Basic Operating Instructions

Digital Camera

Model No. DMC-TS2

Before connecting, operating or adjusting this product,

please read the instructions completely.

Please also refer to Operating

Instructions (PDF format)

recorded on the CD-ROM

containing the Operating Instructions

(supplied).

You can learn about advanced operation methods

and check the Troubleshooting.

until

2010/2/28

VQT2M30

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or,

contact us via the web at: http://www.panasonic.com/contactinfo

P

DMC-FT2&TS2P-VQT2M30_eng.book 1 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

2

Dear Customer,

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on

the market today. Used properly, we’re sure it will bring you and your family

years of enjoyment. Please take time to fill in the information below. The

Serial Number is on the tag located on the underside of your Camera. Be

sure to retain this manual as your convenient Camera information source.

Please note that the actual controls and components, menu items, etc. of

your Digital Camera may look somewhat different from those shown in the

illustrations in these Operating Instructions.

Carefully observe copyright laws.

•Recording of pre-recorded tapes or discs or other published or broadcast

material for purposes other than your own private use may infringe copyright

laws. Even for the purpose of private use, recording of certain material may be

restricted.

Please be sure to read “(Important) About the Waterproof/Dustproof and

Anti-shock Performance of the Camera” (P8) and “Maintenance and

Waterproof Performance” (P10) before using this unit underwater to

prevent the unit from being mishandled, which may cause water to seep in.

A lithium ion battery that is recyclable powers the

product you have purchased. Please call

1-800-8-BATTERY for information on how to recycle

this battery.

Model No.

Serial No.

DMC-FT2&TS2P-VQT2M30_eng.book 2 ページ ２０１０年１月２９日　金曜日　午後５時３１分

3

(ENG) VQT2M30

Information for Your Safety

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT

DAMAGE,

•DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING

OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH

AS VASES, SHALL BE PLACED ON THE APPARATUS.

•USE ONLY THE RECOMMENDED ACCESSORIES.

•DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE

EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

Product Identification Marking is located on the bottom of units.

DMC-FT2&TS2P-VQT2M30_eng.book 3 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

4

FCC Note:

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:To assure continued compliance, follow the attached

installation instructions and use only shielded interface

cables with ferrite core when connecting to computer

or peripheral devices.

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

this equipment.

Declaration of Conformity

Trade Name: Panasonic

Model No.: DMC-TS2

Responsible party: Panasonic Corporation of North America One

Panasonic Way, Secaucus, NJ 07094

Support Contact: Panasonic Consumer Electronics Company

1-800-211-PANA (7262)

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

DMC-FT2&TS2P-VQT2M30_eng.book 4 ページ ２０１０年１月２９日　金曜日　午後５時３１分

5

(ENG) VQT2M30

∫About the battery pack

•Do not heat or expose to flame.

•Do not leave the battery(ies) in an automobile exposed to direct sunlight for a

long period of time with doors and windows closed.

∫About the battery charger

CAUTION

Battery pack (Lithium ion battery pack)

•Use the specified unit to recharge the battery pack.

•Do not use the battery pack with equipment other than the specified unit.

•Do not get dirt, sand, liquids, or other foreign matter on the terminals.

•Do not touch the plug terminals (i and j) with metal objects.

•Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or clothes,

wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub the

eyes. Rinse eyes thoroughly with water, and then consult a doctor.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose

of used batteries according to the manufacturer’s instructions.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC

(140 oF) or incinerate.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN

CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT

IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK

OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT

CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE

VENTILATION VENTS.

DMC-FT2&TS2P-VQT2M30_eng.book 5 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

6

∫Cautions for Use

•Always use a genuine Panasonic AC adaptor (DMW-AC5PP; optional).

•

Always use a genuine Panasonic multi conversion adaptor (DMW-MCA1; optional).

•Do not use any other AV cables except the supplied one.

•Do not use any other cables except a genuine Panasonic HDMI mini cable

(RP-CDHM15, RP-CDHM30; optional).

Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet)

•Do not use any other USB connection cables except the supplied one.

Keep the camera as far away as possible from electromagnetic

equipment (such as microwave ovens, TVs, video games etc.).

•If you use the camera on top of or near a TV, the pictures and sound on the

camera may be disrupted by electromagnetic wave radiation.

•Do not use the camera near cell phones because doing so may result in noise

adversely affecting the pictures and sound.

•Recorded data may be damaged, or pictures may be distorted, by strong

magnetic fields created by speakers or large motors.

•Electromagnetic wave radiation generated by microprocessors may adversely

affect the camera, disturbing the pictures and sound.

•If the camera is adversely affected by electromagnetic equipment and stops

functioning properly, turn the camera off and remove the battery or disconnect

AC adaptor (DMW-AC5PP; optional). Then reinsert the battery or reconnect AC

adaptor and turn the camera on.

Do not use the camera near radio transmitters or high-voltage lines.

•If you record near radio transmitters or high-voltage lines, the recorded pictures

and sound may be adversely affected.

-If you see this symbol-

Battery charger

This battery charger operates on AC between 110 V and 240 V.

But

•In the U.S.A. and Canada, the battery charger must be connected to a 120 V

AC power supply only.

•When connecting to an AC supply outside of the U.S.A. or Canada, use a

plug adaptor to suit the AC outlet configuration.

Information on Disposal in other Countries outside

the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your

local authorities or dealer and ask for the correct

method of disposal.

DMC-FT2&TS2P-VQT2M30_eng.book 6 ページ ２０１０年１月２９日　金曜日　午後５時３１分

7

(ENG) VQT2M30

Contents

Information for Your Safety...........................................................................3

(Important) About the Waterproof/

Dustproof and Anti-shock Performance of the Camera ................................8

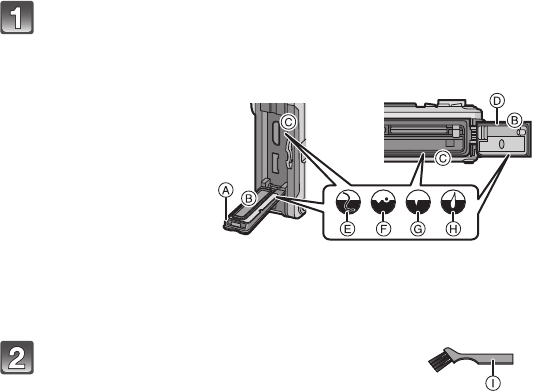

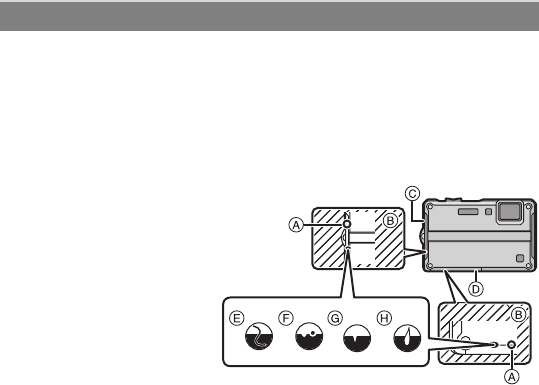

Maintenance and Waterproof Performance ................................................10

• Using the camera underwater...............................................................14

• Causes of water leak ............................................................................15

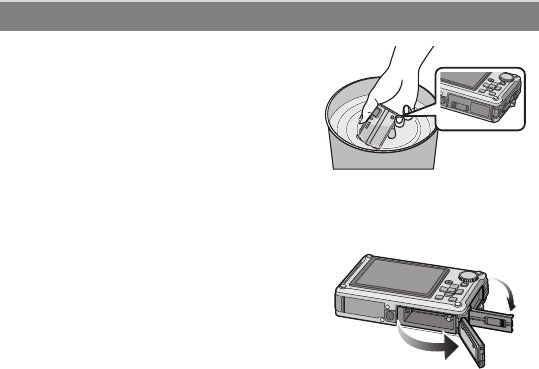

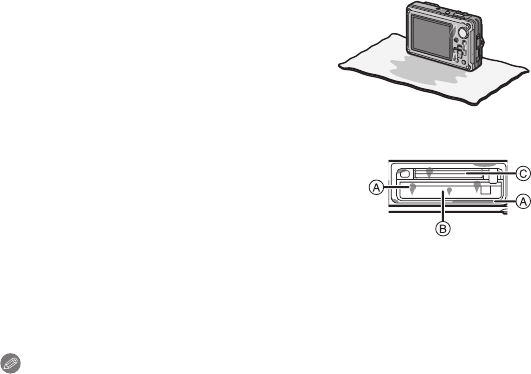

• Caring of the camera after using it underwater.....................................16

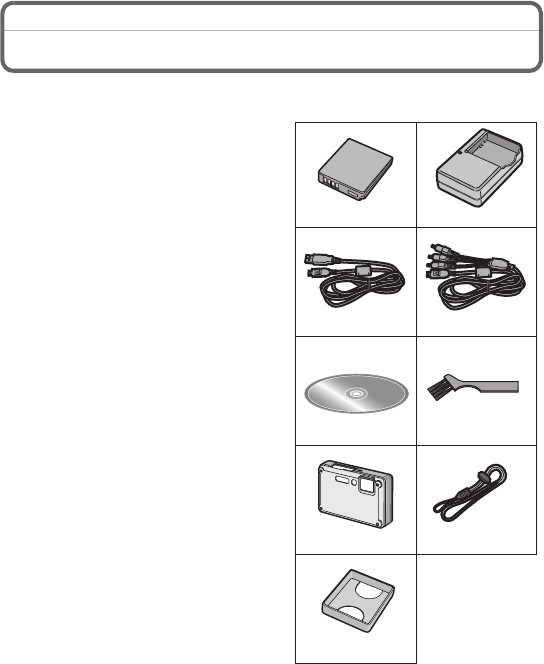

Standard Accessories .................................................................................18

Names of the Components .........................................................................19

Charging the Battery ...................................................................................21

About the Built-in Memory/the Card............................................................23

Inserting and Removing the Card (optional)/the Battery.............................24

Setting Date/Time (Clock Set).....................................................................25

• Changing the Clock setting...................................................................25

Setting the Menu.........................................................................................26

Selecting the [REC] Mode...........................................................................27

Taking Pictures Using the Automatic Function

(ñ: Intelligent Auto Mode).........................................................................28

• Scene Detection....................................................................................29

• AF Tracking Function............................................................................29

Recording Motion Picture............................................................................30

Playing Back Pictures ([NORMAL PLAY]) ..................................................31

Deleting Pictures......................................................................................... 31

Reading the Operating Instructions

(PDF format) ............................................................................................... 32

Specifications.............................................................................................. 34

Digital Camera Accessory System..............................................................38

Digital Camera Accessory Order Form .......................................................39

Limited Warranty

(ONLY FOR U.S.A. AND PUERTO RICO) .................................................40

DMC-FT2&TS2P-VQT2M30_eng.book 7 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

8

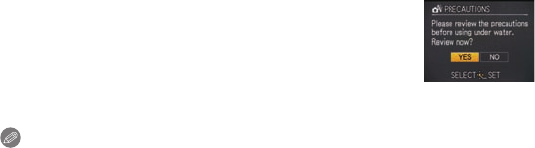

(Important) About the Waterproof/

Dustproof and Anti-shock Performance of

the Camera

•Please observe the following precautions, and avoid using this camera in any

situation where the camera is subject to high water pressure. This camera’s

waterproof/dustproof rating complies with the “IPX8” and “IP6X” ratings.

Provided the care and maintenance guidelines described in this document are

strictly followed, this camera can operate underwater, to a depth not exceeding

10 m (33 feet) for a time not exceeding 60 minutes.¢1

•This camera also complies with “MIL-STD 810F (Method 516.5-Shock)”. The

camera has cleared a drop test from a height of 2 m (6.6 feet) onto 3 cm

(0.10 feet) thick plywood. In most cases this camera should not sustain any

damage if dropped from a height not exceeding 2 m (6.6 feet).¢2

•Supplied accessories are not waterproof (excluding hand strap/silicon jacket).

¢1 This means that the camera can be used underwater for a specified time in

specified pressure in accordance with the handling method established by

Panasonic. This does not guarantee no destruction, no malfunction, or

waterproofing in all conditions.

¢2 This does not guarantee no destruction, no malfunction, or waterproofing in all

conditions.

Observe the following precautions and avoid using under water pressure

exceeding the guaranteed performance, and in an environment with

excessive dust or sand.

Waterproofing is not guaranteed if the unit is subject to an impact as a result

of being hit or dropped etc.

If an impact to the camera occurs, it should be inspected (subject to a fee) by

a Panasonic Service Center to verify that the waterproofing is still effective.

Any malfunction caused by customer misuse, or mishandling will not be

covered by the warranty.

Note

•The picture can become whitish if there is dirt e.g. fingerprints on the lens.

When it is dirty, lightly wipe the surface of the lens with a soft and dry cloth.

DMC-FT2&TS2P-VQT2M30_eng.book 8 ページ ２０１０年１月２９日　金曜日　午後５時３１分

9

(ENG) VQT2M30

∫Handling of the camera

•Do not leave the camera for a long period of time in places where temperature is

very low (ski resort etc.) or very high [above 40 oC (104 oF)], inside a car under

strong sunlight, close to a heater, on the beach, etc. Waterproof performance

may be degraded.

•The inside of this unit is not waterproof. Do not open or close the card/battery

door or terminal cover close to the water by the sea, a lake or river, or with wet

hands.

•Waterproof function of the camera is for sea water and fresh water only.

•Operation may not be possible when snow or water freezes on the zoom lever,

mode dial or camera [OFF/ON] button in cold places like ski resorts etc.

∫About the [PRECAUTIONS] demonstration display

•Please check beforehand to maintain the waterproof performance.

[PRECAUTIONS] is displayed when the power is turned

on for the first time after purchase, with the card/battery

door completely closed.

•The [PRECAUTIONS] screen will not display the next time

you turn on the power if you start the slide show by selecting

[YES], and then select [END] once it has completed. Select

[REPLAY] to see the slide show again.

Note

•It will automatically skip to the Clock setting screen if [NO] is selected before the

Slide Show starts.

•[PRECAUTIONS] is displayed every time the power is turned on if you exited the

slide show using a method other than selecting [END], such as turning off the

power while the slide show is playing.

•This can be also confirmed from [PRECAUTIONS] in the [SETUP] menu.

VQT2M30~Body1_eng.fm 9 ページ ２０１０年２月２日　火曜日　午後６時２６分

VQT2M30 (ENG)

10

Maintenance and Waterproof Performance

∫To prevent water leaking into the camera, observe the following

items before using it.

∫Check that there is enough remaining battery power or memory in

the card.

∫Do not open or close the card/battery door or terminal cover in

places with sand and dust, or with wet hands.

∫At purchase, the [LOCK] switch is in the locked state. When opening

the card/battery door and terminal cover, first release the lock.

•Release the lock by sliding the [LOCK] switch in the direction of the arrow until

the red area becomes visible, and open the card/battery door and terminal

cover.

A: [LOCK] switch (gray part)

B: Locked state

C:Red part

D: Released state

DMC-FT2&TS2P-VQT2M30_eng.book 10 ページ ２０１０年１月２９日　金曜日　午後５時３１分

11

(ENG) VQT2M30

Confirm that there are no foreign objects on inner side of

the card/battery door or terminal cover (B rubber seal

and C place where rubber seal meet).

•If there is any crack or deformation in the rubber seal inside the card/battery

door and terminal cover, get the camera inspected or repaired by the dealer or

an authorized Panasonic Service Center.

If there is any foreign object, remove

with attached brush.

I: Brush (supplied)

•If there is any foreign object, such as lint, hair, sand, etc., on the

surrounding area, water will leak within a few seconds causing

malfunction.

A: Terminal cover

B: Rubber seal

C: Area where rubber seal

sits

D: Card/Battery door

E: Hair and lint

F: Sand and dust

G: Crack and deformation

H:Fluid

DMC-FT2&TS2P-VQT2M30_eng.book 11 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

12

•Wipe it off with a dry soft cloth if there is any liquid.

•The integrity of the rubber seals may decrease after about 1 year, with use and

age. To avoid permanently damaging the camera the seals should be replaced

once each year. Please contact Panasonic Service Center for related costs and

other information.

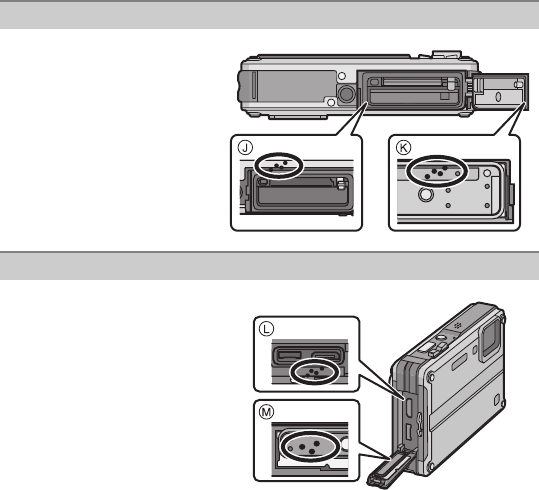

Example of foreign object on the inner side of the card/battery door

J: Area where rubber seal

sits (around the card/

battery compartment)

K: Rubber seal site (around

the card/battery cover)

Example of foreign object on the inner side of the terminal cover

L: Area where rubber seal

sits (around the

connection terminal)

M: Rubber seal site (around

the terminal cover)

DMC-FT2&TS2P-VQT2M30_eng.book 12 ページ ２０１０年１月２９日　金曜日　午後５時３１分

13

(ENG) VQT2M30

1:With the [LOCK] switch released, close the card/

battery door and terminal cover by pushing until you

hear a click.

•To prevent water seeping into the camera, be careful not to trap foreign

objects such as liquids, sand, hair or dust etc.

•Closing the door with the [LOCK] switch in the locked state may result in

damage or leaks.

2:Slide the [LOCK] switch in the direction of the arrow

until the visible red area is no longer visible and the

switch is locked.

•If you use the camera without securely closing the door and cover, it may

open and close of its own accord.

Note

•If there is any foreign object, remove it

with attached brush.

•Sand and dust etc. will unintentionally

adhere to the camera by lodging in

between the gap around the card/

battery door or terminal cover when

used in the following locations:

–Where sand is floating, such as in the

sea or water etc.

–Where there is a lot of sand or dust,

such as at the beach or in a sand box

etc.

•To prevent unintentional opening of the card/battery door and terminal

cover, it is recommended to use the supplied silicon jacket.

N:Red area

O: [LOCK] switch (gray part)

P: Released state

Q: Locked state

DMC-FT2&TS2P-VQT2M30_eng.book 13 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

14

•Use the camera underwater up to 10 m (33 feet) depth, water temperature from

0oC to 40 oC (32 oF to 104 oF), and not longer than 60 minutes continuously.

•If there is water or dirt on the camera, use it after wiping it off with a dry soft cloth

and have it dry out in a well ventilated area.

•Do not open or close the card/battery door or terminal cover.

•Do not apply shock to the camera underwater. (Waterproof performance may not

be maintained, and there is a chance of water leak.)

•Do not dive into the water holding the camera. Do not use the camera at a

location where water will splash strongly, such as rapid flow or a waterfall.

(Strong water pressure may be applied, and it may cause malfunction.)

•The camera will sink in the water. Take care not to drop the camera and lose it

underwater by securely placing the hand strap around your wrist or similar

measure.

•Do not use it in hot water over 40 oC (104 oF) (in the bath or hot spring).

•When the camera is splashed with detergent, soap, hot spring, bath additive,

sun oil, sun screen, chemical, etc., wipe it off immediately.

•Card and battery are not waterproof. Do not handle with a wet hand. Also, do not

insert wet card or battery into the camera.

Using the camera underwater

DMC-FT2&TS2P-VQT2M30_eng.book 14 ページ ２０１０年１月２９日　金曜日　午後５時３１分

15

(ENG) VQT2M30

•When the camera is used in the following conditions, a gap may occur between

the camera and the card/battery door or terminal cover, causing water to leak

and malfunction.

–When there are foreign objects, such as lint, hair, sand, etc., between the card/

battery door or terminal cover and the camera.

–When the rubber seal has deteriorated.

–When the [LOCK] switch is not closed on the card/battery door and terminal

cover.

Causes of water leak

A: Water will leak through

the gap formed remove.

B: Water

C: Terminal cover

D: Card/Battery door

E: Hair and lint

F: Sand and dust

G: Crack and deformation

H:Fluid

DMC-FT2&TS2P-VQT2M30_eng.book 15 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

16

1With the card/battery door and

terminal cover closed, rinse with

water, or if it was used in the sea,

soak the unit in fresh water in a

shallow container for 10 minutes or

less.

•If you have attached the silicon jacket,

be sure to rinse the camera after

removing it.

•Leaving the camera with foreign objects or saline matter on it may cause

damage, discoloration, corrosion, unusual odour, or deterioration.

2Wipe off the water, and dry the

camera by standing it on a dry

cloth in a well ventilated shaded

area.

3Confirm there is no water on the

camera, and open the card/battery

door and terminal cover.

4Wipe off any water or sand inside

the card/battery door and terminal cover with a soft dry cloth.

Caring of the camera after using it underwater

DMC-FT2&TS2P-VQT2M30_eng.book 16 ページ ２０１０年１月２９日　金曜日　午後５時３１分

17

(ENG) VQT2M30

∫This unit incorporates a drain design

This unit incorporates a drain design, draining

water from gaps in the camera [OFF/ON]

button and zoom lever etc. As a result of this,

bubbles may come out when you soak the

unit in water, but it is not a malfunction.

Note

•Wipe off the water and dirt on the camera with a dry soft cloth.

•Do not leave the camera uncared for more than 60 minutes after using it

underwater. It may cause deterioration of the waterproof performance.

•After use at the seaside or under water, make sure that the card/battery door

and terminal cover are firmly closed and soak the unit in fresh water in a shallow

container for 10 minutes or less.

•If the zoom lever, mode dial, or camera [OFF/ON] button do not move smoothly,

it may be caused by an adhesion of foreign objects. Using the camera in such a

state may cause malfunctions, such as locking up, so wash off any foreign

objects by soaking the camera in fresh water. Confirm that the zoom lever, mode

dial, and camera [OFF/ON] button move smoothly after cleaning.

•After soaking or washing the unit, wipe off water drops with a dry soft cloth and

dry the unit in a shaded area which is well ventilated.

•Make sure that water is completely drained from the unit after soaking in water

by standing the unit on a dry cloth for a while.

•Do not dry the camera with hot air from a dryer or similar. Waterproof

performance will deteriorate due to possible deformation.

•Do not use chemicals such as benzine, thinner, alcohol, cleanser, or soap or

detergents.

•Example of water droplets around card/battery slot.

A: Water droplet

B:Battery

C:Card

•Water droplets may attach to the card or the battery when the card/battery door

is opened without fully drying the camera after it is used underwater or soaked in

fresh water. Be sure to wipe off the water with a soft dry cloth in such cases.

•Do not open or close the card/battery door and terminal cover with droplets of

water still on the camera. The water droplets may seep into the camera, causing

condensation or failure.

DMC-FT2&TS2P-VQT2M30_eng.book 17 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

18

Standard Accessories

Check that all the accessories are included before using the camera.

Product numbers correct as of January 2010. These may be subject to change.

1 Battery Pack

(Indicated as battery pack or

battery in the text)

Charge the battery before use.

2 Battery Charger

(Indicated as battery charger or

charger in the text)

3 USB Connection Cable

4 AV Cable

5 CD-ROM

•Software:

Use it to install the software to your

PC.

•Operating Instructions

6Brush

7 Silicon Jacket

8 Hand Strap

9 Battery Case

•Supplied accessories are not waterproof

(excluding hand strap/silicon jacket).

•Keep the Brush out of reach of children

to prevent swallowing.

•The charger is stored inside the silicon

jacket.

•SD Memory Card, SDHC Memory Card

and SDXC Memory Card are indicated

as card in the text.

•The card is optional.

You can record or play back pictures

on the built-in memory when you are

not using a card.

•For information about optional

accessories, refer to the “Digital Camera

Accessory System”.

•If any accessories are lost, customers should contact Panasonic’s parts

department at 1 800 833-9626 for further information about obtaining

replacement parts.

DMW-BCF10PP DE-A59B

34

VGQ0D56

9

12

K1HA14CD0004K1HA14AD0003

8

VFC4393

7

VMG1932

6

VFC4364/

VFC4537

5

VFF0593

DMC-FT2&TS2P-VQT2M30_eng.book 18 ページ ２０１０年１月２９日　金曜日　午後５時３１分

19

(ENG) VQT2M30

Names of the Components

1Flash

2 Self-timer indicator/

AF Assist Lamp/LED light

3 Lens

4 LCD monitor

5 Motion picture button

6 [MENU/SET] button

7 [DISPLAY] button

8 [Q.MENU]/Delete button

9 Playback button

10 Mode dial

11 Cursor buttons

A:3/Exposure Compensation/Auto

Bracket/White Balance fine

adjustment

B: 4/Macro Mode/

AF Tracking

C: 2/Self-timer button

D:1/Flash setting button

In these Operating Instructions, the cursor buttons are described as

shown in the figure below or described with 3/4/2/1.

e.g.: When you press the 4 (down) button

or Press 4

21 3

4511

786

9

10

DMC-FT2&TS2P-VQT2M30_eng.book 19 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

20

12 Speaker

13 Microphone

14 Zoom lever

15 Camera [OFF/ON] button

16 Shutter button

17 Hand strap eyelet

•Be sure to attach the hand strap when

using the camera to ensure that you will

not drop it.

18 [HDMI] socket

19 [AV/DIGITAL/MULTI] socket

•When using an AC adaptor, ensure that

the Panasonic multi conversion adaptor

(DMW-MCA1; optional) and AC adaptor

(DMW-AC5PP; optional) are used.

20 Tripod receptacle

•When you use a tripod, make sure the

tripod is stable when the camera is

attached to it.

21 Card/Battery door

22 Release lever

23 [LOCK] switch

e.g.: To make subjects appear closer

use (Tele)

Place your finger on the zoom lever,

and press [T]

13 1412

1615

19

18 17

2120

22 23

DMC-FT2&TS2P-VQT2M30_eng.book 20 ページ ２０１０年１月２９日　金曜日　午後５時３１分

21

(ENG) VQT2M30

Charging the Battery

∫About batteries that you can use with this unit

The battery that can be used with this unit is DMW-BCF10PP.

•Use the dedicated charger and battery.

•The camera has a function for distinguishing batteries which can be used

safely. The dedicated battery (DMW-BCF10PP) supports this function. The

only batteries suitable for use with this unit are genuine Panasonic

products and batteries manufactured by other companies and certified by

Panasonic. (Batteries which do not support this function cannot be used).

Panasonic cannot in any way guarantee the quality, performance or safety

of batteries which have been manufactured by other companies and are

not genuine Panasonic products.

∫Charging

•The battery is not charged when the camera is shipped. Charge the battery

before use.

•Charge the battery with the charger indoors.

•It is recommended to charge the battery in a temperature between 10 oC to

35 oC (50 oF to 95 oF). (The battery temperature should also be the same.)

It has been found that counterfeit battery packs which look very similar

to the genuine product are made available to purchase in some

markets. Some of these battery packs are not adequately protected with

internal protection to meet the requirements of appropriate safety

standards. There is a possibility that these battery packs may lead to

fire or explosion. Please be advised that we are not liable for any

accident or failure occurring as a result of use of a counterfeit battery

pack. To ensure that safe products are used we would recommend that

a genuine Panasonic battery pack is used.

Attach the battery paying

attention to the direction of the

battery.

Connect the charger to the

electrical outlet.

•Disconnect the charger from the

electrical socket and detach the battery

after charging is completed.

90

DMC-FT2&TS2P-VQT2M30_eng.book 21 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

22

∫ About the [CHARGE] indicator

•When the [CHARGE] indicator flashes

–The battery temperature is too high or too low. It is recommended to charge

the battery again in an ambient temperature of between 10 ºC to 35 ºC (50 oF

to 95 oF).

–The terminals of the charger or the battery are dirty. In this case, wipe off the

dirt with a dry cloth.

∫Charging time

∫Approximate operating time and number of recordable pictures

Recording conditions by CIPA standard

•CIPA is an abbreviation of [Camera & Imaging Products Association].

•Normal Picture Mode

•Temperature: 23 oC (73.4 oF)/Humidity: 50% when LCD monitor is on.

•Using a Panasonic SD Memory Card (32 MB).

•Using the supplied battery.

•Starting recording 30 seconds after the camera is turned on. (When the Optical

Image Stabilizer function is set to [AUTO].)

•Recording once every 30 seconds with full flash every second recording.

•Changing the zoom magnification from Tele to Wide or vice versa in every

recording.

•Turning the camera off every 10 recordings and leaving it until the temperature

of the battery decreases.

The [CHARGE]

indicator turns on: The [CHARGE] indicator A is turned on and

charging will start.

The [CHARGE]

indicator turns off: The [CHARGE] indicator A of the charger will turn

off once the charging has completed without any

problem.

Charging time Approx. 130 min

Number of recordable pictures Approx. 360 pictures

Recording time Approx. 180 min

Playback time Approx. 300 min

DMC-FT2&TS2P-VQT2M30_eng.book 22 ページ ２０１０年１月２９日　金曜日　午後５時３１分

23

(ENG) VQT2M30

About the Built-in Memory/the Card

•Memory size: Approx. 40 MB

•The built-in memory can be used as a temporary storage device when the card

being used becomes full.

•The access time for the built-in memory may be longer than the access time for

a card.

The following cards which conform to the SD video standard can be used

with this unit.

(These cards are indicated as card in the text.)

•Only cards bearing the SDHC logo (indicating that the card conforms to SD

video standards) may be used as 4 GB to 32 GB cards.

•Only cards bearing the SDXC logo (indicating that the card conforms to SD

video standards) may be used as 48 GB to 64 GB cards.

•Use a card with SD Speed Class¢ with “Class 4” or higher when recording

motion pictures in [AVCHD Lite]. Also, use a card with SD Speed Class with

“Class 6” or higher when recording motion pictures in [MOTION JPEG].

¢SD Speed Class is the speed standard regarding continuous writing.

•Please confirm the latest information on the following website.

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

Note

•Keep the Memory Card out of reach of children to prevent swallowing.

Built-in Memory

Card

Type of card which can be used with

this unit Remarks

SD Memory Card (8 MB to 2 GB) •SDHC Memory Cards and SDXC

Memory Cards can be used only in

equipment that is compatible with

their respective formats.

•Check that the PC and other

equipment are compatible when

using the SDXC Memory Cards.

http://panasonic.net/avc/sdcard/

information/SDXC.html

SDHC Memory Card (4 GB to 32 GB)

SDXC Memory Card (48 GB to 64 GB)

DMC-FT2&TS2P-VQT2M30_eng.book 23 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

24

Inserting and Removing the Card

(optional)/the Battery

•Check that this unit is turned off.

•Confirm that there is no foreign object.

•We recommend using a Panasonic card.

1:Slide the [LOCK] switch B, and

release the lock.

2:Slide the release lever A and

open the card/battery door.

•Always use genuine Panasonic batteries

(DMW-BCF10PP).

•If you use other batteries, we cannot

guarantee the quality of this product.

Battery: Insert until it is locked by

the lever C being careful about the

direction you insert it. Pull the

lever C in the direction of the

arrow to remove the battery.

Card: Push it fully until it clicks

being careful about the direction

you insert it. To remove the card,

push the card until it clicks, then

pull the card out upright.

D:Do not touch the connection terminals of the card.

•The card may be damaged if it is not fully inserted.

Close the card/battery door until it

clicks, and then lock the [LOCK]

switch by sliding it toward [2].

DMC-FT2&TS2P-VQT2M30_eng.book 24 ページ ２０１０年１月２９日　金曜日　午後５時３１分

25

(ENG) VQT2M30

Setting Date/Time (Clock Set)

•The clock is not set when the camera is shipped.

•[PRECAUTIONS] is displayed. Be sure to check this so that you can

maintain the waterproof performance. (P9)

Press [MENU/SET].

Press 2/1 to select the items (year,

month, day, hour, minute, display

sequence or time display format),

and press 3/4 to set.

‚: Cancel without setting the clock.

Press [MENU/SET] to set.

Press [MENU/SET].

•Press [‚] to return to the settings screen.

Select [CLOCK SET] in the [REC] or [SETUP] menu, and press 1.

•It can be changed in steps 3, 4 and 5 to set the clock.

Press the [OFF/ON] button.

A[MENU/SET] button

BCursor buttons

Changing the Clock setting

DMC-FT2&TS2P-VQT2M30_eng.book 25 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

26

Setting the Menu

This section describes how to select the Normal Picture Mode settings, and

the same setting can be used for the [PLAYBACK] menu and [SETUP] menu

as well.

Example: Setting [AF MODE] from [Ø] to [š] in the Normal Picture Mode

Press [MENU/SET] to close the menu.

Press [MENU/SET] to display the menu.

Press 3/4 to select [AF MODE], and then

press 1.

•Depending on the item, its setting may not appear or it

may be displayed in a different way.

Press 3/4 to select [š] and then press

[MENU/SET] to set.

Switching to other menus

e.g.: Switching to the [SETUP] menu

1Press [MENU/SET] to display the menu.

2Press 2.

3Press 4 to select the [SETUP] menu icon

[].

4Press 1.

•Select a menu item next and set it.

DMC-FT2&TS2P-VQT2M30_eng.book 26 ページ ２０１０年１月２９日　金曜日　午後５時３１分

27

(ENG) VQT2M30

Mode switching

Selecting the [REC] Mode

∫List of [REC] Modes

Press the [OFF/ON] button.

Switch the Mode by rotating the mode

dial.

AMode dial

¦Intelligent Auto Mode

The subjects are recorded using settings automatically selected by the

camera.

!Normal Picture Mode

The subjects are recorded using your own settings.

Sports Mode

Use this mode to take pictures of sporting events, etc.

Snow Mode

This allows you to take pictures that show the snow as white as possible

at a ski resort or a snow-covered mountain.

Beach & Surf Mode

This mode is optimal for taking pictures up to 3 m (10 feet) underwater

and at the beach.

ÛScene Mode

This allows you to take pictures that match the scene being recorded.

ìClipboard Mode

Record as a memo.

DMC-FT2&TS2P-VQT2M30_eng.book 27 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

28

[REC] Mode: ñ

Taking Pictures Using the Automatic

Function

(ñ: Intelligent Auto Mode)

The camera will set the most appropriate settings to match the subject and

the recording conditions so we recommend this mode for beginners or those

who want to leave the settings to the camera and take pictures easily.

Set the mode dial to [ñ].

Press the shutter button halfway to

focus.

•The focus indication 1 (green) lights when

the subject is focused.

•The AF area 2 is displayed around the

subject’s face by the Face Detection function.

In other cases, it is displayed at the point on

the subject which is in focus.

•The focus range is 5 cm (0.17 feet) (Wide)/

30 cm (0.99 feet) (Tele) to ¶.

Press the shutter button fully (push it in further), and take

the picture.

1

2

DMC-FT2&TS2P-VQT2M30_eng.book 28 ページ ２０１０年１月２９日　金曜日　午後５時３１分

29

(ENG) VQT2M30

When the camera identifies the optimum scene, the icon of the scene

concerned is displayed in blue for 2 seconds, after which its color changes to

the usual red.

•[¦] is set if none of the scenes are applicable, and the standard settings are

set.

•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s

face, and it will adjust the focus and exposure. (Face Detection)

It is possible to set the focus to the specified subject. Focus will keep

following the subject automatically even if it moves.

1Press 3.

•[ ] is displayed in the upper left of the screen.

•AF Tracking frame is displayed in the center of

the screen.

•Press 3 again to cancel.

2Bring the subject to the AF Tracking frame,

and press 4 to lock the subject.

•AF Tracking frame will turn yellow.

•An optimum scene for the specified subject will

be chosen.

•Press 3 to cancel.

Scene Detection

¦>[i-PORTRAIT]

[i-SCENERY]

[i-MACRO]

[i-NIGHT PORTRAIT] •Only when [ ] is selected

[i-NIGHT SCENERY]

[i-SUNSET]

[i-BABY]

AF Tracking Function

DMC-FT2&TS2P-VQT2M30_eng.book 29 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

30

[REC] Mode: ñ· ¿

Recording Motion Picture

This mode can record high definition motion pictures compatible with the

AVCHD format or motion pictures recorded in Motion JPEG.

Audio will be recorded in monaural.

Note

•Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the

maximum recordable time for 2 GB is displayed on the screen.

•Maximum time to record motion pictures continuously with [AVCHD Lite] is

13 hours 3 minutes 20 seconds. Screen will only display up to 13 hours

3 minutes 20 seconds. However, the recording may stop before that depending

on the remaining battery level.

Select the Mode.

AMode dial

BMotion picture button

Start recording by pressing the

motion picture button.

A Available recording time

B Elapsed recording time

•Release the motion picture button right after

you press it.

•The recording state indicator (red) C will

flash while recording motion pictures.

Stop the recording by pressing the motion picture button

again.

•If the built-in memory or the card becomes full in the middle of recording,

the camera stops recording automatically.

B

A

C

DMC-FT2&TS2P-VQT2M30_eng.book 30 ページ ２０１０年１月２９日　金曜日　午後５時３１分

31

(ENG) VQT2M30

[PLAYBACK] Mode: ¸

Playing Back Pictures ([NORMAL PLAY])

[PLAYBACK] Mode: ¸

Deleting Pictures

Once deleted, pictures cannot be recovered.

•Pictures on the built-in memory or the card, that are being played back will be

deleted.

Press [(].

A[(] button

•Normal Playback is displayed automatically

when the power is turned on by pressing and

holding the [(] button.

Press 2/1 to select the picture.

•After selecting the motion picture, press 3 to

start playback.

Select the picture to be deleted, and

then press [‚].

A[‚] button

Press 2 to select [YES] and then

press [MENU/SET].

DMC-FT2&TS2P-VQT2M30_eng.book 31 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

32

Reading the Operating Instructions

(PDF format)

•You have practised the basic operations introduced in these operating

instructions and want to progress to advanced operations.

•You want to check the Troubleshooting.

In these kinds of situations refer to Operating Instructions (PDF format) recorded

on the CD-ROM containing the Operating Instructions (supplied).

∫For Windows

Turn the PC on and insert the CD-ROM containing the

Operating Instructions (supplied).

Click the [Operating

Instructions].

Select the desired language

and then click [Operating

Instructions] to install.

ATo return to the install menu.

Double click the “Operating

Instructions” shortcut icon on

the desktop.

DMC-FT2&TS2P-VQT2M30_eng.book 32 ページ ２０１０年１月２９日　金曜日　午後５時３１分

33

(ENG) VQT2M30

∫When the Operating Instructions (PDF format) will not open

You will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to

browse or print the Operating Instructions (PDF format).

Insert the CD-ROM containing the Operating Instructions (supplied), click B and

then follow the messages on the screen to install.

(Compatible OS: Windows 2000 SP4/Windows XP SP2 or SP3/Windows Vista

SP1 or SP2/Windows 7)

•You can download and install a version of Adobe Reader that you can use with

your OS from the following Web Site.

http://get.adobe.com/reader/otherversions

∫To uninstall the Operating Instructions (PDF format)

Delete the PDF file from the “Program Files\Panasonic\Lumix\” folder.

•When the contents in the Program Files folder cannot be displayed, click the

[Show the contents of this folder] to display them.

∫For Macintosh

Turn the PC on and insert the CD-ROM containing the

Operating Instructions (supplied).

Open the “Manual” folder in the CD-ROM and then copy

the PDF file with the desired language inside the folder.

Double click the PDF file to open it.

DMC-FT2&TS2P-VQT2M30_eng.book 33 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

34

Specifications

Digital Camera: Information for your safety

Power Source: DC 5.1 V

Power

Consumption: 1.2 W (When recording)

0.7 W (When playing back)

Camera effective

pixels

:14,100,000 pixels

Image sensor: 1/2.33q CCD, total pixel number 14,500,000 pixels,

Primary color filter

Lens: Optical 4.6kzoom, fl4.9 mm to 22.8 mm (35 mm film

camera equivalent: 28 mm to 128 mm)/F3.3 to F5.9

Digital Zoom: Max. 4k

Extended Optical

Zoom: Max. 9.8k

Focus range: Normal: 30 cm (0.99 feet) to ¶

Macro/Intelligent Auto/Clipboard Mode:

5 cm (0.17 feet) (Wide)/30 cm (0.99 feet) (Tele) to ¶

Scene Mode: There may be differences in the above

settings.

Shutter system: Electronic shutteriMechanical shutter

Burst Recording

Burst speed: Approx. 1.8 pictures/second

Number of

recordable

pictures: Max. 5 pictures (Standard), max. 3 pictures (Fine).

DMC-FT2&TS2P-VQT2M30_eng.book 34 ページ ２０１０年１月２９日　金曜日　午後５時３１分

35

(ENG) VQT2M30

Hi-speed Burst

Burst speed: Approx. 10 pictures/second (Speed priority)

Approx. 5 pictures/second (Image priority)

(3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the

picture size.)

Number of

recordable

pictures: When using the built-in memory:

Approx. 15 pictures (immediately after formatting)

When using a Card: Max. 100 pictures (differs

depending on the type of Card and the recording

conditions)

Shutter speed: 8 seconds to 1/1300th of a second

[STARRY SKY] Mode: 15 seconds, 30 seconds,

60 seconds

Exposure (AE): Program AE

Exposure compensation (1/3 EV Step, j2EV to

i2EV)

Metering Mode: Multiple

LCD monitor: 2.7q TFT LCD

(Approx. 230,000 dots) (field of view ratio about 100%)

Flash: Flash range: [ISO AUTO]

Approx. 30 cm (0.99 feet) to 5.1 m (16.7 feet) (Wide)

Microphone: Monaural

Speaker: Monaural

Recording media: Built-in Memory (Approx. 40 MB)/SD Memory Card/

SDHC Memory Card/SDXC Memory Card

Recording File

Format

Still Picture: JPEG (based on “Design rule for Camera File system”,

based on “Exif 2.21” standard)/DPOF corresponding

Pictures with

audio: JPEG (based on “Design rule for Camera File system”,

based on “Exif 2.21” standard)r“QuickTime”

Motion pictures

with audio: AVCHD Lite/QuickTime Motion JPEG

DMC-FT2&TS2P-VQT2M30_eng.book 35 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

36

Interface

Digital: “USB 2.0” (High Speed)

Analog video/audio:NTSC

Audio line output (monaural)

Terminal

[AV/DIGITAL/

MULTI]: Dedicated jack (14 pin)

[HDMI]: MiniHDMI TypeC

Dimensions: Approx. 99.3 mm (W)k63.1 mm (H)k24.3 mm (D)

[3.91q (W)k2.48q(H)k0.96q (D)]

(excluding the projecting parts)

Mass (weight): Approx. 188 g/0.41 lb (with card and battery)

Approx. 167 g/0.37 lb (excluding card and battery)

Operating

temperature: j10 oC¢ to 40 oC (24 oF¢ to 104 oF)

¢The performance of the battery (number of recordable

pictures/operating time) may decrease temporarily

when using the camera in a temperature between

j10 oC to 0 oC (24 oF to 32 oF) (at the cold climate

such as ski resorts).

Operating humidity:10% to 80%

Language select: [ENGLISH]/[ESPAÑOL]

Waterproof

performance: Equivalent to IEC 60529 “IPX8”.

(Usable for 60 minutes in 10 m (33 feet) water depth)

Crash resistance

perfomance: The camera has cleared a single unit drop test from a

height of 2 m (6.6 feet) onto 3 cm (0.10 feet) plywood,

which is compliant with “MIL-STD 810F Method

516.5-Shock”.

Dustproof

performance: Equivalent to IEC 60529 “IP6X”.

VQT2M30~Body3_eng.fm 36 ページ ２０１０年１月２９日　金曜日　午後８時１４分

37

(ENG) VQT2M30

Battery Charger

(Panasonic

DE-A59B): Information for your safety

Input: 110V to 240V 50/60Hz, 0.2A

Output: 4.2 V 0.65 A (Battery charging)

Operating

temperature: 0oC¢ to 40 oC (32 oF¢ to 104 oF)

¢

The battery cannot be recharged in a temperature

less than 0 oC (32 oF).(The [CHARGE] indicator

blinks when the battery cannot be recharged.)

Equipment mobility: Movable

Battery Pack

(lithium-ion)

(Panasonic

DMW-BCF10PP): Information for your safety

Voltage/capacity: 3.6 V/940 mAh

DMC-FT2&TS2P-VQT2M30_eng.book 37 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

38

Digital Camera Accessory System

Product numbers correct as of January 2010. These may be subject to

change.

¢

The AC Adaptor (DMW-AC5PP; optional) can only be used with the

designated Panasonic multi conversion adaptor (DMW-MCA1; optional).

•NOTE: Accessories and/or model numbers may vary between countries.

Consult your local dealer.

DMW-MCFT2

DMW-CHTZ3

DMW-AC5PP

DMW-BCF10PP

DMW-MCA1

Multi conversion adaptor

Battery Pack

Marine Case

Accessory# Description

Illustration

AC Adaptor

RP-CDHM15

RP-CDHM30 HDMI mini Cable

Semi Hard Case

Class 10 64 GB SDXC Memory Card

Class 10 48 GB SDXC Memory Card

Class 10 32 GB SDHC Memory Card

Class 10 16 GB SDHC Memory Card

Class 10 8 GB SDHC Memory Card

Class 10 4 GB SDHC Memory Card

Class 4 16 GB SDHC Memory Card

Class 4 8 GB SDHC Memory Card

Class 4 4 GB SDHC Memory Card

Class 4 2 GB SD Memory Card

Class 2 8 GB SDHC Memory Card

Class 2 4 GB SDHC Memory Card

Class 2 2 GB SD Memory Card

RP-SDW64GU1K

RP-SDW48GU1K

RP-SDW32GU1K

RP-SDW16GU1K

RP-SDW08GU1K

RP-SDW04GU1K

RP-SDP16GU1K

RP-SDP08GU1K

RP-SDP04GU1K

RP-SDP02GU1K

RP-SDR08GU1A

RP-SDR04GU1A

RP-SDR02GU1A

DMC-FT2&TS2P-VQT2M30_eng.book 38 ページ ２０１０年１月２９日　金曜日　午後５時３１分

39

(ENG) VQT2M30

Digital Camera Accessory Order Form

TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF

THE FOLLOWING:

VISIT YOUR LOCAL PANASONIC DEALER

OR

CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368

[6 AM-6 PM M-F, PACIFIC TIME]

OR

MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY

ACCESSORY ORDER OFFICE

20421 84th Avenue South Kent, WA. 98032

Ship To:

Mr.

Mrs.

Ms. First Last

Street Address

City State Zip

Phone#:

Day ( )

Night ()

4. Shipping information (UPS delivery requires complete street address)

Please photocopy this form when placing an order.

3. Method of payment (check one)

Check of Money Order enclosed (NO C.O.D.SHIPMENTS)

VISA

MasterCard

Make Check or Money Order to: PANASONIC ACCESSORIES

(Please do not send cash)

2. Items Ordered

QuantityAccessory # Price EachDescription Total Price

6.95

Subtotal

Your State & Local Sales Tax

Shipping & Handling

Total Enclosed

1. Digital Camera Model #

Discover

Expiration Date

Credit Card #

Customer Signature

DMC-FT2&TS2P-VQT2M30_eng.book 39 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

40

Limited Warranty

(ONLY FOR U.S.A. AND PUERTO RICO)

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Digital Still Camera Products

Limited Warranty

Limited Warranty Coverage (For USA and Puerto Rico Only)

If your product does not work properly because of a defect in materials or

workmanship, Panasonic Consumer Electronics Company (referred to as “the

warrantor”) will, for the length of the period indicated on the chart below, which

starts with the date of original purchase (“warranty period”), at its option either (a)

repair your product with new or refurbished parts, (b) replace it with a new or a

refurbished equivalent value product, or (c) refund your purchase price. The

decision to repair, replace or refund will be made by the warrantor.

During the “Labor” warranty period there will be no charge for labor. During the

“Parts” warranty period, there will be no charge for parts. This Limited Warranty

excludes both parts and labor for non-rechargeable batteries, antennas, and

cosmetic parts (cabinet). This warranty only applies to products purchased and

serviced in the United States or Puerto Rico. This warranty is extended only to the

original purchaser of a new product which was not sold “as is”.

Product or Part Name Parts Labor

Digital Still Camera 1 year 1 year

CCD 6 months 90 days

SD Memory Cards, Rechargeable

Battery Pack (defective exchange) 90 days Not Applicable

DMC-FT2&TS2P-VQT2M30_eng.book 40 ページ ２０１０年１月２９日　金曜日　午後５時３１分

41

(ENG) VQT2M30

Mail-In Service

For assistance in the U.S.A. and Puerto Rico in obtaining repairs, please ship the

product prepaid to:

Panasonic Exchange Center

4900 George McVay Drive

Suite B

McAllen, TX 78503

panacare@us.panasonic.com

When shipping the unit, carefully pack, include all accessories, and send it

prepaid, adequately insured and preferably in the original carton. If Lithium Ion

batteries are shipped by air the package must be labeled “Contains Lithium Ion

Battery (No lithium metal)”. Damaged batteries are prohibited from shipment by

US Mail. Batteries must be securely packed in a manner to prevent

short-circuiting and a package cannot contain more than 3 Lithium Ion batteries.

Include a letter detailing the complaint, a return address and provide a daytime

phone number where you can be reached. A valid registered receipt is required

under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE

PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF

OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND

PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR

OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or

workmanship, and DOES NOT COVER normal wear and tear or cosmetic

damage. The warranty ALSO DOES NOT COVER damages which occurred in

shipment, or failures which are caused by products not supplied by the warrantor,

or failures which result from accidents, misuse, abuse, neglect, mishandling,

misapplication, alteration, faulty installation, set-up adjustments, misadjustment of

consumer controls, improper maintenance, power line surge, lightning damage,

modification, introduction of sand, humidity or liquids, commercial use such as

hotel, office, restaurant, or other business or rental use of the product, or service

by anyone other than a Factory Service Center or other Authorized Servicer, or

damage that is attributable to acts of God.

DMC-FT2&TS2P-VQT2M30_eng.book 41 ページ ２０１０年１月２９日　金曜日　午後５時３１分

VQT2M30 (ENG)

42

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER

“LIMITED WARRANTY COVERAGE”.

THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING

OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the servicer,

loss of or damage to media or images, data or other memory or recorded content.

The items listed are not exclusive, but for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY

OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED

WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, or limitations on how long an implied warranty lasts, so the exclusions

may not apply to you.

This warranty gives you specific legal rights and you may also have other rights

which vary from state to state. If a problem with this product develops during or

after the warranty period, you may contact your dealer or Service Center. If the

problem is not handled to your satisfaction, then write to the warrantor's

Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED

WARRANTY, ARE YOUR RESPONSIBILITY.

DMC-FT2&TS2P-VQT2M30_eng.book 42 ページ ２０１０年１月２９日　金曜日　午後５時３１分

43

(ENG) VQT2M30

As of November 2009

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest

Dealer or Service Center; purchase Parts and Accessories; or make

Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (7262)

Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books online for all Panasonic

Products by visiting our Web Site at:

http://www.pstc.panasonic.com

Or, send your request by E-mail to:

npcparts@us.panasonic.com

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)

(Monday-Friday 9am-9pm EST)

Panasonic Service and Technology Company

20421 84th Avenue South, Kent, WA 98032

(We accept Visa, MasterCard, Discover Card, American Express, and Personal

Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

DMC-FT2&TS2P-VQT2M30_eng.book 43 ページ ２０１０年１月２９日　金曜日　午後５時３１分

•SDXC Logo is a trademark of SD-3C, LLC.

•The “AVCHD”, “AVCHD Lite” and the “AVCHD”, “AVCHD Lite” logo are

trademarks of Panasonic Corporation and Sony Corporation.

•Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

•HDMI, the HDMI Logo, and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

•VIERA Link™ is a trademark of Panasonic Corporation.

•EZ Sync™ is a trademark of Panasonic Corporation.

•HDAVI Control™ is a trademark of Panasonic Corporation.

•QuickTime and the QuickTime logo are trademarks or registered trademarks

of Apple Inc., used under license therefrom.

•Microsoft product screen shot(s) reprinted with permission from Microsoft

Corporation.

•

Other names, company names, and product names printed in these instructions

are trademarks or registered trademarks of the companies concerned.

This product is licensed under the AVC patent portfolio license for the personal

and non-commercial use of a consumer to (i) encode video in compliance with

the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was

encoded by a consumer engaged in a personal and non-commercial activity

and/or was obtained from a video provider licensed to provide AVC Video. No

license is granted or shall be implied for any other use. Additional information

may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

One Panasonic Way, Secaucus, NJ 07094

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

 Panasonic Corporation 2010

Printed in Japan

DMC-FT2&TS2P-VQT2M30_eng.book 44 ページ ２０１０年１月２９日　金曜日　午後５時３１分
