Thank you for purchasing a Panasonic product.
Please read this installation
manual before using the unit and
save it for future reference.
For assistance, visit our Web site:
http://www.panasonic.com/help
for customers in the U.S.A. or
Puerto Rico.
This unit is an additional handset compatible with the following
series of Panasonic Digital Cordless Phone:
KX-TG4731/KX-TG4741/KX-TG4751/KX-TG4761/
KX-TG4771/KX-TG7731/KX-TG7741
(The corresponding models are subject to change without
notice.)
You must register this handset with your base unit before it can
be used. This installation manual describes only the steps
needed to register and begin using the handset. Please read
the base unit’s operating instructions for further details.
Charge the batteries for about 7 hours before initial use.
Additional Digital Cordless Handset
Model No. KX-TGA470
Installation Manual
PNQX5093ZA PT1111MG0 (D)
Printed in China
TGA470(e).fm Page 1 Wednesday, November 16, 2011 10:51 AM
2For assistance, please visit http://www.panasonic.com/help
Accessory information
Supplied accessories
*1 PNLC1029ZB: Black, PNLC1029ZS: Silver
*2 PNYNTGA470BR: Black
*3 The handset cover comes attached to the handset.
*4 PNKE1132Z1: Black
Note:
LPlease read the base unit’s operating instructions for additional/
replacement accessories.
Optional headsets: KX-TCA60, KX-TCA93, KX-TCA400,
KX-TCA430
Accessory item/Order number Quantity
Charger*1 1
AC adaptor/PNLV226Z 1
Rechargeable batteries/HHR-4DPA 2
Handset cover*2, *3 1
Belt clip*4 1
TGA470(e).fm Page 2 Wednesday, November 16, 2011 10:51 AM
For assistance, please visit http://www.panasonic.com/help 3
Setting up

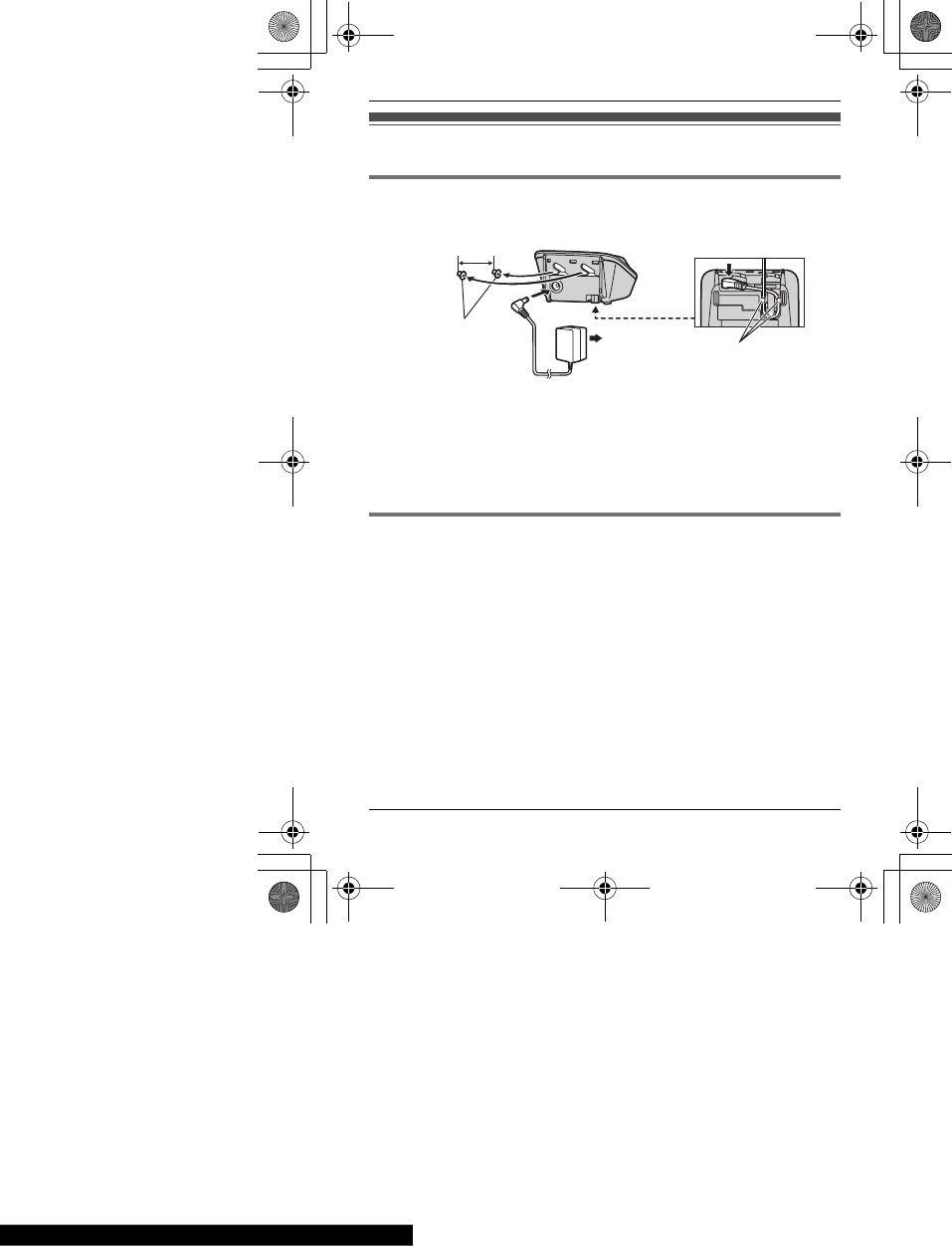

Connections/Wall mounting
Note:
LUse only the supplied Panasonic AC adaptor PNLV226.
LThe AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
LMake sure that the wall and the fixing method are strong enough to
support the weight of the unit.

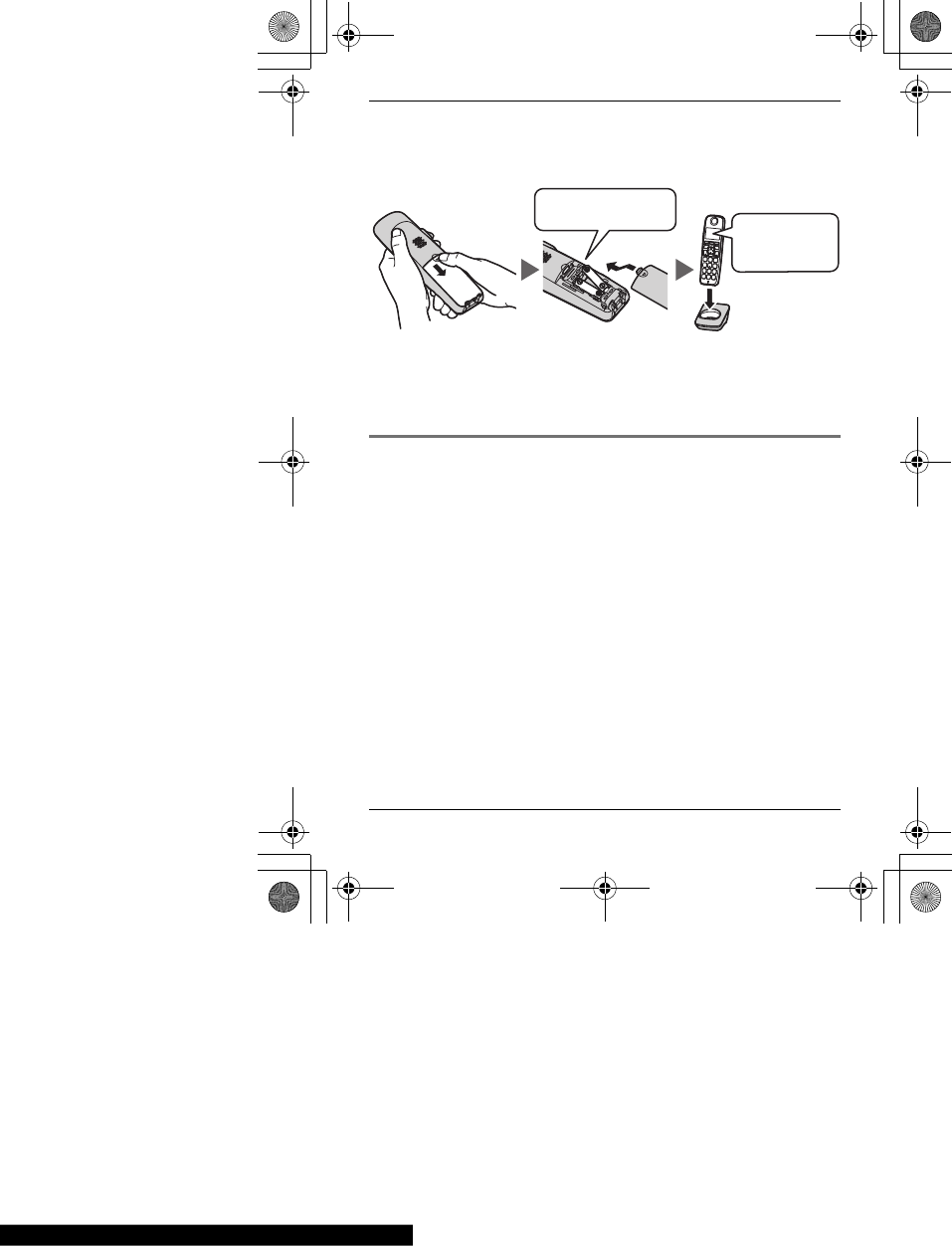

Battery installation/Battery charging
Important:
LUse the supplied rechargeable batteries. For replacement, we
recommend using the Panasonic rechargeable batteries noted on
page 2.
LWipe the battery ends (S, T) with a dry cloth.
LAvoid touching the battery ends (S, T) or the unit contacts.
LConfirm correct polarities (S, T).
LUSE ONLY Ni-MH batteries AAA (R03) size.
LDo NOT use Alkaline/Manganese/Ni-Cd batteries.
To power outlet Hooks
25.4 mm
(1 inch)
Screws
(Not supplied)
TGA470(e).fm Page 3 Wednesday, November 16, 2011 10:51 AM
4For assistance, please visit http://www.panasonic.com/help
Charge for about 7 hours.
LWhen the batteries are fully charged, Fully charged is displayed.
Note:
LIf the batteries are fully charged, but the operating time seems to be
shorter, clean the battery ends (S, T) and the charge contacts with a
dry cloth and charge again.
Registering a handset to a base unit
1Base unit:
Press and hold {LOCATOR} for about 5 seconds.
LDepending on the base unit, a registration tone sounds.
LIf all registered handsets start ringing, press {LOCATOR} again to
stop, then repeat this step.
2Handset:
Place the handset on the base unit or charger, then wait until a long
beep sounds and w is displayed.
Note:
LIf an error tone sounds, or if _ is displayed, register the handset
according to the base unit’s operating instructions.
Confirm
Charging
is displayed.
Rechargeable
Ni-MH ONLY
TGA470(e).fm Page 4 Wednesday, November 16, 2011 10:51 AM
For assistance, please visit http://www.panasonic.com/help 5
Display language
1{MENU} (11)
2{r}: Select the desired setting. s {SAVE}
3{OFF}

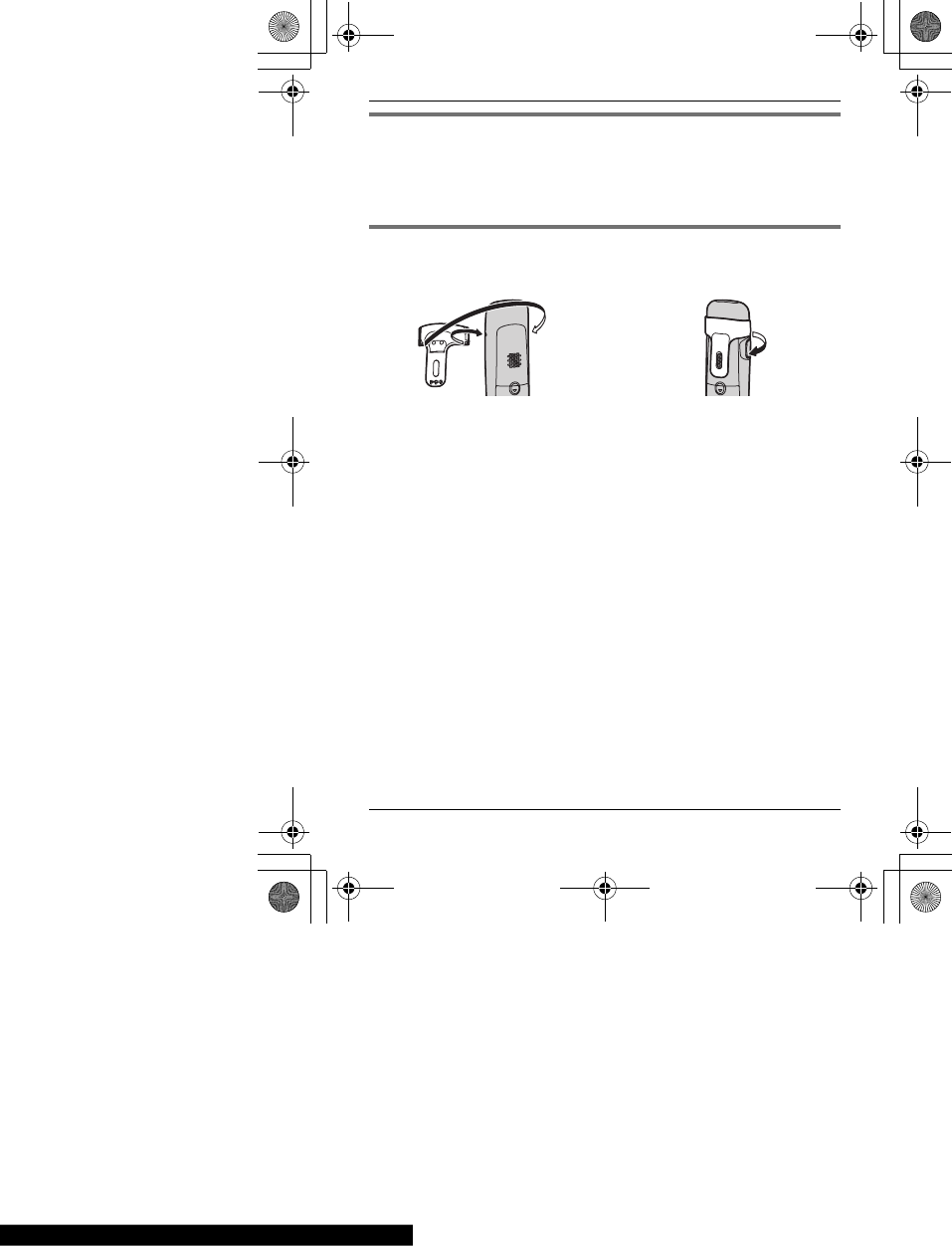

Belt clip
NTo attach NTo remove
TGA470(e).fm Page 5 Wednesday, November 16, 2011 10:51 AM
6For assistance, please visit http://www.panasonic.com/help
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
LUnplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact the Panasonic Call Center
at 1-800-211- PANA (1-800-211-7262).
Installation
LTo prevent the risk of fire or electrical shock, do not expose the product to rain or
any type of moisture.
LDo not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and location
LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet
is installed near the product and is easily accessible.
Battery
LWe recommend using the supplied batteries or additional/replacement batteries
noted on page 2 for replacement battery information. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
LDo not mix old and new batteries.
LDo not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
LExercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
TGA470(e).fm Page 6 Wednesday, November 16, 2011 10:51 AM
For assistance, please visit http://www.panasonic.com/help 7
may cause the batteries and/or the conductive material to overheat and cause
burns.
LCharge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
LOnly use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
Attention:
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
Other information
LOperating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Routine care
LWipe the outer surface of the product with a soft moist cloth.
LDo not use benzine, thinner, or any abrasive powder.
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY (1-800-822-
8837) for information on how to recycle this
battery.
TGA470(e).fm Page 7 Wednesday, November 16, 2011 10:51 AM
8For assistance, please visit http://www.panasonic.com/help
Notice for product disposal, transfer, or return
LThis product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
FCC and other information
This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section
68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately shielded from external RF (radio frequency)
energy. If noise occurs, use an optional headset accessory or the speakerphone
option (if applicable) when using this phone. Consult with your audiologist or
Hearing Aid manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late
evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
TGA470(e).fm Page 8 Wednesday, November 16, 2011 10:51 AM
For assistance, please visit http://www.panasonic.com/help 9
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning:
LThis product complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
LThis handset may not be collocated or operated in conjunction with any other
antenna or transmitter.
LThe handset may be carried and operated with only the specific provided belt-
clip. Other non-tested belt-clips or similar body-worn accessories may not
comply and must be avoided.
Notice:
LFCC ID can be found inside the battery compartment or on the bottom of the unit.
Compliance with TIA-1083 standard:
Telephone handsets identified with this logo have reduced
noise and interference when used with T-Coil equipped hearing
aids and cochlear implants.
T
Compatible with
Hearing Aid T-Coil
TIA-1083
TGA470(e).fm Page 9 Wednesday, November 16, 2011 10:51 AM
10 For assistance, please visit http://www.panasonic.com/help
Notice
LThis product is designed for use in the United States of America. Sale or use
of this product in other countries may violate local laws.
LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique. La vente
ou l’emploi de cet appareil dans certains autres pays peut constituer une
infraction à la législation locale.
LEste producto está diseñado para usarse en los Estados Unidos de América.
La venta o el empleo de este producto en ciertos países puede constituir
violación de la legislación local.
Lҏ౰ࠢட࣏छ୽ٺҢՄ೩Ȅषӵڏт୽ড়᎛୵ܖٺҢȂџ૖ོႂІ࿋ӴݲٽȄ
Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ
૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅޿ߡߪේೣߣߒ
ߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ
TGA470(e).fm Page 10 Wednesday, November 16, 2011 10:51 AM
For assistance, please visit http://www.panasonic.com/help 11
One Panasonic Way, Secaucus, New Jersey 07094
© Panasonic System Networks Co., Ltd. 2011
1 Reconnect AC adaptor to the base unit.
2 Check if telephone line cord is connected.
3 Use rechargeable Ni-MH batteries.
(Alkaline/Manganese/Ni-Cd batteries CANNOT be used.)
4 Read troubleshooting page in the base unit’s
Operating Instructions.
If your product is not working properly. . .
IMPORTANT!
Visit our Web site: http://www.panasonic.com/help
LFAQ and troubleshooting hints are available.
TGA470(e).fm Page 11 Wednesday, November 16, 2011 10:51 AM
Gracias por adquirir un producto Panasonic.
Lea este manual de instalación antes de usar la unidad y guárdelo para
consultarlo en el futuro.
Para obtener ayuda, visite nuestro sitio web:
http://www.panasonic.com/help
para clientes de EE. UU. o Puerto
Rico (solo en inglés).
Esta unidad es un auricular adicional compatible con la siguiente
serie de teléfonos inalámbricos digitales Panasonic:
KX-TG4731/KX-TG4741/KX-TG4751/KX-TG4761/KX-TG4771/
KX-TG7731/KX-TG7741
(Los modelos correspondientes están sujetos a cambio sin previo
aviso.) Debe registrar este auricular en su unidad base antes de
poder usarlo. Este manual de instalación solo describe los pasos
necesarios para registrar y comenzar a usar el auricular. Lea las
instrucciones de operación de la unidad base para obtener más
detalles.
Cargue las baterías aproximadamente durante 7 horas antes de
usarse por primera vez.
Auricular Inalámbrico Digital Adicional
Modelo N° KX-TGA470
Manual de instalación
TGA470(sp).fm Page 1 Wednesday, November 16, 2011 11:32 AM
(2)
Información de los accesorios
Accesorios que se suministran
*1 PNLC1029ZB: Negro, PNLC1029ZS: Plateado
*2 PNYNTGA470BR: Negro
*3 La cubierta del auricular viene unida a él.
*4 PNKE1132Z1: Negro
Nota:
L
Lea las instrucciones de operación de la unidad base para obtener
información sobre accesorios adicionales o de repuesto.
Audifonos opcionales: KX-TCA60, KX-TCA93, KX-TCA400, KX-TCA430
Accesorio/Número de pedido Cantidad
Cargador
*1
1
Adaptador de corriente/PNLV226Z 1
Baterías recargables/HHR-4DPA 2
Cubierta del auricular
*2,
*3
1
Sujetador para cinturón
*4
1
TGA470(sp).fm Page 2 Wednesday, November 16, 2011 11:32 AM
(3)
Instalación
Conexiones/Montaje en la pared
Nota:
L
Use solo el adaptador de corriente Panasonic PNLV226 que se suministra.
L
El adaptador de corriente debe permanecer conectado todo el tiempo. (Es
normal que el adaptador se caliente durante su uso.)
L
Asegúrese de que la pared y el método de colocación sean lo suficientemente
resistentes para soportar el peso de la unidad.
Instalación y carga de la batería
Importante:
L
Utilice las baterías recargables que se suministran. Para reemplazarlas,
recomendamos el uso de las baterías recargables Panasonic que se
especifican en la página 2.
L
Limpie los extremos de las baterías (
S
,
T
) con un paño seco.
L
Evite tocar los extremos de las baterías (
S
,
T
) o los contactos de la unidad.
L
Confirme que las polaridades estén correctas (
S
,
T
).
L
UTILICE SOLO baterías de Ni-MH tamaño AAA (R03).
L
NO utilice baterías Alcalinas, de Manganeso o de Ni-Cd.
A la toma
de corriente Ganchos
25.4 mm
(1 pulgada)
Tornillos
(no se suministran)
TGA470(sp).fm Page 3 Wednesday, November 16, 2011 11:32 AM
(4)
Cargue aproximadamente durante 7 horas.
L
Cuando las baterías estén completamente cargadas, aparecerá
Carg.
Comp.
.
Nota:
L
Si las baterías están completamente cargadas pero el tiempo de
funcionamiento parece ser más corto, limpie los extremos de las baterías (
S
,
T
) y los contactos de carga con un paño seco y cárguelas de nuevo.
Cómo registrar un auricular a una unidad base
1
Unidad base:
Oprima y mantenga oprimido
{
LOCATOR
}
durante aproximadamente 5
segundos.
L
Dependiendo de la unidad base, suena un tono de registro.
L
Si todos los auriculares registrados comienzan a timbrar, oprima
{
LOCATOR
}
de nuevo para detenerlos y después repita este paso.
2
Auricular:
Coloque el auricular en la unidad base o cargador, y espere hasta que suene
un pitido largo y aparezca
w
.
Nota:
L
Si suena un tono de error, o si se muestra
_
, registre el auricular de acuerdo
con las instrucciones de operación de la unidad base.
SOLO baterías
Ni-MH recargables Confirme que
aparezca
Cargando.
TGA470(sp).fm Page 4 Wednesday, November 16, 2011 11:32 AM
(5)
Idioma de la pantalla
1
{
MENU
}
(
11
)
2
{
r
}
: Seleccione la configuración deseada.
s
{
GUARDA
}
3
{
OFF
}
Sujetador para cinturón
N
Para colocarlo
N
Para retirarlo
TGA470(sp).fm Page 5 Wednesday, November 16, 2011 11:32 AM

Navigation menu
