Operating Instructions

Digital High Definition Plasma Television

Manual de instrucciones

Televisor digital con pantalla de plasma de alta definición

Model No. TH-37PX60U

Número de modelo TH-42PX60U

TH-50PX60U

TH-50PX60X

TH-58PX60U

Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en el futuro.

Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

TQB2AA0663-2

For assistance, please call : 1-888-VIEW-PTV (843-9788)

or contact us at www.panasonic.com/contactinfo (U.S.A.)

For assistance, please call : 787-750-4300

or visit us at www.panasonic.com (Puerto Rico)

For assistance, please call : 1-800-561-5505

or visit us at www.panasonic.ca (Canada)

Español

English

Para solicitar ayuda, llame al: 1-888-VIEW-PTV (843-9788)

ó visítenos en

www.panasonic.com/contactinfo

(EE.UU.)

Para solicitar ayuda, llame al: 787-750-4300

ó visítenos en www.panasonic.com (Puerto Rico)

Experience an amazing level of multimedia

excitement

Turn your own living room into a movie theater!

Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbols are trademarks of

Dolby Laboratories.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks

or registered trademarks of HDMI Licensing LLC.

SD Logo is a

trademark.

Viewing Advanced FAQs, etc.Quick Start Guide

Enjoy rich multimedia

SD memory card

Camcorder

Amplifier

Home theater unit

VCR DVD player

DVD recorder Set Top Box •

Watching TV ···············································14

•

Viewing from SD Card ······························· 16

•

SD Cards: Notes and Cautions ··················18

•

Watching Videos and DVDs ·······················19

•

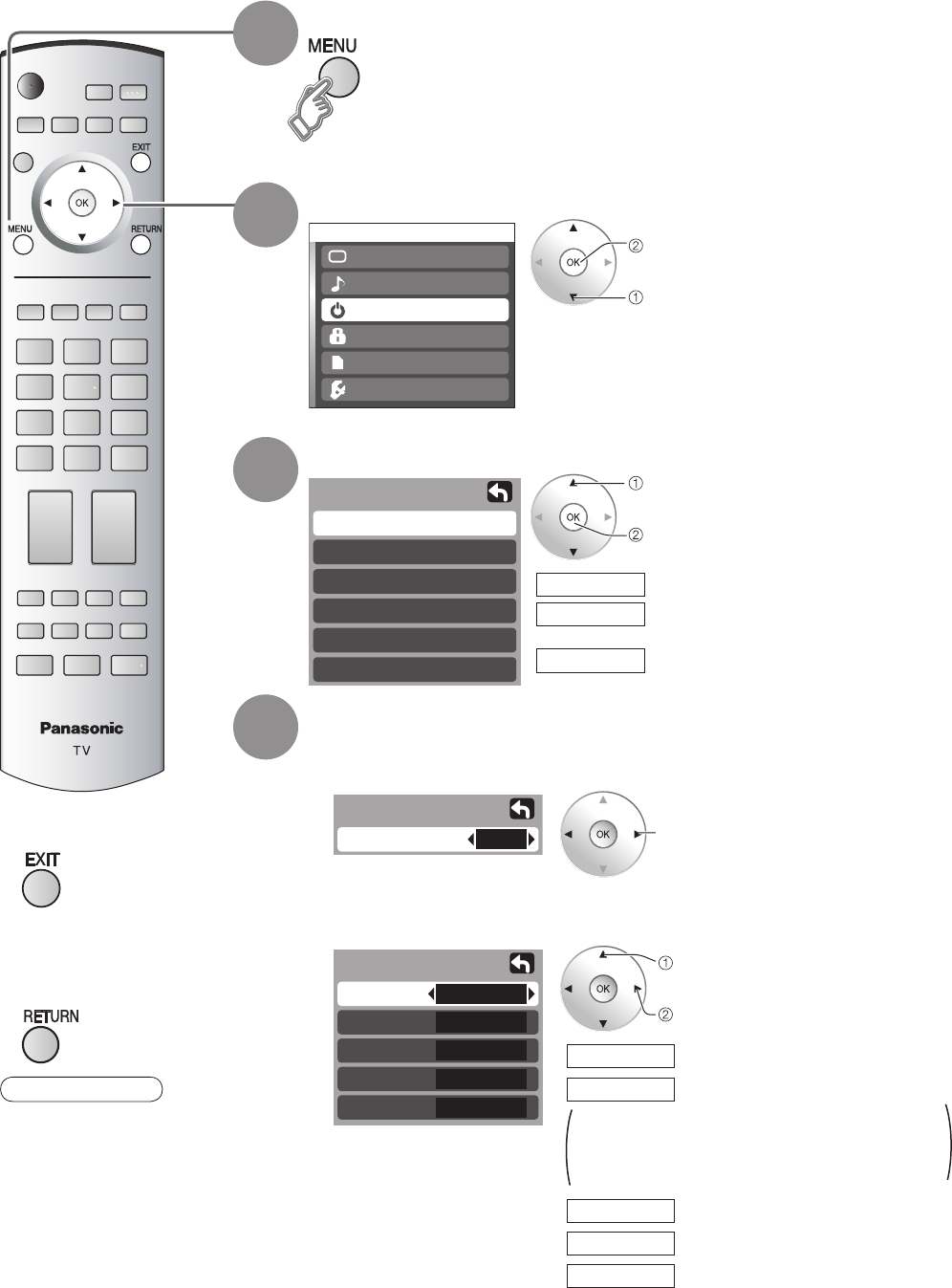

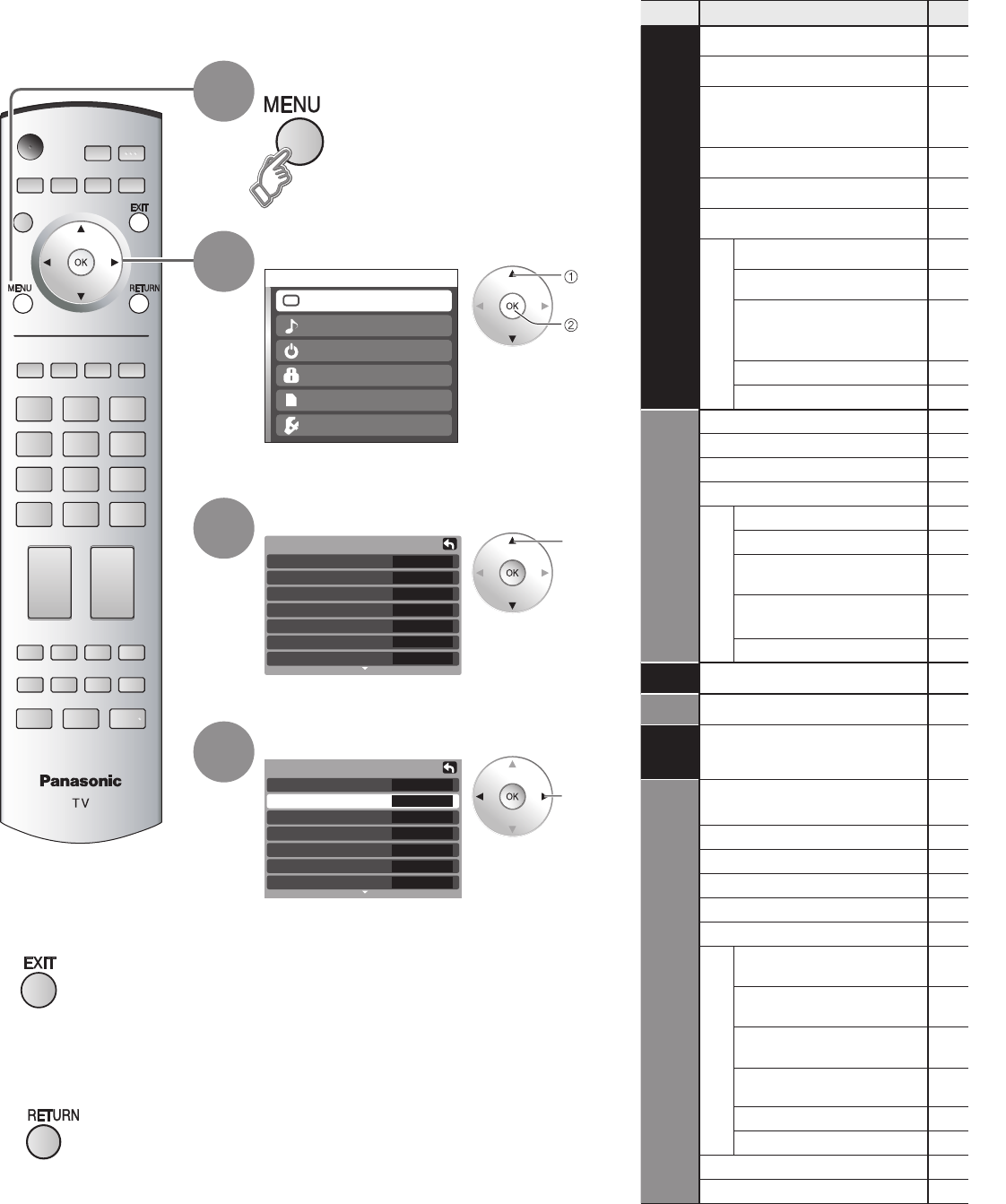

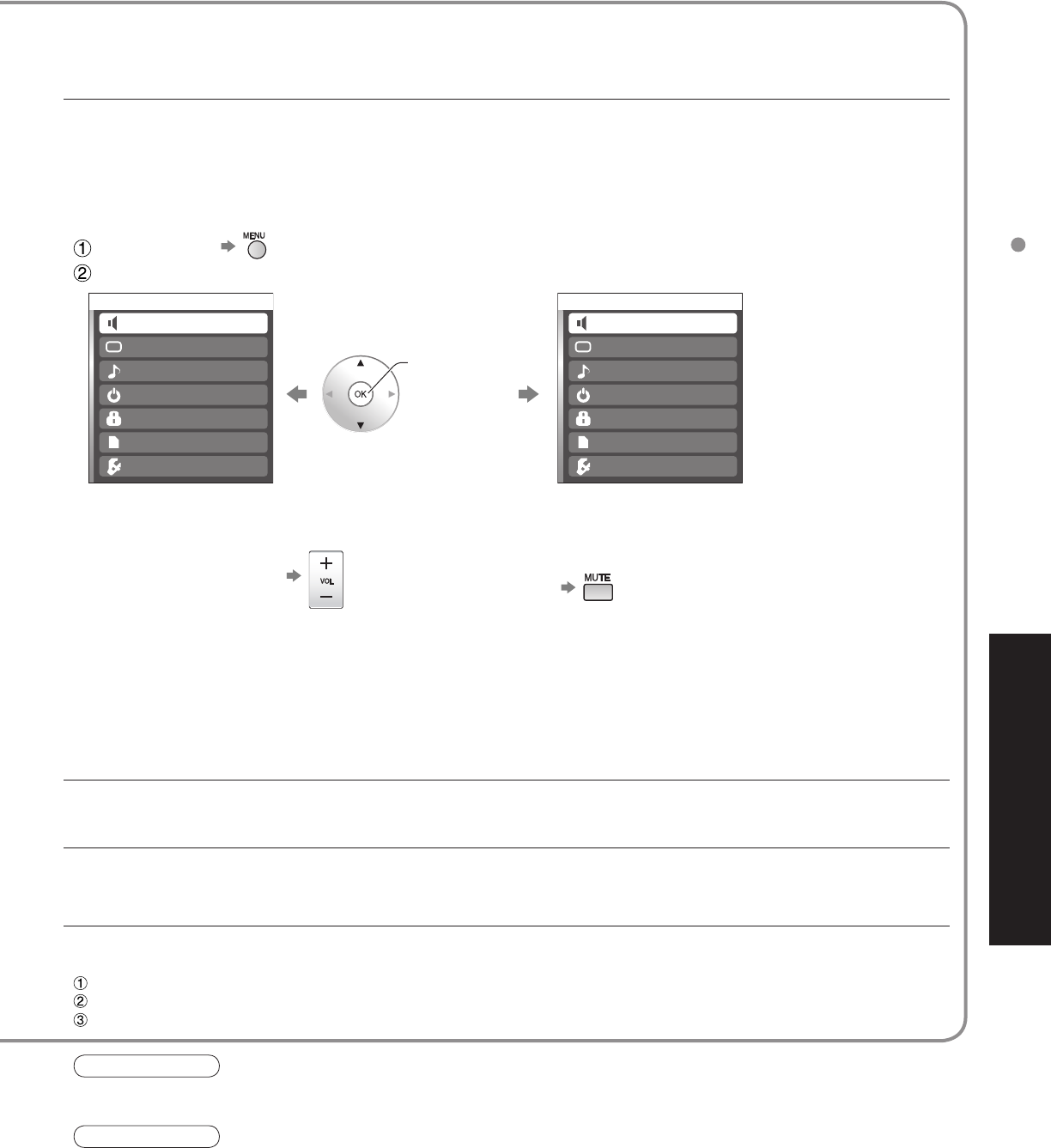

How to Use Menu Functions

(picture, sound quality, etc.) ·······················20

•

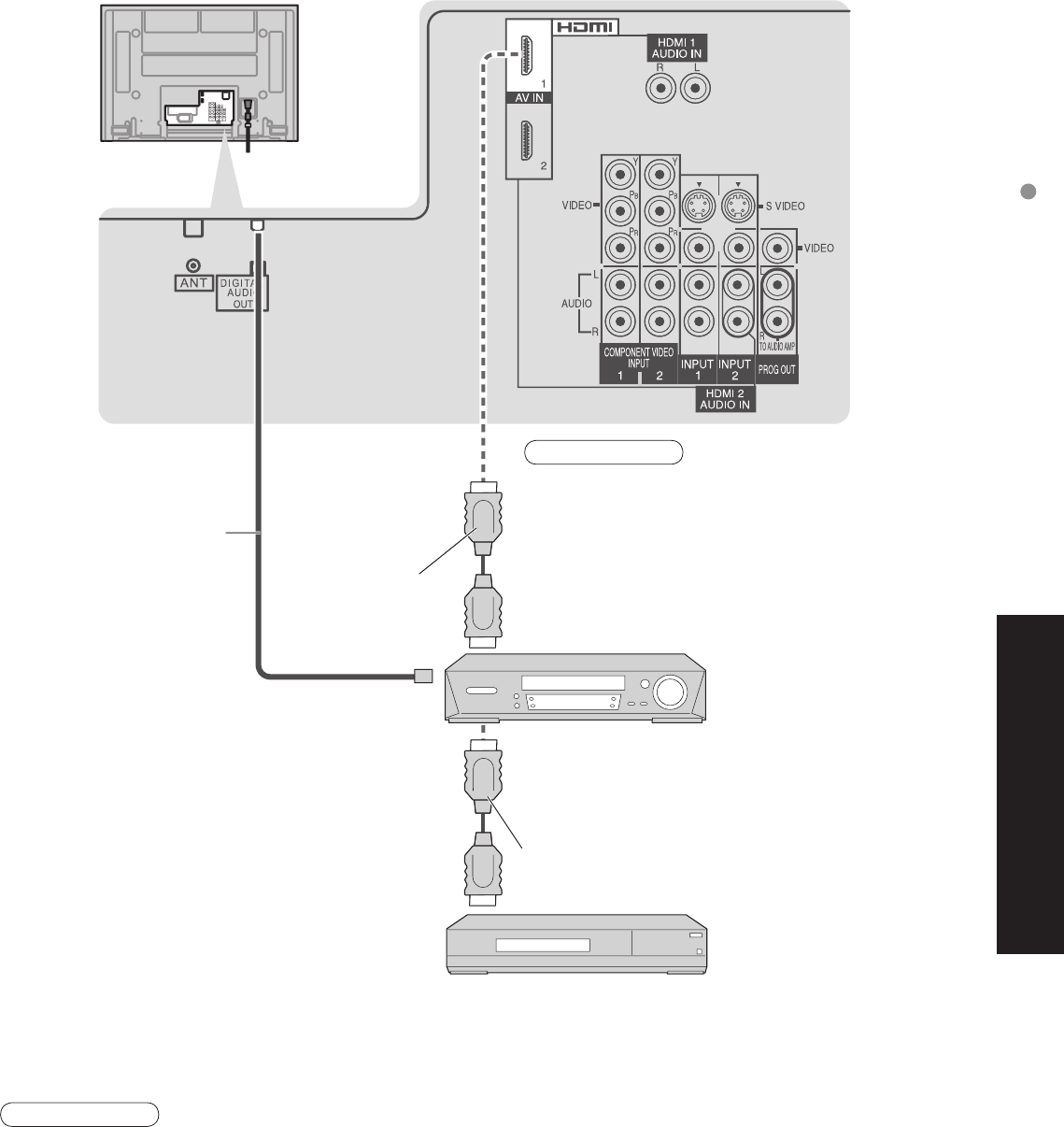

Control with HDMI “HDAVI ControlTM” ········ 22

•

Channel Lock ·············································26

•

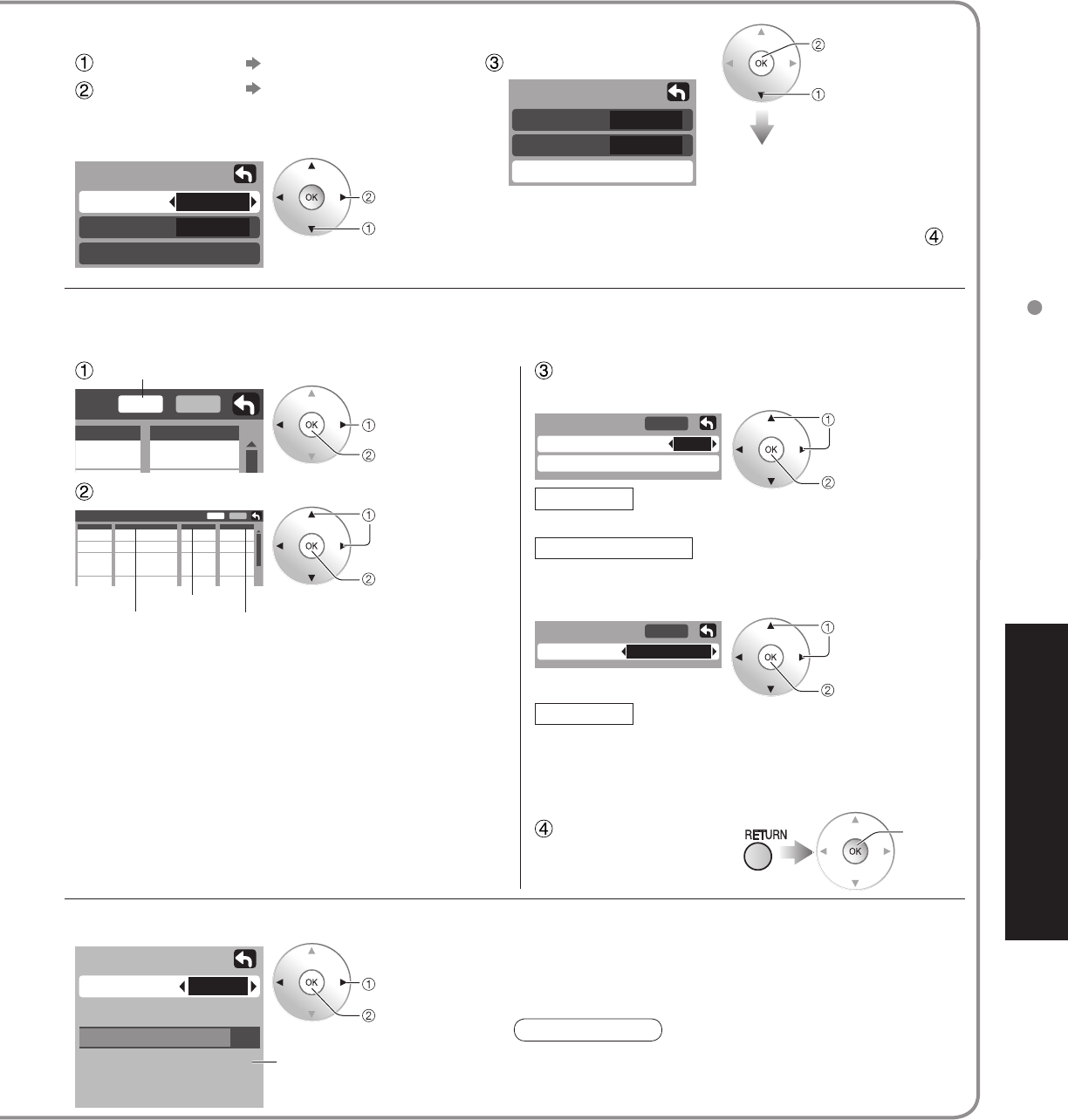

Editing and Setting Channels ····················28

•

Input Labels/Closed Caption ······················30

•

Using Timer ················································ 32

•

Operating Peripheral Equipment ···············33

•

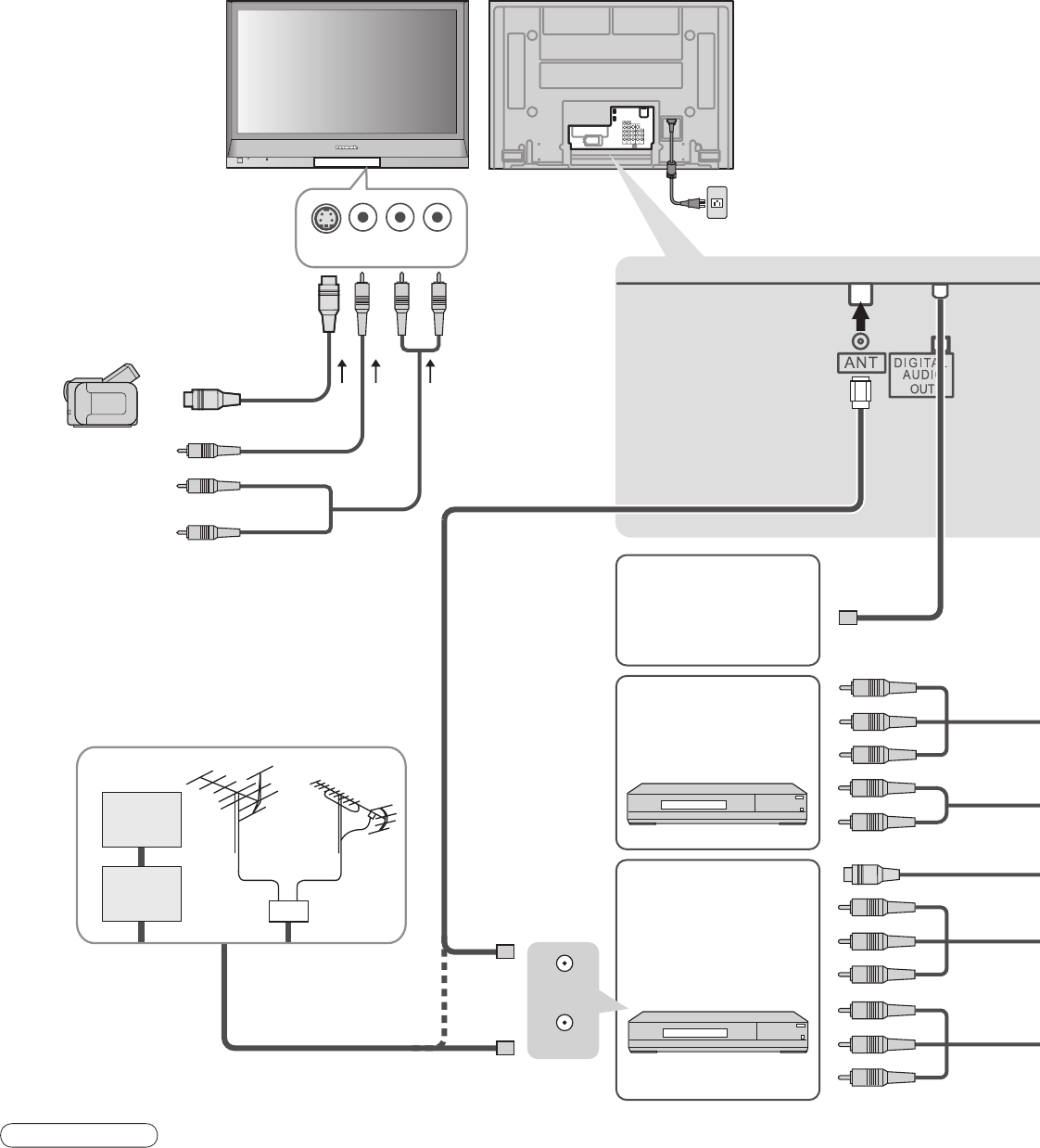

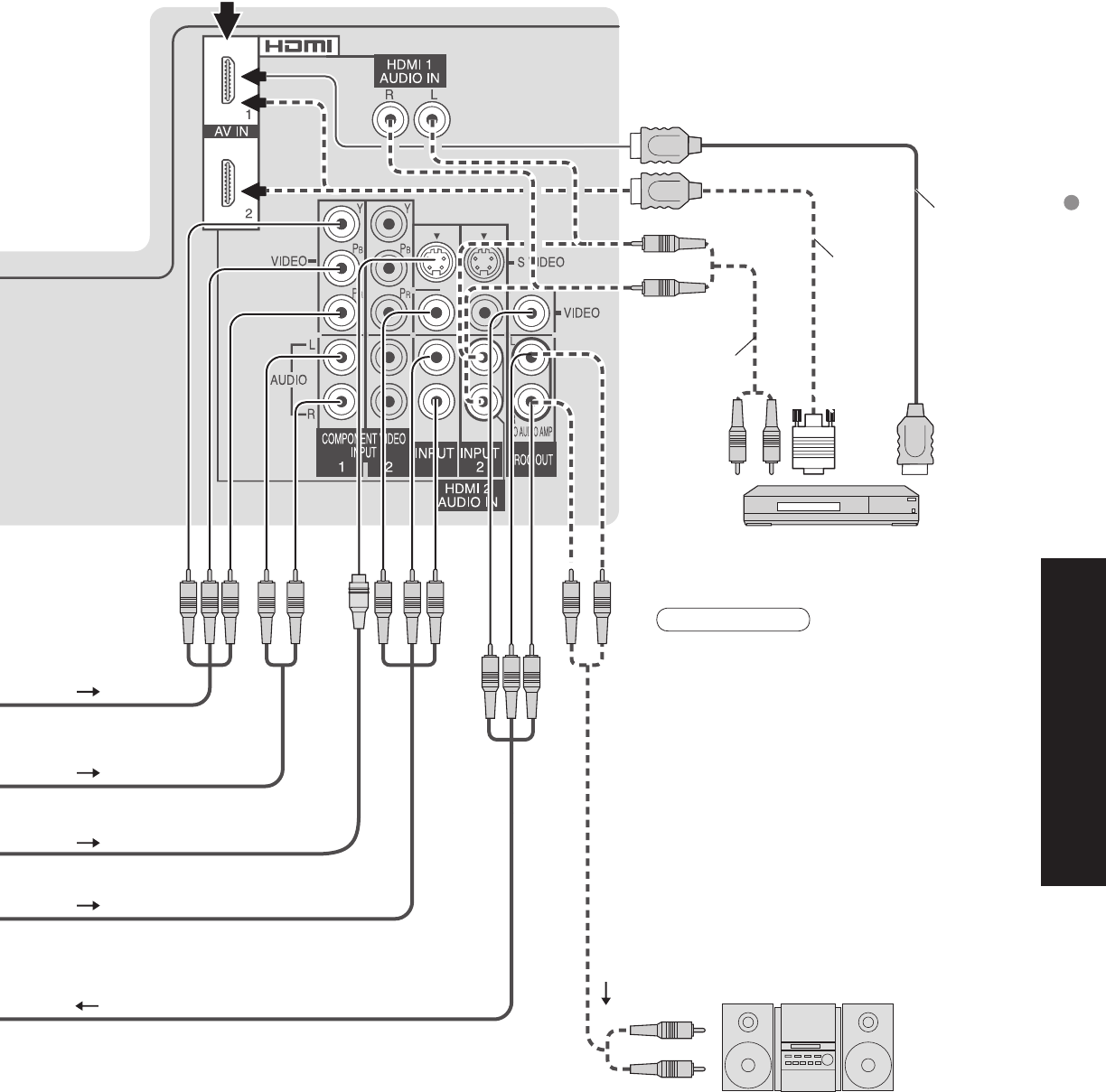

Recommended AV Connections ················34

•

Remote Control Operation/Code List ·········36

•

Ratings List for Channel Lock ····················39

•

Technical Information ·································40

•

Maintenance ··············································43

•

FAQ ···························································· 44

•

Specifications ·············································46

•

Limited Warranty (for U.S.A.) ·····················48

•

Customer Services Directory (for U. S. A.)

··49

•

Limited Warranty (for Canada) ··················· 50

Contents

Enjoy your TV !

Basic Features

Advanced Features

FAQs, etc.

•

Safety Precautions ·······································4

(Warning/Caution)

•

Notes ····························································5

Be Sure to Read

•

Accessories/Options ······················· 6

•

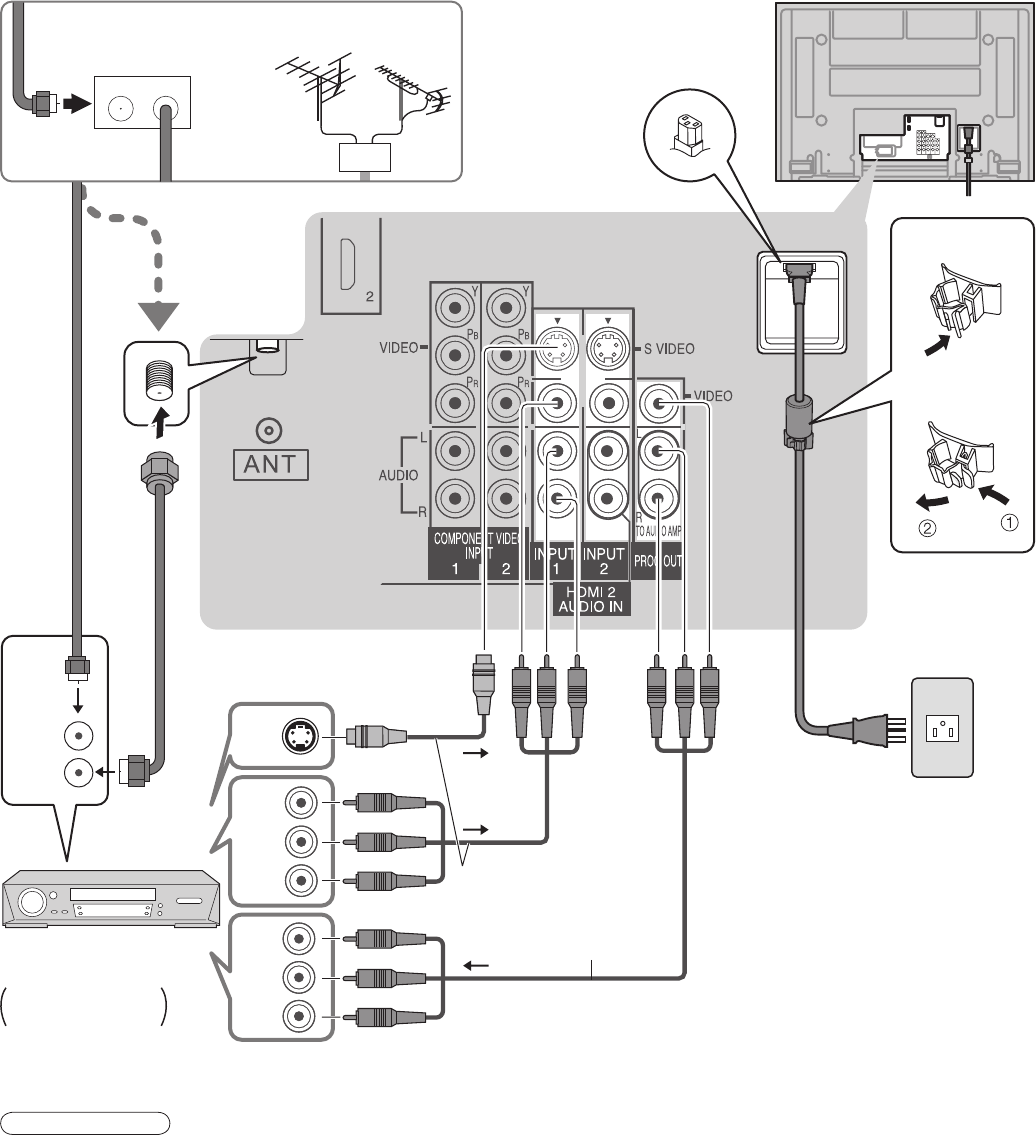

Connection ··························· 10

•

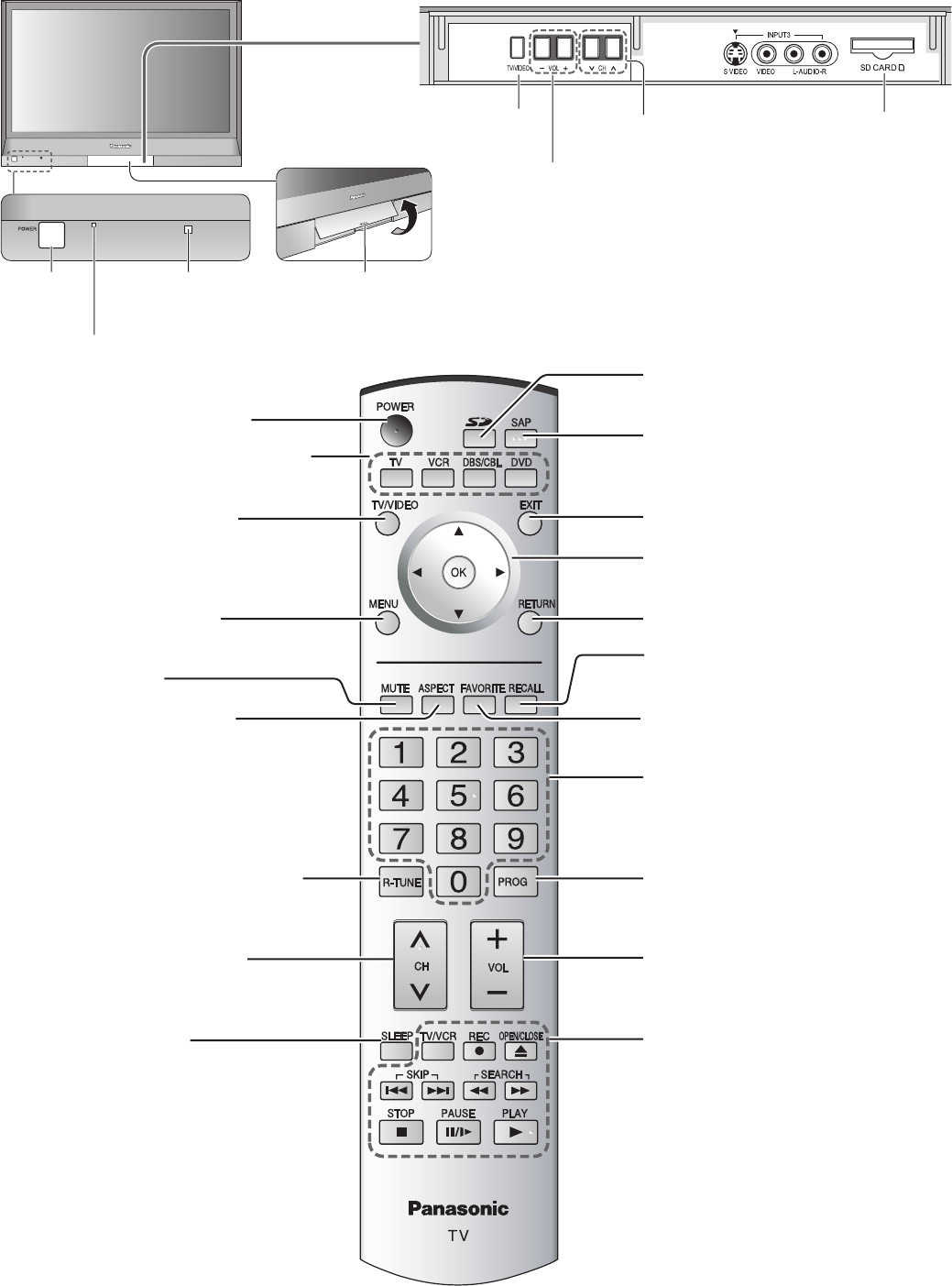

Identifying Controls ······················· 12

•

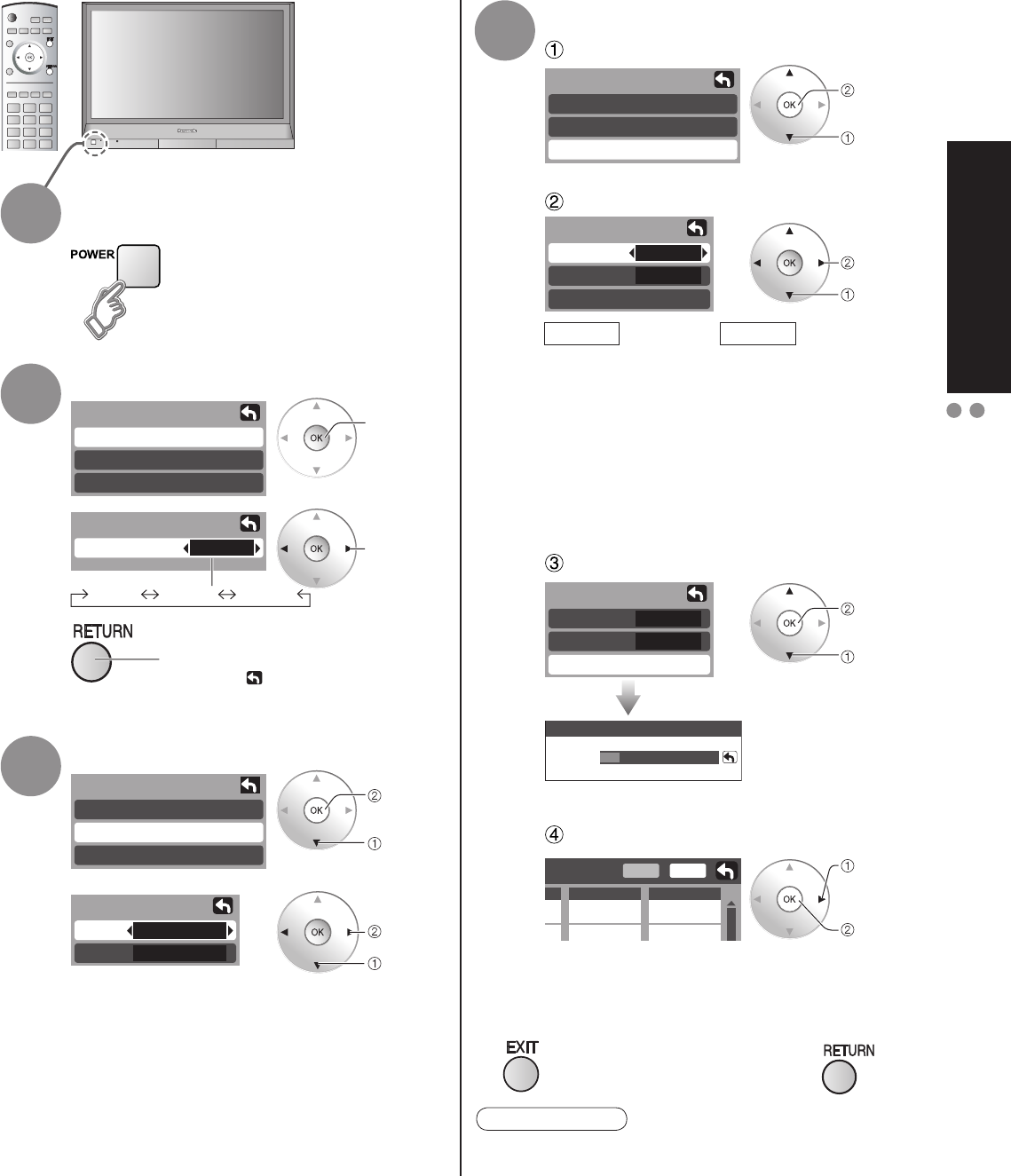

First Time Setup ················ 13

HDAVI ControlTM is a trademark of

Matsushita Electric Industrial Co.,

Ltd.

Safety Precautions

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11) Only use attachments / accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used,

use caution when moving the cart /

apparatus combination to avoid injury

from tip-over.

13) Unplug this apparatus during lightning

storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the

AC cord power plug is securely connected.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with

arrow-head within a triangle

is intended to tell the user

that parts inside the product

are a risk of electric shock to

persons.

The exclamation point within

a triangle is intended to

tell the user that important

operating and servicing

instructions are in the papers

with the appliance.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set

(including on shelves above, etc.).

Important Safety Instructions

CANADIAN NOTICE:

For Models TH-37PX60U, TH-42PX60U, TH-50PX60U, TH-50PX60X, TH-58PX60U

This Class B digital apparatus complies with Canadian ICES-003.

This equipment has been tested and found to comply with the limits for an Other Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the Panasonic Service Center or an experienced radio/TV technician for help.

FCC STATEMENT

FCC Caution:

To assure continued compliance, use only shielded interface cables when connecting TV to peripheral devices.

Any changes or modifications not expressly approved by responsible party may cause harmful interference and could

void the user’s authority to operate this device.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Contact Source: Panasonic Consumer Electronics Company

1-888-VIEW-PTV (843-9788)

email: consumerproducts@panasonic.com

WARNING/CAUTION

4 : 3

This causes the image to remain on the plasma screen

(“after image”). This is not considered a malfunction and is

not covered by the warranty.

Typical still images

To prevent after image,

the screen saver is

automatically activated after

a few minutes if no signals

are sent or no operations

are performed. (p. 45)

■

Do not display a still picture for a long time

Do not place the unit where it’s exposed to sunlight or other

bright light (including reflections).

Use of some types of fluorescent lighting may reduce the remote

control’s transmission range.

■

Setup

Notes

SMALL PARTS CAN PRESENT CHOKING HAZARD IF

ACCIDENTALLY SWALLOWED.

KEEP SMALL PARTS AWAY FROM YOUNG CHILDREN.

DISCARD UNNEEDED SMALL PARTS AND OTHER

OBJECTS, INCLUDING PACKAGING MATERIALS AND

PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING

PLAYED WITH BY YOUNG CHILDREN, CREATING THE

POTENTIAL RISK OF SUFFOCATION.

■

Set up

Do not place the Plasma TV on sloped or unstable surfaces.

The Plasma TV may fall off or tip over.

Do not place any objects on top of the Plasma TV.

If water spills onto the Plasma TV or foreign objects get inside

it, a short-circuit may occur which could result in fire or electric

shock. If any foreign objects get inside the Plasma TV, please

consult an Authorized Service Center.

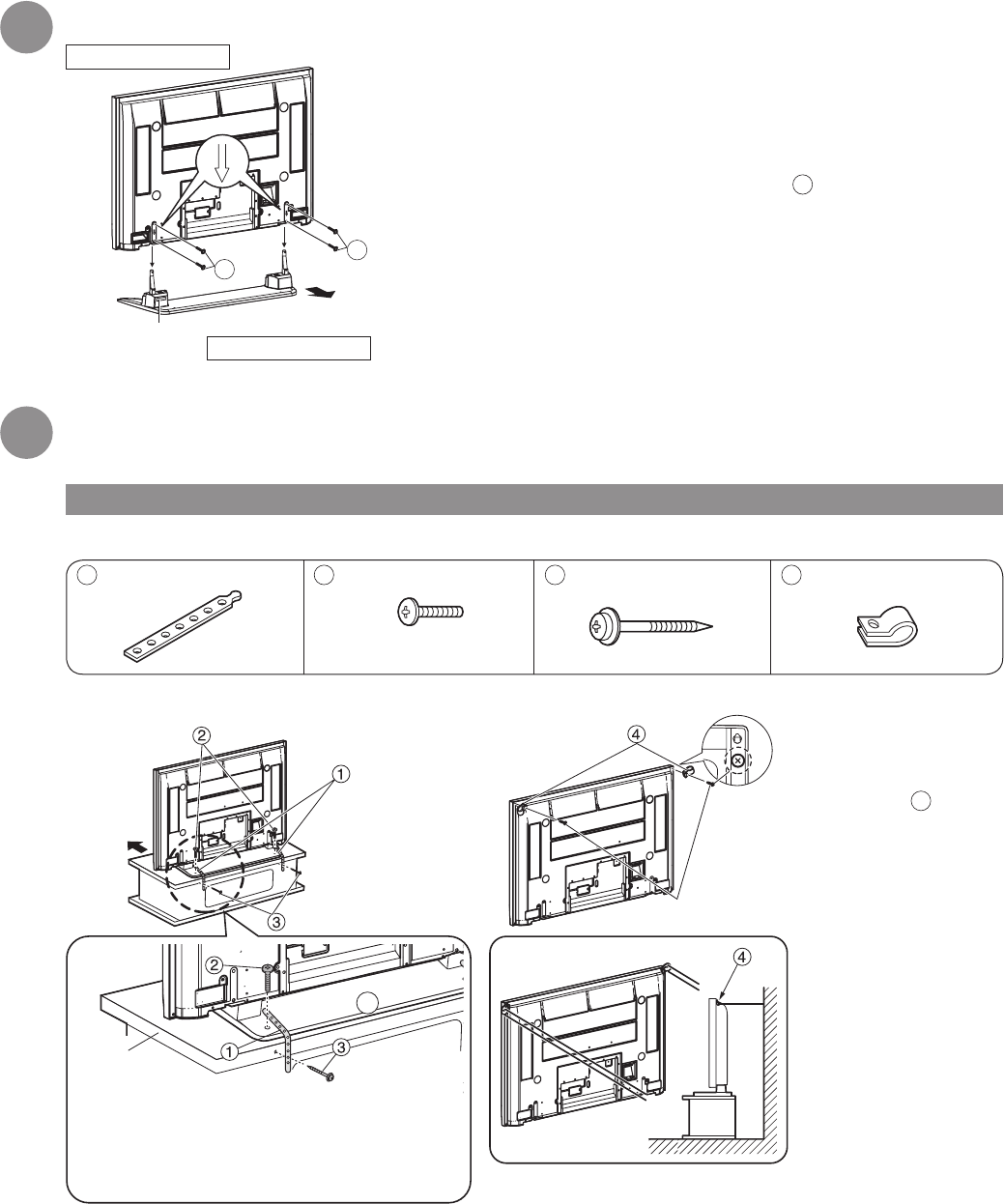

This Plasma TV is for use only with the following

optional accessories. Use with any other type of optional

accessories may cause instability which could result in the

possibility of injury.

(All of the following accessories are manufactured by

Matsushita Electric Industrial Co., Ltd.)

• Wall-hanging bracket (Vertical):

TY-WK42PV3U (TH-37PX60U, TH-42PX60U,

TH-50PX60U, TH-50PX60X, TH-58PX60U)

• Wall-hanging bracket (Angled):

TY-WK42PR2U, TY-WK42PR3U (TH-37PX60U,

TH-42PX60U, TH-50PX60U, TH-50PX60X)

Always be sure to ask a qualified technician to carry out set-up.

■

AC Power Supply Cord

The Plasma TV is designed to operate on 120 V AC, 50/60 Hz

(TH-37PX60U, TH-42PX60U, TH-50PX60U, TH-58PX60U) or on

110 - 127 V AC, 50/60 Hz (TH-50PX60X). Securely insert the

power cord plug as far as it will go.

If the plug is not fully inserted, heat may be generated which

could cause fire. If the plug is damaged or the wall socket

plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

Doing so may cause electric shocks.

Do not do anything that might damage the power cable.

When disconnecting the power cable, hold the plug, not the

cable.

Do not make any modifications to, place heavy objects on, place

near hot objects, heat, bend, twist or forcefully pull the power cable.

Doing so may cause damage to the power cable which can cause

fire or electric shock. If damage to the cable is suspected, have it

repaired at an Authorized Service Center.

■

If problems occur during use

If a problem occurs (such as no picture or no sound), or if

smoke or an abnormal odor is detected from the Plasma

TV, unplug the power cord immediately.

Continued use of the TV under these conditions might cause

fire or permanent damage to the unit. Have the TV evaluated

at an Authorized Service Center. Servicing of the TV by any

unauthorized personnel is strongly discouraged due to its high

voltage dangerous nature.

If water or foreign objects get inside the Plasma TV, if the

Plasma TV is dropped, or if the cabinet becomes damaged,

disconnect the power cord plug immediately.

A short may occur, which could cause fire. Contact an

Authorized Service Center for any repairs that need to be

made.

Do not cover the ventilation holes.

Doing so may cause the Plasma TV to overheat, which can

cause fire or damage to the Plasma TV.

If using the pedestal, leave a space of 3 15/16” (10 cm) or

more at the top, left and right, 2 3/8” (6 cm) or more at the

bottom, and 2 3/4” (7 cm) or more at the rear.

■

When using the Plasma TV

Be sure to disconnect all cables before moving the Plasma

TV.

Moving the TV with its cables attached might damage the

cables which, in turn, can cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety

precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from

becoming dusty.

Built-up dust on the power cord plug can increase humidity

which might damage the insulation and cause fire. Unplug the

cord from the wall outlet and clean it with a dry cloth.

This Plasma TV radiates infrared rays; therefore, it may

affect other infrared communication equipment.

Install your infrared sensor in a place away from direct or

reflected light from your Plasma TV.

Do not climb up onto the television or use it as a step.

(Young children should be made particularly aware of this

caution.)

If the unit falls over or becomes damaged through misuse,

injury may result.

The TV will still consume some power as long as the power

cord is inserted into the wall outlet.

Channel number and other logos

Image displayed in 4:3 mode

SD Card photo Video game Computer image

WARNING

CAUTION

Check you have all the items shown.

Accessories/Options

Installing remote’s batteries

1Open

Hook

Note the correct polarity (+ or -).

Caution

•

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control unit.

Do not mix old and new batteries.

Do not mix different battery types (such as alkaline and manganese batteries).

Do not use rechargeable (Ni-Cd) batteries.

•

Do not burn or break batteries.

•

Make a note of the remote control codes before changing batteries in case the codes are reset. (p. 37-38)

Wall-hanging bracket

(vertical)

•

TY-WK42PV3U

(TH-37PX60U, TH-42PX60U,

TH-50PX60U, TH-50PX60UX,

TH-58PX60U)

(angle)

•

TY-WK42PR2U

•

TY-WK42PR3U

(TH-37PX60U, TH-42PX60U,

TH-50PX60U, TH-50PX60X)

Optional accessories

□

Batteries for the Remote

Control Transmitter (2)

•

AA Battery

□

AC cord

□

Remote Control

Transmitter

•

EUR7737Z20

□

Cable clamper (2)

□

Antenna Adapter

•

F-Type

for 5C-2V

□

Operating Instructions

□

Product Registration Card

(U.S.A.)

□

Customer Care Plan Card

(U.S.A.)

□

Warranty Card (TH-50PX60X)

(Mexico)

Accessories

•

TBL2AX00051

(TH-50PX60U, TH-50PX60X)

□

Pedestal

•TBL2AX00011

(TH-37PX60U, TH-42PX60U) •

TBL2AX00081

(TH-58PX60U)

Quick Start Guide Accessories/Options

Attaching the pedestal to the plasma television

Caution

Do not use any television or displays other than those given in this manual.

•

Otherwise the unit may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

•

If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic

Dealer immediately.

During setting-up, make sure that all screws are securely tightened.

•

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be

strong enough to support the plasma television, and it might fall over and become damaged, and personal injury

may result.

Use the accessory fall-prevention brackets to secure the plasma television.

•

If the unit is knocked or children climb onto the pedestal with the Plasma TV installed, the plasma television may

fall over and personal injury may result.

Two or more people are required to install and remove the television.

•

If two people are not present, the television may be dropped, and personal injury may result.

Accessories for pedestal assembly

A Assembly screw (4) B Assembly screw (4) C Pole (2) D Base (1)

(37˝, 42˝, 50˝) M5 x 20

(58˝) M6 x 20 M5 x 30

1Assembling the pedestal

■Installing the poles

■Securing the poles

For 42˝ ,50˝ Plasma

television (Outside)

For 37˝ Plasma television

(Inside)

Front

Insert the poles C into the left and right holes in the underside of the base D so that they fit securely as

shown in the illustration above.

Use the assembly A screws to secure the poles firmly to the bottom of the base.

Note

Forcing the assembly screws the wrong way will strip the threads.

For 58˝ Plasma television

Front

2Setting-up

Lift the television unit above the pedestal base,

with the back of the display unit on the same side

as the Label. Then align the holes in the television

unit with the poles of the pedestal and lower the

television unit into place.

Use the assembly screws B (M5 x 30) to fasten

securely.

3Stopping the plasma television from falling over

Television unit

Pedestal

Label

* Carry out work on

a horizontal and

level surface.

Accessories/Options

■Securing to a base ■Securing to a wall

Fasten with wood screws in the holes in the

back edge of the wood worktop. If there are

no holes, first drill them in the middle of the

thickness of the wood worktop, and then

fasten the strap with wood screws.

* Remove the screws at

both top corners on

the rear side of the

plasma TV, and attach

the clamps 4 to the

plasma TV using the

removed screws.

Front

Screws on main body

Wood Worktop

* Use strong wire

or chain which is

commercially available

to secure the plasma

television to a solid

area of the wall or a

pillar.

Securing method

* The plasma TV must be fastened to both the base and the wall.

Front

Rear

Accessories for pedestal security

For 37'', 42'', 50'' Plasma television

1 Band (2) 2 Screw (2) 3 Wood screw (2) 4 Clamp (2)

Nominal diameter

4 mm x 12

Quick Start Guide Accessories/Options

Accessories for pedestal security

For 58'' Plasma television

1 Band (4) 2 Screw (4) 3 Wood screw (4) 4 Hook (2)

Nominal diameter

4 mm x 12

5 Hook securing

screw (2)

M8 x 35

Fasten with wood screws in the holes

in the back edge of the wood worktop.

If there are no holes, first drill them in

the middle of the thickness of the wood

worktop, and then fasten the strap with

wood screws.

* Use a flat-head screwdriver

to remove the caps at the left

and right top on the rear side

of the plasma TV, and attach

the hooks 4 to the plasma

TV using the hook securing

screws 5. (Keep the caps

you have removed in a safe

place.)

Hook securing

screw 5

• Securing method

■Securing to a base. ■Securing to a wall.

Wood

Worktop

Hook

* Use a strong wire or chain

which is commercially

available to secure the hooks

4 to a solid area of the wall

or pillar.

Front

IN OUT

ANT IN

ANT OUT

S-Video

OUT

Video

OUT

Audio

OUT

Video

Audio

Connection

■

Watching TV Back of the unit

Cable BOX

S-Video signals have

priority.

VHF/UHF aerial

DVD Recorder /

VCR

Fastener

•

To unfasten

AC cord

(Connect after

all the other

connections.)

Note

•

All cables and external equipment shown in this book are not supplied with the TV.

•

For additional assistance, visit us at : www.panasonic.com

www.panasonic.ca

•

The S Video input will override the composite video signal when S Video cable is connected.

Connect either S Video cable or Video cable.

•

When receiving digital channel signals, all digital formats are down-converted to composite NTSC video to be

output through the PROG.OUT terminals.

•

Some programs contain a copyright protection signal to prevent VCR recording.

•

Set the TV channel to CH3 or CH4 for using Cable Box Connection.

Video recorder

with TV Tuner To record TV shows

Quick Start Guide Connection

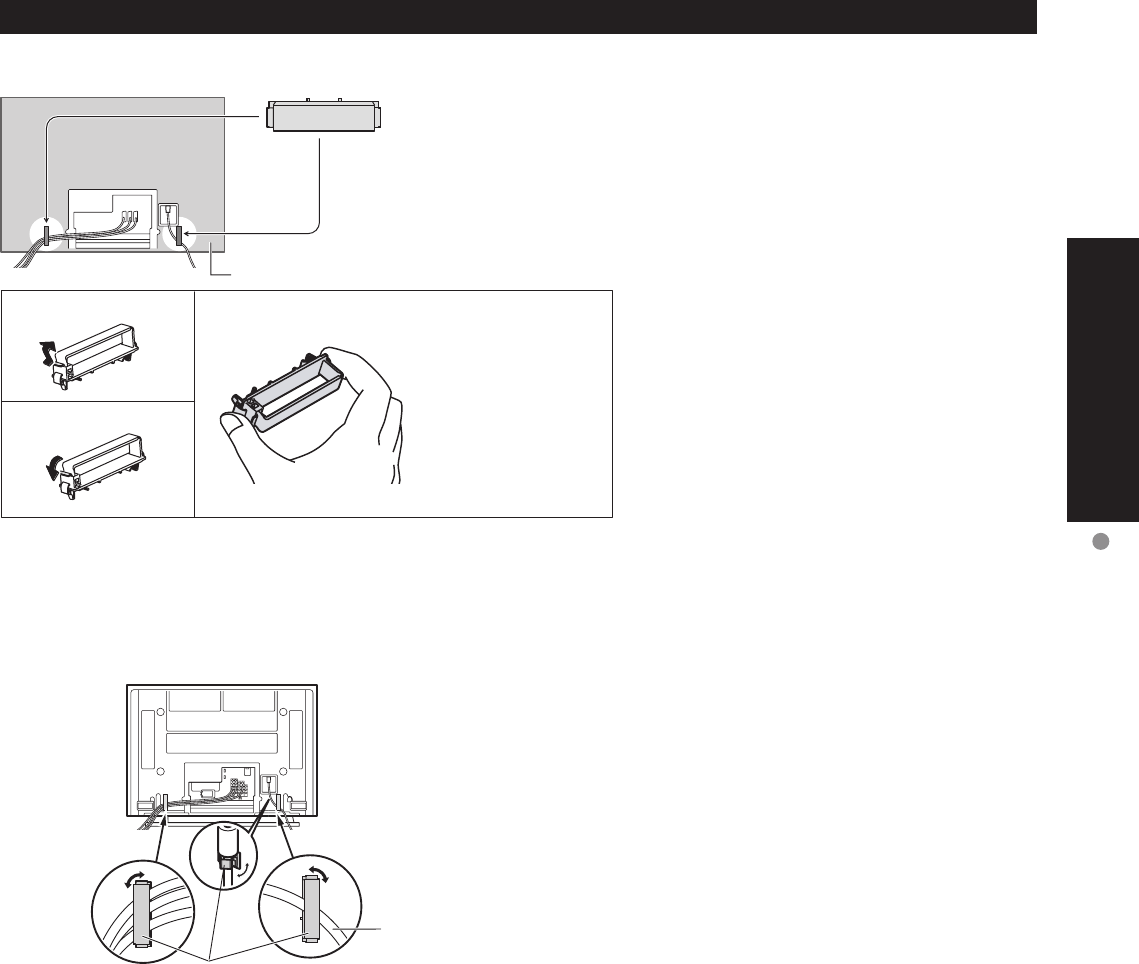

Snap open

Snap shut

Back of the TV unit

•

Do not bundle the RF cable and AC cord

together (could cause distorted image).

•

Fix cables with Cable clampers as necessary.

•

When using the optional accessory, follow the

option’s assembly manual to fix cables.

Remove from the TV unit

Push both side hooks

and pull out

Cable clamper

AC cord

•

Bundle cables with the Cable clamper on the left

side.

•

Fasten the AC cord with the Cable clamper on

the right side.

Bind all cables to the plasma television with the

Cable clamper.

Cable Binding Instructions

■Attaching the Cable clampers

■Cable Binding Instructions

Identifying Controls

Switches TV/VIDEO

Volume

POWER

button Swing up the door at “PULL”.Remote control

sensor

Selects channels in

sequence SD CARD slot

(p. 17)

Switches TV to On or Standby

Sets the remote to communicate with

other equipment (p. 33)

Changes input signal (p. 19)

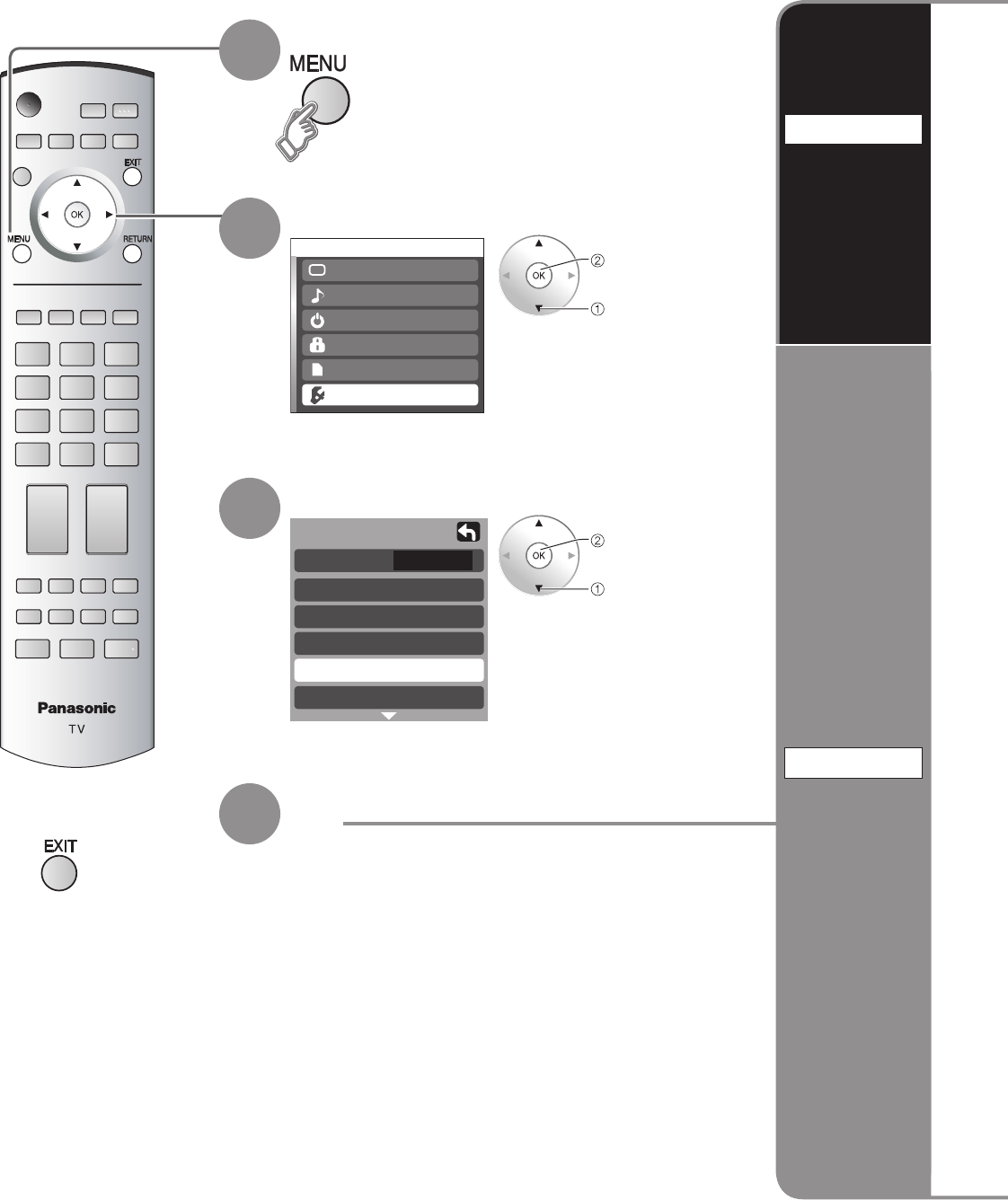

Display Main Menu (p. 20)

Sound mute On/Off

Changes aspect ratio (p. 15)

Switch to previously viewed channel

and input modes.

Selects channels in sequence

Sleep Timer (p. 14, 32)

Power indicator (on: red, off: no light)

Viewing from SD Card (p. 16)

SAP (p. 14)

Exit menus

Select/OK/Change

RETURN (to previous menu)

Display or remove the channel

banner (p. 14)

Operate the Favorite channel list

function. (p. 15)

Numeric keypad to select

any channel or press to enter

alphanumeric input in menus.

(p. 14)

Direct channel access for DTV and

DBS (p. 14)

Volume

External equipment operations

(p. 19, 36) (VCRs, DVDs, etc.)

Quick Start Guide First Time Setup

Identifying Controls

First time setup

Language

Clock

Auto program

Language

Language English

First time setup

Language

Clock

Auto program

Clock

Date

Time

4 / 1 / 2006

9 : 43 AM

First time setup

Language

Clock

Auto program

Now scanning analog channel ...

Progress

Auto program

ANT In

Mode

Start scan

All

Cable

Auto program

ANT In

Mode

Start scan

All

Cable

Edit

- - -

Favorite

Apply

Yes

Add

■

Press to exit

Turn the TV On with the

POWER button

First Time Setup

Select your language

Adjust the clock

3 next

select

“Clock”

English Español Français

Date: Adjust the date

(Press and hold to change the month.)

Time: Adjust the time

(If the button is held, the speed of

change increases.)

select

Note

•

To change setting later, go to Menu screen (p. 20)

set

select

item

ANT In

Cable: Cable TV

Antenna: Antenna

Mode

All: digital and analog

Analog: analog only

(Reduces time

for scanning)

Auto channel setup

set

select

start

select

“Start

scan”

select

“Apply”

Start scanning the channels

Select “Auto program”

Select antenna and input modes

Confirm registered channels

•

Available channels

(analog/digital)

are automatically

set.

■

Press to return to

previous screen

“First time setup” is displayed only when the TV is turned on for the first time after the AC cord is inserted

into a wall outlet. Available only when “Auto power on” (p. 20) is set to “Off”.

select

Press to go to previous screen.

Or, select icon, then press OK

for same results.

•

About broadcasting systems

Analog: traditional TV system

Digital : new system that allows you to view

more channels featuring high-quality

video and sound

•

If OK is not pressed after selecting “Apply”,

the channels will not be memorized.

15-2

ABC - HD

- 10:30

Andrew ’ s cooking show

1080I

T V -G

Standard

4 : 3

10:00 am

CC SAP

Watching TV

Switch to TV mode

down

Connect cable Box when watching cable TV. (p. 10)

Select a channel number

■

To directly input the digital channel

number

example: CH15-1:

Turn power on

•

POWER button on

unit should be On.

Rating Level


mode

Signal

resolution

■

Other Useful Functions (Operate after )

•

0/30/60/90 (minutes)

Switches the unit OFF in a preset amount of time from 0 to 90 minutes in 30

minute intervals.

Display or remove the channel banner.

■

Select Audio Mode for TV Viewing

•

Digital mode

Press SAP to select the next audio track (if available) when receiving a digital channel.

Audio Track 1 of 1

(English)

•

Analog mode

Press SAP to select the desired audio mode.

• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)

Channel Ending time Show title

Station

identifier SAP

Aspect ratio

Sleep timer

remaining time

Clock

Sleep

Timer

Listen

with SAP

(Secondary

Audio

Program)

Information

Recall

•

When tuning digital channel,

press the button to enter the

minor number in a compound

channel number.

Viewing Watching TV

Viewing

Setting 1/3

[1]

[2]

[3]

[4]

[5]

Setting 1/3

[1] 26-1

[2]

[3]

[4]

[5]

Favorite 1/3

[1]

[2]

[3]

[4]

[5]

1 Display the channel to be placed on the Favorites list.

2 Hold down FAVORITE for several

seconds.

• Press FAVORITE repeatedly

to change between pages (1/3,

2/3, 3/3, or exit). Pressing ◄ ►

also changes the page.

3 Press ▲▼to highlight a position

on the list.

Then, press OK to memorize the

displayed CH in that position.

• You can also use the NUMBER

keys (1-9 and 0) to select the

recorded list numbers (1-9 and

0). By doing so, the numbers

will be directly recorded without

having to press the OK key.

• To delete a favorite channel

A memorized channel can be removed from the list by

holding down FAVORITE while its position is highlighted.

Caution

•

ATSC broadcasts cannot be received in countries other than the USA, Canada, and Mexico.

•

Each press changes the mode.

•

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9) :

FULL, JUST, 4:3 or ZOOM

•

1080p / 1080i / 720p : FULL, H-FILL, JUST, 4:3 or

ZOOM.

Change the aspect (p. 40)

■

FAVORITE

Channel numbers registered in Favorite are displayed on the favorite

tune screen. Select the desired broadcast station with the cursor, or using

number keys. (see below)

Change

aspect

ratio

Call up

a favorite

channel

Set Favorite Feature Use Favorite Feature

select

1 Press FAVORITE.

• Press FAVORITE repeatedly

to change between pages (1/3,

2/3, 3/3, or exit). Pressing ◄ ►

also changes the page.

2 Press ▲▼ or a Numbered key

(1-9 and 0) to highlight a channel

on the list.

• Selecting a channel number

from the list with the Number

keys will display the channel

directly.

3 Press OK to display the

highlighted channel.

select

Note

•

Reselect “Cable” or “Antenna” in “ANT In” of “Auto program” to switch the signal reception between cable TV and

antenna. (p. 13)

•

The channel number and volume level remain the same even after the TV is turned off.

Accessing

•

To display/hide Navigation Area

To previous photo

Rotate 90 degree

(clockwise)

To next photo

Rotate 90 degree

(counter-clockwise)

Viewing from SD Card

You can view photos taken with a digital camera or a digital video camera saved on SD card.

(Media other than SD Cards may not be reproduced properly.)

View

Select the data to be viewed

3While reading

the data

2Select the SD mode

select

view

Thumbnail view

Navigation Area

Selected picture information is displayed.

No. : Image number or file name is displayed.

Date : Date of recording is displayed.

Pixel : Display resolution is displayed.

Insert the SD Card

•

For cautions and details on SD Cards (p. 18 and 41)

Displayed

one at a time

Navigation

Area

■

Press to return to

■

Press to exit

■

Press to return

to the previous

screen

Note

•

This SD modes selection are able to operate from MENU screen.

Total number of images

Note

•

Depending on the JPEG type, Info contents may not be displayed correctly.

Viewing Viewing from SD Card

Standard

+30

+10

Picture 1/2

Normal

Pic. mode


Brightness

Color

Tint

Sharpness

■

To adjust picture

Adjust

Card

In select

set

Start

slide show

select

Picture menu

(p. 20)

•

Remove the card

Press in lightly on SD Card, then

release.

Label

surface

Push until a

click is heard

•

Compliant card type (maximum capacity): SD Card (2 GB), Mini SD Card (1 GB) (requiring mini

SD Card adapter)

To change the view (slide show, adjusting images, etc.)

■

To watch photos in slide show

•

Insert the card

When MENU is pressed, the Picture Adjust menu is displayed. (p. 20)

Mode Set to Single/Slide to view single images or

perform a slide show.

Disp time You can set how many seconds each image is

displayed in Slide mode.

Repeat Turn the slide show Repeat function On or Off.

Note

•

For large image sizes, the display time will be longer than the

number of seconds set.

•

To stop in mid-cycle Press “OK” button

•

To display/hide Navigation Area

SD Card: Notes and Cautions

Message Meaning

Card Warning Messages

Cautions in handling card :

Is memory card in? •

The card is not inserted or this unit does not support the format.

•

Do not remove the card while the unit is accessing data (this can damage card or unit).

•

Do not touch the terminals on the back of the card.

•

Do not subject the card to a high pressure or impact.

•

Insert the card in the correct direction (otherwise, card may be damaged).

•

Electrical interference, static electricity, or erroneous operation may damage the data or card.

•

Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic

operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

No file •

The card has no data or this type of data is not supported.

Viewing Watching Videos and DVDs

Cards: Notes and Cautions

VCR DVD

VCR Record Record

Open/Close

Skip Reverse/Forward

Rewind/Fast Forward Reverse/Forward

Stop Stop

Pause Pause

Play Play

Input select

[1] TV

[2] Component 1

[3] Component 2

[4] HDMI 1

[5] HDMI 2

[6] Video 1

[7] Video 2

[8] Video 3

Video 1

VCR

Press corresponding NUMBER

key on the Remote Control to

select the input of your choice.

Press to select the input of your

choice, then press “OK”.

•

If during selection, no action

is taken for several seconds,

the Input selection menu is

exited.

Watching Videos and DVDs

Some Panasonic equipment connected to the TV unit can be operated with the remote control.

Programming the remote control is necessary to operate other manufacturers’ products. (p. 33)

With VCR or DVD turned On

Switch to external input

Press to display the Input select menu.

2Select the input mode

select

enter

(example)

Operate

the VCR or DVD with the remote control

Note

•

For details, see the

manual of the

equipment

or ask your local

dealer.

•

The terminal and label of the connected device is

indicated.

To label each of the connected devices (p. 30)

(For other operations, see p. 36.)

■

Press to return to

(Initial screen)

Label Terminal

[example]

Menu Item


Normal

Pic. mode

Picture, Brightness,

Color, Tint, Sharpness

Color temp

Color mng.

Zoom adjust

Other adjust

Video NR

3D Y/C filter

Color matrix

MPEG NR

Black level

Audio

Normal

Bass

Treble

Balance

Other adjust

AI sound

Surround

Speakers

HDMI1 in

HDMI2 in

Audio leveler

Timer

Sleep, Timer1-5

Lock

Memory

Card

Setup

CH scan

Language

Clock

Program channel

Input labels

Other adjust

Auto power on

Side bar

Prog-out stop

Ctrl with HDMI

Power off link

Power on link

About

Reset


Audio

Lock

Setup

Memory card

Timer

Standard

+30

+10

Picture 1/2

Normal

Pic. mode


Brightness

Color

Tint

Sharpness

Standard

+30

+10

Picture 1/2

Normal

Pic. mode


Brightness

Color

Tint

Sharpness

■

Press to return

to TV

■

Press to return

to the previous

screen

How to Use Menu Functions

Select the menu

Select the item

Adjust or select

4adjust

select

Display menu

(example: Picture menu)

Various menus allow you to select settings for the picture, sound, and

other functions so that you can enjoy watching TV in your own way.

■

Menu list

(example: Picture menu)

•

Displays the functions that

can be set (varies according

to the input signal)

Advanced

How to Use Menu Functions

(picture, sound quality, etc.)

Adjustments/Configurations (alternatives)

Resets all picture adjustments to factory default settings except for “Other adjust” NoNormal

Basic picture mode (Vivid/Standard/Cinema) (p. 42) StandardPic. mode

Adjusts color, brightness, etc. for each picture mode to suit your

taste

+30


Brightness

Color

+10

Tint

Sharpness

Selects level of warm colors (red) and cool colors (blue) (Warm/Cool/Normal) CoolColor temp

On enhances green and blue color reproduction, especially outdoor scenes. (On/Off) OffColor mng.

Adjusts vertical alignment and size when aspect setting is “ZOOM” (p. 40) Zoom adjust

Reduces noise, commonly called snow. Leave off when receiving a strong signal. (On/Off) Video NR Off

Minimizes noise and cross-color in the picture. (On/Off) 3D Y/C filter Off

Selects image resolution of component-connected devices (SD/HD)

SD: normal vision HD: high-definition vision

Only 480p signal accepted; regular TV (NTSC) is not available.

Color matrix SD

Reduces noise of specific digital signals of DVD, STB, etc. (On/Off) MPEG NR Off

Select Dark or Light. Valid only for external input signals. (Dark/Light) Black level Dark

Reset Bass, Treble and Balance adjustments to factory default settings. SetNormal

Increase or decrease the bass response. + 7Bass

Increase or decrease the treble response. + 7Treble

Emphasize the left / right speaker volume. 0Balance

Equalize overall volume levels across all channels and VIDEO inputs. (On/Off) OnAI sound

Enhances audio response when listening to stereo. (On/Off) OffSurround

Switches to “Off” when using external speakers (On/Off)

“AI sound”, “Surround” and “Audio leveler” do not work if “Off” is selected OnSpeakers

Selects according to the signal when HDMI is connected (Auto/Digital/Analog)

Auto: Automatically selects Analog / Digital signal

AutoHDMI1 in

AutoHDMI2 in

Minimizes volume disparity after switching to external inputs 0Audio leveler

The TV can automatically turn On/Off at the designated date and time. (p. 32) 60Sleep

Locks the channels and programs (p. 26)

Displays SD card data (p. 16)

Selects the channel with “Program up/down” button (Fav./All)

Fav.: Only channels registered as FAVORITE (p. 15, 28) CH scan All

Selects the screen menu language (p. 13) Language

Adjusts the clock (p. 13) Clock

Sets channels (p. 28) Program channel

Select the terminal and the label of the external equipment (p. 30) Input labels

Displays subtitles (Closed Caption) (p. 30) CC

Turns TV On automatically when the cable box or a connected device is turned On (Set/Off)

The Sleep Timer and On / Off timer will not function if “Auto power on” is set. Off

Auto power on

Increases the brightness of the side bar (Off/Dark/Mid/Bright) (4:3 mode only)

The recommended setting is Bright to prevent panel “after image”. (p. 42) Bright

Side bar

To prevent howling and image oscillation, stops output of the pictures and audio specified in this

menu. (p. 35) (Off/Comp.1/Comp.2/HDMI 1/HDMI 2/Video 1/Video 2/Video 3) Off

Prog-out stop

Controls equipment connected to HDMI terminals (p. 22) (On/Off)

“Power off link” and “Power on link” do not work if “Off” is selected. On

Ctrl with HDMI

Sets “Power off link” of HDMI connection equipment (p. 22) (Set/No) Set

Power off link

Sets “Power on link” of HDMI connection equipment (p. 22) (Set/No) Set

Power on link

Displays TV version and software license About

Performing Reset will clear all items set with Setup, such as channel settings. (p. 28) Reset

•

In AV mode, the Audio menu and Setup menu give a smaller number of options.

Setup

Other adjust

About

Reset

Other adjust

Auto power on

Side bar

Off

Prog-out stop Off

Set

Ctrl with HDMI

Power off link

Power on link

Home theater


Audio

Lock

Setup

Memory card

Timer

select

Control with HDMI “HDAVI ControlTM”

∗ Simultaneously control all Panasonic “HDAVI Control” equipped components using

one-button on one remote.

Newer Panasonic audio-video products with HDMI output connections can be

controlled using the TV’s remote. Limited features such as home theater system

volume and automatic switching to the TV’s HDMI input are available.

•

This feature is limited to models incorporating Panasonic’s “Control with HDMI”. Refer to the

individual instruction manuals for compatibility information.

•

Non-HDMI-compliant cables cannot be utilized.

•

It is recommended that you use Panasonic’s HDMI cable.

Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m)

■

Press to return

to TV

■

Press to return

to the previous

screen

Select “Setup”

Select “Other adjust”

Select “Ctrl with HDMI”

4select

select

Display menu

Select “On”

change

Automatic

input

switching

Theater

speaker

• Default setting is “On”. If no HDMI equipment is

connected or standard HDMI equipment (non- “Control

with HDMI”) is used, set to “Off”.

Power on

link

Power off

link

One-touch

theater

playback

Advanced

Control with HDMI “HDAVI ControlTM”

Home theater


Audio

Lock

Setup

Memory card

Timer

TV speakers


Audio

Lock

Setup

Memory card

Timer

At the start of DIGA, Player theater or RAM theater playback, the TV’s input automatically switches to the input

corresponding to the playback equipment.

•

For RAM theater, the speakers automatically switch to theater.

If using DIGA operation, the TV’s input automatically switches to DIGA and the DIGA menu is displayed.

You can control the theater speaker with TV’s remote control.

“Home theater” with speaker icon appears when a Panasonic “Control with HDMI” home theater system is

connected via the HDMI input (1 or 2).

Pressing the OK button toggles between TV and home theater volume control.

• “Ctrl with HDMI” must be set to “On”.

• Limited to newer Panasonic Home Theater, RAM theater and DIGA/DVD models with “Control with HDMI”.

Display menu

Select “Home theater” or “TV speakers”

■

Home theater:

Adjustment for Panasonic Amplifier, Panasonic Player theater, Panasonic RAM theater

•

When selecting “Home theater”, the sound of TV speakers is mute.

•

When “Home theater” is selected, the home theater volume control can be raised or lowered using the TV remote

volume button. The TV will display “Home Theater + / -” on screen.

•

If home theater/RAM theater/Player theater is currently off, selecting the “Home theater” option will automatically

turn the equipment on. See “Power on link” below.

•

If home theater/Player theater/RAM theater power is turned Off, speakers automatically switch to the TV.

Volume up / down Mute

■

TV speakers:

The TV speakers are active.

change

Note

•

Before using HDMI control functions, the connected equipment (DIGA, RAM theater, Player theater, AV amp) must

also be set. For details, see the operation manual for each equipment.

•

For equipment connection details, see p. 24.

When “Set” is selected, this allows for the TV to automatically turn on and switch to the appropriate HDMI input

whenever a “Control with HDMI” compatible DVD player/recorder is initially turned on and Play mode is selected.

When “Set” is selected, this allows for the TV to turn off and also turn off the connected home theater/

RAM theater/player theater and/or DIGA-DVD player.

If the “ONE TOUCH PLAY” key is pressed on the AV amp or Player theater remote control, the following sequence of operations

is performed automatically.

Home theater/Player theater power switches On, and playback begins.

TV power switches On, and the playback screen is displayed.

Audio is muted on the TV and switches to theater.

Caution

• “Control with HDMI” function does not work in countries other than the USA and Canada.

•

The TV remains on even if the “Control with HDMI” compatible equipment is turned off.

Note

•

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their

respective operating instruction manuals.

Control with HDMI “HDAVI ControlTM”

■

Setting of this unit after connection

After making connections as shown above, set “Ctrl with HDMI” (under “Other adjust”) to “On” using the Setup

menu. (p. 22).

Audio

Audio CableHDMI cable

HDMI

(AV OUT) HDMI

(AV OUT) Audio

DIGA

(Panasonic DVD Recorder) Panasonic RAM theater Panasonic Player theater

or or

■

Connecting this unit to a DVD recorder, RAM theater or Player theater

Follow the connection diagrams below for HDMI control of

a single AV piece of equipment such as a Panasonic DIGA-

DVD recorder, RAM Theater or Player Theater system.

Refer to page 22 for Setup Menu settings and additional

control information.

Optional HDMI and/or optical cables are not provided.

If connection (or setting) of equipment compatible with HDMI

control is changed, switch the power of this unit Off then

On again while the power of all equipment is On (to this

unit to correctly recognize the connected equipment) and

check that DIGA, RAM theater and Player theater playback

operates.

Back of the unit

Recommended HDMI Connections

•

For DIGA :

Connect with HDMI cable

•

For RAM theater and Player theater :

Connect with HDMI cable and audio cable.

Connect the TV’s PROG. OUT audio

(L&R) to listen to the TV program

through the theater system.

Note

•

HDMI 1 is recommended.

When connecting to HDMI 2, set the

input mode to HDMI 2 (p. 19) initially

before connecting to HDMI 2. After

connection, confirm the HDMI control

functions (p. 22-23).

Advanced

Control with HDMI “HDAVI ControlTM”

HDMI cable

■

Setting of this unit after connection

After making connections as shown above, set “Ctrl with HDMI” (under “Other adjust”) to “On” using the Setup

menu. (p. 22).

Note

Optic fiber

Digital audio input

(Optic)

HDMI (AV OUT)

HDMI (AV IN)

HDMI (AV OUT)

DIGA (Panasonic DVD Recorder)

HDMI cable

Panasonic AV amp

■

Connecting this unit to a DVD recorder and AV amp

When using an “Control with HDMI” audio-video amplifier and a compatible DIGA recorder, use a daisy chain

connection as shown below.

•

One AV amp and one DIGA can be operated

with this unit.

•

Be sure to connect the AV amp between this

unit and the DIGA.

•

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their

respective operating instruction manuals.

•

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this

unit, the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

Note

•

HDMI 1 is recommended.

When connecting to HDMI 2, set the input mode

to HDMI 2 (p. 19) initially before connecting to

HDMI 2. After connection, confirm the HDMI control

functions (p. 22-23).


Audio

Lock

Setup

Memory card

Timer

Enter password.

----

Lock

Mode

Channel

Program

Change password

Off

Channel Lock

Select “Lock”

select

Display menu

Input your 4-digit password

Select the Lock mode

■

Press to exit

You can lock out specified channels or shows to prevent children from watching objectionable content.

Caution

•

Make a note of your

password in case

you forget it. (If you

have forgotten your

password, consult your

local dealer.)

•

For the first time, input the

number twice to register it.

Note

•

When you select a

locked channel,

a message will be

displayed that allows

you to view the

channel if you input

your password.

■

To change the password

In , select “Change password” and press “OK” button

Input the new 4-digit password twice

■

To cancel the “Channel lock”

Select “Off” in

•

Off: “Channel lock” not activated

•

All: Locks all channels and Video inputs

•

Game: Locks CH3, CH4, and Video inputs

•

CH: Locks specified channels (analog/digital)

You will be asked to enter your password each time you display the Lock menu.

A 4-digit code must be entered to view a blocked program or change rating

settings.

Advanced

Channel Lock

Lock

Mode

Channel

Channel lock

CH 1

CH 2

3 - 0

Lock

Mode

Channel

Program

Change password

Program lock

MPAA

U.S.TV

C.E.L.R.

C.F.L.R.

Monitor out

Off

Program lock

MPAA

U.S.TV

C.E.L.R.

C.F.L.R.

Monitor out

select

Block

program

Channel

Lock Select channel to lock

select

“CH1-7”

select

channel

■

To set rating level

“V-chip” technology enables restricted shows to be locked according to TV ratings.

Select “Program”

Select the rating category you wish

to follow

set

select

Select the rating to be locked

select

Off No rating

G General Audience: All ages admitted

PG Parental Guidance Suggested

PG-13 Parents Strongly Cautioned: Inappropriate

for children under 13

RRestricted: Under 17 requires

accompanying parent or adult guardian

NC-17 No one 17 and under admitted

X Adults only

Example of “MPAA” (U.S movie ratings)

■

To disable recording of the locked program

Select “Monitor out” in “Program lock” menu ( )

•

MPAA : U.S movie ratings

•

U.S.TV : U.S TV program ratings

•

C.E.L.R : Canadian English ratings

•

C.F.L.R : Canadian French ratings

•

To get other information (p. 39)

Caution

•

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and

none) as per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and

possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of

programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports

• Weather

Select up to 7 (1-7) channels to be blocked out. These channels will be blocked out regardless

of the program rating.

Select “CH” in on p. 26

Select “Channel”

■

To select the channel or the rating of the program to be locked

select

On : Turns on the monitor terminal output for programs that

have been set to “Blocked.”

Off : Turns off the monitor terminal output for programs that

have been set to “Blocked.”

Note

•

The Off rating is independent of other ratings.

•

When placing a block on a specific age based rating level, the Off rating and any other more restrictive ratings will

also be blocked.


Audio

Lock

Setup

Memory card

Timer

Setup

CH scan

Language

Clock

Program channel

Input labels

All

Program channel

Auto

Manual

Signal meter

Editing and Setting Channels

Select “Setup”

Display menu

■

Press to exit

The current channel settings can be changed according to your needs and reception conditions.

■

To reset the settings of Setup menu

Select “Reset” in Setup menu ( ) and press “OK”

button

Input your 4-digit password with number buttons

Select “Yes” on the confirmation screen and press

“OK” button

Set

Select “Program channel”

Select the function

Check

signal

strength

Signal

meter

Set

automatically

Auto

Set

manually

Manual

select

Advanced

Editing and Setting Channels

Apply

Caption detail

---

Caption select

Preset

Auto program

ANT In

Mode

Start scan

All

Cable

Edit

- - -

avorite

Apply

Add

Edit

- - -

Favorite

Apply

- - -

Caption

Yes

Add

Signal meter

Signal strength

Current

Peak level

85 %

2 - 1

Apply

Favorite

Auto program

ANT In

Mode

Start scan

All

Cable

Check the signal strength if interference is found or freezing occurs on a digital image.

Select the station identifier

Select All or Analog

All: Analog and digital

Analog: Analog only

Settings are made

automatically

•

After completing the setting,

select “Apply”. (see below ).

•

All previous memorized

channels are erased.

set

select

Select “ANT In”

Select “Mode”

Select “Start scan”

Select “Edit”

Select the item to be edited

select item to edit

(Caption/Favorite/

Add)

Edit

•

Caption:

Changes the station identifier

•

Favorite:

Registers channel to Favorites List

•

Add:

Adds or deletes channels

start

select

(Select Cable or Antenna)

select

Caption

Favorite

Add

• Caption

Preset

Caption detail

Rename (maximum 7 characters available)

Select the number

•

Favorite

•

Add

•

Press “OK” button to select “Yes (add)” or “No

(delete)”

Select “Apply”

Press to move cursor to

“Apply”

Signal intensity

select channel

Use this procedure when changing setting of receiving channels or changing the channel display.

Also, use to add or delete channels from channel list manually.

Automatically searches and adds receivable channels to memory.

select

set/next

(to enter

your

program)

select

•

If the signal is weak, check the antenna.

If no problem is found, consult your

local dealer.

Note

•

Not available if “Cable” is selected in “ANT In”

(see above).

•

Effective only for digital antenna channels.

•

If “Channel lock” (p. 26) is activated and “Auto”, “Manual” or “Signal meter” is selected, “Enter password.” will be

displayed.


Audio

Lock

Setup

Memory card

Timer

Fav.

Setup

CH scan

Language

Clock

Program channel

Input labels

Input Labels/Closed Caption

Select “Setup”

2 next

select

Display menu

■

Press to exit

Set

Select “Input labels” or “CC”

Display

labels of

external

devices

Input labels

Display

Closed

Caption

select

Advanced

Input Labels/Closed Caption

Digital setting

Size

Font

Style

Automatic

SKIP

DVD

AUX

VCR

SKIP

Input labels

Comp. 1

Comp. 2

HDMI 1

HDMI 2

Video 1

Video 2

Mode

Analog

Digital

Digital setting

CC reset

Off

CC1

Primary

Input labels

SKIP

Video 3

Video 1

VCR

■

To make more in-depth display settings in digital programs

Select “Digital setting” and press “OK” button

Select the item and set

The labels of devices connected to external input terminals can be indicated

for easy recognition on the screen. (In selecting input mode of p. 19 )

Select the terminal and the label of the external equipment

•

Terminals: Comp.1-2/HDMI1-2/

Video1-3

•

Label: SKIP*/VCR/DVD/CABLE/

■

To reset the settings

Select “CC reset” and press “OK” button

(1/3)

select

set

The television includes a built-in decoder that is capable or providing a visual display of the audio portion. The

program viewed must provide Closed Captioning (CC) for the television to display it. (p. 40)

■

Select the item and set

•

Size: Text size

•

Font: Text font

•

Style: Text style (Raised, Depressed, etc.)

•

Foreground: Color of text

•

Fore opacity: Opacity of text

•

Background: Color of text box

•

Back opacity: Opacity of text box

•

Outline: Outline color of text

(Identify the setting options on the screen.)

DBS/PVR/GAME/AUX/[BLANK]

* If “SKIP” is selected for a non-connected terminal, its input

is skipped when switched with TV/VIDEO button.

Mode

Select “On” (when not using, select “Off”).

Analog (Choose the closed caption service of Analog

broadcasting.)

CC1-4: Information related to pictures

(Appears at bottom of screen)

T1-4: Textual information

(Appears over entire screen)

Digital (The Digital Closed Caption menu lets you

configure the way you choose to view the digital

captioning.)

Select the setting.

•

“Primary”, “Second.”, “Service 3”, “Service 4”, “Service 5”,

“Service 6”

select

set

select

set

Label Terminal

[example]

•

The settings in “Analog” or “Digital”

depend on the broadcaster.


Audio

Lock

Setup

Memory card

Timer

Sleep

Timer 1

Timer 2

Timer 3

Timer 4

Timer 5

Sleep

310 - 1

EVR FRI

10:00 AM

11:00 AM

Timer 1

Day

On time

Off time

Set SUN/MON/TUE/WED/THU/FRI/SAT/

MON-FRI/SAT-SUN/DAILY/EVR SUN/

EVR MON/EVR TUE/EVR WED/EVR THU/

EVR FRI/ EVR SAT

Using Timer

Select “Timer”

Select the timer to set

Set the timer

select

Display menu

select

Turns Off automatically

Sleep

Turns On/Off automatically

(5 timers can be set.)

Timer 1

Timer 5

select

set

Select the channel

Select the day

Day

The time to turn On

On time

The time to turn Off

Off time

Timer setting (On/Off)

Set

■

To set “Sleep” (Off Timer)

Press to set unit to shut itself off after a preselected amount of time.

■

Press to exit

■

Press to return

to the previous

screen

Note

•

The TV automatically

turns Off after 90

minutes when turned

On by the Timer.

This operation will be

cancelled if the Off

time is selected or if a

key is pressed.

The TV can automatically turn On/Off at the designated date and time.

•

The Clock must be set before On time/Off time settings. (p. 13)

•

0/30/60/90 (minutes)

■

To set “Timer 1-5” (On/Off Timer)

Select the item and set

Advanced

Operating Peripheral Equipment

Using Timer

Operating Peripheral Equipment

You can operate other manufacturers’ components using this TV’s remote control.

2Press both buttons simultaneously

for more than 3 seconds.

•

Release the buttons when the equipment selection

buttons start flashing.

Caution

•

Registration will fail if the wrong code is input or it takes more than 30 seconds to register.

Select the equipment

with the equipment selection button

•

The selected button remains lit (other buttons are not

lit).

Connect the external equipment to the TV and

turn Off the external equipment

Input the equipment’s 4-digit remote

control code (p. 37-38)

Confirm the equipment with the

remote control

•

The external equipment turns On.

■

If the equipment does not operate with

remote control

•

When your equipment has a single code

Input the remote control code again

•

When your equipment has multiple codes

Change the code with above and test again

(p. 37-38)

After step above, change the code and

test store

Operate the equipment with the

remote control (p. 36)

•

Repeat until the code is found

•

It may take many attempts before the correct

code is found

When the correct code is found

change

To find a code not listed in the code list

This procedure searches all codes and is called the “sequence method.”

RF OUT

RF IN

■

To record TV

shows

DVD Recorder /

VCR

Recommended AV Connections

These diagrams show our recommendations for how to connect the TV unit to your various equipment.

For other connections, consult the instructions of each equipment, and the specifications (p. 46-47).

For additional assistance, please visit our website at : www.panasonic.com

www.panasonic.ca

Camcorder

S-Video Camcorder

VCR/S-Video VCR

DVD Player

■

To watch camcorder images

INPUT3

■

To watch DVDs

DVD Player

Set Top Box

Caution

•

For Antenna connection via VCR, please refer to the Operating Instructions of a VCR.

Cable TV

Cable Box

•

For receiving digital

broadcasting of cable

TV, connect Cable

TV directly to “ANT”

terminal.

AC Cord

(Connect after all the

other connections are

complete.)

Back of the unit

• Digital audio amplifier

• Theater system

Advanced

Recommended AV Connections

•

Turn Off the

TV speakers.

(p. 20 “Speakers”)

■

To watch digital video image

S-Video signals have priority

■

To listen to the TV through

speakers

Amplifier

DVD Player or

Set Top Box

(HDMI compatible machines only)

HDMI

cable

HDMI-DVI

conversion

cable

Audio cable

■

Recommended HDMI Connections (p. 24-25)

Note

•

The picture and audio input signals

connected to a terminal specified in “Prog-

out stop” (p. 20) cannot be output from

“OUTPUT” terminals. However, audio

output can be obtained from the optical

Digital Audio Out terminal.

•

To prevent howling and image oscillation, set

the “Prog-out-stop” setting when connecting

VCR with loop-connection. (p. 20)

•

When a device (STB, DVD, etc.) is

connected to the HDMI or COMPONENT

terminals, only audio signals will be

output. No video signals will be output.

KEY NAME VCR MODE DBS/CBL MODE DVD MODE

(DBS) (CBL)

Power Power Power Power

TV Input Switch TV Input Switch TV Input Switch TV Input Switch

Exit Exit

DBS Cursor Up/Down/Right/

Left CBL Cursor Up/Down/Right/

Left DVD Cursor Up/Down/Right/

Left

Ok Ok Ok

DBS Menu CBL Menu DVD Setup Menu

---

Return, Clear

TV Mute TV Mute TV Mute TV Mute

Aspect Aspect DVD Disc Menu

---

Title

Onscreen Display Onscreen Display Onscreen Display Onscreen Display

0-9 0-9 0-9 0-9

DBS Previous Channel CBL Previous Channel Drive Select

Channel Up/Down DBS Channel Up/Down CBL Channel Up/Down Channel Up/Down

TV Volume Up/Down TV Volume Up/Down TV Volume Up/Down TV Volume Up/Down

Sleep Sleep

TV/VCR Switch TV/DBS Switch TV/CBL Switch

VCR Record PVR Record *1PVR Record *1Record

Search *1Search *1Open/Close

---

Skip Reverse/Forward

Reverse/Forward

Rewind/Fast Forward

Stop

Pause

Play

*1: Combination type

Remote Control Operation/Code List

Note

•

Operation may not be possible depending on the available memory size of the remote control.

This remote control is not designed to cover operation of all functions of all models.

■

Remote Control Operation List

This chart defines which keys are operational after programming (if needed),

while in the selected remote control mode, VCR, DBS/CBL, DVD.

The following explains how to operate external devices with the remote control.

•

(p. 37-38)

FAQs, etc.

Remote Control Operation/Code List

AlphaStar 0772

Chaparral 0216

Crossdigital 1109

DirecTV

0099, 0247, 0392, 0566,

0639, 0724, 0749, 0819,

1076, 1108, 1109, 1142, 1377,

1392, 1414, 1442, 1443,

1444, 1609, 1639, 1640,

1749, 1856

Dish Network

System 0775, 1005, 1170, 1505,

1775

Dishpro

0775, 1005, 1505, 1775

Echostar

0775, 1005, 1170, 1505, 1775

Expressvu 0775, 1775

GE 0392, 0566

General

Instrument 0869

GOI 0775, 1775

Goodmans 1246

Hisense 1535

Hitachi 0819, 1250

HTS 0775, 1775

Hughes 0749, 1442, 1749

Hughes Network

Systems

0749, 1142, 1442, 1443,

1444, 1749

iLo 1535

Janeil 0152

Jerrold 0869

JVC 0775, 1170, 1775

LG 1226, 1414

Magnavox 0722, 0724

Memorex 0724

Mitsubishi 0749

Motorola 0856, 0869

NEC 1270

Next Level 0869

Panasonic

0152, 0247, 0701, 1786

Paysat 0724

Philips

0099, 0722, 0724, 0749, 0819,

1076, 1142, 1442, 1749

Pioneer 1442

Proscan 0392, 0566

Proton 1535

RadioShack 0869

RCA

0143, 0392, 0566, 0855, 1392

Samsung

1108, 1109, 1142, 1276, 1377,

1442, 1609

Sanyo 1219

Sony 0639, 1639, 1640

Star Choice 0869

Tivo 1142, 1442, 1443, 1444

Toshiba

0749, 0790, 0819, 1285, 1749

UltimateTV 1392, 1640

Uniden 0722, 0724

US Digital 1535

USDTV 1535

Voom 0869

Zenith 1856

■

Remote Control Code List

Cable Converter ( )

Brand Code Brand Code Brand Code Brand Code

ABC 0003, 0008

Americast 0899

Bell South 0899

Digeo 1187

Director 0476

General Instrument

0003, 0276, 0476, 0810

GoldStar 0144

Hamlin 0009, 0273

Jerrold

0003, 0276, 0476, 0810

Memorex 0000

Motorola

1376, 0276, 0476, 0810, 1187

Pace 0008, 0237, 1877

Panasonic 0000, 0107

Paragon 0000

Philips 0317, 1305

Pioneer

0144, 0533, 0877, 1877

Pulsar 0000

Quasar 0000

Regal 0273, 0279

Runco 0000

Samsung 0144

Scientific Atlanta

0008, 0477, 0877, 1877

Sony 1006

Starcom 0003

Supercable 0276

Torx 0003

Toshiba 0000

Zenith 0000, 0525, 0899

Satellite Receiver ( )

ABS 1972

Adventura 0000

Aiwa 0000, 0037, 0124

Akai 0175

Alienware 1972

American High

0035

Audiovox 0037

Broksonic 1479

Calix 0037

Canon 0035

Citizen 0037, 1278

Craig 0037

Curtis Mathes 0035, 0060, 1035

CyberPower 1972

Daewoo 0045, 1278

Dell 1972

Denon 0042

DirecTV 0739

Durabrand 0039

Dynatech 0000

Electrohome 0037, 0043

Electrophonic 0037

Emerex 0032

Emerson

0000, 0037, 0043, 1278, 1479

Fuji 0033, 0035

Funai 0000

Garrard 0000

Gateway 1972

0035, 0060, 0807, 1035, 1060

GoldStar 0037, 1237

Gradiente 0000

Harley Davidson

0000

Hewlett Packard

1972

Hitachi 0000, 0042, 0089

Howard Computers

1972

HP 1972

Hughes

Network Systems

0042, 0739

Humax 0739

Hush 1972

iBUYPOWER 1972

JVC 0067

KEC 0037

Kenwood 0067

Kodak 0035, 0037

Linksys 1972

Lloyd’s 0000

LXI 0037

Magnasonic 1278

Magnavox

0000, 0035, 0039, 1781

Marantz 0035

Marta 0037

Matsushita 0035

Media Center PC

1972

MEI 0035

Memorex

0000, 0035, 0037, 0039, 1237

MGA 0043

Microsoft 1972

Mind 1972

Minolta 0042

Mitsubishi 0043, 0067, 0807

Motorola 0035

MTC 0000

Multitech 0000

NEC 0067

Nikko 0037

Niveus Media 1972

Northgate 1972

Olympus 0035, 0226

Onkyo 0222

Optimus 0037

Orion 1479

Panasonic

0035, 0077, 0225, 0226, 0227,

0378, 0616, 1035, 1244

Penney

0035, 0037, 0042, 1035, 1237

Pentax 0042

Philco 0035

Philips

0035, 0618, 0739, 1081, 1181

Pilot 0037

Pioneer 0067

Proscan 0060, 1060

Pulsar 0039

Quasar 0035, 0077, 1035

RadioShack 0000

Radix 0037

Randex 0037

RCA

0042, 0060, 0077, 0807,

0880, 1035, 1060

Realistic 0000, 0035, 0037

ReplayTV 0614, 0616

Ricavision 1972

Runco 0039

Samsung 0045, 0739, 1014

Sanky 0039

Sansui 0000, 0067, 1479

Sanyo 0159

Scott 0043, 0045

Sears

0000, 0035, 0037, 0042, 1237

Sharp 0807, 0848

Sonic Blue 0614, 0616

Sony

0000, 0032, 0033, 0035,

0636, 1032, 1232, 1972

Stack 9 1972

STS 0042

Sylvania

0000, 0035, 0043, 1781

Symphonic 0000

Systemax 1972

Tagar Systems

1972

Teac 0000

Technics 0035

Teknika 0000, 0035, 0037

Thomas 0000

Tivo 0618, 0636, 0739

Toshiba 0043, 0045, 0845, 1008,

1145, 1972

Totevision 0037

Touch 1972

Vector 0045

Video Concepts

0045

Videomagic 0037

Viewsonic 1972

Villain 0000

Voodoo 1972

Wards

0000, 0035, 0042, 0060

XR-1000 0000, 0035

Zenith

0000, 0033, 0039, 1479

ZT Group 1972

Americast 0899

Digeo 1187

General Instrument

0476, 0810

Jerrold 0476, 0810

Motorola 0476, 0810, 1187, 1376

Pace 0237, 1877

Pioneer 0877, 1877

Scientific Atlanta

0877, 1877

Sony 1006

Supercable 0276

Zenith 0899

DirecTV

0099, 0392, 0639, 1076,

1142, 1377, 1392, 1442,

1443, 1444, 1640

Dish Network

System 0775, 1505

Dishpro 0775, 1505

Echostar 0775, 1170, 1505

Expressvu 0775

Hughes Network

Systems

1142, 1442, 1443, 1444

JVC 1170

Motorola 0869

Philips 1142, 1442

Proscan 0392

RCA 1392

Samsung 1442

Sony 0639, 1640

Star Choice 0869

DBS/PVR Combination ( )

VCR ( )

Cable/PVR Combination ( )

ABS 1972

Alienware 1972

CyberPower 1972

Dell 1972

DirecTV 0739

Gateway 1972

Hewlett Packard

1972

Howard

Computers 1972

HP 1972

Hughes Network

Systems

0739

Humax 0739

Hush 1972

iBUYPOWER 1972

Linksys 1972

Media Center PC

1972

Microsoft 1972

Mind 1972

Niveus Media 1972

Northgate 1972

Panasonic 0616

Philips 0618, 0739

RCA 0880

ReplayTV 0614, 0616

Sonic Blue 0614, 0616

Sony 0636, 1972

Stack 9 1972

Systemax 1972

Tagar Systems 1972

Tivo 0618, 0636, 0739

Toshiba 1008, 1972

Touch 1972

Viewsonic 1972

Voodoo 1972

ZT Group 1972

Hughes Network

Systems

0739 Philips 0739

Samsung 0739

Apex Digital 1056

Aspire Digital 1168

Coby 1086

CyberHome 1129

Funai 0675

Gateway 1158

Go Video 0741, 1158, 1304, 1730

JVC 1164, 1275

LG 0741

LiteOn 1158, 1440

Magnavox 0646

Panasonic 0490, 1010, 1011

Philips 0646

Pioneer 0631

Polaroid 1086

RCA 0522

Samsung 0490

Sensory Science

1158

Sharp 0675

Sony 1033, 1431

Sylvania 0675

Zenith 0741

Adcom 1094

Allegro 0869

Apex Digital 0672, 0794, 0796, 0797,

1004, 1056, 1061, 1100

Aspire Digital 1168

Blue Parade 0571

Broksonic 0695

California Audio

Labs 0490

CineVision 0833, 0869

Coby 1086

CyberHome 0816, 1023, 1024, 1129

Daewoo 0833, 0869

Denon 0490

Disney 0675

DVD2000 0521

Emerson 0591, 0675

Enterprise 0591

Funai 0675

Gateway 1158

GE 0522

Go Video 0741, 0833, 0869, 1075,

1158, 1304, 1730

GoldStar 0741

Gradiente 0490

Grundig 0539

Hitachi 0573, 0664

Hiteker 0672

Integra 0571

JVC

0558, 0623, 0867, 1164, 1275

Kenwood 0490, 0534

Lecson 1533

LG 0591, 0741, 0801, 0869

LiteOn 1158, 1440

Loewe 0511

Magnavox 0503, 0539, 0646, 0675

Marantz 0539

McIntosh 1533

Memorex 0695

Microsoft 0522

Mitsubishi 0521, 1521

NAD 0591, 0741

NEC 0785

Onkyo 0503, 0792

Panasonic 0490, 0503, 0632, 0703,

1010, 1011, 1362, 1462,

1490, 1762, 1967

Philips 0503, 0539, 0646, 0675,

1267, 1354

PianoDisc 1024

Pioneer 0525, 0571, 0631, 0632

Polaroid 1061, 1086

Polk Audio 0539

Proceed 0672

Proscan 0522

RCA 0522, 0571, 0822

Rio 0869

Rotel 0623

Sampo 0752

Samsung 0490, 0573, 0820, 1075

Sansui 0695

Sanyo 0695, 0873, 1967

Sensory Science

1158

Sharp 0630, 0675, 0752, 1256

Shinsonic 0533

Sonic Blue 0869

Sony

0533, 0864, 1033, 1431, 1533

Sylvania 0675

Symphonic 0675

Teac 0809

Technics 0490, 0703

Theta Digital 0571

Toshiba 0503, 0695, 1045, 1154

Urban Concepts 0503

Xbox 0522

Yamaha 0490, 0539, 0545

Zenith 0503, 0591, 0741,0869

PVR ( )

DVD Recorder ( )

DVD ( )

DBS/PVR Combination ( )

Brand Code Brand Code Brand Code Brand Code

Remote Control Operation/Code List

■

Remote Control Code List

FAQs, etc.

Ratings List

Remote Control Operation/Code List

Off NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS.

Movie has not been rated or rating does not apply.

GGENERAL AUDIENCES. All ages admitted.

PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

RRESTRICTED. Under 17 requires accompanying parent or adult guardian.

NC-17 NO ONE 17 AND UNDER ADMITTED.

XADULTS ONLY.

Age-based

Group Age-based

Ratings Possible Content

Selections Description

(Not Rated) TV-NR Viewable

Blocked Not Rated.

Youth

TV-Y Viewable

Blocked All children. The themes and elements in this program are specifically

designed for a very young audience, including children from ages 2-6.

TV-Y7 FV Blocked

Viewable

Blocked

Directed to older children. Themes and elements in this program may

include mild physical or comedic violence, or may frighten children under

the age of 7.

Guidance

TV-G Viewable

Blocked General audience. It contains little or no violence, no strong language,

and little or no sexual dialogue or situations.

TV-PG D,L,S,V (all selected)

Any combination of D,

L, S, V

Parental guidance suggested. The program may contain infrequent

coarse language, limited violence, some suggestive sexual dialogue and

situations.

TV-14 D,L,S,V (all selected)

Any combination of D,

L, S, V

Parents strongly cautioned. This program may contain sophisticated

themes, sexual content, strong language and more intense violence.

TV-MA D,L,S,V (all selected)

Any combination of L,

S, V

Mature audiences only. This program may contain mature themes,

profane language, graphic violence, and explicit sexual content.

EExempt - Exempt programming includes: news, sports, documentaries and other information programming,

talk shows, music videos, and variety programming.

CProgramming intended for children under age 8. No offensive language, nudity or sexual content.

C8+ Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

GGeneral programming, suitable for all audiences.

PG Parental Guidance suggested. Some material may not be suitable for children.

14+ Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are

strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

18+ 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

EExempt - Exempt programming.

GGeneral - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal

or is depicted appropriately.

8 ans+ 8+ General - Not recommended for young children. Programming intended for a broad audience but contains light

or occasional violence. Adult supervision recommended.

13 ans+ Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or

more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

16 ans+ Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense

violence.

18 ans+ Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Ratings List for Channel Lock

“V-chip” technology enables you to lock out channels or shows according to standard ratings set by the

entertainment industry. (p. 27)

■

U.S. MOVIE RATINGS (MPAA)

■

U.S. TV PROGRAMS RATINGS (U. S. TV)

■

CANADIAN ENGLISH RATINGS (C. E. L. R)

■

CANADIAN FRENCH RATINGS (C. F. L. R)

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

•

FULL •

JUST

FULL JUST

Enlarges the 4:3 image horizontally to the screen’s

side edges.

(Recommended for anamorphic picture)

Stretches to justify the 4:3 image to the four corners

of the screen.

(Recommended for normal TV broadcast)

•

H-FILL •

4:3

H-FILL

Enlarges the 4:3 image horizontally to the screen’s

side edges. The side edges of the image are cut off. Standard

(Note that “after image” of the side bar may occur from

displaying it for a long time.)

•

ZOOM

Enlarges the 4:3 image to the entire screen.

(Recommended for Letter Box)

•

Zoom adjust

Vertical image position and size can be adjusted in “ZOOM.”

Select “Zoom adjust” on the Picture menu. (p. 20)

Vertical position adjustment Vertical size adjustment

Technical Information

Aspect Ratio

Let you choose the aspect depending on the format of the received signal and your preference. (p. 15)

•

For viewing Closed Caption of digital broadcasting, set the aspect ratio to FULL.

(If viewing with H-FILL, JUST, ZOOM or 4:3, characters will be cut off.)

•

The closed caption is not displayed when you use HDMI connection.

•

If analog connected equipment is used for displaying or recording, closed caption (CC) should be set On/Off on the

connected equipment.

The CC mode setting of the TV will not affect the analog input.

If a digital program is being output in analog format, the CC data will also be output in analog format.

If digital connected equipment is used for input, CC should be set to On on either the connected equipment or the

TV.

If CC is set On on both the connected equipment and the TV, captions from each unit will overlap.

Closed Caption (CC)

Side bar

•

To reset the aspect ratio (OK)

•

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9) : FULL,

JUST, 4:3 or ZOOM

•

1080p / 1080i / 720p : FULL, H-FILL, JUST, 4:3 or ZOOM.

•

When the signal is 720p/1080i/1080p, the aspect mode

automatically defaults to Full after turning off the TV,

after changing input mode, or after changed signal

resolution other than 720p/1080i/1080p.

Note

FAQs, etc.

Technical Information

DCIM





100_PANA

Data format for Card browsing

Created automatically

Note

Caution

•

A JPEG image modified with a PC cannot be displayed.

•

Partly degraded files might be displayed at a reduced resolution.

•

Folder structure viewed in PC

•

The folder and file names may be different depending on the digital camera used.

•

Suitable SD Memory Cards. Please confirm the latest information on the following website.

http://panasonic.co.jp/pavc/global/cs (This site is in English only)

Photo: Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF

standards

Data format: Baseline JPEG 160X120-2,560X1,920 pixels (Sub-sampling: 4:4:4, 4:4:2 or 4:2:0)

Max. number of files: 9,999

Image resolution: 8 x 8 to 5,120 x 3,840

* DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard

DIGITAL AUDIO OUT terminals

You can enjoy your home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier

to the DIGITAL AUDIO OUT terminals.

Caution

•

External speakers cannot be connected directly to PROG.OUT terminals.

•

When ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When NTSC

channel is selected, the output will be PCM.

3-digit folder number + 5-digit arbitrary characters

4-digit arbitrary characters + 4-digit file number

•

Usable characters: 1-byte “a to z”, “A to Z”, “0 to 9,” and “_”

Control with HDMI “HDAVI Control”

HDMI connections to some Panasonic equipment allow you to enjoy the easy playback or home theater.

•

Setup the equipment to enable this function. Read the manual of the equipment.

•

Switch the TV unit on again with the equipment on when connection or setup is changed.

•

This function may not work normally depending on the equipment condition.

•

The equipment can be operated by TV’s remote control with this function on even if TV is in Standby mode.

•

Image or sound may not be available for the first few seconds when the playback starts.

•

Image or sound may not be available for the first few seconds when Input mode is switched.

•

Volume function will be displayed when adjusting the volume of the equipment.

•

Easy playback is also available by using the remote control for Amplifier. Read the manuals of Amplifier.

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality

sound by connecting the TV unit and the devices.

HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can be

connected to the HDMI terminal using an HDMI compliant (fully wired) cable.

•

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

•

If the external device has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).

•

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.

•

Audio settings can be made on the “HDMI1 in” or “HDMI2 in” menu screen. (p. 20)

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(*1): The HDMI logo is displayed on an HDMI-compliant device.

(*2): Enquire at your local digital device retailer shop.

Caution

•

Use with a PC is not assumed.

•

All signals are reformatted before being displayed on the screen.

•

If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”.

•

This HDMI connector is “type A”.

•

A device having no digital output terminal may be connected to the input terminal of either “COMPONENT”, “S

VIDEO”, or “VIDEO” to receive analog signals.

•

The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p.

Match the output setting of the digital device.

•

For details of the applicable HDMI signals, see below.

horizontal

frequency (kHz) vertical

frequency (Hz) COMPONENT HDMI

525 (480) / 60i 15.73 59.94 **

525 (480) /60p 31.47 59.94 **

750 (720) /60p 45.00 59.94 **

1,125 (1,080) /60i 33.75 59.94 **

1,125 (1,080) /60p 67.43 59.94 *

1,125 (1,080) /60p 67.50 60.00 *

* Mark: Applicable input signal for Component (Y, PB, PR), and HDMI

Note •

Signals other than those shown above may not be displayed properly.

•

The above signals are reformatted for optimal viewing on your display.

Input signal that can be displayed

Technical Information

Do not display a picture in 4:3 mode for an extended period, as this can cause an after-image to remain on either or

both sides of the display field.

To reduce the risk of such an after-image, change the brightness of the side bars.

• The side bar may flash (alternate black/white) depending on the picture. Using Cinema mode will reduce such

flashing (See below).

Side Bar

4:3

Screen

Display

after-images

Pic. mode

•

Vivid (default) : Provides enhanced picture contrast and sharpness for viewing in a well-lit room.

•

Standard : Recommended for normal viewing conditions with subdued room lighting.

•

Cinema : For watching movies in a darkened room. It provides a soft, film-like picture.

FAQs, etc.

Maintenance

Technical Information

Maintenance

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or

a soft, lint-free cloth.

•

If the surface is particularly dirty, soak a soft, lint-free cloth in a weak detergent solution and then wring the cloth to

remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth, of

the same type, until the surface is dry.

•

Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact

with volatile substances such as insect sprays, solvents and thinner; otherwise, the quality of the surface may be

adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

•

If the cabinet is particularly dirty, soak the cloth in a weak detergent solution and then wring the cloth dry.

Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

•

Do not allow any detergent to come into direct contact with the surface of the Plasma TV.

If water droplets get inside the unit, operating problems may result.

•

Avoid contact with volatile substances such as insect sprays, solvents and thinner; otherwise, the quality of the

cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods

in contact with articles made from rubber or PVC.

First, unplug the AC cord plug from the wall outlet.

Pedestal

•

Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to

which a small amount of neutral detergent has been added, and then wipe with a dry cloth.

Do not use products such as solvents, thinner or household wax for cleaning, as they can damage the surface

coating. (If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

•

Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term

contact with rubber, vinyl products or the like. (Doing so will cause deterioration.)

The remote control

does not work

•

Are the batteries installed correctly? (p. 6)

•

Has the battery run down?

•

Has the TV POWER button been turned On?

•

To operate external equipment of other

manufacturers, register the

remote control codes. (p. 33)

Pictures from external

equipment are distorted

when the unit is

connected via HDMI

•

Is the HDMI cable connected properly?

(p. 24-25, 34-35)

•

Turn Off the TV unit and equipment,

then turn them On again.

•

Check an input signal from the equipment.

(p. 24-25, 34-35)

•

Use a device compliant with

EIA/CEA-861/861B.

White spots or

shadow images

(noise)

•

Check the position, direction,

and connection of the aerial.

Interference or

frozen digital

channels

(intermittent sound)

•

Change the direction of antenna for

digital channels .

•

Check “Signal meter” (p. 28).

If the signal is weak, check the

antenna and consult your local

dealer.

Before requesting service or assistance, please follow these simple guides to

resolve the problem.

If problem still persists, please contact your local Panasonic dealer or

Panasonic Service center for assistance. For details (p. 49, 50)

For additional assistance, please contact our website at:

www.panasonic.com/contactinfo

www.panasonic.ca

FAQ

FAQs, etc.

Frequently Asked Questions

No sound is produced

Whirling sound is

heard

Sound is unusual

•

Is “Sound Mute” active? (p. 12)

•

Is the volume set to the minimum?

•

Is “Speakers” set to “Off”? (p. 20)

•

Change “SAP” settings. (p. 14)

•

Check “HDMI1 in” or “HDMI2 in” settings. (p. 20)

•

Set “SAP” setting to “Stereo” or “Mono.”

•

Check the HDMI device connected to the unit.

•

Set the audio setting of the HDMI device to

“Linear PCM.”

•

If digital sound connection has a problem,

select analog sound connection.

•

The sound is from built-in cooling fan

(not a sign of faulty operation).

Problem Actions

“Press any key to return”

moves on the screen

Screen

One spot remains dark

Chaotic image, noisy

No image can be

displayed

Only spots are displayed

instead of images

Neither image nor

sound is produced

Before requesting service or assistance, please follow these simple guides to resolve the problem.

If problem still persists, please contact your local Panasonic dealer or Panasonic Service center

for assistance. For details (p. 49, 50)

•

The function to prevent “after image” is activated.

(Not a faulty symptom)

The screen saver is activated if the TV unit is not operated for

a certain time in SD mode.

“after image” (p. 5)

•

A pixel or luminescent spot can occasionally

be missing in plasma displays.

(Not a faulty symptom)

•

Check nearby electrical products

(car, motorcycle, fluorescent lamp).

•

Check Picture menu (p. 20)

•

Check the channel settings. (p. 13, 28)

•

Check the antenna cables.

•

Is the AC power cord plugged into the outlet?

•

Is the TV unit turned On?

•

Check Picture menu (p. 20) and volume.

•

Are the remote control codes correct? (p. 37-38)

Black Box appears •

Change settings of Closed Caption (CC). (p. 30)

HDMI

“Control with HDMI”

function does not work •

Switch the TV unit on again with the equipment on.

•

Set “Control with HDMI” to “Off”, then set to “On” again.

(p. 22)

Sound

TH-37PX60U TH-42PX60U

Power Source AC 120 V, 50 / 60 Hz

Power

Consumption

Maximum 323 W 390 W

Standby condition 0.2 W 0.2 W

Plasma Display

panel

Drive method AC type

Aspect Ratio 16:9

Contrast Ratio (max) 10000:1

Visible screen size

(W × H × Diagonal)

(No.of pixels)

94 cmV 106 cmV

32.2 ” × 18.2 ” × 37.0 ”

(818 mm × 461 mm × 939 mm) 36.3 ” × 20.4 ” × 41.6 ”

(920 mm × 518 mm × 1,056 mm)

737,280 (1,024 (W) × 720 (H))

[3,072 × 720 dots] 786,432 (1,024 (W) × 768 (H))

[3,072 × 768 dots]

Sound

Speaker 4.8 ” × 2.4 ” (120 mm × 60 mm) × 2pcs, 8 Ω

Audio Output 20 W [10 W + 10 W] (10 % THD)

Channel Capability

(Digital/Analog) VHF/ UHF : 2-69, CATV:1-135

Operating Conditions Temperature : 32 °F - 104 °F (0 °C - 40 °C)

Humidity : 20 % - 80 % RH (non-condensing)

Connection Terminals

INPUT 1-3 VIDEO : RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

S-VIDEO : Mini DIN 4-pin Y:1.0 V [p-p] (75 Ω) C:0.286 V [p-p] (75 Ω)

AUDIO L - R : RCA PIN Type × 2 0.5 V [rms]

COMPONENT VIDEO

INPUT 1-2

Y : 1.0 V [p-p] (including synchronization)

PB, PR: ±0.35 V [p-p]

AUDIO L-R : RCA PIN Type × 2 0.5 V [rms]

HDMI 1-2 TYPE A Connector

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

Card slot SD CARD slot × 1

AV PROG. OUT VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

AUDIO L - R: RCA PIN Type × 2 0.5 V [rms]

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES 3D Y/C FILTER

CLOSED CAPTION V-Chip

Photo Viewer

Dimensions

( W × H × D )

Including pedestal 36.1 ” × 27.9 ” × 12.7 ”

(917 mm × 708 mm × 321 mm)

40.2 ” × 30.3 ” × 12.7 ”

(1,020 mm × 768 mm × 321 mm)

TV Set only 36.1 ” × 25.4 ” × 3.8 ”

(917 mm × 645 mm × 95 mm) 40.2 ” × 27.8 ” × 3.8 ”

(1,020 mm × 705 mm × 95 mm)

Weight

Including pedestal 61.7 lb. (28 ) 70.5 lb. (32 )

TV Set only 57.3 lb. (26 ) 66.1 lb. (30 )

Specifications

Note

•

Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

36.1 ” (917 mm) 3.8 ” (95 mm)

12.7 ” (321 mm)

25.4 ” (645 mm)

27.9 ” (708 mm)

40.2 ” (1020 mm) 3.8 ” (95 mm)

12.7 ” (321 mm)

27.8 ” (705 mm)

30.3 ” (768 mm)

31.9 ” (809 mm) 31.9 ” (809 mm)

[TH-37PX60U] [TH-42PX60U]

FAQs, etc.

Specifications

TH-50PX60U, TH-50PX60X TH-58PX60U

Power Source AC 120 V, 50 / 60 Hz (TH-50PX60U, TH-58PX60U)

AC 110 - 127 V, 50 / 60 Hz (TH-50PX60X)

Power

Consumption

Maximum 515 W 655 W

Standby condition 0.2 W 0.2 W

Plasma Display

panel

Drive method AC type

Aspect Ratio 16:9

Contrast Ratio (max) 10000:1

Visible screen size

(W × H × Diagonal)

(No.of pixels)

127 cmV 148 cmV

43.6 ” × 24.5 ” × 50.0 ”

(1,106 mm × 622 mm × 1,269 mm) 50.7 ” × 28.5 ” × 58.1 ”

(1,287 mm × 723 mm × 1,476 mm)

1,049,088 (1,366 (W) × 768(H))

[4,098 × 768 dots] 1,049,088 (1,366 (W) × 768(H))

[4,098 × 768 dots]

Sound

Speaker 4.8 ” × 2.4 ” (120 mm × 60 mm) × 2pcs, 8 Ω

Audio Output 20 W [10 W + 10 W] (10 % THD)

Channel Capability

(Digital/Analog) VHF/ UHF : 2-69, CATV:1-135

Operating Conditions Temperature : 32 °F - 104 °F (0 °C - 40 °C)

Humidity : 20 % - 80 % RH (non-condensing)

Connection Terminals

INPUT 1-3 VIDEO : RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

S-VIDEO : Mini DIN 4-pin Y:1.0 V [p-p] (75 Ω) C:0.286 V [p-p] (75 Ω)

AUDIO L - R : RCA PIN Type × 2 0.5 V [rms]

COMPONENT VIDEO

INPUT 1-2

Y : 1.0 V [p-p] (including synchronization)

PB, PR: ±0.35 V [p-p]

AUDIO L-R : RCA PIN Type × 2 0.5 V [rms]

HDMI 1-2 TYPE A Connector

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

Card slot SD CARD slot × 1

AV PROG. OUT VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

AUDIO L - R: RCA PIN Type × 2 0.5 V [rms]

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES 3D Y/C FILTER

CLOSED CAPTION V-Chip

Photo Viewer

Dimensions

( W × H × D )

Including pedestal

47.7 ” × 34.8 ” × 14.6 ”

(1,210 mm × 882 mm × 371 mm) 55.1 ” × 39.3 ” × 16.9 ”

(1,399 mm × 997 mm × 430 mm)

TV Set only 47.7 ” × 32.2 ” × 3.8 ”

(1,210 mm × 818 mm × 95 mm)

55.1 ” × 36.8 ” × 3.9 ”

(1,399 mm × 934 mm × 99 mm)

Weight

Including pedestal 93.7 lb. (42.5 ) 138.9 lb. (63 )

TV Set only 88.2 lb. (40 ) 130.1 lb. (59 )

Note

•

Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

47.7 ” (1210 mm) 3.8 ” (95 mm)

14.6 ” (371 mm)

32.2 ” (818mm)

34.8 ” (882 mm)

32.1 ” (815 mm)

55.1 ” (1399 mm) 3.9 ” (99 mm)

16.9 ” (430 mm)

36.8 ” (934 mm)

39.3 ” (997 mm)

34.9 ” (887 mm)

[TH-50PX60U, TH-50PX60X] [TH-58PX60U]

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer

Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the warrantor”) will, for the length of

the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”),

at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished

product. The decision to repair or replace will be made by the warrantor.

During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty

period, there will be no charge for parts.

You must carry-in your product or arrange for in-home service during the Limited Warranty period. If non-

rechargeable batteries are included, they are not warranted. This Limited Warranty only applies to products

purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original

purchaser and only covers product purchased as new. A purchase receipt or other proof of the original purchase date

is required for Limited Warranty service.

In-Home or Carry-in Service

For In-Home or Carry-In Service in the United States call 1-888-VIEW-PTV(1-888-843-9788).

For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax (787)-768-2910.

In-Home service requires clear, complete and easy access to the product by the authorized servicer and does

not include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be

completed in-home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or

repair and then returned.

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER

normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube

resulting from viewing fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s,

or non-expanded standard 4:3 pictures on wide screen TV’s, or onscreen data in a stationary and fixed location).

The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused

by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug

infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer

controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as

in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory

Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.

THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM

THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As

examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if

applicable, or travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL

EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE LIMITED WARRANTY OF MERCHANTABILITY, ARE

LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have others rights which vary from state

to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your

dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs

Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH

ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

Limited Warranty (for U.S.A.)

Panasonic Color Television

Limited Warranty

CATEGORIES ALL PARTS EXCEPT

GLASS PANEL OR CRT LABOR GLASS PANEL OR CRT GLASS PANEL

CRT LABOR SERVICE

PLASMA DISPLAY 1 (ONE) YEAR 1 (ONE) YEAR GLASS PANEL - 2 (TWO)

YEARS 1 (ONE) YEAR IN-HOME OR CARRY-IN

PANASONIC CONSUMER ELECTRONICS COMPANY,

DIVISION OF

PANASONIC CORPORATION OF NORTH AMERICA

One Panasonic Way

Secaucus, New Jersey 07094

PANASONIC SALES COMPANY,

DIVISION OF

PANASONIC PUERTO RICO INC.

Ave. 65 de Infanteria, Km. 9.5

San Gabriel Industrial Park

Carolina, Puerto Rico 00985

FAQs, etc.

Customer Services Directory (for U.S.A.)

Limited Warranty (for U.S.A.)

Customer Services Directory

(for U.S.A.)

Customer Services Directory

Accessory Purchases

Service in Puerto Rico

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service center;

purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web

Site at:

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-888-VIEW-PTV (843-9788)

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

■

For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web

Site at:

http://www.pasc.panasonic.com

or, send your request by E-mail to:

npcparts@us.panasonic.com

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 8 pm, EST.)

Panasonic Services Company

20421 84th Avenue South,

Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

■

For hearing or speech impaired TTY users, TTY : 1-866-605-1277

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,

Carolina, Puerto Rico 00985

Phone (787)750-4300, Fax (787)768-2910

Limited Warranty (for Canada)

Panasonic Canada Inc.

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to

remedy any such defect for a period as stated below from the date of original purchase.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized

Panasonic service facility.

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly

installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping,

or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor

does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this

warranty.

This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original

purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential

damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

In-home service requires clear, complete and easy access to the product by the Authorized Servicentre and does not

include removal or re-installation of an installed product. If removal is required to service the product, it will be at the

discretion of the Servicentre and in no event will Panasonic Canada Inc. or the Servicentre be liable for any special,

indirect or consequential damages.

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: Telephone #: (905) 624-5505

1-800 #: 1-800-561-5505

Fax #: (905) 238-2360

Email link: “Customer support” on www.panasonic.ca

FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca :

Link: “Servicentres™ locator” under “Customer support”

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Plasma TV / Monitor In-home service One (1) year, parts (including Plasma Panel) and labour.

LCD TV (26 in & over) In-home service One (1) year, parts (including LCD Panel) and labour.

LCD TV (25 in & under) Carry-in service only One (1) year, parts (including LCD Panel) and labour.

FAQs, etc.

Limited Warranty (for Canada)

Note

NOTE

0662-2_nota_pages eng_4.fm Page 2 Wednesday, April 12, 2006 1:54 PM

NOTE

0662-2_nota_pages eng_4.fm Page 3 Wednesday, April 12, 2006 1:54 PM

NOTE

0662-2_nota_pages eng_4.fm Page 4 Wednesday, April 12, 2006 1:54 PM

NOTE

0662-2_nota_pages eng_4.fm Page 5 Wednesday, April 12, 2006 1:54 PM

Printed in U.S.A.

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial

number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your

purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of

North America

One Panasonic Way, Secaucus New Jersey

07094 U.S.A.

Panasonic Puerto Rico Inc.

(“PSC”)

Ave. 65 de Infanteria, Km 9.5 San Gabriel Industrial

Park, Carolina, Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

CANADA

Panasonic De México S.A. De C.V.

Moras No.313, Col. Tlacoquemecatl Del Valle Del.

Benito Juárez

MÉXICO, D.F. C.P. 03200

Panasonic Th 42Px60U Operating Instructions Manual 1003383 Th_37_42_50_58px60ux_0663_2_eng.indb User

Navigation menu

Versions of this User Manual:

Views

Navigation
