Variable Refrigerant Flow (VRF), Multi-Zone,
Heat Pump & Heat Recovery Systems
Use of the AHRI Certied™ mark indicates
a manufacture's participation in the
certication program.
For verication of certication for individual
products, go to www.ahridirectory.org
Do not add or replace refrigerant other than the specified type. Manufacturer is not responsible for the damage and deterioration in safety due to usage of other refrigerant.
Caution Related to Safety
Because its products are subject to continuous improvements, Panasonic reserves the right to modify product design and specifications without notice and without incurring any obligations.
©Copyright 2014, Panasonic Air Conditioning Products.
Serving the US Ductless
market since 1983
Panasonic Corporation of North America
Air Conditioning Group
1690 Roberts Blvd., NW, Suite 110, Kennesaw, GA 30144
WWW.PANASONIC.COM/AIRCON
Panasonic Canada Inc.
Enterprise Product Sales
5770 Ambler Dr., Mississauga, ON, L4W 2T3 CANADA
www.panasonic.ca
Quality
Management
System
Certificate
Environmental
Management
System
Certificate
Certified to ISO 14001: 2004
Cert. No.: MY-ER 0112
Certified to ISO 9001: 2008
Panasonic HA Air-Conditioning (M)
Sdn.Bhd.
Cert. No.: MY-AR 1010
Certified to ISO 14001: 2004
Panasonic HA Air-Conditioning (M)
Sdn.Bhd.
Cert. No.: MY-ER 0112
Certified to ISO 9001: 2008
Cert. No.: MY-AR 1010
ECOi™ – Your Building Life Tool.
INTRODUCTION.......................... 2
ECOi™ VRF series Lineup.....................4
New ECOi EX™ series (ME2)
Product Advantages........................... 6

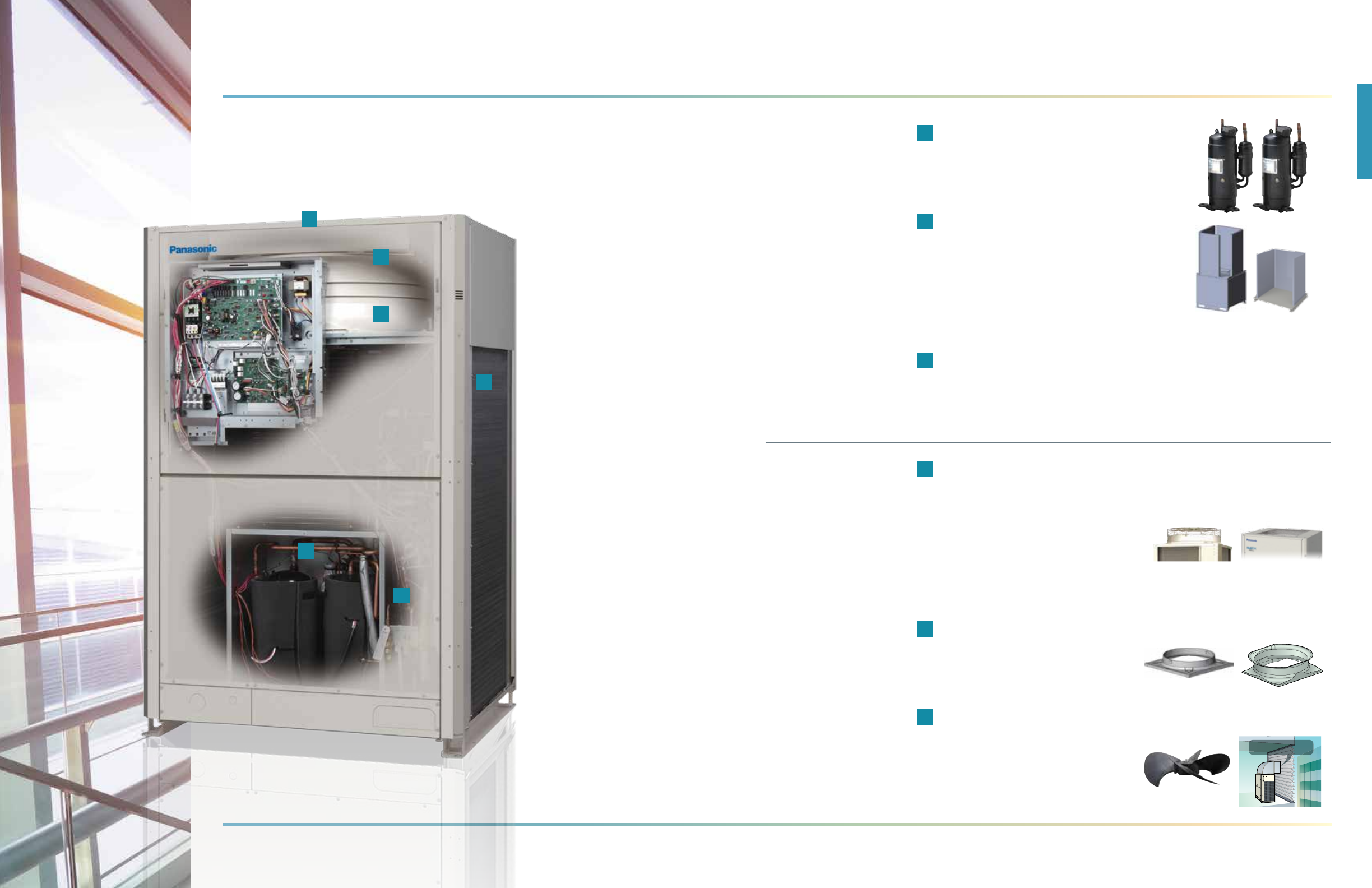

Core Technologies ............................ 8

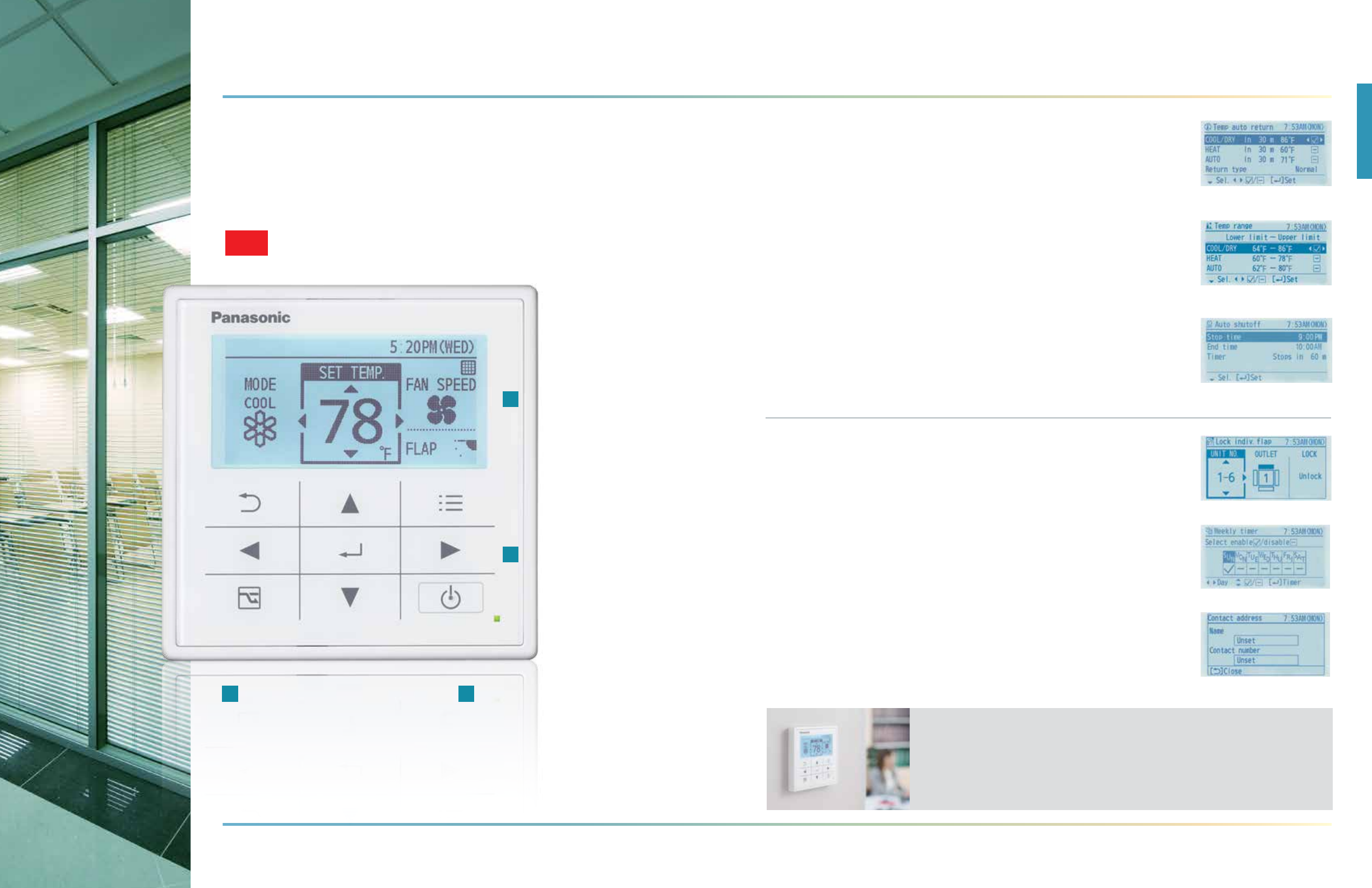

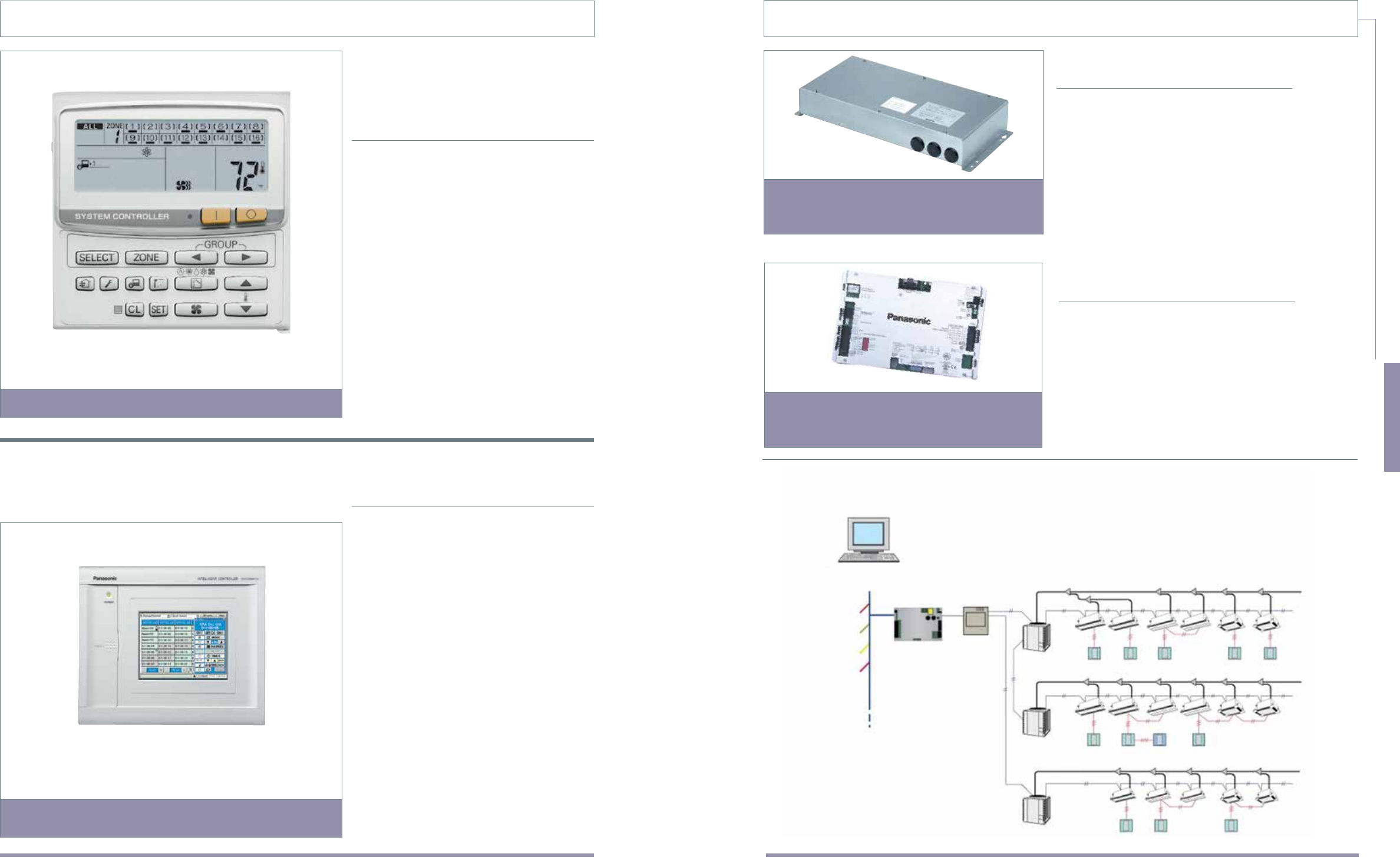

High-spec Wired Remote Controller .............. 10

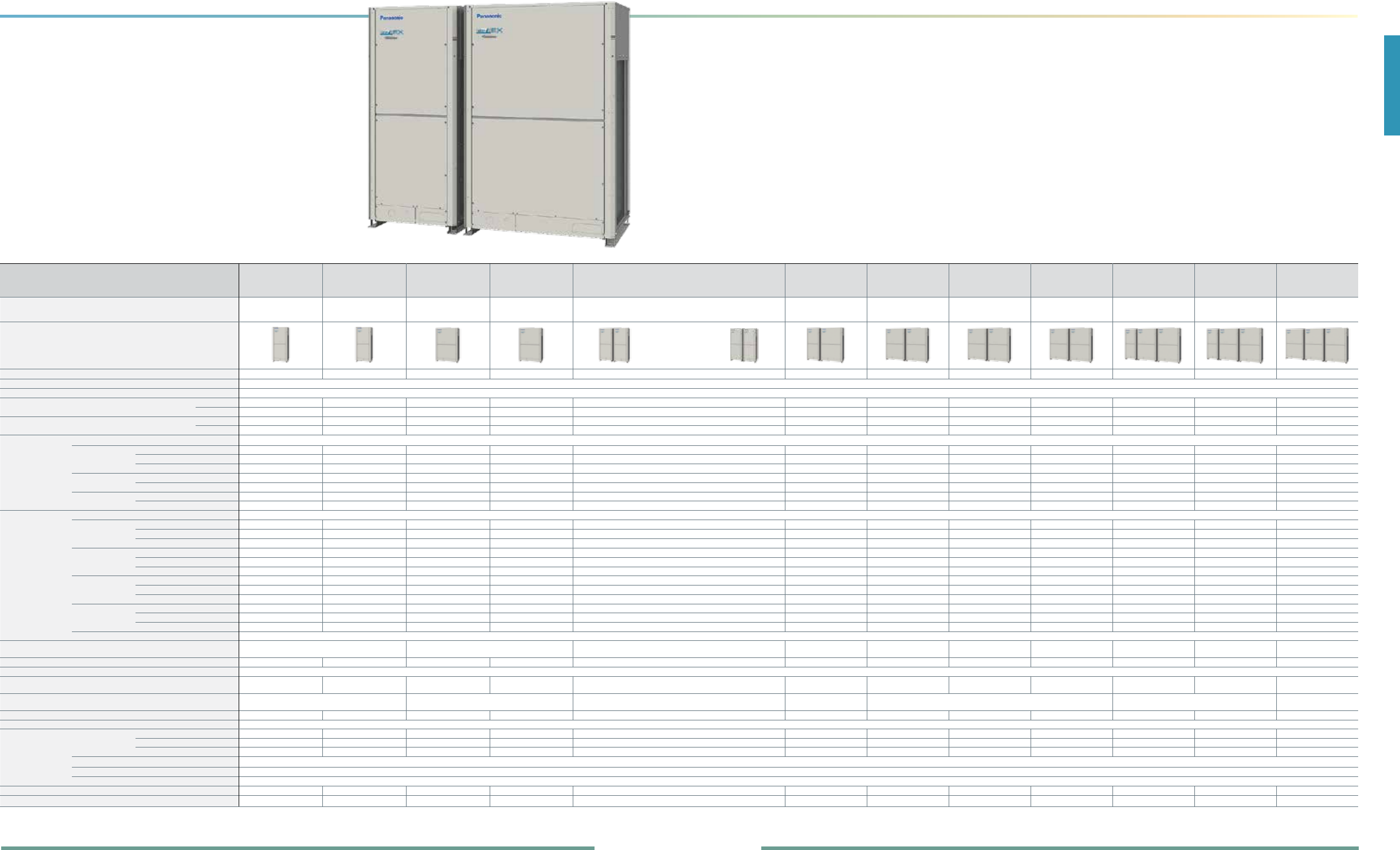

New ECOi EX™ series Specifications ......... 12
ECOi™ OUTDOOR Unit Lineup
MF 3-Way ECOi™ VRF Heat Pump.............. 14
Combined MF 3-Way ECOi™ VRF Heat Recovery ..16

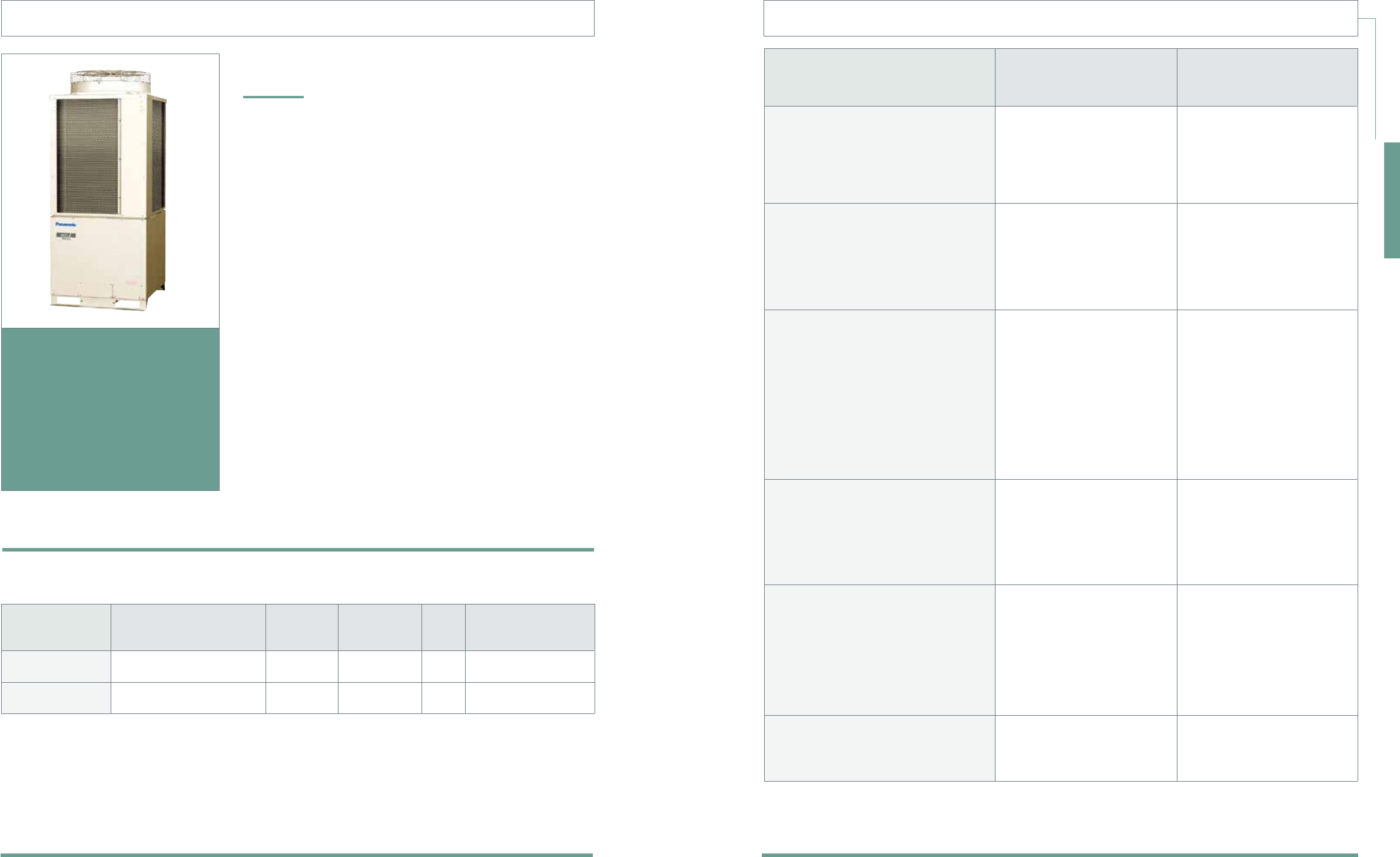

LE Mini 2-way ECOi™ VRF Heat Pump .......... 19

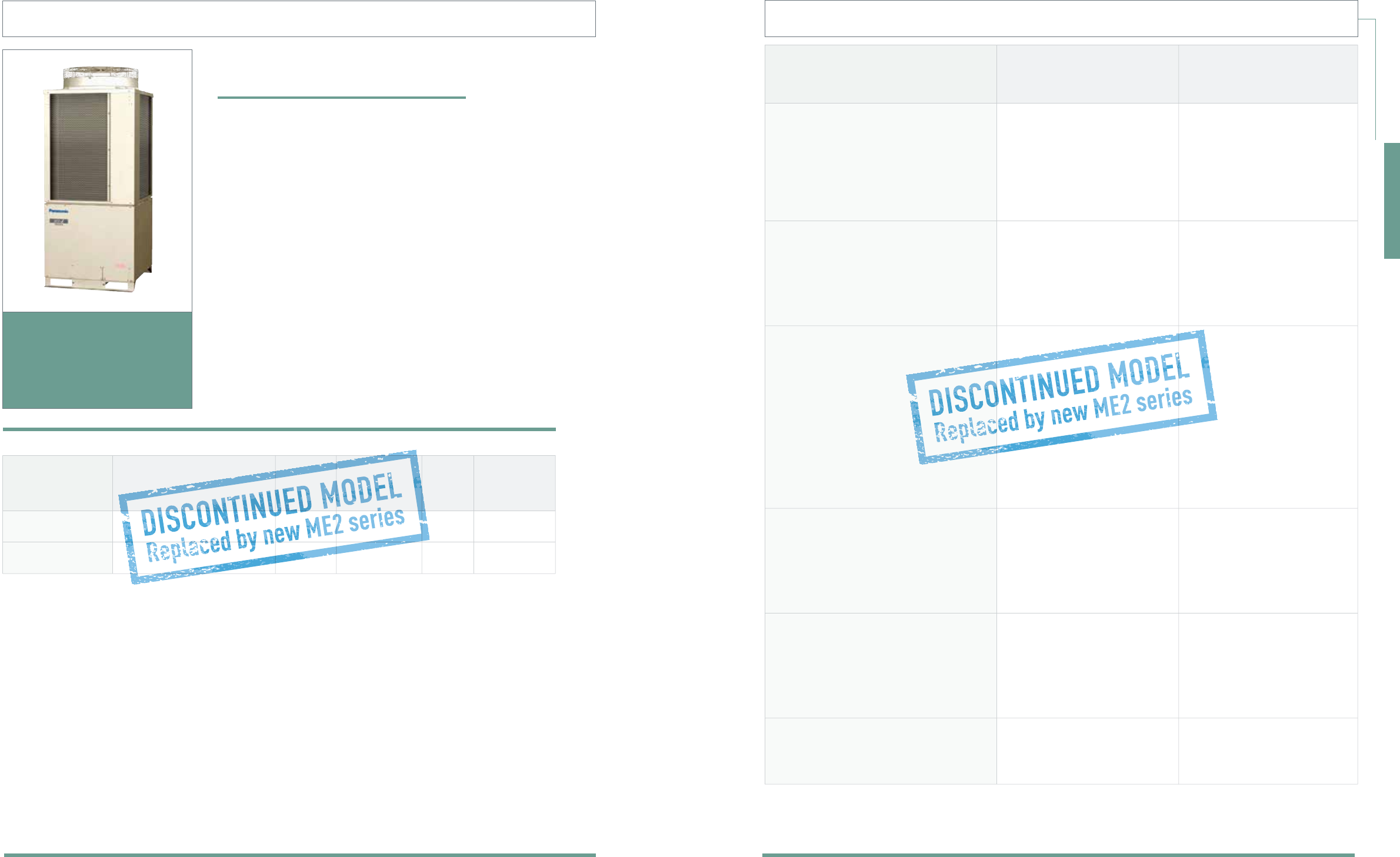

ME1 series 2-Way ECOi™ VRF Heat Pump .......20
Combined ME1 2-Way ECOi™ VRF Heat Pump.... 22

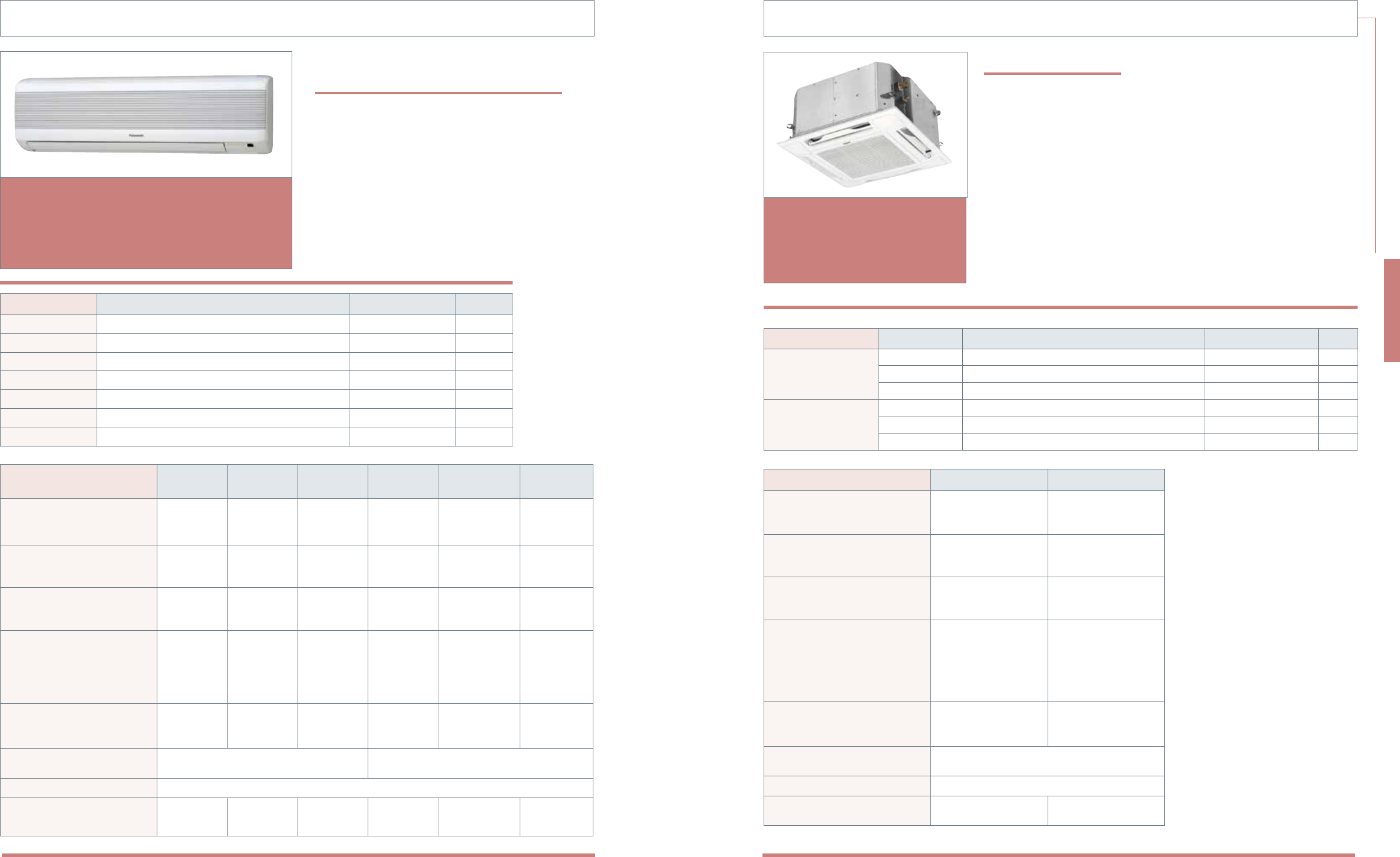

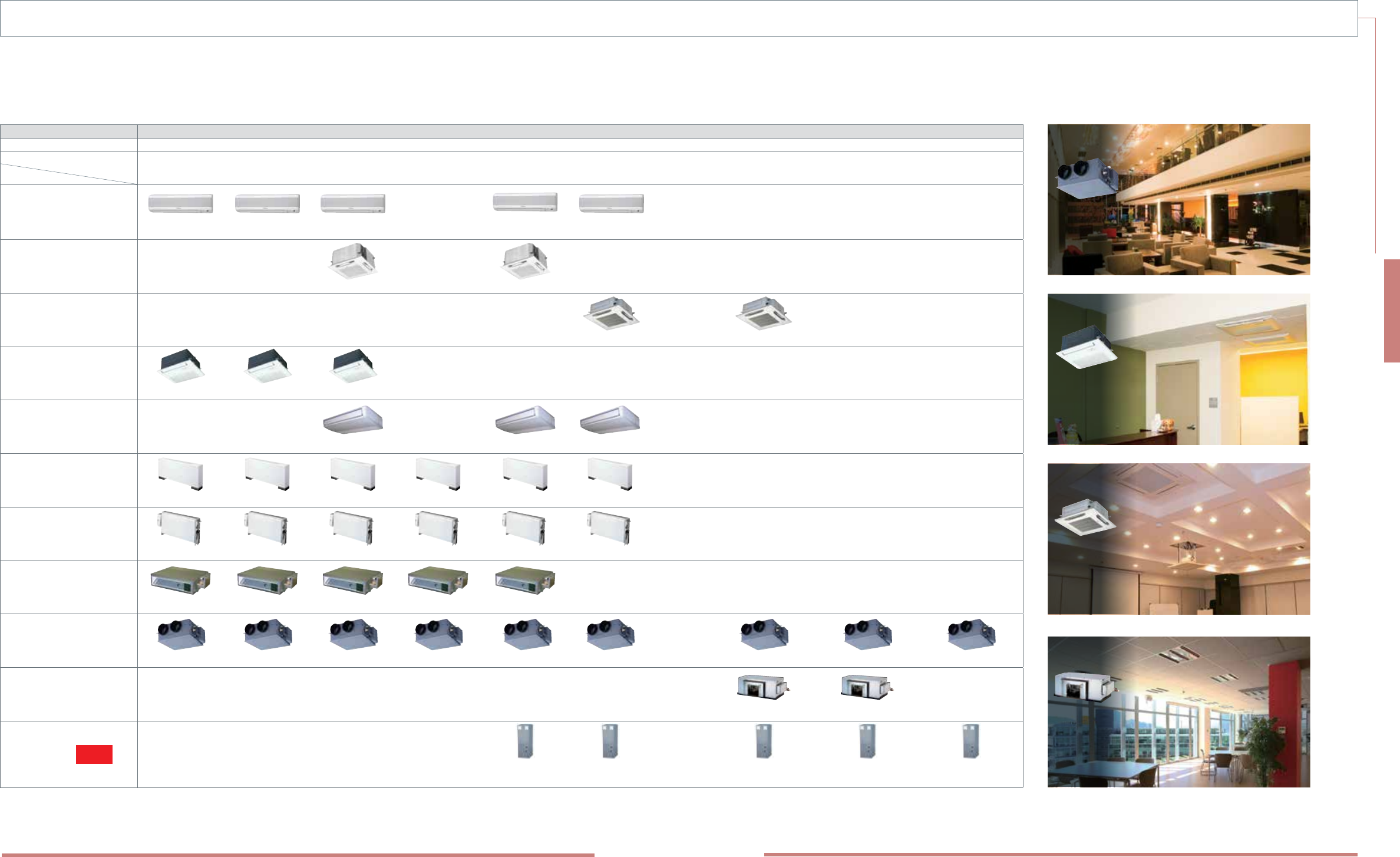

INDOOR Unit Lineup .....................24
MK Wall Mounted ............................ 26

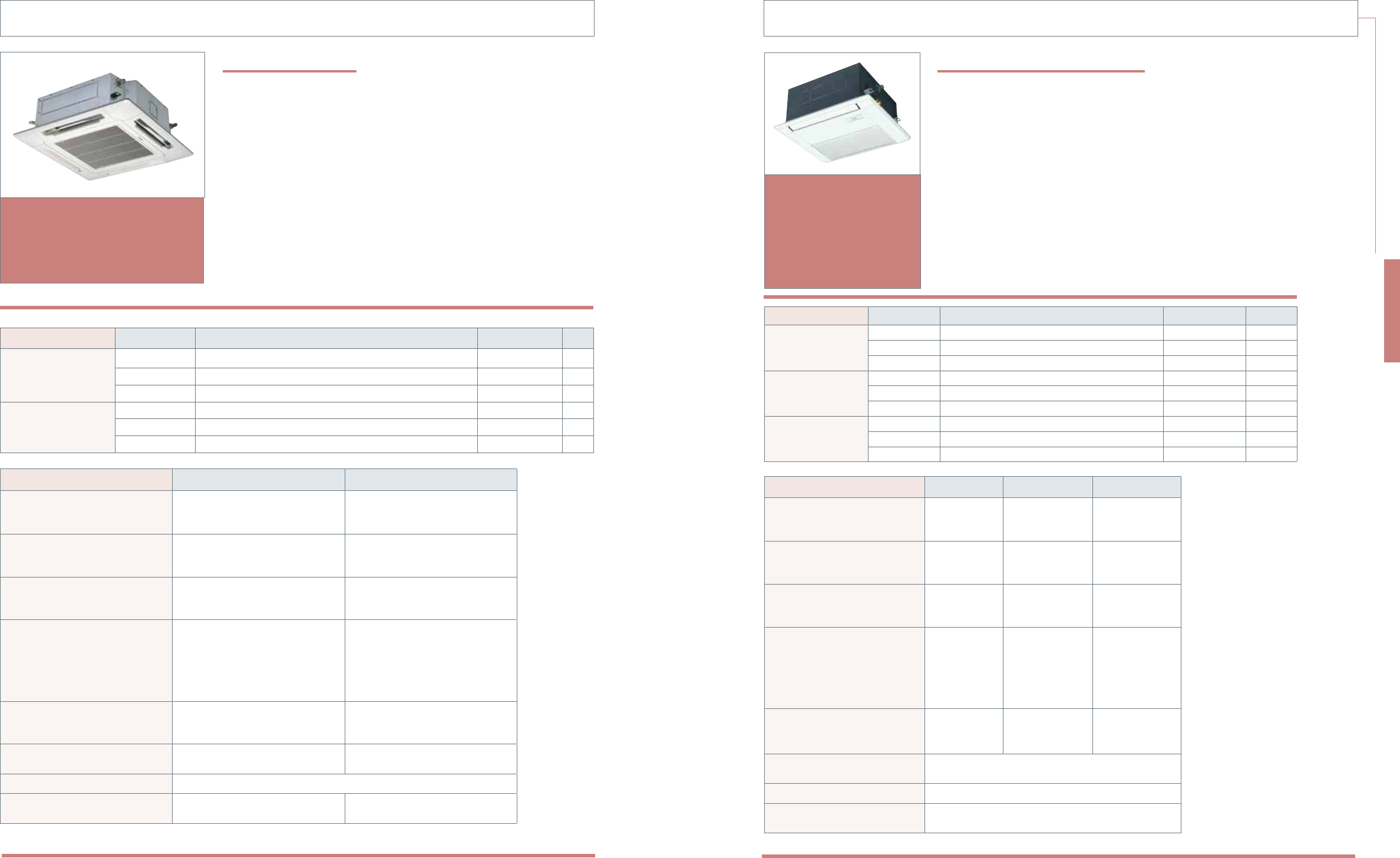

MY Series 4-Way Ceiling Cassette ............... 27
MU Series 4-Way Ceiling Cassette............... 28
MD Series 1-Way Ceiling Cassette............... 29

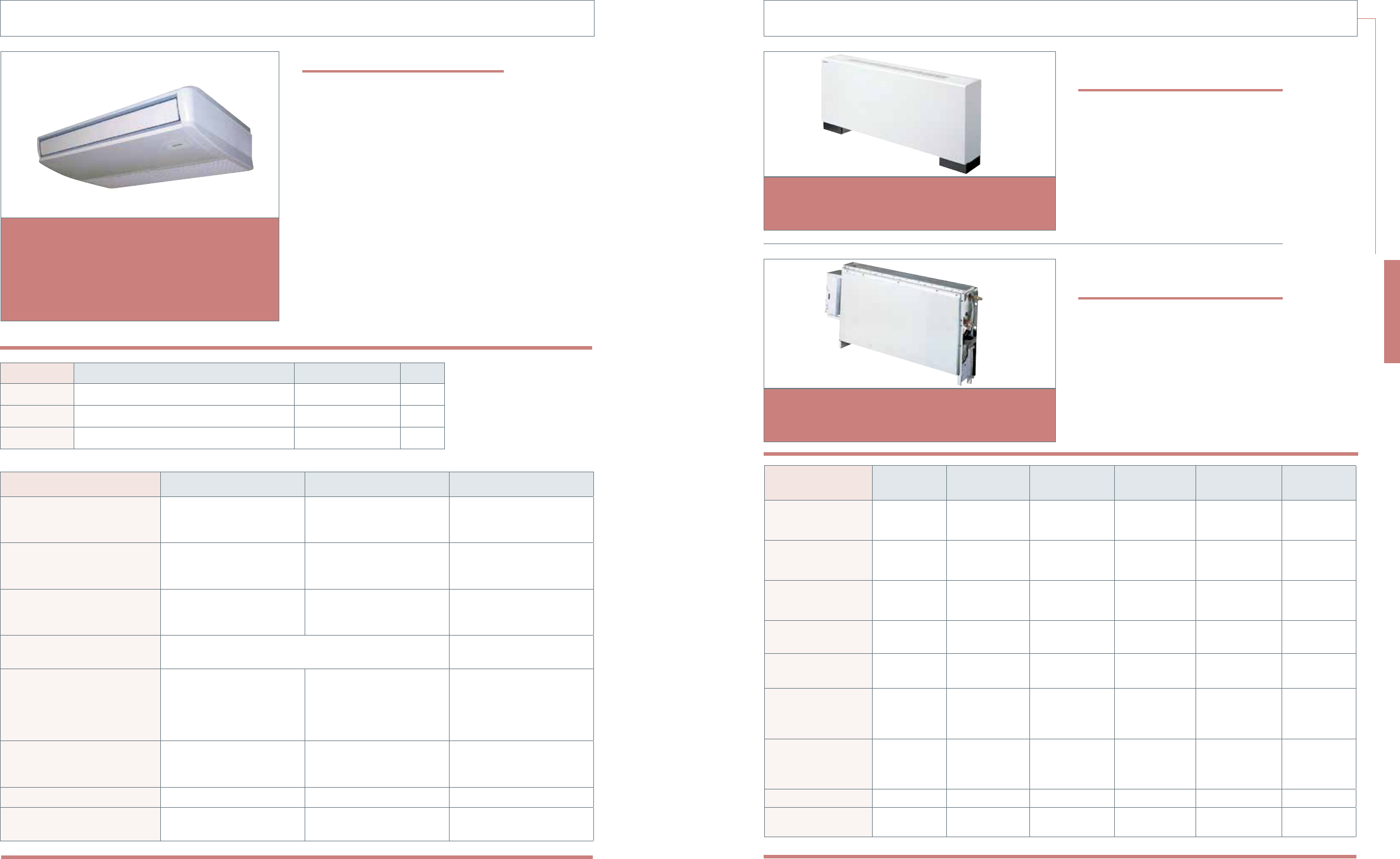

MT Series Ceiling Suspended . . . . . . . . . . . . . . . . . . . 30
MP / MR Floor Mounted ....................... 31
MM Concealed Duct .......................... 32
MF Concealed Duct ........................... 33
ME Concealed Duct . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
MVA Concealed Duct – Vertical Multi Poise series .. 35

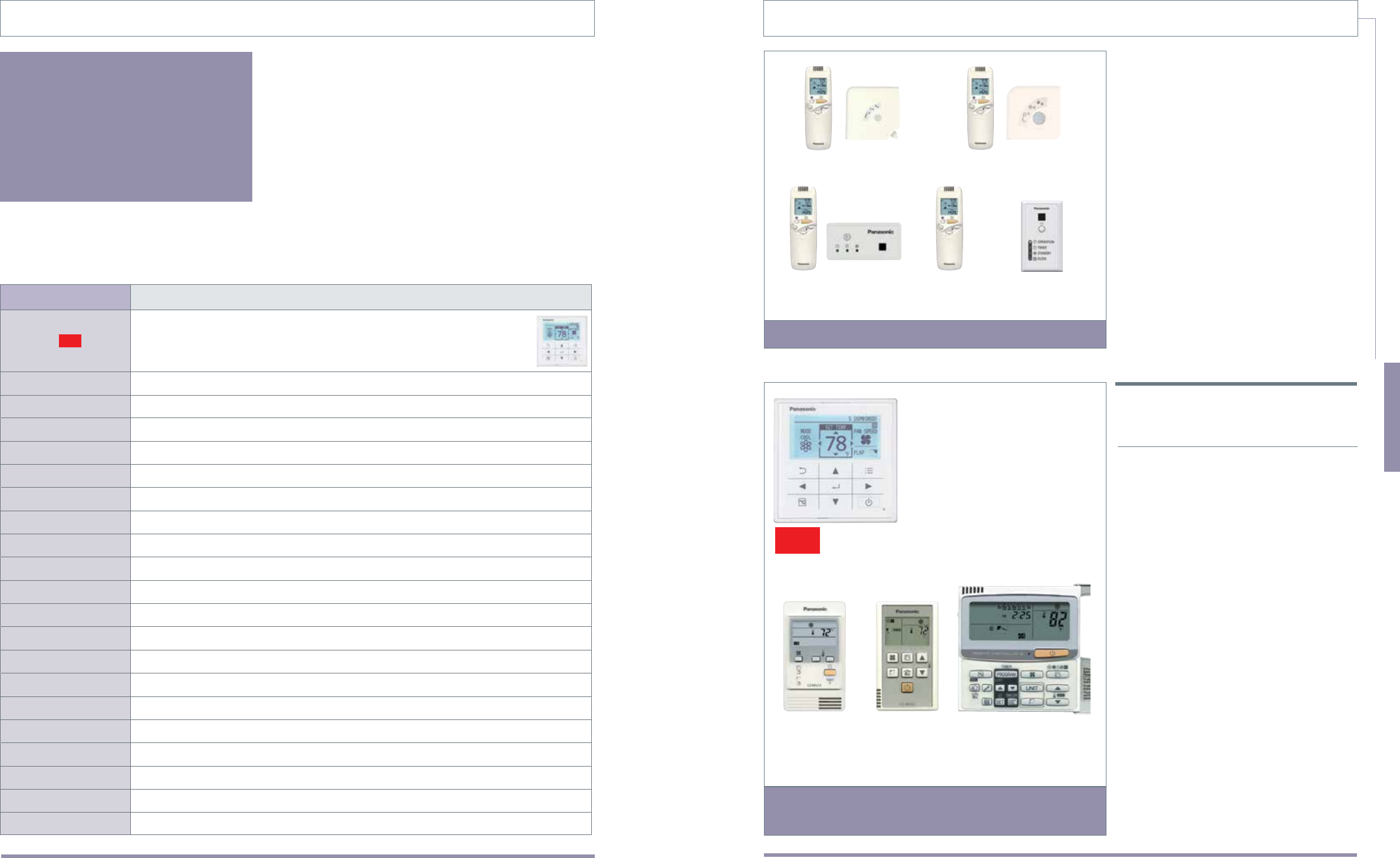

CONTROL SYSTEM ...................... 36-39
ACCESSORIES ........................... 40
SERVICES ................................41
Efficiency Rating ......................... 42
Panasonic commercial HVAC history .... 45
For the Living Inside & Out ECOi™ – Your Building Life Tool
Contractors. Building Support.
At Panasonic, we realize contractors are looking for turnkey installation
and support. ECOi™ is quite simply the perfect building solution. With its
modular design and ease of installation, it’s a solution that can grow with
any building project. In fact, ECOi may just remind you why you got into
the business in the first place.
Engineers. Designing Confidence.
ECOi™ is absolute confidence. Its flexibility allows multiple applications
and installation configurations. With a maximum pipe length of up to
3,280 feet and up to 64 units connected to one outdoor system you can
engineer a perfect solution for all your needs. ECOi is a superior modular
option that provides for floor-by-floor commissioning.
Architects. Design Freedom. Now There’s An Idea.
Nobody understands design freedom more than architects. That’s why
the ECOi HVAC system provides more freedom to meet any design need.
With space-saving environmentally-friendly designs, you can design your
vision first then marry our system within your plans.
Owners & Tenants.
Immediate response to changing room capacity, heat loads, and varying
sun exposures throughout the day means everybody stays cool and
comfortable. ECOi ensures individual zone temperature control so each
office or room can be adjusted for personalized comfort. ECOi can grow
with you. As remodeling occurs and building extensions are planned,
ECOi’s modularity lets you simply add on to the system. With intelligent
controllers, VRF technology and R410A refrigerant, ECOi guarantees
continued energy savings and environmental friendship for years to come.
ECOi has a number of diverse features to meet all your air conditioning
needs, including flexible combinations. ECOi allows multiple indoor
unit combinations that provide you with the utmost flexibility.
The system also allows multiple unit connectivity providing up to 200%
of the total capacity of the condensing unit. This provides 20-39 (6-12 tons)
connected to one condensing unit.
Inverter Control Compressor: All ECOi systems utilize highly advanced
inverter controlled compressor technology. By varying the rotational speed
of the compressor, the inverter control can precisely match the amount of
refrigerant being delivered to each zone. This intelligent approach helps
realize the highest efficiencies during partial-load conditions. This allows
all occupants to enjoy consistent room temperature regardless of any
increases or decreases in the heat load during the day. ECOi quite simply
knows what you need, and when you need it throughout the day.
Lower running and life cycle costs: ECOi VRF systems are among the most
efficient systems on the market, offering COPs in excess of 4.0 at full
load conditions. Using our intelligent control sequence, all VRF systems
are designed to minimize running costs. This is done by the most efficient
combination of compressor, fan, and refrigeration management criteria.
Improved defrost sequencing reduces running cost and defrost cycle.
A partner in the lives of people all over the world.
A Better Life, A Better World
Since the founding of Panasonic Corporation, our management
philosophy has driven us to contribute to people’s lives and the progress
of society.
In 2018, Panasonic will celebrate its 100th anniversary. As we prepare to
greet a new century in business, the world is witnessing a major turning
point in the way we live. It is no longer practical to pursue extravagant
lifestyles that consume large amounts of natural resources and energy.
We must create a new way of living that minimizes the burden we place
on the environment, while raising our standard of living. This is Panasonic’s
mission – the creation of new lifestyle values.
Through our complete HVAC solutions, we are committed to delivering
“A Better Life, A Better World” to every customer.
Table of Contents
23
5
4
ECOiTM VRF Series
ECOi™ VRF Series
NEW ME2 series 2way ECOi EX™
LE 2-WAY
LE 2-WAY MINI ECOiTM VRF HEAT PUMP
Panasonic’s combined ECOi EX 2-Way conditioning solution offers superior
heating and cooling coupled with cost effective installation. A smart
conditioning solution for large capacity jobs.
Panasonic 2-WAY mini ECOi is a 2-pipe heat pump specifically designed for numerous
commercial and premium residential applications. Mini ECOi is available in 2 sizes
with cooling capacities ranging with up to 9 indoor units connectable.
Cooling Heating
ME2
series
2-WAY ECOi EXTM VRF HEAT PUMP
For the buildings requiring
simultaneous heating and
cooling, Panasonic 3-Way
ECOi™ system provides
the perfect solution.
Solenoid valve kit
• CZ-P56HR1U (For 7,500 BTU/H to
19,000 BTU/H)
• CZ-P160HR1U (For 19,100 BTU/H to
54,600 BTU/H)
System example
[Cooling]
MF
[Cooling]
ME
[Stop]
MU
[Heating]
MK
[Heating]
MD
[Heating]
MT
Liquid pipe
medium temperature,
medium-pressure liquid pipe
Discharge pipe
high temperature,
high-pressure gas pipe
Suction pipe
low temperature,
low-pressure gas pipe

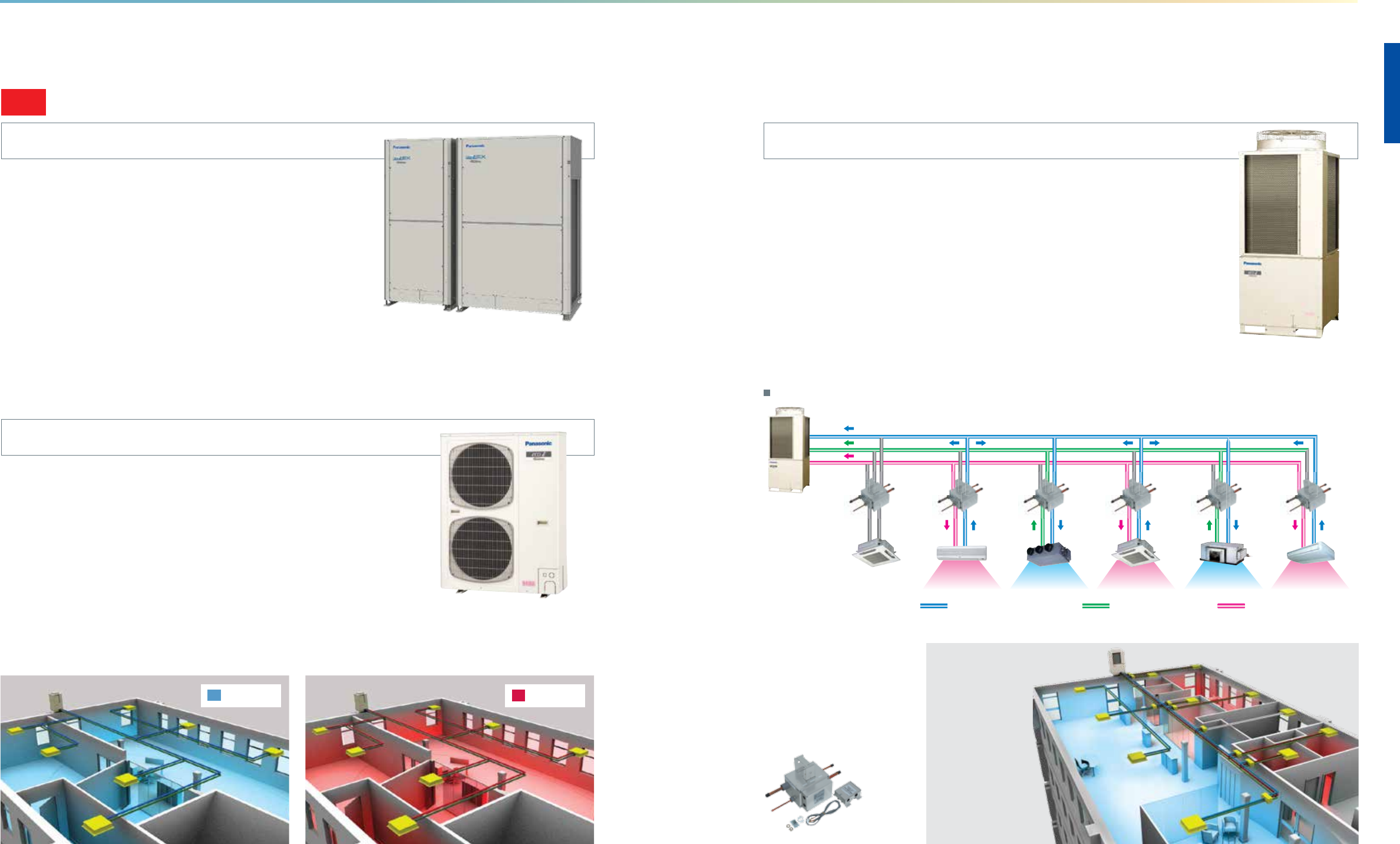

3-Way ECO-i™ MULTI
enables simultaneous
heating and cooling
operation by each
solenoid valve kit.
Cooling and Heating
Simultaneous Type
* For conference rooms and other
locations where low noise is required,
pay attention to the installation location
and install in a corridor etc.
• Ultra high performance: efficient individual air conditioning is possible in buildings
having diverse room temperatures for simultaneous heating/cooling and individual
operation of each indoor unit.
• Effective heat recovery system enables higher energy savings
• Improves discharge air temperature of indoor units during heating and simultaneous
mode operation
• Flexible system design with Solenoid Valve Kit (can be piped up to 98 ft. from indoor unit)
• Dual large-capacity inverter compressors (models above U-120MEU9)
• Outstanding energy saving performance: IEER : 19.1 / EER : 12.3 (in the
case of 6 tons)
• Exceptional flexible piping design:
Maximum total piping length - 3,280 Feet
Maximum outdoor to most distant indoor unit - 164 Feet
• Extended operating range (Outdoor Temperature)
- Cooling 14 °F DB to 122 °F DB
- Heating -4 °F WB to 64 °F WB
• Maximum outdoor unit connects as many as 64 indoor units (50%-200%
ratio of indoor to outdoor capacity)
• Expanded system capacity range (up to 30 tons)
• Inverter Driven Twin Rotary Compressor
• One outdoor unit connects as many as 9 indoor units (50%-130% ratio of indoor to
outdoor capacity)
• Nominal operating range (outdoor ambient)
- Cooling 14 °F DB to 113°F DB
- Heating -4 °F WB to 59 °F WB
• Flexible piping design:
Maximum total piping length - 656 Feet
Maximum outdoor to most distant indoor unit - 164 Feet
Commercial office buildings are subject to fluctuating heat levels generated from office
equipment, lighting and varying occupant levels. Also, hotels, nursing homes and other
commercial living spaces often have times when occupants will want either heating or
cooling at the same time. The heat recovery system offers the perfect solution for stabilizing
air temperature by providing all the features of a heat pump system and the added flexibility
of simultaneous cooling and heating from one refrigerant pipe network.
MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
Cooling and Heating Type
Simultaneous Heating & Cooling Operation

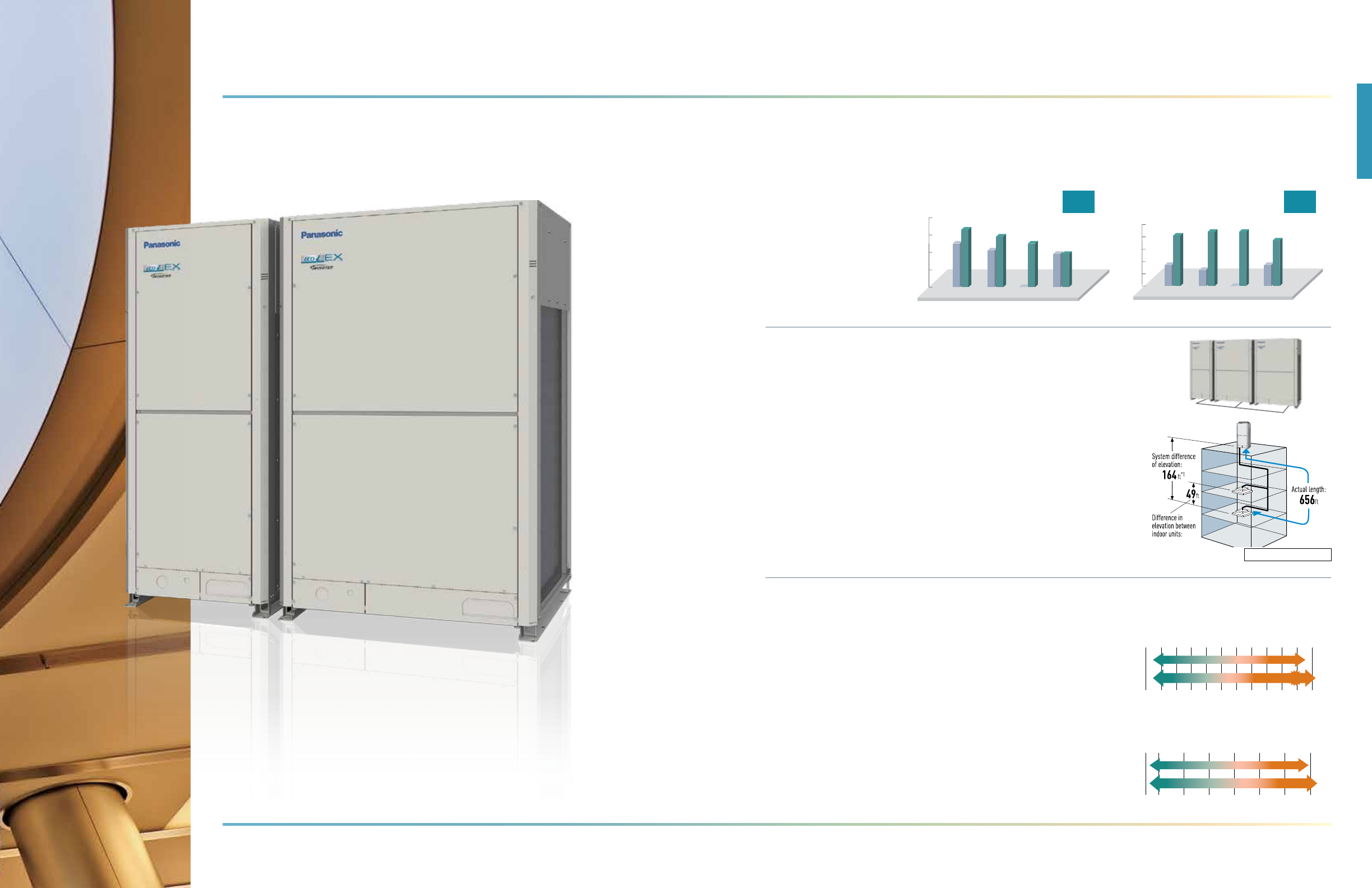

NEW
ECOi EX
TM
ME2 Series
7
Outstanding
Energy-Saving
Performance
Exceptional
Design Flexibility
Extended
Operating Range
IEER19.3 / EER 12.3 (6, 8, 10, 12 tons) top level in the industry
Long actual piping length max. of 656 ft
Cooling operation range: 14˚F (WB) to 122˚F (DB)
Heating operation range: -4˚F to 64˚F
Up to 30 tons large-capacity single system
Thanks to the all inverter compressors combinations with improved combined triple-surface heat
exchanger and medium cooling capacity, the new ME2 Series achieved the industry’s top level
energy saving performance.
The cooling operation range has been extended up to 122˚F (DB) (Up to 113°F with current models).
Cooling is also possible when the outdoor
temperature is 14˚F (WB). Suitable for use
in cold regions where year-round cooling
is required, as well as in the hot regions
where cooling is needed the most.
The heating operation range has been extended
to -4˚F to 64˚F by use of a compressor with a
high-pressure vessel. Provides powerful heating
even in the extremely cold regions.
Combined outdoor units delivering a maximum of up to
30 tons. (Ducted combination)
The accumulator, compressor and oil separator are
combined in a single unit to enable long 656 ft
piping (equivalent to 689 ft), 164 ft after first
branch. This extends the piping distance between
indoor units and outdoor units.
(Current models: 492/574 ft, 131 ft after branching)
North American EER
9.0
10.0
11.0
12.0
13.0
[EER]
6 tons 8 tons 10 tons 12 tons
CURRENT
NEW
11.5
12.3
11.1
11.9
10.9 10.9
11.5
North American IEER
[Seasonal Efficiency]
6 tons 8 tons 10 tons 12 tons
15.0
17.0
16.0
18.0
19.0
20.0
[IEER]
CURRENT
NEW
16.7
19.1
16.3
19.3
16.7
18.7
19.3
(°C DB)
10 40 50 60 70 80 90 100 110 12020 30
Current [ME1]14°F 113°F
Cooling
New [ME2]
14°F122°F
010-5 20 50 6030 40
Current [ME1]
-4°F 59°F
New [ME2]
-4°F
Heating
(°F WB
)
64°F
NEW ECOi EX™ Series
Product Advantages
*1: 131 ft if the outdoor unit is
below the indoor unit. Max. total length: 3280 ft
As of June 2014
Top
Class
As of June 2014
Top
Class
9
8
Max. 80Pa external
static pressure
ECOi EX
TM
ME2 Series
Outstanding
Energy-saving
Technology
Redesigned
for Smooth
and Better
Air Discharge
Dual large-capacity inverter compressors
Large air discharge area with new flush surface top panel.
Enlarged heat exchanger surface area
with triple surface
High 80Pa external static pressure – large diameter fan (27-1/2")
Gas-liquid separation + oil separation for increased efficiency
Two independently controlled inverter compressors
achieve high efficiency (For models U-120ME2U9
and above).
• The new large size heat exchanger features
a 3-sides construction. Compared to the
conventional 2 (upper/lower) compartments
outdoor unit structure, the new model has more
efficient heat exchanging performance. Current model [ME1]
Current model [ME1] New model [ME2]
New model [ME2]
10, 12 tons
To reduce air resistance, a new large flat fan guard
design (instead of a tubular fan design), flush with
the top panel, is employed.
This design leads to improvements in air resistance,
and contributes to better appearance.
A large, newly-designed 27-1/2" diameter fan.
High 80Pa external static pressure maintains
performance in winds around large buildings.
Ideal for high-rise buildings.
• Accumulator: Increases gas-liquid separation efficiency to reduce compressor pressure loss.
• Oil separator: Efficiently separates and absorbs refrigeration oil to prevent it flowing into the
heat exchanger.
2
2
1
1
3
3
Newly designed curved air discharge bell mouth for better aerodynamics
Current model [ME1] New model [ME2]
The new curved shape with integrated top
and bottom assure smooth air discharge flow.
Minimal swirling means an increased flow rate.
5
5
6
6
4
4
NEW ECOi EX™ Series
Core Technologies
11
10
ECOi EX
TM
ME2 Series
Multiple Control
Setting Functions
for More Energy
Saving
Other Convenient
Controls
Temperature Auto Return
Large 3.5" Full-dot LCD with
White LED Backlight
Stylish, Easy-to-use
Touch Key Design
Temperature Setting Range
Auto Shutoff
Even if you change the temperature setting, after a set time
it automatically returns to the original temperature setting.
You can set temperature auto return in 10-minute intervals
within a period of 4 hours.
Individual Louver Control
(Lock individual flap only for 4-way cassette MU type)
Each of the 4-directional outlets can be selected and locked to
provide efficient air distribution that matches the indoor unit
layout. Indoor units can be set individually.
Weekly Timer
This lets you select 8 Start/Stop times and temperature presets
for each day of the week.
Characters and icons are clearly displayed for
improved visibility. The display is also large enough
to provide a wide range of information for easy
confirmation of operation conditions.
The elegant, flat design features
large touch keys in a simple layout
enabling easy, intuitive operation.
Both maximum and minimum temperature settings can be
limited. Doing this helps reduce power consumption due to over
cooling or heating. Setting is possible in the Cooling, Heating and
Dry modes.
Air conditioning operation can be programmed to stop its operation
automatically after a set time, so you don’t have to remember to
manually switch the unit off. Even if you manually switch the unit
back on after it has stopped, the program will continue to activate and
continue to switch off the operation after a set time.
Service Contact Address
Once you have registered service contact details, they are
automatically displayed if a problem occurs. This helps you
address the situation quickly.
• Basic instructions
• FLAP
• Individual louver control
(Lock individual flap only
for 4-way cassette MU type)
• ON/ OFF timer
• Weekly timer
• Filter information
• Outing function
• Quiet operation mode
• Energy saving
• Initial settings
• Ventilation
Menu items
• Temperature auto return
• Temperature setting range
• Auto shutoff
• Schedule peak cut
• Repeat off timer
• ECONAVI on/ off
Energy Saving
• Outdoor unit error data
• Service Contact address
• RC setting mode
• Test Run
• Sensor Information
• Service check
• Simple/ Detailed Settings
• Auto address
Maintenance Function
NEW ECOi EX™ Series
High-spec Wired
Remote Controller
2
2
1
1
(CZ-RTC3)
NEW
13
12
* NOTE:
*1 If the longest tubing equivalent length exceeds 295 ft. (90 m), increase the sizes of the main tubes by 1 rank for gas tubes and liquid tubes.
*2 It’s necessary to charge additional refrigerant of 70.5 oz (2.0 kg) per one outdoor unit.
* NOTE: *1
If the longest tubing equivalent length exceeds 295 ft. (90 m), increase the sizes of the main tubes by 1 size for both gas tubes and liquid tubes.
*2
It’s necessary to charge additional refrigerant of 70.5 oz (2.0 kg) per one outdoor unit.
The New Panasonic ECOi EX VRF system, redesigned with new DC inverter
compressor combination operations. Perfected original active oil control
system brings quality, efficiency and reliability you can count on.

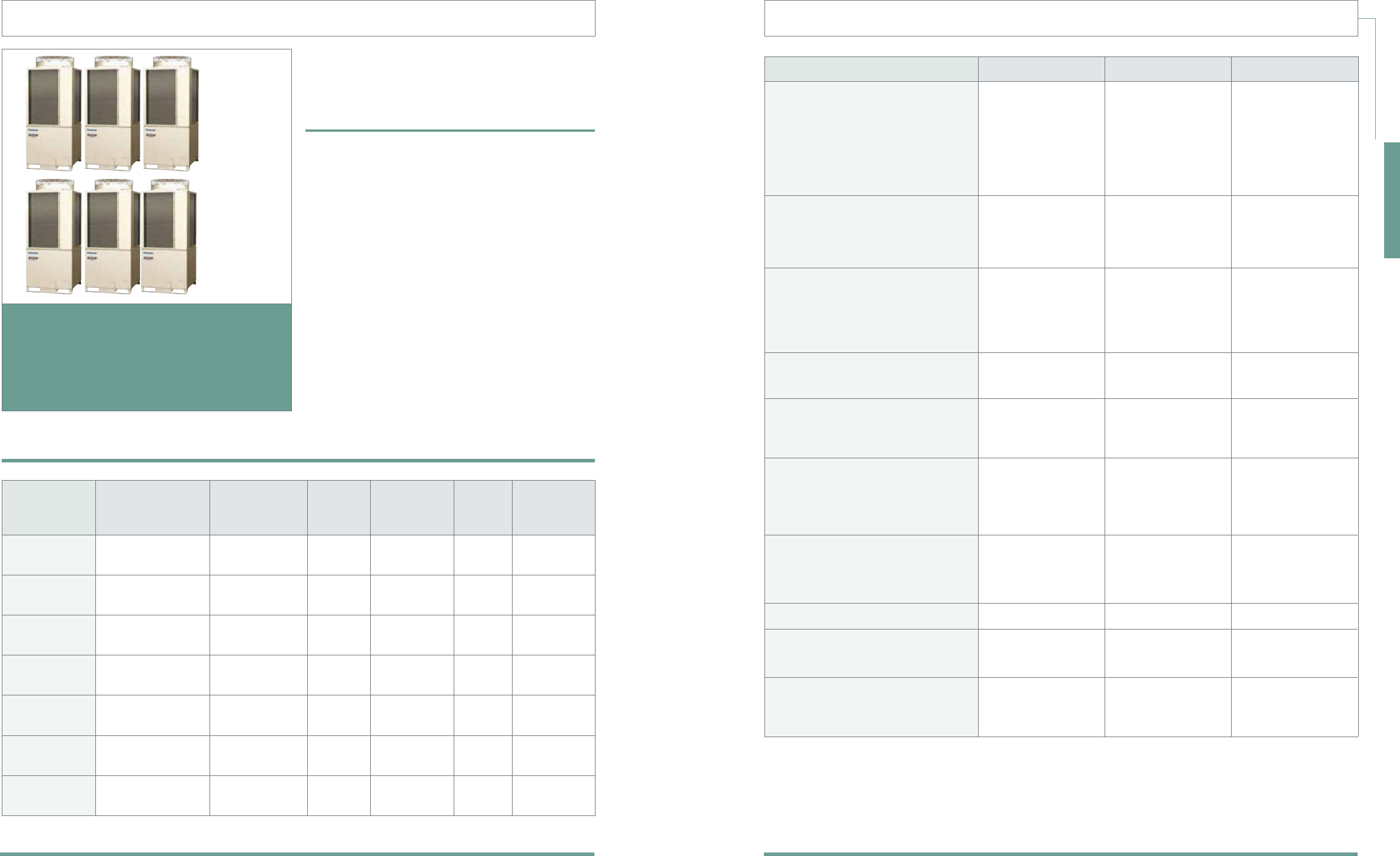

MODEL NAME U-72ME2U9 U-96ME2U9 U-120ME2U9 U-144ME2U9 WU-168ME2U9 WU-192ME2U9 WU-216ME2U9 WU-240ME2U9 WU-264ME2U9 WU-288ME2U9 WU-312ME2U9 WU-336ME2U9 WU-360ME2U9
Consisted of U-72ME2U9 U-96ME2U9 U-120ME2U9 U-144ME2U9 U-72ME2U9
+U-96ME2U9
U-96ME2U9
+U-96ME2U9
U-96ME2U9
+U-120ME2U9
U-120ME2U9
+U-120ME2U9
U-120ME2U9
+U-144ME2U9
U-144ME2U9
+U-144ME2U9
U-72ME2U9
+U-120ME2U9
+U-120ME2U9
U-96ME2U9
+U-120ME2U9
+U-120ME2U9
U-120ME2U9
+U-120ME2U9
+U-120ME2U9
Appearance
Nominal Tons 6 8 10 12 14 16 18 20 22 24 26 28 30
Performance test condition AHRI Standard 1230 AHRI Standard 1230
Power supply 3φ 208/230V 60Hz 3φ 208/230V 60Hz
Cooling capacity Btu/h 72,000 96,000 120,000 144,000 168,000 192,000 216,000 240,000 264,000 288,000 312,000 336,000 360,000
kW 21.1 28.1 35.2 42.2 49.2 56.3 63.3 70.3 77.4 84.4 91.4 98.4 105.5
Heating capacity Btu/h 81,000 108,000 135,000 162,000 189,000 216,000 243,000 270,000 297,000 324,000 351,000 378,000 405,000
kW 23.7 31.6 39.6 47.5 55.4 63.3 71.2 79.1 87.0 94.9 102.8 110.8 118.7
Rating Standard
AHRI 1230
Indoor unit Ducted | Non-ducted Ducted | Non-ducted
Cooling
Capacity Btu/h 69,000 | 69,000 92,000 | 92,000 114,000 | 114,000 138,000 | 138,000 160,000 | 160,000 184,000 | 184,000 206,000 | 206,000 228,000 | 228,000 252,000 | 252,000 274,000 | 274,000 298,000 | - 320,000 | - 342,000 | -
EER 12.3 | 12.6 11.9 | 11.9 11.5 | 11.8 10.9 | 10.7 11.7 | 11.6 11.2 | 11.1 11.0 | 10.9 10.7 | 10.8 10.2 | 10.1 9.8 | 9.6 10.4 | - 10.3 | - 10.1 | -
IEER 19.1 | 22.1 19.3 | 23.1 19.3 | 24.8 18.7 | 22.6 19.0 | 23.2 18.4 | 22.6 18.0 | 22.3 17.7 | 22.8 17.3 | 20.8 16.9 | 19.5 17.7 | - 17.2 | - 16.6 | -
High heating 47°F Capacity Btu/h 77,000 | 77,000 103,000 | 103,000 129,000 | 129,000 154,000 | 154,000 180,000 | 180,000 206,000 | 206,000 232,000 | 232,000 258,000 | 258,000 284,000 | 284,000 308,000 | 308,000 334,000 | - 360,000 | - 386,000 | -
COP 3.56 | 3.86 3.54 | 3.75 3.40 | 3.60 3.27 | 3.35 3.45 | 3.50 3.40 | 3.39 3.38 | 3.35 3.29 | 3.25 3.35 | 3.22 3.28 | 3.20 3.27 | - 3.23 | - 3.20 | -
Low heating 17°F Capacity Btu/h 52,000 | 52,000 67,000 | 67,000 75,000 | 75,000 100,000 | 100,000 119,000 | 119,000 134,000 | 134,000 142,000 | 142,000 150,000 | 150,000 176,000 | 176,000 200,000 | 200,000 202,000 | - 218,000 | - 226,000 | -
COP 2.56 | 2.63 2.42 | 2.59 2.30 | 2.40 2.18 | 2.41 2.30 | 2.38 2.25 | 2.26 2.23 | 2.34 2.18 | 2.22 2.16 | 2.12 2.14 | 2.06 2.16 | - 2.13 | - 2.10 | -
Electrical ratings
Outdoor unit only
Voltage V 208 / 230 208 / 230
Ducted cooling
Running current A 14.3 / 13.1 19.0 / 17.4 24.4 / 22.3 31.9 / 28.8 35.8 / 32.7 42.1 / 38.5 47.5 / 43.5 55.2 / 50.5 65.3 / 59.0 74.7 / 67.6 77.5 / 70.9 82.7 / 75.6 90.7 / 82.9
Power input kW 4.49 / 4.49 6.36 / 6.36 8.25 / 8.25 10.8 / 10.8 11.6 / 11.6 14.1 / 14.1 16.1 / 16.1 18.7 / 18.7 22.1 / 22.1 25.3 / 25.3 25.7 / 25.7 28.0 / 28.0 30.7 / 30.7
Power factor % 87 / 86 93 / 92 94 / 93 94 / 94 90 / 89 93 / 92 94 / 93 94 / 93 94 / 94 94 / 94 92 / 91 94 / 93 94 / 93
Ducted heating
Running current A 16.7 / 15.2 21.6 / 19.8 27.9 / 25.5 35.1 / 31.8 40.7 / 37.2 46.5 / 42.5 52.2 / 47.8 58.8 / 53.7 65.6 / 59.3 73.5 / 66.5 81.5 / 74.5 88.3 / 80.8 95.1 / 86.9
Power input kW 5.22 / 5.22 7.16 / 7.16 9.45 / 9.45 11.9 / 11.9 13.2 / 13.2 15.4 / 15.4 17.5 / 17.5 19.9 / 19.9 22.2 / 22.2 24.9 / 24.9 27.0 / 27.0 29.6 / 29.6 32.2 / 32.2
Power factor % 87 / 86 92 / 91 94 / 93 94 / 94 90 / 89 92 / 91 93 / 92 94 / 93 94 / 94 94 / 94 92 / 91 93 / 92 94 / 93
Non-ducted
cooling
Running current A 15.7 / 14.4 21.0 / 19.2 26.4 / 24.1 35.7 / 32.3 40.1 / 36.7 47.2 / 43.1 53.2 / 48.6 59.7 / 54.5 70.9 / 64.1 81.2 / 73.4 - - -
Power input kW 4.92 / 4.92 7.04 / 7.04 8.94 / 8.94 12.1 / 12.1 13.0 / 13.0 15.8 / 15.8 18.0 / 18.0 20.2 / 20.2 24.0 / 24.0 27.5 / 27.5 - - -
Power factor % 87 / 86 93 / 92 94 / 93 94 / 94 90 / 89 93 / 92 94 / 93 94 / 93 94 / 94 94 / 94 - - -
Non-ducted
heating
Running current A 16.8 / 15.4 22.2 / 20.3 28.9 / 26.4 37.5 / 33.9 44.1 / 40.3 51.3 / 46.9 57.9 / 52.9 66.1 / 60.5 73.5 / 66.5 80.3 / 72.6 - - -
Power input kW 5.28 / 5.28 7.36 / 7.36 9.78 / 9.78 12.7 / 13.7 14.3 / 14.3 17.0 / 17.0 19.4 / 19.4 22.4 / 22.4 24.9 / 24.9 27.2 / 27.2 - - -
Power factor % 87 / 86 92 / 91 94 / 93 94 / 94 90 / 89 92 / 91 93 / 92 94 / 93 94 / 94 94 / 94 - - -
Starting current A 1 / 1 1 / 1
Compressor type/quantity Inverter driven Rotary×1 Inverter driven Rotary×2 Inverter driven
Rotary 1+1
Inverter driven
Rotary 1+1
Inverter driven
Rotary 1+2
Inverter driven
Rotary 2+2
Inverter driven
Rotary 2+2
Inverter driven
Rotary 2+2
Inverter driven
Rotary 1+2+2
Inverter driven
Rotary 1+2+2
Inverter driven
Rotary 2+2+2
Air flow rate CFM 6,000 6,200 7,900 7,900 6,000+6,200 6,200+6,200 6,200+7,900 7,900+7,900 7,900+7,900 7,900+7,900 6,000+7,900+7,900 6,200+7,900+7,900 7,900+7,900+7,900
External static pressure Pa (in. WC) 80 80
Refrigerant amount at shipment*2lbs R410A / 20.1 R410A / 22.7 R410A / 18.7 R410A / 26.0 R410A / 20.1+22.7 R410A / 22.7+22.7 R410A / 22.7+18.7 R410A / 18.7+18.7 R410A / 18.7+26.0 R410A / 26.0+26.0 R410A /
20.1+18.7+18.7
R410A /
22.7+18.7+18.7
R410A /
18.7+18.7+18.7
Dimensions H x W x D inch 72-33/64" x 30-5/16" x 39-3/8" 72-33/64" x 46-29/64" x 39-3/8" 72-33/64" x 62-63/64"
x 39-3/8"
72-33/64" x 62-63/64"
x 39-3/8"
72-33/64" x
79-9/64" x 39-3/8"
72-33/64" x 95-9/32" x
39-3/8" 72-33/64" x 127-61/64" x 39-3/8" 72-33/64" x144-3/32"
x 39-3/8"
Net weight lbs 503 560 664 721 503 + 560 560 + 560 560 + 664 664 + 664 664 + 721 721 + 721 503 + 664 + 664 560 + 664 + 664 664 + 664 + 664
Ambient temperature operating range Cooling: 14~122°F DB, Heating: -4~64°F WB Cooling: 14~122°F DB, Heating: -4~64°F DB
Piping
Diameter
Gas inch 3/4" 7/8" 1-1/8" 1-1/8" 1-1/8" 1-1/8" 1-1/8" 1-3/8" 1-3/8" 1-3/8" 1-3/8" 1-3/8" 1-5/8"
Liquid inch 3/8" 3/8" 1/2" 1/2" 5/8" 5/8" 5/8" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4"
Balance inch 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4"
Connecting method
(Liquid,Balance)Flared, (Gas)Brazing (Liquid,Balance)Flared, (Gas)Brazing
Max total pipe length
Ft ~3,280 ~3,280
Elevation difference (OD upper/ OD lower)
Ft 164 / 131 164 / 131
Operation sound (Normal/Quiet mode) dB 54.5 / 51.5 58.0 / 55.0 59.5 / 56.5 61.0 / 58.0 60.0 / 57.0 61.0 / 58.0 62.0 / 59.0 62.5 / 59.5 63.5 / 60.5 64.0 / 61.0 63.5 / 60.5 64.0 / 61.0 64.5 / 61.5
Maximum allowable indoor unit connection 20 25 32 39 45 50 55 64 64 64 64 64 64
KEY FEATURES: SINGLE OUTDOOR
* Wide range of systems from 6 ton to 30 ton
* Top class IEER: 19.3 (for 8 ton system)
* Longer max piping length (up to 3,280 ft)
* Increased max number of connectable indoor units (up to 64)
* Increased connectable indoor/outdoor capacity ratio up to 200%
* External static pressure increased to 80Pa
* Extended operation range allowing cooling operation to continue
even when outdoor temperature is as high as 122°F DB
* Heating operation possible down to outdoor temperature of -4°F WB
ECOi EX
TM
ME2 Series
ME 2 SERIES
ECOi EX™
2-WAY VRF HEAT PUMP
NEW ECOi EX™ Series
15
14

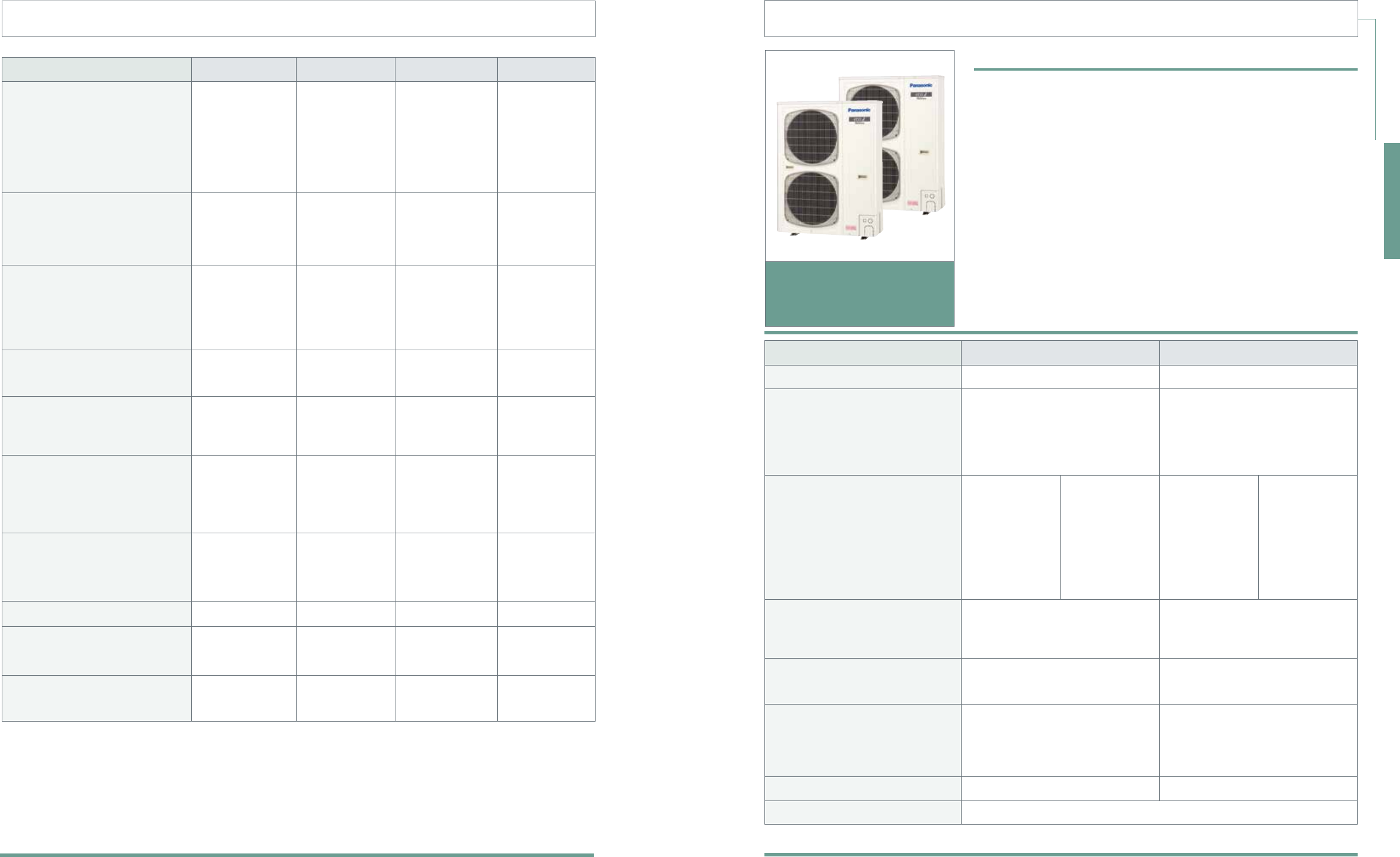

DESCRIPTION U-72MF1U9 U-96MF1U9
PERFORMANCE
COOLING CAPACITY: BTU/H
POWER INPUT: kW
HEATING CAPACITY: BTU/H
POWER INPUT: kW
72,000
5.3
81,000
5.79
95,000
7.75
106,500
8.6
ELECTRICAL RATINGS
VOLTAGE RATING
COOLING RUNNING AMPERES
HEATING RUNNING AMPERES
MIN. CIRCUIT AMPACITY
MAX. OVERCURRENT PROTECTION (MOCP): (A)
208 - 230 V
15.1 - 14.2 A
16.5 - 15.5 A
24 A
40 A
208 - 230 V
23.2 - 21.6 A
25.4 - 23.7 A
34 A
45 A
COMPRESSOR
TYPE - QUANTITY
MOTOR OUTPUT
REFRIGERATION OIL TYPE
REFRIGERATION OIL CHARGE AMOUNT
CRANKCASE HEATER
REFRIGERANT AMOUNT AT SHIPMENT
REFRIGERANT CONTROL
DEFROST METHOD
HEAT EXCHANGER
CAPACITY CONTROL
Inverter Driven Rotary Type
4.1 kW
FV68S (Ether oil - PVE)
1.4 gal
25 w
R410A - 25.9 lbs
Electronic expansion valve
Reverse-cycle, outdoor unit cycle
Aluminum plate fin / Copper tube
10-100%
Inverter Driven Rotary 1 Fixed Scroll Hermetic
(2.7 + 3.5) kW
FV68S (Ether oil - PVE)
1.96 gal
25 + 32 w
R410A - 25.9 lbs
Electronic expansion valve
Reverse-cycle, outdoor unit cycle
Aluminum plate fin / Copper tube
8-100%
FAN DEVICE
TYPE - QUANTITY
MOTOR OUTPUT
PROTECTIVE DEVICES
CFM
EXTERNAL STATIC PRESSURE
Propeller fan x 1
0.7 kW
High pressure switch, overcurrent (CT method)
5,300
0.0 / 0.24 WC
Propeller fan x 1
0.7 kW
High pressure switch, overcurrent (CT method)
5,650
0.0 / 0.24 WC
TUBING
REFRIGERANT TUBING GAS TUBE
REFRIGERANT TUBING LIQUID TUBE
REF. TUBING DISCHARGE TUBE
REFRIGERANT TUBING BALANCE TUBE
EXTERNAL AIR TEMP. OPERATION RANGE
OPERATION SOUND (HI)
3/4" (Brazing)
ø3/8" (Brazing)
ø5/8" (Brazing)
ø3/8" (Flare)
Cooling: 14 to 113 (DB) / Heating: -4 to 59 (WB) °F
54.5 (Quiet mode: 51.5) dB-A
ø7/8" (Brazing)
ø3/8" (Brazing)
ø3/4" (Brazing)
ø3/8" (Flare)
Cooling: 14 to 113 (DB) / Heating: -4 to 59 (WB) °F
55.0 (Quiet mode: 52.0) dB-A
UNIT DIMENSIONS
Inches (") / lbs.
Color (Munsell code)
82.5"/ 35"/ 35"/ 573 lbs.
Height/ Width/ Depth/ Net Weight
Silky shade (1y 8.5/0.5)
82.5"/ 35"/ 35"/ 672 lbs.
Height/ Width/ Depth/ Net Weight
Silky shade (1y 8.5/0.5)
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted combinations.
MODELS (Type: Nominal Cooling
Capacity, Ducted)
Nominal
Tons
Volt PH Connectable
Indoor Units (Max.)
U-72MF1U9 72,000 BTU Heat Recovery 6 208-230V/60 HZ 3 12
U-96MF1U9 95,000 BTU Heat Recovery 8 208-230V/60 HZ 3 16
U-72MF1U9
U-96MF1U9
KEY FEATURES:
* 3-Way Heat Recovery System. Simultaneous Heating and Cooling.
*ECO Friendly R410A Refrigerant
* One Outdoor Unit Connects As Many As 16 Indoor Units
(50%-130% ratio of indoor to outdoor capacity)
* U-72MF1U9 includes one inverter driven Rotary compressor
* U-96MF1U9 includes one inverter driven Rotary compressor
and one AC Constant Speed Scroll Compressor
* Nominal Operating Range (Outdoor Ambient)
- Cooling 14°F DB to 113°F DB
- Heating -4°F WB to 59°F WB
* Ultra Quiet Operation As Low As 51.5 dB(a)
* Variable Speed DC Fan Motor (ESP adjustable to 0.24" wc)
* Flexible Piping Design:
- 984 Feet - Maximum Total Liquid Line
- 492 Feet - Maximum Outdoor To Most Distant Indoor Unit
- 164 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Above Indoor)
- 131 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Below Indoor)
ECOi Heat Recovery series offers the
ability to heat and cool different zones
simultaneously.
Panasonic was the first manufacturer in the
world to develop this energy saving heat
recovery solution. Offering all the features
of our standard heat pump series, the
3-Way solution can offer even higher energy
savings for the building owner.
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
ECOi™ OUTDOOR
MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
17
16
DESCRIPTION WU-144MF1U9 WU-168MF1U9 WU-192MF1U9-1
PERFORMANCE
COOLING CAPACITY: BTU/H
POWER INPUT: kW
HEATING CAPACITY: BTU/H
POWER INPUT: kW
Includes (1) U-72MF1U9 and
(1) U-72MF1U9
139,000
10.6
157,000
11.6
Includes (1) U-72MF1U9 and
(1) U-96MF1U9
164,000
13.1
184,000
14.4
Includes (1) U-96MF1U9 and
(1) U-96MF1U9
180,000
14.4
202,000
16.2
COOLING MODE NOMINAL CONDITIONS
INDOOR: °F WB/ °F DB
OUTDOOR: °F DB
PIPE LENGTH: FEET
LEVEL DIFFERENCE: FEET
80/67
95
25
0
80/67
95
25
0
80/67
95
50
0
HEATING MODE NOMINAL CONDITIONS
INDOOR: °F DB
OUTDOOR: °F DB/ °F WB
PIPE LENGTH: FEET
LEVEL DIFFERENCE: FEET
70
47/43
25
0
70
47/43
25
0
70
47/43
50
0
NOMINAL OPERATING RANGE
COOLING: °F DB
HEATING: °F WB
14 to 113
-4 to 59
14 to 113
-4 to 59
14 to 113
-4 to 59
COMPRESSOR
TYPE/QUANTITY
CAPACITY CONTROL RANGE: %
2 Inverter driven Twin Rotary
6 - 100%
2 Inverter driven Twin Rotary
& 1 fixed speed scroll
6 - 100%
2 Inverter driven Twin Rotary
& 2 fixed speed scroll
6 - 100%
FAN
TYPE/QUANTITY
FAN MOTOR OUTPUT: (kW)
EXTERNAL STATIC PRESSURE
1 Propeller (ea)
0.7 kW (ea)
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW (ea)
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW (ea)
0.0 / 0.24 WC
POWER SUPPLY
V/PH/HZ
MINIMUM CIRCUITS AMPS (MCA): (A)
MAX. OVERCURRENT PROTECTION (MOCP): (A)
208 - 230 / 3 / 60
52
80
208 - 230 / 3 / 60
60
85
208 - 230 / 3 / 60
68
90
WEIGHT: (LBS) 1,146 1,245 1,344
COIL
COIL FACE AREA: (SQ. FT.)
NUMBER OF ROWS:
29.5(ea)
4(ea)
29.5(ea)
4(ea)
29.5(ea)
4(ea)
PROTECTION DEVICES
HIGH PRESSURE SWITCH/OVERCURRENT
(CT METHOD)
CRANKCASE HEATERS: (W)
Yes
25 + 25
Yes
25 + 25 + 32
Yes
(25 + 32) x 2
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted Indoor Units.
EACH OUTDOOR UNIT REQUIRES A SEPARATE ELECTRICAL FUSED DISCONNECT,
SEE INDIVIDUAL OUTDOOR REQUIREMENTS.
WU-144MF1U9 / WU-168MF1U9 / WU-192MF1U9-1
WU-216MF1U9 / WU-240MF1U9
WU-264MF1U9 / WU-288MF1U9
KEY FEATURES:
* Three-Way Heat Recovery
* Combine 3 outdoor units up to 24 tons
* ECO Friendly R410A Refrigerant
* 208/230V, 3 Phase, 60Hz
* Multiple Compressors For Extra Reliability and Partial Redundancy
* Nominal Operating Range (Outdoor Ambient)
-Cooling 14 °F DB to 113 °F DB
-Heating -4 °F WB to 59 °F WB
* Ultra Quiet Operation As Low As 55 dB(a)
* Variable Speed DC Fan Motors
* Flexible Piping Design:
- 984 Feet - Maximum Total Liquid Line
- 492 Feet - Maximum Outdoor To Most Distant Indoor Unit
- 164 Feet - Maximum Vertical Between Indoor and Outdoor
(Outdoor Above Indoor)
- 131 Feet - Maximum Vertical Between Indoor and Outdoor
(Outdoor Below Indoor)
WU HEAT RECOVERY COMBINED SERIES.
WU 216
WU 240
WU 264
WU 288
WU 144
WU 168
WU 192
Panasonic’s Combined ECOi 3-Way conditioning solution offers
superior heating and cooling coupled with cost effective installation.
Providing a single refrigerant pipe network means there’s only one
penetration into the building and ultimately less piping material
required, saving you time and money. A smart conditioning solution for
large capacity jobs that require simultaneous heating and cooling.
SYSTEM Outdoor Unit Cooling &
Heating Ducted
Nominal
Tons Power input Control
Range
Connectable
Indoor Units
(Max)
WU-144MF1U9 U-72MF1U9 (quantity of 2) 139,000 & 157,000
BTU/H
12 10.6 / 11.6 kW 6 - 100% 24
WU-168MF1U9 U-72MF1U9
U-96MF1U9
164,000 & 184,000
BTU/H
14 13.1 / 14.4 kW 6 - 100% 29
WU-192MF1U9-1 U-96MF1U9 (quantity of 2) 180,000 & 202,000 16 14.37 / 16.2 kW 6 - 100% 33
WU-216MF1U9 U-72MF1U9 (quantity of 3) 203,000 & 228,000
BTU/H
18 15.9 / 17.4 kW 6 - 100% 37
WU-240MF1U9 U-72MF1U9 (quantity of 2)
U-96MF1U9
230,000 & 265,000
BTU/H
20 18.4 / 20.2 kW 6- 100% 40
WU-264MF1U9 U-96MF1U9 (quantity of 2)
U-72MF1U9
258,000 & 288,000
BTU/H
22
20.8 / 23.0 kW 6 - 100% 40
WU-288MF1U9 WU-96MF1U9 (quantity of 3)
281,000 & 312,000
BTU/H
24
23.3 / 25.8 kW 6 - 100% 40
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
ECOi™ OUTDOOR
COMBINED MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIESCOMBINED MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
19
18
Panasonic’s Mini ECOi is suited
for numerous commercial and
premium residential applications.
U-36LE1U6 / U-52LE1U6
KEY FEATURES:
* Single Phase 208/230 volts
* One Outdoor Unit Connects As Many As 9 Indoor Units
(50%-130% ratio of indoor to outdoor capacity)
* Inverter Driven Twin Rotary Compressor
* Nominal Operating Range (Outdoor Ambient)
- Cooling 14 °F DB to 113 °F DB
- Heating -4 °F WB to 59 °F WB
* Ultra Quiet Operation As Low As 48 dB(a)
* Variable Speed DC Fan Motor
* Piping:
-656 Feet - Maximum Total Liquid Line
-164 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Above Indoor)
-131 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Below Indoor)
* Defrost control, reverse cycle, microprocessor control
* External finish: Galvanized steel plate with powder paint
* Refrigerant control: Electronic expansion valve
* Control Range 10 - 100%
DESCRIPTION U-36LE1U6 U-52LE1U6
POWER SOURCE 208-230V/1PH/60Hz 208-230V/1PH/60Hz
PERFORMANCE
COOLING CAPACITY
SEER
HEATING CAPACITY
HSPF
AIR CIRCULATION (HI)
Ducted Non-Ducted Mix
37,000 39,000 38,000 BTU/H
13.10 17.00 15.00
38,500 43,000 40,750 BTU/H
7.80 9.80 8.80
3,530 CFM
Ducted Non-Ducted Mix
51,500 52,000 51,750 BTU/H
14.6 17.4 16.0
57,500 58,500 58,000 BTU/H
7.7 9.6 8.6
3,530 CFM
ELECTRICAL RATINGS
VOLTAGE RATING
AVAILABLE VOLTAGE RANGE
RUNNING AMPERES
MAX. RUNNING AMPERES
POWER INPUT
MAX. POWER INPUT
MIN. CIRCUIT AMPACITY
MAX. OVERCURRENT PROTECTION (MOCP)
COOLING
208 / 230 V
187—253 V
14.6 / 13.6 A
23.6 / 23.6 A
2.76 / 2.76 kW
4.85 / 4.85 kW
18 A
30 A
HEATING
208 / 230 V
187—253 V
14.6 / 13.6 A
23.6 / 23.6 A
2.88 / 2.88 kW
4.85 / 4.85 kW
COOLING
208 / 230 V
187—253 V
23.5 / 21.9 A
28 / 28 A
4.57 / 4.57 kW
5.72 / 5.72 kW
29 A
50 A
HEATING
208 / 230 V
187—253 V
23.5 / 21.9 A
28 / 28 A
4.58 / 4.58 kW
5.7 2 / 5.72 kW
REFRIGERANT TUBING
LIMIT OF TUBING LENGTH
LIMIT OF ELEVATION DIFFERENCE
BETWEEN THE 2 UNITS
656 ft
Outdoor unit is higher than indoor unit: 164
Outdoor unit is lower than indoor unit: 131
656 ft
Outdoor unit is higher than indoor unit: 164
Outdoor unit is lower than indoor unit: 131
REFRIGERANT TUBE DIAMETER
LIQUID TUBE IN.
GAS TUBE IN.
3 / 8"
5 / 8"
3 / 8"
3 / 4"
UNIT DIMENSIONS
INCHES (") / LBS.
SHIPPING WEIGH / VOLUME
EXTERNAL AIR TEMP. OPERATION RANGE
Height/ Width/ Depth/ Net Weight
49" / 37" / 14" / 229 lbs.
247 lbs. / 19.8 ft.3
Cooling:14 to 113 (DB)/Heating: -4 to 59 (WB)
Height/ Width/ Depth/ Net Weight
49" / 37" / 14" / 229 lbs.
247 lbs. / 19.8 ft.3
Cooling:14 to 113 (DB)/Heating: -4 to 59 (WB)
CONNECTABLE INDOOR UNITS (MAX) 6 9
CERTIFICATION STANDARD AHRI 210 / 240
DESCRIPTION WU- 216MF1U9 WU- 240MF1U9 WU- 264MF1U9 WU- 288MF1U9
PERFORMANCE
COOLING CAPACITY: BTU/H
POWER INPUT: kW
HEATING CAPACITY: BTU/H
POWER INPUT: kW
Includes
(3) U-72MF1U9
203,000
15.9
228,000
17.4
Includes (2)
U-72MF1U9 and
(1) U-72MF1U9
230,000
18.4
265,000
20.2
Includes
(1) U-72MF1U9 and
(2) U-96MF1U9
258,000
20.8
288,000
23.0
Includes
(3) U-96MF1U9
281,000
23.3
312,000
25.8
COOLING MODE NOMINAL CONDITIONS
INDOOR: °F WB/ °F DB
OUTDOOR: °F DB
PIPE LENGTH: FEET
LEVEL DIFFERENCE: FEET
80/67
95
25
0
80/67
95
25
0
80/67
95
25
0
80/67
95
25
0
HEATING MODE NOMINAL CONDITIONS
INDOOR: °F DB
OUTDOOR: °F DB/ °F WB
PIPE LENGTH: FEET
LEVEL DIFFERENCE: FEET
70
47/43
25
0
70
47/43
25
0
70
47/43
25
0
70
47/43
25
0
NOMINAL OPERATING RANGE
COOLING: °F DB
HEATING: °F WB
14 to 113
-4 to 59
14 to 113
-4 to 59
14 to 113
-4 to 59
14 to 113
-4 to 59
COMPRESSOR
TYPE/QUANTITY
CAPACITY CONTROL RANGE: %
3 Inverter driven Twin
Rotary
6 - 100%
3 Inverter driven Twin
Rotary & 1 fixed speed
scroll 6 - 100%
3 Inverter driven Twin
Rotary & 2 fixed speed
scroll 6 - 100%
3 Inverter driven Twin
Rotary & 3 fixed speed
scroll 6 - 100%
FAN
TYPE/QUANTITY
FAN MOTOR OUTPUT: (kW)
EXTERNAL STATIC PRESSURE
1 Propeller (ea)
0.7 kW
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW
0.0 / 0.24 WC
POWER SUPPLY
V/PH/HZ
MINIMUM CIRCUITS AMPS (MCA): (A)
MAX. OVERCURRENT PROTECTION (MOCP): (A)
208 - 230 / 3 / 60
78
120
208 - 230 / 3 / 60
86
125
208 - 230 / 3 / 60
94
130
208 - 230 / 3 / 60
102
135
WEIGHT: (LBS) 1,719 1,818 1,917 2,016
COIL
COIL FACE AREA: (SQ. FT.)
NUMBER OF ROWS:
29.5(ea)
4 (ea)
29.5 (ea)
4
29.5 (ea)
4
29.5 (ea)
4
PROTECTION DEVICES
HIGH PRESSURE SWITCH/OVERCURRENT (CT METHOD)
CRANKCASE HEATERS: (W)
Yes
25 + 25 + 25
Yes
25 + 25 + 25 + 32
Yes
(2 X 25 + 32) + 25
Yes
3 x 25 + 32
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted Indoor Units.
EACH OUTDOOR UNIT REQUIRES A SEPARATE ELECTRICAL FUSED DISCONNECT,
SEE INDIVIDUAL OUTDOOR REQUIREMENTS.
ECOi™ OUTDOOR
LE MINI ECOiTM MULTI SPLIT VRF HEAT PUMP SERIESCOMBINED MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
21
20
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted Indoor Units.
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
DESCRIPTION (Type: Nominal Cooling
Capacity, Ducted)
Nominal
Tons
Volt PH Connectable
Indoor Units
(Max)

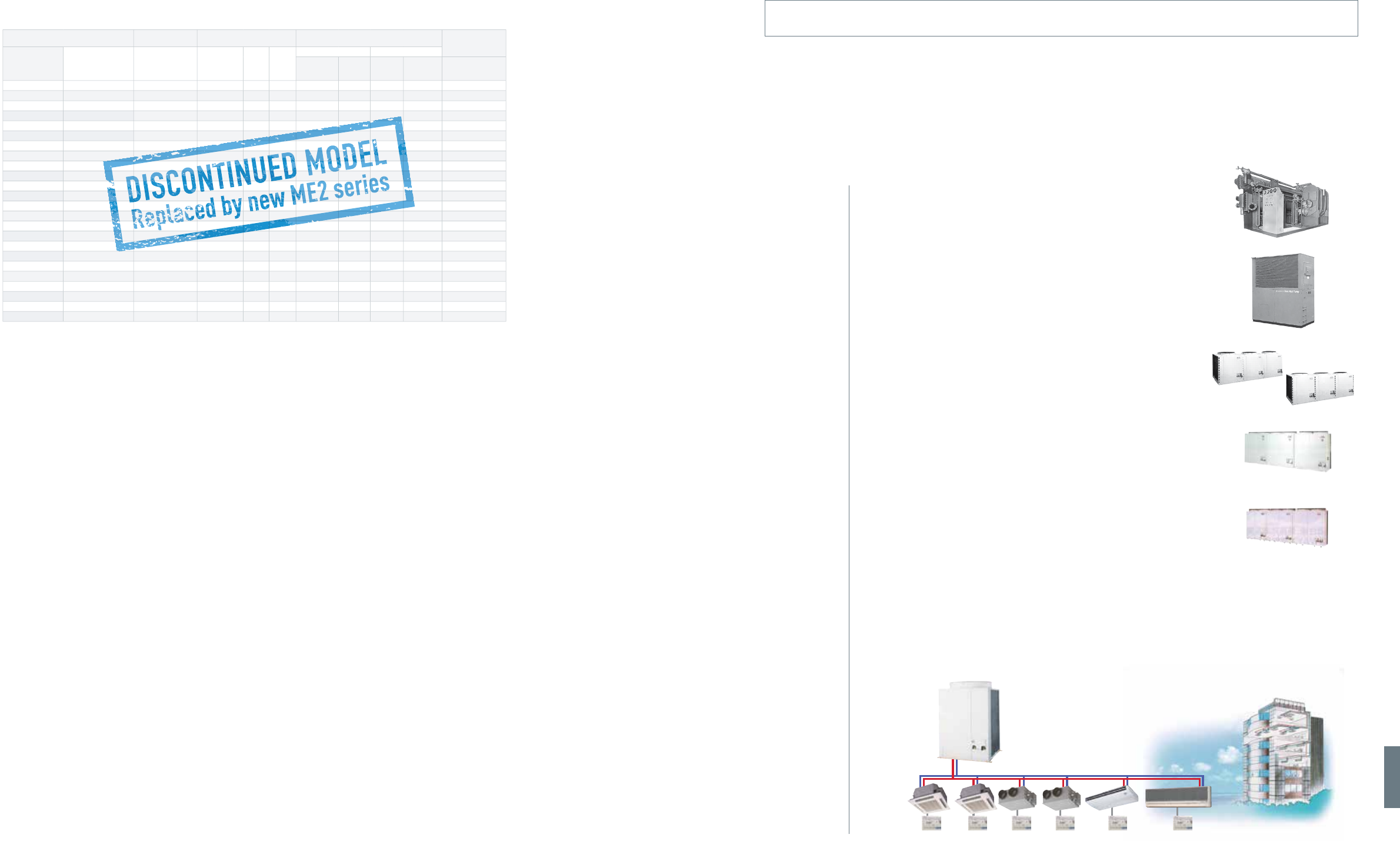

U-72ME1U9 * 72,000 BTU Heat Pump 6 208-230V/60 HZ 3 12
U-96ME1U9 * 95,000 BTU Heat Pump 8 208-230V/60 HZ 3 16
U-72ME1U9
U-96ME1U9
KEY FEATURES:
* One Outdoor Unit Connects As Many As 16 Indoor Units
(50%-130% ratio of indoor to outdoor capacity)
* U-72ME1U9 one Inverter Driven Rotary Compressor
* U-96ME1U9 includes one Inverter Driven Rotary Compressor
and One AC Constant Speed Scroll Compressor
* Nominal Operating Range (Outdoor Ambient)
- Cooling 14 °F DB to 113 °F DB
- Heating -4 °F WB to 59 °F WB
* Ultra Quiet Operation As Low As 52 dB(a)
* Variable Speed DC Fan Motor (ESP adjustable to 0.24" wc)
* Flexible Piping Design:
- 984 Feet - Maximum Total Liquid Line
- 492 Feet - Maximum Outdoor To Most Distant Indoor Unit
- 164 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Above Indoor)
- 131 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Below Indoor)
Panasonic’s ECOi is an all-in-one
modular conditioning solution. Suited
for numerous commercial and industrial
applications, it offers flexible installation,
superior heating and cooling.
ECOi™ OUTDOOR
ME1 series 2-WAY ECOiTM VRF HEAT PUMP SERIES
ME1 series 2-WAY ECOiTM VRF HEAT PUMP SERIES
23
22
WU-144ME1U9 / WU-168ME1U9
WU-216ME1U9 / WU-240ME1U9
WU-264ME1U9 / WU-288ME1U9
KEY FEATURES:
* Heat Pump
* Combine 3 outdoor units up to 24 tons
* Combined Series Allows Up to 40 Indoor Units (50%-130% ratio of
indoor to outdoor capacity)
* ECO Friendly R410A Refrigerant
* 208/230V, 3 Phase, 60Hz
* Multiple Compressors For Precise and Efficient Operation
* Nominal Operating Range (Outdoor Ambient)
-Cooling 14 °F DB to 113 °F DB
-Heating -4 °F WB to 59 °F WB
* Ultra Quiet Operation As Low As 51.5 dB(a)
* Variable Speed DC Fan Motors
* Flexible Piping Design:
- 984 Feet - Maximum Total Liquid Line
- 492 Feet - Maximum Outdoor To Most Distant Indoor Unit
- 164 Feet - Maximum Vertical Between Indoor and Outdoor
(Outdoor Above Indoor)
- 131 Feet - Maximum Vertical Between Indoor and Outdoor
(Outdoor Below Indoor)
ME COMBINED SERIES
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted Indoor Units.
WU 216ME
WU 240ME
WU 264ME
WU 288ME
WU 144ME
WU 168ME
Panasonic’s Combined ECOi outdoor units offer superior
heating and cooling coupled with cost effective installation.
Providing a single refrigerant pipe network means there’s
only one penetration into the building and less piping
material required, saving you time and money. A smart
conditioning solution for large capacity jobs.
SYSTEM Outdoor Unit Cooling &
Heating
Nominal
Tons
Power input
208/230
Control
Range
Connectable
Indoor Units
(Max)
WU-144ME1U9 U-72ME1U9 (quantity of 2) 139,000 & 157,000
BTU/H
12 10.56/ 11.58 kW 6 - 100% 24
WU-168ME1U9 U-72ME1U9
U-96ME1U9
164,000 & 184,000
BTU/H
14 12.97/ 14.39 kW 6 - 100% 29
WU-216ME1U9 U-72ME1U9 (quantity of 3) 203,000 & 228,000
BTU/H
18 15.84/ 17.37 kW 6 - 100% 37
WU-240ME1U9 U-72ME1U9 (quantity of 2)
U-96ME1U9
230,000 & 265,000
BTU/H
20 18.25/ 20.18 kW 6- 100% 40
WU-264MEIU9 U-96ME1U9 (quantity of 2)
U-72ME1U9
258,000 & 288,000
BTU/H
22
20.66/ 22.99 kW 6 - 100% 40
WU-288ME1U9 U-96ME1U9 (quantity of 3)
281,000 & 312,000
BTU/H
24
23.07/ 25.8 kW 6 - 100% 40
COMBINED ME 1-WAY ECOiTM VRF HEAT PUMP SERIES
ECOi™ OUTDOOR
25
24
Cooling Cooling
Nominal Cooling Capacity
Btu/h class 7,500 9,000 12,000 15,000 18,000 24,000 36,000
MVA: 30,000 / 36,000
48,000
MVA: 42,000 / 48,000
54,000
MVA: 60,000
MK TYPE
Wall Mounted
S-07MK1U6 S-09MK1U6 S-12MK1U6
S-18MK1U6
S-19MK1U6
(Special Order) S-24MK1U6
MY TYPE
4-way ceiling
cassette
23" x 23" S-12MY1U6 S-18MY1U6
MU TYPE
4-way ceiling
cassette
33" x 33" S-24MU1U6 S-36MU1U6
MD TYPE
1 way ceiling
cassette S-07MD1U6 S-09MD1U6 S-12MD1U6
MT TYPE
Ceiling Suspended
S-12MT1U6 S-18MT1U6 S-24MT1U6
MP TYPE
Floor Mounted
without decorative panel S-07MP1U6 S-09MP1U6 S-12MP1U6 S-15MP1U6 S-18MP1U6 S-24MP1U6
MR TYPE
Floor Mounted
without decorative panel S-07MR1U6 S-09MR1U6 S-12MR1U6 S-15MR1U6 S-18MR1U6 S-24MR1U6
MM TYPE
Concealed Duct –
Low Profile S-07MM1U6 S-09MM1U6 S-12MM1U6 S-15MM1U6 S-18MM1U6
MF TYPE
Concealed Duct –
Medium Static S-07MF1U6 S-09MF1U6 S-12MF1U6 S-15MF1U6 S-18MF1U6 S-24MF1U6 S-36MF1U6 S-48MF1U6 S-54MF1U6
ME TYPE
Concealed Duct –Medium-High Static
S-36ME1U6 S-48ME1U6
MVA TYPE
Vertical Air Handler
MVA18FBAS6HBCP MVA24FBAS6HBCP MVA30FBAS6HBCP
MVA36FBAS6HBCP
MVA42FBAS6HBCP
MVA48FBAS6HBCP MVA60FBAS6HBCP
Type
INDOOR UNITS LINEUP
Actual Installation Examples
Panasonic introduced its first VRF to the US market in 2001 with 16 different indoor units.
Panasonic has continued to refine and expand VRF indoor model offerings, and today the lineup totals
49 models. Whether it’s an office, a hotel, or other applications, Panasonic offers wide versatility in solving
your air conditioning requirements.
MF TYPE
MD TYPE
MU TYPE
ME TYPE
Panasonic
INDOOR
NEW
27
26
S-07MK1U6 / S-09MK1U6 / S-12MK1U6/S-18MK1U6
S-19MS1U6 / S-24MK1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Easy Wall Mount for Any Application
* Washable Long Life Filter
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* Light Weight, Only 31 lbs. (S-24MK1U6 is 46 lbs.)
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Easy Service
MODELS (Type: Nominal Cooling Capacity, etc) Volt PH
S-07MK1U6 7,500 BTU 208-230V/60 HZ 1
S-09MK1U6 9,600 BTU 208-230V/60 HZ 1
S-12MK1U6 12,000 BTU 208-230V/60 HZ 1
S-18MK1U6 18,000 BTU 208-230V/60 HZ 1
S-19MS1U6 19,000 BTU (special order) 208-230V/60 HZ 1
S-24MK1U6 25,000 BTU 208-230V/60 HZ 1
CZ-P56SVK1U External EEV (required for use with S-19MS1U6)N/A N/A
Panasonic’s wall-mounted units work well with any interior
design. Flexible and compact, offering individualized zoned
comfort for complete temperature control throughout the day.
Over five different air flow directions and wireless remotes
provide control in the palm of your hand.
MK WALL MOUNTED UNIT
DESCRIPTION S-07MK1U6 S-09MK1U6 S-12MK1U6 S-18MK1U6 S-19MS1U6
needs CZ-P56SVK1U
S-24MK1U6
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
7,500 BTU/H
8,500 BTU/H
9,600 BTU/H
11,000 BTU/H
12,000 BTU/H
14,000 BTU/H
18,000 BTU/H
20,000 BTU/H
19,000 BTU/H
21,000 BTU/H
25,000 BTU/H
27,000 BTU/H
CURRENT
COOLING
HEATING
0.20/0.21 A
0.20/0.21 A
0.20/0.21 A
0.20/0.21 A
0.20/0.21 A
0.20/0.21 A
0.30/0.32 A
0.30/0.32 A
0.30/0.32 A
0.30/0.32 A
0.37/0.39 A
0.38/0.32 A
POWER INPUT
COOLING
HEATING
50/56 W
50/56 W
50/56 W
50/56 W
50/56 W
50/56 W
61/72 W
61/72 W
61/72 W
61/72 W
72/83 W
72/83 W
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
CROSS FLOW X1
350/280/210
AC
30 W
CROSS FLOW X1
350/280/210
AC
30 W
CROSS FLOW X1
350/280/210
AC
30 W
CROSS FLOW X1
565/495/353
AC
30 W
CROSS FLOW X1
565/495/353
AC
30 W
CROSS FLOW X1
565/495/350
AC
30 W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
3/8"
5/8"
UNIT DIMENSIONS
Inches (") / lbs.
11.5"/ 39.5"/ 8"/ 31 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
13"/ 45"/ 9"/ 46 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION 3/4" OD
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V 28/32/36 28/32/36 28/32/36 35/38/42 35/38/42 35/38/42
S-12MY1U6 / S-18MY1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Four Way Air Throw
* Washable Long Life Air Filter
* Built-In Drain Pump – 25" Lift
* Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
* A Low Profile Unit Perfectly Suited for
Compact Ceiling Voids (as little as 12-14")
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Easy Service
* Optional Outside Air Intake
SYSTEM/MODEL Components (Type: Nominal Cooling Capacity, etc) Volt PH
S-12MY1U6
System 12,000 BTU 4-Way Ceiling cassette 25" x 25" (includes grille) 208-230V/1ø/60 HZ 1
S-12MY1U6 cassette 208-230V/1ø/60 HZ 1
CZ-18KPY1U grille
S-18MY1U6
System 18,000 BTU 4-way Ceiling cassette 25" x 25" (includes grille) 208-230V/1ø/60 HZ 1
S-18MY1U9 cassette 208-230V/1ø/60 HZ 1
CZ-18KPY1U grille
Panasonic’s 4-Way semi-concealed ceiling
units are flexible, efficient and space-saving.
Now available to fit within standard
24"x24"ceiling grids.
DESCRIPTION S-12MY1U6 S-18MY1U6
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
12,000 BTU/H
14,000 BTU/H
19,000 BTU/H
21,000 BTU/H
CURRENT
COOLING
HEATING
0.22/0.20 A
0.19/0.17 A
0.30/0.32 A
0.27/0.30 A
POWER INPUT
COOLING
HEATING
38/43 W
30/35 W
52/56 W
48/47 W
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
TURBO X1
320/280/250
DC
20 W
TURBO X1
440/370/320
DC
20 W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
UNIT DIMENSIONS
Inches (") / lbs.
12.5"/ 23"/ 23"/ 41 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION 1 1/4" OD
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V 27/29/31 33/37/41
4-WAY AIR DISCHARGE
25" X 25" SYSTEM
(INCLUDES GRILLE)
MY SERIES 4-WAY CEILING CASSETTE 23" X 23" WITH CONDENSATE PUMP
Panasonic
INDOOR
29
28
S-24MU1U6 / S-36MU1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Four Way Air Throw
* Washable Long Life Air Filter
* Built-In Drain Pump – 25" Lift
* Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
* A Low Profile Unit Perfectly Suited for
Compact Ceiling Voids (as little as 12-14")
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Easy Service
* Branch Duct Available
* Optional Outside Air Intake
SYSTEM/MODEL Components (Type: Nominal Cooling Capacity, etc) Volt PH
S-24MU1U6
System 25,000 BTU 4-Way Ceiling cassette 37-1/2" x 37-1/2" (includes grille) 208-230V/60 HZ 1
S-24MU1U6 cassette 208-230V/60 HZ 1
CZ-36KPU2U grille
S-36MU1U6
System 36,000 BTU 4-Way Ceiling cassette 37-1/2" x 37-1/2" (includes grille) 208-230V/60 HZ 1
S-36MU1U6 cassette 208-230V/60 HZ 1
CZ-36KPU2U grille
Panasonic’s 4-Way semi-concealed ceiling
units are flexible, efficient and
space-saving. Two sides can be adjusted
simply to accommodate corner airflow.
DESCRIPTION S-24MU1U6 S-36MU1U6
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
25,000 BTU/H
27,000 BTU/H
36,000 BTU/H
39,000 BTU/H
CURRENT
COOLING
HEATING
0.29/0.26 A
0.30/0.31 A
0.51/0.46 A
0.54/0.49 A
POWER INPUT
COOLING
HEATING
38/40 W
33/33 W
74/79 W
76/76 W
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
TURBO X1
705/565/495
DC
50 W
TURBO X1
990/810/740
DC
90 W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
3/8"
5/8"
3/8"
5/8"
UNIT DIMENSIONS
Inches (") / lbs.
12"/ 33"/ 33"/ 58 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
12" / 33" / 33" / 58 LBS.
HEIGHT/WIDTH/DEPTH/NET WEIGHT
DRAINPIPE DIMENSION 1 1/4 "OD
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V 28/31/34 33/36/39
MU SERIES 4-WAY CEILING CASSETTE 33" X 33" WITH CONDENSATE PUMP
SYSTEM/MODEL Components (Type: Nominal Cooling Capacity, etc) Volt PH
S-07MD1U6
System 7,500 BTU 1-Way Ceiling cassette (includes grille) 208-230V/60 HZ 1
S-07MD1U6 cassette 208-230V/60 HZ 1
CZ-12KPD1U grille
S-09MD1U6
System 9,000 BTU 1-Way Ceiling cassette (includes grille) 208-230V/60 HZ 1
S-09MD1U6 cassette 208-230V/60 HZ 1
CZ-12KPD1U grille
S-12MD1U6
System 12,000 BTU 1-Way Ceiling cassette (includes grille) 208-230V/60 HZ 1
S-12MD1U6 cassette 208-230V/60 HZ 1
CZ-12KPD1U grille
DESCRIPTION S-07MD1U6 S-09MD1U6 S-12MD1U6
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
7,500 BTU/H
8,500 BTU/H
9,600 BTU/H
11,000 BTU/H
12,000 BTU/H
14,000 BTU/H
CURRENT
COOLING
HEATING
0.29/0.28 A
0.28/0.26 A
0.29/0.28 A
0.28/0.26 A
0.32/0.31 A
0.34/0.32 A
POWER INPUT
COOLING
HEATING
48/50 W
44/46 W
48/50 W
44/46 W
52/55 W
50/52 W
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN EXT. STATIC PRESS (230V)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
CENTRIFUGAL X1
282/247/212
0 IN. WC
DC
60 W
CENTRIFUGAL X1
282/247/212
0 IN. WC
DC
60 W
CENTRIFUGAL X1
320/280/250
0 IN. WC
DC
60 W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
UNIT DIMENSIONS
Inches (") / lbs.
13"/ 30"/ 24.5"/ 43 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION 1 1/4" OD
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V 29/31/33
Panasonic’s semi-concealed ceiling
units are flexible and space-saving.
A perfect conditioning solution
for small spaces. Barely visible,
the unit blends with any interior
design. Powerful enough to cool
and comfort those inside.
S-07MD1U6 / S-09MD1U6 / S-12MD1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* One-Way Air Throw – Perfect for Small Spaces
* Washable Long Life Air Filter
* Built-In Drain Pump – 24" Lift
* Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
* Only 13" Tall (Not Including Decorative Panel), 30" Wide and
25" Deep
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Optional Outside Air Intake
* Easy Service
MD SERIES 1-WAY CEILING CASSETTE WITH CONDENSATE PUMP
Panasonic
INDOOR
31
30
DESCRIPTION S-12MT1U6 S-18MT1U6 S-24MT1U6
CAPACITY
COOLING
HEATING
12,000 BTU
14,000 BTU
19,000 BTU
21,000 BTU
25,000 BTU
27,000 BTU
CURRENT
COOLING
HEATING
0.14/0.17 A
0.14/0.15 A
0.15/0.14 A
0.15/0.17 A
0.34/0.31 A
0.34/0.36 A
POWER INPUT
COOLING
HEATING
15/16 W
15/16 W
16/16 W
16/18 W
38/37 W
40/40 W
UNIT DIMENSIONS
Inches (") / lbs.
8.5"/ 36"/ 27"/ 46 lbs.
Height/ Width/ Depth/ Net Weight
8.5"/ 46.5"/ 27"/ 55 lbs.
Height/ Width/ Depth/ Net Weight
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
CENTRIFUGAL X1
450/390/320
DC
60 - W
CENTRIFUGAL X1
450/390/320
DC
60 - W
CENTRIFUGAL X1
653/530/495
DC
60 - W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
3/8"
5/8"
DRAINPIPE DIMENSION 1" OD 1" OD 1" OD
SOUND LEVELS
(LOW-MED-HIGH) 30/32/35 - DB(A) @ 230V 30/33/36 - DB(A) @ 230V 33/36/38 - DB(A) @ 230V
MODELS (Type: Nominal Cooling Capacity, etc) Volt PH
S-12MT1U6 12,000 BTU 208-230V/60 HZ 1
S-18MT1U6 18,000 BTU 208-230V/60 HZ 1
S-24MT1U6 24,000 BTU 208-230V/60 HZ 1
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Low Profile Design Fits Into Numerous Ceiling
Suspended Locations
* One Way Air Discharge with Vanes and
Auto Louvre for Efficient Air Distribution
* Washable Long Life Air Filter
* Electronic Expansion Valve (EEV) for Accurate
Refrigerant Control
* Less Than 9" Tall and Less than 36"
Wide (47" Wide For S-24MT1U6)
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Easy Service
S-12MT1U6 / S-18MT1U6 / S-24MT1U6
Panasonic’s ceiling suspended units are an ideal solution
for any medium to light commercial application. Well
suited for retail stores, schools, and restaurants.
These units utilize large supply air openings to provide
comfortable airflow and ultra quiet operation.
MT SERIES CEILING SUSPENDED UNIT
S-07MR1U6 / S-09MR1U6 / S-12MR1U6
S-15MR1U6 / S-18MR1U6 / S-24MR1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Easy Service
* Washable Long Life filter
FLOOR MOUNTED
WITHOUT DECORATIVE PANEL
S-07MP1U6 / S-09MP1U6 / S-12MP1U6
S-15MP1U6 / S-18MP1U6 / S-24MP1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Easy Service
* Washable Long Life filter
FLOOR MOUNTED
WITH DECORATIVE PANEL
DESCRIPTION S-07MP1U6 /
S-07MR1U6
S-09MP1U6 /
S-09MR1U6
S-12MP1U6 /
S12MR1U6
S-15MP1U6 /
S15MR1U6
S-18MP1U6 /
S18MR1U6
S-24MP1U6 /
S-24MR1U6
CAPACITY
COOLING
HEATING
7,500 BTU
8,500 BTU
9,600 BTU
11,000 BTU
12,000 BTU
14,000 BTU
15,000 BTU
17,000 BTU
19,000 BTU
21,000 BTU
24,000 BTU
27,000 BTU
CURRENT
COOLING
HEATING
0.22/0.24 A
0.22/0.23 A
0.22/0.24 A
0.22/0.23 A
0.42/0.44 A
0.40/0.42 A
0.58/0.60 A
0.53/0.55 A
0.58/0.60 A
0.53/0.55 A
0.61/0.63 A
0.56/0.58 A
POWER INPUT
COOLING
HEATING
45/54 W
43/50 W
45/54 W
43/50 W
86/101 W
83/96 W
116/134 W
106/122 W
116/134 W
106/122 W
119/138 W
109/125 W
FHX UNIT DIMENSIONS
Inches (") / lbs.
24.25"/42"/9"/64 lbs.
HT / W / D / NT WT
24.2"/42"/9"/64 lbs.
HT / W / D / NT WT
24.2"/42"/9"/64 lbs.
HT / W / D / NT WT
24.0"/54.5"/9"/86 lbs.
HT / W / D / NT WT
24.0"/54.5"/9"/86 lbs.
HT / W / D / NT WT
24.0"/54.5"/9"/86 lbs.
HT / W / D / NT WT
FMHX UNIT DIMENSIONS
Inches (") / lbs.
24.25"/35.5"/9"/46 lbs.
HT / W / D / NT WT
24.25"/35.5"/9"/46 lbs.
HT / W / D / NT WT
24.25"/35.5"/9"/46 lbs.
HT / W / D / NT WT
24.25"/48"/9"/62 lbs.
HT / W / D / NT WT
24.25"/48"/9"/62 lbs.
HT / W / D / NT WT
24.25"/48"/9"/62 lbs.
HT / W / D / NT WT
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR OUTPUT
Centrifugal
247/212/177
10 W
Centrifugal
247/212/177
10 W
Centrifugal
318/247/212
20 W
Centrifugal
424/318/283
20 W
Centrifugal
530/459/389
30 W
Centrifugal
601/495/424
60 W
REFRIGERANT
PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
3/8"
5/8"
DRAINPIPE DIMENSION 1 1/4" OD 1 1/4" OD 1 1/4" OD 1 1/4" OD 1 1/4" OD 1 1/4" OD
SOUND LEVELS
(LOW-MED-HIGH) 28/30/33 28/30/33 29/35/39 31/35/38 31/36/39 35/38/41
MP/MR FLOOR MOUNTED SERIES
Panasonic
INDOOR
33
32
S-07MM1U6 / S-09MM1U6 / S-12MM1U6 /
S-15MM1U6 / S-18MM1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* Adjustable External Static Pressure
* Built-In Drain Pump – 20" Lift
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Bottom or Rear Return Air
* Easy Service
* 8" high
* Low Profile fits into tight ceiling spaces
* Optional Outside Air Intake
* Washable Long Life Filter
MODELS (Type: Nominal Cooling Capacity, etc) Volt PH
S-07MM1U6 7,500 BTU ESP = 0.04 / 0.12 208-230V/60 HZ 1
S-09MM1U6 9,600 BTU ESP = 0.06 / 0.12 208-230V/60 HZ 1
S-12MM1U6 12,000 BTU ESP = 0.06 / 0.16 208-230V/60 HZ 1
S-15MM1U6 15,000 BTU ESP = 0.06 / 0.16 208-230V/60 HZ 1
S-18MM1U6 19,000 BTU ESP = 0.06 / 0.16 208-230V/60 HZ 1
DESCRIPTION S-07MM1U6 S-09MM1U6 S-12MM1U6 S-15MM1U6 S-18MM1U6
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
7,500 BTU/H
8,500 BTU/H
9,600 BTU/H
11,000 BTU/H
12,000 BTU/H
14,000 BTU/H
15,000 BTU/H
17,000 BTU/H
19,000 BTU/H
21,000 BTU/H
CURRENT
COOLING
HEATING
0.22/0.21 A
0.23/0.22 A
0.26/0.25 A
0.28/0.28 A
0.28/0.26 A
0.30/0.37 A
0.34/0.33 A
0.36/0.35 A
0.47/0.43 A
0.51/0.47 A
POWER INPUT
COOLING
HEATING
32/30 W
32/30 W
35/37 W
37/40 W
37/39 W
39/40 W
44/46 W
47/49 W
59/61 W
63/64 W
HEAT EXCHANGER
FAN TYPE
FAN AIRFLOW RATE CFM-(H/M/L)
FAN EXT. STATIC PRESS (230V)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
CENTRIFUGAL
212 / 247 / 283
0.04 / 0.12 IN. WC
DC
50 W
CENTRIFUGAL
230 / 265 / 300
0.06 / 0.12 IN. WC
DC
50 W
CENTRIFUGAL
247 / 283 / 318
0.06 / 0.16 IN. WC
DC
50 W
CENTRIFUGAL
283 / 336 / 371
0.06 / 0.16 IN. WC
DC
50 W
CENTRIFUGAL
0353 / 406 / 442
0.06 / 0.16 IN. WC
DC
50 W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
UNIT DIMENSIONS
Inches (") / lbs.
7 7/8", 29 17/32", 25 13/64", 42 LBS
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION 1 1/4" OD
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V 25/27/28 27/29/30 28/30/32 30/32/34 31/33/35
8 inches high - Low Profile fits into tight ceiling spaces.
Panasonic’s MM units are ideal for drop ceiling applications including
apartments, condominiums, and hotel rooms. Compact design permits
installation within conditioned space.
MM CONCEALED DUCT – LOW PROFILE WITH CONDENSATE PUMP SERIES
DESCRIPTION S-07MF1U6 S-09MF1U6 S-12MF1U6 S-15MF1U6 S-18MF1U6 S-24MF1U6 S-36MF1U6 S-48MF1U6 S-54MF1U6
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
7,500 BTU/H
8,500 BTU/H
9,600 BTU/H
11,000 BTU/H
12,000 BTU/H
14,000 BTU/H
15,000 BTU/H
17,000 BTU/H
19,000 BTU/H
21,000 BTU/H
25,000 BTU/H
27,000 BTU/H
36,000 BTU/H
39,000 BTU/H
47,8 0 0 BTU/H
54,600 BTU/H
54,600 BTU/H
61,400 BTU/H
CURRENT
COOLING
HEATING
0.45/0.49 A
0.42/0.46 A
0.45/0.49 A
0.42/0.46 A
0.52/0.55 A
0.49/0.54 A
0.52/0.55 A
0.49/0.54 A
0.90/0.96 A
0.89/0.95 A
0.90/0.96 A
0.89/0.95 A
1.15/1.25 A
1.10/1.18 A
1.25/1.34 A
1.13/120 A
1.25/1.34 A
1.13/120 A
POWER INPUT
COOLING
HEATING
92/112 W
87/104 W
92/112 W
87/104 W
107/125 W
100/122 W
107/125 W
100/122 W
183/219 W
182/214 W
183/219 W
182/214 W
235/282 W
224/267 W
254/301 W
230/271 W
254/301 W
230/271 W
HEAT EXCHANGER
FAN TYPE
FAN AIRFLOW RATE CFM-(H/M/L)
FAN EXT. STATIC PRESS (230V)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
CENTRIFUGAL X1
353/300/247
0.40 IN. WC
AC
50 W
CENTRIFUGAL X1
353/300/247
0.40 IN. WC
AC
50 W
CENTRIFUGAL X1
424/371/318
0.40 IN. WC
AC
70 W
CENTRIFUGAL X1
424/371/318
0.44 IN. WC
AC
70 W
CENTRIFUGAL X1
671/565/459
0.48 IN. WC
AC
100 W
CENTRIFUGAL X1
671/565/459
0.48 IN. WC
AC
100 W
CENTRIFUGAL X1
1060/919/742
0.49 IN. WC
AC
140 W
1060/919/742
0.49 IN. WC
AC
140 W
CENTRIFUGAL X1
1166/1060/883
0.45 IN. WC
AC
140 W
1166/1060/883
0.45 IN. WC
AC
140 W
CENTRIFUGAL X1
1166/1060/883
0.45 IN. WC
AC
140 W
1166/1060/883
0.45 IN. WC
AC
140 W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
3/8"
5/8"
3/8"
5/8"
3/8"
5/8"
3/8"
5/8"
UNIT DIMENSIONS
Inches (") / lbs.
12.5"/ 27.5"/ 25"/ 53 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
12.5"/ 39.5"/ 25"/ 71 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
12.5"/58.5"/ 25" 104 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION 1 1/4" OD
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V
24/28/31 24/28/31 24/28/31 26/30/33 27/32/36 27/32/36 31/33/38 33/37/40 33/37/40
MODELS (Type: Nominal Cooling Capacity, etc) Volt PH
S-07MF1U6 7,500 BTU 0.28 / 0.40 ESP 208-230V/60 HZ 1
S-09MF1U6 9,600 BTU 0.28 / 0.40 ESP 208-230V/60 HZ 1
S-12MF1U6 12,000 BTU 0.28 / 0.40 ESP 208-230V/60 HZ 1
S-15MF1U6 15,000 BTU 0.28 / 0.44 ESP 208-230V/60 HZ 1
S-18MF1U6 19,000 BTU 0.32 / 0.48 ESP 208-230V/60 HZ 1
S-24MF1U6 25,000 BTU 0.32 / 0.48 ESP 208-230V/60 HZ 1
S-36MF1U6 36,000 BTU 0.32 / 0.49 ESP 208-230V/60 HZ 1
S-48MF1U6 48,000 BTU 0.31 / 0.45 ESP 208-230V/60 HZ 1
S-54MF1U6 54,600 BTU 0.31 / 0.45 ESP 208-230V/60 HZ 1
Panasonic’s concealed ceiling units are
compact and space saving with advanced zoning
capabilities and efficient design. A perfect
conditioning solution for shorter duct runs.
MF CONCEALED DUCT – MEDIUM STATIC SERIES
S-07MF1U6 / S-09MF1U6 / S-12MF1U6
S-15MF1U6 / S-18MF1U6 / S-24MF1U6
S-36MF1U6 / S-48MF1U6 / S-54MF1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Includes 8" round duct connections (two 8" duct collars for 7-15,000 BTU units
three 8" duct collars for 18-24,000 BTU unit and four 8" duct collars
for 36-54,000 BTUs units) can be removed for plenum ducting.
* Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
* Adjustable External Static Pressure
* Built-In Drain Pump – 20" Lift
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Bottom or Rear Return Air
* Easy Service
* Optional Outside Air Intake
Panasonic
INDOOR
35
34
Panasonic
INDOOR
DESCRIPTION S-36ME1U6 S-48ME1U6
CAPACITY
COOLING
HEATING
36,000 BTU
39,000 BTU
47,800 BTU
54,600 BTU
CURRENT
COOLING
HEATING
2.84/2.89 A
2.74/2.80 A
3.24/3.19 A
3.17/3.42 A
POWER INPUT
COOLING
HEATING
548/620 W
528/602 W
644/695 W
627/756 W
UNIT DIMENSIONS
Inches (") / lbs.
16.5"/ 42"/ 24.5"/ 110 lbs.
Height/ Width/ Depth/ Net Weight
18"/ 42"/ 24.5"/ 119 lbs.
Height/ Width/ Depth/ Net Weight
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN EXT. STATIC PRESS (230V)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
CENTRIFUGAL X1
1,060/988/883
0.70 - In. WC
AC
200 - W
CENTRIFUGAL X1
1,272/1,237/1,160
0.67 - In. WC
AC
400 - W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
3/8"
5/8"
3/8"
5/8"
DRAINPIPE DIMENSION 1 1/4" OD 1 1/4" OD
SOUND LEVELS
(LOW-MED-HIGH) 42/44/45 - DB(A) @ 230V 44/46/47 - DB(A) @ 230V
Panasonic’s concealed ceiling units are flexible and space
saving, helping maximize floor and wall space. Advanced
zoning capabilities condition large areas simply and
efficiently. Completely concealed, they offer easy
installation.
MODELS (Type: Nominal Cooling Capacity, etc) Volt PH
S-36ME1U6 36,000 BTU ESP = 0.70" 208-230V/60 HZ 1
S-48ME1U6 48,000 BTU ESP = 0.67" 208-230V/60 HZ 1
S-36ME1U6 / S-48ME1U9
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV) for
Accurate Refrigerant Control
* Perfect for Long Duct Runs
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Easy Service
* Built-in float safety
A PERFECT APPLICATION FOR
LONGER DUCT RUN INSTALLATIONS
ME CONCEALED DUCT – MEDIUM-HIGH STATIC SERIES
MVA Vertical Air Handlers are compact and efficient. With 4
thermistors (Air intake/outlet, & 2 HEX sensors) more precise
control is possible. Optional electric heater is available to
accommodate comfortable heating even in the harshest winter.
MVA18FBAS6HBCP/ MVA24FBAS6HBCP
MVA30FBAS6HBCP/ MVA36FBAS6HBCP
MVA42FBAS6HBCP/ MVA48FBAS6HBCP
MVA60FBAS6HBCP
KEY FEATURES:
* Eco-Friendly R410A Refrigerant
* 208/230V, 1 phase, 60Hz
* Electronic Expansion Valve (EEV) for Accurate
Refrigerant Control
* Multi-position (Horizontal/Vertical) possible
* High efficient ECM(DC) fan motor
* Optional Electric Heater available (Field installed)
* 19 gauge galvanized external panel with baked
on polyester powder coating
* Adjustable External Static
* With 1" filter rack
* Optional filter available. (2" or 4" Filter RACK)
MVA CONCEALED DUCT – VERTICAL MULTI POISE SERIES
DESCRIPTION MVA18
FBAS6HBCP
MVA24
FBAS6HBCP
MVA30
FBAS6HBCP
MVA36
FBAS6HBCP
MVA42
FBAS6HBCP
MVA48
FBAS6HBCP
MVA60
FBAS6HBCP
PERFORMANCE
COOLING CAPACITY 19,800 BTU/H 24,700 BTU/H 32,000 BTU/H 36,000 BTU/H 42,000 BTU/H 48,000 BTU/H 60,000 BTU/H
HEATING CAPACITY 23,900 BTU/H 28,000 BTU/H 37,000 BTU/H 40,000 BTU/H 49,000 BTU/H 54,000 BTU/H 68,000 BTU/H
FULL LOAD AMP.
3.0 A 3.0 A 3.6 A 3.6 A 4.9 A 6.0 A 7.6 A
FAN MOTOR OUTPUT
224 W 396 W 309 W 440 W 567 W 1040 W 1110 W
FAN TYPE
CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
FAN MOTOR TYPE
DC DC DC DC DC DC DC
AIRFLOW CFM (H/M/L)
690/675/621 882/769/718 1037/952/837 1229/1067/978 1335/1213/1133 1597/1378/1238 1932/1658/1500
EXT. STATIC PRESS. STD/MAX
0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G.
REFRIGERANT PIPE SIZE
GAS PIPE SIZE
1/2" 5/8" 5/8" 5/8" 5/8" 5/8" 5/8"
LIQUID PIPE SIZE
1/4" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
PIPE CONNECTION SIZE
LOW PRESSURE(BRAZING)
HIGH PRESSURE(BRAZING)
7/8"
3/8"
7/8"
3/8"
7/8"
3/8"
7/8"
3/8"
7/8"
3/8"
7/8"
3/8"
1-1/8"
3/8"
DIMENSIONS (H×W×D) INCH
46.9×17.7×22.2 46.9×17.7×22.2 51.9×20.2×25.2 51.9×20.2×25.2 55.9×22.2×27.2 55.9×22.2×27.2 57.9×24.2×31.2
WEIGHT
135 LBS 135 LBS 145 LBS 145 LBS 158 LBS 158 LBS 190 LBS
DRAIN PIPE CONNECTION
3/4"
AVAILABLE OPTIONAL HEATER SIZE
3, 5, 6, 8, 10 kW
8KW, 10 kW
METERING DEVICE
ELECTRONIC EXP. VALVE
MODELS
Nominal Cooling Capacity
Static std / Max Volt PH
MVA18FBAS6HBCP 19,800 BTU/h 0.3 / 0.5 208/230V 60Hz 1
MVA24FBAS6HBCP 24,700 BTU/h 0.3 / 0.5 208/230V 60Hz 1
MVA30FBAS6HBCP 32,000 BTU/h 0.3 / 0.5 208/230V 60Hz 1
MVA36FBAS6HBCP 36,000 BTU/h 0.3 / 0.5 208/230V 60Hz 1
MVA42FBAS6HBCP 42,000 BTU/h 0.3 / 0.5 208/230V 60Hz 1
MVA48FBAS6HBCP 48,000 BTU/h 0.3 / 0.5 208/230V 60Hz 1
MVA60FBAS6HBCP 60,000 BTU/h 0.3 / 0.5 208/230V 60Hz 1
ACCESSORY HEATER
PART NO.
Heater Capacity (kW)
Applications on MVA models
240V 208V
MVA18
FBAS6HB CP
MVA24
FBAS6HB CP
MVA30
FBAS6HB CP
MVA36
FBAS6HB CP
MVA42
FBAS6HB CP
MVA48
FBAS6HB CP
MVA60
FBAS6HB CP
012-000458-001 3 2.3 x x x x
012-000458-002 5 3.8 x x x x
012-000458-003 6 4.5 x x x x
012-000458-004 8 6 xxxxxxx
012-000458-005 9.5 7.5 x x x x x x x
(Single stage electric heater)
Only qualified personnel must install the electrical service. Refer to manuals for more details.
NOTE: When connecting MVA model(s) in the system (mix or all), the maximum connectable indoor/outdoor capacity ratio will be limited to 130%.
NEW
37
36
Panasonic’s system control network is the heart and
soul of the ECOi™ unit. With a simple two-wire loop
installation, we put control in your hands, literally.
No outside specialists required, it’s an all-in-one
solution, and a way to further build profits by
keeping installation in-house. The logic resides in
the ECOi system and the control is in the gateway.
CZ-RTC3 / CZ-RTC2 / CZ-RWSC3 / CZ-RWSU1U
CZ-RWST1U / CZ-RWSY1U
CZ-RWSK1U / CZ-RE2C2 / CZ-64ESMC1U
CZ-ESWC2 / CZ-256ESMC1U / CZ-CFUNC1U
CZ-CSRC2 / CZ-CLNC1U / BMS-CTRL1
CZ-CSWKC1U / CZ-CSWAC1U / CZ-CSWGC1U
CZ-CSWBC1U / CZ-CSWWC1U
AN ALL-IN-ONE SOLUTION, NO OUTSIDE SPECIALISTS REQUIRED.
PART NUMBER DESCRIPTION
CZ-RTC2 WIRED REMOTE CONTROLLER — 7- day setback, mode, temp, service, etc
CZ-RTC3 HIGH-SPEC WIRED REMOTE CONTROLLER
Touch pad operation, weekly timer, energy saving functions etc. (Ref.P10-11)
CZ-RWSC3 REMOTE CONTROLLER RECEIVER — To be used with CZ-RWSK1U
CZ-RWSU1U WIRELESS REMOTE CONTROLLER — For use with MU models
CZ-RWST1U WIRELESS REMOTE CONTROLLER — For use with MD and MT models
CZ-RWSY1U WIRELESS REMOTE CONTROLLER — For use with MY models
CZ-RWSK1U WIRELESS REMOTE CONTROLLER — For use with MK models & for use with CZ-RWSC3
CZ-RELC2 SIMPLE REMOTE CONTROLLER — with Back Light
CZ-RE2C2 SIMPLE REMOTE CONTROLLER (wired) — on/off, Mode, Temp, Fan Speed, Flap, Service Function
CZ-64ESMC1U SYSTEM CONTROLLER — Set individual indoor unit temps for up to 4 zones, 16 indoor units max per zone
CZ-ESWC2 SCHEDULE TIMER — Thermal On/Off at program times only, no set back temperature
CZ-256ESMC1U INTELLIGENT CONTROLLER ( Web Enabled ) — Controls Max of 256 indoor units with CZ-CFUNC1U
CZ-CFUNC1U COMMUNICATIONS ADAPTER — Used with INTELLIGENT CONTROLLER and BMS interface
CZ-CSRC2 REMOTE SENSOR
CZ-CLNC1U LONWORKS INTERFACE — Maximum of 16 indoor units
BMS-CTRL1 BMS INTERFACE — BACnet, LONworks, N2 or MODBUS (also requires CZ-CFUNC1U)
CZ-CSWKC1U P-AIMS — Base Software Package
CZ-CSWAC1U P-AIMS — Electrical Power Distribution Proportioning Software (also requires CZ-CFUNC1U)
CZ-CSWGC1U P-AIMS — Layout Graphic Display Software (also requires CZ-CFUNC1U)
CZ-CSWBC1U P-AIMS — BACnet Interface Software (also requires CZ-CFUNC1U)
CZ-CSWWC1U P-AIMS — Web Enabling Software (also requires CZ-CFUNC1U)
CONTROL SYSTEMS SIMPLE SYSTEM CONTROL NETWORK
WIRED REMOTES
SIMPLE TO INSTALL
KEY FEATURES (SIMPLE REMOTE):
* Thin and Easy To Read
* Simple To Install and Use
* Can Be Adapted for Use On All ECOi Indoor Units
* Operating Mode (Heating/Cooling/Auto/Dry/Fan)
* Vacation Mode for Continued Energy Efficiencies
(CZ-RE2C2 & CZ-RTC2 only)
* Fan Speed Control: Including Automatic or Fixed
Set Temperature
* On/Off
* Airflow Direction
* Perfectly Suited for Applications Where Simpler
Functionality is Required (ie: Hotel Rooms, Nursing
Homes, Offices)
KEY FEATURES (STANDARD REMOTE/7-DAY TIMER):
* Thin and Easy To Read
* Simple To Install and Use
* Can Be Adapted for Use On All ECOi Indoor Units
* Fan Speed Control: Including Automatic or Fixed Set
Temperature
* Airflow Direction
* Operating Mode (Heating/Cooling/Auto/Dry/Fan)
* Vacation Mode for Continued Energy Efficiencies
* Full 7-Day Set-Back Functionality, With Up To 6 Time
Periods/Day
* Full System Diagnostic Capability
(Diagnostic History Provides Immediate View of System
Past and Present.)
Users can truly take control of the entire system,
including mode, temperature, airflow, and system
diagnosis, all from an easy-to-read LCD display.
WIRELESS REMOTES
CONTROL IN THE PALM
OF YOUR HAND
KEY FEATURES:
* Thin and Easy To Read
* Simple To Install and Use
* Can Be Adapted for Use On All ECOi Indoor Units
* Fan Speed Control
* Timer Mode Start/Stop
* Timer Mode On/Off
* Operating Mode
* Inspection/Test Indication
* Remote Can Be Configured To Sense Temperature
Panasonic’s wireless remotes control more than comfort.
CZ-RWSU1U
For Use With MU Indoor Units
CZ-RWSY1U
For Use With MY Series
Easy-to-use remotes offer control where
minimal user functionality is preferred.
Panasonic’s Standard Remote with 7-Day
Timer is perfectly suited for those requiring
more programmed management over
multiple zones. With immediate diagnostics
and up to six daily set temperature
schedules, it’s a perfectly controlled
solution offering intuitive simplicity.
Panasonic’s wired remote controls offer multiple conditioning solutions
to meet the needs of any project.
CZ-RE2C2
Simple Remote
Controller
CZ-RELC2
Simple Remote
Controller with
Back Light
CZ-RTC2
Standard Remote/7-Day Timer
For Use With All Indoor Units
CZ-RWSK1U
For Use With MK Indoor
Units for CZ-RWSC3
CZ-RWSC3
Remote Controller Receiver to be
used with CZ-RWSK1U MM, MF,
ME, MP and MR Indoor Units
CZ-RWST1U
For Use With MD and MT Indoor Units
CONTROL SYSTEMS SIMPLE SYSTEM CONTROL NETWORK
CZ-RTC3
High-spec
Wired Remote Controller
CONTROL SYSTEM
NEW
NEW
39
38
CONTROL SYSTEM
KEY FEATURES:
* Communicate With LonWorks Compatible Systems
* Start/Stop
* Controls Up To 16 Groups (Maximum 64 Indoor Units)
* For 17 or more groups of indoor units connect additional
interface units.
* Temperature Setting, Fan Speed, etc.
* Schedule Time Setting
* Alarm Notification
KEY FEATURES:
*
Able to provide BMS integration to a variety of BMS
protocols including BACnet, Modbus, LonWorks and N2
* Communicates with up to 90 indoor units and
10 Refrigerent Circuits (note; N2 can communicate with
40 indoor and 10 outdoor units)
* Provides control of operating mode, fan, set temperature
* Provides status of operating modes and alarm status
Panasonic’s LonWorks interface integrates into many
compatible Building Management Systems. Single point of
control. Access to all of the ECOi™ conditioning mechanics.
Panasonic’s BMS Controller sets a new standard for multiple
equipment protocol conversion.
LONWORKS INTERFACE
BMS CONTROLLER
CZ-CLNC1U
LonWorks Interface
BMS-CTRL1
BACnet Interface
SINGLE POINT OF CONTROL
BMS-CTRL1
BMS-CTRL1
NETWORK DIAGRAM
Building Automation
System
BMS-CTRL1
(Up to 10 outdoor units &
90 indoor units)
Communication
Adapter
Outdoor unit Remote
Controller
Remote
Controller Schedule
Timer
Group control
Group control
BACnet
LonWorks
Modbus
N2
CZ-256ESMC1U
Intelligent Controller
KEY FEATURES (INTELLIGENT CONTROL):
* 6.5" Touch Screen Panel
* Controls up to 256 Indoor units with added
Communication Adapter (128 indoors without)
* New Control Wiring System (S Net) Connects Up
To 64 Units To a Single Control Line
* Offers a Maximum Installation of Two System
Controls (One Main, One Sub)
* Provides Individual Tenant Billing data for
3 systems (use Communication Adapters to add
more systems). Requires watt hour meters
* Provides Individual Tenant Billing Data Through
Calculations Based on a Per-Tenant Basis
* Individual Zone Override Feature
(High/Low Setting)
* Web Accessible/Real Time Diagnostics
Through Individual IP Address
* Diagnostic History of System Past and Present
MULTIPLE ZONE
CONTROLLERS
THE HEART AND SOUL
OF CONDITIONING.
KEY FEATURES (SYSTEM CONTROL):
*
Controls Up To 64 Units Into
4 Individualized Zones
* Alarm and Operational Signal Output
* Single Access Points for All Connected
Wired Remotes
* System Control Timer Available
Controls Up To 64 Units Into 4 Individualized Zones
Panasonic’s system and intelligent controls are the central nervous system
of the conditioning system. The gateway to all data, temperature, and
system diagnostics.
Web Accessible/Real Time Diagnostics Through Individual IP Address
CZ-64ESMC1U
System Controller
CONTROLS UP TO
256 INDOOR UNITS
CONTROL SYSTEMS BUILDING MANAGEMENT INTEGRATION
CONTROL SYSTEMS SIMPLE SYSTEM CONTROL NETWORK
41
40
PART NUMBER DESCRIPTION
ECO-SC-4 ECOi COMMISSIONING (Per normal business day, up to 24 tons)
IC-SC-1 COMMISSIONING OF INTELLIGENT CONTROLLER (Base fee for each Intelligent Controller)
IC-SC-INDOOR COMMISSIONING OF INTELLIGENT CONTROLLER (Indoor Units)
LW-SC-1 COMMISSIONING OF LONWORKS INTERFACE MODULE (Base fee)
LW-SC-INDOOR COMMISSIONING OF LONWORKS INTERFACE (Indoor Units fee)
PP-SC-1 COMMISSIONING OF INTELLIGENT BACnet INTERFACE (Base fee for each BMS-CTRL 1)
PP-SC-INDOOR COMMISSIONING OF INTELLIGENT BACnet (Indoor Units fee)
CA-SC-1 COMMISSIONING OF COMMUNICATIONS ADAPTER (Base fee for each Comm. Adapter)
CA-SC-INDOOR COMMISSIONING OF COMMUNICATIONS ADAPTER (Indoor Units fee)
P-AIMS-SC-1 COMMISSIONING OF P-AIMS MANAGEMENT SYSTEM (Base fee for each overall system)
P-AIMS-SC-INDOOR COMMISSIONING OF P-AIMS MANAGEMENT SYSTEM (Indoor Units fee)
AC-SC-1 PROGRAM 2-WAY SYSTEM TO ENABLE AUTO CHANGEOVER OF MODE (Base fee /Indoor Units fee)
AC-SC-INDOOR PROGRAM 2-WAY SYSTEM TO ENABLE AUTO CHANGEOVER OF MODE (Indoor Units fee)
IPO-SC-1 PROGRAM “IGNORE INDOOR POWER OFF FAILURE” FOR 2-WAY SYSTEM (Base fee /Indoor Units fee)
IPO-SC-INDOOR PROGRAM “IGNORE INDOOR POWER OFF FAILURE” FOR 2-WAY SYSTEM (Indoor Units fee)
CNBH COMMISSIONING COMPLETED DURING NON-BUSINESS HOURS OR NON-BUSINESS DAYS
COUS ALL COMMISSIONING OF SYSTEMS OR COMPONENTS OUTSIDE CONTINENTAL U.S.
RP-SIT-1 TRAINING - MINI SPLIT SYSTEMS (1 class per day at Customer Location)
RP-SIT-2 TRAINING - MINI SPLIT SYSTEMS (2 classes / same location / same day)
ECOi-IST TRAINING - ECOi INSTALLATION AND COMMISSIONING TRAINING (at customer location)
ECOi-SERT TRAINING - ECOi SERVICE TRAINING (at customer location)
TOUS TRAINING (Conducted outside of the Continental U.S.)
ECO-SIT-4 TRAINING (On-Site Supervised ECOi installation training)
ECO-SIT-NR TRAINING (Supervised installation On-Site training where attendees did not show up as agreed upon)
ECO-SIT-OS TRAINING (Supervised installation Training Outside Continental U.S.)
623 303 9831 Pac Checker Service & diagnostics tool for all ECOi and Panasonic Splits greater than 26,000 BTUs
WARRANTY 6 Year Compressor
1 Year Parts
PART NUMBER DESCRIPTION 2-Way Distribution Kits
CZ-P160BK1U DISTRIBUTION JOINT KIT Used with 2 Pipe indoor Unit Piping - Up to 76,400 BTUs
CZ-P680BK1U DISTRIBUTION JOINT KIT Used with 2 Pipe indoor Unit Piping - 76,500 to 232,000 BTUs
CZ-P1350BK1U DISTRIBUTION JOINT KIT Used with 2 Pipe indoor Unit Piping - 232,200 to 460,700 BTUs
CZ-P680PJ1U DISTRIBUTION JOINT KIT Used to Connect Multiple 2 Pipe Outdoor Units - Up to 232,000 BTUs
CZ-P1350PJ1U DISTRIBUTION JOINT KIT Used to Connect Multiple 2 Pipe Outdoor Units - 232,200 to 460,700 BTUs
3-Way Distribution Kits
CZ-P224BH1U DISTRIBUTION JOINT KIT CUT TO FIT Used with 3 Pipe Indoor Unit Piping - Up to 76,400 BTUs
CZ-P680BH1U DISTRIBUTION JOINT KIT CUT TO FIT Used with 3 Pipe Indoor Unit Piping - 76,500 to 232,000 BTUs
CZ-P1350BH1U DISTRIBUTION JOINT KIT CUT TO FIT Used with 3 Pipe Indoor Unit Piping - 232,200 to 460,700 BTUs
CZ-P900PH1U DISTRIBUTION JOINT KIT CUT TO FIT Used to Connect Multiple 3 Pipe Outdoor Units - Up to 307,100 BTUs
3-Way Solenoid Valve Kits
CZ-P160HR1U SOLENOID VALVE KIT Total Indoor Capacity of 19,100 to 54,600 BTUs (for 3 Pipe System)
CZ-P56HR1U SOLENOID VALVE KIT Total Indoor Capacity of Less than 19,000 BTUs (for 3 Pipe System)
Ball Valves
BVT 14 1/4" Ball Valve With Access Port Fitting
BVT 38 3/8" Ball Valve With Access Port Fitting
BVT 12 1/2" Ball Valve With Access Port Fitting
BVT 58 5/8" Ball Valve With Access Port Fitting
BVT 34 3/4" Ball Valve With Access Port Fitting
BVT 78 7/8" Ball Valve With Access Port Fitting
BVT 118 1-1/8" Ball Valve With Access Port Fitting
BVT 138 1-3/8" Ball Valve With Access Port Fitting
BVT 158 1-5/8" Ball Valve With Access Port Fitting
460 Transformers
ACC-195674 460V TO 230V, 11 KVA TRANSFORMER For Use With 72,000 (6 Ton) BTU/HR Outdoor Unit
ACC-195679 460V TO 230V, 14 KVA TRANSFORMER For Use With 95,000 (8 Ton) BTU/HR Outdoor Unit
Univolt Mini Condensate Pumps
ASP-MAUNI 100 - 250 VOLT MINI AQUA ASPEN CONDENSATE PUMP Max 26' Lift, 3.7 GPH @ 0 Lift, 0.8 GPH @ 26'
ASP-MOUNI 100 - 250 VOLT MINI ORANGE ASPEN CONDENSATE PUMP Max 26' Lift, 3.7 GPH @ 0 Lift, 0.8 GPH @ 26'
ASP-MLUNI 100 - 250 VOLT MINI LIME ASPEN CONDENSATE PUMP Max 26' Lift, 3.7 GPH @ 0 Lift, 0.8 GPH @ 26'
ASP-MWUNI 100 - 250 VOLT MINI WHITE ASPEN CONDENSATE PUMP Max 26' Lift, 3.7 GPH @ 0 Lift, 0.8 GPH @ 26'
CZ-FDU1U FRESH AIR CHAMBER For Use With S-24MU1U6 and S-36MU1U6 Indoor Units Only (Requires CZ-ATU1U)
SERVICES ECOiTM SYSTEM
ACCESSORIES ECOiTM SYSTEM
ACCESSORIES
SERVICES
Electric Heater
012-000458-00X ELECTRIC HEATER FOR MVA SERIES (REFER TO PAGE 35 FOR DETAILS)
43
42
IEER = (0.02 * A) + (0.617 * B) + (0.238 * C) + (0.125 * D)
Where as:
A = EER at 100% net capacity at AHRI standard condition (95°F)
B = EER at 75% net capacity and reduced ambient (81.5°F)
C = EER at 50% net capacity and reduced ambient (68°F)
D = EER at 25% net capacity and reduced ambient (65°F)
Example:
A = 11.0 EER B = 16.0 EER C = 19.0 EER D = 23.0 EER
IEER = (0.02 * 11) + (0.617 * 16) + (0.238 * 19) + (0.125 * 23)
IEER = 0.2 + 9.8 + 4.5 + 2.9 = 17.4 IEER
Part load performance of commercial HVAC
systems was represented as Integrated Part Load
Performance (IPLV) which was used until January 1, 2010.
A new methodology was then adopted and defined as
Integrated Energy Efficiency Ratio (IEER).
IEER is intended to be used as a representation of part load performance
for energy comparisons of similar systems. For Variable Refrigerant Flow
(VRF) Multi Split systems AHRI Standard 1230 defines the process to
calculate IEER. In a most simplistic form IEER is calculated by operating
the system at 4 different capacities and applying a formula. The basic
calculation is as follows:
Some points to recognize from this calculation:
1. Full load EER (100% capacity) represents only 2% of
the overall IEER rating because the system would rarely
operate at this condition.
2. As overall capacity is reduced the system EER
increases significantly.
3. An ECOi system operating at 50% part load could
result in an efficiency increase of more than 70% over
the rated full load EER value.
4. Your actual efficiency could exceed the IEER rating
depending upon equipment sizing, environment and use
of the system.
IEER INTEGRATED ENERGY EFFICIENCY RATIO
Rating Standard: AHRI 1230 COOLING PERFORMANCE HEATING PERFORMANCE SIMULTANEOUS
OPERATION
PERFORMANCE
Type System Model
Number
Indoor Unit Rating
Type
Capacity
(Btu/h) EER IEER
High Heating 47°F Low Heating 17°F
Capacity
(Btu/h) COP Capacity
(Btu/h) COP
Simultaneous
Cooling-Heating
Efficiency (SCHE)
Heat Recovery U-72MF1U9 Ducted 72,000 11.4 16.4 81,000 3.5 47,000 2.28 24.0
Heat Recovery U-72MF1U9 Mixed 71,000 11.2 16.8 79,500 3.41 44,500 2.27 24.4
Heat Recovery U-72MF1U9 Non-Ducted 69,000 10.9 17.1 77,000 3.31 42,000 2.25 24.7
Heat Recovery U-96MF1U9 Ducted 95,000 11.0 16.0 106,000 3.3 69,000 2.25 23.1
Heat Recovery U-96MF1U9 Mixed 94,000 11.0 16.4 104,500 3.31 63,500 2.25 23.3
Heat Recovery U-96MF1U9 Non-Ducted 93,000 10.9 16.7 103,000 3.31 58,500 2.25 23.5
Heat Recovery WU-144MF1U9 Ducted 138,000 10.8 16.4 156,000 3.21 93,000 2.05 23.1
Heat Recovery WU-144MF1U9 Mixed 137,000 10.9 16.8 153,000 3.26 88,000 2.15 23.5
Heat Recovery WU-144MF1U9 Non-Ducted 136,000 10.9 17.1 150,000 3.31 83,000 2.25 23.8
Heat Recovery WU-168MF1U9 Ducted 164,000 10.7 16.1 184,000 3.21 114,000 2.05 22.6
Heat Recovery WU-168MF1U9 Mixed 162,000 10.6 16.5 181,000 3.21 106,000 2.05 23.0
Heat Recovery WU-168MF1U9 Non-Ducted 160,000 10.5 16.9 178,000 3.21 98,000 2.05 23.3
Heat Recovery WU-192MF1U9-1 Ducted 180,000 10.6 16.0 202,000 3.21 132,000 2.05 22.3
Heat Recovery WU-192MF1U9-1 Non-Ducted 174,000 10.5 16.7 196,000 3.21 114,000 2.05 22.8
Heat Recovery WU-192MF1U9-1 Mixed 176,000 10.55 16.4 198,000 3.21 123,000 2.05 22.6
Heat Recovery WU-216MF1U9 Ducted 202,000 10.6 16.0 228,000 3.21 136,000 2.05 22.2
Heat Recovery WU-216MF1U9 Mixed 200,000 10.6 16.3 224,000 3.21 128,000 2.05 22.6
Heat Recovery WU-216MF1U9 Non-Ducted 198,000 10.5 16.6 220,000 3.21 120,000 2.05 22.9
Heat Recovery WU-240MF1U9 Ducted 230,000 10.5 16.0 264,000 3.21 158,000 2.05 22.0
Heat Recovery WU-240MF1U9 Mixed 225,000 10.5 16.2 255,000 3.21 147,000 2.05 22.2
Heat Recovery WU-240MF1U9 Non-Ducted 220,000 10.5 16.4 246,000 3.21 136,000 2.05 22.4
Heat Recovery WU-264MF1U9 Ducted 258,000 9.7 15.9 288,000 3.21 176,000 2.05 21.6
Heat Recovery WU-264MF1U9 Mixed 255,000 9.6 16.1 278,000 3.21 163,000 2.05 21.8
Heat Recovery WU-264MF1U9 Non-Ducted 252,000 9.4 16.3 268,000 3.21 150,000 2.05 22.0
Heat Recovery WU-288MF1U9 Ducted 280,000 9.6 15.8 312,000 3.21 194,000 2.05 21.2
Heat Recovery WU-288MF1U9 Mixed 277,000 9.5 16.0 302,000 3.21 179,000 2.05 21.4
Heat Recovery WU-288MF1U9 Non-Ducted 274,000 9.4 16.2 292,000 3.21 164,000 2.05 21.6
System Model Number Indoor Unit
Rating Type
High Cooling 95°F High Heating 47°F
Low Heating 17
°
F
Capacity
(Btu/h) EER(95F) SEER Capacity
(Btu/h) HSPF Capacity (Btu/h)
U-36LE1U6 Non-Ducted 39,000 11.5 17.0 43,000 9.8 28,000
U-36LE1U6 Ducted 37,000 9.6 13.1 38,500 7.8 25,000
U-36LE1U6 Mixed 38,000 10.55 15.05 40,750 8.8 26,500
U-52LE1U6 Ducted 51,500 9.4 14.6 57,500 7.7 32,000
U-52LE1U6 Non-Ducted 52,000 10.2 17.4 58,500 9.6 32,000
U-52LE1U6 Mixed 51,750 9.8 16.0 58,000 8.65 32,000
ECOiTM System Certified Efficiency Ratings
LE Series MINI ECOiTM MULTI SPLIT 2-WAY VRF HEAT PUMP SERIES
MF SERIES 3-WAY ECOi Heat Recovery System
Rating Standard: AHRI 1230 COOLING PERFORMANCE HEATING PERFORMANCE
System Model Number
Indoor Unit
Rating Type
Capacity
Btu/h
EER
95F° IEER
High Heating 47°F Low Heating 17°F
Capacity
(Btu/h) COP Capacity
(Btu/h) COP
U-72ME2U9 Ducted 69,000 12.3 19.1 77,000 3.56 52,000 2.56
U-72ME2U9 Mixed Ducted 69,000 12.5 20.6 77,000 3.71 52,000 2.60
U-72ME2U9 Non Ducted 69,000 12.6 22.1 77,000 3.86 52,000 2.63
U-96ME2U9 Ducted 92,000 11.9 19.3 103,000 3.54 67,000 2.42
U-96ME2U9 Mixed Ducted 92,000 11.9 21.2 103,000 3.65 67,000 2.51
U-96ME2U9 Non Ducted 92,000 11.9 23.1 103,000 3.75 67,000 2.59
U-120ME2U9 Ducted 114,000 11.5 19.3 129,000 3.40 75,000 2.30
U-120ME2U9 Mixed Ducted 114,000 11.7 22.1 129,000 3.50 75,000 2.35
U-120ME2U9 Non Ducted 114,000 11.8 24.8 129,000 3.60 75,000 2.40
U-144ME2U9 Ducted 138,000 10.9 18.7 154,000 3.27 100,000 2.18
U-144ME2U9 Mixed Ducted 138,000 10.8 20.7 154,000 3.31 100,000 2.30
U-144ME2U9 Non Ducted 138,000 10.7 22.6 154,000 3.35 100,000 2.41
WU-168ME2U9 Ducted 160,000 11.7 19.0 180,000 3.45 119,000 2.30
WU-168ME2U9 Mixed Ducted 160,000 11.7 21.1 180,000 3.48 119,000 2.34
WU-168ME2U9 Non Ducted 160,000 11.6 23.2 180,000 3.50 119,000 2.38
WU-192ME2U9 Ducted 184,000 11.2 18.4 206,000 3.40 134,000 2.25
WU-192ME2U9 Mixed Ducted 184,000 11.2 20.5 206,000 3.40 134,000 2.26
WU-192ME2U9 Non Ducted 184,000 11.1 22.6 206,000 3.39 134,000 2.26
WU-216ME2U9 Ducted 206,000 11.0 18.0 232,000 3.38 142,000 2.23
WU-216ME2U9 Mixed Ducted 206,000 11.0 20.2 232,000 3.37 142,000 2.29
WU-216ME2U9 Non Ducted 206,000 10.9 22.3 232,000 3.35 142,000 2.34
WU-240ME2U9 Ducted 228,000 10.7 17.7 258,000 3.36 150,000 2.18
WU-240ME2U9 Mixed Ducted 228,000 10.8 20.3 258,000 3.31 150,000 2.20
WU-240ME2U9 Non Ducted 228,000 10.8 22.8 258,000 3.25 150,000 2.22
WU-264ME2U9 Ducted 252,000 10.2 17.3 284,000 3.35 176,000 2.16
WU-264ME2U9 Mixed Ducted 252,000 10.2 19.1 284,000 3.29 176,000 2.14
WU-264ME2U9 Non Ducted 252,000 10.1 20.8 284,000 3.22 176,000 2.12
WU-288ME2U9 Ducted 274,000 9.8 16.9 308,000 3.28 200,000 2.14
WU-288ME2U9 Mixed Ducted 274,000 9.7 18.2 308,000 3.24 200,000 2.10
WU-288ME2U9 Non Ducted 274,000 9.6 19.5 308,000 3.20 200,000 2.06
WU-312ME2U9 Ducted 298,000 10.4 17.7 334,000 3.27 202,000 2.16
WU-336ME2U9 Ducted 320,000 10.3 17.2 360,000 3.23 218,000 2.13
WU-360ME2U9 Ducted 342,000 10.1 16.6 386,000 3.20 226,000 2.10
ECOiTM System Certified Efficiency Ratings
ME2 SERIES 2-WAY ECOi HEAT PUMP
Efficiency Rating
45
44
Starts production of absorption chillers
1971
Introduces first GHP (gas heat pump) VRF air conditioner
1985
Introduces world’s first simultaneous 3-pipe heating/cooling
VRF system
1989
Releases world’s first large-capacity modular combination VRF
system
1993
Releases world’s first large-capacity modular combination VRF
system with simultaneous heating/cooling
1995
VRF Eco-Multi, the new individual air-conditioning system that effectively combines a power
control compressor and an electronic refrigerant control valve, was displayed at the 2001AHR
show. Eco Multi was a new technology to the US market and further secured our leadership
position in the ductless market.
2001 Launched VRF Eco-Multi to the US market
With roots going back 56 years, the Panasonic Air Conditioning Business Division has grown to become a multinational company
recognized around the world. Driven by a never-ending quest for product innovation, the group has evolved from manufacturing
compressors to providing comprehensive air conditioning solutions. Panasonic has become a brand that people trust to deliver products
with superior quality and reliability.
Panasonic commercial AC History
A GLOBALLY TRUSTED AIR CONDITIONING BRAND
Rating Standard: AHRI 1230 COOLING PERFORMANCE HEATING PERFORMANCE SIMULTANEOUS
OPERATION
PERFORMANCE
Type System Model Number Indoor Unit Rating
Type
Capacity
(Btuh) EER IEER
High Heating 47F Low Heating 17F
Capacity
(Btuh) COP Capacity
(Btuh) COP
Simultaneous
Cooling-Heating
Efficiency (SCHE)
Heat Pump U-72ME1U9 Ducted 72,000 11.5 16.7 81,000 3.53 47,000 2.31
Heat Pump U-72ME1U9 Mixed 71,000 11.3 17.1 79,500 3.42 44,500 2.28
Heat Pump U-72ME1U9 Non-Ducted 69,000 11.0 17.4 77,000 3.31 42,000 2.25
Heat Pump U-96ME1U9 Ducted 95,000 11.1 16.3 106,000 3.32 69,000 2.26
Heat Pump U-96ME1U9 Mixed 94,000 11.1 16.7 104,500 3.32 63,500 2.26
Heat Pump U-96ME1U9 Non-Ducted 93,000 11.0 17.0 103,000 3.31 58,500 2.25
Heat Pump WU-144ME1U9 Ducted 138,000 10.9 16.7 156,000 3.24 93,000 2.05
Heat Pump WU-144ME1U9 Mixed 137,000 11.0 17.1 153,000 3.28 88,000 2.15
Heat Pump WU-144ME1U9 Non-Ducted 136,000 11.0 17.4 150,000 3.31 83,000 2.25
Heat Pump WU-168ME1U9 Ducted 164,000 10.8 16.4 184,000 3.22 114,000 2.05
Heat Pump WU-168ME1U9 Mixed 162,000 10.7 16.8 181,000 3.22 106,000 2.05
Heat Pump WU-168ME1U9 Non-Ducted 160,000 10.6 17.2 178,000 3.21 98,000 2.05
Heat Pump WU-216ME1U9 Ducted 202,000 10.7 16.3 228,000 3.22 136,000 2.05
Heat Pump WU-216ME1U9 Mixed 200,000 10.7 16.6 224,000 3.22 128,000 2.05
Heat Pump WU-216ME1U9 Non-Ducted 198,000 10.6 16.9 220,000 3.21 120,000 2.05
Heat Pump WU-240ME1U9 Ducted 230,000 10.6 16.3 264,000 3.22 158,000 2.05
Heat Pump WU-240ME1U9 Mixed 225,000 10.6 16.5 255,000 3.22 147,000 2.05
Heat Pump WU-240ME1U9 Non-Ducted 220,000 10.6 16.7 246,000 3.21 136,000 2.05
Heat Pump WU-264ME1U9 Ducted 258,000 9.8 16.2 288,000 3.22 176,000 2.05
Heat Pump WU-264ME1U9 Mixed 255,000 9.7 16.4 278,000 3.22 163,000 2.05
Heat Pump WU-264ME1U9 Non-Ducted 252,000 9.5 16.6 268,000 3.21 150,000 2.05
Heat Pump WU-288ME1U9 Ducted 280,000 9.7 16.1 312,000 3.22 194,000 2.05
Heat Pump WU-288ME1U9 Mixed 277,000 9.6 16.3 302,000 3.22 179,000 2.05
Heat Pump WU-288ME1U9 Non-Ducted 274,000 9.5 16.5 292,000 3.21 164,000 2.05
ECOiTM System Certified Efficiency Ratings
ME1 SERIES 2-WAY ECOi HEAT PUMP
HISTORY
47
46
NOTES

Navigation menu
