RQT8654-1B

EGN

Operating Instructions

DVD Home Theater Sound System

Model No. SC-HT545/

SC-HT545W

Region number

The player plays DVD-Video marked with labels containing the region

number or “ALL”.

Example: [Continental[Europe]

Before connecting, operating or adjusting this product,

please read the instructions completely.

Please keep this manual for future reference.

Region Number

Continental Europe 2

Australia and N.Z. 4

2ALL

34

2

page

6

Wireless system and

digital transceiver

§

Wireless surround speaker

connection. (§Sold separately for SC-HT545.)

page

8

Advanced

progressive scan

Provides a smoother and

sharper image.

Compatible with a variety

of media formats

DVD-RAM, DVD-Audio,

DVD-Video, DivX and more.

page

12

High-performance

sound effects

Sound quality enhancement,

Dolby Pro Logic II and more.

page

28

The illustration shows SC-HT545.

HT545 545W En.book Page 1 Monday, May 8, 2006 6:44 PM

RQT8654

2

Accessories

Dear customer

Thank you for purchasing this product. For optimum performance and

safety, please read these instructions carefully.

[HT545]: indicates features applicable to SC-HT545 only.

[HT545W]: SC-HT545W only.

Please check and identify the supplied accessories.

≥

These operating instructions are applicable to models

SC-HT545 and SC-HT545W for a variety of regions.

≥Unless otherwise indicated, illustrations in these operating

instructions are of SC-HT545.

≥Operations in these instructions are described mainly with the

remote control, but you can perform the operations on the main

unit if the controls are the same.

System SC-HT545 SC-HT545W

Main unit SA-HT545 SA-HT545

Front speakers SB-FS440 SB-FS640

Center speaker SB-PC640 SB-PC545

Surround speakers

SB-FS441 SB-FS545

Subwoofer SB-W440 SB-W545

Wireless system

-

SE-FX60

Digital transceiver

-

SH-FX80T

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR

PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO

RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO

OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE

PLACED ON THE APPARATUS.

CAUTION!

≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,

BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.

ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK

OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO

OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER

MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

≥

DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH

NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS

LIGHTED CANDLES, ON THE UNIT.

≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY

FRIENDLY MANNER.

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

(Side of product)

(Inside of product)

(Produktets innside)

(Tuotteen sisällä)

Accessories

∏

1 Remote control

[HT545] (N2QAYZ000004)

[HT545W] (N2QAYZ000005)

∏

2 Remote control batteries

∏

1 AM loop antenna

∏1 FM indoor antenna

∏1Video cable

∏1 Sheet of speaker cable stickers

∏[HT545] 1 AC mains lead

∏[HT545W] 2 AC mains leads

4

4

2

2

6

6

53

5

3

1

1

SURROUND

Rch

Rch

SURROUND

Rch

Rch

FRONT

WOOFER

SUB

Lch

Lch Lch

CENTER

Lch

SURROUND

SURROUND

FRONT

SUB

WOOFER

FRONT

FRONT

CENTER

HT545 545W En.book Page 2 Monday, May 8, 2006 6:44 PM

RQT8654

3

TABLE OF CONTENTS

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Simple Setup

STEP 1

Positioning the speakers . . . . . . . . . 4

Speaker installation options . . . . . . . . . . . . . 5

STEP 2

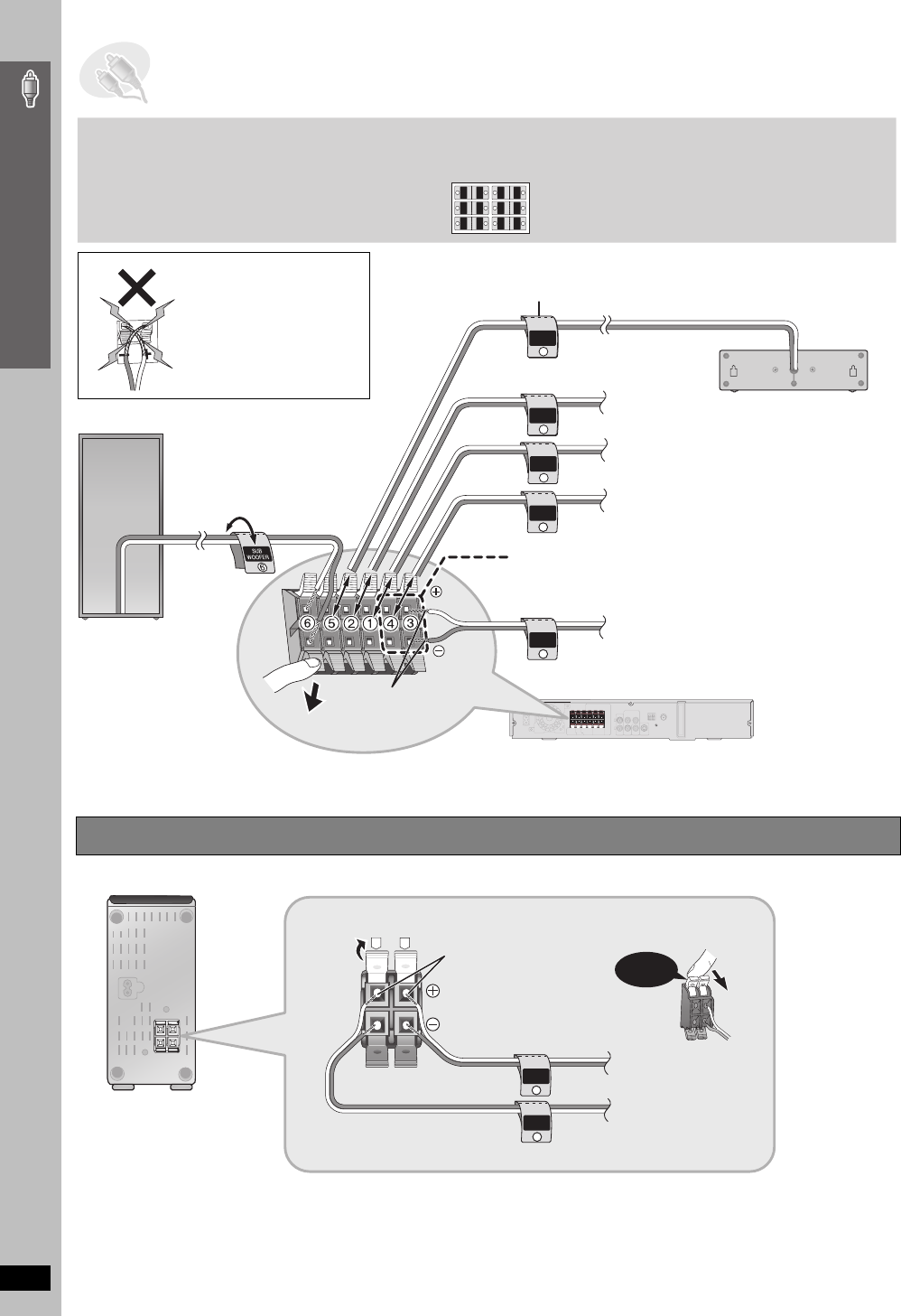

Speaker connections

. . . . . . . . . . . . . 6

[HT545W]

Connecting the surround speaker

cables to the wireless system . . . . . . . . . . . 6

STEP 3

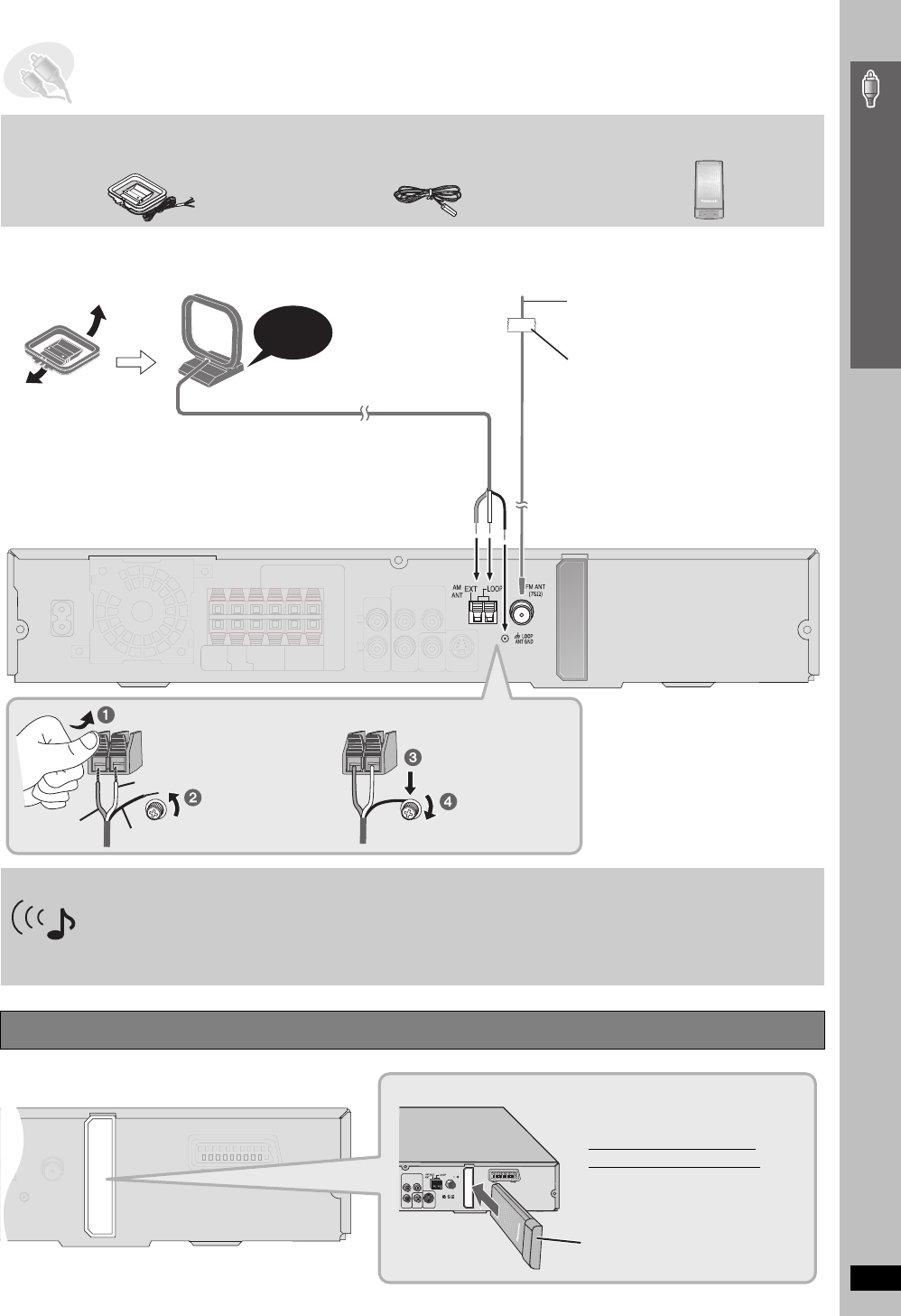

Radio and digital transceiver

connections . . . . . . . . . . . . . . . . . . 7

[HT545W]

Connecting the digital transceiver . . 7

STEP 4

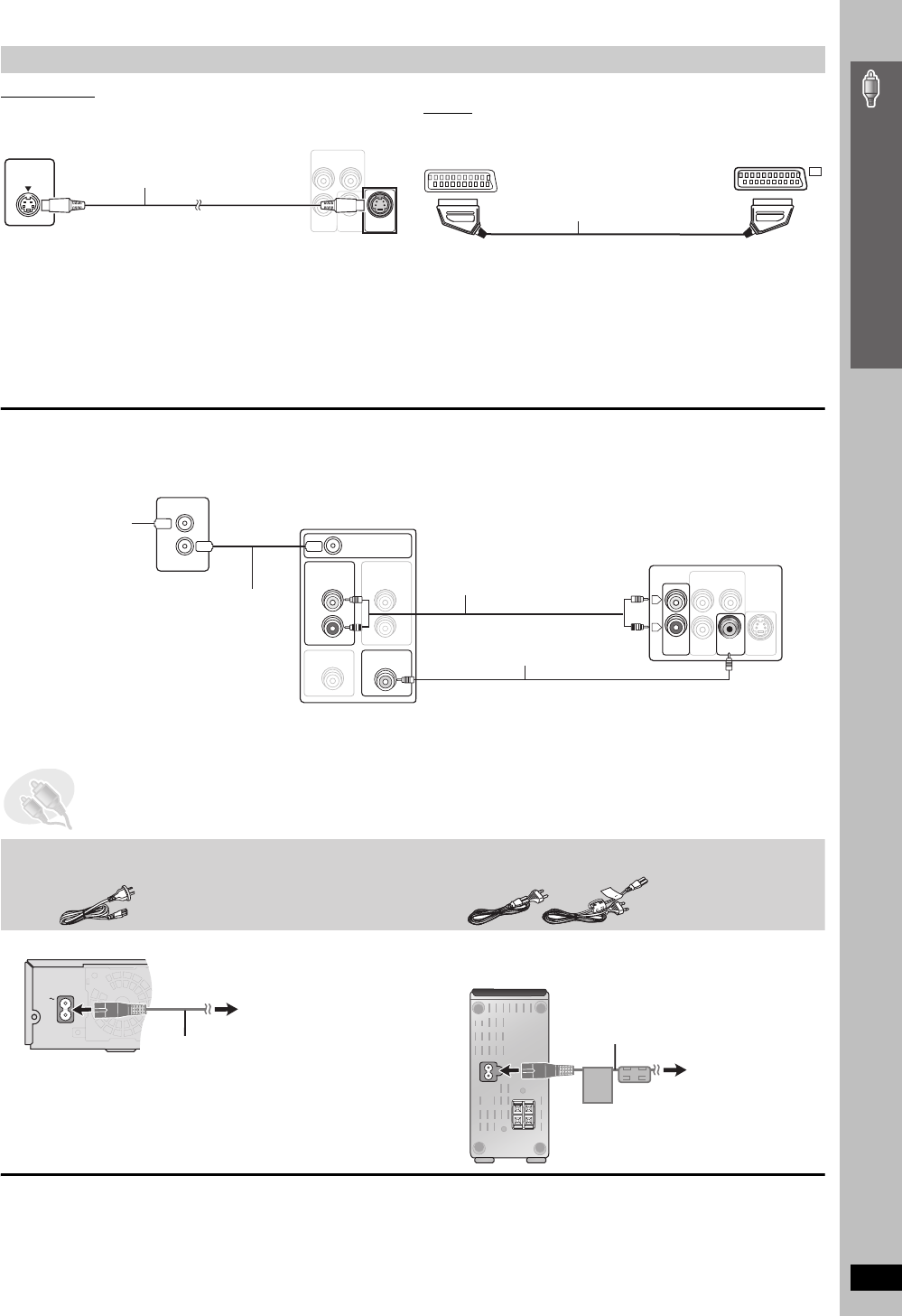

Audio and video connections. . . . . 8

Basic audio connection . . . . . . . . . . . . . . . .8

Basic video connection . . . . . . . . . . . . . . . .8

STEP 5

AC mains lead connections . . . . . . 9

STEP 6

Preparing the remote control . . . . 10

STEP 7

Performing QUICK SETUP . . . . . . 10

Control reference guide . . . . . . . . . . . . . . . . . 11

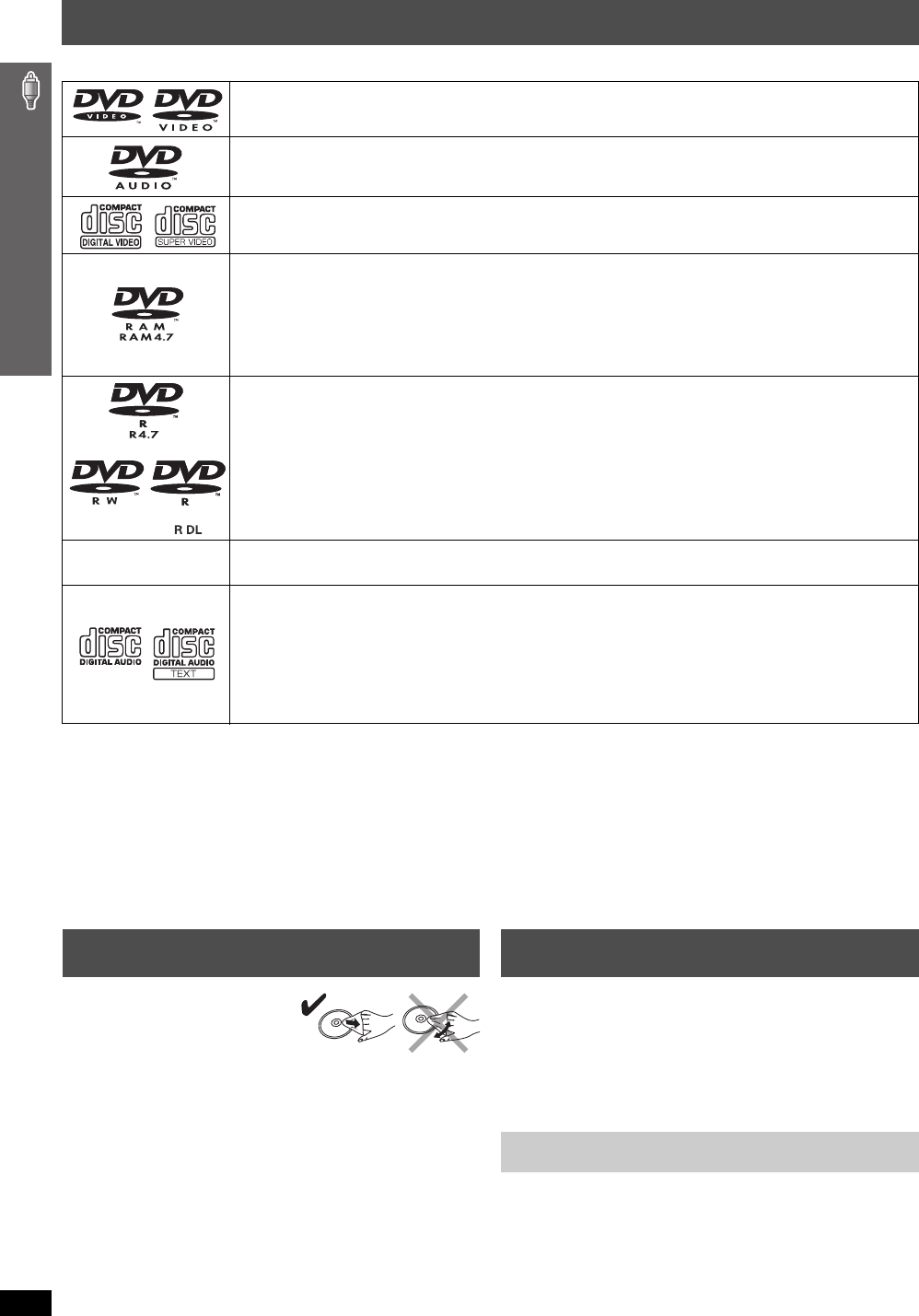

Discs that can be played. . . . . . . . . . . . . . . . . 12

Disc caution . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

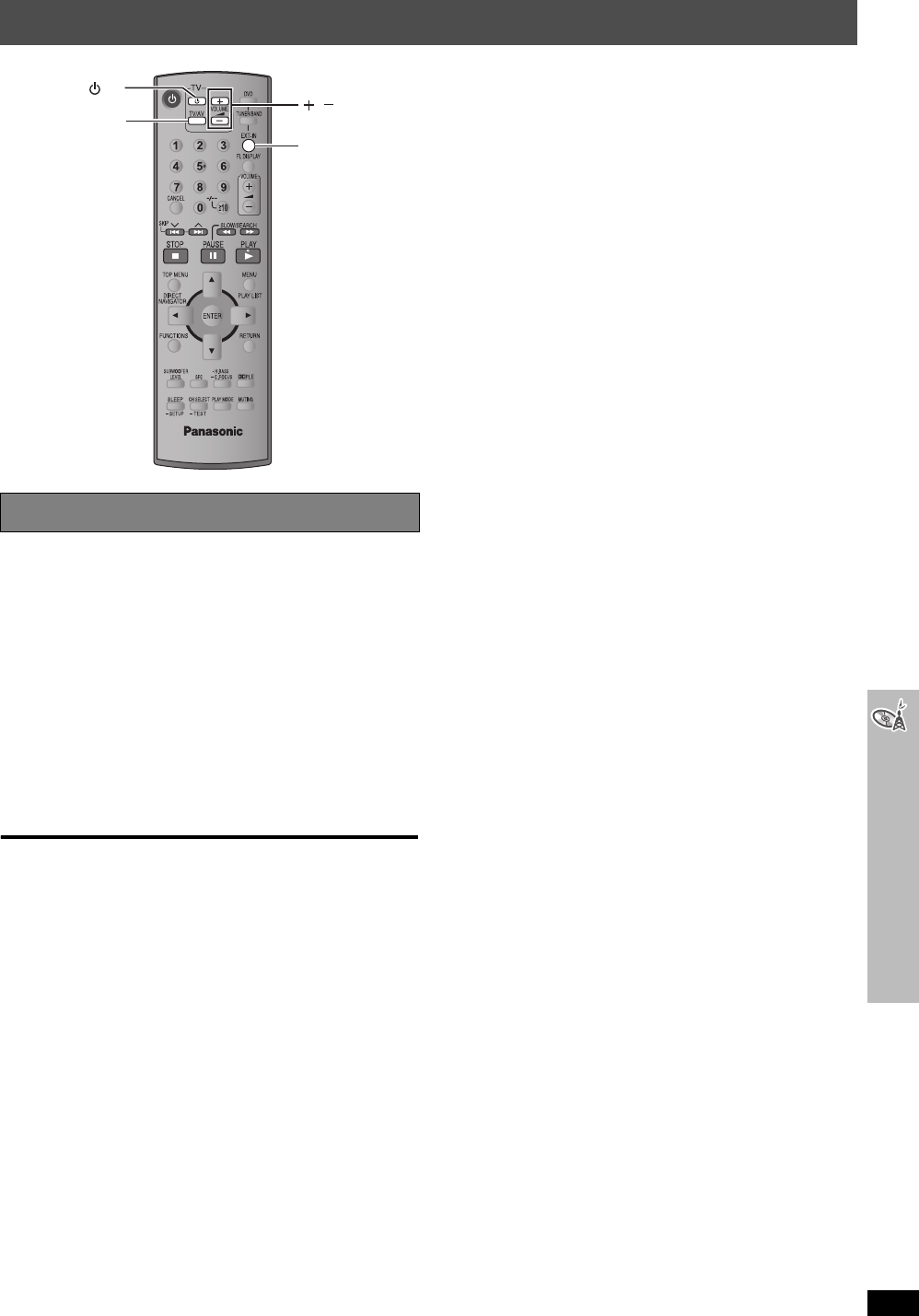

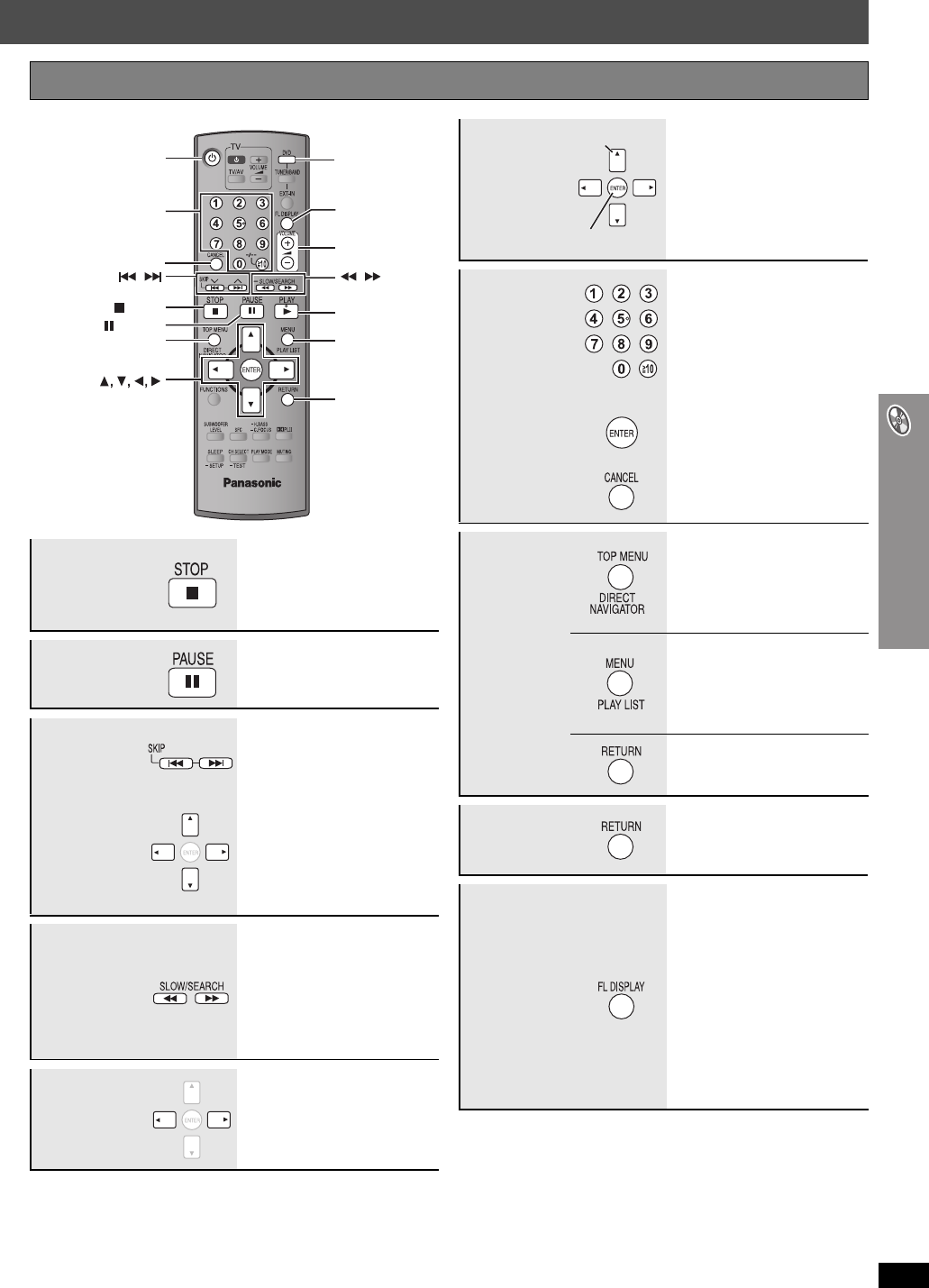

Using the remote control . . . . . . . . . . . . . . . . . . . . . . 15

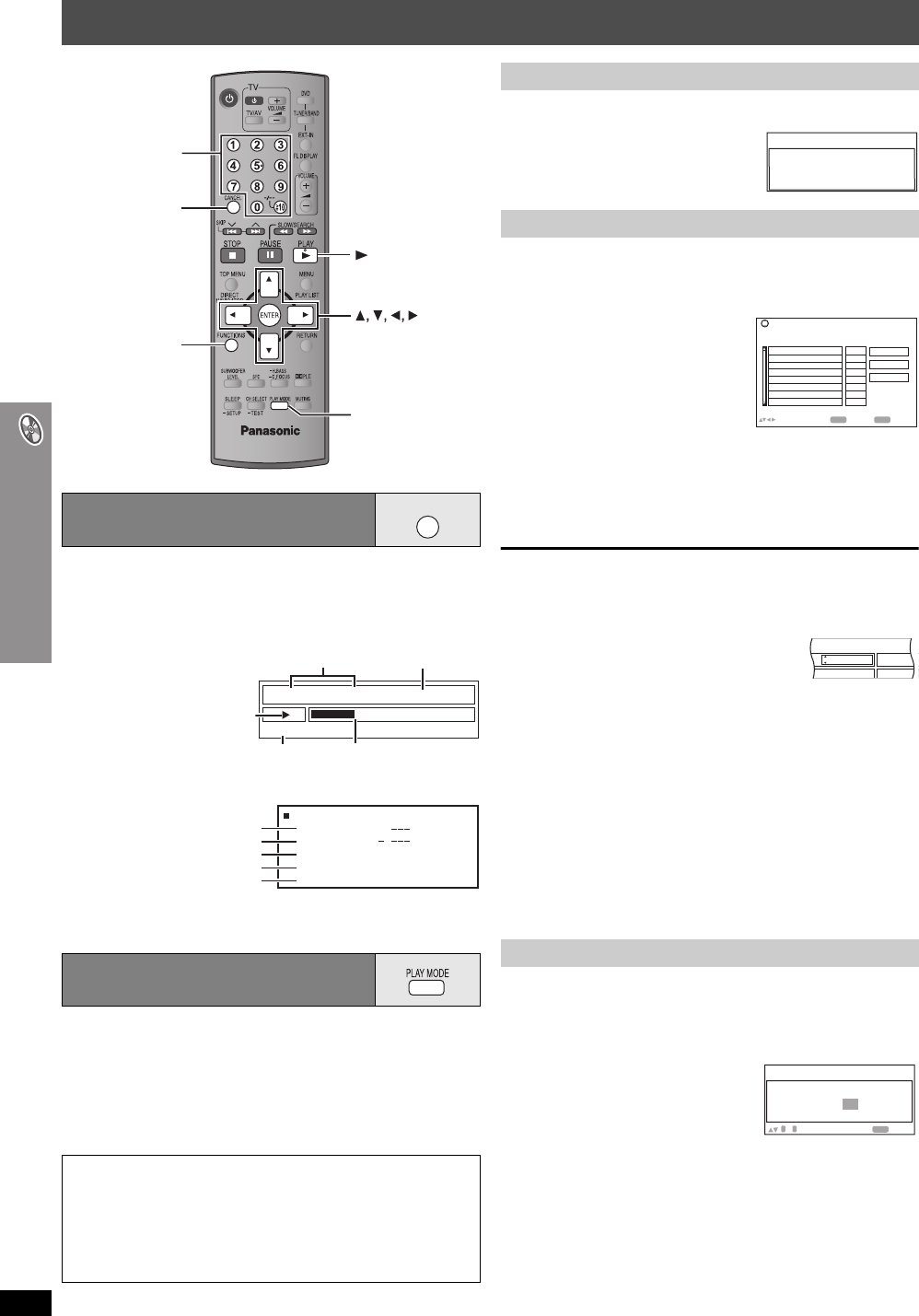

Convenient functions . . . . . . . . . . . . . . . . . . . .16

Displaying current playback condition. . . . . . . . . . . . . 16

All group, Program and Random play. . . . . . . . . . . . . 16

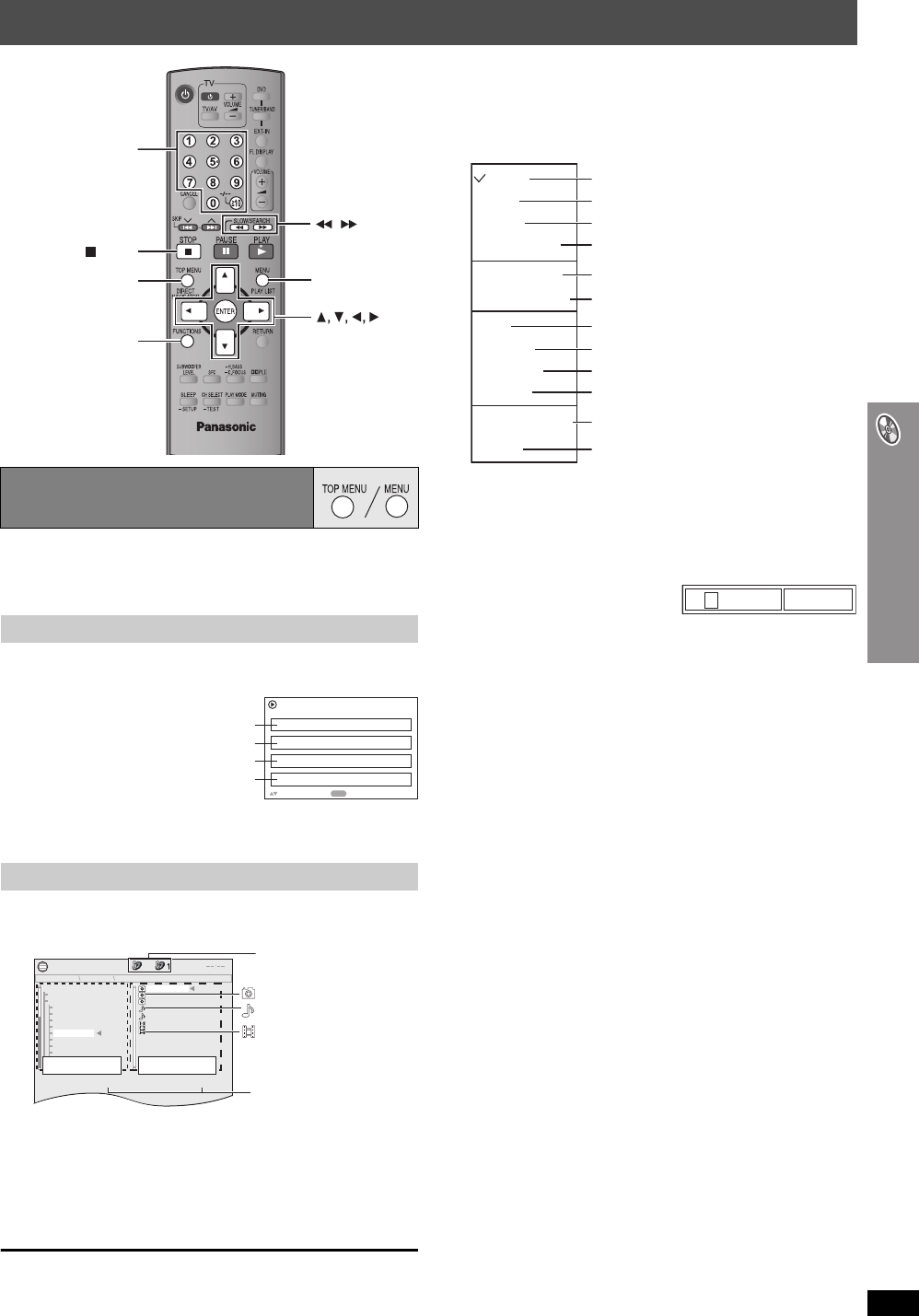

Playing data discs using navigation menus

. . . 17

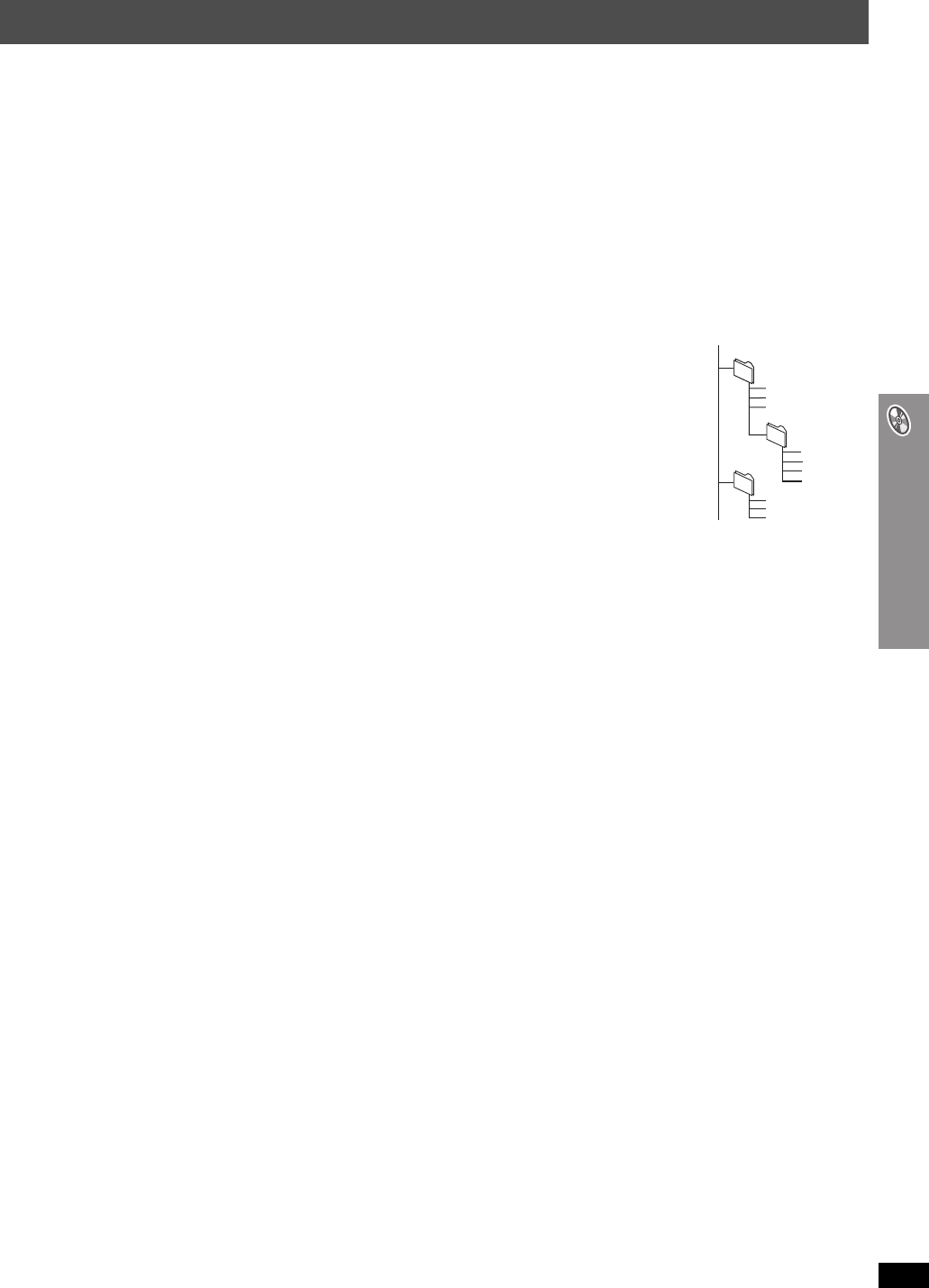

Playing data discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Selecting a track using CD text. . . . . . . . . . . . . . . . . . 18

Playing HighMATTM discs . . . . . . . . . . . . . . . . . . . . . . 18

Playing RAM and DVD-R/-RW (DVD-VR) discs . . . . . 18

Using on-screen menus . . . . . . . . . . . . . . . . . . 20

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Other Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing the player settings . . . . . . . . . . . . . .23

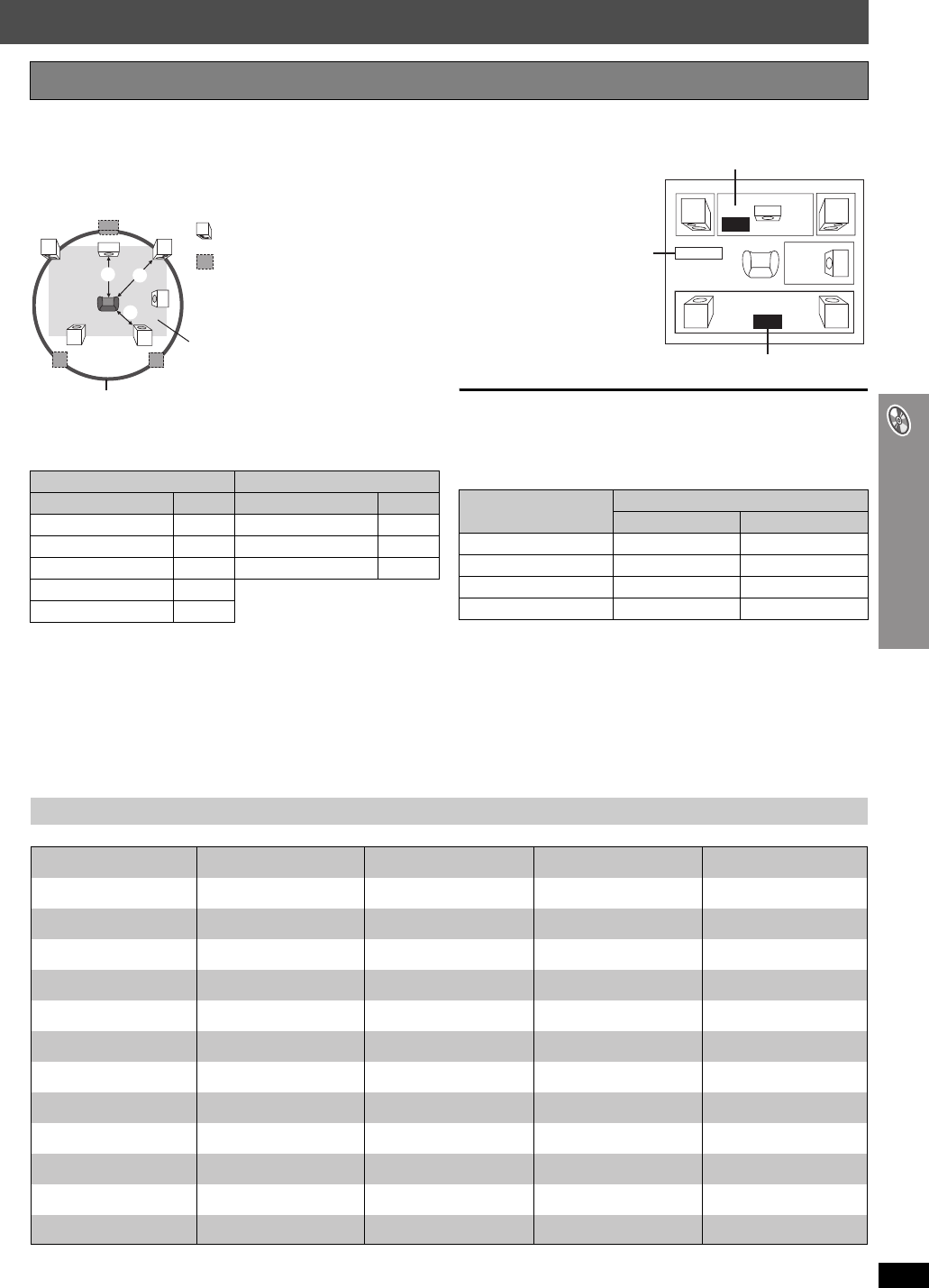

Changing the delay time of the speakers. . . . . . . . . . 25

Using the radio . . . . . . . . . . . . . . . . . . . . . . . . . 26

Presetting stations automatically . . . . . . . . . . . . . . . . 26

Selecting the preset channels . . . . . . . . . . . . . . . . . . 26

Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

RDS broadcasting . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Using an outdoor antenna (optional) . . . . . . . . . . . . . 27

Using sound effects . . . . . . . . . . . . . . . . . . . . .28

Changing the sound quality: Sound Field Control . . . 28

Enhancing the sound from the center speaker:

Center Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Enhancing the stereo sound: Dolby Pro Logic II . . . . 28

Adjusting the amount of bass: Subwoofer level . . . . . 28

[HT545] Enhancing the bass sound: H.BASS . . . . . . . 29

Adjusting the volume of each speaker:

Speaker level adjustments. . . . . . . . . . . . . . . . . . . . 29

Using other useful functions . . . . . . . . . . . . . .30

Setting the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . 30

Muting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using headphones. . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the Music Port . . . . . . . . . . . . . . . . . . . . . . . . . 30

Operating other equipment . . . . . . . . . . . . . . .31

Operating the television . . . . . . . . . . . . . . . . . . . . . . . 31

Safety precautions . . . . . . . . . . . . . . . . . . . . . .32

About DivX VOD content . . . . . . . . . . . . . . . . .32

Troubleshooting guide . . . . . . . . . . . . . . . . . . .33

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Getting

Started

Reference

Playing

Discs

Other

Operations

RQT8654

Simple Setup

4

How you set up your speakers can affect the bass and the sound field. Note the following points:

≥Place speakers on flat secure bases.

≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains.

≥Left and right speakers are interchangeable, but front and surround speakers are not.

≥Place the front, center, and surround speakers at approximately the same distance from the seating position.

The angles in the diagram are approximate.

≥Use only supplied speakers

Using other speakers can damage the unit, and sound quality will be

negatively affected.

≥Set the speakers up on an even surface to prevent them from falling.

Take proper precautions to prevent the speakers from falling if you

cannot set them up on an even surface.

Main unit

[Note]

≥Keep your speakers at least 10 mm away from the system for proper

ventilation.

≥To allow for proper ventilation and to maintain good airflow around the

main unit, position it with at least 5 cm of space on all sides.

≥Do not block the ventilation holes of the main unit.

Center speaker

≥

Vibration caused by the center speaker can disrupt the picture if it is

placed directly on the television. Put the center speaker on a rack or shelf.

≥To prevent the speakers from falling, do not place directly on top of the

television.

[HT545W] Wireless system

≥

Place the wireless system within approximately 10 m from the main unit.

≥Do not use the wireless system or the digital transceiver in a metal

cabinet or bookshelf.

Subwoofer

Place to the right or left of the television, on the floor or a sturdy shelf so

that it will not cause vibration. Leave about 30 cm from the television.

Caution

Do not touch the netted area of

the speakers.

Notes on speaker use

≥You can damage your speakers and shorten their useful life if you play

sound at high levels over extended periods.

≥Reduce the volume in the following cases to avoid damage:

– When playing distorted sound.

– When the speakers are reverberating due to a record player,

noise from FM broadcasts, or continuous signals from an oscillator,

test disc, or electronic instrument.

– When adjusting the sound quality.

– When turning the unit on or off.

If irregular coloring occurs on your television

The front and center speakers are designed to be used close to a

television, but the picture may be affected with some televisions and

setup combinations.

If this occurs, turn the television off for about 30 minutes.

The demagnetizing function of the television should correct the problem.

If it persists, move the speakers further away from the television.

STEP1Positioning the speakers

HT545

5

HT545W

5

Setup example

Main unit

(with digital transceiver)

FRONT

(L, R)

SURROUND

(L, R)

CENTER

SUBWOOFER WIRELESS

SYSTEM

Setup example

Main unit

FRONT

(L, R)

SURROUND

(L, R)

CENTER

SUBWOOFER

e.g. Surround speaker

Caution

≥The main unit and supplied speakers are to be used only as

indicated in this setup. Failure to do so may lead to damage to

the amplifier and/or the speakers, and may result in the risk of

fire. Consult a qualified service person if damage has occurred

or if you experience a sudden change in performance.

≥Do not attempt to attach these speakers to walls using

methods other than those described in this manual.

Positioning the speakers

RQT8654

5

Simple Setup

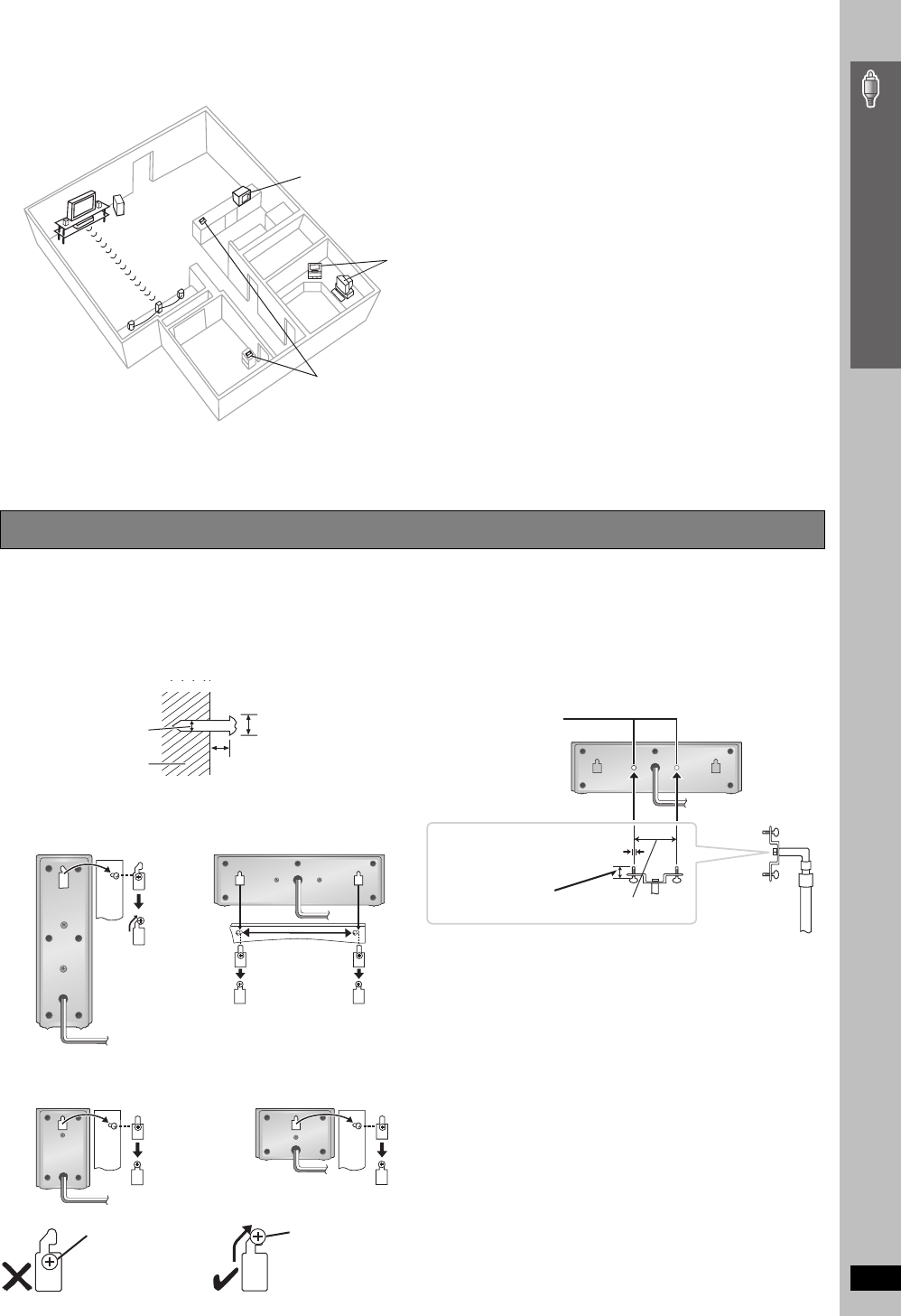

∫[HT545W] Avoiding interference

To avoid possible interference, do not place the wireless system near any of the following devices.

The wireless system uses the same radio frequencies as other devices that may be present in your home.

The wireless system will automatically seek a clear channel if any of these other devices interfere with its communication. When this happens, the

wireless link indicator (“ [W] ”) flashes on the main unit, and there is a brief interruption in audio coming from the surround speakers.

This is the normal operation of the product working to assure the best possible performance of your Home Theater System.

If the interference persists, try moving the other devices to another location outside the range of the wireless system.

∫Attaching to a wall

You can attach all of the speakers (except subwoofer) to a wall.

≥

The wall or pillar on which the speakers are to be attached should

be capable of supporting over 10 k

g

per screw. Consult a qualified

building contractor when attaching the speakers to a wall. Improper

attachment may result in damage to the wall and speakers.

1Drive a screw (not included) into the wall.

2Fit the speaker securely onto the screw(s) with the hole(s).

∫Fitting speaker stands (not included)

Ensure the stands meet these conditions before purchasing them.

Note the diameter and length of the screws and the distance

between screws as shown in the diagram.

≥The stands must be able to support over 10 kg.

≥

The stands must be stable even if the speakers are in a high position.

2.4GHz-band microwave oven

2.4GHz-band cordless phone

personal computer with

2.4GHz-band wireless LAN

e.g.

Speaker installation options

‰7.5 to 9.5 mm

5.0 to 7.0 mm

Wall or pillar

‰4.0 mm

[HT545] Front speaker [HT545] Center speaker

200 mm

[HT545W] Center speaker[HT545] Surround speaker

[HT545W] Front and surround

speakers

In this position, the

speaker will likely

fall if moved to the

left or right.

Move the speaker

so that the screw

is in this position.

e.g.

Speaker stand

(not included)

Plate thickness plus

7 mm to 10 mm

e.g. [HT545] Center speaker

5 mm, pitch 0.8 mm

Metal screw holes

For attaching to

speaker stands

60 mm

Positioning the speakers

RQT8654

Simple Setup

6

[HT545W] Connecting the surround speaker cables to the wireless system

STEP2Speaker connections

4

4

2

2

6

6

53

5

3

1

1

SURROUND

Rch

Rch

SURROUND

Rch

Rch

FRONT

WOOFER

SUB

Lch

Lch Lch

CENTER

Lch

SURROUND

SURROUND

FRONT

SUB

WOOFER

FRONT

FRONT

CENTER

FRONT

Lch

Rch

SURROUND

Rch

FRONT

2

CENTER

5

Lch

SURROUND

1

4

3

Be careful not to cross

(short-circuit) or reverse

the polarity of the speaker

wires as doing so may

damage the speakers.

1 sheet of speaker cable stickers

≥Attach the speaker-cable stickers

to make connection easier.

Speaker cable sticker

2 FRONT (R)

1 FRONT (L)

5 CENTER

Main unit

Insert the wire fully.

i: White

j: Blue

Push!

6 SUBWOOFER

The illustration shows SC-HT545.

[HT545W]

Connect the surround speaker cables

to the wireless system (➜below).

4 SURROUND (R)

3 SURROUND (L)

LR

Rch

SURROUND

4

Lch

SURROUND

3

Wireless system

Click!

Insert the wire fully.

i: White

j: Blue

4 SURROUND (R)

3 SURROUND (L)

Speaker connections

RQT8654

7

Simple Setup

[HT545]

Set your surround sound free!

Optional Panasonic wireless accessory (e.g. SH-FX60)

You can enjoy surround speaker sound wirelessly when you use the optional Panasonic wireless accessory (e.g. SH-FX60).

For details, please refer to the operating instructions for the optional Panasonic wireless accessory.

STEP3Radio and digital transceiver connections

[For SC-HT545, an optional wireless accessory is required to make the digital transceiver connection (➜below).]

Digital Transceiver

Adhesive tape

Main unit

AM loop antenna

Stand the antenna up on its base.

Place the antenna where reception is best.

Keep loose antenna cable away from other

wires and cables.

Click!

AM loop antenna FM indoor antenna

FM indoor antenna

Affix this end of the antenna where

reception is best.

≥Using an outdoor antenna (optional) (➜page 27).

The illustration shows SC-HT545.

Re-tighten the

terminal screw.

Loosen the terminal

screw with a Phillips-

head screwdriver.

White

Red Black

While pushing, insert the wire fully.

[HT545W]

Digital transceiver

[HT545W] Connecting the digital transceiver

Digital Transceiver

Digital Transceiver

FM ANT

75

COMPONENT VIDEO OUT

VIDEO

S-VIDEO

OUT

Y

PB

R

P

OUT

Insert the digital transceiver

into the slot.

Do not insert or remove

while the main unit is on.

Digital transceiver

Insert fully until you hear a click.

Th

e

ill

ustrat

i

on s

h

ows

SC

-

HT

545

W

.

Main unit

Radio and digital transceiver connections

RQT8654

Simple Setup

8

≥Do not connect through the video cassette recorder.

Due to copy guard protection, the picture may not be displayed properly.

≥Turn the television off before connecting, and refer to the television’s operating instructions.

≥This audio connection will enable you to play audio from your

television through your home theater system. Refer to “Operating other

equipment” (➜page 31).

≥Refer also to “Other video connections for improved picture quality”

(➜below).

COMPONENT VIDEO OUT ≥Using the COMPONENT VIDEO OUT terminals

The COMPONENT VIDEO OUT terminals provides a purer picture than

the S-VIDEO OUT terminal. These terminals can be used for either

interlaced or progressive output. Connection using these terminals

outputs the color difference signals (PB/PR) and luminance signal (Y)

separately in order to achieve high fidelity in reproducing colors.

≥The description of the component video input terminals depends on

the television or monitor (e.g. Y/PB/PR, Y/B-Y/R-Y, Y/CB/CR). Connect

to terminals of the same color.

[Continental]Europe]

≥When making this connection, select “Video/YPbPr” or “S-Video/

YPbPr” from QUICK SETUP (➜page 10). If “RGB/No Output” is

selected, the RGB signal is output from the SCART (AV) terminal, but

no signal is output from the component video output terminals.

STEP4Audio and video connections

Video cable

Basic audio connection

VIDEO

OUT

R

RF IN

AUDIO

OUT

L

R

VIDEO IN

AUDIO

IN

VIDEO OUT

L

AUX

AUX

S-VIDEO

OUT

COMPONENT VIDEO OUT

P

B

P

R

Y

Back of the main unit

Audio cable

(not included)

Television (not included)

Basic video connection

RF IN

AUDIO

OUT

L

R

VIDEO IN

AUDIO

IN

VIDEO OUT

AUX

AUX

VIDEO

VIDEO

OUT

OUT

S-VIDEO

OUT

COMPONENT VIDEO OUT

P

B

P

R

Y

L

R

AUX

Back of the main unit

Video cable (included)

Television (not included)

Other video connections for improved picture quality

VIDEO

OUT S-VIDEO

OUT

COMPONENT VIDEO OUT

P

B

P

R

Y

COMPONENT

VIDEO IN

PR

PB

Y

Television

(not included)

Back of the

main unit

Video cables

(not included)

To enjoy progressive video

≥Connect to a progressive output compatible television.

≥Set “Video Output Mode” to “480p” or “576p”, and then follow the instructions on the menu screen (➜page 21, Picture Menu).

[Continental]Europe]

≥Panasonic televisions with 625 (576)/50i·50p, 525 (480)/60i·60p input terminals are progressive compatible. Consult the manufacturer if you

have another brand of television.

Audio and video connections

RQT8654

9

Simple Setup

S-VIDEO OUT

≥Using the S-VIDEO OUT terminal

The S-VIDEO OUT terminal achieves a more vivid picture than the

VIDEO OUT terminal by separating the chrominance (C) and luminance

(Y) signals. (Actual results depend on the television.)

[Continental]Europe]

SCART

≥Using the SCART (AV) terminal

To improve picture quality, you can change the video signal output from

the SCART (AV) terminal from “Video” to either “S-Video” or “RGB” to

suit the type of television you are using. Select “S-Video/YPbPr” or

“RGB/No Output” from QUICK SETUP (➜page 10).

This connection will also enable you to play audio from your television

through your home theater system. Refer to “Operating other

equipment” (➜page 31).

∫Cable TV box or video cassette recorder connection

Conserving power

The main unit and the wireless system consume a small amount of

power when they are in standby mode (main unit: approx. 0.5 W,

wireless system: approx. 1.2 W). To save power when they are not to be

used for a long time, unplug them from the household mains socket.

You will need to reset some memory items after plugging in the main unit.

[Note]

The included AC mains leads are for use with the main unit and wireless

system only. Do not use them with other equipment. Also, do not use

cords for other equipment with the main unit or wireless system.

Other video connections for improved picture quality

VIDEO

OUT S-VIDEO

OUT

COMPONENT VIDEO OUT

P

B

P

R

Y

S-VIDEO

IN

Television

(not included)

S-video cable

(not included)

Back of the

main unit

AV

AV

Television

(not included)

Scart cable

(not included)

Back of the

main unit

AUX

AUX

VIDEO

VIDEO

OUT

OUT

S-VIDEO

OUT

COMPONENT VIDEO OUT

P

B

P

R

Y

L

R

RF IN

RF OUT

RF IN

AUDIO

OUT

L

R

VIDEO IN

AUDIO

IN

VIDEO OUT

Television

(not included)

Video cable

(included)

Back of the main unit

RF cable

(not included)

To your cable TV

service or television

antenna

Cable TV box or video cassette recorder

(not included)

Audio cable (not included)

≥

You can use the scart cable connection

(

➜

above) instead of this connection.

STEP5AC mains lead connections

AC IN

AC IN~

AC mains lead AC mains lead

Main unit [HT545W]

Wireless system

To household mains socket

[HT545W]

2 AC mains leads

[HT545]

1 AC mains lead

To household

mains socket

Audio and video connections/AC mains lead connections

HT545 545W En.book Page 9 Monday, May 8, 2006 6:46 PM

RQT8654

Simple Setup

10

Do not:

≥mix old and new batteries.

≥use different types at the same time.

≥heat or expose to flame.

≥take apart or short circuit.

≥attempt to recharge alkaline or manganese batteries.

≥use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can

severely damage the remote control.

Remove the batteries if the remote control is not going to be used for a

long period of time. Store in a cool, dark place.

∫Use

Aim at the remote control signal sensor (➜page 11), avoiding

obstacles, at a maximum range of 7 m directly in front of the unit.

The QUICK SETUP screen assists you to make necessary settings.

To display the picture from the main unit, turn on your television and change its video input mode (e.g. VIDEO 1, AV 1, etc.).

≥To change your television’s video input mode, refer to its operating instructions.

≥This remote control can perform some basic television operations (➜page 31).

To change these settings later

Select “QUICK SETUP” in the “Others” tab (➜page 24).

STEP6Preparing the remote control

R6/LR6, AA

1

3

2

Remote control Batteries

Insert so the poles (i and j) match those in the remote control.

≥Do not use rechargeable type

batteries.

STEP7Performing QUICK SETUP

RETURN

DVD

ENTER

SETUP

1Turn on the unit.

2Select “DVD/CD”.

3Press and hold to show

the QUICK SETUP

screen.

4Follow the messages

and make the settings.

5Press to finish QUICK

SETUP.

6Press repeatedly to exit.

Select

Register

ENTER

Preparing the remote control/Performing QUICK SETUP

RQT8654

11

Control reference guide

Control reference guide

AC IN

WIRELESS LINK

(28)

(29, 28)

(28)

(30, 23)

(29) (16) (30)

(28)

(28)

Turn the unit on/off (10)

Select disc’s title numbers etc./Enter numbers (15)

Basic operations for play (14, 15)

Show a disc top menu (17) or program list (18)

Frame-by-frame/Select or register menu items on the

television screen (15)

Show on-screen menu (20) or

display RDS text data ([Continental]Europe] only) (27)

Change the television’s video input mode (31)

Return to previous screen (15)

Adjust the volume of the main unit (15)

Select the source

DVD: DVD/CD (10)

TUNER/BAND: FM/AM (26)

EXT-IN: MUSIC P. (30), TV§ (31), AUX (31)

Cancel (15)

Change the unit’s display (15)

See page references in parentheses.

SELECTOR (26)

DVD/CD#FM#AM#TV§#AUX #MUSIC P. #

Return to DVD/CD

§[Continental]Europe] “TV” works only when the

scart cable is connected (➜page 9).

< OPEN/CLOSE

Open/Close the disc tray (14)

∫ /

-

TUNE MODE /

-

FM MODE

Stop playing (14)/Select the tuning mode (26)

Adjust the FM reception condition (26)

1 / MEMORY

Play discs (14)/Memorize the receiving radio

stations (26)

4, 5 / XTUNING W

Skip or slow-search play (14)/

Select the radio stations (26)

Standby/on switch [Í/I]

Press to switch the unit from on to standby mode

or vice versa. In standby mode, the unit is still

consuming a small amount of power. (14)

VOLUME

Turn up/down the volume (14)

AC supply indicator [AC IN]

This indicator lights when the unit is

connected to the AC mains supply.

Phones

Connect headphones (30)

MUSIC PORT

Connect an external device (30)

Remote control signal sensor

Television operations (31) Adjust the television volume (31)

Select preset radio stations (26)

[HT545W]

To use functions labeled with “

-

”:

Press and hold the button for at least 2 seconds.

Display

AC supply indicator [AC IN]

This indicator lights when the unit is

connected to the AC mains supply.

The unit is in the standby condition when the

AC power supply cord is connected.

The primary circuit is always “live” as long as

the power cord is connected to an electrical

outlet.

Lighting Ring

Lights when the wireless link is active.

[HT545W]

The illustration shows the

wireless system for SC-HT545W.

Show a disc menu (17) or play list (18)

The illustration shows SC-HT545.

RQT8654

12

Discs that can be played / Disc caution / Maintenance

Discs that can be played

Operations in these instructions are described mainly with formats. Icons such as [DVD-V] show the formats.

§1Functions added with DivX Ultra are not supported.

§2Includes single-sided, dual-layer discs.

§3A process that allows play on compatible equipment.

≥It may not be possible to play all the above-mentioned discs in some cases due to the type of disc or condition of the recording.

∫Discs that cannot be played

DVD-RW version 1.0, DVD-ROM, CD-ROM, CDV, CD-G, SACD and

Photo CD, DVD-RAM that cannot be removed from their cartridge, 2.6-GB

and 5.2-GB DVD-RAM, and “Chaoji VCD” available on the market

including CVD, DVCD and SVCD that do not conform to IEC62107.

∫Video systems

– This unit can play PAL and NTSC, but your television must match

the system used on the disc.

– PAL discs cannot be correctly viewed on an NTSC television.

– This unit can convert NTSC signals to PAL 60 for viewing on a PAL

television (➜page 24, “NTSC Disc Output” in “Video” tab).

∫To clean discs

Wipe with a damp cloth and

then wipe dry.

∫Disc handling precautions

≥Do not attach labels or stickers to discs. This may cause disc

warping, rendering it unusable.

≥Do not write on the label side with a ball-point pen or other writing

instrument.

≥Do not use record cleaning sprays, benzine, thinner, liquids which

prevent static electricity, or any other solvent.

≥Do not use scratch-proof protectors or covers.

≥Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels

(rented discs, etc).

– Discs that are badly warped or cracked.

– Irregularly shaped discs, such as heart shapes.

Clean this unit with a soft, dry cloth.

≥Never use alcohol, paint thinner or benzine to clean this unit.

≥Before using chemically treated cloth, carefully read the instructions that

came with the cloth.

Do not use commercially available lens cleaners as they may cause

malfunction. Cleaning of the lens is generally not necessary although

this depends on the operating environment.

DVD-Video [DVD-V]

—

DVD-Audio [DVD-A] [DVD-V]

≥[DVD-V] Some DVD-Audio discs contain DVD-Video content. To play DVD-Video content, select “Play as DVD-Video” in

Other Menu (➜page 22).

Video CD [VCD]

≥Including SVCD (Conforming to IEC62107)

DVD-RAM [DVD-VR] [MP3] [JPEG] [MPEG4] [DivX] §1

≥[DVD-VR] Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard),

such as DVD video recorders, DVD video cameras, personal computers, etc.

≥[JPEG] Recorded with Panasonic SD multi cameras or DVD video recorders using the DCF (Design rule for Camera

File system) Standard Version 1.0.

≥[MPEG4] Recorded with Panasonic SD multi cameras or DVD video recorders [conforming to SD VIDEO specifications

(ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system].

DVD-R (DVD-Video)§2/DVD-RW (DVD-Video) [DVD-V]

≥Discs recorded and finalized§3 on DVD video recorders or DVD video cameras.

DVD-R (VR)§2/DVD-RW (VR) [DVD-VR]

≥Discs recorded and finalized§3 on DVD video recorders or DVD video cameras using Version 1.1 (or 1.2 DVD-R DL

only) of the Video Recording Format (a unified video recording standard).

DVD-R/ DVD-RW [MP3] [JPEG] [MPEG4] [DivX] §1

≥Finalize§3 the disc after recording.

—iR (Video)§2/iRW (Video) [DVD-V]

≥Discs recorded and finalized§3 on DVD video recorders or DVD video cameras.

CD [CD] [WMA] [MP3] [JPEG] [VCD] [MPEG4] [DivX] §1

≥This unit can play CD-R/RW recorded with the above formats. Close the sessions or finalize§3 the disc after recording.

≥[CD] This unit is compatible with HDCD, but does not support the Peak Extend function (a function which expands the

dynamic range of high-level signals).

HDCD-encoded CDs sound better because they are encoded with 20 bits, as compared with 16 bits for all other CDs.

≥[WMA] [MP3] [JPEG] This unit also plays HighMAT discs.

≥[WMA] This unit does not support Multiple Bit Rate (MBR: a file that contains the same content encoded at several

different bit rates).

Disc caution Maintenance

Before moving the unit, ensure the disc tray is empty. Failure to

do so will risk severely damaging the disc and the unit.

RQT8654

13

Glossary

Glossary

Decoder

A decoder restores the coded audio signals on DVDs to normal. This is

called decoding.

DivX

DivX is a popular media technology created by DivX, Inc. DivX media files

contain highly compressed video with high visual quality that maintains a

relatively small file size.

Dolby Digital

This is a method of coding digital signals developed by Dolby

Laboratories. Apart from stereo (2-channel) audio, these signals can also

be multi-channel audio. A large amount of audio information can be

recorded on one disc using this method.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters around the world.

There is good separation between the channels, so realistic sound effects

are possible.

Dynamic range

Dynamic range is the difference between the lowest level of sound that

can be heard above the noise of the equipment and the highest level of

sound before distortion occurs.

Film and video

DVD-Videos are recorded using either film or video. This unit can

determine which type has been used, then uses the most suitable method

of progressive output.

Film: Recorded at 25 frames per second (PAL discs) or 24 frames per

second (NTSC discs). (NTSC discs recorded at 30 frames per

second as well).

Generally appropriate for motion picture films.

Video: Recorded at 25 frames/50 fields per second (PAL discs) or

30 frames/60 fields per second (NTSC discs). Generally

appropriate for TV drama programs or animation.

Frame still and field still

Frames are the still pictures that go together to make a moving picture.

There are about 30 frames shown each second.

One frame is made up of two fields. A regular television shows these

fields one after the other to create frames.

A still is shown when you pause a moving picture. A frame still is made up

of two alternating fields, so the picture may appear blurred, but overall

quality is high.

A field still is not blurred, but it has only half the information of a frame still

so picture quality is lower.

I/P/B

MPEG 2, the video compression standard adopted for use with

DVD-Video, codes frames using these 3 picture types.

I: Intra coded picture

This picture has the best quality and is the best to use when adjusting

the picture.

P: Predictive coded picture

This picture is calculated based on past I- or P-pictures.

B: Bidirectionally-predictive coded picture

This picture is calculated by comparing past and future I- and

P-pictures so it has the lowest volume of information.

JPEG (Joint Photographic Experts Group)

This is a system used for compressing/decoding color still pictures. If you

select JPEG as the storage system on digital cameras, etc., the data will

be compressed to 1/10–1/100 of its original size. The benefit of JPEG is

less deterioration in picture quality considering the degree of

compression.

Linear PCM (pulse code modulation)

These are uncompressed digital signals, similar to those found on CDs.

MP3 (MPEG Audio Layer 3)

An audio compression method that compresses audio to approximately

one tenth of its size without any considerable loss of audio quality.

MPEG4

A compression system for use on mobile devices or a network, that allows

highly efficient recording at a low bit rate.

Playback control (PBC)

If a Video CD has playback control, you can select scenes and

information with menus.

Progressive/Interlaced

The PAL video signal standard has 576 interlaced (i) scan lines, whereas

progressive scanning, called 576p, uses twice the number of scan lines.

For the NTSC standard, these are called 480i and 480p respectively.

Using progressive output, you can enjoy the high-resolution video

recorded on media such as DVD-Video.

Your television must be compatible to enjoy progressive video.

Sampling frequency

Sampling is the process of converting the heights of sound wave (analog

signal) samples taken at set periods into digits (digital encoding).

Sampling frequency is the number of samples taken per second, so larger

numbers mean more faithful reproduction of the original sound.

WMA (Windows MediaTM Audio)

WMA is a compression format developed by Microsoft Corporation. It

achieves the same sound quality as MP3 with a file size that is smaller

than that of MP3.

RQT8654

14

Basic play

Basic play

To display the picture from the main unit, turn on your television and change its video input mode (e.g. VIDEO 1, AV 1, etc.).

≥To change your television’s video input mode, refer to its operating instructions.

[Note[

≥Discs continue to rotate while menus are displayed. To preserve the unit’s motor and your television screen, press [∫] (Stop) when you are finished

with the menus.

≥Total title number may not be displayed properly on iR/iRW.

Using the main unit

VOLUME

Press to skip.

Press and hold to

– search during play

– start slow-motion play during pause

(Motion picture part)

≥Press [1] (Play) to start normal play.

6Adjust the

volume.

5Start play.

The tray is automatically closed.

To change the sound quality ➜page 28

3Open the disc tray.

∫ (Stop)

2Select “DVD/CD”.

≥Select “AUX” ([HT545W] “AUX” or “TV”) to

enjoy video cassette recorder, television

or cable TV programs.

(Refer to page 9 for the necessary

connections.)

1Turn the unit on.

4Load the disc.

≥Load double-sided discs so the label for the

side you want to play is facing up.

≥For DVD-RAM, remove

the disc from its

cartridge before use.

RQT8654

15

Basic play

If you are experiencing problems, refer to troubleshooting (➜page 33 to 35).

Using the remote control

Stop

The position is memorized while

“RESUME” is on the display.

≥Press [1PLAY] to resume.

≥Press [∫STOP] again to clear

the position.

Pause

≥Press [1PLAY] to restart play.

Skip

—

≥[WMA] [MP3] [JPEG] [MPEG4] [DivX]

[This feature does not work

during program and random play

(➜page 16).]

[3,4]: Group skip

[2,1]: Content skip

Search

(during play)

≥Up to 5 steps.

≥Press [1PLAY] to start normal

play.

Slow-motion

(during pause)

≥[VCD] Slow-motion: forward

direction only.

≥[MPEG4] [DivX] Slow-motion:

Does not work.

Frame-by-

frame

(during pause)

[DVD-A] (Motion picture part)

[DVD-VR] [DVD-V] [VCD]

≥[VCD] Forward direction only.

12

5

6

,

SLOW/SEARCH

RETURN

,

SKIP

STOP

PAUSE

TOP MENU,

DIRECT NAVIGATOR MENU,

PLAY LIST

FL DISPLAY

ENTER

CANCEL

Numbered

buttons

On-screen

item select —

Enter number

[DVD-VR] [DVD-A] [DVD-V] [VCD] [CD]

e.g. To select 12:

[S10] ➜ [1] ➜ [2]

[VCD] with playback control

Press [∫STOP] to cancel the PBC

function, and then press the

numbered buttons.

[WMA] [MP3] [JPEG] [MPEG4] [DivX]

e.g. To select 123:

[1] ➜ [2] ➜ [3] ➜ [ENTER]

≥Press [CANCEL] to cancel the

number(s).

[DVD-A] [DVD-V]

Shows a disc top menu.

[DVD-VR]

Press the button to show the

programs (➜page 18).

Disc menu

[DVD-V]

Shows a disc menu.

[DVD-VR]

Press the button to show a playlist

(➜page 18).

[VCD] with playback control

Shows a disc menu.

Return to

previous

screen

—

Main unit

display

[DVD-VR] [DVD-A] [DVD-V] [WMA]

[MP3] [MPEG4] [DivX]

Time display

,-.Information display

(e.g. [DVD-VR] Program

number)

[JPEG]

When Slideshow (➜page 20) is

on:

SLIDE,-.Contents number

When Slideshow is off:

PLAY,-.Contents number

Select

Register

RQT8654

16

Convenient functions

Convenient functions

Press [FUNCTIONS].

Each time you press the button:

Main menu (➜page 20) --------------------> Basics -------------------->Details

^---------------------- off (No on-screen display) ,------------------b

≥[MPEG4] [DivX] Video and audio information is not displayed during

search.

≥Selecting “Play as Data Disc” in Other Menu (➜page 22) will be

effective if the following functions are not available to play WMA, MP3,

JPEG, MPEG4 or DivX video contents.

≥[DVD-V] Some items cannot be played even if you have programmed

them.

≥[DVD-A] Some discs contain bonus groups. If a password screen

appears after selecting a group, enter the password with the numbered

buttons to play the bonus group. Refer also to the disc’s jacket.

[DVD-A]

Press [1PLAY].

To select an item using the cursor buttons

Press [ENTER] and [3,4] to select an item, and then press [ENTER]

again to register.

To select all the items

While the “Chapter”, “Track” or “Content” field is

highlighted, press [3,4] to select “ALL”. Then

press [ENTER] again to register.

To change the selected program

1 Press [3,4] to select the program number.

2 Press the numbered buttons to change each item.

([WMA] [MP3]

[JPEG]

[MPEG4] [DivX]

Press [ENTER] to register the

selection.)

To clear the selected program

1 Press [3,4] to select the program number.

2 Press [CANCEL] (or press [3,4,2,1] to select “Clear” and press

[ENTER]).

To clear the whole program

Select “Clear all” with [3,4,2,1] and press [ENTER].

The whole program is also cleared when the disc tray is opened, the unit

is turned off or another source is selected.

Displaying current playback

condition

All group, Program and Random

play

Press [PLAY MODE] while stopped.

All group, program and random playback screens appear sequentially.

All group ([DVD-A]) __--------) Program ------------------) Random

^------------------------- off (Normal play) (__------__----}

To exit the all group, program and random mode

Press [PLAY MODE] several times while stopped.

CANCEL

FUNCTIONS

PLAY MODE

ENTER

PLAY

Numbered

buttons

FUNCTIONS

Chapter

Time

4

Title

1 0:41:23

Program Playback

Details-DVD-Video

Audio

Subtitle

Angle

Source Aspect

Title Total Time

1 DTS 3/2.1ch

1/1

4:3

0:54:28

e.g. [DVD-V]

∫Basics

Audio information

Subtitle information

Angle information

Aspect of current title

Total play time of current title

∫Details

Elapsed play timeCurrent playback number

Current positionPlay mode

Playback

condition

e.g. [DVD-V]

All group play

Program play (up to 32 items)

1Press the numbered buttons to select the item.

([WMA] [MP3] [JPEG]

[MPEG4]

[DivX]

Press [ENTER] to

register the selection.)

≥Repeat this step to program other items.

≥To select a 2-digit number

e.g. To select 12: [S10] ➜ [1] ➜ [2]

[WMA] [MP3] [JPEG] [MPEG4] [DivX] [1] ➜ [2] ➜ [ENTER]

2Press [1PLAY].

Random play

1[DVD-A] [DVD-V] [WMA] [MP3] [JPEG]

[MPEG4]

[DivX]

Press the numbered buttons to select a group or title.

([WMA] [MP3] [JPEG]

[MPEG4]

[DivX]

Press [ENTER] to

register the selection.)

[DVD-A]

≥To enter all groups, press [2,1] to select “All” and press

[ENTER].

≥To deselect a group, press numbered buttons corresponding to the

group you want to clear.

2Press [1PLAY].

All Group Playback

Press PLAY to start

Program Playback

ENTER

to select and press

PLAY

to start

TitleNo. Chapter Time

Play

Clear

Clear all

Choose a title and chapter.

1

e.g. [DVD-V]

e

Chapter Time

ALL

e.g. [DVD-V]

Random Playback

Title

Choose a title.

1

0 ~ 9

PLAY

to start

to select

e.g. [DVD-V]

Playing data discs using navigation menus

RQT8654

17

Playing data discs using navigation menus

Selecting “Play as Data Disc” in Other Menu (➜page 22) will be effective

if the following functions are not available to play WMA, MP3, JPEG,

MPEG4 or DivX video contents.

≥Playing HighMATTM discs (➜page 18)

To enjoy listening to WMA/MP3 contents while showing a JPEG image on

the screen, select a JPEG file first and then select audio contents.

(The opposite order is not effective.)

∫Using the submenu

1While Navigation Menu is displayed

Press [FUNCTIONS].

2Press [3,4] to select an item and press [ENTER].

Items shown differ depending on the type of disc.

∫Searching by a content or group title

Highlight a group title to search the group, or a content title to search

its content.

1While the submenu is displayed (➜above)

Press [3,4] to select “Find” and press [ENTER].

2Press [3,4] to select a character and press [ENTER].

≥Repeat to enter another character.

≥Lower case characters are also searched.

≥Press [6, 5SLOW/SEARCH] to skip between A, E, I, O

and U.

≥Press [2] to erase a character.

≥Leave the asterisk (¢) when you search for the titles including

the character you enter.

≥Erase the asterisk (¢) to search for the titles starting with the

character you enter. To add the asterisk (¢) again, display the

submenu again and select “Find”.

3Press [1] to select “Find” and press [ENTER].

The search result screen appears.

4Press [3,4] to select the content or group and press

[ENTER].

(Continued on next page)

Playing data discs

[WMA] [MP3] [JPEG] [MPEG4] [DivX]

Playing items in order (Playback Menu)

1Press [TOP MENU].

≥To exit the screen, press [TOP MENU].

2Press [3,4] to select “All”, “Audio”, “Picture” or

“Video” and press [ENTER].

Playing from the selected item (Navigation Menu)

1Press [MENU].

≥To exit the screen, press [MENU].

2Press [2] followed by [3,4] to select the group and

press [ENTER].

3To play content in the group in order

Press [ENTER].

To start play from the selected content

Press [3,4] to select and [ENTER].

ENTER

TOP MENU,

DIRECT NAVIGATOR

FUNCTIONS

MENU,

PLAY LIST

,

SLOW/SEARCH

STOP

Numbered

buttons

Playback Menu

ENTER

to select and press

All

Total 434

Audio

Total 7


Total 427

Video

Total 2

All contents

WMA/MP3

JPEG

e.g.

MPEG4 and DivX video

N

avigation

M

enu

Group 005/023 Content 0001/0004

Perfume

001 Brazilian

002 Chinese

003 Czech

004 Hungarian

006 Mexican

007 Philippine

008 Swedish

009 Piano

010 Vocal

001 Lady Starfish

002 Metal Glue

003 Life on Jupiter

004 Starperson

005 Starpersons

006 Starperson

001 My favorite1

002 My favorite2

5

JPEG

002 My favorite2 005 Japanese 001 Lady Starfish

005 Japanese

007 Starpersons

Group and content number

currently playing

: WMA/MP3

Content

Group

e.g.

Number currently selected

: JPEG

: MPEG4 and DivX video

Multi

List

Tree

Thumbnail

All

Audio


Video

Next group

Previous group

Help display

Find

Groups and contents are displayed.

Contents only

Groups only

Thumbnail images [JPEG]

To go to next group

To go to previous group

WMA/MP3, JPEG, MPEG4 and DivX video

WMA/MP3 only

JPEG only

MPEG4 and DivX video only

To switch between guide messages and the

elapsed play time indicator

To search by content or group title (➜below)

AFind

¢

RQT8654

18

Playing data discs using navigation menus

Playing data discs using navigation menus

Titles appear with CD Text disc playback. ≥Titles appear only if the titles are recorded on the disc.

≥You cannot edit programs, playlists and disc titles.

This works only when the disc contains a playlist.

∫Playing scenes one by one

1While the playlist menu is displayed

Press [1].

2Press [3,4] to select “Scene List” and press [ENTER].

≥“Contents” shows playlist information.

3Press [3,4,2,1] to select a scene and press [ENTER].

Selecting a track using CD text

[CD]

1Press [TOP MENU] or [MENU].

≥To exit the screen, press [TOP MENU] or [MENU].

2Press [3,4] to select the track and press [ENTER].

≥Press [FUNCTIONS] to show the playback condition and current

position.

Playing HighMATTM discs

[WMA] [MP3] [JPEG]

1Press [TOP MENU].

≥To exit the screen, press [∫STOP].

≥To change the menu background to the one recorded on the disc,

press [FUNCTIONS].

2Press [3,4,2,1] to select the item, and then press

[ENTER].

≥Repeat this step if necessary.

Selecting from the list

1During play

Press [MENU].

≥To exit the screen, press [MENU].

2Press [2] followed by [3,4] to switch among

“Playlist”, “Group” and “Content” lists.

3Press [1] followed by [3,4] to select an item and

press [ENTER].

CD Text

1.

2.

3.

4.

5.

6.

7.

8

Ashley at Prom

63 00

1/23

Disc Title: All By Artist

Disc Artist: Pink Island

Track title: Long John Platinum

Track Artist: SHIPWRECKED

City Penguin

Formura one

Soccer

Baseball

Neanderthal

Cartoons

Trilobites

e.g. CD text

2

Prev

3

Return

Next

1

New Playlist Item Long Name Display Te PAGE 1/3

Menu1 Menu2

Menu3

Play list1

Play list2 Play list3

Menu: Takes you to the next

menu which shows

playlists or another

menu

Playlist: play starts

e.g.

Playlist

Group

Content

All By Artist

ENTER

RETURN

to playto select

to exit

09

Content title

No.

1Few times in summer

Less and less

And when I was born

Quatre gymnopedies

You've made me sad

I can't quit him

Evening glory

Wheeling spin

Velvet Cuppermine

Ziggy starfish

2

3

4

5

6

7

8

9

10

Playlist

Krissa

e.g.

Playing RAM and DVD-R/-RW

(DVD-VR) discs

[DVD-VR]

Playing the programs

1Press [DIRECT NAVIGATOR].

≥To exit the screen, press [DIRECT NAVIGATOR].

2Press [3,4] or the numbered buttons to select the

program.

≥To select a 2-digit number

e.g. 12: [S10] ➜ [1] ➜ [2]

≥Press [1] to show the contents of the program and the disc.

3Press [ENTER].

Playing a playlist

1Press [PLAY LIST].

≥To exit the screen, press [PLAY LIST].

2Press [3,4] or the numbered buttons to select the

playlist.

≥To select a 2-digit number

e.g. 12: [S10] ➜ [1] ➜ [2]

3Press [ENTER].

Direct Navigator

11/ 1(WED) 0:05 AM Monday feature1

1/ 1 (MON) 1:05 AM Auto action2

2/ 2 (TUE) 2:21 AM Cinema3

3/ 3 (WED) 3:37 AM Music4

4/10(THU) 11:05 AM Baseball5

Date

No. On Title Contents

RETURN

to select

to exit

09

e.g.

to select and press

09

RETURN

ENTER

to exit

Playlist

11/1 0:00:01 City Penguin1

1/ 1 0:01:20 Ashley at Prom2

2/ 2 1:10:04 Formula one3

3/ 3 0:10:20 Soccer4

4/10 0:00:01 Baseball5

DateNo. Total Time Title Contents

21

e.g.

RQT8654

19

Playing data discs using navigation menus

Tips for making data discs

≥When there are more than 8 groups, the eighth group onwards will be displayed on one vertical line in the menu screen.

≥There may be differences in the display order on the menu screen and computer screen.

≥This unit cannot play files recorded using packet write.

DVD-RAM

≥Discs must conform to UDF 2.0.

DVD-R/RW

≥Discs must conform to UDF bridge (UDF 1.02/ISO9660).

≥This unit does not support multi-session. Only the default session is played.

CD-R/RW

≥Discs must conform to ISO9660 level 1 or 2 (except for extended formats).

≥This unit supports multi-session but if there are many sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid

this.

Naming folders and files

(Files are treated as contents and folders are treated as groups on this unit.)

At the time of recording, prefix folder and file names. This should be with numbers that have an equal number of

digits, and should be done in the order you want to play them (this may not work at times).

Files must have the extension (➜ below).

[WMA] (Extension: “.WMA” or “.wma”)

≥Compatible compression rate: between 48 kbps and 320 kbps

≥You cannot play WMA files that are copy-protected.

≥This unit does not support Multiple Bit Rate (MBR).

[MP3] (Extension: “.MP3” or “.mp3”)

≥Compatible compression rate: between 32 kbps and 320 kbps

≥This unit does not support ID3 tags.

≥Compatible sampling rates:

– DVD-RAM, DVD-R/RW: 11.02, 12, 22.05, 24, 44.1 and 48 kHz

– CD-R/RW: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1 and 48 kHz

[JPEG] (Extension: “.JPG”, “.jpg”, “.JPEG” or “.jpeg”)

≥JPEG files taken on a digital camera that conform to DCF Standard (Design rule for Camera File system) Version 1.0 are displayed. Files that have

been altered, edited or saved with computer picture editing software may not be displayed.

≥This unit cannot display moving pictures, MOTION JPEG and other such formats, and still pictures other than JPEG (e.g. TIFF), or play pictures with

attached audio.

[MPEG4] (Extension: “.ASF” or “.asf”)

≥You can play MPEG4 data [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system]

recorded with Panasonic SD multi cameras or DVD video recorders with this unit.

≥The recording date may differ from that of the actual date.

[DivX] (Extension: “.DIVX”, “.divx”, “.AVI” or “.avi”)

≥You can play all versions of DivX® video (including DivX®6) [DivX video system/MP3, Dolby Digital or MPEG audio system] with standard playback of

DivX® media files. Functions added with DivX Ultra are not supported.

≥GMC (Global Motion Compensation) is not supported.

≥DivX files greater than 2 GB or have no index may not be played properly on this unit.

≥This unit supports all resolutions up to maximum of 720 k480 (NTSC)/720 k576 (PAL).

≥You can select up to 8 types of audio and subtitles on this unit.

002 group

001

001 group

001 track.mp3

002 track.mp3

003 track.mp3

003 group

001 track.mp3

002 track.mp3

003 track.mp3

001 track.mp3

002 track.mp3

003 track.mp3

004 track.mp3

e.g. [MP3]

root

RQT8654

20

Using on-screen menus

Using on-screen menus

1Show the Main menu.

2Select the menu.

e.g. [DVD-V]

3Make the settings.

e.g. [DVD-V]

4Press to exit.

Main menu

Items shown differ depending on the type of disc.

Program

Group

Title

Chapter

Track

Playlist

Content

To start from a specific item

e.g. [DVD-VR] To select Program 12

Press the numbered buttons: [1] ➜ [2] ➜ [ENTER]

ENTER

PLAY

FUNCTIONS

CANCEL

RETURN

Numbered

buttons

Go to the

next menu

Select

Register

Return to the previous

menu

Functions

Title

Chapter

Time

Audio

Subtitle

An

g

le

1/2

3/10

0:24:31

1 English

3 Spanish

1/2

1 English

2 French

3 Spanish

Select

Register

Functions

Title

Chapter

Time

Audio

Subtitle

Angle

Oth S tti

1/2

3/10

0:24:31

1 English

3 Spanish

1/2

1 English

2 French

3 Spanish

Functions

Program

Time

Audio

Subtitle

2/16

0:34:15

L R

On

Program Search 12

Time

(Time Slip and Time Search do not work with iR/iRW

discs.)

To skip incrementally or decrementally (Time Slip

for play only)

1 Press [ENTER] twice to show the Time Slip

indicator.

2 Press [3,4] to select the time and press

[ENTER].

≥To change the steps more quickly, press and hold

[3,4].

To start from a specific time (Time Search)

To change remaining/elapsed time display

Video

[MPEG4] [DivX]

To display pixel number

[DivX] fps (frame per second) is also displayed.

Audio

[DVD-A] [DVD-V] [DivX] (with multiple soundtracks)

To select audio soundtrack

[DVD-VR] [VCD] [DivX]

To select “L”, “R” or “LR”

[DVD-V] (Karaoke disc)

To select “On” or “Off” for vocals

≥Read the disc’s instructions for details.

Signal type/data

LPCM/PPCM/ÎDigital/DTS/MP3/MPEG: Signal type

kHz (Sampling frequency)/bit/ch (Number of channels)

e.g. 3/2 .1ch

.1: Low frequency effect

.1: (not displayed if there is no signal)

.0: No surround

.1: Mono surround

.2: Stereo surround (left/right)

.1: Center

.2: Front leftiFront right

.3: Front leftiFront rightiCenter

≥[DivX] It may take some time for play to start if you

change the audio on a DivX video disc.

[WMA] [MP3]

To display the current bitrate or sampling

frequency

Still Picture To switch still pictures

Thumbnail To show thumbnail images

Subtitle

[DVD-V] [DivX] (with multiple subtitles)

[VCD] (SVCD only)

To select subtitle language

≥On iR/iRW, a subtitle number may be shown for

subtitles that are not displayed.

≥[DVD-VR] “On” or “Off” appears only with discs that

contain subtitle on/off information (Subtitle on/off

information cannot be recorded using Panasonic

DVD Recorders).

Marker (VR)

[DVD-VR]

To recall a marker recorded on DVD-Video

recorders

Press [3,4] ➜ Press [ENTER].

Angle (with multiple angles)

To select a video angle

Rotate


To rotate a picture

Slideshow

To turn on/off slideshow

On ,------. Off

To change the slideshow timing

1 (Fast) to 5 (Slow)

Other

Settings

(➜page 21)

RQT8654

21

Using on-screen menus

∫Play Menu

This works only when the elapsed play time can be displayed. It also

works with all JPEG content.

∫Picture Menu

(Continued on next page)

Other Settings Items shown differ depending on the type of disc.

Play Speed

[DVD-A] (Motion picture part) [DVD-VR] [DVD-V]

To change play speed

– from “k0.6” to “k1.4”

≥Press [1PLAY] to return to normal play.

≥After you change the speed

– Dolby Pro Logic II and Sound Enhancement have

no effect.

– Audio output switches to 2-channel stereo.

– Sampling frequency of 96 kHz is converted to

48 kHz.

≥This function may not work depending on the disc’s

recording.

Repeat

[DVD-VR]: Program>All>Off

≥During playlist play: Scene>Playlist>Off

[DVD-A]: Track>Group§>Off

[DVD-V]: Chapter>Title§>Off

[VCD] [CD]: Track>All>Off

[WMA] [MP3] [MPEG4] [DivX]: Content>Group§>Off

[JPEG]: Group§>Off

§“All” is displayed during all group ([DVD-A]), program

or random play.

A-B Repeat

Except [JPEG] [DVD-VR] (Still picture part) [MPEG4] [DivX]

To repeat a specified section

Press [ENTER] at the starting and ending points.

Press [ENTER] again to cancel.

Marker

Except [DVD-VR]

To mark up to 5 positions to play again

Press [ENTER] (The unit is now ready to accept

markers.)

To mark a position:

Press [ENTER] (at the desired point).

To mark another position:

Press [2,1] to select “¢” ➜ Press [ENTER].

To recall a marker:

Press [2,1] ➜ Press [ENTER].

To erase a marker:

Press [2,1] ➜ Press [CANCEL].

≥This feature does not work during program and

random play.

≥Markers you add are cleared when you open the disc

tray or switch the unit to standby.

Advanced

Disc Review

[DVD-VR] (Except still picture part)

[DVD-V] (Except iR/iRW)

Allows you to browse the disc contents and start

playing from the selected position. You can select

either “Intro Mode” or “Interval Mode” in “Advanced

Disc Review” in the “Disc” tab (➜page 23).

When you find a title/program to play

Press [1PLAY].

≥This may not work depending on the disc and the

play position.

≥[DVD-VR]

This does not work when playing a playlist

(➜page 18).


Mode

Normal

Cinema1: Mellows images and enhances detail in

dark scenes.

Cinema2: Sharpens images and enhances detail in

dark scenes.

Animation: Suitable for animation.

Dynamic: Enhances the contrast for powerful

images.

User: Press [ENTER] to select “Picture

Adjustment” (➜below).

Picture Adjustment

Contrast: Increases the contrast between light and

dark parts of the picture.

Brightness: Brightens the picture.

Sharpness: Adjusts the sharpness of the edges of

horizontal lines.

Colour: Adjusts the shade of the picture’s color.

Gamma: Adjusts the brightness of dark parts.

Depth Enhancer: Reduces the rough noise in the

background to give a greater

feeling of depth.

Video

Output

Mode

To select suitable picture quality with your television

§480p/576p (progressive)

§480i/576i (interlace)

When you select “xxx§p” (progressive) and a

confirmation screen appears, select “Yes” only if

connecting to a progressive output compatible

television.

§The numbers displayed depend on the disc being

played. One of the above numbers is displayed.

Transfer

Mode

If you have chosen “xxx§p” (progressive) (➜above),

select the method of conversion for progressive output

to suit the type of material.

≥The setting will return to Auto or Auto1 when the disc

tray is opened, the unit is turned off or another source

is selected.

When playing PAL discs, MPEG4 or DivX video

contents

Auto: Automatically detects the film and video

content, and appropriately converts it.

Video: Select when using Auto, and the content is

distorted.

Cinema: Select this if the edges of

the film content appear

jagged or rough when Auto

is selected.

However, if the video

content is distorted as shown in the

illustration to the right, then select Auto.

When playing NTSC discs

Auto1: Automatically detects the film and video

content, and appropriately converts it.

Auto2: In addition to Auto1, automatically detects film

contents with different frame rates and

appropriately converts it.

Video: Select when using Auto1 and Auto2, and the

content is distorted.

Source

Select

[DivX]

When you select “Auto” the constructing method of the

DivX contents is automatically distinguished and

output. If the picture is distorted, select “I (Interlace)” or

“P (Progressive)” depending on which constructing

method was used when the contents were recorded to

disc.

Auto, I (Interlace), P (Progressive)

RQT8654

22

Using on-screen menus

Using on-screen menus

∫Audio Menu

∫Display Menu

∫Other Menu

Other Settings Items shown differ depending on the type of disc.

Dolby Pro Logic II (➜page 28, Enhancing the stereo sound:

Dolby Pro Logic II)

Dialogue Enhancer

To make the dialogue in movies easier to

hear

[DVD-V] (Dolby Digital, DTS, MPEG, 3-channel

or higher, with the dialogue recorded in the

center channel)

[DivX] (Dolby Digital, 3-channel or higher, with

the dialogue recorded in the center channel)

On ,------. Off

Sound

Enhancement

To enjoy comfortable, analog-like sound

[DVD-VR] [DVD-V] (Discs recorded with 48 kHz

only)

[WMA] [MP3] (Disc recording is other than

8 kHz, 16 kHz or 32 kHz)

[VCD] [CD]

On ,------. Off

≥This may have no effect depending on the

disc’s recording.

≥This does not work with MP3 on DVD-RAM

or DVD-R/RW.

Information [JPEG] On ,------. Off

Subtitle Position 0 to s60 (in 2 unit steps)

Subtitle Brightness Auto, 0 to s7

4:3 Aspect

To select how to show images made for 4:3

aspect screens on a 16:9 aspect television

Normal: Laterally stretches images.

Auto: Expands 4:3 letterbox images to fill

more of the screen. Other images

appear in full in the center of the

screen.

Shrink: Images appear in the center of the

screen.

Zoom: Expands to 4:3 aspect ratio.

If your television has a similar feature, use it

instead for a better effect.

Just Fit Zoom

To select the appropriate screen size to fit

your television screen

[DVD-A] (Motion picture part)

[DVD-VR] [DVD-V] [VCD]

Auto, 4:3 Standard, European Vista,

16:9 Standard, American Vista,

Cinemascope1, Cinemascope2

[MPEG4] [DivX]

Standard (a0.25 full-screen),

Original (actual recorded size),

Full (full-screen)

≥This may not work depending on the discs

recording.

16:9 Standard (16:9)

4:3 Standard (4:3)

European Vista (1.66:1)

American Vista (1.85:1)

Cinemascope1 (2.35:1)

Cinemascope2 (2.55:1)

e.g.

Manual Zoom

To zoom in and out manually

– in 0.01-unit steps from “k1.00” to “k1.60”

– in 0.02-unit steps from “k1.60” to “k2.00”

– in 0.05-unit steps from “k2.00” to “k4.00”

([MPEG4] [DivX] only)

≥To change the steps more quickly, press

and hold [3,4].

≥[MPEG4] [DivX] It may not be possible to

zoom up to “k4.00” depending upon the

connected television and its settings.

Bit Rate Display [DVD-A] (Motion picture part)

[DVD-VR] [DVD-V] [VCD] [MPEG4] [DivX]

On ,------. Off

GUI See-through To make the on-screen menu transparent

Off, On, Auto

GUI Brightness To adjust the on-screen menu brightness

s3 to r3

Setup (➜page 23)

Play as DVD-Video

or

Play as DVD-Audio

To play DVD-Video contents of DVD-Audio

Select “Play as DVD-Video”.

Play as DVD-VR,

Play as HighMAT

or

Play as Data Disc

To use functions for data discs

(

➜

page 17)

(To play JPEG, MP3, MPEG4 or DivX video

contents on DVD-RAM, or to play a HighMAT

disc without using HighMAT function)

Select “Play as Data Disc”.

Changing the player settings

RQT8654

23

Changing the player settings

≥The settings remain intact even if you switch the unit to standby.

≥Underlined items are the factory settings in the following table.

∫“Disc” tab

§1Language options

[Continental]Europe]: French, German, Italian, Spanish, Polish, Swedish and Dutch

[Australia[and[N.Z.[ : French, German, Italian, Spanish, Portuguese, Russian and Dutch

§2The original language designated on the disc is selected.

§3Input the appropriate code from the language code list (➜page 25).

§4If the language selected for “Audio” is not available, subtitles appear in that language (if available on the disc).

(Continued on next page)

ENTER

RETURN

SETUP

Numbered

buttons

Video

Audio

Others

Display

Disc

Setup

Audio

English

Menus

English

Advanced Disc Review

Intro Mode

Subtitle

Automatic

Ratings

Level 8

ENTER

RETURN

to select and press

to exit

Tab Setting

Item

1Press and hold to show

the Setup menu.

If you have not performed QUICK

SETUP (➜page 10), the QUICK

SETUP screen appears.

2Select the tab.

3Select the item.

4Make the settings.

5Press repeatedly to exit.

Select

Go right

Select

Register

Select

Register

QUICK SETUP enables successive settings of the items in the shaded area.

Audio

Choose the audio language.

≥English ≥(Language options)§1≥Original§2≥Other¢¢¢¢§3

Subtitle

Choose the subtitle language.

≥Automatic§4≥English ≥(Language options)§1≥Other¢¢¢¢§3

Menus

Choose the language for disc menus.

Changing the menu language in QUICK

SETUP also changes this setting.

≥English ≥(Language options)§1≥Other¢¢¢¢§3

Advanced Disc Review

(➜page 21)

≥Intro Mode: Reviews each title/program.

≥Interval Mode:

Reviews not only each title/program but also each 10-minute interval within a title/program.

Ratings

Set a rating level to limit DVD-Video

play.

Setting ratings (When level 8 is selected)

≥8 No Limit ≥1 to 7 ≥0 Lock All: To prevent play of discs without rating levels.

When you select your ratings level, a password screen is shown.

Follow the on-screen instructions.

Do not forget your password.

A message screen will be shown if a DVD-Video disc exceeding the rating level is inserted in the unit.

Enter your password and then follow the on-screen instructions.

RQT8654

24

Changing the player settings

Changing the player settings

∫“Video” tab

∫“Audio” tab

∫“Display” tab

∫“Others” tab

§5Refer to “Frame still and field still” (➜page 13, Glossary). §6[Continental]Europe] §7[Australia[and[N.Z.\

QUICK SETUP enables successive settings of the items in the shaded area.

TV Aspect

Choose the setting to suit your

television and preference.

≥4:3 Pan&Scan: Regular aspect television (4:3)

The sides of the widescreen picture are cut off so it fills the screen (unless

prohibited by the disc).

≥4:3 Letterbox: Regular aspect television (4:3)

Widescreen picture is shown in the letterbox style.

≥16:9: Widescreen television (16:9)

TV Type

Select to suit the type of television.

≥Standard (Direct View TV) ≥CRT Projector ≥LCD TV/Projector

≥Projection TV ≥Plasma TV

Time Delay

When connected with a Plasma

display, adjust if you notice the audio is

out of sync with the video.

≥0ms ≥20ms ≥40ms ≥60ms ≥80ms ≥100ms

Video Out (AV/Component) §6

Choose the video signal format to be

output from the SCART (AV) and

Component terminal.

≥Video/YPbPr ≥S-Video/YPbPr

≥RGB/No Output

Still Mode

Specify the type of picture shown

when paused.

≥Automatic

≥Field§5 : The picture is not blurred, but picture quality is lower.

≥Frame§5 :

Overall quality is high, but the picture may appear blurred.

NTSC Disc Output

Choose PAL 60 or NTSC output when

playing NTSC discs (➜page 12,

Video systems).

≥PAL60: When connected to a PAL television.

≥NTSC: When connected to an NTSC television.

Picture/Video Output

Change the video signal format to be

output for JPEG, MPEG4 and DivX

video if picture output is not smooth

during playback.

≥Automatic ≥PA L

≥NTSC/PAL60: Output will depend on “NTSC Disc Output” setting (➜above).

Dynamic Range Compression ≥Off

≥On: Adjusts for clarity even when the volume is low by compressing the range of the lowest sound level

and the highest sound level. Convenient for late night viewing. (Only works with Dolby Digital)

Speaker Settings (➜page 25)

Set the delay time for your center and

surround speakers.

≥Center: 0.0/1.0/2.0/3.0/4.0/5.0 ms

≥Surround (L/R): 0.0/5.0/10.0/15.0 ms

Menu Language §6≥English ≥Français ≥Deutsch ≥Italiano ≥Español ≥Polski ≥Svenska ≥Nederlands

§7≥English ≥Français ≥Deutsch ≥Italiano ≥Español ≥Português ≥Русский ≥Nederlands

On-Screen Messages ≥On ≥Off

Background during Play

Select background during JPEG,

MPEG4 and DivX video playback.

≥Black ≥Grey

FL Dimmer

Change the brightness of the unit’s

display.

≥Bright ≥Dim

≥Auto: The display is dimmed, but brightens when you perform some operations.

DivX Registration

Display the unit’s registration code.

You need this registration code to purchase and play DivX Video-on-Demand (VOD) content (➜page 32,

About DivX VOD content).

QUICK SETUP ≥Yes ≥No

Re-initialise Setting

Return all values in the Setup menus

to the default settings.

≥Yes: The password screen is shown if “Ratings” (➜page 23) is set. Please enter the same password.

After “INIT” on the display disappears, turn the unit off and on again.

≥No

RQT8654

25

Changing the player settings

(Effective when playing multi-channel audio)

(Center and surround speakers only)

For optimum listening with 5.1-channel sound, all the speakers, except for

the subwoofer, should be the same distance from the seating position.

If you have to place the center or surround speakers closer to the seating

position, adjust the delay time to make up for the difference.

If either distance a or b is less than c, find the difference in the table

and change to the recommended setting.

1Press [3,4] to select the delay time box and press [ENTER].

2Press [3,4] to adjust the delay time and press [ENTER].

To finish the speaker setting

Press [2] to select “Exit” and press [ENTER].

When you change the surround speaker setting for Dolby Digital, the

setting also changes for Dolby Pro Logic II.

e.g., the settings for Music are the same as those for Dolby Digital.

Changing the delay time of the speakers

a Center speaker b Surround speaker

Difference (Approx.) Setting Difference (Approx.) Setting

30 cm 1.0 ms 150 cm 5.0 ms

60 cm 2.0 ms 300 cm 10.0 ms

90 cm 3.0 ms 450 cm 15.0 ms

120 cm 4.0 ms

150 cm 5.0 ms

L

LS

R

SW

C

RS

C

RS

LS

bca

a

b

c

Approximate room dimensions

Circle of constant primary listening distance

: Actual speaker position

: Ideal speaker position

: Primary listening distance

Dolby Digital Dolby Pro Logic II

Music Movie

0 ms 0 ms 10 ms

5 ms 5 ms 15 ms

10 ms 10 ms 20 ms

15 ms 15 ms 25 ms

ms

ms

L

Exit

LS

R

SW

C

RS

0.0

0.0

Center delay time

Exit

Surround delay time

Language code list

Abkhazian: 6566

Afar: 6565

Afrikaans: 6570

Albanian: 8381

Ameharic: 6577

Arabic: 6582

Armenian: 7289

Assamese: 6583

Aymara: 6589

Azerbaijani: 6590

Bashkir: 6665

Basque: 6985

Bengali, Bangla: 6678

Bhutani: 6890

Bihari: 6672

Breton: 6682

Bulgarian: 6671

Burmese: 7789

Byelorussian: 6669

Cambodian: 7577

Catalan: 6765

Chinese: 9072

Corsican: 6779

Croatian: 7282

Czech: 6783

Danish: 6865

Dutch: 7876

English: 6978

Esperanto: 6979

Estonian: 6984

Faroese: 7079

Fiji: 7074

Finnish: 7073

French: 7082

Frisian: 7089

Galician: 7176

Georgian: 7565

German: 6869

Greek: 6976

Greenlandic: 7576

Guarani: 7178

Gujarati: 7185

Hausa: 7265

Hebrew: 7387

Hindi: 7273

Hungarian: 7285

Icelandic: 7383

Indonesian: 7378

Interlingua: 7365

Irish: 7165

Italian: 7384

Japanese: 7465

Javanese: 7487

Kannada: 7578

Kashmiri: 7583

Kazakh: 7575

Kirghiz: 7589

Korean: 7579

Kurdish: 7585

Laotian: 7679

Latin: 7665

Latvian, Lettish: 7686

Lingala: 7678

Lithuanian: 7684

Macedonian: 7775

Malagasy: 7771

Malay: 7783

Malayalam: 7776

Maltese: 7784

Maori: 7773

Marathi: 7782

Moldavian: 7779

Mongolian: 7778

Nauru: 7865

Nepali: 7869

Norwegian: 7879

Oriya: 7982

Pashto, Pushto: 8083

Persian: 7065

Polish: 8076

Portuguese: 8084

Punjabi: 8065

Quechua: 8185

Rhaeto-Romance:

8277

Romanian: 8279

Russian: 8285

Samoan: 8377

Sanskrit: 8365

Scots Gaelic: 7168

Serbian: 8382

Serbo-Croatian: 8372

Shona: 8378

Sindhi: 8368

Singhalese: 8373

Slovak: 8375

Slovenian: 8376

Somali: 8379

Spanish: 6983

Sundanese: 8385

Swahili: 8387

Swedish: 8386

Tagalog: 8476

Tajik: 8471

Tamil: 8465

Tatar: 8484

Telugu: 8469

Thai: 8472

Tibetan: 6679

Tigrinya: 8473

Tonga: 8479

Turkish: 8482

Turkmen: 8475

Twi: 8487

Ukrainian: 8575

Urdu: 8582

Uzbek: 8590

Vietnamese: 8673

Volapük: 8679

Welsh: 6789

Wolof: 8779

Xhosa: 8872

Yiddish: 7473

Yoruba: 8979

Zulu: 9085

RQT8654

26

Using the radio

Using the radio

Up to 15 stations can be set in each band, FM and AM.

When a stereo FM broadcast is being received,

“ST” lights in the display.

∫If noise is excessive

When “FM” is selected

Press and hold [—FM MODE] on the main unit to

display “MONO”.

Press and hold [—FM MODE] again to cancel the mode.

≥The mode is also canceled when you change the frequency.

When “AM” is selected

Press [FUNCTIONS] on the remote control.

Each time you press the button: BP 2()BP 1

∫Presetting the channel

Up to 15 stations can be set in each band, FM and AM.

1While listening to the radio broadcast

Press [ENTER].

2While the frequency and “PGM” are flashing on the display

Press the numbered buttons to select a channel.

≥To select a 2-digit number

e.g. To select 12:

[S10] ➜ [1] ➜ [2]

Alternatively, press [X,W], and then press [ENTER].

The station occupying a channel is erased if another station is

preset to that channel.

Presetting stations automatically

1Press [SELECTOR] to select “FM” or “AM”.

2Press [-TUNE MODE] to select “MANUAL”.

Each time you press the button: MANUAL()PRESET

3Press [XTUNING W] to tune to the lowest frequency

(FM: 87.50, AM: 522).

4Press and hold [MEMORY].

Release the button when “FM AUTO” or “AM AUTO” is displayed.

The tuner presets all the stations it can receive into the channels in

ascending order.

≥“SET OK” is displayed when the stations are set, and the radio

tunes to the last preset station.

≥“ERROR” is displayed when automatic presetting is unsuccessful.

Preset the channels manually (➜right).

MEMORY

SELECTOR

TUNING

-TUNE MODE

/

-

FM MODE

ENTER

FUNCTIONS

TUNER/BAND

Numbered

buttons

Main unit only

Selecting the preset channels

1Press [TUNER/BAND] to select “FM” or “AM”.

2Press the numbered buttons to select the channel.

≥To select a 2-digit number

e.g. 12: [S10] ➜ [1] ➜ [2]

Alternatively, press [X,W].

Manual tuning

1Press [SELECTOR] to select “FM” or “AM”.

2Press [-TUNE MODE] to select “MANUAL”.

3Press [XTUNING W] to select the frequency.

≥To start automatic tuning, press and hold [XTUNING W] until the

frequency starts scrolling. Tuning stops when a station is found.

DISC SFC

TG

D.MIX

MONO

SLP

D

E

AC

P

RG

S

A

ST

H.BASS

SRD

PGM

HDCD

E.

1

W

MONO

ST

H.BASS

SRD

PGM

HDCD

E.

1

W

Main unit only

DISC SFC

TG

D.MIX

MONO

SLP

RQT8654

27

Using the radio

[Continental]Europe\

The unit can display the text data transmitted by the radio data system

(RDS) available in some areas.

If the station you are listening to is transmitting RDS signals, “RDS” will

light up on the display.

When “FM” is selected

Press [FUNCTIONS] to display the text data.

Each time you press the button:

PS (factory preset)>PTY> Frequency display

^----------------------------------------------------------}

§“M.O.R. M”=Middle of the road music

[Note]

RDS displays may not be available if reception is poor.

Use outdoor antennas if radio reception is poor.

≥Disconnect the antenna when the unit is not in use.

≥Do not use the outdoor antenna during an electrical storm.

RDS broadcasting

PTY displays

NEWS VARIED FINANCE COUNTRY

AFFAIRS POP M CHILDREN NATIONAL

INFO ROCK M SOCIAL A OLDIES

SPORT M.O.R. M§RELIGION FOLK M

EDUCATE LIGHT M PHONE IN DOCUMENT

DRAMA CLASSICS TRAVEL TEST

CULTURE OTHER M LEISURE ALARM

SCIENCE WEATHER JAZZ

Using an outdoor antenna (optional)

Leave the AM loop

antenna connected.

AM outdoor antenna

(Using a vinyl wire)

Run a piece of vinyl wire horizontally across a

window or other convenient location.

5 to 12 m

FM outdoor antenna (Using

a television antenna)

≥Disconnect the FM indoor antenna.

≥The antenna should be installed by a

competent technician.

75 ≠ coaxial cable

(not included)

The illustration shows SC-HT545.

RQT8654

28

Using sound effects

Using sound effects

[Note]

≥The following sound effects may not be available or have no effect

depending on the type of source, or when headphones are used.

≥You may experience a reduction in sound quality when these sound

effects are used with some sources. If this occurs, turn the sound effects

off.

Press [SFC].

Each time you press the button:

FLAT: Cancel (no effect is added) (factory preset).

MOVIE: Use this mode when playing movie software.

SPORT: Simulates sound to make you feel like you are at a sports event.

MUSIC: Adds surround effects to stereo sources.

HEAVY: Adds punch to rock.

CLEAR: Clarifies higher sounds.

SOFT: For background music.

≥To check the current setting, press [SFC].

≥MOVIE, SPORT

and

MUSIC are not available when Dolby Pro Logic II

is on, or when playing a disc recorded with a multi-channel source.

≥You can adjust the volume of the surround speakers to get the best

surround effect (➜page 29, Adjusting the volume of each speaker:

Speaker level adjustments).

≥When MOVIE, SPORT

or

MUSIC is turned on, you can enjoy audio from

your television in 5.1-channel surround sound (➜page 31).

This applies to discs where the dialogue is recorded in the center

channel.

You can make the sound of the center speaker seem

like it is coming from within the television.

[HT545]

Press and hold [—C.FOCUS].

Each time you press and hold the button:

C FOCUS ON,------.C FOCUS OFF

[HT545W]

Press [C.FOCUS].

Each time you press the button:

C FOCUS ON,------.C FOCUS OFF

≥This does not work when Sound Field Control (MOVIE, SPORT or

MUSIC) is turned on.

≥This also works when Dolby Pro Logic II is turned on.

Except [DivX]

Dolby Pro Logic II is an advanced decoder that derives 5-channel

surround (Left and Right Front, Center, Left and Right Surround) from

stereo sound sources, whether or not it has been specifically Dolby

Surround encoded.

Press [ÎPLII].

Each time you press the button:

Movie: Movie software, recorded in Dolby Surround.

Music: Stereo sources

Off: Cancel

≥This works only in DVD/CD mode.

≥“ÎPLII” lights when there is effect.

You can adjust the amount of bass. The unit automatically selects the

most suitable setting according to the type of playing source.

Press [SUBWOOFER LEVEL].

≥[DVD-V] [DVD-VR]

SUB W 4 (factory preset)>SUB W 1>SUB W 2>SUB W 3

^----------------------------------------------------------------------------------------}

≥When another source is selected

SUB W 2 (factory preset)>SUB W 3>SUB W 4>SUB W 1

^----------------------------------------------------------------------------------------}

≥To check the current setting, press [SUBWOOFER LEVEL].

≥The setting you make is retained, and recalled every time you play the

same type of source, except when Sound Field Control (MOVIE,

SPORT or MUSIC) is turned on.

§When Sound Field Control (MOVIE, SPORT or MUSIC) is on, the

factory presets are as follows:

– MOVIE: SUB W 4

– SPORT: SUB W 2

–MUSIC: SUBW1

Changing the sound quality:

Sound Field Control

H.BASS, C.FOCUS

( C.FOCUS)

SUBWOOFER

LEVEL

SFC

CH SELECT,

TEST

PL

VOLUME

DVD

[HT545W]

Enhancing the sound

from the center speaker:

Center Focus

Enhancing the stereo sound:

Dolby Pro Logic II

Adjusting the amount of bass:

Subwoofer level

[HT545W][HT545]

MODE

AC

PRG

RDS

DTS

PL

A

PS

PTY

CD

DVD

D

RQT8654

29

Using sound effects

You can enhance low-frequency sound so that heavy bass sound can be

heard clearly, even if the acoustics of your room are not optimal. The unit

automatically selects the most suitable setting according to the type of

playing source.

Press [-H.BASS].

≥[DVD-V] [DVD-VR]

H.BASS ON (factory preset),------.H.BASS OFF

≥When another source is selected

H.BASS OFF (factory preset),------.H.BASS ON

The setting you make is retained, and recalled every time you play from

the same type of source.

This is one of the ways to get appropriate surround effects.

Preparation

Press [DVD].

∫To adjust speaker level during play

[Effective when playing multi-channel audio or when Dolby Pro

Logic II or Sound Field Control (MOVIE, SPORT or MUSIC) is on.]

1Press [CH SELECT] to select the speaker.

L #C #R #RS #LS #SW

^-----------------------------------------------------}

SW: Subwoofer

≥You can adjust SW only if the disc includes a subwoofer

channel.

≥“SW” does not appear on the display and is not adjustable

when “ÎPLII” is lit.

≥“S” appears on the display when “MOVIE”, “SPORT” or

“MUSIC” is selected with Sound Field Control (➜page 28).

In this case, you can adjust both surround speaker levels at the

same time using [3,4].

S:

`

6dB to

i

6dB

2Press [3] (increase) or [4] (decrease) to adjust the speaker

level for each speaker.

C, RS, LS, SW: `6dB to i6dB

(L, R: Only the balance is adjustable.)

≥To adjust the balance of the front speakers, while “L” or “R” is

selected, press [2,1].

[HT545]

Enhancing the bass sound:

H.BASS

ST

H.BASS

SRD

PGM

HDCD

E.

1

W

Adjusting the volume of each

speaker: Speaker level adjustments

1While stopped and no on-screen display is shown

Press and hold [—TEST] to output a test signal.

≥To stop the test signal, press and hold [—TEST] again.

L: Front left C: Center R: Front right

RS: Right surround LS: Left surround

≥There is no output from SW (subwoofer) channel.

2Press [VOLUME, r] or [s] to set the volume level

normally used for listening.

3Press [3] (increase) or [4] (decrease) to adjust the

speaker level for each speaker.

≥Adjust the speaker levels to the same level as the front speakers.

C, RS, LS: `6dB to i6dB

RQT8654

30

Using other useful functions

Using other useful functions

Press [SLEEP] to select the time (in minutes).

SLEEP 30_----)SLEEP 60_----)SLEEP 90

^"""" OFF(_ SLEEP120(__}

To cancel the timer

Press [SLEEP] to select “OFF”.

To confirm the remaining time

Press [SLEEP] again.

To change the setting

Repeat the procedure from the beginning.

Press [MUTING].

“MUTING” flashes on the unit’s display.

To cancel

≥Press [MUTING] again or reduce the volume to minimum “VOL 0”, and

then raise it to the required level.

≥Muting is canceled when you switch the unit to standby.

[Note]

To prevent hearing damage, avoid listening for prolonged periods of time.

The Music Port allows you to connect and enjoy music from an external

device (e.g. MP3 player) through your home theater system.

Preparation

To avoid distorted sound, make sure that any equalizer function of your

external device is turned off.

Setting the sleep timer

Muting the sound

VOLUME

EXT-IN

MUTING

SLEEP

MONO

SLP

ST

H.BASS

SRD

PGM

HDCD

E.

1

W

MONO

SLP

ST

MODE

AC

PRG

RDS

DTS

PL

A

PS

PTY

CD

DVD

D

Using headphones

1Reduce the volume and connect the headphones (not

included).

Headphone plug type: ‰3.5 mm stereo mini plug

2Adjust headphone volume with [VOLUME].

≥Audio is automatically switched to 2-channel stereo.

Using the Music Port

1Reduce the volume and connect the external device

(not included).

Plug type: ‰3.5 mm stereo mini plug

2Press [EXT-IN] to select “MUSIC P.”.

[Continental]Europe]

MUSIC P. ""--) TV

^"----- AUX -------}

[Australia]and[N.Z.]

MUSIC P. ("--) AUX

3Adjust the external device volume to a normal listening

level, and then adjust the volume of the main unit with

[VOLUME].

≥You can enjoy surround sound when you turn on Sound Field

Control (MOVIE, SPORT or MUSIC) (➜page 28).

Main unit only

VOLUME

VOLUME

External device

Reduce the volume

before connecting.

MONO

ST

D

E

AC

R

G

S

H.

B

S

R

H

W

RQT8654

31

Operating other equipment

Operating other equipment

You can use the remote control to operate a Panasonic television.

Connect your equipment referring to “Cable TV box or video cassette

recorder connection” (➜page 9).

[Note]

The remote control may not work properly with some models.

Aim the remote control at the television.

Turning the television on/off

Press [ÍTV].

Switching the television’s video input mode

Press [TV/AV].

Adjusting the volume

Press [r,sTV VOLUME].

To play audio from your television through your home theater

system

Press [EXT-IN] to select “AUX” or “TV”§ as the source, reduce the volume

on the television to its minimum, and control the volume on the main unit.

Each time you press the button:

[Continental]Europe]

MUSIC P. ""--) TV§

^"----- AUX -------}

[Australia]and[N.Z.]

MUSIC P. ("--) AUX

§“TV” works only when the scart cable is connected (➜page 9).

≥You can enjoy 5.1-channel surround sound when you turn on Sound

Field Control (MOVIE, SPORT

or

MUSIC) (➜page 28).

Operating the television

TV/AV TV VOLUME

TV

,

EXT-IN

RQT8654

32

Safety precautions / About DivX VOD content

Safety precautions

Set the unit up on an even surface away from direct sunlight, high

temperatures, high humidity, and excessive vibration. These conditions

can damage the cabinet and other components, thereby shortening the

unit’s service life.

Do not place heavy items on the unit.

Do not use high voltage power sources. This can overload the unit and

cause a fire.

Do not use a DC power source. Check the source carefully when setting

the unit up on a ship or other places where DC is used.

Ensure the AC mains lead is connected correctly and not damaged.

Poor connection and lead damage can cause fire or electric shock. Do not

pull, bend, or place heavy items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC mains

lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Do not let metal objects fall inside the unit. This can cause electric

shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or

malfunction. If this occurs, immediately disconnect the unit from the power

supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable

gases which can ignite if sprayed into the unit.

Do not attempt to repair this unit by yourself. If sound is interrupted,

indicators fail to light, smoke appears, or any other problem that is not

covered in these instructions occurs, disconnect the AC mains lead and

contact your dealer or an authorized service center. Electric shock or

damage to the unit can occur if the unit is repaired, disassembled or

reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power source if

it is not to be used for a long time.

DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this unit, you first need to register the

unit.

Follow the online instructions for purchasing DivX VOD content to enter the unit’s registration code and register the unit. For more information about

DivX VOD, visit www.divx.com/vod.

Display the unit’s registration code

(➜page 24, “DivX Registration” in “Others” tab)

≥We recommend that you make a note of this code for future reference.

≥After playing DivX VOD content for the first time, another registration

code is then displayed in “DivX Registration”. Do not use this

registration code to purchase DivX VOD content. If you use this code to

purchase DivX VOD content, and then play the content on this unit, you

will no longer be able to play any content that you purchased using the

previous code.

≥If you purchase DivX VOD content using a registration code different

from this unit’s code, you will not be able to play this content.

(“Authorization Error” is displayed.)

Regarding DivX content that can only be played a set

number of times

Some DivX VOD content can only be played a set number of times. When

you play this content, the remaining number of plays is displayed. You

cannot play this content when the number of remaining plays is zero.

(“Rented Movie Expired” or “Rental Expired” is displayed.)

When playing this content

≥The number of remaining plays is reduced by one if

– you press [Í] or press and hold [—SETUP].

– you press [∫STOP]. (Press [;PAUSE] to pause play.)

– you press [:,9SKIP] or [6, 5SLOW/SEARCH] etc. and

arrive at another content or the start of the content being played.

≥Resume (➜page 15, Stop) and Marker (➜page 21, Play Menu)

functions do not work.

Placement

Voltage

AC mains lead protection

Foreign matter

Service

About DivX VOD content

Video

Audio

Display

Disc

Setup

Others

DivX Registration

DivX Video-on-Demand

To learn more visit www.divx.com/vod

to continuePress

ENTER

Your registration code is : XXXXXXXX

8 alphanumeric characters

RQT8654

33

Troubleshooting guide

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the table do not

solve the problem, consult your dealer for instructions.

Power Page

Unresponsive or inoperable function

Specific operation undesirable or unexpected

Subtitle

(Continued on next page)

No power. ≥Insert the AC mains lead securely. 9

The unit is automatically switched

to standby mode.

≥The Sleep timer was working and had reached the set time limit. 30

No response when any buttons

are pressed.

≥This unit cannot play discs other than the ones listed in these operating instructions.

≥

The unit may not be operating properly due to lightning, static electricity or some other external

factor.

Turn the unit off and then back on. Alternatively, turn the unit off, disconnect the AC mains

lead, and then reconnect it.

≥Condensation has formed. Wait 1 to 2 hours for it to evaporate.

12

—

—

No response when remote control

buttons are pressed.

≥Check that the batteries are installed correctly.

≥The batteries are depleted. Replace them with new ones.

≥Aim the remote control at the remote control signal sensor and operate.

10

10

11

No picture or sound. ≥Check the video or speaker connection.

≥Check the power or input setting of the connected equipment and the main unit.

≥Check that the disc has something recorded on it.

6, 8,

9

—

—

You have forgotten your ratings

password.

Reset all the settings to Factory

Preset.

≥While stopped and “DVD/CD” is the source, press and hold [∫] (Stop) on the main unit and [S10]

on the remote control until “Initialised” disappears from the television. Turn the unit off and on

again.

All settings will return to the default values.

—

It takes time before play starts. ≥Play may take time to begin when an MP3 track has still picture data. Even after the track starts, the

correct play time will not be displayed. This is normal. [MP3]

≥This is normal on DivX video. [DivX]

—

—

Folders on a data CD are not

displayed correctly.

[WMA] [MP3] [JPEG] [MPEG4] [DivX]

≥Folders deeper than the eighth layer are displayed as the eighth layer. —

A menu screen appears during

skip or search. [VCD]

≥This is normal for Video CDs. —

Playback control menu does not

appear. [VCD]

with playback control

≥Press [∫STOP] twice and then press [1PLAY]. —

Program and Random play do not

work. [DVD-V]

≥These functions do not work with some DVD-Videos. —

Selecting audio soundtrack “2”

does not change the audio. [DVD-A]

≥Even if a second soundtrack is not recorded, two numbers are normally shown. —

Play does not start. ≥This unit may not play WMA and MPEG4 that contains still picture data.

≥If playing DivX VOD content, refer to the homepage where you purchased the DivX VOD content.

(Example: www.divx.com/vod) [DivX]

≥If a disc contains CD-DA and other formats, proper playback may not be possible.

—

—

—

Play restarts from the beginning

when the soundtrack is changed.

[DVD-A]

≥This is normal for DVD-Audio. —

Scenes are skipped intermittently.

[DVD-VR] [DVD-V]

≥If you change the volume or sound effects during Advanced Disc Review, the function continues

without the on-screen display. Cancel the function.

21

Subtitle position is wrong. ≥Adjust the position. (“Subtitle Position” in Display Menu) 22

No subtitles. ≥Display the subtitles. (“Subtitle” in Main menu)

≥Subtitles may not be displayed depending on the disc. [DivX]

20

—

RQT8654

34

Troubleshooting guide

Troubleshooting guide

Marker Page

A-B repeat

Sound abnormal or improper

Menus

Picture abnormal or unviewable

Progressive video

Cannot add markers. ≥You cannot add markers with DVD-RAM or DVD-R/-RW (DVD-VR) discs.

≥If the disc’s elapsed play time does not appear on the unit’s display, you cannot add markers.

—

—

Point B is automatically set. ≥The end of an item becomes point B when it is reached. —

Sound is distorted. ≥Noise may occur when playing WMA. —

Effects do not work. ≥Some audio effects do not work or have less effect with some discs. —

Humming is heard during play. ≥An AC mains lead or fluorescent light is near the main unit. Keep other appliances and cables away

from the main unit (and wireless system [HT545W]).

—

No sound. ≥There may be a slight pause in sound when you change the play speed.

≥Audio may not be output due to how files were created. [DivX]

—

—

The Setup menu cannot be

accessed.

≥Select “DVD/CD” as the source.

≥Cancel All group, Program and Random play.

—

16

The picture on the television is

not displayed correctly or

disappears.

≥The unit and television are using different video systems.

Use a multi-system or PAL television.

≥The system used on the disc does not match your television.

– PAL discs cannot be correctly viewed on an NTSC television.

– This unit can convert NTSC signals to PAL 60 for viewing on a PAL television (“NTSC Disc

Output” in “Video” tab).

≥Ensure that the unit is connected directly to the television, and is not connected through a video

cassette recorder.

≥Mobile telephone chargers can cause some disturbance.

≥If you are using an indoor television antenna, change to an outdoor antenna.

≥The television antenna wire is too close to the unit. Move it away from the unit.

≥Change “Source Select” in Picture Menu. [DivX]

—

—

24

8, 9

—

—

—

21

Picture size does not fit the

screen.

≥Change “TV Aspect” in the “Video” tab.

≥Use the television to change the aspect. If your television does not have that function, change “4:3

Aspect” in Display Menu.

≥Change the zoom setting. (“Just Fit Zoom” or “Manual Zoom” in Display Menu)

24

22

22

Picture stops. [DivX] ≥Picture may stop if the DivX files are greater than 2 GB. —

Menu is not displayed correctly. ≥Restore the zoom ratio to “k1.00”. (“Manual Zoom” in Display Menu)

≥Set “Subtitle Position” in Display Menu to “0”.

≥Set “4:3 Aspect” in Display Menu to “Normal”.

22

22

22

Auto zoom function does not work

well.

≥Turn off television zoom function.

≥Use the other preset aspect ratios or manual adjustment.

≥Zoom function may not work well, especially in dark scenes and may not work depending on the

type of disc.

—

22

—

When playing PAL disc, picture

distorted.

≥Set “Transfer Mode” in Picture Menu to “Auto”. 21

There is ghosting when

progressive output is on.

≥This problem is caused by the editing method or material used on DVD-Video, but should be

corrected if you use interlaced output. Set “Video Output Mode” in Picture Menu to “480i” or “576i”.

(Alternatively, press and hold [CANCEL] to switch to “480i” or “576i”.)

21

Pictures not in progressive

output.

≥Select “480p” or “576p” in “Video Output Mode” in Picture Menu.

≥The unit’s VIDEO OUT, S-VIDEO OUT [or SCART (AV) [Continental[Europe]] terminal outputs the

interlaced signal even if “PRG” is displayed.

21

8, 9

RQT8654

35

Troubleshooting guide

Listening to the radio Page

[HT545W] Wireless system

Unit displays

Television displays

Distorted sound or noise is heard.

“ST” flickers or does not light.

≥Adjust the position of the FM or AM antenna.

≥Use an outdoor antenna.

—

27

A beat sound is heard. ≥Turn the television off or move it away from the unit. —

A low hum is heard during AM

broadcasts.

≥Separate the antenna from other cables. —

No sound. ≥Ensure that the digital transceiver is fully inserted into the slot of the main unit.

≥Ensure that the wireless system is connected to the mains socket, and “[W]” is displayed on the

main unit’s display.

7

9

The display is dark. ≥Select “Bright” in “FL Dimmer” in the “Others” tab. 24

“NO PLAY” ≥You inserted a disc the unit cannot play; insert one it can.

≥You inserted a blank disc.

≥You inserted a disc that has not been finalized.

12

—

—

“NO DISC” ≥You have not inserted a disc; insert one.

≥You have not inserted the disc correctly; insert it correctly.

—

14

“F61” ≥Check and correct the speaker cable connections.

If this does not fix the problem, consult the dealer.

6

“DVD U11” ≥Disc may be dirty. Wipe it clean. 12

“ERROR” ≥Incorrect operation performed. Read the instructions and try again. —

“DVD H∑∑”

“DVD F∑∑∑”

∑ stands for a number.

≥Trouble may have occurred. The numbers following “H” and “F” depend on the status of the unit.

Turn the unit off and then back on. Alternatively, turn the unit off, disconnect the AC mains lead, and

then reconnect it.

≥If the service numbers fail to clear, note the service number and contact a qualified service person.

—

—

[HT545W]

“[W]” is flashing.

≥There is no link between the main unit and the wireless system. Check that the wireless system is

connected to the mains socket.

≥Ensure that the digital transceiver is fully inserted into the slot of the main unit.

9

7

“D.MIX” is flashing. [DVD-A] ≥Down-mixing is the process of remixing the multiple-channel audio found on some discs into two

channels. The disc contains single-channel or multiple-channel signals which may not be

reproduced authentically.

—

“/”≥The operation is prohibited by the unit or disc. —

“Cannot play group xx, content

xx”

“Cannot display group xx, content

xx”

≥You are trying to display incompatible group or content. —

“This disc may not be played in

your region”

≥Only DVD-Video discs that include or have the same region number as the one on the rear panel of

this unit can be played.

Cover

page

No on-screen display. ≥Select “On” in “On-Screen Messages” in the “Display” tab. 24

“Group xx content xx is

protected”

≥You are trying to play protected group or content. You cannot play it. —

“Check the disc” ≥This disc may be dirty. 12

“Authorization Error” [DivX] ≥You are trying to play the DivX VOD content that was purchased with a different registration code.

You cannot play the content on this unit.

32

“Rented Movie Expired” [DivX] ≥The DivX VOD content has zero remaining plays. You cannot play it. 32

RQT8654

36

Specifications

Specifications

[HT545]

RMS Output Power: Dolby Digital Mode

Front Ch 110 W per channel (3 ≠), 1 kHz, 10 % THD

Surround Ch 90 W per channel (4 ≠), 1 kHz, 10 % THD

Center Ch 225 W per channel (6 ≠), 1 kHz, 10 % THD

Subwoofer Ch 225 W per channel (6 ≠), 100 Hz, 10 % THD

Total RMS Dolby Digital mode power 850 W

DIN Output Power: Dolby Digital Mode

Front Ch 80 W per channel (3 ≠), 1 kHz, 1 % THD

Surround Ch

65 W per channel (4

≠

), 1

kHz

, 1 % THD

Center Ch

75 W per channel (6

≠

),

1kHz

, 1 % THD

Subwoofer Ch 75 W per channel (6

≠

),

100 Hz

,

1% THD

Total DIN Dolby Digital mode power 440 W

[HT545W]

RMS Output Power: Dolby Digital Mode

Front Ch 110 W per channel (3 ≠), 1 kHz, 10 % THD

Surround Ch§8 110 W per channel (3 ≠), 1 kHz, 10 % THD

Center Ch 110 W per channel (3 ≠), 1 kHz, 10 % THD

Subwoofer Ch 110 W per channel (3 ≠), 100 Hz, 10 % THD

Total RMS Dolby Digital mode power 660 W

DIN Output Power: Dolby Digital Mode

Front Ch 75 W per channel (3 ≠), 1 kHz, 1 % THD

Surround Ch§8

65 W per channel (3

≠

), 1

kHz

, 1 % THD

Center Ch

75 W per channel (3

≠

),

1kHz

, 1 % THD

Subwoofer Ch 75 W per channel (3

≠

),

100 Hz

,

1% THD

Total DIN Dolby Digital mode power 430 W

Preset Memory FM 15 stations

AM/MW 15 stations

Frequency Modulation (FM)

Frequency range 87.50–108.00 MHz (50-kHz step)

Sensitivity

[Continental[Europe] 1.8 µV (IHF)

[Others] 2.5 µV (IHF)

S/N 26 dB

[Continental[Europe] 1.4 µV

[Others] 2.2 µV

Antenna terminals 75 ≠ (unbalanced)

Amplitude Modulation (AM/MW)

Frequency range 522–1629 kHz (9-kHz step)

AM Sensitivity S/N 20 dB at 999 kHz 560 µV/m

Phone jack

Terminal Stereo, 3.5 mm jack

Front Music Port

Sensitivity 100 mV, 15

k

≠

Terminal Stereo, 3.5 mm jack

Discs played (8 cm or 12 cm)

(1) DVD (DVD-Video, DVD-Audio, DivX§1, 2)

(2) DVD-RAM (DVD-VR, MP3§2, 6, JPEG§2, 3, MPEG4§2, 4, DivX§1, 2)

(3) DVD-R (DVD-Video, DVD-VR, MP3§2, 6, JPEG§2, 3, MPEG4§2, 4,

DivX§1, 2)

(4) DVD-R DL (DVD-Video, DVD-VR)

(5) DVD-RW (DVD-Video, DVD-VR, MP3§2, 6, JPEG§2, 3, MPEG4§2, 4,

DivX§1, 2)

(6) iR/iRW (Video)

(7) iR DL (Video)

(8) CD, CD-R/RW [CD-DA, Video CD, SVCD§5, MP3§2, 6, WMA§2, 7,

JPEG§2, 3, MPEG4§2, 4, DivX§1, 2, HighMAT Level 2 (Audio and

Image)]

§1 Plays all versions of DivX® video (including DivX®6) with standard

playback of DivX® media files. Certified to the DivX Home Theater

Profile.

GMC (Global Motion Compensation) is not supported.

§2The total combined maximum number of recognizable audio,

picture and video contents and groups: 4000 audio, picture and

video contents and 400 groups.

§3Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160k120 and 6144k4096 pixels (Sub

sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and narrow

pictures may not be displayed.

§4MPEG4 data recorded with Panasonic SD multi cameras or DVD

video recorders

Conforming to SD VIDEO specifications (ASF standard)/MPEG4

(Simple Profile) video system/G.726 audio system

§5 Conforming to IEC62107

§6 MPEG-1 Layer 3, MPEG-2 Layer 3

§7Windows Media Audio Ver.9.0 L3

Not compatible with Multiple Bit Rate (MBR)

Pick up

Wavelength (DVD/CD) 662/785 nm

Laser power (DVD/CD) CLASS 1/CLASS 1M

NORSK

Bølgelengde (DVD/CD) 662/785 nm

Laserstyrke Ingen farlig stråling sendes ut

Audio output (Disc)

Number of channels 5.1ch (FL, FR, C, SL, SR, SW)

Video system PAL625/50, PAL525/60, NTSC

Composite video output

Output level 1 Vp-p (75 ≠)

Terminal Pin jack (1 system)

[Continental[Europe] Scart jack (1 system)

S-video output

Y output level 1 Vp-p (75 ≠)

C output level PAL; 0.3 Vp-p (75 ≠)

NTSC; 0.286 Vp-p (75 ≠)

Terminal S terminal (1 system)

[Continental[Europe] Scart jack (1 system)

Component video output (NTSC: 480p/480i, PAL: 576p/576i)

Y output level 1 Vp-p (75 ≠)

PB output level 0.7 Vp-p (75 ≠)

PR output level 0.7 Vp-p (75 ≠)

Terminal Pin jack (Y: green, PB: blue, PR: red) (1 system)

[Continental[Europe]

RGB video output

R output level 0.7 Vp-p (75 ≠)

G output level 0.7 Vp-p (75 ≠)

B output level 0.7 Vp-p (75 ≠)

Terminal Scart jack (1 system)

AMPLIFIER SECTION

FM/AM TUNER, TERMINALS SECTION

DISC SECTION

VIDEO SECTION

RQT8654

37

Specifications

[HT545] [Front\speakers\SB-FS440]

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 3 ≠

Full range 6.5 cm Cone type

Input power (IEC) 110 W§9 (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 102 Hz–25 kHz (j16 dB)

113 Hz–22 kHz (j10 dB)

Dimensions (WtHtD) 92 mmk273 mmk95.4 mm

Mass 0.84 kg

[HT545] [Surround\speakers\SB-FS441]

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 4 ≠

Full range 6.5 cm Cone type

Input power (IEC) 90 W§9 (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 96 Hz–25 kHz (j16 dB)

120 Hz–22 kHz (j10 dB)

Dimensions (WtHtD) 92 mmk135 mmk95.4 mm

Mass 0.75 kg

[HT545] [Center\speaker\SB-PC640]

Type 1 way, 2 speaker system (Bass reflex)

Speaker unit(s) Impedance 6 ≠

1. Full range 6.5 cm Cone type

2. Full range 6.5 cm Cone type

Input power (IEC) 250 W§9 (Max)

Output sound pressure 84 dB/W (1.0 m)

Frequency range 105 Hz–25 kHz (j16 dB)

125 Hz–22 kHz (j10 dB)

Dimensions (WtHtD) 270 mmk92 mmk95.4 mm

Mass 1.3 kg

[HT545] [Subwoofer\SB-W440]

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 6 ≠

Woofer 16 cm Cone type

Input power (IEC) 250 W (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 32 Hz–220 Hz (j16 dB)

38 Hz–180 Hz (j10 dB)

Dimensions (WtHtD) 183 mmk396 mmk267 mm

Mass 4kg

[HT545W] [Front\speakers\SB-FS640]

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 3 ≠

Full range 6.5 cm Cone type

Input power (IEC) 110 W§9 (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 110 Hz–25 kHz (j16 dB)

122 Hz–22 kHz (j10 dB)

Dimensions (WtHtD) 92 mmk135 mmk95.4 mm

Mass 0.75 kg

[HT545W] [Surround\speakers\SB-FS545]

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 3 ≠

Full range 6.5 cm Cone type

Input power (IEC) 110 W§9 (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 110 Hz–25 kHz (j16 dB)

122 Hz–22 kHz (j10 dB)

Dimensions (WtHtD) 92 mmk135 mmk95.4 mm

Mass 0.75 kg

[HT545W] [Center\speaker\SB-PC545]

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 3 ≠

Full range 6.5 cm Cone type

Input power (IEC) 110 W§9 (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 92 Hz–25 kHz (j16 dB)

110 Hz–22 kHz (j10 dB)

Dimensions (WtHtD) 135 mmk92 mmk95.4 mm

Mass 0.75 kg

[HT545W] [Subwoofer\SB-W545]

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 3 ≠

Woofer 16 cm Cone type

Input power (IEC) 110 W (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 29 Hz–165 Hz (j16 dB)

35 Hz–140 Hz (j10 dB)

Dimensions (WtHtD) 183 mmk396 mmk267 mm

Mass 4kg

Power supply [HT545W] AC 230 V, 50 Hz

[HT545] AC 230–240 V, 50 Hz

Power consumption [HT545W] Main unit 75 W

[HT545] Main unit 115 W

Dimensions (WtHtD) 430 mmk60 mmk354 mm

Mass [HT545W] Main unit 3.3 kg

[HT545] Main unit 3.35 kg

Operating temperature range r5oC to r35 oC

Operating humidity range 5 % to 90 % RH (no condensation)

Power supply AC 230–240 V, 50 Hz

Power consumption Digital transceiver 0.85 W

Wireless system 30 W

Dimensions (WtHtD)

Digital transceiver

97 mm

k

47.5 mm

k

8.5 mm

Wireless system

89 mm

k

189 mm

k

180 mm

Mass Digital transceiver 0.03 kg

Wireless system 0.7 kg

Wireless module Frequency range 2.403– 2.425 GHz

RF Output Power 14 dBm (Max)

Operating temperature range r5oC to r35 oC

Operating humidity range 5 % to 90 % RH (no condensation)

§8Power output of the wireless system amplifier SE-FX60

§9Rating with low-cut filter equipped amplifier

[Note]

1. Specifications are subject to change without notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by a digital spectrum analyzer.

SPEAKER SECTION GENERAL

Power consumption in standby mode approx. 0.5 W

[HT545W]

WIRELESS SYSTEM AND DIGITAL TRANSCEIVER

Power consumption in standby mode approx. 1.2 W

RQT8654

38

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby

Laboratories.

“DTS” and “DTS Digital Surround” are registered trademarks of

Digital Theater Systems, Inc.

This product incorporates copyright protection technology that is

protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology must

be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses only unless otherwise authorized by

Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer

IIS and Thomson multimedia.

Windows Media, and the Windows logo are

trademarks, or registered trademarks of

Microsoft Corporation in the United States

and/or other countries.

WMA is a compression format developed by

Microsoft Corporation. It achieves the same

sound quality as MP3 with a file size that is

smaller than that of MP3.

HighMAT™ and the HighMAT logo are either

trademarks or registered trademarks of

Microsoft Corporation in the United States

and/or other countries.

, HDCD®, High Definition Compatible Digital® and

Pacific Microsonics™ are either registered trademarks or trademarks

of Pacific Microsonics, Inc. in the United States and/or other

countries.

HDCD system manufactured under license from Pacific Microsonics,

Inc. This product is covered by one or more of the following: In the

USA: 5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274,

5,854,600, 5,864,311, 5,872,531, and in Australia: 669114, with other

patents pending.

This product is licensed under the MPEG-4 Visual patent portfolio

license for the personal and non-commercial use of a consumer for (i)

encoding video in compliance with the MPEG-4 Visual Standard

(“MPEG-4 Video”) and/or (ii) decoding MPEG-4 Video that was

encoded by a consumer engaged in a personal and non-commercial

activity and/or was obtained from a video provider licensed by MPEG

LA to provide MPEG-4 Video. No license is granted or shall be implied

for any other use. Additional information including that relating to

promotional, internal and commercial uses and licensing may be

obtained from MPEG LA, LLC. See http://www.mpegla.com.

Official DivX® Certified product.

Plays all versions of DivX® video (including

DivX®6) with standard playback of DivX®

media files.

DivX, DivX Certified, and associated logos

are trademarks of DivX, Inc. and are used

under license.

RQT8654

39

DIGITAL TRANSCEIVER SH-FX80T

WIRELESS SYSTEM SE-FX60

OPERATING AT 2403MHz TO 2425MHz

1177

[Continental[Europe]

Matsushita Electric Industrial Co., Ltd.

Web Site: http://panasonic.net

RQT8654-1B

F0406KN1056

p

-If you see this symbol-

SUOMI NORSK

This product may receive radio interference caused by mobile

telephones during use. If such interference is apparent, please

increase separation between the product and the mobile telephone.

The socket outlet shall be installed near the equipment and easily

accessible or the mains plug or an appliance coupler shall remain

readily operable.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

Information on Disposal for Users of Waste Electrical &

Electronic Equipment (private households)

This symbol on the products and/or

accompanying documents means that used

electrical and electronic products should not be

mixed with general household waste.

For proper treatment, recovery and recycling,

please take these products to designated

collection points, where they will be accepted on a free of

charge basis. Alternatively, in some countries you may be

able to return your products to your local retailer upon the

purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable

resources and prevent any potential negative effects on human

health and the environment which could otherwise arise from

inappropriate waste handling. Please contact your local authority

for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this

waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment,

please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the

European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local

authorities or dealer and ask for the correct method of disposal.

VAROITUS!

LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA

KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE

NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VAROITUS:

TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN

MUUN VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA

ALTISTAA SATEELLE, KOSTEUDELLE, VESIPISAROILLE TAI

ROISKEELLE, EIKÄ NESTETTÄ SISÄLTÄVIÄ ESINEITÄ, KUTEN

ESIMERKIKSI MALJAKOITA, SAA ASETTAA LAITTEEN PÄÄLLE.

VAROITUS!

≥

ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINETTITYYPPISEEN

KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA

TUULETUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN

MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA

VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU-

TAI TULIPALOVAARA.

≥ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA

SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI

MUULLA VASTAAVALLA ESINEELLÄ.

≥ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN

LÄHDETTÄ LAITTEEN PÄÄLLE.

≥HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA

TAVALLA.

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA

ILMASTOSSA.

Laite tulee asettaa lähelle verkkopistorasiaa ja pistokkeen täytyy olla

sellaisessa asennossa, että siihen on helppo tarttua ongelman

sattuessa.

ADVARSEL!

DETTE PRODUKTET ANVENDER EN LASER.

BETJENING AV KONTROLLER, JUSTERINGER ELLER ANDRE

INNGREP ENN DE SOM ER BESKREVET I DENNE

BRUKSANVISNING, KAN FØRE TIL FARLIG BESTRÅLING.

DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å REPARERE

APPARATET PÅ EGENHÅND. ALT SERVICE OG

REPARASJONSARBEID MÅ UTFØRES AV KVALIFISERT PERSONELL.

ADVARSEL:

FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT ELLER

SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE UTSETTES

FOR REGN, FUKTIGHET, VANNDRÅPER ELLER VANNSPRUT. DET

MÅ HELLER IKKE PLASSERES GJENSTANDER FYLT MED VANN,

SLIK SOM BLOMSTERVASER, OPPÅ APPARATET.

ADVARSEL!

≥

APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET

INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED HVOR

VENTILASJONSFORHOLDENE ER UTILSTREKKELIGE. SØRG

FOR AT GARDINER ELLER LIGNENDE IKKE FORVERRER

VENTILASJONSFORHOLDENE, SÅ RISIKO FOR ELEKTRISK

SJOKK ELLER BRANN FORÅRSAKET AV OVERHETING UNNGÅS.

≥APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES

TIL MED AVISER, BORDDUKER , GARDINER OG LIGNENDE.

≥PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ

APPARATET.

≥

BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET.

DETTE APPARATET ER BEREGNET TIL BRUK UNDER

MODERATE KLIMAFORHOLD.

Utstyret bør plasseres i nærheten av AC-stikkontakten, og støpslet må

være lett tilgjengelig hvis det skulle oppstå problemer.

HT545 545W En.book Page 40 Monday, May 8, 2006 6:47 PM
