RQT6530-P
Model No. SC-PM47
CD Stereo System
Operating Instructions
PPC
Before connecting, operating or adjusting this product, please read these
instructions completely.
Please keep this manual for future reference.
RQT6530
2
Before use
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
These operating instructions are applicable to the following
system.
System SC-PM47
Main unit SA-PM47
Speakers SB-PM27
Table of contents
Before use
Supplied accessories ................................................. 3
IMPORTANT SAFETY INSTRUCTIONS ..................... 4
Placement of speakers ............................................... 5
The remote control ..................................................... 5
Connections ................................................................ 6
Front panel controls ................................................... 8
Listening operations
The radio: manual tuning ........................................... 10
The radio: preset tuning ............................................. 11
CDs ............................................................................... 12
Cassette tapes ............................................................. 19
Recording operations
Before recording ......................................................... 20
Recording from the radio ........................................... 21
Recording CDs ............................................................ 21
Timers and others
Using the built-in sound quality settings ................. 22
Enhancing the sound quality ..................................... 22
Using an external unit ................................................ 22
Auto-off function ......................................................... 23
Turning the demo function off ................................... 23
Convenient functions ................................................. 24
Setting the time ........................................................... 24
Using the timers .......................................................... 25
Reference
Troubleshooting guide ................................................. 28
Warranty (ONLY FOR U.S.A.) ....................................... 29
Product Service ............................................................. 30
Maintenance .................................................................. 30
Specifications ................................................................ 31
When moving the unit ...................................Back cover
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
The model number and serial number of this product can
be found on either the back or the bottom of the unit.
Please note them in the space provided below and keep
for future reference.
MODEL NUMBER
SERIAL NUMBER
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING,
ENSURE THAT CURTAINS AND ANY OTHER MATE-
RIALS DO NOT OBSTRUCT THE VENTILATION
VENTS.
RQT6530(2-10).p65 5/9/2002, 6:37 PM2
RQT6530
3
Before use
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses
when asking for replacement parts.
(Only for U.S.A.)
To order accessories contact
1-800-332-5368 or web site
(http://www.panasonic.com).

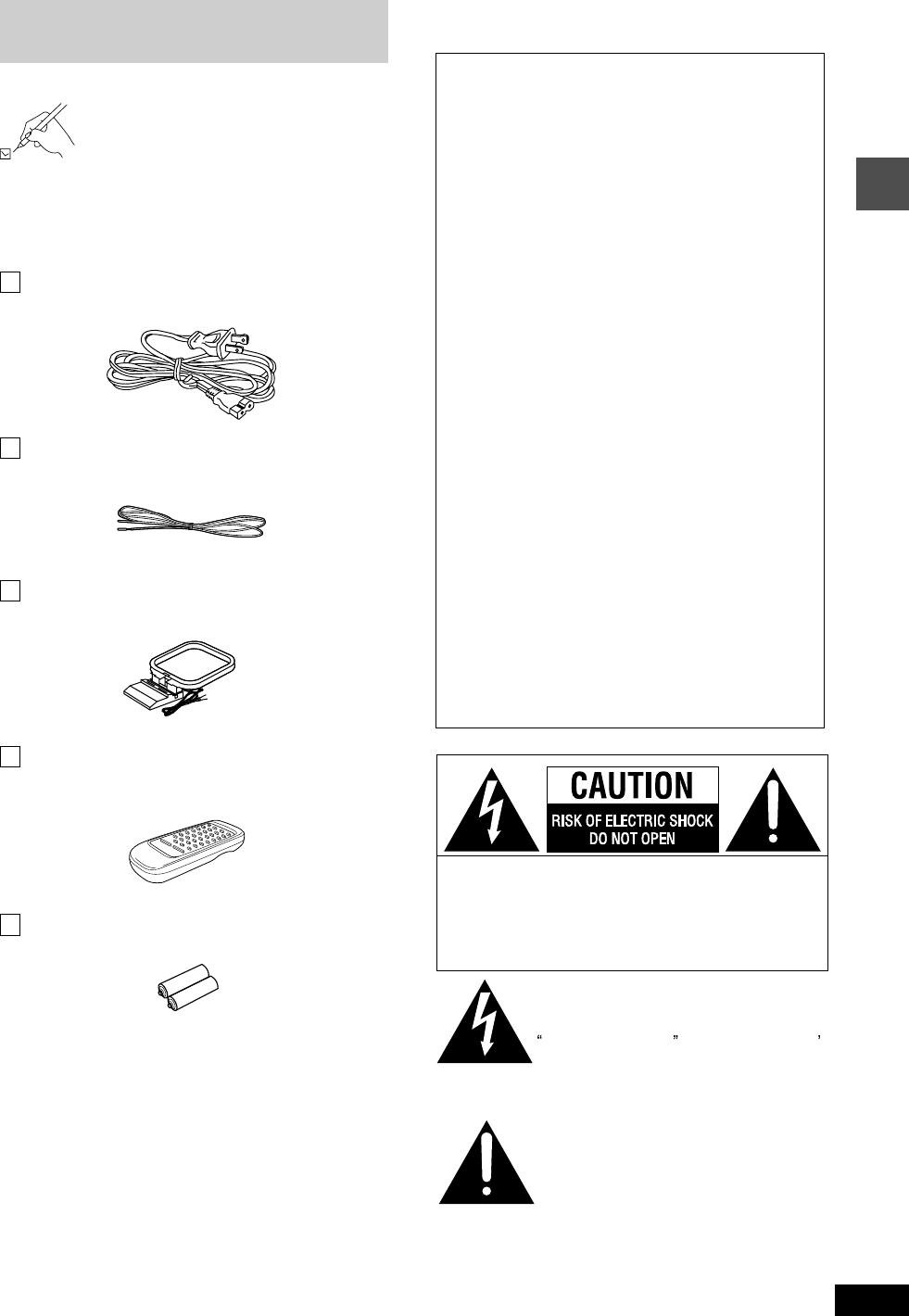

Supplied accessories
AC power supply cord ...................................... 1 pc.
(RJA0065-A)
FM indoor antenna ............................................ 1 pc.
(RSA0006-L)
AM loop antenna ............................................... 1 pc.
(RSA0033A-1)
Remote control transmitter .............................. 1 pc.
(EUR648268)
Remote control batteries ................................ 2 pcs.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate
this device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
RQT6530(2-10).p65 5/9/2002, 6:37 PM3
RQT6530
4
Before use
IMPORTANT SAFETY INSTRUCTIONS
Maintenance
(See page 30 for details.)
Unplug the unit from the household AC outlet before clean-
ing.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or solvents.
Service
1. Damage requiring service—The unit should be serv-
iced by qualified service personnel if:
(a) The AC power supply cord or the plug has been
damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a
marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond
that described in these operating instructions. Refer all
other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing en-
sure the servicer uses parts specified by the manufac-
turer or parts that have the same characteristics as the
original parts. Unauthorized substitutes may result in
fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer
to perform safety checks to confirm that the unit is in
proper working condition.
3. Power lines—Take care when setting up an outdoor
antenna that it is not near overhead power lines, elec-
tric lights, or electrical circuits, and that there is no dan-
ger of the antenna falling on power lines, electric lights,
or electrical circuits. When installing an outdoor antenna,
take extreme care not to touch such power lines or
circuits, as contact with them can be fatal.

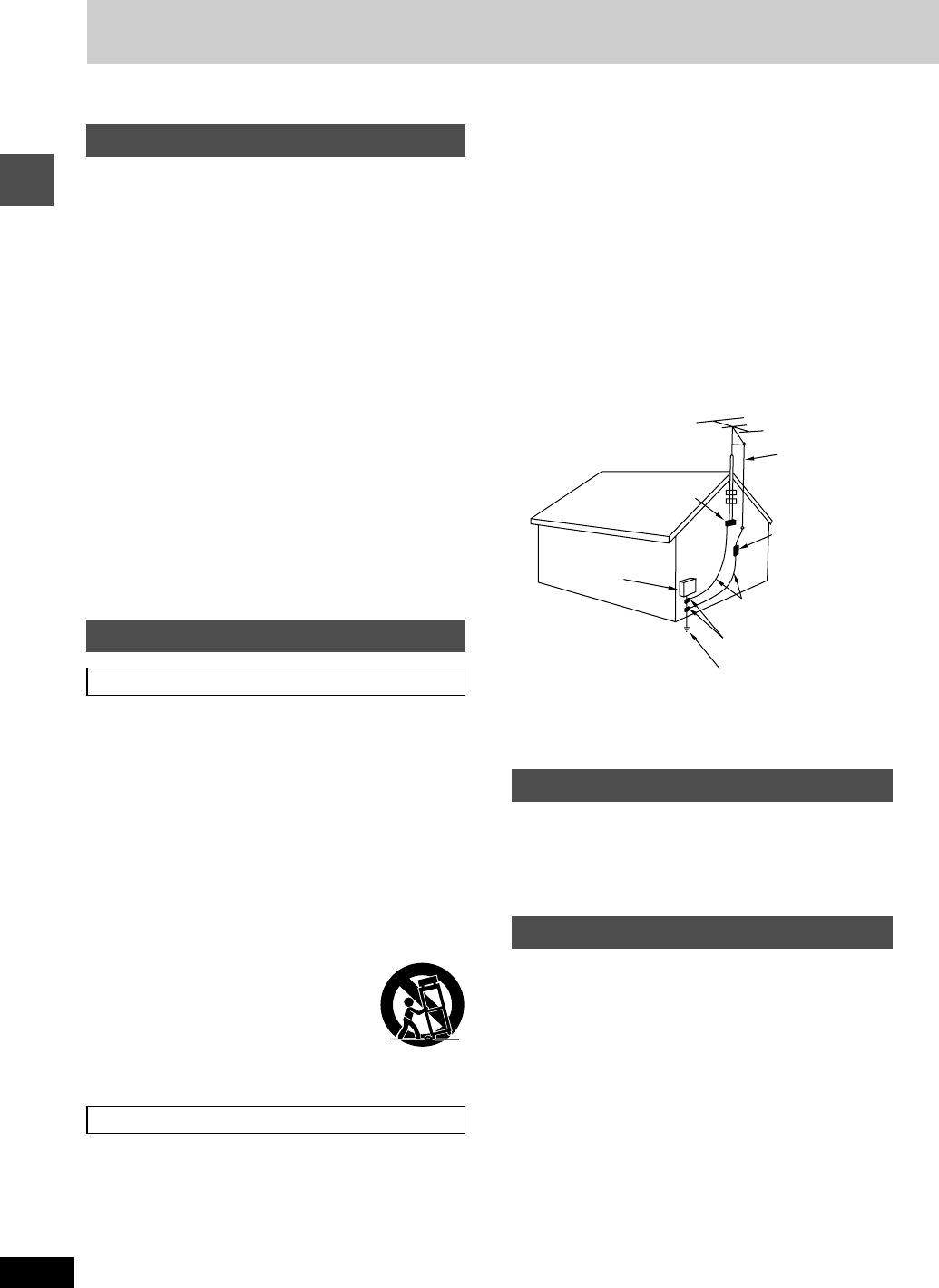

4. Outdoor antenna grounding—If you connect an out-
door antenna, ground the antenna system to protect
against voltage surges and built-up static charges. Sec-
tion 810 of the National Electrical Code, ANSI/NFPA
No. 70-1990, provides information about grounding of
the mast and supporting structure, grounding of the lead-
in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connec-
tion to grounding electrodes, and requirements for the
grounding electrode. Refer to this diagram.
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC—NATIONAL ELECTRICAL CODE
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety
precautions listed below. Keep these operating instructions handy for future reference.
Safety
1. Power source—Connect the unit to a power source of
the type described in these instructions or as marked
on the unit.
2. Polarization—The unit is equipped with a polarized
power plug where one blade is wider than the other.
This safety feature ensures that the plug fits into your
household AC outlet only one way. If the plug doesn’t fit
one way, try reversing it. If the plug still doesn’t fit,
contact an electrician to replace the obsolete outlet. Do
not attempt to defeat the safety purpose of the plug.
3. Power cord protection—Route the AC power supply
cord so that it will not be walked on or pinched by items
placed on or against it. Never take hold of the plug or
cord with wet hands. Always grasp the plug body firmly
when connecting and disconnecting it.
4. Overloading—When connecting the AC power supply
cord, be careful not to overload the household AC out-
let, extension cord, or outlet from any other device as
this can result in fire or electric shock.
5. Nonuse periods—Turn the unit off when it is not in
use. Unplug the unit from the household AC outlet if it is
not to be used for a long time. Unplug the unit during
lightning storms.
6. Attachments and accessories—Use only the attach-
ments and accessories recommended in these operat-
ing instructions.
Installation
Placement
1. Ventilation—Situate the unit so that it receives proper
ventilation. Do not install in a confined space such as a
bookcase or cabinet. Allow at least 10 cm (4 inches)
clearance from the rear of the unit. To prevent the risk
of electric shock or fire due to overheating ensure cur-
tains and other materials do not obstruct the unit’s ven-
tilation.
2. Foreign material—Ensure objects and liquids do not
get into the unit. Avoid exposing the unit to excessive
smoke, dust, mechanical vibration, and shock.
3. Magnetism—Situate the unit away from equipment and
devices that generate strong magnetic fields.
4. Stacking—Do not place heavy objects on top of this
unit.
5. Surface—Place the unit on a flat, level surface.
6. Carts and stands—Use the unit only
with carts and stands recommended by
the manufacturer. Move carts with care.
Sudden stops, excessive force, and
uneven surfaces can cause carts to
overturn.
7. Wall and ceiling mounting—Do not mount the unit on
walls or ceilings unless specified in the instructions.
Environment
1. Water and moisture—Do not use the unit near water,
such as near a bathtub or swimming pool. Avoid damp
basements.
2. Heat—Situate the unit away from heat sources, such
as radiators.
Do not situate where temperatures fall below 5˚C (41˚F)
or rise above 35˚C (95˚F).
RQT6530(2-10).p65 5/9/2002, 6:37 PM4
RQT6530
5
Before use

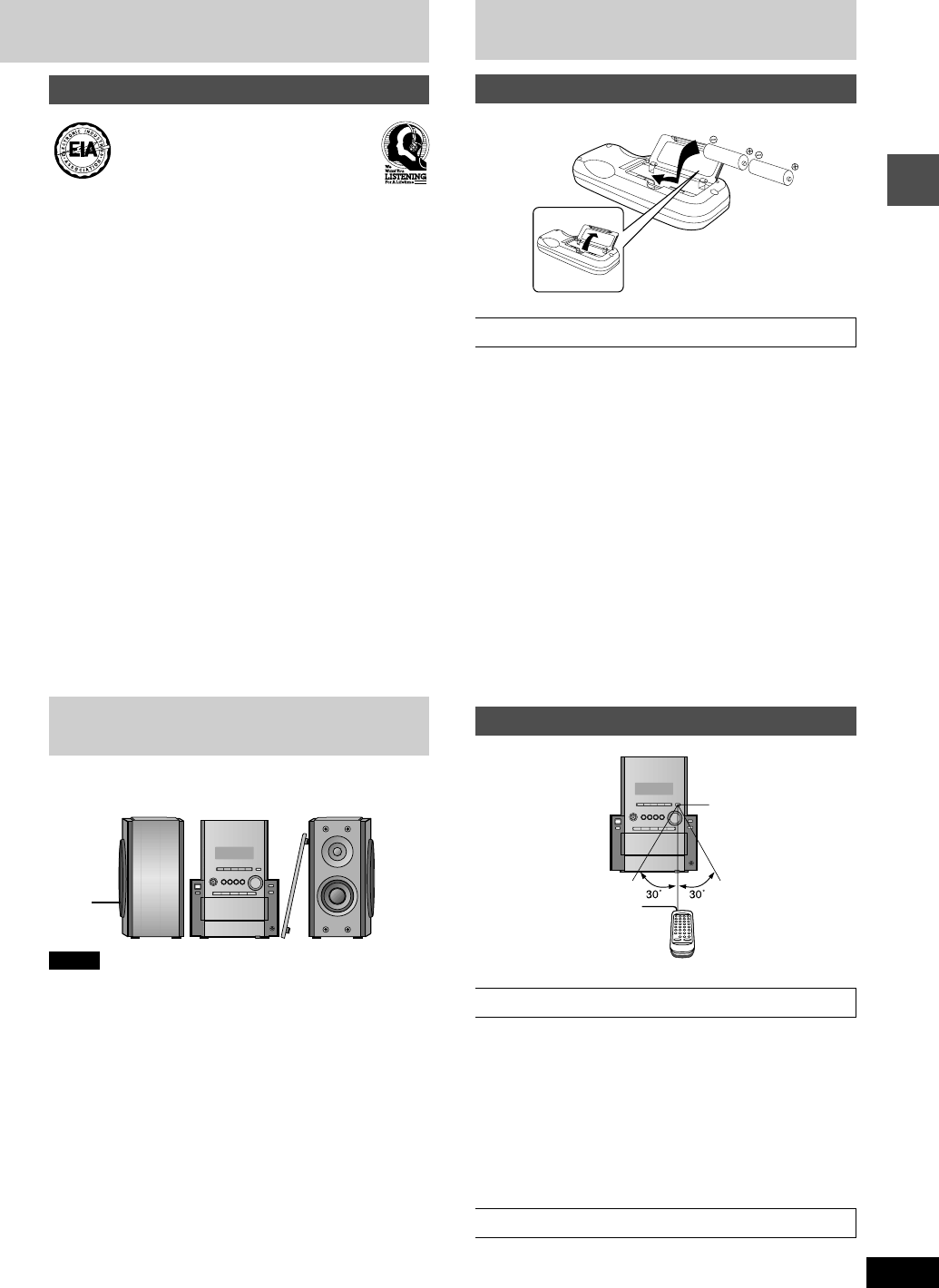

The remote control
Battery installation
1
2
Use of batteries
•Align the poles (+ and –) properly when inserting the
batteries.
•Do not mix old and new batteries or different types of
batteries.
•Do not recharge ordinary dry cell batteries.
•Do not heat or disassemble the batteries. Do not allow
them to contact flame or water.
•Remove the batteries if the unit is not to be used for a long
time.
•Do not keep together with metallic objects such as
necklaces.
•Do not use rechargeable type batteries.
•Do not use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage
which can damage items the fluid contacts and may cause a
fire.
If electrolyte leaks from the batteries, consult your dealer.
Wash thoroughly with water if electrolyte comes in contact
with any part of your body.
Correct method of use
Operation notes
•Do not place obstacles between the remote control signal
sensor and remote control unit.
•Do not expose the remote control signal sensor to direct
sunlight or to the bright light of a fluorescent light.
•Take care to keep the remote control signal sensor and the
end of the remote control unit free from dust.
•If this system is installed in a rack with glass doors, the
glass doors’ thickness or color might make it necessary to
use the remote control unit a shorter distance from the
system.
To prevent damage
•Never place heavy items on top of the unit.
•Do not disassemble or reconstruct the unit.
•Do not spill water or other liquids into the unit.
Placement of speakers
Place the speakers so that the super woofer is on the
outside.
Notes
•Keep your speakers at least 10
mm (13/32˝) away from the
system for proper ventilation.
•The super woofers are located on the sides of the
speakers. Leave 10-cm clearance for them to be effective.
•These speakers do not have magnetic shielding. Do not
place them near televisions, personal computers or other
devices easily influenced by magnetism.
•To avoid damage to the speakers, do not touch the
speaker cones if you have taken the nets off.
Listening caution
Selecting fine audio equipment such as the unit you’ve just
purchased is only the start of your musical enjoyment. Now
it’s time to consider how you can maximize the fun and ex-
citement your equipment offers. This manufacturer and the
Electronic Industries Association’s Consumer Electronics
Group want you to get the most out of your equipment by
playing it at a safe level. One that lets the sound come
through loud and clear without annoying blaring or distor-
tion—and, most importantly, without affecting your sensi-
tive hearing.
We recommend you to avoid prolonged exposure to exces-
sive noise.
Sound can be deceiving. Over time your hearing “comfort
level” adapts to higher volumes of sound. So what sounds
“normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe
level BEFORE your hearing adapts.
To establish a safe level:
•Start your volume control at a low setting.
•Slowly increase the sound until you can hear it
comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
•Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listen-
ing for a lifetime.
EST. 1924
Remote control
signal sensor
About 7 meters in
front of the signal
sensor.
Transmission
window
R6, AA, UM-3
Super
woofer
RQT6530(2-10).p65 5/9/2002, 6:37 PM5
RQT6530
6
Before use
Connections
• Plug the AC power supply cord into a household AC outlet
only after all other connections have been made.
• To prepare the AM loop antenna wire and speaker cords,
twist the vinyl cover tip and pull off.

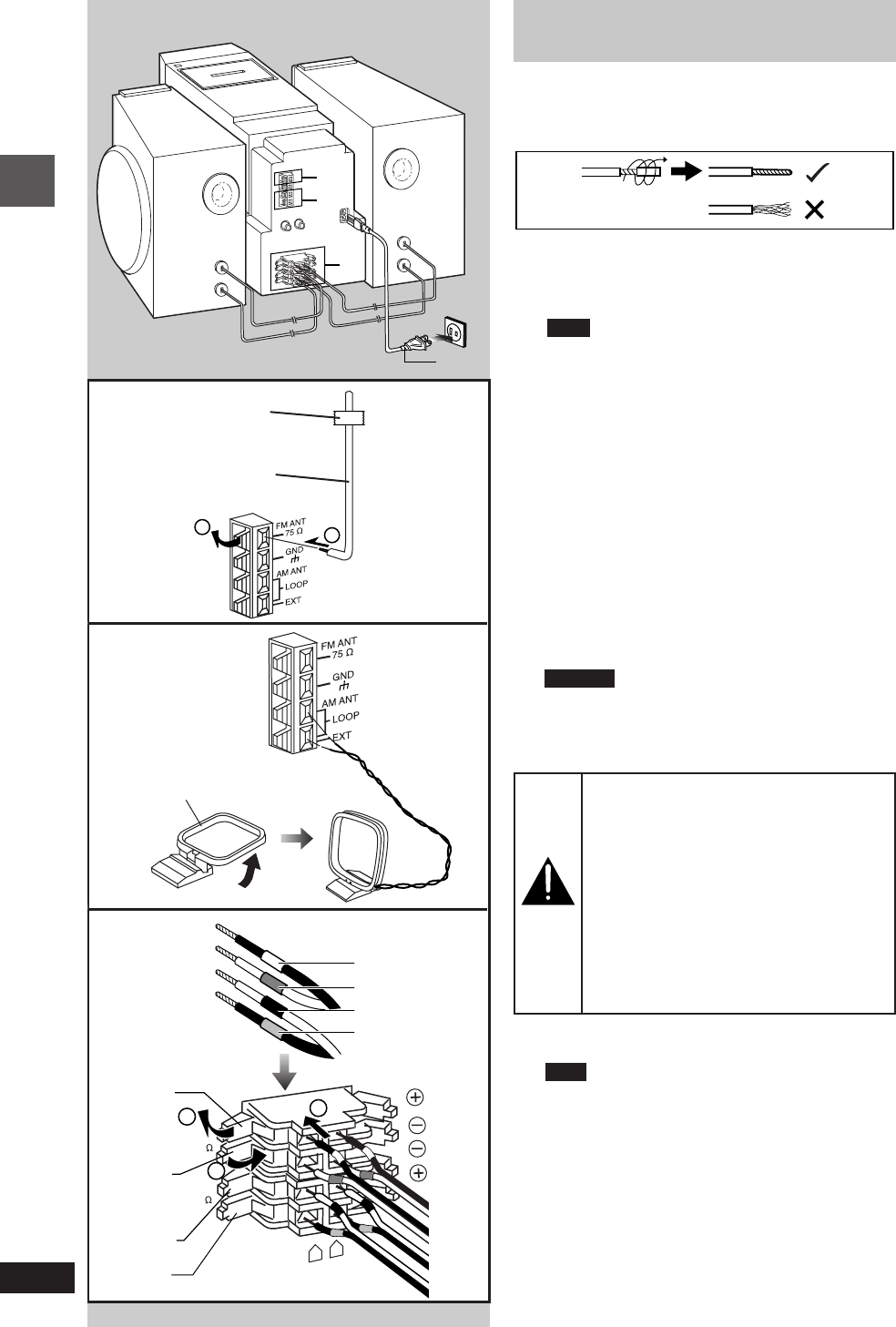

1Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position
where radio signals are received with the least amount
of interference.
Note
For the best reception:
An FM outdoor antenna is recommended. (\ page 7)
2Connect the AM loop antenna.
Stand the antenna up on its base. Keep loose antenna
cord away from other wires and cords.
3Connect the speaker cords.
AConfirm the colors of the tags on the ends of the
cords.
BFor White tags:
Connect cords to gray terminals.
For Blue, Black and Red tags:
Connect cords so tag colors match the terminal
colors.
Cords with white and blue tags are for high frequency.
Cords with red and black tags are for low frequency.
Incorrect connection can damage the unit.
Caution
Use only the supplied speakers.
The combination of the main unit and speakers provide
the best sound. Using other speakers can damage the
unit and sound quality will be negatively affected.
4Connect the AC power supply cord.
Note
The included AC power supply cord is for use with this
unit only. Do not use it with other equipment.
Red (ªª
ªª
ª)
Black (··
··
·) Black (··
··
·)
Red (ªª
ªª
ª)
1
2
3
AM loop antenna
Adhesive
tape
FM indoor
antenna
12
R
L
LOW(6 )
HIGH(6 )
Blue (–)
Red (+)
Gray (+)
White
Blue
Black
Red
A
B
Black (–)
(R)
(L)
1
2
3
4
1
3
2
Caution
•Use the speakers only with the
recommended system. Failure to do
so may lead to damage to the
amplifier and/or the speakers, and
may result in the risk of fire.
Consult a qualified service person if
damage has occurred or if you
experience a sudden change in
performance.
•Do not attach these speakers to walls
or ceilings.
RQT6530(2-10).p65 5/9/2002, 6:37 PM6
RQT6530
7
Before use
Connections

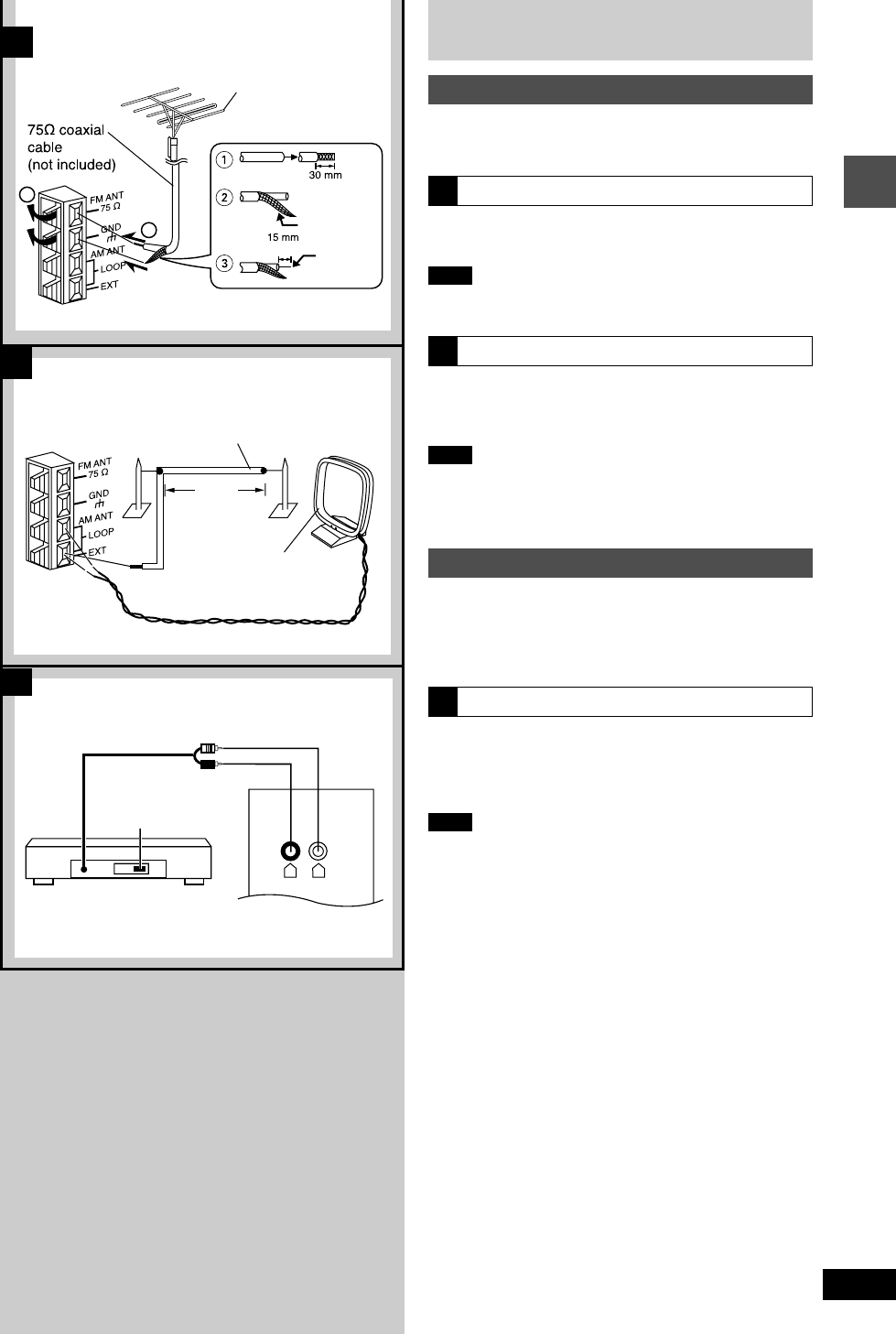

Optional antenna connections
You may need an outdoor antenna if you use this system in
a mountainous region or inside a reinforced-concrete
building, etc.
FM outdoor antenna
Disconnect the FM indoor antenna if an FM outdoor
antenna is installed.
Note
An outdoor antenna should be installed by a qualified
technician only.
AM outdoor antenna
Connect the outdoor antenna without removing the AM loop
antenna. Run 5 to 12 m of vinyl-covered wire horizontally
along a window or other convenient location.
Note
When the unit is not in use, disconnect the outdoor antenna
to prevent possible damage that may be caused by
lightning. Never use an outdoor antenna during an electrical
storm.
External unit connections
•Make sure that the power supply for all components has
been turned off before making any connections.
•For details, refer to the operating instructions of the unit
which is to be connected.
•All peripheral components and cables sold separately.
Connecting analog equipment
This example shows how to connect an analog player with a
PHONO OUT/LINE OUT switch.
When units other than those described are to be connected,
please consult your audio dealer.
Note
•Only an analog player with a built-in phono equalizer can
be connected.
•Set the switch to the “LINE OUT” position at the back of
the analog player.
A
B
C
A
B
C
AUX
(L)
(R)
AM outdoor antenna
(not included)
AM loop antenna
(included)
Shield braid
Core wire
FM outdoor antenna
(not included)
5-12 m
Analog player (not included)
"LINE OUT"
position
Rear panel of this unit
L
R
1
2
(1
3/16"
)
(
19/32"
)
RQT6530(2-10).p65 5/9/2002, 6:37 PM7
RQT6530
8
Before use

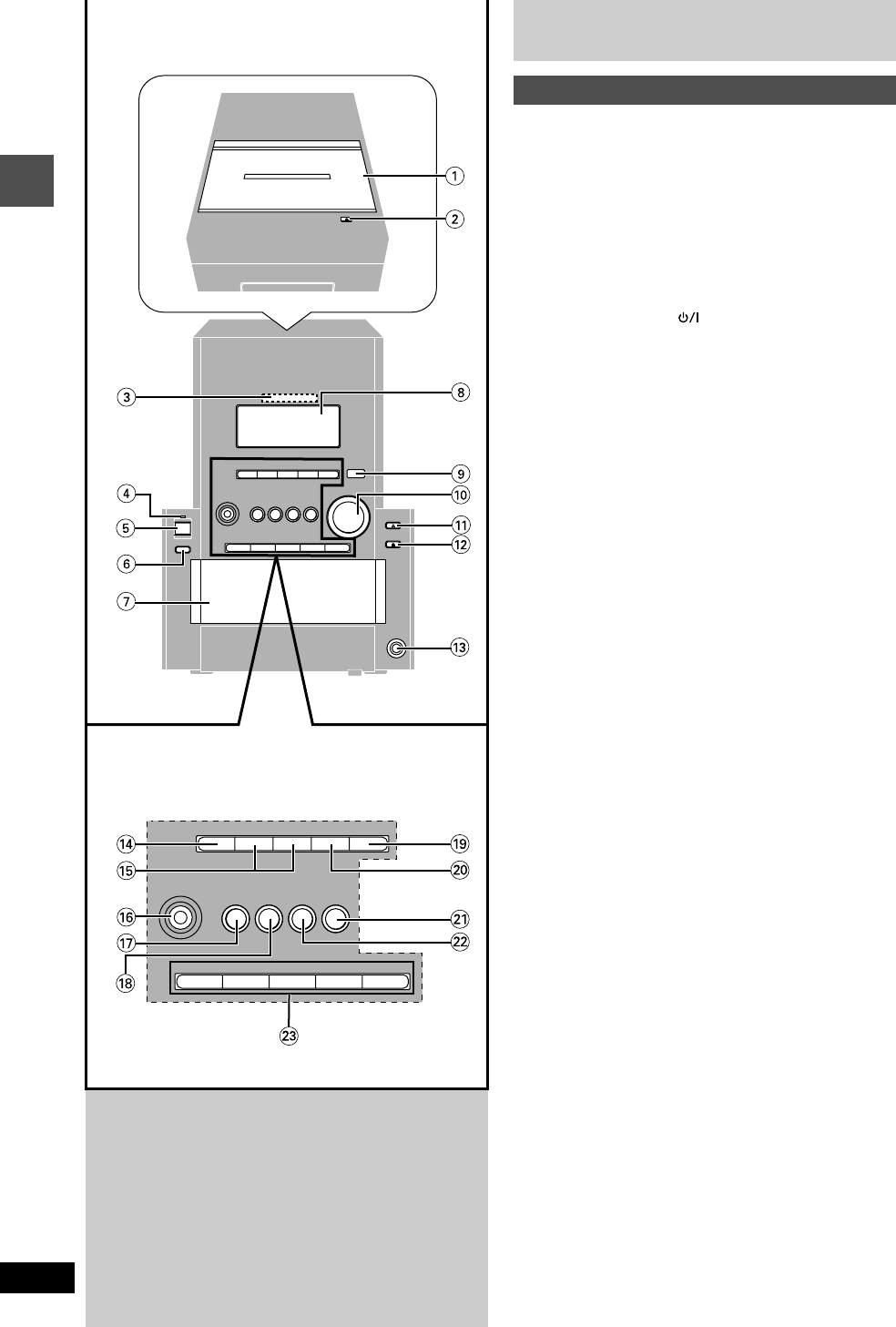

Front panel controls
Main unit
11
11
1Cassette lid
22
22
2Cassette open button (c OPEN) ........................... 19
33
33
3Tape indicator
This indicator changes in the following manner:
a Orange (when no cassette is inserted.)
b Green (when cassette is inserted.)
c Red (when in recording mode.)
44
44
4AC supply indicator (AC IN)
This indicator lights when the unit is connected to the
AC mains supply.
55
55
5Standby/on switch (
POWER)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a
small amount of power.
66
66
6CD check button (CD CHECK) ............................... 13
77
77
7CD trays
88
88
8Display
99
99
9Remote control signal sensor
!!
!!
!Volume control (VOLUME DOWN, UP) ..... 10, 12, 19
""
""
"CD tray open/close button (c OPEN/CLOSE) ...... 12
##
##
#CD change button (c CD CHANGE) ..................... 13
$$
$$
$Headphone jack (PHONES).................................... 22
%%
%%
%Preset EQ select button (PRESET EQ) ................. 22
&&
&&
&CD skip/search, tape fast-forward/rewind/TPS, tune/
preset channel select, time adjust buttons
(44
44
4/REW/ g, 33
33
3/FF/f ) .............. 10, 11, 12, 19, 24
((
((
(Super sound EQ button (SUPER SOUND EQ) ..... 22
))
))
)Aux button (AUX) .................................................... 22
~~
~~
~Tuner/band select button (TUNER/BAND)............ 10
++
++
+Recording start/pause button ([ REC/ J ) ............ 21
,,
,,
,Stop/program clear and demonstration button
(L/–DEMO) ............................................. 12, 18, 19, 23
--
--
-CD play/pause button (2/ J CD) ............................ 12
..
..
.Cassette play button (2TAPE).............................. 19
//
//
/Disc direct play buttons (CD 1~CD 5)............. 12, 13
PRESET EQ 4/REW/g3/FF/fL/–DEMO [REC/J
AUX
CD 1 CD 2 CD 3 CD 4 CD 5
TUNER/
BAND
TAPE
£
CD
-
/
J
CD CHECK
OPEN/CLOSE
CD CHANGE
PHONES
AC IN
PRESET EQ 4/REW/g3/FF/fL/–DEMO [REC/J
SUPER SOUND EQ AUX
CD 1 CD 2 CD 3 CD 4 CD 5
TUNER/
BAND
TAPE
£
DOWN
VOLUME
UP
CD
-
/
J
POWER
f
/
7
SUPER SOUND EQ
OPEN
RQT6530(2-10).p65 5/9/2002, 6:37 PM8
RQT6530
9
Before use
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
45610
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S.SOUND EQ PRESET EQ
VOLUME
?
@
[
.
&
-
\]
^
=
5
:
;
<
~
(
)
!
%
ALBUM
>
_
Front panel controls
Remote Control
Buttons such as function in exactly same way as the
buttons on the main unit.
::
::
:Sleep timer/auto off button
(SLEEP, –AUTO OFF) ....................................... 23, 27
;;
;;
;Numeric buttons ( 10, 1–9, 0) ......................... 11, 17
<<
<<
<Display button (DISPLAY) ................................ 15, 17
==
==
=Dimmer button (DIMMER) ...................................... 24
>>
>>
>Album button (ALBUM) .......................................... 15
??
??
?Clock/timer button (CLOCK/TIMER).......... 24, 25, 26
@@
@@
@Play timer/recording timer button
(˚˚
˚˚
˚PLAY/˚˚
˚˚
˚REC) ....................................................... 25
[[
[[
[Disc button (DISC) .................................................. 16
\\
\\
\CD Program, tuner preset button
(PROGRAM) ...................................................... 11, 18
]]
]]
]Play mode select button
(PLAY MODE) ........................................ 10, 16, 17, 21
Use this for selecting repeat mode, CD play mode, tune
mode, FM mode and AM beat proof function.
^^
^^
^Stop/program clear button (L/CLEAR) .... 12, 18, 19
__
__
_Muting button (MUTING) ....................................... 24
RQT6530(2-10).p65 5/9/2002, 6:37 PM9
RQT6530
10
Before use

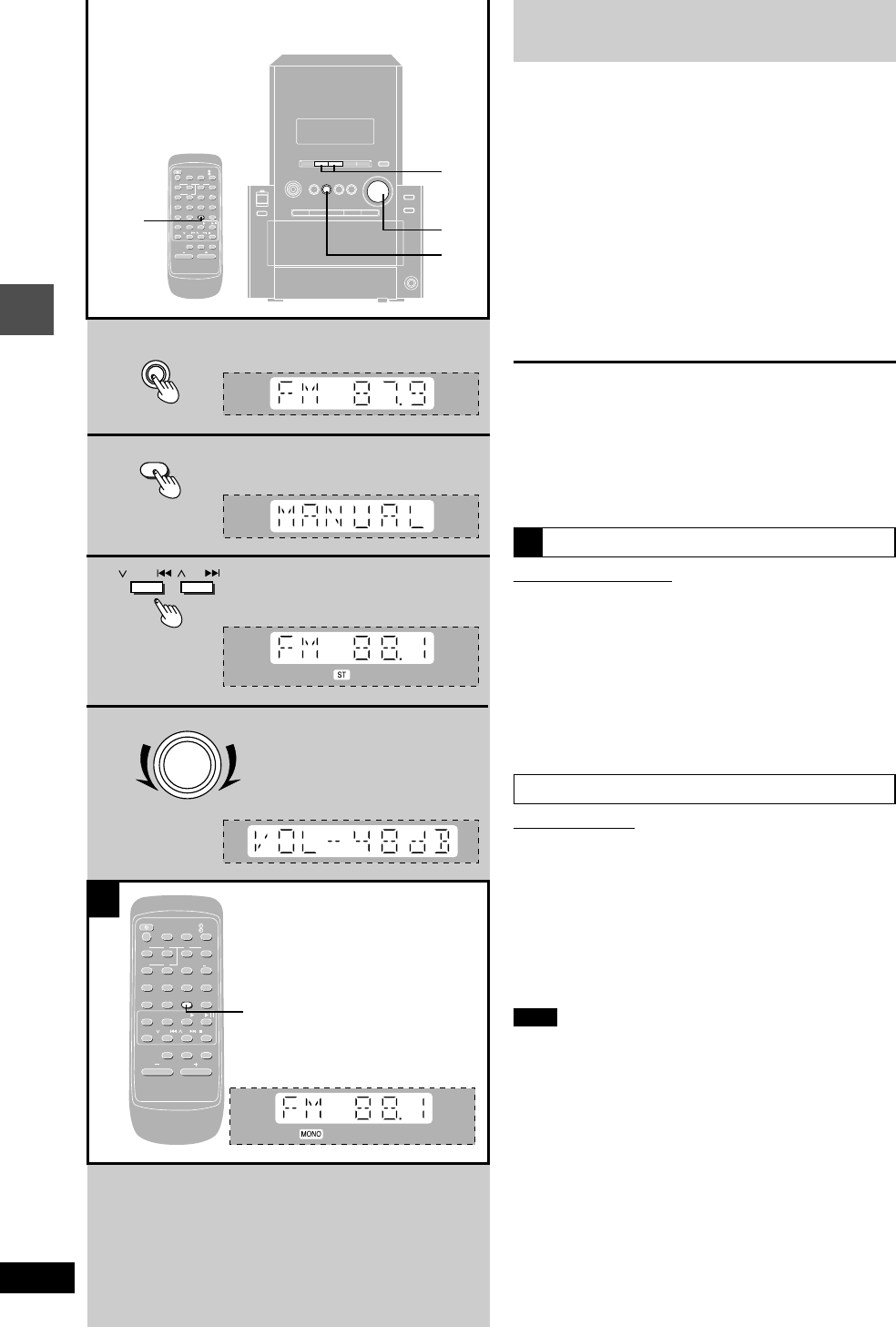

The radio: manual tuning
1Press [TUNER/BAND] to select “FM” or “AM”.
The unit comes on automatically.
Every time you press the button:
FM ↔ AM
2Press [PLAY MODE] on the remote control to
select “MANUAL”.
Every time you press the button:
MANUAL ↔ PRESET
3Press [44
44
4/REW/g] or [33
33
3/FF/f] to select
the frequency of the required station.
“ST” is displayed when a stereo FM broadcast is being
received.
4Adjust the volume.
Auto tuning
Press and hold [44
44
4/REW/ g ] or [33
33
3/FF/ f] for a moment
until the frequency starts changing rapidly. The unit begins
auto tuning, stopping when it finds a station.
•Auto tuning may not function when there is excessive
interference.
•To cancel auto tuning, press [44
44
4/REW/ g ] or [33
33
3/FF/ f ]
once again.
If noise is excessive in FM
By remote control only
Press and hold [PLAY MODE] to display
“MONO”.
This mode improves sound quality if reception is weak, but
broadcasts will be heard in monaural.
Press and hold [PLAY MODE] again to cancel the mode.
“MONO” goes out. MONO is also cancelled if the frequency
is changed.
Turn off “MONO” for normal listening. Stereo and monaural
broadcasts are automatically played as they are received.
FM allocation setting
By main unit only
By adjusting the allocation, you can enable this tuner to
receive FM broadcasts allocated in 0.1 MHz steps.
Press and hold [TUNER/BAND]. After a few seconds, the
display will change to a flashing display of the current mini-
mum FM frequency. If you continue to hold the button down,
the minimum frequency will change. Release the button at
this time.
To return to the original frequency indication, repeat above.
Note
•After changing the “allocation” setting, the frequencies you
previously preset in the memory will be cleared.
•Sound is momentarily interrupted if you load/unload a
cassette while listening to an AM broadcast.
A
2
3
4
1
/
REW
///
FF
PLAY MODE
VOLUME
DOWN UP
TUNER/
BAND
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥10
7890
DISPLAY DIM MER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR/CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥
10
7890
DISPLAY DI MMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
PLAY MODE
2
3
4
1
A
Listening operations
RQT6530(2-10).p65 5/9/2002, 6:37 PM10
RQT6530
11
Listening operations

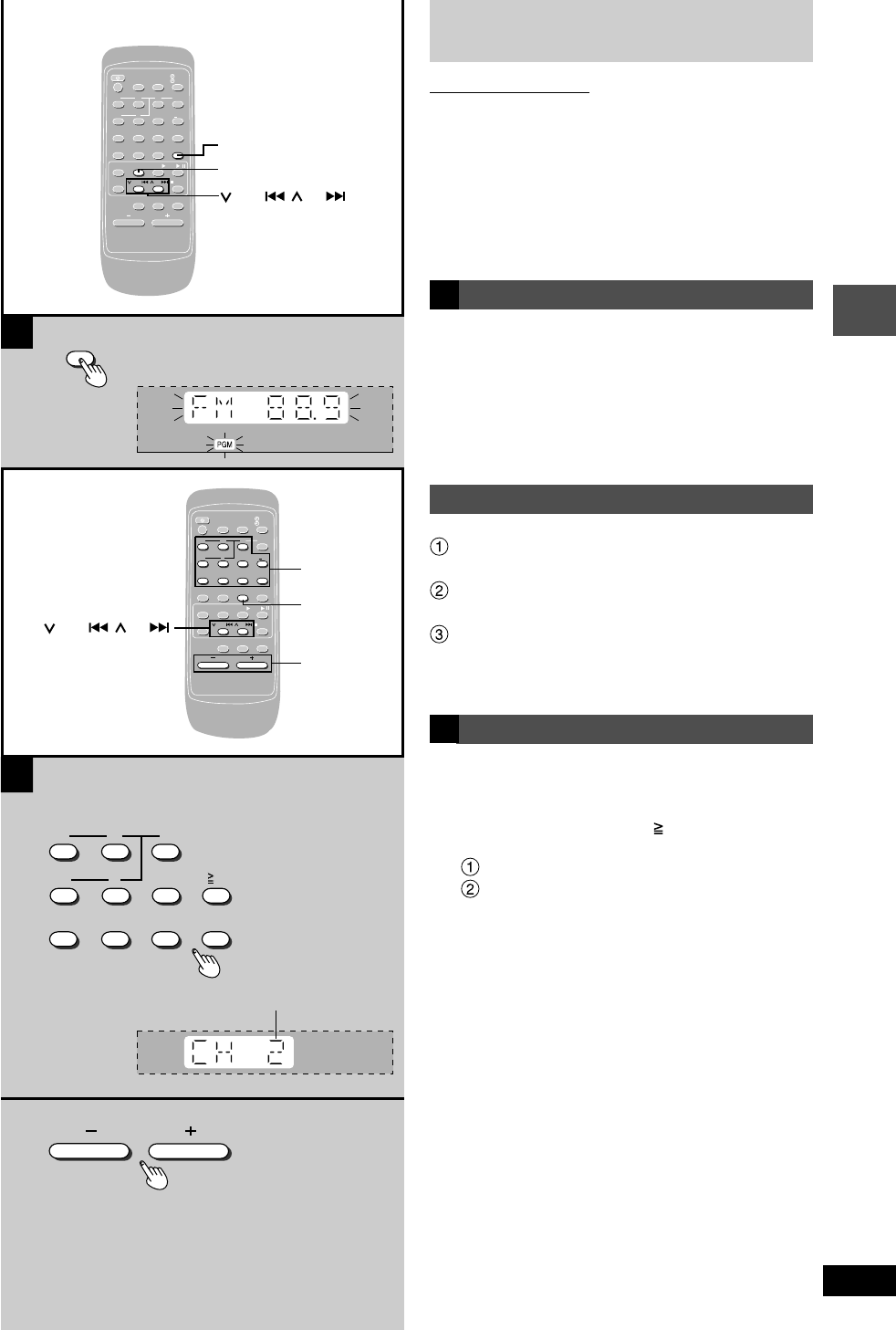

The radio: preset tuning
By remote control only
There are two methods of pre-setting stations.
Automatic presetting: All the stations the tuner can
receive are preset.
Manual presetting: You can select the stations to pre-
set and the order they are preset
in.
Up to 15 stations each can be set in the FM and AM bands.
Preparation:
Press [TUNER] to select “FM” or “AM”.
AAutomatic pre-setting
Do the following once each for FM and AM.
Preparation:
Tune to the frequency where pre-setting is to begin (\ page
10).
Press and hold [PROGRAM].
The tuner presets all the stations it can receive into the
channels in ascending order. When finished, the last station
memorized is tuned in.
Manual pre-setting
Pre-set the stations one at a time.
Press [PROGRAM] then press [44
44
4/REW/
g]
or [33
33
3
/FF/f] to tune to the required station.
Press [PROGRAM] then press [44
44
4/REW/
g]
or [33
33
3
/FF/f] to select a channel.
Press [PROGRAM].
The station occupying a channel is erased if another station
is preset in that channel.
BSelecting channels
1Press the numeric buttons to select the
channel.
For channels 1 to 9, press the corresponding number.
For channels 10 to 15, press [ 10], then the two digits.
OR
Press [PLAY MODE] to select “PRESET”.
Press [44
44
4/REW/g] or [33
33
3/FF/f] to
select the channel.
2Adjust the volume.
A
B
1
2
123
45610
7890
VOLUME
PROGRAM
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
PROGRAM
/REW/ /FF/
TUNER
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
PLAY MODE
/REW/ /FF/
1
2
,
,
Preset channel
RQT6530(11-15).p65 5/9/2002, 6:39 PM11
RQT6530
12
Listening operations

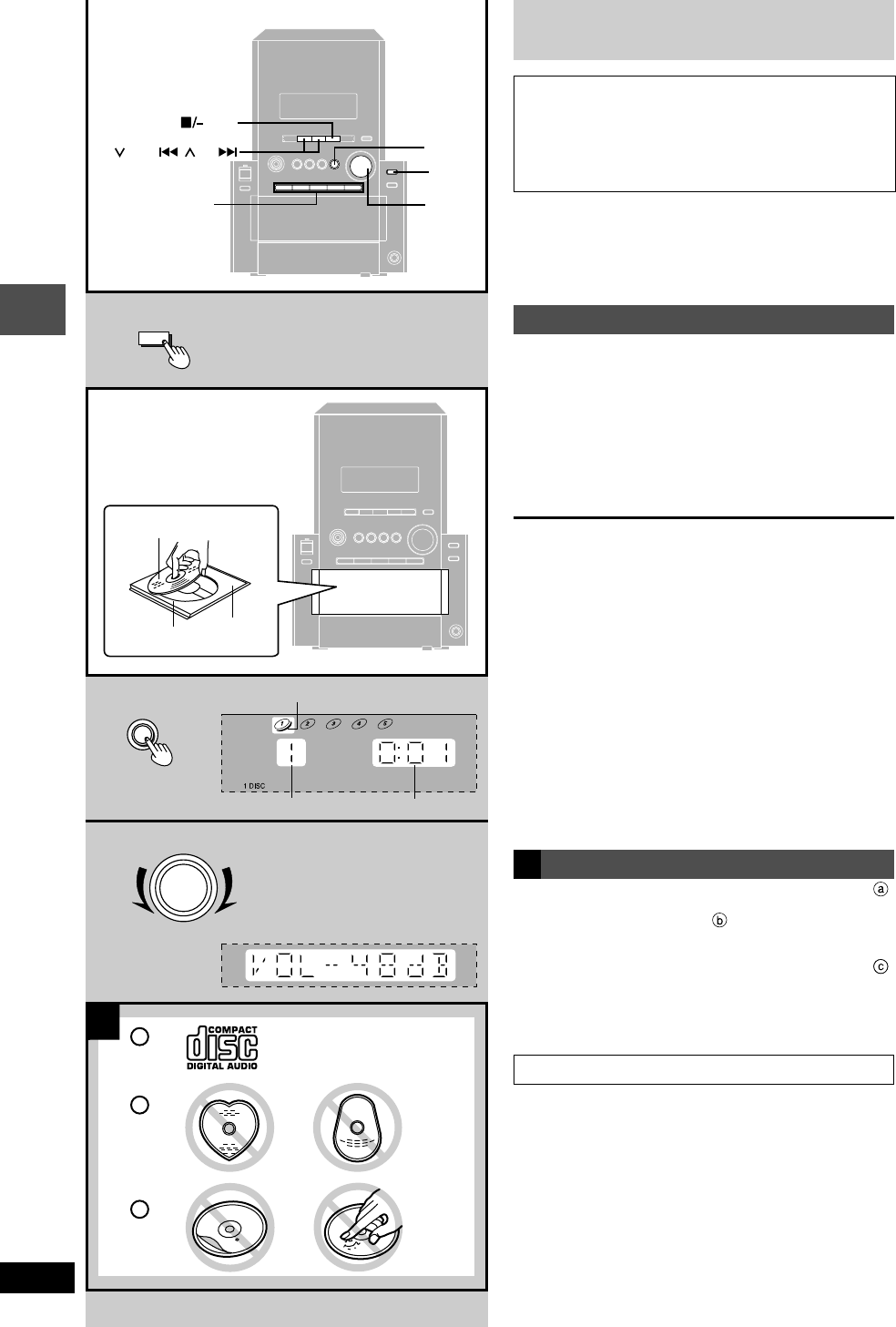

CDs
This unit can play CD-DA (digital audio), MP3 and
WMA format audio CD-R and CD-RW that have been
finalized (a process that enables CD-R/CD-RW
players to play audio CD-R and CD-RW) upon
completion of recording.
It may not be able to play some CD-R or CD-RW due to
the condition of the recording.
The unit contains five CD trays.
You can simply listen to the CD on a single tray, or you
can select and listen to the CD in a particular tray. See
the section on All-Disc play (\ page 16) for information
on how to listen to all the CDs one after the next.

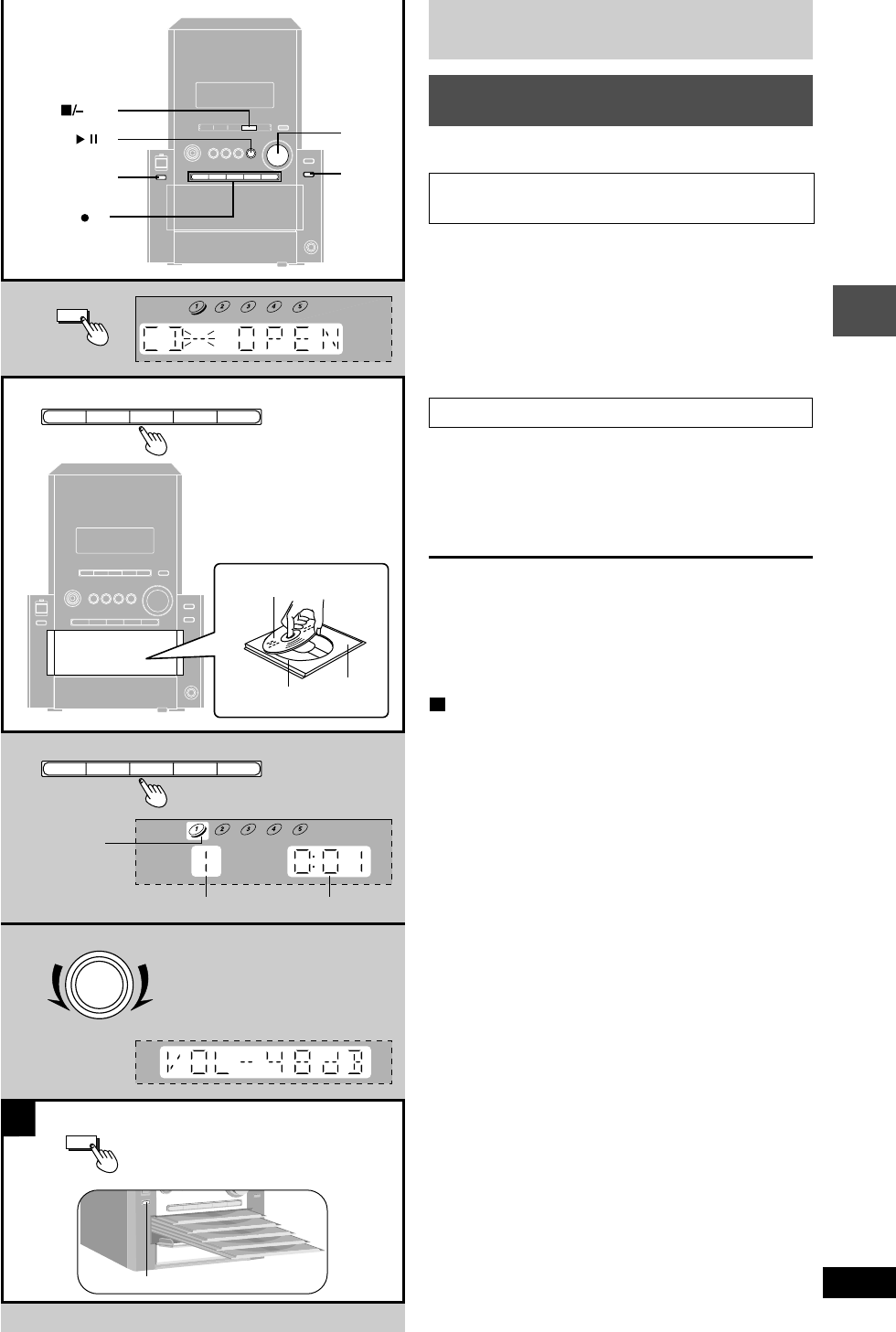

Listening to the CD on a single tray
1Press [c OPEN/CLOSE] to open the disc tray
and insert the CD.
The unit comes on automatically and tray 1 opens.
Press [c OPEN/CLOSE] again to close the tray.
2Press [2/
J CD] to start play.
The selected CD is played from the first track to the last
track in order. After the last track, the player stops
automatically.
3Adjust the volume.
To stop the disc
Press [L/–DEMO].
To pause play
Press [2/J CD]. Press [2/J CD] again to resume play.
Skipping tracks
Press [44
44
4/REW/ g] (backward) or [33
33
3
/FF/ f] (forward).
Searching through tracks
During play or pause
Press and hold [44
44
4/REW/g] (backward) or [33
33
3/FF/f]
(forward).
CD indicator
The CD indicator on the display lights whenever the tray is
in the playing position whether it is loaded or not.
One touch play
If the unit is in standby mode and a CD is loaded, press
[2/J CD] or [CD 1] ~ [CD 5].
The unit will come on automatically and play will start.
ACD selection and care
With this system, you can only play CDs having this mark. ( )
Do not;
•use irregularly shaped CDs. ( )
•attach extra labels and stickers.
•use CDs with labels and stickers that are coming off or
with adhesive exuding from under labels and stickers. ( )
•attach scratch-proof covers or any other kind of accessory.
•write anything on the CD.
•clean CDs with liquids. (Wipe with a soft, dry cloth.)
•use CDs printed with labels available on the market.
To prevent damage
Always observe the following points.
•Set the system on a flat, level surface.
Do not set it on top of magazines, inclined surfaces, etc.
•Do not move the system while tray is opening/closing, or
when loaded. Always unload all CDs before moving the
system.
•Do not put anything except a CD in the tray.
•Do not use cleaning CDs or CDs which are badly warped
or cracked.
•Do not disconnect the power cord from the household AC
outlet during CD changing operation.
A
1
2
3
VOLUME
DOWN UP
a
2
1
b
c
OPEN/CLOSE
//
REW
(CD 1)
~
(CD 5)
/ , /
FF
3
CD
-/J
DEMO
c
1
CD indicator
Elapsed play time
Disc tray
Label must face upward.
Track number
Tray
number
RQT6530(11-15).p65 5/9/2002, 6:39 PM12
RQT6530
13
Listening operations
1
2
3
4
VOLUME
DOWN UP
2 3
CD CHANGE
CD 1 CD 2 CD 3 CD 4 CD 5
CD CHECK
A
CD CHECK
1
CD CHECK
4
CD 1 CD 2 CD 3 CD 4 CD 5
DEMO
1
CD
/
c
CD indicator
Elapsed play time
Track number
Disc tray
Label must face upward.
Tray
number
CDs
Listening to a CD placed in a
specific tray
Preparation: Press [2/J CD] and then [L/–DEMO].
Selecting the desired tray number and placing
a CD in it
1Press [c CD CHANGE].
2(Within about 10 seconds)
Press [CD 1] – [CD 5] to open the tray and
insert the CD.
Press [c CD CHANGE] again to close the tray.
Repeat steps 1 and 2 to insert other CDs. You can load
up to 5 CDs.
Listening to the CD placed in a specific tray
3Press [CD 1] – [CD 5] to start play.
The selected CD is played from the first track to the last
track in order. After the last track, the player stops auto-
matically.
4Adjust the volume.
To remove the CD
While one CD is playing (except in All-Disc Random play or
program play), you can change the CDs in the other trays.
1 Press [c CD CHANGE].
2 Press [CD 1] – [CD 5].
Press [c CD CHANGE] again to close the tray.
A To check which tray the CD is in (CD CHECK)
The CD check feature lets you check whether a 12cm CD is
in a tray.
Press [CD CHECK].
If the player is stopped, all trays will open.
If a CD is being played, the corresponding tray will not open.
Press [CD CHECK] again to close the trays.
• Do not remove or insert CDs during a CD check.
• Do not pull out the trays during a CD check.
RQT6530(11-15).p65 5/9/2002, 6:39 PM13
RQT6530
14
Listening operations
CDs

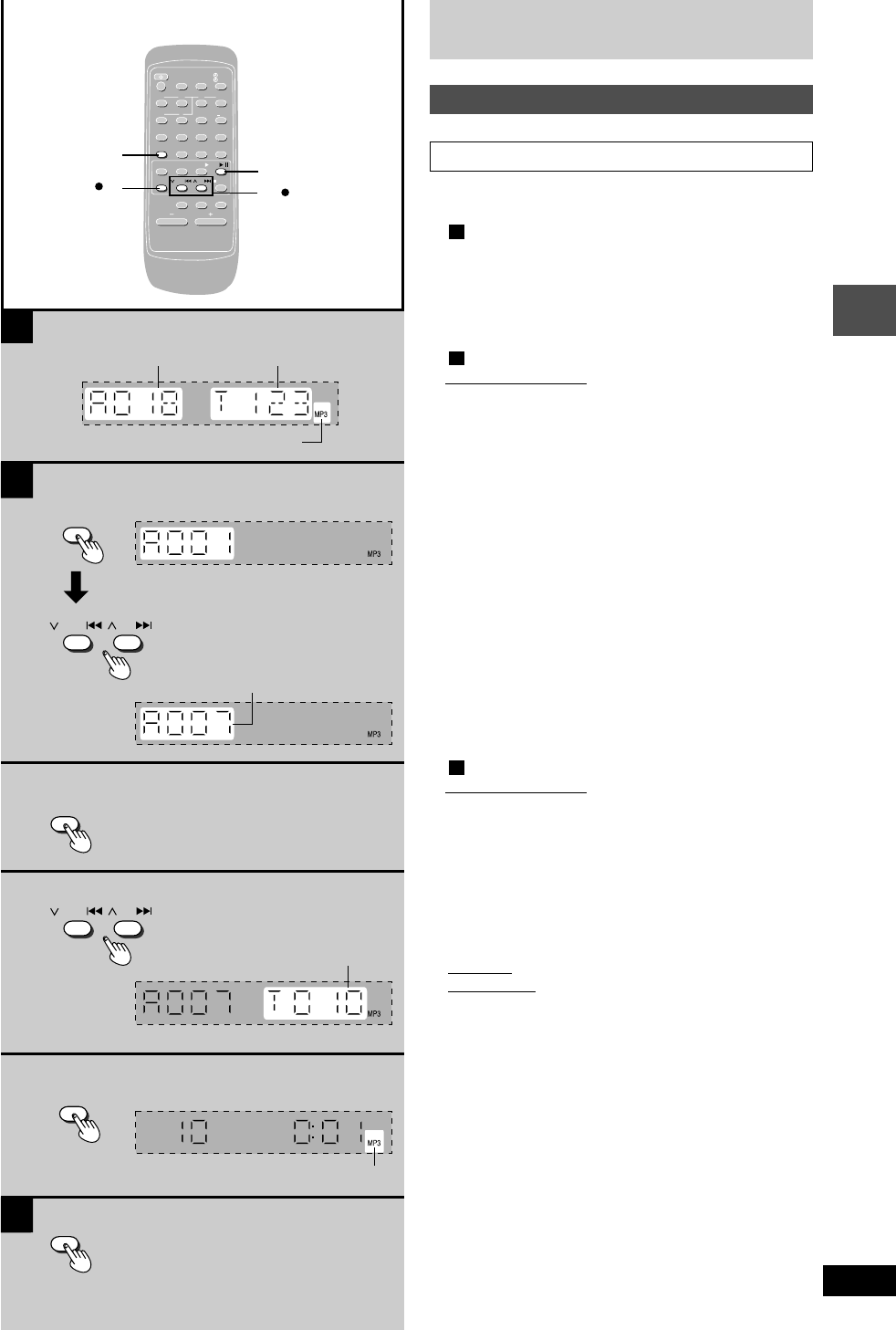

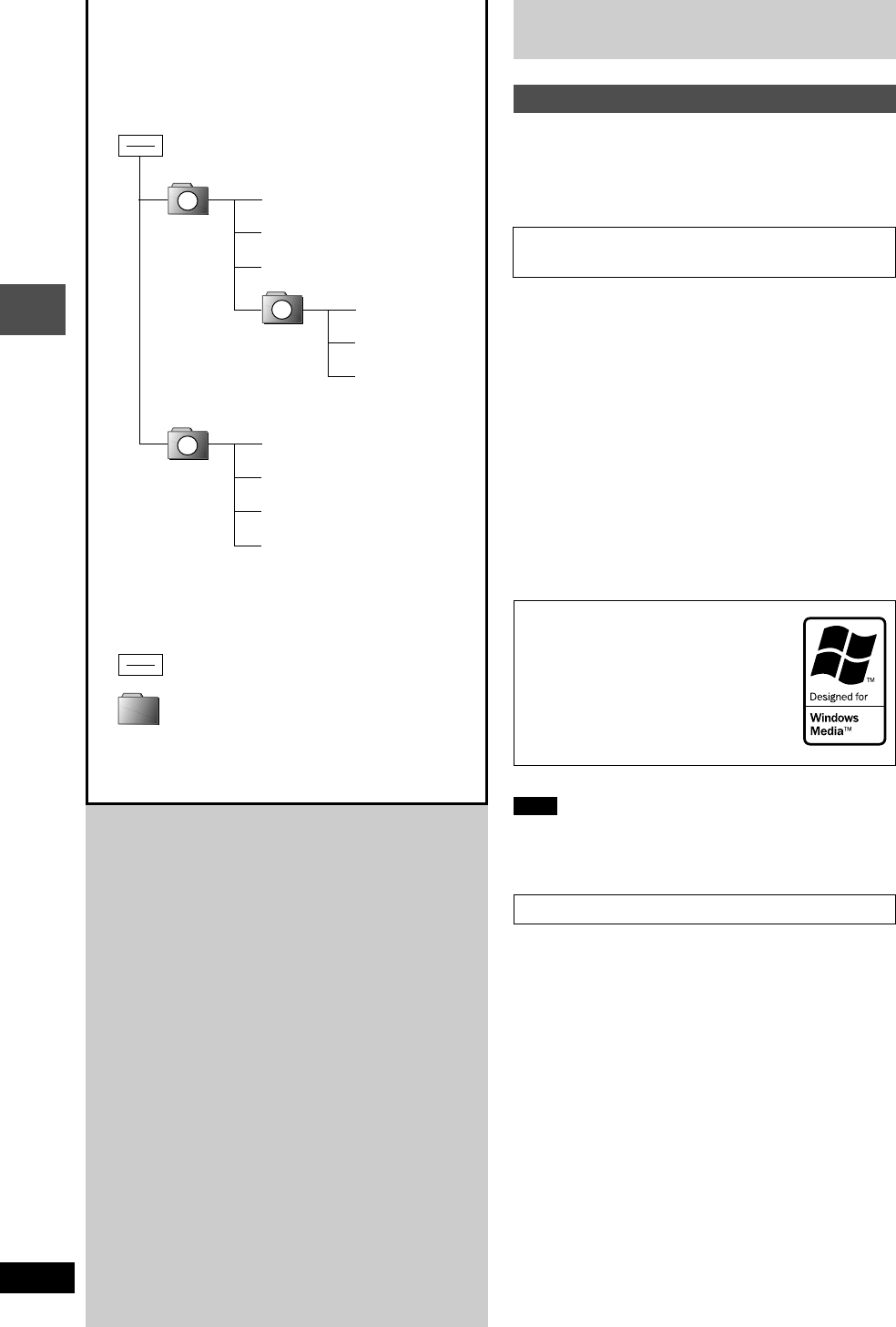

Playing MP3/WMA
This unit can play MP3 and WMA files recorded on CD-R/
RW with a computer.
Files are treated as tracks and folders are treated as
albums.
When making MP3/WMA files to play on this
unit
Disc format
Discs must conform to ISO9660 level 1 or 2 (except for
extended formats).
File format
•MP3 files must have the extension “.MP3” or “.mp3”.
•WMA files must have the extension “.WMA” or “.wma”.
To play in a certain order
Prefix the folder and file names with 3-digits numbers in the
order you want to play them.
Files may not be recorded in numbered order if the prefixes
have different numbers of digits. For example: 1????.mp3,
2????.mp3, 10????.mp3.
However, some writing software may also cause recording
to occur in a different order.
Windows Media, and the Windows logo
are trademarks, or registered trademarks
of Microsoft Corporation in the United
States and/or other countries.
WMA is a compression format developed
by Microsoft Corporation. It achieves the
same sound quality as MP3 with a file
size that is smaller than that of MP3.
Note
•When creating a WMA disc, ensure the copyright feature
is off.
•Noise may occur when playing WMA files.
Limitations on MP3/WMA play
•This unit is not compatible with packet-write format.
•This unit does not use ID tags.
•When both MP3/WMA and CD-DA data is recorded on the
disc over a number of sessions:
•If the first session contains MP3/WMA recordings, the unit
will play from the MP3/WMA made in that session till the
session before the first CD-DA recordings.
•If the first session contains CD-DA recordings, the unit will
play only the recordings made in that session. The
subsequent sessions will be ignored.
•Maximum number of displayable characters in the album
and track name is 31.
•You cannot use 1-Disc Random play, All-Disc Random play,
program play and search function.
•Some MP3/WMA may not be played due to the condition of
the disc or recording.
•Recordings will not necessarily be played in the order you
recorded them.
001
002
003
001????.mp3
002????.mp3
003????.mp3
001????.mp3
002????.mp3
003????.mp3
004????.mp3
001????.mp3
002????.mp3
003????.mp3
001????.mp3 : File (Track)
: Folder (Album)
: CD-ROM drive
Example: MP3
RQT6530(11-15).p65 5/9/2002, 6:39 PM14
RQT6530
15
Listening operations
CDs
Playing MP3/WMA
How discs with MP3/WMA differ from CDs
This unit can access up to 999 tracks, 255 albums and 20
sessions.
LA Display when in the stop mode (example)
• File format indicator
“MP3”: Indicates the disc contains MP3 files
“WMA”: Indicates the disc contains WMA files
If the disc contains both MP3 and WMA files, both “MP3”
and “WMA” will light up.
LB Starting play from a desired track in a desired album
Remote control only
1Press [ALBUM] and then (within 5
seconds) [
44
44
4/REW/
g] or [33
33
3
/FF/
f] to
select a desired album.
2Press [ALBUM] again.
3Press [44
44
4/REW/
g] or [33
33
3
/FF/
f] to select
a desired track.
4Press [CD 2/J] to start play.
Play starts from the selected track of the selected
album.
LWhen “NOT MP3/ERR0E1” appears on the display
An unsupported MP3 format is being played. The unit will
skip that track and play the next one.
LWhen “TRACK/PROTECTED” appears on the display
A copyright protected WMA format is being played. The unit
will skip that track and play the next one.
L
C
Changing the CD display
Remote control only
During play or pause
Press [DISPLAY] to select a desired CD
display mode.
Every time you press the button:
Elapsed play time → Remaining play time
Album name ← Track name
If you press the button when the track or album name
is scrolling
: The next display will be shown.
ends scrolling: The current display will be shown again.
To display album and track names
During play or pause
Press and hold [DISPLAY].
The album name(s) will scroll across the display from the
higher level of the hierarchy to the lowest (max. 8 levels),
then followed by the track name.
(“ROOT” is the highest hierarchical level.)
The previous display returns thereafter.
→
→
A
B
1
C
ALBUM
ALBUM
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥
10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
DISPLAY
1 3
4
1 2
3
4
2
DISPLAY
/REW/ /FF/
/REW/ /FF/
CD
-/J
Specified album number
Specified track number
Total album number
Total track number
(in all albums)
Format of file in play
File format indicator
RQT6530(11-15).p65 5/13/2002, 11:46 AM15
RQT6530
16
Listening operations
CDs
Listening to specific CDs and tracks
(CD Play Mode function)
By remote control only
This function makes it easier for you to select specific CDs
and tracks from those loaded in the player.
There are 5 disc/track selection modes.
All-Disc mode : Plays all loaded discs in succession
from the selected disc to the final
disc .
1-Song mode : Plays one selected track on the
selected disc.
1-Disc Random mode : Plays one selected disc in random
order.
All-Disc Random mode : Plays all loaded discs in random
order.
1-Disc mode : Plays one selected disc.

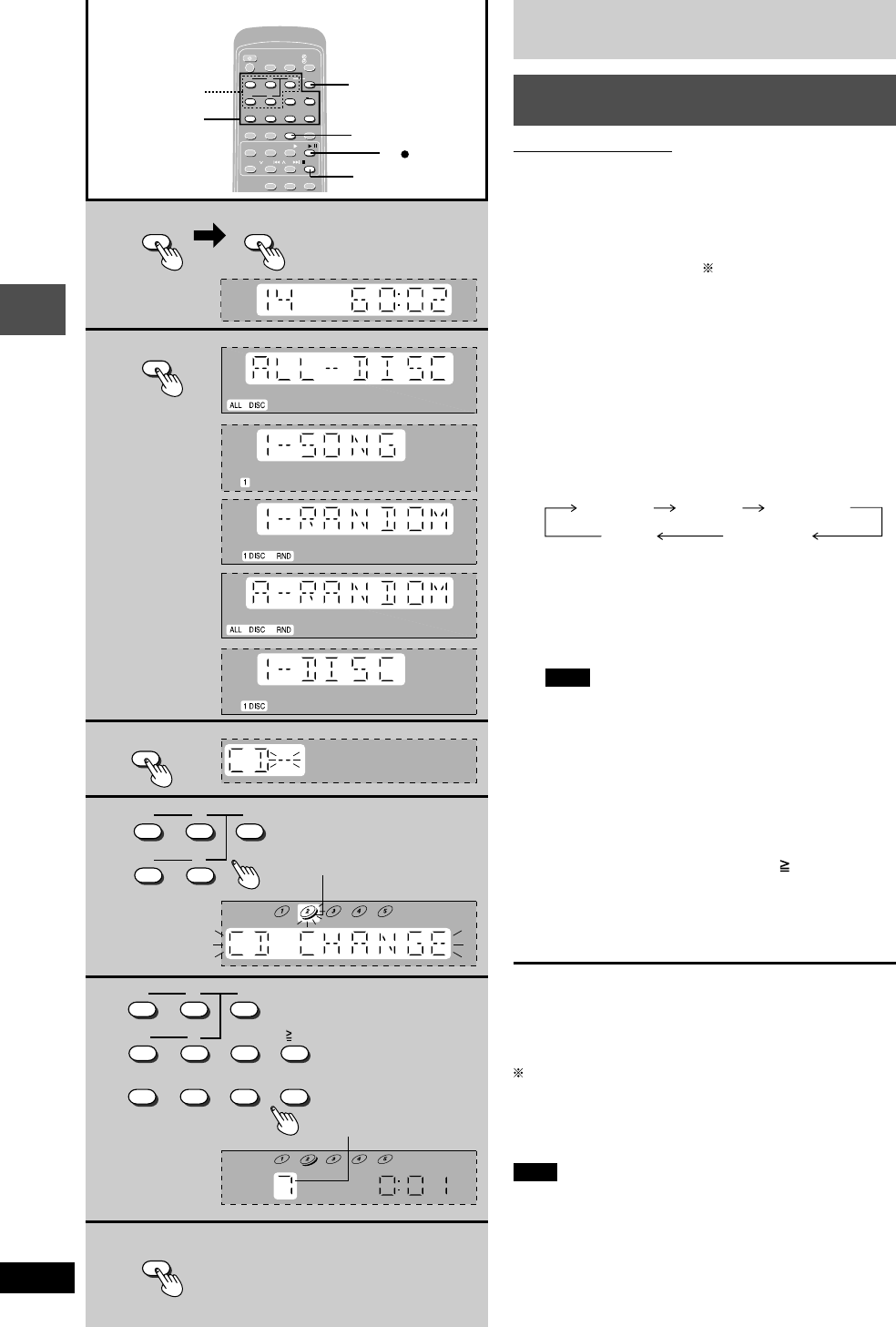

1Press [CD 2/J] and then [L
/CLEAR].
2Press [PLAY MODE] to select the desired
mode.
Every time you press the button:
1-RANDOM1-SONG
A-RANDOM
1-DISC
ALL-DISC
ALL-DISC : All-Disc mode
1-SONG : 1-Song mode
1-RANDOM : 1-Disc Random mode
A-RANDOM : All-Disc Random mode
1-DISC : 1-Disc mode
(The original display is restored in about 2 seconds.)
Note
Proceed to step 6 if A-RANDOM was selected in this
step.
3Press [DISC].
4(Within 10 seconds)
Press [1]-[5] to select the disc.
The CD starts.
5Only when you selected “1-SONG” in step 2
Select the track with the numeric buttons.
To select a track 10 or over, press [ 10] then the two
digits.
Play starts from the selected track.
6Only when you selected “A-RANDOM” in step 2
Press [CD 2/J] to start play.
To stop play
Press [L
/CLEAR].
When playback ends
The current play mode will be retained.
Final disc
For example, if play starts from disc 4, disc 3 will be the “final
disc”.
Order of progression:
Disc 4z5z1z2z3
Note
• You can use the CD Play Mode function together with repeat
play.
• During 1-Disc Random play or All-Disc Random play, you
cannot skip to tracks which have already been played.
• During 1-Disc Random play or All-Disc Random play, you
can search forward or backward only within the current
track.
4
1
2
6
3
/CLEAR
L
5
123
45
CD
-/J
CD
-/J
PLAY MODE
DISC
123
45610
7890
16
3
4
52
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥
10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
ALBUM
1
Specified disc indicator
Specified track number
RQT6530(16-22).p65 5/9/2002, 6:41 PM16
RQT6530
17
Listening operations
CDs

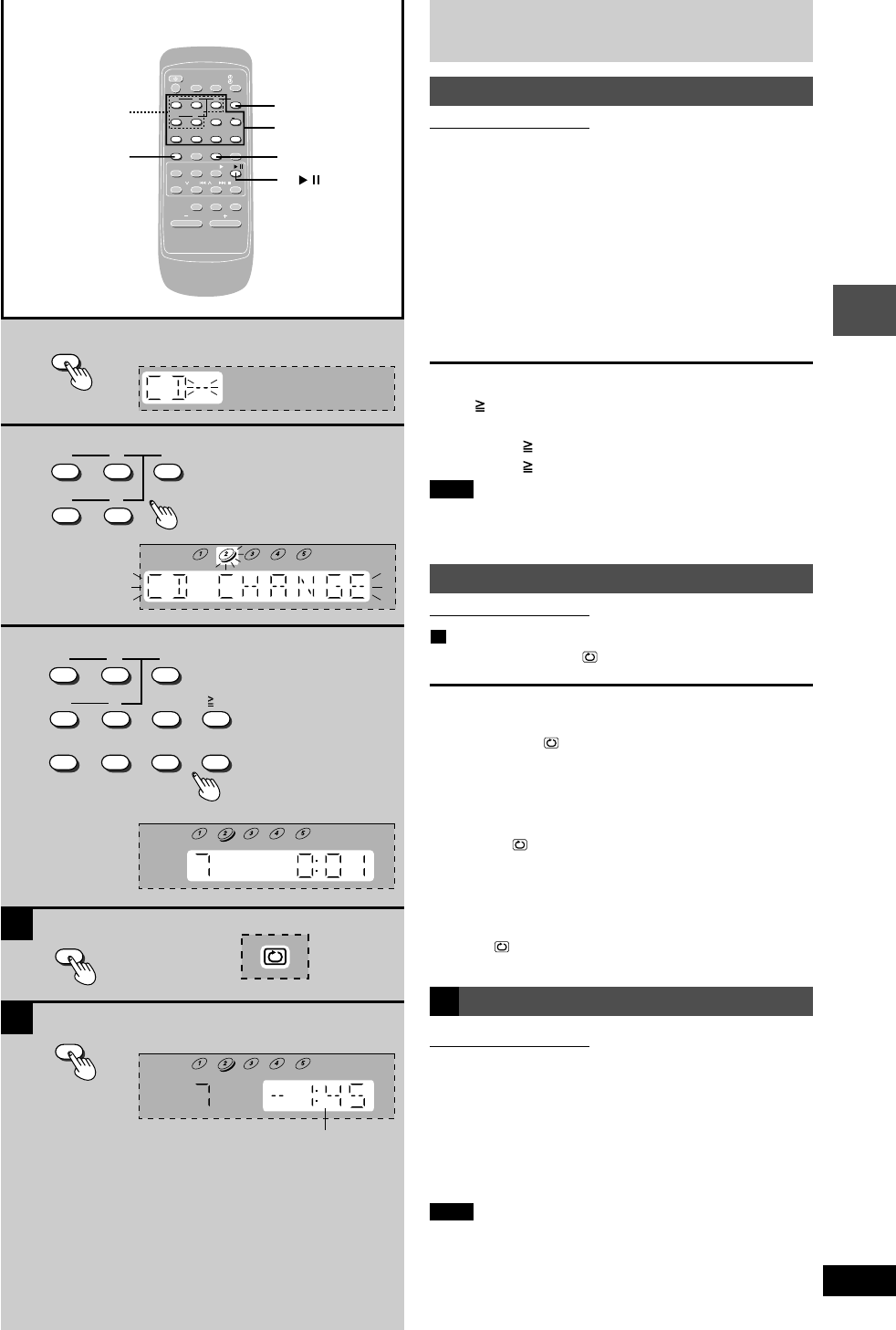

Direct access play
By remote control only
Direct access allows you to start normal play from a specific
track to the last track of the CD.
1Press [DISC].
2(within 10 seconds or so)
Press [1] – [5] to select the disc you want.
3Press the numeric button(s) to select the
desired track number.
Play will start with the track you select.
To select a two-digit track
Press [ 10] and then the two numbers you want.
For example
Track no. 20: [ 10]→[2]→[0]
Track no. 35: [ 10]→[3]→[5]
Note
You cannot use direct access play with 1-RANDOM or
A-RANDOM mode.
Repeat play
By remote control only
APress and hold [PLAY MODE] before or during play.
“REPEAT ON” and “ ” are displayed.
To cancel repeat play
Press and hold [PLAY MODE] once again. “REPEAT OFF”
is displayed and “ ” is cleared.
To repeat your favorite tracks
1. Program the tracks you want (perform steps 1 ~ 6 on
page 18.)
2. Press and hold [PLAY MODE] and make sure “REPEAT
ON” and “ ” are displayed.
3. Press [CD 2/J]. Playback will start.
To use repeat play with CD Play Mode function
Set the desired mode (A page 16), press and hold [PLAY
MODE] before or during playback, and make sure “REPEAT
ON” and “ ” are displayed.
B CD display
By remote control only
This function allows you to display the remaining play time
of the current track.
During play or pause mode
Press [DISPLAY].
Every time you press the button:
Elapsed play time ↔ Remaining play time
Note
When track number 25 or greater is playing, remaining play
time display shows “– –:– – ”.
A
B
1
2
3
123
45
DISC
PLAY MODE
DISPLAY
123
45610
7890
3
2
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥
10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
1
CD
PLAY MODE
/
DISPLAY
Remaining play time
RQT6530(16-22).p65 5/9/2002, 6:41 PM17
RQT6530
18
Listening operations
A
B
1
2
5
123
45
/CLEAR
L
CD
-/J
123
45610
7890
2
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
1
3
5
17
/REW/ , /FF/
7
CD
-/J
PROGRAM
3
4
DISC
4
ALBUM
CDs

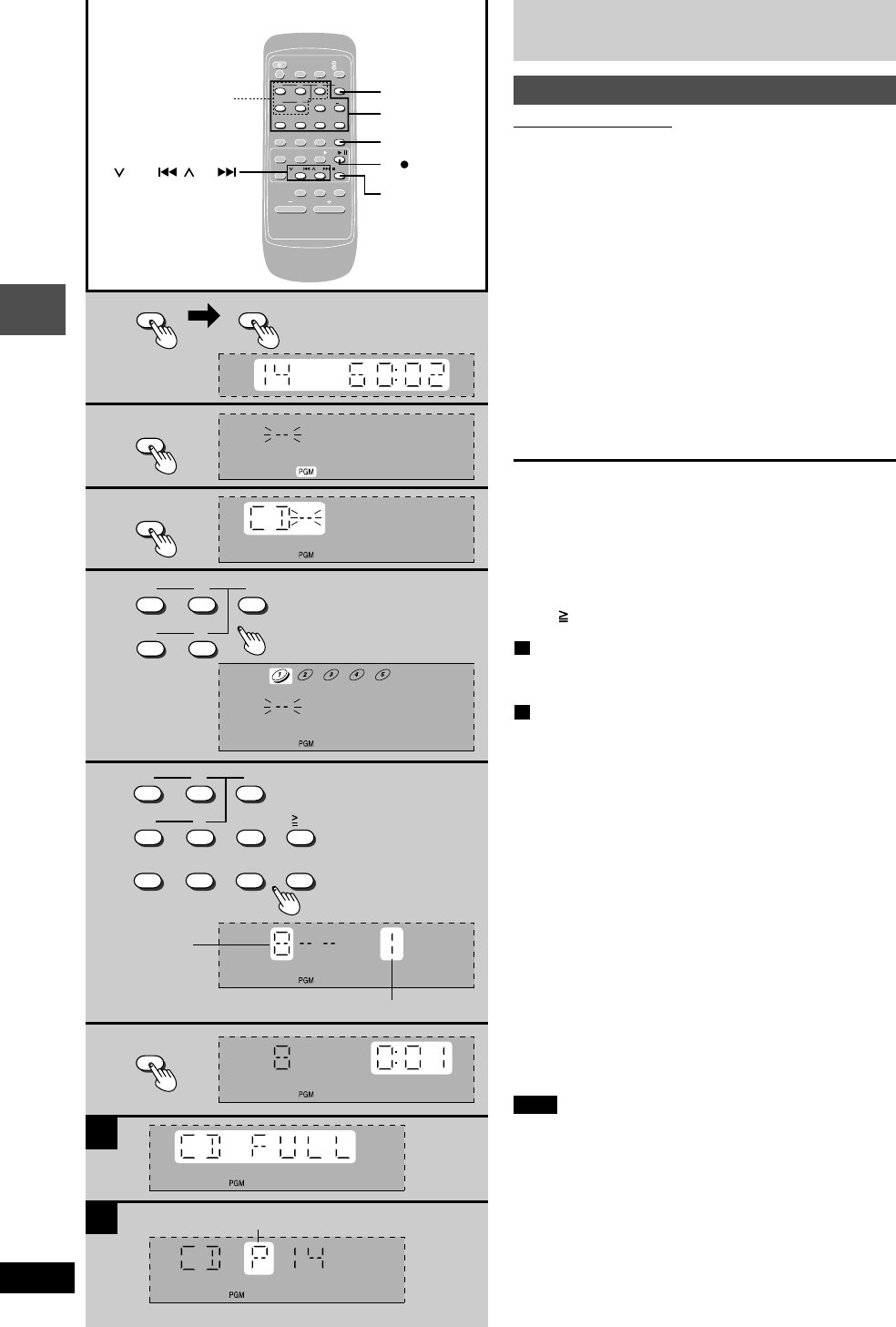

Program play
By remote control only
This function allows you to program up to 24 tracks.
1Press [CD 2/ J] and then [L /CLEAR].
2Press [PROGRAM].
3Press [DISC].
4(within 10 seconds or so)
Press [1] – [5] to select the disc you want.
5Press the numeric button(s) to select the
track you want to play in the desired
sequence.
6Repeat steps 3 through 5 until you have
programmed all the tracks you want.
7Press [CD 2/ J].
Play will start in the programmed sequence.
To cancel program play mode
Press [PROGRAM] in the stop mode.
Programmed contents will be saved in memory.
To clear all programmed tracks
Press [L
/CLEAR] in the stop mode. “CLEAR” is displayed.
To select a two-digit track
Press [ 10] and then the two numbers you want.
A When “CD FULL” appears
The number of programmed tracks is limited to 24. No
further tracks can be programmed.
B You can do the following during program mode:
•Check program contents.
Press [44
44
4/REW/
g] or [33
33
3/FF/f].
Every time you press one of the buttons, the track and
program No. are shown on the display.
•Add to the program.
Repeat steps 3 through 5.
Memory retention
Your program is retained in memory for about 1 week while
the system is unplugged.
To replay your program
If you turned OFF your program with [PROGRAM], you can
play it again as explained below.
1. Press [PROGRAM].
2. Press [CD 2/ J].
If you program a track not on your CDs
The track is initially programmed, but during program play,
the player will skip that track and will continue playing from
the next programmed item.
Note
•During program play, you can search forward or backward
only within the current track.
•During program play, skipping is always in the programmed
order, whether forward or backward.
Specified track
number
Program order
Indicates program mode
RQT6530(16-22).p65 5/9/2002, 6:41 PM18
RQT6530
19
Listening operations
1
2
3
TAPE
VOLUME
DOWN UP
B
OPEN
2
3
1
//
REW
/ , /
FF
OPEN
c
DEMO

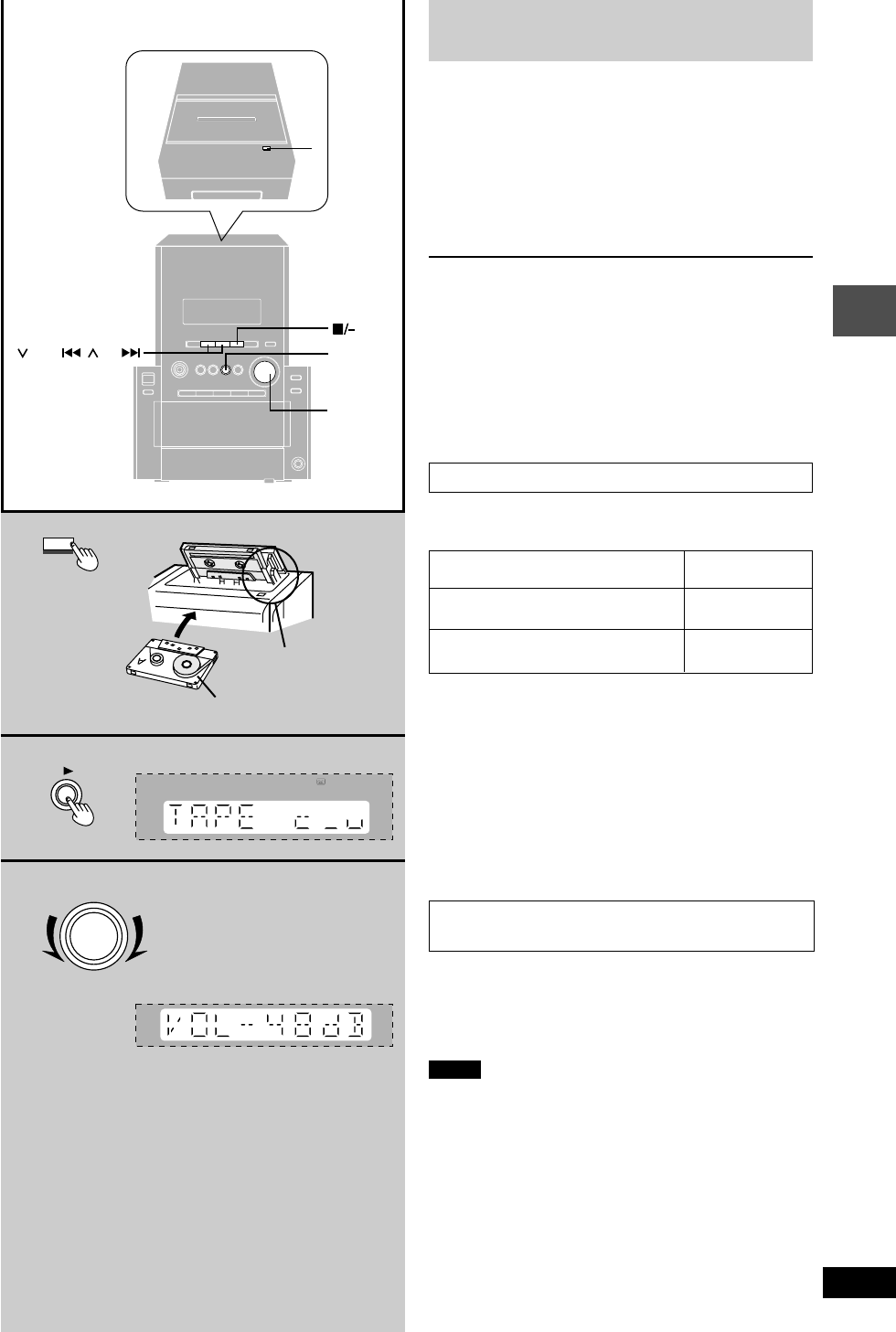

Cassette tapes
1Press [c OPEN], insert a cassette with the
tape facing in.
When the button is pressed, the unit comes on
automatically.
Make sure the cassette is fully inserted and close the
lid by hand.
2Press [3TAPE ] to start playback.
3Adjust the volume.
To stop tape playback
Press [L/–DEMO].
One-touch play
When the system is OFF and a cassette is already inserted,
play starts automatically when you press [3TAPE].
Fast-forward and rewind
Press [44
44
4/REW/ g ] (rewind) or [33
33
3/FF/f] (fast-forward)
in the stop mode.
Cassette tape selection and care
Types of tapes which can be played correctly.
The system automatically identifies the type of tape.
NORMAL POSITION/TYPE I ✓
HIGH POSITION/TYPE II ✕
METAL POSITION/TYPE IV ✕
High position and metal position tapes can be played, but
the unit will not be able to do full justice to the characteristics
of these tapes.
•Tapes exceeding 100 minutes are thin and can break or
get caught in the mechanism.
•Tape slack can get caught up in the mechanism and
should be wound up before the tape is played.
•Endless tapes can get caught up in the deck’s moving
parts if used incorrectly. Always read the instructions
provided with your tapes.
To find the beginning of a program
(TPS: Tape Program Sensor)
TPS finds the beginning of a track and resumes play from
there. Each press increases the number of tracks skipped,
up to a maximum of 9.
Press [44
44
4/REW/ g ] or [33
33
3/FF/f] during play.
Notes
The TPS function searches for silent parts of about 4
seconds in length which are normally found between tunes.
As a result, it may not function properly in the following
cases:
•With short silent parts
•When noise occurs between tunes
•With silent parts found within tunes
Forward side
Insert inside the
guides
RQT6530(16-22).p65 5/9/2002, 6:41 PM19
RQT6530
20
Listening operations
B
A
B
1
3
OPEN
c
C
OPEN
OPEN
c

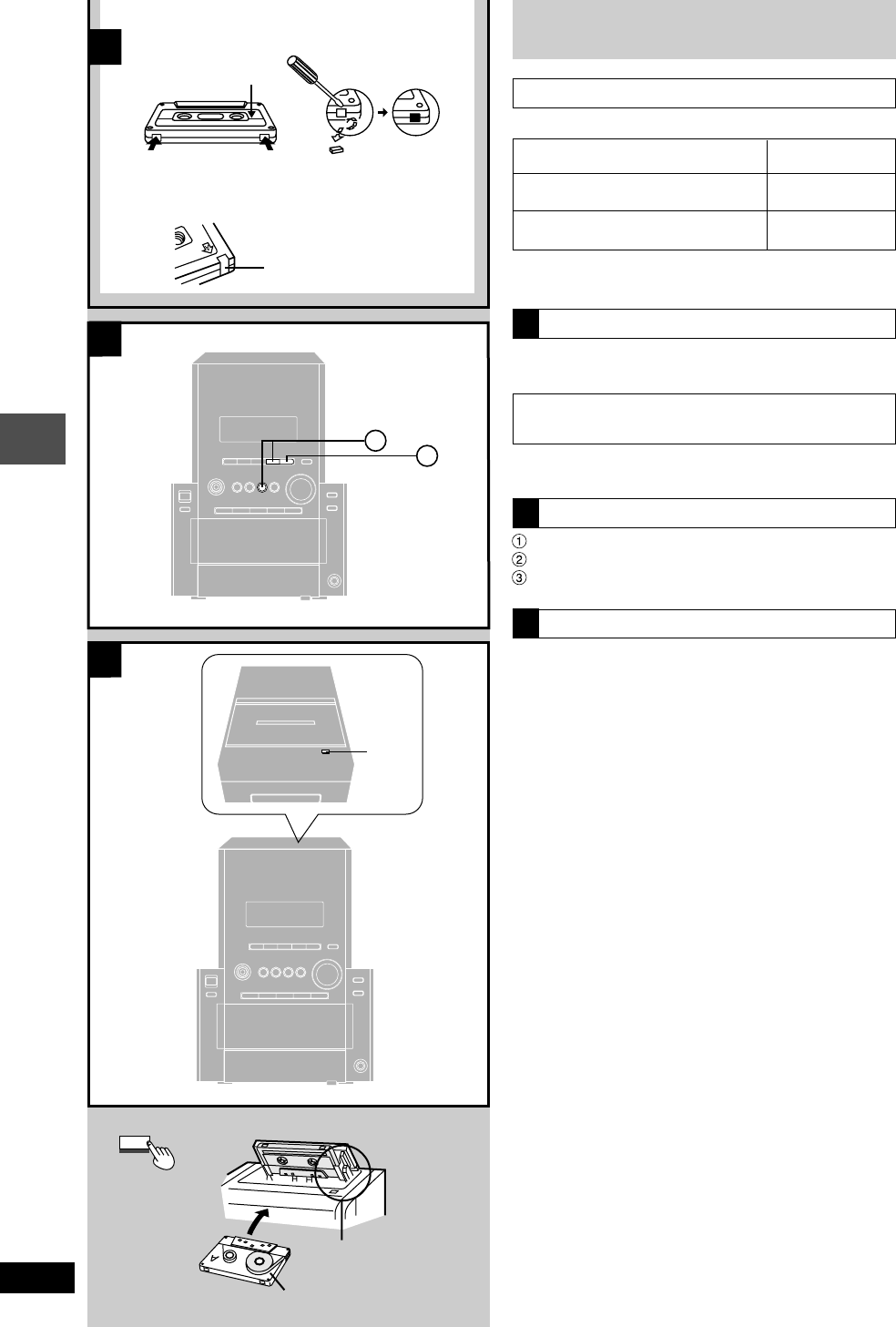

Before recording
Types of tapes which can be recorded correctly
The system automatically identifies the type of tape.
NORMAL POSITION/TYPE I ✓
HIGH POSITION/TYPE II ✕
METAL POSITION/TYPE IV ✕
High position and metal position tapes can be used, but the
unit will not be able to record or erase them correctly.
Erasure prevention
The illustration shows how to remove the tabs to prevent re-
cording. To record on the tape again, cover as shown.
The effect of volume and sound quality on
recording.
These have no effect on recording.
They can be changed for playback.
To erase a recorded sound
Press [-TAPE] and then [L/–DEMO].
Insert the recorded cassette with the tape facing in.
Press [[REC/ J].
Preparatory steps
Do these steps before each recording.
Wind up the leader tape so recording can begin
immediately.
Press [c OPEN], insert a cassette with the tape
facing in.
Make sure the cassette is fully inserted and close the lid by
hand.
A
B
Side A
Tab for side B Tab for side A
To re-record
Normal position tape
C
Side to be recorded
facing up
Insert inside the guides
To protect tapes against further recording
Adhesive tape
Recording operations
RQT6530(16-22).p65 5/9/2002, 6:41 PM20

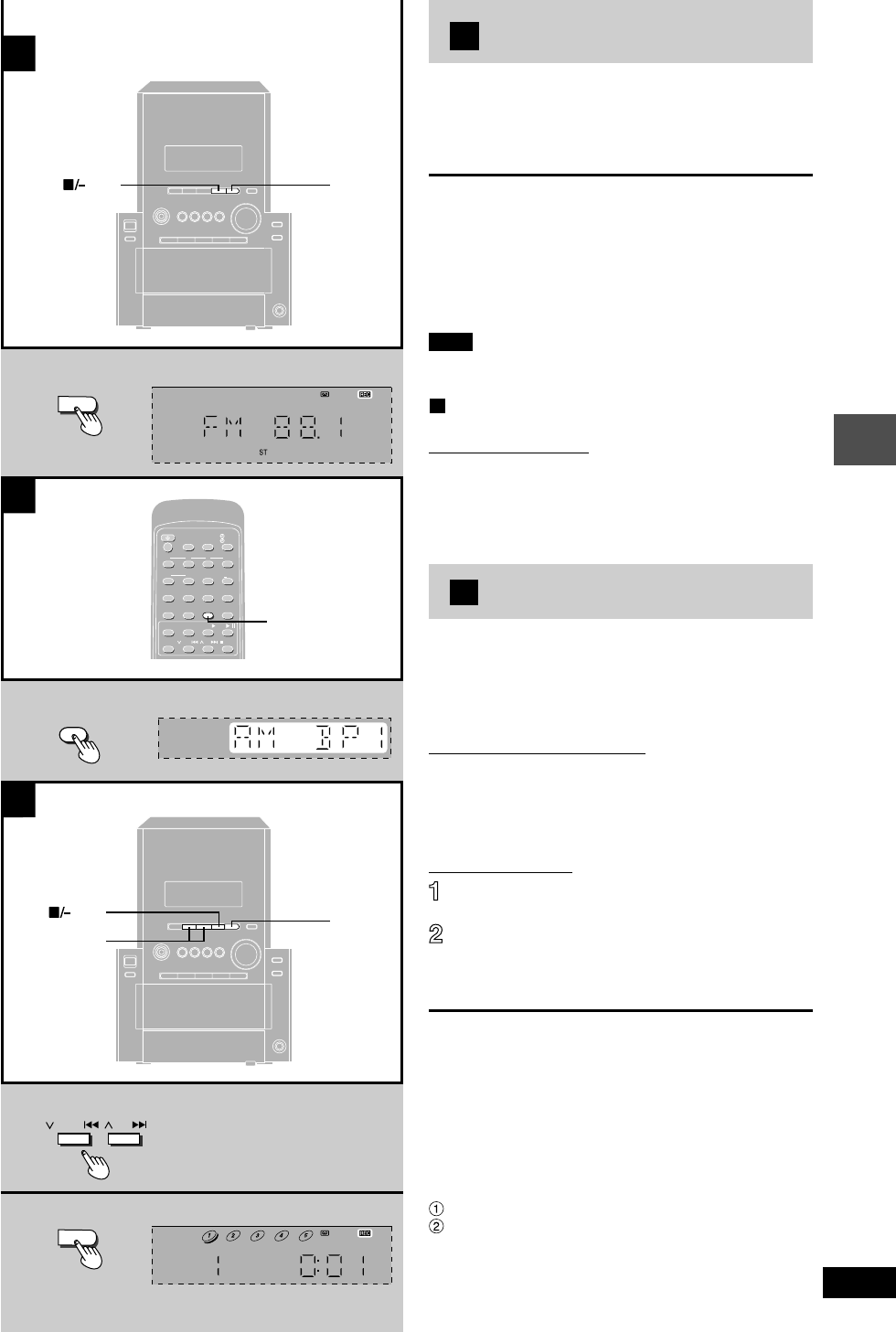

RQT6530
21
Listening operations
2
3
2
PLAY MODE
A
B
C
2
2
[ REC
/
J
[
REC
/
J
DEMO
DEMO
2
/
REW
///
FF
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥
10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
ALBUM
PLAY MODE
Recording operations
Recording from the radio
Preparation: Do the preparatory steps (\ page 20).
1Tune to the required station.
(\ page 10 or 11)
2Press [[REC/ J] to start recording.
To stop recording
Press [L/–DEMO].
To stop recording temporarily
Press [[REC/ J].
To resume recording, press [[REC/ J].
To record on the other side of the tape
Turn the tape over and press [[REC/ J].
Note
When recording an AM broadcast, sound is momentarily
interrupted when you start and stop the recording.
B To reduce noise while recording an AM broadcast
(Beat proof function)
By remote control onlyly
Press and hold [PLAY MODE] while recording.
Every time you press the button:
BP1 ↔ BP2
Select the position where there is less noise.
C Recording CDs
You can use 1-DISC/ALL-DISC/1-SONG mode (A page
16) to make recordings.
Preparation:
•Do the preparatory steps (A page 20).
•Insert the CD(s) you want to record (A page 12).
1-DISC/ALL-DISC recording
1Do steps 1 to 4 on page 16.
Ensure CD is stopped.
2Press [[ REC/ J ] to start recording.
The CD starts.
1-SONG recording
Do steps 1 to 4 on page 16.
Ensure CD is stopped.
Press [44
44
4/REW/g] or [33
33
3/FF/f] to select
the track.
3
Press [[ REC/ J ] to start recording.
The CD starts.
To stop recording
Press [L/–DEMO].
CD play stops automatically.
To stop recording temporarily
Press [[REC/ J].
To resume recording, press [[REC/ J].
If the tape finishes before the CD
The CD continues playing. Press [L/–DEMO] to stop it.
To record programmed tracks
Program the tracks (A page 18).
Press [[REC/ J] to start recording.
Play starts.
To stop recording, press [L/–DEMO].
Disc play stops automatically.
A
RQT6530(16-22).p65 5/9/2002, 6:41 PM21
RQT6530
22
Listening operations

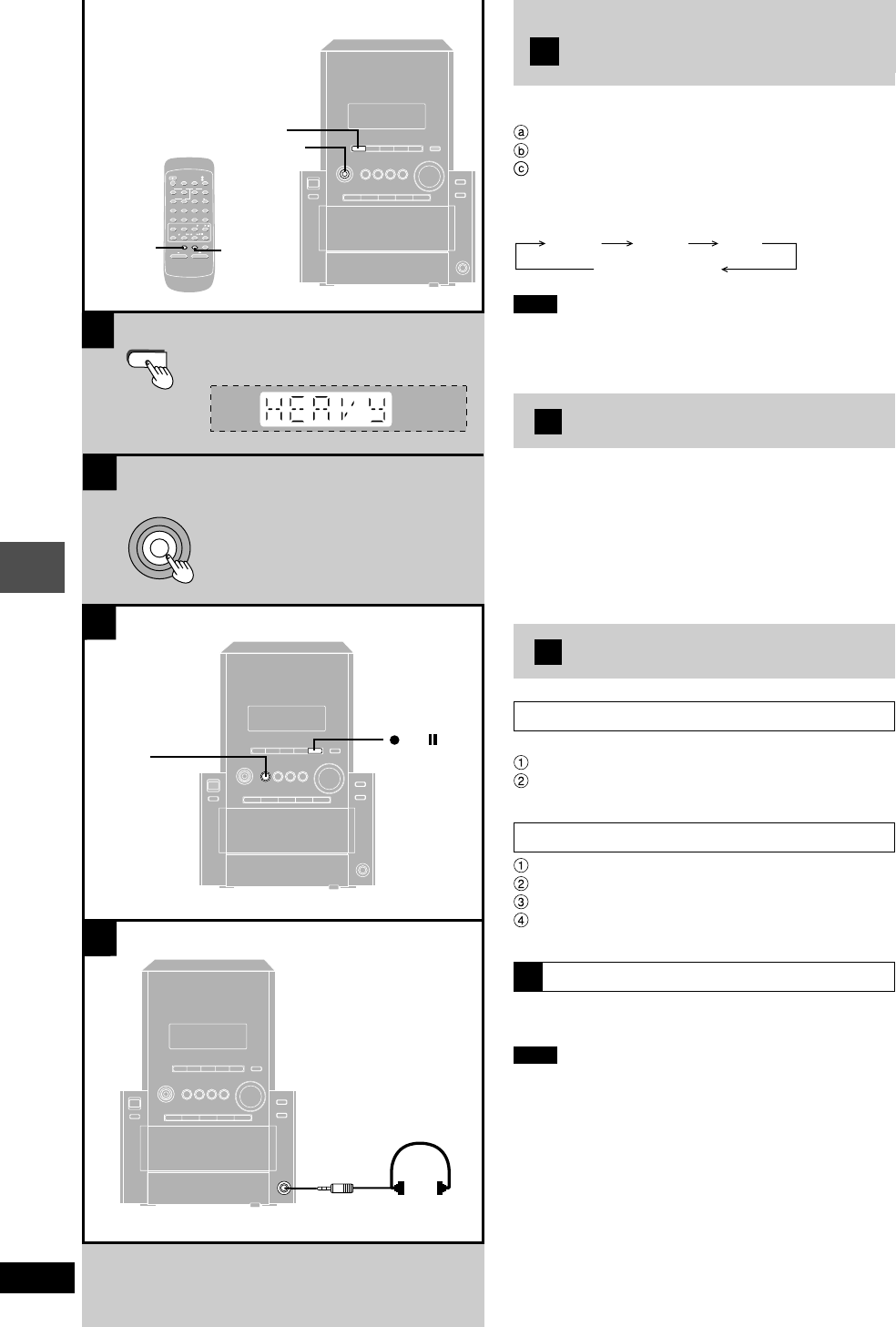

C Using an external unit
Listening to an external source
(See page 7 for external unit connection.)
Press [AUX].
Start playback from the external source. (Refer to your
equipment’s operating instructions.)
Recording from an external source
Insert the tape to be recorded on.
Press [AUX].
Press [[REC/ J] (recording starts).
Start playback from the external source. (Refer to your
equipment’s operating instructions.)
Listening with headphones
Reduce the volume level, and connect the headphones.
Plug type: 3.5 mm (1/8˝) stereo.
Note
Avoid listening for prolonged periods of time to prevent
hearing damage.
D
Using the built-in sound
quality settings
You can choose one of three types of sound quality.
HEAVY: Adds punch to rock
CLEAR: Clarifies higher sounds
SOFT: For background music
Press [PRESET EQ] to select a setting.
Each time you press the button:
HEAVY CLEAR SOFT
EQ-OFF (cancelled)
Note
•Preset EQ cannot be used together with Super Sound
EQ.
•Changes to sound quality do not affect recordings.
B Enhancing the sound quality
C
A
D
B
PRESET EQ
AUX
PRESET EQ
PRESET EQ
SUPER SOUND EQ
S.SOUND EQ
REC/
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥
10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
SUPER SOUND EQ
Headphones
(not included)
This feature enhances the bass and treble effect of the
sound.
Press [SUPER SOUND EQ].
Remote control: Press [S.SOUND EQ].
Press the button again to cancel.
The button light goes out.
A
Timers and others
RQT6530(16-22).p65 5/9/2002, 6:41 PM22
RQT6530
23
Listening operations

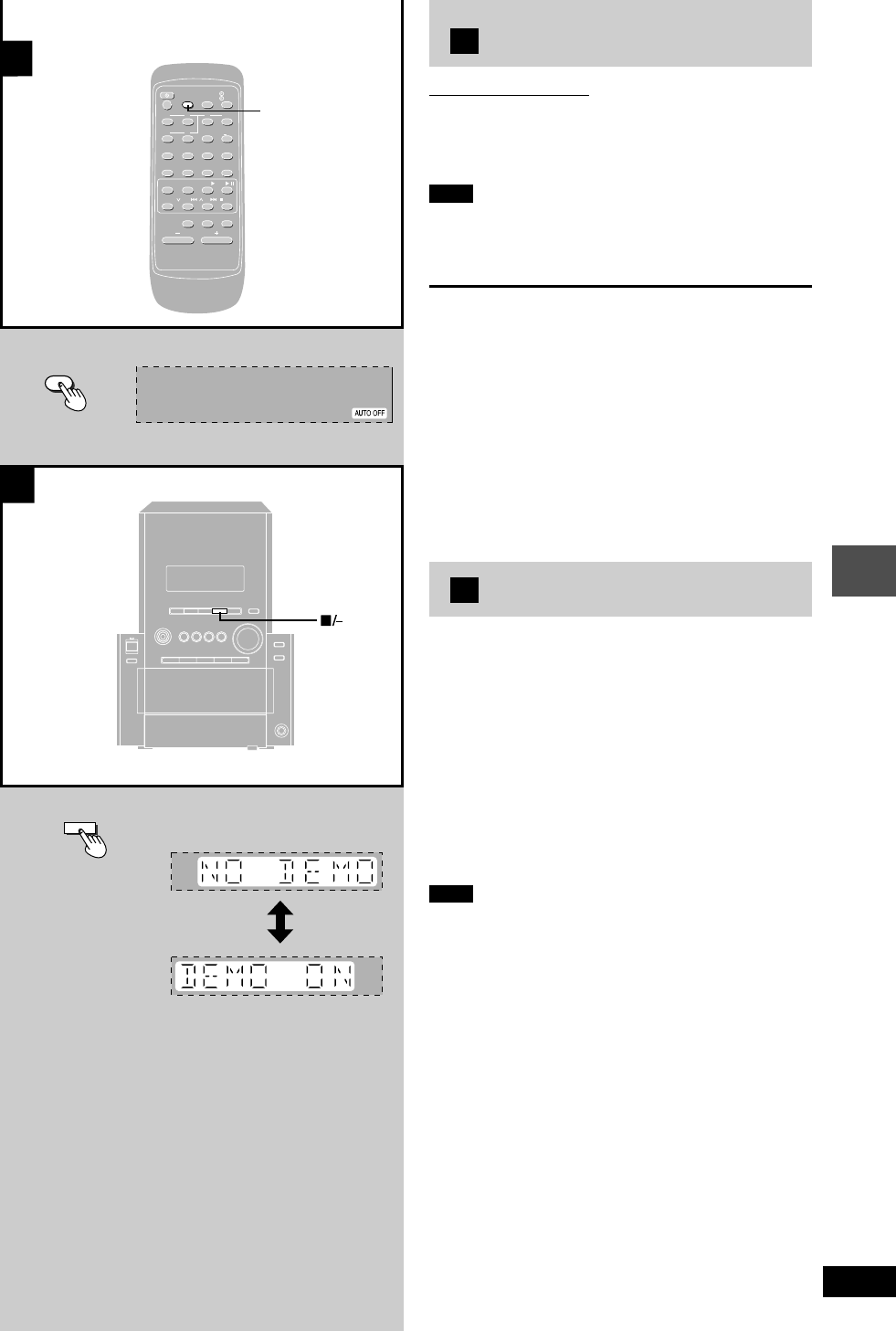

A Auto-off function
By remote control only
When CD or tape is selected as the source
To save power, the unit turns off if it is left unused for ten
minutes.
Note
This function does not work if the source is tuner or AUX.
Press and hold [–AUTO OFF].
“AUTO OFF” is shown on the display.
To cancel
Press and hold [–AUTO OFF] again to clear “AUTO OFF”
from the display.
For your reference
The setting is maintained even if the unit is turned off. When
the unit is turned on again, “AUTO OFF” is displayed and
the unit functions as described above.
“AUTO OFF” disappears from the display if either tuner or
AUX is selected as the source but continues to function
normally.
“AUTO OFF” remains displayed if CD or tape is selected as
the source.
B Turning the demo function off
If the clock has not been set, a demonstration of the display
is shown when the unit is switched to standby mode.
This function is set to on at the time of purchase.
During standby mode
Press and hold [LL
LL
L/–DEMO] until “NO DEMO” is
displayed.
The display changes each time the button is held down.
NO DEMO (off) ↔ DEMO ON (on)
To show a demonstration of the display
Press and hold [L/–DEMO] until a demonstration of the
display is shown.
Note
• You cannot turn demo function off when the unit is on.
• DEMO function cannot be turned on when Dimmer is on.
Timers and others
B
L/–
DEMO
DEMO
A
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥
10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
SLEEP
–
AUTO OFF
SLEEP
–
AUTO OFF
RQT6530(23-27).p65 5/9/2002, 6:45 PM23
RQT6530
24
Listening operations

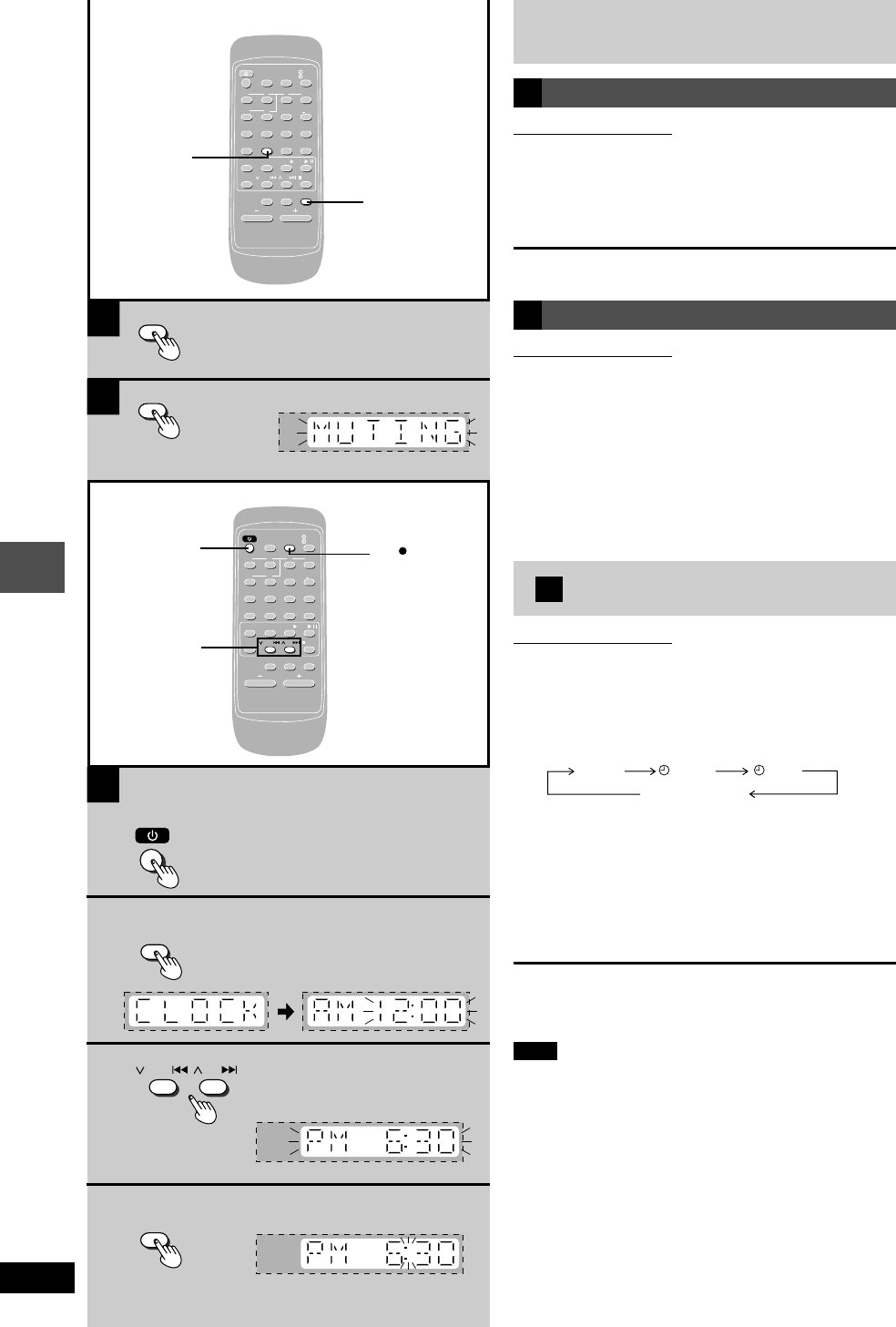

Convenient functions
ATo dim the display panel
By remote control onlyBy remote control only
Use this when you are going to sleep or any other time you
would prefer the panel to be dimmer.
Press [DIMMER].
The display dims and all lights are turned off except for the
[AC IN] indicator and the backlight of the CD changer.
To cancel
Press [DIMMER] again.
BTo mute the volume
By remote control only
This feature is convenient when you have a telephone call,
etc.
Press [MUTING].
Press the button again to cancel. (“MUTING” goes out.)
Muting can also be cancelled by lowering the volume all the
way to “--dB”.
When the system is turned off, the muting operation will be
automatically cancelled.
C Setting the time
By remote control only
This is a 12-hour clock.
The example shows how to set the clock for 6:30 p.m..
1Press [yy
yy
y] to turn the unit on.
2Press [CLOCK / TIMER] to select “CLOCK”.
Every time you press the button:
CLOCK
PLAY REC
Original display
3(Within 7 seconds)
Press [44
44
4/REW/g] or [33
33
3/FF/f] to set the
time.
Press and hold to change the time faster.
4Press [CLOCK / TIMER].
The time is set and the original display is restored.
Displaying the clock when the unit is ON:
Press [CLOCK/ TIMER].
The clock is shown for about 5 seconds.
Note
The clock may lose or gain some time over a period.
Readjust if necessary.
Timers and others
A
1
2
3
4
CLOCK/
TIMER
CLOCK/
TIMER
/REW/ /FF/
DIMMER
B
MUTING
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
2 4
1
3
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
ALBUM
DIMMER
MUTING
ALBUM
C
RQT6530(23-27).p65 5/9/2002, 6:45 PM24
RQT6530
25
Listening operations

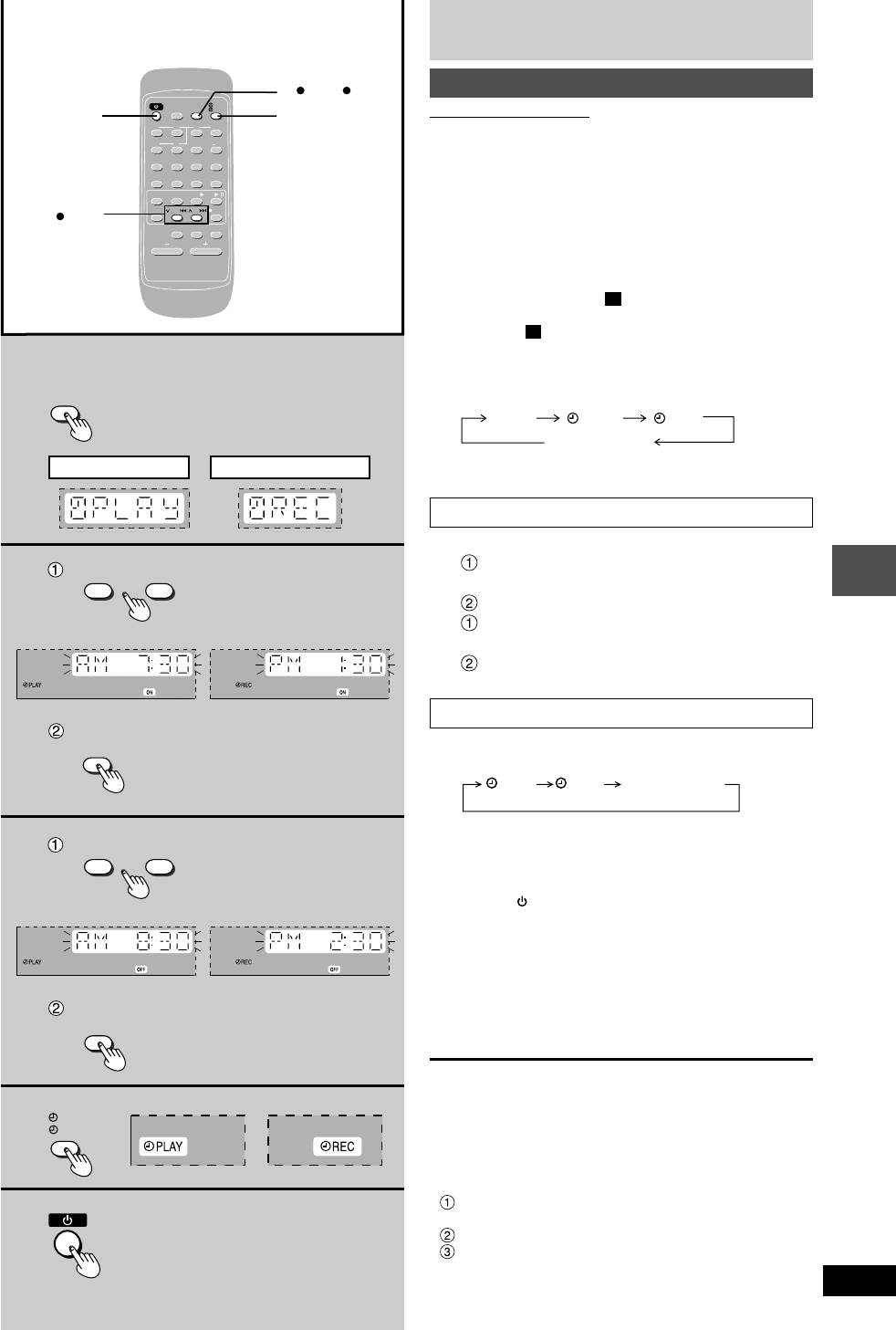

Using the timers
Using the play/record timer
By remote control only
The timer has two functions. It can be set to on at a certain
time to wake you up, or it can be set to record from the radio
or from the aux source.
The play timer cannot be used in combination with the
record timer.
Preparations:
•Turn the unit on and set the clock (\ page 24).
•For the play timer, prepare the music source you want to
listen to; tape, CD, radio or aux, and set the volume.
•For the record timer, check the cassette’s erasure pre-
vention tabs (\ page 20: A
), insert the cassette and tune
to the radio station (\ page 10) or select the aux source
(\ page 22:
C
).
1Press [CLOCK/TIMER] to select the timer
function.
Every time you press the button:
CLOCK
Original display
REC
PLAY
˚˚
˚˚
˚PLAY : to set the play timer
˚˚
˚˚
˚REC : to set the record timer
Setting the start and finish times
2(Within 8 seconds or so)
Press [44
44
4/REW/g] or [33
33
3/FF/f] to
select the starting time.
Press [CLOCK/TIMER].
3Press [44
44
4/REW/g] or [33
33
3/FF/f] to
select the finishing time.
Press [CLOCK /TIMER].
The start and finish times are now set.
Turning the timer on
4Press [˚˚
˚˚
˚PLAY/˚˚
˚˚
˚REC].
Every time you press the button:
PLAY REC no display (off)
˚˚
˚˚
˚PLAY : to turn the play timer on
˚˚
˚˚
˚REC : to turn the record timer on
(The indicator doesn’t appear if the start and finish
times or the clock haven’t been set.)
5Press [ ] to turn the unit off.
The unit must be off for the timers to operate.
•For play timer
The timer play will start at the preset time with
volume increasing gradually up to the volume level
you pre-set.
•For record timer
The record timer comes on about 30 seconds before
the set time with the volume muted.
To cancel the timer
Press [˚˚
˚˚
˚PLAY/˚˚
˚˚
˚REC] to clear the timer indicators from the
display.
The timer comes on at the set time everyday if the timer is on.
To change the settings (when unit is on)
•To change the play/record times
Do steps 1, 2, 3, and 5.
•To change the source or volume
Press [˚˚
˚˚
˚PLAY/˚˚
˚˚
˚REC] to clear the timer indicator from
the display.
Make changes to the source or volume.
Do steps 4 to 5.
(Continued on next page)
Timers and others
1
2
3
4
5
4/REW/g 3/FF/f
CLOCK/
TIMER
4/REW/g 3/FF/f
CLOCK/
TIMER
CLOCK/
TIMER
PLAY/
REC
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
54
2
1 3
1
1 2 2 3 2
ALBUM
FOR PLAY TIMER FOR RECORD TIMER
RQT6530(23-27).p65 5/9/2002, 6:45 PM25
RQT6530
26
Listening operations

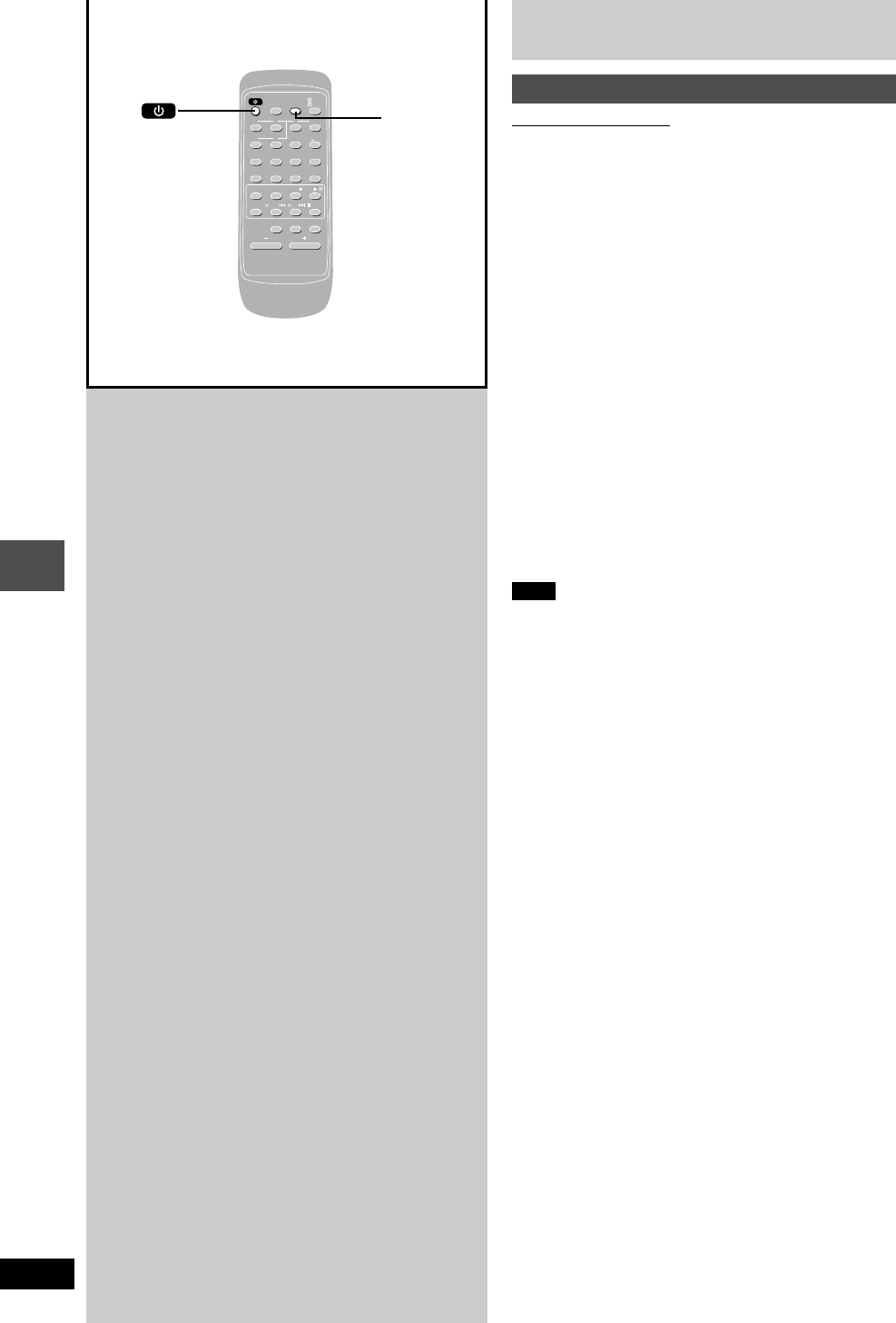

Using the timers
Using the play/record timer
By remote control only
To check settings
While the unit is on and the “rPLAY” (or “rREC”) indicator is
on, press [CLOCK/TIMER] so “rPLAY” (or “rREC”) appears
on the display.
Two seconds after “rPLAY” (or “rREC”) appear, the settings
are displayed in the following order:
•For play timer •For record timer
1Play start time 1Recording start time
2Play finish time 2Recording finish time
3Play source 3Recording source
4Playback volume
You can check the settings even when the system is OFF by
pressing [CLOCK/TIMER] twice.
To enjoy the desired source after the timer setting is
completed
The volume level (for play timer) and music source are stored
in the timer memory and the timer will start in these preset
conditions. However, the CD numbers do not get stored in
the timer memory.
1. After step 4, start playing the desired source.
2. Reset the CD numbers if you have changed any of them,
confirm that a CD or cassette is inserted, then press [f] to
put the unit on standby.
Note
•If you turn the unit off and on again while a timer is
functioning, the finish time setting will not be activated.
•If the unit is on, the timer will not function. The unit must be
in the standby mode.
•If AUX is selected as the source, when the timer comes on,
the system turns on and engages AUX as the source. If
you want to playback or record from a connected unit, set
the other unit’s timer to the same time. (See the other unit’s
instruction manual.)
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥
10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
CLOCK/
TIMER
ALBUM
Timers and others
RQT6530(23-27).p65 5/9/2002, 6:45 PM26

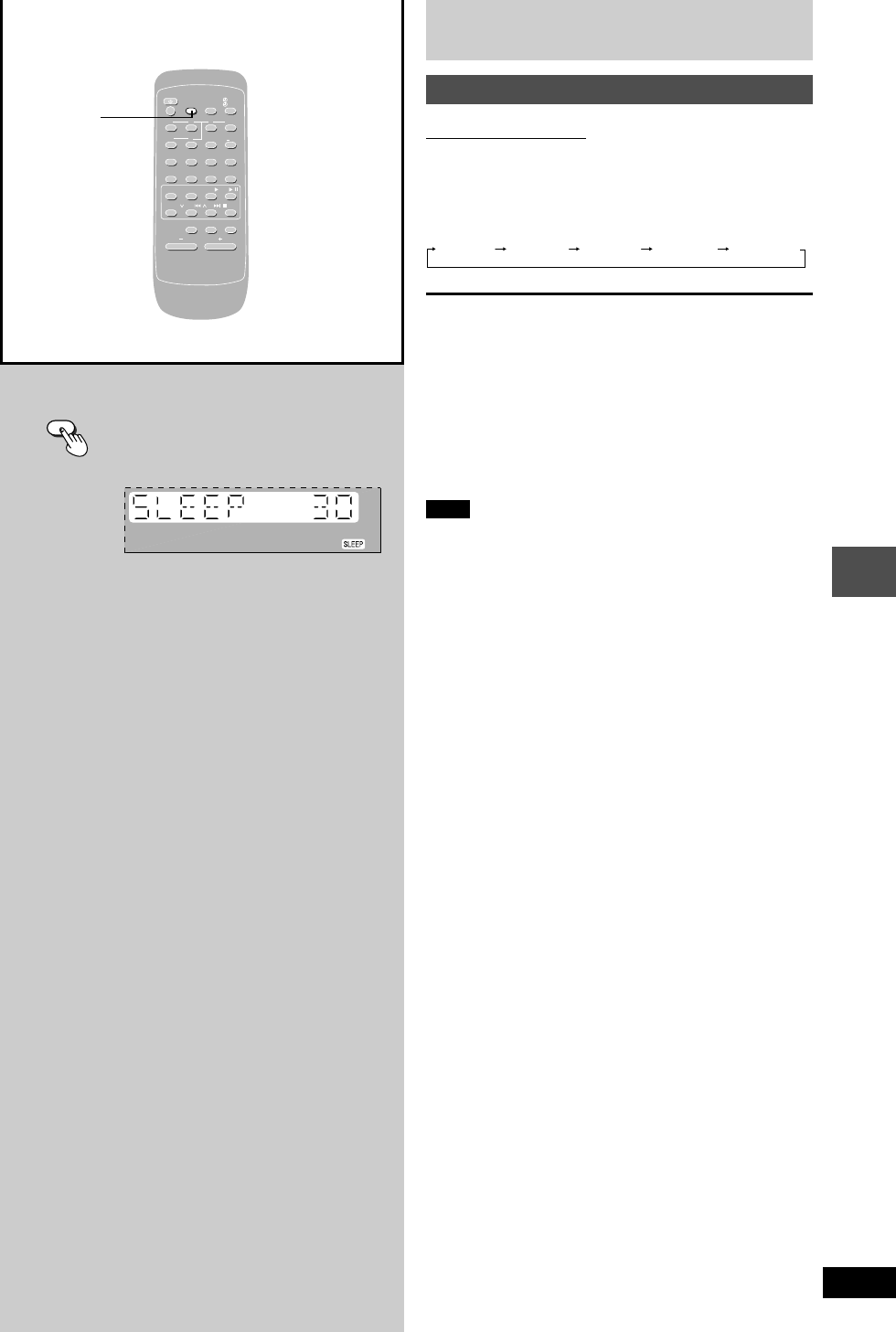

RQT6530
27
Listening operations
Timers and others
Using the timers
Using the sleep timer
By remote control only
Set the unit to stop and turn off after a certain time.
While enjoying the desired source:
Press [SLEEP] to select the desired time.
Every time you press the button:
SLEEP 90SLEEP 30 SLEEP 60 SLEEP 120 SLEEP OFF
To cancel the sleep timer
Press [SLEEP] to select “SLEEP OFF”.
To confirm the remaining time
(only while unit is ON)
Press [SLEEP].
The remaining time is shown for about 5 seconds.
To change the time remaining during operation
Press [SLEEP] to show the remaining time, and then press
[SLEEP] to select the desired time.
Note
•The sleep timer turns OFF automatically the moment you
attempt to edit-record a CD.
•The play and sleep timer or the record and sleep timer can
be used together.
The sleep timer always has priority. Be sure not to overlap
timer settings.
SLEEP
–
AUTO OFF
SLEEP
-AUTO OFF
CLOCK/
TIMER PLAY/
REC
123
DISC
456
≥10
7890
DISPLAY DIMMER
AUX TUNER TAPE CD
PLAY MODE
/
PROGRAM
/REW/ /FF/ /CLEAR
MUTING
S SOUND EQ PRESET EQ
VOLUME
SLEEP
–
AUTO OFF
ALBUM
RQT6530(23-27).p65 5/9/2002, 6:45 PM27
RQT6530
28
Listening operations
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the reme-
dies indicated in the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail
consumerproducts@panasonic.com, or web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, web site (www.panasonic.ca), or an
authorized Servicentre closest to you.
Reference pages are shown as black circled numbers 6.
Common Problems
No sound.
Sound is unfixed, reversed or
comes from one speaker only.
Humming heard during play.
Turn the volume up.
The speaker cords may be shorted. Turn the unit off, check and correct the
connections and turn the unit on. 6
Check the speaker connections. 6
An AC power supply cord or fluorescent light is near the cables. Keep other appliances
and cords away from this unit’s cables.
“ERROR” is displayed.
“– –:– –” appears on the
display.
“F61” is displayed.
Incorrect operation performed. Read the instructions and try again.
You plugged the AC power supply cord in for the first time or there was a power failure
recently.
Set the time. :
Check and correct the speaker cord connections. 6
If this does not fix the problem, there is a power supply problem. Consult the dealer.
Noise is heard.
The stereo indicator flickers or
doesn’t light.
Sound is distorted.
A beat sound is heard.
A low hum is heard during AM
broadcast.
Use an outdoor antenna. 7
Turn the TV off or separate it from the unit.
Separate the antenna from other cables and cords.
Listening to the radio
Clean the heads. @
If the erasure prevention tabs have been removed, cover the holes with adhesive
tape. ,
Poor quality sound.
Recording is not possible.
Using the cassette deck
Remote control doesn’t work. Check that the batteries are inserted correctly. 5
Replace the batteries if they are worn.
The remote control
Reference
Playing discs
The display is wrong or play
won’t start.
Only one track from the CD is
played/recorded.
The total number of tracks
displayed differs each time
the same disc is inserted.
Unusual sound is heard.
CD-RW cannot be read.
“VBR–” is displayed instead of
the remaining play time.
The disc may be upside down. #
Wipe the disc.
Replace the disc if it is scratched, warped, or non-standard.
Condensation may have formed inside the unit due to a sudden change in
temperature. Wait about an hour for it to clear and try again.
Press [PLAY MODE] to cancel 1-Song mode and to select the required mode. (
The disc may be scratched, or its data may be defective. Replace the disc.
The disc was incompletely formatted. Use the recording equipment to fully format the
disc before recording.
The unit cannot display the remaining play time for variable bit rate (VBR) tracks.
The picture on the TV
disappears or stripes appear
on the screen.
The location and orientation of the antenna are incorrect. If you are using an indoor
antenna, change to an outdoor antenna. 7
The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set
from the unit.
When there is a television set nearby
RQT6530(28).p65 5/9/2002, 6:47 PM28
RQT6530
29
Listening operations
Warranty (ONLY FOR U.S.A.)
Panasonic/Technics Audio Products
Limited Warranty
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or work-
manship, Panasonic Consumer Electronics Company or Panasonic Sales Compa-
ny (collectively referred to as “the warrantor”) will, for the length of the period
indicated on the chart below, which starts with the date of original purchase (“war-
ranty period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or
replace will be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the
“Parts” warranty period, there will be no charge for parts. You must carry-in or mail-
in your product during the warranty period. If non-rechargeable batteries are
included, they are not warranted. This warranty only applies to products purchased
and serviced in the United States or Puerto Rico. This warranty is extended only to
the original purchaser of a new product which was not sold “as is”. A purchase
receipt or other proof of the original purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States call 1-800-211-PANA (1-800-
211-7262) or visit Panasonic web site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or
fax (787)-768-2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or commercial use
(such as in a hotel, office, restaurant, or other business), rental use of the product,
service by anyone other than a Factory Servicenter or other Authorized Servicer,
or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WAR-
RANTY. (As examples, this excludes damages for lost time, travel to and from the
servicer, loss of media or images, data or other memory content. The items listed
are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE
LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the exclusions may
not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or
after the warranty period, you may contact your dealer or Servicenter. If the prob-
lem is not handled to your satisfaction, then write to the warrantor’s Consumer
Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WAR-
RANTY ARE YOUR RESPONSIBILITY.
Parts
One (1) year
Thirty (30) days
Three (3) years
One (1) year
Ninety (90) days
Ten (10) days
Ninety (90) days
Product or Part Name
Audio Products (except items listed
below)
All Audio Racks (cabinets)
Technics Stand Alone Speakers,
Subwoofer Speakers
USB Reader-Writer, Personal Computer
Card Adapters
(in exchange for defective item)
Accessories: Headphones, Cartridges,
Microphones, Adapters
Rechargeable Batteries (in exchange for
defective item)
SD Memory Cards, Rechargeable
Battery Packs (in exchange for defective
item)
For Product Information, Operating Assistance, Literature Request, Dealer Locations, and
all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday–Friday 9 am–9 pm; Saturday–Sunday 9 am–7 pm, EST.
1-800-332-5368 (Customer Orders Only)
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)
Web Site: http://www.panasonic.com
You can purchase parts, accessories or
locate your nearest servicenter by visiting
our Web Site.
Accessory Purchases:
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787) 750-4300 Fax (787) 768-2910
Labor
One (1) year
Not Applicable
Three (3) years
Not Applicable
Ninety (90) days
Not Applicable
Not Applicable
Customer Services Directory (ONLY FOR U.S.A.)
Reference
RQT6530(29).p65 5/9/2002, 6:47 PM29
RQT6530
30
Listening operations
Reference
Product Service
1. Damage requiring service —The unit should be serviced
by qualified service personnel if:
(a) The AC power supply cord or AC adaptor has been
damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a
marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond
that described in these operating instructions. Refer all
other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing ensure
the servicer uses parts specified by the manufacturer or
parts that have the same characteristics as the original
parts. Unauthorized substitutes may result in fire, electric
shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer
to perform safety checks to confirm that the unit is in
proper working condition.
Product information
For product information or assistance with product
operation:
In the U.S.A., contact the Panasonic Customer Call
Center at 1-800-211-7262, or e-mail
consumerproducts@panasonic.com, or web site
(http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer
Care Centre at 905-624-5505, web site
(www.panasonic.ca), or an authorized Servicentre
closest to you.
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this
unit.
• Before using chemically treated cloth, read the instructions
that came with the cloth carefully.
For a cleaner crisper sound
Clean the heads regularly to assure good quality playback
and recording.
Use a cleaning tape (not included).
RQT6530(30-32).p65 5/9/2002, 6:48 PM30
RQT6530
31
Listening operations
Reference
Specifications
AMPLIFIER SECTION
Power output
10% Total harmonic distortion
60
Hz–120 Hz, both channels driven
(Low channel) 24
W per channel (6
Ω)
120 Hz–16
kHz, both channels driven
(High channel) 26
W per channel (6
Ω)
Total Bi-Amp power 50
W per channel (Band)
Power output
10% Total harmonic distortion
100 Hz, both channels driven
(Low channel) 31
W per channel (6
Ω)
1
kHz, both channels driven
(High channel) 34
W per channel (6
Ω)
Total Bi-Amp power 65
W per channel
Input sensitivity
AUX 250
mV
Input Impedance
AUX 11.8
kΩ
FM TUNER SECTION
Frequency range 87.9 – 107.9
MHz (200
kHz steps)
87.5 – 108.0
MHz (100
kHz steps)
Sensitivity 2.5
µV (IHF)
S/N 26
dB 2.2
µV
Antenna terminal(s) 75
Ω (unbalanced)
AM TUNER SECTION
Frequency range 520 – 1710
kHz (10
kHz steps)
Sensitivity
S/N 20
dB (at 1000
kHz) 560
µV/m
CASSETTE DECK SECTION
Track system 4 track, 2 channel
Heads
Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor
Recording system AC bias 100
kHz
Erasing system AC erase 100
kHz
Tape speed 4.8
cm/s (17/8 ips)
Overall frequency response
(+3
dB, –6
dB at DECK OUT)
NORMAL (TYPE I) 35
Hz – 14
kHz
S/N 50
dB (A weighted)
Wow and flutter 0.18% (WRMS)
Fast forward and rewind time Approx. 120 seconds with
C-60 cassette tape
CD SECTION
Sampling frequency 44.1
kHz
Decoding 16 bit linear
Beam source/wavelength Semiconductor laser/780
nm
Number of channels Stereo
Frequency response 20
Hz – 20
kHz (+1, –2
dB)
Wow and flutter Below measurable limit
Digital filter 8
fs
D/A converter MASH (1 bit DAC)
MP3
MP3 decoder MPEG 1 Layer 2/Layer 3
Bit rate 32
kbps – 320
kbps (Variable bit rate)
Sampling frequency 32
kHz, 44.1
kHz, 48
kHz
MP3 decoder MPEG 2 Layer 2/Layer 3
Bit rate 8
kbps – 160
kbps
Sampling frequency 16
kHz, 22.05
kHz, 24
kHz
MP3 decoder MPEG 2.5 Layer 3
Bit rate 8
kbps – 160
kbps
Sampling frequency 8
kHz, 11.025
kHz, 12
kHz
WMA
WMA decoder Version 8
Bit rate 20
kbps – 192
kbps
Sampling frequency 32
kHz, 44.1
kHz, 48
kHz
SPEAKER SECTION
Type 3 way speaker system
Speaker(s)
Super woofer 10
cm (4˝) cone type
Woofer 8 cm (31/8˝) cone type
Tweeter 6
cm (23/8˝) cone type
Impedance
HIGH 6
Ω
LOW 6
Ω
Input power
HIGH 70
W (Music)
LOW 70
W (Music)
Output sound pressure level 86
dB/W (1.0
m)
Cross over frequency 110 Hz, 5 kHz
Frequency range 55
Hz – 30
kHz (–16
dB)
75
Hz – 25
kHz (–10
dB)
Dimensions (WxHxD) 149 x 244 x 240
mm
(57/8˝ x 919/32˝ x 97/16˝)
Mass 2.5
kg (5.5
lb.)
GENERAL
Power supply AC 120
V, 60
Hz
Power consumption 90
W
Standby Approx. 0.5
W
Dimensions (WxHxD) 179 x 241 x 375 mm
(71/16˝ x 91/2˝ x 143/4˝)
Mass 5.6
kg (12.3
lb.)
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital
spectrum analyzer.
3. The labels “HIGH (HF)” and “LOW (LF)” on the rear of
the speakers refer to High frequency and Low
frequency.
RQT6530(30-32).p65 5/9/2002, 6:48 PM31
RQT6530
32
Listening operations
En
RQT6530-P
A0502TL0
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
© 2002 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
As an ENERGY STAR® Partner, Panasonic has determined
that this product meets the ENERGY STAR® guidelines for
energy efficiency.
When moving the unit
1Remove all discs.
2Press [ /I POWER] to turn the unit off.
3Disconnect the AC power supply cord.
RQT6530(30-32).p65 5/9/2002, 6:48 PM32

Navigation menu
