[_P_] [_PC_] RQTX0221-1P

Operating Instructions

DVD Home Theater Sound System

Model No. SC-PT770

until

2009/01/05

The illustrations shown may differ from your unit.

§For Canada only: The word “Participant” is used in place of the word

“Partner”.

Before connecting, operating or adjusting this product, please

read the instructions completely.

Please keep this manual for future reference.

If you have any questions contact

In the U.S.A. and Puerto Rico:

1-800-211-PANA (7262)

In Canada: 1-800-561-5505

Region number

The player plays DVD-Video marked with labels containing the region number “1” or “ALL”.

Example:

1ALL 24

As an ENERGY STAR Partner,

Panasonic has determined that

this product meets the ENERGY STAR

guidelines for energy efﬁciency.

[U.S.A.[and[Canada[

RQTX0221-P_770_en.book Page 1 Monday, January 12, 2009 5:56 PM

RQTX0221

Dear customer

Thank you for purchasing this product. For optimum performance and

safety, please read these instructions carefully.

THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA.

(For wireless system)

The following mark and symbols are located on bottom of the unit.

≥These operating instructions are applicable to the model

SC-PT770 for a variety of regions.

≥Unless otherwise indicated, illustrations in these operating

instructions are of the model for U.S.A. and Canada.

≥Operations in these instructions are described mainly with the

remote control, but you can perform the operations on the main

unit if the controls are the same.

System

SC-PT770

Main unit

SA-PT770

Front speakers

SB-HF770

Center speaker

SB-HC470

Surround speakers

SB-HS470

Subwoofer

SB-HW560

Digital transmitter

SH-TR70A

Wireless system

SE-FX70

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PRODUCT DAMAGE,

≥DO NOT EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING AND

THAT NO OBJECTS FILLED WITH LIQUIDS,

SUCH AS VASES, SHALL BE PLACED ON THE

APPARATUS.

≥USE ONLY THE RECOMMENDED

ACCESSORIES.

≥DO NOT REMOVE THE COVER (OR BACK);

THERE ARE NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION!

≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,

BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.

ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK

OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO

OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER

MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS

WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND

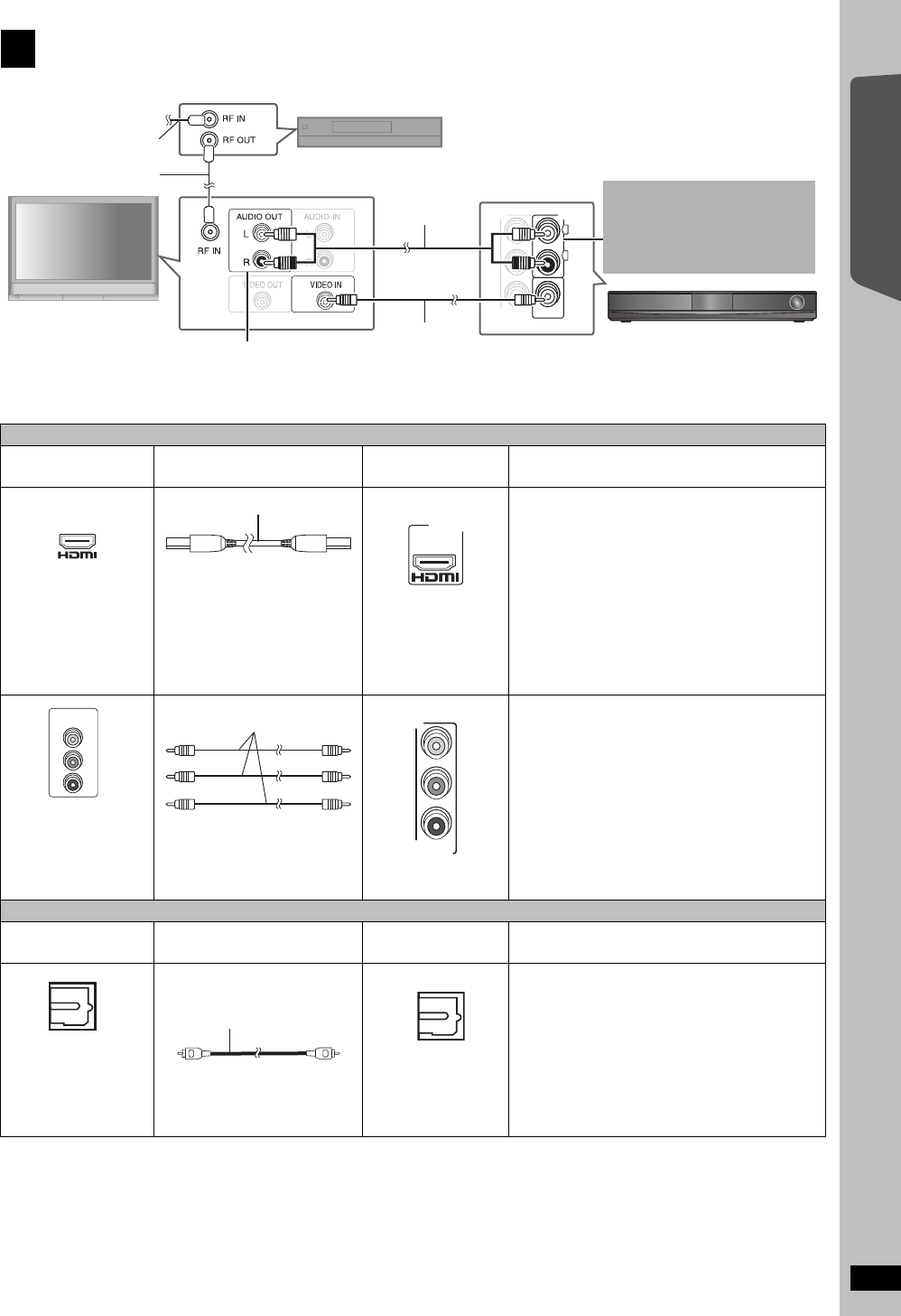

Other video connections

TV terminal Cable required

(not included) Main unit terminal Features

[Note]

≥Non-HDMI-compliant cables

cannot be utilized.

≥It is recommended that you use

Panasonic’s HDMI cable.

Recommended part number:

RP-CDHG15 (1.5 m/4.9 ft),

RP-CDHG30 (3.0 m/9.8 ft),

RP-CDHG50 (5.0 m/16.4 ft), etc.

[\\\\\\\\\\\HDMI\\\\\\\\\\\] This connection provides the best picture quality.

≥Set “VIDEO PRIORITY” to “ON” (B29, HDMI

menu).

≥Set “VIDEO FORMAT” in Menu 4 (HDMI) (B23).

VIERA Link “HDAVI Control”

If your Panasonic TV is VIERA Link compatible, you

can operate your TV synchronizing with home theater

operations or vice versa (B24, Using the VIERA

LinkTM “HDAVI ControlTM”).

≥Make the audio connection (Babove) when you use

VIERA Link “HDAVI Control” function.

All Panasonic TVs that

have 480p input

connectors are

compatible. Consult the

manufacturer if you have

another brand of TV.

[COMPONENT\VIDEO]

≥Connect to terminals

of the same color.

This connection provides a much purer picture than

the VIDEO OUT terminal.

≥After making this connection, select “DARKER” from

the “BLACK LEVEL” in the VIDEO menu (B28).

To enjoy progressive video

≥Connect to a progressive output compatible TV.

– Set “VIDEO OUT (I/P)” in VIDEO menu to

“PROGRESSIVE” and then follow the instructions

on the menu screen (B28).

Other audio connection

TV or external

equipment terminal

Cable required

(not included) Main unit terminal Features

≥Do not bend sharply when

connecting.

[\\\\\\OPTICAL\IN\\\\\\] This is the preferred connection for best sound and

true surround sound.

This unit can decode the surround signals received

from your TV, cable or satellite STB. Refer to the

operating instructions for the TV, cable or satellite STB

for the settings necessary to output its audio from the

digital audio output to your home theater system. Only

Dolby Digital and PCM can be played with this

connection.

≥After making this connection, make settings to suit

the type of audio from your digital equipment (B15).

COMPONENT

VIDEO OUT

AUX

RF cable (not included)

TV (not included)

Set top box (STB) or VCR

(not included)

Video cable

(included)

Audio cable

(not included)

Main unit

To your cable TV

service or TV antenna

You can enjoy the audio from your

TV, cable or satellite STB, or your

VCR through this home theater

system by connecting to the AUX

terminal.

Select “AUX” as the source (B15).

Refer to the operating instructions for the TV, cable

or satellite STB, or VCR for the settings necessary

to output its audio from the AUDIO OUT terminal to

your home theater system.

AV IN

HDMI cable

AV OUT

COMPONENT

VIDEO IN

Video cables

COMPONENT

VIDEO OUT

OPTICAL OUT

Optical digital audio cable

OPTICAL

RQTX0221-P_770_en.book Page 9 Monday, January 12, 2009 5:56 PM

RQTX0221

Quick Start Guide

Getting Started

≥Keep loose antenna cables away from other wires and cables.

step 3 Connections (continued)

AM ANT

EXT

LOOP

FM ANT

(75 )

LOOP

ANT GND

Main unit

4Radio antenna connections

Using an FM/AM outdoor antenna (optional)

AM ANT

EXT

LOOP

FM ANT

(75 )

LOOP

ANT GND

Main unit

Push!

Click!

Red

White

Black

Adhesive

tape

[AM\loop\antenna]

(included)

Stand the antenna up on its base.

Place the antenna where reception is best.

[FM\indoor\antenna]

(included)

Affix this end of the antenna where

reception is best.

AM ANT

EXT

LOOP

FM ANT

(75 )

LOOP

ANT GND





Leave the AM loop

antenna connected.

AM outdoor antenna

[Using a vinyl wire (not included)]

Run a piece of vinyl wire horizontally across a

window or other convenient location.

5.0 m to 12 m

(16 ft to 39 ft)

FM outdoor antenna

[Using a TV antenna (not included)]

The antenna should be installed by a

competent technician.

75 ≠ coaxial cable§

(not included)

\U.S.A.\and\Canada]

Antenna plug (not included)

Use outdoor antenna if FM/AM radio reception is poor.

≥Disconnect the antenna when the unit is not in use.

≥Do not use the outdoor antenna during an electrical storm.

1Remove a piece of the outer

vinyl insulator.

2Carefully pull the tabs apart

to remove the cover.

3Install the coaxial cable.

Clamp the cable conductor, and

wind it around so that it does not

contact anything else.

7mm (

9/32z)

Peel back

4Attach the cover.

Clamp with pliers.

10 mm (13/32z)

§Rework your outdoor antenna’s 75 ≠ coaxial cable as follows.

10 mm (13/32z)

Main unit

RQTX0221-P_770_en.book Page 10 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting Started

Quick Start Guide

Conserving power

The main unit and the wireless system consume a small amount of

power when they are turned off (\U.S.A.[and\Canada] main unit: approx.

0.1 W, wireless system: approx. 0.2 W, \Others] main unit: approx. 0.2 W,

wireless system: approx. 0.3 W). To save power when they are not to be

used for a long time, unplug them from the household AC outlet.

You will need to reset some memory items after plugging in the main

unit.

[Note]

The included AC power supply cords are for use with the main unit and

wireless system only. Do not use them with other equipment. Also, do

not use cords for other equipment with the main unit or wireless system.

Turn on the wireless system after all connections are complete.

≥Use alkaline or manganese batteries.

≥Do not heat or expose to flame.

≥Do not leave the battery(ies) in an automobile exposed to direct

sunlight for a long period of time with doors and windows closed.

Do not:

≥mix old and new batteries.

≥use different types of batteries at the same time.

≥take apart or short circuit.

≥attempt to recharge alkaline or manganese batteries.

≥use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can

severely damage the remote control.

Remove the batteries if the remote control is not going to be used for a

long period of time. Store in a cool, dark place.

Aim at the remote control signal sensor (B39), avoiding obstacles, at a

maximum range of 7 m (23 ft) directly in front of the unit.

step 4 AC power supply cord connections

AC IN

110

127V 220

240V

VOLT ADJ

household

AC outlet

Main unitWireless system

AC power supply cord

(included)

Before connecting the AC power

supply cord

Set the voltage.

Use a flat-head screwdriver to move the

voltage selector to the appropriate position

for the area in which this system is used.

Ferrite core ≥If the AC plug does not fit

your household AC outlet

Use the AC plug adaptor

(included).

If it still does not fit, contact an electrical

parts distributor for assistance.

AC power

supply cord

(included)

household

AC outlet

[For\areas\except\U.S.A.[and\Canada]

step 5 Preparing the wireless system

WIRELESS LINK

POWER

WIRELESS LINK indicator

Red: The wireless system is on and the wireless link is deactivated.

Green: The wireless system is on and the wireless link is activated.

(“ [W1] ” is also displayed on the main unit’s display.)

Press [POWER CI, BÍ] on the wireless system.

Unit on/off button [POWER CI, BÍ]

Use this button to turn the wireless system on and off.

CI: The wireless system is on.

BÍ: The wireless system is off.

Wireless system

step 6 Preparing the remote control

Batteries

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only

with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

R6/LR6, AA

Insert so the poles ( and ) match those in the remote control.

Press in and lift up.

Replace the cover.

Use

RQTX0221-P_770_en.book Page 11 Monday, January 12, 2009 5:56 PM

RQTX0221

Quick Start Guide

Getting Started

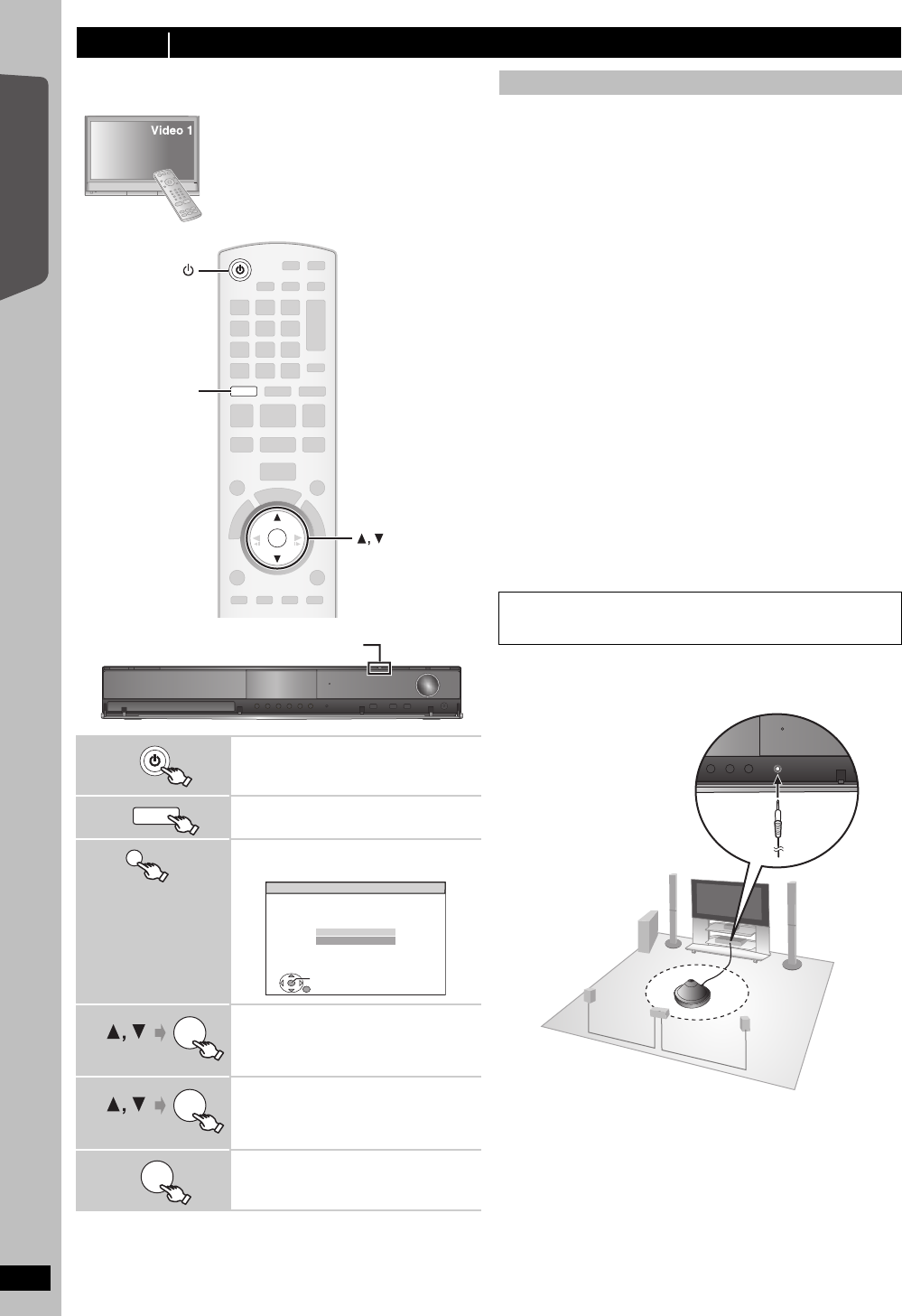

The Smart setup screen assists you in making necessary

settings.

≥Language

Select the language used on menu screen.

≥TV aspect

Select the aspect to suit your TV.

≥Speaker check

Listen to speaker output to confirm speaker connections.

≥Auto speaker setup

Adjust the speaker output level automatically. (Bbelow)

≥Speaker output

Make surround sound setting for speaker output.

≥TV audio

Select the audio input connection from your TV.

For AUX connection (B9): Select “AUX”.

For OPTICAL IN connection (B9): Select “DIGITAL IN”.

This will be the TV audio setting for VIERA Link “HDAVI Control”. (

24)

[Note]

≥If this unit is connected to a “HDAVI Control 3 or later” compatible TV

via HDMI cable, the menu language and TV aspect information will be

retrieved via VIERA Link.

≥If this unit is connected to a “HDAVI Control 2” compatible TV via

HDMI cable, the menu language information will be retrieved via

VIERA Link.

≥Settings in the Smart setup can also be changed in the player settings

[e.g. language, TV aspect, speaker level and TV audio (B28)].

∫Adjusting the speaker output level automatically:

Auto speaker setup

The speaker level settings can be optimized to accommodate your

room’s listening conditions so that you can enjoy the ideal surround

sound experience.

≥Place the Auto speaker setup microphone at actual seating position.

(At ear level when seated.)

≥The test signal is output from each speaker.

[Note]

Auto speaker setup can be activated through Smart setup only.

step 7 SMART SETUP

Preparation

Turn on your TV and select the appropriate

video input mode (e.g. VIDEO 1, AV 1, HDMI,

etc.) to suit the connections to this unit.

≥To change your TV’s video input mode, refer

to its operating instructions.

≥This remote control can perform some basic

TV operations (B38).

1Turn on the unit.

≥When the Smart setup screen appears

automatically, skip step 2 and 3.

2Select “DVD/CD”.

3Show the Smart setup.

e.g.

4Select “Yes”.

5Follow the messages and

make the settings.

(Bright, Smart setup settings)

6Finish Smart setup.

DVD

SMART SETUP

DVD

SMART SETUP

(Main unit only)

SET

RETURN

Smart setup

Would you like to start smart

setup?

Yes

Smart setup settings

Keep as quiet as possible during the Auto speaker setup. Loud

voices, air-conditioning noise, or excessive wind may lead to incorrect

settings. The speakers output loud test signals during setup.

SETUP MIC

RQTX0221-P_770_en.book Page 12 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Setting up the radio

Up to 30 stations can be set in each band, FM and AM.

≥“SET OK” is displayed when the stations are set, and the radio tunes to

the last preset station.

≥“ERROR” is displayed when automatic presetting is unsuccessful.

Preset the channels manually (B14).

≥The FM/AM setting is also shown on the TV display.

When “FM” is selected

Press and hold the button again to cancel the mode.

≥The mode is also canceled when you change the frequency.

When “AM” is selected

Press [FUNCTIONS] on the remote control.

Each time you press the button: BP 2

BP 1

(Continued on next page)

Presetting stations automatically

1Select “FM” or “AM”.

≥Main unit:

Press [SELECTOR].

2Each time you press the button:

LOWEST (factory preset):

To begin auto preset with the lowest

frequency.

CURRENT:

To begin auto preset with the current

frequency.§

§ To change the frequency, refer to “Manual

tuning” (Bright).

(press and hold)

Release the button when

“FM AUTO” or “AM AUTO” is displayed.

≥Main unit:

Press and hold [MEMORY].

The tuner starts to preset all the stations it

can receive into the channels in ascending

order.

PLAY

MODE

1 2 3

4 5 6

7 8

SEARCH SEARCH

EXT-IN

RADIO

SKIP SKIP

,SEARCH

Numbered

buttons

FUNCTIONS

RADIO

PLAY MODE

VOLUME

SELECTOR

TUNE

MEMOR

-TUNE MODE/—FM MODE

EXT-IN

RADIO

PLAY

LIST

Confirming the preset channels

1Select “FM” or “AM”.

≥Main unit:

Press [SELECTOR].

2Select the channel.

≥To select a 2-digit number

e.g. 12: [S10] B [1] B [2]

Alternatively, press [X,W].

≥Main unit:

Press [-TUNE MODE] to select “PRESET”

on the display, and then press

[XTUNE W] to select the channel.

When a stereo FM broadcast is being

received, “ST” lights in the display.

If noise is excessive

Press and hold [PLAY MODE]

(main unit: [—FM MODE]) to

display “MONO”.

Manual tuning

1Select “FM” or “AM”.

≥Main unit:

Press [SELECTOR].

2Select the frequency.

≥Main unit:

Press [-TUNE MODE] to select “MANUAL”

on the display, and then press

[XTUNE W] to select the frequency.

≥To start automatic tuning, press and hold

[6, 5] (main unit: [XTUNE W]) until

the frequency starts scrolling. Tuning

stops when a station is found.

EXT-IN

RADIO

1 2 3

4 5 6

7 8

MONO

EXT-IN

RADIO

SEARCH SEARCH

RQTX0221-P_770_en.book Page 13 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Setting up the radio (continued)

Up to 30 stations can be set in each band, FM and AM.

A station previously stored is overwritten when another station is stored in

the same channel preset.

FM frequency step

Main unit only

The step is factory-set to 0.2-MHz, but you can change it to receive

broadcasts allocated in 0.1-MHz steps. You may need to change this

setting if the tuner seems to skip over the correct frequency for stations in

your area.

1Press [SELECTOR] to select “FM”.

2Press and hold [SELECTOR].

After a few seconds the display changes to show the current minimum

frequency. Continue to hold the button down. The minimum frequency

changes and the step is changed.

e.g. 87.9 (Factory preset) ,# 87.5

To return to the original step, repeat steps 1 and 2.

[Note]

After changing the setting, previously preset frequencies will be cleared.

Preset them again.

1 2 3

4 5 6

7 8

SKIP SKIP

Numbered

buttons

VOLUME

SELECTOR

TUNE

MEMOR

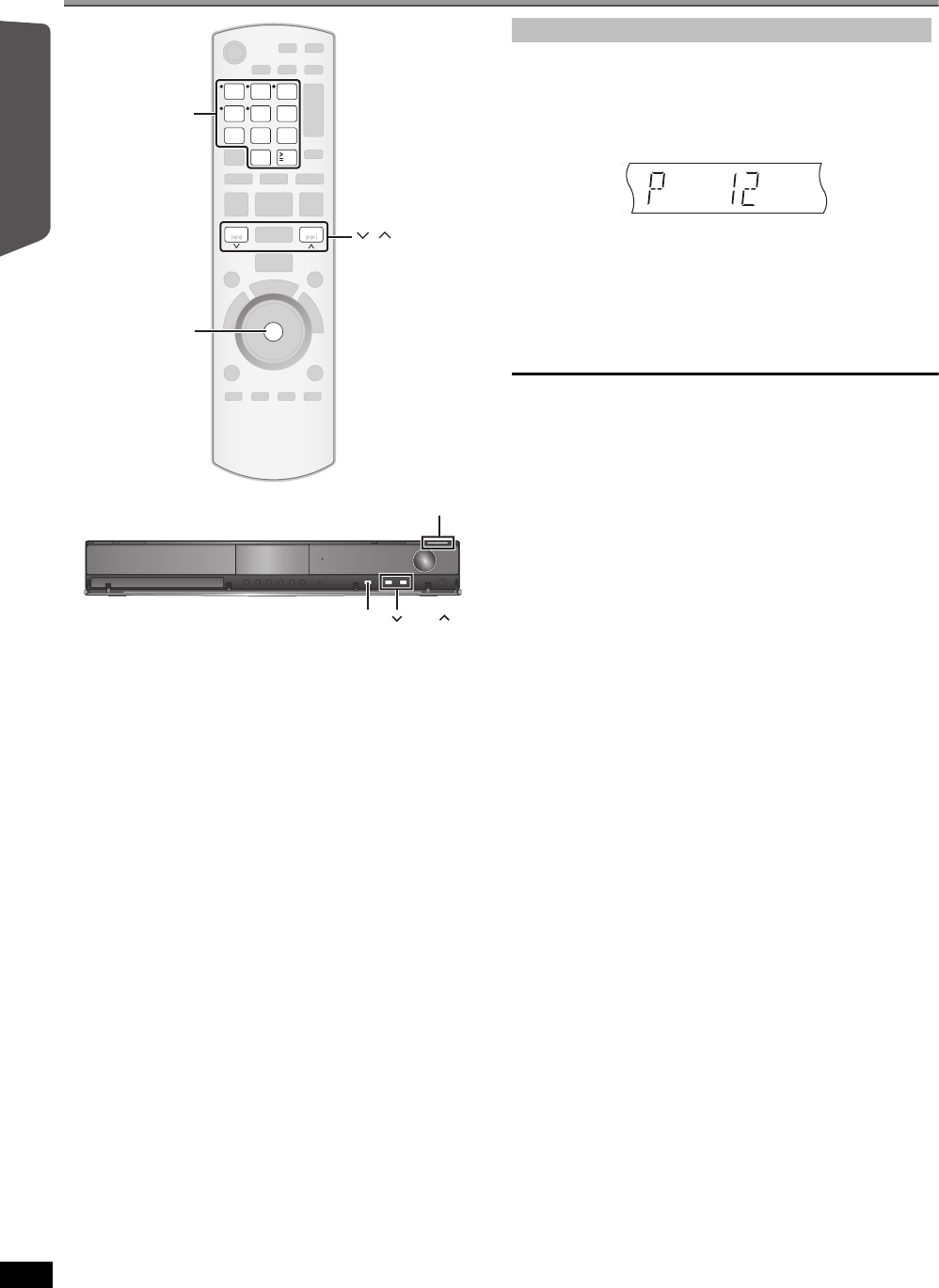

Presetting stations manually

1While listening to the radio broadcast

Press [OK].

2While the frequency is flashing on the display

Press the numbered buttons to select a channel.

≥To select a 2-digit number

e.g. 12: [S10] B [1] B [2]

Alternatively, press [X,W], and then press [OK].

Main unit:

1While listening to the radio broadcast

Press [MEMORY] twice.

2While a channel number is flashing on the display

Press [XTUNE W], and then press [MEMORY].

RQTX0221-P_770_en.book Page 14 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

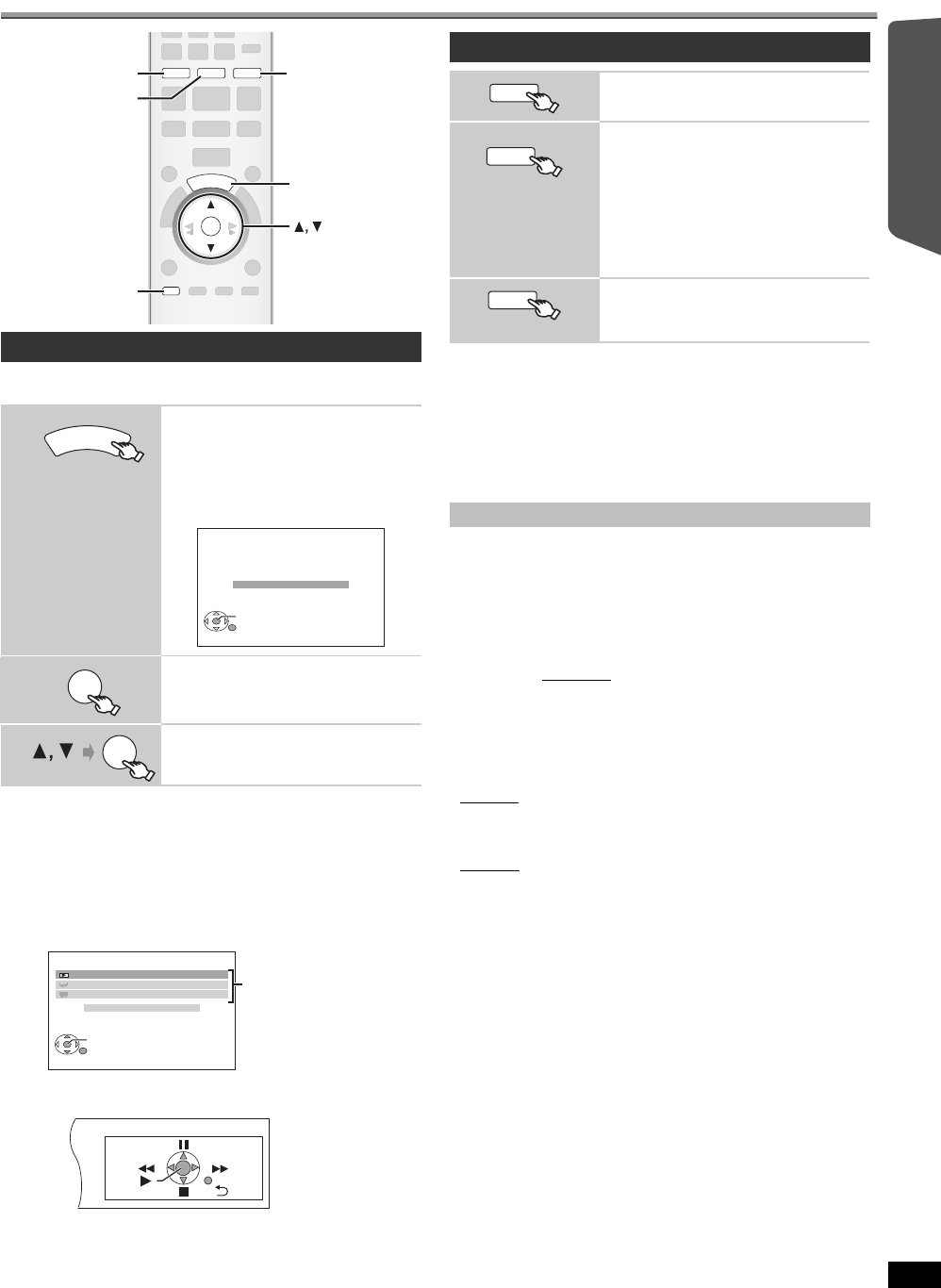

Selecting the playback source

You can select desired source or access playback/menus by using the

START menu.

When “Input select” is selected

You can select a desired source from the menu.

≥DVD/CD (B12), FM (B13), AM (B13), AUX§ (Bright),

DIGITAL IN§ (Bright), iPod (B26)

§“(TV)” will appear beside “AUX” or “DIGITAL IN”, indicating the TV

audio setting for VIERA Link “HDAVI Control” (B24).

When a disc is loaded, you can also access playback or menus from the

START menu.

e.g. [DVD-V]

When the on-screen control panel appears

e.g. [DVD-V] (when “Playback Disc” is selected from the START menu)

You can operate the playback with the indicated controls.

Press [SELECTOR] on the main unit to select source from the main unit.

(B39)

[Note]

Confirm the audio connection to the AUX or OPTICAL IN terminal on the

main unit when you select the corresponding sources (B9). Reduce the

volume on the TV to its minimum and then balance the TV volume with

the volume setting on the main unit. Refer also to the operating

instructions for your TV to balance the sound.

Select to suit the type of audio from the OPTICAL IN terminal on the main

unit.

(When receiving true 5.1-channel surround sound, select “PCM OFF”.)

[Note]

≥Audio that is input through the OPTICAL IN terminal is not output from

the HDMI terminal.

≥Underlined items in the above paragraph are factory settings.

Selecting the source from the START menu

1Show the START menu.

This unit automatically turns on.

(The TV also turns on when using VIERA

Link “HDAVI Control”. This works only when

in “DVD/CD” or “IPOD” mode without any

disc/device being loaded/connected.)

e.g.

2Select an item.

≥To exit, press [START].

3Make the setting.

DVD

iPod

SETUP

EXT-IN

RADIO

RADIO, EXT-INDVD

iPod

SETUP

START

DVD/CD Home theater

RETURN

Input select

DVD/CD Home theater

RETURN

Input select

Playback Disc

TOP MENU (DVD)

MENU (DVD)

Playback/menu access

Selecting the source by the remote control

DVD/CD (B12)

Each time you press the button:

FM (B13)

AM (B13)

AUX§: For audio input through the AUX

terminal.

D-IN§: For audio input through the

OPTICAL IN terminal. (Bbelow)

§“(TV)” will appear beside “AUX” or “D-IN”,

indicating the TV audio setting for VIERA

Link “HDAVI Control” (B24).

iPod (B26)

Making settings for digital audio input

1 While in “D-IN” mode

Press [SETUP] to select “MAIN/SAP”, “DRC” or “PCM FIX”.

2 While the selected mode is displayed

Press [3,4] to make the setting.

MAIN/SAP mode (Only works with Dolby Dual Mono):

MAIN, SAP§, MAIN+SAP§ (stereo audio)

§“SAP” = Secondary Audio Program

Dynamic Range Compression

DRC ON: Adjust for clarity even when the volume is low by

compressing the range of the lowest sound level and the

highest sound level. Convenient for late night viewing.

(Only works with Dolby Digital)

DRC OFF:The full dynamic range of the signal is reproduced.

PCM FIX mode

PCM ON: Select when receiving only PCM signals.

PCM OFF:Select when receiving Dolby Digital and PCM signals.

DVD

EXT-IN

RADIO

iPod

RQTX0221-P_770_en.book Page 15 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

≥The following sound effects may not be available or may have no effect

with some sources, or when headphones are used (B39).

≥You may experience a reduction in sound quality when these sound

effects are used with some sources. If this occurs, turn the sound effects

off.

§“ÎPLII” lights in the main unit’s display when there is effect.

You can enhance the surround effect for low volume 5.1-channel sound.

(Convenient for late night viewing.)

Enjoying sound from all speakers and various

sound effects

Enjoying surround sound effects

SURROUND OUTPUT indicator on the main

unit will light up when there is surround

sound effect.

Each time you press the button:

STANDARD:

Sound is output as it was recorded/encoded.

Speaker output varies depending on the

source.

MULTI–CH:

You can enjoy sound from the front

speakers, as well as the surround speakers

even when playing a 2-channel sound or

non-surround sound.

MANUAL: (Bbelow)

While “MANUAL” is

displayed

Select other surround modes.

Each time you press [2,1]:

PLII MOVIE §

Suitable for movie software, or softwares

recorded in Dolby Surround.

PLII MUSIC §

Adds 5.1-channel effects to stereo

sources.

S.SRND

You can enjoy sound from all speakers

with stereo sources. (Surround output will

be in mono.)

STEREO

Sound will only be output to the front

speakers and the subwoofer from any

source.

VOL

SOUND

SURROUND

CH SELECT

SETUP

W.SRD

VOL

SETUP,

─CH SELECT

SURROUND SOUND

W.SRD

SURROUND

Recommended modes to enjoy TV audio or stereo

sources from all speakers:

≥PLII MOVIE

≥PLII MUSIC

≥S.SRND

Selecting sound mode

1Select a sound mode.

Each time you press the button:

EQ: Equalizer

SUBW LVL: Subwoofer Level

C.FOCUS: Center Focus

2While the selected

mode is displayed

Make settings.

Refer to the following for setting details of

each sound effect.

Equalizer

You can select sound quality settings.

Each time you press [2,1]:

HEAVY: Adds punch to rock.

CLEAR: Clarifies higher sounds.

SOFT: For background music.

FLAT: Cancel (no effect is added).

Subwoofer level

You can adjust the amount of bass. The unit automatically

selects the most suitable setting according to the type of

playback source.

SUB W 1

SUB W 2

SUB W 3

SUB W 4

^-------------------------------------------------------------------J

≥The setting you make is retained and recalled every time you

play the same type of source.

Center Focus

(Effective when playing audio containing center channel

sound or when “ÎPLII” lights in the main unit display.)

You can make the sound of the center speaker seem like it is

coming from within the TV.

C.FOCUS ON,------.C.FOCUS OFF

Whisper-mode Surround

≥“(( ))” lights when there is effect.

Each time you press the button:

WHISPER-MODE SRD ON



WHISPER-MODE SRD OFF

SOUND

W.SRD

RQTX0221-P_770_en.book Page 16 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Preparation

≥To display the picture, turn on the TV and select the appropriate video

input mode.

≥Press [i,`VOL] to adjust the volume to normal listening level.

≥Select “TEST TONE” from “SPEAKER SETTINGS” in AUDIO menu

(B29).

(Effective when playing 5.1-channel sound or when “ÎPLII” lights.)

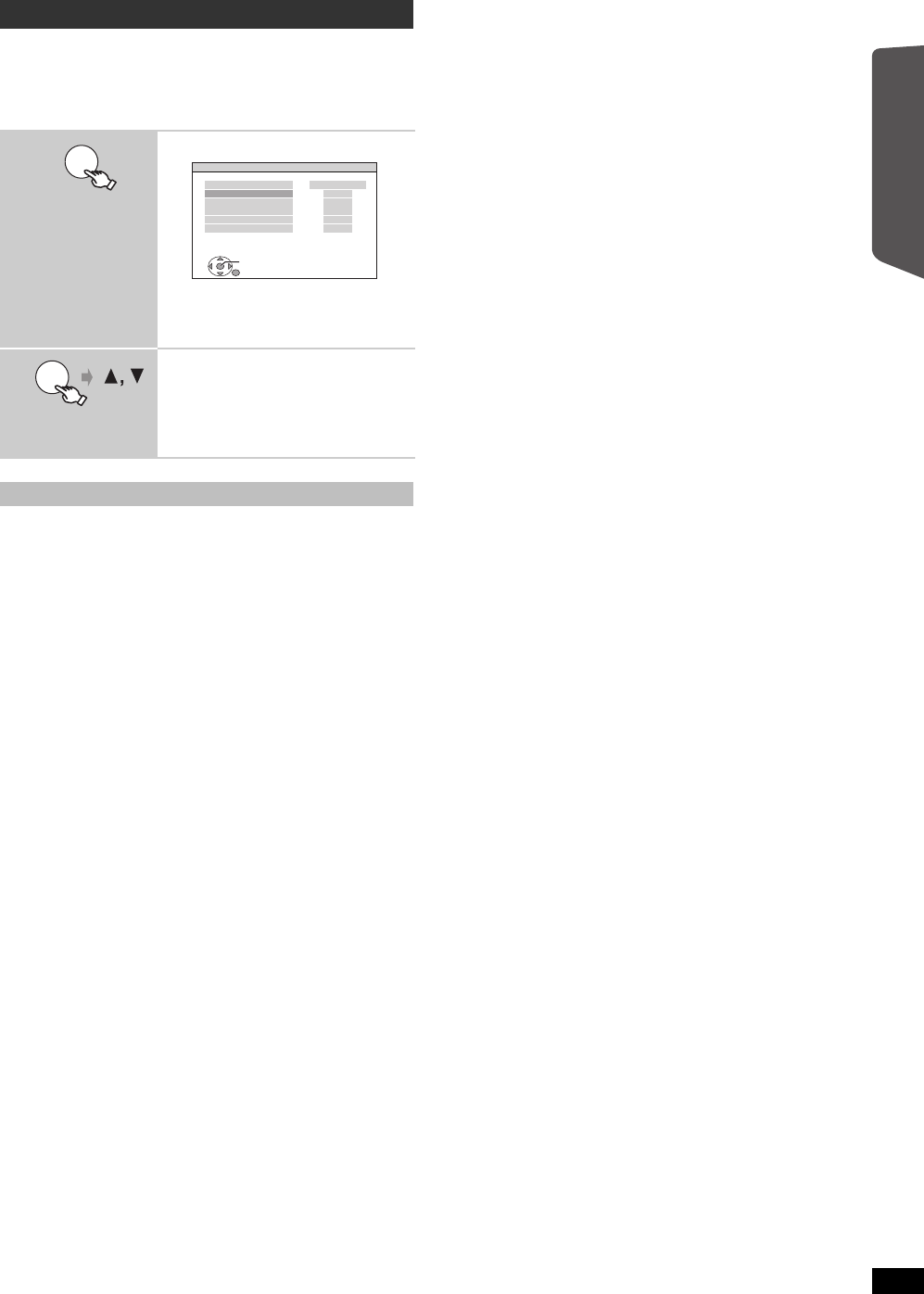

Adjusting the speaker output level manually

1Enter test tone mode.

Test tone will be output to each channel in

the following order.

LEFT, CENTER, RIGHT,

SURROUND RIGHT, SURROUND LEFT

2Adjust the speaker level for each

speaker. (CENTER, SURROUND

RIGHT, SURROUND LEFT)

6dB to

6 dB (Factory preset: 0 dB)

≥To exit the screen, press [SETUP].

To adjust speaker level during play

1Press and hold [—CH SELECT] to select the speaker.

While the speaker channel is displayed, press [—CH SELECT].

L# C# R# RS# LS# SW

^----------------------------------------------}

≥You can adjust SW (Subwoofer) only if the disc includes a

subwoofer channel and “ÎPLII” is not lit.

≥“S” appears on the main unit’s display when you have selected

“S.SRND” (B16, Enjoying surround sound effects). In this case,

you can adjust both surround speaker levels at the same time using

[3,4].

S: `6dB to i6dB

2Press [3] (increase) or [4] (decrease) to adjust the speaker level

for each speaker.

C, RS, LS, SW: `6dB to i6dB

(L, R: Only the balance is adjustable.)

To adjust the balance of the front speakers, while “L” or “R” is selected,

press [2,1].

e.g.

SET

RETURN

AUDIO-SPEAKER SETTINGS-TEST TONE

SPEAKER

LEFT

CENTER

RIGHT

SURROUND RIGHT

SURROUND LEFT

TRIM LEVEL

− −

0dB

− −

0dB

EXIT : SETUP

RQTX0221-P_770_en.book Page 17 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Playing D iscs

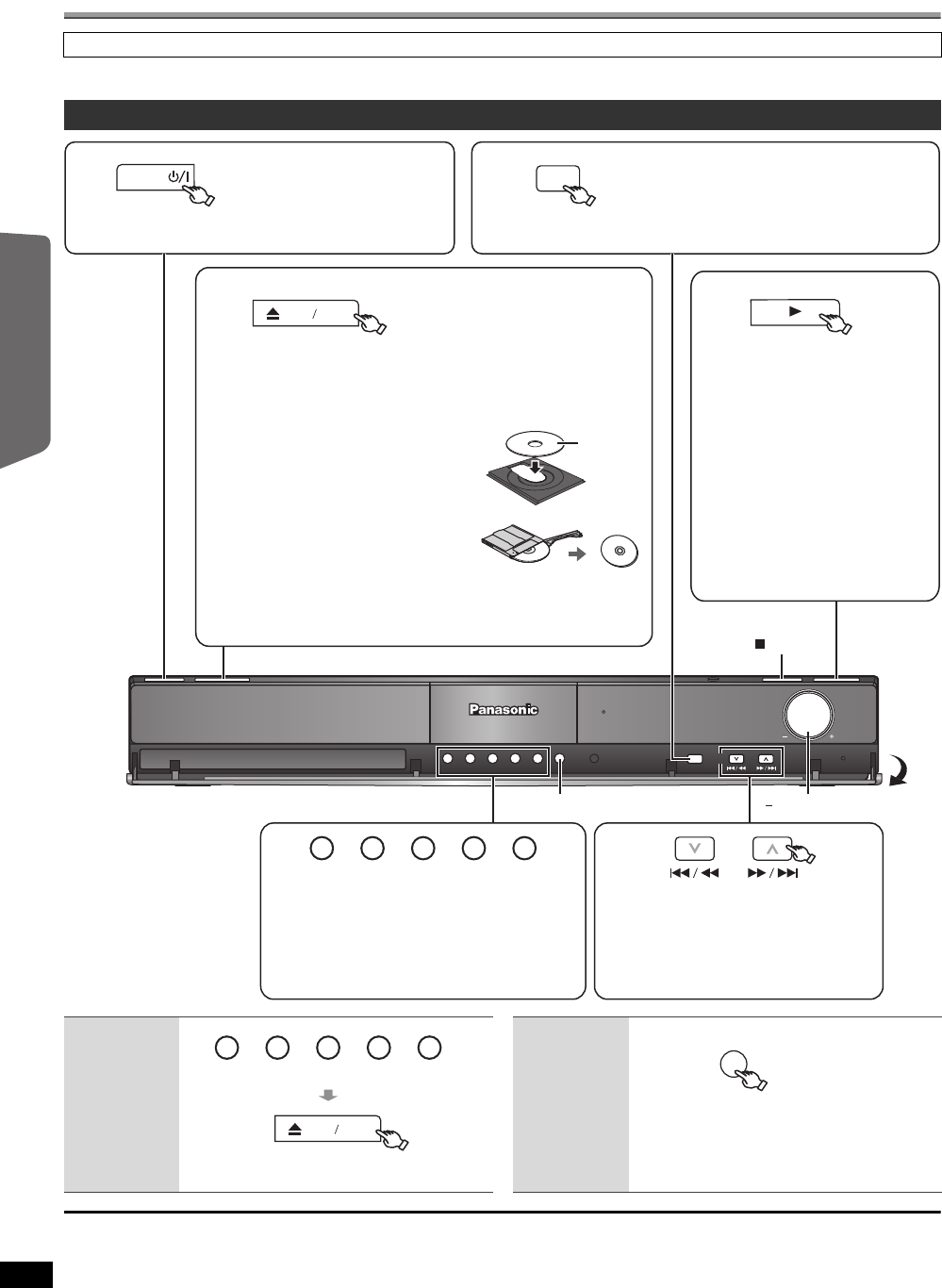

Basic play

Preparation

To display the picture, turn on your TV and change its video input mode (e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this unit.

[Note]

≥DISC CONTINUES TO ROTATE WHILE MENUS ARE DISPLAYED.

To preserve the unit’s motor and your TV screen, press [∫] (Stop) when you are finished with the menus.

≥Total title number may not be displayed properly on iR/iRW.

If you are experiencing problems, refer to troubleshooting (B32 to 33)

Using the main unit

Pull open

VOLUME

TUNE

SELECTOR

EXCHANGE

1 2 3 4 5

5 DISC SELECTOR

1 2 3 4 5

5 DISC SELECTOR

, + VOLUMEEXCHANGE

SELECTOR

TUNE

(Stop)

POWER

MEMORY

OPEN CLOSE

Load the disc.

≥Load double-sided discs so the

label for the side you want to play is

facing up.

≥Press [EXCHANGE] to load discs

one by one.

≥For DVD-RAM, remove the disc

from its cartridge before use.

≥Do not:

– Load more than one disc per tray.

– Push or pull out the tray by hand.

Label

facing up

Start play.

≥Turn [`, i VOLUME] to

adjust the volume.

Select “DVD/CD”.Turn on the unit.

Press to skip.

Press and hold to:

– search during play

– start slow-motion play during pause

≥Press [1] (Play) to start normal play.

Open all the disc trays.

≥To select a desired tray (Bbelow, Selecting the desired tray).

≥Press [<OPEN/CLOSE] again to close all the disc trays.

Press to select a disc directly.

≥You can also select the disc using the remote

control (B19, Selecting a disc).

Selecting

the desired

tray

Press [<OPEN/CLOSE] again to close the tray.

1 2 3 4 5

5 DISC SELECTOR

OPEN CLOSE

Change

discs

without

interrupting

playback

During play,

≥All trays are opened (except the tray where the disc

is playing).

≥Press [EXCHANGE] to close the top tray.

Press again until all the trays are closed.

≥Press [<OPEN/CLOSE] to close all the open trays.

EXCHANGE

RQTX0221-P_770_en.book Page 18 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

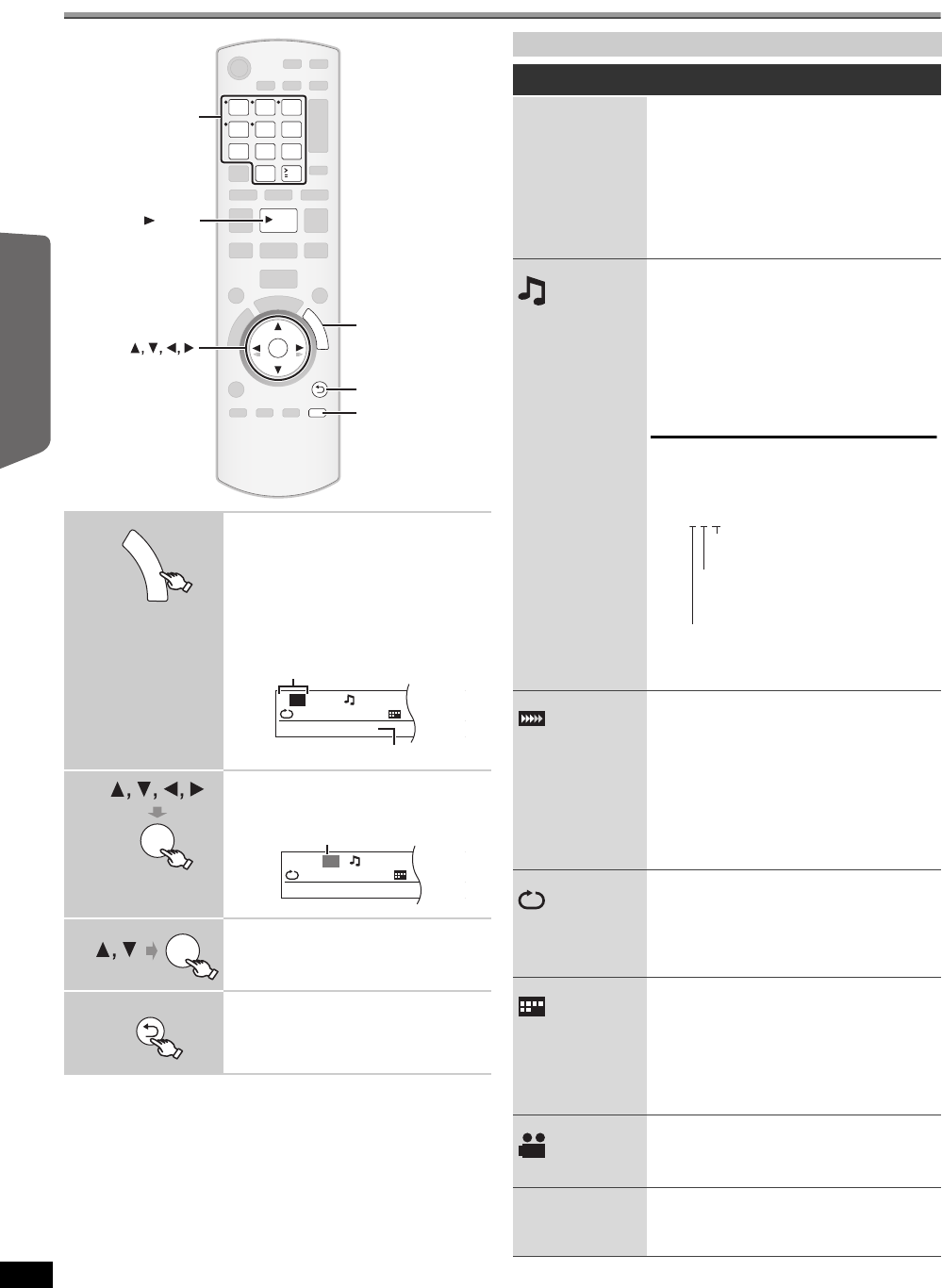

Using the remote control

One touch

play

(during standby

mode)

(Remote control only)

The main unit automatically turns

on and starts playing the disc in

the tray.

Stop The position is memorized while

“RESUME STOP” is on the

screen.

≥Press [1PLAY] to resume.

≥Press [∫STOP] again to clear

the position.

Pause ≥Press [1PLAY] to restart play.

Skip

(during play)

≥Up to 5 steps.

≥Press [1PLAY] to start normal

play.

Slow-motion

(during pause)

≥[VCD] Slow-motion: Forward

direction only.

Frame-by-

frame

(during pause)

[DVD-VR] [DVD-V] [VCD]

≥[DVD-VR] [VCD] Forward direction

only.

On-screen

item select

RETURN

VOL

STOP

1 2 3

4 5 6

7 8

DISC

SKIP

SLOW

SKIP

PLAY

PAUSE

DVD

PLAY

LIST

FL DISPLAY

SLOW, SEARCH

,SKIP

PAUSE

STOP

RETURN

DISC

MENU, PLAY LIST

FL DISPLAY

TOP MENU,

DIRECT NAVIGATOR

Numbered

buttons

VOL

PLAY

STOP

PAUSE

SKIP SKIP

—

SLOW

Select

Confirm

—

Selecting a

disc

Disc information screen is

displayed.

≥To exit the screen, press [DISC].

e.g. [DVD-V]

Enter

number

[DVD-VR] [DVD-V] [VCD] [CD]

e.g. To select 12:

[S10] B [1] B [2]

[VCD] with playback control

Press [∫STOP] to cancel the PBC

function, and then press the

numbered buttons.

Disc menu [DVD-V]

Shows a disc top menu.

[DVD-VR]

Press the button to show the

programs (B21).

[DVD-V]

Shows a disc menu.

[DVD-VR]

Press the button to show a play list

(B21).

[VCD] with playback control

Shows a disc menu.

Return to

screen

Main unit

display

[DVD-VR] [DVD-V] [WMA] [MP3]

Time display

,-. Information display

(e.g. [DVD-VR] Program

number)

[JPEG]

SLIDE,-.Contents number

Select

Confirm

1 2 3

4 5

DISC

DISC CHANGE

DVD-VR

UNCHECKED

NO DISC

DVD-VIDEO1

Empty tray Not yet read

1 2 3

4 5 6

7 8

PLAY

LIST

RETURN

—

SLEEP

FL DISPLAY

RQTX0221-P_770_en.book Page 19 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

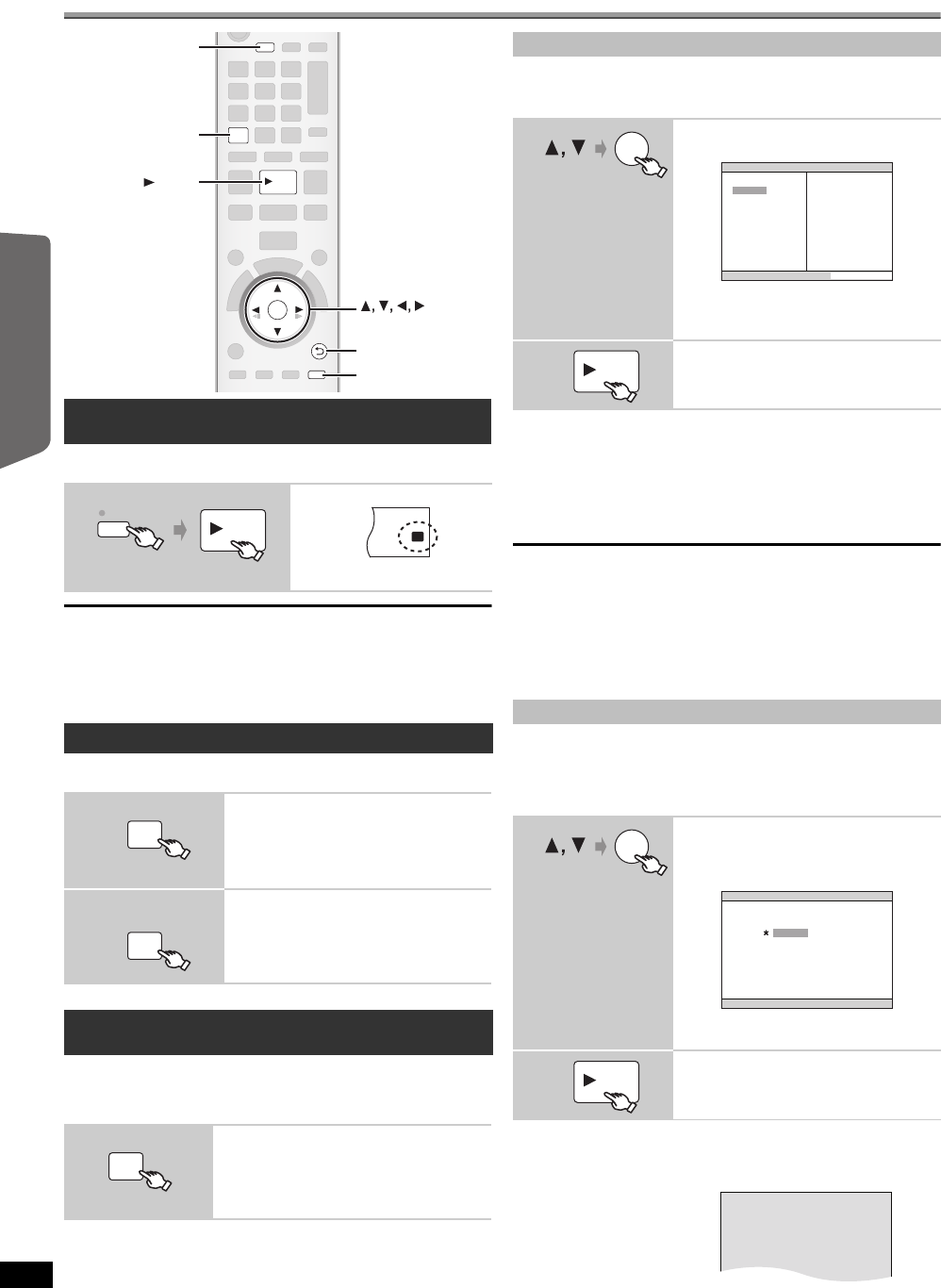

Other modes of play

This feature allows you to play all loaded CDs sequentially. Select an

applicable disc before playing (B19, Selecting a disc).

≥If all loaded discs are DVDs, CD Mode does not work.

≥Video CD playback control is disabled.

≥You cannot turn CD Mode on or off during program or random mode.

≥If you want to play a DVD, press and hold [—CD MODE] again while

stopped to cancel CD Mode. (CD Mode is also canceled when you

switch the unit to standby, select another source, or when the disc tray

is opened.)

This works only when the elapsed play time can be displayed. It also

works with all JPEG content.

Items shown differ depending on the type of disc and playback mode.

To enjoy program or random play with:

– 1 disc : ensure CD Mode (Babove) is off

– all discs : ensure CD Mode is on

Preparation

≥[DVD-VR] Select “DATA” in “DVD-VR/DATA” (B29, OTHERS menu) to

play WMA, MP3, JPEG contents.

≥[DVD-V] Some items cannot be played even if you have programmed

them.

∫1-Disc program

[DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG] You can program all the items on a

disc in the selected tray.

∫All-Disc program (when CD Mode is on)

[VCD] [CD] You can program all the items on all the discs.

To select all the items

Press [3,4] to select “ALL” and press [OK].

To clear the selected program

1 Press [1] and then press [3,4] to select the program.

2 Press [CANCEL].

To clear the whole program

Press [1] several times to select “CLEAR ALL”, and then press [OK].

The whole program is also cleared when the disc tray is opened, the unit

is turned off or another source is selected.

∫1-Disc random

[VCD] [CD] You can playback all the items on a disc in the selected tray in

random order.

[DVD-V] [WMA] [MP3] [JPEG] You can playback selected item(s) on a disc in

the selected tray in random order.

∫All-Disc random (when CD Mode is on)

[VCD] [CD] You can playback all the items on all the discs in random order.

Playing CDs sequentially (CD Mode)

[VCD] [CD] [WMA] [MP3]

While stopped

(press and hold)

Repeat play

1During play

(press and hold)

Show the repeat mode.

2While the repeat

mode is displayed

Select an item to be repeated.

e.g. [DVD-V]

`TITLE ---. `CHAP. ---. `OFF

^----------------------------------------------------b

To cancel, select “OFF”.

Program and Random play

[DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

While stopped Select the play mode.

Program and random playback screens appear

sequentially.

Program ------------------------------------------) Random

^--- Exit program and random screens (}

PLAY

CD MODE

PLAY

MODE

REPEAT

RETURN

CANCEL

RETURN

CANCEL

PLAY

─CD MODE

PLAY MODE,

─REPEAT

DISC

CD MODE

PLAY

W1W2

P.MODE

PLAY

MODE

REPEAT

PLAY

MODE

REPEAT

PLAY

MODE

REPEAT

Program play (up to 30 items)

1Select an item.

e.g. [DVD-V]

≥Repeat this step to program other items.

≥To return to the previous menu, press

[RETURN].

2Start play.

1Press [3,4], and then press [OK] to select the disc.

2Press [3,4], and then press [OK] to select the track.

3Repeat step 1 and 2 to program other items.

≥To return to the previous menu, press [RETURN].

4Press [1PLAY].

Random play

1(Only when the disc has groups or multiple

titles.)

Select a group or title.

e.g. [DVD-V]

≥“¢” represents selected. To deselect, press

[OK] again.

2Start play.

Press [1PLAY]. e.g. [CD]

DVD-V PROGRAM

SELECT TITLE TITLE CHAPTER

TITLE 1

TITLE 2

TITLE 3

TITLE 4

START:PLAY CLEAR ALL

PLAY

DVD-V RANDOM

SELECT TITLE

TITLE 1

TITLE 2

TITLE 3

PRESS PLAY TO START

PLAY

ALL DISC RANDOM

PRESS PLAY TO START

RQTX0221-P_770_en.book Page 20 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Using navigation menus

[DVD-VR] Select “DATA” in “DVD-VR/DATA” (B29, OTHERS menu) to

play WMA, MP3, JPEG contents.

You can select to play from your desired item while the “DATA-DISC”

screen is displayed.

e.g.

≥To display/exit the screen, press [MENU].

Play starts from the selected content.

∫Selecting the picture in Thumbnail menu

[JPEG]

To go to other group

1 Press [3] to select the group name.

2 Press [2,1] to select the group and press [OK].

≥Titles appear only if the titles are recorded on the disc.

≥You cannot edit programs, play lists and disc titles.

This works only when the disc contains a play list.

Playing data discs

[WMA] [MP3] [JPEG]

Playing from the selected item

Select an item.

≥Press [2,1] to skip page by page.

≥To return to 1 level up from the current

folder, press [RETURN].

≥Maximum: 28 characters for file/folder

name.

PLAY

LIST

RETURN

SKIP SKIP

,SKIP

RETURN

MENU, PLAY LIST

TOP MENU,

DIRECT NAVIGATOR

DATA-DISC

ROOT

Perfume

My favorite1

My favorite2

My favorite3

Underwater

Fantasy planet

Starpersons1

Starpersons2

Group (Folder):

Content (File):

: WMA/MP3

: JPEG

1While picture is

displayed

e.g.

2Select a picture.

≥Press [:,9SKIP] to skip page by

page.

Playing RAM and DVD-R/-RW (DVD-VR) discs

[DVD-VR]

Playing the programs

1While stopped e.g.

≥To exit the screen, press [DIRECT

NAVIGATOR].

2Select the program.

≥Press [2,1] to skip page by page.

Playing a play list

1While stopped e.g.

≥To exit the screen, press [PLAY LIST].

2Select the play list.

≥Press [2,1] to skip page by page.

JPEG images G 1/ 1:C 3/ 9

Group name

Group and content

number

PG DATE LENGTH TITLE

10:16:02

10/11 LIVE CONCERT

02:15

20:38:25

12/05 AUTO ACTION

31:16:05

04/03 CINEMA

02:10

01:30

RETURN

PLA

LIST

PL DATE LENGTH TITLE

10:00:10

11/11 CITY PENGUIN

00:01

20:01:20

12/01 FOOTBALL

31:10:04

01/02 SPECIAL

01:10

01:20

RETURN

RQTX0221-P_770_en.book Page 21 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

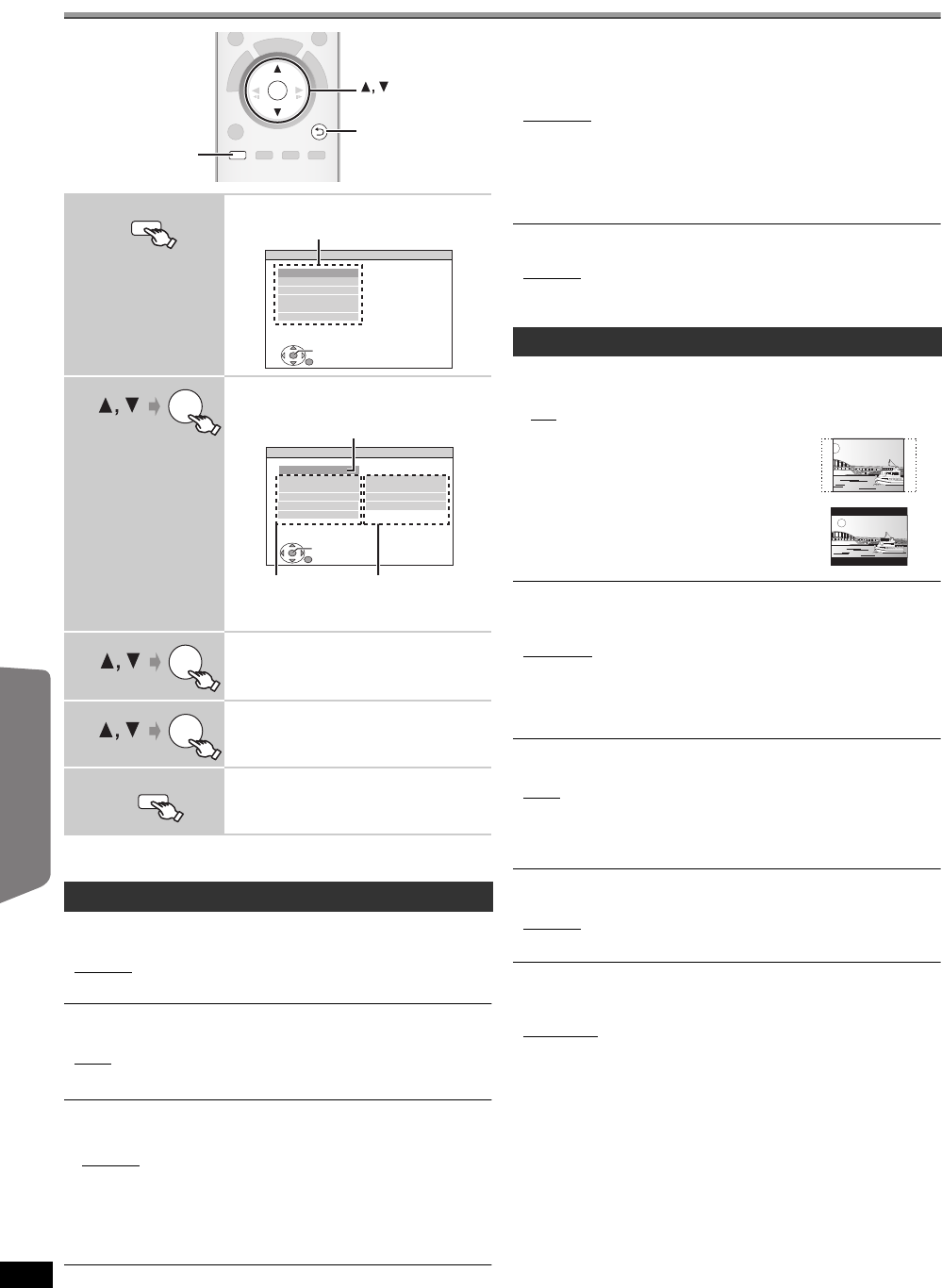

Using on-screen menus

1Show the on-screen menu.

Each time you press the button:

Menu 1 (Disc/Play)

Menu 2 (Video)

Menu 3 (Audio)

Menu 4 (HDMI)

Exit

2Select the item.

3Make the settings.

4Exit.

RETURN

PLAY

CANCEL

1 2 3

4 5 6

7 8

RETURN

FUNCTIONS

CANCEL

Numbered

buttons

PLAY

C1 1:ENG 3/2.1ch

1 :ENG

OFF

TITLE SEARCH

Current item

Item name

e.g. Menu 1 (Disc/Play) [DVD-V]

C11:ENG 3/2.1ch

1 :ENG

OFF

CHAPTER SEARCH

Current setting

e.g. Menu 1 (Disc/Play) [DVD-V]

RETURN

Items shown differ depending on the type of disc.

Menu 1 (Disc/Play)

TRACK SEARCH

TITLE SEARCH

CONTENT SEARCH

CHAPTER SEARCH

PG SEARCH

(Program Search)

PL SEARCH

(Playlist Search)

To start from a specific item

≥[VCD] This does not work when using playback

control.

e.g. [DVD-V]: T2 C5

To select numbers for data disc

e.g. 123: [S10] B [1] B [2] B [3] B [OK]

AUDIO

[DVD-V] (with multiple soundtracks)

To select audio soundtrack

[DVD-VR] [VCD]

To select “L”, “R”, “L+R” or “L R”

[DVD-V] (Karaoke disc)

To select “ON” or “OFF” for vocals

To select “OFF”, “V1”, “V2” or “V1+V2” for

vocal selections

Actual operations depend on the disc. Read the

disc’s instructions for details.

Signal type/data

LPCM/PPCM/

D/DTS/MP3/MPEG: Signal type

kHz (Sampling frequency)/bit/ch (Number of

channels)

PLAY SPEED

[DVD-VR] [DVD-V]

To change play speed

– from “k0.6” to “k1.4” (in 0.1-unit steps)

≥Press [1PLAY] to return to normal play.

≥After you change the speed

– Dolby Pro Logic II has no effect.

– Audio output switches to 2-channel stereo.

– Sampling frequency of 96 kHz is converted to

48 kHz.

≥This function may not work depending on the

disc’s recording.

REPEAT MODE

(B20, Repeat play)

A-B Repeat (To repeat a specified section)

Except [JPEG] [DVD-VR] (Still picture part)

[VCD] (SVCD)

Press [OK] at the starting and ending points.

≥Select “OFF” to cancel.

SUBTITLE

[DVD-V] (with multiple subtitles)

[VCD] (SVCD only)

To select subtitle language

≥On iR/iRW, a subtitle number may be shown

for subtitles that are not displayed.

[DVD-VR] (with subtitle on/off information)

To select “ON” or “OFF”

≥This may not work depending on the disc.

ANGLE

[DVD-V] (with multiple angles)

To select a video angle

DATE DISPLAY

[JPEG] To select “ON” or “OFF” for picture’s

date display

3/2 .1ch

.0: No surround

.1: Mono surround

.2: Stereo surround (left/right)

.1: Low frequency effect

(not displayed if there is no signal)

.1: Center

.2: Front leftiFront right

.3: Front leftiFront rightiCenter

e.g.

JPG

DATE

RQTX0221-P_770_en.book Page 22 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Confirming HDMI information

1Connection status

2Shows the output signal type.

3Shows the number of audio channels.

4(Babove, VIDEO FORMAT)

5(Babove, COLOR SPACE)

[Note]

When “OFF” is selected in “AUDIO OUT” (B29, HDMI menu), “– – –” will

be displayed in “AUDIO STREAM”.

ROTATION

To rotate a picture (during pause)

[JPEG]:

0,------. 90,------.180,------.270

^--------------------------------------------J

Menu 2 (Video)

PICTURE MODE

NORMAL

CINEMA1:

CINEMA2:

DYNAMIC:

ANIMATION:

Mellows images and enhances

detail in dark scenes.

Sharpens images and enhances

detail in dark scenes.

Enhances the contrast for

powerful images.

Suitable for animation.

ZOOM

To select zoom sizes

NORMAL, AUTO (

[DVD-VR]

[DVD-V] [VCD]

≥[JPEG]: during pause

TRANSFER

MODE

If you have chosen “480p”/“720p”/“1080p”

(progressive), “1080i” (interlaced)

[“VIDEO FORMAT” in Menu 4 (HDMI)] or

“PROGRESSIVE” under “VIDEO OUT (I/P)”

(B28, VIDEO menu), select the method of

conversion for progressive output to suit the type

of material.

≥The setting will return to “AUTO1” when the

disc tray is opened, the unit is turned off or

another source is selected.

AUTO1:

AUTO2:

VIDEO:

Automatically detects the film and

video content, and appropriately

converts it.

In addition to “AUTO1”,

automatically detects film

contents with different frame rates

and appropriately converts it.

Select if the video content is

distorted when using “AUTO1” or

“AUTO2”.

Menu 3 (Audio)

DIALOGUE

ENHANCER

To make the dialogue in movies easier to hear

[DVD-V] (Dolby Digital, DTS, 3-channel or higher,

with the dialogue recorded in the center channel)

OFF, ON

Menu 4 (HDMI)

HDMI STATUS

To show HDMI information.

(Bbelow, Confirming HDMI information)

HD ENHANCER

This works when the HDMI connection is being

used with “VIDEO PRIORITY” (B29, HDMI

menu) set to “ON”.

To sharpen the “720p”, “1080i” and “1080p”

picture quality

OFF, 1 (weakest) to 3 (strongest)

VIDEO FORMAT

This works when the HDMI connection is being

used with “VIDEO PRIORITY” (B29, HDMI

menu) set to “ON”.

To select suitable picture quality with your TV

(Video recordings will be converted to, and output

as, high-definition video.)

§480p/720p/1080p (progressive)

§480i/1080i (interlaced)

≥If the picture is distorted, press and hold

[CANCEL] until the picture is displayed

correctly. (The output will return to “480p”.)

§The numbers displayed depend on the disc

being played. One of the above numbers is

displayed.

COLOR SPACE

This works when the HDMI connection is being

used with “VIDEO PRIORITY” (B29, HDMI

menu) set to “ON”.

To select suitable picture color with your TV

YCbCr 4:2:2§

– Luminance and color details are sent

separately. Most of the picture details are in

luminance. The color rate is much higher than

composite video. Compatible with all TV

models.

YCbCr 4:4:4§

– All color details are sent. Luminance and

color details are in the same signal.

RGB

– Component video type of signal.

≥If the setting above is not compatible with your

TV, it will not be displayed.

§Terms are descriptions of the sample formats

used in digital video. YCbCr is a video signal

for luminance (Y), blue (Cb) and red (Cr)

details.

e.g.

HDMI

HDMI --- INFORMATION

CONNECTED STATE

AUDIO STREAM

MAX CHANNEL

VIDEO FORMAT

COLOR SPACE

CONNECTED

PCM

2ch

720p

YCbCr 4:4:4

RQTX0221-P_770_en.book Page 23 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Other Oper ating

Using the VIERA LinkTM “HDAVI ControlTM”

VIERA Link “HDAVI Control”

VIERA LinkTM is a new name for EZ SyncTM.

VIERA Link “HDAVI Control” is a convenient function that offers linked

operations of this unit, and a Panasonic TV (VIERA) under “HDAVI

Control”. You can use this function by connecting the equipment with the

HDMI cable. See the operating instructions for connected equipment for

operational details.

≥VIERA Link “HDAVI Control”, based on the control functions provided by

HDMI which is an industry standard known as HDMI CEC (Consumer

Electronics Control), is a unique function that we have developed and

added. As such, its operation with other manufacturers’ equipment that

supports HDMI CEC cannot be guaranteed.

≥This unit supports “HDAVI Control 4” function.

“HDAVI Control 4” is the newest standard (current as of December,

2008) for Panasonic’s HDAVI Control compatible equipment. This

standard is compatible with Panasonic’s conventional HDAVI

equipment.

≥Please refer to individual manuals for other manufacturers’ equipment

supporting VIERA Link function.

The TV with “HDAVI Control 2 or later” function enables the following

operation: VIERA Link Control only with TV’s remote control (for

“HDAVI Control 2 or later”) (B25)

Preparation

≥Confirm that the HDMI connection has been made (B9).

≥Set “VIERA Link” to “ON” (B29, HDMI menu).

≥To complete and activate the connection correctly, turn on all VIERA

Link “HDAVI Control” compatible equipment and set the TV to the

corresponding HDMI input mode for this unit.

Whenever the connection or settings are changed, reconfirm the points

above.

(Available when using VIERA Link “HDAVI Control” with

“HDAVI Control 3 or later” compatible TV)

This function automatically provides synchronized audio and video

output. (This works only when the source is “DVD/CD”, “AUX” or “D-IN”.)

≥When using “DVD/CD” as the source, set “TIME DELAY” in VIDEO

menu to “0 ms/AUTO” (B28).

You can turn on this unit and the TV, and start playing the disc with a

single press of a button.

[Note]

Playback may not be immediately displayed on the TV. If you miss the

beginning portion of playback, press [:] or [6] to go back to where

playback started.

≥When you switch the TV input to TV tuner mode, this unit will

automatically switch to “AUX”§ or “D-IN”§. (For “IPOD” mode, this works

only in iPod music mode, or when iPod is not connected.)

≥When you start disc play, the TV will automatically switch its input mode

for this unit.

When the TV is turned off, this unit goes into standby mode automatically.

To continue audio playback even when the TV is turned off, select

“VIDEO” (B29, “POWER OFF LINK” in HDMI menu).

[Note]

≥When you press [Í], only this unit turns off. Other connected equipment

compatible with VIERA Link “HDAVI Control” stays on.

≥If this unit is connected to a “HDAVI Control 4” compatible TV with the

“Auto power standby” setting activated on the TV, the main unit will be

automatically turned to standby under the following conditions:

e.g.,

For details, refer also to the operating instructions for your TV.

Setting the TV audio for VIERA Link “HDAVI Control”

Select “AUX” or “DIGITAL IN” to work with the linked operations.

Refer to TV audio setting in Smart setup (B12) or “TV AUDIO” in HDMI

menu (B29).

Confirm the audio connection to the AUX terminal (for “AUX”) or

OPTICAL IN terminal (for “DIGITAL IN”) (B9).

§“AUX” or “D-IN” (“DIGITAL IN”) works depending on the TV audio

setting (Babove, Setting the TV audio for VIERA Link “HDAVI

Control”).

PLAY

SKIP

PLAY

Auto lip sync

One touch play

During standby mode (Remote control only)

Start disc playback.

This unit’s speakers will be automatically

activated (B25).

Auto input switching

Power off link

– when changing the TV input from the one the main unit is

connected to

– when changing the speaker use from this unit’s speaker to the TV

speakers

PLAY

RQTX0221-P_770_en.book Page 24 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

You can select whether audio is output from this unit’s speakers or the TV

speakers by using the TV menu settings. For details, refer to the

operating instructions for your TV.

Home theater

This unit’s speakers are active.

≥When you turn on this unit, this unit’s speakers will be automatically

activated.

≥When this unit is in standby mode, changing the TV speakers to this

unit’s speakers in the TV menu will automatically turn this unit on and

select “AUX”§ or “D-IN”§ as the source.

≥The TV speakers are automatically muted.

≥You can control the volume setting using the volume or mute button on

the TV’s remote control. (The volume level is displayed on the main

unit’s display.)

≥To cancel muting, you can also use this unit’s remote control (B38).

≥If you turn off this unit, TV speakers will be automatically activated.

TV speakers are active.

≥The volume of this unit is set to “0”.

– This function works only when “DVD/CD”, “AUX”§ or “D-IN”§ is

selected as the source on this unit.

≥Audio output is 2-channel audio.

When switching between this unit’s speakers and TV speakers, the TV

screen may be blank for several seconds.

You can control the playback menus of this unit with the TV’s remote

control. When operating the TV’s remote control, refer to the below

illustration for operation buttons.

You can operate the playback with the indicated controls.

≥The on-screen control panel can also be shown by using a button on the

TV’s remote control (e.g. [SUB MENU]).

– This works only during “DVD/CD” playback and resume modes or,

while the iPod music playback screen is displayed on the TV.

[Note]

≥Depending on the menu, some button operations cannot be performed

from the TV’s remote control.

≥You cannot input numbers with the numbered buttons on the TV’s

remote control ([0] to [9]). Use this unit’s remote control to select the

play list etc.

Speaker control VIERA Link Control only with TV’s remote control

(for “HDAVI Control 2 or later”)

1 Select this unit’s operation menu by using the TV menu settings.

(For details, refer to the operating instructions for your TV.)

The START menu will be shown.

e.g. [DVD-V]

≥The START menu can also be shown by using a button on the TV’s

remote control (e.g. [SUB MENU]).

– When “DVD/CD” is selected as the source, the TV’s remote control

works only during stop mode.

– This feature does not work while the iPod music playback screen is

displayed on the TV.

2 Select the desired item on the START menu (B15).

When the on-screen control panel appears

e.g. [DVD-V] (when “Playback Disc” is selected from the START menu.)

DVD/CD Home theater

RETURN

Input select

Playback Disc

TOP MENU (DVD)

MENU (DVD)

Playback/menu access

RQTX0221-P_770_en.book Page 25 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Using the iPod

You can enjoy iPod music through this unit’s speakers or view iPod

videos/photos on the TV.

Preparation

≥To view photos/videos from the iPod

– Ensure the video connection to the VIDEO OUT terminal on this unit

(B9).

– Operate the iPod menu to make the appropriate photo/video output

settings for your TV. (Refer to operating instructions of your iPod.)

≥To display the picture, turn on the TV and select the appropriate video

input mode.

≥Before connecting/disconnecting the iPod, turn the main unit off or

reduce the volume of the main unit to its minimum.

Connect the iPod (not included) firmly.

Recharging starts when the iPod is inserted.

≥Attach the dock adapter which should be supplied with your iPod to the

dock for the stable use of the iPod.

If you need an adapter, consult your iPod dealer.

When using the START menu in “IPOD” mode

Music: Shows the music menu.

Videos: Shows the video menu.

All (iPod display): Switches to iPod menu.

Play starts from the selected song or video.

e.g. music playback screen

§These icons will only appear for music mode.

Other methods of playback

Shuffle mode (For music playback only)

Press [PLAY MODE] several times.

SONGS, ALBUMS, OFF

Repeat mode

Press and hold [—REPEAT] and then press the button several times

within a few seconds.

During the music/video playback: ONE, ALL, OFF

PLAY

PAUSE

iPod

PLAY

MODE

REPEAT

STOP

RETURN

SKIP SKIP

RETURN

iPod

STOP

PLAY

SKIP

PAUSE

PLAY MODE,

─REPEAT

FUNCTIONS

iPod

Dock for iPod

Main unit

e.g.

Pull out Dock adapter

(not included)

Select “IPOD”.

The iPod automatically switches to this unit’s display

mode.

Music menu appears on the TV.

Select the menu.

Each time you press the button:

Music menu -----------------------------) Video menu

^-- iPod menu (iPod LCD) (}

Enjoying music/videos

1Select music or video menu on the

TV.

2Select an item.

≥Press [2,1] to skip page by page.

≥To return to the previous screen, press

[RETURN].

: Song shuffle

: Album shuffle

: Repeat 1 song

: Repeat all

Basic controls (For music and videos only)

Button Function

[1PLAY] Play

[∫STOP], [;PAUSE] Pause

[:, 9SKIP] Skip

(press and hold)

[:, 9SKIP]

iPod

Music Home theater

RETURN

Playlists

Artists

Albums

Songs

Podcasts

Genres

Composers

Audiobooks

e.g.

iPod Home theater

RETURN

Music

Videos

All (iPod display)

Input select

e.g.

RETURN

iPod Home theater

Good morning

Ronaldo

Happy days

3 of 20

2:43 -1:15

Playback condition

Song

Artist

Album

Current position

Shuffle mode

Repeat mode

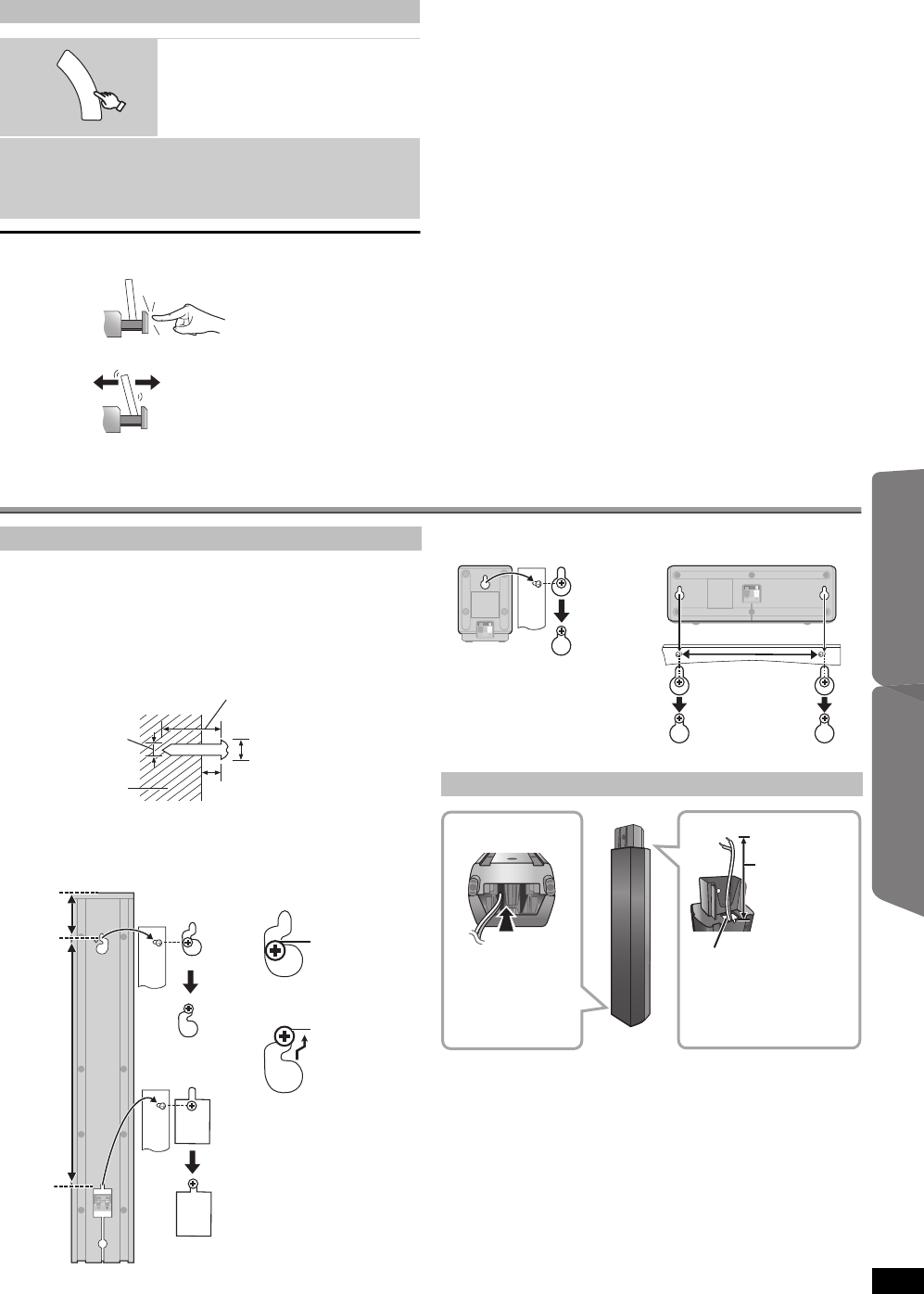

RQTX0221-P_770_en.book Page 26 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

While an iPod is connected

≥Do not push the Dock for iPod.

≥Do not push or pull your iPod back and forth with great force.

About recharging the battery

≥iPod will start recharging regardless of whether this unit is on or off.

≥“IPOD ¢” will be shown on the main unit’s display during iPod charging

in main unit standby mode.

≥Check iPod to see if the battery is fully recharged.

≥If you are not using iPod for an extended period of time after recharging

has completed, disconnect it from main unit, as the battery will be

depleted naturally. (Once fully recharged, additional recharging will not

occur.)

Compatible iPod

≥iPod touch 2nd generation (8GB, 16GB, 32GB)

≥iPod nano 4th generation (video) (8GB, 16GB)

≥iPod classic (120GB)

≥iPod touch 1st generation (8GB, 16GB, 32GB)

≥iPod nano 3rd generation (video) (4GB, 8GB)

≥iPod classic (80GB, 160GB)

≥iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB)

≥iPod 5th generation (video) (60GB, 80GB)

≥iPod 5th generation (video) (30GB)

≥iPod nano 1st generation (1GB, 2GB, 4GB)

≥iPod 4th generation (color display) (40GB, 60GB)

≥iPod 4th generation (color display) (20GB, 30GB)

≥iPod 4th generation (40GB)

≥iPod 4th generation (20GB)

≥iPod mini (4GB, 6GB)

Compatibility depends on the software version of your iPod.

Speaker installation options

You can attach all of the speakers (except subwoofer) to a wall.

≥The wall or pillar on which the speakers are to be attached should be

capable of supporting 10 kg (22 Ibs) per screw. Consult a qualified

building contractor when attaching the speakers to a wall. Improper

attachment may result in damage to the wall and speakers.

1Drive a screw (not included) into the wall.

2Fit the speaker securely onto the screw(s) with the hole(s).

Enjoying photos

1Select the iPod menu.

2Play a slideshow on your iPod.

You can use the remote control to operate the iPod menu.

[3,4]: To navigate menu items.

[OK]: To go to the next menu.

[RETURN]: To return to the previous menu.

DO NOT

Attaching to a wall

At least 30 mm (13/16)

3 mm to 5 mm (1/8 to 3/16)

Wall or pillar

4.0 mm (5/32)7.0 mm to 9.0 mm

(9/32 to 11/32)

Front speaker

Attach to a wall without the base and the stand

e.g.

In this

position, the

speaker will

likely fall if

moved to the

left or right.

Move the

speaker so

that the

screw is in

this position.

NOT

348.5 mm

(1323/32q)

72 mm

(227/32q)

Reattaching the speaker cable

190 mm

(715/32q)

Surround speaker Center speaker

Insert the cable

from the bottom.

Pull out the cable

through the hole.

Leave about

120 mm (423/32z)

RQTX0221-P_770_en.book Page 27 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Changing the player settings

≥The settings remain intact even if you switch the unit to standby.

≥Underlined items are the factory settings in the following menus.

§1The original language designated on the disc is selected.

§2Input the appropriate code from the language code list (B39).

§3If the language selected for “AUDIO” is not available, subtitles appear

in that language (if available on the disc).

RATINGS

Set a rating level to limit DVD-Video play.

Setting ratings (When level 8 is selected)

≥0 LOCK ALL: To prevent play of discs without rating levels.

≥1 to 7

≥8 NO LIMIT

When you select your ratings level, a password screen is shown.

Follow the on-screen instructions.

Do not forget your password.

A message screen will be shown if a DVD-Video disc exceeding the rating

level is inserted in the unit.

Follow the on-screen instructions.

PASSWORD

Change the password for “RATINGS”.

≥SETTING

To change ratings (When level 0 to 7 is selected)

≥CHANGE: Follow the on-screen instructions.

§Refer to “Frame still and field still” (B4, Glossary).

1Show the setup menu.

2Select the menu.

≥To return to the previous screen, press

[RETURN].

3Select the item.

4Make the settings.

5Exit.

DISC menu

AUDIO

Choose the audio language.

≥ENGLISH ≥FRENCH ≥SPANISH

≥ORIGINAL§1≥OTHER – – – –§2

SUBTITLE

Choose the subtitle language.

≥AUTO§3≥ENGLISH ≥FRENCH ≥SPANISH

≥OTHER – – – –§2

MENUS

Choose the language for disc menus.

≥ENGLISH ≥FRENCH ≥SPANISH

≥OTHER – – – –§2

SETUP

RETURN

SETUP

CH SELECT

SETUP

SET

MAIN

DISC

VIDEO

AUDIO

DISPLAY

HDMI

OTHERS

EXIT : SETUP

RETURN

SET

RETURN

DISC

EXIT : SETUP

SETTING STATE

AUDIO

SUBTITLE

MENUS

RATINGS

PASSWORD

ENGLISH

AUTO

ENGLISH

8 NO LIMIT

Item Setting

Display the current setting

of the items below

CH SELECT

SETUP

VIDEO menu

TV ASPECT

Choose the setting to suit your TV.

≥16:9: Widescreen TV (16:9)

≥4:3PAN&SCAN: Regular aspect TV (4:3)

The sides of the widescreen picture are cut

off so it fills the screen (unless prohibited by

the disc).

≥4:3LETTERBOX: Regular aspect TV (4:3)

Widescreen picture is shown in the letterbox

style.

TIME DELAY

When connected with a Plasma display, adjust if you notice the audio is

out of sync with the video.

≥0 ms/AUTO ≥20 ms ≥40 ms ≥60 ms

≥80 ms ≥100 ms

When using VIERA Link “HDAVI Control” with “HDAVI Control 3 or later”

compatible TV, select “0 ms/AUTO”.

Audio and video will automatically be set in sync.

STILL MODE

Specify the type of picture shown when paused.

≥AUTO

≥FIELD§: The picture is not blurred, but picture quality is lower.

≥FRAME§: Overall quality is high, but the picture may appear blurred.

BLACK LEVEL

Change the black level of the picture.

≥LIGHTER

≥DARKER

VIDEO OUT (I/P)

Select “PROGRESSIVE” only if connecting to a progressive output

compatible TV.

≥INTERLACE

≥PROGRESSIVE: A message screen will appear. Follow the on-screen

instructions.

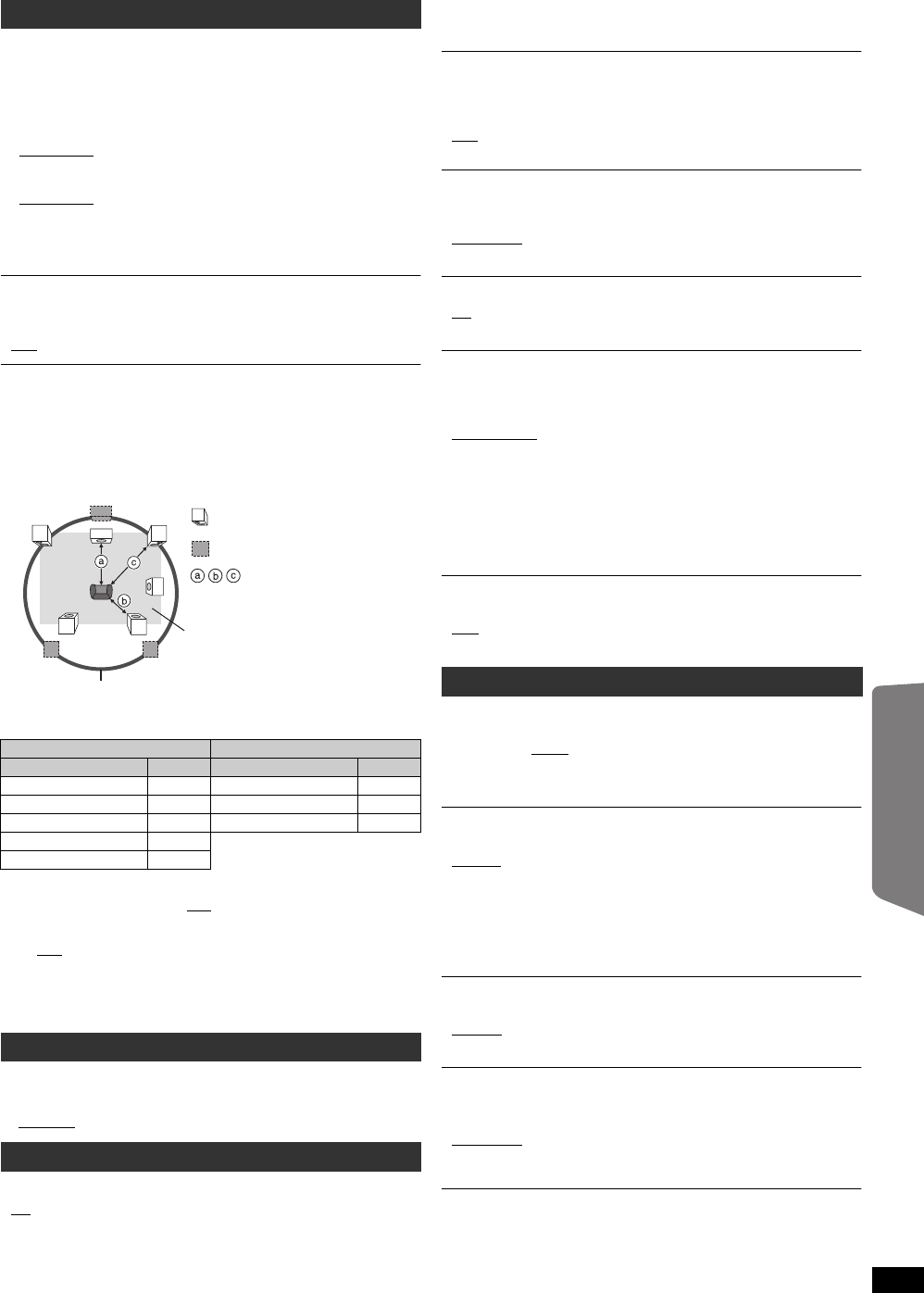

RQTX0221-P_770_en.book Page 28 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Select to suit the type of equipment you connected to the HDMI AV OUT

terminal.

Select “BITSTREAM” when the equipment can decode the bitstream

(digital form of 5.1-channel data). Otherwise, select “PCM”.

(If the bitstream is output to the equipment without a decoder, high levels

of noise can be output and may damage your speakers and hearing.)

DOLBY DIGITAL§

≥BITSTREAM

≥PCM

DTS§

≥BITSTREAM

≥PCM

§ When audio is output from HDMI AV OUT terminal, and the connected

equipment does not support the item selected, the actual output will

depend on the performance of this connected equipment.

JPEG TIME

Set the speed of the slideshow.

Factory preset: 3 SEC

≥1 SEC to 15 SEC (in 1-unit steps)

≥15 SEC to 60 SEC (in 5-unit steps)

≥60 SEC to 180 SEC (in 30-unit steps)

DEFAULTS

This returns all values in the MAIN menu to the default settings.

≥RESET

The password screen is shown if “RATINGS” (B28) is set. Please enter

the same password, then turn the unit off and on again.

AUDIO menu

DYNAMIC RANGE

≥ON: Adjusts for clarity even when the volume is low. Convenient for

late night viewing. (Only works with Dolby Digital)

≥OFF

SPEAKER SETTINGS

Select the delay time of the speakers.

(Effective when playing 5.1-channel sound)

(Center and surround speakers only)

For optimum listening with 5.1-channel sound, all the speakers, except for

the subwoofer, should be the same distance from the seating position.

If you have to place the center or surround speakers closer to the seating

position, adjust the delay time to make up for the difference.

If either distance a or b is less than c, find the difference in the table

and change to the recommended setting.

a Center speaker b Surround speaker

Difference (Approx.) Setting Difference (Approx.) Setting

30 cm (1 foot) 1ms 150 cm (5 feet) 5ms

60 cm (2 feet) 2ms 300 cm (10 feet) 10ms

90 cm (3 feet) 3ms 450 cm (15 feet) 15ms

120 cm (4 feet) 4ms

150 cm (5 feet) 5ms

≥SETTINGS:

≥C DELAY (Center Delay): 0ms, 1ms, 2ms, 3ms, 4ms, 5ms

Select the delay time for your center speaker.

≥LS/RS DELAY (Left Surround/Right Surround Delay):

0ms, 5ms, 10ms, 15ms

Select the delay time for your surround speakers.

≥TEST TONE: SETTING

Use the test tone for speaker level adjustments (B17, Adjusting

the speaker output level manually).

DISPLAY menu

LANGUAGE

Choose the language for the on-screen messages.

≥ENGLISH ≥FRANÇAIS ≥ESPAÑOL

HDMI menu

VIDEO PRIORITY

≥ON: When using the HDMI AV OUT terminal for video output. The

resolution of the video output from the HDMI AV OUT terminal is

optimized according to the capability of the connected

equipment (e.g. TV).

: Actual speaker position

: Ideal speaker position

: Primary listening

distance

Approximate room dimensions

Circle of constant primary listening distance

≥OFF: When not using the HDMI AV OUT terminal for video output.

Video output will not depend on the connected equipment, but

on this unit.

AUDIO OUT

≥ON: When audio output is from the HDMI AV OUT terminal.

(Depending on the capabilities of the connected equipment,

audio output may differ from the audio settings of the main unit.)

≥OFF: When audio output is not from the HDMI AV OUT terminal. (The

audio is output using the settings of the main unit.)

RGB RANGE

This works only when “COLOR SPACE” in Menu 4 (HDMI) is set to RGB

(B23).

≥STANDARD

≥ENHANCED: When the black and white images are not distinct.

VIERA Link

≥ON: The VIERA Link “HDAVI Control” function is available (B24).

≥OFF

POWER OFF LINK

Select the desired power off link setting of this unit for VIERA Link operation

24). (This works depending on the settings of the connected

VIERA Link

“HDAVI Control”

compatible equipment.)

≥VIDEO/AUDIO: When the TV is turned off, this unit will turn off

automatically.

≥VIDEO: When the TV is turned off, this unit will turn off except during the

following conditions:

– audio playback ([CD] [MP3] [WMA])

–iPod mode

– radio mode

– “AUX” or “D-IN” mode (non-selected TV audio setting for

VIERA Link)

TV AUDIO

Select the TV audio input to work with the VIERA Link operations (B24).

≥AUX

≥DIGITAL IN

OTHERS menu

FL DIMMER

Change the brightness of the unit’s display and indicator.

≥BRIGHT

≥DIM: The display is dimmed.

(SURROUND OUTPUT indicator will turn off even if it is

activated.)

≥AUTO: The display is dimmed, but brightens when you perform some

operations. (The SURROUND OUTPUT indicator will turn on

if it is activated, when you perform some operations.)

DVD-VR/DATA

Select to play only DVD-VR or DATA format.

≥DVD-VR: To play the video programs on DVD-RAM or DVD-R/-RW.

≥DATA: To play the data files on DVD-RAM or DVD-R/-RW.

SCREEN DIMMER

This is to prevent burn marks on the TV screen.

≥OFF

≥WAIT 5 MIN: If there is no operation for 5 minutes, the picture turns

gray. The TV screen will resume when you perform some

operations. (This does not work during video playback.)

RQTX0221-P_770_en.book Page 29 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Reference

Discs that can be played

Commercial discs

Recorded discs (±: Playable, —: Not playable)

≥It may not be possible to play all the above-mentioned discs in some cases due to the type of disc, the condition of the recording, the recording

method, or how the files were created (B31, Tips for making data discs).

§1This unit can play CD-R/RW recorded with CD-DA or Video CD format.

§2Discs recorded on DVD recorders or DVD video cameras, etc. using Version 1.1 of the Video Recording Format (a unified video recording

standard).

§3Discs recorded on DVD recorders or DVD video cameras using Version 1.2 of the Video Recording Format (a unified video recording standard).

§4Discs recorded on DVD recorders or DVD video cameras using DVD-Video Format.

§5Recorded using a format different from DVD-Video Format, therefore some functions cannot be used.

§6A process that allows play on compatible equipment. To play a disc that is indicated as “Necessary”, the disc must first be finalized on the device it

was recorded on.

§7Closing the session will also work.

Blu-ray, HD DVD, AVCHD discs, DVD-RW version 1.0, DVD-Audio,

DVD-ROM, CD-ROM, CDV, CD-G, SACD, DivX Video Discs and Photo

CD, DVD-RAM that cannot be removed from their cartridge, 2.6 GB and

5.2 GB DVD-RAM, and “Chaoji VCD” available on the market including

CVD, DVCD and SVCD that do not conform to IEC62107.

≥Do not attach labels or stickers to discs. This may cause disc warping,

rendering it unusable.

≥Do not write on the label side with a ball-point pen or other writing

instrument.

≥Do not use record cleaning sprays, benzine, thinner, liquids which

prevent static electricity, or any other solvent.

≥Do not use scratch-proof protectors or covers.

≥Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels (rented

discs, etc.).

– Discs that are badly warped or cracked.

– Irregularly shaped discs, such as heart shapes.

Disc Logo Indicated in these

instructions by Remarks

DVD-Video [DVD-V] High quality movie and music discs

Video CD [VCD] Music discs with video

Including SVCD (Conforming to IEC62107)

CD [CD] Music discs

Disc Logo

Recorded on a DVD

video recorder, etc.

Recorded on a personal

computer, etc. Finalizing§6

[DVD-VR]§2[DVD-V]§4[WMA] [MP3] [JPEG]

DVD-RAM ±——±±Not necessary

DVD-R/RW ±±—±± Necessary

DVD-R DL ±§3±——— Necessary

iR/iRW ——(±)§5——— Necessary

iR DL ——(±)§5——— Necessary

CD-R/RW§1———±±± Necessary§7

Note about using a DualDisc

The digital audio content side of a DualDisc does not meet the technical

specifications of the Compact Disc Digital Audio (CD-DA) format so

playback may not be possible.

Discs that cannot be played

Disc handling precautions

RQTX0221-P_770_en.book Page 30 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

≥There may be differences in the display order on the menu screen and computer screen.

≥This unit cannot play files recorded using packet write.

DVD-RAM

≥Discs must conform to UDF 2.0.

DVD-R/RW

≥Discs must conform to UDF bridge (UDF 1.02/ISO9660).

≥This unit does not support multi-session. Only the default session is played.

CD-R/RW

≥Discs must conform to ISO9660 level 1 or 2 (except for extended formats).

≥This unit supports multi-session but if there are many sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid

this.

Wipe with a damp cloth and then wipe dry. ≥Never use alcohol, paint thinner or benzine to clean this unit.

≥Before using chemically treated cloth, carefully read the instructions that

came with the cloth.

Do not use commercially available lens cleaners as they may cause

malfunction. Cleaning of the lens is generally not necessary although

this depends on the operating environment.

Product Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

(a)The AC power supply cord or AC adaptor has been damaged; or

(b)Objects or liquids have gotten into the unit; or

(c)The unit has been exposed to rain; or

(d)The unit does not operate normally or exhibits a marked change in performance; or

(e)The unit has been dropped or the cabinet damaged.

2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing

personnel.

3. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same

characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

The servicer will require all components to service your system.

Therefore, should service ever be necessary, be sure to bring the entire system.

For product information or assistance with product operation:

In the U.S.A. and Puerto Rico, refer to “Customer Services Directory (United States and Puerto Rico)” on page 36.

In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized

Servicentre closest to you.

Tips for making data discs

Format Disc Extension Reference

[WMA] CD-R/RW “.WMA”

“.wma”

≥Compatible compression rate: between 48 kbps and 320 kbps

≥You cannot play WMA files that are copy-protected.

≥This unit does not support Multiple Bit Rate (MBR: an encoding process for audio content that

produces an audio file encoded at several different bit rates).

[MP3] DVD-RAM

DVD-R/RW

CD-R/RW

“.MP3”

“.mp3”

≥This unit does not support ID3 tags.

≥Sampling frequency and compression rate:

– DVD-RAM, DVD-R/RW: 11.02, 12, 22.05, 24 kHz (8 to 160 kbps), 44.1 and 48 kHz (32 to

320 kbps)

– CD-R/RW: 8, 11.02, 12, 16, 22.05, 24 kHz (8 to 160 kbps), 32, 44.1 and 48 kHz (32 to 320 kbps)

[JPEG] DVD-RAM

DVD-R/RW

CD-R/RW

“.JPG”

“.jpg”

“.JPEG”

“.jpeg”

≥JPEG files taken on a digital camera that conform to DCF Standard (Design rule for Camera File

system) Version 1.0 are displayed.

– Files that have been altered, edited or saved with computer picture editing software may not be

displayed.

≥This unit cannot display moving pictures, MOTION JPEG and other such formats, still pictures other

than JPEG (e.g. TIFF), or play pictures with attached audio.

Maintenance

To clean discs

DO DO NOT

Clean this unit with a soft, dry cloth

Before moving the unit, ensure the disc trays are empty. Failure

to do so will risk severely damaging the discs and the unit.

Product information

RQTX0221-P_770_en.book Page 31 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt

about some of the check points, or if the solutions indicated in the

following guide do not solve the problem, refer to “Customer Services

Directory (United States and Puerto Rico)” on page 36 if you reside in the

U.S.A. or Puerto Rico, or refer to “Product information” on page 31 if you

reside in Canada. In other areas, consult your dealer.

No power.

Insert the AC power supply cord securely. (B11)

The unit is automatically switched to standby mode.

The Sleep timer was working and had reached the set time limit. (B38)

The display is dark.

Select “BRIGHT” in “FL DIMMER” in the OTHERS menu. (B29)

“NOPLAY”

≥You inserted a disc the unit cannot play; insert one it can. (B30)

≥You inserted a blank disc.

≥You inserted a disc that has not been finalized.

“NODISC”

≥You have not inserted a disc; insert one.

≥You have not inserted the disc correctly; insert it correctly. (B18)

“IPOD OVER CURRENT ERROR”

The iPod is drawing too much power. Remove the iPod, and turn the unit

off and on again.

“F61”

Check and correct the speaker cable connections. If this does not fix the

problem, consult the dealer. (B6, 8)

“F76”

There is a power supply problem. Consult the dealer.

“DVD U11”

Disc may be dirty. Wipe it clean. (B31)

“ERROR”

Incorrect operation performed. Read the instructions and try again.

“DVD H∑∑”

“DVD F∑∑∑”

∑ stands for a number.

≥Trouble may have occurred. The numbers following “H” and “F” depend

on the status of the unit. Turn the unit off and then back on.

Alternatively, turn the unit off, disconnect the AC power supply cord, and

then reconnect it.

≥If the service numbers fail to clear, note the service number and contact

a qualified service person.

“ [W1] ” is flashing or does not light.

≥There is no link between the main unit and the wireless system. Check

that the wireless system is plugged into the household AC outlet and is

turned on. (B11)

≥Ensure that the digital transmitter is fully inserted into the slot of the

main unit. (B8)

“U70∑”

∑ stands for a number. (The actual number following “U70” will depend on

the state of the main unit.)

≥The HDMI connection acts unusually.

– The connected equipment is not HDMI-compatible.

– Please use HDMI cables that have the HDMI logo (as shown on the

cover).

– The HDMI cable is too long.

– The HDMI cable is damaged.

“REMOTE 1” or “REMOTE 2”

Match the modes on the main unit and remote control. Depending on the

number being displayed (“1” or “2”), press and hold [OK] and the

corresponding numbered button ([1] or [2]) for at least 2 seconds. (B38)

“LOADING”

≥The iPod is not ready. Wait for this display to disappear.

≥Disconnect the iPod, and then reconnect it firmly. (B26)

“NO MIC”

The Auto speaker setup microphone is not inserted. Check whether the

Auto speaker setup microphone is plugged in properly into the SETUP

MIC jack.

“NOISY”

Excessive ambient noise in the room. Perform the setup again and keep

quiet during the Auto speaker setup.

No response when any buttons are pressed.

≥This unit cannot play discs other than the ones listed in these operating

instructions. (B30)

≥The unit may not be operating properly due to lightning, static electricity

or some other external factor. Turn the unit off and then back on.

Alternatively, turn the unit off, disconnect the AC power supply cord, and

then reconnect it.

≥Condensation has formed. Wait 1 to 2 hours for it to evaporate.

No response when remote control buttons are pressed.

≥Check that the batteries are installed correctly. (B11)

≥The batteries are depleted. Replace them with new ones. (B11)

≥Aim the remote control at the remote control signal sensor and operate.

(B39)

Other products respond to the remote control.

Change the remote control operating mode. (B38)

Cannot play DVDs.

CD Mode is on. Press and hold [—CD MODE] to turn CD Mode off.

(B20)

No picture or sound.

≥Check the video or speaker connection. (B6, 8, 9)

≥Check the power or input setting of the connected equipment and the

main unit.

≥Check that the disc has something recorded on it.

You have forgotten your ratings password.

Reset all the settings to Factory Preset.

While stopped and “DVD/CD” is the source, press and hold [∫] (Stop) on

the main unit and [S10] on the remote control until “INITIALIZED”

disappears from the TV. Turn the unit off and on again.

All settings will return to the default values.

(This does not work during program and random modes, or when setup

menu or START menu is displayed.)

Some characters are not displayed correctly.

Characters other than English alphabet and Arabic numerals may not be

displayed correctly.

The VIERA Link “HDAVI Control” function does not

respond.

Depending on the condition of this unit or the connected equipment, it

may be necessary to repeat the same operation so that the function can

work correctly. (B24)

The setting you made in “TV ASPECT” (B28, VIDEO menu)

or “LANGUAGE” (B29, DISPLAY menu) does not work.

≥The settings for “TV ASPECT”§1 and “LANGUAGE”§2 will automatically

follow the information from the TV. (B12, Smart setup settings)

§1When using VIERA Link “HDAVI Control” with “HDAVI Control 3 or

later” compatible TV

§2When using VIERA Link “HDAVI Control” with “HDAVI Control 2 or

later” compatible TV

Disc tray(s) cannot open.

“CHGR ERR” is displayed.

Press [Í] to release the jammed tray(s) as the unit will switch off.

Disconnect the AC power supply cord, and then reconnect it. Turn the unit

on again and the tray will initialize to the previous tray condition. If this still

does not fix the problem, please consult the dealer.

Power

Unit displays General operation

Disc trays

RQTX0221-P_770_en.book Page 32 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

It takes time before play starts. [MP3]

Play may take time to begin when an MP3 track has still picture data.

Even after the track starts, the correct play time will not be displayed. This

is normal.

A menu screen appears during skip or search. [VCD]

This is normal for Video CDs.

Playback control menu does not appear.

[VCD] with playback control

Press [∫STOP] twice and then press [1PLAY].

Program and Random play do not work. [DVD-V]

These functions do not work with some DVD-Videos.

Play does not start.

≥This unit may not play WMA that contains still picture data.

≥If a disc contains CD-DA and other formats, proper playback may not be

possible.

No subtitles.

Display the subtitles. (“SUBTITLE” in Menu 1) (B22)

Point B is automatically set.

The end of an item becomes point B when it is reached.

The Setup menu cannot be accessed.

≥Select “DVD/CD” as the source.

≥Cancel Program and Random play. (B20)

Sound is distorted.

≥Noise may occur when playing WMA.

≥When using the HDMI output, audio may not be output from other

terminals.

Effects do not work.

Some audio effects do not work or have less effect with some discs.

Humming is heard during play.

An AC power supply cord or fluorescent light is near the main unit. Keep

other appliances and cables away from the main unit.

No sound.

≥There may be a slight pause in sound when you change the play speed.

≥Audio may not be heard when more than 4 devices are connected with

HDMI cables. Reduce the number of connected devices.

≥When using the HDMI connection, ensure that “AUDIO OUT” in the

HDMI menu is set to “ON”. (B29)

≥If there is no sound from the surround speakers, ensure that the

surround selector switch is set at the center position. (B8)

≥Ensure that the digital transmitter is fully inserted into the slot of the

main unit. (B8)

≥Ensure that the wireless system is plugged into the AC outlet and is

turned on. Ensure “ [W1] ” is displayed on the main unit’s display. (B11)

No sound from the TV.

Confirm the audio connection. Press [EXT-IN] to select the corresponding

source. (B9, 15)

No surround sound.

Press [SURROUND] to select MULTI–CH. (B16)

The wireless link indicator keeps flashing between red and green.

There is a power supply problem. Consult the dealer.

The picture on the TV is not displayed correctly or

disappears.

≥Ensure that the unit is connected directly to the TV, and is not

connected through a VCR. (B9)

≥Mobile telephone chargers can cause some disturbance.

≥If you are using an indoor TV antenna, change to an outdoor antenna.

≥The TV antenna wire is too close to the unit. Move it away from the unit.

≥Pictures may not be seen when more than 4 devices are connected with

HDMI cables. Reduce the number of connected devices.

≥When using the COMPONENT VIDEO OUT terminal, ensure that

progressive output is not selected when the connected TV is not

progressive compatible. Press and hold [CANCEL] until “PRG”

disappears from the main unit display and the picture is displayed

correctly.

≥When using the HDMI AV OUT terminal, ensure that an incompatible

video output with the connected TV is not selected. Press and hold

[CANCEL] until the picture is displayed correctly. (The output will return

to “480p”.) (B23)

≥Video images converted to 1920k1080 resolution may look different

from the true native 1080p full-HD sources. This is not a malfunction of

the main unit.

Picture size does not fit the screen.

≥Change “TV ASPECT” in the VIDEO menu. (B28)

≥Use the TV to change the aspect.

≥Change the zoom setting. (“ZOOM” in Menu 2) (B23)

Menu is not displayed correctly.

Restore the zoom ratio to “NORMAL”. (“ZOOM” in Menu 2) (B23)

Auto zoom function does not work well.

≥Turn off TV’s zoom function.

≥Zoom function may not work well, especially in dark scenes and may

not work depending on the type of disc.

Cannot charge or operate.

≥Check that the iPod is connected firmly. (B26)

≥The battery of the iPod is depleted. Charge the iPod, and then operate

again.

Cannot display iPod photos/videos on the TV.

≥Ensure the video connection to the VIDEO OUT terminal on this unit.

(B9)

≥Operate the iPod menu to make the appropriate photo/video output

settings for your TV. (Refer to operating instructions for your iPod.)

There is ghosting when HDMI or progressive output is on.

≥This problem is caused by the editing method or material used on DVD-

Video, but should be corrected if you use interlaced output. When using

the HDMI AV OUT terminal, set “VIDEO FORMAT” in Menu 4 to “480i”.

Or, disable the HDMI AV OUT connection and use other video

connections. (B9, 23)

≥When using the COMPONENT VIDEO OUT terminal, set “VIDEO OUT

(I/P)” in VIDEO menu to “INTERLACE”. (Alternatively, press and hold

[CANCEL] until “PRG” disappears from the main unit display.) (B28)

Pictures not in progressive output.

≥Select “PROGRESSIVE” in “VIDEO OUT (I/P)” in VIDEO menu. (B28)

≥The unit’s VIDEO OUT terminal outputs the interlaced signal even if

“PRG” is displayed.

Closed captions not displayed.

When HDMI or progressive output is on, closed captions will not be

displayed.

Distorted sound or noise is heard.

“ST” flickers or does not light.

≥Adjust the position of the FM or AM antenna.

≥Use an outdoor antenna. (B10)

A beat sound is heard.

Turn the TV off or move it away from the unit.

A low hum is heard during AM broadcasts.

Separate the antenna from other cables.

“/”

The operation is prohibited by the unit or disc.

“THIS DISC CANNOT BE PLAYED IN YOUR REGION.”

Only DVD-Video discs that include or have the same region number as

the one on the rear panel of this unit can be played. (BCover page)

“No Video”

Depending on the connected iPod, video menu may not be available on

the TV.

Select iPod menu (iPod LCD) mode (B26) and operate video playback

from your iPod menu.

Disc operation

Sound

Wireless system


iPod operation

HDMI or progressive video

Radio

TV displays

RQTX0221-P_770_en.book Page 33 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Specifications

AMPLIFIER SECTION

RMS Output Power: Dolby Digital Mode

Front Ch

Surround Ch

Center Ch

Subwoofer Ch

125 W per channel (3 ≠), 1 kHz, 10 % THD

250 W per channel (6 ≠), 1 kHz, 10 % THD

250 W per channel (6 ≠), 100 Hz, 10 % THD

Total RMS Dolby Digital mode power 1000 W

FTC Output Power: Dolby Digital Mode

Front Ch

Surround Ch

Center Ch

Subwoofer Ch

75 W per channel (3 ≠), 120 Hz to 20 kHz, 1 % THD

34 W per channel (3 ≠), 120 Hz to 20 kHz, 1 % THD

105 W per channel (6 ≠), 120 Hz to 20 kHz, 1 % THD

105 W per channel (6 ≠), 45 Hz to 120 Hz, 1 % THD

Total FTC Dolby Digital mode power 428 W

FM/AM TUNER, TERMINALS SECTION

Preset Memory FM 30 stations

AM 30 stations

Frequency Modulation (FM)

Frequency range 87.9 MHz to 107.9 MHz (200-kHz step)

87.5 MHz to 108.0 MHz (100-kHz step)

Antenna terminals 75 ≠ (unbalanced)

Amplitude Modulation (AM)

Frequency range 520 kHz to 1710 kHz (10-kHz step)

Digital audio input

Optical digital input

Sampling frequency

Optical terminal

32 kHz, 44.1 kHz, 48 kHz

Phone jack

Terminal Stereo, 3.5 mm (1/8z) jack

Calibration Mic

Sensitivity 100 mV, 1.4 k≠

Terminal Mono, 3.5 mm (1/8z) jack

DISC SECTION

Discs played [8 cm (3z) or 12 cm (5z)]

(1) DVD (DVD-Video)

(2) DVD-RAM (DVD-VR, MP3§2, 5, JPEG§4, 5)

(3) DVD-R (DVD-Video, DVD-VR, MP3§2, 5, JPEG§4, 5)

(4) DVD-R DL (DVD-Video, DVD-VR)

(5) DVD-RW (DVD-Video, DVD-VR, MP3§2, 5, JPEG§4, 5)

(6) iR/iRW (Video)

(7) iR DL (Video)

(8) CD, CD-R/RW (CD-DA, Video CD, SVCD§1, MP3§2, 5, WMA§3, 5,

JPEG§4, 5)

§1Conforming to IEC62107

§2MPEG-1 Layer 3, MPEG-2 Layer 3

§3Windows Media Audio Ver.9.0 L3

Not compatible with Multiple Bit Rate (MBR)

§4Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160k120 and 6144k4096 pixels (Sub

sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and narrow

pictures may not be displayed.

§5The total combined maximum number of recognizable audio and

picture contents and groups: 4000 audio and picture contents and

255 groups. (Excluding Root folder)

Pick up

Wavelength (DVD/CD) 655/785 nm

Laser power (DVD/CD) [U.S.A.]

[Others]

CLASS II/CLASS I

CLASS 1/CLASS 1M

Audio output (Disc)

Number of channels 5.1 ch (FL, FR, C, SL, SR, SW)

VIDEO SECTION

Video system NTSC

Composite video output

Output level

Terminal

1 Vp-p (75 ≠)

Pin jack (1 system)

Component video output

Y output level

PB output level

PR output level

Terminal

1 Vp-p (75 ≠)

0.7 Vp-p (75 ≠)

Pin jack (Y: green, PB: blue, PR: red) (1 system)

HDMI AV output

Terminal 19-pin type A connector

HDAVI Control This unit supports “HDAVI Control 4” function.

SPEAKER SECTION

[Front\speakers\SB-HF770]

Type

Speaker unit(s)

1 way, 1 speaker system (Bass reflex)

Impedance 3 ≠

Full range 6.5 cm (21/2z) Cone type

Input power (IEC)

Output sound pressure

Frequency range

Dimensions (WtHtD)

Mass [Weight]

Full assembly with stand base

Dimensions (WtHtD) max

Dimensions (WtHtD) min

Mass [Weight]

125 W§6(Max)

79 dB/W (1.0 m)

80 Hz to 25 kHz (j16 dB)

90 Hz to 22 kHz (j10 dB)

100 mmk530 mmk78 mm

(315/16zk207/8zk31/16z)

0.92 kg (2.2 lbs)

255 mmk1020 mmk255 mm

(101/16zk403/16zk101/16z)

255 mmk550 mmk255 mm

(101/16zk2121/32zk101/16z)

2.3 kg (5.1 lbs)

[Surround\speakers\SB-HS470]

Type

Speaker unit(s)

1 way, 1 speaker system (Bass reflex)

Impedance 3 ≠

Full range 6.5 cm (21/2z) Cone type

Input power (IEC)

Output sound pressure

Frequency range

Dimensions (WtHtD)

Mass [Weight]

125 W§6(Max)

79 dB/W (1.0 m)

100 Hz to 25 kHz (j16 dB)

120 Hz to 22 kHz (j10 dB)

92 mmk128 mmk81 mm

(35/8zk51/32zk33/16z)

0.47 kg (1.1 lbs)

[Center\speaker\SB-HC470]

Type

Speaker unit(s)

2 way, 2 speaker system (Bass reflex)

Impedance 6 ≠

1. Woofer

2. Full range

6.5 cm (21/2z) Cone type

Input power (IEC)

Output sound pressure

Frequency range

Dimensions (WtHtD)

Mass [Weight]

250 W§6(Max)

81 dB/W (1.0 m)

82 Hz to 25 kHz (j16 dB)

99 Hz to 22 kHz (j10 dB)

250 mmk94.5 mmk81 mm

(927/32zk33/4zk33/16z)

1.15 kg (2.6 lbs)

[Subwoofer\SB-HW560]

Type

Speaker unit(s)

1 way, 1 speaker system (Kelton type)

Impedance 6 ≠

1. Woofer 16 cm (61/2z) Cone type

2. Passive Radiator 25 cm (10z)

Input power (IEC)

Output sound pressure

Frequency range

Dimensions (WtHtD)

Mass [Weight]

250 W (Max)

78 dB/W (1.0 m)

35 Hz to 200 Hz (j16 dB)

40 Hz to 198 Hz (j10 dB)

181 mmk361 mmk315 mm

(71/8zk147/32zk1213/32z)

4.7 kg (10.4 lbs)

RQTX0221-P_770_en.book Page 34 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

§6Rating with Low-cut filter equipped Amplifier

[Note]

1 Specifications are subject to change without notice.

Mass and dimensions are approximate.

2 Total harmonic distortion is measured by a digital spectrum analyzer.

GENERAL

Power supply

[U.S.A.]and[Canada] AC 120 V, 60 Hz

[Others] AC 110 V to 127 V/220 V to 240 V, 50/60 Hz

Power consumption

Dimensions (WtHtD)

Mass [Weight]

Operating temperature range

Operating humidity range

Main unit 125 W

430 mmk68 mmk327 mm

(1615/16zk211/16zk127/8z)

Main unit 3.6 kg (7.9 lbs)

0oC to r40 oC (r32 oF to r104 oF)

35 % to 80 % RH (no condensation)

Power consumption in standby mode

[U.S.A.]and[Canada]

[Others]

approx. 0.1 W

approx. 0.2 W

WIRELESS SYSTEM AND DIGITAL TRANSMITTER

[AMPLIFIER\SECTION]

RMS Output Power

Surround Ch 125 W per channel (3 ≠), 1 kHz, 10 % THD

Total RMS power 250 W

FTC Output Power

Surround Ch 34 W per channel (3 ≠), 120 Hz to 20 kHz, 1 % THD

Total FTC power 68 W

[RF\SECTION]

Wireless module

Frequency range

No. of channels

2.4 GHz to 2.4835 GHz

[GENERAL]

Power supply

[U.S.A.]and[Canada]

[Others]

AC 120 V, 60 Hz

AC 110 V to 240 V, 50/60 Hz

Power consumption

Digital transmitter

Wireless system [U.S.A.]and[Canada]

[Others]

1.2 W

35 W

43 W

Dimensions (WtHtD)

Digital transmitter

Wireless system

65.5 mmk52 mmk8.6 mm

(219/32zk21/16zk11/32z)

165 mmk91.5 mmk164 mm

(61/2zk35/8zk615/32z)

Mass [Weight]

Digital transmitter

Wireless system

0.022 kg (0.0484 lbs)

0.65 kg (1.43 lbs)

Power consumption in off mode

[U.S.A.]and[Canada]

[Others]

approx. 0.2 W

approx. 0.3 W

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby

Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942;

5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and

worldwide patents issued & pending. DTS and DTS Digital Surround

are registered trademarks and the DTS logos and Symbol are

U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and

5,583,936.

This product incorporates copyright protection technology that is

protected by U.S. patents and other intellectual property rights. Use of

this copyright protection technology must be authorized by

Macrovision, and is intended for home and other limited viewing uses

only unless otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

Windows Media and the Windows logo are trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other

countries.

This product is protected by certain intellectual property rights of

Microsoft Corporation and third parties. Use or distribution of such

technology outside of this product is prohibited without a license from

Microsoft or an authorized Microsoft subsidiary and third parties.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

HDAVI ControlTM is a trademark of Panasonic Corporation.

VIERA LinkTM is a trademark of Panasonic Corporation.

EZ SyncTM is a trademark of Panasonic Corporation.

iPod is a trademark of Apple Inc., registered in the U.S. and other

countries.

RQTX0221-P_770_en.book Page 35 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO)

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Audio Products Limited Warranty

Limited Warranty Coverage (For USA and Puerto Rico Only)

If your product does not work properly because of a defect in materials or

workmanship, Panasonic Consumer Electronics Company (referred to as “the

warrantor”) will, for the length of the period indicated on the chart below, which starts

with the date of original purchase (“warranty period”), at its option either (a) repair your

product with new or refurbished parts, or (b) replace it with a new or a refurbished

product. The decision to repair or replace will be made by the warrantor.

During the “Labor” warranty period there will be no charge for labor. During the “Parts”

warranty period, there will be no charge for parts. You must carry-in or mail-in your

product during the warranty period. If non-rechargeable batteries are included, they

are not warranted. This warranty only applies to products purchased and serviced in

the United States or Puerto Rico. This warranty is extended only to the original

purchaser of a new product which was not sold “as is”. A purchase receipt or other

proof of the original purchase date is required for warranty service.

Carry-In or Mail-In Service

For Carry-In or Mail-In Service in the United States and Puerto Rico call 1-800-211-

PANA (7262) or visit Panasonic Web Site: http://www.panasonic.com

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship,

and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty

ALSO DOES NOT COVER damages which occurred in shipment, or failures which

are caused by products not supplied by the warrantor, or failures which result from

accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty

installation, set-up adjustments, misadjustment of consumer controls, improper

maintenance, power line surge, lightning damage, modification, or commercial use

(such as in a hotel, office, restaurant, or other business), rental use of the product,

service by anyone other than a Factory Service Center or other Authorized Servicer,

or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED

WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS

PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As

examples, this excludes damages for lost time, travel to and from the servicer, loss of

media or images, data or other memory content. The items listed are not exclusive,

but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF

MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED

WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, or limitations on how long an implied warranty lasts, so the exclusions may

not apply to you.

This warranty gives you specific legal rights and you may also have other rights which

vary from state to state. If a problem with this product develops during or after the

warranty period, you may contact your dealer or Service Center. If the problem is not

handled to your satisfaction, then write to the warrantor’s Consumer Affairs

Department at the addresses listed for the warrantor.

PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED

WARRANTY ARE YOUR RESPONSIBILITY.

As of October 2008

Product or Part Name Parts Labor

Audio Products (except items listed below) One (1) year One (1) year

USB Reader-Writer, Personal Computer

Card Adapters (in exchange for defective

item)

One (1) year Not

Applicable

Accessories: Headphones, Cartridges,

Microphones, Adapters

Ninety (90)

days

Ninety (90)

days

Rechargeable Batteries, DVD-R/-RAM

Discs (in exchange for defective item)

Ten (10)

days

Not

Applicable

SD Memory Cards, Rechargeable Battery

Packs (in exchange for defective item)

Ninety (90)

days

Not

Applicable

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and

Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http:/ /www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (7262),

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

npcparts@us.panasonic.com

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 9 pm, EST.)

Panasonic Service and Technology Company

20421 84th Avenue South, Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

RQTX0221-P_770_en.book Page 36 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc.

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such

defect for a period as stated below from the date of original purchase.

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed,

subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been

altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used

commercially. Dry cell batteries are also excluded from coverage under this warranty.

This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is

required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL

DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the

exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Technics Audio Product

Panasonic Portable / Clock Radio (without Tape, CD, MD)

Panasonic Audio / SD Audio Product

Panasonic DVD Product

Panasonic Combination DVD Player / VCR

Panasonic Combination DVD Recorder / VCR

Accessories including rechargeable batteries

One (1) year, parts and labour

Ninety (90) days

FOR PRODUCT OPERATION ASSISTANCE, please contact:

Our Customer Care Centre: Telephone #:

1-800 #:

Fax #:

Email link:

(905) 624-5505

1-800-561-5505

(905) 238-2360

“Customer support” on www.panasonic.ca

FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca :

Link : “ServicentresTM locator” under “Customer support”

RQTX0221-P_770_en.book Page 37 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

Control reference guide

Other Panasonic audio/video equipment may start functioning when you

operate the unit using the supplied remote control.

You can operate this unit in another mode by setting the remote control

operating mode to “REMOTE 2”.

The main unit and remote control must be set to the same mode.

1 Press and hold [5/9] on the main unit and [2] on the remote

control until the main unit’s display shows “REMOTE 2”.

2 Press and hold [OK] and [2] on the remote control for at least 2

seconds.

To change the mode back to “REMOTE 1”, repeat both steps above by

replacing [2] with [1].

Avoiding interference with other Panasonic equipment

PLAY

MODE

RETURN

VOL

STOP

1 2 3

4 5 6

7 8

DISC

VOL

INPUT

SKIP

SLOW

SKIP

PLAY

PAUSE

DVD

iPod

EXT-IN

MUTE

RADIO

CD MODE

REPEAT

SOUND

SURROUND

PLAY

LIST

SLEEP

CH SELECT

SETUP

W.SRD

FL DISPLAY

CANCEL

517

1Turn the main unit on/off (B12)

2Select a disc / Play all loaded CDs sequentially (B19, 20)

3Select channels and title numbers etc. / Enter numbers

(B13, 19)

4Select the play mode / Set the repeat mode (B20)

5Basic operations for play (B18, 19)

6Select preset radio stations (B13)

7Select surround sound effects (B16)

8Show a disc top menu or program list (B19, 21)

9Select or confirm menu items / Frame-by-frame (B19)

:Show a disc menu or play list (B19, 21)

;Show setup menu or select speaker channel (B17, 28)

<Turn Whisper-mode Surround on/off (B16)

=TV operations

Aim the remote control at the Panasonic TV and press the

button.

[Í]: Turn the TV on/off

[INPUT]: Change the TV’s video input mode

[r, s]: Adjust the TV volume

This may not work properly with some models.

>Adjust the volume of the main unit

?Mute the sound

≥“MUTE” flashes on the main unit’s display while the function is on.

≥To cancel, press the button again or adjust the volume.

≥Muting is canceled when you switch the unit to standby.

@Source select

[DVD]: Select disc as the source (B12)

[iPod]: Select iPod as the source (B26)

[RADIO], [EXT-IN]: Select FM/AM tuner or external audio as the

source (B13, 15)

FM#AM#AUX§#D-IN§

^-----------------------------------}

§“(TV)” will appear beside “AUX” or “D-IN”, indicating the TV audio

setting for VIERA Link “HDAVI Control” (B24).

ASelect radio stations manually (B13)

BSelect sound mode (B16)

CShow START menu (B15)

DShow on-screen menu (B22)

EReturn to previous screen (B19)

FCancel (B20)

GSwitch information on the main unit’s display (B19)

Set the Sleep timer

Press and hold [—SLEEP].

While the time is shown on the main unit’s display, press

[—SLEEP] repeatedly.

SLEEP 30#SLEEP 60#SLEEP 90#SLEEP120

^----------------------OFF (Cancel)(--------------------}

≥To confirm the remaining time, press and hold the button again.

RQTX0221-P_770_en.book Page 38 Monday, January 12, 2009 5:56 PM

RQTX0221

Getting StartedPlaying DiscsOther OperationsReference

VOLUME

SURROUND OUTPUT

MEMORY

SMART SETUP

Dock for iPod

POWER

OPEN CLOSE

TUNE MODE FM MODE

TUNE

SELECTOR

SETUP MIC

EXCHANGE

1 2 3 4 5

5 DISC SELECTOR

Dock for iPod

23 4 5

15 16

7 8 9 10 11 14

Pull open

1Standby/on switch (POWER Í/I)

Press to switch the unit from on to standby mode or vice

versa. In standby mode, the unit is still consuming a small

amount of power. (B18)

2Open/Close the disc tray (B18)

3Show the Smart setup (B12)

4Stop playing / Select the tuning mode / Adjust the FM

reception condition (B13, 18)

5Play discs / Memorize the receiving radio stations

(B13, 18)

6Connect iPod (B26)

7Select a disc directly (B18)

8Open the disc tray to exchange the disc. (B18)

9Connect Auto speaker setup microphone (B12)

:The indicator lights when there is surround sound effect.

(B16)

;Remote control signal sensor

<Display

=Select the source

DVD/CD#FM#AM#AUX§#D-IN§#IPOD

^----------------------------------------------------------------}

§“(TV)” will appear beside “AUX” or “D-IN”, indicating the TV audio

setting for VIERA Link “HDAVI Control” (B24).

>Skip or slow-search play / Select the radio stations

(B13, 18)

?Adjust the volume of the main unit

@Connect headphones (not included)

Headphone plug type: ‰3.5 mm (1/8q) stereo mini plug

≥Reduce the volume before connecting.

≥Audio is automatically switched to 2-channel stereo.

≥To prevent hearing damage, avoid listening for prolonged periods of

time.

Excessive sound pressure from earphones and headphones can

cause hearing loss.

Language code list

Abkhazian: 6566

Afar: 6565

Afrikaans: 6570

Albanian: 8381

Ameharic: 6577

Arabic: 6582

Armenian: 7289

Assamese: 6583

Aymara: 6589

Azerbaijani: 6590

Bashkir: 6665

Basque: 6985

Bengali, Bangla: 6678

Bhutani: 6890

Bihari: 6672

Breton: 6682

Bulgarian: 6671

Burmese: 7789

Byelorussian: 6669

Cambodian: 7577

Catalan: 6765

Chinese: 9072

Corsican: 6779

Croatian: 7282

Czech: 6783

Danish: 6865

Dutch: 7876

English: 6978

Esperanto: 6979

Estonian: 6984

Faroese: 7079

Fiji: 7074

Finnish: 7073

French: 7082

Frisian: 7089

Galician: 7176

Georgian: 7565

German: 6869

Greek: 6976

Greenlandic: 7576

Guarani: 7178

Gujarati: 7185

Hausa: 7265

Hebrew: 7387

Hindi: 7273

Hungarian: 7285

Icelandic: 7383

Indonesian: 7378

Interlingua: 7365

Irish: 7165

Italian: 7384

Japanese: 7465

Javanese: 7487

Kannada: 7578

Kashmiri: 7583

Kazakh: 7575

Kirghiz: 7589

Korean: 7579

Kurdish: 7585

Laotian: 7679

Latin: 7665

Latvian, Lettish: 7686

Lingala: 7678

Lithuanian: 7684

Macedonian: 7775

Malagasy: 7771

Malay: 7783

Malayalam: 7776

Maltese: 7784

Maori: 7773

Marathi: 7782

Moldavian: 7779

Mongolian: 7778

Nauru: 7865

Nepali: 7869

Norwegian: 7879

Oriya: 7982

Pashto, Pushto: 8083

Persian: 7065

Polish: 8076

Portuguese: 8084

Punjabi: 8065

Quechua: 8185

Rhaeto-Romance:

8277

Romanian: 8279

Russian: 8285

Samoan: 8377

Sanskrit: 8365

Scots Gaelic: 7168

Serbian: 8382

Serbo-Croatian: 8372

Shona: 8378

Sindhi: 8368

Singhalese: 8373

Slovak: 8375

Slovenian: 8376

Somali: 8379

Spanish: 6983

Sundanese: 8385

Swahili: 8387

Swedish: 8386

Tagalog: 8476

Ta j i k : 8 4 7 1

Ta m i l : 8 4 6 5

Ta t a r : 8 4 8 4

Telugu: 8469

Thai: 8472

Tibetan: 6679

Tigrinya: 8473

Tonga: 8479

Turkish: 8482

Tu r k m e n : 8 4 7 5

Tw i : 8 4 8 7

Ukrainian: 8575

Urdu: 8582

Uzbek: 8590

Vietnamese: 8673

Volapük: 8679

Welsh: 6789

Wolof: 8779

Xhosa: 8872

Yiddish: 7473

Yo r u b a : 8 9 7 9

Zulu: 9085

RQTX0221-P_770_en.book Page 39 Monday, January 12, 2009 5:56 PM

[For[U.S.A.]and]Puerto]Rico]

Panasonic Consumer Electronics

Company, Division of Panasonic

Corporation of North America

One Panasonic Way, Secaucus,

New Jersey 07094

http://www.panasonic.com

[For[Canada]

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

www.panasonic.ca

[For[others[

Panasonic Corporation

Corporate Management Division for the Americas

Sales Office for North America

Tokyo Panasonic Sales Section

32nd Floor, World Trade Center 4-1,

Hamamatsu-cho, 2-Chome, Minato-Ku,

Tokyo 105-6132, Japan

Panasonic Marketing Europe G.M.B.H.

Wiesbaden N. (a Division of Panasonic Marketing G.M.B.H.)

Military Sales Department

6200 Wiesbaden-Biebrich, Hagenauerstr. 43

Germany

C Panasonic Corporation 2008 RQTX0221-1P

Printed in Singapore F1208AD1019

User memo:

DATE OF PURCHASE ___________________________________________

DEALER NAME _________________________________________________

DEALER ADDRESS _____________________________________________

_____________________________________________________

TELEPHONE NUMBER _________________________________________

The model number and serial number of this product can be found

on either the back or the bottom of the unit.

Please note them in the space provided below and keep for future

reference.

MODEL NUMBER ______________________________________________

SERIAL NUMBER ______________________________________________

SC-PT770

RQTX0221-P_770_en.book Page 41 Monday, January 12, 2009 5:56 PM

Panasonic SC PT770 User Manual To The 906335c3 9837 4809 Ada0 10eac34f7604

Navigation menu

Versions of this User Manual:

Views

Navigation
