Operating Instructions

DVD Stereo System

Model No. SC-VKX65

RQT9951-1B

GA GS

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Please keep this manual for future reference.

Your system and the illustrations can look differently.

Region code

This system plays DVD-Video marked with labels containing the region number or “ALL”:

Region Number Example

Southeast Asia 3

235

3

The Middle East and South Africa 2

235

2

SC-VKX65GAGS_RQT9951-1B_En .indd 1SC-VKX65GAGS_RQT9951-1B_En .indd 1 8/21/2014 11:43:43 AM8/21/2014 11:43:43 AM

printing rev.1

Confidential

Until:

29 Aug 2014

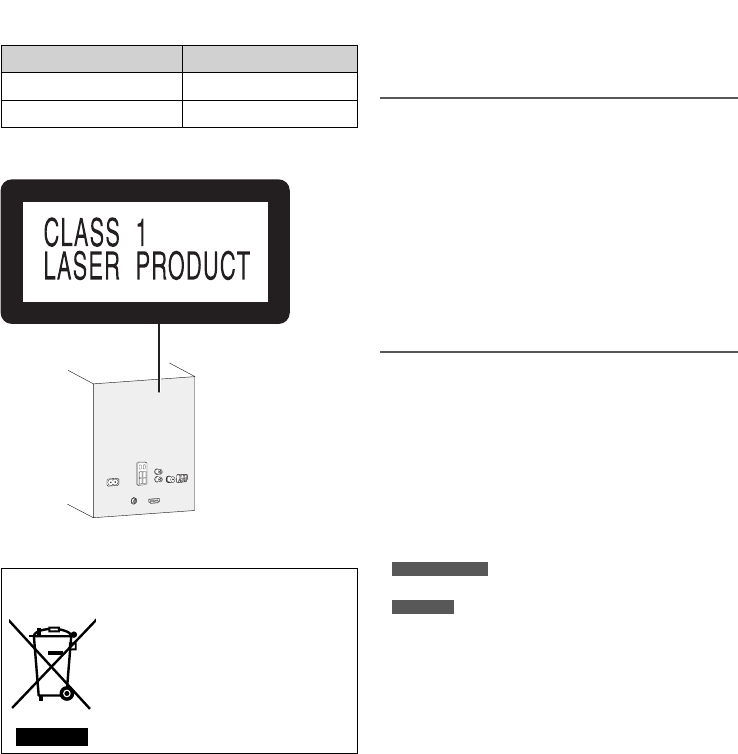

2

RQT9951

System SC-VKX65

Main unit SA-VKX65

Speakers SB-AKX38

– If you see this symbol –

Information on Disposal in other Countries outside

the European Union

This symbol is only valid in the

European Union.

If you wish to discard this product,

please contact your local authorities or

dealer and ask for the correct method

of disposal.

Safety precautions

WARNING!

Unit

• To reduce the risk of fire, electric shock or product

damage,

− Do not expose this unit to rain, moisture, dripping or

splashing.

− Do not place objects filled with liquids, such as

vases, on this unit.

− Use only the recommended accessories.

− Do not remove covers.

− Do not repair this unit by yourself. Refer servicing to

qualified service personnel.

− Do not let metal objects fall inside this unit.

CAUTION!

Unit

• To reduce the risk of fire, electric shock or product

damage,

− Do not install or place this unit in a bookcase, built-in

cabinet or in another confined space. Ensure this unit

is well ventilated.

− Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

− Do not place sources of naked flames, such as

lighted candles, on this unit.

• For South Africa

This unit is intended for use in moderate climates.

For others

This unit is intended for use in tropical climates.

• This unit may receive radio interference caused by

mobile telephones during use. If such interference

occurs, please increase separation between this unit

and the mobile telephone.

• This unit utilizes a laser. Use of controls or adjustments

or performance of procedures other than those

specified herein may result in hazardous radiation

exposure.

• Set the unit up on an even surface away from direct

sunlight, high temperatures, high humidity, and

excessive vibration.

AC mains lead

• The mains plug is the disconnecting device. Install this

unit so that the mains plug can be unplugged from the

socket outlet immediately.

Battery

• Danger of explosion if battery is incorrectly replaced.

Replace only with the type recommended by the

manufacturer.

• When disposing of the batteries, please contact your

local authorities or dealer and ask for the correct

method of disposal.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct

sunlight for a long period of time with doors and

windows closed.

• Do not break open or short-circuit the battery.

• Do not charge the alkaline or manganese battery.

• Do not use the battery if the cover has peeled off.

• Remove the battery if you do not use the remote

control for a long period of time. Keep in a cool, dark

area.

SC-VKX65GAGS_RQT9951-B_En.indd 2SC-VKX65GAGS_RQT9951-B_En.indd 2 8/18/2014 3:31:33 PM8/18/2014 3:31:33 PM

printing rev.1

Confidential

Until:

29 Aug 2014

3

RQT9951

Licenses

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing Limited.

DTS, the Symbol, & DTS and the Symbol together are

registered trademarks, and DTS 2.0+Digital Out is a

trademark of DTS, Inc.

© DTS, Inc. All Rights Reserved.

HDMI, the HDMI Logo, and High-Definition Multimedia

Interface are trademarks or registered trademarks of

HDMI Licensing LLC in the United States and other

countries.

“DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation.

This item incorporates copy protection technology

that is protected by U.S. patents and other intellectual

property rights of Rovi Corporation. Reverse

engineering and disassembly are prohibited.

The Bluetooth® word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc. and any

use of such marks by Panasonic Corporation is under

license. Other trademarks and trade names are those

of their respective owners.

Google Play and Android are trademarks of Google

Inc.

MPEG Layer-3 audio coding technology licensed from

Fraunhofer IIS and Thomson.

Table of Contents

Safety precautions........................................................... 2

Licenses .......................................................................... 3

Note on AC mains lead ................................................... 4

Maintenance .................................................................... 4

About Bluetooth® ............................................................. 4

Supplied accessories ...................................................... 5

Preparing the remote control ........................................... 5

Placement of speakers .................................................... 5

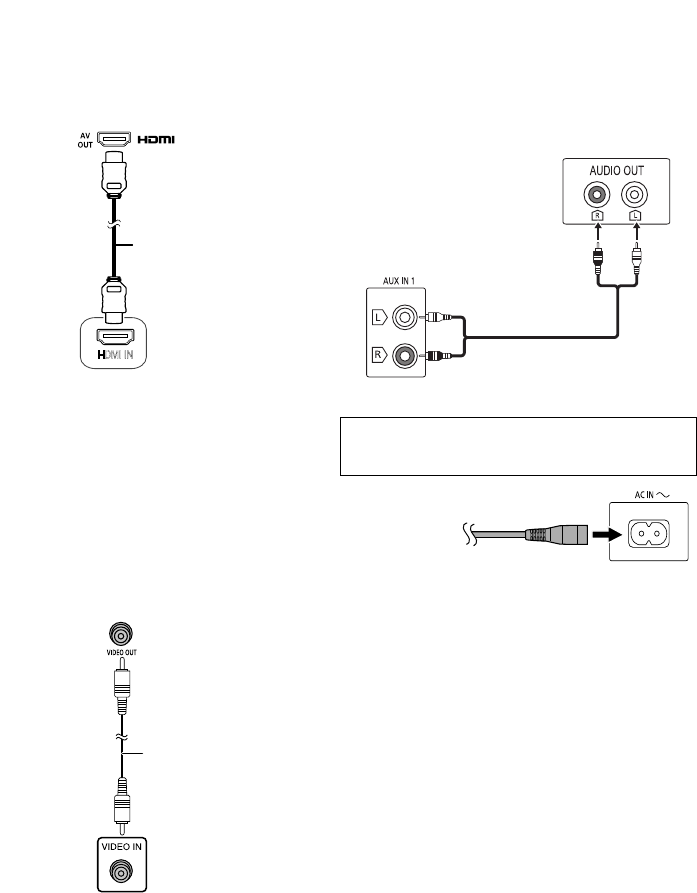

Making the connections .................................................. 6

Overview of controls ........................................................ 8

Easy Setup .................................................................... 10

Preparing the media ...................................................... 10

Media playback ............................................................. 11

Using the navigation menus .......................................... 13

Using on-screen menus ................................................ 14

Radio ............................................................................. 16

Recording ...................................................................... 17

Sound and illumination effects ...................................... 19

Clock and timers ........................................................... 20

Using microphones ....................................................... 21

External equipment ....................................................... 22

Others ............................................................................ 22

Changing system settings ............................................. 23

Playable media .............................................................. 25

Language code list ........................................................ 26

Troubleshooting ............................................................. 27

Specifi cations ................................................................ 30

SC-VKX65GAGS_RQT9951-B_En.indd 3SC-VKX65GAGS_RQT9951-B_En.indd 3 8/18/2014 3:31:33 PM8/18/2014 3:31:33 PM

printing rev.1

Confidential

Until:

29 Aug 2014

4

RQT9951

About Bluetooth®

Panasonic bears no responsibility for data and/or

information that can possibly be compromised during

a wireless transmission.

Frequency band

• This system uses the 2.4 GHz frequency band.

Certification

• This system conforms to the frequency restrictions and

has received certification based on frequency laws.

Thus, a wireless permit is not necessary.

• The actions below are punishable by law:

− Taking apart or modifying the main unit.

− Removing specification indications.

Restrictions of use

• Wireless transmission and/or usage with all Bluetooth®

equipped devices is not guaranteed.

• All devices must conform to standards set by

Bluetooth SIG, Inc.

• Depending on the specifications and settings of a

device, it can fail to connect or some operations can

be different.

• This system supports Bluetooth® security features.

But depending on the operating environment and/or

settings, this security is possibly not sufficient.

Transmit data wirelessly to this system with caution.

• This system cannot transmit data to a Bluetooth®

device.

Range of use

• Use this device at a maximum range of 10 m.

• The range can decrease depending on the

environment, obstacles or interference.

Interference from other devices

• This system may not function properly and troubles

such as noise and sound jumps may arise due to radio

wave interference if this unit is located too close to

other Bluetooth® devices or the devices that use the

2.4 GHz band.

• This system may not function properly if radio waves

from a nearby broadcasting station, etc. is too strong.

Intended usage

• This system is for normal, general use only.

• Do not use this system near an equipment or in

an environment that is sensitive to radio frequency

interference (example: airports, hospitals, laboratories,

etc.).

For United Arab Emirates only

UAE-TRA

REGISTERED No:

ER34195/14

DEALER No:

DA0052708/10

Note on AC mains lead

(For the AC mains plug of three pins)

Before use

Remove the connector cover.

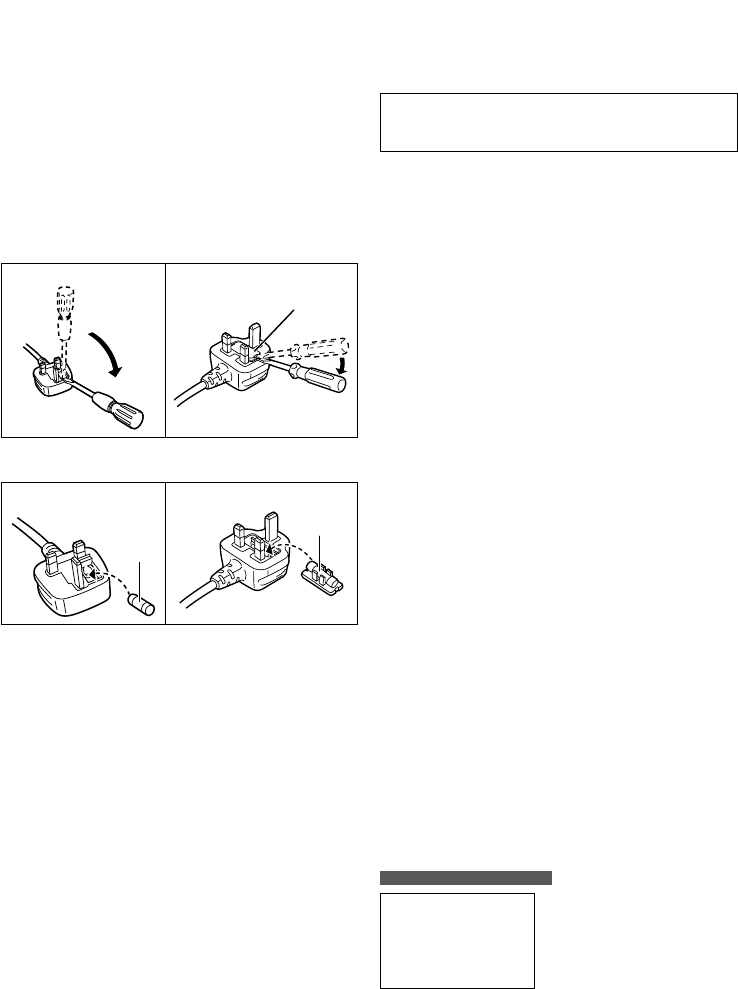

How to replace the fuse

The location of the fuse differs according to the type of

AC mains plug (figures A and B). Confirm the AC mains

plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A Figure B

2. Replace the fuse and close or attach the fuse cover.

Figure A Figure B

Maintenance

To clean this system, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean

this system.

• Before using chemically treated cloth, read the

instructions that came with the cloth carefully.

Fuse cover

Fuse

(5 ampere)

Fuse

(5 ampere)

SC-VKX65GAGS_RQT9951-1B_En .indd 4SC-VKX65GAGS_RQT9951-1B_En .indd 4 8/26/2014 1:08:48 PM8/26/2014 1:08:48 PM

printing rev.1

Confidential

Until:

29 Aug 2014

5

RQT9951

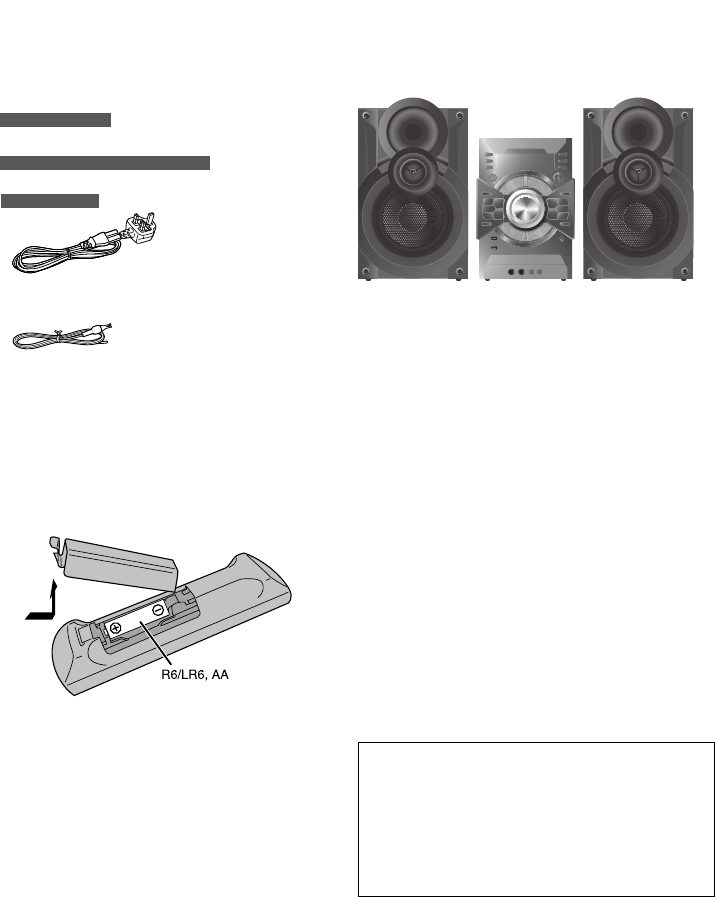

Supplied accessories

Check and identify the supplied accessories.

For Southeast Asia

2 AC mains leads

For the Middle East and South Africa

2 AC mains leads

For Saudi Arabia

1 AM loop antenna

1 FM indoor antenna

1 Video cable

1 HDMI cable

1 Remote control

(N2QAYB000998)

1 Remote control battery

Preparing the remote control

Use alkaline or manganese battery.

Install the battery so that the poles (+ and –) align with

those in the remote control.

Placement of speakers

The left and right speakers are the same.

You cannot remove the net of the speakers.

Use only the supplied speakers.

You can cause damage to the system and decrease the

sound quality if you use other speakers.

Note:

• Keep your speakers more than 10 mm from the main unit

for ventilation.

• Put the speakers on a flat safe surface.

• These speakers do not have magnetic shielding. Do not put

them near TVs, PCs or other equipment easily influenced

by magnetism.

• When you play at high levels for a long period, it can

cause damage to the speakers and decrease the life of the

speakers.

• Decrease the volume in these conditions to prevent

damage:

− When the sound is distorted.

− When you adjust the sound quality.

Irregular colour on your TV

The setup condition of the speakers can cause

unwanted effects to the picture of the TV.

If this occurs, switch off the TV for 30 minutes.

If the demagnetising of the TV does not correct the

problem, increase the distance between the speakers

and the TV.

CAUTION!

• Use the speakers only with the recommended

system. If not, you can cause damage to the

amplifier and speakers and can cause a fire.

Consult an approved service personnel if damage

occurs or if there is a sudden apparent change in

performance.

• Do the procedures included in these instructions

when you attach the speakers.

SC-VKX65GAGS_RQT9951-B_En.indd 5SC-VKX65GAGS_RQT9951-B_En.indd 5 8/18/2014 3:31:33 PM8/18/2014 3:31:33 PM

printing rev.1

Confidential

Until:

29 Aug 2014

6

RQT9951

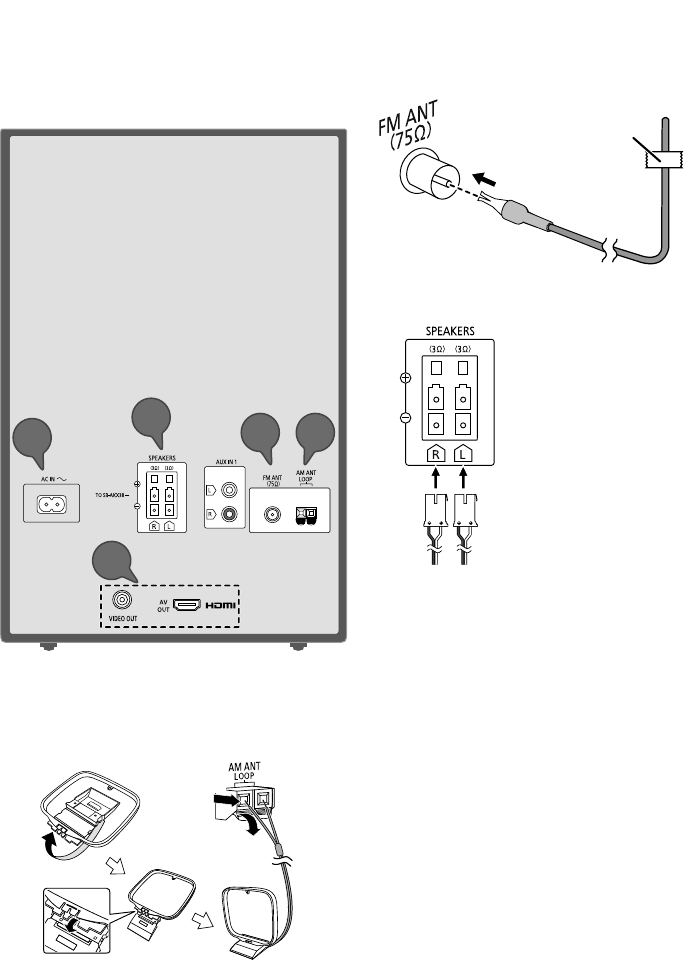

Making the connections

Connect the AC mains lead only after all the other

connections have been made.

12

5

3

4

1 Connect the AM loop antenna.

Stand the antenna up on its base until it clicks.

A

2

2 Connect the FM indoor antenna.

Put the antenna where reception is best.

3 Connect the speakers.

Adhesive tape

(not supplied)

SC-VKX65GAGS_RQT9951-B_En.indd 6SC-VKX65GAGS_RQT9951-B_En.indd 6 8/18/2014 3:31:33 PM8/18/2014 3:31:33 PM

printing rev.1

Confidential

Until:

29 Aug 2014

7

RQT9951

Alternative connection to a TV

To listen to the TV audio on this system, connect the

audio cable to this system.

AUX 1 terminal

5 Connect the AC mains lead.

(For the AC mains plug of three pins)

READ THE “Note on AC mains lead” BEFORE

CONNECTION.

Do not use an AC mains lead from other equipment.

Conserving power

The system consumes a small amount of power even

when it is in standby mode. Disconnect the power

supply if you do not use the system.

Some settings will be lost after you disconnect the

system. You have to set them again.

4 Connect the TV to this system.

Connect either HDMI cable or video cable to this

system.

HDMI terminal

HDMI IN

This connection provides the best picture quality.

• Set “VIDEO PRIORITY” to “ON” (Z 24, “HDMI”

menu).

• Set “VIDEO FORMAT” in Menu 4 (HDMI) (Z 16).

Note:

• Use the supplied HDMI cables.

• If you use an optional HDMI cable, use High Speed HDMI

Cables. Non-HDMI compliant cables cannot be utilised.

• It is recommended that you use Panasonic HDMI cable.

When outputting 1080p signal, use HDMI cables 5.0 m or

less.

• For TV with more than one HDMI terminal, refer to the TV’s

operating instructions for the connection.

VIDEO OUT terminal

Note:

Do not make the video connections through the VCR.

The video cannot show correctly because of copy-guard

protection.

TV

(not supplied)

Video cable

To household

mains socket

HDMI cable

TV

(not supplied)

TV

(not supplied)

Audio cable

(not supplied)

SC-VKX65GAGS_RQT9951-B_En.indd 7SC-VKX65GAGS_RQT9951-B_En.indd 7 8/18/2014 3:31:33 PM8/18/2014 3:31:33 PM

printing rev.1

Confidential

Until:

29 Aug 2014

8

RQT9951

Overview of controls

Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.

REPEAT

PLAY MODE

RETURN

USB REC

CLOCK/TIMER

SETUP

FL DISPLAY

DIMMER

INPUT

TV

P

L

A

Y

L

I

S

T

AV

CANCEL

DEL

DVD/CD

RADIO

AUX

SLOW(PAUSE)

SOUND

AUTO OFF

PLAY/REC

EDIT MODE

SLEEP

ILLUMINATION/

CONTROL

DVD

/

CD

TUNE

MODE

OPEN/CLOSE

AUX IN 2

ALBUM/

TRACK

PAIRING

PRESET EQ

M

ANUAL

EQ

LOCAL

/

USB REC

VOLU

ME

A

B

PLAY

REC / PLAY

/ USB

FL DISPLAY

DIMMER

KARAOKE

VOCAL CANCEL

ECHO

KEY-CON

D

J J

UKEBOX

D.BASS

RADIO/AUX

MIC VOL 1 MIC VOL 2

MIN

MAX

MIN

MAX

MIC 1 MIC 2

A

B

C

D

6

E

8

7

9

L

M

N

P

O

Q

R

S

J

K

T

U

A

E

V

X

F

J

Y

Z

9

W

a

E

b

d

g

f

c

D

M

e

h

SC-VKX65GAGS_RQT9951-B_En.indd 8SC-VKX65GAGS_RQT9951-B_En.indd 8 8/18/2014 3:31:33 PM8/18/2014 3:31:33 PM

printing rev.1

Confidential

Until:

29 Aug 2014

9

RQT9951

AStandby/on switch [`], [1] (Z 10, 30)

Press to switch the unit from on to standby mode

or vice versa. In standby mode, the unit is still

consuming a small amount of power.

BNumeric buttons

To set a 2-digit number

Example: 16: [ 10] = [1] = [6]

CCancel an item (Z 12)

Delete the programmed tracks (Z 12)

DSelect the source

On the main unit:

To start Bluetooth® pairing, press and hold

[ /USB, –PAIRING] when you are in Bluetooth®

source.

EBasic playback control (Z 11)

FSelect the sound effects (Z 19)

GRepeat playback (Z 12)

HShow the disc top menu (Z 13)

Show the program list (Z 14)

IView the information shown on the display panel

(Z 11)

Decrease the brightness of the display panel

(Z 28)

Press and hold the button to use this function.

To cancel, press and hold the button again.

On the main unit:

Press [DIMMER] to use this function.

JRecord content to a USB device (Z 17, 18)

K Set the sleep timer (Z 20)

Automatically switch off the system

The auto off function switches off the system if you

do not use the system for approximately 20 minutes

(except when you are in radio source or when a

Bluetooth® device is connected).

Press and hold the button to use this function.

To cancel, press and hold the button again.

LOperate a Panasonic TV (compatible models only)

Point the remote control to a Panasonic TV:

[`]: Switch on or switch off the TV

[AV]: Change the video input mode of the TV

[+/ –, VOL]: Adjust the volume of the TV

M Adjust the volume level of the system

NMute the sound

To cancel, press the button again.

“MUTE” is also cancelled when you adjust the

volume or when you switch off the system.

OSet the play mode item (Z 11, 12, 16, 22)

PShow the on-screen menu (Z 14)

QShow the disc menu or playlist (Z 14)

RSelect or confirm menu items

View frame-by-frame (Z 11)

Browse albums on USB A-AUDIO and USB B-AUDIO

source

Press [R, T] to browse.

SGo back to the previous screen (Z 12, 23)

TChange the system settings (Z 10, 23)

Set the edit mode for USB B (Z 18)

USet the clock and timer (Z 20)

VRemote control sensor

Distance: Within approximately 7 m

Angle: Approximately 20° up and down, 30° left and

right

WSelect the Karaoke mode (Z 21)

XSelect the DJ Jukebox (Z 19)

YUSB A

USB port ( )

USB status indicator

Play MP3 tracks, Xvid and JPEG.

Record MP3 tracks to USB B .

ZUSB B

USB port ( )

USB status indicator

Record sound or music tracks.

Play MP3 tracks, Xvid and JPEG.

aMicrophone jacks (Z 21)

bDisplay panel

cSelect the Karaoke sound effect (Z 21)

dSelect MP3 album or track

Press [ALBUM/TRACK] to select album or track.

Browse tracks or albums

Turn [CONTROL] to browse.

To start playback from the selection, press [4/9].

Illumination

Turn [ILLUMINATION] to select the setting.

eOpen or close the disc tray (Z 10)

fAUX IN 2 jack (Z 22)

gDisc tray

hAdjust the volume of the microphone

SC-VKX65GAGS_RQT9951-B_En.indd 9SC-VKX65GAGS_RQT9951-B_En.indd 9 8/18/2014 3:31:33 PM8/18/2014 3:31:33 PM

printing rev.1

Confidential

Until:

29 Aug 2014

10

RQT9951

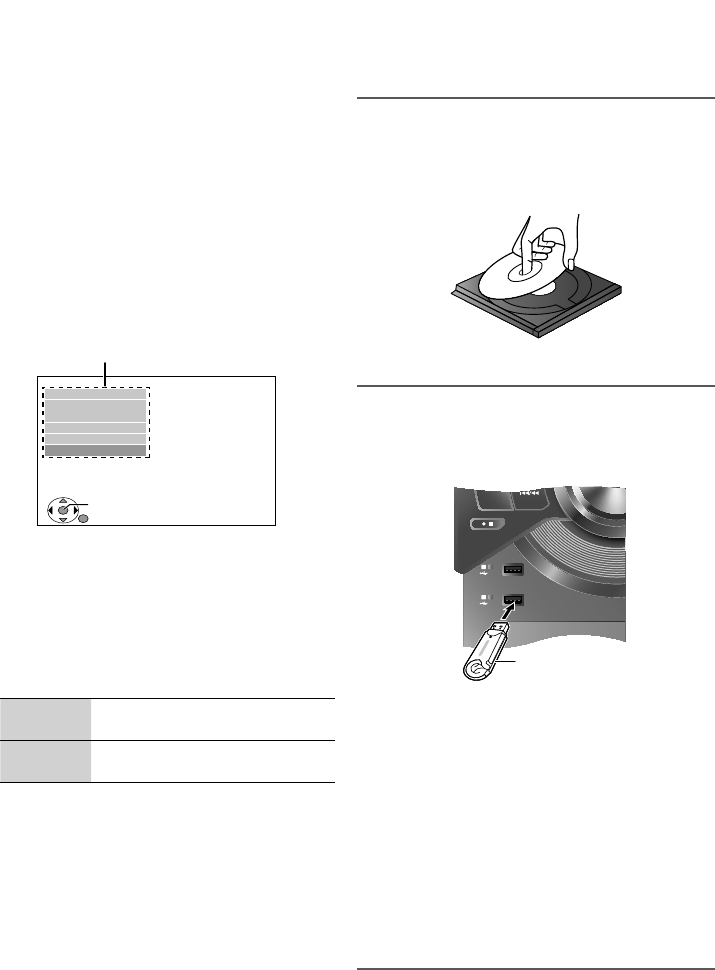

Easy Setup

The EASY SETUP screen assists you in making basic

settings.

Preparation

Switch on your TV and change its video input mode

(example: HDMI, AV 1, etc.).

1 Press [`] to switch on the system.

If the EASY SETUP screen appears, skip steps 2 to

6.

2 Press [DVD/CD].

3 Press [SETUP] to show the SETUP menu.

4 Press [R, T] to select “OTHERS” and then press

[OK].

SET

MAIN

DISC

VIDEO

AUDIO

DISPLAY

HDMI

EXIT : SETUP

RETURN

OTHERS

5 Press [R, T] to select “EASY SETUP” and then

press [OK].

6 Press [OK] to select “SET”.

7 Press [R, T] to select “YES” and then press [OK].

8 Follow the messages and make the settings with

[R, T

, Y, U] and then press [OK].

Language Select the language for the

on-screen messages.

TV aspect Select the aspect ratio that suits

your TV.

9 Press [OK] to finish EASY SETUP.

Press [SETUP] to close the screen.

Note:

Settings in the EASY SETUP can also be changed in the

system settings (Z 23, “Changing system settings”).

Menu

Preparing the media

Disc

1 Press [x OPEN/CLOSE] on the main unit to open

the disc tray.

Put in a disc with the label facing up.

2 Press [DVD/CD].

USB

Preparation

Before you connect a USB device to the system, make

sure you do a backup of the data.

/

USB REC

A

B

PLAY

REC / PLAY

D.BASS

1 Decrease the volume and connect the USB device

to the USB port.

Hold the main unit when connecting or disconnecting

the USB device.

2 Press [USB] to select “USB A-AUDIO”, “USB

A-VIDEO”, “USB B-AUDIO” or “USB B-VIDEO”.

USB status indicator lights up in red when selected.

Note:

• Do not use a USB extension cable. The system cannot

recognise USB device connected through a cable.

• USB A-AUDIO and USB B-AUDIO source support MP3

format only.

• USB A-VIDEO and USB B-VIDEO source support JPEG

and Xvid formats only.

Bluetooth®

You can connect and play an audio device wirelessly

through Bluetooth®.

Preparation

• Switch on the Bluetooth® feature of the device and put

the device near the system.

• Read the operating instructions of the device for

details.

USB device

(not supplied)

SC-VKX65GAGS_RQT9951-B_En.indd 10SC-VKX65GAGS_RQT9951-B_En.indd 10 8/18/2014 3:31:34 PM8/18/2014 3:31:34 PM

printing rev.1

Confidential

Until:

29 Aug 2014

11

RQT9951

█ Pairing a device

Preparation

If this system is connected to a Bluetooth® device,

disconnect it (Z below, “Disconnecting a device”).

1 Press [ , USB] (main unit: [ /USB, –PAIRING]) to

select “BLUETOOTH”.

If “PAIRING” is shown, continue with step 4.

2 Press [PLAY MODE] to select “PAIRING”.

Or press and hold [ /USB, –PAIRING] on the main

unit until “PAIRING” is shown. Continue with step 4.

3 Press [Y, U] to select “OK? YES” and then press

[OK].

4 Select “SC-VKX65” from the Bluetooth® menu of

the device.

If prompted for a passkey, input “0000”.

The device connects with this system automatically

after pairing is complete.

The name of the connected device is shown for a few

seconds.

Note:

You can pair up to 8 devices with this system. If a 9th device

is paired, the device that has not been used for the longest

time will be replaced.

█Connecting a device

Preparation

If this system is connected to a Bluetooth® device,

disconnect it (Z below, “Disconnecting a device”).

1 Press [ , USB] (main unit: [ /USB, –PAIRING]) to

select “BLUETOOTH”.

“BLUETOOTH READY” is shown.

2 Select “SC-VKX65” from the Bluetooth® menu of

the device.

The name of the connected device is shown for a few

seconds.

3 Start playback on the device.

Note:

• A device must be paired to connect.

• The system can only connect to one device at a time.

• When “BLUETOOTH” is selected as the source, this system

will automatically try to connect to the last connected

device. (“LINKING” is shown during this process.)

• Press [FL DISPLAY] repeatedly to view the name and profile

of the connected device.

█ Disconnecting a device

1 Press [ , USB] (main unit: [ /USB, –PAIRING]) to

select “BLUETOOTH”.

2 Press [PLAY MODE] repeatedly to select

“DISCONNECT?”.

3 Press [Y, U] to select “OK? YES” and then press

[OK].

“BLUETOOTH READY” is shown.

To cancel, select “OK? NO”.

Using the main unit

Press and hold [ /USB, –PAIRING] until “PAIRING” is

shown.

Note:

A device is disconnected when you:

• Select a different source.

• Move the device out of the maximum range.

• Disable the Bluetooth® transmission of the device.

• Switch off the system or the device.

Media playback

(Z 25, “Playable media”)

Basic playback

Preparation

To view the picture, switch on your TV and change its

video input mode (example: HDMI, AV 1, etc.).

Play Press [4/9].

Stop Press [8] during playback.

The position is memorised.

“RESUME STOP” shows on the

screen.

Press again to stop fully.

Pause Press [4/9] during playback.

Press again to continue playback.

Skip track or

content Press [2] or [6] (main unit:

[2/3] or [5/6]).

Search

(during

playback)

Slow-motion

(during pause)

Press [3] or [5].

Or

Press and hold [2/3] or

[5/6] on the main unit.

• Up to 5 speeds.

• Press [4/9] to continue normal

playback.

View

frame-by-frame

(during pause) Press [e] or [E] to go to the

previous or next frame.

Press [E] to go to the next frame.

View

information

Press [FL DISPLAY] to show

available information on the display

panel.

Note:

• For Bluetooth®, only Play, Stop, Pause, Skip and Search

can be selected.

• Depending on the type of media, some operations are

restricted.

SC-VKX65GAGS_RQT9951-1B_En .indd 11SC-VKX65GAGS_RQT9951-1B_En .indd 11 8/21/2014 11:43:58 AM8/21/2014 11:43:58 AM

printing rev.1

Confidential

Until:

29 Aug 2014

12

RQT9951

Repeat playback

This works only when the elapsed play time can be

shown. It also works with all JPEG contents.

During playback

Press [REPEAT] to select the item to play again.

Example:

TITLE CHAP.

OFF

To cancel, select “ OFF”.

Note:

Depending on the type of media and playback mode, the

display shows different items.

Link mode

(For Bluetooth® source)

You can change the link mode to suit the connection

type.

Preparation

If this system is connected to a Bluetooth® device,

disconnect it (Z11, “Disconnecting a device”).

1 Press [PLAY MODE] to select “LINK MODE”.

2 Press [Y, U] to select the setting and then press

[OK].

MODE 1 Emphasis on connectivity.

MODE 2 (default) Emphasis on sound quality.

Play mode

While stopped

Press [PLAY MODE] to select the playback mode.

(For USB A-AUDIO and USB B-AUDIO source)

1-TRACK

1-TR Play one selected track.

Press the numeric buttons to

select the track.

1-ALBUM

1-ALB Play one selected MP3 album.

Press [R, T] to select the MP3

album.

PROGRAM

PGM Play programmed tracks.

1. Press [R, T] to select the

album.

2. Press [6] and then press

the numeric buttons to select

the track.

3. Press [OK].

RANDOM

RND Play all tracks randomly.

1-ALBUM

RANDOM

1-ALB RND

Play all tracks in one selected

MP3 album randomly.

Press [R, T] to select the MP3

album.

(For DVD/CD, USB A-VIDEO and USB B-VIDEO source)

Program Random

Note:

• During random playback, you cannot skip to tracks which

have been played.

• The setting is cancelled when you open the disc tray.

• Select “DATA” in “DVD-VR/DATA”

(Z 24, “OTHERS” menu) to play MP3, JPEG or Xvid

contents.

• If “PLAYBACK MENU” screen appears, refer to “Using

playback menu” (Z 13).

• For a disc with MP3 and JPEG contents, select music or

picture contents.

MP3: Select “MUSIC PROGRAM” or “MUSIC RANDOM”.

JPEG: Select “PICTURE PROGRAM” or “PICTURE

RANDOM”.

• Some items cannot be played even if you have

programmed them.

█ Program playback (maximum 30 items)

1 Press [R, T] to select an item and then press

[OK].

Example:

DVD-V PROGRAM

SELECT TITLE TITLE CHAPTER

TITLE 1

TITLE 2

TITLE 3

TITLE 4

TITLE 5

TITLE 6

TITLE 7

1

2

3

4

5

6

7

8

• Do this step again to program other items.

• To go back to the previous menu, press

[, RETURN].

2 Press [4/9] to start playback.

To select all the items

Press [R, T] to select “ALL” and then press [OK].

To clear the selected program

1. Press [U] and then press [R, T] to select the program.

2. Press [CANCEL DEL].

To clear the whole program

Press [U] to select “CLEAR ALL” and then press [OK].

Note:

The whole program is also cleared when you:

− Open the disc tray.

− Switch off the system.

− Select another source.

Close program and

random screens

SC-VKX65GAGS_RQT9951-B_En.indd 12SC-VKX65GAGS_RQT9951-B_En.indd 12 8/18/2014 3:31:34 PM8/18/2014 3:31:34 PM

printing rev.1

Confidential

Until:

29 Aug 2014

13

RQT9951

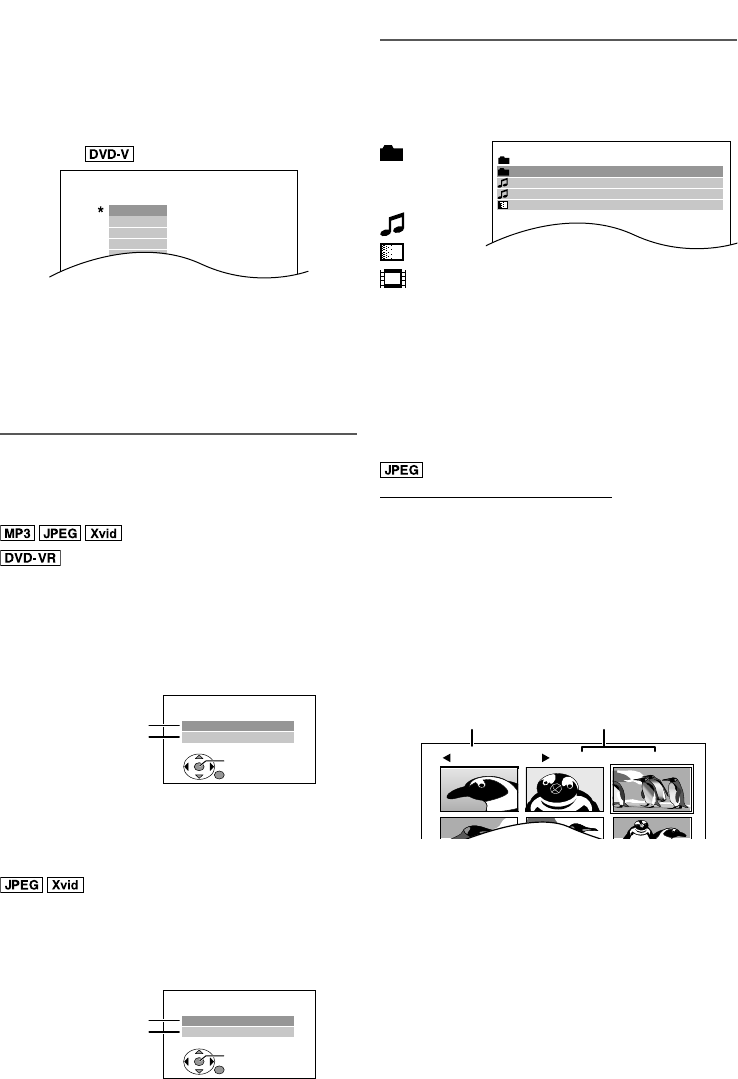

█ Random playback

1 Press [R, T] to select a group or title.

2 Press [OK] to put “*” on your selection.

Example:

DVD-V RANDOM

SELECT TITLE

TITLE 1

TITLE 2

TITLE 3

TITLE 4

TITLE 5

TITLE 6

TITLE 7

To cancel a selection, press [OK] again.

3 Press [4/9] to start playback.

Using the navigation menus

Using playback menu

█Playing data discs

Select “DATA” in “DVD-VR/DATA”

(Z 24, “OTHERS” menu) to play MP3, JPEG or Xvid

contents.

“PLAYBACK MENU” shows when the disc contains

video (Xvid) and other formats (MP3/JPEG).

1 Press [R, T] to select “AUDIO/PICTURE” or

“VIDEO” and then press [OK].

OK

PLAYBACK MENU

AUDIO/PICTURE

VIDEO

2 Press [4/9] to start playback.

█Playing USB

“PLAYBACK MENU” shows when you select “USB

A-VIDEO” or “USB B-VIDEO”.

1 Press [R, T] to select “PICTURE” or “VIDEO” and

then press [OK].

OK

PLAYBACK MENU


VIDEO

2 Press [4/9] to start playback.

MP3/JPEG

Xvid

JPEG

Xvid

Playing from the selected item

While the “DATA-DISC” screen is shown

Group/Album

(Folder)

DATA-DISC

ROOT

Perfume

Underwater

Fantasy planet

Starpersons1

Content/Track

(File)

: MP3

: JPEG

: Xvid

1 Press [R, T] to select an item.

Press [Y, U] to skip page by page.

2 Press [OK] to start playback.

Playback starts from the item you select to the last

item in the group or album.

To close the screen, press [MENU].

Selecting picture in thumbnail menu

While the display shows a picture

1 Press [TOP MENU].

2 Press [R, T

, Y, U] to select a picture and then

press [OK].

Press [6] or [2] to skip page by page.

To select a picture in other groups

1. Press [R] to select the group name.

2. Press [Y, U] to select the group and then press [OK].

Jpeg(JPEG) G 2/ 4:C 3/ 9

To close the screen, press [MENU].

Group and

content number

Group name

SC-VKX65GAGS_RQT9951-B_En.indd 13SC-VKX65GAGS_RQT9951-B_En.indd 13 8/18/2014 3:31:34 PM8/18/2014 3:31:34 PM

printing rev.1

Confidential

Until:

29 Aug 2014

14

RQT9951

Playing DVD-R/-RW (DVD-VR) discs

• Display shows the title only if a title is given during

recording.

• You cannot edit programs, playlists and disc titles.

█Playing the programs

While stopped

1 Press [DIRECT NAVIGATOR].

2 Press [R, T] to select the program and then press

[OK].

Press [Y, U] to skip page by page.

PG DATE LENGTH TITLE

10:16:02

10/11 LIVE CONCERT

02:15

20:38:25

12/05 AUTO ACTION

311605

04/03 CINEMA

01:30

To close the screen, press [DIRECT NAVIGATOR].

█Playing the playlist

This works only when the disc contains a playlist.

While stopped

1 Press [PLAYLIST].

2 Press [R, T] to select the playlist and then press

[OK].

Press [Y, U] to skip page by page.

PL DATE LENGTH TITLE

10:00:10

11/11 CITY PENGUIN

00:01

20:01:20

12/01 FOOTBALL

31:10:04

01/02 SPECIAL

01:20

To close the screen, press [PLAYLIST].

Using on-screen menus

1 Press [FUNCTIONS] to show the on-screen menu.

Menu 1 (Disc/Play) Menu 2 (Video)

Exit Menu 4 (HDMI)

Menu 3 (Audio)

T

1

C1 1:ENG 3/2.1ch

1 :ENG

OFF

TITLE SEARCH

2 Press [R, T

, Y, U] to select an item and then

press [OK].

Example: Menu 1 (Disc/Play)

T

1

C1 1:ENG 3/2.1ch

1 :ENG

OFF

CHAPTER SEARCH

3 Press [R, T] to make the settings and then press [OK].

To close the screen, press [ , RETURN].

The type of disc and the disc format can cause

some items tonot show or work.

█Menu 1 (Disc/Play)

TRACK SEARCH, TITLE SEARCH, CONTENT

SEARCH, CHAPTER SEARCH, PG SEARCH

(program search), PLSEARCH (playlist search)

Start playback from a specified item

This function does not work when you play a disc

with the playback control (PBC) function.

Example: : T2 C5

To select numbers for data disc

Example: 12: [ 10] = [1] = [2] = [OK]

AUDIO

(with multiple soundtrack)

Select audio soundtrack

Change the audio mode (when using Karaoke formatted

source)

Solo disc

OFF: Vocals off

ON: Vocals on

Duet disc

OFF: Vocals off

V1+V2: Vocal 1 and 2

V1: Vocal 1

V2: Vocal 2

Select “L”, “R”, “L+R” or “L R”

Item name

Current item

Current setting

SC-VKX65GAGS_RQT9951-B_En.indd 14SC-VKX65GAGS_RQT9951-B_En.indd 14 8/18/2014 3:31:34 PM8/18/2014 3:31:34 PM

printing rev.1

Confidential

Until:

29 Aug 2014

15

RQT9951

Signal type/data

LPCM/PPCM/GD/DTS/MP3/MPEG:

Signal type kHz (sampling frequency)/bit/ch (number of

channels)

Example: 3/ 2 .1ch

.1: Low frequency effect

(not shown if there is no signal)

0: No surround

1: Mono surround

2: Stereo surround (left/right)

1: Center

2: Front left + Front right

3: Front left + Front right + Center

It can be a while before playback starts if you

change the audio of a Xvid disc.

PLAY SPEED

Change play speed

– from “x0.6” to “x1.4” (in 0.1-unit step)

• Press [4/9] two times to continue normal playback.

• After you change the speed:

− Audio output will switch to 2-channel stereo.

− Sampling frequency of 96 kHz is converted to

48 kHz.

REPEAT MODE

(Z 12, “Repeat playback”)

A-B Repeat: Repeat a specified section

Except (still picture part)

(SVCD only)

Press [OK] at the start and end points.

• To cancel, select “OFF”.

SUBTITLE

(with multiple subtitles) (SVCD only)

Select subtitle language

• For +R/+RW disc, a number display will replace the

subtitles that cannot be shown.

(with subtitle on or off information)

ON ↔ OFF

ANGLE

(with multiple angles)

Select a video angle

DATE DISPLAY

Show the date of a picture

ON ↔ OFF

ROTATION

Rotate a picture (during pause)

0 ↔ 90 ↔ 180 ↔ 270

█ Menu

2

(Video)

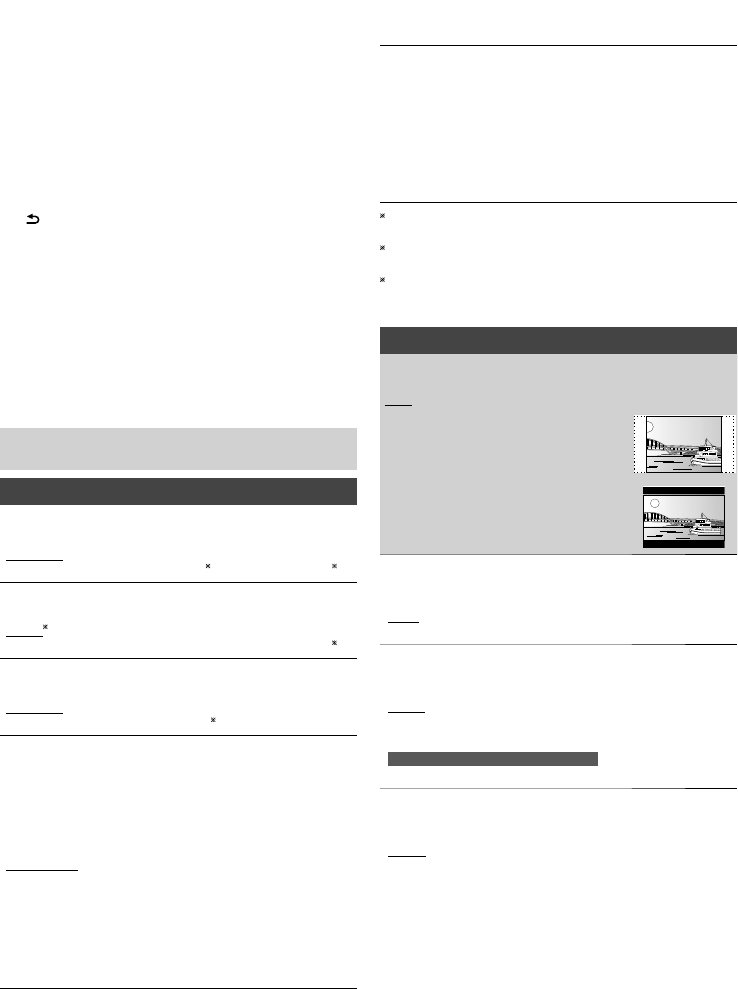

PICTURE MODE

NORMAL: Normal images.

CINEMA1: Mellows images and enhances details in

dark scenes.

CINEMA2: Sharpens images and enhances details in

dark scenes.

DYNAMIC: Enhances the contrast for powerful images.

ANIMATION: Suitable for animation.

ZOOM

Select zoom sizes

NORMAL, AUTO ( ), x2,

x4

(during pause)

TRANSFER MODE

Select the method of conversion for video output

accordingly

When playing PAL discs

AUTO: Converts the film and video automatically.

VIDEO: Select when the content is distorted in the

“AUTO” mode.

FILM: Select when the edges of the film content are

jagged or rough in the “AUTO”

mode.

But, if the video content is

distorted (as illustrated on

the right), then select “AUTO”.

When playing NTSC discs

AUTO1: Converts the film and video automatically.

AUTO2: Select to automatically sense the differences in

the frame rates of the film content and converts

it accordingly.

VIDEO: Select when the video content is distorted in

the “AUTO1” or “AUTO2” mode.

SOURCE SELECT

AUTO: Converts the Xvid content

automatically.

INTERLACE: Select if the Xvid content was encoded

in interlace format.

PROGRESSIVE: Select if the Xvid content was encoded

in progressive format.

█ Menu 3 (Audio)

DIALOGUE ENHANCER

Make the dialogue in films easier to hear

(Dolby Digital, DTS, 3-channel or higher, with the

dialogue recorded in the center channel)

(Dolby Digital, 3-channel or higher, with the

dialogue recorded in the center channel)

ON ↔ OFF

SC-VKX65GAGS_RQT9951-B_En.indd 15SC-VKX65GAGS_RQT9951-B_En.indd 15 8/18/2014 3:31:35 PM8/18/2014 3:31:35 PM

printing rev.1

Confidential

Until:

29 Aug 2014

16

RQT9951

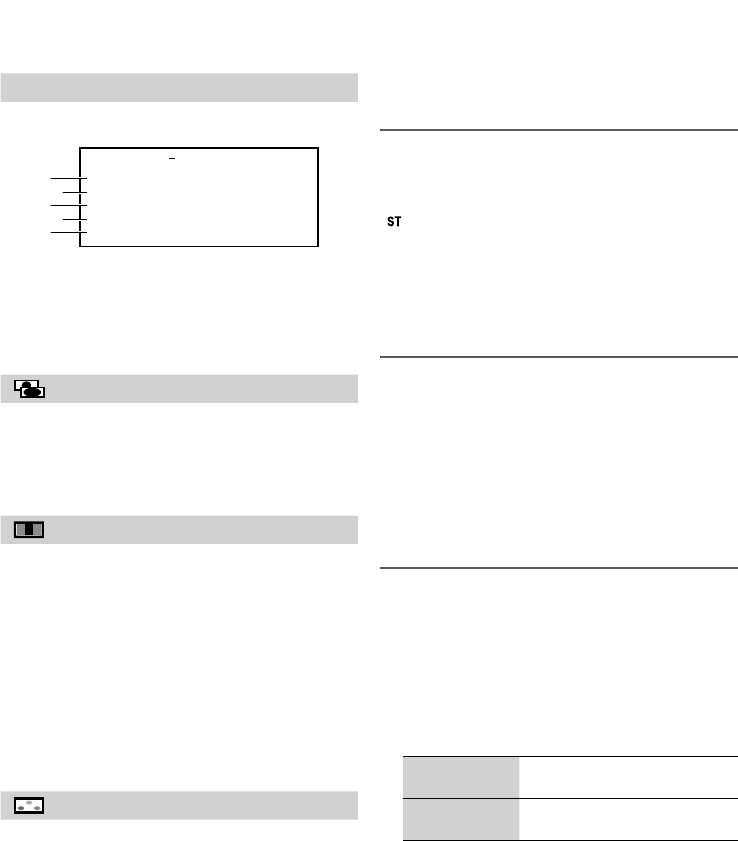

█ Menu 4 (HDMI)

HDMI

HDMI STATUS

To show HDMI information

Example:

A

HDMI INFORMATION

CONNECTED STATE CONNECTED

AUDIO STREAM PCM

MAX CHANNEL 2ch

VIDEO FORMAT 720p

COLOUR SPACE YCbCr 4:4:4

A

3

5

2

4

Connection status

BShows the output signal type.

(When “OFF” is selected in “AUDIO OUT”

(Z 24, “HDMI” menu), “---” will be shown.)

CShows the number of audio channels.

D(Z below, “VIDEO FORMAT”)

E(Z below, “COLOUR SPACE”)

HD ENHANCER

This works when the HDMI connection is being used

with “VIDEO PRIORITY” (Z 24, “HDMI” menu) set to

“ON”.

To sharpen the “720p”, “1080i” and “1080p” picture

quality

OFF, 1 (weakest) to 3 (strongest)

VIDEO FORMAT

This works when the HDMI connection is being used

with “VIDEO PRIORITY” (Z 24, “HDMI” menu) set to

“ON”.

To select suitable picture quality with your TV

(Video recordings will be converted to, and output as,

high-definition video.)

 480p/576p/720p/1080p (progressive)

 480i/576i/1080i (interlaced)

 The numbers shown depend on the disc being

played. One of the above numbers is shown.

• If the picture is distorted, press [CANCEL DEL] until

the picture is shown correctly. (The output will return to

“480p”/“576p”.)

COLOUR SPACE

This works when the HDMI connection is being used

with “VIDEO PRIORITY” (Z 24, “HDMI” menu) set to

“ON”.

To select suitable picture colour with your TV

YCbCr 4:2:2

YCbCr 4:4:4

RGB

• An “*” mark will appear if compatible with your TV.

• If the picture colour is distorted, press [CANCEL DEL]

until the picture colour is shown correctly.

Radio

Preparation

Press [RADIO/AUX] to select “FM” or “AM”.

Manual tuning

Press [3] or [5] to tune in to the station.

To tune automatically, press and hold the button until the

frequency starts changing quickly.

“ ” is shown when a stereo broadcast is being received.

Using the main unit

1 Press [TUNE MODE] to select “MANUAL”.

2 Press [2/3] or [5/6] to tune in to the

station.

Improving the sound quality

When “FM” is selected

1 Press [PLAY MODE] to select “FM MODE”.

2 Press [Y, U] to select “MONO” and then press

[OK].

To cancel, select “STEREO”.

“MONO” is also cancelled when you change the

frequency.

Memory presetting

You can preset up to 30 FM and 15 AM stations.

█Automatic presetting

1 Press [PLAY MODE] repeatedly to select

“A.PRESET”.

2 Press [Y, U] to select “LOWEST” or “CURRENT”.

LOWEST Tuning begins from the lowest

frequency.

CURRENT Tuning begins from the current

frequency.

3 Press [OK] to start presetting.

The tuner presets all the stations it can receive into

the channels in ascending order.

To cancel, press [8].

SC-VKX65GAGS_RQT9951-B_En.indd 16SC-VKX65GAGS_RQT9951-B_En.indd 16 8/18/2014 3:31:35 PM8/18/2014 3:31:35 PM

printing rev.1

Confidential

Until:

29 Aug 2014

17

RQT9951

█Manual presetting

1 Press [3] or [5] (main unit: [5/6] or

[2/3]) to tune in to the station and then press

[OK].

“

PGM

”

is shown.

2 Press the numeric buttons to select a preset

number.

The new station replaces any station that occupies

the same preset number.

Do steps 1 and 2 again to preset more stations.

█Selecting a preset station

Press the numeric buttons, [2] or [6] to select the

preset station.

Using the main unit

1 Press [TUNE MODE] to select “PRESET”.

2 Press [2/3] or [5/6] to select the preset

station.

AM allocation setting

By main unit only

This system can also receive AM broadcasts allocated in

10 kHz steps.

1 Press [RADIO/AUX] to select “FM” or “AM”.

2 Press and hold [RADIO/AUX].

After a few seconds, the display panel shows the current

minimum radio frequency. Release the button when the

minimum frequency changes.

• To go back to the initial setting, do the above steps

again.

• After you change the setting, preset frequencies are

erased.

Recording

This system can record up to the followings depending

on the available storage capacity of the USB device in

USB B and the mode selected:

• MP3 disc and CD-DA to USB B

− 255 folders or a total of 4000 tracks.

• USB A-AUDIO and others to USB B

− 800 folders (maximum 999 tracks in an album) or a

total of 8000 tracks.

To check storage space

In the stop mode (except for DVD/CD, USB A-VIDEO

and USB B-VIDEO), press [FL DISPLAY].

• “UPDATE” is shown when the system is reading the

device.

• “NODEVICE” is shown if there is no USB device

connected to USB B .

Panasonic cannot be held responsible on the action of

consumer to record copyrighted contents which can

cause copyright infringement.

Note:

• All recordings are in “.mp3” format.

• You cannot do recording when you are using random

playback mode.

• You cannot do recording when DJ jukebox is switched on.

• Repeat playback mode is off during recording.

• A new album is added each time you do a recording.

• The sequence of album may change after the recording.

• The recordings are kept in a folder named “REC_DATA” in

the USB device.

• USB status indicator blinks in red during USB recording.

Basic recording

1 Select the source you want to record.

CD-DA

Prepare the disc playback mode (Z 12, “Play

mode”)

Make sure the disc is stopped.

Radio

Tune in to the radio station.

External equipment

Connect and play the equipment

(Z 22, “External equipment”).

2 Press [USB REC 7/9] to start recording.

The name of the folder that keeps the recording is

shown.

Stop

recording Press [8]. “WRITING” is shown.

Pause

recording

Press [USB REC 7/9] during recording.

Press again to continue recording.

Note:

You can pause during recording from

radio, AUX 1 or AUX 2 (except in

SYNCHRO mode). A track mark is added

every time you pause (Z18, “Adding

track marks”).

Note:

• Wait for a few seconds for the system to prepare the USB

device before recording starts.

• When the next track of the CD-DA disc is being recorded, it

will be shown on the display.

SC-VKX65GAGS_RQT9951-1B_En .indd 17SC-VKX65GAGS_RQT9951-1B_En .indd 17 8/21/2014 11:44:07 AM8/21/2014 11:44:07 AM

printing rev.1

Confidential

Until:

29 Aug 2014

18

RQT9951

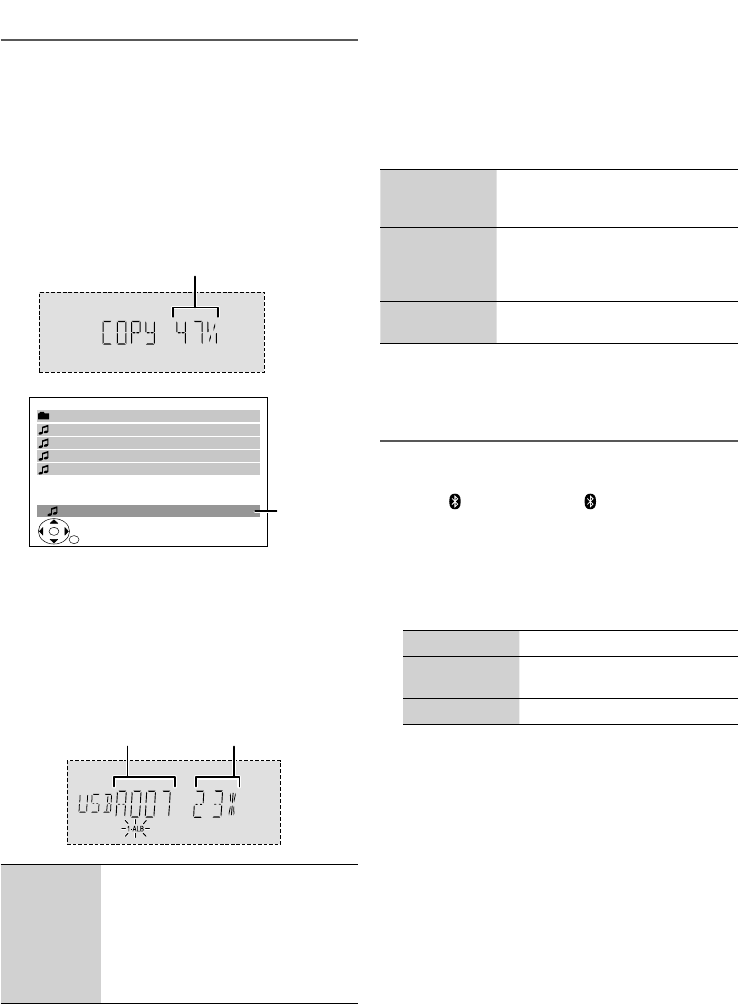

Recording MP3 tracks

Recording from MP3 disc

1 Put in the disc.

2 Press [R, T] to select the album and then press

[OK].

3 Press [USB REC 7/9] to start recording.

Example: Recording an album from MP3 disc.

DATA-DISC

. ./Audio/mp3

Hakkushon

LevelUp

Mata Sazae

Sazae***

Hakkushon

Recording from USB A-AUDIO

1 Prepare the source you want to record.

You can also use playmode function to record

specified files (Z 12, “Play mode”).

2 Press [USB REC 7/9] to start recording.

Example: Recording an album from the USB device.

Stop

recording Press [8].

Recording stops at the last fully

recorded track in the album. For

example, if you stop recording

during the fourth track, only the first

three tracks are recorded.“NO FILE

RECORDED” is shown if no track is

recorded.

Note:

• Some tracks can use a longer time to record.

• Some tracks cannot be recorded because of the condition

of the source.

• When recording from MP3 disc, the recorded file name will

be different from the original file.

• When recording from USB A-AUDIO, the recorded file

name will be the same as the original file (maximum 32

characters).

Recording progress in percentage

of all contents in the group

Track

currently

being

recorded

█ Adding track marks

When recording from radio or external equipment, you

can divide tracks using various modes.

Before recording

Press [EDIT MODE] to select the setting.

MANUAL Add a track mark manually.

Press [OK] during recording to add

a track mark.

SYNCHRO

(For AUX 1 or

AUX 2 source)

Recording starts automatically

when the other equipment starts

to play. Recording pauses when it

detects silence for 3 seconds.

TIME MARK A track is automatically divided at

5-minute intervals.

Note:

• During recording, if you press [OK] or pause recording while

using “TIME MARK” mode, the 5-minute counter is reset.

• You cannot add track marks manually in “SYNCHRO”

mode.

Deleting recorded tracks

1 Press [ , USB] (main unit: [ /USB, –PAIRING]) to

select “USB B-AUDIO”.

2 Press [R, T] to select album.

3 Press [2] or [6] to select the track.

4 Press [EDIT MODE] to select the mode.

TRK DEL Delete a single track.

ALB DEL Delete one album (maximum

999 tracks).

FORMAT Format the USB device.

5 Press [OK].

The selected item to be deleted is shown.

6 Press [OK].

“SURE? NO” is shown.

7 Press [Y, U] to select “YES” and then press [OK].

“WRITING” is shown.

To cancel, select “NO”.

Album being

recorded

Percentage of the

recording process

SC-VKX65GAGS_RQT9951-B_En.indd 18SC-VKX65GAGS_RQT9951-B_En.indd 18 8/18/2014 3:31:35 PM8/18/2014 3:31:35 PM

printing rev.1

Confidential

Until:

29 Aug 2014

19

RQT9951

Sound and illumination effects

Sound effects

1 Press [SOUND] to select the sound effect.

2 Press [Y, U] to select the setting and then press

[OK].

PRESET EQ Select the desired preset EQ

setting.

Using the main unit

Press [LOCAL PRESET EQ].

BASS –4 to +4

Using the main unit

1. Press [MANUAL EQ] to select

“BASS”, “MID” or “TREBLE”.

2. Press [2/3] or [5/6]

to adjust the level.

MID

TREBLE

SURROUND “ON SURROUND” or “OFF

SURROUND” (default)

INPUT LEVEL

(For AUX 2

source)

“NORMAL” (default) or “HIGH”

Note:

Select “NORMAL” if the sound is

distorted during “HIGH” input level.

D.BASS

“D.BASS ON” (default) or

“D.BASS OFF”

Using the main unit

Press [D.BASS].

Illumination effects

By main unit only

You can change the illumination colour on this system.

Turn [ILLUMINATION].

To cancel, select “OFF”.

DJ jukebox

(For USB A-AUDIO and USB B-AUDIO source)

You can use DJ jukebox to add cross-fading effect

between songs. You can also use additional features

with the “Panasonic MAX Juke” app (Z below).

By main unit only

1 Press [DJ JUKEBOX] to select the setting.

OFF CROSSFADE Cancel cross-fading.

ON CROSSFADE Add cross-fading.

OFF Switch off DJ jukebox.

2 During stop mode, turn [CONTROL] to select the

repeat setting.

RANDOM REPEAT

RND Play all tracks randomly and

repeat all tracks.

ALL TITLE REPEAT Repeat all tracks.

Note:

DJ jukebox effect is cancelled when you switch off the

system or change to another source.

Using the “Panasonic MAX Juke” app

You can download and install the free Android™

app “Panasonic MAX Juke” on Google Play™ for

additional features, such as to request song playback

from multiple devices simultaneously.

SC-VKX65GAGS_RQT9951-B_En.indd 19SC-VKX65GAGS_RQT9951-B_En.indd 19 8/18/2014 3:31:35 PM8/18/2014 3:31:35 PM

printing rev.1

Confidential

Until:

29 Aug 2014

20

RQT9951

Clock and timers

Setting the clock

This is a 24-hour clock.

1 Press [CLOCK/TIMER] to select “CLOCK”.

2 Press [R, T] to set the time then press [OK].

To check the time

Press [CLOCK/TIMER].

Note:

Reset the clock regularly to maintain accuracy.

Sleep timer

The sleep timer switches off the system after the set

time.

Press [SLEEP] to select the setting (in minutes).

To cancel, select “OFF”.

SLEEP 30 → SLEEP 60 → SLEEP 90 → SLEEP120

OFF

To check the remaining time

Press [SLEEP].

Note:

• The play timer and sleep timer or the record timer and

sleep timer can be used together.

• The sleep timer always comes first. Be sure not to set an

overlap of timers.

Play and record timer

(Except for Bluetooth® source)

You can set the timer to come on at a certain time to:

• Wake you up (play timer).

• Record from the radio or the external equipment

(record timer).

Play timer and record timer cannot be used together.

Preparation

Set the clock.

1 Press [CLOCK/TIMER] to select “#PLAY” or

“#REC”.

2 Press [R, T] to set the start time.

3 Press [OK].

4 Do steps 2 and 3 again to set the end time.

5 Press [R, T] to select the source you want to play

or record and then press [OK].

To start the timer

1 Prepare the audio source.

Play timer Prepare the music source you

want to listen to (disc, USB, radio

or external equipment) and set

the volume.

Record timer Connect the USB device to

USB B and tune to the radio

station or select the external

equipment.

2 Press and hold [#, –PLAY/REC] and then press

the button again to select the setting.

TIMER OFF Cancel the setting.

#PLAY ON Start the play timer. “#PLAY” is

shown.

#REC ON Start the record timer. “#REC” is

shown.

The system must be switched off for the timer to

operate.

To check the settings

Press [CLOCK/TIMER] to select “#PLAY” or “#REC”.

In standby mode, press [CLOCK/TIMER] two times.

Note:

• The play timer starts at a low volume and increases

gradually to the preset level.

• The record timer starts 30 seconds before the set time with

the volume muted.

• The timer comes on at the set time every day if the timer

is on.

• If you switch off the system and switch on again while a

timer is in operation, the timer will not stop at the end time.

SC-VKX65GAGS_RQT9951-B_En.indd 20SC-VKX65GAGS_RQT9951-B_En.indd 20 8/18/2014 3:31:35 PM8/18/2014 3:31:35 PM

printing rev.1

Confidential

Until:

29 Aug 2014

21

RQT9951

Using microphones

Preparation

Decrease the volume of the system to its minimum

before you connect or disconnect a microphone.

1 Connect a microphone (not supplied) to the

microphone jack.

Plug type : Ø 6.3 mm monaural

2 Turn [MIC VOL 1, MIN/MAX] or [MIC VOL 2,

MIN/MAX] on the main unit to adjust the volume

of the microphone.

If you want to use the microphone with background

music.

3 Play the music source and adjust the volume of

the system.

Note:

• If a strange noise (howling) is emitted, move the

microphone away from the speakers, or decrease the

volume of the microphone.

• When you do not use the microphone, disconnect it from

the microphone jack, and decrease the volume of the

microphone level to “MIN”.

Enjoying Karaoke (by main unit only)

1 Select the music source.

“DVD/CD” or “USB”.

2 Press [KARAOKE] to select “ON KARAOKE”.

To cancel, select “OFF KARAOKE”.

Note:

Karaoke mode switches off when you switch off this system.

KEY CONTROL

Press [KEY-CON] repeatedly to make the setting.

Alternatively, press [KEY-CON] and then turn [CONTROL]

to make the setting.

Change the key of a song

–6 (lowest) to +6 (highest)

0: Normal

Note:

The key control automatically reset to “0” when you change

to another source.

VOCAL CANCEL

Press [VOCAL CANCEL] repeatedly to make the setting.

Alternatively, press [VOCAL CANCEL] and then turn

[CONTROL] to make the setting.

Reduce the vocal level (when using stereo source not

formatted for Karaoke)

VOCAL CANCEL: Reduces vocal level

OFF VOCAL CANCEL: Cancel

Change the audio mode (when using Karaoke formatted

source)

L: Only left channel sound (accompaniment only).

R: Only right channel sound (vocals only).

L+R: Left and right channel sounds are mixed and heard

from both speakers.

Note:

• “L” and “R” are reversed on some discs.

• This function can fail to work depending on the type of

song.

• To make the setting, refer to “AUDIO” in Menu 1

(Z 14).

ECHO EFFECT

Press [ECHO] repeatedly to select the level.

Alternatively, press [ECHO] and then turn [CONTROL] to

select the level.

ECHO 1 ECHO 2 ECHO 3

ECHO OFF

Note:

You can adjust echo effect, key control and vocal cancel only

when Karaoke mode is set to “ON”.

SC-VKX65GAGS_RQT9951-B_En.indd 21SC-VKX65GAGS_RQT9951-B_En.indd 21 8/18/2014 3:31:35 PM8/18/2014 3:31:35 PM

printing rev.1

Confidential

Until:

29 Aug 2014

22

RQT9951

External equipment

Preparation

• Disconnect the AC mains lead.

• Switch off all equipment and read the appropriate

operating instructions.

Using the auxiliary input

You can connect the TV and listen to the audio through

this system.

1 Connect the TV to this system.

(Z 7, “Alternative connection to a TV”)

2 Press [RADIO/AUX] to select “AUX 1”.

Note:

• You can also connect other equipment (such as Blu-ray

Disc player, DVD recorder, VCR, etc.) to the AUX 1 terminal

of this system.

• Sound distortion can occur when you use an adaptor.

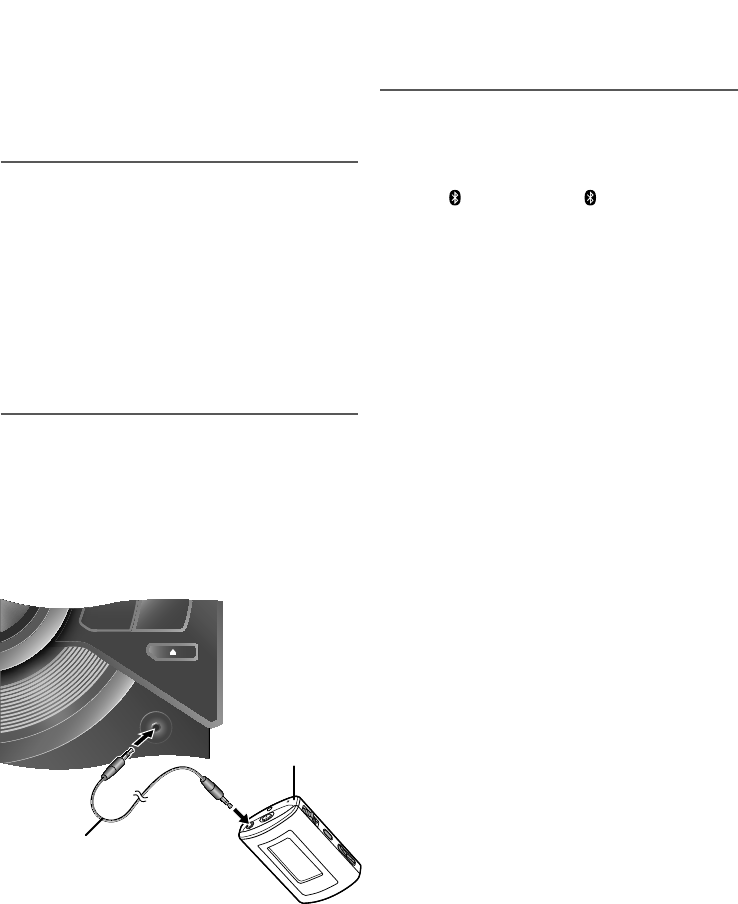

Connect to a portable audio equipment

You can play music from a portable audio equipment.

Preparation

• Switch off the equaliser (if any) of the portable audio

equipment to prevent sound distortion.

• Decrease the volume of the system and the portable

audio equipment before you connect or disconnect the

portable audio equipment.

RADIO/AUX

TUNE

MODE

OPEN/CLOSE

AUX IN 2

1 Connect the portable audio equipment.

Plug type: Ø 3.5 mm stereo

2 Press [RADIO/AUX] to select “AUX 2”.

3 Play the portable audio equipment.

Portable audio

equipment

(not supplied)

Audio cable

(not supplied)

Others

Bluetooth® standby

This function automatically switches on the system when

you establish a Bluetooth® connection from a paired

device.

1 Press [ , USB] (main unit: [ /USB, –PAIRING]) to

select “BLUETOOTH”.

2 Press [PLAY MODE] to select “STANDBY MODE”.

3 Press [Y, U] to select “ON STANDBY MODE” and

then press [OK].

To cancel, select “OFF STANDBY MODE”.

SC-VKX65GAGS_RQT9951-B_En.indd 22SC-VKX65GAGS_RQT9951-B_En.indd 22 8/18/2014 3:31:35 PM8/18/2014 3:31:35 PM

printing rev.1

Confidential

Until:

29 Aug 2014

23

RQT9951

Changing system settings

1 Press [DVD/CD].

2 Press [SETUP] to show the SETUP menu.

3 Press [R, T] to select the menu and then press

[OK].

To go back to the previous menu, press

[, RETURN].

4 Press [R, T] to select an item and then press

[OK].

5 Press [R, T] to make the setting and then press

[OK].

6 Press [SETUP] to close the screen.

• The settings stay intact even if you put the system on

standby mode.

• Underlined items are the factory settings in the menu.

EASY SETUP allows successive settings of the

items in the shaded area.

“DISC” menu

AUDIO

Change the audio language.

ENGLISH

FRENCH SPANISH

RUSSIAN ORIGINAL

1

OTHER ----

2

SUBTITLE

Change the subtitle language.

AUTO

3

ENGLISH FRENCH

SPANISH RUSSIAN OTHER ----

2

MENUS

Change the language for disc menus.

ENGLISH FRENCH SPANISH

RUSSIAN OTHER ----

2

RATINGS

Set a ratings level to limit DVD-Video playback.

Setting ratings

0 LOCK ALL: To prevent playback of discs without

ratings levels.

1 to 7: To prevent playback of DVD-Video with the

same ratings recorded on them.

8 NO LIMIT

When you set the ratings level, a password screen is

shown.

Follow the on-screen instructions.

Do not forget your password.

A message screen is shown if a DVD-Video with higher

ratings level is played.

Follow the on-screen instructions.

PASSWORD

Change the password for “RATINGS” (Z left).

1. Select “CHANGE” and then press [OK].

2. Input the current password with the numeric

buttons and then press [OK].

3. Input the new password with the numeric buttons

and then press [OK].

If “VERIFY” is shown, make sure that the new

password is correct and input it again.

1 The original language designated on the disc is

selected.

2 Input the applicable code from the “Language code

list” (Z 26).

3 If the language selection for “AUDIO” is not available

for the disc played, the subtitles in that language will

be shown (if available on the disc).

“VIDEO” menu

TV ASPECT

Change the setting to suit your TV and preference.

16:9: Widescreen TV (16:9)

4:3PAN&SCAN: Regular aspect TV (4:3)

The sides of the widescreen picture

are cut off so it fills the screen (unless

prohibited by the disc).

4:3LETTERBOX: Regular aspect TV (4:3)

Widescreen picture is shown in the

letterbox style.

TIME DELAY

When connected with an AV amplifier and Plasma TV,

adjust if the audio is out of sync with the video.

0 ms

20 ms

40 ms

60 ms 80 ms 100 ms

NTSC DISC OUT

Change PAL 60 or NTSC output when you play NTSC

discs.

NTSC: Output signals from NTSC discs remains as

NTSC.

PAL60: NTSC discs can be viewed on PAL TV.

For the Middle East and South Africa

“PAL60” is the factory preset.

STILL MODE

Specify the type of picture shown when in pause

mode.

AUTO

FIELD: The picture is not blurred, but the picture

quality is lowered.

FRAME: Overall quality is high, but the picture is

blurred.

SC-VKX65GAGS_RQT9951-B_En.indd 23SC-VKX65GAGS_RQT9951-B_En.indd 23 8/18/2014 3:31:36 PM8/18/2014 3:31:36 PM

printing rev.1

Confidential

Until:

29 Aug 2014

24

RQT9951

“AUDIO” menu

DOLBY DIGITAL 

BITSTREAM

PCM

DTS 

BITSTREAM

PCM

For the Middle East and South Africa

MPEG

BITSTREAM

PCM

Select “BITSTREAM” when the equipment can

decode the bitstream (digital form of multi-channel

data). If not, select “PCM”. (If the bitstream output to

the equipment without a decoder, there can be high

levels of noise output that can do damage to your

speakers and hearing.)

DYNAMIC RANGE

ON: Adjust for clarity even when the volume is low.

The range between the lowest and the highest

sound levels is compressed. Convenient for late

night viewing. (Only works with Dolby Digital.)

OFF

“DISPLAY” menu

LANGUAGE

Select the language for the on-screen messages.

ENGLISH FRANÇAIS ESPAÑOL

PУCCKИЙ

“HDMI” menu

VIDEO PRIORITY

ON: When using the HDMI AV OUT terminal for

video output. The resolution of the video output

from the HDMI AV OUT terminal is optimised

according to the capability of the connected

equipment (e.g. TV).

OFF: When not using the HDMI AV OUT terminal for

video output.

AUDIO OUT

ON: When audio output is from the HDMI AV OUT

terminal. (Depending on the capabilities of the

connected equipment, audio output may differ

from the audio settings of this system.)

OFF: When audio output is not from the HDMI AV

OUT terminal. (The audio is output using the

settings of this system.)

RGB RANGE

STANDARD

ENHANCED: When the black and white images are

not distinct.

“OTHERS” menu

SLIDE SHOW TIME

To change the slideshow time.

1 SEC to 15 SEC (in 1-unit)

15 SEC to 60 SEC (in 5-unit)

60 SEC to 180 SEC (in 30-unit)

“3 SEC” is the factory preset.

EASY SETUP

SET: Shows the EASY SETUP settings.

DVD-VR/DATA

Select to play only DVD-VR or DATA format.

DVD-VR: To play video on DVD-R/RW.

DATA: To play data files on DVD-R/RW.

SCREEN DIMMER

This is to prevent burnt mark on the TV screen.

OFF

WAIT 5 MIN: If there is no operation for 5 minutes, the

picture becomes grey. The TV screen

will go back to the normal position when

you do some operations. (This does not

apply during video playback.)

DEFAULTS

This returns all values in the SETUP menus to the

default settings.

RESET

The password screen is shown if “RATINGS”

(Z 23, “RATINGS”) is set. Input the same password

and then press [OK], then switch off the system and

switch on again.

SC-VKX65GAGS_RQT9951-B_En.indd 24SC-VKX65GAGS_RQT9951-B_En.indd 24 8/18/2014 3:31:36 PM8/18/2014 3:31:36 PM

printing rev.1

Confidential

Until:

29 Aug 2014

25

RQT9951

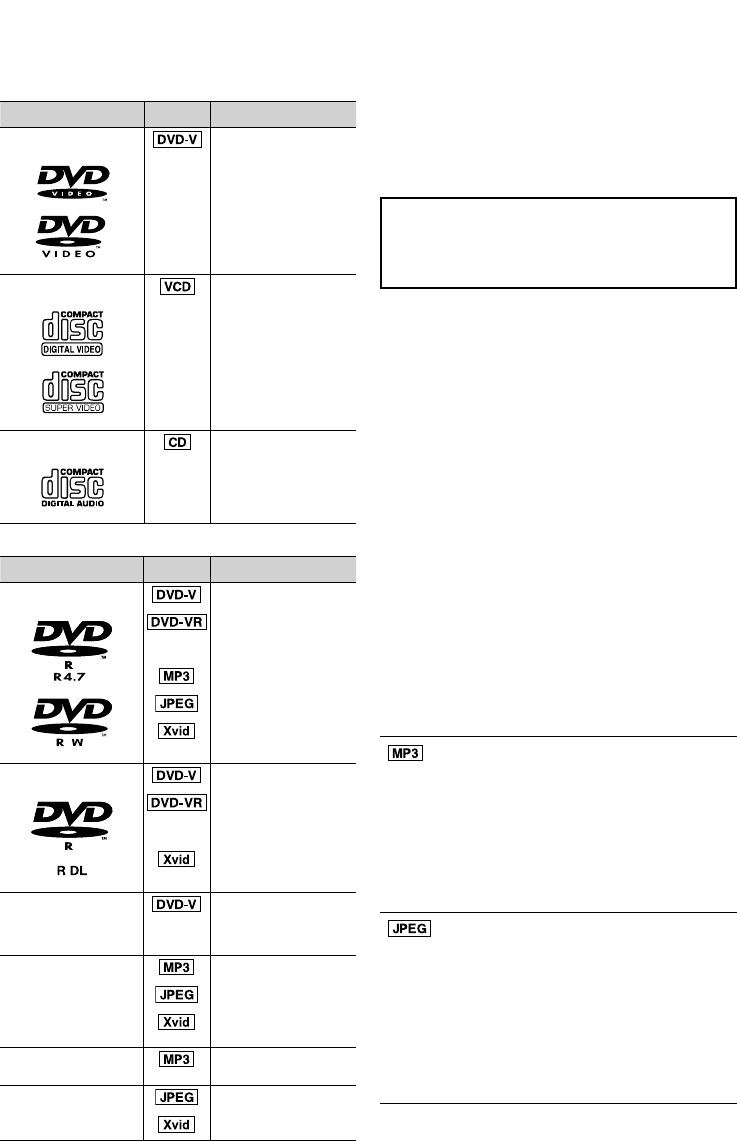

Playable media

Commercial discs

Type Icon Details

DVD-Video • High quality video

and audio discs

Video CD • Video discs

• Including SVCD

(conforms to

IEC62107)

CD • Audio discs

Recorded discs and USB devices

Type Icon Details

DVD-R/RW • DVD-Video format

• Version 1.1 of

the DVD Video

Recording format

• MP3 format

• JPEG format

• Xvid format

DVD-R DL • DVD-Video format

• Version 1.2 of

the DVD Video

Recording format

• Xvid format

+R/+RW/+R DL

• +VR (+R/+RW

Video Recording)

format

CD-R/RW

• MP3 format

• JPEG format

• Xvid format

USB A-AUDIO/

USB B-AUDIO

• MP3 format

USB A-VIDEO/

USB B-VIDEO

• JPEG format

• Xvid format

• Before playback, finalise the disc on the device it was

recorded on.

• It is not possible to play all the above-mentioned media

in some conditions because of:

− The type of media.

− The condition of the recording.

− The recording procedure.

− How the files were made (Z below, “About MP3/

JPEG/Xvid files”).

Note on using a DualDisc

A DualDisc could possibly not playback if the side of

the digital audio content does not meet the technical

specifications of the Compact Disc Digital Audio

(CD-DA) format.

█Discs that cannot be played

Blu-ray, HD DVD, AVCHD discs, DVD-RW version 1.0,

DVD-Audio, DVD-ROM, CD-ROM, CDV, CD-G, SACD,

Photo CD, DVD-RAM, and “Chaoji VCD” (including CVD,

DVCD and SVCD) that do not conform to IEC62107.

█ Video systems

• This system can play discs with PAL and NTSC, but

your TV must complement with the system used on

the disc.

• Videos from PAL discs cannot be correctly shown on

an NTSC TV.

• This system can convert NTSC signals to PAL 60 to

show video on a PAL TV (Z 23, “NTSC DISC OUT”

in “VIDEO” menu).

█About MP3/JPEG/Xvid files

• This system can access up to:

− Data disc: 255 folders (excluding root folder) and

4000 tracks.

− USB A-AUDIO/USB B-AUDIO: 800 albums (including

root folder) and 8000 tracks.

− USB A-VIDEO/USB B-VIDEO: 4000 picture and video

contents and 255 groups (excluding root folder).

(Extension: “.MP3”, “.mp3”)

• This system supports ID3 tags (USB A-AUDIO and

USB B-AUDIO only).

• Sampling frequency and compression rate:

− DVD-R/RW: 11.02, 12, 22.05, 24 kHz (8 to 160

kbps), 44.1 and 48 kHz (32 to 320 kbps)

− CD-R/RW: 8, 11.02, 12, 16, 22.05, 24 kHz (8 to

160 kbps), 32, 44.1 and 48 kHz (32 to 320 kbps)

• MP3 disc must conform to ISO9660 level 1 or 2

(except for extended formats).

(Extension: “.JPG”, “.jpg”, “.JPEG”, “.jpeg”)

• JPEG files taken on a digital camera that conforms

to DCF Standard (Design rule for Camera File

system) Version 1.0 are shown.

− Files that have been changed, edited or saved

with a computer picture editing software are

possibly not shown.

• This system cannot show moving pictures, MOTION

JPEG and other such formats, still pictures other

than JPEG (example:TIFF), or play pictures with

attached audio.

SC-VKX65GAGS_RQT9951-B_En.indd 25SC-VKX65GAGS_RQT9951-B_En.indd 25 8/18/2014 3:31:36 PM8/18/2014 3:31:36 PM

printing rev.1

Confidential

Until:

29 Aug 2014

26

RQT9951

Abkhazian: 6566

Afar: 6565

Afrikaans: 6570

Albanian: 8381

Amharic: 6577

Arabic: 6582

Armenian: 7289

Assamese: 6583

Aymara: 6589

Azerbaijani: 6590

Bashkir: 6665

Basque: 6985

Bengali, Bangla: 6678

Bhutani: 6890

Bihari: 6672

Breton: 6682

Bulgarian: 6671

Burmese: 7789

Byelorussian: 6669

Cambodian: 7577

Catalan: 6765

Chinese: 9072

Corsican: 6779

Croatian: 7282

Czech: 6783

Danish: 6865

Dutch: 7876

English: 6978

Esperanto: 6979

Estonian: 6984

Faroese: 7079

Fiji: 7074

Finnish: 7073

French: 7082

Frisian: 7089

Galician: 7176

Georgian: 7565

German: 6869

Greek: 6976

Greenlandic: 7576

Guaraní: 7178

Gujarati: 7185

Hausa: 7265

Hebrew: 7387

Hindi: 7273

Hungarian: 7285

Icelandic: 7383

Indonesian: 7378

Interlingua: 7365

Irish: 7165

Italian: 7384

Japanese: 7465

Javanese: 7487

Kannada: 7578

Kashmiri: 7583

Kazakh: 7575

Kirghiz: 7589

Korean: 7579

Kurdish: 7585

Laotian: 7679

Latin: 7665

Latvian, Lettish: 7686

Lingala: 7678

Lithuanian: 7684

Macedonian: 7775

Malagasy: 7771

Malay: 7783

(Extension: “.XVID”, “.xvid”, “.AVI”, “.avi”)

• Xvid files that are more than 2 GB or have no index

can fail to play correctly on this system.

• This system supports all resolutions until a

maximum of 720 x 480 (NTSC)/720 x 576 (PAL).

• There can be differences in the display sequence on

the menu screen and computer screen.

• This system cannot play files recorded using packet

write.

DVD-R/RW

• Discs must conform to UDF bridge

(UDF 1.02/ISO9660).

• This system does not support multi-session. Only the

default session is played.

CD-R/RW

• Discs must conform to ISO9660 level 1 or 2 (except for

extended formats).

• This system supports multi-session but if there are

many sessions, it uses more time for playback to start.

Keep the number of sessions to a minimum to prevent

this.

USB device

• This system does not guarantee connection with all

USB devices.

• This system does not support USB device charging.

• This system can support USB devices of up to 32 GB.

• Only FAT 12/16/32 file system is supported.

• This system supports USB 2.0 full speed.

Note:

The above media may not be played in some cases due

to the type of media, the condition of the recording, the

recording method, and how the files were created.

Malayalam: 7776

Maltese: 7784

Māori: 7773

Marathi: 7782

Moldavian: 7779

Mongolian: 7778

Nauru: 7865

Nepali: 7869

Norwegian: 7879

Oriya: 7982

Pashto, Pushto: 8083

Persian: 7065

Polish: 8076

Portuguese: 8084

Punjabi: 8065

Quechua: 8185

Rhaeto-Romance: 8277

Romanian: 8279

Russian: 8285

Samoan: 8377

Sanskrit: 8365

Scots Gaelic: 7168

Serbian: 8382

Serbo-Croatian: 8372

Shona: 8378

Sindhi: 8368

Singhalese: 8373

Slovak: 8375

Slovenian: 8376

Somali: 8379

Spanish: 6983

Sundanese: 8385

Swahili: 8387

Swedish: 8386

Tagalog: 8476

Tajik: 8471

Tamil: 8465

Tatar: 8484

Telugu: 8469

Thai: 8472

Tibetan: 6679

Tigrinya: 8473

Tonga: 8479

Turkish: 8482

Turkmen: 8475

Twi: 8487

Ukrainian: 8575

Urdu: 8582

Uzbek: 8590

Vietnamese: 8673

Volapük: 8679

Welsh: 6789

Wolof: 8779

Xhosa: 8872

Yiddish: 7473

Yoruba: 8979

Zulu: 9085

Language code list

SC-VKX65GAGS_RQT9951-B_En.indd 26SC-VKX65GAGS_RQT9951-B_En.indd 26 8/18/2014 3:31:36 PM8/18/2014 3:31:36 PM

printing rev.1

Confidential

Until:

29 Aug 2014

27

RQT9951

Troubleshooting

Before requesting service, make the following checks.

If you are in doubt about some of the check points, or if

the solutions indicated do not solve the problem, consult

your dealer for instructions.

█Common problems

The unit does not work.

• The safety device has been activated. Do the following:

1. Press [1] on the main unit to switch the unit

to standby mode. If the unit does not switch to

standby mode,

− Press and hold the button for a minimum of

10 seconds. Or,

− Disconnect the AC mains lead and connect it

again.

2. Press [1] again to switch on the unit. If the

problem persists, consult your dealer.

The display panel lights up and changes continuously

in standby mode.

• Press and hold [8] on the main unit to select “DEMO

OFF”.

No operations can be done with the remote control.

• Examine that the battery is installed correctly. (Z 5)

Sound is distorted or no sound.

• Adjust the volume of the system.

(Z 9)

• Switch off the system, determine and correct the

cause, then switch on again. It can be caused by

straining of the speakers through excessive volume

or power, and when using the system in a hot

environment.

• Audio is possibly not output because of how the

contents are made.

A humming sound can be heard during playback.

• An AC mains lead or fluorescent light is near the

cables. Keep other appliances and cords away from

the cables of this system.

The sound level reduces.

• The protection circuit has been activated due to the

continuous use at high volume output. This is to

protect the system and maintain the sound quality.

No sound from the TV.

• Confirm the audio connection.

(Z 7)

• When using the HDMI connection, ensure that

“AUDIO

OUT” in the HDMI menu is set to “ON”.

(Z 24)

You have forgotten your ratings password.

• Reset all the settings to factory preset.

1. Press [DVD/CD] and then press [8].

2. Press [8] on the main unit and [ 10] on the remote

control at the same time.

“INIT” is shown.

Other equipment operates with the supplied remote

control.

• Change the remote control mode.

(Z 30)

█Disc

Display not shown correctly.

Playback does not start.

• You have not put in the disc correctly. Put it in

correctly.

(Z 10)

• Disc is dirty. Clean the disc.

• Replace the disc if it is scratched, warped, or

non-standard.

• There is condensation. Let the system dry for 1 to 2

hours.

• If a disc contains CD-DA and other formats, correct

playback is not possible.

The total number of tracks shown is incorrect.

The disc cannot be read.

Distorted sound is heard.

• You put in a disc that the system cannot play. Change

to a playable disc.

(Z 25)

• You put in a disc that has not been finalised.

Playback starts slowly.

• Playback starts slowly when an MP3 content has still

picture data. Even after the content starts, the correct

play time will not be shown.

• This is usual on Xvid video.

Groups deeper than the eighth layer on a data disc are

not shown correctly.

• Groups deeper than the eighth layer are shown as the

eighth layer.

A menu screen shows during skip or search.

• This is usual for Video CDs.

Playback control menu does not show.

with playback control (PBC).

• Press [8] two times and then press [4/9].

The program and random playback functions do not

work.

• These functions do not work with some

DVD-Videos.

Programmed items are not played.

• Some items cannot be played even if you have

programmed them.

No subtitles.

• Show the subtitles (“SUBTITLE” in Menu 1 (Z 15)).

• It is possible that the subtitles are not shown because

of the disc.

Cannot select alternative languages.

• Select from the menu of the disc if one is available.

Point B is automatically set.

• The end of an item becomes point B when it is at the

end. (Z 15)

The SETUP menu cannot be accessed.

• Select “DVD/CD” as the source. (Z 10)

• Cancel the program and random playback.

(Z 12, 13)

SC-VKX65GAGS_RQT9951-B_En.indd 27SC-VKX65GAGS_RQT9951-B_En.indd 27 8/18/2014 3:31:36 PM8/18/2014 3:31:36 PM

printing rev.1

Confidential

Until:

29 Aug 2014

28

RQT9951

█Main unit displays

The display panel is dark.

• Press and hold [–DIMMER] on the remote control

or press [DIMMER] on the main unit to increase the

brightness of the display panel. (Z 9)

“A NO DEV”

“B NO DEV”

• The USB device is not connected. Examine the

connection.

“ADJUST CLOCK”

• The clock is not set. Adjust the clock. (Z 20)

“ADJUST TIMER”

• The play and/or record timer is not set. Adjust the play

and/or record timer. (Z 20)

“AUTO OFF”

• The system has not been used for 20 minutes and will

switch off within a minute. To cancel, press any button.

(Z 9)

“CAN’T REC”

“DEVICE FULL”

• You cannot do recording because the remaining

recording time of the USB device is less than the total

time of the music source. Change to a USB device

which has enough recording time and do the recording

again. (Z 17)

“DVD H □ □”

“DVD F □ □”

□ is a number.

• Disconnect the AC mains lead, and then connect it

again. If the service numbers fail to clear, note the

service number and contact a qualified service person.

“DVD U11”

• Disc is dirty. Clean the disc.

“ERROR”

• An incorrect operation was done. Read the instructions

and try again.

“ERROR” (during recording)

• You cannot select other playback source (example:

radio, USB etc.) or press [2] or [6] during

recording. Stop the recording function.

• You cannot open the disc tray when recording from an

AM source.

“F61”

• Examine and correct the speaker cords connection.

(Z 6)

• Disconnect the USB device. Switch off the system and

then switch on again.

“F70”

• Examine the Bluetooth® connection. (Z 11)

• Disconnect the Bluetooth® device. Switch off the

system and then switch on again. (Z 11)

“F76”

• There is a problem with the power supply.

• Disconnect the AC mains lead and consult your dealer.

“F77”

• Disconnect the AC mains lead and consult your dealer.

“TR FULL”

• The number of files has exceeded the supported limit.

“ALB FULL”

• The number of groups or albums has exceeded the

supported limit.

█USB

The USB device or the contents in it cannot be read.

• The format of the USB device or the contents in it are

not compatible with the system.

• USB devices with storage capacity of more than 32 GB

cannot work in some conditions.

• Make sure you have selected the correct USB source

and format type. (Z 10,

25

)

Slow operation of the USB device.

• Large content size or large memory USB device takes

longer time to read.

█Bluetooth®

Pairing cannot be done.

• Check the Bluetooth® device condition.

• The device is out of the 10 m communication range.

Move the device nearer to the system.

The device cannot be connected.

• The pairing of the device was unsuccessful. Do pairing

again. (Z 11)

• The pairing of the device has been replaced. Do pairing

again. (Z 11)

• This system might be connected to a different device.

Disconnect the other device and try pairing the device

again. (Z 11)

• The system may have a problem. Switch off the system

and then switch on again.

The device is connected but audio cannot be heard

through the system.

• For some built-in Bluetooth® devices, you have to set

the audio output to “SC-VKX65” manually. Read the

operating instructions of the device for details.

Sound from the device is interrupted.

• The device is out of the 10 m communication range.

Move the device nearer to the system.

• Remove any obstacle between the system and the

device.

• Other devices that use the 2.4 GHz frequency band

(wireless router, microwaves, cordless phones, etc.) are

interfering. Move the device nearer to the system and

distance it from the other devices.

• Select “MODE 1” for stable communication. (Z 12)

Playback image and sound are not synchronised.

• Restart the playback app of the device.

• Connect the device to the system with an audio cable

(not supplied). (Z 22)

█Radio

Sound is distorted.

“ST” flickers or does not show.

• Use an optional FM outdoor antenna. The antenna

should be installed by a competent technician.

• Press [PLAY MODE] to select “MONO”. (Z 16)

A beat sound is heard.

• Switch off the TV or move it away from the system.

• Move mobile telephones away from the system if the

interference is apparent.

A low hum is heard during AM broadcasts.

• Move the antenna away from other cables and cords.

SC-VKX65GAGS_RQT9951-1B_En .indd 28SC-VKX65GAGS_RQT9951-1B_En .indd 28 8/21/2014 11:44:16 AM8/21/2014 11:44:16 AM

printing rev.1

Confidential

Until:

29 Aug 2014

29

RQT9951

“NODEVICE”

“NO DEVICE”

• You cannot do recording or check available storage

space because there is no USB device connected to

USB B .

“NO DISC”

• You have not put in a disc.

• You have not put in the disc correctly. Put it in

correctly.

(Z 10)

“NO MP3”

• Select an MP3 content before recording can start.

“NO PLAY”

“UNSUPPORT”

• Examine the content. You can only play supported

format.

(Z 25)

• The files in the USB device can be corrupted. Format

the USB device and try again.

• The system may have a problem. Switch off the system

and then switch on again.

• You put in a disc that the system cannot play. Change

to a playable disc.

(Z 25)

• You put in a blank disc.

• You put in a disc that has not been finalised.

“NO TRACK”

• There is no MP3 file in the USB device.

“PLAYERROR”

• You played an unsupported MP3 file. The system will

skip that track and play the next one.

“REC ERROR”

• You disconnected the USB device while recording.

Connect the USB device and do recording again.

(Z 10, 17)

• Error occurred during USB recording. Disconnect the

USB device and then connect again. (Z 10, 17)

“REMOTE 1”

“REMOTE 2”

• The remote control and the main unit are using

different codes. Change the code of the remote

control. (Z 30)

− When “REMOTE 1” is shown, press and hold [OK]

and [1] for a minimum of 4 seconds.

− When “REMOTE 2” is shown, press and hold [OK]

and [2] for a minimum of 4 seconds.

“TEMP NG”

• The temperature protection circuit has been activated,

and the system will switch off. Let the unit cool down

before switching it on again.

• Check that the ventilation opening of the unit is not

obstructed.

• Ensure this unit is well ventilated.

“U70 □”

□ is a number.

(The actual number following “U70” will depend on the

state of this unit.)

• HDMI connection acts unusually.

− The connected equipment is not HDMI-compatible.

− Use HDMI cables that have the HDMI logo.

− The HDMI cable is too long.

− The HDMI cable is damaged.

“USB OVER CURRENT ERROR”

• The USB device is using too much power. Disconnect

the USB device, switch off the system and then switch

on again.

“VBR”

• The system cannot show the remaining play time for

variable bit rate (VBR) tracks.

█TV displays

“THIS DISC CANNOT BE PLAYED IN YOUR REGION.”

• You can only play DVD-Video if the region code is

compatible with this system. You can check the

compatible region code at the rear of the main unit.

(Z Cover page)

“ ”

• The operation is prevented by the system or disc.

“THIS TYPE OF DEVICE CANNOT BE PLAYED.

PLEASE INSERT A DIFFERENT DEVICE.”

• Make sure there is video or picture content in the USB

device.

█Picture

Picture is distorted.

• It is common to experience some distortion during

“SEARCH”.

• Make sure that the system is connected directly to the

TV, and is not connected through a VCR.

(Z 7)

• Change the “SOURCE SELECT” in Menu 2.

(Z 15)

• When using the HDMI AV OUT terminal, ensure that

an incompatible video output with the connected TV

is not selected. Press [CANCEL DEL] until the picture

is shown correctly. The output will return to “480p” or

“576p”.

• Video images converted to 1920x1080 resolution

may look different from the true native 1080p full-HD

sources. This is not a malfunction of this unit.

No picture.

• Examine the connection.

(Z 7)

• Make sure that the video input mode of the TV is

correct.

(Z 7)

A defective TV display or faded colours.

• The system and TV are using different video systems.

For Southeast Asia

− Use the multi-system or NTSC TV.

For the Middle East and South Africa

− Use the multi-system or PAL TV.

• The system used on the disc does not complement

your TV.

− Videos on PAL discs cannot be correctly shown on

an NTSC TV.

− This system can convert NTSC signals to PAL 60

to be shown on a PAL TV (“NTSCDISC OUT” in

“VIDEO” menu).

(Z 23)

Picture stops.

• Picture can stop if the Xvid contents are more

than 2 GB.

Menus not shown correctly.

• Change the zoom ratio to “NORMAL” in “ZOOM” in

Menu 2. (Z 15)

• Change the “TV ASPECT” in “VIDEO” menu.

(Z 23)

Auto zoom function does not operate correctly.

• Switch off the zoom function of the TV.

• Use the other preset aspect ratios or manual

adjustment.

(Z 23)

• Zoom function does not work well especially in dark

scenes or does not work at all due to the type of disc.

When playing PAL disc, picture is distorted.

• Set “TRANSFER MODE” in Menu 2 to “AUTO”.

(Z 15)

SC-VKX65GAGS_RQT9951-1B_En .indd 29SC-VKX65GAGS_RQT9951-1B_En .indd 29 8/21/2014 11:44:26 AM8/21/2014 11:44:26 AM

printing rev.1

Confidential

Until:

29 Aug 2014

30

RQT9951

Specifications

█Amplifier section

RMS output power stereo mode

Front Ch 275 W per channel (3 ), 1 kHz

Total RMS stereo mode power 550 W (30% THD)

PMPO output power 6000 W

█Tuner, terminals section

Preset station FM 30 stations

AM 15 stations

Frequency modulation (FM)

Frequency range

87.50 MHz to 108.00 MHz (50 kHz step)

Antenna terminals 75

(unbalanced)

Amplitude modulation (AM)

Frequency range

522 kHz to 1629 kHz (9 kHz step)

520 kHz to 1630 kHz (10 kHz step)

Mic jack

Terminal Mono, 6.3 mm jack (2 system)

Sensitivity 0.7 mV, 1.2 k

AUX 1

Audio input Pin jack (1 system)

AUX 2

Sensitivity 100 mV, 4.7 k

█USB section

USB port

USB standard USB 2.0 full speed

Media file format support

USB AUDIO MP3 (*.mp3)

USB VIDEO JPEG (*.jpg, *.jpeg), Xvid (*.xvid, *.avi)

USB device file system FAT12, FAT16, FAT32

USB port power 500 mA (max)

Bit rate Up to 4 Mbps (Xvid)

USB recording

Bit rate 128 kbps

USB recording speed 1x

Recording file format MP3 (*.mp3)

█Bluetooth® section

Version Bluetooth® Ver. 2.1 + EDR

Class Class 2

Supported profiles A2DP, AVRCP, SPP

Operating frequency 2.4 GHz band, FH-SS

Operation distance 10 m line of sight

█HDMI progressive video

There is a ghosting effect when the HDMI progressive

output is on.

• This problem is caused by the editing method or

material used on DVD-Video, but should be corrected

if you use interlaced output. When using the HDMI

AV OUT terminal, set “VIDEO FORMAT” in Menu 4

to “480i” or “576i”. Or, disable the HDMI AV OUT

connection and use the other video connection.

(Z 7, 16)

Remote control code

When other Panasonic equipment responds to the

remote control of this system, change the remote control

code for this system.

Preparation

Press [RADIO/AUX] to select “AUX 1” or “AUX 2”.

█To set the code to “REMOTE 2”

1 Press and hold [RADIO/AUX] on the main unit

and [2] on the remote control until “REMOTE 2”

is shown.

2 Press and hold [OK] and [2] for a minimum of

4 seconds.

█To set the code to “REMOTE 1”

1 Press and hold [RADIO/AUX] on the main unit

and [1] on the remote control until “REMOTE 1” is

shown.

2 Press and hold [OK] and [1] for a minimum of

4 seconds.

Note:

After you set the code, you can continue to use the TV

operation buttons on the remote control to operate a

Panasonic TV (Z 9).

System memory reset

Reset the memory when the following situations occur:

• There is no response when buttons are pressed.

• You want to clear and reset the memory contents.

1 Disconnect the AC mains lead.

2 While you press and hold [1] on the main unit,

connect the AC mains lead again.

Continue to press and hold the button until

“– – – – – – – –” is shown.

3 Release [1].

All the settings are set back to the factory preset. It is

necessary to set the memory items again.

SC-VKX65GAGS_RQT9951-B_En.indd 30SC-VKX65GAGS_RQT9951-B_En.indd 30 8/18/2014 3:31:36 PM8/18/2014 3:31:36 PM

printing rev.1

Confidential

Until:

29 Aug 2014

31

RQT9951

█Video section

Video system PAL, NTSC

Composite video output

Output level 1 Vp-p (75 )

Terminal Pin jack (1 system)

HDMI AV output

Terminal 19-pin type A connector

█Disc section

Disc played (8 cm or 12 cm)

(1) DVD (DVD-Video, Xvid 4, 5)

(2) DVD-R (DVD-Video, DVD-VR, JPEG 3, 5, MP3 2, 5,

Xvid 4, 5)

(3) DVD-R DL (DVD-Video, DVD-VR, Xvid 4, 5)

(4) DVD-RW (DVD-Video, DVD-VR, JPEG 3, 5, MP3 2, 5,

Xvid 4, 5)

(5) +R/+RW (Video)

(6) +R DL (Video)

(7) CD, CD-R/RW (CD-DA, Video CD, SVCD 1, MP3 2, 5,

JPEG 3, 5, Xvid 4, 5)

1 Conforming to IEC62107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096

pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4).

Extremely long and narrow pictures may not be

displayed.

4 Plays Xvid video.

5 The total combined maximum number of recognisable

audio, picture and video contents and groups: 4000

audio, picture and video contents and 255 groups

(Excluding Root folder).

Pick up

Wavelength

CD 790 nm

DVD 655 nm

█Speaker section

Speaker unit(s)

Woofer 20 cm cone type

Tweeter 6 cm cone type

Impedance 3

Dimensions (W x H x D) 250 mm x 429 mm x 226 mm

Mass 4.0 kg

█General

Power supply AC 220 V to 240 V, 50/60 Hz

Power consumption 81 W

Dimensions (W x H x D) 230 mm x 335 mm x 249 mm

Mass 3.1 kg

Operating temperature range 0°C to +40°C

Operating humidity range

35% to 80% RH (no condensation)

Power consumption in standby mode

0.5 W (approximate)

Power consumption in standby mode

(With Bluetooth® “STANDBY MODE” set to

“ON STANDBY MODE”)

0.6 W (approximate)

Note:

• Specifications are subject to change without notice.

Mass and dimensions are approximate.

• Total harmonic distortion is measured by the digital

spectrum analyser.

SC-VKX65GAGS_RQT9951-B_En.indd 31SC-VKX65GAGS_RQT9951-B_En.indd 31 8/18/2014 3:31:36 PM8/18/2014 3:31:36 PM

printing rev.1

Confidential

Until:

29 Aug 2014

Panasonic Corporation

Web Site: http://panasonic.net

© Panasonic Corporation 2014

RQT9951-1B

L0814AA1084

En

SC-VKX65GAGS_RQT9951-1B_En .indd 32SC-VKX65GAGS_RQT9951-1B_En .indd 32 8/21/2014 11:44:35 AM8/21/2014 11:44:35 AM

printing rev.1

Confidential

Until:

29 Aug 2014
