Owner’s Manual

32” Class 720p LCD HDTV

(31.5 inches measured diagonally)

Manual de usuario

Televisión de alta definición de 720p y

clase 32” de LCD

(31,5 pulgadas medidas diagonalmente)

For assistance (U.S.A./Puerto Rico), please call:

1-877-95-VIERA (958-4372)

www.panasonic.com/help

For assistance (Canada), please call:

1-866-330-0014

www.vieraconcierge.ca

Para solicitar ayuda (EE.UU./Puerto Rico), llame al:

1-877-95-VIERA (958-4372)

www.panasonic.com/help

TQB4GC0608

Gracias por su decisión de comprar este producto marca Panasonic.

Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en

el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

Español

English Thank you for purchasing this Panasonic product.

Please read these instructions before operating your set and retain them for future

reference. The images shown in this manual are for illustrative purposes only.

Model No.

Número de modelo

TC-L3232C

tc_L3232c_eng_0608.indb 1tc_L3232c_eng_0608.indb 1 2010/12/24 13:40:022010/12/24 13:40:02

This product incorporates the following software:

(1) software developed independently by or for Panasonic Corporation,

(2) software owned by a third party and licensed to Panasonic Corporation,

(3) software licensed under the GNU General Public License, Version 2 (GPL v2),

(4) software licensed under the GNU LESSER General Public License (LGPL) and/or,

(5) open source software other than software licensed under the GPL and/or LGPL

For the software categorized as (3) or (4), please refer to the terms and conditions of GPL v2 and LGPL, as the

case may be at http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and

http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html In addition, software categorized as (3) or (4) is

copyrighted by several individuals and/or entities. Please refer to the copyright notice of those individuals at

http://www.am-linux.jp/dl/DTV11UT/.

GPL/LGPL SOFTWARE IS DISTRIBUTED IN THE HOPE THAT IT WILL BE USEFUL, BUT WITHOUT

ANY WARRANTY, EXPRESS, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

For at least three (3) years from delivery of products, Panasonic will give to anyone who contacts us at the

address provided below, for a charge of no more than our cost of physically performing source code distribution,

a complete machine-readable copy of the corresponding source code covered under GPL v2/LGPL.

Contact Information

cdrequest@am-linux.jp

Source code is also freely available to you and any other member of the public via our website below.

http://www.am-linux.jp/dl/DTV11UT/

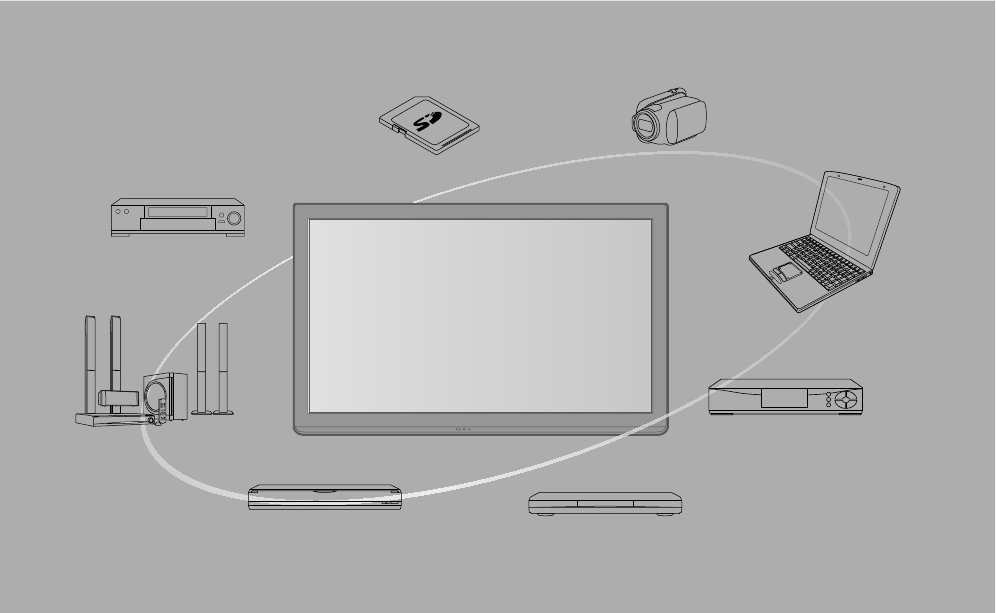

Experience an amazing level of

multimedia excitement

SD memory card Camcorder

Personal computer

Amplifier with

Speaker system

Cable box

DVD Player/

Blu-ray Disc player

DVD Recorder/

Blu-ray Disc recorder

VCR

Enjoy rich multimedia

tc_L3232c_eng_0608.indb 2tc_L3232c_eng_0608.indb 2 2010/12/24 13:40:032010/12/24 13:40:03

Basic Advanced Support Information

Getting started

VIERA Link™ is a trademark of

Panasonic Corporation.

HDMI, the HDMI logo and High-

Definition Multimedia Interface are

trademarks or registered trademarks

of HDMI Licensing LLC in the United

States and other countries.

SDHC Logo is a trademark of SD-

3C, LLC.

This product qualifies for ENERGY

STAR in the “Home Use” setting

and this is the setting in which

energy savings will be achieved.

Any modifications to the “Home

Use” setting or other factory default

settings could result in greater

energy consumption beyond

levels that meet ENERGY STAR

qualifications.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

HDAVI Control™ is a trademark of Panasonic Corporation.

Contents

• Watching TV ·················································15

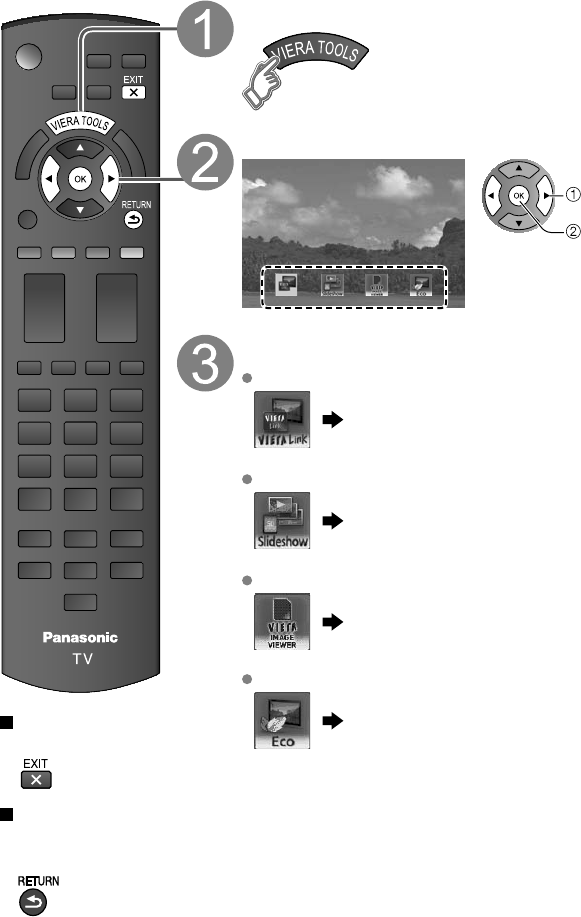

• Using VIERA TOOLS ···································18

• Watching content from external devices ······19

•

Viewing photos with VIERA IMAGE VIEWER

····· 20

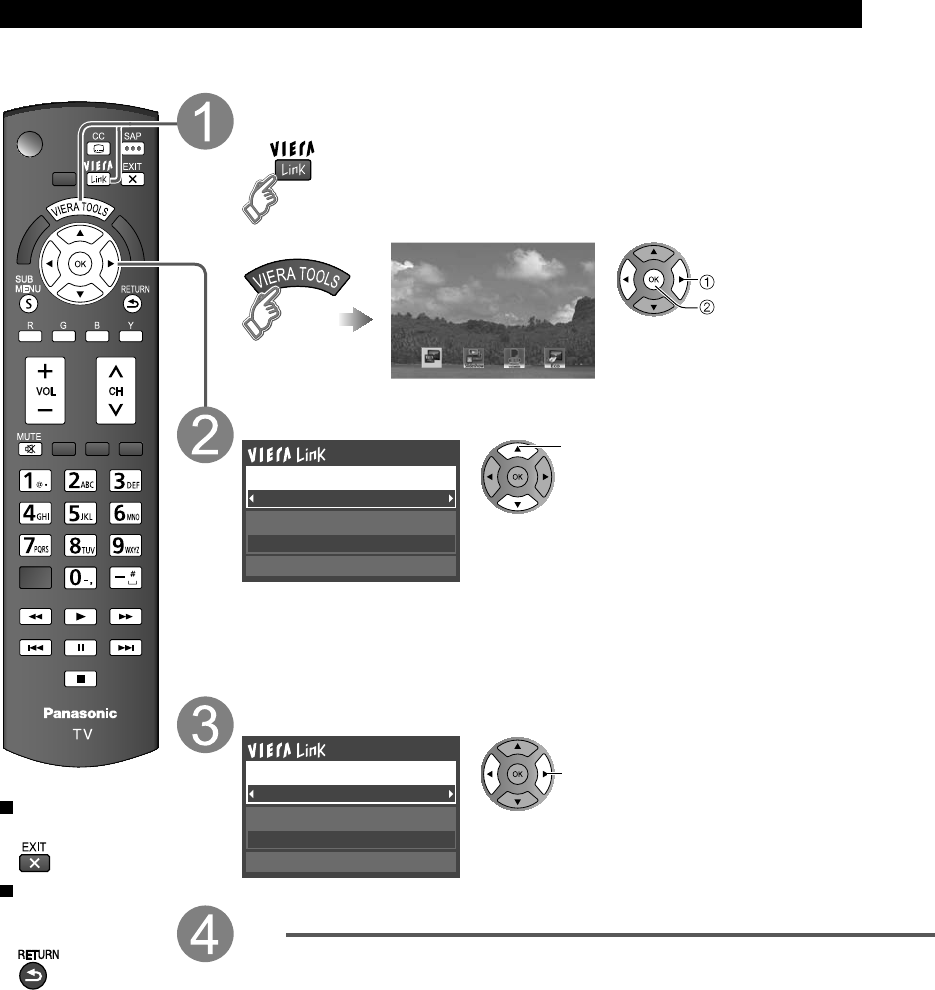

• VIERA Link

“HDAVI Control

” ··················· 22

• Editing and Setting Channels ·······················28

• How to Use Menu Functions ························30

• Picture settings ···········································31

• Audio settings ·············································32

• Timer settings ·············································32

• Lock ····························································33

• Closed caption ············································33

• Setup ··························································34

• Ratings List for parental control ···················35

• Technical Information ···································36

• Care and Cleaning ·······································40

• Specifications ··············································· 41

• Frequently Asked Questions (FAQ) ·············42

• Index ····························································44

• Limited Warranty

(for U.S.A. and Puerto Rico only) ·················45

•

Customer Services Directory

(for U. S. A. and Puerto Rico)

························ 46

• Limited Warranty (for Canada) ·····················47

Basic Features

Advanced Features

Support Information

• Safety Precautions ·········································4

Please read before using the unit

• Accessories/Optional Accessory ···················7

• Connections ··················································9

• Identifying Controls ······································ 11

• First Time Setup ··········································12

Getting started

tc_L3232c_eng_0608.indb 3tc_L3232c_eng_0608.indb 3 2010/12/24 13:40:032010/12/24 13:40:03

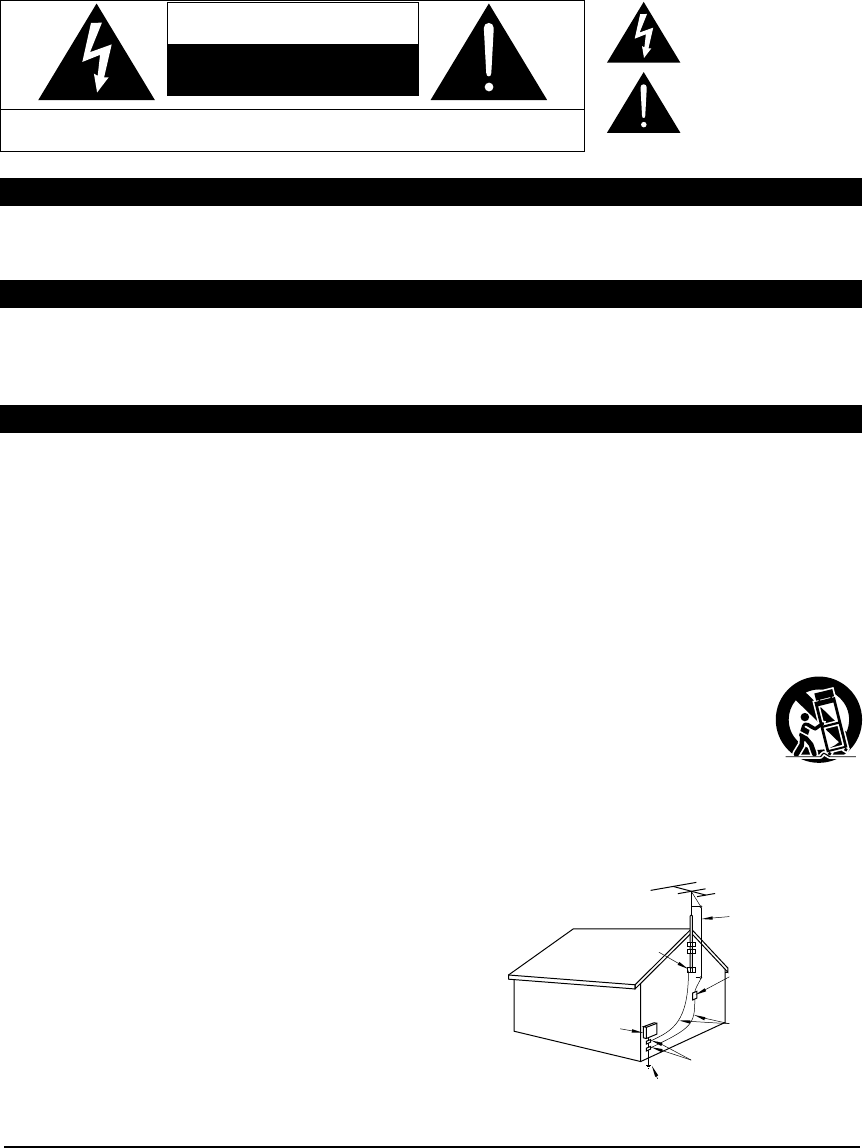

ANTENNA

LEAD-IN WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING

CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

ELECTRIC

SERVICE

EQUIPMENT

GROUND CLAMP

EXAMPLE OF ANTENNA

GROUNDING AS PER

(NEC) NATIONAL

ELECTRICAL

CODE

Safety Precautions

Note to CATV System Installer

This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as

close to the point of cable entry as practical.

Secure Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD

TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space

around the TV. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This

LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that

produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided

for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied

to your home consult your television dealer or local power company.

16) Follow all warnings and instructions marked on the LCD TV.

17) Never push objects of any kind into this LCD TV through cabinet

slots as they may touch dangerous voltage points or short out parts

that could result in a fire or electric shock. Never spill liquid of any

kind on the LCD TV.

18) If an outside antenna is connected to the television equipment,

be sure the antenna system is grounded so as to provide some

protection against voltage surges and built up static charges.

In the U.S. Section 810-21 of the National Electrical Code

provides information with respect to proper grounding of the mast

and supporting structure, grounding of the lead-in wire to an

antenna discharge unit, size of grounding conductors, location of

antenna discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead

within a triangle is intended to tell the

user that parts inside the product are a

risk of electric shock to persons.

The exclamation point within a

triangle is intended to tell the

user that important operating and

servicing instructions are in the

papers with the appliance.

tc_L3232c_eng_0608.indb 4tc_L3232c_eng_0608.indb 4 2010/12/24 13:40:052010/12/24 13:40:05

19) An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits, or

where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to

keep from touching such power lines or circuits as contact with them might be fatal.

20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the LCD TV.

c. If the LCD TV has been exposed to rain or water.

d. If the LCD TV does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as improper adjustment of other

controls may result in damage and will often require extensive work by a qualified technician to restore the

LCD TV to normal operation.

e. If the LCD TV has been dropped or the cabinet has been damaged.

f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.

21)

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that

have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING.

DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET

(INCLUDING ON SHELVES ABOVE, ETC.).

23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL

PARTS AWAY FROM YOUNG CHILDREN.

DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS

AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,

CREATING THE POTENTIAL RISK OF SUFFOCATION.

24) WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all

times.

25) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power

cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet

to shut down all power.

Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet

in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when

left unused for a long period of time (for example, when on vacation).

26) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

27) CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.

28) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME

OR EQUIVALENT TYPE.

29) CAUTION: This LCD TV is for use only with the following optional accessory. Use with any other type of optional

accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation)

• Wall-hanging bracket: TY-WK3L2RW

Always be sure to ask a qualified technician to carry out set-up.

NOTE: This equipment is designed to operate in North America and other countries where the broadcasting system and AC

house current are exactly the same as in North America.

tc_L3232c_eng_0608.indb 5tc_L3232c_eng_0608.indb 5 2010/12/24 13:40:052010/12/24 13:40:05

CEA CHILD SAFETY NOTICES

WARNING

Flat panel displays are not always supported on the

proper stands or installed according to the manufacturer’s

recommendations. Flat panel displays that are inappropriately

situated on dressers, bookcases, shelves, desks, speakers,

chests or carts may fall over and may cause personal injury or

even death.

The consumer electronics industry (of which Panasonic is

a member) is committed to making home entertainment

enjoyable and safe. To prevent personal injury or death, be

sure to follow the following safety guidelines:

TUNE INTO SAFETY:

• One size does NOT fit all. Follow the manufacturer’s

recommendations for the safe installation and use of your

flat panel display.

• Carefully read and understand all enclosed instructions for

proper use of this product.

• Don’t allow children to climb on or play with furniture and

television sets.

• Don’t place flat panel displays on furniture that can easily be

used as steps, such as a chest of drawers.

• Remember that children can become excited while watching

a program, especially on “larger than life” flat panel

displays. Care should be taken to install the display where it

cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables

connected to the flat panel display so that they cannot be

pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT

YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display

manufacturer and/or listed by an independent laboratory

(such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall

mount manufacturers.

• If you have any doubts about your ability to safely

install your flat panel display, contact your retailer about

professional installation.

• Make sure the wall where you are mounting the display

is appropriate. Some wall mounts are not designed to

be mounted to walls with steel studs or old cinder block

construction. If you are unsure, contact a professional

installer.

• A minimum of two people are required for installation. Flat

panel displays can be heavy.

Panasonic recommends that a qualified installer perform

the wall-mount installation. See page 5.

The American Academy of Pediatrics discourages

television viewing for children younger than two years

of age.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

FCC Caution:

To assure continued compliance, follow the attached installation instructions and use only shielded interface cables

when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by

Panasonic Corp. of North America could void the user’s authority to operate this device.

FCC Declaration of Conformity

Model No. TC-L3232C

Responsible Party: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Contact Source: Panasonic Consumer Electronics Company

1-877-95-VIERA (958-4372)

email: consumerproducts@panasonic.com

tc_L3232c_eng_0608.indb 6tc_L3232c_eng_0608.indb 6 2010/12/24 13:40:052010/12/24 13:40:05

Getting started

Accessories/Optional Accessory

Optional Accessory

Wall-hanging bracket

TY-WK3L2RW

The angle of wall-hanging bracket

can be adjusted in “zero tilting

(vertical)”, “5-degree tilting”,

“10-degree tilting”, “15-degree tilting”

and “20-degree tilting” for this TV.

WARNING

Please contact your nearest Panasonic dealer to purchase the recommended

wall-hanging bracket. For additional details, please refer to the wall-hanging

bracket installation manual.

Back of the TV

Holes for wall-hanging bracket

installation

Screw for fixing the TV onto the

wall-hanging bracket

(not supplied with the TV)

(View from the side)

7.9 ”

(200 mm)

7.9 ”

(200 mm)

Customers assumes liability if mounting the unit themselves or if a Panasonic bracket is not used. Any damage resulting

from not having a professional installer mount your unit will void your warranty.

Always be sure to ask a qualified technician to perform any necessary set-up. Incorrect fitting may cause equipment to

fall, resulting in injury and product damage.

Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off

high heat. Doing so may warp or damage plastic cabinet parts.

Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall

before hanging bracket.

When using an angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting cables

so that they do not to press against the wall when the TV is tilted forward.

For safety reasons, remove units no longer being used from their wall-mounted locations.

Accessories/Optional Accessory

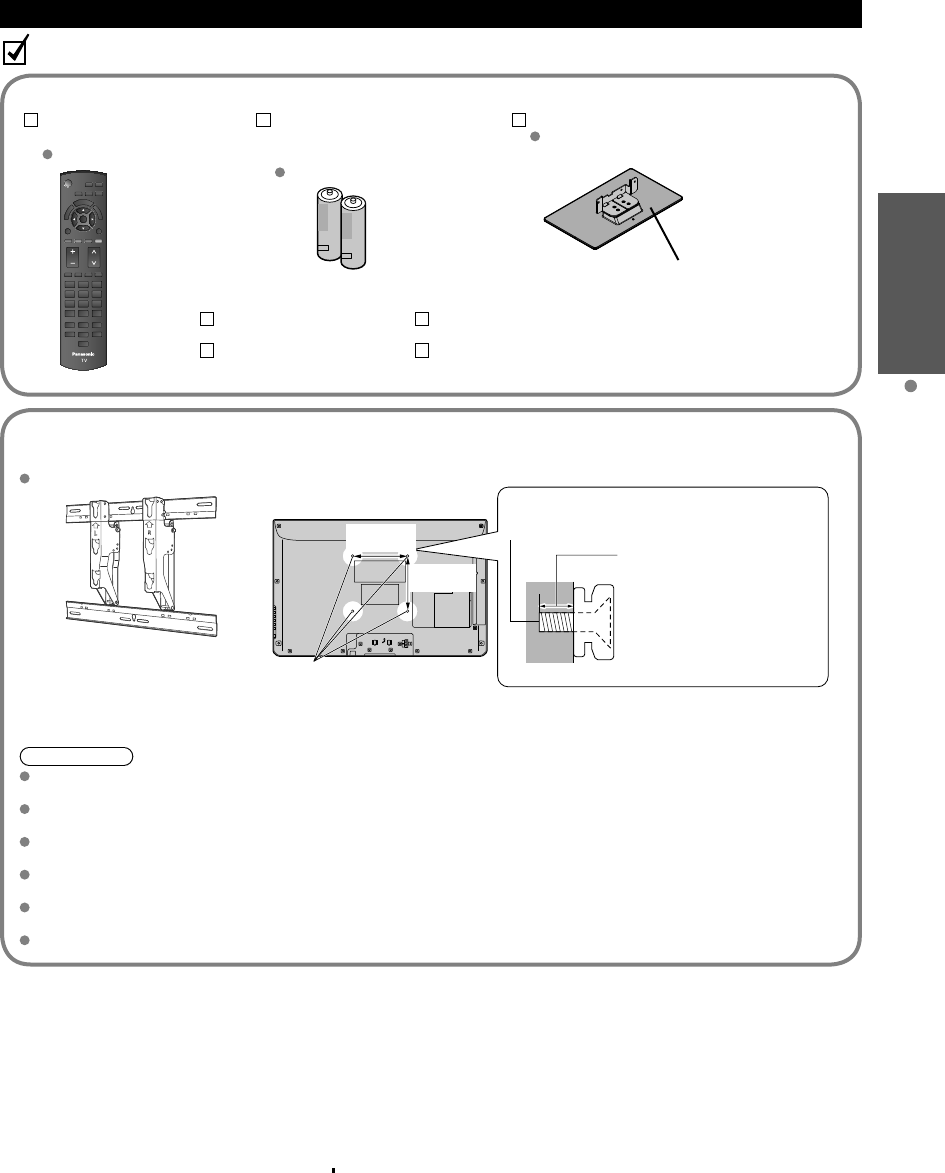

Accessories

Check you have all the items shown.

Accessories

Remote Control

Transmitter

N2QAYB000570

Batteries for the

Remote Control

Transmitter (2)

AA Battery

Owner’s Manual

Quick Start Guide Product Registration Card (U.S.A.)

Pedestal

TBL5ZX0084

How to assemble (p. 8)

Depth of screw:

Minimum: 0.39” (10.0 mm)

Maximum: 0.47” (12.0 mm)

Child safety

tc_L3232c_eng_0608.indb 7tc_L3232c_eng_0608.indb 7 2010/12/24 13:40:052010/12/24 13:40:05

Accessories

Assembly screws (4 of each)

XSS4+16FJK

size (M4 × 16) XYN4+F12FJK

size (M4 × 12)

Bracket (1) Base (1)

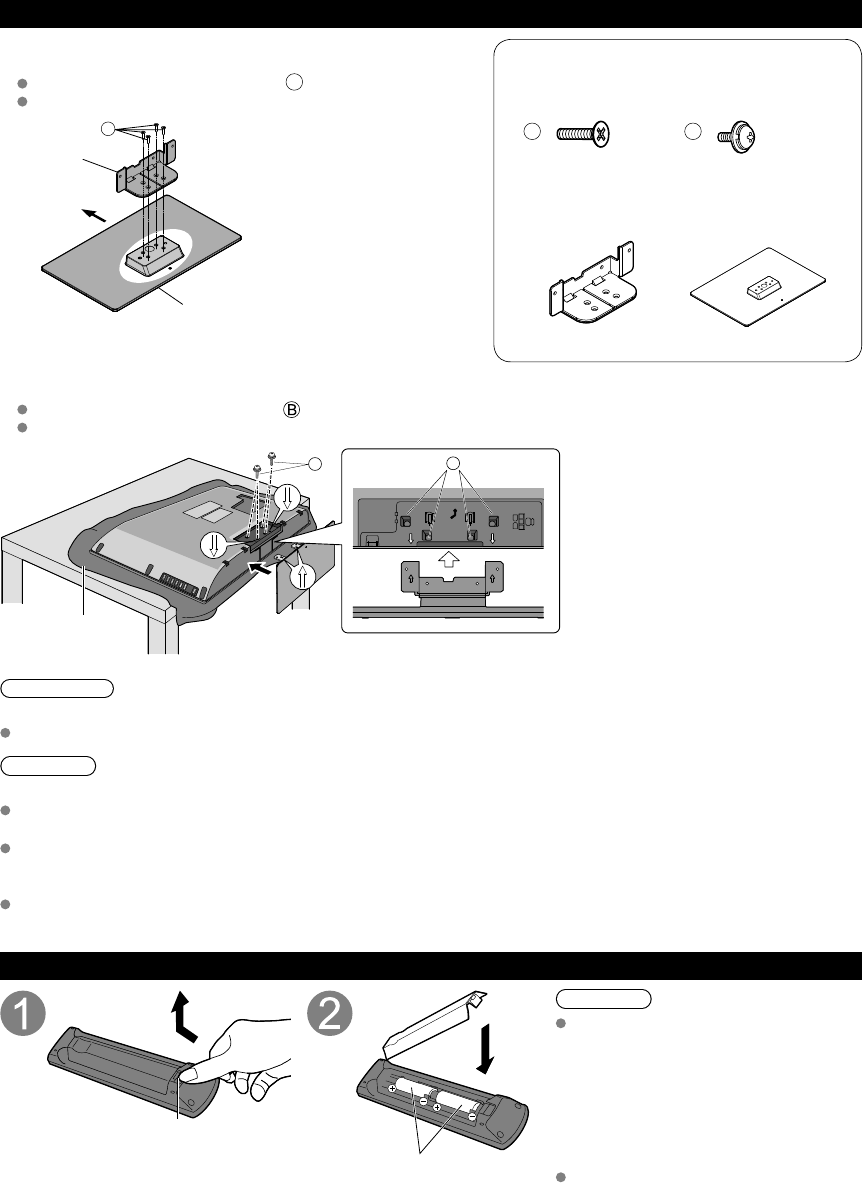

ŶAssembling the pedestal

Fix securely with assembly screws A. (Total 4 screws)

Tighten screws firmly.

Bracket

Front

Base

ŶSet-up

Fix securely with assembly screws . (Total 4 screws)

Tighten screws firmly.

Foam mat or thick

soft cloth

WARNING

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than that provided with this TV.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic

Dealer immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong

enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Attaching the pedestal to TV

Installing the remote’s batteries

Open

Hook

Note the correct polarity

(+ or -).

Caution

Incorrect installation may cause

battery leakage and corrosion,

resulting in damage to the remote

control.

•

Do not mix old and new batteries.

•

Do not mix different battery types (such

as alkaline and manganese batteries).

•

Do not use rechargeable (Ni-Cd)

batteries.

Do not burn or break batteries.

tc_L3232c_eng_0608.indb 8tc_L3232c_eng_0608.indb 8 2010/12/24 13:40:062010/12/24 13:40:06

Getting started

Connections

Accessories/Optional Accessory

Connections

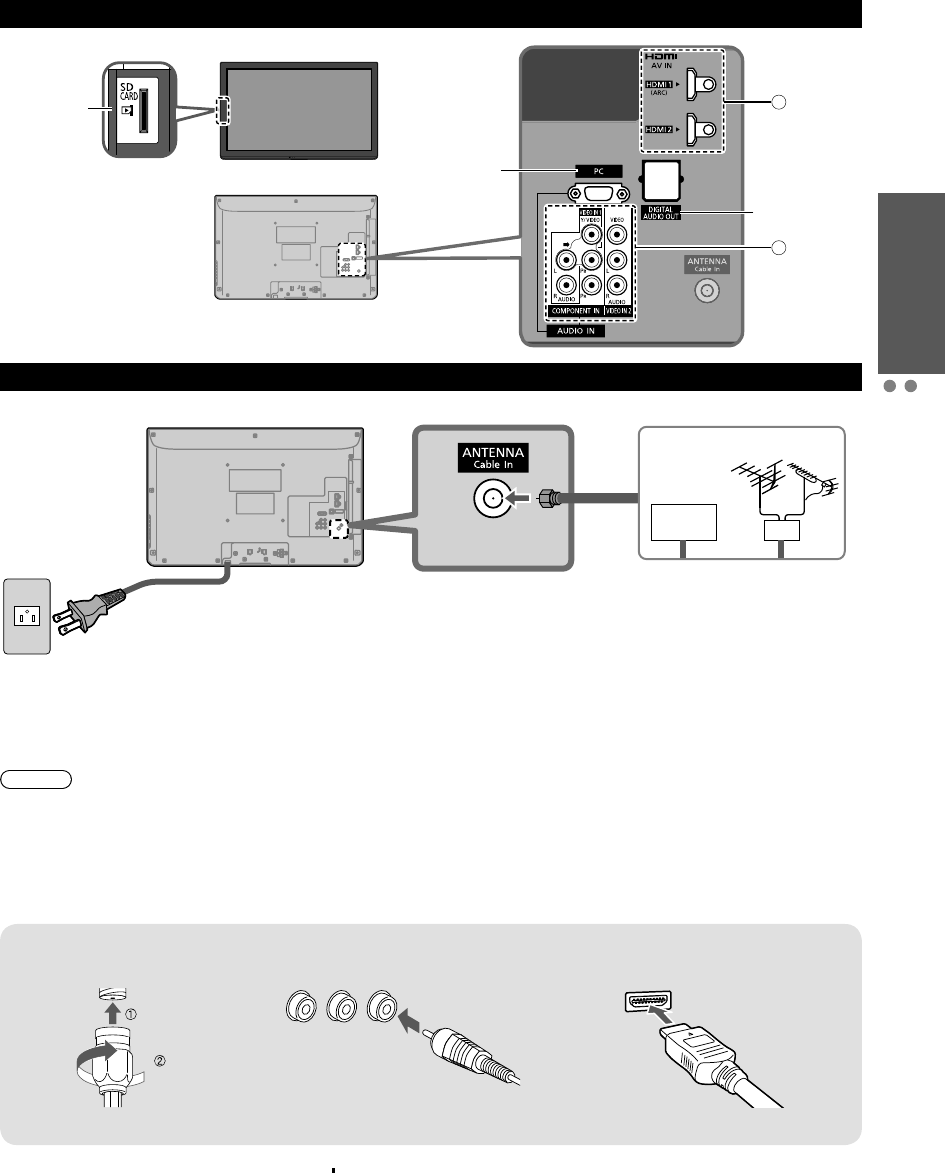

Connection Panels

Power Cord

(Connect after

all the other

connections have

been made.)

VHF/UHF Antenna

• NTSC (National Television System Committee):

• ATSC (Advanced Television Systems Committee):

Digital TV Standards include digital high-definition television (HDTV), standard-definition television

(SDTV), data broadcasting, multichannel surround-sound audio and interactive television.

Back of the TV

Cable TV

VHF/UHF Antenna

ŶAntenna terminal ŶPin terminals ŶHDMI terminal

green

bluered

green/ yellow

ƔFirmly tighten by hand. ƔInsert firmly. ƔInsert firmly.

Connection references

Antenna or Cable connection

Cable

ƔYou need to subscribe to a cable TV service to enjoy viewing their programming.

ƔYou may need to subscribe to a high-definition (HD) cable service to enjoy HD programming.

The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 10)

Note

ƔWhen using a Cable box, external equipment and video cables shown in this manual are not supplied with the TV.

ƔFor additional assistance, visit us at: www.panasonic.com/help

www.panasonic.ca

DIGITAL

AUDIO OUT

Back of the TV

PC terminal

SD card

slot (p. 20)

Front of the TV

tc_L3232c_eng_0608.indb 9tc_L3232c_eng_0608.indb 9 2010/12/24 13:40:072010/12/24 13:40:07

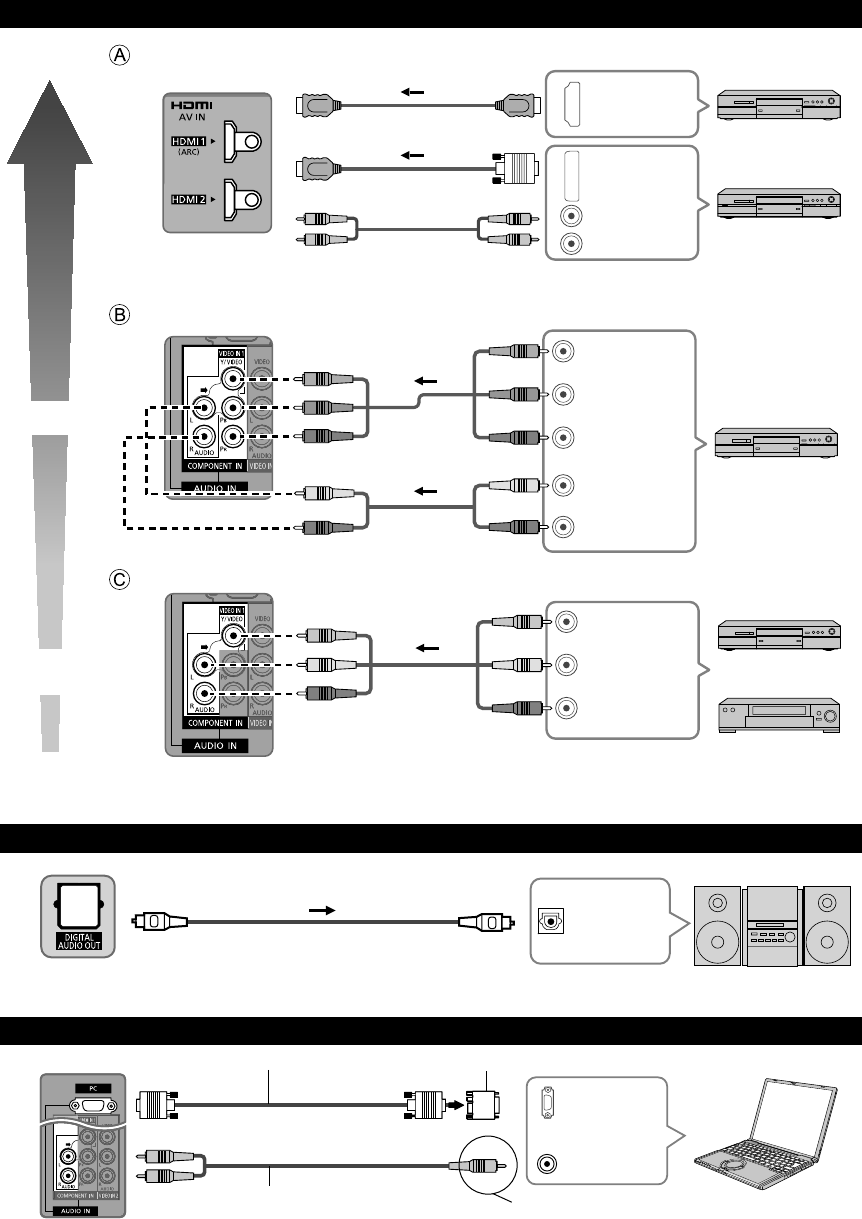

AV cable connection

Audio connection

Best

Good

Basic

(Not HD)

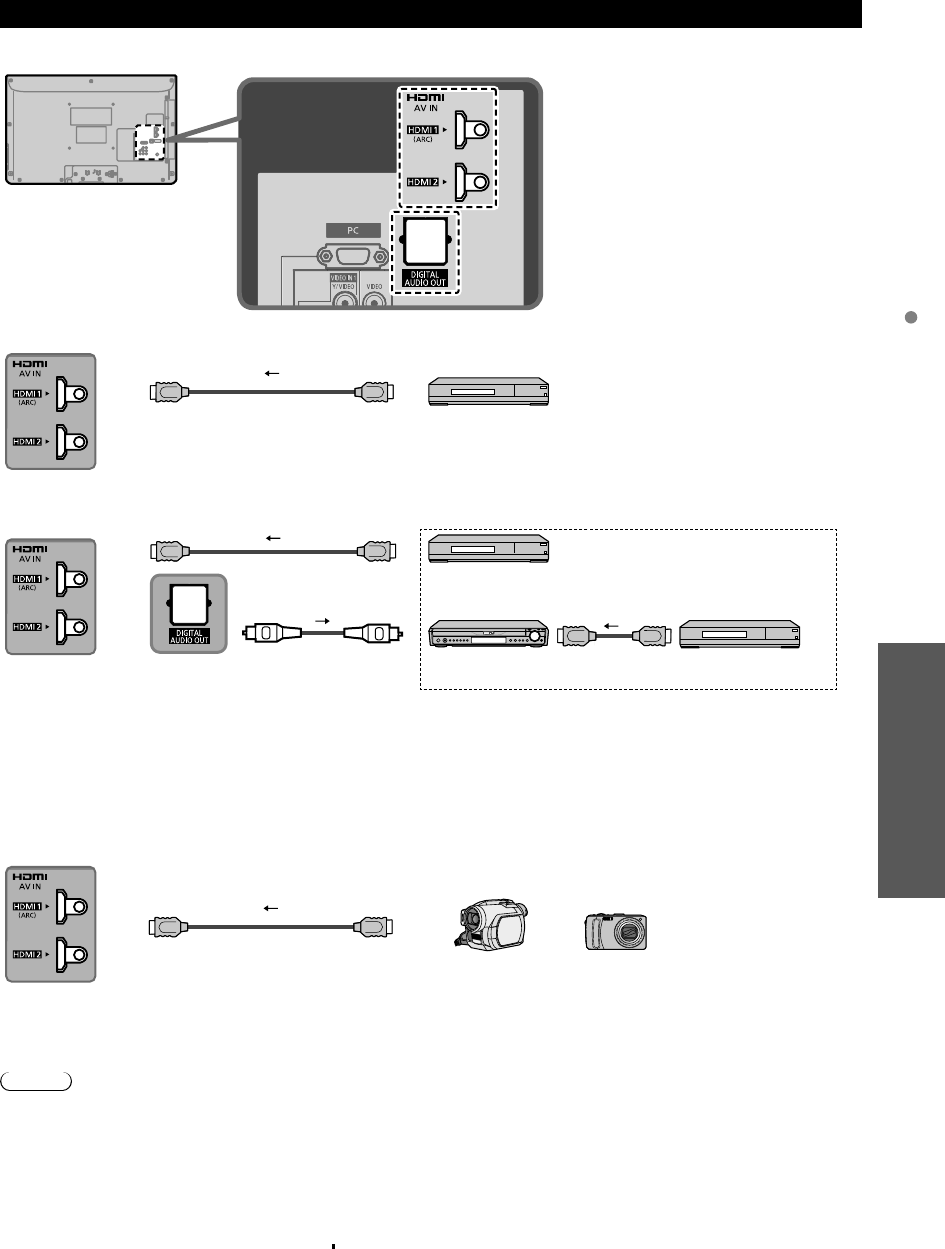

To use HDMI terminals

HDMI

AV OUT

HDMI-DVI

Conversion cable

DVI OUT

AUDIO OUT

e.g. Blu-ray Disc

player

e.g. Blu-ray Disc

player

AV Equipment

ƔVIERA Link connection, please refer to p. 23

ƔThe HDMI connection is required for a 1080p signal.

To use COMPONENT terminals

AUDIO

OUT

COMPONENT

VIDEO OUT

white

red

green

blue

red

white

red

blue

green

white

red

green

blue

red e.g. Blu-ray Disc

player

AV Equipment

To use COMPOSITE terminals

COMPOSITE

OUT

yellow

white

red

yellow

white

red

yellow

white

red

e.g. DVD Recorder

AV Equipment

e.g. VCR

PC / Computer connection (VGA)

PC OUT Computer

RGB PC cable

Audio cable Connect cable which matches the

audio out terminal on the computer

Audio OUT

Conversion adapter (if necessary)

DIGITAL

AUDIO IN

e.g. Amplifier

Optical cable

Audio equipment

ƔFor HDMI-ARC (Audio Return Channel) connection, see p. 22

The Green terminal is shared for both the COMPONENT and COMPOSITE (VIDEO IN 1) connection.

When using COMPOSITE (VIDEO IN 1) connection the Yellow connector (Video) should be inserted into Green connection.

tc_L3232c_eng_0608.indb 10tc_L3232c_eng_0608.indb 10 2010/12/24 13:40:082010/12/24 13:40:08

Getting started

Identifying Controls

Connections

Identifying Controls

C.A.T.S (Contrast Automatic Tracking System)

Power indicator

( on: red, off: no light)

Note

The TV consumes a small amount of electric energy even when turned off.

Do not place any objects between the TV remote control sensor and remote control.

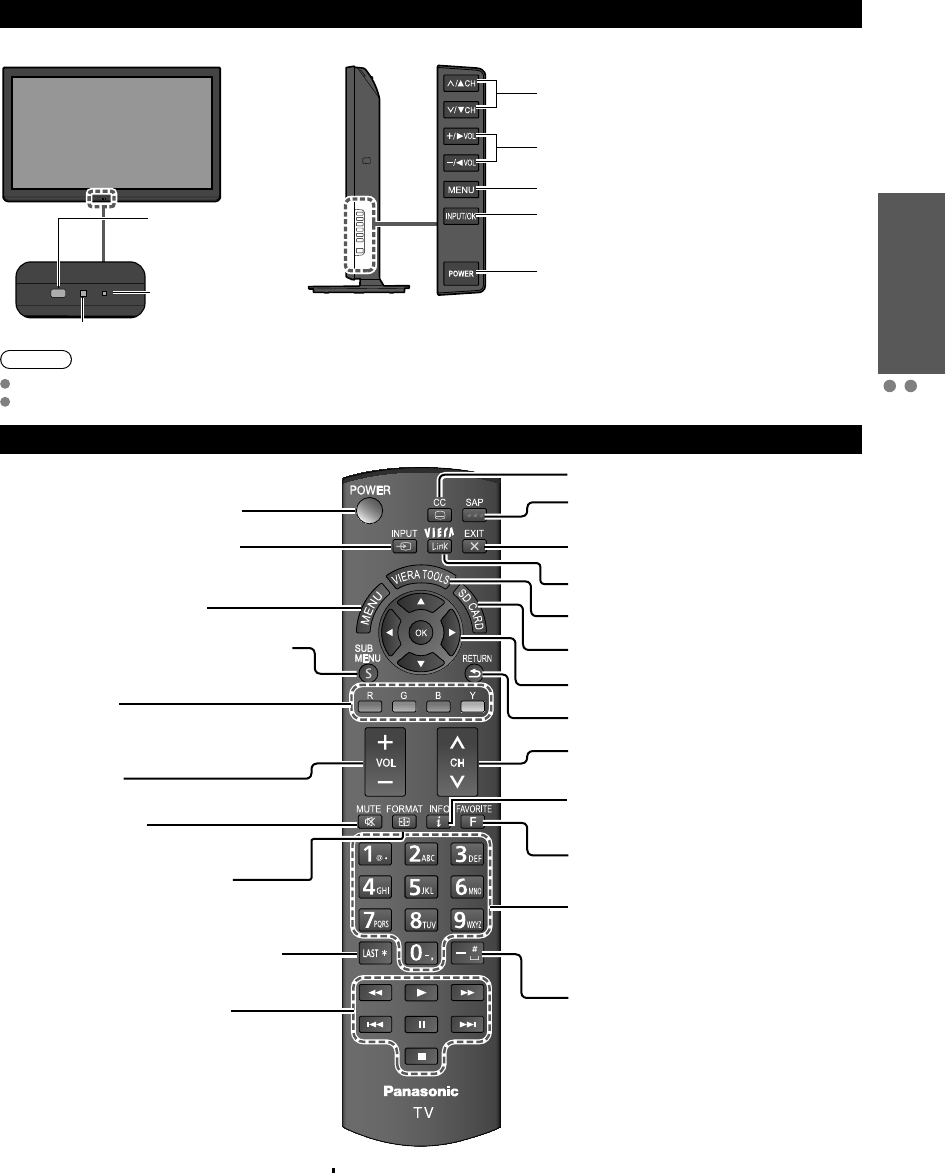

TV controls/indicators

Changes the input mode

Chooses menu and submenu entries

Volume up/down

Selects channels in sequence

Front of the TV

POWER button

Menu navigations

Remote control

Switches TV On or Off (Standby)

Select source to watch (p. 19)

Displays Main Menu (p. 30)

Displays Sub Menu for special functions

(when available) (p. 16)

Colored buttons

(used for various functions)

Volume up/down

Sound mute On/Off

Changes aspect ratio and zoom

(p. 16, 36)

Switches to previously viewed channel

or input

External equipment operations

(p. 27)

Closed Caption On/Off (p. 15)

Selects Secondary Audio Programming

(p. 15)

Exits from menu screen

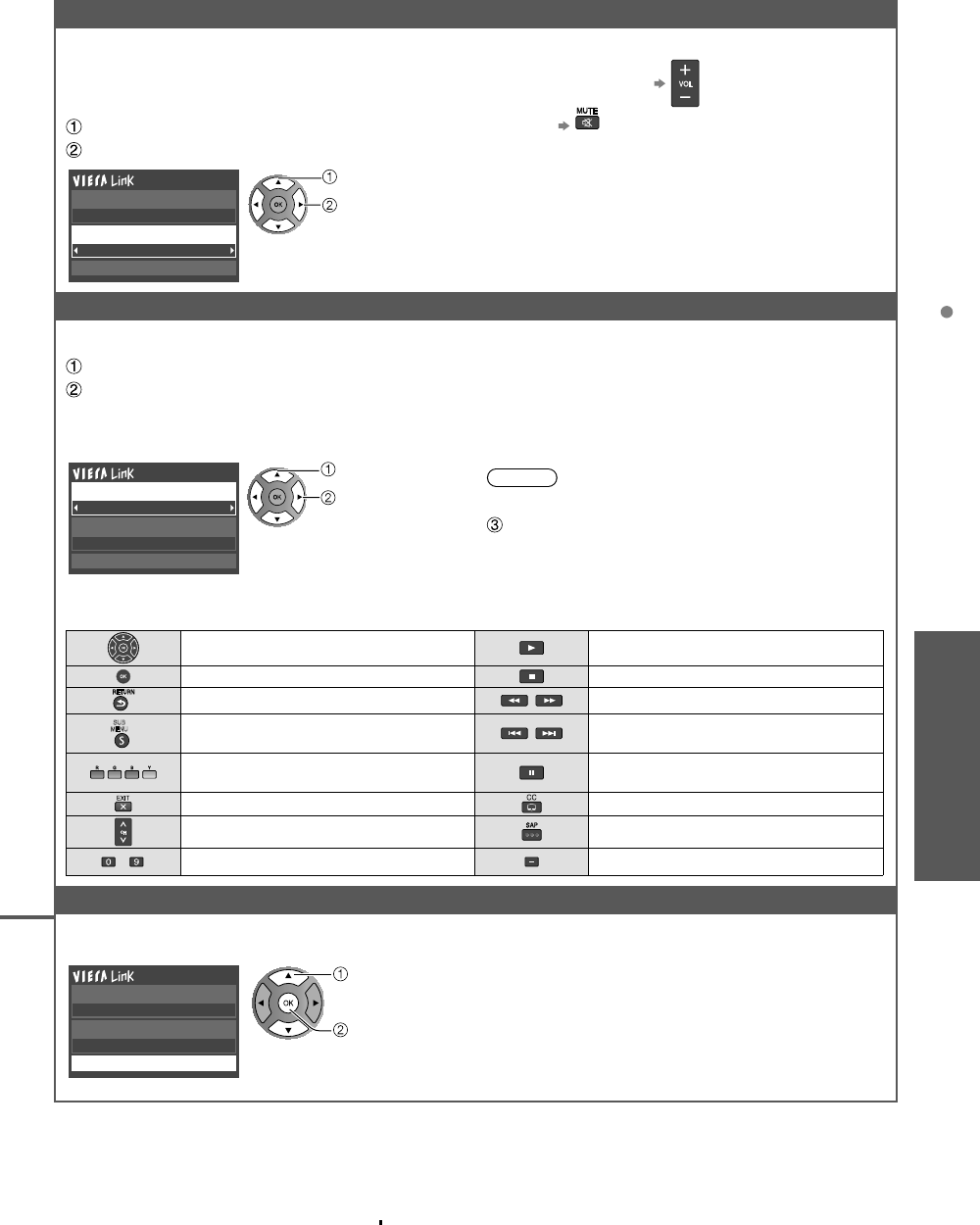

VIERA Link menu (p. 26-27)

Display VIERA TOOLS Menu (p. 18)

Viewing from SD Card (p. 20-21)

Selects/OK/Change

Go back to previous menu

Channel up/down, when viewing from

ANT/Cable source

Displays or removes the channel

banner (p. 15)

Operates the Favorite channel list

function (p. 16)

Numeric keypad to select any channel

or press to enter alphanumeric input in

menus

Use for digital channels. (p. 15)

Remote control sensor

within about 23 feet

(7 meters) in front of the

TV set

tc_L3232c_eng_0608.indb 11tc_L3232c_eng_0608.indb 11 2010/12/24 13:40:092010/12/24 13:40:09

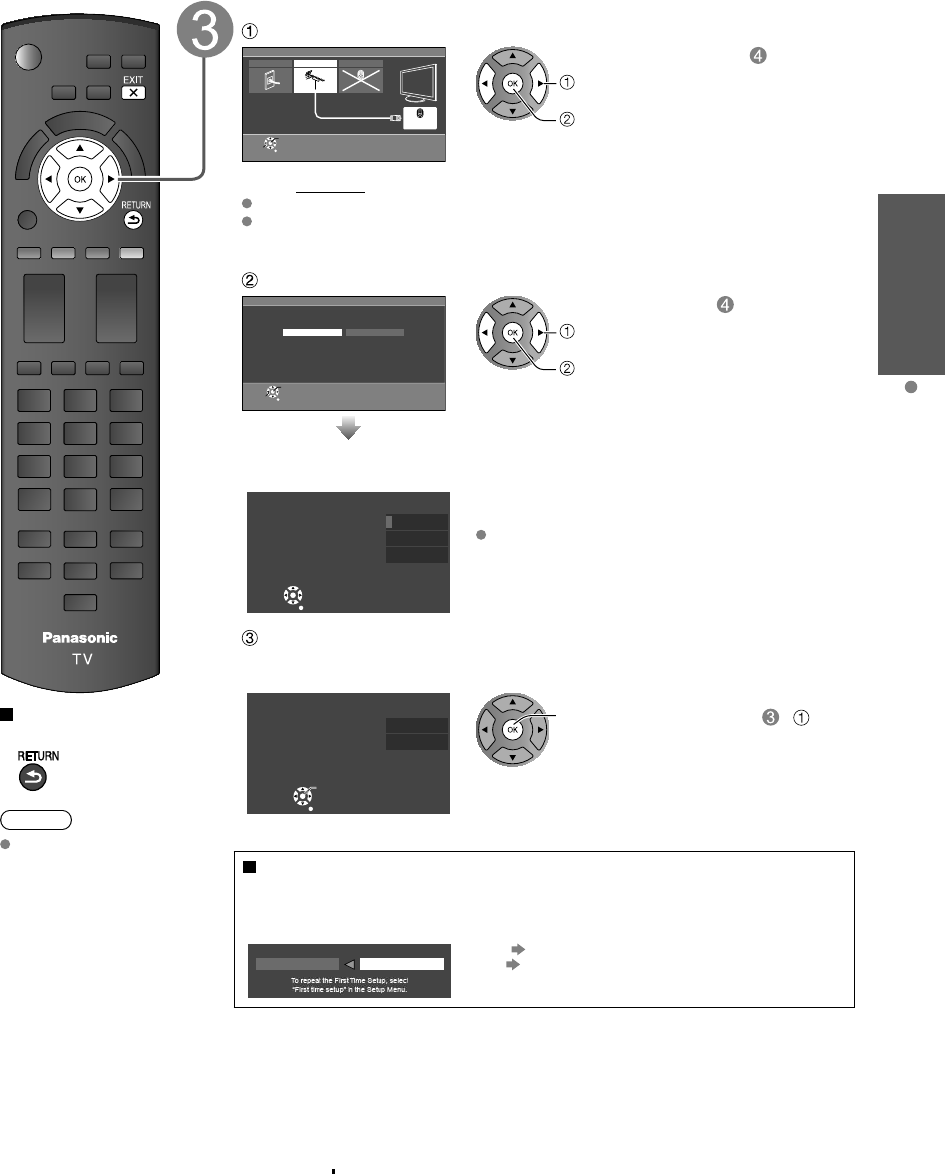

First Time Setup

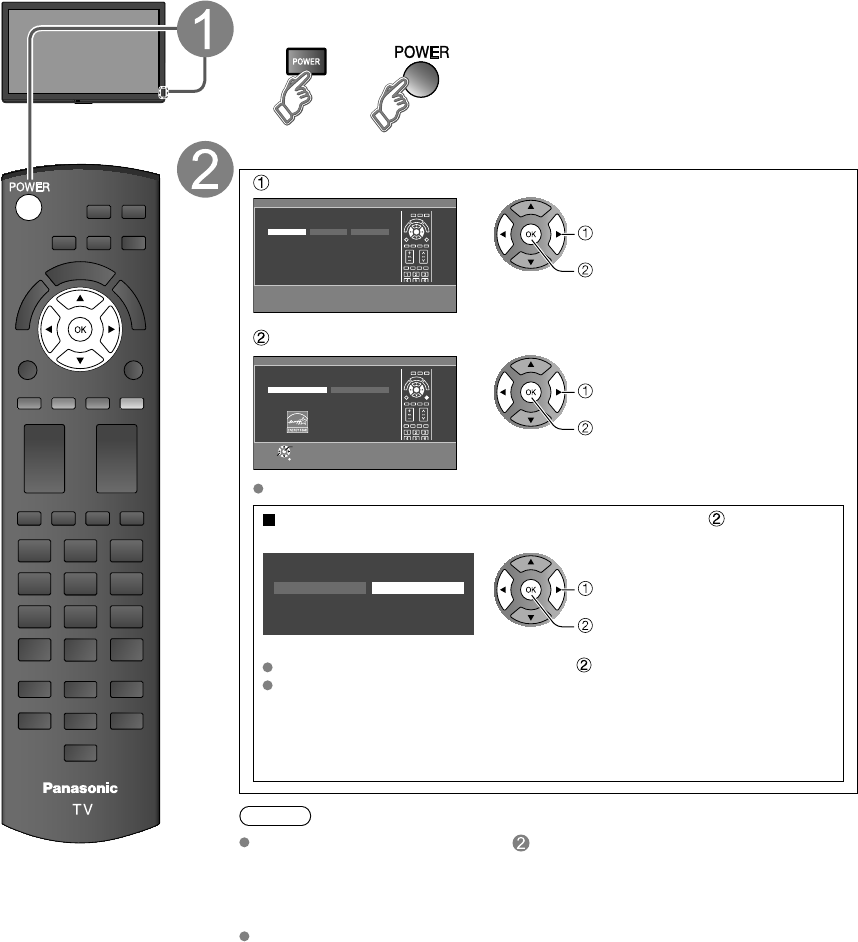

Turn the TV On with the POWER button

(TV) (Remote)

Configure your viewing mode

Select your language

Language / Idioma / Langue

English Español Français select

Select your viewing mode (Be sure to select “Home use”)

Set viewing mode Step 2 of 6

Home Use Store Demonstration

RETURN

Select

select

Please confirm your selection (Home Use) before pressing OK button.

If you select “Store Demonstration” by mistake in ,

confirmation screen will be displayed.

You are selecting the store demonstration mode.

If you select “Yes”, the picture mode will regularly reset

to “Vivid” and a Picture Refresh message will be displayed on the

screen.

Yes select

Select “No” and return to previous screen .

If you select “Yes”, Screen enters the store demonstration mode.

To display the “Set viewing mode” screen again as shown above and select

“Home Use”, do one of the following:

• Press and hold down the side POWER button for at least five seconds.

• Unplug power cord for 30 seconds and plug it again.

Note

If you use any other step other than

then turn the TV off, or if you used the EXIT

button to quit before completing the settings, the next time you turn the TV on, “First

time setup” will not be automatically displayed.

• The settings up to that point are saved.

• You can start “First time setup” at any time. (p. 34)

Language, ANT/Cable setup, Input labels, Clock can also be changed from the

Settings Menu. (p. 34)

First time setup screen is displayed only when the TV is turned on for the first time after the power cord is

inserted into a wall outlet and when “Auto power on” (p. 34) is set to “No”.

tc_L3232c_eng_0608.indb 12tc_L3232c_eng_0608.indb 12 2010/12/24 13:40:092010/12/24 13:40:09

Getting started

First Time Setup

Press to go back to

the previous screen

Note

About broadcasting

systems

Analog (NTSC):

Conventional

broadcasting

Digital (ATSC):

New

programming

that allows

you to view

more channels

featuring

high-quality video

and sound

Auto channel setup ( ANT/Cable setup)

Select the connected Antenna in terminal

ANT/Cable setup Step 3 of 6

Cable Antenna Not used

ANTENNA

Cable In

ANTENNA

Cable In

RETURN

Select

select

Not used: Go to

(Label inputs)

Select “Not used” when no wire is connected to the “Antenna/Cable” terminal.

Typical when a Cable/Satellite box is connected to a TV AV input.

Prevents accidental tuning to an unavailable signal, when Cable or Satellite box is

used.

Select “Start”

Auto program Step 4 of 6

Start Skip

RETURN

Select

select

Skip: Go to

(Label inputs)

Start scanning the channels

(Available channels are automatically set.)

Auto program

Progress

Number of analog channels

Number of digital channels

Press RETURN to quit

RETURN

This process may take up to 20 minutes.

This step is not needed when a Cable or Satellite

box is connected to an AV input.

Complete the Auto program setup

Completion message is displayed when the Auto program scan is successfully

completed.

Auto program

Auto program completed.

Press OK to continue.

Number of analog channels

Number of digital channels

RETURN

OK If there is no available

channel, return to -

(ANT/ Cable setup).

“Not used” will be selected.

Operation of the EXIT button during “First time setup”

Press the button once to display confirmation screen. Press again to close

confirmation screen.

[EXIT confirmation screen]

Are you sure you want to exit the First Time Setup?

Yes No

Yes Exit “First time setup”

No Return to the original screen.

tc_L3232c_eng_0608.indb 13tc_L3232c_eng_0608.indb 13 2010/12/24 13:40:102010/12/24 13:40:10

Press to go back to

the previous screen

Give names to the TV’s inputs (Label inputs)

When done, select NEXT and press OK to go to the next step.

Label inputs Step 5 of 6

Edit

Blu-ray, DVD ...

HDMI HDMI

RETURN

Change

Select

Comp./Video 1

Video 2

HDMI 1

HDMI 2

ABC Deleteabc

R G B Y

1 @.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

0- ,

LAST

select

changeor

RETURN

Select

ABC Delete abc

R G B Y

1 @.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

0 - ,

LAST

HDMI 2

Follow the instructions on

screen to complete the

following operations.

Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME THTR/GAME/COMPUTER/

VCR/CABLE/SATELLITE/DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA

CTR/MEDIA EXT/OTHER

• Select “Not used” for any back-panel input that has no device connected to it.

Afterward, the input will be skipped when pressing INPUT, for your convenience.

• The input labels can be changed at any time from the TV’s setup menu.

Adjust the Clock (Set clock)

When done, select NEXT and press OK to go to the next step.

Step 6 of 6

Edit

RETURN

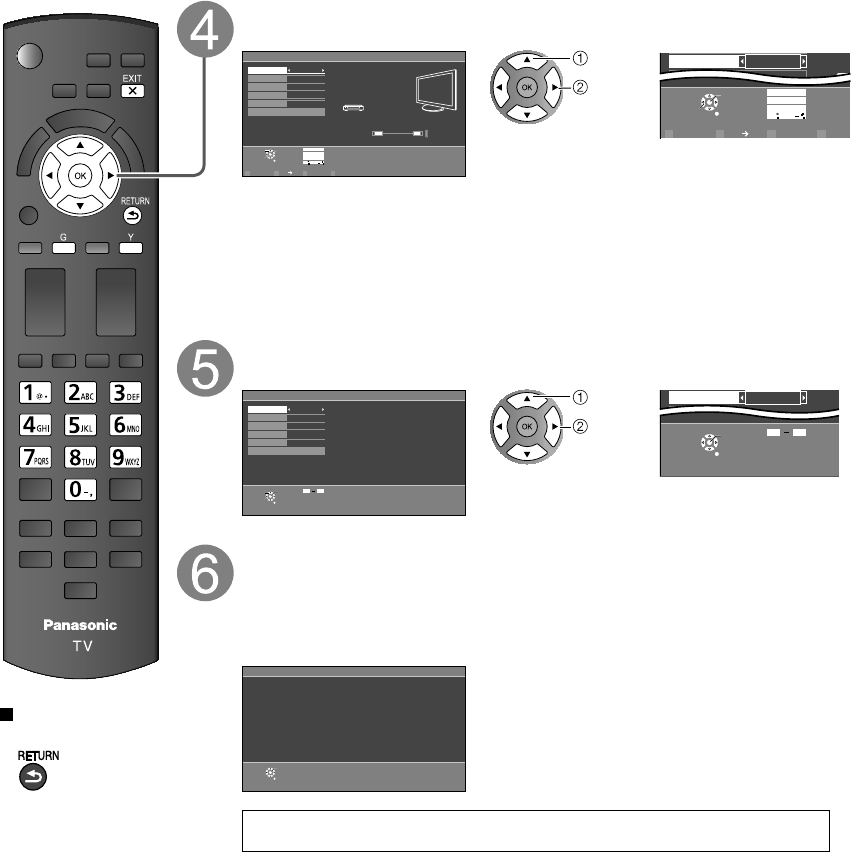

Change

Select 09

Set clock

Day

Hour

Minute

Year

Month

select

change

RETURN

0 9

Minute

Follow the instructions on

screen to complete the

following operations.

Complete the First time setup

Congratulations! You are done.

The First time setup can be repeated at any time.

Press MENU and select SETUP; then “First time setup”.

RETURN

Setup is complete. Enjoy your

Panasonic VIERA TV.

To watch TV via a Cable box, Satellite receiver, or any other source (DVD, DVR,

gaming device, etc.), press the INPUT button and select the appropriate input.

tc_L3232c_eng_0608.indb 14tc_L3232c_eng_0608.indb 14 2010/12/24 13:40:122010/12/24 13:40:12

Getting started

Basic Watching TV

First Time Setup

Watching TV

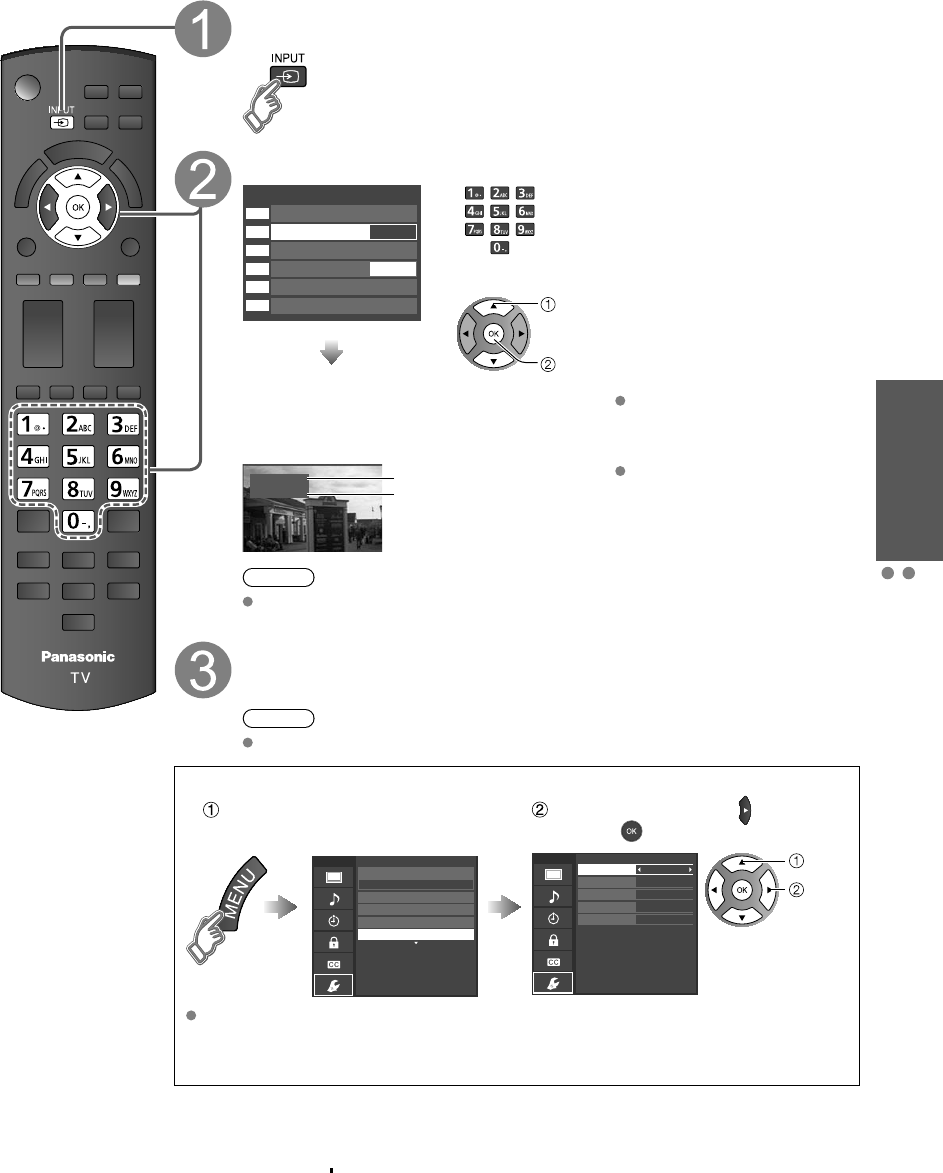

Turn power on(TV)

(Remote) Note

Please select correct input --> (p. 19)

Select a channel number

down

• Also available side CH button on the unit.

[For Cable/Satellite box connection]

- Use your connected box’s remote control.

To directly enter the digital channel

number

When tuning to a digital channel,

press the button to enter the minor

number in a compound channel

number.

example: CH15-1:

Note

Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal

reception between cable TV and antenna. (p. 13, 28)

The channel number and volume level remain the same even after the TV is turned

off.

ŶOther Useful Functions

Listen with SAP (Secondary Audio Programming)

ŶSelect the Audio mode for watching TV

Digital mode

Press SAP to select next Audio track (if available) when receiving a digital channel.

Audio track 1 of 2

(English)

Analog mode

Press SAP to select the desired Audio mode.

• Each press of SAP will change the Audio mode. (Stereo/SAP/Mono)

SAP is not available when watching TV with a Cable or Satellite box connected via HDMI.

Contact your Cable or Satellite operator for instructions on enabling SAP with their box.

Closed Caption

ŶSwitches the Closed Caption mode On or Off

Closed caption OnClosed caption Off

Closed caption On mute

Closed Caption is not available when watching TV with a Cable or Satellite box connected via HDMI.

Contact your Cable or Satellite operator for instructions on enabling CC with their box.

Displaying Information

ŶDisplays and removes information. When watching programming via the Antenna/Cable input,

shows the channel banner.

15-2 12:30 PM

THE NEWS

CC SAP

TV-G 1080i Standard 4:3

ABC-HD

Channel

Station

identifier SAP

indication Signal

resolution

Rating Level


mode Sleep timer

remaining time

Aspect ratioClosed caption

Clock

tc_L3232c_eng_0608.indb 15tc_L3232c_eng_0608.indb 15 2010/12/24 13:40:122010/12/24 13:40:12

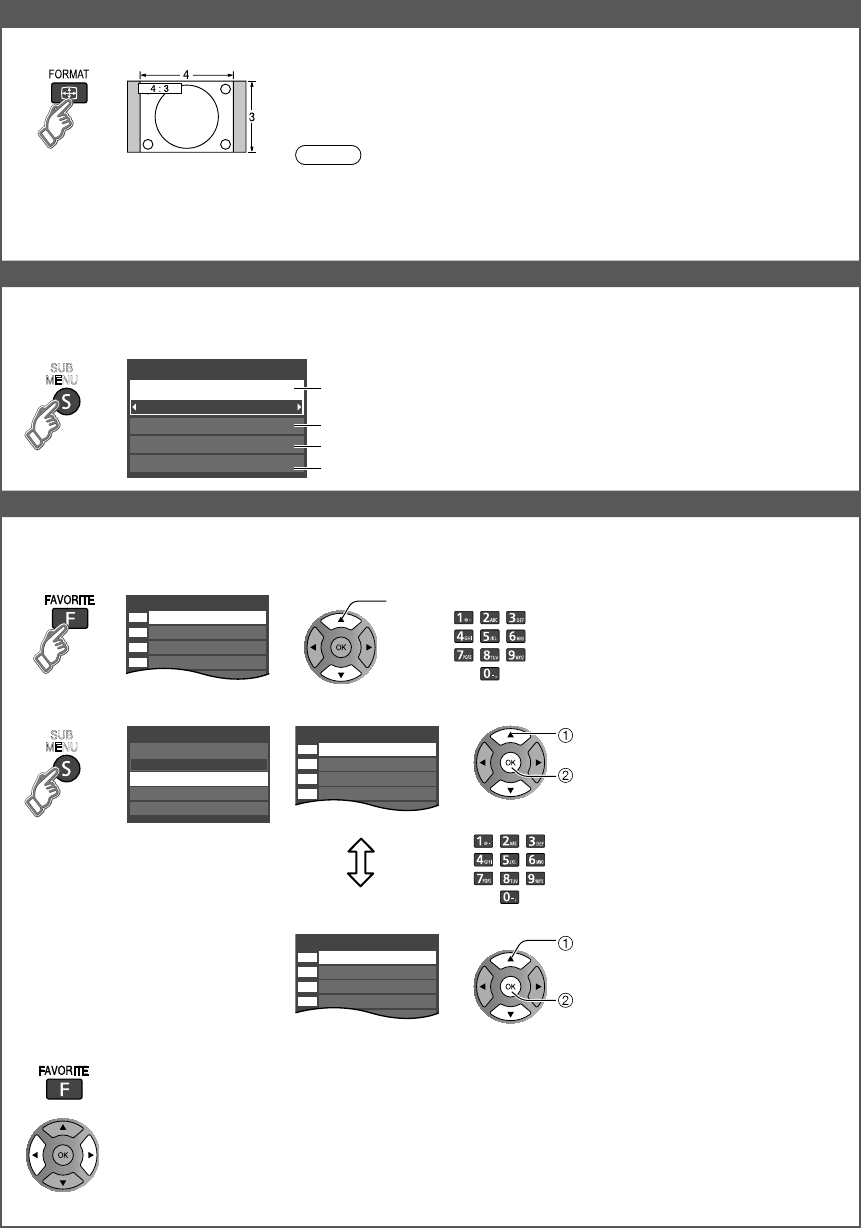

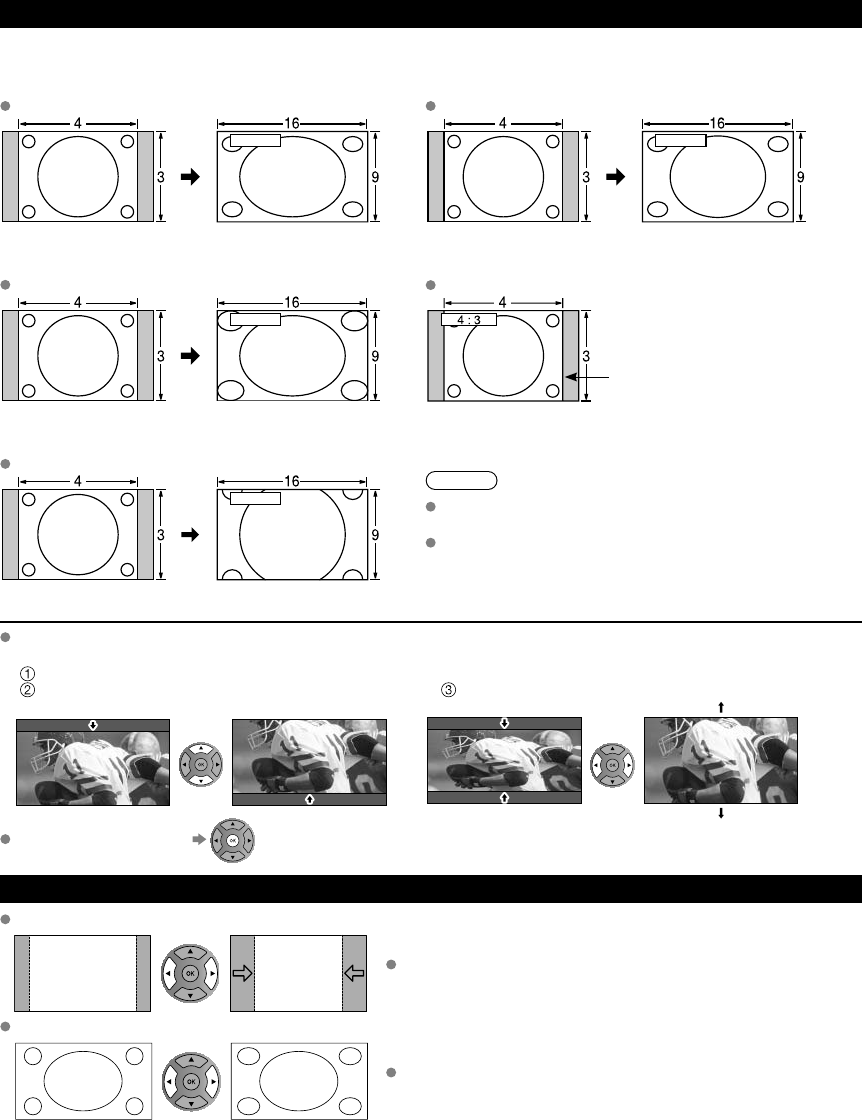

Change aspect ratio and Zoom the picture

ŶPress FORMAT to cycle through the aspect modes (p. 36)

• 480i, 480p: FULL/JUST/4:3/ ZOOM

• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM

Use when the picture does not fill the whole screen (bars appears on either side of

the image) or portions of the picture is trimmed.

Note

1. Some content, such as film-based movies, are available in extra-wide format.

Top and bottom bars are unavailable.

2. Connected devices, such as Cable/Satellite box, DVD/Blu-ray players and game

consoles have their own aspect (format) settings. Adjust the device’s aspect

settings.

Display the SUB MENU

ŶPress SUB MENU to show the Sub Menu screen

This menu consists of shortcuts to convenient functions.

Sub menu is only available when the TV is using the Antenna/Cable input, not when using Cable or Satellite box.

SUB

Specify favorites or type of channels to view when pressing the channel up/

down button.

Set favorite channel (below)

Edit the channel identifier (p. 29)

Check the signal strength (p. 29)

All

Setup SUB MENU

Edit CH caption

Signal meter

Set favorite

Channel surf mode

Call up a favorite channel

Ŷ FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast

station with the cursor or use the number buttons. (p. 15)

Favorite channels

1/3

26-1

select

ŶSet the Favorite channel

SUB

All

Setup SUB MENU

Edit CH caption

Signal meter

Set favorite

Channel surf mode

Set favorite 1/3

26-1

select the list number

(to save the channel

without pressing OK)

select

the list

number

save the displayed

channel

ŶDelete a favorite channel

Set favorite 1/3

26-1

select

delete

(while holding down)

ŶTo change the page

Press repeatedly to change between pages (1/3, 2/3, 3/3 or exit)

Changes the page forward/backward

ƔFavorite channels cannot be set when using Cable or Satellite box.

tc_L3232c_eng_0608.indb 16tc_L3232c_eng_0608.indb 16 2010/12/24 13:40:132010/12/24 13:40:13

Basic Watching TV

ŶOther Useful Operations

Entering characters

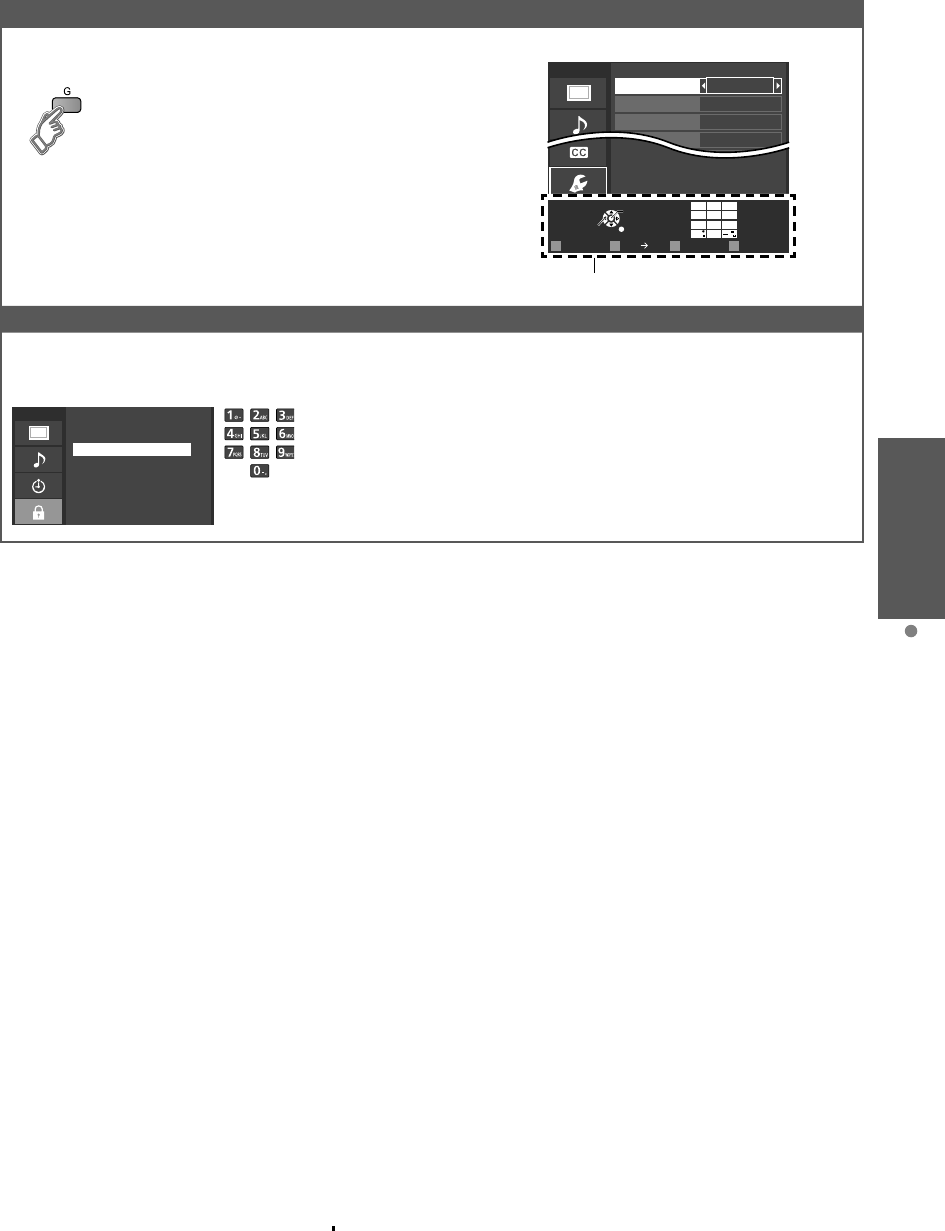

You can use the remote control keys to enter the alphanumeric characters.

ŶSwitches input mode.

ABC ĺ abc ĺ 123

Select

RETURN

ABC Deleteabc

R G B Y

1 @.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

0- ,

LAST

Menu Input labels

Video 2

Video 1

HDMI 2

Comp./Video 1

HDMI 1

Navigation area

ŶPress each number key to cycle through the

alphanumeric character.

Password setting/entering

You need to enter the password when you access locked channel or inputs.

Input your 4-digit password

Menu Password

Enter password.

* * * -

ƔIf it is your first time entering the password, enter the password twice in

order to register it.

ƔMake a note of your password. Do not forget it. (If you have forgotten your

password, consult your local dealer.)

ƔWhen you select a locked channel, a message will be displayed that

allows you to view the channel after you input your password.

ƔChange password (p. 33)

tc_L3232c_eng_0608.indb 17tc_L3232c_eng_0608.indb 17 2010/12/24 13:40:132010/12/24 13:40:13

Using VIERA TOOLS

Press to exit from

a menu screen

Press to go back

to the previous

screen

Display VIERA TOOLS

Select the item

VIERA Link

select

Set each item

VIERA Link

VIERA Link (p. 26-27)

Slideshow

Slideshow (p. 20-21)

VIERA IMAGE VIEWER

VIERA IMAGE VIEWER (p. 20-21)

Eco mode

ECO/energy saving (p. 34)

VIERA TOOLS is the easy way to access the TV’s special features. They are displayed as shortcut icons on

the TV screen.

tc_L3232c_eng_0608.indb 18tc_L3232c_eng_0608.indb 18 2010/12/24 13:40:142010/12/24 13:40:14

Basic Watching content from external devices

Using VIERA TOOLS

With the connected equipment turned On

Display the Input select menu

Select the input mode

Input select

Video 2

HDMI 1

HDMI 2

Comp./Video 1

AUX

DVD

(example)

select

enter

(shortcut) press the corresponding

NUMBER button on the remote

control to select the input of your

choice. Or, press the INPUT

button repeatedly, to cycle through

the available inputs.

* set unused input to “Not used”

(below) for quick skipping.

Select the input of your choice,

then press OK.

During the selection, if no action

is taken for several seconds,

the “Input select” menu

disappears.

HDMI 1

DVD Terminal

(example)

Label

The terminal and label (names)

of the connected equipment are

displayed.

To label each of the inputs, see

below.

Note

The input label will be displayed on the “Input select” screen if the Input label was

customized.

Operate the connected device directly by using its own

remote control.

Note

PC adjustments (p. 31)

Ŷ Label each input

Select “Input labels” in “Setup” For each input, press to select a

label or to edit

Menu Setup 1/2

Clock

ANT/Cable setup

Input labels

Language

All

Channel surf mode select

set

Menu Input labels

Video 2

HDMI 2

Comp. /Video 1

HDMI 1

Labeling each input with names of connected devices such as DVD Player, Cable box, etc.

will help you to identify and switch between them.

• See p. 34 for list of available label names.

• You can also enter the label name directly. (Entering characters (p. 17))

Watching content from external devices

tc_L3232c_eng_0608.indb 19tc_L3232c_eng_0608.indb 19 2010/12/24 13:40:142010/12/24 13:40:14

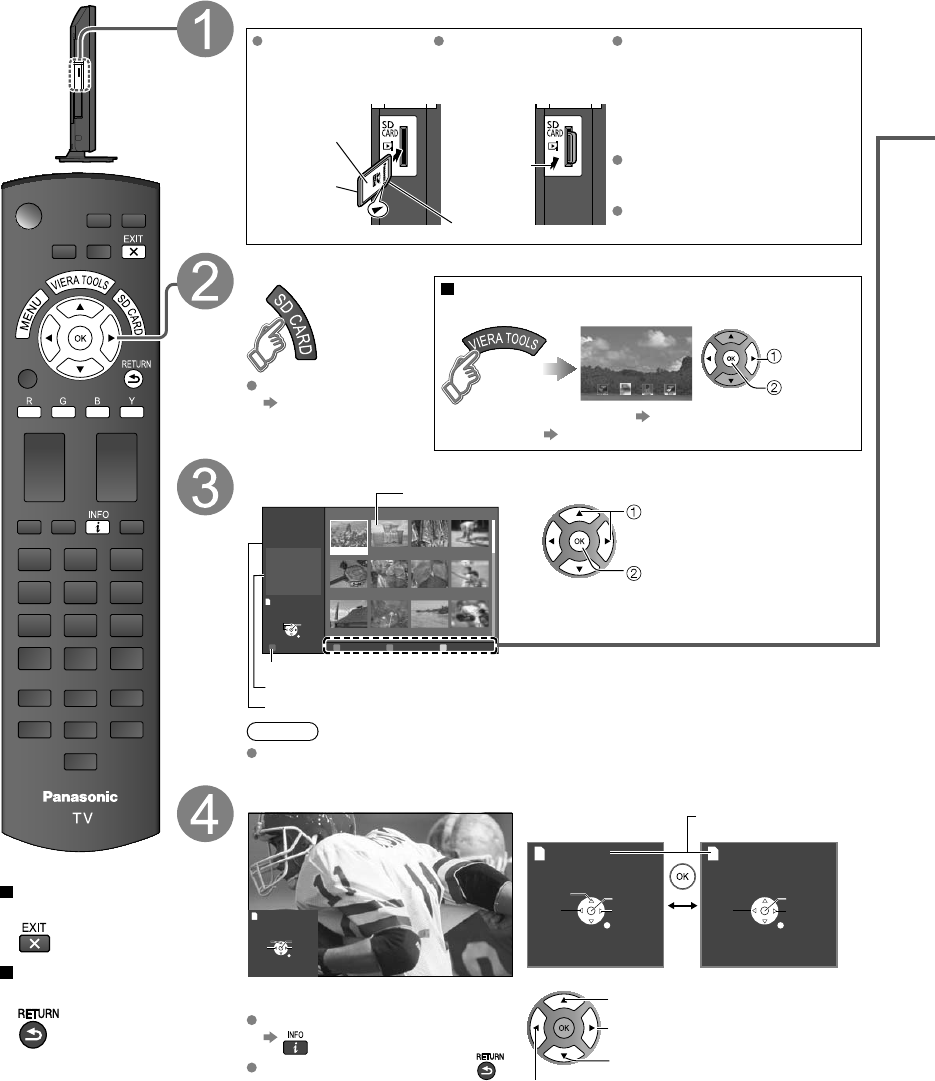

Viewing photos with VIERA IMAGE

VIEWER

The VIERA Image Viewer lets you easily view still images on the television by simply inserting an SD card into the VIERA

SD card slot.

Press to exit from

a menu screen

Press to go back to

the previous screen

Insert the SD card

Insert the card Remove the card

Compliant card type (maximum

capacity): SDHC Card (32 GB),

microSDHC Card (32 GB), SD

Card (2 GB), miniSD Card (2 GB),

microSD Card (2 GB) (requiring

microSDHC Card/miniSD Card/

microSD Card adapter)

If a microSDHC Card, miniSD Card

or microSD Card is used, insert /

remove it together with the adapter.

For cautions and details on SD

Cards (p. 37)

Press in lightly

on SD Card,

then release.

Gently insert the SD Card label

surface facing front.

Label surface

Push until a

click is heard

Cutout

Display “VIERA IMAGE VIEWER”

Auto play setting

Image viewer auto

play (p. 34)

Using VIERA TOOLS (p. 18)

Select the item

VIERA IMAGE VIEWER Displayed Thumbnail screen.

Slideshow Start slideshow.

select

Slideshow

Select the data to be viewed

Slideshow Folders

R Y

Sort by month

Sort by date

Select

RETURN

Name Pana0001

Date

03/04/2010

Size 1029×1200

VIERA IMAGE VIEWER

All photos

Total 238 Pana0001 Pana0002 Pana0003 Pana0004

Pana0005 Pana0006 Pana0007 Pana0008

Pana0009 Pana0010 Pana0011 Pana0012

select

view

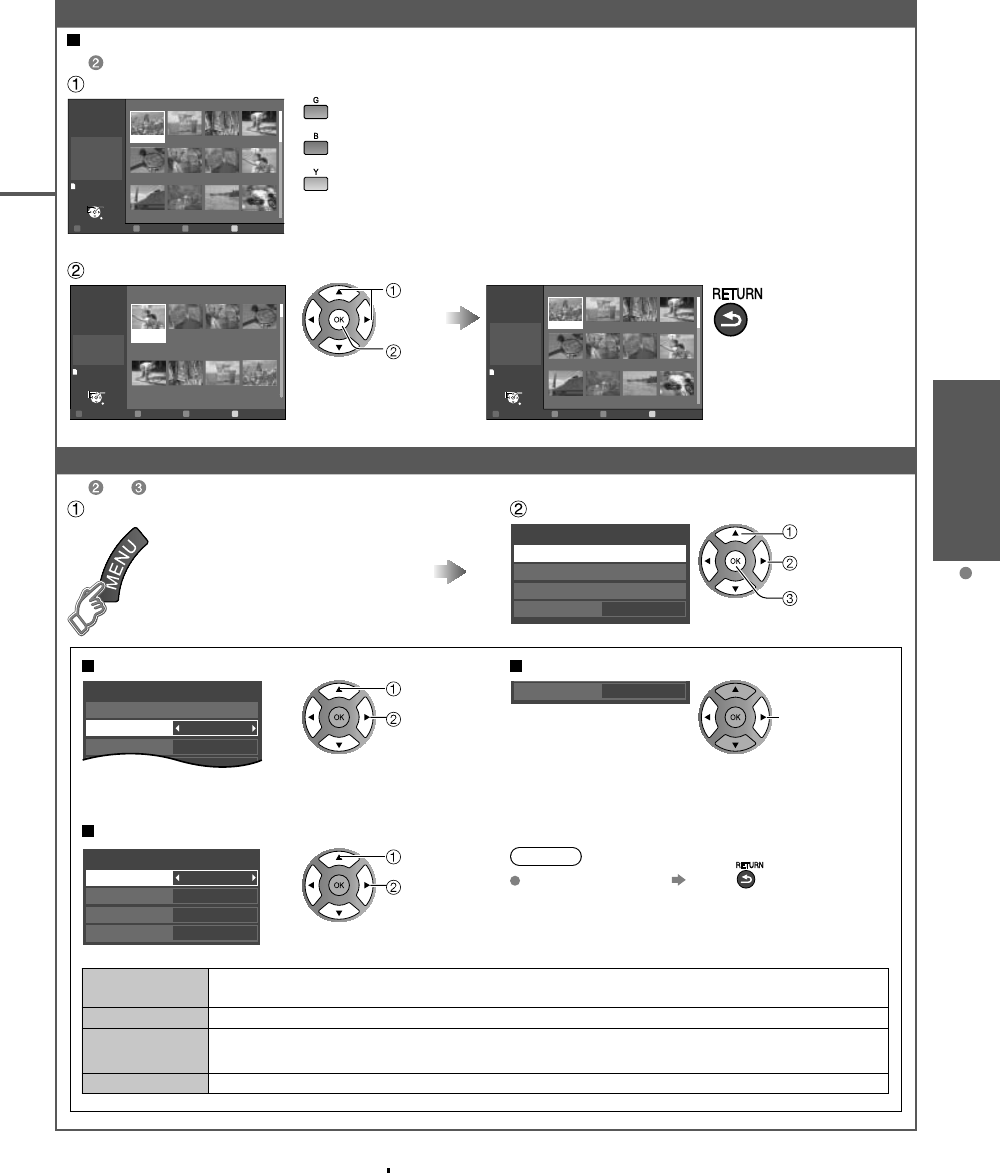

Thumbnail view

To start Slideshow

Selected picture information is displayed.

Total number of images.

Note

Depending on the JPEG file format, “Information” contents may not be displayed

correctly. Refer to p. 37 (Data format for SD card browsing) for details.

View

Rotate

Prev.

RETURN

Play

Accessing

Displays one at a time

To display/hide the Navigation area

Return to the Thumbnail view

Accessing

Prev.

Rotate

RETURN

Accessing

Pause

Prev.

RETURN

Play

Navigation area Present status

(While reading the data)

Single photo view Slideshow

Rotate 90 degrees (counter-clockwise)

To next photo

Rotate 90 degrees (clockwise)

To previous photo

tc_L3232c_eng_0608.indb 20tc_L3232c_eng_0608.indb 20 2010/12/24 13:40:142010/12/24 13:40:14

Basic Viewing photos with VIERA IMAGE VIEWER

Sort

To sort by Folder, month or date

Select the sort type

Slideshow Folders

R Y

Sort by month

Sort by date

Select

RETURN

Name Pana0001

Date

03/04/2010

Size 1029×1200

VIERA IMAGE VIEWER

All photos

Total 238 Pana0001 Pana0002 Pana0003 Pana0004

Pana0005 Pana0006 Pana0007 Pana0008

Pana0009 Pana0010 Pana0011 Pana0012

Folders (ascending order of numeric/alphabetical)

Sort by month (ascending order of the month)

Sort by date (ascending order of the date )

Select the directory.

Accessing

Slideshow

R YG B

Select

RETURN

09/23/2009

28 photos 09/28/2009

58 photos 10/10/2009

3 photos 11/20/2009

8 photos

12/25/2009

24 photos 01/01/2010

10 photos 02/15/2010

16 photos 03/04/2010

32 photos

Date

09/23/2009

Number of photos

28 photos

VIERA IMAGE VIEWER

All photos

Sort by date

Accessing

Slideshow

R YG B

Select

RETURN

Name Pana0001

Date

09/23/2009

Size 1029×1200

VIERA IMAGE VIEWER

All photos

09/23/2009

Total 28 Pana0001 Pana0002 Pana0003 Pana0004

Pana0011 Pana0012 Pana0013 Pana0014

Pana0055 Pana0056 Pana0057 Pana0058

select

OK Go back to

screen

Photo settings

In or

Display “Photo settings” Select the item

Off

Photo settings


Audio

Slideshow settings

Soundtrack

select

change

Adjust the picture/Audio Set the Soundtrack

example :Picture menu

Picture menu/Audio menu (p. 31-32)

Vivid

Picture 1/2

Picture mode

Contrast

Back light

Reset to defaults

Select

Adjust

Off

Soundtrack

change

Select the music from 5 options.

(Off/Music 1/Music 2/Music 3/Music 4/Music 5)

Slideshow settings

Fast

Off

Sepia

Slideshow settings

Display interval

Repeat playback

Transition effect

Photo effect

Select

Adjust

Note

To stop in mid-cycle Press

Display interval

Set how many seconds each image is displayed in the Slideshow mode.

(Short/Fast/Normal/Slow/Very slow)

Repeat playback

Turn the slideshow Repeat (cycle) function on or off (Off/On).

Transition effect

Select the transition effect shown between photos (Off /Wipe Ļ/Wipe Ĺ/Wipe ĺ/Wipe ĸ

/Comb ĹĻ/Comb ĺĸ/Dissolve/Checker wipe/Random/Array/Collage)

Photo effect Select the display effect (Off/Sepia/Gray scale)

tc_L3232c_eng_0608.indb 21tc_L3232c_eng_0608.indb 21 2010/12/24 13:40:162010/12/24 13:40:16

VIERA LinkTM “ HDAVI ControlTM”

Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote.

Enjoy additional HDMI Inter-Operability with compatible Panasonic products.

This TV supports “HDAVI Control 5” function.

Connections to equipment (DVD recorder DIGA, HD Camcorder, Home theater system, Amplifier, etc.) with HDMI cables

enables VIERA Link controls.

Equipment with the “HDAVI Control” function enables the following operations:

Version Operations (See p. 24-27, for more information)

HDAVI Control or later •

Automatic Input Switching

•

Power on link

•

Power off link

•

Default speakers

•

Speaker control

HDAVI Control 2 or later •

VIERA Link control only with the TV’s remote control

•

Unselected device energy save (for available equipment only)

HDAVI Control 3 or later •

Provides setting information (Language, time. etc.)

•

Automatic lip-sync function

HDAVI Control 4 or later •

Energy saving mode (with Quick Start mode)

HDAVI Control 5 •

Audio Return Channel

Audio Return Channel (ARC) is a function that enables digital sound signals to

be sent via an HDMI cable back from the TV to a connected audio device.

ŶWhen adding new equipment, reconnecting equipment or changing the setup after the connection,

turn the equipment on and then switch the TV on. Set the input mode to HDMI1 or HDMI2 (p. 19),

and make sure that the image is displayed correctly.

VIERA Link “HDAVI Control”, is based on the control functions provided by HDMI and industry standard known as HDMI

CEC (Consumer Electronics Control), with unique function that we have developed and added. As such, its operation with

other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.

ŶHDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic’s HDMI cable. Recommended part number:

RP-CDHS15 (4.9 ft/1.5 m), RP-CDHS30 (9.8 ft/3.0 m), RP-CDHS50 (16.4 ft/5.0 m)

* For more details on the external equipment’s connections, please refer to the operating manual for the equipment.

tc_L3232c_eng_0608.indb 22tc_L3232c_eng_0608.indb 22 2010/12/24 13:40:172010/12/24 13:40:17

Advanced

VIERA LinkTM “HDAVI ControlTM”

VIERA Link™ Connections (with VIERA Link function)

ŶTerminal overview

Back of the TV

ŶConnecting DVD Recorder (DIGA)

DVD recorder (DIGA)

with VIERA Link function

HDMI cable

ŶConnecting Home theater system/AV amp

HDMI 1 is recommended.

HDMI cable

Optical cable

Home theater systems

with VIERA Link function

AV amp with

VIERA Link function

DVD recorder (DIGA)

with VIERA Link function

No optical cable is necessary when connecting a Home Theater

supporting “HDAVI control 5” with an HDMI cable. Audio will be

supported via ARC (Audio Return Channel) (p. 22)

ƔOne AV amp and one DVD recorder (DIGA) can be operated with this unit.

ŶConnecting HD Camcorder/Digital camera

Press INPUT and select an available HDMI terminal, then connect the camcorder to this input. After connection,

confirm the HDAVI control functions. (p. 24-27)

HDMI / mini HDMI cable

HD Camcorder

with VIERA Link

function

LUMIX with

VIERA Link

function

If connection (or setting) of equipment compatible with HDAVI control is changed, switch the power of this unit Off and

On again while the power of all equipment is On (so that the unit can correctly recognize the connected equipment) and

check that the connected equipment playback operates.

Note

ƔIndividual HDMI equipment may require additional menu settings specific to each model. Please refer to their

respective manuals.

ƔWhen audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this unit,

the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

ƔSome devices use Mini-HDMI terminal. HDMI (type A) to Mini-HDMI (type C) cable or adapter should be used.

tc_L3232c_eng_0608.indb 23tc_L3232c_eng_0608.indb 23 2010/12/24 13:40:182010/12/24 13:40:18

VIERA Link settings and Available features

To use all VIERA Link functions: After everything is connected, in VIERA Link settings menu, set “VIERA Link” to “On”.

Some features are disabled depending on the “HDAVI Control” version of the equipment.

Please check the list (p. 22)

Press to exit from

a menu screen

Press to go back

to the previous

screen

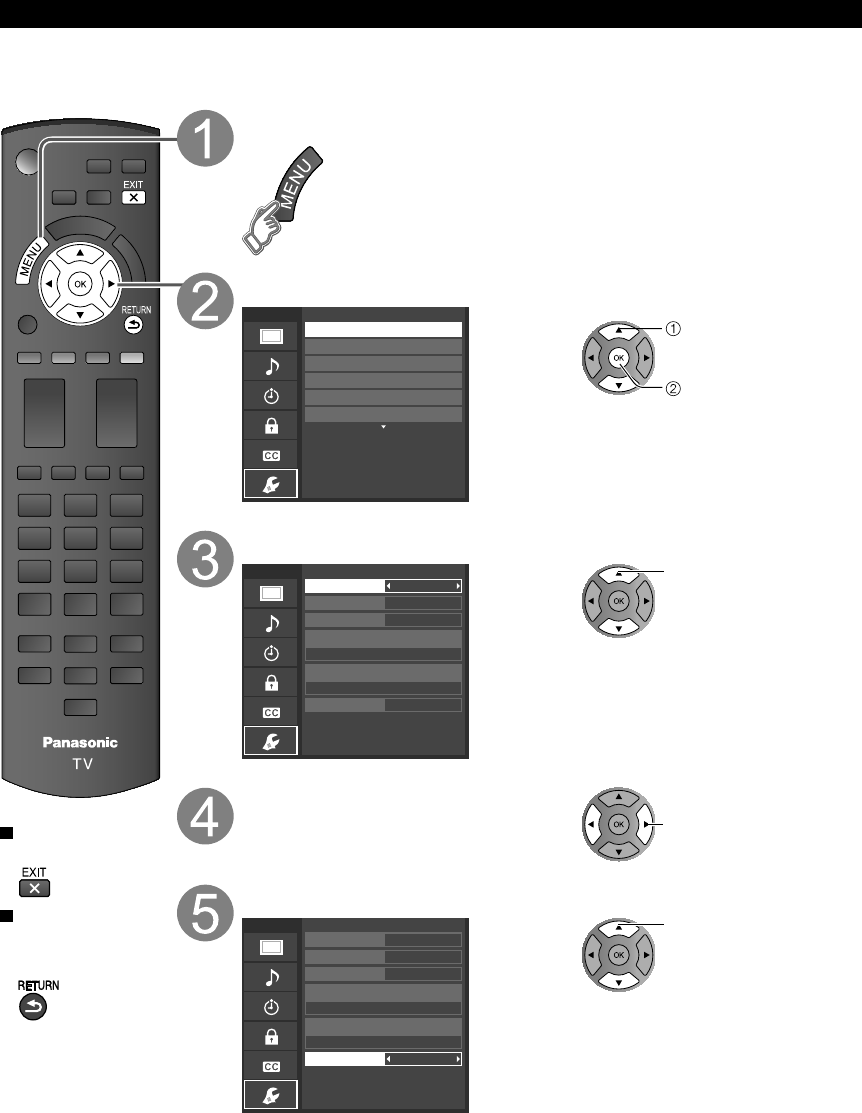

Display the menu

Select “VIERA Link settings” in “Setup”

Menu Setup 2/2

Advanced setup

First time setup

About

Reset to defaults

VIERA Link settings

ECO/energy saving

select

Select “VIERA Link”

Yes

Quick start

No (stay on)

Menu VIERA Link settings

VIERA Link

Power on link

Power off link

Default speakers

Energy saving mode

Unselected device energy save

select

Select “On”

(default is On) change

Select and make other settings

Yes

Quick start

No (stay on)

Menu VIERA Link settings

VIERA Link

Power on link

Power off link

Default speakers

Energy saving mode

Unselected device energy save

select

tc_L3232c_eng_0608.indb 24tc_L3232c_eng_0608.indb 24 2010/12/24 13:40:182010/12/24 13:40:18

Advanced

VIERA LinkTM “HDAVI ControlTM”

Automatic Input Switching

When using a Blu-ray Disc player, DVD player/recorder or Home theater system, the TV will automatically change to

the appropriate input, when playback begins on one of those devices.

• For a Home theater system the speakers automatically switch to the theater system.

Power on link

Yes: The TV is turned on automatically and switches to the appropriate HDMI input whenever VIERA Link compatible

equipment is initially turned on and the Play mode is selected.

Power off link

When “Yes” is selected and the TV is turned off, all connected VIERA Link compatible equipment is also automatically

turned off.

• A Panasonic DVD Recorder will not turn off if it is still in Rec mode.

• The TV remains on even if the VIERA Link compatible equipment is turned off.

Energy saving mode

Quick Start: When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO Standby mode*

automatically under these conditions.

• Power off link:(Yes), The connected equipment has “HDAVI Control 4 or later (with Quick Start mode)”

* Minimum power consumption of Standby condition for the equipment.

Unselected device energy save

Yes: The connected VIERA Link compatible equipment will be turned off automatically when not in use under these

conditions.

• The connected equipment has “HDAVI Control 2 or later” (for available equipment only)

[ Example of timing for operation ]

• When the input is switched from the HDMI.

Default speakers

“TV” is the default setting. To set the Home theater system as Default speakers, change the Default speakers setting

from “TV” to “Theater”. Sound will be output from the Home theater whenever the TV is powered on.

Automatic lip-sync function

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or

Amplifier.

TV provided setting information

The following information about the TV settings can be transmitted to each piece of equipment (Recorder/Home

theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with an HDMI cable.

Transmittable data Recorder Home theater Player

On Screen Display Language setting

(English/Español/Français) żżż

Panel Aspect Ratio

(16:9 fixed) żżż

Closed caption information

(Mode/CC type/Digital setting) ż--- ---

Channel information

(Input signal/Channel list/Caption information) ż--- ---

Note

ƔThere is a possibility that all the GUI language information might be set from equipment that has an HDMI CEC

function connected to the TV with an HDMI cable. Depending on the operating conditions or the specification for

each piece of equipment the setting may or may not be applied.

ƔFor more details on the external equipment’s operation, please refer to the operating manual for the equipment.

tc_L3232c_eng_0608.indb 25tc_L3232c_eng_0608.indb 25 2010/12/24 13:40:182010/12/24 13:40:18

VIERA Link menu and Available features

Some features are disabled depending on the “HDAVI Control” version of the equipment.

Please check the list (p. 22)

Press to exit from

a menu screen

Press to go back

to the previous

screen

Display the VIERA Link menu

select

VIERA Link

Select the item

Recorder

VIERA Link control

Speaker output

Back to TV

select

Items in the VIERA Link menu may be grayed out

if no compatible equipment is connected (must be

HDAVI Control 2 or later) or if the equipment has

not initiated a connection with the TV. In that case,

switch the equipment’s power Off and On while the

TV is On.

For further details, see “VIERA Link” on page 24.

Select

Home theater

VIERA Link control

Speaker output

Back to TV

change

Set

tc_L3232c_eng_0608.indb 26tc_L3232c_eng_0608.indb 26 2010/12/24 13:40:182010/12/24 13:40:18

Advanced

VIERA LinkTM “HDAVI ControlTM”

Speaker control

You can select the Home theater or TV speakers for audio

output.

Control the theater speakers with the TV remote control.

This function is available only when a Panasonic Amplifier

or Player theater is connected.

Select “Speaker output”

Select “Home theater” or “TV”

select

change

Recorder

Back to TV

VIERA Link control

Speaker output

ŶHome theater: Adjustment for the equipment

Volume up / down

Mute

• The sound of the TV is muted.

• When the equipment is turned off, the TV speakers

take over.

• Selecting “Home theater” turns the equipment on

automatically if it is in Standby mode.

ŶTV: The TV speakers are on.

VIERA Link control only with the TV’s remote control

In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV

remote control to operate the equipment, pointing it at the TV.

Select “VIERA Link control”

Select the equipment you want to access

(Recorder/Home theater/Player/Camcorder/LUMIX/

Digital camera)

ƔUsing VIERA TOOLS (p. 18)

select

change

You can select available items

only.

Recorder

VIERA Link control

Speaker output

Back to TV

ƔIf there is more than one equipment item, a number

after the name indicates the number of items. (e.g.

Recorder 1/Recorder 2/Recorder 3...)

ƔThe number of equipment items that can be connected

is three for recorders, and a total of three for Home

theater/Player/Camcorder/LUMIX/Digital camera.

Note

ƔThere is a limit to the number of HDMI connectors.

Operate the equipment with the TV remote

control, pointing it at the TV

ƔTo operate the equipment, read the manual of the

equipment.

ŶAvailable TV remote control buttons

Whether an operation is available differs depending on the connected equipment.

Move the cursor/Select Play

Set/Access Stop

Return to previous menu Reverse/Forward

SUB

Display the functions

menu on the equipment Skip Reverse/Forward

Available when the purpose of the keys

is displayed on screen Pause

Exit Closed caption

Channel Up/Down SAP (Select Audio Mode)

0-9 Select digital subchannel

Back to TV

Returns the input selection of the device selected with the VIERA Link Control to the TV input.

Select “Back to TV”

select

Recorder

VIERA Link control

Speaker output

Back to TV

tc_L3232c_eng_0608.indb 27tc_L3232c_eng_0608.indb 27 2010/12/24 13:40:192010/12/24 13:40:19

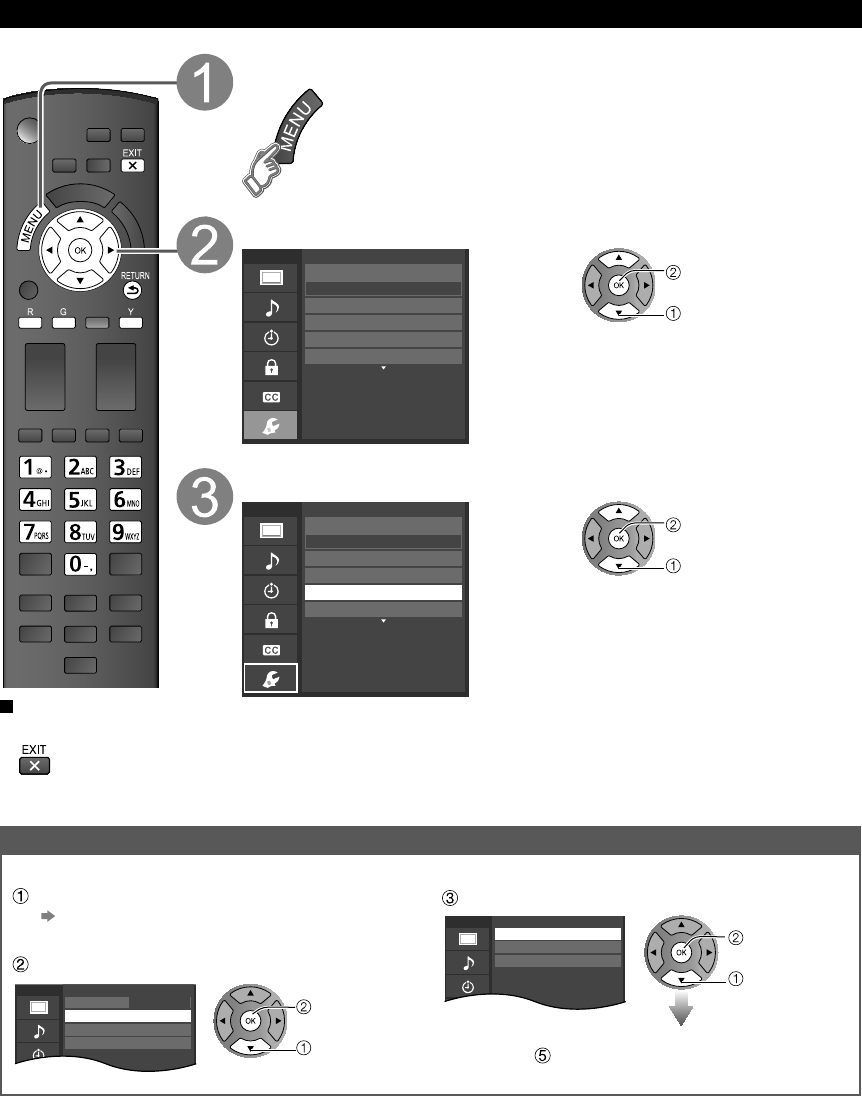

Editing and Setting Channels

Auto program (Set automatically)

Automatically searches and adds available channels to the memory.

Select “ANT in”

Select “Cable” or “Antenna”

Or select “Not used” (p. 13).

Select “Auto program”

select

Cable

ANT/Cable setup

ANT in

Auto program

Manual program

Signal meter

Select a scanning mode (p. 13)

select

Menu Auto program

All channels

Analog only

Digital only

ƔAfter the scanning is completed, select “Apply”.

(see p. 29 ).

ƔAll previously saved channels are erased.

Press to exit from

a menu screen

Display the menu

Select “Setup”

Menu Setup 1/2

Clock

ANT/Cable setup

Input labels

Language

All

Channel surf mode next

select

Select “ANT/Cable setup”

Menu Setup 1/2

Clock

ANT/Cable setup

Input labels

Language

All

Channel surf mode next

select

The current channel settings can be changed according to your needs and reception conditions.

ANT/Cable setup and operation

tc_L3232c_eng_0608.indb 28tc_L3232c_eng_0608.indb 28 2010/12/24 13:40:192010/12/24 13:40:19

Advanced

Editing and Setting Channels

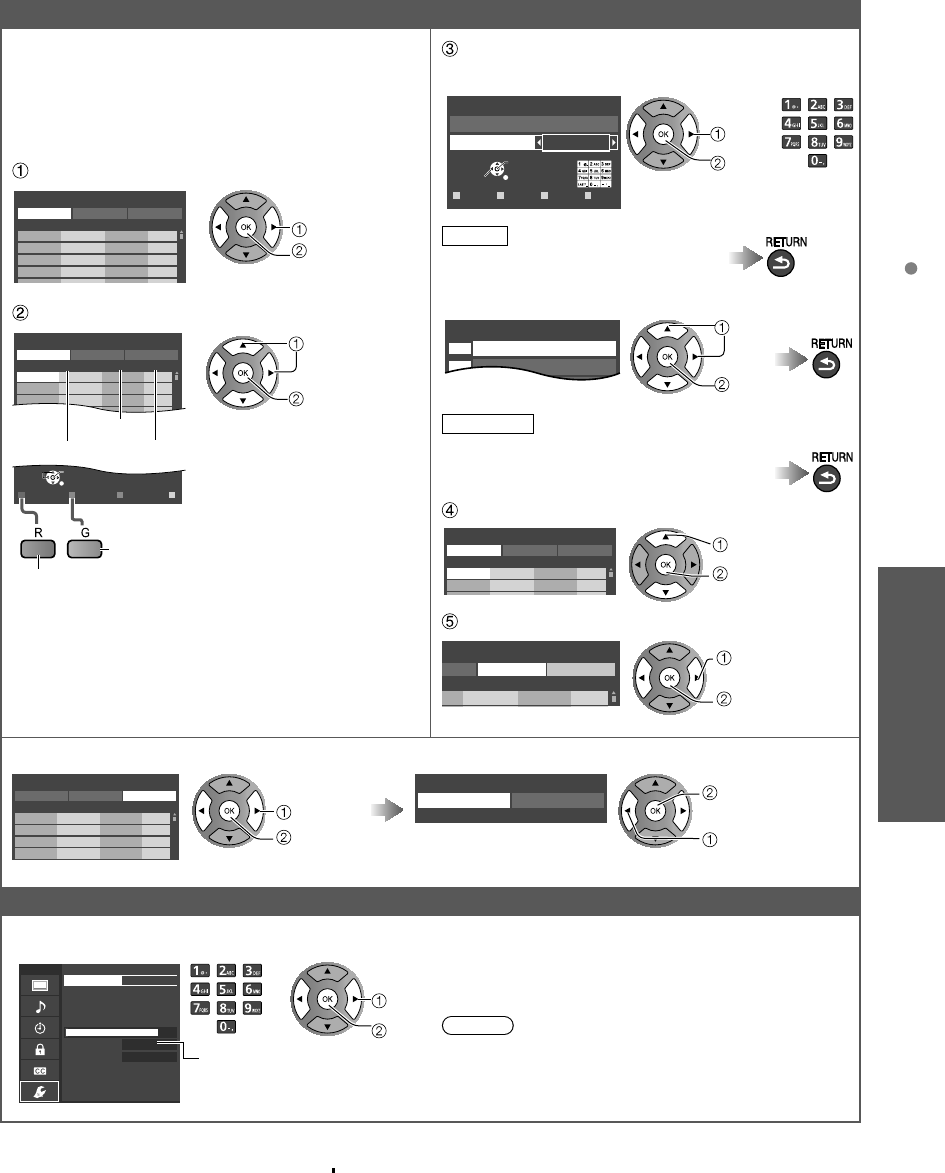

Manual program ( Set manually)

Use this procedure when changing the channel setup or

changing the channel display.

Also, use this to add or skip channels from the channel list

manually.

You can select a channel tuning mode (Digital only/Analog

only) in “Channel surf mode”(p. 34)

Select “Edit”

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

... Yes

3 ...

... Yes

4 ...

... Yes

5 ...

... Yes

Channel select

Select the item to edit

R G B Y

Select

RETURN

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

... Yes

3 ...

... Yes

4 ...

... Yes

5 ...

... Yes

6 ...

... Yes

7 ...

... Yes

8 ...

... Yes

9 ...

... Yes

Channel

Prev.page Next page

Caption

Favorite

Add

Proceed to

Go back to the previous

page

•

Caption:

Changes the station

identifier

•

Favorite:

Registers channels to the

Favorite List

•

Add:

Adds or skips channels

select the i

tem

to edit (Caption/

Favorite/Add)

Edit

ƔCaption

---

80-101

Edit CH caption

Caption

Channel

RETURN

DeleteABC ĺ abc

R G B Y

@ D A

Select

change

set

Caption

Select or edit the station identifier.

(maximum 7 characters available)

ƔFavorite

Set favorite 1/3

26-1

select

set

Set favorite

Select the number

ƔAdd

Press OK to select “Yes (add)” or “No (skip)”

Move the cursor to a channel number

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

... Yes

3 ...

... Yes

Channel

select

press OK to tune

to the channel.

Select “Apply”

select

program

CancelApply

Caption Favorite Add

...

... Yes

To cancel the Edit

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

... Yes

3 ...

... Yes

4 ...

... Yes

5 ...

... Yes

Channel

Changes will be lost. Continue?

Yes No

select

(returns to “ANT/

Cable setup”)

select “Yes”

Signal meter (Check signal strength)

Check the signal strength if interference is found or freezing occurs on a digital image.

Signal meter

Channel

Signal strength

Current 86%

Peak level 98% Signal intensity

change

channel

ƔIf the signal is weak, check the antenna.

If no problem is found, consult your local dealer.

Note

Not available if “Cable” is selected in “ANT in” (see p. 28).

ƔAvailable only for digital antenna channels.

tc_L3232c_eng_0608.indb 29tc_L3232c_eng_0608.indb 29 2010/12/24 13:40:202010/12/24 13:40:20

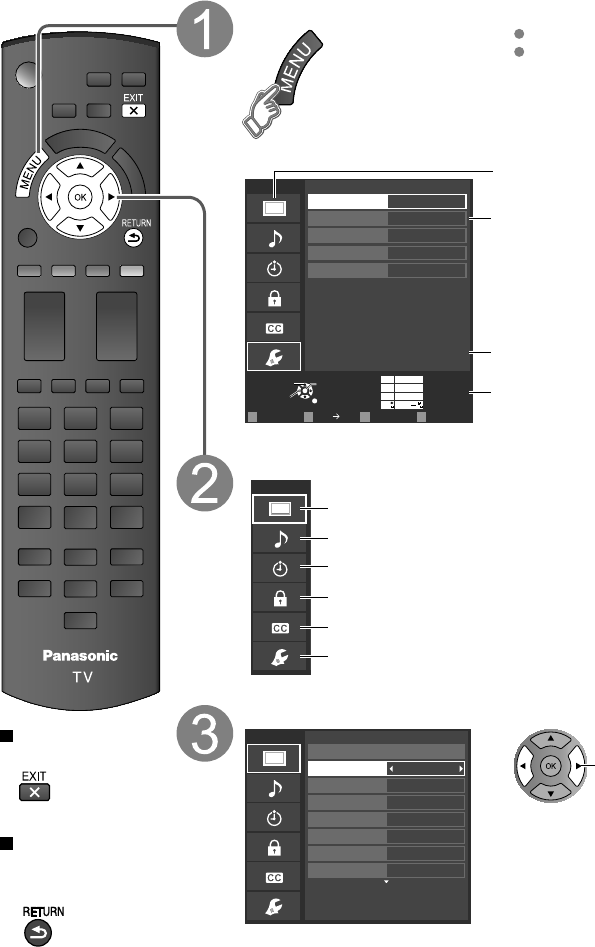

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy

watching TV best suited for you.

Press to exit from

a menu screen

Press to go back

to the previous

screen

Display the menu

Shows the functions that can be adjusted.

Some functions will be disabled depending on

the type of input signal.

Edit

RETURN

ABC Deleteabc

R G B Y

1 @.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

0- ,

LAST

Change

Select

Select or enter the name of the device

connected to the HDMI 1 terminal.

Input labels

HDMI 2

Comp./Video 1

HDMI 1

Video 2

Menu structure Menu bar

Press OK to move to the Menu items.

Menu items

Press OK to proceed to next screen if

available.

Help information

Operation guide

(example: Input labels)

Select the menu

Picture settings

Audio settings

Timer (Sleep, On/Off timer)

Lock (Channel, Game, Program etc.)

Closed Caption setting

Setup (other settings)

Adjust or select a menu item

Vivid

Picture 1/2

Brightness

Color

Tint

Sharpness

Picture mode

Back light

Contrast

Reset to defaults

(example: Picture menu)

adjust

select

tc_L3232c_eng_0608.indb 30tc_L3232c_eng_0608.indb 30 2010/12/24 13:40:202010/12/24 13:40:20

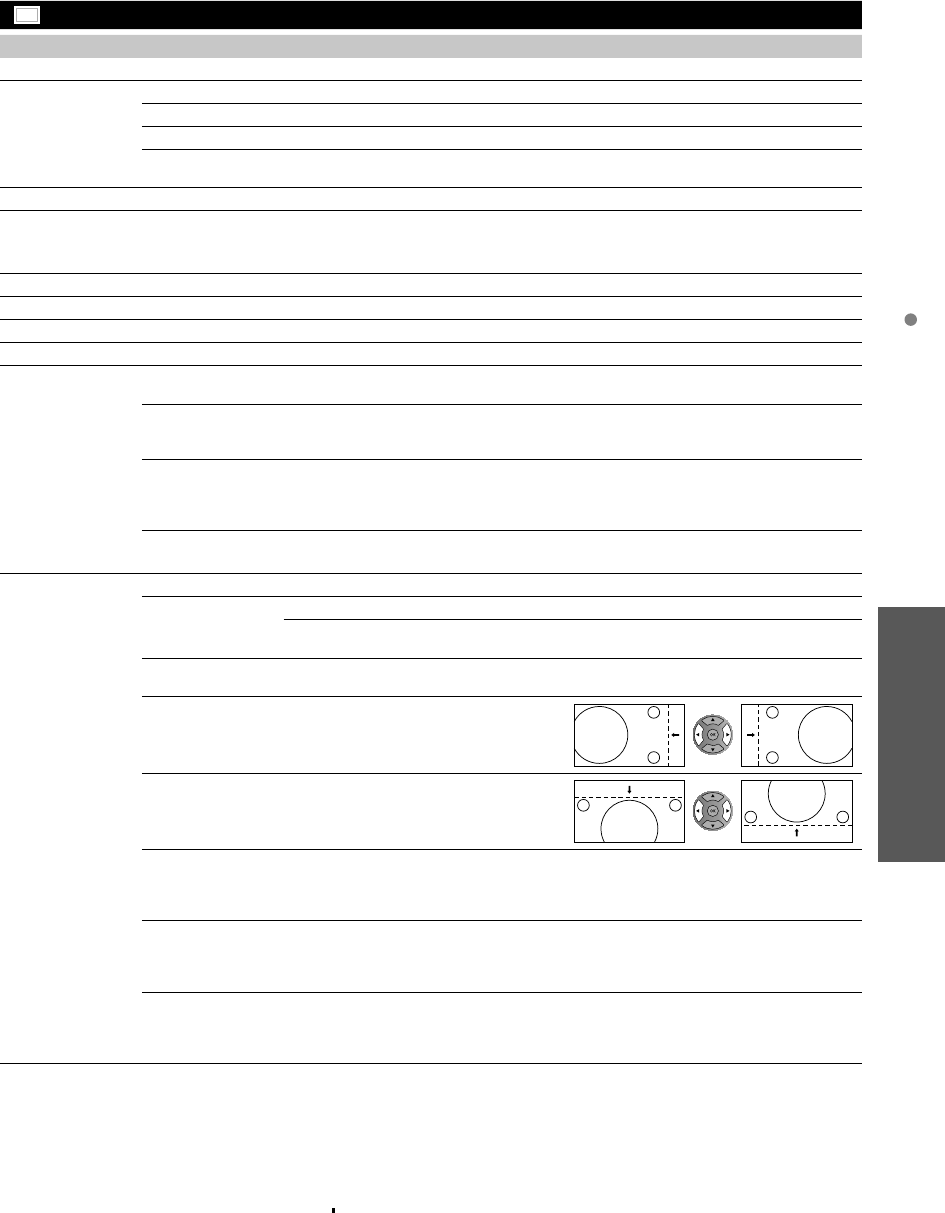

Advanced

How to Use Menu Functions

Ɣ“Reset to default” will be grayed out if no changes are made in the following menus:

“Picture”, “PC adjustments”, “Audio” and “Closed caption”.

Picture settings Adjust the image or picture quality

Settings Items Item Description

Reset to defaults

Resets all picture adjustments to factory default settings except for “Advanced picture”.

Picture mode Vivid Provides enhanced picture contrast and sharpness for viewing in a well-lit room.

Standard Recommended for normal viewing conditions with subdued room lighting.

Cinema For watching movies in a darkened room. It provides a soft, film-like picture.

Custom (Photo) Customizes each item according to your taste.

Photo is displayed in JPEG menu.

Back light Adjusts the luminance of the back light.

Contrast,

Brightness, Color,

Tint, Sharpness

Adjusts the color, brightness, etc. for each picture mode to suit your taste

• Display range Contrast/Brightness/Color/Sharpness : 0 - 100

Tint : -50 - +50

Color temp.

Cool/Normal/Warm

Selects a choice of Cool (blue), Normal, or Warm (red) color.

A.I. picture Off/On

Controls dark areas without affecting the black level or brightness in the overall picture.

C.A.T.S. Off/On

Automatically adjusts the screen brightness according to the ambient lighting condition.

Video NR Off/On Reduces noise, commonly called snow. Leave it off when receiving a strong signal.

• Some menus are grayed out depending on the input signal or condition.

(e.g. “Zoom adjustments” will be grayed out if the aspect is not set to Zoom.)

Aspect

adjustments Screen format JUST/4:3/ZOOM/

FULL/H-FILL

Changes the format (aspect ratio).

Lets you choose the aspect depending on the format of

received signal. (p. 36)

H size Size 1/Size 2

Adjusts the horizontal display range to reduce noise of both side

edges of an image.

Size 2: Adjusts the image size according to the aspect mode to

reduce noise. (p. 36)

Zoom

adjustments

Adjusts vertical alignment and size when aspect setting is “ZOOM”.

PC adjustments Reset to defaults Resets PC adjustments.

Sync H & V

The H and V sync signals are input from the HD/VD connector. (p. 39)

On green Uses a synchronized signal on the Video G signal, which is

input from the G connector. (p. 39)

Dot clock Alleviates the problem if a picture appears to be vertically-striped, flickers partially or

is blurred.

H-position Adjusts the horizontal position.

V-position Adjusts the vertical position.

Clock phase Alleviates the problem if the whole picture appears to flicker or is blurred.

First adjust the Dot Clock to get the best possible picture, then adjust the clock Phase

so that a clear picture appears.

ƔIt may not be possible to display a clear picture due to poor input signals.

Input

resolution

Switches to wide display.

ƔVGA (640×480 pixels), WVGA (852×480 pixels), XGA (1,024×768 pixels), WXGA

(1,280×768 pixels)

ƔOptions change depending on signals

H-frequency

V-frequency

Displays the H (Horizontal)/V (Vertical) frequencies.

Display range

Horizontal: 15 - 110 kHz

Vertical: 48 - 120 Hz

tc_L3232c_eng_0608.indb 31tc_L3232c_eng_0608.indb 31 2010/12/24 13:40:212010/12/24 13:40:21

Settings Items Item Description

• Some menus are grayed out depending on the input signal or condition.

(e.g. “3:2 pulldown” will be grayed out if the input signal is high definition or you are viewing photos, etc.)

Advanced

picture 3D Y/C filter Off/On Minimizes noise and cross-color in the picture.

Color matrix SD/HD Selects image resolution of component-connected devices.

SD: Standard Definition HD: High Definition

Only used with 480p video signal.

MPEG NR Off/On Reduces noise of specific digital signals of DVD, Cable box, etc.

Black level Dark/Light Selects Dark or Light. Valid only for external input signals.

3:2 pulldown Off/On/Auto Adjusts the picture recorded in 24 fps for optimum quality.

Audio settings Adjust Audio quality

Settings Items Item Description

Reset to defaults Resets Bass, Treble, and Balance adjustments to factory default settings.

Bass Increases or decreases the bass response.

Treble Increases or decreases the treble response.

Balance Emphasizes the left / right speaker volume.

Advanced audio Surround Off/On Enhances audio L/R response when listening to stereo.

Volume leveler Minimizes volume disparity after switching to external inputs.

TV speakers Off/On Switches to “Off” when using external speakers.

Off: “Surround” and “Volume leveler” do not work if “Off” is

selected.

HDMI 1-2 in Digital/

Comp./Video 1/

Video 2

The default setting is “Digital” for the HDMI connection. (Digital

input signal)

Select audio input terminal when DVI cable is connected.

(Analog audio input signal)

Timer settings The TV can automatically turn On/Off at the designated date and time.

If the Timer settings are grayed out, first set the clock (see p. 34) and make sure “Auto power on” is set to “No” (see p. 34)

Settings Items Item Description

Sleep (Off timer) Sleep (minutes) 0/15/30/60/90 Select how long for the TV to automatically turn off.

Timer 1-5

(On/Off timer) Timer set Enables or disables this timer. (Off/On)

Inputs Sets the input to select when the TV turns on.

Channel Sets the channel to select when the TV turns on.

Day Sets the day when the TV turns on.

[SUN/MON/TUE/WED/THU/FRI/SAT(displays the nearest future date)

MON-FRI/SAT-SUN/DAILY/Every SUN/Every MON/Every TUE/Every

WED/Every THU/Every FRI/ Every SAT]

On time Sets the time when the TV turns on. The TV will turn off after 90 minutes or as

specified.

Off time Sets the time when the TV turns off within 24 hours.

tc_L3232c_eng_0608.indb 32tc_L3232c_eng_0608.indb 32 2010/12/24 13:40:212010/12/24 13:40:21

Advanced

How to Use Menu Functions

Lock

Locks specified channels or shows to prevent children from watching objectionable content.

You will be asked to enter your password each time you display the Lock menu.

• Password setting/entering (p. 17)

Set “Custom” in “Mode” to specify “Channel”, “Game” and “Program” settings.

Settings Items Item Description

Mode Off Unlocks all the Lock settings of “Channel”, “Game” and “Program”.

All Locks all the inputs regardless of the Lock settings of “Channel”, “Game” and

“Program”.

Custom Locks specified inputs of “Channel”, ”Game” and “Program”.

Channel

(These channels

will be blocked

regardless of the

program rating.)

Mode Set channel lock status. (Off/All/Custom)

All: Locks all channels

Off: Unlocks all channels

Custom: Locks specified channels. Set “Channel 1” - “Channel 7”

Channel 1-7 Select a channel to lock. (Select up to 7 (1-7) channels to block.)

Game On/Off Locks Channel 3, Channel 4, and external inputs.

Program

(To set a rating

level)

Mode Set program lock status. (Off/On) “V-chip” technology enables restricted shows to

lock according to TV ratings. On: Set each rating level (MPAA, US.TV, C.E.L.R.,

C.F.L.R.)

MPAA Select U.S. movie ratings to lock.

For more

information

(p. 35)

U.S.TV U.S. TV program ratings.

C.E.L.R. Canadian English ratings.

C.F.L.R. Canadian French ratings.

Change

password

Change the password. Input the new 4-digit password twice.

• This television is designed to support the “Downloadable U.S. Region Rating System” when available.

(Available only in U.S.A.)

• The Off rating is independent of other ratings.

• When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also

be blocked.

Closed caption Display closed caption

The television includes a built-in decoder that is capable of providing a text display of the audio.

The program being viewed must be transmitting the Closed caption (CC) information. (p. 38)

Settings Items Item Description

Reset to defaults Resets all Closed caption settings to factory default settings.

Mode On/Off/

CC on mute

On: To display Closed captions.

CC on mute: To display Closed captions when the audio is muted.

(When not using, select “Off”).

Analog CC1-4/T1-4 Choose the Closed caption service of Analog broadcasting.

CC1-4: Information related to pictures (Appears at the bottom of the screen)

T1-4: Textual information (Appears over the entire screen)

Digital Primary/Second./

Service 3/4/5/6

The Digital Closed caption menu lets you configure the way you choose to view

the digital captioning.

Digital setting

(Set display

settings

in digital program)

Size Text size

Font Text font

Style Text style (Raised, Depressed, etc.)

Foreground Color of text

Fore. opacity Opacity of text

Background Color of text box

Back. opacity Opacity of text box

Outline Outline color of text (Identify the setting options on the screen.)

• The settings in “Analog” or “Digital” depend on the broadcaster.

tc_L3232c_eng_0608.indb 33tc_L3232c_eng_0608.indb 33 2010/12/24 13:40:212010/12/24 13:40:21

Setup Other function settings

Settings Items Item Description

Channel surf

mode All/Favorite/

Digital only/

Analog only

Sets the mode to select the channel with the Channel up/down button.

Favorite: Only channels registered as FAVORITE. (p. 16)

Language English/

Español/

Français

Selects the screen menu language.

Clock Adjusts the clock. (p. 14)

ANT/Cable setup See p. 28-29 for more detail.

Input labels

(Display labels

of connected

devices)

Selects the terminal and label of the external equipment.

Devices connected to external input terminals can be labeled for easier identification during the

input selection. (Input select (p. 19))

Terminals: HDMI 1-2/Comp./Video 1/Video 2/PC

Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME THTR/GAME/COMPUTER/VCR/

CABLE/SATELLITE/DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA CTR/MEDIA EXT/

OTHER

• You can also enter the label name directly. (Entering characters (p. 17))

VIERA Link settings

See p. 24-25 for more detail.

ECO/energy

saving Power save

(Standard/

Saving)

Reduces screen brightness to lower power consumption. Eye-friendly for

viewing in a dark room.

No signal for 10

minutes

(Stay on/ Power

TV off)

To conserve energy, the TV automatically turns off when NO SIGNAL and NO

OPERATION continue for more than 10 minutes.

• Not in use when “Auto power on” is set to “Yes”, or “On/Off Timer” is set.

• “No signal for 10 minutes was activated” will be displayed for about 10 seconds

when the TV is turned on for the first time after the power was turned off by “No

signal for 10 minutes”.

• The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining

minutes prior to the shut-off.

No activity for 3

hours

(Stay on/ Power

TV off)

To conserve energy, the TV automatically turns off when no operation of remote and

side panel key continues for more than 3 hours.

• Not in use when “Auto power on” is set to “Yes”, or “On/Off Timer” is set, or while

“PC inputs” is selected.

• “No activity for 3 hours was activated” will be displayed for about 10 seconds when

the TV is turned on for the first time after the power was turned off by “No activity

for 3 hours”.

• The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining

minutes prior to the shut-off.

Advanced setup Auto power on

(No/Yes) Turns TV On automatically when the cable box or connected device is turned On.

TV AC cord must be plugged into this device. TV turns on every time the power is restored.

Image viewer

auto play

Slideshow/

Thumbnail/

Set later/Off

Sets the playback type to play back SD cards automatically.

Set later: “Image viewer settings” menu will be displayed repeatedly.

“Viewing photos with VIERA IMAGE VIEWER” (p. 20)

First time setup Restarts the first time setup from “Language” setting. (p. 12)

About Displays TV version and software license.

Reset to defaults

Performing Reset will clear all settings made with Setup, such as channel

settings.

• Password setting/entering (p. 17)

tc_L3232c_eng_0608.indb 34tc_L3232c_eng_0608.indb 34 2010/12/24 13:40:212010/12/24 13:40:21

Advanced Support Information

Ratings List for parental control

How to Use Menu Functions

Ratings List for parental control

“V-chip” technology enables you to lock channels or shows according to standard ratings set by the

entertainment industry.

U.S. MOVIE RATINGS (MPAA)

NR NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or

where rating does not apply.

G GENERAL AUDIENCES. All ages admitted.

PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

R RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NC-17 NO ONE 17 AND UNDER ADMITTED.

X ADULTS ONLY.

U.S. TV PROGRAMS RATINGS (U. S. TV)

Age-based

Group

Age-based

Ratings

Possible Content

Selections Description

(Not Rated) TV-NR •

Viewable

•

Blocked Not Rated.

Youth

TV-Y •

Viewable

•

Blocked All children. The themes and elements in this program are specifically

designed for a very young audience, including children from ages 2-6.

TV-Y7 •

FV Blocked

•

Viewable

•

Blocked

Directed to older children. Themes and elements in this program may

include mild physical or comedic violence, or may frighten children

under the age of 7.

Guidance

TV-G •

Viewable

•

Blocked General audience. It contains little or no violence, no strong language,

and little or no sexual dialogue or situations.

TV-PG •

D,L,S,V (all selected)

•

Any combination of

D, L, S, V

Parental guidance suggested. The program may contain infrequent

coarse language, limited violence, some suggestive sexual dialogue

and situations.

TV-14 •

D,L,S,V (all selected)

•

Any combination of

D, L, S, V

Parents strongly cautioned. This program may contain sophisticated

themes, sexual content, strong language and more intense violence.

TV-MA •

L,S,V (all selected)

•

Any combination of

L, S, V

Mature audiences only. This program may contain mature themes,

profane language, graphic violence, and explicit sexual content.

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

CANADIAN ENGLISH RATINGS (C. E. L. R.)

EExempt - Exempt programming includes: news, sports, documentaries and other information programming,

talk shows, music videos, and variety programming.

C Programming intended for children under age 8. No offensive language, nudity or sexual content.

C8+

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

G General programming, suitable for all audiences.

PG Parental Guidance suggested. Some material may not be suitable for children.

14+ Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents

are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

18+ 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

CANADIAN FRENCH RATINGS (C. F. L. R.)

E Exempt - Exempt programming.

GGeneral - Programming intended for audience of all ages. Contains no violence, or the violence content is

minimal or is depicted appropriately.

8 ans+ 8+ General - Not recommended for young children. Programming intended for a broad audience but contains

light or occasional violence. Adult supervision recommended.

13 ans+ Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one

or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

16 ans+ Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or

intense violence.

18 ans+ Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Caution

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) as per

FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results

may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

tc_L3232c_eng_0608.indb 35tc_L3232c_eng_0608.indb 35 2010/12/24 13:40:212010/12/24 13:40:21

Technical Information

Aspect Ratio (FORMAT)

Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format

of the received signal and your preference. (p. 16)

(e.g.: in case of 4:3 image)

FULL JUST

Enlarges the 4:3 image horizontally to the screen’s side edges.

(Recommended for anamorphic picture) Stretches to justify the 4:3 image to the four corners of the

screen.

(Recommended for normal TV broadcast)

H-FILL 4:3

H-FILL

Side bar

Enlarges the 4:3 image horizontally to the screen’s side

edges. The side edges of the image are cut off. Standard

(Note that “Image retention” of the side bar may occur from

displaying it for a long time.)

ZOOM

Note

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9):

FULL, JUST, 4:3 or ZOOM

1080p / 1080i / 720p:

FULL, H-FILL, JUST, 4:3 or ZOOM

Enlarges the 4:3 image to the entire screen.

(Recommended for Letter Box)

Zoom adjustments

Vertical image position and size can be adjusted in “ZOOM”.

Select “Zoom adjustments” on the “Picture” menu. (p. 31)

V-position: Vertical position adjustment V-size: Vertical size adjustment

To reset the aspect ratio (OK)

H size

Aspect Ratio: 4:3

Size 1 Size 2 The width will be decreased on both sides to

reduce noise.

Aspect Ratio: FULL/JUST(H-FILL/ZOOM)

Size 1 Size 2 The width will be increased on both sides to

reduce noise.

See page 31 for more information

tc_L3232c_eng_0608.indb 36tc_L3232c_eng_0608.indb 36 2010/12/24 13:40:212010/12/24 13:40:21

Support Information

Technical Information

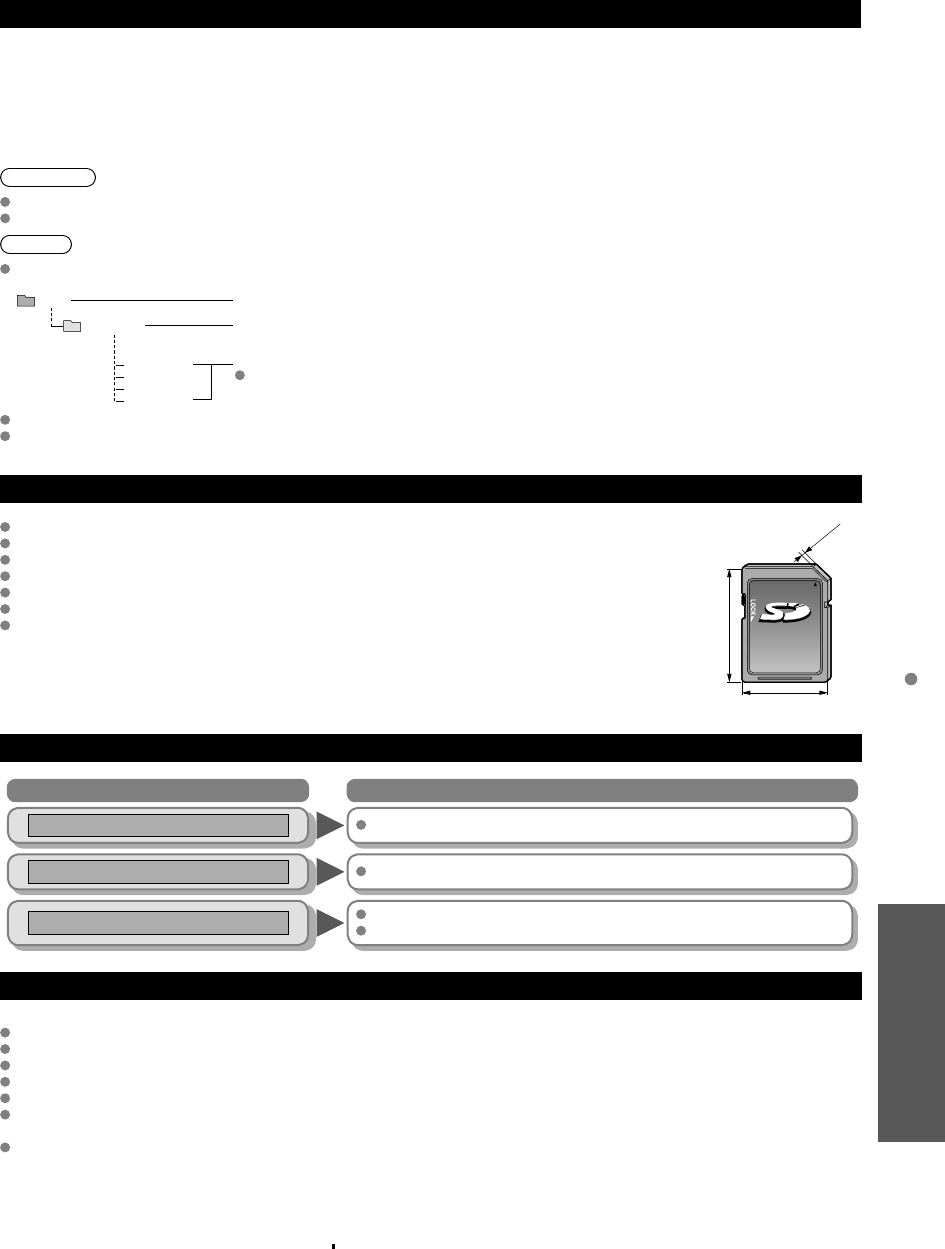

Data format for SD Card browsing

Photo: Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF**

standards

Data format: Baseline JPEG (Sub-sampling: 4:4:4, 4:2:2 or 4:2:0)

Max. number of files: 9,999

Image resolution: 160 x 120 to 20,000,000

* DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard

** EXIF (Exchangeable Image File Format)

Caution

A JPEG image modified with a PC may not be displayed.

Partly degraded files might be displayed at a reduced resolution.

Note

Folder structure viewed in PC

DCIM





100_ P ANA

Created automatically

3-digit folder number + 5-digit arbitrary characters

4-digit arbitrary characters + 4-digit file number

Usable characters: 1-byte “a to z”, “A to Z”, “0 to 9,” and “_”

The folder and file names may be different depending on the digital camera used.

For the suitable SD Memory Cards, please confirm the latest information on the following website.

http://panasonic.jp/support/global/cs (This site is in English only)

Cautions when handling SD Cards

2.1 mm

32 mm

24 mm

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

Do not remove the card while the unit is accessing data (this can damage card or unit).

Do not touch the terminals on the back of the card.

Do not subject the card to high pressure or impact.

Insert the card in the correct direction (otherwise, card or unit may be damaged).

Electrical interference, static electricity or erroneous operation may damage the data or card.

Back up the recorded data at regular intervals in case of deteriorated or damaged data or

erratic operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

SD Card warning messages

Message Meaning

SD card slot is empty. The card is not inserted.

No photos The card has no data or this type of data is not supported.

Cannot read file The file is broken or unreadable.

The TV does not support the format.

VIERA LinkTM “HDAVI ControlTM”

HDMI connections to some Panasonic equipment allows you to interface automatically. (p. 23)

This function may not work normally depending on the equipment condition.

The equipment can be operated by other remote controls with this function on even if TV is in Standby mode.

Image or sound may not be available for the first few seconds when the playback starts.

Image or sound may not be available for the first few seconds when Input mode is switched.

Volume function will be displayed when adjusting the volume of the equipment.

If you connect equipment that has “HDAVI Control 2 or later” function to the TV with HDMI cable, the sound from DIGITAL

AUDIO OUT terminal can be output as multi channel surround.

“HDAVI Control 5” is the newest standard (current as of December, 2010) for the HDAVI Control compatible equipment.

This standard is compatible with the conventional HDAVI equipment.

tc_L3232c_eng_0608.indb 37tc_L3232c_eng_0608.indb 37 2010/12/24 13:40:222010/12/24 13:40:22

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting

the TV unit and HD devices.

HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a Cable or Satellite box or a DVD player, can be

connected to the HDMI connector using an HDMI compliant (fully wired) cable.

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.

Audio settings can be made on the “HDMI 1 in” or “HDMI 2 in” menu screen. (p. 32)

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(*1): The HDMI logo is displayed on an HDMI-compliant device.

(*2): Enquire at your local digital equipment retailer shop.

Caution

Use with a PC is not assumed.

All signals are reformatted before being displayed on the screen.

If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”.

These HDMI connectors are “type A”.

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

A device having no digital output terminal may be connected to the input terminal of either “COMPONENT” or “VIDEO” to

receive analog signals.

The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i, 1080p.

Match the output setting of the digital device.

For details of the applicable HDMI signals, see p. 39.

DIGITAL AUDIO OUT terminal

You can enjoy your Home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the

DIGITAL AUDIO OUT terminals.

Caution

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical

output.

When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC

channel is selected, the output will be PCM.

Closed Caption (CC)

For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM or 4:3;

characters might be cut off).

The CC can be displayed on the TV only when the receiver (such as a Cable box or satellite receiver) has the CC set

to ON within the device itself. Check with your Cable or Satellite provider for instructions. The TV’s CC button does

not operate the Satellite or Cable box’s CC function.

If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC

may overlap on the TV.

If a digital program is being output in analog format, the CC data will also be output in analog format.

If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output monitor.

tc_L3232c_eng_0608.indb 38tc_L3232c_eng_0608.indb 38 2010/12/24 13:40:222010/12/24 13:40:22

Support Information

Technical Information

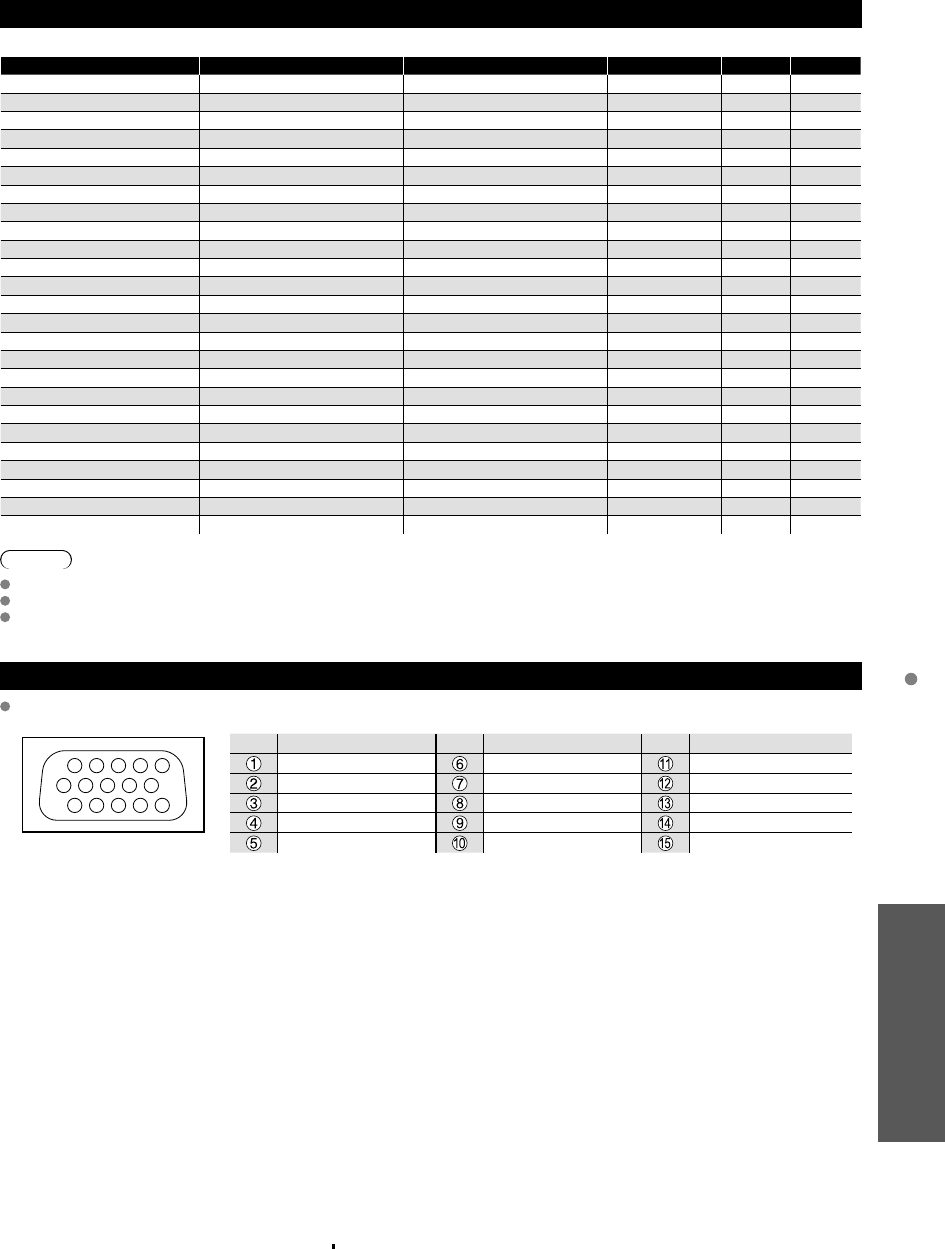

678

15 14 13 12 11

Pin No.

Signal Name

Pin No.

Signal Name

Pin No.

Signal Name

RGND (Ground) NC (not connected)

GGND (Ground) NC

BGND (Ground) HD/SYNC

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC

Pin Layout for PC Input Terminal

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR), HDMI and PC

horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI PC

525 (480) / 60i 15.73 59.94 **

525 (480) /60p 31.47 59.94 **

750 (720) /60p 45.00 59.94 **

1,125 (1,080) /60i 33.75 59.94 **

1,125 (1,080)/60p 67.43 59.94 *

1,125 (1,080)/60p 67.50 60.00 *

1,125(1,080)/24p 26.97 23.98 *

1,125(1,080)/24p 27.00 24.00 *

640 × 400 @70 31.47 70.08 *

640 × 480 @60 31.47 59.94 *

Macintosh13” (640 × 480) 35.00 66.67 *

640 × 480 @75 37.50 75.00 *

852 × 480 @60 31.44 59.89 *

800 × 600 @60 37.88 60.32 *

800 × 600 @75 46.88 75.00 *

800 × 600 @85 53.67 85.08 *

Macintosh16” (832 × 624) 49.73 74.55 *

1,024 × 768 @60 48.36 60.00 *

1,024 × 768 @70 56.48 70.07 *

1,024 × 768 @75 60.02 75.03 *

1,024 × 768 @85 68.68 85.00 *

Macintosh 21” (1,152 × 870) 68.68 75.06 *

1,280 × 768 @60 47.78 59.87 *

1,280 × 1,024 @60 63.98 60.02 *

1,366 × 768 @60 48.39 60.04 *

Note

Signals other than above may not be displayed properly.

The above signals are reformatted for optimal viewing on your display.

Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning

frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

PC Input Terminals Connection

Signal Names for D-sub 15P Connector

tc_L3232c_eng_0608.indb 39tc_L3232c_eng_0608.indb 39 2010/12/24 13:40:222010/12/24 13:40:22

Care and Cleaning

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-

free cloth.

If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted

by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the

display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.

Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile

substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry. Use this cloth to

wipe the cabinet and then wipe it dry with a dry cloth.

Do not allow any mild liquid dish soap to come into direct contact with the surface of the LCD TV.

If water droplets get inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet

surface may be adversely affected or the coating may peel off.

Do not let articles made from rubber or PVC be in contact with the TV for long periods of time.

Pedestal

Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small

amount of mild liquid dish soap has been added and then wipe with a dry cloth.

Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating.

(If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with

rubber, vinyl products, or the like. (Doing so will cause deterioration.)

Power cord plug

Wipe the plug with a dry cloth at regular intervals. (Moisture and dust can lead to fire or electrical shock.)

tc_L3232c_eng_0608.indb 40tc_L3232c_eng_0608.indb 40 2010/12/24 13:40:222010/12/24 13:40:22

Support Information

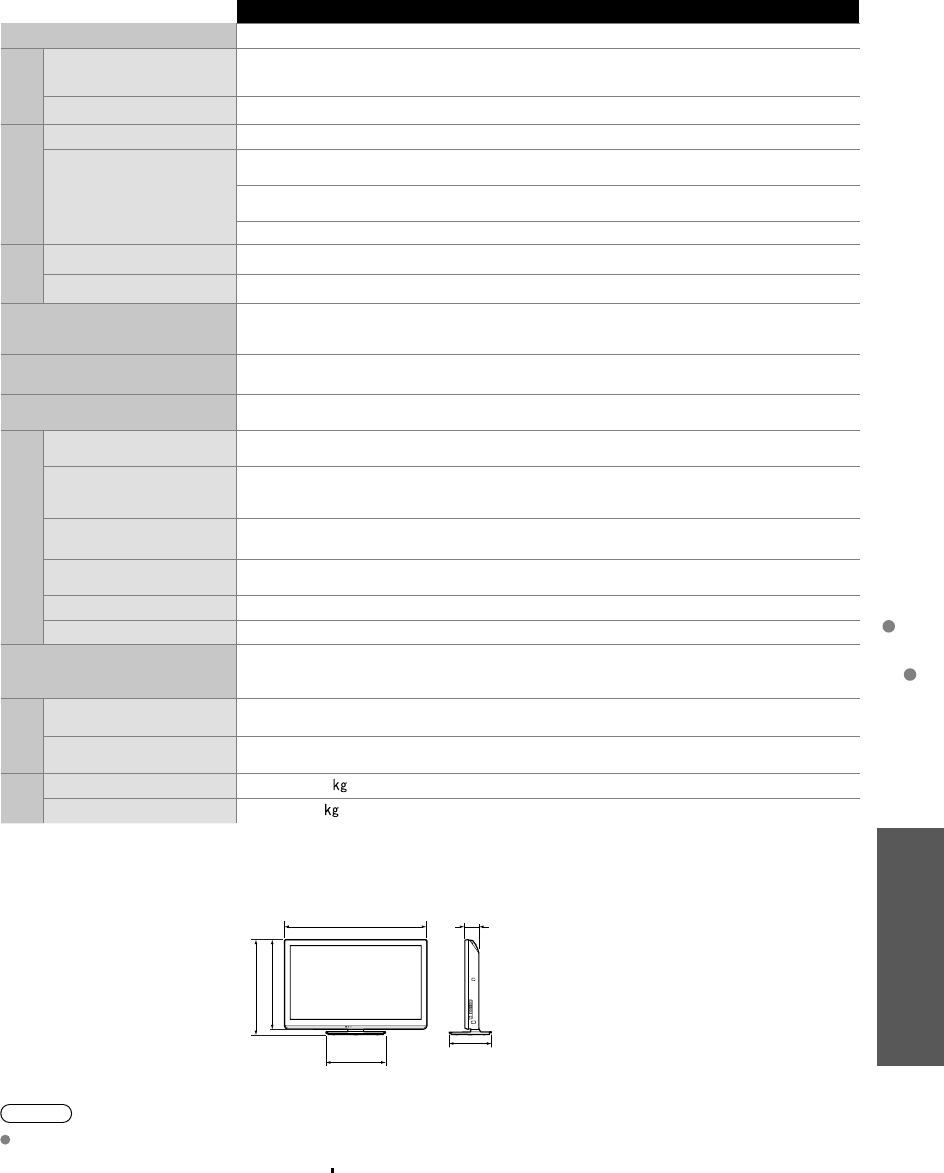

Specifications

Care and Cleaning

Specifications

TC-L3232C

Power Source AC 110-127 V, 60 Hz

Power

Consumption

Rated Power

Consumption 106 W

Standby condition 0.3 W

Display panel

Aspect Ratio 16:9

Visible screen size

(W × H × Diagonal)

(No. of pixels)

32” class

(31.5 inches measured diagonally)

27.5 ” × 15.4 ” × 31.5 ”

(698 mm × 392 mm × 800 mm)

1,049,088 (1,366 (W) x 768 (H)) [4,098 x 768 dots]

Sound

Speaker 1-way 2 bottom SP System

Audio Output 20 W [10 W + 10 W] (10 % THD)

PC signals VGA, SVGA, XGA, WXGA, SXGA

Horizontal scanning frequency 31 - 69 kHz

Vertical scanning frequency 59 - 86 Hz

Channel Capability-

ATSC/NTSC (Digital/Analog) VHF/ UHF: 2 - 69, CATV: 1 - 135

Operating Conditions Temperature: 32 °F – 95 °F (0 °C – 35°C)

Humidity: 20 % – 80 % RH (non-condensing)

Connection Terminals

VIDEO IN 1-2 VIDEO: RCA PIN Type × 1

1.0 V [p-p] (75 ȍ)

AUDIO L-R: RCA PIN Type × 2

0.5 V [rms]

COMPONENT IN Y: 1.0 V [p-p] (including synchronization)

PB, PR: ±0.35 V [p-p]

AUDIO L-R: RCA PIN Type × 2

0.5 V [rms]

HDMI 1-2 TYPE A Connector × 2

• This TV supports “HDAVI Control 5” function.

PC D-SUB 15PIN: R,G,B / 0.7 V [p-p] (75 ȍ)

HD, VD / 1.0 - 5.0 V [p-p] (high impedance)

Card slot SD CARD slot × 1

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES 3D Y/C FILTER, CLOSED CAPTION,

V-Chip, HDAVI Control 5

Vesa compatible, VIERA IMAGE VIEWER

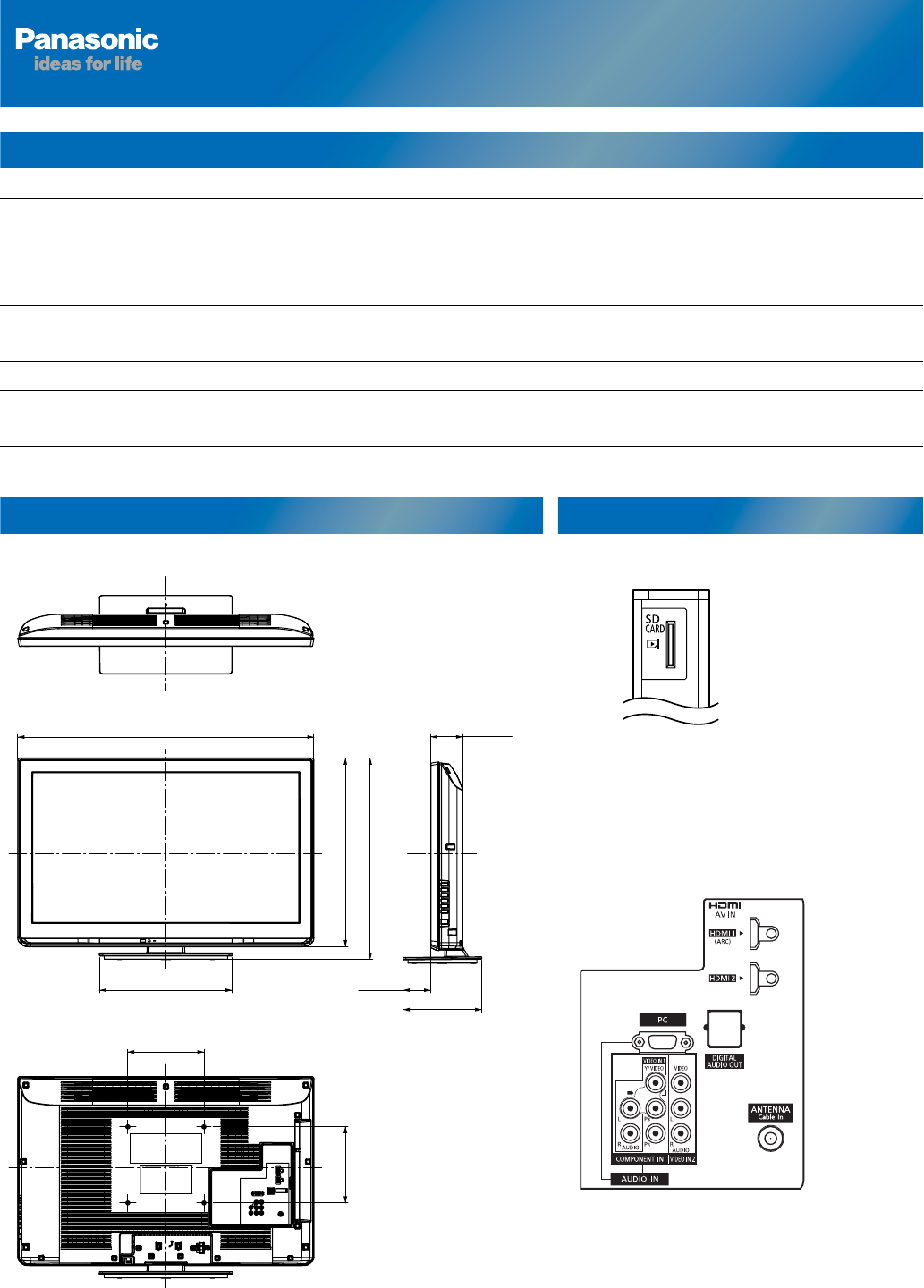

Dimensions

(W × H × D)

Including TV stand 30.7” × 21.0” × 8.2”

(779 mm × 531 mm × 207 mm)

TV Set only 30.7” × 19.6” × 3.4”

(779 mm × 497 mm × 85 mm)

Mass

Including TV stand 22.0 lb. (10.0 ) NET

TV Set only 20.0 lb. (9.0 ) NET

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

[TC-L3232C]

8.2” (207 mm)

3.4”

(85 mm)

30.7” (779 mm)

13.8”

(350 mm)

19.6” (497 mm)

21.0” (531 mm)

tc_L3232c_eng_0608.indb 41tc_L3232c_eng_0608.indb 41 2010/12/24 13:40:222010/12/24 13:40:22

Questions Answers


Frequently Asked Questions (FAQ)

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the

suggested check. If this does not solve the problem, visit the Panasonic web site for further assistance. (see cover)

How do I view the picture from

devices such as a: Cable/

Satellite box, game console,

Blu-ray or DVD player?

Press the INPUT button on the remote to select the correct

input source.

Check that the device is turned on and functioning

correctly.

Why is there no picture or just

a blue, black or snowy screen

being displayed?

Check if the power cord is plugged in and the TV is turned

on (front red LED light should be on; not blinking)

Press the INPUT button on the remote to select the correct input source.

Ensure all connections are correct and secure.

When using external video source, such as a Cable/Satellite box or

DVD player, check that the device is on and functioning correctly.

Press MENU on the TV’s remote control. If the menu is

displayed, then the TV is working; recheck above steps.

Why doesn’t the picture look

like it is in High Definition?

Press the INFO button on the remote to confirm the type of signal

being received (p. 15). HD signal should be 720P, 1080i or 1080p.

Select a High Definition channel from your HD source

(Cable, Satellite or fiber optic service). HD channels

sometimes broadcast non-HD content.

Ensure that your HD source (HD box, Blu-ray player, etc.)

is connected to the TV with an HDMI or Component cable

and set to output an HD video signal.

Why do black bars appear on

the top and bottom and/or sides

of the screen?

Change the format (aspect ratio) of the picture by pressing

the FORMAT button on the remote control. (p.16)

Check the aspect settings on your external video source,

such as Cable/Satellite box, DVD/Blu-ray Disc player, etc.

Note: Some content, such as film-based movies, are available in

extra-wide format. Top and bottom bars are unavoidable.

Why is the picture snowy when

“ANT/Cable in” is selected?

When using a cable service (without a box), check that all

connections are secure.

When using a cable or satellite box, change the connection

(wiring) to Composite, Component or HDMI. (p.10)

If you’re using an antenna, then check that connections are

secure. Change the position or direction of the antenna and

check the “Signal meter”. (p.29)

Why is the picture chaotic and/

or torn and/or with a buzz in the

speakers?

Check if electrical products such as kitchen appliances, fluorescent lights

or light dimmers are nearby. They may interfere with the TV’s picture.

Try viewing a picture from another device, such as a DVD player

or a game console, to narrow down the source of the problem.

Why is there a black box on the

screen? Change settings of Closed Caption (CC). (p. 15, 38)

Why is the screen blank and the

power indicator blinking?

The TV has gone into shutdown mode to protect itself. Try unplugging

it for a few minutes and connecting it again. If there was a temporary

power surge on the AC line it may now be OK. If the blinking returns,

call 1-877-95VIERA (U.S.A.) or 1-866-330-0014 (Canada).

Why do some small spots on

the screen remain bright or

dark?

The LCD panel is made up of a few million pixels and is

produced with advanced technology through an intricate

process. Sometimes a few pixels may be bright or dark.

These pixels do not indicate a defective panel and will have

no impact on the performance of the TV.

tc_L3232c_eng_0608.indb 42tc_L3232c_eng_0608.indb 42 2010/12/24 13:40:232010/12/24 13:40:23

Support Information

Frequently Asked Questions

Questions Answers

Sound Other

Why is there no sound coming

from the TV?

Make sure the volume is up and MUTE is off.

Confirm the TV speakers are set to ON by pressing MENU

and selecting “Audio” --> “Advanced audio”. (p.32)

Check that the correct SAP (Secondary Audio Program) is

selected by pressing the SAP button on the remote control. (p.15)

If the TV is connected to a Panasonic Home Theater via

HDMI cable, then check VIERA Link controls. (p.22)

If the TV is connected to a Home Theater via optical cable,

then: Check the connection, the audio system is on, the

correct input is selected.

Check “HDMI 1 in” or “HDMI 2 in” analog/digital audio

settings. (p. 32)

Why is the sound unusual,

distorted, low volume or in

another language?

Check that the correct SAP (Secondary Audio Program) is

selected by pressing the SAP button on the remote control.

Check that all connections of external equipment

connected to the TV are secure.

When using Cable or Satellite box, check the device’s audio

settings. (example: try changing the box’s Audio Range to ‘narrow’)

Why is there a clicking, ticking

or buzzing sound coming from

the TV unit?

When TV power is turned on or shut off there are electrical

components that make a click sound. This is normal operation.

Changes in the temperature and humidity of the room may

cause thermal expansion and contraction that can produce

sounds. This is not a sign of faulty operation or a malfunction.

What is the easiest and best

way to connect a High-Definition

Cable or Satellite box to the TV?

Use an HDMI cable. It carries both digital video and audio

signal in HD. HDMI cable is the only cable needed to

connect an HD device to the TV.

Why is there no yellow jack

(video 1 input) on the back of

the TV?

The Video 1 input is shared with the Component input.

Just connect the yellow plug into the green jack. Be sure to

connect the red and white audio plugs into the appropriate

red and white audio inputs. (p. 10)

Why does the CC button not

display Closed Caption?

When viewing TV via an HDMI connected device, such as

a Cable or Satellite box, CC must be enabled at the device.

Closed Caption is available only at supported TV programming.

Why does the screen and back

cover of the TV get warm?

The main unit radiates heat and some of the parts may

become hot. This is normal operation and does not affect

the performance of the set.

Ensure good ventilation.

Do not block the ventilation holes of the TV and do not

place the TV on top of other equipment.

Why doesn’t the Remote

Control work?

Check that the batteries are fresh, are of the same type

and are installed with the correct polarity (+ & -).

To operate other devices, such as changing channels when

using Cable or Satellite boxes or operating non-Panasonic

Blu-ray players, use the remote supplied with the device.

Why is the “ANT/Cable” option

at the top of the “Input select”

menu gray-out and cannot be

selected?

During “First time setup”, step 3, you indicated that the

“Antenna/Cable in” connector is “not used” (p.13). This is the

proper setting if the TV is connected to a Cable or Satellite

box via any of the other inputs. To re-activate the “ANT/

Cable” input, press MENU, select SETUP and then redo the

First time setup, selecting Cable or Antenna in step 3.

Some menu items are grayed-

out and cannot be selected.

Why?

Depending on certain modes or the selected input, some

options are not available. For example, Zoom adjustments are

only available when the FORMAT is changed to zoom mode.

tc_L3232c_eng_0608.indb 43tc_L3232c_eng_0608.indb 43 2010/12/24 13:40:232010/12/24 13:40:23

Index

A Accessories ............................................................. 7

ANT/Cable ....................................................... 13, 28

Antenna ............................................................. 9, 13

Audio ...................................................................... 32

Audio, Advanced .................................................... 32

Auto Power ON ...................................................... 34

Auto Program ......................................................... 28

B Battery ..................................................................... 8

Blinking LED .......................................................... 42

C Cable ................................................................. 9, 10

Care & Cleaning .................................................... 40

CC Closed Caption .................................... 15, 33, 38

Channel ...........................................13, 15-16, 28-29

Channel Surf Mode .......................................... 16, 34

Clock ...................................................................... 14

Colored buttons ......................................................11

Component ...................................................... 10, 41

Composite .............................................................. 10

Connections ........................................................ 9-10

Customer Services Directory ................................. 46

E ECO/energy ..................................................... 18, 34

Exit ..........................................................................11

F FAQ’s ................................................................ 42-43

Favorite .................................................................. 16

First Time Setup .......................................... 12-14, 34

Format ............................................................. 16, 36

H HDAVI Control ........................................................ 22

HDMI .......................................................... 10, 38, 41

Home use .............................................................. 12

I Image Viewer Auto ................................................. 34

Info ......................................................................... 15

Input ....................................................................... 19

L Language ......................................................... 12, 34

Last .........................................................................11

Lock / Parental control ..................................... 33, 35

M Menu ...................................................................... 30

Mute ........................................................................11

P Pedestal ............................................................... 7, 8

Photo ................................................................ 20-21

Picture, Advanced .................................................. 32

Picture settings ...................................................... 31

Power ......................................................................11

R Remote control .......................................................11

Reset ..................................................................... 34

S Safety ....................................................................... 4

SAP ........................................................................ 15

Scan ................................................................. 13, 28

SD Card ........................................................... 20, 37

Signal Meter ........................................................... 29

Sleep ...................................................................... 32

Specifications ......................................................... 41

Store Demonstration .............................................. 12

Sub menu .............................................................. 16

T Technical Information ........................................ 36-39

Timer ...................................................................... 32

V VIERA IMAGE VIEWER ........................................ 20

VIERA Link .................................................. 18, 22-27

VIERA TOOLS ....................................................... 18

Viewing Photos ...................................................... 20

Volume ....................................................................11

W Warranty .......................................................... 45, 47

Watching TV, DVD, Blu-ray, etc. ...................... 15, 19

Z Zoom ................................................................ 16, 36

tc_L3232c_eng_0608.indb 44tc_L3232c_eng_0608.indb 44 2010/12/24 13:40:232010/12/24 13:40:23

Support Information

Limited Warranty (for U.S.A. and Puerto Rico only)

Index

PANASONIC CONSUMER ELECTRONICS COMPANY,

DIVISION OF:

PANASONIC CORPORATION OF NORTH AMERICA

One Panasonic Way

Secaucus, New Jersey 07094

Panasonic LCD Televisions

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics

Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with

the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts,

(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to

repair, replace or refund will be made by the warrantor.

LCD TV CATEGORIES PARTS LABOR SERVICE

Up to 42” (diagonal) 1 (ONE) YEAR 1 (ONE) YEAR Carry-In

46” (diagonal) and larger On-Site

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will

be no charge for parts.

You must carry-in your product or arrange for on-site service during the Limited warranty period. If non-rechargeable

batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the

United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not

sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.

On-Site or Carry-in Service

For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372)

On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer and

does not include removal or re-installation of an installed product. It is possible that certain on-site repairs will not be

completed on-site, but will require that the product or parts of the product, at the servicer’s discretion be removed for shop

diagnosis and/or repair and then returned.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal

wear and tear or cosmetic damage, nor does it cover markings or retained images on the LCD panel resulting from

viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TV’s, or

onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER damages which occurred in

shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents,

misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments,

misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or

commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone

other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.

THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes

damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the

servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,

INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED

WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have others rights which vary from state to state.

If a problem with this product develops during or after the warranty period, you may contact your dealer or

Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs

Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH

ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

Limited Warranty (for U.S.A. and Puerto Rico only)

tc_L3232c_eng_0608.indb 45tc_L3232c_eng_0608.indb 45 2010/12/24 13:40:232010/12/24 13:40:23

Customer Services Directory (for U.S.A. and Puerto Rico)

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center;

purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web

Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-877-95-VIERA (958-4372)

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

Ŷ For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web

Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

npcparts@us.panasonic.com

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)

Panasonic Service and Technology Company

20421 84th Avenue South,

Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

Ŷ For hearing or speech impaired TTY users, TTY: 1-866-605-1277

tc_L3232c_eng_0608.indb 46tc_L3232c_eng_0608.indb 46 2010/12/24 13:40:232010/12/24 13:40:23

Support Information

Limited Warranty (for Canada)

Customer Services Directory (for U.S.A. and Puerto Rico)

Limited Warranty (for Canada)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and

for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with

new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase

price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Viera TV (42” & over) In-home service One (1) year, parts (including panel) and labour.

Viera TV (under 42”) Carry-in service One (1) year, parts (including panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic

service facility.

In-home service requires clear, complete and easy access to the product by the Authorized Servicer and does not include

removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of

the Servicer and in no event will Panasonic Canada Inc. or the Servicer be liable for any special, indirect or consequential

damages.

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic

brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada,

which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR

OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS

REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal

wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or

failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,

misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment

of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,

humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or

service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are

also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY

EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the

Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is

not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or

the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives

you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: 1-800 #: 1-866-330-0014

Email link: “Contact us ĺ email” on www.vieraconcierge.ca

For product repairs, please contact Viera Customer Care Agent using the above contact info.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

tc_L3232c_eng_0608.indb 47tc_L3232c_eng_0608.indb 47 2010/12/24 13:40:232010/12/24 13:40:23

TC-L3232C

32" LCD HDTV

Dimensions (W x H x D) 30.7" (779 mm) x 21.0" (531 mm) x 8.2" (207 mm)

(Including TV stand)

30.7" (779 mm) x 19.6" (497 mm) x 3.4" (85 mm)

(TV Set only)

Mass 22.0 lb. (10.0 kg) (Including TV stand)

20.0 lb. (9.0 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz

Rated Power Consumption 106 W

Standby condition 0.3 W

SPECIFICATIONS

DIMENSIONS JACKS

Top View

Front View

Back View

Note:

To make sure that the LCD TV fits the cabinet properly when a high degree of precision

is required, we recommend that you use the LCD TV itself to make the necessary

cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet

design or manufacture.

Specifications are subject to change without notice.

Non-metric weights and measurements are

approximate.

Side View

Rear Panel

P110120

7.9 (200)

21 (531)

8.2 (207)

2.9 (73)

30.7 (779)

19.6 (497)

3.4 (85)

13.8 (350)

Side Panel

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in

the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid

in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Anotación del cliente

El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el espacio

provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su adquisición,

para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para disponer de los

servicios que le ofrece la garantía.

Modelo Número de serie

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus

New Jersey 07094 U.S.A.

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3 CANADA

M1210-0

This product has a fluorescent lamp that contains mercury.

Disposal may be regulated in your community due to environmental

considerations. For disposal or recycling information, please contact your

local authorities, or the Electronic Industries Alliance:

http://www.eiae.org.

Este producto tiene una lámpara fluorescente que contiene mercurio.

Debido a consideraciones ambientales, puede que deshacerse de este

material esté regulado en su comunidad. Para obtener información sobre

cómo deshacerse o reciclar este material, póngase en contacto con las

autoridades de su localidad o con Electronics Industries Alliance:

http://www.eiae.org.

tc_L3232c_eng_0608.indb H4tc_L3232c_eng_0608.indb H4 2010/12/24 13:40:022010/12/24 13:40:02

Panasonic TC L3232C L3232C_EN+SP User Manual To The 3c66cc4a 956e 473c Acbc A7d820d0c3e7

Navigation menu

Versions of this User Manual:

Views

Navigation
