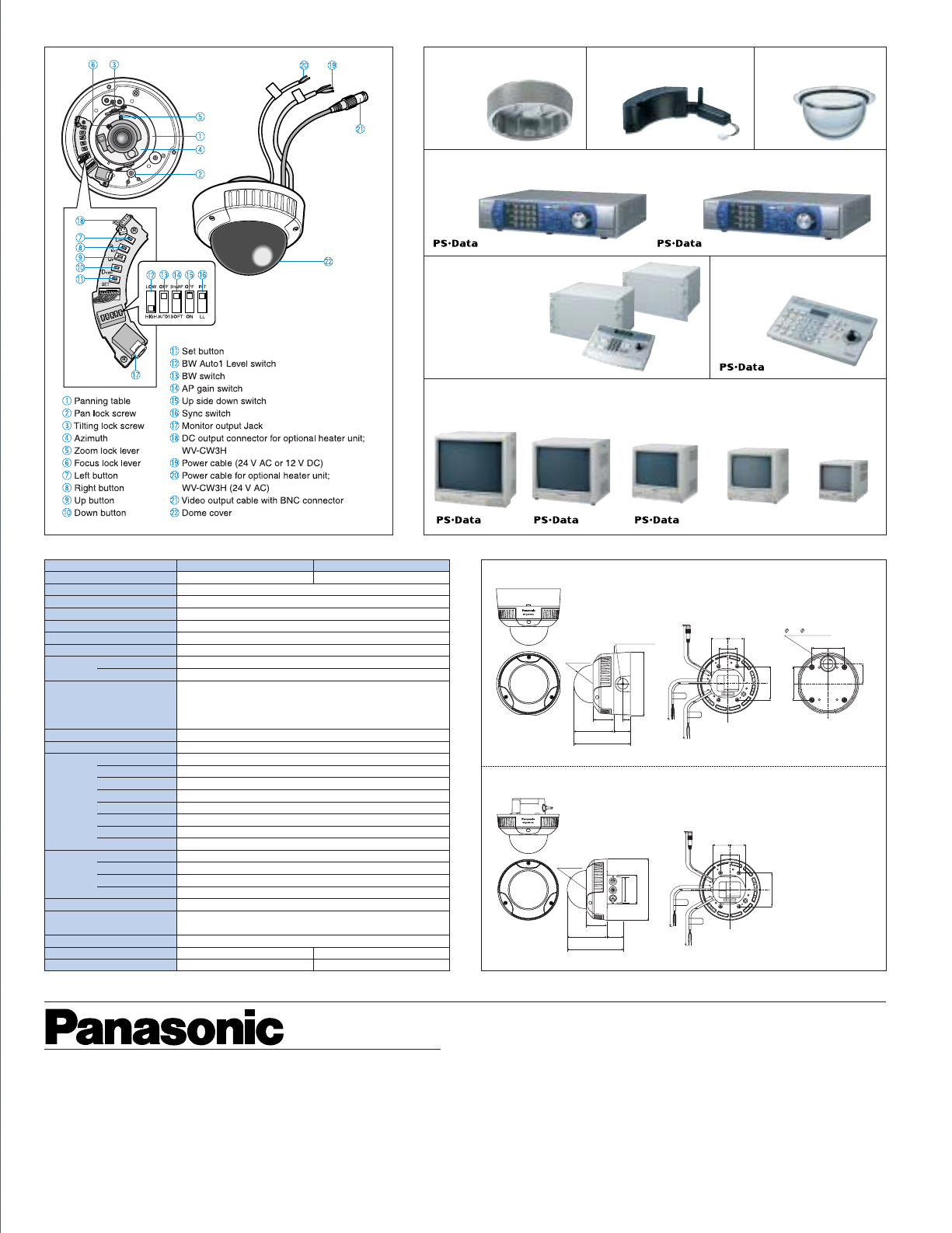

MAJOR OPERATING CONTROLS OPTIONAL COMPONENTS & ACCESSORIES
Mounting Base for WV-CW474AF
WV-Q112
Heater Unit
WV-CW3H
Clear Dome Cover
WV-CW2C
Digital Disk Recorders
WJ-HD316(16ch) WJ-HD309(9ch)
SPECIFICATIONS APPEARANCE
WV-CW474AS (Surface mount type)
Unit: mm (inches)
Model No. WV-CW474AS WV-CW474AF
Type Surface mount type Flush mount type
Pick Up Device 768 (H) x 494 (V) pixels, interline transfer CCD
Scanning Area 4.8 (H) x 3.6 (V) mm, (Equivalent to 1/3" tube)
Scanning 525 lines / 60 fields / 30 frames
Scanning System 2 : 1 interlace
Synchronization Internal / Line-Lock / VD2
Video Output VBS 1.0V [p-p] / 75 Ω/ NTSC composite signal / BNC connector
Resolution Horizontal
510 lines (at High) and 480 lines at color imaging mode, 570 lines at B/W mode
Vertical more than 350 lines
Minimum Illumination 2.0 lux (0.2 fc) at color imaging mode
(at F1.4 Wide) 0.2 lux (0.02 fc) at B/W mode
0.8 lux (0.08 fc) at color imaging mode, with optional dome cover; WV-CW2C
0.1 lux (0.01 fc) at B/W mode, with optional dome cover; WV-CW2C
Signal to Noise Ratio 50dB (at AGC Off, Weight On, AP On)
Dynamic Range 46dB (typical)
Functions Camera Title 16 character display (alphabet, numeric, symbols)
Light Control ALC mode
Super Dynamic II On / Off
Electronic Shutter
Off, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec.
AGC On (High / Mid / Low) / Off
Electronic Sensitivity Up
Off, Auto (x2, x4, x6, x10), Fix (x2, x4, x6, x10, x16, x32)
White Balance ATW 1 / ATW 2 / AWC
Motion Detector On / Off
Lens Type 2x variable focal lens
Focal Length 3.8 ~ 8.0 mm
Aperture Ratio F1.4 (Wide) to F176, close / F1.8 (Tele) to F176, close
Min. Object Distance
1.2 m (3.9 ft) - ∞
Power Source and Consumption
24V AC 60Hz; 3.4W 12V DC; 335mA (12.1W optional Heater Unit; WV-CW3H only)
Ambient Operating Temperature
–10°C ~ +50°C (14°F ~ 122°F)
[–30°C ~ +50°C (–22°F ~ 122°F) with optional Heater Unit (WV-CW3H)]
Ambient Operating Humidity Less than 90%
Dimensions (D) x (H) mm ø160 x 140.5 (ø6-5/16" x 5-9/16") ø152.5 x 137 (ø6 x 5-3/8")
Weight (approx.) 1.7 kg (3.8 lbs.) 1.2 kg (2.7 lbs.)
ø160(ø6-5/16")
140.5(5-9/16
")
99(3-7/8
"
)
41.5 (1-5/8")
19 (
3/4"
)
51.5(2-1/32")
85(3-3/8")
85(3-3/8")
51(2")
27( 1-1/16")
46(1-13/16")
42.5
(1
-11/16"
)
39.5
(
1-9/16"
)
270(10-5/8")
270(10-5/8")
270
(10-5/8")
83.5(3-5/16")
SR47.5
(NPSM 3/4)
WV-CW474AF (Flush mount type)
SR47.5
ø152.5(ø6")
72(2-13/16")
64(2-1/2")
46(1-13/16")
42.5
(1-11/16")
39.5
( 1-9/16")
270(10-5/8")
270(10-5/8")
270
(10-5/8")
83.5(3-5/16")
137(5-3/8
"
)
99(3-7/8
"
)38 (1-1/2
"
)
51.5(2-1/32")
MATRIX SYSTEM 500
Matrix Switcher
WJ-SX550C
Card Cage
WJ-AD550
System Controller
WV-CU550C
System Controller
WV-CU360C
WV-CM1780
41cm (16")
Color Monitors
WV-CM2080
51cm (20")
WV-CM1020
22cm (9")
WV-CM1420
34cm (13")
WV-CM1480
36cm (14")

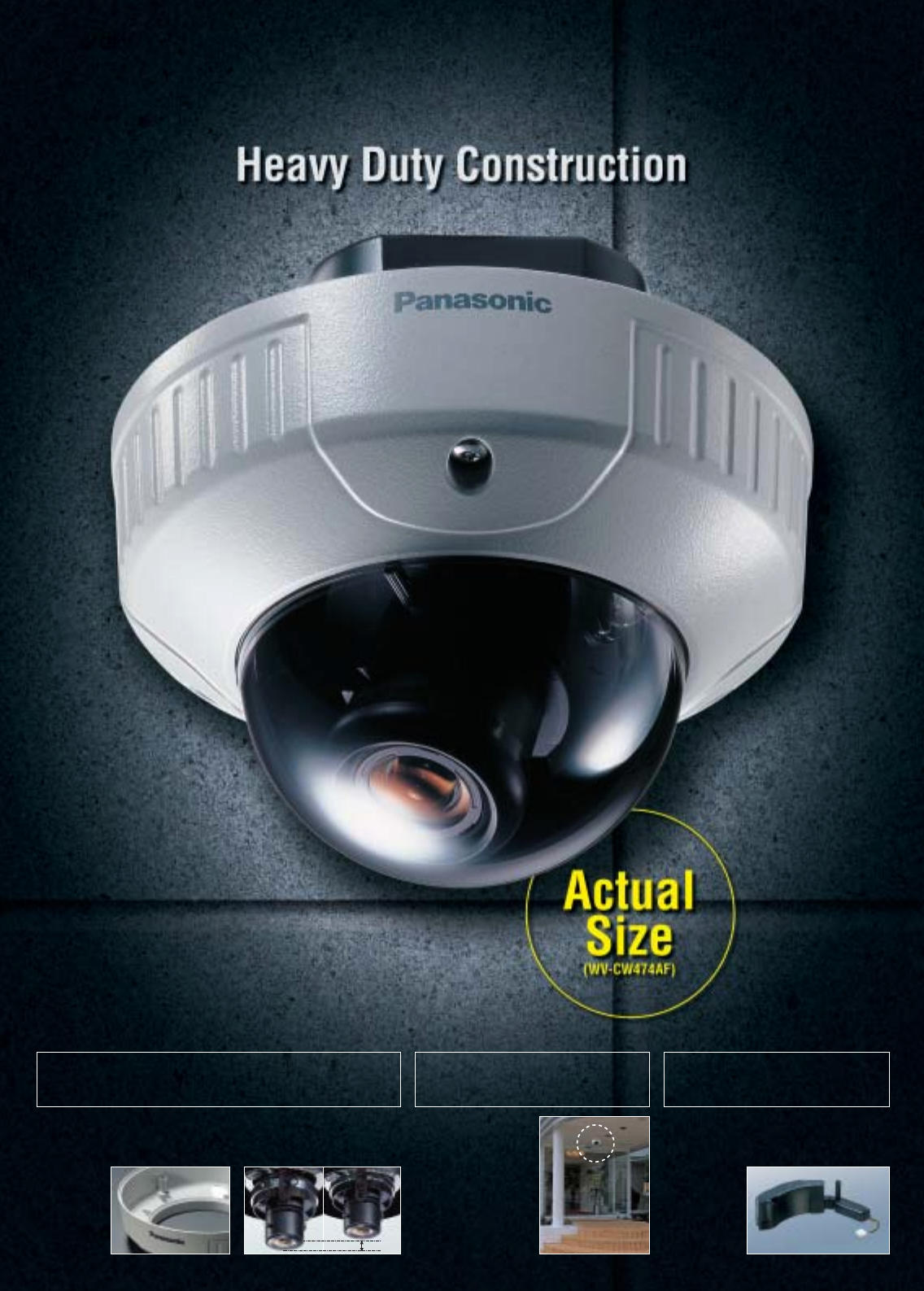

With a body made of die-cast
aluminum and a dome made of 3.5mm
thick polycarbonate, these cameras
are tough
enough to
resist severe
shocks.
The camera lens unit has a
spring structure, so the chassis
can withstand external shocks.
Meet IP66 international
standards. With
excellent dust and
moisture resistant
capabilities these
cameras can be used
outdoors, under
building eaves.
The optional heater unit adjusts
automatically to temperature fluctuations,
helping to prevent dew condensation.
Die-cast aluminum body
Shock Resistant
IP66 approved
Rain and Wind Resistant
Heater Unit: WV-CW3H (Optional)
Ideal for Varying Temperatures
Printed in Japan
WV-JHCW474AC(2P-492B)
DISTRIBUTED BY:
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 (809) 750-4300
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems Group
http://www.panasonic.com/security
Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
Zone Office
Eastern : Three Panasonic Way, Secaucus, New Jersey 07094 (201) 348-7303
Central : 1707 N.Randal Road, Elgin, IL 60123 (847) 468-5205
Western : 6550 Katella Ave., Cypress, CA 90630 (714) 373-7840
Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
Vandal Proof
Super Dynamic II Color Cameras
(with Low-Light B/W Mode)
WV-CW474A Series
The Easy to Install
Vandal Proof
Weather Proof
Camera Solution
MAJOR OPERATING CONTROLS OPTIONAL COMPONENTS & ACCESSORIES
Mounting Base for WV-CW474AF
WV-Q112
Heater Unit
WV-CW3H
Clear Dome Cover
WV-CW2C
Digital Disk Recorders
WJ-HD316(16ch) WJ-HD309(9ch)
SPECIFICATIONS APPEARANCE
WV-CW474AS (Surface mount type)
Unit: mm (inches)
Model No. WV-CW474AS WV-CW474AF
Type Surface mount type Flush mount type
Pick Up Device 768 (H) x 494 (V) pixels, interline transfer CCD
Scanning Area 4.8 (H) x 3.6 (V) mm, (Equivalent to 1/3" tube)
Scanning 525 lines / 60 fields / 30 frames
Scanning System 2 : 1 interlace
Synchronization Internal / Line-Lock / VD2
Video Output VBS 1.0V [p-p] / 75 Ω/ NTSC composite signal / BNC connector
Resolution Horizontal
510 lines (at High) and 480 lines at color imaging mode, 570 lines at B/W mode
Vertical more than 350 lines
Minimum Illumination 2.0 lux (0.2 fc) at color imaging mode
(at F1.4 Wide) 0.2 lux (0.02 fc) at B/W mode
0.8 lux (0.08 fc) at color imaging mode, with optional dome cover; WV-CW2C
0.1 lux (0.01 fc) at B/W mode, with optional dome cover; WV-CW2C
Signal to Noise Ratio 50dB (at AGC Off, Weight On, AP On)
Dynamic Range 46dB (typical)
Functions Camera Title 16 character display (alphabet, numeric, symbols)
Light Control ALC mode
Super Dynamic II On / Off
Electronic Shutter
Off, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec.
AGC On (High / Mid / Low) / Off
Electronic Sensitivity Up
Off, Auto (x2, x4, x6, x10), Fix (x2, x4, x6, x10, x16, x32)
White Balance ATW 1 / ATW 2 / AWC
Motion Detector On / Off
Lens Type 2x variable focal lens
Focal Length 3.8 ~ 8.0 mm
Aperture Ratio F1.4 (Wide) to F176, close / F1.8 (Tele) to F176, close
Min. Object Distance
1.2 m (3.9 ft) - ∞
Power Source and Consumption
24V AC 60Hz; 3.4W 12V DC; 335mA (12.1W optional Heater Unit; WV-CW3H only)
Ambient Operating Temperature
–10°C ~ +50°C (14°F ~ 122°F)
[–30°C ~ +50°C (–22°F ~ 122°F) with optional Heater Unit (WV-CW3H)]
Ambient Operating Humidity Less than 90%
Dimensions (D) x (H) mm ø160 x 140.5 (ø6-5/16" x 5-9/16") ø152.5 x 137 (ø6 x 5-3/8")
Weight (approx.) 1.7 kg (3.8 lbs.) 1.2 kg (2.7 lbs.)
ø160(ø6-5/16")
140.5(5-9/16
")
99(3-7/8
"
)
41.5 (1-5/8")
19 (
3/4"
)
51.5(2-1/32")
85(3-3/8")
85(3-3/8")
51(2")
27( 1-1/16")
46(1-13/16")
42.5
(1
-11/16"
)
39.5
(
1-9/16"
)
270(10-5/8")
270(10-5/8")
270
(10-5/8")
83.5(3-5/16")
SR47.5
(NPSM 3/4)
WV-CW474AF (Flush mount type)
SR47.5
ø152.5(ø6")
72(2-13/16")
64(2-1/2")
46(1-13/16")
42.5
(1-11/16")
39.5
( 1-9/16")
270(10-5/8")
270(10-5/8")
270
(10-5/8")
83.5(3-5/16")
137(5-3/8
"
)
99(3-7/8
"
)38 (1-1/2
"
)
51.5(2-1/32")
MATRIX SYSTEM 500
Matrix Switcher
WJ-SX550C
Card Cage
WJ-AD550
System Controller
WV-CU550C
System Controller
WV-CU360C
WV-CM1780
41cm (16")
Color Monitors
WV-CM2080
51cm (20")
WV-CM1020
22cm (9")
WV-CM1420
34cm (13")
WV-CM1480
36cm (14")
With a body made of die-cast
aluminum and a dome made of 3.5mm
thick polycarbonate, these cameras
are tough
enough to
resist severe
shocks.
The camera lens unit has a
spring structure, so the chassis
can withstand external shocks.
Meet IP66 international
standards. With
excellent dust and
moisture resistant
capabilities these
cameras can be used
outdoors, under
building eaves.
The optional heater unit adjusts
automatically to temperature fluctuations,
helping to prevent dew condensation.
Die-cast aluminum body
Shock Resistant
IP66 approved
Rain and Wind Resistant
Heater Unit: WV-CW3H (Optional)
Ideal for Varying Temperatures
Printed in Japan
WV-JHCW474AC(2P-492B)
DISTRIBUTED BY:
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 (809) 750-4300
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems Group
http://www.panasonic.com/security
Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
Zone Office
Eastern : Three Panasonic Way, Secaucus, New Jersey 07094 (201) 348-7303
Central : 1707 N.Randal Road, Elgin, IL 60123 (847) 468-5205
Western : 6550 Katella Ave., Cypress, CA 90630 (714) 373-7840
Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
Vandal Proof
Super Dynamic II Color Cameras
(with Low-Light B/W Mode)
WV-CW474A Series
The Easy to Install
Vandal Proof
Weather Proof
Camera Solution
Digital Motion Detector senses
movement and sends an alarm signal
When the Motion Detector
senses movement in the
monitored image, it automatically
sends an alarm signal to the
system. When linked to a
recording device, it provides an
efficient way to avoid missed
images. Extension Unit WJ-HDE300 x 3
Digital Disk Recorder WJ-HD316
PC
PC
WV-CS854B x 8 WV-CW474A Series x 8
WV-CU360C
System Controller
Color Monitor
PS-Data Link
Color Monitor
Ethernet
(10Base-T/100Base-TX Cable)
LAN/WAN
Internet
+

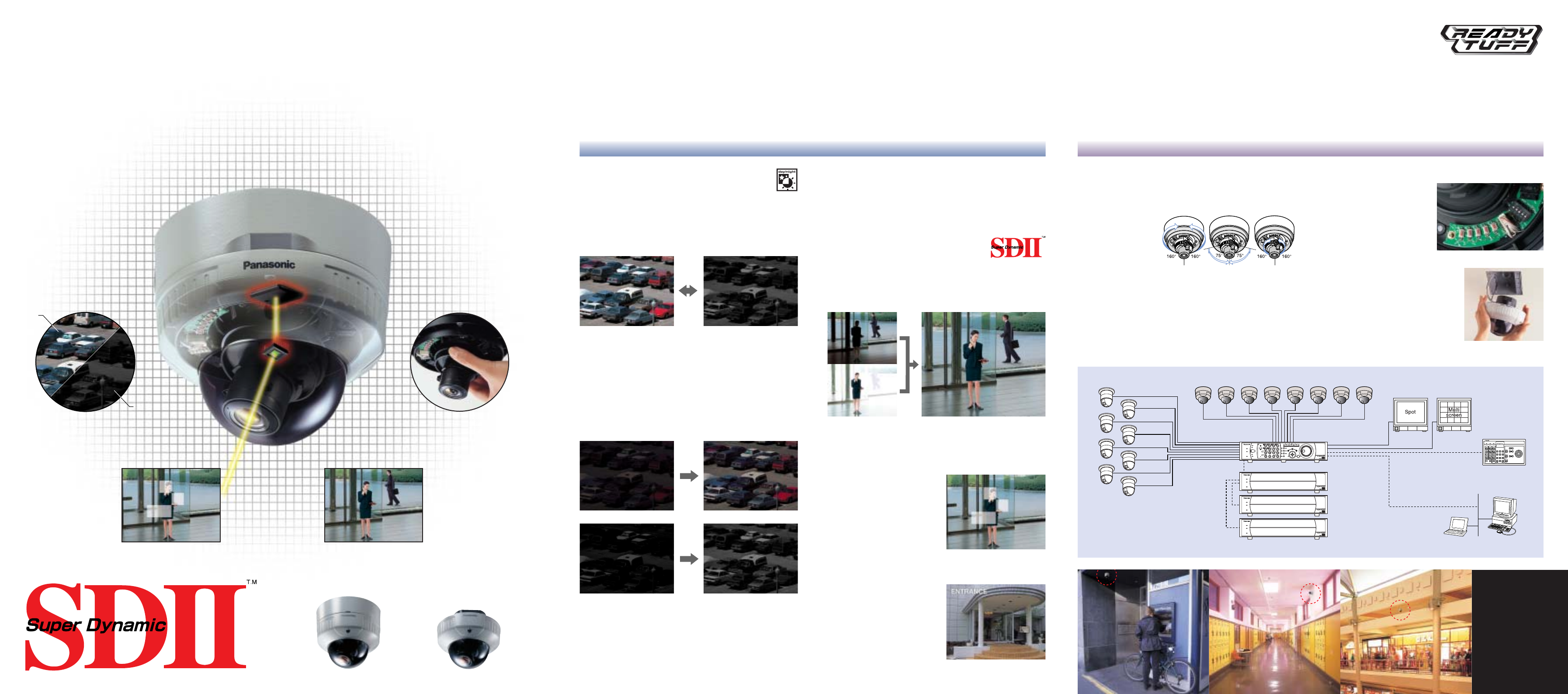

Panasonic's new Vandal Proof Super Dynamic II Color Cameras. The WV-CW474A Series are not only rugged and loaded with
high-performance features, they are also easy to install. Highly resistant to dust, moisture and shock these units satisfy international
standards. The WV-CW474A Series include high image quality, increased sensitivity, day/night switching for 24-hour surveillance and
a multi-function motion detector. Free from conventional limitations on placement, application and objective, these multipurpose color
cameras are ideal for numerous surveillance applications.
SYSTEM EXAMPLE
For single-camera
24-hour surveillance
Day/Night Switching
Senses motion
and sends alarm signal
Motion Detector
Versatile attachment
with Unlimited Positioning
3-Dimensional Hinges
Day (Color mode)
Night (B/W mode) at low-light condition
*With optional clear dome cover; WV-CW2C
Single-camera 24-hour surveillance
Day/Night Switching
To allow 24-hour surveillance, these cameras (in high-
sensitivity mode) sense darkness and switch automatically from
daytime color to nighttime black-and-white with duration and
timer setting to meet exact installation requirements. They can
also be switched from color to black-and-white manually.
Proprietary 3-D hinge makes adjustments easy
The 3-dimensional hinge (Pan, Tilt and Azimuth) allows the
camera to be rotated as well as moved horizontally and
vertically. Digital signal processing allows the image itself to be
shifted up, down, left,
right, or inverted.
Choose precisely the
camera angle you
need; no camera
makes it easier.
Accepts both 24V AC and 12V DC power
in a single unit
WV-CW474A Series accept both 24V AC and 12V DC with a
single cable terminal. This unique capability enables simple
model selection and easy installation.
With Super Dynamic II ,
backlighting is no problem
With a 64 times dynamic range, Panasonic's proprietary Super
Dynamic II processing yields clear images even in high-
contrast or backlit lighting situations.
Current
WV-CW474A Series at color imaging
Current
WV-CW474A Series at B/W mode
Full-color images at 0.8lux* (0.08fc*)
Black-and-white images at 0.1lux* (0.01fc*)
These cameras support full-color surveillance in low-light
situations like this parking lot, switching to black-and-white
allows surveillance in light as low as 0.1lux (0.01fc) with
optional clear dome cover; WV-CW2C. IR response down to
0.00lux is valid. 10x auto electronic sensitivity up is also
supported (in fixed mode 32x available).
Set the lens aperture to the bright section,
and the dark section is invisible.
Set the lens aperture to the dark section,
and the bright section is invisible.
Digital signal technology allows images with
high contrast to be seen on screen.
Character displays title
The monitor can display title up
to 16 roman letters or numbers.
By allowing instant identification
of pre-set camera locations,
this feature can help prevent
errors during emergency
situations.
Basic settings couldn’t be simpler
Simple dipswitches control
Soft/Sharp, Day/Night:
Off/Auto and other basic
settings. A compact monitor-
out terminal with a small liquid
crystal display allows you to
check settings on the spot.
Easily installs in existing
electronic junction box
The Flush Mount Type WV-CW474AF
can be installed in existing two gang
junction box.
High Performance in a Rugged Body. With All the Features You Need for a Wide Variety of
Surveillance Applications.
at Shopping mall/Building/Officeat ATMs/Banks/Jewelry Shops
•At Hospitals
•At Day Care
Centers
•At Courthouses
•At Correctional
Facilities
•At Warehouses
•And many more
at Campus
Surface Mount Type
WV-CW474AS
Two Types to Choose From
For direct attachment
to walls, ceilings,
eaves
For insertion in existing
junction box
64 times dynamic range
Super Dynamic
II
(Turns white only in demo mode)
Feature Loaded & Simple to Install
Day/Night
switching
Feature Loaded Simple to Install
Photographs were taken for the purpose of explanation; actual images may differ.
510-line horizontal resolution in color mode
Equipped with a powerful 768(H) x 494(V) 1/3-type CCD,
these cameras deliver beautifully clear images with 510 lines
(at High) and 480 lines horizontal resolution at color imaging,
and 570 lines at B/W mode.
2x variable-focal lens is
standard equipment
Equipped with a 2x variable-focal lens plus an additional 2x
electronic zoom, these cameras can view their subjects in
greater details.
Night
Day
at ATMs/Banks/Jewelry Shops at Campus at Shopping mall/Building/Office
Pan 320 degrees Tilt 150 degrees Azimuth 320 degrees
Flush Mount Type
WV-CW474AF

Navigation menu
