Operating Instructions

LCD Video Monitor

F0308T0 -P

Printed in Japan VQT1R47

ENGLISH

D

Model No. BT-LH1760P

Model No. BT-LH1760E

Before operating this product, please read the instructions carefully and save this manual for future use.

2

indicates safety information.

■THIS EQUIPMENT MUST BE GROUNDED

To ensure safe operation, the three-pin plug must be

inserted only into a standard three-pin power outlet

which is effectively grounded through normal

household wiring. Extension cords used with the

equipment must have three cores and be correctly

wired to provide connection to the ground. Wrongly

wired extension cords are a major cause of fatalities.

The fact that the equipment operates satisfactorily

does not imply that the power outlet is grounded or that

the installation is completely safe. For your safety, if

you are in any doubt about the effective grounding of

the power outlet, please consult a qualified electrician.

CAUTION:

THE MAINS PLUG OF THE POWER SUPPLY CORD

SHALL REMAIN READILY OPERABLE.

THE AC RECEPTACLE (MAINS SOCKET OUTLET)

SHALL BE INSTALLED NEAR THE EQUIPMENT

AND SHALL BE EASILY ACCESSIBLE. TO

COMPLETELY DISCONNECT THIS EQUIPMENT

FROM THE AC MAINS, DISCONNECT THE POWER

CORD PLUG FROM THE AC RECEPTACLE.

WARNING:

• TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE.

• TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, KEEP THIS EQUIPMENT AWAY

FROM ALL LIQUIDS. USE AND STORE ONLY

IN LOCATIONS WHICH ARE NOT EXPOSED

TO THE RISK OF DRIPPING OR SPLASHING

LIQUIDS, AND DO NOT PLACE ANY LIQUID

CONTAINERS ON TOP OF THE EQUIPMENT.

CAUTION:

In order to maintain adequate ventilation, do

not install or place this unit in a bookcase,

built-in cabinet or any other confined space. To

prevent risk of electric shock or fire hazard due

to overheating, ensure that curtains and any

other materials do not obstruct the ventilation.

CAUTION:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD AND ANNOYING INTERFERENCE, USE

THE RECOMMENDED ACCESSORIES ONLY.

CAUTION:

This apparatus can be operated at a voltage in the

range of 100 - 240 V AC. Voltages other than 120 V

are not intended for U.S.A. and Canada.

CAUTION:

Operation at a voltage other than 120 V AC may

require the use of a different AC plug. Please contact

either a local or foreign Panasonic authorized service

center for assistance in selecting an alternate AC plug.

CAUTION:

• Keep the temperature inside the rack to

between 41°F to 95°F (5°C to 35°C).

• Bolt the rack securely to the floor so that it

will not topple over.

CAUTION:

Excessive sound pressure from earphones and

headphones can cause hearing loss.

WARNING:

Installation should only be performed by qualified

installation personnel.

Improper installation may result in the entire

apparatus falling down and causing injury.

CAUTION:

Check the installation at least once a year.

An improper installation could cause the monitor

to fall off resulting in personal injury.

CAUTION:

Remove the wall mount adaptor when not used.

Otherwise people moving in the vicinity of the

monitor could get caught on the bracket and be

injured.

Notice (U.S.A. only):

This product has a fluorescent lamp that contains mercury. Disposal may be regulated in your community

due to environmental considerations. For disposal or recycling information, please contact your local

authorities, or the Electronic Industries Alliance: http://www.eiae.org.

Read this first ! (for BT-LH1760P)

3

FCC NOTICE (USA)

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ-

ing amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The

wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus combi-

nation to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not oper-

ate normally, or has been dropped.

Declaration of Conformity

Model Number: BT-LH1760P

Trade Name: PANASONIC

Responsible Party: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ07094

Support contact: Panasonic Broadcast & Television Systems Company

1-800-524-1448

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

To assure continued compliance, follow the attached installation instructions and do not make any unautho-

rized modifications.

Note:

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular instal-

lation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

The user may find the booklet “Something About Interference” available from FCC local regional offices helpful.

Warning:

To assure continued FCC emission limit compliance, follow the attached installation instructions and the user

must use only shielded interface cables when connecting to host computer or peripheral devices. Also, any

unauthorized changes or modifications to this equipment could void the user’s authority to operate this device.

S3125A

Read this first ! (for BT-LH1760P) (continued)

4

Read this first ! (for BT-LH1760E)

indicates safety information.

■THIS EQUIPMENT MUST BE EARTHED

To ensure safe operation, the three-pin plug

must be inserted only into a standard three-pin

power point which is effectively earthed through

normal house-hold wiring.

Extension cords used with the equipment must

have three cores and be correctly wired to

provide connection to the earth. Wrongly wired

extension cords are a major cause of fatalities.

The fact that the equipment operates

satisfactorily does not imply that the power point

is earthed or that the installation is completely

safe. For your safety, if you are in any doubt

about the effective earthing of the power point,

please consult a qualified electrician.

■DO NOT REMOVE PANEL COVERS BY

UNSCREWING THEM.

To reduce the risk of electric shock, do not

remove covers. No user serviceable parts

inside.

Refer servicing to qualified service personnel.

CAUTION:

THE MAINS PLUG OF THE POWER SUPPLY

CORD SHALL REMAIN READILY OPERABLE.

THE AC RECEPTACLE (MAINS SOCKET OUTLET)

SHALL BE INSTALLED NEAR THE EQUIPMENT

AND SHALL BE EASILY ACCESSIBLE. TO

COMPLETELY DISCONNECT THIS EQUIPMENT

FROM THE AC MAINS, DISCONNECT THE POWER

CORD PLUG FROM THE AC RECEPTACLE.

WARNING:

• TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE.

• TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, KEEP THIS EQUIPMENT AWAY

FROM ALL LIQUIDS. USE AND STORE ONLY

IN LOCATIONS WHICH ARE NOT EXPOSED

TO THE RISK OF DRIPPING OR SPLASHING

LIQUIDS, AND DO NOT PLACE ANY LIQUID

CONTAINERS ON TOP OF THE EQUIPMENT.

CAUTION:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD AND ANNOYING INTERFERENCE, USE

THE RECOMMENDED ACCESSORIES ONLY.

CAUTION:

In order to maintain adequate ventilation, do

not install or place this unit in a bookcase,

built-in cabinet or any other confined space. To

prevent risk of electric shock or fire hazard due

to overheating, ensure that curtains and any

other materials do not obstruct the ventilation.

CAUTION:

• Keep the temperature inside the rack to

between 5°C to 35°C.

• Bolt the rack securely to the floor so that it

will not topple over.

CAUTION:

Excessive sound pressure from earphones and

headphones can cause hearing loss.

WARNING:

Installation should only be performed by qualified

installation personnel.

Improper installation may result in the entire

apparatus falling down and causing injury.

CAUTION:

Check the installation at least once a year.

An improper installation could cause the monitor

to fall off resulting in personal injury.

CAUTION:

Remove the wall mount adaptor when not used.

Otherwise people moving in the vicinity of the

monitor could get caught on the bracket and be

injured

5

Read this first ! (for BT-LH1760E) (continued)

indicates safety information.

Transportation precautions

Do not expose the LCD panel to strong pressure or pressure from pointed objects. Take care especially during

transportation.

Exposing the LCD panel to strong pressure may result in blurring or other damage.

Operating precaution

Operation near any appliance which generates strong magnetic fields may give rise to noise in the video and

audio signals. If this should be the case, deal with the situation by, for instance, moving the source of the magnetic

fields away from the unit before operation.

FOR U.K. ONLY

This appliance is supplied with a moulded three pin

mains plug for your safety and convenience.

A 13 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that

the replacement fuse has a rating of 13 amps and that it

is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the

body of the fuse.

If the plug contains a removable fuse cover you must

ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used

until a replacement cover is obtained.

A replacement fuse cover can be purchased from your

local Panasonic Dealer.

Caution for AC Mains Lead

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc. and the other one is only

for U.K.

Appropriate mains cable must be used in each local area, since the other type of mains cable is not suitable.

FOR CONTINENTAL EUROPE, ETC.

Not to be used in the U.K.

FOR U.K. ONLY

How to replace the fuse

1.Open the fuse compartment with a screwdriver.

2.Replace the fuse.

Fuse

Do not try to lift the

monitor by grabbing

the panel.

Do not place the monitor face down during transportation to prevent

damaging it. Keep it upright.

6

•The LCD screen is manufactured to precise specifications. Although over 99.99% of the pixels function normally,

0.01% of the pixels are either missing or constantly lit (red, blue or green). This is normal and not a cause for

concern.

•The liquid crystal protection panel is a specially manufactured component. Wiping it with a hard cloth, or rubbing

it vigorously will scratch the surface.

•If a still image is displayed for an extended period of time, it may generate a temporary afterimage (phosphor

burn-in). (However, such images can be removed by displaying normal video for a while.)

•The response speed and brightness of liquid crystal vary with ambient temperatures.

•Let authorized service person handle installation.

Be sure to consult with the service person about the installation. Make sure that the wall is strong enough to

endure the weight of this unit including the mount fittings. If not strong enough, it may fall off resulting in injury.

•Do not install the unit in a place exposed to direct sunlight, as it may damage the cabinet and the LCD screen.

•Be sure to attach a protection panel (optional accessory) when the unit is used outdoors.

•Do not install the unit in locations where enough space cannot be provided around it as heat may build up inside

preventing normal operation. Be sure to provide enough space around the unit.

•Exposing the LCD screen to intense light sources will impair its characteristics and lower image quality.

•In an environment exposed to drastic temperature fluctuations, condensation may build up on and inside the

LCD screen. This may lower the quality of the screen and may damage it.

•Some video images may appear blurred on the screen.

•Leaving the unit in a location exposed to high temperature and humidity for an extended period of time may

damage the LCD screen and cause blurring.

Contents

Read this first ! . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Transportation precautions . . . . . . . . . . . . . . . . . . . 5

Precautions for Use . . . . . . . . . . . . . . . . . . . . . . . . 6

Standard accessories . . . . . . . . . . . . . . . . . . . . . . . 6

Optional units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Controls and Their Functions . . . . . . . . . . . . . . . . . 8

Video monitor unit ................................................... 8

Front panel ............................................................. 9

Rear panel............................................................ 10

Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

How to Use the On Screen Menu . . . . . . . . . . . . . . 12

User Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Menu configuration............................................... 17

MARKER.............................................................. 18

Marker types......................................................... 19

VIDEO CONFIG ................................................... 20

SYSTEM CONFIG................................................ 22

FUNCTION........................................................... 23

GPI ....................................................................... 29

INPUT SELECT.................................................... 30

AUDIO ................................................................... 32

DISPLAY SETUP .................................................. 33

CONTROL............................................................ 34

HOURMETER ...................................................... 34

REMOTE Specifications . . . . . . . . . . . . . . . . . . . . 36

How to Attach the Rack Mount. . . . . . . . . . . . . . . . 40

Maintenance Inspections . . . . . . . . . . . . . . . . . . . . 40

Error and Warning Displays . . . . . . . . . . . . . . . . . . 41

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Standard accessories

<For BT-LH1760P>

Operationg instructions × 1

Warranty (Card) × 1

Power cord × 1

Power cord hook × 1

Screw × 1

<For BT-LH1760E>

Operationg instructions × 1

AC mains lead × 2

AC mains lead hook × 1

Screw × 1

Optional units

Rack Mount Adaptor BT-MA1710G (Installation instructions Jpage 40)

Wall Mount Adaptor BT-WMA17G (Leave installation of the wall mount adaptor to authorized personnel.)

Protection Panel BT-PRP17G (Refer to the installation instructions in the operating instructions supplied with the

protection panel.)

Precautions for Use

7

The BT-LH1760 LCD monitor was designed especially for broadcasting service and business use. It is equipped

with a high performance 17.0-inch wide LCD display panel.

■High performance LCD panel

This monitor achieves outstanding color reproduction, a wide viewing angle, and high-speed response.

The double-speed drive in the BT-LH1760 has substantially reduced image lag.

■Immediate image output of input signals

The time-lag caused by IP field unit conversion*1 has been eliminated, and the delay from input until image

output has been suppressed to the absolute minimum.

*1 Conversion from interlace to progressive scanning.

■Multi-format image compatibility

• This monitor is equipped with SDI (HD/SD compatible), VIDEO, YPBPR/RGB, DVI-D (HDCP compatible) input jacks.

• It supports both NTSC and PAL TV broadcast systems.

■A host of functions

• Split-screen function

You can divide the screen into two windows, and compare the windows for critical color matching using the

same input terminal and same format.

• Pixel-to-pixel mode

During HD signal input, use this feature to see video in its native resolution (that is every pixel of the original

corresponds to one pixel on the screen).

• Time code display

During HD SDI input, you can select to display VITC, LTC or UB time code.

• Closed caption

During VIDEO (NTSC) input, this feature displays the closed caption information embedded in the video signal.

(EIA-608 compliant)

• Waveform and vector display

This feature shows the waveform (for SDI, VIDEO and YPBPR inputs) and vector display (for SDI input) of input signals.

• Cross hatch overlay function

Displays markers at regular vertical and horizontal intervals to facilitate composition.

■REMOTE control

Depending on the intended use of the monitor, you can select between parallel remote control (GPI) and serial

remote control (RS232C).

Dimensions

260(10.2)

30(1.2)

2-M4

178(7.0)

371.6(14.6)

430(16.9)

280(11.0)

233(9.2)

128(5.0)

16(0.6)

81.1

(3.2)

198(7.8)

70

(2.8)

72

(2.8)

16(0.6) 40

(1.6)

309(12.2)

323.5(12.7)

190(7.5)

75(3.0)15.1(0.6)

14.5(0.6)

20.5

(0.8)

223.8(8.8)

166.5(6.6)

190(7.5)75(3.0)

2-M4

100(3.9)

75(3.0)

100(3.9)

197(7.8)

75(3.0)

When installing the monitor in one place permanently, we

recommend that you fix the monitor in place using the screw

holes in the lower part of the stand.

Center

(Opening)

(Opening)

U

n

i

t: mm

(i

nc

h

es

)

Outline

8

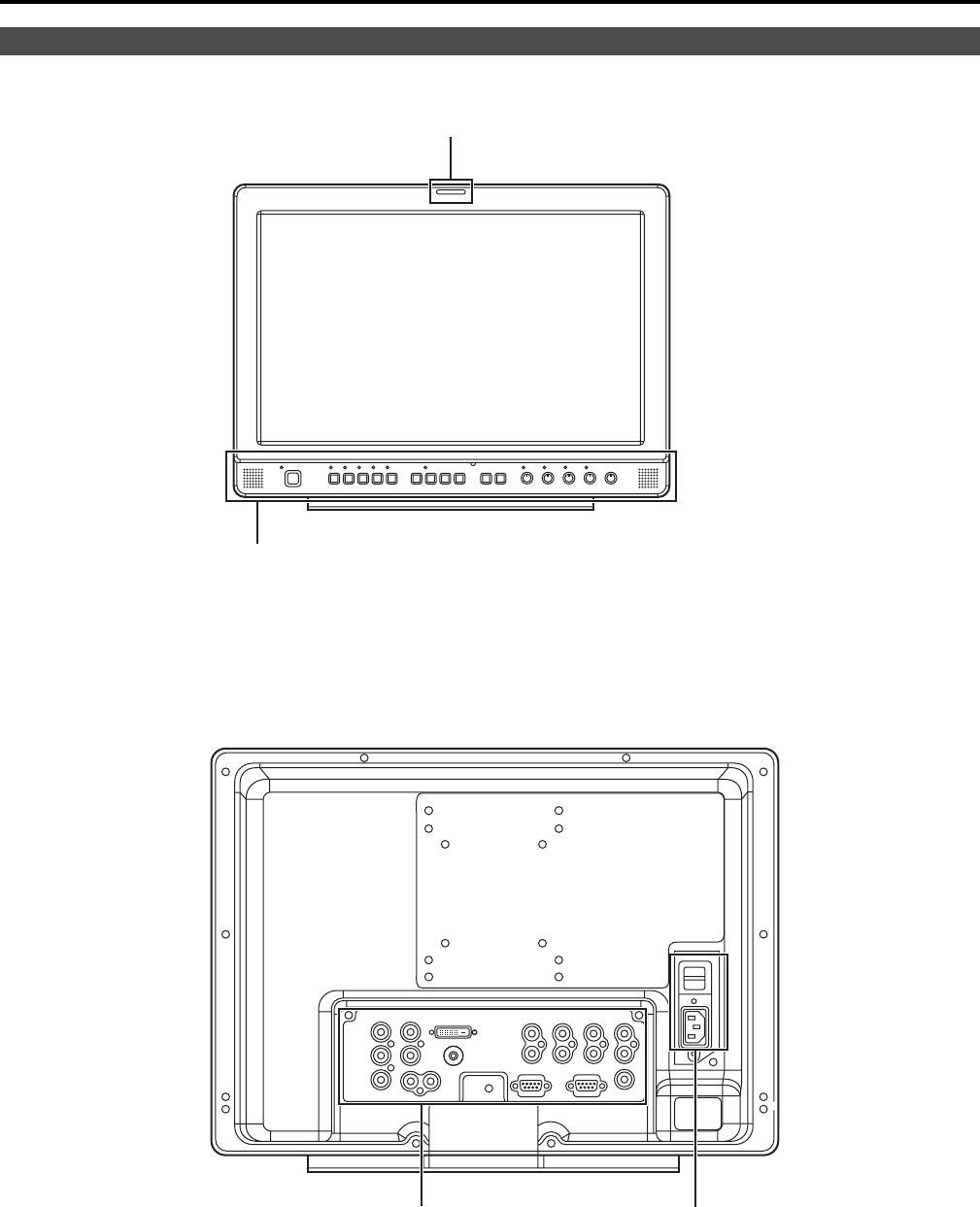

Video monitor unit

Front view

Rear view

Rear panel (Jpage 10) Power supply [you can switch between

AC and DC (Jpage 11)]

Front panel (Jpage 9)

Tal ly ( Jpage 29, 36)

Controls and Their Functions

9

POWER switch

Switches the power supply ON/OFF. When the power is ON, the LED (green) lights up.

INPUT SELECT buttons

Selects the signal input line. The green LED light above the button indicates the selected input signal.

VIDEO : Video input

SDI1 : Serial digital interface input (HD/SD compatible)

SDI2 : Serial digital interface input (HD/SD compatible)

YPBPR/RGB : Analog component (YPBPR) or RGB input. Also compatible with PC input RGB.

* When using PC Input, select “RGB-COMP.” from “YPBPR/RGB” in the “INPUT SELECT”

menu (Jpage 30).

DVI-D : DVI-D input (HDCP compatible)

* When using PC Input, select “DVI-COMP.” from “DVI-D” in the “INPUT SELECT” menu

(Jpage 30).

MENU, FUNCTION buttons

Use these buttons to display menus, select and adjust settings and confirm menu selections.

MENU : Press to open a menu, exit a menu or return to a previous menu.

/FUNCTION1 : Moves the cursor downwards and selects items.

It also confirms a menu item assigned to FUNCTION1.

/FUNCTION2 : Moves the cursor upwards and selects items.

It also confirms a menu item assigned to FUNCTION2.

ENTER/FUNCTION3 : Press to confirm a setting or to open a submenu.

It also confirms a menu item assigned to FUNCTION3.

FUNCTION4 : Confirms a menu item assigned to FUNCTION4.

FUNCTION5 : Confirms a menu item assigned to FUNCTION5.

* When the control lock is on, the key mark appears and FUNCTION does not operate.

Picture adjusting knob

PHASE 0 - 60 (30)

CHROMA 0 - 60 (30)

BRIGHT 0 - 60 (30)

CONT [CONTRAST] 0 - 60 (50) / B.LIGHT [BACKLIGHT] 0 - 60 (60)

( ) denotes factory preset values.

Turn or press this knob to display and adjust menu settings. Press the knob a second time to save settings.

When values are changed from the factory defaults, the LED above the knob (amber) lights.

Settings are loaded when the monitor is turned on. The settings are saved when the knob is pressed, or when

10 seconds have elapsed after they have been changed. However, operating changes cannot be made in the

following conditions.

* When the control lock is on, the key mark appears and setting values cannot be changed (Jpage 34).

* When the MONO function is ON (Jpage 20), [PHASE] and [CHROMA] operations are disabled.

* When using “RGB-COMP.” input or “DVI-COMP” input, [PHASE] and [CHROMA] operations are disabled.

* While operating HV DELAY (Jpage 24) (when set to any other setting than OFF), [BRIGHT] operation is disabled.

Volume knob

Turn this knob to adjust speaker and headphones volume.

Speaker

The speaker reproduces audio input from the AUDIO input terminal or SDI terminal (embedded audio).

* Connecting headphones to the HEADPHONES output connector turns off the speakers.

Front panel

Controls and Their Functions (continued)

10

SDI (HD/SD) terminal (BNC)

IN1 : This is the SDI input terminal (compatible with HD/SD automatic switching).

IN2 : This is the SDI input terminal (compatible with HD/SD automatic switching).

SWITCHED OUT : This is the active through-out terminal for the SDI input signal being displayed on the screen.

* SDI active through-out is only output when [SDI1] or [SDI2] is selected using the [INPUT SELECT] buttons.

It is not output when anything other than SDI is selected. This terminal supports embedded audio.

When multiple monitors are connected in a daisy chain* pattern using the SDI active through-out, flicker or

noise may occur on the screen, depending on the quality of the original signal, length of cables or the

number of monitors connected.

* Daisy chain connection:

This is a connection method for distributing a signal to two or more devices by connecting the through-out

terminal of the first device to an input terminal of the second device, the through-output terminal of the

second device to an input terminal of the third device, and so on.

VIDEO terminal (BNC)*1*2

IN : This is the VIDEO signal (composite signal) input terminal.

OUT : This is the input signal through-out terminal.

DVI-D terminal (DVI-D)

An HDCP compliant DVI-D signal input terminal.

YPBPR/RGB terminal (BNC)*1*2

IN : This is the YPBPR/RGB signal input terminal.

OUT : This is the input signal through-out terminal.

* When using the RGB signal, you can also connect the external synchronizing signal to the SYNC/HD

terminal. When using a PC RGB signal, connect the horizontal synchronizing signal to the SYNC/HD

terminal, and the vertical synchronizing signal to the VD terminal.

VD IN input terminal

This is the vertical synchronizing signal (VD) input terminal used when connecting to a PC RGB signal.

AUDIO input terminal (pin jack)

This is the common audio input terminal for all video input terminals.

* SDI input audio is automatically selected by selecting [SDI1] or [SDI2] with [INPUT SELECT].

HEADPHONES output connector (Stereo mini-jack M3)

Connect a pair of headphones to monitor the sound.

* The sound volume and sound quality will depend on the headphones. Note that plugging in a pair of

headphones turns off the speakers.

GPI input terminal (D-SUB 9-pin)

External control is possible by using a GPI signal.

RS232C input terminal (D-SUB 9-pin)

External control is possible by using a RS232C signal.

*1 Unless a cable is connected to the OUT terminal, the VIDEO IN terminal is automatically terminated at

75Ω. Connecting a cable releases this termination.

*2 Since a connection to the through-out terminal releases the 75Ω termination of the unit, the level of the

video signal input to the unit may become too large depending on the connected device.

Rear panel

689

12 3 4 5

7

Controls and Their Functions (continued)

11

1. Attach the power cord to the monitor unit.

2. Connect the power cord to the power outlet.

■When using external DC power (12V DC)

You can slide open the power cover, and switch from

AC input to external DC input. (When shipped from

the factory, the power cover is up, and AC input is

selected.)

Please note the followings

• If the power cover has been removed or opened, do

not use the monitor with the power supply connected

to both the AC input and external DC input terminals.

• Use a shielded DC cable that is not longer than 2 m. A

cable that is 2 m or longer may cause noise.

• Use an external 12 V DC, 7 A (10 A peak or more) DC

power supply.

Connecting and fixing the power cord

Power cord hook

Using the power cord

hook and the screw,

attach the power cord to

the monitor unit.

Power cord

Screw

When using external DC power (12 V DC), check the

external DC input terminal pin signal, and use the

correct polarity. If a +12 V power supply is accidentally

connected to the GND terminal, this could cause a fire

or personal injury.

Pin number Signal

1GND

2, 3 —

4+12V

External DC input terminal

Power cover

1

23

4

Power Supply

12

The screen displays eight types of information: input signal status, picture adjusting knob status, sharpness display,

FUNCTION display, audio level meter display, menu display, time code display and closed caption display.

1. The selected input line (Jpage 9, )

•VIDEO, SDI1, SDI2,

YPBPR/RGB-VIDEO/RGB-COMP.

DVI-VIDEO/DVI-COMP.

2. Signal format

•

Use “STATUS DISPLAY” in the “SYSTEM CONFIG”

menu to set the display status (

J

page 22).

•“UNSUPPORT SIGNAL” appears if an unsupported

signal is input. It may also indicate that the format

selected in the “INPUT SELECT” menu does not

match the input signal.

•“NO SIGNAL” appears if no signal is input.

3. Various indications (PIXEL TO PIXEL mode)

•This indicates the PIXEL TO PIXEL mode is

engaged.

4. Various indications (FILM mode)

•This indicates that “GAMMA SELECT” is set to

“FILM.”

5. Various indications (lock status)

•This indicates that the control lock is on.

Note:

“UNSUPPORT SIGNAL” and “NO SIGNAL” may not be

properly displayed.

Picture adjusting knob (Jpage 9, )

•Press or turn this knob to make adjustments.

•The status display appears when the knob is

pressed. To clear the display, press the knob again

or leave it idle for 10 seconds.

•Only adjustments that appear on the screen can be

adjusted.

•The display always appears in the same screen

location.

Display status:

PHASE, CHROMA, BRIGHT, CONTRAST or BACKLIGHT.

Note:

The status of the volume knob does not appear on the

screen.

•This is the SHARPNESS H/V mode display.

•It disappears after 2 minutes of inaction.

Input signal status

Picture adjusting knob status

Sharpness display

How to Use the On Screen Menu

13

How to Use the On Screen Menu (continued)

•Use the menu to open and set up functions.

•When “FUNCTION DISPLAY” (Jpage 23) is set to

ON, press any of the “FUNCTION1” to

“FUNCTION5” buttons to display the functions

assigned to the FUNCTION buttons.

•This display disappears after 2 seconds of inaction.

•“XXXXX” indicates operating status (Jpage 25,

“Functions displayed during FUNCTION button

operation”).

•A white skeleton bar meter indicates the audio level

for SDI signals.

•You can switch the level display on/off and set the

number of displayed channels using the menu.

•The 0 dB line and channel display can be switched

on/off from the menu.

•This is the menu display.

•It disappears after 2 minutes of inaction.

•You can change position of the display (Jpage 22,

“MENU POSITION”).

FUNCTION display

F1:MARKER

F2:WFM/VECTOR

F3:PIXEL TO PIXEL

F4:TIME CODE

F5:LEVEL METER

XXXXX

Audio level meter display

11

33

55

77

22

44

66

88

Channel

display

Level

display

0 dB line

Menu display

[MAIN MENU]

Displays instructions on menu

button operations.

14

How to Use the On Screen Menu (continued)

•Use the menu to display the time code for HD-SDI

signal input. It also allows you to switch display mode

(VITC, LTC, VUB, LUB).

In VITC and LTC display mode:

•Displays the time code in hours: minutes: seconds:

or frames.

•In drop-frame mode, a different delimiter between

seconds and frames is used.

Note:

Read errors are displayed as “--:--:--:--”

In VUB and LUB display modes:

•BG8, BG7, BG6, BG5, BG4, BG3, BG2, BG1 appear

in the stated order. BG: binary group

•The (:) delimiter does not appear.

Note:

Read errors are displayed as “--:--:--:--”

•Use the menu to display closed caption for VIDEO

(NTSC) signals. It also allows you to select display

mode (CC1 to CC4).

Note:

Closed captions are not available during HV DELAY.

Time code (TC) display

( : ) NDF

( . ) DF

Closed caption (CC) display

15

1. Press [MENU] to display the MAIN menu.

2. Press [ , ] to select a menu and press

[ENTER].

3. Press [ , ] to select a sub menu and Press

[ENTER].

The settings in the sub menu change to green.

4. Press [ , ] to select a setting, then press

[ENTER].

To cancel, press [MENU].

To return to the previous screen

Push [MENU].

Menu operations

[MAIN MENU]

How to Use the On Screen Menu (continued)

16

You can save and load up to five combinations of menu settings and adjustments made with the picture adjustment

knob as user data. You can also return settings and adjustments to their factory defaults.

User data include the following settings.

• Menu settings except “SETUP LOAD/SAVE” (including button function settings on the monitor front panel)

• Screen adjustments made with the picture adjusting knob

1. Press [MENU] to display the MAIN menu.

2. Press [ , ] to select the “SYSTEM CONFIG”

menu and press [ENTER].

3. Press [ , ] to select the “SETUP SAVE” sub

menu and press [ENTER].

The setting in the sub menu changes to green.

4. Press [ , ] to select a “USER1” to “USER5”

file to save the settings to and press [ENTER].

The following screen appears.

5. Select “YES” and press [ENTER].

This saves the user data.

1. Press [MENU] to display the MAIN menu.

2. Press [ , ] to select the “SYSTEM CONFIG”

menu and press [ENTER].

3. Press [ , ] to select the “SETUP LOAD” sub

menu and press [ENTER].

The setting in the sub menu changes to green.

4. Press [ , ] to select a “USER1” to “USER5”

file to load and press [ENTER].

The following screen appears.

To return to the factory defaults, select “FACTORY.”

5. Select “YES” and press [ENTER].

This loads the user data.

To return to the previous screen

Push [MENU].

Saving user data

Changes to green

Loading user data

Changes to green

User Data

17

Menu configuration

MAIN MENU

VIDEO CONFIG

SYSTEM CONFIG

FUNCTION

INPUT SELECT

GPI

MARKER

GAMMA SELECT

FILM GAMMA

COLOR TEMP.

SHARPNESS MODE

SHARPNESS H

SHARPNESS V

I-P MODE

MONO

ANAMO

SD ASPECT

SCAN

CONT./BACK.

BACKLIGHT

SUB WINDOW

MENU POSITION

STAT U S DISPLAY

SETUP LOAD

SETUP SAVE

POWER ON SETUP

COLOR SPA C E

POWER SAVE MODE

BLACK DATA INSERTION

GPI CONTROL

GPI1

GPI2

GPI3

GPI4

GPI5

GPI6

GPI7

GPI8

VIDEO

NTSC SETUP

YPBPR/RGB

COMPONENT LEVEL

SELECT SYNC

COMP.

DVI-D

AUTOSETUP

H POSITION

V POSITION

PHASE

CLOCK

WXGA/XGA

RESET

AUDIO INPUT SELECT

EMBEDDED SELECT L

EMBEDDED SELECT R

LEVEL METER

CH SELECT

0 dB POINT

CH INFO.

*[WHITE BALANCE VAR1-3]

MARKER

16:9

4:3

BACK

CENTER

GPI PRESET1

GPI PRESET2

MARKER TYPE

CROSS HATCH

FUNCTION1

FUNCTION2

FUNCTION3

FUNCTION4

FUNCTION5

FUNCTION DISPLAY

COLOR TEMP.

GAIN RED

GAIN GREEN

GAIN BLUE

BIAS RED

BIAS GREEN

BIAS BLUE

RESET

USER0-63

D93

D65

D56

VAR1

VAR2

VAR3

CONTROL

LOCAL ENABLE

OPERATION

LCD

CONTROL

HOURMETER

DISPLAY SETUP

WFM/VECTOR

POSITION

VECTOR MODE

VECTOR SCALE

TIME CODE

MODE SELECT

CLOSED CAPTION

MODE SELECT

[WHITE BALANCE VAR1]*

[WHITE BALANCE VAR2]*

[WHITE BALANCE VAR3]*

Main Menu

18

Underlined values indicate factory defaults.

*1 This setting is turned “ON” when receiving marker control in REMOTE operation. (GPI, if set, has priority.)

*2 These settings are disabled when the GPI function (Jpage 36) is used to control the marker setting.

They are also disabled in split screen mode.

*3 This setting is enabled only for HD and SD signal input in 16:9 aspect ratio mode.

*4 This setting is enabled for SD signal input in 4:3 aspect ratio mode.

*5 Remote control via RS-232C ends in error (error response: ER001) when “GPI PRESET1” or “GPI PRESET2”

is selected with the GPI function.

*6 Display size for SD signals differ.

TYPE1: The effective horizontal area meets the SMPTE125M for NTSC and ITU-R BT 601-5 for PAL.

TYPE2: The effective horizontal area meets the EIA-RS170 for NTSC and ITU-R BT 470-4 for PAL.

MARKER

Sub menu Setting Description

MARKER OFF*1

ON

Enables the MARKER setting.

16:9*2*3 OFF

4:3

13:9

14:9

CNSCO

VISTA

95%

93%

90%

88%

80%

Selects and displays marker type for 16:9 aspect ratio.

<OFF> No marker display

<4:3> 4:3 marker <13:9> 13:9 marker

<14:9> 14:9 marker <CNSCO> CNSCO marker

<VISTA> VISTA marker <95%> 95% area marker

<90%> 90% area marker <80%> 80% area marker

<93%> 93.1% area marker (TYPE1)

93% area marker (TYPE2)

<88%> 89.5% area marker (TYPE1)

88% area marker (TYPE2)

4:3*2*4 OFF

95%

93%

90%

88%

80%

Selects and displays marker type for 4:3 aspect ratio.

<OFF> No marker display

<95%> 95% area marker <93%> 93% area marker

<90%> 90% area marker <80%> 80% area marker

<88%> 89% area marker (TYPE1)

88% area marker (TYPE2)

BACK*2

NORMAL

HALF

BLACK

Selects the background brightness around the marker.

<NORMAL> Normal background

<HALF> 50% background brightness

<BLACK> 0% background brightness (black)

CENTER*2 OFF

ON

Displays the center marker.

<OFF> Turns the display off

<ON> Turns the display on

GPI PRESET1*5 4:3

13:9

14:9

CNSCO

VISTA

95% (16:9)

93% (16:9)

90% (16:9)

88% (16:9)

80% (16:9)

95% (4:3)

93% (4:3)

90% (4:3)

88% (4:3)

80% (4:3)

GPI PRESET1: Selects the marker displayed by the GPI terminal

“MARKER1 ON/OFF” (Jpage 36) operation.

GPI PRESET2: Selects the marker displayed by the GPI terminal

“MARKER2 ON/OFF” (Jpage 36) operation.

<4:3> 4:3 marker

<13:9> 13:9 marker

<14:9> 14:9 marker

<CNSCO> CNSCO marker

<VISTA> VISTA marker

<95% (16:9)> 95% area marker for 16:9 aspect ratio

<93% (16:9)> 93% area marker for 16:9 aspect ratio

<90% (16:9)> 90% area marker for 16:9 aspect ratio

<88% (16:9)> 88% area marker for 16:9 aspect ratio

<80% (16:9)> 80% area marker for 16:9 aspect ratio

<95% (4:3)> 95% area marker for 4:3 aspect ratio

<93% (4:3)> 93% area marker for 4:3 aspect ratio

<90% (4:3)> 90% area marker for 4:3 aspect ratio

<88% (4:3)> 88% area marker for 4:3 aspect ratio

<80% (4:3)> 80% area marker for 4:3 aspect ratio

GPI PRESET2*5

MARKER TYPE*6 TYPE1

TYPE2

Selects conventional monitor or camera recorder marker size.

<TYPE1> Conventional monitor marker size

<TYPE2>

Marker size compliant with the camera recorder (Panasonic)

CROSS HATCH HIGH

LOW

OFF

Turns the cross hatch grid on and off and sets its density.

<HIGH> 70/256 (displays a dense cross hatch grid)

<LOW> 20/256 (displays a light cross hatch grid)

<OFF> Turns the display off

Main Menu (continued)

19

■16:9 marker

(Displayed for HD input and SD input in 16:9 ratio

mode.)

This marker is only displayed as a vertical bar. The

section becomes the “MARKER BACK”.

VISTA marker, CNSCO marker

This marker is displayed as a horizontal dotted line.

The marker is displayed as a vertical dotted line

when “UNDER” is selected under “SCAN” in the

“VIDEO CONFIG” menu.

Area marker

This marker is displayed as a dotted line.

■4:3 marker

(Displayed for SD input in 4:3 aspect ratio mode)

This marker is displayed as a dotted line.

(Displayed for HD input and SD input in 16:9 ratio mode.)

This marker is displayed as a dotted line.

* You can display the 4:3 marker and the 16:9 marker simultaneously.

Simultaneous display example

The section becomes the “MARKER BACK”. It controls

the background of the marker selected with a 16:9 ratio.

■Center marker

Marker types

4:3 marker 13:9 marker

14:9 marker

VISTA marker CNSCO marker

VISTA marker CNSCO marker

95% Area marker 93% Area marker

90% Area marker 88% Area marker

80% Area marker

TYPE1 Vertical 93.1%,

horizontal 93%

TYPE2 Vertical/Horizontal 93%

TYPE1 Vertical 89.5%,

horizontal 88%

TYPE2 Vertical/Horizontal 88%

95% Area marker 93% Area marker

90% Area marker 88% Area marker

80% Area marker

95% Area marker 93% Area marker

90% Area marker 88% Area marker

80% Area marker

16:9 marker:

95% area marker

4:3 marker:

80% area marker

Center marker

This marker is displayed

at the center of the

screen.

TYPE1 Vertical 89%,

horizontal 88%

TYPE2 Vertical/Horizontal 88%

16:9 marker

4:3 marker

Main Menu (continued)

20

Underlined values indicate factory defaults.

*1 In split-screen display, changes are not reflected to the still image in the main window.

*2 These functions are not available when “RGB-COMP.” under “YPBPR/RGB” or “DVI-COMP.” under “DVI-D” is

selected in the “INPUT SELECT” menu (Jpage 30).

*3 The following sharpness values are available and the settings for the selected input signal is displayed.

Adjustment status during selection appears at the bottom right of the screen.

1) VIDEO system input (VIDEO) (the factory defaults are SHARPNESS MODE: LOW and SHARPNESS H/V: 0)

2) HD for any other input (the factory defaults are SHARPNESS MODE: HIGH and SHARPNESS H/V: 0).

3) SD for any other input (the factory defaults are SHARPNESS MODE: LOW and SHARPNESS H/V: 0).

*4 Selecting “VAR1”, “VAR2” and “VAR3” engages the WB adjustment mode (Jpage 21).

*5 To select USER0 - 63,

1) Press [ENTER] (“USER” changes to blue). 2) Use [ , ] to select 0 - 63 and press [ENTER].

*6 To use the “SUB WINDOW” (Jpage 25) function,

1) Change settings after exiting the “SUB WINDOW” function.

2) It is recommended to use “MODE2” for handling fast video.

*7 “SCAN” changes are not reflected in Anamo size display.

VIDEO CONFIG

Sub menu Settings Description

GAMMA

SELECT*1*2 STANDARD

FILM

STDIO/PST

Selects gamma curve.

<STANDARD> Standard mode <FILM> Film mode

<STDIO/PST> Color emphasis mode (a mode that approximates CRT

display capability suitable for studio or postproduction

application)

The mark appears at the top left of the screen when “FILM”

is selected.

FILM GAMMA*2 VARICAM

OTHER

Selects type of FILM gamma mode.

<VARICAM> For VARICAM use <OTHER> Other

COLOR TEMP. USER0 - 63*5

D93

D65

D56

VAR1

VAR2

VAR3

Selects color temperature.

<USER 0 - 63> Adjustable settings 0 - 63 (equivalent to a color

temperature range of 3,000 - 9,300K)

<D93> Equivalent to a color temperature of 9,300K

<D65> Equivalent to a color temperature of 6,500K

<D56> Equivalent to a color temperature of 5,600K

<VAR1> WB adjustment mode*4 <VAR2> WB adjustment mode*4

<VAR3> WB adjustment mode*4

SHARPNESS

MODE*2 HIGH*3

LOW

Selects the width of outline correction edge.

<HIGH> Thin edge <LOW> Wide edge

SHARPNESS H

*2 0 - 30*3

Sets horizontal outline correction. The item display moves to the lower

part of the screen during adjustment.

SHARPNESS V*2 0 - 30*3

Sets vertical outline correction. The item display moves to the lower part of

the screen during adjustment.

I-P MODE*2*6 MODE2

MODE1

Selects IP conversion mode. (Jpage 21, “IP mode”)

<MODE2> Inter-field interpolation

<MODE1> Inter-frame interpolation

MONO*2 OFF

ON

Switches between color and monochrome (MONO).

<OFF> Color <ON> Monochrome

*

When ON, the CHROMA setting of the picture adjusting knob is fixed at 0.

ANAMO*2*7 OFF

ON

With an Anamo lens and SDI 720/60P, 59.94P input, the picture is

resized to Anamo magnification (the vertically enlarged signal can be

vertically compressed and corrected for display).

SD ASPECT*2 4:3

16:9

Sets the aspect ratio for SD signal input.

<4:3> 4:3 display <16:9> 16:9 display

SCAN*2 NORMAL

UNDER

Sets under-scan and normal display.

<NORMAL> Normal display <UNDER> Under-scan

Main Menu (continued)

21

■ WB adjustment mode

Select “VAR1” to “VAR3” for “COLOR TEMP.” in the “VIDEO CONFIG” menu to make “WHITE BALANCE VAR1”

to “WHITE BALANCE VAR3” (WB) adjustments.

Underlined values indicate factory defaults.

*1 Selecting “COLOR TEMP.” and pressing [ENTER] after making a change, opens a confirmation screen.

Selecting “YES” and pressing [ENTER] in this screen resets selected GAIN and BIAS values to the selected

color temperature values.

*2 The item display moves to the lower part of the screen during adjustment.

IP mode

“MODE1” performs IP conversion using inter-frame interpolation.

Conventional inter-frame interpolation involved 1-frame or greater delay, but this monitor suppresses the delay to

within 1 field.

The factory default is “MODE1”.

“MODE2” performs IP conversion using inter-field interpolation.

Since interpolation is performed inside each field, this mode is suitable for checking interlace status.

Sub menu Settings Description

COLOR TEMP.*1 USER0 - 6

D93

D65

D56

Selects the color temperature that will become the basis

for adjustment.

<USER 0 - 63> Adjustable settings 0 - 63 (equivalent to a

color temperature range of 3,000 - 9,300K)

<D93> Equivalent to a color temperature of 9,300K

<D65> Equivalent to a color temperature of 6,500K

<D56> Equivalent to a color temperature of 5,600K

GAIN RED 0 - 1023

(Factory defaults are color

temperature <D65>

values.)

* These are the

adjustments made before

shipment from the factory.

Adjusts the GAIN elements for RED.*2

GAIN GREEN Adjusts the GAIN elements for GREEN.*2

GAIN BLUE Adjusts the GAIN elements for BLUE.*2

BIAS RED -512 - 511

(Factory default: 0)

Adjusts the BIAS elements for RED.*2

BIAS GREEN Adjusts the BIAS elements for GREEN.*2

BIAS BLUE Adjusts the BIAS elements for BLUE.*2

RESET Resets “GAIN RED” - “BIAS BLUE” to color temperature

values selected under “COLOR TEMP.”

Main Menu (continued)

22

Main Menu (continued)

Underlined values indicate factory defaults.

*1 When the monitor is shipped, settings for “USER1” - “USER5” are identical to “FACTORY.”

*2 “H-POSITION”, “V-POSITION”, “PHASE” and “CLOCK” (Jpage 31) cannot be saved or loaded.

*3 Double speed reduces image lag caused by black signal input but lowers resolution compared to standard

speed and some images may generate flicker. Return to standard speed should flicker become noticeable.

*4 ITU-709 is an ITU-R BT.709 standard.

*5 Factory preset settings are The U.S.A. and Canada: SMPTE-C, Others: EBU.

SYSTEM CONFIG

Sub menu Settings Description

CONT./BACK. BACKLIGHT

CONTRAST

Selects function to be assigned to [CONTRAST/BACKLIGHT] (front panel

knob).

<BACKLIGHT> Adjusts the BACKLIGHT.

<CONTRAST> Adjusts the CONTRAST.

BACKLIGHT 0 - 60 Adjusts LCD backlight brightness. Adjust as required by ambient

conditions.

SUB WINDOW FULL

PART

Selects sub-window type.

<FULL> Reduces the entire images for both input signals and places them

side by side.

<PART> Cuts out the center of the images for both input signals and places

them side by side (the images are shown at their original size).

MENU

POSITION

CENTER

LB

RB

RT

LT

Positions the on-screen menu.

<CENTER> Center of the screen

<LB> Left Bottom <RB> Right Bottom

<RT> Right Top <LT> Left Top

STATUS

DISPLAY

CONTINUE

3SEC OFF

OFF

Sets display state for input signal status (on-screen menu).

<CONTINUE> Displayed at all times

<3SEC OFF> Displayed for 3 seconds after a status change.

<OFF> Not displayed.

SETUP LOAD USER5*1*2

USER4*1*2

USER3*1*2

USER2*1*2

USER1*1*2

FACTORY

Loads saved factory defaults (FACTORY) or user data (USER1 - USER5).

After loading user data, the screen displays the signal selected before

user data was loaded.

SETUP SAVE USER5*2

USER4*2

USER3*2

USER2*2

USER1*2

Up to 5 sets of user data can be saved (Jpage 16).

They save menu settings and adjustments made with the picture adjusting

knob (PHASE/CHROMA/BRIGHT/CONTRAST/BACKLIGHT) except

“SETUP SAVE/SETUP LOAD.”

POWER ON

SETUP USER5

USER4

USER3

USER2

USER1

FACTORY

LAST

Selects the settings used when the power is turned on.

<LAST> Starts in the mode used when the power was last turned off.

<FACTORY> Starts up using the factory defaults.

<USER1 - 5> Starts up using USER registered settings.

COLOR SPACE SMPTE-C*5

EBU*5

ITU-709*4

Sets the studio standard color shade.

POWER SAVE

MODE OFF

ON

Sets the power save mode

<ON> The backlight dims when no signal (NO SIGNAL) is input for 60

seconds or longer. Signal input or menu operation will return the

backlight to its normal brightness.

BLACK DATA

INSERTION OFF

ON

Doubles the speed of the LCD panel.*3

<ON> Double speed (120 Hz/100 Hz)

<OFF> Standard speed (60 Hz/50 Hz)

23

Underlined values indicate factory defaults.

*1 Changes in settings change menu settings.

FUNCTION

Sub menu Settings Description

FUNCTION 1 -

FUNCTION 5 HV DELAY

AUTOSETUP

BLUE ONLY

GAMMA SELECT

SD ASPECT

SCAN

SUB WINDOW

WFM/VECTOR

MARKER

PIXEL TO PIXEL

PIXEL POSITION

LEVEL METER

CROSS HATCH

MONO

TIME CODE

CLOSED

CAPTION

UNDEF

(Factory default:

FUNCTION1:

MARKER

FUNCTION2:

WFM/VECTOR

FUNCTION3:

PIXEL TO PIXEL

FUNCTION4:

TIME CODE

FUNCTION5:

LEVEL METER)

Selects functions to be assigned to [FUNCTION1] - [FUNCTION5]

(front panel buttons).

<HV DELAY>

Displays synchronizing signals (horizontal, vertical).

The display changes in the following order.

DELAY OFF JV DELAY JH DELAY JHV DELAY JDELAY OFF

<AUTOSETUP>

Performs auto setup for PC display.

<BLUE ONLY>

Cuts the red and green signals. Use this function to check phase and

chroma. This button toggles between ON and OFF.

<GAMMA SELECT>*1

Displays the gamma curve.

The display changes in the following order.

GAMMA STANDARD JGAMMA FILM JGAMMA STDIO/PST J

GAMMA STANDARD

<SD ASPECT>

Switches between “16:9” and “4:3.”*1

<SCAN>

Switches between “UNDER SCAN” and “NORMAL SCAN”.*1

<SUB WINDOW>

Sets the split-screen function.*1

The display changes in the following order.

SINGLE JFULL/PART JSTILL JSINGLE

<WFM/VECTOR>

Displays waveform or vector display.

<MARKER>

Turns the marker on and off.

<PIXEL TO PIXEL>

Turns the PIXEL TO PIXEL function On and Off.

<PIXEL POSITION>

Positions the display of signals in PIXEL TO PIXEL mode.

<LEVEL METER>

Turns the LEVEL METER display On and Off.

<TIME CODE>

Turns the time code display on and off.

<MONO>

Switches between color and monochrome.

<CLOSED CAPTION>

Turns the closed caption display on and off.

<UNDEF>

Undefined

FUNCTION

DISPLAY OFF

ON1

ON2

Selects display of functions assigned to [FUNCTION1] -

[FUNCTION5] (front panel buttons). It also selects button action (1-

touch, 2-touch, off).

<ON1>

1-touch action to display and perform functions.

<ON2>

2-touch action to display and perform functions.

<OFF>

No function display.

Main Menu (continued)

24

■FUNCTION setting restrictions

Settings are not available under the following conditions.

Setting Conditions that disable operation

HV DELAY During SUB WINDOW, WFM, PIXEL TO PIXEL mode operation, “INVALID FUNCTION”

appears to indicate that operation is disabled.

When “RGB-COMP.” is selected under “YPBPR/RGB” or “DVI-COMP.” is selected under

“DVI-D” in the “INPUT SELECT” menu, “INVALID FUNCTION” appears to indicate that

operation is disabled.

AUTO SETUP When something other than “RGB-COMP.” is selected under “YPBPR/RGB” in the “INPUT

SELECT” menu, “NOT RGB-COMP. CH” appears to indicate that operation is disabled.

When “RGB-COMP.” is selected under “YPBPR/RGB” in the “INPUT SELECT” menu and

no signal is input, “INCOMPLETE” appears to indicate that operation is disabled.

GAMMA SELECT When GPI is set, “INVALID FUNCTION” appears to indicate that operation is disabled.

When “RGB-COMP.” is selected under “YPBPR/RGB” or “DVI-COMP.” is selected under

“DVI-D” in the “INPUT SELECT” menu, “INVALID FUNCTION” appears to indicate that

operation is disabled.

SD ASPECT When GPI is set, “INVALID FUNCTION” appears to indicate that operation is disabled.

During SUB WINDOW (still image) and HD display (including PIXEL TO PIXEL), “INVALID

FUNCTION” appears to indicate that operation is disabled.

SCAN When GPI is set, “INVALID FUNCTION” appears to indicate that operation is disabled.

During SUB WINDOW and PIXEL TO PIXEL mode operation, “INVALID FUNCTION”

appears to indicate that operation is disabled.

SUB WINDOW When “RGB-COMP.” is selected under “YPBPR/RGB” or “DVI-COMP.” is selected under

“DVI-D” in the “INPUT SELECT” menu, “INVALID FUNCTION” appears to indicate that

operation is disabled.

If you select “RGB-COMP.” or “DVI-COMP.” while motion picture is displayed in sub-

window, the screen returns to a single screen display. Selecting something other than

“RGB-COMP.” or “DVI-COMP.” opens the split screen mode and a still image is blacked

out.

WFM/VECTOR During SUB WINDOW and PIXEL TO PIXEL mode operation, “INVALID FUNCTION”

appears to indicate that operation is disabled.

When “RGB-COMP.” or “RGB-VIDEO” is selected under “YPBPR/RGB”, or “DVI-COMP.” or

“DVI-VIDEO” is selected under “DVI-D” in the “INPUT SELECT” menu, “INVALID

FUNCTION” appears to indicate that WFM operation is disabled.

1080/23P, 24P, 25P, 29P or 30P input causes “INVALID FUNCTION” to appear indicating

that operation is disabled,

VECTOR does not appear when a selection other than “SDI” is made in the “INPUT

SELECT” menu.

MARKER When “RGB-COMP.” is selected under “YPBPR/RGB” or “DVI-COMP.” is selected under

“DVI-D” in the “INPUT SELECT” menu, “INVALID FUNCTION” appears to indicate that

operation is disabled.

When GPI is set during sub-window operation, “INVALID FUNCTION” appears to indicate

that operation is disabled.

PIXEL TO PIXEL When “SD1” or “SD2” is selected in the “INPUT SELECT” menu during 1080I/P signal

input or “YPBPR” is selected in “YPBPR/RGB”, 1080I/P signal input is enabled. When other

settings are made, “INVALID FUNCTION” appears to indicate that operation is disabled. In

SUB WINDOW mode, “INVALID FUNCTION” appears to indicate that operation is

disabled.

LEVEL METER When input is something other than SDI, “INVALID FUNCTION” appears to indicate that

operation is disabled.

MONO When GPI is set, “INVALID FUNCTION” appears to indicate that operation is disabled.

TIMECODE When input is something other than HD-SDI input, “INVALID FUNCTION” appears to

indicate that operation is disabled.

Main Menu (continued)

25

■Functions displayed during FUNCTION button operation

Pressing any of the [FUNCTION1] to [FUNCTION5] buttons displays the operations assigned to each button as

shown below.

•HV DELAY

DELAY OFF/V DELAY/H DELAY/HV DELAY

•AUTOSETUP

AUTOSETUP/COMPLETE/INCOMPLETE/NOT

RGB-COMP.CH

•BLUE ONLY

BLUE ONLY ON/BLUE ONLY OFF

• GAMMA SELECT

GAMMA STANDARD/GAMMA FILM/GAMMA

STDIO/PST

• SD ASPECT

4:3/16:9

• SCAN

NORMAL SCAN/UNDER SCAN

• SUB WINDOW

SINGLE/FULL/PART/STILL

•WFM/VECTOR

WFM ON/WFM/VECTOR OFF/VECTOR × 1/

VECTOR × 2/VECTOR × 4/VECTOR × 8

• MARKER

MARKER OFF/4:3 MARKER/13:9 MARKER/14:9

MARKER/VISTA MARKER/CNSCO MARKER/95%

MARKER/93% MARKER/90% MARKER/88%

MARKER/80% MARKER/MARKER ON

• PIXEL TO PIXEL

• PIXEL POSITION

CENTER/LEFT TOP/LEFT BOTTOM/RIGHT TOP/

RIGHT BOTTOM/PIXEL TO PIXEL OFF

• AUDIO LEVEL METER

METER OFF/METER 2CH/METER 4CH/METER

8CH

•CROSS HATCH

CROSS HATCH HIGH/CROSS HATCH LOW/

CROSS HATCH OFF

•MONO

MONO ON/MONO OFF

• TIME CODE

LTC/VITC/LUB/VUB/TC OFF

• CLOSED CAPTION

CC1/CC2/CC3/CC4/CC OFF

■“HV DELAY”

This displays the blanking period. Each press of the button changes the display as follows: H blanking display J

V blanking display J H and V blanking display J no blanking display.

■“SUB WINDOW”

Opening the “SUB WINDOW” function splits the screen (main window) in two as shown below to enable

comparison of a recorded still image with live video.

Use the “SUB WINDOW” setting (FULL, PART) in the “SYSTEM CONFIG” menu (Jpage 22) to set up the

function as shown below.

Press the button ([FUNCTION1] to [FUNCTION5] (Jpage 23)) to which the “SUB WINDOW” function has been

assigned to turn the function on and off. (This assumes that the “SUB WINDOW” function has been assigned to

any of the [FUNCTION1] to [FUNCTION5] buttons.)

To setup “IP MODE” (Jpage 20), exit the “SUB WINDOW” function first.

•FULL

Resizes the main window to also display a second window (two sub-windows).

Normal window

(main window)

Before image input

(two sub-windows)

After image input

(two sub-windows)

Press the FUNCTION button to which the SUB WINDOW function has been assigned.

Video

Press the

button again

Video Video

Press the

button again

Still image Video

Main Menu (continued)

26

This function is designed to enable comparison of identical formats input to the same input terminal. Input of

different formats via different input channels may distort the sub-window (left side, still image) or blanking could

occur. However, input of an identical format signal to the input terminal during still image acquisition will display

correctly.

■“WFM/VECTOR”

The “WFM/VECTOR” function enables display of the waveform and vector display. Use “DISPLAY SETUP” in the

main menu to select “WFM” and “VECTOR” display. (Jpage 33)

Press the button ([FUNCTION1] to [FUNCTION5] (Jpage 23)) to which the “WFM/VECTOR” function has been

assigned to turn the function on and off. (This assumes that the “WFM/VECTOR” function has been assigned to

any of the [FUNCTION1] to [FUNCTION5] buttons.)

These examples show 16:9 aspect ratio images.

*1 Displayed only for SDI signal input.

•PART

Resizes the main window to show only its center to also display a second image (two sub-windows).

Normal window

(main window)

Before image input

(two sub-windows)

After image input

(two sub-windows)

Crops the image to show its

center part

The cropped main window image

is placed side by side with a

second image

These examples show 16:9 aspect ratio images.

Normal screen WFM display VECTOR display*1

WFM (waveform display) VECTOR

(vector display)

Press the FUNCTION button to which the SUB WINDOW function has been assigned.

Video

Press the

button again

Video Video

Press the

button again

Still image Video

Note on FULL/PART selection

Press the FUNCTION button to which the WFM/VECTOR function has been assigned.

P

ress t

h

e

button again

P

ress t

h

e

button again

Main Menu (continued)

27

Main Menu (continued)

■“PIXEL TO PIXEL” and “PIXEL POSITION”

The “PIXEL TO PIXEL” function allows you to check images at their actual pixel resolution (1080I/P signals only).

Press the button ([FUNCTION1] to [FUNCTION5] (Jpage 23)) to which the “PIXEL TO PIXEL” function has

been assigned to turn the function on. Then press the button ([FUNCTION1] to [FUNCTION5] (Jpage 23)) to

which the “PIXEL POSITION” function has been assigned to position the display of signals. (This assumes that

the “PIXEL TO PIXEL” and “PIXEL POSITION” functions have been assigned to any of the [FUNCTION1] to

[FUNCTION5] buttons.)

Underlined values indicate factory defaults.

*1 The following settings are disabled in PIXEL TO PIXEL mode.

Setting “ANAMO” to “ON”, and setting “SCAN” to “UNDER” in “VIDEO CONFIG”

Any “HV DELAY” setting in “FUNCTION”

“MARKER” display

*2 Enabled during “SDI1”, “SDI2” and “YPBPR” input.

■“PIXEL POSITION” display position sequence

PIXEL POSITION: ➀ J ➁ J ➂ J ➃ J ➄ J ➀ …….

Sub menu Settings Description

PIXEL TO PIXEL*1*2 OFF

ON

Tailors the image display size to the input signal size.

Compatible formats

1080/60I/59I/50I/60P/59P/50P/30P/29P/25P/24P/23P/24Psf/23Psf

PIXEL POSITION CENTER

LEFT TOP

RIGHT TOP

RIGHT BOTTOM

LEFT BOTTOM

Positions the display of signals in PIXEL TO PIXEL mode.

<CENTER> Center of the screen

<LT> Left Top

<RT> Right Top

<RB> Right Bottom

<LB> Left Bottom

➀ CENTER ➁ LEFT TOP ➂ RIGHT TOP

➃ RIGHT BOTTOM ➄ LEFT BOTTOM

28

Main Menu (continued)

■“CROSS HATCH”

The “CROSS HATCH” function enables display of markers at regular vertical and horizontal intervals to facilitate

composition and other tasks. The width of marker lines is 1 dot, the markers consist of 1 line, and are spaced 80

dots apart (fixed value).

Each press of the button (“FUNCTION1” to “FUNCTION5”) to which the “CROSS HATCH” has been assigned

turns the function on and off.

Each press of the FUNCTION button to which the “CROSS HATCH” function is assigned changes the

display as shown.

HD/SD (16:9) mode

SD (4:3) mode

1st press 2nd press

Light cross hatch Dense cross hatch

3rd press (back to original image without cross hatch)

29

“GPI CONTROL” is used to enable and disable GPI functions and assign functions to each of the GPI terminal pins

(J page 36).

Underlined values indicate factory defaults.

Note:

This function is not available when,

•“SD ASPECT” operation when input signal is HD or PC

•“SCAN” operation when the input signal is PC

•“GAMMA SELECT” operation when the input signal is PC

•“SELECT SYNC” operation when anything other than “RGB-VIDEO” is selected under “YPBPR/RGB” in the

“INPUT SELECT” menu

•“MONO” operation when input signal is PC

GPI

Sub menu Settings Description

GPI CONTROL DISABLE

ENABLE

Enables and disables GPI functions

<DISABLE> Disabled

<ENABLE> Enabled

GPI1 - GPI8 UNDEF

MARKER1 ON/OFF

MARKER2 ON/OFF

MARKER BACK

HALF

MARKER BACK

BLACK

CENTER MARKER

INPUT SEL. VIDEO

INPUT SEL. SDI1

INPUT SEL. SDI2

INPUT SEL.

YPBPR/RGB

INPUT SEL. DVI-D

SD ASPECT

SCAN

R-TALLY

G-TALLY

MONO

GAMMA SEL. FILM

GAMMA SEL.

STDIO/PST

SELECT SYNC

PIXEL TO PIXEL

Assigns functions to the GPI control terminal pins.

The same items can be set to each terminal (Jpage

36).

Main Menu (continued)

30

Underlined values indicate factory defaults.

*1 “AUTO” is the factory default, but select a specific format when there is risk that the input signal may be

contaminated by outside noise.

INPUT SELECT

Sub menu Settings Description

VIDEO AUTO

NTSC

PA L

Selects the video input format.*1

<AUTO> Automatically selects NTSC or PAL.

<NTSC> NTSC <PAL> PAL

NTSC SETUP 75

00

Selects NTSC setup level.

<75> Select this function when using 7.5% setup signals.

(Adjusts the interior of the monitor to the 7.5% setup

level to suit the black level)

<00> Select this when there is no setup signal.

YPBPR/RGB YPBPR

RGB-VIDEO

RGB-COMP.

Selects YPBPR (component) or RGB input mode.

<YPBPR> Selects the YPBPR signal.

<RGB-VIDEO> Selects the video RGB signal.

<RGB-COMP.> Selects the PC RGB signal.

COMPONENT

LEVEL

SMPTE

B75

B00

Selects

YPBPR

(component) signal input level.

<SMPTE> Signal level complies with SMPTE and PB and PR are

0.7 Vp-p at 100% chroma.

<B75> Select this when connecting a Betacam or similar

device with a setup function. (Adjusts the interior of

the monitor to the 7.5% setup level to suit the black

level)

<B00> Select this when connecting a Betacam or similar

device without a setup function.

SELECT SYNC INT

EXT

Selects the sync signal when using YPBPR and RGB-VIDEO input.

<INT> Select when the synchronizing signal is

superimposed on the G or Y signal.

<EXT> Select to synchronize with an external synchronizing

signal.

COMP. Performs analog PC settings. (“COMP.” Jpage 31)

DVI-D DVI-VIDEO

DVI-COMP.

Selects DVI-D input mode.

<DVI-VIDEO> Selects component input.

<DVI-COMP.> Selects PC input.

Main Menu (continued)

31

■COMP.

Selecting “RGB-COMP.” under “YPBPR/RGB” in the “INPUT SELECT” menu opens the following menu.

Underlined values indicate factory defaults.

*1 “EXECUTING” is displayed during “AUTOSETUP” and “COMPLETE” appears when setup completes.

“INCOMPLETE” is displayed if setup could not be completed.

AUTOSETUP may not provide adequate adjustment for some video input. Use H POSITION, V POSITION,

PHASE and CLOCK to adjust.

*2 Each input format can be adjusted but not when user data is loaded (“SETUP LOAD” Jpage 22) or saved

(“SETUP SAVE” Jpage 22).

*3 “CLOCK” factory default

Sub menu Settings Description

AUTOSETUP*1 Selecting “RGB-COMP.” under “YPBPR/RGB” in the “INPUT

SELECT” menu automatically adjusts the screen. A

separate screen opens. Select “YES” to perform

“AUTOSETUP.”

H POSITION 0 - 60

(Factory preset settings: 30)

Adjusts horizontal image display position.*2

V POSITION 0 - 60

(Factory preset settings: 30)

Adjusts vertical image display position.*2

PHASE 0 - 31

(Factory preset settings: 16

Adjusts the clock phase in 1/32 clock period increments.*2

CLOCK 700 - 1800

(Factory preset settings:*3)

Adjusts the sampling clock in dot units.*2

WXGA/XGA XGA

WXGA

Switches between WXGA and XGA.

RESET Returns “H POSITION”, “V POSITION”, “PHASE” and

“CLOCK” settings in the COMP. input compliant format to

their factory defaults.

FORMAT CLOCK FORMAT CLOCK

640 × 400 (70 Hz) 800 1024 × 768 (60 Hz) 1344

640 × 480 (60 Hz) 800 1024 × 768 (70 Hz) 1328

640 × 480 (75 Hz) 840 1024 × 768 (75 Hz) 1312

640 × 480 (85 Hz) 832 1024 × 768 (85 Hz) 1376

800 × 600 (60 Hz) 1056 1280 × 768 (50 Hz) 1648

800 × 600 (70 Hz) 1040 1280 × 768 (60 Hz) 1680

800 × 600 (75 Hz) 1056 1280 × 768 (75 Hz) 1712

800 × 600 (85 Hz) 1048 1280 × 1024 (60 Hz) 1688

Main Menu (continued)

32

Sets speaker and headphones output.

Underlined values indicate factory defaults.

*1 When ANALOG is selected in the “INPUT SELECT” menu, the LEVEL METER does not indicate the audio level

even when set to ON.

AUDIO

Sub menu Settings Description

INPUT

SELECT

AUTO

ANALOG

Selects speaker and headphones output.

<AUTO> When an SDI input line is selected with the [INPUT SELECT]

button on the front panel:

embedded audio (SDI terminal)

When input lines other than SDI1 or SDI2 are selected with

the [INPUT SELECT] button on the front panel:

analog (AUDIO input terminal)

<ANALOG> Analog (AUDIO input terminal)

EMBEDDED

SELECT L

CH1 - CH8

(Factory

default: CH1)

Selects embedded audio channel output to the speaker (L) or headphones

(L).

EMBEDDED

SELECT R

CH1 - CH8

(Factory

default: CH2)

Selects embedded audio channel output to the speaker (R) or headphones

(R).

LEVEL

METER*1

OFF

ON

Selects embedded audio meter displayed by the on-screen display.

CH SELECT 8CH

4CH

2CH

Selects number of audio meter channels.

0dB POINT OFF

ON

Switches the 0 dB line displayed on the meter on and off.

CH INFO. OFF

ON

Switches the channel displayed on the meter on and off.

Main Menu (continued)

33

Main Menu (continued)

Underlined values indicate factory defaults.

*1 Available during HD-SDI input signals.

*2 Available during VIDEO (NTSC) input. Closed captions appear as bright lines on line 21 when closed caption is

set to ON and underscan is also on.

*3 Opens the vector display during SDI signal input.

DISPLAY SETUP

Sub menu Settings Description

WFM/

VECTOR

OFF

WFM

VECTOR

Switches between “WFM/VECTOR” waveform and vector display.

<WFM> Displays waveforms.

<VECTOR> Displays vector waveforms.*3

POSITION LB

RB

RT

LT

Selects the position for the “WFM/VECTOR” waveform display.*3

<LB> Left Bottom

<RB> Right Bottom

<RT> Right Top

<LT> Left Top

VECTOR

MODE

× 8

× 4

× 2

× 1

Enlarges vector waveforms.*3

<× 8> 8×

<× 4> 4×

<× 2> 2×

<× 1> 1×

VECTOR

SCALE

100%

75%

Determines the scale of vector waveform.

<100%> Displays it at 100% scale.

<75%> Displays it at 75% scale.

TIME CODE OFF

ON Turns the time code display on and off.*1

MODE

SELECT

LTC

VITC

LUB

VUB

Selects time code display mode.*1

<LTC> Displays linear time code (LTC).

<VITC> Displays vertical interval time code (VITC).

<LUB> Displays user bits included in LTC.

<VUB> Displays user bits included in VITC.

CLOSED

CAPTION

OFF

ON Turns closed caption display on and off.*2

MODE

SELECT

CC4

CC3

CC2

CC1

Selects the cross caption display mode.*2

34

Main Menu (continued)

Underlined values indicate factory defaults.

*1 The menu can be displayed when the lock is engaged.

Only “CONTROL/LOCAL ENABLE” menu items are available when the lock is engaged.

The picture adjusting knob is disabled when the lock is engaged.

The “LOCAL ENABLE” setting determines operations in lock mode. The volume knob (Jpage 9, ) can be

used during lock engagement.

The key mark is displayed during lock engagement.

*2 Only available when “REMOTE” is selected under “CONTROL.”

Underlined values indicate factory defaults.

*3 “XXXXXX” indicates the number of hours.

“XXXXXX”: 262800H (about 30 years), 262800 or greater number results in “OVER”.

CONTROL

Sub menu Settings Description

CONTROL LOCAL

REMOTE

Selects operation. (with control clock)

<LOCAL> Enables front panel operation

<REMOTE> Enables remote operation

(front panel operation is locked)*1

LOCAL

ENABLE*2

DISABLE.

INPUT

Selects the disabled operation on the front panel when selecting

“REMOTE” under “CONTROL”.

<DISABLE> Disables all front panel operations.

<INPUT> All controls except [INPUT SELECT] and the volume knob

are disabled.

MARKER

[MAIN MENU] Key mark

HOURMETER

Sub menu Settings Description

OPERATION XXXXXXH*3 Displays the number of hours it has been on.

LCD XXXXXXH*3 Displays the number of hours that the backlight has been on.

35

Main Menu (continued)

■ List of setting restrictions ( : available,

×

: not available)

*1 The VECTOR display appears only during SDI input.

*2 It does not appear during 1080/23P, 24P, 25P, 29P and 30P input.

Input

VIDEO

SDI 1/2 YP

B

P

R

RGB-VIDEO

RGB-COMP

.DVI-VIDEO

DVI-COMP.

CH SD HD SD HD SD HD SD HD

MARKER

MARKER ××

16:9 ××

4:3 ××

BACK ××

CENTER ××

GPI PRESET1 × ×

GPI PRESET2 × ×

MARKER TYPE × ×

CROSS HATCH

VIDEO

CONFIG

GAMMA SELECT × ×

FILM GAMMA ××

COLOR TEMP.

SHARPNESS MODE

××

SHARPNESS H × ×

SHARPNESS V × ×

I-P MODE ×× ×

MONO ××

ANAMO ××

SD ASPECT × × × × × ×

SCAN ××

INPUT

SELECT

VIDEO × × × × × × × × × ×

NTSC SETUP × × × × × × × × × ×

YP

B

P

R

/RGB ××××× ×× ×

COMPONENT LEVEL

××××× × × ×× ×

SELECT SYNC × × × × × × ×

COMP. × × × × × × × × × ×

DVI-D × × × × × × × ×

AUDIO

INPUT SELECT

EMBEDED SELECT L

EMBEDED SELECT R

LEVEL METER × × × × × × × × ×

CH SELECT × × × × × × × × ×

0dB POINT × × × × × × × × ×

CH INFO. × × × × × × × × ×

DISPLAY

SETUP

WFM/VECTOR

*1 *2 *1 *1*2

×× × ×× ×

POSITION × × × × × ×

VECTOR MODE × × × × × × × × ×

VECTOR SCALE × × × × × × × × ×

TIME CODE × × × × × × × × × ×

MODE SELECT × × × × × × × × × ×

CLOSED CAPTION × × × × × × × × × ×

MODE SELECT × × × × × × × × × ×


adjustment

knob

PHASE ××

CHROMA ××

BRIGHT

CONTRAST

BACKLIGHT

36

This monitor permits remote operation via GPI/RS-232C terminal.

GPI screen items correspond to the following terminals. Use the GPI menu to assign functions to each terminal (

J

page 29).

Functions assigned to terminals are executed when GND (pin 5) is short-circuited (ON) or open (OFF).

■Operating conditions

Level operation: Operates when GND is short-circuited.

Edge operation: Operates when GND changes from

open to short-circuited.

* When level operation is assigned to more than one

terminal, the function operates as long as one of the

terminals is short-circuited.

*1 When a 16:9 marker and a 4:3 marker are simultaneously selected and activated on a 16:9 aspect ratio display,

both markers are displayed.

*2 When a 16:9 marker and a 4:3 marker are simultaneously displayed, the background of the marker selected by

the 16:9 marker is controlled.

*3 When “R-TALLY” and “G-TALLY” simultaneously go on, the tally color changes to orange.

*4 This is only enabled when “RGB-VIDEO” is selected under “YPBPR/RGB” in the “INPUT SELECT” menu.

GPI terminal

Pin number Signal

1GPI1

2GPI2

GPI Terminal (9P) 3 GPI3

4GPI4

5GND

6GPI5

7GPI6

8GPI7

9GPI8

Assigned item Function Operating conditions

UNDEF Undefined (no function assigned) —

MARKER1

ON/OFF*1 Switches marker display defined in “GPI PRESET1”

(J page 18) in the “MARKER” menu.

Level operation

(Short-circuited: ON, Open: OFF)

MARKER2

ON/OFF*1 Switches marker display defined in “GPI PRESET2”

(J page 18) in the “MARKER” menu.

Level operation

(Short-circuited: ON, Open: OFF)

MARKER

BACK HALF*2

Reduces the brightness of the background outside the

marker displayed in “GPI PRESET1” (

J

page 18) to 50%.

Level operation

(Short-circuited: ON, Open: OFF)

MARKER

BACK BLACK*2

Reduces the brightness of the background outside the

marker displayed in “GPI PRESET1” (

J

page 18) to 0%.

Level operation

(Short-circuited: ON, Open: OFF)

CENTER MARKER Turns the center marker display on and off. (When

other markers are displayed, this marker is

superimposed on other markers.)

Level operation

(Short-circuited: ON, Open: OFF)

INPUT SEL. VIDEO Switches the input line to VIDEO. Edge/level operation

INPUT SEL. SDI1 Switches the input line to SDI1. Edge/level operation

INPUT SEL. SDI2 Switches the input line to SDI 2. Edge/level operation

INPUT SEL.

YPBPR/RGB Switches the input line to YPBPR/RGB. Edge/level operation

INPUT SEL. DVI-D Switches the input line to DVI-D. Edge/level operation

SD ASPECT

Sets the aspect ratio for SD signal input. (Disabled during

HD and PC signal input)

Level operation

(Short-circuited: 16:9, open: 4:3)

SCAN

Switches the scan mode between “UNDER” and

“NORMAL”. (Disabled during PC signal input)

Level operation (Short-circuited: UNDER,

Open: NORMAL)

R-TALLY*3 Lights the red tally. Level operation

(Short-circuited: ON, Open: OFF)

G-TALLY*3 Lights the green tally. Level operation

(Short-circuited: ON, Open: OFF)

MONO Switches between color and monochrome (MONO).

(Disabled during PC signal input)

Level operation (Short-circuited:

monochrome, Open: color)

GAMMA SEL. FILM Switches the gamma curve to FILM mode. Level operation (Short-circuited: FILM

mode, Open: STANDARD mode)

GAMMA SEL. STDIO/

PST Switches the gamma curve to STDIO/PST mode. Level operation (Short-circuited: STDIO/

PST mode, Open: STANDARD mode)

SELECT SYNC*4

Selects the SYNC when using

YPBPR/

RGB-VIDEO input.

Level operation

(Short-circuited: EXT, Open: INT)

PIXEL TO PIXEL Switches screen display between input size and

display size.

Level operation

(Short-circuited: ON, Open: OFF)

REMOTE Specifications

37

■Priority of assigned functions

• When both “MARKER1” and “MARKER2” are activated at the same time, “MARKER1” has priority. However,

when the display aspect ratio is 4:3, the “MARKER1” aspect ratio is 16:9 and the “MARKER2” aspect ratio is 4:3,

“MARKER2” is displayed. In this case, the “MARKER2” background is controlled.

• When “MARKER BACK HALF” and “MARKER BACK BLACK” are activated at the same time, “MARKER BACK

BLACK” has priority.

• During GPI edge operation and two or more of “INPUT SEL. VIDEO”, “INPUT SEL. SDI1”, “INPUT SEL. SDI2”,

“INPUT SEL. YPBPR/RGB” and “INPUT SEL. DVI-D” are simultaneously activated, priority goes to the last

activated item. During level operation, priority is assigned in the following order: “INPUT SEL. VIDEO”, “INPUT

SEL. SDI1”, “INPUT SEL. SDI2”, “INPUT SEL. YPBPR/RGB” and “INPUT SEL. DVI-D”.

• When “GAMMA SEL. FILM” and “GAMMA SEL. STDIO/PST” are activated at the same time, “GAMMA SEL.

FILM” has priority.

The following diagram and the table on the lower right show RS-232C terminal pin arrangement and connections.

For details on systems using RS-232C, be sure to consult your dealer.

■Connectors and signals

Connector: D-SUB 9-pin (female)

Signal

■Communication parameters

■Command format

•The command is the 3-character string starting with

STX and ending with ETX.

•Append any data after the colon (:) following the

command, as required.

■Response formats

1. Setting command response

2. Query command response

3. Error response

Error codes

ER001: Invalid command

ER002: Parameter error

RS-232C terminal

PC Side (Straight) BT-LH1760 Side

Pin number Signal Pin number Signal

1N.C. 1N.C.

2 RXD 2 TXD

RS-232C terminals (9P) 3 TXD 3 RXD

4DTR 4DSR

5GND 5GND

6DSR 6DTR

7RTS 7CTS

8 CTS 8 RTS

9N.C. 9N.C.

RS-232C remote control method

Pin number Signal Description

1 N.C. Not connected

2 TXD Transmission data

3 RXD Reception data

4 DSR Connected inside

5 GND Ground

6 DTR Connected inside

7 CTS Connected inside

8 RTS Connected inside

9 N.C. Not connected

Signal level RS-232C compliant

Synchro system Asynchronous

Transfer rate 9600 bps

Parity None

Data length 8 bit

Stop bit 1 bit

Flow control None

STX (02h) Command : Data ETX (03h)

STX (02h) Command ETX (03h)

STX (02h) Data ETX (03h)

STX (02h) Error code ETX (03h)

REMOTE Specifications (continued)

38

■Setting command

No Command Description Data Response

1IIS Input switch 0: SDI1 1: SDI2 2: VIDEO

3: YPBPR/RGB 6: DVI-D

IIS

2

VPC Image quality

adjustment

CON00-60 : Contrast settings

BRI00-60 : Brightness settings

CRO00-60 : Chroma settings

PHA00-60 : Phase settings

VPC

3OBO Blue only 0: OFF 1: ON OBO

4OHV HV Delay 0: OFF 1: H DELAY 2: V DELAY

3: HV DELAY

OHV

5VBL Backlight 00-60: Backlight setting VBL

6DCH Cross hatch 0: OFF 1: LOW 2: HIGH DCH

7DSD Status display 0: CONTINUE 1: 3SEC OFF 2: OFF DSD

8ISM Analog mode ANA0: YPBPR ANA1: RGB-VIDEO

ANA2: RGB-COMP.

ISM

9IRF SELECT Sync 0: INT 1: EXT IRF

10 ISM DVI-D mode DVI0: DVI-VIDEO DVI1: DVI-COMP. ISM

11

DMK Marker settings 16:9 marker

MK100: OFF MK101: 80%

MK102: 88% MK103: 93%

MK104: 95% MK105: 14:9

MK106: 13:9 MK107: 4:3

MK108: 90% MK109: CNSCO

MK110: VISTA

4:3 marker

MK200: OFF MK201: 80%

MK202: 88% MK203: 93%

MK204: 95% MK208: 90%

Marker background

BAK0: NORMAL BAK1: HALF BAK2: BLACK

Center marker

CMK0: OFF CMK1: ON

DMK

12 MGM Gamma selection 1: STANDARD 2: FILM 3: STDIO/PST MGM

13

MCT Color temperature

settings

00: D56 01: D65 02: D93

03: VAR1 04: VAR2 05: VAR3

10-73: USER0 - 63

MCT

14

VPC Sharpness settings SHP0: LOW SHP1: HIGH

SHH00-30 Horizontal sharpness settings

SHV00-30 Vertical sharpness settings

VPC

15 MIP IP mode settings 0: MODE1 1: MODE2 MIP

16 OMO Monochrome settings 1: OFF 2: ON OMO

17 MAS SD aspect settings 0: 16:9 1: 4:3 MAS

18 MSC Scan settings 0: NORMAL 1: UNDER MSC

19 MCO Remote settings 0: LOCAL 1: REMOTE MCO

20 MLE Remote operation

settings

0: DISABLE 1: INPUT MLE

REMOTE Specifications (continued)

39

REMOTE Specifications (continued)

■Query command

*1 When both 16:9 and 4:3 markers are displayed, the 16:9 marker state is returned.

No Command Description Data Response

1

QIS Input selection 0: SDI1 1: SDI2 2: YPBPR

3: RGB-VIDEO 4: VIDEO 6: RGB-COMP.

9: DVI-VIDEO 10: DVI-COMP.

2

QPC Image quality

adjustment

CON : Contrast setting value 00-60

BRI : Brightness setting value

00-60

CRO : Chroma setting value 00-60

PHA : Phase setting value 00-60

3QBO

Blue only

0: OFF 1: ON

4QBL

Backlight

00-60

5QCH

Cross hatch

0: OFF 1: LOW 2: HIGH

6

QMK Marker MAK : Area marker*1 00: OFF 01: 80% 02: 88%

03: 93% 04: 95% 05: 14:9

06: 13:9 07: 4:3 08: 90%

09: CNSCO 10: VISTA

BAK : Background 0: NORMAL 1: HALF 2: BLACK

CMK : Center marker 0: OFF 1: ON

7QGM Gamma 1: STANDARD 2: FILM 3: STDIO/PST

8

QCT Color

temperature

00: D56 01: D65 02: D93

03: VAR1 04: VAR2 05: VAR3

10-73: USER0 - 63

9

QPC Sharpness SHP : Sharpness mode 0: LOW 1: HIGH

SHH

:

Horizontal sharpness value

00-30

SHV

:

Vertical sharpness value

00-30

10 QIP IP mode 0: MODE1 1: MODE2

11 QMO Monochrome 1: OFF 2: ON

12 QAS Aspect 0: 16:9 1: 4:3

13 QSC Scan 0: NORMAL 1: UNDER

14 QAN Analog mode 0: YPBPR1: RGB-VIDEO 2: RGB-COMP.

15 QSY SELECT sync 0: INT 1: EXT

16 QDV DVI-D mode 0: DVI-VIDEO 1: DVI-COMP.

17

QFR Format 00: NO SIGNAL

01: 1080/60I 02: 1080/59I

03: 1080/50I 04: 1080/30P

05: 1080/29P 06: 1080/25P

07: 1080/24P 08: 1080/23P

09: 1080/24PsF 10: 1080/23PsF

13: 720/60P 14: 720/59P

15: 576/50I 16: 480/60P

17: 480/60I 18: 576/50P

20: 1080/60P 21: 1080/59P

22: 1080/50P 23: 720/50P

50: 640 × 400 (70 Hz)

51: 640 × 480 (60 Hz)

52: 640 × 480 (75 Hz)

53: 640 × 480 (85 Hz)

54: 800 × 600 (60 Hz)

55: 800 × 600 (75 Hz)

56: 800 × 600 (85 Hz)

57: 1024 × 768 (60 Hz)

58: 1024 × 768 (70 Hz)

59: 1024 × 768 (75 Hz)

60: 1024 × 768 (85 Hz)

61: 1280 × 768 (60 Hz)

62: 1280 × 768 (75 Hz)

63: 1280 × 1024 (60 Hz)

64: 800 × 600 (70 Hz)

65: 1280 × 768 (50 Hz)

FF: UNSUPORT SIGNAL

18 QID Model BT-LH1760

40

How to Attach the Rack Mount

The monitor can be fitted with an optional BT-MA1710G rack mount adaptor to enable mounting it in a standard 19-

inch rack (7U size height). The steps below show how to attach it.

1. Remove the three screws on the back and base

of the monitor and remove the stand.

2. Use the supplied screws to attach the rack

mount adaptors to both sides of the monitor.

Maintenance Inspections

Maintenance inspections through periodic and appropriate maintenance are essential to keep the monitor in

optimum condition and ensure safe operation. Be sure to conduct the following maintenance inspections to enable

long-term, full use of all its functions.

Necessity of periodic maintenance service

The backlight in the LCD panel is a consumable component that deteriorates over time leading to gradual loss of

performance that could eventually result in a malfunction.

Conventional after-sales service that replaces parts when they break down should therefore be combined with a

regularly conducted comprehensive service to maintain normal operation and prevent unforeseen breakdown of

consumables.

Screws

Rear

Base

Stand

Rack mount adaptor

Screw

41

Error and Warning Displays

If for any reason an error occurs in this monitor, the LEDs above the picture adjusting knob flash at 1-second

intervals to inform of the error/warning.

Maintenance

• Clean the cabinet and protection panel by gently wiping it with a soft cloth.

To remove stubborn soiling, use a cloth dampened in a weak neutral detergent solution and thoroughly wrung

out. Then wipe with a dry cloth. Any moisture entering the monitor could damage it.

• Do not use benzene, thinner and similar solvents for cleaning.

They could discolor the surface and cause the paint to peel.

• Do not directly expose the monitor to spray cleaning.

Any moisture entering the monitor could damage it.

Error and Warning

displays Symptom Remedy

Inverter error If a malfunction occurs in the inverter that

controls backlight brightness, the

backlight goes off and the screen turns

black.

Turn off the power and then turn it back

on. If the problem still persists, consult

your dealer.

Warning of drop in

external DC input

voltage/low voltage

A “LOW VOLTAGE” indication in blue

flashes on the screen.

This means that the external DC power

supply input voltage has dropped to

approximately 11.3 V or less.

•If you use a battery pack as an

external DC power supply, replace it

with a fully charged battery pack.

•Connect an external DC power supply

providing 11.0 V or more. Set the

POWER switch to the off position and

then set it to the on position again.

The “LOW VOLTAGE” indication flashes

in red on the screen and the power is

turned off approximately 4 seconds later.

This means that the external DC power

supply input voltage has dropped below

11.0 V.

42

Specifications

■General

Input power

is the safety information.

Dimensions:

• Including stand

430 (W) mm × 323.5 (H) mm × 198 (D) mm

[16

15

/

16

(W) inches × 12

3

/

4

(H) inches × 7

13

/

16

(D) inches]

• Main body only, not including stand

430 (W) mm × 309 (H) mm × 81.1 (D) mm

[16

15

/

16

(W) inches × 12

3

/

16

(H) inches × 3

3

/

16

(D) inches]

Mass:

• Including stand

7.1 kg (15.7 lb)

• Main body only, not including stand

6.2 kg (13.7 lb)

Operating temperature:

+5 °C to +35 °C (+41 °F to +95 °F)

Operating humidity:

20 % to 80 % (no condensation)

Storage temperature:

-20 °C to +60 °C (-4 °F to +140 °F)

■Panel

Size: 17.0 type

Aspect ratio: 15:9

Number of pixels: 1280 × 768 (WXGA)

Display colors: Approx. 16,770,000 colors

View angle: 176° up/down, 176° right/left

■Input/output Connectors

Image signal input:

VIDEO:

1 line, BNC × 2

(1 connector with through-out configuration)

Analog component:

1 line for YPBPR/RGBS, BNC × 8

(4 connectors with through-out configuration)

However, when input is RGB-COMP. this becomes

BNC × 5 (R, G, B, HD, and VD).

(Through-out is not available)

SDI:

Compliant with SMPTE 274M, 296M, 259M-C and

ITU-R BT.656-4

2 lines, BNC × 3

(1 connector with switched-out configuration)

DVI-D (HDCP compatible): TMDS single link

1 line, DVI-D × 1

Vertical frequency: 50.0 - 60.0 Hz

Horizontal frequency: 31.5 - 67.5 kHz

Dot clock: 25 - 165 MHz

Audio input: Pin jack × 2 (stereo)

Headphone output: Stereo minijack M3 × 1

GPI: D-SUB, 9 pins × 1

RS-232C: D-SUB, 9 pins × 1

DC input: XLR, 4 pins × 1

■Signal level

VIDEO

EXT SYNC signal level: 0.3 Vp-p to 4.0 Vp-p

HD/VD signal level: TTL level

AUDIO

AUDIO input level: 0.5 Vrms

Speaker output: 0.5 W + 0.5 W

Headphone output: 32 Ω, level adjustable

■SDI embedded audio

HD-SDI: SMPTE299M compatible

Sampling rate: 48 kHz, synchronous/asynchronous

8 ch

SD-SDI: SMPTE272M compatible

Sampling rate: 48 kHz, synchronous

4 ch

■Standard accessories

<For BT-LH1760P>

Operationg instructions × 1

Warranty (Card) × 1

Power cord × 1

Power cord hook × 1

Screw × 1

<For BT-LH1760E>

Operationg instructions × 1

AC mains lead × 2

AC mains lead hook × 1

Screw × 1

■Optional units

Rack Mount Adaptor

BT-MA1710G

Wall Mount Adaptor

BT-WMA17G

Protection Panel

BT-PRP17G

AC:

DC:

Power supply:

100 V - 240 V, 50/60 Hz

12 V (11 V - 17 V)

Power consumption:

0.6 A - 0.3 A

4.0 A

Inrush current, measured according to European standard

EN55103-1: 5.62A

43

Specifications (continued)

■ List of compatible signal formats ( : Compatible, : Limited compatibility)

*1 When 1035/59.94I signal is input, displayed as 1080/59.94I. Other various marker displays will use the 1080/

59.94I marker.

*2 When 1035/60I signal is input, displayed as 1080/60I. Other various marker displays will use the 1080/60I

marker.

Weight and dimensions when shown are approximately.

Specifications are subject to change without notice.

Input signal formats VIDEO SDI1 SDI2 YPBPR

RGB-VIDEO RGB-COMP. DVI VIDEO DVI COMP.

NTSC

PA L

480/59.94I

480/59.94P

576/50I

576/50P

720/50P

720/59.94P

720/60P

1035/59.94I

*1 *1 *1 *1

1035/60I

*2 *2 *2 *2

1080/23.98PsF

1080/24PsF

1080/23.98P

1080/24P

1080/25P

1080/29.97P

1080/30P

1080/50I

1080/50P

1080/59.94I

1080/60I

1080/59.94P

1080/60P

640 × 400 (70 Hz)

640 × 480 (60 Hz)

640 × 480 (75 Hz)

640 × 480 (85 Hz)

800 × 600 (60 Hz)

800 × 600 (70 Hz)

800 × 600 (75 Hz)

800 × 600 (85 Hz)

1024 × 768 (60 Hz)

1024 × 768 (70 Hz)

1024 × 768 (75 Hz)

1024 × 768 (85 Hz)

1280 × 768 (50 Hz)

1280 × 768 (60 Hz)

1280 × 768 (75 Hz)

1280 × 1024 (60 Hz)

© 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

EP

Panasonic Broadcast & Television Systems Company

Unit Company of Panasonic Corporation of North America

Executive Office:

One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000

EASTERN ZONE:
