Panda Wireless®
Version 4.0 ( BLE + EDR)
Bluetooth USB Adapter
Quick Start Guide
Model number: PBU40
FCC ID:2ADUTLGPBU40
Panda Wireless is a trademark of Panda Wireless, Inc. All product names are the trademarks and registered trademarks of
the respective owners. The Bluetooth word, mark and logos are owned by the Bluetooth SIG, Inc. This manual may not be
copied in any media or form without the written consent of Panda Wireless.
TABLE OF CONTENTS
Introduction..........................................................................................................................1
Features................................................................................................................................1
System Requirements...........................................................................................................1
Install Wireless Software Stack...........................................................................................2
Introduction
the PBU40 Bluetooth USB dongle provides wireless links between your computer and
other Bluetooth devices at speed up to 25 Mbps. The Panda Wireless BT 4.0 dongle is
compatible with all Bluetooth certified devices.
Features
•In compliance with Bluetooth standard version 4.0(BLE+EDR)
•Work on machine running Windows XP/Vista/7/8, Mac OS X, Linux
•No need to install driver under Windows XP/Vista/7/8, Mac OS X, Linux
•Wireless data exchange between your computer and other Bluetooth devices
•Ultra low power consumption
System Requirements
•Processor: Intel/AMD CPUs (clock frequency >1GHz recommended)
•Operating System: Microsoft Windows XP/Vista/7/8, Mac OS X, Linux
•System memory: 1GB minimum
•Hard disk free space: 500 MB
Panda Wireless, Inc. | 15559 Union Ave, Suite 300, Los Gatos, CA 95032
Phone: (408) 827-5568 | Email: sales@pandawireless.com | Support: support@pandawireless.com
Panda Wireless’ BT 4.0 dongle features the latest version 4.0(B LE + EDR) specification,
For Windows Users: Panda BT 4.0 is a Plug and Play device for any machine running
Windows XP/Vista/7/8. You need to install the Wireless Software Stack in order to
utilize the full capabilities of the Panda BT4.0 dongle.
Wireless Software Stack Installation for Windows Users Only
What are included in the Wireless Software Stack?
a) Generic Bluetooth Radio
b) Bluetooth Device (RFCOMM Protocol TDI)
c) Microsoft Bluetooth Enumerator
d) Bluetooth Device (Personal Area Network)
e) CSR Bluetooth Radio
f) Bluetooth Personal Area Network Device
g) Bluetooth SPP Driver
For Mac and Linux Users: Panda BT4.0 dongle is a Plug and Play device for any
machine running Mac OS X and Linux. You need to run Mac OS X 10.6 or higher and
the latest Linux distributions (i.e. Ubuntu, Mint, Fedora…etc.) in order to utilize the full
capabilities of the Panda BT4.0 dongle
Install Wireless Software Stack
Please see below for the instructions to install the Wireless Software Stack on Windows
XP/Vista/7/8.
Step 0: Please remove any previous version of the Wireless Software Stack that exists in
your systems.

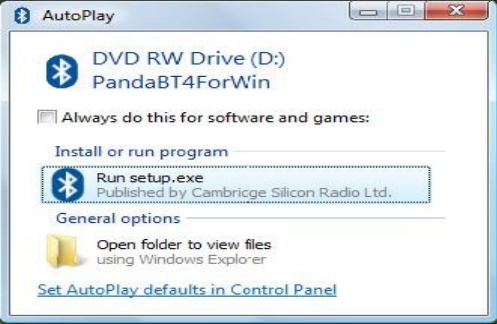

Step 1: Insert the installation CD into CD drive of your computer. The auto-installation
program will guide you to complete the installation. Just click “Run setup.exe” to start
the installation.
Panda Wireless, Inc. | 15559 Union Ave, Suite 300, Los Gatos, CA 95032
Phone: (408) 827-5568 | Email: sales@pandawireless.com | Support: support@pandawireless.com 2

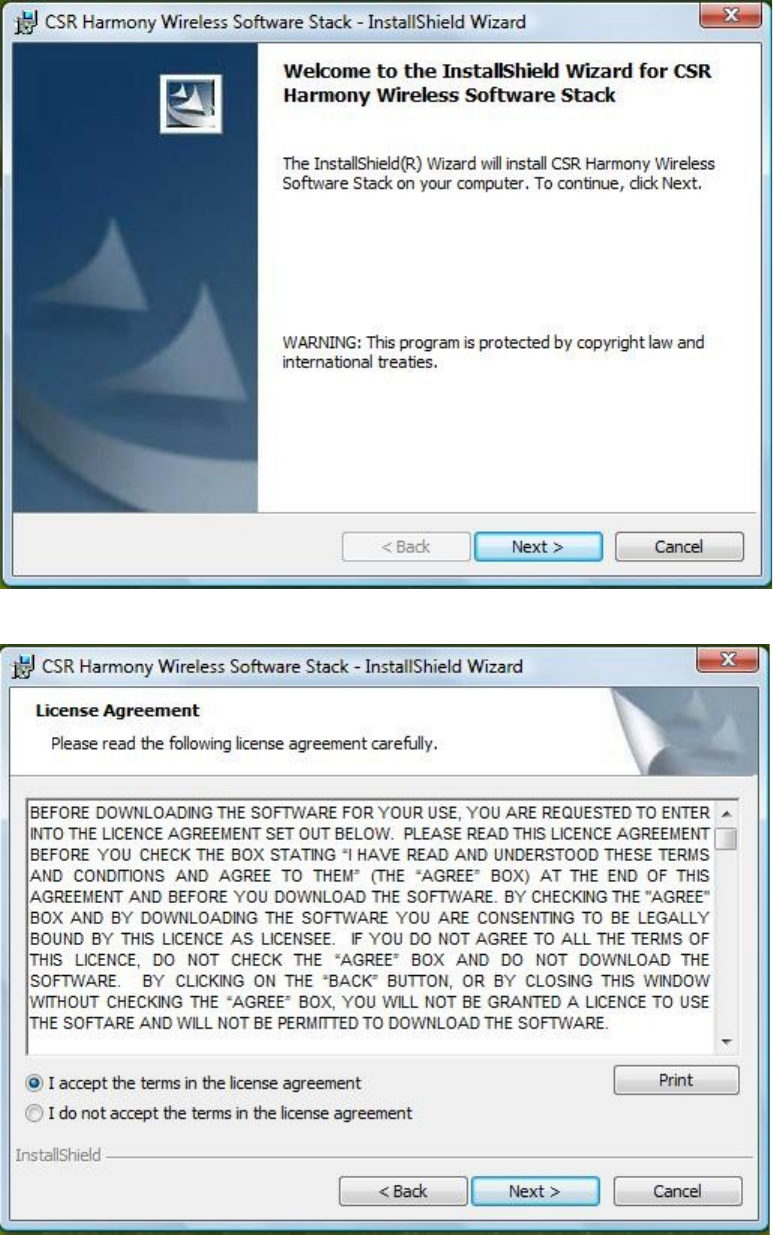

Step 1: Click “Next” to continue.
Step 2 : Select “I accept the terms in the license agreement” and click “Next” to continue.
Panda Wireless, Inc. | 15559 Union Ave, Suite 300, Los Gatos, CA 95032
Phone: (408) 827-5568 | Email: sales@pandawireless.com | Support: support@pandawireless.com 3

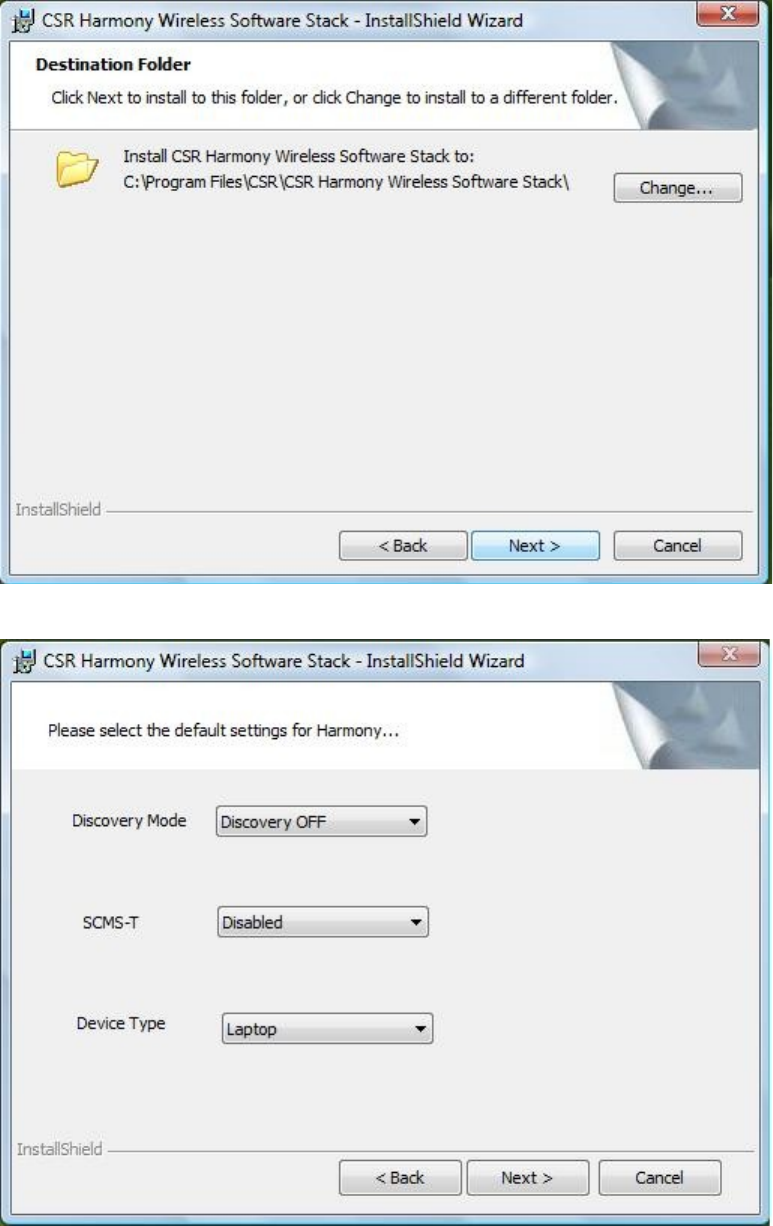

Step 3: Click “Next” to continue. (We recommend that you use the default path)
Step 4: Click “Next” to continue. (We recommend that you use the default settings)
Panda Wireless, Inc. | 15559 Union Ave, Suite 300, Los Gatos, CA 95032
Phone: (408) 827-5568 | Email: sales@pandawireless.com | Support: support@pandawireless.com 4
Step 5: Click “Install” to install the Wireless Software Stack.
Step 6: Wait for the files to be automatically installed on your computer.
Panda Wireless, Inc. | 15559 Union Ave, Suite 300, Los Gatos, CA 95032
Phone: (408) 827-5568 | Email: sales@pandawireless.com | Support: support@pandawireless.com 5

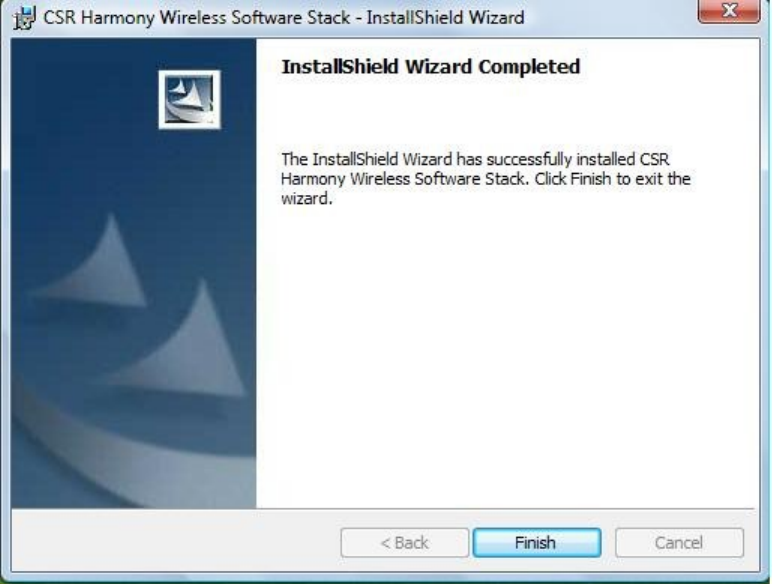

Step 7: Click “Finish” to complete the installation.
Panda Wireless, Inc. | 15559 Union Ave, Suite 300, Los Gatos, CA 95032
Phone: (408) 827-5568 | Email: sales@pandawireless.com | Support: support@pandawireless.com 6
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
