Panoramic Power PAN-1-0 WIRELESS CURRENT SENSOR User Manual USERS MANUAL

Panoramic Power ltd. WIRELESS CURRENT SENSOR USERS MANUAL

USERS MANUAL

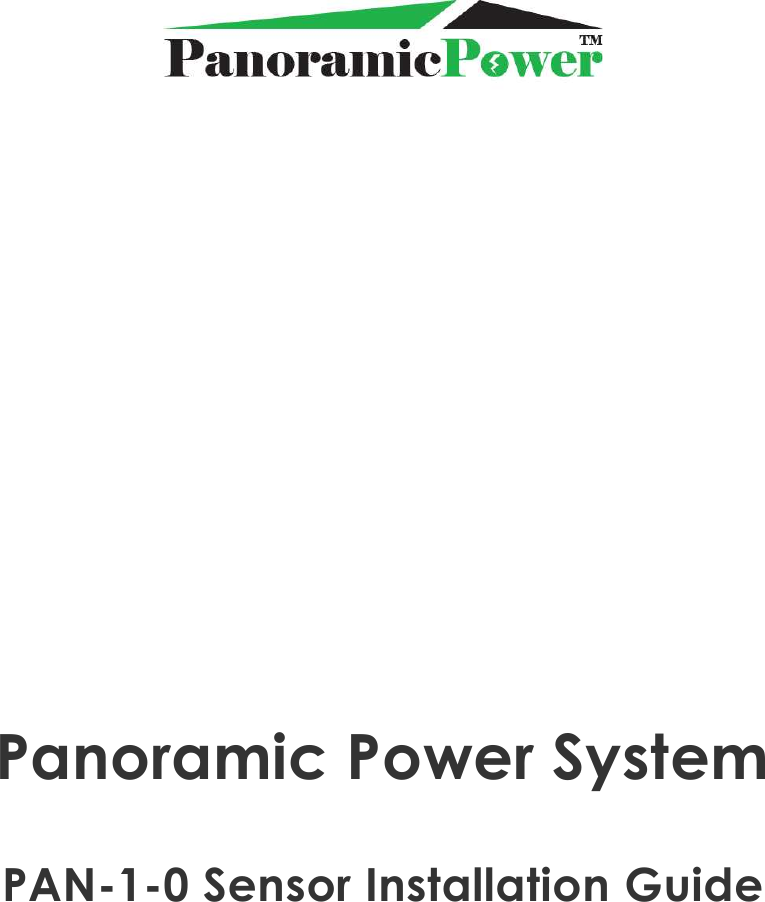

Panoramic Power SystemPAN-1-0 Sensor Installation Guide

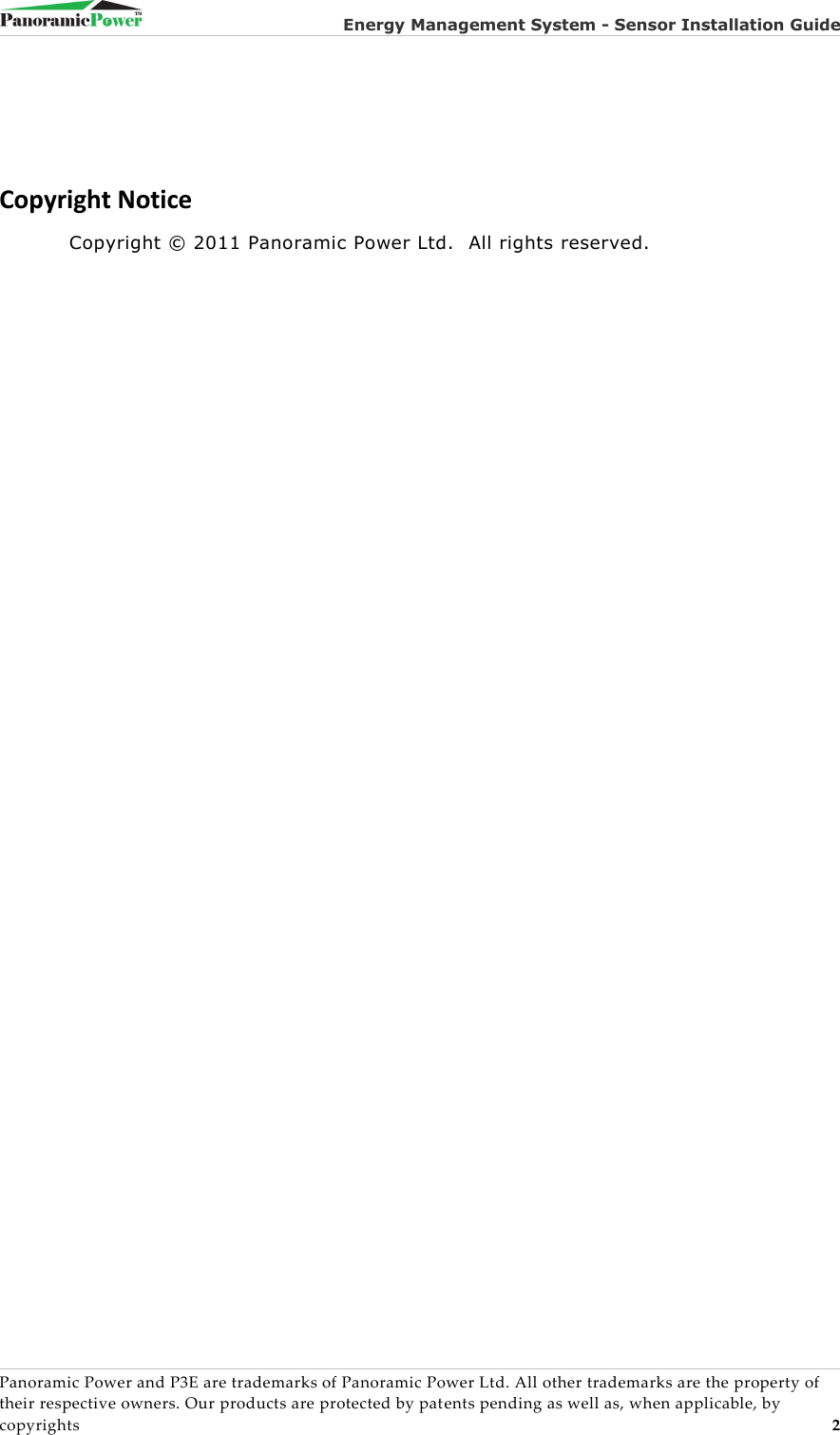

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 2Copyright NoticeCopyright © 2011 Panoramic Power Ltd. All rights reserved.

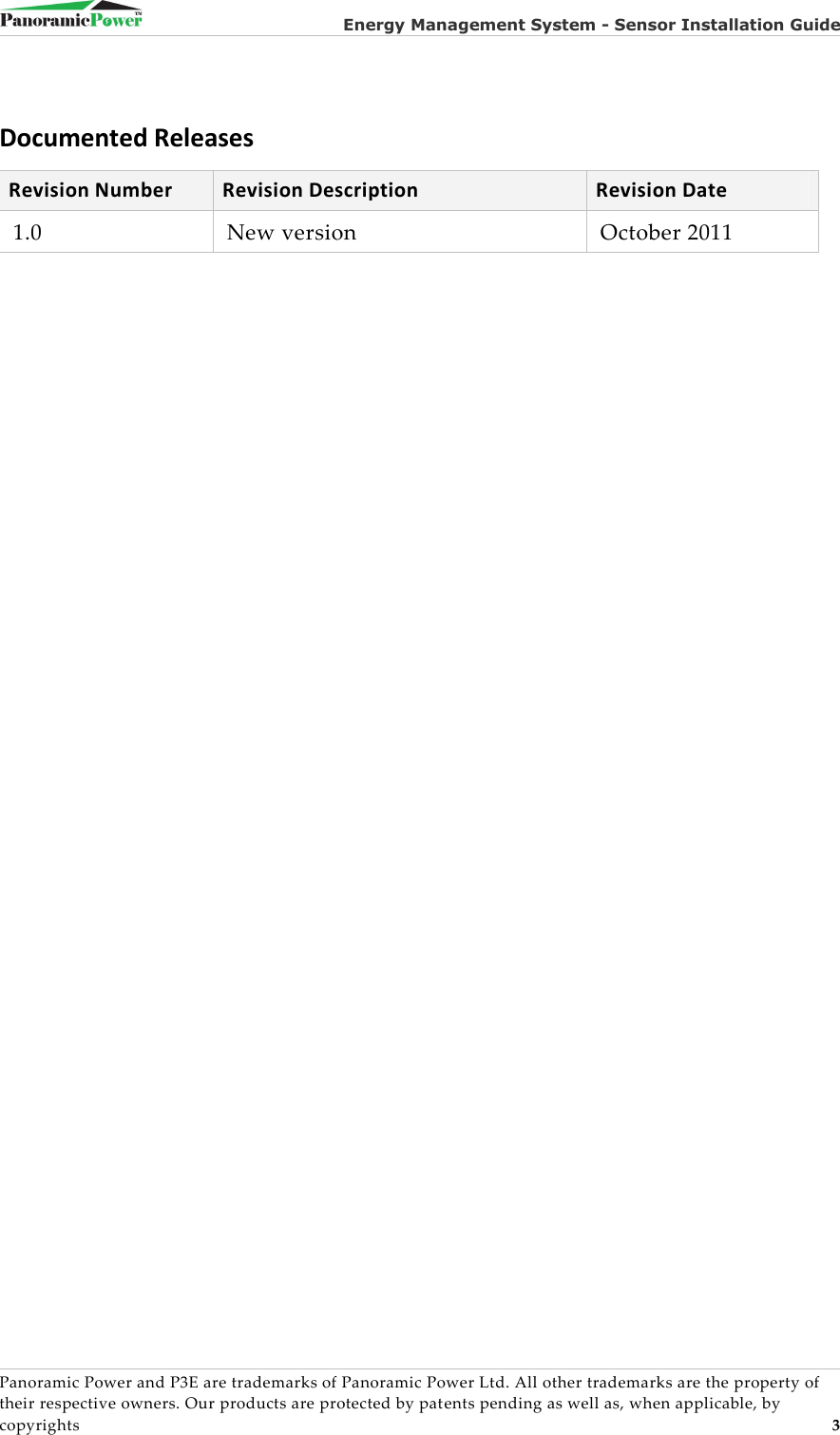

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 3Documented ReleasesRevision NumberRevision DescriptionRevision Date1.0New versionOctober 2011

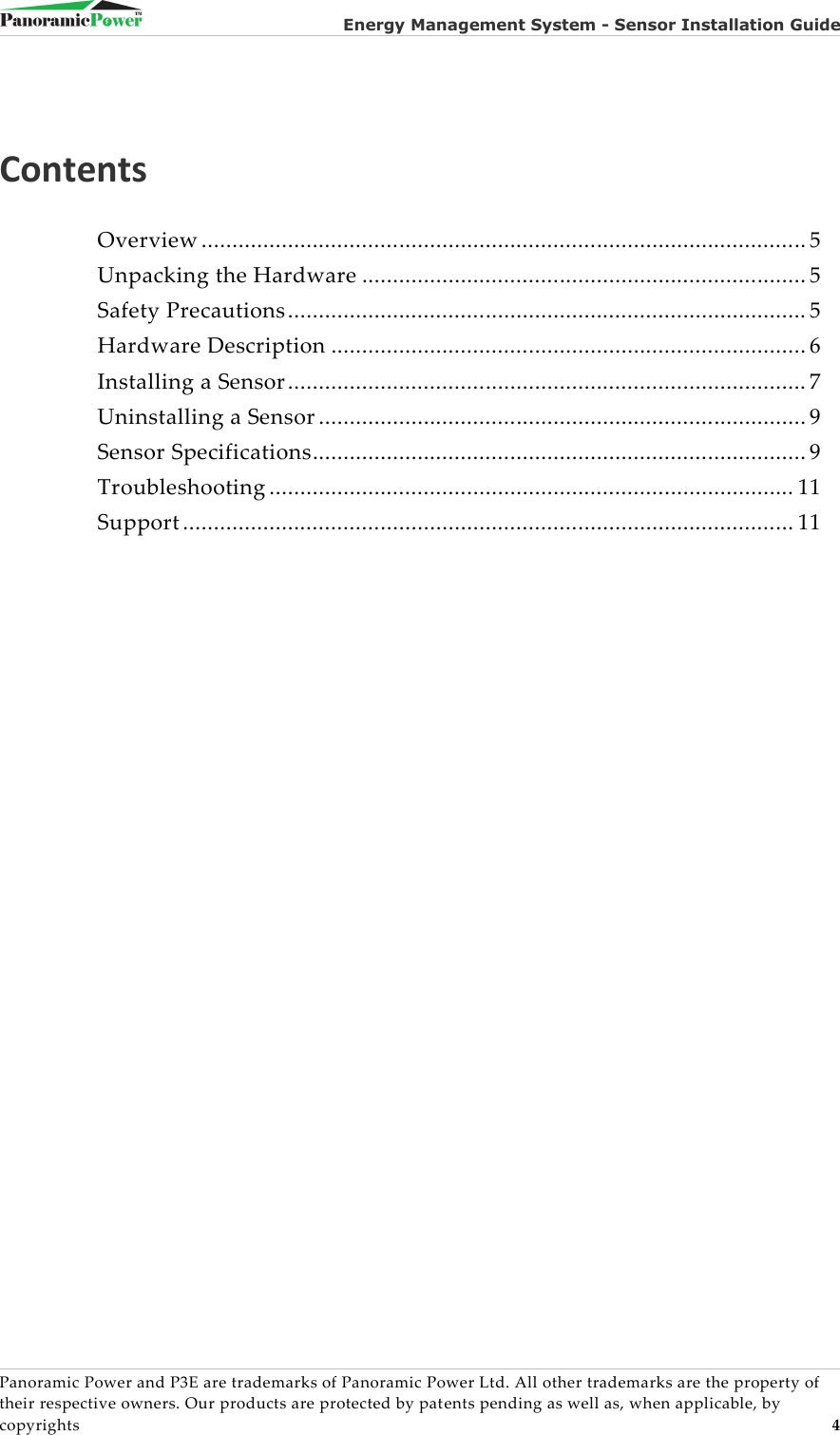

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 4ContentsOverview .................................................................................................. 5Unpacking the Hardware ........................................................................ 5Safety Precautions.................................................................................... 5Hardware Description ............................................................................. 6Installing a Sensor.................................................................................... 7Uninstalling a Sensor ............................................................................... 9Sensor Specifications................................................................................ 9Troubleshooting ..................................................................................... 11Support................................................................................................... 11

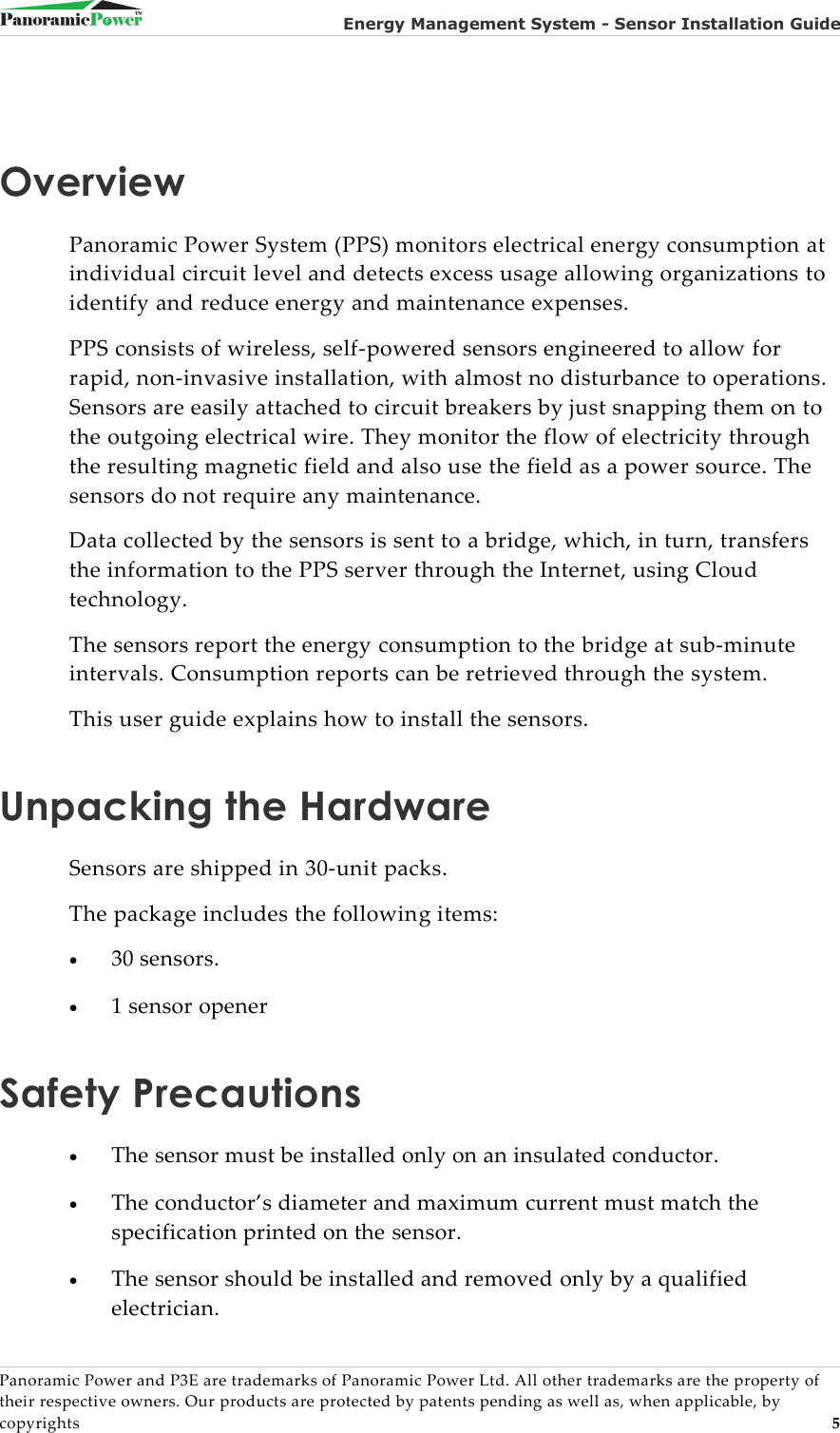

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 5OverviewPanoramic Power System (PPS) monitors electrical energy consumption atindividual circuit level and detects excess usage allowing organizations toidentify and reduce energy and maintenance expenses.PPS consists of wireless, self-powered sensors engineered to allow forrapid, non-invasive installation, with almost no disturbance to operations.Sensors are easily attached to circuit breakers by just snapping them on tothe outgoing electrical wire. They monitor the flow of electricity throughthe resulting magnetic field and also use the field as a power source. Thesensors do not require any maintenance.Data collected by the sensors is sent to a bridge, which, in turn, transfersthe information to the PPS server through the Internet, using Cloudtechnology.The sensors report the energy consumption to the bridge at sub-minuteintervals. Consumption reports can be retrieved through the system.This user guide explains how to install the sensors.Unpacking the HardwareSensors are shipped in 30-unit packs.The package includes the following items:30 sensors.1 sensor openerSafety PrecautionsThe sensor must be installed only on an insulated conductor.The conductor’s diameter and maximum current must match thespecification printed on the sensor.The sensor should be installed and removed only by a qualifiedelectrician.

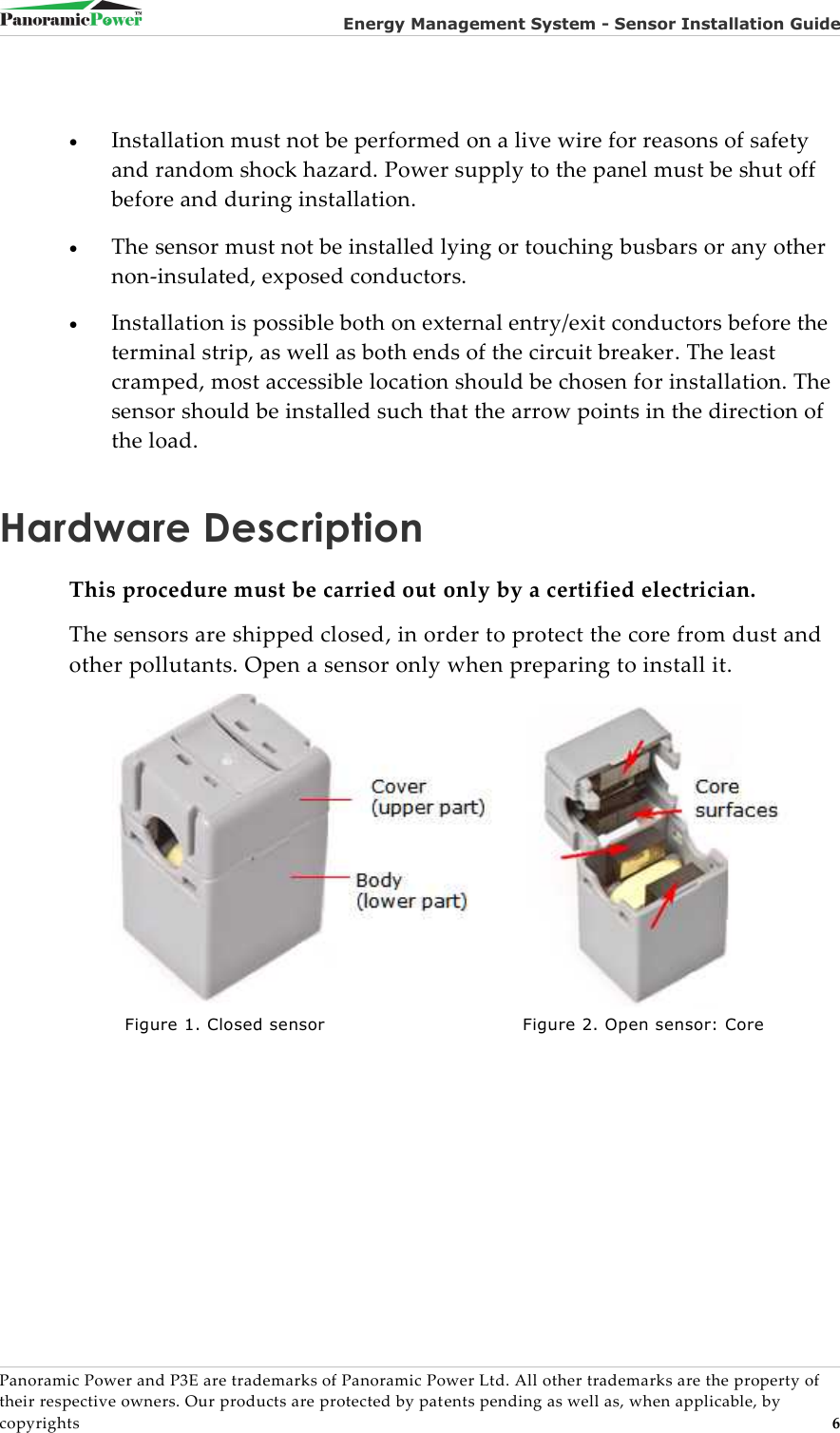

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 6Installation must not be performed on a live wire for reasons of safetyand random shock hazard. Power supply to the panel must be shut offbefore and during installation.The sensor must not be installed lying or touching busbars or any othernon-insulated, exposed conductors.Installation is possible both on external entry/exit conductors before theterminal strip, as well as both ends of the circuit breaker. The leastcramped, most accessible location should be chosen for installation. Thesensor should be installed such that the arrow points in the direction ofthe load.Hardware DescriptionThis procedure must be carried out only by a certified electrician.The sensors are shipped closed, in order to protect the core from dust andother pollutants. Open a sensor only when preparing to install it.Figure 1. Closed sensor Figure 2. Open sensor: Core

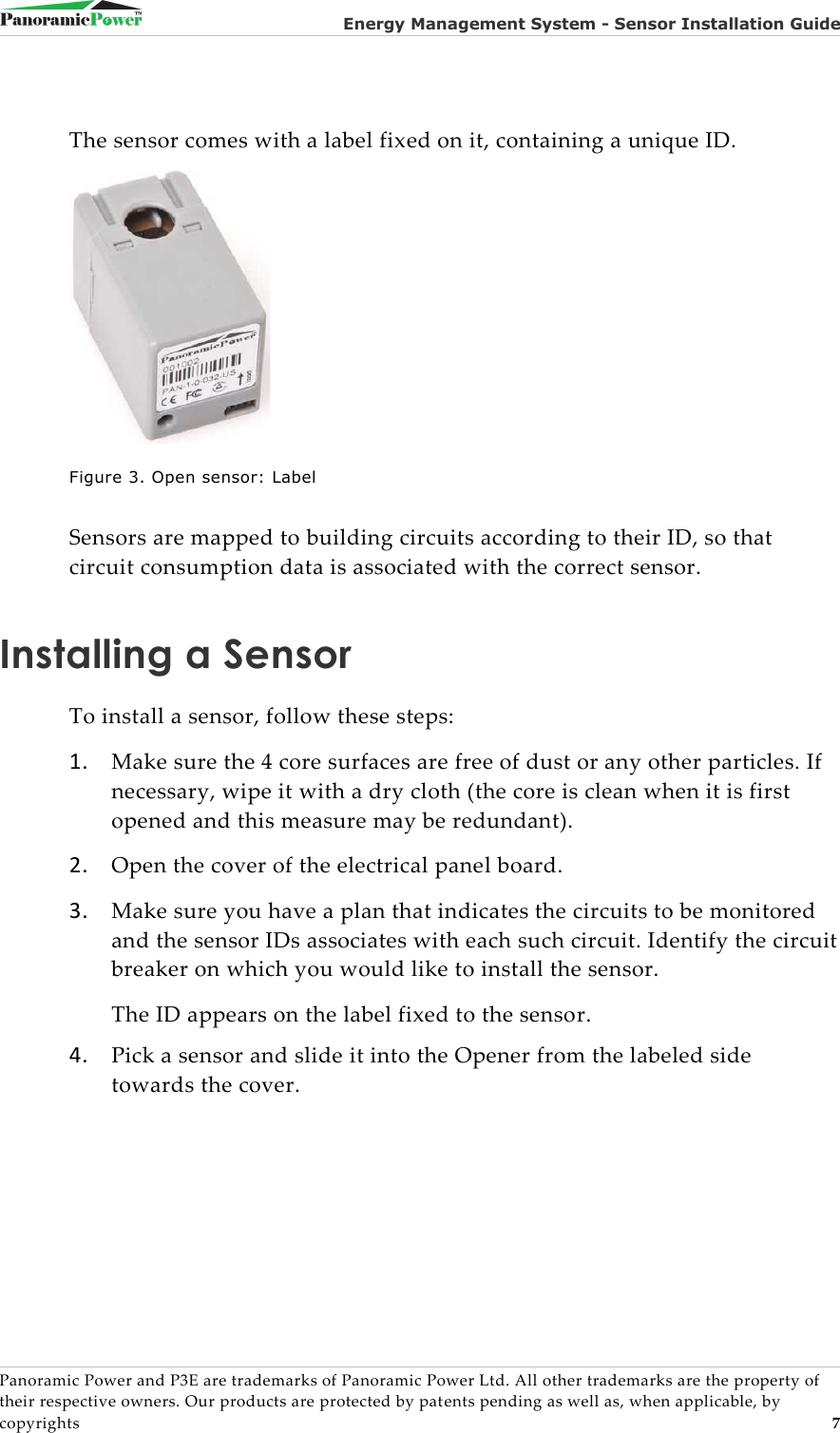

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 7The sensor comes with a label fixed on it, containing a unique ID.Figure 3. Open sensor: LabelSensors are mapped to building circuits according to their ID, so thatcircuit consumption data is associated with the correct sensor.Installing a SensorTo install a sensor, follow these steps:1. Make sure the 4 core surfaces are free of dust or any other particles. Ifnecessary, wipe it with a dry cloth (the core is clean when it is firstopened and this measure may be redundant).2. Open the cover of the electrical panel board.3. Make sure you have a plan that indicates the circuits to be monitoredand the sensor IDs associates with each such circuit. Identify the circuitbreaker on which you would like to install the sensor.The ID appears on the label fixed to the sensor.4. Pick a sensor and slide it into the Opener from the labeled sidetowards the cover.

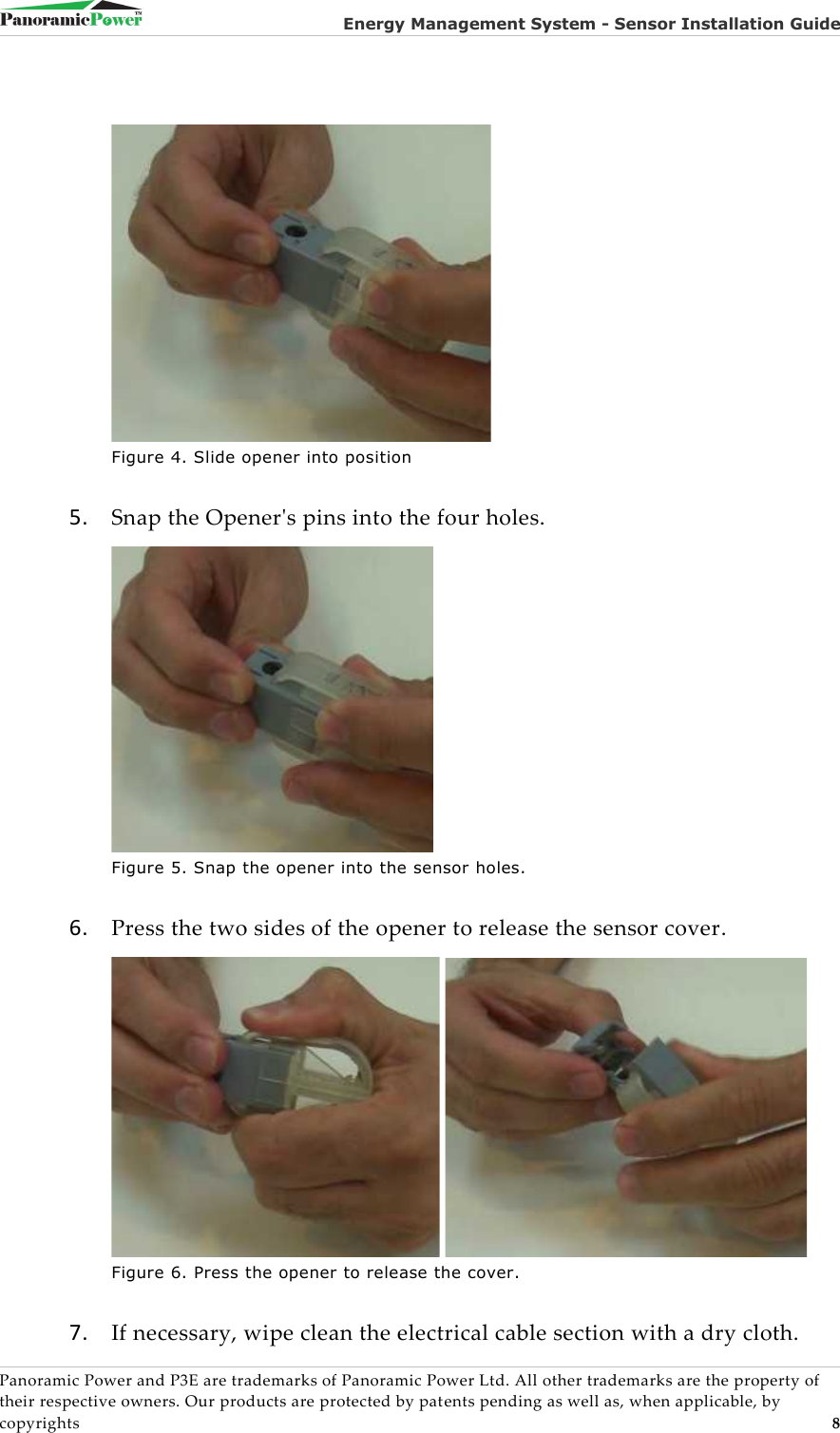

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 8Figure 4. Slide opener into position5. Snap the Opener's pins into the four holes.Figure 5. Snap the opener into the sensor holes.6. Press the two sides of the opener to release the sensor cover.Figure 6. Press the opener to release the cover.7. If necessary, wipe clean the electrical cable section with a dry cloth.

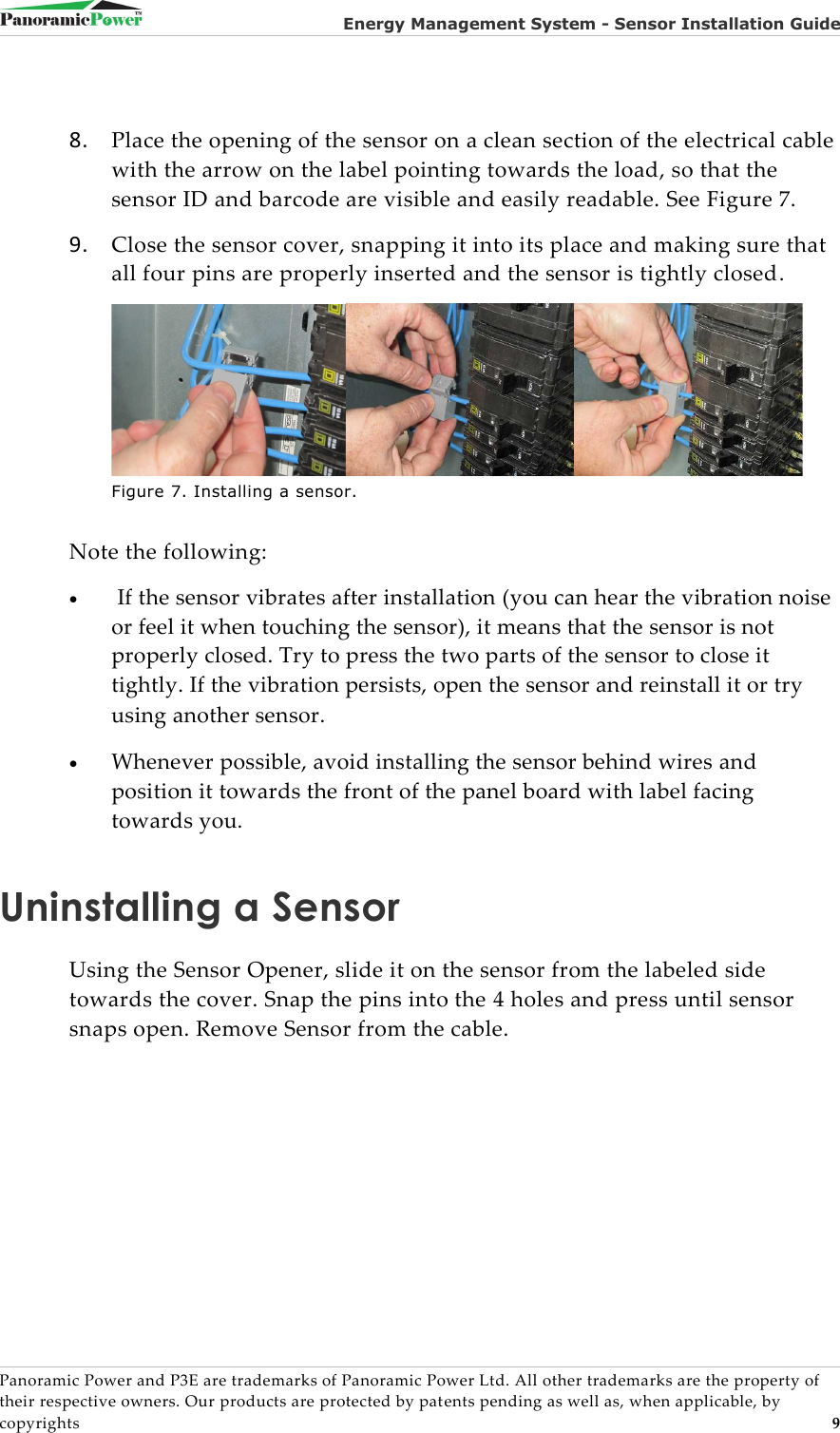

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 98. Place the opening of the sensor on a clean section of the electrical cablewith the arrow on the label pointing towards the load, so that thesensor ID and barcode are visible and easily readable. See Figure 7.9. Close the sensor cover, snapping it into its place and making sure thatall four pins are properly inserted and the sensor is tightly closed.Figure 7. Installing a sensor.Note the following:If the sensor vibrates after installation (you can hear the vibration noiseor feel it when touching the sensor), it means that the sensor is notproperly closed. Try to press the two parts of the sensor to close ittightly. If the vibration persists, open the sensor and reinstall it or tryusing another sensor.Whenever possible, avoid installing the sensor behind wires andposition it towards the front of the panel board with label facingtowards you.Uninstalling a SensorUsing the Sensor Opener, slide it on the sensor from the labeled sidetowards the cover. Snap the pins into the 4 holes and press until sensorsnaps open. Remove Sensor from the cable.

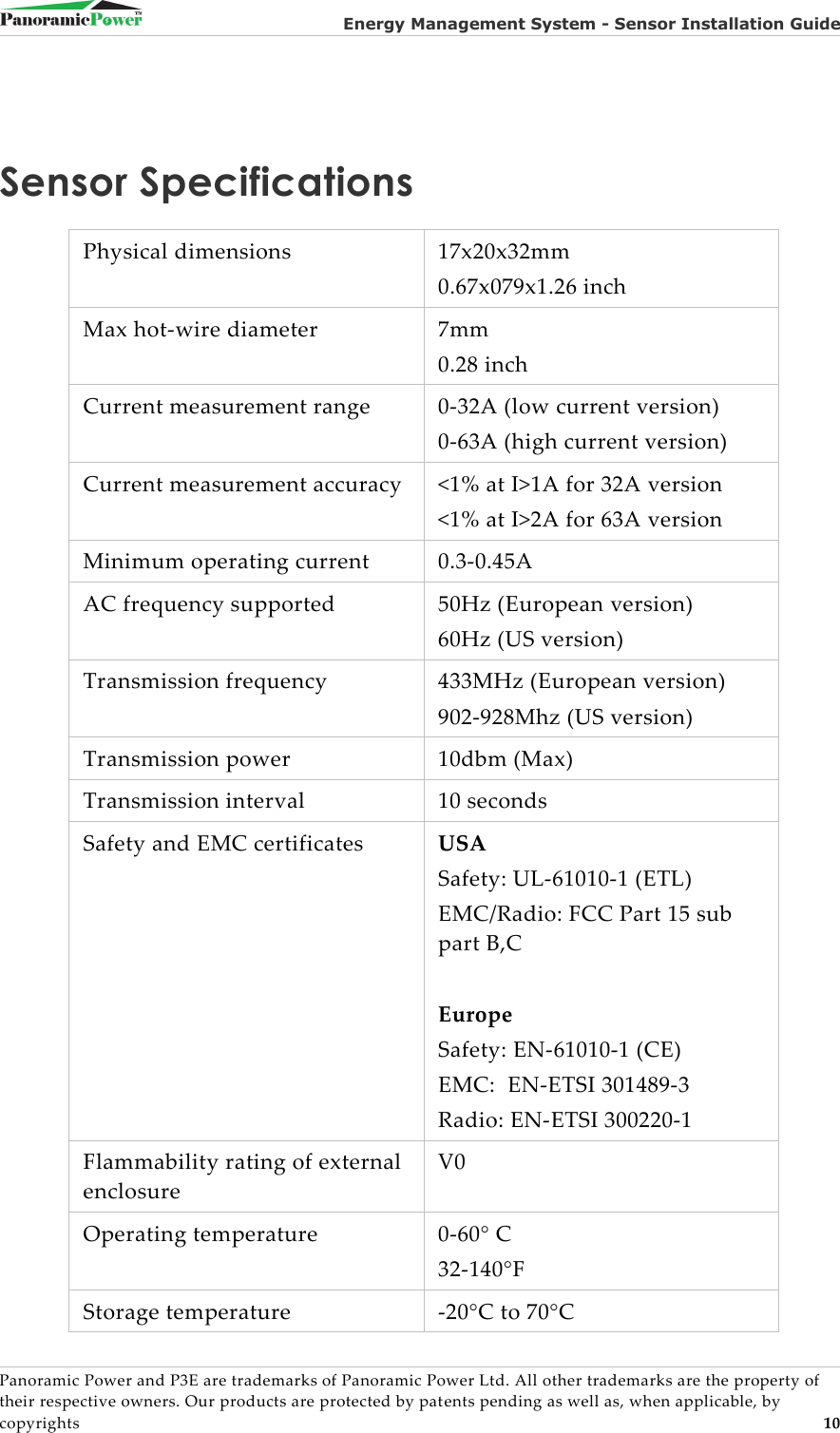

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 10Sensor SpecificationsPhysical dimensions17x20x32mm0.67x079x1.26 inchMax hot-wire diameter7mm0.28 inchCurrent measurement range0-32A (low current version)0-63A (high current version)Current measurement accuracy<1% at I>1A for 32A version<1% at I>2A for 63A versionMinimum operating current0.3-0.45AAC frequency supported50Hz (European version)60Hz (US version)Transmission frequency433MHz (European version)902-928Mhz (US version)Transmission power10dbm (Max)Transmission interval10 secondsSafety and EMC certificatesUSASafety: UL-61010-1 (ETL)EMC/Radio: FCC Part 15 subpart B,CEuropeSafety: EN-61010-1 (CE)EMC: EN-ETSI 301489-3Radio: EN-ETSI 300220-1Flammability rating of externalenclosureV0Operating temperature0-60° C32-140°FStorage temperature-20°C to 70°C

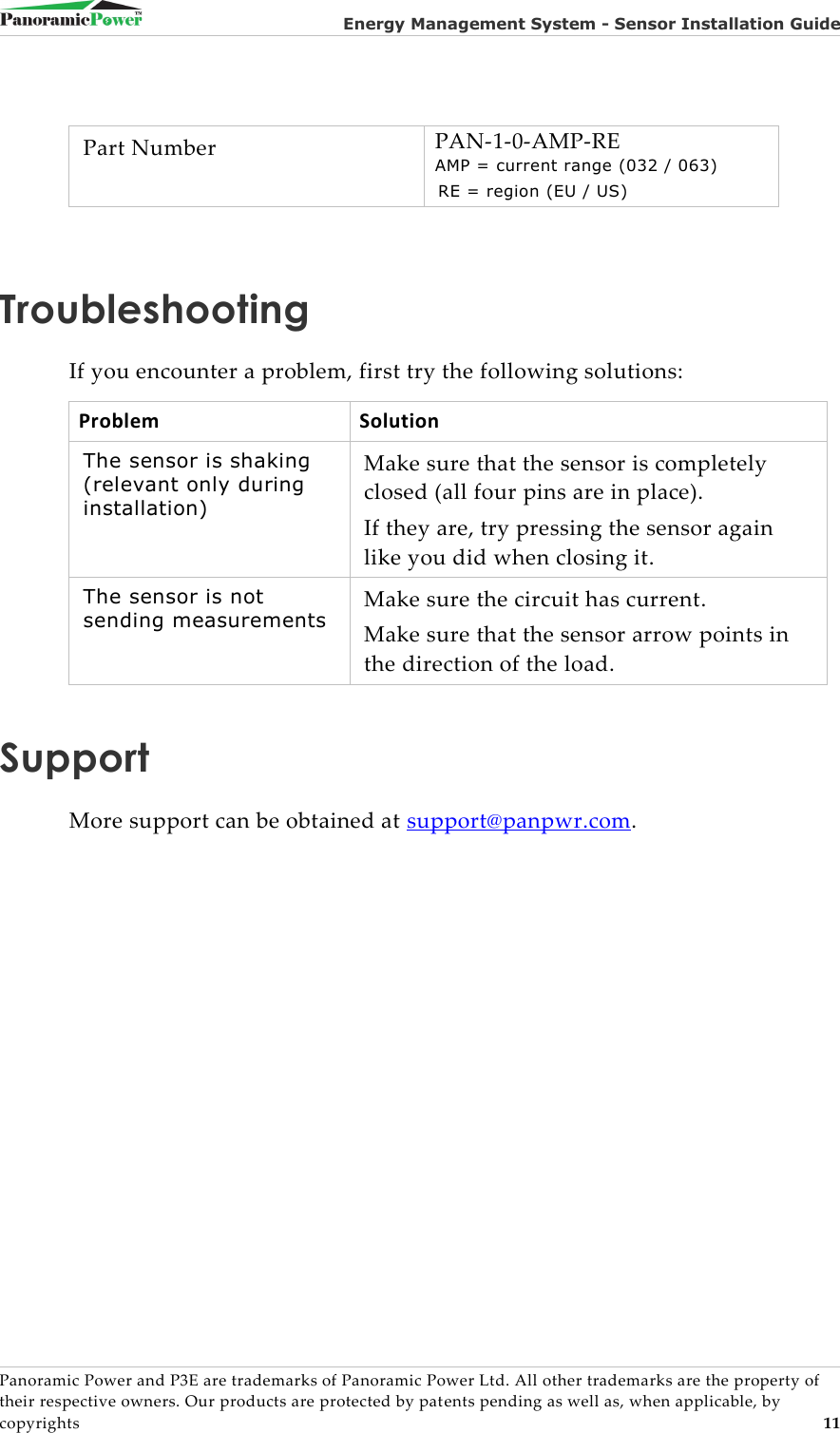

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 11Part NumberPAN-1-0-AMP-REAMP = current range (032 / 063)RE = region (EU / US)TroubleshootingIf you encounter a problem, first try the following solutions:ProblemSolutionThe sensor is shaking(relevant only duringinstallation)Make sure that the sensor is completelyclosed (all four pins are in place).If they are, try pressing the sensor againlike you did when closing it.The sensor is notsending measurementsMake sure the circuit has current.Make sure that the sensor arrow points inthe direction of the load.SupportMore support can be obtained at support@panpwr.com.

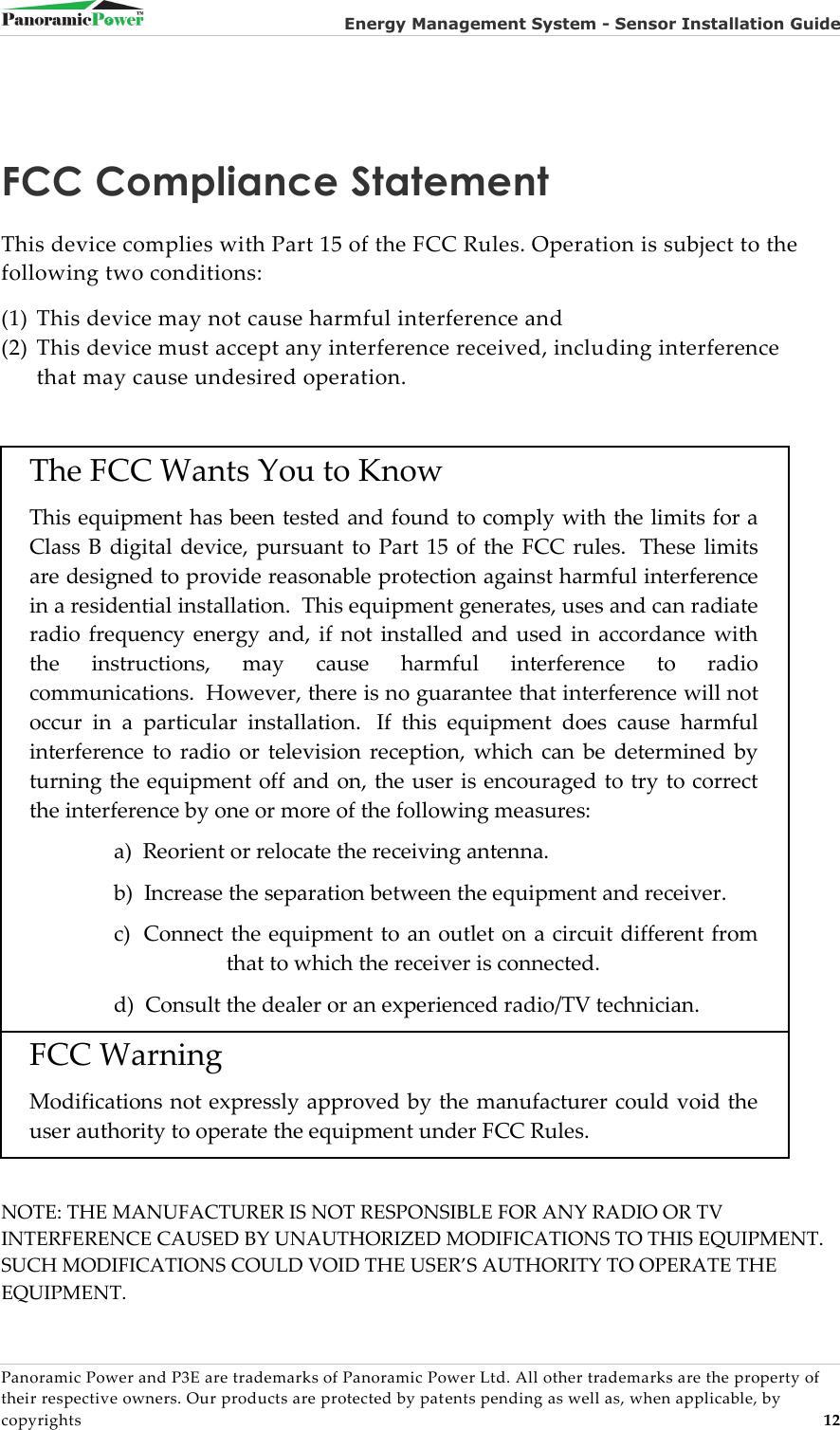

Energy Management System - Sensor Installation GuidePanoramic Power and P3E are trademarks of Panoramic Power Ltd. All other trademarks are the property oftheir respective owners. Our products are protected by patents pending as well as, when applicable, bycopyrights 12FCC Compliance StatementThis device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:(1) This device may not cause harmful interference and(2) This device must accept any interference received, including interferencethat may cause undesired operation.The FCC Wants You to KnowThis equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC rules. These limitsare designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:a) Reorient or relocate the receiving antenna.b) Increase the separation between the equipment and receiver.c) Connect the equipment to an outlet on a circuit different fromthat to which the receiver is connected.d) Consult the dealer or an experienced radio/TV technician.FCC WarningModifications not expressly approved by the manufacturer could void theuser authority to operate the equipment under FCC Rules.NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TVINTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THEEQUIPMENT.
