C530 USER MANUAL
Thank you for choosing the Pantech Angela, our latest EDGE mobile
phone.
The Pantech Angela has many features designed to enhance your mobile
experience. From its sleek, stylish design and QWERTY keypad, we know
you will enjoy the entire Angela experience.
This User Guide contains important and useful information that will
maximize your familiarity with all that the Pantech Angela has to offer.
Specifications
Design
Bar type phone with single display and QWERTY keypad
Displays
l 260k colors TFT LCD with 2.2” internal display
l 176*220 resolution
l 7 lines for text in basic mode with 16-point font
l Two soft keys and four-way scroll and selection OK keys
Melodies
MP3, AAC. AAC+, WMA, AMR-NB, MIDI, SP-MIDI
Camera
Integrated 1.2M CMOS Camera
l Resolution up to 1280 x 960 (330,000 pixels)
l Mpeg4 Video recording/playing up to 15f/s(QCIF size)
l Self-timer function (5 seconds or 10 seconds)
l Photo album and video album
Dimensions & Weight
l Weight: 132g (with standard battery)
l Dimensions: 107 mm x 64 mm x 9.9 mm
Power Management (Performance)
Battery Type Capacity Standby Time Talk Time
Standard
Lithium-Ion
(Li-ion) Up to 920 mAh
Up to 250 hours
Up to 3 hours
Operating Frequency
• GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS 1900Mhz
networks in North America, South America, Europe, Africa, and Asia-
Pacific where these networks are supported.
• Automatic band switching.

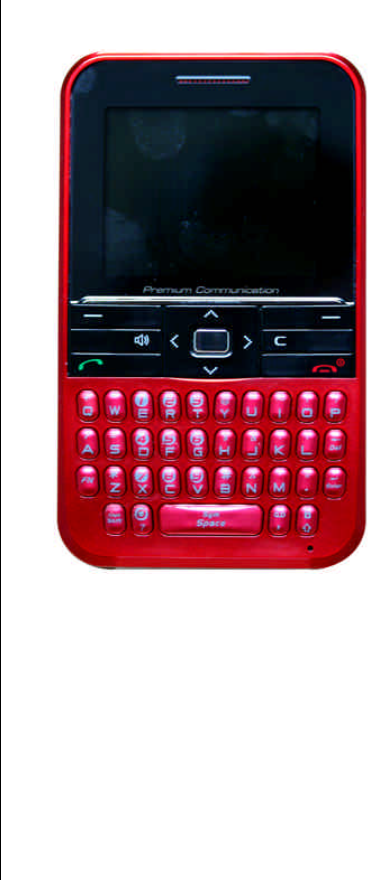

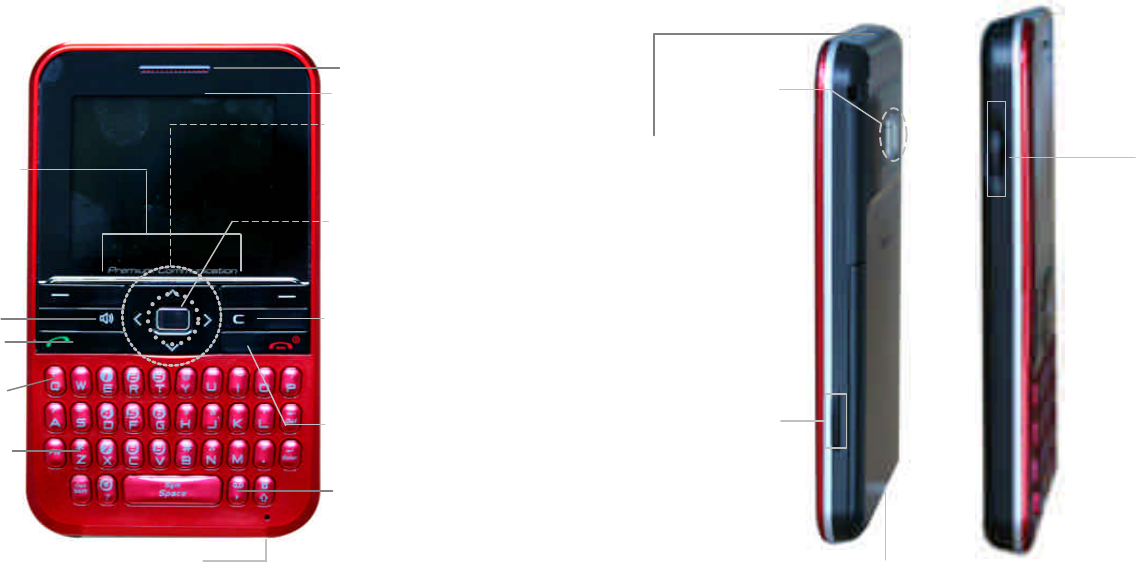

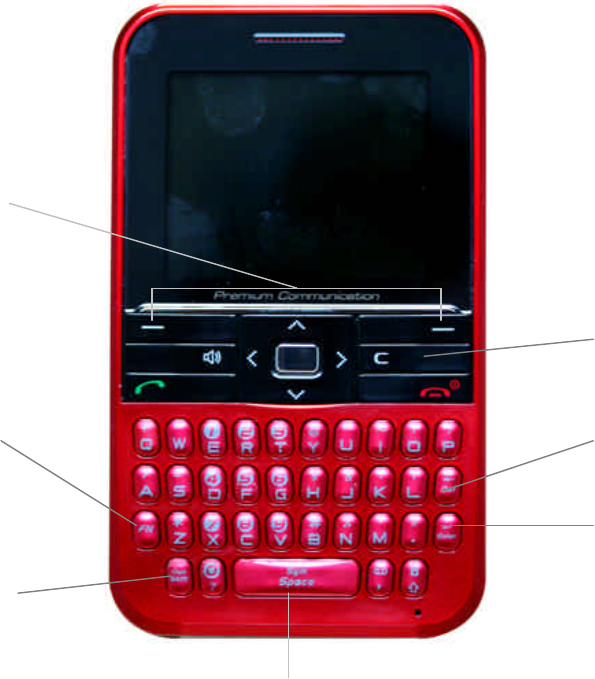

Phone overview
Number pad view
Power on&off/Menu exit key/End key
Turn phone on/off, end calls, exit menus
Send key
Clear key
Return to previous screen or
delete characters in text mode.
Vibrate mode
Microphone
Prefix international call key
Navigation key
Scroll through the menu options
Left/Right Soft key
at the bottom line of the
display.
OK key or access MEdia Net
Press to enter menu system
Camera
Side Key
Camera key
Earpiece
Display
NOTE: Holding device at internal antenna area might affect call
quality reception.
Internal antenna
Charger slot/Ear mic
Voicemail
Speaker key
QWERTY keyboard view
Left/Right Soft key
Perform the functions
shown at the bottom line of
the display.
CAPS/Shift key
To type a single uppercase letter,
press this key then a l
etter
Function key
To enter a number or a symbol,
press the function key, and press
the corresponding key
Space key
Press to enter a space
Clear/Back key
Returns to previous screen or
deletes characters in text mode.
Enter key
Press
to create new line while writing a
message
Delete key
Press to delete a number or letter
Using shortcuts
Numbered menu items, such as menus, sub-menus, and options can be
quickly accessed by using their shortcut numbers. In Menu mode, Main
Menus can be accessed by pressing the number keys (1 to 9)
corresponding to their location on the screen.
Example: Accessing the Language menu.
1. Press Menu.
2. Press the [9] for Settings.
3. Press the [4] for Phone.
4. Press the [1] for Language.
5. Press Select for Screen Text.
5. Press the [up] or [down] scroll key to display the list of available
languages.
Menu overview
1 Email & IM
1. Mobile Email
2. IM
2 Messaging
1. Create Message
2. Inbox
3. Sent
4. Outbox
5. Draft
6. Voice Mail
7. Templates
8. Settings
9. Memory Info
3 Yellowpage.com
4 MEdia Net
1. MEdia Net Home
2. Bookmarks
3. Go to URL
4. Profiles
5. Options
6. Security
7. Version
5 MEdia Mall
1. Shop Tones
2. Shop Games
3. Shop Graphics
4. Shop Multimedia
5. Shop Applications
6. MEdia Net
6 Games & Apps
1. Games
2. Applications
7 My Stuff
1. Audio
2. Graphics
3. Video
4. Tools
5. Other Files
6. Memory Info
8 Address Book
1. Contacts
2. New Contact
3. Speed Dial
4. Groups
5. My Business Card
6. Memory in Use
7. Delete All
8. Copy All
9. My Phone Number
10. Memory Info
11. Service Numbers*
9 Settings
1. Sounds & Alerts
2. Display
3. Call
4. Phone
5. Flight Mode
6. Connectivity
7. Security*
8. Software Version
9. Reset
10. TTY
* SIM dependent
** Network dependent
Quick & Easy
Keys Functions
Perform the functions shown at the bottom line of the
display by using these soft keys.
Scroll through the menu options in Menu mode. In standby
mode,
Left: Access Mobile Email menu
Right: Access IM menu
Up: Access Create Message menu
Down: Access Contacts menu
Select a menu function or store user-input information, such
as names. Also use this key for confirmation as the [OK]
key.
Launch the MEdia Net directly if pressed in standby mode.
Delete characters from the display, or return to previous
menu.
Make or receive a call. Show the recent call list in standby
mode.
Re-dial the last call number if pressed and held in standby
mode.
Complete the current call. Turn on/off the phone if pressed
and held.
Cancel user input and return to main screen while in Menu
mode.
Quickly connect to the voice mail server if pressed and held
in standby mode.
~ Enters numbers, letters or special characters. Go to the dial
screen if pressed in standby mode.
Enter or exit from vibrate mode if pressed and held in
standby mode.
Enter a prefix international dialling.
Change various text input modes if pressed at the text-
editing screen.
Enter numbers or symbols if pressed and held at the text-
editing screen.
Adjust the earpiece volume while making a call.
Control the Ringtone volume, vibrate mode and silent all
mode in standby mode.
Mute the ringtone of an incoming call.
Reject the incoming call if pressed and held when you
receive an incoming call.
Turn camera capture mode on.
Contents
Specifications......................................................... 3
Phone overview...................................................... 4
Using shortcuts...................................................... 6
Quick & Easy .......................................................... 8
1. Getting Started...................................................11
SIM card and battery................................................................................12
Turn on/off the phone ...............................................................................13
Keypad lock..............................................................................................13
Essential display indications.....................................................................13
Assigning the menu..................................................................................14
Using the QWERTY key pad....................................................................14
MEdia Mall................................................................................................14
2. Calls and address book ................................... 15
Making, receiving and ending a call .........................................................16
Options during a call.................................................................................17
Call Setting...............................................................................................18
Checking all calls......................................................................................18
Speed dialing............................................................................................19
Using address book..................................................................................20
Caller identification ...................................................................................21
Using your headset...................................................................................21
Service number and fixed dialing .............................................................21
3. Messaging......................................................... 22
Entering text .............................................................................................23
Messaging ................................................................................................23
Receiving message ..................................................................................24
Creating and sending text messages .......................................................24
Creating a multimedia message...............................................................25
Message template....................................................................................26
Message settings......................................................................................27
Setting voice message .............................................................................28
Email.........................................................................................................28
Using instant messenger..........................................................................28
4. Multimedia......................................................... 29
Camera.....................................................................................................30
Photo album .............................................................................................32
Images album...........................................................................................33
Video album .............................................................................................33
Audio album .............................................................................................34
Other files.................................................................................................34
Managing the memory..............................................................................34
Playing games..........................................................................................35
5. Useful Features ................................................ 36
Alarm........................................................................................................37
Calendar...................................................................................................37
Notepad and voice memo ........................................................................38
Calculator, converter and stopwatch ........................................................38
Business card...........................................................................................38
Memory information..................................................................................39
6. Connectivity...................................................... 40
Bluetooth ..................................................................................................41
Using the browser ....................................................................................42
Profiles setting..........................................................................................42
7. Settings............................................................. 44
Language .................................................................................................45
Time and date...........................................................................................45
Ringtones.................................................................................................45
Decorating the display..............................................................................45
Locks........................................................................................................46
To enable fixed dialing..............................................................................46
Reset ........................................................................................................46
TTY...........................................................................................................47
8. Appendix........................................................... 48
Alert message...........................................................................................49
Troubleshooting checklist .........................................................................49
Safety information.....................................................................................50
Safety precautions....................................................................................51
About the battery usage ...........................................................................51
FCC Regulatory Compliance....................................................................52
Warranty...................................................................................................55
1. Getting Started
SIM card and battery
Turn on/off the phone
Keypad lock
Essential display indications
Assigning the menu
Using the QWERTY key pad
MEdia Mall

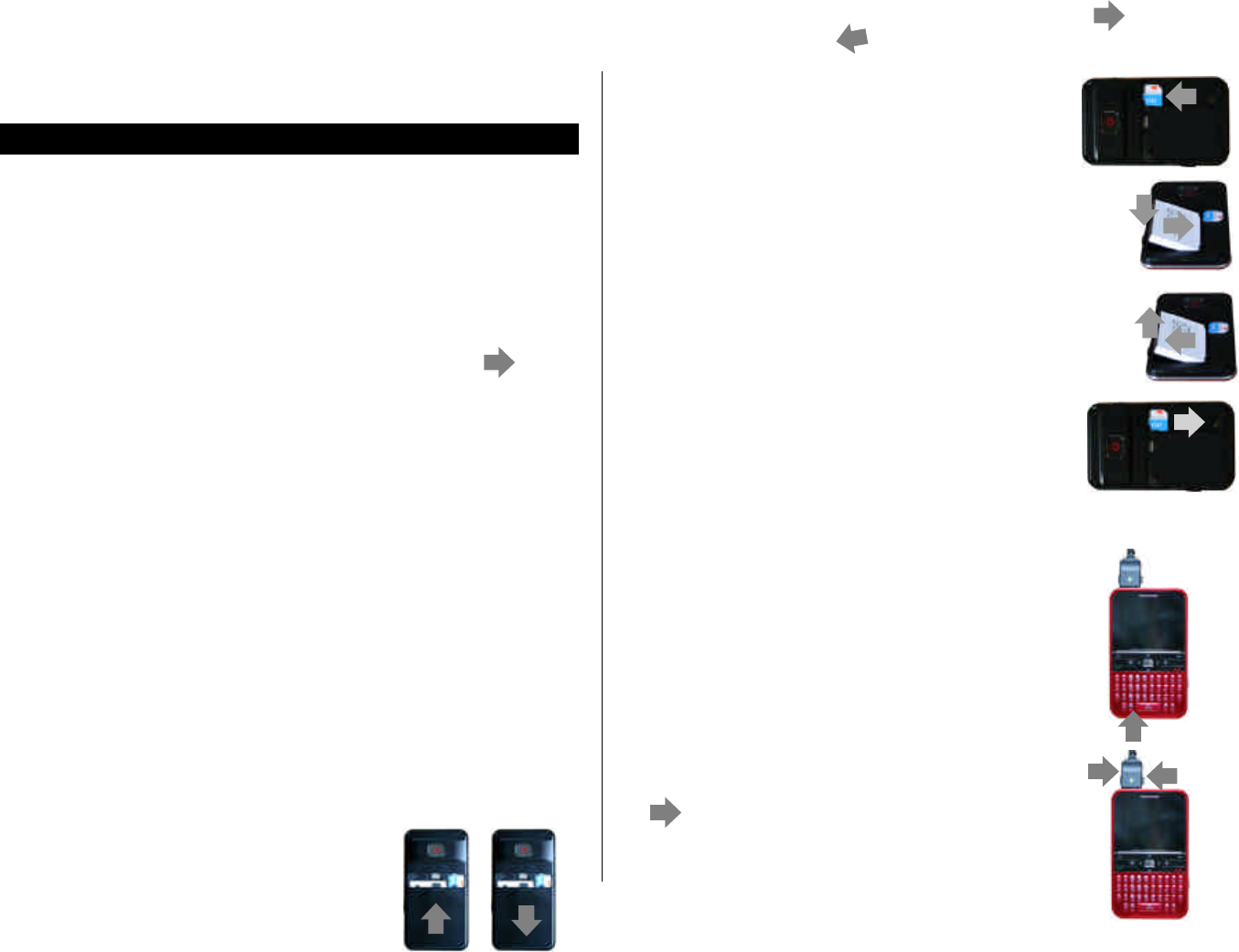

SIM card and battery
About your SIM card
When you subscribe to your network operator, you receive a SIM
(Subscriber Identity Module) card containing your registration information,
PIN code, etc.
Like a credit card, it should be kept secure and handled carefully. Do not
bend, scratch or expose it to moisture. Avoid static electricity.
To avoid corrupting your SIM card’s memory, always switch off your phone
before removing or inserting your SIM card
About your battery
Your phone uses a Li-Ion battery. Make sure to use an authorized battery
and charger only. For more details, please inquire at your nearest dealer.
NOTE: Your phone is powered by a Lithium Ion (Li-Ion) battery. This means
that, unlike other forms of battery technology, you can recharge your
battery while some charge remains without reducing your phone’s
autonomy due to the “battery memory effect” inherent in those technologies.
Installing/removing SIM card and battery
1. Remove the battery cover from the unit. To fit the battery cover, put it
on the guide rail and push up.
2. Insert the SIM card first into the slot. The gold
contacts of the SIM card should go against the metal
contacts of the phone. After inserting the SIM card,
put the contacts of the battery into the hole located at the
right of the unit (1) and press the left side(2) of the battery
until you hear the “click”.
3. To remove the battery pull the left side of the battery to
upwards(1) and remove(2) the battery. After removing the
battery, remove the SIM card in the arrow direction as shown.
NOTE: Data will be loose if the SIM card is removed
while the phone is turned on.
To charge your battery
1. To charge, open the protective cover on the top left side
and connect the charger adapter.
2. To remove the adapter connection press the adapter’s
side buttons(1) and pulling the adapter away(2).
2
1
1
1
2
1
2
Turn on/off the phone
To turn on
1. Press and hold [ ].
To turn off
1. Press and hold [ ].
Keypad lock
Locking the keypad
1. Press and hold [ ] to lock.
Unlocking the keypad
1. Press Unlock > [ ] within 3 seconds to unlock.
Essential display indications
Signal strength. The greater the number of bars, the
stronger the signal. When network is in searching mode
is displayed.
A call is being made. When you are in no service area is
displayed
Call forwarding* is active
Incoming calls set to ring only (Normal)
Incoming calls set to Vibrate and Ring
Incoming calls set to Vibrate Only
Incoming calls set to Silent
Flight Mode is active
Received one or more text messages
Received one or more multimedia messages
Received one or more WAP push messages
Received one or more other messages
Received one or more voice messages
A message is being sent
A message is being received
An alarm is set
Bluetooth is active
Headset is connected
TTY is active
An EDGE signal is available. It is displayed when there is
an active EDGE session
A GPRS signal is available. It is displayed when there is an
active GPRS session
WAP is connected. When the security is set is displayed.
Battery strength. When the battery charge is low, is
displayed
Available, Away, Invisible Status of AIM
Online, Away, Busy, Offline Status of MSN
Available, Busy, Invisible Status of YAHOO
You have received one or more IM messages
* Network dependent
Assigning the menu
You can set the most commonly used menu in Options in standby mode.
1. Press Options in standby mode > select Unassigned.
2. Press Options > Edit.
3. Select the menu and sub menu.
Note: User can change Options menu except My Account.
Using the QWERTY key pad
Your phone has QWERTY keypad which provides a superior typing
experience on a small handheld for easy and comfortable text writing. You
can use all of the phone functions with the QWERTY keypad.
Key Function
/
Perform the functions shown at the bottom line of the display by
using these soft keys.
Press to change ab AB AB at the text editing screen.
(all small caps / first letter caps / all caps)
Press to type a special character or number, at the applicable key
pad. To enter symbols and numbers continually, press until
displays.
Enter the space character in text input mode.
Insert a carriage return in text input mode.
Delete a character to the left of the text cursor in text editing
screen.
MEdia Mall
Shopping tones
1. Press Menu > MEdia Mall > Shop Tones.
Shopping Games
1. Press Menu > MEdia Mall > Shop Games.
Shopping Graphics
1. Press Menu > MEdia Mall > Shop Graphics.
Shopping Multimedia
1. Press Menu > MEdia Mall > Shop Multimedia.
Shopping Applications
1. Press Menu > MEdia Mall > Shop Applications.
MEida Net home
1. Press Menu > MEdia Mall > MEdia Net.
2. Calls and address book
Making, receiving and ending a call
Options during a call
Call Setting
Checking all calls
Speed dialing
Using address book
Caller identification
Using your headset
Service number and fixed dialing
Making, receiving and ending a call
Making a call
1. Enter the area code and phone number.
2. Press [ ] key.
Answering a call
1. Press [ ].
Ending a call
1. Press [ ].
Once the call is completed, a call summary is displayed.
Rejecting a call
1. Press [ ] or Ignore.
Making a call using call list
Your phone logs up to 20 dialed, received and missed call numbers.
1. Press [ ] to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, or Dialed Calls
pressing the [ / ].
3. Select a number.
4. Press [ ] to dial the selected number.
NOTE: To redial the last number in the Recent Calls list, press and hold
[ ].
Making a call during a call
1. Enter the phone number or look it up in Address Book.
2. Press [ ] to dial the second call. The first call is automatically put on
hold.
Switching between two calls
1. Press Swap.
Making an international call
1. Press [ ] key for the international.
2. Type the country code, area code, and phone number.
3. Press [ ].
Making an emergency call
You can make emergency calls even if your phone does not have a SIM
card.
1. Press Emergency Number, or press SOS if your phone does not have
a SIM card.
2. Select 911 or 112.
3. Press [ ].
Replying to a missed call**
1. Press View to display the list of missed calls.
2. Select a number to call by pressing the [ /] l key.
3. Press [ ].
Answering a second call**
1. Press [ ]. The first call is automatically put on hold.
2. Press [ ] to end the second call.
The call on hold is automatically reconnected.
Options during a call
Microphone off and on
Switching your phone’s microphone off
1. Press Options > Mute [].
Switching your phone’s microphone back on
1. Press Options > Unmute.
Talking on speaker
1. Press Speaker Phone [ ].
Putting a call on hold and return**
Putting a call on hold
1. Press Options > Hold or press [ ].
Returning to a held call
1. Press Options > Retrieve or press [ ] again.
Multi-party calls**
You can talk with more than one person or conference call.
Making a multi-party call
1. Call the first participant.
2. Call the second participant. The first call is automatically put on hold.
3. Press Options > Join.
Having a private conversation with one participant
1. Press Options > Private.
2. Press OK.
3. Select the participant and press OK.
All of the multi-party call participants can now hear each other.
Removing one participant from a multi-party call
1. Press Options > End Call.
2. Select the participant and press OK.
The call ends with that participant, but you can continue to talk with other
participants.
Searching a number in address book during a call
1. Press [ ] or press Menu > Address Book > Contacts.
2. Select a number > [ ].
Searching for a name or group in address book
Enter the first letters of the name for Name Search. The entries are
displayed starting with the first entry matching your input.
Finding a name manually in address book
1. Press the [ / ] key.
Viewing the details of highlighted entry in address book
1. Press OK.
For details on address book, see page 20.
Reading a message during a call
1. Press Options > View Message.
2. Press Inbox > select a message
Writing a message during a call
1. Press Options > Create Message.
2. Press Create New Message.
For details on creating a text message, see page 24.
NOTE: During the call, you can only send text messages. Multimedia
messages cannot be sent, but can be saved.
Call Setting
Setting auto redial
1. Press Menu > Settings > Call > Auto Redial.
2. Select On or Off.
Answering with any key press
1. Press Menu > Settings > Call >Answer Type
2. Select Any Key.
NOTE: you can answer with any key except [] and Reject.
Checking all calls
You can view information about all Recent Calls. For more options for all,
missed, received and dialed calls press Options.
You can also view the all Recent Calls simply by pressing [ ].
Viewing missed calls
1. Press Menu > My Stuff > Tools > Recent Calls > Missed Calls.
Viewing received calls
1. Press Menu > My Stuff > Tools > Recent Calls > Received Calls.
Viewing dialed calls
1. Press Menu > My Stuff > Tools > Recent Calls > Dialed Calls.
Deleting call logs
1. Press Menu > My Stuff > Tools > Recent Calls > Delete Call Logs.
2. Select All Calls > Yes.
NOTE: If no logs exist, the message “List Empty” appears.
Viewing call time
1. Press Menu > My Stuff > Tools > Recent Calls > Call Time.
2. Press [ /] to view Last Call, Received Calls, Dialed Calls, and Total
Calls.
Resetting all call times
1. Press Menu > My Stuff > Tools > Recent Calls > Call Time > Reset
Call Times.
2. Enter password > OK.
NOTE: The default password is ‘1234’.
Viewing data transmitted information
1. Press Menu > My Stuff > Tools > Recent Calls > Packet Counter.
- Current Info: You can view transmitted data in the current session, in
Kbytes. Sent, Received and Total information is also available.
- Last Info: You can view Sent, Received, and Total transmitted in
previous sessions, in Kbytes.
- Total Info: You can view all Sent, Received, and Total transmitted data in
Kbytes.
- Clear Logs: You can clear all logs.
Speed dialing
You can dial quickly using speed dialing. Up to 8 phone numbers can be
programmed using numbers 2 to 9.
[] and [ ] : Voice mail
[ ] : Prefix for international call
[] : Question mark
Setting speed dial
1. Press Menu > Address Book > Speed Dial.
2. Select an empty entry and press Add.
3. Select a person and press OK or Options > Select.
Changing speed dialing person
1. Select a number > OK or Options > Edit.
2. Select a person > OK or Options > Select.
Removing from speed dial
1. Select a number > Options > Remove.
Using address book
You can save names, phone numbers, and information on the SIM or
phone. Entries can depend on the capacity of the SIM card.
Viewing contact list
1. Press [ ] or press Menu > Address Book > Contacts.
Searching for a phone number
1. Press [ ] or press Menu > Address Book > Contacts.
2. Input the first letter or two of the person's name and scroll with [ /].
3. Press OK to view detail information.
4. To update information press Options > Edit.
Calling from contact list
1. Press [ ] or press Menu > Address Book > Contacts.
2. Select a person to call.
3. Press [ ]
Forwarding contact details
1. Press [ ] or press Menu > Address Book > Contacts.
2. Select a contact > Options > Forward Contact Info.
3. You can send the information Multimedia Message or Bluetooth.
Deleting a contact
1. Press [ ] or press Menu > Address Book > Contacts.
2. Select a contact > Options > Delete.
Adding a contact
1. Press Menu > Address Book >New Contact.
2. Select SIM card or Phone.
3. Input the fields.
4. Press OK or Options > Save.
Making a groups
1. Press Menu > Address Book > Groups.
2. You can select group either on phone or SIM. There will be defaulted
groups.
3. To add new group press Options > New.
4. To edit group press Options > Select. You can also set a specific
ringtone by selecting Options > Group Ring tones > OK > select the
ringtone.
Caller identification
Caller identification**
1. Press Menu > Settings > Call > Caller ID.
2. Select Send or Hide My No. > Select.
Using your headset
You can send or receive a call using your headset.
When you connect your headset to the jack the button on the headset
works as follows.
NOTE: You need to use the headset designed for this device and it is
optional item. Also not every headset has a button.
While in standby mode
1. Press the button once to list recent calls.
2. Press and hold the button to redial the last call.
Service number and fixed dialing
Calling your service numbers*
You can see the service number to reach the service provider.
1. Press Menu > Address Book > Service Numbers.
2. Select a number > press [ ].
Viewing fixed dialing list
Fixed dialing is a service that limits your access to specific numbers in the
address book list recorded on the SIM. Input the PIN2 to set up or cancel
this service.
1. Press Menu > Settings > Security > Fixed Dialing > Fixed Dial List.
2. Select a number > press [ ].
NOTE: PIN2 must be correctly entered within 3 attempts. If you input
incorrect code three times in a row the PIN2 code will be blocked. If the
PIN2 code is blocked please contact your service provider. PIN2 code
supplied with SIM card.
3. Messaging
Entering text
Messaging
Receiving message
Creating and sending text message
Creating a multimedia message
Message template
Message settings
Setting voice message
Email
Using instant messenger
Entering text
You can enter text with multi-tap, numeric or symbol.
Useful keys
[ ] Adding space
[ ] Press to change , and .
[ ]
Press to change capital mode.
Press to change and .
(all small caps / first letter caps /
all caps)
[ ] ~[ ] and [ ] Press and hold to enter numbers
[ ] + [ ] Symbols
Alphabet input mode
Press the key labeled with the target letter once.
1 Press [ ] to [ ] to input text.
2 To enter all characters with upper cases, press [ ] to change the mode
to . Press [ ] to [ ].
Numeric mode
You can input numbers in this mode.
1. Press [ ] to change the mode .
2. Press [ ] to [ ] and [ ] to input numbers.
3. To enter numbers continually, press and hold [] to change the mode
to . Press [ ] to [ ] and [ ].
Symbol mode
You can input symbols.
1. Press [ ] and [] to view the symbols.
2. Using the [ / / / ] to select symbol and press Insert.
Messaging
You can send, receive and save the text message and multimedia
message.
Managing memory
When the message box is full the messages full icon will appear.
When It means
Text message is full
Multimedia message is full
Moving a message to SIM
1. Press Menu > Messaging > Inbox.
2. Select a message > Options > Move to SIM.
Deleting a message in a mailbox
1. Select a message > Options > Delete > Yes.
Replying to a message
1. Select a message > Options > Reply.
Viewing memory space information
1. Press Menu > Messaging > Memory Info
2. Press [ / ] to view SIM and Phone memory.
Receiving message
Viewing a new message
1. Press View or press OK.
Reading a message from the inbox
1. Press Menu > Messaging > Inbox > OK.
2. Select a received message > OK.
Saving number or e-mail from received message
1. Select a received message > Options > View or OK.
2. Press Options > Save Number & Email from received message.
3. Select Options > Save > Save New or Add to Old
Saving the object in the received multimedia message
1. Open the multimedia message.
2. Press Options > Save Objects.
3. Select an object > Save or OK.
4. Edit the filename > Options > Save or OK.
It will be saved in one of the categories in the My Stuff folder.
For details on photo album, see page 32.
Listening to voice message
1. Press and hold [ ] or press Menu > Messaging > Voice Mail.
It will automatically call the voice mail center.
Creating and sending text messages
Sending new text message
1. Press [ ] or press Menu > Messaging > Create Message > Text
Message.
2. Write the message.
3. Press Options > Send to.
4. Select a person or persons or Options > Enter Number, Enter Email,
Call Log or Groups.
5. Select Send.
6. To view sent message press Menu > Messaging > Sent.
NOTE: All successfully sent messages will save in Sent. While sending or
failed to send message will save in Outbox.
Finding all sent messages
1. Press Menu > Messaging > Sent.
Creating a multimedia message
You can create new multimedia message. Capacity is 600Kb and will alert
you once that is exceeded via error message.
Adding saved picture to the message
1. Press [ ] or press Menu > Messaging > Create Message >
Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Image > Photo or Images.
4. Select the folder > OK > choose a file.
5. Press Options > Select.
6. To preview the whole message, press Options > Preview > OK.
7. To edit the text message, press [/] to select the text box and
Options > Edit Text.
8. Press Options > Send to.
Adding new picture to the message
1. Press [ ] or press Menu > Messaging > Create Message >
Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Image > Take a Photo.
4. Focus on the object > OK.
5. Press Insert > Send to.
For the taking apicture, see page 31.
Adding recorded voice memo to the message
1. Press [ ] or press Menu > Messaging > Create Message >
Multimedia Message.
2. Write a message
3. Press Options > Add Object >Add Sound > Voice Memo.
4. Select the file.
5. To listen select the recorded memo, press Play.
6. To stop listening, press [ ].
7. To select other recorded memo press Back and select other memo.
8. Press Options > Send to.
Adding new voice memo to the message
1. Press [ ] or press Menu > Messaging > Create Message >
Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Sound > New Voice Memo.
4. Record the sound.
5. To stop and save press OK.
6. Press Options > Send to.
For the recording voice memo, see page 38.
Adding saved video to the message
1. Press [ ] or press Menu > Messaging > Create Message >
Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Image > Video.
4. Select a video > Options > Select.
5. To preview the whole message press Options > Preview.
6. To pause press Pause.
7. Press Options > Send to.
Adding new video to the message
1. Press [ ] or press Menu > Messaging > Create Message >
Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Image > Take a Video.
4. Focus on the object > OK.
5. To stop recording and save press OK.
6. Press Options > Send to.
For the recording video, see page 31.
Adding other file to the message
1. Press [ ] or press Menu > Messaging > Create Message >
Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Other Files.
4. Select the file > Options > Select.
5. Press Options > Send to.
Message template
When you often use the same phrases, you can save the message under
template messages.
Using the template
1. Press Menu > Messaging > Templates.
2. Select the template > Options >
Text Message or Multimedia
Message.
3. Write message and send message.
Creating a template
1. Press Menu > Messaging > Templates.
2. Press Options > Create Message.
3. Select Text Message or Multimedia Message.
4. Write often used message.
5. Press Options > Save.
6. To edit, press Options > Edit.
7. To delete, press Options > Delete.
NOTE: Delete All will only delete templates with [ ] icon is displayed.
Message settings
Setting message center for text message
1. Press Menu > Messaging > Settings.
2. Press Text Message > Message Center.
3. Enter new center address.
4. To save press Select.
Setting profiles for multimedia message
1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > WAP Profiles.
3. Select a profile > Select.
Setting message center for multimedia message
1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > Message Center.
3. Enter new center address.
4. Press Options > Save.
Setting sending multimedia message
1. Press Menu > Messaging > Settings.
2. Press Multimedia Message .
3. You can set for Delivery Reports, Read Reports and Lifetime .
Setting e-mail gateway for text message
1. Press Menu > Messaging > Settings.
2. Press Text message > Email Gateway.
3. Enter new gateway for receiving e-mail.
4. To save press Select.
Setting receiving notice for push message
1. Press Menu > Messaging > Settings.
2. Press Push Message > Receive.
3. Select On, Prompt or Off modes.
Setting voice message
Setting receiving voice message
1. Press Menu > Messaging > Settings.
2. Press Voice Mail.
3. Enter the number of the voice mail center > Select.
Note: This number may be pre-configured by the service provider upon
activation.
Email
You can receive email from your service provider.
Receiving an email
1. Press Menu > Email &IM > Mobile Email.
2. Select an email > OK.
Using instant messenger
Use Instant Messenger (IM) to send and receive short, simple messages
that are delivered immediately.
Starting an instant messenger
4. Press Menu > Email &IM > IM.
5. Select the IM application > Select.
6. Enter logon and password > Sign On.
Viewing the conversation log
You can view the log of your conversations in the Instant Messenger Saved
History.
4. Multimedia
Camera
Photo album
Image album
Video album
Audio album
Other files
Managing the memory
Playing games
Camera
You can take pictures and record movies using the built-in camera. The
photos and video clips can be saved and sent via multimedia message.
Setting camera settings
1. Press Menu > My Stuff > Tools.
2. Press Camera.
3. Press Options to change settings prior to taking a picture.

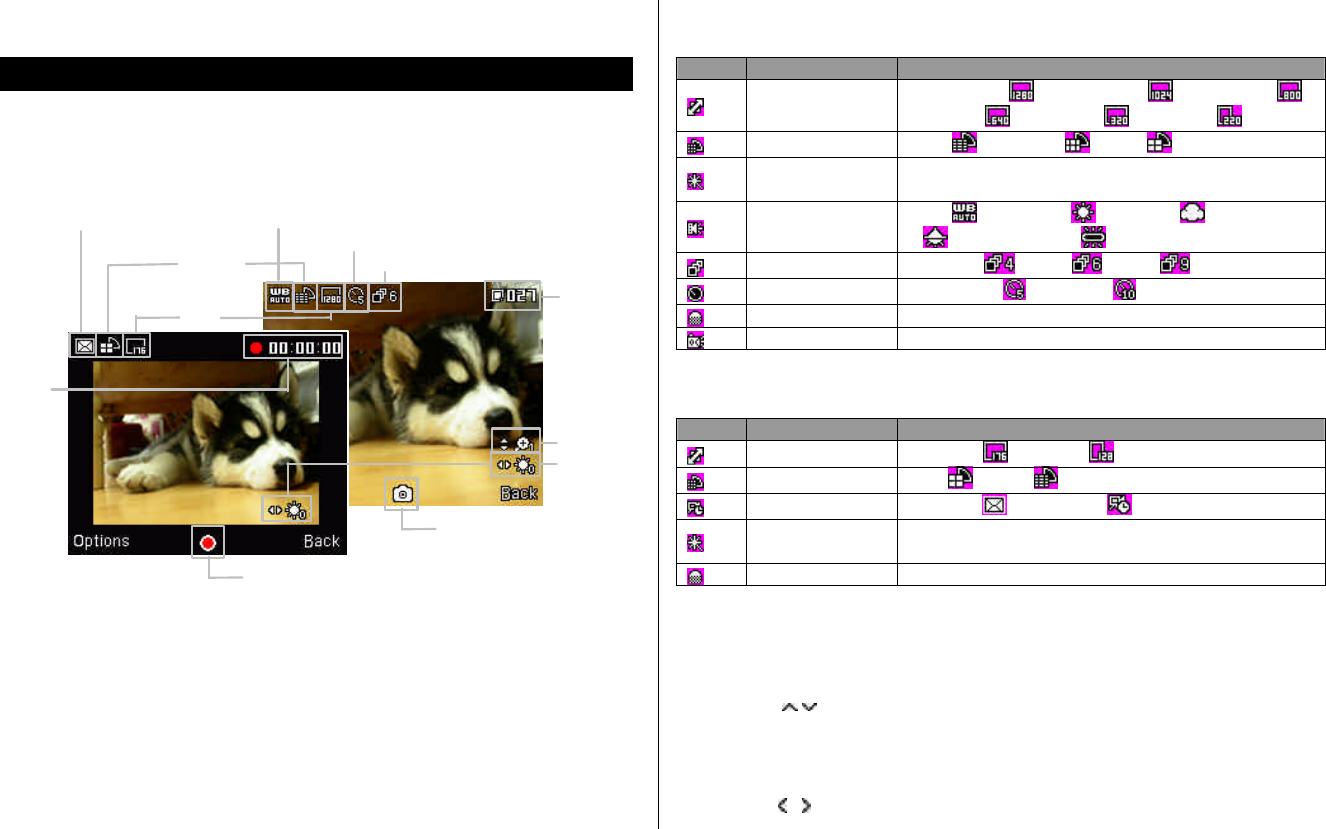

In options menu for camera
Icons
Name Description
Image Size 1280x1024( ), 1024x768( ), 800x600( ),
640x480( ), 320x240(),220x176(),
Image Quality High( ), Medium( ), Low( )
Effects Nomal, Sepia, Monochrome, Nagative,
Embossing
White Balance Auto( ), Sunlight( ), Cloudy( ),Fluorescent
(), Incandescent( )
Multi-Shot Off, 4EA( ), 6EA( ), 9EA( )
Self Timer Off, 5 secs( ), 10 secs( )
Display Icons
On, Off
Shutter Sound
On, Off
In options menu for video camera
Icons
Name Description
Video Size 176*144( ), 128*96( )
Video Quality Low( ), High( )
Record Type For Msg( ), Unlimited( )
Effects Nomal, Sepia, Monochrome, Nagative,
Embossing
Display Icons
On, Off
Zoom in and out
1. Press [ /]. It ranges from x1 to x4.
Increasing or decreasing the brightness
1. Press [ / ]. It ranges from -3 to +3.
Camera mode
Remain
Zoom
Brightness
Video mode
Record Type
Quality
White Balance
Size
Self Timer
Multi-shot
Record
ing
time
Taking a picture
1. Press Options > Camera in standby mode or press Menu > My Stuff
> Tools.
2. Press Camera > Take a Photo.
3. Focus on the object > OK or press Options > Take a Picture.
NOTE: Your photo will be saved automatically to My Stuff > Camera >
Photo.
Changing to video camera mode
1. Press Options > Camera in standby mode or press Menu > My Stuff
>Tools > Camera > Take a Photo.
2. Press Options while camera mode is activated.
3. Press Take a Video.
4. Focus on the object > Options > Take a Video or press OK.
5. Record the motion > OK.
6. Press OK to save the video clip.
NOTE: Your video will be saved to My Stuff > Video.
Viewing the taken picture
1. Press Options > Camera in standby mode or press Menu > My Stuff
> Tools > Camera > Take a Photo.
2. Press Options > View Photos.
3. Select the picture > OK.
After taking pictures
To Press
Send a multimedia message Options > Send as Multimedia
Message
Send using Bluetooth Options > Send via Bluetooth
Upload photos on the web Options > Send to HP’s Snapfish
Set as wallpaper Options > Set as > Wallpaper
Set as address book Options > Set as > Address Book
Delete Options > Delete
Rename Options > Rename
Recording a video
1. Press Menu > My Stuff > Tools > Camera > Take a Video.
2. Focus on the object > OK or press Options > Take a Video.
3. Press OK to stop.
4. Press Play to play the video clip.
5. Press Back to go back to preview mode.
6. Press OK to save the video clip.
Changing to camera mode
1. Press Menu > My Stuff > Tools > Camera > Take a Video.
2. Press Options while video camera mode is activated.
3. Press Take a Photo.
For details on taking a picture, see page 31.
Viewing the recorded video clip
1. Press Menu > My Stuff > Tools > Camera
2. Press Video.
3. Select the video clip > OK.
After saving recorded video clips
To Press
Send a multimedia message Options > Send as Multimedia
Message
Send using Bluetooth Options > Send via Bluetooth
View recorded video clip Options > View Videos
Delete Options > Delete
Rename Options > Rename
During recording a video
To Press
Receive an incoming call [ ]
Stop recording OK
Photo album
You can view, send, save to your phone and also delete photos. JPEG
format is supported, and other formats are saved in the Camera folder.
Viewing the saved pictures
1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture > OK or press Options > View.
Setting as wallpaper in the display
1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture > Options > Set as > Wallpaper.
Sending pictures using multimedia message
1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture.
4. Press Options > Send as Multimedia Message.
For details on creating a multimedia message, see page 25.
Uploading pictures on the web
1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture > Options > Send to HP’s Snapfish.
Deleting multiple pictures
1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Press Options > Multi-Select.
4. Press OK to select more than one picture.
5. Press OK to unselect.
6. Press Options > Delete.
Viewing file information
1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture.
4. Press Options > File Info.
Images album
You can play, send and delete the saved images. The supported formats
are JPG, GIF, BMP, and PNG.
To view the saved image
1. Press Menu > My Stuff > Graphics > Images.
2. Select an image > Options > View.
To set as wallpaper in display
1. Press Menu > My Stuff > Graphics > Images.
Select an image > Options > Set as Wallpaper.
Video album
You can view, send, save and delete videos.
Playing the saved video clips
1. Press Menu > My Stuff.
2. Press Tools > Camera > Video.
3. Select a video clip > OK or press Options > Play.
Using video player controls
To Press
Pause OK
Play OK
Rewind and hold
Fast forward and hold
Control volume Side key up/down or /
Mute Mute
Sending video clip using multimedia message
1. Press Menu > My Stuff.
2. Press Tools > Camera > Video.
3. Select a video.
4. Press Options > Send as Multimedia Message.
For details on creating a multimedia message, see page 25.
Deleting multiple video clips
1. Press [ ] in standby mode or press Menu > My Stuff.
2. Press Tools > Camera > Video.
3. Press Options > Multi-Select.
4. Press OK to select more than one video.
5. Press OK to unselect.
6. Press Delete.
Audio album
You can play, send, delete the saved sounds. The supported formats are
MP3, AAC, AAC+, and WMA.
To listen the saved sound
1. Press Menu > My Stuff > Audio.
2. Select a sound > Options > Play.
To use sound controls
To Press
Play & Pause OK
Play previous clip Hold
Play next clip Hold
Control volume Side key/Navi key up or down
To set as a ringtone
1. Press Menu > My Stuff > Audio.
2. Select a sound > Options > Set as Ringtone.
To send sound file using multimedia message
1. Press Menu > My Stuff > Audio.
2. Select a sound file.
3. Press Options > Send via Multimedia Message.
Other files
You can manage files in unsupported formats saved on your phone. It also
lists files received via Bluetooth from other devices.
Viewing the list of the files
1. Press [ ] in standby mode or press Menu > My Stuff.
2. Press Other Files.
Managing the memory
Viewing memory status
1. Press [ ] in standby mode or press Menu > My Stuff.
2. Press Memory Info.
3. Use [ /] to view the information.
Playing games
You can download games to play with. It is easy to download and you can
preview them beforehand. You will only be able to view games that are
available on your mobile.
Shop games
1. Press [ ] in standby mode or press Menu > Games & Apps.
2. Select Games > Shop Games > Select.
3. Play the demo and press BUY to download the complete game.
5. Useful Features
Alarm
Calendar
Notepad and voice memo
Calculator, converter and stopwatch
Business card
Memory information
Alarm
Setting an alarm
1. Press Menu > My Stuff > Tools > Alarm.
2. Press New for new alarm for the first time.
3. Set the Cycle, Time and Alarm Sound > Save.
4. To turn on the snooze, press Options > Snooze on.
Note: The alarm will not ring if you set the phone to Vibrate Only. To make
it ring on vibrate mode, press Options > Wake-Up Call On. The alarm will
not go off if the phone is turned off.
Viewing the saved alarms
1. Press Menu > My Stuff > Tools > Alarm.
Editing existing alarms
1. Press Menu > My Stuff > Tools > Alarm.
2. Select an alarm > Options > Selcet.
3. Press Options > Delete to delete an alarm.
Calendar
Calendar helps you manage your schedule including your time for calls or
special days. You can set a reminder on any given date with this function.
Viewing calendar
1. Press Menu > My Stuff > Tools > Calendar.
NOTE: Monthly view is displayed as default.
In the monthly view
To Press
Move to another day [] for Previous
[] for Next
Move to another week [] for Previous
[] for Next
View other month
Side key up for Previous
Side key down for Next
Creating a new event and edit
1. Select a day > Options > New Event.
2. Set Event, Start Time, Stop Time, Reminder, Phone Number,
Location and Memo.
3. Input the events > Save.
NOTE: You can create up to 50 scheduled events.
Note. You can create events for dates from 01/01/2000 to 12/31/2049.
Notepad and voice memo
Using notepad
1. Press Menu > My Stuff > Tools > Notepad.
2. Press New for the first time. To add new note press Options > Create
New.
3. To edit memo press Options > Edit.
4. Press Options > Save to save.
Recording voice memo
1. Press Menu > My Stuff > Tools > Voice Memo.
2. Press Options > Create New. (Press New to create memo for the first
time.)
3. Press OK to stop recording.
4. Press Re-rec to re-record. Press Pause to pause recording.
5. Press Play to listen.
6. Press OK [ ] to save.
Using sound controls
To Press
Pause OK
Play
Stop Stop
Rewind
Fast Forward
Control volume Side key up / down or /
Calculator, converter and stopwatch
Using stopwatch
1. Press Menu > My Stuff > Tools > Stopwatch.
2. Press OK to start.
3. Press OK to stop.
4. Press Reset to clear.
5. Press Lap To change to lap time
Using the calculator
1. Press Menu > My Stuff > Tools > Calculator.
2. Use [ / / / /OK] to calculate.
3. Press Clear or [ ] to reset.
4. Press [.] to use the decimal point.
Using the converter
1. Press Menu > My Stuff > Tools > Converter.
2. Select the categories
3. Select current unit and enter figure.
4. Select the unit to be changed.
Business card
You can send your information by sending it as multimedia message.
Creating your own business card
1. Press Menu > Address Book > My Business Card.
2. Edit the fields > Options > Save or press OK.
Forwarding
1. Press Menu > Address Book > My Business Card.
2. Press Options > Send as Multimedia Message.
3. Press Options > Send via Bluetooth.
4. Write a message for Multimedia Message.
5. Press Options > Send.
Updating information
1. Press Menu > Address Book > My Business Card.
2. Press Options > Edit.
3. Update information.
4. Press Options > Save.
Memory information
You can view the information of your phone for Free, Graphics, Video,
Photo, Audio, Others , Games , Message and System.
Viewing the information
1. Press Menu > My Stuff > Memory Info.
6. Connectivity
Bluetooth
Using the browser
Profiles setting
Bluetooth
Bluetooth technology enables free wireless connections between electronic
devices within a maximum range of 33 feet (10 meters). Bluetooth
connection can be used to send images, text, business cards, calendar
notes, or to connect to computers using Bluetooth technology.
Your mobile phone supports:
• Connect to PC to access internet.
• Connect to Hands-Free.
• Connect to electronic devices.
Icons for Bluetooth
Bluetooth is active
Transmitting file using Bluetooth
Bluetooth is active and USB cable is connected
Bluetooth is active and the headset is connected
Sending file and USB is connected
USB is connected
Activating
1. Press Menu > Settings > Connectivity > Bluetooth > Bluetooth.
2. Select On or Off.
Adding a device
1. Press Menu > Settings > Connectivity > Bluetooth >Paired Devices.
2. Press New > Search All.
3. The available device will display.
4. To select the device press Options > Select
5. Enter password.
Note: The other device must be in pairing mode.
Sending an object
1. Select the file from Menu > My Stuff > Graphics, Video, Audio, or
Other Files.
2. Press Options > Send via Bluetooth.
3. Press Search for Devices > Search or press OK.
4. Select the device > Options > Select.
NOTE: If the other Bluetooth device requests pairing, the object is sent
after pairing is completed. Locked object or ones containing original rights
may not be forwarded.
Receiving an object
The receiving an object starts only when the receipt has been approved.
The received file will be saved in each place. For example, if you received
contacts information from the sender, it will be saved in your phone’s
memory.
Setting the visibility
1. Press Menu > Settings > Connectivity > Bluetooth > Visibility.
2. Select Hide or Show to All.
Naming the phone
1. Press Menu > Settings > Connectivity > Bluetooth > Name.
2. Edit the filed > Options > Save.
Note: This is what others will see in their device’s display for your phone when
searching for your device.
Using the browser
Accessing browser
1. Press OK in standby mode or press Menu > MEdia Net > MEdia Net
Home.
NOTE: It will access provider’s homepage.
Viewing bookmarks
1. Press Menu > MEdia Net > Bookmarks.
2. To open the site, press Options > Select.
3. To send via text message, press Options > Send Message.
Setting new bookmarks
1. Press Menu > MEdia Net > Bookmarks.
2. Press Options > Add.
3. Enter the fields > Options > Save.
Entering address
1. Press Menu > MEdia Net > Go to URL > Enter New URL.
2. Enter the web address > Options > Go to URL.
Setting options
1. Press Menu > MEdia Net > Options.
2. Select the category > Select > select the option.
Profiles setting
You can set profile and view Profile Name, Home URL, Connection Type,
Proxy Address, Proxy Port, Proxy Login ID, Proxy Password and Data
Bearer.
Adding new profile
1. Press Menu > MEdia Net > Profiles
2. Select Empty > Add.
3. Enter the fields > Options > Save.
Editing profile
1. Press Menu > MEdia Net > Profiles
2. Select other profile > Options > Edit.
Viewing default profile
1. Press Menu > MEdia Net > Profiles
2. Select MEdia Net > Options > View.
Deleting profile
1. Press Menu > MEdia Net > Profiles
2. Select a profile > Options > Delete.
7. Settings
Language
Time and date
Ringtones
Decorating the display
Locks
To enable fixed dialing
Reset
TTY
Language
Setting up
1. Press Menu > Settings > Phone > Language.
2. Select the language > Select.
Time and date
Setting up
1. Press Menu > Settings > Phone > Time & Date.
2. Set the categories using [ ///] > Save.
Ringtones
Setting ringtones
1. Press Menu > My Stuff > Audio.
2. Select a file > Options > Set as RingTone.
Setting sound profile
1. Press Menu > Settings > Sounds & Alerts.
2. Select Normal, Vibrate and Ring , Vibrate Only or Silent.
Customizing the ringtone
You can set Ring Sound, Call Alert Type, Ringtone Volume, Message
Sound, Message Alert Type, Message Reminder, Message Volume, Alarm
Volume, Keytone Type, Key Volume and Power On/Off Sound for Normal
and Vibrate and Ring profile.
8. Press Menu > Settings > Sound & Alerts.
9. Select Normal or Vibrate and Ring.
10. Press Options > Customize.
11. Select a category > set the options > Save.
Decorating the display
Setting the display
You can set the Wallpaper, Clocks, and Color Theme
1. Press Menu > Settings > Display > Main Screen.
Note: Your wallpaper images are in the Images folder. To access Images
folder press Menu > My Stuff > Graphics > Images.
Setting the menu type
1. Press Menu > Settings > Display > Menu Type.
Setting the font
1. Press Menu > Settings > Display > Font Style.
Setting the brightness
1. Press Menu > Settings > Display > Brightness.
Note: Modifying brightness may affect battery life.
Setting time for backlight
1. Press Menu > Settings > Display > Backlight Timer.
Note: Modifying backlight time may affect battery life.
Locks
Locking the phone
1. Press Menu > Settings > Security > Phone Lock.
2. Select On.
NOTE: The default password is ‘1234’. To change the password press
Menu > Settings > Security > Change Password.
Locking the PIN
The Personal Identification Number is the security code that protects the
phone or SIM against unauthorized use.
1. Press Menu > Settings > Security > PIN 1 Check.
2. Enter PIN code > OK.
NOTE: To change the PIN code press Menu > Settings > Security >
Change PIN1.
Changing PIN 2
1. Press Menu > Settings > Security > Change PIN2.
To enable fixed dialing
Enabling
1. Press Menu > Settings > Security > Fixed Dialing.
2. Select On or Off.
For details on fixed dialing, see page 21.
Reset
Resetting the phone
1. Press Menu > Settings > Reset
2. Enter password > Master Reset.
NOTE: It will return configuration settings to default. The default password
is ‘1234’.
Clearing the phone
1. Press Menu > Settings > Reset
2. Enter password > Master Clear.
NOTE: It will change the setting as default and erase all personal data. The
default password is ‘1234’.
TTY
The teletypewriter (TTY) is a telecommunications device that allows people
who are deaf or hard of hearing, or who have speech or language
disabilities, to communicate via a telephone.
Setting teletypewriter
1. Press Menu > Settings > TTY.
2. Select Disabled, TTY Full, TTY Talk, or TTY Hear.
- Disabled: TTY mode is disabled.
- TTY Full: User who cannot talk and hear sends and receives a text
message.
- TTY Talk: User who can talk but cannot receive a text message and send
voice message.
-TTY Hear: User who can hear but cannot talk sends a text message and
receive voice message.
8. Appendix
Alert message
Troubleshooting checklist
Safety information
Safety precautions
About the battery usage
FCC Regulatory Compliance
Warranty
Alert message
If you experience any problem while using your mobile phone, please refer
to the following checklist. If the problem still persists, contact your dealer or
nearest carrier.
When the “Insert SIM Card” message appears:
Make sure the SIM card is correctly installed. Check to see if the SIM card
is working properly. If it does not work, try to clean the contact points of the
card with a dry cloth. If it is out of order, take it to your service provider.
When the “Text Message Full” message appears:
The received or saved messages are full in your phone or SIM memory.
You need to delete the message.
When the “Multimedia Message Full” message appears:
The saved messages are full in your phone memory. When you receive
new message you will see “Multimedia Message Full. Move To Inbox?"
You can move to inbox or delete the message.
When the “Password” message appears in Phone locked state:
Enter the phone password. The default password is”1234”. If you cannot
remember the password, contact the nearest carrier.
When the “Enter PIN1” message appears:
Input PIN1. If you cannot remember it, contact your service provider. You
can still receive calls even if your mobile phone becomes locked after
entering the incorrect PIN1 on three consecutive attempts.
When the “No Service” or “Network Search” appears:
If you cannot make/receive a call when you are indoors or undergrounds
where the signal strength is poor, move toward a window or go out to an
open area. If you still cannot make a connection, contact your service
provider.
Troubleshooting checklist
When audio quality is poor:
End a call and try again.
When the other party cannot hear you speaking:
Your phone may be set to MUTE. Disable the MUTE function. Or your hand
may be covering the microphone located below the [ ] key.
When battery lifetime is shorter than usual:
This may happen when you are in an area with low signal strength. Turn off
your phone when it is not in use. Change the battery when battery energy
is exhausted.
When your mobile phone does not turn on:
Make sure your battery is charged. Check to see if your phone works while
recharging the battery.
When you are unable to send a message:
Either you are not registered to receive an SMS service, or you may be in
an area where your network service provider cannot provide such a service.
When you are unable to make a call:
Your phone may be set to “Fixed Dialing.” Cancel the “fixed dial” function.
When you are unable to charge the battery:
This may be the result of one of the following three cases.
1. Your charger may be out of order. Contact your nearest dealer.
2. You may be attempting to use the phone in an overly hot/cold
temperature. Try changing the charging environment.
3. Your battery may have not been connected to the charger properly.
Check the connector.
When you are unable to input data into your Address Book:
Your Address Book memory may be full. Try deleting some entries from
your Address Book.
When you are unable to select a certain function:
You may not have subscribed to that function, or your network service
provider may be in an area where such service cannot be provided.
Contact your local service provider.
Safety information
The following list shows how to maintain your mobile phone, together with
precautions to take.
• Keep your mobile phone and its accessories out of the reach of
children.
• Maintain your mobile phone in dry conditions and keep it within normal
operating temperatures. Temperatures higher than 55°C (131°F) or
lower than -20°C (-4°F) may damage your phone.
• Do not use or store your mobile phone in dusty, dirty areas.
• Do not attempt to disassemble your mobile phone.
• Do not drop or cause severe impact to your mobile phone.
• Do not use chemical products, cleaning solvents or detergents to clean
your mobile phone.
• If your mobile phone does not work properly, contact your dealer
immediately.
• Use only authorized batteries, battery chargers and accessories. Any
malfunction or damage caused by the use of unauthorized batteries,
battery chargers and accessories will void the limited product warranty.
• Ensure that the battery and battery charger do not come in contact with
conductive objects.
Safety precautions
Using a mobile phone while driving may be prohibited.
Please check local laws and regulations with regard to the prohibition of
mobile phone use while driving, and comply with them.
Use of your phone while you are driving may disturb your concentration
and so cause an accident. Always switch your phone off to drive safely.
You should use your phone in an emergency, either use a hands free
device built into your car or pull over in a safe place first.
Switch off in restricted areas
Always switch your phone off in areas where mobile phone use is restricted.
Switch off in explosive or dangerous areas
Always switch your phone off in areas with explosive or dangerous
materials (such as fuels, fuel stations or areas containing chemical goods)
and obey any instructions or signals. Do not remove your mobile phone’s
battery in such areas.
Switch off in aircraft
Always switch your phone off or select Flight Mode On (press the Menu >
Settings > Flight Mode) when you are in an aircraft. The electromagnetic
waves emitted by your phone may affect the electronic navigation
equipment in the aircraft.
Switch off in hospitals and near medical equipment
Always switch your phone off in hospitals, and obey the regulations or rules
of the hospital.
Switch your phone off when using medical equipment for private purposes,
if possible. Always consult with the medical equipment’s manufacturer or
an expert regarding phone use near the medical equipment.
Installing a hands free device in your vehicle
Install vehicle hands free devices away from the steering wheel and airbag
expansion area, otherwise injury may result.
Mobile phones and other electronic devices
Mobile phones emit electromagnetic waves that may affect nearby
electronic devices. When it is switched on, do not place your phone close
to delicate electronic equipment.
About the battery usage
Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that,
unlike other forms of battery technology, you can recharge your battery
while some charge remains without reducing your phone’s autonomy due
to the “battery memory effect” inherent in those technologies.
• Do not use a damaged battery or charger.
• Do not disassemble or open crush, bend or deform, puncture or shred
• Do not modify or remanufacture, attempt to insert foreign objects into
the battery, immerse or expose to water or other liquids, expose to fire,
explosion or other hazard.
• Do not put your battery into contact with conductive objects.
• Dispose of and recycle used batteries in accordance with local
regulations. Do not dispose of batteries by burning; they may explode.
• Do not use an unauthorized charger.
• Only use the battery for the device for which it is specified
• Only use the battery with a charging device that has been qualified with
the device per this standard. Use of an unqualified battery or charger
may present a risk of fire, explosion, leakage, or other hazard.
• Do not short circuit a battery or allow metallic conductive objects to
contact battery terminals.
• Replace the battery only with another battery that has been qualified
with the device per this standard, IEEE-Std-1725-2006. Use of an
unqualified battery may present a risk of fire, explosion, leakage or
other hazard.
• Promptly dispose of used batteries in accordance with local regulations
• Battery usage by children should be supervised.
• Avoid dropping the phone or battery. If the phone or battery is dropped,
especially on a hard surface, and the user suspects damage, take it to
a service center for inspection.
• Use your battery for the specified purpose only.
• The closer you are to your network’s base station, the longer your
phone usage time because less battery power is consumed for the
connection.
• The battery recharging time varies depending on the remaining battery
capacity and the battery and charger type you use.
• Battery life inevitably shortens over time.
• Use an authorized battery and charger only.
• Since overcharging may shorten battery life, remove the phone from its
charger once it is fully charged. Unplug the charger, once charging is
complete. Leaving the battery in hot or cold places, especially inside a
car in summer or winter, may reduce the capacity and life of the battery.
Always keep the battery within normal temperatures.
• To prevent injury or burns, ensure that no metal objects come into
contact with the + and – terminals of the battery.
FCC Regulatory Compliance
FCC Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Your mobile device is a low power radio transmitter and receiver. When it is
ON, it receives and also sends out radio frequency (RF) signals. In August
1996, the Federal Communications Commission (FCC) adopted RF
exposure guidelines with safety levels for mobile devices. Those guidelines
are consistent with safety standards previously set by both U.S. and
international standards bodies: American National Standard Institute
(ANSI), National Council of Radiation Protection and
Measurements(NCRP), and International Commission on Non-Ionizing
Radiation Protection (ICNRP). Those standards were based on
comprehensive and periodic evaluations of the relevant scientific literature.
The design of your phone complies with the FCC guidelines and applicable.
Statement according to FCC part 15.105
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Statement according to FCC part 15.21
Modifications not expressly approved by this company could void the user's
authority to operate the equipment.
RF exposure FCC
For body worn operation, to maintain compliance with FCC RF exposure
guidelines, use only accessories that contain no metallic components and
provide a separation distance of 15mm (0.6 inches) to the body. Use of
other accessories may violate FCC RF exposure guidelines and should be
avoided.
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
Health and Safety Information FCC
This EUT has been shown to be capable of compliance for localized
specific absorption rate (SAR) for uncontrolled environment/general
population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and
had been tested in accordance with the measurement procedures specified
in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003
Ministry of Health (Canada), Safety Code 6. The standards include a
substantial safety margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for wireless mobile
phones employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *.
* In the U.S. and Canada, the SAR limit for mobile phones used by the
public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in.
**This device contains 1800 MHz GSM functions that are not operational in
U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900
MHz PCS operations.
FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless
Devices
On July 10, 2003, the U.S. Federal Communications Commission (FCC)
Report and Order in WT Docket 01-309 modified the exception of wireless
phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to
require digital wireless phones be compatible with hearing-aids. The intent
of the HAC Act is to ensure reasonable access to telecommunications
services for persons with hearing disabilities.
While some wireless phones are used near some hearing devices (hearing
aids and cochlear implants), users may detect a buzzing, humming, or
whining noise. Some hearing devices are more immune than others to this
interference noise, and phones also vary in the amount of interference they
generate.
The wireless telephone industry has developed a rating system for wireless
phones, to assist hearing device users find phones that may be compatible
with their hearing devices. Not all phones have been rated. Phones that
are rated have the rating on their box or a label located on the box.
The ratings are not guarantees. Results will vary depending on the user’s
hearing device and hearing loss. If your hearing device happens to be
vulnerable to interference, you may not be able to use a rated phone
successfully. Trying out the phone with your hearing device is the best way
to evaluate it for your personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely
to generate less interference to hearing devices than phones that are not
labeled. M4 is the better/higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to
generate less interference to hearing devices than phones that are not
labeled. T4 is the better/higher of the two ratings.
Hearing devices may also be rated. Your hearing device manufacturer or
hearing health professional may help you find this rating. Higher ratings
mean that the hearing device is relatively immune to interference noise.
The hearing aid and wireless phone rating values are then added together.
A sum of 5 is considered acceptable for normal use. A sum of 6 is
considered for best use.

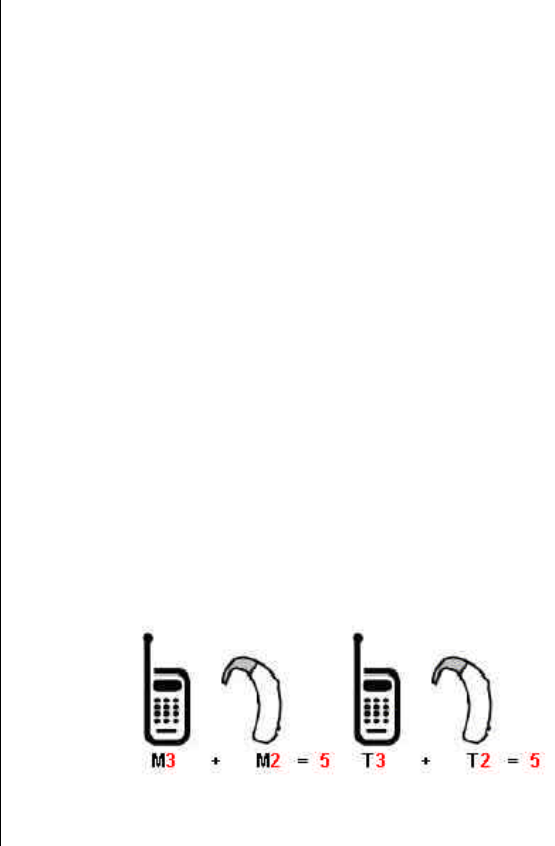

In the above example, if a hearing aid meets the M2 level rating and the
wireless phone meets the M3 level rating, the sum of the two values equal
M5. This is synonymous for T ratings. This should provide the hearing aid
user with “normal usage” while using their hearing aid with the particular
wireless phone. “Normal usage” in this context is defined as a signal quality
that is acceptable for normal operation.
The M mark is intended to be synonymous with the U mark. The T mark is
intended to be synonymous with the UT mark. The M and T marks are
recommended by the Alliance for Telecommunications Industries Solutions
(ATIS). The U and UT marks are referenced in Section 20.19 of the FCC
Rules. The HAC rating and measurement procedure are described in the
American National Standards Institute (ANSI) C63.19 standard.
To ensure that the Hearing Aid Compatibility rating for your phone is
maintained, secondary transmitters such as Bluetooth and WLAN
components must be disabled during a call. See Page XX for instructions
to disable these components.
Warranty
Protect Your Warranty
Read your Warranty carefully, with the special consideration to paragraph
seven of the Limited Warranty for your unit.
“Warranty does not apply to... or to any product or part thereof which has
suffered through alteration... mishandling, misuse, neglect or accident”.
Many companies are making look alike accessories and in some cases,
promoting that their product is equal to or better than the Pantech product.
Be careful. Some of these products may not be compatible to use with your
Pantech product and may damage the unit or cause it to malfunction.
If service is required on your unit and it is determined that a non-Pantech
accessory has created the problem with your unit, the Warranty will not
apply. In addition, if the unit has already suffered irreversible damage by
reason of a non-compatible accessory, the Warranty will be voided. To
protect your Warranty, use only compatible accessories which cannot
damage or interfere with the functioning of your Pantech product.
12 Month Limited Warranty
Pantech Wireless, Inc. (the Company) warrants to the original retail
purchaser of this Pantech handheld portable cellular telephone, that should
this product or any part thereof during normal consumer usage and
conditions, be proven defective in material or workmanship that results in
product failure within the first twelve (12) months period from the date of
purchase, such defect(s) will be repaired or replaced (with new or rebuilt
parts) at the Company’s option, without charge for parts or labor directly
related to the defect(s).
The antenna, key pad, display, rechargeable battery and battery charger, if
included, are similarly warranted for twelve (12) months from date of
purchase. This Warranty extends only to consumers who purchase the
product in the United States or Canada and it is not transferable or
assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident, mishandling,
neglect, unauthorized alteration, misuse, improper installation or repair or
improper storage;
(b) Product whose mechanical serial number or electronic serial number
has been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures
or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other
product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as
framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand,
weather conditions, battery leakage, blown fuse, theft or improper usage of
any electrical source.
The Company disclaims liability for removal or reinstallation of the product,
for geographic coverage, for inadequate signal reception by the antenna or
for communications range or operation of the cellular system as a whole.
To obtain repairs or replacement within the terms of this Warranty, the
product should be delivered with proof of Warranty coverage (e.g. dated bill
of sale), the consumer’s return address, daytime phone number and/or fax
number and complete description of the problem, transportation prepaid, to
the Company by calling the number listed below or to the place of purchase
for repair or replacement processing.
To locate Pantech Authorized Service Center, call: (800) 962-8622 or email
HandsetHelp@Pantech.com.
Please have the following information available when you send the phone
in for repair:
- A valid original Proof of Purchase
- Return address
- Daytime phone number or fax number
- Model #
- IMEI # (Look for the 15 digit IMEI # behind the battery of the device.)
- Complete description of the problem
- Transportation prepaid
Other Warranty Program
You may have other warranty program with your purchase, such as
warranty exchange. If so, please refer to equipment package or the original
point of sale.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S
LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER
FOR THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT
WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY
SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH
OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE
DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS
OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR
REPLACED.
No person or representative is authorized to assume for the Company any
liability other than expressed herein in connection with the sale of this
product.
Some states or provinces do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or consequential
damage so the above limitation or exclusions may not apply to you. This
Warranty gives you specific legal rights, and you may also have other rights
which vary from state to state or province to province.
For technical support in the U.S. & Canada, call (800) 962-8622.
Or email: HandsetHelp@Pantech.com.
Or visit the web site: www.pantechusa.com
For all other inquiry, write to:
PANTECH WIRELESS, INC.
5607 Glenridge Dr. Suite 500 Atlanta, GA 30342

Navigation menu
