Pantech Co C790 Dual-Band Dual-Mode GSM/WCDMA Phone with Bluetooth User Manual USER MANNUAL C790

Pantech Co Ltd Dual-Band Dual-Mode GSM/WCDMA Phone with Bluetooth USER MANNUAL C790

Contents

Users manual

1
C790
USER
MANUAL
Thank you for choosing the Pantech Aladdin, our latest 3G mobile phone.
The Pantech Aladdin has many features designed to enhance your mobile
experience. From its unique, stylish design and QWERTY keypad, we know
you will enjoy the entire Aladdin experience.
This User Guide contains important and useful information that will maximize
your familiarity with all that the Pantech Aladdin has to offer.
Specifications
Design
Single slider with QWERTY keypad
Displays
z 260k colors TFT LCD with 2.2” internal display
z 176*220 resolution
z 7 lines for text in basic mode with 16-point font
z Two soft keys and four-way scroll and selection OK keys
Melodies
MP3, MIDI, iMelody, MMF, WAV, SMAF, AAC+
Camera
Integrated 1.3M CMOS Camera
z Resolution up to 1280 x 960 (1,228,800 pixels)
z Mpeg4 Video recording/playing up to 15f/s(QCIF size)
z Self-timer function (5 seconds or 10 seconds)
z Photo album and video album
Dimensions & Weight
z Weight: 132g/4.66oz (with standard battery)
z Dimensions: 99.3 mm x 59mm x 14.9 mm
3.90“ x 2.32“ x 0.58“
Power Management (Performance)
Battery Type Capacity Standby Time Talk Time
Standard
Lithium-Ion
(Li-ion) Up to 930 mAh Up to 16 days Up to 5 hours
Operating Frequency
• GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS 1900Mhz networks
in North America, South America, Europe, Africa, and Asia-Pacific where
these networks are supported.
• Automatic band switching.
Phone overview

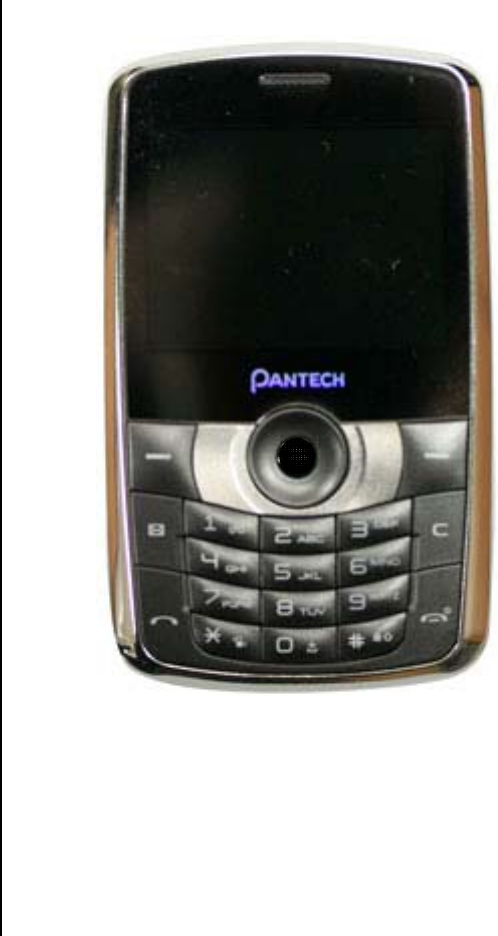

Number pad view
Power on&off
/Menu exit key/End key
Turn phone on/off,
end calls, exit menus
Clear key
Return to previous
screen or delete
characters in text mode.
International call prefix key
Soft key (Right)
Perform the functions shown
At the bottom line of the
display
Camera MicroSD Slot
Camera key
Speaker
Receiver
Display
NOTE: Holding the device by the internal antenna area might
affect the quality of all calls.
Charger slot/Ear mic
5 way navigation
Up: White New
Down: Contacts
Left: My stuff
Right: IM
Center: Media net
Music Key
Send Key
QWERTY
Keypad
Side key
Soft key (Left)
QWERTY keyboard view
CAPS/Shift key
To type a single uppercase letter,
press this key then a letter
Function key
To enter a number or a symbol,
press the function key, and press
the corresponding key
Space key
Press to enter a space
Enter key
Press to create new line while writing a
message
Delete key
Press to delete a number or letter
Note: To use the QWERTY keyboard, ensure that the Number pad is closed, then hold the phone horizontally and slide the screen up.
Using shortcuts
Numbered menu items, such as menus, sub-menus, and options can be
quickly accessed by using their shortcut numbers. In Menu mode, Main Menus
can be accessed by pressing the number keys (1 to 0) corresponding to their
location on the screen.
Example: Accessing the Language menu.
1. Press Menu.
2. Press the [9] for Settings.
3. Press the [4] for Phone.
4. Press the [1] for Language.
5. Press Select for Screen Text.
5. Press the [up] or [down] scroll key to display the list of available languages.
Menu overview
1 AT&T Music
1. Music Player
2. Shop Music
3. MusicID
4. XM Radio
5. Music Videos
6. Make –UR-Tones
7. Community
8. Music Apps
2 Messaging
1. Create Message
2. Inbox
3. Mobile Email
4. IM
5. Sent
6. Outbox
7. Drafts
8. Voice Mail
9. Thread Message
10. Settings
11. Templates
12. Memory Info
3 YPmobile
4 MEdia Net
1. MEdia Net Home
2. Bookmarks
3. Enter Address
4. History
5. Manage
5 MEdia Mall
1. Shop Tones
2. Shop Games
3. Shop Graphics
4. Shop Multimedia
5. Shop Applications
6. Shop Videos
7. MEdia Net
6 AT&T GPS
1. AT&T Navigator
7 My Stuff
1. Application
2. Audio
3. Games
4. Picture
5. Tools
6. Video
7. Other Files
8. Memory Info
8 Address Book
1. Contacts
2. PostPaid Contacts
3. Add Contact
4. Speed Dial
5. Groups
6. My Business Card
7. Memory in Use
8. My Phone Number
9. Memory Info
10. Service Numbers*
11. FDN List*
9 Settings
1. Profiles
2. Display
3. Call
4. Phone
5. Network Connections
6. Network*
7. Connectivity
8. Security*
9. Software
10. Reset
11. TTY
* SIM dependent
** Network dependent
Quick & Easy
Keys Functions
Perform the functions shown at the bottom line of the
display by using these soft keys.
Scroll through the menu options in Menu mode. In standby
mode,
Left: Access My Stuff menu
Right: Access IM menu
Up: Access Create Message menu
Down: Access Contacts menu
Work in Word search mode if pressed in the Predictive text
input mode.
Select a menu function or store user-input information, such
as names. Also use this key for confirmation as the [OK]
key.
Launch the MEdia Net directly if pressed in standby mode.
Delete characters from the display, or return to previous
menu.
Send or receive a call. Show the recent call list in standby
mode.
Complete the current call. Turn on/off the phone if pressed
and held.
Cancel user input and return to main screen while in Menu
mode.
Quickly connect to the voice mail server if pressed and held
in standby mode.
~ Enter numbers, letters or special characters. Go to the dial
screen if pressed in standby mode.
Enter or exit from vibrate mode if pressed and held in
standby mode.
Show the symbol input screen if pressed in text input mode.
Enter an international dialing prefix if pressed and held in
standby mode.
Enter the space character in text input mode.
Change various text input modes if pressed at the text-
editing screen.
Adjust the earpiece volume while making a call.
Control the Ringtone volume, vibrate mode and silent all
mode in standby.
Mute the ringtone of an incoming call.
Turn camera capture mode on.
Work as a camera shutter in capture mode.
Contents
Specifications .......................................................... 3
Phone overview ....................................................... 4
Using shortcuts ....................................................... 6
Quick & Easy ........................................................... 8
1. Getting Started ................................................... 11
SIM card and battery ................................................................................ 12
Turn phone on/off ..................................................................................... 13
Keypad lock ............................................................................................. 13
Essential display indications .................................................................... 13
Memory card ............................................................................................ 14
Assigning the menu ................................................................................. 14
Updating software .................................................................................... 15
Using the QWERTY key pad ................................................................... 15
MEdia Mall ............................................................................................... 15
2. Calls and address book .................................... 17
Making, receiving and ending a call ......................................................... 18
Using video share .................................................................................... 19
Options during a call ................................................................................ 20
Call settings ............................................................................................. 21
Settings for video share ........................................................................... 21
Checking all calls ..................................................................................... 22
Speed dialing ........................................................................................... 23
Using the address book ........................................................................... 23
Caller identification ................................................................................... 25
Using your headset .................................................................................. 25
Service numbers and fixed dialing ........................................................... 25
3. Messaging .......................................................... 26
Entering text ............................................................................................. 27
Messaging ................................................................................................ 28
Receiving messages ................................................................................ 28
Creating and sending text messages ...................................................... 29
Creating a multimedia messages ............................................................ 29
Message templates .................................................................................. 31
Message settings ..................................................................................... 31
Voice message setting ............................................................................. 32
Email ........................................................................................................ 32
Using instant messenger ......................................................................... 33
4. Multimedia .......................................................... 34
Camera .................................................................................................... 35
Photo album ............................................................................................. 37
Video album ............................................................................................. 38
Audio album ............................................................................................. 39
Music Player ............................................................................................ 39
Music player settings ............................................................................... 42
Media player ............................................................................................ 43
Other files ................................................................................................. 44
Managing memory ................................................................................... 44
Playing games ......................................................................................... 44
5. Useful Features ................................................. 44
Alarm ........................................................................................................ 45
Calendar .................................................................................................. 45
Notepad and voice memo ........................................................................ 46
Calculator, converter and stop watch ....................................................... 46
Business card .......................................................................................... 47
Memory information ................................................................................. 47
6. Connectivity ....................................................... 48
Bluetooth .................................................................................................. 49
Using the browser .................................................................................... 50
Profile settings ......................................................................................... 51
7. Settings .............................................................. 52
Language ................................................................................................. 53
Time and date .......................................................................................... 53
Ringtones ................................................................................................. 53
Decorating the display ............................................................................. 53
Locks ........................................................................................................ 54
To enable fixed dialing ............................................................................. 54
Reset ........................................................................................................ 54
TTY .......................................................................................................... 55
8. Appendix ............................................................ 56
Alert message .......................................................................................... 57
Troubleshooting checklist ........................................................................ 57
Safety information .................................................................................... 58
Safety precautions ................................................................................... 59
About the battery usage ........................................................................... 59
FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices60
FCC Regulatory Compliance ................................................................... 61
Warranty ................................................................................................... 63
1. Getting Started
SIM card and battery
Turn phone on/off
Keypad lock
Essential display indications
Memory card
Assigning the menu
Updating software
Using the QWERTY key pad
MEdia Mall
SIM card and battery
About your SIM card
When you subscribe to your network operator, you receive a SIM (Subscriber
Identity Module) card containing your registration information, PIN code, etc.
Like a credit card, it should be kept secure and handled carefully. Do not bend,
scratch or expose it to moisture. Avoid static electricity.
To avoid corrupting your SIM card’s memory, always switch off your phone
before removing or inserting your SIM card.
About your battery
Your phone uses a Li-Ion battery. Make sure to use an authorized battery and
charger only. For more details, please inquire at your nearest dealer.
NOTE: Your phone is powered by a Lithium Ion (Li-Ion) battery. Unlike other
forms of battery technology, you can recharge your battery while some charge
remains without reducing your phone’s autonomy due to the “battery memory
effect” inherent in those technologies.
Installing/removing SIM card and battery
1. Remove the battery cover from the unit.
2. To fit the battery cover, put it on the
guide rail and push up.
3. Insert the SIM card into the slot. The gold contacts of the SIM card should
go against the metal contacts of the phone. Put the contacts of the battery
into the hole located at the bottom of the unit insert and press the upper
side of the battery until you hear the “click”.
4. To remove the battery push the bottom of the
battery to upwards(1) and remove(2) the battery..
Push the SIM card in the direction of the arrow
as shown.
To charge your battery
1. To charge, open the protective cover on the top
right side and connect the charger adapter.
Make sure you align the connector as the image.
If not, it will damage
the charging connector on the phone and will not charge.
2. To remove the adapter connection press the
adapter’s side buttons(1) and pull the adapter
away(2).
1
1
1
2
1
2
1
2
Turn phone on/off
To turn on
1. Press and hold [ ].
To turn off
1. Press and hold [ ].
Keypad lock
Locking the keypad
1. Press Menu > press [ ] to lock.
Unlocking the keypad
1. Press Unlock > [ ] to unlock.
Essential display indications
Signal strength. The greater the number of bars, the stronger
the signal. When network is in searching mode is
displayed.
A call is being made. When you are in no service area is
displayed
Call forwarding* is active
Incoming calls set to ring only (Normal)
Incoming calls set to Vibrate and Ring
Incoming calls set to Vibrate Only
Incoming calls set to Silent
Flight Mode is active
Received one or more text messages
Received one or more multimedia messages
Received one or more WAP push messages
Received one or more voice messages
A message is being sent
A message is being received
An alarm is set
Schedule Alarm is set
Bluetooth is active
Headset is connected
Headset
USB is connected
TTY is active
A GPRS signal is available. It is displayed when there is an
active GPRS session
An EDGE signal is available. It is displayed when there is an
active EDGE session
A 3G signal is available. It is displayed when there is an
active 3G session
Battery strength. When the battery charge is low, is
displayed
Available, Away, Invisible Status of AIM
Online, Away, Busy, Offline Status of MSN
Available, Busy, Invisible Status of YAHOO
You have received one or more IM messages
* Network dependent
Memory card
You can use microSD card as a memory card.
It gives you more space to save pictures,
videos, music, etc.
Inserting and removing the memory card
1. Open the memory card slot.
2. Insert the card. The [ ] icon will be display.
3. Press the card to remove.
Using memory card
You can save, move and delete the files between your phone and external
memory card. You can also move and copy the files to computer from your
phone.
Resetting the card
1. Press Menu > Settings > Reset.
2. Enter the password > External Memory Reset.
Note: The default password is ‘1234’.
To copy the file to the card
1. Select the file > Options > Copy to External Memory.
2. To copy the file back to phone, press Options > Copy to Phone.
To move the file to the card
1. Select the file > Options > Move to External Memory.
2. To move the file back to phone, press Options > Move to Phone.
To delete the file from the card
1. Select the file from the card > Options > Delete.
To move the file from the card to the computer
1. Connect the data cable with mobile and the computer.
2. Press Menu > Settings > Connectivity.
3. Press Select USB Mode.
4. Select Mass Storage or Ask on Connection.
5. Follow the instruction on your computer screen.
Note: Select Music Player when you want to add music to the playlist in your
device. When you select Ask on Connection, it will ask you to select either the
Music Player or Mass Storage every time you connect your device with your
computer.
Assigning the menu
You can set the most commonly used menu in Options in standby mode.
1. Press Options in standby mode > select Unassigned.
2. Press Edit.
3. Select the menu and sub menu.
Note: User can change Options menu except CV.
Updating software
You can update your software without visiting your nearest dealer.
To update the software
1. Press Menu > Settings > Software > Software Update.
2. Press Check for Update > Yes to check whether or not you need to
update the software.
NOTE: After downloading the software, the device will ask you whether to
update the software now or later. If you choose to update the software now, it
will restart the handset. If you postpone updating the software, you can select
between 30 mins, 1 hour or 4 hours in the Options. After selecting the
updating time, you will be sent back to standby mode. If you go to Software
Update while you are in postponing, press Continue Update.
To view the version of software
1. Press Menu > Settings > Software.
2. Press Phone Information and scroll down to Software Version.
Using the QWERTY key pad
Your phone has QWERTY keypad which provides a superior typing experience
on a small handheld for easy and comfortable text writing. You can use all of
the phone functions with the QWERTY keypad opened.
Note: QWERTY keypad can be used when the number pad is closed. With the
number pad is opened, the QWERTY keypad can not be opened.
Key Function
/ Perform the functions shown at the bottom line of the display by
using these soft keys.
Press to change ab AB AB at the text editing screen.
(all small caps / first letter caps / all caps)
Press to type a special character or number, at the applicable key
pad. To enter symbols and numbers continually, press until
displays.
Enter the space character in text input mode.
Insert a carriage return in text input mode.
Delete a character to the left of the text cursor in text editing
screen.
+ Press to type a special character that is not placed on the keypad
MEdia Mall
Shopping tones
1. Press Menu > MEdia Mall > Shop Tones.
Shopping Games
1. Press Menu > MEdia Mall > Shop Games.
Shopping Graphics
1. Press Menu > MEdia Mall > Shop Graphics.
Shopping Multimedia
1. Press Menu > MEdia Mall > Shop Multimedia.
Shopping Applications
1. Press Menu > MEdia Mall > Shop Applications.
Shopping Themes
1. Press Menu > MEdia Mall > Shop Themes.
Shopping Videos
1. Press Menu > MEdia Mall > Shop Videos.
MEdia Net home
1. Press Menu > MEdia Mall > MEdia Net.
2. Calls and address book
Making, receiving and ending a call
Using video share
Options during a call
Call settings
Settings for video share
Checking all calls
Speed dialing
Using the address book
Caller identification
Using your headset
Service numbers and fixed dialing
Making, receiving and ending a call
Making a call
1. Enter the area code and phone number.
2. Press [ ] key.
Answering a call
1. Press [ ].
Ending a call
1. Press [ ].
Once the call is complete, a call summary is displayed.
Rejecting a call
1. Press [ ] or Ignore.
Making a call using call list
Your phone logs up to 20 dialed, received and missed call numbers.
1. Press [ ] to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, or Dialed Calls pressing
the [ /].
3. Select a number.
4. Press [ ] to dial the selected number.
NOTE: To redial the last number in the Recent Calls list, press [ ].
Making a call during a call
1. Enter the phone number or look it up in Address Book.
2. Press [ ] to dial the second call. The first call is automatically put on hold.
Switching between two calls
1. Press Swap.
Making an international call
1. Press and hold [ ] key for the international prefix until the ‘+’ character
appears.
2. Type the country code, area code, and phone number.
3. Press [ ].
Making an emergency call
You can make emergency calls even if your phone does not have a SIM card.
1. Press Emergency Number, or press SOS if your phone does not have a
SIM card.
2. Press [ ].
Replying to a missed call
1. Press View to display the list of missed calls.
2. Select a number to call by pressing the [ /] key.
3. Press [ ].
Answering a second call**
1. Press [ ]. The first call is automatically put on hold.
2. Press [ ] to end the second call.
The call on hold is automatically reconnected.
Using video share
You can share live or recorded video while on a call. You can send or receive
video.
NOTE: Video Share is not available in all markets. Both parties must be in a
3G service area–a 3G icon must appear by the signal bars prior to a call being
placed, and both parties must remain in the 3G coverage area for the duration
of the Video Share.
<Call mode> <Video Share Mode>
Making video share call
1. Enter the area code and phone number > [ ].
2. Press Options > Video Share.
3. Select Live or Recorded.
Note: To use video share in the Recent Calls, press Options > Video Share.
Turning off the speakerphone
1. Press OK or press Options > Speakerphone Off during video share mode.
2. Press Options > Mute to mute the sound.
Stopping video share
1. Press Stop to end.
2. To end a call press [ ].
Increasing or decreasing the brightness
1. Press Options > Brightness.
2. Adjust the brightness by pressing [ / ].
Zoom in and out
1. Press Options > Zoom. It ranges from x1 to x3.
Stopping the recording
1. Press Options > Stop Record.
For details on setting for automatic recording, see page 23.
Ending video share
1. Press Stop to end the video share.
2. It will ask you whether you will stop video share > Yes to stop.
Mute Mute
Note: Even you end video share, the call will not be ended. Press [ ] to end
the call. The recorded video will be saved in My Stuff > Video.
Receiving video share
1. After receiving video share, it will ask you whether to accept or reject the
video share > Yes to accept and No for reject.
2. Press Options > Landscape to landscape the screen.
Options during a call
Microphone off and on
Switching your phone’s microphone off
1. Press Options > Mute [].
Switching your phone’s microphone back on
1. Press Options > Unmute.
Talking on speaker
1. Press Speaker Phone [].
Putting a call on hold and returning**
Putting a call on hold
1. Press Options > Hold or press [ ]
Returning to a held call
1. Press Options > Unhold or press [ ] again.
Multi-party calls**
You can talk with more than one person or have conference call.
Making a multi-party call
1. Call the first participant.
2. Call the second participant. The first call is automatically put on hold.
3. Press Options > Join.
Having a private conversation with one participant
1. Press Options > Split.
2. Press OK.
3. Select the participant and press OK.
All of the multi-party call participants can now hear each other.
Removing one participant from a multi-party call
1. Press Options > End.
2. Select the participant and press OK.
The call ends with that participant, but you can continue to talk to the other
participants.
Searching for a number in the address book during a call
1. Press [ ] or press Options > View Contacts > Contacts.
2. Select a number > [ ]
Searching for a name or group in the address book
Enter the first letters of the name for Name Search. The entries are displayed
starting with the first entry matching your input.
Finding a name manually in the address book
1. Press the [ /] key.
Viewing the details of the highlighted entry in the address
book
1. Press OK.
For details on address book, see page 25.
Reading a message during a call
1. Press Options > View Message.
2. Select a message > OK
Writing a message during a call
1. Press Options > Create Message.
For details on creating a text message, see page 31.
Viewing calendar during a call
1. Press Options > View Calendar
Writing a notepad during a call
1. Press Options > Notepad
Voice recording
1. Press Options > Voice Recording
Setting DTMF
1. Press Options > DTMF On or Off
Call settings
Setting auto redial
1. Press Menu > Settings > Call > Auto Redial.
2. Select On or Off.
Answering by pressing any key
1. Press Menu > Settings > Call > Any Key Answer.
2. Select Answer with Any Key.
NOTE: You can answer with any key except [ ]and Ignore.
Settings for video share
Turning the alert on/ off
1. Press Menu > Settings > Call > Video Share.
2. Press Alerts.
3. Select On or Off > Select.
Setting for automatic recording
1. Press Menu > Settings > Call > Video Share.
2. Press Auto Record.
3. Select On or Off > Select.
Setting for service
1. Press Menu > Settings > Call > Video Share.
2. Press Service.
3. Select On or Off > Select.
Setting for profile
1. Press Menu > Settings > Call > Video Share.
2. Press Profile
3. Select AT&T IMS or Media Net > Select.
Setting recording location
1. Press Menu > Settings > Call > Video Share.
2. Press Recording Location.
3. Select Phone Memory or External Memory > Select.
Checking all calls
You can view information about all Recent Calls. For more options for all,
missed, received and dialed calls press Options.
You can also view the call history simply by pressing [ ].
Viewing missed calls
1. Press Options in standby mode or press Menu > My Stuff > Tools Press
Recent Calls > Missed Calls.
Viewing received calls
1. Press Options in standby mode or press Menu > My Stuff > Tools
2. Press Recent Calls > Received Calls.
Viewing dialed calls
1. Press Options in standby mode or press Menu > My Stuff > Tools.
2. Press Recent Calls > Dialed Calls.
Deleting call logs
1. Press Options in standby mode or press Menu > My Stuff > Tools Press
Recent Calls > Delete Call Logs.
2. Select All Calls > Yes.
Viewing call time
1. Press Options in standby mode or press Menu > My Stuff > Tools Press
Recent Calls > Call Time.
2. Press [ /] to view Last Call, Received Calls, Dialed Calls and Total
Calls.
Resetting all call times
1. Press Options in standby mode or press Menu > My Stuff > Tools Press
Recent Calls > Call Time.
2. Press Reset > Yes.
3. Enter password > OK.
NOTE: The default password is ‘1234’
.
Viewing data transmitted information
1. Press Options in standby mode or press Menu > My Stuff > Tools Press
Recent Calls > Packet Counter.
- Current Info: You can view transmitted data in the current session, in Kbytes.
Sent, Received and Total information are also available.
- Last Info: You can view Sent, Received, Total and Duration information of
the previous session’s transmitted in Kbytes.
- Total Info: You can view all the Sent, Received, Total and Duration
transmitted data in Kbytes.
- Clear Logs: The default password is ‘1234’.
Speed dialing
You can dial quickly using speed dialing. Up to 8 phone numbers can be
programmed using numbers 2 to 9.
[ ] : Voice mail
[ ] : Prefix for international call
Setting speed dial
1. Press Menu > Address Book > Speed Dial.
2. Select an empty entry and press Add.
3. Select a person and press OK or Select.
Changing speed dialing person
1. Press Menu > Address Book > Speed Dial.
2. Select a number > OK or Options > Change.
3. Select a person > OK or Select.
Removing from speed dial
1. Press Menu > Address Book > Speed Dial.
2. Select a number > Options > Delete.
Using the address book
You can save names, phone numbers, and information on the SIM or phone.
Entries can depend on the capacity of the SIM card.
Viewing the contact list
1. Press [ ] or press Menu > Address Book > Contacts.
Searching for a phone number
1. Press [ ] or press Menu > Address Book > Contacts.
2. Input the first letter or two of the person's name and scroll with [ /].
3. Press OK to view the detailed information.
4. To update information, press Options > Edit.
Calling from the contact list
1. Press [ ] or press Menu > Address Book > Contacts.
2. Select a person to call.
3. Press [ ]
Forwarding contact details
1. Press [ ] or press Menu > Address Book > Contacts.
2. Select a contact > Options > Send This Card.
3. You can send the information using Multimedia Message or Bluetooth.
Deleting a contact
1. Press [ ] or press Menu > Address Book > Contacts.
2. Select a contact > Options > Delete.
Adding a contact
1. Press Menu > Address Book > Add Contact.
2. Select Phone or SIM.
3. Input the fields.
4. Press OK or Save.
Making groups
1. Press Menu > Address Book > Groups.
2. You can select group either on phone or SIM. There will be defaulted groups.
3. To add new group, press Options > Add Group.
4. To edit group press, Edit Group. You can also set a specific ringtone by
selecting Ringtone > OK > select the ringtone.
Caller identification
Caller identification**
1. Press Menu > Settings > Call > Display My Number.
2. Select Network Default, Show or Hide > Select.
Using your headset
You can send or receive a call using your headset.
When you connect your headset to the jack the button on the headset works as
follows.
Note: You need to use the headset designed for this device, and it is optional
item. Also not every headset has a button.
While in standby mode
1. Press the button once to list recent calls.
2. Press the button twice to redial the last call.
While the phone is closed
1. Press the button once to receive a call.
2. Press the button once to end the call.
Service numbers and fixed dialing
Calling your service numbers*
You can see the service number to reach the service provider.
1. Press Menu > Address Book > Service Numbers.
2. Select a number > press [ ].
Viewing the fixed dialing list
Fixed dialing is a service that limits your access to specific numbers in the
address book list recorded on the SIM. Input the PIN2 to set up or cancel this
service.
1. Press Menu > Address Book > FDN List.
2. Select a number > press [ ].
NOTE: PIN2 must be correctly entered within 3 attempts. If you input the
incorrect code three times in a row the PIN2 code will be blocked. If the PIN2
code is blocked please contact your service provider. PIN2 code supplied with
the SIM card.
3. Messaging
Entering text
Messaging
Receiving messages
Creating and sending text messages
Creating a multimedia messages
Message templates
Message settings
Voice message setting
Email
Using instant messenger
Entering text
You can enter text with multi-tap, predictive, numeric or symbol.
Useful keys
] Display symbols
[] Adding space
[]
Press to change capital mode.
Press to change ab Ab AB and press to change
from multi to predictive to Number
Multi-tap (all small caps / first
letter caps / all caps)
Predictive (all small caps / first
letter caps / all caps)
Number
For details on using QWERTY key pad, see page 16.
Key characters by language
Each of the following keys will scroll through these sequential options listed by
language.
key English French Spanish
1 . , - ? ! / ' @ : . , - ? ! / ' @ : . , - ? ! / ' @ :
2 abc ç à ä á ã ç
3 def é è é
4 ghi í
5 jkl
6 mno ô ñ ó ñ
7 pqrs ß
8 tuv ù ü ú ü
9 wxyz
Predictive mode
The predictive mode automatically compares your keystrokes with an internal
linguistic dictionary to determine the correct word. It will display the most
commonly used word first. The most commonly used word will appear first. To
save a word not listed in phone's dictionary, press Options > Predictive
Settings > Selection List > On.
1. Press [ ] to change the mode to predictive.
2. Press [ to [ ] to input text. For example, to write ‘hello’ press
[ ] [ ] [ ] [ ] [ ].
Alphabet input mode
Press the key labeled with the target letter once for the first letter; press it twice
for the second letter, and so on.
1. Press [ ] to change the mode as multi-tap.
2. Press [ ] to [ ] to input text repeatedly. To write the letter “C”, press
[] 3 times. To write number 2 press [ ] 4 times.
Numeric mode
You can input numbers in this mode.
1. Press [ ] to change the mode to 123.
2. Press [ ] to [ ] and [ ] to input numbers.
Symbol mode
You can input symbols.
1. Press [ ] to view the symbols.
2. Press [ / / / ] to select symbol and press Insert.
Messaging
You can send, receive and save the text messages and multimedia messages.
Managing memory
When the message box is full the messages full icon will appear. All messages
share memory.
When It means
Text message is full ( SIM and Phone messages )
Moving a message to SIM
1. Press Menu > Messaging > Inbox.
2. Select a message > Options > Move to SIM.
Deleting a message in a mailbox
1. Select a message > Options > Delete > Yes.
Replying to a message
1. Select a message > Options > Reply.
Viewing memory space information
1. Press Menu > Messaging > Memory Info
2. Press [ / ] to view SIM and Phone memory.
Receiving messages
Viewing a new message
1. Press View or press OK.
Reading a message from the inbox
1. Press Menu > Messaging > Inbox.
2. Select a received message > OK.
Saving a number or e-mail from a received message
1. Select a received message > Options > View.
2. Press Options > Save.
3. Select New Contact or select Update Contact.
Saving the object in the received multimedia message
1. Open the multimedia message.
2. Select an object.
3. Press Options > Use > Save.
It will be saved in one of the categories in the My Stuff folder.
For details on photo album, see page 39.
Listening to voice message
1. Press and hold [ ] or press Menu > Messaging > Voice Mail.
It will automatically call the voice mail center.
Loading URL using Push message
1. Press Menu > Messaging > Inbox > OK.
2. Press Options > Load URL.
Save connection setting using Configuration message
1. Press Menu > Messaging > Inbox > OK.
2. Press Options > Install.
Creating and sending text messages
Sending new text message
1. Press [ ] or press Menu > Messaging > Create Message.
2. Write the message.
3. Press Options > Send.
4. To view sent message press Menu > Messaging > Sent.
NOTE: All successfully send messages will be saved in Sent while the
messages that failed to be sent will save in the Outbox.
Finding all sent messages
1. Press Menu > Messaging > Sent.
Creating a multimedia messages
You can create new multimedia message. Capacity is 100Kb, 300Kb, 600Kb
and an error message will alert you once you exceed the capacity.
Adding a saved picture to the message
1. Press [ ] or press Menu > Messaging > Create Message.
2. Write a message.
3. Press Options > Add Picture > Saved Pictures.
4. Select Graphics > Camera > select a file.
5. Press Options > Select.
6. To preview the current page, press Options > Preview > Current.
7. To preview the whole message, press Options > Preview > Whole
Message.
8. To edit the text message, press [ /] to select the text box.
9. Press Options > Send.
Adding a new picture to the message
1. Press [ ] or press Menu > Messaging > Create Message.
2. Write a message.
3. Press Options > Add Picture > Take Picture.
4. Focus on the object > OK.
5. Press Options > Send.
For the taking picture, see page 38.
Adding a recorded voice memo to the message
1. Press [ ] or press Menu > Messaging > Create Message.
2. Write a message.
3. Press Options > Add Sound > Saved Sounds.
4. Select Audio > My Voice > Select.
5. Select the file, press Options > Select.
6. To listen select the recorded memo Options > Play.
7. Press Pause to stop listening.
8. To select other recorded memo press Back and select another memo.
9. Press Options > Send.
Adding a new voice memo to the message
1. Press [ ] or press Menu > Messaging > Create Message.
2. Write a message.
3. Press Options > Add Sound > Record Sound.
4. Press Options > Record to record the sound.
5. To stop and save press Stop.
6. Press Options > Send.
For the recording voice memo, see page 49.
Adding a saved video to the message
1. Press [ ] or press Menu > Messaging > Create Message.
2. Write a message.
3. Press Options > Add Video > Saved Videos.
4. Select a video > Options > Select.
5. To preview the current page, press Options > Preview > Current.
6. To preview the whole message, press Options > Preview > Whole
message.
7. To stop press Stop.
8. Press Options > Send.
Adding a new video to the message
1. Press [ ] or press Menu > Messaging > Create Message.
2. Write a message.
3. Press Options > Add Video > Record Video.
4. Focus on the object > Options > Record.
5. To stop recording and save press Stop.
6. Press Options > Send.
For the recording video, see page 38.
Adding other file to the message
1. Press [ ] or press Menu > Messaging > Create Message.
2. Write a message.
3. Press Options > Add Other File.
4. Select the file > Options > Select.
5. Press Options > Send.
Message templates
When you often use the same phrases, you can save the message under
template messages.
Adding the message as a template
1. Press Menu > Messaging > Templates.
2. Press Options > Add New.
3. Write the frequently used message > Options > Save.
Sending a message with template
1. Press Menu > Messaging > Templates.
2. Select the message to send.
3. Edit the message > Options > Send.
NOTE: You can add a template while writing message. Write a message >
Options > Add Template. Choose Text or Multimedia and select the
message to add.
Message settings
Setting message center
1. Press Menu > Messaging > Settings.
2. Press Text Message.
3. Enter new Center Address.
4. Press Save.
Setting profiles for multimedia message
1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > MMS Profiles.
3. Select a profile.
Setting for sending multimedia message
1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > Sending Settings.
3. You can set the Validity Period, Delivery Time, Priority, Creation Mode
and Max Message Size.
Setting for receiving multimedia message
1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > Receiving Settings.
3. You can set the Automatic Download, Allow Delivery Reply, Allow
Read Reply and Accepted Messages.
Setting e-mail gateway
1. Press Menu > Messaging > Settings.
2. Press Email Gateway.
3. Enter new gateway for receiving e-mail.
4. Press Save.
Setting for receiving notice for push message
1. Press Menu > Messaging > Settings.
2. Press Push Message > Receive.
3. Select On or Off.
NOTE: When you receive push message the [ ] icon will displays.
Voice message setting
Setting for receiving voice message
1. Press Menu > Messaging > Settings.
2. Press Voice Mail.
3. Enter the number of the voice mail center > Save.
Note: This number may be pre-configured by the service provider upon
activation.
Email
You can receive emails from your service provider.
Receiving an email
1. Press Menu > Messaging > Mobile Email.
2. Select an email > OK.
Using instant messenger
Use Instant Messenger (IM) to send and receive short, simple messages that
are delivered immediately.
Starting an instant messenger
1. Press Menu > Messaging > IM.
2. Select the IM application > Select.
3. Enter login and password > Sign In.
Viewing the conversation log
You can view the conversations log in the Instant Messenger Saved History.
4. Multimedia
Camera
Photo album
Video album
Audio album
Music player
Music player settings
Media player
Other files
Managing memory
Playing games
Camera
You can take pictures and record movies using the built-in camera. The photos
and video clips can be saved and sent via multimedia messages.
Setting camera settings
1. Press Menu > My Stuff > Tools.
2. Press Camera.
3. Press Options > Settings to change settings prior to taking a picture.
In the options menu for camera
Icons Name Description
White Balance Auto( ), Day Light( ), Tungsten( ),
Fluorescent( )
Effect Normal( ), Sepia( ), Negative( ),
B&W( )
Self Timer Off( ), 5 secs( ), 10 secs( )
Picture Size 1280x1024( ), 1024x768 ( ), 640x480 ( ),
320x240 ( ),144x176 ( )
Advanced Picture Quality, Save Location, Shutter
Sound, Timer Sound, Default File Name
In the options menu for video camera
Icons Name Description
White Balance Auto( ), Day Light( ), Tungsten( ),
Fluorescent( )
Effect Normal( ), Sepia( ), Negative( ),
B&W( )
Self Timer Off( ), 5 secs( ), 10 secs( )
Resolution 176x144(MMS)( ), 176x144( ),
320x240 ( ),Video Share( )
Advanced Video Quality, Sound Recording, Save
Location, Timer Sound, File Format, Default
File Name
Camera mode
White Balance
Effect
Self Timer
Video mode
Size
Remain
Zoom
Brightness
Zoom in and out
1. Press [ /]. It ranges from x1 to x4.
Increasing or decreasing the brightness
1. Press [ / ]. It ranges from -2 to +2.
Taking a picture
1. Press [ ] in standby mode or press Menu > My Stuff > Tools
Press Camera.
2. Focus on the object > OK or press Options > Capture.
NOTE: Your photo will be saved automatically to My Stuff > Graphics >
Camera.
Changing to video camera mode
1. Press [ ] in standby mode or press Menu > My Stuff > Camera.
2. Press Options while camera mode is activated.
3. Press Video Camera Mode.
4. Focus on the object > OK or press Options > Record.
5. Record the motion > Stop.
NOTE: Your video will be saved automatically to My Stuff > Video.
Viewing the taken picture
1. Press [ ] in standby mode or press Menu > My Stuff > Tools > Camera.
2. Press Options > Photo Album.
3. Select the picture > OK.
After taking pictures
To Press
Send a multimedia message Options > Send > as Multimedia
Message
Send using Bluetooth Options > Send > via Bluetooth
Upload photos on the web Options > Send > to HP’s Snapfish
Set as wallpaper Options > Set as > Wallpaper
Set as address book Options > Set as > Caller ID
Delete Options > Delete
Rename Options > Rename
View photo’s information Options > Properties
Recording a video
1. Press Menu > My Stuff > Tools > Video Camera.
2. Focus on the object > OK or press Options > Record.
3. Press Stop to stop.
4. Press Options > Play to play the video clip.
5. Press [ ] to go back to preview mode.
Changing to camera mode
1. Press Menu > My Stuff > Tools > Video Camera.
2. Press Options while video camera mode is activated.
3. Press Camera Mode.
For details on taking a picture, see page 38.
Viewing the recorded video clip
1. Press Menu > My Stuff > Tools > Video Camera.
2. Press Options > Video Album.
3. Select the video clip > OK.
After saving recorded video clips
To Press
Send a multimedia message Options > Send > as Multimedia
Message
Send using Bluetooth Options > Send > via Bluetooth
View recorded video clip Options > View by List
Delete Options > Delete
Rename Options > Rename
View the information Options > Properties
During recording a video
To Press
Receive an incoming call [ ]
Stop recording OK
Photo album
You can view, send, save to your phone or an external memory card and also
delete photos. JPEG format is supported, and other formats are saved in the
Graphics folder.
NOTE: To access Graphics, press Menu > My Stuff > Graphics.
Viewing the saved pictures
1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture > OK or press Options > View.
Setting as wallpaper in the display
1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture > Options > Set as > Wallpaper.
Setting as caller identification
1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture > Options > Set as > Caller ID.
Sending pictures using multimedia message
1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture.
4. Press Options > Send > as Multimedia Message.
For details on creating a multimedia message, see page 31.
Uploading pictures on the web
1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture > Options > Send > to HP’s Snapfish.
Deleting multiple pictures
1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Press Options > Multiple Select.
4. Press OK to select more than one picture.
5. Press OK to unselect.
6. Press Options > Delete.
Viewing file information
1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture.
4. Press Options > Properties.
Video album
You can view, send, save and delete videos.
Playing the saved video clips
1. Press Menu > My Stuff.
2. Press Video.
3. Select a video clip > OK or press Options > Play.
Using video player controls
To Press
Pause OK
Play OK
Rewind hold
Fast forward hold
Rotate to landscape mode Options > Landscape
Control volume Side key up or down or /
Sending video clip using multimedia message
1. Press Menu > My Stuff.
2. Press Video.
3. Select a video.
4. Press Options > Send > as Multimedia Message.
For details on creating a multimedia message, see page 31.
Deleting multiple video clips
1. Press Menu > My Stuff.
2. Press Video.
3. Press Options > Multiple Select.
4. Press OK to select more than one video.
5. Press OK to unselect.
6. Press Options > Delete.
Audio album
You can play, send, delete, moves to external memory or to phone the saved
sounds. The supported formats are MP3, AAC, AAC+, and WMA.
Listening the recorded sound
1. Press Menu > My Stuff > Audio.
2. Press My Voice > select a sound > Options > Play.
Using sound controls
To Press
Play & Pause OK
Stop Options > Stop
Rewind Hold
Fast forward Hold
Control volume Side key up or down or /
Setting as a ring tone
1. Press Menu > My Stuff > Audio.
2. Select a sound > Options > Set as Ring Tone.
Moving or copying multiple sound to external memory
1. Press Menu > My Stuff > Audio.
2. Press Options > Multiple Select.
3. Press OK to select more than one sound file.
4. Press Options > Copy to External Memory or Move to External
Memory. The selected sound will copy to Audio folder in external memory
card.
Sending sound file using multimedia message
1. Press Menu > My Stuff > Audio.
2. Select a sound file.
3. Press Options > Send > as Multimedia Message.
Music Player
You can listen MP3 and audio files even your device is closed. It can be only
play audio files saved in MP3, .AAC, .AAC+, and .WMA,.
When It means
Music is playing
Music has been paused
Music has been stopped
Note: microSD card must be inserted to transfer music to your device.
Adding music from Windows Media PlayerTM
1. Connect the USB cable to the device and the computer.
2. Select Music Player > Yes.
3. Open the Sync tab in Windows Media PlayerTM in your computer.
4. Select the music from the list and drag and drop to your device.
Note: Windows Media PlayerTM 10, 11 and Window XP version is required.
Playing the music
1. Press Menu > AT&T Music > Music Player.
2. Select the categorize using [ /] to play the music.
3. Select the file using [ /] then press OK.
4. Press Options > Add to Playlist to add to the playlist.
5. Press Options > Stop to stop playing.
Note: To stop playing music in the standby mode, press [ ].
When receiving a call press [ ] and music will stop without asking.
Icons for player
Icon Name Description
Volume
Previous
Next
Short Press : Previous, Next
Long Press : Fast Rewind, Fast
Forward
Pause
Play
Repeat All Tracks
Shuffle On
Making playlist
1. Press Menu > AT&T Music > Music Player.
2. Press Playlists > New Playlist.
3. Select All Music, Albums, Artists or Genres.
4. Select the music file using [/] then press OK to add to playlist.
5. Press Done > name the playlist > Save.
Add music to playlist
1. Press Menu > AT&T Music > Music Player.
2. Press Playlists.
3. Select the playlist to add music > Options > Add Tracks.
4. Select the music to add > OK > Done.
5. To remove tracks press Options > Remove Tracks > select the music by
pressing OK > Remove.
6. To rename the playlist press Options > Rename Playlist.
7. To delete the playlist press Options > Delete.
Listening music with Bluetooth headset
1. While music is playing in the standby mode, Press Menu > AT&T Music >
Music Player.
2. Press Now Playing > Options > Transfer to B/T Headset.
Viewing the information
1. Press Menu > AT&T Music > Music Player.
2. Select the categorize using [ /] to play the music.
3. Select the file using [ /] then press OK.
4. Press Options > Properties.
5. Use [ /] to view Title, Artist, Album, Genre, Filename, Location,
Format, Bit Rate, Length, Size, Date Added, License and Sharing.
Setting as ringtone
1. Press Menu > AT&T Music > Music Player.
2. Select the categorize using [ /] to play the music.
3. Select the file using [ /] then press OK.
4. Press Options > Set as Ring Tone.
Note: During playing the music the file can not be set as ring tone. You cannot
set a file which is larger than 300 Kb as a ringtone.
Deleting music
1. Press Menu > AT&T Music > Music Player.
2. Select the music from the list.
3. Press Options > Delete.
Note: If the music is playing you cannot delete.
Shopping the music
1. Press Menu > AT&T Music.
2. Press Shop Music.
3. To go to previous page press Back.
Using music identification
1. Press Menu > AT&T Music.
2. Press MusicID.
3. Hold the phone close to the music. Your phone will analyze the music and
display the artist, title and album.
Note: For the cost plan contact your nearest carrier.
Listening the radio
1. Press Menu > AT&T Music.
2. Press XM Radio.
Watching the music video
1. Press Menu > AT&T Music.
2. Press Music Videos.
Viewing Billboard information
1. Press Menu > AT&T Music.
2. Press Make – UR - Tones.
Launching to community
1. Press Menu > AT&T Music.
2. Press Community.
Launching more applications
1. Press Menu > AT&T Music.
2. Press Music Apps.
Music player settings
Shuffling music
1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Shuffle.
4. Select Shuffle On or Shuffle Off > OK.
Repeating the music
1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Repeat.
4. Select Repeat All Tracks, Repeat Single Track or Repeat Off > OK.
Setting equalizer
1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Equalizer.
4. Select the category by using [ / ] > OK.
Auto Full Screen
1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Auto Full Screen.
4. Select Auto Full Screen On or Auto Full Screen Off > OK.
Removing
5. Press Menu > AT&T Music > Music Player.
6. Press Settings.
7. Select Remove.
8. Select License Data File or All Music Contents > OK.
Media player
You can play video clips with the media player.
NOTE: Do not use this feature illegally. Sound and video can be protected by
copyright. It is illegal to copy such sound / video tracks for the purpose of
selling or distribution. Pantech does not in any way support the unauthorized
use of content on your phone media player.
<Audio player> <Video player>
Icons for player
Icon Name Description
Volume
Previous
Next Long Press : Fast Rewind, Fast
Forward
Pause
Play
Repeat On
Playing the video clip
1. Press Menu > My Stuff
2. Press Tools > Media Player.
3. Press Video.
4. Select a file > OK > Play
5. Select a file > Options > Send or Rename or Multiple Select or Delete or
Delete All or Properties or View by Grid
Playing the audio file
1. Press Menu > My Stuff
2. Press Tools > Media Player
3. Press Audio.
4. Select the folder > select a file > Select > Play.
For the video player control see page 40.
Video image
Playing time
Volume controls
Player controls
Duration
Background skin
Other files
You can manage files in unsupported formats saved on your phone. It also lists
files received via Bluetooth from other devices.
Viewing the list of the files
1. Press Menu > My Stuff.
2. Press Other Files.
Managing memory
Viewing memory status
1. Press Menu > My Stuff.
2. Press Memory Info.
3. Use [ /] to view the information.
Playing games
You can download games to play with. It is easy to download and you can
preview them beforehand. You will only be able to view games that are
available on your mobile.
Shop games
1. Press Menu > My Stuff.
2. Press Games.
3. Select Shop Games > Select.
4. Play the demo and press BUY to download the complete game.
5. Useful Features
Alarm
Calendar
Notepad and voice memo
Calculator, converter and stop watch
Business card
Memory information
Alarm
Setting an alarm
1. Press Menu > My Stuff > Tools > Alarms.
2. Press Select for new alarm for the first time.
3. Set the Cycle, Time, Alarm Sound, Alert Type, Volume, and Power
Alarm > Save.
Viewing the saved alarms
1. Press Menu > My Stuff > Tools > Alarms.
Editing existing alarms
1. Press Menu > My Stuff > Tools > Alarms.
2. Select an alarm > Edit.
3. Press Options > Delete to delete an alarm.
4. Press Options > Create New to add new alarm.
Calendar
Calendar helps you manage your schedule including your time for calls or
special days. You can set a reminder on any given date with this function.
Viewing calendar
1. Press Menu > My Stuff > Tools > Calendar.
NOTE: Monthly view is displayed as default.
In the monthly view
To Press
Move to another day [] for Previous
[] for Next
Move to another week [] for Previous
[] for Next
View other month
Side key up for Previous
Side key down for Next
Creating a new event and edit
1. Select a day > Options > New Event.
2. Select Schedule, Task or Note.
3. Input the events > Save.
NOTE: You can create events for dates from 01/01/1980 to 12/31/2050.
Notepad and voice memo
Using notepad
1. Press Menu > My Stuff > Tools > Notepad.
2. Press Select for the first time. To add new note press Options > Create
New.
3. To edit memo press Options > Edit.
4. Press Options > Save to save.
Recording voice memo
3. Press Menu > My Stuff > Tools > Voice Memo.
4. Press OK > Record.
5. Press Stop to stop recording. It will automatically save on My Voice.
6. Press Options > Play to listen.
Listening the recorded sound
1. Press Menu > My Stuff > Audio > My Voice.
2. Select a sound > Play.
Using sound controls
To Press
Pause OK
Play OK
Stop Options > Stop
Control volume Side key up or down or /
Calculator, converter and stop watch
Using stop watch
1. Press Menu > My Stuff > Tools > Stop Watch.
2. Press OK > Start
3. Press Stop to stop.
4. Press Continue to restart.
5. Press Reset to clear.
6. To change to lap time, press Mode > Lap Time Mode.
7. To split the stopwatch, press Mode > Split Time Mode.
Using the calculator
1. Press Menu > My Stuff > Tools > Calculator.
2. Use [ / / / /OK] to calculate.
3. Press [ ] to erase one digit.
4. Press Reset to reset.
5. Press [ ] to use the decimal point.
Using the converter
1. Press Menu > My Stuff > Tools > Converter.
2. Select the categories
3. Select current unit and enter figure.
4. Select the unit to be changed.
Business card
You can send your information by sending it as multimedia message.
Creating your own business card
1. Press Menu > AT&T Address Book > My Business Card.
2. Edit the fields > Options > Save or press OK.
Forwarding
1. Press Menu > AT&T Address Book > My Business Card.
2. Press Options > Send This Card > Multimedia Message or Bluetooth.
3. Write a message for Multimedia Message.
4. Press Options > Send.
Updating information
1. Press Menu > AT&T Address Book > My Business Card.
2. Press Options > Edit.
3. Update information.
4. Press Options > Save.
Memory information
You can view the information of your phone for Used, Audio, Games,
Applications, Graphics, Video, Other Files and System.
Viewing the information
1. Press Menu > My Stuff > Memory Info.
6. Connectivity
Bluetooth
Using the browser
Profile settings
Bluetooth
Bluetooth technology enables free wireless connections between electronic
devices within a maximum range of 33 feet (10 meters). Bluetooth connection
can be used to send images, text, business cards, calendar notes or to connect
to computers using Bluetooth technology.
Your mobile phone supports:
• Connect to PC to access internet.
• Connect to Hands-Free.
• Connect to electronic devices.
Icons for Bluetooth
Bluetooth is active
Transmitting file using Bluetooth
Bluetooth is active and the headset is connected
USB is connected
Activating
1. Press Menu > Settings > Connectivity > Bluetooth > Activation.
2. Select On or Off.
Adding a device
1. Press Menu > Settings > Connectivity > Bluetooth >My Devices.
2. Press Search for Devices > press OK.
3. The available device will display.
4. To select the device press Options > Select Device. To view the details
press View Detail.
5. Enter password.
Note: The other device must be in pairing mode.
Sending an object
1. Select the file from Menu > My Stuff > Picture,Video, Audio or Other
Files.
2. Press Options > Send > via Bluetooth.
3. Press Search or press OK.
4. Select the device > Select.
NOTE: If the other Bluetooth device requests pairing, the object is sent after
pairing is completed. Locked object or ones containing original rights may not
be forwarded.
Receiving an object
The receiving an object starts only when the receipt has been approved.
The received file will be saved in each place. For example, if you received
contacts information from the sender, it will be saved in your phone’s memory.
Setting the visibility
1. Press Menu > Settings > Connectivity > Bluetooth > Visibility.
2. Select Hide or Show.
Naming the phone
1. Press Menu > Settings > Connectivity > Bluetooth > My Bluetooth Info.
2. Select the Name > Edit > edit the field > Options > Save.
Note: This is what others will see in their device’s display for your phone when
searching for your device.
Using the browser
Accessing browser
1. Press OK in standby mode or press Menu > MEdia Net > MEdia Net
Home.
NOTE: It will access provider’s homepage.
Viewing bookmarks
1. Press Menu > MEdia Net > Bookmarks.
2. To open the site, press Options > Go.
3. To send via text message, press Send by MSG.
Setting new bookmarks
1. Press Menu > MEdia Net > Bookmarks.
2. Press Options > Create New.
3. Enter the field > Save.
Entering address
1. Press Menu > MEdia Net > Enter Address.
2. Enter the web address > Go.
Viewing history
1. Press Menu > MEdia Net > History.
Setting advanced options
1. Press Menu > MEdia Net > Manage > Options.
2. Select the category > Select.
3. Select the option > Select.
Viewing certificates
1. Press Menu > MEdia Net > Manage > Security > Certificates.
Using memory operations
1. Press Menu > MEdia Net > Manage > Private Date.
2. To clear the cache, press Clear Cache > Yes
3. To clear the cookies, press Clear Cookies > Yes.
4. To clear the history, press Clear History > Yes.
Viewing status of downloading
1. Press Menu > MEdia Net > Manage > Download Manage.
Profile settings
You can set profile and view Profile Name, Home URL, Connection Type,
Proxy Address and Proxy Port.
Adding new profile
1. Press Menu > MEdia Net > Manage > Profiles.
2. Press Options > Create.
3. Enter the fields > Options > Save.
Editing profile
1. Press Menu > MEdia Net > Manage > Profiles.
2. Select other profile > Options > Edit.
Viewing default profile
1. Press Menu > MEdia Net > Manage > Profiles.
2. Select MEdia Net > Options > View.
Deleting profile
1. Press Menu > MEdia Net > Manage > Profiles
2. Select a profile > Options > Delete.
7. Settings
Language
Time and date
Mode transition time
Ringtones
Decorating the display
Locks
To enable fixed dialing
Reset
TTY
Language
Setting up
1. Press Menu > Settings > Phone > Language.
2. Select Screen Text or Predictive.
3. Select the language > Select.
Time and date
Setting up
1. Press Menu > Settings > Phone > Time & Date.
2. Select the category > Select.
3. Select the options > Select.
Ring tones
Setting ring tones
1. Press Menu > My Stuff > Audio.
2. Select the folder > select a file > Options > Set as Ring Tone.
Setting sound profile
1. Press Menu > Settings > Profiles.
2. Select Normal, Vibrate and Ring, Vibrate Only, Silent or Flight Mode.
Decorating the display
Setting the display
You can set the Wallpaper, Clock Type and Text.
1. Press Menu > Settings > Display > Home Screen.
Setting the menu type
1. Press Menu > Settings > Display > Menu Type.
Setting the font
1. Press Menu > Settings > Display > Font Style.
Setting the brightness
1. Press Menu > Settings > Display > Brightness.
Note: Modifying brightness may affect battery life.
Setting time for backlight
1. Press Menu > Settings > Display > Backlight Timer.
Note: Modifying backlight time may affect battery life.
Locks
Locking the phone
1. Press Menu > Settings > Security > Phone Lock > Phone Lock.
2. Select On.
NOTE: The default password is ‘1234’. To change the password press Menu >
Settings > Security > Phone Lock > Change Password.
Locking the PIN
The Personal Identification Number is the security code that protects the phone
or SIM against unauthorized use.
1. Press Menu > Settings > Security > PIN > PIN Lock. .
2. Enter PIN code > OK.
NOTE: To change the PIN code press Menu > Settings > Security > PIN >
Change PIN.
Changing PIN 2
1. Press Menu > Settings > Security > Change PIN2.
Locking the keypad automatically
You can set locking keypad automatically to prevent mistaken key presses.
1. Press Menu > Settings > Security > Auto Key Lock.
2. Select On.
Unlocking Auto Key Lock
1. Press Menu > Settings > Security > Auto Key Lock.
2. Select Off.
Changing hidden key
The hidden key is a security code for USIM Contact. You can lock the person’s
information in the USIM Contacts with the hidden key.
1. Press Menu > Settings > Security > Change Hidden Key.
Note: The default password is dependent by SIM card. (either depends on the
SIM card or determined by the SIM card)
To enable fixed dialing
Enabling and disabling
1. Press Menu > Settings > Security > FDN.
2. Select On or Off.
For details on fixed dialing, see page 27.
Reset
Resetting the phone
1. Press Menu > Settings > Reset
2. Enter password > Master Reset.
NOTE: It will return configuration settings to default. The default password is
‘1234’.
Clearing the phone
1. Press Menu > Settings > Reset
2. Enter password > Master Clear.
NOTE: It will change the setting as default and erase all personal data. The
default password is ‘1234’.
TTY
The teletypewriter (TTY) is a telecommunications device that allows people
who are deaf or hard of hearing, or who have speech or language disabilities,
to communicate via a telephone.
Setting teletypewriter
1. Press Menu > Settings > TTY.
2. Select Disable, TTY Full, TTY Talk or TTY Hear.
- Disable: TTY mode is disabled.
- TTY Full: User who cannot talk and hear, sends and receives a text message.
- TTY Talk: User who can talk but cannot hear, receive a text message and
send voice message.
-TTY Hear: User who can hear but cannot talk, sends a text message and
receive voice message.
8. Appendix
Alert message
Troubleshooting checklist
Safety information
Safety precautions
About the battery usage
FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices
FCC Regulatory Compliance
Warranty
Alert message
If you experience any problem while using your mobile phone, please refer to
the following checklist. If the problem still persists, contact your dealer or
nearest carrier.
When the “Insert SIM Card” message appears:
Make sure the SIM card is correctly installed. Check to see if the SIM card is
working properly. If it does not work, try to clean the contact points of the card
with a dry cloth. If it is out of order, take it to your service provider.
When the “Messages full” message appears:
The received or saved messages are full in your phone memory. You need to
delete the message.
When the “Phone and SIM messages is full. Delete Messages” message
appears:
The received or saved messages are full in your phone and SIM card memory.
You need to delete the message.
When the “Password” message appears in Phone locked state:
Enter the phone password. The default password is”1234”. If you cannot
remember the password, contact the nearest carrier.
When the “Enter PIN1” message appears:
Input PIN1. If you cannot remember it, contact your service provider. You can
still receive calls even if your mobile phone becomes locked after entering the
incorrect PIN1 on three consecutive attempts.
When the “No Service” or “Network Search” appears:
If you cannot make/receive a call when you are indoors or undergrounds where
the signal strength is poor, move toward a window or go out to an open area. If
you still cannot make a connection, contact your service provider.
Troubleshooting checklist
When audio quality is poor:
End a call and try again.
When the other party cannot hear you speaking:
Your phone may be set to MUTE. Disable the MUTE function. Or your hand
may be covering the microphone located below the [*] key.
When battery lifetime is shorter than usual:
This may happen when you are in an area with low signal strength. Turn off
your phone when it is not in use. Change the battery when battery energy is
exhausted.
When your mobile phone does not turn on:
Make sure your battery is charged. Check to see if your phone works while
recharging the battery.
When you are unable to send a message:
Either you are not registered to receive an SMS service, or you may be in an
area where your network service provider cannot provide such a service.
When you are unable to make a call:
Your phone may be set to “fixed dial.” Cancel the “fixed dial” function.
When you are unable to charge the battery:
This may be the result of one of the following three cases.
1. Your charger may be out of order. Contact your nearest dealer.
2. You may be attempting to use the phone in an overly hot/cold
temperature. Try changing the charging environment.
3. Your battery may have not been connected to the charger properly. Check
the connector.
When you are unable to input data into your Address Book:
Your Address Book memory may be full. Try deleting some entries from your
Address Book.
When you are unable to select a certain function:
You may not have subscribed to that function, or your network service provider
may be in an area where such service cannot be provided. Contact your local
service provider.
Safety information
The following list shows how to maintain your mobile phone, together with
precautions to take.
• Keep your mobile phone and its accessories out of the reach of children
and pets.
• Maintain your mobile phone in dry conditions and keep it within normal
operating temperatures. Temperatures higher than 55°C (131°F) or lower
than -20°C (-4°F) may damage your phone.
• Donot try to dry your phone in a microwave oven. If not, speaks can occur
and cause an explosion or fire.
• Do not use or store your mobile phone in dusty, dirty areas.
• Do not attempt to disassemble your mobile phone.
• Do not drop or cause severe impact to your mobile phone.
• Do not use chemical products, cleaning solvents or detergents to clean
your mobile phone.
• If your mobile phone does not work properly, contact your dealer
immediately.
• Use only authorized batteries, battery chargers and accessories. Any
malfunction or damage caused by the use of unauthorized batteries,
battery chargers and accessories will void the limited product warranty.
• Ensure that the battery and battery charger do not come in contact with
conductive objects.
Safety precautions
Using a mobile phone while driving may be prohibited.
Please check local laws and regulations with regard to the prohibition of mobile
phone use while driving, and comply with them.
Use of your phone while you are driving may disturb your concentration and so
cause an accident. Always switch your phone off to drive safely.
You should use your phone in an emergency, either use a hands free device
built into your car or pull over in a safe place first.
Switch off in restricted areas
Always switch your phone off in areas where mobile phone use is restricted.
Switch off in explosive or dangerous areas
Always switch your phone off in areas with explosive or dangerous materials
(such as fuels, fuel stations or areas containing chemical goods) and obey any
instructions or signals. Do not remove your mobile phone’s battery in such
areas.
Switch off in aircraft
Always switch your phone off or select Flight Mode (press the Menu >
Settings > Profiles > Flight Mode) when you are in an aircraft. The
electromagnetic waves emitted by your phone may affect the electronic
navigation equipment in the aircraft.
Switch off in hospitals and near medical equipment
Always switch your phone off in hospitals, and obey the regulations or rules of
the hospital.
Switch your phone off when using medical equipment for private purposes, if
possible. Always consult with the medical equipment’s manufacturer or an
expert regarding phone use near the medical equipment.
Installing a hands free device in your vehicle
Install vehicle hands free devices away from the steering wheel and airbag
expansion area, otherwise injury may result.
Mobile phones and other electronic devices
Mobile phones emit electromagnetic waves that may affect nearby electronic
devices. When it is switched on, do not place your phone close to delicate
electronic equipment.
About the battery usage
Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike
other forms of battery technology, you can recharge your battery while some
charge remains without reducing your phone’s autonomy due to the “battery
memory effect” inherent in those technologies.
• Do not use a damaged battery or charger.
• Do not disassemble or open crush, bend or deform, puncture or shred
• Do not modify or remanufacture, attempt to insert foreign objects into the
battery, immerse or expose to water or other liquids, expose to fire,
explosion or other hazard.
• Do not put your battery into contact with conductive objects.
• Dispose of and recycle used batteries in accordance with local regulations.
Do not dispose of batteries by burning; they may explode.
• Do not use an unauthorized charger.
• Only use the battery for the device for which it is specified
• Only use the battery with a charging device that has been qualified with the
device per this standard. Use of an unqualified battery or charger may
present a risk of fire, explosion, leakage, or other hazard.
• Do not short circuit a battery or allow metallic conductive objects to contact
battery terminals.
• Replace the battery only with another battery that has been qualified with
the device per this standard, IEEE-Std-1725-2006. Use of an unqualified
battery may present a risk of fire, explosion, leakage or other hazard.
• Promptly dispose of used batteries in accordance with local regulations
• Battery usage by children should be supervised.
• Avoid dropping the phone or battery. If the phone or battery is dropped,
especially on a hard surface, and the user suspects damage, take it to a
service center for inspection.
• Use your battery for the specified purpose only.
• The closer you are to your network’s base station, the longer your phone
usage time because less battery power is consumed for the connection.
• The battery recharging time varies depending on the remaining battery
capacity and the battery and charger type you use.
• Battery life inevitably shortens over time.
• Use an authorized battery and charger only.
• Since overcharging may shorten battery life, remove the phone from its
charger once it is fully charged. Unplug the charger, once charging is
complete. Leaving the battery in hot or cold places, especially inside a car
in summer or winter, may reduce the capacity and life of the battery.
Always keep the battery within normal temperatures.
• To prevent injury or burns, ensure that no metal objects come into contact
with the + and – terminals of the battery.
FCC Hearing-Aid Compatibility (HAC) Regulations
for Wireless Devices
On July 10, 2003, the U.S. Federal Communications Commission (FCC)
Report and Order in WT Docket 01-309 modified the exception of wireless
phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require
digital wireless phones be compatible with hearing-aids. The intent of the HAC
Act is to ensure reasonable access to telecommunications services for persons
with hearing disabilities.
While some wireless phones are used near some hearing devices (hearing
aids and cochlear implants), users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others to this interference
noise, and phones also vary in the amount of interference they generate.
The wireless telephone industry has developed a rating system for wireless
phones, to assist hearing device users find phones that may be compatible
with their hearing devices. Not all phones have been rated. Phones that are
rated have the rating on their box or a label located on the box.
The ratings are not guarantees. Results will vary depending on the user’s
hearing device and hearing loss. If your hearing device happens to be
vulnerable to interference, you may not be able to use a rated phone
successfully. Trying out the phone with your hearing device is the best way to
evaluate it for your personal needs.
• M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely
to generate less interference to hearing devices than phones that are not
labeled. M4 is the better/higher of the two ratings.
• T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to
generate less interference to hearing devices than phones that are not
labeled. T4 is the better/higher of the two ratings.
Hearing devices may also be rated. Your hearing device manufacturer or
hearing health professional may help you find this rating. Higher ratings mean
that the hearing device is relatively immune to interference noise. The hearing
aid and wireless phone rating values are then added together. A sum of 5 is
considered acceptable for normal use. A sum of 6 is considered for best use.
In the above example, if a hearing aid meets the M2 level rating and the
wireless phone meets the M3 level rating, the sum of the two values equal M5.
This is synonymous for T ratings. This should provide the hearing aid user with
“normal usage” while using their hearing aid with the particular wireless phone.
“Normal usage” in this context is defined as a signal quality that is acceptable
for normal operation.
The M mark is intended to be synonymous with the U mark. The T mark is
intended to be synonymous with the UT mark. The M and T marks are
recommended by the Alliance for Telecommunications Industries Solutions
(ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules.
The HAC rating and measurement procedure are described in the American
National Standards Institute (ANSI) C63.19 standard.
To ensure that the Hearing Aid Compatibility rating for your phone is
maintained, secondary transmitters such as Bluetooth and WLAN components
must be disabled during a call. See Page XX for instructions to disable these
components.
FCC Regulatory Compliance
FCC Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Your mobile device is a low power radio transmitter and receiver. When it is
ON, it receives and also sends out radio frequency (RF) signals. In August
1996, the Federal Communications Commission (FCC) adopted RF exposure
guidelines with safety levels for mobile devices. Those guidelines are
consistent with safety standards previously set by both U.S. and international
standards bodies: American National Standard Institute (ANSI), National
Council of Radiation Protection and Measurements(NCRP), and International
Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards
were based on comprehensive and periodic evaluations of the relevant
scientific literature. The design of your phone complies with the FCC guidelines
and applicable.
Statement according to FCC part 15.105
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Statement according to FCC part 15.21
Modifications not expressly approved by this company could void the user's
authority to operate the equipment.
RF exposure FCC
For body worn operation, to maintain compliance with FCC RF exposure
guidelines, use only accessories that contain no metallic components and
provide a separation distance of 20mm to the body. Use of other
accessories may violate FCC RF exposure guidelines and should be avoided.
This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
Health and Safety Information FCC
This EUT has been shown to be capable of compliance for localized specific
absorption rate (SAR) for uncontrolled environment/general population
exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested
in accordance with the measurement procedures specified in FCC/OET
Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health
(Canada), Safety Code 6. The standards include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health. The
exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC
is 1.6W/kg *.
* In the U.S. and Canada, the SAR limit for mobile phones used by the public is
1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give additional protection for the
public and to account for any variations in.
**This device contains 1800 MHz GSM functions that are not operational in U.S.
Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS
operations.
Warranty
Protect Your Warranty
Read your Warranty carefully, with the special consideration to paragraph
seven of the Limited Warranty for your unit.
“Warranty does not apply to... or to any product or part thereof which has
suffered through alteration... mishandling, misuse, neglect or accident”.
Many companies are making look alike accessories and in some cases,
promoting that their product is equal to or better than the Pantech product. Be
careful. Some of these products may not be compatible to use with your
Pantech product and may damage the unit or cause it to malfunction.
If service is required on your unit and it is determined that a non-Pantech
accessory has created the problem with your unit, the Warranty will not apply.
In addition, if the unit has already suffered irreversible damage by reason of a
non-compatible accessory, the Warranty will be voided. To
protect your Warranty, use only compatible accessories which cannot damage
or interfere with the functioning of your Pantech product.
12 Month Limited Warranty
Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser
of this Pantech handheld portable cellular telephone, that should this product or
any part thereof during normal consumer usage and conditions, be proven
defective in material or workmanship that results in product failure within the
first twelve (12) months period from the date of purchase, such defect(s) will be
repaired or replaced (with new or rebuilt parts) at the Company’s option,
without charge for parts or labor directly related to the defect(s).
The antenna, key pad, display, rechargeable battery and battery charger, if
included, are similarly warranted for twelve (12) months from date of purchase.
This Warranty extends only to consumers who purchase the product in the
United States or Canada and it is not transferable or assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident, mishandling,
neglect, unauthorized alteration, misuse, improper installation or repair or
improper storage;
(b) Product whose mechanical serial number or electronic serial number has
been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures or
extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other
product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as
framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand,
weather conditions, battery leakage, blown fuse, theft or improper usage of any
electrical source.
The Company disclaims liability for removal or reinstallation of the product, for
geographic coverage, for inadequate signal reception by the antenna or for
communications range or operation of the cellular system as a whole.
To obtain repairs or replacement within the terms of this Warranty, the product
should be delivered with proof of Warranty coverage (e.g. dated bill of sale),
the consumer’s return address, daytime phone number and/or fax number and
complete description of the problem, transportation prepaid, to the Company by
calling the number listed below or to the place of purchase for repair or
replacement processing.
To locate Pantech Authorized Service Center, call: (800) 962-8622 or email
HandsetHelp@Pantech.com.
Please have the following information available when you send the phone in for
repair:
- A valid original Proof of Purchase
- Return address
- Daytime phone number or fax number
- Model #
- IMEI # (Look for the 15 digit IMEI # behind the battery of the device.)
- Complete description of the problem
- Transportation prepaid
Other Warranty Program
You may have other warranty program with your purchase, such as warranty
exchange. If so, please refer to equipment package or the original point of sale.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS
LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN
NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE
PRICE PAID BY PURCHASER FOR THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL
BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY
ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN
A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO
CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR
ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE
COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING
SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME
THE PRODUCT IS BEING REPAIRED OR REPLACED.
No person or representative is authorized to assume for the Company any
liability other than expressed herein in connection with the sale of this product.
Some states or provinces do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or consequential
damage so the above limitation or exclusions may not apply to you. This
Warranty gives you specific legal rights, and you may also have other rights
which vary from state to state or province to province.
For technical support in the U.S. & Canada, call (800) 962-8622.
Or email: HandsetHelp@Pantech.com.
Or visit the web site: www.pantechusa.com
For all other inquiry, write to:
PANTECH WIRELESS, INC.
5607 Glenridge Dr. Suite 500 Atlanta, GA 30342
SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications
Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The guidelines are based on standards that were
developed by independent scientific organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *
Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level
of the phone while operating can be well below the maximum value. This is because the phone is designed
to operate at multiple power levels so as to use only the power required to reach the network. In general,
the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is
available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit
established by the government adopted requirement for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The
highest SAR value for this model phone when tested for use at the when worn on the body , as described
in this user guide, is 0.727 W/Kg . (Body-worn measurements differ among phone models, depending
upon available accessories and FCC requirements). While there may be differences between the SAR
levels of various phones and at various positions, they all meet the government requirement for safe
exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/
oet/fccid after searching on FCC ID: JYCC790. Additional information on Specific Absorption Rates
(SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at
http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by
the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-
stantial margin of safety to give additional protection for the public and to account for any variations in
measurements.

Navigation menu
