USER MANUAL
P2000
breeze3
2
Breeze3 P2000
User Manual
Thank you for choosing the Pantech Breeze3 P2000, our latest mobile
phone.
The Pantech Breeze3 P2000 has many features designed to enhance your
mobile experience. From its EZ to read menus, to its sleek, stylish design,
we know you will enjoy the entire Breeze3 P2000 experience.
This User Guide contains important and useful information that will maximize
your familiarity with all that the Pantech Breeze3 P2000 has to offer.
2
Specifications
Design
Clamshell phone with internal and external display
Displays
y 260K Colors TFT LCD with 2.2” internal display
y 260K Colors TFT LCD with 1.38” external display
y 7 lines for text in basic mode with 16 point font
y Two soft keys and four-way scroll and selection OK keys
Melodies
MP3, AAC, AAC+, WMA, AMR-NB, MIDI, SP-MIDI
Camera
Integrated VGA (300K) CMOS Camera
y Resolution up to 640 x 480 (330,000 pixels)
y Mpeg4 Video recording/playing up to 15f/s(QCIF size)
y Self-timer function (5 seconds or 10 seconds)
y Photo album and video album
Dimensions & Weight
Weight: 96 g (with standard battery)
Dimensions: 99 mm x 50 mm x 18.65 mm
Power Management (Performance)
Battery Type Capacity Standby Time Talk Time
Standard
Lithium-Ion
(Li-ion)
Up to 920mAh Up to 250
hours
Up to 3 hours
Operating Frequency
y GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS 1900Mhz
networks in North America, South America, Europe, Africa, and Asia-
Pacific where these networks are supported.
y Automatic band switching.
Phone overview
NOTE: Holding device at internal antenna area might affect call quality
reception.
Earpiece
Internal display
Navigation key
Scroll through the
menu options Left/Right Soft key
Perform the functions
shown at the bottom
line of the display
OK key or access
MEdia Net
Press to enter menu
system
Camera key
Power on & off / Menu
exit / End key
Turns phone on / off,
ends calls, exit menus
Clear key and
Calendar
Returns to previous
screen or deletes
characters in text mode.
Access Calendar menu
One-touch Quick Call
Voice Command
Send key
Voicemail
V
ibrate mode
Microphone
V
olume up
/
down
LED Indicators
Message, Call, Battery
External Display Strap Hole
Camera
Speaker
Internal
antenna 16 Pin
(Ear Mic. &
Charger)
4
Using Shortcuts
Numbered menu items, such as menus, sub-menus, and options can be
quickly accessed by using their shortcut numbers. In Menu mode, Main
Menus can be accessed by pressing the number keys (1 to 0) corresponding
to their location on the screen.
Example: Accessing the Phone Mode menu.
1. Press Menu.
2. Press the [#] for Settings.
3. Press the [1] for Phone Mode.
4. Press the [ /] scroll key to select the mode.
NOTE: The steps vary by mode and that throughout the manual it will be
notated by [BR] for Breeze Mode or [ADV] for Advanced Mode.
Menu overview
Breeze mode menu
Address Book
All Contacts
Favorites
Groups
My Settings
Messaging
Inbox
Create Message
Sent
Voice Mail
Mobile Email
Camera
Take a Picture
Record a Video
My Pictures
My Videos
Online Locker
AT&T Services
Say a Command
AT&T Maps
My CastWeather
Mobile Web
Games & Apps
My Account
Tools
Calendar
Alarm Clock
Calculator
Tip Calculator
Stop Watch
Settings
Phone Status
Sounds & Alerts
Bluetooth
Font Size
Wallpaper
Phone Mode
* SIM dependent
** Network dependent
Advanced mode menu
Address Book
All Contacts
Favorites
Groups
My Settings
Messaging
Conversations
Create Message
Mobile Email
IM
Outbox
Drafts
Voice Mail
Settings
Templates
User Space
IM
Mobile Email
Mobile Web
Mobile Web
AppCenter
AT&T GPS
AT&T Navigator
Where
AllSport GPS
YPmobile
My Stuff
Applications
Audio
Games
Online Locker
6
Video
Tools
Other Files
Used Space
AT&T Music
Music Player
Shop Music
Shazam
AT&T Radio
Music Videos
Make-UR-Tones
Community
Music Apps
Mobile Video
Settings
Phone Mode
Sounds & Alerts
Display
Call
Phone
Network Connections
Network
Connectivity
Security
AT&T Software Update
Reset
TTY
Phone Information
* SIM dependent
** Network dependent
Quick & Easy
Keys Functions
Perform the functions shown at the bottom line of
the display by using these soft keys.
Scroll through the menu options in Menu mode. In
standby mode,
Left Scroll: Access Voice Mail menu
Right Scroll: Access Mobile Email menu
Up Scroll: Access Create Message menu
Down Scroll: Access Address Book menu
Select a menu function or store user-input
information, such as names. Also use this key for
confirmation as the [OK] key.
Launch the MEdia Net directly if pressed in standby
mode.
Delete characters from the display, or return to
previous menu.
Open Calendar view if pressed quickly in standby
mode.
Make or receive a call. Show the recent call list in
standby mode.
Re-dial the last call number if pressed and held in
standby mode.
Complete the current call. Turn on/off the phone if
pressed and held.
Keys Functions
Cancel user input and return to standby mode while
in Menu mode.
Quickly connect to the voice mail server if pressed
and held in standby mode.
~ Enters numbers, letters or special characters. Go to
the dial screen if pressed in standby mode.
Enter or exit from vibrate mode if pressed and held in
standby mode.
Show the symbol input screen if pressed and held in
text input mode.
Work in Word search mode if pressed in the
Predictive text input mode.
Enter the + sign prefix for international dialing if
pressed and held.
Enter the space character in text input mode.
Change various text input modes if pressed and held
at the text-editing screen.
Adjust the earpiece volume while making a call.
Control the Ringtone volume, vibrate mode and silent
all mode in standby.
Mute the ringtone of an incoming call.
Reject the incoming call if pressed and held when
you receive an incoming call.
8
Keys Functions
Turn camera capture mode on.
Work as a camera shutter in capture mode.
Turn the speaker mode on
Contents
Specifications ...............................................................................................2
Phone overview ............................................................................................3
Using Shortcuts............................................................................................4
Menu overview..............................................................................................4
Quick & Easy.................................................................................................7
1. Getting Started
Package contents..................................................................................12
SIM Card and Battery............................................................................13
Turn on/off the phone ............................................................................14
Keypad lock...........................................................................................14
Essential display indications .................................................................14
Setting theme ........................................................................................15
EZ quick call keys..................................................................................15
Updating software .................................................................................16
2. Calls & address book
Making, receiving and ending a call......................................................18
Options during a call..............................................................................19
Call setting.............................................................................................20
Checking all calls...................................................................................20
Speed dialing.........................................................................................21
Using address book...............................................................................22
Caller identification................................................................................22
Using your headset ...............................................................................23
Service number and fixed dialing..........................................................23
3. Messaging
Entering text...........................................................................................25
Messaging .............................................................................................26
Receiving messages..............................................................................27
Creating and sending text messages ....................................................27
Creating a multimedia message............................................................28
Message template .................................................................................29
Message settings...................................................................................30
Setting voice message...........................................................................31
Email......................................................................................................31
Using instant messenger .......................................................................31
4. Multimedia
Camera..................................................................................................33
Photo album...........................................................................................36
Video album...........................................................................................37
Other files ..............................................................................................37
Managing the memory...........................................................................37
Playing games .......................................................................................38
5. Useful Features
Calendar ................................................................................................40
Alarm......................................................................................................40
Calculator, converter and stopwatch .....................................................41
Notepad and voice memo......................................................................41
Business card ........................................................................................42
Phone status..........................................................................................42
10
6. Connectivity
Bluetooth ...............................................................................................44
Using the browser .................................................................................45
Profiles setting.......................................................................................45
7. Settings
Language ..............................................................................................48
Time and date........................................................................................48
Ringtones ..............................................................................................48
Decorating the display...........................................................................48
Locks .....................................................................................................49
To enable fixed dialing...........................................................................49
Reset .....................................................................................................49
TTY........................................................................................................50
8. Appendix
Alert message .......................................................................................52
Troubleshooting checklist......................................................................52
Safety information .................................................................................53
Safety precautions.................................................................................54
About the battery usage ........................................................................54
Hearing aid compatibility with mobile phones .......................................55
FCC Regulatory Compliance.................................................................56
Warranty ................................................................................................57
1. Getting Started

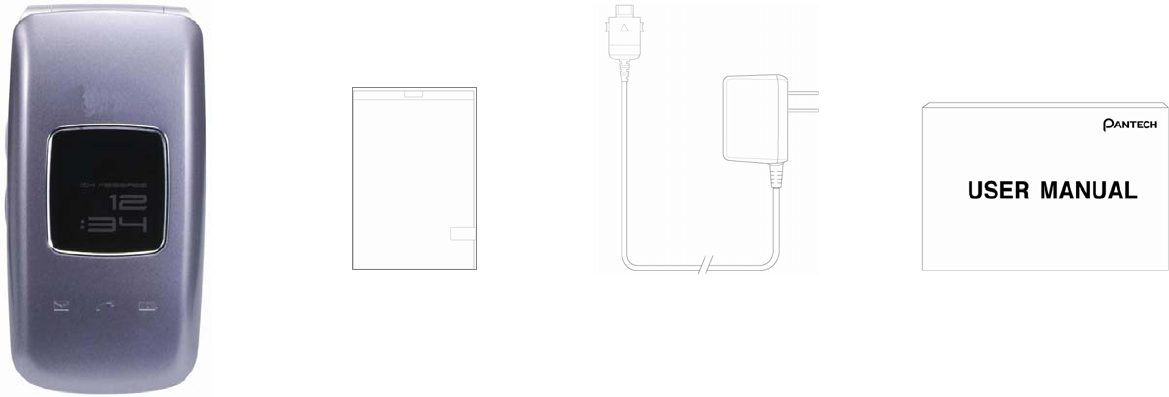

Package contents

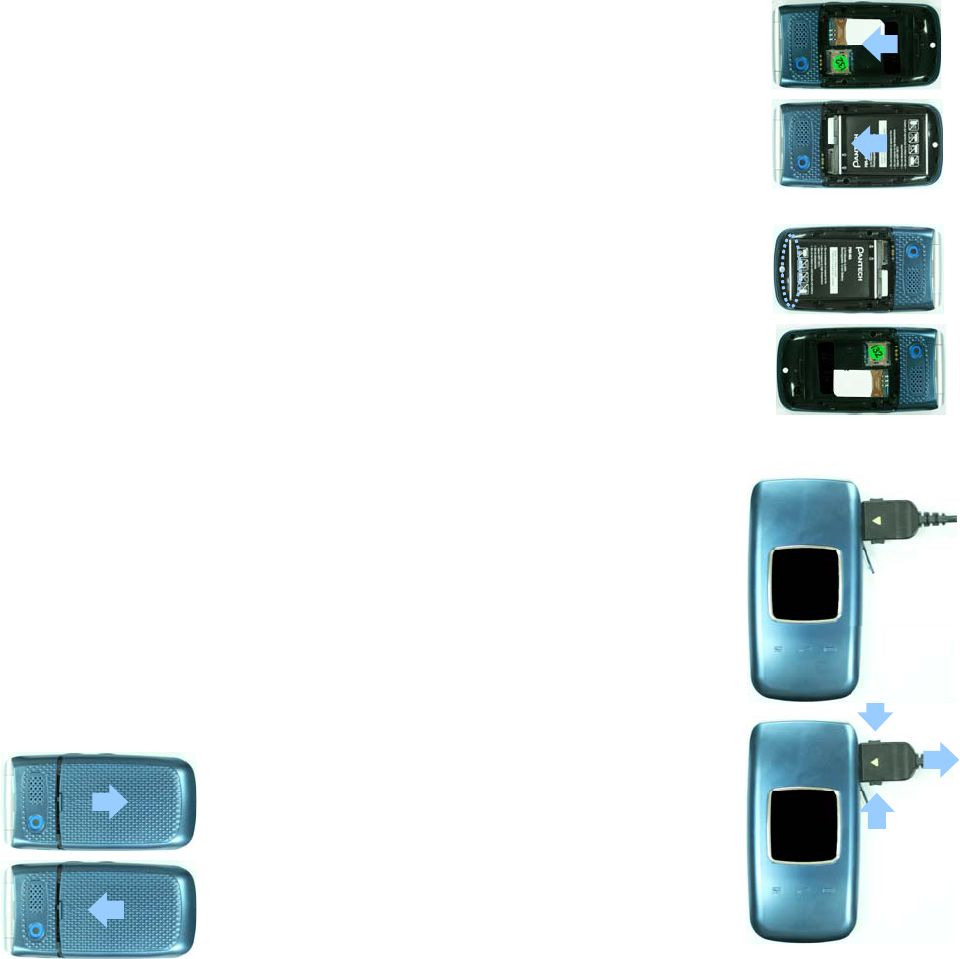

SIM card and battery
Turn on / off the phone
Keypad lock
Essential display indications
Setting theme
EZ quick call keys
Updating software
12
Package contents
Phone Battery Travel charger User Manual
1
1
2
SIM Card and Battery
About your SIM card
When you subscribe to your network operator, you receive a SIM
(Subscriber Identity Module) card containing your registration information,
PIN code, etc.
Like a credit card, it should be kept secure and handled carefully. Do not
bend, scratch or expose it to moisture. Avoid static electricity.
To avoid corrupting your SIM card’s memory, always switch off your phone
before removing or inserting your SIM card
About your battery
Your phone uses a Li-Ion battery. Make sure to use an authorized battery
and charger only. For more details, please inquire at your nearest dealer.
NOTE: Your phone is powered by a Lithium Ion (Li-Ion) battery. This means
that, unlike other forms of battery technology, you can recharge your battery
while some charge remains without reducing your phone’s autonomy due to
the “battery memory effect” inherent in those technologies.
Installing / removing SIM card and battery
1. Remove the battery cover from the unit. To fit the
battery cover, put it on the guide rail and push up.
2. Insert the SIM card into the slot. The gold contacts of
the SIM card should go against the metal contacts of
the phone. Put the contacts of the battery into the hole
located at the bottom of the unit insert and press the
upper side of the battery until you hear the “click”.
3. To remove the battery push the bottom of the battery to
upwards (1) and remove (2) the battery. Push the SIM
card in the arrow direction as shown.
To charge your battery
1. To charge, open the protective cover on the top left
side and connect the charger adapter. The arrow on
the charger has to face the top of the phone.
2. To remove the adapter connection press the
adapter’s side buttons(1) and pulling the adapter
away (2).
14
Turn on/off the phone
To turn on
1. Press and hold [ ] in red color.
To turn off
1. Press and hold [ ] in red color.
Keypad lock
Locking the keypad
1. Press Menu > [ ] to lock.
Unlocking the keypad
1. Press Unlock > [ ] within 3 seconds to unlock.
Essential display indications
Signal strength. The greater the number of bars, the
stronger the signal. When network is in searching
mode is displayed.
Flight mode is active
A call is being made. When you are in no service
area is displayed
Call forwarding* is active
FAX mode* is active
Data* folder
Incoming calls set to ring only (Normal)
Incoming calls set to Vibrate then Ring
Incoming calls set to Vibrate Only
Incoming calls set to Silent
Received one or more text messages
Received one or more multimedia messages
Received one or more WAP push messages
Received one or more FAX messages
Received one or more other messages
Received one or more voice messages
A message is being sent
A message is being received
An alarm is set
Bluetooth is active
Headset is connected
TTY is active
An EDGE signal is available. It is displayed when
there is an active EDGE session
A GPRS signal where only 2G is available. It is
displayed when there is an active GPRS session
WAP is connected When the security is set is
displayed.
Battery strength. When the battery charge is low,
is displayed
Available, Away, Invisible Status of AIM
Online, Away, Busy, Offline Status of MSN
Available, Busy, Invisible Status of YAHOO
You have received one or more IM messages
* Network dependent
Setting theme
Your phone has two customized themes, Breeze and Advanced. The default
is set to Breeze mode which provides EZ access to the functions used most
frequently. In the Breeze mode, you view an abbreviated menu: Address
Book, Messaging, My Stuff, Tools, Settings and Phone Status. The
Advanced Mode allows access to all menu items.
To change the theme from Breeze Mode to Advanced
Mode
1. Press Menu > Settings > Phone Mode.
2. Select Advanced Mode.
Assigning the menu
In Breeze Mode, you can set the most commonly used menu in Options in
standby mode.
1. Press Shortcuts in standby mode > select Unassigned.
2. Press Add.
3. Select the menu and sub menu.
EZ quick call keys
Getting in touch with those you call most is now as EZ as 1-2-3.
NOTE: The following direction is an example with using 1 key. The usage of
2 and 3 key will be same as the following.
To assign a contact
1. Press [ ].
2. Press Option > Assign Contact.
3. Select a contact > Options > OK.
To use call using one touch key
4. Press and hold [ ].
Breeze Mode
A
dvanced Mode
16
To send a message using one touch key
1. Press [ ].
2. Press Option > Send Message.
Updating software
You can update your software without visiting your nearest dealer.
To update the software
In Advanced mode
1. Press Menu > Settings > AT&T Software Update.
2. Press Check for Update > Yes.
2. Calls & address book
Making, receiving and ending a call
Options during a call
Call Setting
Checking all calls
Speed dialing
Using address book
Caller identification
Using your headset
Service number and fixed dialing
18
Making, receiving and ending a call
Making a call
1. Enter the area code and phone number.
2. Press [ ].
Answering a call
1. Press [ ].
Ending a call
1. Press [ ].
Once the call is completed, a call summary is displayed.
Rejecting a call
Press [ ] or Ignore.
Making a call using call list
Your phone logs up to 30 dialed, received and missed call numbers.
1. Press [ ] to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, or Dialed Calls by pressing
the [ /] key.
3. Select a number.
4. Press [ ] to dial the selected number.
NOTE: To redial the last number in the Recent Calls list, press [ ].
Making a call during a call
1. Enter the phone number or press Options > Contact Search.
2. Press [ ] to dial the second call. The first call is automatically put
on hold.
Switching between two calls
1. Press Swap.
Making an international call
1. Press and hold [ ] key for the international prefix until the ‘+’
character appears.
2. Type the country code, area code, and phone number.
3. Press [ ].
Making an emergency call
1. You can make emergency calls even if your phone does not have a SIM
card.
2. Press Emergency Number, or press SOS if your phone does not have a
SIM card.
3. Press [ ].
Replying to a missed call**
1. Press View to display the list of missed calls.
2. Select a number to call by pressing the [ /] l key.
3. Press [ ].
Answering a second call**
1. Press [ ]. The first call is automatically put on hold.
2. Press [ ] to end the second call.
The call on hold is automatically reconnected.
Options during a call
Microphone off and on
Switching your phone’s microphone off
1. Press Mute[].
Switching your phone’s microphone back on
1. Press Unmute.
Talking on speaker
1. Press Speaker Phone [] or press the [ ] above the [ ].
Putting a call on hold and return**
Putting a call on hold
1. Press Options > Hold or press [ ].
Returning to a held call
1. Press Retrieve.
Multi-party calls**
You can talk with more than one person or conference call.
Making a multi-party call
1. Call the first participant.
2. Call the second participant. The first call is automatically put on hold.
3. Press Options > Join.
Adding a caller to a multi-party call
1. Press Options > Join All.
Having a private conversation with one participant
1. Press Options > Split.
2. Press OK.
3. Select the participant and press OK.
All of the multi-party call participants can now hear each other.
Removing one participant from a multi-party call
1. Press Options > End Call.
2. Select the participant and press OK.
The call ends with that participant, but you can continue to talk with other
participants.
20
Searching a number in address book during a call
1. Press [ ] or press Options > Contact Search.
2. Select a number > [ ].
Searching for a name or group in address book
Enter the first letters of the name for Name Search. The entries are
displayed starting with the first entry matching your input.
Finding a name manually in address book
1. Press the [ /] key.
Viewing the details of highlighted entry in address book
1. Press OK.
For details on address book, see page 21.
Reading a message during a call
1. Press Options > Messaging.
2. Press Inbox > select a message.
Writing a message during a call
1. Press Options > Messaging.
2. Press Write New.
For details on creating a text message, see page 26.
NOTE: During the call, you can only send text messages. Multimedia
messages cannot be sent, but can be saved.
Call setting
Answering with any key press
1. [BR] Press Menu > Settings > Answer Type.
[ADV] Press Menu > Settings > Call > Answer Type.
2. Select Any Key.
NOTE: you can answer with any key except [ ]in red color and Reject.
Setting auto redial
1. Press Menu > Settings > Call > Auto Redial.
2. Select On or Off.
Checking all calls
You can view information about all Recent Calls.
For more options for all, missed, received and dialed calls, press Options.
In Breeze Mode, press [ ] to view all Recent Calls.
Viewing missed calls
1. Press Menu > Recent Calls > Missed Calls.
Viewing received calls
1. Press Menu > Recent Calls > Received Calls.
Viewing dialed calls
1. Press Menu > Recent Calls > Dialed Calls.
Deleting call logs
1. Press Menu > Recent Calls > Delete Call Logs.
2. Select All Calls > Yes.
NOTE: If no logs exist, the message “List Empty” appears.
Viewing call time
1. Press Menu > Recent Calls > Call Time.
2. Press [ /] to view Last Call, Received Calls, Dialed Calls, and
Total Calls.
Resetting all call times
1. Press Menu > Recent Calls > Call Time.
2. Press Reset Call Time.
3. Enter password > OK.
NOTE: The default password is ‘1234’.
Viewing data transmitted information
1. Press Menu > Recent Calls > GPRS Info.
y Current Info: You can view transmitted data in the current session, in
Kbytes.
y Last Info: You can view Sent, Received, and Total transmitted in
previous sessions, in Kbytes.
y Total Info: You can view all Sent, Received, and Total transmitted data in
Kbytes.
y Clear Logs: The default password is ‘0000’.
Speed dialing
You can dial quickly using speed dialing. Up to 8 phone numbers can be
programmed using numbers 2 to 9.
[ ] : Voice mail
[ ] : Prefix for international call
Setting speed dial
1. Press Menu > Address Book > Speed Dial.
2. Select an empty entry and press Add.
3. Select a person and press OK or Options > Select.
Changing speed dialing person
1. Press Menu > Address Book > Speed Dial.
2. Select a number and press OK or Options > Edit.
3. Select a person and press OK or Options > Select.
Removing from speed dial
1. Press Menu > Address Book > Speed Dial.
2. Select a number and press Options > Remove.
Setting speed dial in address book
1. Press Menu > Address Book > Contact List.
2. Select a person > Options > Add to Speed Dial.
3. Select an entry and press OK or Select.
22
Using address book
You can save names, phone numbers, and information on the SIM or phone.
Entries can depend on the capacity of the SIM card.
Adding a contact
1. Press Menu > Address Book > New Contact.
2. Select SIM Card or Phone.
3. Input the fields.
4. Press OK or Options > Save.
Viewing contact list
1. Press [ ] or press Menu > Address Book > Contact List.
NOTE: In Advanced Mode you can set speed dial when you are viewing
contact list. Press Options > Add to Speed Dial.
Searching for a phone number
1. Press Menu > Address Book > Contact List.
2. Input the first letter or two of the person's name and scroll with [ /].
3. Press OK to view detail information.
4. To update information press Options > Edit.
Calling from contact list
1. Press [ ] or press Menu > Address Book > Contact List.
2. Select a person to call.
3. Press [ ] in green color.
Forwarding contact details
1. Press Menu > Address Book > Contact List.
2. Select a contact > Options > Forward Contact Info.
3. You can send the information Send as Multimedia Message or Send via
Bluetooth.
Deleting a contact
1. Press Menu > Address Book > Contact List.
2. Select a contact > Options > Delete.
Making a groups
1. Press Menu > Address Book > Groups.
2. There will be defaulted groups.
3. To add new group press Options > New.
4. To edit group press Rename.
5. To set a specific ring tone, press Options > Group Ring tones.
Caller identification
Caller identification**
1. Press Menu > Settings > Call > Caller ID.
2. Select Send My No. or Hide my No. > Select.
Using your headset
You can send or receive a call using your headset.
When you connect your headset to the jack the button on the headset works
as follows.
NOTE: You need to use the headset designed for this device and it is
optional item. Also not every headset has a button.
While in standby mode
1. Press the button once to list recent calls.
2. Press the button twice to redial the last call.
While the phone is closed
1. Press the button once to receive a call.
2. Press the button once to end the call.
Service number and fixed dialing
Calling your service numbers* [ADV]
You can see the service number to reach the service provider.
1. Press Menu > Address Book > Service Numbers.
2. Select a number > press [ ].
Viewing fixed dialing list [ADV]
Fixed dialing is a service that limits your access to specific numbers in the
address book list recorded on the SIM. Input the PIN2 to set up or cancel
this service.
1. Press Menu > Settings > Security.
2. Press Fixed Dialing > Fixed Dial List.
NOTE: PIN2 must be correctly entered within 3 attempts. If you input
incorrect code three times in a row the PIN2 code will be blocked. If the
PIN2 code is blocked please contact your service provider. PIN2 code is
supplied with SIM card.
24
3. Messaging
Entering text
Messaging
Receiving message
Creating and sending text message
Message template
Creating a multimedia message
Message settings
Setting voice message
Email
Using instant messenger
Entering text
You can enter text with multi-tap, predictive, numeric or symbol.
Useful keys
[] Display and undisplay symbols
[] Adding space
[] Press to change capital mode.
Press to change ab Ab AB and press and hold
to change from multi to predictive to Number to
Symbol
Multi-tap (all small
caps / first letter caps / all caps)
Predictive (all
small caps / first letter caps / all caps)
Number
Symbols
Key characters by language
Each of the following keys will scroll through these sequential options listed
by language.
key English Spanish French
1 . , - ? ! '
@ : 1 . , - ¿ ? ¡ ! @ 1 . , - ? ! '
@ : 1
2 abc á ã ç ç à â á ä
3 def é é è ê ë
4 ghi í î ï í
5 jkl
6 mno ó ñ ô ó ö ñ
7 pqrs ß
8 tuv ú ü ù û ú ü
9 wxyz
Predictive mode (T9)
The predictive mode automatically compares your keystrokes with an
internal linguistic dictionary to determine the correct word. The most
commonly used word will appear first. To save a word not listed in phone's
dictionary press Options > My word.
1. Press and hold [ ] to change the mode as T9.
2. Press [ ] to [ ] to input text. For example, to write ‘hello’ press
[ ] [ ] [ ] [ ] [ ].
26
Alphabet input mode
Press the key labeled with the target letter once for the first letter; press it
twice for the second letter, and so on.
1. Press and hold [ ] to change the mode as multi-tap.
2. Press [ ] to [ ] to input text repeatedly. To write the letter “C”,
press [ ] 3 times. To write number 2 press [ ] 4 times.
Numeric mode
You can input numbers in this mode.
1. Press and hold [ ] to change the mode 123.
2. Press [ ] to [ ] and [ ] to input numbers.
Symbol mode
You can input symbols.
1. Press and hold [ ] to change the mode as symbols.
2. Press [ ] to [ ] input symbol. For more symbols press [ /].
Messaging
You can send, receive and save the text message and multimedia message.
Managing memory
When the message box is full the messages full icon will appear.
When It means
Text message is full
Multimedia message is full
Moving a message to SIM
1. Press Menu > Messaging > Inbox.
2. Select a message > Options > Move To SIM.
Moving a message to phone
1. Press Menu > Messaging > Inbox.
2. Select a message > Options > Move To Phone.
Deleting a message in a mailbox
1. Press Menu > Messaging > Inbox.
2. Select a message > Options > Delete > Yes.
Replying to a message
1. Press Menu > Messaging > Inbox.
2. Select a message > Reply.
Viewing memory space information
1. Press Menu > Messaging > Memory Info.
2. Press [ /] to view SIM and Phone memory.
Receiving messages
Viewing a new message
1. Press View or press OK.
Reading a message from the inbox
1. Press Menu > Messaging > Inbox.
2. Select a received message > OK.
3. To reply press > Reply.
Saving number or e-mail from received message
1. Press Menu > Messaging > Inbox.
2. Select a received message > OK.
3. Press Options > Save Number & Email.
4. Press Options > Save.
5. Select New Contact or select Update Existing.
Saving URL address from received message
1. Press Menu > Messaging > Inbox.
2. Select a received message > Options > View.
3, Press Options > Save URL.
4. Press Options > Save.
Saving the object in the received multimedia message
1. Press Menu > Messaging > Inbox.
2. Open the multimedia message.
3. Press Options > Save Objects.
4. Select an object > Save.
5. Edit the filename > Options > Save.
It will be saved in one of the categories in the My Stuff folder.
For details on photo album, see page 35.
Listening to voice messages
1. Press and hold [ ] or press Menu > Messaging > Voice Mail.
It will automatically call the voice mail center.
Creating and sending text messages
Sending new text message
1. Press [ ] or press Menu > Messaging > Write New.
2. Press Text Message.
3. Write a message.
4. Press OK.
5. Enter the phone number to send or press Options > Contact List > find a
person to send.
6. To send more then one person press OK to select. To deselect. press OK.
28
7. To view sent message press Menu > Messaging > Sent.
NOTE: You can send up to 10 person at a time.
NOTE: All successfully send messages will save in Sent.
Finding all sent messages
1. Press Menu > Messaging > Sent.
Creating a multimedia message
You can create new multimedia message. Capacity is 300kb and will alert
you once that is exceeded via error message.
Adding saved picture to the message
1. Press Menu > Messaging > Write New.
2. Select Multimedia Message.
3. Write a message.
4. Press Options > Add Object > Add Image.
5. Select Photo Album > select a picture > Options Select.
6. To preview press Options > Preview.
7. To edit the text message, press [ /] to select the text box, then press
Options > Edit Text.
8. Press Options > Send to.
Adding new picture to the message
1. Press Menu > Messaging > Write New.
2. Select Multimedia Message.
3. Write a message.
4. Press Options > Add Object > Add Image.
5. Select Take a Photo > focus on the object > OK.
6. Press Insert.
7. Press Options > Send to.
For details on taking a picture, see page 33.
Adding recorded voice memo to the message
1. Press Menu > Messaging > Write New.
2. Select Multimedia Message.
3. Write a message
4. Press Options > Add Object > Add Sound.
5. Select Voice Memo > select a voice memo > OK.
6. To listen select the recorded memo > Play.
7. To stop press [ ]
8. To select other recorded memo press Back and select other memo.
9. Press Options > Send to.
Adding new voice memo to the message
1. Press Menu > Messaging > Write New.
2. Select Multimedia Message.
3. Write a message.
4. Press Options > Add Object > Add Sound.
5. Select New Voice Memo > record the sound.
6. To save press OK.
7. Press Options > Send to.
For details on recording voice memo, see page 40.
Adding saved video to the message
1. Press Menu > Messaging > Write New.
2. Select Multimedia Message.
3. Write a message.
4. Press Options > Add Object > Add Image.
5. To play press Options > Play.
6. Select Video Album > select a video > Options > Select.
7. To preview with the text press Options > Preview.
8. To stop press Pause.
9. To go back to the message editor press Back.
1. Press Options > Send to.
Adding new video to the message
1. Press Menu > Messaging > Write New.
2. Select Multimedia Message.
3. Write a message.
4. Press Options > Add Object > Add Image.
5. Select Take a Video > focus on the object > OK.
6. To stop recording press OK.
7. To preview with the text press Options > Preview.
8. To stop press Pause.
9. To go back to the message editor press Back.
10. Press Options > Send to.
For details on recording video, see page 34.
Adding other file to the message
1. Press Menu > Messaging > Write New.
2. Select Multimedia Message.
3. Write a message.
4. Press Options > Add Object.
5. Select Add Other files.
6. Select the file > Options > Select.
7. Press Options > Send.
Message template
When you often use the same phrases, you can save the message under
template messages.
Adding to the existing template
1. Press Menu > Messaging > Write New.
2. Select Multimedia Message.
3. Write a message.
4. Press Options > Add Template.
5. Select the template.
30
Message settings
Setting default editing mode
1. Press Menu > Messaging > Settings.
2. [BR] Press Default Edit Mode.
[ADV] Press Common Settings > Default Edit Mode.
3. Select Alphabet or Predictive.
Setting to save sent message
1. Press Menu > Messaging > Settings.
2. [BR] Press Save Messages.
[ADV] Press Common Settings > Save Messages.
3. Select On or Off.
It will save all out going messages.
Setting deleting read message
1. Press Menu > Messaging > Settings.
2. [BR] Press Auto Delete Read Message.
[ADV] Press Common Settings > Auto Delete Read Message.
3. Select On or Off.
Setting message center
1. Press Menu > Messaging > Settings.
2. Press Text Massage > Message Center.
3. Enter new Message Center.
4. Press Select.
Setting e-mail gateway
1. Press Menu > Messaging > Settings.
2. Press Text Massage > E-mail Gateway.
3. Enter new gateway for receiving e-mail.
4. Press Select.
Setting default save place
1. Press Menu > Messaging > Settings.
2. Press Text Massage > Save to.
3. Select SIM or Phone.
Setting profiles for multimedia message
1. Press Menu > Messaging > Settings.
2. Select Multimedia Massage > WAP Profiles.
3. Select a profile.
Setting receiving method for push message
1. Press Menu > Messaging > Settings.
2. Press Push Message > Receive.
3. Select the method.
NOTE: When you receive push message the [ ] icon will displays.
Setting voice message
Setting receiving voice message
1. Press Menu > Messaging > Settings.
2. Press Voice Mail.
3. Enter the number of the voice mail center > OK.
NOTE: This number may be pre-configured by the service provider upon
activation.
Email
You can receive email from your service provider.
Receiving an email
1. [BR] Press Options > Mobile Email or Menu > Messaging > Mobile
Email.
[ADV] Press Menu > Email & IM > Mobile Email.
2. Select an email > OK.
Using instant messenger
Use Instant Messenger (IM) to send and receive short, simple messages
that are delivered immediately.
Starting an instant messenger
1. [BR] Press Options > IM or Menu > Messaging > IM.
[ADV] Press Menu > Email & IM > IM.
2. Select the IM application > Select.
3. Enter logon and password > Sign On.
Viewing the conversation log
You can view the log of your conversations in the Instant Messenger Saved
History.
32
4. Multimedia
Camera
Photo album
Video album
Other files
Managing the memory
Playing games
Camera
You can take pictures and record movies using the built-in camera. The
photos and video clips can be saved and sent via multimedia message.
Setting camera settings
1. [BR] Press Camera in standby mode or press Menu > Tools.
[ADV] Press Camera in standby mode or press Menu > My Stuff > Tools.
2. Press Camera > Take a Photo.
3. Press Options to change settings prior to taking a picture.
In options menu for camera
Icons Name Description
Take a Picture
View Photos
Take a Video
Image Size 176x220( ), 320x240( ),
640x480( )
Image Quality Low( ), Medium( ), High( )
Effects Nomal, Sepia, Monochrome, Nagative,
Embossing
White Balance Auto( ), Sunlight( ), Cloudy( ),
Fluorescent( ), Incandescent( )
Multi-shot Off, 4EA( ), 6EA( ), 9EA( )
Self Timer Off, 5Sec( ), 10Sec( )
Display Icons On, Off
Shutter Sound On, Off
Icons for camera
Icons Name Description
Remain Picture
Zoom x1, x2,
x3, x4
Brightness
-3, -2, -1
0
+1, +2, +3
NOTE: Zoom tool is disabled when the picture size set for 640x480.
White
balance
Self Timer
Multi-shot
Remain
Zoom
Brightness
Quality
Recording
Type
Duration
Recordin
g
Size
34
In options menu for video camera
Icons Name Description
Take a Video
View Videos
Take a Photo
Video Size 128x96( ), 176x144( )
Quality
Low( ), High( )
Record Type Unlimited( ), For Msg( )
Effects Nomal, Sepia, Monochrome, Nagative,
Embossing
Display
Icons
On, Off
Icons for video camera
Icons Name Description
Brightness
-3, -2, -1
0
+1, +2, +3
Zoom in and out
1. Press [ / ]. It ranges from x1 to x4.
Increasing or decreasing the brightness
1. Press [ / ]. It ranges from -3 to +3.
Taking a picture
1. [BR] Press [ ] in standby mode or press Menu > Tools.
[ADV]Press [ ] in standby mode or press Menu > My Stuff > Tools.
2. Press Camera > Take a Photo.
3. Focus on the object > OK or press Options > Take a Picture.
NOTE: Your photo will be saved automatically to My Stuff > Photo Album.
Changing to video camera mode
1. [BR] Press [ ] in standby mode or press Menu > Tools > Camera >
Take a Photo.
[ADV]Press [ ] in standby mode or press Menu > My Stuff > Tools >
Camera > Take a Photo.
2. Press Options while camera mode is activated.
3. Press Take a Video.
4. Focus on the object > OK or press Options > Take a Video.
5. Press OK to stop.
6. Press OK to save.
Viewing the taken picture
1. [BR] Press Q in standby mode or press Menu > Camera > Take a Video.
[ADV] Press Q in standby mode or press Menu > My Stuff > Camera >
Take a Video.
2. Press Options > View Photos.
3. Select the picture > OK.
After taking pictures
To Press
Send a multimedia
message
Options > Send as Multimedia
message
View taken picture Options > View Photos
Delete Options > Delete
Send using Bluetooth Options > Send via Bluetooth
Upload photos on the web Options > Send to HP’s Snapfish
Set as wallpaper Options > Set as > Wallpaper
Set as address book Options > Set as > Address Book
Go back to preview Options > Back to Preview
Rename Options > Rename
Recording a video
1. [BR] Press [ ] in standby mode or press Menu > Tools > Camera >
Take a Video.
[ADV] Press [ ] in standby mode or press Menu > My Stuff > Tools >
Camera > Take a Video.
2. Focus on the object > OK or press Options > Take a Video.
3. Press OK to stop.
4. Press Play to play the video clip.
5. Press Back to go back to preview mode.
6. Press OK to save.
Changing to camera mode
1. [BR] Press [ ] in standby mode or press Menu > Tools > Camera >
Take a Video.
[ADV] Press [ ] in standby mode or press Menu > My Stuff > Tools >
Camera > Take a Video.
2. Focus on the object > OK or press Options > Take a Video.
3. Press Options while video camera mode is activated.
4. Press Take a Photo.
For details on taking a picture, see page 30.
Viewing the recorded video clip
1. [BR] Press [ ] in standby mode or press Menu > Tools > Camera >
Take a Video.
[ADV] Press [ ] in standby mode or press Menu > My Stuff > Tools >
Camera > Take a Video.
2. Press Options > View Videos.
3. Select the video clip > OK.
36
After saving recorded video clips
To Press
Send a multimedia message Options > Send as Multimedia
message
View recorded video clip Options > View Videos
Delete Options > Delete
Send using Bluetooth Options > Send via Bluetooth
Go back to preview Options > Back to Preview
Rename Options > Rename
During recording a video
To Press
Receive an incoming call [ ]
Stop recording OK
Save the clip OK
Photo album
You can view, send, save and delete photos. JPEG format is supported, and
other formats are saved in the Graphics folder.
NOTE: To access Graphics, press Menu > My Stuff > Graphics.
Viewing the saved pictures
1. Press [ ] in standby mode or press Menu > My Stuff > Photo Album.
2. Select a picture > OK.
Setting as wallpaper in the display
1. Press [ ] in standby mode or press Menu > My Stuff > Photo Album.
2. Select a picture > Options > Set as > Wallpaper.
Uploading pictures on the web [ADV]
1. Press [ ] in standby mode or press Menu > My Stuff > Photo Album.
2. Select a picture > Options > Send to HP's Snapfish.
Deleting multiple pictures
1. Press [ ] in standby mode or press Menu > My Stuff > Photo Album.
2. Press Options > Multi-Select.
3. Press OK to select more than one picture.
4. Press Back to unselect.
5. Press Delete.
Sending pictures using multimedia message
1. Press [ ] in standby mode or press Menu > My Stuff > Photo Album.
2. Select a picture.
3. Press Options > Send as Multimedia Message.
For details on creating a multimedia message, see page 27.
Viewing file information [ADV]
1. Press [ ] in standby mode or press Menu > My Stuff > Photo Album.
2. Select a picture.
3. Press Options > File Info.
Video album
You can view, send, save and delete videos.
Playing the saved video clips
1. Press [ ] in standby mode or press Menu > My Stuff > Video Album.
Select a video clip > OK or press Options > Play.
Using video controls
To Press
Pause OK
Stop Stop
Rewind
and Hold
Fast forward
and Hold
Mute Mute
Control volume Side key up or down
Deleting multiple video clips
1. Press [ ] in standby mode or press Menu > My Stuff > Video Album.
2. Press Options > Multi-Select.
3. Press OK to select more than one video.
4. Press Back to unselect.
5. Press Delete.
Sending video clip using multimedia message
1. Press [ ] in standby mode or press Menu > My Stuff > Video Album.
2. Select a video.
3. Press Options > Send as Multimedia Message.
For details on creating a multimedia message, see page 27.
Other files
You can manage files in unsupported formats saved on your phone. It also
lists files received via Bluetooth from other devices.
Viewing the list of the files
1. Press Menu > My Stuff > Other Files.
Managing the memory
Viewing memory status
1. Press Menu > My Stuff > Memory Info.
2. Use [ /] to view the information.
38
Playing games
You can download games to play with. It is easy to download and you can
preview them beforehand. You will only be able to view games that are
available on your mobile.
Previewing games
1. [BR] Press Options > Games & Apps.
[ADV] Press Menu > Games & Apps.
2. Select a game > OK.
3. Play the demo and press BUY to download the complete game.
5. Useful Features
Calendar
Alarm
Stopwatch, calculator and converter
Notepad and voice memo
Inspector
Business card
Phone status
40
Calendar
Calendar helps you manage your schedule including your time for calls or
special days. You can set a reminder on any given date with this function.
Viewing calendar
1. [BR] Press C in standby mode or press Menu > Tools > Calendar.
[ADV] Press C in standby mode or press Menu > My Stuff > Tools >
Calendar.
NOTE: Monthly view is displayed as default.
In the monthly view
To Press
Move to another day
[] for Previous
[] for Next
Move to another week
[ ] for Previous
[ ] for Next
View other month
Side key up for Previous
Side key down for Next
Creating a new event and edit
1. Select a day > Options > New Event.
2. Input the events > Save.
NOTE: You can create up to 50 scheduled events.
NOTE: You can create events for dates from 01/01/2000 to 12/31/2049.
Alarm
Setting an alarm
1. [BR] Press [ ] to access alarm or press Menu > Tools > Alarm.
[ADV] Press Menu > My Stuff > Tools > Alarm.
2. Press Options > New > edit a new alarm > Save.
NOTE: The alarm will not ring if you set the phone to Vibrate Only. To make
it ring on vibrate mode, press Options > Wake-Up Call On. The alarm will
not go off if the phone is turned off.
NOTE: Only the first alarm will be Simple Alarm. It will only ring once as
default alarm tone.
Viewing the saved alarms
1. [BR] Press [ ] to access alarm or press Menu > Tools > Alarm.
[ADV] Press Menu > My Stuff > Tools > Alarm.
Editing existing alarms
1. [BR] Press R to access alarm or press Menu > Tools > Alarm.
[ADV] Press Menu > My Stuff > Tools > Alarm.
2. Select an alarm > Options > Select.
3. Edit the alarm settings.
4. To delete an alarm > Options > Delete.
NOTE: You cannot delete Simple Alarm.
Calculator, converter and stopwatch
Using the calculator
1. [BR] Press Menu > Tools > Calculator.
[ADV] Press Menu > My Stuff > Tools > Calculator.
2. Use [ ////OK] to calculate.
3. Press [ ] to clear.
4. Press [ . ] to use the decimal point.
Using the converter
1. Press Menu > My Stuff > Tools > Converter.
2. Select the categories.
3. Select current unit and enter figure.
4. Select the unit to be changed.
Using stopwatch
1. Press Menu > My Stuff > Tools > Stopwatch.
2. Press OK to start.
3. Press OK to restart.
4. To record lap time, press Lap.
5. Press Reset to clear.
Notepad and voice memo
Using notepad
1. [BR] Press Menu > Tools > Notepad.
[ADV] Press Menu > My Stuff > Tools > Notepad.
2. Press Options > Create New. (Press New to create memo for the first
time.)
3. To edit memo press Options > Edit.
4. Press Options > Save to save.
Recording voice memo
1. [BR] Press Menu > Tools > Voice Memo.
[ADV] Press Menu > My Stuff > Tools > Voice Memo.
2. Press Options > Create New. (Press New to create memo for the first
time.)
3. Press OK to stop recording.
4. Press Re-rec to re-record. Press Pause to pause recording.
5. Press Play to listen.
6. Press OK [ ] to save.
42
Listening the recorded sound
1. [BR] Press Menu > Tools > Voice Memo.
[ADV] Press Menu > My Stuff > Tools > Voice Memo.
2. Select a sound > Options > Select.
Using sound controls
To Press
Pause OK
Stop
Rewind
Fast forward
Control volume Side key up or down
Business card
You can send your information by sending it as multimedia message.
Creating your own business card
1. Press Menu > Address Book > My Business Card.
2. Edit the fields > Options > Save or press OK.
Forwarding
1. Press Menu > Address Book > My Business Card.
2. Press Options > Send via Bluetooth or Send via Multimedia Message.
3. Write a message.
4. Press Options > Send.
Updating information
1. Press Menu > Address Book > My Business Card.
2. Press Options > Edit.
3. Update information.
4. Press Options > Save.
Phone status
You can view status of your phone for My Phone Number, Signal Strength,
Battery Remaining, Sounds & Alerts, Alarm, and New Messages.
Viewing the status
1. [BR] Press Menu > Phone Status.
[ADV] Press Menu > My Stuff > Tools > Phone Status.
6. Connectivity
Bluetooth
Using the browser
Profiles setting
44
Bluetooth
Bluetooth technology enables free wireless connections between electronic
devices within a maximum range of 33 feet (10 meters). Bluetooth
connection can be used to send images, text, business cards, calendar
notes, or to connect to computers using Bluetooth technology.
Your mobile phone supports:
y Connect to PC to access internet.
y Connect to Hands-Free.
y Connect to electronic devices.
Activating
1. [BR] Press Options > Bluetooth > Bluetooth.
[ADV] Press Menu > Settings > Connectivity > Bluetooth > Bluetooth.
2. Select On or Off.
Adding a device
1. Press Menu > Settings > Connectivity > Bluetooth > Paired Devices.
2. Press New > Search All.
3. The available device will display.
4. To select the device press Option > Select.
5. Enter password.
NOTE: The other device must be in pairing mode.
Setting device for outgoing call
1. [BR] Press Options in standby mode > Bluetooth > Outgoing Call
Device.
[ADV] Press Menu > Settings > Connectivity > Bluetooth > Outgoing
Call Device.
2. Select Headset, Always Ask or Phone.
Sending an object
1. Select the file from Menu > My Stuff > Photo Album, Video Album,
Audio, Graphics or Other Files.
2. Press Options > Send via Bluetooth.
3. Select the device > Options > Select.
NOTE: If the other Bluetooth device requests pairing, the object is sent after
pairing is completed. Locked object or ones containing original rights may not be
forwarded.
Receiving an object
The receiving an object starts only when the receipt has been approved.
The received file will be saved in each place. For example, if you received
contacts information from the sender, it will be saved in your phone’s
memory.
Setting the visibility
1. [BR] Press Options in standby mode > Bluetooth > Visibility.
[ADV] Press Menu > Settings > Connectivity > Bluetooth > Visibility.
3. Select Hidden or Shown to All.
Naming the phone
1. [BR] Press Options in standby mode > Bluetooth > Name.
[ADV] Press Menu > Settings > Connectivity > Bluetooth > Name.
2. Enter the name > Options > Save.
NOTE: This is what others will see in their device’s display for your phone when
searching for your device.
Using the browser
Accessing browser
1. [BR] Press OK in standby mode.
[ADV] Press OK in standby mode or press Menu > MEdia Net > MEdia
Net Home.
NOTE: It will access provider’s homepage.
Setting new bookmarks
1. Press Menu > MEdia Net > Bookmarks.
2. Press Options > Add.
3. Enter the web address > OK.
Viewing bookmarks
1. [BR] Press OK > Options > Bookmarks.
[ADV] Press Menu > MEdia Net > Bookmarks.
2. To open the site, press Select.
3. To send via text message, press Send Message.
Entering address
1. Press Menu > MEdia Net > Go to URL.
2. Enter the web address > OK.
Setting profile
1. Press Menu > MEdia Net > Profiles.
2. Select Options.
Viewing certificates
1. Press Menu > MEdia Net > Security > Certificates.
Setting the security warning
1. Press Menu > MEdia Net > Security > Warning.
2. Select Off or On.
Profiles setting
You can set profile and view Profile Name, Home URL, Connection Type,
Proxy Address, Proxy Port, Proxy Login ID, Proxy Password and Data
Bearer.
Viewing default profile
1. Press Menu > MEdia Net > Profiles.
2. Select MEdia Net > Options > View.
46
Editing profile
1. Press Menu > MEdia Net > Profiles.
2. Select other profile > Options > Edit.
Adding new profile
1. Press Menu > MEdia Net > Profiles.
2. Select Empty > Add.
3. Enter the profile name > Options > Save.
Deleting profile
1. Press Menu > MEdia Net > Profiles.
2. Select a profile > Options > Delete.
7. Settings
Language
Time and date
Language
Ringtones
Decorating the display
Locks
To enable fixed dialing
Reset
TTY
48
Language
Setting up
1. Press Menu > Settings > Phone > Language.
Time and date
Setting up
1. Press Menu > Settings > Phone > Time & Date.
2. Set each option > Save.
Ringtones
Setting ringtones
1. Press Menu > My Stuff > Audio.
2. Select the ringtone > Options > Set as Ringtone.
Setting sound profile
1. Press Menu > Settings > Sounds & Alerts.
2. Select Normal, Vibrate and Ring, Vibrate Only or Silent.
Decorating the display
Setting the display
1. [EZ] Press Menu > Settings.
[ADV] Press Menu > Settings > Display > Main Screen.
2. Press Wallpaper > Graphic or Photo Album.
3. Select the file > Options > Set as.
Setting the font
1. Press Menu > Settings > Display > Font.
Entering greeting message
1. Press Menu > Settings > Display > Greeting.
Setting the brightness
1. Press Menu > Settings > Display > Brightness.
NOTE: Modifying brightness may affect battery life.
Setting time for backlight
1. [EZ] Press Menu > Settings > Backlight Timer.
[ADV] Press Menu > Settings > Display > Backlight Timer.
NOTE: Modifying backlight time may affect battery life.
Locks
Locking the phone
1. Press Menu > Settings > Security > Phone Lock.
2. Select On.
NOTE: The default password is ‘1234’. To change the password press Menu
> Settings > Security > Change Password.
Locking the PIN
The Personal Identification Number is the security code that protects the
phone or SIM against unauthorized use.
1. Press Menu > Settings > Security > PIN1 Check.
2. Select On.
3. Enter PIN code > OK.
NOTE: To change the PIN code press Menu > Settings > Security >
Change PIN1.
Changing PIN 2
1. Press Menu > Settings > Security > Change PIN2.
To enable fixed dialing
Enabling
1. Press Menu > Settings > Security > Fixed Dialing.
For details on fixed dialing, see page 22.
Reset
Resetting the phone
1. Press Menu > Settings > Reset > Master Reset.
NOTE: It will return configuration settings to default. The default password is
‘1234’.
Clearing the phone
1. Press Menu > Settings > Reset > Master Clear.
NOTE: It will change the setting as default and erase all personal data. The
default password is ‘1234’.
50
TTY
The teletypewriter (TTY) is a telecommunications device that allows people
who are deaf or hard of hearing, or who have speech or language disabilities,
to communicate via a telephone.
Setting teletypewriter
1. Press Menu > Settings > TTY.
2. Select Disabled, TTY Full, TTY Talk or TTY Hear.
y Disabled: TTY mode is disabled.
y TTY Full: User who cannot talk and hear send and receive a text
message.
y TTY Talk: User who can talk but cannot receive a text message and send
voice message.
y TTY Hear: User who can hear but cannot talk send a text message and
receive voice message.
8. Appendix
Alert message
Troubleshooting checklist
Safety information
Safety precautions
About the battery usage
FCC & Industry Canada Regulatory Compliance
Warranty
52
Alert message
If you experience any problem while using your mobile phone, please refer
to the following checklist. If the problem still persists, contact your dealer or
nearest carrier.
When the “Insert SIM Card” message appears:
Make sure the SIM card is correctly installed. Check to see if the SIM card is
working properly. If it does not work, try to clean the contact points of the
card with a dry cloth. If it is out of order, take it to your service provider.
When the “Text Message Full” message appears:
The received or saved messages are full in your phone or SIM memory. You
need to delete the message.
When the “Multimedia Message Full” message appears:
The saved messages are full in your phone memory. When you receive new
message you will see “Multimedia Message Full. Move To Inbox?" You can
move to inbox or delete the message.
When the “Password” message appears in Phone locked state:
Enter the phone password. The default password is”1234”. If you cannot
remember the password, contact the nearest carrier.
When the “Enter PIN1” message appears:
Input PIN1. If you cannot remember it, contact your service provider. You
can still receive calls even if your mobile phone becomes locked after
entering the incorrect PIN1 on three consecutive attempts.
When the “No Service” or “Network Search” appears:
If you cannot make/receive a call when you are indoors or undergrounds
where the signal strength is poor, move toward a window or go out to an
open area. If you still cannot make a connection, contact your service
provider.
Troubleshooting checklist
When audio quality is poor:
End a call and try again.
When the other party cannot hear you speaking:
Your phone may be set to MUTE. Disable the MUTE function. Or your hand
may be covering the microphone located below the [*] key.
When battery lifetime is shorter than usual:
This may happen when you are in an area with low signal strength. Turn off
your phone when it is not in use. Change the battery when battery energy is
exhausted.
When your mobile phone does not turn on:
Make sure your battery is charged. Check to see if your phone works while
recharging the battery.
When you are unable to send a message:
Either you are not registered to receive an SMS service, or you may be in an
area where your network service provider cannot provide such a service.
When you are unable to make a call:
Your phone may be set to “fixed dial.” Cancel the “fixed dial” function.
When you are unable to charge the battery:
This may be the result of one of the following three cases.
1. Your charger may be out of order. Contact your nearest dealer.
2. You may be attempting to use the phone in an overly hot/cold temperature.
Try changing the charging environment.
3. Your battery may have not been connected to the charger properly. Check
the connector.
When you are unable to input data into your Address Book:
Your Address Book memory may be full. Try deleting some entries from your
Address Book.
When you are unable to select a certain function:
You may not have subscribed to that function, or your network service
provider may be in an area where such service cannot be provided. Contact
your local service provider.
Safety information
The following list shows how to maintain your mobile phone, together with
precautions to take.
y Keep your mobile phone and its accessories out of the reach of children.
y Maintain your mobile phone in dry conditions and keep it within normal
operating temperatures. Temperatures higher than 55°C (131°F) or lower
than -20°C (-4°F) may damage your phone.
y Do not use or store your mobile phone in dusty, dirty areas.
y Do not attempt to disassemble your mobile phone.
y Do not drop or cause severe impact to your mobile phone.
y Do not use chemical products, cleaning solvents or detergents to clean
your mobile phone.
y If your mobile phone does not work properly, contact your dealer
immediately.
y Use only authorized batteries, battery chargers and accessories. Any
malfunction or damage caused by the use of unauthorized batteries,
battery chargers and accessories will void the limited product warranty.
y Ensure that the battery and battery charger do not come in contact with
conductive objects.
54
Safety precautions
Using a mobile phone while driving may be prohibited.
Please check local laws and regulations with regard to the prohibition of
mobile phone use while driving, and comply with them.
Use of your phone while you are driving may disturb your concentration and
may lead to an accident. Always switch your phone off to drive safely.
Should you use your phone in an emergency, either use a hands free device
built into your car, or pull over in a safe place first.
Switch off in restricted areas
Always switch your phone off in areas where mobile phone use is restricted.
Switch off in explosive or dangerous areas
Always switch your phone off in areas with explosive or dangerous materials
(such as fuels, fuel stations or areas containing chemical goods) and obey
any instructions or signals. Do not remove your mobile phone’s battery in
such areas.
Switch off in aircraft
Always switch your phone off or select Flight Mode On (press the Menu >
Settings > Flight Mode in Advanced Mode. In Breeze Mode you need to
assign to options. Press Options in main screen. Select one of the
Unassigned > Options > Edit. Press Settings > Flight Mode) when you
are in an aircraft. The electromagnetic waves emitted by your phone may
affect the electronic navigation equipment in the aircraft.
Switch off in hospitals and near medical equipment
Always switch your phone off in hospitals, and obey the regulations or rules
of the hospital.
Switch your phone off when using medical equipment for private purposes, if
possible. Always consult with the medical equipment’s manufacturer or an
expert regarding phone use near the medical equipment.
Installing a hands free device in your vehicle
Install vehicle hands free devices away from the steering wheel and airbag
expansion area, otherwise injury may result.
Mobile phones and other electronic devices
Mobile phones emit electromagnetic waves that may affect nearby electronic
devices. When it is switched on, do not place your phone close to delicate
electronic equipment.
About the battery usage
Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that,
unlike other forms of battery technology, you can recharge your battery while
some charge remains without reducing your phone’s autonomy due to the
“battery memory effect” inherent in those technologies.
y Do not use a damaged battery or charger.
y Do not disassemble or open crush, bend or deform, puncture or shred.
y Do not modify or remanufacture, attempt to insert foreign objects into the
battery, immerse or expose to water or other liquids, expose to fire,
explosion or other hazard.
y Do not put your battery into contact with conductive objects.
y Dispose of and recycle used batteries in accordance with local regulations.
Do not dispose of batteries by burning; they may explode.
y Do not use an unauthorized charger.
y Only use the battery for the device for which it is specified
y Only use the battery with a charging device that has been qualified with
the device per this standard. Use of an unqualified battery or charger may
present a risk of fire, explosion, leakage, or other hazard.
y Do not short circuit a battery or allow metallic conductive objects to
contact battery terminals.
y Replace the battery only with another battery that has been qualified with
the device per this standard, IEEE-Std-1725-2006. Use of an unqualified
battery may present a risk of fire, explosion, leakage or other hazard.
y Promptly dispose of used batteries in accordance with local regulations
y Battery usage by children should be supervised.
y Avoid dropping the phone or battery. If the phone or battery is dropped,
especially on a hard surface, and the user suspects damage, take it to a
service center for inspection.
y Use your battery for the specified purpose only.
y The closer you are to your network’s base station, the longer your phone
usage time because less battery power is consumed for the connection.
y The battery recharging time varies depending on the remaining battery
capacity and the battery and charger type you use.
y Battery life inevitably shortens over time.
y Use an authorized battery and charger only.
y Since overcharging may shorten battery life, remove the phone from its
charger once it is fully charged. Unplug the charger, once charging is
complete. Leaving the battery in hot or cold places, especially inside a car
in summer or winter, may reduce the capacity and life of the battery.
Always keep the battery within normal temperatures.
y To prevent injury or burns, ensure that no metal objects come into contact
with the + and – terminals of the battery.
Hearing aid compatibility with mobile phones
When some mobile phones are used near some hearing devices (hearing
aids and cochlear implants), users may detect a buzzing, humming, or
whining noise. Some hearing devices are more immune than others to this
interference noise, and phones also vary in the amount of interference they
generate.
The wireless telephone industry has developed ratings for some of their
mobile phones, to assist hearing device users in finding phones that may be
compatible with their hearing devices. Not all phones have been rated.
Phones that are rated have the rating on their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the user’s
hearing device and hearing loss. If your hearing device happens to be
vulnerable to interference, you may not be able to use a rated phone
successfully. Trying out the phone with your hearing device is the best way
to evaluate it for your personal needs.
56
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to
generate less interference to hearing devices than phones that are not
labeled. M4 is the better/higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to
be more usable with a hearing device’s telecoil (“T Switch” or “Telephone
Switch”) than unrated phones. T4 is the better/higher of the two ratings.
(Note that not all hearing devices have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The more
immune your hearing aid is, the less likely you are to experience
interference noise from mobile phones.
FCC Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Your mobile device is a low power radio transmitter and receiver. When it is
ON, it receives and also sends out radio frequency (RF) signals. In August
1996, the Federal Communications Commission (FCC) adopted RF
exposure guidelines with safety levels for mobile devices. Those guidelines
are consistent with safety standards previously set by both U.S. and
international standards bodies: American National Standard Institute (ANSI),
National Council of Radiation Protection and Measurements(NCRP), and
International Commission on Non-Ionizing Radiation Protection (ICNRP).
Those standards were based on comprehensive and periodic evaluations of
the relevant scientific literature. The design of your phone complies with the
FCC guidelines and applicable.
Statement according to FCC part 15.105
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
y Consult the dealer or an experienced radio/TV technician for help.
Statement according to FCC part 15.21
Modifications not expressly approved by this company could void the user's
authority to operate the equipment.
RF exposure FCC
For body worn operation, to maintain compliance with FCC RF exposure
guidelines, use only accessories that contain no metallic components and
provide a separation distance of 20mm (0.8 inches) to the body. Use of
other accessories may violate FCC RF exposure guidelines and should be
avoided.
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
Health and Safety Information FCC
This EUT has been shown to be capable of compliance for localized specific
absorption rate (SAR) for uncontrolled environment/general population
exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been
tested in accordance with the measurement procedures specified in
FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003
Ministry of Health (Canada), Safety Code 6. The standards include a
substantial safety margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for wireless mobile
phones employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *.
* In the U.S. and Canada, the SAR limit for mobile phones used by the
public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in.
**This device contains 1800 MHz GSM functions that are not operational in
U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900
MHz PCS operations.
Warranty
Protect Your Warranty
Read your Warranty carefully, with the special consideration to paragraph
seven of the Limited Warranty for your unit.
“Warranty does not apply to... or to any product or part thereof which has
suffered through alteration... mishandling, misuse, neglect or accident”.
Many companies are making look alike accessories and in some cases,
promoting that their product is equal to or better than the Pantech product.
Be careful. Some of these products may not be compatible to use with your
Pantech product and may damage the unit or cause it to malfunction.
If service is required on your unit and it is determined that a non-Pantech
accessory has created the problem with your unit, the Warranty will not apply.
In addition, if the unit has already suffered irreversible damage by reason of
a non-compatible accessory, the Warranty will be voided. To
protect your Warranty, use only compatible accessories which cannot
damage or interfere with the functioning of your Pantech product.
58
12 Month Limited Warranty
Pantech Wireless, Inc. (the Company) warrants to the original retail
purchaser of this Pantech handheld portable cellular telephone, that should
this product or any part thereof during normal consumer usage and
conditions, be proven defective in material or workmanship that results in
product failure within the first twelve (12) months period from the date of
purchase, such defect(s) will be repaired or replaced (with new or rebuilt
parts) at the Company’s option, without charge for parts or labor directly
related to the defect(s).
The antenna, key pad, display, rechargeable battery and battery charger, if
included, are similarly warranted for twelve (12) months from date of
purchase. This Warranty extends only to consumers who purchase the
product in the United States or Canada and it is not transferable or
assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident, mishandling,
neglect, unauthorized alteration, misuse, improper installation or repair or
improper storage;
(b) Product whose mechanical serial number or electronic serial number has
been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures or
extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other
product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as
framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand,
weather conditions, battery leakage, blown fuse, theft or improper usage
of any electrical source.
The Company disclaims liability for removal or reinstallation of the product,
for geographic coverage, for inadequate signal reception by the antenna or
for communications range or operation of the cellular system as a whole.
To obtain repairs or replacement within the terms of this Warranty, the
product should be delivered with proof of Warranty coverage (e.g. dated bill
of sale), the consumer’s return address, daytime phone number and/or fax
number and complete description of the problem, transportation prepaid, to
the Company by calling the number listed below or to the place of purchase
for repair or replacement processing.
In addition, you may telephone us at (800) 962-8622, or email us at
HandsetHelp@Pantech.com
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY
IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE
AND, IN NO EVENT, SHALL THE COMPANY’S LAIBILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT
WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY
SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH
OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE
DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS
OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR
REPLACED.
No person or representative is authorized to assume for the Company any
liability other than expressed herein in connection with the sale of this
product.
Some states or provinces do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or consequential
damage so the above limitation or exclusions may not apply to you. This
Warranty gives you specific legal rights, and you may also have other rights
which vary from state to state or province to province.
PANTECH WIRELESS, INC.
11240 Warland Drive, Cypress, CA 90630 (800) 962-8622
