Pantech Co P5000 GSM/WCDMA Phone with Bluetooth User Manual

Pantech Co Ltd GSM/WCDMA Phone with Bluetooth Users Manual

Users Manual

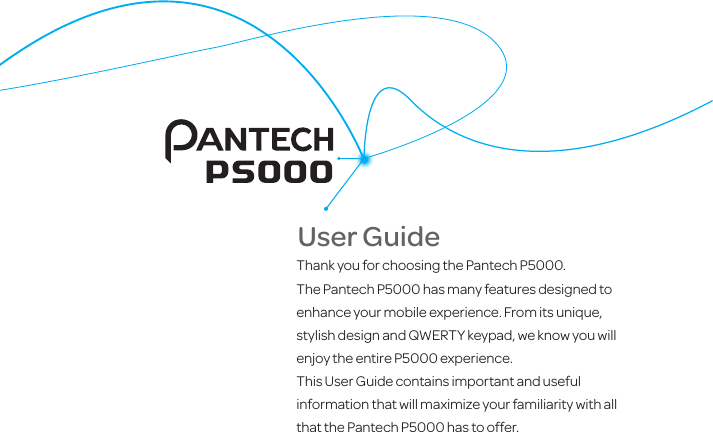

Thank you for choosing the Pantech P5000. The Pantech P5000 has many features designed to enhance your mobile experience. From its unique, stylish design and QWERTY keypad, we know you will enjoy the entire P5000 experience. This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech P5000 has to offer.User Guide

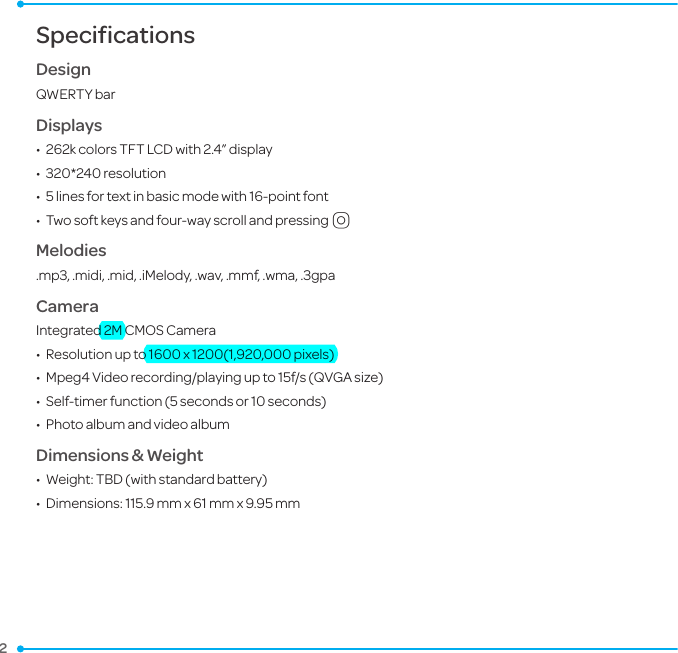

2 SpecificationsDesignQWERTY barDisplays• 262k colors TFT LCD with 2.4” display• 320*240 resolution• 5 lines for text in basic mode with 16-point font • Two soft keys and four-way scroll and pressingOMelodies.mp3, .midi, .mid, .iMelody, .wav, .mmf, .wma, .3gpaCameraIntegrated 2M CMOS Camera• Resolution up to 1600 x 1200(1,920,000 pixels)• Mpeg4 Video recording/playing up to 15f/s (QVGA size)• Self-timer function (5 seconds or 10 seconds)• Photo album and video albumDimensions & Weight• Weight: TBD (with standard battery)• Dimensions: 115.9 mm x 61 mm x 9.95 mm

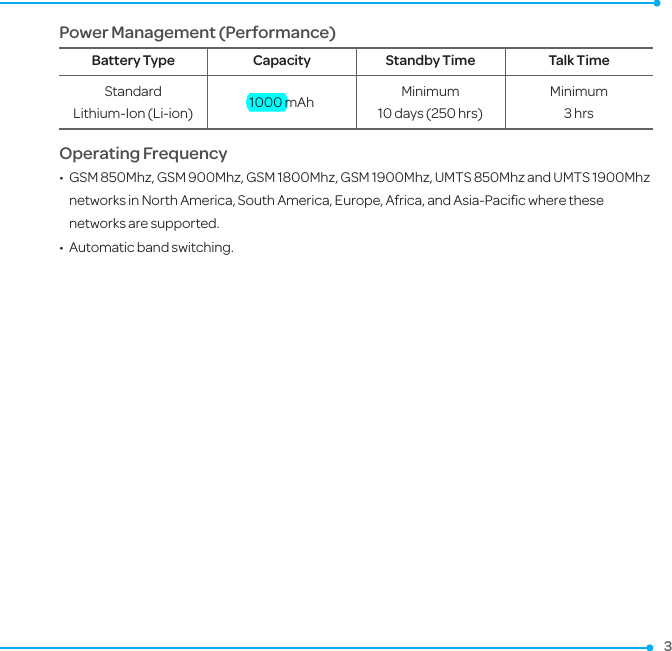

3Power Management (Performance)Battery Type Capacity Standby Time Talk TimeStandard Lithium-Ion (Li-ion) 1000 mAh Minimum 10 days (250 hrs)Minimum 3 hrsOperating Frequency• GSM 850Mhz, GSM 900Mhz, GSM 1800Mhz, GSM 1900Mhz, UMTS 850Mhz and UMTS 1900Mhz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported.• Automatic band switching.
ReceiverDisplayLeft/Right Soft keyPerform the functions shown at the bottom line of the display.Clear key Return to previous screen or delete characters in text mode. Power on&off / Menu exit key / End keyTurn phone on/off, end calls, exit menus.Delete keyPress to delete a number or letter.Enter keyPress to move to the next row.Space keyPress to enter a space.NavigationUp: Write New SMSDown: ContactLeft: Mobile EmailRight: IMCenter: OK / WebSpeaker Phone KeySend KeyCAPS/Shift keyTo type a single uppercase letter, press this key then a letter. Function keyTo enter a number or a symbol, press the function key, and press the corresponding key.Phone overview4

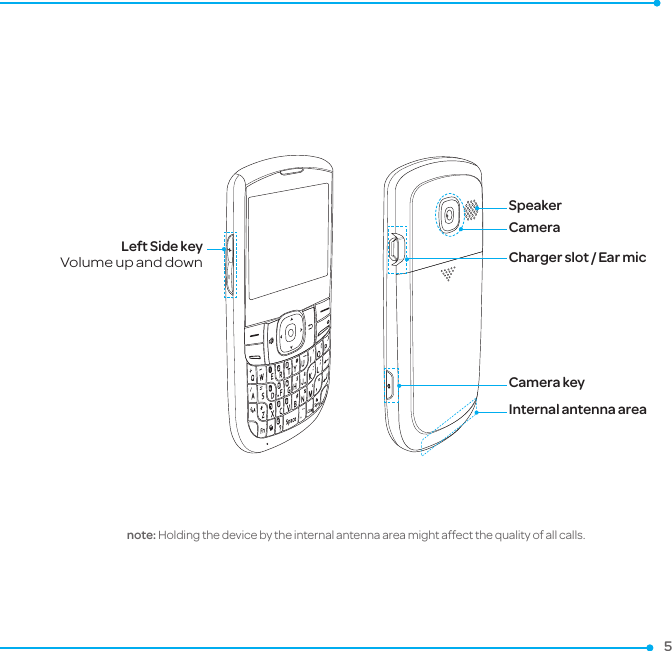

Left Side keyVolume up and downCharger slot / Ear micCameraCamera keyInternal antenna areaSpeaker5note: Holding the device by the internal antenna area might affect the quality of all calls.

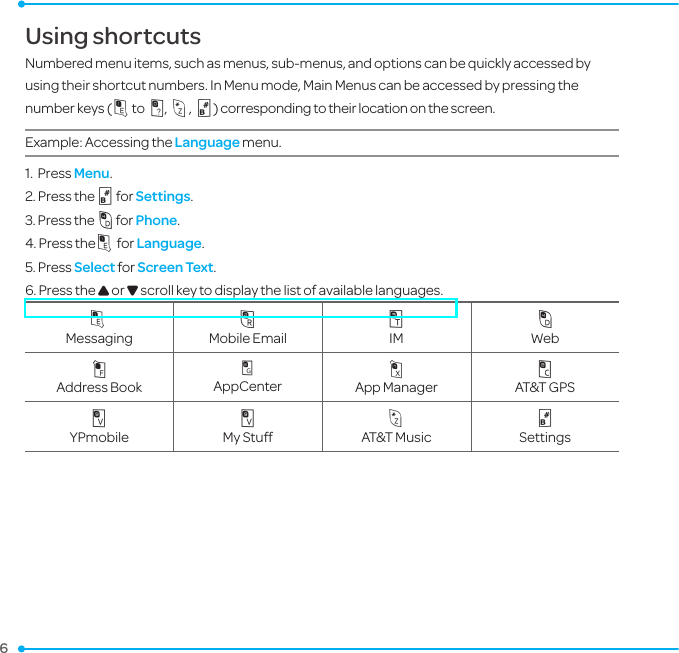

6 Using shortcutsNumbered menu items, such as menus, sub-menus, and options can be quickly accessed by using their shortcut numbers. In Menu mode, Main Menus can be accessed by pressing the number keys (1 to 0, *, #) corresponding to their location on the screen.Example: Accessing the Language menu.1. Press Menu.2. Press the#for Settings.3. Press the4for Phone.4. Press the1for Language.5. Press Select for Screen Text.6. Press the U or D scroll key to display the list of available languages.1Messaging2Mobile Email3IM4Web5Address Book6AppCenter7App Manager8AT&T GPS9YPmobile9My Stuff*AT&T Music#Settings

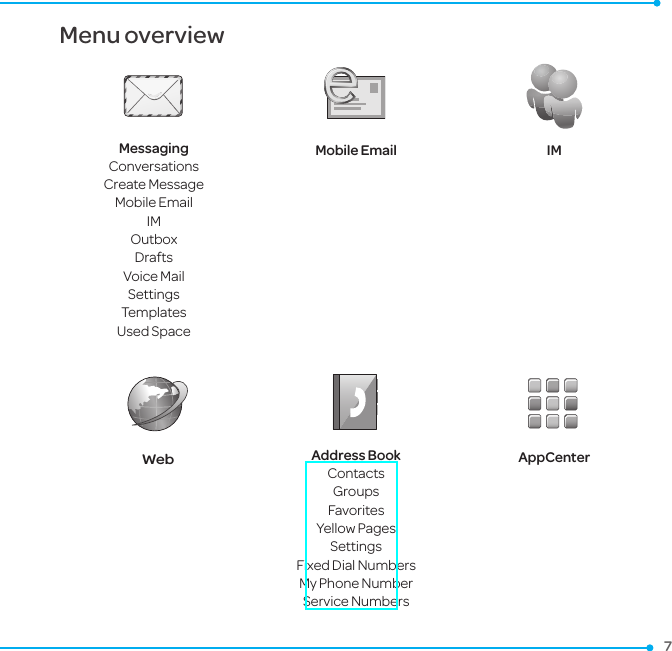

7Menu overviewMessagingConversationsCreate MessageMobile EmailIMOutbox Drafts Voice MailSettingsTemplatesUsed SpaceMobile Email IMWeb Address BookContacts Groups Favorites Yellow Pages Settings Fixed Dial NumbersMy Phone Number Service NumbersAppCenter

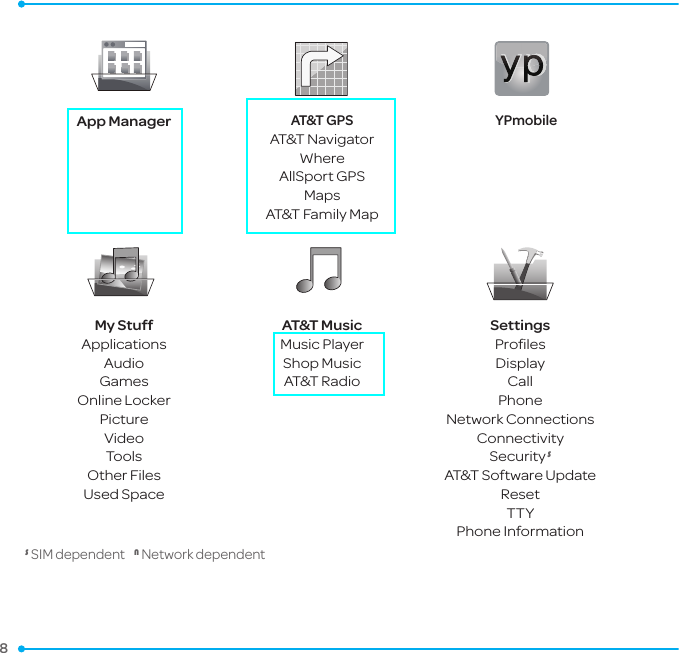

8 App ManagerAT&T GPSAT&T NavigatorWhereAllSport GPSMapsAT&T Family MapYPmobileMy StuffApplicationsAudioGamesOnline LockerPictureVideo ToolsOther FilesUsed SpaceAT&T MusicMusic PlayerShop MusicAT&T RadioSettingsProfilesDisplayCallPhoneNetwork ConnectionsConnectivitySecurity SAT&T Software UpdateResetTTYPhone InformationS SIM dependent N Network dependent

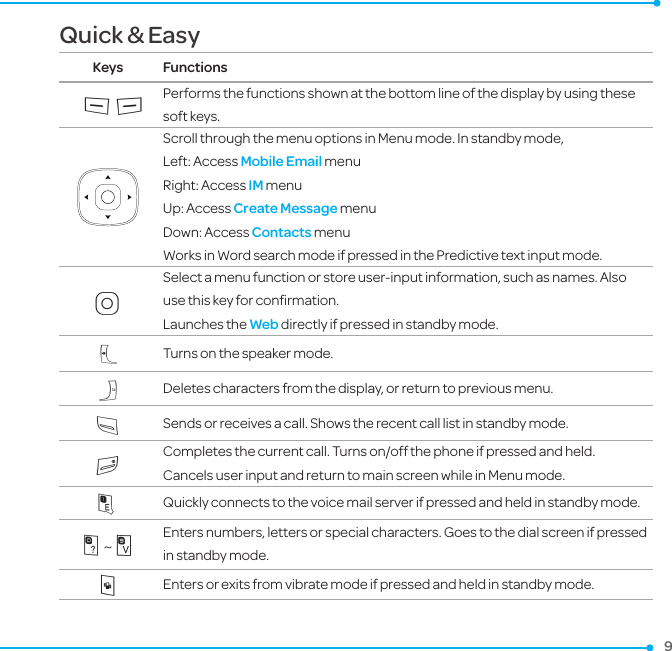

9Quick & EasyKeys Functions<> Performs the functions shown at the bottom line of the display by using these soft keys.Scroll through the menu options in Menu mode. In standby mode,Left: Access Mobile Email menuRight: Access IM menuUp: Access Create Message menuDown: Access Contacts menu Works in Word search mode if pressed in the Predictive text input mode.OSelect a menu function or store user-input information, such as names. Also use this key for confirmation.Launches the Web directly if pressed in standby mode.NTurns on the speaker mode.CDeletes characters from the display, or return to previous menu.SSends or receives a call. Shows the recent call list in standby mode.ECompletes the current call. Turns on/off the phone if pressed and held.Cancels user input and return to main screen while in Menu mode.1Quickly connects to the voice mail server if pressed and held in standby mode.0~9Enters numbers, letters or special characters. Goes to the dial screen if pressed in standby mode.BEnters or exits from vibrate mode if pressed and held in standby mode.

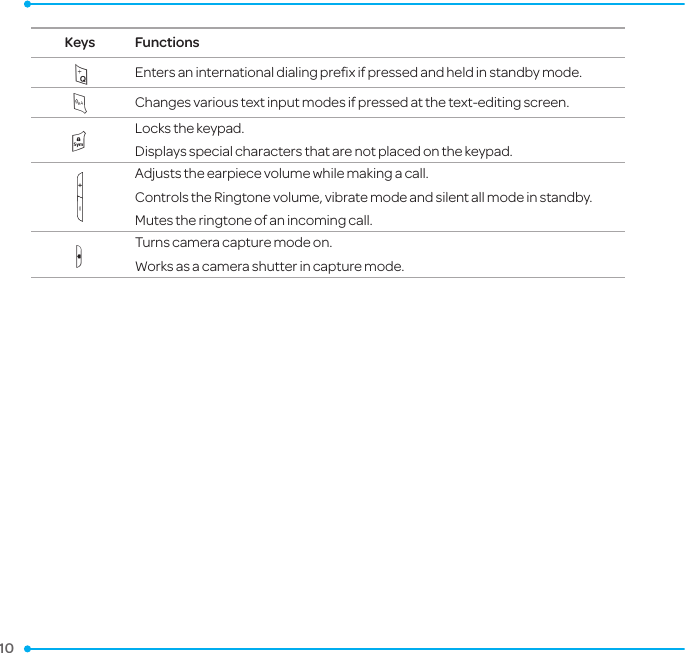

10 Keys FunctionsqEnters an international dialing prefix if pressed and held in standby mode.m Changes various text input modes if pressed at the text-editing screen.lLocks the keypad.Displays special characters that are not placed on the keypad.Adjusts the earpiece volume while making a call.Controls the Ringtone volume, vibrate mode and silent all mode in standby.Mutes the ringtone of an incoming call. QTurns camera capture mode on.Works as a camera shutter in capture mode.

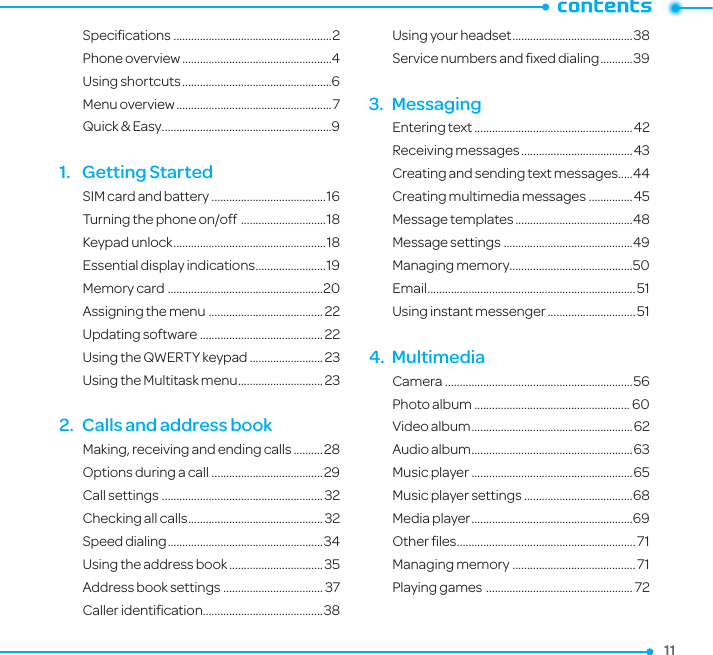

11Specifications ......................................................2Phone overview ...................................................4Using shortcuts ...................................................6Menu overview .....................................................7Quick & Easy ..........................................................91. Getting StartedSIM card and battery .......................................16Turning the phone on/off .............................18Keypad unlock ....................................................18Essential display indications ........................19Memory card .....................................................20Assigning the menu .......................................22Updating software ..........................................22Using the QWERTY keypad .........................23Using the Multitask menu .............................232. Calls and address bookMaking, receiving and ending calls ..........28Options during a call ......................................29Call settings .......................................................32Checking all calls ..............................................32Speed dialing .....................................................34Using the address book ................................35Address book settings .................................. 37Caller identification.........................................38Using your headset .........................................38Service numbers and fixed dialing ...........393. MessagingEntering text ......................................................42Receiving messages ......................................43Creating and sending text messages.....44Creating multimedia messages ...............45Message templates ........................................48Message settings ............................................49Managing memory ..........................................50Email .......................................................................51Using instant messenger ..............................514. MultimediaCamera ................................................................56Photo album ..................................................... 60Video album .......................................................62Audio album .......................................................63Music player .......................................................65Music player settings .....................................68Media player .......................................................69Other files .............................................................71Managing memory ..........................................71Playing games ..................................................72

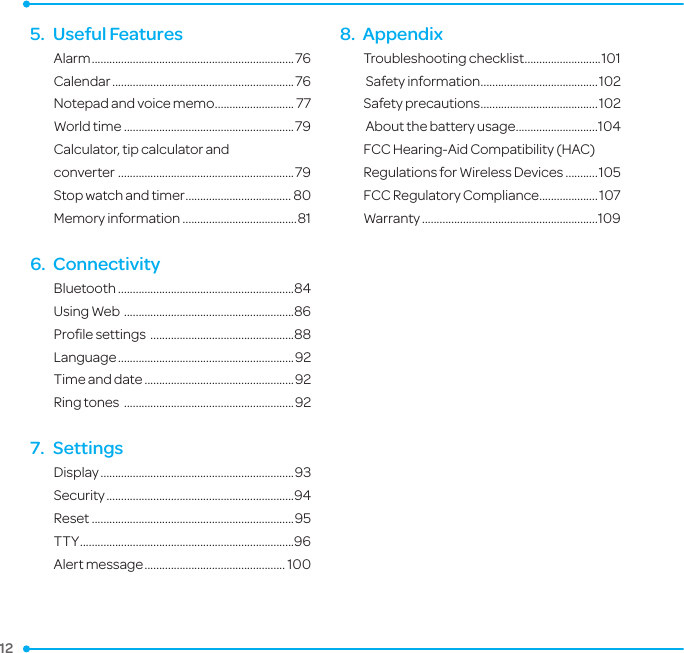

12 5. Useful FeaturesAlarm .....................................................................76Calendar ..............................................................76Notepad and voice memo ........................... 77World time ..........................................................79Calculator, tip calculator and converter ............................................................79Stop watch and timer .................................... 80Memory information .......................................816. ConnectivityBluetooth ............................................................84Using Web ..........................................................86Profile settings .................................................88Language ............................................................92Time and date ...................................................92Ring tones ..........................................................927. SettingsDisplay ..................................................................93Security ................................................................94Reset .....................................................................95TTY .........................................................................96Alert message ................................................ 1008. AppendixTroubleshooting checklist ..........................101 Safety information ........................................102Safety precautions ........................................102 About the battery usage ............................104FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices ...........105FCC Regulatory Compliance ....................107Warranty ............................................................109
13

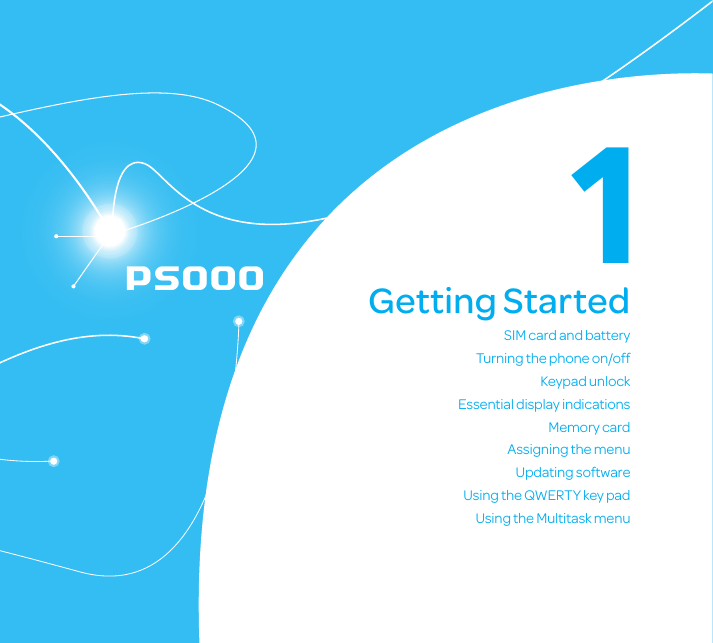

1SIM card and batteryTurning the phone on/off Keypad unlockEssential display indicationsMemory cardAssigning the menuUpdating softwareUsing the QWERTY key padUsing the Multitask menuGetting StartedP50001. Getting Started

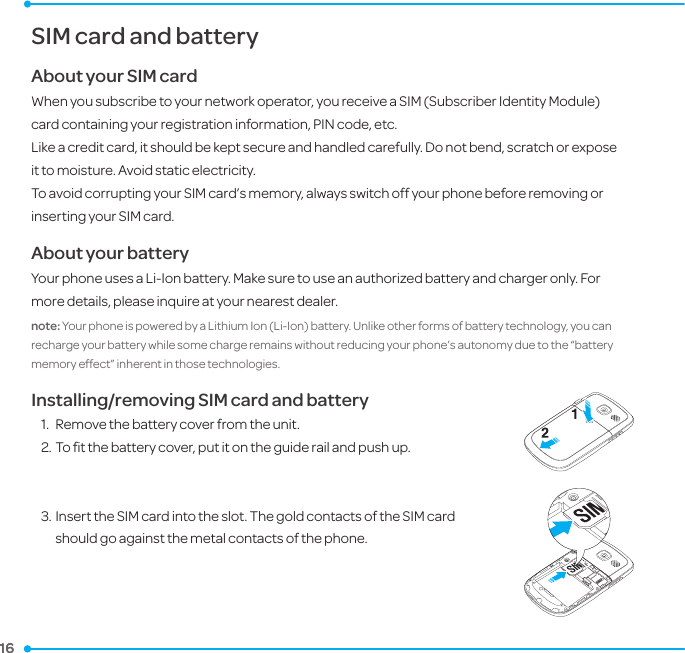

16 16 SIM card and batteryAbout your SIM cardWhen you subscribe to your network operator, you receive a SIM (Subscriber Identity Module) card containing your registration information, PIN code, etc. Like a credit card, it should be kept secure and handled carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity. To avoid corrupting your SIM card’s memory, always switch off your phone before removing or inserting your SIM card.About your batteryYour phone uses a Li-Ion battery. Make sure to use an authorized battery and charger only. For more details, please inquire at your nearest dealer.note: Your phone is powered by a Lithium Ion (Li-Ion) battery. Unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies.Installing/removing SIM card and battery1. Remove the battery cover from the unit. 2. To fit the battery cover, put it on the guide rail and push up.3. Insert the SIM card into the slot. The gold contacts of the SIM card should go against the metal contacts of the phone.

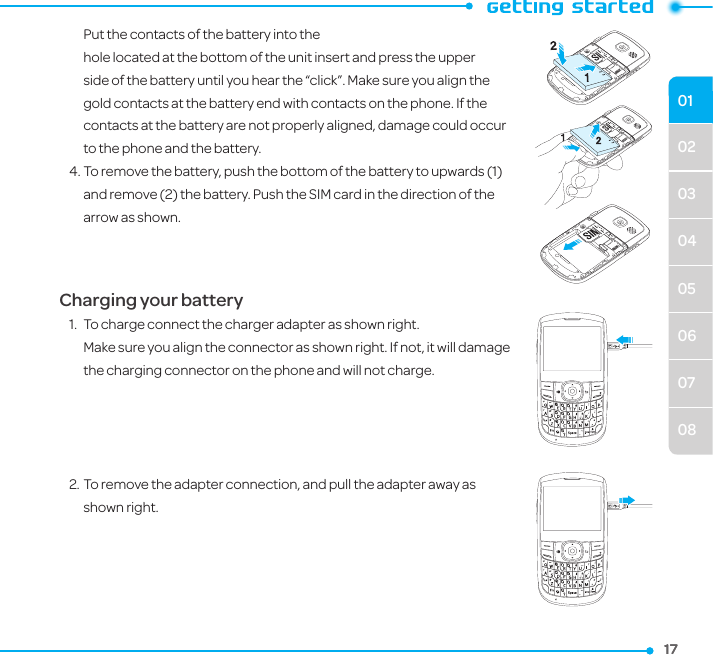

02030405060708011717 Put the contacts of the battery into the hole located at the bottom of the unit insert and press the upper side of the battery until you hear the “click”. Make sure you align the gold contacts at the battery end with contacts on the phone. If the contacts at the battery are not properly aligned, damage could occur to the phone and the battery.4. To remove the battery, push the bottom of the battery to upwards (1) and remove (2) the battery. Push the SIM card in the direction of the arrow as shown.Charging your battery1. To charge connect the charger adapter as shown right. Make sure you align the connector as shown right. If not, it will damage the charging connector on the phone and will not charge.2. To remove the adapter connection, and pull the adapter away as shown right.

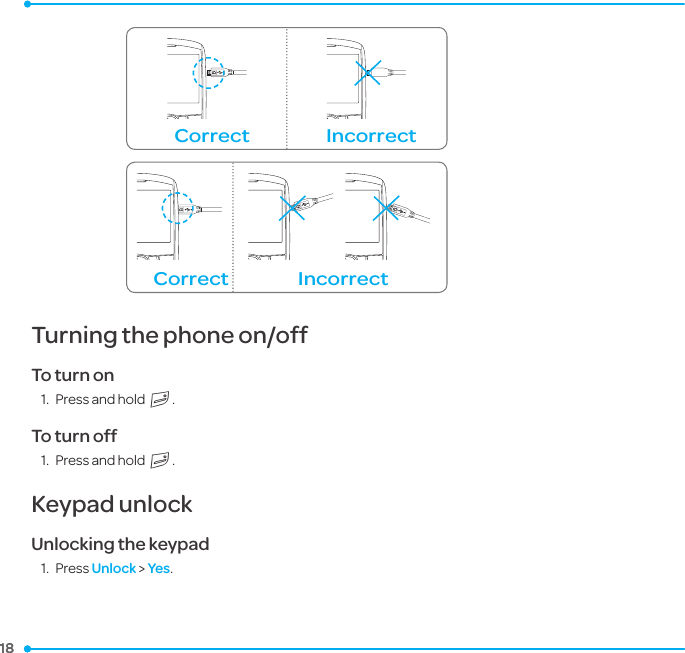

18 18 Incorrect Correct Incorrect CorrectTurning the phone on/off To turn on 1. Press and holdE.To turn off 1. Press and holdE.Keypad unlockUnlocking the keypad1. Press Unlock > Yes.
02030405060708011919Essential display indicationsSignal strength. The greater the number of bars, the stronger the signal. When network is in searching mode is displayed. A call is being made. When you are in no service area, is displayed.Call forwardingN is active.Incoming calls set to ring only (Normal). Incoming calls set to Vibrate and Ring. Incoming calls set to Vibrate Only.Incoming calls set to Silent.Flight Mode is active.Received one or more text messages.Received one or more multimedia messages.Received one or more WAP push messages.Received one or more configuration messages.Received one or more voice messages.A message is being sent.A message is being received. An alarm is set.Appointment Alarm is set. Browser is Active, Secured and being downloaded.Bluetooth is active.Bluetooth hands-free headset is connected. Bluetooth A2DP headset is connected. Bluetooth hands-free + A2DP headset is connected.

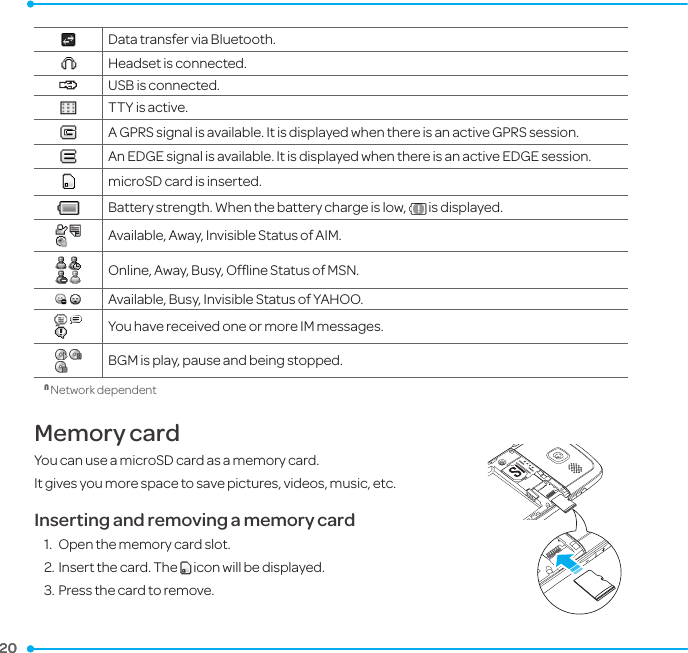

20 20 Data transfer via Bluetooth. Headset is connected. USB is connected.TTY is active.A GPRS signal is available. It is displayed when there is an active GPRS session.An EDGE signal is available. It is displayed when there is an active EDGE session. microSD card is inserted.Battery strength. When the battery charge is low, is displayed.Available, Away, Invisible Status of AIM.Online, Away, Busy, Offline Status of MSN. Available, Busy, Invisible Status of YAHOO.You have received one or more IM messages. BGM is play, pause and being stopped.NNetwork dependent Memory card You can use a microSD card as a memory card. It gives you more space to save pictures, videos, music, etc.Inserting and removing a memory card1. Open the memory card slot.2. Insert the card. The icon will be displayed.3. Press the card to remove.

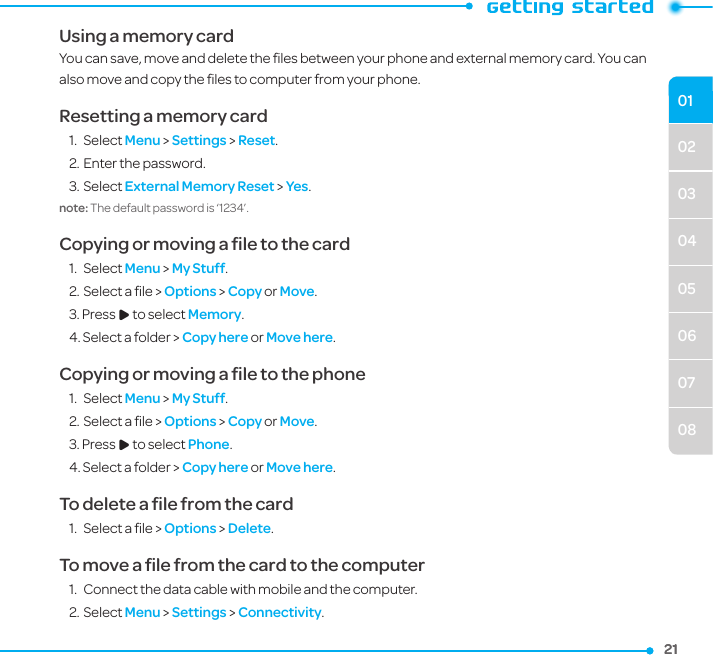

02030405060708012121Using a memory cardYou can save, move and delete the files between your phone and external memory card. You can also move and copy the files to computer from your phone.Resetting a memory card1. Select Menu > Settings > Reset.2. Enter the password.3. Select External Memory Reset > Yes.note: The default password is ‘1234’.Copying or moving a file to the card1. Select Menu > My Stuff. 2. Select a file > Options > Copy or Move.3. Press R to select Memory.4. Select a folder > Copy here or Move here. Copying or moving a file to the phone1. Select Menu > My Stuff. 2. Select a file > Options > Copy or Move.3. Press R to select Phone.4. Select a folder > Copy here or Move here. To delete a file from the card1. Select a file > Options > Delete.To move a file from the card to the computer1. Connect the data cable with mobile and the computer.2. Select Menu > Settings > Connectivity.

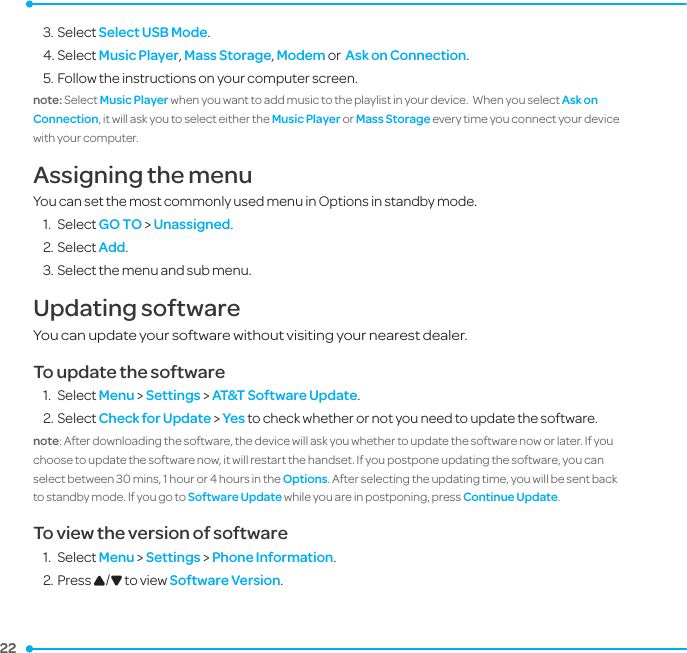

22 22 3. Select Select USB Mode.4. Select Music Player, Mass Storage, Modem or Ask on Connection.5. Follow the instructions on your computer screen.note: Select Music Player when you want to add music to the playlist in your device. When you select Ask on Connection, it will ask you to select either the Music Player or Mass Storage every time you connect your device with your computer.Assigning the menu You can set the most commonly used menu in Options in standby mode. 1. Select GO TO > Unassigned.2. Select Add.3. Select the menu and sub menu.Updating softwareYou can update your software without visiting your nearest dealer.To update the software1. Select Menu > Settings > AT&T Software Update.2. Select Check for Update > Yes to check whether or not you need to update the software. note: After downloading the software, the device will ask you whether to update the software now or later. If you choose to update the software now, it will restart the handset. If you postpone updating the software, you can select between 30 mins, 1 hour or 4 hours in the Options. After selecting the updating time, you will be sent back to standby mode. If you go to Software Update while you are in postponing, press Continue Update.To view the version of software 1. Select Menu > Settings > Phone Information.2. Press U/D to view Software Version.

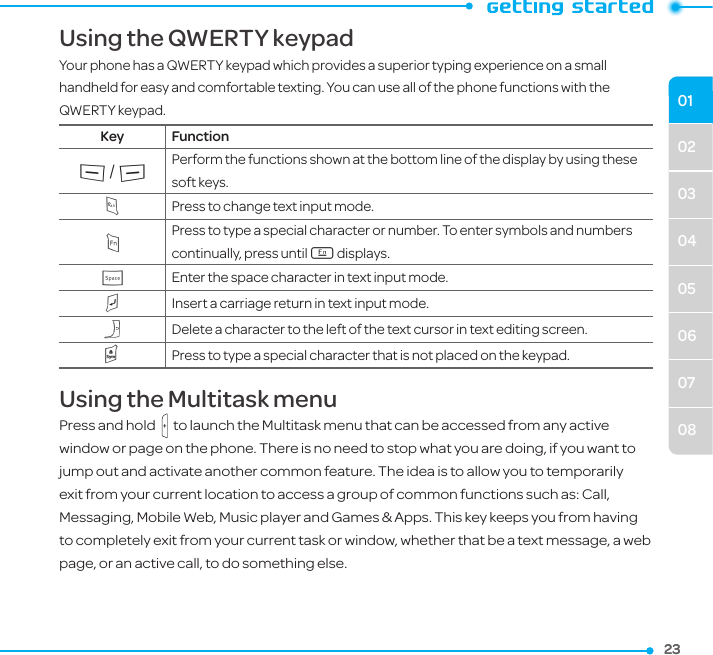

02030405060708012323Using the QWERTY keypadYour phone has a QWERTY keypad which provides a superior typing experience on a small handheld for easy and comfortable texting. You can use all of the phone functions with the QWERTY keypad. Key Function</> Perform the functions shown at the bottom line of the display by using these soft keys.mPress to change text input mode.FPress to type a special character or number. To enter symbols and numbers continually, press until h displays.wEnter the space character in text input mode.TInsert a carriage return in text input mode.CDelete a character to the left of the text cursor in text editing screen.lPress to type a special character that is not placed on the keypad.Using the Multitask menuPress and hold to launch the Multitask menu that can be accessed from any active window or page on the phone. There is no need to stop what you are doing, if you want to jump out and activate another common feature. The idea is to allow you to temporarily exit from your current location to access a group of common functions such as: Call, Messaging, Mobile Web, Music player and Games & Apps. This key keeps you from having to completely exit from your current task or window, whether that be a text message, a web page, or an active call, to do something else.

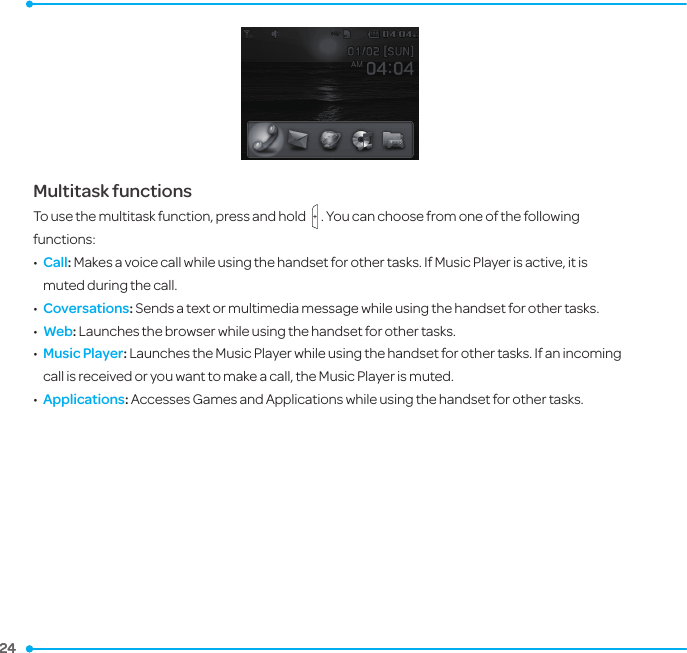

24 24 Multitask functionsTo use the multitask function, press and hold . You can choose from one of the following functions:• Call: Makes a voice call while using the handset for other tasks. If Music Player is active, it is muted during the call.• Coversations: Sends a text or multimedia message while using the handset for other tasks.• Web: Launches the browser while using the handset for other tasks.• Music Player: Launches the Music Player while using the handset for other tasks. If an incoming call is received or you want to make a call, the Music Player is muted.• Applications: Accesses Games and Applications while using the handset for other tasks.
02030405060708012525

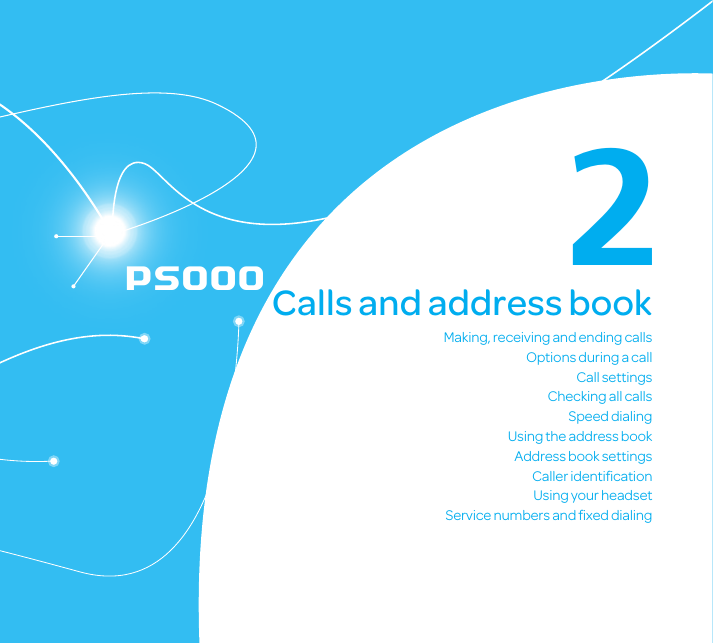

P5000 2Making, receiving and ending callsOptions during a callCall settingsChecking all callsSpeed dialingUsing the address bookAddress book settingsCaller identificationUsing your headsetService numbers and fixed dialingCalls and address book2. Calls and address book

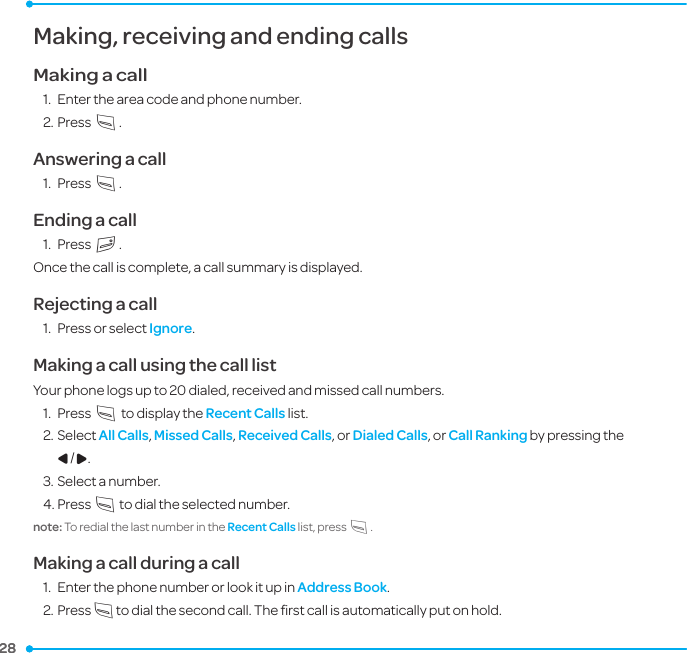

28 28 Making, receiving and ending callsMaking a call1. Enter the area code and phone number.2. Press S.Answering a call1. Press S.Ending a call1. Press E.Once the call is complete, a call summary is displayed.Rejecting a call1. Press or select Ignore.Making a call using the call listYour phone logs up to 20 dialed, received and missed call numbers. 1. Press S to display the Recent Calls list.2. Select All Calls, Missed Calls, Received Calls, or Dialed Calls, or Call Ranking by pressing the L/R.3. Select a number.4. Press S to dial the selected number.note: To redial the last number in the Recent Calls list, press S.Making a call during a call1. Enter the phone number or look it up in Address Book.2. Press S to dial the second call. The first call is automatically put on hold.

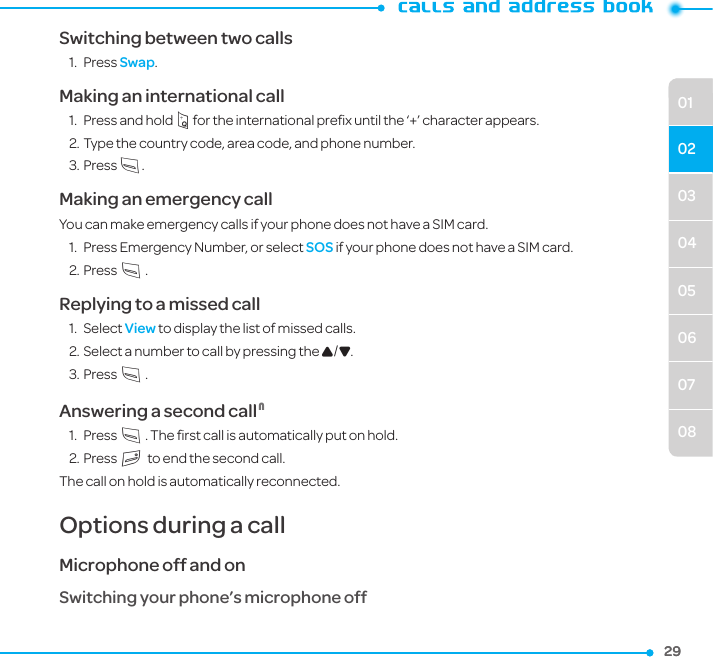

29290304050607080102Switching between two calls1. Press Swap.Making an international call1. Press and hold q for the international prefix until the ‘+’ character appears.2. Type the country code, area code, and phone number.3. Press S.Making an emergency callYou can make emergency calls if your phone does not have a SIM card.1. Press Emergency Number, or select SOS if your phone does not have a SIM card.2. Press S.Replying to a missed call1. Select View to display the list of missed calls. 2. Select a number to call by pressing the U/D.3. Press S.Answering a second call N1. Press S. The first call is automatically put on hold.2. Press E to end the second call. The call on hold is automatically reconnected.Options during a callMicrophone off and on Switching your phone’s microphone off

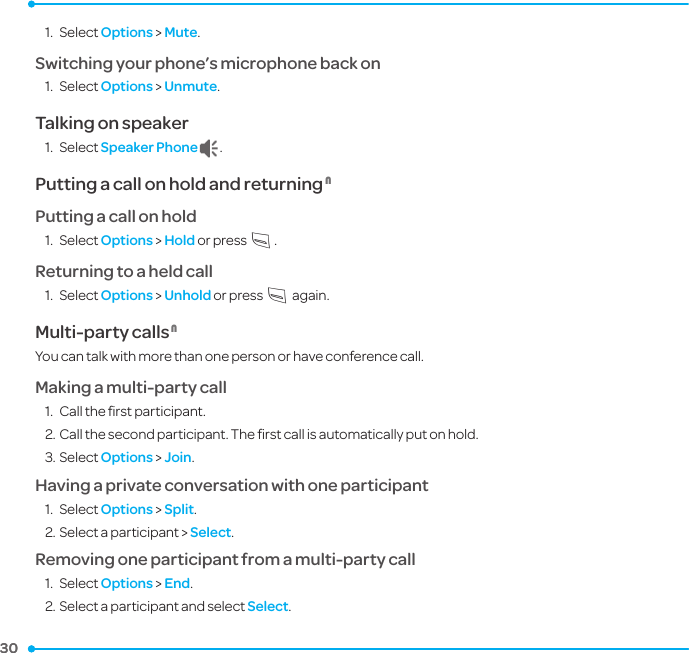

30 30 1. Select Options > Mute.Switching your phone’s microphone back on1. Select Options > Unmute.Talking on speaker1. Select Speaker Phone .Putting a call on hold and returning NPutting a call on hold1. Select Options > Hold or press S.Returning to a held call1. Select Options > Unhold or press S again.Multi-party calls NYou can talk with more than one person or have conference call. Making a multi-party call1. Call the first participant.2. Call the second participant. The first call is automatically put on hold.3. Select Options > Join. Having a private conversation with one participant1. Select Options > Split.2. Select a participant > Select.Removing one participant from a multi-party call1. Select Options > End. 2. Select a participant and select Select.

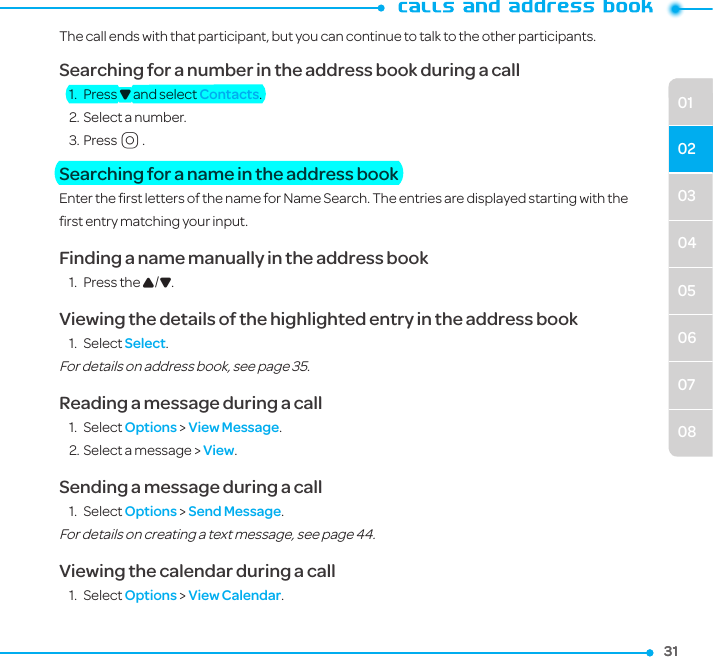

31310304050607080102The call ends with that participant, but you can continue to talk to the other participants.Searching for a number in the address book during a call1. Press D and select Contacts.2. Select a number.3. PressO.Searching for a name in the address bookEnter the first letters of the name for Name Search. The entries are displayed starting with the first entry matching your input.Finding a name manually in the address book 1. Press the U/D.Viewing the details of the highlighted entry in the address book1. Select Select. For details on address book, see page 35. Reading a message during a call1. Select Options > View Message. 2. Select a message > View.Sending a message during a call1. Select Options > Send Message. For details on creating a text message, see page 44.Viewing the calendar during a call1. Select Options > View Calendar.

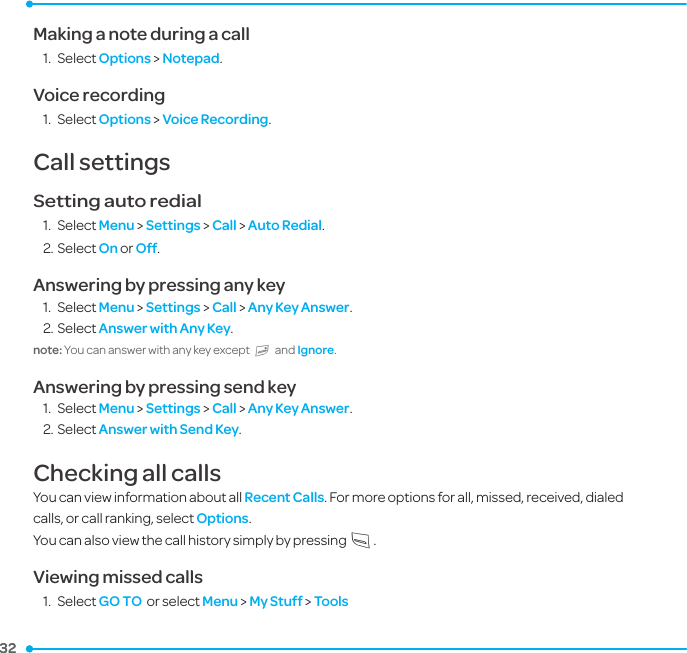

32 32 Making a note during a call1. Select Options > Notepad.Voice recording1. Select Options > Voice Recording.Call settings Setting auto redial 1. Select Menu > Settings > Call > Auto Redial.2. Select On or Off.Answering by pressing any key 1. Select Menu > Settings > Call > Any Key Answer.2. Select Answer with Any Key. note: You can answer with any key except E and Ignore.Answering by pressing send key 1. Select Menu > Settings > Call > Any Key Answer.2. Select Answer with Send Key.Checking all callsYou can view information about all Recent Calls. For more options for all, missed, received, dialed calls, or call ranking, select Options. You can also view the call history simply by pressing S.Viewing missed calls1. Select GO TO or select Menu > My Stuff > Tools

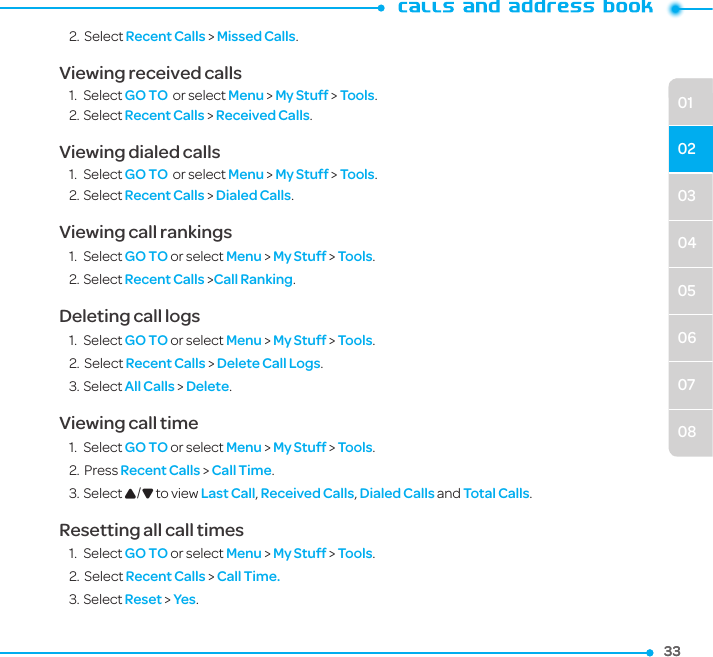

333303040506070801022. Select Recent Calls > Missed Calls.Viewing received calls1. Select GO TO or select Menu > My Stuff > Tools.2. Select Recent Calls > Received Calls.Viewing dialed calls1. Select GO TO or select Menu > My Stuff > Tools.2. Select Recent Calls > Dialed Calls.Viewing call rankings1. Select GO TO or select Menu > My Stuff > Tools.2. Select Recent Calls >Call Ranking.Deleting call logs1. Select GO TO or select Menu > My Stuff > Tools.2. Select Recent Calls > Delete Call Logs.3. Select All Calls > Delete.Viewing call time1. Select GO TO or select Menu > My Stuff > Tools. 2. Press Recent Calls > Call Time.3. Select U/D to view Last Call, Received Calls, Dialed Calls and Total Calls.Resetting all call times1. Select GO TO or select Menu > My Stuff > Tools. 2. Select Recent Calls > Call Time.3. Select Reset > Yes.

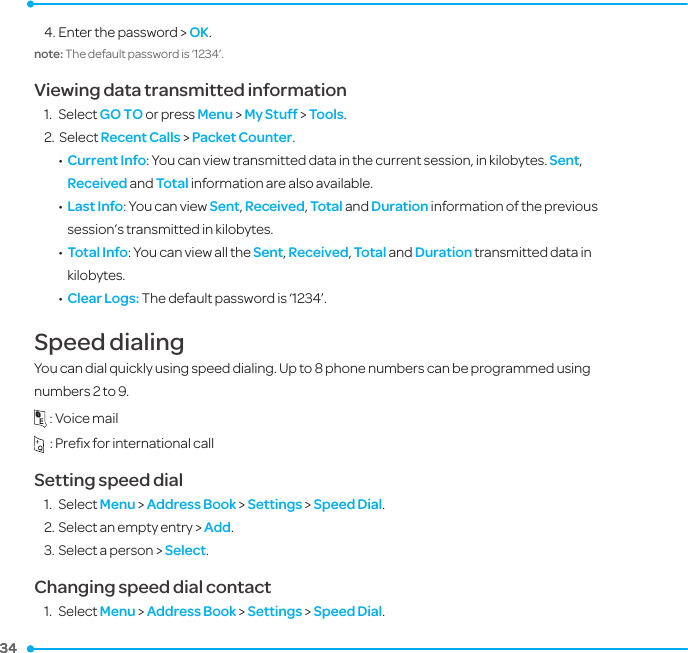

34 34 4. Enter the password > OK.note: The default password is ‘1234’.Viewing data transmitted information1. Select GO TO or press Menu > My Stuff > Tools. 2. Select Recent Calls > Packet Counter. • Current Info: You can view transmitted data in the current session, in kilobytes. Sent, Received and Total information are also available. • Last Info: You can view Sent, Received, Total and Duration information of the previous session’s transmitted in kilobytes. • Total Info: You can view all the Sent, Received, Total and Duration transmitted data in kilobytes. • Clear Logs: The default password is ‘1234’.Speed dialingYou can dial quickly using speed dialing. Up to 8 phone numbers can be programmed using numbers 2 to 9. : Voice mail : Prefix for international callSetting speed dial1. Select Menu > Address Book > Settings > Speed Dial.2. Select an empty entry > Add.3. Select a person > Select.Changing speed dial contact 1. Select Menu > Address Book > Settings > Speed Dial.

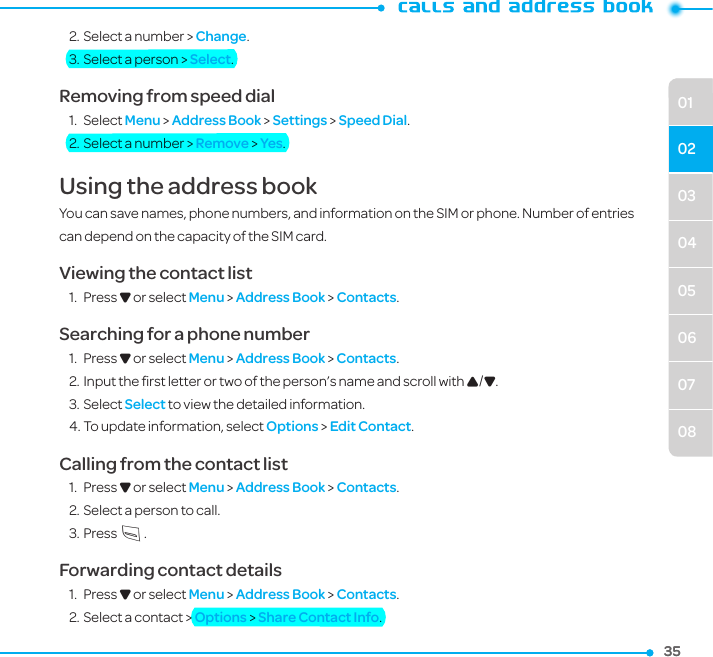

353503040506070801022. Select a number > Change.3. Select a person > Select.Removing from speed dial1. Select Menu > Address Book > Settings > Speed Dial.2. Select a number > Remove > Yes.Using the address bookYou can save names, phone numbers, and information on the SIM or phone. Number of entries can depend on the capacity of the SIM card.Viewing the contact list1. Press D or select Menu > Address Book > Contacts.Searching for a phone number 1. Press D or select Menu > Address Book > Contacts.2. Input the first letter or two of the person’s name and scroll with U/D.3. Select Select to view the detailed information.4. To update information, select Options > Edit Contact. Calling from the contact list1. Press D or select Menu > Address Book > Contacts.2. Select a person to call.3. Press S.Forwarding contact details1. Press D or select Menu > Address Book > Contacts.2. Select a contact > Options > Share Contact Info.

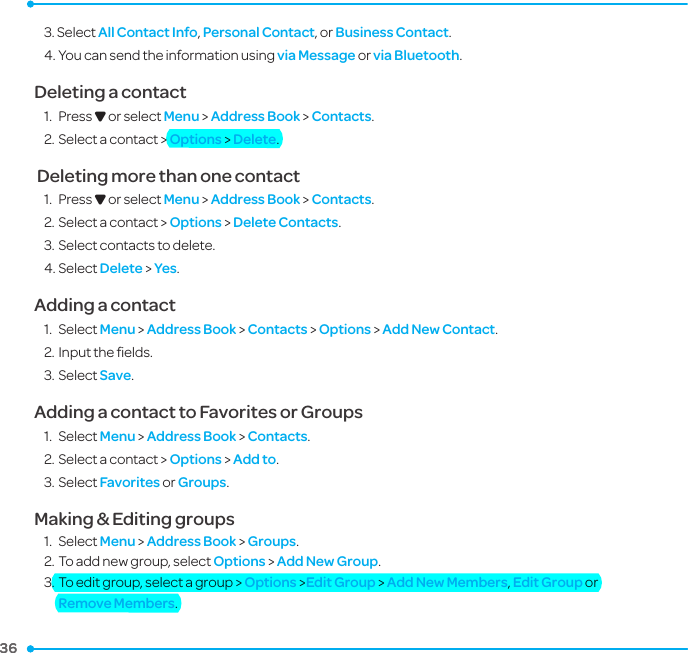

36 36 3. Select All Contact Info, Personal Contact, or Business Contact.4. You can send the information using via Message or via Bluetooth.Deleting a contact 1. Press D or select Menu > Address Book > Contacts.2. Select a contact > Options > Delete. Deleting more than one contact1. Press D or select Menu > Address Book > Contacts.2. Select a contact > Options > Delete Contacts.3. Select contacts to delete. 4. Select Delete > Yes.Adding a contact 1. Select Menu > Address Book > Contacts > Options > Add New Contact.2. Input the fields.3. Select Save.Adding a contact to Favorites or Groups1. Select Menu > Address Book > Contacts.2. Select a contact > Options > Add to.3. Select Favorites or Groups.Making & Editing groups1. Select Menu > Address Book > Groups.2. To add new group, select Options > Add New Group.3. To edit group, select a group > Options >Edit Group > Add New Members, Edit Group or Remove Members.

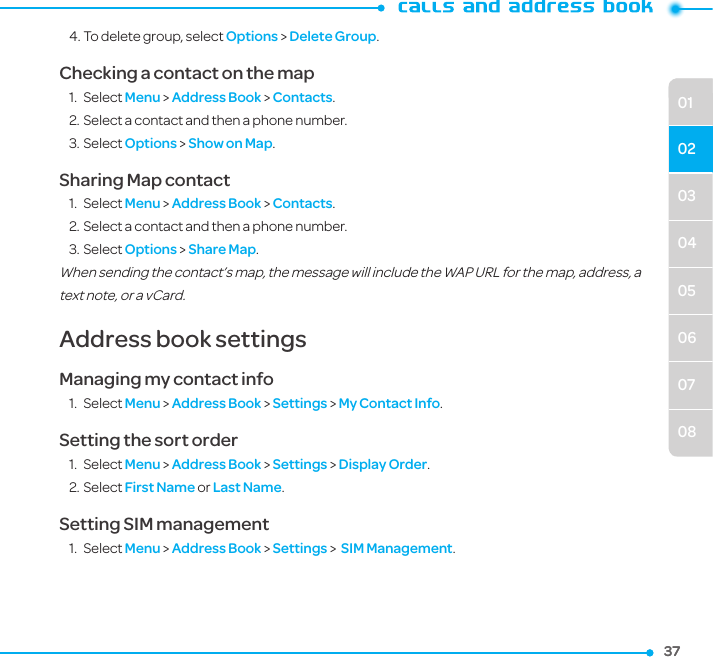

373703040506070801024. To delete group, select Options > Delete Group.Checking a contact on the map1. Select Menu > Address Book > Contacts.2. Select a contact and then a phone number. 3. Select Options > Show on Map. Sharing Map contact1. Select Menu > Address Book > Contacts.2. Select a contact and then a phone number. 3. Select Options > Share Map. When sending the contact’s map, the message will include the WAP URL for the map, address, a text note, or a vCard.Address book settings Managing my contact info1. Select Menu > Address Book > Settings > My Contact Info.Setting the sort order1. Select Menu > Address Book > Settings > Display Order.2. Select First Name or Last Name.Setting SIM management1. Select Menu > Address Book > Settings > SIM Management.

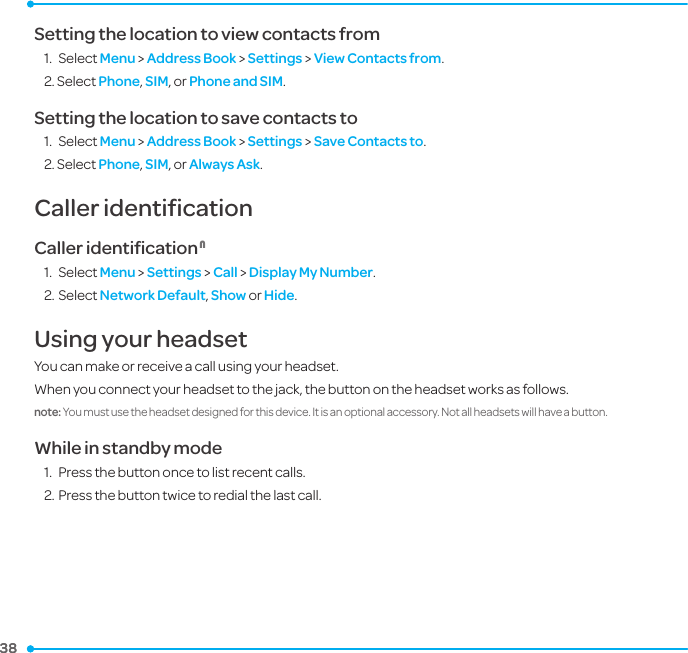

38 38 Setting the location to view contacts from1. Select Menu > Address Book > Settings > View Contacts from.2. Select Phone, SIM, or Phone and SIM.Setting the location to save contacts to1. Select Menu > Address Book > Settings > Save Contacts to.2. Select Phone, SIM, or Always Ask.Caller identificationCaller identification N1. Select Menu > Settings > Call > Display My Number.2. Select Network Default, Show or Hide.Using your headsetYou can make or receive a call using your headset.When you connect your headset to the jack, the button on the headset works as follows.note: You must use the headset designed for this device. It is an optional accessory. Not all headsets will have a button.While in standby mode1. Press the button once to list recent calls. 2. Press the button twice to redial the last call.

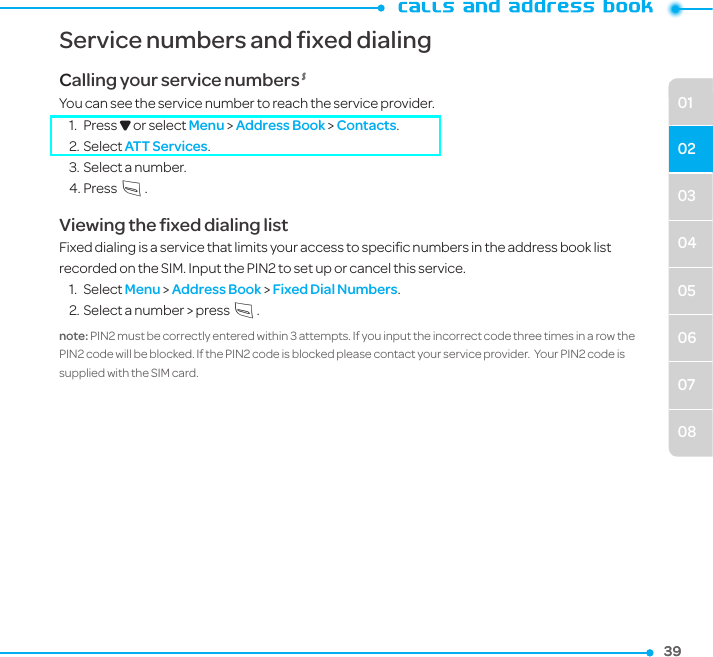

39390304050607080102Service numbers and fixed dialingCalling your service numbers SYou can see the service number to reach the service provider. 1. Press D or select Menu > Address Book > Contacts.2. Select ATT Services.3. Select a number.4. PressS.Viewing the fixed dialing listFixed dialing is a service that limits your access to specific numbers in the address book list recorded on the SIM. Input the PIN2 to set up or cancel this service. 1. Select Menu > Address Book > Fixed Dial Numbers.2. Select a number > press S.note: PIN2 must be correctly entered within 3 attempts. If you input the incorrect code three times in a row the PIN2 code will be blocked. If the PIN2 code is blocked please contact your service provider. Your PIN2 code is supplied with the SIM card.

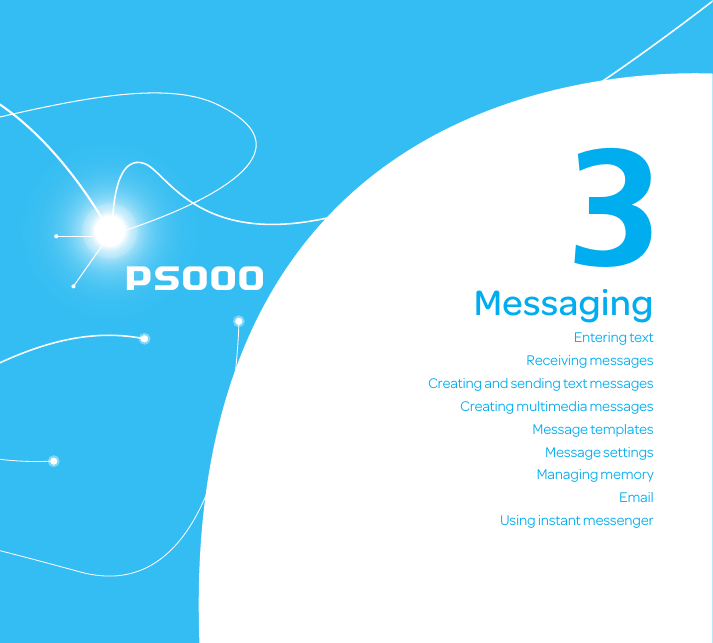

3Entering textReceiving messagesCreating and sending text messagesCreating multimedia messagesMessage templatesMessage settingsManaging memoryEmailUsing instant messengerMessagingP50003. Messaging

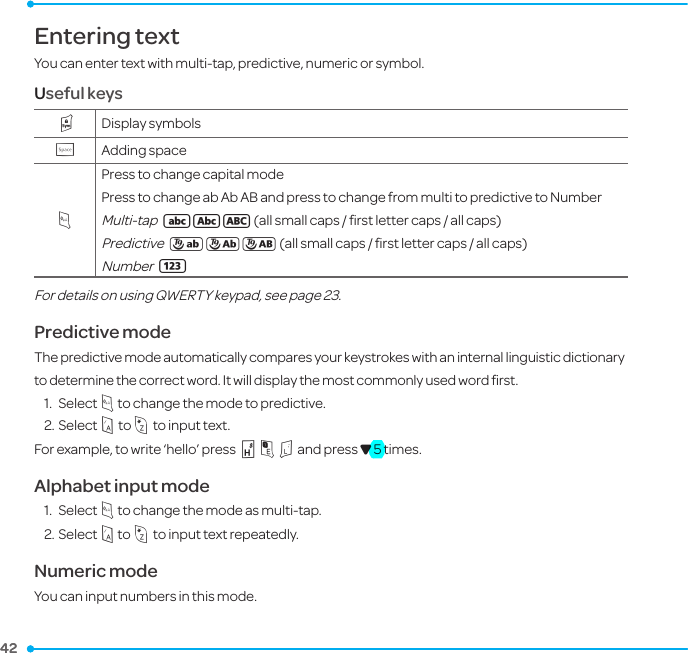

42 42 Entering textYou can enter text with multi-tap, predictive, numeric or symbol.Useful keyslDisplay symbolswAdding spacemPress to change capital modePress to change ab Ab AB and press to change from multi to predictive to NumberMulti-tap dbc (all small caps / first letter caps / all caps)Predictive gef (all small caps / first letter caps / all caps)Number aFor details on using QWERTY keypad, see page 23.Predictive mode The predictive mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word. It will display the most commonly used word first. 1. Select m to change the mode to predictive. 2. Select A to * to input text. For example, to write ‘hello’ press H1I and press D 5 times.Alphabet input mode1. Select m to change the mode as multi-tap.2. Select A to * to input text repeatedly. Numeric modeYou can input numbers in this mode.

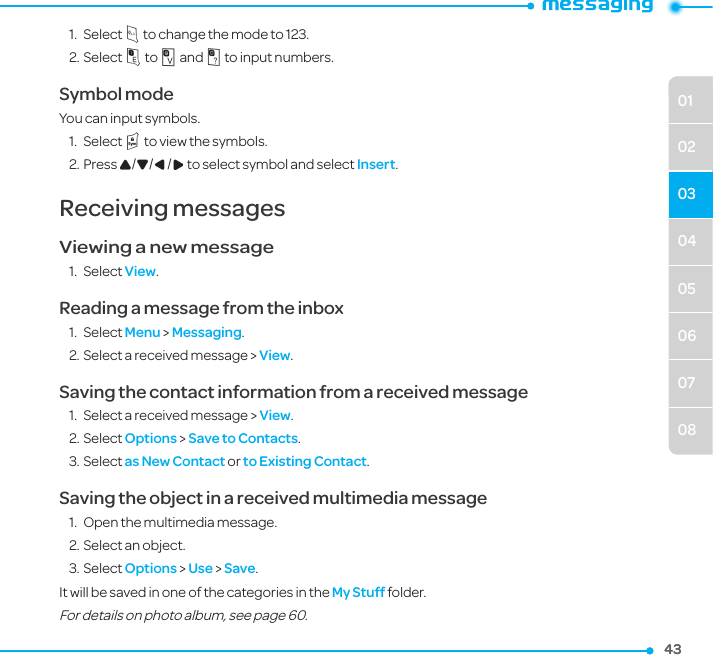

040506070801020343431. Select m to change the mode to 123.2. Select 1 to 9 and 0 to input numbers.Symbol modeYou can input symbols.1. Select l to view the symbols.2. Press U/D/L/R to select symbol and select Insert.Receiving messagesViewing a new message1. Select View.Reading a message from the inbox1. Select Menu > Messaging.2. Select a received message > View.Saving the contact information from a received message1. Select a received message > View.2. Select Options > Save to Contacts.3. Select as New Contact or to Existing Contact.Saving the object in a received multimedia message1. Open the multimedia message.2. Select an object. 3. Select Options > Use > Save.It will be saved in one of the categories in the My Stuff folder.For details on photo album, see page 60.

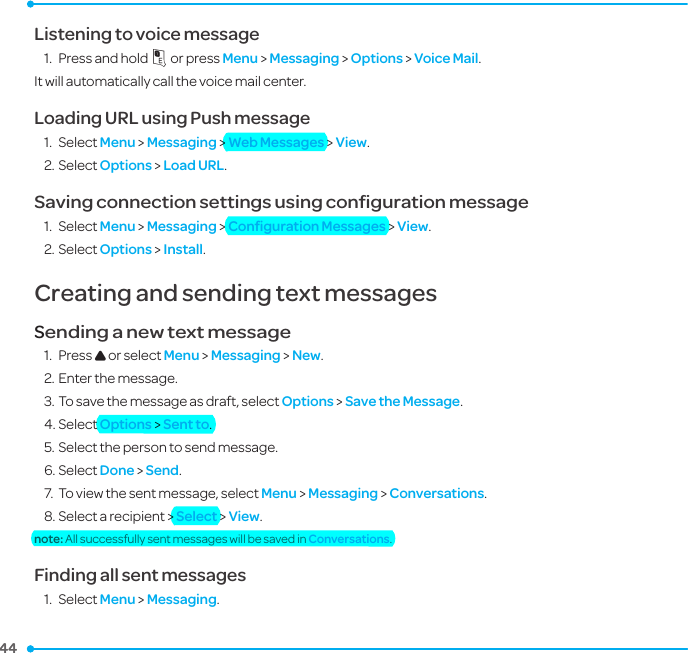

44 44 Listening to voice message 1. Press and hold 1 or press Menu > Messaging > Options > Voice Mail.It will automatically call the voice mail center.Loading URL using Push message1. Select Menu > Messaging > Web Messages > View.2. Select Options > Load URL.Saving connection settings using configuration message1. Select Menu > Messaging > Configuration Messages > View.2. Select Options > Install.Creating and sending text messagesSending a new text message1. Press U or select Menu > Messaging > New.2. Enter the message.3. To save the message as draft, select Options > Save the Message.4. Select Options > Sent to. 5. Select the person to send message.6. Select Done > Send. 7. To view the sent message, select Menu > Messaging > Conversations. 8. Select a recipient > Select > View.note: All successfully sent messages will be saved in Conversations.Finding all sent messages1. Select Menu > Messaging.

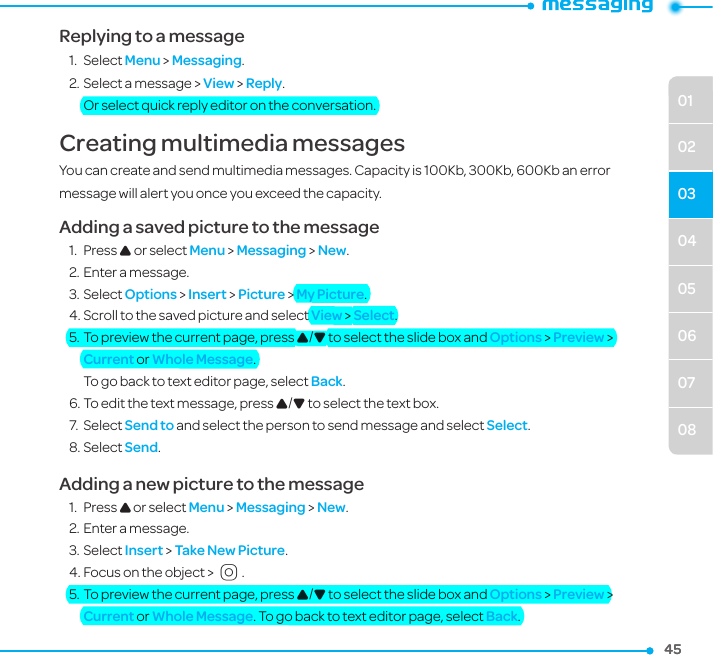

04050607080102034545Replying to a message1. Select Menu > Messaging.2. Select a message > View > Reply. Or select quick reply editor on the conversation.Creating multimedia messagesYou can create and send multimedia messages. Capacity is 100Kb, 300Kb, 600Kb an error message will alert you once you exceed the capacity.Adding a saved picture to the message1. Press U or select Menu > Messaging > New.2. Enter a message.3. Select Options > Insert > Picture > My Picture.4. Scroll to the saved picture and select View > Select. 5. To preview the current page, press U/D to select the slide box and Options > Preview > Current or Whole Message. To go back to text editor page, select Back.6. To edit the text message, press U/D to select the text box.7. Select Send to and select the person to send message and select Select.8. Select Send.Adding a new picture to the message1. Press U or select Menu > Messaging > New.2. Enter a message.3. Select Insert > Take New Picture.4. Focus on the object > O.5. To preview the current page, press U/D to select the slide box and Options > Preview > Current or Whole Message. To go back to text editor page, select Back.
46 46 6. To edit the text message, press U/D to select the text box.7. Select Send to and select the person to send message and select Select.8. Select Send.For taking a picture, see page 57.Adding a saved video to the message1. Press U or select Menu > Messaging > New.2. Enter a message.3. Select Options > Insert > Video > My Video.4. Scroll to the saved video clip and select Play > Select.5. To preview the current page, press U/D to select the slide box and Options > Preview > Current or Whole Message. To go back to text editor page, select Back.6. To edit the text message, press U/D to select the text box.7. Select Send to and select the person to send message and select Select.8. Select Send.Adding a new video to the message 1. Press U or select Menu > Messaging > New.2. Enter a message.3. Select Options > Insert > Video > Create Video.4. Focus on the object > O.5. To stop recording and save, select Stop. 6. To edit the text message, press U/D to select the text box.7. To preview the current page, press U/D to select the slide box and Options > Preview > Current or Whole Message. To go back to text editor page, select Back.8. Select Send to and select the person to send message and select Select.

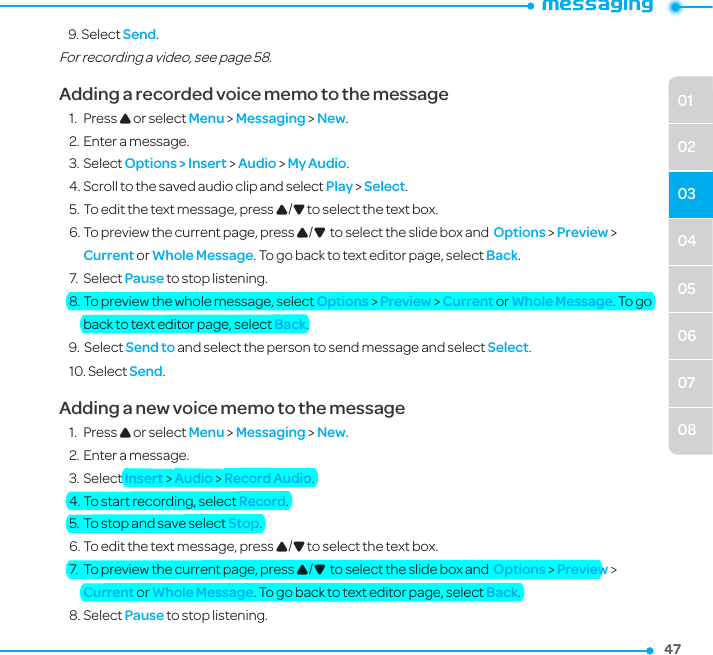

04050607080102034747 9. Select Send.For recording a video, see page 58.Adding a recorded voice memo to the message1. Press U or select Menu > Messaging > New.2. Enter a message.3. Select Options > Insert > Audio > My Audio.4. Scroll to the saved audio clip and select Play > Select.5. To edit the text message, press U/D to select the text box.6. To preview the current page, press U/D to select the slide box and Options > Preview > Current or Whole Message. To go back to text editor page, select Back.7. Select Pause to stop listening.8. To preview the whole message, select Options > Preview > Current or Whole Message. To go back to text editor page, select Back.9. Select Send to and select the person to send message and select Select.10. Select Send.Adding a new voice memo to the message1. Press U or select Menu > Messaging > New.2. Enter a message.3. Select Insert > Audio > Record Audio.4. To start recording, select Record.5. To stop and save select Stop.6. To edit the text message, press U/D to select the text box.7. To preview the current page, press U/D to select the slide box and Options > Preview > Current or Whole Message. To go back to text editor page, select Back.8. Select Pause to stop listening.

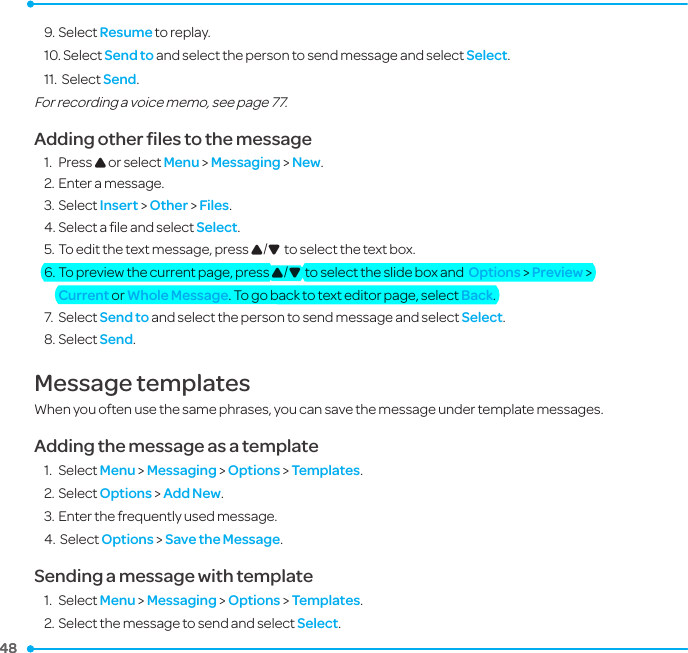

48 48 9. Select Resume to replay.10. Select Send to and select the person to send message and select Select.11. Select Send.For recording a voice memo, see page 77.Adding other files to the message1. Press U or select Menu > Messaging > New.2. Enter a message.3. Select Insert > Other > Files.4. Select a file and select Select. 5. To edit the text message, press U/D to select the text box.6. To preview the current page, press U/D to select the slide box and Options > Preview > Current or Whole Message. To go back to text editor page, select Back.7. Select Send to and select the person to send message and select Select.8. Select Send.Message templatesWhen you often use the same phrases, you can save the message under template messages.Adding the message as a template1. Select Menu > Messaging > Options > Templates.2. Select Options > Add New.3. Enter the frequently used message.4. Select Options > Save the Message.Sending a message with template1. Select Menu > Messaging > Options > Templates.2. Select the message to send and select Select.

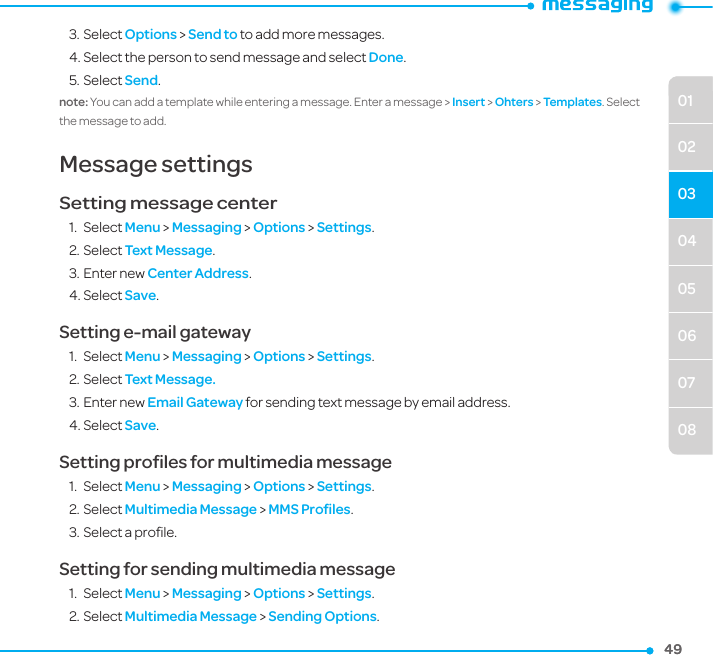

040506070801020349493. Select Options > Send to to add more messages. 4. Select the person to send message and select Done.5. Select Send.note: You can add a template while entering a message. Enter a message > Insert > Ohters > Templates. Select the message to add.Message settings Setting message center1. Select Menu > Messaging > Options > Settings.2. Select Text Message.3. Enter new Center Address. 4. Select Save.Setting e-mail gateway1. Select Menu > Messaging > Options > Settings.2. Select Text Message.3. Enter new Email Gateway for sending text message by email address.4. Select Save.Setting profiles for multimedia message 1. Select Menu > Messaging > Options > Settings.2. Select Multimedia Message > MMS Profiles.3. Select a profile.Setting for sending multimedia message1. Select Menu > Messaging > Options > Settings.2. Select Multimedia Message > Sending Options.

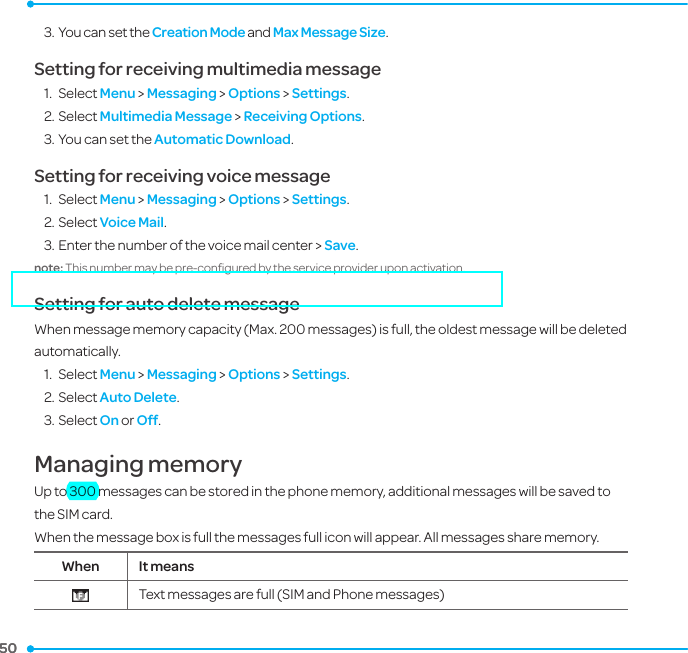

50 50 3. You can set the Creation Mode and Max Message Size.Setting for receiving multimedia message1. Select Menu > Messaging > Options > Settings.2. Select Multimedia Message > Receiving Options.3. You can set the Automatic Download.Setting for receiving voice message1. Select Menu > Messaging > Options > Settings.2. Select Voice Mail.3. Enter the number of the voice mail center > Save.note: This number may be pre-configured by the service provider upon activation.Setting for auto delete messageWhen message memory capacity (Max. 200 messages) is full, the oldest message will be deleted automatically.1. Select Menu > Messaging > Options > Settings.2. Select Auto Delete.3. Select On or Off.Managing memoryUp to 300 messages can be stored in the phone memory, additional messages will be saved to the SIM card. When the message box is full the messages full icon will appear. All messages share memory.When It meansText messages are full (SIM and Phone messages)

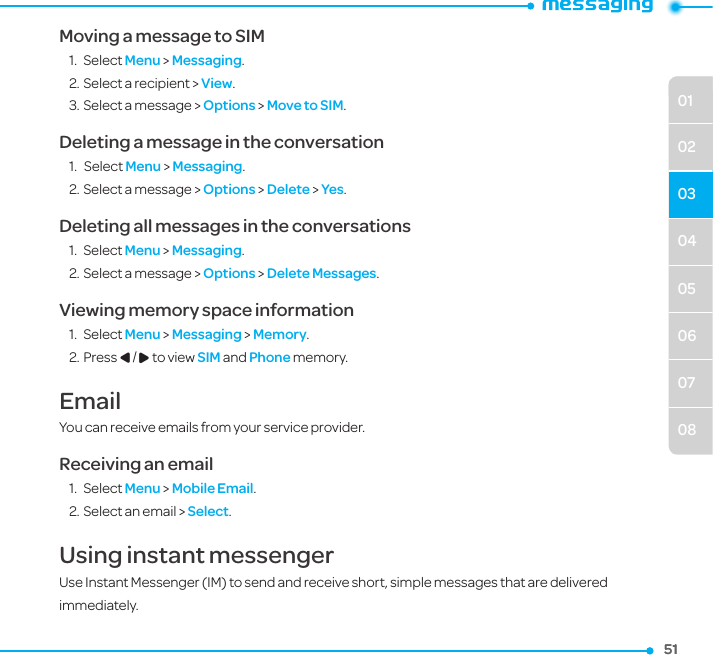

04050607080102035151Moving a message to SIM1. Select Menu > Messaging.2. Select a recipient > View.3. Select a message > Options > Move to SIM.Deleting a message in the conversation1. Select Menu > Messaging.2. Select a message > Options > Delete > Yes.Deleting all messages in the conversations1. Select Menu > Messaging.2. Select a message > Options > Delete Messages.Viewing memory space information1. Select Menu > Messaging > Memory.2. Press L/R to view SIM and Phone memory.EmailYou can receive emails from your service provider.Receiving an email1. Select Menu > Mobile Email.2. Select an email > Select.Using instant messengerUse Instant Messenger (IM) to send and receive short, simple messages that are delivered immediately.

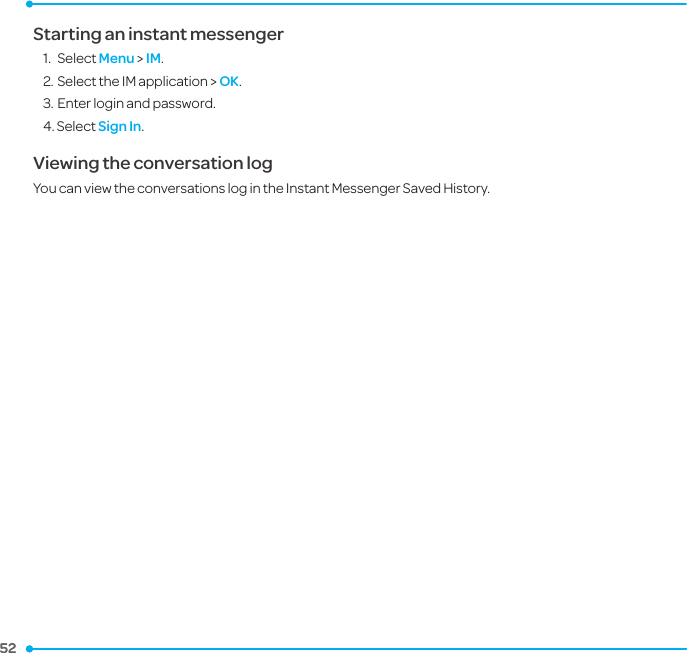

52 52 Starting an instant messenger1. Select Menu > IM.2. Select the IM application > OK.3. Enter login and password. 4. Select Sign In. Viewing the conversation logYou can view the conversations log in the Instant Messenger Saved History.
04050607080102035353
4MultimediaP5000CameraPhoto albumVideo albumAudio albumMusic playerMusic player settingsMedia playerOther filesManaging memoryPlaying games4. Multimedia

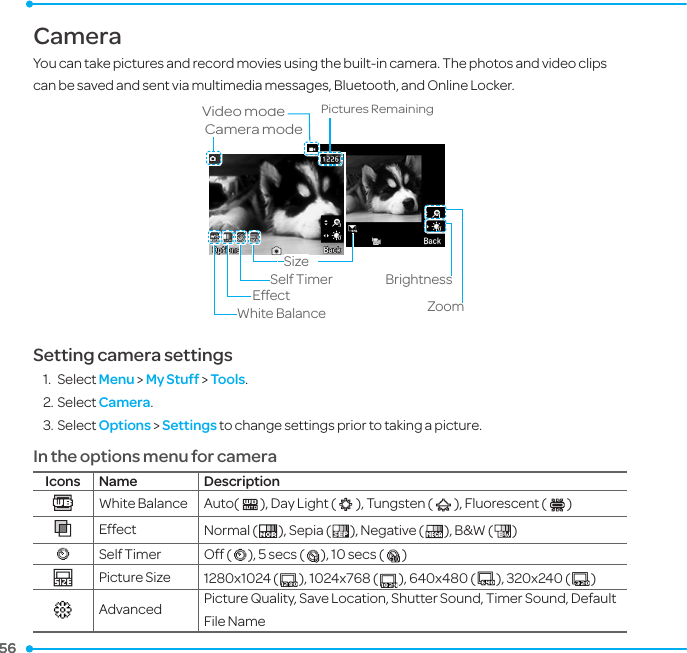

56 56 CameraYou can take pictures and record movies using the built-in camera. The photos and video clips can be saved and sent via multimedia messages, Bluetooth, and Online Locker. Video modeZoomBrightnessSelf TimerEffectWhite BalanceCamera modeSizePictures RemainingSetting camera settings1. Select Menu > My Stuff > Tools.2. Select Camera.3. Select Options > Settings to change settings prior to taking a picture.In the options menu for cameraIcons Name DescriptionWhite Balance Auto( ), Day Light ( ), Tungsten ( ), Fluorescent ( )Effect Normal ( ), Sepia ( ), Negative ( ), B&W ( )Self Timer Off ( ), 5 secs ( ), 10 secs ( )Picture Size 1280x1024 ( ), 1024x768 ( ), 640x480 ( ), 320x240 ( )Advanced Picture Quality, Save Location, Shutter Sound, Timer Sound, Default File Name

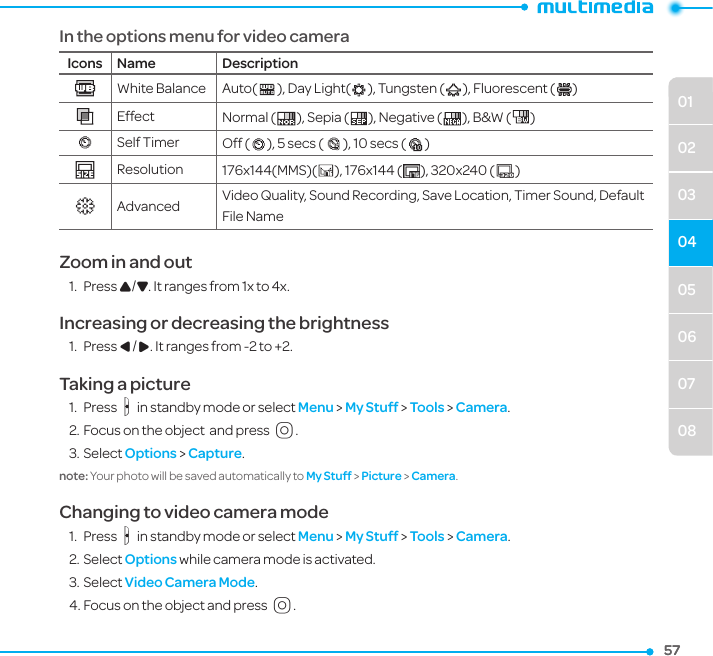

05060708010203045757In the options menu for video cameraIcons Name DescriptionWhite Balance Auto( ), Day Light( ), Tungsten ( ), Fluorescent ( )Effect Normal ( ), Sepia ( ), Negative ( ), B&W ( )Self Timer Off ( ), 5 secs ( ), 10 secs ( )Resolution 176x144(MMS)( ), 176x144 ( ), 320x240 ( )Advanced Video Quality, Sound Recording, Save Location, Timer Sound, Default File NameZoom in and out 1. Press U/D. It ranges from 1x to 4x.Increasing or decreasing the brightness1. Press L/R. It ranges from -2 to +2.Taking a picture1. PressQ in standby mode or select Menu > My Stuff > Tools > Camera.2. Focus on the object and pressO.3. Select Options > Capture.note: Your photo will be saved automatically to My Stuff > Picture > Camera.Changing to video camera mode1. PressQ in standby mode or select Menu > My Stuff > Tools > Camera.2. Select Options while camera mode is activated.3. Select Video Camera Mode.4. Focus on the object and pressO.

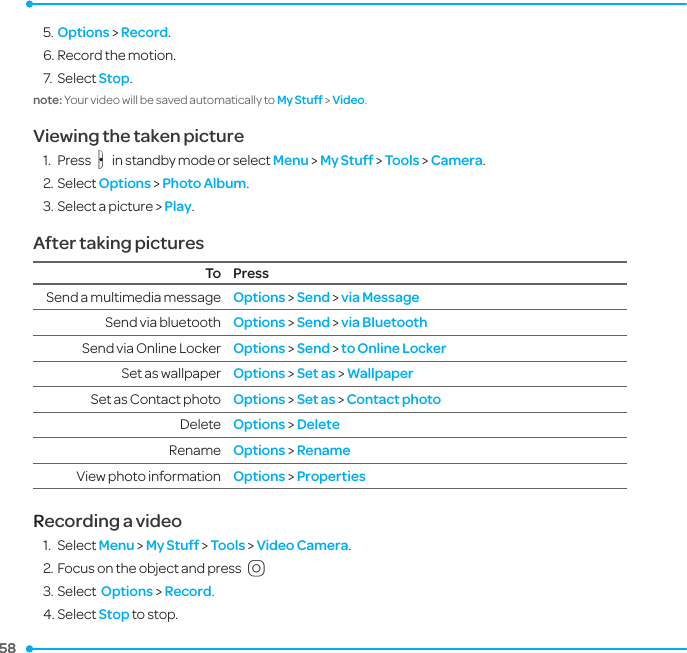

58 58 5. Options > Record.6. Record the motion. 7. Select Stop.note: Your video will be saved automatically to My Stuff > Video.Viewing the taken picture1. PressQ in standby mode or select Menu > My Stuff > Tools > Camera.2. Select Options > Photo Album.3. Select a picture > Play.After taking picturesTo PressSend a multimedia message Options > Send > via MessageSend via bluetooth Options > Send > via BluetoothSend via Online Locker Options > Send > to Online LockerSet as wallpaper Options > Set as > WallpaperSet as Contact photo Options > Set as > Contact photoDelete Options > DeleteRename Options > RenameView photo information Options > PropertiesRecording a video1. Select Menu > My Stuff > Tools > Video Camera. 2. Focus on the object and press O 3. Select Options > Record.4. Select Stop to stop.

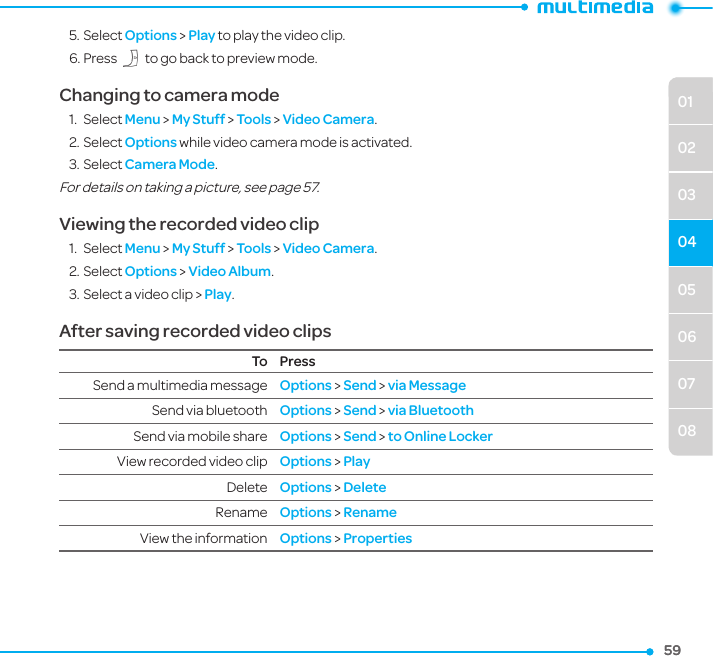

050607080102030459595. Select Options > Play to play the video clip.6. Press C to go back to preview mode. Changing to camera mode1. Select Menu > My Stuff > Tools > Video Camera.2. Select Options while video camera mode is activated.3. Select Camera Mode.For details on taking a picture, see page 57.Viewing the recorded video clip1. Select Menu > My Stuff > Tools > Video Camera.2. Select Options > Video Album.3. Select a video clip > Play.After saving recorded video clipsTo PressSend a multimedia message Options > Send > via MessageSend via bluetooth Options > Send > via BluetoothSend via mobile share Options > Send > to Online LockerView recorded video clip Options > PlayDelete Options > DeleteRename Options > RenameView the information Options > Properties

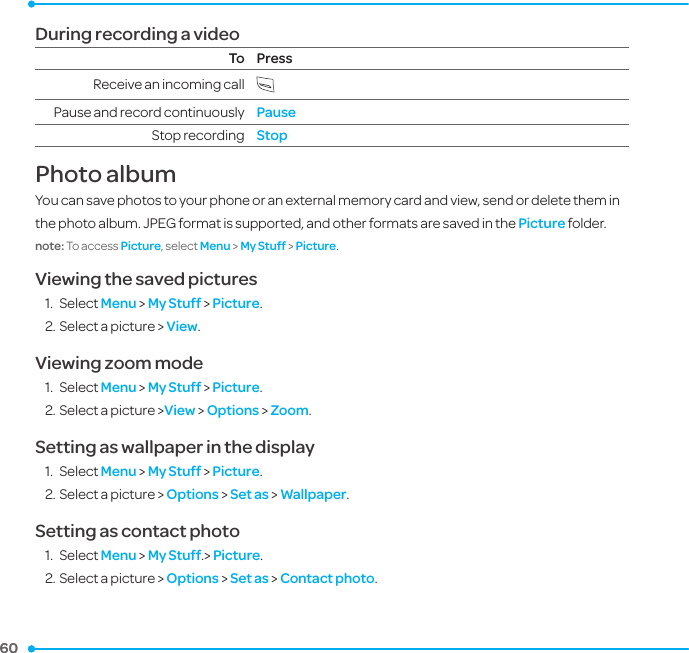

60 60 During recording a videoTo PressReceive an incoming callPause and record continuously PauseStop recording StopPhoto albumYou can save photos to your phone or an external memory card and view, send or delete them in the photo album. JPEG format is supported, and other formats are saved in the Picture folder.note: To access Picture, select Menu > My Stuff > Picture. Viewing the saved pictures 1. Select Menu > My Stuff > Picture.2. Select a picture > View.Viewing zoom mode 1. Select Menu > My Stuff > Picture.2. Select a picture >View > Options > Zoom.Setting as wallpaper in the display1. Select Menu > My Stuff > Picture.2. Select a picture > Options > Set as > Wallpaper.Setting as contact photo1. Select Menu > My Stuff.> Picture.2. Select a picture > Options > Set as > Contact photo.

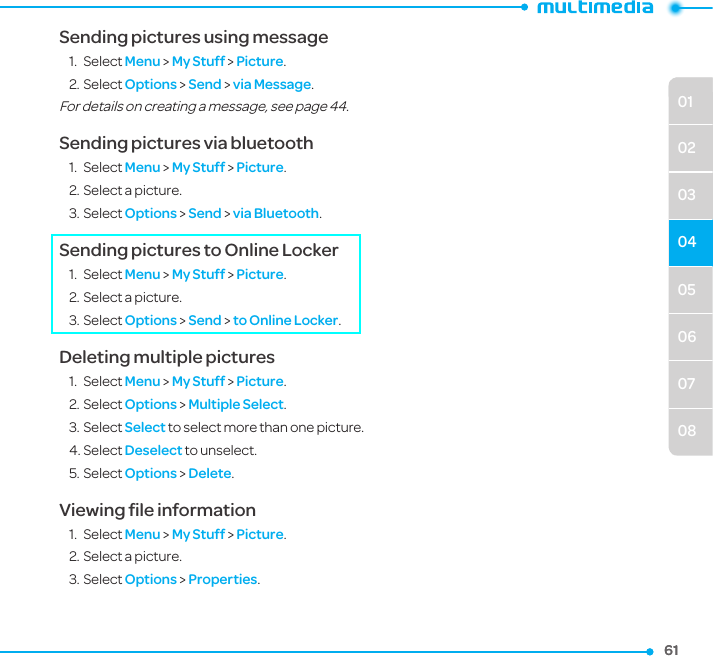

05060708010203046161Sending pictures using message1. Select Menu > My Stuff > Picture.2. Select Options > Send > via Message.For details on creating a message, see page 44.Sending pictures via bluetooth1. Select Menu > My Stuff > Picture.2. Select a picture.3. Select Options > Send > via Bluetooth.Sending pictures to Online Locker1. Select Menu > My Stuff > Picture.2. Select a picture.3. Select Options > Send > to Online Locker.Deleting multiple pictures 1. Select Menu > My Stuff > Picture.2. Select Options > Multiple Select.3. Select Select to select more than one picture. 4. Select Deselect to unselect. 5. Select Options > Delete.Viewing file information1. Select Menu > My Stuff > Picture.2. Select a picture.3. Select Options > Properties.

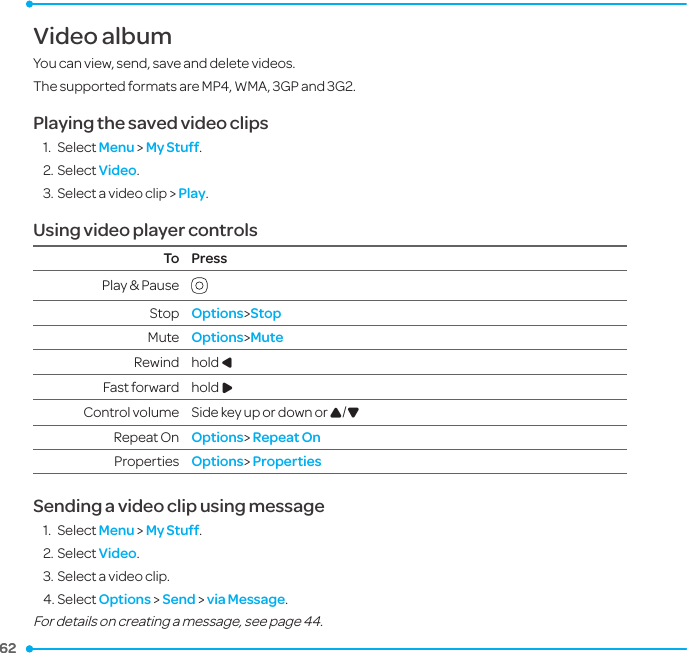

62 62 Video albumYou can view, send, save and delete videos.The supported formats are MP4, WMA, 3GP and 3G2.Playing the saved video clips 1. Select Menu > My Stuff.2. Select Video.3. Select a video clip > Play.Using video player controlsTo PressPlay & Pause Stop Options>StopMute Options>MuteRewind hold L Fast forward hold RControl volume Side key up or down or U/DRepeat On Options> Repeat OnProperties Options> PropertiesSending a video clip using message1. Select Menu > My Stuff.2. Select Video.3. Select a video clip.4. Select Options > Send > via Message.For details on creating a message, see page 44.

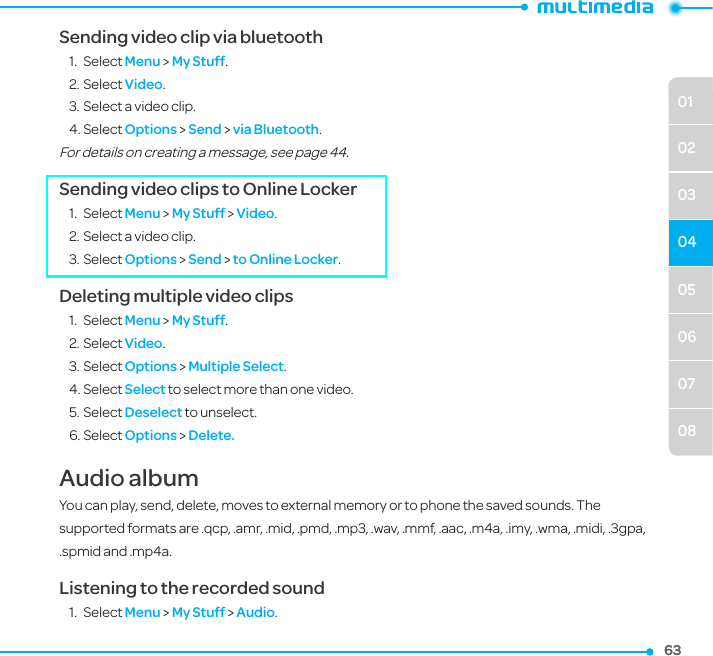

05060708010203046363Sending video clip via bluetooth1. Select Menu > My Stuff.2. Select Video.3. Select a video clip.4. Select Options > Send > via Bluetooth.For details on creating a message, see page 44.Sending video clips to Online Locker1. Select Menu > My Stuff > Video.2. Select a video clip.3. Select Options > Send > to Online Locker.Deleting multiple video clips 1. Select Menu > My Stuff.2. Select Video.3. Select Options > Multiple Select.4. Select Select to select more than one video. 5. Select Deselect to unselect. 6. Select Options > Delete. Audio albumYou can play, send, delete, moves to external memory or to phone the saved sounds. The supported formats are .qcp, .amr, .mid, .pmd, .mp3, .wav, .mmf, .aac, .m4a, .imy, .wma, .midi, .3gpa, .spmid and .mp4a.Listening to the recorded sound1. Select Menu > My Stuff > Audio.

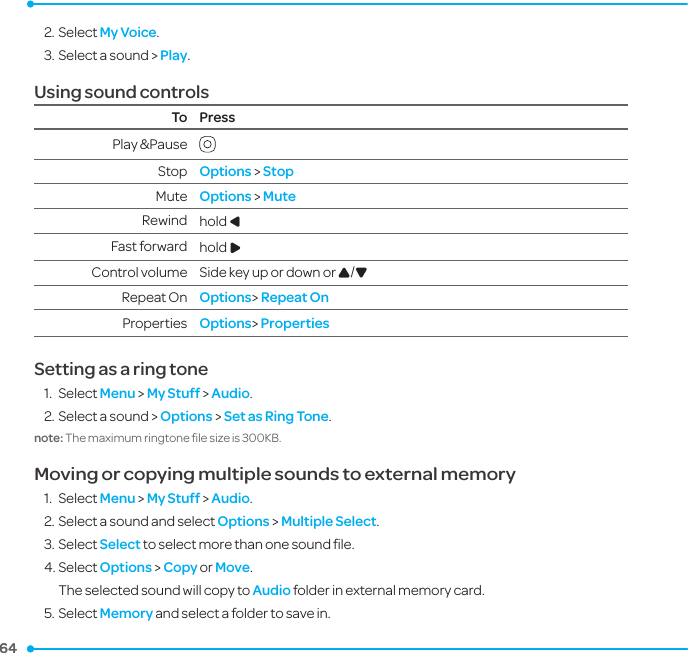

64 64 2. Select My Voice.3. Select a sound > Play.Using sound controlsTo PressPlay &Pause Stop Options > StopMute Options > MuteRewind hold L Fast forward hold RControl volume Side key up or down or U/DRepeat On Options> Repeat OnProperties Options> PropertiesSetting as a ring tone1. Select Menu > My Stuff > Audio.2. Select a sound > Options > Set as Ring Tone.note: The maximum ringtone file size is 300KB.Moving or copying multiple sounds to external memory 1. Select Menu > My Stuff > Audio.2. Select a sound and select Options > Multiple Select.3. Select Select to select more than one sound file. 4. Select Options > Copy or Move. The selected sound will copy to Audio folder in external memory card. 5. Select Memory and select a folder to save in.

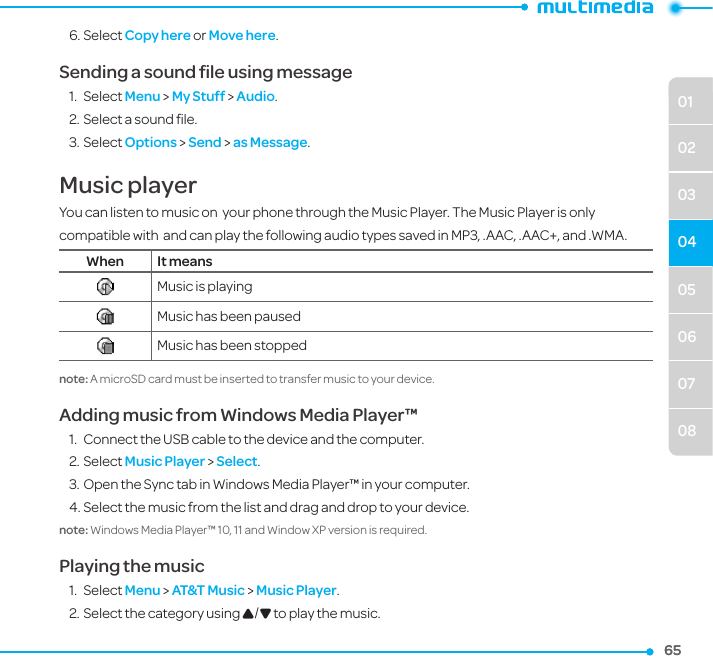

050607080102030465656. Select Copy here or Move here.Sending a sound file using message1. Select Menu > My Stuff > Audio.2. Select a sound file.3. Select Options > Send > as Message.Music playerYou can listen to music on your phone through the Music Player. The Music Player is only compatible with and can play the following audio types saved in MP3, .AAC, .AAC+, and .WMA.When It meansMusic is playingMusic has been pausedMusic has been stoppednote: A microSD card must be inserted to transfer music to your device.Adding music from Windows Media Player™1. Connect the USB cable to the device and the computer.2. Select Music Player > Select.3. Open the Sync tab in Windows Media Player™ in your computer.4. Select the music from the list and drag and drop to your device. note: Windows Media Player™ 10, 11 and Window XP version is required. Playing the music1. Select Menu > AT&T Music > Music Player.2. Select the category using U/D to play the music.

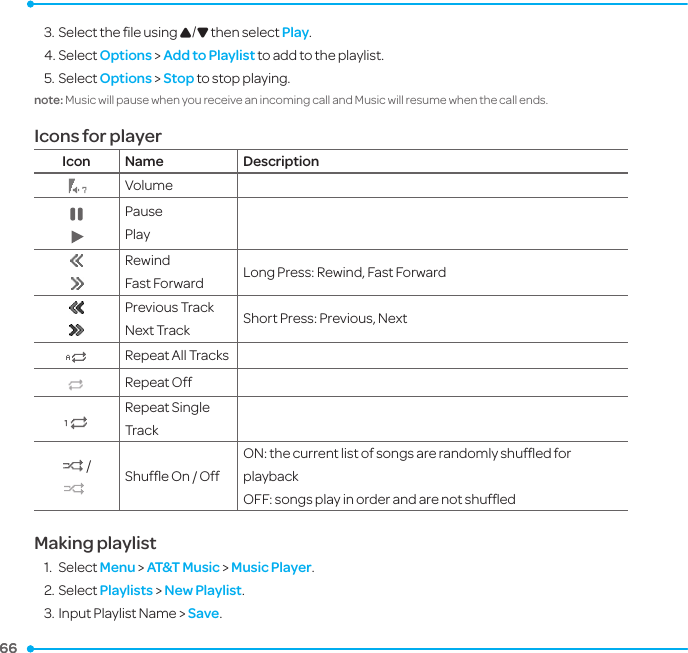

66 66 3. Select the file using U/D then select Play.4. Select Options > Add to Playlist to add to the playlist. 5. Select Options > Stop to stop playing.note: Music will pause when you receive an incoming call and Music will resume when the call ends.Icons for playerIcon Name Description Volume PausePlay RewindFast Forward Long Press: Rewind, Fast ForwardPrevious TrackNext Track Short Press: Previous, NextRepeat All TracksRepeat OffRepeat Single Track / Shuffle On / OffON: the current list of songs are randomly shuffled for playbackOFF: songs play in order and are not shuffledMaking playlist1. Select Menu > AT&T Music > Music Player.2. Select Playlists > New Playlist.3. Input Playlist Name > Save.

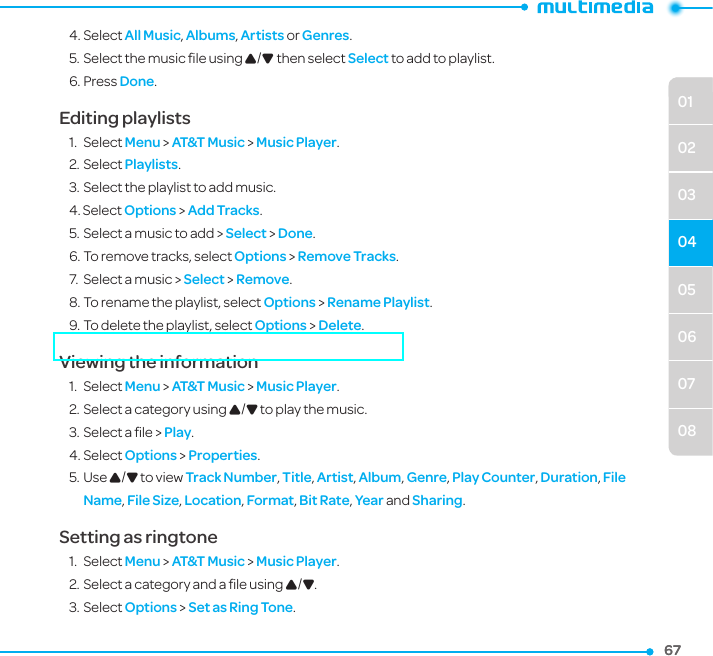

050607080102030467674. Select All Music, Albums, Artists or Genres.5. Select the music file using U/D then select Select to add to playlist.6. Press Done.Editing playlists1. Select Menu > AT&T Music > Music Player.2. Select Playlists.3. Select the playlist to add music.4. Select Options > Add Tracks.5. Select a music to add > Select > Done.6. To remove tracks, select Options > Remove Tracks. 7. Select a music > Select > Remove.8. To rename the playlist, select Options > Rename Playlist.9. To delete the playlist, select Options > Delete. Viewing the information 1. Select Menu > AT&T Music > Music Player.2. Select a category using U/D to play the music.3. Select a file > Play.4. Select Options > Properties.5. Use U/D to view Track Number, Title, Artist, Album, Genre, Play Counter, Duration, File Name, File Size, Location, Format, Bit Rate, Year and Sharing. Setting as ringtone1. Select Menu > AT&T Music > Music Player.2. Select a category and a file using U/D.3. Select Options > Set as Ring Tone.

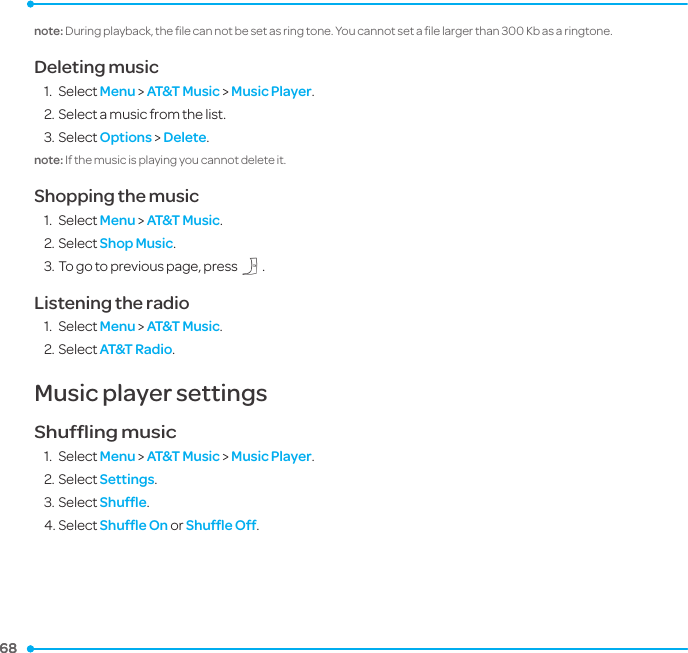

68 68 note: During playback, the file can not be set as ring tone. You cannot set a file larger than 300 Kb as a ringtone.Deleting music1. Select Menu > AT&T Music > Music Player.2. Select a music from the list.3. Select Options > Delete. note: If the music is playing you cannot delete it. Shopping the music1. Select Menu > AT&T Music.2. Select Shop Music.3. To go to previous page, press C.Listening the radio1. Select Menu > AT&T Music.2. Select AT&T Radio.Music player settingsShuffling music1. Select Menu > AT&T Music > Music Player.2. Select Settings. 3. Select Shuffle.4. Select Shuffle On or Shuffle Off.

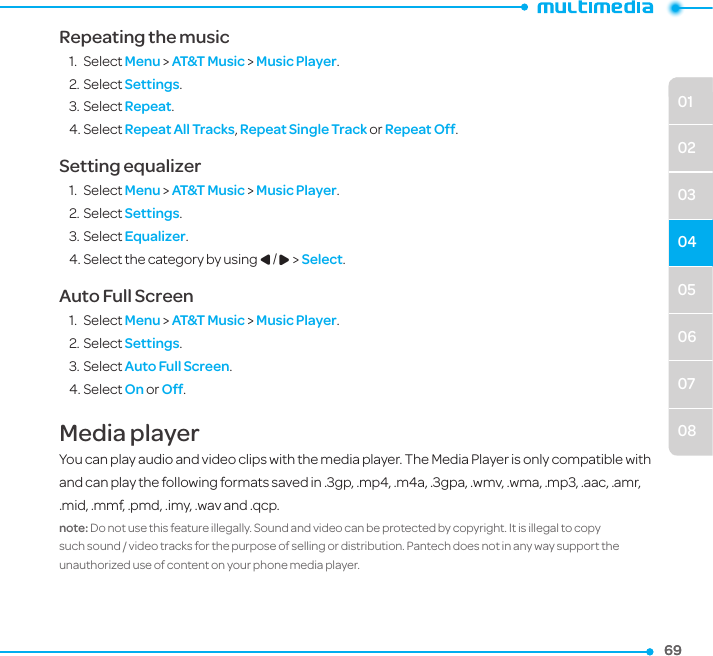

05060708010203046969Repeating the music1. Select Menu > AT&T Music > Music Player.2. Select Settings. 3. Select Repeat.4. Select Repeat All Tracks, Repeat Single Track or Repeat Off.Setting equalizer1. Select Menu > AT&T Music > Music Player.2. Select Settings. 3. Select Equalizer.4. Select the category by using L/R > Select.Auto Full Screen1. Select Menu > AT&T Music > Music Player.2. Select Settings. 3. Select Auto Full Screen.4. Select On or Off.Media playerYou can play audio and video clips with the media player. The Media Player is only compatible with and can play the following formats saved in .3gp, .mp4, .m4a, .3gpa, .wmv, .wma, .mp3, .aac, .amr, .mid, .mmf, .pmd, .imy, .wav and .qcp.note: Do not use this feature illegally. Sound and video can be protected by copyright. It is illegal to copy such sound / video tracks for the purpose of selling or distribution. Pantech does not in any way support the unauthorized use of content on your phone media player.

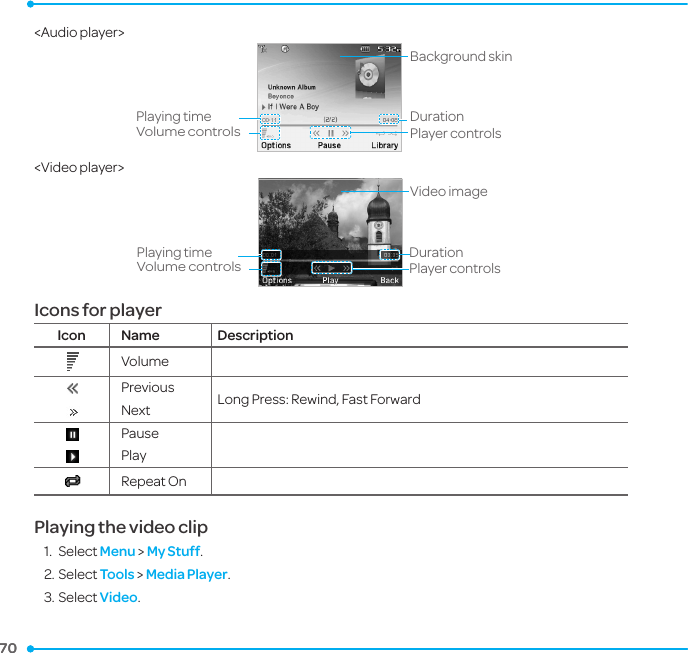

70 70 <Audio player>Playing timeVolume controlsDurationPlayer controlsBackground skin<Video player>Playing timeVolume controlsDurationPlayer controlsVideo imageIcons for playerIcon Name Description Volume PreviousNext Long Press: Rewind, Fast Forward PausePlay Repeat On Playing the video clip1. Select Menu > My Stuff.2. Select Tools > Media Player.3. Select Video.

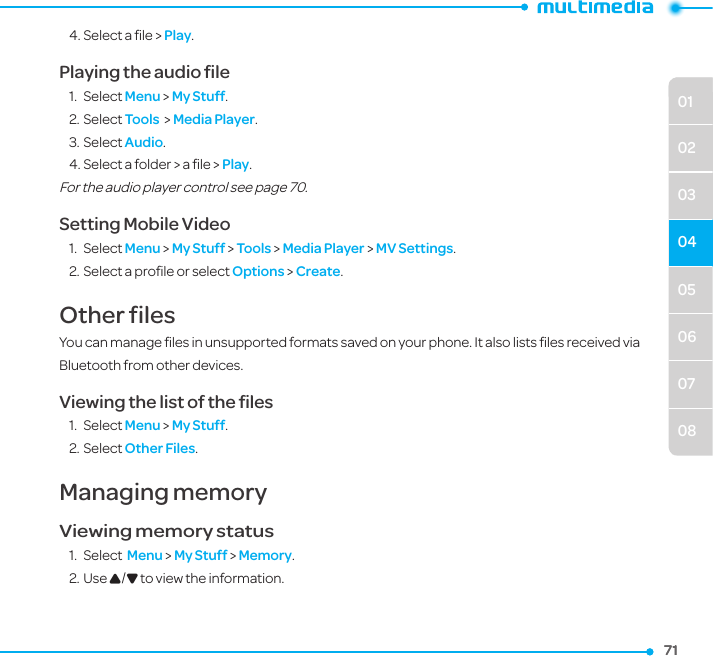

050607080102030471714. Select a file > Play.Playing the audio file 1. Select Menu > My Stuff.2. Select Tools > Media Player.3. Select Audio.4. Select a folder > a file > Play.For the audio player control see page 70. Setting Mobile Video 1. Select Menu > My Stuff > Tools > Media Player > MV Settings. 2. Select a profile or select Options > Create.Other filesYou can manage files in unsupported formats saved on your phone. It also lists files received via Bluetooth from other devices.Viewing the list of the files1. Select Menu > My Stuff. 2. Select Other Files.Managing memory Viewing memory status1. Select Menu > My Stuff > Memory.2. Use U/D to view the information.

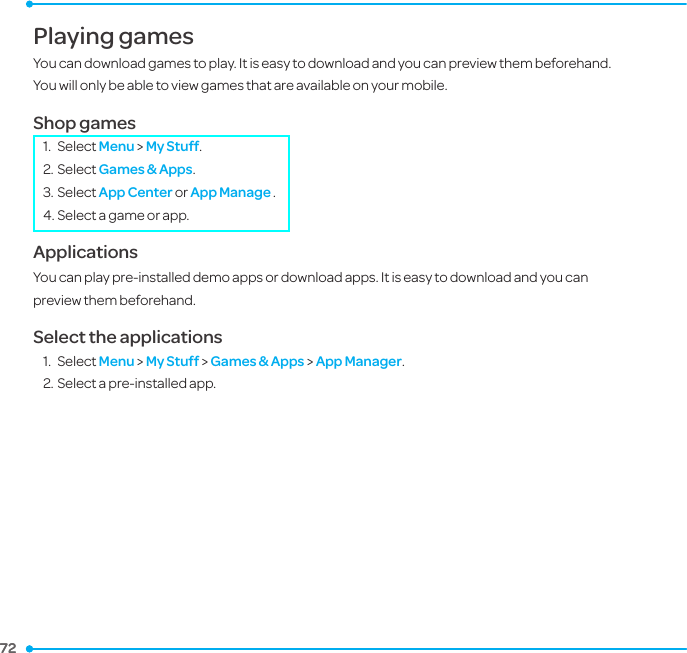

72 72 Playing games You can download games to play. It is easy to download and you can preview them beforehand. You will only be able to view games that are available on your mobile.Shop games1. Select Menu > My Stuff.2. Select Games & Apps. 3. Select App Center or App Manage .4. Select a game or app. ApplicationsYou can play pre-installed demo apps or download apps. It is easy to download and you can preview them beforehand. Select the applications1. Select Menu > My Stuff > Games & Apps > App Manager.2. Select a pre-installed app.
05060708010203047373
5Useful FeaturesP5000AlarmCalendarNotepad and voice memoWorld timeCalculator, tip calculator and converterStop watch and timer Memory information 5. Useful Features
76 76 AlarmSetting an alarm1. Select Menu > My Stuff > Tools> Alarm Clock.2. Select Create New for new alarm for the first time.3. Set the Alarm Name, Time, Frequency, Alarm Sound, Alert Type, Volume, Snooze and Power Alarm > Save.Viewing the saved alarms1. Select Menu > My Stuff > Tools> Alarm Clock.Editing existing alarms1. Select Menu > My Stuff > Tools> Alarm Clock.2. Select an alarm > Edit.3. Select Options > Delete to delete an alarm. 4. Select Options > Create New to add new alarm. CalendarCalendar helps you manage your appointment including your time for calls or special days. You can set a reminder on any given date with this function. Viewing calendar1. Select Menu > My Stuff > Tools> Calendar.note: Monthly view is displayed as default.

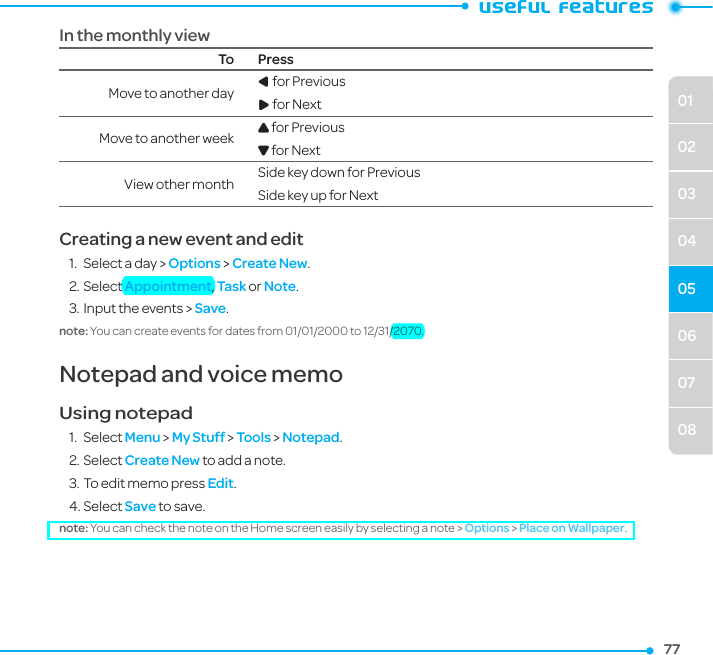

06070801020304057777In the monthly viewTo PressMove to another day L for Previous R for Next Move to another week U for Previous D for Next View other month Side key down for Previous Side key up for Next Creating a new event and edit1. Select a day > Options > Create New.2. Select Appointment, Task or Note.3. Input the events > Save.note: You can create events for dates from 01/01/2000 to 12/31/2070.Notepad and voice memoUsing notepad1. Select Menu > My Stuff > Tools > Notepad.2. Select Create New to add a note. 3. To edit memo press Edit.4. Select Save to save.note: You can check the note on the Home screen easily by selecting a note > Options > Place on Wallpaper.

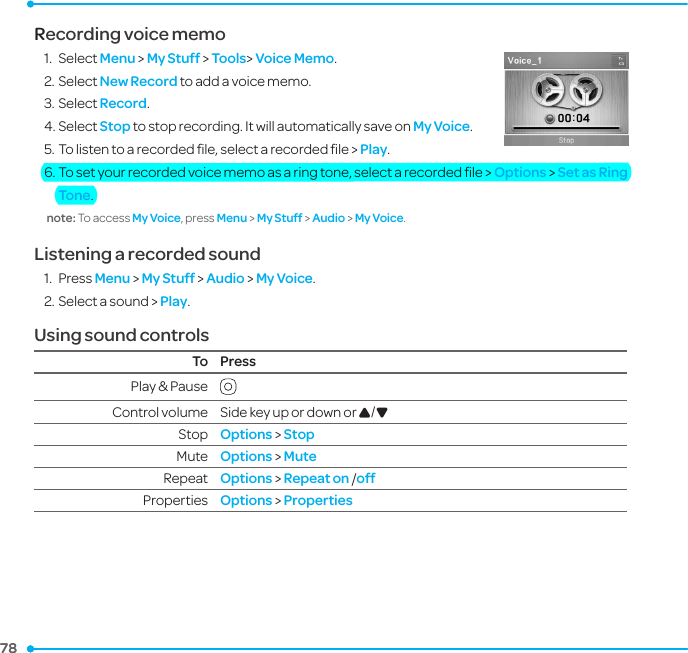

78 78 Recording voice memo1. Select Menu > My Stuff > Tools> Voice Memo.2. Select New Record to add a voice memo.3. Select Record. 4. Select Stop to stop recording. It will automatically save on My Voice.5. To listen to a recorded file, select a recorded file > Play. 6. To set your recorded voice memo as a ring tone, select a recorded file > Options > Set as Ring Tone.note: To access My Voice, press Menu > My Stuff > Audio > My Voice. Listening a recorded sound1. Press Menu > My Stuff > Audio > My Voice.2. Select a sound > Play.Using sound controlsTo PressPlay & Pause Control volume Side key up or down or U/DStop Options > StopMute Options > MuteRepeat Options > Repeat on /offProperties Options > Properties

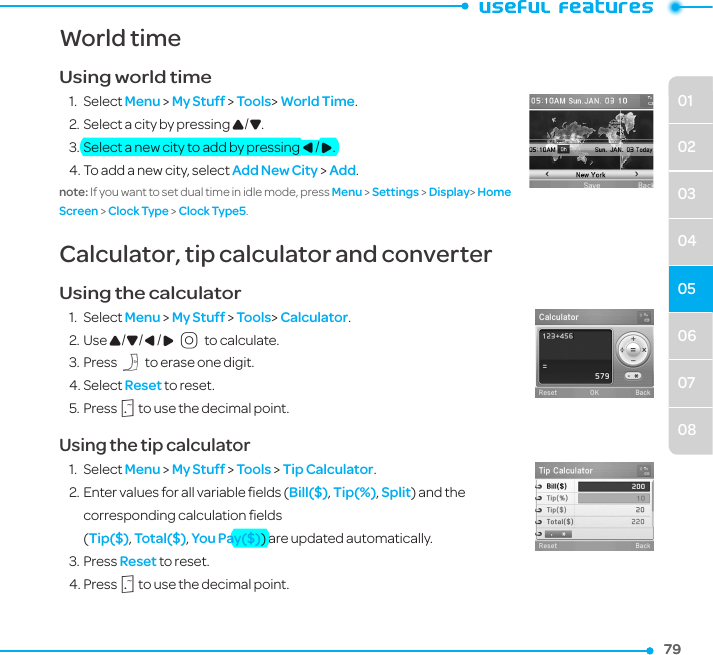

06070801020304057979World timeUsing world time1. Select Menu > My Stuff > Tools> World Time.2. Select a city by pressing U/D. 3. Select a new city to add by pressing L/R.4. To add a new city, select Add New City > Add.note: If you want to set dual time in idle mode, press Menu > Settings > Display> Home Screen > Clock Type > Clock Type5.Calculator, tip calculator and converter Using the calculator1. Select Menu > My Stuff > Tools> Calculator.2. Use U/D/L/R O to calculate.3. Press C to erase one digit. 4. Select Reset to reset.5. Press . to use the decimal point.Using the tip calculator1. Select Menu > My Stuff > Tools > Tip Calculator.2. Enter values for all variable fields (Bill($), Tip(%), Split) and the corresponding calculation fields (Tip($), Total($), You Pay($)) are updated automatically. 3. Press Reset to reset.4. Press . to use the decimal point.
80 80 Using the converter1. Select Menu > My Stuff > Tools> Converter.2. Select the category.3. Select current unit and enter figure. Other unit fields are updated automatically. 4. Press Reset to reset.Stop watch and timerUsing the stop watch1. Select Menu > My Stuff > Tools> Stop Watch.2. Select Start to start.3. Set Stop to stop.4. Select Continue to restart.5. Select Reset to clear.6. To change to lap time, select Mode > Lap Time Mode.7. To split the stopwatch, select Mode > Split Time Mode.note: In Basic Mode, when you exit the stopwatch menu, or become idle, the stopwatch will continue running and will be indicated by a clock icon. You can access the stopwatch by re-entering the stopwatch menu.Using the timer1. Select Menu > My Stuff > Tools> Timer.2. Select Set to input the time.3. Set the hour, minute and second > O.4. Select Start to start.5. Select Restart to restart.

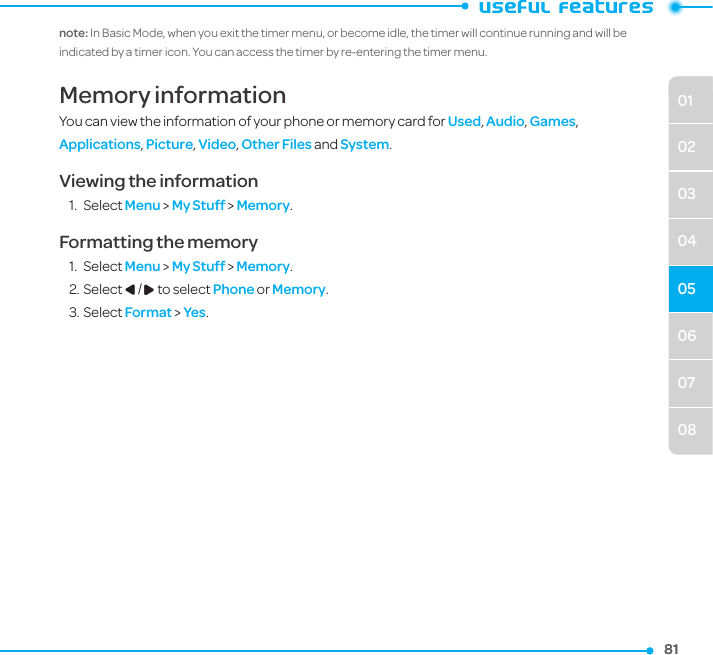

06070801020304058181note: In Basic Mode, when you exit the timer menu, or become idle, the timer will continue running and will be indicated by a timer icon. You can access the timer by re-entering the timer menu.Memory informationYou can view the information of your phone or memory card for Used, Audio, Games, Applications, Picture, Video, Other Files and System.Viewing the information1. Select Menu > My Stuff > Memory.Formatting the memory1. Select Menu > My Stuff > Memory.2. Select L/R to select Phone or Memory.3. Select Format > Yes.
6BluetoothUsing webUsing the browser Profile settings ConnectivityP5000

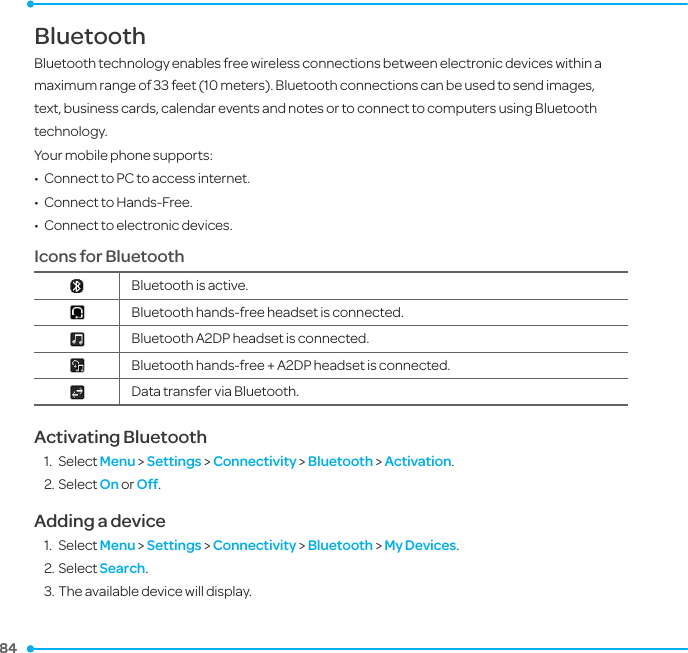

84 84 BluetoothBluetooth technology enables free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). Bluetooth connections can be used to send images, text, business cards, calendar events and notes or to connect to computers using Bluetooth technology.Your mobile phone supports:• Connect to PC to access internet.• Connect to Hands-Free.• Connect to electronic devices.Icons for Bluetooth Bluetooth is active.Bluetooth hands-free headset is connected.Bluetooth A2DP headset is connected.Bluetooth hands-free + A2DP headset is connected.Data transfer via Bluetooth.Activating Bluetooth1. Select Menu > Settings > Connectivity > Bluetooth > Activation.2. Select On or Off.Adding a device1. Select Menu > Settings > Connectivity > Bluetooth > My Devices.2. Select Search.3. The available device will display.6. Connectivity

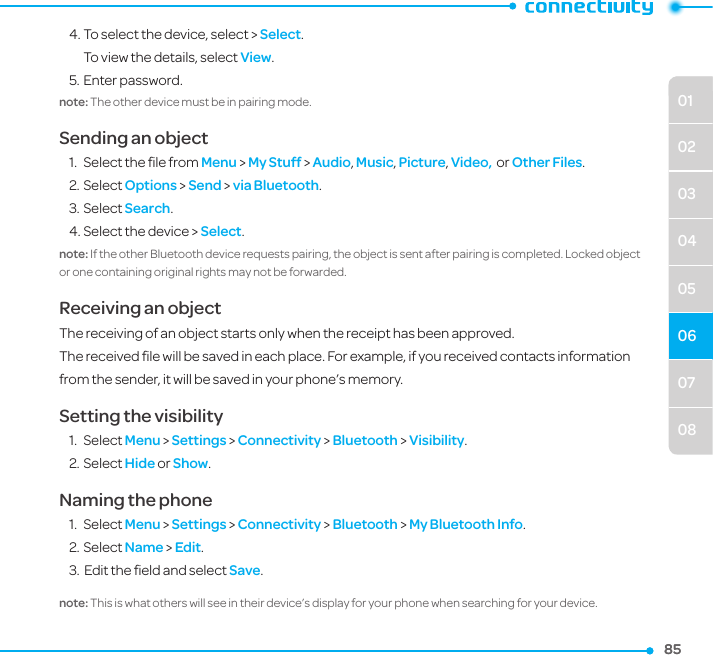

070801020304050685854. To select the device, select > Select. To view the details, select View.5. Enter password.note: The other device must be in pairing mode.Sending an object 1. Select the file from Menu > My Stuff > Audio, Music, Picture, Video, or Other Files.2. Select Options > Send > via Bluetooth.3. Select Search.4. Select the device > Select.note: If the other Bluetooth device requests pairing, the object is sent after pairing is completed. Locked object or one containing original rights may not be forwarded.Receiving an objectThe receiving of an object starts only when the receipt has been approved.The received file will be saved in each place. For example, if you received contacts information from the sender, it will be saved in your phone’s memory.Setting the visibility 1. Select Menu > Settings > Connectivity > Bluetooth > Visibility. 2. Select Hide or Show.Naming the phone1. Select Menu > Settings > Connectivity > Bluetooth > My Bluetooth Info. 2. Select Name > Edit.3. Edit the field and select Save.note: This is what others will see in their device’s display for your phone when searching for your device.

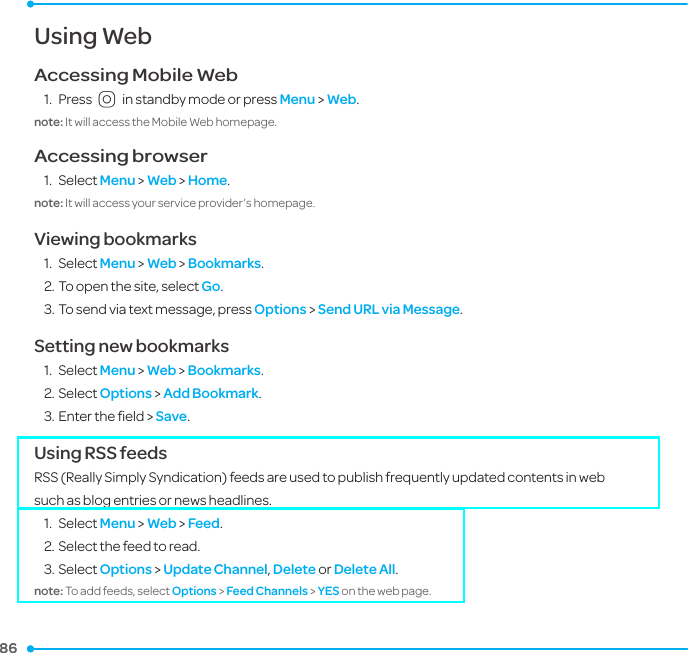

86 86 Using Web Accessing Mobile Web1. Press O in standby mode or press Menu > Web. note: It will access the Mobile Web homepage.Accessing browser1. Select Menu > Web > Home.note: It will access your service provider’s homepage. Viewing bookmarks1. Select Menu > Web > Bookmarks.2. To open the site, select Go.3. To send via text message, press Options > Send URL via Message.Setting new bookmarks1. Select Menu > Web > Bookmarks.2. Select Options > Add Bookmark.3. Enter the field > Save.Using RSS feedsRSS (Really Simply Syndication) feeds are used to publish frequently updated contents in web such as blog entries or news headlines.1. Select Menu > Web > Feed.2. Select the feed to read.3. Select Options > Update Channel, Delete or Delete All.note: To add feeds, select Options > Feed Channels > YES on the web page.

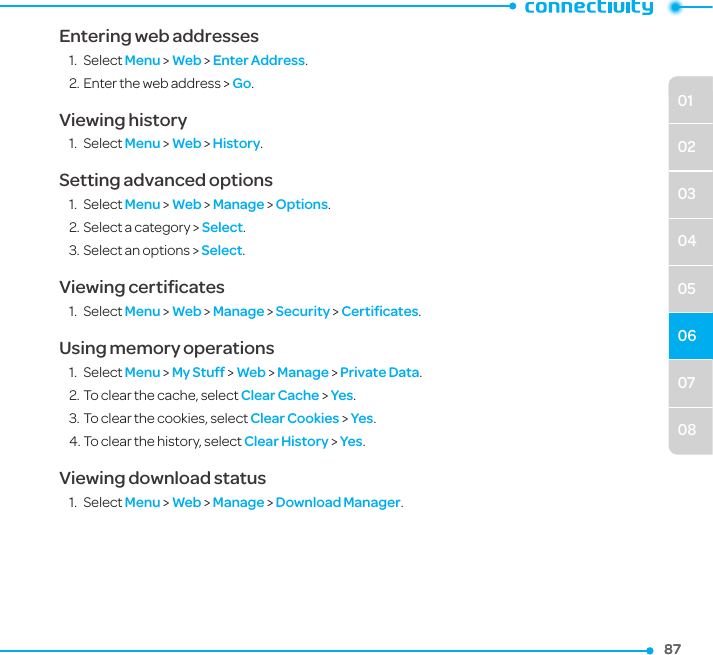

07080102030405068787Entering web addresses1. Select Menu > Web > Enter Address.2. Enter the web address > Go.Viewing history1. Select Menu > Web > History.Setting advanced options1. Select Menu > Web > Manage > Options.2. Select a category > Select.3. Select an options > Select.Viewing certificates1. Select Menu > Web > Manage > Security > Certificates.Using memory operations1. Select Menu > My Stuff > Web > Manage > Private Data. 2. To clear the cache, select Clear Cache > Yes.3. To clear the cookies, select Clear Cookies > Yes. 4. To clear the history, select Clear History > Yes.Viewing download status1. Select Menu > Web > Manage > Download Manager.

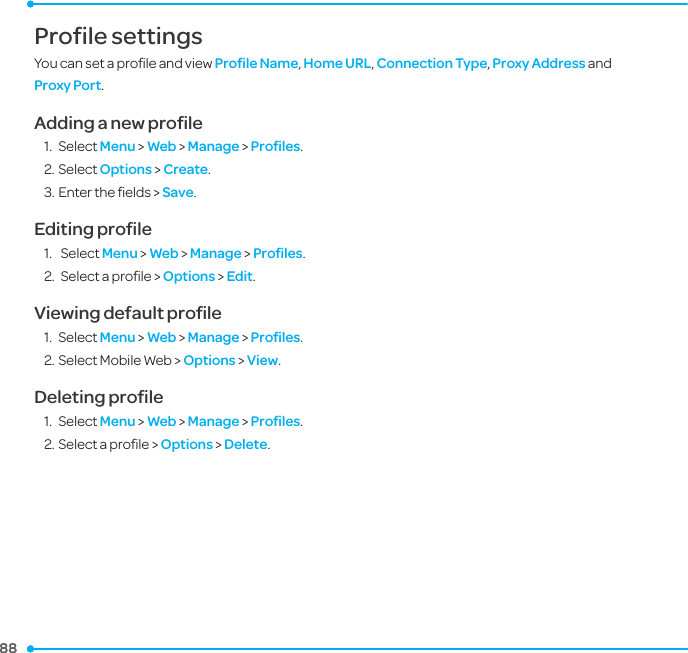

88 88 Profile settings You can set a profile and view Profile Name, Home URL, Connection Type, Proxy Address and Proxy Port. Adding a new profile1. Select Menu > Web > Manage > Profiles.2. Select Options > Create.3. Enter the fields > Save.Editing profile1. Select Menu > Web > Manage > Profiles.2. Select a profile > Options > Edit.Viewing default profile1. Select Menu > Web > Manage > Profiles.2. Select Mobile Web > Options > View.Deleting profile1. Select Menu > Web > Manage > Profiles.2. Select a profile > Options > Delete.
07080102030405068989

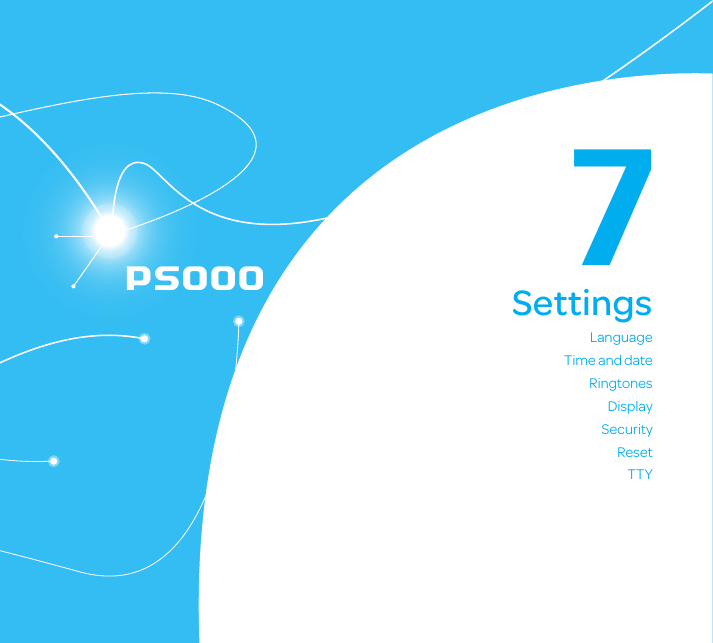

7LanguageTime and dateRingtones DisplaySecurityResetTTYSettingsP5000

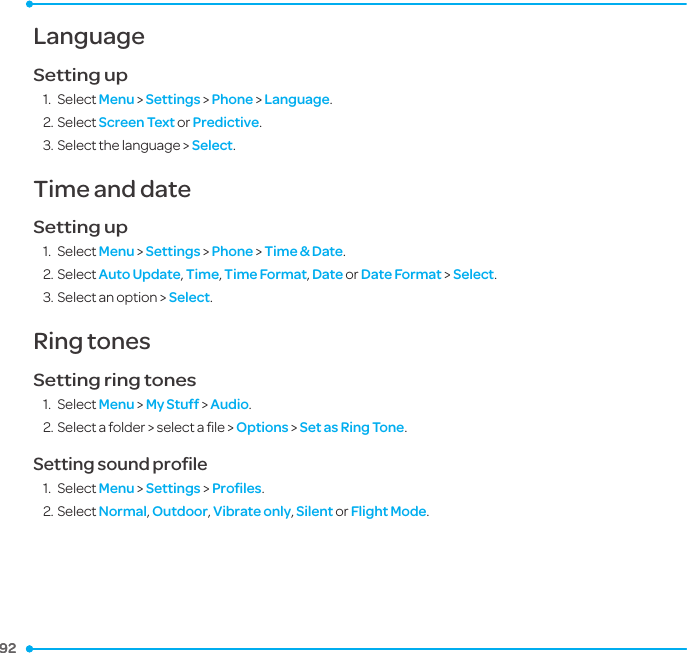

92 92 LanguageSetting up1. Select Menu > Settings > Phone > Language.2. Select Screen Text or Predictive.3. Select the language > Select.Time and dateSetting up1. Select Menu > Settings > Phone > Time & Date.2. Select Auto Update, Time, Time Format, Date or Date Format > Select.3. Select an option > Select.Ring tones Setting ring tones1. Select Menu > My Stuff > Audio.2. Select a folder > select a file > Options > Set as Ring Tone.Setting sound profile1. Select Menu > Settings > Profiles.2. Select Normal, Outdoor, Vibrate only, Silent or Flight Mode.7. Settings
08010203040506079393DisplaySetting the home screenYou can set the Wallpaper, Clock Type and Text.1. Select Menu > Settings > Display > Home Screen. Setting the menu type 1. Select Menu > Settings > Display > Menu Type. Setting the color theme 1. Select Menu > Settings > Display > Color Theme. Setting the font1. Select Menu > Settings > Display > Font Style.Setting the brightness1. Select Menu > Settings > Display > Brightness.note: Modifying brightness may affect battery life.Setting time for backlight 1. Select Menu > Settings > Display > Backlight Timer.note: Modifying backlight time may affect battery life.

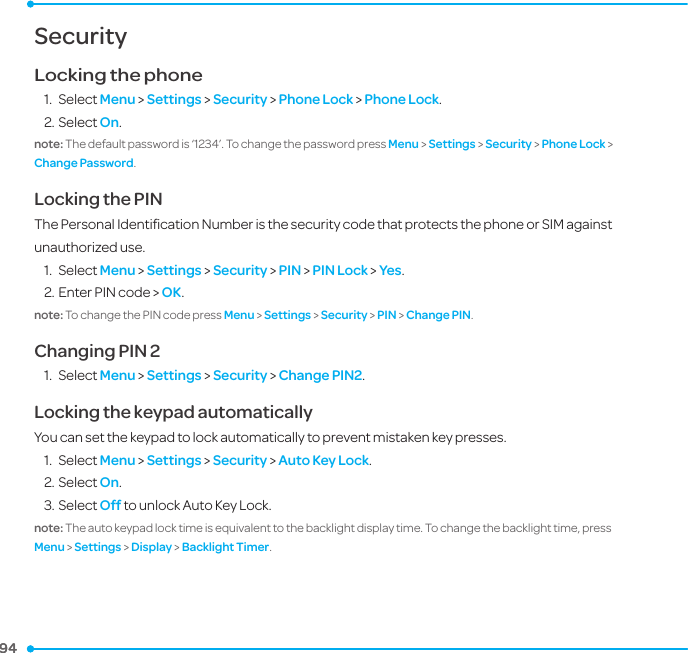

94 94 SecurityLocking the phone1. Select Menu > Settings > Security > Phone Lock > Phone Lock. 2. Select On. note: The default password is ‘1234’. To change the password press Menu > Settings > Security > Phone Lock > Change Password.Locking the PIN The Personal Identification Number is the security code that protects the phone or SIM against unauthorized use.1. Select Menu > Settings > Security > PIN > PIN Lock > Yes.2. Enter PIN code > OK. note: To change the PIN code press Menu > Settings > Security > PIN > Change PIN. Changing PIN 21. Select Menu > Settings > Security > Change PIN2.Locking the keypad automaticallyYou can set the keypad to lock automatically to prevent mistaken key presses. 1. Select Menu > Settings > Security > Auto Key Lock. 2. Select On. 3. Select Off to unlock Auto Key Lock.note: The auto keypad lock time is equivalent to the backlight display time. To change the backlight time, press Menu > Settings > Display > Backlight Timer.

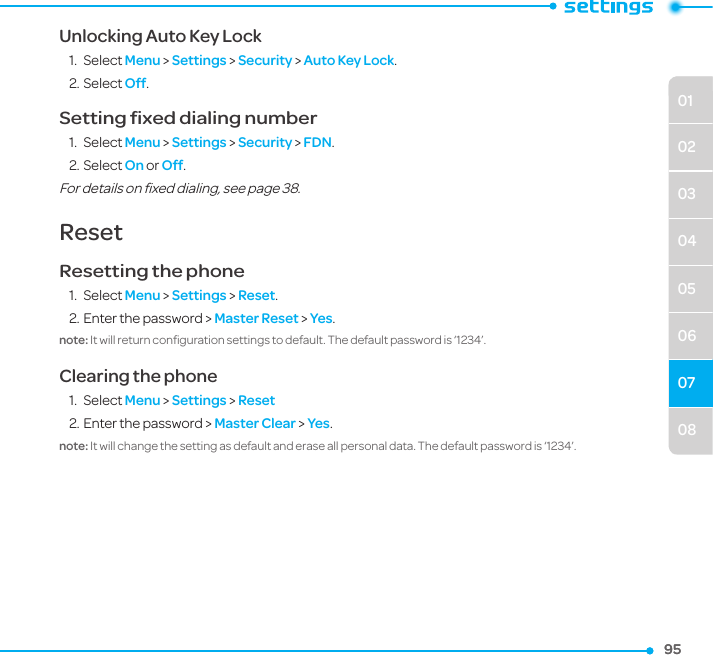

08010203040506079595Unlocking Auto Key Lock1. Select Menu > Settings > Security > Auto Key Lock. 2. Select Off.Setting fixed dialing number1. Select Menu > Settings > Security > FDN.2. Select On or Off.For details on fixed dialing, see page 38. ResetResetting the phone 1. Select Menu > Settings > Reset. 2. Enter the password > Master Reset > Yes.note: It will return configuration settings to default. The default password is ‘1234’. Clearing the phone1. Select Menu > Settings > Reset2. Enter the password > Master Clear > Yes.note: It will change the setting as default and erase all personal data. The default password is ‘1234’.

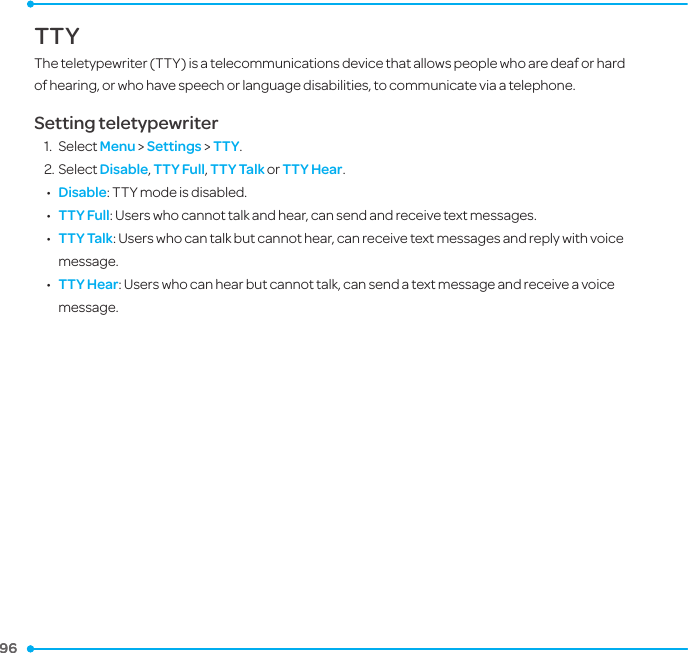

96 96 TTYThe teletypewriter (TTY) is a telecommunications device that allows people who are deaf or hard of hearing, or who have speech or language disabilities, to communicate via a telephone.Setting teletypewriter1. Select Menu > Settings > TTY.2. Select Disable, TTY Full, TTY Talk or TTY Hear. • Disable: TTY mode is disabled. • TTY Full: Users who cannot talk and hear, can send and receive text messages. • TTY Talk: Users who can talk but cannot hear, can receive text messages and reply with voice message. • TTY Hear: Users who can hear but cannot talk, can send a text message and receive a voice message.
08010203040506079797

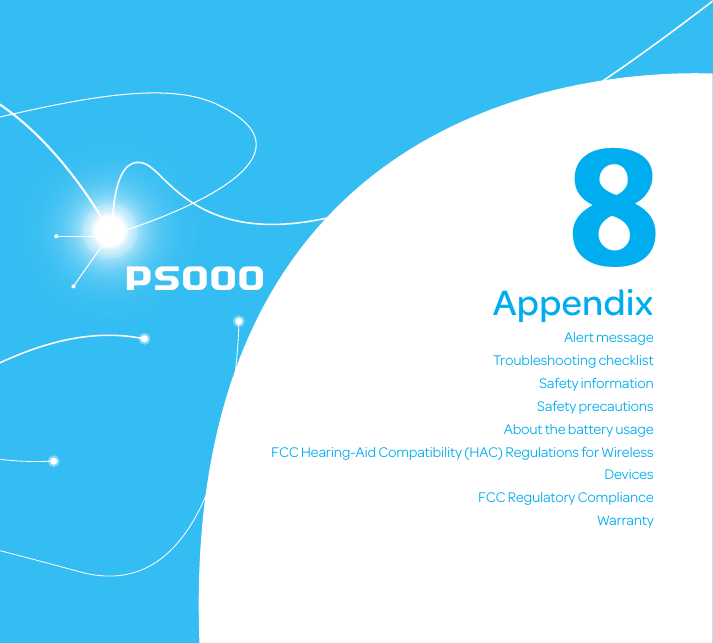

8Alert messageTroubleshooting checklistSafety informationSafety precautionsAbout the battery usageFCC Hearing-Aid Compatibility (HAC) Regulations for Wireless DevicesFCC Regulatory ComplianceWarrantyAppendixP5000
100 100 Alert messageIf you experience any problem while using your mobile phone, please refer to the following checklist. If the problem still persists, contact your dealer or nearest carrier.When the “Insert SIM Card” message appears: Make sure the SIM card is correctly installed. Check to see if the SIM card is working properly. If it does not work, try to clean the contact points of the card with a dry cloth. If it is out of order, take it to your service provider.When the “Messages full” message appears:The received or saved messages are full in your phone memory. You need to delete the message.When the “Phone and SIM messages are full. Delete Messages” message appears:The received or saved messages are full in your phone and SIM card memory. You need to delete the message.When the “Password” message appears in Phone locked state:Enter the phone password. The default password is”1234”. If you cannot remember the password, contact the nearest carrier.When the “Enter PIN1” message appears:Input PIN1. If you cannot remember it, contact your service provider. You can still receive calls even if your mobile phone becomes locked after entering the incorrect PIN1 on three consecutive attempts.When the “No Service” or “Network Search” appears:If you cannot make/receive a call when you are indoors or undergrounds where the signal strength is poor, move toward a window or go out to an open area. If you still cannot make a connection, contact your service provider.8. Appendix

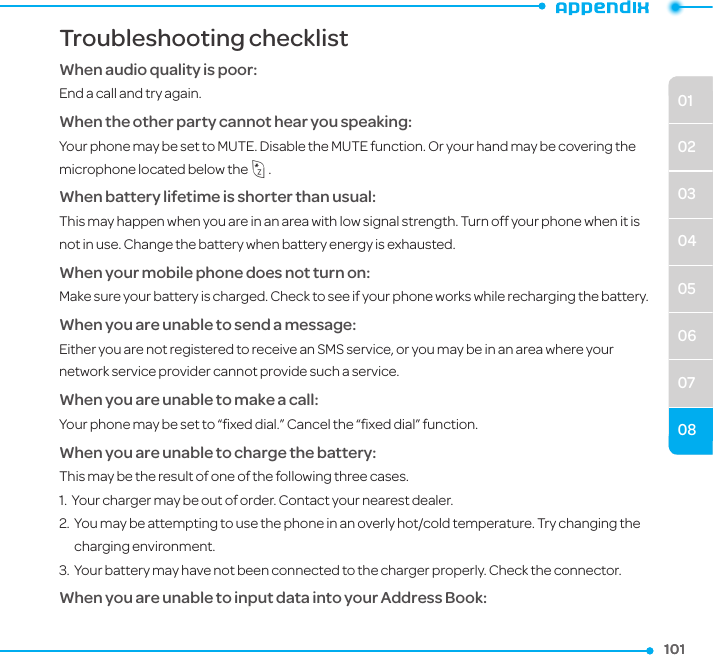

0102030405060708101101Troubleshooting checklistWhen audio quality is poor:End a call and try again. When the other party cannot hear you speaking:Your phone may be set to MUTE. Disable the MUTE function. Or your hand may be covering the microphone located below the *.When battery lifetime is shorter than usual:This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted.When your mobile phone does not turn on:Make sure your battery is charged. Check to see if your phone works while recharging the battery.When you are unable to send a message:Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service.When you are unable to make a call:Your phone may be set to “fixed dial.” Cancel the “fixed dial” function.When you are unable to charge the battery:This may be the result of one of the following three cases.1. Your charger may be out of order. Contact your nearest dealer.2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment.3. Your battery may have not been connected to the charger properly. Check the connector.When you are unable to input data into your Address Book:

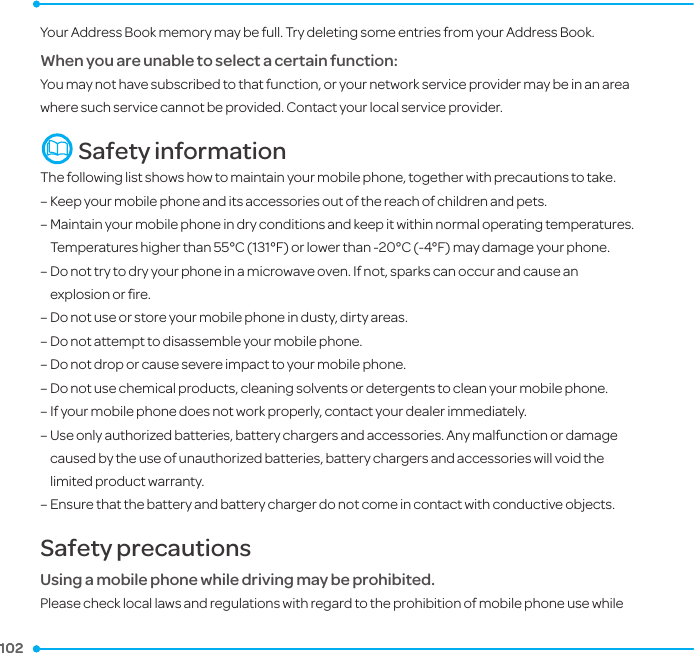

102 102 Your Address Book memory may be full. Try deleting some entries from your Address Book.When you are unable to select a certain function:You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider. Safety informationThe following list shows how to maintain your mobile phone, together with precautions to take.– Keep your mobile phone and its accessories out of the reach of children and pets.– Maintain your mobile phone in dry conditions and keep it within normal operating temperatures. Temperatures higher than 55°C (131°F) or lower than -20°C (-4°F) may damage your phone.– Do not try to dry your phone in a microwave oven. If not, sparks can occur and cause an explosion or fire.– Do not use or store your mobile phone in dusty, dirty areas.– Do not attempt to disassemble your mobile phone.– Do not drop or cause severe impact to your mobile phone.– Do not use chemical products, cleaning solvents or detergents to clean your mobile phone. – If your mobile phone does not work properly, contact your dealer immediately. – Use only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty.– Ensure that the battery and battery charger do not come in contact with conductive objects.Safety precautionsUsing a mobile phone while driving may be prohibited.Please check local laws and regulations with regard to the prohibition of mobile phone use while
0102030405060708103103driving, and comply with them.Use of your phone while you are driving may disturb your concentration and so cause an accident. Always switch your phone off to drive safely.You should use your phone in an emergency, either use a hands free device built into your car or pull over in a safe place first. Switch off in restricted areasAlways switch your phone off in areas where mobile phone use is restricted. Switch off in explosive or dangerous areasAlways switch your phone off in areas with explosive or dangerous materials (such as fuels, fuel stations or areas containing chemical goods) and obey any instructions or signals. Do not remove your mobile phone’s battery in such areas. Switch off in aircraftAlways switch your phone off or select Flight Mode (press the Menu > Settings > Profiles > Flight Mode) when you are in an aircraft. The electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft. Switch off in hospitals and near medical equipmentAlways switch your phone off in hospitals, and obey the regulations or rules of the hospital.Switch your phone off when using medical equipment for private purposes, if possible. Always consult with the medical equipment’s manufacturer or an expert regarding phone use near the medical equipment. Installing a hands free device in your vehicleInstall vehicle hands free devices away from the steering wheel and airbag expansion area, otherwise injury may result. Mobile phones and other electronic devices

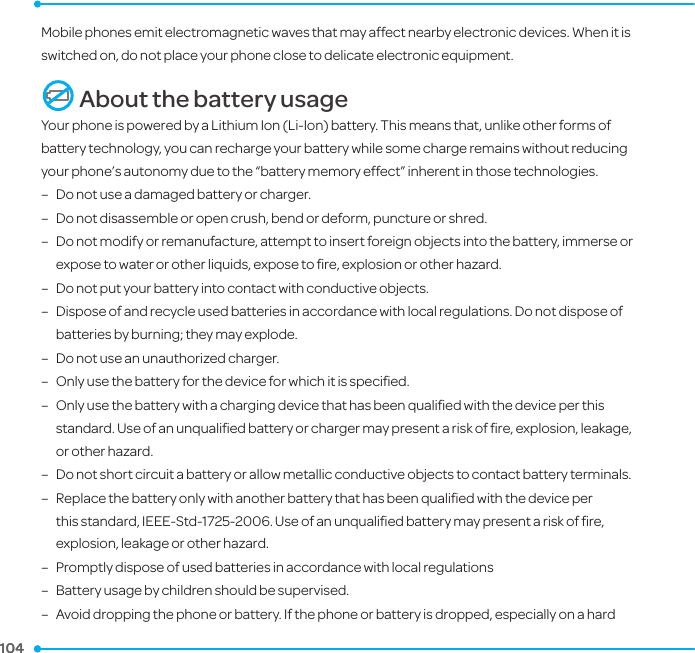

104 104 Mobile phones emit electromagnetic waves that may affect nearby electronic devices. When it is switched on, do not place your phone close to delicate electronic equipment. About the battery usageYour phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies.– Do not use a damaged battery or charger.– Do not disassemble or open crush, bend or deform, puncture or shred.– Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard.– Do not put your battery into contact with conductive objects. – Dispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explode.– Do not use an unauthorized charger.– Only use the battery for the device for which it is specified.– Only use the battery with a charging device that has been qualified with the device per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.– Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.– Replace the battery only with another battery that has been qualified with the device per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard.– Promptly dispose of used batteries in accordance with local regulations– Battery usage by children should be supervised.– Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard
0102030405060708105105surface, and the user suspects damage, take it to a service center for inspection.– Use your battery for the specified purpose only.– The closer you are to your network’s base station, the longer your phone usage time because less battery power is consumed for the connection.– The battery recharging time varies depending on the remaining battery capacity and the battery and charger type you use.– Battery life inevitably shortens over time.– Use an authorized battery and charger only. – Since overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger, once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce the capacity and life of the battery. Always keep the battery within normal temperatures. – To prevent injury or burns, ensure that no metal objects come into contact with the + and – terminals of the battery.FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless DevicesOn July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities. While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of

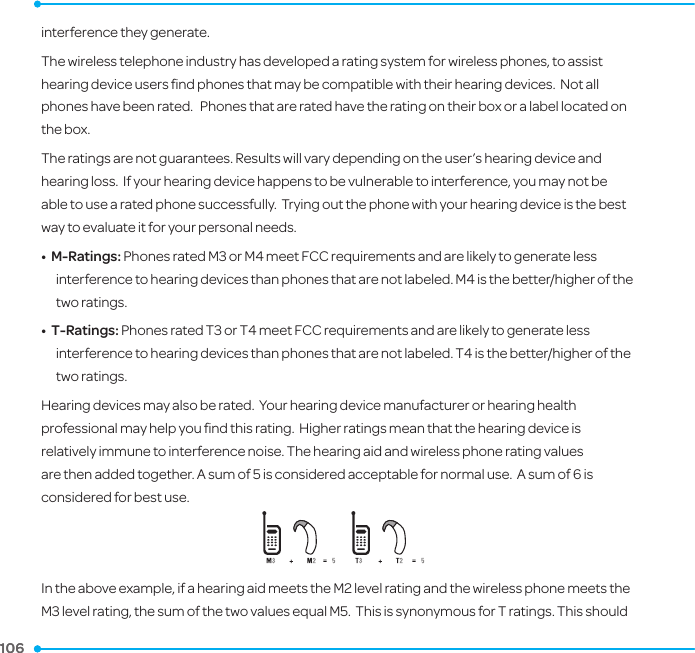

106 106 interference they generate.The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.• M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.• T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use. In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This is synonymous for T ratings. This should

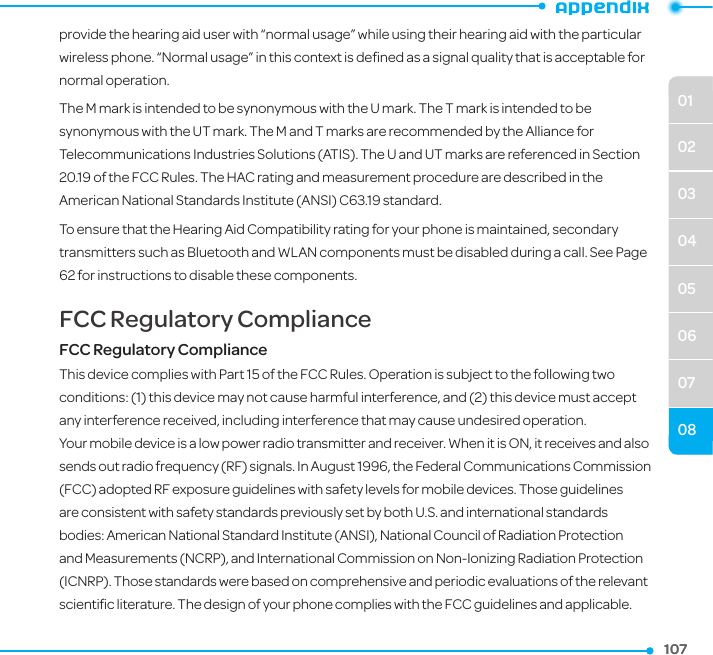

0102030405060708107107provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation. The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See Page 62 for instructions to disable these components.FCC Regulatory ComplianceFCC Regulatory ComplianceThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable.

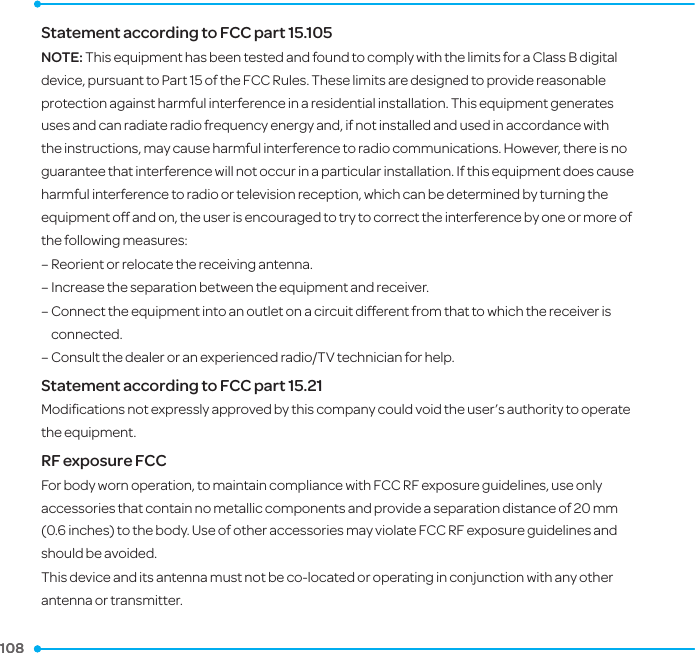

108 108 Statement according to FCC part 15.105NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.Statement according to FCC part 15.21Modifications not expressly approved by this company could void the user’s authority to operate the equipment.RF exposure FCCFor body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 20 mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

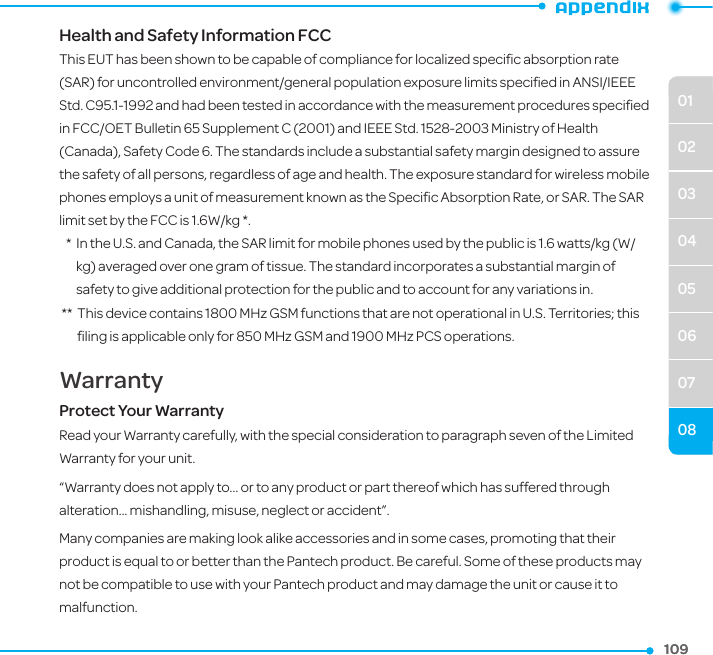

0102030405060708109109Health and Safety Information FCCThis EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *. * In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in. ** This device contains 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.WarrantyProtect Your WarrantyRead your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit.“Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident”.Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction.

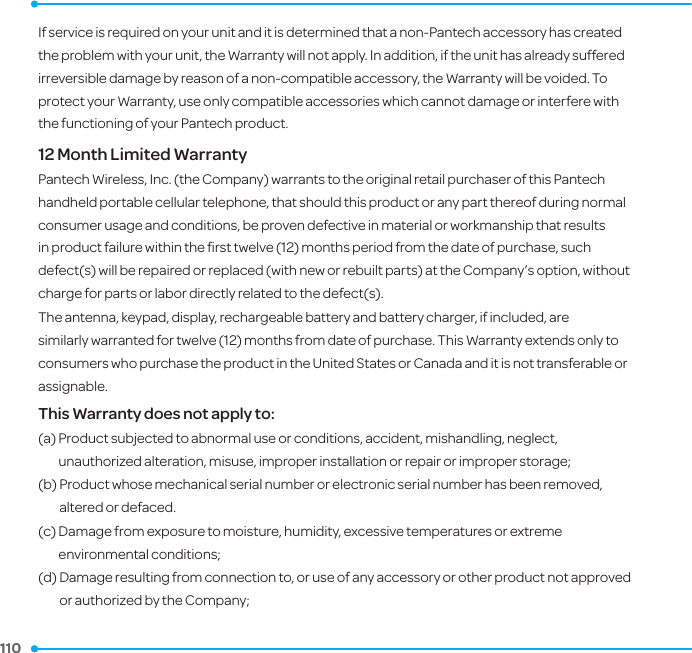

110 110 If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by reason of a non-compatible accessory, the Warranty will be voided. To protect your Warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Pantech product.12 Month Limited WarrantyPantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s).The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.This Warranty does not apply to:(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced.(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;

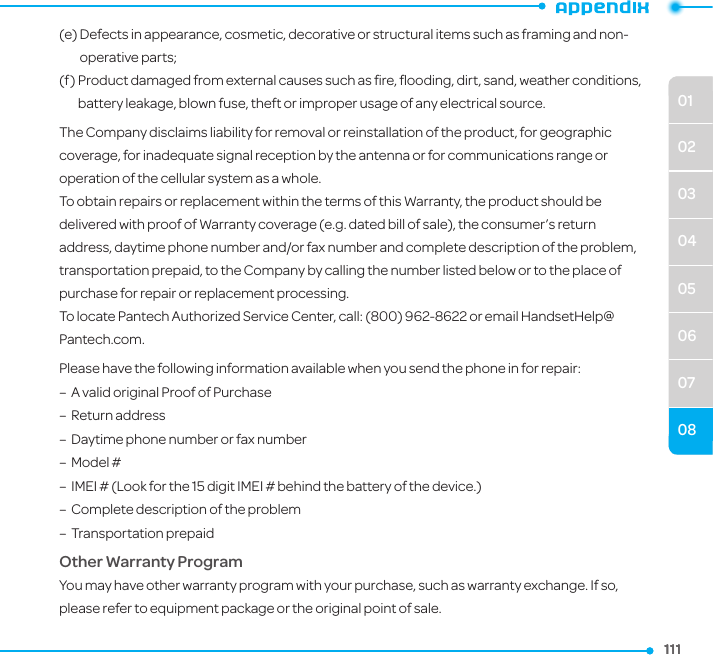

0102030405060708111111(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer’s return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing.To locate Pantech Authorized Service Center, call: (800) 962-8622 or email HandsetHelp@Pantech.com.Please have the following information available when you send the phone in for repair:– A valid original Proof of Purchase – Return address– Daytime phone number or fax number– Model #– IMEI # (Look for the 15 digit IMEI # behind the battery of the device.)– Complete description of the problem– Transportation prepaidOther Warranty ProgramYou may have other warranty program with your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale.

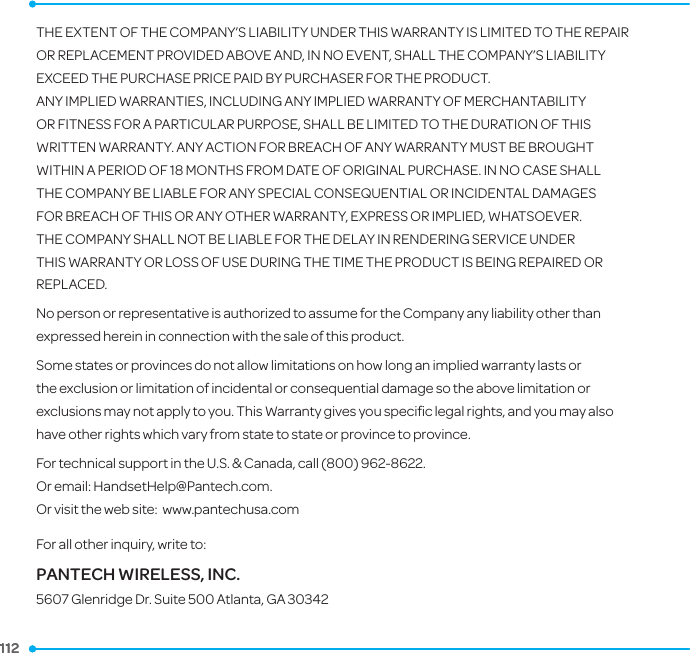

112 112 THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.For technical support in the U.S. & Canada, call (800) 962-8622.Or email: HandsetHelp@Pantech.com. Or visit the web site: www.pantechusa.comFor all other inquiry, write to:PANTECH WIRELESS, INC.5607 Glenridge Dr. Suite 500 Atlanta, GA 30342

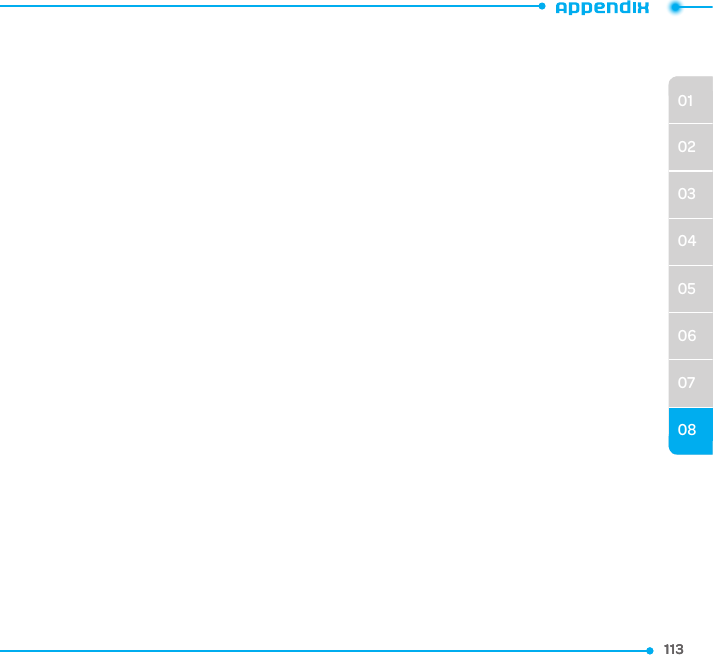

0102030405060708113113
