Pantech Co P8000 GSM/WCDMA Phone with Bluetooth & WLAN User Manual

Pantech Co Ltd GSM/WCDMA Phone with Bluetooth & WLAN Users Manual

Users Manual

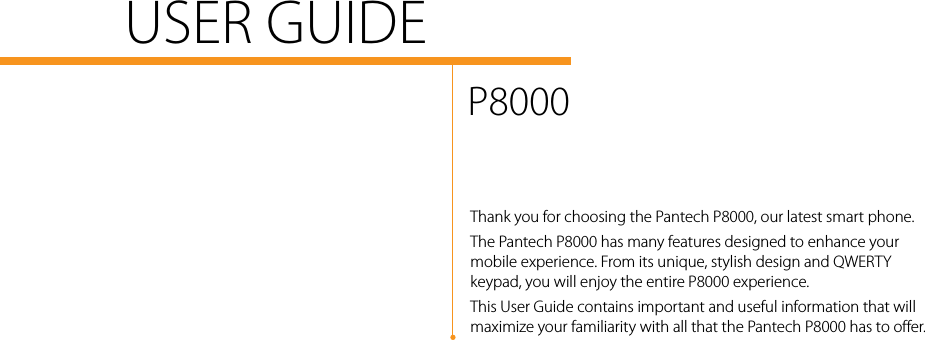

USER GUIDEP8000Thank you for choosing the Pantech P8000, our latest smart phone.The Pantech P8000 has many features designed to enhance your mobile experience. From its unique, stylish design and QWERTY keypad, you will enjoy the entire P8000 experience.This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech P8000 has to offer.

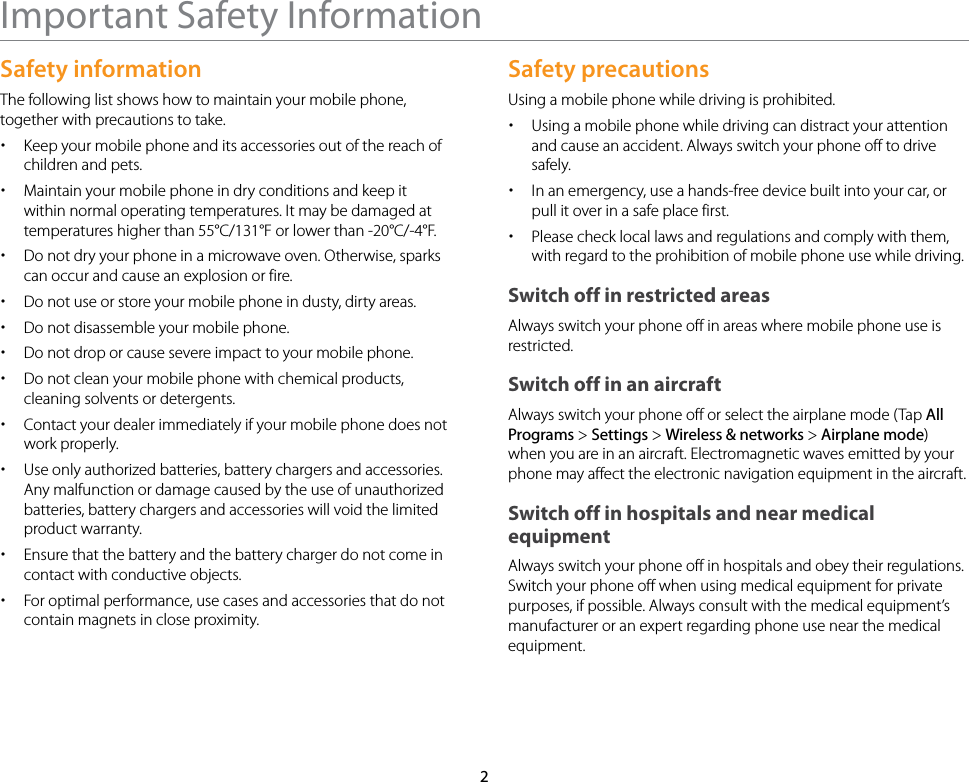

2Important Safety InformationSafety informationThe following list shows how to maintain your mobile phone, together with precautions to take. xKeep your mobile phone and its accessories out of the reach of children and pets. xMaintain your mobile phone in dry conditions and keep it within normal operating temperatures. It may be damaged at temperatures higher than 55°C/131°F or lower than -20°C/-4°F. xDo not dry your phone in a microwave oven. Otherwise, sparks can occur and cause an explosion or fire. xDo not use or store your mobile phone in dusty, dirty areas. xDo not disassemble your mobile phone. xDo not drop or cause severe impact to your mobile phone. xDo not clean your mobile phone with chemical products, cleaning solvents or detergents. xContact your dealer immediately if your mobile phone does not work properly. xUse only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty. xEnsure that the battery and the battery charger do not come in contact with conductive objects. xFor optimal performance, use cases and accessories that do not contain magnets in close proximity.Safety precautionsUsing a mobile phone while driving is prohibited. xUsing a mobile phone while driving can distract your attention and cause an accident. Always switch your phone off to drive safely. xIn an emergency, use a hands-free device built into your car, or pull it over in a safe place first. xPlease check local laws and regulations and comply with them, with regard to the prohibition of mobile phone use while driving.Switch off in restricted areasAlways switch your phone off in areas where mobile phone use is restricted.Switch off in an aircraftAlways switch your phone off or select the airplane mode (Tap All Programs > Settings > Wireless & networks > Airplane mode) when you are in an aircraft. Electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft.Switch off in hospitals and near medical equipmentAlways switch your phone off in hospitals and obey their regulations. Switch your phone off when using medical equipment for private purposes, if possible. Always consult with the medical equipment’s manufacturer or an expert regarding phone use near the medical equipment.
3Important Safety InformationSwitch off in dangerous areasAlways switch your phone off in areas where explosive or dangerous materials (e.g. fuels or chemical products) are located and obey relevant instructions or signals. Do not insert or remove your mobile phone’s battery in such areas.Install a hands-free device in a safe locationInstall a hands-free device away from the steering wheel and airbag expansion areas. Otherwise you can be injured in a car accident.Keep away from other electronic devicesMobile phones emit electromagnetic waves that may affect nearby electronic devices. After switching on your phone, do not place it close to other electronic goods.About the battery usageYour phone is powered by a Lithium Ion (Li-Ion) battery. In other words, unlike other forms of batteries, you can recharge your battery while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies. xDo not use a damaged battery or a charger. xDo not disassemble or open crush, bend or deform, puncture or shred it. xDo not modify or remanufacture, insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard. xDo not put your battery into contact with conductive objects. xDispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explode. xDo not use an unauthorized charger. xOnly use the battery for the device for which it is specified. xOnly use the battery with a charging device that has been qualified with the device per this standard. Use of an unqualified battery or a charger may present a risk of fire, explosion, leakage, or other hazard. xDo not short circuit a battery or allow metallic conductive objects to contact battery terminals. xReplace the battery only with another battery that has been qualified with the device per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. xDispose of used batteries promptly in accordance with local regulations. xChildren should be supervised when they use battery. xAvoid dropping the phone or the battery. If the phone or the battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. xUse your battery for the specified purpose only. xThe closer you move to your network’s base station, the longer you can use your phone because battery power is less consumed for connection. xThe battery recharging time varies depending on the remaining battery capacity and the battery and charger type. xBattery life inevitably shortens over time. xUse an authorized battery and a charger only. xSince overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce its capacity and life. Always keep the battery within normal operating temperatures.
4Important Safety Information xTo prevent injury or burns, ensure that no metal objects come into contact with the + and – terminals of the battery. FCC Hearing-Aid Compatibility Regulations for Wireless DevicesOn July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their boxes or a label located on the boxes.The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. xM-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. xT-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equals M5. This is synonymous for T ratings. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See page 79 for instructions to disable these components.

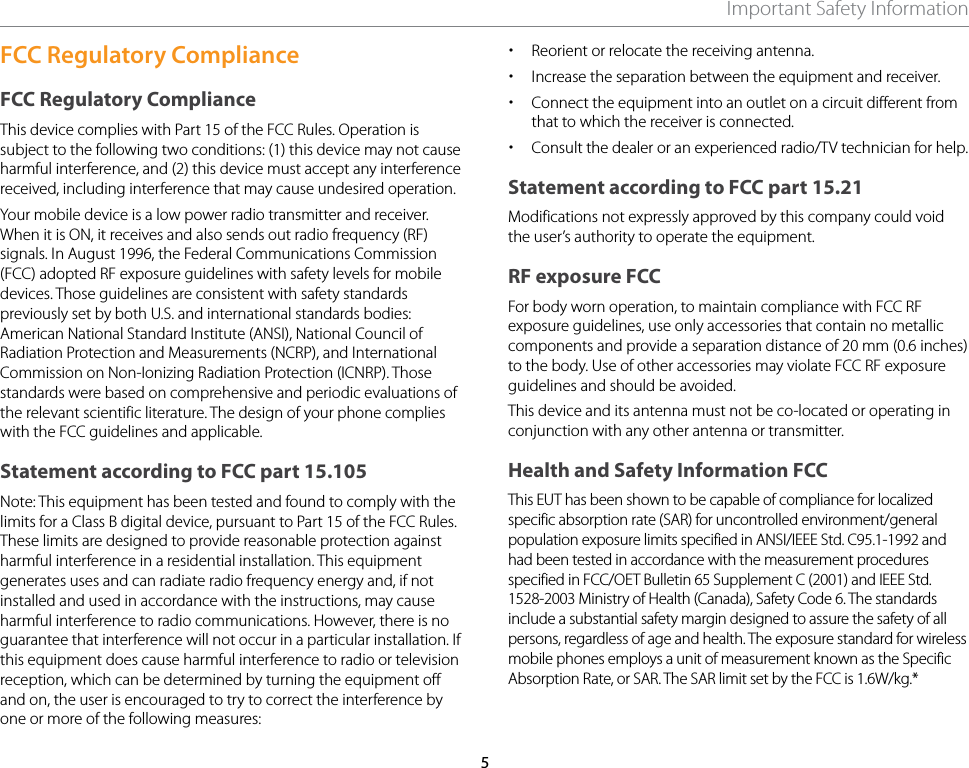

5Important Safety InformationFCC Regulatory ComplianceFCC Regulatory ComplianceThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable.Statement according to FCC part 15.105Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: xReorient or relocate the receiving antenna. xIncrease the separation between the equipment and receiver. xConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. xConsult the dealer or an experienced radio/TV technician for help.Statement according to FCC part 15.21Modifications not expressly approved by this company could void the user’s authority to operate the equipment.RF exposure FCCFor body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 20 mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.Health and Safety Information FCCThis EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.*

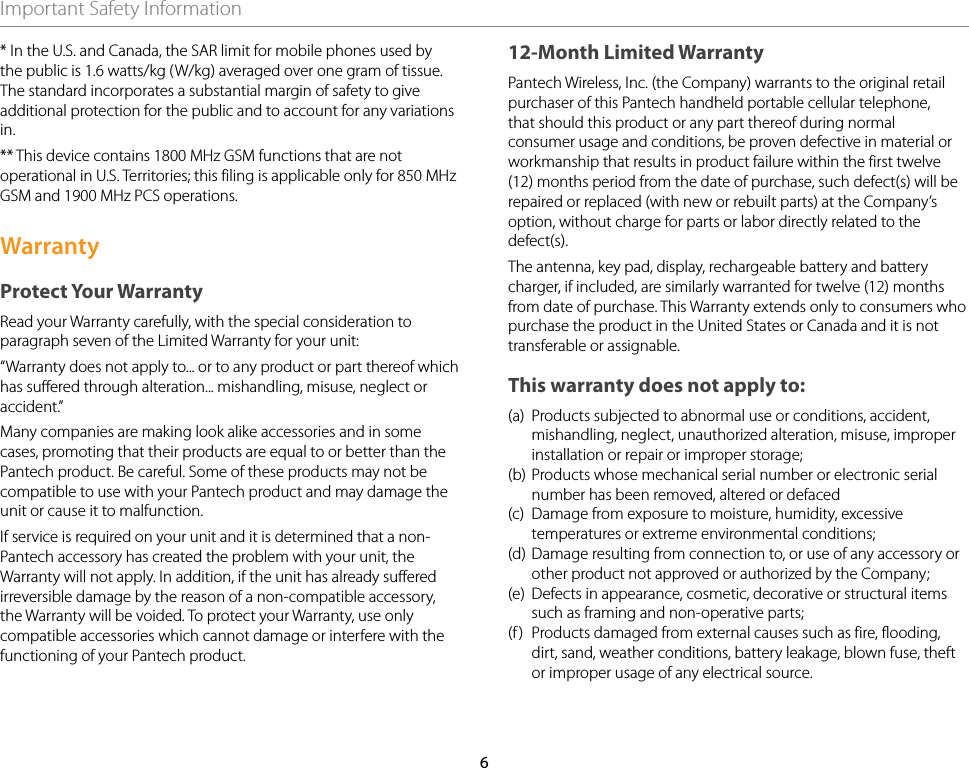

6Important Safety Information* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in. ** This device contains 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.WarrantyProtect Your WarrantyRead your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit:“Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident.”Many companies are making look alike accessories and in some cases, promoting that their products are equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction.If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by the reason of a non-compatible accessory, the Warranty will be voided. To protect your Warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Pantech product. 12-Month Limited Warranty Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s). The antenna, key pad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable. This warranty does not apply to: (a) Products subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;(b) Products whose mechanical serial number or electronic serial number has been removed, altered or defaced(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions; (d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company; (e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts; (f) Products damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.

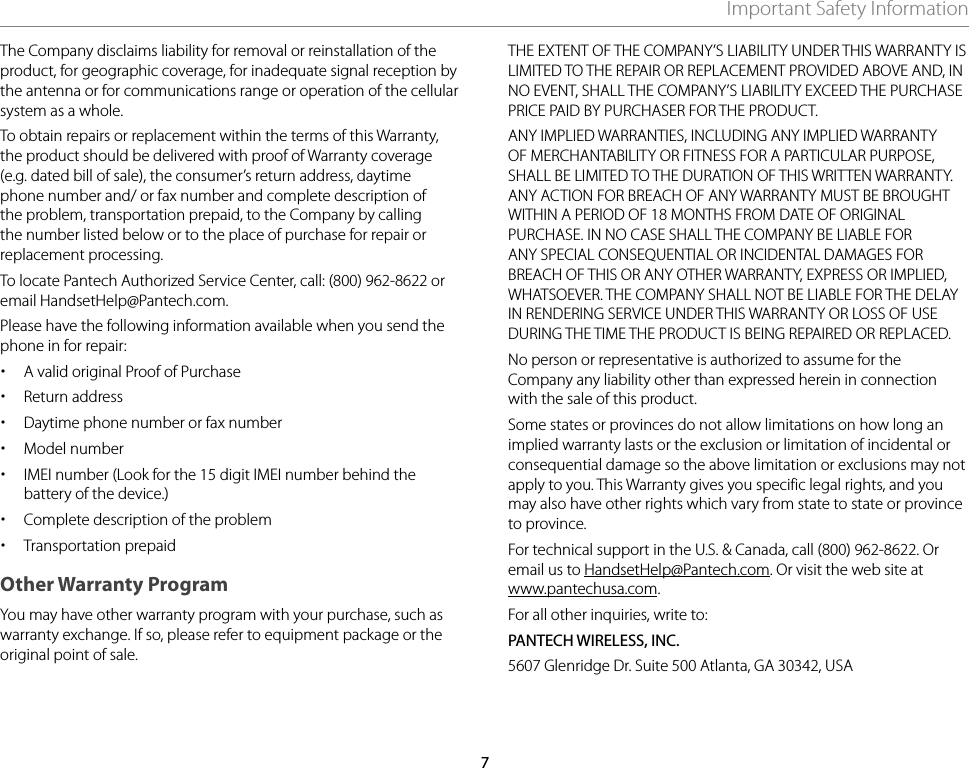

7Important Safety InformationThe Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole. To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer’s return address, daytime phone number and/ or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing. To locate Pantech Authorized Service Center, call: (800) 962-8622 or email HandsetHelp@Pantech.com. Please have the following information available when you send the phone in for repair: xA valid original Proof of Purchase xReturn address xDaytime phone number or fax number xModel number xIMEI number (Look for the 15 digit IMEI number behind the battery of the device.) xComplete description of the problem xTransportation prepaidOther Warranty ProgramYou may have other warranty program with your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale.THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.For technical support in the U.S. & Canada, call (800) 962-8622. Or email us to HandsetHelp@Pantech.com. Or visit the web site at www.pantechusa.com.For all other inquiries, write to:PANTECH WIRELESS, INC.5607 Glenridge Dr. Suite 500 Atlanta, GA 30342, USA

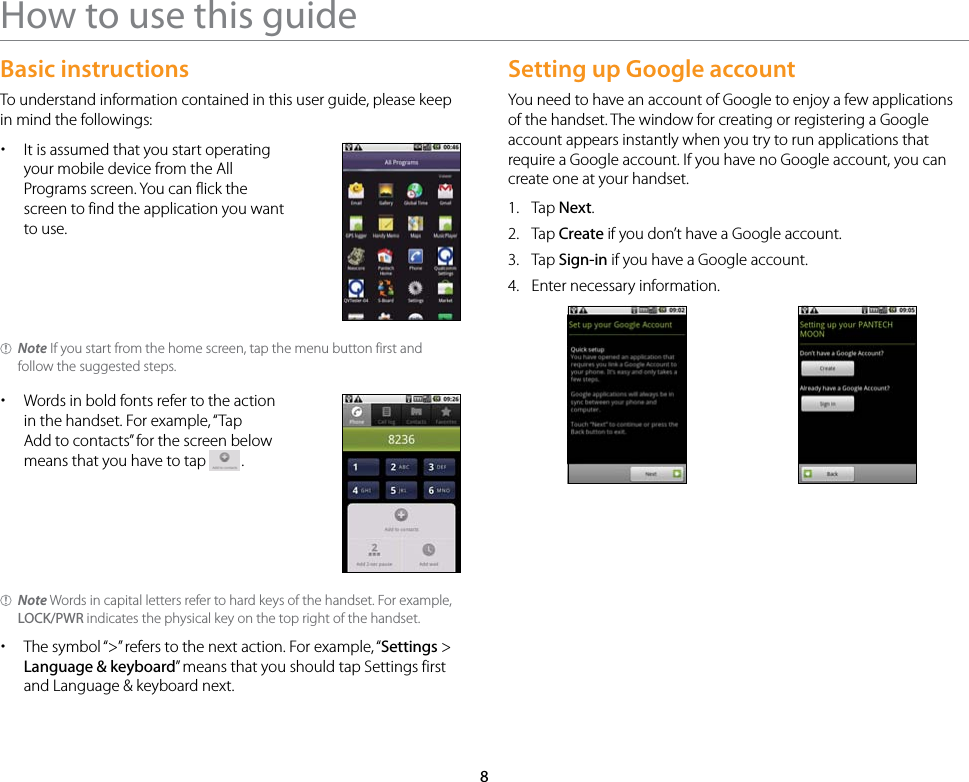

8How to use this guideBasic instructionsTo understand information contained in this user guide, please keep in mind the followings: xIt is assumed that you start operating your mobile device from the All Programs screen. You can flick the screen to find the application you want to use.Note If you start from the home screen, tap the menu button first and follow the suggested steps. xWords in bold fonts refer to the action in the handset. For example, “Tap Add to contacts” for the screen below means that you have to tap .Note Words in capital letters refer to hard keys of the handset. For example, LOCK/PWR indicates the physical key on the top right of the handset. xThe symbol “>” refers to the next action. For example, “Settings > Language & keyboard” means that you should tap Settings first and Language & keyboard next.Setting up Google accountYou need to have an account of Google to enjoy a few applications of the handset. The window for creating or registering a Google account appears instantly when you try to run applications that require a Google account. If you have no Google account, you can create one at your handset.1. Tap Next.2. Tap Create if you don’t have a Google account.3. Tap Sign-in if you have a Google account.4. Enter necessary information.

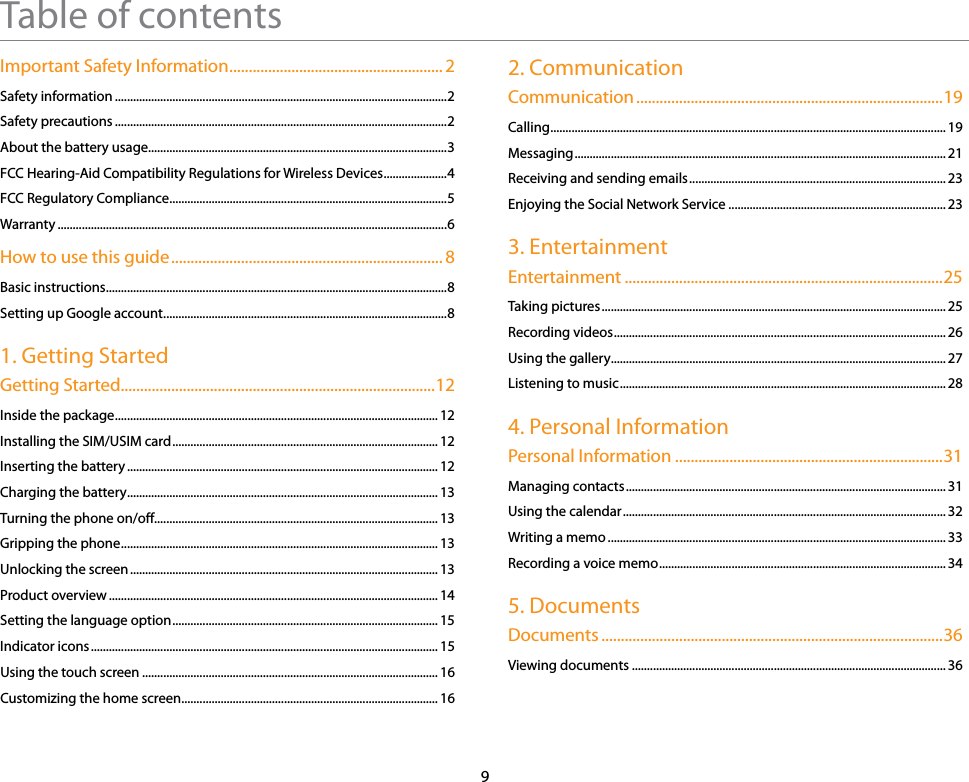

9Table of contentsImportant Safety Information ....................................................... 2Safety information ..............................................................................................................2Safety precautions ..............................................................................................................2About the battery usage...................................................................................................3FCC Hearing-Aid Compatibility Regulations for Wireless Devices .....................4FCC Regulatory Compliance ............................................................................................5Warranty .................................................................................................................................6How to use this guide ...................................................................... 8Basic instructions .................................................................................................................8Setting up Google account ..............................................................................................81. Getting StartedGetting Started.................................................................................12Inside the package ........................................................................................................... 12Installing the SIM/USIM card ........................................................................................ 12Inserting the battery ....................................................................................................... 12Charging the battery ....................................................................................................... 13Turning the phone on/off.............................................................................................. 13Gripping the phone ......................................................................................................... 13Unlocking the screen ...................................................................................................... 13Product overview ............................................................................................................. 14Setting the language option ........................................................................................ 15Indicator icons ................................................................................................................... 15Using the touch screen .................................................................................................. 16Customizing the home screen ..................................................................................... 162. CommunicationCommunication ...............................................................................19Calling ................................................................................................................................... 19Messaging ........................................................................................................................... 21Receiving and sending emails ..................................................................................... 23Enjoying the Social Network Service ........................................................................ 233. EntertainmentEntertainment ..................................................................................25Taking pictures .................................................................................................................. 25Recording videos .............................................................................................................. 26Using the gallery ............................................................................................................... 27Listening to music ............................................................................................................ 284. Personal InformationPersonal Information .....................................................................31Managing contacts .......................................................................................................... 31Using the calendar ........................................................................................................... 32Writing a memo ................................................................................................................ 33Recording a voice memo ............................................................................................... 345. DocumentsDocuments ........................................................................................36Viewing documents ........................................................................................................ 36

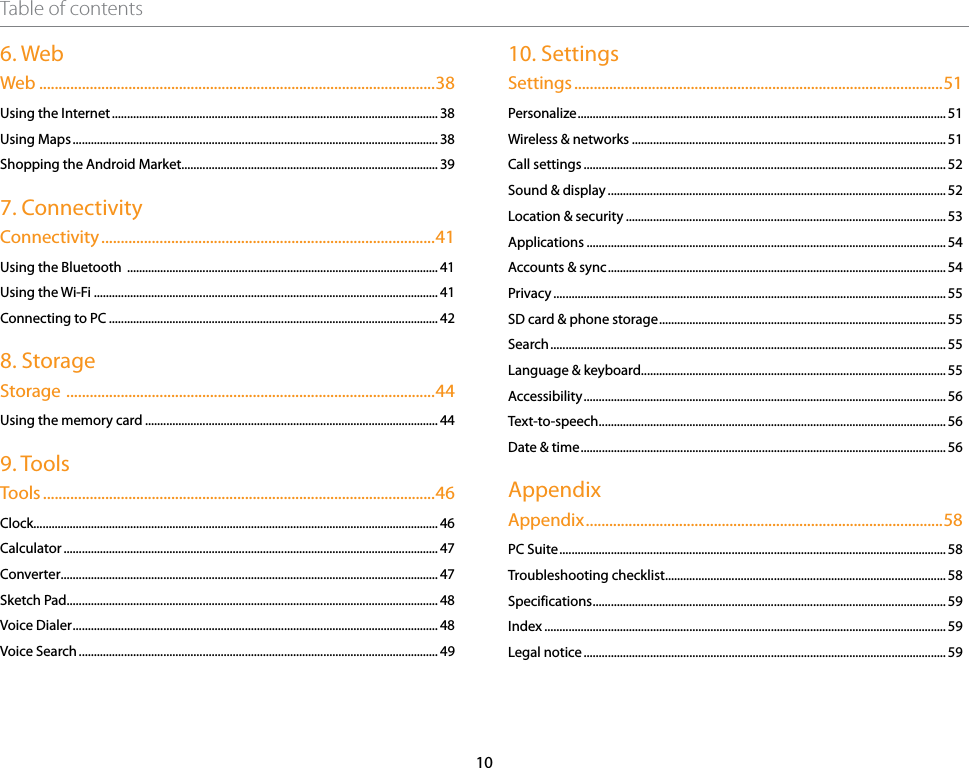

10Table of contents6. WebWeb ......................................................................................................38Using the Internet ............................................................................................................ 38Using Maps ......................................................................................................................... 38Shopping the Android Market..................................................................................... 397. ConnectivityConnectivity ......................................................................................41Using the Bluetooth ....................................................................................................... 41Using the Wi-Fi .................................................................................................................. 41Connecting to PC ............................................................................................................. 428. StorageStorage ...............................................................................................44Using the memory card .................................................................................................449. ToolsTools .....................................................................................................46Clock...................................................................................................................................... 46Calculator ............................................................................................................................ 47Converter ............................................................................................................................. 47Sketch Pad...........................................................................................................................48Voice Dialer ......................................................................................................................... 48Voice Search ....................................................................................................................... 4910. SettingsSettings ...............................................................................................51Personalize .......................................................................................................................... 51Wireless & networks ........................................................................................................ 51Call settings ........................................................................................................................ 52Sound & display ................................................................................................................ 52Location & security .......................................................................................................... 53Applications ....................................................................................................................... 54Accounts & sync ................................................................................................................ 54Privacy .................................................................................................................................. 55SD card & phone storage ............................................................................................... 55Search ................................................................................................................................... 55Language & keyboard..................................................................................................... 55Accessibility ........................................................................................................................ 56Text-to-speech ................................................................................................................... 56Date & time ......................................................................................................................... 56AppendixAppendix ............................................................................................58PC Suite ................................................................................................................................ 58Troubleshooting checklist ............................................................................................. 58Specifications ..................................................................................................................... 59Index ..................................................................................................................................... 59Legal notice ........................................................................................................................ 59

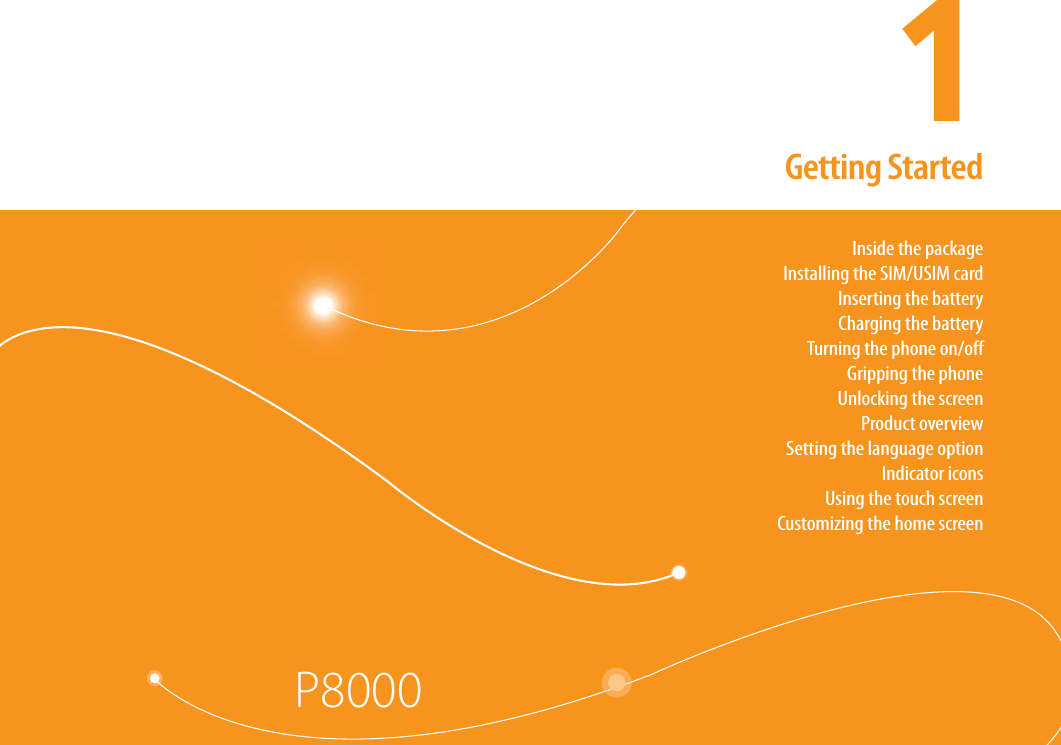

1Inside the packageInstalling the SIM/USIM cardInserting the batteryCharging the batteryTurning the phone on/offGripping the phoneUnlocking the screenProduct overviewSetting the language optionIndicator iconsUsing the touch screenCustomizing the home screen P80001. Getting StartedGetting Started
12Getting StartedThis chapter introduces steps that should be taken first before using this mobile device for a variety of purposes.Inside the packageCheck if the package contains the following items: xHandset xBattery xSD card xSIM card xAdapter xUser Guide xUSB cableYou should purchase following items for the mobile device: xA. xB. xC.Note Items included in the box may differ depending on software or accessories available or provided by the service provider in your country.Installing the SIM/USIM card1. Press and hold the latch and slide it to remove the battery cover from the device.2. Insert the SIM/USIM card into the slot. The gold contacts of the card should go against the metal contacts of the phone.About the SIM/USIM cardWhen you subscribe to your network operator, you receive a Subscriber Identity Module (SIM) card or Universal Subscriber Identity Module (USIM) card containing your registration information, PIN code, etc. Like a credit card, it should be kept secure and handled carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity.Inserting the battery1. Put the connector of the battery into the hole located at the top of the unit and then insert and press the lower side of the battery.2. Put the cover back to the handset.
13Getting StartedAbout the batteryYour phone uses a Lithium Ion (Li-Ion) battery. Make sure to use an authorized battery and a charger only. For more details, inquire at your nearest dealer.Note The Li-Ion battery can be recharged while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies.Charging the battery1. Open the protective cover on the right side and connect the charger adapter.Note Make sure to align the connector as indicated in the image. Otherwise, the charging connector will be damaged and the battery won’t be charged.2. Disconnect the charger from the device when the battery is fully charged.Turning the phone on/offTo turn on,Press and hold Lock/PWR.To turn off,Press and hold Lock/PWR and tap Power off.Gripping the phoneIn order to make calls with no problems, hold the device in the right position as indicated below:Note Using metal accessories (stickers) on the phone, or holding the device by the internal antenna area while changing data and talking on the phone might affect the quality of all calls.Unlocking the screenWhen you turn on the mobile device, the screen is locked by default. To unlock the screen:1. Press LOCK/PWR.2. Drag the arrow symbol diagonally.
14Getting StartedProduct overviewTouch modeKey FunctionPower Locks the touch screenTurns on/off the phoneBack Returns to the previous menuMenu Displays available optionsHome Moves to the Home screenTurns on the screenSearch Searches an item in the device or through the InternetSlide Up & Down Adjusts all sound volumes Adjusts the ring modeCamera Turns on the cameraCaptures the screenFunction Displays available optionsQWERTY keypad
15Getting StartedYour phone has a QWERTY keypad that provides a superior typing experience for easy and comfortable texting. You can use all of the phone functions with the keypad.Key Function ~ Enters the relevant alphabet + Enters the key (numbers, symbols) on the top of each key + Keeps entering keys on the top + Enters the capital letter for the key + Keeps entering capital letters on the topProvides a spaceMoves the cursor; moves to another fieldEnters textDeletes a letter on the left side of the cursorSetting the language optionThe language option is provided on your handset by default and features may differ depending on the model.1. Tap Settings > Language & keyboard > Select locale.2. Tap a language to use for the device.3. Press the home key to finish setting the option.Note It is recommended to set the language option before using other functions.Indicator iconsIcon Description Icon Description The Wi-Fi network is available.The alarm has been set up.The sync is under way. TTY is active.The GPS is active. A voicemail has arrived.Bluetooth is connected. The speakerphone is active. Strength of CDMA signal: The bar becomes bigger when the signal becomes stronger.Airplane mode is active.

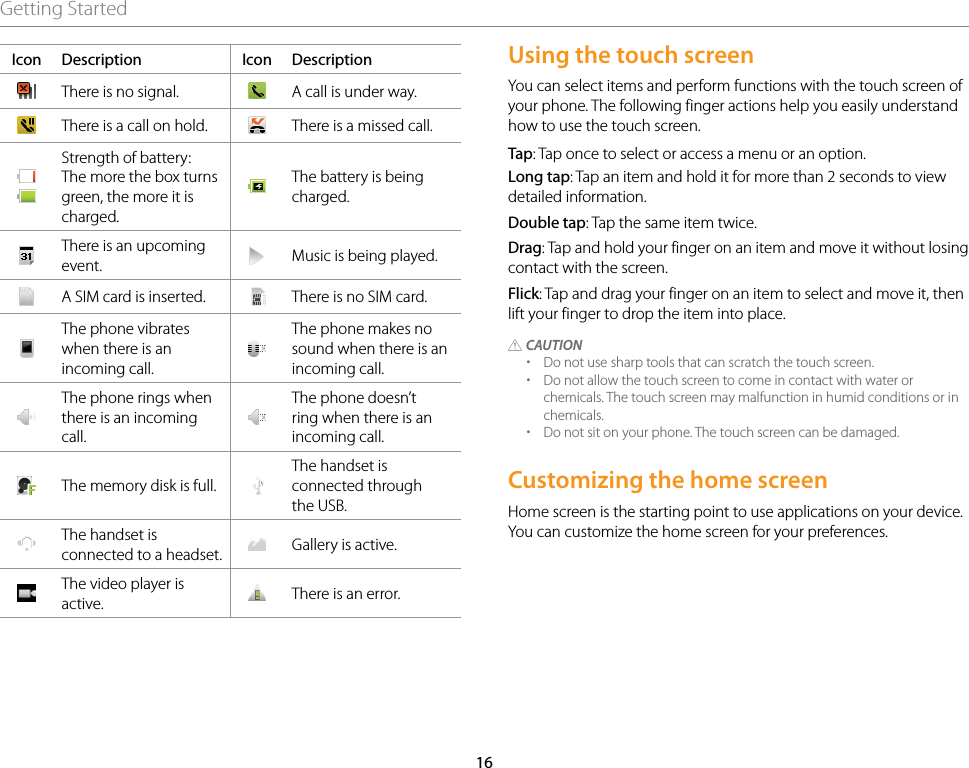

16Getting StartedIcon Description Icon DescriptionThere is no signal. A call is under way.There is a call on hold. There is a missed call. Strength of battery: The more the box turns green, the more it is charged.The battery is being charged.There is an upcoming event. Music is being played.A SIM card is inserted. There is no SIM card.The phone vibrates when there is an incoming call.The phone makes no sound when there is an incoming call.The phone rings when there is an incoming call.The phone doesn’t ring when there is an incoming call.The memory disk is full.The handset is connected through the USB.The handset is connected to a headset. Gallery is active.The video player is active. There is an error.Using the touch screenYou can select items and perform functions with the touch screen of your phone. The following finger actions help you easily understand how to use the touch screen.Tap: Tap once to select or access a menu or an option.Long tap: Tap an item and hold it for more than 2 seconds to view detailed information.Double tap: Tap the same item twice.Drag: Tap and hold your finger on an item and move it without losing contact with the screen.Flick: Tap and drag your finger on an item to select and move it, then lift your finger to drop the item into place.CAUTION xDo not use sharp tools that can scratch the touch screen. xDo not allow the touch screen to come in contact with water or chemicals. The touch screen may malfunction in humid conditions or in chemicals. xDo not sit on your phone. The touch screen can be damaged.Customizing the home screenHome screen is the starting point to use applications on your device. You can customize the home screen for your preferences.

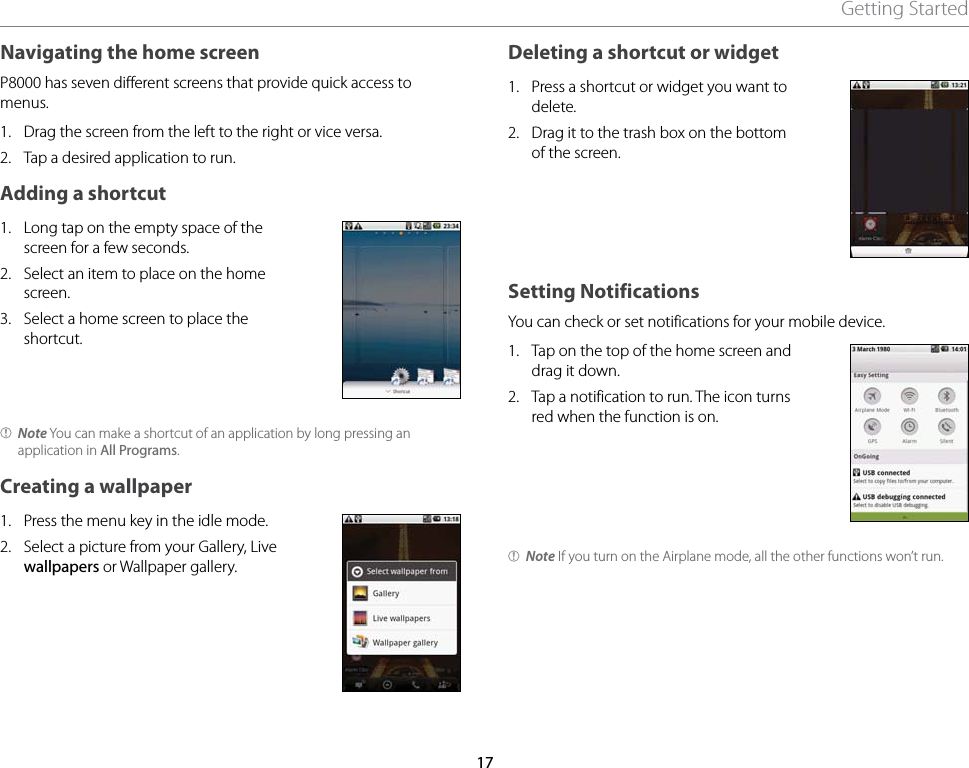

17Getting StartedNavigating the home screenP8000 has seven different screens that provide quick access to menus.1. Drag the screen from the left to the right or vice versa.2. Tap a desired application to run.Adding a shortcut1. Long tap on the empty space of the screen for a few seconds.2. Select an item to place on the home screen.3. Select a home screen to place the shortcut.Note You can make a shortcut of an application by long pressing an application in All Programs.Creating a wallpaper1. Press the menu key in the idle mode.2. Select a picture from your Gallery, Live wallpapers or Wallpaper gallery.Deleting a shortcut or widget1. Press a shortcut or widget you want to delete.2. Drag it to the trash box on the bottom of the screen.Setting NotificationsYou can check or set notifications for your mobile device.1. Tap on the top of the home screen and drag it down.2. Tap a notification to run. The icon turns red when the function is on.Note If you turn on the Airplane mode, all the other functions won’t run.
2. Communication2CallingMessagingReceiving and sending emailsEnjoying the Social Network ServiceCommunicationP8000

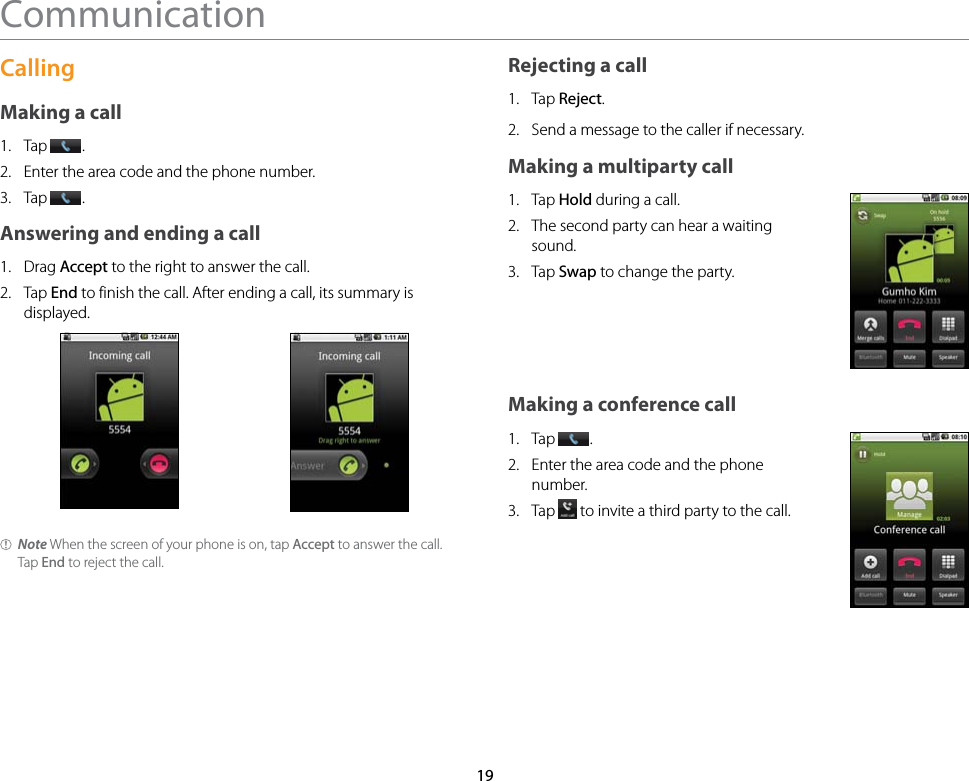

19CommunicationCallingMaking a call1. Tap .2. Enter the area code and the phone number.3. Tap .Answering and ending a call1. Drag Accept to the right to answer the call.2. Tap End to finish the call. After ending a call, its summary is displayed.Note When the screen of your phone is on, tap Accept to answer the call. Tap End to reject the call.Rejecting a call1. Tap Reject.2. Send a message to the caller if necessary.Making a multiparty call1. Tap Hold during a call.2. The second party can hear a waiting sound.3. Tap Swap to change the party.Making a conference call1. Tap .2. Enter the area code and the phone number.3. Tap to invite a third party to the call.

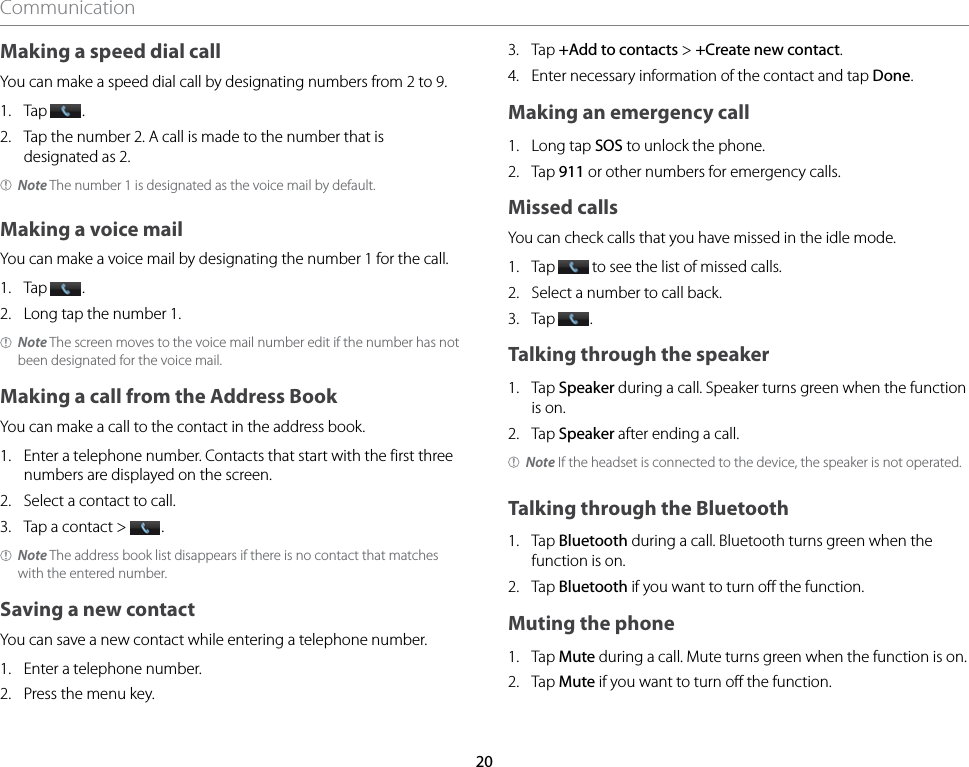

20CommunicationMaking a speed dial callYou can make a speed dial call by designating numbers from 2 to 9.1. Tap .2. Tap the number 2. A call is made to the number that is designated as 2.Note The number 1 is designated as the voice mail by default.Making a voice mailYou can make a voice mail by designating the number 1 for the call.1. Tap .2. Long tap the number 1.Note The screen moves to the voice mail number edit if the number has not been designated for the voice mail.Making a call from the Address BookYou can make a call to the contact in the address book.1. Enter a telephone number. Contacts that start with the first three numbers are displayed on the screen.2. Select a contact to call.3. Tap a contact > .Note The address book list disappears if there is no contact that matches with the entered number.Saving a new contactYou can save a new contact while entering a telephone number.1. Enter a telephone number.2. Press the menu key.3. Tap +Add to contacts > +Create new contact.4. Enter necessary information of the contact and tap Done.Making an emergency call1. Long tap SOS to unlock the phone.2. Tap 911 or other numbers for emergency calls.Missed callsYou can check calls that you have missed in the idle mode.1. Tap to see the list of missed calls.2. Select a number to call back.3. Tap .Talking through the speaker1. Tap Speaker during a call. Speaker turns green when the function is on.2. Tap Speaker after ending a call.Note If the headset is connected to the device, the speaker is not operated.Talking through the Bluetooth1. Tap Bluetooth during a call. Bluetooth turns green when the function is on.2. Tap Bluetooth if you want to turn off the function.Muting the phone1. Tap Mute during a call. Mute turns green when the function is on.2. Tap Mute if you want to turn off the function.
21CommunicationHolding a call1. Tap Hold during a call.2. Tap Hold to connect to another call.Recording a call1. Tap the menu key during a call.2. Tap Record to start recording a call.3. Tap to stop recording.Note The voice won’t be recorded if the memory is full. The voice will be automatically recorded until the memory is full.Adding a call1. Tap Add call to make a call to another party during a call with a party.2. Enter the telephone number and tap Call.Note The party is held when you make a call with another party.Adding an incoming callYou can wait a call during a previous call.1. Drag Accept to the right to answer the call.2. Tap End to finish the call.Adjusting the volume1. Increase or decrease the volume during a call to adjust the volume.2. The screen returns to the normal view in a few seconds.Using the headset button (Bluetooth)1. Long press the headset button during a call to answer the call.2. Long press again the headset button to end the call.3. Short press the button to mute or un-mute the voice.MessagingSending a new message1. Tap Messaging > New message.2. Enter the contact of the recipient using the virtual keypad or the QWERTY keypad.3. Enter a message on the empty screen.4. Tap Send to send the message or Cancel to undo the message.Deleting messages1. Tap Messaging and press the menu key.2. Tap Delete > Yes.Using a quick text1. Tap Messaging and press the menu key.2. Tap Quick Text and tap one of texts.3. Press the menu key.4. Tap Send message.

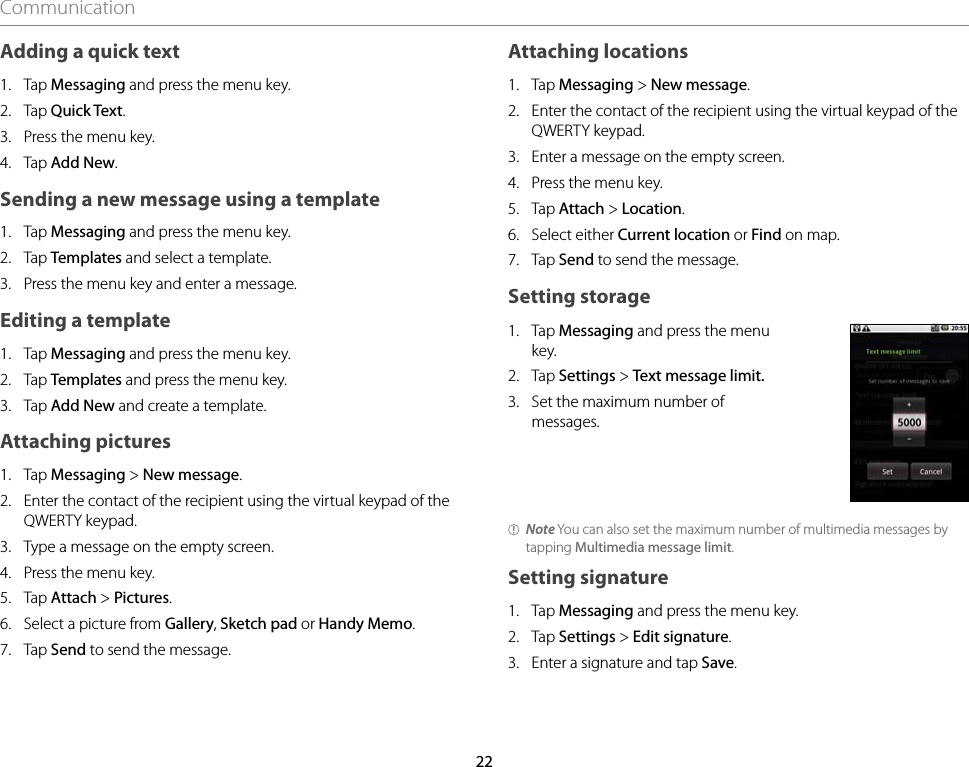

22CommunicationAdding a quick text1. Tap Messaging and press the menu key.2. Tap Quick Text.3. Press the menu key.4. Tap Add New.Sending a new message using a template1. Tap Messaging and press the menu key.2. Tap Templates and select a template.3. Press the menu key and enter a message.Editing a template1. Tap Messaging and press the menu key.2. Tap Templates and press the menu key.3. Tap Add New and create a template.Attaching pictures1. Tap Messaging > New message.2. Enter the contact of the recipient using the virtual keypad of the QWERTY keypad.3. Type a message on the empty screen.4. Press the menu key.5. Tap Attach > Pictures.6. Select a picture from Gallery, Sketch pad or Handy Memo.7. Tap Send to send the message.Attaching locations1. Tap Messaging > New message.2. Enter the contact of the recipient using the virtual keypad of the QWERTY keypad.3. Enter a message on the empty screen.4. Press the menu key.5. Tap Attach > Location.6. Select either Current location or Find on map.7. Tap Send to send the message.Setting storage1. Tap Messaging and press the menu key.2. Tap Settings > Text message limit.3. Set the maximum number of messages.Note You can also set the maximum number of multimedia messages by tapping Multimedia message limit.Setting signature1. Tap Messaging and press the menu key.2. Tap Settings > Edit signature.3. Enter a signature and tap Save.

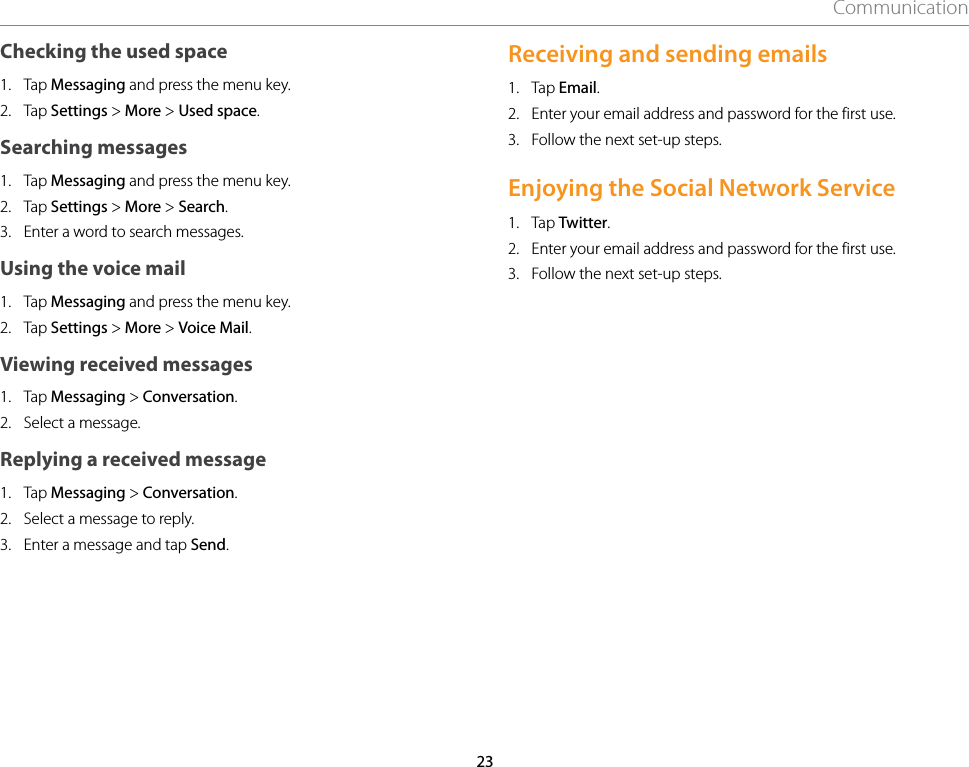

23CommunicationChecking the used space1. Tap Messaging and press the menu key.2. Tap Settings > More > Used space.Searching messages1. Tap Messaging and press the menu key.2. Tap Settings > More > Search.3. Enter a word to search messages.Using the voice mail1. Tap Messaging and press the menu key.2. Tap Settings > More > Voice Mail.Viewing received messages1. Tap Messaging > Conversation.2. Select a message.Replying a received message1. Tap Messaging > Conversation.2. Select a message to reply.3. Enter a message and tap Send.Receiving and sending emails1. Tap Email.2. Enter your email address and password for the first use.3. Follow the next set-up steps.Enjoying the Social Network Service1. Tap Twitter.2. Enter your email address and password for the first use.3. Follow the next set-up steps.

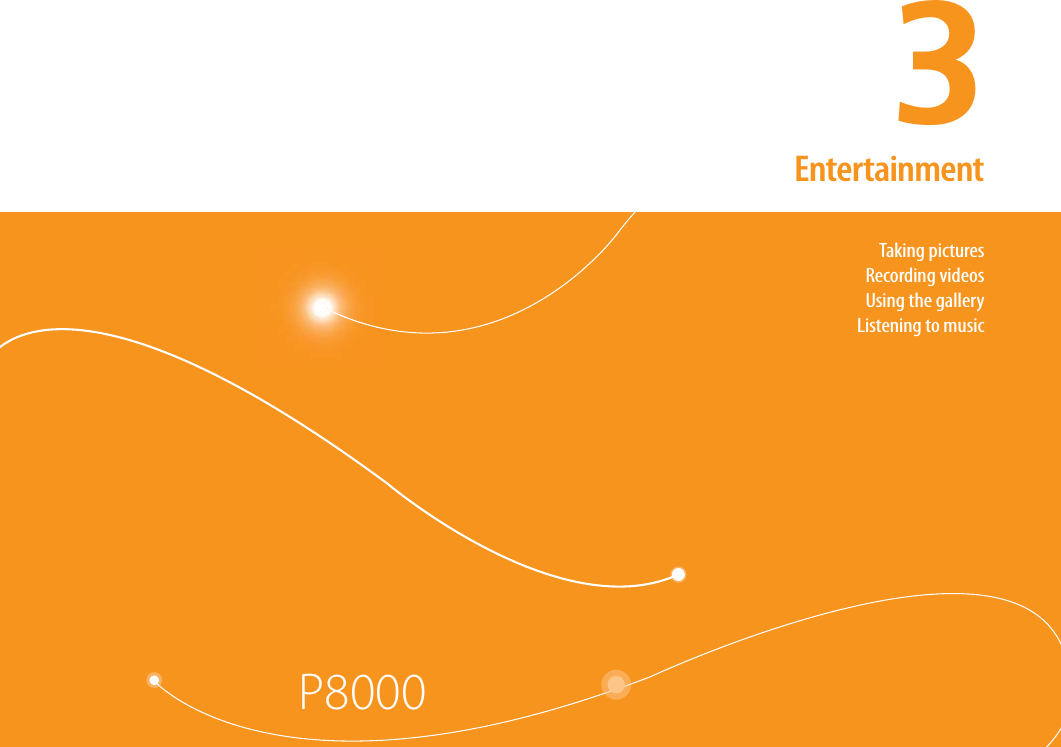

P80003. Entertainment3EntertainmentTaking picturesRecording videosUsing the galleryListening to music

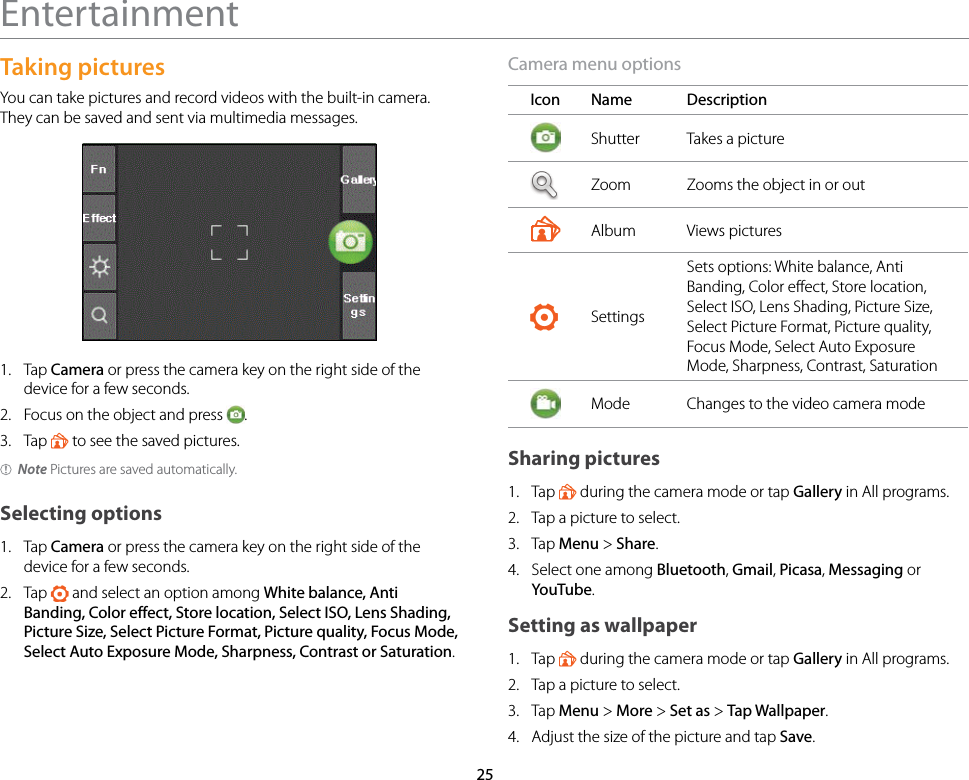

25EntertainmentTaking picturesYou can take pictures and record videos with the built-in camera. They can be saved and sent via multimedia messages.1. Tap Camera or press the camera key on the right side of the device for a few seconds.2. Focus on the object and press .3. Tap to see the saved pictures.Note Pictures are saved automatically.Selecting options1. Tap Camera or press the camera key on the right side of the device for a few seconds.2. Tap and select an option among White balance, Anti Banding, Color effect, Store location, Select ISO, Lens Shading, Picture Size, Select Picture Format, Picture quality, Focus Mode, Select Auto Exposure Mode, Sharpness, Contrast or Saturation.Camera menu optionsIcon Name DescriptionShutter Takes a pictureZoom Zooms the object in or outAlbum Views picturesSettingsSets options: White balance, Anti Banding, Color effect, Store location, Select ISO, Lens Shading, Picture Size, Select Picture Format, Picture quality, Focus Mode, Select Auto Exposure Mode, Sharpness, Contrast, SaturationMode Changes to the video camera modeSharing pictures1. Tap during the camera mode or tap Gallery in All programs.2. Tap a picture to select.3. Tap Menu > Share.4. Select one among Bluetooth, Gmail, Picasa, Messaging or YouTube.Setting as wallpaper1. Tap during the camera mode or tap Gallery in All programs.2. Tap a picture to select.3. Tap Menu > More > Set as > Tap Wallpaper.4. Adjust the size of the picture and tap Save.

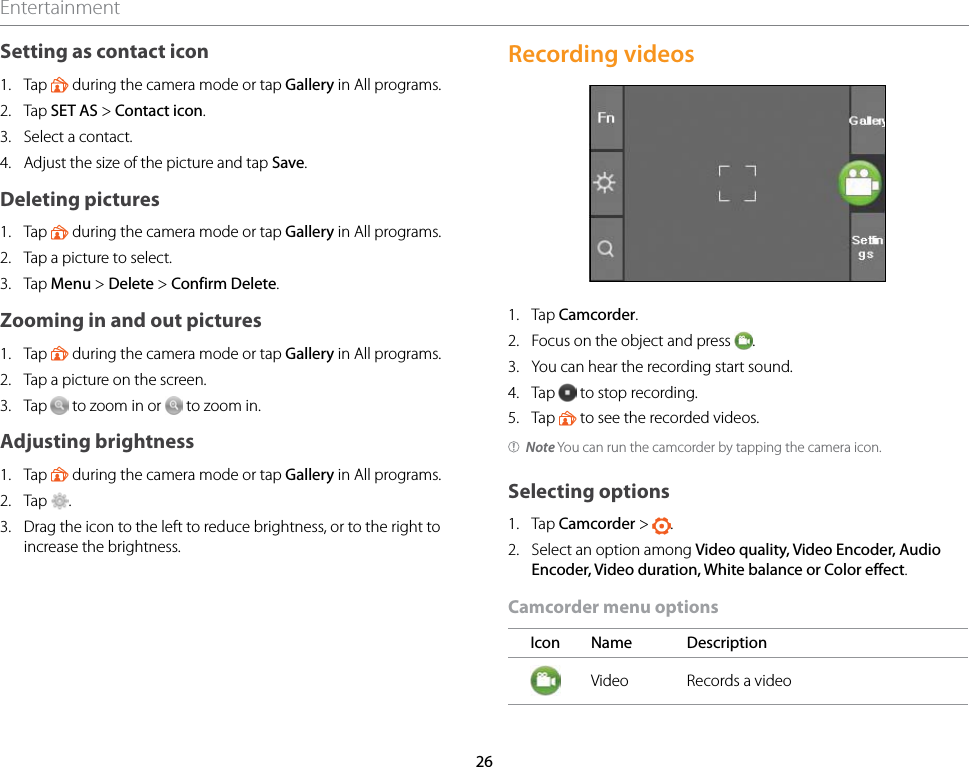

26EntertainmentSetting as contact icon1. Tap during the camera mode or tap Gallery in All programs.2. Tap SET AS > Contact icon.3. Select a contact.4. Adjust the size of the picture and tap Save.Deleting pictures1. Tap during the camera mode or tap Gallery in All programs.2. Tap a picture to select.3. Tap Menu > Delete > Confirm Delete.Zooming in and out pictures1. Tap during the camera mode or tap Gallery in All programs.2. Tap a picture on the screen.3. Tap to zoom in or to zoom in.Adjusting brightness1. Tap during the camera mode or tap Gallery in All programs.2. Tap .3. Drag the icon to the left to reduce brightness, or to the right to increase the brightness.Recording videos1. Tap Camcorder.2. Focus on the object and press .3. You can hear the recording start sound.4. Tap to stop recording.5. Tap to see the recorded videos.Note You can run the camcorder by tapping the camera icon.Selecting options1. Tap Camcorder > .2. Select an option among Video quality, Video Encoder, Audio Encoder, Video duration, White balance or Color effect.Camcorder menu optionsIcon Name DescriptionVideo Records a video

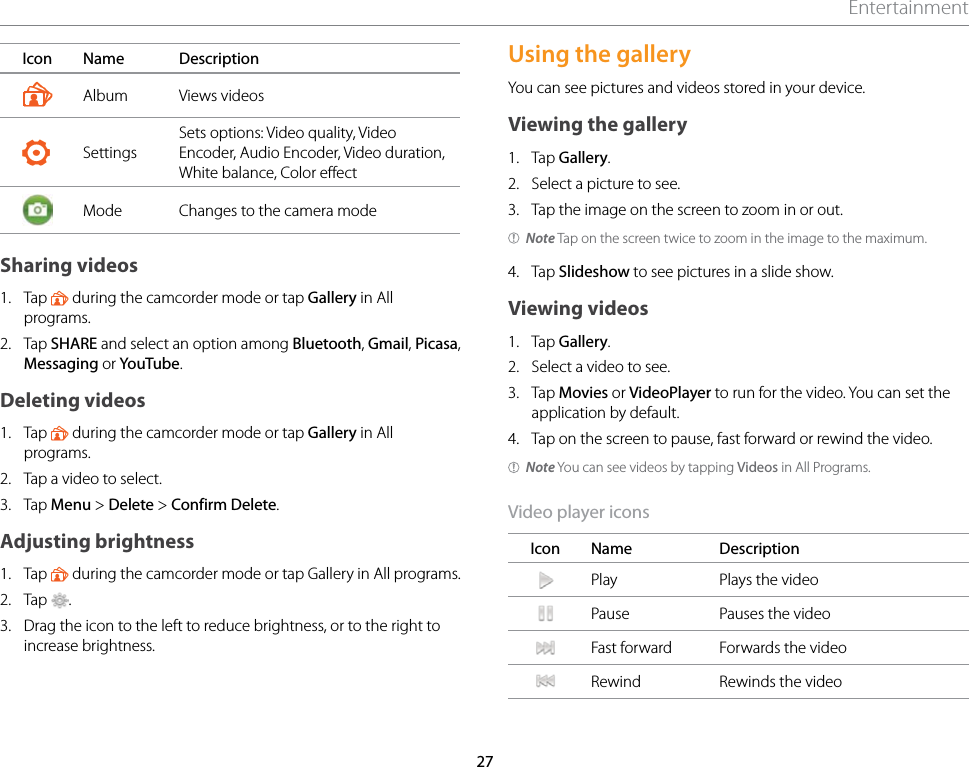

27EntertainmentIcon Name DescriptionAlbum Views videosSettingsSets options: Video quality, Video Encoder, Audio Encoder, Video duration, White balance, Color effectMode Changes to the camera modeSharing videos1. Tap during the camcorder mode or tap Gallery in All programs.2. Tap SHARE and select an option among Bluetooth, Gmail, Picasa, Messaging or YouTube.Deleting videos1. Tap during the camcorder mode or tap Gallery in All programs.2. Tap a video to select.3. Tap Menu > Delete > Confirm Delete.Adjusting brightness1. Tap during the camcorder mode or tap Gallery in All programs.2. Tap .3. Drag the icon to the left to reduce brightness, or to the right to increase brightness.Using the galleryYou can see pictures and videos stored in your device.Viewing the gallery1. Tap Gallery.2. Select a picture to see.3. Tap the image on the screen to zoom in or out.Note Tap on the screen twice to zoom in the image to the maximum.4. Tap Slideshow to see pictures in a slide show.Viewing videos1. Tap Gallery.2. Select a video to see.3. Tap Movies or VideoPlayer to run for the video. You can set the application by default.4. Tap on the screen to pause, fast forward or rewind the video.Note You can see videos by tapping Videos in All Programs.Video player iconsIcon Name DescriptionPlay Plays the videoPause Pauses the videoFast forward Forwards the videoRewind Rewinds the video

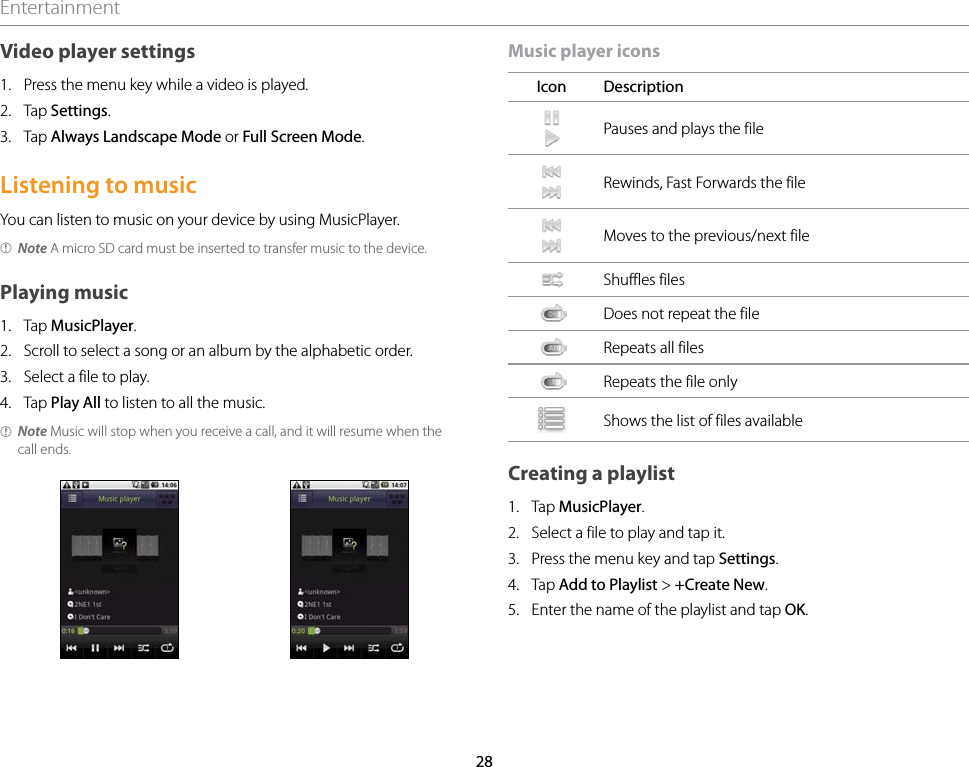

28EntertainmentVideo player settings1. Press the menu key while a video is played.2. Tap Settings.3. Tap Always Landscape Mode or Full Screen Mode.Listening to musicYou can listen to music on your device by using MusicPlayer.Note A micro SD card must be inserted to transfer music to the device.Playing music1. Tap MusicPlayer.2. Scroll to select a song or an album by the alphabetic order.3. Select a file to play.4. Tap Play All to listen to all the music.Note Music will stop when you receive a call, and it will resume when the call ends.Music player iconsIcon DescriptionPauses and plays the fileRewinds, Fast Forwards the file Moves to the previous/next fileShuffles filesDoes not repeat the fileRepeats all filesRepeats the file onlyShows the list of files availableCreating a playlist1. Tap MusicPlayer.2. Select a file to play and tap it.3. Press the menu key and tap Settings.4. Tap Add to Playlist > +Create New.5. Enter the name of the playlist and tap OK.

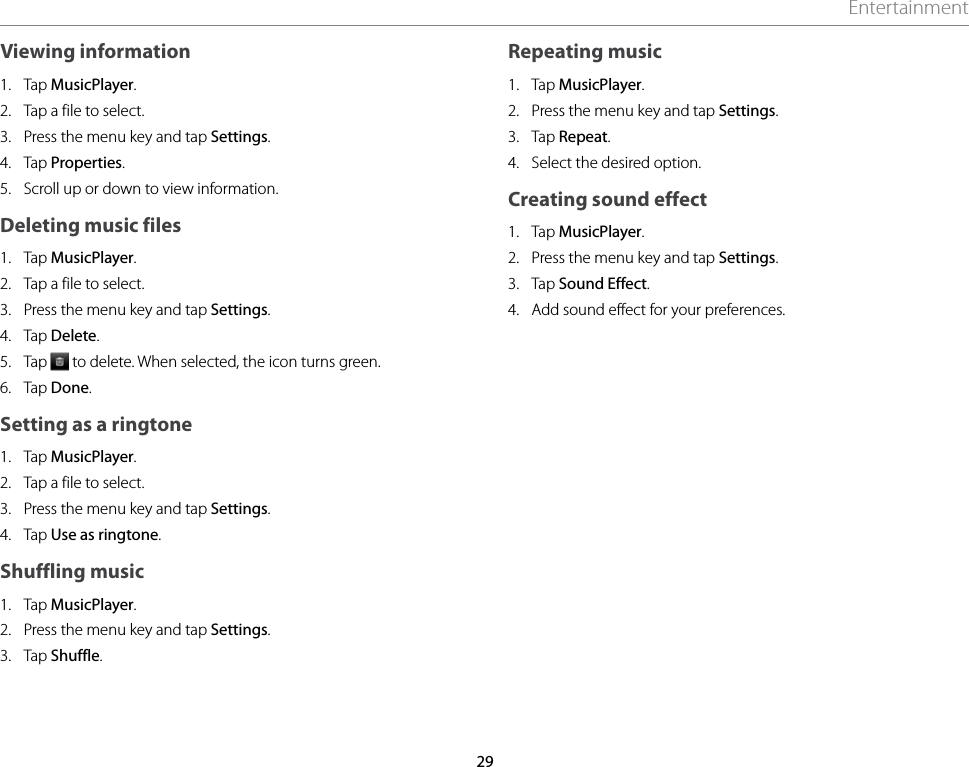

29EntertainmentViewing information1. Tap MusicPlayer.2. Tap a file to select.3. Press the menu key and tap Settings.4. Tap Properties.5. Scroll up or down to view information.Deleting music files1. Tap MusicPlayer.2. Tap a file to select.3. Press the menu key and tap Settings.4. Tap Delete.5. Tap to delete. When selected, the icon turns green.6. Tap Done.Setting as a ringtone1. Tap MusicPlayer.2. Tap a file to select.3. Press the menu key and tap Settings.4. Tap Use as ringtone.Shuffling music1. Tap MusicPlayer.2. Press the menu key and tap Settings.3. Tap Shuffle.Repeating music1. Tap MusicPlayer.2. Press the menu key and tap Settings.3. Tap Repeat.4. Select the desired option.Creating sound effect1. Tap MusicPlayer.2. Press the menu key and tap Settings.3. Tap Sound Effect.4. Add sound effect for your preferences.

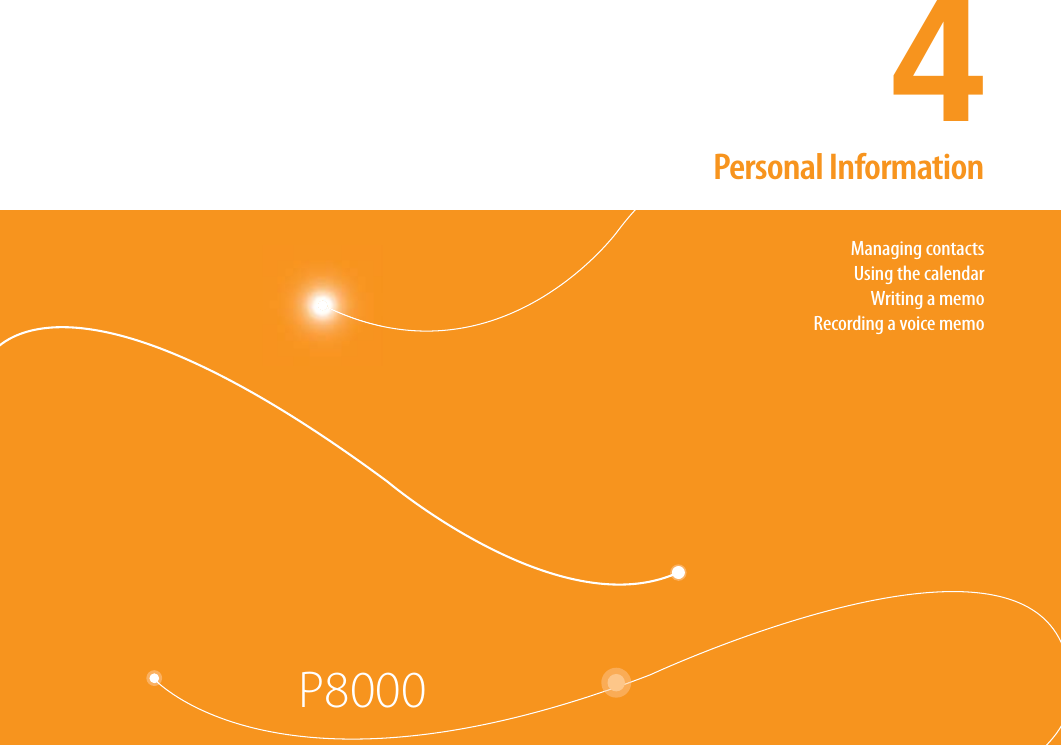

30P80004. Personal Information4Personal InformationManaging contactsUsing the calendarWriting a memoRecording a voice memo

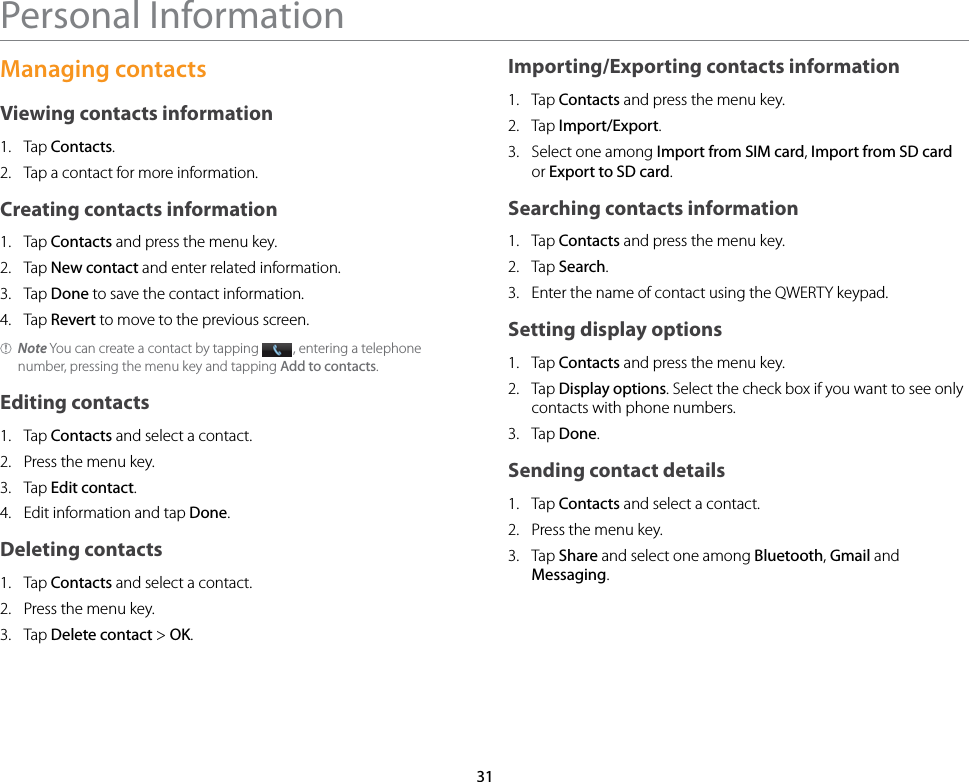

31Personal InformationManaging contactsViewing contacts information1. Tap Contacts.2. Tap a contact for more information.Creating contacts information1. Tap Contacts and press the menu key.2. Tap New contact and enter related information.3. Tap Done to save the contact information.4. Tap Revert to move to the previous screen.Note You can create a contact by tapping , entering a telephone number, pressing the menu key and tapping Add to contacts.Editing contacts1. Tap Contacts and select a contact.2. Press the menu key.3. Tap Edit contact.4. Edit information and tap Done.Deleting contacts1. Tap Contacts and select a contact.2. Press the menu key.3. Tap Delete contact > OK.Importing/Exporting contacts information1. Tap Contacts and press the menu key.2. Tap Import/Export.3. Select one among Import from SIM card, Import from SD card or Export to SD card.Searching contacts information1. Tap Contacts and press the menu key.2. Tap Search.3. Enter the name of contact using the QWERTY keypad.Setting display options1. Tap Contacts and press the menu key.2. Tap Display options. Select the check box if you want to see only contacts with phone numbers.3. Tap Done.Sending contact details1. Tap Contacts and select a contact.2. Press the menu key.3. Tap Share and select one among Bluetooth, Gmail and Messaging.

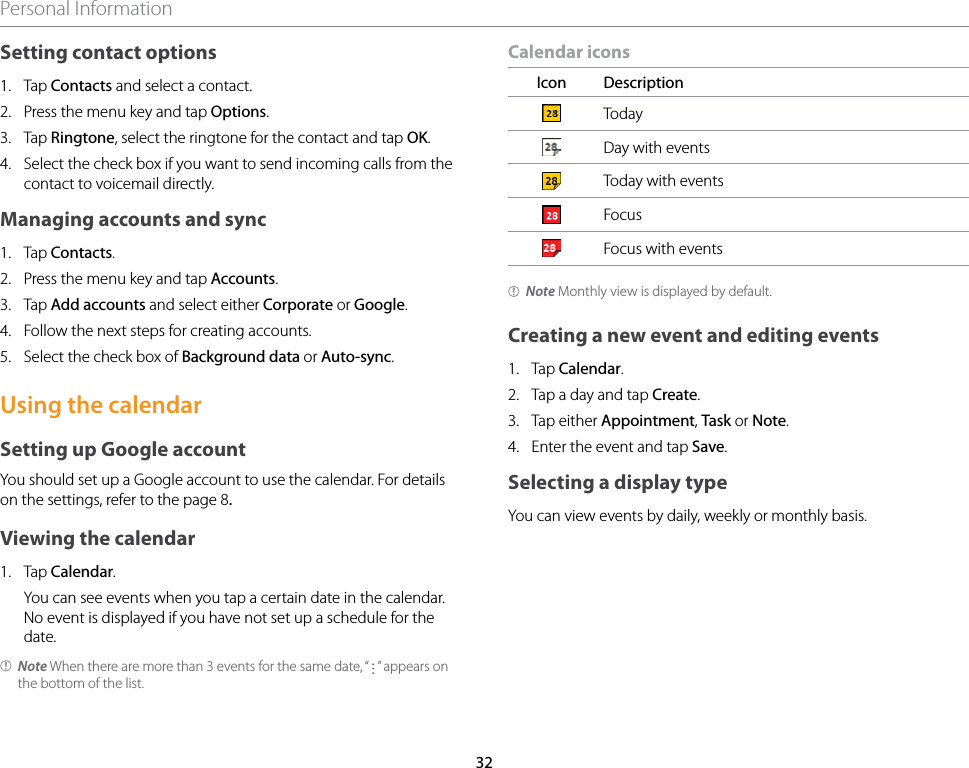

32Personal InformationSetting contact options1. Tap Contacts and select a contact.2. Press the menu key and tap Options.3. Tap Ringtone, select the ringtone for the contact and tap OK.4. Select the check box if you want to send incoming calls from the contact to voicemail directly.Managing accounts and sync1. Tap Contacts.2. Press the menu key and tap Accounts.3. Tap Add accounts and select either Corporate or Google.4. Follow the next steps for creating accounts.5. Select the check box of Background data or Auto-sync.Using the calendarSetting up Google accountYou should set up a Google account to use the calendar. For details on the settings, refer to the page 8.Viewing the calendar1. Tap Calendar. You can see events when you tap a certain date in the calendar. No event is displayed if you have not set up a schedule for the date.Note When there are more than 3 events for the same date, “ ” appears on the bottom of the list.Calendar iconsIcon DescriptionTodayDay with eventsToday with eventsFocusFocus with eventsNote Monthly view is displayed by default.Creating a new event and editing events1. Tap Calendar.2. Tap a day and tap Create.3. Tap either Appointment, Task or Note.4. Enter the event and tap Save.Selecting a display typeYou can view events by daily, weekly or monthly basis.

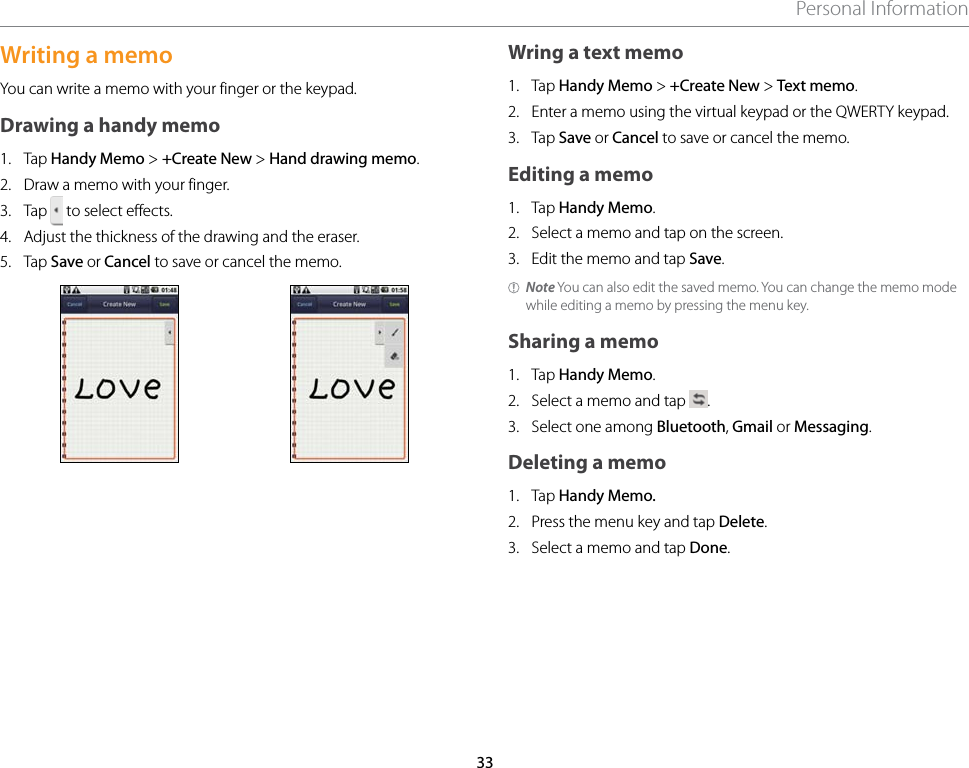

33Personal InformationWriting a memoYou can write a memo with your finger or the keypad.Drawing a handy memo1. Tap Handy Memo > +Create New > Hand drawing memo.2. Draw a memo with your finger.3. Tap to select effects.4. Adjust the thickness of the drawing and the eraser.5. Tap Save or Cancel to save or cancel the memo.Wring a text memo1. Tap Handy Memo > +Create New > Text memo.2. Enter a memo using the virtual keypad or the QWERTY keypad.3. Tap Save or Cancel to save or cancel the memo.Editing a memo1. Tap Handy Memo.2. Select a memo and tap on the screen.3. Edit the memo and tap Save.Note You can also edit the saved memo. You can change the memo mode while editing a memo by pressing the menu key.Sharing a memo1. Tap Handy Memo.2. Select a memo and tap .3. Select one among Bluetooth, Gmail or Messaging.Deleting a memo1. Tap Handy Memo.2. Press the menu key and tap Delete.3. Select a memo and tap Done.

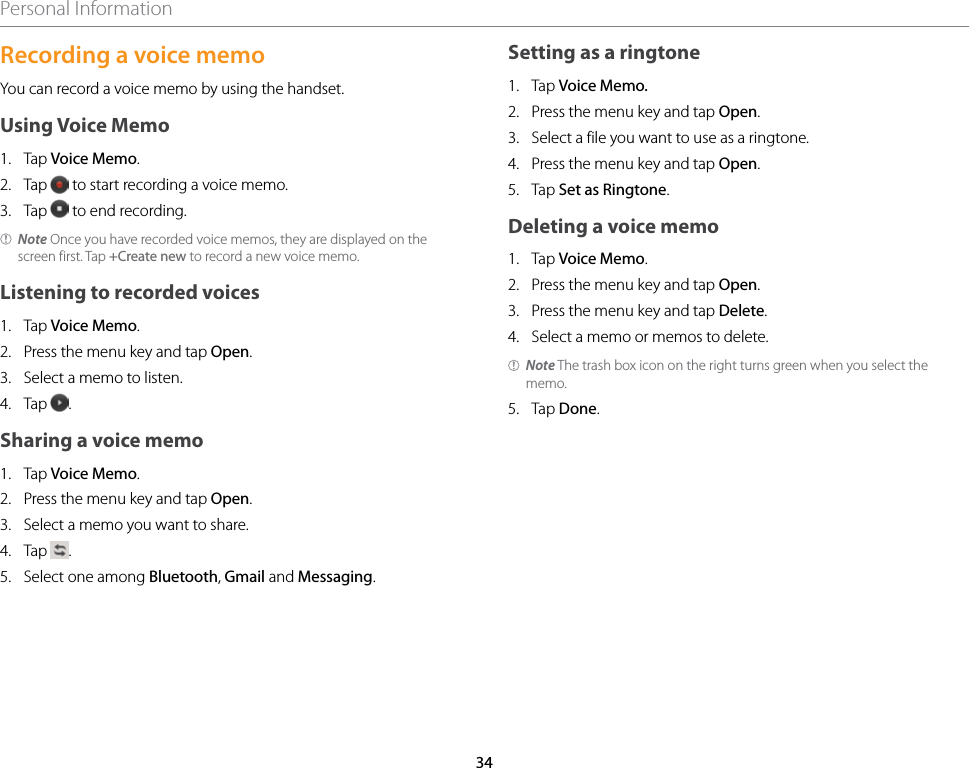

34Personal InformationRecording a voice memoYou can record a voice memo by using the handset.Using Voice Memo1. Tap Voice Memo.2. Tap to start recording a voice memo.3. Tap to end recording.Note Once you have recorded voice memos, they are displayed on the screen first. Tap +Create new to record a new voice memo.Listening to recorded voices1. Tap Voice Memo.2. Press the menu key and tap Open.3. Select a memo to listen.4. Tap .Sharing a voice memo1. Tap Voice Memo.2. Press the menu key and tap Open.3. Select a memo you want to share.4. Tap .5. Select one among Bluetooth, Gmail and Messaging.Setting as a ringtone1. Tap Voice Memo.2. Press the menu key and tap Open.3. Select a file you want to use as a ringtone.4. Press the menu key and tap Open.5. Tap Set as Ringtone. Deleting a voice memo1. Tap Voice Memo.2. Press the menu key and tap Open.3. Press the menu key and tap Delete.4. Select a memo or memos to delete.Note The trash box icon on the right turns green when you select the memo.5. Tap Done.

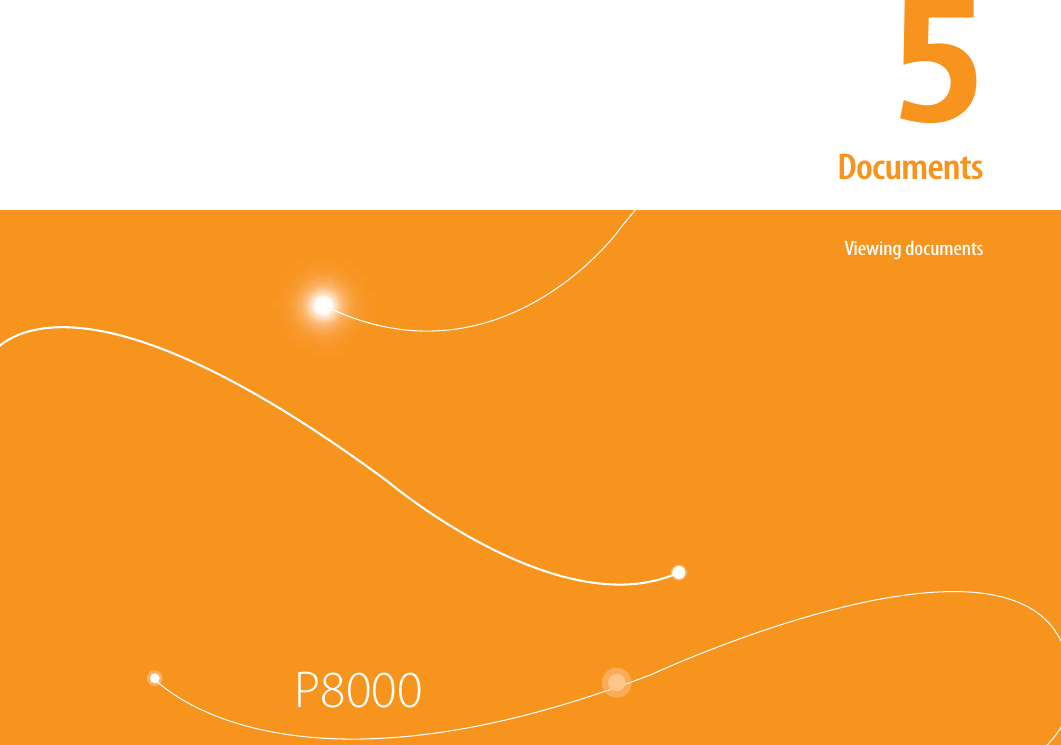

P80005. Documents5Viewing documentsDocuments

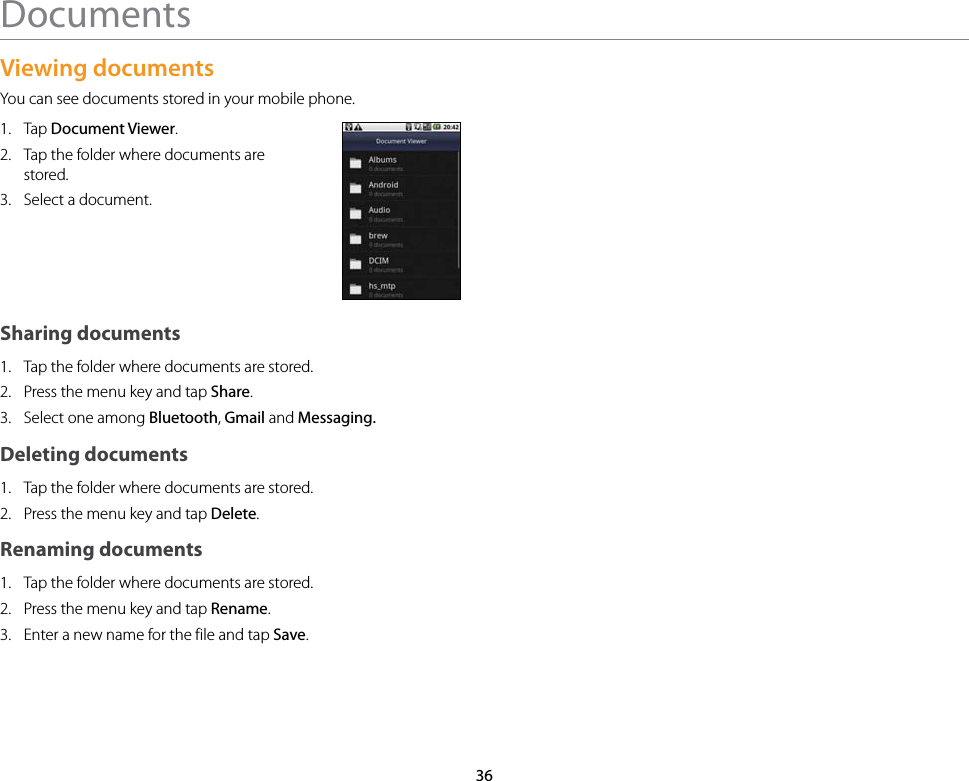

36DocumentsViewing documentsYou can see documents stored in your mobile phone.1. Tap Document Viewer.2. Tap the folder where documents are stored.3. Select a document.Sharing documents1. Tap the folder where documents are stored.2. Press the menu key and tap Share.3. Select one among Bluetooth, Gmail and Messaging. Deleting documents1. Tap the folder where documents are stored.2. Press the menu key and tap Delete.Renaming documents1. Tap the folder where documents are stored.2. Press the menu key and tap Rename.3. Enter a new name for the file and tap Save.

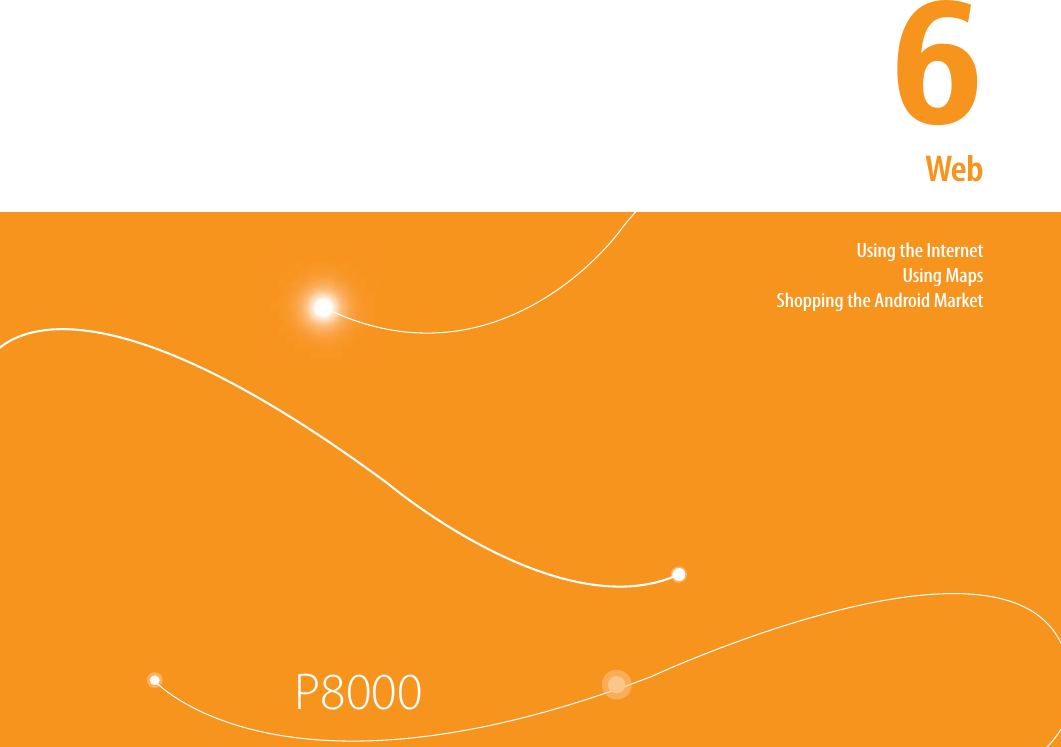

P80006. Web6Using the InternetUsing MapsShopping the Android MarketWeb
38WebUsing the InternetSetting up Google accountYou should set up a Google account to access the Internet. For details on the settings, refer to the page 8. You can access the Internet and search information or visit your favorite websites. The default website is provided by your service provider.1. Tap Browser.2. Enter the keyword in the box on the screen.Refreshing the page1. Tap on the top to refresh the page.2. Tap on the top to stop refreshing.Visiting a new page1. Tap the address bar on the page.2. Enter a new URL on the address bar.Managing bookmarks1. Tap Browser.2. Press the menu key and tap Bookmarks.3. Tap a bookmarked website to access it.4. Tap Add bookmark and enter the name and location of the website.Viewing browser history1. Tap Browser.2. Press the menu key and tap Bookmarks.3. Tap Most visited or History.Using MapsFinding my location1. Tap Maps.2. Press the menu key and tap My Location.Note Make sure to activate the GPS function for accurate information.
39WebZooming in and out1. Tap to zoom in the map.2. Tap to zoom out the map.Note You can tap on the screen to zoom in the map.Finding directions1. Press the menu key and tap Directions.2. Enter the name of the place you want to visit.3. Tap Go.Searching for a place1. Press the menu key and tap Search.2. Enter the name of the place you want to visit.Shopping the Android Market1. Tap Market.2. Select a category.3. Follow the next steps to use the Android Market.
40P80007. Connectivity7Using the BluetoothUsing the Wi-FiConnecting to PCConnectivity

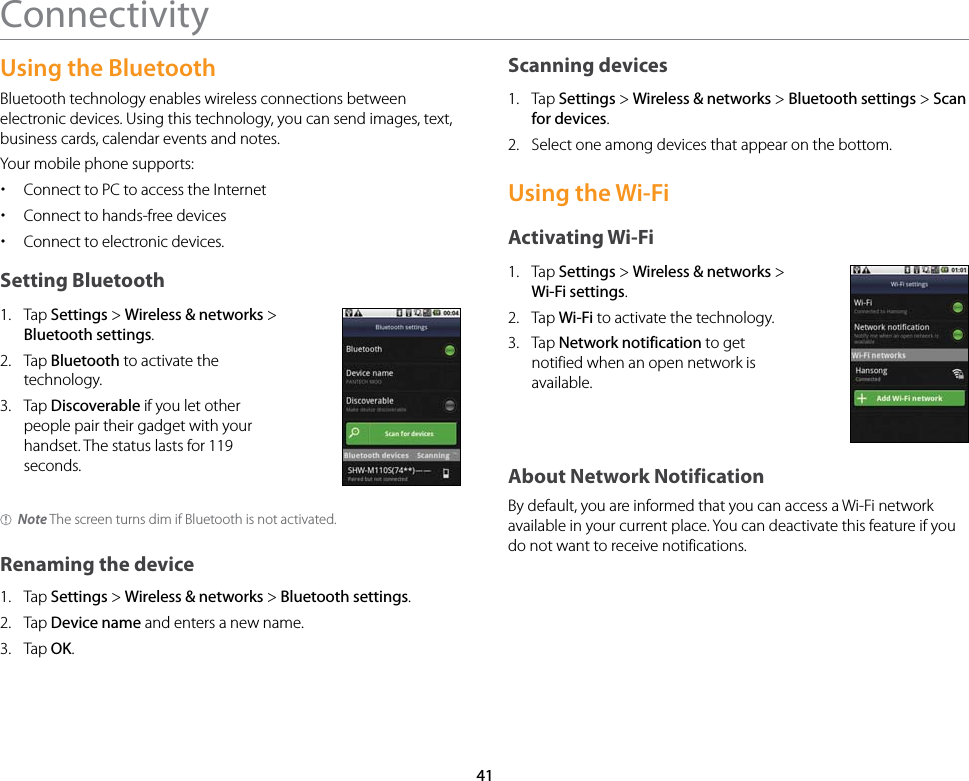

41ConnectivityUsing the Bluetooth Bluetooth technology enables wireless connections between electronic devices. Using this technology, you can send images, text, business cards, calendar events and notes.Your mobile phone supports: xConnect to PC to access the Internet xConnect to hands-free devices xConnect to electronic devices.Setting Bluetooth1. Tap Settings > Wireless & networks > Bluetooth settings.2. Tap Bluetooth to activate the technology.3. Tap Discoverable if you let other people pair their gadget with your handset. The status lasts for 119 seconds.Note The screen turns dim if Bluetooth is not activated.Renaming the device1. Tap Settings > Wireless & networks > Bluetooth settings.2. Tap Device name and enters a new name.3. Tap OK.Scanning devices1. Tap Settings > Wireless & networks > Bluetooth settings > Scan for devices.2. Select one among devices that appear on the bottom.Using the Wi-FiActivating Wi-Fi1. Tap Settings > Wireless & networks > Wi-Fi settings.2. Tap Wi-Fi to activate the technology.3. Tap Network notification to get notified when an open network is available.About Network NotificationBy default, you are informed that you can access a Wi-Fi network available in your current place. You can deactivate this feature if you do not want to receive notifications.

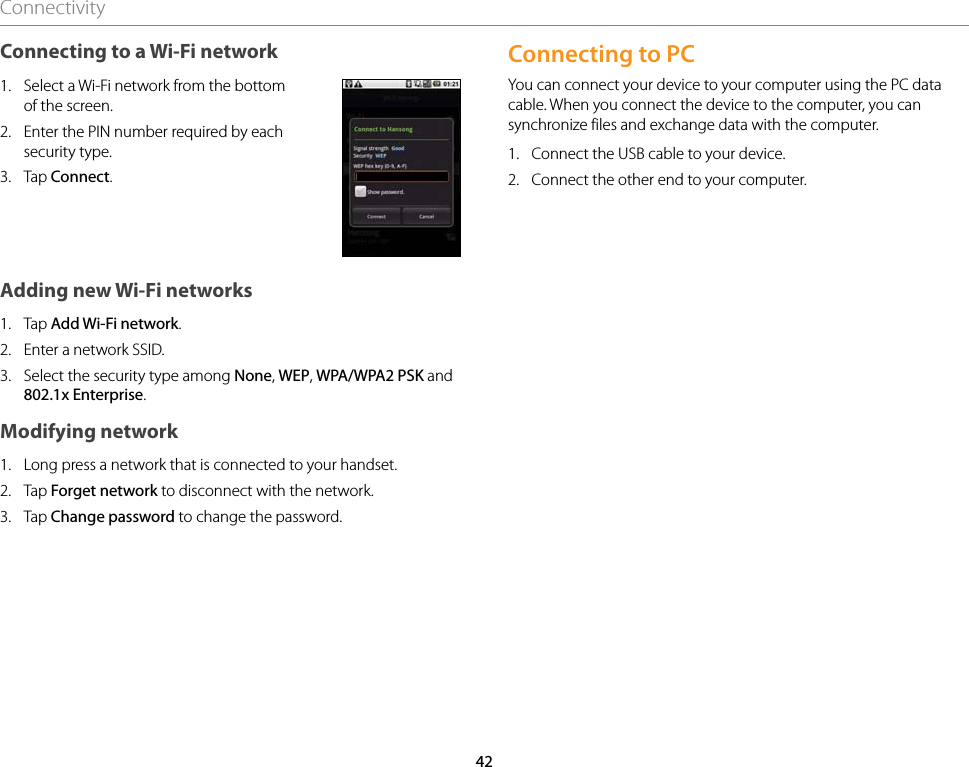

42ConnectivityConnecting to a Wi-Fi network1. Select a Wi-Fi network from the bottom of the screen.2. Enter the PIN number required by each security type.3. Tap Connect.Adding new Wi-Fi networks1. Tap Add Wi-Fi network.2. Enter a network SSID.3. Select the security type among None, WEP, WPA/WPA2 PSK and 802.1x Enterprise.Modifying network1. Long press a network that is connected to your handset.2. Tap Forget network to disconnect with the network.3. Tap Change password to change the password.Connecting to PCYou can connect your device to your computer using the PC data cable. When you connect the device to the computer, you can synchronize files and exchange data with the computer.1. Connect the USB cable to your device.2. Connect the other end to your computer.
P80008. Storage8Using the memory cardStorage
44Storage Using the memory cardYou can enjoy many activities using the SD memory card including: xConnect to PC to store various types of files xCamera, video, music player, and other media or applications.Mounting the SD Card1. Turn off the phone.2. Open the battery cover.3. Remove the battery.4. Insert the SD card into the slot.5. Insert the battery.6. Close the battery cover.Unmounting the SD Card1. Tap Settings > SD card & phone storage > Unmount SD card.2. Turn off the phone.3. Open the battery cover.4. Remove the battery.5. Remove the SD card.6. Close the battery cover. Viewing available memory1. Tap Settings > SD card & phone storage.2. Flick the screen and check the status of the SD card and Internal phone storage.Erasing files from the SD card1. Tap Settings > SD card & phone storage > Unmount SD card > Format SD card.2. Tap Format SD Card.

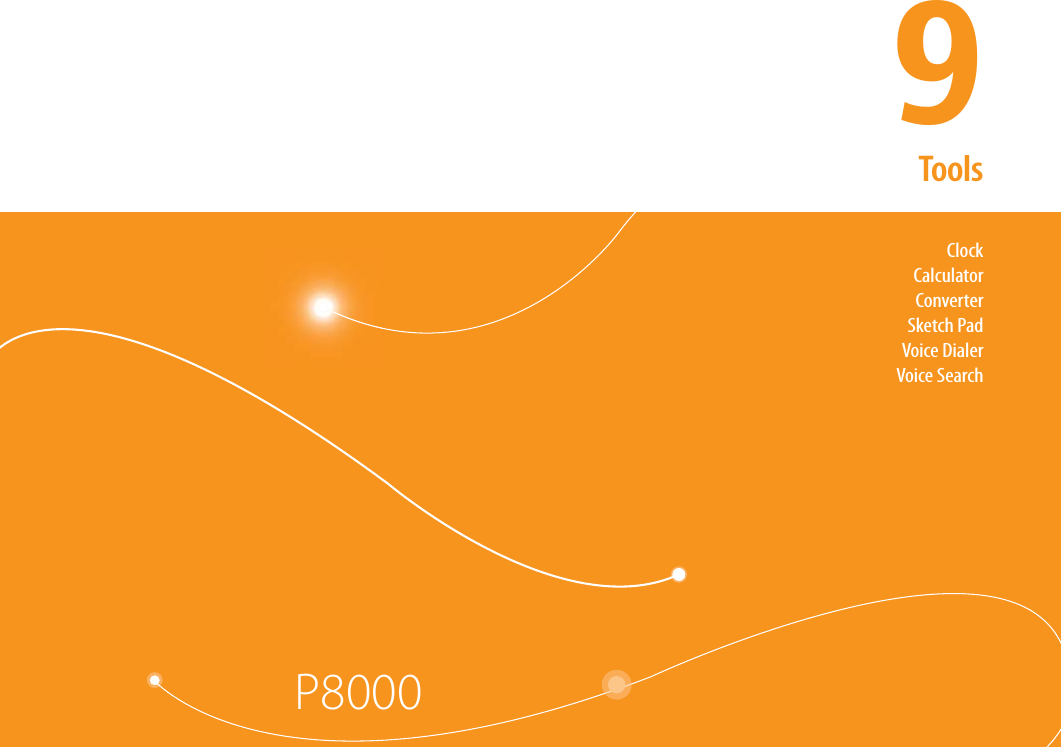

45P80009. Tools9ClockCalculatorConverterSketch PadVoice DialerVoice SearchTools

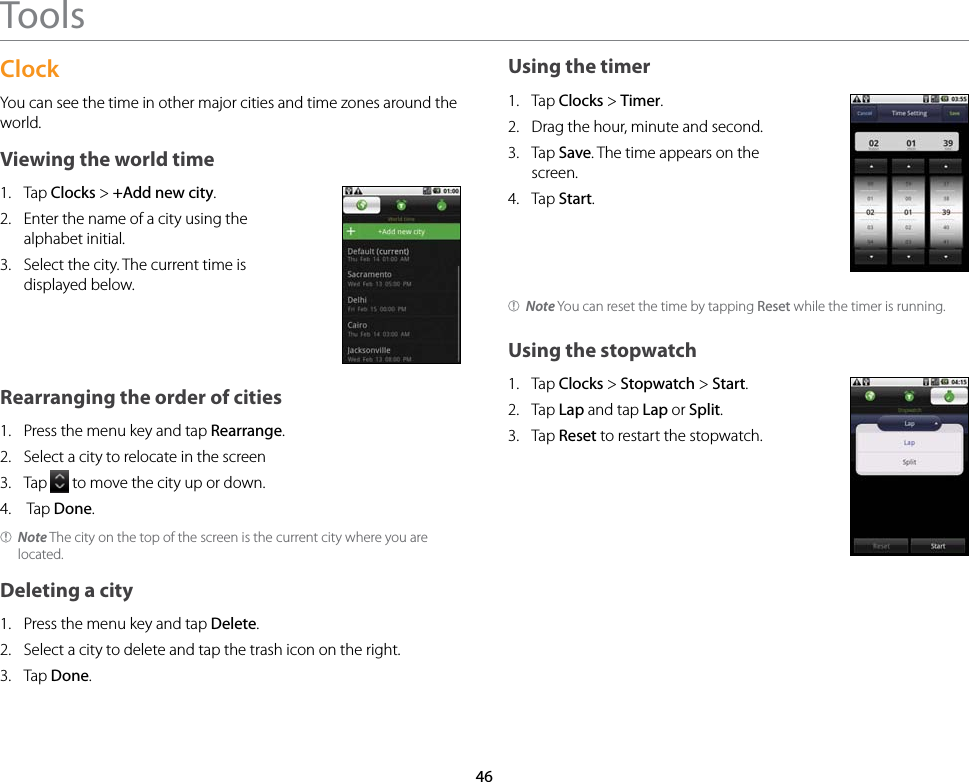

46ToolsClockYou can see the time in other major cities and time zones around the world.Viewing the world time1. Tap Clocks > +Add new city.2. Enter the name of a city using the alphabet initial.3. Select the city. The current time is displayed below.Rearranging the order of cities1. Press the menu key and tap Rearrange.2. Select a city to relocate in the screen3. Tap to move the city up or down.4. Tap Done.Note The city on the top of the screen is the current city where you are located.Deleting a city1. Press the menu key and tap Delete.2. Select a city to delete and tap the trash icon on the right.3. Tap Done.Using the timer1. Tap Clocks > Timer.2. Drag the hour, minute and second.3. Tap Save. The time appears on the screen.4. Tap Start.Note You can reset the time by tapping Reset while the timer is running.Using the stopwatch1. Tap Clocks > Stopwatch > Start.2. Tap Lap and tap Lap or Split.3. Tap Reset to restart the stopwatch.

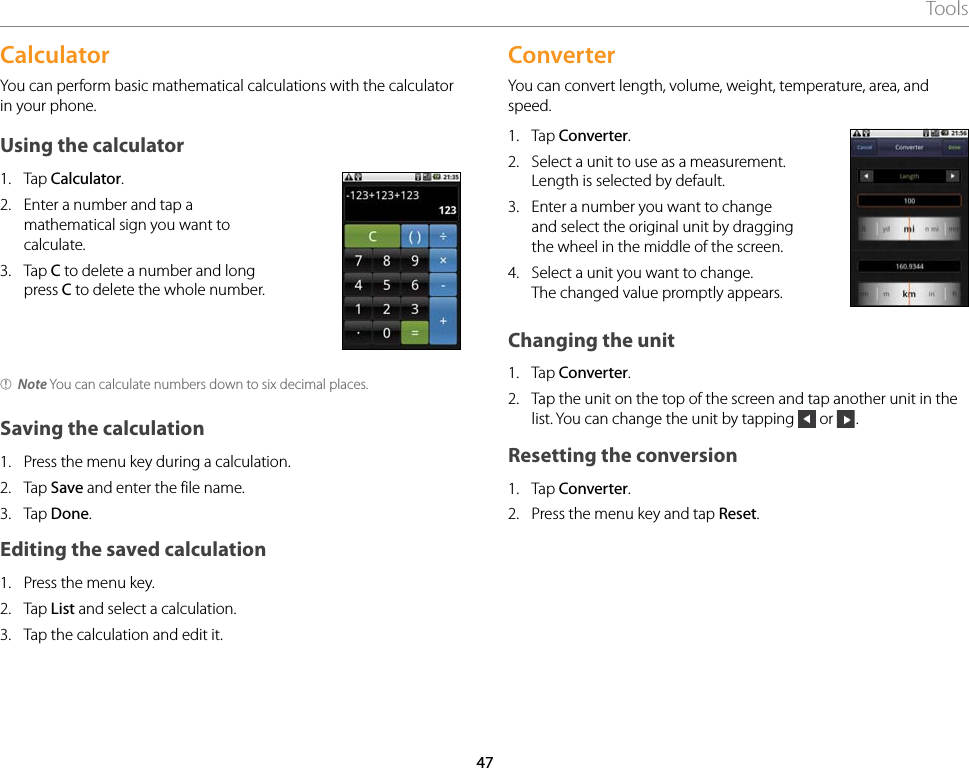

47ToolsCalculatorYou can perform basic mathematical calculations with the calculator in your phone.Using the calculator1. Tap Calculator.2. Enter a number and tap a mathematical sign you want to calculate.3. Tap C to delete a number and long press C to delete the whole number.Note You can calculate numbers down to six decimal places.Saving the calculation1. Press the menu key during a calculation.2. Tap Save and enter the file name.3. Tap Done.Editing the saved calculation1. Press the menu key.2. Tap List and select a calculation.3. Tap the calculation and edit it.ConverterYou can convert length, volume, weight, temperature, area, and speed.1. Tap Converter.2. Select a unit to use as a measurement. Length is selected by default.3. Enter a number you want to change and select the original unit by dragging the wheel in the middle of the screen.4. Select a unit you want to change.The changed value promptly appears.Changing the unit1. Tap Converter.2. Tap the unit on the top of the screen and tap another unit in the list. You can change the unit by tapping or .Resetting the conversion1. Tap Converter.2. Press the menu key and tap Reset.

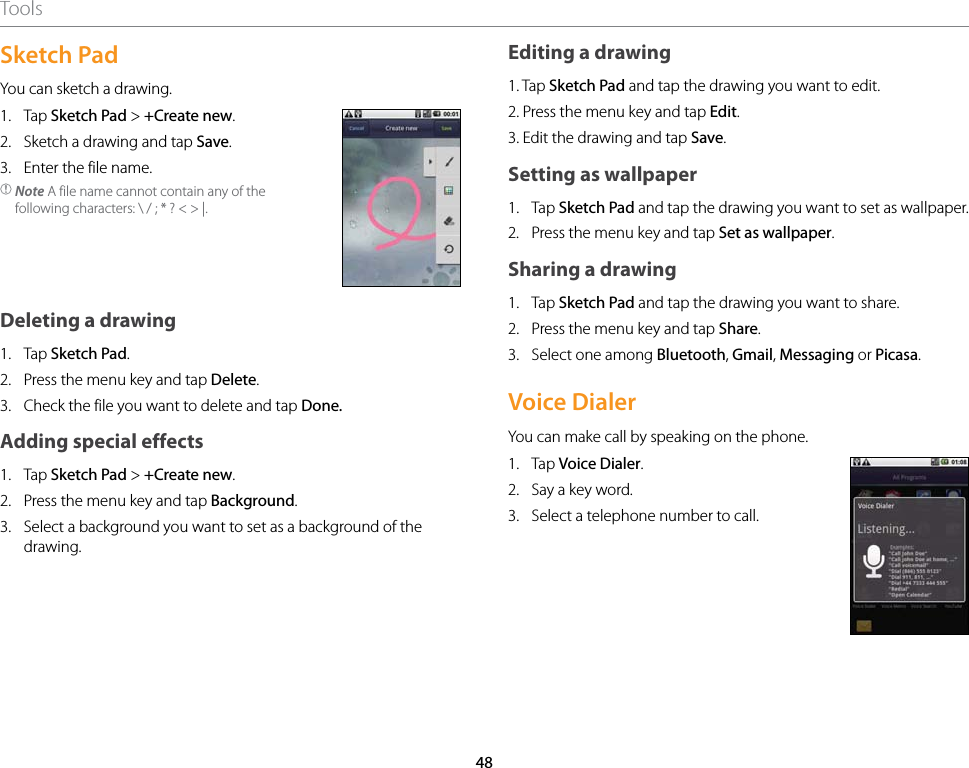

48ToolsSketch PadYou can sketch a drawing.1. Tap Sketch Pad > +Create new.2. Sketch a drawing and tap Save.3. Enter the file name. Note A file name cannot contain any of the following characters: \ / ; * ? < > |.Deleting a drawing1. Tap Sketch Pad.2. Press the menu key and tap Delete.3. Check the file you want to delete and tap Done.Adding special effects1. Tap Sketch Pad > +Create new.2. Press the menu key and tap Background.3. Select a background you want to set as a background of the drawing.Editing a drawing1. Tap Sketch Pad and tap the drawing you want to edit.2. Press the menu key and tap Edit.3. Edit the drawing and tap Save.Setting as wallpaper1. Tap Sketch Pad and tap the drawing you want to set as wallpaper.2. Press the menu key and tap Set as wallpaper. Sharing a drawing1. Tap Sketch Pad and tap the drawing you want to share.2. Press the menu key and tap Share.3. Select one among Bluetooth, Gmail, Messaging or Picasa.Voice DialerYou can make call by speaking on the phone.1. Tap Voice Dialer.2. Say a key word.3. Select a telephone number to call.

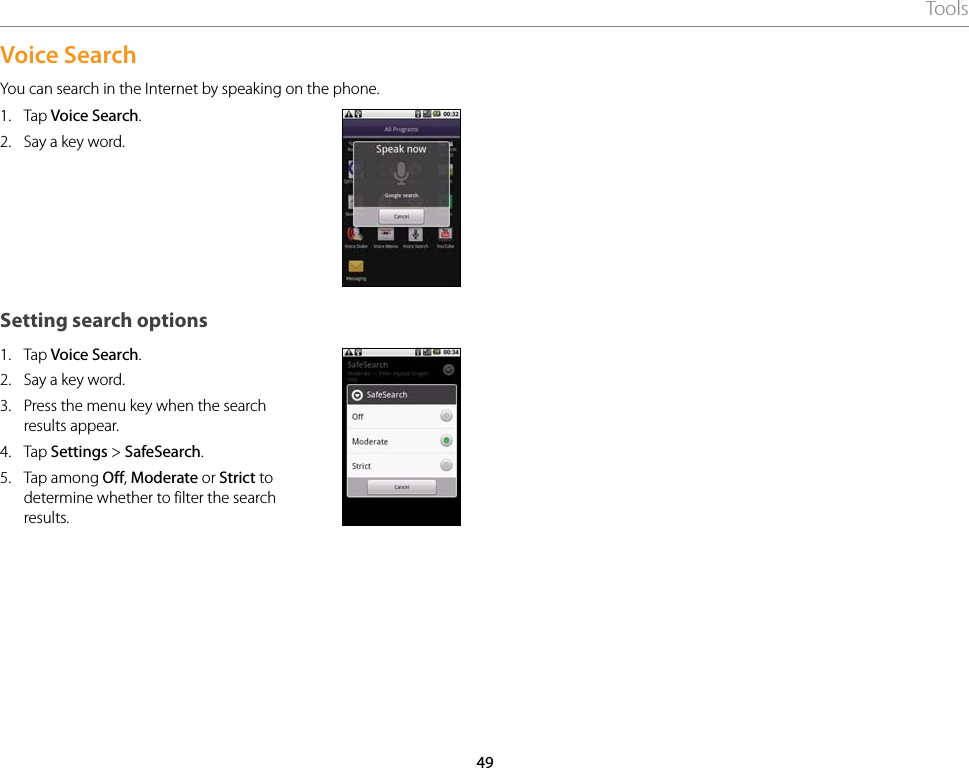

49ToolsVoice SearchYou can search in the Internet by speaking on the phone.1. Tap Voice Search.2. Say a key word.Setting search options1. Tap Voice Search.2. Say a key word.3. Press the menu key when the search results appear.4. Tap Settings > SafeSearch.5. Tap among Off, Moderate or Strict to determine whether to filter the search results.

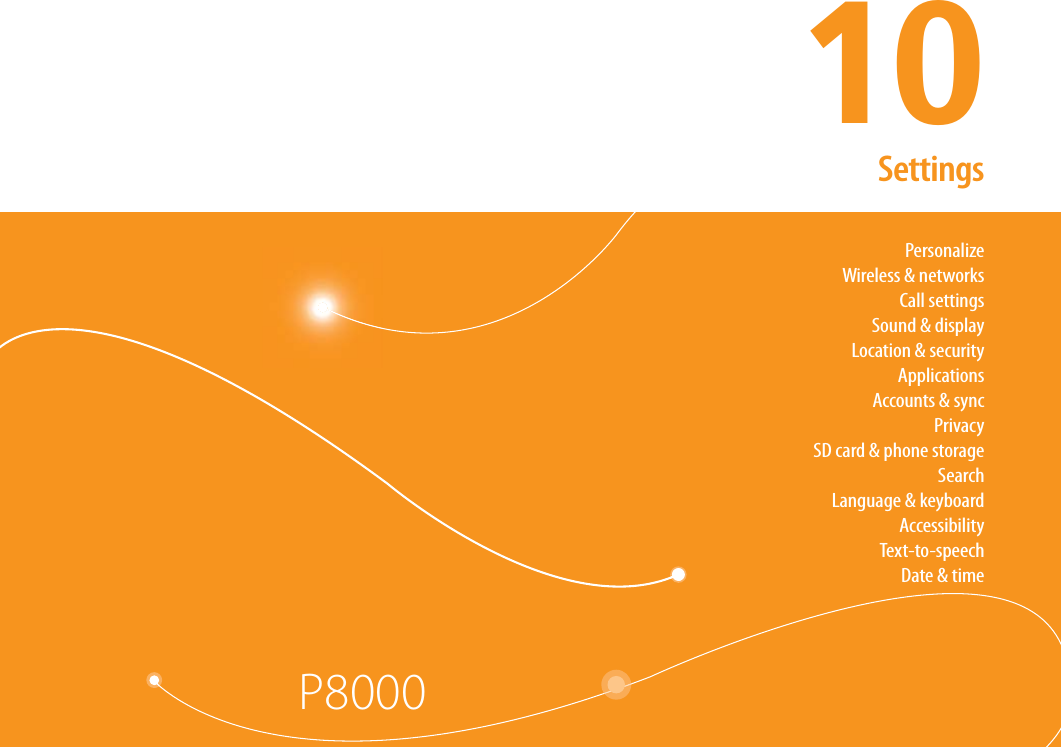

P800010. Settings10PersonalizeWireless & networksCall settingsSound & displayLocation & securityApplicationsAccounts & syncPrivacySD card & phone storageSearchLanguage & keyboardAccessibilityText-to-speechDate & timeSettings
51SettingsPersonalizeSetting contextual themes1. Tap Settings > Personalize > Contextual Themes.2. Tap a theme among User theme, Communication, Travel, Work or Free Time. 3. Tap Done.Setting home wallpaper1. Tap Settings > Personalize > Home Wallpaper.2. Tap among Gallery, Live wallpapers or Wallpaper gallery.3. Select an image you want to use as wallpaper and tap Set wallpaper.Setting lockscreen wallpaper1. Tap Settings > Personalize > Lockscreen wallpaper.2. Tap either Gallery or LockScreen gallery.3. Select an image you want to use as lockscreen wallpaper and tap Set lockscreen wallpaper.Setting emergency contacts1. Tap Settings > Personalize > Emergency Contacts.2. Enter the contact number for emergency call and tap OK. The number appears on the lockscreen.Wireless & networksSetting Airplane mode1. Tap Settings > Wireless & networks > Airplane mode. All other functions will not run if you select this option.2. Tap Airplane mode again to activate other functions.Setting Wi-Fi network1. Tap Settings > Wireless & networks > Wi-Fi. 2. Tap Wi-Fi settings to manage the wireless network. Refer to the page 41 for more information.Setting Bluetooth1. Tap Settings > Wireless & networks > Bluetooth.2. Tap Bluetooth settings to manage the wireless technology option. Refer to the page 41 for more information.

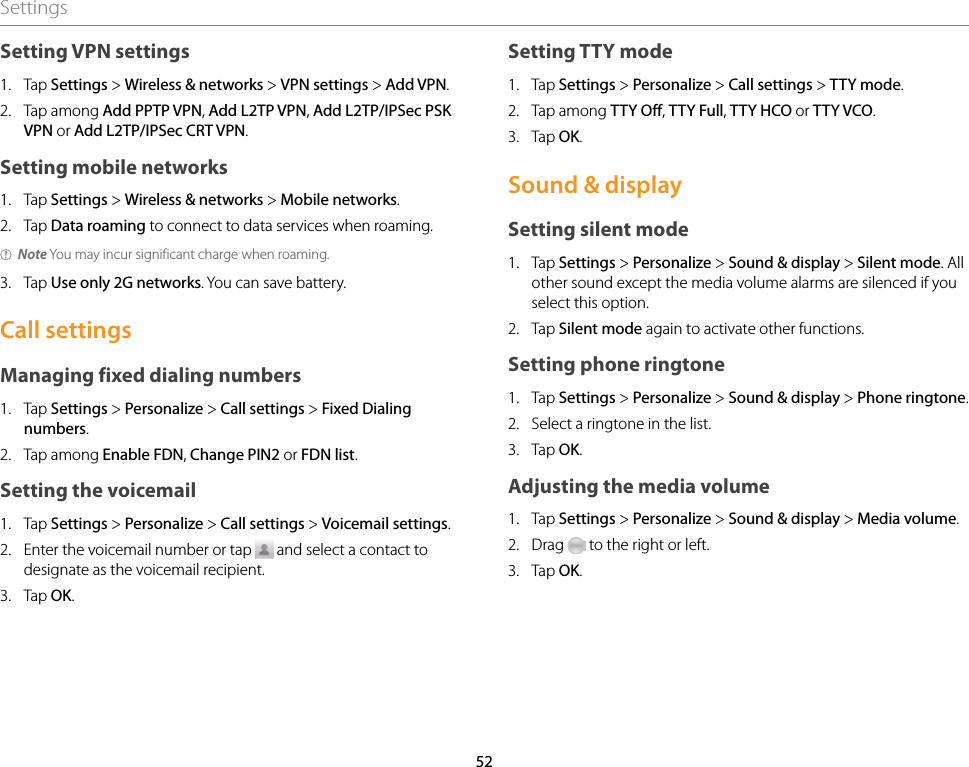

52SettingsSetting VPN settings1. Tap Settings > Wireless & networks > VPN settings > Add VPN.2. Tap among Add PPTP VPN, Add L2TP VPN, Add L2TP/IPSec PSK VPN or Add L2TP/IPSec CRT VPN.Setting mobile networks1. Tap Settings > Wireless & networks > Mobile networks.2. Tap Data roaming to connect to data services when roaming.Note You may incur significant charge when roaming.3. Tap Use only 2G networks. You can save battery.Call settingsManaging fixed dialing numbers1. Tap Settings > Personalize > Call settings > Fixed Dialing numbers.2. Tap among Enable FDN, Change PIN2 or FDN list.Setting the voicemail1. Tap Settings > Personalize > Call settings > Voicemail settings.2. Enter the voicemail number or tap and select a contact to designate as the voicemail recipient.3. Tap OK.Setting TTY mode1. Tap Settings > Personalize > Call settings > TTY mode.2. Tap among TTY Off, TTY Full, TTY HCO or TTY VCO.3. Tap OK.Sound & displaySetting silent mode1. Tap Settings > Personalize > Sound & display > Silent mode. All other sound except the media volume alarms are silenced if you select this option.2. Tap Silent mode again to activate other functions.Setting phone ringtone1. Tap Settings > Personalize > Sound & display > Phone ringtone. 2. Select a ringtone in the list.3. Tap OK.Adjusting the media volume1. Tap Settings > Personalize > Sound & display > Media volume.2. Drag to the right or left.3. Tap OK.

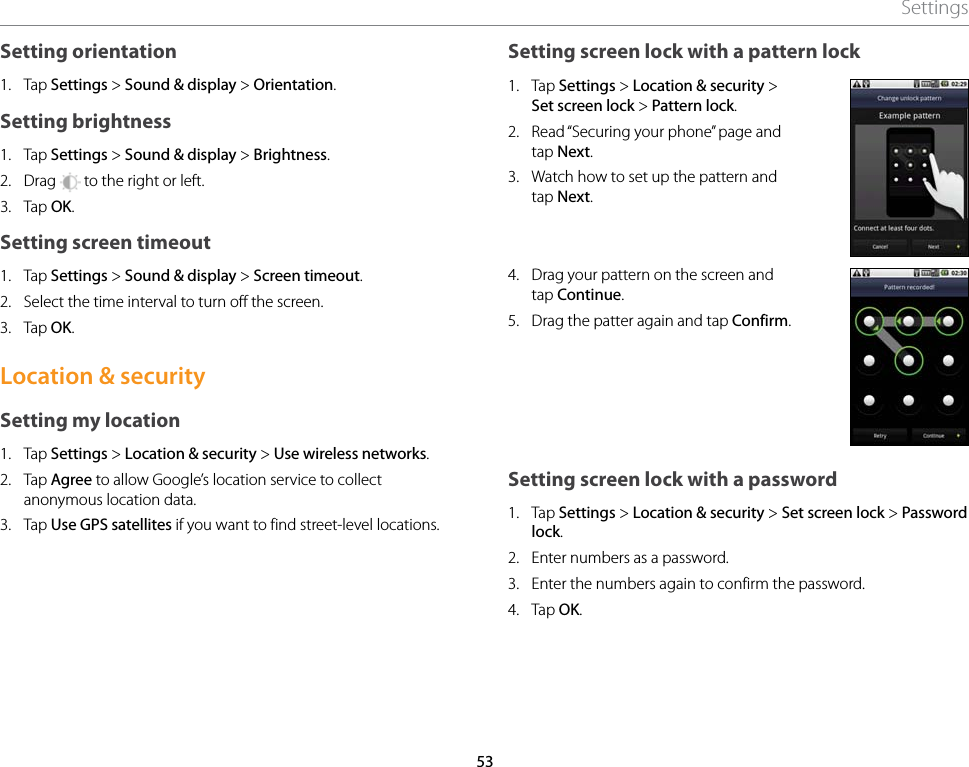

53SettingsSetting orientation1. Tap Settings > Sound & display > Orientation.Setting brightness1. Tap Settings > Sound & display > Brightness.2. Drag to the right or left.3. Tap OK.Setting screen timeout1. Tap Settings > Sound & display > Screen timeout.2. Select the time interval to turn off the screen.3. Tap OK.Location & securitySetting my location1. Tap Settings > Location & security > Use wireless networks.2. Tap Agree to allow Google’s location service to collect anonymous location data.3. Tap Use GPS satellites if you want to find street-level locations.Setting screen lock with a pattern lock1. Tap Settings > Location & security > Set screen lock > Pattern lock.2. Read “Securing your phone” page and tap Next.3. Watch how to set up the pattern and tap Next.4. Drag your pattern on the screen and tap Continue.5. Drag the patter again and tap Confirm.Setting screen lock with a password1. Tap Settings > Location & security > Set screen lock > Password lock.2. Enter numbers as a password.3. Enter the numbers again to confirm the password.4. Tap OK.

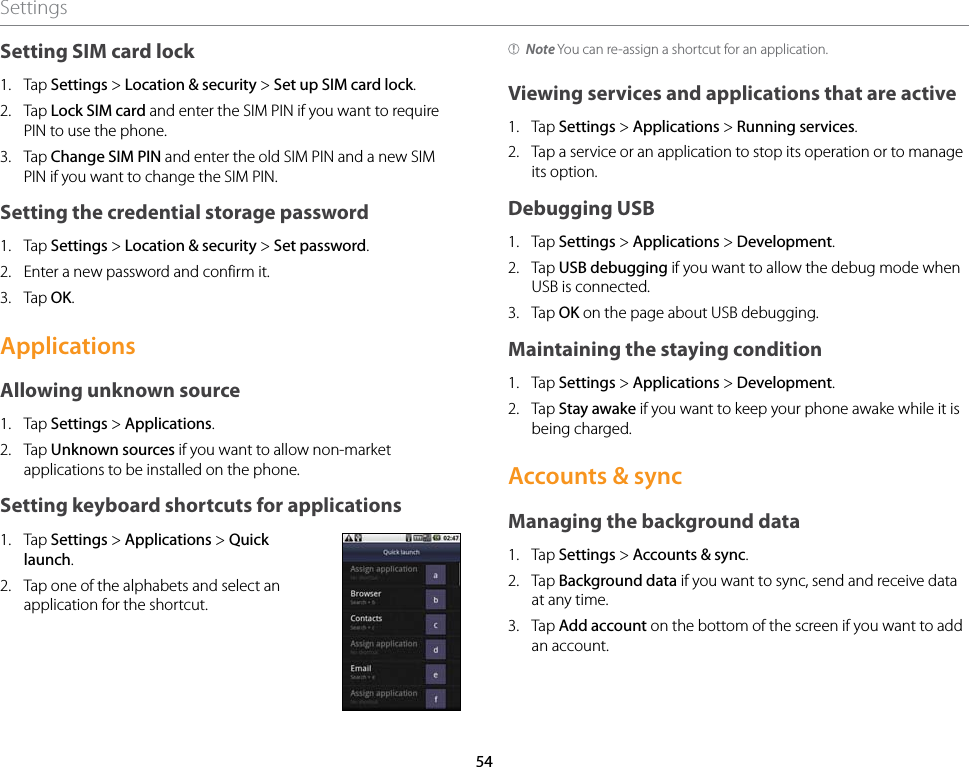

54SettingsSetting SIM card lock1. Tap Settings > Location & security > Set up SIM card lock.2. Tap Lock SIM card and enter the SIM PIN if you want to require PIN to use the phone.3. Tap Change SIM PIN and enter the old SIM PIN and a new SIM PIN if you want to change the SIM PIN.Setting the credential storage password1. Tap Settings > Location & security > Set password.2. Enter a new password and confirm it.3. Tap OK.ApplicationsAllowing unknown source1. Tap Settings > Applications.2. Tap Unknown sources if you want to allow non-market applications to be installed on the phone.Setting keyboard shortcuts for applications1. Tap Settings > Applications > Quick launch.2. Tap one of the alphabets and select an application for the shortcut.Note You can re-assign a shortcut for an application. Viewing services and applications that are active1. Tap Settings > Applications > Running services.2. Tap a service or an application to stop its operation or to manage its option.Debugging USB1. Tap Settings > Applications > Development.2. Tap USB debugging if you want to allow the debug mode when USB is connected.3. Tap OK on the page about USB debugging.Maintaining the staying condition1. Tap Settings > Applications > Development.2. Tap Stay awake if you want to keep your phone awake while it is being charged.Accounts & syncManaging the background data1. Tap Settings > Accounts & sync.2. Tap Background data if you want to sync, send and receive data at any time.3. Tap Add account on the bottom of the screen if you want to add an account.

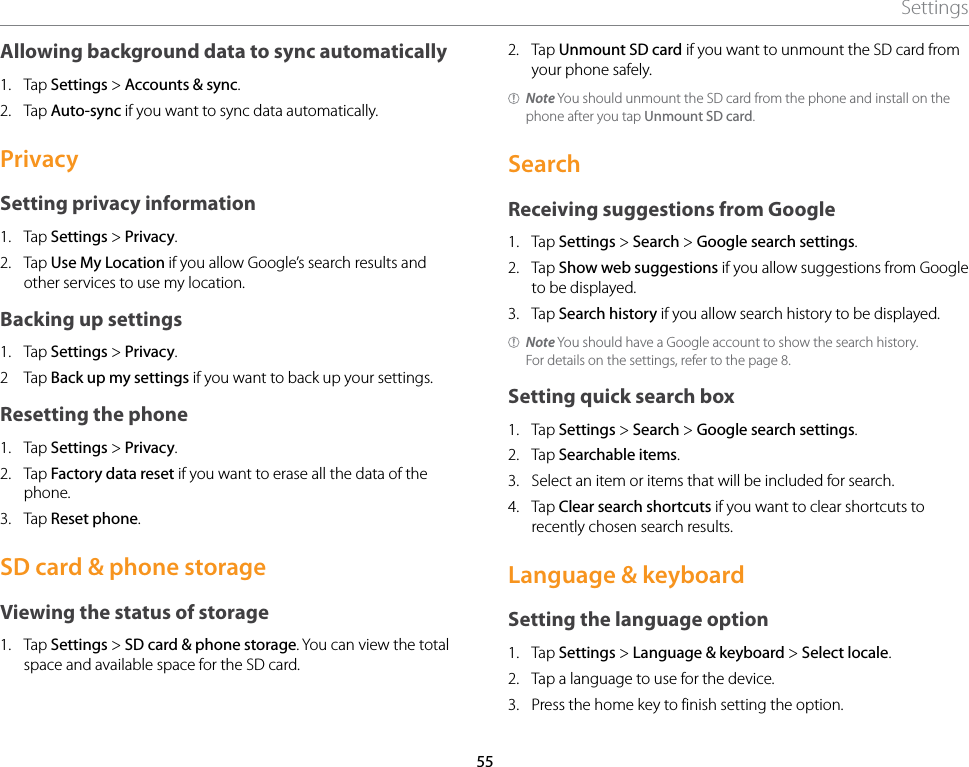

55SettingsAllowing background data to sync automatically1. Tap Settings > Accounts & sync.2. Tap Auto-sync if you want to sync data automatically.PrivacySetting privacy information1. Tap Settings > Privacy.2. Tap Use My Location if you allow Google’s search results and other services to use my location.Backing up settings1. Tap Settings > Privacy.2 Tap Back up my settings if you want to back up your settings.Resetting the phone1. Tap Settings > Privacy.2. Tap Factory data reset if you want to erase all the data of the phone.3. Tap Reset phone.SD card & phone storageViewing the status of storage1. Tap Settings > SD card & phone storage. You can view the total space and available space for the SD card.2. Tap Unmount SD card if you want to unmount the SD card from your phone safely.Note You should unmount the SD card from the phone and install on the phone after you tap Unmount SD card.SearchReceiving suggestions from Google1. Tap Settings > Search > Google search settings.2. Tap Show web suggestions if you allow suggestions from Google to be displayed.3. Tap Search history if you allow search history to be displayed.Note You should have a Google account to show the search history. For details on the settings, refer to the page 8.Setting quick search box1. Tap Settings > Search > Google search settings.2. Tap Searchable items.3. Select an item or items that will be included for search.4. Tap Clear search shortcuts if you want to clear shortcuts to recently chosen search results.Language & keyboardSetting the language option1. Tap Settings > Language & keyboard > Select locale.2. Tap a language to use for the device.3. Press the home key to finish setting the option.

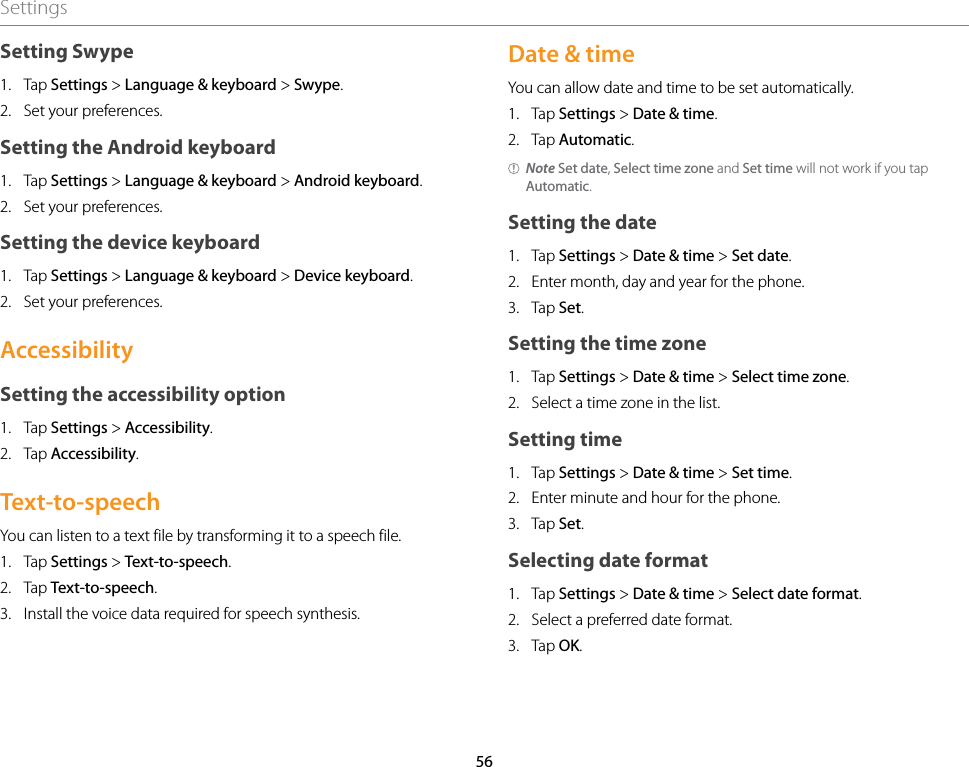

56SettingsSetting Swype1. Tap Settings > Language & keyboard > Swype.2. Set your preferences.Setting the Android keyboard1. Tap Settings > Language & keyboard > Android keyboard.2. Set your preferences.Setting the device keyboard1. Tap Settings > Language & keyboard > Device keyboard.2. Set your preferences.AccessibilitySetting the accessibility option1. Tap Settings > Accessibility.2. Tap Accessibility.Text-to-speechYou can listen to a text file by transforming it to a speech file.1. Tap Settings > Text-to-speech.2. Tap Text-to-speech.3. Install the voice data required for speech synthesis.Date & timeYou can allow date and time to be set automatically.1. Tap Settings > Date & time.2. Tap Automatic.Note Set date, Select time zone and Set time will not work if you tap Automatic.Setting the date1. Tap Settings > Date & time > Set date.2. Enter month, day and year for the phone.3. Tap Set.Setting the time zone1. Tap Settings > Date & time > Select time zone.2. Select a time zone in the list.Setting time1. Tap Settings > Date & time > Set time.2. Enter minute and hour for the phone.3. Tap Set.Selecting date format1. Tap Settings > Date & time > Select date format.2. Select a preferred date format.3. Tap OK.

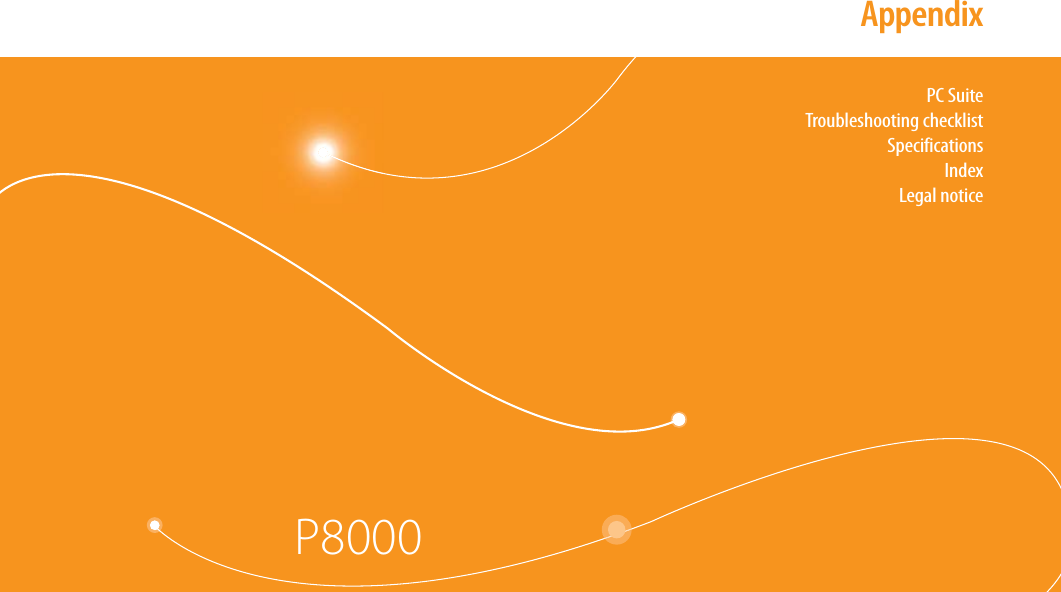

P8000AppendixPC SuiteTroubleshooting checklistSpecificationsIndexLegal noticeAppendix

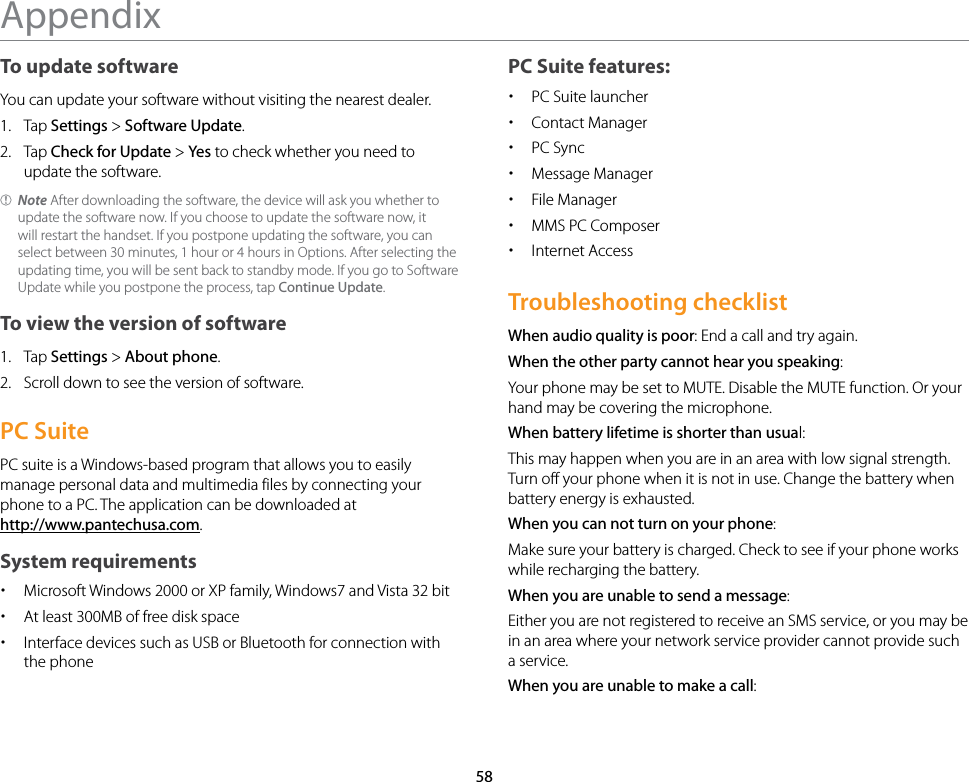

58AppendixTo update softwareYou can update your software without visiting the nearest dealer.1. Tap Settings > Software Update.2. Tap Check for Update > Yes to check whether you need to update the software.Note After downloading the software, the device will ask you whether to update the software now. If you choose to update the software now, it will restart the handset. If you postpone updating the software, you can select between 30 minutes, 1 hour or 4 hours in Options. After selecting the updating time, you will be sent back to standby mode. If you go to Software Update while you postpone the process, tap Continue Update.To view the version of software1. Tap Settings > About phone.2. Scroll down to see the version of software.PC SuitePC suite is a Windows-based program that allows you to easily manage personal data and multimedia files by connecting your phone to a PC. The application can be downloaded at http://www.pantechusa.com.System requirements xMicrosoft Windows 2000 or XP family, Windows7 and Vista 32 bit xAt least 300MB of free disk space xInterface devices such as USB or Bluetooth for connection with the phonePC Suite features: xPC Suite launcher xContact Manager xPC Sync xMessage Manager xFile Manager xMMS PC Composer xInternet AccessTroubleshooting checklistWhen audio quality is poor: End a call and try again.When the other party cannot hear you speaking:Your phone may be set to MUTE. Disable the MUTE function. Or your hand may be covering the microphone.When battery lifetime is shorter than usual:This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted.When you can not turn on your phone:Make sure your battery is charged. Check to see if your phone works while recharging the battery.When you are unable to send a message:Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service.When you are unable to make a call:

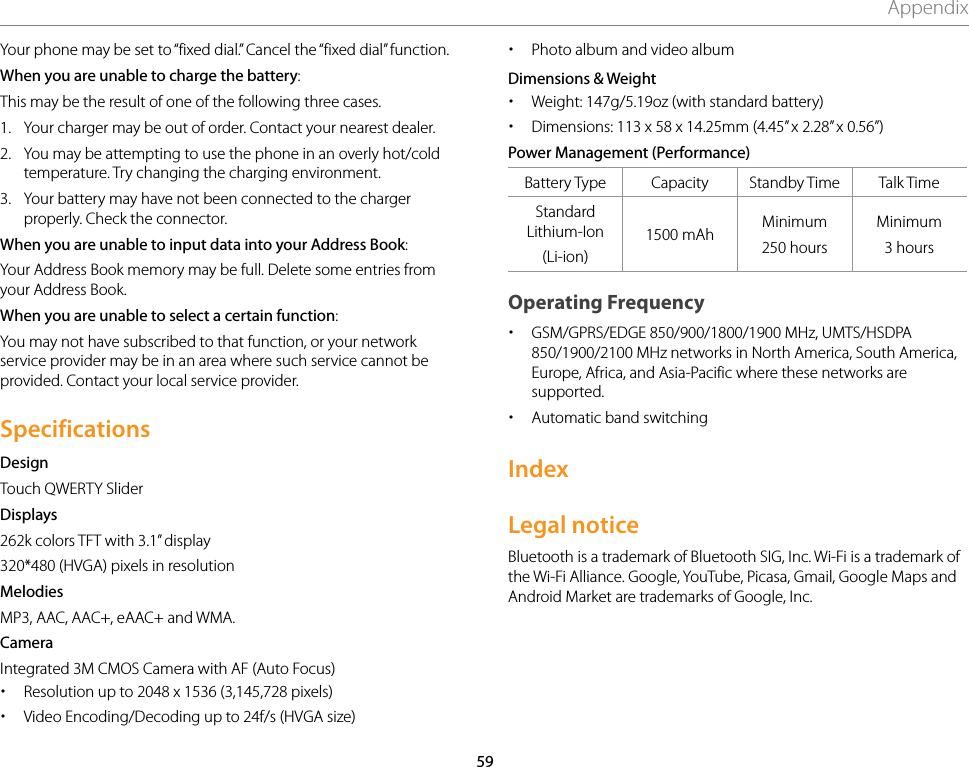

59AppendixYour phone may be set to “fixed dial.” Cancel the “fixed dial” function.When you are unable to charge the battery: This may be the result of one of the following three cases.1. Your charger may be out of order. Contact your nearest dealer.2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment.3. Your battery may have not been connected to the charger properly. Check the connector.When you are unable to input data into your Address Book: Your Address Book memory may be full. Delete some entries from your Address Book.When you are unable to select a certain function:You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider.SpecificationsDesignTouch QWERTY SliderDisplays262k colors TFT with 3.1” display320*480 (HVGA) pixels in resolution MelodiesMP3, AAC, AAC+, eAAC+ and WMA.CameraIntegrated 3M CMOS Camera with AF (Auto Focus) xResolution up to 2048 x 1536 (3,145,728 pixels) xVideo Encoding/Decoding up to 24f/s (HVGA size) xPhoto album and video albumDimensions & Weight xWeight: 147g/5.19oz (with standard battery) xDimensions: 113 x 58 x 14.25mm (4.45” x 2.28” x 0.56”)Power Management (Performance)Battery Type Capacity Standby Time Talk TimeStandard Lithium-Ion(Li-ion)1500 mAh Minimum 250 hoursMinimum 3 hoursOperating Frequency xGSM/GPRS/EDGE 850/900/1800/1900 MHz, UMTS/HSDPA 850/1900/2100 MHz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported. xAutomatic band switchingIndexLegal noticeBluetooth is a trademark of Bluetooth SIG, Inc. Wi-Fi is a trademark of the Wi-Fi Alliance. Google, YouTube, Picasa, Gmail, Google Maps and Android Market are trademarks of Google, Inc.
