Welcome

USER MANUAL

PG-3810

Thank you for choosing a Pantech PG-3810 and welcome to the wireless

mobile communications with the PG-3810, our tri-band GSM mobile phone.

Pantech is delighted to introduce this brand new portable phone which

will always keep you connected to your network.

This user manual explains in detail its unique features and how to use them.

Note:Some of the contents in this User Manual could vary from actual features of

your phone.

It may vary depending on the S/W version and the network provider you subscribed

to.

Specification

1. Display

Dual clamshell 262,000 TFT LCD both internal and external.

z 1.52” internal LCD

z 1.0” external LCD

z True TFT colour display

z Supports up to 262,000 colours within 128 x 128 pixels

z 6 lines for text in basic mode with 16-pixel font

z Two Soft keys ([ ], [ ]), and four-way scroll and selection ([OK])

keys

z List and grid menu

2. Melody

Yamaha 64 poly sound

MP3 Ring tones

3. Camera

VGA CCD built-in Camera.

z Resolution up to 640 x 480 (307,200 pixels)

z Self timer function (5 Secs or 10 Secs)

z Internal and external display used as a viewfinder

z Photo album

4. Dimensions & Weight

z Weight: 90 g

z Dimensions: 80 mm x 43 mm x 18.8 mm

5. Power Management (Performance)

Battery Type Capacity Standby Time Talk Time

Standard

(Li-ion) 730 mAh 280Hours 4.5 Hours

6. Operating Frequency

z GSM 850 and PCS 1900 networks in North America and South America

where these networks are supported.

z Automatic band switching.

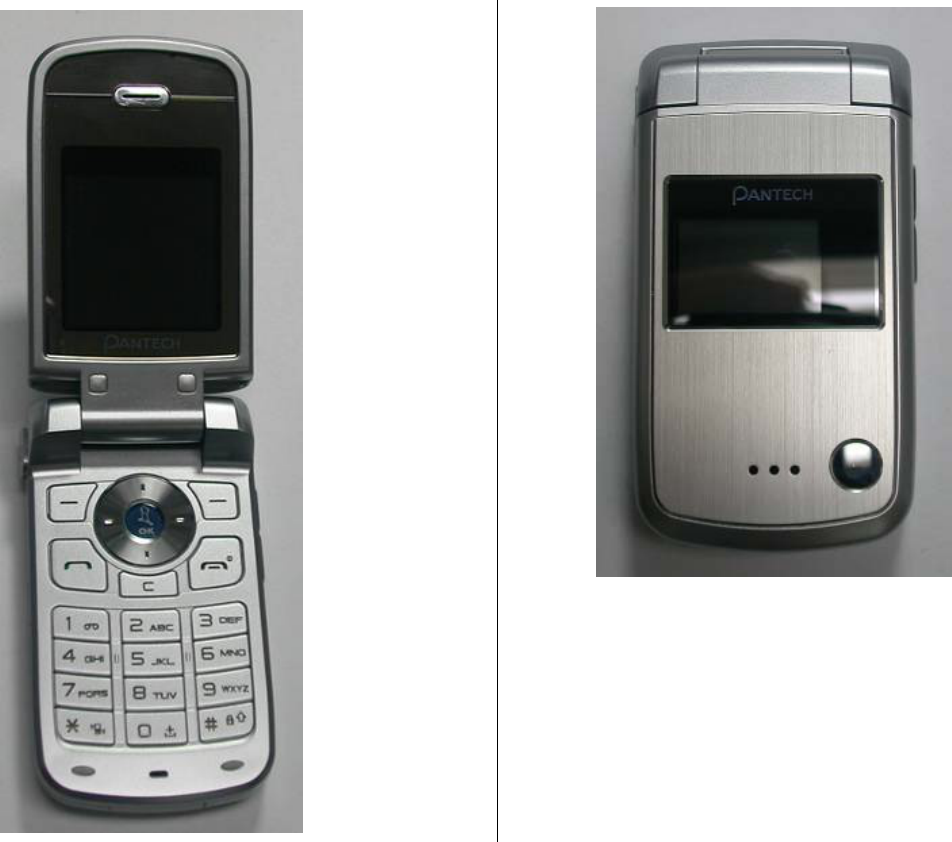

Power On/Off

ht Soft ke

Left Soft ke

DiaI key

Call Accept

oicemail

hanumeric Ke

4-way Menu Navigation

Special Menu Short key

(ring tone, msg, camera, favorite)

olume up(Camera)/

down(Backlight)

Menu Scroll

WAP Access key

Select/Menu Confirm key

Phone Lock

Internal display

Microphone

Etiquette Mode

External dis

Cancel/Back/Text

Clear/Edit Exit

Key

iews

Headset Jack

Earpiece

Quick & Easy

Keys Functions

Performs the functions shown at the bottom line of the display

(Soft Keys).

Up/Down/Left

and Right key

Scrolls through the menu options in Menu mode.

In standby mode, the default functions,

Left : Favorites

Right : Games

Up : Message

Down : SIM Tool Kit

For details, see “Using the Shortcut Key in Standby Mode”.

Opens the WAP (Wireless Application Protocol) menu list if

pressed shortly in standby mode.

Launches the WAP browser directly, if pressed and held in

standby mode.

Selects menu function or stores user input information, such as

names, SIM memory. Also used for confirmation (OK key).

Deletes characters in text input mode, or returns to the previous

menu.

Makes or receives a call.

Shows the recent call lists in standby mode.

Re-dials the last call number if pressed and held, or pressed

twice in standby mode.

Completes the current call.

Turns on/off the phone if pressed and held.

Cancels user input and returns to the standby mode while in

Menu mode.

Quickly connects to the voice mail server, or inputs a voice mail

box number which you want to dial if pressed and held in

standby mode.

~ Enters numbers, characters, or symbols.

Goes to the dial number input mode if pressed in standby

mode.

Enters or exits from etiquette mode if pressed and held in

standby mode.

Shows the symbol input screen if pressed and held in text input

mode.

Works in Word search mode if pressed in the Predictive text

input mode.

Enters an international dialling prefix (00, +).

Enters the space character in text input mode.

Locks the phone if pressed and held in standby mode. The

default password to unlock the phone is ‘1234’.

Adjusts the earpiece volume level which you want during a call,

and moves the cursor upwards or downwards in the menu

mode.

Controls the key tone volume in standby mode if the phone flip

is opened. Turns camera preview mode on/off if side up volume

key is pressed and held in standby mode. Press the side down

key to turn the backlight on.

Safety Precautions

Using a phone while driving is prohibited.

Please check local laws and regulations with regard to the prohibition of phone

usage while driving, and comply with them.

- Use of your mobile phone while you are driving may disturb your concentration

and consequently cause accidents. Please turn it off as soon as possible.

- If you should use in an emergency, please make use of the hands free device built

in your car, or pull your car over to a safe place for your utmost safety.

- The electronic wave energy emitting from your phone may affect the electronic

devices built in your car. Please be aware of this characteristic.

Mobile Phone Use Restriction Area

Make sure to turn your phone off in a phone usage restricted area.

Using a Phone in an Explosive or Dangerous Area is not

Permitted

Please turn your phone off in areas with explosive or dangerous materials (such as

fuel, fuel stations, or places with chemical goods) and abide by any instructions or

signals. Never try to detach your mobile phone battery from the phone in such

areas.

Boarding an Aircraft

- Please turn your phone off when you are on the aircraft. The electronic wave from

your phone may affect the electronic navigation device in the aircraft.

Using Medical Equipment

- Please turn your phone off while you are in a hospital.

- Please abide by the regulations or rules of the hospital.

- Please turn off your phone when using medical equipment for private purposes if

possible. You should consult with the manufacturer or an expert regarding phone

usage near medical equipment.

Installing a Vehicle Hands Free Device

- Please keep the vehicle hands free device away from the steering, and air bag

expansion range, or otherwise injury may result.

Effect of Mobile Phone and Electronic Devices

Some electronic devices may be affected by the electronic wave emitting from the

mobile phone in service. Please be careful.

Access Code

The following section describes various security codes.

PIN code (4 to 8 digits)

The PIN (Personal Identification Number) code protects your SIM card against

unauthorised user(6. Settings>8. Security Settings>1. PIN Check). The PIN

code is usually supplied with the SIM card. If you input the incorrect PIN code

five times consecutively (trial time depends on SIM card), the PIN code will be

blocked. If the PIN code is blocked, you need the PUK(Personal Unblocking Key)

code before you can use the SIM card again. See information on the PUK code.

PIN2 code (4 to 8 digits)

The PIN2 code, supplied with SIM card, is required to access functions, such as

call cost counters. (3. Call Logs>6. Call Cost>4. Max Cost>2. Set Limit. Call

Cost menu is SIM Dependent) and FDN(Fixed Dial Number) (6. Settings>8.

Security Settings>8. Fixed Dialling).

Phone Lock code (0 to 8 digits)

The lock code can be used to lock the phone and keypad to avoid unauthorised

use(6. Settings>8. Security Settings>3. Phone Lock).

Note: The factory setting for the lock code is 1234. To avoid unauthorised

user of your phone, change the lock code. Keep the new code secret and in a

safe place separate from your phone.

PUK and PUK2 codes (8 digits)

The PUK (Personal Unblocking Key) code is required to unblock and change a

disabled PIN code. The PUK2 code is required to unblock and change a disabled

PIN2 code. If the codes are not supplied with the SIM card, contact the operator

whose SIM card is in your phone for the codes.

You can change the following codes: PIN code(6. Settings>8. Security

Settings>2. Change PIN), and PIN2 code(6. Settings>8. Security Settings>9.

Change PIN2). These codes can include the numbers from 0 to 9 only.

N/W Password (4 digits)

The N/W password is required when you use the N/W Barring function. You

obtain the password from your service provider when you subscribe to this

function.

You can change this password(6. Settings>8. Security Settings>6. N/W

Barring>7. Change Password).

(For further details, see Applications Menu 6.8.6)

Menu Tree

1 Messages

1.1 Write New

1.1.1 Text Msg.

1.1.2 Multimedia Msg.

1.2 Inbox

1.3 Outbox

1.4 Draft Box

1.5 Sent Box

1.6 Templates

1.7 Settings

1.7.1 Text Msg.

1.7.1.1 Message Center

1.7.1.2 Message Type

1.7.1.3 Receive to

1.7.2 Multimedia Msg.

1.7.2.1 MMS Profile

1.7.2.2 Auto Download

1.7.2.3 Read Report

1.7.3 CB Msg.

1.7.3.1 Language

1.7.3.2 Topic List

1.7.3.3 Receive

1.7.4 Voice Mail

1.8 Memory Info.

2 Contacts

2.1 Search

2.1.1 Name Search

2.1.2 Group Search

2.2 Add Contact

2.3 Speed Dial

2.4 Groups

2.5 Business Card

2.6 Memory in Use

2.7 Copy All

2.7.1 SIM to Phone

2.7.2 Phone to SIM

2.8 Delete All

2.8.1 Phone

2.8.2 SIM Card

2.9 Memory Info

2.10 Service Number∗

3 Call Logs

3.1 Missed Calls

3.2 Received Calls

3.3 Dialled Calls

3.4 Recent Calls

3.5 Delete Call Logs

3.5.1 Missed Calls

3.5.2 Received Calls

∗ SIM Dependent

3.5.3 Dialled Calls

3.5.4 All Calls

3.6 Call Timer

3.6.1 Last Call Time

3.6.2 Received Call Time

3.6.3 Dialled Call Time

3.6.4 Total Call Time

3.6.5 Reset Call Times

3.7 Call Cost∗∗

3.7.1 Last Call Cost

3.7.2 Total Call Cost

3.7.3 Clear Logs

3.7.4 Max Cost

3.7.5 Cost Unit

3.8 GPRS Info

3.8.1 Current Info

3.8.2 Last Info

3.8.3 All Info

3.8.4 Clear Logs

4 Media Gallery

4.1 Photo Gallery

4.2 Image Gallery

4.3 Sound Gallery

4.4 Memory Info

∗∗ Network Dependent

5 Multimedia

5.1 Camera

5.1.1 Take a Photo

5.1.2 Photo Gallery

5.1.3 Settings

5.2 Java

5.2.1 Games

6 Settings

6.1 Display Settings

6.1.1 Main Screen

6.1.1.1 Wallpaper

6.1.1.2 Wallpaper Type

6.1.2 Greeting

6.1.1.1 Startup

6.1.1.2 Idle

6.1.3 Backlight

6.2 Sound Settings

6.2.1 Ring Tone

6.2.2 Volume

6.2.3 Message Alert

6.2.4 Key Tone

6.2.5 Sound Effect

6.3 Call Settings

6.3.1 Call Forward∗∗

6.3.1.1 All Calls

6.3.1.2 When Busy

6.3.1.3 On No Answer

6.3.1.4 When Not Found

6.3.1.5 Cancel All

6.3.2 Answer Type

6.3.3 Auto Answer

6.3.3.1 Auto Answer

6.3.3.2 Recorded Message

6.3.3.3 Response Message

6.3.3.4 Response Time

6.3.3.5 User Message

6.3.4 Auto Redial

6.3.5 Call Waiting**

6.3.5.1 Activate

6.3.5.2 Deactivate

6.3.5.3 Status

6.3.6 Send Caller ID∗

6.3.7 Own Number

6.3.8 Active Line

6.4 Language

6.5 Time & Date

6.6 Favorites

6.7 Network Settings

∗∗ Network Dependent

∗ ∗

Network Dependent

6.7.1 Search now

6.7.2 Default setup

6.8 Security Settings

6.8.1 PIN Check∗

6.8.2 Change PIN*

6.8.3 Phone Lock

6.8.4 Change Lock

6.8.5 Phone Barring

6.8.5.1 Incoming

6.8.5.2 Outgoing

6.8.6 N/W Barring**

6.8.6.1 Outgoing Calls

6.8.6.2 International Calls

6.8.6.3 Int. Call Except to Home Country

6.8.6.4 Incoming Calls

6.8.6.5 Incoming Calls When Abroad

6.8.6.6 Delete All

6.8.6.7 Change Password

6.8.7 CUG∗

6.8.8 Fixed Dialling∗

6.8.9 Change PIN2*

6.8.10 System Reset

6.9 Software Version

∗ SIM Dependent

∗ ∗

Network Dependent

∗ SIM Dependent

7 Organizer

7.1 Alarm

7.2 Calender

7.3 Memo

7.4 Voice Memo

7.5 World Time

7.6 Calculator

7.7 Converter

7.8 Stopwatch

8 WAP

8.1 WAP

8.1.1 Home

8.1.2 Resume

8.1.3 Bookmarks

8.1.4 Push Messages

8.1.4.1 Inbox

8.1.4.2 Receive

8.1.5 Go to URL

8.1.6 Profiles

8.1.7 Cache

8.1.7.1 Cache Mode

8.1.7.2 Clear Cache

8.1.8 Security Cert

8.1.9 Version

8.2 Infrared Port

9 SIM Toolkit∗

∗ SIM Dependent

Table of Contents

. Getting StartedⅠ

1 Package Contents

2 Displays

3 SIM Card

4 Using the battery

II. New Functions

1. OTA Settings Service

2. DRM/ Forward Lock

III. Basic Functions

1. Switching the Phone On or Off

1.1 Switching the Phone On

1.2 Switching the Phone Off

2. Making a Call

2.1 Making a Call

2.2 Ending a Call

2.3 Using Call Logs

2.4 Using Entry

2.5 Making an International Call

2.6 Speed-dialling from Entry

2.7 Making an Emergency Call

3. Answering a Call

3.1 Answering a Call

3.2 Viewing Missed Calls

3.3 Rejecting a Call

3.4 Adjusting the Calling Volume

4. Calling Options

4.1 Speaker Phone

4.2 Switching the Microphone off (Mute)

4.3 Holding a Call

4.4 Answering a Second Call

4.5 Making a Call

4.6 Searching for a Number in Contacts

4.7 Using DTMF Tones

4.8 Transferring a Call

4.9 Using the Message Service

4.10 Making a Multi-party Call

4.11 Ending a Call

5. Using the Headset

6. Selecting Menu Functions

6.1 Entering into Menu Functions

6.2 Using the Shortcut key in Standby Mode

7. Entering Text

7.1 Input Mode

7.2 Changing Text Input Mode

7.3 Using T9 Mode

7.4 Using ABC Mode

7.5 Using 123 Mode

7.6 Using Symbol Mode

IV. Applications

1. Messages

1.1 Write New

1.2 Inbox

1.3 Outbox

1.4. Drafts

1.5 Sent

1.6 Templates

1.7 Settings

1.8 Memory Info

2. Contacts

2.1 Search

2.2 Add Contact

2.3 Speed Dial

2.4 Groups

2.5 Business Card

2.6 Memory In Use

2.7 Copy All

2.8 Delete All

2.9 Memory Info

2.10 Service Number

3. Call Logs

3.1 Missed Calls

3.2 Received Calls

3.3 Dialled Calls

3.4 Recent Calls

3.5 Delete Call Logs

3.6 Call Timer

3.7 Call Cost

3.8 GPRS Info

4. Media Gallery

4.1 Photo Gallery

4.2 Image Gallery

4.4 Sound Gallery

4.5 Memory Info

5. Multimedia

5.1 Camera

5.2 Java

6. Settings

6.1 Display Settings

6.2 Sound Settings

6.3 Call Settings

6.4 Language

6.5 Time & Date

6.6 Favorites

6.7 Network Selection

6.8 Security Settings

6.9 Software Version

7.Organizer

7.1 Alarm

7.2 Calendar

7.3 Memo

7.4 Voice Memo

7.5 World Time

7.6 Calculator

7.7 Converter

7.8 Stopwatch

V. Advanced Functions

1. WAP

1.1 Navigating the WAP Browser

1.2 Entering Text in the WAP Browser

1.3 Home

1.4 Resume

1.5 Bookmarks

1.6 Push Messages

1.7 Go to URL

1.8 Profiles

1.9 Cache

1.10 Security Cert

1.11 Version

2. Infrared Port

3. SIM Toolkit

VI. Appendix

Check List

Performance and safety

Glossary

Warranty

Memo

Ⅰ. Getting Started

1. Package Contents

2. Internal & External Displays

3. SIM Card

4. Using the battery

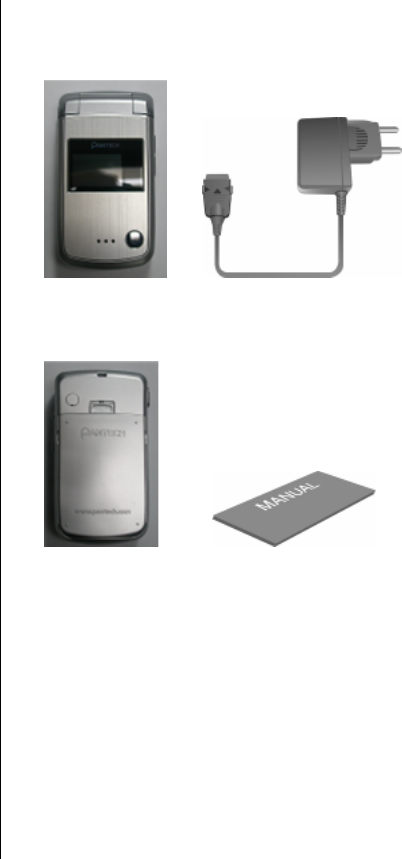

1. Package Contents

Phone Travel Charger

Battery User’s Manual

※ The contents can be vary by regions.

2. Internal & External Displays

This phone has 2 displays (internal and external), and icons on the top of the

display indicate the phone status.

2.1 Internal Display

Icon(s) Description

Shows received signal strength.

The more the number of bars, the stronger the signal.

A call is being made.

Outside the coverage area, you cannot make or receive a call.

You have a new voice mail.

WAP is connected.

You have a new message. If the inbox list is full, the icon will look

like. If the inbox list and SIM memory are full, the icon will look like

Out of the home network range.

When a GPRS session is in progress, the icon will look like .

Call forwarding feature is activated,

You have set the alarm.

You have set the alert type for incoming call to ring only.

You have set the alert type for incoming call to ring ascent.

You have set the alert type for incoming call to ring and vibrate.

You have set the alert type for incoming call to vibrate then ring.

You have set the alert type for incoming call to quiet

You have set the alert type for incoming call to vibrate only.

You have set the alert type for all tones to be quiet and for all rings to

vibrate only.

Headset is connected.

Battery level. The bar indicates the available battery charge. If your

battery charge is low, this icon will look like

Display Off Mode.

If you do not press any key within 10 secs while the internal and external displays

are dimmed, the internal display goes into Off Mode to save power. Press any

key to restore the display.

Selecting Functions and Options.

Icons Area

Text and Graphic Area

In standby screen, displays textural and

graphical information showing Network

Name, Time & Date, or a Greeting put by the

user

Softkeys

The phone provides several customized functions, which are arranged in menus

and sub-menus. You can access these functions using the two Soft keys ([ ],

[]) and [ OK] key.

The menu related to a specific function allows you to view and change its settings.

The soft key function varies depending on the current context; the labels or icons

at the bottom line of the display indicate the current function.

To view various functions/options available or select the one that is required:

1. Press the appropriate Soft key.

2. To select the function displayed or option highlighted, press the Soft key

[] or the [ OK] key.

3. To highlight the next option on a list, press the [ Up/ Down] key.

4. To move back to the previous function or option on a list, press the [ ]

key

5. To return to the Standby Mode, press the [ ] key.

In some functions, you may be prompted for a password or PIN input. Enter the

required code and press the [ OK] key.

2.2 External Display

You can use several menus even though the folder is closed.

The following section describes the external display screen and easy-to-control

external menus and their functions.

Side Up

- Adjusts the earpiece volume

- Rejects the incoming call if press and hold upon an incoming call

and the phone when the flip is closed

- Turns the camera capture mode on/off, if pressed and held

Side Down

- Adjusts the earpiece volume

- Turns melody off if press and hold when the flip is closed

-Turns the backlight on if pressed when the upon flip is closed

Side Key Special Functions

Snap Shot :To initiate the camera function when the folder is closed, press and

hold the side [ Up]. Press the side [ up] key again to take a photo. And then,

the image taken will be displayed on the screen. At this time, press the side [ up]

key to save the picture with auto naming mode.

After the image display on the screen, press the [ down] key to move to

snapshot mode.

3. SIM Card

3.1 SIM Card

When you subscribe to your network operator, you will get a SIM (Subscriber

Identity Module) card containing your registration information. (PIN), the

existence of additional service, etc.

Like a credit card, it should be kept securely and handled carefully.

Do not bend, scratch or expose it to moisture.

Avoid static electricity.

To avoid memory corruption of your SIM card, always switch off your phone

before removing or inserting your SIM card.

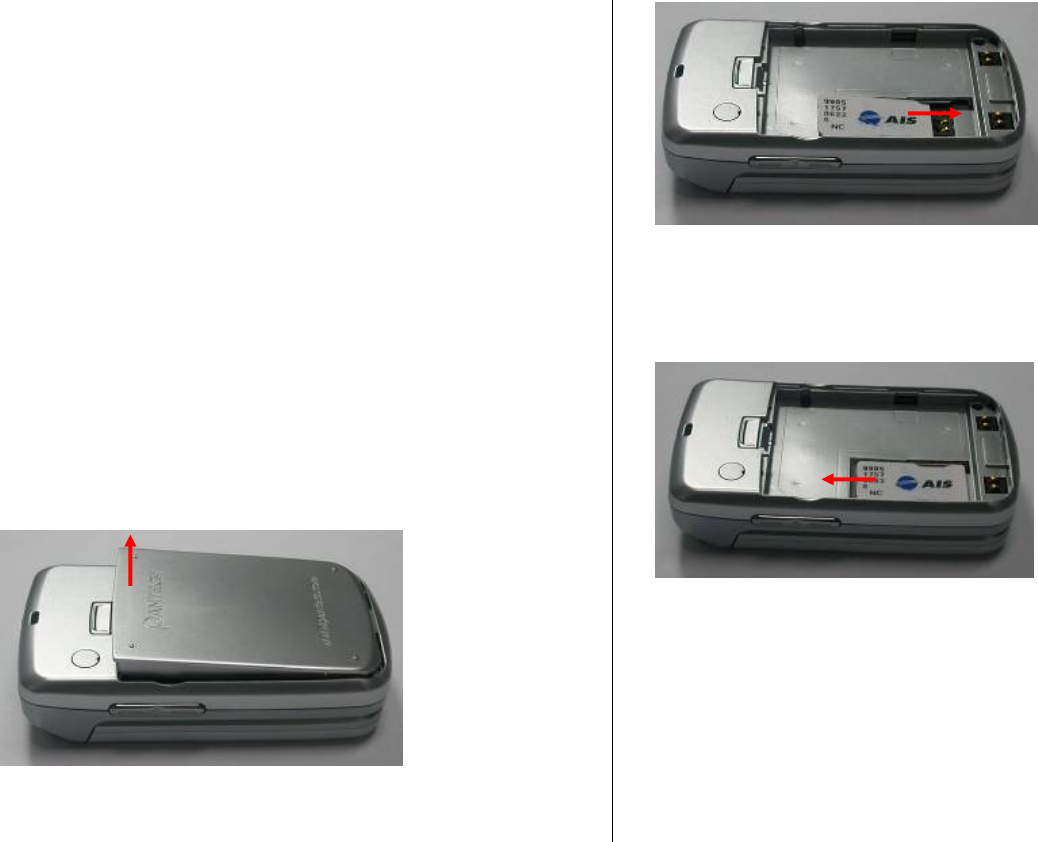

3.2 Installing/Removing the SIM card

1. Remove the battery from the unit.

2. If the SIM slot is empty, insert the SIM card into the slot.

3. If you want to remove the SIM card, push the SIM card in the arrow direction

as shown in the picture.

4. Using the battery

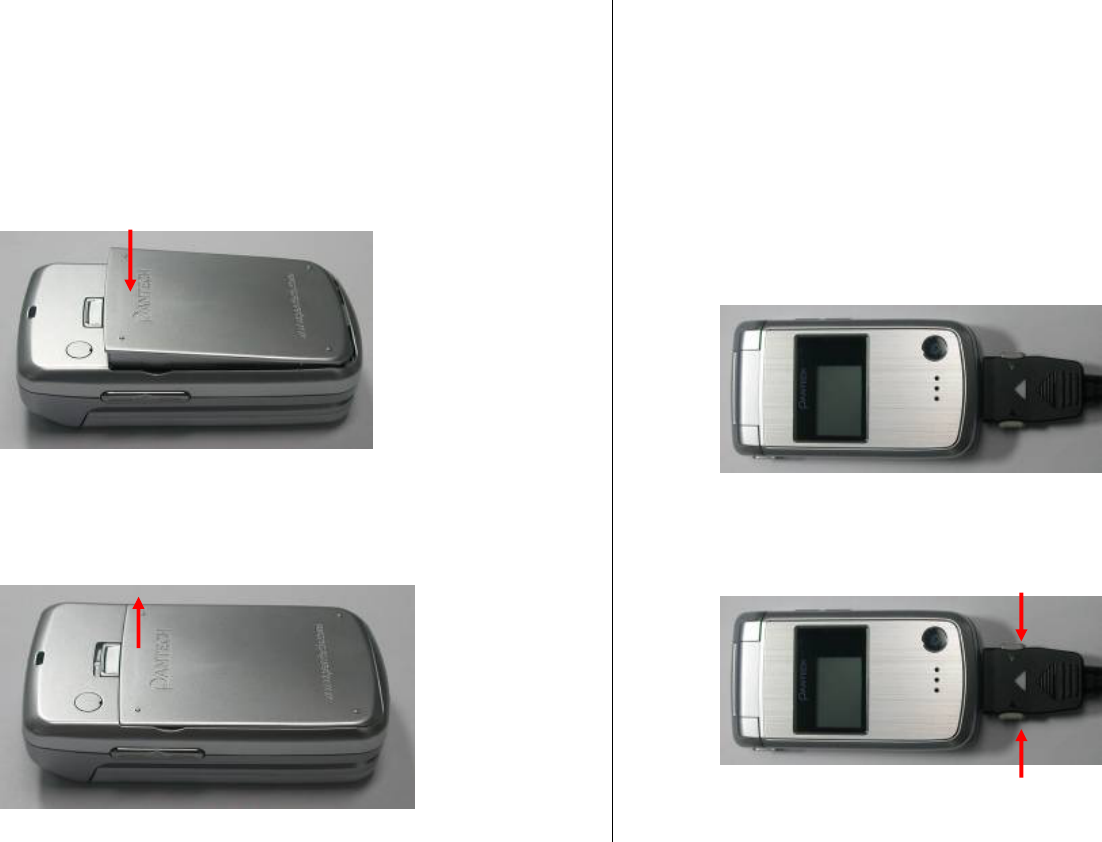

4.1 Installing the battery

Put the contacts of the battery into the hole located at the bottom of the unit, as

shown in the picture below.

Press the upper side of the battery until you hear a “click” sound.

4.2 Removing the battery

Push the battery lock button up and remove the battery.

4.3 Charging the battery

z This phone uses a Li-ion battery. Make sure to use an authorised

battery and charger only. For more details, please inquire at your

nearest dealer.

z You can use the phone during battery recharging.

z When the battery is mounted within the phone, open the cover located

at the bottom of the phone and connect the adapter. An adapter is

provided with the phone.

z If recharging is completed, detach the adapter connection from the

outlet.

Tip

Your phone is powered by a Lithium Ion (Li-ion) battery.

You can use the following Li-ion battery types for your phone. (Contact your local

dealer for more information.)

4.4 Precautions while Using the Battery

- Do not use a damaged battery or charger.

- Use the battery for the specified purpose only.

- The closer you are to the base station, the longer the phone usage time

because less battery power is consumed for the connection.

- Battery charging time varies depending on the remaining battery capacity and

the battery and charger type in use.

- Battery life is shortened as time passes by.

- Use an authorised battery and charger only.

- Since overcharging may shorten battery life, remove the battery from its charger

once it is fully charged. Unplug the charger, once charging is complete. Leaving

the battery in hot or cold places, especially inside a car in summer or winter, may

reduce the capacity and life of the battery. Always keep the battery within normal

temperatures.

- Do not earth the battery. Earthing may occur when the battery is in contact with

a conductive object. An earthed phone may also damage the battery.

- Dispose and recycle used batteries in accordance with local regulations. - Do

not dispose of the batteries in a fire.

- Do not use an unauthorised charger.

- In order to prevent injury or burns, ensure that metal objects do not come into

contact with the + and – terminals of the battery.

II. New Functions

1. OTA Settings Service

2. DRM/ Forward Lock

1. OTA Settings Service

1.1 WAP/ OTA Provisioning

In order to use the WAP Browser, you need to have proper connection

settings on your phone. You may add or edit the WAP Profile

manually, or receive its settings information sent as a type of configuration

message by a operator and/or a service provider at the latter case, those wap

setting information received unsolicitly should be automatically stored on the phone.

Please note that there should be some on-screen steps you need to follow to

save and activate the settings.

Please also note that the compatibility to Ericsson/Nokia WAP Provisioning OTA

has been made.

2. DRM/ Forward Lock

Your phone supports a Digital Rights Management (DRM) system

to protect acquired content. A piece of content, for example

ring tones, wall papers, etc. Can be protected by Forward Lock,

which means the protected contents cannot be forwarded to other

devices including other phones and desktops.

Please note that you should and shall be informed by the service

provider before and/or when you try to download such protected

contents.

III. Basic Functions

1 Switching the Phone On or Off

2. Making a Call

3. Answering a Call

4. Calling Options

5. Using the Headset

6 Selecting Menu Functions

7. Entering Text

1. Switching the Phone On or Off

1.1 Switching the Phone On

① Open the folder.

① Press the [ ] key until the phone switches on.

② If the phone requests you to input a PIN, enter the PIN and press the

[OK] key. (For further details, see Applications Menu 6.8.)

Your phone starts to search for an available network and the current date and

time will appear on the internal and external displays. Once connected to the

network, you can send or receive a call.

If a malfunction occurs while using the phone or it is not turned on, remove the

battery and install it again after 5 or 10 seconds.

Note: To change the language, use the Language menu option (For further

details, see Applications Menu 6.4)

1.2 Switching the Phone Off

To switch the phone off, press the [ ] key until the power-off animation

displays.

2. Making a Call

2.1 Making a Call

Enter the area code and the phone number to make a call in standby mode, and

press the [ ] key.

Note: If you have set the [Auto Redial] option (For further details, see Application

Menu 6.3.4) to [On], the phone will attempt to make a call automatically for

up to 10 times if it is not answered.

To clear the last digit displayed, press the [ ] key.

To clear the all digits displayed, press and hold the [ ] or [] key.

2.2 Ending a Call

When you want to finish your call, press the [ ] key or close the folder.

Once the call is completed, a call summary (Recipient Name or Number, Service

Time) will be displayed.

2.3 Using Call Logs

The phone stores up to 30 dialled, received or missed calls chronologically. The

last call is saved in the first position. If the same number was dialled more than

once, only the latest occurrence will be saved.

① Press the [ ] key to see the call log list aligned dialled, chronologically.

② Press the [ Up/ Down] key to select a number.

③ Press the [ ] key for dialling.

(For further details, see Applications Menu 3)

* Tip: Press and hold the [ ] key to redial the last number in the call log.

2.4 Using Entry

You can store frequently used names and phone numbers in the SIM card or the

phone memory, which are called Entry

You therefore do not have to remember all your phone numbers; simply select

the name to recall the associated number.

① Press the [ ] key to see the ‘Contacts’ List

② Select a number from ‘Contacts’.

③ Press the [ ] key for dialling. (For further details, see Applications Menu

2.)

2.5 Making an International Call

① Press and hold the [0] key for the international prefix until the ‘+’ character

appears on the display or enter the outgoing national code following after

00. (If network supported.)

② Enter the country code, area code and phone number you want to make

a call to.

③ Press the [ ] key.

2.6 Speed-dialling from Entry

Press and hold the ‘Speed Dial’ number to make a call using the number you

have saved. For example, press the “5” key longer to dial a number which has

been saved as “5” in Speed Dial List.

For speed dial numbers longer than 2 digits, press the first one and then press

and hold the second one.

(For further details, see Applications Menu 2.3)

2.7 Making an Emergency Call

You can make an emergency call without the SIM.

Enter 'Emergency Number'. Then press the [ ] key,

or, press the [SOS] Soft key if no SIM Card is available.

3. Answering a Call

3.1 Answering a Call

When you receive a call, the phone rings (or vibrates) and the screen will display

the name or the number of the caller (if the network supports the function and

you have subscribed to it).

If the caller can be identified, the caller’s phone number or name will be

displayed if it is stored in your entry

1 press the [ ] key.

Tip: If the answer type is set as [Any Key], you can answer a call by pressing

any key except the [ ] key.

3.2 Viewing Missed Calls

If the incoming call could not be answered, a missed call message will appear on

the screen to remind you of the call you have missed

To reply to the missed call;

1 Press the [View] Soft key to display a list of missed calls.

2 If necessary, scroll to the number you want by pressing up/down key

3 Press the [ ] key to call the missed call.

Press the [ ] or [ ] key to close the missed call notification message

3.3 Rejecting a Call

Press the [ ] key or the [Reject] Soft key. If the [Reject] Soft key is pressed,

the caller will receive a busy line tone.

3.4 Adjusting the Calling Volume

If you wish to adjust the earpiece volume during a call, use the volume keys on

the left side of the phone.

Press the [Side Up] key to increase the volume level and the [Side Down] key to

decrease it.

The current volume level will be displayed on the screen.

In standby mode, you can adjust the key tone volume using the [Side Up/Down]

keys.

4. Calling Options

During a call, press the [Option] Soft key to show the call options.

4.1 Speaker Phone

If you want to change to speaker phone mode, select ‘Speaker On’ followed by

Options while you have a call in progress.

If you select ‘Speaker Off’ followed by Options, you can deactivate the speaker

phone function.

Note:

1. Please use headset and speaker phone Carkit for your safe when

driving.

2. Don’t move the phone close to your ear when the speaker phone

mode. It can cause damage to your ear.

4.2 Switching the Microphone Off (Mute)

You can temporarily switch your phone’s microphone off so that the person you

talk to on the phone cannot hear you.

For example, you may wish to say something to another person in the room but

do not want the person calling to hear you.

Press the [Mute] Soft key or Select ‘Mute’ followed by Options to activate

the Mute function.

To get the microphone back on, press the [Unmute] Soft key select

‘Unmute’ followed by Options.

4.3 Holding a Call

You can place a current call on hold whenever you want. You can make another

call while you have a call in progress if your network service provider supports

this service. Of these two calls, one is active and the other is on hold and you can

switch between the calls.

To place a call on hold simply select ‘Hold’ followed by Options, or press the

[] key.

You can reactivate the call whenever you want by selecting ‘Resume’ followed

by Options.

Once a call is held, the name and icon of the caller will fade to grey.

To make a call while you have a call in progress:

① Enter the phone number that you want to dial or look it up in Contacts entry.

② Press the key to dial the second call. The first call is automatically put on

hold.

To switch between two calls, select [Swap] from the Options menu.

The current call is placed on hold and the call on hold is reactivated so that you

can continue your conversation with the other person.

If you want to finish, complete each call normally by pressing the [ ] key.

4.4 Answering a Second Call

You can answer an incoming call while you have a call in progress, if your

network service provider supports this service and you have activated the [Call

waiting] option. (For further details, see Applications Menu 6.3.1) You will be

notified of an incoming call by a call waiting tone.

To answer a call while you have another call in progress:

① Press the [ ] key to answer the incoming call.

② The first call is automatically put on hold.

③ To switch between two calls, select [Swap] from the Options menu.

④ To end the current call, press the [ ] key.

The call on hold is automatically reconnected to you.

4.5 Making a Call

You can make another call while having a call in progress. To make new call,

select ‘New Call’ followed by Options, or press numeric keys that you want to dial

and then [ ] key.

4.6 Searching for a Number in Contacts

You can search for a number in your Contacts during a call.

① Press the [Options] Soft key.

② If necessary, press the [Up/Down] key to highlight the [Contacts] option.

③ Press the [OK] key.

④ The Entries are displayed.

⑤ Enter the first letters of the name for Name Search.

⑥ The Contacts entries are displayed starting with the first entry matching

your input.

Note: You can also scroll through Entry from the beginning, by pressing the

[Up/Down] key.

⑦ To view the highlighted entry, press the [OK] key.

(For further details, see Applications Menu 2)

4.7 Using DTMF Tones

You can turn the DTMF key tones off or on during a call.

When the [DTMF Off] option is selected, your phone does not transmit the key

tones. It allows you to press keys without hearing annoying key tones during a

call.

To communicate with answering machines or computerised telephone systems,

the [DTMF On] option must be selected.

4.8 Transferring a Call

You can transfer the current call to the call on hold if your network service

provider supports this service, so that callers can talk to each other. You will be

disconnected from both of them.

① During a call, answer or make a call in the normal way, and press the

[Options] Soft key.

② Press the [Up/Down] key to select the [Transfer] option and press the [OK]

key.

The two people will be connected to each other.

4.9 Using the Message Service

You can read or write a new message during a call.

① Press the [Options] Soft key.

② Press the [Up/Down] key to highlight the [Messages] option. Press the [OK]

key.

③ To read a received message, select the ‘Inbox’ submenu, and then scroll to

the message that you want to read.

④ To write a new message, select the ‘Write New’ submenu.

⑤ Press the [OK] key.

(For further details, see Applications Menu 1.1)

During a call, only text messages can be sent. Multimedia messages cannot be

sent, but can only be saved.

4.10 Making a Multi-party Call

A multi-party call feature is a network service that allows up to six people to take

part in a multi-party or conference call simultaneously.

For more information, contact your service provider.

To make a multi-party call;

① Call the first participant in the normal way.

② Call the second participant in the normal way.

The first call is automatically put on hold.

③ To join the first participant to a multi-party call, press the [Options] Soft key

and select the [Join All] option.

④ Press the [OK] key.

⑤ To add a new person to the multi-party call, call the person in the normal

way. Then, press the [Options] Soft key and select the [Join All] option.

⑥ Press the [OK] key.

You can add incoming callers by answering the call and selecting the [Join All]

option. Repeat the above steps as needed.

Upon organising a multi-party call, you may view the people and their status in

Multiparty with the [Left/Right] key.

An icon indicates either Far Multiparty or Far Hold.

Having a Second Call During a Multi-party Call

To answer or make a call when you have the multiparty call:

① To place the multi-party call on hold, press the [Options] Soft key and

select the [Hold All Calls] option.

② Answer or make a call in the normal way.

③ You can reactivate the multi-party call on hold by pressing the [Swap] Soft

key.

④ To end the multi-party call, press the [ ] key or close the flip.

Having a Private Conversation with One Participant

① Press the [Options] Soft key and select the [Private] option.

Press the [OK] key.

② Press the [Up/Down] key to highlight a participant and press the [OK] key.

Now you can talk privately with that person.

The other participants can continue the conversation with each other.

③ To return to the multi-party call, press the [Options] Soft key and select the

[Join All] option.

④ Press the [OK] key. All of the multi-party call participants can now hear

each other.

Removing One Participant

① Press the [Options] Soft key and select the [Exclude] option.

② Press the [Up/Down] key to highlight a participant and press the [OK] key.

The call ends with that participant, but you can continue to talk with other

participants.

③ Complete the multi-party call by closing the folder or pressing the [ ] key.

4.11 Ending a Call

To end the active call, press the pressing the [ ] key. To terminate all calls

at a time while you are in multi-party call, select ‘End All Calls’ followed by

Options.

5. Using the Headset

You can send or receive a call without touching the phone, using the headset.

When you connect the headset to the jack located at the left side of the phone,

the button on the headset works as described below;

z To show the recent calls, press the button in standby mode

z To redial the last call, press the button twice in standby mode

z To answer a call, press the button when you receive a call

z To complete a call, press and hold the button when you have finished a

call.

6. Selecting Menu Functions

6.1 Entering into Menu Functions

Key Function

Soft key [ ]

Goes to the main menu in standby mode.

Soft key [ ] Goes to the Searching View Names

[], [ ] key

Moves within the main menu.

[],[] key

Searches for the sub-menu.

[] key

Goes to the sub-menu.

Goes to the WAP menu in standby mode

Side up/down key Moves the cursor upwards or downwards in the

menu.

Press the 4-way navigation keys in the main menu to move the menu.

See the bottom of the Sub Menu List to check the current setting values in the

sub-menu.

Then, press the navigation [Left/Right] key and then the [OK] key to change the

preset menu value.

If you do not press the [OK] key, the new value will be cleared without saving.

Note: Press the [C] key to return to the previous menu.

Input the menu number to access the sub-menu quickly.

6.2 Using the Shortcut Key in Standby Mode

Key Menu selected if

pressed

If pressed and held

Soft Key [ ]

Menu Menu

Soft Key [ ] Contacts

[] key

Navigation [RIGHT]

key

Games

[] key

Navigation [LEFT]

key

Favorites

[] key

Navigation [UP] key

Message

[] key

Navigation [DOWN]

key

SIM Tool Kit

[] key

WAP WAP

[] key Cancel/Back

[] key

Recent Calls Redial last call

[] key

PWR On/Off

[] Key Connects to the voice mail server

[] Long Key

Enters or exits form Ettiquette

Mode

[#] Key Locks the phone

7. Entering Text

7.1 Input Mode

On many occasions you need to input text while you are using your phone, (e.g.,

storing a name in the Contacts, writing a new message, creating your greeting or

scheduling events on your Scheduler).

The available text input modes include.

T9 mode

You can input a letter using only one keystroke. The keypad has more than one

letter on it – when you press the [5] key once, J, K or L may be displayed.

The T9 mode automatically compares your keystrokes with an internal linguistic

dictionary to determine the correct word, thus requiring far fewer keystrokes than

the conventional ABC mode.

ABC mode

In this mode, you can input the letter you want by pressing the keypad once,

twice, three or more times until the target letter appears.

123 mode

You can input numbers in this mode.

Symbol mode

You can input the special characters, such as a period mark or currency units in

this mode.

7.2 Changing Text Input Mode

When you are in the area where you can input the text, the text input mode

indicator will be displayed at the bottom of the display.

Example: Entering a memo.

To switch to other text input modes:

① Press the Soft key [Right] indicating the current text input mode.

② Toggle to the mode you want to use by pressing the Soft key [Right]. The

‘Lang.’ option allows you to change the text input language.

Inserting a Space

To insert a space between words, press the [0] key. If in 123 mode or Symbol

mode, press and hold the [0] key to input space.

Scrolling

To move the cursor to the left or right within the text, press the navigation

[Left/Right] key. And also, to move the cursor to the up or down among the lines,

press the navigation [Up/Down] key.

Note: By pressing the [Side Up/Down] key, the cursor can be moved very quickly

to the beginning or the end of the text.

Clearing Letters and Words

To clear the letter to the left of the cursor, press the [C] key.

You can clear all of the letters on the editor box, press and hold the [C] key.

Returning to the Previous Screen

When the text input field is empty, press the [C] key to return to the previous

screen.

TIP: To change the text input mode quickly

Press and hold [*] Shows symbol mode.

Returns to the previous screen in Symbol mode.

Press [0] Enters a space Character.

Press [C] Deletes characters one by one.

Returns to previous screen after deleting all

characters.

Press and hold [C] Deletes all characters and moves the cursor to the

beginning of the input screen.

7.3 Using T9 Mode

The number of remaining characters you can enter.

Editing area

The current text input mode and language.

In the T9 alphabet Editor, each word is composed completely as you input the

text.

① Press the keys numbered [2] to [9] to input text. For example, press

[4][3][5][5][6] in sequence to input ‘hello’. The word you are typing appears

on the display. It may change with each key you press.

② Enter the whole word before editing or deleting any keystrokes.

③ Upon searching a word, input the next text.

④ If the search fails, press the [*] key to search which text can be typed in. The

phone displays the most commonly used choices first.

⑤ Continue entering the next word.

7.4 Using ABC Mode

When typing in ABC(Multi-tap) mode, press the key labelled with the target letter:

- Press the key once for the first letter.

- Press twice for the second letter.

Example: To display the letter “C”, quickly press the [2] key three times. To

display the letter “K”, press the [5] key twice. This method is called Multi-tap

typing.

Note: The cursor moves to the right when you press a different key. When

entering the same letter twice or a different letter on the same key, just press the

Right key or wait a few seconds for the cursor to move to the right automatically,

and then enter the next letter.

Refer to the table for more information about the characters available. The

characters vary, depending on the text input language.

Changing Case

To change the case of the next letter(s) that you type, press the [#] key.

There are three cases:

- Lower case (no indicator)

- Initial capital ( )

- Capital lock ( )

[English]

KEY Characters in displayed order

1 . , - ? ! ' @: 1

2 a b c 2

3 d e f 3

4 g h i 4

5 j k l 5

6 m n o 6

7 p q r s 7

8 t u v 8

9 w x y z 9

0 Space 0

7.5 Using 123 Mode

The number mode allows you to enter numbers into the text. Press the key

corresponding to the digit you want to enter.

7.6 Using Symbol Mode

The symbol mode allows you to enter symbols into your text.

To display more symbols, press the navigation [Up/Down] key.

To input a symbol, press the number for a symbol, and the text will appear in the

input screen.

Press the Soft key [Right] to proceed to a mode next to the Symbol mode.

Ⅲ. Applications

1. Messages

2. Contacts

3. Call Logs

4. Media Gallery

5. Multimedia

6. Settings

7. Organizer

1. Messages

Select ‘Menu>1.Messages’.

This menu allows you to create, send, read and save a message using Short

Message Service (SMS: Text message), Cell Broadcast Service, Multimedia

Message Service (MMS: Message supporting presentation of various media

types, such as full colour images and polyphonic ring tones).

Voice mails are also available.

Note: These features are available only if your service provider’s network

supports it. Contact your service provider for more information.

(The detail of editing and writing message text, see Basic Functions Menu

7.)

Multimedia Messages

Multimedia Message Service (MMS) is a messaging service quite similar to Short

Message Service (SMS). It provides asynchronous delivery of personal

multimedia messages.

Adding to the familiar text content of the text message, the multimedia message

can contain an image, graphic, and/or sound.

The MMS message is a separate multimedia presentation in a single entry, not

an attachment to the text file.

Using the MMS feature, your phone can receive and/or send a multimedia

message, depending on MMS availability from your service provider. Only the

phone that supports the multimedia message feature can receive or display the

multimedia message.

Short Message Service

Short message service (SMS) allows you to send and receive a short text

message to and from other GSM phones.

To send a text message by phone, you must obtain the number of the SMS

message center from your service provider.

Cell Broadcast Service and Voice mail

Broadcast message service allows you to receive a broadcasting information as

Newsflashes, Weather, …from GSM network. Voice mail message also can be

received.

Receiving a new message

When you receive a new message, the New Message icon ( ) and a

notification showing the caller number or phonebook name will

appear on the display. You will also hear an alert, depending on the message

sound setting. (For further details, see Applications Menu 5.3.)

To read the new message(s) immediately, press the [Read] Soft key or [OK] key.

Note: To clear the new message notification on the display, press the [Cancel]

Soft key, [End] or [CLR] key.

Managing memory

The Inbox, Outbox, Draft Box, Sent Box and Templates share a given amount of

memory on phone. In case of the Inbox, Text messages (SMS) can be saved on

a phone or SIM, depending on the text message settings. Even though “Save to”

in the text message settings set to “SIM”, received messages will be saved in the

phone memory if SIM capacity is full. Also, Even though “Save to” in the text

message settings set to “Phone”, received messages will be saved in the SIM if

phone memory capacity is full. In case of the Inbox, received messages can be

saved 50 messages to phone memory. The other mailboxes can be saved up to

30 entries. The Inbox, Sent Box and Draft Box are able to use the SIM memory

but Outbox and Templates can’t. When over 50 messages are saved at phone

memory in the Inbox, message full icon will be appeared and then Only SIM

memory is available. If SIM capacity is also full, Message full icon appears.

When the Message full icon is displayed, you cannot receive any new message.

When the flip is opened at this time a notification showing ‘Message full please

delete’ will appear on the display. You must delete one or more old messages to

free memory for new messages, using the [Delete] option within the each mailbox

or the [Delete All] option which deletes the All list.

- Write New: Writes a new Multimedia message (MMS) or Text message

(SMS).

- Inbox: Displays the received messages in the SIM and Phone memory. You

can save 50 messages to the phone memory and more

messages are received if SIM capacity is available. So you can

see over 50 messages in the Inbox. ‘10’ in [10/20] represents the

number of unread messages, whereas ‘20’ represents the number of saved

messages in the Inbox.

- Outbox:

Displays the list of messages stored when sending

message. 30 messages can be saved to phone memory.

[10] represents the total number of messages saved in the Outbox.

- Draft Box: Displays the list of messages stored during writing message. You

can save 30 messages to phone memory. But if some

messages are saved in the SIM, the messages appear in the list.

So you can see over 30 messages in Draft Box.

[10] represents the total number messages saved in the Draft Box.

- Sent Box: Stores messages in the phone memory after sending message,

depending on Save message in the common setting.

But if some messages are saved in the SIM, the messages are

appeared in the list. So Sent Box is able to display over 30

messages. [10] represents the total number messages in the Sent Box.

- Templates: Displays the default and your saved templates.

You can save 30 messages to phone memory (include default

template).

- Settings: Sets up the messages environment.

- Memory Info: Displays the free space of the SIM or phone memory.

1.1 Write New

1.1.1 Text Msg.

Select ‘Menu>1.Messages>1.Write New>1. Text Msg.’ and press

the [OK] key.

(1) Creating a text message. At the top of the display, you can see the number

of remaining characters and you can write into the current page of the message

as the icon ( ).

(2) While entering your message, press the [Option] Soft key [Left] to use the

following options. When you press the [Up/Down] key to select an item and

press the [OK] button using the following option;

 Add template : Obtains the template message from the Templates

 Save : Saves messages in the phone memory

 Language: English, French, German, Italian, Spanish and Turkish. The

selected language will be displayed at the bottom of the right corner.

(3) When you have finished creating the message, press the [OK] key, to send

the message out. If the phone number entry is empty, input the recipient’s

phone numbers. You can also search for a number in Contacts Entry or

Recent Call List by pressing the [Option].

 All Contacts: search for a number in Phonebook.

 Recent Calls: search for a number in recent call list.

When you finish entering the recipient, press the [OK] or

[SEND] key.

1.1.2 Multimedia Msg.

Select ‘Menu>1.Messages>1.Write New>2. Multimedia Msg.’ and press the

[OK] key.

(1) [Editor Option] page will be displayed, and you can write a message

composed of some kinds of item format (image, sound, photo, and template) as

well as just only text using this menu. Select one of the following options using

the [Up/Down] key.

[1] Add Text

Adds a new text.

[2] Edit Subject

Edits the subject.

[3] Add Image

Adds an image to the Image Box. Press the [OK] key to select the

image when the image list appears. (For further details, see Application

Menu 4.2.

[4] Add Sound

Adds a sound to the Sound Box. Press the [OK] key to select the sound

when the sound list appears. (For further details, see Application Menu

4.3.)

[5] Add Photo

Adds a photo to Photo Album. Press the [OK] key to select the phone

when the photo list in each folder appears. (For further details, see

Applications Menu 4.1.)

[6] Add Template

Adds a multimedia message template. This feature is available only

when no item is in the slide. With more than one slide, Add Template will

not be available.

(2) After writing message, Press [OK] Key. Press the [Option] Soft key [Left] to

use the following options.

[1] Delete Text/Image/Sound

Deletes the selected text, image, sound from the slide page.

[2] Add Objects

Add image, photo, sound, and slide objects

[3] Preview

Shows the message as it appears on the recipient’s phone.

[4] Save as Draft

Saves messages in the phone memory

[5] Slide Timing

Set the time duration that the received message is displayed. The display

automatically scrolls to the next slide page after the specified time.

[6] Delete Slide

Delete the slide page.

[7] Edit Text

Edits the selected text.

[8] Page Layout

Arranges the image and text display position in the slide page. You can

set ‘Image at Top’ or ‘Text at Top’.

(3) Sending and saving a message. When you finish creating the message, press

the [OK] key.

If the phone number entry is empty, input the recipient’s number. You can also

search for a number in Phonebook Entry or Recent Call List by pressing the

[Option].

 All Contacts: search for a number in Phonebook

 Recent Calls: search for a number in recent call list

When you finish entering the recipient, press the [OK] or [SEND] key.

Note: If the size of the Multimedia message exceeds the transmission limit, a

warning information message will be appeared. It will be automatically saved in

the Sent Box if transmission is success.

1.2 Inbox

Select ‘Menu>1.Messages>2. Inbox’ and press the [OK] key.

Select Inbox and press the [OK] key to display the received messages one by

one. Press the [Reply] Soft key at the bottom right corner to write a new

message.

You can receive a multimedia message notification through the network and read

only the downloaded multimedia message.

If ‘Auto Download’ in multimedia message settings is set to ‘On’, notification will

not be displayed but the message will be downloaded and saved in the Inbox as

unread.

You can also receive a text message, voice mail and cell broadcast message.

In the case of text message, if available in the Contacts, the sender’s phone

number is displayed with the list of messages. In the case of multimedia message,

the list of messages displays with message subject.

According to message type, the list of messages displays following icons.

unread Text message in SIM

read Text message in SIM

unread Text message in phone

read Text message in phone

notification multimedia message

unread multimedia message

read multimedia message

Select [Option] Soft key [Left] on the bottom of the message list to select one of

the following options.

 Call Sender : Sends the call to the Message Sender

 Forward: Sends the received message to another recipient.

 Delete: Deletes the selected message.

 Delete All: Deletes all messages in Inbox.

 Move to Phone (SIM): Saves the message in the phone memory (in the

SIM) if message saved in the phone (in the SIM). Only text message is

available.

Select [Option] Soft key [Left] on the bottom of the message view to select one of

the following options.

 Cut Number : Extract a number from the message text . You can save it as

a Contacts Entry.

 Cut Urls: Extract a Url address from the message text. You can save it in

WAP bookmark. (Shown only on the text message)

 Cut Objects: Extract an object from the multimedia message. You can save

it in one of categories of Fun & Tools. (Shown only on the multimedia

message)

1.3 Outbox

Select ‘Menu>1.Messages>3.Outbox’. and press the [OK] key.

The message that failed to send is stored in the Outbox.

Press the [Send] Soft key at the bottom right corner to send the failed message

again.

Press the [Option] Soft key [Left] at the left of Total Message List to select the

following menu.

 Delete: Deletes the message.

 Delete All: Deletes all messages in the Outbox.

 Edit: edit the message.

1.4 Drafts

Select ‘Menu>1 Messages>4.Drafts’ and press the [OK] key.

The message to be saved before sending will be saved in the Drafts.

Press the [Edit] Soft key at the bottom right corner to edit the draft message.

Press the [Option] Soft key [Left] at the left of Total Message List to select the

following menu.

 Delete: Deletes the message.

 Delete All: Deletes all messages in the Drafts.

1.5 Sent

Select ‘Menu>1. Messages>5.Sent”

The message that you sent is stored in the Sent.

 Press the [Edit] Soft key at the bottom right corner to Edit and send a sent

message using the recipient’s number.

Select [Option] Soft key on the bottom of the message list to select one of the

following options.

 Forward: Sends the sent message to another recipient.

 Delete: Deletes the selected message.

 Delete All: Deletes all messages in Sent.

1.6 Templates

Select ‘Menu>1.Messages>6 Templates’.

Press the [Send] Soft key at the bottom right corner to Edits and Sends the

Tem pl ate s .

Select a text template menu and press the [Option] Soft key [Left] at the left for

associated options.

 Create New: Makes a new template. Not available if the template space is

full.

 Delete: Deletes a template you have defined. Default template is not

appeared.

 Delete all : Deletes all messages in Templates box. Default template is not

appeared.

 Edit: Edits the Templates.

1.7 Settings

Select ‘Menu>1.Messages>7.Settings’.

1.7.2 Text Msg.

Select ‘Menu>1. Message>7.Settings>2.Text Msg.’ and press the [OK] key.

You can set up default text message information using this menu with the

following options.

 Message Center: Allows you to store or change the number of your

message center required when sending a message. You must obtain

this number from your service provider.

 Message Type: Allows you to set the message type to Normal, Fax,

Voicemail, ERMES, National Paging, X.400, or Internet. The network

will convert the messages into the selected format

　 Receive to: Allows you to set the text message storage to SIM or

phone.

1.7.3 Multimedia Msg.

Select ‘Menu->1. Message>7 Settings>3.Multimedia Msg.’ and press the [OK]

key.

You can set up default multimedia message information using this menu

with the following options.

- MMS Profile : You can set up multimedia messages profile

settings. (For further details, see Advanced functions 1.8.)

- Auto Download : Allows you to set how you receive a message when

messages is stored in your home network system. You can select

either On or Off

- Read Report : When this option is set to [On], the recipient’s phone

sends a reply to let you know when your message was read by

her/him.k

1.7.4 CB Msg.

Select ‘Menu>1. Message>7.Settings>4.Broadcast’ and press the [OK] key.

You can set up default CB information using this menu with the following options.

-Language : You can specify the language of a message. You may also add

new languages or delete existing ones.

-Topic List : You may choose up to 2 topics from the current list. For more

information, contact your network service provider.

-Receive : You can decide whether the Cell Broadcast service is active or

not. When this option is set to [Enable], cell

broadcast service is activated.

1.7.6 Voice Mail

Select ‘Menu>1. Message>7.Settings>5.Voice Mail’ and press the [OK] key.

- You can set up default Voice Mail number.

1.8 Memory Info

Select ‘Menu>1.Messages>8.Memory Info’.

Select Memory Info and press the [OK] key to display the free Text message and

Multimedia message memory space.

2. Contacts

You can store your personal Entries, which can be added or deleted at any time.

You can save up to 800 Entries on the phone memory. Entries that can be stored

on SIM differ with SIM’s storage capacity, and maximum 254 Entries can be

saved on SIM.

(The detail method of editing Contacts, see Basic Functions Menu 7.)

2.1 Searching

2.1.1 Name Search

Select ‘Menu>2.Contacts>1. Search>1. Name Search’.

Searches for the phone number from Contacts using the following procedure.

1. Input a name. The entry list is shown and the cursor is placed on an

item that matches your input data.

2. Press [Left/Right] key to view the recorded numbers

3. Press the [OK] soft key to view all.

Press the [Options] Soft key to;

 Add Contact: Creates a new entry.

 Edit: Edits and saves the entry.

 Delete: Deletes the selected item.

 Copy : Copy Memory to SIM or Phone.

 Send Message: Sends a message to a selected recipient.

 Add to Speed Dial: Adds the selected number to Speed dial.

 Language: Change the language.

 Group Search : Searches for the phone number of each group.

2.1.2 Group Search

Select ‘Menu>2.Contacts>1. Search>2. Group Search’.

Searches for the phone number from Contacts using the following procedure.

1. Select a group. The entry list is shown and the cursor is placed on an

item that matches your input data.

2. Press [Left/Right] key to view the recorded numbers

3. Press OK key, the [OK] soft key to view all.

Press the [Options] Soft key to;

 Add Contact: Creates a new entry.

 Edit: Edits and saves the entry.

 Delete: Deletes the selected item.

 Copy : Copy Memory to SIM or Phone.

 Send Message: Sends a message to a selected recipient.

 Add to Speed Dial: Adds the selected number to Speed dial.

 Name Search: Searches for the phone number of name.

2.2 Add Contact

Select ‘Menu>2.Contacts >2.Add Contact’.

Adds the Entry information of other people. Initially, an empty field with a grey

colour will appear until you input a text.

Depending on the ‘Memory in Use’ setup, the following fields will be displayed.

- Phone: Name, Mobile, Home, Office, Group, Picture, Melody, Email1,

Email2, and Memo.

- SIM Card: Name, Mobile, Group, Picture, Melody

- Phone or SIM: Select the saving location – SIM card or Phone.

2.3. Speed Dial

Press a speed dial number in standby mode for Speed Dialling.

The Speed Dial number ranges from 2 to 99, totalling 98 Speed Dial numbers.

Note: press and hold the [0] or the [1] key is for the prefix for international call or

the Voice Mail respectively.

2.3.1 To Set the Speed Dial

Select ‘Menu>2.Contacts>3.Speed Dial’.

1. Press the [Up/Down] key to move to an Empty Entry and press the [Add] key.

2. Press the [Up/Down] key to choose a person and press the [Left/Right] key to

select his number.

3. Press the [OK] key to save an item in the Speed Dial list.

4. If you want to remove or edit particular item in the speed dial list, move cursor to

the item and press the Soft key [Left] to;

 Remove: Remove an item.

 Edit : Update another item

2.4.2 To Set the Speed Dial in Name Search

Select ‘Menu>2.Contacts>1. Search>1. Name Search’.

1. Press the [Up/Down] key to choose a person and press the [Left/Right] key to

select his number.

2. To add Speed Dial, use [Add to Speed Dial] option

3. Press the [Up/Down] key to move to an Empty Entry.

4. Press the [OK] key to save an item in the Speed Dial list.

2.4 Groups

Select ‘Menu>2.Contacts>4.Groups’.

Changes the settings for the five predefined caller groups.

Default Groups: No Group, Family, Friends, Business, and VIP

Press the [Options] Soft key to;

 Group Ring Tones : Set a Group, Melody, Picture.

 Rename : Renames a group name.

 Delete : : Deletes the selected Groups.

 New : Set a new groups.

You can also add your preferred new groups by pressing the [Right] key, on

bottom of the predefined 5 groups.

2.5 Business Card

Select ‘Menu>2.Contacts>5.Business Card’.

Allows you to save your business card and send it to the phone of other user via

IrDA . You can edit or delete the saved numbers.

Press the [Options] Soft key to;

 Send IrDA: Allows you to choose IrDA for transmission.

 Delete : Deletes the saved business cards.

 Edit : Edits the saved business cards.

2.6 Memory in use

Select ‘Menu>2.Contacts>6. Memory in Use’.

Allows you to set the storage to SIM Card, Phone, Phone or SIM.

2.7 Copy All

Select ‘Menu>2.Contacts>7. Copy All’.

Copy all information saved on the Phone/SIM card to SIM or Phone.

2.8 Delete All

Select ‘Menu>2.Contacts>8. Delete All’.

Press the [OK] key and input the phone password.

Deletes all information saved on the Phone/SIM Card.

2.9 Memory Info

Select ‘Menu>2.Contacts>9.Memory Info’.

Select Memory Info and press the [OK] key to display the use and free memory

space in Phone and SIM memory

2.10 Service Number

Select ‘Menu > 2. Contacts> 10.Service Number’.

This feature may not be available depending on your SIM card.

The list of the numbers in the SDN (Service Dial Number) will be displayed.

If necessary, scroll to a number by pressing the [Up] or [Down] and press the

[Send] key to dial the number.

3. Call Logs

Press the [Send] key to see the recent calls in standby mode or select

‘Menu>3.Call Logs’.

This function displays missed calls, received calls, and dialled calls. You can

delete a call log and see the information for the call timer, call cost, and GPRS

info in this menu.

Note: If Contacts contains the phone number that you want to dial, the name

will be displayed, or phone number, date, and time will be displayed

alternatively on the Screen.

Press [SEND] when the cursor is placed on the number or name to dial the

number.

3.1 Missed Calls

Select ‘Menu>3.Call Logs>1.Missed Calls’.

Displays the missed calls list accompanied by the time and date of a missed call

as well as the number or name of the recipient.

Press the [Up/Down] key for selection.

Press the [Options] Soft key [Left] to;

 Call : Calls with the selected Number.

 Edit : Edits selected Number.

 Save Number: If the selected number is not saved on the SIM or the phone,

this option will be shown. Saves the selected Number to the SIM or the

phone.

 Delete : Deletes the selected Number.

 Delete All: Deletes all missed call records from the list.

 Send Message: Sends a message to the person you missed the call.

When the call is not found in Contacts Entry, the [Save Number] option will be

created.

3.2 Received Calls

Select ‘Menu>3.Call Logs>2.Received Calls’.

Displays the received call list accompanied by the time and date of a received call

as well as the number or name of the caller. Press the [Up/Down] key to select.

Press the [Options] Soft key [Left] to;

 Call : Calls selected Number.

 Edit : Edits selected Number.

 Delete : Deletes selected Number.

 Delete All: Deletes all received call records from the list.

 Send Message: Sends a message to the person you received a call.

When the number of the caller is not found in Entry, the [Save Number] option

will be created.

3.3 Dialled Calls

Select ‘Menu>3.Call Logs>3.Dialled Calls’

Displays the Dialled calls list accompanied by the time and date of a dialled call

as well as the number or name of the recipient. Press the [Up/Down] key for

selection.

Press the [Options] Soft key [Left] to;

 Call : Calls selected Number.

 Edit : Edits selected Number.

 Save Number: If the selected number is not saved on the SIM or the phone,

this option will be shown. Saves the selected Number to the SIM or the

phone.

 Delete : Deletes selected Number

 Delete All: Deletes all the dialled call records from the list.

 Send Message: Sends a message to the person you made a call to.

When the number of the caller is not found in Contacts Menu, the [Save Number]

option will be created.

3.4 Recent Calls

Select ‘Menu>3.Call Logs>4.Recent Calls’

Displays the Recent calls list accompanied by the time and date of a recent call

as well as the number or name of the caller. Press [Up/Down] key for selection.

Press the [Options] Soft key [Left] to;

 Call : Calls selected Number.

 Edit : Edits selected Number.

 Save Number: If the selected number is not saved on the SIM or the phone,

this option will be shown. Saves the selected Number to the SIM or the

phone.

 Delete : Deletes selected Number

 Delete All: Deletes all the dialled call records from the list.

 Send Message: Sends a message to the person you made a call to.

When the number of the caller is not found in Contacts Menu, the [Save Number]

option will be created.

3.5 Delete Call Logs

Select ‘Menu>3.Call Logs>5.Delete Call Logs’.

It deletes the missed, received, or dialled calls or deletes all the call records with

‘All Calls’.

Press the [Yes] Soft key [Left] or [No] Soft key [Right] to execute or cancel this

function.

3.6 Call Timer

Select ‘Menu>3.Call Logs>6.Call Timer’.

Indicates information on call time.

- Last Call Time: Date and Time.

- Received, Dialled, Total Call Time: Call Time only.

- Reset Call Times: Initialises the call timer. Press the [OK] key and

input the phone password. And then press the [OK] key one more time.

3.7 Call Cost

Select ‘Menu>3.Call Logs>7.Call Cost’.

Records information on call cost, and limits the call charge to prevent

overcharges.

- Last Call Cost: Displays the cost of the last call.

- Total Call Cost: Displays the cost of all calls.

- Clear Logs: Inputs PIN2 to clear all the logs of call cost.

- Max Cost: Reads or sets up the maximum value of the call cost unit in

the service area.

- Read Limit: Reads the maximum unit value.

- Set Limit: Sets up the maximum units.

- Cost Unit: Reads or sets up the unit defined in a service area. This

function has the following sub options.

- Read Unit: Reads the cost unit.

- Set Unit: Sets up the current cost unit and the cost per unit

3.8 GPRS Info

Select ‘Menu>3.Call Logs>8.GPRS Info’.

This displays the GPRS data transmission capacity.

- Current Info: Displays the total transmitted Kbytes at the moment.

- Last Info: Displays the total transmitted Kbytes in the past.

- All Info: Displays the total transmitted Kbytes since connected.

- Clear Logs: Clears the log related to GPRS.

4. Media Gallery

4.1 Photo Gallery

see Applications Menu 5.1.3

4.2 Image Gallery

You can view or edit the image or information recorded in your phone in this

menu.

The image formats supported here are “JPEG, GIF, BMP, WBMP, PNG”

1. Select ‘Menu>4.Media Gallery>3.Images’ to the list of images saved in your

phone.

2. Press the [Large] Soft key or press the [OK] key to zoom in the image

selected from the list.

3. Press [Left/Right] key to view other images in the list.

Press the [List] Soft key to return to the list.

Press the [Options] Soft key [ Left] to apply the options to the image

concerned.

- Options: Set as Wallpaper, Send as Multimedia Msgs., Rename, Delete, Delete

All, Details, Infrared Port

 Set as Wallpaper

Adds an image to ‘Wallpaper’ in ‘Display settings’ The image is set as the

background image of the main screen.

 Send as Multimedia Msgs.

Sends the selected sound to the Multimedia Messages(This option is

available only for a non-forward locked sound or image)

 Rename

Renames an Image

(for further details about rename a file, see Basic Functions Menu 7)

 Delete

Deletes an Image

 Delete All

Deletes all Images in the list of image

 Details

Views the information on an image

 Infrared Port

Send to IRDA

With a respect to the DRM, a forward locked image will be displayed with an

icon like in the list of images.

4.3 Sound Gallery

Plays back sound in your phone or edits information.

The sound formats supported here are “MMF, MIDI, iMelody, MP3, AMR”.

Select ‘Menu>4.Media Gallery>4. Sound Gallery’ to display the list of sounds

recorded in your phone.

The selected melody will be automatically played back once.

Press the [Options] Soft key [ Left] to apply the options to the sound

concerned.

- Options: Set as Ring Tone(can not used in AMR file), Send as Multimedia

Msgs, Rename, Delete, Delete All, Details, , Infrared Port

 Set as Ringtone

Sets the selected sound as a preferred Ringtone

(For further details about Options, see Applications Menu 4.3)

 Infrared Port

Send to IRDA

With a respect to the DRM, a forward locked sound will be displayed with

an icon like in the list of sounds.

Note: MP3 ringtone support (maximum file size: 500kb) and MP3 files may

be subject to the relevant copyright law, so refrain from distributing those

files illegally.

4.5 Memory Info

Displays information on the memory usage status for Photo, Image, Sound, Voice,

Java, and Message and System used.

Note: The 'System' memory information means the total used memory for the

reserved objects, user-defined wallpapers, etc.

5 Multimedia

5.1 Camera

You can take a photo in various ways using the built-in camera.

The photo can be saved and sent with a multimedia message..

5.1.1 Take a Photo

5.1.1.1 snapshot mode

1. Select ‘Menu->5.Multimedia->1.Camera->1.Take a Photo’ in the menu in

sequence

* Tip: Press camera key to enter into the photo capture mode

2. Adjust the image by focusing the camera at the subject.

Press the Soft key [Right] to change the shooting mode.

Shooting Mode Icon Description

Single Capture Take a single photo.

Multi Capture Take multiple photos. Number of photos to be taken

set by the [Multi-shot] option.

Sticker Capture Take a photo with a built-in frame.

Image size is fixed as 128X128

3Press OK key [ ] to take the picture in the current preview.

Press the Side [Up / Down] key to zoom in/out of the image.

Press [ ] key to return to the camera preview screen.

In Multi Capture mode, select [Mark]/[Unmark] to check the image that you want

to save.

4. Press OK key [ ]

to save the photo taken. You can select a photo album

and edit the photo name.

In Multi Capture mode, the photo will be named automatically. You can edit the

photo name, if only one photo is set as ‘Marked’.

Camera Specific Functions

Function Description Key

Brightness Control the brightness of 7 levels (from 0 to

[Left / Right

key

Zoom change the zoom levels Side [up/ down]

key

Sub LCD mode Change the LCD mode.

(Sub LCD mode or Main LCD mode)

Navigation

[Down]key

5.1.1.2 Using the Camera Options

Press the [Options] Soft key [Left] in Capture mode to select the following

information which will be applied to the image. Its setting value is temporary, so if

you want to save its value, go to 5. Multimedia ->5.1 Camera ->5.1.5 Settings

 Goto Album: Moves to the Photo Album.

 Image Size: Displays the size of image that you want to shoot

LCD(128X128), VGA(640X480).

Note: this option will not appear in ‘Sticker Capture’ mode

 Self Timer: select one of 5 Secs or 10 Secs. When the selected time has

lapsed, a photo is taken.

 Multi shot : select multishot number you want. 4/6/9

Note: this option will appear in ‘Multi Capture’ mode

삭제됨: Taking

 Sticker : selects the frame (10 frames)

Note: this option will appear in ‘Sticker Capture’ mode

　 Effect: Applies an effect to the picture. Normal/ Sepia/Solarization/

Monochrome/Line drawing/ Negative/ Embossing/

 OSD : On/Off

5.1.2 Photo Gallery

Allows you to view or edit the photos saved in your phone.

5.1.2.1 Views the Saved Picture.

1.Select the ‘Menu->5.Multimedia->1.Camera->2.Photo Gallery’ or ‘Menu-

>4.Media Gallery->1.Photo Gallery’ in the menu in this order to access the Photo

Album List.

2. Press the [New] Soft key to add an album to Photo Albums.

You can add up to 7 albums (including the default album ‘My Photo’)

(For further details about making directory name, see Basic Functions Menu 7)

. Press the [Options] Soft key [Left] to apply the following options to the

selected album

- Rename : Rename a album.

- Delete : Deletes a album.

- New : add a album

Album directories, but default directory ‘My Photo’, can be renamed and deleted.

3. Select an album from the list and Press OK key to display the photo list in the

album.

Use the [Small] or [List] Soft key to change the list type (Small/List).

4. Select a photo and Press OK key to enlarge the photo view. Press the

[Left/Right] key to view other photos in the album.

5.1.2.2 Using the Photo Options

Press the [Options] Soft key [ Left] to apply the following options to a

selected photo from the album.

 Set As:

1. Wallpaper – Adds a photo to ‘Wallpaper’ in ‘Display Settings’. The photo

is set as the background image of the main screen.

2. Contacts – Assigns a specific photo image to Contacts.

* Tip: Press the [Right] Soft key [Right] to apply the

following options to a selected photo from the albu

 Send as Multimedia Msgs.: Sends the selected photo with to the

Multimedia Messages.

 Rename: Renames a photo.

(For further details about rename a photo, see Basic Functions Menu 7)

 Delete: Deletes a photo.

 Delete All: Deletes all photos in the album.

 Information: Views the information on a photo.



Infrared Port: . Send to IRDA

5.1.3 Settings

Changes the default camera option value.

- Image Size: Size of the image to be shot

LCD (128X128), VGA (640X480).

- Shutter Sound: Shutter/Cheese/Smile/321/ Whisky/Off

- Self Timer: select one of 5 Secs or 10 Secs. When the selected time

has lapsed, a photo is taken

- Auto Save: When Auto Save is on, the taken picture will be

automatically saved with a default name in the default album ‘My Photo’.

- Multi-Shot : select multishot number you want. 4/6/9

5.2 Java

You can download and execute a java game on your phone. Use the WAP

browser to search for a java game and download it for installation.

5.2.1 View of Java Game List

Select ‘Menu>5. Multimedia>2.Java>1.Games’ in the menu to view the Java

Game list stored in your phone.

Press the Navigation key to select a game.

The Menu has an option to control the game.

5.2.2 Java Game Execution/Deletion/Information Search

Select ‘Menu>5. Multimedia>3.Java’ in the menu to select a Java menu.

Select ‘1. Games’ to view the Java Game list stored in your phone.

Press the Navigation key to select a game.

To: Press:

Run the Game Press the [Option] Soft key [ Left] and select

the [Run] Soft key, or press the [OK] key

View Detail Information

Press the [Option] Soft key [ Left] and select

the [Info] Soft key, or press the [ Right] Soft

key.

Delete the Game Press the [Option] Soft key [ Left] and select

the [Delete] Soft key.

Setup Game Network Access

Permissions

Press the [Option] Soft key [ Left] and select

the [Permissons] Soft key.

Exit Game Program Press the [Option] Soft key [ Left] and select

the [Exit] Soft key.

6. Settings

Select ‘Menu>6.Settings’.

You can set up various phone functions in the settings menu.

6.1 Display Settings

Select ‘Menu>6.Settings>1.Display Settings’.

You can change the outlook of LCD display.

6.1.1 Main Screen

Select ‘Menu>6.Settings>1.Display Settings>1.Main Screen’

You can change the idle screen image.

- Wallpaper: One of 3 defaut images and 1 user image can be

selected as idle screen image. Only user wallpaper can be deleted

with the [Delete] Soft key [ Left], but the default one cannot be

deleted.

- Wallpaper Type: Digital Clock /Greeting/D-day

6.1.2 Greeting

Select ‘Menu>6.Settings>1.Display Settings>2.Greeting’

You can type up your own greeting phrase to be shown on start up or Idle

screen.

6.1.3 Backlight

Select ‘Menu>6.Settings>1.Display Settings>3.Backlight’.

You can adjust the LCD backlight duration to one of 5 Secs/10 Secs/20

Secs/1 Min/10 Mins.

Press [Left/Right] keyto change the duration value that you want and press

the OK key.

1.2 Sound Settings

Select ‘Menu>6. Settings> 2. Sound Settings’

Sound Settings define how your phone reacts when you receive a call or a

message, how your keypad sounds when you press a key, and more.

Ring tone, key tone, and other settings can also be customised to your needs.

6.2.1 Ring Tone

Select ‘Menu>6. Settings>2. Sound Settings>1.Ring Tone’

* You can choose the preferred ring type, melody to ring.

- Ring Type: Ringing, Vibration, Vib then Ring, Vib and Ring, Ascending,

None(Quiet)

 Sound: Sound is composed of several groups such as Melody Sound,

MP3 Sound, Bell Sound and User Sound and each Group has multiple

tones. User Sound presents the melody of ‘Menu>4.Media

Gallery>4.Sound Gallery’ as a consequence (For further details

about User Sound, see Applications Menu 4.4).

6.2.2 Volume

Select ‘Menu>6. Settings>2. Sound Settings >2. Volume’

- Ringing Volume : Controls the volume in 8 levels.

- Key Volume : There are 8 different volume levels (0~7) available for

volume adjustment

6.2.3 Message Alert

Select ‘Menu>6. Settings>2. Sound Settings >3.Message Alert’

You can select the preferred alert melody, its volume and reminder period when

you have new messages.

- Alerting: Use the Press Left/Right keyto select one out of Off, Once,

Every 2 Mins, Every 5 Mins.

- Ring Volume: Controls the volume in 8 levels.

- Sound: Use the Press Left/Right keykey to set Message Alert Tone to

Bell1, Bell2, Bell3.

6.2.4 Key Tone

Select ‘Menu>6. Settings>2. Sound Settings >4.Key Tone’

You can select the keypad sound to be used for dialling or in the menu screen.

- Tone Type: You can turn the key tone on or off.

- Sound: Selects a key tone.

6.2.5 Sound Effect

Select ‘Menu>6. Settings>2. Sound Settings >5.Sound Effect’

Turns the default sound effect on or off.

Press the [Mark] Soft key, and then press the Press OK key to save.

- Folder Open/Close: When you open or close folder.

- Power On/Off: When you turn the power on or off.

- WAP Connection: When you connect or terminate WAP

- Minute Minder: A sound effect every minute while making a phone call.

6.3 Call Settings

Select ‘Menu>6.Settings>3.Call Settings’.

6.3.1 Call Forward

Select ‘Menu>6.Settings>3..Call Settings>1.Call Forward’.

You can forward a receiving call to another phone number with this menu. It’s

one of network services, so please contact your service provider to check

its availability.

You may choose one from All Calls, When Busy, On No Answer, When Not Found,

or Cancel All, all of which forward as required.

6.3.2 Answer Type

Select ‘Menu>6.Settings>3.Call Settings>2.Answer Type’.

You can set up the call receiving method.

Use pressing left or right key to set the call receiving method. Press [OK] key.

- SEND key: You can answer the incoming call by pressing the [ ] key.

- Any Key: You can answer incoming calls by pressing any key, except

the [ ] key and the [Reject] Soft key.

- Flip Open: You can answer incoming calls by opening the flip.

- Auto Answer: Your phone automatically answers calls after 10 seconds.

6.3.3 Auto Answer

Select ‘Menu>6.Settings>3.Call Settings>3.Auto Answer’.

The Auto Answer function works like an automatic answering machine. It

relays the recorded message to the caller if you do not answer the call for a

specified period of time.

- Auto Answer : Set Auto Answer to [On/Off]. If set to [On], the Auto

Answer function will be enabled.

- Recorded Message: Displays a list of recorded messages during

call active (In call). Each list displays the recorded date & time of

the file and the message caller ID as well. Press the [Delete] Soft

key to delete the message in the View list, and press the [Send] key

to make a call while confirming recorded messages.

- Response Message: Depending on your current situation, a

different answering message will be played, including.

[Absent/Meeting/Driving/User Message]. The User Message is the

voice message of the local user that will be answered in the

standby mode.

- Response Time: Sets the automatic answering time (After 3 Secs/5

Secs/10 Secs/20 Secs). When the response time elapses without

answering the incoming call, the recorded message will be relayed

to the caller. If the caller decides to leave a voice message,

recording will be started with a beep sound.

- User Message: Displays your voice message set for the response

message. Press the [ ] key for playback. If no message is

recorded, only the recorder function will 6.3.3 Auto Answer.

6.3.4 Auto Redial

Select ‘Menu>6.Settings>3.Call Settings>4.Auto Redial’.

This function automatically redials the number the call is made to.

- On: Sets up Auto Redial.

- Off: Cancels Auto Redial.

6.3.5 Call Waiting

Select ‘Menu>6.Settings>3.Call Settings>5.Call Waiting’.

It’s one of network services, so please contact your service provider to

check its availability.

The call waiting function informs you that a second call is waiting during a call

- Activate: Sets up Call Waiting.

- Deactivate: Cancels the preset Call Waiting.

- Status: Informs the setup condition.

6.3.6 Send Caller ID

Select ‘Menu>6.Settings>3.Call Settings>6.Send Caller ID’.

You can prevent your phone number from being displayed on the phone of the

person being called. This service is dependent on the network. Please ask the

network provider.

6.3.7 Own Number

Select ‘Menu>6.Settings>3.Call Settings>7.Own Number’.

The number for Own Number can vary depending on the SIM.

Press the [Options] Soft key [ Left] to:

 Add: Adds a Own Number.

 Delete: Deletes a Own Number.

 Edit: Edits a Own Number.

6.3.8 Active Line

Select ‘Menu>6.Settings>3.Call Settings>8.Active Line’.

Some SIM cards may be used with two subscriber numbers. This menu is

available only if your SIM card supports it.

This menu option allows you to select the Line1/ Line2/ Choice Line to be used

to make calls. However, calls can be answered on both lines, regardless of the

selected line.

NOTE: Please contact your service provider to check the availability of this

feature and how to subscribe to ALS(Alternate Line Service).

6.4. Language

Select ‘Menu>6.Settings>4.Language’.

You can select a language to be displayed on the phone.

6.5 Time & Date

Select ‘Menu>6.Settings>5.Time & Date’.

You can set up Time,Time Format .,Date, Date Format and Auto Update.

When Auto update sets as on, time and date will be updated automatically

by the network signal which contains time and date information.

6.6 Favorites

Select ‘Menu>6.Settings>6.Favorites.

The Favorites menu is, so called, the collection of items frequently used,

and can be made up by your own sake. To add an item to the Favorites,

browse to the item which you want and press the [Favorite] Soft key

[Right] .

Press OK key in one of the registered Favorite items to access the item directly.

Press the [Add] Soft key [ Right] or Press OK key in Empty record to add a

Press the [Options] Soft key [ Left] to:

 Delete: Deletes a Favorite from the list..

 Delete All : Deletes all Favorites from the list

 Edit: Edits a Favorite.

 Add: Adds a Favorite.

Note: ‘Automatic’ selects the language previously stored in

your SIM.

6.7 Network Settings

Select ‘Menu>6.Settings>7.Network Settings’.

6.7.1 Search now

You can search a network in the way you would set in the Default Setup

6.7.2 Default setup

You can set the network searching way as “Automatic” or “Manual”

6.8 Security Settings

Set ‘Menu>6.Settings>8.Security Settings’.

The security settings enable you to restrict the use of your phone to other people

and types of calls of your choice.

Various codes and passwords are used to protect these features of your phone.

They are described in the following sections. See also ‘Access Code’ 6

The Security feature keeps your phone and SIM Card safe from unauthorised

users. You may set up a password for your phone or use the Call Barring service

and Fixed Dialling mode.

6.8.1 PIN Check

Press [Left/Right] keyand Press OK key for setup.

. If you fail to input the correct PIN and PIN2 number 3 times(Trial time depends

on the SIM) continuously, you will be prompted to input the PUK number.

- Enabled: You should input PIN to access to the main menu after power

on.

- Disabled: You don’t have to input PIN to access to the main menu after

power on.

6.8.2 Change PIN

Changes the PIN number.

6.8.3 Phone Lock

Once selected, this option locks your phone until you input the right password to

unlock. Press OK key after you input the password.

6.8.4 Change Lock

Changes a password. Default Password is 1234.

6.8.5 Phone Barring

This function offers multiple methods to limit

incoming or outgoing calls. In general, the barring

service becomes activated by interoperating with the

network, but Phone barring is made by the phone

itself. Major functions are as follows:

- Incoming : Limits all incoming calls.

- Outgoing : Limits all Outgoing calls.

6.8.6 N/W Barring

This function is available only if the service provider

provides such a function and you have subscribed to

it.

You can set limitations for making certain types of

calls:

- Outgoing Calls: Limits all Outgoing calls.

- International Calls: Limits an outgoing and incoming international call.

- Int. Call Except to Home Country: Limits other international calls

except home country.

- Incoming Calls: Limits all incoming calls.

- Incoming Calls When Abroad: Limits all international incoming calls.

- Delete All: Cancels all the barring settings.

- Change Password: Replaces the old password with a new one.

6.8.7 CUG (Closed User Group)

Sets up a group of numbers that you want to dial or receive. Select CUG name

and Press OK key to see the CUG name list as you input.

Press the [Options] Soft key [ Left] to:

 Delete: Deletes the preset CUG Identifier.

 Edit: Edits the CUG Identifier.

 Add: Adds the CUG Identifier.

6.8.8 Fixed Dialling (Fixed Dialling Numbers)

6.8.8 Fixed Dialling

Fixed Dialling is a service that limits your access to specific numbers in the

Phonebook list recorded on the SIM. Input PIN2 to set up or cancel this service.

(trial attempt depends on SIM)

- On

- Off

- Fixed Dial List: Displays the numbers recorded in the Fixed Dialling

list.

6.8.9 Change PIN2

Changes PIN2.

6.8.10 System Reset

Select ‘Menu>6.Settings>8.Security Settings >.10.System Reset’

Deletes all user settings and data from your phone and returns to factory default

settings.

Input the phone password and Press OK key to reset.

The default password is 1234.

Note: In Empty record, the Soft key [ Right] will turn into the [Add] Soft key

and move to the name input screen for a new CUG registration.

6.9 Software Version

This menu is for viewing the software version.

7. Organizer

Select ‘Menu>7.Organizer’.

Organizer provides Alarm, Scheduler, Memo, Voice Memo, World Time,

Calculator, Converter, and Stopwatch.

7.1 Alarm

Select ‘Menu>7.Organizer>1.Alarm’.

You can set up to 5 alarms (Once you set the On Morning Call, then an icon

appears on the display.)

7.1.1 To set an alarm

Select ‘Menu>7.Organizer>1.Alarm’ to display the current alarm list.

Press the [New] Soft key [ ], and compose a new one in the alarm edit

screen.

Press the [Options] Soft key [ ] to:

 Delete: Deletes an Alarm from the list.

 Delete All : Deletes all Alarms from the list.

 Morning Call On/Off : Notifies by ring a matter foreign to the Ring Type

settings

 Snooze On/Off: The alarm that is set to Snooze rings every 5 minutes for 3

times. Only one alarm can be set to Snooze On.

 New: Set a new alarm

Press the [OK] key to edit the Alarm, and then press the navigation [Up/Down]

key in the ‘Edit Alarm’ screen to set on Set, Time, or Melody.

Press the [AM]/[PM] Soft key [ ] to select AM or PM time format for

setup.

7.2 Calender

Select ‘Menu>7.Organizer>2.Calender’.

The Scheduler helps you managing your schedule. On time of the day,

Scheduler alerts you that you have something to do by alarming. The

Scheduler consists of Monthly View, Daily View, and Event View & Edit.(For

further details about using editor, Basic Functions Menu 7.)

7.2.1 Monthly View

To: Press:

Move to another day [Left] key Previous Day

[Right] key Next Day

Move to another week [Up] key Previous Week

[Down] key Next Week

Move to the previous or next month

[Side Up] or [1] key

Previous Month

[Side Down] or [3] key

Next Month

Select ‘Menu>7.Organizer>2.Calender’ from the menu to display the Monthly

View.

Press the [New] Soft key [] to add a new event.

Press the [Options] Soft key [ ] to;

 Goto Date: Moves to the set date.

 Goto Today: Moves to today for selection.

 View All Events: Shows all of your scheduled events

 Del Past Events: Deletes your past scheduled events.

 Del All Events: Deletes all of your scheduled events.

 Memory Info: Displays the number of stored events, not more than 50.

 New : Set a new schedule.

Use the Navigation key to select the date and press the [OK] key.

On a date with any schedule registered, move to Daily View to check the

schedule.

On a date with no registered schedule, add a new schedule.

Any event registered on a date will be displayed at the bottom of the display in

form of an icon.

7.2.2 Daily View

Shows the schedule registered for a date. Select a schedule and press the [OK]

key to view or edit the details of an event.

Press the [Options] Soft key [ ] to;

 Delete: Deletes an event.

 Delete All: Deletes all events.

 D-day On/ D-day Off: Sets up or cancels D-Day.

 New: Set a new schedule

 Send IrDA: Allows you to choose IrDA for transmission.

Note: When you select D-Day from Screen Control, ‘D-Date, Event Memo Content

Part’ will not appear in the standby screen.

Upon setup of a new D-Day, the existing D-Day is automatically deleted.

7.2.3 Event View & Edit

Shows the registered schedule item by item and edits the schedule or creates a

new schedule.

Create New Event (by View & Edit)

① Select a day from Monthly View and press the [New] Soft key [ ]

② Upon appearance of the New Event screen, select and input an event

item by item for registration.

③ After input, press the [OK] key to save the event.

Note: Maximum Quantity of Schedule for Registration: 50

Maximum Daily Quantity of Schedule for Registration: 5

Period of Registration: 01/01/1950 ~31/12/2043

7.3 Memo

Select ‘Menu>7.Organizer>3.Memo’.

Saves short notes in your phone.

Press the [Options] Soft key [ ] to;

 Edit: Retrieve existing memos, edit the parts of your choice, and press the

[OK] key for save.

* Tip: Press the [OK] key and [Edit] Soft key [] to return to the editing screen.

 Delete/Delete All: Deletes any or all items.

 New: Input texts to create a new memo.

(For further details about using editor, Basic Functions Menu 7.)

7.4 Voice Memo

Select ‘Menu>7. Organizer>4. Voice Memo’

The Voice Memo function records your voice message. You can use Record,

Stop, Play, and Save for voice recording and playback. You can use the Text

Editor for a message title. (For further details about using editor, Basic

Functions Menu 7.)

Record

① Press the [New] Soft key [ ] to start record immediately.

② Press the [ ] key to terminate the recording process and press the

[Preview] Soft key to hear the recorded data before saving the voice

data.

③ Press the [Re-rec] key to re-record a voice message.

④ Press the [ ] key, input a name, and press the [OK] key to save the

data.

* Tip: When the memory is full, the “Not Enough Memory” message will appear

and returns to the menu.

In the Voice Memo list, Press the [Options] Soft key [ ] to;

 Send as Multimedia Msgs.: Attach AMR file, and Sends as MMS

 Rename: Renames the voice memo

 Delete: Deletes the selected voice memo.

 Delete All: Deletes all voice memos.

 Details : Views the information on a file

Play

① Select an item in the voice memo list, and press the [ OK ] key to start play

immediately.

② Press the [ ] key or [ ] key to rewind or fast forward to position about

5seconds.

③ Press the [ ] key to play or pause a voice memo

④ Press the [ ] key to stop a voice memo.

7.5 World Time

Select ‘Menu>7.Organizer>5.World Time’.

This function informs you of world time.

Press the [Options] Soft key [ ] to:

 Daylight-saving On/Off: The Daylight-saving function fits the time of the

countries in summer who enforce Summer Time. Select Daylight-saving

from the Options menu for setup. The icon for the country with Summer

Time will be activated

Shows that the Summer Time Saving function is on.

* Tip: Summer Time sets the clock one hour ahead.

 Set as Local: Press the [Set] Soft key [] or select [Set as Local] from

the Options menu and Target Area will be replaced with Home Area.

7.6 Calculator

Select ‘Menu>7.Organizer>6.Calculator’.

Your phone has a Calculator function. Calculator provides 4 basic operations +, -,

x, and /.

Press the number keys and direction keys to input a formula and press the [=]

Soft key to display the result.

* Tip: Press the Soft key [ ] to input a decimal point.

Press the [C] Soft key [] to reset the formula.

Press the [C] key short to delete the text of a formula and press and briefly hold

the [C] key to delete the whole formula.

7.7 Converter

Select ‘Menu>7.Organizer>7.Converter’.

Converter converts a figure between different units i.e. Length, Area, Volume,

Weight, Temperature, and Currency.

Select one from Length, Area, Volume, Weight, Temperature, or Currency.

Press [Down] key to move to the next line, press [Left/Right] key to select a

target unit, and press the number keys to input numbers.

Press [Down] key again to move to the next line and select a result unit and you

will get the correct answer.

* Tip: The result is automatically recalculated upon a change of unit or value.

Press the Soft key [] to input a decimal point.

Press the Soft key [] to modify default currency on the first select line.

7.8 Stop Watch

Select ‘Menu>7.Organizer>8 Stopwatch’.

The Stopwatch measures time for all sorts of sports.

Press the [ ] key to operate the Stopwatch.

Press the [ ] key to pause the Stopwatch and press the [ ] key to restart the

Stopwatch.

Whenever you select the [Lap] Soft key [], the 2 lap times as a maximum

are displayed and when you select the second [Lap] Soft key [ ], the

Stopwatch stops.

Press the [Reset] Soft key [ ] to initialise all.

V. Advanced Functions

1. WAP

2. Infrared Port

3. SIM Toolkit

1. WAP

You can access the Internet with a WAP (Wireless Application Protocol) browser.

That means you can connect to the Internet any time and anywhere if the service

area is within the coverage of your network.

The descriptions below can be different from what is provided by your Network

provider.

Therefore, ask your Network provider for detailed information.

Note: Press the [OK] key short to access the WAP menu directly. Press and

briefly hold the [OK] key during standby to proceed to the WAP homepage.

(For further details about using editor, Basic Functions Menu 7.)

1.1 Navigating the WAP Browser

To scroll through and select browser items, press the [Up/Down] key until the

item you want is highlighted, and then press the [OK] key.

To return to the previous page, press the [C] .

To return to the startup homepage, select [Options]> Home.

1.2 Entering Text in the WAP Browser

When you are prompted to enter text, the current text input mode appears above

the [OK] key.

(For further details, see Basic Functions Menu 7.)

1.3 Home

This menu contacts the network to load the Wireless Web service provider

homepage.

1.4 Resume

You can reconnect to the latest web site.

1.5 Bookmarks

You can bookmark an Internet address using the WAP browser just as you do

with a PC Internet browser.

To register an URL and Name in the closest empty number of the Bookmark List,

press the [Add] Soft key on the right.

Press the [Option] Soft key [ ] to;

 Edit: Edits the URL and name of a bookmark.

Note: This feature will not be available if the manufacturer provides a default

bookmark.

 Delete: Deletes a bookmark from the List.

Note: This feature will not be available if the manufacturer provides a default

bookmark.

 Go: Goes to the related site.

1.6 Push Messages

The phone can receive Push Messages from the Service Provider.

1.6.1 Inbox

The Push message is stored in Inbox. Select and check a message from the

message list of Inbox to contact the WAP page concerned.

Press the [Option] Soft key [ ] to;

 Delete: Deletes a message.

 Delete All: Deletes all the messages in Inbox.

 Go to: Goes to related site.

1.6.2 Receive

Sets up Push Message receiving.

- Accept All: Receives all Push messages.

- Accept None: Rejects all messages.

1.7 Go to URL

You can directly input and connect to the desired URL.

1.8 Profiles

(Note: The parameter settings have been already entered as required by the

service provider. Care should be taken when you make any modification to a profile

since it may cause malfunction of WAP.)

Selects or edits the Connection Profile supplied by the phone.

Select the Profile List and press the [OK] key for setup.

The Unedited Profile will not be selected.

Select the Profile List and press the [Edit] Soft key to edit a profile.

- Profile Name: Pressing the [OK] key allows you to enter the edit mode

to change a profile name.

- Home URL: Pressing the [OK] key allows you to enter the edit mode to

edit the Homepage URL provided by the service provider.

- Connection Type: Select either WAP or HTTP.

- GSM Settings: This menu allows you to set the GSM network proxy,

and has the following sub-menus:

- Gateway or Proxy: Pressing the [OK] key allows you to access the

submenus such as IP Address, IP Port, Login ID and Password. For

each submenu, pressing the [OK] key lets you enter edit mode to edit

every item provided by the service provider.

- Data Call Type: Use the left or right navigation key to select from the two

modes: ISDN and Analogue.

- Dial Number: Pressing the [OK] key allows you to enter the edit mode to

change this item.

- Login ID: Pressing the [OK] key allows you to enter the edit mode to

change this item.

- Password: Pressing the [OK] key allows you to enter the edit mode to

change this item.

- GPRS Settings: This menu allows you to set the GPRS network proxy,

and it has the following sub-menus:

- Gateway or Proxy: Pressing the [OK] key allows you to access the

submenus such as IP Address, IP Port, Login ID and Password. For

each submenu, pressing the [OK] key lets you enter edit mode to edit

every item provided by the service provider.

- APN: It stands for Access Point Name. Pressing the [OK] key lets you

enter the edit mode to change this item.

- Login ID: Pressing the [OK] key lets you enter the edit mode to change

this item.

- Password: Pressing the [OK] key lets you enter edit mode to change

this item.

- DNS Settings : Enter the IP address for the Domain Name Server. You

may enter primary and secondary DNS. This function is available only

when you are connected to HTTP.

- Bearer: This lets you select the bearer type for each type of network

access. Using the left or right navigation key allows you to select from

the two modes: GSM Only and GPRS Only.

- Reset Profile: Press the [OK] key to delete the parameter settings of a

profile. Choose Yes or No.

Note: If Connection Type is WAP, .GSM Setting

1.9 Cache

1.9.1 Cache Mode

Sets up the Cache memory check.

- Always Check: The Cache is always checked whenever a URL is

loaded.

- Never Check: The Cache is never checked.

1.9.2 Clear Cache:

This menu provides a function to clean the data stored in the Cache (recently

visited WAP pages).

1.10 Security Cert

You can see the saved security certificate.

Press the [Option] Soft key [ ] to;

 Delete: Deletes a security certificate.

 Delete All: Deletes all security certificates.

1.11 Version

This function is for viewing the software version of the WAP browser

2. Infrared Port

Select ‘Menu>8.Connectivity>2.Infrared Port

Allows you to change the current status of the Infrared port

- Internet Connection: Uses the Infrared port for GPRS Modem

purposes (Only some menus and functions are accessible.)

- PC Sync Connection: Connects to PC Sync with the Infrared port.

(Only some menus and functions are accessible.)

- Object Exchanging: Sends/receives any image, sound, contact or

event file from or to any other device equipped with an Infrared Port

- Deactivate: Deactivates the Infrared port

To send an object using “Send via Infrared”

1. Align the object with the other device

2. Select “Send via Infrared” from the option menu for the file you want to send

3. Check the progress and completeness of the process with the Progress

screen

To receive an object

1. Activate “Object Exchanging” first

2. Align the object with the other device

3. Check the progress and completeness of the process with the Progress

screen.

4. If you select the View/Play menu after the image/sound file is received, you

can view or listen to this file and then it is saved in the Image Gallery if it is

an image, or in the Sound Gallery if it is a sound file. If you select the View

menu displayed after a Contact/Event file is received, you can view this file.

When you select the Save menu on the View window, it is saved in Phone

Memory if it is a contact file or in the Event for the date specified if it is an

event

NOTE: The Infrared Port is not available for WAP connection or fax service.

Depending on which Windows operating system you have, you may not be able

to connect to the Infrared Port. For more details, see the PC Sync Guide

Manual on using the various functions of the Infrared Port

3. SIM ToolKit

Refer to the service provider,

VI. Appendix

Check List

Performance and safety

Glossary

1. Check List

If you experience any problem while using your mobile phone, please refer to the

following checklist. If the problem still persists, contact your dealer or nearest

service centre.

When the “Insert SIM Card” message appears:

Make sure the SIM card is correctly installed. Check to see if the SIM card is

working properly. If it does not work, try to clean the contact points of the card. If it is

out of order, take it to the nearest service centre.

When the “Password” message appears in Phone locked state:

Enter the phone password. The default password is “1234”. If you cannot

remember the password, contact the nearest service centre.

When the “Enter PIN” message appears:

Input PIN. If you cannot remember it, contact the nearest service centre. You can

still receive calls even if your mobile phone becomes locked after entering the

incorrect PIN on 3(trial time depends on the SIM) consecutive attempts.

When the “No Service” or “Network Failure” appears in standby mode:

Check the RSSI (Received Signal Strength Indicator i.e., Antenna Bar) state. If

you cannot making/receiving a call when you are indoors or undergrounds

where the signal strength is poor, move toward a window or go out open area.

If you still cannot make a connection, contact the nearest service centre.

When audio quality is poor:

End a call and try again.

When the other party cannot hear you speaking:

Your phone may be set to MUTE. Disable the MUTE function.

When battery lifetime is shorter than usual:

This may happen when you are in the lower signal strength area. Turn off your

phone when it is not in use. Change the battery when battery energy is exhausted.

When your mobile phone does not turn on:

Make sure your battery is charged. Check to see if your phone works while

recharging the battery.

When you are unable to send a message:

Either you are not registered to receive a message service, or you may be in an

area where your network service provider cannot provide such a service.

When you are unable to make a call:

Your phone may be set to “fixed dial.” Cancel the “fixed dial” function.

When you are unable to charge the battery:

This may be the result of one of the following cases.

1. Your charger may be out of order. Contact your nearest dealer.

2. You may be attempting to use the phone in an overly hot/cold temperature. Try

changing the charging environment.

3. Your battery may have not been connected to the charger properly. Check the

connector.

When you are unable to input data into the Phonebook:

Your Phonebook memory may be full. Try deleting some entries from your

Phonebook.

When you are unable to select a certain function:

You may not have subscribed to that function, or your network service provider may

be in an area where such service cannot be provided. Contact your local service

provider.

2. Performance and safety

The following list shows how to maintain your mobile phone, together with

precautions to take.

- Keep your mobile phone and its accessories out of the reach of children.

- Maintain your mobilephone in dry condition and keep it within normal operating

temperatures. Temperatures higher than 55 C (131 F) or lower than -20 C (-4 F)

may damage your phone.

- Do not use or store your mobile phone in dusty, dirty areas.

- Do not attempt to disassemble your mobile phone.

- Do not drop or cause severe impact to the phone.

- Do not use chemical products, cleaning solvents or detergents to clean your

mobile phone.

- If your mobile phone does not work properly, contact your dealer immediately.

- Use only authorised batteries, battery chargers and accessories. Any malfunction

or damage caused by the use of unauthorised batteries, battery chargers and

accessories will void the limited product warranty.

- Ensure that the earthing points of the battery and battery charger are not in direct

contact with conductive objects.

3.Glossary

To help you understand the main technical terms and abbreviations used in this

booklet and take full advantage of the features of your mobile phone, here are a few

definitions.

Call Barring

Ability to restrict outgoing and incoming calls.

Call Forwarding

Ability to re-route calls to another number.

Call Holding

Ability to put one call on standby while answering or making another call; you can

then swap between the two calls, as required.

Call Waiting

A Network service to inform users that the user has another call

during a call.

CLI (Caller Line Identification) Services

Services allowing subscribers to view or block the telephone numbers of

callers.

GPRS (General Packet Radio Service)

New non-voice value-added service that allows information to be sent and received

across a mobile telephone network. GPRS guarantees continuous connection to

the Internet for mobile phone and computer users. It is based on the Global System

for Mobile Communication (GSM) circuit-switched mobile phone connections and

the Short Message Service (SMS).

GSM (Global System for Mobile Communication)

International standard for mobile phone communication, guaranteeing compatibility

between the various network operators. GSM covers most European countries and

many other parts of the world.

Multiparty Calling

Ability to establish a conference call involving up to five additional parties.

PIN (Personal Identification Number)

Security code that protects the phone/SIM from unauthorised use. The PIN

is supplied by the service provider with the SIM card. It may be a four to

eight-digit number and can be changed, as required.

PUK (PIN Unblocking Key)

Security code used to unlock the phone when an incorrect PIN has been entered

three times in succession. The eight-digit number is supplied by the service

provider with the SIM card.

Roaming

Use of your phone when you are outside your home area (when travelling for

example).

SIM (Subscriber Identification Module)

Card containing a chip with all the information required to operate the phone

(network and memory information, as well as the subscriber’s personal data).

The SIM card fits into a small slot on the back of the phone and is protected by the

battery.

SMS (Short Message Service)

Network service sending and receiving messages to and from another

subscriber without having to speak to the correspondent. The message

created or received can be displayed, received, edited or sent.

MMS (Multimedia Message Service)

Network service sending and receiving messages to and from another subscriber

without having to speak to the correspondent. The Message supporting

presentation of various media types, such as full colour images and polyphonic ring

tones.

Soft Keys

Two keys([ ], [ ]) marked on the phone, that:

• vary according to the function that you are currently using

• are indicated on the bottom line of the display just above the corresponding key.

Voice Mail

Computerised answering service that automatically answers your calls when you

are not available, plays a greeting (optionally in your own voice) and records a

message.

RF exposure FCC

For body worn operation, to maintain compliance with FCC RF exposure guidelines,

use only accessories that contain no metallic components and provide a separation

distance of 5mm (0.2 inches) to the body. Use of other accessories may violate

FCC RF exposure guidelines and should be avoided.

This device and its antenna must not be co-located or operating in

conjunction with any other antenna or transmitter.

Health and Safety Information FCC

This EUT has been shown to be capable of compliance for localized

specific absorption rate (SAR) for uncontrolled environment/general

population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and

had been tested in accordance with the measurement procedures specified

in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003

Ministry of Health (Canada), Safety Code 6. The standards include a

substantial safety margin designed to assure the safety of all persons,

regardless of age and health. The exposure standard for wireless mobile

phones employs a unit of measurement known as the Specific Absorption

Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *.

* In the U.S. and Canada, the SAR limit for mobile phones used by the

public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The

standard incorporates a substantial margin of safety to give additional

protection for the public and to account for any variations in.

***This device contains 1800 MHz GSM functions that are not operational

in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900

MHz PCS operations.

Pantech Co PG-3810 TripleBand GSM850/DCS1800/PCS1900 (with WAP&GPRS;) User Manual 09PG 3810 user manual

Pantech Co Ltd TripleBand GSM850/DCS1800/PCS1900 (with WAP&GPRS;) 09PG 3810 user manual

UserMan

Navigation menu

Namespaces

Views

Navigation
