5U010000760 REV01PG-61005U010000760 REV01www.pantech.comMade in KoreaPG-6100 USER’S MANUALPG-6100USER’S MANUAL01<5U010000760>PG6100영문표지 2005.8.17 1:50 PM 페이지1
Thank you for choosing Pantech PG-6100 and welcome towireless mobile communication networking with the PG-6100, our tri- band GSM mobile phone. Pantech is delightedto introduce this brand new portable phone which willalways keep you connected to the network.This user manual explains in detail its unique features andhow to use them.1WelcomeUSER’S MANUALPG-6100NOTE: Some of the contents in this User Manual could vary from yourphone. It may vary depending on the S/W version and the networkprovider you subscribed to. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지1

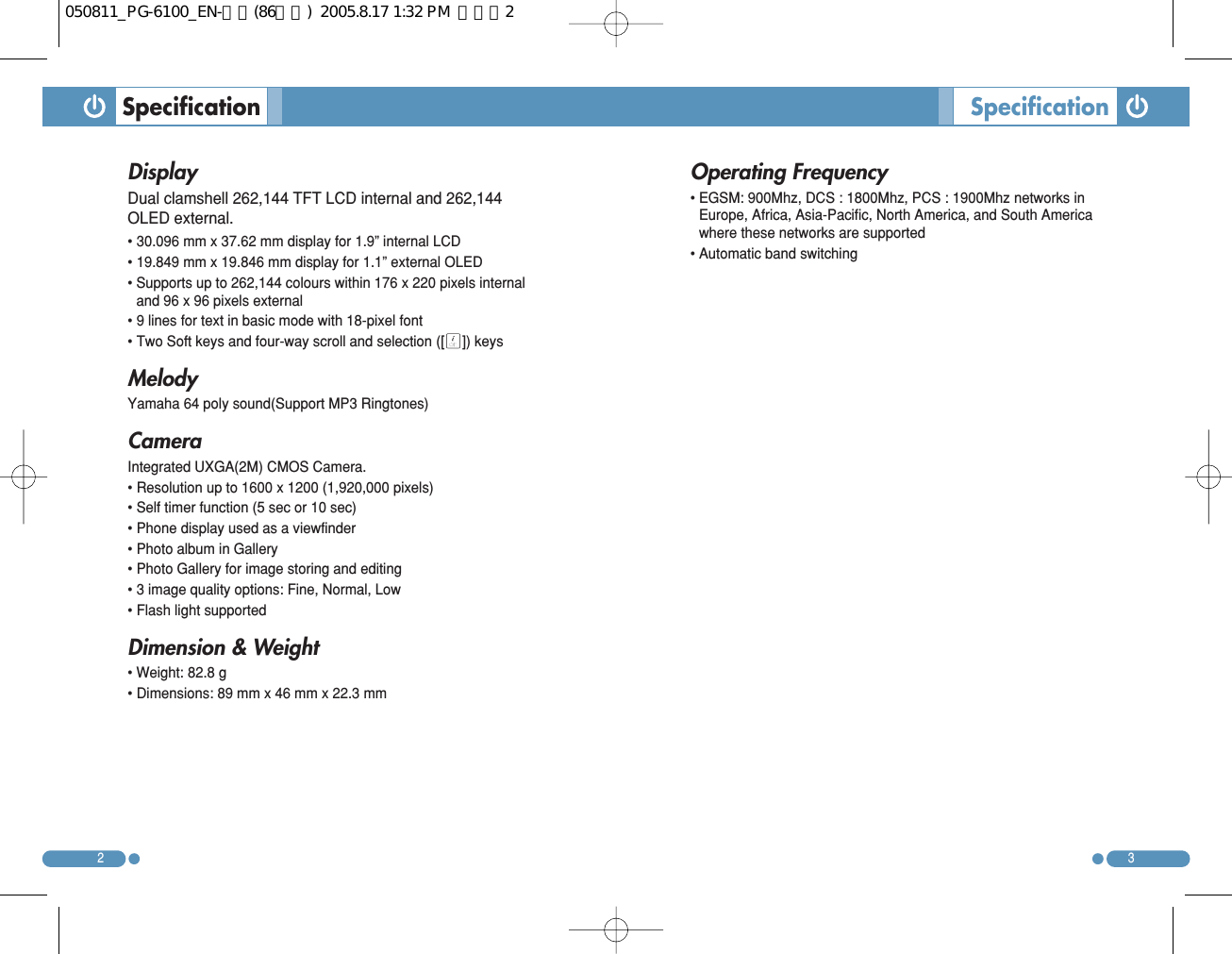

2DisplayDual clamshell 262,144 TFT LCD internal and 262,144OLED external.• 30.096 mm x 37.62 mm display for 1.9” internal LCD• 19.849 mm x 19.846 mm display for 1.1” external OLED • Supports up to 262,144 colours within 176 x 220 pixels internaland 96 x 96 pixels external • 9 lines for text in basic mode with 18-pixel font • Two Soft keys and four-way scroll and selection ([O]) keys Melody Yamaha 64 poly sound(Support MP3 Ringtones) Camera Integrated UXGA(2M) CMOS Camera. • Resolution up to 1600 x 1200 (1,920,000 pixels)• Self timer function (5 sec or 10 sec) • Phone display used as a viewfinder • Photo album in Gallery• Photo Gallery for image storing and editing • 3 image quality options: Fine, Normal, Low • Flash light supported Dimension & Weight • Weight: 82.8 g • Dimensions: 89 mm x 46 mm x 22.3 mm Operating Frequency • EGSM: 900Mhz, DCS : 1800Mhz, PCS : 1900Mhz networks inEurope, Africa, Asia-Pacific, North America, and South Americawhere these networks are supported • Automatic band switching 3Specification Specification050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지2

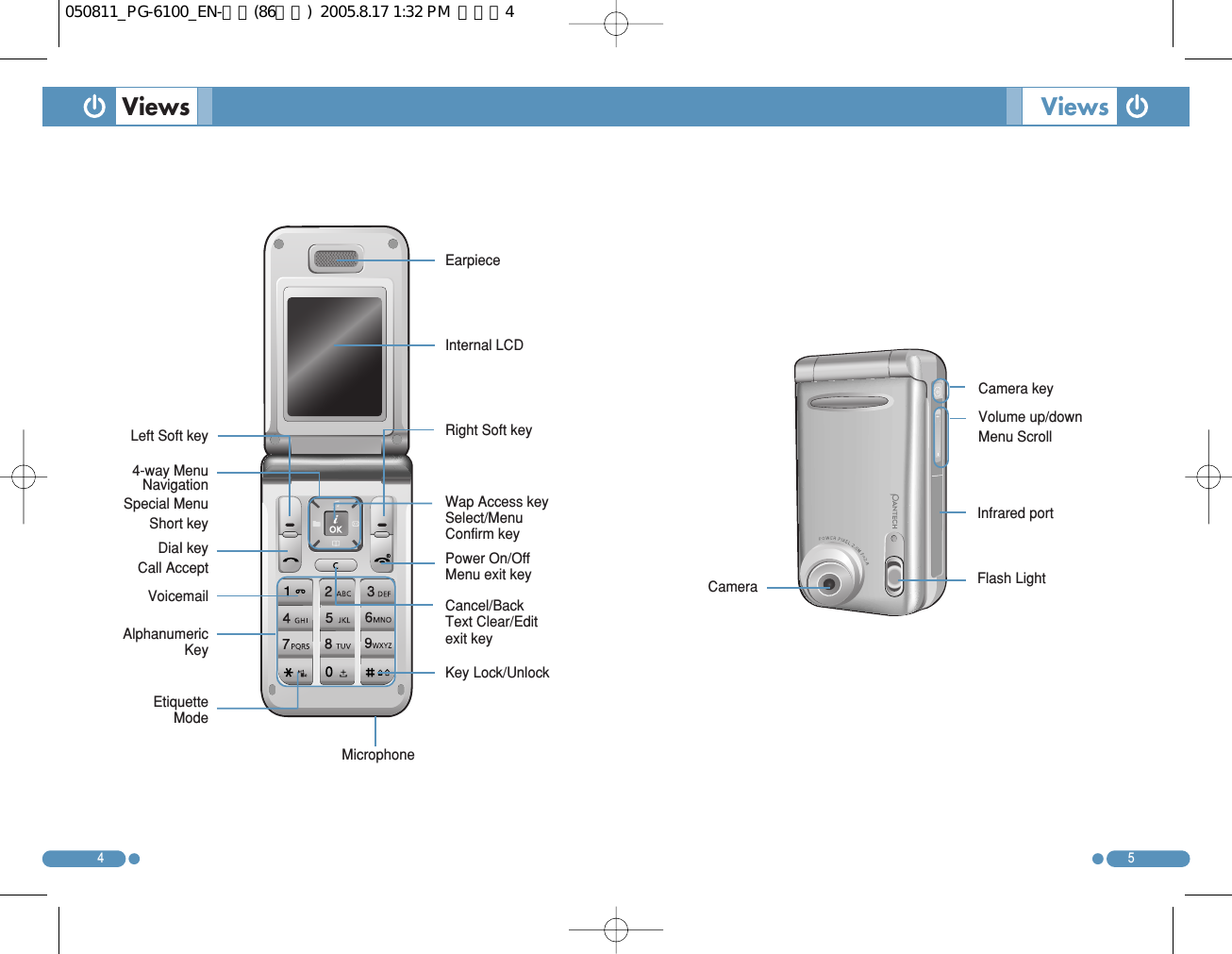

4 5ViewsVolume up/downMenu Scroll Camera keyInfrared port Flash LightCameraViewsEarpieceInternal LCD Right Soft key Power On/Off Menu exit keyKey Lock/UnlockMicrophoneCancel/Back Text Clear/Edit exit keyWap Access key Select/Menu Confirm keyLeft Soft keyDiaI key Call Accept Alphanumeric KeyVoicemail4-way MenuNavigation Special Menu Short key Etiquette Mode050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지4

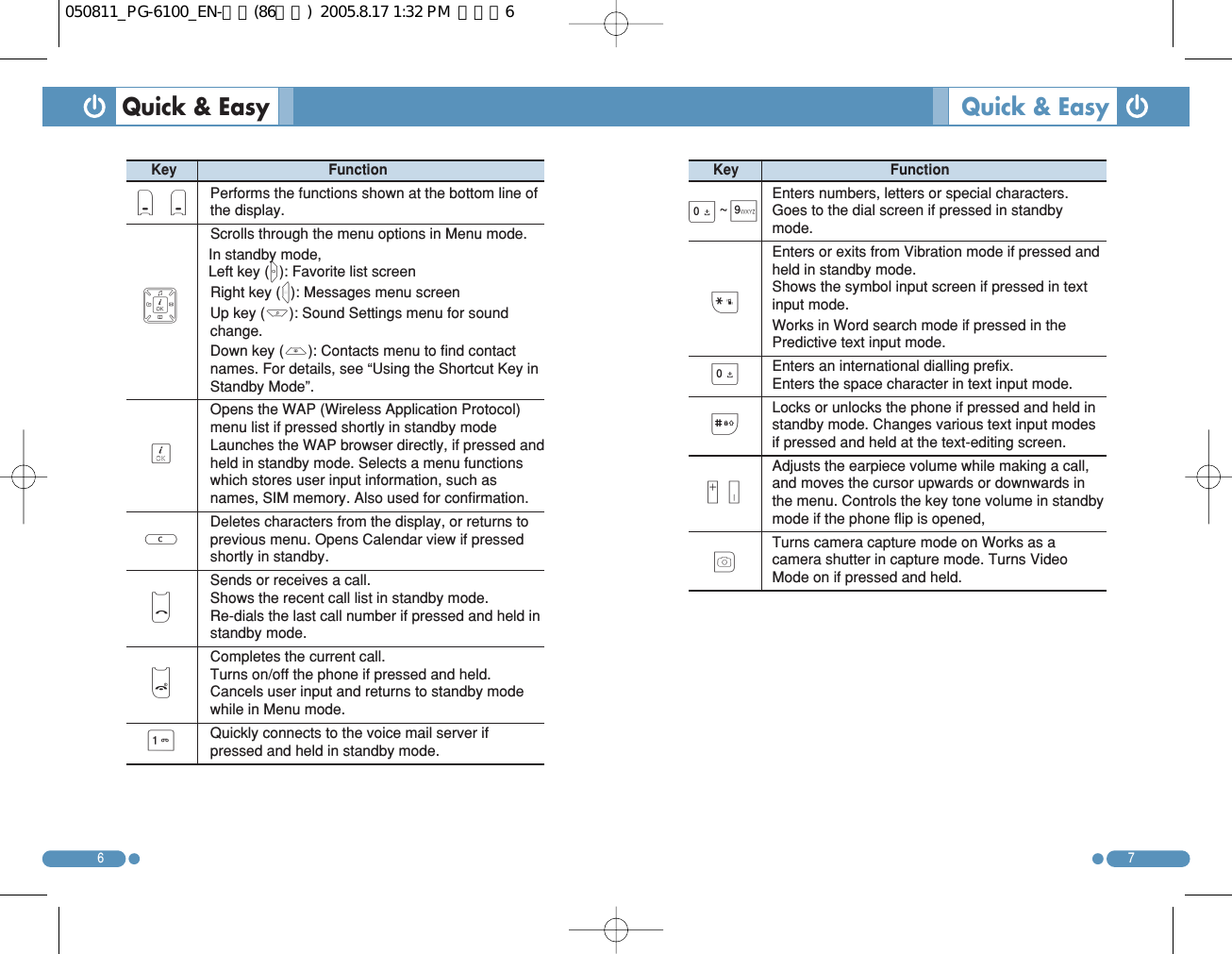

76Quick & Easy Quick & Easy Key FunctionEnters numbers, letters or special characters. Goes to the dial screen if pressed in standbymode. Enters or exits from Vibration mode if pressed andheld in standby mode. Shows the symbol input screen if pressed in textinput mode. Works in Word search mode if pressed in thePredictive text input mode. Enters an international dialling prefix. Enters the space character in text input mode. Locks or unlocks the phone if pressed and held instandby mode. Changes various text input modesif pressed and held at the text-editing screen. Adjusts the earpiece volume while making a call,and moves the cursor upwards or downwards inthe menu. Controls the key tone volume in standbymode if the phone flip is opened, Turns camera capture mode on Works as acamera shutter in capture mode. Turns VideoMode on if pressed and held. 09*0#cMN~Key FunctionPerforms the functions shown at the bottom line ofthe display. Scrolls through the menu options in Menu mode. In standby mode, Left key (L): Favorite list screenRight key (R): Messages menu screen Up key (U): Sound Settings menu for soundchange. Down key (D): Contacts menu to find contactnames. For details, see “Using the Shortcut Key inStandby Mode”. Opens the WAP (Wireless Application Protocol)menu list if pressed shortly in standby modeLaunches the WAP browser directly, if pressed andheld in standby mode. Selects a menu functionswhich stores user input information, such asnames, SIM memory. Also used for confirmation. Deletes characters from the display, or returns toprevious menu. Opens Calendar view if pressedshortly in standby. Sends or receives a call. Shows the recent call list in standby mode. Re-dials the last call number if pressed and held instandby mode. Completes the current call. Turns on/off the phone if pressed and held. Cancels user input and returns to standby modewhile in Menu mode. Quickly connects to the voice mail server ifpressed and held in standby mode. ()nOCSE1050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지6

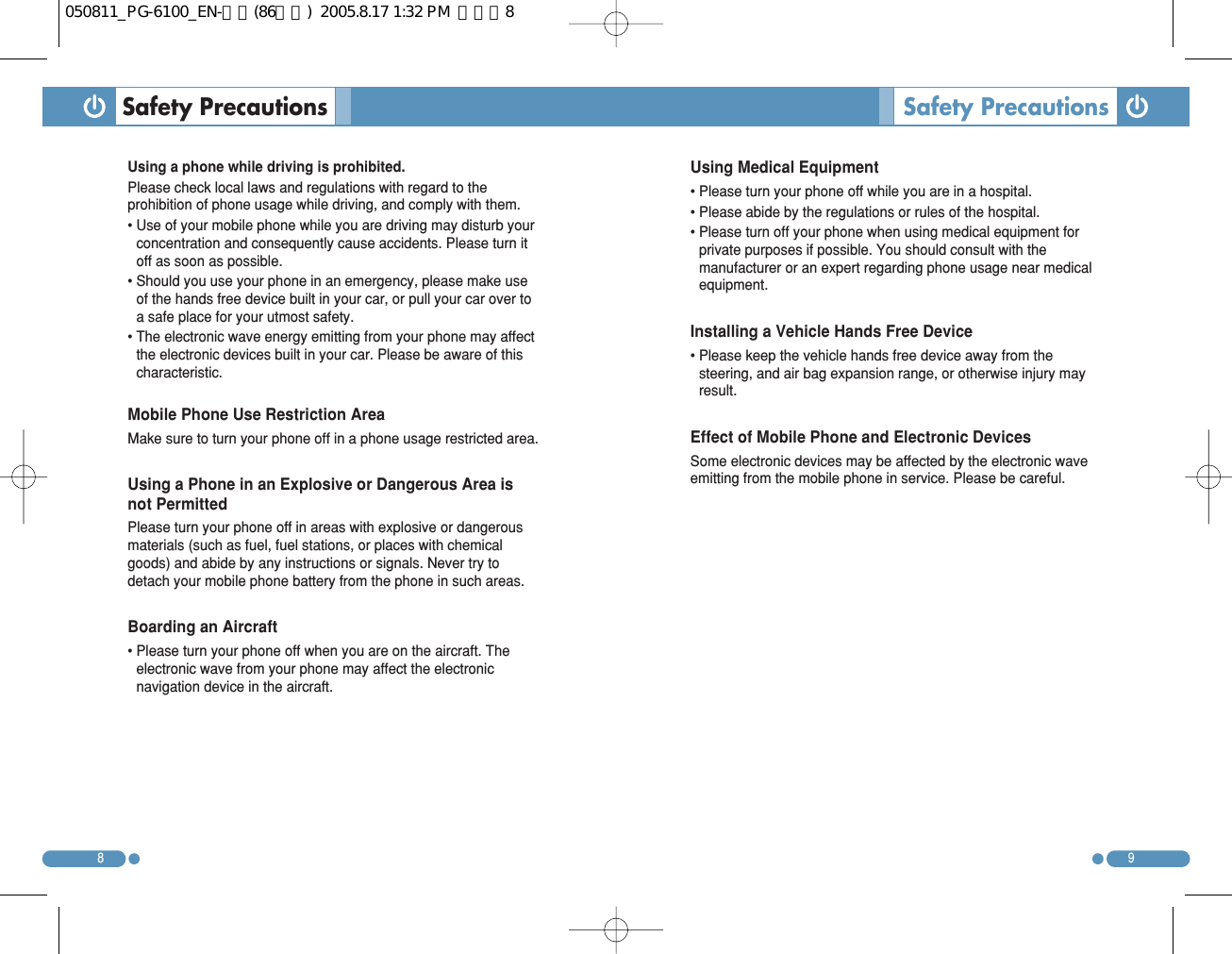

8Using Medical Equipment • Please turn your phone off while you are in a hospital. • Please abide by the regulations or rules of the hospital. • Please turn off your phone when using medical equipment forprivate purposes if possible. You should consult with themanufacturer or an expert regarding phone usage near medicalequipment. Installing a Vehicle Hands Free Device • Please keep the vehicle hands free device away from thesteering, and air bag expansion range, or otherwise injury mayresult. Effect of Mobile Phone and Electronic Devices Some electronic devices may be affected by the electronic waveemitting from the mobile phone in service. Please be careful. 9Safety Precautions Safety Precautions Using a phone while driving is prohibited. Please check local laws and regulations with regard to theprohibition of phone usage while driving, and comply with them. • Use of your mobile phone while you are driving may disturb yourconcentration and consequently cause accidents. Please turn itoff as soon as possible. • Should you use your phone in an emergency, please make useof the hands free device built in your car, or pull your car over toa safe place for your utmost safety. • The electronic wave energy emitting from your phone may affectthe electronic devices built in your car. Please be aware of thischaracteristic. Mobile Phone Use Restriction Area Make sure to turn your phone off in a phone usage restricted area. Using a Phone in an Explosive or Dangerous Area isnot Permitted Please turn your phone off in areas with explosive or dangerousmaterials (such as fuel, fuel stations, or places with chemicalgoods) and abide by any instructions or signals. Never try todetach your mobile phone battery from the phone in such areas. Boarding an Aircraft • Please turn your phone off when you are on the aircraft. Theelectronic wave from your phone may affect the electronicnavigation device in the aircraft. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지8

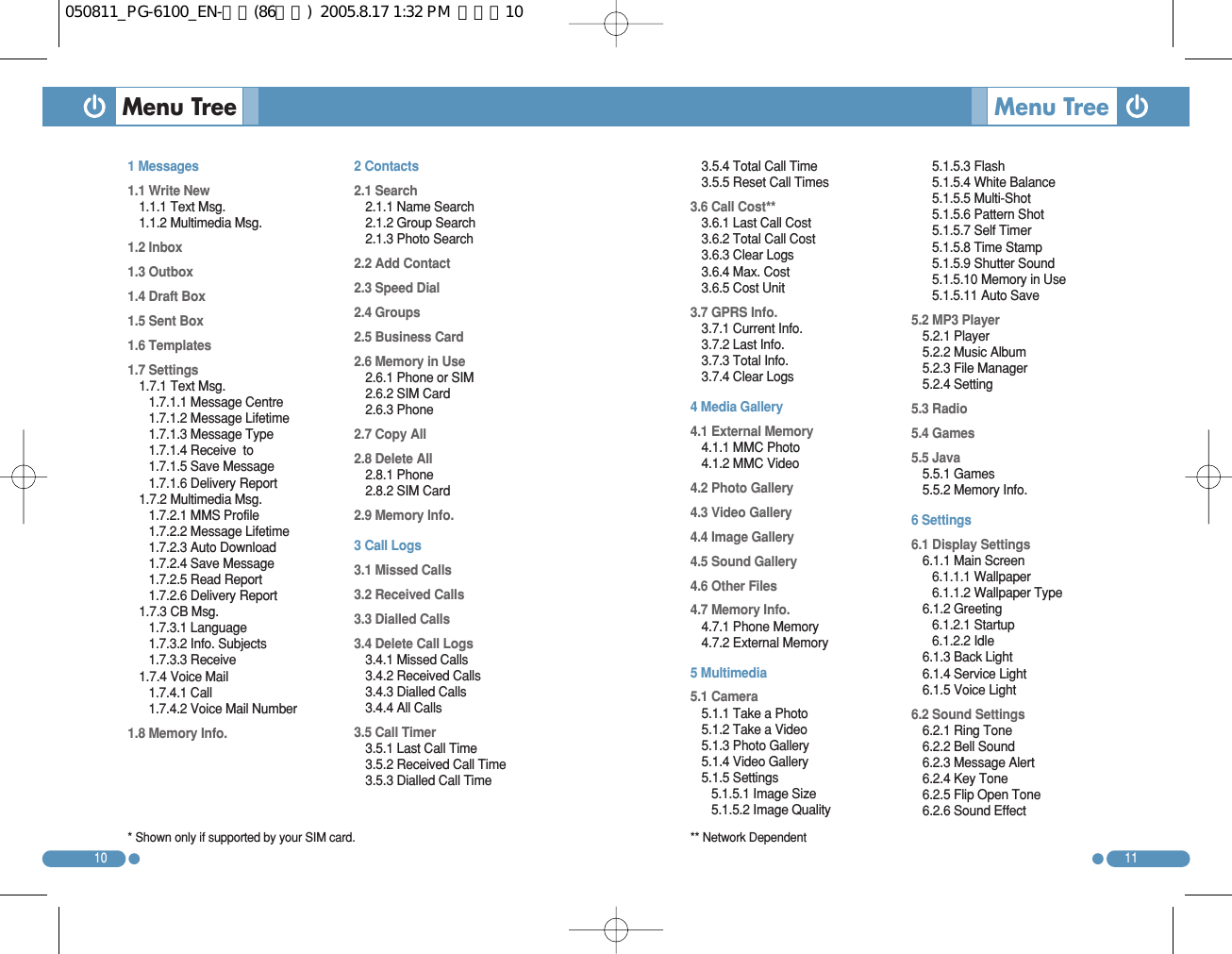

10 11Menu Tree3.5.4 Total Call Time 3.5.5 Reset Call Times 3.6 Call Cost**3.6.1 Last Call Cost 3.6.2 Total Call Cost 3.6.3 Clear Logs 3.6.4 Max. Cost 3.6.5 Cost Unit 3.7 GPRS Info.3.7.1 Current Info. 3.7.2 Last Info. 3.7.3 Total Info. 3.7.4 Clear Logs 4 Media Gallery 4.1 External Memory 4.1.1 MMC Photo4.1.2 MMC Video 4.2 Photo Gallery 4.3 Video Gallery 4.4 Image Gallery 4.5 Sound Gallery 4.6 Other Files 4.7 Memory Info. 4.7.1 Phone Memory 4.7.2 External Memory 5 Multimedia 5.1 Camera 5.1.1 Take a Photo 5.1.2 Take a Video 5.1.3 Photo Gallery 5.1.4 Video Gallery 5.1.5 Settings 5.1.5.1 Image Size 5.1.5.2 Image Quality 5.1.5.3 Flash 5.1.5.4 White Balance 5.1.5.5 Multi-Shot 5.1.5.6 Pattern Shot 5.1.5.7 Self Timer 5.1.5.8 Time Stamp 5.1.5.9 Shutter Sound 5.1.5.10 Memory in Use 5.1.5.11 Auto Save 5.2 MP3 Player 5.2.1 Player 5.2.2 Music Album 5.2.3 File Manager 5.2.4 Setting5.3 Radio 5.4 Games 5.5 Java 5.5.1 Games 5.5.2 Memory Info. 6 Settings 6.1 Display Settings 6.1.1 Main Screen 6.1.1.1 Wallpaper 6.1.1.2 Wallpaper Type 6.1.2 Greeting 6.1.2.1 Startup 6.1.2.2 Idle 6.1.3 Back Light 6.1.4 Service Light 6.1.5 Voice Light 6.2 Sound Settings 6.2.1 Ring Tone 6.2.2 Bell Sound 6.2.3 Message Alert 6.2.4 Key Tone 6.2.5 Flip Open Tone 6.2.6 Sound Effect Menu Tree 1 Messages1.1 Write New1.1.1 Text Msg. 1.1.2 Multimedia Msg.1.2 Inbox1.3 Outbox1.4 Draft Box 1.5 Sent Box 1.6 Templates1.7 Settings1.7.1 Text Msg. 1.7.1.1 Message Centre 1.7.1.2 Message Lifetime 1.7.1.3 Message Type 1.7.1.4 Receive to 1.7.1.5 Save Message 1.7.1.6 Delivery Report 1.7.2 Multimedia Msg. 1.7.2.1 MMS Profile 1.7.2.2 Message Lifetime 1.7.2.3 Auto Download 1.7.2.4 Save Message 1.7.2.5 Read Report 1.7.2.6 Delivery Report 1.7.3 CB Msg. 1.7.3.1 Language 1.7.3.2 Info. Subjects 1.7.3.3 Receive 1.7.4 Voice Mail 1.7.4.1 Call1.7.4.2 Voice Mail Number1.8 Memory Info. 2 Contacts 2.1 Search 2.1.1 Name Search 2.1.2 Group Search 2.1.3 Photo Search 2.2 Add Contact 2.3 Speed Dial 2.4 Groups 2.5 Business Card 2.6 Memory in Use 2.6.1 Phone or SIM 2.6.2 SIM Card 2.6.3 Phone 2.7 Copy All 2.8 Delete All 2.8.1 Phone 2.8.2 SIM Card 2.9 Memory Info. 3 Call Logs3.1 Missed Calls3.2 Received Calls3.3 Dialled Calls 3.4 Delete Call Logs3.4.1 Missed Calls 3.4.2 Received Calls 3.4.3 Dialled Calls 3.4.4 All Calls 3.5 Call Timer3.5.1 Last Call Time 3.5.2 Received Call Time 3.5.3 Dialled Call Time * Shown only if supported by your SIM card. ** Network Dependent 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지10

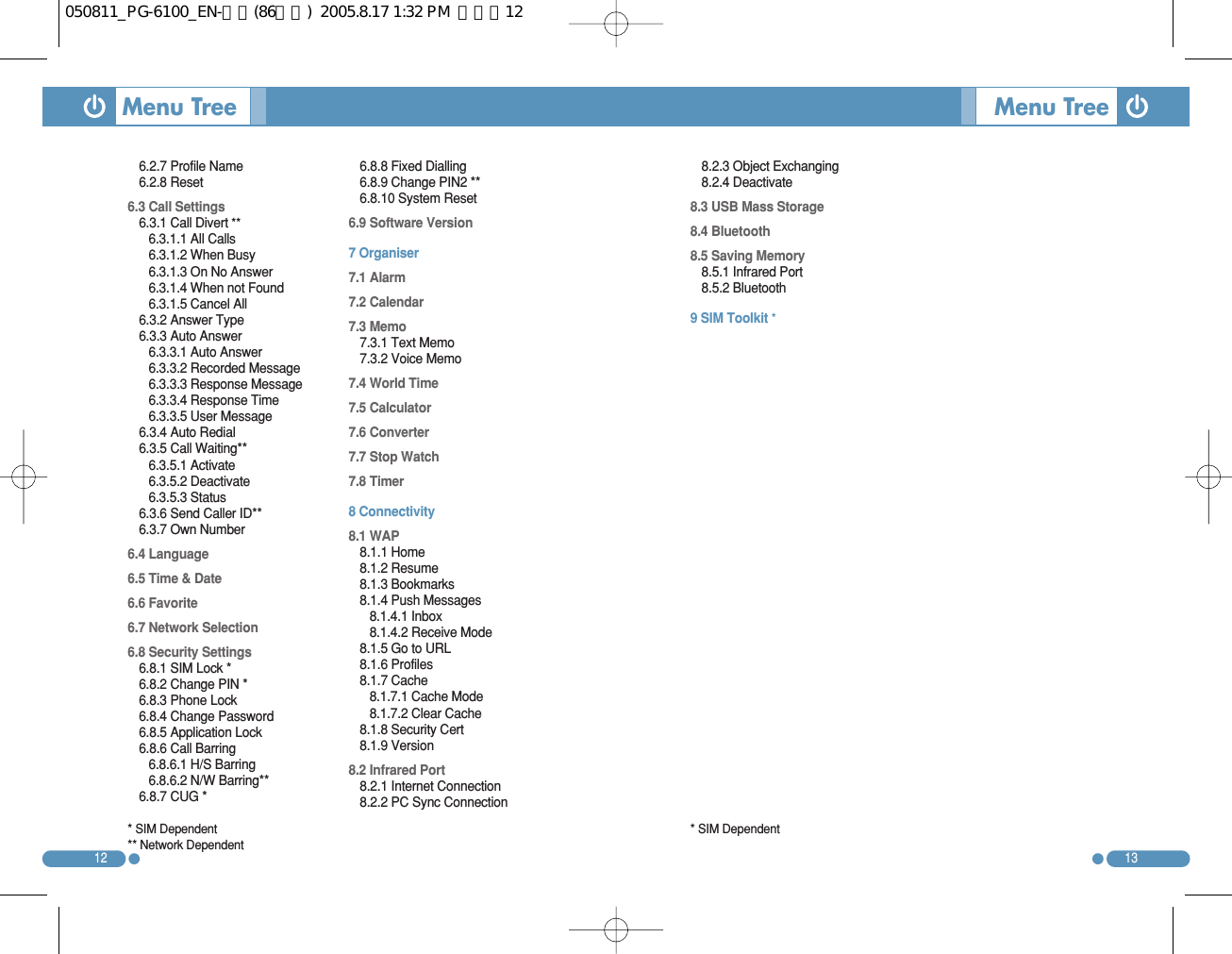

12 13Menu Tree Menu Tree 6.2.7 Profile Name 6.2.8 Reset 6.3 Call Settings 6.3.1 Call Divert **6.3.1.1 All Calls 6.3.1.2 When Busy 6.3.1.3 On No Answer6.3.1.4 When not Found 6.3.1.5 Cancel All 6.3.2 Answer Type 6.3.3 Auto Answer6.3.3.1 Auto Answer 6.3.3.2 Recorded Message 6.3.3.3 Response Message 6.3.3.4 Response Time 6.3.3.5 User Message6.3.4 Auto Redial 6.3.5 Call Waiting** 6.3.5.1 Activate 6.3.5.2 Deactivate6.3.5.3 Status 6.3.6 Send Caller ID** 6.3.7 Own Number 6.4 Language6.5 Time & Date 6.6 Favorite 6.7 Network Selection 6.8 Security Settings 6.8.1 SIM Lock *6.8.2 Change PIN *6.8.3 Phone Lock 6.8.4 Change Password 6.8.5 Application Lock 6.8.6 Call Barring 6.8.6.1 H/S Barring 6.8.6.2 N/W Barring** 6.8.7 CUG * 6.8.8 Fixed Dialling 6.8.9 Change PIN2 ** 6.8.10 System Reset 6.9 Software Version 7 Organiser 7.1 Alarm 7.2 Calendar 7.3 Memo 7.3.1 Text Memo 7.3.2 Voice Memo 7.4 World Time 7.5 Calculator 7.6 Converter 7.7 Stop Watch 7.8 Timer 8 Connectivity 8.1 WAP 8.1.1 Home 8.1.2 Resume 8.1.3 Bookmarks 8.1.4 Push Messages 8.1.4.1 Inbox 8.1.4.2 Receive Mode 8.1.5 Go to URL 8.1.6 Profiles 8.1.7 Cache 8.1.7.1 Cache Mode 8.1.7.2 Clear Cache 8.1.8 Security Cert 8.1.9 Version 8.2 Infrared Port 8.2.1 Internet Connection 8.2.2 PC Sync Connection 8.2.3 Object Exchanging 8.2.4 Deactivate 8.3 USB Mass Storage 8.4 Bluetooth 8.5 Saving Memory 8.5.1 Infrared Port 8.5.2 Bluetooth 9 SIM Toolkit ** SIM Dependent ** Network Dependent * SIM Dependent 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지12

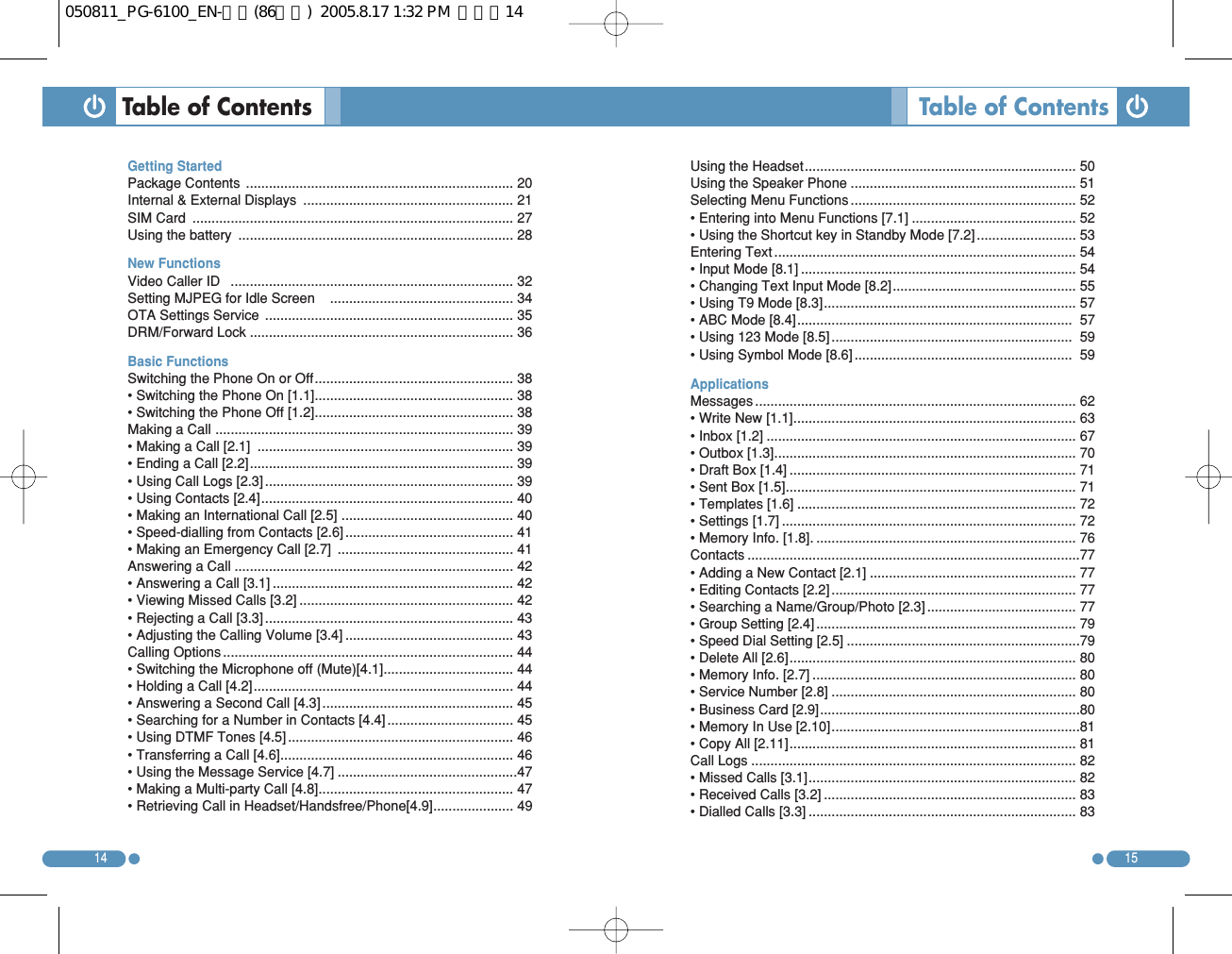

1514Table of Contents Getting Started Package Contents ...................................................................... 20Internal & External Displays ....................................................... 21SIM Card .................................................................................... 27Using the battery ........................................................................ 28New Functions Video Caller ID .......................................................................... 32Setting MJPEG for Idle Screen ................................................ 34OTA Settings Service ................................................................. 35DRM/Forward Lock ..................................................................... 36Basic Functions Switching the Phone On or Off.................................................... 38• Switching the Phone On [1.1].................................................... 38• Switching the Phone Off [1.2].................................................... 38Making a Call .............................................................................. 39• Making a Call [2.1] ................................................................... 39• Ending a Call [2.2]..................................................................... 39• Using Call Logs [2.3] ................................................................. 39• Using Contacts [2.4].................................................................. 40• Making an International Call [2.5] ............................................. 40• Speed-dialling from Contacts [2.6] ............................................ 41• Making an Emergency Call [2.7] .............................................. 41Answering a Call ......................................................................... 42• Answering a Call [3.1] ............................................................... 42• Viewing Missed Calls [3.2] ........................................................ 42• Rejecting a Call [3.3] ................................................................. 43• Adjusting the Calling Volume [3.4] ............................................ 43Calling Options ............................................................................ 44• Switching the Microphone off (Mute)[4.1].................................. 44• Holding a Call [4.2].................................................................... 44• Answering a Second Call [4.3] .................................................. 45• Searching for a Number in Contacts [4.4] ................................. 45• Using DTMF Tones [4.5] ........................................................... 46• Transferring a Call [4.6]............................................................. 46• Using the Message Service [4.7] ...............................................47• Making a Multi-party Call [4.8]................................................... 47• Retrieving Call in Headset/Handsfree/Phone[4.9]..................... 49Table of ContentsUsing the Headset....................................................................... 50Using the Speaker Phone ........................................................... 51Selecting Menu Functions ........................................................... 52• Entering into Menu Functions [7.1] ........................................... 52• Using the Shortcut key in Standby Mode [7.2] .......................... 53Entering Text ............................................................................... 54• Input Mode [8.1] ........................................................................ 54• Changing Text Input Mode [8.2]................................................ 55• Using T9 Mode [8.3].................................................................. 57• ABC Mode [8.4]........................................................................ 57• Using 123 Mode [8.5] ............................................................... 59• Using Symbol Mode [8.6] ......................................................... 59ApplicationsMessages .................................................................................... 62• Write New [1.1].......................................................................... 63• Inbox [1.2] ................................................................................. 67• Outbox [1.3]............................................................................... 70• Draft Box [1.4] ........................................................................... 71• Sent Box [1.5]............................................................................ 71• Templates [1.6] ......................................................................... 72• Settings [1.7] ............................................................................. 72• Memory Info. [1.8]. .................................................................... 76Contacts .......................................................................................77• Adding a New Contact [2.1] ...................................................... 77• Editing Contacts [2.2] ................................................................ 77• Searching a Name/Group/Photo [2.3] ....................................... 77• Group Setting [2.4] .................................................................... 79• Speed Dial Setting [2.5] .............................................................79• Delete All [2.6]........................................................................... 80• Memory Info. [2.7] ..................................................................... 80• Service Number [2.8] ................................................................ 80• Business Card [2.9]....................................................................80• Memory In Use [2.10].................................................................81• Copy All [2.11]........................................................................... 81Call Logs ..................................................................................... 82• Missed Calls [3.1]...................................................................... 82• Received Calls [3.2] .................................................................. 83• Dialled Calls [3.3] ...................................................................... 83050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지14
16 17Table of Contents• Delete Call Logs [3.4].................................................................84• Call Timer [3.5].......................................................................... 84• Call Cost [3.6]............................................................................ 85• GPRS Info. [3.7] ........................................................................ 85Media Gallery .............................................................................. 86• External Memory [4.1] ............................................................... 86• Photo Gallery [4.2] .................................................................... 87• Video Gallery [4.3]..................................................................... 88• Image Gallery [4.4].................................................................... 88• Sound Gallery [4.5] ................................................................... 89• Other Files [4.6]......................................................................... 90• Memory Info. [4.7] ..................................................................... 91Multimedia ................................................................................... 92• Camera [5.1] ............................................................................. 92• MP3 Player [5.2]........................................................................ 96• Radio [5.3]................................................................................. 99• Games [5.4]............................................................................. 102• Java [5.5]................................................................................. 102Settings ..................................................................................... 104• Display Settings [6.1] .............................................................. 104• Sound Settings [6.2].................................................................106• Call Settings [6.3] .................................................................... 109• Language [6.4] ........................................................................ 111• Time & Date [6.5] ................................................................... 112• Favorite [6.6] ............................................................................112• Network Selection [6.7] ........................................................... 112• Security Settings [6.8] ............................................................. 112• Software Version [6.9]............................................................. 115Organiser................................................................................... 116• Alarm [7.1]............................................................................... 116• Calendar [7.2].......................................................................... 117• Memo [7.3] .............................................................................. 119• World Time [7.4]...................................................................... 120• Calculator [7.5] ........................................................................ 121• Converter [7.6] .........................................................................121• Stop Watch [7.7]...................................................................... 122• Timer [7.8] ............................................................................... 122Table of ContentsAdvanced FunctionsWAP .......................................................................................... 124• Navigating the WAP Browser [1.1]...........................................124• Entering Text in the WAP Browser [1.2].................................. 124• Home [1.3]............................................................................... 124• Resume [1.4]........................................................................... 125• Bookmarks [1.5] ...................................................................... 125• Push Messages [1.6]............................................................... 125• Go to URL [1.7] ....................................................................... 126• Profiles [1.8] ............................................................................ 126• Cache [1.9].............................................................................. 128• Security Cert [1.10] ................................................................. 128• Version [1.11] .......................................................................... 128Infrared Port .............................................................................. 129USB Mass Storage.................................................................... 131Bluetooth ................................................................................... 132• Bluetooth [4.1] ......................................................................... 133• Paired Devices [4.2] ................................................................ 133• Business Card [4.3]................................................................. 135• Outgoing Call Device [4.4] ...................................................... 136• Visibility [4.5] ........................................................................... 136• Name [4.6]............................................................................... 137• Address [4.7] ........................................................................... 137Saving Memory ......................................................................... 138• Infrared Port [5.1] .................................................................... 138• Bluetooth [5.2] ......................................................................... 138SIM Toolkit ................................................................................ 139AppendixAccess Code ............................................................................. 142Check List.................................................................................. 144Performance and safety ............................................................ 147Glossary .................................................................................... 148050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지16

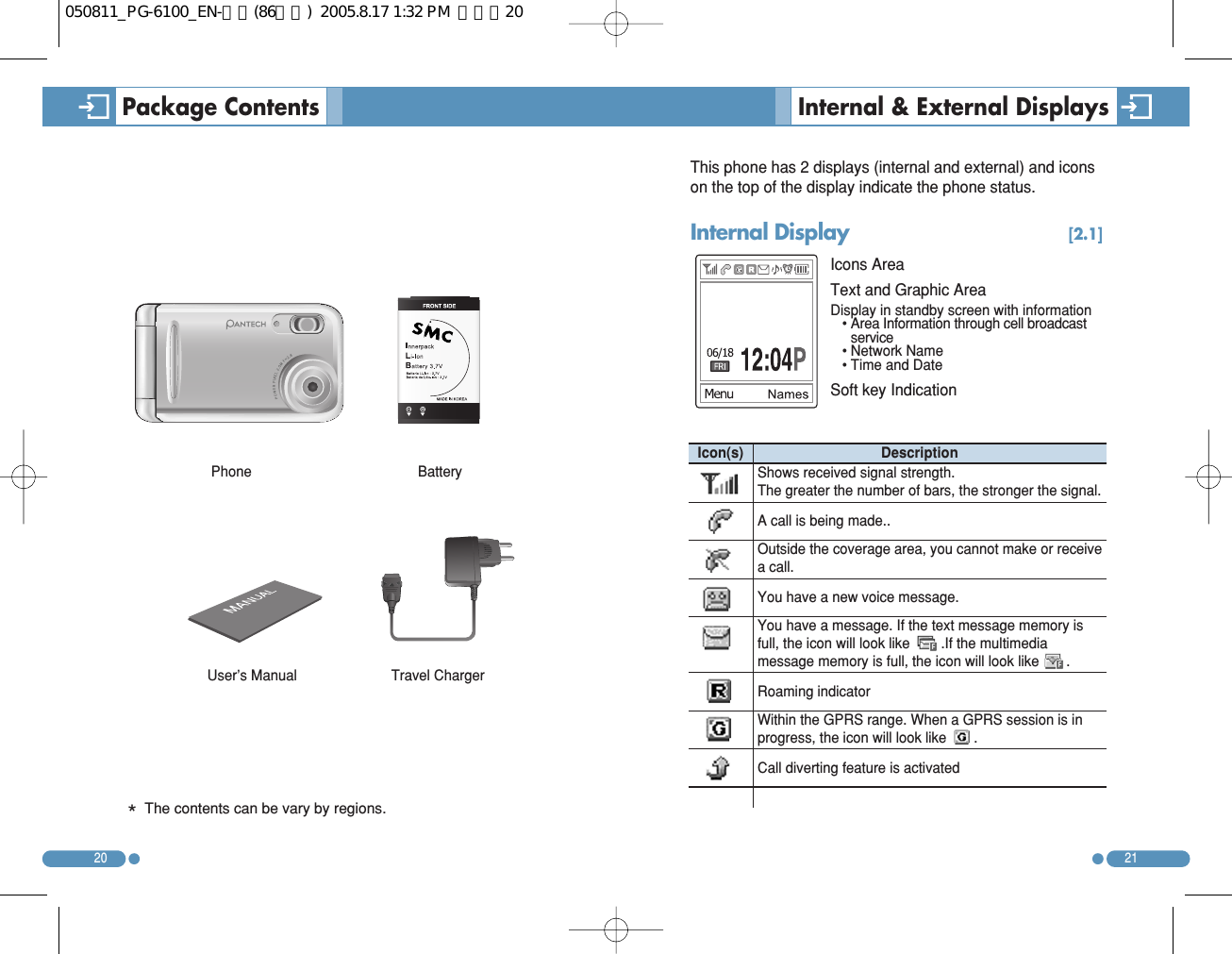

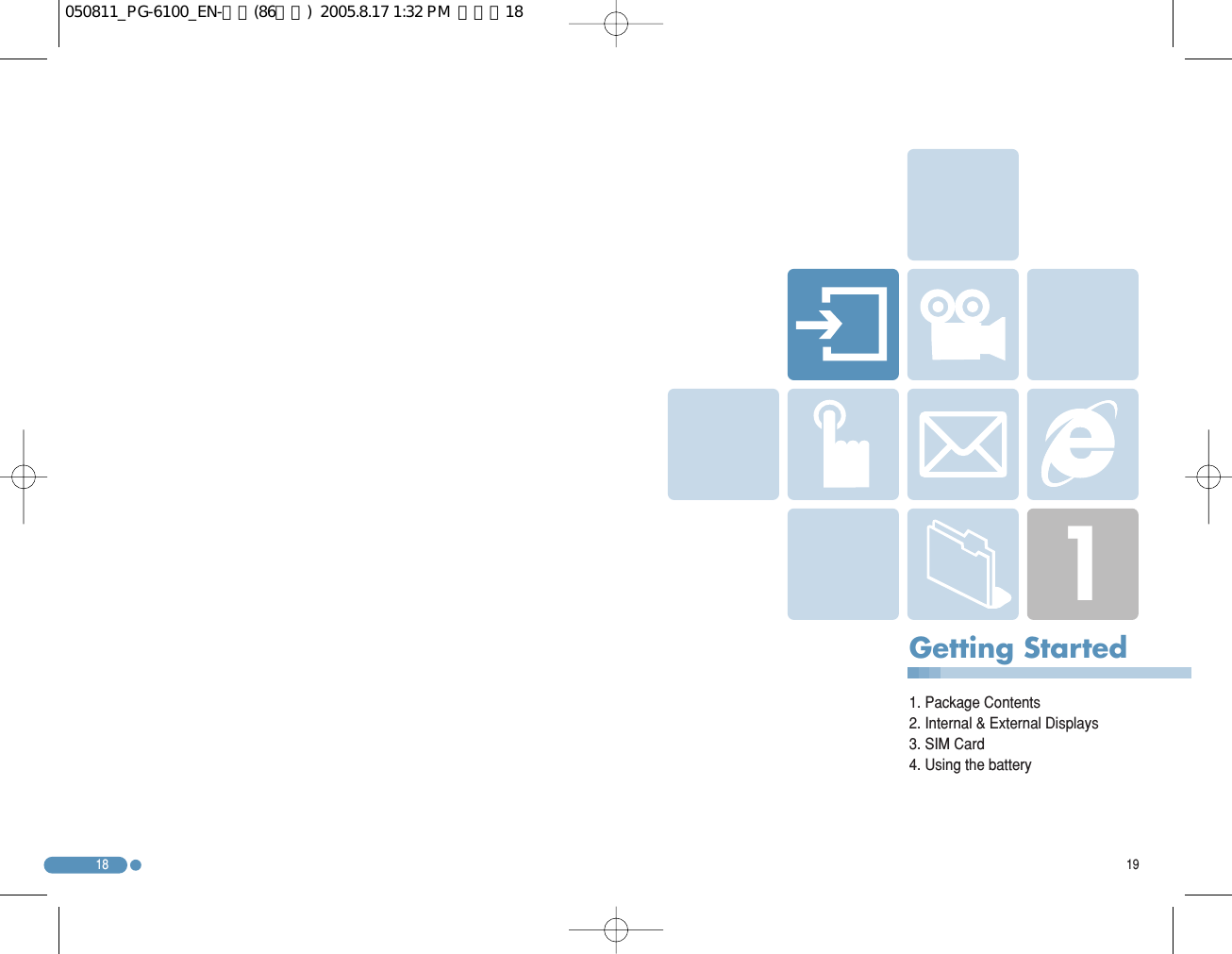

19Getting Started1. Package Contents2. Internal & External Displays3. SIM Card4. Using the battery118050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지18
20This phone has 2 displays (internal and external) and iconson the top of the display indicate the phone status. Internal Display [2.1]Icons AreaText and Graphic Area Display in standby screen with information • Area Information through cell broadcastservice• Network Name • Time and Date Soft key Indication 21Package Contents Internal & External Displays Phone BatteryUser’s Manual Travel Charger Icon(s) Description Shows received signal strength. The greater the number of bars, the stronger the signal.A call is being made..Outside the coverage area, you cannot make or receivea call. You have a new voice message. You have a message. If the text message memory isfull, the icon will look like .If the multimediamessage memory is full, the icon will look like . Roaming indicator Within the GPRS range. When a GPRS session is inprogress, the icon will look like .Call diverting feature is activated *The contents can be vary by regions. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지20

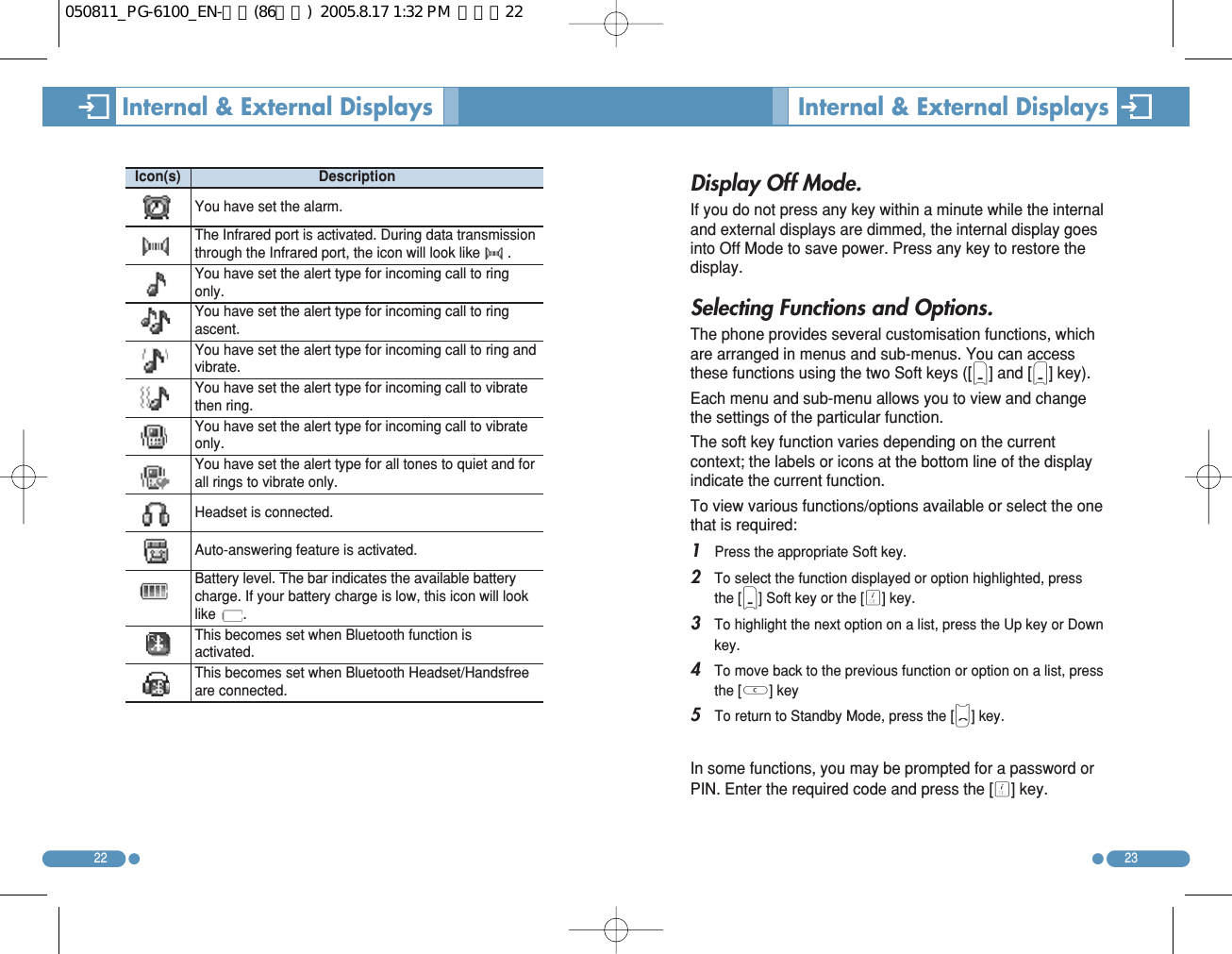

22Display Off Mode. If you do not press any key within a minute while the internaland external displays are dimmed, the internal display goesinto Off Mode to save power. Press any key to restore thedisplay. Selecting Functions and Options. The phone provides several customisation functions, whichare arranged in menus and sub-menus. You can accessthese functions using the two Soft keys ([(] and [)] key). Each menu and sub-menu allows you to view and changethe settings of the particular function. The soft key function varies depending on the currentcontext; the labels or icons at the bottom line of the displayindicate the current function. To view various functions/options available or select the onethat is required: 1 Press the appropriate Soft key. 2 To select the function displayed or option highlighted, pressthe [(] Soft key or the [O] key. 3 To highlight the next option on a list, press the Up key or Downkey. 4 To move back to the previous function or option on a list, pressthe [C] key 5 To return to Standby Mode, press the [S] key. In some functions, you may be prompted for a password orPIN. Enter the required code and press the [O] key. 23Internal & External Displays Internal & External DisplaysIcon(s) DescriptionYou have set the alarm. The Infrared port is activated. During data transmissionthrough the Infrared port, the icon will look like . You have set the alert type for incoming call to ringonly. You have set the alert type for incoming call to ringascent. You have set the alert type for incoming call to ring andvibrate. You have set the alert type for incoming call to vibratethen ring. You have set the alert type for incoming call to vibrateonly. You have set the alert type for all tones to quiet and forall rings to vibrate only. Headset is connected. Auto-answering feature is activated. Battery level. The bar indicates the available batterycharge. If your battery charge is low, this icon will looklike .This becomes set when Bluetooth function isactivated. This becomes set when Bluetooth Headset/Handsfreeare connected.050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지22

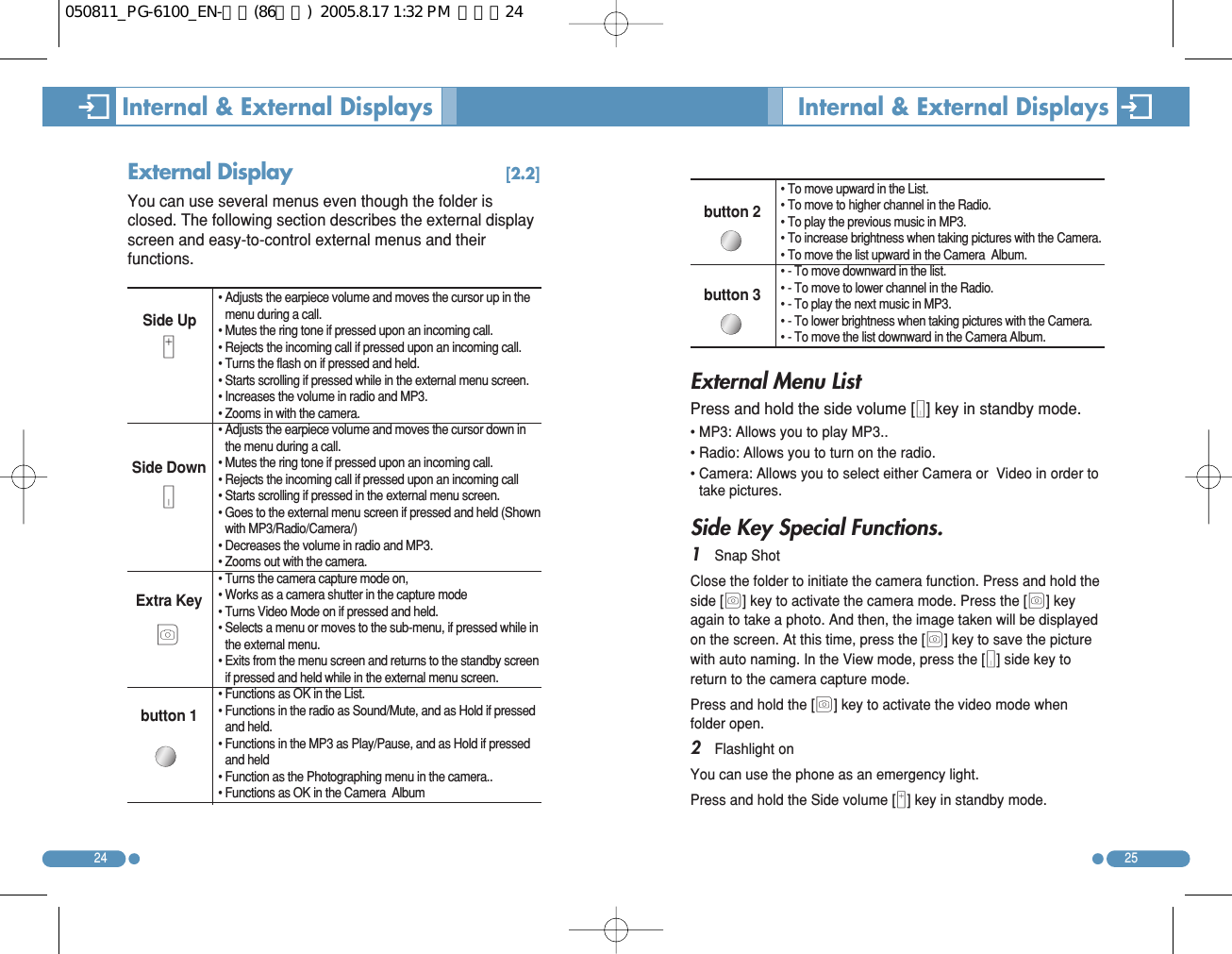

24External Display [2.2]You can use several menus even though the folder isclosed. The following section describes the external displayscreen and easy-to-control external menus and theirfunctions. 25Internal & External Displays• Adjusts the earpiece volume and moves the cursor up in themenu during a call. • Mutes the ring tone if pressed upon an incoming call. • Rejects the incoming call if pressed upon an incoming call. • Turns the flash on if pressed and held. • Starts scrolling if pressed while in the external menu screen. • Increases the volume in radio and MP3. • Zooms in with the camera. • Adjusts the earpiece volume and moves the cursor down inthe menu during a call. • Mutes the ring tone if pressed upon an incoming call. • Rejects the incoming call if pressed upon an incoming call • Starts scrolling if pressed in the external menu screen. • Goes to the external menu screen if pressed and held (Shownwith MP3/Radio/Camera/) • Decreases the volume in radio and MP3. • Zooms out with the camera. • Turns the camera capture mode on, • Works as a camera shutter in the capture mode• Turns Video Mode on if pressed and held.• Selects a menu or moves to the sub-menu, if pressed while inthe external menu. • Exits from the menu screen and returns to the standby screenif pressed and held while in the external menu screen.• Functions as OK in the List. • Functions in the radio as Sound/Mute, and as Hold if pressedand held.• Functions in the MP3 as Play/Pause, and as Hold if pressedand held • Function as the Photographing menu in the camera.. • Functions as OK in the Camera Album Side UpSide DownM• To move upward in the List. • To move to higher channel in the Radio. • To play the previous music in MP3. • To increase brightness when taking pictures with the Camera. • To move the list upward in the Camera Album. • - To move downward in the list. • - To move to lower channel in the Radio. • - To play the next music in MP3. • - To lower brightness when taking pictures with the Camera. • - To move the list downward in the Camera Album.button 2 button 3 NExtra Key cbutton 1 Internal & External DisplaysExternal Menu List Press and hold the side volume [N] key in standby mode. • MP3: Allows you to play MP3.. • Radio: Allows you to turn on the radio. • Camera: Allows you to select either Camera or Video in order totake pictures. Side Key Special Functions. 1 Snap Shot Close the folder to initiate the camera function. Press and hold theside [c] key to activate the camera mode. Press the [c] keyagain to take a photo. And then, the image taken will be displayedon the screen. At this time, press the [c] key to save the picturewith auto naming. In the View mode, press the [N] side key toreturn to the camera capture mode. Press and hold the [c] key to activate the video mode whenfolder open. 2 Flashlight on You can use the phone as an emergency light. Press and hold the Side volume [M] key in standby mode.050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지24
2726Internal & External DisplaysSIM Card [3.1]When you subscribe to your network operator, you will get aSIM (Subscriber Identity Module) card containing yourregistration information. (PIN), the existence of additionalservice, etc. Like a credit card, it should be kept secure and handledcarefully. Do not bend, scratch or expose it to moisture.Avoid static electricity. To avoid memory corruption of your SIM card, alwaysswitch off your phone before removing or inserting your SIMcard. Installing/Removing the SIM card [3.2]1 Remove the battery from the unit. 2 If the SIM slot is empty, insert the SIM card into the slot. 3 If you want to remove the SIM card, push the SIM card in thearrow direction as shown in the picture below. SIM Card The camera flash is lit automatically for 10 seconds. Press the[c] key or the [N] key to turn the flash off 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지26

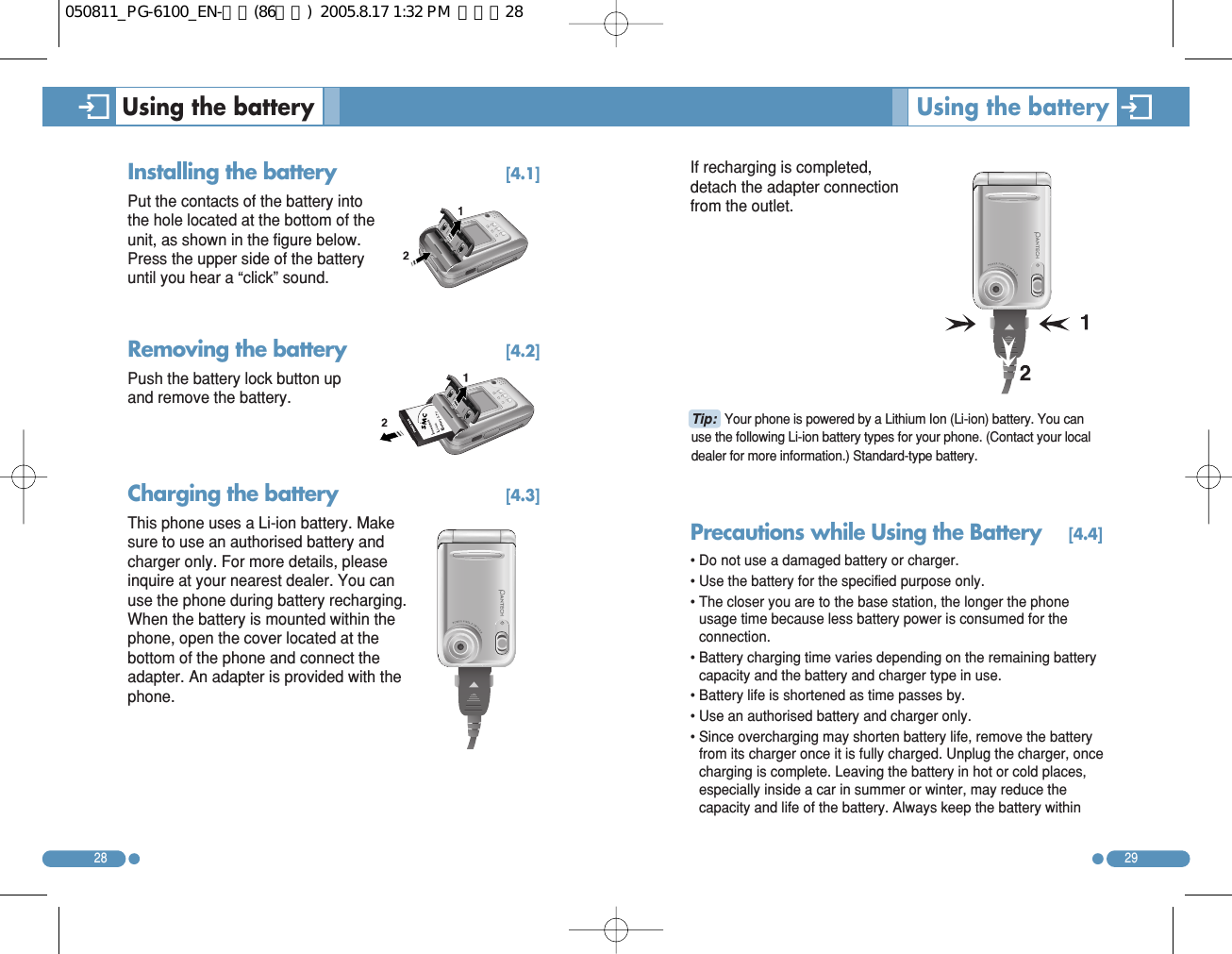

If recharging is completed,detach the adapter connectionfrom the outlet. Precautions while Using the Battery[4.4]• Do not use a damaged battery or charger. • Use the battery for the specified purpose only. • The closer you are to the base station, the longer the phoneusage time because less battery power is consumed for theconnection. • Battery charging time varies depending on the remaining batterycapacity and the battery and charger type in use. • Battery life is shortened as time passes by. • Use an authorised battery and charger only. • Since overcharging may shorten battery life, remove the batteryfrom its charger once it is fully charged. Unplug the charger, oncecharging is complete. Leaving the battery in hot or cold places,especially inside a car in summer or winter, may reduce thecapacity and life of the battery. Always keep the battery within2928Installing the battery [4.1]Put the contacts of the battery intothe hole located at the bottom of theunit, as shown in the figure below.Press the upper side of the batteryuntil you hear a “click” sound. Removing the battery [4.2]Push the battery lock button upand remove the battery. Charging the battery [4.3]This phone uses a Li-ion battery. Makesure to use an authorised battery andcharger only. For more details, pleaseinquire at your nearest dealer. You canuse the phone during battery recharging.When the battery is mounted within thephone, open the cover located at thebottom of the phone and connect theadapter. An adapter is provided with thephone. Using the battery Using the battery Tip: Your phone is powered by a Lithium Ion (Li-ion) battery. You canuse the following Li-ion battery types for your phone. (Contact your localdealer for more information.) Standard-type battery. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지28
30normal temperatures. • Do not earth the battery. Earthing may occur when the battery isin contact with a conductive object. An earthed phone may alsodamage the battery. • Dispose and recycle used batteries in accordance with localregulations. • Do not dispose of the batteries in a fire. • Do not use an unauthorised charger. • In order to prevent injury or burns, ensure that metal objects donot come into contact with the + and – terminals of the battery. 31Using the battery New Functions 1. Video Caller ID2. Setting MJPEG for Idle Screen3. OTA Settings Service4. DRM/ Forward Lock2050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지30

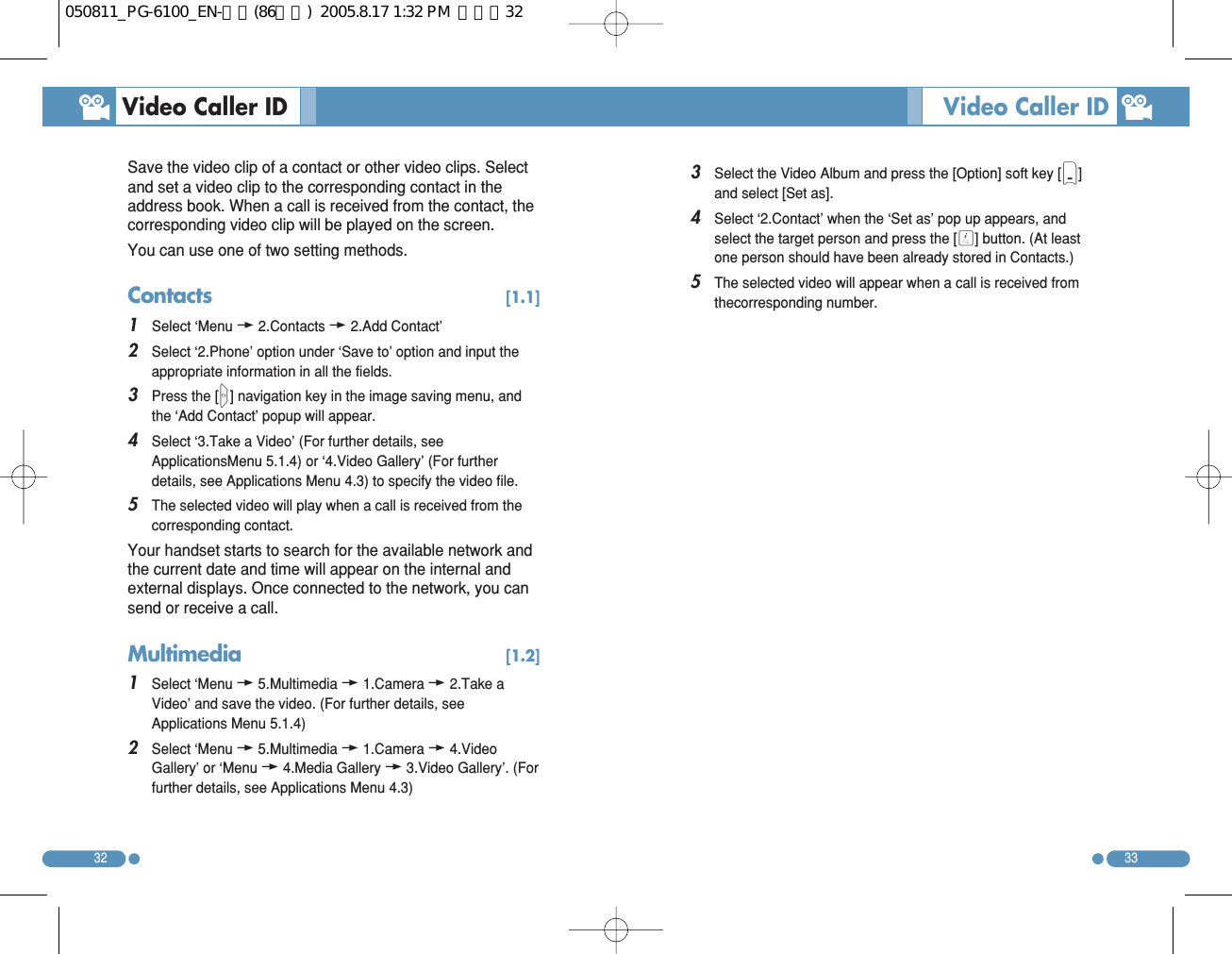

3332Save the video clip of a contact or other video clips. Selectand set a video clip to the corresponding contact in theaddress book. When a call is received from the contact, thecorresponding video clip will be played on the screen. You can use one of two setting methods. Contacts [1.1]1 Select ‘Menuw2.Contactsw2.Add Contact’ 2 Select ‘2.Phone’ option under ‘Save to’ option and input theappropriate information in all the fields. 3 Press the [L] navigation key in the image saving menu, andthe ‘Add Contact’ popup will appear. 4 Select ‘3.Take a Video’ (For further details, seeApplicationsMenu 5.1.4) or ‘4.Video Gallery’ (For furtherdetails, see Applications Menu 4.3) to specify the video file. 5 The selected video will play when a call is received from thecorresponding contact. Your handset starts to search for the available network andthe current date and time will appear on the internal andexternal displays. Once connected to the network, you cansend or receive a call.Multimedia [1.2]1 Select ‘Menuw5.Multimediaw1.Cameraw2.Take aVideo’ and save the video. (For further details, seeApplications Menu 5.1.4) 2 Select ‘Menuw5.Multimediaw1.Cameraw4.VideoGallery’ or ‘Menuw4.Media Galleryw3.Video Gallery’. (Forfurther details, see Applications Menu 4.3) Video Caller ID 3 Select the Video Album and press the [Option] soft key [(]and select [Set as]. 4 Select ‘2.Contact’ when the ‘Set as’ pop up appears, andselect the target person and press the [O] button. (At leastone person should have been already stored in Contacts.) 5 The selected video will appear when a call is received fromthecorresponding number. Video Caller ID 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지32

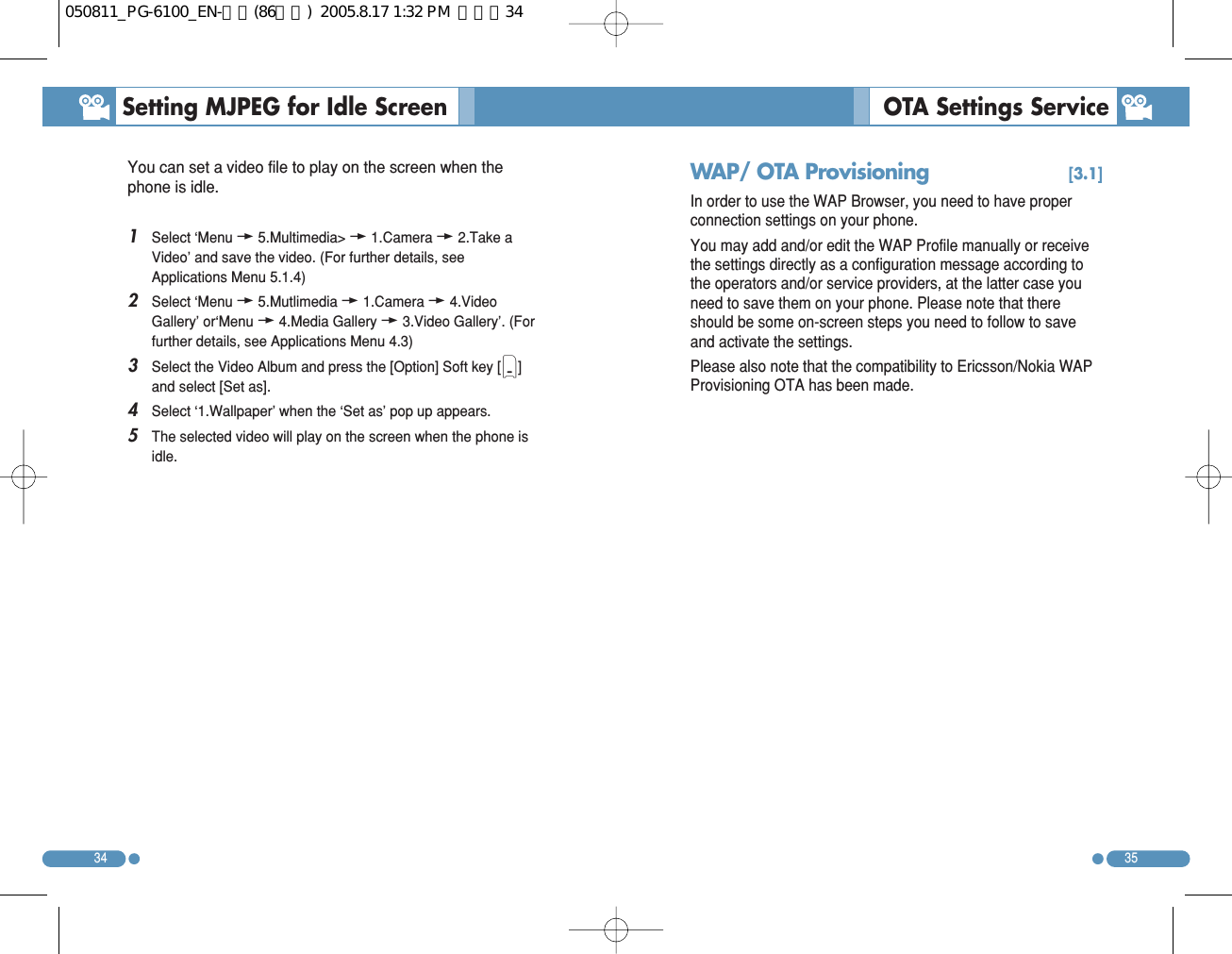

3534You can set a video file to play on the screen when thephone is idle. 1 Select ‘Menuw5.Multimedia>w1.Cameraw2.Take aVideo’ and save the video. (For further details, seeApplications Menu 5.1.4) 2 Select ‘Menuw5.Mutlimediaw1.Cameraw4.VideoGallery’ or‘Menuw4.Media Galleryw3.Video Gallery’. (Forfurther details, see Applications Menu 4.3) 3 Select the Video Album and press the [Option] Soft key [(]and select [Set as]. 4 Select ‘1.Wallpaper’ when the ‘Set as’ pop up appears. 5 The selected video will play on the screen when the phone isidle. Setting MJPEG for Idle Screen WAP/ OTA Provisioning [3.1]In order to use the WAP Browser, you need to have properconnection settings on your phone. You may add and/or edit the WAP Profile manually or receivethe settings directly as a configuration message according tothe operators and/or service providers, at the latter case youneed to save them on your phone. Please note that thereshould be some on-screen steps you need to follow to saveand activate the settings. Please also note that the compatibility to Ericsson/Nokia WAPProvisioning OTA has been made. OTA Settings Service 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지34

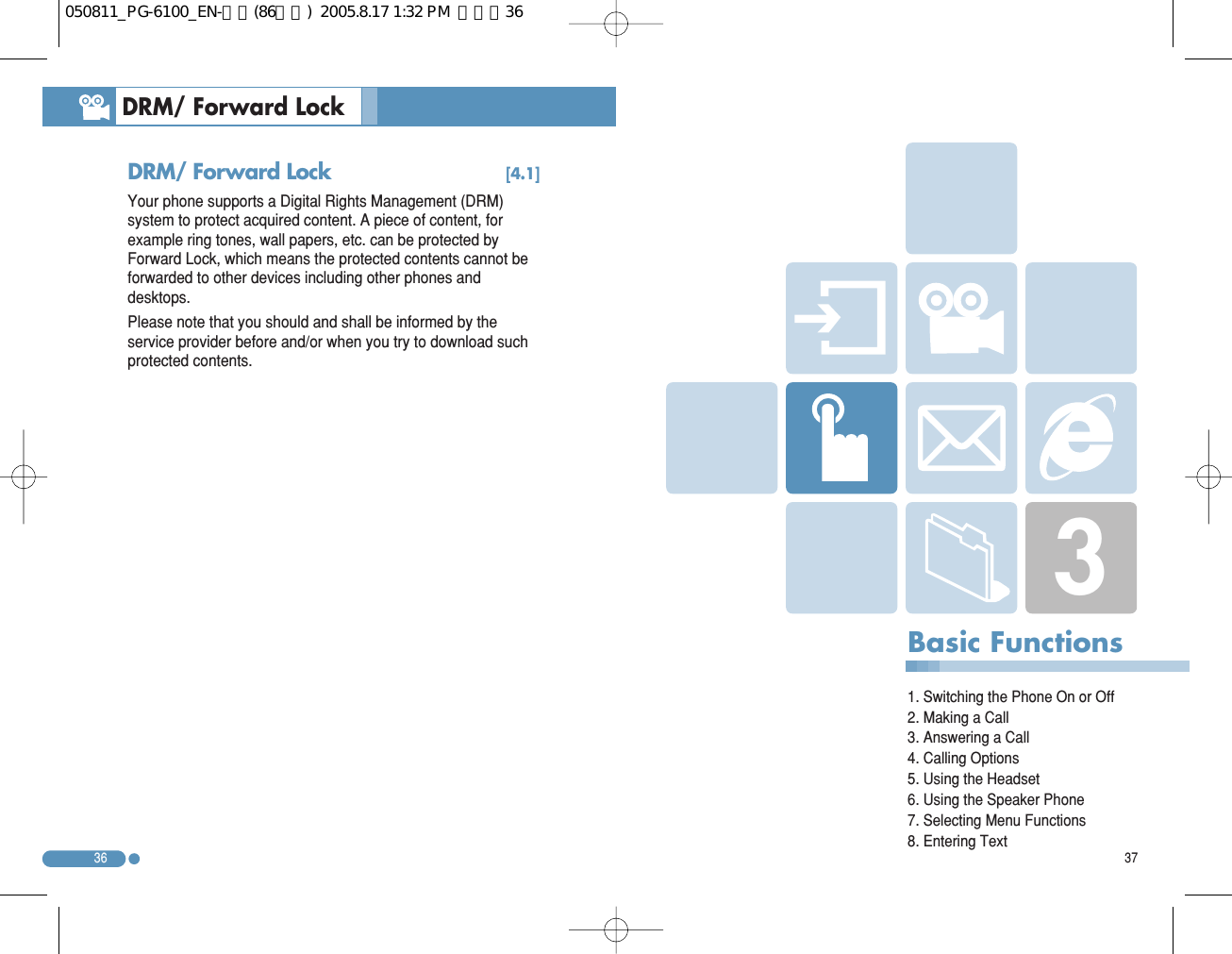

3736DRM/ Forward Lock [4.1]Your phone supports a Digital Rights Management (DRM)system to protect acquired content. A piece of content, forexample ring tones, wall papers, etc. can be protected byForward Lock, which means the protected contents cannot beforwarded to other devices including other phones anddesktops. Please note that you should and shall be informed by theservice provider before and/or when you try to download suchprotected contents. DRM/ Forward Lock Basic Functions1. Switching the Phone On or Off2. Making a Call3. Answering a Call4. Calling Options5. Using the Headset6. Using the Speaker Phone7. Selecting Menu Functions8. Entering Text3050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지36
Making a Call [2.1]Enter the area code and the phone number to make a call instandby mode, and press the [S] key. To clear the last digit displayed, press the [C] key. To clear the all digits displayed, press and hold the [C]key. Ending a Call [2.2]When you want to finish your call, press the [E] key or closethe folder. Once the call is completed, a call summary(Recipient Name or Number, Service Time) will be displayed. Using Call Logs [2.3]The phone stores dialled, received or missed calls. The last callis saved in the first position. If the same number was dialledmore than once, only the latest occurrence will be saved. 1 Press the [S] key to see the call log list aligned dialled,chronologically. 2 Press the [U/D] key to select a number. 3 Press the [S] key for dialling. (For further details, see Applications Menu 3) 3938Switching the Phone On [1.1]1 Open the folder. 2 Press the [E] key until the phone switches on. 3 If the phone requests you to input a PIN, enter the PIN andpress the [O] Soft key. (For further details, see ApplicationsMenu 6.8) Your phone starts to search for an available network andthe current date and time will appear on the internal andexternal displays. Once connected to the network, you cansend or receive a call. If a malfunction occurs while using the phone or it is notturned on, remove the battery and install it again after 5 or10 seconds. Switching the Phone Off [1.2]To switch the phone off, press the [E] key until the power-off animation displays. NOTE: To change the language, use the Language menu option (Forfurther details, see Applications Menu 6.4) NOTE: If you have set the [Auto Redial] option (For further details, seeApplications Menu 6.3.4) to [On], the phone will attempt to make a callautomatically for up to 10 times if it is not answered. NOTE: Press and hold the [S] key to redial the last number in the calllog. Switching the Phone On or Off Making a Call050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지38

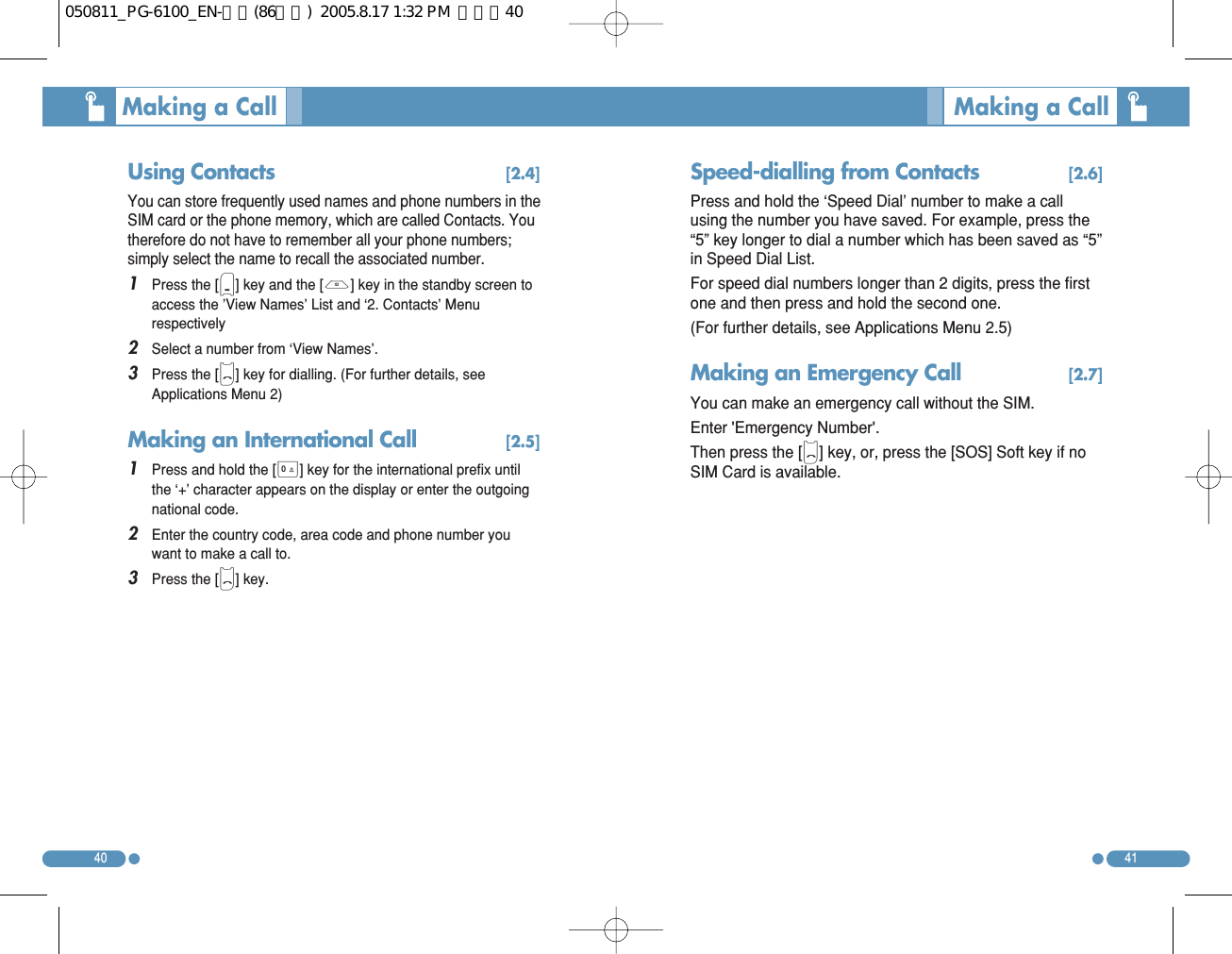

40Making a CallUsing Contacts [2.4]You can store frequently used names and phone numbers in theSIM card or the phone memory, which are called Contacts. Youtherefore do not have to remember all your phone numbers;simply select the name to recall the associated number. 1 Press the [)] key and the [D] key in the standby screen toaccess the ’View Names’ List and ‘2. Contacts’ Menurespectively 2 Select a number from ‘View Names’. 3 Press the [S] key for dialling. (For further details, seeApplications Menu 2) Making an International Call [2.5]1 Press and hold the [0] key for the international prefix untilthe ‘+’ character appears on the display or enter the outgoingnational code. 2 Enter the country code, area code and phone number youwant to make a call to. 3 Press the [S] key. 41Making a CallSpeed-dialling from Contacts [2.6]Press and hold the ‘Speed Dial’ number to make a callusing the number you have saved. For example, press the“5” key longer to dial a number which has been saved as “5”in Speed Dial List. For speed dial numbers longer than 2 digits, press the firstone and then press and hold the second one. (For further details, see Applications Menu 2.5) Making an Emergency Call [2.7]You can make an emergency call without the SIM. Enter 'Emergency Number'. Then press the [S] key, or, press the [SOS] Soft key if noSIM Card is available. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지40

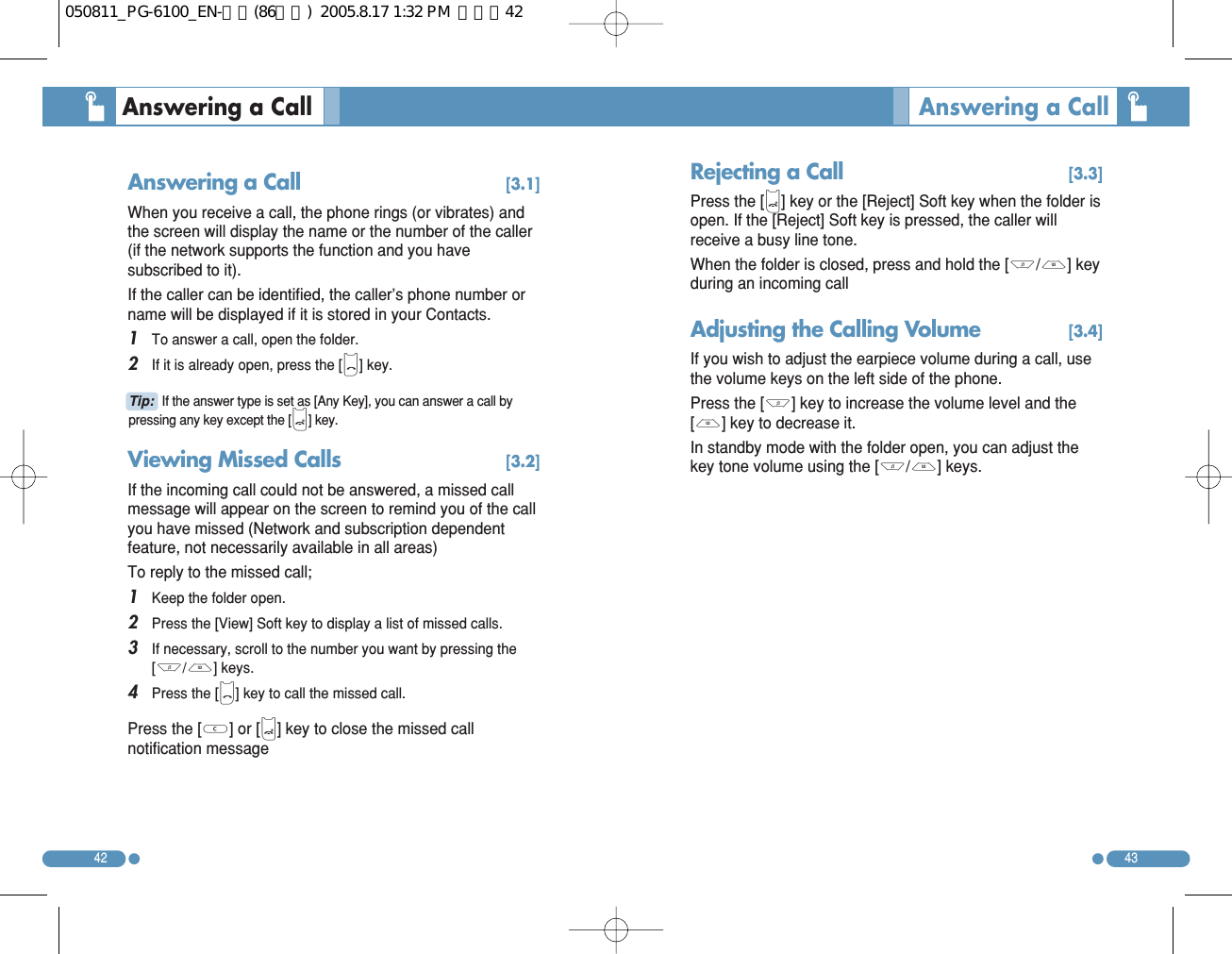

42Answering a Call [3.1]When you receive a call, the phone rings (or vibrates) andthe screen will display the name or the number of the caller(if the network supports the function and you havesubscribed to it). If the caller can be identified, the caller’s phone number orname will be displayed if it is stored in your Contacts. 1 To answer a call, open the folder. 2 If it is already open, press the [S] key. Viewing Missed Calls [3.2]If the incoming call could not be answered, a missed callmessage will appear on the screen to remind you of the callyou have missed (Network and subscription dependentfeature, not necessarily available in all areas) To reply to the missed call; 1 Keep the folder open. 2 Press the [View] Soft key to display a list of missed calls. 3 If necessary, scroll to the number you want by pressing the[U/D] keys. 4 Press the [S] key to call the missed call. Press the [C] or [E] key to close the missed callnotification message 43Answering a Call Answering a CallRejecting a Call [3.3]Press the [E] key or the [Reject] Soft key when the folder isopen. If the [Reject] Soft key is pressed, the caller willreceive a busy line tone. When the folder is closed, press and hold the [U/D] keyduring an incoming call Adjusting the Calling Volume [3.4]If you wish to adjust the earpiece volume during a call, usethe volume keys on the left side of the phone. Press the [U] key to increase the volume level and the[D] key to decrease it. In standby mode with the folder open, you can adjust thekey tone volume using the [U/D] keys. Tip: If the answer type is set as [Any Key], you can answer a call bypressing any key except the [E] key. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지42
During a call, press the [(] key to show the call options. Switching the Microphone Off (Mute)[4.1]You can temporarily switch your phone’s microphone off sothat the person you talk to on the phone cannot hear you. For example, you may wish to say something to anotherperson in the room but do not want the person calling tohear you. Press the [Mute] Soft key, or select Options followed by‘Mute’ to activate the Mute function. To switch the microphone back on: Press the [Sound] Soft key. Holding a Call [4.2]You can place a current call on hold whenever you want.You can make another call while you have a call in progressif your network service provider supports this service. Ofthese two calls, one is active and the other is on hold andyou can switch between the calls. To place a call on hold,simply select the [Option] Soft key followed by [Hold], orpress the [S] key. You can reactivate the call whenever you want by selecting[Option] followed by [Retrieve]. Once a call is held, thename and icon of the caller will fade to grey. To make a call while you have a call in progress: 1 Enter the phone number that you want to dial or look it up inContacts. 2 Press the key to dial the second call. The first call isautomatically put on hold. 4544Calling Options Calling OptionsTo switch between two calls, simply press the [Swap] Softkey. The current call is placed on hold and the call on hold isreactivated so that you can continue your conversation withthe other person. If you want to finish, complete each call normally bypressing the [E] key. Answering a Second Call [4.3]You can answer an incoming call while you have a call inprogress, if your network service provider supports thisservice and you have activated the [Call waiting] option (Forfurther details, see Applications Menu 6.3.5). You will benotified of an incoming call by a call waiting tone. To answer a call while you have another call in progress: 1 Press the [S] key to answer the incoming call. 2 The first call is automatically put on hold.3 To switch between two calls, press the [Swap] Soft key. To end the current call, press the [E] key. The call on hold is automatically reconnected to you. Searching for a Number in Contacts[4.4]You can search for a number in your Contacts during a call.1 Press the [Option] Soft key. 2 If necessary, press the [U/D] key to highlight the[Contacts] option. Press the [Select] Soft key. 3 Select the preferred search types like Name, Group, or Photo. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지44

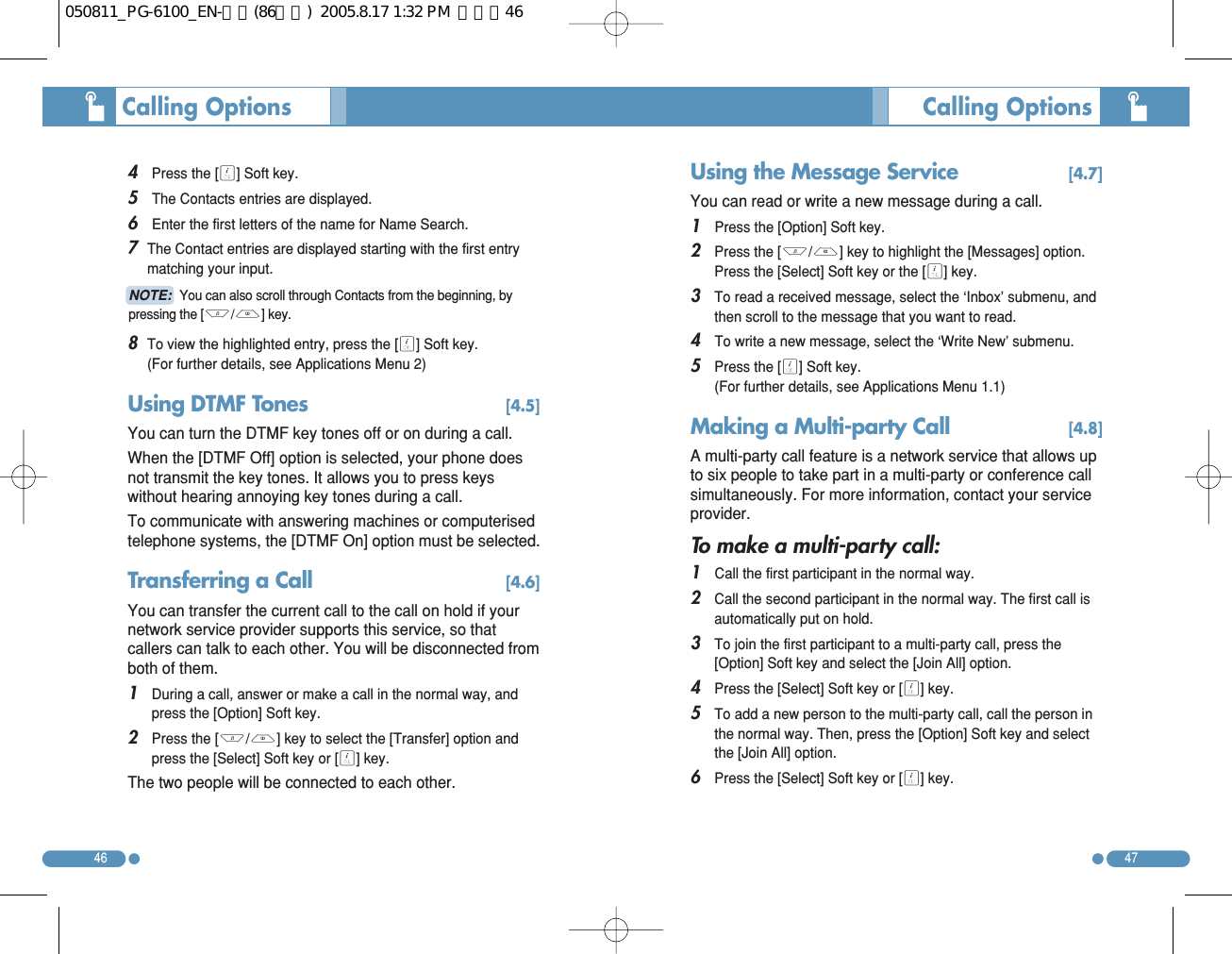

4 Press the [O] Soft key. 5 The Contacts entries are displayed. 6 Enter the first letters of the name for Name Search. 7 The Contact entries are displayed starting with the first entrymatching your input. 8 To view the highlighted entry, press the [O] Soft key.(For further details, see Applications Menu 2) Using DTMF Tones [4.5]You can turn the DTMF key tones off or on during a call. When the [DTMF Off] option is selected, your phone doesnot transmit the key tones. It allows you to press keyswithout hearing annoying key tones during a call. To communicate with answering machines or computerisedtelephone systems, the [DTMF On] option must be selected. Transferring a Call [4.6]You can transfer the current call to the call on hold if yournetwork service provider supports this service, so thatcallers can talk to each other. You will be disconnected fromboth of them. 1 During a call, answer or make a call in the normal way, andpress the [Option] Soft key. 2 Press the [U/D] key to select the [Transfer] option andpress the [Select] Soft key or [O] key. The two people will be connected to each other. 4746Using the Message Service [4.7]You can read or write a new message during a call. 1 Press the [Option] Soft key. 2 Press the [U/D] key to highlight the [Messages] option.Press the [Select] Soft key or the [O] key. 3 To read a received message, select the ‘Inbox’ submenu, andthen scroll to the message that you want to read. 4 To write a new message, select the ‘Write New’ submenu. 5 Press the [O] Soft key. (For further details, see Applications Menu 1.1) Making a Multi-party Call [4.8]A multi-party call feature is a network service that allows upto six people to take part in a multi-party or conference callsimultaneously. For more information, contact your serviceprovider. To make a multi-party call: 1 Call the first participant in the normal way. 2 Call the second participant in the normal way. The first call isautomatically put on hold. 3 To join the first participant to a multi-party call, press the[Option] Soft key and select the [Join All] option. 4 Press the [Select] Soft key or [O] key. 5 To add a new person to the multi-party call, call the person inthe normal way. Then, press the [Option] Soft key and selectthe [Join All] option. 6 Press the [Select] Soft key or [O] key. NOTE: You can also scroll through Contacts from the beginning, bypressing the [U/D] key. Calling OptionsCalling Options050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지46

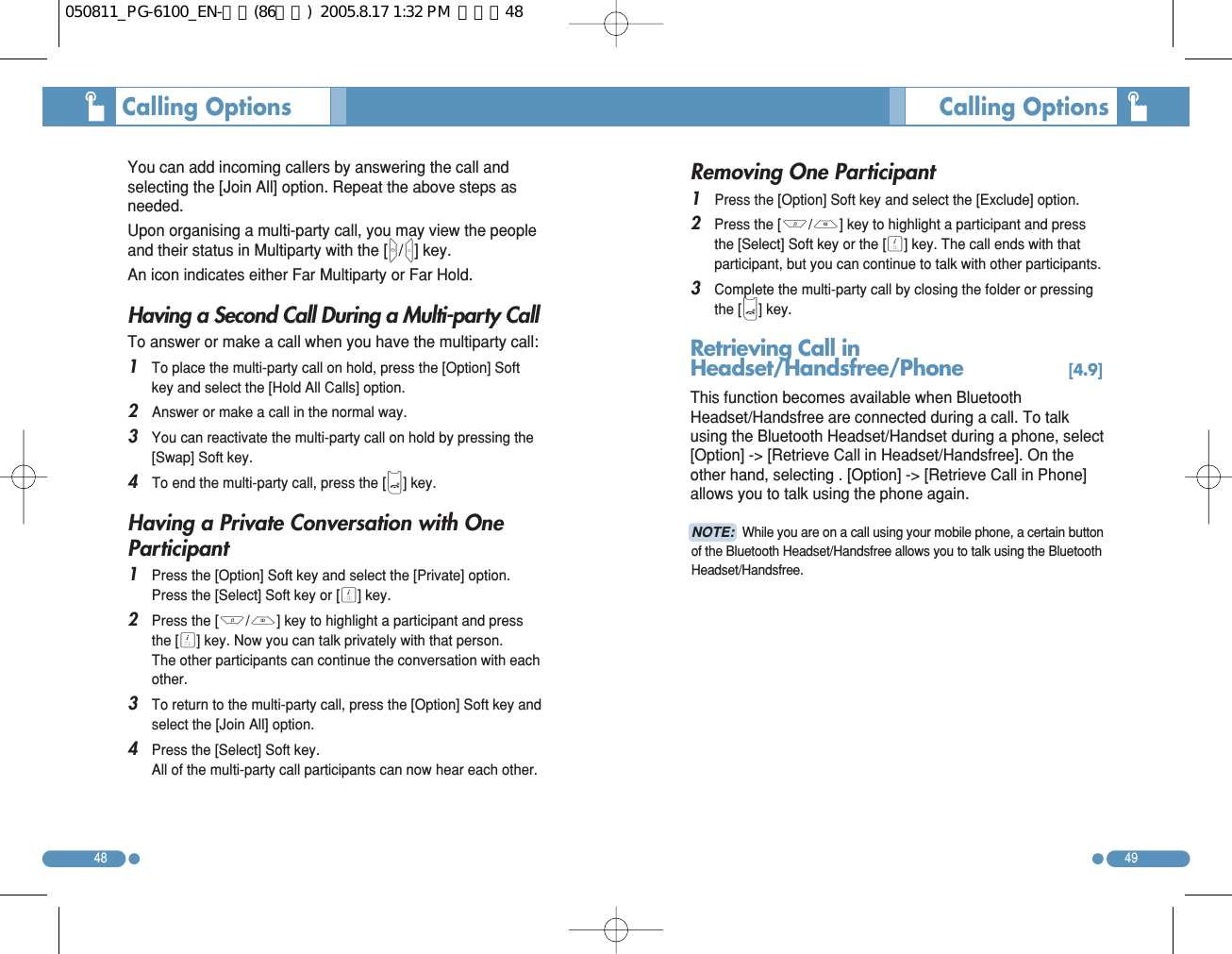

Removing One Participant 1 Press the [Option] Soft key and select the [Exclude] option. 2 Press the [U/D] key to highlight a participant and pressthe [Select] Soft key or the [O] key. The call ends with thatparticipant, but you can continue to talk with other participants. 3 Complete the multi-party call by closing the folder or pressingthe [E] key. Retrieving Call inHeadset/Handsfree/Phone [4.9]This function becomes available when BluetoothHeadset/Handsfree are connected during a call. To talkusing the Bluetooth Headset/Handset during a phone, select[Option] -> [Retrieve Call in Headset/Handsfree]. On theother hand, selecting . [Option] -> [Retrieve Call in Phone]allows you to talk using the phone again. 4948You can add incoming callers by answering the call andselecting the [Join All] option. Repeat the above steps asneeded. Upon organising a multi-party call, you may view the peopleand their status in Multiparty with the [L/R] key. An icon indicates either Far Multiparty or Far Hold. Having a Second Call During a Multi-party Call To answer or make a call when you have the multiparty call: 1 To place the multi-party call on hold, press the [Option] Softkey and select the [Hold All Calls] option. 2 Answer or make a call in the normal way. 3 You can reactivate the multi-party call on hold by pressing the[Swap] Soft key. 4 To end the multi-party call, press the [E] key. Having a Private Conversation with OneParticipant 1 Press the [Option] Soft key and select the [Private] option.Press the [Select] Soft key or [O] key. 2 Press the [U/D] key to highlight a participant and pressthe [O] key. Now you can talk privately with that person. The other participants can continue the conversation with eachother. 3 To return to the multi-party call, press the [Option] Soft key andselect the [Join All] option. 4 Press the [Select] Soft key. All of the multi-party call participants can now hear each other. Calling Options Calling OptionsNOTE: While you are on a call using your mobile phone, a certain buttonof the Bluetooth Headset/Handsfree allows you to talk using the BluetoothHeadset/Handsfree. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지48

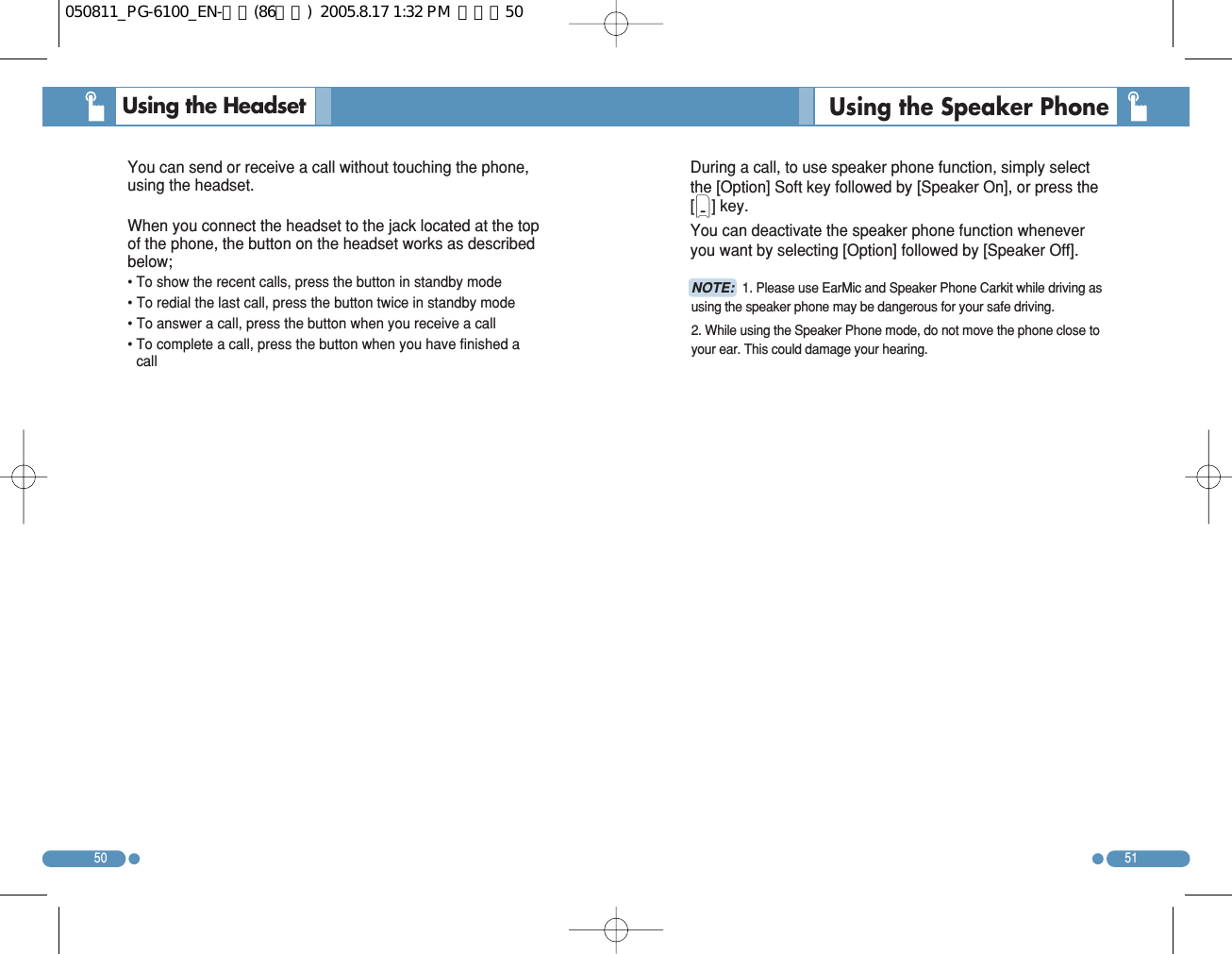

5150You can send or receive a call without touching the phone,using the headset. When you connect the headset to the jack located at the topof the phone, the button on the headset works as describedbelow; • To show the recent calls, press the button in standby mode • To redial the last call, press the button twice in standby mode • To answer a call, press the button when you receive a call • To complete a call, press the button when you have finished acall Using the Headset Using the Speaker PhoneDuring a call, to use speaker phone function, simply selectthe [Option] Soft key followed by [Speaker On], or press the[(] key.You can deactivate the speaker phone function wheneveryou want by selecting [Option] followed by [Speaker Off].NOTE: 1. Please use EarMic and Speaker Phone Carkit while driving asusing the speaker phone may be dangerous for your safe driving.2. While using the Speaker Phone mode, do not move the phone close toyour ear. This could damage your hearing.050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지50

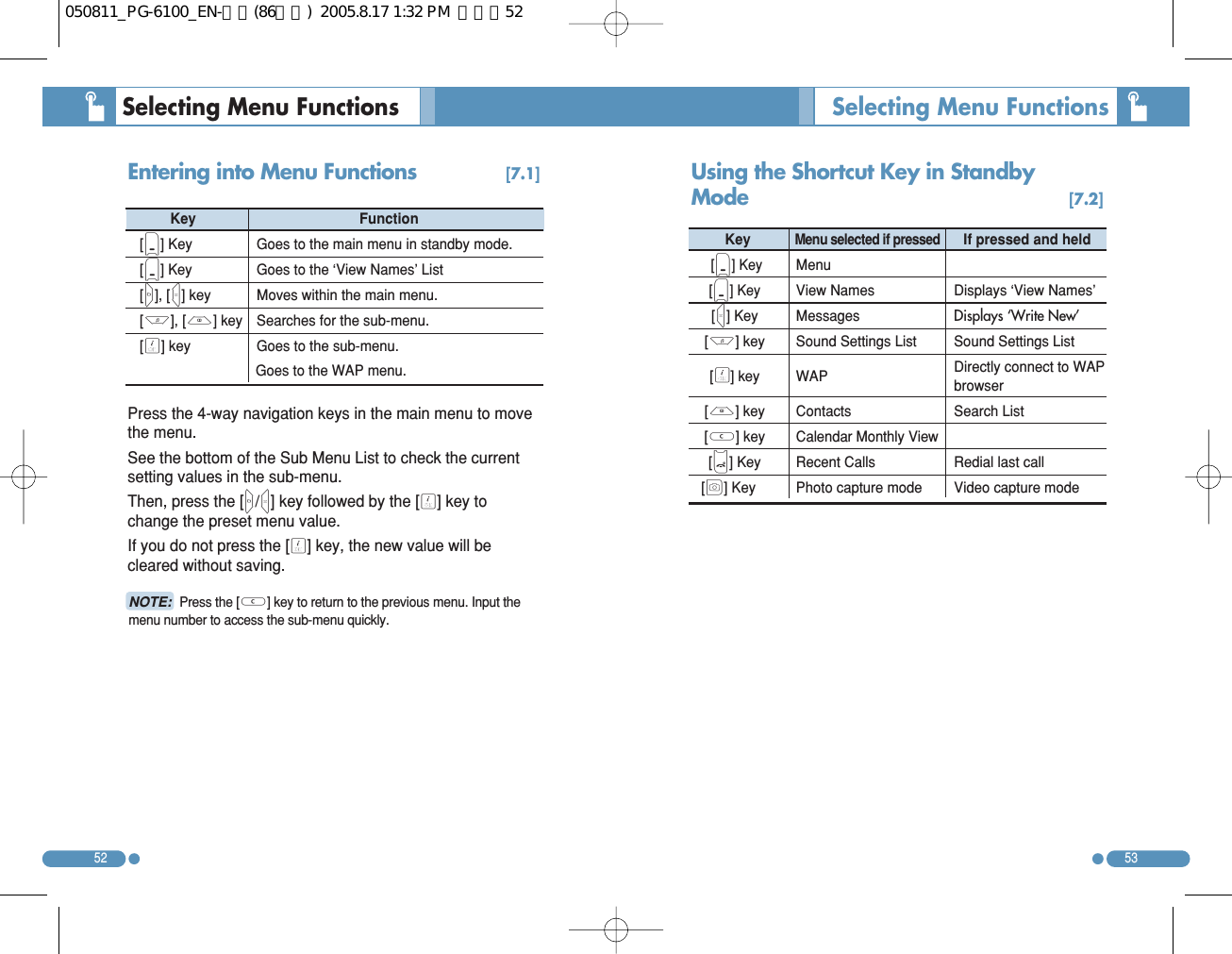

5352Selecting Menu Functions Selecting Menu Functions Entering into Menu Functions [7.1]Press the 4-way navigation keys in the main menu to movethe menu. See the bottom of the Sub Menu List to check the currentsetting values in the sub-menu. Then, press the [L/R] key followed by the [O] key tochange the preset menu value. If you do not press the [O] key, the new value will becleared without saving. Key Function[(] Key Goes to the main menu in standby mode. [)] Key Goes to the ‘View Names’ List[L], [R] key Moves within the main menu. [U], [D] key Searches for the sub-menu. [O] key Goes to the sub-menu.Goes to the WAP menu. NOTE: Press the [C] key to return to the previous menu. Input themenu number to access the sub-menu quickly. Using the Shortcut Key in StandbyMode [7.2]KeyMenu selected if pressed If pressed and held [(] KeyMenu[)] KeyView Names Displays ‘View Names’ [R] Key Messages Displays ‘Write New’ [U] key Sound Settings List Sound Settings List[ ] key WAP Directly connect to WAPbrowser [D] key Contacts Search List[C] key Calendar Monthly View[E] Key Recent Calls Redial last call [c] Key Photo capture mode Video capture mode O050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지52

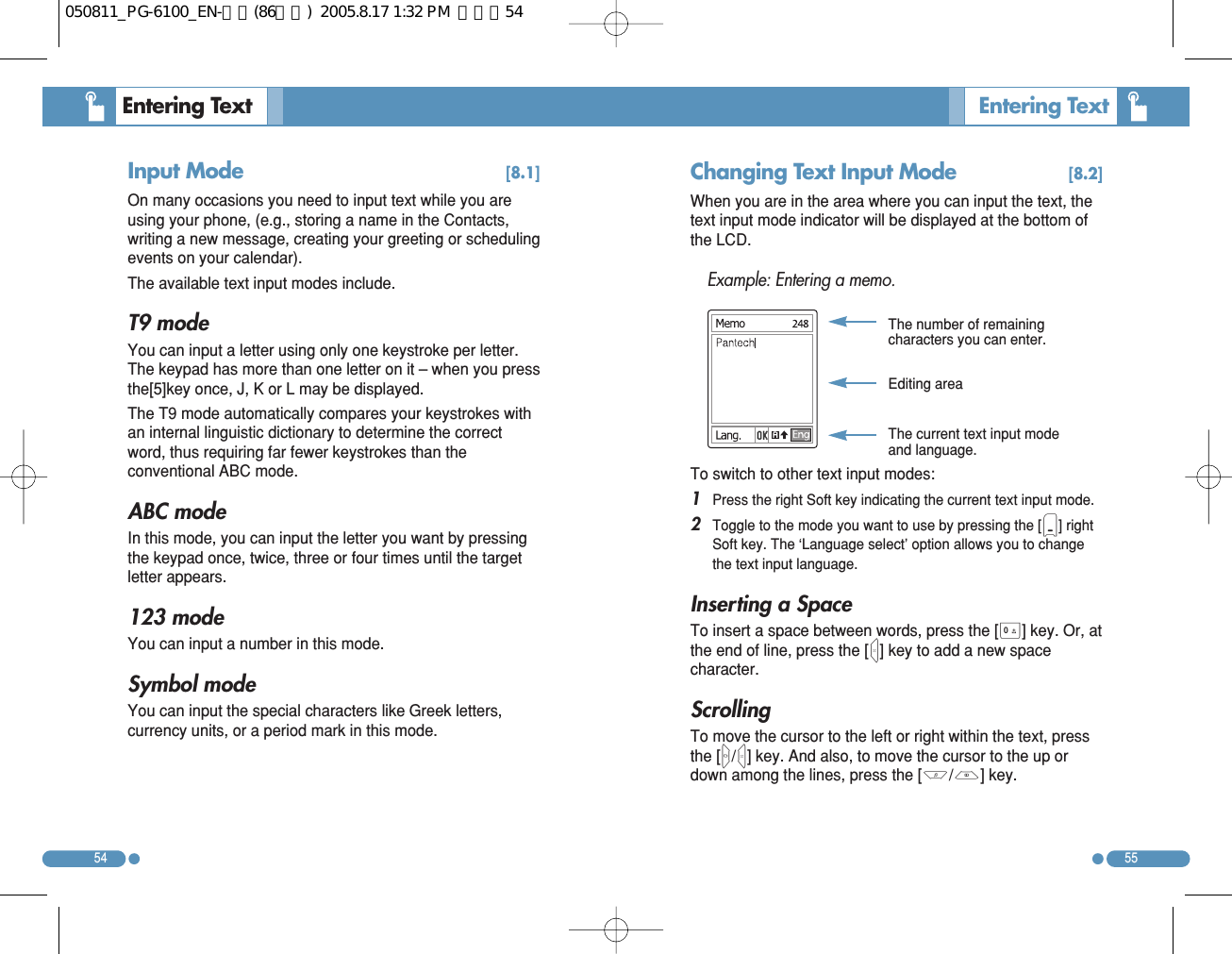

Input Mode [8.1]On many occasions you need to input text while you areusing your phone, (e.g., storing a name in the Contacts,writing a new message, creating your greeting or schedulingevents on your calendar). The available text input modes include. T9 mode You can input a letter using only one keystroke per letter.The keypad has more than one letter on it – when you pressthe[5]key once, J, K or L may be displayed. The T9 mode automatically compares your keystrokes withan internal linguistic dictionary to determine the correctword, thus requiring far fewer keystrokes than theconventional ABC mode. ABC mode In this mode, you can input the letter you want by pressingthe keypad once, twice, three or four times until the targetletter appears. 123 mode You can input a number in this mode. Symbol mode You can input the special characters like Greek letters,currency units, or a period mark in this mode. 5554Entering Text Entering Text Changing Text Input Mode [8.2]When you are in the area where you can input the text, thetext input mode indicator will be displayed at the bottom ofthe LCD. Example: Entering a memo. To switch to other text input modes: 1 Press the right Soft key indicating the current text input mode. 2 Toggle to the mode you want to use by pressing the [)] rightSoft key. The ‘Language select’ option allows you to changethe text input language. Inserting a Space To insert a space between words, press the [0] key. Or, atthe end of line, press the [R] key to add a new spacecharacter. Scrolling To move the cursor to the left or right within the text, pressthe [L/R] key. And also, to move the cursor to the up ordown among the lines, press the [U/D] key. The number of remainingcharacters you can enter. Editing area The current text input modeand language. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지54

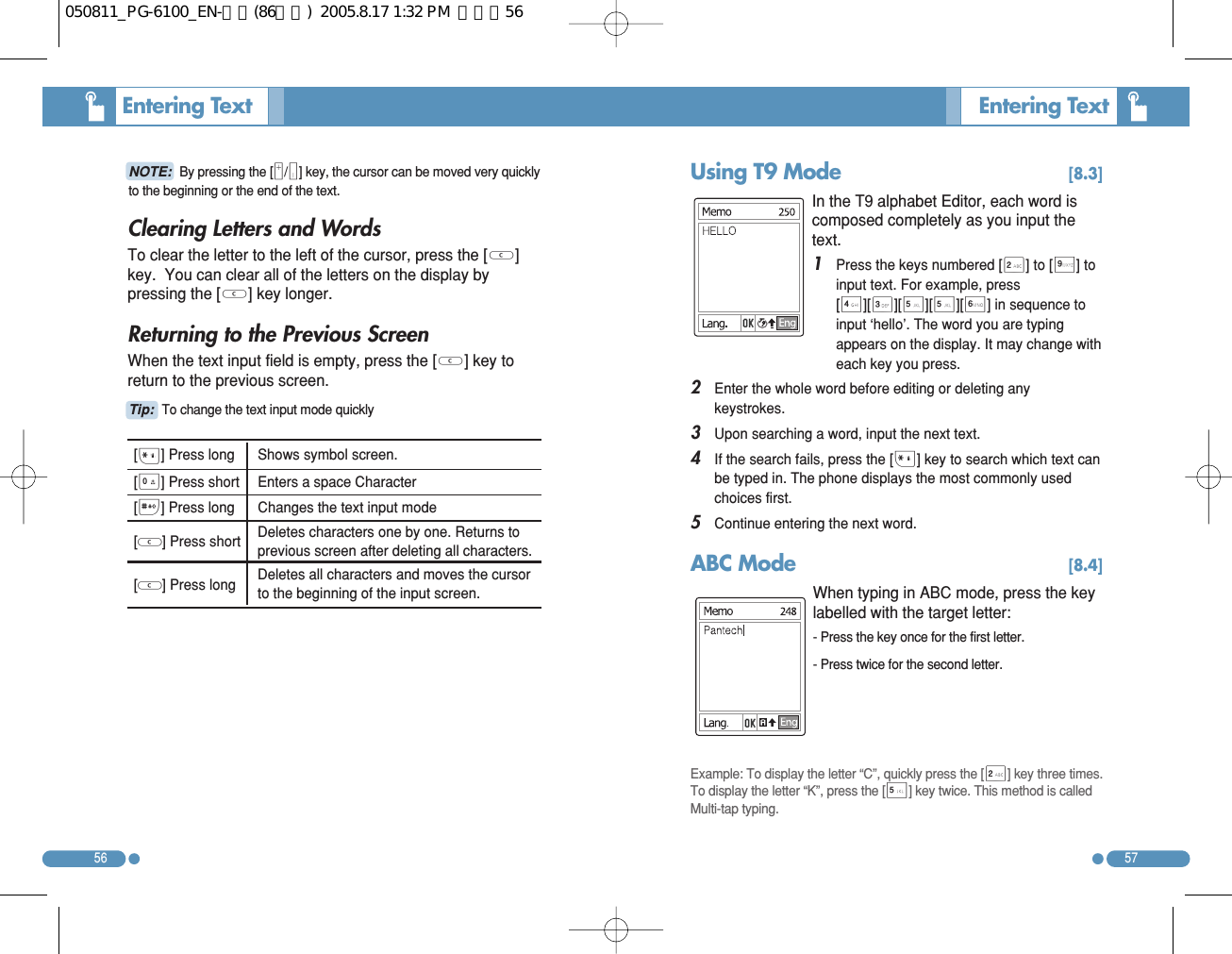

Clearing Letters and Words To clear the letter to the left of the cursor, press the [C]key. You can clear all of the letters on the display bypressing the [C] key longer. Returning to the Previous Screen When the text input field is empty, press the [C] key toreturn to the previous screen. 5756Entering Text NOTE: By pressing the [M/N] key, the cursor can be moved very quicklyto the beginning or the end of the text. Entering Text [*] Press long Shows symbol screen. [0] Press short Enters a space Character [#] Press long Changes the text input mode [ ] Press short Deletes characters one by one. Returns toprevious screen after deleting all characters. [ ] Press long Deletes all characters and moves the cursorto the beginning of the input screen. Tip: To change the text input mode quickly CCUsing T9 Mode [8.3]In the T9 alphabet Editor, each word iscomposed completely as you input thetext. 1 Press the keys numbered [2] to [9] toinput text. For example, press[4][3][5][5][6] in sequence toinput ‘hello’. The word you are typingappears on the display. It may change witheach key you press. 2 Enter the whole word before editing or deleting anykeystrokes. 3 Upon searching a word, input the next text. 4 If the search fails, press the [*] key to search which text canbe typed in. The phone displays the most commonly usedchoices first. 5 Continue entering the next word. ABC Mode [8.4]When typing in ABC mode, press the keylabelled with the target letter: - Press the key once for the first letter.- Press twice for the second letter. Example: To display the letter “C”, quickly press the [2] key three times.To display the letter “K”, press the [5] key twice. This method is calledMulti-tap typing. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지56

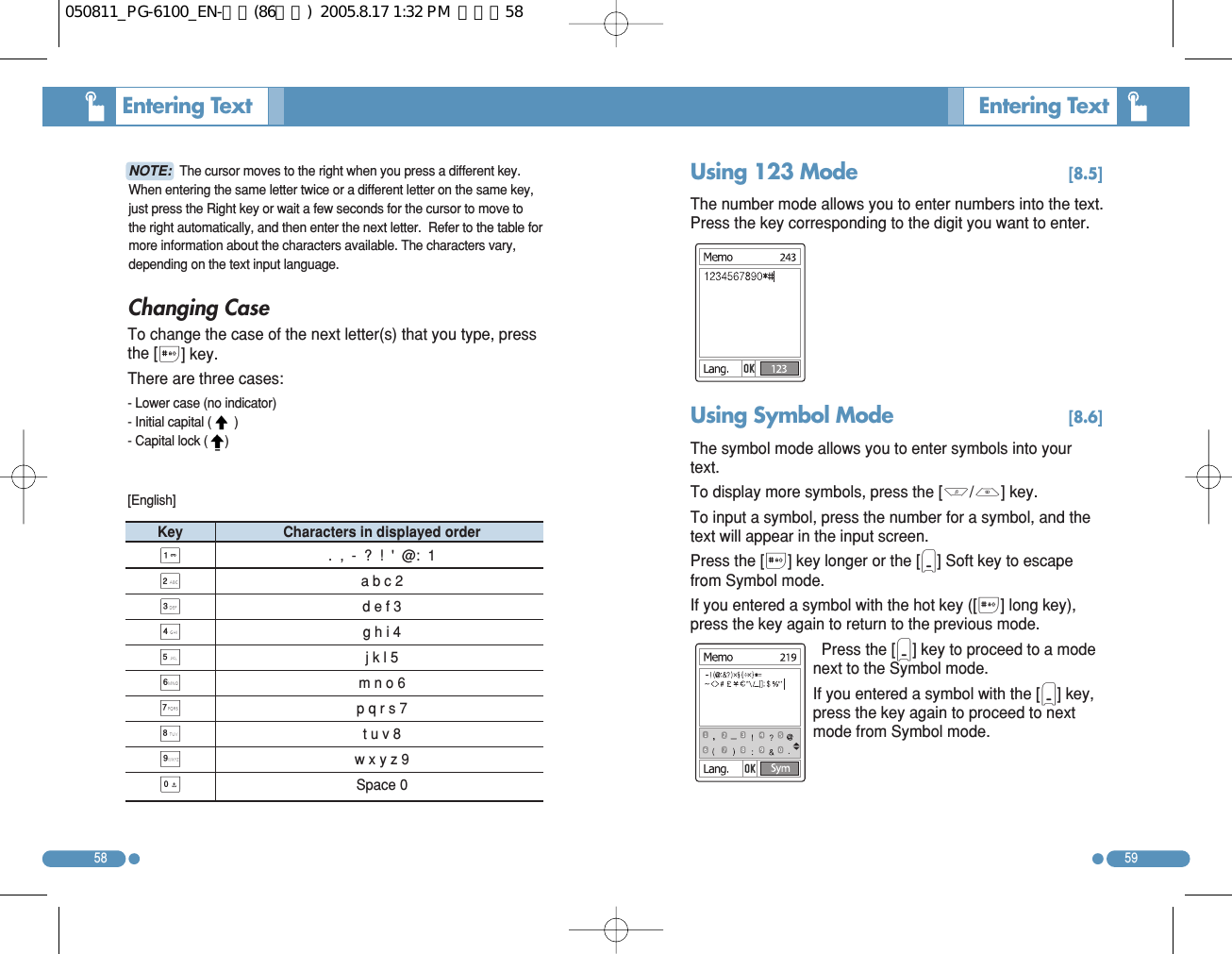

58Changing Case To change the case of the next letter(s) that you type, pressthe [#] key. There are three cases: - Lower case (no indicator) - Initial capital ( )- Capital lock ( )Entering Text 59Entering Text NOTE: The cursor moves to the right when you press a different key.When entering the same letter twice or a different letter on the same key,just press the Right key or wait a few seconds for the cursor to move tothe right automatically, and then enter the next letter. Refer to the table formore information about the characters available. The characters vary,depending on the text input language. Key Characters in displayed order 1. , - ? ! ' @: 1 2a b c 23d e f 34g h i 45j k l 56m n o 67p q r s 78t u v 89w x y z 90Space 0[English] Using 123 Mode [8.5]The number mode allows you to enter numbers into the text.Press the key corresponding to the digit you want to enter. Using Symbol Mode [8.6]The symbol mode allows you to enter symbols into yourtext. To display more symbols, press the [U/D] key. To input a symbol, press the number for a symbol, and thetext will appear in the input screen. Press the [#] key longer or the [)] Soft key to escapefrom Symbol mode. If you entered a symbol with the hot key ([#] long key),press the key again to return to the previous mode. Press the [)] key to proceed to a modenext to the Symbol mode. If you entered a symbol with the [)] key,press the key again to proceed to nextmode from Symbol mode. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지58

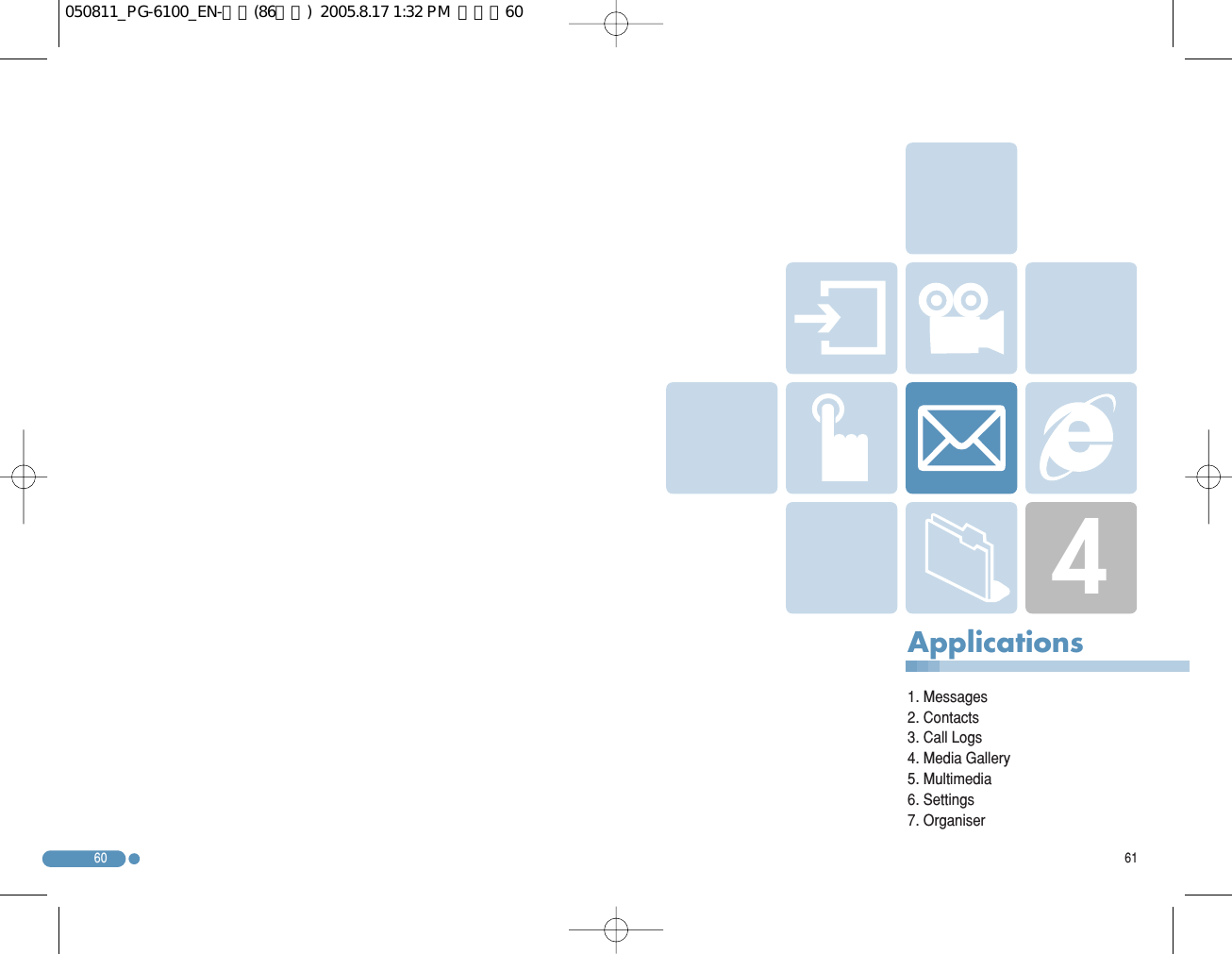

60 61Applications 1. Messages2. Contacts3. Call Logs4. Media Gallery5. Multimedia6. Settings7. Organiser4050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지60
The MMS message is a separate multimedia presentation ina single entry, not an attachment to the text file. Using the MMS feature, your phone can receive amultimedia message and/or send a picture message,depending on MMS availability from your service provider.Only the phone that supports the multimedia messagefeature can receive or display the multimedia message. Write New [1.1]Select ‘Menu w1.Messages w1.Write New’ and press the[O] key. • Text Msg.: Write new SMS or EMS message. • Multimedia Msg.: Write new MMS message. Editor options for Text Msg. [1.1.1]While entering your message, press the [Option] Soft key[(] to use the following options. When you press the [U/D] key to select an item andpress the [O] key using the following option: • Language: The selected language will be displayed at thebottomof the right corner. • Add Picture: Loads the selected item. • Add Animation: Loads the selected item. • Add Melody: The melody will be set up and played back once. • Add Emoticon: Loads the selected item. • Add Template: Insert a clause stored in a Template. 6362Select ‘Menu w1.Messages’. This menu allows you to create, send, read and save amessage using Short Message Service (SMS: Textmessage), Enhanced Message Service (EMS: Messageincluding simple image, animation or melody) or MultimediaMessage Service (MMS: Message supporting presentationof various media types, such as full colour images andpolyphonic ring tones). Voice mails are also available. Text Msg. Short message service (SMS) allows you to send andreceive a short text message to and from other GSMphones. Additionally, your phone supports Enhanced MessagingService (EMS), which allows you to make a short messageconsisting of a simple picture, melodies, animation andstyled text that add new features to simple text messages. To send a text message by phone, you must obtain thenumber of the SMS centre from your service provider. Multimedia Msg. Multimedia Message Service (MMS) is a messaging servicequite similar to Short Message Service (SMS). It providesasynchronous delivery of personal multimedia messages. Adding to the familiar text content of the text message, themultimedia message can contain an image, graphic, and/orsound. Messages Messages NOTE: These features are available only if your service provider’snetwork supports it. Contact your service provider for more information. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지62

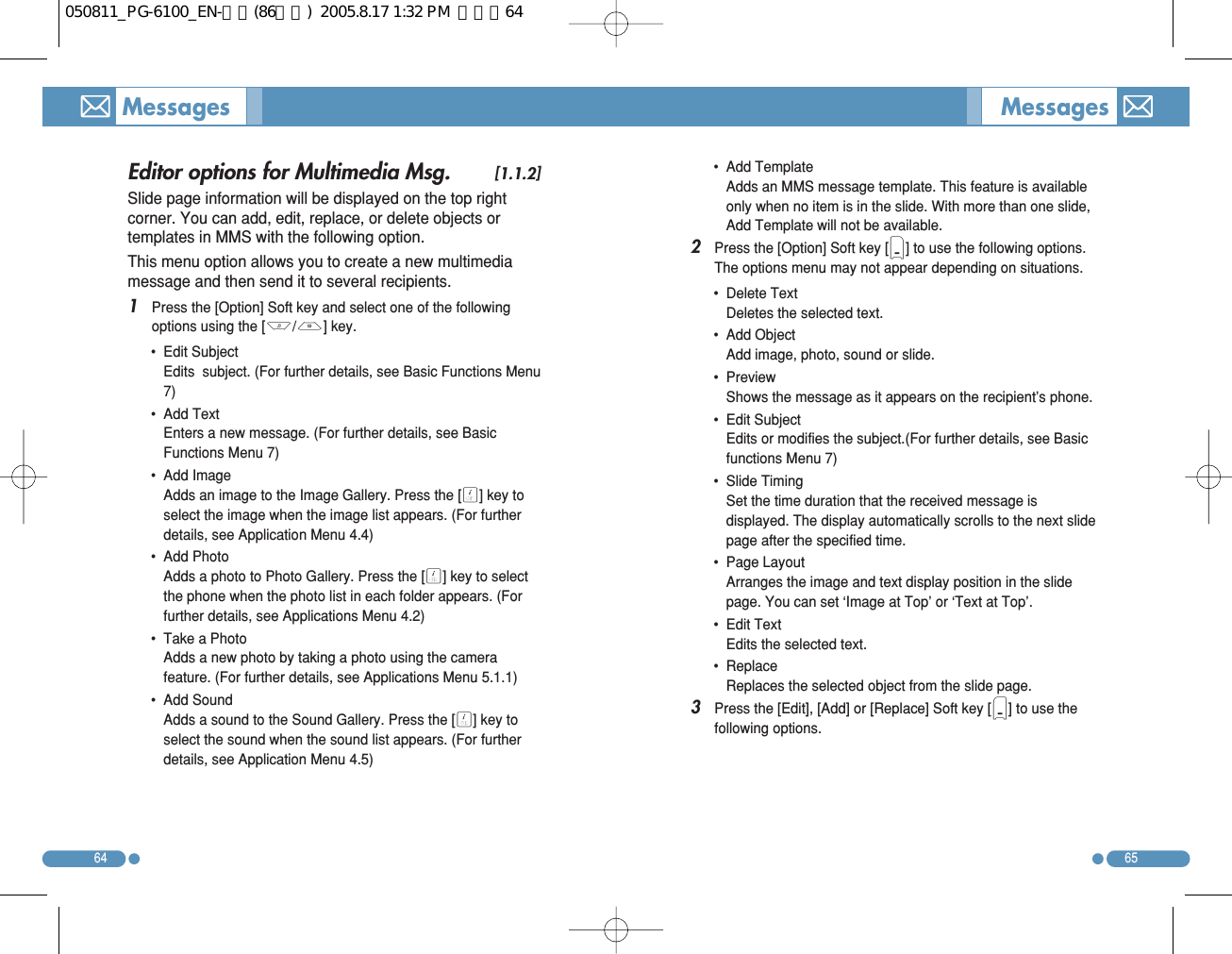

• Add TemplateAdds an MMS message template. This feature is availableonly when no item is in the slide. With more than one slide,Add Template will not be available. 2 Press the [Option] Soft key [(] to use the following options.The options menu may not appear depending on situations. • Delete TextDeletes the selected text. • Add ObjectAdd image, photo, sound or slide. • PreviewShows the message as it appears on the recipient’s phone. • Edit SubjectEdits or modifies the subject.(For further details, see Basicfunctions Menu 7) • Slide TimingSet the time duration that the received message isdisplayed. The display automatically scrolls to the next slidepage after the specified time. • Page LayoutArranges the image and text display position in the slidepage. You can set ‘Image at Top’ or ‘Text at Top’. • Edit TextEdits the selected text. • ReplaceReplaces the selected object from the slide page. 3 Press the [Edit], [Add] or [Replace] Soft key [)] to use thefollowing options. 6564Editor options for Multimedia Msg. [1.1.2]Slide page information will be displayed on the top rightcorner. You can add, edit, replace, or delete objects ortemplates in MMS with the following option. This menu option allows you to create a new multimediamessage and then send it to several recipients. 1 Press the [Option] Soft key and select one of the followingoptions using the [U/D] key. • Edit SubjectEdits subject. (For further details, see Basic Functions Menu7) • Add TextEnters a new message. (For further details, see BasicFunctions Menu 7) • Add ImageAdds an image to the Image Gallery. Press the [O] key toselect the image when the image list appears. (For furtherdetails, see Application Menu 4.4) • Add PhotoAdds a photo to Photo Gallery. Press the [O] key to selectthe phone when the photo list in each folder appears. (Forfurther details, see Applications Menu 4.2) • Take a PhotoAdds a new photo by taking a photo using the camerafeature. (For further details, see Applications Menu 5.1.1) • Add SoundAdds a sound to the Sound Gallery. Press the [O] key toselect the sound when the sound list appears. (For furtherdetails, see Application Menu 4.5) Messages Messages 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지64

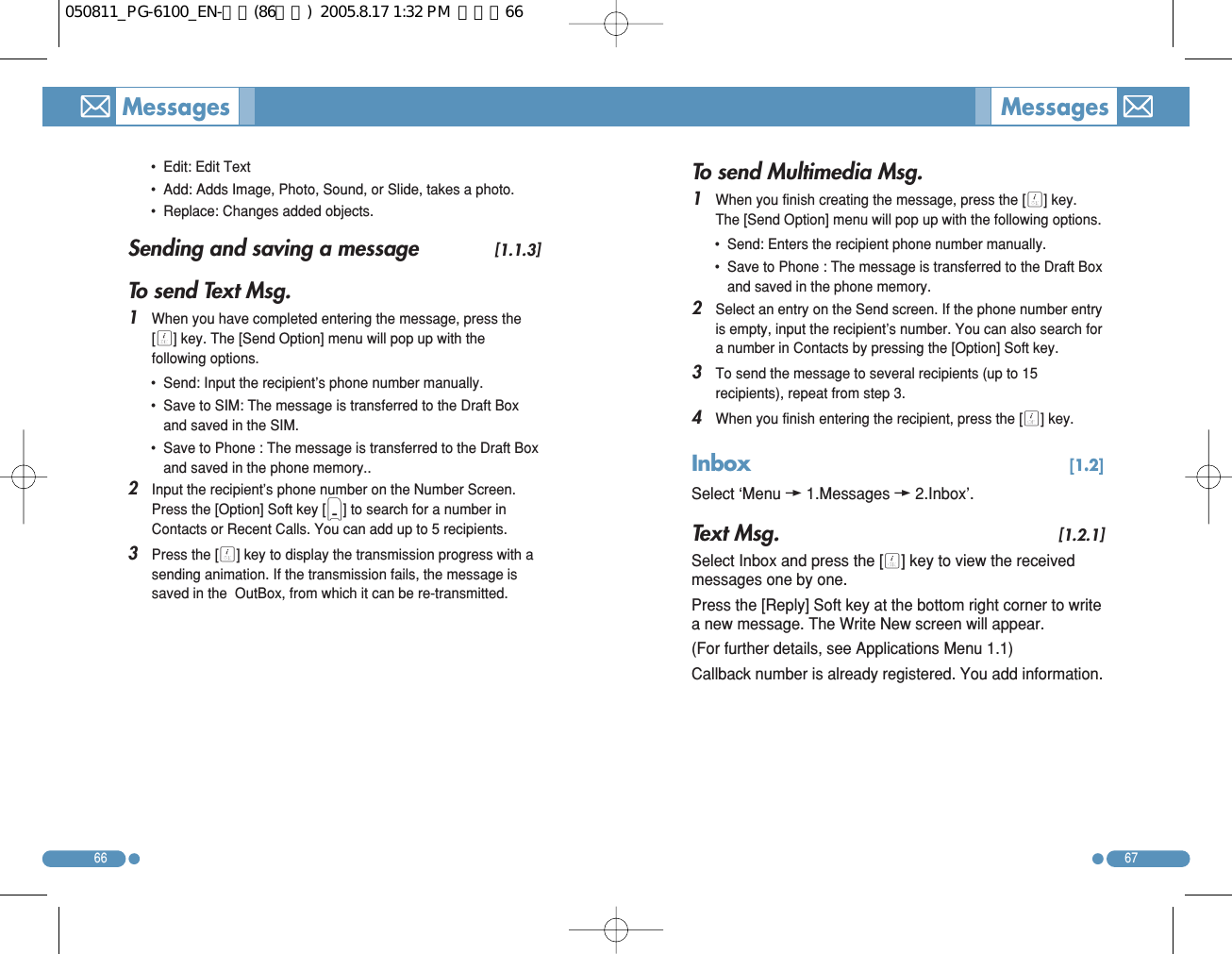

To send Multimedia Msg. 1 When you finish creating the message, press the [O] key.The [Send Option] menu will pop up with the following options. • Send: Enters the recipient phone number manually. • Save to Phone : The message is transferred to the Draft Boxand saved in the phone memory. 2 Select an entry on the Send screen. If the phone number entryis empty, input the recipient’s number. You can also search fora number in Contacts by pressing the [Option] Soft key. 3 To send the message to several recipients (up to 15recipients), repeat from step 3. 4 When you finish entering the recipient, press the [O] key. Inbox [1.2]Select ‘Menu w1.Messages w2.Inbox’. Text Msg. [1.2.1]Select Inbox and press the [O] key to view the receivedmessages one by one. Press the [Reply] Soft key at the bottom right corner to writea new message. The Write New screen will appear. (For further details, see Applications Menu 1.1) Callback number is already registered. You add information.6766• Edit: Edit Text • Add: Adds Image, Photo, Sound, or Slide, takes a photo. • Replace: Changes added objects. Sending and saving a message [1.1.3]To send Text Msg. 1 When you have completed entering the message, press the[O] key. The [Send Option] menu will pop up with thefollowing options. • Send: Input the recipient’s phone number manually. • Save to SIM: The message is transferred to the Draft Boxand saved in the SIM. • Save to Phone : The message is transferred to the Draft Boxand saved in the phone memory.. 2 Input the recipient’s phone number on the Number Screen.Press the [Option] Soft key [(] to search for a number inContacts or Recent Calls. You can add up to 5 recipients. 3 Press the [O] key to display the transmission progress with asending animation. If the transmission fails, the message issaved in the OutBox, from which it can be re-transmitted. Messages Messages 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지66

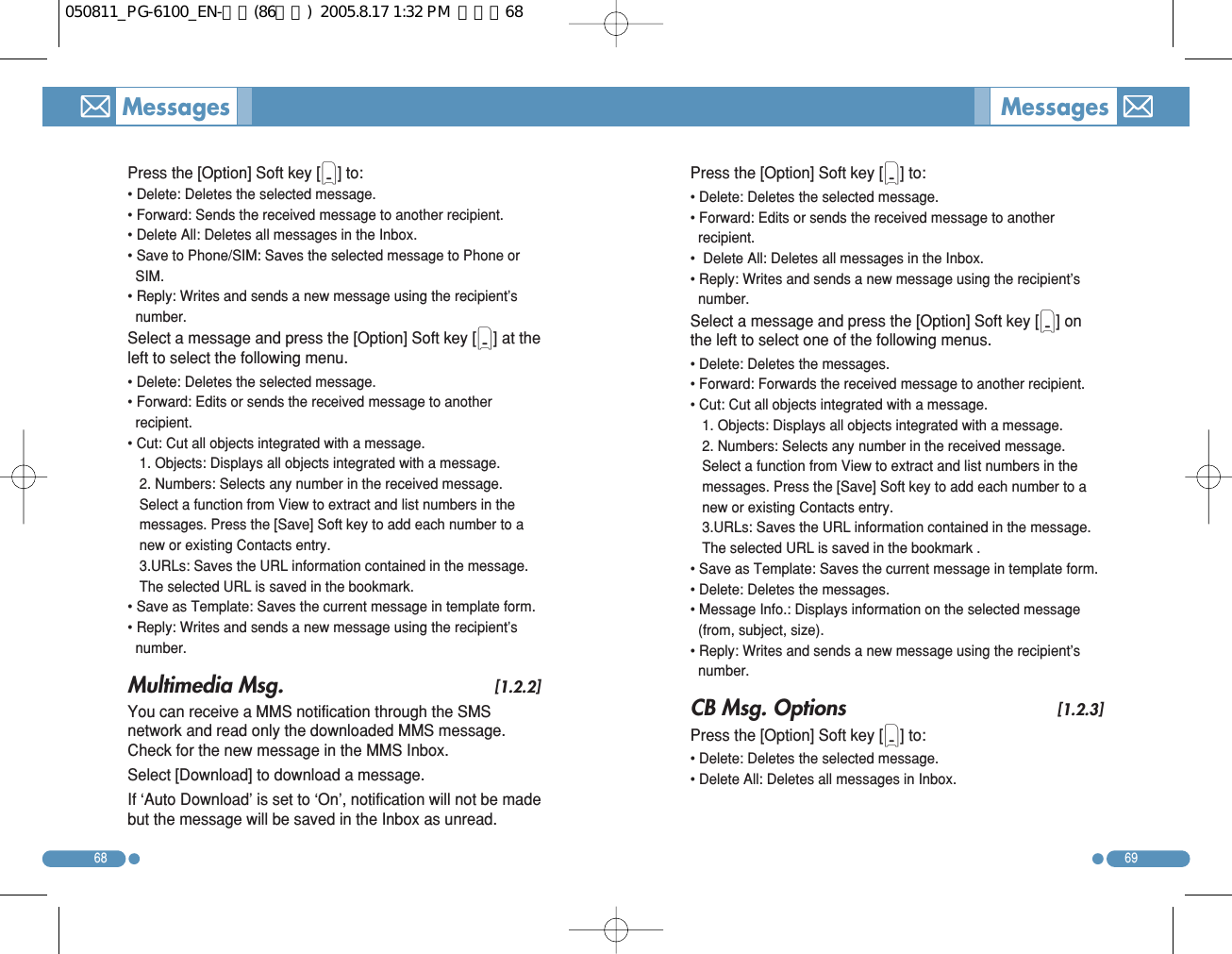

Press the [Option] Soft key [(] to: • Delete: Deletes the selected message. • Forward: Edits or sends the received message to another recipient. • Delete All: Deletes all messages in the Inbox. • Reply: Writes and sends a new message using the recipient’s number. Select a message and press the [Option] Soft key [(] onthe left to select one of the following menus. • Delete: Deletes the messages.• Forward: Forwards the received message to another recipient. • Cut: Cut all objects integrated with a message. 1. Objects: Displays all objects integrated with a message. 2. Numbers: Selects any number in the received message. Select a function from View to extract and list numbers in the messages. Press the [Save] Soft key to add each number to a new or existing Contacts entry. 3.URLs: Saves the URL information contained in the message. The selected URL is saved in the bookmark . • Save as Template: Saves the current message in template form. • Delete: Deletes the messages. • Message Info.: Displays information on the selected message (from, subject, size). • Reply: Writes and sends a new message using the recipient’s number. CB Msg. Options [1.2.3]Press the [Option] Soft key [(] to: • Delete: Deletes the selected message. • Delete All: Deletes all messages in Inbox. 6968Press the [Option] Soft key [(] to: • Delete: Deletes the selected message. • Forward: Sends the received message to another recipient. • Delete All: Deletes all messages in the Inbox. • Save to Phone/SIM: Saves the selected message to Phone or SIM. • Reply: Writes and sends a new message using the recipient’s number. Select a message and press the [Option] Soft key [(] at theleft to select the following menu. • Delete: Deletes the selected message. • Forward: Edits or sends the received message to another recipient. • Cut: Cut all objects integrated with a message. 1. Objects: Displays all objects integrated with a message. 2. Numbers: Selects any number in the received message. Select a function from View to extract and list numbers in the messages. Press the [Save] Soft key to add each number to a new or existing Contacts entry. 3.URLs: Saves the URL information contained in the message. The selected URL is saved in the bookmark. • Save as Template: Saves the current message in template form. • Reply: Writes and sends a new message using the recipient’s number. Multimedia Msg. [1.2.2]You can receive a MMS notification through the SMSnetwork and read only the downloaded MMS message.Check for the new message in the MMS Inbox. Select [Download] to download a message. If ‘Auto Download’ is set to ‘On’, notification will not be madebut the message will be saved in the Inbox as unread. Messages Messages 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지68

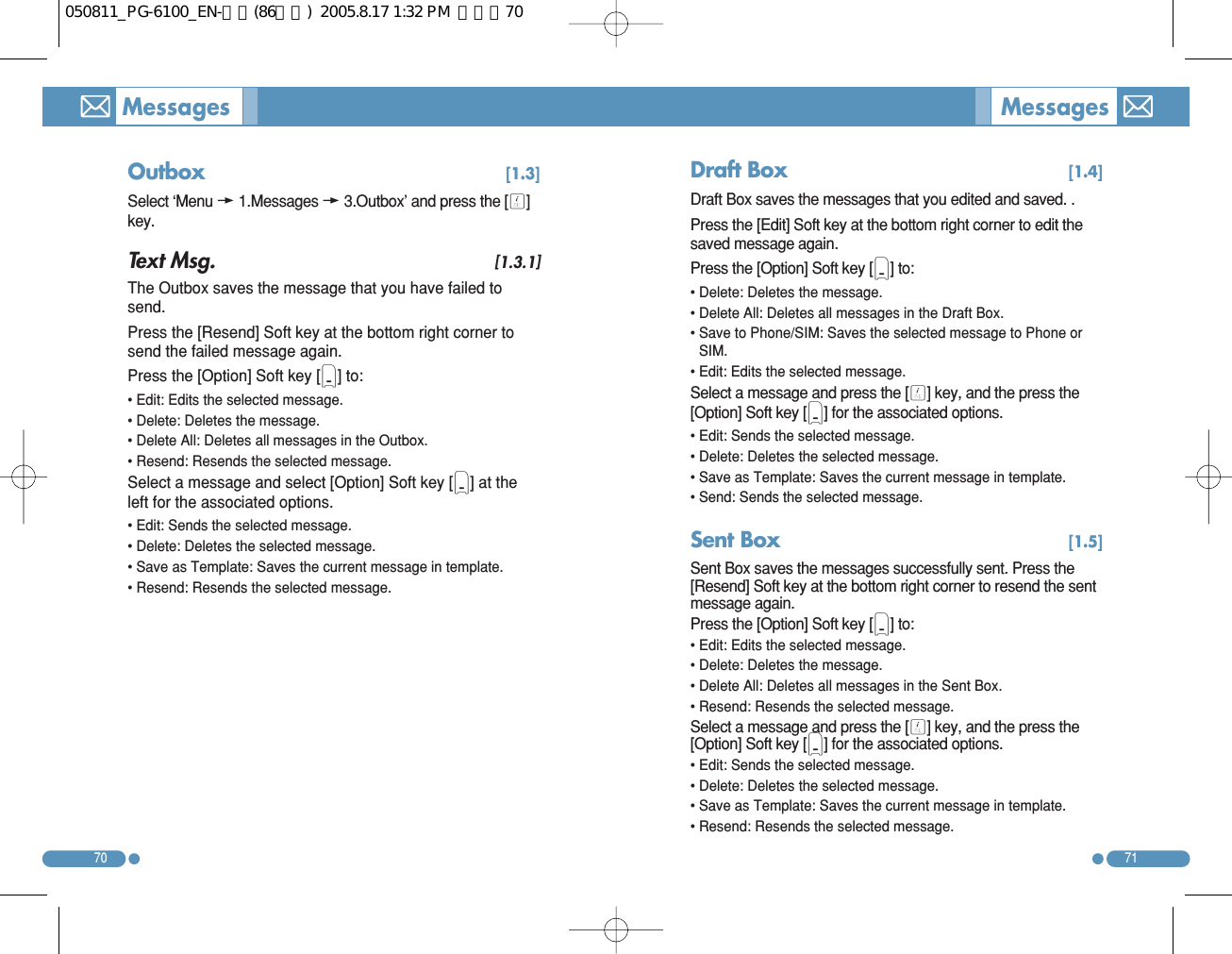

Draft Box [1.4]Draft Box saves the messages that you edited and saved. . Press the [Edit] Soft key at the bottom right corner to edit thesaved message again. Press the [Option] Soft key [(] to: • Delete: Deletes the message. • Delete All: Deletes all messages in the Draft Box. • Save to Phone/SIM: Saves the selected message to Phone orSIM. • Edit: Edits the selected message. Select a message and press the [O] key, and the press the[Option] Soft key [(] for the associated options. • Edit: Sends the selected message. • Delete: Deletes the selected message. • Save as Template: Saves the current message in template. • Send: Sends the selected message. Sent Box [1.5]Sent Box saves the messages successfully sent. Press the[Resend] Soft key at the bottom right corner to resend the sentmessage again. Press the [Option] Soft key [(] to: • Edit: Edits the selected message. • Delete: Deletes the message. • Delete All: Deletes all messages in the Sent Box. • Resend: Resends the selected message. Select a message and press the [O] key, and the press the[Option] Soft key [(] for the associated options. • Edit: Sends the selected message. • Delete: Deletes the selected message. • Save as Template: Saves the current message in template. • Resend: Resends the selected message. 7170Outbox [1.3]Select ‘Menu w1.Messages w3.Outbox’ and press the [O]key. Text Msg. [1.3.1]The Outbox saves the message that you have failed tosend. Press the [Resend] Soft key at the bottom right corner tosend the failed message again. Press the [Option] Soft key [(] to: • Edit: Edits the selected message. • Delete: Deletes the message. • Delete All: Deletes all messages in the Outbox. • Resend: Resends the selected message. Select a message and select [Option] Soft key [(] at theleft for the associated options. • Edit: Sends the selected message. • Delete: Deletes the selected message. • Save as Template: Saves the current message in template. • Resend: Resends the selected message. Messages Messages 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지70

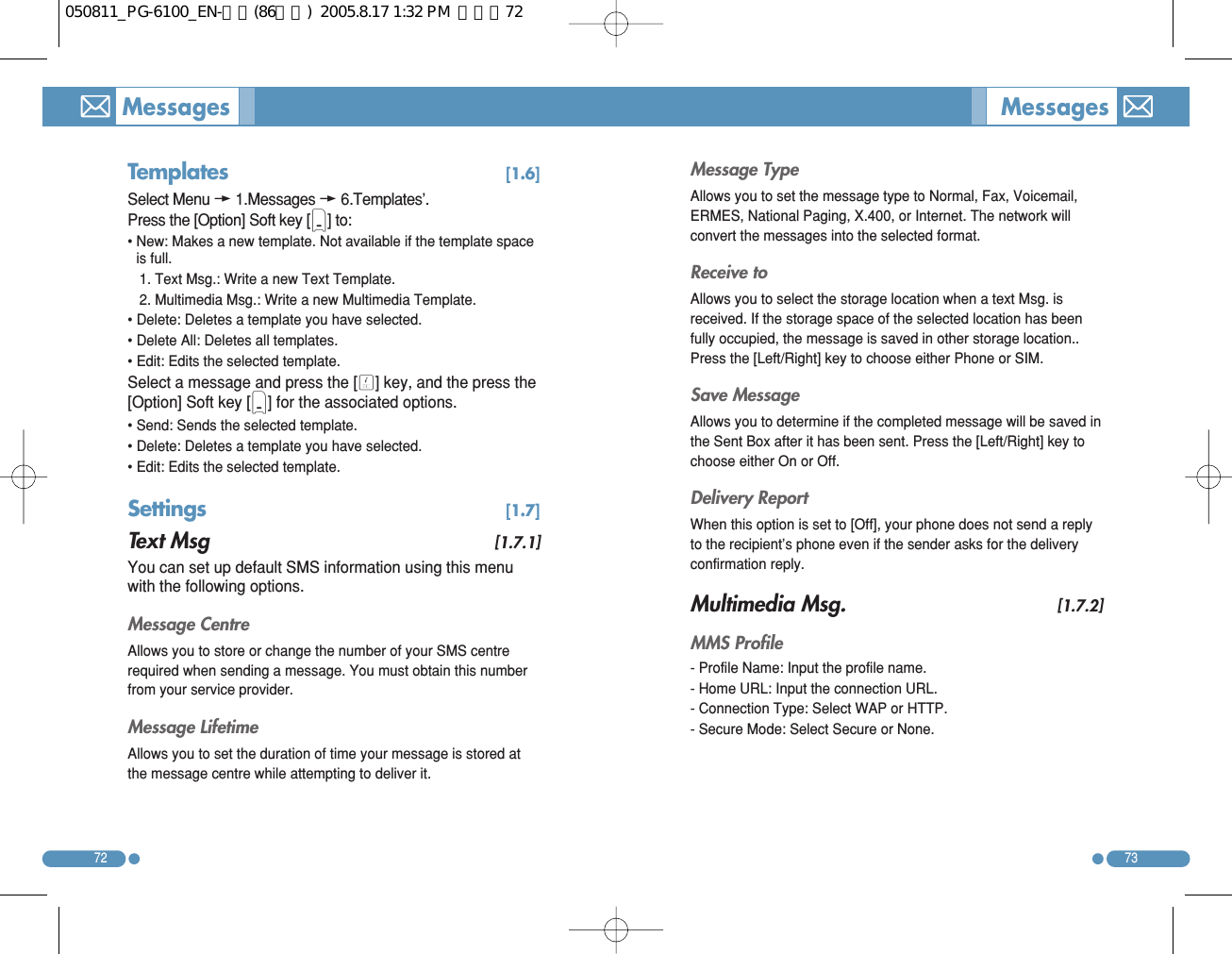

Message TypeAllows you to set the message type to Normal, Fax, Voicemail,ERMES, National Paging, X.400, or Internet. The network willconvert the messages into the selected format. Receive toAllows you to select the storage location when a text Msg. isreceived. If the storage space of the selected location has beenfully occupied, the message is saved in other storage location..Press the [Left/Right] key to choose either Phone or SIM. Save MessageAllows you to determine if the completed message will be saved inthe Sent Box after it has been sent. Press the [Left/Right] key tochoose either On or Off. Delivery Report When this option is set to [Off], your phone does not send a replyto the recipient’s phone even if the sender asks for the deliveryconfirmation reply. Multimedia Msg. [1.7.2]MMS Profile - Profile Name: Input the profile name. - Home URL: Input the connection URL. - Connection Type: Select WAP or HTTP. - Secure Mode: Select Secure or None. 7372Templates [1.6]Select Menu w1.Messages w6.Templates’. Press the [Option] Soft key [(] to: • New: Makes a new template. Not available if the template spaceis full. 1. Text Msg.: Write a new Text Template. 2. Multimedia Msg.: Write a new Multimedia Template. • Delete: Deletes a template you have selected. • Delete All: Deletes all templates. • Edit: Edits the selected template. Select a message and press the [O] key, and the press the[Option] Soft key [(] for the associated options. • Send: Sends the selected template. • Delete: Deletes a template you have selected. • Edit: Edits the selected template. Settings [1.7]Text Msg [1.7.1]You can set up default SMS information using this menuwith the following options. Message CentreAllows you to store or change the number of your SMS centrerequired when sending a message. You must obtain this numberfrom your service provider. Message LifetimeAllows you to set the duration of time your message is stored atthe message centre while attempting to deliver it. Messages Messages 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지72
Auto DownloadAllows you to set how you receive a message. You can selecteither On or Off Save MessageAllows you to determine if the completed message will be saved inthe Sent Box after it has been sent. Press the [L/R] key to chooseeither On or Off. Read ReportWhen this option is set to [On], the network informs you whether ornot your message has been delivered successfully Delivery ReportWhen this option is set to [Off], your phone does not send a replyto the recipient’s phone even if the sender asks for the deliveryconfirmation reply CB Msg. [1.7.3]- Language: Choose one of All, English, Chinese, or Deutsch. - Info. Subjects: Allows you to choose the subject of a CB Msg. - Standard: Predefined subjects list. - Custom: Userdefined subjects list. - Receive : Press the [L/R] key to set whether the message will bereceived or not. 7574- GSM Settings - Gateway- IP Address: Input the IP address. A point will be added after every 3 digits. A comma will be added every 3 digits. - IP Port: Input the IP port number yourself. - Login ID: Input the ID to sign into the gateway. - Password: Input the password to sign into the gateway. - Data Call Type: Press the [L/R] key to choose either ISDN orAnalogue. - Dial Number: Input the dial number manually - Login ID: Input the ID to sign into the GSM. - Password: Input the password to sign into the GSM. - GPRS Settings - Gateway- IP Address: Input the IP address. A comma will be added every 3 digits. - IP Port: Input the IP port number yourself. - Login ID: Input the ID to sign into the GPRS service - Password: Input the password to sign into the GPRS service. - APN: Input the Access Point Name yourself. - Login ID: Input the ID to sign into the GPRS service. - Password: Input the password to sign into the GPRS service. - Bearer: Press the [L/R] key to choose either GPRS Only/ GSMOnly. Message LifetimeAllows you to set the duration of time your message is stored atthe message centre while attempting to deliver it. Messages Messages 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지74

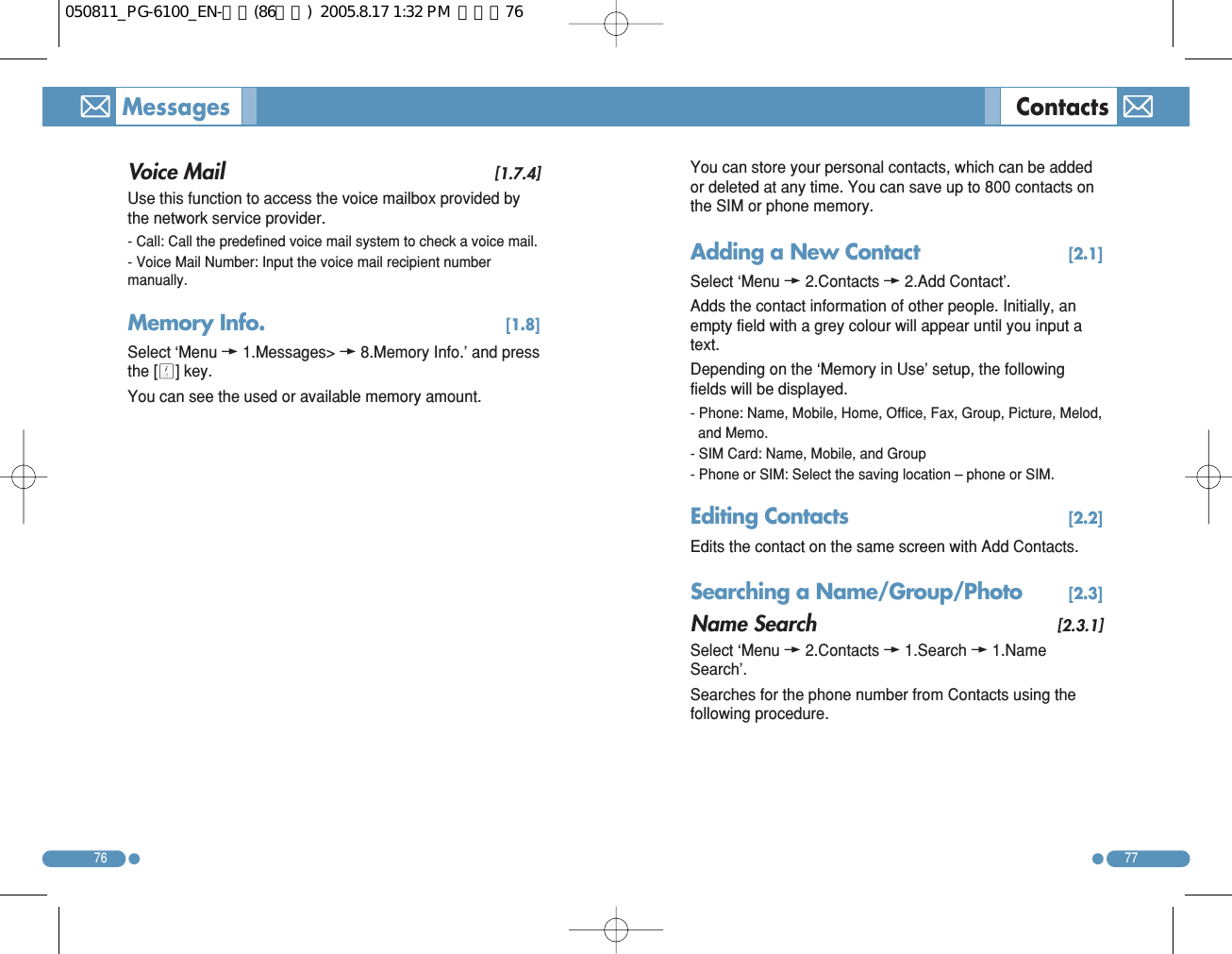

You can store your personal contacts, which can be addedor deleted at any time. You can save up to 800 contacts onthe SIM or phone memory. Adding a New Contact [2.1]Select ‘Menu w2.Contacts w2.Add Contact’. Adds the contact information of other people. Initially, anempty field with a grey colour will appear until you input atext. Depending on the ‘Memory in Use’ setup, the followingfields will be displayed. - Phone: Name, Mobile, Home, Office, Fax, Group, Picture, Melod, and Memo. - SIM Card: Name, Mobile, and Group - Phone or SIM: Select the saving location – phone or SIM. Editing Contacts [2.2]Edits the contact on the same screen with Add Contacts. Searching a Name/Group/Photo [2.3]Name Search [2.3.1]Select ‘Menu w2.Contacts w1.Search w1.NameSearch’. Searches for the phone number from Contacts using thefollowing procedure. 7776Voice Mail [1.7.4]Use this function to access the voice mailbox provided bythe network service provider. - Call: Call the predefined voice mail system to check a voice mail. - Voice Mail Number: Input the voice mail recipient numbermanually. Memory Info. [1.8]Select ‘Menu w1.Messages> w8.Memory Info.’ and pressthe [O] key. You can see the used or available memory amount. Messages Contacts050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지76

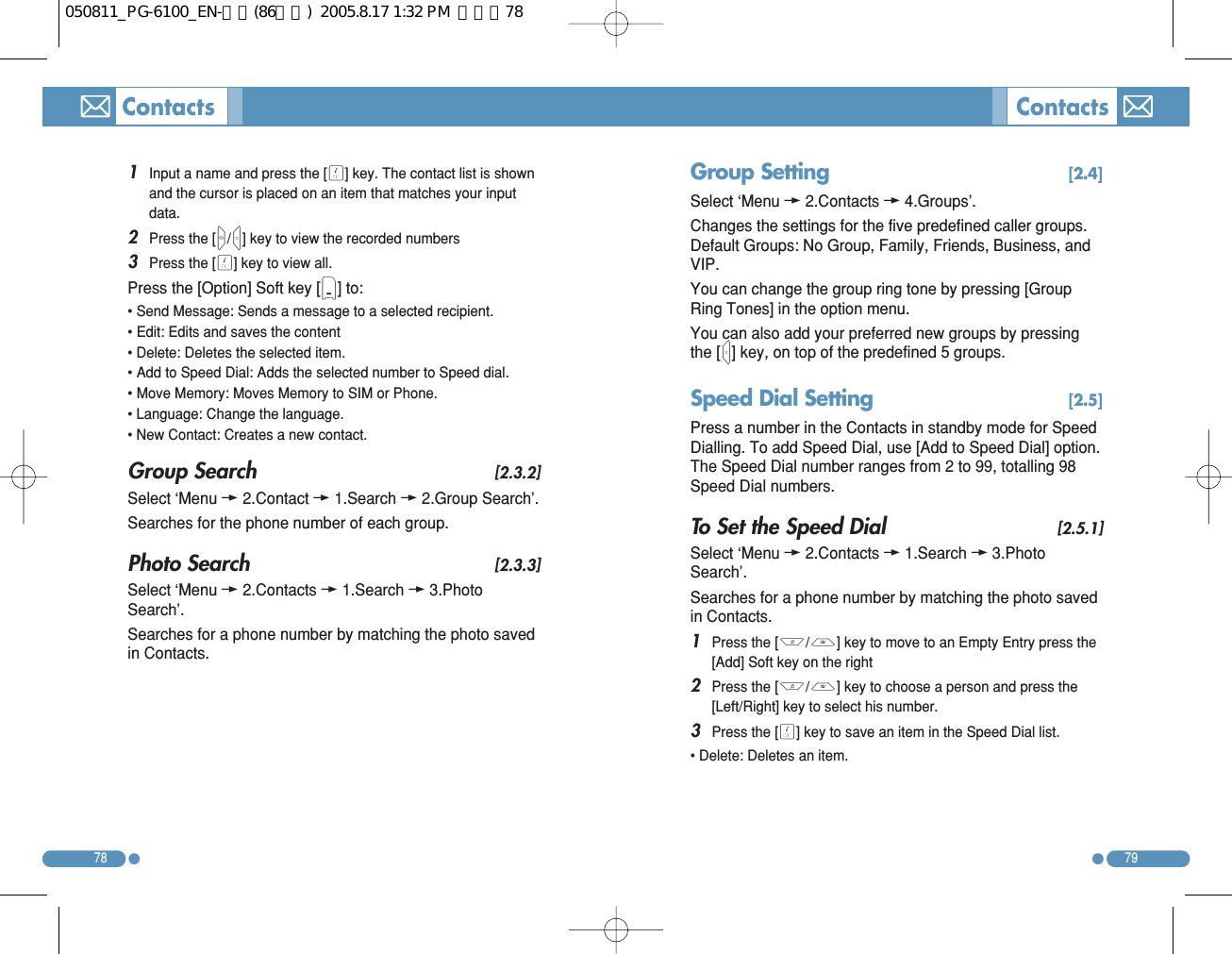

Group Setting [2.4]Select ‘Menu w2.Contacts w4.Groups’. Changes the settings for the five predefined caller groups.Default Groups: No Group, Family, Friends, Business, andVIP. You can change the group ring tone by pressing [GroupRing Tones] in the option menu. You can also add your preferred new groups by pressingthe [R] key, on top of the predefined 5 groups. Speed Dial Setting [2.5]Press a number in the Contacts in standby mode for SpeedDialling. To add Speed Dial, use [Add to Speed Dial] option.The Speed Dial number ranges from 2 to 99, totalling 98Speed Dial numbers. To Set the Speed Dial [2.5.1]Select ‘Menu w2.Contacts w1.Search w3.PhotoSearch’. Searches for a phone number by matching the photo savedin Contacts. 1Press the [U/D] key to move to an Empty Entry press the[Add] Soft key on the right 2Press the [U/D] key to choose a person and press the[Left/Right] key to select his number. 3Press the [O] key to save an item in the Speed Dial list. • Delete: Deletes an item. 79781Input a name and press the [O] key. The contact list is shownand the cursor is placed on an item that matches your inputdata. 2Press the [L/R] key to view the recorded numbers 3Press the [O] key to view all. Press the [Option] Soft key [(] to: • Send Message: Sends a message to a selected recipient. • Edit: Edits and saves the content • Delete: Deletes the selected item. • Add to Speed Dial: Adds the selected number to Speed dial. • Move Memory: Moves Memory to SIM or Phone. • Language: Change the language. • New Contact: Creates a new contact. Group Search [2.3.2]Select ‘Menu w2.Contact w1.Search w2.Group Search’. Searches for the phone number of each group. Photo Search [2.3.3]Select ‘Menu w2.Contacts w1.Search w3.PhotoSearch’. Searches for a phone number by matching the photo savedin Contacts. Contacts Contacts050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지78

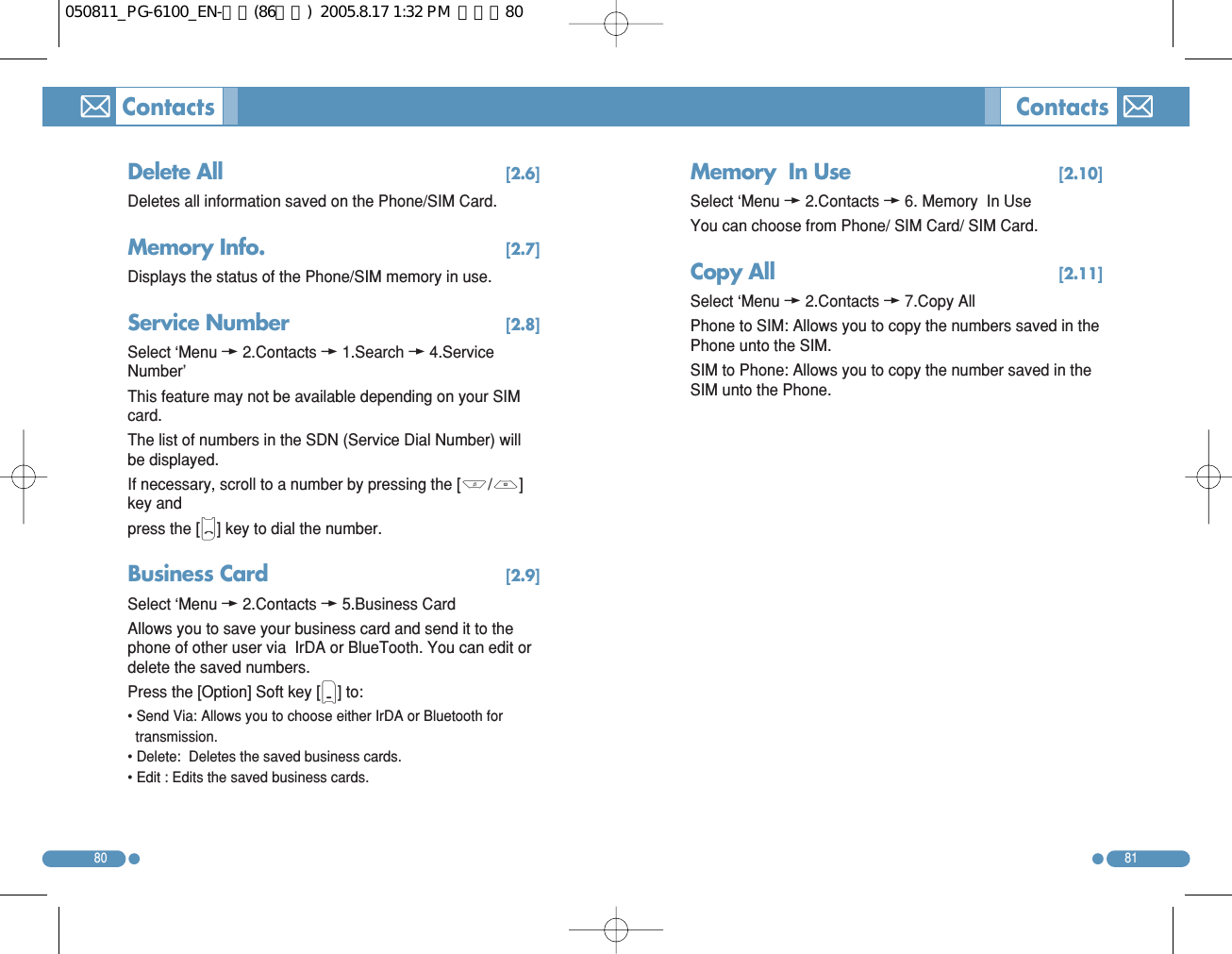

8180Delete All [2.6]Deletes all information saved on the Phone/SIM Card. Memory Info. [2.7]Displays the status of the Phone/SIM memory in use. Service Number [2.8]Select ‘Menu w2.Contacts w1.Search w4.ServiceNumber’ This feature may not be available depending on your SIMcard. The list of numbers in the SDN (Service Dial Number) willbe displayed. If necessary, scroll to a number by pressing the [U/D]key and press the [S] key to dial the number. Business Card [2.9]Select ‘Menu w2.Contacts w5.Business Card Allows you to save your business card and send it to thephone of other user via IrDA or BlueTooth. You can edit ordelete the saved numbers. Press the [Option] Soft key [(] to: • Send Via: Allows you to choose either IrDA or Bluetooth for transmission. • Delete: Deletes the saved business cards. • Edit : Edits the saved business cards. Contacts ContactsMemory In Use [2.10]Select ‘Menu w2.Contacts w6. Memory In Use You can choose from Phone/ SIM Card/ SIM Card. Copy All [2.11]Select ‘Menu w2.Contacts w7.Copy All Phone to SIM: Allows you to copy the numbers saved in thePhone unto the SIM. SIM to Phone: Allows you to copy the number saved in theSIM unto the Phone. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지80

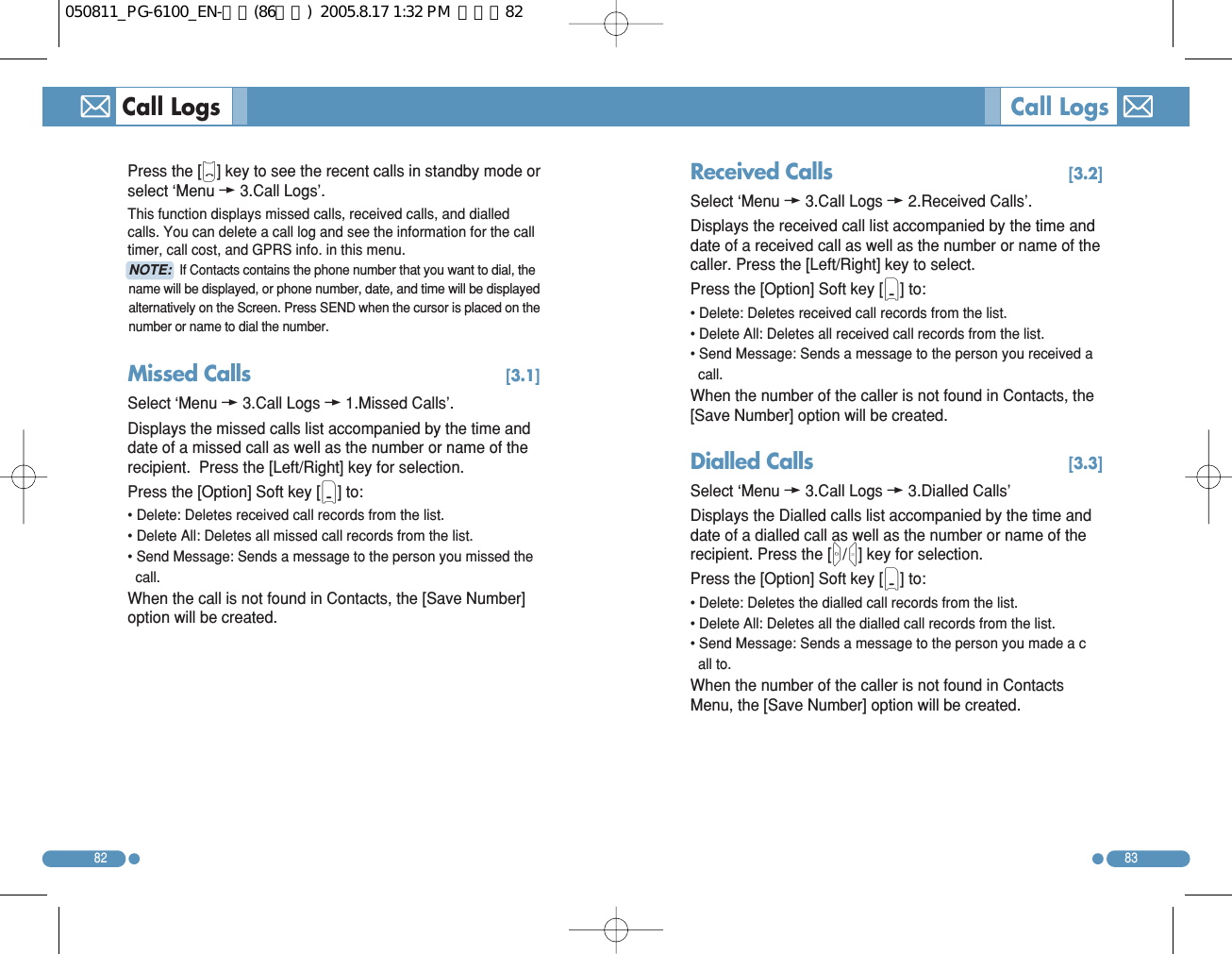

8382Press the [S] key to see the recent calls in standby mode orselect ‘Menu w3.Call Logs’. This function displays missed calls, received calls, and dialledcalls. You can delete a call log and see the information for the calltimer, call cost, and GPRS info. in this menu. Missed Calls [3.1]Select ‘Menu w3.Call Logs w1.Missed Calls’. Displays the missed calls list accompanied by the time anddate of a missed call as well as the number or name of therecipient. Press the [Left/Right] key for selection. Press the [Option] Soft key [(] to: • Delete: Deletes received call records from the list. • Delete All: Deletes all missed call records from the list. • Send Message: Sends a message to the person you missed the call. When the call is not found in Contacts, the [Save Number]option will be created. Call Logs Call LogsReceived Calls [3.2]Select ‘Menu w3.Call Logs w2.Received Calls’. Displays the received call list accompanied by the time anddate of a received call as well as the number or name of thecaller. Press the [Left/Right] key to select. Press the [Option] Soft key [(] to: • Delete: Deletes received call records from the list. • Delete All: Deletes all received call records from the list. • Send Message: Sends a message to the person you received a call.When the number of the caller is not found in Contacts, the[Save Number] option will be created. Dialled Calls [3.3]Select ‘Menu w3.Call Logs w3.Dialled Calls’ Displays the Dialled calls list accompanied by the time anddate of a dialled call as well as the number or name of therecipient. Press the [L/R] key for selection. Press the [Option] Soft key [(] to: • Delete: Deletes the dialled call records from the list.• Delete All: Deletes all the dialled call records from the list. • Send Message: Sends a message to the person you made a call to. When the number of the caller is not found in ContactsMenu, the [Save Number] option will be created. NOTE: If Contacts contains the phone number that you want to dial, thename will be displayed, or phone number, date, and time will be displayedalternatively on the Screen. Press SEND when the cursor is placed on thenumber or name to dial the number. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지82
Call Cost [3.6]Select ‘Menu w3.Call Logs w6.Call Cost’. Records information on call cost, and limits the call chargeto prevent overcharges. - Last Call Cost: Displays the cost of the last call. - Total Call Cost: Displays the cost of all calls. - Clear Logs: Inputs PIN2 to delete all the logs of call cost. - Max. Cost: Reads or sets up the maximum value of the call costunit in the service area. - Read Limit: Reads the maximum unit value. - Set Limit: Sets up the maximum units. - Cost Unit: Reads or sets up the unit defined in a service area.- Read Unit: Reads the cost unit. - Set Unit: Sets up the current cost unit and the cost per unit GPRS Info. [3.7]Select ‘Menu w3.Call Logs w7.GPRS Info.’. This displays the GPRS data transmission capacity. - Current Info.: Displays the total transmitted Kbytes at themoment. - Last Info.: Displays the total transmitted Kbytes in the past. - Total Info.: Displays the total transmitted Kbytes sinceconnected. - Clear Logs: Deletes the log related to GPRS. 8584Delete Call Logs [3.4]Select ‘Menu w3.Call Logs w4.Delete Call Logs’. It deletes the missed, received, or dialled calls or deletes allthe call records with ‘All Calls’. Press the [Yes] Soft key [(] or [No] Soft key [)] to executeor cancel this function. Call Timer [3.5]Select ‘Menu w3.Call Logs w5.Call Timer’. Indicates information on call time. - Last Call Time: Date and Time. - Received, Dialled, Total Call Time: Call Time only. - Reset Call Times: Initialises the call timer. Press the [O] key andinput the phone password. And then press the [O] key one moretime.Call Logs Call Logs050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지84

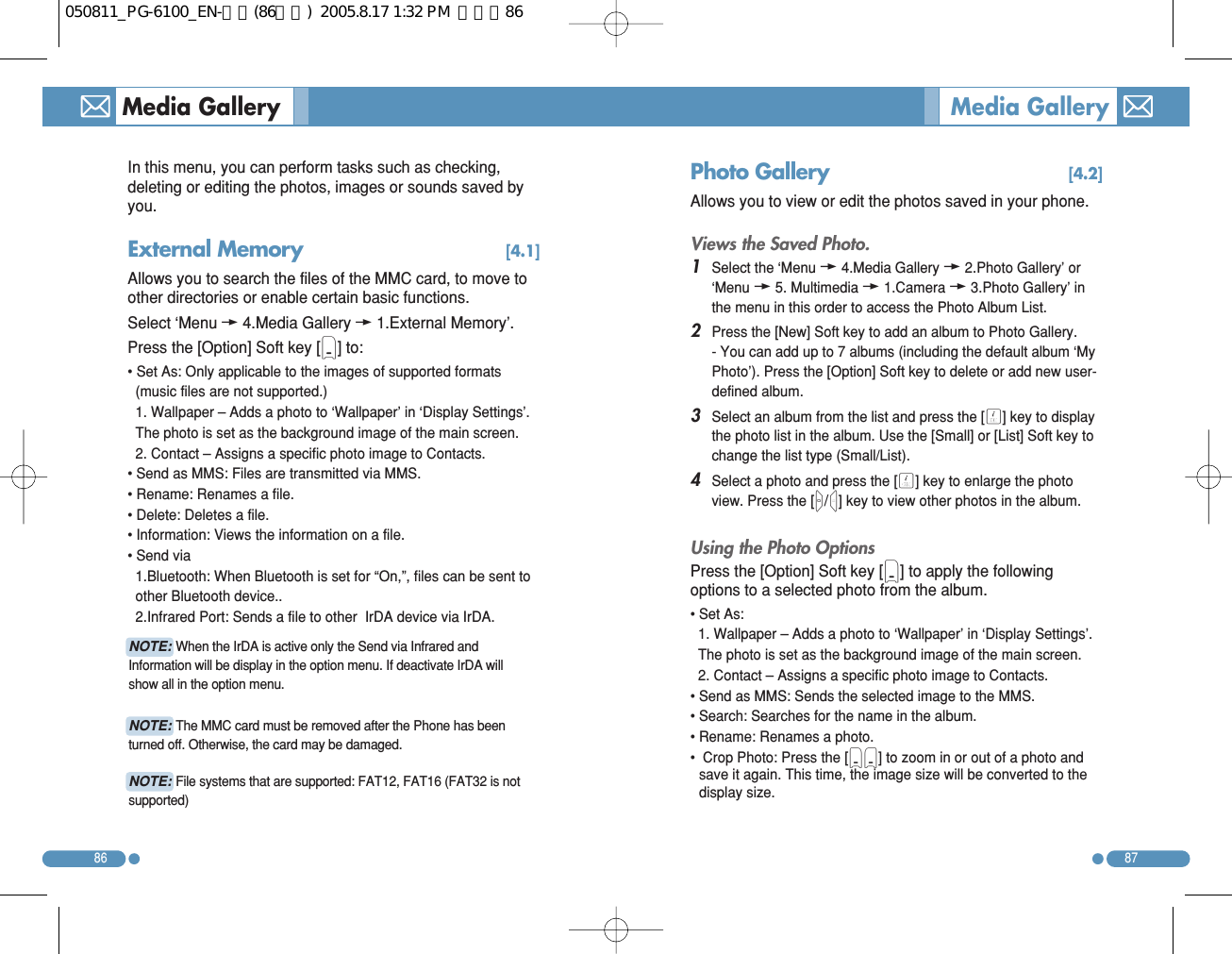

Photo Gallery [4.2]Allows you to view or edit the photos saved in your phone. Views the Saved Photo. 1Select the ‘Menuw4.Media Galleryw2.Photo Gallery’ or‘Menuw5. Multimediaw1.Cameraw3.Photo Gallery’ inthe menu in this order to access the Photo Album List. 2Press the [New] Soft key to add an album to Photo Gallery.- You can add up to 7 albums (including the default album ‘MyPhoto’). Press the [Option] Soft key to delete or add new user-defined album. 3Select an album from the list and press the [O] key to displaythe photo list in the album. Use the [Small] or [List] Soft key tochange the list type (Small/List). 4Select a photo and press the [O] key to enlarge the photoview. Press the [L/R] key to view other photos in the album. Using the Photo Options Press the [Option] Soft key [(] to apply the followingoptions to a selected photo from the album. • Set As: 1. Wallpaper – Adds a photo to ‘Wallpaper’ in ‘Display Settings’. The photo is set as the background image of the main screen. 2. Contact – Assigns a specific photo image to Contacts. • Send as MMS: Sends the selected image to the MMS. • Search: Searches for the name in the album. • Rename: Renames a photo. • Crop Photo: Press the [()] to zoom in or out of a photo andsave it again. This time, the image size will be converted to thedisplay size. 8786In this menu, you can perform tasks such as checking,deleting or editing the photos, images or sounds saved byyou. External Memory [4.1]Allows you to search the files of the MMC card, to move toother directories or enable certain basic functions. Select ‘Menu w4.Media Gallery w1.External Memory’. Press the [Option] Soft key [(] to: • Set As: Only applicable to the images of supported formats (music files are not supported.) 1. Wallpaper – Adds a photo to ‘Wallpaper’ in ‘Display Settings’. The photo is set as the background image of the main screen. 2. Contact – Assigns a specific photo image to Contacts. • Send as MMS: Files are transmitted via MMS. • Rename: Renames a file. • Delete: Deletes a file. • Information: Views the information on a file. • Send via 1.Bluetooth: When Bluetooth is set for “On,”, files can be sent to other Bluetooth device.. 2.Infrared Port: Sends a file to other IrDA device via IrDA. Media Gallery Media Gallery NOTE:When the IrDA is active only the Send via Infrared andInformation will be display in the option menu. If deactivate IrDA willshow all in the option menu. NOTE:The MMC card must be removed after the Phone has beenturned off. Otherwise, the card may be damaged. NOTE:File systems that are supported: FAT12, FAT16 (FAT32 is notsupported)050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지86

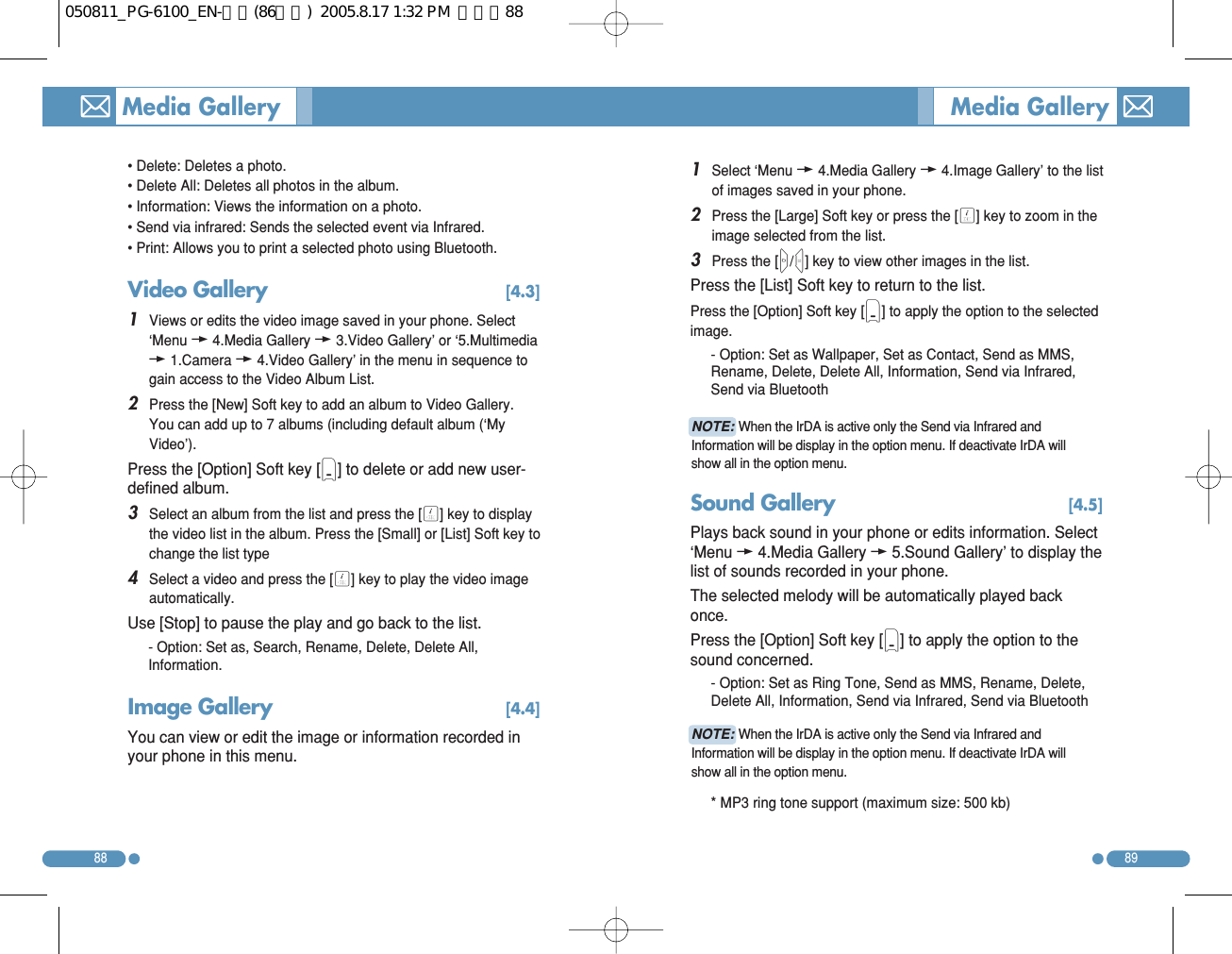

1Select ‘Menuw4.Media Galleryw4.Image Gallery’ to the listof images saved in your phone. 2Press the [Large] Soft key or press the [O] key to zoom in theimage selected from the list. 3Press the [L/R] key to view other images in the list. Press the [List] Soft key to return to the list. Press the [Option] Soft key [(] to apply the option to the selectedimage. - Option: Set as Wallpaper, Set as Contact, Send as MMS,Rename, Delete, Delete All, Information, Send via Infrared,Send via Bluetooth Sound Gallery [4.5]Plays back sound in your phone or edits information. Select‘Menu w4.Media Gallery w5.Sound Gallery’ to display thelist of sounds recorded in your phone. The selected melody will be automatically played backonce. Press the [Option] Soft key [(] to apply the option to thesound concerned. - Option: Set as Ring Tone, Send as MMS, Rename, Delete,Delete All, Information, Send via Infrared, Send via Bluetooth * MP3 ring tone support (maximum size: 500 kb) 8988• Delete: Deletes a photo. • Delete All: Deletes all photos in the album. • Information: Views the information on a photo. • Send via infrared: Sends the selected event via Infrared. • Print: Allows you to print a selected photo using Bluetooth. Video Gallery [4.3]1Views or edits the video image saved in your phone. Select‘Menuw4.Media Galleryw3.Video Gallery’ or ‘5.Multimediaw1.Cameraw4.Video Gallery’ in the menu in sequence togain access to the Video Album List. 2Press the [New] Soft key to add an album to Video Gallery.You can add up to 7 albums (including default album (‘MyVideo’). Press the [Option] Soft key [(] to delete or add new user-defined album. 3Select an album from the list and press the [O] key to displaythe video list in the album. Press the [Small] or [List] Soft key tochange the list type 4Select a video and press the [O] key to play the video imageautomatically. Use [Stop] to pause the play and go back to the list. - Option: Set as, Search, Rename, Delete, Delete All,Information. Image Gallery [4.4]You can view or edit the image or information recorded inyour phone in this menu. Media Gallery Media Gallery NOTE:When the IrDA is active only the Send via Infrared andInformation will be display in the option menu. If deactivate IrDA willshow all in the option menu. NOTE:When the IrDA is active only the Send via Infrared andInformation will be display in the option menu. If deactivate IrDA willshow all in the option menu. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지88

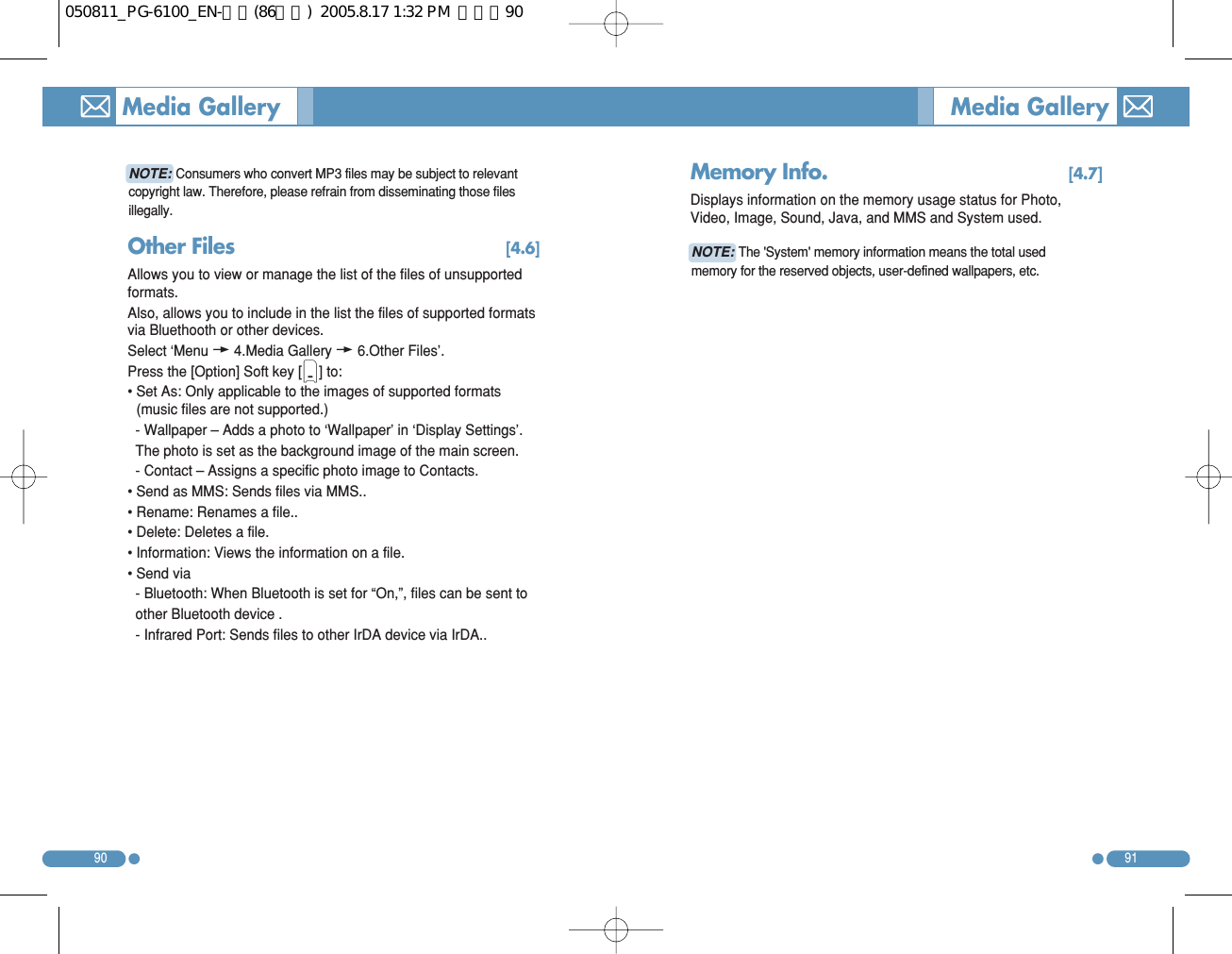

9190Media Gallery Media Gallery Other Files [4.6]Allows you to view or manage the list of the files of unsupportedformats. Also, allows you to include in the list the files of supported formatsvia Bluethooth or other devices. Select ‘Menuw4.Media Galleryw6.Other Files’. Press the [Option] Soft key [(] to: • Set As: Only applicable to the images of supported formats(music files are not supported.) - Wallpaper – Adds a photo to ‘Wallpaper’ in ‘Display Settings’. The photo is set as the background image of the main screen. - Contact – Assigns a specific photo image to Contacts. • Send as MMS: Sends files via MMS.. • Rename: Renames a file.. • Delete: Deletes a file. • Information: Views the information on a file. • Send via - Bluetooth: When Bluetooth is set for “On,”, files can be sent to other Bluetooth device . - Infrared Port: Sends files to other IrDA device via IrDA.. Memory Info. [4.7]Displays information on the memory usage status for Photo,Video, Image, Sound, Java, and MMS and System used. NOTE:Consumers who convert MP3 files may be subject to relevantcopyright law. Therefore, please refrain from disseminating those filesillegally. NOTE:The 'System' memory information means the total usedmemory for the reserved objects, user-defined wallpapers, etc. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지90

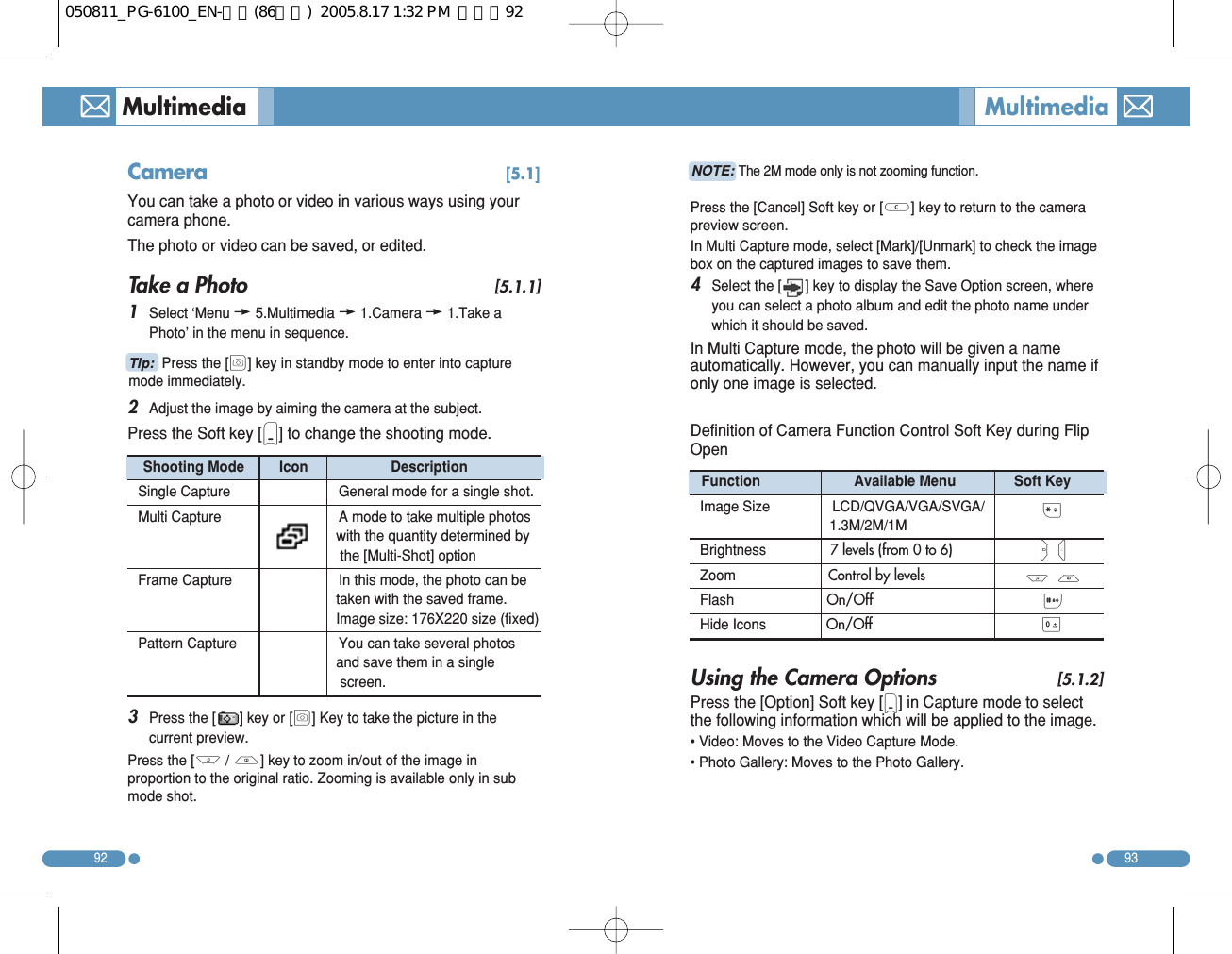

Press the [Cancel] Soft key or [C] key to return to the camerapreview screen. In Multi Capture mode, select [Mark]/[Unmark] to check the imagebox on the captured images to save them. 4Select the [ ] key to display the Save Option screen, whereyou can select a photo album and edit the photo name underwhich it should be saved. In Multi Capture mode, the photo will be given a nameautomatically. However, you can manually input the name ifonly one image is selected. Definition of Camera Function Control Soft Key during FlipOpen Using the Camera Options [5.1.2]Press the [Option] Soft key [(] in Capture mode to selectthe following information which will be applied to the image. • Video: Moves to the Video Capture Mode. • Photo Gallery: Moves to the Photo Gallery. 9392Camera [5.1]You can take a photo or video in various ways using yourcamera phone. The photo or video can be saved, or edited. Take a Photo [5.1.1]1Select ‘Menuw5.Multimediaw1.Cameraw1.Take aPhoto’ in the menu in sequence. 2Adjust the image by aiming the camera at the subject. Press the Soft key [)] to change the shooting mode. 3Press the [ ] key or [c] Key to take the picture in thecurrent preview. Press the [U/ D] key to zoom in/out of the image inproportion to the original ratio. Zooming is available only in submode shot. Multimedia Multimedia Tip: Press the [c] key in standby mode to enter into capturemode immediately. Shooting Mode Icon Description Single Capture General mode for a single shot. Multi Capture A mode to take multiple photoswith the quantity determined bythe [Multi-Shot] option Frame Capture In this mode, the photo can betaken with the saved frame.Image size: 176X220 size (fixed)Pattern Capture You can take several photosand save them in a singlescreen. Function Available Menu Soft Key Image Size LCD/QVGA/VGA/SVGA/1.3M/2M/1M Brightness 7 levels (from 0 to 6) Zoom Control by levels Flash On/Off Hide Icons On/Off NOTE:The 2M mode only is not zooming function. *L RU D#0050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지92

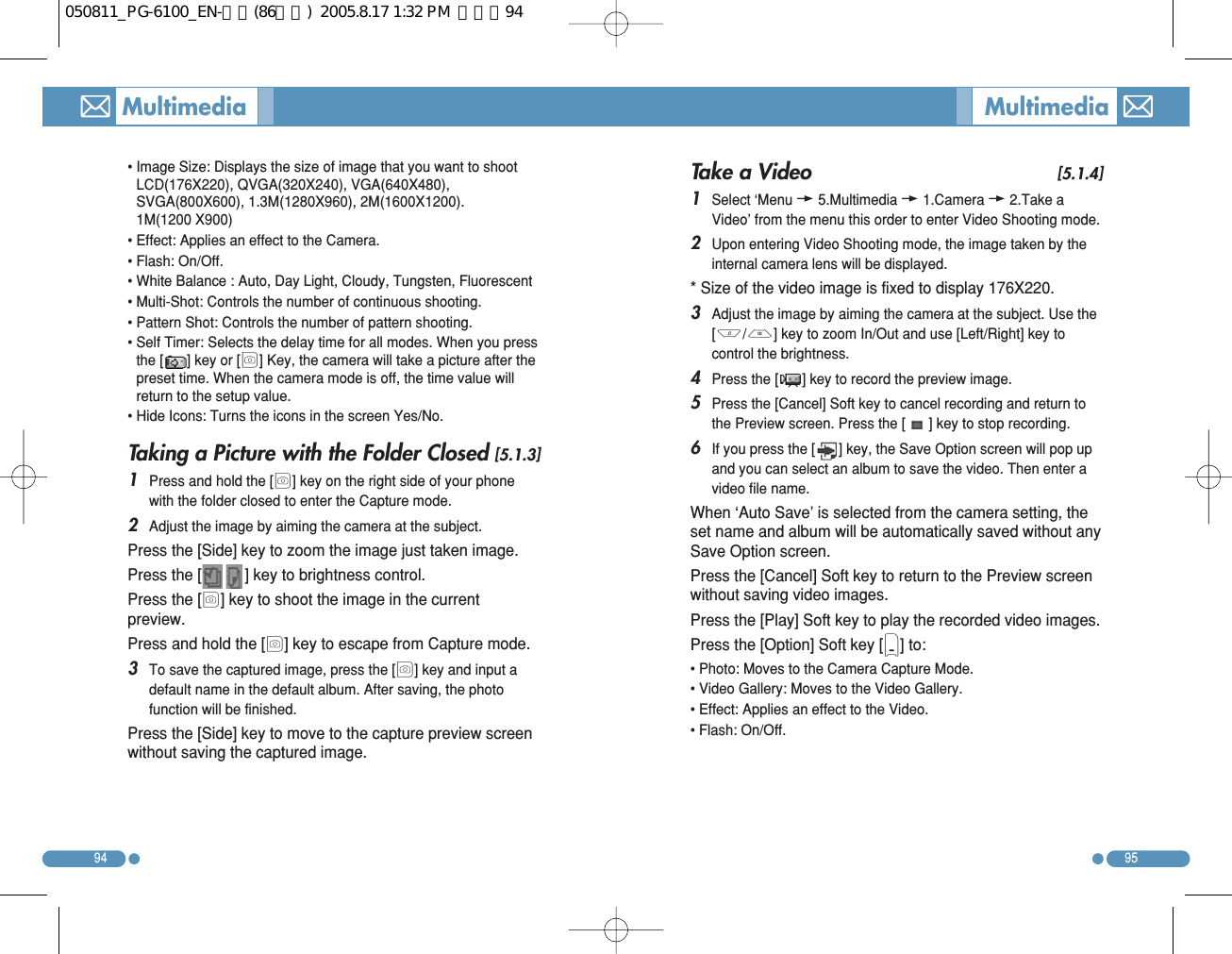

Take a Video [5.1.4]1Select ‘Menuw5.Multimediaw1.Cameraw2.Take aVideo’ from the menu this order to enter Video Shooting mode. 2Upon entering Video Shooting mode, the image taken by theinternal camera lens will be displayed. * Size of the video image is fixed to display 176X220. 3Adjust the image by aiming the camera at the subject. Use the[U/D] key to zoom In/Out and use [Left/Right] key tocontrol the brightness. 4Press the [ ] key to record the preview image. 5Press the [Cancel] Soft key to cancel recording and return tothe Preview screen. Press the [ ] key to stop recording. 6If you press the [ ] key, the Save Option screen will pop upand you can select an album to save the video. Then enter avideo file name. When ‘Auto Save’ is selected from the camera setting, theset name and album will be automatically saved without anySave Option screen. Press the [Cancel] Soft key to return to the Preview screenwithout saving video images. Press the [Play] Soft key to play the recorded video images. Press the [Option] Soft key [(] to: • Photo: Moves to the Camera Capture Mode. • Video Gallery: Moves to the Video Gallery. • Effect: Applies an effect to the Video. • Flash: On/Off. 9594Multimedia Multimedia • Image Size: Displays the size of image that you want to shootLCD(176X220), QVGA(320X240), VGA(640X480),SVGA(800X600), 1.3M(1280X960), 2M(1600X1200).1M(1200 X900) • Effect: Applies an effect to the Camera. • Flash: On/Off. • White Balance : Auto, Day Light, Cloudy, Tungsten, Fluorescent • Multi-Shot: Controls the number of continuous shooting. • Pattern Shot: Controls the number of pattern shooting. • Self Timer: Selects the delay time for all modes. When you pressthe [ ] key or [c] Key, the camera will take a picture after thepreset time. When the camera mode is off, the time value willreturn to the setup value. • Hide Icons: Turns the icons in the screen Yes/No. Taking a Picture with the Folder Closed [5.1.3]1Press and hold the [c] key on the right side of your phonewith the folder closed to enter the Capture mode. 2Adjust the image by aiming the camera at the subject. Press the [Side] key to zoom the image just taken image. Press the [ ] key to brightness control. Press the [c] key to shoot the image in the currentpreview. Press and hold the [c] key to escape from Capture mode. 3To save the captured image, press the [c] key and input adefault name in the default album. After saving, the photofunction will be finished. Press the [Side] key to move to the capture preview screenwithout saving the captured image. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지94

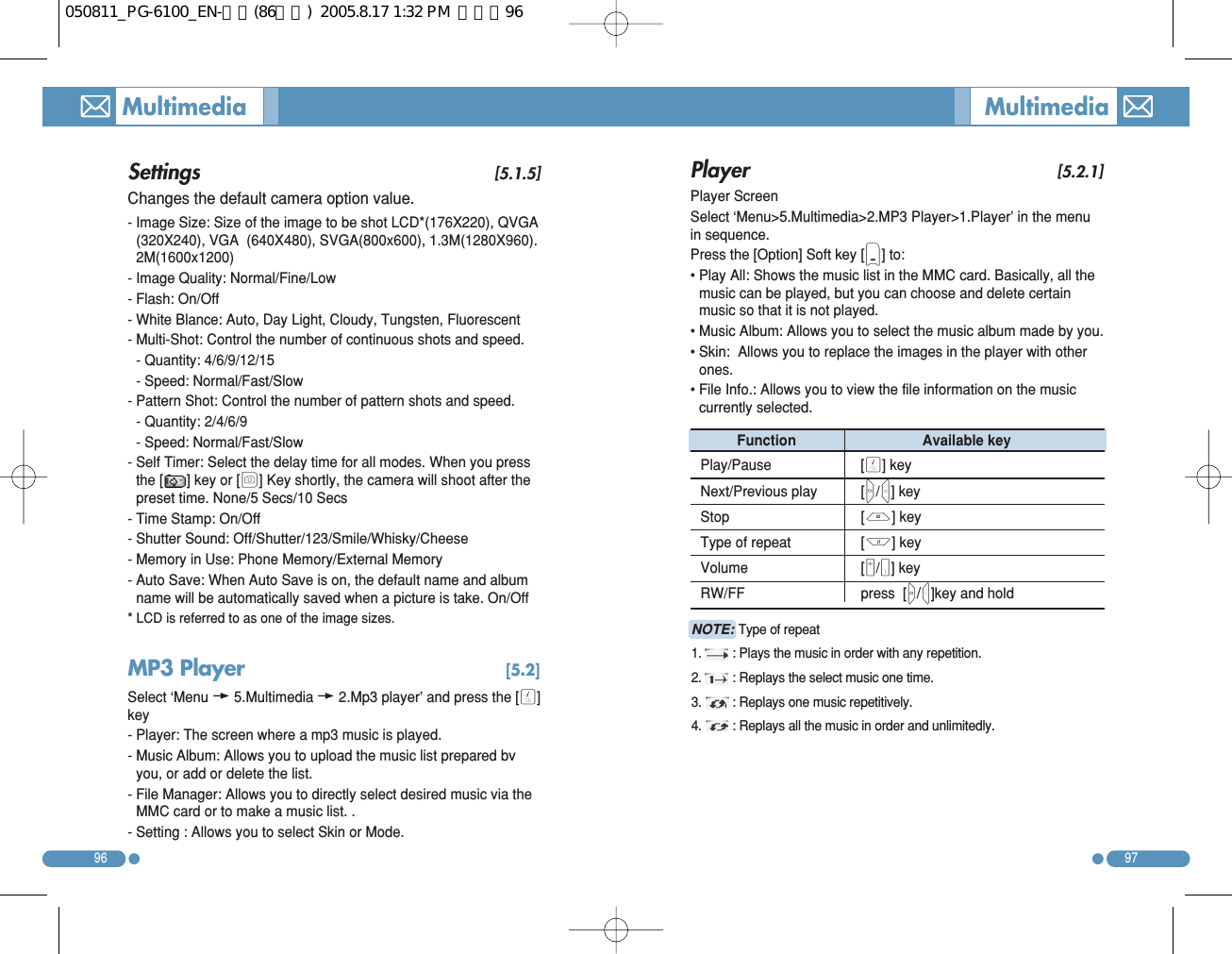

Settings [5.1.5]Changes the default camera option value. - Image Size: Size of the image to be shot LCD*(176X220), QVGA(320X240), VGA (640X480), SVGA(800x600), 1.3M(1280X960).2M(1600x1200) - Image Quality: Normal/Fine/Low - Flash: On/Off - White Blance: Auto, Day Light, Cloudy, Tungsten, Fluorescent - Multi-Shot: Control the number of continuous shots and speed. - Quantity: 4/6/9/12/15 - Speed: Normal/Fast/Slow - Pattern Shot: Control the number of pattern shots and speed. - Quantity: 2/4/6/9 - Speed: Normal/Fast/Slow - Self Timer: Select the delay time for all modes. When you pressthe [ ] key or [c] Key shortly, the camera will shoot after thepreset time. None/5 Secs/10 Secs - Time Stamp: On/Off - Shutter Sound: Off/Shutter/123/Smile/Whisky/Cheese - Memory in Use: Phone Memory/External Memory - Auto Save: When Auto Save is on, the default name and albumname will be automatically saved when a picture is take. On/Off * LCD is referred to as one of the image sizes. MP3 Player [5.2]Select ‘Menuw5.Multimediaw2.Mp3 player’ and press the [O]key - Player: The screen where a mp3 music is played. - Music Album: Allows you to upload the music list prepared bvyou, or add or delete the list. - File Manager: Allows you to directly select desired music via theMMC card or to make a music list. . - Setting : Allows you to select Skin or Mode. 9796Multimedia Multimedia Player [5.2.1]Player Screen Select ‘Menu>5.Multimedia>2.MP3 Player>1.Player’ in the menuin sequence. Press the [Option] Soft key [(] to: • Play All: Shows the music list in the MMC card. Basically, all themusic can be played, but you can choose and delete certainmusic so that it is not played. • Music Album: Allows you to select the music album made by you. • Skin: Allows you to replace the images in the player with otherones. • File Info.: Allows you to view the file information on the musiccurrently selected. Function Available key Play/Pause [O] key Next/Previous play [L/R] key Stop [D] key Type of repeat [U] key Volume [M/N] key RW/FF press [L/R]key and hold NOTE:Type of repeat 1. : Plays the music in order with any repetition. 2. : Replays the select music one time. 3. : Replays one music repetitively. 4. : Replays all the music in order and unlimitedly. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지96

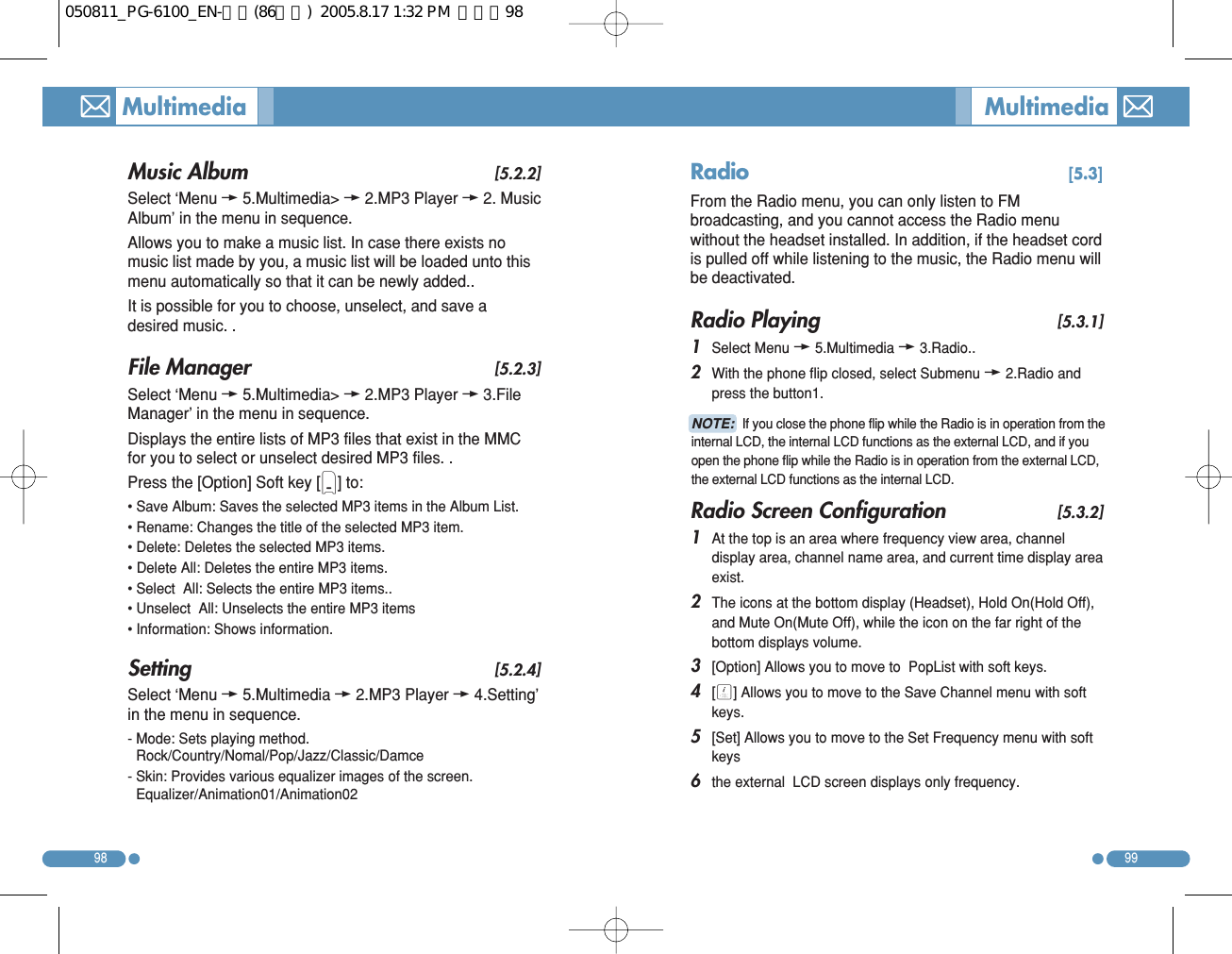

Music Album [5.2.2]Select ‘Menu w5.Multimedia> w2.MP3 Player w2. MusicAlbum’ in the menu in sequence. Allows you to make a music list. In case there exists nomusic list made by you, a music list will be loaded unto thismenu automatically so that it can be newly added.. It is possible for you to choose, unselect, and save adesired music. . File Manager [5.2.3]Select ‘Menu w5.Multimedia> w2.MP3 Player w3.FileManager’ in the menu in sequence. Displays the entire lists of MP3 files that exist in the MMCfor you to select or unselect desired MP3 files. . Press the [Option] Soft key [(] to: • Save Album: Saves the selected MP3 items in the Album List. • Rename: Changes the title of the selected MP3 item. • Delete: Deletes the selected MP3 items. • Delete All: Deletes the entire MP3 items. • Select All: Selects the entire MP3 items.. • Unselect All: Unselects the entire MP3 items • Information: Shows information. Setting [5.2.4]Select ‘Menu w5.Multimedia w2.MP3 Player w4.Setting’in the menu in sequence. - Mode: Sets playing method.Rock/Country/Nomal/Pop/Jazz/Classic/Damce - Skin: Provides various equalizer images of the screen.Equalizer/Animation01/Animation02 9998Radio [5.3]From the Radio menu, you can only listen to FMbroadcasting, and you cannot access the Radio menuwithout the headset installed. In addition, if the headset cordis pulled off while listening to the music, the Radio menu willbe deactivated. Radio Playing [5.3.1]1Select Menuw5.Multimediaw3.Radio.. 2With the phone flip closed, select Submenuw2.Radio andpress the button1. Radio Screen Configuration [5.3.2]1At the top is an area where frequency view area, channeldisplay area, channel name area, and current time display areaexist. 2The icons at the bottom display (Headset), Hold On(Hold Off),and Mute On(Mute Off), while the icon on the far right of thebottom displays volume. 3[Option] Allows you to move to PopList with soft keys. 4[O] Allows you to move to the Save Channel menu with softkeys. 5[Set] Allows you to move to the Set Frequency menu with softkeys 6the external LCD screen displays only frequency. Multimedia Multimedia NOTE: If you close the phone flip while the Radio is in operation from theinternal LCD, the internal LCD functions as the external LCD, and if youopen the phone flip while the Radio is in operation from the external LCD,the external LCD functions as the internal LCD. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지98

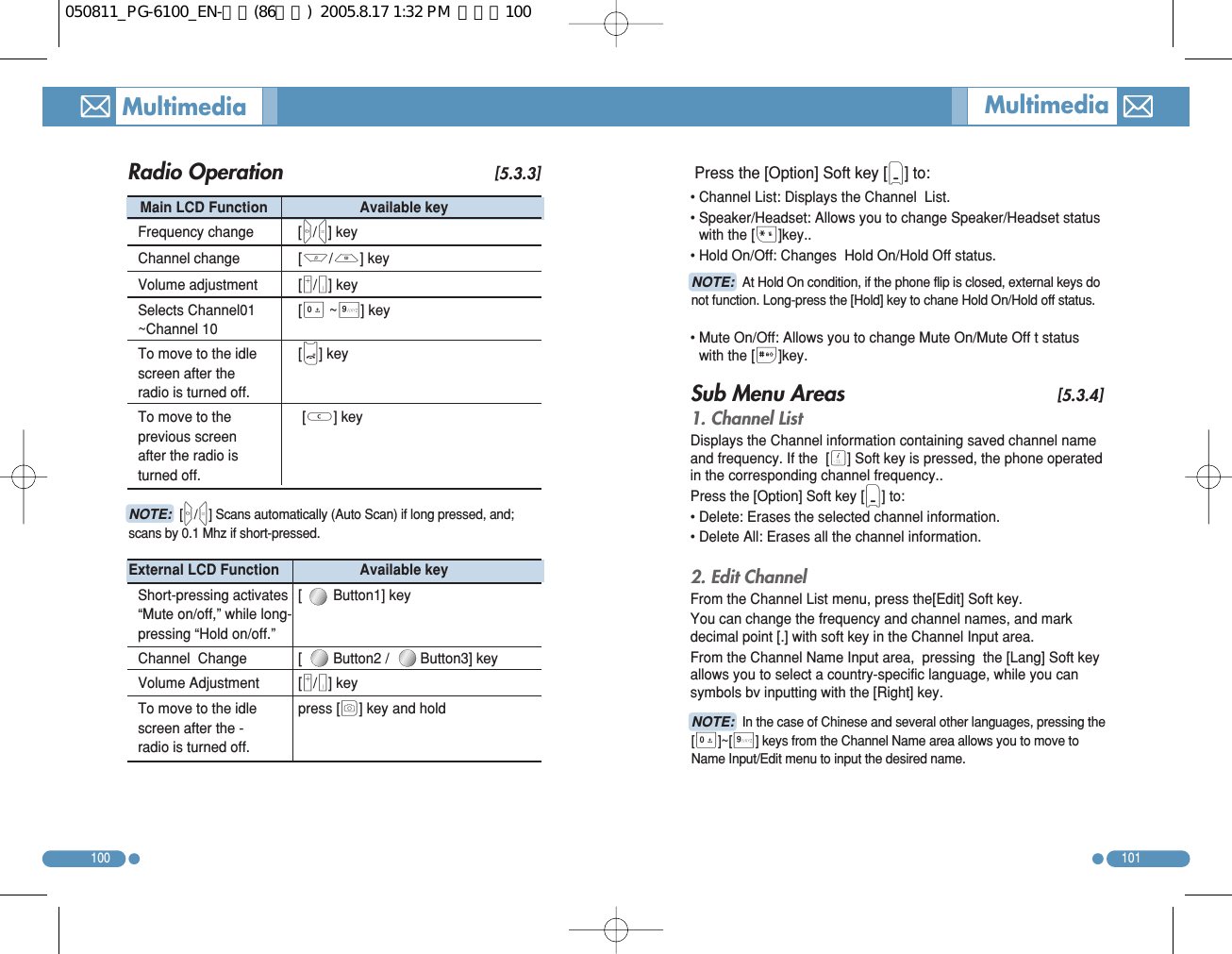

Radio Operation [5.3.3]101100Multimedia Multimedia Press the [Option] Soft key [(] to: • Channel List: Displays the Channel List. • Speaker/Headset: Allows you to change Speaker/Headset statuswith the [*]key.. • Hold On/Off: Changes Hold On/Hold Off status. • Mute On/Off: Allows you to change Mute On/Mute Off t statuswith the [#]key. Sub Menu Areas [5.3.4]1. Channel List Displays the Channel information containing saved channel nameand frequency. If the [O] Soft key is pressed, the phone operatedin the corresponding channel frequency.. Press the [Option] Soft key [(] to: • Delete: Erases the selected channel information. • Delete All: Erases all the channel information. 2. Edit Channel From the Channel List menu, press the[Edit] Soft key. You can change the frequency and channel names, and markdecimal point [.] with soft key in the Channel Input area.From the Channel Name Input area, pressing the [Lang] Soft keyallows you to select a country-specific language, while you cansymbols bv inputting with the [Right] key. Main LCD Function Available key Frequency change [L/R] key Channel change [U/D] key Volume adjustment [M/N] key Selects Channel01 [0~9] key ~Channel 10 To move to the idle [E] key screen after the radio is turned off. To move to the [C] key previous screen after the radio is turned off. External LCD Function Available key Short-pressing activates [ Button1] key “Mute on/off,” while long- pressing “Hold on/off.” Channel Change [ Button2 / Button3] key Volume Adjustment [M/N] key To move to the idle press [c] key and hold screen after the - radio is turned off. NOTE: [L/R] Scans automatically (Auto Scan) if long pressed, and;scans by 0.1 Mhz if short-pressed. NOTE: At Hold On condition, if the phone flip is closed, external keys donot function. Long-press the [Hold] key to chane Hold On/Hold off status. NOTE: In the case of Chinese and several other languages, pressing the[0]~[9] keys from the Channel Name area allows you to move toName Input/Edit menu to input the desired name. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지100
3. Save Channel From the Radio Main menu, pressing the [ ] soft key allows youto save the scanned frequency and channel names and displaythe saved channel information.. You can change the channel name by moving to the Name Inputmenu with the [Rename] Soft key. 4. Set Frequency; From the Radio Main menu, pressing the [Set] Soft key allowsyou to input desired frequency. . The decimal point [.] can be marked with the soft key. Games [5.4]The phone offers you the game(s) to play with. Each game has ‘Help’ menu to explain the controls keys. The control keys are different depending on a game. Java [5.5]You can download and execute a java game game on yourphone. Use the WAP browser to search for a java game anddownload it for installation. * A java game is not installed in the current model. Pleasedownload it as required. View of Java Game List [5.5.1]Select ‘Menu w5.Multimedia w5.Java’ in the menu toselect a Java menu. Select ‘1.Games’ to view the Java Application list stored inyour phone. 103102Multimedia Multimedia NOTE: ‘Automatic’ selects the language previously stored in your SIM.Java Game Execution/Deletion/InformationSearch [5.5.2]Select ‘Menu w5. Multimedia w5.Java’ in the menu toselect a Java menu. Select ‘1.Games’ to view the JavaGame list stored in your phone. Press the Navigation key to select an game. The Menu has an option to control the game. View the Java Application Memory [5.5.3]Select ‘2.Memory Info.’ to see the memory used. To: Press: Run the game Press the [Option] Soft key [(] andselect the [Run] Soft key, or press the[O] key View Detail Information Press the [Option] Soft key [(] andselect the [Info.] Soft key, or press the[)] Soft key. Delete the game Press the [Option] Soft key [(] andselect the [Delete] Soft key. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지102

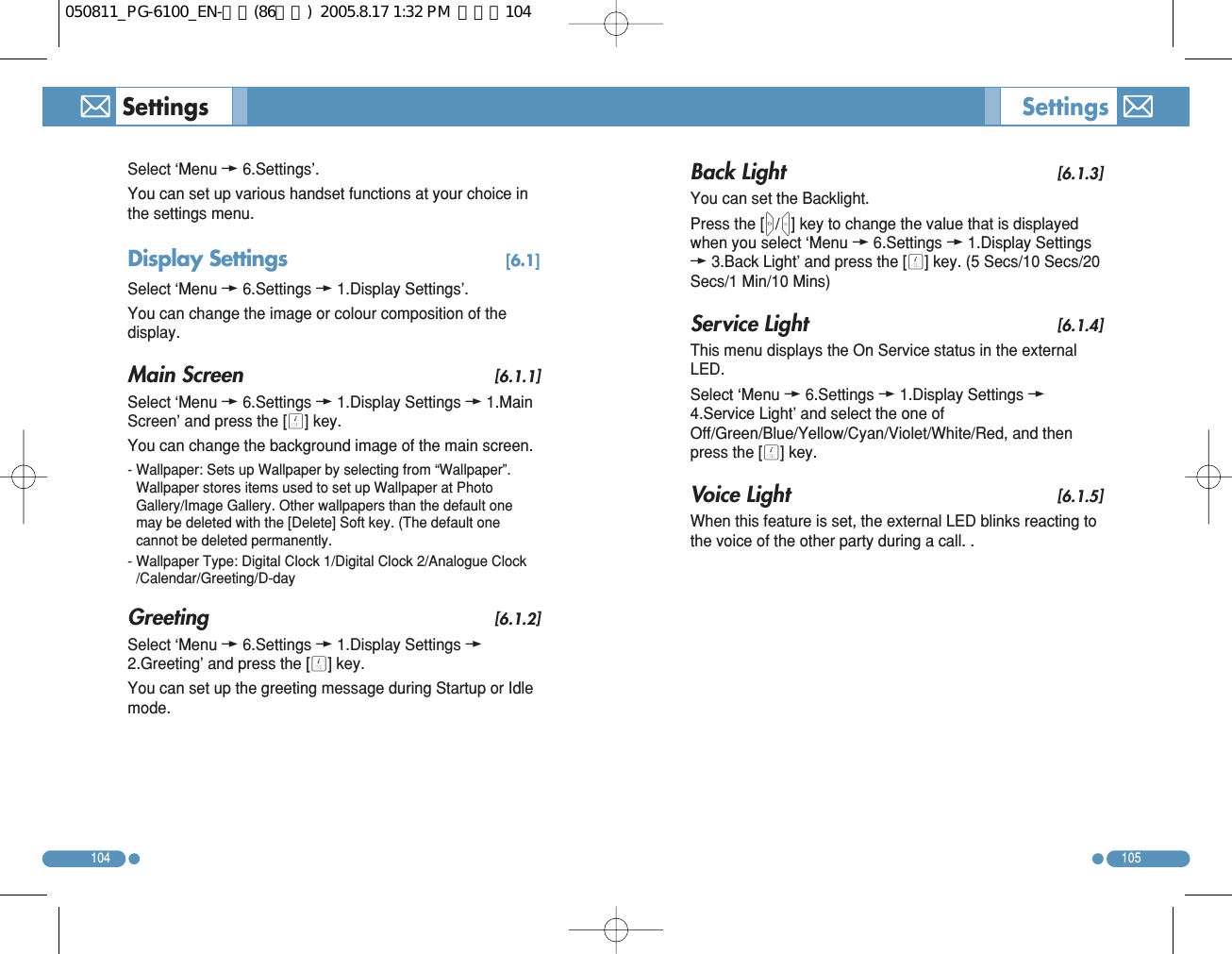

Back Light [6.1.3]You can set the Backlight. Press the [L/R] key to change the value that is displayedwhen you select ‘Menu w6.Settings w1.Display Settingsw3.Back Light’ and press the [O] key. (5 Secs/10 Secs/20Secs/1 Min/10 Mins) Service Light [6.1.4]This menu displays the On Service status in the externalLED. Select ‘Menu w6.Settings w1.Display Settings w4.Service Light’ and select the one ofOff/Green/Blue/Yellow/Cyan/Violet/White/Red, and thenpress the [O] key. Voice Light [6.1.5]When this feature is set, the external LED blinks reacting tothe voice of the other party during a call. . 105104Select ‘Menu w6.Settings’. You can set up various handset functions at your choice inthe settings menu. Display Settings [6.1]Select ‘Menu w6.Settings w1.Display Settings’. You can change the image or colour composition of thedisplay. Main Screen [6.1.1]Select ‘Menu w6.Settings w1.Display Settings w1.MainScreen’ and press the [O] key. You can change the background image of the main screen. - Wallpaper: Sets up Wallpaper by selecting from “Wallpaper”.Wallpaper stores items used to set up Wallpaper at PhotoGallery/Image Gallery. Other wallpapers than the default onemay be deleted with the [Delete] Soft key. (The default onecannot be deleted permanently. - Wallpaper Type: Digital Clock 1/Digital Clock 2/Analogue Clock/Calendar/Greeting/D-day Greeting [6.1.2]Select ‘Menu w6.Settings w1.Display Settings w2.Greeting’ and press the [O] key. You can set up the greeting message during Startup or Idlemode. Settings Settings 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지104

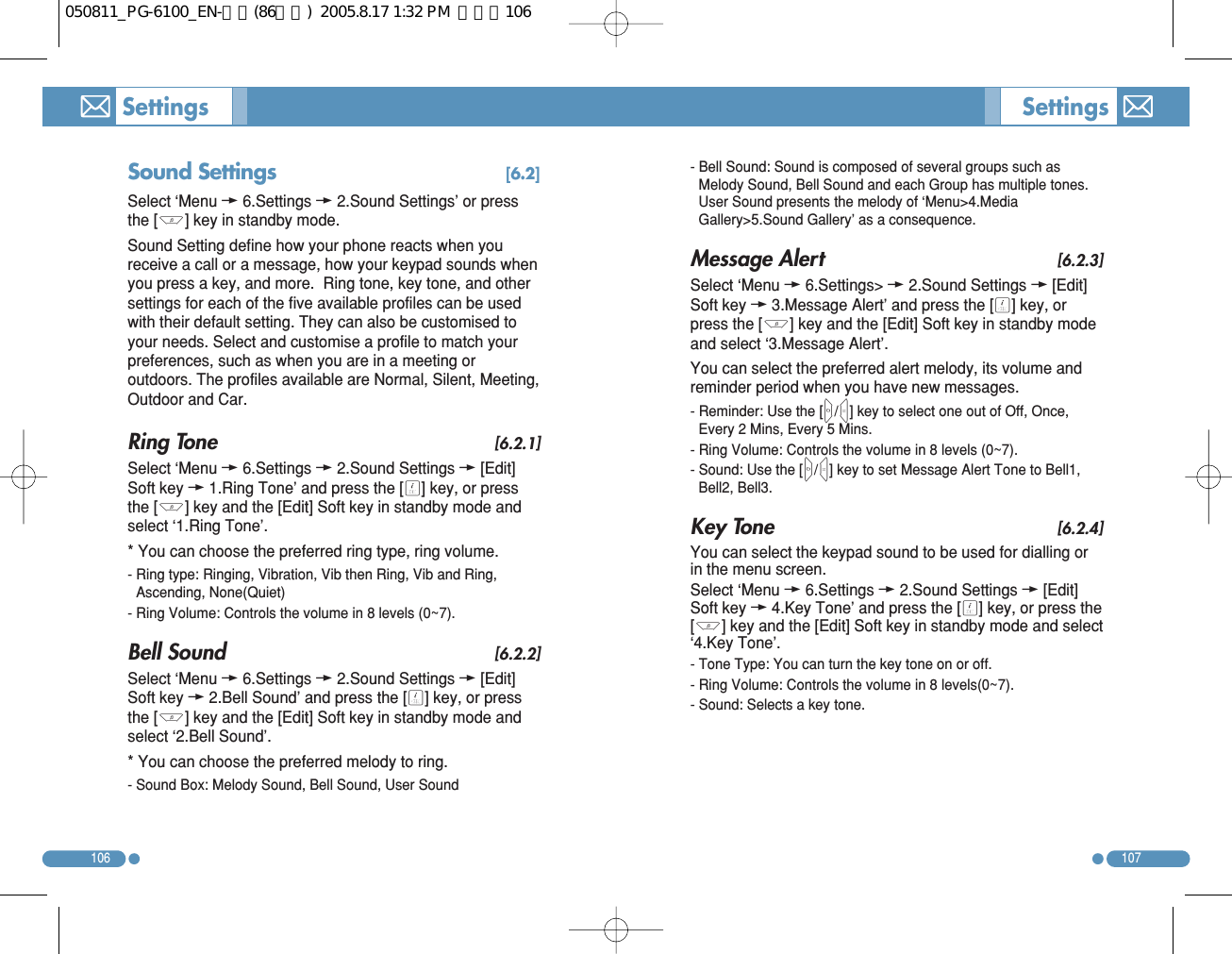

- Bell Sound: Sound is composed of several groups such asMelody Sound, Bell Sound and each Group has multiple tones.User Sound presents the melody of ‘Menu>4.MediaGallery>5.Sound Gallery’ as a consequence. Message Alert [6.2.3]Select ‘Menu w6.Settings> w2.Sound Settings w[Edit]Soft key w3.Message Alert’ and press the [O] key, orpress the [U] key and the [Edit] Soft key in standby modeand select ‘3.Message Alert’. You can select the preferred alert melody, its volume andreminder period when you have new messages. - Reminder: Use the [L/R] key to select one out of Off, Once,Every 2 Mins, Every 5 Mins. - Ring Volume: Controls the volume in 8 levels (0~7). - Sound: Use the [L/R] key to set Message Alert Tone to Bell1,Bell2, Bell3. Key Tone [6.2.4]You can select the keypad sound to be used for dialling orin the menu screen. Select ‘Menu w6.Settings w2.Sound Settings w[Edit]Soft key w4.Key Tone’ and press the [O] key, or press the[U] key and the [Edit] Soft key in standby mode and select‘4.Key Tone’. - Tone Type: You can turn the key tone on or off. - Ring Volume: Controls the volume in 8 levels(0~7). - Sound: Selects a key tone. 107106Sound Settings [6.2]Select ‘Menu w6.Settings w2.Sound Settings’ or pressthe [U] key in standby mode. Sound Setting define how your phone reacts when youreceive a call or a message, how your keypad sounds whenyou press a key, and more. Ring tone, key tone, and othersettings for each of the five available profiles can be usedwith their default setting. They can also be customised toyour needs. Select and customise a profile to match yourpreferences, such as when you are in a meeting oroutdoors. The profiles available are Normal, Silent, Meeting,Outdoor and Car. Ring Tone [6.2.1]Select ‘Menu w6.Settings w2.Sound Settings w[Edit]Soft key w1.Ring Tone’ and press the [O] key, or pressthe [U] key and the [Edit] Soft key in standby mode andselect ‘1.Ring Tone’. * You can choose the preferred ring type, ring volume. - Ring type: Ringing, Vibration, Vib then Ring, Vib and Ring,Ascending, None(Quiet) - Ring Volume: Controls the volume in 8 levels (0~7). Bell Sound [6.2.2]Select ‘Menu w6.Settings w2.Sound Settings w[Edit]Soft key w2.Bell Sound’ and press the [O] key, or pressthe [U] key and the [Edit] Soft key in standby mode andselect ‘2.Bell Sound’. * You can choose the preferred melody to ring. - Sound Box: Melody Sound, Bell Sound, User Sound Settings Settings 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지106

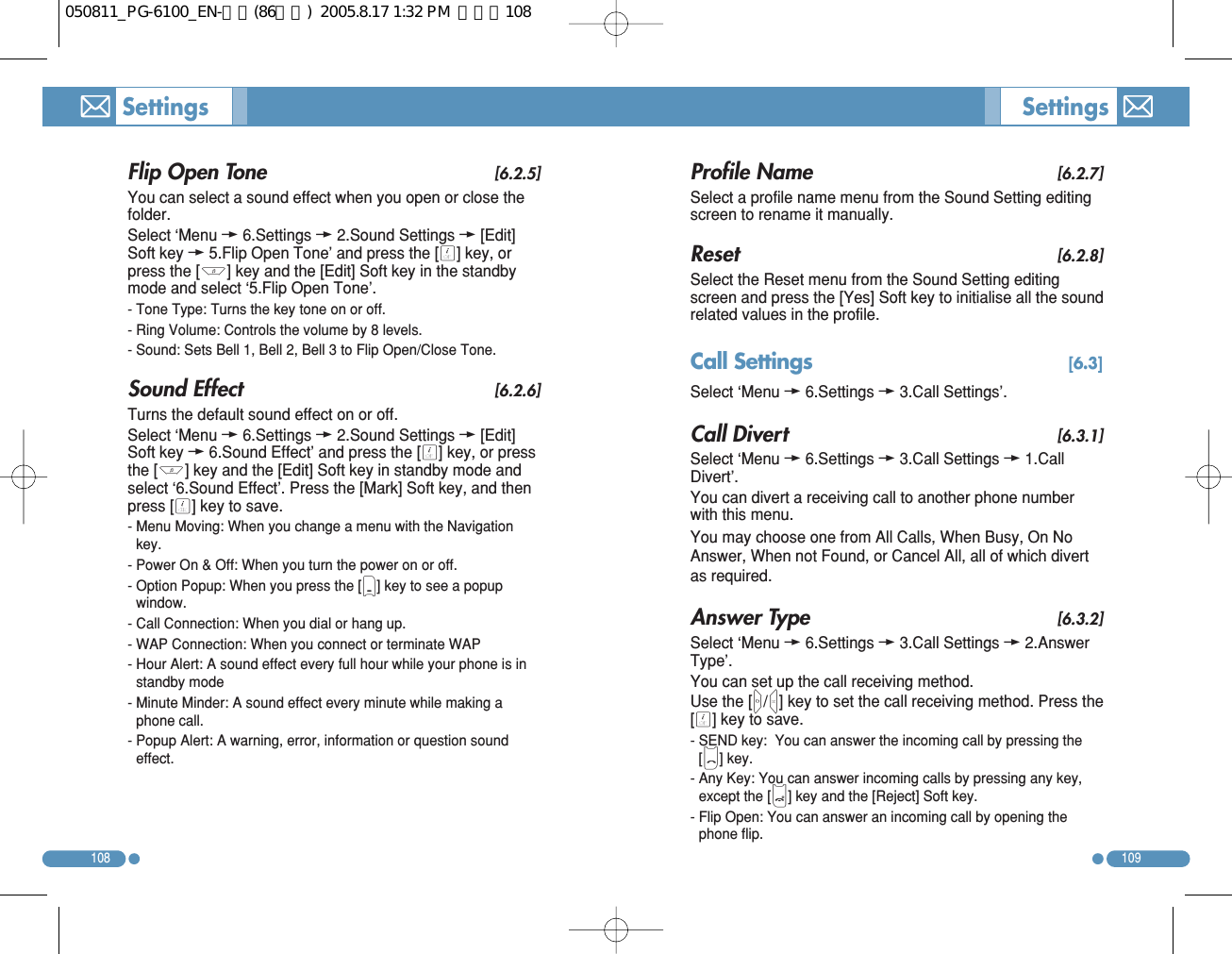

Profile Name [6.2.7]Select a profile name menu from the Sound Setting editingscreen to rename it manually. Reset [6.2.8]Select the Reset menu from the Sound Setting editingscreen and press the [Yes] Soft key to initialise all the soundrelated values in the profile. Call Settings [6.3]Select ‘Menu w6.Settings w3.Call Settings’. Call Divert [6.3.1]Select ‘Menu w6.Settings w3.Call Settings w1.CallDivert’. You can divert a receiving call to another phone numberwith this menu. You may choose one from All Calls, When Busy, On NoAnswer, When not Found, or Cancel All, all of which divertas required. Answer Type [6.3.2]Select ‘Menu w6.Settings w3.Call Settings w2.AnswerType’. You can set up the call receiving method. Use the [L/R] key to set the call receiving method. Press the[O] key to save. - SEND key: You can answer the incoming call by pressing the[S] key. - Any Key: You can answer incoming calls by pressing any key,except the [E] key and the [Reject] Soft key. - Flip Open: You can answer an incoming call by opening thephone flip. 109108Flip Open Tone [6.2.5]You can select a sound effect when you open or close thefolder. Select ‘Menu w6.Settings w2.Sound Settings w[Edit]Soft key w5.Flip Open Tone’ and press the [O] key, orpress the [U] key and the [Edit] Soft key in the standbymode and select ‘5.Flip Open Tone’. - Tone Type: Turns the key tone on or off. - Ring Volume: Controls the volume by 8 levels. - Sound: Sets Bell 1, Bell 2, Bell 3 to Flip Open/Close Tone. Sound Effect [6.2.6]Turns the default sound effect on or off. Select ‘Menu w6.Settings w2.Sound Settings w[Edit]Soft key w6.Sound Effect’ and press the [O] key, or pressthe [U] key and the [Edit] Soft key in standby mode andselect ‘6.Sound Effect’. Press the [Mark] Soft key, and thenpress [O] key to save. - Menu Moving: When you change a menu with the Navigationkey. - Power On & Off: When you turn the power on or off. - Option Popup: When you press the [(] key to see a popupwindow. - Call Connection: When you dial or hang up. - WAP Connection: When you connect or terminate WAP - Hour Alert: A sound effect every full hour while your phone is instandby mode - Minute Minder: A sound effect every minute while making aphone call. - Popup Alert: A warning, error, information or question soundeffect. Settings Settings 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지108
- On: Sets up Auto Redial. - Off: Cancels Auto Redial. Call Waiting [6.3.5]Select ‘Menu w6.Settings w3.Call Settings w5.CallWaiting’. The call waiting function informs you of the reception of asecond call. - Activate: Sets up Call Waiting. - Deactivate: Cancels the preset Call Waiting. - Status: Informs the setup condition. Send Caller ID [6.3.6]Select ‘Menu w6.Settings w3.Call Settings w6.SendCaller ID’. You can prevent your phone number from being displayedon the phone of the person being called. This service isdependent on the network. Please ask the network provider. Own Number [6.3.7]Select ‘Menu w6.Settings w3.Call Settings w7.OwnNumber’. The number for Own Number can vary depending on theSIM. Press the [Option] Soft key [(] to: • Add: Adds Own Number. • Delete: Deletes Own Number. • Edit: Edits Own Number. Language [6.4]Select ‘Menu w6.Settings w4.Language’. You can select a language to be displayed on the phone. 111110- Auto Receive: Your phone automatically answers calls after 10seconds. This feature is available only when the phone isconnected to the headset jack. Auto Answer [6.3.3]The Auto Answer function works like an automaticanswering machine. It relays the recorded message to thecaller if you do not answer the call for a specified period oftime. - Auto Answer : Set Auto Answer to [On/Off]. If set to [On], theAuto Answer function will be enabled. - Recorded Message: Displays a list of recorded messages duringcall active (In call). Each list displays the recorded date & time ofthe file and the message caller ID as well. Press the [Delete] Softkey to delete the message in the View list, and press the [Send]key to make a call while confirming recorded messages. - Response Message: Depending on your current situation, adifferent answering message will be played, including.[Absent/Meeting/Driving/User Message]. The User Message isthe voice message of the local user that will be answered in thestandby mode. - Response Time: Sets the automatic answering time (After 3Secs/5 Secs/10 Secs/20 Secs). When the response time elapseswithout answering the incoming call, the recorded message willbe relayed to the caller. If the caller decides to leave a voicemessage, recording will be started with a beep sound. - User Message: Displays your voice message set for theresponse message. Press the [ ] key for playback. If nomessage is recorded, only the recorder function will 6.3.3 AutoAnswer. Auto Redial [6.3.4]Select ‘Menu w6.Settings w3.Call Settings w4.AutoRedial’. This function automatically redials the number the call ismade to. Settings Settings 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지110

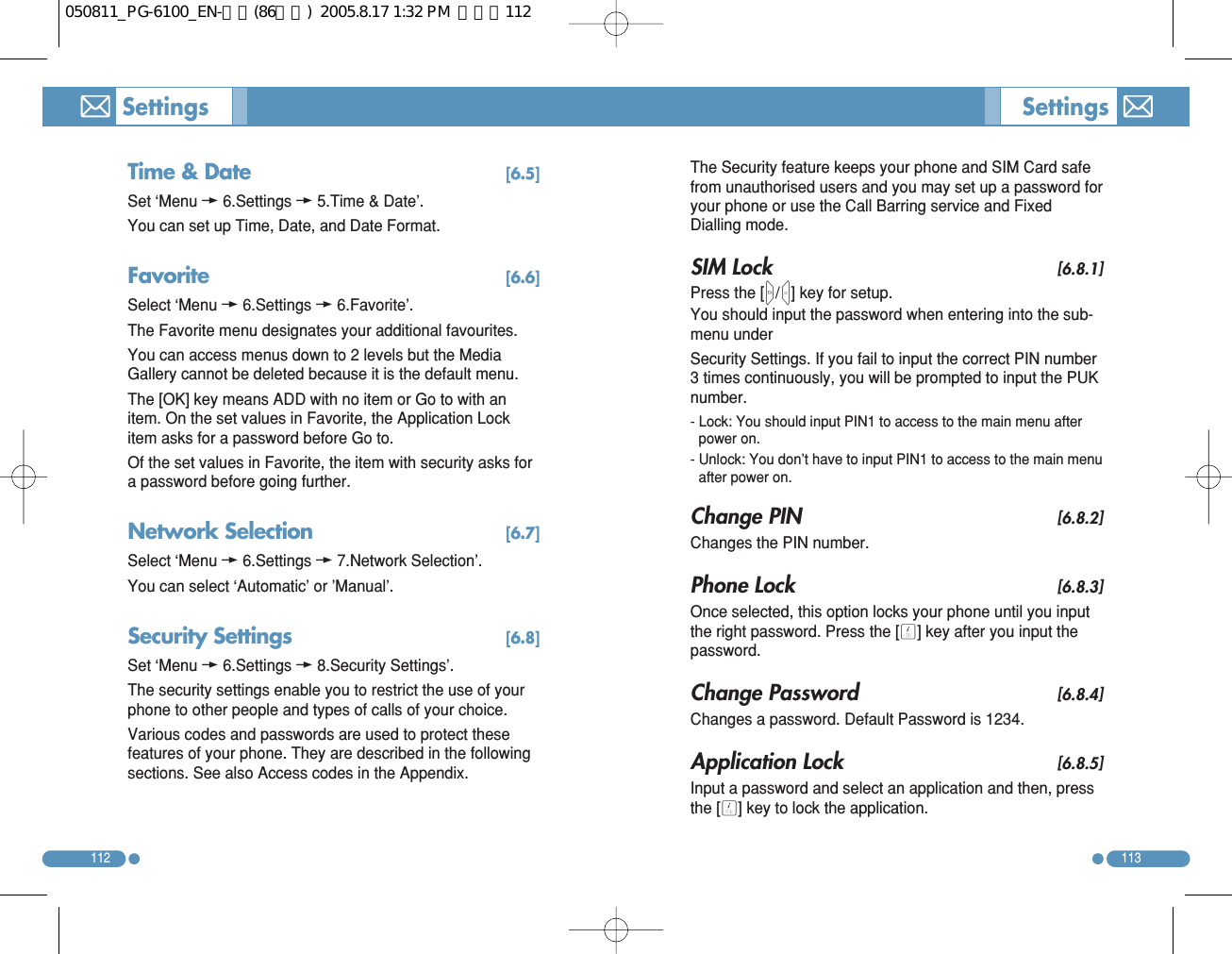

The Security feature keeps your phone and SIM Card safefrom unauthorised users and you may set up a password foryour phone or use the Call Barring service and FixedDialling mode. SIM Lock [6.8.1]Press the [L/R] key for setup. You should input the password when entering into the sub-menu under Security Settings. If you fail to input the correct PIN number3 times continuously, you will be prompted to input the PUKnumber. - Lock: You should input PIN1 to access to the main menu afterpower on. - Unlock: You don’t have to input PIN1 to access to the main menuafter power on. Change PIN [6.8.2]Changes the PIN number. Phone Lock [6.8.3]Once selected, this option locks your phone until you inputthe right password. Press the [O] key after you input thepassword. Change Password [6.8.4]Changes a password. Default Password is 1234. Application Lock [6.8.5]Input a password and select an application and then, pressthe [O] key to lock the application. 113112Time & Date [6.5]Set ‘Menu w6.Settings w5.Time & Date’. You can set up Time, Date, and Date Format. Favorite [6.6]Select ‘Menu w6.Settings w6.Favorite’. The Favorite menu designates your additional favourites. You can access menus down to 2 levels but the MediaGallery cannot be deleted because it is the default menu. The [OK] key means ADD with no item or Go to with anitem. On the set values in Favorite, the Application Lockitem asks for a password before Go to. Of the set values in Favorite, the item with security asks fora password before going further. Network Selection [6.7]Select ‘Menu w6.Settings w7.Network Selection’. You can select ‘Automatic’ or ’Manual’. Security Settings [6.8]Set ‘Menu w6.Settings w8.Security Settings’. The security settings enable you to restrict the use of yourphone to other people and types of calls of your choice. Various codes and passwords are used to protect thesefeatures of your phone. They are described in the followingsections. See also Access codes in the Appendix. Settings Settings 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지112

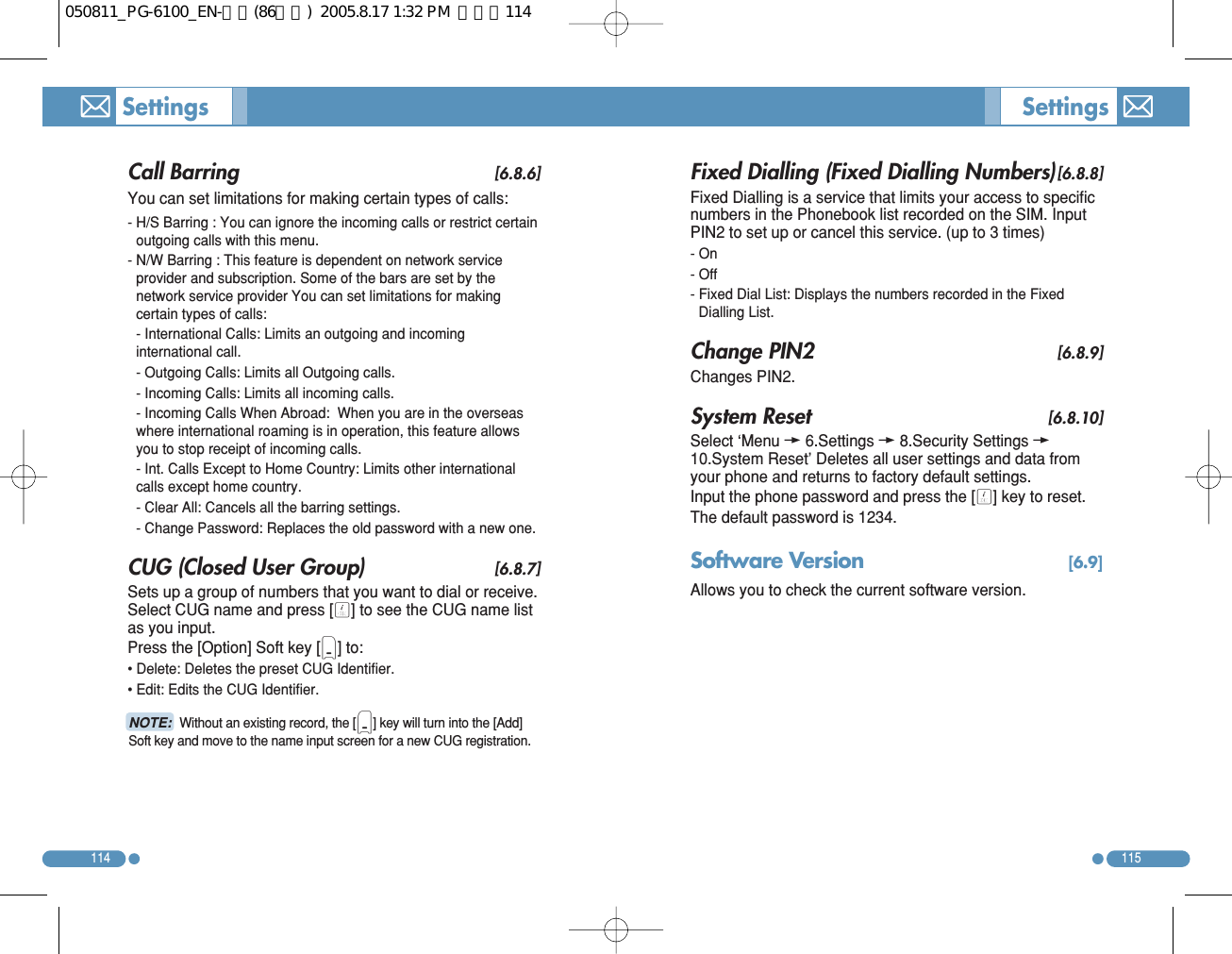

Fixed Dialling (Fixed Dialling Numbers)[6.8.8]Fixed Dialling is a service that limits your access to specificnumbers in the Phonebook list recorded on the SIM. InputPIN2 to set up or cancel this service. (up to 3 times) - On - Off - Fixed Dial List: Displays the numbers recorded in the FixedDialling List. Change PIN2 [6.8.9]Changes PIN2. System Reset [6.8.10]Select ‘Menu w6.Settings w8.Security Settings w10.System Reset’ Deletes all user settings and data fromyour phone and returns to factory default settings. Input the phone password and press the [O] key to reset. The default password is 1234. Software Version [6.9]Allows you to check the current software version. 115114Call Barring [6.8.6]You can set limitations for making certain types of calls: - H/S Barring : You can ignore the incoming calls or restrict certainoutgoing calls with this menu. - N/W Barring : This feature is dependent on network serviceprovider and subscription. Some of the bars are set by thenetwork service provider You can set limitations for makingcertain types of calls: - International Calls: Limits an outgoing and incominginternational call. - Outgoing Calls: Limits all Outgoing calls. - Incoming Calls: Limits all incoming calls. - Incoming Calls When Abroad: When you are in the overseaswhere international roaming is in operation, this feature allowsyou to stop receipt of incoming calls. - Int. Calls Except to Home Country: Limits other internationalcalls except home country. - Clear All: Cancels all the barring settings. - Change Password: Replaces the old password with a new one.CUG (Closed User Group) [6.8.7]Sets up a group of numbers that you want to dial or receive.Select CUG name and press [O] to see the CUG name listas you input. Press the [Option] Soft key [(] to: • Delete: Deletes the preset CUG Identifier. • Edit: Edits the CUG Identifier. Settings Settings NOTE: Without an existing record, the [)] key will turn into the [Add]Soft key and move to the name input screen for a new CUG registration. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지114

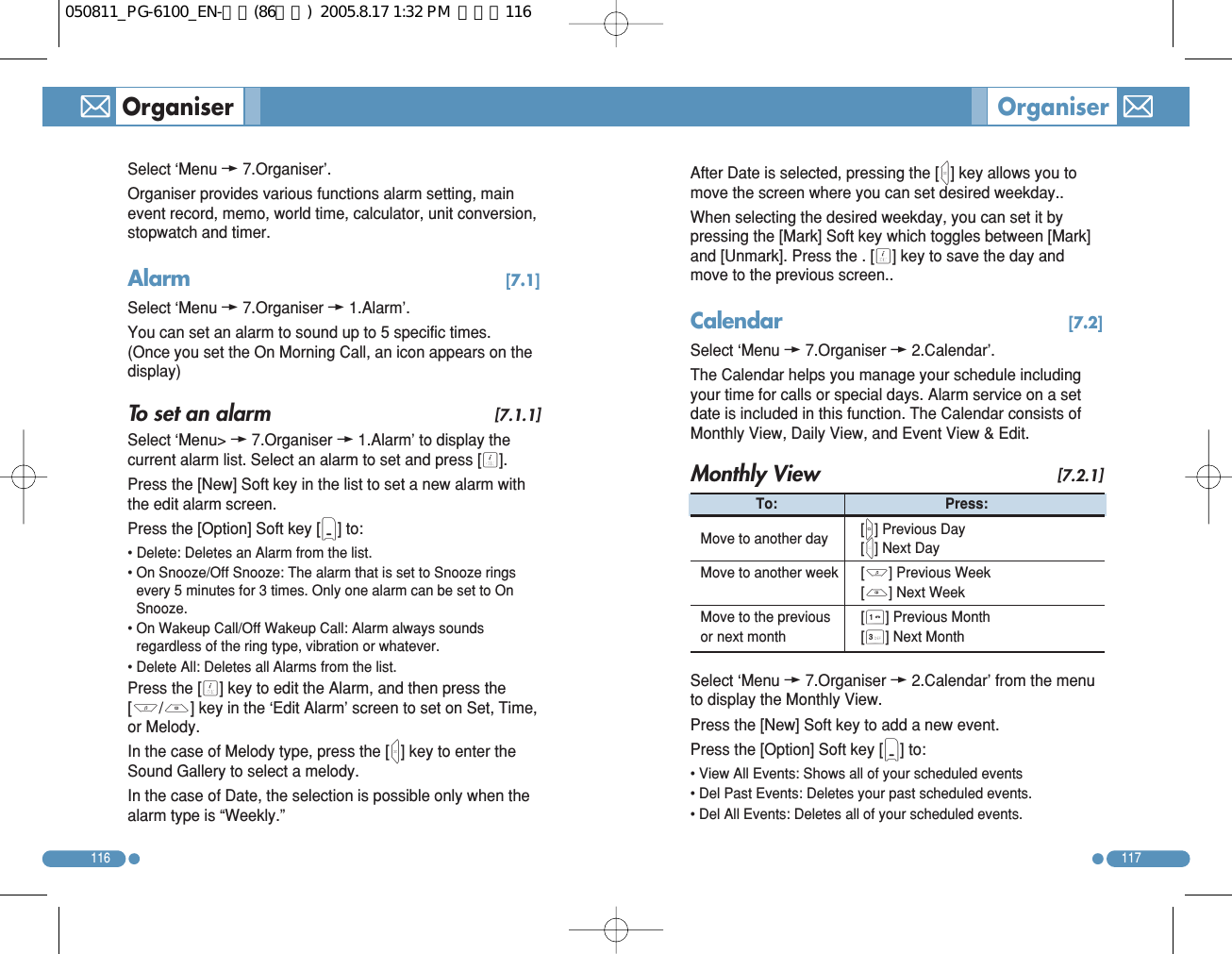

Select ‘Menu w7.Organiser’. Organiser provides various functions alarm setting, mainevent record, memo, world time, calculator, unit conversion,stopwatch and timer. Alarm [7.1]Select ‘Menu w7.Organiser w1.Alarm’. You can set an alarm to sound up to 5 specific times.(Once you set the On Morning Call, an icon appears on thedisplay) To set an alarm [7.1.1]Select ‘Menu> w7.Organiser w1.Alarm’ to display thecurrent alarm list. Select an alarm to set and press [O]. Press the [New] Soft key in the list to set a new alarm withthe edit alarm screen. Press the [Option] Soft key [(] to: • Delete: Deletes an Alarm from the list. • On Snooze/Off Snooze: The alarm that is set to Snooze ringsevery 5 minutes for 3 times. Only one alarm can be set to OnSnooze. • On Wakeup Call/Off Wakeup Call: Alarm always soundsregardless of the ring type, vibration or whatever. • Delete All: Deletes all Alarms from the list. Press the [O] key to edit the Alarm, and then press the[U/D] key in the ‘Edit Alarm’ screen to set on Set, Time,or Melody. In the case of Melody type, press the [R] key to enter theSound Gallery to select a melody. In the case of Date, the selection is possible only when thealarm type is “Weekly.”117116Organiser OrganiserAfter Date is selected, pressing the [R] key allows you tomove the screen where you can set desired weekday.. When selecting the desired weekday, you can set it bypressing the [Mark] Soft key which toggles between [Mark]and [Unmark]. Press the . [O] key to save the day andmove to the previous screen.. Calendar [7.2]Select ‘Menu w7.Organiser w2.Calendar’. The Calendar helps you manage your schedule includingyour time for calls or special days. Alarm service on a setdate is included in this function. The Calendar consists ofMonthly View, Daily View, and Event View & Edit. Monthly View [7.2.1]Select ‘Menu w7.Organiser w2.Calendar’ from the menuto display the Monthly View. Press the [New] Soft key to add a new event. Press the [Option] Soft key [(] to: • View All Events: Shows all of your scheduled events • Del Past Events: Deletes your past scheduled events. • Del All Events: Deletes all of your scheduled events. To: Press: Move to another day [L] Previous Day [R] Next Day Move to another week [U] Previous Week [D] Next Week Move to the previous [1] Previous Month or next month [3] Next Month 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지116

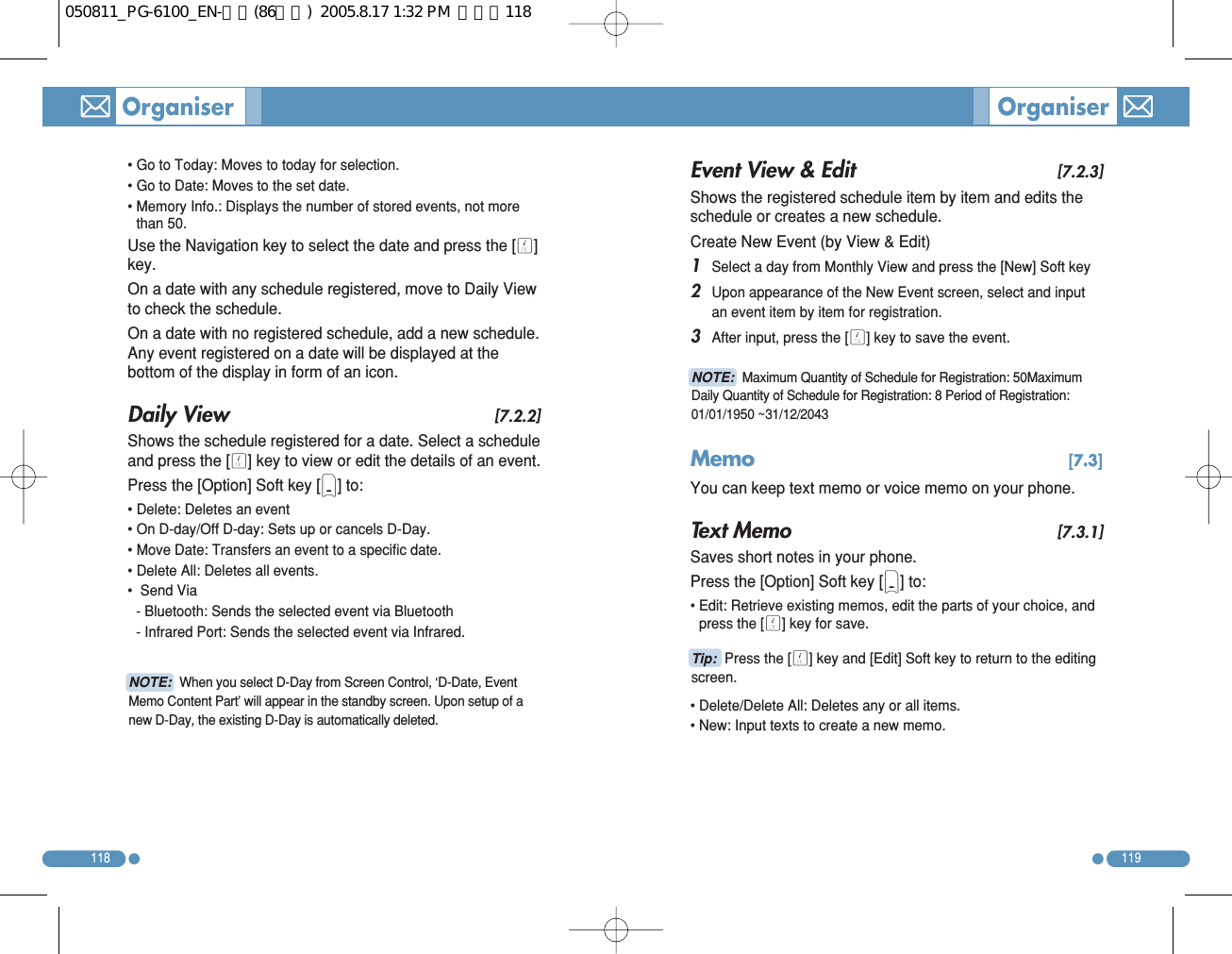

• Go to Today: Moves to today for selection. • Go to Date: Moves to the set date. • Memory Info.: Displays the number of stored events, not morethan 50. Use the Navigation key to select the date and press the [O]key. On a date with any schedule registered, move to Daily Viewto check the schedule. On a date with no registered schedule, add a new schedule.Any event registered on a date will be displayed at thebottom of the display in form of an icon. Daily View [7.2.2]Shows the schedule registered for a date. Select a scheduleand press the [O] key to view or edit the details of an event. Press the [Option] Soft key [(] to: • Delete: Deletes an event • On D-day/Off D-day: Sets up or cancels D-Day. • Move Date: Transfers an event to a specific date. • Delete All: Deletes all events. • Send Via - Bluetooth: Sends the selected event via Bluetooth - Infrared Port: Sends the selected event via Infrared.119118Organiser OrganiserEvent View & Edit [7.2.3]Shows the registered schedule item by item and edits theschedule or creates a new schedule. Create New Event (by View & Edit) 1Select a day from Monthly View and press the [New] Soft key 2Upon appearance of the New Event screen, select and inputan event item by item for registration. 3After input, press the [O] key to save the event. Memo [7.3]You can keep text memo or voice memo on your phone. Text Memo [7.3.1]Saves short notes in your phone. Press the [Option] Soft key [(] to: • Edit: Retrieve existing memos, edit the parts of your choice, andpress the [O] key for save. • Delete/Delete All: Deletes any or all items. • New: Input texts to create a new memo. NOTE: When you select D-Day from Screen Control, ‘D-Date, EventMemo Content Part’ will appear in the standby screen. Upon setup of anew D-Day, the existing D-Day is automatically deleted. Tip: Press the [O] key and [Edit] Soft key to return to the editingscreen. NOTE: Maximum Quantity of Schedule for Registration: 50MaximumDaily Quantity of Schedule for Registration: 8 Period of Registration:01/01/1950 ~31/12/2043 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지118

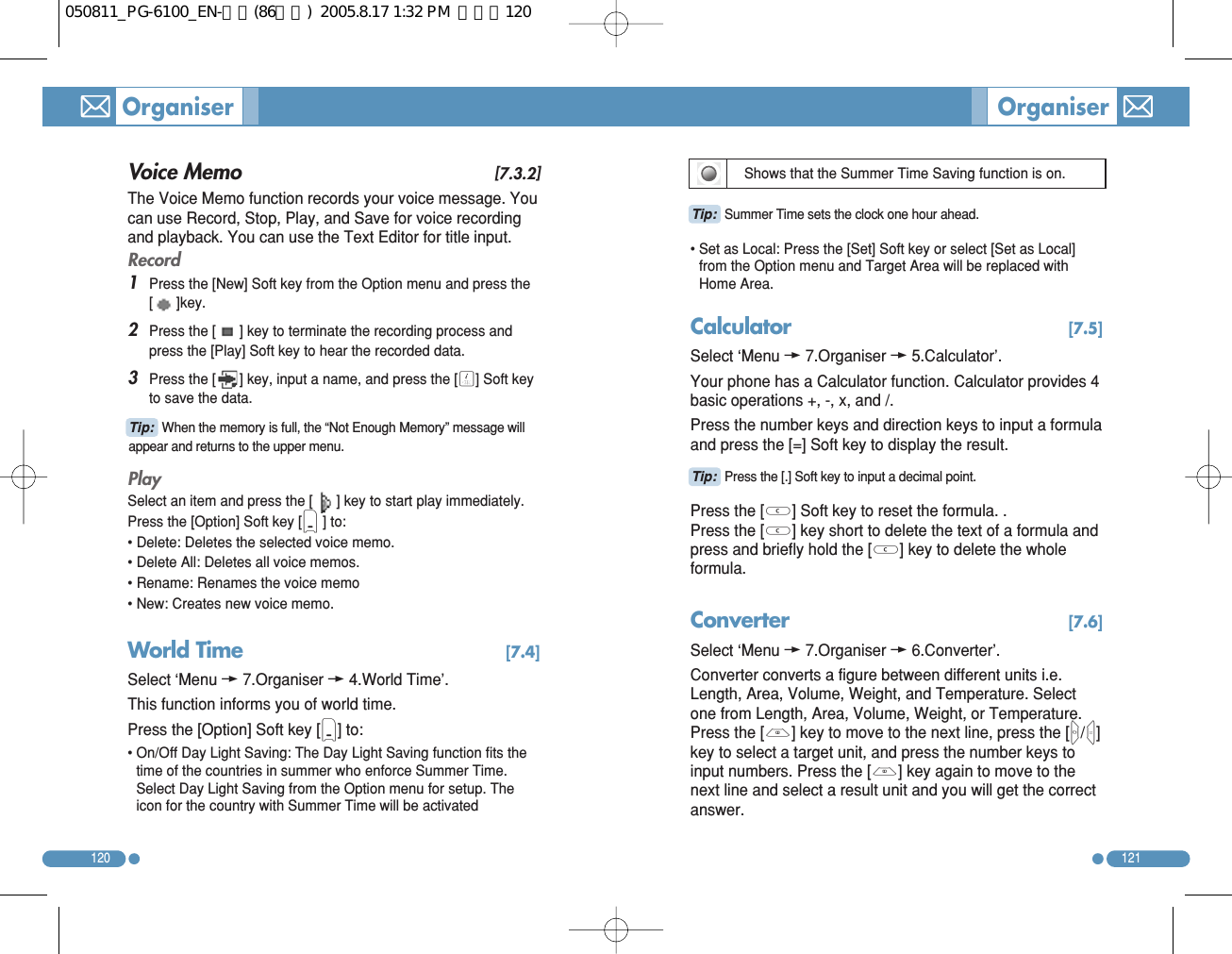

Voice Memo [7.3.2]The Voice Memo function records your voice message. Youcan use Record, Stop, Play, and Save for voice recordingand playback. You can use the Text Editor for title input. Record 1Press the [New] Soft key from the Option menu and press the[ ]key. 2Press the [ ] key to terminate the recording process andpress the [Play] Soft key to hear the recorded data. 3Press the [ ] key, input a name, and press the [O] Soft keyto save the data. Play Select an item and press the [ ] key to start play immediately. Press the [Option] Soft key [(] to: • Delete: Deletes the selected voice memo. • Delete All: Deletes all voice memos. • Rename: Renames the voice memo • New: Creates new voice memo. World Time [7.4]Select ‘Menu w7.Organiser w4.World Time’. This function informs you of world time. Press the [Option] Soft key [(] to: • On/Off Day Light Saving: The Day Light Saving function fits thetime of the countries in summer who enforce Summer Time.Select Day Light Saving from the Option menu for setup. Theicon for the country with Summer Time will be activated 121120Tip: When the memory is full, the “Not Enough Memory” message willappear and returns to the upper menu. Organiser Organiser• Set as Local: Press the [Set] Soft key or select [Set as Local]from the Option menu and Target Area will be replaced withHome Area. Calculator [7.5]Select ‘Menu w7.Organiser w5.Calculator’. Your phone has a Calculator function. Calculator provides 4basic operations +, -, x, and /. Press the number keys and direction keys to input a formulaand press the [=] Soft key to display the result. Press the [C] Soft key to reset the formula. .Press the [C] key short to delete the text of a formula andpress and briefly hold the [C] key to delete the wholeformula. Converter [7.6]Select ‘Menu w7.Organiser w6.Converter’. Converter converts a figure between different units i.e.Length, Area, Volume, Weight, and Temperature. Selectone from Length, Area, Volume, Weight, or Temperature.Press the [D] key to move to the next line, press the [L/R]key to select a target unit, and press the number keys toinput numbers. Press the [D] key again to move to thenext line and select a result unit and you will get the correctanswer. Shows that the Summer Time Saving function is on. Tip: Summer Time sets the clock one hour ahead. Tip: Press the [.] Soft key to input a decimal point. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지120

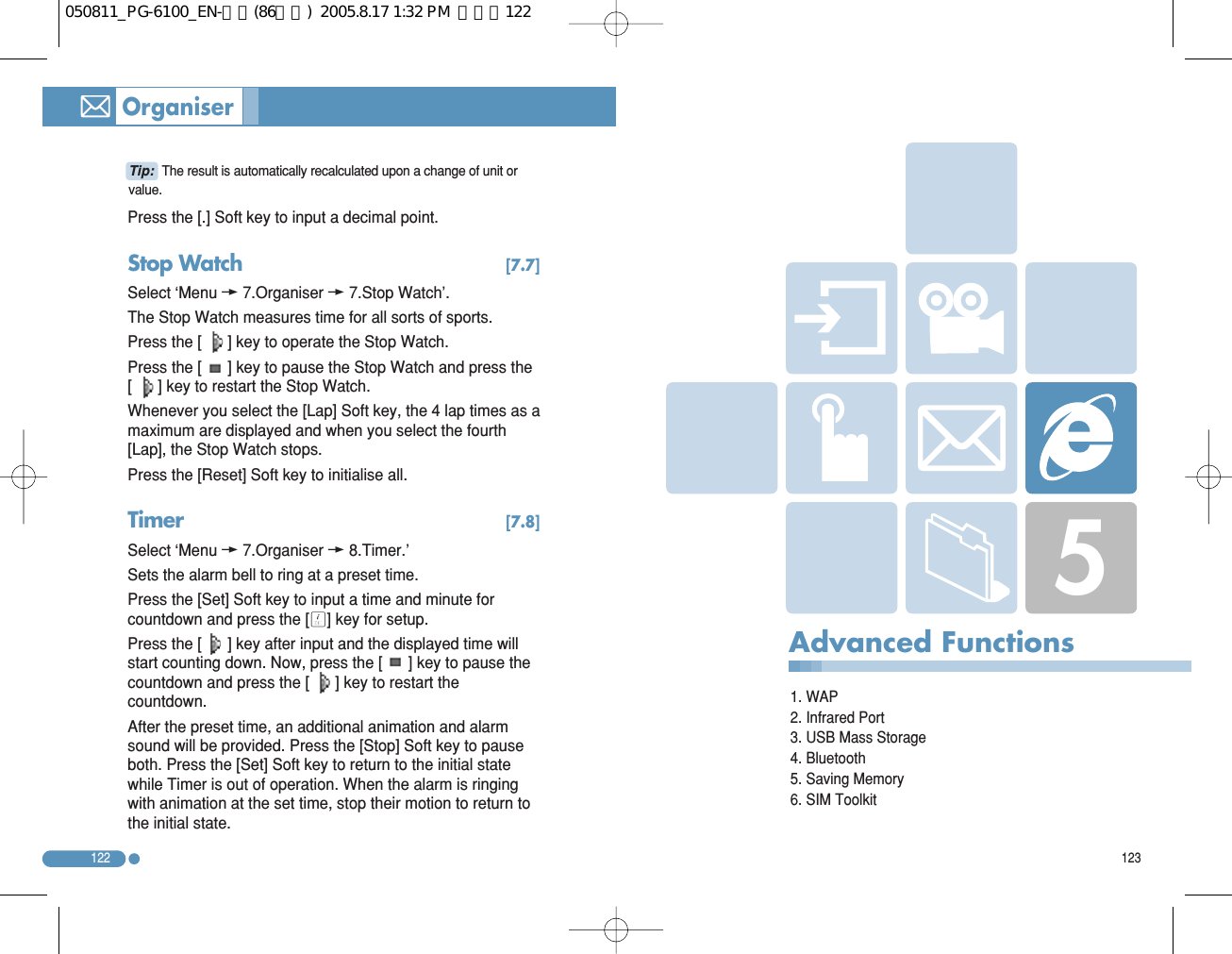

122Press the [.] Soft key to input a decimal point. Stop Watch [7.7]Select ‘Menu w7.Organiser w7.Stop Watch’. The Stop Watch measures time for all sorts of sports. Press the [ ] key to operate the Stop Watch. Press the [ ] key to pause the Stop Watch and press the[ ] key to restart the Stop Watch. Whenever you select the [Lap] Soft key, the 4 lap times as amaximum are displayed and when you select the fourth[Lap], the Stop Watch stops. Press the [Reset] Soft key to initialise all. Timer [7.8]Select ‘Menu w7.Organiser w8.Timer.’ Sets the alarm bell to ring at a preset time. Press the [Set] Soft key to input a time and minute forcountdown and press the [O] key for setup. Press the [ ] key after input and the displayed time willstart counting down. Now, press the [ ] key to pause thecountdown and press the [ ] key to restart thecountdown. After the preset time, an additional animation and alarmsound will be provided. Press the [Stop] Soft key to pauseboth. Press the [Set] Soft key to return to the initial statewhile Timer is out of operation. When the alarm is ringingwith animation at the set time, stop their motion to return tothe initial state. 123Advanced Functions 1. WAP2. Infrared Port3. USB Mass Storage4. Bluetooth5. Saving Memory6. SIM Toolkit5OrganiserTip: The result is automatically recalculated upon a change of unit orvalue. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지122

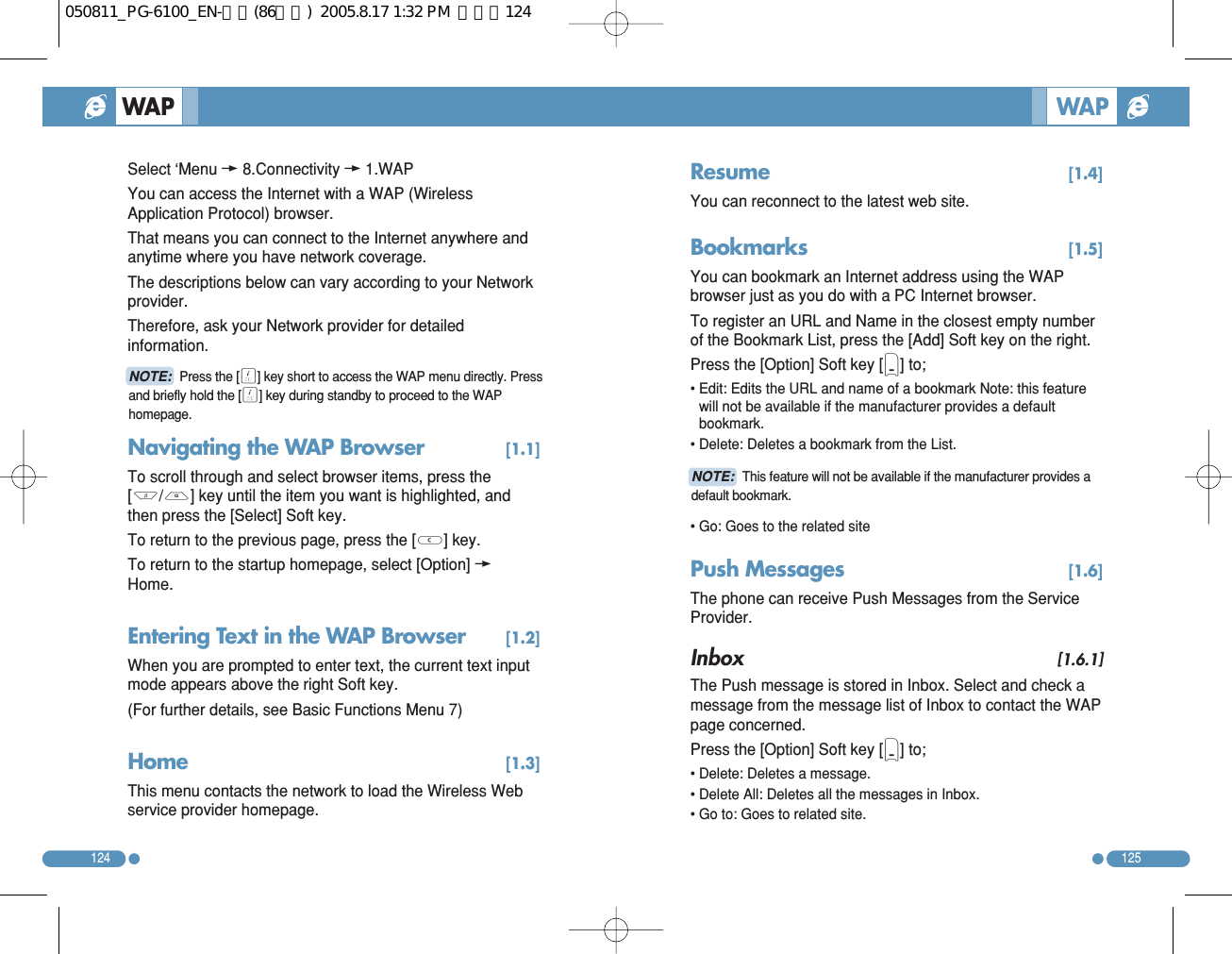

124Select ‘Menu w8.Connectivity w1.WAP You can access the Internet with a WAP (WirelessApplication Protocol) browser. That means you can connect to the Internet anywhere andanytime where you have network coverage. The descriptions below can vary according to your Networkprovider. Therefore, ask your Network provider for detailedinformation. Navigating the WAP Browser [1.1]To scroll through and select browser items, press the[U/D] key until the item you want is highlighted, andthen press the [Select] Soft key. To return to the previous page, press the [C] key. To return to the startup homepage, select [Option] wHome. Entering Text in the WAP Browser [1.2]When you are prompted to enter text, the current text inputmode appears above the right Soft key. (For further details, see Basic Functions Menu 7) Home [1.3]This menu contacts the network to load the Wireless Webservice provider homepage. Resume [1.4]You can reconnect to the latest web site. Bookmarks [1.5]You can bookmark an Internet address using the WAPbrowser just as you do with a PC Internet browser. To register an URL and Name in the closest empty numberof the Bookmark List, press the [Add] Soft key on the right. Press the [Option] Soft key [(] to; • Edit: Edits the URL and name of a bookmark Note: this featurewill not be available if the manufacturer provides a defaultbookmark. • Delete: Deletes a bookmark from the List. • Go: Goes to the related site Push Messages [1.6]The phone can receive Push Messages from the ServiceProvider. Inbox [1.6.1]The Push message is stored in Inbox. Select and check amessage from the message list of Inbox to contact the WAPpage concerned. Press the [Option] Soft key [(] to; • Delete: Deletes a message. • Delete All: Deletes all the messages in Inbox. • Go to: Goes to related site. 125WAP WAPNOTE: Press the [O] key short to access the WAP menu directly. Pressand briefly hold the [O] key during standby to proceed to the WAPhomepage. NOTE: This feature will not be available if the manufacturer provides adefault bookmark. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지124

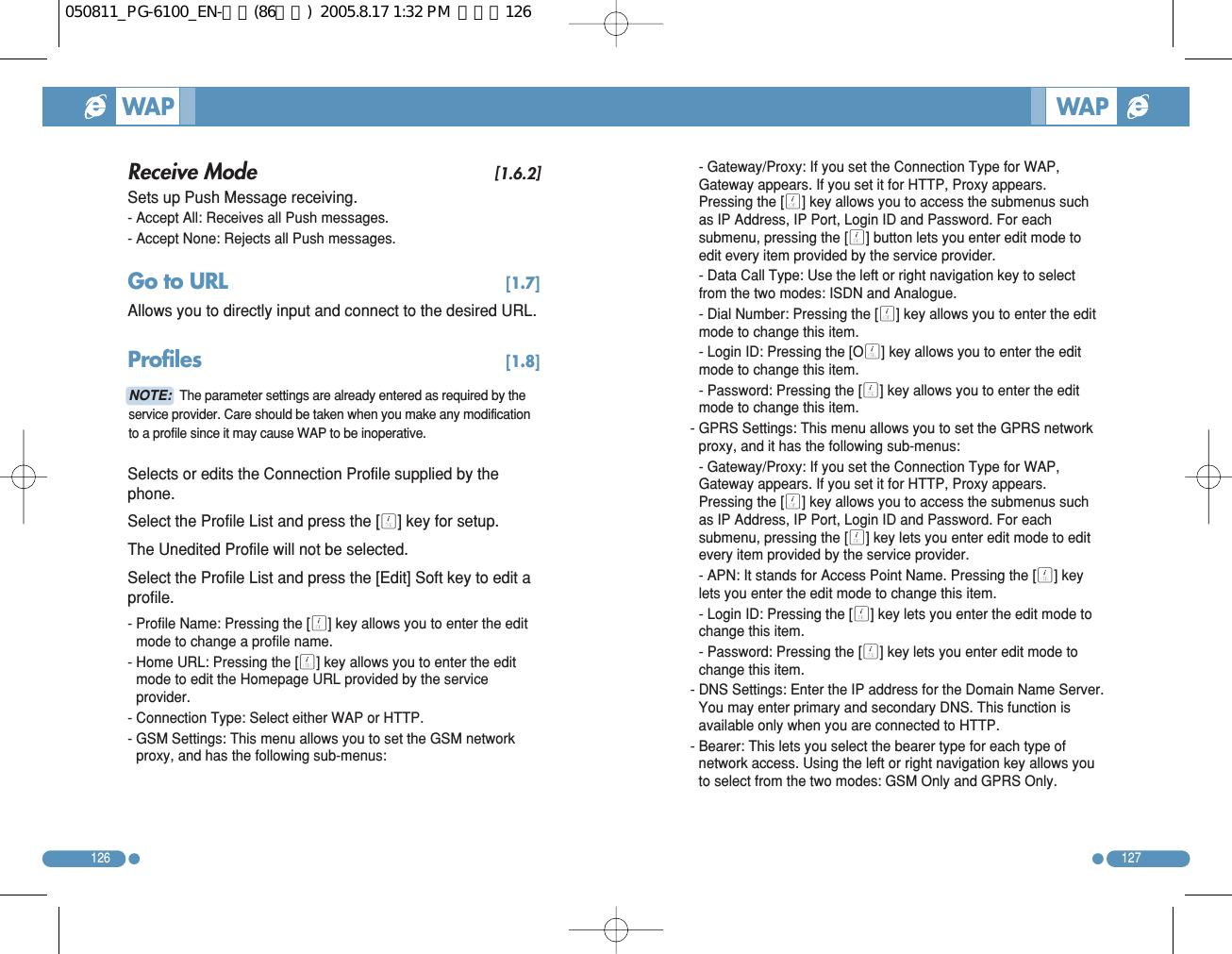

126Receive Mode [1.6.2]Sets up Push Message receiving. - Accept All: Receives all Push messages. - Accept None: Rejects all Push messages. Go to URL [1.7]Allows you to directly input and connect to the desired URL.Profiles [1.8]Selects or edits the Connection Profile supplied by thephone. Select the Profile List and press the [O] key for setup. The Unedited Profile will not be selected. Select the Profile List and press the [Edit] Soft key to edit aprofile. - Profile Name: Pressing the [O] key allows you to enter the editmode to change a profile name. - Home URL: Pressing the [O] key allows you to enter the editmode to edit the Homepage URL provided by the serviceprovider. - Connection Type: Select either WAP or HTTP. - GSM Settings: This menu allows you to set the GSM networkproxy, and has the following sub-menus: - Gateway/Proxy: If you set the Connection Type for WAP,Gateway appears. If you set it for HTTP, Proxy appears.Pressing the [O] key allows you to access the submenus suchas IP Address, IP Port, Login ID and Password. For eachsubmenu, pressing the [O] button lets you enter edit mode toedit every item provided by the service provider. - Data Call Type: Use the left or right navigation key to selectfrom the two modes: ISDN and Analogue. - Dial Number: Pressing the [O] key allows you to enter the editmode to change this item. - Login ID: Pressing the [OO] key allows you to enter the editmode to change this item. - Password: Pressing the [O] key allows you to enter the editmode to change this item. - GPRS Settings: This menu allows you to set the GPRS networkproxy, and it has the following sub-menus: - Gateway/Proxy: If you set the Connection Type for WAP,Gateway appears. If you set it for HTTP, Proxy appears.Pressing the [O] key allows you to access the submenus suchas IP Address, IP Port, Login ID and Password. For eachsubmenu, pressing the [O] key lets you enter edit mode to editevery item provided by the service provider. - APN: It stands for Access Point Name. Pressing the [O] keylets you enter the edit mode to change this item. - Login ID: Pressing the [O] key lets you enter the edit mode tochange this item. - Password: Pressing the [O] key lets you enter edit mode tochange this item. - DNS Settings: Enter the IP address for the Domain Name Server.You may enter primary and secondary DNS. This function isavailable only when you are connected to HTTP. - Bearer: This lets you select the bearer type for each type ofnetwork access. Using the left or right navigation key allows youto select from the two modes: GSM Only and GPRS Only. 127WAP WAPNOTE: The parameter settings are already entered as required by theservice provider. Care should be taken when you make any modificationto a profile since it may cause WAP to be inoperative. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지126
129128Cache [1.9]Cache Mode [1.9.1]Sets up the Cache memory check. - Always Check: The Cache is always checked whenever a URL isloaded. - Never Check: The Cache is never checked. Clear Cache [1.9.2]This menu provides a function to clean the data stored inthe Cache (recently visited WAP pages). Security Cert [1.10]You can see the saved security certificate. Press the [Option] Soft key [(] to; • Delete: Deletes a security certificate. • Delete All: Deletes all security certificates. Version [1.11]This function is for viewing the software version of the WAPbrowser Select ‘Menu w8.Connectivity w2.Infrared Port Allows you to change the current status of the Infrared port - Internet Connection: Uses the Infrared port for GPRS Modempurposes (Only some menus and functions are accessible.) - PC Sync Connection: Connects to PC Sync with the Infraredport. (Only some menus and functions are accessible.) - Object Exchanging: Sends/receives any image, sound, contact orevent file from or to any other device equipped with an InfraredPort - Deactivate: Deactivates the Infrared port To send an object using “Send via Infrared” 1Align the object with the other device 2Select “Send via Infrared” from the option menu for the file youwant to send 3Check the progress and completeness of the process with theProgress screen To receive an object 1Activate “Object Exchanging” first WAP Infrared Port 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지128
1302Align the object with the other device 3Check the progress and completeness of the process with theProgress screen. 4If you select the View/Play menu after the image/sound file isreceived, you can view or listen to this file and then it is savedin the Image Gallery if it is an image, or in the Sound Gallery ifit is a sound file. If you select the View menu displayed after aContact/Event file is received, you can view this file. When youselect the Save menu on the View window, it is saved in PhoneMemory if it is a contact file or in the Event for the datespecified if it is an event Select ‘Menu w8.Connectivity w3.USB Mass Storage Provides the function to use the MMC card of the phone asa movable storage site by using a USB Cable.To use a mass storage If the Mass Storage is set for [On]. “Connect USB Cable”will be displayed. At this time, connect the phone with thepaired device, and when “Connecting” is displayed, you canuse the MMC card as a movable storage site from thepaired device. Infrared Port USB Mass Storage NOTE: The Infrared Port is not available for WAP connection or faxservice. Depending on which Windows operating system you have, youmay not be able to connect to the Infrared Port. For more details, see thePC Sync Guide Manual on using the various functions of the Infrared Port NOTE: When the USB cable has been already connected before you setthe Mass Storage for [On], if you set Mass Storage for [On],“Connecting” will be displayed immediately. 131050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지130

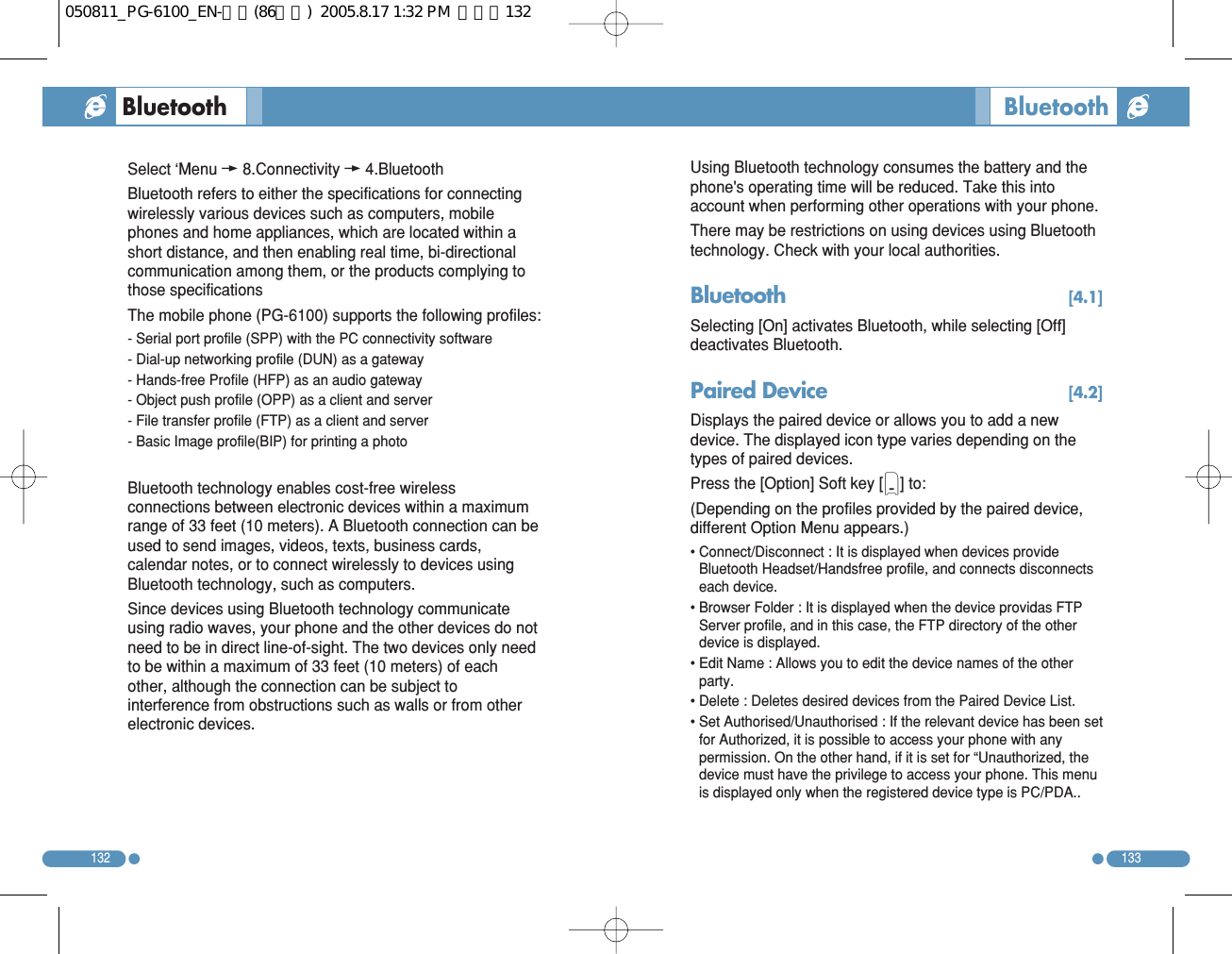

Using Bluetooth technology consumes the battery and thephone's operating time will be reduced. Take this intoaccount when performing other operations with your phone. There may be restrictions on using devices using Bluetoothtechnology. Check with your local authorities. Bluetooth [4.1]Selecting [On] activates Bluetooth, while selecting [Off]deactivates Bluetooth. Paired Device [4.2]Displays the paired device or allows you to add a newdevice. The displayed icon type varies depending on thetypes of paired devices. Press the [Option] Soft key [(] to: (Depending on the profiles provided by the paired device,different Option Menu appears.) • Connect/Disconnect : It is displayed when devices provideBluetooth Headset/Handsfree profile, and connects disconnectseach device. • Browser Folder : It is displayed when the device providas FTPServer profile, and in this case, the FTP directory of the otherdevice is displayed.• Edit Name : Allows you to edit the device names of the otherparty. • Delete : Deletes desired devices from the Paired Device List. • Set Authorised/Unauthorised : If the relevant device has been setfor Authorized, it is possible to access your phone with anypermission. On the other hand, if it is set for “Unauthorized, thedevice must have the privilege to access your phone. This menuis displayed only when the registered device type is PC/PDA.. 133132Select ‘Menu w8.Connectivity w4.Bluetooth Bluetooth refers to either the specifications for connectingwirelessly various devices such as computers, mobilephones and home appliances, which are located within ashort distance, and then enabling real time, bi-directionalcommunication among them, or the products complying tothose specifications The mobile phone (PG-6100) supports the following profiles: - Serial port profile (SPP) with the PC connectivity software - Dial-up networking profile (DUN) as a gateway - Hands-free Profile (HFP) as an audio gateway - Object push profile (OPP) as a client and server - File transfer profile (FTP) as a client and server - Basic Image profile(BIP) for printing a photo Bluetooth technology enables cost-free wirelessconnections between electronic devices within a maximumrange of 33 feet (10 meters). A Bluetooth connection can beused to send images, videos, texts, business cards,calendar notes, or to connect wirelessly to devices usingBluetooth technology, such as computers. Since devices using Bluetooth technology communicateusing radio waves, your phone and the other devices do notneed to be in direct line-of-sight. The two devices only needto be within a maximum of 33 feet (10 meters) of eachother, although the connection can be subject tointerference from obstructions such as walls or from otherelectronic devices. Bluetooth Bluetooth 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지132

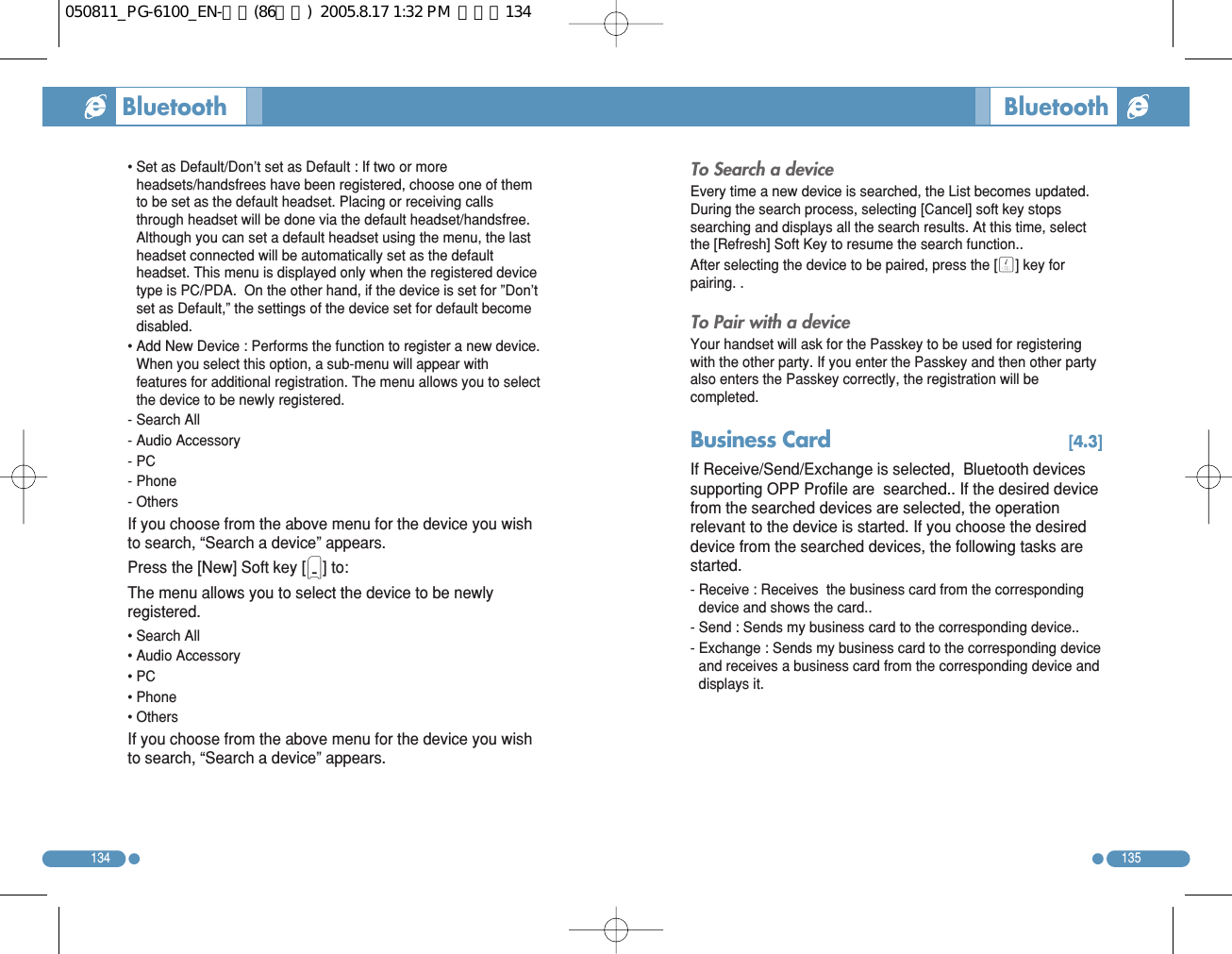

To Search a device Every time a new device is searched, the List becomes updated.During the search process, selecting [Cancel] soft key stopssearching and displays all the search results. At this time, selectthe [Refresh] Soft Key to resume the search function.. After selecting the device to be paired, press the [O] key forpairing. . To Pair with a device Your handset will ask for the Passkey to be used for registeringwith the other party. If you enter the Passkey and then other partyalso enters the Passkey correctly, the registration will becompleted. Business Card [4.3]If Receive/Send/Exchange is selected, Bluetooth devicessupporting OPP Profile are searched.. If the desired devicefrom the searched devices are selected, the operationrelevant to the device is started. If you choose the desireddevice from the searched devices, the following tasks arestarted. - Receive : Receives the business card from the correspondingdevice and shows the card.. - Send : Sends my business card to the corresponding device.. - Exchange : Sends my business card to the corresponding deviceand receives a business card from the corresponding device anddisplays it. 135134• Set as Default/Don’t set as Default : If two or moreheadsets/handsfrees have been registered, choose one of themto be set as the default headset. Placing or receiving callsthrough headset will be done via the default headset/handsfree.Although you can set a default headset using the menu, the lastheadset connected will be automatically set as the defaultheadset. This menu is displayed only when the registered devicetype is PC/PDA. On the other hand, if the device is set for ”Don’tset as Default,” the settings of the device set for default becomedisabled. • Add New Device : Performs the function to register a new device.When you select this option, a sub-menu will appear withfeatures for additional registration. The menu allows you to selectthe device to be newly registered. - Search All - Audio Accessory - PC - Phone - Others If you choose from the above menu for the device you wishto search, “Search a device” appears. Press the [New] Soft key [)] to: The menu allows you to select the device to be newlyregistered. • Search All • Audio Accessory • PC • Phone • Others If you choose from the above menu for the device you wishto search, “Search a device” appears. Bluetooth Bluetooth 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지134

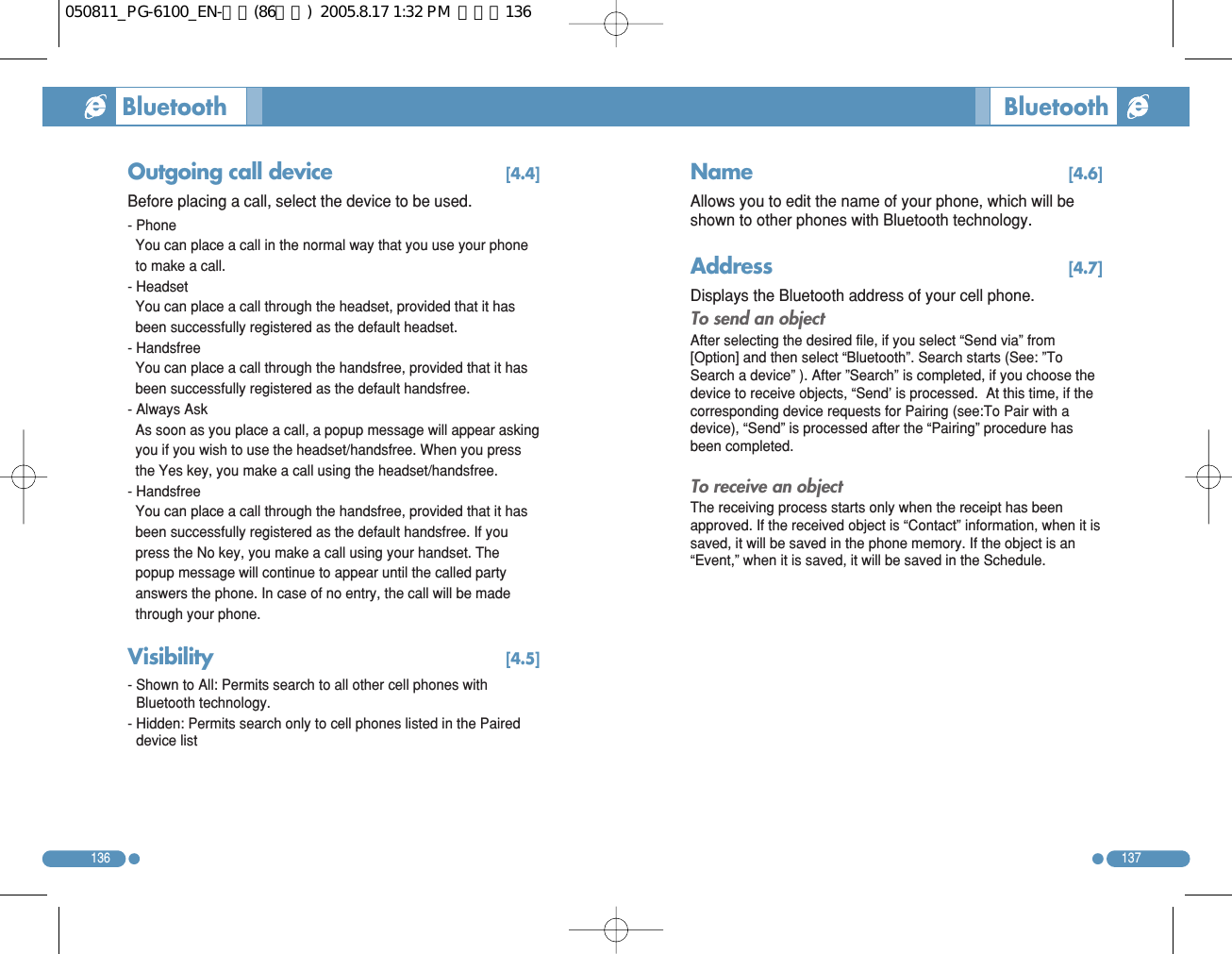

Name [4.6]Allows you to edit the name of your phone, which will beshown to other phones with Bluetooth technology. Address [4.7]Displays the Bluetooth address of your cell phone. To send an object After selecting the desired file, if you select “Send via” from[Option] and then select “Bluetooth”. Search starts (See: ”ToSearch a device” ). After ”Search” is completed, if you choose thedevice to receive objects, “Send’ is processed. At this time, if thecorresponding device requests for Pairing (see:To Pair with adevice), “Send” is processed after the “Pairing” procedure hasbeen completed. To receive an object The receiving process starts only when the receipt has beenapproved. If the received object is “Contact” information, when it issaved, it will be saved in the phone memory. If the object is an“Event,” when it is saved, it will be saved in the Schedule. 137136Outgoing call device [4.4]Before placing a call, select the device to be used. - Phone You can place a call in the normal way that you use your phone to make a call. - Headset You can place a call through the headset, provided that it has been successfully registered as the default headset. - Handsfree You can place a call through the handsfree, provided that it has been successfully registered as the default handsfree. - Always Ask As soon as you place a call, a popup message will appear asking you if you wish to use the headset/handsfree. When you press the Yes key, you make a call using the headset/handsfree. - Handsfree You can place a call through the handsfree, provided that it has been successfully registered as the default handsfree. If you press the No key, you make a call using your handset. Thepopup message will continue to appear until the called party answers the phone. In case of no entry, the call will be made through your phone. Visibility [4.5]- Shown to All: Permits search to all other cell phones withBluetooth technology. - Hidden: Permits search only to cell phones listed in the Paireddevice list Bluetooth Bluetooth 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지136
This menu depends on SIM and the network services 139138Select ‘Menu w8.Connectivity w5.Saving Memory Infrared Port [5.1]Sets the memory for saving the Image/Sound files whenthey are received via IrDA.. - Internal Memory : Image files are saved in the Image Gallery,and sound files in the Sound Gallery. - External Memory : All files are saved in the MMC Card. Bluetooth [5.2]Sets the directory to be displayed when the correspondingdevice views my FTP directory using Bluetooth, as well asthe Memory where the files received from the correspondingdevice will be saved. - Internal Memory: Shows the “Image Gallery/Sound Gallery/OtherFiles” directory to the corresponding device. Please note thatonly the files supported in each Gallery,Image Gallery/SoundGallery can be saved in the respective Gallery. All other files canbe saved in Other Files. When files are received from thecorresponding device, image files are saved in the ImageGallery, and the sound files in the Sound Gallery. - External Memory:: Shows all the directories of the MMC card. Allthe files received from the corresponding device are saved in theMMC card. Saving Memory SIM Toolkit 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지138

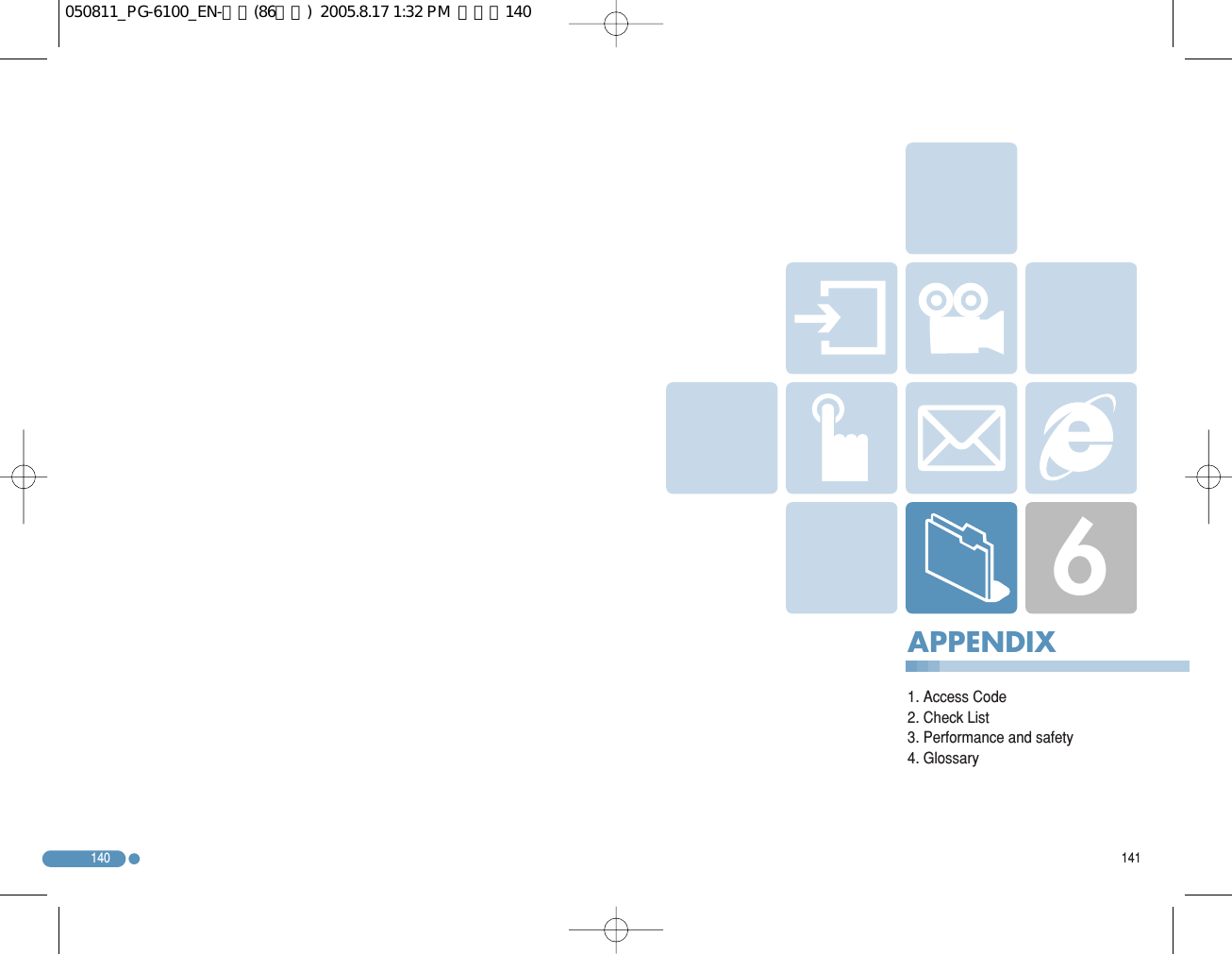

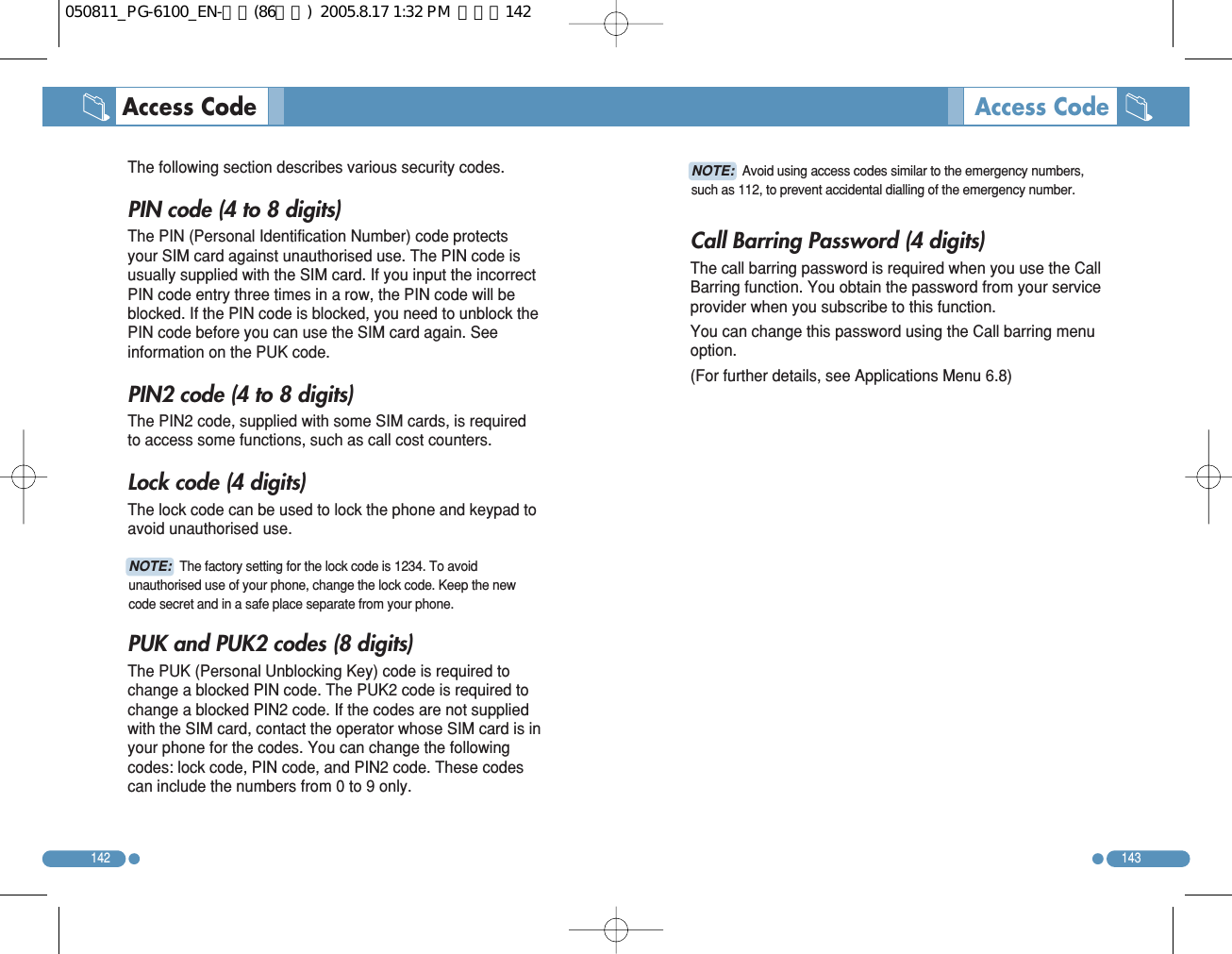

141140APPENDIX1. Access Code2. Check List3. Performance and safety 4. Glossary6050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지140
Call Barring Password (4 digits) The call barring password is required when you use the CallBarring function. You obtain the password from your serviceprovider when you subscribe to this function. You can change this password using the Call barring menuoption. (For further details, see Applications Menu 6.8) 143142The following section describes various security codes. PIN code (4 to 8 digits) The PIN (Personal Identification Number) code protectsyour SIM card against unauthorised use. The PIN code isusually supplied with the SIM card. If you input the incorrectPIN code entry three times in a row, the PIN code will beblocked. If the PIN code is blocked, you need to unblock thePIN code before you can use the SIM card again. Seeinformation on the PUK code. PIN2 code (4 to 8 digits) The PIN2 code, supplied with some SIM cards, is requiredto access some functions, such as call cost counters. Lock code (4 digits) The lock code can be used to lock the phone and keypad toavoid unauthorised use. PUK and PUK2 codes (8 digits) The PUK (Personal Unblocking Key) code is required tochange a blocked PIN code. The PUK2 code is required tochange a blocked PIN2 code. If the codes are not suppliedwith the SIM card, contact the operator whose SIM card is inyour phone for the codes. You can change the followingcodes: lock code, PIN code, and PIN2 code. These codescan include the numbers from 0 to 9 only. Access Code NOTE: The factory setting for the lock code is 1234. To avoidunauthorised use of your phone, change the lock code. Keep the newcode secret and in a safe place separate from your phone. Access CodeNOTE: Avoid using access codes similar to the emergency numbers,such as 112, to prevent accidental dialling of the emergency number. 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지142
When audio quality is poor: End a call and try again. When the other party cannot hear you speaking: Your phone may be set to MUTE. Disable the MUTEfunction. When battery lifetime is shorter than usual: This may happen when you are in an area with low signalstrength. Turn off your phone when it is not in use. Changethe battery when battery energy is exhausted. When your mobile phone does not turn on: Make sure your battery is charged. Check to see if yourphone works while recharging the battery. When you are unable to send a message: Either you are not registered to receive an SMS service, oryou may be in an area where your network service providercannot provide such a service. When you are unable to make a call: Your phone may be set to “fixed dial.” Cancel the “fixed dial”function. 145144If you experience any problem while using your mobilephone, please refer to the following checklist. If the problemstill persists, contact your dealer or nearest service centre. When the “Insert SIM Card” message appears: Make sure the SIM card is correctly installed. Check to seeif the SIM card is working properly. If it does not work, try toclean the contact points of the card. If it is out of order, takeit to the nearest service centre. When the “Handset locked enter password”message appears: Enter the phone password. If you cannot remember thepassword, contact the nearest service centre. When the “Enter PIN1” message appears: InputPIN1. If you cannot remember it, contact the nearestservice centre. You can still receive calls even if your mobilephone becomes locked after entering the incorrect PIN1 onthree consecutive attempts. When the “No service” or “Network failure”message appears: Check the SSI (Signal Strength Indicator) state. If youcannot make a connection in underground areas or inbuildings where signal strength may be low, try moving toanother place. If you still cannot make a connection, contactthe nearest service centre. Check List Check List 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지144

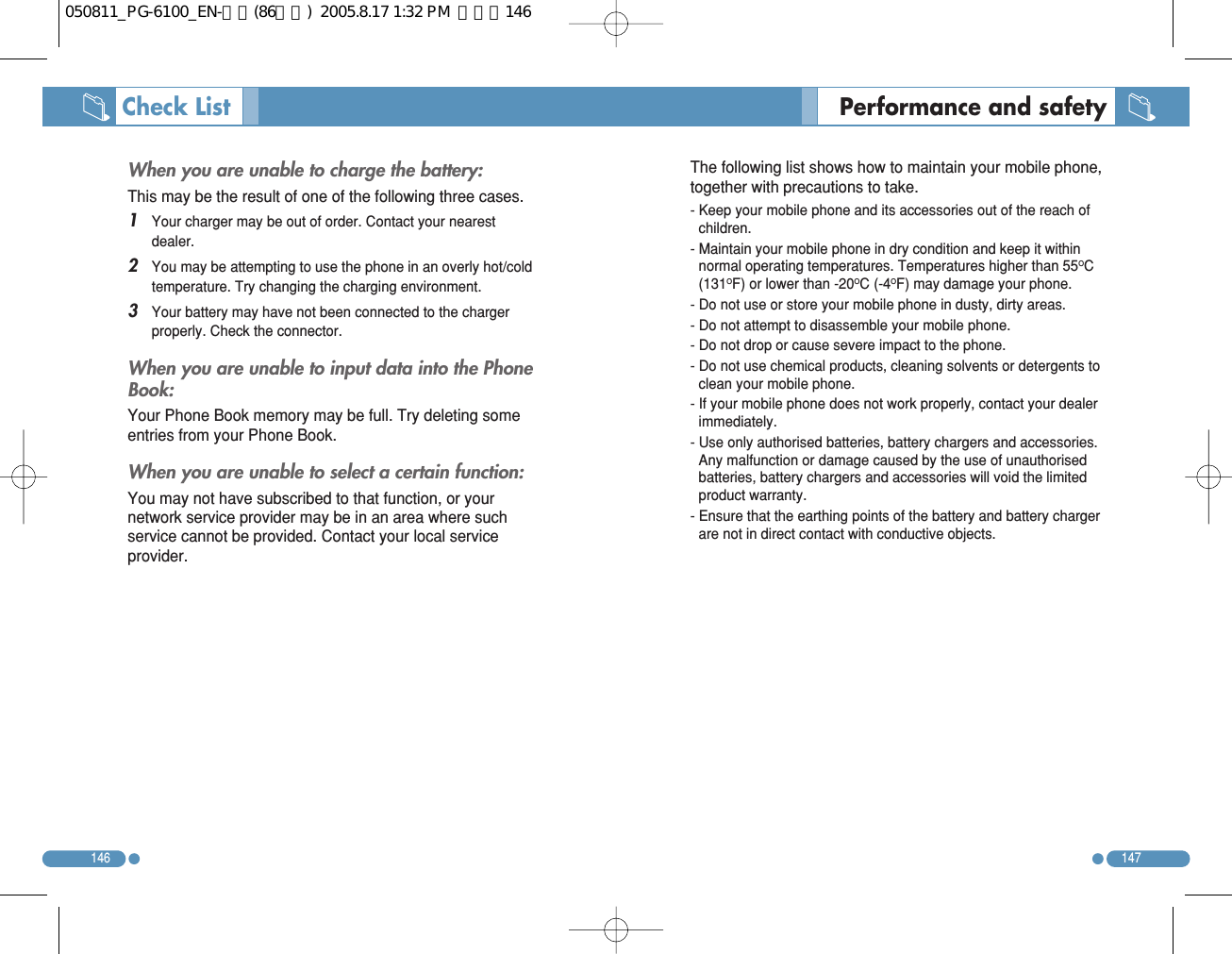

Check List The following list shows how to maintain your mobile phone,together with precautions to take. - Keep your mobile phone and its accessories out of the reach ofchildren. - Maintain your mobile phone in dry condition and keep it withinnormal operating temperatures. Temperatures higher than 55OC(131OF) or lower than -20OC (-4OF) may damage your phone. - Do not use or store your mobile phone in dusty, dirty areas. - Do not attempt to disassemble your mobile phone. - Do not drop or cause severe impact to the phone. - Do not use chemical products, cleaning solvents or detergents toclean your mobile phone. - If your mobile phone does not work properly, contact your dealerimmediately. - Use only authorised batteries, battery chargers and accessories.Any malfunction or damage caused by the use of unauthorisedbatteries, battery chargers and accessories will void the limitedproduct warranty. - Ensure that the earthing points of the battery and battery chargerare not in direct contact with conductive objects. 147146When you are unable to charge the battery: This may be the result of one of the following three cases. 1 Your charger may be out of order. Contact your nearestdealer. 2 You may be attempting to use the phone in an overly hot/coldtemperature. Try changing the charging environment. 3 Your battery may have not been connected to the chargerproperly. Check the connector. When you are unable to input data into the PhoneBook: Your Phone Book memory may be full. Try deleting someentries from your Phone Book. When you are unable to select a certain function: You may not have subscribed to that function, or yournetwork service provider may be in an area where suchservice cannot be provided. Contact your local serviceprovider. Performance and safety 050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지146

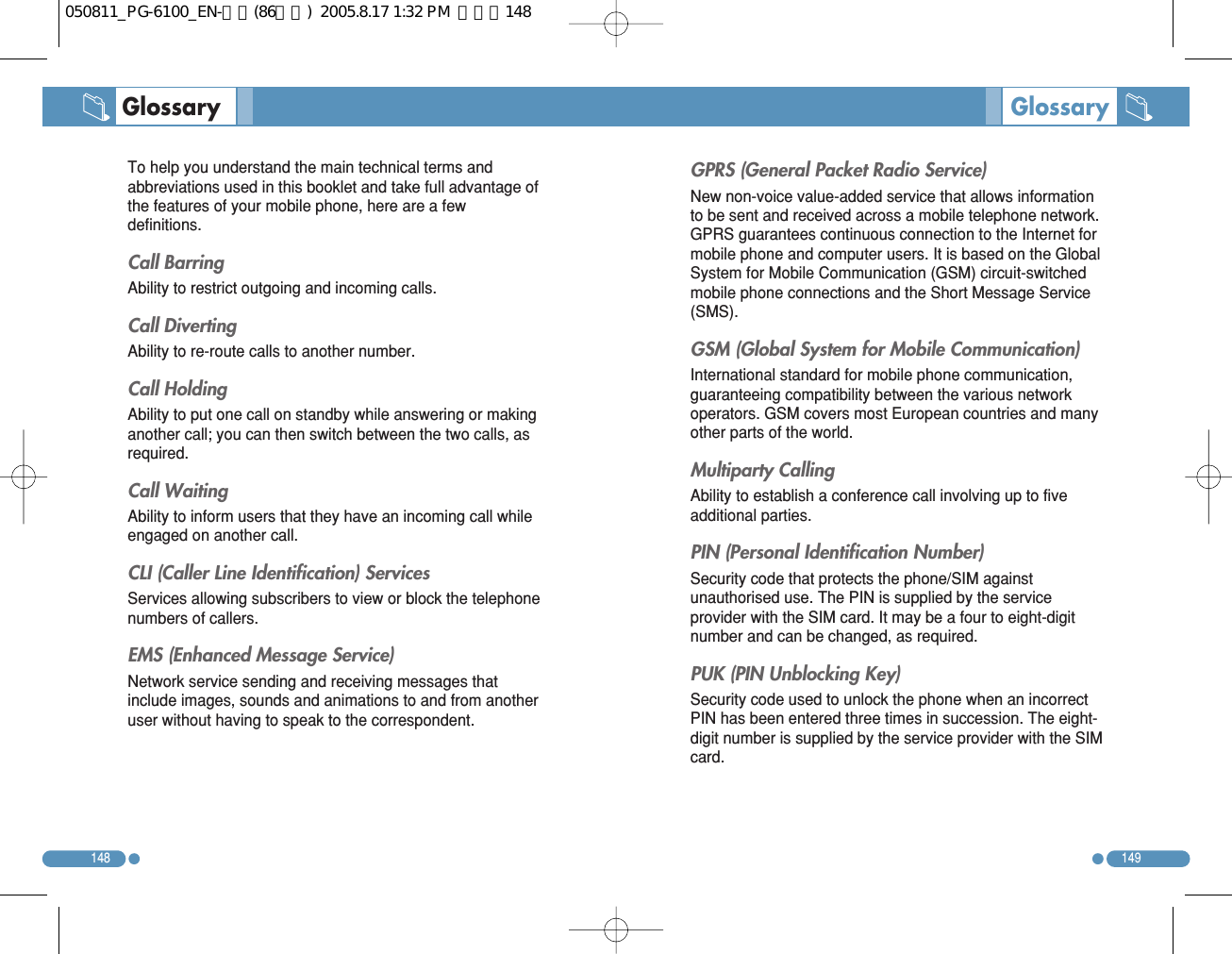

GPRS (General Packet Radio Service) New non-voice value-added service that allows informationto be sent and received across a mobile telephone network.GPRS guarantees continuous connection to the Internet formobile phone and computer users. It is based on the GlobalSystem for Mobile Communication (GSM) circuit-switchedmobile phone connections and the Short Message Service(SMS). GSM (Global System for Mobile Communication) International standard for mobile phone communication,guaranteeing compatibility between the various networkoperators. GSM covers most European countries and manyother parts of the world. Multiparty Calling Ability to establish a conference call involving up to fiveadditional parties. PIN (Personal Identification Number) Security code that protects the phone/SIM againstunauthorised use. The PIN is supplied by the serviceprovider with the SIM card. It may be a four to eight-digitnumber and can be changed, as required. PUK (PIN Unblocking Key) Security code used to unlock the phone when an incorrectPIN has been entered three times in succession. The eight-digit number is supplied by the service provider with the SIMcard. 149148To help you understand the main technical terms andabbreviations used in this booklet and take full advantage ofthe features of your mobile phone, here are a fewdefinitions. Call Barring Ability to restrict outgoing and incoming calls. Call Diverting Ability to re-route calls to another number. Call Holding Ability to put one call on standby while answering or makinganother call; you can then switch between the two calls, asrequired. Call Waiting Ability to inform users that they have an incoming call whileengaged on another call. CLI (Caller Line Identification) Services Services allowing subscribers to view or block the telephonenumbers of callers. EMS (Enhanced Message Service) Network service sending and receiving messages thatinclude images, sounds and animations to and from anotheruser without having to speak to the correspondent. Glossary Glossary050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지148

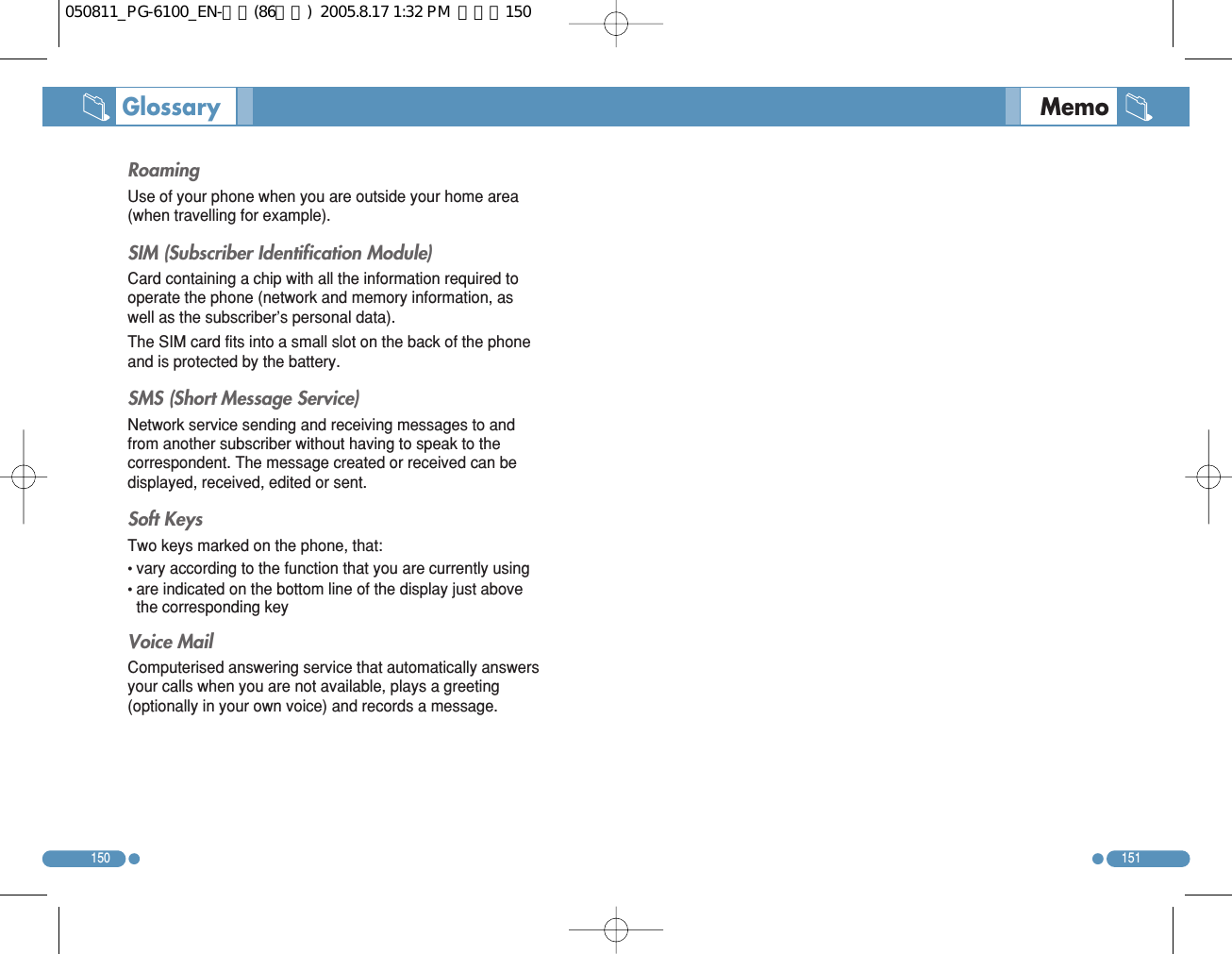

151150Roaming Use of your phone when you are outside your home area(when travelling for example). SIM (Subscriber Identification Module) Card containing a chip with all the information required tooperate the phone (network and memory information, aswell as the subscriber’s personal data). The SIM card fits into a small slot on the back of the phoneand is protected by the battery. SMS (Short Message Service) Network service sending and receiving messages to andfrom another subscriber without having to speak to thecorrespondent. The message created or received can bedisplayed, received, edited or sent. Soft Keys Two keys marked on the phone, that: • vary according to the function that you are currently using • are indicated on the bottom line of the display just abovethe corresponding key Voice Mail Computerised answering service that automatically answersyour calls when you are not available, plays a greeting(optionally in your own voice) and records a message. Glossary Memo050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지150

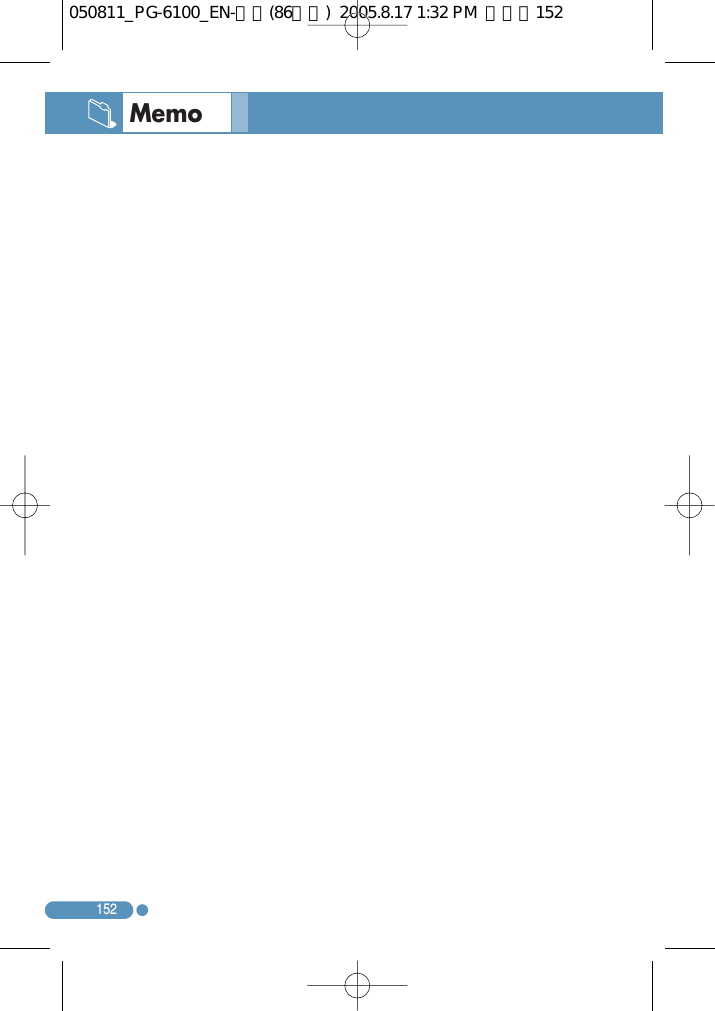

152Memo050811_PG-6100_EN-출력(86수정) 2005.8.17 1:32 PM 페이지152

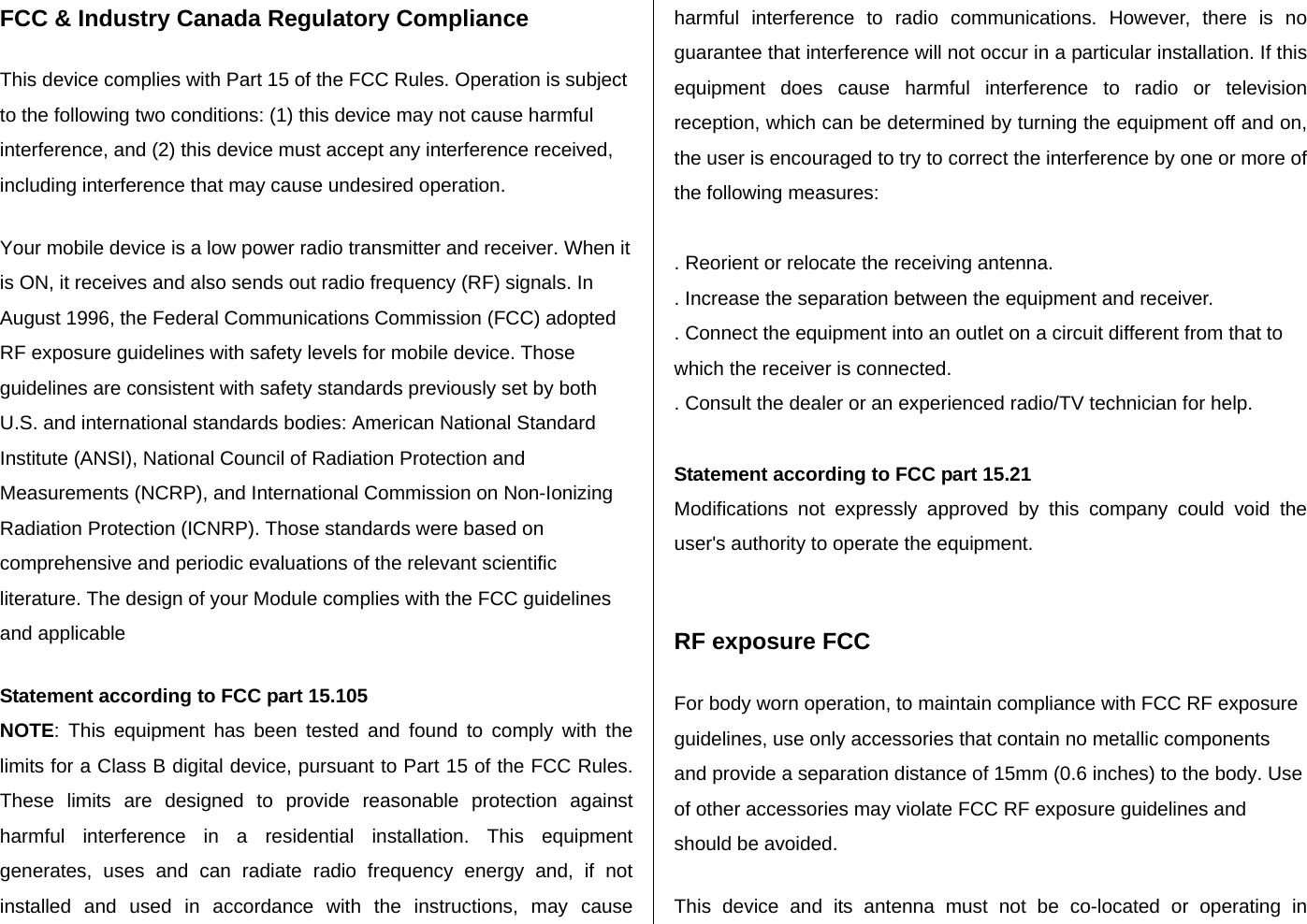

FCC & Industry Canada Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile device. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your Module complies with the FCC guidelines and applicable Statement according to FCC part 15.105 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. Statement according to FCC part 15.21 Modifications not expressly approved by this company could void the user's authority to operate the equipment. RF exposure FCC For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided. This device and its antenna must not be co-located or operating in

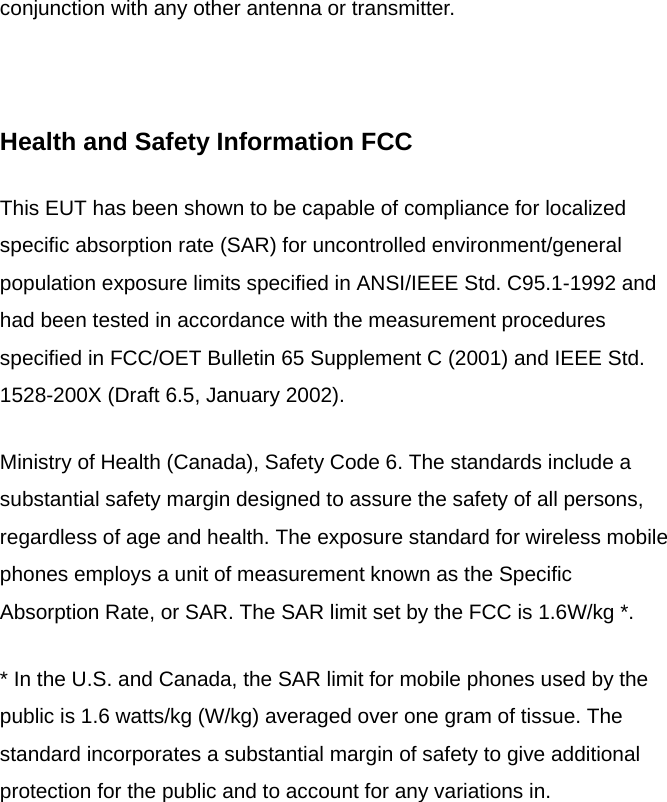

conjunction with any other antenna or transmitter. Health and Safety Information FCC This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *. * In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.
