Users Manual
TXT8040
User Guide
Table of Contents 1
CHAPTER 1. BEFORE USING
BEFORE USING.....................................4
INSIDE THE PACKAGE..................................................5
HANDSET DESCRIPTIONS.........................................6
KEY DESCRIPTIONS.....................................................7
DISPLAY INDICATORS..................................................9
INSTALL BATTERY.......................................................11
REMOVE BATTERY.....................................................12
BATTERY HANDLING INFORMATION ....................13
SWIVELING THE KEYPAD .........................................14
REMOVING THE microSD CARD..............................14
BASIC OPERATION.............................15
TURNING THE PHONE ON/OFF...............................16
ACCESSING THE MENU............................................16
USING THE TASK BAR................................................17
MENU SUMMARY........................................................18
MAKING A CALL............................................................20
ANSWERING CALLS...................................................20
MISSED CALL NOTIFICATION...................................21
WAIT/PAUSE FEATURE..............................................21
ANSWERING A CALL...................................................22
MAKING AN INTERNATIONAL CALL .......................22
3-WAY CALLING............................................................22
CALL WAITING FUNCTION........................................22
CALLING A NUMBER FROM CONTACTS..............23
ADJUSTING VOLUME.................................................23
CALLER ID FUNCTION................................................23
VIBRATE ON/OFF MODE............................................23
SPEAKERPHONE MODE...........................................24
USING AUTO KEYPAD LOCK FUNCTION .............24
AVAILABLE OPTIONS DURING A CALL..................24
MAKING AN EMERGENCY CALL.............................25
DIALING LETTERS.......................................................25
MEMORY FUNCTION........................... 27
STORING A PHONE NUMBER..................................28
ENTERING LETTERS, NUMBERS & SYMBOLS..33
ONE, TWO, THREETOUCH DIALING..................34
MENU FUNCTION................................ 35
NEW CONTACT............................................................36
LIST Entries .....................................................................36
GROUPS.........................................................................37
SPEED DIALS................................................................39
MY NAME CARD...........................................................40
CALLS..............................................................................42
MISSED...........................................................................42
2
RECEIVED......................................................................43
DIALED............................................................................43
ALL....................................................................................44
BLUETOOTH..................................................................45
SOUNDS SETTINGS....................................................48
DISPLAY SETTINGS.....................................................51
PHONE SETTINGS.......................................................54
CALL SETTINGS ...........................................................59
MEMORY........................................................................61
USB MODE.....................................................................63
PHONE INFO .................................................................64
SET - UP WIZARD.........................................................65
VOICE COMMANDS....................................................66
CALCULATOR................................................................70
TIP CALCULATOR ........................................................71
CALENDAR ....................................................................71
E-DIARY...........................................................................73
ALARM CLOCK .............................................................74
STOP WATCH................................................................76
WORLD CLOCK............................................................77
NOTEPAD.......................................................................77
USB MASS STORAGE ................................................78
MEDIA CENTER................................... 79
USING THE microSD CARD .......................................80
MUSIC & TONES...........................................................80
PICTURES......................................................................84
GAMES............................................................................86
MOBILE WEB.................................................................87
BROWSE & DOWNLOAD...........................................88
EXTRAS ..........................................................................88
MEDIA CENTER INFO .................................................89
MESSAGING MENU............................. 90
WHEN A NEW MESSAGE ARRIVES........................91
NEW MESSAGE ...........................................................91
INBOX..............................................................................93
SENT................................................................................94
MESSAGES....................................................................94
DRAFTS ..........................................................................95
VOICEMAIL.....................................................................96
ERASE ALL.....................................................................96
SETTINGS ......................................................................97
SAFETY AND WARRANTY ................. 99
SAFETY INFORMATION FOR WIRELESS
HANDHELD PHONES .............................................. 100
SAFETY INFORMATION FOR FCC RF EXPOSURE
........................................................................................ 103
SAR INFORMATION.................................................. 104
Table of Contents 3
HEARING AID COMPATIBILITY (HAC) FOR
WIRELESS TELECOMMUNICATIONS DEVICES
........................................................................................ 105
FDA CONSUMER UPDATE..................................... 107
AVOID POTENTIAL HEARING LOSS.....................113
FCC COMPLIANCE INFORMATION ......................115
12 MONTH LIMITED WARRANTY..........................116
4
CHAPTER 1
BEFORE USING
This chapter provides important information about using the
TXT8040 including:
Inside the package
Handset descriptions
Key descriptions
Display indicators
Install battery
Remove battery
Charging your battery
Battery handling information
Swiveling the keypad
Removing the microSD card
Chapter 1 Before Using 5

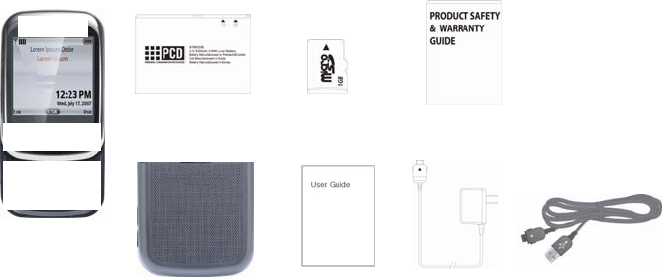

INSIDE THE PACKAGE
This package should include all items pictured below. If any are missing or different, immediately contact the
retailer where you purchased the phone.
Handset
Standard Battery
User Guide
1GB pre-installed
microSD Card
Battery Cover
Product Safety &
Warranty Guide
Wall Charger USB Cable
6
HANDSET DESCRIPTIONS
1. Left Soft Key 7. Quick Note Key
2. SEND Key 8. TXT Composer
3. Speakerphone Key 9. Delete Key
4. Function Key 10. CLR/AVC Key
5. International Dial Key 11. END Key
6. Vibration Key 12. Right Soft Key
13. Scroll Navigation 19. Self-Portrait Mirror
14. Display Screen 20. External Speaker
15. Earpiece 21. Wrist Strap Eyelet
16. Task Bar/Lock Key 22. Camera lens
17. Camera Key 23. Headset Jack
18. Charging Jack 24. Volume Keys
1
2
3
4
5
6 7
8
9
10
12
11
13
14
15
16
17
18 22
21
24
25
23
Chapter 1 Before Using 7
KEY DESCRIPTIONS
The following list correlates to the previous page’s
phone illustration.
1. [ ] Left Soft Key: From idle mode, press to
display the Message menu or access the function
listed above the key.
2. [ ] SEND Key: Press to make or receive a call.
From idle mode, press to access the ALL CALLS list.
3. [ ] Music Key: Press to access Music Player.
4. [] Function Key: In text entry mode, press to
change the character input type.
5. International Dial Key: Press to enter an asterisk
(*) character for calling features. Press and hold to
display the plus sign (+) for international dialing.
5. External Speaker: Music, Ringtones and Sounds
are played through the speaker.
6. Vibration Key: Press and hold to place your
device in Vibrate Mode.
7. Quick Note Key: Press to access the Quick Note
menu or to add a space between characters.
8. TXT Composer Key: Press to access the New
TXT Message menu.
9. [] Delete Key: In text entry mode, press to delete
the character.
10. [ ] CLR/AVC Key: Press to clear a character
from the display. Press and hold to clear all
characters. Within a menu, press to return to the
previous menu. From idle mode, press and hold to
access the VOICE COMMANDS menu.
11. [ ] END Key: Press and hold to turn the
phone on/off or press to end a call or browser
session, and/or return to idle mode.
12. [ ] Right Soft Key: From idle mode, press to
display Contacts or to access the function listed
above the key.
13. Scroll Navigation: Allows you to scroll through
phone menu options and provides a shortcut to
phone functions from idle mode.
14. Display Screen: Displays incoming calls,
messages, signal, battery strength, time and date.
15. Earpiece: The earpiece allows you to hear the
other caller.
16. Task Bar: Press to access the Task Bar menu.
17. Camera Key: Press to access the built-in
camera.
18. [ ] Charging/ Jack: Allows you to plug in an
optional headset for convenient, hands-free
conversations.
8
19. Self-Portrait Mirror: Displays your reflection
when taking pictures.
20. External Speaker: Music, Ringtones and
Sounds are played through the speaker.
21. Wrist Strap Eyelet: Accessory eyelet (optional
straps and lanyards - purchased separately).
22. Camera Lens: The lens of your built-in camera.
23. Headset Jack: Allows you to plug in an optional
headset for convenient, hands-free conversations.
24. [ /] Volume Keys: Press to adjust the
master volume in idle mode, adjust the voice volume
during a call or adjust music volume when playing
music.
Chapter 1 Before Using 9
DISPLAY INDICATORS
Icon Icon Descriptions
Signal Strength: Indicates Signal Strength.
1X: 1X service is available.
D: CDMA IS 95 service is available.
EVDO: EVDO service is available.
Airplane Mode: Transmitting and receiving
information is restricted.
Roaming: The phone is outside of the home
service area.
SSL (Secured Socket Layer): Indicates that
secure communication between client and
server has been established during data
communication using encryption.
Voice Privacy: Indicates Voice Privacy mode
is active.
Data Call: Indicates Data Session in
progress.
Dormant: Indicates phone is in a dormant
state during a data call. Phone reverts to
Dormant mode when there hasn't been
activity on a page for some time — the
connection is still active and you can make
and receive calls.
Icon Icon Descriptions
No Service: Phone cannot receive signal
from the system.
TTY: TTY mode is active.
Voice Call: A call is in progress. * No icon
indicates the phone is in idle mode.
Location On: Global Positioning Service is
set to On for Location Service and 911 calls.
Bluetooth: Indicates Bluetooth mode.
Bluetooth Active: Indicates Bluetooth Active
mode.
Bluetooth Connected: Indicates Bluetooth
Device is connected.
Bluetooth Discovery: Indicates Bluetooth
Discovery mode is On.
Playing Music: Indicates that music is
playing.
Pause Music: Indicates that music playback
has been paused.
Numeric Entry Mode: Enter numbers by
pressing the corresponding key on the
keypad.
Alphabetical Entry Mode: Enter characters
by pressing the key with the desired characters.
Battery Level: Battery charging level-the
more blocks, the stronger the charge.
10
Icon Icon Descriptions
AVR Active: AVR mode is active.
AVR Listening: Indicates AVR listening.
Silent: Indicates the Ringer Volume is set to
Silent.
Vibrate Only: Indicates the Ringer Volume is
set to Vibrate On.
Speakerphone: Speakerphone mode is
active.

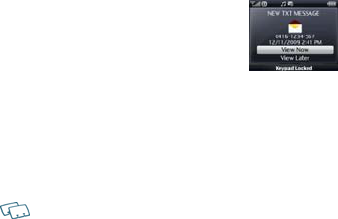

Message: Indicates you have new message.
Voice Message: Indicates you have voice
message.
Voicemail: Indicates you have voicemail
message.
Alarm On: Appears when an alarm is set.
Recent Calls Icons
Dialed Call Missed Call
Received Call
Contact Icons
Mobile1 Group
Mobile2 Picture
Home Ringtone
Work Fax
E-mail1 Speed Dial
E-mail2
Message Icons
NEW/Unread
Message Message
Locked
Opened/Read
Message Text Message
Draft
Message
Delivered Multimedia
Message Draft
Incomplete
Delivery Message
Priority level
Sent
Message,
Delivery
Failed
Unread
Multimedia
Message
Chapter 1 Before Using 11
Message Icons
Read
Multimedia
Message
Multiple
Message
Delivered
Pending
Message
Send
Multiple
Message
Failed
Sent Message
Multiple
Message
Incomplete
Unread WAP
Multiple
Message
Pending
Read WAP Multiple
Message Sent
INSTALL BATTERY
1. Push down (1) the battery door release latch with
your finger tip and pull off (2) the battery cover.
2. Slide (1) the battery into the slot by aligning the
contacts and press (2) until you hear the "click".
3. Align the cover tabs with the slots on the back of
the device and press the battery cover onto the unit
until it snaps into place.
If the battery is not correctly placed in the compartment,
the handset will not turn on and/or the battery may detach
during use.
12
REMOVE BATTERY
1. To remove the battery cover, push down (1) battery
door release latch with your finger tip and pull off (2)
the battery cover.
2. Push the bottom of the battery upwards while
inserting your finger into the slot (1) and remove (2)
the battery.
3. Align the cover tabs with the slots on the back of
the device and press the battery cover onto the unit
until it snaps into place.
CHARGING YOUR BATTERY
1. To charge, open the Charging/Data Jack cover
and connect the Wall Charger. Make sure you align
the connector as it appears in the image.
If the battery connector is not properly aligned, damage
could occur to the charging connector and the phone
may not charge.
Chapter 1 Before Using 13
2. Plug the other end into a standard outlet.
3. To remove the Wall Charger, squeeze the
adapter’s side buttons (1) and pull the charger from
the device (2).
y When you charge the battery with the handset
powered off you will see a charging status
screen. After the charging has completed, the Charge
Complete message appears. You cannot operate the
phone until it is powered on.
y The battery is not fully charged at the time of purchase.
Fully charge the battery before use.
y It is more efficient to charge the battery with the
handset powered off.
y Battery operating time gradually decreases over time.
y If the battery fails to perform normally, you may need
to replace the battery.
BATTERY HANDLING INFORMATION
DO’S
y Only use the battery and charger approved for
use with the TXT8040.
y Only use the battery for its original purpose.
y Try to keep batteries in a temperature between
41°F (5°C) and 95°F (35°C). If the battery is
stored in temperatures above or below the
recommended range, give it time to warm up or
cool down before using.
y Store the discharged battery in a cool, dark, and
dry place.
y Purchase a new battery when its operating time
gradually decreases after fully charging.
y Properly dispose of the battery according to local
laws.
DON’TS
y Don’t attempt to disassemble the battery – it is a
sealed unit with no serviceable parts.
y Don’t accidentally short circuit the battery by
carrying it in your pocket or purse with other
metallic objects such as coins, clips and pens.
This may critically damage the battery.
y Don’t leave the battery in extremely hot or cold
temperatures. Otherwise, it could significantly
reduce the capacity and lifetime of the battery.
y Don’t dispose of the battery by placing into a fire.
14
SWIVELING THE KEYPAD
To avoid breakage, turn the device in the direction
indicated.
1. Rotate the swivel bottom of the phone to the right,
as shown above.
2. The swivel bottom must be rotated to the left in
order to bring it back to the original position.
Important: To prevent breakage, do not rotate the swivel
bottom 360 degrees.
REMOVING THE microSD CARD
This device comes with a 1GB pre-installed microSD
Card.
1. Open the microSD Card cover, and use your
thumb to press and release the microSD Card.
2. Press the memory card inward, gently, until it pops
out. Remove the microSD Card.
3. Close the microSD Card cover.
To prevent possible damages, please keep the microSD
Card cover closed at all times regardless of whether the
microSD Card is inserted or not.
Chapter 2 Basic Operation 15
CHAPTER 2
BASIC OPERATION
This chapter addresses and explains the basic features for
TXT8040 including:
Turning the phone on/off 3-way calling
Accessing the menu Call waiting function
Using the task bar Calling a number from contacts
Quick switching between the main menus Adjusting volume
Menu summary Caller ID function
Making a call Vibrate on/off mode
Answering calls Speakerphone mode
Missed call notification Using auto keypad lock function Available
Wait/Pause feature options during a call
Answering a call Making an emergency call
Making an international call Dialing Letters
16
TURNING THE PHONE ON/OFF
TURNING THE PHONE ON
1. Press and hold the END Key [ ] until your display
turns on.
y If “Enter Lock Code” appears on the display, press the
OK Key to unlock the keypad and enter your 4-digit
lock code and press the OK Key.
y The default lock code is “1234”.
TURNING THE PHONE OFF
1. Press the OK Key to unlock the keypad, then
press and hold the END Key [ ] until your display
turns off.
y Immediately change or recharge the battery when
“BATTERY LOW” appears on the display.
y Memory may possibly be damaged if the phone turns
off due to the battery completely draining.
y Turn the phone off before removing or replacing the
battery. If the phone is on, unsaved data may be lost.
ACCESSING THE MENU
Your phone can be customized via the menu. Each
function can be accessed by scrolling with the
Directional Key [ ] or by pressing the number that
corresponds with the menu item.
1. To access the main menu from idle mode, press
the OK Key to unlock the keypad, then press the Left
Soft Key [ ] [MENU].
2. To scroll through the menu, press the Directional
Key [ ] up or down or press the number that
corresponds to the desired menu item.
3. To return to the previous page, press the CLR Key
[ ]. To exit the current menu and return to idle mode,
press the END Key [ ].
4. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [Contacts] to
open your Contact List.
This manual assumes that Menu Type of Display
Settings is set to Grid which is the default settings.
Chapter 2 Basic Operation 17
USING THE TASK BAR
The Task Bar is an alternative way to cycle through
menus, requiring fewer key presses. Toggle between
the following menus:
Dialing, Recent Calls, Messages, MP3 Box, My
Pictures, Contacts, Tools
1. From idle mode, press the OK Key to unlock the
keypad, then press the Task Bar Key [ ].
2. Press the Directional Key left or right to scroll
through Task Bar menus.
3. Select the desired task and press the OK Key.
y Task Bar is not available for certain circumstances
such as receiving an incoming call or message,
displaying a notification message or displaying the
main menu.
y Once a menu is selected, it is dimmed and not
selectable from the Task Bar.
18
MENU SUMMARY
Main Menu 2ND DEPTH 3RD DEPTH
1. Missed
2. Received
3. Dialed
4. All
1. Calls
5. View Timers
1. New Entry
2. List Entries
3. Message
Groups
4. Speed Dials
2. Contacts
5. My Name
Card
1. Sound Box
1. All Songs
2. Playlists
3. Artists
4. Genres
5. Albums
6. Manage My
Music
2. MP3 Box
7. Music Settings
3. Multimedia
3. Picture Box
4. Messages 1. New
Messages 1. Text Message
Main Menu 2ND DEPTH 3RD DEPTH
1. New
Message 2. Picture
Message
2. Voicemail
3. Inbox
4. Sent
5. Drafts
1. Entry Mode
2. Auto Save
3. Auto Erase
4. Auto Receive
5. Quick Text
6. Callback #
6. Settings
7. Signature
1. Erase Inbox
2. Erase Sent
3. Erase Drafts
4. Messages
.
7. Erase
4. Erase All
5. Neo
Applications 1. Neo
Applications
6. Neo
Navigation 1. Connect
WAP
1. Ringer
Volume
7. Configuration 1. Sounds
Settings 2. Dial Sounds
Chapter 2 Basic Operation 19
Main Menu 2ND DEPTH 3RD DEPTH
3. Call Sounds
4. Msg Sounds
5. Service
Alerts
6. Device
Connect
7. Power
On/Off
8. Key Tone
1. Sounds
Settings
9. Swivel
Sounds
1. My Banner
2. Backlight
3. Wallpaper
4. Menu Type
2. Display
Settings
5. Clock Format
1. Airplane
Mode
2. Language
3. Menu
Readout
4. Message
Readout
5. Location
7. Configuration
3. Phone
Settings
6. Security
Main Menu 2ND DEPTH 3RD DEPTH
7. System Select 3. Phone Settings 8. NAM Selection
1. Answer
Options
2. Auto Retry
3. TTY Mode
4. One Touch
Dial
4. Call Settings
5. Voice Privacy
1. Save Options
2. Internal
Memory
5. Memory
3. External
Memory
6. Bluetooth 1. Add New
Device
7. USB Mode
1. My Number
7. Configuration
8. Phone Info 2. SW / HW
Version
1. Take Picture 8. Camera
2. Picture Gallery
1. Voice
Commands
2. Calculator
9. Tools
3. Calendar
20
Main Menu 2ND DEPTH 3RD DEPTH
1. Alarm 1
2. Alarm 2
4. Alarm Clock
3. Alarm 3
5. Stop Watch
6. World Clock
7. Notepad
8. Voice Memo
9. Tools
9. USB Mass
Storage
MAKING A CALL
1. From idle mode, press the OK Key to unlock the
keypad, swivel to the QWERTY keypad and enter
the phone number (include the area code if needed).
y To erase one digit at a time, press the CLR Key [ ].
y To erase the entire number, press and hold the CLR
Key [ ].
y When you place or receive a call from phone numbers
stored in your Contact List with a contact name, the
name will be displayed.
2. Press the SEND Key [ ].
3. To end a call, press the END Key [ ].
y If you activate the AUTO RETRY function, the phone
will automatically re-dial the number
(Refer to page 63).
y You can also place calls using Voice-Activated Dialing.
Please refer to page 70 for more details.
ANSWERING CALLS
1. When your phone rings or vibrates, press the
SEND Key [ ] to answer the incoming call.
(Depending on your phone’s settings, you may also
answer incoming calls by pressing any key.)
2. To ignore incoming calls, press the Right Soft Key
[ ] [Ignore].
Chapter 2 Basic Operation 21
3. To end a call, press the END Key [ ].
In “Auto with Handsfree” a call is automatically answered
after a preset number of ringtones (Refer to page 63).
MISSED CALL NOTIFICATION
When an incoming call is not answered, the Missed
Call logo appears on the display.
TO DISPLAY THE MISSED CALL ENTRY FROM
THE NOTIFICATION SCREEN:
1. Highlight View Now and press the OK Key.
2. Press the OK Key [OPEN] to view the call details.
TO DISPLAY A MISSED CALL ENTRY FROM
IDLE MODE:
1. From idle mode, press the OK Key to unlock the
keypad, swivel to the QWERTY keypad and press
the Left Soft Key [ ] [MENU], select Calls, then press
the OK Key.
2. Press 1. Missed.
3. Highlight the entry you wish to view, then press the
OK Key [OPEN].
4. To dial the phone number, press the SEND Key [ ].
WAIT/PAUSE FEATURE
Pauses are used for automated systems (i.e., voice
mail or calling cards). Insert a pause after a phone
number and then enter another group of numbers.
The second set of numbers is dialed automatically
after the pause. This feature is useful for dialing into
systems that require a code.
Hard Pause (P)
The phone stops dialing until you press the SEND
Key [ ] to advance to the next number.
2 Sec Pause
The phone waits 2 seconds before sending the next
string of digits automatically.
1. From idle mode, press the OK Key to unlock the
keypad, swivel to the QWERTY keypad and enter
the phone number.
2. Press the Right Soft Key [ ] [Options].
3. Select 2 Sec Pause, then press the OK Key.
4. Enter additional number(s) (pin number or credit
card number).
5. Press the SEND Key [ ] to dial or the Left Soft Key
[ ] [Save].
22
ANSWERING A CALL
1. If your phone is set to Any Key for Answer Options,
simply press any key to answer a call. If your phone
is set to Auto with Handsfree for Answer Options,
calls are answered automatically with a 5 second
delay. (Auto with Handsfree is available only when
connected to a headset or hands-free device.) For
information on how to set your Answer Options, see
page 67.
2. To end the call, press the END Key [ ].
Any Key is the default setting for this device.
MAKING AN INTERNATIONAL CALL
1. Press the OK Key to unlock the keypad, swivel to
the QWERTY keypad and then press and hold the *
Key [ ]. The + required for international calls will be
displayed.
2. Enter the country code, area code, and phone
number then press the SEND Key [ ].
3. To end the call, press the END Key [ ].
3-WAY CALLING
With 3-Way Calling, you can talk to two people at the
same time. When using this feature, the normal
airtime rates will be applied for each of the two calls.
1. Press the OK Key to unlock the keypad, swivel to
the QWERTY keypad, enter the phone number you
wish to call and then press the SEND Key [ ].
2. Once you have established the connection, enter
the second phone number you wish to call and then
press the SEND Key [ ] again.
3. When you’re connected to the second party, press
the SEND Key [ ] again to begin your 3-Way call.
If one of the people you called hangs up during your call,
you and the remaining caller stay connected. If you
initiated the call and are the first to hang up, all three
calls are disconnected.
CALL WAITING FUNCTION
If you are on a call and you receive another incoming
call, you will hear a beep and the caller’s phone
number will appear on the display. With Call Waiting,
you may put the active call on hold while you answer
the other incoming call.
To use Call Waiting:
1. To answer another call while on the phone, press
the SEND Key [ ].
Chapter 2 Basic Operation 23
This places the first call on hold. To switch back to the
first caller, press the SEND Key [ ] again.
CALLING A NUMBER FROM
CONTACTS
1. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [ ] [Contacts].
2. Select the Contact entry and press the OK Key
[VIEW], then select the desired phone number.
3. Press the SEND Key [ ] to place the call.
Selecting the Contact entry and then pressing the Send
Key [ ] will dial the Default Number of the Contact entry
automatically. If multiple numbers are saved in the
Contact List, select the Contact entry, then select the
phone number you want to dial. Then press the Send
Key [ ].
ADJUSTING VOLUME
To adjust the master volume:
1. From idle mode, press the OK Key to unlock the
keypad, then press the Volume Keys [ ]/[ ] up or down.
2. Select one of the following options and press the
OK Key [SET] to save it.
y Silent
y Vibrate On
y Level 1 ~ Level 5
y Press the Volume Keys [ ]/[ ] up or down to adjust
Earpiece volume during a call.
y To play a ringtone, press the Left Soft Key [ ] [Play].
CALLER ID FUNCTION
Caller ID displays the number of the person calling
when your phone rings. If the caller’s identity is stored
in Contacts, the name appears on the screen. The
caller ID is stored in the Recent Calls Menu.
VIBRATE ON/OFF MODE
Vibrate Mode mutes key tones and alerts for an
incoming call or message. To activate Vibrate Mode:
1. From idle mode, press the OK Key to unlock the
keypad, swivel to the QWERTY keypad, then press
and hold the # Key [ ]. "VIBRATE MODE ENABLED"
appears on the display.
2. To disable Vibrate, press and hold the # Key [ ]
again. "VIBRATE MODE DISABLED" appears on
the display.
24
SPEAKERPHONE MODE
The Speakerphone feature lets you hear audio
through the speaker and talk without holding the
phone.
1. To activate press the OK Key to unlock the keypad,
then press the Speakerphone Key [ ]. To deactivate,
press the Speakerphone Key [ ] again.
USING AUTO KEYPAD LOCK
FUNCTION
When the backlight of the display is turned off, the
Side Keys and the Directional Key are locked. To
unlock them, press any key, “PRESS OK TO
UNLOCK KEYPAD” displays, then press the OK Key.
You can press and hold the Task Bar/Lock Key [ ] to lock
or unlock the keypad.
AVAILABLE OPTIONS DURING A
CALL
During a phone call, you can access the following
features by pressing the Right Soft Key [Options]:
NEW MESSAGE
To access the Messaging Menu during a call:
1. Press the Right Soft Key [Options], with New
Message highlighted, press the OK Key.
CONTACTS
To view your Contacts during a call:
1. Press the Right Soft Key [Options], select Contacts
and press the OK Key.
CALLS
To view your recent Calls list during a call:
1. Press the Right Soft Key [Options], select Calls
and press the OK Key.
BLUETOOTH
To access the Bluetooth Menu during a call:
1. Press the Right Soft Key [Options], select
Bluetooth and press the OK Key.
If an Audio device is connected, Audio To Phone / Audio
To Device is displayed in the options menu instead of
Bluetooth.
MAIN MENU
To access the Main Menu during a call:
Chapter 2 Basic Operation 25
1. Press the Right Soft Key [ ] [Options], select Main
Menu and press the OK Key.
NOTEPAD
To compose notes during a call:
1. Press the Right Soft Key [ ] [Options], select
Notepad and press the OK Key.
VOICE PRIVACY
To turn the voice privacy feature On or Off:
1. Press the Right Soft Key [ ] [Options], select Voice
Privacy and press the OK Key.
MAKING AN EMERGENCY CALL
The 911 feature automatically places the phone in
Emergency Call Mode when you dial the
preprogrammed emergency number, 911. It also
operates in Lock Mode and out of the service area.
911 IN LOCK MODE
To make an emergency call in Lock Mode:
1. Press the OK Key to unlock the keypad, swivel to
the QWERTY keypad, enter “911”, and then press
the SEND Key [ ].
2. The call connects.
3. The phone maintains Emergency Mode for 5
minutes. When the call ends, the phone returns to
Lock Mode.
911 USING ANY AVAILABLE SYSTEM
To make an Emergency Call using any available
system:
1. Press the OK Key to unlock the keypad, swivel to
the QWERTY keypad, enter “911”, and then press
the SEND Key [ ].
2. The call connects.
3. The phone will stay in Emergency Mode for 5
minutes. While the phone is in the Emergency Mode
for 5 minutes, the phone can receive an incoming call
from any available system or you can make outgoing
calls even in the Emergency Callback Mode.
DIALING LETTERS
Allows you to dial the number associated with a
specific word.
For example, to call “1-800-FLOWERS”:
1. Press the OK Key to unlock the keypad, swivel to
the QWERTY keypad, enter “1-800”, then press the
Mode Change Key [ ].
26
2. Enter “FLOWERS” with the QWERTY Keypad
and press the SEND Key [ ] to connect.
y If Alphabetical Entry Mode icon is turned on, only
capital letters will be appeared.
y Pressing the Mode Change Key change between the
Numeric Entry Mode and Alphabetical Entry Mode.
Chapter 3 Memory Function 27
CHAPTER 3
MEMORY FUNCTION
This chapter addresses memory functions including:
Storing a phone number
Entering letters, numbers & symbols
One, Two, Three-touch dialing
28
STORING A PHONE NUMBER
The Contact List stores up to 1000 entries.
ADDING A NEW CONTACT
1. From idle mode, press the OK Key to unlock the
keypad, swivel to the QWERTY keypad, then enter
the phone number you want to save.
2. Press the Left Soft Key [ ] [Save].
3. Select New Entry, and press the OK Key.
4. Press the Directional Key [ ] up or down to select
the type of phone number you want to save, then
press the OK Key.
Mobile 1/Mobile 2/Home/Work/Fax
Use Update Existing to add another phone number to a
contact already stored in memory.
5. Enter a name for the phone number (up to 32
characters), then press the OK Key [SAVE].
6. “CONTACT SAVED” displays, then the phone
number reappears on the screen. Press the End Key
[ ] to exit, or press the Send Key [ ] to call the number.
OPTIONS TO CUSTOMIZE YOUR CONTACTS
Once the basic phone number and name information
is stored in your Contacts, you can edit and/or
customize the entries.
1. From idle mode, press the OK Key to unlock the
keypad, press the Right Soft Key [ ] [Contacts], then
highlight the Contact entry you want to edit.
2. Press the Left Soft Key [ ] [Edit] to access the Edit
Contact screen.
3. Select the information field you want to customize.
Additional fields include: Name / Mobile 1 / Home /
Work / E-mail 1 / Group / Picture / Ringtone / Mobile
2 / IM Screen Name / Fax / E-mail 2 / Street / City /
State / Zip Code / Country
4. Swivel to the QWERTY keypad, change the data
as necessary, then press the OK Key [SAVE] to
update the contact entry.
ADDING OR CHANGING GROUPS
To organize your Contacts into groups:
1. From idle mode, press the OK Key to unlock the
keypad, press the Right Soft Key [ ] [Contacts], then
highlight the desired Contact entry.
Chapter 3 Memory Function 29
2. Press the Left Soft Key [ ] [Edit].
3. Highlight Group and press the Left Soft Key [ ]
[Set].
4. Select Family or Work, then press the OK Key
[MARK]. To create a new group, press the Right Soft
Key [ ] [New], swivel to the QWERTY keypad and
enter the new group name, then press the OK Key
[SAVE].
5. Press the Left Soft Key [ ] [Done] to set the group.
6. Press the OK Key [SAVE] to update the contact
entry.
CHANGING THE CALL RINGTONE
To identify who is calling by setting different ringtones
for different phone numbers in your Contacts:
1. From idle mode, press the OK Key to unlock the
keypad, press the Right Soft Key [ ] [Contacts], then
highlight the desired entry.
2. Press the Left Soft Key [ ] [Edit].
3. Highlight Ringtone, then press the Left Soft Key [ ]
[Set].
4. Select the new ringtone, then press the OK Key.
Press the Left Soft Key [ ] [Play] to listen to a highlighted
ringtone before you press the OK Key.
5. Press the OK Key [SAVE] to update the contact
entry.
ADDING OR CHANGING THE PICTURE ID
To select a picture or graphic to assign to a Caller ID:
1. From idle mode, press the OK Key to unlock the
keypad, press the Right Soft Key [ ] [Contacts], then
highlight the desired entry.
2. Press the Left Soft Key [ ] [Edit].
3. Highlight Picture, and press the Left Soft Key [ ]
[Set].
4. Press the Directional Key [ ] up, down, left or right
to select a picture, then press the OK Key.
5. When completed, press the OK Key [SAVE] to
update the contact entry.
ADDING OR CHANGING AN EMAIL ADDRESS
To enter or add an Email address to a Contact entry:
1. From idle mode, press the OK Key to unlock the
keypad, press the Right Soft Key [ ] [Contacts], then
press highlight the desired entry.
2. Press the Left Soft Key [ ] [Edit].
30
3. Highlight E-mail 1 or E-mail 2.
4. Swivel to the QWERTY keypad, enter an Email
address, then press the OK Key [SAVE] to update
the contact entry.
ADDING A SPEED DIAL ENTRY
To add an entry to Speed Dial:
1. From idle mode, press the OK Key to unlock the
keypad, press the Right Soft Key [ ] [Contacts], then
highlight a desired entry.
2. Press the Left Soft Key [ ] [Edit].
3. Highlight the phone number you want to add to
Speed Dial, then press the Right Soft Key [ ]
[Options].
4. Select 1. Set Speed Dial, then press the OK Key.
5. Select a Speed Dial location, then press the OK
Key [SET].
6. Select Yes and press the OK key.
7. Press the OK Key [SAVE] to update the contact
entry.
EDITING CONTACT ENTRIES
ADDING A PHONE NUMBER FROM IDLE MODE
1. From idle mode, press the OK Key to unlock the
keypad, swivel to the QWERTY keypad, and then
enter the phone number you want to save (up to 32
digits).
2. Press the Left Soft Key [ ] [Save].
3. Highlight Update Existing, then press the OK Key.
4. Highlight the existing Contact entry, then press the
OK Key.
5. Highlight the following phone number type, then
press the OK Key.
Mobile 1/Mobile 2/Home/Work/Fax
6. If a phone number is already assigned to the item
you selected, select Yes or No to overwrite the
existing entry, then press the OK Key.
7. “CONTACT UPDATED” displays, then the phone
number reappears on the screen. Press the End Key
[ ] to exit, or press the Send Key [ ] to call the number.
ADDING A PHONE NUMBER FROM THE
CONTACT LIST SCREEN
1. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [ ] [Contacts].
Your Contacts are displayed alphabetically.
Chapter 3 Memory Function 31
2. Highlight the Contact entry you want to edit, then
press the Left Soft Key [ ] [Edit].
3. Highlight the phone number field you want to add,
swivel to the QWERTY keypad, enter the number,
then press the OK Key [SAVE] to update the contact
entry. A confirmation message appears.
DEFAULT NUMBERS
The phone number saved when a Contact is created
is the Default Number. If more than one number is
saved in a Contact entry, another number can be set
as the Default Number.
The Default Number cannot be deleted. The entire
Contact entry can be deleted or another number
can be assigned as the Default Number allowing you to
delete the original number and keep the Contact entry.
CHANGING THE DEFAULT NUMBER
1. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [ ] [Contacts].
Your Contacts are displayed alphabetically.
2. Highlight the Contact entry you want to edit, then
press the Left Soft Key [ ] [Edit].
3. Highlight the phone number you want to assign as
the Default Number, then press the Right Soft Key [ ]
[Options].
4. Select 2. Set As Default, then press the OK Key.
5. Select Yes and press the OK Key. A confirmation
message appears.
6. Press the OK Key [SAVE] to update the contact
entry.
EDITING STORED PHONE NUMBERS
1. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [ ] [Contacts].
Your Contacts are displayed alphabetically.
2. Highlight the Contact entry you want to edit, then
press the Left Soft Key [ ] [Edit].
3. Select the phone number you want to edit.
4. Swivel to the QWERTY keypad, edit the phone
number as necessary, then press the OK Key
[SAVE] to update the contact entry.
EDITING STORED NAMES
1. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [ ] [Contacts].
Your Contacts are displayed alphabetically.
32
2. Highlight the Contact entry you want to edit, then
press the Left Soft Key [ ] [Edit].
3. Swivel to the QWERTY keypad, edit the name as
necessary, then press the OK Key [SAVE] to update
the contact entry.
DELETING
DELETING A PHONE NUMBER FROM A
CONTACT
1. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [ ] [Contacts].
2. Highlight the Contact entry, then press the Left Soft
Key [ ] [Edit].
3. Select the desired phone number to be deleted.
4. Press and hold the Clear Key [ ] to delete the
number.
5. Press the OK Key [SAVE] to update the contact
entry. A confirmation message appears.
DELETING A CONTACT ENTRY
1. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [ ] [Contacts].
2. Select the desired Contact entry to be deleted.
3. Press the Right Soft Key [ ] [Options], select 2.
Erase and press the OK Key.
4. Select Yes and press the OK Key. A confirmation
message appears.
DELETING A SPEED DIAL
1. From idle mode, press the OK Key to unlock the
keypad, then press the Right Soft Key [ ] [Contacts].
2. Highlight the entry that has a speed dial to be
deleted.
3. Press the Left Soft Key [ ] [Edit].
4. Highlight the phone number that has a speed dial
to be deleted.
5. Press the Right Soft Key [ ] [Options], select 1.
Remove Speed Dial and press the OK Key. Select
Yes and press the OK Key. A confirmation message
appears.
6. Press the OK Key [SAVE] to update the contact
entry.
Chapter 3 Memory Function 33
ENTERING LETTERS, NUMBERS &
SYMBOLS
Your device has a QWERTY keypad that provides a
superior typing experience on a small handheld
device for easy and comfortable input.
1. [ ] Mode Change Key:
y When in Numeric entry mode
- Press to change between entering numbers and letters
that appear on the same key or to lock in numeric or
text entry mode.
y When in Text entry mode
- Press to change between entering numbers and letters
that appear on the same key.
- Press and hold to lock in numeric or text entry mode.
2. [ ] Word Change Key: When in text entry
mode, press to select the next matching word.
3. [ ] Space Key: Press to accept a word and add
a space while entering letters. From idle mode, press
to access the Quick Note menu.
4. [ ] Symbols Key: Press to open the symbols
list.
5. [ ] Caps Key: Press to select a letter case for
the standard text [Abc] input mode. [Abc], [ABC] and
[abc] indicate the standard text input.
6. [ ] Enter Key: Press to insert a carriage return.
7. [ ] Del Key: When in a Text entry field and in
entry mode, press to delete the character to the left of
the cursor. Press and hold to delete the entire word
or character string that was just entered.
1
2 3 4 5
6
7
8
34
8. [ ] CLR/AVR Key: When in a Text entry field
and in entry mode, press to delete the character to
the left of the cursor. Press and hold to delete the
entire word or character string that was just entered.
For best performance in low-light environments, your
handset includes a backlight feature that can
illuminate both the display and the keypad so you can
keep reading and typing. (Please refer to page 55 for
more details on Backlight.)
ONE, TWO, THREE TOUCH
DIALING
Ideal for frequently dialed numbers, this feature
allows contact entries to be dialed via the keypad
with only one, two, or three key presses.
ONE - TOUCH DIALING:
1-9: Press the OK Key to unlock keypad, swivel to
the QWERTY keypad, and then press and hold the
number you wish to connect to for more than 1
second.
TWO - TOUCH DIALING:
10-21 : Press the OK Key to unlock keypad, swivel to
the QWERTY keypad, and then press the first digit
and press and hold the second digit of the number to
dial.
THREE - TOUCH DIALING:
Press the OK Key to unlock keypad, swivel to the
QWERTY keypad, press the first and second digits,
then press and hold the third digit of the number to
dial.
Chapter 4 Menu Function 35
CHAPTER 4
MENU FUNCTION
This chapter addresses accessing the menu and using its functions
and features to customize your TXT8040.
CONTACTS RECENT CALLS SETTINGS TOOLS
New contact Recent calls Bluetooth Voice Commands
Contact list Missed Sounds settings Calculator
Groups Received Display settings Tip Calculator
Speed dials Dialed Phone settings Calendar
In Case of Emergency All Call settings E-Diary
My Name Card Blocked Memory Alarm Clock
View timers USB Mode Stop Watch
Phone Info World Clock
Set-up Wizard Notepad
USB Mass Storage
36
NEW CONTACT
To add a new number to your Contact List:
Using this submenu, the number is saved as a new
Contact. To save the number into an existing Contact,
edit the Contact entry.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, then press 2. Contacts, 1.
New Entry.
To change the input mode, press the Left Soft Key [ ]
[Abc], select the desired option, and press the OK Key.
2. Press the Directional Key [ ] down to enter
information in other fields for the contact. Fields
include:
Mobile 1 / Home / Work / E-mail 1 / Group / Picture /
Ringtone / Mobile 2 / IM Screen Name / Fax / E-mail
2 / Street / City / State / Zip Code / Country
3. Press the OK Key [SAVE] to create the contact
entry.
LIST Entries
You can review all the entries stored in your Contact
List or quickly find an entry by entering a name or its
character string.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, then press 2. Contacts, 2. List
Entries.
Press the Right Soft Key [ ] [Contacts]. The list of names
in your contacts is displayed alphabetically.
2. Enter a name or part of a name in the Go To Field
at the bottom of the screen or press the Directional
Key [ ] up or down to scroll through your Contact List.
3. To edit the entry, press the Left Soft Key [ ] [Edit].
To view contact details, press the OK Key [VIEW].
y By pressing the Right Soft Key [ ] [Options], you can
choose from the following:
1. New Contact: To add a new contact.
2. Erase: To delete a contact.
3. New TXT Message: To create a TXT message.
4. New Picture Message: To create a Picture message.
5. New Voice Message: To create a Voice message.
6. Set As ICE Contact:: To set as an in case of emergency
number.
7. Call: Dial the contact.
8. Manage Contacts: To erase, lock, unlock or copy to card.
9. Send Name Card: To send a name card.
4. To dial the selected number, press the Right Soft
Key [ ] [Options] and then press 7. Call or press the
SEND Key [ ].
Chapter 4 Menu Function 37
GROUPS
Groups allow you to classify phone entries into
groups with up to 10 members in each group. The
default groups include Family and Work and they
cannot be erased or renamed.
TO ADD NEW GROUP
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
3. Message Groups.
2. Press the Left Soft Key [ ] [New].
3. Enter a new group name and press the OK Key
[SAVE].
TO ASSIGN PHONE NUMBER TO GROUP
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
3. Message Groups.
2. Select the group where you want to add the
contact, and then press the Right Soft Key [ ]
[Options].
3. Select Add and press the OK Key.
4. Your contact entries will be displayed in
alphabetical order. Select the contact you want to
add then press the OK Key [MARK].
5. Press the Left Soft Key [ ] [Done]. “MEMBER LIST
UPDATED” will be displayed.
TO CHANGE GROUP NAME
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
3. Message Groups.
2. Select the group you want to rename then press
the Right Soft Key [ ] [Options].
3. Select Rename and press the OK Key.
4. Enter the new group name, then press the OK Key
[SAVE].
ERASE GROUP
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
3. Message Groups.
2. Select the existing group name that you want to
erase, and then press the Right Soft Key [ ] [Options].
38
3. Select Erase Group and press the OK Key.
“ERASE GROUP?” will appear on the screen.
4. Select Yes and press the OK Key. A confirmation
message appears.
TO SEND A TXT MESSAGE TO A GROUP
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
3. Message Groups.
2. Select the group you want to send a message to
then press the Right Soft Key [ ] [Options].
3. Press 1. New TXT Message.
4. Input your message in the Text Field and then
press the Right Soft Key [ ] [Options] to select Insert
Quick Text, Save As Draft, Add, Format Text, Priority
Level or Cancel Message.
5. To send the TXT message, press the OK Key
[SEND] or press the SEND Key [ ].
TO SEND A PICTURE MESSAGE TO A GROUP
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
3. Message Groups.
2. Select the group you want to send a message to
then press the Right Soft Key [ ] [Options].
3. Press 2. New Picture Message.
4. Under Text, input your message and then press
the Directional Key [ ] down.
5. Under Picture, press the Left Soft Key [ ] [My Pics],
select the picture you would like to send then press
the OK Key. Press the Directional Key down.
6. Under Sound, press the Left Soft Key [ ] [Sounds],
select the sound you would like to send then press
the OK Key. Press the Directional Key down.
7. Under Subject, input a subject and then press the
Directional Key down.
8. Under Name Card, press the Left Soft Key [ ] [Add],
select 1. My Name Card or 2. Contacts then press
the OK Key. Select the desired card then press the
OK Key.
Chapter 4 Menu Function 39
9. Press the Right Soft Key [ ] [Options] to select
Preview, Save As Draft, Add Quick Text, Add Slide,
Priority Level, Remove Picture, Remove Slide,
Remove Sound, Remove Name Card or Cancel
Message.
These options will vary depending on the message
contents chosen.
10. To send the Picture Message, press the OK Key
[SEND] or press the SEND Key [ ].
TO SEND A VOICE MESSAGE TO A GROUP
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
3. Message Groups.
2. Select the group you want to send a voice
message to then press the Right Soft Key [ ]
[Options].
3. Press 3. New Voice Message.
4. To record a new Voice Memo, press the OK Key to
start recording, then press the OK Key [STOP] to
finish recording and save the voice memo.
5. Under Voice, your recorded file name will appear.
Press the Directional Key [ ] down.
6. Under Text, input your message then press the
Directional Key [ ] down.
7. Under Subject, input a subject then press the
Directional Key [ ] down.
8. Under Name Card, press the Left Soft Key [ ] [Add],
select 1. My Name Card or 2. Contacts then press
the OK Key. Select the card you’d like to send then
press the OK Key.
9. Press the Right Soft Key [ ] [Options] to select
Review, Save As Draft, Add Quick Text, Priority Level,
Remove Recording, Remove Name Card or Cancel
Message.
These options will vary depending on the message
contents chosen.
10. To send the Voice Message, press the OK Key
[SEND] or press the SEND Key [ ].
SPEED DIALS
From idle mode, calls can be placed to numbers
stored in speed dial by swiveling to the QWERTY
keypad, and pressing & holding the location number
on the keypad.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
4. Speed Dials.
40
2. Highlight the desired Speed Dial position, or enter
the Speed Dial digit, then press the OK Key [SET].
3. Select the desired Contact entry, then press the
OK Key.
4. Highlight the number you wish to set to speed dial
then press the OK Key.
5. "ASSIGN SPEED DIAL TO CONTACT?" appears
on the screen. Select Yes and press the OK Key. A
confirmation message appears.
“Unassigned” appears if the location is available.
TO ERASE A SAVED SPEED DIAL
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
4. Speed Dials.
2. Select the Speed Dial entry you want to erase.
3. Press the Right Soft Key [ ] [Remove].
4. "REMOVE SPEED DIALS" appears on the screen.
Select Yes and press the OK Key. A confirmation
message appears.
MY NAME CARD
A Name Card with the handset’s mobile number
automatically appears.
EDIT MY NAME CARD
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
5. My Name Card.
2. Press the Left Soft Key [ ] [Edit].
3. Edit My Name Card options and then press the
OK Key [SAVE] to save your changes.
SEND MY NAME CARD
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, press 2. Contacts then press
5. My Name Card.
2. Press the Right Soft Key [ ] [Send].
3. Press 1. TXT Message, 2. Picture Message, 3.
Voice Message or 4. Via Bluetooth.
y TXT Message: Allows you to send TXT messages with the
Name Card as an attachment.
Chapter 4 Menu Function 41
1. Enter the recipient’s contact information and press the
OK Key.
2. Enter your message in the Text field and then press the
OK Key [SEND].
y Picture Message: Allows you to send picture messages
with the Name Card as an attachment.
1. Enter the recipient’s contact information and press the
OK Key.
2. Compose your Picture Message and then press the OK
Key [SEND]. Please refer to page 97 for more details
on Picture Message.
y Voice Message: Allows you to send voice messages with
the Name Card as an attachment.
1. Press the OK Key to start recording a voice memo and
press the OK Key [STOP] to finish recording and save
the voice memo.
2. Compose your Voice Message and then press the OK
Key [SEND]. Please refer to page 97 for more details
on Voice Message.
y Via Bluetooth: Allows you to send Name Card to another
Bluetooth device.
1. Press 1. Add New Device. If the Bluetooth® power is
switched off, the following message will appear on the
screen: "TURN BLUETOOTH POWER ON?". Press
the OK Key to select Yes.
2. When "PLACE DEVICE YOU ARE CONNECTING TO
IN DISCOVERABLE MODE" appears, press the OK
Key to start searching Bluetooth devices.
3. Press the Directional Key [ ] up or down to select a
desired device and press the OK Key [PAIR]. Please
refer to page 47 for more details on Bluetooth.
4. The handset may prompt you for the passkey. Consult
the Bluetooth® accessory (sold separately) instructions
for the appropriate passkey (typically “0000” - 4 zeroes).
Enter the passkey, then press the OK Key.
5. "Before Connecting To [Device Name]" will appear on
the screen. Select Always Ask or Always Connect and
press the OK Key.
42
CALLS
The Calls menu is a list of the last phone numbers or
Contact entries for calls you placed, accepted, or
missed. It is continually updated as new numbers are
added to the beginning of the list and the oldest
entries are removed from the bottom of the list.
ACCESS AND OPTIONS
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, select 1. Recent Calls, then
press the OK Key.
2. Select a submenu.
1. Missed
2. Received
3. Dialed
4. All
5. View Timers
MISSED
Displays information about the 90 most recently
missed calls. Place a call to a missed call by simply
pressing the SEND Key [ ].
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, then press 7. Recent Calls, 1.
Missed.
2. Highlight an entry and do one of the following
options:
y Press the OK Key [OPEN] to view the entry.
y Press the Send Key [ ] to place a call to the number.
y Press the Right Soft Key [ ] [Options] to select:
Save to Contacts: To store the phone number in your
Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all Missed Call entries.
View Timers: To display usage time.
y Press the Left Soft Key [ ] [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the
contact.
Voice Message: To send a Voice message to the contact.
After 90 missed calls, the oldest call will automatically be
erased from the history.
Chapter 4 Menu Function 43
RECEIVED
Displays information about the 90 most recently
received calls. Place a call to a received call by
simply pressing the SEND Key [ ].
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, then press 7. Recent Calls, 2.
Received.
2. Highlight an entry and do one of the following
options:
y Press the OK Key [OPEN] to view the entry.
y Press the Send Key [ ] to place a call to the number.
y Press the Right Soft Key [Options] to select:
Save to Contacts: To store the phone number in your
Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all Received Call entries.
View Timers: To display usage time
y Press the Left Soft Key [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the
contact.
Voice Message: To send a Voice message to the contact.
After 90 received calls, the oldest call will automatically
be erased from the history.
DIALED
Displays information about the 90 most recently
dialed numbers. Place a call to a dialed call by simply
pressing the SEND Key [ ].
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, then press 7. Recent Calls, 3.
Dialed.
2. Highlight an entry and do one of the following
options:
y Press the OK Key [OPEN] to view the entry.
y Press the Send Key [ ] to place a call to the number.
y Press the Right Soft Key [ ] [Options] to select:
Save to Contacts: To store the phone number in your
Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all Dialed Call entries.
View Timers: To display usage time.
y Press the Left Soft Key [ ] [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the
contact.
Voice Message: To send a Voice message to the contact.
After 90 dialed calls, the oldest call will automatically be
erased from the history.
44
ALL
Displays information about the most recently
received, dialed and missed calls.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, then press 7. Recent Calls, 4.
All.
2. Highlight an entry and do one of the following
options:
y Press the OK Key [OPEN] to view the entry.
y Press the Send Key [ ] to place a call to the number.
y Press the Right Soft Key [ ] [Options] to select:
Save to Contacts: To store the phone number in your
Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all Call entries.
View Timers: To display usage time
y Press the Left Soft Key [ ] [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the
contact.
Voice Message: To send a Voice message to the contact.
After the 270 received, dialed or missed calls, the oldest
call will automatically be erased from the history.
Shortcut: To view a quick list of all your calls, press the
Send Key from idle mode.
VIEW TIMERS
Checks the usage time and manages your calls
within the limit you set. The 11 timers include (Last
Call, All Calls, Received Calls, Dialed Calls, Roaming
Calls, Transmit Data, Received Data, Total Data, Last
Reset, Lifetime Calls, Lifetime Data Counter):
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad, then press 7. Recent Calls,
then 5. View Timers.
2. Highlight a call list. Call timers include:
Last Call/All Calls/Received Calls/Dialed
Calls/Roaming Calls/Transmit Data/Received
Data/Total Data/Last Reset/Lifetime Calls/Lifetime
Data Counter
y Press the Left Soft Key [Reset] to reset highlighted timer.
y Press the Right Soft Key [Reset All] to reset all timers.
Chapter 4 Menu Function 45
BLUETOOTH
Bluetooth technology connectivity enables wireless
connections between electronic devices. If connected
with a Bluetooth Handsfree device, you can use your
phone more freely. Since devices with Bluetooth
connectivity communicate using radio waves, your
phone and the other device do not need to be in
direct line-of-sight. The two devices only need to be
within 10 meters (30 feet) of each other. The
connection can be subject to interference from
obstructions such as walls or other electronic devices.
This device is compliant with Bluetooth specification
2.0, supporting the following profiles: Headset,
Handsfree, Stereo, Phonebook Access, and Object
Push for vCard. To ensure interoperability between
other devices supporting Bluetooth technology, use
approved enhancements for this model. Check with
the manufacturers of other devices to determine their
compatibility with this phone. There may be
restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service
provider. If you want more information on this function,
visit the Bluetooth Technology organization Web site:
https://www.bluetooth.org/.
Important: Features using Bluetooth technology, or allowing
such features to run in the background
while using other features, increase the demand on
battery power and reduce the battery life.
BLUETOOTH ON/OFF
To toggle Bluetooth® power On/Off:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
3. Bluetooth.
2. Press the Left Soft Key [ ] [Turn On/Turn Off]. A
confirmation window appears.
ADD NEW DEVICE
Pairing is the process that allows the handset to
locate, establish and register a 1-to-1 connection with
the target device.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
3. Bluetooth, 1. Add New Device.
2. If the Bluetooth® power is switched off, the
following message will appear on the LCD screen:
“TURN BLUETOOTH POWER ON?” Select Yes and
press the OK Key.
46
3. The handset will prompt you with the following
message on the LCD screen: “PLACE DEVICE YOU
ARE CONNECTING TO IN DISCOVERABLE
MODE.” Press the OK Key.
4. The device will appear in the ADD NEW DEVICE
menu. Select the device you wish to pair to, then
press the OK Key [PAIR].
5. The handset may prompt you for the passkey.
Consult the Bluetooth® accessory (sold separately)
instructions for the appropriate passkey (typically
“0000”—4 zeroes). Enter the passkey, then press the
OK Key.
You do not need to input the passkey for pairing when
the passkey of the Bluetooth® Headset or hands-free kit
is 0000.
6. The handset will prompt you with the following
message on the LCD screen: BEFORE
CONNECTING [Device Name]. If you would like to
always confirm before connecting to the Bluetooth®
device, select Always Ask, then press the OK Key.
Then the handset will prompt you with the message
Connect to [Device Name]? Select Yes and press the
OK Key. If you do not wish to confirm every time
before connecting to the Bluetooth® device, select
Always Connect, then press the OK Key.
7. Once connected, you will see the device listed in
the Bluetooth menu and the Bluetooth® device
connected icon will appear at the top of the screen
when connected to the Bluetooth® device.
y In the Bluetooth menu, you can disconnect the
connected device with an icon by pressing the OK
Key [Drop]. Conversely, you can reconnect by
pressing the OK Key again.
y When an audio device is connected, you can select
another device and the connection is automatically
transferred from that audio device to the other one.
y If multiple devices are displayed, select the device you
want to connect to.
OPTIONS
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
3. Bluetooth.
2. Select the paired device.
3. Press the Right Soft Key [ ] [Options].
4. Select one of the following options, then press the
OK Key.
y Remove Device: Removes a device from the pairing list.
y Rename Device: Renames a paired device.
y Incoming Security: Sets permissions for connecting an
incoming device.
y Service Discovery: To search for the services that the
selected device supports.
Chapter 4 Menu Function 47
y Device Info: Displays device information.
5. Or, press the OK Key to access 1. Send Name
Card, 2. Get Name Card or 3. Send Picture. Select
the desired option and press the OK Key to access
the following:
y Send Name Card: Send name cards stored in Contacts to
a selected device.
1. Press the Directional Key [ ] up or down to highlight a
desired contact or contacts, then press the OK Key
[MARK]. If you want to change your selections, press the
OK Key [UNMARK] to deselect your selections.
2. Press the Left Soft Key [ ] [Done]. If you want to send all
the name cards, press the Right Soft Key [ ] [Send All].
y Get Name Card: Get name cards from the selected device.
y Send Picture: Send photos to a selected device.
1. Press the Directional Key [ ] up, down, left or right to
highlight a desired photo or photos, then press the OK Key
[MARK]. If you want to change your selections, press the
OK Key [UNMARK] to deselect your selections.
2. Press the Left Soft Key [ ] [Done]. If you want to send all
the photos, press the Right Soft Key [ ] [Send All].
SETTINGS
MY PHONE NAME
To edit the Bluetooth® name of your phone:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
3. Bluetooth.
2. Press the Right Soft Key [ ] [Options].
3. Press 1. My Phone Name.
4. Use the numeric keypad to enter a new custom
name.
5. Press the OK Key [SET] to save and exit.
DISCOVERY MODE
To set whether your device is able to be searched for
by other Bluetooth® devices in the area:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
3. Bluetooth.
2. Press the Right Soft Key [ ] [Options].
3. Press 2. Discovery Mode.
If Bluetooth power is not on, it will be turned on
automatically.
4. Select On or Off, then press the OK Key [SET].
48
SUPPORTED PROFILES
To view brief descriptions of the profiles supported by
the phone:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
3. Bluetooth.
2. Press the Right Soft Key [ ] [Options].
3. Press 3. Supported Profiles.
4. Select one of the following profiles, and then press
the OK Key [VIEW].
Headset / Handsfree / Stereo / Phonebook Access /
Object Push
AUTO PAIR HANDSFREE
To set Auto Pair Handsfree On/Off:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
3. Bluetooth.
2. Press the Right Soft Key [ ] [Options].
3. Press 4. Auto Pair Handsfree.
4. Select On or Off, then press the OK Key [SET].
SOUNDS SETTINGS
CALL SOUNDS
To set ringtones for types of incoming calls:
CALL RINGTONE
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sound Settings, 2. Call Sounds, 1. Call Ringtone.
2. Select a ringtone, then press the OK Key [SET]. To
play the ringtone, press the Left Soft Key [Play].
CALL VIBRATE
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sound Settings, 2. Call Sounds, 2. Call Vibrate.
2. Select On or Off, then press the OK Key [SET].
CALLER ID READOUT
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sound Settings, 2. Call Sounds, 3. Caller ID
Readout.
2. Select Ring Only, Caller ID + Ring or Name
Repeat, then press the OK Key [SET].
Chapter 4 Menu Function 49
ALERT SOUNDS
To select the alert type for a new message:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 3. Alert Sounds.
2. Select 1. TXT Message, 2. Pic- Voice Message or
3. Voicemail then press the OK Key.
3. Select Tone, Vibrate or Reminder, then press the
OK Key.
y Tone: Press the Directional Key [ ] up or down to select a
ringer, then press the OK Key [SET]. To play the alert tone,
press the Left Soft Key [ ] [Play].
y Vibrate: Press the Directional Key [ ] up or down to select
On or Off, then press the OK Key [SET].
y Reminder: Press the Directional Key [ ] up or down to
select Once, Every 2 Minutes, Every 15 Minutes or Off,
then press the OK Key [SET].
EMERGENCY TONE
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 3. Alert Sounds, 4. Emergency
Tone.
2. Select Alert, Vibrate or Off then press the OK Key
[SET].
MISSED CALL
To select alert type for missed calls:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 3. Alert Sounds, 5. Missed Call.
2. Select Tone, Vibrate or Reminder, then press the
OK Key.
y Tone: Press the Directional Key [ ] up or down to select a
ringer, then press the OK Key [SET]. To play the alert tone,
press the Left Soft Key [ ] [Play].
y Vibrate: Press the Directional Key [ ] up or down to select
On or Off, then press the OK Key [SET].
y Reminder: Press the Directional key [ ] up or down to
select Once, Every 2 Minutes, Every 15 Minutes or Off,
then press the OK Key [SET].
KEYPAD SOUNDS
To select keypad sounds for pressing keypad:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 4. Keypad Sounds.
2. Select DTMF, Cloud or Simple, then press the OK
Key [SET].
DTMF is the default setting for this device.
50
KEYPAD VOLUME
To set the keypad volume:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 5. Keypad Volume.
2. Adjust the volume by pressing the Directional Key
[ ] up or down, then press the OK Key [SET] to save
the setting.
DIGIT DIAL READOUT
The Digit Dial Readout setting controls if digits are
read out when you enter a phone number with the
keypad.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 6. Digital Dial Readout.
2. Select On or Off, then press the OK Key [SET].
SERVICE ALERTS
To set any of the three Alert options to either On or
Off:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings &
Tools, 4. Sounds Settings, 7. Service Alerts.
2. Select one of the following options, then press the
OK Key.
y ERI: The Enhanced Roaming Indicator (ERI) feature
displays a text banner on the display screen informing the
handset user of which systems the wireless device is
using as compared to the service plan they purchased.
The ERI Banner text changes to tell a customer if they are
using the Verizon Wireless Network, Extended Network or
Roaming.
y Minute Beep: Alerts you every minute during a call.
y Call Connect: Alerts you when the call is connected.
3. Select On or Off, then press the OK Key [SET].
DEVICE CONNECT
Allows you to turn the Device Connect On or Off:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 8. Device Connect.
2. Select On or Off, then press the OK Key [SET].
POWER ON/OFF
To set the phone to sound a tone when the phone is
powered on or off:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
Chapter 4 Menu Function 51
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 9. Power On/Off.
2. Press 1. Power On or 2. Power Off.
3. Select On or Off, then press the OK Key [SET].
SWIVEL SOUNDS
To set the phone to sound a tone when swiveling to
Music/QWERTY keypad:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
4. Sounds Settings, 0. Swivel Sounds.
2. Select On or Off, then press the OK Key [SET].
DISPLAY SETTINGS
Allows you to customize the display.
BANNER
To set your Personal or ERI banner:
PERSONAL BANNER
The Personal Banner can be up to 16 characters and
is displayed on your phone’s screen from idle mode.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
5. Display Settings, 2. Banner, 1. Personal Banner.
2. Enter the banner text (up to 16 characters), select
a desired font color, then press the OK Key [SET].
ERI BANNER
If you use ERI Service, ERI Text is shown on the sub
banner.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
5. Display Settings, 2. Banner, 2. ERI Banner.
2. Select On or Off, then press the OK Key [SET].
BACKLIGHT
To set the duration for backlight illumination of the
Main Screen and Keypad:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
5. Display Settings, 3. Backlight.
2. Press 1. Display or 2. Keypad.
3. Select 7 Seconds, 15 Seconds, 30 Seconds or
Always On, then press the OK Key [SET].
52
Even if Always On is selected for the Backlight
setting, the backlight will turn off when the phone is
powered off.
WALLPAPER
To choose the kind of background to be displayed on
the phone:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
5. Display Settings, 4. Wallpaper.
2. Select a desired screen then press the OK Key
[SET]. To view the image, press the Left Soft Key [ ]
[View].
3. To download other available selections, press the
Right Soft Key [ ] [Get New], then 1. Get New
Applications. Follow the on-screen prompts.
DISPLAY THEMES
To choose the background screen:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
5. Display Settings, 5. Display Themes.
2. Select Foliate, Transparent, Urban, or White, then
press the OK Key [SET]. To preview the display
theme, press the Left Soft Key [ ] [Preview].
3. To view the Help for the Display Theme, press the
Right Soft Key [ ] [Help].
Foliate is the default setting for this device.
MAIN MENU SETTINGS
To change Main Menu layout and type:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
5. Display Settings, 6. Main Menu Settings.
y Menu Layout: Select Tab, List or Grid, then press the OK
Key [SET]. To preview the Main Menu layout, press the
Left Soft Key [ ] [Preview]. If you selected List or Grid, the
Menu Type selection screen appears. Select Messaging
or Personalizing, then press the OK Key [SET].
This guide gives navigation instructions according
to the defaults, Main Menu Settings are set to List
and Messaging, and Display Themes is set to
Foliate. If other settings are set, navigating the
phone's menus may be different.
y Replace Menu Items: Allows you to replace the Main
Menu with desired menus.
1. Select the menu you want to replace then press the OK
Key [EDIT].
2. Select a menu in the list to replace it and then press the
OK Key [SET].
Chapter 4 Menu Function 53
3. To return to Menu Settings, press the Left Soft Key [ ]
[Done] or to view the Help for Replace Menu Items, press
the Right Soft Key [ ] [Help].
y Position Menu Items: Allows you to move the position of
Main Menu to a desired position.
1. Select the menu you want to move then press the OK
Key [MOVE].
2. Press the Directional Key up or down to place the menu
in a desired position and then press the OK Key [SET].
3. To return to Menu Settings, press the Left Soft Key [ ]
[Done] or to view the Help for Position Menu Items, press
the Right Soft Key [ ] [Help].
y Reset Menu Settings: Allows you to reset Main Menu Settings.
1. Select Menu Layout, Menu Items, Item Positions, or All
and then press the OK Key.
2. To return to Menu Settings, press the Left Soft Key [ ]
[Done] or to view the Help for Reset Menu Settings, press
the Right Soft Key [ ] [Help].
- Menu Layout: Reset Menu Layout to the initial Menu Layout.
- Menu Items: Reset Menu Items to the initial content of the Main
Menu.
- Item Positions: Reset Menu Items to the initial order of Main Menu.
- All: Reset all Main Menu Settings to the initial Main Menu Settings.
DIAL FONTS
To set the font size:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
5. Display Settings, 7. Dial Fonts.
2. Select Normal or Large, then press the OK Key [SET].
MENU FONT SIZE
To set the menu font size:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
5. Display Settings, 8. Menu Font Size.
2. Select Normal or Large, then press the OK Key [SET].
CLOCK FORMAT
To choose the kind of clock to be displayed on the
LCD screen:
1. From idle mode, press the OK Key to unlock the
keypad, press the OK Key [MENU], swivel to the
QWERTY keypad and press 9. Settings & Tools, 5.
Display Settings, 9. Clock Format.
2. Press the Directional Key [ ] left or right to select
Analog, Large Analog, Digital 12, Large Digital 12,
Digital 24, Large Digital 24 or Off, select a
desired font color, then press the OK Key [SET].
Large Digital 12 is the default setting for this device.
54
PHONE SETTINGS
AIRPLANE MODE
In Airplane Mode, all menu functions can be
accessed except making calls, receiving calls, data
connection and Bluetooth®. Activating Airplane Mode
will disable all wireless communications. Services
that support Location On functions like Chaperone
are temporarily disabled.
1. From idle mode, press the OK Key to unlock the
keypad, press the OK Key [MENU], swivel to the
QWERTY keypad and press 9. Settings & Tools, 6.
Phone Settings, 1. Airplane Mode.
2. Select On or Off, then press the OK Key [SET].
SET SHORTCUTS
Your phone offers you the option of assigning a
shortcut key (Directional Key left, right, up, and down)
to a favorite or often-used function.
From idle mode, press the Directional Key [ ] right to
access the MY SHORTCUTS menu and press the Left
Soft Key [ ] [Settings].
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools, 6.
Phone Settings, 2. Set Shortcuts, 1. Set My Shortcuts.
2. Select Shortcut 1, Shortcut 2, Shortcut 3 or
Shortcut 4, then press the OK Key [SET].
3. Select the desired option, then press the OK Key [SET].
From idle mode, pressing the Directional Key [ ] right will
display the MY SHORTCUTS screen. On the MY
SHORTCUTS screen, you can select a function and
then press the OK Key to access the function. On the
MY SHORTCUTS screen, you can relocate a function
by pressing the Right Soft Key [ ] [Move], pressing the
Directional Key [ ] up or down, and then pressing the OK
Key [SAVE]. Or you can press the Left Soft Key [ ]
[Settings] to access Set My Shortcuts or Set Directional Keys.
RESETTING MY SHORTCUTS
To reset My Shortcuts to their original defaults:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools, 6.
Phone Settings, 2. Set Shortcuts, 1. Set My Shortcuts.
2. Select Shortcut 1, Shortcut 2, Shortcut 3 or
Shortcut 4, and then press the Right Soft Key [ ]
[Options].
3. Press 1. Reset Shortcut (1, 2, 3 or 4) or 2. Reset
My Shortcuts.
4. Select Yes and press the OK Key.
Chapter 4 Menu Function 55
SET DIRECTIONAL KEYS
From idle mode, you can specify the function that is
accessed when you press the Directional Key [ ] up,
down or left.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 2. Set Shortcuts, 2. Set Directional
Keys.
2. Select UP Directional Key, LEFT Directional Key or
DOWN Directional Key, and then press the OK Key [SET].
3. Select the desired option, and then press the OK
Key [SET].
RESETTING THE DIRECTIONAL KEY SETTINGS
Use the following procedure to specify the default
Directional Key settings.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 2. Set Shortcuts, 2. Set Directional
Keys.
2. Select UP Directional Key, LEFT Directional Key or
DOWN Directional Key, and then press the Right
Soft Key [ ] [Options].
3. Press 1. Reset (UP, LEFT or DOWN) Key or 2.
Reset Directional Keys.
4. Select Yes and press the OK Key.
LANGUAGE
To set the bilingual feature to either English or
Español:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 4. Language.
2. Select either English or Español, then press the
OK Key [SET].
LOCATION
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 5. Location.
2. Select one of the following settings, then press the
OK Key [SET].
y Location On: Your location is now available to the network.
y E911 Only: Your location will be hidden from the network
and applications, except for 911.
When Lock Setting is selected for Location Setting
under Restrictions on the Security Menu, you will need
to enter a lock code. The default Lock Code is “1234”.
56
CURRENT COUNTRY
Allows you to set the country of your current location
so that your phone works properly while you travel.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 6. Current Country.
2. Press the Directional Key [ ] up or down or input
the country name in the Go To field to select the
desired country, then press the OK Key [SET]. To
view help for Current Country, press the Right Soft
Key [ ] [Help].
SECURITY
The Security menu allows you to electronically
secure the phone.
The default lock code is “1234”.
EDIT CODES
To set a new lock code:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 7. Security.
2. Enter the four-digit lock code, then press the OK Key.
3. Press 1. Edit Codes.
4. Select one of the following settings, then press the
OK Key.
y Phone Only: Allows you to edit the lock code for Security.
(The default lock code is ”1234”.)
y Calls & Services: Allows you to edit the lock code for
Restrictions. (The default lock code is “1234”.)
5. If Phone Only is selected, enter the new four-digit
code in the Enter New Code field. Enter the new
four-digit code again in the Re-enter New Code field
to confirm your input.
6. If Calls & Services is selected, enter the current
lock code in the Enter Current Code field. Enter the
new four-digit code in the Enter New Code field.
Enter the new four-digit code again in the Re-enter
New Code field.
7. Press the OK Key [SET].
RESTRICTIONS
Use the following procedure to configure Location
Setting, Calls and Messages restrictions.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 7. Security.
2. Enter the four-digit lock code, then press the OK
Key. The default lock code is “1234”.
Chapter 4 Menu Function 57
3. Press 2. Restrictions.
4. Enter the four-digit lock code again, then press the
OK Key.
5. Select one of the following settings:
y Location Setting: Unlock Setting/Lock Setting.
y Calls: Incoming Calls/Outgoing Calls.
For Incoming Calls, set Allow All, Contacts Only or
Block All.
For Outgoing Calls, set Allow All, Contacts Only or
Block All.
y Messages: Incoming Messages/Outgoing Messages.
For Incoming Messages, set Allow All or Block
All.
For Outgoing Messages, set Allow All or Block
All.
6. Press the OK Key [SET].
PHONE LOCK SETTING
This setting specifies whether the phone should be
locked whenever it is turned on. Lock Mode prevents
the unauthorized use of your phone. Once the phone
is locked, it is in restricted mode until the lock code is
entered. You can still make emergency calls.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 7. Security.
2. Enter the four-digit lock code, then press the OK
Key. The default lock code is “1234”.
3. Press 3. Phone Lock Setting.
4. Select one of the following settings, then press the
OK Key [SET].
y Unlocked: Phone is unlocked.
y On Power Up: Phone will lock when it is turned on.
LOCK PHONE NOW
Lock the phone now.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 7. Security.
2. Enter the four-digit lock code, then press the OK
Key. The default lock code is ”1234”.
3. Press 4. Lock Phone Now.
4. To unlock the phone from idle mode, press the OK
Key to unlock the keypad, then press the Right Soft
Key [ ] [Unlock] and enter the four-digit lock code,
then press the OK Key.
58
RESTORE PHONE
To delete all User Data and restore all settings to their
initial defaults:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 7. Security.
2. Enter the four-digit lock code, then press the OK Key.
3. Press 5. Restore Phone.
4. A confirmation message appears in the display,
select Yes, and then press the OK Key.
5. After reading the message that appears, press the
OK Key.
6. Enter the four-digit lock code, then press the OK Key.
The phone will turn off and then back on again
automatically.
SYSTEM SELECT
You can set your phone to search or roam on
another network when you are not in your home area.
Leave this setting as default unless you want to alter
the system selection as instructed by your service
provider.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings &
Tools, 6. Phone Settings, 8. System Select.
2. Select one of the following settings, then press the
OK Key [SET].
y Automatic: Scan radio channels based on the Automatic setting.
y Home Only: Only within your home area or home affiliated
area.
Automatic setting can be displayed as Automatic B and
Automatic A depending on PRL.
NAM SELECTION
Enables Auto NAM (Number Assignment Modules)
or manually selects a NAM.
AUTO NAM
Automatically switches the phone to proper NAM
when you have multiple NAM registrations.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 9. NAM Selection.
2. Select 1. Auto NAM, then press the OK Key.
3. Select On or Off, then press the OK Key [SET].
Chapter 4 Menu Function 59
CHANGE NAM
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
6. Phone Settings, 9. NAM Selection.
2. Select 2. Change NAM, then press the OK Key.
3. Select NAM 1 or NAM 2, then press the OK Key
[SET].
CALL SETTINGS
ANSWER OPTIONS
To determine how to handle an answered call:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
7. Call Settings, 1. Answer Options.
2. Select Any Key or Auto with Handsfree, then press
the OK Key [MARK].
Any Key is the default setting for this device.
3. Press the Left Soft Key [ ] [Done].
y When the phone is closed, the Auto with Handsfree
Mode will not function, except when a headset is
connected.
y The Auto with Handsfree will function after about five
seconds.
y Auto with Handsfree is available only when a headset
or hands-free device is connected.
y The two functions can be used at the same time.
y To answer all incoming calls, press the SEND Key [ ].
AUTO RETRY
To set the length of time the phone waits before automatically
redialing a number when the attempted call fails:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU],swivel to
the QWERTY keypad and press 9. Settings & Tools,
7. Call Settings, 2. Auto Retry.
2. Select one of the following settings, then press the
OK Key [SET].
10 Seconds/30 Seconds/60 Seconds/Off.
TTY MODE
You can attach a TTY device to your phone enabling
you to communicate with parties also using a TTY
device. A phone with TTY support is able to translate
typed characters to voice. Voice can also be translated
into characters and then displayed on the TTY.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
7. Call Settings, 3. TTY Mode.
60
2. Select one of the following settings, then press the
OK Key [SET].
TTY Full/TTY + Talk/TTY + Hear/TTY Off.
ONE TOUCH DIAL
To initiate a speed dial call by holding down the
speed dial digit:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
7. Call Settings, 4. One Touch Dial.
2. Select On or Off, then press the OK Key [SET].
If One Touch Dial is disabled, Speed Dial numbers
designated in your Contacts will not function.
VOICE PRIVACY
To turn the voice privacy feature On or Off:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
7. Call Settings, 5. Voice Privacy.
2. Select On or Off, then press the OK Key [SET].
DTMF TONES
To set the Key Tone length and touch tone playback speed:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
7. Call Settings, 6. DTMF Tones.
2. Select one of the following settings, then press the
OK Key [SET].
y Normal: Sends out a tone for a fixed period of time even if you
continue to press the key.
y Long: Sends out a continuous tone for the duration the key is
pressed and held.
ASSISTED DIALING
To set Assisted Dialing feature On or Off:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
7. Call Settings, 7. Assisted Dialing.
2. Press the Directional Key [ ] left or right to select
On or Off. To view help for Assisted Dialing, press the
Right Soft Key [ ] [Help].
3. When you set Assisted Dialing to On, press the
Directional Key [ ] down and then press the Left Soft
Key [ ] [Set] to edit Reference Country.
4. Select the desired Country and press the OK key.
5. Press the OK Key to set Assisted Dialing.
Chapter 4 Menu Function 61
MEMORY
SAVE OPTIONS
To select whether to save to Phone Memory or to
Card Memory when saving files:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
8. Memory, 1. Save Options.
2. Select 1. Pictures or 2. Sounds, and then press the OK
Key.
3. Select Phone Memory or Card Memory, and then
press the OK Key [SET].
PHONE MEMORY
Select Phone Memory option to display Phone
Memory information or to delete or move files saved
in Phone Memory.
PHONE MEMORY USAGE
To check the available Phone Memory capacity, used
capacity and total capacity:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
8. Memory, 2. Phone Memory.
2. Press 1. Phone Memory Usage.
3. Press the OK Key to return to the previous screen.
DELETING AND MOVING FILES
To delete files stored in Phone Memory or to move
files from Phone Memory to Card Memory:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
8. Memory, 2. Phone Memory.
2. Select My Pictures, My Ringtones, My Sounds or
My Contacts and then press the OK Key.
3. Press the Right Soft Key [ ] [Options].
4. Select 1. Erase if you want to delete a file or 2.
Move if you want to move a file to Card Memory, and
then press the OK Key.
If you have selected My Contacts, you can select 1.
View, 2. Copy or 3. Erase after pressing the Right Soft
Key [ ] [Options]. Once you have selected 2. Copy or 3.
Erase, press the OK Key. If you want to move the
contacts, press the Left Soft Key [ ] [Move].
5. Select a file, press the OK Key [MARK] or the
Right Soft Key [ ] [Mark All], and then press the Left
Soft Key [ ] [Done].
6. Select Yes and press the OK Key.
62
MOVING ALL FILES
To move all files saved in Phone Memory to Card
Memory:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
8. Memory, 2. Phone Memory.
2. Select Move All to Card and then press the OK Key.
3. Select Yes and press the OK Key.
Do not remove the memory card from the phone while a
file or files are being moved to the Card Memory.
CARD MEMORY
Select this option to display Card Memory
information or to delete or move files saved in Card
Memory. The memory card must be inserted into the
phone to perform these functions. A 1GB microSD
Card is pre-installed in the device.
CARD MEMORY USAGE
To check the available Card Memory capacity, used
capacity and total capacity:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
8. Memory, 3. Card Memory.
2. Press 1. Card Memory Usage.
3. Press the OK Key to return to the previous screen.
FORMAT CARD
To format the card inserted:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
8. Memory, 3. Card Memory.
2. Press 1. Card Memory Usage and the Right Soft
Key [ ] [Options].
3. Press 1. Format Card, enter your 4-digit lock code
and then press the OK Key.
4. Select Yes and press the OK Key.
DELETING AND MOVING FILES
To delete files stored in Card Memory or to move files
from Card Memory to Phone Memory:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
8. Memory, 3. Card Memory.
2. Press the Directional Key [ ] up or down to select
My Pictures, My Ringtones, My Music, My Sounds or
My Contacts and then press the OK Key.
3. Press the Right Soft Key [ ] [Options].
Chapter 4 Menu Function 63
4. Select 1. Erase if you want to delete a file or 2.
Move if you want to move a file to Phone Memory,
and then press the OK Key.
If you have selected My Contacts, you can select 1.
Copy or 2. Erase after pressing the Right Soft Key [ ]
[Options]. Once you have selected 1. Copy or 2. Erase,
press the OK Key. If you want to move the contacts,
press the Left Soft Key [ ] [Move].
5. Select a file, press the OK Key [MARK] or the
Right Soft Key [ ] [Mark All], and then press the Left
Soft Key [ ] [Done].
6. Select Yes and press the OK Key.
MOVING ALL FILES
To move all files saved in Card Memory to Phone
Memory:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
8. Memory, 3. Card Memory.
2. Select Move All to Phone and then press the OK
Key.
3. Select Yes and press the OK Key.
Do not remove the memory card from the phone while a
file or files are being moved to Card Memory.
USB MODE
You can use the USB data cable to transfer data
between the device and a compatible PC.
Important: To activate your device for data transfer,
select USB Mode before connecting the USB data cable.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
9. USB Mode.
2. Select Media Sync Mode or Modem Mode and
then press the OK Key [SET].
y Media Sync Mode: Allows you to sync your device music
files with PC's Windows Media Player via USB data cable.
y Modem Mode: Allows you to use your phone as a modem
for your computer when connecting with a USB data cable.
To use End User Upgrade Tool, select Modem Mode for
USB Mode.
64
PHONE INFO
MY NUMBER
To view your phone number:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
0. Phone Info, 1. My Number.
2. The following information appears:
Mobile Device Number (MDN)/Mobile Identifications
Number (MIN)/Other device information
SW/HW VERSION
To view your device HW/SW information:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
0. Phone Info, 2. SW/HW Version.
2. Software Version / PRL Version / ERI Version /
Browser Version / Media Center Version / MSUI
Version / HW Version / MEID are displayed.
3. Press the OK Key to return to the previous screen.
ICON GLOSSARY
To view all the icons and their meanings:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
0. Phone Info, 3. Icon Glossary.
2. Press the OK Key to return to the previous screen.
Please refer to page 9 Display Indicators for more details
about the icons.
SOFTWARE UPDATE
The update phone firmware (software) option allows
you to download and update the software in your
phone automatically. Only the internal software is
updated; no Contacts entries or other information
saved to your phone will be deleted.
STATUS
Check the latest Software Download/Update status.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
0. Phone Info, 4. Software Update.
2. Press 1. Status.
Chapter 4 Menu Function 65
CHECK NEW
To check Download Server for new Software
updates:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
0. Phone Info, 4. Software Update.
2. Press 2. Check New.
SET - UP WIZARD
Set-up Wizard menu allows you to set following five
menus for Settings & Tools with simple operation.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
*. Set-up Wizard.
y CALL SOUNDS: Select Ring Only, Vibrate Only,
Ring&Vibrate or Be Silent then press the OK Key [SET]. If
you select Ring Only or Ring&Vibrate, the ringtone
selection screen will be displayed. Select a desired
ringtone and then press the OK Key [SET]. To play the
selected ringtone, press the Left Soft Key [ ] [Play].
y DISPLAY THEMES: Select Foliate, Transparent, Urban or
White, then press the OK Key [SET]. To preview the
selected display theme, press the Left Soft Key [ ]
[Preview].
y MENU LAYOUT: Select Tab, List and Grid, then press the
OK Key [SET]. To preview the Main Menu layout, press
the Left Soft Key [ ] [Preview].
y MENU TYPE: Select Messaging or Personalizing, then
press OK Key [SET]. To view the Help for each type,
select the type then press the Left Soft Key [ ] [Help].
y CLOCK FORMAT: Select Analog, Large Analog, Digital 12,
Large Digital 12, Digital 24, Large Digital 24 or Off, and
then press the OK Key [SET]. To preview the format of the
main clock, press the Left Soft Key [ ] [Preview].
To skip setting each menu, press the Right Soft Key
[Skip].
66
VOICE COMMANDS
Your phone is equipped with an Advanced Voice
Command (AVC) feature. This feature allows you to
make calls or use the phone’s functions by simply
using your voice. All you have to do is talk into the
phone and then the phone will recognize your voice
and complete tasks by itself.
1. To access Voice Commands from idle mode,
press the OK Key to unlock the keypad, press the
Left Soft Key [ ] [MENU], swivel to the QWERTY
keypad and press 9. Settings & Tools, 2. Tools, 1.
Voice Commands.
Shortcut: From idle mode, press and hold the CLR Key
[ ] to access the Voice Commands menu.
2. The phone displays the Voice Commands menu
and prompts you to say the name of the command
you want to use. To complete your task, simply follow
the voice prompts. You can speak the name of the
command after you hear a beep.
3. Select one of the following options, then press the
OK Key.
Call <Name or #> / Send <MSG Type> / Go To
<Shortcut> / Check <Item> / Contact <Name> /
Redial / Play <Playlist> / Help
To view information about each option, press the Left
Soft Key [ ] [Info]. Press the Right Soft Key [ ] [Options] to
access Voice Commands Settings. Please refer to page
73 for more details on Voice Commands Settings.
4. When it recognizes one of these commands, the
phone launches the associated application. If the
phone does not hear a command within
approximately eight seconds, AVC mode will turn
itself off.
CALL <NAME OR #>
Use the Call command to voice dial a name from
your Contact List or a phone number. When dialing a
number, pronounce each digit, but do not pause
noticeably between the digits.
1. You will hear Please say a command and the
Voice Commands menu will be displayed.
2. If calling a contact from your Contact List, say Call
<Name>. Your phone will ask you to confirm the
name you said. Say “Yes“ if it was repeated correctly.
That phone number will be dialed. If there is more
than one number saved for that contact, you will be
asked to confirm which number to dial.
Examples: - Call Tom Smith, - Call 617 555-1212,
- Call Bob Carson’s mobile, - Call Dee
Harper at Home.
Chapter 4 Menu Function 67
SEND <MSG TYPE>
Use the Send command to send a text or other type
of message to a specified name or number.
1. You will hear Please say a command and the
Voice Commands menu will be displayed.
2. Say “Send“ followed immediately by Text, Picture
or Voice.
Examples: - Send Picture to Dee Harper’s Mobile,
- Send Text Tom Smith.
GO TO <SHORTCUT>
Use the Go To command to open an application on
your phone. You can say “Go To” by itself and be
prompted to say the application name, or you can
skip the prompt by saying ”Go To” followed by the
application name.
1. You will hear Please say a command and the
Voice Commands menu will be displayed.
2. Say “Go To” followed immediately by one of the
following items:
Airplane Mode / Alarm / Alert Sounds / All Calls / Answer
Options / Auto Retry / Backlight / Banner / Bluetooth /
Calculator / Calendar / Call Connect / Call Ringtone / Call
Settings / Call Sounds / Call Vibrate / Card Memory / Clock
Format / Contact List / Contacts / Dial Fonts / Dialed Calls /
Display Settings / Display Themes / Drafts / ERI / ERI
Banner / Groups / Icon Glossary / In Case of Emergency /
Inbox / Keypad Backlight / Keypad Volume / Language /
Location / Master Volume / Media Center / Memory /
Message Settings / Messaging / Minute Beep / Missed Calls
/ Music & Tones / My Name Card / My Number / My
Pictures / My Ringtones / My Sounds / New Contact / New
Message / New Picture Message / New TXT Message /
Notepad / One Touch Dial / Personal Banner / Phone Info /
Phone Memory / Phone Settings / Power On/Off / Received
Calls / Recent Calls / Save Options / Sent / Service Alerts /
Set Shortcut Keys / Settings & Tools / Sounds Settings /
Speed Dials / Stop Watch / SW/HW Version / Take Picture /
Tip Calculator / Tools / TTY mode / View Timers / Voice
Privacy / Voicemail / Wallpaper / World Clock
CHECK <ITEM>
The Check command lets you check status
information for your phone. You can say “Check” or
“Check Status” to see and hear all status information.
1. You will hear Please say a command and the
Voice Commands menu will be displayed.
2. Say “Check” followed immediately by one of the
following items:
Status / Voicemail / Messages / Missed Calls / Time / Signal
Strength / Battery Level / Volume / Balance / Minutes /
Payment / My Number
68
CONTACTS <NAME>
Use the Contact command to retrieve and display
information for any name stored in your Contact List.
1. You will hear Please say a command and the
Voice Commands menu will be displayed.
2. Say “Contact <Name>”.
Examples: - Contact Tom Jones.
3. The Say a Command menu will be displayed for
that contact name.
Follow the voice prompts.
REDIAL
Use the Redial command to make a call to the last
number you dialed.
1. You will hear Please say a command and the
Voice Commands menu will be displayed.
2. Say “Redial”.
3. Your phone will make a call to the last number you
dialed.
PLAY <PLAYLIST>
Use the Play command to play back one of the
playlists. Say “PLAY” followed by a playlist and then
your phone will play back the recognized playlist for
you.
1. You will hear Please say a command and the
Voice Commands menu will be displayed.
2. Say “Play <Playlist>” to play back individual playlist
or say “Play All Songs” to play back all songs saved
in your phone.
HELP
Use the Help command to view how to use the Voice
Commands.
1. You will hear Please say a command and the
Voice Commands menu will be displayed.
2. Say “Help”.
3. The Help guide will be displayed on your phone.
VOICE COMMANDS SETTINGS
CONFIRM CHOICES
When the phone does not recognize your voice
command, it will ask you to repeat your voice
command. If it does not recognize the name or number,
it will display a list of up to three choices and speak
each one in turn. You can control how often the phone
asks you to confirm the recognized name or number.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 1. Voice Commands.
Chapter 4 Menu Function 69
2. Press the Right Soft Key [ ] [Settings] and 1.
Confirm Choices.
You can also access Voice Commands Settings from
idle mode, by pressing the OK Key to unlock the keypad,
press the Left Soft Key [ ] [MENU], swivel to the
QWERTY keypad and press 9. Settings & Tools, 6.
Phone Settings, 3. Voice Commands Settings, 1.
Confirm Choices.
3. Select Automatic, Always Confirm or Never
Confirm, then press the OK Key [SET].
SENSITIVITY
The Sensitivity setting allows you to adjust the
sensitivity monitoring of voice tones. If you frequently
experience the messages “Please try again” or
“COMMAND NOT RECOGNIZED Try again?”, adjust
the sensitivity toward Less Sensitive. If you frequently
experience false activations (when the phone
recognizes a name you didn’t say), adjust the
sensitivity toward More Sensitive.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools, 2.
Tools, 1. Voice Commands.
2. Press the Right Soft Key [ ] [Settings], 2. Sensitivity.
3. Select More Sensitive, Automatic or Less Sensitive,
then press the OK Key [SET].
ADAPT VOICE
Voice Command is speaker independent, which
means that no training or adaptation is required. Some
users with heavy accents or unusual voice
characteristics may find difficulty in achieving high
accuracy with speaker independent Voice Command,
so the Adapt Voice feature allows users to dramatically
improve the recognition accuracy after adapting their
voices. Users who get acceptable recognition accuracy
will find no additional benefit to performing the Adapt
Voice.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools, 2.
Tools, 1. Voice Commands.
2. Press the Right Soft Key [ ] [Settings], 3. Adapt Voice.
3. Select 1. Train Voice or 2. Reset Voice, then press
the OK Key.
y Train Voice: Requires that you make recordings of your voice to
customize the voice recognitions system. It will take a few
minutes.
y Reset Voice: Once you finish the adaptation process, you can
reset the adaptation to factory default. Reset Voice option only
appears after you finish the Train Voice process.
70
4. "Adaptation will take a couple of minutes to
complete. Adapt in a quiet room. Press OK to begin."
will appear on the screen. Press the OK Key. Wait for
the beep, and then repeat the sentences using a
normal tone of voice.
5. When you are finished with a full session, you will
reach a screen that reads “Adaptation Complete”.
PROMPTS
Allows you to select the voice command system
characteristics.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 1. Voice Commands.
2. Press the Right Soft Key [ ] [Settings], 4. Prompts.
3. Select 1. Mode or 2. Audio playback, then press
the OK Key.
y Mode: Select the voice command system mode from the
following:
- Prompts: For handset to prompt for required information.
- Readout+Alerts: For handset to prompt for required information and
readout the contents of the screen and phone alerts.
- Readout: For handset to prompt for required information and
readout the contents of the screen.
- Tones Only: For handset to provide beeps only for audio guidance.
y Audio playback: Allows audio playback to play through the
speakerphone or earpiece. Select Automatic, Speakerphone or
Earpiece.
4. Press the OK Key [SET].
ABOUT
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 1. Voice Commands.
2. Press the Right Soft Key [ ] [Settings], 5. About.
3. The Nuance VSuite 3.2 version appears.
4. To return to the previous screen, then press the OK Key.
CALCULATOR
The Calculator allows you to perform simple
mathematical calculations. To access the calculator:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 2. Calculator.
Chapter 4 Menu Function 71
2. Follow the instructions below to calculate 8×6÷4-
2.5=9.5
y Input 8 and then press the Directional Key [ ] right.
y Input 6 and then press the Directional Key [ ] left.
y Input 4 and then press the Directional Key [ ] down.
y Input 2 and then press the [ ] to input (.).
y Press 5.
y Then press the OK Key and then you will see the answer (9.5).
3. To reset, press the Left Soft Key [ ] [Clear].
y Directional Key right : X, Directional Key down : -,
Directional Key left : ÷, Directional Key up : +, * Key : .,
Left Soft Key : Clear, OK Key : =.
y To change the displayed number from positive (+) to
negative (-) and vice versa, press # Key [ ].
y Press the Right Soft Key [ ] [Operator] to use parenthesis
1. (, 2. ) and 3. Exponent.
TIP CALCULATOR
Allows you to calculate the tip and determine how
much each person should pay for the bill.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 3. Tip Calculator.
2. Input the amount in the Total Bill field and press the
Directional Key [ ] down.
3. Select the percentage of tip in the Tip(%) field by
pressing the Directional Key [ ] left or right. The
amount of a tip will be displayed in the Tip($) field.
Press the Directional Key [ ] down.
4. Input the number of persons by pressing the
Directional Key [ ] left or right. The tip amount and
cost per person is shown.
5. Press the Left Soft Key [ ] [Reset] to clear the fields.
Press the Right Soft Key [ ] [Close] to return to the
previous menu.
CALENDAR
The Calendar tool provides easy and convenient
access to your schedule. Simply store your
appointments and then your phone will alert you to
them.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 4. Calendar.
Shortcut: From idle mode, press the Directional Key [ ]
down to access the Calendar.
2. Highlight the scheduled day.
72
3. Press the Left Soft Key [ ] [Add].
4. The Appointment field is highlighted. Enter the
name of the event.
Press the Directional Key [ ] down to set the other
fields for the event:
APPOINTMENT
Use the keypad to enter an appointment in your
schedule.
START TIME
Use the keypad to set a start time and press the
Left Soft Key [ ] for am/pm.
END TIME
Use the keypad to set a end time and press the
Left Soft Key [ ] for am/pm.
START DATE
Use the keypad to change or enter the start date.
RECURRENCE
Press the Directional Key [ ] left or right to set the
recurrence of the event (Once, Daily, Weekly,
Monthly, Yearly).
END DATE
Use the keypad to change or enter the end date.
ALERT
Press the Left Soft Key [ ] [Set] to select a new
ringtone. Highlight a desired ringtone then press
the OK Key. Press the Left Soft Key [ ] [Play] to
play a ringtone.
VIBRATE
Press the Directional Key [ ] left or right to set On or
Off.
REMINDER
Press the Directional Key [ ] left or right to select a
reminder before the event from the following:
Once / Every 2 Minutes / Every 15 Minutes / Off
ALERT TIME
Press the Directional Key [ ] left or right to select
the alert time before the event takes place from the
following:
On time / 5 minutes before / 10 minutes before / 15
minutes before / 30 minutes before / 1 hour before
/ 3 hours before / 5 hours before / 1 Day Before
Chapter 4 Menu Function 73
1. Press the OK Key [SAVE] to save it. The date of
the event will be marked on your calendar.
VIEW SAVED EVENT
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 4. Calendar.
2. Choose the event then press the OK Key [VIEW].
ERASE SAVED EVENT
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 4. Calendar.
2. Choose the event then press the OK Key [VIEW].
3. Press the Left Soft Key [ ] [Erase], select Yes, then
press the OK Key.
ERASE ALL PASSED EVENTS
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 4. Calendar.
2. Choose the event then press the OK Key [VIEW].
3. Press the Right Soft Key [ ] [Options], press 7.
Erase Passed, select Yes, then press the OK Key.
E-DIARY
E-Diary is a simple diary application designed to be
easy to understand and
convenient for everyday use.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 5. E-Diary.
2. Press the Left Soft Key [ ] [New].
3. In the Weather & Feeling field, press the Left Soft
Key [ ] [Set], then select an icon and press the OK Key.
4. Press the Directional Key [ ] down to set the other
fields for the E-diary:
Title
Enter the title of the diary.
Press the Left Soft Key [ ] [Set] to select an image stored in
My Pictures. Please refer to page 90 for more details on
PICTURES.
Text
Enter the message for the diary.
Background
Press the Directional Key [ ] left or right to select one of the
following backgrounds:
Blackboard / Essay / Sky / Letter
74
5. In each field, press the Right Soft Key [ ] [Options]
then press 1. Preview to preview the setting you
selected or 2. Cancel E-Diary to discard your new E-
diary.
6. Press the OK Key [Save] to save your E-diary.
SEND AN E-DIARY
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 5. E-Diary.
2. Press the Directional Key [ ] up or down to highlight
an entry, then press the Right Soft Key [ ] [Options].
3. Select Send and press the OK Key, then compose
a Picture Message and press the OK Key [SEND].
Please refer to page 97 for more details on Picture
Message.
EDIT AN E-DIARY
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 5. E-Diary.
2. Highlight an E-diary, then press the Right Soft Key
[ ] [Options].
3. Select Edit and press the OK Key, then modify
the E-diary.
4. Press the OK Key [SAVE] to save your
modifications.
ERASE E-DIARY
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 5. E-Diary.
2. Highlight an E-diary, then press the Right Soft Key
[ ] [Options].
3. Select Erase to erase an E-diary or Erase all to
erase all the E-diary entries, then press the OK Key.
4. Select Yes and press the OK Key.
ALARM CLOCK
The Alarm Clock tool allows you to set up to three
alarms. When you set an alarm, the current time is
displayed at the top of the screen. When the alarm
goes off, Alarm 1 (2 or 3, as applicable) will be
displayed on the LCD screen and the alarm will
sound.
Chapter 4 Menu Function 75
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 6. Alarm Clock.
2. Highlight an Alarm (1, 2 or 3), then press the OK
Key.
3. Press the Directional Key [ ] down to set the fields
for the alarm:
ALARM
Press the Directional Key [ ] left or right to select
On or Off.
TIME
Use the keypad to set a time for the alarm and
press the Left Soft Key [ ] to set am or pm.
FREQUENCY
Press the Directional Key [ ] left or right to select a
setting for the alarm (Once, Daily, Mon - Fri,
Weekends).
RINGTONE
Press the Left Soft Key [ ] [Set] then press 1. Get
New Ringtones or select the alert tone you wish to
set. Press the Left Soft Key [ ] [Play] to play a
ringtone. Press the OK Key [SET] to make your
selection.
4. Press the OK Key [SAVE] to set the alarm.
TURN ON/OFF THE ALARM SETTING
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 6. Alarm Clock.
2. Highlight an Alarm (1, 2 or 3), then press the Right
Soft Key [ ] [Options].
3. Select Turn On or Turn Off then press the OK Key.
RESET THE ALARM SETTING
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 6. Alarm Clock.
2. Highlight an Alarm (1, 2 or 3), then press the Right
Soft Key [ ] [Options].
3. Select Reset Alarm, then press the OK Key.
4. "RESET ALARM?" will appear on the screen.
Select Yes and press the OK Key.
76
RESET ALL ALARM SETTINGS
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 6. Alarm Clock.
2. Highlight an Alarm (1, 2 or 3), then press the Right
Soft Key [ ] [Options].
3. Select Reset All, then press the OK Key.
4. "RESET ALL ALARMS?" will appear on the screen.
Select Yes and press the OK Key.
STOP WATCH
Simultaneously times up to eight different events. To
operate the stop watch:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 7. Stop Watch.
TO MEASURE A TIME PERIOD
1. To start the stop watch, press the OK Key [START].
2. To pause it, press the OK Key [STOP].
3. To resume it, press the OK Key [START].
4. To reset it, press the Right Soft Key [ ] [Reset].
TO TIME UP TO EIGHT EVENTS AT ONCE
1. To start the stop watch, press the OK Key [START].
2. To stop a time period and continue measuring
another one, press the Left Soft Key [ ] [Lap].
3. To stop the second and continue measuring a third
one, press the Left Soft Key [ ] [Lap].
4. To measure up to eight time periods, repeat the
above steps.
5. To stop the stop watch, press the OK Key [STOP].
6. To review the results, press the Left Soft Key [ ]
[View].
7. To return to the stop watch, press the OK Key.
8. To reset it, press the Right Soft Key [ ] [Reset].
Chapter 4 Menu Function 77
WORLD CLOCK
To display the time and date in pre-programmed
cities:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 8. World Clock.
2. Press the Left Soft Key [ ] [Cities] to access the
CITIES LIST. Select the desired city, then press the
OK Key. Or, press the Directional Key [ ] up, down,
left, or right to select your city using the world map.
3. The world map appears with the city, its date and
time.
DAYLIGHT SAVING TIME (DST) SETTING
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 8. World Clock.
2. Press the Right Soft Key [ ] [DST].
3. Press the Directional Key [ ] left or right to select a
city. Press the Directional Key [ ] down.
4. Under DST, press the Directional Key [ ] left or right
to turn Daylight Savings Time (DST) On or Off. Press
the Directional Key [ ] down.
5. Under Start Date, use the keypad to change or
enter the start date and then press the Directional
Key [ ] down.
6. Under Start Time, use the keypad to set a start
time and press the Left Soft Key [ ] to select am or
pm and then press the Directional Key [ ] down.
7. Under End Date, use the keypad to change or
enter the end date and then press the Directional
Key [ ] down.
8. Under End Time, use the keypad to set an end
time and press the Left Soft Key [ ] to select am or
pm.
9. To save a DST setting, press the OK Key [SAVE].
NOTEPAD
Your phone includes an internal notepad that can be
used to compose and store reminders and notes. To
create a note:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 9. Notepad.
78
2. Press the Left Soft Key [ ] [New] to write a new
note. When you are done, press the OK Key [SAVE].
VIEW SAVED MEMO
To view a saved memo:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 9. Notepad.
2. Select a note, then press the OK Key [VIEW].
ERASE SAVED MEMO
To erase a saved memo:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 9. Notepad.
2. Select a note, press the Right Soft Key [ ] [Options]
then select Erase and press the OK Key.
3. Select Yes and press the OK Key.
ERASE ALL SAVED MEMOS
To erase all saved memos:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings &
Tools, 2. Tools, 9. Notepad.
2. Press the Right Soft Key [ ] [Options], then select
Erase All and press the OK Key.
3. Select Yes and press the OK Key.
USB MASS STORAGE
The USB Mass Storage allows you to transfer files to
or from your PC. In order to use this option, you must
insert a microSD memory card and connect to PC
with the USB cable. The TXT8040 comes with a
1GB pre-installed microSD Card.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], swivel to
the QWERTY keypad and press 9. Settings & Tools,
2. Tools, 0. USB Mass Storage.
Chapter 4 Menu Function 79
CHAPTER 5
MEDIA CENTER
Your phone provides a unique feature - Media Center - that enables
you to download ringtones, wallpapers, games and more from your
network to your phone. Please contact your service provider for the
availability of these services.
Using the microSD Card
Music & Tones
Pictures
Games
Mobile Web
Browse & Download
Extras
Media Center Info
80
USING THE microSD CARD
The microSD Card stores sounds, images, photos,
music and other files.
The TXT8040 comes with a 1GB pre-installed
microSD Card.
INSTALLING THE microSD CARD
To install your microSD Card:
1. Open the microSD Card cover, and insert the
microSD Card into the slot with the gold contacts
facing down.
2. Press the microSD Card until you hear the 'click'
and close the microSD Card cover. Then, “CARD
INSERTED. PICTURE & SOUND WILL BE SAVED
TO CARD MEMORY. CONTINUE?” will appear on
the display.
3. Select Yes and press the OK Key.
To prevent possible damages, please keep the microSD
Card slot closed at all times regardless of whether the
microSD Card is inserted or not.
REMOVING THE microSD CARD
To remove the microSD Card:
1. Open the microSD Card cover, and use your
thumb to press and release the microSD Card. Press
the memory card inward, gently, until it pops out.
2. Remove the microSD Card and close the microSD
Card cover.
y Do not remove the microSD Card while reading or
writing files. Otherwise it could be damaged.
y To ensure the proper function of removable memory,
please use a microSD Card.
MUSIC & TONES
To access the Music & Tones menu:
GET NEW RINGTONES
To connect to Media Center and download various
ringtones:
1. From idle mode, press the OK Key to unlock the
keypad. Press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, then swivel to
the QWERTY keypad and press 1. Music & Tones, 1.
Get New Ringtones.
2. If you have not downloaded any ringtones or
ringtone applications previously, press 1. Get New
Applications and follow the prompts.
Chapter 5 Media Center 81
MY RINGTONES
TO PLAY DOWNLOADED TUNES OR TONES:
1. From idle mode, press the OK Key to unlock the
keypad. Press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, then swivel to
the QWERTY keypad and press 1. Music & Tones, 2.
My Ringtones.
2. Select the tune or tone you want to play then press
the OK Key [PLAY].
3. To stop, press the OK Key [STOP].
TO ERASE DOWNLOADED TUNES OR TONES:
1. From idle mode, press the OK Key to unlock the
keypad. Press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 1. Music & Tones, 2.
My Ringtones.
2. Select the tune or tone you want to erase then
press the Right Soft Key [ ] [Options].
3. Press 1. Erase, then select Yes and press the OK
Key.
y If a Downloaded Ringtone is selected, press the Right Soft
Key [ ] [Options] to choose from the following:
1. Erase: Erase the current ringtone from your phone.
2. Rename: To edit the ringtone’s title.
3. Lock/Unlock: Lock/Unlock the ringtone.
4. Erase All: To erase all the ringtones in your phone.
5. File Info: Displays information on the selected ringtone.
TO ASSIGN DOWNLOADED TUNES OR TONES:
To select a desired ringtone, or download a new
ringtone:
1. From idle mode, press the OK Key to unlock the
keypad. Press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 1. Music & Tones, 2.
My Ringtones.
2. Highlight the desired ringtone, press the Left Soft
Key [ ] [Set As], then select one of the following and
press the OK Key.
y 1. Ringtone: A confirmation message appears.
y 2. Contact ID: The Set As Contact ID screen appears.
Select the Contact you want to assign the ringtone to, then
press the OK Key.
y 3. Alert Sounds: Press the corresponding number key to
set the ringtone for one of the following:
- All Messages / TXT Message / Pic-Voice Message / Voicemail
3. Press the Right Soft Key [ ] [Options] to access the
following options:
y Erase: Erase the current ringtone from your phone.
y Rename: To edit the ringtone’s title.
y Lock/Unlock: Lock or unlock the current ringtone in your
phone.
y Erase All: To erase all the ringtones in your phone.
82
y File Info: Displays information on the selected ringtone.
MY MUSIC
To playback and manage music stored in your
phone’s memory and on a memory card:
NATIVE MUSIC PLAYER
Icon Name Descriptions
Volume Indicates current music volume
Previous / Next Short Press: Previous, Next
Long Press: Rewind, Fast Forward
Pause / Play Indicates Player’s status
Repeat Repeat All
Repeat One
Off
Shuffle On
Off
1. From idle mode, press the OK Key to unlock the
keypad, press the Music Key [ ] or the Left Soft Key
[ ] [MENU], select Media Center and press the OK
Key, swivel to the QWERTY keypad, then press 1.
Music & Tones, 3. My Music.
2. The Music Library screen appears.
3. Select All Songs, press the OK Key, then select
the desired song and press the OK Key [PLAY].
4. Press the Left Soft Key [ ] [Mute] to mute. Press
the Right Soft Key [Options] to select from the
following options:
Exit Player/Music Only Mode/Song Info/Home
Screen/Repeat/Shuffle/Sound Effects
5. Press the Directional Key [ ] left to start the song
over again. Press the Directional Key [ ] right to skip
to the next song if there are other songs to be played.
Press the OK Key to pause or play the song. If you
press and hold the Directional Key [ ] left, the song
rewinds or press and hold the Directional Key [ ] right,
the song will fast forward.
Playing Icon
A
lbum jacket image
Volume indicato
r
Shuffle / Repeat Visual Guide Elapsed time / Total time
Skin & File info
Chapter 5 Media Center 83
MY SOUNDS
To select a desired sound or record a new sound:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 1. Music & Tones, 4.
My Sounds.
2. Highlight the desired sound, then press the OK
Key [PLAY] to hear the sound. Press the OK Key
[STOP] to stop playing the sound.
3. Press the Right Soft Key [ ] [Options] to access the
following options:
y DOWNLOADED or RECORDED SOUND:
Send: To send the sound.
To Online Album: Upload the selected tone to the online
server.
Rename: To edit the sound’s title.
Move: To move the selected sound to the memory card.
This option only appears if a memory card is
inserted.
Lock/Unlock: Lock or unlock the selected sound in your
phone.
Erase: To erase the sound.
Erase All: To erase all the sounds in your phone.
The preloaded sounds cannot be erased.
File Info: Displays information on the selected sound.
y PRELOADED SOUND:
Send: To send a sound.
To Online Album: To upload selected sound to picture
server.
File Info: Displays information on the selected sound.
RECORDING NEW SOUNDS
To record a new sound:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad and press 1. Music & Tones, 4. My
Sounds.
2. Press 1. Record New.
3. Press the OK Key to begin recording. When done,
press the OK Key [STOP] to finish recording. The
recording is automatically saved to your My Sounds
list.
4. Your recording is saved with a number. To rename
your recording, scroll to it with the Directional Key [ ]
in the My Sounds menu, then press the Right Soft
Key [Options].
5. Press 3. Rename.
6. Enter the new name for your recording, then press
the OK Key.
84
TO SET A SOUND:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad and press 1. Music & Tones, 4. My
Sounds.
2. Select the sound you want to set, press the Left
Soft Key [ ] [Set As], then select one of the following
and press the OK Key.
y 1. Ringtone: A confirmation message appears.
y 2. Contact ID: The Set As Contact ID screen appears.
Select the Contact you want to assign the ringtone to, then
press the OK Key.
y 3. Alert Sounds: Press the corresponding number key to
set the ringtone for one of the following:
- All Messages / TXT Message / Pic-Voice Message /
Voicemail
SYNC MUSIC
1. Plug in the USB cable (included inbox) to your
phone and connect it to a USB port on your PC.
2. Press the Right Soft Key [] Sync.
3. Drag and drop the song(s) you want to sync from
PC to your external memory where placed in
TXT8040.
4. Once synchronization is complete, press the
END/CLR key and disconnect the USB cable
(included inbox).
5. Under the Music & Tones menu, open My Music to
view and play your music.
y A compatible USB cable is required for synchronizing.
PICTURES
GET NEW PICTURES
To connect to Media Center and download a variety
of Pictures (images):
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 2. Pictures, 1. Get New
Pictures.
2. Press 1. Get New Applications. Follow the on-
screen prompts.
The downloaded application will be included in the list
displayed when you access:
Get New Pictures > 1. Get New Applications.
Chapter 5 Media Center 85
MY PICTURES
In My Pictures you can view all the pictures you have
taken, store selected images in your phone, send
pictures to the Online Album, delete images and
access additional picture options.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 2. Pictures, 2. My
Pictures.
2. Select the desired picture, then press the Right
Soft Key [Options].
3. Select one of the following options:
y Send: To send a picture message.
y Set As: Assigns the selected picture to display for specific
tasks. (Wallpaper/Picture ID)
y Take Picture: Take a new picture.
y Get New Picture: Download various pictures.
y Manage Pictures: Erase, Lock, Unlock, Move to Phone or
Move to Card.
y Rename: Rename the selected picture.
y File Info: Displays information about the selected picture.
(File Name/Date/Time/Resolution/Size)
TO ERASE A PICTURE:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 2. Pictures, 2. My
Pictures.
2. Select the picture you want to erase, then press
the Left Soft Key [ ] [Erase]. “ERASE PICTURE?” will
appear on your display.
3. Select Yes and press the OK Key. A confirmation
message appears.
TAKE PICTURE
1. To access the camera, press the Camera Key [ ].
If the keypad is locked, unlock the keypad by pressing
the OK Key. Press the Camera Key [ ] to access the
camera viewfinder.
2. Point the camera lens at your subject. You can
check the picture framing through the display screen.
y Press the Directional Key [ ] left/right: Zoom Down/Up.
(Except 1280X960, 960X1280 mode).
y Pressing the Right Soft Key [ ] [Options], you can choose
from the following:
1. Resolution: To select a resolution for a picture.
- Landscape: 1280x960 / 640x480 / 320x240 / 160x120
- Portrait: 960x1280 / 480x640 / 240x320 / 120x160
2. Self Timer: To activate the camera’s timer function.
(Off/3 Seconds/5 Seconds/10 Seconds)
3. Brightness: To brightness up/down( -2, -1, 0, +1, +2).
86
4. White Balance: To select white balance.
(Auto / Sunny / Cloudy / Tungsten / Fluorescent /
Darkness)
5. Shutter Sound: To select a shutter sound.
(Shutter/Silent/Say “Cheez”/Ready! 123)
6. Color Effects: To select color effect.
(Normal/Antique/Black and White/Negative)
7. Capture Mode: To select Capture mode. (Landscape /
Portrait)
To view captured images, press the Left Soft Key [ ] [My
Pics].
3. Press the Camera Key [ ] or press the OK Key
[TAKE] to take the picture.
4. After taking the picture, it will be displayed. To save
the picture, press the Left Soft Key [ ] [Save]. To take
another picture without saving the picture you just
took, press the Right Soft Key [ ] [Erase]. To send the
picture to someone, press the OK Key [SEND].
ONLINE ALBUM
To access Online Album:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 2. Pictures, 4. Online
Album. The browser launches and the Online Album
sign-on screen appears.
2. Follow the on-screen prompts.
GAMES
DOWNLOADING NEW GAMES
To download games and applications from the Media
Center server:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 3. Games.
2. Press the OK Key to select 1. Get New
Applications.
3. Follow the on-screen prompts.
PLAYING DOWNLOADED GAMES
1. To play the game you downloaded, from the
Games menu, select the game then press the OK
Key [PLAY] to run the application.
Chapter 5 Media Center 87
MOBILE WEB
Now you can access news, sports, weather and
Email from your phone. Mobile Web keeps you
updated by providing access to up-to-date information
such as news, sports, weather and stock quotes when
you subscribe to Internet service with your service
provider. Please contact your service provider for a list
of available websites and service details.
1. To start your Internet browser and access websites
through your wireless handset, press the Directional
Key [ ] up.
BROWSER MENU
The browser menu lists the actions necessary to
operate the browser. To access, press the Directional
Key [ ] up to launch Mobile Web and then press the
Right Soft Key [ ] [Menu].
VZW HOME
Returns the user to the home page.
ADD FAVORITE
Takes user to the VZW Add Favorite page.
For favorites, page name and URL need to auto-
populate.
SEARCH
Takes user to the VZW Search page.
GO TO URL
Takes user to the VZW Search > Go to Site page.
SHOW URL
Displays the current URL.
BACK
Returns to the previously viewed page.
MANAGE MEMORY
Displays the following list of options:
y Clear Cache: Clears the cache.
y Clear History: Clears the list of recently visited URLs.
y Clear Cookies: Clears saved cookies.
y Autofill: Automatically fills in character for browser
recognized words.
SETTINGS
y Downloads: Selecting the Downloads item allows the
user to enable/disable downloading images,
background sounds and object downloads when a
URL is accessed.
y Restart Browser: Selecting Restart Browser causes the
history and cache to be cleared and returns the user to
the homepage.
88
y Scroll Mode: Selecting Scroll Mode from the Settings
menu allows the user to select the way text scrolls and
the scroll speed.
y Send Referrer: When the Send Referrer item is
selected from the Settings menu, the browser allows
the user to turn on or off sending the referrer URL.
y Key Press Time Out: When the Key Press Time Out
item is selected from the Settings menu, the browser
allows the user to set the key press timeout as fast,
medium, slow or OFF. Medium is 1.5 seconds, slow 2
seconds and fast is 1 second. The key press timeout is
the period of time after which the cursor auto-advances
to the next entry position. In most cases, a single key
can be used to enter more than one character. Each
time the key is pressed the last character of the line is
replaced by the next choice for that key. As long as the
same key is repressed within key press timeout, the last
character cycles between all the choices for the key.
y Connection Time Out: When the Connection Timeout is
selected from the Settings menu, the browser allows
the user to set the connection timeout. The connection
timeout determines how long the browser will wait for a
response from the network for a network request: 30
Seconds or 60 Seconds.
ADVANCED
y About: Displays the name of the supplier of the Browser
and the Browser SW version.
y Refresh: Allows the user to reload the current URL.
y History: Displays the previous 20 visited URLs.
y Encryption: Displays the following list of options:
1. Authentication: Gives the option to turn Authentication
Caching ON or OFF.
2. Root Certificate: Shows the root security keys for TLS.
3. Current Certificate: Shows the current site security key
for TLS (if applicable).
2. Press the END Key [ ] to exit out of the browser
and return to idle mode.
BROWSE & DOWNLOAD
DOWNLOADING NEW APPLICATIONS
To download Tools that can help you navigate to
entertainment spots, restaurants, and provide you
with up-to-date weather information:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 5. Browse & Download.
2. Select Backup Assistant, Mobile Email or VZ
Navigator, then press the OK Key. Follow the on-
screen prompts.
EXTRAS
DOWNLOADING NEW APPLICATIONS
To download Applications:
1. From standby mode, press the OK Key to unlock
Chapter 5 Media Center 89
the keypad, press the Left Soft Key [ ] [MENU], select
Media Center and press the OK Key, swivel to the
QWERTY keypad, then press 6. Extras.
2. Press 1. Get New Applications and follow the on-
screen prompts.
MEDIA CENTER INFO
To view Application Memory, Phone Memory, View
Log and Help information:
1. From idle mode, press the OK Key to unlock the
keypad, then press the Left Soft Key [ ] [MENU].
2. Select Media Center and press the OK Key.
3. Press the Right Soft Key [ ] [Info].
4. Select one of the following settings and then press
the OK Key.
App. Memory / Phone Memory / View Log / Help
90
CHAPTER 6
MESSAGING MENU
This chapter addresses Voicemail, TXT, Picture, Voice Messaging
functions including:
When a new message arrives
New Message
Inbox
Sent
Messages
Drafts
Voicemail
Mobile IM
Email
Chat
Erase All
Settings
Chapter 6 Messaging Menu 91
WHEN A NEW MESSAGE ARRIVES
1. The following display appears
when a new message arrives.
2. To display the message, select
View Now and then press the OK Key.
NEW MESSAGE
TXT MESSAGE
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [Message], swivel
to the QWERTY keypad, then press 1. New
Message.
2. Press 1. TXT Message.
Shortcut: From idle mode, press the TXT Composer Key
[ ].
3. Under To, input the phone number and then press
the OK Key.
y By pressing the Right Soft Key [ ] [Add], you can choose
from the following:
1. From Contacts: Search for a phone number which is
stored in the Contact List.
2. Recent Calls: Search for a phone number which is
stored in the Add Recent Calls menu.
3. Groups: Search the groups stored in the Add Groups
menu.
4. To Contacts: Save the number or email you’ve entered
to the Contact List, when you enter the number.
4. Under Text, input your message. When completed,
press the OK Key [SEND].
y By pressing the Right Soft Key [ ] [Add], you can choose
from the following:
1. Insert Quick Text: Inserts written sentences in the TXT
message.
2. Save As Draft: To save the TXT message to Drafts.
3. Add: To attach Graphic, Sound, Name Card.
y Graphic: Inserts simple graphic images.
y Sound: Inserts a selected Sound.
y Name Card: Inserts a selected Name Card.
4. Format Text: Allows you to edit the Alignment, Font Size,
Font Style, Font Color and Background Color.
y Alignment: Select Left, Center or Right by pressing the
Directional Key [ ] left or right.
y Font Size: Select Normal, Large or Small by pressing
the Directional Key [ ] left or right.
y Font Style: Select Regular, Bold, Italic, Underline or
Strikethrough by pressing the Directional Key [ ] left or
right.
y Font Color: Select a font color.
y Background Color: Select a background color.
5. Priority Level: Select High or Normal and then press the
OK Key.
6. Cancel Message: To cancel message.
5. To send the TXT Message, press the OK Key
[SEND].
92
PICTURE MESSAGE
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [Message], swivel
to the QWERTY keypad, then press 1. New Message.
2. Press 2. Picture Message.
3. Under To, input the phone number and then press
the OK Key.
y By pressing the Right Soft Key [Add], you can choose
from the following:
1. From Contacts: Search for a phone number which is
stored in the Contact List.
2. Recent Calls: Search for a phone number which is
stored in the Add Recent Calls menu.
3. Groups: Search the groups stored in the Add Groups menu.
4. To Online Album: Send the picture message to your
Online Album.
5. To Contacts: Save the number or email you’ve entered
to the Contact List, when you enter the number.
4. Under Text, input your message and then press
the Directional Key [ ] down.
5. Under Picture, press the Left Soft Key [My Pics] to
select the picture you would like to send then press
the OK Key. Press the Directional Key [ ] down.
6. Under Sound, press the Left Soft Key [ ] [Sounds]
to select the sound you would like to send then press
the OK Key. Press the Directional Key [ ] down.
7. Under Subject, input the message subject and
then press the Directional Key [ ] down.
8. Under Name Card, press the Left Soft Key [ ] [Add]
select 1. My Name Card or 2. Contacts then press the
OK Key. Select the desired card then press the OK Key.
9. Press the Right Soft Key [ ] [Options] to access the
following:
y Preview: To preview a written Picture Message.
y Save As Draft: To save the Picture Message to Drafts.
y Add Quick Text: Inserts written sentences in the Picture
Message.
y Add Slide: To add another message.
y Priority Level: Select High or Normal and then press the
OK Key.
y Remove Picture: To remove an inserted picture in Picture field.
y Remove Slide: To remove an inserted Slide Message.
y Remove Sound: To remove an inserted sound in Sound field.
y Remove Name Card: To remove an inserted name card in
Name Card field.
y Cancel Message: To cancel the picture message.
10. To send the Picture Message, press the OK Key
[SEND].
VOICE MESSAGE
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [Message], swivel
to the QWERTY keypad, then press 1. New
Message.
Chapter 6 Messaging Menu 93
2. Press 3. Voice Message.
3. To record a new Voice Memo, press the OK Key to
start recording a voice memo. Press the OK Key
[STOP] to finish recording and insert the voice memo
into the voice message.
4. Under To, input the phone number and then press
the OK Key.
y By pressing the Right Soft Key [ ] [Add], you can choose
from the following:
1. From Contacts: Search for a phone number which is
stored in the Contact List
2. Recent Calls: Search for a phone number which is
stored in the Add Recent Calls menu.
3. Groups: Search the groups stored in the Add Groups
menu.
4. To Contacts: Save the number or email you’ve entered
to the Contact List, when you enter the number.
5. Using the Directional Key [ ], scroll down to the Text field.
6. Under Text, input your message and then press
the Directional Key [ ] down.
7. Under Subject, input the voice message subject
and then press the Directional Key [ ] down.
8. Under Name Card, press the Left Soft Key [ ] [Add],
select 1. My Name Card or 2. Contacts then press
the OK Key. Select the desired card then press the
OK Key.
9. Press the Right Soft Key [ ] [Options] to access the
following:
y Review: To preview a written Voice Message.
y Save As Draft: To save the Voice Message to Drafts.
y Add Quick Text: Inserts written sentences in the Voice
Message.
y Priority Level: Select High or Normal and then press the
OK Key.
y Remove Recording: To remove an inserted recorded
voice memo in Voice field.
y Remove Name Card: To remove an inserted name card in
Name Card field.
y Cancel Message: To cancel the voice message.
10. To send the Voice Message, press the OK Key
[SEND].
INBOX
The Inbox manages received TXT, Picture, Voice,
Web Alert messages. To access:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [Message], swivel
to the QWERTY keypad, then press 2. Inbox.
2. Select a message and then press the OK Key
[OPEN]. The message is displayed. To delete a
message, press the Left Soft Key [ ] [Erase], then
select Yes and press the OK Key.
3. Press the Right Soft Key [ ] [Options] to access the
following:
94
y Play Again: To play a received Picture/Voice message.
y Forward: Select to forward the message.
y Erase: To delete a message.
y Replay w. Copy: Select to reply with the original message
included.
y Save Graphic: Select to save the graphic to the My
Pictures folder.
y Save Sound: Select to save the sound to the My Sounds folder.
y Save Picture: Select to save the picture to the My Pictures
folder.
y Save As Ringtone: Select to save the tone to the My
Ringtones folder.
y Save Name Card: Select to save the name card to the
Contact List.
y Save Quick Text: Select to save the received text to Quick
Text.
y Add To Contacts: Select to save the number to the
Contact List.
y Extract Addresses: To extract all phone numbers, email
addresses and URLs from the received message.
y Message Info: Select to view received message information.
y Manage Inbox: Manage messages with following options:
Erase: To delete a message.
Lock: To lock a message.
Unlock: To unlock a message.
y Sort By Sender: To view messages sorted by sender.
y Sort By Size: To view messages sorted by size.
y View By Contacts: To view messages sorted by contacts.
This feature is displayed when the Messages View is set
to By Time.
SENT
Manage messages already sent or waiting to be sent.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [Message], swivel
to the QWERTY keypad, then press 3. Sent.
2. Select a message and then press the OK Key
[OPEN]. The message is displayed. To delete a
message, press the Left Soft Key [ ] [Erase], then
select Yes and press the OK Key.
3. With the message open, press the Right Soft Key
[ ] [Options] to access the following:
y Forward: Select to forward the message.
y Resend: Select to resend the message.
y Erase: To delete a sent message.
y Lock/Unlock: Select to lock or unlock the message.
y Save Quick Text: Select to save sent text to Quick Text.
y Add To Contacts: Select to save the number to the
Contact List
y View Name Card: To view the included Name Card.
y Message Info: Select to view sent message information.
This feature is displayed when the Messages View is set
to By Time.
MESSAGES
This feature can be seen when the Messages View
setting value is set to By Contacts. With Message
View By Contacts, all received and sent messages
Chapter 6 Messaging Menu 95
are stored under Messages by contact name.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [Message], swivel
to the QWERTY keypad, then press 2. Messages.
2. Select the desired contact name to view and press
the OK Key. Press the Right Soft Key [ ] [Options] to
access following options:
y Erase: To delete a message.
y Sort Alphabetically: To view messages sorted
alphabetically.
y Add To Contacts: Save number to contacts.
y Manage Inbox: Manage messages with following options:
Erase: To delete a message.
Lock: To lock a message.
Unlock: To unlock a message.
3. Select a message then press the OK Key [OPEN]
to view the message.
4. Press the Directional Key [ ] right / left to view the
next / previous message.
5. Press the Right Soft Key [ ] [Options] to access the
following options.
y Forward: Forward the message.
y Reply w. Copy: Select to reply with the original message
included.
y Save Quick Text: Save the text to Quick Text.
y Lock / Unlock: Lock or unlock the message.
y Add To Contacts: Save the number to the Contact List.
y Extract Addresses: To extract all phone numbers, email
addresses and URLs from the received message.
y Message Info: Select to view received or sent message
information.
DRAFTS
The Drafts Folder contains any draft messages or
saved messages. If message composition is
interrupted by a voice call or other interrupting event,
the message being composed is automatically saved
in the Drafts Folder.
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [Message], swivel
to the QWERTY keypad, then press 3. Drafts.
2. Select a message and then press the OK Key
[EDIT]. The message is displayed.
3. To delete a message, press the Left Soft Key [ ]
[Erase], then select Yes and press the OK Key.
4. Press the Right Soft Key [ ] [Options] to access the
following:
y Send: Select to send the selected message.
y Lock/Unlock: Select to lock or unlock the message.
y Add To Contacts: Select to save the number to the
Contact List.
y Erase Drafts: To erase all drafts messages.
96
VOICEMAIL
WHEN A NEW VOICEMAIL ARRIVES
When you receive a new voicemail message you’ll
hear a sound and a Voicemail appears in the display.
1. To listen to the message, select Listen Now or
Listen Later.
2. Press the OK Key.
TO ACCESS YOUR VOICE MAILBOX
1. To dial your voice mailbox directly, press the OK
Key to unlock the keypad then swivel to the
QWERTY keypad, dial *86 and then press the SEND
Key [ ]. Or, from idle mode, press the Left Soft Key [ ]
[Message], select Voicemail and press the OK Key
then press the OK Key [CALL].
2. Follow the prompts to enter your password and
retrieve your messages.
Shortcut: From idle mode, press and hold 1 to access
your Voicemail. One Touch Dial must be enabled,
please refer to page 63 for more details.
ERASE ALL
To erase all messages stored in your Inbox, Drafts or
Sent folders:
1. From idle mode, press the OK Key to unlock the
keypad, press the Left Soft Key [ ] [Message], then
press the Right Soft Key [ ] [Options] and select from
the following:
y Press “1. Erase Inbox” to erase all messages or only read
messages stored in the Inbox.
y Press “2. Erase Sent” to erase all messages stored in
Sent Folder.
y Press “3. Erase Drafts” to erase all messages stored in the
Drafts folder.
y Press “4. Erase All” to erase all messages or all except
unread messages stored in the Inbox, Sent, and Drafts
folders.
Locked messages cannot be erased.
2. Select Yes to erase the selected messages, then
press the OK Key. A confirmation message appears.
Chapter 6 Messaging Menu 97
SETTINGS
To configure message settings:
1. From idle mode, press the OK Key to unlock the
keypad, then press the Left Soft Key [ ] [Message],
then press the Left Soft Key [ ] again for [Settings].
2. Highlight one of the settings below, then press the
OK Key to select it:
MESSAGES VIEW
1. Select By Time or By Contacts and press the OK
Key.
y By Time: Sort received and sent messages into inbox and
sent folders by time.
y By Contact: Group all received and sent messages by
contact.
ENTRY MODE
Allows you to set a default Entry Mode. For example,
if Abc Mode is the default, its icon will appear.
1. Select Abc, ABC or 123, then press the OK Key.
AUTO SAVE SENT
1. Select On, Off or Prompt, then press the OK Key.
y On: All sent messages are saved in the Sent box.
y Off: All sent messages are not saved in the Sent box.
y Prompt: The Yes or No dialogue box will be displayed after
sending a message.
AUTO ERASE INBOX
Automatically erase inbox messages when new
messages arrive.
1. Select On or Off, then press the OK Key.
y On: The oldest message will be erased from the Inbox
automatically once full.
y Off: The oldest message will not be erased automatically
from the Inbox once full.
MESSAGING FONT SIZE
To set the message font size:
1. Select Normal or Large, then press the OK Key.
TXT AUTO VIEW
1. Select On or Off, then press the OK Key.
y On: TXT messages are displayed automatically.
y Off: TXT messages are displayed by going into the Inbox,
or by responding to the message prompt.
MULTIMEDIA AUTO RECEIVE
1. Select On or Off, then press the OK Key.
y On: Picture/Voice messages are downloaded
automatically.
y Off: Picture/Voice messages must be retrieved from the
Inbox or by responding to the message prompt.
98
QUICK TEXT
To create a new Quick Text or edit the Quick Text you
have saved:
1. Select a Quick Text from the list and press the OK
Key [EDIT].
2. To add a new Quick Text, press the Right Soft key
[ ] [Options] and press 1. New. Enter the new text and
press the OK Key [SAVE].
3. To move the saved Quick Text, press the Right
Soft Key [ ] [Options] and press 2. Move. Scroll to
desired location and press the OK Key [SAVE].
4. To erase a saved Quick Text, press the Left Soft
Key [ ] [Erase]. Select Yes and press the OK Key.
VOICEMAIL#
1. Swivel to the QWERTY keypad, input a new
voicemail number or edit the voicemail number then
press the OK Key.
2. Press the Left Soft Key [ ] [Add] and then press 1.
Add Wait or 2. Add 2-Sec Pause. Please refer to
page 21 for more details on WAIT/ PAUSE
FEATURE.
CALLBACK #
Edit a default callback number so that the recipient
can callback or reply.
1. Select On or Off, then press the OK Key.
2. If On is selected, input a new callback number
then press the OK Key.
SIGNATURE
Create a signature that can be automatically inserted
at the end of all TXT, Picture
and Voice messages.
1. To deactivate Signature function, select None and
press the OK Key.
2. To input a Signature, select Custom. Enter your
signature in the text
box then press the OK Key.
DELIVERY RECEIPT
To set delivery receipts for sent messages:
1. Select On or Off, then press the OK Key.
y On: Request to receive the delivery acknowledgement.
y Off: No delivery acknowledgement will be sent.
Chapter 7 Safety and Warranty 99
CHAPTER 7
SAFETY AND WARRANTY
This chapter addresses the safety guidelines and precautions to
follow when operating your phone. Before operating your phone,
please be aware of all the safety details. This chapter contains the
terms and conditions of services and the warranty for your phone.
Please review them thoroughly.
Safety Information for Wireless Handheld Phones
Safety Information for FCC RF Exposure
SAR Information
Hearing Aid Compatibility (HAC) for Wireless Telecommunications Devices
FDA Consumer Update
Avoid Potential Hearing Loss
FCC Compliance Information
12 month Limited Warranty
100
SAFETY INFORMATION FOR
WIRELESS HANDHELD PHONES
READ THIS INFORMATION BEFORE USING YOUR
HANDHELD PORTABLE CELLULAR TELEPHONE
EXPOSURE TO RADIO FREQUENCY SIGNALS
Your wireless handheld portable telephone is a low
power radio transmitter and receiver. When it is ON, it
receives and also sends out radio frequency (RF)
signals. In August 1996, the Federal
Communications Commissions (FCC) adopted RF
exposure guidelines with safety levels for handheld
wireless phones. Those guidelines are consistent
with the safety standards previously set by both U.S.
and international standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986) *
ICNIRP (1996) *
Those standards were based on comprehensive and
periodic evaluations of the relevant scientific literature.
For example, over 120 scientists, engineers, and
physicians from universities, government health
agencies, and industry reviewed the available body
of research to develop the ANSI Standard (C951).
The design of your phone complies with the FCC
guidelines (and those standards).
1*: American National Standards Institute.
2*: National Council on Radiation protection and
measurements.
3*: International Commission on Nonionizing
Radiation Protection.
ANTENNA SAFETY
Use only the supplied or an approved replacement
antenna. Unauthorized antennas, modifications, or
attachments could impair call quality, damage the
phone, or result in violation of FCC regulations. Please
contact your local dealer for replacement antenna.
Do not use the phone with a damaged antenna. If a
damaged antenna comes into contact with the skin, a
minor burn may result. Please contact your local
dealer for replacement antenna.
DRIVING SAFETY
Talking on the phone while driving is extremely
dangerous and is illegal in some states. Remember,
safety comes first. Check the laws and regulations on the
use of phones in the areas where you drive. Always obey
them. Also, if using your phone while driving, please:
y Give full attention to driving. Driving safely is your first
responsibility.
y Use hands-free operation, if available.
Chapter 7 Safety and Warranty 101
y Pull off the road and park before making or answering a
call, if driving conditions so require.
If you must use the phone while driving, please use
one-touch, speed dialing, and auto answer modes.
An airbag inflates with great force. DO NOT place
objects, including both installed or portable wireless
equipment, in the area over the airbag or in the air bag
deployment area. If in-vehicle wireless equipment is
improperly installed and the air bag inflates, serious
injury could result.
WARNING: Failure to follow these instructions may lead
to serious personal injury and possible property damage.
ELECTRONIC DEVICES
Your wireless handheld portable telephone is a low
power radio transmitter and receiver. When it is ON, it
receives and also sends out radio frequency (RF)
signals. Most modern electronic equipment is
shielded from RF energy. However, certain electronic
equipment may not be shielded against the RF
signals from your wireless phone. Therefore, use of
your phone must be restricted in certain situations.
PACEMAKERS
The Health Industry Manufacturers Association
recommends that a minimum separation of six (6”)
inches be maintained between a handheld wireless
phone and a pacemaker to avoid potential interference
with the pacemaker. These recommendations are
consistent with the independent research by and
recommendations of Wireless Technology Research.
Persons with pacemakers:
y ALWAYS keep the phone more than six inches from your
pacemaker when the phone is turned on.
y Do not carry the phone in a breast pocket.
y Use the ear opposite the pacemaker to minimize the
potential for interference.
y If you have any reason to suspect that interference is
taking place, turn your phone OFF immediately.
HEARING AIDS
Some digital wireless phones may interfere with
some hearing aids. In the event of such interference,
you may want to consult your service provider (or call
the customer service line to discuss alternatives).
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult
the manufacturer of your device to determine if they
are adequately shielded from external RF energy.
Your physician may be able to assist you in obtaining
this information. Turn your phone OFF in healthcare
facilities when any regulations posted in these areas
102
instruct you to do so. Hospitals or healthcare facilities
may be using equipment that could be sensitive to
external RF energy.
VEHICLES
RF signals may affect improperly installed or
inadequately shielded electronic systems
in motor vehicles. Check with the manufacturer or its
representative regarding your vehicle. You should
also consult the manufacturer of any equipment that
has been added to your vehicle.
POSTED FACILITIES
Turn your phone OFF where posted notices so
require.
OTHER SAFETY GUIDELINES
AIRCRAFT
FCC regulations prohibit using your phone while in
the air. Turn your phone OFF before boarding an
aircraft. Always request and obtain prior consent and
approval of an authorized airline representative
before using your phone aboard an aircraft.
Always follow the instructions of the airline
representative whenever using your phone aboard
an aircraft, to prevent any possible interference
with airborne electronic equipment.
BLASTING AREAS
To avoid interfering with blasting operations, turn your
phone OFF when in a “blasting area” or in areas
posted: “Turn off two-way radio.” Obey all signs and
instructions.
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a
potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause
an explosion or fire resulting in bodily injury or even
death.
Areas with a potentially explosive atmosphere are
often, but not always, clearly marked. They include
fueling areas such as gas stations; below deck on
boats; fuel or chemical transfer or storage facilities;
vehicles using liquefied petroleum gas (such as
propane or butane); areas where the air contains
chemicals or particles, such as grain, dust, or metal
powders; and any other area where you would
normally be advised to turn off your vehicle’s engine.
Chapter 7 Safety and Warranty 103
PRECAUTIONS
Your Handheld Portable Telephone is a high quality
piece of equipment. Before operating, read all
instructions and cautionary markings on (1) AC/DC
Travel Adaptor (2) Battery and (3) Product Using
Battery.
Failure to follow the directions below could result in
serious bodily injury and/or property damage due to
battery liquid leakage, fire or rupture.
y DO NOT use this equipment in an extreme environment
where high temperature or high humidity exists.
y DO NOT abuse the equipment. Avoid striking, shaking or
shocking. When not using, lay down the unit to avoid
possible damage due to instability.
y DO NOT expose this equipment to rain or spilled
beverages.
y DO NOT use unauthorized accessories.
y DO NOT disassemble the phone or its accessories. If
service or repair is required, return unit to an authorized
PCD cellular service center. If unit is disassembled, the risk
of electric shock or fire may result.
y DO NOT short-circuit the battery terminals with metal
items etc.
SAFETY INFORMATION FOR FCC RF
EXPOSURE
WARNING! READ THIS INFORMATION BEFORE
USING
CAUTIONS
In August 1996 the Federal Communications
Commission (FCC) of the United States with its
action in Report and Order FCC 96-326 adopted an
updated safety standard for human exposure to radio
frequency electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are
consistent with the safety standard previously set by
both U.S. and international standards bodies. The
design of this phone complies with the FCC
guidelines and these international standards.
BODY-WORN OPERATION
This device was tested for typical body-worn
operations with the back of the phone kept 2 cm.
from the body. To maintain compliance requirements,
use only belt-clips, holsters or similar accessories that
maintain a 2 cm separation distance between the
user’s Body and the back of the phone, including the
antenna.
The use of belt-clips, holsters and similar accessories
should not contain metallic components in its
assembly. The use of accessories that do not satisfy
these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
104
For more information about RF exposure, please visit the
FCC website at www.fcc.gov.
SAR INFORMATION
THIS MODEL PHONE MEETS THE
GOVERNMENT’S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and
receiver. It is designed and manufactured not to
exceed the emission limits for exposure to
radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF
energy for the general population. The guidelines are
based on standards that were developed by
independent scientific organizations through periodic
and thorough evaluation of scientific studies. The
standards include a substantial safety margin
designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless mobile phones
employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set
by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its
highest certified power level in all tested frequency
bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of
the phone while operating can be well below the
maximum value. This is because the phone is
designed to operate at multiple power levels so as to
use only the power required to reach the network. In
general, the closer you are to a wireless base station
antenna, the lower the power output.
Before a phone model is available for sale to the
public, it must be tested and certified to the FCC that
it does not exceed the limit established by the
government adopted requirement for safe exposure.
The tests are performed in positions and locations
(e.g., at the ear and worn on the body) as required by
the FCC for each model. The highest SAR value for
this model phone when tested for use at the ear is
1.31 W/Kg and when worn on the body, as described
in this user guide, is 0.709 W/Kg. (Body-worn
measurements differ among phone models,
depending upon available accessories and FCC
requirements). While there may be differences
between the SAR levels of various phones and at
various positions, they all meet the government
requirement for safe exposure.
The SAR testing for Body-worn operation was
Chapter 7 Safety and Warranty 105
performed with a belt clip that provided a 20mm
separation. The User’s Manual indicates that any
holsters/clips used with this device should contain no
metallic components.
The FCC has granted an Equipment Authorization
for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF
exposure guidelines.
SAR information on this model phone is on file with
the FCC and can be found under the Display Grant
section of http://www.fcc.gov/oet/ea after searching
on JYCSHOW.
Additional information on Specific Absorption Rates
(SAR) can be found on the Cellular
Telecommunications Industry Association (CTIA)
web-site at http://www.wow-com.com.
* In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue. The
standard incorporates a sub-stantial margin of safety
to give additional protection for the public and to
account for any variations in measurements.
HEARING AID COMPATIBILITY (HAC)
FOR WIRELESS
TELECOMMUNICATIONS DEVICES
PCD’S COMMITMENT
PCD believes that all of our customers should be
able to enjoy the benefits of digital wireless
technologies. We are committed to providing a
selection of compatible devices for our customers
who wear hearing aids.
THIS PHONE HAS A HAC RATING OF M4/T3
WHAT IS HEARING AID COMPATIBILITY?
The Federal Communications Commission has
implemented rules and a rating system designed to
enable people who wear hearing aids to more
effectively use these wireless telecommunications
devices. The standard for compatibility of digital
wireless phones with hearing aids is set forth in
American National Standard Institute (ANSI)
standard C63.19. There are two sets of ANSI
standards with ratings from one to four (four being
the best rating): an “M” rating for reduced interference
making it easier to hear conversations on the phone
when using the hearing aid microphone, and a “T”
rating that enables the phone to be used with hearing
106
aids operating in the telecoil mode thus reducing
unwanted background noise.
HOW WILL I KNOW WHICH WIRELESS PHONES
ARE HEARING AID COMPATIBLE?
The Hearing Aid Compatibility rating is
displayed on the wireless phone box.
A phone is considered Hearing Aid Compatible for
acoustic coupling (microphone mode) if it has an
“M3” or “M4” rating. A digital wireless phone is
considered Hearing Aid Compatible for inductive
coupling (telecoil mode) if it has a “T3” or “T4” rating.
HOW WILL I KNOW IF MY HEARING AID WILL
WORK WITH A PARTICULAR DIGITAL
WIRELESS PHONE?
You’ll want to try a number of wireless phones so that
you can decide which works the best with your
hearing aids. You may also want to talk with your
hearing aid professional about the extent to which
your hearing aids are immune to interference, if they
have wireless phone shielding, and whether your
hearing aid has a HAC rating.
FOR MORE INFORMATION ABOUT HEARING
AIDS AND DIGITAL WIRELESS PHONE
y FCC Hearing Aid Compatibility and Volume Control –
http://www.fcc.gov/cgb/dro/hearing.html
y Hearing Loss Association of America –
http://www.hearingloss.org/learn/cellphonetech.asp
y CTIA – http://www.accesswireless.org/hearingaid/
y Gallaudet University, RERC –
http://tap.gallaudet.edu/voice
Chapter 7 Safety and Warranty 107
FDA CONSUMER UPDATE
U.S. FOOD AND DRUG
ADMINISTRATION - CENTER
FOR DEVICES AND
RADIOLOGICAL HEALTH CONSUMER UPDATE
ON WIRELESS PHONES
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that
any health problems are associated with using
wireless phones. There is no proof, however, that
wireless phones are absolutely safe. Wireless
phones emit low levels of radiofrequency energy
(RF) in the microwave range while being used. They
also emit very low levels of RF when in the stand-by
mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low
level RF that does not produce heating effects
causes no known adverse health effects. Many
studies of low level RF exposures have not found
any biological effects. Some studies have suggested
that some biological effects may occur, but such
findings have not been confirmed by additional
research. In some cases, other researchers have
had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
2. What is FDA’s role concerning the safety of
wireless phones?
Under the law, FDA does not review the safety of
radiation-emitting consumer products such as
wireless phones before they can be sold, as it does
with new drugs or medical devices. However, the
agency has authority to take action if wireless phones
are shown to emit radiofrequency energy (RF) at a
level that is hazardous to the user. In such a case,
FDA could require the manufacturers of wireless
phones to notify users of the health hazard and to
repair, replace or recall the phones so that the hazard
no longer exists. Although the existing scientific data
do not justify FDA regulatory actions, FDA has urged
the wireless phone industry to take a number of steps,
including the following:
y Support needed research into possible biological effects of
RF of the type emitted by wireless phones;
y Design wireless phones in a way that minimizes any RF
exposure to the user that is not necessary for device
function;
and
y Cooperate in providing users of wireless phones with the
best possible information on possible effects of wireless
phone use on human health.
108
FDA belongs to an interagency working group of the
federal agencies that have responsibility for different
aspects of RF safety to ensure coordinated efforts at
the federal level. The following agencies belong to
this working group:
y National Institute for Occupational Safety and Health
y Environmental Protection Agency
y Federal Communications Commission
y Occupational Safety and Health Administration
y National Telecommunications and Information
Administration
The National Institutes of Health participates in some
inter-agency working group activities, as well. FDA
shares regulatory responsibilities for wireless phones
with the Federal Communications Commission
(FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF
exposure. FCC relies on FDA and other health
agencies for safety questions about wireless phones.
FCC also regulates the base stations that the
wireless phone networks rely upon. While these base
stations operate at higher power than do the wireless
phones themselves, the RF exposures that people
get from these base stations are typically thousands
of times lower than those they can get from wireless
phones. Base stations are thus not the subject of the
safety questions discussed in this document.
3. What kinds of phones are the subject of this
update?
The term “wireless phone” refers here to hand-held
wireless phones with built-in antennas, often called
“cell,” “mobile,” or “PCS” phones. These types of
wireless phones can expose the user to measurable
radiofrequency energy (RF) because of the short
distance between the phone and the user’s head.
These RF exposures are limited by Federal
Communications Commission safety guidelines that
were developed with the advice of FDA and other
federal health and safety agencies. When the phone
is located at greater distances from the user, the
exposure to RF is drastically lower because a
person’s RF exposure decreases rapidly with
increasing distance from the source. The so-called
“cordless phones,” which have a base unit connected
to the telephone wiring in a house, typically operate
at far lower power levels, and thus produce RF
exposures far below the FCC safety limits.
Chapter 7 Safety and Warranty 109
4. What are the results of the research done
already?
The research done thus far has produced conflicting
results, and many studies have suffered from flaws in
their research methods. Animal experiments
investigating the effects of radiofrequency energy
(RF) exposures characteristic of wireless phones
have yielded conflicting results that often cannot be
repeated in other laboratories.
A few animal studies, however, have suggested that
low levels of RF could accelerate the development of
cancer in laboratory animals.
However, many of the studies that showed increased
tumor development used animals that had been
genetically engineered or treated with cancer-
causing chemicals so as to be predisposed to
develop cancer in the absence of RF exposure.
Other studies exposed the animals to RF for up to 22
hours per day. These conditions are not similar to the
conditions under which people use wireless phones,
so we don’t know with certainty what the results of
such studies mean for human health.
Three large epidemiology studies have been
published since December 2000.
Between them, the studies investigated any possible
association between the use of wireless phones and
primary brain cancer, glioma, meningioma, or
acoustic neu-roma, tumors of the brain or salivary
gland, leukemia, or other cancers. None of the
studies demonstrated the existence of any harmful
health effects from wireless phone RF exposures.
However, none of the studies can answer questions
about long-term exposures, since the average period
of phone use in these studies was around three
years.
5. What research is needed to decide whether RF
exposure from wireless phones poses a health
risk?
A combination of laboratory studies and
epidemiological studies of people actually using
wireless phones would provide some of the data that
are needed. Lifetime animal exposure studies could
be completed in a few years. However, very large
numbers of animals would be needed to provide
reliable proof of a cancer promoting effect if one
exists. Epidemiological studies can provide data that
is directly applicable to human populations, but 10 or
more years’ follow-up may be needed to provide
answers about some health effects, such as cancer.
This is because the interval between the time of
exposure to a cancer-causing agent and the time
110
tumors develop - if they do -may be many, many
years. The interpretation of epidemiological studies is
hampered by difficulties in measuring actual RF
exposure during day-to-day use of wireless phones.
Many factors affect this measurement, such as the
angle at which the phone is held, or which model of
phone is used.
6. What is FDA doing to find out more about the
possible health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology
Program and with groups of investigators around the
world to ensure that high priority animal studies are
conducted to address important questions about the
effects of exposure to radiofrequency energy (RF).
FDA has been a leading participant in the World
Health Organization International Electromagnetic
Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the
development of a detailed agenda of research needs
that has driven the establishment of new research
programs around the world. The Project has also
helped develop a series of public information
documents on EMF issues. FDA and the Cellular
Telecommunications & Internet Association (CTIA)
have a formal Cooperative Research and
Development Agreement (CRADA) to do research
on wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government,
industry, and academic organizations. CTIA-funded
research is conducted through contracts to
independent investigators. The initial research will
include both laboratory studies and studies of
wireless phone users. The CRADA will also include a
broad assessment of additional research needs in
the context of the latest research developments
around the world.
7. How can I find out how much radiofrequency
energy exposure I can get by using my wireless
phone?
All phones sold in the United States must comply
with Federal Communications Commission (FCC)
guidelines that limit radiofrequency energy (RF)
exposures. FCC established these guidelines in
consultation with FDA and the other federal health
and safety agencies. The FCC limit for RF exposure
from wireless telephones is set at a Specific
Absorption Rate (SAR) of 1.6 watts per kilogram (1.6
W/kg). The FCC limit is consistent with the safety
standards developed by the Institute of Electrical and
Electronic Engineering (IEEE) and the National
Chapter 7 Safety and Warranty 111
Council on Radiation Protection and Measurement.
The exposure limit takes into consideration the
body’s ability to remove heat from the tissues that
absorb energy from the wireless phone and is set
well below levels known to have effects.
Manufacturers of wireless phones must report the RF
exposure level for each model of phone to the FCC.
The FCC website (http://www.fcc.gov/oet/rfsafety)
gives directions for locating the FCC identification
number on your phone so you can find your phone’s
RF exposure level in the online listing.
8. What has FDA done to measure the
radiofrequency energy coming from wireless
phones ?
The Institute of Electrical and Electronic Engineers
(IEEE) is developing a technical standard for
measuring the radiofrequency energy (RF) exposure
from wireless phones and other wireless handsets
with the participation and leadership of FDA scientists
and engineers. The standard, “Recommended
Practice for Determining the Spatial-Peak Specific
Absorption Rate (SAR) in the Human Body Due to
Wireless Communications Devices: Experimental
Techniques,” sets forth the first consistent test
methodology for measuring the rate at which RF is
deposited in the heads of wireless phone users. The
test method uses a tissue-simulating model of the
human head. Standardized SAR test methodology is
expected to greatly improve the consistency of
measurements made at different laboratories on the
same phone. SAR is the measurement of the
amount of energy absorbed in tissue, either by the
whole body or a small part of the body. It is measured
in watts/kg (or milliwatts/g) of matter. This
measurement is used to determine whether a
wireless phone complies with safety guidelines.
9. What steps can I take to reduce my exposure
to radiofrequency energy from my wireless
phone?
If there is a risk from these products—and at this
point we do not know that there is—it is probably very
small. But if you are concerned about avoiding even
potential risks, you can take a few simple steps to
minimize your exposure to radiofrequency energy
(RF). Since time is a key factor in how much
exposure a person receives, reducing the amount of
time spent using a wireless phone will reduce RF
exposure.
112
y If you must conduct extended conversations by wireless
phone every day, you could place more distance between
your body and the source of the RF, since the exposure
level drops off dramatically with distance.
For example, you could use a headset and carry the
wireless phone away from your body or use a
wireless phone connected to a remote antenna.
Again, the scientific data do not demonstrate that
wireless phones are harmful. But if you are
concerned about the RF exposure from these
products, you can use measures like those described
above to reduce your RF exposure from wireless
phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to
users of wireless phones, including children and
teenagers. If you want to take steps to lower
exposure to radiofrequency energy (RF), the
measures described above would apply to children
and teenagers using wireless phones. Reducing the
time of wireless phone use and increasing the
distance between the user and the RF source will
reduce RF exposure.
Some groups sponsored by other national
governments have advised that children be
discouraged from using wireless phones at all. For
example, the government in the United Kingdom
distributed leaflets containing such a
recommendation in December 2000. They noted that
no evidence exists that using a wireless phone
causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by
children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
11. What about wireless phone interference with
medical equipment?
Radiofrequency energy (RF) from wireless phones
can interact with some electronic devices. For this
reason, FDA helped develop a detailed test method
to measure electromagnetic interference (EMI) of
implanted cardiac pacemakers and defibrillators from
wireless telephones. This test method is now part of
a standard sponsored by the Association for the
Advancement of Medical instrumentation (AAMI).
The final draft, a joint effort by FDA, medical device
manufacturers, and many other groups, was
completed in late 2000. This standard will allow
manufacturers to ensure that cardiac pacemakers
and defibrillators are safe from wireless phone EMI.
FDA has tested hearing aids for interference from
Chapter 7 Safety and Warranty 113
handheld wireless phones and helped develop a
voluntary standard sponsored by the Institute of
Electrical and Electronic Engineers (IEEE). This
standard specifies test methods and performance
requirements for hearing aids and wireless phones
so that that no interference occurs when a person
uses a “compatible” phone and a “compatible”
hearing aid at the same time. This standard was
approved by the IEEE in 2000. FDA continues to
monitor the use of wireless phones for possible
interactions with other medical devices. Should
harmful interference be found to occur, FDA will
conduct testing to assess the interference and work
to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the
following resources:
y FDA web page on wireless phones
(http://www.fda.gov/cellphones)
y Federal Communications Commission (FCC) RF Safety
Program
(http://www.fcc.gov/oet/rfsafety)
y International Commission on Non-Ionizing Radiation
Protection
(http://www.icnirp.de)
y World Health Organization (WHO) International EMF
Project
(http://www.who.int/emf)
y National Radiological Protection Board (UK)
(http://www.hpa.org.uk/radiation/)
AVOID POTENTIAL HEARING LOSS
Prolonged exposure to loud sounds (including music)
is the most common cause of preventable hearing
loss. Some scientific research suggests that using
portable audio devices, such as portable music
players and cellular telephones, at high volume
settings for long durations may lead to permanent
noise-induced hearing loss. This includes the use of
headphones (including headsets, earbuds and
Bluetooth® or other wireless devices). Exposure to
very loud sound has also been associated in some
studies with tinnitus (a ringing in the ear),
hypersensitivity to sound and distorted hearing.
Individual susceptibility to noise-induced hearing loss
and other potential hearing problems varies.
The amount of sound produced by a portable audio
device varies depending on the nature of the sound,
the device, the device settings and the headphones.
You should follow some commonsense
recommendations when using any portable audio
device:
114
y Set the volume in a quiet environment and select the
lowest volume at which you can hear adequately.
y When using headphones, turn the volume down if you
cannot hear the people speaking near you or if the person
sitting next to you can hear what you are listening to.
y Do not turn the volume up to block out noisy surroundings.
If you choose to listen to your portable device in a noisy
environment, use noise-cancelling headphones to block
out background environmental noise.
y Limit the amount of time you listen. As the volume
increases, less time is required before your hearing could
be affected.
y Avoid using headphones after exposure to extremely loud
noises, such as rock concerts, that might cause temporary
hearing loss. Temporary hearing loss might cause unsafe
volumes to sound normal.
y Do not listen at any volume that causes you discomfort. If
you experience ringing in your ears, hear muffled speech
or experience any temporary hearing difficulty after
listening to your portable audio device, discontinue use
and consult your doctor.
YOU CAN OBTAIN ADDITIONAL INFORMATION
ON THIS SUBJECT FROM THE FOLLOWING
SOURCES:
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: 800-AAA-2336, 703-790-8466
Email: info@audiology.org
Internet: www.audiology.org
National Institute on Deafness and Other
Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD USA 20892-2320
Voice: (301) 496-7243
Email: nidcdinfo@nidcd.nih.gov
Internet: http://www.nidcd.nih.gov/health/hearing
National Institute for Occupational Safety and
Health
Hubert H. Humphrey Bldg.
200 Independence Ave., SW
Washington, DC 20201
Voice: 1-800-CDC-INFO (1-800-232-4636)
Internet:
http://www.cdc.gov/niosh/topics/noise/default.html
Chapter 7 Safety and Warranty 115
FCC COMPLIANCE INFORMATION
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference
received. Including interference that may cause
undesired operation.
INFORMATION TO THE USER
This equipment has been tested and found to comply
with the limits for a Class B digital device pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
Interference in a residential installation This
equipment generates, uses, and can radiate radio
frequency energy and, if Not installed and used in
accordance with the instructions, may cause harmful
Interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular Installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
y Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
y Connect the equipment into an outlet of a circuit different
from that to which the receiver is connected.
y Consult the dealer or an experienced radio/TV technician
for assistance.
CAUTION: Changes or modification not expressly
approved by the party responsible for Compliance could
void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded
shielded signal cables.
116
12 MONTH LIMITED WARRANTY
Personal Communications Devices, LLC. (the
“Company”) warrants to the original retail purchaser
of this handheld portable cellular telephone, that
should this product or any part thereof during normal
consumer usage and conditions, be proven defective
in material or workmanship that results in product
failure within the first twelve (12) month period from
the date of purchase, such defect(s) will be repaired
or replaced (with new or rebuilt parts) at the
Company’s option, without charge for parts or labor
directly related to the defect(s).
The antenna, keypad, display, rechargeable battery
and battery charger, if included, are similarly
warranted for twelve (12) months from date of
purchase.
This Warranty extends only to consumers who
purchase the product in the United States or Canada
and it is not transferable or assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions,
accident, mishandling, neglect, unauthorized
alteration, misuse, improper installation or repair
or improper storage;
(b) Product whose mechanical serial number or
electronic serial number has been removed,
altered or defaced.
(c) Damage from exposure to moisture, humidity,
excessive temperatures or extreme
environmental conditions;
(d) Damage resulting from connection to, or use of
any accessory or other product not approved or
authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or
structural items such as framing and non-
operative parts;
(f) Product damaged from external causes such as
fire, flooding, dirt, sand, weather conditions,
battery leakage, blown fuse, theft or improper
usage of any electrical source.
The Company disclaims liability for removal or
reinstallation of the product, for geographic coverage,
for inadequate signal reception by the antenna or for
communications range or operation of the cellular
system as a whole.
When sending your wireless device to Personal
Communications Devices for repair or service,
please note that any personal data or software stored
on the device may be inadvertently erased or altered.
Therefore, we strongly recommend you make a back
up copy of all data and software contained on your
Chapter 7 Safety and Warranty 117
device before submitting it for repair or service. This
includes all contact lists, downloads (i.e. third-party
software applications, ringtones, games and
graphics) and any other data added to your device. In
addition, if your wireless device utilizes a SIM or
Multimedia card, please remove the card before
submitting the device and store for later use when
your device is returned, Personal Communications
Devices is not responsible for and does not
guarantee restoration of any third-party software,
personal information or memory data contained in,
stored on, or integrated with any wireless device,
whether under warranty or not, returned to Personal
Communications Devices for repair or service.
To obtain repairs or replacement within the terms of
this Warranty, the product should be delivered with
proof of Warranty coverage (e.g. dated bill of sale),
the consumer’s return address, daytime phone
number and/or fax number and complete description
of the problem, transportation prepaid, to the
Company at the address shown below or to the
place of purchase for repair or replacement
processing. In addition, for reference to an authorized
Warranty station in your area, you may telephone in
the United States (800) 229-1235, and in Canada
(800) 465-9672 (in Ontario call 416-695-3060).
THE EXTENT OF THE COMPANY’S LIABILITY
UNDER THIS WARRANTY IS LIMITED TO THE
REPAIR OR REPLACEMENT PROVIDED ABOVE
AND, IN NO EVENT, SHALL THE COMPANY’S
LAIBILITY EXCEED THE PURCHASE PRICE PAID
BY PURCHASER FOR THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, SHALL
BE LIMITED TO THE DURATION OF THIS
WRITTEN WARRANTY. ANY ACTION FOR
BREACH OF ANY WARRANTY MUST BE
BROUGHT WITHIN A PERIOD OF 18 MONTHS
FROM DATE OF ORIGINAL PURCHASE. IN NO
CASE SHALL THE COMPANY BE LIABLE FOR AN
SPECIAL CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY
OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. THE COMPANY SHALL NOT BE
LIABLE FOR THE DELAY IN RENDERING
SERVICE UNDER THIS WARRANTY OR LOSS
OF USE DURING THE TIME THE PRODUCT IS
BEING REPAIRED OR REPLACED.
No person or representative is authorized to assume
for the Company any liability other than expressed
herein in connection with the sale of this product.
118
Some states or provinces do not allow limitations on
how long an implied warranty lasts or the exclusion
or limitation of incidental or consequential damage so
the above limitation or exclusions may not apply to
you. This Warranty gives you specific legal rights,
and you may also have other rights, which vary from
state to state or province to province.
IN USA: Personal Communications Devices, LLC.
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA: PCD Communications Canada Ltd.
5535 Eglinton Avenue West
Suite# 234
Toronto, ON M9C 5K5
(800) 465-9672
