Pantech ECHO Dual-Band CDMA Phone with Bluetooth (CDMA/PCS CDMA) User Manual
Pantech Co., Ltd. Dual-Band CDMA Phone with Bluetooth (CDMA/PCS CDMA) Users Manual
Pantech >
Users Manual
User Guide
CDM8950
080716_CDM8950_ECHO.indd 1080716_CDM8950_ECHO.indd 1 2008.7.16 4:0:18 PM2008.7.16 4:0:18 PM
CHAPTER 1. BEFORE USING CDM8950
BEFORE USING ................................................................................ 6
INSIDE THE PACKAGE .................................................................... 6
HANDSET DESCRIPTIONS .............................................................. 7
KEYS DESCRIPTIONS ..................................................................... 8
DISPLAY INDICATORS .................................................................. 10
INSTALL BATTERY ....................................................................... 13
REMOVE BATTERY ...................................................................... 13
CHARGING YOUR BATTERY .......................................................... 14
BATTERY HANDLING INFORMATION ............................................. 14
CHAPTER 2. BASIC OPERATION
BASIC OPERATION ......................................................................... 16
TURNING THE PHONE ON/OFF ..................................................... 16
ACCESSING THE MENU ................................................................ 16
MENU SUMMARY ....................................................................... 17
MAKING A CALL ......................................................................... 19
ANSWERING CALLS .................................................................... 19
MISSED CALL NOTIFICATION ........................................................ 20
WAIT/PAUSE FEATURE ................................................................ 20
ANSWERING A CALL ................................................................... 21
MAKING AN INTERNATIONAL CALL .............................................. 21
3-WAY CALLING ......................................................................... 21
CALL WAITING FUNCTION ........................................................... 21
CALLING A NUMBER FROM CONTACTS .......................................... 22
ADJUSTING VOLUME ................................................................... 22
ADJUSTING THE CALL VOLUME .................................................... 22
CALLER ID FUNCTION ................................................................. 23
VIBRATE ON/OFF MODE .............................................................. 23
SPEAKERPHONE MODE .............................................................. 23
MUSIC PLAYER .......................................................................... 23
AVAILABLE OPTIONS DURING A CALL ........................................... 23
MAKING AN EMERGENCY CALL .................................................... 24
CHAPTER 3. MEMORY FUNCTION
MEMORY FUNCTION ...................................................................... 28
STORING A PHONE NUMBER ....................................................... 28
ENTERING LETTERS, NUMBERS & SYMBOLS ................................. 33
ONE, TWO, THREE-TOUCH DIALING .............................................. 35
2
Table of Contents
ContentsContents
CHAPTER 4. MENU FUNCTION
CONTACTS ..................................................................................... 38
NEW CONTACT ........................................................................... 38
CONTACT LIST ............................................................................ 38
GROUPS .................................................................................... 39
SPEED DIALS .............................................................................. 42
IN CASE OF EMERGENCY ............................................................. 43
MY NAME CARD ......................................................................... 45
RECENT CALLS............................................................................... 47
RECENT CALLS............................................................................ 47
MISSED ..................................................................................... 47
RECEIVED .................................................................................. 48
DIALED ...................................................................................... 48
ALL ........................................................................................... 49
BLOCKED ................................................................................... 49
VIEW TIMERS ............................................................................. 50
SETTINGS ...................................................................................... 51
BLUETOOTH MENU ..................................................................... 51
SOUNDS SETTINGS ..................................................................... 54
DISPLAY SETTINGS ..................................................................... 57
PHONE SETTINGS ....................................................................... 61
CALL SETTINGS .......................................................................... 68
MEMORY ................................................................................... 70
PHONE INFO .............................................................................. 72
SET UP WIZARD.......................................................................... 74
VOICE TOOLS ................................................................................. 75
VOICE COMMANDS ..................................................................... 75
TOOLS ........................................................................................... 80
CALCULATOR .............................................................................. 80
CALENDAR ................................................................................. 80
ALARM CLOCK ............................................................................ 82
STOP WATCH .............................................................................. 84
WORLD CLOCK ........................................................................... 84
NOTEPAD ................................................................................... 85
MY VERIZON ................................................................................. 87
MY VERIZON .............................................................................. 87
CHAPTER 5. MEDIA CENTER
microSD ....................................................................................... 90
USING THE microSD CARD ........................................................... 90
MEDIA CENTER .............................................................................. 91
MUSIC & TONES.......................................................................... 91
Table of Contents
3
ContentsContents
080716_CDM8950_ECHO.indd 2-3080716_CDM8950_ECHO.indd 2-3 2008.7.16 4:0:21 PM2008.7.16 4:0:21 PM
BEFORE USING CDM8950
CHAPTER 1
BEFORE USING CDM8950
This chapter provides important information about using the
CDM8950 including:
Inside the package
Handset descriptions
Keys descriptions
Display indicators
Install battery
Remove battery
Charging your battery
Battery handling information
PICTURE & VIDEO ....................................................................... 96
GAMES .....................................................................................100
MOBILE WEB ............................................................................101
BROWSE & DOWNLOAD .............................................................102
EXTRAS ....................................................................................103
MEDIA CENTER INFO ..................................................................103
CHAPTER 6. MESSAGING MENU
MESSAGING .................................................................................106
WHEN A NEW MESSAGE ARRIVES ...............................................106
NEW MESSAGE ..........................................................................106
INBOX ......................................................................................110
SENT ........................................................................................110
DRAFTS ....................................................................................111
VOICEMAIL ...............................................................................111
MOBILE IM ...............................................................................112
EMAIL ......................................................................................112
CHAT ........................................................................................113
ERASE ALL ................................................................................113
SETTINGS .................................................................................114
CHAPTER 7. SAFETY AND WARRANTY
SAFETY ........................................................................................118
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES ..........118
SAFETY INFORMATION FOR FCC RF EXPOSURE .............................121
SAR INFORMATION ....................................................................121
FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR
WIRELESS DEVICES ....................................................................122
FDA CONSUMER UPDATE ............................................................124
AVOID POTENTIAL HEARING LOSS. ..............................................127
FCC COMPLIANCE INFORMATION ................................................130
WARRANTY ..................................................................................131
12 MONTH LIMITED WARRANTY .................................................131
INDEX LIST ...................................................................................133
ContentsContents
4
Table of Contents
080716_CDM8950_ECHO.indd 4-5080716_CDM8950_ECHO.indd 4-5 2008.7.16 4:0:22 PM2008.7.16 4:0:22 PM
INSIDE THE PACKAGE
This package should include all items pictured below. If any are missing or different, immediately contact
the retailer where you purchased the phone.
6
Chapter 1 − Before Using CDM8950
Before UsingBefore Using

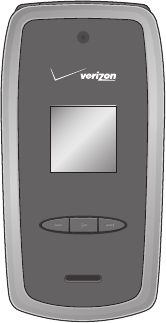

HANDSET DESCRIPTIONS
Before Using CDM8950 − Chapter 1
7
Before UsingBefore Using
Handset
Wall Charger
User Guide
1. Earpiece
2. Main Display Screen
3. Directional Key
4. Left Soft Key
5. Speakerphone Key
6. SEND Key
7. Voicemail Key
8. International Dial Key
9. Microphone
10. Vibrate Mode Key
11. CLR Key
12. END/Power Key
13. My Messaging Key
14. Right Soft Key
15. Menu/OK Key
16. Headset Jack
17. Volume Keys
18. AVR Key
19. Wrist Strap Eyelet
20. Camera Lens
21. Camera Key
22. Front Display Screen
23. Music Key
24. microSD Card Slot
25. External Speaker
26. Charging / Data Jack
18
17
16
22
25
26
23
21
24
2019
13
12
11
10
9
14
15
1
2
4
3
5
6
7
8
USB Cable
QRG (Quick Reference Guide)
Battery Cover
Standard Battery
080716_CDM8950_ECHO.indd 6-7080716_CDM8950_ECHO.indd 6-7 2008.7.16 4:0:23 PM2008.7.16 4:0:23 PM
8
Chapter 1 − Before Using CDM8950
Before UsingBefore Using
Before Using CDM8950 − Chapter 1
9
Before UsingBefore Using
KEYS DESCRIPTIONS
The following list correlates to the previous page’s phone illustration.
1. Earpiece: The earpiece allows you to hear the other caller.
2. Main Display Screen: This screen displays all the information
needed to operate your phone.
3. [ ] Directional Key: The Directional Key allows you to scroll
through phone menu options and
provides a shortcut to phone functions
from standby mode. For more informa-
tion on personalizing set shortcut keys,
see ”Set Shortcuts” on page 62.
4. [ ] Left Soft Key: Press to display the Message menu or
access the function listed above the key.
5. [ ] Speakerphone Key: Press to turn Speakerphone On or Off.
6. [ ] SEND Key: Press to make or receive a call. In standby
mode, press to access your All Calls list.
7. [ ] Voicemail Key: Press and hold to automatically dial your
voicemail system.
8. [ ] International Dial Key: Press and hold to enter a plus
“+”. A “+” is reserved for
international dialing code.
9. Microphone: Allows the other caller to hear you clearly when
you are speaking to them.
10. [ ] Vibrate Mode Key: Press and hold to place your device
in Vibrate mode.
11. [ ] CLR Key: When entering a phone number or text, press
to delete a single space or character. Press
and hold to delete entire words. Press this key
once in a menu to go back one level.
12. [ ] END/POWER Key: Press to turn the phone on/off, end a
call or browser session, and/or return
to idle mode.
13. [ ] My Messaging Key: Press to access the New TXT
Message field.
14. [ ] Right Soft Key: Press to display Contacts or to access the
function listed above the key.
15. [ ] Menu/OK Key: Allows you to access the menu screen. It
also allows you to accept choices when
navigating through a menu.
16. Headset Jack: Plug in the Headset Connector here to use a
headset.
17. [ ] Volume Keys: Allows you to adjust the master volume in
standby mode or adjust the voice volume
during a call.
18. [ ] AVR Key: In idle mode, press to activate VoiceSignal™.
19. Wrist Strap Eyelet: Accessory eyelet (optional straps and lan-
yards - purchased separately).
20. Camera Lens: The lens of your built-in camera.
21. [ ] Camera Key: Press to access Camera Viewfinder mode.
22. Front Display Screen: This screen displays incoming calls,
messages, signal, battery strength, time,
day and date.
23. [ ] Music Key: In idle mode, press to activate the
Music player.
24. microSD Card Slot: You can insert a microSDTM memory card
here to increase memory capacity.
25. External Speaker: Music, Ringtones, and Sounds are played
through the speaker.
26. Charging / Data Jack: Plug in the Wall Charger or USB Cable.
080716_CDM8950_ECHO.indd 8-9080716_CDM8950_ECHO.indd 8-9 2008.7.16 4:0:25 PM2008.7.16 4:0:25 PM
DISPLAY INDICATORS
Icon Icon Discriptions
D Signal Strength: CDMA IS 95 service available.
EV Signal Strength: EV service is available.
1X Signal Strength: 1X service is available.
EV/1X Signal Strength: EV/1X service is available.
EV/D Signal Strength: EV/Digital service is available.
Airplane Mode: Transmitting and receiving information is restricted.
Roaming: The phone is outside of the home service area.
SSL (Secured Socket Layer): Indicates that secure communication
between client and server has been established during data
communication using encryption.
Voice Privacy: Indicates Voice Privacy mode is active.
Data Call: Data Session in progress.
Icon Icon Discriptions
Dormant: Phone is in a dormant state during a data call. Phone
reverts to Dormant mode when there hasn t been activity on a page
for some time — the connection is still active and you can make and
receive calls.
No Service: Phone cannot receive a signal from the system.
TTY: TTY mode is active.
Voice Call: A call is in progress.
* No icon indicates the phone is in standby mode.
GPS Icon: Location Service of your phone is E911/Location On.
Keypad Lock: Indicates Keypad Lock mode.
Bluetooth: Indicates Bluetooth mode.
Bluetooth Active: Indicates Bluetooth Active mode.
10
Chapter 1 − Before Using CDM8950
Before UsingBefore Using
Icon Icon Discriptions
Bluetooth Conncted: Indicates Bluetooth Device is connected.
Battery Level: Battery charging level — the more blocks, the
stronger the charge.
AVR Active: AVR mode is active.
AVR Listening: Indicates AVR listening.
Alarm Only: Phone will alert you with an alarm tone.
All Sounds Off: Ringer volume is set to off.
Vibrate Only: Phone will vibrate when call is received.
Speakerphone: Speakerphone mode is active.
Missed Calls: Indicates you have missed calls.
Message: Indicates you have new message.
Icon Icon Discriptions
Calendar Appointment: Event Alarm is active.
Voicemail: Indicates you have voicemail messages.
Alarm On: Appears when an alarm is set.
Recent Calls Icon
Dialed Call Missed Call
Received Call
Before Using CDM8950 − Chapter 1
11
Before UsingBefore Using
080716_CDM8950_ECHO.indd 10-11080716_CDM8950_ECHO.indd 10-11 2008.7.16 4:0:26 PM2008.7.16 4:0:26 PM
New Contacts Icon
Mobile1 Group
Mobile2 Picture
Home Ringtone
Work Fax
E-mail 1 Message Ringer
E-mail 2 Speed Dial
Messages Icon
New/Unread Message Unopened Message
Notification
Opened/Read Message Opened Download
Picture Message
Message Delivered Corrupt Message
Incomplete Delivery Pending Message
Send
Sent Message,
Delivery Failed Unread MMS
Message Locked Read MMS
Text Message Draft Unread WAP Push
Picture Message Draft Read WAP Push
Priority Multiple Message
Delivered
12
Chapter 1 − Before Using CDM8950
Before UsingBefore Using
Messages Icon
Multiple Message
Failed
Multiple Message
Pending
Multiple Message
Incomplte
Multiple SMS/MMS
Ack
INSTALL BATTERY
1. Remove the battery cover from the unit.
2. Slide the battery into the slot located at the
bottom of the unit and press until you hear
the “click”.
REMOVE BATTERY
1. To remove the battery, push down on the
top of the battery while inserting your
finger into the slot and pulling up from the
back of the battery and slide it out.
2. Align the cover tabs with the slots at the
top of the device and slide the battery cover
back onto the unit.
If the battery is not correctly placed in the compartment, the handset will not turn on
and/or the battery may detach during use.
Before Using CDM8950 − Chapter 1
13
Before UsingBefore Using
080716_CDM8950_ECHO.indd 12-13080716_CDM8950_ECHO.indd 12-13 2008.7.16 4:0:28 PM2008.7.16 4:0:28 PM
BASIC OPERATION
CHAPTER 2
BASIC OPERATION
This chapter addresses and explains the basic features of your
phone including:
CHARGING YOUR BATTERY
1. To charge the phone, open the Charging/Data Jack cover on the Right
Side of the phone, and connect the charger adapter. Plug the other
end into a standard outlet.
2. To remove the adapter connection, squeeze the adapter’s side but-
tons (1) and pull.
•
When you charge the battery with the phone power off, you will see a charging status
screen. You cannot operate the phone until it is powered on.
•
The battery is not fully charged at the time of purchase. Fully charge the battery
before use.
•
It is more efficient to charge the battery with the handset powered off.
•
Battery operating time gradually decreases over time.
•
If the battery fails to perform normally, you may need to replace the battery.
BATTERY HANDLING INFORMATION
DO’S
•
Only use the battery and charger approved for use with the CDM8950.
•
Only use the battery for its original purpose.
•
Try to keep batteries in a temperature between 41 °F (5 °C) and 95 °F (35 °C). If
the battery is stored in temperatures above or below the recommended range,
give it time to warm up or cool down before using.
•
Completely drain the battery before recharging.
•
Store the discharged battery in a cool, dark, and dry place.
•
Purchase a new battery when its operating time gradually decreases after fully
charging.
•
Properly dispose of the battery according to local laws.
DON’TS
•
Don’t attempt to disassemble the battery – it is a sealed unit with no service-
able parts.
•
Don’t accidentally short circuit the battery by carrying it in your pocket or purse
with other metallic objects such as coins, clips and pens. This may critically
damage the battery.
•
Don’t leave the battery in extremely hot or cold temperatures. Otherwise, it could
significantly reduce the capacity and lifetime of the battery.
•
Don’t dispose of the battery by placing into a fire.
14
Chapter 1 − Before Using CDM8950
Before UsingBefore Using
Turning the phone on/off
Accessing the menu
Menu summary
Making a call
Answering calls
Missed call notification
Wait/Pause feature
Answering a call
Making an international call
3-way calling
Call waiting function
Calling a number from contacts
Adjusting volume
Adjusting the call volume
Caller ID function
Vibrate on/off mode
Speakerphone mode
Music player
Available options during a call
Making an emergency call
080716_CDM8950_ECHO.indd 14-15080716_CDM8950_ECHO.indd 14-15 2008.7.16 4:1:4 PM2008.7.16 4:1:4 PM
TURNING THE PHONE ON/OFF
TURNING THE PHONE ON
1. Press and hold the END Key until your display turns on and the
tone sounds.
•
If “Enter Lock Code” appears on the display, enter your 4-digit lock code to unlock
your phone.
•
The default lock code is the last 4 digits of your Mobile Telephone Number.
TURNING THE PHONE OFF
1. Press the OK Key [OK] to unlock the keypad, then press and hold
the END Key until your display turns off.
•
Immediately change or recharge the battery when “BATTERY LOW” appears on the
display. Memory may possibly be damaged if the phone turns off due to the battery
completely draining.
•
Turn the phone off before removing or replacing the battery. If the phone is on,
unsaved data may be lost.
ACCESSING THE MENU
Your phone can be customized via the menu. Each function can be accessed
by scrolling with the Directional Key or by pressing the number that
corresponds with the menu item.
1. To access the menu in idle mode, press the OK Key [MENU].
2. To scroll through the menu, press the Directional Key up, down,
left or right.
3. To return to the previous page, press the CLR Key . To exit the
current menu and return to the idle mode, press the END Key .
4. In idle mode, press the Left Soft Key [Message] to open the
Messaging menu. Or, press the Right Soft Key [Contacts] to open
your Contacts list.
All directions in this manual are based on the Tab Main Menu Setting, and Classic
Display Theme, which are the default settings.
16
Chapter 2 − Basic Operation
Basic OperationBasic Operation
MENU SUMMARY
Main Menu 2ND DEPTH 3RD DEPTH
MEDIA CENTER 1. Music & Tones
2. Picture & Video
3. Games
4. Mobile Web
5. Browse & Download
6. Extras
1. V CAST Music
2. Get New Ringtones
3. My Ringtones
4. My Music
5. My Sounds
6. Sync Music
1. V CAST Videos
2. Get New Pictures
3. My Pictures
4. My Videos
5. Take Picture
6. Record Video
7. Online Album
1. Get New Applications
1. Get New Applications
Mobile E-mail
VZ Navigator
1. Get New Applications
Main Menu 2ND DEPTH 3RD DEPTH
MESSAGING 1. New Message
2. Inbox
3. Sent
4. Drafts
5. Voicemail
6. Mobile IM
7. Email
8. Chat
1. TXT Message
2. Picture Message
3. Video Message
4. Voice Message
1. Get New Applications
Mobile IM
Mobile Email
Mobile Web Mail
CONTACTS 1. New Contact
2. Contact List
3. Groups
4. Speed Dials
5. In Case of Emergency
6. My Name Card
Basic Operation − Chapter 2
17
Basic OperationBasic Operation
080716_CDM8950_ECHO.indd 16-17080716_CDM8950_ECHO.indd 16-17 2008.7.16 4:1:5 PM2008.7.16 4:1:5 PM
Main Menu 2ND DEPTH 3RD DEPTH
RECENT CALLS 1. Missed
2. Received
3. Dialed
4. Blocked (“Blocked”
appears only when
Call Restriction is set)
5. All
6. View Timers
SETTINGS &
TOOLS
1. My Verizon
2. Tools
3. Bluetooth Menu
4. Sounds Settings
1. Voice Commands
2. Calculator
3. Calendar
4. Alarm Clock
5. Stop Watch
6. World Clock
7. Notepad
1. Add New Device
1. Easy Set Up
2. Call Sounds
3. Alert Sounds
4. Keypad Volume
5. Service Alerts
Main Menu 2ND DEPTH 3RD DEPTH
SETTINGS &
TOOLS
5. Display Settings
6. Phone Settings
7. Call Settings
6. Device Connect
7. Power On/Off
1. Easy Set Up
2. Banner
3. Backlight
4. Wallpaper
5. Display Themes
6. Menu Settings
7. Dial Fonts
8. Menu Font Size
9. Clock Format
1. Airplane Mode
2. Set Shortcuts
3. Voice Commands
4. Language
5. Location
6. Security
7. System Select
8. NAM Selection
1. Answer Options
2. Auto Retry
3. TTY Mode
18
Chapter 2 − Basic Operation
Basic OperationBasic Operation
Main Menu 2ND DEPTH 3RD DEPTH
SETTINGS &
TOOLS
8. Memory
9. Phone Info
0. Set Up Wizard
4. One Touch Dial
5. Voice Privacy
6. DTMF Tones
1. Save Options
2. Phone Memory
3. Card Memory
1. My Number
2. SW/HW Version
3. Icon Glossary
4. Software Update
MAKING A CALL
1. From standby mode enter the phone number (include the area code
if needed). Press the SEND Key .
•
To erase one digit at a time press the CLR Key .
•
To erase the entire number, press and hold the CLR Key .
•
When you place or receive a call from phone numbers stored in your contact list with
a contact name, the name will be displayed.
2. To end a call, press the END Key .
•
If you activate the “AUTO RETRY” function, the phone will automatically re-dial the
number (Refer to page 69).
•
You can also place calls using Voice-Activated Dialing. Please refer to page 75 for
more details.
ANSWERING CALLS
1. When your phone rings or vibrates, press the SEND Key to
answer the incoming call. (Depending on your phone’s settings, you
may also answer incoming calls by opening the phone or by pressing
any key.)
2. To ignore incoming calls, press the Right Soft Key [Ignore].
3. To end a call, press the END Key .
In “Auto w/ Hands-free” a call is automatically answered after a preset number of ring
tones (Refer to page 68).
Basic Operation − Chapter 2
19
Basic OperationBasic Operation
080716_CDM8950_ECHO.indd 18-19080716_CDM8950_ECHO.indd 18-19 2008.7.16 4:1:6 PM2008.7.16 4:1:6 PM
MISSED CALL NOTIFICATION
When an incoming call is not answered, the Missed Call logo appears on the
display.
TO DISPLAY THE MISSED CALL ENTRY FROM THE
NOTIFICATION SCREEN:
1. Highlight the entry “View Now” and press the OK Key .
2. To dial the phone number, press the SEND Key .
TO DISPLAY A MISSED CALL ENTRY FROM STANDBY MODE:
1. From standby mode, press the OK Key [MENU], then press the
Directional Key right once for the “RECENT CALLS” menu.
2. Press “1. Missed”.
3. Highlight the entry you wish to view, then press the OK Key
[OPEN].
4. To dial the phone number, press the SEND Key .
WAIT/PAUSE FEATURE
Pauses are used for automated systems (i.e., voice mail or calling cards).
Insert a pause after a phone number and then enter another group of
numbers. The second set of numbers is dialed automatically after the pause.
This feature is useful for dialing into systems that require a code.
Wait (W)
The phone stops dialing until you press the Left Soft Key [Release] to
advance to the next number.
2-Sec Pause
The phone waits 2 seconds before sending the next string of digits
automatically.
1. From standby mode enter the phone number.
2. Press the Right Soft Key [Options].
3. Press the Directional Key up or down to select pause type, then
the OK Key [OK]. “2-Sec Pause/Wait”.
4. Enter additional number(s) (pin number or credit card number).
5. Press the SEND Key to dial or the Left Soft Key [Save].
20
Chapter 2 − Basic Operation
Basic OperationBasic Operation
ANSWERING A CALL
1. If your phone is set to “Flip Open” for “Answer Options,” simply open
the phone to answer a call. If your phone is set to “Any Key” for
“Answer Options,” press any key to answer a call.
If your phone is set to “Auto w/ Hands-free” for “Answer Options,”
calls are answered automatically with a 5 second delay. (“Auto w/
Hands-free” is available only when connected to a headset or hands-
free device.) For information on how to set your Answer Options,
see page 68.
2. To end the call, press the END Key .
MAKING AN INTERNATIONAL CALL
1. From standby mode, press and hold the * Key . The + required
for international calls will be displayed.
2. Enter the country code, area code, and phone number, then press the
SEND Key .
3. To end the call, press the END Key .
3WAY CALLING
With 3-Way Calling, you can talk to two people at the same time. When using
this feature, the normal airtime rates will be applied for each of the two calls.
1. From standby mode, enter the phone number you wish to call and
then press the SEND Key .
2. Once you have established the connection, enter the second phone
number you wish to call and then press the SEND Key again.
3. When you’re connected to the second party, press the SEND Key
again to begin your 3-Way call.
If one of the people you called hangs up during your call, you and the remaining caller
stay connected. If you initiated the call and are the first to hang up, all three CALLS
are disconnected.
CALL WAITING FUNCTION
If you are on a call and you receive another incoming call, you will hear two
beeps and the caller’s phone number will appear on the display. With Call
Waiting, you may put the active call on hold while you answer the other
incoming call. To use Call Waiting:
Basic Operation − Chapter 2
21
Basic OperationBasic Operation
080716_CDM8950_ECHO.indd 20-21080716_CDM8950_ECHO.indd 20-21 2008.7.16 4:1:7 PM2008.7.16 4:1:7 PM
1. To answer another call while on the phone, press the SEND
Key . This places the first call on hold. To switch back to the first
caller, press the SEND Key again.
CALLING A NUMBER FROM CONTACTS
1. From standby mode, press the Right Soft Key [Contacts].
2. Press the Directional Key up or down to select the Contact entry
then press the OK Key [VIEW].
3. Press the Directional Key up or down to select the phone
number.
4. Press the SEND Key to place the call.
Pressing the Directional Key up or down to select the “Contact entry” and then
pressing the Send Key will dial the Default Number of the Contact entry
automatically. If multiple numbers are saved in the “Contact entry”, press the Directional
Key up or down to select the “Contact entry” and then press the Directional Key
left or right to select the number you want to dial. Then press the Send Key .
ADJUSTING VOLUME
To adjust the master volume:
1. From standby mode, press the Volume Keys up or down.
2. Select one of the following options and press the OK Key [SET]
to save it.
•
All Sounds Off
•
Alarm Only
•
Vibrate Only
•
Low /
•
Medium Low /
•
Medium /
•
Medium High /
•
High
•
Press the Volume Keys up or down to adjust Earpiece volume during a call.
•
To play a ringtone, press the Left Soft Key [Play].
ADJUSTING THE CALL VOLUME
During a call, if you want to adjust the earpiece volume, press the Volume
Keys up or down. Press the Volume Keys up to increase the volume
level and the Volume Keys down to decrease the level. In Idle mode, you
can also adjust the ringer volume by following the same steps.
22
Chapter 2 − Basic Operation
Basic OperationBasic Operation
CALLER ID FUNCTION
Caller ID displays the number of the person calling when your phone
rings. If the caller’s identity is stored in Contacts, the name appears on the
screen. The caller ID is stored in the Recent Calls Menu.
VIBRATE ON/OFF MODE
Vibrate Mode mutes key tones and activates an alert for an incoming call or
message. To activate Vibrate Mode:
1. From the idle screen, press and hold the # Key .
2. To return to a “Medium High” volume, from the idle screen press and
hold the # Key again.
SPEAKERPHONE MODE
The Speakerphone feature lets you hear audio through the speaker and talk
without holding the phone.
To activate the Speakerphone in idle mode or while on a call, press the
Speakerphone Key . If you press the Speakerphone Key when you
are not on a call, Speakerphone mode will be active for one minute, then
turn itself off automatically.
MUSIC PLAYER
Music Player is for playing MP3 files saved on the microSD card. To display
music list with phone closed, press and hold and select a music file
with the / , press [PLAY], then press [PAUSE] or
in order to stop the music player while it is playing with shell closed, it is
required to open the shell and press the END Key .
AVAILABLE OPTIONS DURING A CALL
During a phone call, you can access the following features by pressing the
Right Soft Key [Options]:
MESSAGING
To access the Messaging Menu during a call:
1. Press the Right Soft Key [Options], then press “1. Messaging”.
CONTACT LIST
To view your Contact List during a call:
1. Press the Right Soft Key [Options], then press “2. Contact List”.
Basic Operation − Chapter 2
23
Basic OperationBasic Operation
080716_CDM8950_ECHO.indd 22-23080716_CDM8950_ECHO.indd 22-23 2008.7.16 4:1:8 PM2008.7.16 4:1:8 PM
RECENT CALLS
To view your Recent Calls list during a call:
1. Press the Right Soft Key [Options], then press “3. Recent Calls”.
BLUETOOTH MENU
To access the Bluetooth Menu during a call:
1. Press the Right Soft Key [Options], then press “4. Bluetooth
Menu”.
If an Audio device is connected, “Audio To Phone/Audio To Device” is displayed in the
options menu instead of “Bluetooth Menu”.
MAIN MENU
To access the Main Menu during a call:
1. Press the Right Soft Key [Options], then press “5. Main Menu”.
2. Press the Directional Key up, down, left or right to scroll through
the menu screens.
NOTEPAD
To compose and send notes during a call:
1. Press the Right Soft Key [Options], then press “6. Notepad”.
MAKING AN EMERGENCY CALL
The 911 feature automatically places the phone in the Emergency Call Mode
when you dial the preprogrammed emergency number, 911. It also operates
in Lock Mode and out of the service area.
911 IN LOCK MODE
To make an emergency call in Lock Mode:
1. From standby mode, enter “911” and then press the SEND Key .
2. The call connects.
3. The phone maintains the Emergency Mode for 5 minutes. When the
call ends, the phone returns to Lock Mode.
911 USING ANY AVAILABLE SYSTEM
To make an Emergency Call using any available system:
1. From standby mode, enter “911” and then press the SEND Key .
2. The call connects.
3. The phone will stay in Emergency Mode for 5 minutes. While the
phone is in the Emergency Mode for 5 minutes, the phone can
receive an incoming call from any available system or you can make
outgoing calls even in the Emergency Callback Mode.
24
Chapter 2 − Basic Operation
Basic OperationBasic Operation
In this case, making a call can automatically end the Emergency
Callback Mode.
The 911 call does not appear in the recent call list.
Basic Operation − Chapter 2
25
Basic OperationBasic Operation
080716_CDM8950_ECHO.indd 24-25080716_CDM8950_ECHO.indd 24-25 2008.7.16 4:1:10 PM2008.7.16 4:1:10 PM
MEMORY FUNCTION
CHAPTER 3
MEMORY FUNCTION
This chapter addresses memory functions including:
Storing a phone number
Entering letters, numbers & symbols
One, Two, Three-touch dialing
26
Chapter 2 − Basic Operation
NoteNote
080716_CDM8950_ECHO.indd 26-27080716_CDM8950_ECHO.indd 26-27 2008.7.16 4:1:10 PM2008.7.16 4:1:10 PM
STORING A PHONE NUMBER
The Contact List stores up to 1000 entries.
ADDING A NEW CONTACT
1. From standby mode, enter the phone number you want to save.
2. Press the Left Soft Key [Save].
3. Press the Directional Key up or down to select “Add New
Contact”, then press the OK Key [OK].
4. Press the Directional Key up or down to select the type of phone
number you want to save, then press the OK Key [OK].
Mobile 1/Mobile 2/Home/Work/Fax
Use Update Existing to add another phone number to a contact already stored in
memory.
5. Enter a name for the phone number (up to 32 characters), then press
the OK Key [SAVE].
6. “ CONTACT SAVED” displays, then the phone number reappears on the
screen. Press the End Key to exit, or press the Send Key to
call the number.
Press the Right Soft Key [Options] to access the following options:
•
2-Sec Pause: Insert a 2-sec Pause in the number.
•
Wait: Insert a Wait pause in the number.
•
New TXT Message: Send a text message to the contact.
•
New Picture Message: Send a picture message to the contact.
•
New Video Message: Send a video message to the contact.
•
New Voice Message: Send a voice message to the contact.
OPTIONS TO CUSTOMIZE YOUR CONTACTS
Once the basic phone number and name information is stored in your Contacts, you
can edit and/or customize the entries.
1. From standby mode, press the Right Soft Key [Contacts], then
press the Directional Key up or down to highlight the Contact
entry you want to edit.
2. Press the Left Soft Key [Edit] to access the Edit Contact screen.
3. Press the Directional Key up or down to highlight the
information field you want to customize. Additional fields include:
Name/Mobile 1/Home/Work/E-mail 1/Group/Picture/Ringtone/
Mobile 2/Fax/E-mail 2
28
Chapter 3 − Memory Function
Memory FunctionMemory Function
4. To change the data as necessary, then press the OK Key [SAVE]
to save.
ADDING OR CHANGING GROUPS
To organize your Contacts into groups:
1. From standby mode, press the Right Soft Key [Contacts], then
press the Directional Key up or down to highlight an entry.
2. Press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight ”Group”
then press the Left Soft Key [Set].
4. Press the Directional Key up or down to select the Group, then
press the OK Key [OK].
No Group/Family/Work
5. Press the OK Key [SAVE] to save.
CHANGING THE CALL RINGTONE
To identify who is calling by setting different ringtones for different phone numbers
in your Contacts:
1. From standby mode, press the Right Soft Key [Contacts], then
press the Directional Key up or down to highlight an entry.
2. Press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight Default
under ”Ringtone”, then press the Left Soft Key [Set].
4. Press the Directional Key up or down to select the new
ringtone, then press the OK Key [OK].
Press the Left Soft Key [Play] to listen to a highlighted ringtone before you press
the OK Key [OK].
5. Press the OK Key [SAVE] to save.
ADDING OR CHANGING THE PICTURE ID
To select a picture or graphic to assign to a Caller ID:
1. From standby mode, press the Right Soft Key [Contacts], then
press the Directional Key up or down to highlight an entry.
2. Press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight ”Picture”,
then press the Left Soft Key [Set].
4. Press the Directional Key up, down, left or right to select a
picture, then press the OK Key [OK].
5. When completed, press the OK Key [SAVE].
Memory Function − Chapter 3
29
Memory FunctionMemory Function
080716_CDM8950_ECHO.indd 28-29080716_CDM8950_ECHO.indd 28-29 2008.7.16 4:1:11 PM2008.7.16 4:1:11 PM
ADDING OR CHANGING AN EMAIL ADDRESS
To enter or add an Email address to a Contact entry:
1. From standby mode, press the Right Soft Key [Contacts], then
press the Directional Key up or down to highlight an entry.
2. Press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight ”E-mail 1”
or ”E-mail 2”.
4. Enter an Email address, then press the OK Key [SAVE] to save.
ADDING A SPEED DIAL ENTRY
To add an entry to Speed Dial:
1. From standby mode, press the Right Soft Key [Contacts], then
press the Directional Key up or down to highlight an entry.
2. Press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight the phone
number you want to add to Speed Dial, then press the Right Soft
Key [Options].
4. Select ”1. Set Speed Dial”, then press the OK Key [OK].
5. Press the Directional Key up or down to select a Speed Dial
location, then press the OK Key [SET].
6. Press the Directional Key up or down to select ”Yes” to save,
then press the OK Key [OK].
7. Press the OK Key [SAVE] to save.
EDITING CONTACTS ENTRIES
ADDING A PHONE NUMBER FROM THE STANDBY MODE
1. From standby mode, enter the phone number you want to save
(up to 48 digits).
2. Press the Left Soft Key [Save].
3. Press the Directional Key up or down to highlight
”Update Existing”, then press the OK Key [OK].
4. Press the Directional Key up or down to highlight the existing
Contact entry, then press the OK Key [OK].
5. Press the Directional Key up or down to highlight the phone
number type, then press the OK Key [OK].
Mobile 1/Mobile 2/Home/Work/Fax
30
Chapter 3 − Memory Function
Memory FunctionMemory Function
6. If a phone number is already assigned to the item you selected,
press the Directional Key up or down to select ”Yes” or ”No”,
then press the OK Key [OK].
7. “ CONTACT SAVED” displays, then the phone number reappears on
the screen. Press the End Key to exit, or press the Send Key
to call the number.
ADDING A PHONE NUMBER FROM THE CONTACT LIST SCREEN
1. From standby mode, press the Right Soft Key [Contacts]. Your
Contacts display alphabetically.
2. Press the Directional Key up or down to highlight the Contact
entry you want to edit, then press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight the phone
number field you want to add, enter the number, then press the
OK Key [SAVE] to save. A confirmation message appears.
DEFAULT NUMBERS
The phone number saved when a Contact is created is the Default
Number. If more than one number is saved in a Contact entry, another
number can be set as the Default Number.
The Default Number cannot be deleted. The entire Contact entry can be deleted or
another number can be assigned as the Default Number allowing you to delete the
original number and keep the Contact entry.
CHANGING THE DEFAULT NUMBER
1. From standby mode, press the Right Soft Key [Contacts]. Your
Contacts display alphabetically.
2. Press the Directional Key up or down to highlight the Contact
entry you want to edit, then press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight the phone
number you want to assign as the Default Number, then press the
Right Soft Key [Options].
4. Press the Directional Key up or down to highlight
”2. Set As Default”, then press the OK Key [OK].
5. Press the Directional Key up or down to select ”Yes”.
6. Press the OK Key [OK]. A confirmation message appears.
7. Press the OK Key [SAVE] to save.
Memory Function − Chapter 3
31
Memory FunctionMemory Function
080716_CDM8950_ECHO.indd 30-31080716_CDM8950_ECHO.indd 30-31 2008.7.16 4:1:13 PM2008.7.16 4:1:13 PM
EDITING STORED PHONE NUMBERS
1. From standby mode, press the Right Soft Key [Contacts]. Your
Contacts display alphabetically.
2. Press the Directional Key up or down to highlight the Contact
entry you want to edit, then press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight the phone
number.
4. To edit the phone number as necessary, then press the OK Key
[SAVE].
EDITING STORED NAMES
1. From standby mode, press the Right Soft Key [Contacts]. Your
Contacts display alphabetically.
2. Press the Directional Key up or down to highlight the Contact
entry you want to edit, then press the Left Soft Key [Edit].
3. To edit the name as necessary, then press the OK Key [SAVE].
DELETING
DELETING A PHONE NUMBER FROM A CONTACT
1. From standby mode, press the Right Soft Key [Contacts].
2. Press the Directional Key up or down to highlight the Contact
entry, then press the Left Soft Key [Edit].
3. Press the Directional Key up or down to highlight the phone
number to be deleted.
4. Press and hold the Clear Key to delete the number.
5. Press the OK Key [SAVE]. A confirmation message appears.
DELETING A CONTACT ENTRY
1. From standby mode, press the Right Soft Key [Contacts].
2. Press the Directional Key up or down to highlight the Contact
entry to be deleted.
3. Press the Right Soft Key [Options].
4. Press ”2. Erase”.
5. Press the Directional Key up or down to select ”Yes”.
6. Press the OK Key [OK]. A confirmation message appears.
32
Chapter 3 − Memory Function
Memory FunctionMemory Function
DELETING A SPEED DIAL
1. From standby mode, press the OK Key [MENU].
2. Press the Directional Key up or down to highlight
”4. Speed Dials”, then press the OK Key [OK].
3. Press the Directional Key up or down to highlight the
Speed Dial number.
4. Press the Right Soft Key [Remove].
5. Press the Directional Key up or down to select ”Yes”.
6. Press the OK Key [OK]. A confirmation message appears.
ENTERING LETTERS, NUMBERS & SYMBOLS
The input mode (Alpha editor) will automatically be activated when
necessary to enter letters and numbers. As shown below, there are
5 available modes ; Standard input mode (Abc)/(ABC), Input mode
(Word), Numeric mode (123) and Symbol mode (Symbols). The input
mode indicator appears on the upper right of the display when letters
and numbers are entered.
Key Key Functions
Abc: Press to change mode. [Word][Abc][ABC][123][Symbols]
Next: Press to view the next matching word if the highlighted word is
not the word you intended.
Space: Press to accept a word and add a space.
Caps Lock: Press to select a letter case of the standard text input or
text input mode. [Abc], [ABC] and [abc] indicate the standard text
input. [Word], [WORD] and [word] indicate the predictive text input.
Clear: Press to delete a character to the left of the cursor.
Send: Send the letters and numbers you enter.
Memory Function − Chapter 3
33
Memory FunctionMemory Function
080716_CDM8950_ECHO.indd 32-33080716_CDM8950_ECHO.indd 32-33 2008.7.16 4:1:15 PM2008.7.16 4:1:15 PM
STANDARD INPUT MODE
Use the digit keys to enter letters, numbers and characters.
1. Enter letters using the key pad as follows:
KEYPAD
1 Time 2 Times 3 Times 4 Times 5 Times
Press
Key ABC2A
Press
Key DEF3D
Press
Key GHI 4G
Press
Key JKL5J
Press
Key MNO 6M
Press
Key PQRS7
Press
Key TUV8T
Press
Key WX Y Z 9
2. To change the input mode, press the Left Soft Key [Abc]. When
entering special character such as . @ ? ! - , & : ’ / 1, press Key
repeatedly.
3. To enter a space, press Key. The cursor will automatically move
to the next column.
4. Repeat until letters are entered. There is a 160-letter limit.
5. To delete one digit, press the Clear Key . To delete the entire
entry, press and hold the Clear Key .
6. To change from lowercase to uppercase, press Key.
For Example:
To enter the name “John”:
Press [ ] J
Press [ , , ] o
Press [ , ] h
Press [ , ] n
WORD INPUT MODE
The input mode incorporates a built-in-dictionary to determine a word based on
the entered characters. A word can be entered more quickly by pressing a key once
per character.
1. Select the Word mode by pressing Left Soft Key [Abc].
2. Press a digit key once to enter the character you want and then enter
all the characters to input the word you want.
3. To view the next matching word, press Key.
4. To accept the matching word, enter a space and then press Key.
34
Chapter 3 − Memory Function
Memory FunctionMemory Function
Memory Function − Chapter 3
35
Memory FunctionMemory Function
For Example:
To enter “Hello bill” in the input mode.
•
After you enter the 1st letter, press Left Soft Key [Abc] to select input mode and
to choose the lower case (Word).
•
Press , , , , and you will see “Hello” highlighted. Press to
select it.
•
Press , , , until you see “bill” highlighted.
NUMERIC MODE
Allows you to enter numbers.
1. Press Left Soft Key [Abc] and scroll down to “123” and press the
OK Key to change to Numeric Mode.
2. To enter a number, press a digit key.
SYMBOL MODE
Allows you to enter symbols.
1. Press Left Soft Key [Abc] and scroll down to “Symbols” and press
the OK Key to change to Symbol Mode.
2. Select symbol you want to enter by pressing the Directional Key
up or down.
3. Press the Directional Key up or down to view a different line
of Symbols.
ONE, TWO, THREETOUCH DIALING
Ideal for frequently dialed numbers, this feature allows contact entries to be
dialed via the keypad with only one, two, or three key presses.
ONETOUCH DIALING:
1-9 : Press and hold the number you wish to connect to for more than
1 second.
TWOTOUCH DIALING:
10-21 : Press the first digit and press and hold the second digit of the
number to dial.
97, 98, and 99 : Speed Dial entries 97(#BAL), 98(#MIN), and 99(#PMT) are
already assigned to Verizon Wireless Account Information.
•
#BAL is a VZW Customer Service VRU number (Free call) that provides customers information
about their Verizon Wireless billing balance.
•
#MIN is a VZW Customer Service VRU number (Free call) that provides customers information
about their Verizon Wireless usage.
•
#PMT is a VZW Customer Service VRU number (Free call) that allows a user to make a bill
payment, either with a payment option they have already set up, or using a new, one time
payment option.
080716_CDM8950_ECHO.indd 34-35080716_CDM8950_ECHO.indd 34-35 2008.7.16 4:1:16 PM2008.7.16 4:1:16 PM
MENU FUNCTIONS
CHAPTER 4
MENU FUNCTION
This chapter addresses accessing the menu and using its functions
and features to customize your phone.
36
Chapter 3 − Memory Function
Memory FunctionMemory Function
New contact
Contact list
Groups
Speed dials
In case of emergency
My name card
Recent calls
Missed
Received
Dialed
All
Blocked
View timers
Bluetooth menu
Sounds settings
Display settings
Phone settings
Call settings
Memory
Phone info
Set up wizard
Voice commands
Calculator
Calendar
Alarm clock
Stop watch
World clock
Notepad
My Verizon
THREETOUCH DIALING:
Press the first and second digits and press and hold the third digit of the
number to dial.
411 : Speed Dial entry 411 (Directory Assistance) is already assigned to
Directory Assistance.
•
Directory Assistance is a VZW Wireless Directory Assistance service that provides directory
listing database information.
080716_CDM8950_ECHO.indd 36-37080716_CDM8950_ECHO.indd 36-37 2008.7.16 4:1:18 PM2008.7.16 4:1:18 PM
Entries can be retrieved by name or group.
NEW CONTACT
To add a new number to your Contacts List:
Using this submenu, the number is saved as a new Contact.
To save the number into an existing Contact, edit the Contact entry.
1. From standby mode, press the OK Key [MENU], and press
1. New Contact.
2. Enter the name, then press the Directional Key down. To change
the input mode, press the Left Soft Key [Abc].
3. Press the Directional Key down to enter information in other
fields for the contact. Fields include:
Mobile 1/Home/Work/E-mail 1/Group/Picture/Ringtone/
Mobile 2/Fax/E-mail 2
If entering information in a phone number field, press the Right Soft
Key [Options] to select one of the following options:
1. Set Speed Dial/2. Set As Default/3. Add Pause
4. Press the OK Key [SAVE].
For additional details on how to add a new contact, see page 28.
CONTACT LIST
You can review all the entries stored in your Contact List or quickly find an
entry by entering a name or its character string.
1. From standby mode, press the OK Key [MENU], and press
2. Contact List. Or, press the Right Soft Key [Contacts].
The list of names in your contacts is displayed alphabetically.
2. Enter a name or part of a name in the Go To field at the bottom of the
screen or press the Directional Key up or down to scroll through
your Contact List.
3. To edit the entry, press the Left Soft Key [Edit]. To view contact
details, press the OK Key [VIEW].
•
By pressing the Right Soft Key [Options], you can choose from the following:
1. New Contact: To add a New Contact.
2. Erase: To delete a contact.
3. New TXT Message: To create a TXT message.
4. New Picture Message: To create a Picture message.
5. New Video Message: To create a Video message.
6. New Voice Message: To create a Voice message.
7. Send by Bluetooth: To access Bluetooth Menu.
8. Set As ICE Contact: To set as emergency number.
9. Call: To call the contact.
10. Erase All Contacts: To delete all contact list.
38
Chapter 4 − Menu Function
ContactsContacts
4. To call the selected number, press the Right Soft Key [Options]
and then select ”9. Call” or press the SEND Key .
GROUPS
Groups allows you to classify phone entries into groups with up to 10 numbers
in each group. The default groups include No Group, Family and Work and they
cannot be erased or renamed.
TO ADD NEW GROUP
1. From standby mode, press the OK Key [MENU], and press
3. Groups.
2. Press the Left Soft Key [New].
3. Enter a new group name, then press the OK Key [SAVE].
TO ASSIGN PHONE NUMBER TO GROUP
1. From standby mode, press the OK Key [MENU], and press
3. Groups.
2. Press the Directional Key up or down to select the group where
you want to add the contact, and then press the Right Soft Key
[Options].
3. Select “Add”.
4. Your contact entries will be displayed in alphabetical order. Select the
contact you want to add then press the OK Key [MARK].
5. Press the Left Soft Key [Done]. “CONTACT ADDED TO [GROUP
NAME]” will be displayed.
TO CHANGE GROUP NAME
1. From standby mode, press the OK Key [MENU], and press
3. Groups.
2. Press the Directional Key up or down to select the group you
want to rename then press the Right Soft Key [Options].
3. Select “Rename”.
4. Enter the new group name, then press the OK Key [SAVE].
ERASE GROUP
1. From standby mode, press the OK Key [MENU], and press
3. Groups.
Menu Function − Chapter 4
39
ContactsContacts
080716_CDM8950_ECHO.indd 38-39080716_CDM8950_ECHO.indd 38-39 2008.7.16 4:1:19 PM2008.7.16 4:1:19 PM
2. Press the Directional Key up or down to select the existing group
name that you want to erase, and then press the Right Soft Key
[Options].
3. Select “Erase”. “ERASE GROUP?” will appear on the screen.
4. Press the OK Key [OK] to select “Yes”. A confirmation message
appears.
TO SEND A TXT MESSAGE TO A GROUP
1. From standby mode, press the OK Key [MENU], and press
3. Groups.
2. Press the Directional Key up or down to select the group
you want to send a message to then press the Right Soft Key
[Options].
3. Press “1. New TXT Message”.
4. Input your message in the Text Field and then press the Right Soft
Key [Options] to select “Quick Text”, “ Save As Draft”, “Add”, “ Edit
Text Format”, “ Priority Level” and “Cancel Message”.
5. To send the TXT message, press the OK Key [SEND] or press the
SEND Key .
TO SEND A PICTURE MESSAGE TO A GROUP
1. From standby mode, press the OK Key [MENU], and press
3. Groups.
2. Press the Directional Key up or down to select the group
you want to send a message to then press the Right Soft Key
[Options].
3. Press “2. New Picture Message”.
4. Under “Text:”, input your message and then press the Directional Key
down.
5. Under “Picture:”, press the Left Soft Key [My Pics] to select the
picture you would like to send then press the OK Key [OK].
6. Under “Sound:”, press the Left Soft Key [Sounds] to select the
sound you would like to send then press the OK Key [OK].
7. Under “Subject:”, input a subject and then press the Directional Key
down.
8. Under “Name Card:”, you can insert your name card. Press the Left
Soft Key [Add] select “1. My Name Card” or “2. Contacts” then
press the OK Key [OK]. Select the card you’d like to send then
press the OK Key [OK].
40
Chapter 4 − Menu Function
ContactsContacts
9. Press the Right Soft Key [Options] to select “Preview”, “ Save As
Draft”, “Add Quick Text”, “Add Slide”, “ Priority Level”, “ Remove Picture”,
“Remove Slide”, “ Remove Sound”, “ Remove Name Card” or “Cancel
Message”.
These options will vary depending on the message contents chosen.
10. To send the Picture Message, press the OK Key [SEND] or press
the SEND Key .
TO SEND A VIDEO MESSAGE TO A GROUP
1. From standby mode, press the OK Key [MENU], and press
3. Groups.
2. Press the Directional Key up or down to select the group
you want to send a message to then press the Right Soft Key
[Options].
3. Press “3. New Video Message”.
4. Under “Text:”, input your message and then press the Directional Key
down.
5. Under “Video:”, press the Left Soft Key [Videos] to select the video
clip you would like to send then press the OK Key [OK].
6. Under “Subject:”, input a subject and then press the Directional Key
down.
7. Under “Name Card:”, you can insert your name card. Press the Left
Soft Key [Add] select “1. My Name Card” or “2. Contacts” then
press the OK Key [OK]. Select the card you’d like to send then
press the OK Key [OK].
8. Press the Right Soft Key [Options] to select “Preview”, “ Save As
Draft”, “Add Quick Text”, “ Priority Level”, “ Remove Video”, “ Remove
Name Card” or “Cancel Message”.
These options will vary depending on the message contents chosen.
9. To send the Video Message, press the OK Key [SEND] or press the
SEND Key .
TO SEND A VOICE MESSAGE TO A GROUP
1. From standby mode, press the OK Key [MENU], and press
3. Groups.
2. Press the Directional Key up or down to select the group you
want to send a voice message to then press the Right Soft Key
[Options].
Menu Function − Chapter 4
41
ContactsContacts
080716_CDM8950_ECHO.indd 40-41080716_CDM8950_ECHO.indd 40-41 2008.7.16 4:1:21 PM2008.7.16 4:1:21 PM
3. Press “4. New Voice Message”.
4. To record a new Voice Memo, press the OK Key [OK] to start
recording, then press the OK Key [STOP] again to save the voice
memo.
5. Under “Voice:”, your recorded file name will appear.
Press the Directional Key down.
6. Under “Text:”, input your message and then press the Directional Key
down.
7. Under “Subject:”, input a subject and then press the Directional Key
down.
8. Under “Name Card:”, you can insert your name card. Press the Left
Soft Key [Add], select “1. My Name Card” or “2. Contacts” then
press the OK Key [OK]. Select the card you’d like to send then
press the OK Key [OK].
9. Press the Right Soft Key [Options] to select “Review”, “ Save As
Draft”, “Add Quick Text”, “ Priority Level”, “ Remove Recording”, “ Remove
Name Card” or “Cancel Message”.
These options will vary depending on the message contents chosen.
10. To send the Voice Message, press the OK Key [SEND] or press
the SEND Key .
SPEED DIALS
In idle mode, calls can be placed to numbers stored in speed dial by pressing
& holding the location number on the key pad. For a 2-digit location number,
press the first number and then press and hold the second number. For a
3-digit location number, press the first number, and second numbers and then
press and hold the third number. Speed Dial 1 is assigned to Voice Mail and
cannot be changed. Speed Dial entries 97(#BAL), 98(#MIN), 99(#PMT) and
411 (Directory Assistance) are already assigned to Verizon Wireless Account
Information.
•
#BAL: #BAL is a VZW Customer Service VRU number (Free call) that provides customers
information about their Verizon Wireless billing balance.
•
#MIN: #MIN is a VZW Customer Service VRU number (Free call) that provides customers
information about their Verizon Wireless usage.
•
#PMT: #PMT is a VZW Customer Service VRU number (Free call) that allows a user to make
a bill payment, either with a payment option they have already set up, or using a new,
one time payment option.
•
411: 411 ia s Directory Assistance number.
1. From standby mode, press the OK Key [MENU], and press
4. Speed Dials.
42
Chapter 4 − Menu Function
ContactsContacts
2. Press the Directional Key up or down to highlight the Speed
Dial position, or enter the Speed Dial digit, then press the OK Key
[SET].
3. Press the Directional Key up or down to highlight the Contact
then press the OK Key [OK].
4. Press the Directional Key up or down to highlight the number
you wish to select then press the OK Key [OK].
5. Press the Directional Key up or down to select “Yes”.
6. Press the OK Key [OK]. A confirmation message appears.
“Unassigned” appears if the location is available.
TO ERASE A SAVED SPEED DIAL
1. From standby mode, press the OK Key [MENU], and press
4. Speed Dials.
2. Press the Directional Key up or down to select the Speed Dial
entry you want to erase.
3. Press the Right Soft Key [Remove].
4. Press the OK Key [OK] to select “Yes.”
5. A confirmation window appears.
IN CASE OF EMERGENCY
Your phone has a special menu to organize your emergency contacts and
personal information.
TO ASSIGN EMERGENCY CONTACTS
Follow the procedures below to register a Contact to be contacted in case of
emergency, or to register a medical record number or other personal info.
To register up to three different Contacts to ICE:
1. From standby mode, press the OK Key [MENU], and press
5. In Case of Emergency.
2. Press the Directional Key up or down to select “Contact 1”,
“Contact 2”, or “Contact 3”, and then press the OK Key [ADD].
3. When selecting from the Contacts List, press “1. From Contacts”, press
the Directional Key up or down to select the Contact entry,
and then press the OK Key [OK]. When adding a new Contact,
press “2. New Contact”, enter the info, and then press the OK Key
[SAVE].
Menu Function − Chapter 4
43
ContactsContacts
080716_CDM8950_ECHO.indd 42-43080716_CDM8950_ECHO.indd 42-43 2008.7.16 4:1:23 PM2008.7.16 4:1:23 PM
44
Chapter 4 − Menu Function
ContactsContacts
5. The information you enter now appears in place of “Note 1”,
“Note 2” or “Note 3”.
TO EDIT SAVED PERSONAL INFO
1. From standby mode, press the OK Key [MENU], and press
5. In Case of Emergency.
2. Press the Directional Key up or down to select “Personal Info”
and then press the OK Key [VIEW].
3. Select the Note you want to edit then press the OK Key [VIEW].
4. Press the OK Key [EDIT]. Edit the Note then press the OK Key
[SAVE].
TO ERASE SAVED PERSONAL INFO
1. From standby mode, press the OK Key [MENU], and press
5. In Case of Emergency.
2. Press the Directional Key up or down to select “Personal Info”
and then press the OK Key [VIEW].
3. Select the Note you want to erase then press the Right Soft Key
[Erase].
4. Press the OK Key [OK] to select “Yes”. A confirmation window
appears.
MY NAME CARD
A Name Card with the handset’s mobile number automatically appears.
EDIT MY NAME CARD
1. From standby mode, press the OK Key [MENU], and press
6. My Name Card.
2. Press the Left Soft Key [Edit].
3. Edit the “My Name Card” options then press the OK Key [SAVE] to
save your changes.
SEND MY NAME CARD
1. From standby mode, press the OK Key [MENU], and press
6. My Name Card.
2. Press the Right Soft Key [Send].
3. Select “1. New Message”.
Menu Function − Chapter 4
45
ContactsContacts
4. The Contact name will be displayed in place of “Contact 1”,
“Contact 2”, or “Contact 3”.
TO REASSIGN EMERGENCY CONTACTS
1. From standby mode, press the OK Key [MENU], and press
5. In Case of Emergency.
2. Select the contact you want to re-assign then press the Right Soft
Key [Options].
3. Select “1. Re-assign”, then select “1. From Contacts” to select a
contact from your Contact List, or “2. New Contact” to enter a new
contact.
4. Press the OK Key [OK]. A confirmation window appears.
TO ERASE ASSIGNED EMERGENCY CONTACTS
1. From standby mode, press the OK Key [MENU], and press
5. In Case of Emergency.
2. Select the contact you want to erase then press the Right Soft Key
[Options].
3. Select “2. Unassign”.
4. Press the OK Key [OK]. A confirmation window appears.
TO CALL AN ASSIGNED EMERGENCY CONTACT
1. From standby mode, press the OK Key [MENU], and press
5. In Case of Emergency.
2. Select the contact you want to call then press the Left Soft Key
[Call] or press the SEND Key .
TO ADD PERSONAL INFO
To store a Medical Record Number or other information that may be useful in case
of an emergency:
1. From standby mode, press the OK Key [MENU], and press
5. In Case of Emergency.
2. Press the Directional Key up or down to select “Personal Info”
and then press the OK Key [VIEW].
3. Press the Directional Key up or down to select “Note 1”, “Note 2”
or “Note 3” and then press the OK Key [ADD].
4. Enter the information and then press the OK Key [SAVE].
080716_CDM8950_ECHO.indd 44-45080716_CDM8950_ECHO.indd 44-45 2008.7.16 4:1:24 PM2008.7.16 4:1:24 PM
46
Chapter 4 − Menu Function
ContactsContacts
RECENT CALLS
The Recent Calls menu is a list of the last phone numbers or Contact entries
for calls you placed, accepted, missed, or blocked. It is continually updated as
new numbers are added to the beginning of the list and the oldest entries are
removed from the bottom of the list.
ACCESS AND OPTIONS
1. From standby mode, press the OK Key [MENU].
2. Press the Directional Key right once for “RECENT CALLS”.
3. Select a submenu.
1. Missed
2. Received
3. Dialed
4. All
5. View Timers
MISSED
Displays information about the 90 most recently missed calls. Place a call to a
missed call by simply pressing the SEND Key .
1. From standby mode, press the OK Key [MENU], the Directional
Key right once for RECENT CALLS, and press 1. Missed.
2. Press the Directional Key up or down to highlight an entry, then:
•
Press the OK Key [OPEN] to view the entry.
•
Press the Send Key to place a call to the number.
•
Press the Right Soft Key [Options] to select:
Save to Contacts: To store the phone number in your Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all Missed Call entries.
View Timers: To display usage time.
•
Press the Left Soft Key [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the contact.
Video Message: To send a Video message to the contact.
Voice Message: To send a Voice message to the contact.
After 90 missed calls, the oldest call will automatically be erased from the history.
Menu Function − Chapter 4
47
Recent CallsRecent Calls
4. Select “1. TXT Message”, “ 2. Picture Message”, “ 3. Video Message” or
“4. Voice Message”.
5. Enter the recipient’s contact information then press the OK Key
[OK].
6. Enter your message in the Text Field and then press the OK Key
[SEND].
SEND MY NAME CARD TO ANOTHER BLUETOOTH DEVICE
1. From standby mode, press the OK Key [MENU], and press
6. My Name Card.
2. Press the Right Soft Key [Send].
3. Select “2. Send by Bluetooth”.
4. Press “1. Add New Device” to connect to the other device.
080716_CDM8950_ECHO.indd 46-47080716_CDM8950_ECHO.indd 46-47 2008.7.16 4:1:26 PM2008.7.16 4:1:26 PM
48
Chapter 4 − Menu Function
Recent CallsRecent Calls
ALL
Displays information about the most recently received, dialed and missed calls.
1. From standby mode, press the OK Key [MENU], the Directional
Key right once for RECENT CALLS, and press 4. All.
2. Press the Directional Key up or down to highlight an entry, then:
•
Press the OK Key [OPEN] to view the entry.
•
Press the Send Key to place a call to the number.
•
Press the Right Soft Key [Options] to select:
Save to Contacts: To store the phone number in your Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all All Call entries.
View Timers: To display usage time.
•
Press the Left Soft Key [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the contact.
Video Message: To send a Video message to the contact.
Voice Message: To send a Voice message to the contact.
After the 270 received, dialed or missed calls, the oldest call will automatically be
erased from the history.
Shortcut: To view a quick list of all your calls, press the Send Key from standby
mode.
BLOCKED
This menu appears only when “Incoming Call Restriction” is set.
1. From standby mode, press the OK Key [MENU], the Directional
Key right once for RECENT CALLS, and press Blocked Calls.
2. Press the Directional Key up or down to highlight an entry, then:
•
Press the OK Key [OPEN] to view the entry.
•
Press the Send Key to place a call to the number.
•
Press the Right Soft Key [Options] to select:
Save to Contacts: To store the phone number in your Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all Blocked Call entries.
View Timers: To display usage time.
•
Press the Left Soft Key [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the contact.
Video Message: To send a Video message to the contact.
Voice Message: To send a Voice message to the contact.
•
After 90 blocked calls, the oldest call will automatically be erased from the history.
•
Please refer to page 66 for more details on “Restrictions”.
Menu Function − Chapter 4
49
Recent CallsRecent Calls
RECEIVED
Displays information about the 90 most recently received calls. Place a call to a
received call by simply pressing the SEND Key .
1. From standby mode, press the OK Key [MENU], the Directional
Key right once for RECENT CALLS, and press 2. Received.
2. Press the Directional Key up or down to highlight an entry, then:
•
Press the OK Key [OPEN] to view the entry.
•
Press the Send Key to place a call to the number.
•
Press the Right Soft Key [Options] to select:
Save to Contacts: To store the phone number in your Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all Received Call entries.
View Timers: To display usage time.
•
Press the Left Soft Key [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the contact.
Video Message: To send a Video message to the contact.
Voice Message: To send a Voice message to the contact.
After 90 received calls, the oldest call will automatically be erased from the history.
DIALED
Displays information about the 90 most recently dialed numbers. Place a call
to a dialed call by simply pressing the SEND Key .
1. From standby mode, press the OK Key [MENU], the Directional
Key right once for RECENT CALLS, and press 3. Dialed.
2. Press the Directional Key up or down to highlight an entry, then:
•
Press the OK Key [OPEN] to view the entry.
•
Press the Send Key to place a call to the number.
•
Press the Right Soft Key [Options] to select:
Save to Contacts: To store the phone number in your Contacts.
Erase: To erase a call listing.
Lock/Unlock: To lock or unlock a call listing.
Erase All: To erase all Dialed Call entries.
View Timers: To display usage time.
•
Press the Left Soft Key [Message] to select:
TXT Message: To send a TXT message to the contact.
Picture Message: To send a Picture message to the contact.
Video Message: To send a Video message to the contact.
Voice Message: To send a Voice message to the contact.
After 90 dialed calls, the oldest call will automatically be erased from the history.
080716_CDM8950_ECHO.indd 48-49080716_CDM8950_ECHO.indd 48-49 2008.7.16 4:1:27 PM2008.7.16 4:1:27 PM
VIEW TIMERS
Checks the usage time and manages your calls within the limit you set.
The 11 timers include (Last Call, All Calls, Received Calls, Dialed Calls, Roaming
Calls, Transmit Data, Received Data, Total Data, Last Reset, Lifetime Calls,
Lifetime Data Counter):
1. From standby mode, press the OK Key [MENU], the Directional
Key right once for RECENT CALLS, and press 5. View Timers.
2. Press the Directional Key up or down to highlight a call list.
Call timers include:
Last Call/All Calls/Received Calls/Dialed Calls/Roaming Calls/
Transmit Data/Received Data/Total Data/Last Reset/Lifetime Calls/
Lifetime Data Counter
•
Press the Left Soft Key [Reset] to reset highlighted timer.
•
Press the Right Soft Key [Reset All] to reset all timers.
50
Chapter 4 − Menu Function
Recent CallsRecent Calls
BLUETOOTH MENU
Bluetooth technology connectivity enables wireless connections between
electronic devices. If connected with a Bluetooth Handsfree device, you can
use your phone more freely. Since devices with Bluetooth connectivity com-
municate using radio waves, your phone and the other device do not need to
be in direct line-of-sight. The two devices only need to be within 10 meters
(30 feet) of each other. The connection can be subject to interference from
obstructions such as walls or other electronic devices.
This device is compliant with Bluetooth specification 2.0, supporting the
following profiles: HSP V1.0 (headset profile), AVRCP V1.0 (stereo profile), and
HFP V1.5 (handsfree car kit profile). To ensure interoperability between other
devices supporting Bluetooth technology, use approved enhancements for
this model. Check with the manufacturers of other devices to determine their
compatibility with this phone. There may be restrictions on using Bluetooth
technology in some locations. Check with your local authorities or Verizon
Wireless. If you want more information on this function, visit the Bluetooth
Technology organization Web site: https://www.bluetooth.org/.
Important: Features using Bluetooth technology, or allowing such features to run in
the background while using other features, increase the demand on
battery power and reduce the battery life.
BLUETOOTH ON/OFF
To toggle Bluetooth® power On/Off:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 3. Bluetooth
Menu.
2. Press the Left Soft Key [Turn On/Turn Off]. A Confirmation
window appears.
ADD NEW DEVICE
Pairing is the process that allows the handset to locate, establish and register a
1-to-1 connection with the target device.
1. Follow the Bluetooth® accessory instructions to set the device to
pairing mode.
2. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 3. Bluetooth
Menu. Press the OK Key [OK] or select “1. Add New Devices”.
3. If the Bluetooth® power is switched off, the following message will
appear on the LCD screen: “TURN BLUETOOTH POWER ON?” Press the
OK Key [OK] to select “Yes”.
Menu Function − Chapter 4
51
SettingsSettings
080716_CDM8950_ECHO.indd 50-51080716_CDM8950_ECHO.indd 50-51 2008.7.16 4:1:28 PM2008.7.16 4:1:28 PM
4. The handset will prompt you with the following message on the LCD
screen: “PLACE DEVICE YOU ARE CONNECTING TO IN DISCOVERABLE
MODE”. Press the OK Key [OK].
5. The device will appear in the “ADD NEW DEVICE” menu. Press the
Directional Key up or down to select the device you wish to pair
to, then press the OK Key [PAIR].
6. The handset will prompt you for the passkey. Consult the Bluetooth®
accessory (sold separately) instructions for the appropriate passkey
(typically “0000”—4 zeroes). Enter the passkey, then press the OK
Key [OK].
You do not need to input the passkey for pairing when the passkey of the Bluetooth®
Headset or hands-free kit is 0000.
7. The handset will prompt you with the following message on the LCD
screen: [Device Name] Before Connecting. If you would like to always
confirm before connecting to the Bluetooth® device, select Always
Ask, then press the OK Key [OK]. Then the handset will prompt
you with the message Connect to [Device Name].
Select “Yes”, then press the OK Key [OK]. If you do not wish to
confirm every time before connecting to the Bluetooth® device,
select Always Connect, then press the OK Key [OK].
8. Once connected, you will see the device listed in the Bluetooth Menu
and the Bluetooth® device connected icon will appear at the top of
the LCD screen when connected to the Bluetooth® device.
You can also check out the connection with an Arrow icon on the
Bluetooth Menu.
•
In the Bluetooth Menu, you can disconnect the connected device with an icon by
pressing the OK Key [Drop]. Conversely, you can reconnect by pressing the OK
Key [OK] again.
•
When an audio device is connected, you can select another device and the connection
is automatically transferred from that audio device to the other one.
•
If multiple devices are displayed, select the devices you want to connect.
OPTIONS
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 3. Bluetooth
Menu.
2. Press the Directional Key up or down to select the paired device.
3. Press the Right Soft Key [Options].
4. Press the Directional Key up or down to select one of the
following options, then press the OK Key [OK].
52
Chapter 4 − Menu Function
SettingsSettings
•
Remove Device: Removes a device from the pairing list.
•
Rename Device: Renames a paired device.
•
Incoming Security: Sets permissions for connecting an incoming device.
•
Service Discovery: To search for the services that the selected device supports.
•
Device Info: Displays device information.
SETTINGS
MY PHONE NAME
To edit the Bluetooth® name of your phone:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 3. Bluetooth
Menu.
2. Press the Right Soft Key [Options].
3. Press “1. My Phone Name”.
4. Use the numeric keypad to enter a new custom name.
5. Press the OK Key [OK] to save and exit.
DISCOVERY MODE
To set whether your device is able to be searched for by other Bluetooth® devices in
the area:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 3. Bluetooth
Menu.
2. Press the Right Soft Key [Options].
3. Press “2. Discovery Mode”.
If Bluetooth power is not on, you will be prompted to turn it on in order to proceed.
4. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
SUPPORTED PROFILES
To view brief descriptions of the profiles supported by the phone:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 3. Bluetooth
Menu.
2. Press the Right Soft Key [Options].
3. Press “3. Supported Profiles”.
4. Press the Directional Key up or down to select one of the
following profiles, and then press the OK Key [VIEW].
Headset/Handsfree/Dial Up Networking/Object Push/File Transfer
Menu Function − Chapter 4
53
SettingsSettings
080716_CDM8950_ECHO.indd 52-53080716_CDM8950_ECHO.indd 52-53 2008.7.16 4:1:29 PM2008.7.16 4:1:29 PM
AUTO PAIR HANDSFREE
To set Auto Pair Handsfree On/Off:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 3. Bluetooth
Menu.
2. Press the Right Soft Key [Options].
3. Press “4. Auto Pair Handsfree”.
4. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
SOUNDS SETTINGS
EASY SET UP
To easy set up sounds options with Easy Set Up Wizerd.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 1. Easy Set Up.
2. Select the CALL SOUNDS ringer type with using the Directional Key
up or down, then press the OK Key [SET].
To skip select the CALL SOUNDS ringer type, press the Left Soft Key [Skip].
3. Select the CALL SOUNDS ringtone with using the Directional Key
up or down, then press the OK Key [SET].
•
To play the selected ringtone, press the Left Soft Key [Play].
•
To skip select the CALL SOUNDS ringtone, press the Left Soft Key [Skip].
4. Select the KEYPAD VOLUME with using the Directional Key up or
down, then press the OK Key [SET].
To skip select the KEYPAD VOLUME, press the Left Soft Key [Skip].
5. Select the TEXT MESSAGE ALERTS ringer type with using the
Directional Key up or down, then press the OK Key [SET].
To skip select the TEXT MESSAGE ALERTS ringer type, press the Left Soft Key [Skip].
6. Select the TEXT MESSAGE ALERTS ringtone with using the Directional
Key up or down, then press the OK Key [SET].
•
To play the selected ringtone, press the Left Soft Key [Play].
•
To skip select the TEXT MESSAGE ALERTS ringtone, press the Left Soft Key [Skip].
7. Select the PIC/VIDEO/VOICE MESSAGE ringer type with using the
Directional Key up or down, then press the OK Key [SET].
To skip select the PIC/VIDEO/VOICE MESSAGE ringer type, press the Left Soft Key
[Skip].
54
Chapter 4 − Menu Function
SettingsSettings
8. Select the PIC/VIDEO/VOICE MESSAGE ringtone with using the
Directional Key up or down, then press the OK Key [SET].
•
To play the selected ringtone, press the Left Soft Key [Play].
•
To skip select the PIC/VIDEO/VOICE MESSAGE ringtone, press the Left Soft Key
[Skip].
9. Select the VOICEMAIL MSG ALERTS ringer type with using the
Directional Key up or down, then press the OK Key [SET].
To skip select the VOICEMAIL MSG ALERTS ringer type, press the Left Soft Key [Skip].
10. Select the VOICEMAIL MSG ALERTS ringtone with using the
Directional Key up or down, then press the OK Key [SET].
•
To play the selected ringtone, press the Left Soft Key [Play].
•
To skip select the VOICEMAIL MSG ALERTS ringtone, press the Left Soft Key [Skip].
11. “ SOUNDS EASY SET UP COMPLETE” will be displayed.
CALL SOUNDS
To set ringtones for types of incoming calls:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 2. Call Sounds.
CALL RINGTONE
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 2. Call Sounds, 1. Call Ringtone.
2. Press the Directional Key up or down to select a ringtone,
then press the OK Key [OK] to save the sound. To play the
ringtone, press the Left Soft Key [Play].
CALL VIBRATE
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 2. Call Sounds, 2. Call Vibrate.
2. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
ALERT SOUNDS
To select the alert type for a new message:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 3. Alert Sounds.
Menu Function − Chapter 4
55
SettingsSettings
080716_CDM8950_ECHO.indd 54-55080716_CDM8950_ECHO.indd 54-55 2008.7.16 4:1:31 PM2008.7.16 4:1:31 PM
2. Press the Directional Key up or down to select “1. TXT Message”,
“2. Pic-Video Message”, “ 3. Voicemail” then press the OK Key
[OK].
3. Press the Directional Key up or down to select “Tone”, “ Vibrate”,
“Reminder”, then press the OK Key [OK].
•
Tone: Press the Directional Key up or down to select a ringer, then press the OK Key
[OK]. To play the alert tone, press the Left Soft Key [Play].
•
Vibrate: Press the Directional Key up or down to select “On/Off”, then press the
OK Key [OK].
•
Reminder: Press the Directional Key up or down to select “Once”, “ Every 2 Minutes”,
“Every 15 Minutes”, “ Off”, then press the OK Key [OK].
EMERGENCY TONE
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 3. Alert Sounds, 4. Emergency Tone.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
Alert/Vibrate/Off
KEYPAD VOLUME
To set the keypad volume:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 4. Keypad Volume.
2. Adjust the volume by pressing the Directional Key up or down,
then press the OK Key [OK] to save the setting.
SERVICE ALERTS
To set any of the three Alert options to either On or Off:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 5. Service Alerts.
2. Press the Directional Key up or down to select one of the
following options, then press the OK Key [OK].
•
ERI: The Enhanced Roaming Indicator (ERI) feature displays a text banner on the display
screen informing the handset user of which systems the wireless device is using as
compared to the service plan they purchased. The ERI Banner text changes to tell
a customer if they are using the: “Verizon Wireless Network”, “Extended Network”
or “Roaming”.
•
Minute Beep: Alerts you every minute during a call.
•
Call Connect: Alerts you when the call is connected.
56
Chapter 4 − Menu Function
SettingsSettings
3. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
DEVICE CONNECT
Allows you to turn the Device Connect On or Off:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 6. Device Connect.
2. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
POWER ON/OFF
To set the phone to sound a tone when the phone is powered on/off:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 4. Sounds
Settings, 7. Power On/Off.
2. Press “1. Power On” or “2. Power Off”.
3. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
DISPLAY SETTINGS
Allows you to customize the display.
EASY SET UP
To easy set up display options with Easy Set Up Wizerd.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 1. Easy Set Up.
2. Enter the text to be displayed on your main screen, then press the OK
Key [SET].
•
To change the input mode, press the Left Soft Key [Abc].
•
To skip enter the personal banner, press the Left Soft Key [Skip].
3. Set the Backlight duration for main display with using the Directional
Key up or down, then press the OK Key [SET].
To skip select the display backlight time, press the Left Soft Key [Skip].
4. Set the Backlight duration for keypad with using the Directional Key
up or down, then press the OK Key [SET].
To skip select the keypad backlight time, press the Left Soft Key [Skip].
Menu Function − Chapter 4
57
SettingsSettings
080716_CDM8950_ECHO.indd 56-57080716_CDM8950_ECHO.indd 56-57 2008.7.16 4:1:33 PM2008.7.16 4:1:33 PM
5. Select the Main Screen Wallpaper image with using the Directional
Key up, down, left or right, then press the OK Key [SET].
•
To preview selected wallpaper image, press the Left Soft Key [View].
•
To skip select the Main Screen Wallpaper image, press the Left Soft Key [Skip].
6. Select the Front Screen Wallpaper image with using the Directional
Key up, down, left or right, then press the OK Key [SET].
•
To preview selected wallpaper image, press the Left Soft Key [View].
•
To skip select the Front Screen Wallpaper image, press the Left Soft Key [Skip].
7. Select the Display Theme for your device with using the Directional
Key up or down, then press the OK Key [SET].
•
To preview selected display theme image, press the Left Soft Key [View].
•
To skip select the Display Theme image, press the Left Soft Key [Skip].
8. Select your device’s Main Menu layout with using the Directional Key
up or down, then press the OK Key [SET].
•
To preview selected main menu layout style, press the Left Soft Key [View].
•
To skip select the Main Menu Layout, press the Left Soft Key [Skip].
9. Select Dial Font Size with using the Directional Key up or down,
then press the OK Key [SET].
To skip select the Dial Fonts size, press the Left Soft Key [Skip].
10. Select the format of the Main Screen Clock with using the
Directional Key up or down, then press the OK Key [SET].
To skip select the Main Screen Clock format, press the Left Soft Key [Skip].
11. Select the format of the Front Screen Clock with using the
Directional Key up or down, then press the OK Key [SET].
To skip select the Front Screen Clock format, press the Left Soft Key [Skip].
12. “ DISPLAY EASY SET UP COMPLETE” will be displayed.
BANNER
To set your Personal or ERI banner:
PERSONAL BANNER
The Personal Banner can be up to 16 characters and is displayed on your phone’s screen
in standby mode.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 2. Banner, 1. Personal Banner.
2. Enter your banner text (up to 16 characters) then press the OK
Key [OK].
58
Chapter 4 − Menu Function
SettingsSettings
ERI BANNER
If you use ERI Service, ERI Text is shown on the sub banner.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 2. Banner, 2. ERI Banner.
2. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
BACKLIGHT
To set the duration for backlight illumination for the Main Screen and Keypad:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 3. Backlight.
2. Press “1. Display” or “2. Keypad”.
3. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
7 Seconds/15 Seconds/30 Seconds/Always On/Always Off
Even if “Always On” is selected for the Backlight setting, the backlight will turn off when
the phone is closed.
WALLPAPER
To choose the kind of Main LCD or Front LCD background to be displayed on the
phone:
MAIN SCREEN
To choose the kind of Main LCD background to be displayed on the phone:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 4. Wallpaper, 1. Main Screen.
2. Press “1. My Pictures” or “2. My Videos”.
3. Select from the available screens, then press the OK Key [OK].
To view the image, press the Left Soft Key [View].
To play the video clip, press the Left Soft Key [Play].
4. Press the Right Soft Key [Get New], “1. Get New Applications”
to download other available selections.
Menu Function − Chapter 4
59
SettingsSettings
080716_CDM8950_ECHO.indd 58-59080716_CDM8950_ECHO.indd 58-59 2008.7.16 4:1:35 PM2008.7.16 4:1:35 PM
FRONT SCREEN
To choose the kind of Front LCD background to be displayed on the phone:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 4. Wallpaper, 2. Front Screen.
2. Select from the available screens, then press the OK Key [OK].
To view the image, press the Left Soft Key [View].
3. Press the Right Soft Key [Get New], “1. Get New Applications”
to download other available selections.
DISPLAY THEMES
To choose the background screen:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 5. Display Themes.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [SET].
Black Space/Classic/Water
MENU SETTINGS
To change Main Menu layout and type:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 6. Menu Settings.
2. Press “1. Menu Layout”.
3. Press the Directional Key up or down to select one of the
following layouts, and then press the OK Key [OK].
Tab/List/Grid
RESET MENU LAYOUT
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 6. Menu Settings, 2. Reset Menu Layout.
2. Press the OK Key [OK] to select “Yes”. To reset to main menu
layout. To return to the standby mode.
60
Chapter 4 − Menu Function
SettingsSettings
DIAL FONTS
To set the font size:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 7. Dial Fonts.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
Normal/Large Only
MENU FONT SIZE
To set the menu font size:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 8. Menu Font Size.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
Normal/Large
CLOCK FORMAT
To choose the kind of clock to be displayed on the Main LCD or Front LCD screen:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 5. Display
Settings, 9. Clock Format.
2. Press “1. Main Clock” or “2. Front Clock”.
3. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
•
Main Clock: Analog/Large Analog/Digital12/Large Digital12/Digital24/
Large Digital24/Off (“Digital12” is the default setting for this device.)
•
Front Clock: Digital/ Analog/Minimize/Off (“ Digital” is the default setting for this device.)
PHONE SETTINGS
AIRPLANE MODE
In Airplane Mode, all menu functions can be accessed except making calls, receiving
calls, data connection and Bluetooth®. Activating Airplane Mode will disable all
wireless communications. In the Airplane Mode, services that support Location On
functions like Chaperone are temporarily disabled.
Menu Function − Chapter 4
61
SettingsSettings
080716_CDM8950_ECHO.indd 60-61080716_CDM8950_ECHO.indd 60-61 2008.7.16 4:1:37 PM2008.7.16 4:1:37 PM
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 1. Airplane Mode.
2. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
SET SHORTCUTS
Your phone offers you the option of assigning a shortcut key (Directional Key left,
right, up, and down) to a favorite or often-used function. In addition, choose menu
settings for each of the shortcut options under Set My Shortcuts (Directional Key
right).
In idle mode, press the Directional Key right to connect Set Shortcuts menu and
press the Left Soft Key [Settings].
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 2. Set Shortcuts, 1. Set My Shortcuts.
2. Press the Directional Key up or down to select “Shortcut 1”,
“Shortcut 2”, “ Shortcut 3”, or “Shortcut 4”, and then press the OK Key
[SET].
3. Press the Directional Key up or down to select one of the
following functions, then press the OK Key [OK].
•
Alarm Clock /
•
Bluetooth Menu /
•
Bluetooth on/off /
•
Browse & Download /
•
Calculator /
•
Calendar /
•
Call Settings /
•
Chat /
•
Display Settings /
•
Extras /
•
Games /
•
Get New Extra /
•
Get New Game /
•
Get New Pictures /
•
Get New Ringtones /
•
Get New Tools on the Go /
•
Media Center /
•
Messaging Inbox /
•
Mobile IM /
•
Mobile Web /
•
Mobile Web Mail /
•
Tunes & Tones /
•
My Music /
•
My Pictures /
•
My Ringtones /
•
My Sounds /
•
My Verizon /
•
My Videos /
•
New Contact /
•
New TXT Message /
•
New Picture Message /
•
New Video Message /
•
Online Album /
•
Phone Settings /
•
Picture & Video /
•
Play All Songs /
•
Settings & Tools /
•
Sounds Settings /
•
Sync Music /
•
Tools /
•
Download Application Alphabet
The “Download Application Alphabet” option only appears when you have downloaded
Brew Applications.
In standby mode, pressing the Directional Key right will display the “My Shortcuts”
screen. On the “My Shortcuts” screen, you can press the Directional Key up or down
to select a function and then press the OK Key [OK] to access the function. On the
“My Shortcuts” screen, you can relocate a function by pressing the Right Soft Key
[Move], pressing the Directional Key up or down, and then pressing the OK Key
[SAVE]. Or you can press the Left Soft Key [Settings] to Set My Shortcuts or
Set Directional Keys.
62
Chapter 4 − Menu Function
SettingsSettings
RESETTING MY SHORTCUTS
To return My Shortcuts to their original defaults:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 2. Set Shortcuts, 1. Set My Shortcuts.
2. Press the Directional Key up or down to select “Shortcut 1”,
“Shortcut 2”, “ Shortcut 3”, or “Shortcut 4”, and then press the Right
Soft Key [Options].
3. Press “1. Reset Shortcut (1, 2, 3, or 4)”, or “2. Reset My Shortcuts”.
4. Press the Directional Key up or down to select “Yes”, then
press the OK Key [OK].
SET DIRECTIONAL KEYS
In standby mode, you can specify the function that is accessed when you press the
Directional Key up, down or left.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 2. Set Shortcuts, 2. Set Directional Keys.
2. Press the Directional Key up or down to select “UP Directional
Key”, “ LEFT Directional Key”, or “DOWN Directional Key”, and then
press the OK Key [SET].
3. Press the Directional Key up or down to select one of the
following functions, and then press the OK Key [OK].
•
Alarm Clock /
•
Bluetooth Menu /
•
Bluetooth on/off /
•
Browse & Download /
•
Calculator /
•
Calendar /
•
Call Settings /
•
Chat /
•
Display Settings /
•
Extras /
•
Games /
•
Get New Extra /
•
Get New Game /
•
Get New Pictures /
•
Get New Ringtones /
•
Get New Tools on the Go /
•
Media Center /
•
Messaging Inbox /
•
Mobile IM /
•
Mobile Web /
•
Mobile Web Mail /
•
Tunes & Tones /
•
My Music /
•
My Pictures /
•
My Ringtones /
•
My Sounds /
•
My Verizon /
•
My Videos /
•
New Contact /
•
New TXT Message /
•
New Picture Message /
•
New Video Message /
•
Online Album /
•
Phone Settings /
•
Picture & Video /
•
Play All Songs /
•
Settings & Tools /
•
Sounds Settings /
•
Sync Music /
•
Tools /
•
Download Application Alphabet
The “Download Application Alphabet” option only appears when you have
downloaded Brew Applications.
RESETTING THE DIRECTIONAL KEY SETTINGS
Use the following procedure to specify the default directional key settings.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 2. Set Shortcuts, 2. Set Directional Keys.
Menu Function − Chapter 4
63
SettingsSettings
080716_CDM8950_ECHO.indd 62-63080716_CDM8950_ECHO.indd 62-63 2008.7.16 4:1:39 PM2008.7.16 4:1:39 PM
2. Press the Directional Key up or down to select “UP Directional
Key”, “ LEFT Directional Key”, or “DOWN Directional Key”, and then
press the Right Soft Key [Options].
3. Press “1. Reset (UP, LEFT or DOWN) Key”, or “2. Reset Directional
Keys”.
4. Press the Directional Key up or down to select “Yes”, then
press the OK Key [OK].
VOICE COMMANDS
You can use voice commands to control your device.
MODE
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 3. Voice Commands.
2. Press “1. Mode”, then select one of the following:
•
Prompts Mode: Reads out only the command prompts in voice command.
•
Readout Mode: Reads out prompts, menus, outgoing contact name, status infor-
mation, and confirming message recipient (contact name and type
or number) when using the Send command.
•
Tones Only Mode: Will only prompt the user with a tone (in place of the Readout
prompt).
If you change the setting details in the phone’s mode in Voice Commands, it will
affect the mode in Sound (refer to page 79) or vice versa.
CALL ALERT
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 3. Voice Commands.
2. Press “2. Call Alert”, then select one of the following:
•
Ring Only: Deactivate Caller ID. You can hear ringtone only.
•
Caller ID + Ring: Playback the Caller ID once and then you will hear ringtone.
•
Name Repeat: Activate Caller ID. You will hear the caller’s details repeatedly.
For more information about the enhanced voice commands supported by your
device, see “Voice Tools”. Please refer to page 75 for more details.
LANGUAGE
To set the bilingual feature to either English or Spanish:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 4. Language.
64
Chapter 4 − Menu Function
SettingsSettings
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
English/Español
LOCATION
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 5. Location.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
•
Location On: Your location is now available to the network.
•
E911 Only: Your location will be hidden from the network and applications, except
for 911.
When “Lock Setting” is selected for Location Settings under “Restrictions” on the Security
Menu, you will need to enter a Lock Code. The default Lock Code is “0000”.
SECURITY
The Security menu allows you to electronically secure the phone.
The default lock code is the last 4 digits of your Mobile Telephone Number.
EDIT CODES
To set a new Lock Code:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 6. Security.
2. Enter the four-digit lock code, then press the OK Key [OK].
3. Press “1. Edit Codes”.
4. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
•
Phone Only: Allows you to edit the Lock Code for Security. (The default Lock Code is
the last 4 digits of your Mobile Telephone Number.)
•
Calls & Services: Allows you to edit the Lock Code for Restrictions. (The default
Lock Code is “0000”. )
5. If “Phone Only” is selected, enter the new four-digit code in the
“Enter New Code” field. Enter the new four-digit code again in the
“Re-enter New Code” field.
6. If “Calls & Services” is selected, enter the current lock code in the
“Enter Current Code” field. Enter the new four-digit code in the
“Enter New Code” field. Enter the new four-digit code again.
7. Press the OK Key [OK].
Menu Function − Chapter 4
65
SettingsSettings
080716_CDM8950_ECHO.indd 64-65080716_CDM8950_ECHO.indd 64-65 2008.7.16 4:1:41 PM2008.7.16 4:1:41 PM
RESTRICTIONS
Use the following procedure to configure Location Setting, Calls and Messages
restrictions.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 6. Security.
2. Enter the four-digit Lock Code, then press the OK Key [OK].
The default Lock Code is “0000”.
3. Press “2. Restrictions”.
4. Enter the four-digit Lock Code again, then press the OK Key
[OK].
5. Select one of the following settings:
•
Location Setting: Unlock Setting/Lock Setting.
•
Calls: Incoming Calls/Outgoing Calls
For Incoming Calls, set Allow All/Contacts Only/Block All.
For Outgoing Calls, set Allow All/Contacts Only/Block All.
•
Messages: Incoming Messages/Outgoing Messages
For Incoming Messages, set Allow All/Block All.
For Outgoing Messages, set Allow All/Block All.
•
Dial-Up Modem: Allow/Block.
PHONE LOCK SETTING
This setting specifies whether the phone should be locked whenever it is turned on.
Lock Mode prevents the unauthorized use of your phone. Once the phone is locked, it
is in restricted mode until the Lock Code is entered. You can still make emergency calls.
You can modify the Lock Code using the new Lock code within the Security menu.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 6. Security.
2. Enter the four-digit Lock Code, then press the OK Key [OK].
The default lock code is the last 4 digits of your Mobile Telephone
Number.
3. Press “3. Phone Lock Setting”.
4. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
•
Unlocked: Phone is unlocked.
•
On Power Up: Phone will lock when it is turned on.
66
Chapter 4 − Menu Function
SettingsSettings
LOCK PHONE NOW
Lock the phone now.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 6. Security.
2. Enter the four-digit Lock Code, then press the OK Key [OK].
The default Lock Code is the last 4 digits of your mobile telephone
number.
3. Press “4. Lock Phone Now”.
4. To unlock the phone, in stanby mode, press the Right Soft Key
[Unlock] and enter the four-digit Lock Code, then press the OK
Key [OK].
RESTORE PHONE
To delete all User Data and restore all settings to their initial defaults:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 6. Security.
2. Enter the four-digit Lock Code, then press the OK Key [OK].
3. Press “5. Restore Phone”.
4. After reading the warning message that appears, press the
Directional Key up or down to select “Yes”, and then press the
OK Key [OK].
5. After reading the message that appears, press the OK Key
[OK].
6. Enter the four-digit Lock Code, then press the OK Key [OK].
The phone will turn off and then back on again automatically.
SYSTEM SELECT
You can set your phone to search or roam on another network when you are not in
your home area. Leave this setting as default unless you want to alter the system
selection as instructed by your service provider.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 7. System Select.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
•
Automatic B: Scan radio channels based on the Automatic B setting.
•
Automatic A: Scan radio channels based on the Automatic A setting.
•
Home Only: Only within your home area or home affiliated area.
Menu Function − Chapter 4
67
SettingsSettings
080716_CDM8950_ECHO.indd 66-67080716_CDM8950_ECHO.indd 66-67 2008.7.16 4:1:42 PM2008.7.16 4:1:42 PM
NAM SELECTION
Enables Auto NAM (Number Assignment Modules) or manually selects a NAM.
AUTO NAM
Automatically switches phone to proper NAM when you have multiple NAM
registrations.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 8. NAM Selection.
2. Press the Directional Key up or down to select “1. Auto NAM”,
then press the OK Key [OK].
3. Select “On/Off”, then press the OK Key [OK].
CHANGE NAM
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 6. Phone
Settings, 8. NAM Selection.
2. Press the Directional Key up or down to select “2. Change
NAM”, then press the OK Key [OK].
3. Select “NAM 1 - VERIZON” or “NAM 2 - VERIZON” , then press the
OK Key [OK].
CALL SETTINGS
ANSWER OPTIONS
To determine how to handle an answered call:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 7. Call Settings,
1. Answer Options.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [MARK].
Flip Open/Any Key/Auto w/ Hands-free.
“Flip Open” is the default setting for this device.
3. Press the Left Soft Key [Done].
•
When the phone is closed, the Auto w/ Hands-free Mode will not function,
except when connected to a headset.
•
The Auto w/ Hands-free will function after about five seconds.
•
Auto w/ Hands-free is available only when connected to a headset or hands-free
device.
•
The three functions can be used at the same time.
•
To answer all incoming calls, press the SEND Key .
68
Chapter 4 − Menu Function
SettingsSettings
AUTO RETRY
To set the length of time the phone waits before automatically redialing a number
when the attempted call fails:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 7. Call Settings,
2. Auto Retry.
2. Press the Directional Key up or down to select the following
settings, then press the OK Key [OK].
10 Seconds/30 Seconds/60 Seconds/Off.
TTY MODE
You can attach a TTY device to your phone enabling you to communicate with
parties also using a TTY device. A phone with TTY support is able to translate typed
characters to voice. Voice can also be translated into characters and then displayed
on the TTY.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 7. Call Settings,
3. TTY Mode.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
TTY Full/TTY + Talk/TTY + Hear/TTY Off.
ONE TOUCH DIAL
To initiate a speed dial call by holding down the speed dial digit:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 7. Call Settings,
4. One Touch Dial.
2. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
If One Touch Dial is disabled, Speed Dial numbers designated in your Contacts will
not function.
VOICE PRIVACY
To turn the voice privacy feature On or Off:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 7. Call Settings,
5. Voice Privacy.
2. Press the Directional Key up or down to select “On/Off”, then
press the OK Key [OK].
Menu Function − Chapter 4
69
SettingsSettings
080716_CDM8950_ECHO.indd 68-69080716_CDM8950_ECHO.indd 68-69 2008.7.16 4:1:43 PM2008.7.16 4:1:43 PM
DTMF TONES
To set the Key Tone length and touch tone playback speed:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 7. Call Settings,
6. DTMF Tones.
2. Press the Directional Key up or down to select one of the
following settings, then press the OK Key [OK].
•
Normal: Sends out a tone for a fixed period of time even if you continue to press the key.
•
Long: Sends out a continuous tone for the duration the key is pressed and held.
MEMORY
SAVE OPTIONS
To select whether to save to Phone Memory or to Card Memory when saving a file:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 8. Memory,
1. Save Options.
2. Press the Directional Key up or down to select one of the
following settings, and then press the OK Key [OK].
Pictures/Videos/Sounds
3. Press the Directional Key up or down to select one of the
following settings, and then press the OK Key [OK].
Phone Memory/Card Memory
PHONE MEMORY
Select this option to display Phone Memory information, and to delete or move files
saved in Phone Memory.
PHONE MEMORY USAGE
To check the available Phone Memory capacity, used capacity, and total capacity:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 8. Memory,
2. Phone Memory.
2. Press “1. Phone Memory Usage”.
3. Press the OK Key [OK] to return to the previous screen.
DELETING AND MOVING FILES
To delete files stored in Phone Memory, and to move files from Phone Memory to
Card Memory:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 8. Memory,
2. Phone Memory.
70
Chapter 4 − Menu Function
SettingsSettings
2. Press the Directional Key up or down to select one of the
following settings, and then press the OK Key [OK].
My Pictures/My Videos/My Ringtones/My Music/My Sounds
3. Press the Right Soft Key [Options].
4. Press the Directional Key up or down to select “1. Erase” if you
want to delete a file or “2. Move” if you want to move a file to Card
Memory, and then press the OK Key [OK].
5. Press the Directional Key up or down to select a file, press the
OK Key [MARK] or the Right Soft Key [Mark All], and then
press the Left Soft Key [Done].
6. Press the Directional Key up or down to select “Yes”, and then
press the OK Key [OK].
MOVING ALL FILES TO CARD MEMORY
To move all files from Phone Memory to Card Memory:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 8. Memory,
2. Phone Memory.
2. Press the Directional Key up or down to select “7. Move All To
Card”, and then press the OK Key [OK].
3. Press the Directional Key up or down to select “Yes”, and then
press the OK Key [OK].
Do not remove the memory card from the phone while a file is being moved to Card
Memory.
CARD MEMORY
Select this option to display Card Memory information, and to delete or move files
saved in Card Memory.
Memory card must be inserted into the phone to perform these functions.
CARD MEMORY USAGE
To check the available Card Memory capacity, used capacity, and total capacity:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 8. Memory,
3. Card Memory.
2. Press “1. Card Memory Usage”.
3. Press the OK Key [OK] to return to the previous screen.
Menu Function − Chapter 4
71
SettingsSettings
080716_CDM8950_ECHO.indd 70-71080716_CDM8950_ECHO.indd 70-71 2008.7.16 4:1:45 PM2008.7.16 4:1:45 PM
DELETING AND MOVING FILES
To delete files stored in Card Memory, and to move files from Card Memory to Phone
Memory:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 8. Memory,
3. Card Memory.
2. Press the Directional Key up or down to select one of the
following settings, and then press the OK Key [OK].
My Pictures/My Videos/My Ringtones/My Music/My Sounds
3. Press the Right Soft Key [Options].
4. Press the Directional Key up or down to select “1. Erase” if
you want to delete a file or “2. Move” if you want to move a file to
Phone Memory, and then press the OK Key [OK].
5. Press the Directional Key up or down to select a file, press the
OK Key [MARK] or the Right Soft Key [Mark All], and then
press the Left Soft Key [Done].
6. Press the Directional Key up or down to select “Yes”, and then
press the OK Key [OK].
MOVING ALL FILES TO PHONE MEMORY
To move all files from Card Memory to Phone Memory:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 8. Memory,
3. Card Memory.
2. Press the Directional Key up or down to select “7. Move All To
Phone”, and then press the OK Key [OK].
3. Press the Directional Key up or down to select “Yes”, and then
press the OK Key [OK].
PHONE INFO
MY NUMBER
To view your phone number:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 9. Phone Info,
1. My Number.
2. The following information appears:
Mobile Device Number (MDN)/Mobile Identifications Number (MIN)/
Other device information
72
Chapter 4 − Menu Function
SettingsSettings
SW/HW VERSION
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 9. Phone Info,
2. SW/HW Version.
2. Displays the Software Version/PRL Version/ERI Version/Browser
Version/Media Center Version/MSUI Version/HW Version/MEID.
3. Press the OK Key [OK] to return to the previous screen.
ICON GLOSSARY
To view all the icons and their meanings:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 9. Phone Info,
3. Icon Glossary.
2. Press the OK Key [OK] to return to the previous screen.
Please refer to page 10 for more details a list of “Display Indicators”.
SOFTWARE UPDATE
The update phone firmware (software) option allows you to download and update
the software in your phone automatically. Only the internal software is updated; no
Contacts entries or other information saved to your phone will be deleted.
STATUS
Check the latest Software Download/Update status.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 9. Phone
Info, 4. Software Update.
2. Select “1. Status”.
CHECK NOW
To check Download Server for new Software updates:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 9. Phone
Info, 4. Software Update.
2. Select “2. Check Now”.
Menu Function − Chapter 4
73
SettingsSettings
080716_CDM8950_ECHO.indd 72-73080716_CDM8950_ECHO.indd 72-73 2008.7.16 4:1:47 PM2008.7.16 4:1:47 PM
SET UP WIZARD
To easy set up specially options with Set Up Wizerd.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 0. Set Up
Wizard.
2. Select the CALL SOUNDS ringer type with using the Directional Key
up or down, then press the OK Key [SET].
To skip select the CALL SOUNDS ringer type, press the Left Soft Key [Skip].
3. Select the CALL SOUNDS ringtone with using the Directional Key
up or down, then press the OK Key [SET].
•
To play the selected ringtone, press the Left Soft Key [Play].
•
To skip select the CALL SOUNDS ringtone, press the Left Soft Key [Skip].
4. Select the Display Theme for your device with using the Directional
Key up or down, then press the OK Key [SET].
•
To preview selected display theme image, press the Left Soft Key [View].
•
To skip select the Display Theme image, press the Left Soft Key [Skip].
5. Select your device’s Main Menu layout with using the Directional Key
up or down, then press the OK Key [SET].
•
To preview selected main menu layout style, press the Left Soft Key [View].
•
To skip select the Main Menu Layout, press the Left Soft Key [Skip].
6. Select the format of the Main Screen Clock with using the Directional
Key up or down, then press the OK Key [SET].
To skip select the Main Screen Clock format, press the Left Soft Key [Skip].
7. Select the format of the Front Screen Clock with using the Directional
Key up or down, then press the OK Key [SET].
To skip select the Front Screen Clock format, press the Left Soft Key [Skip].
8. “ SET UP COMPLETE” will be displayed.
74
Chapter 4 − Menu Function
SettingsSettings
VOICE COMMANDS
Your phone is equipped with an AVR (Advanced Voice Recognition) feature.
This feature allows you to make calls or use the phone’s functions by simply
using your voice. All you have to do is talk into the phone, and the phone will
recognize your voice and complete tasks by itself.
1. To access Voice Commands from standby mode, press the OK Key
[MENU], the Directional Key right twice for SETTINGS & TOOLS,
and press 2. Tools, 1. Voice Commands.
Shortcut: In idle mode, press the Side Voice Key to access the Voice Commands
menu.
2. The phone displays the Command menu and prompts you to say
the name of the command you want to use. To complete your task,
simply follow the voice prompts. You can speak the name of the
command after you hear a beep.
You can hear a beep in the Tone Only Mode (Settings & Tools > Phone Settings > Voice
Commands > Mode > Tones Only Mode) while you can see a prompt without a beep
sound in the Prompt Mode or Readout Mode.
3. Select one of the following options by pressing the Directional Key
up or down, press the OK Key .
•
Call <Name or #> /
•
Send <MSG Type> /
•
Go To <Shortcut> /
•
Check <Item> /
•
Contact <Name> /
•
Play <Playlist> /
•
My Verizon /
•
Help
4. When it recognizes one of these commands, the phone launches the
associated application. If the phone does not hear a command within
approximately eight seconds, AVR mode will turn itself off.
CALL <NAME OR #>
Use the Call command to voice dial a name from your contact list or a phone
number. When dialing a number, pronounce each digit, but do not pause noticeably
between the digits.
1. You will hear “Please say a command” and the Voice Commands
menu will be displayed.
2. If calling a contact from your list, say Call <Name>. Your phone will
ask you to confirm the name you said. Say “Yes” if it was repeated
correctly. That phone number will be dialed. If there is more than one
number saved for that contact, you will be asked to confirm which
number to dial.
Examples: - Call Tom Smith, - Call 617 555-1212, - Call
Bob Carson’s mobile, - Call Dee Harper at Home.
Menu Function − Chapter 4
75
Voice ToolsVoice Tools
080716_CDM8950_ECHO.indd 74-75080716_CDM8950_ECHO.indd 74-75 2008.7.16 4:1:48 PM2008.7.16 4:1:48 PM
SEND <MSG TYPE>
Use the Send command to send a text or other type of message to a specified name
or number.
1. You will hear “Please say a command” and the Voice Commands
menu will be displayed.
2. S a y “ Send” followed immediately by one of the following items:
•
Text /
•
Picture /
•
Video
Examples: - Send Picture to Dee Harper’s Mobile,
- Send Video to Tom Jones Mobile,
- Send Text Tom Smith.
GO TO <SHORTCUT>
Use the Go To command to open an application on your phone. You can say ”Go To”
by itself and be prompted to say the application name, or you can skip the prompt
by saying ”Go To” followed by the application name.
1. You will hear “Please say a command” and the Voice Commands
menu will be displayed.
2. S a y “ Go To” followed immediately by one of the following items:
•
Contacts /
•
Recent Calls /
•
Messaging /
•
Media Center /
•
Settings & Tools /
•
Mobile Web /
•
V CAST Video /
•
My Music
CHECK <ITEM>
The Check command lets you check status information for your phone. You can say
“Check” or “Check Status” to see and hear all status information.
1. You will hear “Please say a command” and the Voice Commands
menu will be displayed.
2. S a y “ Check” followed immediately by one of the following items:
•
Status /
•
Voicemail /
•
Messages /
•
Missed Calls /
•
Time /
•
Signal Strength /
•
Battery /
•
Volume
CONTACTS <NAME>
Use the Lookup command to retrieve and display information for any name stored
in your contact list.
1. You will hear “Please say a command” and the Voice Commands
menu will be displayed.
2. S a y “ Lookup <Name>”.
Examples: - Lookup Tom Jones.
3. The View Contact page will be displayed for that contact name.
76
Chapter 4 − Menu Function
Voice ToolsVoice Tools
PLAY <PLAYLIST>
Use the Play command to playback one of the playlists. Say “PLAY” followed by a
playlist and your phone will playback the recognized playlist for you.
1. You will hear “Please say a command” and the Voice Commands
menu will be displayed.
2. S a y “ Play <Playlist>”.
Say “Play All Songs” (to playback all songs saved in your phone.)
MY VERIZON
1. You will hear “Please say a command” and the Voice Commands
menu will be displayed.
2. S a y “ My Verizon”.
3. Your phone will make a web connection.
HELP
1. You will hear “Please say a command” and the Voice Commands
menu will be displayed.
2. S a y “ Help”.
3. The Help guide will be displayed on your phone.
VOICE COMMANDS SETTINGS
DIGIT DIAL READOUT
The Digit Dial Readout setting controls if digits are read out when you type in a phone
number with the keypad.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
1. Voice Commands.
2. Press the Right Soft Key [Settings], “1. Digit Dial Readout”.
3. Select “On/Off” by pressing the Directional Key up or down,
then press the OK Key [OK].
CONFIRMATION
When voice recognition is not confident it has recognized a name or number correctly,
it will show you a list of up to three choices. You can control when choice lists appear.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
1. Voice Commands.
2. Press the Right Soft Key [Settings], “2. Confirmation”.
Menu Function − Chapter 4
77
Voice ToolsVoice Tools
080716_CDM8950_ECHO.indd 76-77080716_CDM8950_ECHO.indd 76-77 2008.7.16 4:1:50 PM2008.7.16 4:1:50 PM
3. Select “Automatic”, “Always Confirm” or “Never Confirm” b y
pressing the Directional Key up or down, then press the OK
Key [OK].
SENSITIVITY
The Sensitivity setting controls how the voice recognition software determines when a
spoken word is a match. If you frequently experience the messages “Please Repeat...” or
“No Match Found,” adjust the sensitivity toward Reject Less. If you frequently
experience false activations (when the phone recognizes a name you didn’t say), adjust
the sensitivity toward Most Sensitive.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
1. Voice Commands.
2. Press the Right Soft Key [Settings], “3. Sensitivity”.
3. Select “Most Sensitive”, “ Recommended” or “Least Sensitive” by
pressing the Directional Key up or down, then press the OK
Key [OK].
ADAPTATION
Voice Command is speaker independent, which means that no training or adaptation
is required. Some users with heavy accents or unusual voice characteristics may find
difficulty in achieving high accuracy with speaker independent Voice Command,
so the Adapt Voice feature allows users to dramatically improve the recognition
accuracy through adaptation. Users who get acceptable recognition accuracy will find
no additional benefit to performing the Adapt Voice adaptaion.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
1. Voice Commands.
2. Press the Right Soft Key [Settings], “4. Adaptation”.
3. Select “1. Adapt Voice” or “2. Reset Voice” by pressing the
Directional Key up or down, then press the OK Key [OK].
•
Adapt Voice: Requires that you make recordings of your voice to customize the voice
recognitions system. It will take a few minutes.
•
Reset Voice: Once you finish the adaptation process, you can reset the adaptation
to factory default.
“Reset Voice” menu option only appears after you finish the “Adapt Voice” process.
4. Wait for the beep, and then repeat the sentences using a normal
tone of voice.
78
Chapter 4 − Menu Function
Voice ToolsVoice Tools
5. Repeat steps 1-4. When you are finished with a full session, you
will reach a screen that reads “Adaptation Complete”.
PROMPTS
Allows you to select the voice command system characteristics.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
1. Voice Commands.
2. Press the Right Soft Key [Settings], “5. Prompts”.
3. Select “1. Mode” or “2. Audio playback” by pressing the Directional
Key up or down, then press the OK Key [OK].
•
Mode: Select the voice command system mode from the following:
- Prompts: For handset to read out voice command prompts.
- Readout: For handset to read out prompts, dialing digits and menus.
- Tones Only: For handset to prompt you with a tone only.
•
Audio playback: Allows audio playback to play through the speakerphone or
through the earpiece. Select “Automatic”, “ Speakerphone” or
“Earpiece” with the Directional Key up or down.
CALL ALERT
Provides audible readout of the phone number and/or name (if in your contact list) of
an incoming call.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
1. Voice Commands.
2. Press the Right Soft Key [Settings], “6. Call Alert”.
3. Select “Ring Only”, “ Caller ID + Ring” or “Name Repeat” by pressing
the Directional Key up or down, then press the OK Key
[OK].
ABOUT
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
1. Voice Commands.
2. Press the Right Soft Key [Settings], “7. About”.
3. The VoiceSignal version appears.
4. To return to the previous screen, then press the OK Key [OK].
Menu Function − Chapter 4
79
Voice ToolsVoice Tools
080716_CDM8950_ECHO.indd 78-79080716_CDM8950_ECHO.indd 78-79 2008.7.16 4:1:51 PM2008.7.16 4:1:51 PM
CALCULATOR
The Calculator allows you to perform simple mathematical calculations.
To access the calculator:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
2. Calculator.
2. Follow the instructions below to calculate 8×6÷4-2.5=9.5
•
Input 8 and then press the Directional Key right.
•
Input 6 and then press the Directional Key left.
•
Input 4 and then press the Directional Key down.
•
Input 2 and then press the to input (.).
•
Press 5.
•
Then press the OK Key and you will see the answer (9.5).
3. To reset, press the Left Soft Key [Clear].
•
Directional Key right : X, Directional Key down : -,
Directional Key left : ÷, Directional Key up : +, * Key : .,
Left Soft Key : Clear, OK Key : =.
•
To change the displayed number from positive (+) to negative (-) and vice versa,
press # Key .
•
Press the Right Soft Key [Operator] to use parenthesis “1. (”, “ 2. )” and
“3. Exponent”.
CALENDAR
The Calendar tool provides easy and convenient access to your schedule.
Simply store your appointments and your phone will alert you to them.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
3. Calendar.
Shortcut: In idle mode, press the Directional Key down to access Calendar.
2. Press the Directional Key up, down, left or right to highlight the
scheduled day.
3. Press the Left Soft Key [Add].
4. The Appointment field is highlighted. Enter the name of the event.
Press the Directional Key down to set the other fields for the
event:
APPOINTMENT
Use the keypad to enter an appointment in your schedule.
START TIME
Use the keypad to set a start time and press the Left Soft Key
for “am/pm”.
80
Chapter 4 − Menu Function
ToolsTools
END TIME
Use the keypad to set a end time and press the Left Soft Key for
“am/pm”.
START DATE
Use the keypad to change or enter the start date.
RECURRENCE
Press the Directional Key left or right to set the recurrence of the
event (Once, Daily, Weekly, Monthly, Yearly).
END DATE
Use the keypad to change or enter the end date.
TIME ZONES
If the Time Zone needs to be adjusted, press the Left Soft Key
[Set]. Press the Directional Key up or down to select a new time
zone then press the OK Key [OK].
•
O f f /
•
EST /
•
EDT /
•
CST /
•
C D T /
•
MST /
•
M D T /
•
PST /
•
P D T /
•
AKST /
•
AKDT /
•
HAST /
•
HADT /
•
GMT/UTC
ALERT
Press the Left Soft Key [Set] to select a new ringtone. Press the
Directional Key up or down to highlight a ringtone then press
the OK Key [OK]. Press the Left Soft Key [Play] to preview
a ringtone.
VIBRATE
Press the Directional Key left or right to set “On/Off”.
REMINDER
Press the Directional Key left or right to select an alert time
interval option.
•
On Time /
•
5 min before /
•
10 min before /
•
15 min before
5. Press the OK Key [SAVE] to save it. The date of the event will be
marked on your calendar.
VIEW PLAN LIST
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
3. Calendar.
Menu Function − Chapter 4
81
ToolsTools
080716_CDM8950_ECHO.indd 80-81080716_CDM8950_ECHO.indd 80-81 2008.7.16 4:1:52 PM2008.7.16 4:1:52 PM
2. Press the Directional Key up, down, left or right to choose the
event then press the OK Key [VIEW].
ERASE SAVED EVENT
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
3. Calendar.
2. Press the Directional Key up, down, left or right to choose the
event then press the OK Key [VIEW].
3. Press the Left Soft Key [Erase], then press the Directional Key
up or down to select “Yes”, and then press the OK Key [OK].
ERASE ALL PASSED EVENTS
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
3. Calendar.
2. Press the Directional Key up, down, left or right to choose the
event then press the OK Key [VIEW].
3. Press the Right Soft Key [Options], “6. Erase Passed”, then press
the Directional Key up or down to select “Yes”, then press the
OK Key [OK].
ALARM CLOCK
The Alarm Clock tool allows you to set up to three alarms. When you set an
alarm, the current time is displayed at the top of the screen. When the alarm
goes off, Alarm 1 (or 2 or 3, as applicable) will be displayed on the LCD screen
and the alarm will sound.
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
4. Alarm Clock.
2. Press the Directional Key up or down to highlight an Alarm
(1, 2, or 3), then press the OK Key [OK].
3. The setting field will be highlighted. Press the Directional Key
down to select alarm options.
ALARM
Press the Directional Key left or right to select “On/Off”.
82
Chapter 4 − Menu Function
ToolsTools
TIME
Use the keypad to set a time for the alarm and press the Left Soft Key
for “am/pm”.
FREQUENCY
Press the Directional Key left or right to select a setting for the
alarm (Once, Daily, Mon - Fri, Weekends).
RINGER
Press the Left Soft Key [Set] to “1. Get New Ringtones” or select
the alert tone you wish to set. Press the Left Soft Key [Play]
to preview a ringtone. Press the OK Key [OK] to make your
selection.
4. To save an alarm setting, press the OK Key [SAVE].
TURN ON/OFF THE ALARM SETTING
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
4. Alarm Clock.
2. Press the Directional Key up or down to highlight an Alarm
(1, 2, or 3), then press the Right Soft Key [Options].
3. Select “Turn On/Turn Off” then press the OK Key [OK].
RESET THE ALARM SETTING
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
4. Alarm Clock.
2. Press the Directional Key up or down to highlight an Alarm
(1, 2, or 3), then press the Right Soft Key [Options].
3. Select “Reset Alarm”, then press the Directional Key up or down
to select “Yes”, then press the OK Key [OK].
RESET ALL ALARM SETTINGS
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
4. Alarm Clock.
2. Press the Directional Key up or down to highlight an Alarm
(1, 2, or 3), then press the Right Soft Key [Options].
3. Select “Reset All”, then press the Directional Key up or down
to select “Yes”, and then press the OK Key [OK].
Menu Function − Chapter 4
83
ToolsTools
080716_CDM8950_ECHO.indd 82-83080716_CDM8950_ECHO.indd 82-83 2008.7.16 4:1:54 PM2008.7.16 4:1:54 PM
STOP WATCH
Simultaneously times up to eight different events. To operate the stop watch:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
5. Stop Watch.
TO MEASURE A TIME PERIOD
1. To start the stop watch, press the OK Key [START].
2. To pause it, press the OK Key [STOP].
3. To resume it, press the OK Key [START].
4. To reset it, press the Right Soft Key [Reset].
TO TIME UP TO EIGHT EVENTS AT ONCE:
1. To start the stop watch, press the OK Key [START].
2. To stop a time period and continue measuring another one,
press the Left Soft Key [Lap].
3. To stop the second and continue measuring a third one, press the Left
Soft Key [Lap].
4. To measure up to eight time periods, repeat the above steps.
5. To stop the stop watch, press the OK Key [STOP].
6. To review the results, press the Left Soft Key [View].
7. To return to the stop watch, press the OK Key [OK].
8. To reset it, press the Right Soft Key [Reset].
WORLD CLOCK
To display the time and date in pre-programmed cities:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
6. World Clock.
2. Press the Left Soft Key [Cities] to access the CITIES LIST.
Press the Directional Key up or down to select the city, then
press the OK Key [OK]. Or, press the Directional Key up,
down, left, or right to select your city using the world map.
3. The world map appears with the city, its date, and time.
84
Chapter 4 − Menu Function
ToolsTools
DST DAYLIGHT SAVING TIME SETTING
1. Press the Right Soft Key [DST] to set the DST options. Press the
Directional Key left or right to select City and then press the
Directional Key down.
2. Press the Directional Key left or right to turn DST (Daylight
Savings Time) “On/Off”. Press the Directional Key down.
3. Under “Start Date”, use the keypad to change or enter the start date
and then press the Directional Key down.
4. Under “Start Time”, use the keypad to set a start time and press the
Left Soft Key for “am/pm” and then press the Directional Key
down.
5. Under “End Date”, use the keypad to change or enter the end date
and then press the Directional Key down.
6. Under “End Time”, use the keypad to set a end time and press the Left
Soft Key for “am/pm”.
7. To save a DST setting, press the OK Key [SAVE].
NOTEPAD
Your phone includes an internal notepad that can be used to compose and
store reminders and notes. To create a note:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
7. Notepad.
2. Press the Left Soft Key [New] to write a new note. When you are
done, press the OK Key [SAVE].
VIEW SAVED MEMO
To view a saved memo:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
7. Notepad.
2. Press the OK Key [VIEW] to view a selected Note.
Menu Function − Chapter 4
85
ToolsTools
080716_CDM8950_ECHO.indd 84-85080716_CDM8950_ECHO.indd 84-85 2008.7.16 4:1:56 PM2008.7.16 4:1:56 PM
ERASE SAVED MEMO
To erase a saved memo:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
7. Notepad.
2. Press the Right Soft Key [Options], then select “Erase.”
3. Press the OK Key [OK] to select “Yes.”
ERASE ALL SAVED MEMOS
To erase all saved memos:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 2. Tools,
7. Notepad.
2. Press the Right Soft Key [Options], then select “Erase All.”
3. Press the OK Key [OK] to select “Yes.”
86
Chapter 4 − Menu Function
ToolsTools
MY VERIZON
To access your Verizon account information:
1. From standby mode, press the OK Key [MENU], the Directional
Key right twice for SETTINGS & TOOLS, and press 1. My Verizon.
Shortcut: In idle mode, press the Directional Key left to access My Verizon.
Menu Function − Chapter 4
87
My VerizonMy Verizon
080716_CDM8950_ECHO.indd 86-87080716_CDM8950_ECHO.indd 86-87 2008.7.16 4:1:58 PM2008.7.16 4:1:58 PM
88
Chapter 4 − Menu Function
NoteNote
MEDIA CENTER
CHAPTER 5
MEDIA CENTER
Your phone provides a unique feature -Media Center- that enables
you to download ringtones, wallpapers, games and more from your
network to your phone. Please contact your service provider for the
availability of these services.
Using the microSD card
Music & Tones
Picture & Video
Games
Mobile Web
Browse & Download
Extras
Media center info
080716_CDM8950_ECHO.indd 88-89080716_CDM8950_ECHO.indd 88-89 2008.7.16 4:1:58 PM2008.7.16 4:1:58 PM
USING THE microSD CARD
The microSD card stores sounds, images, photos and videos, music, and other
files.
The microSD card is sold separately, it does not come in-box.
INSTALLING THE microSD CARD
To install your microSD card:
1. With the microSD card slot opened and the
gold contacts facing down, insert the microSD
card into the slot.
2. Push the card in until it clicks into place.
“MEMORY CARD DETECTED” will appear on the
display. Close the microSD card slot.
To prevent possible damages, please keep microSD card slot closed at all times
regardless of whether the microSD card is inserted or not.
REMOVING THE microSD CARD
To remove the microSD card:
1. Open the microSD card slot. Use your thumb
to press and release the microSD card.
It will pop-out to allow you to remove the card.
2. Remove the card and close the microSD card slot.
•
When you insert the microSD card, make sure contact terminals face down.
•
Do not remove the microSD card while reading or writing files. Otherwise it could be
damaged.
To ensure the proper function of removable memory, please use a microSD card.
HOW IS MUSIC TRANSFERRED?
Transfer from PC
to Handset via USB
Cable
Transfer from
PC to Handset
via Memory card
MP3 Songs Yes Yes
WMA Songs (Music ripped
from CDs, e.g.
unprotected content)
Yes Yes
WMA Songs (Purchased
from a Windows Media
Player 10 music store
such as V CAST Music, e.g.
protected content)
Yes
Song will not
play on the
phone
90
Chapter 5 − Media Center
microSDmicroSD
•
Music acquired from another online store as part of a subscription service or
purchased in another format other than WMA/MP3 will not be recognized by V CAST
Music devices.
•
V CAST Over The Air Music dowloads are not available. Music can be purchased and
downloaded via V CAST Music with Rhapsody through your PC. V CAST Music with
Rhapsody will work with Windows Vista, XP, or 2000 (Only 32-bit versions of Windows
are supported.) Not available for Mac or Linux.
•
Only MP3 files with 192kbps or higher bitrate will be converted into WMA files.
MUSIC & TONES
To access the Music & Tones menu.
V CAST MUSIC
To download music from the V CAST Music catalog directly to phone memory or to a
removable memory card.
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
1. V CAST Music to open the V CAST Music catalog.
2. Browse or search the catalog to preview the songs you want.
3. Select the music (song or album) that you want to purchase.
Press the OK Key [BUY] to purchase.
4. The CONFIRM PURCHASE screen will display the price and items you
selected to purchase. Press the OK Key [BUY] to accept the terms.
5. You’ll receive confirmation that your purchase was successful and
your music is available for download. Press the OK Key to
continue.
6. Select Phone Memory or Memory Card for storage location.
Press the OK Key to begin downloading. Wait for the phone to
acquire the content license. Press the OK Key when download is
complete.
7. Press the Right Soft Key [Play] to play the downloaded song
immediately. Or, You can press the Left Soft Key [Library] to go to
your Music Library of downloaded songs and albums.
8. To return to idle mode, press the END Key .
GET NEW RINGTONES
To connect to MEDIA CENTER and download various ringtones:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
1. Get New Ringtones.
Media Center − Chapter 5
91
Media CenterMedia Center
080716_CDM8950_ECHO.indd 90-91080716_CDM8950_ECHO.indd 90-91 2008.7.16 4:1:59 PM2008.7.16 4:1:59 PM
2. If you have not downloaded any ringtones or ringtone applications
previously, press “1. Get New Applications”. The Media Center browser
will launch. From the Download menu, select a service provider and
press the OK Key . Then select the application and press the OK
Key to download it.
3. To download a ringtone, select the application from the Get New
Ringtones menu. Once the application has launched,
follow the directions to download your ringtones.
Downloaded ringtones are saved to the “2. My Ringtones” menu.
MY RINGTONES
TO PLAY DOWNLOADED TUNES OR TONES:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
2. My Ringtones.
2. Select the tune or tone you want to play then press the OK Key
[PLAY].
3. To stop, press the OK Key [STOP].
TO ERASE DOWNLOADED TUNES OR TONES:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
2. My Ringtones.
2. Select the tune or tone you want to erase then press the Right Soft
Key [Options].
3. Select “1. Erase,” then select “Yes” by pressing the OK Key [OK].
•
If a “Downloaded Ringtone” is selected, press the Right Soft Key [Options] to
choose from the following:
1. Erase: Erase the current ringtone from your phone.
2. Rename: To edit the ringtone’s title.
3. Lock: Lock/Unlock the current ringtone from your phone.
4. Erase All: To erase all the ringtones in your phone.
5. File Info: Displays information on the selected ringtone.
•
If a “Preloaded Sound” is selected, pressing Right Soft Key [Options], you can
choose from the following:
1. Erase: Erase the current ringtone from your phone.
2. Erase All: To erase all the ringtones in your phone.
3. File Info: Displays information on the selected ringtone.
92
Chapter 5 − Media Center
Media CenterMedia Center
TO ASSIGN DOWNLOADED TUNES OR TONES:
To select a desired ringtone, or download a new ringtone:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
2. My Ringtones.
2. Press the Directional Key up or down to highlight ringtone,
then press the Left Soft Key [Set As].
•
1. Ringtone: A confirmation message appears.
•
2. Contact ID: The “SET AS CONTACT ID“ screen appears. Select the Contact you want
to assign the ringtone to, then press the OK Key [OK].
•
3. Alert Sounds: Press the corresponding number key to set the ringtone for one
of the following: “All Messages”/“TXT Message”/“Pic/Video/Voice
Message”/“Voicemail”. Press the Directional Key up or down to
highlight ringtone, then press the OK Key [OK].
3. Press the Right Soft Key [Options] to access the following
options:
•
Erase: Erase the current ringtone from your phone.
•
Rename: To edit the ringtone’s title. (This option only appears for a downloaded
ringtone)
•
Lock/Unlock: Lock or unlock the current ringtone in your phone. (This option only
appears for a downloaded ringtone)
•
Erase All: To erase all the ringtones in your phone.
•
File Info: Displays information on the selected ringtone.
MY MUSIC
To playback and manage music stored in your phone’s memory and on a memory
card:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
3. My Music.
2. The Music Library screen appears in the display with the following
options:
•
1. Genres /
•
2. Artists /
•
3. Albums /
•
4. Songs /
•
5. Playlists /
•
6. Play All /
•
7. Shuffle
3. To play a song, select “4. Songs”, scroll through the list of
downloaded songs then press the OK Key [Play]. To view your
Playlists, select “5. Playlists”. Select “6. Play All” to play all your music,
or select “7. Shuffle” to play your songs in random order.
4. Press the Left Soft Key [Repeat] to replay the song. Press the
Right Soft Key [Options] to “1. Play All”, “ 2. Shuffle”,
“3. My Music”, “ 4. Help”.
Media Center − Chapter 5
93
Media CenterMedia Center
080716_CDM8950_ECHO.indd 92-93080716_CDM8950_ECHO.indd 92-93 2008.7.16 4:2:0 PM2008.7.16 4:2:0 PM
5. Press the Directional Key left to start the song over again. Press
the Directional Key right to skip to the next song if there are
other songs to be played. Press the OK Key [OK] to pause or play
the song. If you press and hold the Directional Key left the song
rewinds and if you hold the Directional Key right the song fast
forwards.
MY SOUNDS
To select a desired sound or record a new sound:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
4. My Sounds.
2. Press the Directional Key up or down to highlight the sound,
then press the OK Key [PLAY] to hear the sound. Press the OK Key
[STOP] to stop playing the sound.
3. Press the Right Soft Key [Options] to access the following options:
• DOWNLOADED or RECORDED SOUND:
Send: To send a sound.
To Online Album: To upload selected sound to picture server.
Rename: To edit the sound’s title.
Move: To move the selected sound to the other save location.
This option only appears if a memory card is inserted.
Lock/Unlock: Lock or unlock the selected sound in your phone.
Erase: To erase a selected sound in your phone.
Erase All: To erase all the sounds in your phone.
File Info: Displays information on the selected sound.
• PRELOADED SOUND:
Send: To send a sound.
To Online Album: To upload selected sound to picture server.
File Info: Displays information on the selected sound.
RECORDING NEW SOUNDS
To record a new sound:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
4. My Sounds.
2. Press “1. Record New”.
3. Press the OK Key [OK] to begin recording. When done, press
the OK Key [STOP] to finish recording. The recording is
automatically saved to your “My Sounds” list.
4. Your recording is saved with a number. To rename your recording,
scroll to it with the Directional Key in the My Sounds menu,
then press the Right Soft Key [Options].
94
Chapter 5 − Media Center
Media CenterMedia Center
5. Press “3. Rename”.
6. Press and hold the Clear Key to erase the number.
7. Enter the new name for your recording, then press the OK Key
[OK].
TO ERASE A SOUND:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 1. Music & Tones,
4. My Sounds.
2. Press the Directional Key up or down to select the sound you
want to erase, and then press the Right Soft Key [Options].
3. Press “5. Erase”. “ ERASE SOUND FROM MY SOUNDS AND
SETTINGS?” will appear on your display.
4. Press the OK Key [OK] to select “Yes.” A confirmation message
appears.
Your phone comes with 5 preloaded sounds: Clapping, Crowd roar, Happy Birthday,
Rainforest, and Train. These cannot be erased.
SYNC MUSIC
SYNC YOUR MUSIC FROM YOUR PC TO YOUR V CAST MUSIC WITH
RHAPSODY® CAPABLE PHONE
This option allows you to transfer music files from your PC. In order to use this
option, you must install V CAST Music with Rhapsody on your PC.
1. Open V CAST Music with Rhapsody software. Don’t have V CAST
MUSIC with Rhapsody software? Download it for free at
www.verizonwireless.com/music.
2. Plug in the USB cable (purchased separately) to your phone and
connect it to a USB port on your PC.
3. From the main screen on your phone, the SYNC MUSIC V CAST
MOBILE PHONE display appears. Your phone should display the
message: Connected.
4. Drag and drop the song(s) you want to sync from My Library, to
your V CAST Music with Rhapsody mobile phone, listed under the
Sources tab. Once synchronization is complete, press the END/
Power key (“Picture”) and disconnect the USB cable (purchased
separately).
Media Center − Chapter 5
95
Media CenterMedia Center
080716_CDM8950_ECHO.indd 94-95080716_CDM8950_ECHO.indd 94-95 2008.7.16 4:2:2 PM2008.7.16 4:2:2 PM
5. Under the “Music & Tones” menu, open “My Music” to view and
play your music.
•
A compatible USB cable (included in-box) is required for syncing.
•
V CAST Over The Air Music dowloads are not available. Music can be purchased and
downloaded via V CAST Music with Rhapsody through your PC. V CAST Music with
Rhapsody will work with Windows Vista, XP, or 2000 (Only 32-bit versions of Windows
are supported.) Not available for Mac or Linux.
PICTURE & VIDEO
V CAST VIDEO
V CAST, the next generation wireless technology that unveils a whole new
multimedia experience at your fingertips, provides access to vibrant, full-color
content from some of the biggest names in entertainment. V CAST is your link to
video on demand, which allows you to view or download video clips that contain
breaking news, sports highlights, weather and more.For additional information
regarding V CAST Videos and its use, see www.verizonwireless.com.
TO BROWSING, SELECTING AND PLAYING VIDEO CLIPS:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
1. V CAST Videos.
2. Press the Directional Key up or down to select the V CAST
Videos category you want, and then press the OK Key [OK].
3. Press the Directional Key up or down to select the video, and
then press the OK Key [VIEW].
4. Press the OK Key [OK] to select “Yes.” After connection and
buffering occurs, the video clip begins.
TO DOWNLOADING A VIDEO CLIP:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
1. V CAST Videos.
2. Press the Directional Key up or down to select a video you
want to save, and then press the OK Key [SAVE]. The video clip
will be saved to your “My Videos” list.
3. Press the OK Key [OK] to select “Yes.” The video download
begins.
96
Chapter 5 − Media Center
Media CenterMedia Center
GET NEW PICTURES
To connect to MEDIA CENTER and download a variety of Pictures (images):
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
2. Get New Pictures.
2. Press “1. Get New Applications”. Media Center will launch and take
you to the download menu.
3. Press the Directional Key up or down to select a provider’s
browser, and then press the OK Key [OK].
4. Press the Directional Key up or down, or press the OK Key
to select Application.
5. After executing the downloaded application, download the desired
picture. The downloaded contents are saved in “My Pictures”.
The downloaded application will be included in the list displayed when you access:
Get New Pictures > 1. Get New Applications.
MY PICTURES
In My Pictures you can view all the pictures you have taken, store selected images in
your phone, send pictures to the Online Album, delete images and access additional
picture options.
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
3. My Pictures.
2. Press the Directional Key up, down, left or right to select your
desired pictures, then press the Right Soft Key [Options].
3. Select one of the following options:
•
Send: To send a picture message.
•
Send by Bluetooth: To access Bluetooth Menu.
•
Set As: Assigns the selected picture to display for specific tasks. (Wallpaper/Picture ID)
•
To Online Album: Access the Online Album.
•
Take Picture: Take a new picture.
•
Get New Pictures: Download various pictures.
•
Rename: Rename the selected picture.
•
Move: To move the picture to another save location. This only appears when a memory
card is inserted.
•
Lock/Unlock: Lock or unlock the selected picture. Locked pictures cannot be deleted by
the Erase All function. This option only appears for pictures you
downloaded or took with the camera.
•
Erase All: To erase all the pictures in your phone. (From Card/From Phone)
•
File Info: Displays information about the selected picture. (File Name/Date/Time/
Resolution/Size)
Media Center − Chapter 5
97
Media CenterMedia Center
080716_CDM8950_ECHO.indd 96-97080716_CDM8950_ECHO.indd 96-97 2008.7.16 4:2:3 PM2008.7.16 4:2:3 PM
TO ERASE THE CURRENT PICTURE:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
3. My Pictures.
2. Press the Directional Key up, down, left or right to select the
picture you want to erase, and then press the Left Soft Key
[Erase]. “ERASE PICTURE FROM MY PICTURES AND SETTINGS?”
will appear on your display.
3. Press the OK Key [OK] to select “Yes”. A confirmation message
appears.
MY VIDEOS
In My Videos you can view all the videos you have recorded, store selected videos in
your phone, send videos to the Online Album, delete videos and access additional
video options.
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
4. My Videos.
2. Press the Directional Key up, down, left or right to select your
desired videos, then press the Right Soft Key [Options].
3. Select one of the following options:
•
Send: To send a video message.
•
Send by Bluetooth: To access Bluetooth Menu.
•
Record Video: Record a new video clip.
•
To Online Album: Access the Online Album.
•
V CAST Videos: Download various video clips.
•
Set As: Assigns the selected picture to display for specific tasks. (Wallpaper/Contact ID)
•
Rename: Rename the selected video clip.
•
Move: To move the video clip to another save location. This only appears when a memory
card is inserted.
•
Lock/Unlock: Lock or unlock the selected video clip. Locked video clip cannot be deleted
by the Erase All function. This option only appears for video clips you
downloaded or record with the camera.
•
Erase All: To erase all the video clips in your phone. (From Card/From Phone)
•
File Info: Displays information about the selected picture. (File Name/Date/Time/
Duration/Size)
TO ERASE THE CURRENT VIDEO CLIP:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
4. My Videos.
2. Press the Directional Key up, down, left or right to select the
picture you want to erase, and then press the Left Soft Key
[Erase]. “ERASE VIDEO FROM MY VIDEOS AND SETTINGS?” will
appear on your display.
98
Chapter 5 − Media Center
Media CenterMedia Center
3. Press the OK Key [OK] to select “Yes”. A confirmation message
appears.
TAKE PICTURE
1. To access the camera, press the Side Camera Key .
2. Point the camera lens at your subject. You can check the picture
framing through the display screen.
•
Press the Directional Key left/right: Zoom Down/Up.
(Except 1280X960 mode).
•
Pressing the Right Soft Key [Options], you can choose from the following:
1. Resolution: To select a resolution for a picture.
(1280x960/640x480/320x240/160x120)
2. Self Timer: To activate the camera’s timer function.
(Off/3 Seconds/5 Seconds/10 Seconds)
3. Brightness: To brightness up/down( -2, -1, 0, +1, +2).
4. White Balance: To select white balance.
(Auto/Sunny/Cloudy/Tungsten/Fluorescent/Darkness)
5. Shutter Sound: To select a shutter sound. (Shutter/Silent/Say “Cheez”/Ready! 123)
6. Color Effects: To select color effect among the following:
(Normal/Antique/Black & White/Negative)
7. Capture Mode: To select Capture mode “Landscape” or “Portrait”.
8. Multishot: To select a multishot mode among the following:
(Off/4/6/8)
9. Sub Display: To take a picture of yourself by checking the view on the front LCD.
To view captured images, press the Left Soft Key [My Pics].
3. Press the Side Camera Key or press the OK Key [TAKE] to take
the picture.
4. After taking the picture it will be displayed.
To save the picture, press the Left Soft Key [Save].
To take another picture without saving the picture you just took,
press the Right Soft Key [Erase].
To send the picture to someone, press the OK Key [SEND].
RECORD VIDEO
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
6. Record Video.
2. Point the camera lens at your subject. You can check the picture
framing through the display screen.
•
Press the Directional Key left/right: Zoom Down/Up.
•
Pressing the Right Soft Key [Options], you can choose from the following:
1. Brightness: To brightness up/down( -2, -1, 0, +1, +2).
2. White Balance: To select white balance.
(Auto/Sunny/Cloudy/Tungsten/Fluorescent/Darkness)
3. Mute/Unmute: Phone is mute or unmute while recording a video.
Media Center − Chapter 5
99
Media CenterMedia Center
080716_CDM8950_ECHO.indd 98-99080716_CDM8950_ECHO.indd 98-99 2008.7.16 4:2:5 PM2008.7.16 4:2:5 PM
4. Sub Display: To recording a video of yourself by checking the view on the front LCD.
To view recorded videos, press the Left Soft Key [Videos].
3. Press the Side Camera Key Key or press the OK Key [REC] to
take the video. To pause/resume the video record, press the Left
Soft Key [Pause/Resume]. To stop recording, press the OK Key
[STOP].
4. After recording the video it will be displayed.
To save the video, press the Left Soft Key [Save].
To recording another video without saving the video you just took,
press the Right Soft Key [Erase].
To send the video to someone, press the OK Key [SEND].
ONLINE ALBUM
To access Online Album:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 2. Picture & Video,
7. Online Album. The browser launches, and the Online Album
sign-on screen appears.
2. Follow the on-screen prompts.
GAMES
DOWNLOADING NEW GAMES
To download games and applications from the MEDIA CENTER server:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 3. Games.
2. Press the OK Key [OK] to “1. Get New Applications”.
3. Choose the software you want from the list displayed on the screen.
4. All applicable charges or fees will be incurred to download the
selected application.
5. Once download application, select “Yes” to run or “No” to return to
the Games menu.
In case of slide closed, first unlock the keypad by pressing the any key then press the
OK Key [OK].
PLAYING DOWNLOADED GAMES
1. To play the game you downloaded, select the game then press the
OK Key [PLAY] to run the application.
100
Chapter 5 − Media Center
Media CenterMedia Center
MOBILE WEB
Now you can access news, sports, weather, and Email from your phone. Mobile
Web 2.0 keeps you updated by providing access to up-to-date information
such as news, sports, weather and stock quotes when you subscribe to
Internet service with your service provider. Please contact your service provider
for a list of available websites and service details.
1. To start your Internet browser and access websites through your
wireless handset press the Directional Key up.
BROWSER MENU
The browser menu lists the actions necessary to operate the browser. To access,
press the Directional Key up and then press the Right Soft Key [Menu].
VZW HOME
Returns the user to the home page.
ADD FAVORITE
Takes user to the VZW Add Favorite page.
For favorites, page name and URL need to auto-populate.
SEARCH
Takes user to the VZW Search page.
GO TO URL
Takes user to the VZW Search > Go to Site page.
SHOW URL
Displays the current URL.
BACK
Returns to the previously viewed page.
MANAGE MEMORY
Displays the following list of options:
•
Clear Cache: Clears the cache.
•
Clear History: Clears the list of recently visited URLs.
•
Clear Cookies: Clears saved cookies.
•
Autofill: Automatically fills in character for browser recognized words.
SETTINGS
•
Downloads: Selecting the “Downloads” item allows the user to enable/disable
downloading images, background sounds, and object downloads when a URL
is accessed.
•
Restart Browser: Selecting “Restart Browser” causes the history and cache to be cleared
and returns the user to the homepage.
•
Scroll Mode: Selecting “Scroll Mode” from the Settings menu allows the user to select the
way text scrolls and the scroll speed.
•
Send Referrer: When the “Send Referrer” item is selected from the Settings menu, the
browser allows the user to turn on or off sending the referrer URL.
Media Center − Chapter 5
101
Media CenterMedia Center
080716_CDM8950_ECHO.indd 100-101080716_CDM8950_ECHO.indd 100-101 2008.7.16 4:2:6 PM2008.7.16 4:2:6 PM
•
Key Press Time Out: When the “Key Press Timeout” item is selected from the Settings
menu, the browser allows the user to set the key press timeout as
fast, medium or slow. Medium is 1.5 seconds, slow 2 seconds and
fast is 1 second. The key press timeout is the period of time after
which the cursor auto-advances to the next entry position. In most
cases, a single key can be used to enter more than one character.
Each time the key is pressed the last character of the line is replaced
by the next choice for that key. As long as the same key is repressed
within key press timeout, the last character cycles between all the
choices for the key.
•
Connection Time Out: When the Connection Timeout item is selected from the Settings
menu, the browser allows the user to set the connection timeout.
The connection timeout determines how long the browser will wait
for a response from the network for a network request.
ADVANCED
•
About: Displays the name of the supplier of the Browser and the Browser SW version.
•
Refresh: Allows the user to reload the current URL.
•
History: Displays the previous 20 number of visited URLs, where X=20.
•
Encryption: Displays the following list of options.
1. Authentication: Gives the option to turn Authentication Caching ON or OFF.
2. Root Certificate: Shows the root security keys for TLS.
3. Current Certificate: Shows the current site security key for TLS (if applicable).
EXIT
Press the END Key to exit out of the browser and return to idle
mode.
BROWSE & DOWNLOAD
DOWNLOADING NEW APPLICATIONS
To download Tools that can help you navigate to entertainment spots, restaurants,
and provide you with up-to-date weather information:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER , and press
5. Browse & Download.
2. Select “Mobile E-mail” or “VZ Navigator” with the Directional Key
then, press the OK Key [OK].
•
Mobile E-mail: To connect to Brew Smartlink.
•
VZ Navigator: To connect to VZ Navigator.
3. Press the OK Key [OK] for Get New Applications.
102
Chapter 5 − Media Center
Media CenterMedia Center
EXTRAS
DOWNLOADING NEW APPLICATIONS
To download Applications:
1. From standby mode, press the OK Key [MENU], the Directional
Key left twice for MEDIA CENTER, and press 6. Extras.
2. Press the OK Key [OK] for “1. Get New Applications”.
MEDIA CENTER INFO
To view App. Memory, Phone Memory, View Log, and Help information:
1. From standby mode, press the OK Key [OK] to unlock the keypad,
then press the OK Key [MENU].
2. Press the Directional Key left twice for MEDIA CENTER.
3. Press the Right Soft Key [Info].
4. Press the Directional Key up or down to select one of the
following settings, and then press the OK Key [OK].
•
App. Memory /
•
Phone Memory /
•
View Log /
•
Help
Media Center − Chapter 5
103
Media CenterMedia Center
080716_CDM8950_ECHO.indd 102-103080716_CDM8950_ECHO.indd 102-103 2008.7.16 4:2:7 PM2008.7.16 4:2:7 PM
104
Chapter 5 − Media Center
NoteNote
MESSAGING MENU
CHAPTER 6
MESSAGING MENU
This chapter addresses Voicemail, TXT, Picture, Video, Voice Messaging
functions including:
When a new message arrives
New message
Inbox
Sent
Drafts
Voicemail
Mobile IM
Email
Chat
Erase all
Settings
080716_CDM8950_ECHO.indd 104-105080716_CDM8950_ECHO.indd 104-105 2008.7.16 4:2:8 PM2008.7.16 4:2:8 PM
WHEN A NEW MESSAGE ARRIVES
1. The following display appears when a new
message arrives.
2. To display the message, select “View Now”
and then press the OK Key [OK].
NEW MESSAGE
TXT MESSAGE
1. From standby mode, press the Left Soft Key [Message],
and press 1. New Message.
2. Press “1. TXT Message”.
3. Under “To:”, input the phone number and then press the OK Key
[OK].
•
By pressing the Right Soft Key [Add], you can choose from the following:
1. From Contacts: Search for a phone number which is stored in the contacts list.
2. Recent Calls: Search for a phone number which is stored in the recent calls list.
3. Groups: Search the groups stored in the contacts list.
4. To Contacts: Save the number or email you’ve entered to the contacts list, when you
enter the number.
4. Under “Text:”, input a new TXT message. When completed, press the
OK Key [SEND].
•
By pressing the Right Soft Key [Options], you can choose from the following:
1. Quick Text: Inserts already written sentences in TXT message.
2. Save As Draft: To save the TXT message.
3. Add: To attach Quick Text, Graphic, Sound, Name Card.
•
Graphic: Inserts simple graphic images in TXT message.
•
Sound: Inserts EMS sound in TXT message.
•
Add Name Card: Inserts name card in TXT message.
4. Edit Text Format: Allows you to edit the “Alignment”, “Font Size”, “Font Style”, “Font
Color”, “Background Color”.
•
Alignment: Select “Left”, “Center” or “Right” by pressing the Directional Key
left or right.
•
Font Size: Select “Small”, “Normal” or “Large” by pressing the Directional Key
left or right.
•
Font Style: Select “Strikethrough”, “Normal”, “Bold”, “Italic” or “Underline” by
pressing the Directional Key left or right.
•
Font Color: Select Font color by pressing the Directional Key left or right.
•
Background Color: Select Background color by pressing the Directional Key left
or right.
5. Priority Level: Select “High” or “Normal” by pressing the Directional Key up or
down.
6. Cancel Message: To cancel message.
If one of the fields is inserted in the TXT message field, the message is saved in the
draft box.
106
Chapter 6 − Messaging Menu
MessagingMessaging
PICTURE MESSAGE
1. From standby mode, press the Left Soft Key [Message],
and press 1. New Message.
2. Press “2. Picture Message”.
3. Under “To:”, input the phone number and then press the OK Key
[OK].
•
By pressing the Right Soft Key [Add], you can choose from the following:
1. From Contacts: Search for a phone number which is stored in the contacts list.
2. Recent Calls: Search for a phone number which is stored in the recent calls list.
3. Groups: Search the groups stored in the contacts list.
4. To Online Album: To send Picture message by using online Address.
5. To Contacts: Save the number or email you’ve entered to the contacts list, when you
enter the number.
4. Under “Text:”, input a New Picture Message and then press the
Directional Key down.
5. Under “Picture:”, you can only insert/remove one picture.
Press the Left Soft Key [My Pics] to select the picture you would
like to send then press the OK Key [OK].
6. Under “Sound:”, you can only insert/remove one sound. Press the Left
Soft Key [Sounds] to select the sound you would like to send then
press the OK Key [OK].
7. Under “Subject:”, input a subject and then press the Directional Key
down.
8. Under “Name Card:”, you can insert your name card. Press the Left
Soft Key [Add] select “1. My Name Card” or “2. Contacts” then
press the OK Key [OK]. Select the card you’d like to send then
press the OK Key [OK].
9. Press the Right Soft Key [Options] to access the following:
•
Preview: To preview a written Picture Message.
•
Save As Draft: To save the Picture Message.
•
Add Quick Text: Inserts already written sentences in Picture Message.
•
Add Slide: To add a another message.
•
Priority Level: Select “High” or “Normal” by pressing the Directional Key up or down.
•
Remove Picture: To remove inserted picture in Picture field.
•
Remove Slide: To remove inserted Slide Message.
•
Remove Sound: To remove inserted sound in Sound field.
•
Remove Name Card: To remove inserted name card in Name Card field.
•
Cancel Message: To cancel message.
10. To send the Picture message, press the OK Key [SEND].
If one of the fields is inserted in Picture Message field, the message is saved in the
draft box.
Messaging Menu − Chapter 6
107
MessagingMessaging
080716_CDM8950_ECHO.indd 106-107080716_CDM8950_ECHO.indd 106-107 2008.7.16 4:2:9 PM2008.7.16 4:2:9 PM
VIDEO MESSAGE
1. From standby mode, press the Left Soft Key [Message],
and press 1. New Message.
2. Press “3. Video Message”.
3. Under “To:”, input the phone number and then press the OK Key
[OK].
•
By pressing the Right Soft Key [Add], you can choose from the following:
1. From Contacts: Search for a phone number which is stored in the contacts list.
2. Recent Calls: Search for a phone number which is stored in the recent calls list.
3. Groups: Search the groups stored in the contacts list.
4. To Online Album: To send Picture message by using online Address.
5. To Contacts: Save the number or email you’ve entered to the contacts list, when you
enter the number.
4. Under “Text:”, input a New Video Message and then press the
Directional Key down.
5. Under “Video:”, you can only insert/remove one video clip.
Press the Left Soft Key [Videos] to select the video clip you would
like to send then press the OK Key [OK].
6. Under “Subject:”, input a subject and then press the Directional Key
down.
7. Under “Name Card:”, you can insert your name card. Press the Left
Soft Key [Add] select “1. My Name Card” or “2. Contacts” then
press the OK Key [OK]. Select the card you’d like to send then
press the OK Key [OK].
8. Press the Right Soft Key [Options] to access the following:
•
Preview: To preview a written Video Message.
•
Save As Draft: To save the Video Message.
•
Add Quick Text: Inserts already written sentences in Video Message.
•
Priority Level: Select “High” or “Normal” by pressing the Directional Key up or down.
•
Remove Video: To remove inserted video clip in Video field.
•
Remove Name Card: To remove inserted name card in Name Card field.
•
Cancel Message: To cancel message.
9. To send the Video message, press the OK Key [SEND].
If one of the fields is inserted in Video Message field, the message is saved in the
draft box.
VOICE MESSAGE
1. From standby mode, press the Left Soft Key [Message],
and press 1. New Message.
2. Press “4. Voice Message”.
108
Chapter 6 − Messaging Menu
MessagingMessaging
3. To record a new Voice Memo, press the OK Key [OK] to start
recording voice memo. Press the OK Key [STOP] to stop recording
voice memo and save it.
4. Under “To:”, input the phone number and then press the OK Key
[OK], then press the Directional Key down.
•
By pressing the Right Soft Key [Add], you can choose from the following:
1. From Contacts: Search for a phone number which is stored in the contacts list.
2. Recent Calls: Search for a phone number which is stored in the recent calls list.
3. Groups: Search the groups stored in the contacts list.
4. To Online Album: To send Voice message by using online Address.
5. To Contacts: Save the number or email you’ve entered to the contacts list, when you
enter the number.
5. Under “Voice:”, you can only Record/Remove one Voice memo. Press
the OK Key [OK] to start recording voice memo. Press the OK Key
[STOP] to stop recording voice memo and save it.
6. Under “Text:”, input a New Voice Message and then press the
Directional Key down.
7. Under “Subject:”, input a subject and then press the Directional Key
down.
8. Under “Name Card”, you can insert your name card. Press the Left Soft
Key [Add], select “1. My Name Card” or “2. Contacts” then press
the OK Key [OK]. Select the card you’d like to send then press the
OK Key [OK].
9. Press the Right Soft Key [Options] to access the following:
•
Review: To preview a written Voice Message.
•
Save As Draft: To save the Voice Message.
•
Add Quick Text: Inserts already written sentences in Voice Message.
•
Priority Level: Select “High” or “Normal” by pressing the Directional Key up or
down.
•
Remove Recording: To remove inserted recorded voice memo in Voice field.
•
Remove Name Card: To remove inserted name card in Name Card field.
•
Cancel Message: To cancel message.
10. To send the Voice message, press the OK Key [SEND].
If one of the fields is inserted in Voice Message field, the message is saved in the
draft box.
Messaging Menu − Chapter 6
109
MessagingMessaging
080716_CDM8950_ECHO.indd 108-109080716_CDM8950_ECHO.indd 108-109 2008.7.16 4:2:11 PM2008.7.16 4:2:11 PM
INBOX
The Inbox manages received TXT, Picture, Video. Voice, Web Alert messages.
To access:
1. From standby mode, press the Left Soft Key [Message], and press
2. Inbox.
2. Select a message and then press the OK Key [OPEN].
The message is displayed. To delete a message, press the Left Soft
Key [Erase], then press the OK Key [OK] to select “Yes”.
MESSAGE ICON REFERENCE
3. Press the Right Soft Key [Options] to access the following:
•
Play Again: To play a received Picture/Voice message.
•
Reply: Type your reply.
•
Erase Inbox: To erase all inbox message.
•
Reply W. Copy: Select to reply with the original message included.
•
Forward: Select to forward the TXT or Picture/Voice message.
•
Save Picture (MMS Picture): Select to save a picture to the “My Pictures” folder.
•
Save As Ringtone (MMS Sound): Select to save a sound to the “My Ringtones” folder.
•
Save Sound (MMS Sound): Select to save a sound to the “My Sounds” folder
•
Save Objects (EMS Save Objects): Select to save a graphic, sound, name card.
•
Save Name Card: Select to save a name card to the contacts.
•
Save Quick Text: Select to save received text msg to “Quick Text”.
•
Add To Contacts: Select to save number to contacts.
•
Extract Addresses: To extract all Phone Numbers, Email Addresses and URLs from the
received message.
•
Lock/Unlock: Select to lock or unlock the TXT, Picture or Voice message.
•
Message Info: Select to show received TXT/Picture/Voice message information.
SENT
Manages TXT, Picture, Voice messages already sent or waiting to be sent.
1. From standby mode, press the Left Soft Key [Message], and
press 3. Sent.
2. Select a message and then press the OK Key [OPEN].
The message is displayed. To delete a message, press the Left Soft
Key [Erase], then press the OK Key [OK] to select “Yes”.
MESSAGE ICON REFERENCE
110
Chapter 6 − Messaging Menu
MessagingMessaging
3. With the message open, press the Right Soft Key [Options] to
access the following:
•
Play Again: Select to play sent MMS message.
•
Forward: Select to forward the TXT or Picture/Voice message.
•
Erase: To erase a sent message.
•
Resend: To resend a message.
•
Lock/Unlock: Select to lock or unlock the TXT, Picture or Voice message.
•
Save Quick Text: Select to save sent text msg to “Quick Text”.
•
Add To Contacts: Select to save number to contacts.
•
Erase Sent: To erase a sent message.
•
View Name Card: To view include name card with in message.
•
Message Info: Select to show received TXT/Picture/Voice message information.
DRAFTS
Draft Folder contains any draft messages or saved messages. If message
composition is interrupted by a voice call or other interrupting event, the
message of the current composition is automatically saved in the drafts folder.
1. From standby mode, press the Left Soft Key [Message], and press
4. Drafts.
2. Select a message and then press the OK Key [EDIT].
The message is displayed.
3. To delete a message, press the Left Soft Key [Erase], then
press the OK Key [OK] to select “Yes”.
MESSAGE ICON REFERENCE
4. Press the Right Soft Key [Options] to access the following:
•
Send: Select to send a selected message.
•
Lock/Unlock: Select to lock or unlock the TXT, Picture or Voice message.
•
Add To Contacts: Select to save number to contacts.
•
Erase Drafts: To erase all drafts messages.
VOICEMAIL
New voicemail alerts are sent via an SMS text message. These messages
indicate how many new and urgent voicemails are in your voicemail box.
Open the text message to view the number of new voice messages in your
voicemail. If a caller leaves a callback number, this number will also be sent via
an SMS text message.
WHEN A NEW VOICEMAIL ARRIVES
When you receive a new voicemail message you’ll hear a sound and a Voicemail
appears in the display.
1. To display the message, select “Listen Now” or “Listen Later” by
pressing the Directional Key up or down.
2. Press the OK Key [OK].
Messaging Menu − Chapter 6
111
MessagingMessaging
Lock MMS Drafts SMS/EMS Drafts
Read
Unread
Lock
Priority
MMS Unread
MMS Read
EMS Unread
EMS Read
WAP Unread
WAP Read
Sent
Lock
Delivered
Priority
Sent Failed
Incomplete
Delivery
080716_CDM8950_ECHO.indd 110-111080716_CDM8950_ECHO.indd 110-111 2008.7.16 4:2:12 PM2008.7.16 4:2:12 PM
TO ACCESS YOUR VOICE MAILBOX
1. To dial voice mail directly, press * Key , 8 Key , 6 Key
and then the SEND Key . or From standby mode press the Left
Soft Key [Message]. Press 5.Voicemail then the SEND Key .
2. Follow the prompts to enter your lock code and retrieve your
messages.
MOBILE IM
LAUNCHING MOBILE IM
1. From standby mode, press the Left Soft
Key [Message], and press 6. Mobile IM,
and then select “Mobile IM” for the Preloaded
Mobile IM.
2. The first time you access this feature an “Accept/Decline” screen will
appear, select “Accept” by highlighting it and pressing the OK Key
.
3. Choose from “AIM”, “ WL Messenger” and “Yahoo!®”.
Highlight the messenger service and press the OK
Key [OK].
4. Enter your Login ID and Password and then press the OK Key
[Sing In] to Sign In.
DOWNLOAD NEW IM APPLICATIONS
1. From standby mode, press the Left Soft Key
[Message], then 6. Mobile IM, and press
1. Get New Applications.
EMAIL
1. From standby mode, press the Left Soft Key [Message], and press
7. Email.
2. Select “Mobile Email” or “Mobile Web Mail” with the Directional Key
up or down, press the OK Key [OK].
112
Chapter 6 − Messaging Menu
MessagingMessaging
•
Mobile Email: To connect Brew Smartlink.
•
Mobile Web Mail: To connect WAP Browser.
3. Browser launches.
4. Press the Directional Key up or down to select your Email
provider, and then press the OK Key [OK].
5. To send an Email, follow the on-screen prompts and functions.
CHAT
1. From standby mode, press the Left Soft Key [Message], and
press 8. Chat.
2. Browser launches.
3. Press the Directional Key up or down to select one of the
displayed chat rooms, and then press the OK Key [OK].
4. To chat with Internet Messenger users, follow the on-screen prompts
and functions.
ERASE ALL
To erase all messages stored in your Inbox, Drafts or Sent folders:
1. From standby mode, press the Left Soft Key [Message], then the
Right Soft Key [Options].
•
Press “1. Erase Inbox” to erase all messages or only read message stored in the Inbox.
•
Press “2. Erase Drafts” to erase all messages stored in the Drafts folder.
•
Press “3. Erase Sent” to erase all messages stored in Sent Folder.
•
Press “4. Erase All” to erase all messages stored in the Inbox, Sent, and Drafts folders.
Locked messages cannot be erased.
2. Select “Yes” to erase the selected messages, then press the OK Key
[OK]. A confirmation message appears.
Messaging Menu − Chapter 6
113
MessagingMessaging
080716_CDM8950_ECHO.indd 112-113080716_CDM8950_ECHO.indd 112-113 2008.7.16 4:2:15 PM2008.7.16 4:2:15 PM
SETTINGS
To configure received message settings:
1. From standby mode, press the Left Soft Key [Message], then the
Left Soft Key again for [Settings].
2. Press the Directional Key up or down to highlight one of the
settings below, then press the OK Key [OK] to select it:
ENTRY MODE
Sets an Entry Mode as a default. For example, if Abc Mode is the default, its icon
will appear.
1. Select “Word”, “Abc”, “ABC” or “123” by pressing the Directional Key
up or down then press the OK Key [OK].
AUTO SAVE
1. Select “On”, “ Off” or “Prompt” by pressing the Directional Key up
or down then press the OK Key [OK].
•
On: All sent messages saved in the Sent box.
•
Off: All sent messages not saved in the Sent box.
•
Prompt: “Yes”, “No” dialogue box displayed after sent message.
AUTO ERASE
Automatically erases inbox messages when new messages arrive.
1. Select “On” or “Off” by pressing the Directional Key up or down
then press the OK Key [OK].
•
On: Oldest message erased from inbox automatically when Inbox is full.
•
Off: Oldest message not erased from inbox automatically when Inbox is full.
MESSAGING FONT SIZE
1. Select “Normal” or “Large” by pressing the Directional Key up or
down then press the OK Key [OK].
TXT AUTO VIEW
1. Select “On” or “Off” by pressing the Directional Key up or down
then press the OK Key [OK].
•
On: TXT message displayed automatically.
•
Off: TXT message displayed by going to the inbox or responding to interactive
notification.
114
Chapter 6 − Messaging Menu
MessagingMessaging
PICVIDEO AUTO RECEIVE
1. Select “On” or “Off” by pressing the Directional Key up or down
then press the OK Key [OK].
•
On: Picture/Video message downloaded automatically.
•
Off: Picture/Video message must be retrieved from the inbox or at new Picture/Video
Message prompt.
QUICK TEXT
To edit the Quick Text you have saved:
1. Select a message from the list then press the OK Key [EDIT].
2. To add a new Quick Text, press the Right Soft key [Options] to
select “New”. Enter the new text then press the OK Key [SAVE].
3. To move locate the saved Quick Text, press the Right Soft key
[Options] to select “Move”. Press the Directional Key up or down
to move locate then press the OK Key [SAVE].
4. To erase a saved Quick Text, press the Left Soft Key [Erase].
Press the OK Key [OK] to select “Yes”.
VOICEMAIL#
1. Input a new voicemail number or edit voicemail number then press
the OK Key [OK].
CALLBACK #
Edits a default callback number so that the recipient can callback or reply.
1. Select “On” or “Off” by pressing the Directional Key up or down
then press the OK Key [OK].
2. If “On” is selected, input a new callback number then press the OK
Key [OK].
SIGNATURE
Create a signature that can be automatically inserted at the end of all TXT, Picture,
Video and Voice messages.
1. To deactivate Signature function, select “None”.
2. To input a “Signature”, select “Custom”. Enter your signature in the
text box then press the OK Key [OK].
Messaging Menu − Chapter 6
115
MessagingMessaging
080716_CDM8950_ECHO.indd 114-115080716_CDM8950_ECHO.indd 114-115 2008.7.16 4:2:16 PM2008.7.16 4:2:16 PM
116
Chapter 6 − Messaging Menu
NoteNote
SAFETY AND WARRANTY
CHAPTER 7
SAFETY AND WARRANTY
This chapter addresses the safety guidelines and precautions to follow when operating
your phone. Before operating your phone, please be aware of all the safety details.
This chapter contains the terms and conditions of services and the
warranty for your phone. Please review them thoroughly.
Safety information for wireless handheld phones
Safety information for FCC RF exposure
SAR information
FCC hearing-aid compatibility (HAC) regulations for wireless devices
FDA consumer update
Avoid potential hearing loss.
FCC compliance information
12 month limited warranty
Index list
080716_CDM8950_ECHO.indd 116-117080716_CDM8950_ECHO.indd 116-117 2008.7.16 4:2:18 PM2008.7.16 4:2:18 PM
SAFETY INFORMATION FOR WIRELESS HANDHELD
PHONES
READ THIS INFORMATION BEFORE USING YOUR HANDHELD
PORTABLE CELLULAR TELEPHONE
EXPOSURE TO RADIO FREQUENCY SIGNALS
Your wireless handheld portable telephone is a low power radio transmitter and
receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.
In August 1996, the Federal Communications Commissions (FCC) adopted RF
exposure guidelines with safety levels for handheld wireless phones. Those
guidelines are consistent with the safety standards previously set by both U.S. and
international standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986) *
ICNIRP (1996) *
Those standards were based on comprehensive and periodic evaluations of the rele-
vant scientific literature. For example, over 120 scientists, engineers, and physicians
from universities, government health agencies, and industry reviewed the available
body of research to develop the ANSI Standard (C951).
The design of your phone complies with the FCC guidelines (and those standards).
1* : American National Standards Institute.
2* : National Council on Radiation protection and measurements.
3* : International Commission on Nonionizing Radiation Protection.
ANTENNA SAFETY
Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachments could impair call quality, damage the phone, or result
in violation of FCC regulations. Please contact your local dealer for replacement
antenna.
Do not use the phone with a damaged antenna. If a damaged antenna comes into
contact with the skin, a minor burn may result. Please contact your local dealer for
replacement antenna.
DRIVING SAFETY
Talking on the phone while driving is extremely dangerous and is illegal in some
states. Remember, safety comes first. Check the laws and regulations on the use of
phones in the areas where you drive. Always obey them. Also, if using your phone
while driving, please:
•
Give full attention to driving. Driving safely is your first responsibility.
•
Use hands-free operation, if available.
•
Pull off the road and park before making or answering a call, if driving conditions
so require.
118
Chapter 7 − Safety and Warranty
SafetySafety
If you must use the phone while driving, please use one-touch, speed dialing, and
auto answer modes.
An airbag inflates with great force. DO NOT place objects, including both installed
or portable wireless equipment, in the area over the airbag or in the air bag deploy-
ment area. If in-vehicle wireless equipment is improperly installed and the air bag
inflates, serious injury could result.
WARNING: Failure to follow these instructions may lead to serious personal injury and
possible property damage.
ELECTRONIC DEVICES
Your wireless handheld portable telephone is a low power radio transmitter and
receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.
Most modern electronic equipment is shielded from RF energy. However, certain
electronic equipment may not be shielded against the RF signals from your wireless
phone. Therefore, use of your phone must be restricted in certain situations.
PACEMAKERS
The Health Industry Manufacturers Association recommends that a minimum
separation of six (6”) inches be maintained between a handheld wireless phone
and a pacemaker to avoid potential interference with the pacemaker. These recom-
mendations are consistent with the independent research by and recommendations
of Wireless Technology Research. Persons with pacemakers:
•
ALWAYS keep the phone more than six inches from your pacemaker when the
phone is turned on.
•
Do not carry the phone in a breast pocket.
•
Use the ear opposite the pacemaker to minimize the potential for interference.
•
If you have any reason to suspect that interference is taking place, turn your
phone OFF immediately.
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event
of such interference, you may want to consult your service provider (or call the
customer service line to discuss alternatives).
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult the manufacturer of your
device to determine if they are adequately shielded from external RF energy.
Your physician may be able to assist you in obtaining this information.
Turn your phone OFF in healthcare facilities when any regulations posted in these
areas instruct you to do so. Hospitals or healthcare facilities may be using
equipment that could be sensitive to external RF energy.
VEHICLES
RF signals may affect improperly installed or inadequately shielded electronic sys-
tems in motor vehicles. Check with the manufacturer or its representative regarding
Safety and Warranty − Chapter 7
119
SafetySafety
080716_CDM8950_ECHO.indd 118-119080716_CDM8950_ECHO.indd 118-119 2008.7.16 4:2:18 PM2008.7.16 4:2:18 PM
your vehicle. You should also consult the manufacturer of any equipment that has
been added to your vehicle.
POSTED FACILITIES
Turn your phone OFF where posted notices so require.
OTHER SAFETY GUIDELINES
AIRCRAFT
FCC regulations prohibit using your phone while in the air. Turn your phone OFF
before boarding an aircraft. Always request and obtain prior consent and approval
of an authorized airline representative before using your phone aboard an aircraft.
Always follow the instructions of the airline representative whenever using your
phone aboard an aircraft, to prevent any possible interference with airborne
electronic equipment.
BLASTING AREAS
To avoid interfering with blasting operations, turn your phone OFF when in a
“blasting area” or in areas posted: “Turn off two-way radio.” Obey all signs and
instructions.
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere and
obey all signs and instructions. Sparks in such areas could cause an explosion or fire
resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly
marked. They include fueling areas such as gas stations; below deck on boats; fuel or
chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such
as propane or butane); areas where the air contains chemicals or particles, such as
grain, dust, or metal powders; and any other area where you would normally be
advised to turn off your vehicle’s engine.
PRECAUTIONS
Your Handheld Portable Telephone is a high quality piece of equipment. Before
operating, read all instructions and cautionary markings on (1) AC/DC Travel Adaptor
(2) Battery and (3) Product Using Battery.
Failure to follow the directions below could result in serious bodily injury and/or
property damage due to battery liquid leakage, fire or rupture.
•
DO NOT use this equipment in an extreme environment where high temperature
or high humidity exists.
•
DO NOT abuse the equipment. Avoid striking, shaking or shocking. When not
using, lay down the unit to avoid possible damage due to instability.
•
DO NOT expose this equipment to rain or spilled beverages.
•
DO NOT use unauthorized accessories.
•
DO NOT disassemble the phone or its accessories. If service or repair is required,
120
Chapter 7 − Safety and Warranty
SafetySafety
return unit to an authorized UTStarcom cellular service center. If unit is disas-
sembled, the risk of electric shock or fire may result.
•
DO NOT short-circuit the battery terminals with metal items etc.
SAFETY INFORMATION FOR FCC RF EXPOSURE
WARNING! READ THIS INFORMATION BEFORE USING
CAUTIONS
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard pre-
viously set by both U.S. and international standards bodies. The design of this phone
complies with the FCC guidelines and these international standards.
BODYWORN OPERATION
This device was tested for typical body-worn operations with the back of the
phone kept 2 cm. from the body. To maintain compliance requirements, use only
belt-clips, holsters or similar accessories that maintain a 2 cm separation distance
between the user’s Body and the back of the phone, including the antenna.
The use of belt-clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirements, and should be
avoided.
For more information about RF exposure, please visit the FCC website at www.fcc.gov.
SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufac-
tured not to exceed the emission limits for exposure to radiofrequency (RF) energy
set by the Federal Communications Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on standards that were developed
by independent scientific organizations through periodic and thorough evaluation
of scientific studies. The standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6
W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certi-
fied power level in all tested frequency bands. Although the SAR is determined at
the highest certified power level, the actual SAR level of the phone while operating
can be well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to reach the
Safety and Warranty − Chapter 7
121
SafetySafety
080716_CDM8950_ECHO.indd 120-121080716_CDM8950_ECHO.indd 120-121 2008.7.16 4:2:19 PM2008.7.16 4:2:19 PM
network. In general, the closer you are to a wireless base station antenna, the lower
the power output.
Before a phone model is available for sale to the public, it must be tested and
certified to the FCC that it does not exceed the limit established by the government
adopted requirement for safe exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as required by the FCC for each
model. The highest SAR value for this model phone when tested for use at the
ear is 1.38 W/Kg and when worn on the body, as described in this user guide,
is 1 W/Kg. (Body-worn measurements differ among phone models, depending
upon available accessories and FCC requirements). While there may be differences
between the SAR levels of various phones and at various positions, they all meet
the government requirement for safe exposure.
The SAR testing for Body-worn operation was performed with a belt clip that
provided a 22mm separation. The User’s Manual indicates that any holsters/clips
used with this device should contain no metallic components.
The FCC has granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model phone is on file with the FCC and can be found under
the Display Grant section of http://www.fcc.gov/oet/ea after searching on PP4ECHO.
Additional information on Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Association (CTIA) web-site
at http://www.wow-com.com.
* In the United States and Canada, the SAR limit for mobile phones used by the
public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a sub-stantial margin of safety to give additional protection for the
public and to account for any variations in measurements.
FCC HEARINGAID COMPATIBILITY HAC
REGULATIONS FOR WIRELESS DEVICES
On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and
Order in WT Docket 01-309 modified the exception of wireless phones under the
Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones
be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable
access to telecommunications services for persons with hearing disabilities.
While some wireless phones are used near some hearing devices (hearing aids and
cochlear implants), users may detect a buzzing, humming, or whining noise. Some
hearing devices are more immune than others to this interference noise, and phones
also vary in the amount of interference they generate.
The wireless telephone industry has developed a rating system for wireless phones,
to assist hearing device users find phones that may be compatible with their hear-
ing devices. Not all phones have been rated. Phones that are rated have the rating
on their box or a label located on the box.
The ratings are not guarantees. Results will vary depending on the user’s hearing
device and hearing loss. If your hearing device happens to be vulnerable to interfer-
122
Chapter 7 − Safety and Warranty
SafetySafety
ence, you may not be able to use a rated phone successfully. Trying out the phone
with your hearing device is the best way to evaluate it for your personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements
and are likely to generate less interference to hearing devices
than phones that are not labeled. M4 is the better/higher of
the two ratings.
Hearing devices may also be rated. Your hearing device manufacturer or hearing
health professional may help you find this rating. Higher ratings mean that the
hearing device is relatively immune to interference noise.
The hearing aid and wireless phone rating values are then added together. A sum of
5 is considered acceptable for normal use. A sum of 6 is considered for best use.
In the above example, if a hearing aid meets the M2 level rating and the wireless
phone meets the M3 level rating, the sum of the two values equal M5. This should
provide the hearing aid user with “normal usage” while using their hearing aid with
the particular wireless phone. “Normal usage” in this context is defined as a signal
quality that is acceptable for normal operation.
The M mark is intended to be synonymous with the U mark. The T mark is intended
to be synonymous with the UT mark. The M and T marks are recommended by the
Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks
are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement
procedure are described in the American National Standards Institute (ANSI) C63.19
standard.
For information about hearing aids and digital wireless phone
•
Fcc Hearing Aid Compatibility and Volume Control
http://www.fcc.gov/cgb/dro/hearing.html
•
Gallaudet University, RERC
http://tap.gallaudet.edu/DigWireless.KS/DigWireless.htm
•
Self Help for Hard of Hearing People Inc. [SHHH]
www.hearingloss.org/hat/TipsWirelessPhones.htm
•
The Hearing Aid Compatibility FCC Order
http://hraunfoss.fcc.gov/edocs_public/attachmatch/FCC-03-168A1.pdf
Safety and Warranty − Chapter 7
123
SafetySafety
080716_CDM8950_ECHO.indd 122-123080716_CDM8950_ECHO.indd 122-123 2008.7.16 4:2:19 PM2008.7.16 4:2:19 PM
FDA CONSUMER UPDATE
U.S. FOOD AND DRUG ADMINISTRATION CENTER
FOR DEVICES AND RADIOLOGICAL HEALTH
CONSUMER UPDATE ON WIRELESS PHONES
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are associ-
ated with using wireless phones. There is no proof, however, that wireless phones
are absolutely safe. Wireless phones emit low levels of radiofrequency energy (RF)
in the microwave range while being used. They also emit very low levels of RF
when in the stand-by mode. Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low level RF exposures
have not found any biological effects. Some studies have suggested that some bio-
logical effects may occur, but such findings have not been confirmed by additional
research. In some cases, other researchers have had difficulty in reproducing those
studies, or in determining the reasons for inconsistent results.
2. What is FDA’s role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new drugs
or medical devices. However, the agency has authority to take action if wireless
phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to
the user. In such a case, FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or recall the phones so that
the hazard no longer exists. Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone industry to take a number of
steps, including the following:
•
Support needed research into possible biological effects of RF of the type emitted
by wireless phones;
•
Design wireless phones in a way that minimizes any RF exposure to the user that
is not necessary for device function;
and
•
Cooperate in providing users of wireless phones with the best possible informa-
tion on possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at the
federal level. The following agencies belong to this working group:
•
National Institute for Occupational Safety and Health
•
Environmental Protection Agency
•
Federal Communications Commission
•
Occupational Safety and Health Administration
•
National Telecommunications and Information Administration
The National Institutes of Health participates in some inter-agency working group
activities, as well. FDA shares regulatory responsibilities for wireless phones with the
124
Chapter 7 − Safety and Warranty
SafetySafety
Federal Communications Commission (FCC). All phones that are sold in the United
States must comply with FCC safety guidelines that limit RF exposure. FCC relies on
FDA and other health agencies for safety questions about wireless phones. FCC also
regulates the base stations that the wireless phone networks rely upon. While these
base stations operate at higher power than do the wireless phones themselves, the
RF exposures that people get from these base stations are typically thousands of
times lower than those they can get from wireless phones. Base stations are thus
not the subject of the safety questions discussed in this document.
3. What kinds of phones are the subject of this update?
The term “wireless phone” refers here to hand-held wireless phones with built-in
antennas, often called “cell,” “mobile,” or “PCS” phones. These types of wireless
phones can expose the user to measurable radiofrequency energy (RF) because of
the short distance between the phone and the user’s head. These RF exposures are
limited by Federal Communications Commission safety guidelines that were devel-
oped with the advice of FDA and other federal health and safety agencies. When the
phone is located at greater distances from the user, the exposure to RF is drastically
lower because a person’s RF exposure decreases rapidly with increasing distance
from the source. The so-called “cordless phones,” which have a base unit connected
to the telephone wiring in a house, typically operate at far lower power levels, and
thus produce RF exposures far below the FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies have
suffered from flaws in their research methods. Animal experiments investigating
the effects of radiofrequency energy (RF) exposures characteristic of wireless phones
have yielded conflicting results that often cannot be repeated in other laboratories.
A few animal studies, however, have suggested that low levels of RF could acceler-
ate the development of cancer in laboratory animals.
However, many of the studies that showed increased tumor development used
animals that had been genetically engineered or treated with cancer-causing
chemicals so as to be predisposed to develop cancer in the absence of RF exposure.
Other studies exposed the animals to RF for up to 22 hours per day. These conditions
are not similar to the conditions under which people use wireless phones, so we
don’t know with certainty what the results of such studies mean for human health.
Three large epidemiology studies have been published since December 2000.
Between them, the studies investigated any possible association between the use
of wireless phones and primary brain cancer, glioma, meningioma, or acoustic
neu-roma, tumors of the brain or salivary gland, leukemia, or other cancers. None of
the studies demonstrated the existence of any harmful health effects from wireless
phone RF exposures. However, none of the studies can answer questions about
long-term exposures, since the average period of phone use in these studies was
around three years.
5. What research is needed to decide whether RF exposure from wireless
phones poses a health risk?
A combination of laboratory studies and epidemiological studies of people actually
Safety and Warranty − Chapter 7
125
SafetySafety
080716_CDM8950_ECHO.indd 124-125080716_CDM8950_ECHO.indd 124-125 2008.7.16 4:2:20 PM2008.7.16 4:2:20 PM
using wireless phones would provide some of the data that are needed. Lifetime
animal exposure studies could be completed in a few years. However, very large
numbers of animals would be needed to provide reliable proof of a cancer promot-
ing effect if one exists. Epidemiological studies can provide data that is directly
applicable to human populations, but 10 or more years’ follow-up may be needed to
provide answers about some health effects, such as cancer. This is because the inter-
val between the time of exposure to a cancer-causing agent and the time tumors
develop - if they do -may be many, many years. The interpretation of epidemiologi-
cal studies is hampered by difficulties in measuring actual RF exposure during
day-to-day use of wireless phones. Many factors affect this measurement, such as
the angle at which the phone is held, or which model of phone is used.
6. What is FDA doing to find out more about the possible health effects of
wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of inves-
tigators around the world to ensure that high priority animal studies are conducted
to address important questions about the effects of exposure to radiofrequency
energy (RF). FDA has been a leading participant in the World Health Organization
International Electromagnetic Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the development of a detailed agenda
of research needs that has driven the establishment of new research programs
around the world. The Project has also helped develop a series of public information
documents on EMF issues. FDA and the Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative Research and Development Agreement
(CRADA) to do research on wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government, industry, and academic
organizations. CTIA-funded research is conducted through contracts to independent
investigators. The initial research will include both laboratory studies and studies of
wireless phone users. The CRADA will also include a broad assessment of additional
research needs in the context of the latest research developments around the world.
7. How can I find out how much radiofrequency energy exposure I can get
by using my wireless phone?
All phones sold in the United States must comply with Federal Communications
Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC
established these guidelines in consultation with FDA and the other federal health
and safety agencies. The FCC limit for RF exposure from wireless telephones is set
at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC
limit is consistent with the safety standards developed by the Institute of Electrical
and Electronic Engineering (IEEE) and the National Council on Radiation Protection
and Measurement. The exposure limit takes into consideration the body’s ability
to remove heat from the tissues that absorb energy from the wireless phone and
is set well below levels known to have effects. Manufacturers of wireless phones
must report the RF exposure level for each model of phone to the FCC. The FCC
website (http://www.fcc.gov/oet/rfsafety) gives directions for locating the FCC
identification number on your phone so you can find your phone’s RF exposure level
in the online listing.
126
Chapter 7 − Safety and Warranty
SafetySafety
8. What has FDA done to measure the radiofrequency energy coming from
wireless phones ?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical
standard for measuring the radiofrequency energy (RF) exposure from wireless
phones and other wireless handsets with the participation and leadership of FDA
scientists and engineers. The standard, “Recommended Practice for Determining
the Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless
Communications Devices: Experimental Techniques,” sets forth the first consistent
test methodology for measuring the rate at which RF is deposited in the heads of
wireless phone users. The test method uses a tissue-simulating model of the human
head. Standardized SAR test methodology is expected to greatly improve the con-
sistency of measurements made at different laboratories on the same phone. SAR is
the measurement of the amount of energy absorbed in tissue, either by the whole
body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of
matter. This measurement is used to determine whether a wireless phone complies
with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency energy
from my wireless phone?
If there is a risk from these products—and at this point we do not know that there
is—it is probably very small. But if you are concerned about avoiding even potential
risks, you can take a few simple steps to minimize your exposure to radiofrequency
energy (RF). Since time is a key factor in how much exposure a person receives,
reducing the amount of time spent using a wireless phone will reduce RF exposure.
•
If you must conduct extended conversations by wireless phone every day, you
could place more distance between your body and the source of the RF, since the
exposure level drops off dramatically with distance.
For example, you could use a headset and carry the wireless phone away from your
body or use a wireless phone connected to a remote antenna. Again, the scientific
data do not demonstrate that wireless phones are harmful. But if you are concerned
about the RF exposure from these products, you can use measures like those
described above to reduce your RF exposure from wireless phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones,
including children and teenagers. If you want to take steps to lower exposure to
radiofrequency energy (RF), the measures described above would apply to children
and teenagers using wireless phones. Reducing the time of wireless phone use and
increasing the distance between the user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised that children
be discouraged from using wireless phones at all. For example, the government
in the United Kingdom distributed leaflets containing such a recommendation in
December 2000. They noted that no evidence exists that using a wireless phone
causes brain tumors or other ill effects. Their recommendation to limit wireless
phone use by children was strictly precautionary; it was not based on scientific
evidence that any health hazard exists.
Safety and Warranty − Chapter 7
127
SafetySafety
080716_CDM8950_ECHO.indd 126-127080716_CDM8950_ECHO.indd 126-127 2008.7.16 4:2:20 PM2008.7.16 4:2:20 PM
11. What about wireless phone interference with medical equipment?
Radiofrequency energy (RF) from wireless phones can interact with some electronic
devices. For this reason, FDA helped develop a detailed test method to measure
electromagnetic interference (EMI) of implanted cardiac pacemakers and
defibrillators from wireless telephones. This test method is now part of a standard
sponsored by the Association for the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and
many other groups, was completed in late 2000. This standard will allow manufac-
turers to ensure that cardiac pacemakers and defibrillators are safe from wireless
phone EMI. FDA has tested hearing aids for interference from handheld wireless
phones and helped develop a voluntary standard sponsored by the Institute of
Electrical and Electronic Engineers (IEEE). This standard specifies test methods and
performance requirements for hearing aids and wireless phones so that that no
interference occurs when a person uses a “compatible” phone and a “compatible”
hearing aid at the same time. This standard was approved by the IEEE in 2000. FDA
continues to monitor the use of wireless phones for possible interactions with other
medical devices. Should harmful interference be found to occur, FDA will conduct
testing to assess the interference and work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
•
FDA web page on wireless phones
(http://www.fda.gov/cellphones)
•
Federal Communications Commission (FCC) RF Safety Program
(http://www.fcc.gov/oet/rfsafety)
•
International Commission on Non-Ionizing Radiation Protection
(http://www.icnirp.de)
•
World Health Organization (WHO) International EMF Project
(http://www.who.int/emf)
•
National Radiological Protection Board (UK) (http://www.hpa.org.uk/radiation/)
AVOID POTENTIAL HEARING LOSS.
Prolonged exposure to loud sounds (including music) is the most common cause
of preventable hearing loss. Some scientific research suggests that using portable
audio devices, such as portable music players and cellular telephones, at high
volume settings for long durations may lead to permanent noise-induced
hearing loss. This includes the use of headphones (including headsets, earbuds and
Bluetooth® or other wireless devices). Exposure to very loud sound has also been
associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to
sound and distorted hearing. Individual susceptibility to noise-induced hearing loss
and other potential hearing problems varies.
The amount of sound produced by a portable audio device varies depending on
the nature of the sound, the device, the device settings and the headphones. You
should follow some commonsense recommendations when using any portable
audio device:
128
Chapter 7 − Safety and Warranty
SafetySafety
•
Set the volume in a quiet environment and select the lowest volume at which you
can hear adequately.
•
When using headphones, turn the volume down if you cannot hear the people
speaking near you or if the person sitting next to you can hear what you are
listening to.
•
Do not turn the volume up to block out noisy surroundings. If you choose to listen
to your portable device in a noisy environment, use noise-cancelling headphones
to block out background environmental noise.
•
Limit the amount of time you listen. As the volume increases, less time is required
before your hearing could be affected.
•
Avoid using headphones after exposure to extremely loud noises, such as rock
concerts, that might cause temporary hearing loss. Temporary hearing loss might
cause unsafe volumes to sound normal.
•
Do not listen at any volume that causes you discomfort. If you experience ringing
in your ears, hear muffled speech or experience any temporary hearing difficulty
after listening to your portable audio device, discontinue use and consult your
doctor.
YOU CAN OBTAIN ADDITIONAL INFORMATION ON THIS SUBJECT FROM
THE FOLLOWING SOURCES:
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: 800-AAA-2336, 703-790-8466
Email: info@audiology.org
Internet: www.audiology.org
National Institute on Deafness and Other Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD USA 20892-2320
Voice: (301) 496-7243
Email: nidcdinfo@nidcd.nih.gov
Internet: http://www.nidcd.nih.gov/health/hearing
National Institute for Occupational Safety and Health
Hubert H. Humphrey Bldg.
200 Independence Ave., SW
Washington, DC 20201
Voice: 1-800-CDC-INFO (1-800-232-4636)
Internet: http://www.cdc.gov/niosh/topics/noise/default.html
Safety and Warranty − Chapter 7
129
SafetySafety
080716_CDM8950_ECHO.indd 128-129080716_CDM8950_ECHO.indd 128-129 2008.7.16 4:2:21 PM2008.7.16 4:2:21 PM
FCC COMPLIANCE INFORMATION
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful Interference in a residential instal-
lation This equipment generates, uses, and can radiate radio frequency energy and,
if Not installed and used in accordance with the instructions, may cause harmful
Interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular Installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet of a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for assistance.
CAUTION: Changes or modification not expressly approved by the party responsible for
Compliance could void the user’s authority to operate the equipment. Connecting of
peripherals requires the use of grounded shielded signal cables.
©2008 Verizon Wireless. All Rights Reserved.
130
Chapter 7 − Safety and Warranty
SafetySafety
12 MONTH LIMITED WARRANTY
UTStarcom Personal Communications (the Company) warrants to the original retail
purchaser of this UTStarcom handheld portable cellular telephone, that should
this product or any part thereof during normal consumer usage and conditions, be
proven defective in material or workmanship that results in product failure within
the first twelve (12) month period from the date of purchase, such defect(s) will be
repaired or replaced (with new or rebuilt parts) at the Company’s option, without
charge for parts or labor directly related to the defect(s).
The antenna, keypad, display, rechargeable battery and battery charger, if included,
are similarly warranted for twelve (12) months from date of purchase.
This Warranty extends only to consumers who purchase the product in the United
States or Canada and it is not transferable or assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect,
unauthorized alteration, misuse, improper installation or repair or improper
storage;
(b) Product whose mechanical serial number or electronic serial number has been
removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme
environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product
not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing
and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt,sand, weather
conditions, battery leakage, blown fuse, theft or improper usage of any electrical
source.
The Company disclaims liability for removal or reinstallation of the product, for
geographic coverage, for inadequate signal reception by the antenna or for
communications range or operation of the cellular system as a whole.
When sending your wireless device to UTStarcom Personal Communications for
repair or service, please note that any personal data or software stored on the
device may be inadvertently erased or altered. Therefore, we strongly recommend
you make a back up copy of all data and software contained on your device before
submitting it for repair or service. This includes all contact lists, downloads (i.e.
third-party software applications, ringtones, games and graphics) and any other
data added to your device. In addition, if your wireless device utilizes a SIM or
Multimedia card, please remove the card before submitting the device and store
for later use when your device is returned, UTStarcom Personal Communications is
not responsible for and does not guarantee restoration of any third-party software,
personal information or memory data contained in, stored on, or integrated with
any wireless device, whether under warranty or not, returned to UTStarcom Personal
Communications for repair or service.
Safety and Warranty − Chapter 7
131
WarrantyWarranty
080716_CDM8950_ECHO.indd 130-131080716_CDM8950_ECHO.indd 130-131 2008.7.16 4:2:21 PM2008.7.16 4:2:21 PM
To obtain repairs or replacement within the terms of this Warranty, the product
should be delivered with proof of Warranty coverage (e.g. dated bill of sale),
the consumer’s return address, daytime phone number and/or fax number and
complete description of the problem, transportation prepaid, to the Company at the
address shown below or to the place of purchase for repair or replacement process-
ing. In addition, for reference to an authorized Warranty station in your area, you
may telephone in the United States (800) 229-1235, and in Canada (800) 465-9672
(in Ontario call 416-695-3060).
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO
THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE
COMPANY’S LAIBILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE
PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED
TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF
ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE
LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF
USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.
No person or representative is authorized to assume for the Company any liability
other than expressed herein in connection with the sale of this product.
Some states or provinces do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damage so the
above limitation or exclusions may not apply to you. This Warranty gives you specific
legal rights, and you may also have other rights, which vary from state to state or
province to province.
IN USA: UTStarcom Personal Communications
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA: UTStarcom Canada Company
5535 Eglinton Avenue West
Suite# 234
Toronto, ON M9C 5K5
(800) 465-9672
132
Chapter 7 − Safety and Warranty
WarrantyWarranty
3-WAY CALLING 21
A
ACCESSING THE MENU 16
ADJUSTING THE CALL VOLUME 22
ADJUSTING VOLUME 22
ALARM CLOCK 82
ANSWERING A CALL 21
ANSWERING CALLS 19
AVAILABLE OPTIONS DURING A CALL 23
B
BATTERY HANDLING INFORMATION 14
BLUETOOTH MENU 51
C
CALCULATOR 80
CALENDAR 80
CALLER ID FUNCTION 23
CALLING A NUMBER FROM CONTACTS 22
CALL SETTINGS 68
ANSWER OPTIONS 68
AUTO RETRY 69
DTMF TONES 70
ONE TOUCH DIAL 69
TTY MODE 69
VOICE PRIVACY 69
CALL WAITING FUNCTION 21
CHARGING YOUR BATTERY 14
CONTACTS 38
CONTACT LIST 38
GROUPS 39
IN CASE OF EMERGENCY 43
MY NAME CARD 45
NEW CONTACT 38
SPEED DIALS 42
D
DISPLAY INDICATORS 10
DISPLAY SETTINGS 57
BACKLIGHT 59
BANNER 58
CLOCK FORMAT 61
DIAL FONTS 61
DISPLAY THEMES 60
EASY SET UP 57
MENU FONT SIZE 61
MENU SETTINGS 60
WALLPAPER 59
E
ENTERING LETTERS, NUMBERS & SYMBOLS
33
H
HANDSET DESCRIPTIONS 7
I
INSIDE THE PACKAGE 6
INSTALL BATTERY 13
K
KEYS DESCRIPTIONS 8
M
MAKING A CALL 19
MAKING AN EMERGENCY CALL 24
MAKING AN INTERNATIONAL CALL 21
MEDIA CENTER 91
BROWSE & DOWNLOAD 98
EXTRAS 99
GAMES 96
PICTURES 94
GET NEW PICTURES 94
MY PICTURES 94
ONLINE ALBUM 96
TAKE PICTURE 95
MEDIA CENTER INFO 99
MOBILE WEB 97
MUSIC & TONES 91
GET NEW RINGTONES 91
MY RINGTONES 92
MY MUSIC 93
MY SOUNDS 94
SYNC MUSIC 95
V CAST MUSIC 91
MEMORY 70
CARD MEMORY 71
PHONE MEMORY 70
SAVE OPTIONS 70
MENU SUMMARY 17
Safety and Warranty − Chapter 7
133
Index ListIndex List
080716_CDM8950_ECHO.indd 132-133080716_CDM8950_ECHO.indd 132-133 2008.7.16 4:2:22 PM2008.7.16 4:2:22 PM
MESSAGING MENU 105
CHAT 113
ERASE ALL 113
EMAIL 112
DRAFTS 111
INBOX 110
MOBILE IM 112
NEW MESSAGE 106
PICTURE MESSAGE 107
TXT MESSAGE 106
VIDEO MESSAGE 108
VOICE MESSAGE 108
SENT 110
SETTINGS 114
AUTO ERASE 114
AUTO SAVE 114
CALLBACK # 115
ENTRY MODE 114
MESSAGING FONT SIZE 114
PIC-VIDEO AUTO RECEIVE 115
QUICK TEXT 115
SIGNATURE 115
TXT AUTO VIEW 114
VOICEMAIL# 115
VOICEMAIL 111
MISSED CALL NOTIFICATION 20
MUSIC PLAYER 23
MY VERIZON 87
N
NOTEPAD 85
O
ONE, TWO, THREE-TOUCH DIALING 35
P
PHONE INFO 72
ICON GLOSSARY 73
MY NUMBER 72
SOFTWARE UPDATE 73
SW/HW VERSION 73
PHONE SETTINGS 61
AIRPLANE MODE 61
LANGUAGE 64
LOCATION 65
NAM SELECTION 68
SECURITY 65
SET SHORTCUTS 62
SYSTEM SELECT 67
VOICE COMMANDS 64
R
RECENT CALLS 47
ALL 49
BLOCKED 49
DIALED 48
MISSED 47
RECEIVED 48
RECENT CALLS 47
VIEW TIMERS 50
REMOVE BATTERY 13
S
SAFETY 118
SOUNDS SETTINGS 54
ALERT SOUNDS 55
CALL SOUNDS 55
DEVICE CONNECT 57
EASY SET UP 54
KEYPAD VOLUME 56
OPEN/CLOSE SOUND 57
POWER ON/OFF 57
SERVICE ALERTS 56
SPEAKERPHONE MODE 23
STOP WATCH 84
STORING A PHONE NUMBER 28
ADDING A NEW CONTACT 28
DELETING 32
EDITING CONTACTS ENTRIES 30
OPTIONS TO CUSTOMIZE YOUR
CONTACTS 28
T
TURNING THE PHONE ON/OFF 16
U
USING THE microSD CARD 90
134
Chapter 7 − Safety and Warranty
Index ListIndex List
V
VIBRATE ON/OFF MODE 23
VOICE COMMANDS 75
CALL <NAME OR #> 75
CHECK <ITEM> 76
CONTACTS <NAME> 76
GO TO <SHORTCUT> 76
HELP 77
MY VERIZON 77
PLAY <PLAYLIST> 77
SEND <MSG TYPE> 76
VOICE COMMANDS SETTINGS 77
W
WAIT/PAUSE FEATURE 20
WARRANTY 131
WORLD CLOCK 84
Safety and Warranty − Chapter 7
135
Index ListIndex List
080716_CDM8950_ECHO.indd 134-135080716_CDM8950_ECHO.indd 134-135 2008.7.16 4:2:22 PM2008.7.16 4:2:22 PM
