Pantech PN-310 Dual-Band Phone ( CDMA/ PCS-CDMA ) User Manual 061010 PN 310 EN M indd
Pantech Co., Ltd. Dual-Band Phone ( CDMA/ PCS-CDMA ) 061010 PN 310 EN M indd
Pantech >
User Manual
User Guide
PN-310
TABLE OF CONTENTS
CHAPTER 1. BEFORE USING YOUR PHONE ...................... 7
INSIDE THE PACKAGE ................................................... 8
HANDSET DESCRIPTION ................................................ 9
PHONE VIEW ...................................................................... 9
THE FUNCTION KEYS ....................................................... 10
DISPLAY INDICATORS ................................................. 11
DISPLAY INDICATORS ....................................................... 11
BATTERY USAGE .......................................................... 13
BATTERY INSTALLATION .................................................. 13
BATTERY REMOVAL ......................................................... 13
BATTERY CHARGING ........................................................ 14
BATTERY HANDLING INFORMATION .......................... 15
DO’s ................................................................................... 15
DON’Ts .............................................................................. 15
CHAPTER 2. BASIC OPERATION ..................................... 17
TURNING THE PHONE ON / OFF .................................. 18
TURNING THE PHONE ON ............................................... 18
TURNING THE PHONE OFF .............................................. 18
ACCESSING THE MENU ............................................... 19
MENU SUMMARY ....................................................... 20
BASIC FUNCTIONS ....................................................... 23
MAKING A CALL .............................................................. 23
ANSWERING A CALL ........................................................ 24
SPEAKERPHONE ............................................................... 24
CALLER ID ......................................................................... 24
3-WAY CALLING ............................................................... 25
CALL WAITING ................................................................. 25
ADJUSTING MASTER VOLUME ........................................ 26
WAIT/2-SEC PAUSE ........................................................... 26
DURING A CALL .......................................................... 27
AVAILABLE OPTIONS DURING A CALL ........................... 27
MAKING AN EMERGENCY CALL ................................ 28
911 USING ANY AVAILABLE SYSTEM ............................. 28
3
WELCOME
Thank you for choosing the Verizon Wireless PN-310 wireless
handset. Developed by our dedicated team of top researchers,
this product allows has an animated, graphic menu system for
easy access to it's many features. Among its many advanced
features, the T9 text input mode makes it much easier to enter
letters and type messages. In addition, VR (Voice Recognition)
adds the convenience of hands free dialing. Other included
technologies are:
•
Full graphic display of 9 text input lines and 1 icon line with
variable font size.
•
Animated Graphic User Interface (GUI) display compliant
with CDMA2000 1X.
•
CSTN 65K Color LCD.
•
Navigation Key and 20 keys aligned for more convenience.
•
Sophisticated speakerphone and voice recognition features.
•
Additional text messaging in addition to authentication,
call forwarding, call transfer, and call waiting.
IMPORTANT INFORMATION
This Verizon Wireless user guide contains very important
information about how to handle and use the product.
Please read this User Guide thoroughly, pay attention to the
warranty on the back page and be alert to the exclusions and
limitations of your warranty, related to the use of
unauthorized components.
2
TABLE OF CONTENTS
MESSAGING ................................................................ 73
WHEN A NEW MESSAGE ARRIVES .................................. 73
VOICE MAIL ...................................................................... 73
NEW TXT MSG .................................................................. 74
INBOX ............................................................................... 76
SENT .................................................................................. 79
DRAFTS ............................................................................. 81
ERASE ALL MESSAGE ....................................................... 82
SETTINGS .......................................................................... 83
EMERGENCY CONTACTS ............................................. 87
EMERGENCY CONTACTS .................................................. 87
CHAPTER 5. SAFETY AND WARRANTY ......................... 89
SAFETY INFORMATION FOR WIRELESS HANDHELD
PHONES ....................................................................... 90
SAFETY INFORMATION FOR FCC RF EXPOSURE ......... 95
SAR INFORMATION ..................................................... 96
FCC HEARING-AID COMPATIBILITY (HAC)
REGULATIONS FOR WIRELESS DEVICES ..................... 98
FDA CONSUMER UPDATE ......................................... 100
PROTECT YOUR WARRANTY ..................................... 107
12 MONTH LIMITED WARRANTY .............................. 108
5
TABLE OF CONTENTS
CHAPTER 3. MEMORY FUNCTIONS ................................ 29
STORING A PHONE NUMBER ...................................... 30
ENTERING LETTERS, NUMBERS & SYMBOLS .............. 31
STANDARD INPUT MODE ................................................ 32
WORD INPUT MODE ........................................................ 33
NUMERIC MODE .............................................................. 34
SYMBOL MODE ................................................................ 34
MAKING A CALL FROM THE PHONE BOOK ................ 35
ONE-TOUCH/TWO-TOUCH DIALING ............................... 35
CHAPTER 4. MENU FUNCTIONS ..................................... 37
MEDIA GALLERY ......................................................... 38
MEDIA GALLERY .............................................................. 38
RECENT CALLS ............................................................ 39
MISSED .............................................................................. 39
RECEIVED .......................................................................... 40
DIALED .............................................................................. 41
ALL CALLS ......................................................................... 42
VIEW TIMERS .................................................................... 43
PHONE SETTINGS ........................................................ 44
PHONE SETTINGS ............................................................. 44
SETTINGS ..................................................................... 49
DISPLAY ............................................................................ 49
CALLS ................................................................................ 53
SOUNDS ............................................................................ 57
CONTACTS ................................................................... 61
NEW CONTACT ................................................................. 61
CONTACT LIST .................................................................. 62
GROUPS ............................................................................ 63
SPEED DIALS ..................................................................... 66
TOOLS .......................................................................... 67
CALCULATOR .................................................................... 67
SCHEDULE ......................................................................... 68
ALARM CLOCK ................................................................. 70
PHONE INFO ................................................................ 72
PHONE INFO ..................................................................... 72
4
MEMO
6
CHAPTER 1
BEFORE
USING
YOUR PHONE
This chapter provides important information about using the
PN-310 including:
INSIDE THE PACKAGE
HANDSET DESCRIPTION
DISPLAY INDICATORS
BATTERY USAGE
BATTERY HANDLING INFORMATION
CHAPTER 1 BEFORE USING YOUR PHONE
HANDSET DESCRIPTION BEFORE USING
H

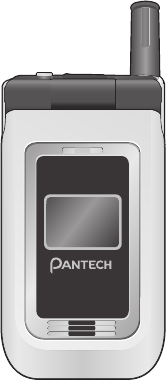

PHONE VIEW
9
This phone is a dual mode CDMA2000 1X digital phone.
The PN-310 weighs 3.7 oz.
The dimensions are 1.83” x 4.48” x 0.97”.
BEFORE USING INSIDE THE PACKAGE
8
This package should include all items pictured below.
If any are missing or different, immediately contact the
retailer where you purchased the cellular telephone.
Handset Standard Battery
Antenna
Sub LCD
User Guide AC Travel Charger
Speaker
Phone
State LED
Clear & Voice Key
Etiquette
Mode Key
End Key
Send Key
Volume Key
Navigation Keys
International
Call Key
Volume Keys
Headset Jack
Left/Right Soft
Keys
DISPLAY INDICATORS BEFORE USING
H
DISPLAY INDICATORS
11
BEFORE USING HANDSET DESCRIPTION
H
THE FUNCTION KEYS
10
Soft Key Indicators
Shows the functions
currently assigned to
each soft key and
displays some icons.
Clear
Press to clear a digit from
the display or to return
to the previous page.
Long press:
Speakerphone On/Off
in idle.
Press and hold to enter
etiquette mode.
Press to turn the phone
on/off, to terminate a
call or to return to the
initial page.
Press OK key
Press to access the
main menu.
THE FUNCTION KEYS
Left Soft Key
Go to Messaging menu.
Right Soft Key
Press to access contacts
menu or function
displayed on bottom
line.
Text & Graphic area
Display Indicators
See page 11 for a
list of icons.
THE NAVIGATION KEYS
In Idle Mode
Press Left for Shortcut
key1, Up for Shortcut
key2, Right for Shortcut
key3 and Down for
Shortcut key4
Inside a menu
Within a menu, use to
scroll through menu
options, or to select a
function displayed on the
screen.
Press to make or
receive a call.
Short press: Recent Calls.
Press to adjust volume.
Press and hold shall
display a plus “+”.
Signal Strength
Signal strength: the more lines, the stronger the signal.
Battery
Battery charging level – the more blocks, the stronger
the charge.
Alarm
Appears when either a calendar or an alarm is set.
Bell_Alarm Only
Appears when a ringer is set as a Bell_Alarm Only mode.
Bell_Off
Appears when a ringer is set as a Bell_Off mode.
TTY
Indicates your phone is active in TTY mode.
Vibrate Only
Phone will vibrate when call is received.
Text Message
New TEXT message.
Roaming
Phone is out of home area.
BATTERY USAGE BEFORE USING
H
BATTERY INSTALLATION
As shown in the picture below, put the metal locators of the
battery into the holes located in the bottom of the unit.
Place the battery on the back of the handset and
slide into place.
Push the battery down until it locks into place.
H
BATTERY REMOVAL
Pull up the release latch, lift up the battery.
Remove the battery from the handset.
If the battery is not correctly placed in the compartment,
the handset will not turn on and/or the battery may detach
during use.
13
BEFORE USING DISPLAY INDICATORS
12
Voice Mail
New Voice Mail.
GPS Icon
Location Service of your phone is disabled/enabled.
Voice Privacy
Indicates “Voice Privacy” mode.
No Service
Phone cannot receive a signal from the system.
Speakerphone
Phone is in speakerphone mode.
BATTERY HANDLING
INFORMATION BEFORE USING
15
BEFORE USING BATTERY USAGE
H
BATTERY CHARGING
POWER CONNECTION
Plug the AC Charger into a standard outlet.
Plug the other end of the AC Charger into the
bottom of your phone. The battery must be
installed onto the phone.
14
•
When you charge the battery with the phone power off,
you will see a charging status screen. You cannot operate
the phone until it is powered on.
•
The battery is not charged at the time of purchase.
•
Fully charge the battery before use.
•
It is more efficient to charge the battery with the handset
powered off.
•
The battery must be connected to the phone in order to
charge it.
•
Battery operating time gradually decreases over time.
•
If the battery fails to perform normally, you may need to
replace the battery.
H
DO’s
•
Only use the battery and charger approved by the
manufacturer.
•
Only use the battery for its original purpose.
•
Try to keep batteries in a temperature between 41ºF (5ºC
) and 95ºF (35ºC).
•
If the battery is stored in temperatures above or below
the recommended range, give it time to warm up or cool
down before using.
•
Store the discharged battery in a cool, dark and dry place.
•
Purchase a new battery when the operating time of the
current battery has decreased gradually over time.
•
Properly dispose of the battery according to local laws.
H
DON’Ts
•
Don’t attempt to disassemble the battery – it is a sealed
unit with no serviceable parts.
•
Don’t accidentally short circuit the battery by carrying it
in your pocket or purse with other metallic objects such as
coins, clips and pens. This may critically damage the
battery.
•
Don’t leave the battery in hot or cold temps.
Otherwise, it could significantly reduce the capacity and
lifetime of the battery.
•
Don’t dispose of the battery into a fire.
CHAPTER 2
BASIC
OPERATION
This chapter addresses and explains the basic features of your
cellular telephone including:
TURNING THE PHONE ON / OFF
ACCESSING THE MENU
MENU SUMMARY
BASIC FUNCTIONS
DURING A CALL
MAKING AN EMERGENCY CALL
CHAPTER 2 BASIC OPERATION
MEMO BATTERY HANDLING
INFORMATION
16
ACCESSING THE MENU BASIC OPERATION
To access the menu in idle mode,
press [MENU].
Use the Navigation Key to scroll through the menu.
To return to the previous page, press .
To exit the current menu and return to idle mode,
press .
Press the Navigation Key to enter a function when
its main page is displayed or press its assigned
number to have direct access to the function.
19
Your phone can be customized via the menu. Each function
can be accessed by scrolling with the Navigation Key or by
pressing the number that corresponds with the menu item.
Hotkey
In idle mode, move the Navigation Key as follows to access
these functions:
•
Leftward movement: Shortcut Key 1
•
Upward movement: Shortcut Key 2
•
Rightward movement: Shortcut Key 3
•
Downward movement: Shortcut Key 4
BASIC OPERATION TURNING THE PHONE
ON / OFF
H
TURNING THE PHONE ON
Press , until animation appears and the wake
up tone sounds.
H
TURNING THE PHONE OFF
Press and hold .
•
Immediately change or recharge the battery when “Low
Battery Warning Power Off” appears on the display.
Memory may possibly be damaged if the phone turns off
due to the battery completely draining.
•
Turn the phone off before removing or replacing the
battery. If the phone is on, unsaved data may be lost.
18
MENU SUMMARY BASIC OPERATION
21
BASIC OPERATION MENU SUMMARY
20
MAIN MENU 2ND DEPTH 3RD DEPTH 4TH DEPTH
1. Media Gallery
2. Recent Calls
3. Phone Settings
4. Settings
1. Sounds
2. Images
1. Missed
2. Received
3. Dialed
4. All
5. View Timers
1. Language
2. Set Shortcut Key
3. Location
4. Security
5. Network Options
1. Display
2. Calls
1. Left key
2. Up key
3. Right key
4. Down key
5. Reset All
1. Restore Settings
2. Erase All
Contacts
3. Edit Code
4. Lock Mode
1. Banner
2. Backlight
3. Wallpaper
4. Color Themes
5. Number On
Start-up
6. Contrast
1. In-Call Sounds
2. Answer Options
3. Dial Fonts
4. Auto Retry
5. TTY Mode
1. Personal
2. ERI Banner
1. Display
2. Keypad
1. Main LCD
2. Sub LCD
1. Minute Beep
2. Call Connect
3. Call Disconnect
MAIN MENU 2ND DEPTH 3RD DEPTH 4TH DEPTH
5. Contacts
6. Tools
7. Phone Info
8. Messaging
3. Sounds
1. New Contact
2. Contact List
3. Groups
4. Speed Dials
1. Calculator
2. Schedule
3. Alarm Clock
1. My Number
2. SW Version
3. Icon Glossary
1. New TXT Msg
2. Inbox
3. Sent
4. Drafts
5. Voicemail
(Left Soft Key)
Settings
1. Call Ringtone
2. Call Vibrate
3. Alert Sounds
4. Keypad Volume
5. Power On/Off
6. Roaming
Indicator
1. Auto Save
2. Auto Erase
3. Quick Text
4. Voicemail
5. Entry Mode
6. Callback #
7. Signature
8. Auto View
1. Download
Ringtone
2. Predefine
Ringtone
1. TXT Message
2. Voicemail Msg
1. Power On
2. Power Off
2322
BASIC FUNCTIONS BASIC OPERATIONBASIC OPERATION MENU SUMMARY
MAIN MENU 2ND DEPTH 3RD DEPTH 4TH DEPTH
9. Emergency
Contacts
(Right Soft Key)
Settings
1. Emergency
Contact 1
2. Emergency
Contact 2
3. Emergency
Contact 3
1. Erase Inbox
2. Erase Sent
3. Erase Drafts
4. Erase All
H
MAKING A CALL
Enter a phone number.
To modify the phone number you have entered:
•
Erase one digit at a time by pressing .
•
Erase the entire number by pressing and holding .
Press .
•
If “CALL FAILED” appears on the display or the line is
busy, press or .
•
If you activate the “AUTO RETRY” function, the phone
will automatically retry for the number of times you have
selected. (refer to page 55).
•
When you place or receive a call from stored phone num-
bers, the name will be displayed. If there is no name in
the contact’s name field, the phone number is displayed.
To end a call, press .
NUMBER
H
ANSWERING A CALL
When your phone rings or vibrates, press to
answer the incoming call. (Depending on your
phone’s settings, you may also answer incoming
calls by opening the phone or by pressing any
number key.)
To ignore incoming calls and silence the ringer,
press [IGNORE].
To end the call, press .
H
SPEAKERPHONE
The speakerphone feature lets you hear audio through the speaker
and talk without holding the phone.
To activate the speakerphone in idle, answering or
calling modes, press .
The phone returns to normal (Speakerphone Off)
after ending a call or when the phone is turned off
and back on.
H
CALLER ID
Identifies callers by displaying their phone number.
If the caller’s name and number are already stored in
your phone book, the name will be displayed.
The caller ID information is stored in Recent Calls.
BASIC FUNCTIONS BASIC OPERATION
25
BASIC OPERATION BASIC FUNCTIONS
24
H
3-WAY CALLING
With 3-Way Calling, you can talk to two people at the same time.
When using this feature, normal airtime rates will apply to both of
the calls.
Enter a number you wish to call and press .
Once you have established the connection, enter
the second number you wish to call and press .
When you’re connected to the second party,
press again to begin your 3-Way call.
If one of the people you called hangs up during your call,
you and the remaining caller stay connected.
If you initiated the call and are the first to hang up, all
three callers are disconnected.
H
CALL WAITING
Notifies you of an incoming call when you are already on a call by
sounding a beep tone and displaying the caller’s phone number.
To answer another call while on the phone, press .
This places the first call on hold. To switch back to the
first caller, press again.
NUMBER
NUMBER
DURING A CALL BASIC OPERATION
27
BASIC OPERATION BASIC FUNCTIONS
26
H
ADJUSTING MASTER VOLUME
Adjust the volume of the master volume.
In idle mode, press up or down side volume key.
Select one of the following options, press [OK]
to save it.
•
Move the Navigation Key up or down to adjust Earpiece
volume during a call.
•
Move the Side Volume Key up or down to adjust
Earpiece volume during a call.
H
WAIT/2-SEC PAUSE
Pauses are used for automated systems (i.e., voice mail, calling cards).
Insert a pause after a phone number then enter another group of
numbers. If “2-Sec Pause” selected, after 2 second is dialed automati-
cally after the pause. If “Wait” selected, press is dialed auto-
matically after the wait. This feature is useful for dialing into systems
that require a code.
To insert a pause, enter a phone number then
press [OPTIONS]. Select either a 2-Sec Pause
(“P” appears) or a Wait (“W” appears).
Press to dial or [SAVE] to store.
Please refer to page 30 for more details about storing a phone
number.
H
AVAILABLE OPTIONS DURING A CALL
To display menu options during a call, press [OPTIONS].
MUTE (UNMUTE)
The caller cannot hear you or any sounds from your side but you
can still hear them.
Press [MUTE].
SEND MSG
Enables you to send a message while on a call.
Press [OPTIONS] .
CONTACTS
Enables you to review your contacts list while on a call.
Press [OPTIONS] .
RECENT CALLS
Enables you to review the all calls list while on a call.
Press [OPTIONS] .
•
To deactivate, press [UNMUTE].
•
The phone will automatically unmute in Emergency Call or
Callback mode.
•
All Sounds Off
•
Alarms Only
•
Vibrate Only
•
Low / Med Low / Med / Med High / High
NUMBER
Select
“P”or”W” OR
CHAPTER 3
MEMORY
FUNCTIONS
This chapter addresses memory functions including:
STORING A PHONE NUMBER
ENTERING LETTERS, NUMBERS & SYMBOLS
MAKING A CALL FROM THE PHONE BOOK
CHAPTER 3 MEMORY FUNCTIONS
28
BASIC OPERATION MAKING AN
EMERGENCY CALL
This 911 feature puts the phone in the Emergency Call Mode when
you dial the preprogrammed emergency number, 911.
H
911 USING ANY AVAILABLE SYSTEM
The 911 call service is available even in the lock mode.
Enter “911” and press .
The call connects.
The phone maintains the Emergency Mode for
5 minutes.
The 911 call is not recorded in the recent call list.
•
While the phone is in the emergency mode for 5 minutes,
the phone can receive an incoming call from any available
system. However it can only make calls to the emergency
number.
Emergency
Number
ENTERING LETTERS,
NUMBERS & SYMBOLS MEMORY FUNCTIONS
The input mode (Alpha editor) will automatically be
activated when necessary to enter letters and numbers.
As shown below, there are 5 available modes ; Standard
input mode (Abc) and standard all capitals (ABC),
T9Word input mode (Word), Numeric mode (123),
and symbol mode (Symbols).
The input mode indicator appears on the upper right of
the display when letters and numbers are entered.
To select the desired input mode among the 5 modes
below, press [Abc], then enter letters and numbers.
The following illustrates the function assigned to each
key in the Alpha Editor.
31
MEMORY FUNCTIONS STORING
A PHONE NUMBER
The phone book stores up to 500 entries.
Enter phone # then press [SAVE] then choose
“Create New” or “Update Existing”. Press [OK]
to select.
If “Create New” is selected, the phone number will
appear above a list. Press the Navigation Key up or
down to choose the type of number you’re adding,
as indicated by the icon. Press [OK] to select.
If “Update Existing” is selected, your contact list is
displayed. Choose the entry to add the phone num-
ber to, then press [OK]. Press the Navigation
Key up or down to choose the type of number
you’re adding, as indicated by the icon. Press
[OK] to select.
Enter a name.
Please refer to page 31 for more details on enter-
ing letters, numbers & symbols.
To change the input mode, press [Abc].
Press the Navigation Key down to select other
options (Mobile1.2, E-mail1.2, etc...).
If you entered a phone number, press [OPTIONS]
to select one of the following options:
To store the entry, press [SAVE].
“CONTACT SAVED” will be displayed.
30
•
Set speed dial
•
Save as default
•
Add Pause
FUNCTIONKEY
Abc
Press to change mode. [Word][Abc][ABC][123][Symbols]
Next
Press to view the next matching word if the
highlighted word is not the word you intended in
Word input mode.
Space
Press to accept a word and add a space.
Clear
Press to delete a character to the left of the cursor.
OK
Confirm the letters and numbers you entered.
Caps Lock
Press to select a letter case of the standard text
input or T9 text input mode. [Abc], [ABC] and [abc]
indicate the standard text input. [Word], [WORD]
and [word] indicate the predictive text input. Press
and hold to change mode.
ENTERING LETTERS,
NUMBERS & SYMBOLS MEMORY FUNCTIONS
H
WORD INPUT MODE
The Word input mode incorporates a built-in-dictionary to
determine a word based on the entered characters. A Word can be
entered more quickly by pressing a key once per character.
Select the Word mode by pressing [Abc],
scroll down to Entry Mode and select “Word”,
press [OK].
Press a digit key once to enter the character you
want then enter all the characters to input the
word you want.
To view the next matching word, press .
To accept the matching word and enter a space,
press .
To enter a compound word:
•
Enter the first part of the word then press to accept
it.
•
Enter the last part of the word then press to enter
the word.
33
MEMORY FUNCTIONS ENTERING LETTERS,
NUMBERS & SYMBOLS
H
STANDARD INPUT MODE
Use the number keys to enter letters, numbers and characters.
Enter letters using the key pad as follows:
Press to select the symbol you want to enter
with the Navigation Key or press the corresponding
numeric keys. To change the input mode,
press [Abc].
To enter a space, press . The cursor will
automatically move to the next column.
Repeat until letters are entered.
To delete one digit, press .
If you press and hold , it will delete the entire
entry, and entire numbers.
To change from lowercase to uppercase, press .
32
Key Pad Press
1 Time
Press
2 times
Press
3 times
Press
4 times
Press
5 times
2ABC
3DEF
4GHI
:
9WXYZ
A
D
G
:
W
B
E
H
:
X
C
F
I
:
Y
2
3
4
:
Z
A
D
G
:
9
MAKING A CALL FROM
THE PHONE BOOK MEMORY FUNCTIONS
H
ONE-TOUCH/TWO-TOUCH DIALING
Ideal for frequently dialed numbers, this feature allows phone book
entries to be dialed via the keypad with only one or two key
presses.
ONE-TOUCH DIALING:
1-9: Press and hold the corresponding memory number
for more than 1 second.
TWO-TOUCH DIALING:
10-22, 97, 98, 99: Press the first digit and second digits
of the memory number short and long
respectively.
If no phone number is stored in the location entered,
“UNASSIGNED LOCATION” will appear on the screen.
35
MEMORY FUNCTIONS ENTERING LETTERS,
NUMBERS & SYMBOLS
H
NUMERIC MODE
Allows you to enter numbers.
Select the Numeric mode by pressing [OPTIONS],
scroll down to Entry Mode and select “123”,
press [OK].
To enter a number, press a digit key.
H
SYMBOL MODE
Allows you to enter symbols.
Select the Symbol mode by pressing [OPTIONS],
scroll down to Entry Mode and select “Symbols”,
press [OK].
Select the symbol you want to enter with the
Navigation Key or press the corresponding numeric
keys.
34
CHAPTER 4
MENU
FUNCTIONS
This chapter addresses accessing the menu and using its functions
and features to customize your phone.
MEDIA GALLERY
RECENT CALLS
PHONE SETTINGS
SETTINGS
CONTACTS
TOOLS
PHONE INFO
MESSAGING
EMERGENCY CONTACTS
CHAPTER 4 MENU FUNCTIONS
MEMO
36
RECENT CALLS MENU FUNCTIONS
3938
MENU FUNCTIONS MEDIA GALLERY
H
MEDIA GALLERY
SOUNDS
This menu shows the list of downloaded ringtones.
Press [MENU] .
To play downloaded sounds, select the sound you
want to play, then press [PLAY].
You want to assign then press [SET].
IMAGES
This menu shows the list of downloaded images.
Press [MENU] .
To view downloaded image, scroll through the list
and press [VIEW].
You want to assign then press [SET].
H
MISSED
Displays information about the 90 most recently missed calls.
Place a call to a missed call number by simply pressing .
To see a list of the 90 most recently missed calls,
press [MENU] . If the number is
already stored in your phone book, only the name
appears. If the number is not stored, only the
phone number appears.
To view missed call details, press [OPEN].
Call details include date, time and phone number.
Press [MESSAGE] to send the TXT message.
Press [OPTIONS] to see the options below:
After 90 missed calls, the oldest call will automatically be
erased from the history.
•
Save: To store the phone number in your phone book.
•
Erase: To erase a missed calls listing.
•
Lock/Unlock: To lock or unlock a missed calls listing.
•
Erase All: To erase all missed calls listings.
•
View Timers: To display usage time.
RECENT CALLS MENU FUNCTIONS
41
MENU FUNCTIONS RECENT CALLS
40
H
RECEIVED
Displays information about the 90 most recently answered calls.
Place a call to a received call by simply pressing .
To see a list of the 90 most recently answered calls,
press [MENU] . If the number is
already stored in your phone book, only the name
appears. If the number is not stored, only the
phone number appears.
To view received call details, press [OPEN].
Call details include date, time and phone number.
Press [MESSAGE] to send the TXT message.
Press [OPTIONS] to see the options below:
After 90 received calls, the oldest call will automatically
be erased from the history.
•
Save: To store the phone number in your phone book.
•
Erase: To erase a received calls listing.
•
Lock/Unlock: To lock or unlock a received calls listing.
•
Erase All: To erase all received calls listings.
•
View Timers: To display usage time.
H
DIALED
Displays information about the 90 most recently dialed numbers.
Place a call to a dialed call by simply pressing .
To see a list of the 90 most recently dialed numbers,
press [MENU] . If the number is
already stored in your phone book, only the name
appears. If the number is not stored, only the
phone number appears.
To view dialed call details, press [OPEN].
Call details include type of call, date, time and phone
number.
Press [MESSAGE] to send the TXT message.
Press [OPTIONS] to see the options below:
After 90 dialed calls, the oldest call will automatically be
erased from the history.
•
Save: To store the phone number in your phone book.
•
Erase: To erase a dialed calls listing.
•
Lock/Unlock: To lock or unlock a dialed calls listing.
•
Erase All: To erase all dialed calls listings.
•
View Timers: To display usage time.
RECENT CALLS MENU FUNCTIONS
43
MENU FUNCTIONS RECENT CALLS
42
H
ALL CALLS
Displays information about the most recent received, dialed and
missed calls.
To see a list of the 270 most recent received, dialed
and missed calls, press [MENU] . If
the number is already stored in your phone book,
only the name appears. If the number is not stored,
only the phone number appears.
To view details, press [OPEN].
Call details include type of call, date, time and phone
number.
Press [MESSAGE] to send the TXT message.
Press [OPTIONS] to see the options below:
After the 270 received, dialed or missed calls, the oldest call
will automatically be erased from the history when a new
call is added.
•
Save: To store the phone number in your phone book.
•
Erase: To erase a recent calls listing.
•
Lock/Unlock: To lock or unlock a recent calls listing.
•
Erase All: To erase all recent calls listings.
•
View Timers: To display usage time.
H
VIEW TIMERS
Tracks the usage time to help you manage your calls within the
limit you set.
The 4 timers include (Last Call, All Calls, Received Calls, Dialed Calls):
Press [MENU] .
“Last Call”, “All Calls”, “Received Calls”, “Dialed
Calls” is selected with Navigation Key.
To reset the timer, press [RESET],
then select “Yes”, press [OK].
To reset all timer, press [RESET ALL],
then select “Yes”, press [OK].
To return to the previous page, press .
4544
PHONE SETTINGS MENU FUNCTIONSMENU FUNCTIONS PHONE SETTINGS
H
PHONE SETTINGS
Allows you to customize the phone settings.
LANGUAGE
Selects the language in which letters are displayed on the screen.
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
SET SHORTCUT KEY
Your phone offers you the option of assigning a shortcut key
(Up, Down, Left, Right Navigation Key) to a favorite or often-used
function. To assign a shortcut to the key:
Press [MENU] .
Select “Left Key”, “Up Key”,
“Right Key” or “Down Key”.
Select one of the following options with the
Navigation Key, press [OK] to save it.
To reset all already set shortcut key, press
“Reset All”, then select “Yes”, press [OK].
•
English
•
Español
•
Images / Sounds / Inbox / Settings / Alarm Clock /
Calculator / Calendar
LOCATION
To determine whether or not the network system can detect your
position:
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
SECURITY
Prevents unauthorized use of your phone. The following settings
can be restricted:
RESTORE SETTINGS
Resets phone to default settings.
Press [MENU] then enter
“Password”, press [OK]. The default pass-
word is the last 4 digits of your phone number.
A message, asking for your confirmation, will
appear as following. “Reset all Settings to
default?”, then select “Yes”, press [OK].
Your phone will reset all settings to the factory
defaults.
•
Location On: Your location is now available to the network.
•
E911 Only: Your location will be hidden from network &
application except 911.
4746
MENU FUNCTIONS PHONE SETTINGS PHONE SETTINGS MENU FUNCTIONS
ERASE ALL CONTACTS
To clears all Phone Book entries.
Press [MENU] then enter
“Password”, press [OK]. The default pass-
word is the last 4 digits of your phone number.
A message, asking for your confirmation, will
appear as following. “Erase All Contacts?”,
then select “Yes”, press [OK].
Your phone will erase all contact entries.
EDIT CODE
Changes your 4-digit password.
Press [MENU] then enter
“Password”, press [OK]. The default pass-
word is the last 4 digits of your phone number.
Enter a “New Code” then press .
Enter a “Confirm Code” then press [OK]
to save it.
Since the data cannot be retrieved once it is erased, a
warning will appear on the display before erasing everything.
LOCK MODE
Prevents the phone from being used without entering the pass-
word first.
Press [MENU] then enter
“Password”, press [OK]. The default pass-
word is the last 4 digits of your phone number.
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
NETWORK OPTIONS
NAM SELECT
Changes the NAM used by the phone when you have multiple
registrations.
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
•
Lock: Lock the phone now.
•
Unlock: Do not lock the phone.
•
On Power Up: Do not lock the phone now, but
automatically lock phone when power is
recycled.
•
NAM 1 - Verizon
•
NAM 2 - Verizon
4948
SETTINGS MENU FUNCTIONSMENU FUNCTIONS PHONE SETTINGS
SYSTEM SELECT
Selects the Preferred System.
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
•
Automatic B
•
Automatic A
•
Home Only
Customizes your phone and optimizes performance through a
variety of settings.
H
DISPLAY
Allows you to customize the displays.
BANNER
You can choose to display a personal Banner greeting or the
Enhanced Roaming Indicator (ERI) banner on the phone’s screens:
PERSONAL
The text greeting can be up to 20 characters and is displayed on
your phone’s screen in standby mode.
Press [MENU] .
Enter a new personal greeting.
To change the input mode, press [Abc].
Press [OK] to save it.
ERI BANNER
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
SETTINGS MENU FUNCTIONS
51
MENU FUNCTIONS SETTINGS
50
BACKLIGHT
Backlights the display and key pad and activates dimming for easy
viewing in dark places.
DISPLAY
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
KEYPAD
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
•
7 Seconds
•
15 Seconds
•
30 Seconds
•
Always On
•
Always Off
•
7 Seconds
•
15 Seconds
•
30 Seconds
•
Always On
WALLPAPER
To set your phone to display it when the phone is in standby mode.
Press [MENU] .
To display full screen image, scroll through the list
and press [VIEW].
You want to assign then press [OK].
COLOR THEMES
To select main display color.
Press [MENU] .
Select one of the following options by pressing the
Navigation Key.
Press [OK] to save it.
NUMBER ON STARTUP
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
•
Default
•
Tropical
•
Business
•
Blue
5352
SETTINGS MENU FUNCTIONSMENU FUNCTIONS SETTINGS
CONTRAST
To adjust the display contrast.
Press [MENU] .
Select “Main LCD” or “Sub LCD” with the
Navigation Key.
Select one of the following options by pressing the
Navigation Key.
Press [OK] to save it.
•
1
•
2
•
3
•
4
•
5
H
CALLS
Allows you to customize the call settings.
IN-CALL SOUNDS
Your phone can alert you with an audible tone when once a minute
during a voice call, or for connect or disconnect calls.
MINUTE BEEP
To sets a minute reminder that beeps ten seconds before the end
of each minute during a call.
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
CALL CONNECT
Notifies you that a call has been successfully placed.
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
SETTINGS MENU FUNCTIONS
55
MENU FUNCTIONS SETTINGS
54
CALL DISCONNECT
Notifies you that a call has been unsuccessfully placed.
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
ANSWER OPTIONS
To allows you to specify how you want to answer calls.
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
DIAL FONTS
To select the size of the dial font to appear in display.
Press [MENU] .
Select “Normal” or “Large” with the Navigation
Key.
Press [OK] to save it.
•
Send Only
•
Flip Open
•
Any Key
•
Auto Answer
AUTO RETRY
To sets automatically redials a call up to 5 times after a set time
interval.
Press [MENU] .
Retry time field is shown. Press the Navigation Key
to choose the amount of time.
When a time is chosen for retry time, the repeat
field is shown. Press the Navigation Key down to
highlight the repeat field. Press the Navigation Key
to choose the number of repeats.
Press [OK] to save it.
•
Off
•
3 SECS
•
5 SECS
•
7 SECS
•
10 SECS
•
1 Time
•
3 Times
•
5 Times
SETTINGS MENU FUNCTIONS
57
MENU FUNCTIONS SETTINGS
56
TTY MODE
Your phone is able to operate with a TTY (Teletypewriter) device in
both analog and digital modes. This feature is system dependent
and may not be available in all areas.
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
•
TTY Full
•
TTY Talk
•
TTY Hear
•
TTY Off
H
SOUNDS
Allows you to customize the sound settings.
CALL RINGTONE
To select a ringer type for incoming calls.
Press [MENU] .
Select “Download Ringtone” or “Predefine
Ringtone” with the Navigation Key.
Select your desired ringer type.
To play ringtone, select the ringtone you want to
play, then press [PLAY].
You want to assign then press [OK].
CALL VIBRATE
Your phone has a built-in vibrating alert so you can receive calls or
message silently.
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
•
Download Ringtone: To select a downloaded right to
your phone.
•
Predefine Ringtone: To select a variety of standard
ringer types and familiar music.
SETTINGS MENU FUNCTIONS
59
MENU FUNCTIONS SETTINGS
58
ALERT SOUNDS
To select type of sound you will hear when you receive an incoming
TXT message or voicemail message.
TXT MESSAGE
To select a ringer type for receiving TXT Message.
Press [MENU] .
Select “Tone” or “Vibrate” with the Navigation
Key and then select one of the following options
by pressing the Navigation Key.
Press [OK] to save it.
VOICEMAIL MSG
To select a ringer type for receiving Voicemail Message.
Press [MENU] .
Select “Tone” or “Vibrate” with the Navigation
Key and then select one of the following options
by pressing the Navigation Key.
Press [OK] to save it.
•
Tone: Select your desired ringer type. To play ringtone,
select the ringtone you want to play, then press
[PLAY].
•
Vibrate: Select “On” or “Off” with the Navigation Key.
•
Tone: Select your desired ringer type. To play ringtone,
select the ringtone you want to play, then press
[PLAY].
•
Vibrate: Select “On” or “Off” with the Navigation Key.
KEYPAD VOLUME
To select a keypad tone you will hear when you press a key.
Press [MENU] .
Select one of the following options with the
Navigation Key.
Press [OK] to save it.
POWER ON/OFF
To set a start-up/power-off tone:
POWER ON
To allows you to activate/deactivate the power on tones.
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
POWER OFF
To allows you to activate/deactivate the power off tones.
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
•
High
•
Med High
•
Med
•
Med Low
•
Low
CONTACTS MENU FUNCTIONS
61
MENU FUNCTIONS SETTINGS
60
ROAMING INDICATOR
The Enhanced Roaming Indicator (ERI) feature displays a text
banner on the display screen informing the handset user of which
systems the wireless device is using as compared to the service plan
they purchased. The ERI Banner text changes to tell a customer if
they are using the: “Verizon Network”, “Extended Network” or
“Roaming”.
Press [MENU] .
Select “On” or “Off” with the Navigation Key.
Press [OK] to save it.
Menu -> Settings -> Display -> Banner -> ERI Banner must be
set for “ON” for smooth operation of all the functions.
Stores up to 500 entries, each of which can be assigned to a group.
Entries can be retrieved by name or group.
H
NEW CONTACT
Adds a new contact entry.
To add a new entry to the phone book,
press [MENU] .
To enter a name or number, use the Navigation Key
to select the contact fields.
Please refer to page 31 for more details on entering letters,
numbers & symbols.
To save the entry, press [SAVE].
To return to the previous page, press .
If only a phone number is entered and the name field is left
blank, the contact will still be saved and the Contact List will
display the phone number.
•
Contact Fields: Name/Mobile1/Home/Work/E-mail1/Group/
Ringtone/Mobile2/Fax/E-mail2.
6362
CONTACTS MENU FUNCTIONSMENU FUNCTIONS CONTACTS
H
CONTACT LIST
Retrieves an entry by name and number, and calls the number by
simply pressing . You can review all the entries stored in your
phone book list or find an entry quickly by entering all or part of
a name.
Press [MENU] .
The list of names in your phone book is displayed
alphabetically.
Enter a name or part of a name or scroll through
the list with the Navigation Key. Please refer to
page 31 for more details on entering letters,
numbers & symbols.
All matching entries will be displayed. Highlight
an entry. Press [VIEW] to view the entry.
Press [EDIT] to edit the entry.
Press [OPTIONS] to 1. New Contact,
2. Erase, 3. Send TXT Msg, 4. Call or 5. Erase All
To call the selected number, press or press
[OPTIONS] and select “Call”.
H
GROUPS
Allows you to classify phone entries into as many as 30 groups. Existing
group names include Family and Work and can’t be renamed or erased,
however the user can create up to 28 additional group names which
can be changed or deleted. The user can add up to 10 phone numbers
per group.
ADD NEW GROUP
To add a new group, press [MENU] .
A maximum of 30 groups is allowed.
Press [NEW].
Input a new group name.
Press [SAVE] to save it.
ASSIGN PHONE NUMBER TO GROUP
Press [MENU] . Select an existing
group name with the Navigation Key, press
[VIEW].
Press [ADD].
Your phone book entries will be displayed in
alphabetical order. Select the contact with the
press [MARK] or press [MARK ALL].
OR
6564
CONTACTS MENU FUNCTIONSMENU FUNCTIONS CONTACTS
Press [DONE]. “CONTACT ADDED TO GROUP”
will be displayed. Repeat for each location for the
Group.
CHANGE GROUP NAME
Press [MENU] . Select an exist-
ing group name that you have added with the
Navigation Key.
Press [OPTIONS] to select “Rename”.
Input a new group name.
Press [SAVE] to save it.
The default group names (Family, Work) cannot be changed.
ERASE GROUP
Press [MENU] . Use the Navigation
Key to select, then delete the group.
Press [OPTIONS] to select “Erase Group”.
“Erase Group?” will be displayed, select “Yes” to
erase it.
The default group names (Family, Work) cannot be erased.
SEND MSG TO A GROUP
Press [MENU] . Select an existing
group name with the Navigation Key.
Press [OPTIONS] to select “Send TXT Msg”.
Input a Message, press [OPTIONS] to select “Add
Graphics”, “Add Sound”, “Add Format Text” and
“Quick Text”.
To send the text message, press [SEND].
To save the text message, press [OPTIONS],
then select “Save as Draft”, then press [OK].
To set priority level, press [OPTIONS], then select
“Priority”, then select “Normal” or “High”, then
press [OK].
To cancel message, press [OPTIONS], then select
“Cancel Msg”, then select “Yes”, message is saved in
the drafts box.
Please refer to page 74 for more details on “New TXT Msg”.
6766
TOOLS MENU FUNCTIONSMENU FUNCTIONS CONTACTS
H
SPEED DIALS
In idle mode, calls can be placed to numbers stored in speed dial by
pressing & holding the location number on the key pad.
For a 2-digit location number, press the first number, then press and
hold the second number.
Press [MENU] .
To assign a phone number to a location, select the
location and press [SET].
Select the entry with the Navigation Key and
press [OK].
Select phone number with the Navigation Key and
press [OK].
“SPEED DIAL SET” will be displayed.
To call an assigned number, press & hold the last digit
of the speed dial #.
•
If a phone number is already assigned to the location,
to view details, press [VIEW] or press [REMOVE],
“Remove speed dial?” will be displayed, select “Yes” to
remove it.
•
“Unassigned” appears if the location is available.
H
CALCULATOR
To access the calculator:
Press [MENU] .
Follow the instructions below to calculate 8*6/4-2.5
To reset, press [CLEAR].
•
To change the displayed number from positive (+) to
negative (-) and vice versa, press [=].
•
Press [OPERATOR] to use parenthesis and “Exponent”.
•
Input 8.
•
Press the Navigation Key rightward (*).
•
Input 6.
•
Press the Navigation Key leftward (/).
•
Input 4.
•
Press the Navigation Key downward (-).
•
Input 2 and press the to input (.).
•
Press 5, .
•
Answer appears on the right side of the grey box below
calculation.
6968
TOOLS MENU FUNCTIONSMENU FUNCTIONS TOOLS
H
SCHEDULE
Sets an event and reminds you of that event.
ADD NEW PLAN
Press [MENU] .
Move the Navigation Key left, right, up or down to
choose a date in the calendar and then press [OK].
Press [OPTIONS] to 1. Weekly View, 2. Add,
3. Go To Date, 4. Erase Passed or 5. Erase All.
To set a new event, press [OPTIONS] then select
“Add”. The appointment field is highlighted. Press the
Navigation Key down to set the alarm options.
APPOINTMENT
Use the keypad to enter an appointment in your
schedule.
START TIME
Use the keypad to set a start time and to select “am”
or “pm”.
END TIME
Use the keypad to set an end time and to select “am”
or “pm”.
START DATE
Use the keypad to change or enter the start date.
TIME ZONE
Use the Navigation Key to select a time zone,
press [SET]. (EST, EDT, CST, CDT, MST, MDT, PST,
PDT, AKST, AKDT, HAST, HADT, GMT/UTC).
RECURRENCE
Use the Navigation Key to select a repeat setting for
the the calendar. (Daily, Weekly, Monthly or Yearly).
BY COUNT
Use the keypad to enter an account.
END DATE
Use the keypad to change or enter the end date.
ALERT
Use the keypad to select the alert tone you wish to set.
VIBRATE
Use the Navigation Key to select vibrate On/Off.
7170
TOOLS MENU FUNCTIONSMENU FUNCTIONS TOOLS
REMINDER
Use the Navigation Key to select an alert time interval
option (0 Minutes, 5 Minutes, 10 Minutes, 15 Minutes).
Press [SAVE], then select “Yes” to save it or
press to return to the calendar.
The date of the event will be marked on your calendar.
VIEW PLAN LIST
To view the Calendar List:
Move the Navigation Key to choose an event and then
press [VIEW]. Press [OPTIONS] to 1. Monthly
View, 2. Weekly View, 3. Add, 4. Go To Date, 5. Erase,
6. Erase Today or 7. Erase Passed.
H
ALARM CLOCK
To display alarm entries,
press [MENU] .
Select one of the entries using the Navigation Key.
To set a new alarm, choose alarm 1, 2 or 3.
To edit an existing alarm, select that alarm.
Press [OK].
The setting field will be highlighted. Press the
Navigation Key down to select alarm options.
ALARM
Use the Navigation Key to select alarm On/Off.
TIME
Use the keypad to set a time for the alarm and to select
“am” or “pm”.
FREQUENCY
Use the Navigation Key to select a setting for the alarm
(Once, Daily, Mon - Fri, Weekends).
RINGER
Press [SET], to use the keypad to select the alert tone
you wish to set.
To save an alarm setting press [SAVE].
7372
MESSAGING MENU FUNCTIONSMENU FUNCTIONS PHONE INFO
H
PHONE INFO
MY NUMBER
Displays your phone number.
Press [MENU] .
You will see the MDN/MIN.
To return to the previous page, press [OK].
SW VERSION
Displays the (Software/PRL/ERI) version.
Press [MENU] .
You will see the version of software and other
software versions.
To return to the previous page, press [OK].
ICON GLOSSARY
Displays the Indicator Icons of your cellular telephone.
Press [MENU] .
You should see a list of the Indicator Icons of your
cellular telephone with a short label or description.
To return to the previous page, press [OK].
H
WHEN A NEW MESSAGE ARRIVES
The following display appears
when a new message arrives.
To display the message,
press [OK].
H
VOICE MAIL
Displays the number of voice mails and accesses them by
pressing .
To access your voice mail,
press [MENU] or .
FIRST TIME USER
Dial *86 and press .
At the recording, press .
Follow the voice tutorial to set up your account.
OR
MESSAGING MENU FUNCTIONS
EXISTING USER
Dial *86 and press .
At the recording, enter your 4 digit password, then
press .
To listen to new messages, press .
H
NEW TXT MSG
To send a new TXT message:
Press [MENU] or .
Under “To”, input the phone number and
press .
Under text filed, input a new text message.
(Please refer to page 33 for more details on
entering letters, numbers and symbols.)
75
•
By pressing [ADD], you can choose from the following:
1. From Contacts: Search for a phone number stored in
the Contacts list.
2. Recent Calls: Search the phone number which is stored
in the recent calls list.
3. Groups: Search the groups stored in the contacts list.
4. Number To Contacts: To store the phone number
in contacts.
MENU FUNCTIONS MESSAGING
74
To send the text message, press [SEND].
•
If one of the fields is inserted in text msg field, the mes-
sage is saved in the draft box.
•
Input at least one text msg field to save in the draft box.
•
By pressing [OPTIONS], you can choose from the
following:
1. Save As Draft: To save message in draft folder.
2. Add Graphic: Inserts simple graphic images in Text Msg.
3. Add Sound: Inserts EMS sound in Text Msg.
4. Add Format Text: To choose from the following:
Default: Reset to default text setting.
Font Size: To select “Small”, “Normal” or “Large”.
Font Style: To select “Bold”, “Italic”, “Underline” or
“Strokeline”.
Text Colour: To select one of the pre-installed 16 text
colours.
Text Back Colour: To select one of the pre-installed 16
text back colours.
5. Quick Text: Inserts already written sentences in Text Msg.
6. Priority: To select “Normal” or “High”.
7. Cancel Msg: To cancel message.
OR
7776
MESSAGING MENU FUNCTIONS
FORWARD
To forward the Text message.
Input the phone number of the person you are
sending the message to, then press .
Input any Text message to go along with the
forwarded message, then press [SEND].
LOCK & UNLOCK
Select “Lock” to lock the message or “Unlock” to
unlock the message.
SAVE GRAPHICS
To save a graphic image. This option is only available
if you are reading an enhanced (EMS) text message. It
will not display in a standard text message.
SAVE SOUND
To save a sound file. This option is only available if
you are reading an enhanced (EMS) text message. It
will not display in a standard text message.
ADD TO CONTACTS
To save number to contacts.
MENU FUNCTIONS MESSAGING
H
INBOX
The Inbox manages received Text messages. To access:
Press [MENU] or .
Select a message and press [OPEN].
The message is displayed.
To erase a received message [ERASE].
Pressing [OPTIONS], the user can choose from
the following:
REPLY
Type your reply and then press [SEND].
REPLY W. COPY
To reply to a received message and include the
received message into the message.
Select to reply with the original message included.
The default call back number is automatically
included in the Default CB# field.
To send the text message, press [SEND].
OR
MESSAGING MENU FUNCTIONS
79
MENU FUNCTIONS MESSAGING
78
ERASE INBOX
To erase all the inbox messages, select “Erase Inbox”
and then select “Yes”, press [OK].
MESSAGE INFO
To show received text message information.
H
SENT
Manages sent TEXT messages or messages waiting to be sent.
Press [MENU] or .
Select a message and press [VIEW].
The message is displayed.
To erase a sent message [ERASE].
Pressing [OPTIONS], the user can choose from
the following:
FORWARD
To forward the Text message.
Input the phone number of the person you are
sending the message to, then press .
Input any Text message to go along with the
forwarded message, then press [SEND].
RESEND
Select to resend a TXT message.
LOCK & UNLOCK
Select “Lock” to lock the message or “Unlock” to
unlock the message.
OR
MESSAGING MENU FUNCTIONS
81
MENU FUNCTIONS MESSAGING
80
ADD TO CONTACTS
To save number to contacts.
MESSAGE INFO
To show received text message information.
H
DRAFTS
Draft Folder contains any draft messages or saved messages.
If message composition is interrupted by a voice call or other
interrupting event, the text of the current composition is
automatically saved in the drafts folder.
Press [MENU] or .
Select a message and then press [EDIT].
The message is displayed.
To erase a draft message [ERASE].
Pressing [OPTIONS], the user can choose from
the following:
SEND
To send a selected message.
LOCK & UNLOCK
Select “Lock” to lock the message or “Unlock” to
unlock the message.
ADD TO CONTACTS
To save number to contacts.
ERASE DRAFTS
To erase all draft messages, select “Erase Drafts” and
then select “Yes”, press [OK].
OR
MESSAGING MENU FUNCTIONS
83
MENU FUNCTIONS MESSAGING
82
H
SETTINGS
Manages messaging features through various features.
AUTO SAVE
Automatically saves sent messages when new messages send.
Press [MENU] or .
Select either “On”, “Off” or “Prompt” with the
Navigation Key then press [OK].
AUTO ERASE
Automatically erases inbox/sent messages when new messages
arrive.
Press [MENU] or .
Select either “On” or “Off” with the Navigation
Key then press [OK].
H
ERASE ALL MESSAGE
To erase message.
Press [MENU] or .
Select one of the following options with the
Navigation Key.
Select “Yes”, then press [OK] to erase it.
•
Erase Inbox
•
Erase Sent
•
Erase Drafts
•
Erase All
OR OR
MESSAGING MENU FUNCTIONS
ENTRY MODE
Sets an Entry Mode as a default. For example, if Word Mode is the
default, its icon will appear.
Press [MENU] or .
Select one of the following options with the
Navigation Key.
Press [OK].
CALLBACK #
Edits a default callback number so that the recipient can callback or
reply.
Press [MENU] or .
Select “On” or “Off” with the Navigation Key.
If you select “On”, then input a new callback number.
Press [OK].
85
MENU FUNCTIONS MESSAGING
84
•
Word
•
Abc
•
ABC
•
abc
•
123
•
Symbols
QUICK TEXT
To edit the Quick Text message you have saved:
Press [MENU] or .
Select a message from the list. Press [OK].
To edit saved Quick Text, press [EDIT],
enter text, press [OK] to save Quick Text.
VOICEMAIL
Press [MENU] or .
Input a new voicemail number or edit voicemail
number. (Default *86)
Press [OK] save it.
•
To add a new Quick Text message, press [NEW].
Enter text, press [OK] to save Quick Text.
•
To erase the saved Quick Text message, press [ERASE].
“Erase Quick Text?” will be displayed, select “Yes” to
erase it.
Pre-defined quick text as below:
1. What’s up?/2. Let’s meet/3. Check this out!/4. Whacha doing?/
5. Thanks/6. What do you think?/7. You’ve gotta be here to
enjoy this./8. Would you like to join me for a date tonight?/
9. On My Way/10. Yes/11. You’re the best!/12.Call Me.
EMERGENCY CONTACTS MENU FUNCTIONS
87
MENU FUNCTIONS MESSAGING
86
SIGNATURE
Create a signature that can automatically be inserted at the end of a
message.
Press [MENU] or .
To activate Signature function, then select “Custom”
by using up or down direction keys. To deactivate
Signature function, select “None”.
To input “Signature”, enter Signature Edit window
by selection “Custom”.
Press [OK] save it.
AUTO VIEW
If the “Auto View” is set to on, the user will be able to view the
message. If the “Auto View” is set to off, the user can view the
message by entering SMS Menu -> Inbox.
Press [MENU] or .
Select “On” or “Off” with the Navigation Key.
Press [OK] save it.
•
On: Text message displayed automatically.
•
Off: Text message displayed by going to the inbox or
responding to interactive notification.
H
EMERGENCY CONTACTS
You can set up to 3 Emergency Number. Stores 3 phone numbers
that can be called even in the lock mode.
Press [MENU] .
To set a new Emergency Number, choose
Emergency Contact 1, 2 or 3. Press [ADD].
The contact list appears. Use the Navigation Key to
select a contact and then press [OK].
To view assigned number, press [VIEW].
To edit an existing Emergency Contact, select that
entrie, then press [EDIT]. To edit Emergency
Contact. Press [SAVE] save it.
To erase assigned number, press [REMOVE].
To call assigned number, press [CALL].
•
#BAL/Balance: #BAL is a VZW Customer Service VRU number
(Free call) that provides customers information on their
Verizon Wireless billing balance. When a customer calls
#BAL/#225 from their mobile phone, once connected
(3 seconds or less), the user will have the option to
- Stay on the line - the VRU system will read balance
information in detail, along with some explanation to the
user.
- Hang-up - the VRU system will automatically send user a
SMS Message with the balance information to the device.
CHAPTER 5
SAFETY AND
WARRANTY
This chapter addresses the safety guidelines and precautions to
follow when operating your phone. Before operating your phone,
please be aware of all the safety details.
This chapter contains the terms and conditions of services and the
warranty for your phone. Please review them thoroughly.
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION FOR FCC RF EXPOSURE
SAR INFORMATION
FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR
WIRELESS DEVICES
FDA CONSUMER UPDATE
PROTECT YOUR WARRANTY
12 MONTH LIMITED WARRANTY
CHAPTER 5 SAFETY AND WARRANTY
88
MENU FUNCTIONS EMERGENCY CONTACTS
•
#MIN/Minutes Usage: #MIN is a VZW Customer Service
VRU number (Free call) that provides customers information
on their Verizon Wireless usage. When the user calls
#MIN/#646 from the device and successfully connects to the
VRU system, the user will have the option to
- Stay on the line - the VRU system will read usage
information in detail, along with some explanation.
- Hang-up - the VRU system will automatically send an SMS
message with the usage information to the device.
•
#PMT/Payment: #PMT is A VZW Customer Service VRU
number (Free call) that allows user to make a bill payment,
either with a payment option they have already set up, or
using a new, one time payment option. When the user dials
#PMT/#768 from the device, and successfully connects to the
VRU system, it (the system) will walk the user through the
payment option.
SAFETY INFORMATION FOR
WIRELESS HANDHELD PHONES SAFETY AND WARRANTY
DRIVING SAFETY
Talking on the phone while driving is extremely dangerous and is
illegal in some states. Remember, safety comes first. Check the laws
and regulations on the use of phones in the areas where you drive.
Always obey them.
Also, if using your phone while driving, please:
If you must use the phone while driving, please use one-touch,
speed dialing, and auto answer modes.
An airbag inflates with great force. DO NOT place objects, includ-
ing both installed or portable wireless equipment, in the area over
the airbag or in the air bag deployment area. If in-vehicle wireless
equipment is improperly installed and the air bag inflates, serious
injury could result.
91
SAFETY AND WARRANTY SAFETY INFORMATION FOR
WIRELESS HANDHELD PHONES
EXPOSURE TO RADIO FREQUENCY SIGNALS
Your wireless handheld portable telephone is a low power radio
transmitter and receiver. When it is ON, it receives and also sends
out radio frequency (RF) signals.
In August 1996, the Federal Communications Commissions (FCC)
adopted RF exposure guidelines with safety levels for handheld
wireless phones. Those guidelines are consistent with the safety
standards previously set by both U.S. and international standards
bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986) *
ICNIRP (1996) *
Those standards were based on comprehensive and periodic
evaluations of the relevant scientific literature. For example, over
120 scientists, engineers, and physicians from universities,
government health agencies, and industry reviewed the available
body of research to develop the ANSI Standard (C951).
The design of your phone complies with the FCC guidelines (and
those standards).
ANTENNA CARE
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could
damage the phone and may violate FCC regulations.
90
Read This Information Before Using Your
Handheld Portable Cellular Telephone
1* : American National Standards Institute.
2* : National Council on Radiation protection and measurements.
3* : International Commission on Nonionizing Radiation Protection.
•
Give full attention to driving. Driving safely is your first
responsibility.
•
Use hands-free operation, if available.
•
Pull off the road and park before making or answering a
call, if driving conditions so require.
WARNING: Failure to follow these instructions may lead to
serious personal injury and possible property damage.
SAFETY INFORMATION FOR
WIRELESS HANDHELD PHONES SAFETY AND WARRANTY
POSTED FACILITIES
Turn your phone OFF where posted notices so require.
OTHER SAFETY GUIDELINES
AIRCRAFT
FCC and Transport Canada Regulations prohibit using your phone
while in the air. Turn your phone OFF before boarding an aircraft.
BLASTING AREAS
To avoid interfering with blasting operations, turn your phone OFF
when in a “blasting area” or in areas posted: “Turn off two-way
radio.” Obey all signs and instructions.
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas
could cause an explosion or fire resulting in bodily injury or even
death.
Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include fueling areas such as gas
stations; below deck on boats; fuel or chemical transfer or storage
facilities; vehicles using liquefied petroleum gas (such as propane or
butane); areas where the air contains chemicals or particles, such as
grain, dust, or metal powders; and any other area where you would
normally be advised to turn off your vehicle’s engine.
93
SAFETY AND WARRANTY SAFETY INFORMATION FOR
WIRELESS HANDHELD PHONES
ELECTRONIC DEVICES
Most modern electronic equipment is shielded from RF energy.
However, certain electronic equipment may not be shielded against
the RF signals from your wireless phone.
PACEMAKERS
The Health Industry Manufacturers Association recommends that
a minimum separation of six (6”) inches be maintained between a
handheld wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are
consistent with the independent research by and recommendations
of Wireless Technology Research.
Persons with pacemakers :
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult the
manufacturer of your device to determine if they are adequately
shielded from external RF energy. Your physician may be able to
assist you in obtaining this information.
Turn your phone OFF in healthcare facilities when any regulations
posted in these areas instruct you to do so. Hospitals or healthcare
facilities may be using equipment that could be sensitive to
external RF energy.
92
•
ALWAYS keep the phone more than six inches from
your pacemaker when the phone is turned on.
•
Do not carry the phone in a breast pocket.
•
Use the ear opposite the pacemaker to minimize the
potential for interference.
•
If you have any reason to suspect that interference is
taking place, turn your phone OFF immediately.
SAFETY INFORMATION FOR
FCC RF EXPOSURE SAFETY AND WARRANTY
WARNING! READ THIS INFORMATION BEFORE USING
CAUTIONS
In August 1996 the Federal Communications Commission (FCC) of
the United States with its action in Report and Order FCC 96-326
adopted an updated safety standard for human exposure to radio
frequency electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the safety
standard previously set by both U.S. and international standards
bodies. The design of this phone complies with the FCC guidelines
and these international standards. Use only the supplied or an
approved antenna. Unauthorized antennas, modifications, or
attachments could impair call quality, damage the phone, or result
in violation of FCC regulations. Do not use the phone with a
damaged antenna. If a damaged antenna comes into contact with
the skin, a minor burn may result. Please contact your local dealer
for replacement antenna.
BODY-WORN OPERATION
This device was tested for typical body-worn operations with the
back of the phone kept 2.0 cm. from the body with a belt
clip that contains metallic components. To maintain compliance with
FCC RF exposure requirements, use only belt-clips, holsters or s-
imilar accessories with which this device was tested. The use
of accessories that do not satisfy these requirements may not c-
omply with FCC RF exposure requirements, and should be avoided.
95
For more information about RF exposure, please visit the
FCC website at www.fcc.gov.
WARNING
•
This product contains a chemical known to the State of
California to cause cancer.
•
This product contains a chemical known to the State of
California to cause birth defects or other reproductive
harm.
SAFETY AND WARRANTY SAFETY INFORMATION FOR
WIRELESS HANDHELD PHONES
PRECAUTIONS
Your Handheld Portable Telephone is a high quality piece of
equipment. Before operating, read all instructions and caution-
ary markings on (1) AC Adaptor (2) Battery and (3) Product Using
Battery.
94
•
DO NOT use this equipment in an extreme environment
where high temperature or high humidity exists.
•
DO NOT abuse the equipment. Avoid striking, shaking or
shocking. When not using, lay down the unit to avoid
possible damage due to instability.
•
DO NOT expose this equipment to rain or spilled beverages.
•
DO NOT use unauthorized accessories.
•
DO NOT disassemble the phone or its accessories. If service
or repair is required, return unit to an authorized Pantech
cellular service center. If unit is disassembled, the risk of
electric shock or fire may result.
•
DO NOT short-circuit the battery terminals with metal items
etc.
SAR INFORMATION SAFETY AND WARRANTY
The SAR testing for Body-worn operation was performed with a
belt clip that provided a 20mm separation. The User’s Manual
indicates that any holsters/clips used with this device should contain
no metallic components.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of http://www.fcc.gov/ oet/fccid after searching on
PP4PN-310.
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications Industry Association
(CTIA) web-site at http://www.wow-com.com.
* In the United States and Canada, the SAR limit for mobile phones
used by the public is 1.6 watts/kg (W/kg) averaged over one gram
of tissue. The standard incorporates a sub-stantial margin of safety
to give additional protection for the public and to account for any
variations in measurements.
97
SAFETY AND WARRANTY SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted levels
of RF energy for the general population. The guidelines are based
on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin
designed to assure the safety of all persons, regardless of age and
health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the maximum
value. This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
Before a phone model is available for sale to the public, it must
be tested and certified to the FCC that it does not exceed the limit
established by the government adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g.,
at the ear and worn on the body) as required by the FCC for each
model. The highest SAR value for this model phone when tested for
use at the ear is 1.43 W/Kg and when worn on the body, as described
in this user guide, is 0.889W/Kg. (Body-worn measurements differ
among phone models, depending upon available accessories and
FCC requirements). While there may be differences between the
SAR levels of various phones and at various positions, they all meet
the government requirement for safe exposure.
96
FCC HEARING-AID COMPATIBILITY
(HAC) REGULATIONS FOR
WIRELESS DEVICES
SAFETY AND WARRANTY
In the above example, if a hearing aid meets the M2 level rating
and the wireless phone meets the M3 level rating, the sum of the
two values equal M5. This should provide the hearing aid user with
“normal usage” while using their hearing aid with the particular
wireless phone. “Normal usage” in this context is defined as a
signal quality that is acceptable for normal operation.
The M mark is intended to be synonymous with the U mark. The T
mark is intended to be synonymous with the UT mark. The M and
T marks are recommended by the Alliance for Telecommunications
Industries Solutions (ATIS). The U and UT marks are referenced
in Section 20.19 of the FCC Rules. The HAC rating and measure-
ment procedure are described in the American National Standards
Institute (ANSI) C63.19 standard.
99
SAFETY AND WARRANTY FCC HEARING-AID COMPATIBILITY
(HAC) REGULATIONS FOR
WIRELESS DEVICES
On July 10, 2003, the U.S. Federal Communications Commission
(FCC) Report and Order in WT Docket 01-309 modified the
exception of wireless phones under the Hearing Aid Compatibility
Act of 1988 (HAC Act) to require digital wireless phones be
compatible with hearing-aids. The intent of the HAC Act is to
ensure reasonable access to telecommunications services for persons
with hearing disabilities.
While some wireless phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzz-
ing, humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed a rating system for
wireless phones, to assist hearing device users find phones that may
be compatible with their hearing devices. Not all phones have been
rated. Phones that are rated have the rating on their box or a label
located on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able
to use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are
likely to generate less interference to hearing devices than phones
that are not labeled. M4 is the better/higher of the two ratings.
Hearing devices may also be rated. Your
hearing device manufacturer or hearing
health professional may help you find this
rating. Higher ratings mean that the hearing
device is relatively immune to interference
noise. The hearing aid and wireless phone
rating values are then added together. A sum of 5 is considered
acceptable for normal use. A sum of 6 is considered for best use.
98
For information about hearing aids and digital wireless
phone
•
Fcc Hearing Aid Compatibility and Volume Control
http://www.fcc.gov/cgb/dro/hearing.html
•
Gallaudet University, RERC
http://tap.gallaudet.edu/DigWireless.KS/DigWireless.htm
•
Self Help for Hard of Hearing People Inc. [SHHH]
www.hearingloss.org/hat/TipsWirelessPhones.htm
•
The Hearing Aid Compatibility FCC Order
http://hraunfoss.fcc.gov/edocs_public/attachmatch/
FCC-03-168A1.pdf
FDA CONSUMER UPDATE SAFETY AND WARRANTY
FDA belongs to an interagency working group of the federal agencies
that have responsibility for different aspects of RF safety to ensure
coordinated efforts at the federal level. The following agencies belong
to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some inter-agency
working group activities, as well. FDA shares regulatory responsibilities
for wireless phones with the Federal Communications Commission (FCC).
All phones that are sold in the United States must comply with FCC
safety guidelines that limit RF exposure. FCC relies on FDA and other
health agencies for safety questions about wireless phones. FCC also
regulates the base stations that the wireless phone networks rely upon.
While these base stations operate at higher power than do the wireless
phones themselves, the RF exposures that people get from these base
stations are typically thousands of times lower than those they can get
from wireless phones. Base stations are thus not the subject of the safety
questions discussed in this document.
3. What kinds of phones are the subject of this update?
The term “wireless phone” refers here to hand-held wireless phones with
built-in antennas, often called “cell,” “mobile,” or “PCS” phones.
These types of wireless phones can expose the user to measurable
radiofrequency energy (RF) because of the short distance between the
phone and the user’s head. These RF exposures are limited by Federal
Communications Commission safety guidelines that were developed with
the advice of FDA and other federal health and safety agencies. When
the phone is located at greater distances from the user, the exposure
to RF is drastically lower because a person’s RF exposure decreases
rapidly with increasing distance from the source. The so-called “cordless
phones,” which have a base unit connected to the telephone wiring in a
house, typically operate at far lower power levels, and thus produce RF
exposures far below the FCC safety limits.
101
SAFETY AND WARRANTY FDA CONSUMER UPDATE
U.S. Food and Drug Administration -
Center for Devices and Radiological Health
Consumer Update on Wireless Phones
100
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems
are associated with using wireless phones. There is no proof, however,
that wireless phones are absolutely safe. Wireless phones emit low levels
of radiofrequency energy (RF) in the microwave range while being
used. They also emit very low levels of RF when in the stand-by mode.
Whereas high levels of RF can produce health effects (by heating tissue),
exposure to low level RF that does not produce heating effects causes
no known adverse health effects. Many studies of low level RF exposures
have not found any biological effects. Some studies have suggested that
some biological effects may occur, but such findings have not been
confirmed by additional research. In some cases, other researchers have
had difficulty in reproducing those studies, or in determining the reasons
for inconsistent results.
2. What is FDA’s role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting
consumer products such as wireless phones before they can be sold, as
it does with new drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown to emit
radiofrequency energy (RF) at a level that is hazardous to the user. In
such a case, FDA could require the manufacturers of wireless phones
to notify users of the health hazard and to repair, replace or recall the
phones so that the hazard no longer exists. Although the existing
scientific data do not justify FDA regulatory actions, FDA has urged the
wireless phone industry to take a number of steps, including the
following:
• Support needed research into possible biological effects of RF of the
type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the
user that is not necessary for device function;
and
• Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human
health.
FDA CONSUMER UPDATE SAFETY AND WARRANTY
6. What is FDA doing to find out more about the possible health
effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with
groups of investigators around the world to ensure that high priority
animal studies are conducted to address important questions about the
effects of exposure to radiofrequency energy (RF). FDA has been a
leading participant in the World Health Organization International
Electromagnetic Fields (EMF) Project since its inception in 1996.
An influential result of this work has been the development of a detailed
agenda of research needs that has driven the establishment of new
research programs around the world. The Project has also helped
develop a series of public information documents on EMF issues. FDA
and the Cellular Telecommunications & Internet Association (CTIA) have
a formal Cooperative Research and Development Agreement (CRADA) to
do research on wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government, industry, and
academic organizations. CTIA-funded research is conducted through
contracts to independent investigators. The initial research will include
both laboratory studies and studies of wireless phone users. The CRADA
will also include a broad assessment of additional research needs in the
context of the latest research developments around the world.
7. How can I find out how much radiofrequency energy exposure
I can get by using my wireless phone?
All phones sold in the United States must comply with Federal
Communications Commission (FCC) guidelines that limit radiofrequency
energy (RF) exposures. FCC established these guidelines in consultation
with FDA and the other federal health and safety agencies. The FCC limit
for RF exposure from wireless telephones is set at a Specific Absorption
Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is
consistent with the safety standards developed by the Institute of
Electrical and Electronic Engineering (IEEE) and the National Council
on Radiation Protection and Measurement. The exposure limit takes
into consideration the body’s ability to remove heat from the tissues
that absorb energy from the wireless phone and is set well below levels
known to have effects. Manufacturers of wireless phones must report
the RF exposure level for each model of phone to the FCC. The FCC
website (http://www.fcc.gov/oet/rfsafety) gives directions for locating the
FCC identification number on your phone so you can find your phone’s
RF exposure level in the online listing.
103
SAFETY AND WARRANTY FDA CONSUMER UPDATE
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many
studies have suffered from flaws in their research methods. Animal
experiments investigating the effects of radiofrequency energy (RF)
exposures characteristic of wireless phones have yielded conflicting
results that often cannot be repeated in other laboratories. A few animal
studies, however, have suggested that low levels of RF could accelerate
the development of cancer in laboratory animals. However, many of the
studies that showed increased tumor development used animals that had
been genetically engineered or treated with cancer-causing chemicals so
as to be predisposed to develop cancer in the absence of RF exposure.
Other studies exposed the animals to RF for up to 22 hours per day.
These conditions are not similar to the conditions under which people
use wireless phones, so we don’t know with certainty what the results of
such studies mean for human health. Three large epidemiology studies
have been published since December 2000. Between them, the studies
investigated any possible association between the use of wireless phones
and primary brain cancer, glioma, meningioma, or acoustic neu-roma,
tumors of the brain or salivary gland, leukemia, or other cancers. None
of the studies demonstrated the existence of any harmful health effects
from wireless phone RF exposures. However, none of the studies can
answer questions about long-term exposures, since the average period of
phone use in these studies was around three years.
5. What research is needed to decide whether RF exposure from
wireless phones poses a health risk?
A combination of laboratory studies and epidemiological studies of
people actually using wireless phones would provide some of the data
that are needed. Lifetime animal exposure studies could be completed in
a few years. However, very large numbers of animals would be needed
to provide reliable proof of a cancer promoting effect if one exists.
Epidemiological studies can provide data that is directly applicable to
human populations, but 10 or more years’ follow-up may be needed
to provide answers about some health effects, such as cancer. This is
because the interval between the time of exposure to a cancer-causing
agent and the time tumors develop - if they do -may be many, many
years. The interpretation of epidemiological studies is hampered by
difficulties in measuring actual RF exposure during day-to-day use of
wireless phones. Many factors affect this measurement, such as the angle
at which the phone is held, or which model of phone is used.
102
FDA CONSUMER UPDATE SAFETY AND WARRANTY
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless
phones, including children and teenagers. If you want to take steps to
lower exposure to radiofrequency energy (RF), the measures described
above would apply to children and teenagers using wireless phones.
Reducing the time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure. Some
groups sponsored by other national governments have advised that
children be discouraged from using wireless phones at all. For example,
the government in the United Kingdom distributed leaflets containing
such a recommendation in December 2000. They noted that no evidence
exists that using a wireless phone causes brain tumors or other ill effects.
Their recommendation to limit wireless phone use by children was strictly
precautionary; it was not based on scientific evidence that any health
hazard exists.
11. What about wireless phone interference with medical
equipment?
Radiofrequency energy (RF) from wireless phones can interact with some
electronic devices. For this reason, FDA helped develop a detailed test
method to measure electromagnetic interference (EMI) of implanted
cardiac pacemakers and defibrillators from wireless telephones. This test
method is now part of a standard sponsored by the Association for the
Advancement of Medical instrumentation (AAMI). The final draft, a joint
effort by FDA, medical device manufacturers, and many other groups,
was completed in late 2000. This standard will allow manufacturers to
ensure that cardiac pacemakers and defibrillators are safe from wireless
phone EMI. FDA has tested hearing aids for interference from handheld
wireless phones and helped develop a voluntary standard sponsored by
the Institute of Electrical and Electronic Engineers (IEEE). This standard
specifies test methods and performance requirements for hearing aids
and wireless phones so that that no interference occurs when a person
uses a “compatible” phone and a “compatible” hearing aid at the same
time. This standard was approved by the IEEE in 2000. FDA continues to
monitor the use of wireless phones for possible interactions with other
medical devices. Should harmful interference be found to occur, FDA will
conduct testing to assess the interference and work to resolve the
problem.
105
SAFETY AND WARRANTY FDA CONSUMER UPDATE
8. What has FDA done to measure the radiofrequency energy
coming from wireless phones ?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a
technical standard for measuring the radiofrequency energy (RF)
exposure from wireless phones and other wireless handsets with the
participation and leadership of FDA scientists and engineers.
The standard, “Recommended Practice for Determining the Spatial-Peak
Specific Absorption Rate (SAR) in the Human Body Due to Wireless
Communications Devices: Experimental Techniques,” sets forth the
first consistent test methodology for measuring the rate at which RF is
deposited in the heads of wireless phone users. The test method uses
a tissue-simulating model of the human head. Standardized SAR test
methodology is expected to greatly improve the consistency of
measurements made at different laboratories on the same phone. SAR is
the measurement of the amount of energy absorbed in tissue, either by
the whole body or a small part of the body. It is measured in watts/kg (or
milliwatts/g) of matter. This measurement is used to determine whether
a wireless phone complies with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency
energy from my wireless phone?
If there is a risk from these products—and at this point we do not know
that there is—it is probably very small. But if you are concerned about
avoiding even potential risks, you can take a few simple steps to
minimize your exposure to radiofrequency energy (RF). Since time is a
key factor in how much exposure a person receives, reducing the amount
of time spent using a wireless phone will reduce RF exposure.
• If you must conduct extended conversations by wireless phone every
day, you could place more distance between your body and the source
of the RF, since the exposure level drops off dramatically with distance.
For example, you could use a headset and carry the wireless phone
away from your body or use a wireless phone connected to a remote
antenna.
Again, the scientific data do not demonstrate that wireless phones are
harmful. But if you are concerned about the RF exposure from these
products, you can use measures like those described above to reduce
your RF exposure from wireless phone use.
104
PROTECT YOUR
WARRANTY SAFETY AND WARRANTY
Read your Warranty carefully, with the special consideration to
paragraph seven of the Limited Warranty for your unit.
“Warranty does not apply to... or to any product or part thereof
which has suffered through alteration... mishandling, misuse,
neglect or accident”.
Many companies are making look alike accessories and in some
cases, promoting that their product is equal to or better than the
Pantech product. Be careful. Some of these products may not be
compatible to use with your Pantech product and may damage the
unit or cause it to malfunction. If service is required on your unit
and it is determined that a non-Pantech accessory has created the
problem with your unit, the Warranty will not apply. In addition,
if the unit has already suffered irreversible damage by reason of a
non-compatible accessory, the Warranty will be voided. To protect
your Warranty, use only compatible accessories which cannot
damage or interfere with the functioning of your Pantech product.
IN USA: UTStarcom Personal Communications
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA: UTStarcom Canada Company
5535 Eglinton Avenue West
Suite# 234
Toronto, ON M9C 5K5
(800) 465-9675
107
SAFETY AND WARRANTY FDA CONSUMER UPDATE
12. Where can I find additional information?
For additional information, please refer to the following resources:
• FDA web page on wireless phones
(http://www.fda.gov/cdrh/phones/index.html)
• Federal Communications Commission (FCC) RF Safety Program
(http://www.fcc.gov/oet/rfsafety)
• International Commission on Non-Ionizing Radiation Protection
(http://www.icnirp.de)
• World Health Organization (WHO) International EMF Project
(http://www.who.int/emf)
• National Radiological Protection Board (UK) (http://www.nrpb.org.uk/)
106
12 MONTH LIMITED
WARRANTY SAFETY AND WARRANTY
The Company disclaims liability for removal or reinstallation of the
product, for geographic coverage, for inadequate signal reception
by the antenna or for communications range or operation of the
cellular system as a whole.
To obtain repairs or replacement within the terms of this Warranty,
the product should be delivered with proof of Warranty coverage
(e.g. dated bill of sale), the consumer’s return address, daytime
phone number and/or fax number and complete description of
the problem, transportation prepaid, to the Company by calling
the number listed below or to the place of purchase for repair or
replacement processing.
In addition, you may telephone us at (800) 962-8622, or email us at
HandsetHelp@Pantech.com
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S
LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR
THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST
BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF
ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE
FOR AN SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR
BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE
DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS
OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR
REPLACED.
No person or representative is authorized to assume for the
Company any liability other than expressed herein in connection
with the sale of this product.
109
SAFETY AND WARRANTY 12 MONTH LIMITED
WARRANTY
Pantech Wireless, Inc. (the Company) warrants to the original retail
purchaser of this Pantech handheld portable cellular telephone,
that should this product or any part thereof during normal
consumer usage and conditions, be proven defective in material or
workmanship that results in product failure within the first twelve
(12) months period from the date of purchase, such defect(s) will be
repaired or replaced (with new or rebuilt parts) at the Company’s
option, without charge for parts or labor directly related to the
defect(s).
The antenna, key pad, display, rechargeable battery and battery
charger, if included, are similarly warranted for twelve (12) months
from date of purchase.
This Warranty extends only to consumers who purchase the product
in the United States or Canada and it is not transferable or
assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident,
mishandling, neglect, unauthorized alteration, misuse, improper
installation or repair or improper storage;
(b) Product whose mechanical serial number or electronic serial
number has been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive
temperatures or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or
other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items
such as framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding,
dirt, sand, weather conditions, battery leakage, blown fuse,
theft or improper usage of any electrical source.
108
SAFETY AND WARRANTY 12 MONTH LIMITED
WARRANTY
Some states or provinces do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of incidental
or consequential damage so the above limitation or exclusions may
not apply to you. This Warranty gives you specific legal rights, and
you may also have other rights which vary from state to state or
province to province.
110
