Paoluy Silicone Technology BKB78HB Tablet Case with Bluetooth® Keyboard User Manual BL BKB78HA Manual
Shenzhen Paoluy Silicone Technology Co., Ltd. Tablet Case with Bluetooth® Keyboard BL BKB78HA Manual
User Manual
BL-BKB78HA BT3.0 Instruction Manual
·Contents
1、Bluetooth keyboard 1PCS
2、Instruction manual 1PCS
3、USB Charging cable 1PCS
·Product Features
1、 use Broadcom20730 main control chip, have Bluetooth3.0 interface.
2、industry leading bluetooth solutions, WIDCOMM BTW (Microsoft officially designated software) bluetooth software
3、Ultra slim body with scissors -switch keys frame design. The ergonomic design enable users to work long time
without fatigue and comfortable handling feel.
4、With aluminum back plate design,the keyboard is super light and durable.
5、Mute design: effectively avoid other person sleeping(especially for one room with several person).
6、Support iPad,Iphone,Mac,Windows and Android system etc.It’s more convenient for you.
7、Work Environment:Temperature 0-55 ℃,humidity: 20%-80%
8、Built in lithium battery,avoid changing battery frequently.
·Specification
1、executive standard: bluetooth V3.0
2、maximum operating distance: 10 meters
3、modulation mode: 2.4 G straight sequence fh (FHSS)
4、transmit power: Class 2 levels
5、working voltage: 3.7V
6、working current: <2.0 MA
7、standby current: 1.0 MA
8、sleep current55uA
9、charging current: 150MA
10、standby time: 160days
11、theoretical use time: 30days
12、continuous uninterrupted use time: 120hours
13、theoretical charging time: 2.5 hours
14、lithium battery capacity: 230mAh
15、lithium battery life span: three years
16、the lithium battery type: 4.0 * 20 * 35MM
17、the key dynamics: 60 + 10g
18、buttons life: 5 million times
19、Dimension:L246mm*W191.5mm*H9.6mm
·Bluetooth keyboard installation
1． Keyboard pair with iPad procedure:

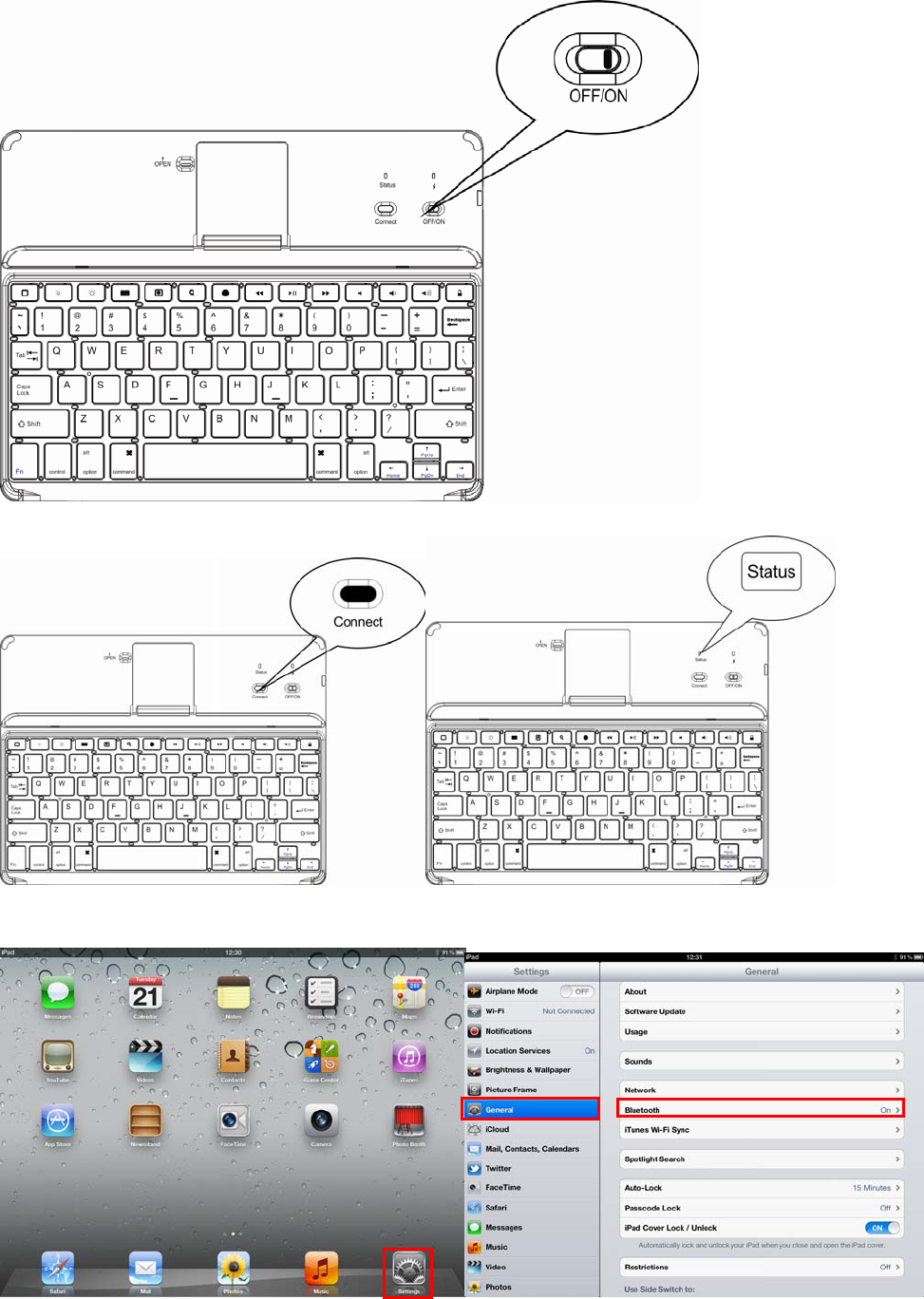

（1）、Turn on the swith”ON”,the blue indicator light 5 seconds then extinguished which advise you the keyboard
be turned on.Please see below instruction picture.
（2）、 Press “Connect”button,”Status” indicator twinkle which advise you is pairing.
（3）、Click the setting button of IPAD and IPHONE,Then choose the General and bluetooth.Turn on the bluetooth,then
the IPAD will searching bluetooth device .

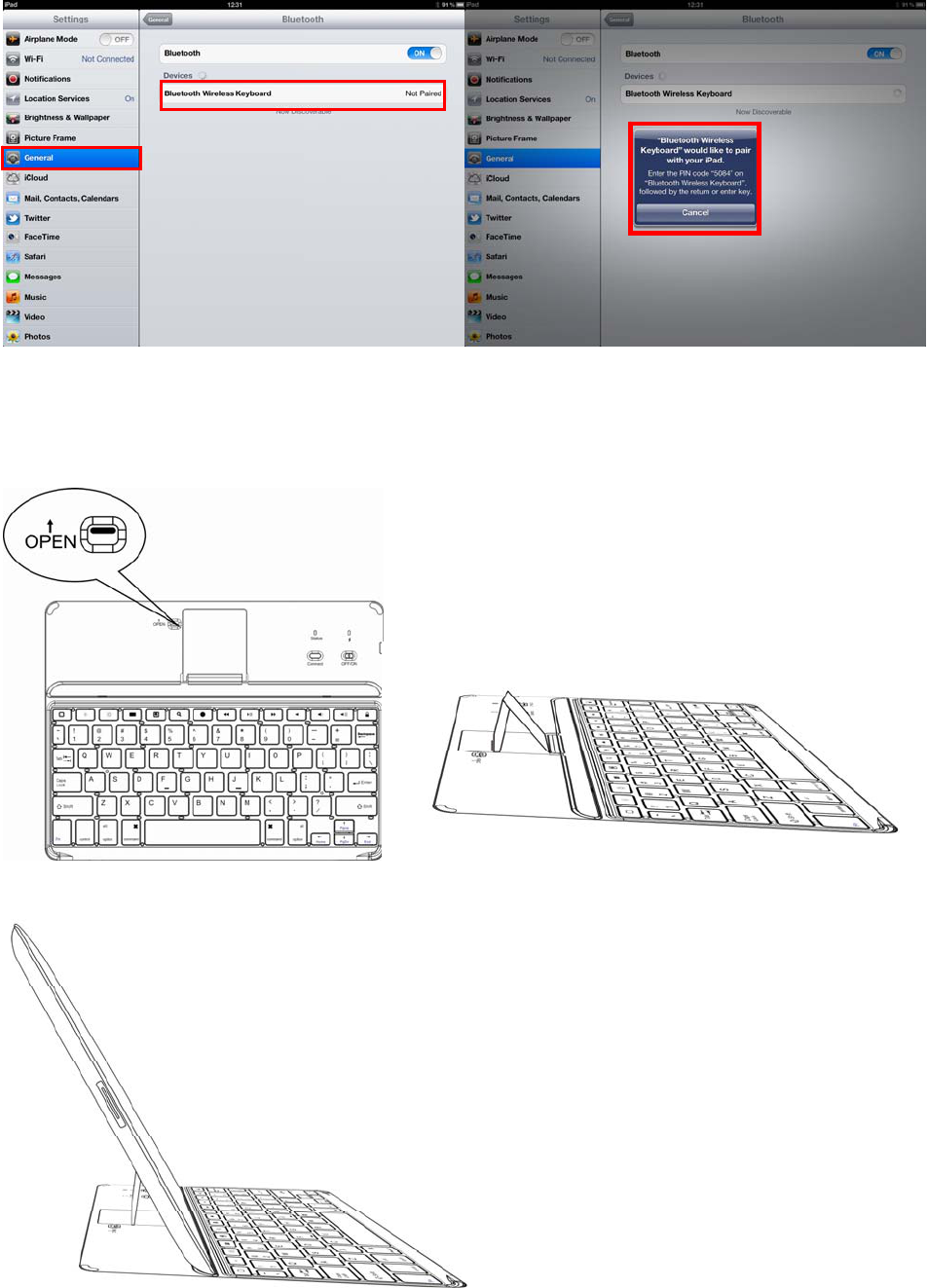

（4）、After the IPAD and IPHNE find out the bluetooth device and connect the bluetooth keyboard(see blow
picture),IPAD will advise you input the password. Then press “Enter”key.
Warning :There are no advise when you input the password.Please make sure input correct and press enter button.
（5）、If IPAD and keyboard connect success.The Status indicator will extinguished .You can use the keyboard.
·How to place iPad and keyboard.
1、Turn on the”open” switch,the stand will stand up automatically as follow pictures:
2、Put your iPad into the groove of keyboard.The stand will support the iPad perfect.

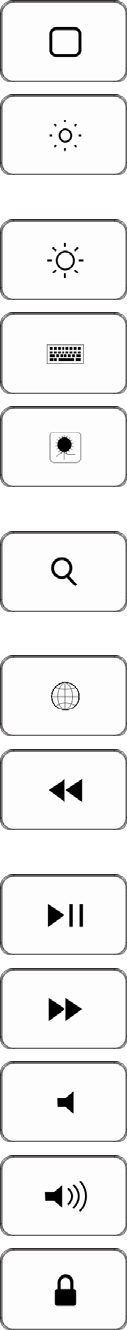

·Keyboard and iPad hotkeys specification.
Press this button can return iPad home page.
Press this button can control IPAD screen brightness dark.
Press this button can control IPAD screen brightness light.
When in use IPAD edit the document by this button to call up and hidden IPAD virtual keyboard.
IPAD locked in on this key, IPAD into the screen saver pictures interface
IPAD in boot state, press this button can enter the IPAD search page.
Press this button can change the input language of iPad.
When the IPAD in music broadcast, click this button can control music upgrade .
IPAD in boot state, press this button can control the play/pause music.
When the IPAD in music broadcast, click this button can control music downwards.
Press this button can be mute, click again, hold "cancel mute .
Press this button can increase the volume.
Press this button can lock IPAD screen.
·Charging
When you use keyboard in process,the status tinkle which advise you the battery is shortage.You should charging.

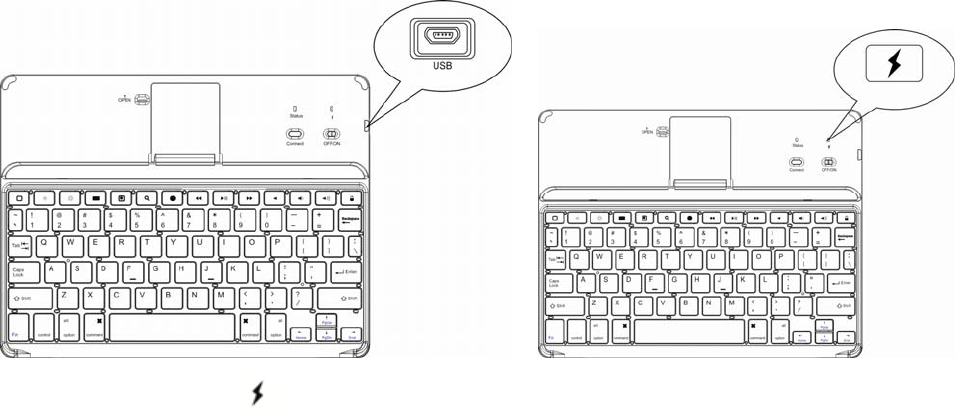

（1）、Separate put the USB terminal cable plug into the PC and keyboard.As follow picture.
（2）、When you charging,the red light on.When the light off,the battery is full enough.(theoretical charging
time 2hours)
·Storage
(1)、When you don’t want to use the keyboard and carry,please close the back stand.Then put iPad cover the
keyboard,the screen of iPad will turn off automatically.
（2）、When you don’t want to use the keyboard and carry.Don’t forget turn off the power switch of keyboard.In
order to extend your battery life span.
（3）、If you want to store the keyboard long time.Don’t forget charging the keyboard around 1hour till the battery
half which can extend your battery life span.
·Troubleshooting
Keyboard and IPAD cannot establish connections
①、please check your iPad bluetooth device is already open and went in search of state.
②、 Press and release the”connect” button of keyboard ,check the Status indicator flash or not.
③、keyboard and iPad connected within 10 meters from working range.
④、Bluetooth devices of iPad changing or not, if it is,need to match again.
⑤、Your iPad bluetooth device is also connected to the other bluetooth terminal and confirm Ipad bluetooth device
speed.
⑥、Checking your battery, if there is electricity shortage, please charge.
This equipment already through the class B digital equipment testing
The FCC, the federal communications commission interference statements:
This equipment already through the class B digital equipment testing
The FCC regulations in accordance with article 15 for the regulations set is to give the
installation process may cause harm on the environment to provide the necessary protection.
This equipment in use process will produce radio radiation. If do not follow the instructions
for installation and use may affect the radio and TV receiving signal, can pass open and
close this equipment to test. Users can try to use the following measures to avoid such
interference:
1、 change the direction of receiving antenna or is rearrange the antenna position.
2、 the admiral equipment in circuit with the antenna connection distinguishes the connection.
3、 Ask for distributor or experienced people.
This device complies with Part 15 of the FCC Rules Operation is subject to the following
tow conditions:
1、 This device may not cause harmful interference
2、 This device must accept any interference received,including interference that may caus undesired
operation.
15.21 Information to user.
The users manual or instruction manual for an intentional or unintentional radiator shall caution
the user that changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
15.105 Information to the user.
(b) For a Class B digital device or peripheral, the instructions furnished the user shall include
the following or similar statement, placed in a prominent location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
