GS6 GYM SYSTEM

CLASS H

PART # 7359601

REV. A Revision: 11/06/02

USER’S GUIDE

WARNING:

Read and follow all directions

for each step to insure proper

assembly of this product.

Version: GS6-101

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF

EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!

1. Before using, read all the warnings and instructions

on the use of this machine. Use only for intended

exercise. DO NOT modify the machine.

2. Obtain a medical exam before beginning any

exercise program.

3. Keep body and clothing free of all moving objects.

4. Inspect the machine before use. DO NOT use it if it

appears damaged. DO NOT attempt to fix a broken or

ammed machine. Notify your authorized ParaBody

dealer before use and have repairs made by an

authorized service technician.

5. Be certain that weight pin is completely inserted.

Use only the pin provided by the manufacturer. If

unsure, call your authorized ParaBody dealer.

6. Never pin the weights or prop plate into an elevated

position. DO NOT use the machine if found in this

condition. DO NOT attempt to fix. Notify your

authorized ParaBody dealer.

7. Inspect cables and their connections before using

machine. Pay particular attention to the cable ends.

DO NOT attempt to fix. Notify your authorized

ParaBody dealer before use and have repairs made by

an authorized service technician.

8. Make sure all spring loaded pull pins are fully

engaged in the adjustment position and fully tighten

thumbscrew before use.

9. Children must not be allowed near this machine.

Supervise teenagers.

IMPORTANT SAFETY INFORMATION

TABLE OF CONTENTS

Safety Statement.............2

General Notes..................3

Tools Required...............3

Parts list.........................4

NOTE: In a continual effort to improve our products, specifications are subject to change

ParaBody is a trademark of Brunswick Corporation

www.parabody.com

Assembly Instructions.....5-30

General Maintenance.......31

Warranty Statement..........32

Product Services..............33

Insert-Registration Card

IMPORTANT NOTES

Please note:

Tools Required for Assembly

* Thank you for purchasing the ParaBody GS6 Gym System. Please read these

instructions thoroughly and keep them for future reference.

* Rubber mallet or hammer

* 3/4” wrench

* 9/16” wrench

* Ratchet with 3/4” and 9/16” sockets

* 5/32” Allen wrench

* Adjustable wrench

* Tape measure

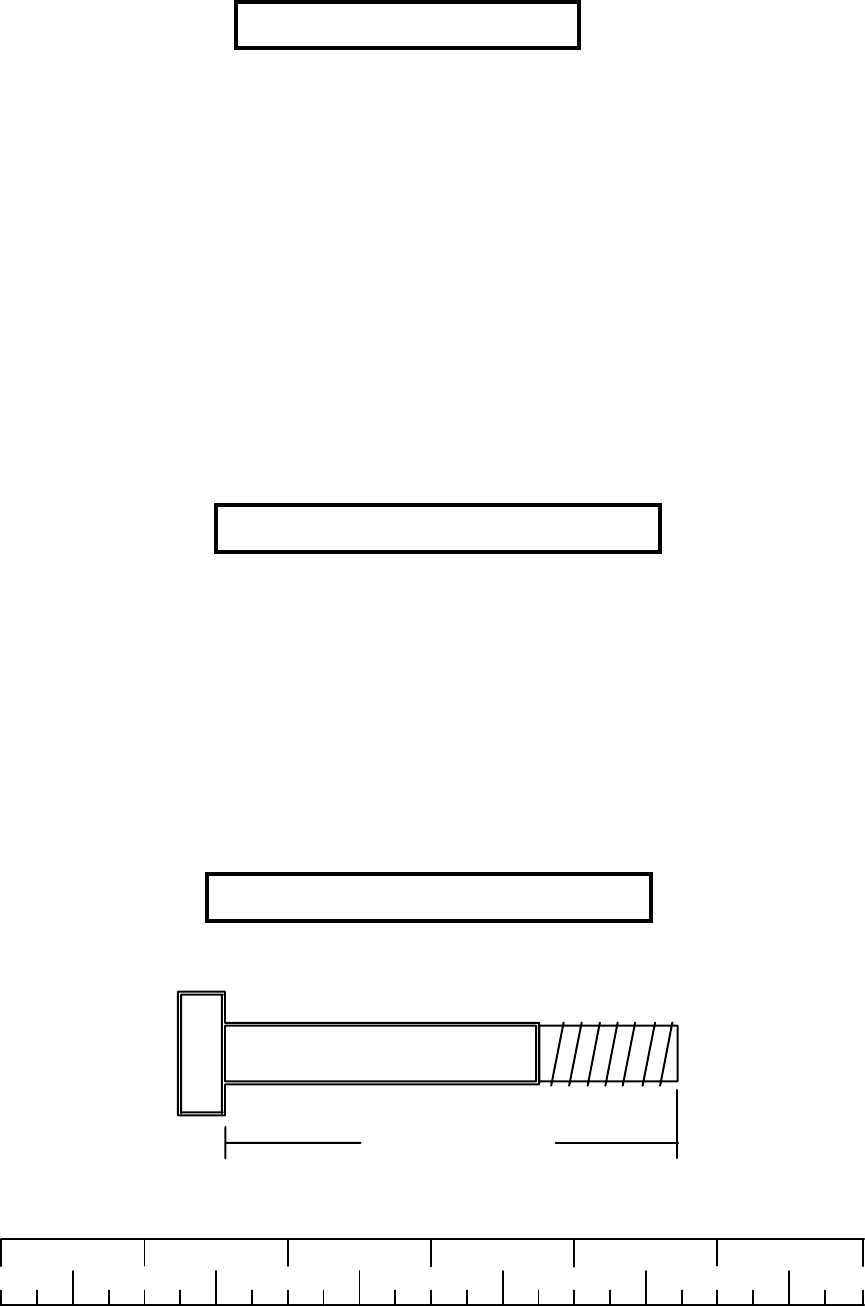

NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.

BOLT LENGTH RULER:

* This product must be assembled on a flat, level surface to assure its proper function. DO

NOT securely tighten any frame connections until the entire frame has been assembled, unless

otherwise stated.

Bolt Length Ruler

0123456

1/2 1/2 1/2 1/2 1/2 1/2

BOLT LENGTH

COMPONENTS PARTS LIST

PAR T #

ACU04-1528

ACU02-1526

ACU02-1451

ACU04-1529

ACU04-1530

ACU04-1532

ACU04-1533

ACU04-1534

ACU04-1535

ACU04-1536

ACU02-1523

ACU02-1071

ACU04-1528

ACU02-1524

ACU04-1539

ACU04-1551

ACU04-1541

ACU04-1542

ACU04-1543

ACU04-1544

ACU04-1545

ACU04-1531

ACU04-1546

ACU04-1547

ACU02-1525

ACU04-1342

ACU02-0055

ACU01-2009

ACU01-2249

ACU04-1548

ACU04-1549

ACU04-1537

ACU04-1540

ACU04-1550

ACU01-2247

ACU04-1165

ACU10-0204

ACU10-0216

ACU04-1386

ACU04-0622

ACU06-0047

ACU06-0429

ACU07-0135

ACU07-0168

AC07-0169

KEY

QTY

PART #

ACU-6194601

ACU12-0005

ACU12-0041

ACU13-0150

ACU13-0151

ACU13-0152

ACU13-0153

ACU-7308601

DESCRIPTION

4 X 7” ROLLER PAD

AB STRAP

ANKLE STRAP

LAT CABLE 114-1/4”

LOW CABLE 290-1/2”

PEC FLY CABLE 79-1/4”

AB CRUNCH CABLE 72”

WEIGHT STACK LABEL

QTY

DESCRIPTION

BASE

BASE PLATE

3-1/2” PULLEY GUARD

REAR FRAME

FRONT FRAME

FOOT ASSEMBLY

PRESS ARM ADJUSTMENT

LEG EXTENSION HOLDER

PRESS ARM

BENCH TUBE

BENCH BRACE

FLOATING PULLEY PLATE

SEAT ADJUST

SEAT HINGE

SEAT SUPPORT BRACKET

PEC FLY HANDLE

LEFT PRESS ARM HANDLE

RIGHT PRESS ARM HANDLE

LEFT PEC FLY ARM

RIGHT PEC FLY ARM

PEC FLY MOUNT

BACKING PLATE

FLOATING PULLEY BRACKET

RIGHT TOP ASSEMBLY

LEFT TOP PLATE

LONG “L” CABLE BRACE

L CABLE RETAINER

3/4 X 17-1/2” TUBE

34/ X 17-13/32 “L” TUBE

LEG PEDESTAL

PRESS LOAD ARM

SEAT FRAME

PIVOT ASSEMBLY

PRESS ARM ADJUST. TUBE

GUIDE ROD

WEIGHT STACK SPACER

HEAD PLATE

ASSEMBLY

LAT BAR

LOW ROW BAR

WEIGHT STACK CUSHION

BUMPER 25/32h

BACK PAD

SEAT PAD

BENCH PAD

KEY

HARDWARE PARTS LIST

PART #

ACUDA1E012101213NB

ACUDA1E01271413NB

ACUDA1E01260013NB

ACUDA1E01241413NB

ACUDA1C01209213NB

ACUDA1E01231213NB

ACUDA1E01230013NB

ACUDA1C01210413NB

ACUDA1E03853416NB

ACUDA1E03840016NB

ACUDA1E03833416NB

ACUDA1E03831216NB

ACUDA1E03831416NB

ACUDA1E03830016NB

ACUDA1E03823416NB

ACUDA1E03820016NB

ACUDA1E03813416NB

ACUDA1E03811416NB

ACUDA1E03801216NB

ACUDAEE01203413YB

ACUDC1340130030B

ACUDC126013020B

ACUDC1250100020B

ACDC417010020B

ACU05-0311

ACUDB2E01212000B

ACUDB2E01208000B

ACUDB2E03811000B

ACU05-0384

ACU05-0381

ACU05-0385

ACU05-0386

ACU05-0387

ACU05-0388

ACU05-0389

ACU05-0390

ACU05-0212

ACU05-0193

ACUD1108008OU

ACU08-0066

ACU08-0077

ACU08-0085

ACU05-0292

ACU05-0036

ACU06-0357

KEY

QTY

PART #

ACU06-0358

ACU06-0375

ACU06-0363

ACU06-0024

ACU06-0025

ACU06-0360

ACUDAE103821416NB

DESCRIPTION

PLASTIC SLEEVE 2 LG

PLASTIC SLEEVE 2-29/32 LG

3/4 PLASTIC WASHER

3-1/2 PULLEY

4-1/2 PULLEY

V PULLEY

HEX BOLT 3/8 X 2-1/4

QTY

DESCRIPTION

HEX BOLT 1/2 X 10-1/2

HEX BOLT 1/2 X 7-1/4

HEX BOLT 1/2 X 6

HEX BOLT 1/2 X 4-1/4

HEX BOLT 1/2 X 92mm

HEX BOLT 1/2 X 3-1/2

HEX BOLT 1/2 X 3

HEX BOLT 1/2 X 104mm

HEX BOLT 3/8 X 5-3/4

HEX BOLT 3/8 X 4

HEX BOLT 3/8 X 3-3/4

HEX BOLT 3/8 X 3-1/2

HEX BOLT 3/8 X 3-1/4

HEX BOLT 3/8 X 3

HEX BOLT 3/8 X 2-3/4

HEX BOLT 3/8 X 2

HEX BOLT 3/8 X 1-3/4

HEX BOLT 3/8 X 1-1/4

HEX BOLT 3/8 X 1/2

BTN HEAD 1/2 X 3/4

1/2 X 1-11/32 WASHER

1/2 X 1-1/32 WASHER

3/8 WASHER

SPRING WASHER

SHIM WASHER

LOCK NUT 1/2 X 15/32

LOCK NUT 1/2 X 5/16

3/8 LOCK NUT

3/4 JAM NUT

SPACER 15/16 LG

SPACER 3/8 LG

SPACER 7/16 LG

SPACER 13/32 LG

SPACER 5-15/16 LG

SPACER 3 LG

SPACER 1/4 LG

COLLAR

CHAIN

SNAP LINK

STEP SPACER 1-1/16 LG

STEP SPACER 15/16 LG

STEP SPACER 19/32 LG

SOCKET WRENCH

STARLOCK COLLAR

RH CAP

KEY

FIGURE 1

STEP 1:

0123456

1/2 1/2 1/2 1/2 1/2 1/2

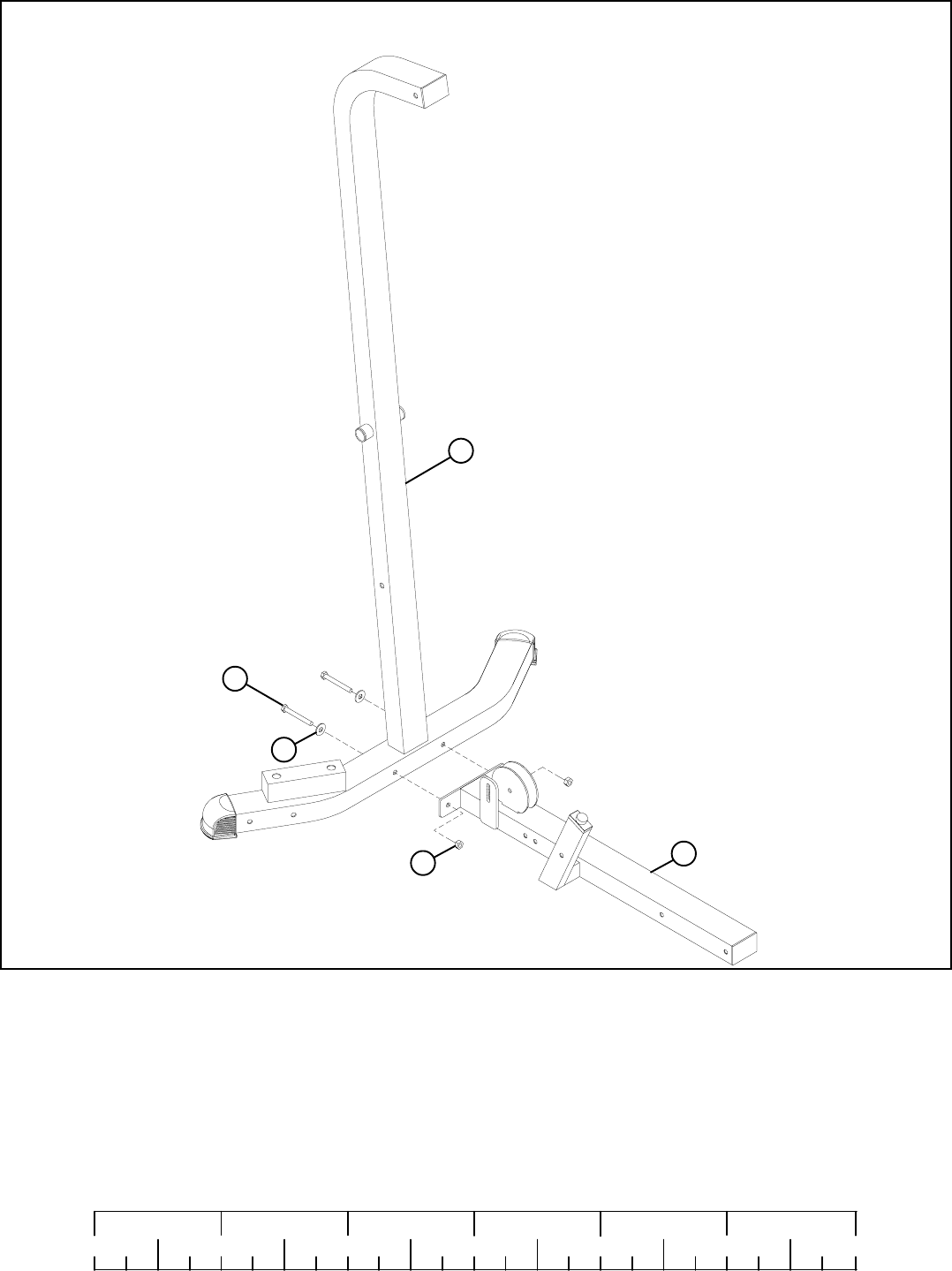

• SECURELY assemble the REAR FRAME (D) to the BASE (A) using two 3/8 X 3-3/4” BOLTS (11), two 3/8” WASHERS (23) and two

3/8” LOCK NUTS (28) as shown in FIGURE 1.

3/8 X 3-3/4” 11

FIGURE 2

STEP 2:

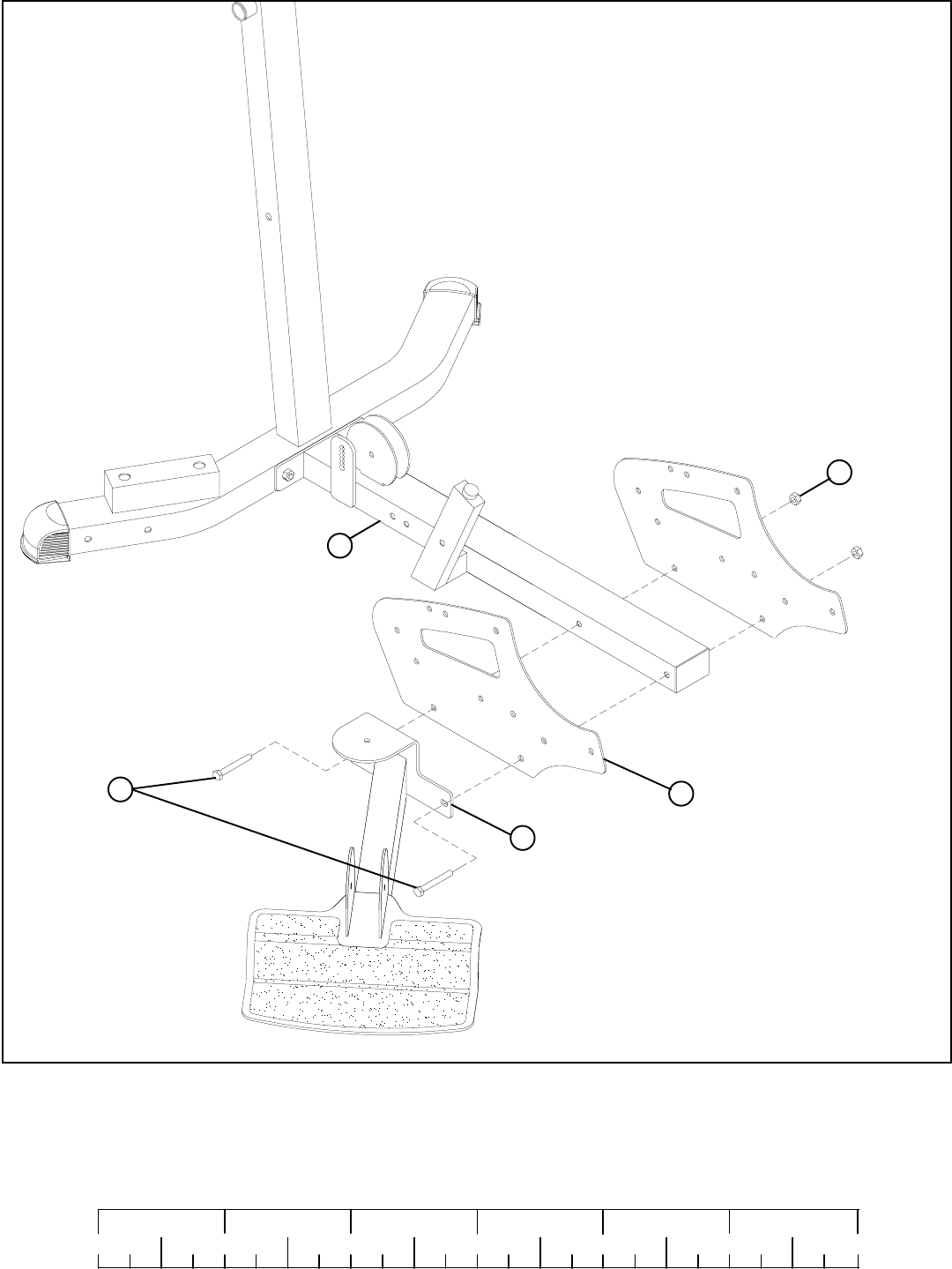

• LOOSELY assemble two BASE PLATES (B) and the FOOT ASSEMBLY (F) to the BASE (A) using two 3/8 X 4” BOLTS (10) and two

3/8” LOCK NUTS (28). See FIGURE 2.

3/8 X 4” 10

0123456

1/2 1/2 1/2 1/2 1/2 1/2

FIGURE 3

STEP 3:

3/8 X 3-3/4” 11

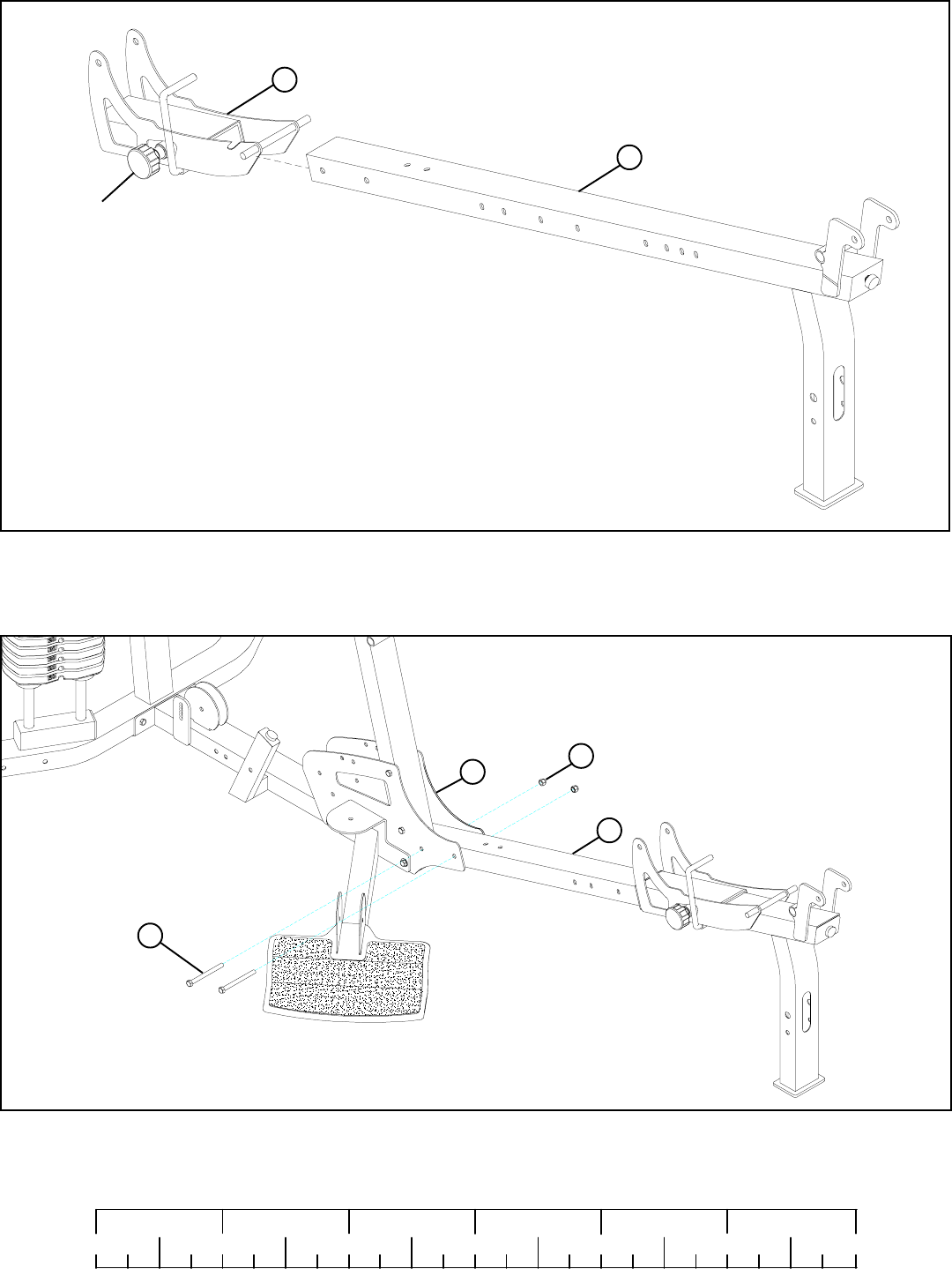

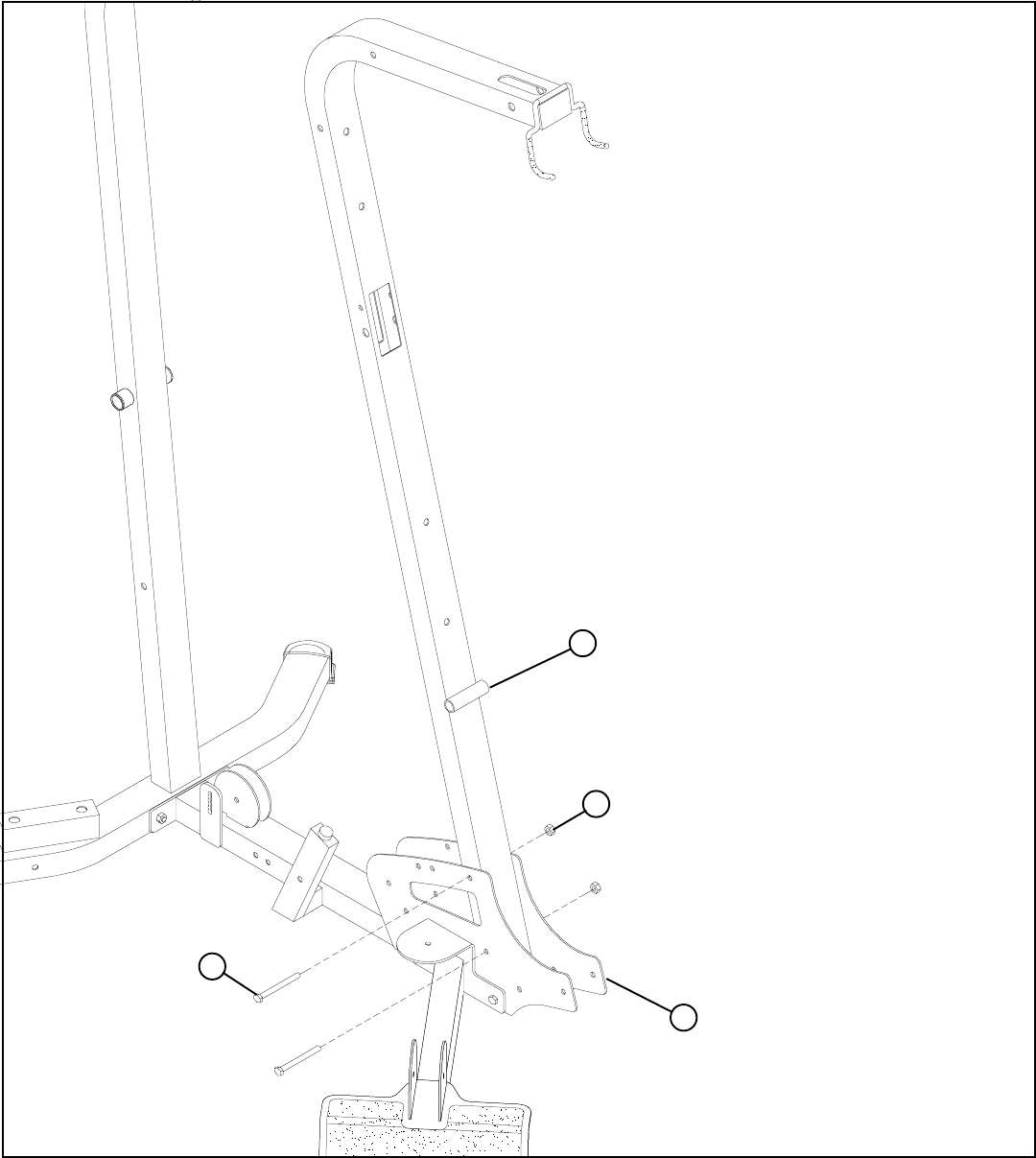

• SECURELY assemble the FRONT FRAME (E) to the BASE PLATES (B) using two 3/8 X 3-3/4” BOLTS (11) and two 3/8” LOCK

NUTS (28) as shown in FIGURE 3.

FIGURE 5

FIGURE 4

• CHECK THAT THE HEADPLATE AND WEIGHT PLATES ARE ASSEMBLED AS SHOWN IN FIGURES 4 & 5

FIGURE 6

STEP 6:

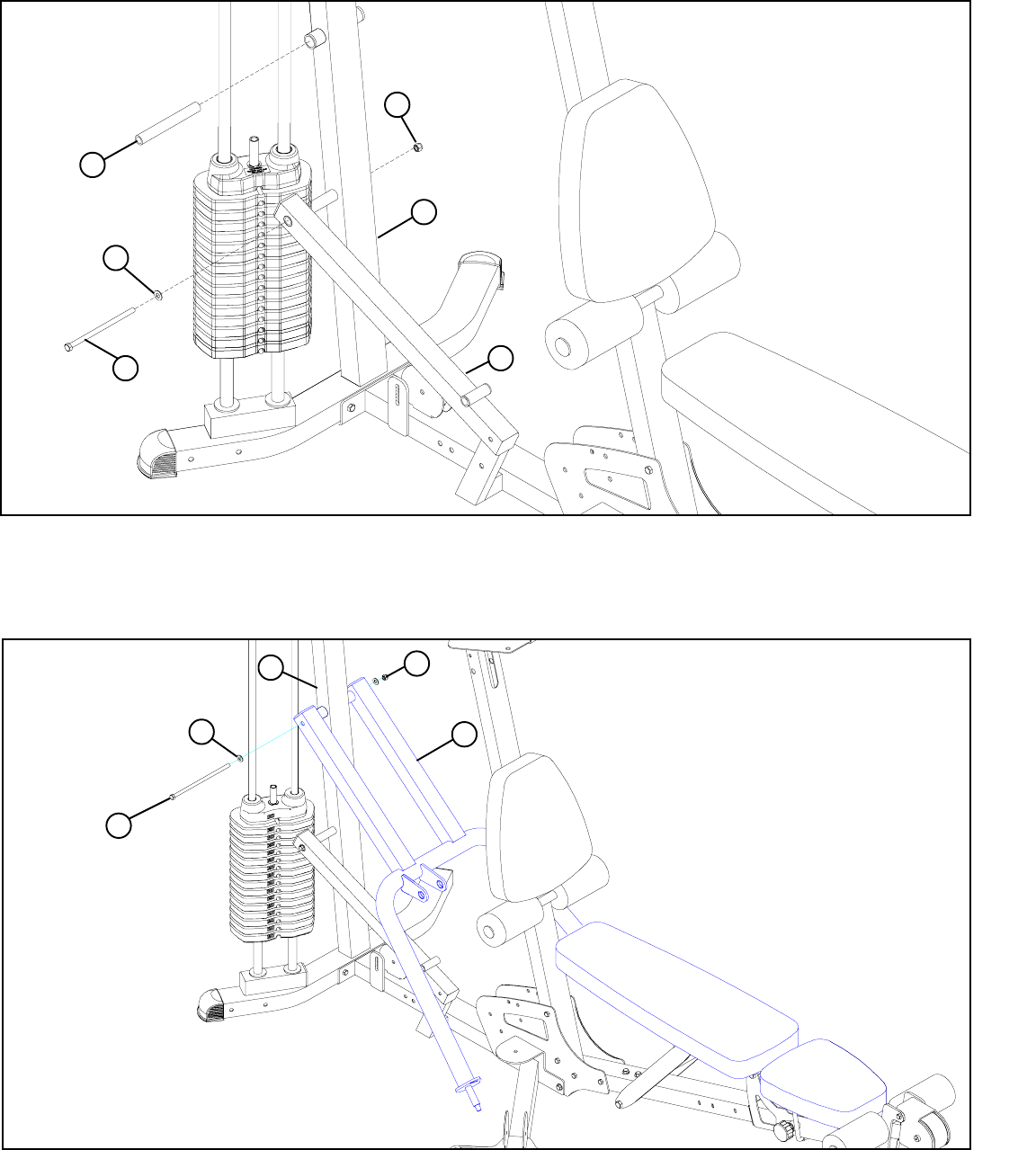

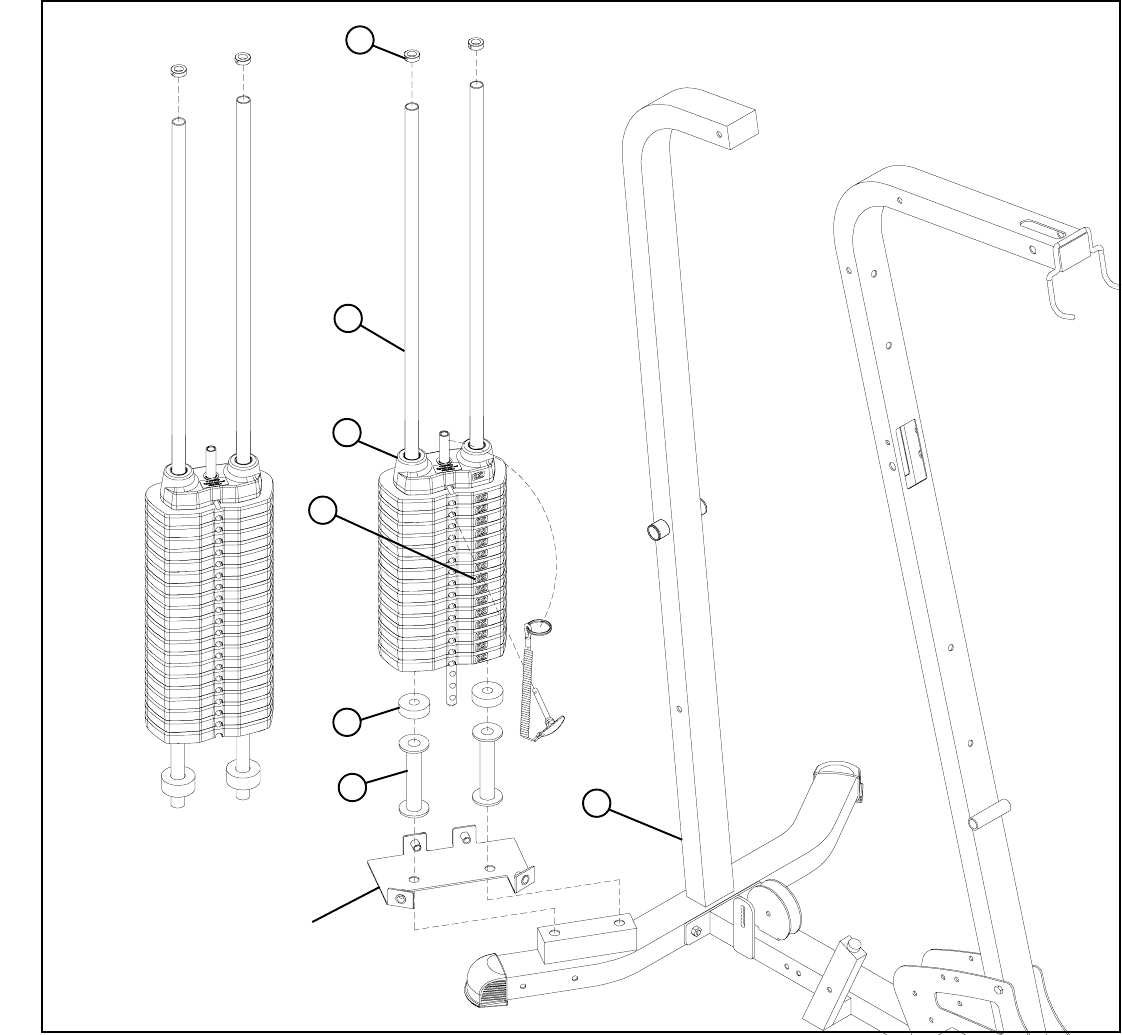

• Insert two GUIDE RODS (AI) into the REAR FRAME (O) as shown on FIGURE 6. (NOTE: If theGS-6 SHROUD OPTION was

purchased, place the GUIDE RODS (AI) through the BOTTOM SHROUD BRACKET (found in SHROUD OPTION box) and into

the REAR FRAME (D) as shown in FIGURE 6.

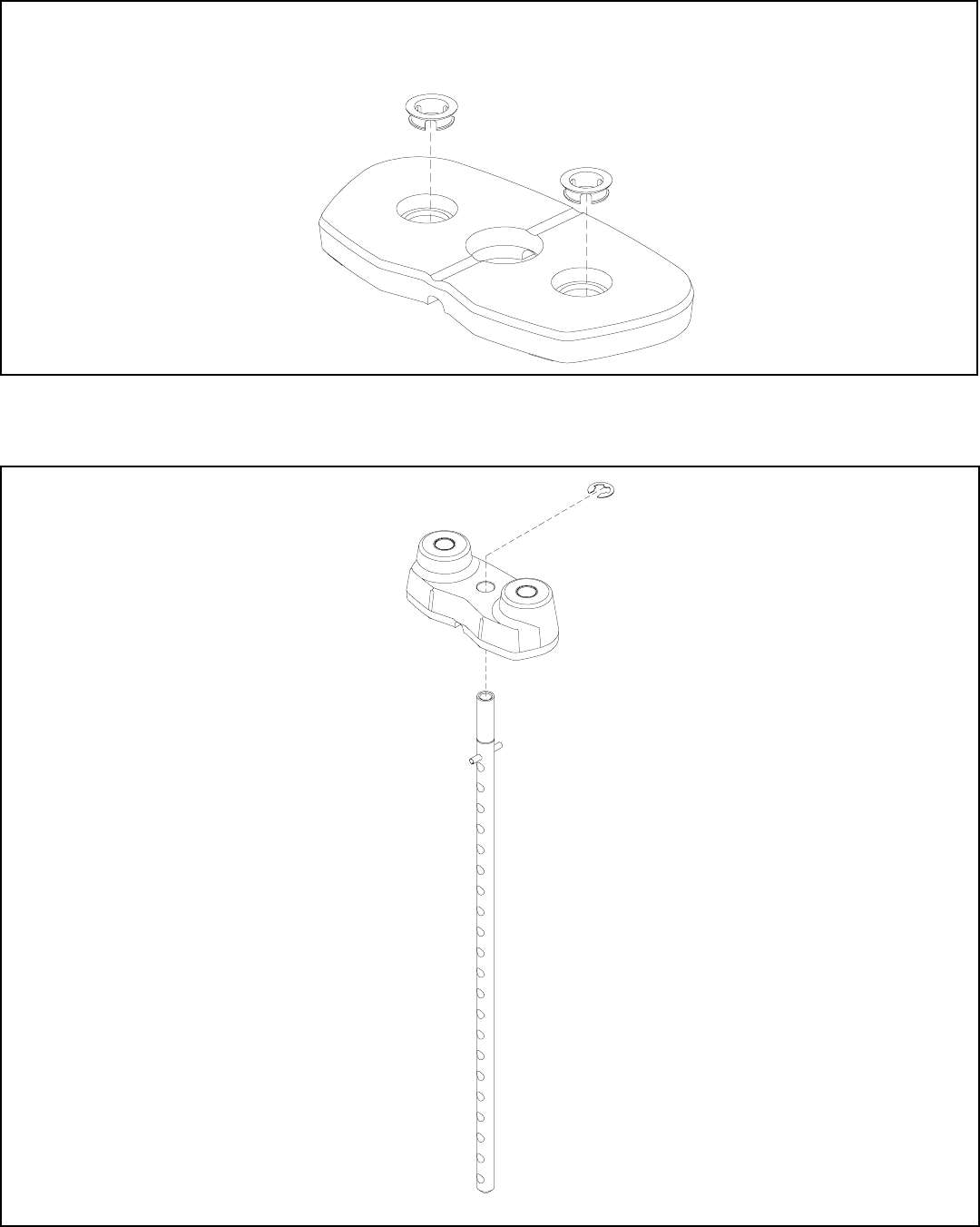

• Slide two WEIGHT STACK SPACERS (AJ), and two WEIGHT STACK CUSHIONS (AN) down over the GUIDE RODS (AI).

• Using EXTREME CARE slide all fifteen WEIGHT PLATES (NOTE: If 50-LB. ADD-ON KIT was purchased, slide twenty WEIGHT

PLATES and discard the two WEIGHT STACK SPACERS (20) and refer to the 50 LB. ADD-ON Kit instructions) down over the

GUIDE RODS (AI) on to the WEIGHT STACK CUSHIONS (AN). Make sure that the WEIGHT PLATES are all facing as shown.

• Slide the HEAD PLATE ASSEMBLY (AK) down over the GUIDE RODS (AI) onto the weight stack.

• Slide two SHAFT COLLARS (37) over the GUIDE RODS (AI) as shown in FIGURE 6.

• (NOTE: Lubricate GUIDE RODS (AI) with silicon or teflon spray available at most hardware stores.)

GS-6 SHROUD

OPTION ONLY!

• Apply WEIGHT STACK LABELS (AZ) to WEIGHT PLATES and HEAD PLATE ASSEMBLY (AK) as shown in FIGURE 6. Begin with

number one at the HEAD PLATE (AK) with larger numbers in consecutive order towards bottom of weight stack.

OPTIONAL 50

LB. ADD-ON KIT

FIGURE 7

STEP 7:

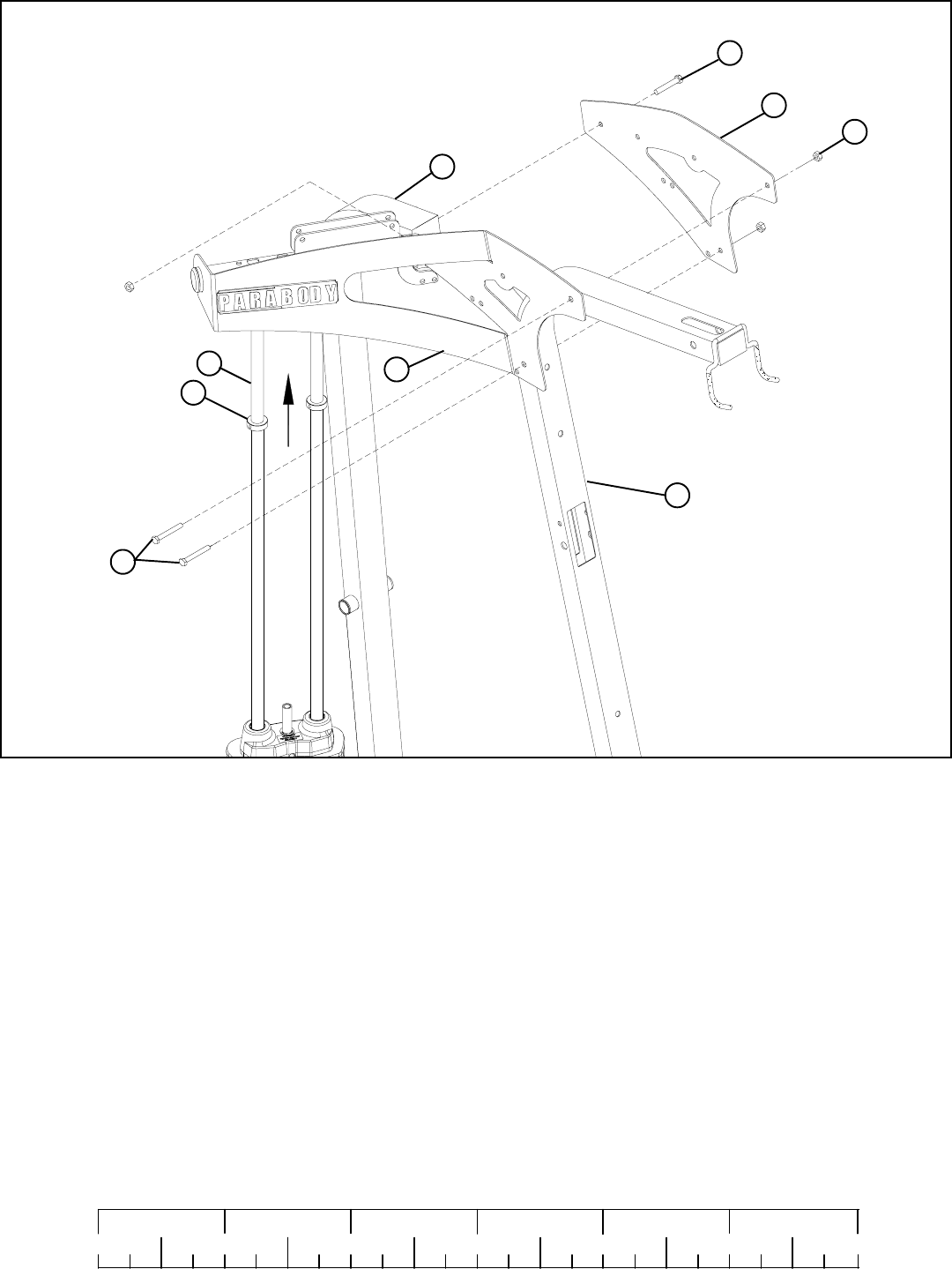

• Swing the GUIDE RODS (AI) into the guide rod bushings in the RIGHT TOP ASSEMBLY (Y) as shown in FIGURE 7.

• LOOSELY assemble the RIGHT TOP ASSEMBLY (Y) and the LEFT TOP PLATE (Y) to the REAR FRAME (D) and the FRONT FRAME

(E) using three 3/8 X 3-3/4” BOLTS (11) and three 3/8” LOCK NUTS (28). See FIGURE 7.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

3/8 X 3-3/4” 11

11 3/8 X 3-3/4”

• SECURELY TIGHTEN top of both SHAFT COLLARS (37) flush to bottom of the RIGHT TOP ASSEMBLY (X)as shown in FIGURE 7.

SECURELY

TIGHTEN!

FIGURE 8

STEP 8:

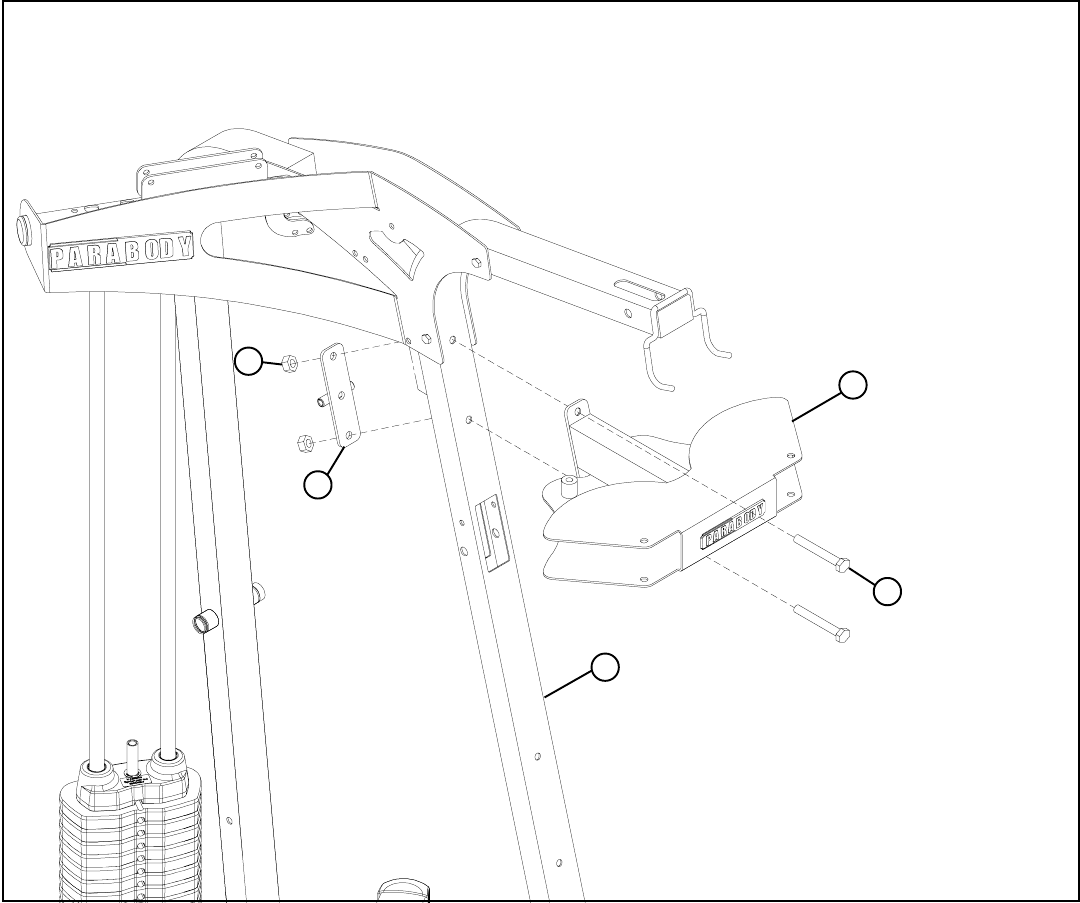

• SECURELY assemble the PEC FLY MOUNT (U) and BACKING PLATE (V) to the FRONT FRAME (E) using two 1/2 X 3” BOLTS (7)

and two 1/2” LOCK NUTS (26) as shown in FIGURE 8.

7 1/2 X 3”

FIGURE 9

STEP 9:

• Assemble the RIGHT PEC FLY ARM (T) and LEFT PEC FLY ARM (S) to the PEC FLY MOUNT (U) using two 1/2 X 92mm BOLTS

(5), two 3” LONG SPACERS (35), four SHIM WASHERS (25), two 1/2” LOW HEIGHT LOCK NUTS (27) and four RH CAPS (45) as

shown in FIGURE 9.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

5 1/2 X 92mm

27 1/2” LOW HEIGHT

STEP 10:

FIGURE 10

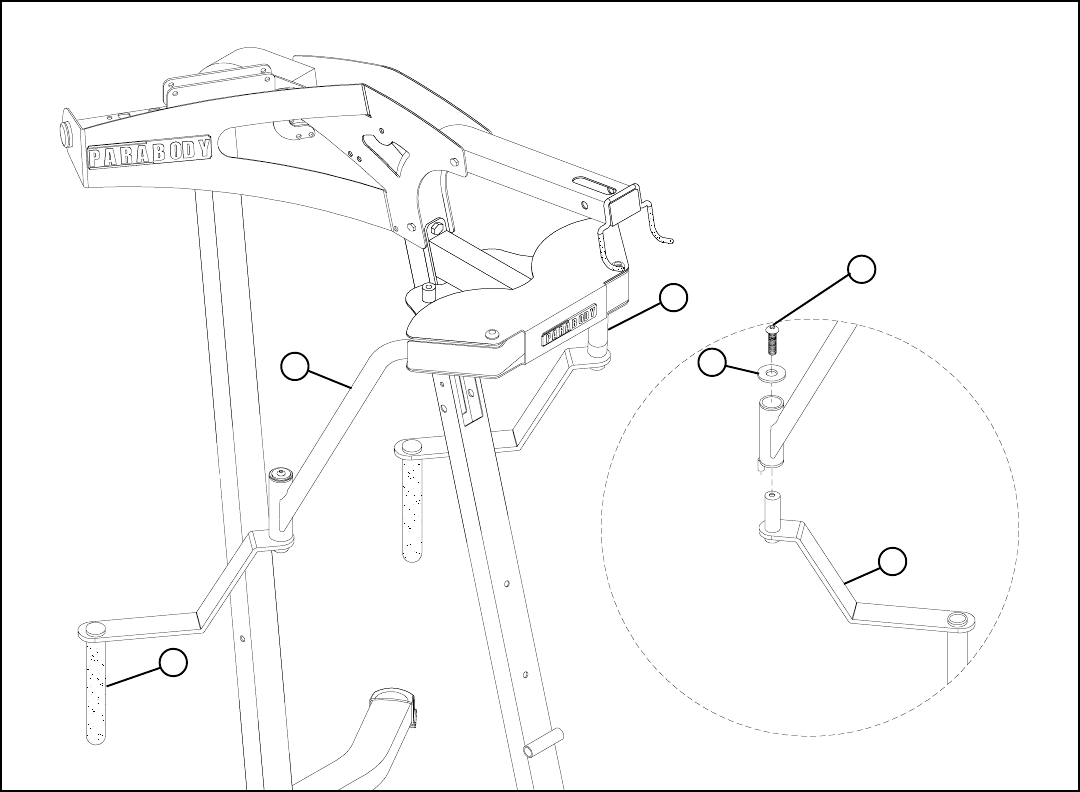

• Assemble the PEC HANDLE (P) to the LEFT PEC FLY ARM (S) using one 1/2 X 3/4” BUTTON HEAD BOLT (20) and on 1/2” WASHER

(21) as shown in FIGURE 10.

20 1/2 X 3/4”

BUTTON HEAD

• Assemble the PEC HANDLE (P) to the RIGHT PEC FLY ARM (T) using one 1/2 X 3/4” BUTTON HEAD BOLT (20) and on 1/2” WASHER

(21) as shown in FIGURE 10.

STEP 11:

FIGURE 11

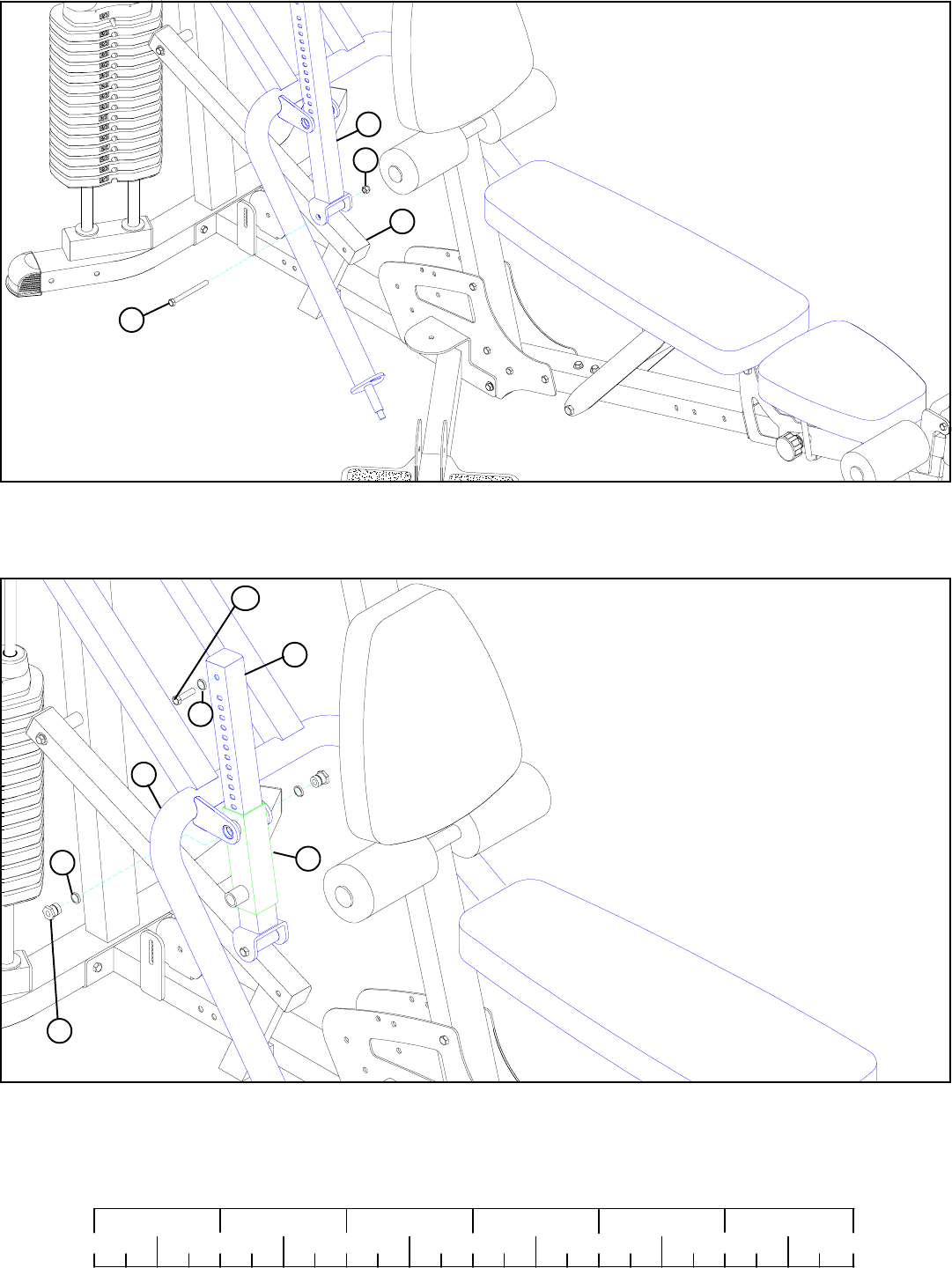

• CAREFULLY slide the SEAT ADJUST (M) onto the SEAT FRAME (AF) as shown. The SEAT can be adjusted and tightened using

the PLUNGER PIN.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

FIGURE 12

STEP 12:

• SECURELY assemble the SEAT FRAME (AF) to the BASE PLATES (B) using two 3/8 X 3-3/4” BOLTS (11) and two 3/8” LOCK NUTS

(28) as shown in FIGURE 12.

B 28

3/8 X 3-3/4” 11

PLUNGER

FIGURE 13

STEP 14:

FIGURE 14

STEP 13:

• SECURELY assemble the PIVOT ASSEMBLY (AG) to the SEAT FRAME (AF) using two 3/8 X 2-3/4” BOLTS (15), two 3/8”

WASHERS (23) and two 3/8” LOCK NUTS (28) as shown in FIGURE 13.

15 3/8 X 2-3/4”

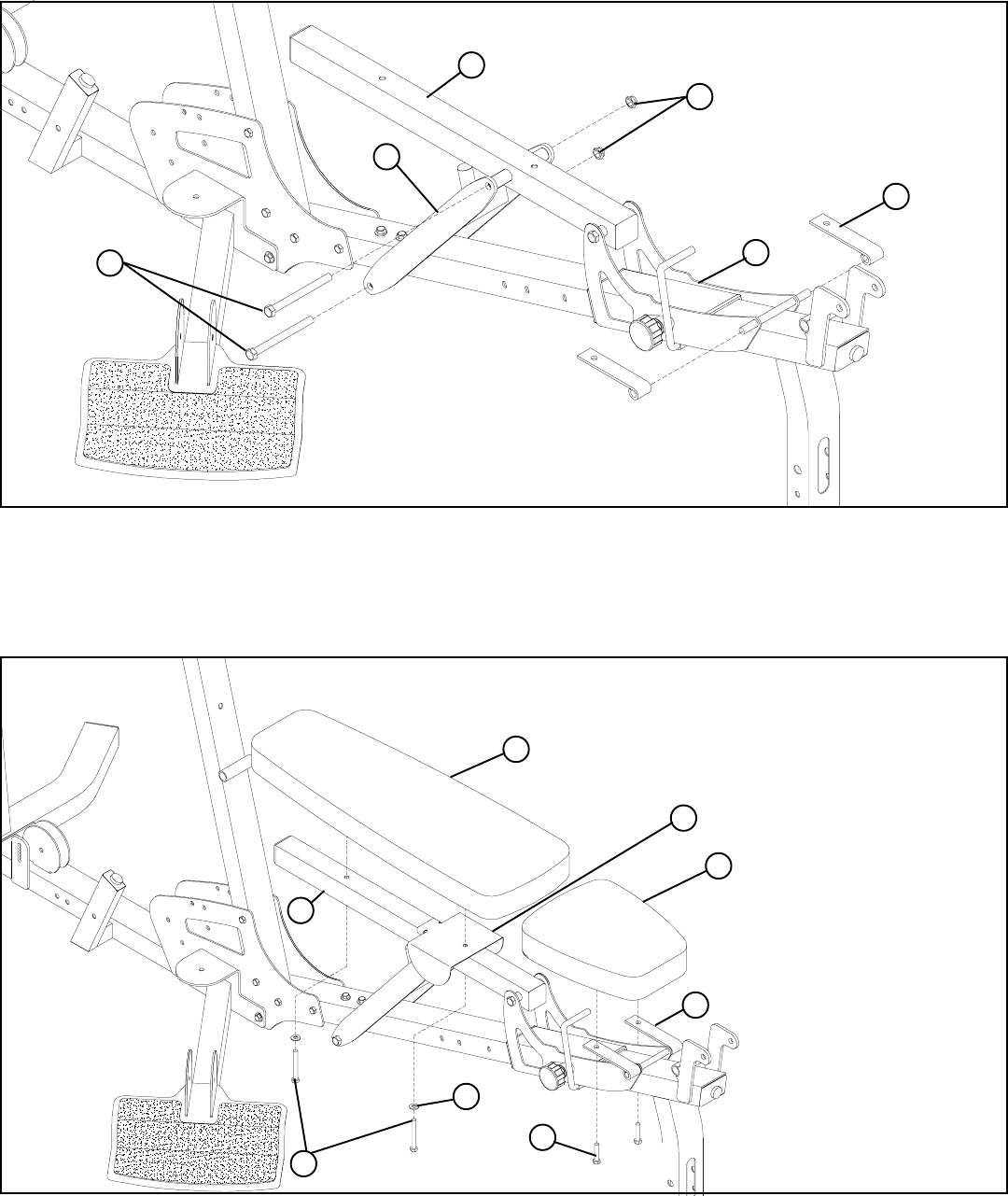

• Assemble the BENCH TUBE (J) to the SEAT ADJUST (M) using one 1/2 X 4-1/4” BOLT (4) and one 1/2” LOCK NUT (26). (Note:

Tighten this connection enough to remove excess play yet allow the BENCH TUBE to rotate freely.)

4 1/2 X 4-1/4”

FIGURE 15

STEP 15:

• Assemble the SEAT SUPPORT BRACKET (O) to the PIVOT ASSEMBLY (AG) and the BENCH TUBE (J) using two 1/2 X 6”

BOLTS (3) and two 1/2” LOW HEIGHT LOCK NUTS (27). (Note: Tighten this connection enough to remove excess play yet allow

the BENCH TUBE to rotate freely.)

1/2 X 6” 3

• Assemble two SEAT HINGES (N) to the tubes on the SEAT ADJUST (M) as shown in FIGURE 15.

STEP 16:

FIGURE 16

• SECURELY assemble the BENCH SEAT PAD (AQ) to the HINGE TABS (N) using two 3/8 X 1” BOLTS (18) See FIGURE 16.

• SECURELY assemble the BENCH BACK PAD (AR) to the BENCH BRACKET (K) and the BACK TUBE (J) using two 3/8 X 3” BOLTS

(14) and two 3/8” WASHERS (23). See FIGURE 16.

3/8 X 1-1/4” 18

14 3/8 X 3”

FIGURE 17

STEP 17:

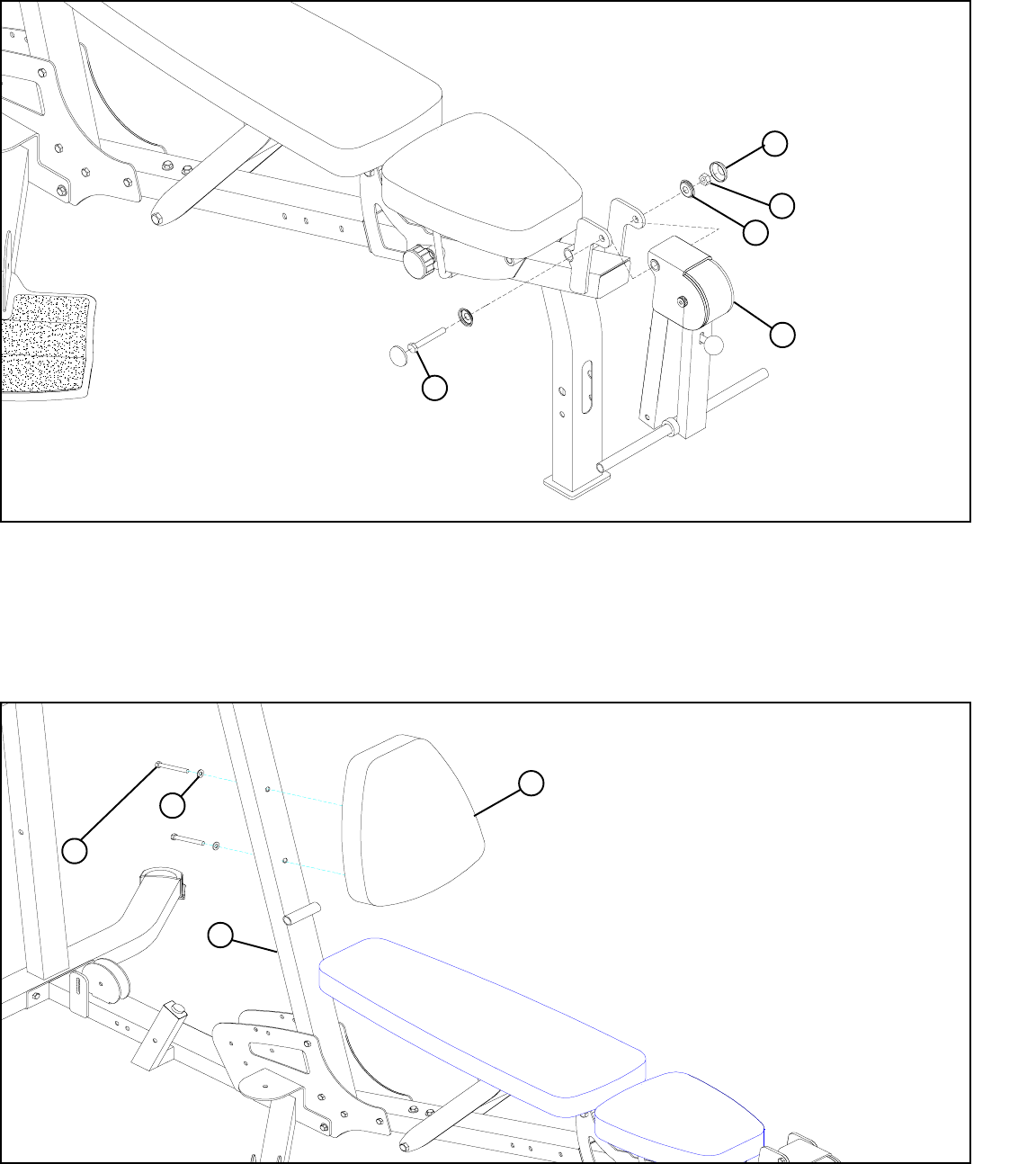

• Assemble the LEG PEDESTAL (AD) to the SEAT FRAME (AF) using one 1/2 X 104mm BOLT (8), two SHIM WASHERS (25), one

1/2” LOCK NUT (27) and two RH CAPS (45). (Note: Tighten this connection enough to remove excess play yet allow the LEG

PEDESTAL to rotate freely.)

8 1/2 X 104mm

STEP 18:

FIGURE 18

• SECURELY assemble one BACK PAD (AP) to the FRONT FRAME (E) using two 3/8 X 3” BOLTS (14) and two 3/8” WASHERS (23).

See FIGURE 18.

14 3/8 X 3”

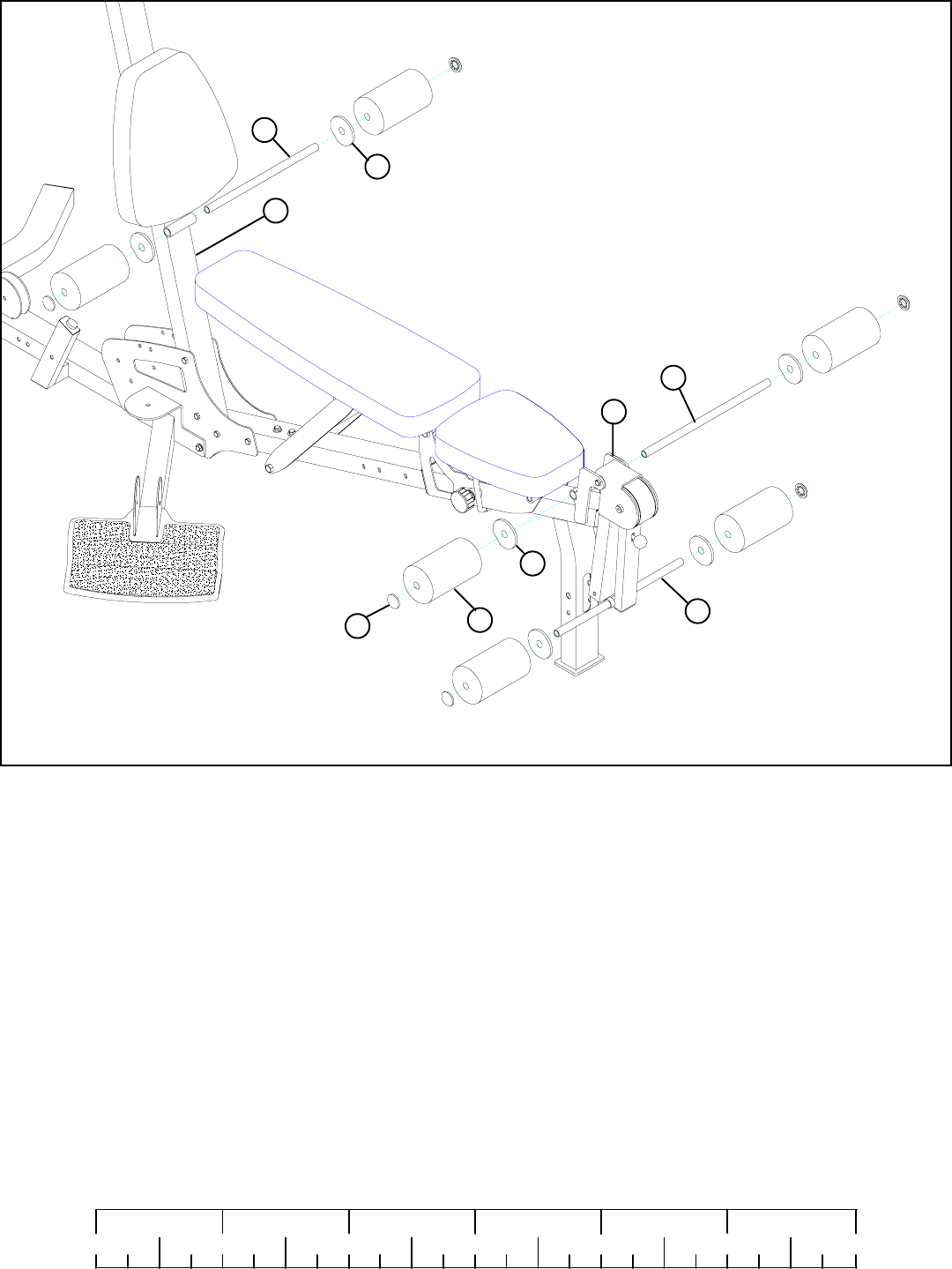

• Assemble two 4 X 7” ROLLER PADS (AS) to the LEG PEDESTAL (AD) using two PLASTIC WASHERS (48) and two STARLOCK

COLLARS (44) as shown in FIGURE 19.

• Assemble two 4 X 7” ROLLER PADS (AS) to the SEAT FRAME (AF) using one 3/4 X 17-1/2” TUBE (AB), two PLASTIC

WASHERS (48) and two STARLOCK COLLARS (44) as shown in FIGURE 19.

• Assemble two 4 X 7” ROLLER PADS (AS) to the FRONT FRAME (E) using one 3/4 X 17-13/32” TUBE (AC), two PLASTIC

WASHERS (48) and two 3/4” STARLOCK COLLARS (44) as shown in FIGURE 19.

STEP 19:

FIGURE 19

0123456

1/2 1/2 1/2 1/2 1/2 1/2

FIGURE 20

STEP 21:

FIGURE 21

STEP 20:

• Insert one 3/4” X 6” SHAFT (36) into the tube on the REAR FRAME (D) as shown.

1/2 X 7-1/4” 2

1/2 X 10-1/2” 1

• SECURELY assemble the PRESS ARM (I) to the REAR UPRIGHT (D) using one 1/2 X 10-1/2” BOLT (1), two 1/2” WASHERS (22)

and one 1/2” LOCK NUT (26) as shown in FIGURE 21.

• SECURELY assemble the PRESS LOAD ARM (AE) to the REAR FRAME (D) using one 1/2 X 7-1/4” BOLT (2), one 1/2” WASHER

(22) and one 1/2” LOCK NUT (26). (Note: Tighten this connection enough to remove excess play yet allow the PRESS LOAD

ARM to rotate freely.)

FIGURE 22

STEP 22:

1/2 X 3-1/2” 6

• SECURELY assemble the PRESS ARM ADJUSTMENT (G) to the PRESS LOAD ARM (AE) using one 1/2 X 3-1/2” BOLT (6) and one

1/2” LOCK NUT (26) as shown in FIGURE 22.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

FIGURE 23

STEP 23:

29 3/4” JAM NUT

19 3/8 X 1/2”

• SECURELY assemble the PRESS ARM ADJUSTMENT (G) to the PRESS ARM (I) and the PRESS ARM ADJUSTMENT TUBE (AH)

using two 3/4” JAM NUTS (29) and two 1/4” SPACERS (36) as shown in FIGURE 23.

• SECURELY assemble one 3/8 X 1/2” BOLT (19) and one SPRING WASHER (24) to the PRESS ARM ADJUSTMENT (G) as shown in

FIGURE 23

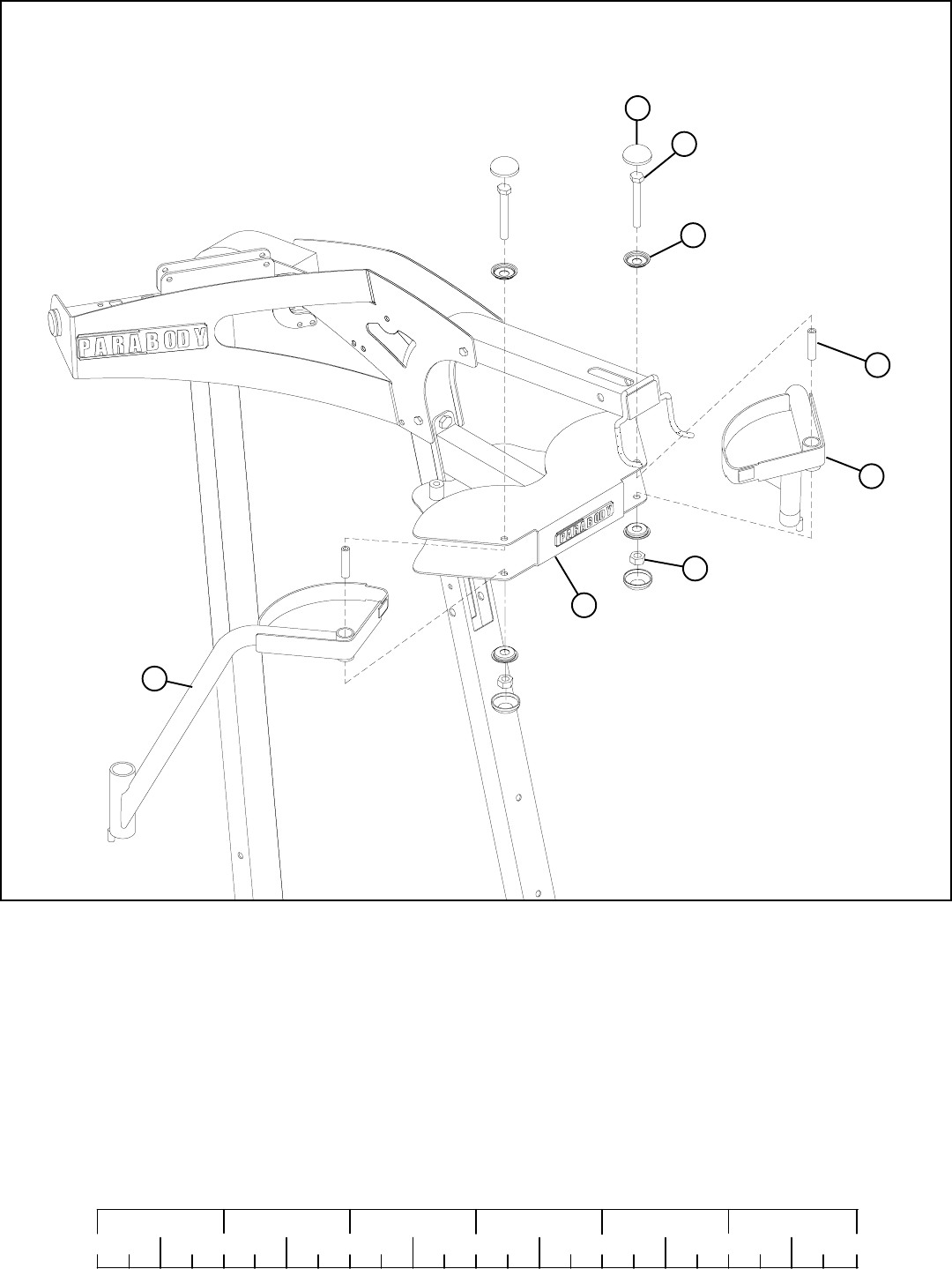

FIGURE 24

STEP 24:

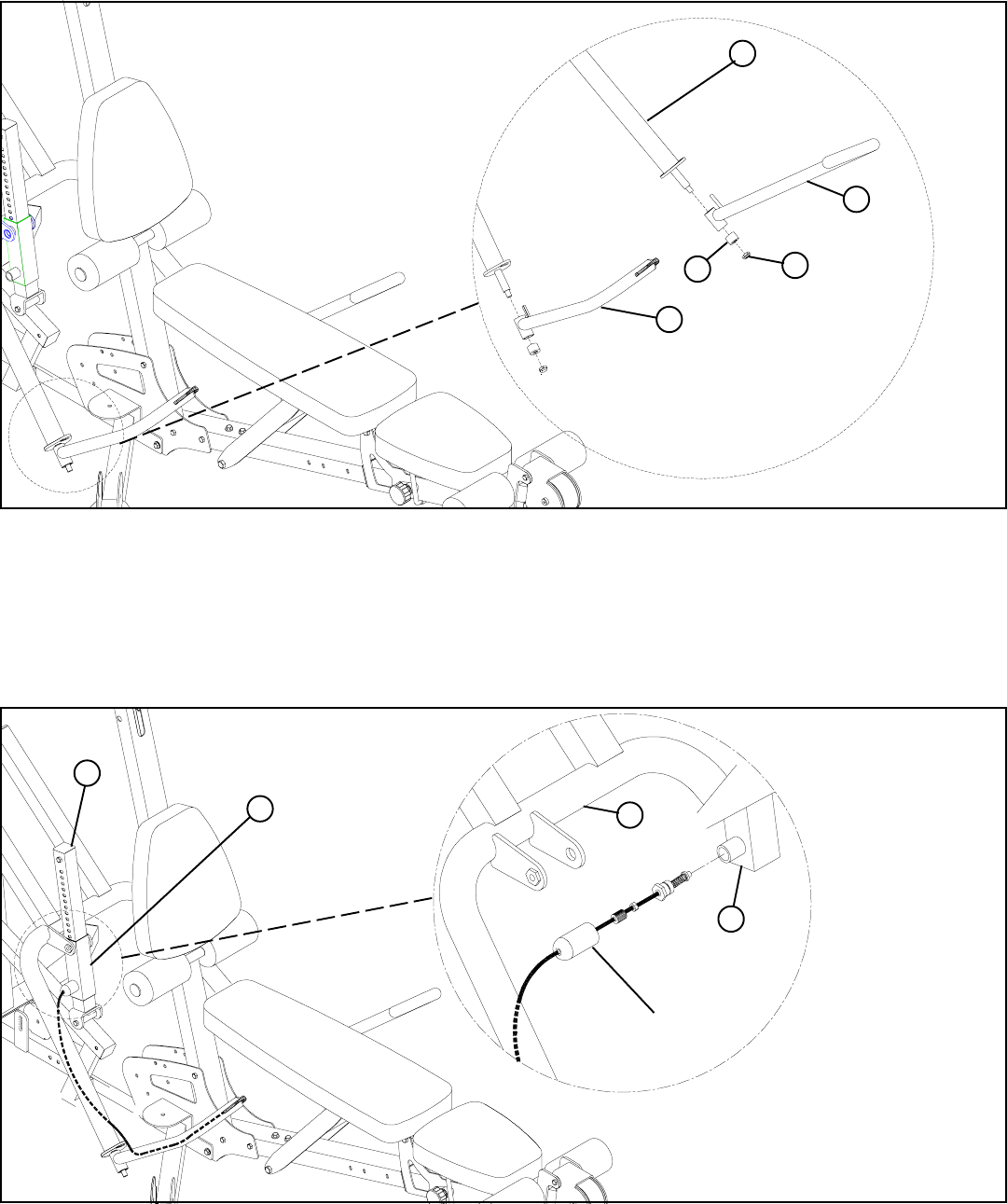

• Assemble the RIGHT PRESS ARM HANDLE (R) to the PRESS ARM (I) using one 25/32” BUMPER (AO) and one 1/2” LOW HEIGHT

LOCK NUT (27) as shown in FIGURE 24. (NOTE: Tighten 1/2” LOW HEIGHT LOCK NUT (27) to remove excess play yet allow the

RIGHT PRESS ARM HANDLE (R) to rotate freely.)

• Assemble the LEFT PRESS ARM HANDLE (Q) to the PRESS ARM (I) using one 25/32” BUMPER (AO) and one 1/2” LOW HEIGHT

LOCK NUT (27) as shown in FIGURE 24. (NOTE: Tighten 1/2” LOW HEIGHT LOCK NUT (27) to remove excess play yet allow the

LEFT PRESS ARM HANDLE (Q) to rotate freely.)

FIGURE 25

STEP 25:

PUSH-PULL

CABLE

• SECURELY assemble the SPRING PIN ASSEMBLY of the PUSH/PULL CABLE to the spring pin barrel on the PRESS ARM ADJUST-

MENT TUBE (AH). (!!! IMPORTANT !!! TIGHTEN THE NUT OF THE SPRING PIN ASSEMBLY SECURELY)

• Swing the PRESS ARM (I) up until the SPRING PIN of the PUSH/PULL CABLE engages in one of the adjustment holes on the PRESS

ARM ADJUSMENT (G).

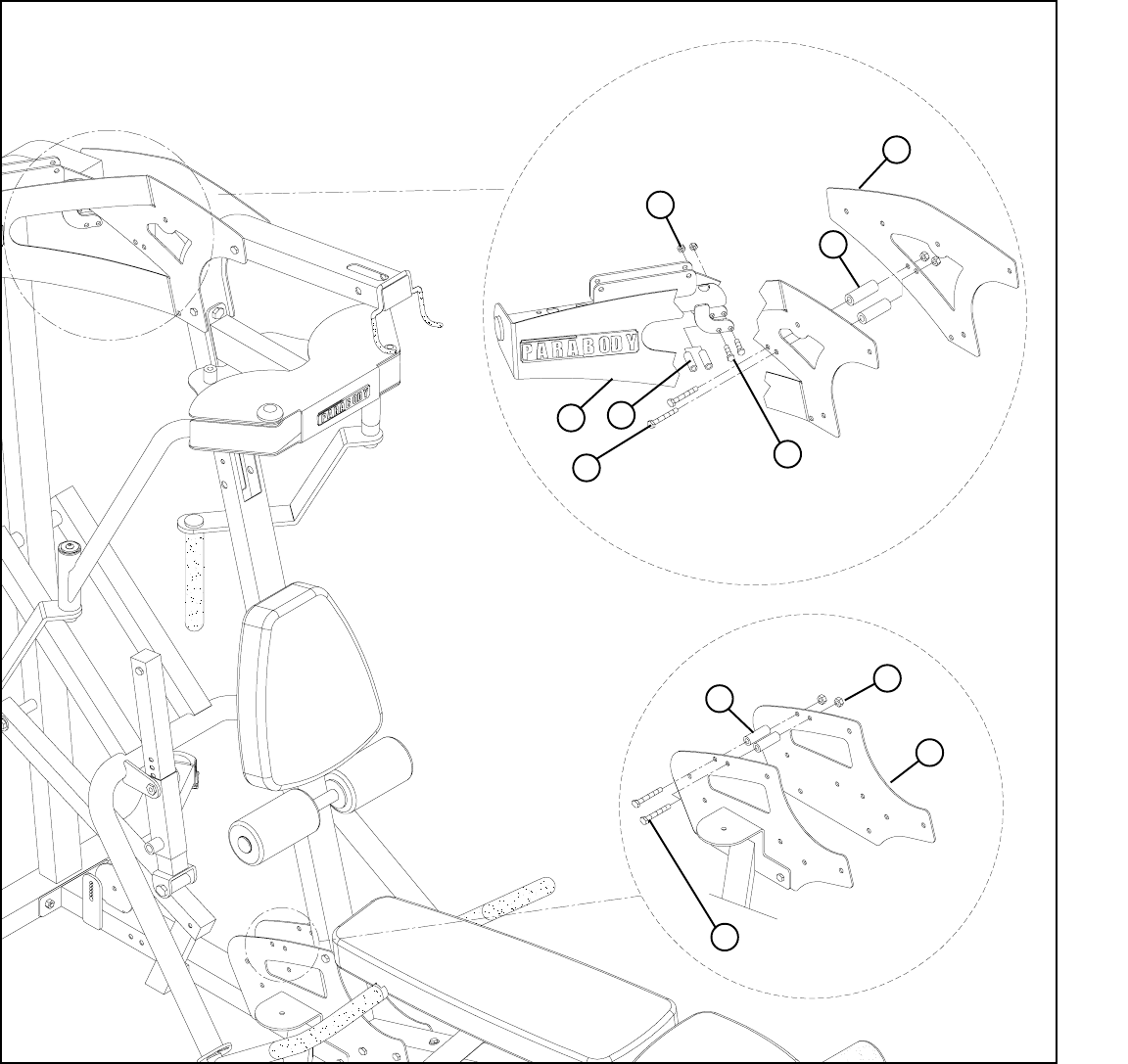

STEP 25:

FIGURE 25

• SECURELY assemble two 2-29/32” PLASTIC SLEEVES (47) to the BASE PLATES (B) using two 3/8 X 3-3/4” BOLTS (11) and two

3/8” LOCK NUTS (28) as shown in FIGURE 25(b)

• SECURELY assemble two 2” PLASTIC SLEEVES (46) to the RIGHT TOP ASSEMBLY (X) using two 3/8 X 2-3/4” BOLTS (15) and

two 3/8” LOCK NUTS (28) as shown in FIGURE 25(a)

• SECURELY assemble two 2-29/32” PLASTIC SLEEVES (47) to the RIGHT TOP ASSEMBLY (X) and LEFT TOP PLATE (Y) using two

3/8 X 3-3/4” BOLTS (11) and two 3/8” LOCK NUTS (28) as shown in FIGURE 25(a)

11 3/8 X 3-3/4”

15 3/8 X 2-3/4”

(a)

(b)

STEP 26:

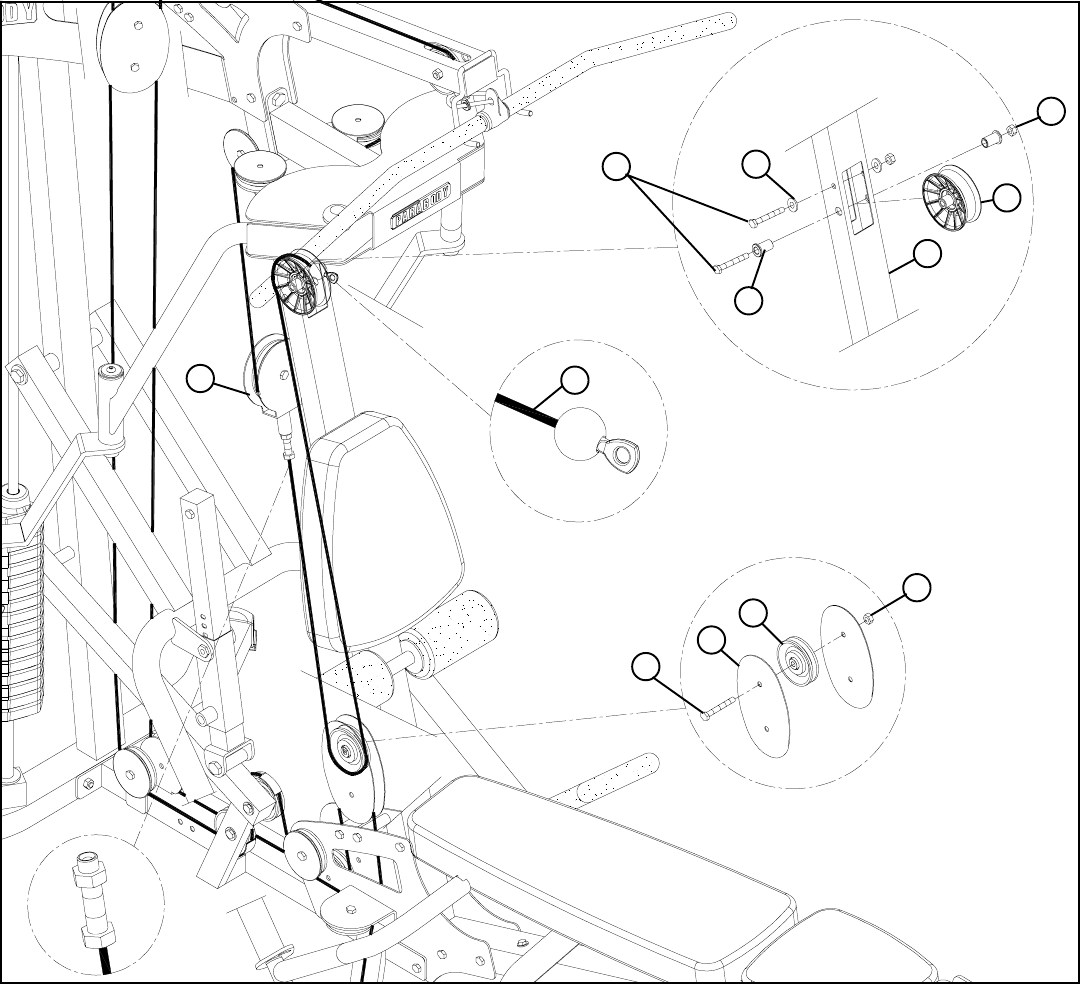

• Assemble two 3-1/2” PULLEYS (49) to the RIGHT TOP ASSEMBLY (X) using two 3/8 X 2” BOLTS (16), two L CABLE RETAINER

(AA) and two 3/8” LOCK NUTS (28) as shown in FIGURE 26(b)

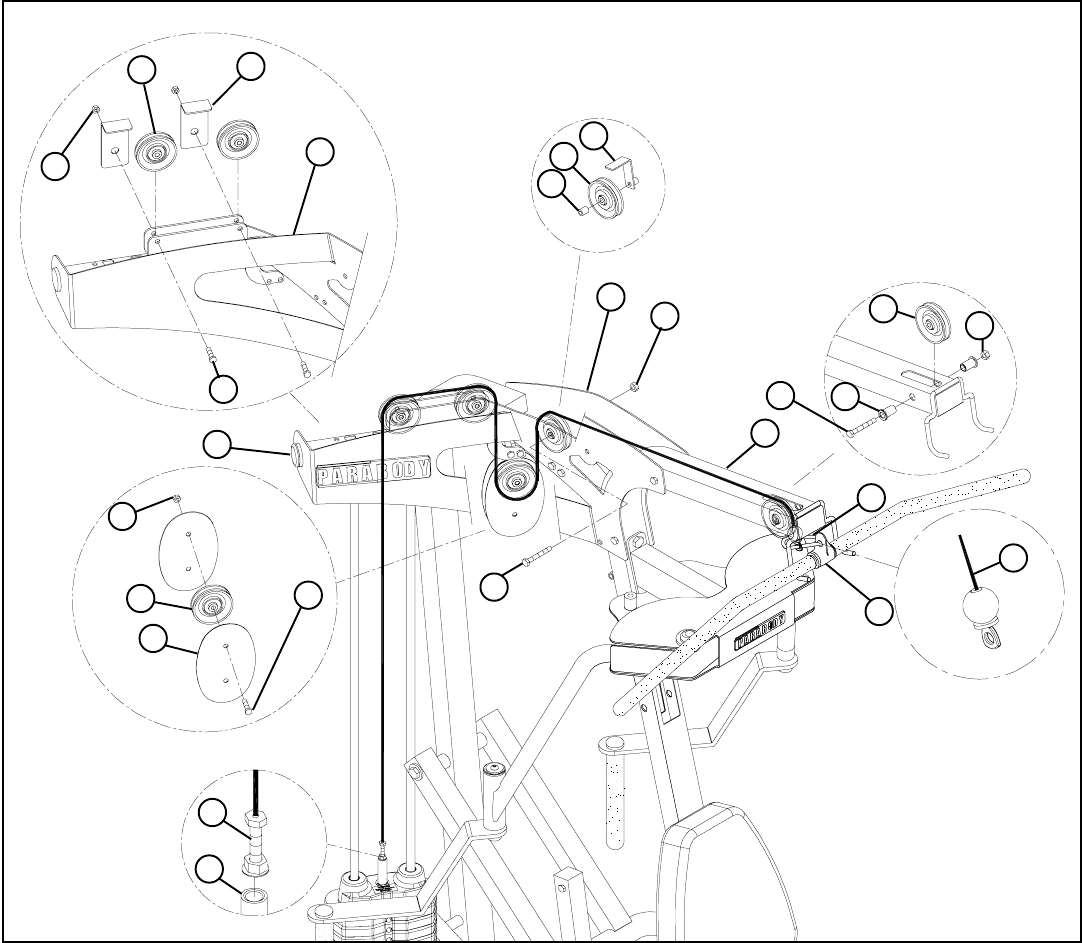

• Screw the long threaded end of the LAT CABLE (AV) into the end of the HEAD PLATE (AK) .See FIGURE 26(a)

• Route the LAT CABLE (AV) around the pulleys in the RIGHT TOP ASSEMBLY (X) as shown in FIGURE 26. (NOTE: Make sure the

cable runs in the grooves of the pulleys.)

• IMPORTANT! Uncoil and straighten all CABLES in order to remove all twist prior to installation

FIGURE 26

• Route the LAT CABLE (AV) around one 3-1/2” PULLEY (49) and assemble two FLOATING PULLEY PLATES (L) to the 3-1/2” PULLEY

(49) using one 3/8 X 1-3/4” BOLT (17) and one 3/8” LOCK NUT (28). See FIGURE 26(c)

• Route the LAT CABLE (AV) around one 4-1/2” PULLEY (50) and assemble the PULLEY to the RIGHT TOP ASSEMBLY (X) and the LEFT

TOP PLATE (Y) using one 3/8 X 3-3/4” BOLT (11), one 3/8 X 15/16” SPACER (30), one LONG “L” CABLE BRACE (Z) and one 3/8”

LOCK NUT (28). See FIGURE 26(d)

• Route the LAT CABLE (AV) around one 3-1/2” PULLEY (49) and assemble the PULLEY to the FRONT FRAME (E) using one 3/8 X 3-

3/4” BOLT (11), two 3/8 X 1-1/16” FLANGE SPACERS (40) and one 3/8” LOCK NUT (28). See FIGURE 26(e)

3/8 X 2” 16

• Assemble the LAT BAR (AL) to the LAT CABLE using one SNAP LINK (39) as shown in FIGURE 26.

11 3/8 X 3-3/4”

3/8 X 1-3/4”

3/8 X 3-3/4” 11

50 Z

(a)

(c)

(b)

(d)

(e)

STEP 27:

FIGURE 27

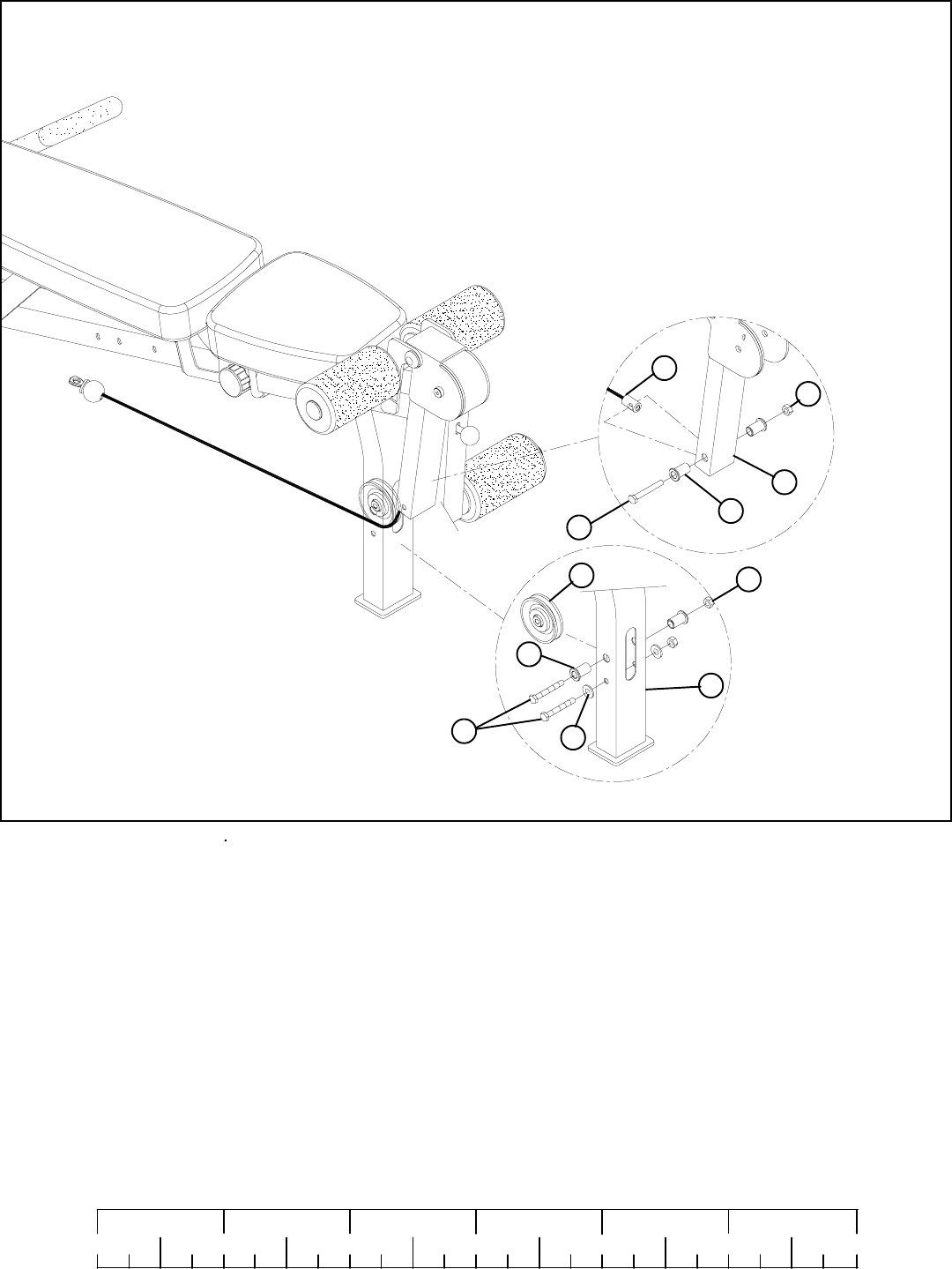

• Route the threaded end of the LOW CABLE (AW) thru theSEAT FRAME (AF) and assemble the swivel end of LOW CABLE (AW) to

the LEG PEDESTAL (AD) using one 3/8 X 3-1/4” BOLT (13), two 15/16” FLANGE SPACERS (41) and one 3/8” LOCK NUT (28). See

FIGURE 27(a)

• Securely assemble the LOW CABLE (AW) and one 3-1/2” PULLEY (49) to the SEAT FRAME (AF) using two 3/8 X 3-3/4” BOLTS (11),

two 3/8 X 1-1/16” FLANGE SPACERS (40), two 3/8” WASHERS (23) and two 3/8” LOCKNUTS (28). See FIGURE 27(b). (NOTE: The

LOW CABLE (AW) must be routed over the retaining bolt as shown in FIGURE 27.)

49 28

3/8 X 3-3/4” 11

3/8 X 3-1/4” 13

0123456

1/2 1/2 1/2 1/2 1/2 1/2

(a)

(b)

STEP 28:

FIGURE 28

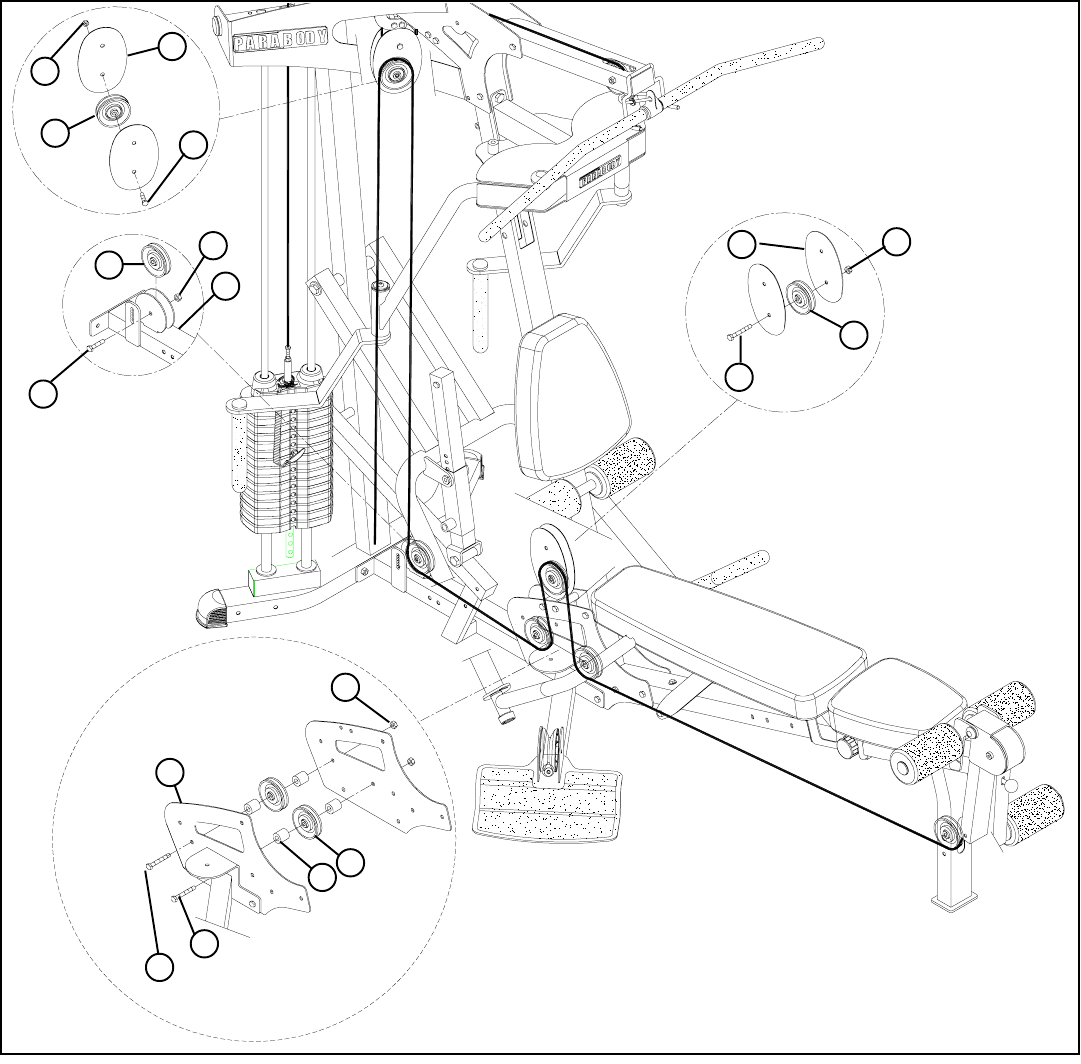

• Assemble one 3-1/2” PULLEY (49) to the BASE PLATES (B) using one 3/8 X 4” BOLT (10), one 3/8 X 15/16” SPACER (30) and one 3/8”

LOCK NUT (28). See FIGURE 28(a) (Note: Loop the LOW CABLE (AW) around the PULLEY prior to assembling the PULLEY to the

BASE PLATES.)

• Route the LOW CABLE (AW) around one 3-1/2” PULLEY (49) and assemble the 3-1/2” PULLEY (49) to the PULLEY PLATES (L) using

one 3/8 X 1-3/4” BOLT (17) and one 3/8” LOCK NUT (28). See FIGURE 28(b)

• Route the LOW CABLE (AW) around one 3-1/2” PULLEY (49) and assemble the 3-1/2” PULLEY (49) to the bracket on the BASE (A) using

one 3/8 X 1-3/4” BOLT (17) and one 3/8” LOCK NUT (28). See FIGURE 28(c)

• Route the LOW CABLE (AW) around one 3-1/2” PULLEY (49) and assemble the 3-1/2” PULLEY (49) to the PULLEY PLATES (L) using

one 3/8 X 1-3/4” BOLT (17) and one 3/8” LOCK NUT (28). See FIGURE 28(d)

3/8 X 1-3/4”

17 3/8 X 1-3/4”

11 3/8 X 3-3/4”

10 3/8 X 4”

• Assemble one 3-1/2” PULLEY (49) to the BASE PLATES (B) using one 3/8 X 3-3/4” BOLT (11), one 3/8 X 15/16” SPACER (30) and one

3/8” LOCK NUT (28). See FIGURE 28(a) (Note: Loop the LOW CABLE (AW) around the PULLEY prior to assembling the PULLEY to

the BASE PLATES.)

(a)

(c)

(d)

(b)

STEP 29:

FIGURE 29

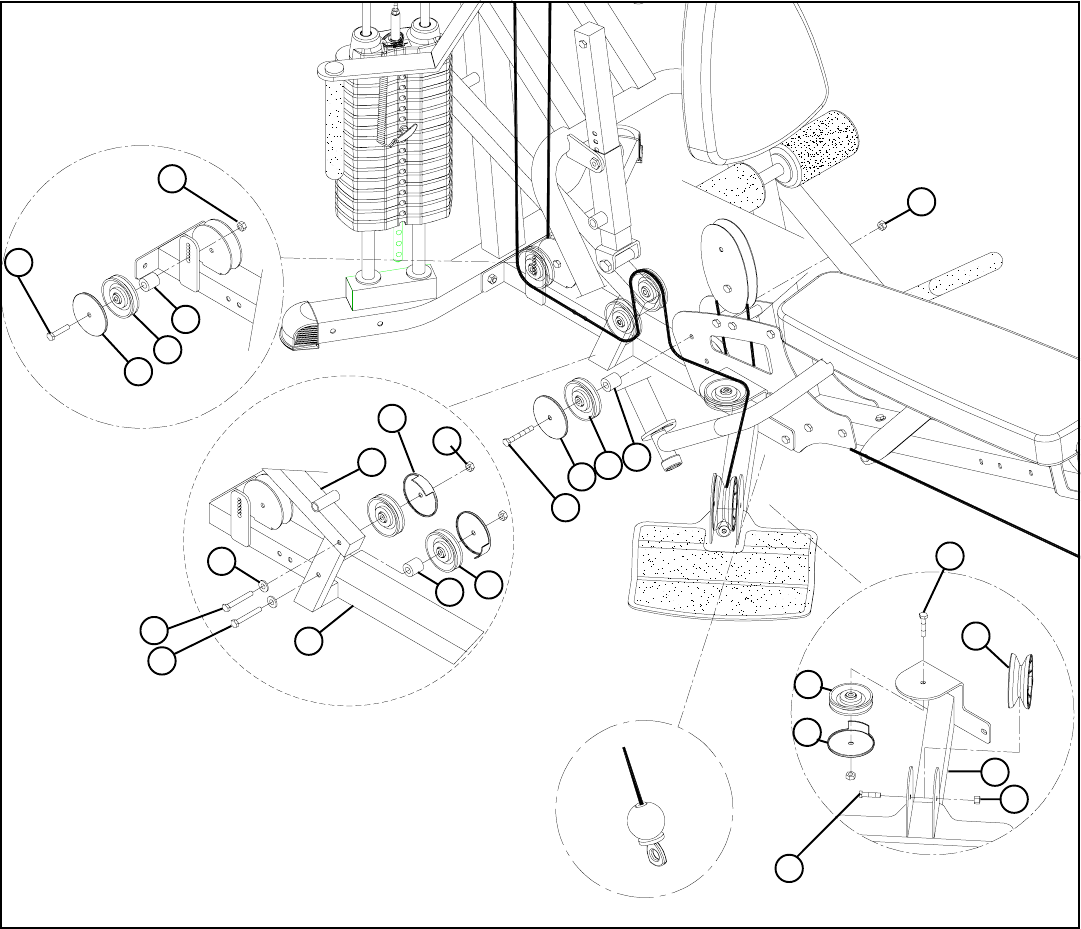

• Assemble one 3-1/2” PULLEY (49) to the bracket on the BASE (A) using one 3/8 X 2-1/4” BOLT (52),one 3-1/2” PULLEY GUARD

(C), one 3/8” SPACER (31) and one 3/8” LOCK NUT (28). See FIGURE 29(a) (Note: Loop the LOW CABLE (45) around the

PULLEY prior to assembling the PULLEY to the BASE .)

• Assemble one 3-1/2” PULLEY (49) and one 3-1/2” PULLEY GUARD (C) to the BASE (B) using one 3/8 X 2-1/4” BOLT (52), one 3/8

X 7/16” SPACER (33) and one 3/8” LOCK NUT (28). See FIGURE 29. (Note: Loop the LOW CABLE (AW) around the PULLEY prior

to assembling the PULLEY to the BASE.)

• Route the LOW CABLE (AW) under one 4-1/2” V-GROOVE PULLEY (51) and assemble the 4-1/2” V-GROOVE PULLEY (50) to the vertical

bracket on the FOOT FRAME (F) using 3/8 X 2-3/4” BOLT (15) and one 3/8” LOCK NUT (28). See FIGURE 29(c)

• Route the LOW CABLE (AW) around one 3-1/2” PULLEY (49) and assemble to the horizontal bracket on the FOOT FRAME (F) using

one 3/8 X 1-3/4” BOLT (17), one 3-1/2” PULLEY GUARD (C) and one 3/8” LOCK NUT (28). See FIGURE 29(c)

• Assemble one 3-1/2” PULLEY (49) to the tube on the BASE (A) using one 3/8 X 3” BOLT (14), one 3/8 WASHER (23) one 3-1/2”

PULLEY GUARD (C), one 13/32“ SPACER (33) and one 3/8” LOCK NUT (28). See FIGURE 29(b) (Note: Loop the LOW CABLE

(AW) around the PULLEY prior to assembling the PULLEY to the BASE .)

• Assemble one 3-1/2” PULLEY (49) to the PRESS LOAD ARM (AE) using one 3/8 X 3-1/2” BOLT (12), one 3/8 WASHER (23)

one 3-1/2” PULLEY GUARD (C) and one 3/8” LOCK NUT (28). See FIGURE 29(b) (Note: Loop the LOW CABLE (AW) around the

PULLEY prior to assembling the PULLEY to the PRESS LOAD ARM .)

17 3/8 X 1-3/4”

15 3/8 X 2-3/4”

52 3/8 X 2-1/4”

3/8 X 3-1/2” 12

52 3/8 X 2-1/4”

3/8 X 3” 14

C 49 32

33 49

(a)

(b)

(c)

STEP 30:

FIGURE 30

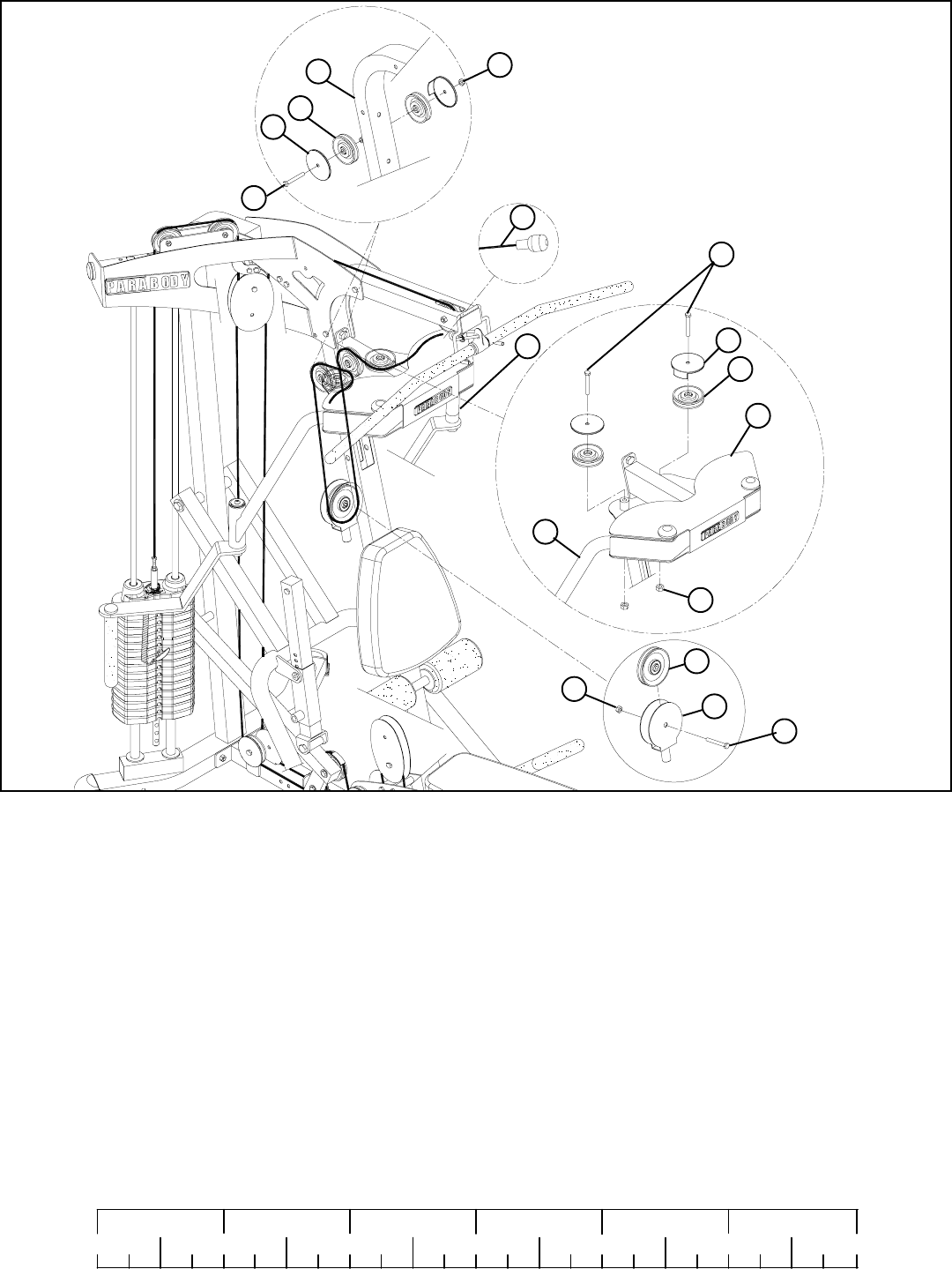

• Securely assemble the PEC FLY CABLE (AX) to the RIGHT PEC FLY ARM (T) as shown in FIGURE 30(a)

• Assemble one 3-1/2” PULLEY (49) to the PEC FLY MOUNT (13) using one 3/8 X 2-3/4” BOLT (15), one 3-1/2” PULLEY GUARD (C)

and one 3/8” LOCK NUT (28). See FIGURE 30(a) (Note: Loop the PEC FLY CABLE (AX) around the PULLEY prior to assembling

the PULLEY to the PEC FLY MOUNT.)

• Assemble two 3-1/2” PULLEYS (49) to the FRONT FRAME (E) using one 3/8 X 5-3/4” BOLT (9), two 3-1/2” PULLEY GUARDS (C)

and one 3/8” LOCK NUT (28). See FIGURE 30(b) (Note: Loop the PEC FLY CABLE (AX) around the PULLEY prior to assembling

the PULLEY to the FRONT FRAME.)

0123456

1/2 1/2 1/2 1/2 1/2 1/2

• Route the PEC FLY CABLE (AX) around one 4-1/2” PULLEY (50) and assemble the 4-1/2” PULLEY (50) to the FLOATING PULLEY

BRACKET (W) using one 3/8 X 1-3/4” BOLT (17) and one 3/8” LOCK NUT (28). See FIGURE 30(c)

• Securely assemble the PEC FLY CABLE (AX) to the LEFT PEC FLY ARM (S) as shown in FIGURE 30.

• Assemble one 3-1/2” PULLEY (49) to the PEC FLY MOUNT (U) using one 3/8 X 2-3/4” BOLT (15), one 3-1/2” PULLEY GUARD (C)

and one 3/8” LOCK NUT (28). See FIGURE 30(a) (Note: Loop the PEC FLY CABLE (AX) around the PULLEY prior to assembling

the PULLEY to the PEC FLY MOUNT.)

15 3/8 X 2-3/4”

17 3/8 X 1-3/4”

3/8 X 5-3/4” 9

C 49

(b)

(a)

(c)

• Securely assemble the ball end of the AB CRUNCH CABLE (AY) and one 4-1/2” V-PULLEY (51) to the FRONT FRAME (E) using two

3/8 X 3-3/4” BOLTS (11), two 3/8 X 19/32” FLANGE SPACERS (42), two 3/8” WASHERS (23) and two 3/8” LOCKNUTS (28).

See FIGURE 31(a) (NOTE: The AB CRUNCH CABLE (44) should be routed underneath the retaing bolt as shown in FIGURE 31.)

STEP 31:

(a)

• Route the AB CRUNCH CABLE (AY) around one 3-1/2” PULLEY (49) and assemble the 3-1/2” PULLEY (49) to the PULLEY PLATES (L)

using one 3/8 X 1-3/4” BOLT (17) and one 3/8” LOCK NUT (28). See FIGURE 31(b)

• Screw the threaded end of the AB CABLE (AY) into the end of the FLOATING PULLEY BRACKET (W) .See FIGURE 31.

3/8 X 1-3/4” 17

3/8 X 3-3/4” 11 23

(b)

FIGURE 31

FIGURE 32

ADJUSTMENT

• If upon completion of assembly, the HEAD PLATE (AK) does not sit on top of the first WEIGHT PLATE, push the HEAD PLATE (AK)

down, insert the WEIGHT SELECTOR PIN and perform several repetitions at the press station.This will relax the cable system and

prevent the HEAD PLATE (AK) from lifting up. See FIGURE 32.

• If after completing previous step, the HEAD PLATE (AK) still does not sit on top of the first WEIGHT PLATE or if there is excess slack

in the cable system, adjust the threaded end of the LAT CABLE (AV) and FLOATING PULLEY BRACKET (W) accordingly and

retighten the jam nuts. See figure 32.

• For maximum performance, the HEAD PLATE (AK should just barely sit on the top WEIGHT PLATE

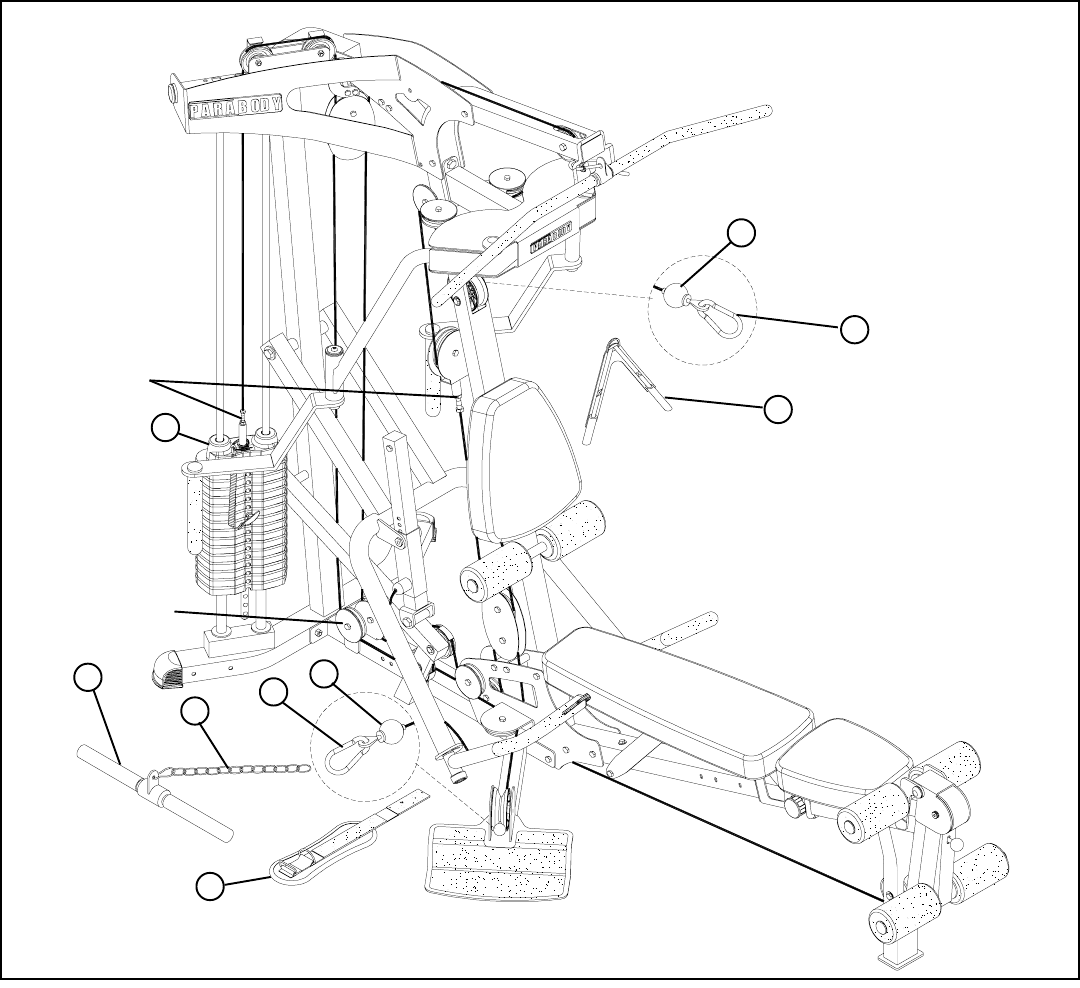

• Attach the LOW ROW BAR (AM) to the ball end of LAT CABLE (AV) using one SNAP LINK (39) as shown in FIGURE 32.

• Attach the ANKLE STRAP (AU) to the 12 LINK CHAIN (38) using one SNAP LINK (39) as shown in FIGURE 32

Thank you for purchasing the ParaBody GS6 Gym System. If unsure of proper use of equipment, call

your local ParaBody distributor or call the ParaBody customer service department at (800) 328-9714

STEP 32:

ADJUSTMENT

• Attach the AB STRAP (AT) to the ball end of LOW CABLE (AW) using one SNAP LINK (39) as shown in FIGURE 32.

TIGHTEN

JAM NUT

SECURELY

MAINTENANCE

MODEL #________________________

SERIAL #_________________________

DATE OF PURCHASE: _____________

DEALERS NAME: _________________

DEALERS PHONE #_______________

* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy

water. Touch-up paint can be purchased from your ParaBody customer service representative

at (800) 328-9714.

* Inspect equipment daily. Tighten all loose connections are replace worn parts immediately.

Failure to do so may result in serious injury

* Lubricate guide rods with a teflon based (or equivalent) lubricant on a regular basis

Thank you for purchasing the ParaBody GS6 Gym System

Please note:

* PLEASE RECORD THE INFORMATION REQUESTED BELOW. IN THE EVENT

YOU MAY NEED SERVICE YOU WILL BE ASKED FOR THIS INFORMATION.

REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND

MAIL BACK.

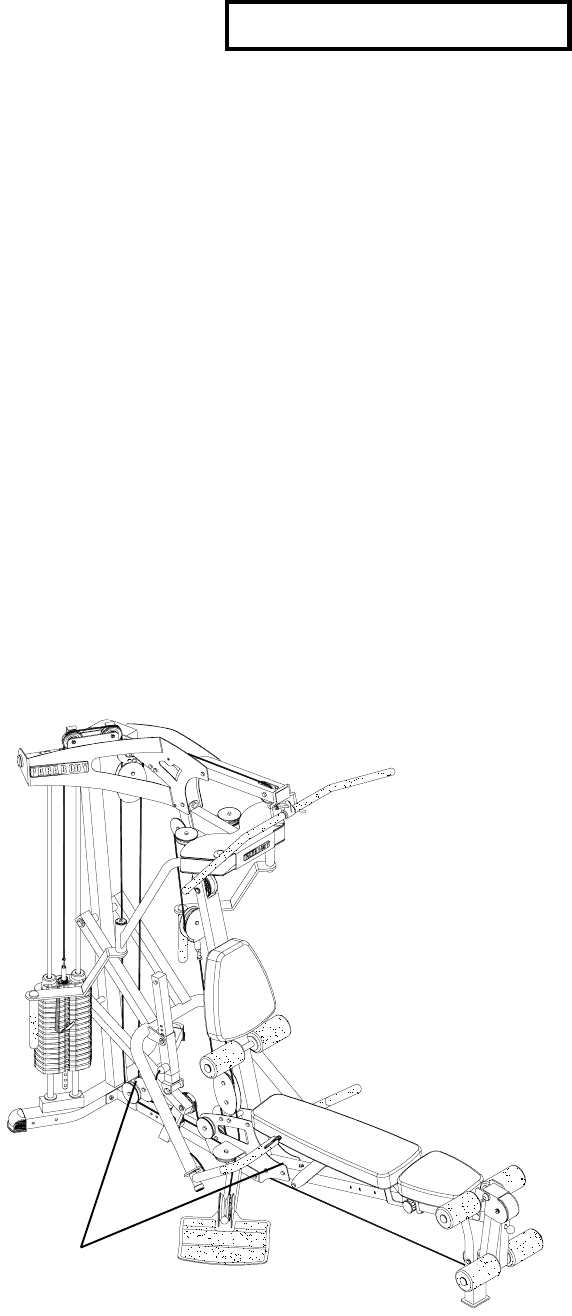

SERIAL NUMBER

LOCATION ON

BACK OF BASE

AND ON FRONT

UPRIGHT

NOTES:

LIMITED WARRANTY

ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONLY.

1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired

or replaced by ParaBody. Terms: Lifetime – for so long as the Customer owns the ParaBody product.

2. LIMITED WARRANTY ON PARTS. If the following parts are defective in material or workmanship, ParaBody will supply replacement

parts: all bolts, nuts, washers, bearings, bushings, pulleys, thumbscrews, collars, cable retaining clips, adjustable pre-stretch slides,

roller pad shafts, allen head bolts, weight selector pin, weight stack shaft, set screws, protector caps, adjustment chain, cotter pin,

plunger, spring and knob. Terms: Lifetime – for so long as the Customer owns the ParaBody product.

3. LIMITED WARRANTY ON CABLES AND UPHOLSTERY. If the coated cables or upholstery are defective in material or workmanship,

ParaBody will repair or replace them, at its option. Terms: Three (3) years.

4. CONDITIONS AND EXCEPTIONS. Any product misuse, abuse or alteration, any attempt to repair by a person other than an authorized

ParaBody Service Center, any improper assembly, accident, or any other condition resulting from occurrences beyond the control of

ParaBody will void this Limited Warranty.

5. REPLACEMENT AND REPAIR EXPENSES. ParaBody will provide only replacement parts or repair under this warranty. The Owner is

responsible for all other costs. Such costs may include, but are not limited to: a. labor charges for service, removal, repair or

reinstallation of the ParaBody product or any component part; b. shipping, delivery, handling and administrative charges for returning

parts to ParaBody; and c. all necessary or incidental costs related to installation of the replacement parts.

6. SHIPPING. If shipping by the Owners is deemed necessary (in sole discretion of ParaBody), parts should be shipped in their original

carton or equivalent packaging, fully insured with shipping charges prepaid. ParaBody will not assume any responsibility for any loss

or damage incurred in shipping.

7. CLAIM PROCEDURES. If service on your ParaBody product is required during the warranty period, please contact our Customer

Service Department at 1-800-328-9714 for instructions regarding returning or replacing parts. Please have available the following

information: (i) the dealer’s name; (ii) the date of purchase; (iii) the serial # (s) of your product (the serial number location is called out

on the final assembly drawing included with your assembly instruction); (iv) a description of the nature of the problem.

8. OWNER’S RIGHT. This Limited Warranty gives you specific legal rights. You may also have other rights, which vary depending on local

law.

9. LIMITATION OF IMPLIED WARRANTIES. All implied warranties, except to the extent prohibited by applicable law, shall have no greater

duration than the warranty period set forth above. There are no warranties which extend beyond the description in this Limited

Warranty. Because local laws do not allow limitations on how long an implied warranty lasts, the above limitations may not apply to

you.

10. DISCLAIMER. No other express warranty has been made or will be made on behalf of ParaBody with respect to any ParaBody product

or the operation, repair or replacement of any ParaBody product. ParaBody shall not be responsible for injury, loss of use of the

ParaBody product, inconvenience, loss or damage to personal property, whether direct or indirect, and incidental or consequential

damages, so the above limitation or exclusion may not apply to you.

INTERNATIONAL OFFICES

Life Fitness Atlantic BV

Atlantic Headquarters

Bijdorpplein 25-31

2992 LB Barendrecht

The Netherlands

Phone: (180) 646 666

Fax: (180) 646 703

Life Fitness Japan

8/F, Nippon Brunswick Building

5-27-7 Sendagaya

Shibuya-Ku, Tokyo 151-0051

Japan

Phone: 81 (3) 3359-4309

Fax: 81 (3) 3359-4307

Life Fitness (UK) Ltd.

Queen Adelaide

Ely, Cambs CB7 4UB

United Kingdom

Phone CSS: (01353) 665507

Fax CSS: (01353) 666719

Life Fitness Benelux N.V.

Bijdorpplein 25-31

2992 LB Barendrecht

The Netherlands

Phone: 31 (180) 64 66 69

Fax: 31 (180) 64 66 99

LIFE FITNESS CONSUMER DIVISION

14150 Sunfish Lake Blvd. Ramsey Minnesota, 55303 U.S.A.

Tel: 763.323.4500 Fax: 763.323.4797

800.328.9714 (Toll-free within the U.S. and Canada)

www.parabody.com

Life Fitness EUROPE GmbH

Siemensstrasse 3

85716 Unterschleissheim

Germany

Phone: (089) 31 77 51-0

Fax: (089) 31 77 51 99

Life Fitness Italia S.R.L.

Via Elvas 92

39042 Bressanone

Italy

Phone: 39 (472) 835-470

Fax: 39 (472) 833-150

Life Fitness Asia Pacific Limited

Room 2610, Miramar Tower

132 Nathan Road, Tsimshatsui

Kowloon, Hong Kong

Phone: (852) 2891-6677

Fax: (852) 2575-6001

Life Fitness Do Brazil

Al. Rio Negro, 433-Predio 2-Sala 2

3º andar (Confab)

Aplhaville-Barueri-Sao Paulo

CEP: 06454-904

Brazil

Phone: 55 (11)7295-2217

Fax: 55 (11) 7295-2218

Parabody Gs6 Users Manual 101

GS6 to the manual 0a9e5c05-7b57-47a5-be37-0d3fa02d2ef6

Navigation menu

Versions of this User Manual:

Views

Navigation
