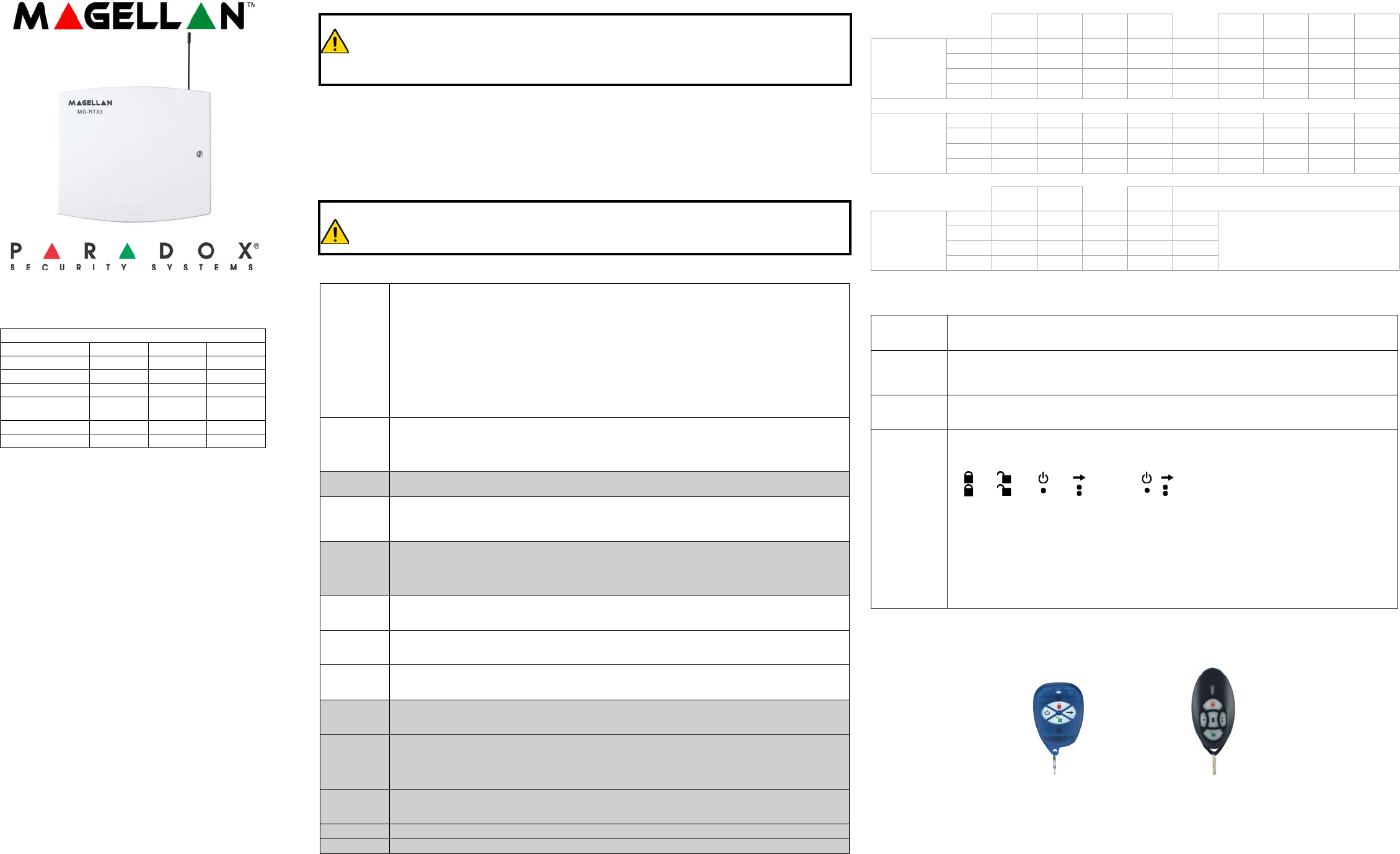

The MG-RTX3 is a 2-Way Wireless Expansion Module for use with any
Digiplex EVO, Spectra SP, and Esprit series control panel. It is also
compatible with the DGP-NE96 and DGP-848 control panels.
What’s New with Version 1.2
• The MG-RTX3's built-in LEDs now display the status of the Spectra SP
Series as shown in F on Table 6.
• The MG-RTX3 with Digiplex EVO now supports MG-REM2 V2.01
remotes programmed directly in the panel. These remotes can also
support the new visual and auditory feedback. When programming with
Digiplex EVO, use section [002] to switch between V2.00 mode or V2.01
mode for all MG-REM2.
Before Programming
1. Connect the MG-RTX3 according to the installation guide.
2. Write down the serial number of all wireless modules to be used with
the MG-RTX3. If this installation replaces another MG-RTX3, make
sure the programming can be transfered.
3. Make sure every wireless module works properly and that you have
the latest version of the firmware for the MG-RTX3 and panels.
System Reset
Press and hold the Programming button for 5 seconds, the BUS RX LED
will flash. Release the button and press it again while the LED flashes to
reset the module to its default values. The system reset feature only
functions during the first 30 seconds after the MG-RTX3 is powered up.
Compatibility Chart
EVO Spectra SP Esprit
Zones 32 32 -
Remotes 32/96/999 32 32
Wireless PGMs 8 16 -
Wireless Keypads
(MG32LRF only) -8-
2-Way Remote 33 -
Wireless Repeater - 2 -
paradox.com
Printed in Canada 10/2007
MG-RTX3 V1.2
Instructions
Spectra SP Series Programming
When connected to a Spectra SP series panel, the MG-RTX3 settings are programmed into the panel. Refer to
the panel’s Programming Guide. Requires version 2.0 or higher of the MG32LED or MG10LED keypads. You can
only connect one MG-RTX3 on a Spectra SP Series panel.
Digiplex EVO Programming
To enter programming mode with a Digiplex EVO panel, press and hold the [0] button. Enter the installer code and go to
section [4003]. Enter the MG-RTX3’s 8-digit serial number. Enter the section number you wish to program.
After Programming with EVO
Program the zones, PGMs, and remotes into the EVO panel. Look at EVO section [3034] for wireless transmitter
supervision options.
WARNING: When used without an EVO641 or EVO641R keypad, enable option [1] in section [3029].
Table 1: Digiplex EVO Programming
[001]
MG-RTX3 Options
Option [1]: Low battery supervision (default: ON)
Option [2]: Check-in supervision (default: OFF)
Option [3]: Check-in supervision time interval
OFF = 24 hours (default)
ON = 80 minutes
Option [4]: RF Jamming supervision (default: ON)
Option [5]: On-board module tamper supervision (default: OFF)
Option [6]: N/A
Option [7]: N/A
Option [8]: Ignore transmitter tamper signal
OFF = MG-RTX3 ignores tamper signal (default)
ON = MG-RTX3 reports tamper signal
[002]
Remote Control Mode
Option [1]: Remote Control Mode
OFF = Remote V2.00 mode (Use with remotes version 2.00 or higher)
ON = Remote V2.01 mode EVO Panel with EVO641/EVO641R (Only use with remotes
version 2.01 or higher) (default)
[030] See Transmitter, Remote and PGM Serial Numbers
To see a transmitter’s 6-digit serial number, press and hold a transmitter’s anti-tamper switch.
[101] to [132]
Assign Wireless Transmitters
[101] = Zone Input 1; [132] = Zone Input 32
Enter 6-digit serial number or press and release the transmitter’s tamper switch.
To delete an assigned transmitter, enter 000000 as a serial number.
See text
Remote Controls
Program 999 remotes with one MG-RTX3 using an EVO641/EVO641R keypad (refer to User Code and
Remote Control programming in the Digiplex EVO Programming Guide).
If you are not using an EVO641/EVO641R keypad, program 32 remotes per MG-RTX3 as detailed in
Table 3.
[601] to [632] Transmitter Signal Strength
[601] = Zone Input 1; [632] = Zone Input 32
3 or less = too weak (move transmitter); 4 to 10 = OK.
[701] to [732] Current Battery Life
[701] = Zone Input 1; [732] = Zone Input 32
View the number of weeks the batteries have been in the transmitter
[801] to [832] Previous Battery Life
[801] = Zone Input 1; [832] = Zone Input 32
View number of weeks the previous batteries were in the transmitter.
[671] to [678] Two-Way PGM Signal Strength
[671] = PGM 1; [678] = PGM 8
3 or less = too weak (move transmitter); 4 to 10 = OK.
[901] to [908]
Assign Two-Way PGMs
[901] = PGM 1; [908] = PGM 8
Enter 6-digit serial number or press and release the transmitter’s tamper switch
To delete an assigned Two-Way PGM, enter 000000 as a serial number.
If a section between [901] to [904] is empty, the MG-RTX3 will use the on-board PGM.
[910] to [989] PGM Programming
Program the Two-Way PGM activation event, deactivation event and PGM Delay options. Refer to Table
below.
[991] View Two-Way PGM tamper trouble (PGM # in trouble will be displayed)
[992] View Two-Way PGM supervision trouble (PGM # in trouble will be displayed)
Table 2: Digiplex EVO PGM Option Programming
Event
Group Feature
Group Start # End # Event
Group Feature
Group Start # End #
PGM
Activation*
PGM1 [910] [911] [912] [913] PGM5 [950] [951] [952] [953]
PGM2 [920] [921] [922] [923] PGM6 [960] [961] [962] [963]
PGM3 [930] [931] [932] [933] PGM7 [970] [971] [972] [973]
PGM4 [940] [941] [942] [943] PGM8 [980] [981] [982] [983]
PGM
Deactivation*
PGM1 [914] [915] [916] [917] PGM5 [954] [955] [956] [957]
PGM2 [924] [925] [926] [927] PGM6 [964] [965] [966] [967]
PGM3 [934] [935] [936] [937] PGM7 [974] [975] [976] [977]
PGM4 [944] [945] [946] [947] PGM8 [984] [985] [986] [987]
*For a complete list of events, refer to the PGM programming section of your Digiplex or Digiplex EVO control panel’s programming guide.
PGM
Delay Options PGM
Delay Options
PGM Delay
(000 to 255)
Default: 005
PGM1 [918] [919] PGM5 [958] [959] Option [1]: ON = PGM delay
OFF = Latch (default)
Option [2]: ON = Minutes
OFF = Seconds (default)
PGM2 [928] [929] PGM6 [968] [969]
PGM3 [938] [939] PGM7 [978] [979]
PGM4 [948] [949] PGM8 [988] [989]
Table 3: Programming without an EVO641/EVO641R
[040] to [043] View Used Remotes
[040] = remotes 1 to 8; [043] = remotes 25 to 32.
To delete a remote, press the corresponding number until it’s no longer displayed in these sections.
[201] to [232]
Assigning Remote Controls
[201] = remote 01; [232] = remote 32
Enter the desired section and then press and hold a button on the remote control until you hear a
confirmation beep.
[301] to [332] Assign Remotes
Assign the remote controls to users by entering a user number (001 to 255) in the appropriate section
(Users 001 to 255, Section [301] = remote 01, section [332] = remote 32.)
[401] to [432]
Program or Delete Remote.
[401] = remote 01; [432] = remote 32
______/ ______/ ______/ ______/ ______/ ______/ ______/ ______ (default: 15000000)
see Figure 1
see Figure 2
[0] = Button Disabled [8] = Panic 2† (Non-Medical)
[1] = Regular Arm [9] = Panic 3† (Fire)
[2] = Stay Arm [stay] = Smoke reset
[3] = Instant Arm [force] = Utility Key 1*
[4] = Force Arm [arm] = Utility Key 2*
[5] = Disarm [disarm] = Utility Key 3*
[6] = Stay/Instant Disarm [byp] = Utility Key 4*
[7] = Panic 1† (Police) [mem] = Utility Key 5*
[clear] = Exit without saving [enter] = Save data
N/A
+
N/A
N/A
N/A
+
N/A
N/A
Figure 1: MG-REM1 Figure 2: MG-REM2
MGRTX3-EI03
Esprit Programming
To enter programming mode with Esprit, connect an Esprit 636 or 646 to the “Program” connector. Press
the “Esprit Mode Programming” button. Press [Enter] on your Esprit keypad and enter the installer code
(default: 757575). Enter the desired section number.
* Buttons used to arm are also used to disarm the system
Installation Information
Figure 3: Mounting
Figure 4: PCB and Connection
Technical Specifications
Changes or modifications on equipment not expressly approved by the Paradox Security Systems could
void the user's authority to operate the equipment.
FCC ID: KDYMG-RTX3
CANADA: 2438A-MGRTX3
FCC PART 15, WARNINGS INFORMATION TO USER
This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant
to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy, and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to equipment intermittently, the user is
encouraged to try to correct the interference by one or more of the following measures: (1) re orient or
relocate the receiving antenna; (2) increase the separation between the equipment and receiver; (3)
connect the equipment to an outlet on a circuit other than the one to which the receiver is connected, or
(4) consult the dealer or an experienced radio/tv technician for assistance. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Table 4: Esprit Programming
[000] Installer Code
Set Installer Code (4 or 6 digits, default: 757575)
[301] to [332]
User Code Assignment
Assign a valid user code from the Esprit Panel into the MG-RTX3.
[301] = user 01; [332] = user 32.
To delete a user code, press [2ND] and then [Enter]
[201] to [232]
Remote Control Assignment
[201] = remote control 01; [232] = remote control 32
Press [Enter]. After the confirmation beep, press and hold any button on the remote until
you hear two beeps.
To delete a remote control, press [2ND] followed by [Enter].
[401] to [432]
Remote Control Button Options
[401] = remote control 01; [432] = remote control 32
Options [1] to [3]: See Table below
Option [4]: Enable button for PGM activation (see section [011])
Option [5]: Enable button for PGM activation (see section [012])
Option [6]: Enable button for PGM activation (see section [013])
Option [7]: Enable button for PGM activation (see section [014])
Option [8]: Enable button + for Panic Alarm
[011] to [014]
PGM Output Activation
[011] = Remote Button
[012] = Remote Button
[013] = Remote Button
[014] = Remote Button
Option [1]: Activate PGM 1 output (Default ON in section [011])
Option [2]: Activate PGM 2 output (Default ON in section [012])
Option [3]: Activate PGM 3 output (Default ON in section [013])
Option [4]: Activate PGM 4 output (Default ON in section [014])
Refer to section [401] to [432]
[021] to [024]
PGM Latch/Delay
[021] = PGM1; [024] = PGM 4
Option [0]: Latched Option [5]: 40 seconds
Option [1]: 1 second Option [6]: 60 seconds
Option [2]: 5 seconds (default) Option [7]: 2 minutes
Option [3]: 10 seconds Option [8]: 4 minutes
Option [4]: 20 seconds
[001]
Code Length
Option [1]: ON = 6-digit access code length (default)
OFF = 4-digit access code length
Panic Alarm
Option [2]: ON = Panic Alarm toggles PGM and panic alarm. (Default)
OFF = Panic Alarm toggles the PGM
[002]
PGM Output on Panic
Option [0]: No PGM output on panic alarm
Option [1]: Toggle PGM 1 on panic alarm
Option [2]: Toggle PGM 2 on panic alarm
Option [3]: Toggle PGM 3 on panic alarm (default)
Option [4]: Toggle PGM 4 on panic alarm
[003]
RF Lockout on Panic
Option [0]: No RF signal lockout on panic alarm (default)
Option [1]: 30-second RF signal lockout on panic alarm
Option [2]: 60-second RF signal lockout on panic alarm
Option [3]: 90-second RF signal lockout on panic alarm
Option [4]: 120-second RF signal lockout on panic alarm
Table 5: Remote Control Arming Options [401] to [432], Options [1] to [3]
Option [1] Option [2] Option [3] Definition
Off Off Off No Arm or Disarm
On Off Off Button = Regular Arm* (Default)
Off On Off Button = Regular Arm*
On On Off Button = Regular Arm*
Button = Regular Arm*
Off Off On Button = Force Arm*
On Off On Button = Force Arm*
Button = Stay Arm*
Off On On Button = Regular Arm*
Button = Stay Arm*
On On On Button = Stay Arm*
Table 6: Mounting and Connection
Element

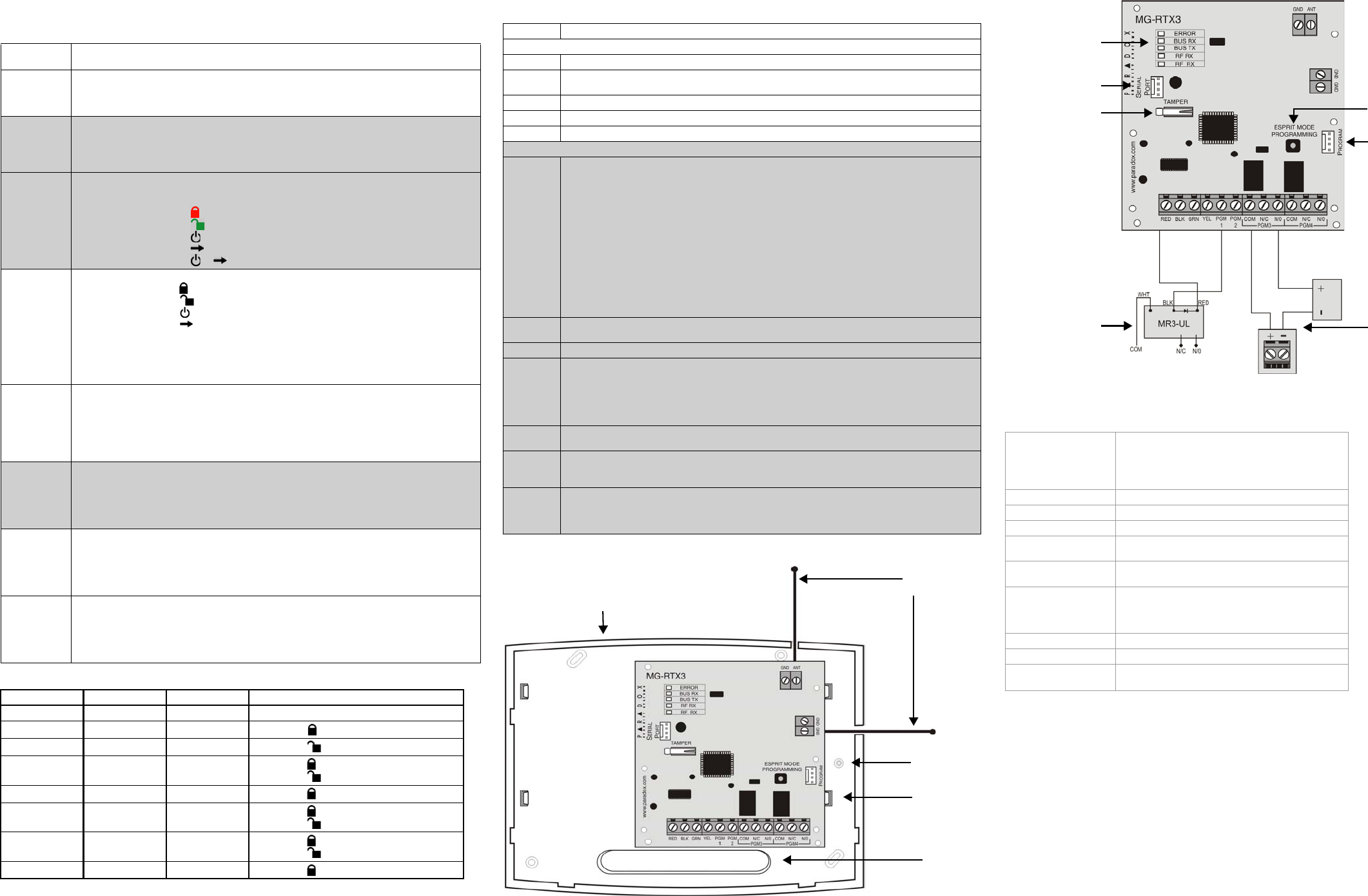

Figure 3: Mounting
A Back Cover
BAntennas: The vertical antenna is the default antenna. Connect the horizontal antenna to
improve reception and range.
C PCB Mounting Holes (x 9)
D Mounting clip (x 4)
E Wiring Slot
Figure 4: PCB and Connection
F
ERROR (Red): Indicates a problem with the module.
BUS RX (Green): Flashes when receiving information from the panel.
BUS TX (Red): Flashes when transmitting information to the panel.
RF RX(Green): Flashes when receiving wireless information.
RF TX(Yellow): Flashes when transmitting wireless information.
Special Display (Digiplex EVO and Spectra SP Series only):
BUS RX BUS TX Error Condition
OFF OFF ON Combus is shorted / No clock / No
data / Fail to Com
OFF ON ON Wrong data / Invalid Combus
address (Too many modules)
ON OFF ON Future Use
ON ON ON Combus lines reversed
---- ---- Flash Combus power is too low
GConnect to a 306USB and use WinLoad’s In-Field Firmware Upgrade Application to
upgrade the firmware.
HAnti-Tamper Switch
I
Esprit Programming: Press to enter programming mode in Esprit mode.
System Reset: Press and hold the Programming button for 5 seconds, the BUS RX LED will
flash. Release the button and press it again while the LED flashes to reset the module to its
default values. This is only possible in the first 30 seconds after the MG-RTX3 is powered
up.
JConnect the Esprit 636/646 LED keypad to the “Program” connector to program in Esprit
and Stand Alone mode.
KIf the current draw exceeds 150mA on PGM1 or PGM2, use a relay. Connect the MG-
RTX3’s RED connector to the relay’s RED connector, and the PGM connector (PGM1 or
PGM2) to the relay’s BLK connector.
L
Connect PGM 3 and PGM4 to external power supplies if you need additional power. A PS-
817 is recommended. Connect the PGM’s N/O connector to the external power supply’s +
connection. Connect the power supply’s - connector to the device’s - connector. Connect
the PGM’s COM connector to the device’s + connector.
B
A
E
C
D
Compatibility All Magellan wireless transmitters
Digiplex EVO (EVO48, EVO96 and EVO192)
Digiplex (DGP-848 and DGP-NE96)
Spectra SP (SP5500, SP6000 and SP7000)
Esprit (728ULT and 738ULT)
Frequency: 433MHz or 868MHz
Sensitivity: -120 dBm
Current consumption: 50 mA
Dimensions (no
antenna): 15cm x 16cm x 3cm (6in x 6.5in x 1.1in)
Operating
temperature: 0°C to 49°C (32°F to 120°F)
PGM outputs: PGM1 and PGM2 - 150mA PGM transistor
outputs
PGM3 - form C relay output rated at 5A/28Vdc,
N.O./N.C. (PGM4 optional)
Range Refer to the appropriate transmitter Instructions
Other: Di-pole antenna; Error Correction Algorithm
Approvals For the latest information on product approvals,
visit our Web site at paradox.com
F
G
HI
J
KL
