Parente Fireworks Srl FIREMASTER4KR FIREMASTER IV REMOTE UNIT User Manual 7

Parente Fireworks Srl FIREMASTER IV REMOTE UNIT 7

Users Manual IX

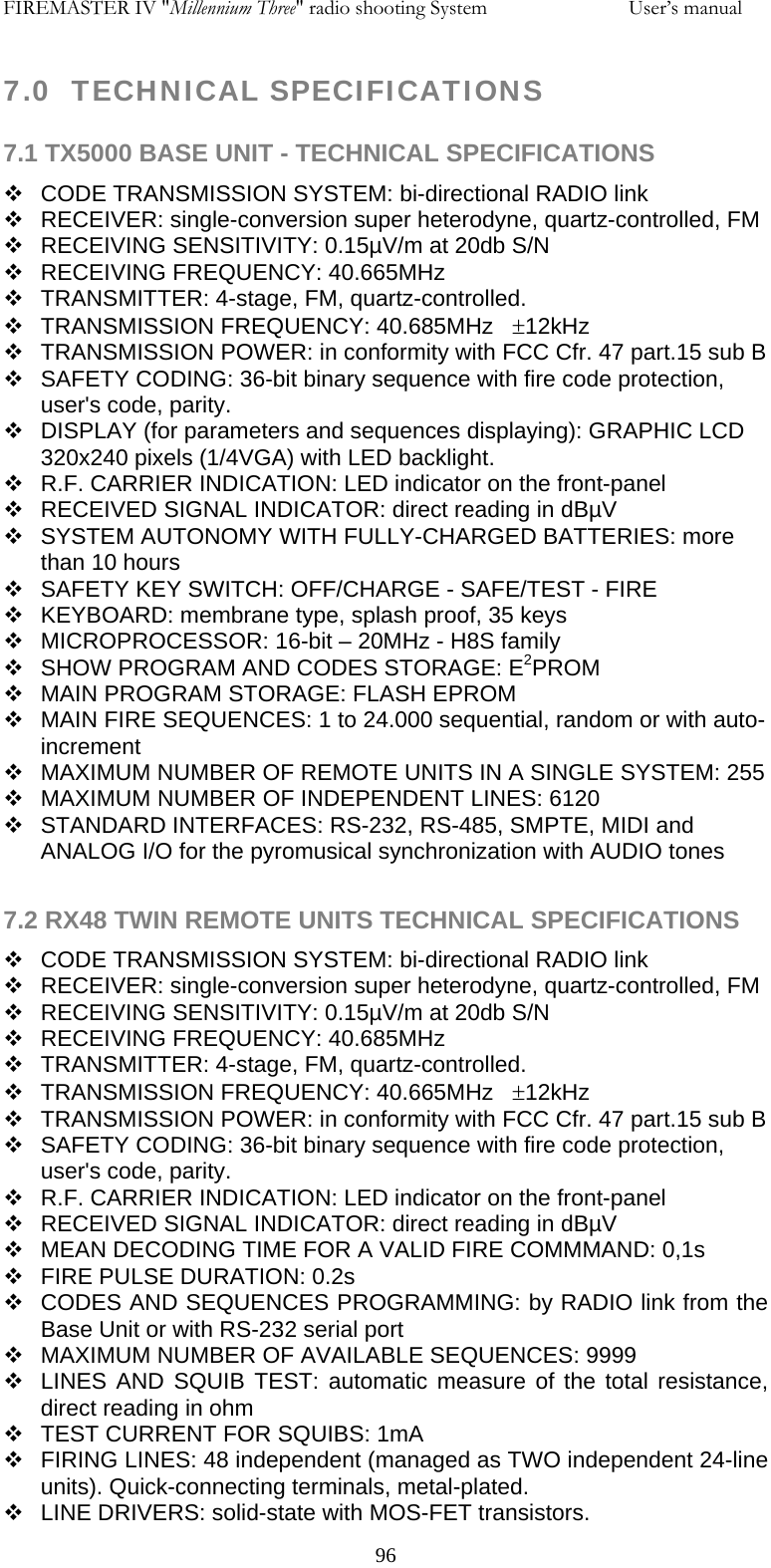

FIREMASTER IV "Millennium Three" radio shooting System User’s manual 7.0 TECHNICAL SPECIFICATIONS 7.1 TX5000 BASE UNIT - TECHNICAL SPECIFICATIONS  CODE TRANSMISSION SYSTEM: bi-directional RADIO link  RECEIVER: single-conversion super heterodyne, quartz-controlled, FM  RECEIVING SENSITIVITY: 0.15µV/m at 20db S/N  RECEIVING FREQUENCY: 40.665MHz  TRANSMITTER: 4-stage, FM, quartz-controlled.  TRANSMISSION FREQUENCY: 40.685MHz ±12kHz  TRANSMISSION POWER: in conformity with FCC Cfr. 47 part.15 sub B  SAFETY CODING: 36-bit binary sequence with fire code protection, user's code, parity.  DISPLAY (for parameters and sequences displaying): GRAPHIC LCD 320x240 pixels (1/4VGA) with LED backlight.  R.F. CARRIER INDICATION: LED indicator on the front-panel  RECEIVED SIGNAL INDICATOR: direct reading in dBµV  SYSTEM AUTONOMY WITH FULLY-CHARGED BATTERIES: more than 10 hours  SAFETY KEY SWITCH: OFF/CHARGE - SAFE/TEST - FIRE  KEYBOARD: membrane type, splash proof, 35 keys  MICROPROCESSOR: 16-bit – 20MHz - H8S family  SHOW PROGRAM AND CODES STORAGE: E2PROM  MAIN PROGRAM STORAGE: FLASH EPROM  MAIN FIRE SEQUENCES: 1 to 24.000 sequential, random or with auto-increment  MAXIMUM NUMBER OF REMOTE UNITS IN A SINGLE SYSTEM: 255  MAXIMUM NUMBER OF INDEPENDENT LINES: 6120  STANDARD INTERFACES: RS-232, RS-485, SMPTE, MIDI and ANALOG I/O for the pyromusical synchronization with AUDIO tones 7.2 RX48 TWIN REMOTE UNITS TECHNICAL SPECIFICATIONS  CODE TRANSMISSION SYSTEM: bi-directional RADIO link  RECEIVER: single-conversion super heterodyne, quartz-controlled, FM  RECEIVING SENSITIVITY: 0.15µV/m at 20db S/N  RECEIVING FREQUENCY: 40.685MHz  TRANSMITTER: 4-stage, FM, quartz-controlled.  TRANSMISSION FREQUENCY: 40.665MHz ±12kHz  TRANSMISSION POWER: in conformity with FCC Cfr. 47 part.15 sub B  SAFETY CODING: 36-bit binary sequence with fire code protection, user's code, parity.  R.F. CARRIER INDICATION: LED indicator on the front-panel  RECEIVED SIGNAL INDICATOR: direct reading in dBµV  MEAN DECODING TIME FOR A VALID FIRE COMMMAND: 0,1s  FIRE PULSE DURATION: 0.2s  CODES AND SEQUENCES PROGRAMMING: by RADIO link from the Base Unit or with RS-232 serial port  MAXIMUM NUMBER OF AVAILABLE SEQUENCES: 9999  LINES AND SQUIB TEST: automatic measure of the total resistance, direct reading in ohm  TEST CURRENT FOR SQUIBS: 1mA  FIRING LINES: 48 independent (managed as TWO independent 24-line units). Quick-connecting terminals, metal-plated.  LINE DRIVERS: solid-state with MOS-FET transistors. 96

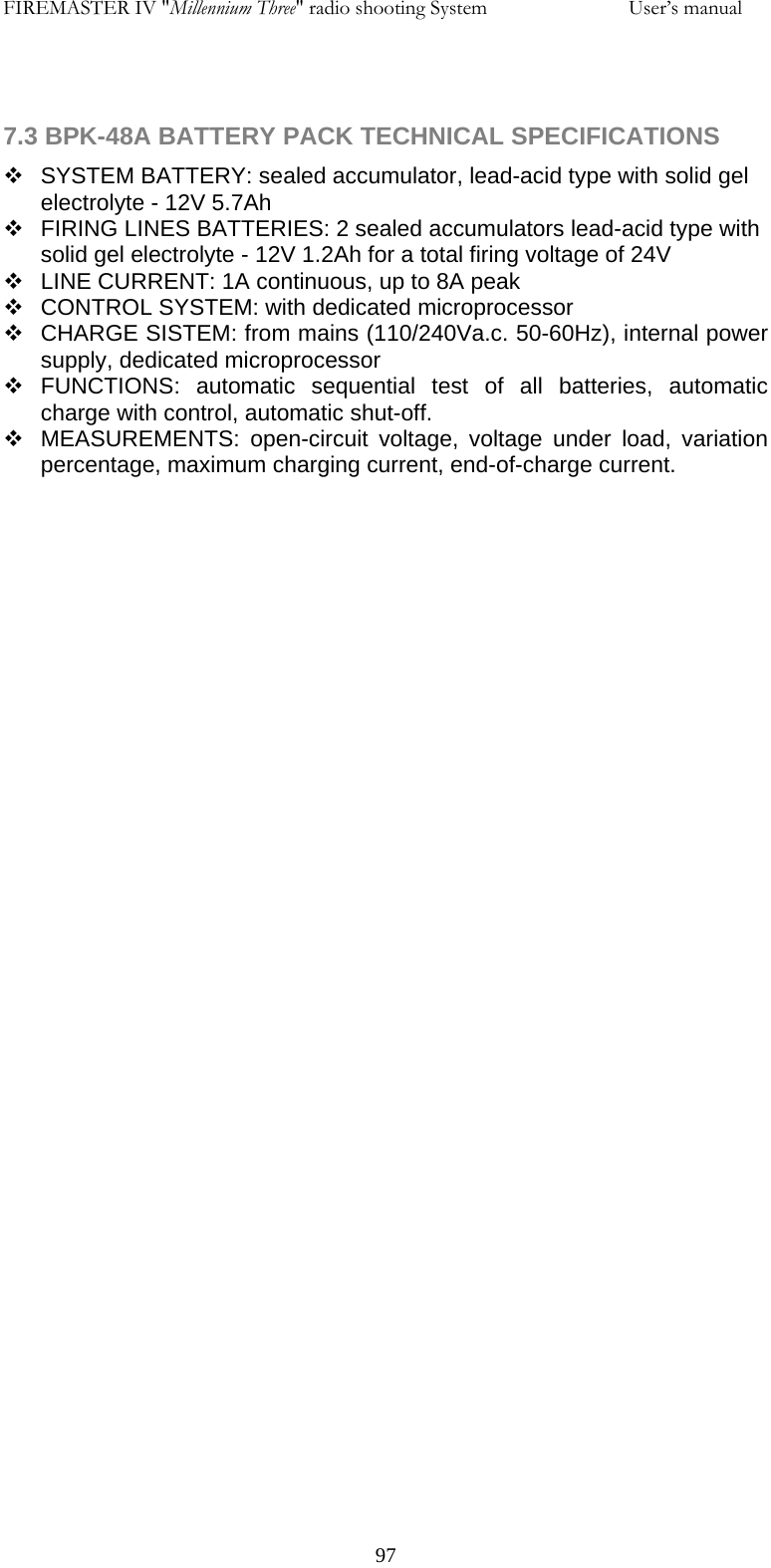

FIREMASTER IV "Millennium Three" radio shooting System User’s manual 7.3 BPK-48A BATTERY PACK TECHNICAL SPECIFICATIONS  SYSTEM BATTERY: sealed accumulator, lead-acid type with solid gel electrolyte - 12V 5.7Ah  FIRING LINES BATTERIES: 2 sealed accumulators lead-acid type with solid gel electrolyte - 12V 1.2Ah for a total firing voltage of 24V  LINE CURRENT: 1A continuous, up to 8A peak  CONTROL SYSTEM: with dedicated microprocessor  CHARGE SISTEM: from mains (110/240Va.c. 50-60Hz), internal power supply, dedicated microprocessor  FUNCTIONS: automatic sequential test of all batteries, automatic charge with control, automatic shut-off.  MEASUREMENTS: open-circuit voltage, voltage under load, variation percentage, maximum charging current, end-of-charge current. 97
