Parrot MKi9100

User guide

2

Contents

Contents .................................................................................................................... 2

Installation ................................................................................................................. 3

Before you begin ..................................................................................................................................... 3

Checking the car configuration ...................................................................................................... 3

Caution .......................................................................................................................................... 3

Removing the car stereo ............................................................................................................... 3

Installing the kit ........................................................................................................................................ 4

Car stereo with ISO connectors .................................................................................................... 4

Car stereo with line-in .................................................................................................................... 4

Installing the electronic box ........................................................................................................... 5

Installing the kit‟s power cable ...................................................................................................... 6

Checking the wiring ....................................................................................................................... 6

Installing the audio connectors ...................................................................................................... 6

Installing the individual components ........................................................................................................ 7

Installing the double microphone .................................................................................................. 7

Installing the remote control .......................................................................................................... 8

Installing the screen .................................................................................................................... 10

Getting started ........................................................................................................ 11

Navigating through the menus............................................................................................................... 11

Associating the remote control to the electronic box .................................................................. 11

Commands .................................................................................................................................. 11

Using the vocal menus ................................................................................................................ 12

Establishing a Bluetooth connection with a phone ................................................................................ 12

Using a phone with the Parrot MKi9100 for the first time ............................................................ 12

Managing Bluetooth devices ....................................................................................................... 13

Synchronizing the phonebook ............................................................................................................... 14

Phone....................................................................................................................... 15

Making and receiving calls .................................................................................................................... 15

Making a call ............................................................................................................................... 15

Receiving a call ........................................................................................................................... 16

Using the Parrot MKi9100 while on a call ................................................................................... 16

Using voice recognition ......................................................................................................................... 18

Receiving a call via voice recognition ......................................................................................... 18

Making a call via voice recognition .............................................................................................. 18

Music ....................................................................................................................... 20

Using the Parrot MKi9100 with an external source ............................................................................... 20

Using the Parrot MKi9100 with an iPod / iPhone ........................................................................ 20

Using the Parrot MKi9100 with a USB peripheral ....................................................................... 21

Using the Parrot MKi9100 with an audio player connected via Bluetooth .................................. 21

Using the Parrot MKi9100 with an analogue audio player .......................................................... 22

Commands ............................................................................................................................................ 22

Settings ................................................................................................................... 23

Brightness ................................................................................................................................... 23

Ringtone ...................................................................................................................................... 23

Call .............................................................................................................................................. 23

Activating the external noise elimination ..................................................................................... 24

Audio ........................................................................................................................................... 25

3

Installation

WARNING: We advise our customers to have the Parrot MKi9100 fitted by a professional.

Before you begin

Checking the car configuration

 The cables supplied with the kit feature ISO connectors and two pairs of line-out jacks. The

line-out jacks can be used if your audio system features this option (use of an amplifier).

Several set-ups are therefore possible depending on the type of car stereo and your vehicle.

 If your car stereo is not fitted with ISO connectors, you need to purchase an ISO adapter

cable to simplify the wiring procedure. Refer to the range of ISO adapters on our website.

Caution

 Unplug the battery before installing the kit‟s power cable.

 Before you install the individual components, check that the installation locations have been

selected in such a way that the cable length is sufficient to connect every element.

 Do not install any component (screen, remote control…) in the airbag deployment area.

 Once the installation is complete, make sure that no cables are pinched.

Removing the car stereo

 Remove your car stereo from you vehicle. You may need release keys to do so.

► Refer to your car stereo user guide or contact your car dealer for more information.

 Remove the audio system from your vehicles dashboard to access the wiring harness.

 The mute function is used to cut the sound of your car stereo to enable a phone call. The

choice of the mute-in jack depends on your car stereo‟s configuration.

4

Installing the kit

Car stereo with ISO connectors

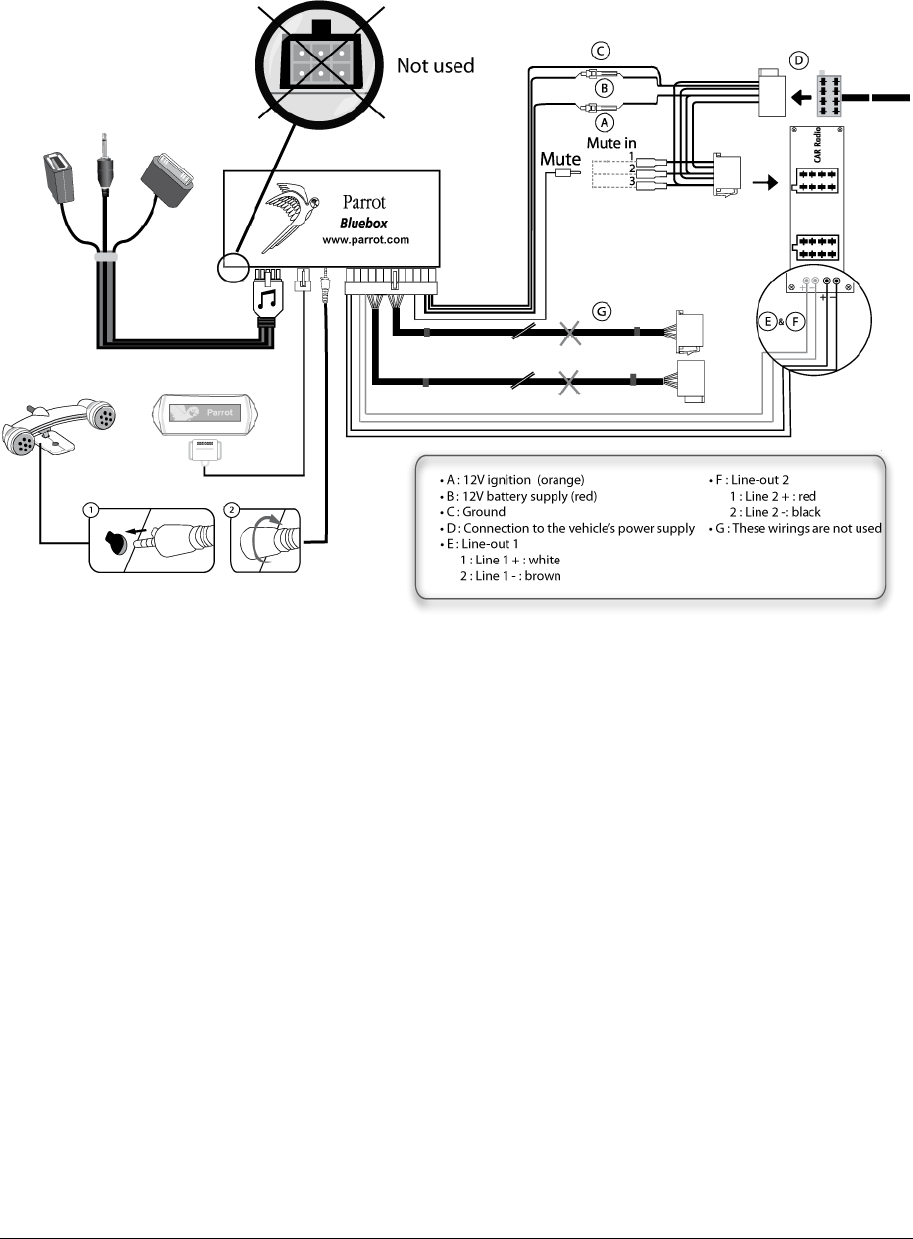

1. Connect the male connectors of the hands-free kit to the car stereo.

2. Join the vehicle‟s audio and power supply cables to the female connectors of the Parrot

MKi9100.

3. On the installation cable, connect the free yellow wire to one of the audio system‟s

corresponding mute-in jacks if available (mute in 1, mute in 2 or mute in 3).

Car stereo with line-in

 Use this type of connection by wiring the line-out (brown & white wire or red & black wire) to

your car stereo‟s line-in.

 Using the two pairs of line-out will enable you to take advantage of the music function in

stereo over your vehicle‟s speakers.

5

 On the installation cable, connect the free yellow wire to the corresponding audio system‟s

mute-input if available (mute in 1, mute in 2 or mute in 3).

Installing the electronic box

 Avoid installing the electronic box near heating or air-conditioning system, on a spot directly

exposed to sunlight or behind metal walls.

 Make sure the electronic box stays fixed once it is installed and that it will not move while

you are driving.

 Do not reinstall the car stereo forcibly. If you are short of space behind the car stereo to

install the electronic box, consider installing it in the glove box.

6

Installing the kit‟s power cable

Note : In order to check the wiring, connect the screen before placing it on the dashboard.

► Refer to the Checking the wiring section for more information.

 Refer to your car stereo‟s wiring diagram.

 The red wire of the kit‟s cable must correspond to the constant +12V supply, the orange wire

to the ignition +12V and the black wire to ground. Check that the orange wire is not

connected to the constant +12V supply, as you could run down the vehicle‟s battery.

Note : On some vehicles, there is no ignition +12V on the vehicle’s connectors. You must therefore

connect the orange power supply wire to the fuse box or another ignition power source.

Checking the wiring

 To perform the installation check, turn the ignition on then off once the Parrot MKi9100 is

installed: the message “Goodbye!” must be displayed.

 If it is not the case, it is necessary to inverse the positions of the red and orange wires.

Indeed, the red wire of the power cable must be connected to the permanent 12V, the

orange wire to the 12V ignition and the black wire to the ground. This can be done simply by

reversing both fuse holders located on the Parrot wiring.

Installing the audio connectors

Installing the music

cable binding

system

The music cable binding system allows you to adjust the cable length

while reducing its wear.

1. Drill a 20 mm hole in your dashboard (glove compartment or parcel

tray).

2. Insert manually two flexible arms of the binding system.

3. Use a flat screwdriver in order to insert the last two arms.

> You can now connect your music cable to the bluebox.

7

Installing the music

cable

Connect the music cable to the electronic box and place the USB /

iPod / Jack connectors into the glove box, the central console or the

parcel tray depending on the configuration of your dashboard. Make

sure that the cable is not pinched.

Note : Use the provided protection cap to protect the connectors.

Installing the individual components

Installing the double microphone

Selecting a

location

In order to get hi-quality conversations, we advise you to respect the following

recommendations:

 Make sure the microphone is installed as close to the mouth of the user as

possible. The ideal distance is 60 cm. The best possible location for the

microphone is near the rear-view mirror.

 The microphone needs to be pointed towards the user.

8

D < 60 cm

α < 45°

 Make sure the microphone is not exposed to the air stream from air vents.

 Do not install the microphone cable in heating, ventilation or air

conditioning systems.

Mounting the

double microphone

 The mounting location for the microphone must be clean and free from grease

or dust. Prior to installation, clean the area with an appropriate cleansing

product.

 Once you have stuck the support on the dashboard, wait for approximately 2

hours to make sure the adhesive tape adheres well.

Installing the remote control

Installing the remote

control on the

steering wheel

If you want to place the remote control on the steering wheel, make sure it is

securely attached, so that it does not move when you are driving.

9

WARNING: Do not install the remote control on the outside of the

steering wheel and ensure it does not get in the way when driving.

Installing the remote

control on the

dashboard

If you want to place the remote control on the dashboard, stick the double-

sided tape located on the flat side of the bracket to fix it against the

dashboard. You can then insert the remote onto the bracket.

WARNING: Once you have stuck the support on the dashboard, wait

for approximately 2 hours to make sure the adhesive tape adheres

well.

Replacing the

battery

 The remote control only works with a 3V CR2032 battery.

 Make sure the battery is correctly positioned before inserting it into the

remote control.

10

Installing the screen

Selecting a

location

 Install the screen in an easily accessible and visible location.

 Do not install the screen in the airbag deployment area or in a possible head

impact area.

Mounting the

screen

 The mounting location for the

screen must be clean and free

from grease or dust. Prior to

installation, clean the area with

an appropriate cleansing

product.

 Once you have stuck the

support on the dashboard, wait

for approximately 2 hours to

make sure the adhesive tape

adheres well.

Avoiding theft

and sunlight

exposure

Remember to remove your screen when leaving the vehicle to avoid tempting any would-

be thieves and to prevent prolonged exposure to sunlight.

11

Getting

started

WARNING : If the remote control doesn’t seem to be associated to the electronic box while

using the Parrot MKi for the first time, refer to the Associating the remote control to the

electronic box section.

Navigating through the menus

Associating the remote control to the electronic box

If the remote control doesn‟t seem to be associated to the electronic box while using the Parrot MKi for

the first time, press several times the button while holding down the and buttons until the

«Pairing remote control» message is said.

This has to be done during a 30 seconds period once the ignition is turned on.

Commands

Accessing the main

menu

Press the central jog wheel to access the menus.

> The kit says the name of the current menu.

Browsing through

the menus

 Turn the jog wheel to browse through the menus.

 Press the button or the jog wheel to confirm.

 Press the button to get back to the previous menu.

Exiting the menu

Press the button to exit the menu or get back to the Now

Playing screen if a song is currently being played.

12

Using the vocal menus

Activating /

deactivating the

vocal menus

You can activate or deactivate the vocal menus of the Parrot

MKi9100. To do so:

1. Press the jog wheel and select Settings > Audio >

Spoken menus.

2. Press the jog wheel to activate or deactivate this option.

Adjusting the vocal

menus volume

1. Press the jog wheel and select Settings > Audio > Menu

Volume.

2. Use the jog wheel to adjust the volume and confirm.

Establishing a Bluetooth connection with a phone

Using a phone with the Parrot MKi9100 for the first time

Adjusting the kit

visibility

Before pairing your phone with the Parrot MKi9100, make sure that it is visible

by all Bluetooth ® devices. To do so press the jog wheel and select Settings

> Bluetooth >Visibility. Then, make sure this option is selected.

If it is not the case, select it by pressing the jog wheel.

Note : The Parrot MKi9100 is visible by default.

Pairing a phone

1. Press the jog wheel and select Settings > Bluetooth > Pair with….

> If your mobile phone‟s model appears in the list, select it and

confirm by pressing the jog wheel.

> If your mobile phone model doesn‟t appear in the list, select the Other

phones option.

2. From your phone, search for Bluetooth peripherals. Refer to your phone

user guide for more information.

> The list of the available Bluetooth peripherals is displayed.

3. Select « Parrot MKi9100 » in the list.

4. Enter « 0000 » on your phone when you are prompted to enter a PIN

code.

> «Pairing successful» is displayed on the screen of the Parrot

MKi9100.

13

Automatic

connection

Once your phone is paired to the Parrot MKi9100, the connection between

both devices will be automatically established each time you enter your

vehicle if your screen is plugged in.

Managing Bluetooth devices

Disconnecting a

phone

1. Press the jog wheel and select Settings > Bluetooth > Paired

devices.

2. Select the phone you want to disconnect from the kit.

3. Select Disconnect.

Connecting an

already used

phone

The Parrot MKi9100 automatically connects itself to the last phone you

used with it. If you want to connect the Parrot MKi9100 to another

phone you already paired:

1. Press the jog wheel and select Settings > Bluetooth > Paired

devices.

2. Select the phone you want to connect to the Parrot MKi9100.

3. Select the Connect option.

Managing the

“Memory full”

problem

You can pair up to 10 devices with the Parrot MKi9100.

If you attempt to pair an 11th phone, you will get the « Memory full »

message. You must then delete a phone from the paired devices list.

To do so:

1. Press the jog wheel and select Settings > Bluetooth > Paired

devices.

2. Select the phone you want to delete from the list.

3. Select Delete.

14

Synchronizing the phonebook

Note : Only contacts stored in the memory of the phone will be synchronised in the kit’s memory.

Automatic

synchronisation

With most of the Bluetooth phones, the phonebook is automatically synchronized

in the kit‟s memory. Refer to the compatibility section of our website for more

information.

WARNING : The automatic synchronization is limited to 2 000 contacts for

each paired phone.

Sending

contacts via

Object Push

If your phone doesn‟t support automatic synchronization, you can also send

contacts from your mobile to the car kit via Object Push. To do so:

1. Press the jog wheel and select Phone > Receive contacts.

2. Refer to your phones „user guide for more information about sending

contacts via Object Push.

Deleting a

contact

Note : You can only delete contacts sent via Object Push.

1. Press the jog wheel and select Phone > Contacts management.

2. Select the contact you want to delete.

3. Press the jog wheel and select Delete contact.

Deleting all

contacts

Note : You can only delete contacts sent via Object Push.

Press the jog wheel and select Phone > Delete all contacts.

15

Phone

Before using your Parrot MKi9100 telephone function, you first have to connect it with your

phone / PDA.

► For more information,refer to the Establishing a Bluetooth connection with a phone section.

Making and receiving calls

The network signal at the top of the screen shows wether you are in range of the cellular network and

can make and receive calls. The more bars, the stronger the signal.

Making a call

Calling a contact in the

phonebook

If the contact you want to call is in the phonebook of the phone

connected to the Parrot MKi9100:

1. Press the jog wheel to enter the main menu and select

Phonebook.

2. Select a letter and press the jog wheel.

> Once the contact chosen:

- Press the button to call this contact.

- Or use the jog wheel to choose between different

numbers of the same contact.

Dialling a number

If the contact you want to call is not in the phonebook of the phone

connected to the Parrot MKi9100, stop your vehicle in a safe location,

press the jog wheel and select Phonebook > Dial a number. You can

then use the jog wheel to select the digits.

You can also make the call directly from your phone.

Bringing up the last

dialled number

Hold down the key of the Parrot MKi9100 for two seconds to redial

the last dialled number.

16

Receiving a call

An incoming call is indicated by a ringtone. The name of the caller is announced if his details are

stored in the phonebook of the phone connected to the Parrot MKi9100.

Answering a call

Press the button to answer an incoming call.

Declining a call

Press the button to decline an incoming call.

Using the Parrot MKi9100 while on a call

Adjusting the volume

Use the jog wheel during a call to adjust the communication volume.

> The volume setting is saved for subsequent calls.

Transfering a call to

the phone

 During a call, if you want to continue the conversation on your

phone (private conversation), press the button of the Parrot

MKi9100.

> The call is automatically transferred to the phone.

 If you want to switch back to the kit, press the button again.

Muting a call

 If you want to deactivate the microphone during a call, press the

button : you will still hear your caller but your caller will not be

able to hear you.

 Press the button to reactivate it again.

Managing a second

call

During a call, you can receive another call if your phone supports this

functionality.

 Press the button to accept the second incoming call.

> The first call is automatically put on hold.

 Press the button to decline the second incoming call.

You can also hang up directly from your phone.

 Press the button to switch from a call to another.

17

Managing voice mail

During a call, the Parrot MKi9100 allows you to send DTMFs to manage

your voice mail for example. To do so :

1. Press the jog wheel to access the DTMF menu.

> « 0 » is displayed by the kit.

2. Use the jog wheel to select your DTMF between the following

possibilities : 0,1,2,3,4,5,6,7,8,9,# or *.

3. Press the jog wheel to send this DTMF to your phone.

Ending a call

Press the button to end a call.

18

Using voice recognition

Receiving a call via voice recognition

To receive a call via voice recognition, magic words must be activated.

Activating /

deactivating the magic

words

Note : Magic words are activated by default.

1. Press the jog wheel and select Phone > Voice Commands > Magic

words.

2. Press the jog wheel to activate/deactivate the magic words.

Accepting a call

Say « Accept » to answer an incoming call.

Declining a call

Say « Reject » to decline an incoming call.

Making a call via voice recognition

Calling a contact with

one phone number

1. Press the button to launch the voice recognition feature.

> The Parrot MKi9100 asks you the name of the contact you want

to call.

2. Say the name of the contact.

> The call is automatically launched if the voice tag is correctly

understood.

> If it is not the case, a confirmation message is asked.

3. Confirm if necessary by saying “Yes” or “call”.

19

Calling a contact with

several phone

numbers

 If there are several phone numbers associated to the contact

you want to call, you can specify the type of number.

 To do so, the following vocal commands are available:

- Home

- At home

- Work

- At work

- Office

- At office

- At the office

- Mobile

- Cellular

- Cell

- On mobile

- On cellular

- On cell

- On mobile phone

- On cellular phone

- On cell phone

- Mobile phone

- Cellular phone

- Cell phone

- Other

- General

- Default

- Preferred

Exiting voice

recognition mode

Press the button to exit voice recognition mode.

20

Music

Using the Parrot MKi9100 with an external source

Notes :

- While playing a song, press the button to get to main menu.

- While navigating through the menus, press the button to get to the Now Playing screen.

Using the Parrot MKi9100 with an iPod / iPhone

WARNING: Make sure your iPod is updated before using it with the Parrot MKi9100.

Compatibility

 If you are using the Parrot MKi9100 with the iPod Mini, iPod

Photo, iPod 3G and iPod Shuffle, then connect your iPod to the

Parrot MKi9100 using the Jack cable.

 Use the iPod connector if you are using another model of iPod

or an iPhone.

Playing music files

 If your iPod / iPhone is connected to the Parrot MKi9100 via the

iPod connector :

1. Press the jog wheel and select iPod.

2. Select one of the classification criteria (artist, album,

songs, genres, playlist) and press the jogwheel.

Note : Use the and buttons to navigate more easily through the

content of your iPod.

3. Select the song and press the jog wheel.

 If your iPod is connected to the Parrot MKi9100 via the jack

cable, refer to the Using the Parrot MKi9100 with an analogue

player section.

21

Using the Parrot MKi9100 with a USB peripheral

WARNING: If your Parrot MKi9100 is connected to an iPhone and an USB flash drive, the

iPhone has priority: you can only browse through your iPhone content.

1. Connect the USB flash drive or the MP3 player using the USB cable.

2. Press the jog wheel and select USB.

> You access the content of your USB peripheral.

- If the tags of your audio files are correctly defined, select one of the

classification features (artist, album, songs, genres, playlist) and press the jog

wheel.

- If the tags of your audio files are not defined, select Directories or Flat

directories.

Note : Use the and buttons to navigate more easily through the content of your USB flash

drive.

3. Select the song and press the jog wheel.

Using the Parrot MKi9100 with an audio player connected via Bluetooth

Compatibility

You can use the Parrot MKi9100 to listen to songs stored on your mobile

phone / PDA / smartphone. Your mobile phone must support the

Bluetooth® A2DP profile (Advanced Audio Distribution Profile).

Playing a music file

 If you are using a Bluetooth audio player for the 1st time, you

have to pair both devices.

► Refer to the Pairing a phone section.

 If both devices are already paired :

1. Press the jog wheel and select Settings > Bluetooth >

Paired devices.

2. Choose an audio player and press the jog wheel.

3. Select Play Bluetooth audio.

4. Get back to main menu and select Audio Bluetooth.

5. Start playing a song on your audio player.

22

Note : Volume for calls and for streaming audio work separately.

Using the Parrot MKi9100 with an analogue audio player

1. Connect your audio player to the Parrot MKi9100 using the Jack connector.

2. Press the jog wheel and select Line In.

3. Start playing a song on your audio player.

WARNING: The Next/Previous tracks functions are not available if the Parrot MKi9100 is

connected to the audio player via the Jack connector.

Commands

To do so

Proceed this way

Pause a song

Press the button.

Resume playback

Press the button.

Raise or lower the volume

Turn the jog wheel.

Rewind or fast-forward

Hold down the or buttons.

Restart a song

Press the button.

Skip to the next song

Press the button.

Skip to the previous song

Press the button twice.

Get to the audio effects menu

Hold down the button for 2

seconds.

23

Settings

Brightness

You can adapt the screen brightness of the Parrot MKi9100. To do so :

1. Press the jog wheel and select Settings > Brightness.

2. Select Night mode or Day mode.

Note : You can also adjust the brightness parameter by holding down the jog wheel for 2 seconds.

Ringtone

To adjust the volume of the ringtone which indicates an incoming call :

1. Press the jog wheel and select Settings > Audio > Ringtone volume.

2. Use the jog wheel to adjust the volume.

Call

Displaying / hiding

identification

 If you do not want your phone number to be displayed on your

contact‟s phone while making a call, activate the Allow #31#

option. To do so:

1. Press the jog wheel and select Phone > Advanced

Settings > Allow #31#.

2. Select Activate.

 Deactivate the Allow #31# option to allow your contacts to see

your number while you are calling them.

Making an

international call

You can configure the Parrot MKi9100 to add a prefix while making a call

from or towards a foreign country. To do so:

1. Press the jog wheel and select Phone > Advanced settings >

Change + to.

2. Select the prefix you want to use.

24

Activating the external noise elimination

 In order to improve the listening comfort of your interlocutor, the Parrot MKi9100 allows you

to tone down the noise from outside your car (motorcycles, trucks) if your window is open.

 To activate / deactivate this setting, press the jog wheel and select Settings > Audio >

Lateral noise detection.

WARNING: Make sure the double microphone is angled towards the driver before activating

the Lateral noise reduction effect. If not, the driver’s voice will be considered as an external

noise.

Lateral noise detection effect activated – Microphone correctly installed

25

Lateral noise detection effect deactivated – Microphone misplaced

Audio

Note : While playing a song, hold down the button for 2 seconds to access to the audio effects

menu.

Using the equalizer

 The equalizer allows you to adjust the low, medium and high

frequencies depending on your preferences. To activate or deactivate

it:

1. Press the jog wheel and select Audio effects > Equalizer.

2. Press the jog wheel to activate or deactivate this option.

 You can choose between 10 default presets to adapt the frequencies

to the music style you are listening to. To do so:

1. Press the jog wheel and select Audio effects > Settings >

Equalizer presets.

2. Use the jog wheel to select a preset.

26

Using the Virtual

Super Bass

 The Virtual Super Bass effect allows you to amplify the low

frequencies. To activate or deactivate it:

1. Press the jog wheel and select Audio effects > Virtual Super

Bass.

2. Press the jog wheel to activate or deactivate this option.

 You can change the settings of the Virtual Super Bass effect by

selecting Audio effects > Settings > Vsb preferences..

Setting the Parrot

MKi9100 to repeat

songs

1. Press the jog wheel and select Audio effects > Settings > Repeat.

2. Activate or deactivate the option by pressing the jog wheel.

WARNING : If you are using the Parrot MKi9100 with an iPod, select

Audio effects > Settings > Repetition (iPod).

Setting the Parrot

MKi9100 to shuffle

songs

To activate or deactivate the random playback of the music files:

1. Press the jog wheel and select Audio effects > Settings > Random.

2. Press the jog wheel to activate or deactivate this option.

WARNING: The shuffle option is only available if you are using the

Parrot MKi9100 with an iPod. Modifying this option on the Parrot

MKi9100 will not modify your iPod settings.

Deactivating the

Mute on Streaming

 This option automatically mutes the tuner when a song is played.

This option is activated by default.

 You can deactivate this option and mute the tuner manually via the

Mute cable. To do so, press the jog wheel then select Settings >

Audio > Mute on Streaming. Press the jog wheel to deactivate this

option.
