Partner Tech EM-70B E-Menu User Manual

Partner Tech Corporation E-Menu

user manual

EM
-
70B
E-Menu
User’s Manual
T
a
ble of Conten
t
s
Preface
...............................................................................................
1
Copyright ...................................................................................................... 1
Safety Information ......................................................................................... 1
Regulatory Statement ................................................................................... 2
SAR Information ................................................................................... 2
Federal Communications Commission Statement ............................... 2
RF Exposure Information (SAR) .......................................................... 3
WEEE Notice ....................................................................................... 3
FCC Regulations ................................................................................. 4
About this Manual ......................................................................................... 4
Getting Started
..................................................................................
5
Introduction ................................................................................................... 5
Features ........................................................................................................ 5
Accessories .................................................................................................. 5

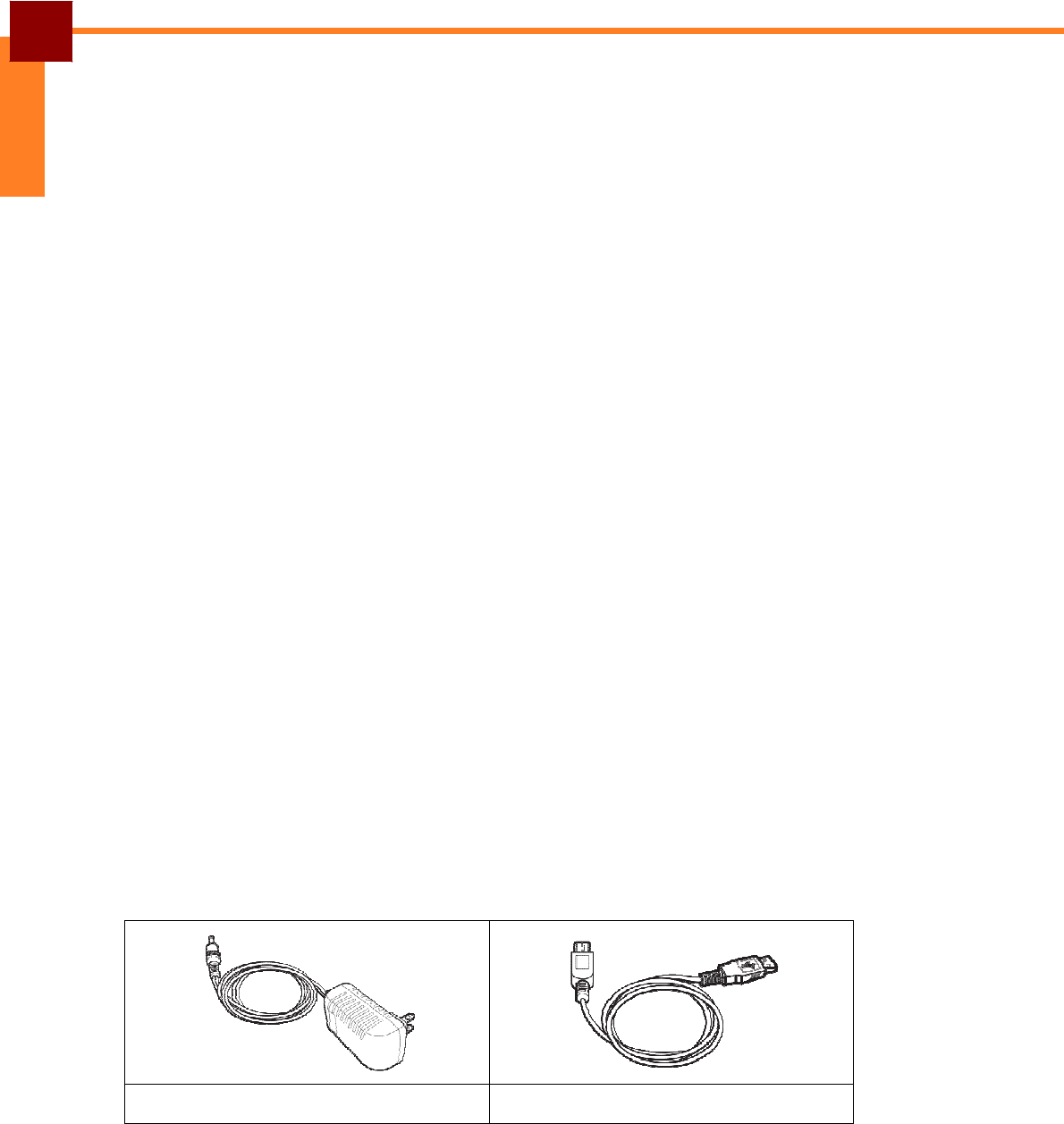

Package Contents ................................................................................ 5
Optional Accessories ........................................................................... 5
Tablet Components ...................................................................................... 6

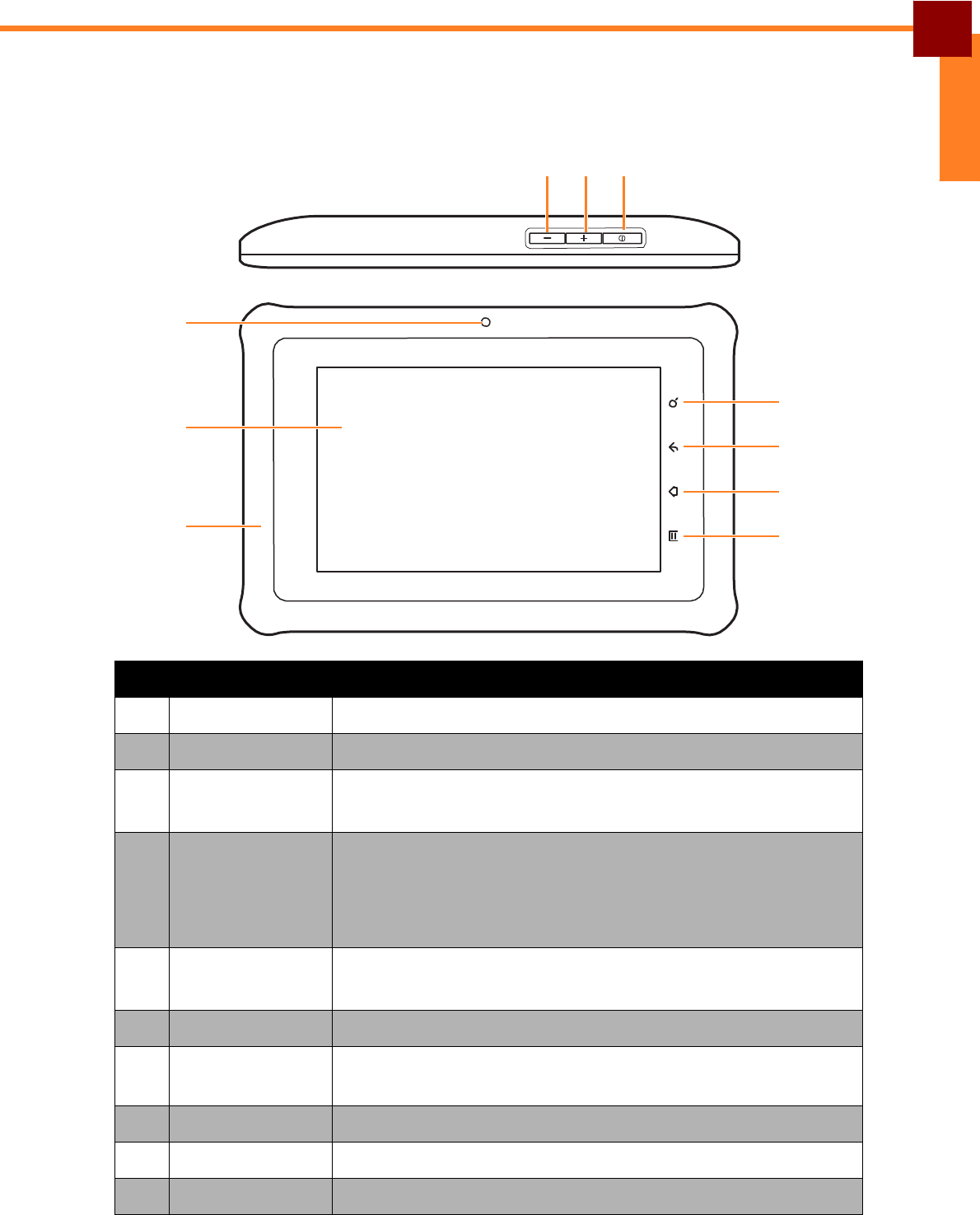

Top and Front ....................................................................................... 6

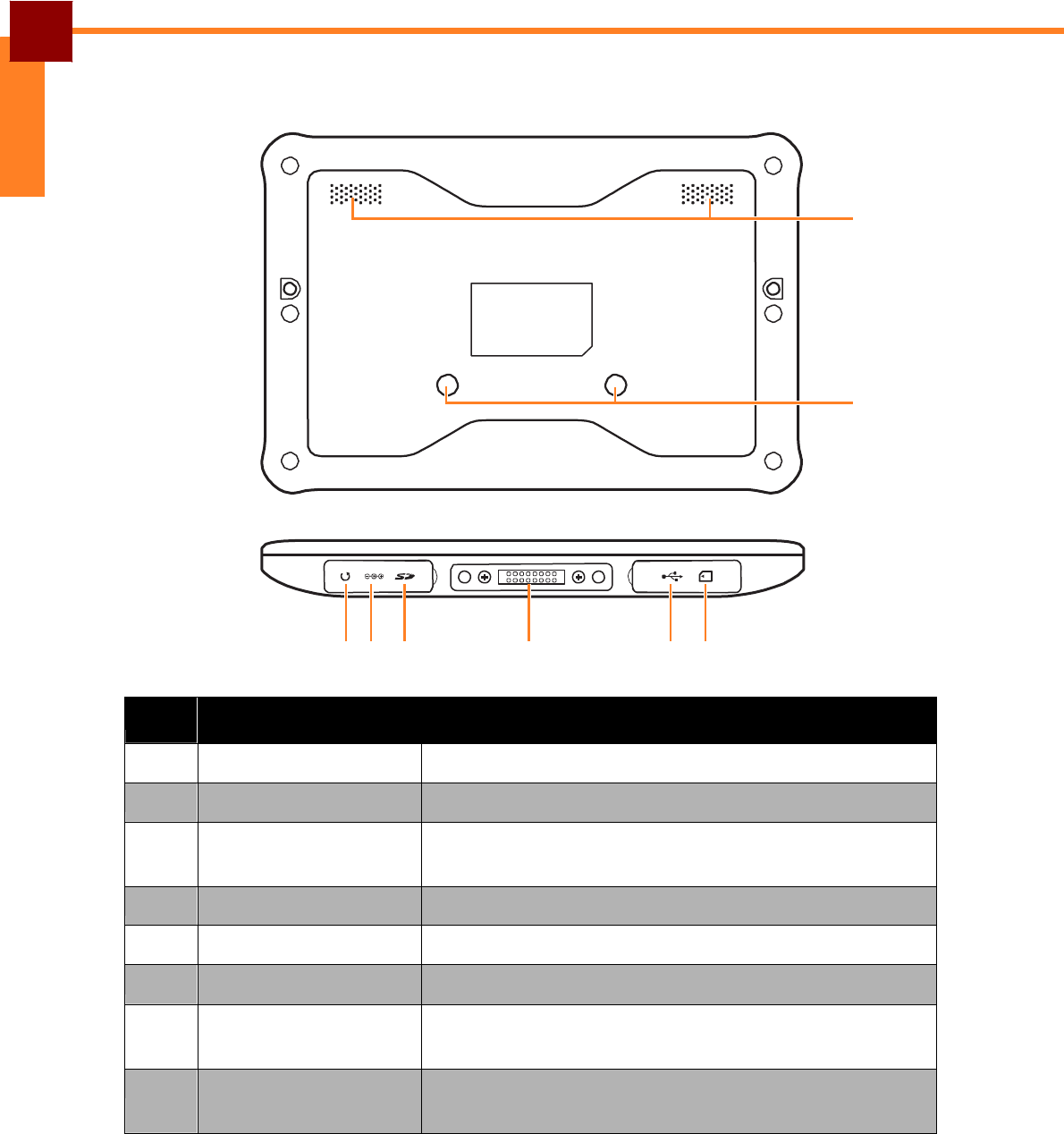

Back and Bottom .................................................................................. 7

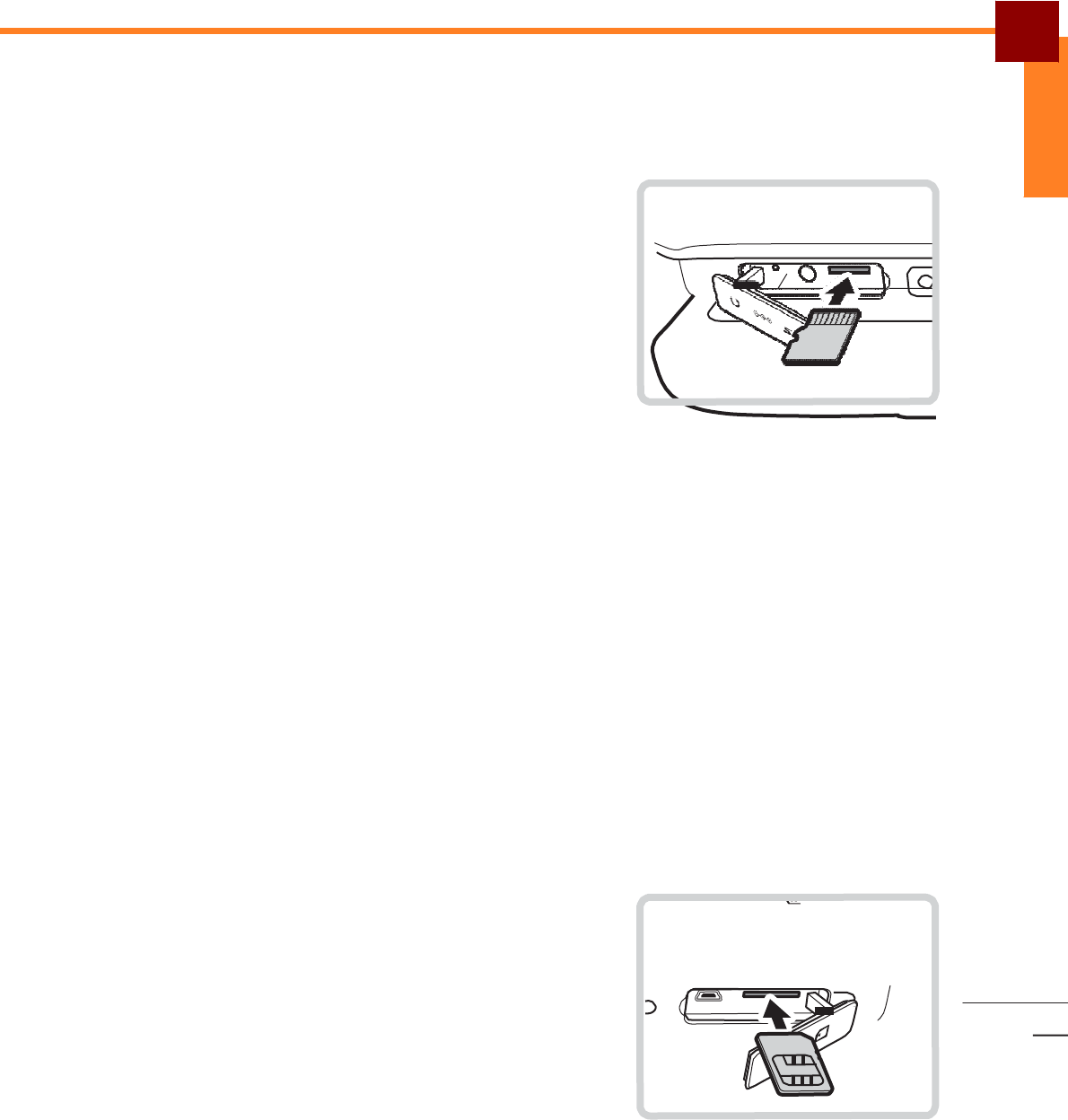

Installing the SD Card ................................................................................... 8
Installing the SIM Card (Optional) ................................................................. 8

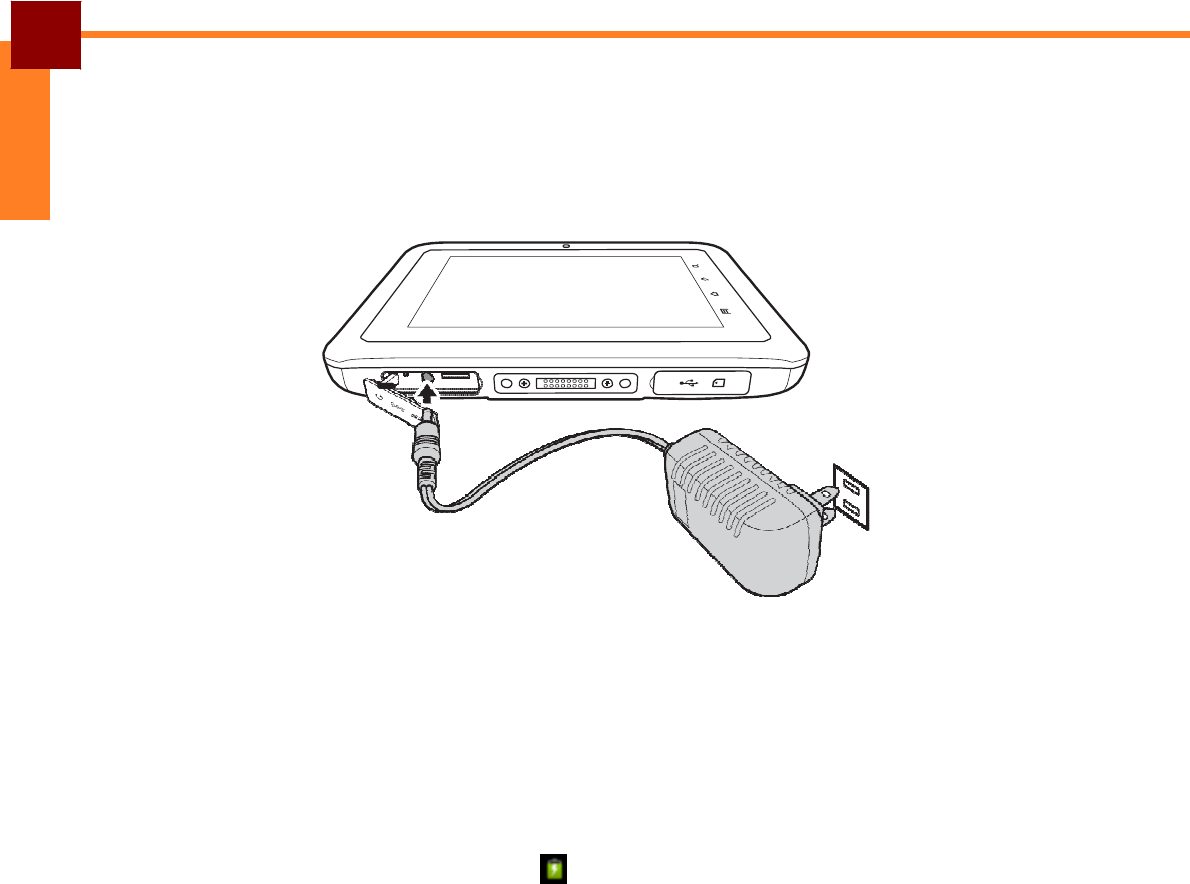

Charging the Battery ..................................................................................... 9

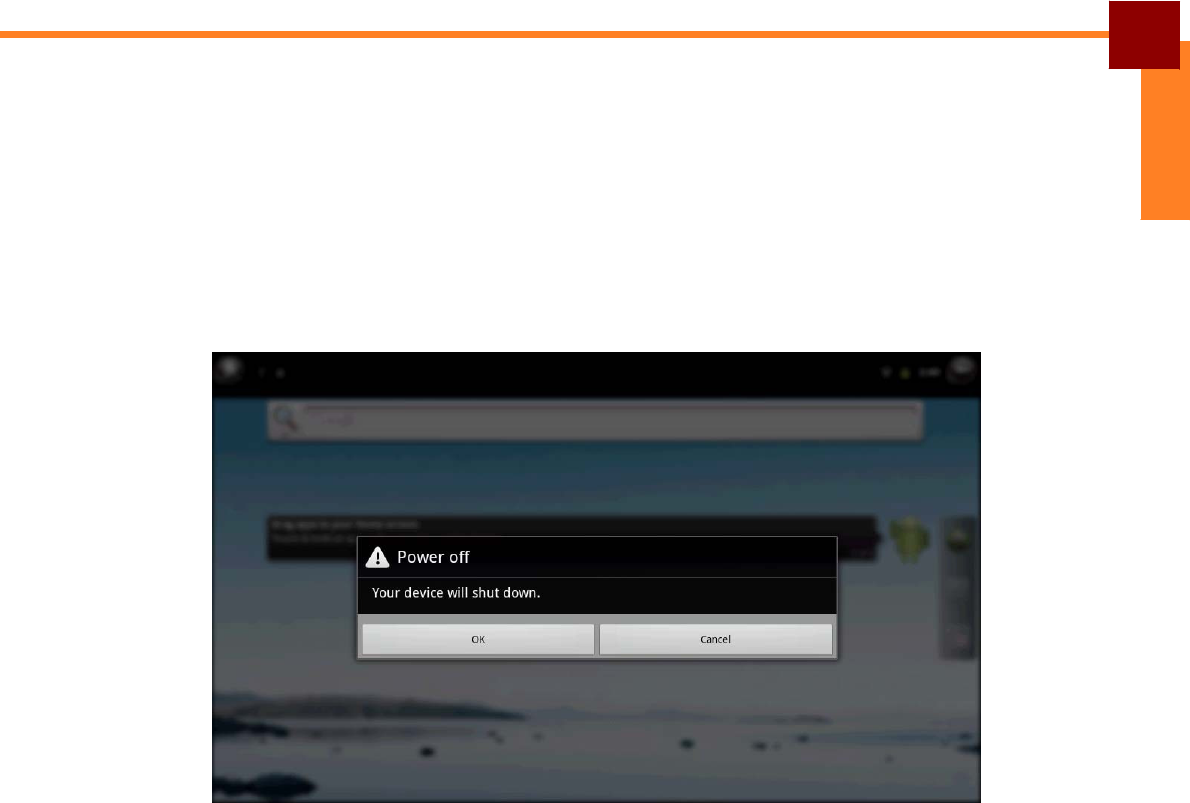

Powering On the Tablet ................................................................................10
Sleep Mode ..........................................................................................10

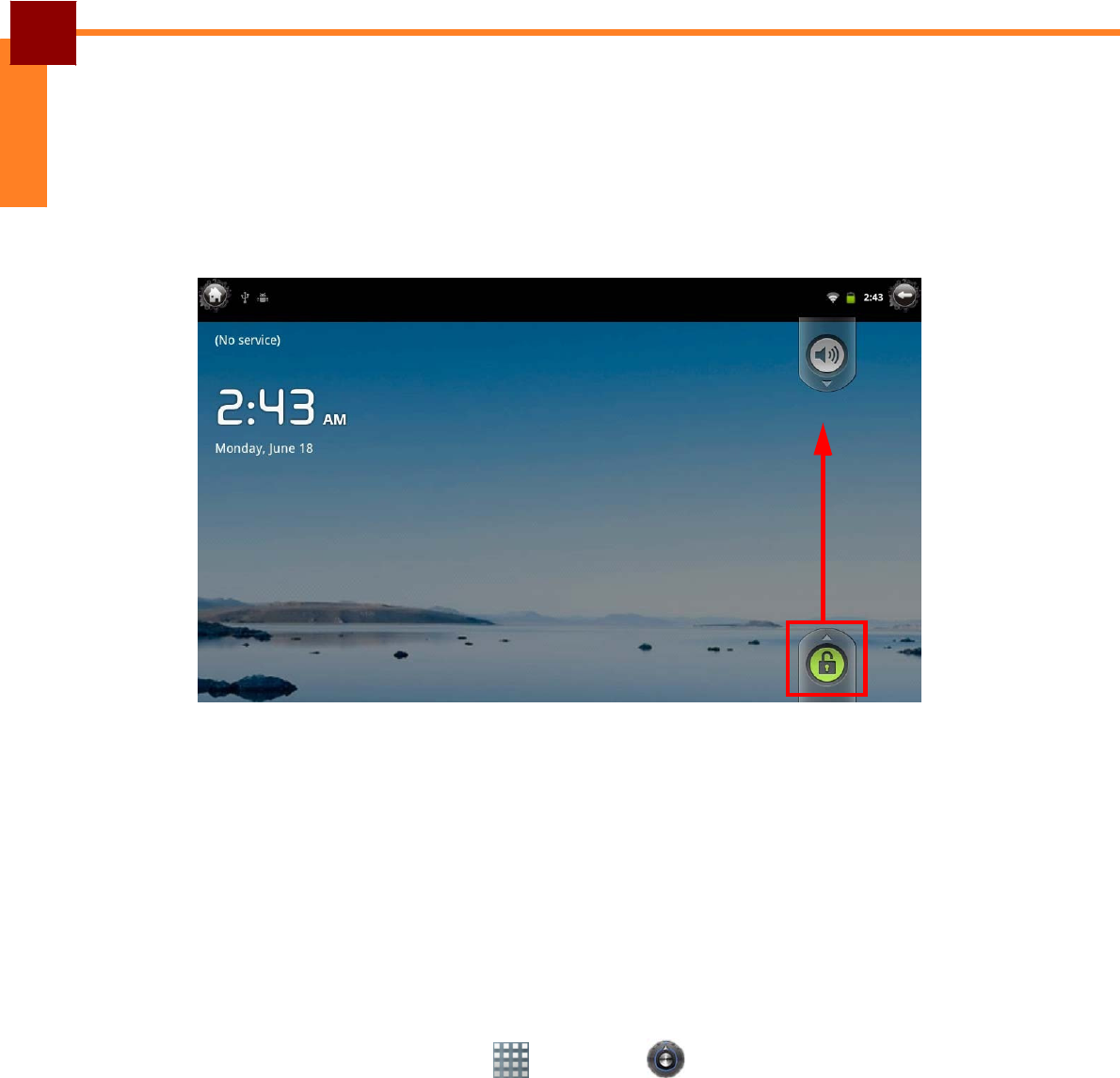

Unlocking the Screen .................................................................................... 11
Initial Settings ............................................................................................... 11
Connecting to Network ................................................................................. 11
Using Wi-Fi Connection ....................................................................... 11
Using Data Network Connection .......................................................... 12
Using the Tablet
................................................................................
13
Understanding the Interface ......................................................................... 13

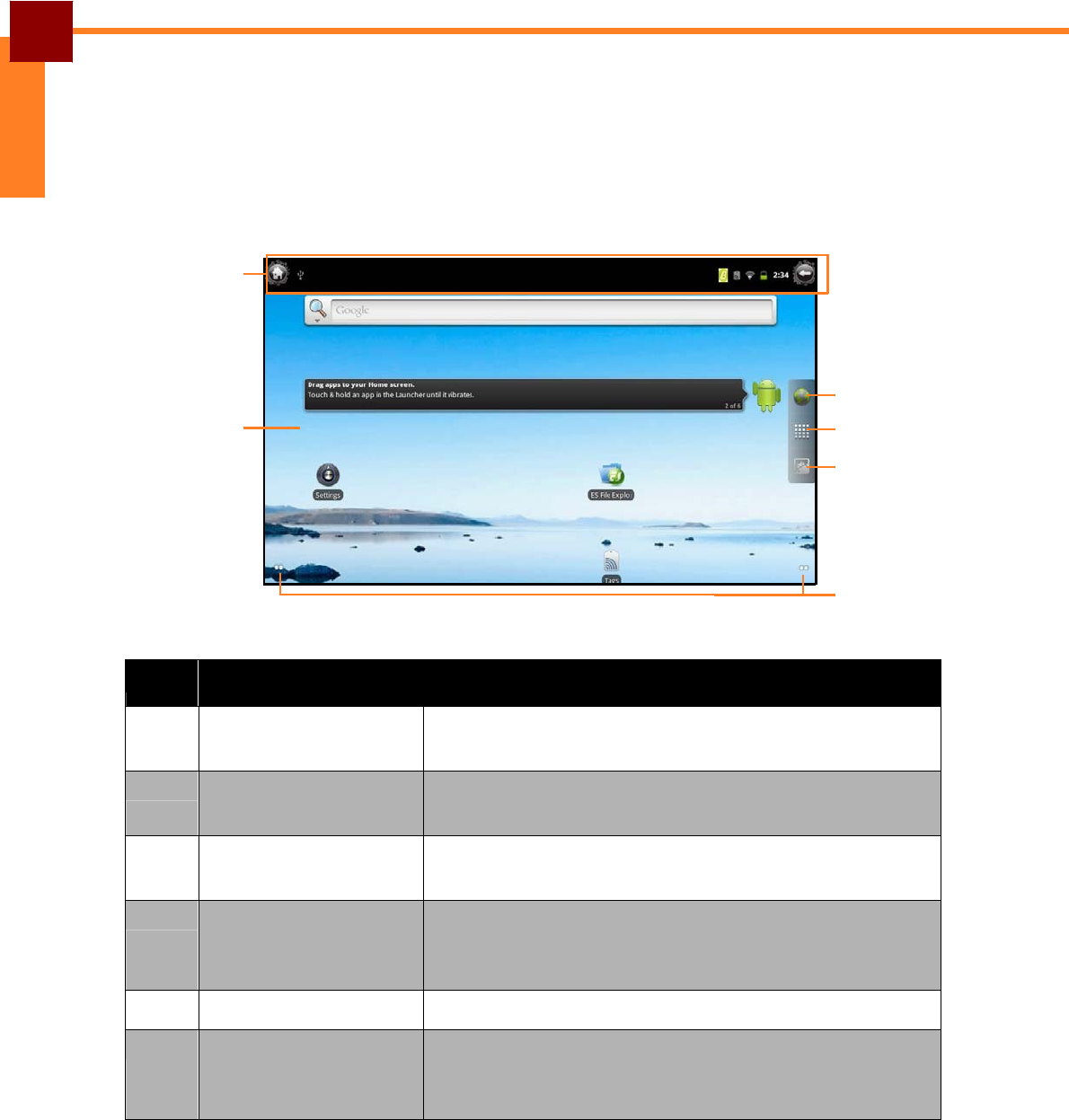

The Home Screen ................................................................................ 13
Status and Notifications ....................................................................... 14
Managing the Home Screen ................................................................ 15
Using the Applications .................................................................................. 16

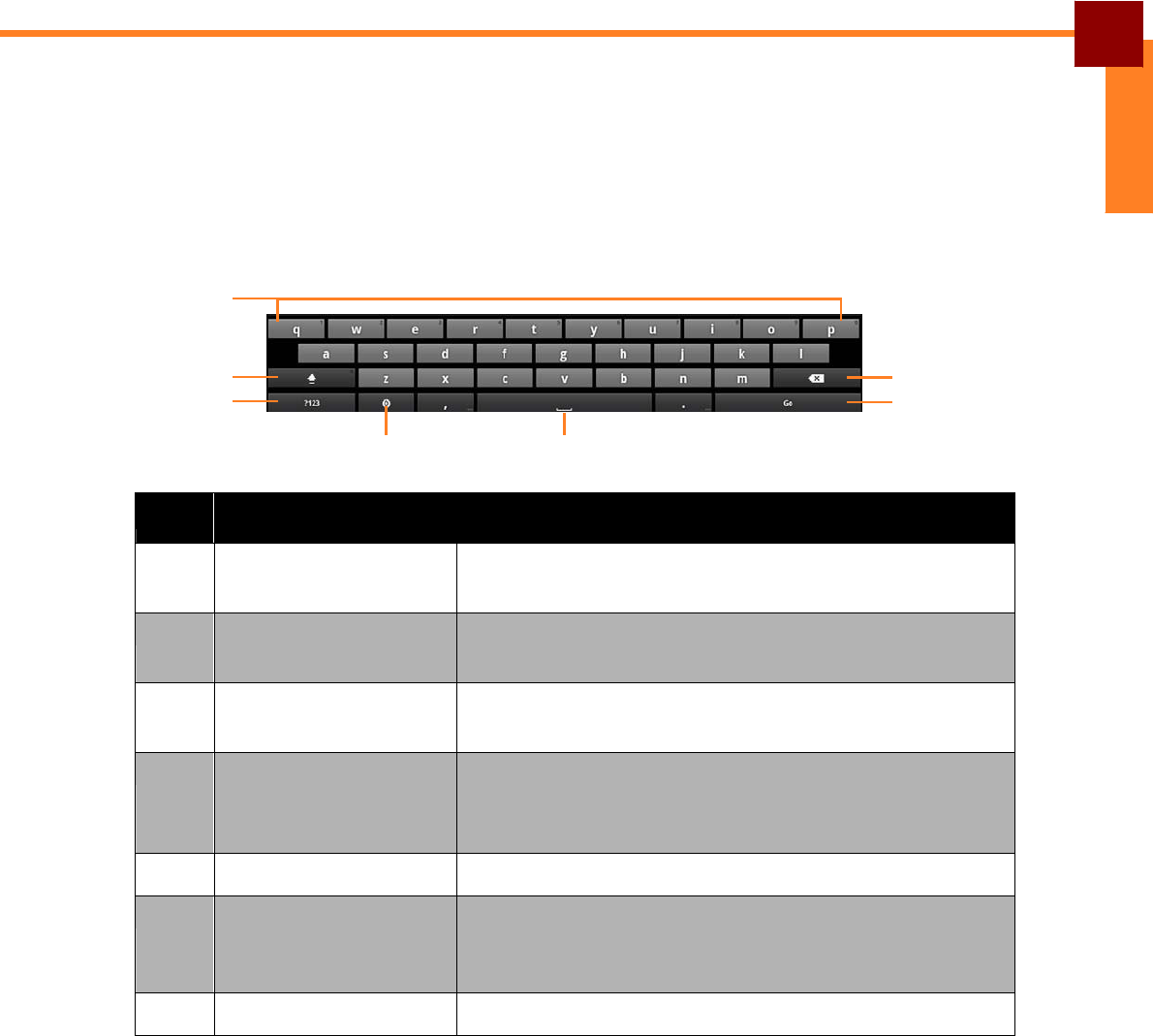

Typing on the Keyboard ....................................................................... 16
Searching for Items .............................................................................. 17
Opening Applications ........................................................................... 17
Killing Tasks ......................................................................................... 17
Using Tags .................................................................................................... 18
Activating NFC ..................................................................................... 18
Scanning Tags ..................................................................................... 18
Sharing Tags ........................................................................................ 18
ii
ENGLISH
Using ES File Explorer .................................................................................. 19
Managing Files and Folders ................................................................. 20
Changing the Tablet Settings
...........................................................
21
Settings Menu ............................................................................................... 21
Managing Wireless and Network Settings .................................................... 22
Connecting to Wireless Networks ........................................................ 22
Connecting to Bluetooth Devices ......................................................... 22
Setting Up VPN .................................................................................... 23
Changing Basic Settings ............................................................................... 23
Sound ................................................................................................... 23
Display ................................................................................................. 24
Date and Time ...................................................................................... 24
Changing Language and Keyboard Settings ................................................ 25
Changing the Device Language ........................................................... 25
Managing Keyboard Settings ............................................................... 25
Using the User Dictionary .................................................................... 26
Managing Storage Space ............................................................................. 27
Erasing Storage Card Content ............................................................. 27
Removing the Storage Card ................................................................. 27
Managing Accounts ...................................................................................... 28
Adding Exchange Accounts ................................................................. 28
Adding Google Accounts ...................................................................... 28
Syncing Accounts ................................................................................. 28
Removing Accounts ............................................................................. 29
Advanced Settings ........................................................................................ 30
Location and Security ........................................................................... 30
Power Manager .................................................................................... 30
Privacy ................................................................................................. 31
Applications .......................................................................................... 31
Accessibility .......................................................................................... 31
About the Device .................................................................................. 31
Using Optional Accessories
.............................................................
32

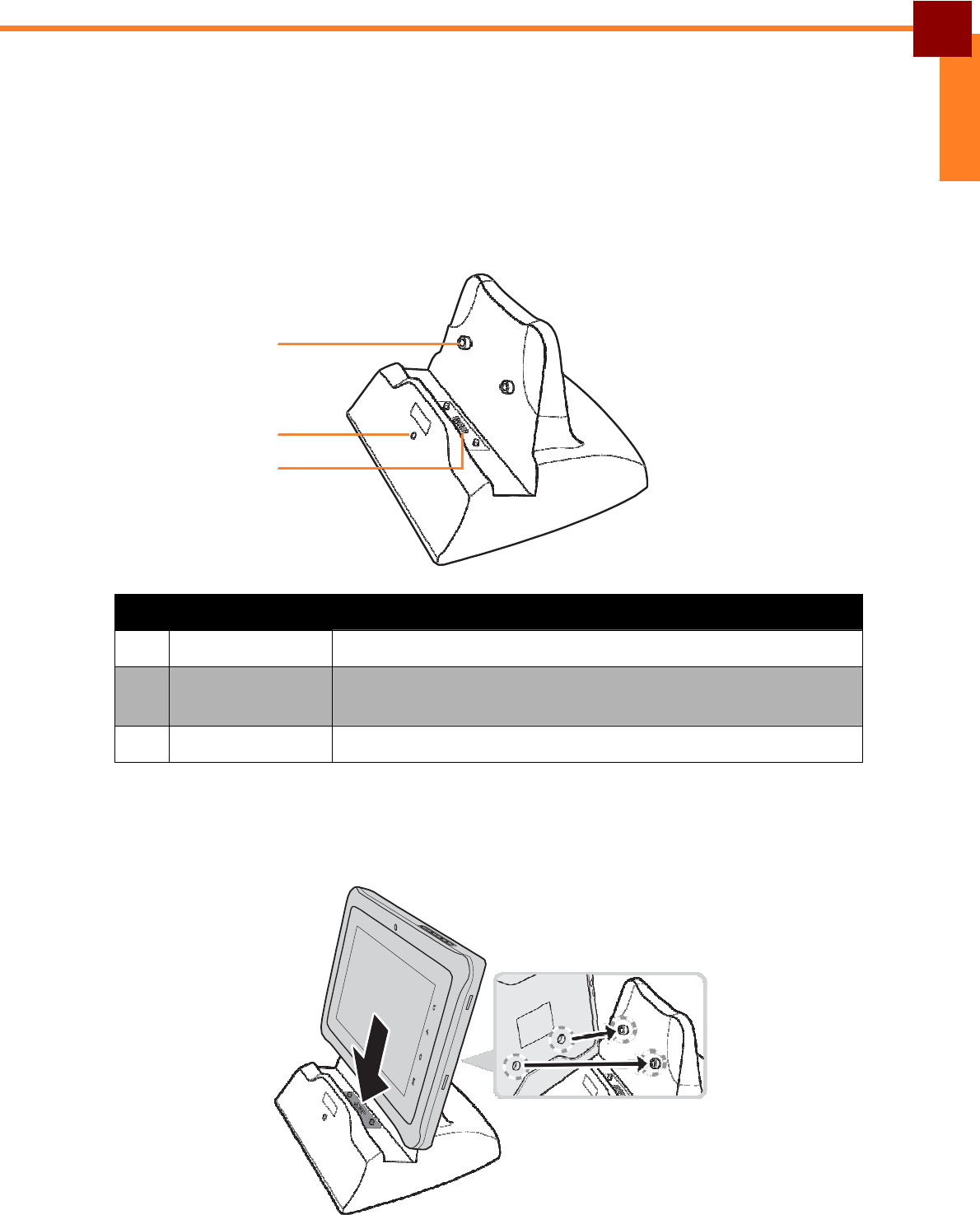

Dock Cradle .................................................................................................. 32
Parts and Functions ............................................................................. 32
Docking the Tablet ............................................................................... 32

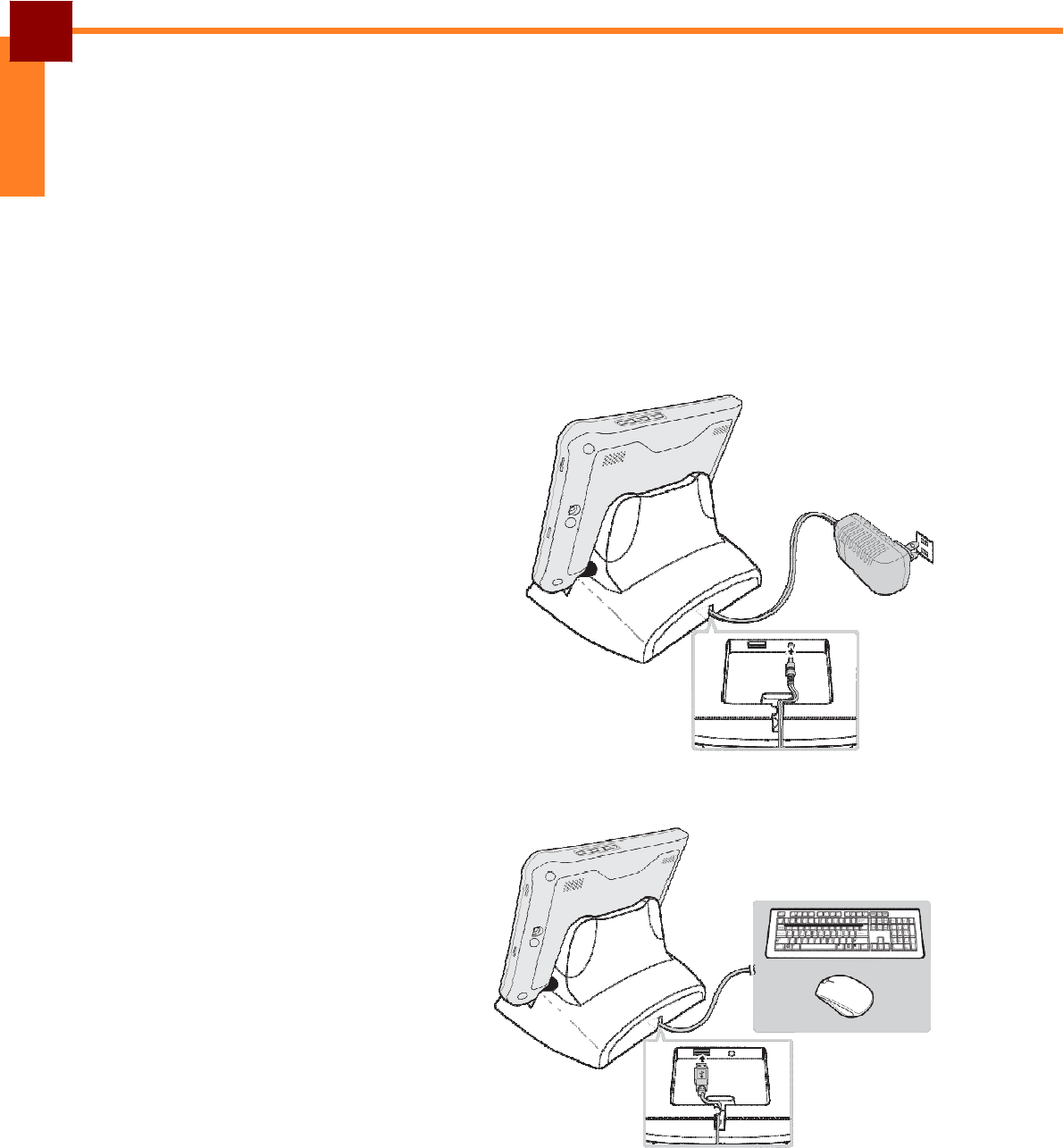

Making Connections ............................................................................. 33

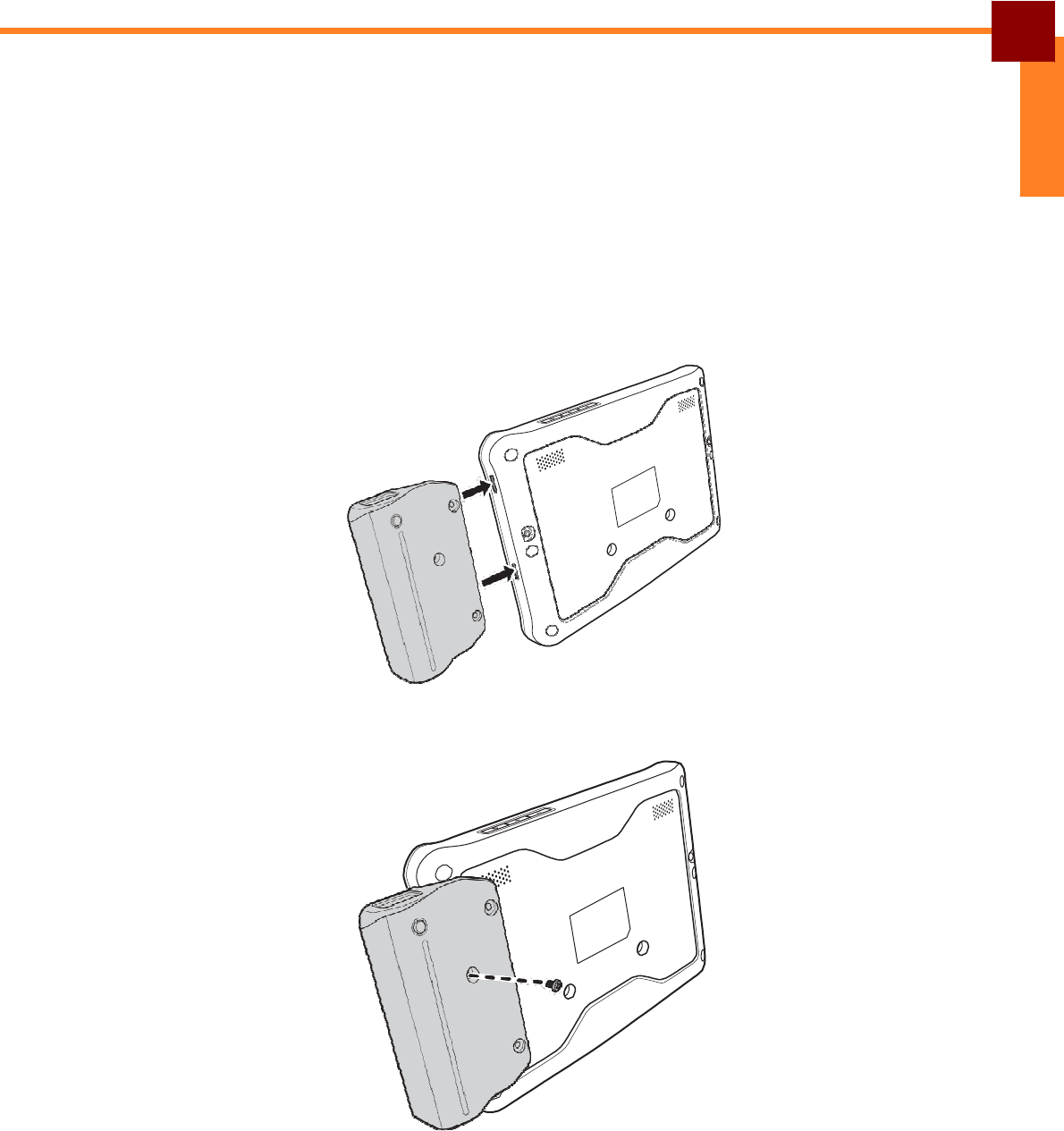

MSR Module ................................................................................................. 34
Appendix
............................................................................................
35
Troubleshooting ............................................................................................ 35
Specifications ................................................................................................ 36
iii
Preface
1
ENGLISH
Copyright
Copyright © 2012. All rights reserved.
No part of this user manual may be reproduced, transmitted, stored in a retrieval
system, or translated into any language, in any form or by any means, without
permission from the manufacturer.
Google, the Google logo, Android, the Android logo and Tags are trademarks of
Google Inc.
ES File Explorer is a trademark of EStrongs Inc.
Wi-Fi is a registered trademark of the Wireless Fidelity Alliance.
microSD is a trademark of SD Card Association.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.
Java, JME and all other Java-based marks are trademarks or registered trademarks
of Sun Microsystems, Inc. in the United States and other countries.
All other products use in this device and trademarks mentioned herein are trademarks
or registered trademarks of their respective owners.
Safety Information
Read the following safety information before using your device.
• Use only the power adapter provided by the manufacturer. Use of unauthorized
accessories may void your warranty.
• Avoid using the device near electromagnetic sources such as TVs, radios, and
microwave ovens.
• Unplug the power adapter from the wall outlet during lightning storms to avoid
electric shock or fire.
• Do not expose the device to direct sunlight.
• Do not use harsh chemicals or detergents to clean your device.
• Do not handle the device with wet hands while it is being charged. This may cause
an electric shock or serious damage to the device.
• Do not store your device in temperatures higher than 60ºC.
• The operating temperature for this device is from 10ºC to 55ºC.
• Do not use the device on board an aircraft.
2
Regulatory Statement
SAR Information
THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the
limits for exposure to radio waves recommended by international guidelines. These
guidelines were developed by the independent scientific organization ICNIRP and
include safety margins designed to assure the protection of all persons, regardless of
age and health.
The exposure guidelines for mobile devices employ a unit of measurement known as
the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is
2.0 W/kg averaged over 10 grams of tissue. Tests for SAR are conducted using
standard operating positions with the device transmitting at its highest certified power
level in all tested frequency bands. The actual SAR level of an operating device can
be below the maximum value because the device is designed to use only the power
required to reach the network. That amount changes depending on a number of
factors such as how close you are to a network base station. The highest SAR value
under the ICNIRP guidelines for use of the device at the body is 0.403 W/kg. Use of
device accessories and enhancements may result in different SAR values. SAR
values may vary depending on national reporting and testing requirements and the
network band. The device could be used with a separation distance of 0 cm to the
human body.
Federal Communications Commission Statement
This device complies with Par 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a
particular installation if this device does cause harmful interference to radio or
television reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.- Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver connected.- Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
3
GE
T
TIN
G
STARTED
:
Int
r
odu
c
tion
ENGLISH
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of the
U.S. Government. The exposure standard employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR
are conducted using standard operating positions accepted by the FCC with the EUT
transmitting at the specified power level in different channels.
The highest SAR value for the device as reported to the FCC is 0.75 W/kg when placed
next to the body.
The FCC has granted an Equipment Authorization for this device with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on
this device is on file with the FCC and can be found under the Display Grant section
of www.fcc.gov/oet/ea/fccid after searching on FCC ID: NDPEM-70B.
This device is compliance with SAR for general population /uncontrolled exposure
limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the
measurement methods and procedures specified in OET Bulletin 65 Supplement C.
WEEE Notice
The WEEE logo on the product or on its box indicates that this product must not be
disposed of or dumped with your other household waste. You are liable to dispose of
all your electronic or electrical waste equipment by relocating over to the specified
collection point for recycling of such hazardous waste. Isolated collection and proper
recovery of your electronic and electrical waste equipment at the time of disposal will
allow us to help conserve natural resources. Moreover, proper recycling of the
electronic and electrical waste equipment will ensure safety of human health and
environment. For more information about electronic and electrical waste equipment
disposal, recovery, and collection points, please contact your local city center,
household waste disposal service, shop from where you purchased the equipment, or
manufacturer of the equipment.
4
FCC Regulations:
15.19(a)(3):
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
15.105(b):
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/ TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
About this Manual
The content in this manual is as accurate as possible. However, due to continuous
product improvements, some contents and specifications may have been changed
since this manual was written. In this case, take the actual device as basis.
No part of this user manual may be reproduced, transmitted, stored in a retrieval
system, or translated into any language, in any form or by any means, without a
written permission from the manufacturer.
Information is subject to change without prior notice.
5
GE
T
TIN
G
STARTED
:
Int
r
odu
c
tion
Getting Started
Introduction
Congratulations on your purchase of the Enterprise Tablet. This Enterprise Tablet is a
stylish commercial tablet that uses the latest ARM technology supporting mobile work
input to ensure a high processing performance. Equipped with the energy-efficient
Freescale ARM CPU in an Android system, the Enterprise Table provides the highest
usability matching various industrial needs.
Designed for use in the field, logistics, retail and restaurants, the Enterprise Tablet
improves profitability and customer satisfaction.
Features
• Auto Rotation Display
• Light Weight
• Dust and Spill Resistant
• Flexible OS Android 2.3
• Integrated RFID Module 13.56 Mhz
• Dock Cradle
• Cradle with Second Battery (optional)
• SIM Card Slot (optional)
• Expandable with WCDMA module / Mini PCI-e (optional)
Accessories
Package Contents
Power Adaptor USB Cable
Optional Accessories
• Dock Cradle
• MSR Module
• Bar Code Reader
• WCDMA / Mini PCI-e
6
GETTIN
G
STARTED
:
Tabl
et
C
o
mpon
e
nts
ENGLISH
Tablet Components
Top and Front
1 2 3
4
7
5
8
9
6
10
No.
Item Description
1 Volume Down Press to decrease volume.
2 Volume Up Press to increase volume.
3 Power Button • Press and hold for 2 seconds to turn the device on or off.
• Press to turn the screen backlight on or off.
4 Status LED Indicates the power and charging status:
• Red: Battery is charging.
• Green: Device power is on.
• Off: Device power is off.
5 Touch Screen • Displays the screen output.
• Touch and drag items on the screen to provide user input.
6 Protective Case
Protects the tablet from drops and rough-handling.
7 Search Key Touch to search device applications and contacts or
search the Internet.
8 Back Key Touch to return to the previous screen or menu.
9 Home Key Touch to return to the Home screen.
10 Menu Key Touch to open the menu of the current application.
7
GE
T
TIN
G
STARTED
:
T
a
bl
et
Compo
n
en
ts
Back and Bottom
1
2
3 4 5 6 7 8
No. Item Description
1 Speakers Emits audio output.
2 Cradle Guide Aligns to the dock cradle (optional accessory).
3 Reset Button Insert a pointed object to reset the device to its
factory defaults.
4 Power Jack Connects to the power adaptor.
5 SD Card Slot Houses the microSD card.
6 Cradle Contacts Connects to the dock cradle (optional accessory).
7 USB Port Connects to a mini USB cable for data transfer
purposes.
8 SIM Card Slot
(optional)
Houses the SIM card.
NOTE: Items 3~5 and 7~8 are housed under the protective caps. The dock cradle and
SIM card slot are optional items.
8
GET
T
IN
G
STARTED
:
I
n
s
t
a
l
l
i
n
g
t
h
e
S
D
Ca
r
d
ENGLISH
Installing the SD Card
Install a compatible microSD™ card to add more storage space to save your files.
To install the microSD™ card:
1. Open the left side protective cap.
2. Insert the microSD™ card with the gold
contacts facing the front of the device.
3. Push the microSD™ card until it clicks into
place.
4. Close the protective cap.
To remove the microSD™ card:
Before removing the microSD™ card, properly unmount the card from the Settings
menu (Settings > Storage > Unmount EXTSD card). When the device displays “SD
card safe to remove”, then do the following to remove the card:
1. Open the protective cap.
2. Push the microSD™ card to eject it from the slot.
3. Pull the microSD™ card out from the slot.
4. Close the protective cap.
NOTE: Removing the card without properly unmounting it may cause data loss. Do
not remove the card while downloading or saving files.
Installing the SIM Card (Optional)
NOTE: The SIM Card slot is not available in all models.
To install the SIM card:
1. Open the right side protective cap.
2. Insert the SIM card with the gold contacts
facing the front of the device.
3. Push the SIM card until it clicks into place.
4. Close the protective cap.
9
GETTI
N
G
STARTE
D
:
Cha
r
g
i
ng
th
e
B
a
t
t
ery
Charging the Battery
1. Open the protective cap.
2. Connect one end of the power adaptor to the power jack of your device.
3. Plug the other end of the power adaptor to the wall outlet to start charging.
NOTE: Use only the supplied power adaptor to charge the battery. Using other power
adaptor not authorized by the manufacturer may damage the device and void
the warranty. The device battery can also be charged using the dock cradle
(optional, see “Dock Cradle” on page 31).
When the battery is charging:
• The status LED lights red
• When the device is turned on, the icon is displayed on the top-right corner of
the screen.
10
GETTING
STARTED:
Powering
On
the
T
a
blet
ENGLISH
Powering On the Tablet
To turn on your device:
Press and hold the Power button until the status LED lights green.
To turn off your device:
1. Press and hold the Power button for at least 3 seconds. The screen below
appears.
2. Touch OK to turn the device off.
Sleep Mode
To save power, put the device to sleep mode when not in use. In sleep mode, the
device is in turned on mode but the screen backlight is turned off.
• To put the device to sleep mode, press the Power button once. The screen
backlight turns off.
• To turn the backlight on, press the Power button again.
11
G
ETTI
N
G
STARTE
D
:
Unlock
in
g
the
Screen
Unlocking the Screen
By default, the screen is locked after turning the device on or after a period of
inactivity. The screen lock time can be set in Setting menu (see “Display” on page 23).
To unlock the screen:
Drag the lock icon upwards.
Initial Settings
For first time use, a setup wizard may prompt you for the system date and time, guide
you on how to setup email and other options.
Follow the wizard to complete the initial settings of your Tablet PC.
Connecting to Network
Using Wi-Fi Connection
1. On the Home Screen, touch > Settings > Wireless & networks.
2. Touch Wi-Fi to check the box and enable the Wi-Fi function.
3. Touch Wi-Fi settings. The device searches for available networks within range.
4. Touch an available network connection.
5. If prompted, enter the password to connect to the Wi-Fi network, then touch
Connect.
NOTE: Password entry is required only for first time connection. Once your Tablet PC
is connected to a network and Wi-Fi is enabled on your device, the Tablet PC
will automatically connect to that network.
12
GE
T
TIN
G
STARTED
:
Conn
e
c
t
i
ng
to
Ne
t
work
ENGLISH
Using Data Network Connection
For locations without Wi-Fi connection, install a SIM card to connect to a data network
(see “Installing the SIM Card (Optional)” on page 7).
NOTE: Only Tablet PC models with a SIM card slot can use this connection.
13
USIN
G
TH
E
TAB
L
E
T
:
Und
e
rs
t
andin
g
t
h
e
In
t
er
f
ace
Using the Tablet
Understanding the Interface
The Home Screen
1
3
2
4
5
6
No. Item Description
1 Status Bar Displays status icons and notifications. See “Status
and Notifications” on page 13 for more information.
2 Home screen Main screen display. Touch items on the screen to
select an application.
3 Browser icon Touch to open the Browser application and search
the Internet.
4 Application icon Touch to display all applications installed on your
device. See “Opening Applications” on page 16 for
more information.
5 Task icon Touch to close all open applications.
6 Panel Indicator Indicates how many screen panels are available to
the left and to the right of the current screen. Swipe
your finger left or right to change panels.
14
USIN
G
TH
E
TAB
L
E
T
:
Unde
r
s
t
andin
g
t
h
e
Int
e
r
f
ace
ENGLISH

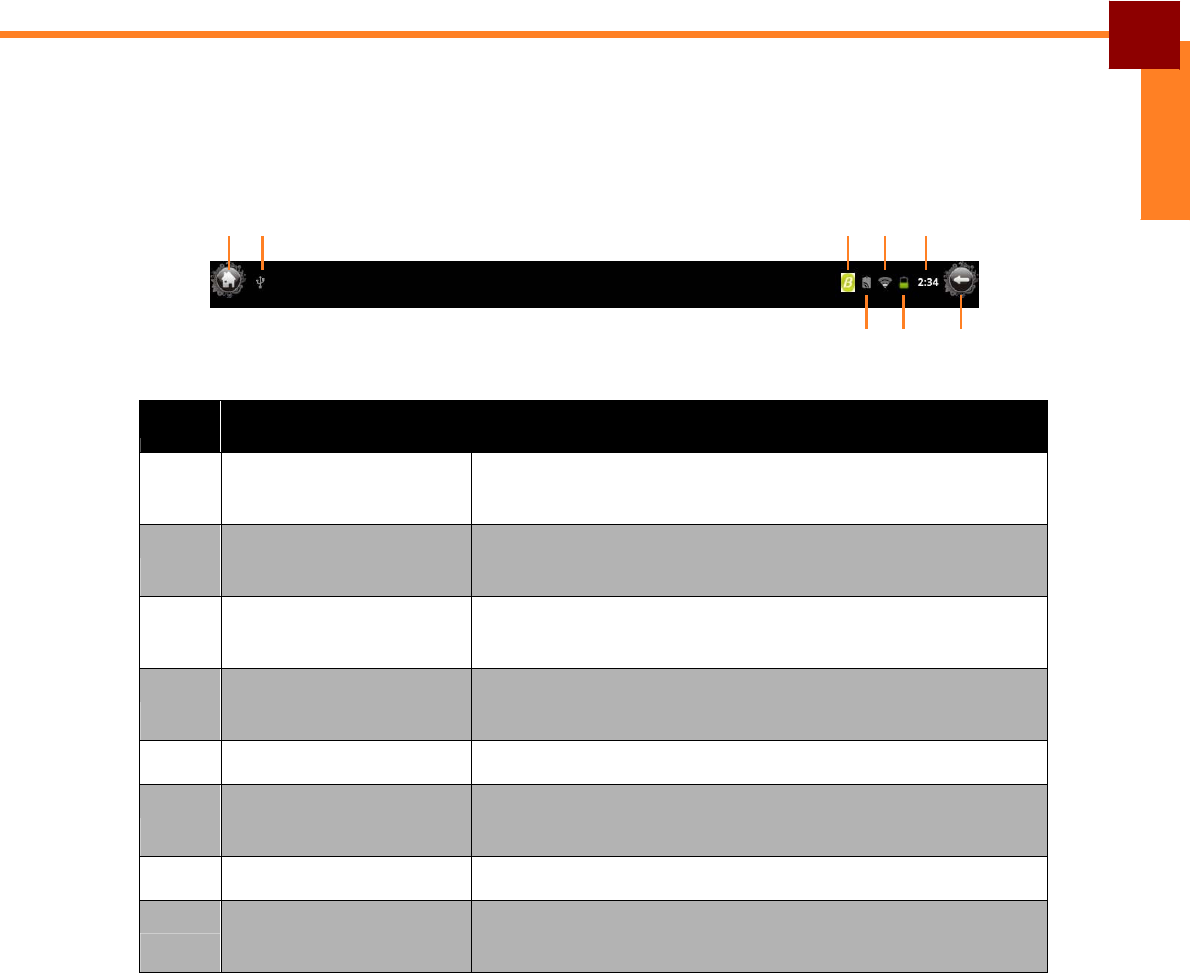

Status and Notifications
The Status Bar always appears on top of the screen and indicates different types of
information.
1 2 3 4 5
6
7
8
No. Item Description
1 Home icon Touch to return to the Home screen from any
application.
2 USB icon Indicates that the Tablet PC is connected to a
computer using the USB cable.
3 Bluetooth icon Indicates Bluetooth is enabled. “Connecting to
Bluetooth Devices” on page 21.
4 Wi-Fi icon Indicates the Wi-Fi signal strength. This icon
appears only if the Tablet PC has Wi-Fi enabled.
5 Time Displays the system time.
6 Tags icon Indicates NFC is enabled. See “Using Tags” on
page 17.
7 Battery icon Indicates the battery status.
8 Back icon Touch to return to the previous screen from any
application.
Drag the status bar downwards to display more information.
NOTE: Depending on the current application and available features for your Tablet
PC, the icons displayed on the status bar may vary.
15
USIN
G
TH
E
TAB
L
E
T
:
Und
e
rs
t
andin
g
t
h
e
In
t
er
f
ace
Managing the Home Screen
You can add shortcut icons, widgets, and folders on the Home screen and change the
wallpaper.
To change the wallpaper:
1. Touch and hold a blank space on the Home screen.
2. A pop up window appears. Touch one of the following:
• Gallery: To use pictures saved on your Tablet PC.
• Live wallpapers: To use pre-installed interactive wallpapers that came with
your device.
• Wallpapers: To use preset wallpapers that came with your device.
To add shortcut icons or widgets:
1. Touch and hold a blank space on the Home screen.
2. A pop up window appears. Touch either Shortcuts or Widgets.
3. Select the application or widget you want to add to the Home screen.
To add folders:
1. Touch and hold a blank space on the Home screen.
2. A pop up window appears. Touch one of the following:
• New folder: To create a folder on the Home screen.
• Bluetooth received: To create a folder to contain items received from a
Bluetooth device.
3. Touch and hold the folder name to open the Rename folder pop up.
4. Type the desired folder name.
5. Touch OK to complete.
To move items:
You can move items from one screen panel to another or rearrange the icons.
1. Touch and hold the item that you want to move until the item is enlarged.
2. Drag and drop the item to the desired location.
To remove items:
1. Touch and hold the item that you want to remove.
2. Drag and drop the item to the trash bin icon until the item turns red.
16
USIN
G
TH
E
T
ABLE
T:
U
s
i
ng
th
e
Ap
p
lic
a
tions
ENGLISH
Using the Applications
This section covers some basic applications that you can do on your Tablet PC.
Typing on the Keyboard
Your Tablet PC comes with the Android On-Screen Keyboard. Use of the on-screen
keyboard is similar to that of an ordinary computer keyboard.
1
2 7
3 6
4 5
No. Item Description
1 Alphanumeric Keys Touch the keys to enter letters, numbers, and
symbols.
2 Shift / Caps Lock Key
Touch to toggle between upper case, lower case,
and all caps keyboard.
3 Numeric Key Touch to toggle between numeric, symbol and
alphabet keyboard.
4 Keyboard Settings
Key
• Touch to access the keyboard settings menu.
• Touch and hold to select the input method:
Android keyboard or Google Pinyin.
5 Space Bar Touch to insert a space.
6 Go / Enter Key The key varies between Go and Enter key
depending on the current application. To add a
carriage return or finalize an entry.
7 Backspace Key Touch to delete the previous character.
17
USIN
G
TH
E
TAB
L
E
T
:
Usin
g
t
he
A
p
pli
c
a
t
io
ns

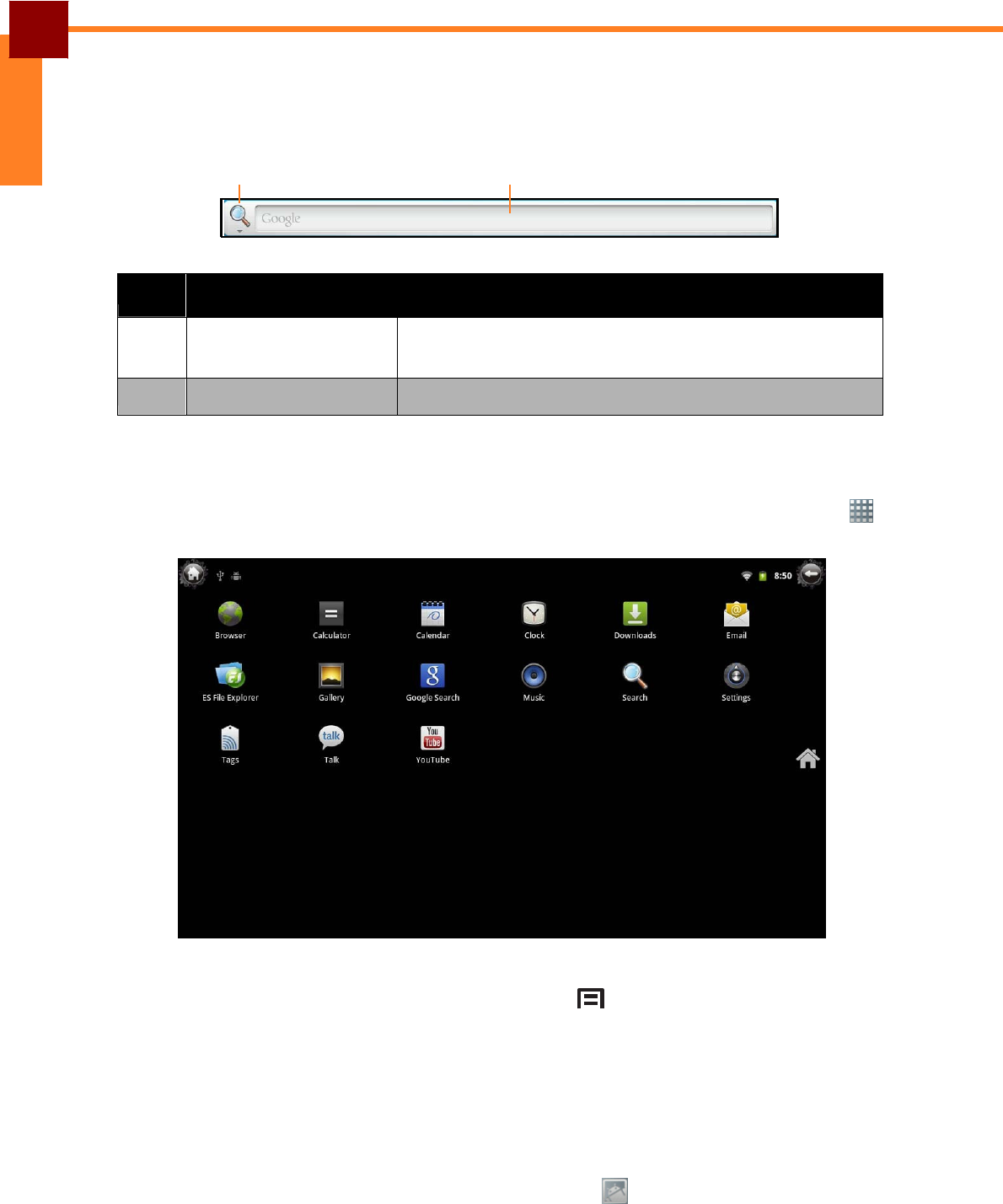

Searching for Items
Your Tablet PC comes with a Search Bar. You can search for applications on your
device or search the Internet using the Search Bar,
1 2
No. Item Description
1 Source to Search Touch to select the source where you want to
search: Web, Application, or All.
2 Search Bar Type the characters/word to search for.
Opening Applications
Your Tablet PC comes with pre-installed applications. On the Home screen, touch .
The applications screen appears,
To open an application, touch the application icon.
To access the applications settings or menu, touch .
Killing Tasks
Once an application is opened, it consumes system memory space and may affect the
efficiency and response time of your device. Thus, it is recommended to close all
applications after using them.
To close all applications or kill all opened tasks, touch . An “All tasks killed” pop up
message appears.
18
USIN
G
TH
E
T
ABLE
T:
U
s
i
ng
Tags
ENGLISH
Using Tags
Near Field Communication (NFC) technology, otherwise called as Tags contain URLs,
pictures, maps location, and any other kinds of information.
Your Tablet PC comes with the Tags application. Use Tags to scan tags, open
applications, share, and organize them on your device. Before using Tags, activate
the NFC function on your device first.
Activating NFC
1. On the Home screen, touch > Settings > Wireless & networks.
2. Touch NFC to check the box and enable the function.
Scanning Tags
1. Unlock the screen (if necessary).
2. Place your Tablet PC next to a tag. Your Tablet PC scans the tag and displays
the contents that it collected.
3. Do one of the following:
• Touch one of the tags to open it in an application that works with its content,
such as Browser, Gallery, Maps, etc.
• Touch Done to save the tag.
• Touch Delete to delete the tag.
Sharing Tags
1. On the Tags screen, touch the My tag tab.
2. Touch Add new tag.
3. Touch the kind of tag you want to add on the pop up window: Contact, URL, or
Text.
4. Enter the text, URL or browse for the contact you want to add.
5. Touch Save when done. The last saved tag is set as the active tag.
6. Touch the Share my tag to allow other devices to read your tag.
Managing Tags
1. Touch and hold a tag content.
2. A pop up window appears. Touch one of the following:
• Set as active tag: To set the tag as the active tag.
• Edit tag: To edit the tag content.
• Delete tag: To delete the tag.
• Write to tag: To add contents to the tag.
19
USING
THE
TABLE
T
:
Using
ES
File
Explo
r
er

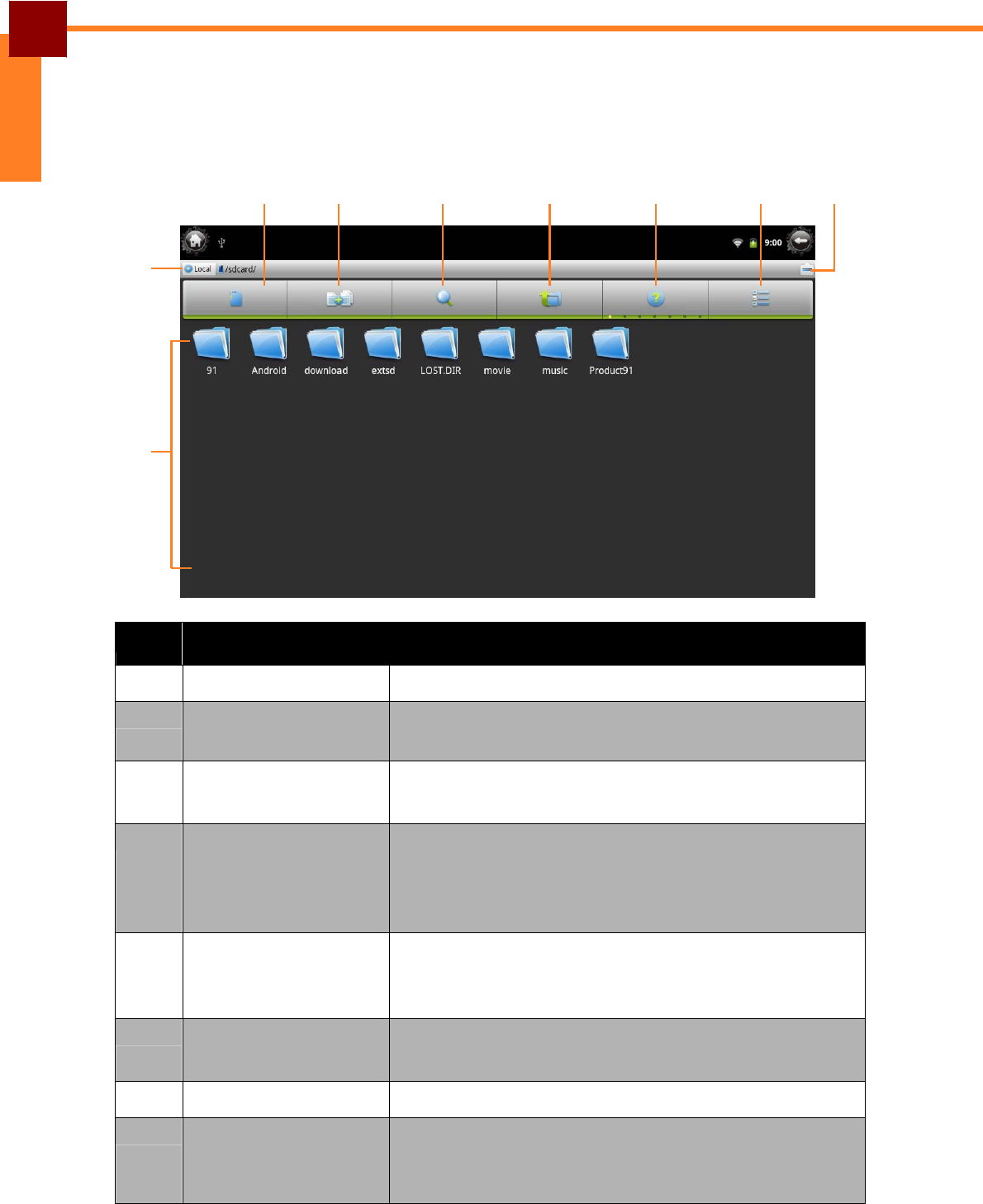

Using ES File Explorer
The ES File Explorer allows you to browse files on the microSD card, device internal
memory, or browse through files through LAN and FTP servers.
3 4 5 6 7 8 9
1
2
No. Item Description
1 Directory Shows the current directory location.
2 File Organizer Displays files/folder contents of the current directory.
Touch a folder to browse its contents.
3 Root / Home • Touch to toggle between root and home directory.
• Touch and hold to manage bookmarks.
4 Multiselect • Touch to enable the multiselect feature. The
selected file/folder names turn green.
• Touch and hold to use Select All or Select None
functions.
5 Search • Touch to search for files or folders.
• Touch and hold to sort the files and folders by
name, type, size, etc.
6 Return • Touch to go up one level at a time.
• Touch and hold to close the application.
7 Help Touch to view the help contents.
8 Display Mode • Touch to toggle between list mode or thumbnail
mode.
• Touch and hold to change the font and icon size.
20
USIN
G
TH
E
TABLE
T:
U
s
i
ng
E
S
Fil
e
E
x
plor
er
ENGLISH
No. Item Description
9 Show / Hide Menu Touch to show or hide the ES File Explorer menu.
Managing Files and Folders
You can use common computer operations such as copy and paste with the ES File
Explorer. To do this, perform the following:
1. Touch and hold a file or folder.
2. A pop up window appears. Touch an operation such as Paste, Cut, Copy,
Rename, etc.
To access more options:
Touch to bring up the ES File Explorer menu. It contains the following submenu
options:
• Operations: Touch to use the Paste, Rename, Delete, Properties functions.
• New: Touch to create a new file, folder, search, or server, etc.
• Manager: Touch to access Task Manager, App Manager, Security Manager,
Bookmark Manager, and SD Card Analyst.
• Show / Hide Tabs: Displays or hides the location tabs. Available tabs are: Local,
LAN, FTP, Net (cloud server).
• Settings: Touch to access the ES File Explorer settings.
• More: Touch to refresh, flip orientation, access Help Center, view software
information or exit the application.
NOTE: Available submenu options vary depending on the current path or directory.
21
CH
A
NGING
THE
T
A
BLET
S
ETTINGS
:
S
e
t
t
i
n
g
s
Me
nu

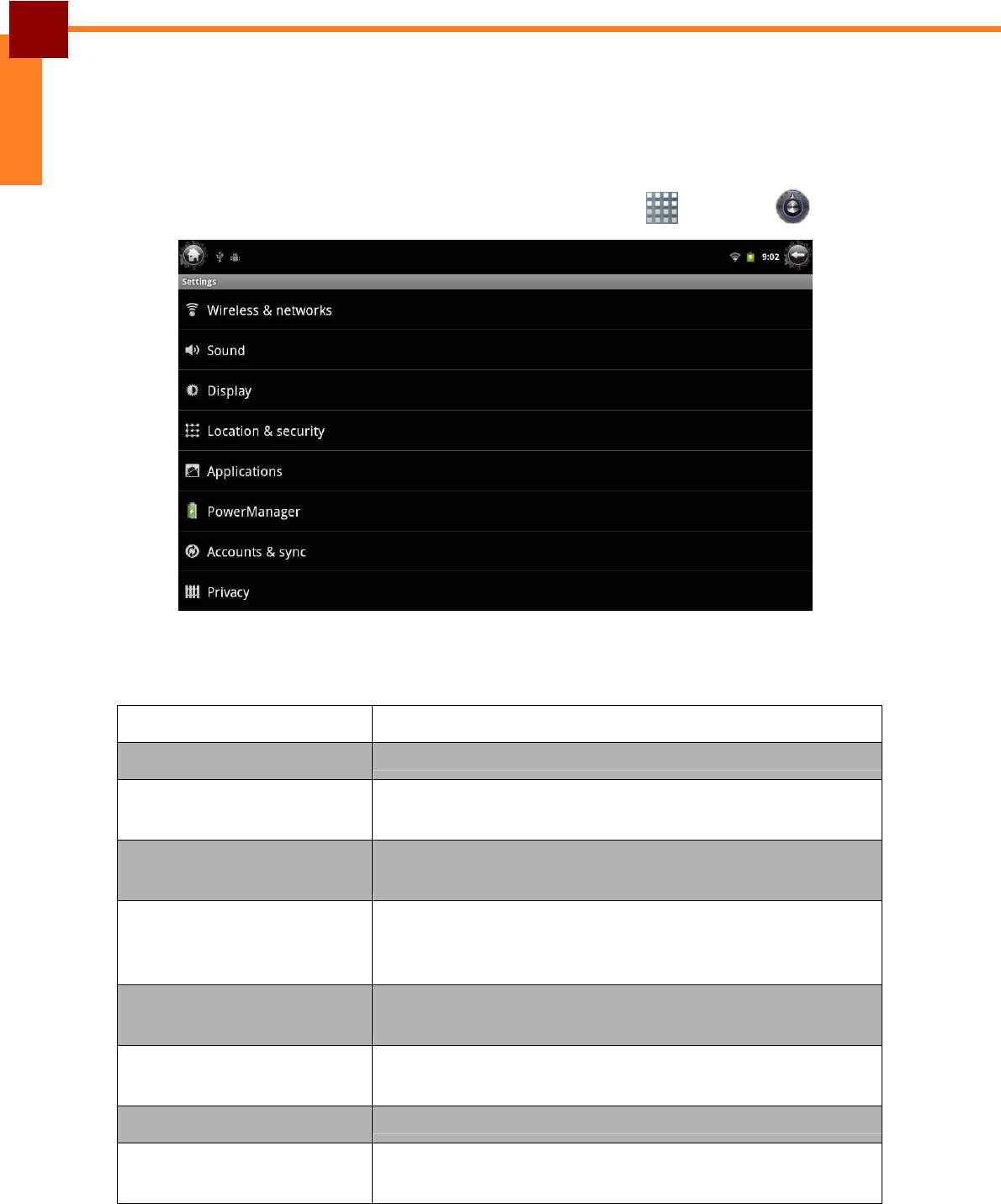

Changing the Tablet Settings
This chapter covers information on how to change your Tablet PC settings and
customize other options.
To access the Tablet Settings, on the Home screen, touch > Settings .
Settings Menu
Wireless & networks Manage Wi-Fi, Bluetooth, VPN, and NFC settings.
Sound Set volume, screen lock sounds, and mute device.
Display Set brightness setting, enable auto-rotate screen,
animation, and screen timeout options.
Location & security Set up screen lock, passwords, and secure credential
storage.
Applications Manage running and downloaded applications,
applications from unknown sources, and development
options.
PowerManager Manage power manager, battery value, brightness and
sound manager.
Accounts & sync Set up account such as email, calendar, etc. to sync
with your Tablet PC.
Privacy Set back up, restore and reset options.
Storage View and manage available storage space on the
internal and external SD card, and U disk.
22
C
H
ANGING
THE
TABLET
SETTINGS:
Manag
i
n
g
Wirele
ss
an
d
Ne
t
w
ork
Se
t
tings
ENGLISH
Language & keyboard Select the system language, manage the user
dictionary and keyboard settings.
Accessibility Set accessibility options, if available.
Date & time Set the system date and time.
About device View device information such as version, legal
information, model name, etc.
Managing Wireless and Network Settings
Connecting to Wireless Networks
1. On the Home Screen, touch > Settings > Wireless & networks.
2. Touch Wi-Fi to check the box and enable the Wi-Fi function.
3. Touch Wi-Fi settings. The device searches for available networks within range.
4. Touch an available network connection.
5. If prompted, enter the password to connect to the Wi-Fi network, then touch
Connect.
NOTE: Password entry is required only for first time connection. Once your Tablet PC
is connected to a network and Wi-Fi is enabled on your device, the Tablet PC
will automatically connect to that network.
NOTE: To enable the Tablet PC to notify you when open networks are available,
check the Network notification box.
Connecting to Bluetooth Devices
1. On the Home Screen, touch > Settings > Wireless & networks.
2. Touch Bluetooth to check the box and enable the Bluetooth function.
3. Touch Bluetooth settings. The following settings are available:
• Device name: This is the name the appears on other Bluetooth devices.
Touch to change the device name.
• Discoverable: Touch to check the box and enable other Bluetooth device
to see your Tablet PC.
4. Touch Scan for device to search for compatible Bluetooth devices in range.
5. Available devices are listed under Bluetooth devices.
6. To connect to a device, touch the device name.
7. Enter the passkey to connect. The passkey you enter must be the same
passkey on the other device.
23
CH
A
NGING
THE
T
A
BLET
SETTINGS:
Changing
Basic
Settings
Setting Up VPN
The Tablet PC can be setup to connect to Virtual Private Networks (VPN).
NOTE: Obtain the necessary settings from your network administrator.
1. On the Home Screen, touch > Settings > Wireless & networks.
2. Touch VPN settings.
3. Touch Add VPN.
4. Touch the VPN protocol that you are using, options are:
• Add PPTP VPN: For Point-to-Point Tunneling protocol
• Add L2TP VPM: For Layer 2 Tunneling protocol
• Add L2TP/IPSec PSK VPN: For Pre-shared key based L2TP/IPSec VPN
• Add L2TP/IPSec CRT VPN: For certificate based L2TP/IPSec VPN
5. Touch the options and enter the necessary settings:
• VPN name: Set the VPN name.
• Set VPN server: Set the VPN server.
• Enable encryption: Check to enable encryption.
• DNS search domains: Set the DNS search domain.
6. Touch > Save.
Changing Basic Settings
Sound
To modify the sound settings of your Tablet PC, perform the following:
1. On the Home Screen, touch > Settings > Sound.
2. Touch one of the following options:
• Silent mode: Check the box to enable silent mode.
• Volume: Touch to bring up the Volume window. Drag the slider of the type
of volume that you want to adjust. Touch OK to close the window,
• Audible selection: Check the box to play sound when making screen
selections.
• Screen lock sounds: Check the box to play sounds when locking and
unlocking the screen.
3. Touch to return to the Home screen.
24
CHANGIN
G
TH
E
TABLE
T
SETTINGS
:
Cha
n
gin
g
B
a
si
c
Se
t
tings
ENGLISH
Display
To modify the display settings of your Tablet PC, perform the following:
1. On the Home Screen, touch > Settings > Display.
2. Touch one of the following options:
• Brightness: Touch to bring up the Brightness window. Drag the slider to
adjust the screen brightness, then touch OK.
• Auto-rotate screen: Check this box to enable automatic rotation of the
screen when changing the screen orientation.
• Animation: Select whether to enable or disable animation on some or all
windows.
• XEC DLS Control: Enable or disable XEC DLS control.
• Screen timeout: Select the amount of time until the screen automatically
locks and the device goes to sleep mode.
3. Touch to return to the Home screen.
Date and Time
To modify the date and time settings of your Tablet PC, perform the following:
1. On the Home Screen, touch > Settings > Date & time.
2. Touch one of the following options:
• Set date: Touch to bring up the Date window. Touch the + and - keys to
adjust the date. When complete, touch Set.
• Select time zone: Touch to select the time zone in your location.
• Set time: Touch to bring up the Time window. Touch the + and - keys to
adjust the time. When complete, touch Set.
• Use 24-hour format: Check this box to display the time in 24-hour format.
• Select date format: Touch to select the date format.
3. Touch to return to the Home screen.
25
CH
A
NGING
THE
T
A
BLET
SETTINGS:
Chang
i
n
g
La
n
gua
ge
an
d
Ke
y
bo
a
r
d
Se
t
tings
Changing Language and Keyboard Settings
Changing the Device Language
To change the device language, perform the following:
1. On the Home Screen, touch > Settings > Language & keyboard.
2. Touch Select language.
3. Touch the desired language.
4. Touch to return to the Home screen.
Managing Keyboard Settings
By default, your Tablet PC uses the Android keyboard. To manage the keyboard
settings, perform the following:
1. On the Home Screen, touch > Settings > Language & keyboard.
2. Touch Android keyboard.
3. The Android keyboard has the following options:
• Vibrate on keypress: Check to vibrate the device every time a key is
pressed.
• Sound on keypress: Check to emit sound every time a key is pressed.
• Popup on keypress: Check to enlarge the keyboard character as the keys
are pressed.
• Touch to correct words: Check to enable auto correct words when the
word is touched.
• Auto-capitalization: Check to automatically capitalize the first letter of the
sentence.
• Show settings key: Select whether to show or hide the settings key on the
keyboard.
• Input languages: Select the input languages that you want to use with the
keyboard. You can easily switch between these input languages by swiping
your finger across the space bar.
• Quick fixes: Check to enable the device to automatically correct common
mistakes in typing.
• Show suggestions: Check to display suggested words while typing.
• Auto-complete: Check to automatically insert the highlighted word to
complete what you are typing with a press of the spacebar or a punctuation
mark.
4. Touch to return to the Home screen.
26
CHANGIN
G
TH
E
TAB
L
E
T
SET
T
INGS
:
Ch
a
ngin
g
L
a
ngu
a
g
e
a
nd
K
e
ybo
a
r
d
Se
t
tings
ENGLISH
Using the User Dictionary
Your Tablet PC has a built-in user dictionary where you can add words to it.
To add words to the dictionary, perform the following:
1. On the Home Screen, touch > Settings > Language & keyboard.
2. Touch User dictionary.
3. To add words to the dictionary, touch > Add.
4. Type the word you want to add to the dictionary.
5. Touch OK.
6. Repeat steps 3 to 5 to add more words.
7. Touch to return to the Home screen.
To modify a word in the dictionary, perform the following:
1. On the Home Screen, touch > Settings > Language & keyboard.
2. Touch User dictionary.
3. Touch the word you want to edit.
4. A pop up window appears. Touch Edit.
5. Modify the word, then touch OK.
6. Repeat steps 3 to 5 to modify more words.
7. Touch to return to the Home screen.
To delete a word from the dictionary, perform the following:
1. On the Home Screen, touch > Settings > Language & keyboard.
2. Touch User dictionary.
3. Touch the word you want to delete.
4. A pop up window appears. Touch Delete. The word is removed from the
dictionary.
5. Repeat steps 3 to 4 to delete more words.
6. Touch to return to the Home screen.
27
CH
A
NGING
THE
T
A
BLET
SETTINGS:
M
ana
g
i
ng
S
t
o
ra
g
e
S
p
a
c
e
Managing Storage Space
The Storage settings menu allows you to view the total and available space on your
storage devices. Your Tablet PC has three storage sources:
• SD card: The internal storage
• EXTSD card: The micro SD card
• U disk
To view the total and available storage space, touch from the Home screen, then
touch Settings > Storage.
Erasing Storage Card Content
To erase the contents of your storage card, perform the following:
1. On the Home Screen, touch > Settings > Storage.
2. Touch one of the following:
• Erase SD card: To erase the contents of the internal SD card.
• Erase EXTSD card: To erase the contents of the microSD card.
• Erase U disk: To erase the contents of the U disk card.
3. A confirmation message appears. Touch Erase SD card to confirm.
4. Touch to return to the Home screen.
Removing the Storage Card
The external SD (microSD) and U disk cards can be removed from the Tablet PC.
However, you must properly unmount the cards to safeguard the storage contents.
To do this, perform the following:
1. On the Home Screen, touch > Settings > Storage.
2. Touch one of the following:
• Unmount EXTSD card: To unmount the microSD card.
• Unmount U disk card: To unmount the U disk card.
3. A confirmation message appears on the status bar. Remove the card.
4. Touch to return to the Home screen.
28
CHANGIN
G
TH
E
TABLE
T
SET
T
INGS
:
M
an
a
gin
g
A
c
co
u
nts
ENGLISH
Managing Accounts
You can synchronize the data, email, calendar and other information of an account
with your Tablet PC.
Adding Exchange Accounts
1. On the Home Screen, touch > Settings > Accounts & sync.
2. Touch Add account.
3. Touch Corporate.
4. Enter your Email address and Password.
NOTE: If you have more than one accounts, check the Send email from this
account by default box to set the current account as the default account.
5. Touch Next to continue.
6. Enter the required information such as Domain or Username, Password,
Server (for Exchange account), etc.
NOTE: Obtain these information from your network administrator or service provider.
7. Touch Next to continue and complete the wizard.
8. Touch to return to the Home screen.
Adding Google Accounts
1. On the Home Screen, touch > Settings > Accounts & sync.
2. Touch Add account.
3. Touch Google.
4. Touch Next to continue.
5. If you already have an existing Google account, touch Sign in if you need to
create an account, touch Create.
6. Follow the on-screen instructions to complete setup.
7. Touch to return to the Home screen.
Syncing Accounts
1. On the Home Screen, touch > Settings > Accounts & sync.
2. Touch to check the type of information you want to sync:
• Background data: To allow applications to sync, send, and receive data at
any time.
• Auto-sync: To allow applications to sync automatically.
3. Touch the account to select the type of data to sync.
4. Check the boxes of the data you want to sync, such as Picasa Web Albums,
Contacts, Calendar.
29
CHANGIN
G
TH
E
T
ABLE
T
SETTINGS
:
M
ana
g
i
ng
A
c
cou
n
ts
5. Touch to return to the Home screen.
Removing Accounts
1. On the Home Screen, touch > Settings > Accounts & sync.
2. Touch the account to you want to remove.
3. Touch Remove account.
4. A confirmation message appears. Touch Remove account to confirm.
5. Touch to return to the Home screen.
30
CH
A
NGING
THE
T
A
BLET
SETTI
NGS
:
Ad
v
an
c
e
d
Se
t
tings
ENGLISH
Advanced Settings
Location and Security
1. On the Home Screen, touch > Settings > Location & security.
2. Touch one of the following options:
• Set up screen lock: Set up a pattern, PIN, or password to lock or unlock
the screen.
• Visible passwords: Check the box to show the password as you type.
• Select device administrators: Add or remove device administrators.
• Use secure credentials: Allow applications to access secure certificates
and other credentials.
• Install from SD card: Install encrypted certificates from SD card.
• Set password: Set or change the credential storage password.
• Clear storage: Clear credential storage of all contents and reset its
password.
3. Touch to return to the Home screen.
Power Manager
1. On the Home Screen, touch > Settings > PowerManager.
2. Touch one of the following options:
• PowerManager: Check to activate PowerManager.
• Battery value settings: Select a value wherein the battery will
automatically turn off when the battery value is less than the selected
value.
• Brightness Manager: Check to automatically turn off backlight when the
battery value is less than the selected value.
• password.
3. Touch to return to the Home screen.
31
CH
A
NGING
THE
T
A
BLET
SETTI
NGS
:
Ad
v
an
c
e
d
Se
t
tings
Privacy
1. On the Home Screen, touch > Settings > Privacy.
2. Touch one of the following options:
• Back up my data: Check to back up application data, Wi-Fi passwords,
and other settings to Google servers.
• Automatic restore: Check to automatically reinstall applications, and
restore backed up settings or other data. Available only when Back up my
data is enabled.
• Factory data reset: To erase all data on the Tablet PC and reset all
settings to its factory default.
3. Touch to return to the Home screen.
Applications
1. On the Home Screen, touch > Settings > Applications.
2. Touch one of the following options:
• Unknown sources: Check to allow installation of non-Market applications.
• Manage applications: Manage and remove installed applications.
• Running services: View and control currently running services.
• Storage use: View storage used by applications.
• Battery use: View applications or services using the battery.
• Development: Set options for application development.
3. Touch to return to the Home screen.
Accessibility
Accessibility is available only when accessibility related applications are installed on
your Tablet PC.
To access Accessibility from the Home Screen, touch > Settings >
Accessibility.
About the Device
About the Device displays device status, battery use, legal information, model
number, Android version, Kernel version, and the build number of your Tablet PC.
To access About the Device from the Home Screen, touch > Settings >
About the Device.
32
USING
O
P
TIONAL
ACCESSORIE
S
:
Dock
Cradle
ENGLISH
Using Optional Accessories
Expand the functionality of your Tablet PC using the optional accessories.
Dock Cradle
Parts and Functions
1
2
3
No.
Item Description
1 Dock Guide Guides that lock with the Tablet PC.
2 Status LED Indicates the dock cradle status. Lights red when battery
charging is ongoing.
3 Dock Contacts Connects to the Tablet PC.
Docking the Tablet
Align the dock guides and the gold contacts on the Tablet PC and the dock cradle.
33
USING
OPTIONAL
AC
C
ESSORIE
S
:
Dock
Cradle
When docked...
• A second battery icon appears on the status bar of the Tablet PC
• The Tablet PC battery is charged when the power adapter is connected to a power
outlet.
• Use the connected USB device, such as a keyboard or mouse, through the Tablet
PC.
Making Connections
To connect the power:
Connect the dock cradle to a power
source to charge the batteries on
both the Tablet PC and dock cradle.
The Tablet PC battery is charged
first. When charging is complete,
the second battery, which is
embedded in the dock cradle, is
charged next.
1. Connect one end of the
power adapter to power jack
of the dock cradle.
2. Plug the adapter head to a
wall outlet.
To connect USB devices:
Connect a USB keyboard or USB
mouse to the dock cradle and use
the USB device to manage the
Tablet PC.
1. Connect the USB end of a
USB keyboard or mouse to
the USB port of the dock cra-
dle.
2. Manage the Tablet PC using
the keyboard or mouse just
as you would on a computer.
34
USING
OPTIONAL
A
CCES
S
ORIES:
MSR
Module
ENGLISH
MSR Module
Your Tablet PC is especially designed to expand functionality with an MSR module.
Before installing the MSR module, prepare the following tools:
• Screw kit (supplied with MSR module)
• Phillip screwdriver
To install the MSR module:
1. Align the guides on the MSR module through the guides on the right side of the
Tablet PC.
2. Attach a screw to secure the MSR module to the Tablet PC.
35
APPENDIX
:
Tro
u
blesh
o
oting
Appendix
Troubleshooting
1. The device powers off automatically.
• The battery power is depleted. Charge the battery.
2. No sound comes out from the Tablet PC.
• Check whether the volume is set to mute. Press the volume keys to adjust
volume.
• Check whether the music file is damaged, try another files to test.
3. Cannot copy a file to the microSD card.
• Check whether the microSD card capacity is full.
• Try to delete or move some files to free space.
4. Cannot scan tags.
• Check whether NFC is enabled in Settings > Wireless Networks.
5. Cannot connect to the Internet.
• Check whether the Tablet PC is connected to a wireless network.
• If no wireless network is available, try to use the SIM card (if supported by
your device model) to use its data network connection.
• The battery may be too low. Network connectivity uses more power. Be
sure to charge the battery.
36
APPENDI
X
:
Specifications
ENGLISH
Specifications
EM-70B Specifications
CPU Freescale ARM IMX 51 800MHz
Memory DDR 512MB, NAND Flash 4GB max. 16 GB
Type: High Brightness TFT Colour LCD
Capacitive Multitouch
Size: 7-inch
Resolution: 1024 x 600
Display
Brightness: 350 nit
Communication Wi-Fi 802.11 b/g/n
Expansion 1 x WCDMA Module / Mini PCI-e (optional)
I/O Interface 1 x Mini USB 2.0 PTG
1 x Micro-SD card
1 x DC Jack
1 x Cradle Connector
Storage Micro SD (SDHC) with eject function, max. 32GB
OS Android 2.3.3
Temperature Operating Temperature: 0 ~ 40º C
Storage Temperature: -20 ~ 60º C
Humidity Operating Humidity: 5% ~ 95%
Storage Humidity: 5% ~ 95%
LED 1 x LED Power Status (Power / on / off / charging)
Buttons 1 x Power
2 x Volume
1 x Home-button
1 x Menu-button
1 x Back-button
Weight 630 g (approx.) with battery
Others 2 x Audio speaker
RFID Module 13.56MHz
Battery Li-ion 4200mA 1S2P 3.7V, Cradle has second battery
Li-ion 4200mA 1S2P 3.7V
Protection Class IP54 1 1,2 M Drop-Tested
