SmartNode Series
SmartWare Release 5.2
Software Configuration Guide
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
URL:
www.patton.com
Part Number:
07MSWR52_SCG, Rev. A
Revised:
August 7, 2008
Patton Electronics Company, Inc.
7622 Rickenbacker Drive, Gaithersburg, MD 20879 USA
Tel:
+1 (301) 975-1000 •
Fax:
+1 (301) 869-9293 •
Support:
+1 (301) 975-1007
Web:
www.patton.com •
E-mail:
support@patton.com
Copyright Statement
Copyright © 2008, Patton Electronics Company. All rights reserved.
Trademark Statement
The terms
SmartWare, SmartView, SmartLink,
and
SmartNode
are trademarks of Patton Electronics Com-
pany. All other trademarks presented in this document are the property of their respective owners.
Notices
The information contained in this document is not designed or intended for use as critical components in
human life-support systems, equipment used in hazardous environments, or nuclear control systems. Patton
Electronics Company disclaims any express or implied warranty of fitness for such uses.
The information in this document is subject to change without notice. Patton Electronics assumes no liabil-
ity for errors that may appear in this document.
Any software described in this document is furnished under license and may be used or copied only in accor-
dance with the terms of such license.
Supported Platforms
SmartNode 4110 Series SmartNode 4830 Series SmartNode 4552, 4562
SmartNode 4520 Series SmartNode 4900 Series SmartNode 4554, 4564
SmartNode 4600 Series SmartNode 4960 Smart-DTA
3
Summary Table of Contents
1System overview ............................................................................................................................................ 38
2Configuration concepts ................................................................................................................................. 44
3Command line interface (CLI) ...................................................................................................................... 49
4Accessing the CLI .......................................................................................................................................... 53
5System image handling.................................................................................................................................. 65
6Configuration file handling........................................................................................................................... 76
7Basic system management ............................................................................................................................. 90
8RADIUS Client Configuration.................................................................................................................... 102
9IP context overview ..................................................................................................................................... 114
10 IP interface configuration ........................................................................................................................... 120
11 NAT/NAPT configuration........................................................................................................................... 132
12 Ethernet port configuration ........................................................................................................................ 141
13 Link scheduler configuration ...................................................................................................................... 151
14 Serial port configuration ............................................................................................................................. 170
15 Frame Relay configuration .......................................................................................................................... 177
16 PRI port configuration................................................................................................................................ 191
17 BRI port configuration................................................................................................................................ 205
18 ISDN Overview ........................................................................................................................................... 212
19 ISDN configuration .................................................................................................................................... 217
20 RBS configuration....................................................................................................................................... 225
21 DSL Port Configuration.............................................................................................................................. 230
22 Basic IP routing configuration .................................................................................................................... 235
23 RIP configuration........................................................................................................................................ 242
24 Access control list configuration.................................................................................................................. 253
25 SNMP configuration ................................................................................................................................... 267
26 SNTP client configuration .......................................................................................................................... 282
27 DHCP configuration................................................................................................................................... 292
28 DNS configuration...................................................................................................................................... 304
29 DynDNS configuration............................................................................................................................... 308
30 PPP configuration....................................................................................................................................... 313
31 CS context overview .................................................................................................................................... 339
4
SmartWare Software Configuration Guide
32 VPN configuration ...................................................................................................................................... 362
33 CS interface configuration........................................................................................................................... 381
34 ISDN interface configuration...................................................................................................................... 390
35 FXS interface configuration......................................................................................................................... 404
36 FXO interface configuration ....................................................................................................................... 414
37 RBS interface configuration ........................................................................................................................ 426
38 H.323 interface configuration ..................................................................................................................... 431
39 SIP interface configuration ......................................................................................................................... 441
40 Call router configuration............................................................................................................................. 456
41 SIP call-router services ................................................................................................................................ 524
42 Tone configuration...................................................................................................................................... 529
43 FXS port configuration ............................................................................................................................... 537
44 FXO port configuration .............................................................................................................................. 542
45 H.323 gateway configuration ...................................................................................................................... 546
46 Context SIP gateway overview..................................................................................................................... 559
47 VoIP profile configuration .......................................................................................................................... 573
48 PSTN profile configuration......................................................................................................................... 597
49 SIP profile configuration............................................................................................................................. 601
50 Authentication Service................................................................................................................................. 604
51 Location Service .......................................................................................................................................... 607
52 VoIP debugging........................................................................................................................................... 624
ATerms and definitions ................................................................................................................................ 644
BMode summary ........................................................................................................................................... 650
CCommand summary ................................................................................................................................... 654
DInternetworking terms & acronyms ........................................................................................................... 657
EUsed IP ports & available voice codecs ...................................................................................................... 662
5
Table of Contents
Summary Table of Contents ........................................................................................................................... 3
Table of Contents ........................................................................................................................................... 5
List of Figures ............................................................................................................................................... 27
List of Tables ................................................................................................................................................ 29
About this guide ........................................................................................................................................... 30
Audience............................................................................................................................................................... 30
How to read this guide ......................................................................................................................................... 30
Structure............................................................................................................................................................... 31
Precautions ........................................................................................................................................................... 34
Typographical conventions used in this document................................................................................................ 34
General conventions .......................................................................................................................................34
Mouse conventions .........................................................................................................................................36
Service and support ...............................................................................................................................................36
Patton support headquarters in the USA .........................................................................................................36
Alternate Patton support for Europe, Middle East, and Africa (EMEA) ..........................................................36
Warranty Service and Returned Merchandise Authorizations (RMAs)...................................................................37
Warranty coverage ..........................................................................................................................................37
Returns for credit ......................................................................................................................................37
Return for credit policy .............................................................................................................................37
RMA numbers ................................................................................................................................................37
Shipping instructions ................................................................................................................................37
1System overview ............................................................................................................................................ 38
Introduction..........................................................................................................................................................39
SmartWare embedded software .............................................................................................................................40
Applications...........................................................................................................................................................41
Carrier networks .............................................................................................................................................41
Enterprise networks ........................................................................................................................................42
LAN telephony ...............................................................................................................................................43
2Configuration concepts ................................................................................................................................. 44
Introduction..........................................................................................................................................................45
Contexts and Gateways..........................................................................................................................................46
Context ...........................................................................................................................................................46
Gateway ..........................................................................................................................................................46
Interfaces, Ports, and Bindings...............................................................................................................................47
Interfaces ........................................................................................................................................................47
Ports and circuits ............................................................................................................................................47
Bindings ..........................................................................................................................................................47
Profiles and Use commands...................................................................................................................................48
Profiles ............................................................................................................................................................48
Use Commands ..............................................................................................................................................48
6
SmartWare Software Configuration Guide
Table of Contents
3Command line interface (CLI) ...................................................................................................................... 49
Introduction..........................................................................................................................................................50
Command modes ..................................................................................................................................................50
CLI prompt ....................................................................................................................................................50
Navigating the CLI .........................................................................................................................................51
Initial mode ..............................................................................................................................................51
System changes ..........................................................................................................................................51
Configuration ...........................................................................................................................................51
Changing Modes .......................................................................................................................................51
Command editing .................................................................................................................................................51
Command help ...............................................................................................................................................51
The No form ..................................................................................................................................................51
Command completion ....................................................................................................................................51
Command history ...........................................................................................................................................52
Command Editing Shortcuts ..........................................................................................................................52
4Accessing the CLI .......................................................................................................................................... 53
Introduction..........................................................................................................................................................54
Accessing the SmartWare CLI task list...................................................................................................................54
Accessing via the console port .........................................................................................................................55
Console port procedure .............................................................................................................................55
Telnet Procedure .......................................................................................................................................56
Using an alternate TCP listening port for the Telnet server .............................................................................56
Disabling the Telnet server ..............................................................................................................................56
Logging on ......................................................................................................................................................56
Selecting a secure password .............................................................................................................................57
Password encryption .......................................................................................................................................58
Factory preset administrator account .........................................................................................................58
Creating an operator account ....................................................................................................................58
Creating an administrator account ............................................................................................................59
Opening a secure configuration session over SSH ...........................................................................................59
Displaying the CLI version .............................................................................................................................60
Displaying account information ......................................................................................................................60
Switching to another account ..........................................................................................................................61
Checking identity and connected users ...........................................................................................................61
Command index numbers ...............................................................................................................................62
Ending a Telnet or console port session ..........................................................................................................64
Showing command default values ...................................................................................................................64
5System image handling.................................................................................................................................. 65
Introduction..........................................................................................................................................................66
Memory regions in SmartWare..............................................................................................................................67
System image handling task list .............................................................................................................................68
Displaying system image information ..............................................................................................................69
Copying system images from a network server to Flash memory .....................................................................69
7
SmartWare Software Configuration Guide
Table of Contents
Upgrading the software directly ......................................................................................................................71
Auto provisioning of firmware and configuration ..................................................................................................72
Boot procedure......................................................................................................................................................74
Factory configuration ............................................................................................................................................75
Default Startup Configuration ........................................................................................................................75
IP Addresses in the Factory Configuration ......................................................................................................75
6Configuration file handling........................................................................................................................... 76
Introduction..........................................................................................................................................................77
Understanding configuration files ...................................................................................................................77
Factory configuration ............................................................................................................................................79
Configuration file handling task list.......................................................................................................................79
Copying configurations within the local memory ............................................................................................80
Replacing the startup configuration with a configuration from Flash memory ................................................81
Copying configurations to and from a remote storage location ........................................................................82
Replacing the startup configuration with a configuration downloaded from TFTP server ...............................83
Displaying configuration file information .......................................................................................................83
Modifying the running configuration at the CLI .............................................................................................84
Modifying the running configuration offline ...................................................................................................85
Deleting a specified configuration ...................................................................................................................86
Encrypted file download .................................................................................................................................87
Encrypted Configuration Download .........................................................................................................87
Use Cases ..................................................................................................................................................88
7Basic system management ............................................................................................................................. 90
Introduction..........................................................................................................................................................91
Basic system management configuration task list ...................................................................................................91
Managing feature license keys .........................................................................................................................92
Setting system information .............................................................................................................................93
Setting the system banner ................................................................................................................................94
Setting time and date ......................................................................................................................................95
Display clock information ...............................................................................................................................95
Display time since last restart ..........................................................................................................................96
Configuring the Web server ............................................................................................................................96
Determining and defining the active CLI version ............................................................................................96
Restarting the system ......................................................................................................................................97
Displaying the system logs ..............................................................................................................................97
Displaying reports ...........................................................................................................................................98
Controlling command execution .....................................................................................................................98
Timed execution of CLI command ...............................................................................................................100
Displaying the checksum of a configuration ..................................................................................................100
Configuration of terminal sessions ................................................................................................................100
8RADIUS Client Configuration.................................................................................................................... 102
Introduction........................................................................................................................................................103
The AAA component ..........................................................................................................................................103
8
SmartWare Software Configuration Guide
Table of Contents
General AAA Configuration ..........................................................................................................................104
RADIUS configuration........................................................................................................................................106
Configuring RADIUS clients ........................................................................................................................107
Configuring RADIUS accounting .................................................................................................................108
Configuring the RADIUS server ...................................................................................................................110
Attributes in the RADIUS request message .............................................................................................110
Attributes in the RADIUS accept message ...............................................................................................111
Configuring the local database accounts ..............................................................................................................111
Storing call logs with quality information ............................................................................................................113
9IP context overview ..................................................................................................................................... 114
Introduction........................................................................................................................................................115
IP context overview configuration task list...........................................................................................................116
Planning your IP configuration ...........................................................................................................................117
IP interface related information .....................................................................................................................117
QoS related information ...............................................................................................................................117
Configuring physical ports...................................................................................................................................117
Creating and configuring IP interfaces.................................................................................................................117
Configuring NAPT .............................................................................................................................................118
Configuring static IP routing...............................................................................................................................118
Configuring RIP..................................................................................................................................................118
Configuring access control lists............................................................................................................................119
Configuring quality of service (QoS) ...................................................................................................................119
10 IP interface configuration ........................................................................................................................... 120
Introduction........................................................................................................................................................121
IP interface configuration task list........................................................................................................................121
Creating an IP interface ................................................................................................................................121
Deleting an IP interface ................................................................................................................................122
Setting the IP address and netmask ...............................................................................................................123
Configuring a NAPT DMZ interface ............................................................................................................123
ICMP message processing .............................................................................................................................124
ICMP redirect messages ................................................................................................................................124
Router advertisement broadcast message .......................................................................................................124
Defining the MTU and MSS of the interface ................................................................................................125
Configuring an interface as a point-to-point link ..........................................................................................126
Displaying IP interface information ..............................................................................................................126
Displaying dynamic ARP entries ...................................................................................................................127
Flushing dynamic ARP entries ......................................................................................................................127
Processing gratuitous ARP requests ...............................................................................................................127
Testing connections with the ping command ................................................................................................127
IP link supervision ........................................................................................................................................128
Check connectivity of an IP link .............................................................................................................129
Show IP link status ..................................................................................................................................129
Debug connectivity .................................................................................................................................129
9
SmartWare Software Configuration Guide
Table of Contents
Debug ARP ...................................................................................................................................................129
Traceroute ....................................................................................................................................................130
Configuring the IGMP Proxy..............................................................................................................................131
11 NAT/NAPT configuration........................................................................................................................... 132
Introduction........................................................................................................................................................133
Dynamic NAPT ...........................................................................................................................................133
Static NAPT .................................................................................................................................................134
Dynamic NAT ..............................................................................................................................................134
Static NAT ...................................................................................................................................................135
NAPT traversal .............................................................................................................................................135
NAT/NAPT configuration task list .....................................................................................................................136
Creating a NAPT profile ...............................................................................................................................136
Configuring a NAPT DMZ host .............................................................................................................137
Defining NAPT port ranges ....................................................................................................................137
Preserving TCP/UDP port numbers in NAPT ........................................................................................138
Defining the UDP NAPT type ...............................................................................................................138
Activate NAT/NAPT ....................................................................................................................................139
Displaying NAT/NAPT configuration information ......................................................................................139
Configuring NAT static protocol entries .......................................................................................................140
12 Ethernet port configuration ........................................................................................................................ 141
Introduction........................................................................................................................................................142
Ethernet port configuration task list ....................................................................................................................142
Entering the Ethernet port configuration mode ............................................................................................142
Configuring medium for an Ethernet port ....................................................................................................142
Configuring Ethernet encapsulation type for an Ethernet port ......................................................................143
Binding an Ethernet port to an IP interface ..................................................................................................143
Multiple IP addresses on Ethernet ports ........................................................................................................144
Configuring a VLAN ....................................................................................................................................145
Configuring layer 2 CoS to service-class mapping for an Ethernet port .........................................................146
Adding a receive mapping table entry ......................................................................................................147
Adding a transmit mapping table entry ...................................................................................................148
Closing an Ethernet port ...............................................................................................................................148
Using the built-in Ethernet sniffer .......................................................................................................................149
13 Link scheduler configuration ...................................................................................................................... 151
Introduction........................................................................................................................................................152
Applying scheduling at the bottleneck ...........................................................................................................152
Using traffic classes .......................................................................................................................................152
Introduction to Scheduling ...........................................................................................................................153
Priority ....................................................................................................................................................153
Weighted fair queuing (WFQ) ................................................................................................................153
Shaping ...................................................................................................................................................153
Burst tolerant shaping or wfq ..................................................................................................................154
Hierarchy ................................................................................................................................................154
10
SmartWare Software Configuration Guide
Table of Contents
Quick references..................................................................................................................................................155
Setting the modem rate .................................................................................................................................155
Command cross reference .............................................................................................................................156
Link scheduler configuration task list...................................................................................................................156
Defining the access control list profile ...........................................................................................................157
Packet classification .................................................................................................................................157
Creating an access control list ..................................................................................................................158
Creating a service policy profile .....................................................................................................................159
Specifying the handling of traffic-classes ........................................................................................................161
Defining fair queuing weight ...................................................................................................................161
Defining the bit-rate ...............................................................................................................................162
Defining absolute priority .......................................................................................................................162
Defining the maximum queue length ......................................................................................................162
Specifying the type-of-service (TOS) field ...............................................................................................162
Specifying the precedence field ................................................................................................................163
Specifying differentiated services codepoint (DSCP) marking .................................................................163
Specifying layer 2 marking ......................................................................................................................164
Defining random early detection .............................................................................................................165
Discarding Excess Load ...........................................................................................................................165
Quality of Service for routed RTP streams ....................................................................................................165
Devoting the service policy profile to an interface .........................................................................................167
Displaying link arbitration status ..................................................................................................................168
Displaying link scheduling profile information .............................................................................................168
Enable statistics gathering .............................................................................................................................168
14 Serial port configuration ............................................................................................................................. 170
Introduction........................................................................................................................................................171
Serial port configuration task list .........................................................................................................................171
Disabling an interface ...................................................................................................................................171
Enabling an interface ....................................................................................................................................172
Configuring the serial encapsulation type ......................................................................................................173
Configuring the hardware port protocol ........................................................................................................173
Configuring the active clock edge ..................................................................................................................174
Configuring the baudrate ..............................................................................................................................175
15 Frame Relay configuration .......................................................................................................................... 177
Introduction........................................................................................................................................................178
Frame Relay configuration task list ......................................................................................................................178
Configuring Frame Relay encapsulation ........................................................................................................178
Configuring the LMI type .............................................................................................................................179
Configuring the keep-alive interval ...............................................................................................................179
Enabling fragmentation ................................................................................................................................180
Entering Frame Relay PVC configuration mode ...........................................................................................181
Configuring the PVC encapsulation type ......................................................................................................182
Binding the Frame Relay PVC to IP interface ...............................................................................................182
11
SmartWare Software Configuration Guide
Table of Contents
Enabling a Frame Relay PVC ........................................................................................................................184
Disabling a Frame Relay PVC .......................................................................................................................184
Debugging Frame Relay ................................................................................................................................185
Displaying Frame Relay information .............................................................................................................186
Integrated service access ................................................................................................................................187
Example 1: Frame Relay on e1t1 without a channel-group ...........................................................................189
16 PRI port configuration................................................................................................................................ 191
Introduction........................................................................................................................................................192
PRI port configuration task list............................................................................................................................192
Enable/Disable PRI port ...............................................................................................................................193
Configuring PRI port-type ............................................................................................................................193
Configuring PRI clock-mode ........................................................................................................................193
Configuring PRI line-code ............................................................................................................................193
Configuring PRI framing ..............................................................................................................................194
Configuring PRI line-build-out (E1T1 in T1 mode only) .............................................................................195
Configuring PRI used-connector (E1T1 in E1 mode only) ...........................................................................195
Configuring PRI application mode (E1T1 only) ...........................................................................................195
Configuring PRI LOS threshold (E1T1 only) ...............................................................................................196
Configuring PRI Loopback detection (E1T1 only) .......................................................................................196
Configuring PRI encapsulation .....................................................................................................................197
Create a Channel-Group ...............................................................................................................................198
Configuring Channel-Group Timeslots ........................................................................................................198
Configuring Channel-Group Encapsulation .................................................................................................198
Entering HDLC Configuration Mode ..........................................................................................................199
Configuring HDLC CRC-Type ...................................................................................................................199
Configuring HDLC Encapsulation ...............................................................................................................200
PRI Debugging .............................................................................................................................................200
PRI Configuration Examples ........................................................................................................................201
Example 1: ISDN ....................................................................................................................................202
Example 2: RBS without a channel-group ...............................................................................................202
Example 3: RBS with a channel-group ....................................................................................................202
Example 4: Frame Relay without a channel-group ...................................................................................203
Example 5: Framerelay with a channel-group ..........................................................................................204
Example 6: PPP without a channel-group ...............................................................................................204
Example 7: PPP with a channel-group .....................................................................................................204
17 BRI port configuration................................................................................................................................ 205
Introduction........................................................................................................................................................206
BRI port configuration task list............................................................................................................................206
Enable/Disable BRI port ...............................................................................................................................206
Configuring BRI clock-mode ........................................................................................................................206
Configuring BRI Power-Feed ........................................................................................................................207
Configuring BRI encapsulation .....................................................................................................................207
Creating a channel group ..............................................................................................................................207
12
SmartWare Software Configuration Guide
Table of Contents
Configuring channel-group timeslots ............................................................................................................208
Configuring channel-group encapsulation .....................................................................................................208
Entering HDLC configuration mode ............................................................................................................208
Configuring HDLC encapsulation ................................................................................................................208
BRI Debugging .............................................................................................................................................209
BRI Configuration Examples ........................................................................................................................210
Example 1: ISDN with auto clock/uni-side settings ................................................................................210
Example 2: ISDN with manual clock/uni-side settings ............................................................................210
Example 3: Multi-Link PPP over two B-Channels ..................................................................................211
18 ISDN Overview ........................................................................................................................................... 212
Introduction........................................................................................................................................................213
ISDN reference points ..................................................................................................................................213
Possible SmartNode port configurations .......................................................................................................214
ISDN UNI Signaling ....................................................................................................................................214
ISDN Configuration Concept.............................................................................................................................216
ISDN Layering .............................................................................................................................................216
19 ISDN configuration .................................................................................................................................... 217
Introduction........................................................................................................................................................218
ISDN configuration task list................................................................................................................................218
Enter Q.921 configuration mode ..................................................................................................................218
Configuring Q.921 parameters .....................................................................................................................218
Configuring Q.921 encapsulation .................................................................................................................219
Enter Q.931 configuration mode ..................................................................................................................219
Configuring Q.931 parameters .....................................................................................................................220
Configuring Q.931 encapsulation .................................................................................................................222
Debugging ISDN ..........................................................................................................................................222
ISDN Configuration Examples .....................................................................................................................223
20 RBS configuration....................................................................................................................................... 225
Introduction........................................................................................................................................................226
RBS configuration task list ..................................................................................................................................226
Enter RBS configuration mode .....................................................................................................................226
Configuring RBS protocol ............................................................................................................................226
Configuring RBS encapsulation ....................................................................................................................227
Debugging RBS ............................................................................................................................................227
RBS Configuration Examples ........................................................................................................................228
21 DSL Port Configuration.............................................................................................................................. 230
Introduction........................................................................................................................................................231
Line Setup ...........................................................................................................................................................231
Configuring PPPoE.............................................................................................................................................231
Configuration Summary......................................................................................................................................232
Setting up permanent virtual circuits (PVC)........................................................................................................233
Using PVC channels in bridged Ethernet mode ............................................................................................233
13
SmartWare Software Configuration Guide
Table of Contents
Using PVC channels with PPPoE .................................................................................................................233
Diagnostics ...................................................................................................................................................234
Troubleshooting DSL Connections.....................................................................................................................234
22 Basic IP routing configuration .................................................................................................................... 235
Introduction........................................................................................................................................................236
Routing tables ...............................................................................................................................................236
Static routing ................................................................................................................................................236
Policy routing ...............................................................................................................................................236
Basic IP routing configuration task list ................................................................................................................236
Configuring static IP routes ..........................................................................................................................237
Deleting static IP routes ................................................................................................................................238
Displaying IP route information ...................................................................................................................238
Configuring policy routing ...........................................................................................................................239
Examples .............................................................................................................................................................240
Basic static IP routing example ......................................................................................................................240
Changing the default UDP port range for RTP and RTCP .................................................................................241
23 RIP configuration........................................................................................................................................ 242
Introduction........................................................................................................................................................243
Routing protocol .................................................................................................................................................243
RIP configuration task list ...................................................................................................................................244
Enabling send RIP ........................................................................................................................................244
Enabling an interface to receive RIP ..............................................................................................................245
Specifying the send RIP version ....................................................................................................................245
Specifying the receive RIP version .................................................................................................................246
Enabling RIP learning ...................................................................................................................................246
Enabling an interface to receive RIP ..............................................................................................................247
Enabling RIP announcing .............................................................................................................................247
Enabling RIP auto summarization ................................................................................................................248
Specifying the default route metric ................................................................................................................248
Enabling RIP split-horizon processing ...........................................................................................................249
Enabling the poison reverse algorithm ...........................................................................................................249
Enabling holding down aged routes ..............................................................................................................250
Setting the RIP route expiry ..........................................................................................................................250
Displaying RIP configuration of an IP interface ............................................................................................251
Displaying global RIP information ................................................................................................................251
24 Access control list configuration.................................................................................................................. 253
Introduction........................................................................................................................................................254
About access control lists .....................................................................................................................................254
What access lists do .......................................................................................................................................254
Why you should configure access lists ...........................................................................................................254
When to configure access lists .......................................................................................................................255
Features of access control lists .......................................................................................................................255
Access control list configuration task list..............................................................................................................256
14
SmartWare Software Configuration Guide
Table of Contents
Mapping out the goals of the access control list .............................................................................................256
Creating an access control list profile and enter configuration mode .............................................................257
Adding a filter rule to the current access control list profile ...........................................................................257
Adding an ICMP filter rule to the current access control list profile ..............................................................259
Adding a TCP, UDP or SCTP filter rule to the current access control list profile .........................................261
Binding and unbinding an access control list profile to an IP interface ..........................................................263
Displaying an access control list profile .........................................................................................................264
Debugging an access control list profile .........................................................................................................264
Examples .............................................................................................................................................................266
Denying a specific subnet ..............................................................................................................................266
25 SNMP configuration ................................................................................................................................... 267
Introduction........................................................................................................................................................268
Simple Network Management Protocol (SNMP) ................................................................................................268
SNMP basic components ..............................................................................................................................268
SNMP basic commands ................................................................................................................................268
SNMP management information base (MIB) ...............................................................................................269
Network management framework .................................................................................................................269
Identification of a SmartNode via SNMP............................................................................................................269
SNMP tools.........................................................................................................................................................270
SNMP configuration task list ..............................................................................................................................270
Setting basic system information..........................................................................................................................270
Setting access community information ................................................................................................................272
Setting allowed host information .........................................................................................................................274
Specifying the default SNMP trap target .............................................................................................................274
Displaying SNMP related information ................................................................................................................275
Using the AdventNet SNMP utilities ..................................................................................................................275
Using the MibBrowser ..................................................................................................................................276
Using the TrapViewer ...................................................................................................................................277
Standard SNMP version 1 traps...........................................................................................................................279
SNMP interface traps ..........................................................................................................................................280
26 SNTP client configuration .......................................................................................................................... 282
Introduction........................................................................................................................................................283
SNTP client configuration task list......................................................................................................................283
Selecting SNTP time servers .........................................................................................................................284
Defining SNTP client operating mode ..........................................................................................................284
Defining SNTP local UDP port ....................................................................................................................285
Enabling and disabling the SNTP client .......................................................................................................286
Defining SNTP client poll interval ...............................................................................................................286
Defining SNTP client constant offset to GMT .............................................................................................287
Defining the SNTP client anycast address .....................................................................................................287
Enabling and disabling local clock offset compensation .................................................................................288
Showing SNTP client related information ....................................................................................................289
Debugging SNTP client operation ................................................................................................................289
15
SmartWare Software Configuration Guide
Table of Contents
Recommended public SNTP time servers............................................................................................................290
NIST Internet time service ............................................................................................................................290
Additional information on NTP and a list of other NTP servers ...................................................................291
27 DHCP configuration................................................................................................................................... 292
Introduction........................................................................................................................................................293
DHCP-client configuration tasks.........................................................................................................................294
Enable DHCP-client on an IP interface ........................................................................................................294
Release or renew a DHCP lease manually (advanced) ...................................................................................296
Get debug output from DHCP-client ...........................................................................................................296
DHCP-server configuration tasks ........................................................................................................................297
Configure DHCP-server profiles ...................................................................................................................297
Use DHCP-server profiles and enable the DHCP-server ...............................................................................299
Define the bootfile (Option 67) for the DHCP-server ..................................................................................300
Define the TFTP server (Option 66) for the DHCP-server ...........................................................................300
Check DHCP-server configuration and status ...............................................................................................300
Get debug output from the DHCP-server .....................................................................................................301
Configure DHCP-relay .................................................................................................................................302
Create/Modify DHCP-Relay profile .......................................................................................................302
Enable/Disable DHCP-Relay Agent ........................................................................................................303
28 DNS configuration...................................................................................................................................... 304
Introduction........................................................................................................................................................305
DNS configuration task list .................................................................................................................................305
Enabling the DNS resolver ............................................................................................................................305
Enabling the DNS relay ................................................................................................................................306
29 DynDNS configuration............................................................................................................................... 308
Introduction........................................................................................................................................................309
DynDNS configuration task list ..........................................................................................................................309
Creating a DynDNS account ........................................................................................................................309
Configuring the DNS resolver ......................................................................................................................309
Configuring basic DynDNS settings .............................................................................................................310
Configuring the DynDNS server ..................................................................................................................310
Configuring advanced DynDNS settings (optional) ......................................................................................311
Defining a mail exchanger for your hostname .........................................................................................311
Troubleshooting ...........................................................................................................................................311
30 PPP configuration....................................................................................................................................... 313
Introduction........................................................................................................................................................314
PPP configuration task list...................................................................................................................................315
Creating an IP interface for PPP ...................................................................................................................315
Disable interface IP address auto-configuration from PPP .............................................................................317
Creating a PPP subscriber .............................................................................................................................317
Trigger forced reconnect of PPP sessions using a timer .................................................................................319
Disable interface IP address auto-configuration from PPP .............................................................................319
16
SmartWare Software Configuration Guide
Table of Contents
Configuring a PPPoE session ........................................................................................................................319
Configuring PPP over a HDLC Link ............................................................................................................321
Creating a PPP profile ...................................................................................................................................321
Configuring the local and remote PPP MRRU .............................................................................................323
Displaying PPP configuration information ...................................................................................................324
Debugging PPP ............................................................................................................................................325
Sample configurations .........................................................................................................................................329
PPP over Ethernet (PPPoE) ..........................................................................................................................329
Without authentication, encapsulation multi, with NAPT ......................................................................329
With authentication, encapsulation PPPoE .............................................................................................329
PPP over a HDLC Link (Serial Port) ............................................................................................................330
Without authentication, numbered interface ...........................................................................................330
With authentication, unnumbered interface ............................................................................................330
PPP over a HDLC Link (E1T1 Port) ............................................................................................................330
Without authentication, numbered interface ...........................................................................................330
PPP Dial-up over ISDN ......................................................................................................................................331
PPP Dialer ....................................................................................................................................................331
Create a dialer .........................................................................................................................................332
Create outbound destinations ..................................................................................................................332
Configure recovery strategy .....................................................................................................................333
Create inbound destinations ....................................................................................................................334
Debug dialer functionality .......................................................................................................................336
Example – Dial-on demand feature .........................................................................................................336
Dial-up .........................................................................................................................................................337
Dial-up on demand .................................................................................................................................337
Dial-up on monitor .................................................................................................................................338
Dial-up nailed .........................................................................................................................................338
.....................................................................................................................................................................338
31 CS context overview .................................................................................................................................... 339
Introduction........................................................................................................................................................340
CS context configuration task list ........................................................................................................................341
Planning the CS configuration ............................................................................................................................341
Configuring general CS settings...........................................................................................................................343
Configuring the clock source ...................................................................................................................343
Debugging the clock source .....................................................................................................................344
Selecting PCM law compression ..............................................................................................................345
Configuring call routing ......................................................................................................................................345
Creating and configuring CS interfaces................................................................................................................346
Specify call routing ........................................................................................................................................346
Configuring dial tones.........................................................................................................................................347
Configuring voice over IP parameters ..................................................................................................................347
Configuring ISDN ports .....................................................................................................................................348
Configuring FXS ports ........................................................................................................................................348
17
SmartWare Software Configuration Guide
Table of Contents
Configuring an H.323 VoIP connection .............................................................................................................348
Configuring a SIP VoIP connection ....................................................................................................................348
Activating CS context configuration ....................................................................................................................349
Planning the CS context ...............................................................................................................................352
Configuring general CS settings ....................................................................................................................353
Configuring call routing ................................................................................................................................353
Configuring VoIP settings ............................................................................................................................355
Configuring BRI ports ..................................................................................................................................355
Configuring an H.323 VoIP connection .......................................................................................................356
Activating the CS context configuration ........................................................................................................356
Showing the running configuration ...............................................................................................................358
32 VPN configuration ...................................................................................................................................... 362
Introduction........................................................................................................................................................363
Authentication ..............................................................................................................................................363
Encryption ....................................................................................................................................................363
Transport and tunnel modes .........................................................................................................................364
Permanent IKE Tunnels ..........................................................................................................................364
Key management ..........................................................................................................................................364
VPN configuration task list .................................................................................................................................365
Creating an IPsec transformation profile .......................................................................................................365
Creating an IPsec policy profile .....................................................................................................................365
Creating/modifying an outgoing ACL profile for IPsec .................................................................................367
Configuration of an IP interface and the IP router for IPsec ..........................................................................368
Displaying IPsec configuration information ..................................................................................................368
Debugging IPsec ...........................................................................................................................................369
Key management (IKE) .......................................................................................................................................370
Main differences between manual & IKE IPSEC configurations .............................................................370
Creating an ISAKMP transform profile ...................................................................................................371
Creating an ISAKMP IPSEC policy profile .............................................................................................372
Creating/modifying an outgoing ACL profile for IPSEC .........................................................................373
Configuration of an IP interface and the IP router for IPSEC .................................................................373
Policy matching ......................................................................................................................................373
Sample configuration snippet ..................................................................................................................373
Troubleshooting ...........................................................................................................................................374
Encrypted Voice - Performance considerations ....................................................................................................375
Performance considerations ...........................................................................................................................375
Enabling RTP encryption support.......................................................................................................................375
Using an alternate source IP address for specific destinations...............................................................................376
Sample configurations .........................................................................................................................................377
IPsec tunnel, DES encryption .......................................................................................................................377
SmartNode configuration ........................................................................................................................377
Cisco router configuration .......................................................................................................................378
IPsec tunnel, AES encryption at 256 bit key length, AH authentication with HMAC-SHA1-96 ..................378
18
SmartWare Software Configuration Guide
Table of Contents
SmartNode configuration ........................................................................................................................378
Cisco router configuration .......................................................................................................................378
IPsec tunnel, 3DES encryption at 192 bit key length, ESP authentication with HMAC-MD5-96 ................379
SmartNode configuration ........................................................................................................................379
Cisco router configuration .......................................................................................................................379
33 CS interface configuration........................................................................................................................... 381
Introduction........................................................................................................................................................382
CS interface configuration task list ......................................................................................................................382
Creating and configuring CS interfaces................................................................................................................383
Configuring call routing ......................................................................................................................................384
Configuring the interface mapping tables ............................................................................................................385
Configuring the precall service tables...................................................................................................................388
34 ISDN interface configuration...................................................................................................................... 390
Introduction........................................................................................................................................................391
ISDN interface configuration task list..................................................................................................................391
Configuring DTMF dialing (optional) ..........................................................................................................392
Configuring an alternate PSTN profile (optional) .........................................................................................392
Configuring ringback tone on ISDN user-side interfaces ..............................................................................393
Configuring call waiting (optional) ...............................................................................................................393
Disabling call-waiting on ISDN DSS1 network interfaces .............................................................................393
Configuring Call-Hold on ISDN interfaces ..................................................................................................394
Enabling Display Information Elements on ISDN Ports ...............................................................................394
Configuring date/time publishing to terminals (optional) .............................................................................394
Sending the connected party number (COLP) (optional) ..............................................................................395
Enabling sending of date and time on ISDN DSS1 network interfaces .........................................................395
Defining the ‘network-type’ in ISDN interfaces ............................................................................................395
ISDN Explicit Call Transfer support (& SIP REFER Transmission) ............................................................395
ISDN Advice of Charge support ...................................................................................................................397
ISDN DivertingLegInformation2 Facility .....................................................................................................401
Transmit Direction .................................................................................................................................401
Receive Direction ....................................................................................................................................401
T1 Caller-Name Support ..............................................................................................................................401
35 FXS interface configuration......................................................................................................................... 404
Introduction........................................................................................................................................................405
FXS interface configuration task list ....................................................................................................................405
Configuring a subscriber number (recommended) ........................................................................................405
Configuring an alternate PSTN profile (optional) .........................................................................................406
Configuring caller-ID presentation (optional) ...............................................................................................406
Configuring flash hook processing (optional) ................................................................................................406
Configuring ringing-cadence (optional) ........................................................................................................407
Configuring the Message Waiting Indication feature for FXS .......................................................................408
Configuration .........................................................................................................................................408
Frequency-shift keying ............................................................................................................................409
19
SmartWare Software Configuration Guide
Table of Contents
FXS supplementary services description...............................................................................................................410
Call hold .......................................................................................................................................................411
Call waiting ...................................................................................................................................................411
Call waiting reminder ring ............................................................................................................................412
Drop passive call ...........................................................................................................................................412
Drop active call .............................................................................................................................................412
Call toggle .....................................................................................................................................................412
Call transfer ..................................................................................................................................................412
Conferencing ................................................................................................................................................413
Call park .......................................................................................................................................................413
36 FXO interface configuration ....................................................................................................................... 414
Introduction........................................................................................................................................................415
FXO services description .....................................................................................................................................416
Creating an FXO interface...................................................................................................................................416
Deleting an FXO interface...................................................................................................................................417
FXO interface configuration task list ...................................................................................................................418
FXO off-hook on caller ID ...........................................................................................................................418
Configuring an alternate PSTN profile (optional) .........................................................................................418
Configuring when the digits are dialed (optional) .........................................................................................419
Configuring the number of rings to wait before answering the call (optional) ...............................................421
Configuring how to detect a call has disconnected (optional) ........................................................................422
Configuring how to detect an outgoing call is connected (optional) ..............................................................423
Configuring the destination of the call ..........................................................................................................424
FXO Mute dialing ........................................................................................................................................424
FXO interface examples ................................................................................................................................425
37 RBS interface configuration ........................................................................................................................ 426
Introduction........................................................................................................................................................427
RBS interface configuration task list ....................................................................................................................427
Creating/Deleting a RBS interface.......................................................................................................................427
Configuring an alternate PSTN profile .........................................................................................................427
Configuring an alternate Tone-Set profile .....................................................................................................428
Configuring B-Channel allocation strategy ...................................................................................................428
Configuring additional disconnect signals .....................................................................................................428
Configuring number of Rings before Off-Hook ............................................................................................429
Configuring ready to dial strategy .................................................................................................................429
RBS interface debugging ...............................................................................................................................429
38 H.323 interface configuration ..................................................................................................................... 431
Introduction........................................................................................................................................................432
H.323 interface configuration task list.................................................................................................................432
Binding the interface to an H.323 gateway ...................................................................................................433
Configuring an alternate VoIP profile (optional) ...........................................................................................434
Configuring CLIP/CLIR support (optional) .................................................................................................435
Enabling ‘early-proceeding’ on H.323 interfaces ...........................................................................................436
20
SmartWare Software Configuration Guide
Table of Contents
Enabling the early call connect (optional) .....................................................................................................436
Enabling the early call disconnect (optional) .................................................................................................437
Enabling the via address support (optional) ...................................................................................................437
Override the default destination call signaling port (Optional) ......................................................................437
Configuring status inquiry settings (optional) ...............................................................................................438
AOC-D Support for H.323 ..........................................................................................................................439
39 SIP interface configuration ......................................................................................................................... 441
Introduction........................................................................................................................................................442
SIP interface configuration task list......................................................................................................................442
Binding the interface to a SIP gateway ..........................................................................................................443
Configure a remote host ................................................................................................................................443
Configuring a local host (Optional) ..............................................................................................................444
Using an alternate VoIP profile (Optional) ...................................................................................................444
Using an alternate SIP profile (Optional) ......................................................................................................445
Using an alternate Tone-Set profile (Optional) .............................................................................................445
Configuring early call connect / disconnect (Optional) .................................................................................446
Configuring address translation (Optional) ...................................................................................................446
Mapping call-control properties in SIP headers .......................................................................................446
Mapping SIP headers to call-control properties .......................................................................................447
Configuring ISDN Redirecting Number Tunneling Over SIP ................................................................447
Enabling SIP RFC Privacy, Asserted-Identity, & Preferred-Identity headers (RFC 3323/3325) ..............448
Updating caller address parameters ..........................................................................................................448
SIP Diversion Header ..............................................................................................................................449
Transmit Direction ...........................................................................................................................450
Receive Direction ..............................................................................................................................450
SIP REFER Transmission (& ISDN Explicit Call Transfer support) ............................................................451
AOC Over SIP (Optional) ............................................................................................................................453
Enabling the session timer (Optional) ...........................................................................................................454
Enabling the SIP penalty-box feature (Optional) ...........................................................................................454
Initiating a new SIP session for redirected SIP calls (Optional) .....................................................................454
Configure the SIP hold method (Optional) ..................................................................................................455
40 Call router configuration............................................................................................................................. 456
Introduction........................................................................................................................................................458
Call router configuration task list.........................................................................................................................460
Map out the goals for the call router .............................................................................................................460
Enable advanced call routing on circuit interfaces .........................................................................................461
Configure general call router behavior ...........................................................................................................461
Configure address completion timeout ....................................................................................................461
Configure default digit collection timeout and terminating character ......................................................462
Configure number prefix for ISDN number types ........................................................................................463
Configure call routing tables .........................................................................................................................464
Create a routing table ..............................................................................................................................464
Called party number routing table ................................................................................................................466
21
SmartWare Software Configuration Guide
Table of Contents
Regular Expressions .................................................................................................................................466
Digit Collection ......................................................................................................................................468
Digit Collection Variants ........................................................................................................................469
Calling party number routing table .........................................................................................................472
Number type routing table ............................................................................................................................472
Numbering plan routing table .......................................................................................................................473
Name routing table .......................................................................................................................................474
IP address routing table .................................................................................................................................474
URI routing table ..........................................................................................................................................475
Presentation Indicator Routing Table ...........................................................................................................475
Screening Indicator Routing Table ...............................................................................................................476
Information transfer capability routing table .................................................................................................477
Call-router support for redirecting number and redirect reason .....................................................................478
Time of day routing table ..............................................................................................................................479
Day of Week Routing Table .........................................................................................................................479
Date routing table .........................................................................................................................................479
Deleting routing tables ..................................................................................................................................480
Configure mapping tables .............................................................................................................................481
E.164 to E.164 Mapping Tables ...................................................................................................................485
Custom SIP URIs from called-/calling-e164 properties .................................................................................488
Other mapping tables ...................................................................................................................................488
Deleting mapping tables ...............................................................................................................................489
Creating complex functions ..........................................................................................................................490
Deleting complex functions ..........................................................................................................................491
Digit collection & sending-complete behavior ..............................................................................................492
Sending-Complete ..................................................................................................................................492
Ingress interface .......................................................................................................................................492
Call-Router .............................................................................................................................................493
Egress Interface .......................................................................................................................................495
Creating call services .....................................................................................................................................497
Creating a hunt group service ........................................................................................................................497
Creating a distribution group service .............................................................................................................506
Distribution-Group Min-Concurrent setting ................................................................................................508
Call-router ‘limiter’ service ............................................................................................................................508
Priority service ..............................................................................................................................................509
CS Bridge service—‘VoIP Leased Line’ .........................................................................................................511
Configuring the service second-dialtone ........................................................................................................513
Deleting call services .....................................................................................................................................514
Activate the call router configuration ............................................................................................................514
Test the call router configuration ..................................................................................................................515
Configure partial rerouting ...........................................................................................................................521
Call reroute .............................................................................................................................................522
Enable acceptation of rerouting requests on ISDN. ...........................................................................522
Enable emission of rerouting requests on ISDN. ...............................................................................522
22
SmartWare Software Configuration Guide
Table of Contents
Enable sending of “302 moved temporary” message on SIP. .............................................................522
Allow Push-Back .....................................................................................................................................522
Enable push-back – aaa service ..........................................................................................................522
Enable push-back – bridge service .....................................................................................................523
Enable push-back – distribution-group service ..................................................................................523
Enable push-back – hunt group service .............................................................................................523
Enable push-back – limiter service ....................................................................................................523
Enable push-back – priority service ...................................................................................................523
41 SIP call-router services ................................................................................................................................ 524
Introduction........................................................................................................................................................525
SIP conference-service .........................................................................................................................................525
SIP conference-service configuration task list ................................................................................................525
Entering conference-service configuration mode .....................................................................................525
Configuring the call routing destination ..................................................................................................525
Configuring the conference server ...........................................................................................................526
SIP location-service..............................................................................................................................................526
SIP location-service configuration task list ....................................................................................................527
Entering SIP location-service configuration mode ...................................................................................527
Binding a location service ........................................................................................................................528
Configuring multi-contact behavior ........................................................................................................528
Configuring the hunt timeout .................................................................................................................528
42 Tone configuration...................................................................................................................................... 529
Introduction........................................................................................................................................................530
Tone-set profiles..................................................................................................................................................530
Tone configuration task list .................................................................................................................................531
Configuring call-progress-tone profiles ..........................................................................................................531
Configure tone-set profiles ............................................................................................................................532
Enable tone-set profile ..................................................................................................................................533
Show call-progress-tone and tone-set profiles ................................................................................................534
43 FXS port configuration ............................................................................................................................... 537
Introduction........................................................................................................................................................538
Shutdown and enable FXS ports..........................................................................................................................538
Bind FXS ports to higher layer applications .........................................................................................................539
Configure country-specific FXS port parameters..................................................................................................539
Other FXS port parameters..................................................................................................................................540
Example ..............................................................................................................................................................541
44 FXO port configuration .............................................................................................................................. 542
Introduction........................................................................................................................................................543
Shutdown and enable FXO ports.........................................................................................................................543
Bind FXO ports to higher layer applications........................................................................................................543
Configure country specific FXO port parameters.................................................................................................544
Other FXO port parameters ................................................................................................................................544
23
SmartWare Software Configuration Guide Table of Contents
45 H.323 gateway configuration ...................................................................................................................... 546
Introduction........................................................................................................................................................547
Gateway configuration task list............................................................................................................................548
Binding the gateway to an IP interface ..........................................................................................................548
Enable the gateway ........................................................................................................................................548
Configure registration authentication service (RAS) (Optional) ....................................................................549
Configure H.235 Security (optional) ............................................................................................................550
H.235 configuration .....................................................................................................................................551
Advanced configuration options (optional) ...................................................................................................554
Enabling H.245 Tunneling .....................................................................................................................554
Enabling the fastconnect procedure .........................................................................................................555
Enabling the early H.245 procedure ........................................................................................................555
Changing the TCP port for inbound call-signaling connections ..............................................................556
Configuring the traffic class for H.323 signaling .....................................................................................556
Setting the response timeout ...................................................................................................................556
Setting the connect timeout ....................................................................................................................557
Configuring the terminal type for registration with the gatekeeper ..........................................................557
Troubleshooting ...........................................................................................................................................558
46 Context SIP gateway overview..................................................................................................................... 559
Introduction........................................................................................................................................................560
Context SIP Gateway configuration task list........................................................................................................561
Creating a context SIP gateway .....................................................................................................................561
Creating a transport interface ........................................................................................................................562
Configuring the IP binding ...........................................................................................................................562
Configuring a priority ...................................................................................................................................562
Configuring a spoofed contact address ..........................................................................................................563
Binding location services ...............................................................................................................................563
Enabling/disabling the context SIP gateway ..................................................................................................563
Troubleshooting..................................................................................................................................................564
Show status information ...............................................................................................................................564
Debug commands .........................................................................................................................................564
Configuration Examples ......................................................................................................................................565
Example 1 .....................................................................................................................................................565
Example 2 .....................................................................................................................................................565
Example 3 .....................................................................................................................................................565
Applications.........................................................................................................................................................566
Outbound Authentication ............................................................................................................................566
Inbound Authentication ...............................................................................................................................567
Outbound Registration .................................................................................................................................568
Inbound Registration ....................................................................................................................................570
B2B User Agent with Registered Clients .......................................................................................................571
47 VoIP profile configuration .......................................................................................................................... 573
Introduction........................................................................................................................................................574
24
SmartWare Software Configuration Guide Table of Contents
VoIP profile configuration task list ......................................................................................................................575
Creating a VoIP profile .................................................................................................................................575
Configure codecs ..........................................................................................................................................576
Configuring the transparent-clearmode codec ...............................................................................................578
Configuring the Cisco versions of the G.726 codecs .....................................................................................578
Configuring DTMF relay .............................................................................................................................579
Configuring RTP payload types ....................................................................................................................579
Configuring RTP payload type for transparent-clearmode ............................................................................580
Configuring RTP payload types for the g726-32k and g726-32k-cisco coders ..............................................580
Configuring RTP payload type for Cisco NSE ..............................................................................................580
Configuring Cisco NSE for Fax ....................................................................................................................580
Configuring the dejitter buffer (advanced) ....................................................................................................581
Enabling/disabling filters (advanced) .............................................................................................................583
Configuring Fax transmission .......................................................................................................................584
T.38 CED retransmission .............................................................................................................................587
T.38 No-Signal Retransmission ....................................................................................................................588
Fax bypass method ........................................................................................................................................588
Configuring fax failover ................................................................................................................................588
Configuring modem transmission .................................................................................................................589
Modem bypass method .................................................................................................................................589
Configuring the traffic class for Voice and Fax data ......................................................................................590
Configuring IP-IP codec negotiation .............................................................................................................590
Examples .............................................................................................................................................................591
Home office in an enterprise network ...........................................................................................................591
Home office with fax ....................................................................................................................................593
Soft phone client gateway ..............................................................................................................................594
48 PSTN profile configuration......................................................................................................................... 597
Introduction........................................................................................................................................................598
PSTN profile configuration task list ....................................................................................................................598
Creating a PSTN profile ...............................................................................................................................598
Configuring the echo canceller ......................................................................................................................599
Configuring output gain ...............................................................................................................................599
49 SIP profile configuration............................................................................................................................. 601
Introduction........................................................................................................................................................602
SIP profile configuration task list.........................................................................................................................602
Entering the configuration mode for a SIP profile .........................................................................................602
Mapping from a SIP disconnect cause ...........................................................................................................602
Mapping to a SIP cause .................................................................................................................................603
Mapping from a SIP redirection reason .........................................................................................................603
Mapping to a SIP redirection code ................................................................................................................603
50 Authentication Service................................................................................................................................. 604
Introduction........................................................................................................................................................605
Authentication Service configuration task list ......................................................................................................605
25
SmartWare Software Configuration Guide Table of Contents
Creating an Authentication Service ...............................................................................................................605
Configuring a Realm .....................................................................................................................................606
Configuring the authentication protocol .......................................................................................................606
Creating credentials ......................................................................................................................................606
Configuration Examples ......................................................................................................................................606
51 Location Service .......................................................................................................................................... 607
Introduction........................................................................................................................................................608
Location Service configuration task list................................................................................................................608
Creating a Location Service ...........................................................................................................................608
Adding a domain ..........................................................................................................................................608
Creating an identity ......................................................................................................................................609
Authentication outbound face .................................................................................................................610
Authentication inbound face ...................................................................................................................611
Registration outbound face ......................................................................................................................613
Registration inbound face ........................................................................................................................615
Call outbound face ..................................................................................................................................616
Call inbound face ....................................................................................................................................617
Creating an identity group ............................................................................................................................618
Inheriting from an identity group to an identity ...........................................................................................618
Configuring the Message Waiting Indication feature for SIP ........................................................................619
Subscription ............................................................................................................................................619
Notification .............................................................................................................................................620
Configuration .........................................................................................................................................620
Message Waiting Indication through Call-Control .......................................................................................622
Configuration Examples ......................................................................................................................................623
52 VoIP debugging........................................................................................................................................... 624
Introduction........................................................................................................................................................625
Debugging strategy..............................................................................................................................................625
Filtering debug monitor output...........................................................................................................................626
Verifying IP connectivity.....................................................................................................................................626
Debugging call signaling......................................................................................................................................627
Debugging ISDN signaling ...........................................................................................................................627
Verify an incoming call ...........................................................................................................................628
Verify an outgoing call ............................................................................................................................629
Verify ISDN layer 2 and 3 status .............................................................................................................631
Debugging FXS Signaling .............................................................................................................................632
Verify an incoming call ...........................................................................................................................632
Verify an outgoing call ............................................................................................................................633
Debugging H.323 Signaling .........................................................................................................................634
Verify an incoming call ...........................................................................................................................634
Verify an outgoing call ............................................................................................................................636
Debugging SIP signaling ...............................................................................................................................638
Verify an incoming call ...........................................................................................................................638
26
SmartWare Software Configuration Guide Table of Contents
Verify an outgoing call ............................................................................................................................638
Using SmartWare’s internal call generator .....................................................................................................639
Debugging voice data ..........................................................................................................................................640
Check system logs .........................................................................................................................................642
How to submit trouble reports to Patton ......................................................................................................642
ATerms and definitions ................................................................................................................................ 644
Introduction........................................................................................................................................................645
SmartWare architecture terms and definitions .....................................................................................................645
BMode summary ........................................................................................................................................... 650
Introduction........................................................................................................................................................651
CCommand summary ................................................................................................................................... 654
Introduction........................................................................................................................................................655
New Configuration Commands ..........................................................................................................................656
Other...................................................................................................................................................................656
Show help .....................................................................................................................................................656
Show command history ................................................................................................................................656
Restart system ...............................................................................................................................................656
DInternetworking terms & acronyms ........................................................................................................... 657
Abbreviations.......................................................................................................................................................658
EUsed IP ports & available voice codecs ...................................................................................................... 662
Used IP ports ......................................................................................................................................................663
Available voice codecs .........................................................................................................................................664
27
List of Figures
1 Basic system (abstract) model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
2 Typical carrier network application with a SmartNode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3 Typical enterprise network with SmartNode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4 Typical LAN telephony system with a SmartNode gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5 Configuration concept overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6 Setup for initial configuration via the console port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
7 Login display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
8 SmartNode memory regions logically defined in SmartWare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
9 Boot procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
10 Sample configuration file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
11 Local memory regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
12 Remote memory regions for SmartWare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
13 System banner with message to operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
14 Authentication procedure with a RADIUS server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
15 How to use AAA methods and AAA profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
16 IP context and related elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
17 Dynamic NAPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
18 Static NAPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
19 Dynamic NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
20 Static NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
21 Binding of an Ethernet port to an IP interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
22 Packet routing in SmartWare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
23 Example of Hierarchical Scheduling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
24 Elements of link scheduler configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
25 Scenario with Web server regarded as a single source host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
26 Structure of a Service-Policy Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
27 Using a Service Policy Profile on an IP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
28 IP interface wan is bound to PVC 1 on port serial 0 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
29 Typical Integrated Service Access Scenario with dedicated PVCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
30 IP Context with logical IP interfaces bound to Ethernet port, serial port PVC 1 and PVC 2 . . . . . . . . . . . . . 188
31 ISDN reference points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
32 ISDN signaling side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
33 Integration of ISDN access lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
34 ISDN layering model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
35 PBX connected to ISDN port 1/0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
36 Configuring the G.SHDSL card for PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
37 Internetwork with three routers and four networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
38 Using traffic filters to prevent traffic from being routed to a network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
39 Deny a specific subnet on an interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
40 AdventNet MibBrowser displaying some of the System Group objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
41 AdventNet MibBrowser Settings Button on the Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
42 AdventNet TrapViewer displaying received traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
43 AdventNet Trap Details window of TrapViewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
44 DHCP-client and DHCP-server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
45 DNS relay diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
46 PPP configuration overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
47 CS context configuration components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
28
SmartWare Software Configuration Guide
48 Remote office in an Enterprise network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
49 Direct call routing from one SmartNode to another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
50 SmartNode in an Enterprise network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
51 CS Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
52 CS interfaces on the CS context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
53 Incoming call passing an interface mapping table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
54 Call passing an input and an output mapping table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388
55 ISDN interfaces on the CS context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391
56 Example SIP network connecting two device to give a home office access to the CO PBX . . . . . . . . . . . . . . . 396
57 FXS interfaces on the CS context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
58 FXO interfaces on the CS context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
59 H.323 interfaces on the CS context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432
60 SIP interfaces on the CS context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
61 Example SIP network connecting two devices to give a home office access to the CO PBX . . . . . . . . . . . . . . 452
62 Direct call routing vs. advanced call routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 459
63 Routing table outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
64 Mapping table outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 481
65 Mapping table examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 484
66 Hunt group service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 498
67 Distribution group service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506
68 Distribution group service examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 507
69 ‘Limiter’ service diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 509
70 Priority service diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 510
71 CS Bridge service—‘VoIP Leased Line’ diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 511
72 Bridge services diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512
73 Call routing example network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 517
74 CS context and call router elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 519
75 Registration and Lookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 527
76 Assign tone-sets to a PSTN interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 531
77 Gateway between IP and CS contexts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547
78 Routing Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 560
79 VoIP profile association . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 574
80 DTMF Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 579
81 Jitter and dejitter buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 581
82 Adaptive versus static dejitter buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 582
83 Multiple tandem and sequential post filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
84 Fax relay and Fax bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 585
85 Home office in an enterprise network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 591
86 PSTN profile association . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 598
87 Echo Cancellation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 599
88 Applying output gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 599
89 Mode overview, 1 of 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 651
90 Mode Overview, 2 of 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 652
91 Mode Overview, 3 of 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 653
92 EBNF syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 655
29
List of Tables
1 General conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2 Mouse conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3 Command edit shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4 Command cross reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
5 TOS values and their meaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
6 Traffic control info (TCI) field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
7 Values defining detail of the queuing statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
8 PVC Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
9 PVC channels in bridged Ethernet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
10 PVC channels in PPPoE mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
11 Diagnostics commans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
12 Details available in the Trap Details window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
13 Time servers operated by NIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
14 FXS services with permanent patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
15 FXS services with configurable patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
16 ISDN number types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 463
17 Routing table types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
18 Wildcard symbols used as keys in E.164 tables (calling-e164, called-e164) . . . . . . . . . . . . . . . . . . . . . . . . . . . 467
19 Wildcard symbols used as keys in E.164 tables (calling-e164, called-e164) . . . . . . . . . . . . . . . . . . . . . . . . . . . 468
20 Mapping table types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 482
21 Hunt group drop causes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500
30
About this guide
The objective of this SmartWare Software Configuration Guide is to provide information concerning the syntax
and usage of the command set. For hardware specfic information, refer to the getting started guide that came
with your unit.
This section describes the following:
•Who should use this guide (see “Audience”)
•How this document is organized (see “Structure”)
•Typographical conventions and terms used in this guide (see “Typographical conventions used in this docu-
ment” on page 34)
Audience
This guide is intended for the following users:
•System administrators who are responsible for installing and configuring networking equipment and who
are familiar with the SmartWare.
•System administrators with a basic networking background and experience, but who might not be familiar
with the SmartWare.
•Operators
•Installers
•Maintenance technicians
How to read this guide
SmartWare is a complex and multifaceted operating system. Without the necessary theoretical background you
will not be able to understand and use all the features available. Therefore, we recommend reading at least the
chapters listed below to get a general idea about SmartWare and the philosophy of contexts used for IP and cir-
cuit switching related configuration.
•Appendix A, "Terms and definitions" on page 644 contains the terms and their definitions that are used
throughout this SmartWare Software Configuration Guide
•Chapter 1, "System overview" on page 38 provides an overview of the main elements of a SmartWare sys-
tem.
•Chapter 9, "IP context overview" on page 114
•Chapter 31, "CS context overview" on page 339
31
SmartWare Software Configuration Guide About this guide
Structure
This guide contains the following chapters and appendices:
•Chapter 1, "System overview" on page 38 provides an overview of the main elements of a SmartWare system.
•Chapter 2, "Configuration concepts" on page 44 introduces basic SmartWare configuration concepts.
•Chapter 3, "Command line interface (CLI)" on page 49 gives an overview of the CLI and the basic features
that allow you to navigate the CLI and edit commands effectively.
•Chapter 4, "Accessing the CLI" on page 53 describes the procedures for entering SmartWare commands via
the command line interface (CLI), to obtain help, to change operator mode and to terminate a session.
•Chapter 5, "System image handling" on page 65 describes how to load and maintain system images and
driver software.
•Chapter 6, "Configuration file handling" on page 76 describes how to upload and download configuration
files from and to a SmartNode.
•Chapter 7, "Basic system management" on page 90 describes parameters that report basic system informa-
tion to the operator or administrator, and their configuration.
•Chapter 8, "RADIUS Client Configuration" on page 102 provides an overview of the authentication,
authorization, and accounting (AAA) component in SmartWare and describes how to configure the
RADIUS client, a subpart of the AAA component.
•Chapter 9, "IP context overview" on page 114 outlines SmartWare Internet protocol (IP) context, together
with its related components.
•Chapter 10, "IP interface configuration" on page 120 provides a general overview of SmartNode interfaces
and describes the tasks involved in their configuration.
•Chapter 11, "NAT/NAPT configuration" on page 132 provides a general overview of the network address
port translation and describes the tasks involved in its configuration.
•Chapter 12, "Ethernet port configuration" on page 141 provides an overview of Ethernet ports and
describes the tasks involved in their configuration through SmartWare.
•Chapter 13, "Link scheduler configuration" on page 151 describes how to use and configure SmartWare
quality of service (QoS) features.
•Chapter 14, "Serial port configuration" on page 170 provides an overview of the serial port and describes
the tasks involved in its configuration through SmartWare.
•Chapter 15, "Frame Relay configuration" on page 177 provides an overview of how to configure frame relay
through SmartWare.
•Chapter 16, "PRI port configuration" on page 191 provides an overview of the T1/E1 ports, their charac-
teristics and the tasks involved in the configuration.
•Chapter 17, "BRI port configuration" on page 205 provides an overview of the BRI (Basic Rate Interface)
ports, their characteristics and the tasks involved in the configuration.
•Chapter 18, "ISDN Overview" on page 212 provides an overview of ISDN ports and describes the tasks
involved in configuring ISDN ports in SmartWare.
32
SmartWare Software Configuration Guide About this guide
•Chapter 19, "ISDN configuration" on page 217 describes the configuration of the Q.921 and Q.931 proto-
col and how to bind the ISDN protocol to an application.
•Chapter 20, "RBS configuration" on page 225 describes the configuration of the Robbed Bit Signaling
(RBS) protocol and how to bind it to the Call Control application.
•Chapter 37, "RBS interface configuration" on page 426 provides an overview of RBS interfaces, and the
tasks involved in their configuration.
•Chapter 21, "DSL Port Configuration" on page 230 provides an overview of the the DSL ports (ADSL and
G.SHDSL), their characteristics and the tasks involved in the configuration.
•Chapter 22, "Basic IP routing configuration" on page 235 provides an overview of IP routing and describes
the tasks involved in configuring static IP routing in SmartWare.
•Chapter 23, "RIP configuration" on page 242 provides an overview of the routing information protocol
(RIP) and describes the tasks involved in configuring RIP features within SmartWare.
•Chapter 24, "Access control list configuration" on page 253 provides an overview of IP access control lists
and describes the tasks involved in their configuration through SmartWare.
•Chapter 25, "SNMP configuration" on page 267 on page 238 provides overview information about the
simple network management protocol (SNMP) and describes the tasks used to configure those of its features
supported by SmartWare.
•Chapter 26, "SNTP client configuration" on page 282 describes how to configure a simple network time pro-
tocol (SNTP) client.
•Chapter 27, "DHCP configuration" on page 292 provides an overview of the dynamic host configuration
control protocol (DHCP) and describes the tasks involved in its configuration.
•Chapter 28, "DNS configuration" on page 304 describes how to configure the domain name system
(DNS) component.
•Chapter 29, "DynDNS configuration" on page 308 describes configuring the dynamic DNS
(DynDNS) service.
•Chapter 30, "PPP configuration" on page 313 describes how to configure the point-to-point protocol over
different link layers.
•Chapter 31, "CS context overview" on page 339 gives an overview of SmartWare circuit-switching (CS) con-
text and its associated components and describes the tasks involved in its configuration.
•Chapter 32, "VPN configuration" on page 362 describes how to configure the VPN connections between
two SmartNodes or between a SmartNode and a third-party device.
•Chapter 33, "CS interface configuration" on page 381 gives an overview of interfaces in the CS context and
describes the tasks involved its configuration.
•Chapter 34, "ISDN interface configuration" on page 390 provides an overview of ISDN interfaces, and the
tasks involved in their configuration.
•Chapter 35, "FXS interface configuration" on page 404 provides an overview of FXS interfaces, and the
tasks involved their configuration.
33
SmartWare Software Configuration Guide About this guide
•Chapter 36, "FXO interface configuration" on page 414 provides an overview of FXO interfaces and the
tasks involved in configuring them.
•Chapter 38, "H.323 interface configuration" on page 431 provides an overview of H.323 interfaces used by
H.323 gateways and describes the specific tasks involved in their configuration.
•Chapter 39, "SIP interface configuration" on page 441 provides an overview of SIP interfaces used by SIP
gateways and describes the specific tasks involved in their configuration.
•Chapter 40, "Call router configuration" on page 456 provides an overview of call router tables, mapping
tables and call services and describes the tasks involved in configuring the call router in SmartWare.
•Chapter 41, "SIP call-router services" on page 524 provides an overview of specific SIP call router services
in SmartWare.
•Chapter 42, "Tone configuration" on page 529 gives an overview of SmartWare call-progress-tone profiles
and tone-set profiles and describes the tasks involved in their configuration.
•Chapter 43, "FXS port configuration" on page 537 provides an overview of POTS signaling and Smart-
Node FXS ports and describes the tasks involved in configuring FXS ports in SmartWare.
•Chapter 44, "FXO port configuration" on page 542 provides an overview of POTS signaling and Smart-
Node FXO ports and describes the tasks involved in configuring FXO ports in SmartWare.
•Chapter 45, "H.323 gateway configuration" on page 546 provides an overview of the H.323 gateway and
describes the tasks involved in its configuration.
•Chapter 46, "Context SIP gateway overview" on page 559 provides an overview of the SIP gateway and
describes the tasks involved in its configuration.
•Chapter 47, "VoIP profile configuration" on page 573 gives an overview of SmartWare VoIP profiles, how
they are used and describes the tasks involved in VoIP profile configuration.
•Chapter 48, "PSTN profile configuration" on page 597 gives an overview of SmartWare PSTN profiles, and
describes how they are used and the tasks involved in PSTN profile configuration.
•Chapter 49, "SIP profile configuration" on page 601 gives an overview of mappings between SIP codes and
Q.931 causes.
•Chapter 50, "Authentication Service" on page 604 explains how to create and manage authentication ser-
vices in SmartWare.
•Chapter 51, "Location Service" on page 607 explains how to configure location services in SmartWare.
•Chapter 52, "VoIP debugging" on page 624 helps you to localize a system component that is responsible for
faults during operation of a SmartNode device.
•Appendix A, "Terms and definitions" on page 644 contains the terms and their definitions that are used
throughout this SmartWare Software Configuration Guide.
•Appendix B, "Mode summary" on page 650 illustrates the modes hierarchy.
•Appendix C, "Command summary" on page 654 is a command reference.
•Appendix D, "Internetworking terms & acronyms" on page 657 contains terms and definitions relating to
internetworking.
34
SmartWare Software Configuration Guide About this guide
•Appendix E, "Used IP ports & available voice codecs" on page 662 describes the used IP ports and available
voice codecs in SmartWare.
•Appendix F, "Notes for upgrading from R3.10 to R3.20" on page 618 describes how to upgrade a
SmartNode device from Release 3.10 to 3.20.
Precautions
The following are used in this guide to help you become aware of potential problems:
Note A note presents additional information or interesting sidelights.
Typographical conventions used in this document
This section describes the typographical conventions and terms used in this guide.
General conventions
In this guide we use certain typographical conventions to distinguish elements of commands and examples. In
general, the conventions we use conform to those found in IEEE POSIX publications. The procedures
described in this manual use the following text conventions:
The alert symbol and IMPORTANT heading calls attention to
important information.
Table 1. General conventions
Convention Meaning
Garamond blue type Indicates a cross-reference hyperlink that points to a figure, graphic, table, or
section heading. Clicking on the hyperlink jumps you to the reference. When
you have finished reviewing the reference, click on the Go to Previous
View button in the Adobe® Acrobat® Reader toolbar to return to your
starting point.
Futura bold type Commands and keywords are in boldface font.
Futura bold-italic type Parts of commands, which are related to elements already named by the
user, are in boldface italic font.
Italicized Futura type Variables for which you supply values are in italic font
Garamond italic type Indicates the names of fields or windows.
Garamond bold type Indicates the names of command buttons that execute an action.
< > Angle brackets indicate function and keyboard keys, such as <shift>,
<ctrl>, <c>, and so on.
[ ] Elements in square brackets are optional.
{a | b | c} Alternative but required keywords are grouped in braces ({ }) and are sepa-
rated by vertical bars ( | )
node The leading IP address or nodename of a SmartNode is substituted with
node in boldface italic font.
node The leading node on a command line represents the nodename of the
SmartNode
IMPORTANT
35
SmartWare Software Configuration Guide About this guide
# An hash sign at the beginning of a line indicates a comment line.
Table 1. General conventions
Convention Meaning
Service and support 36
SmartWare Software Configuration Guide About this guide
Mouse conventions
The following conventions are used when describing mouse actions:
Service and support
Patton Electronics offers a wide array of free technical services. If you have questions about any of our other
products we recommend you begin your search for answers by using our technical knowledge base. Here, we
have gathered together many of the more commonly asked questions and compiled them into a searchable
database to help you quickly solve your problems.
Patton support headquarters in the USA
•Online support: Available at www.patton.com
•E-mail support: E-mail sent to support@patton.com will be answered within 1 business day
•Telephone support: Standard telephone support is available five days a week—from 8:00 am to
5:00 pm EST (1300 to 2200 UTC/GMT)—by calling +1 (301) 975-1007
•Support via VoIP: Contact Patton free of charge by using a VoIP ISP phone to call
sip:support@patton.com
•Fax: +1 (253) 663-5693
Alternate Patton support for Europe, Middle East, and Africa (EMEA)
•Online support: Available at www.patton-inalp.com
•E-mail support: E-mail sent to support@patton-inalp.com will be answered within 1 business day
•Telephone support: Standard telephone support is available five days a week—from 8:00 am to
5:00 pm CET (0900 to 1800 UTC/GMT)—by calling +41 (0)31 985 25 55
•Fax: +41 (0)31 985 25 26
Table 2. Mouse conventions
Convention Meaning
Left mouse button This button refers to the primary or leftmost mouse button (unless you have
changed the default configuration).
Right mouse button This button refers the secondary or rightmost mouse button (unless you have
changed the default configuration).
Point This word means to move the mouse in such a way that the tip of the pointing
arrow on the screen ends up resting at the desired location.
Click Means to quickly press and release the left or right mouse button (as instructed in
the procedure). Make sure you do not move the mouse pointer while clicking a
mouse button.
Double-click Means to press and release the same mouse button two times quickly
Drag This word means to point the arrow and then hold down the left or right mouse but-
ton (as instructed in the procedure) as you move the mouse to a new location.
When you have moved the mouse pointer to the desired location, you can release
the mouse button.
Warranty Service and Returned Merchandise Authorizations (RMAs) 37
SmartWare Software Configuration Guide About this guide
Warranty Service and Returned Merchandise Authorizations (RMAs)
Patton Electronics is an ISO-9001 certified manufacturer and our products are carefully tested before ship-
ment. All of our products are backed by a comprehensive warranty program.
Note If you purchased your equipment from a Patton Electronics reseller, ask your
reseller how you should proceed with warranty service. It is often more con-
venient for you to work with your local reseller to obtain a replacement.
Patton services our products no matter how you acquired them.
Warranty coverage
Our products are under warranty to be free from defects, and we will, at our option, repair or replace the prod-
uct should it fail within one year from the first date of shipment. Our warranty is limited to defects in work-
manship or materials, and does not cover customer damage, lightning or power surge damage, abuse, or
unauthorized modification.
Returns for credit
Customer satisfaction is important to us, therefore any product may be returned with authorization within 30
days from the shipment date for a full credit of the purchase price. If you have ordered the wrong equipment or
you are dissatisfied in any way, please contact us to request an RMA number to accept your return. Patton is
not responsible for equipment returned without a Return Authorization.
Return for credit policy
•Less than 30 days: No Charge. Your credit will be issued upon receipt and inspection of the equipment.
•30 to 60 days: We will add a 20% restocking charge (crediting your account with 80% of the purchase price).
•Over 60 days: Products will be accepted for repairs only.
RMA numbers
RMA numbers are required for all product returns. You can obtain an RMA by doing one of the following:
•Completing a request on the RMA Request page in the Support section at www.patton.com
•By calling +1 (301) 975-1007 and speaking to a Technical Support Engineer
•By sending an e-mail to returns@patton.com
All returned units must have the RMA number clearly visible on the outside of the shipping container. Please use
the original packing material that the device came in or pack the unit securely to avoid damage during shipping.
Shipping instructions
The RMA number should be clearly visible on the address label. Our shipping address is as follows:
Patton Electronics Company
RMA#: xxxx
7622 Rickenbacker Dr.
Gaithersburg, MD 20879-4773 USA
Patton will ship the equipment back to you in the same manner you ship it to us. Patton will pay the return
shipping costs.
38
Chapter 1 System overview
Chapter contents
Introduction..........................................................................................................................................................39
SmartWare embedded software .............................................................................................................................40
Applications...........................................................................................................................................................41
Carrier networks .............................................................................................................................................41
Enterprise networks ........................................................................................................................................42
LAN telephony ...............................................................................................................................................43
Introduction 39
SmartWare Software Configuration Guide 1 • System overview
Introduction
This chapter provides an overview of the main elements of a SmartNode system.
A complete SmartNode system or network, as installed in any of the application scenarios introduced in section
“Applications” on page 41, is typically composed of the following main elements plus a third-party network infra-
structure:
•The first and most obvious element is the SmartNode devices (also referred to as hardware platforms or net-
work nodes) that provide the physical connectivity, the CPU and DSP resources. All SmartNode models
support packet-routed and circuit-switched traffic equally well.
•The second element comprises the embedded software—called SmartWare—running on the SmartNode
hardware platforms.
•Finally, a third-party IP network and transmission infrastructure provides IP connectivity between the
above elements. This infrastructure can range from a simple Ethernet hub or switch to highly complex net-
works including multiple access technologies, backbone transmission, and services nodes.
SmartWare embedded software 40
SmartWare Software Configuration Guide 1 • System overview
Figure 1 depicts the basic system model of a Patton SmartNode. All SmartNode devices have the following
main components:
•64k circuit switching between on-board ISDN ports and between ISDN and PSTN interface cards. The
circuit switching engine uses dedicated hardware resources and therefore can bypass the VoIP gateway and
packet routing engine.
•A gateway (GW) that converts telephone circuits into Internet protocol (IP) packet streams and vice versa.
H.323-compliant and SIP Voice over IP (VoIP) is supported.
•An IP router with on-board ports and optional data interface cards is QoS enabled, thereby allowing classi-
fication, shaping, and scheduling of multiple service classes.
For more detailed hardware information, refer to the getting started guide that came with your Smart-
Node system.
Figure 1. Basic system (abstract) model
SmartWare embedded software
SmartWare is the application software that runs on the SmartNode hardware platforms. SmartWare is available
in several releases. Refer to SmartWare release notes for detailed information about hardware support.
A SmartWare build is a binary image file. It is usually divided into several checksum-protected files to improve
download efficiency and security. The download to the SmartNode is handled in sequence by using a down-
load batchfile. Refer to chapter 5, “System image handling” on page 65 for details on SmartWare image down-
loads.
Public Telephon
y
Node
Circuit Switch
VoI
P
Gatewa
y
IP Route
r
IP LAN
Local
T
elephony
IP WAN
Applications 41
SmartWare Software Configuration Guide 1 • System overview
Applications
The Patton SmartNode product family consists of highly flexible multi-service IP network devices, which fit a
range of networking applications. This section provides an overview of the following SmartNode applications
and the main elements in a SmartNode network.
•Carrier networks—SmartNodes are used as customer gateways or integrated access devices at the customer
premises. These applications are also called Integrated Service Access (ISA).
•Enterprise networks—SmartNodes are used as WAN routers and voice gateways for inter-site networking.
These applications are also called multiservice intranets (MSI).
•LAN telephony—SmartNodes serve as gateways between the LAN and the local PBX or PSTN access.
These applications are also called LAN voice gateway (LVG).
Carrier networks
The network termination (NT) device in a multi-service IP based provider network plays a vital role. It pro-
vides the service access point for the subscriber with respect to physical connectivity and protocol interopera-
bility.
Since the access bandwidth in most cases represents a network bottleneck, the NT must also ensure traffic clas-
sification and the enforcement of service level agreements (SLA) on the access link. In broadband access net-
works, this NT is also called an Integrated Access Device (IAD) or customer gateway.
SmartNode products offer unique features as customer gateways for business services. It provides amongst oth-
ers full ISDN feature support, local switching and breakout options and mass provisioning support.
Figure 2. Typical carrier network application with a SmartNode.
Figure 2 shows the deployment of SmartNodes in carrier networks. Each subscriber site is equipped with a
SmartNode that connects the subscriber LAN on one side with the provider network and services on the other.
Node Access Backbone
PSTN
Internet
Subscriber LAN
GW
Subscriber PBX
Services
M
123
45 6
7 8 9
*0#
123
45 6
7 8 9
*0#
Applications 42
SmartWare Software Configuration Guide 1 • System overview
Typical services in these networks are softswitch-based telephony, PSTN access through V5.2 gateways, PBX
networking services, and LAN interconnection.
Typical access technologies for these networks include xDSL, WLL, PowerLine, cable and conventional leased
lines. With the use of an external modem, the SmartNode can connect to leased lines or any bridged-Ethernet
broadband access.
Enterprise networks
In company-owned and operated wide area networks, SmartNodes can be used to converge voice and data
communications on the same IP link.
In combination with centralized services such as groupware and unified messaging, the SmartNodes provide
migration and investment protection for legacy telephony systems.
Figure 3. Typical enterprise network with SmartNode
Figure 3 shows the deployment of SmartNodes in enterprise networks. Each site (headquarter, branch or home
office) is equipped with a SmartNode that connects the local LAN and telephony infrastructure with the IP
WAN and the local PSTN carrier.
LAN site A
PBX site A
LAN site B
PBX site B
PSTN
Carrier A
PSTN
Carrier B
WAN
Node Node
123
45 6
7 8 9
*0#
123
45 6
7 8 9
*0#
123
45 6
7 8 9
*0#
123
45 6
7 8 9
*0#
Applications 43
SmartWare Software Configuration Guide 1 • System overview
Figure 4. Typical LAN telephony system with a SmartNode gateway
LAN telephony
With its voice-over-IP gateway features, the SmartNode can be used as a standalone gateway for VoIP tele-
phony (see figure 4).
A standalone gateway has performance reliability and scalability advantages compared with PC-based gateway
cards. In this application, the SmartNode also offers a migration path to enterprise or carrier networking.
Figure 4 shows the deployment of a SmartNode as a LAN voice gateway.
The PSTN connections can be scaled from a single ISDN basic rate access to multiple primary rate lines. With
Q.SIG, integration in private PBX networks is also supported.
Node
LAN
IP Phones
IPPBX
PSTN
44
Chapter 2 Configuration concepts
Chapter contents
Introduction..........................................................................................................................................................45
Contexts and Gateways..........................................................................................................................................46
Context ...........................................................................................................................................................46
Gateway ..........................................................................................................................................................46
Interfaces, Ports, and Bindings...............................................................................................................................47
Interfaces ........................................................................................................................................................47
Ports and circuits ............................................................................................................................................47
Bindings ..........................................................................................................................................................47
Profiles and Use commands...................................................................................................................................48
Profiles ............................................................................................................................................................48
Use Commands ..............................................................................................................................................48
Introduction 45
SmartWare Software Configuration Guide 2 • Configuration concepts
Introduction
This chapter introduces basic SmartWare configuration concepts. A good understanding of these concepts is
vital for the configuration tasks explained in the remaining chapters of this guide.
Patton strongly recommends that you read through this chapter because it introduces the fundamental ideas
behind the structure of the command line interface. Once you understand and know this structure, you will
find it much more intuitive to navigate through the CLI and configure specific features.
This chapter includes the following sections:
•Contexts and gateways (see page 46)
•Interfaces, ports, and bindings (see page 47)
•Profiles and Use commands (see page 48)
Patton SmartNodes are multi-service network devices that offer high flexibility for the inter-working of circuit-
switched and packet-routed networks and services. In order to consistently support a growing set of functions,
protocols, and applications, SmartWare configuration is based on a number of abstract concepts that represent
the various SmartWare components.
Figure 5. Configuration concept overview
Figure 5 shows the various elements of a complete SmartNode configuration. Each of these elements imple-
ments one of the configuration concepts described in this chapter. The figure also shows the relationships and
associations between the different elements. The relations are specified through bind (arrow) and use (bullet-
Ports
Interfaces
Context
Gateway
Serial
PVC
Circuit
VoIP
Profile
NAPT
Profile
ACL
Profile
Context
IP
router
H.323 GW
“h323”
SIP GW
“sip”
Context
CS
switch Tone-
set
Profile
Telephone port
Telephone port
bind command bind command
bind
commands
bind command
use command
use command use
commands
Service
Policy
Profile
Ethernet
use command
bind command
VoIP
Profile
use command
Tone-
set
Profile
use
commands
bind command
Contexts and Gateways 46
SmartWare Software Configuration Guide 2 • Configuration concepts
lines) commands. For example, you need bind commands to bind a physical port to a logical interface, and use
commands to assign profiles to contexts.
The sections that follow refer to figure 5 on page 45 and describe the concepts and elements in more
detail.
Contexts and Gateways
Context
A context represents one specific networking technology or protocol, namely IP (Internet Protocol) or CS (cir-
cuit-switching). A context can be seen as virtual dedicated equipment within the SmartNode. For example:
•A CS context contains the circuit-switching functions of the SmartNode. It can be thought of as an embed-
ded multiplexer or cross-connect within the SmartNode
•An IP context contains the routing functions of the SmartNode. It can be thought of as an embedded
router within the SmartNode
The contexts are identified by a name and contain the configuration commands that are related to the technology
they represent. A separate configuration can be built by means of the context concept for newly supported net-
work layer technologies without complicating the configuration methods of existing features. For example, as
bridging, ATM, or FR switching becomes available so a bridging, ATM, or FR context can be introduced.
Each context contains a number of interfaces, which build the connections to other SmartWare elements and
the outside world. Figure 5 on page 45 shows two contexts:
•one of type IP named router
•one of type CS named switch
Note SmartWare currently supports only one instance of the CS and IP context types.
Example
The IP context named router can contain static routes, RIP, and NAT configuration parameters. The default
circuit-switching context named switch can contain number translations, local breakout conditions, and least-
cost routing parameters.
Gateway
The concept of a gateway is introduced for the communication between contexts of different types. A gateway
handles connections between different technologies or protocols. For example, a VoIP gateway connects an IP
context to a circuit-switching context.
The gateways are each of a specific type and are identified by a name. Each named gateway contains its config-
uration parameters. With this concept, multiple vitual gateways can be instantiated and used at the same time.
Interfaces, Ports, and Bindings 47
SmartWare Software Configuration Guide 2 • Configuration concepts
Interfaces, Ports, and Bindings
Interfaces
The concept of an interface in SmartWare differs from that in traditional networking devices. Traditionally, the
term interface is often synonymous with port or circuit, which are physical entities. In SmartWare however, an
interface is a logical construct that provides higher-layer protocol and service information, such as layer 3
addressing. Interfaces are configured as part of a context, and are independent of physical ports and circuits.
The decoupling of the interface from the physical layer entities enables many of the advanced features offered
by SmartWare.
In order for the higher-layer protocols to become active, you must associate an interface with a physical port or
circuit. This association is referred to as a binding in SmartWare. Refer to the “Bindings” section for more
information. In figure 5 on page 45, the IP context shows three interfaces and the CS context shows four inter-
faces. These interfaces are configured within their contexts. The bindings shown in the figure are not present
when the interfaces are configured; they are configured later.
Ports and circuits
Ports and circuits in SmartWare represent the physical connectors and channels on the SmartNode hardware.
The configuration of a port or circuit includes parameters for the physical and data link layer such as line
clocking, line code, framing and encapsulation formats or media access control. Before any higher-layer user
data can flow through a physical port or circuit, you must associate that port or circuit with an interface on a
context. This association is referred to as a binding. Refer to the “Bindings” section for more information.
Examples of ports are: Ethernet, Serial, DSL, FXS or FXO. Ports are numbered according to the label (or
abbreviation) printed on the hardware.
Example: Ethernet 0/1, Serial 0/0, BRI 3/2
Some ports may contain multiple circuits. For example, serial ports can contain one or more Frame Relay Per-
manent Virtual Circuits (PVC). If a port has one or more circuits configured, the individual circuits are bound
to interfaces on a context. The port itself may not be bound in that case.
Example: frame-relay pvc 112.
Figure 5 on page 45 shows five ports. Three ports are bound directly to an IP interface. One port has a single
circuit configured, which is bound to the IP context. Two ISDN ports are bound to CS interfaces.
Bindings
Bindings form the association between circuits or ports and the interfaces configured on a context. No user
data can flow on a circuit or Ethernet port until some higher-layer service is configured and associated with it.
Bindings are configured statically in the port or circuit configuration. The binding is created bottom-up, that is
from the port to the interface.
In the case of VoIP CS interfaces, bindings are configured statically in the CS interface configuration. The
binding is created from the interface to the gateway.
Bindings from ports to interfaces shown in figure 5 on page 45.
Profiles and Use commands 48
SmartWare Software Configuration Guide 2 • Configuration concepts
Profiles and Use commands
Profiles
Profiles provide configuration shortcuts. They contain specific settings that can be used in multiple contexts,
interfaces, or gateways. This concept allows to avoid repetitions of groups of configuration commands that are
the same for multiple elements in a configuration.
Profiles used in the IP and CS contexts are shown in figure 5 on page 45.
Use Commands
Use commands form the association between profiles and contexts, gateways, or interfaces. For example, when
a profile is used in a context, all the configuration settings in that profile become active within the context.
49
Chapter 3 Command line interface (CLI)
Chapter contents
Introduction..........................................................................................................................................................50
Command modes ..................................................................................................................................................50
CLI prompt ....................................................................................................................................................50
Navigating the CLI .........................................................................................................................................51
Initial mode ..............................................................................................................................................51
System changes ..........................................................................................................................................51
Configuration ...........................................................................................................................................51
Changing Modes .......................................................................................................................................51
Command editing .................................................................................................................................................51
Command help ...............................................................................................................................................51
The No form ..................................................................................................................................................51
Command completion ....................................................................................................................................51
Command history ...........................................................................................................................................52
Command Editing Shortcuts ..........................................................................................................................52
Introduction 50
SmartWare Software Configuration Guide 3 • Command line interface (CLI)
Introduction
The primary user interface to SmartWare is the command line interface (CLI). You can access the CLI via the
SmartNode console port or through a Telnet session. The CLI lets you configure the complete SmartWare
functionality. You can enter CLI commands online or as a configuration script in the form of a text file. The
CLI also includes monitoring and debugging commands. CLI commands are simple strings of keywords and
user-specified arguments.
This chapter gives an overview of the CLI and the basic features that allow you to navigate the CLI and edit
commands effectively. The following topics are covered:
•Command Modes
•Command Editing (see page 51)
Command modes
The CLI is composed of modes. There are two mode groups: the exec mode group and the configuration mode
group. Within the exec mode group there are two modes: operator exec and administrator exec. The configura-
tion mode group contains all of the remaining modes. A command mode is an environment within which a
group of related commands is valid. All commands are mode-specific, and certain commands are valid in more
than one mode. A command mode provides command line completion and context help within the mode. The
command modes are organized hierarchically. The current working mode is indicated by the CLI prompt.
Appendix B, “Mode summary” on page 650 contains a detailed overview of all command modes, and
appendix C, “Command summary” on page 654 describes the commands that are valid in each mode.
CLI prompt
For interactive (online) sessions, the system prompt is displayed as:
nodename>
In the operator exec mode, the system prompt is displayed as:
nodename#
In the administrator exec mode and in the different configuration modes, the system prompt is displayed as:
nodename(mode)[name]#
Where:
•nodename is the currently configured name of the SmartNode, the IP address or the hardware type of the
device that is being configured
•mode is a string indicating the current configuration mode, if applicable.
•name is the name of the instance of the current configuration mode
Example: the prompt in radius-client mode, assuming the nodename node and the instance deepblue is:
node(radius)[deepblue]#
The CLI commands used to enter each mode and the system prompt that is displayed when you are working
in each mode is summarized in appendix B, “Mode summary” on page 650.
Command editing 51
SmartWare Software Configuration Guide 3 • Command line interface (CLI)
Navigating the CLI
Initial mode
When you initiate a session, you can log in with operator or administrator privileges. Whichever login you use,
the CLI is always set to operator exec (non-privileged exec) mode by default upon startup. This mode allows
you to examine the state of the system using a subset of the available CLI commands.
System changes
In order to make changes to the system, the administrator exec (privileged exec) mode must be entered. The
enable user interface command is used for this purpose (the enable command is only accessible if you are
logged in as an administrator). Once in administrator exec mode, all of the system commands are available to
you.
Configuration
To make configuration changes, the configuration mode must be entered by using the configure command in
the administrator exec mode.
Changing Modes
The exit command moves the user up one level in the mode hierarchy (the same command works in any of
configuration modes). For example, when in pvc configuration mode, typing exit will take you to framerelay
configuration mode.
The exit command terminates a CLI session when typed from the operator exec mode.
A session can also be terminated by using the logout command within any mode.
Command editing
Command help
To see a list of all CLI commands available within a mode, type a question mark <?> or the <tab> key at the
system prompt in the mode of interest. A list of all available commands is displayed. Commands that have
become available in the current mode are displayed at the bottom of the list, separated by a line. Commands
from higher hierarchy levels are listed at the top.
You can also type the question mark or the <tab> key while in the middle of entering a command. Doing so
displays the list of allowed choices for the current keyword in the command. Liberal use of the question mark
functionality is an easy and effective way to explore the command syntax.
The No form
Almost every command supports the keyword no. Typing the no keyword in front of a command disables the
function or “deletes” a command from the configuration. For example, to enable the DHCP server trace tool,
enter the command debug dhcp-server. To subsequently disable the DHCP server trace, enter the command
no debug dhcop-server.
Command completion
You can use the <tab> key in any mode to carry out command completion. Partially typing a command name
and pressing the <tab> key causes the command to be displayed in full up to the point where a further choice
has to be made. For example, rather than typing configure, typing conf and pressing the <tab> key causes the
Command editing 52
SmartWare Software Configuration Guide 3 • Command line interface (CLI)
CLI to complete the command at the prompt. If the number of characters is not sufficient to uniquely identify
the command, the CLI will provide a list with all commands starting with the typed characters. For example, if
you enter the string co in the configure mode and press <tab>, the selections configure, copy, and context are
displayed.
Command history
SmartWare maintains a list of previously entered commands that you can go through by pressing the <up-
arrow> and <down-arrow> keys, and then pressing <enter> to enter the command.
The show history command displays a list of the commands you can go through by using the arrow keys.
Command Editing Shortcuts
SmartWare CLI provides a number of command shortcuts that facilitate editing of the command line. Com-
mand editing shortcuts are summarized in table 3 on page 52. The syntax <Ctrl>-<p> means press the <p> key
while holding down the keyboard’s control key (sometimes labeled Control, Ctl, or Ctrl, depending on the key-
board and operating system of your computer).
<Esc>-<f> is handled differently; press and release the escape key (often labeled Esc on many keyboards) and
then press the <f> key.
Table 3. Command edit shortcuts
Keyboard Description
<Ctrl>-<p> or <up-arrow> Recall previous command in the command history.
<Ctrl>-<p> or <up-arrow> Recall next command in the command history.
<Ctrl>-<p> or <up-arrow> Move cursor forward one character.
<Ctrl>-<p> or <up-arrow> Move cursor backward one character.
<Esc>-<f> Move cursor forward one word.
<Esc>-<b> Move cursor backward one word.
<Ctrl>-<a> Move cursor to beginning of line.
<Ctrl>-<e> Move cursor to end of line.
<Ctrl>-<k> Delete to end of line.
<Ctrl>-<u> Delete to beginning of line.
<Ctrl>-<d> Delete character.
<Esc>-<d> Delete word.
<Ctrl>-<c> Quit editing the current line.
<Ctrl>-<l> Refresh (redraw) the display.
<Ctrl>-<t> Transpose characters.
<Ctrl>-<v> Insert a code to indicate to the system that the keystroke immediately fol-
lowing should be treated as normal text, not a CLI command.
For example, pressing the question mark <?> character in the CLI prints a
list of possible tokens. If you want to use the ? in a configuration com-
mand, e.g. to enter a regular expression, press Ctrl-v immediately fol-
lowed by the question mark <?>.
53
Chapter 4 Accessing the CLI
Chapter contents
Introduction..........................................................................................................................................................54
Accessing the SmartWare CLI task list...................................................................................................................54
Accessing via the console port .........................................................................................................................55
Console port procedure .............................................................................................................................55
Telnet Procedure .......................................................................................................................................56
Using an alternate TCP listening port for the Telnet server .............................................................................56
Disabling the Telnet server ..............................................................................................................................56
Logging on ......................................................................................................................................................56
Selecting a secure password .............................................................................................................................57
Password encryption .......................................................................................................................................58
Factory preset administrator account .........................................................................................................58
Creating an operator account ....................................................................................................................58
Creating an administrator account ............................................................................................................59
Opening a secure configuration session over SSH ...........................................................................................59
Displaying the CLI version .............................................................................................................................60
Displaying account information ......................................................................................................................60
Switching to another account ..........................................................................................................................61
Checking identity and connected users ...........................................................................................................61
Command index numbers ...............................................................................................................................62
Ending a Telnet or console port session ..........................................................................................................64
Showing command default values ...................................................................................................................64
Introduction 54
SmartWare Software Configuration Guide 4 • Accessing the CLI
Introduction
SmartNode products are designed for remote management and volume deployment. The management and
configuration of SmartNodes is therefore based on IP network connectivity. Once a SmartNode is connected
to, and addressable in, an IP network, you can remotely perform all configuration, management, and mainte-
nance tasks.
This chapter describes the procedures for entering SmartWare commands via the command line interface (CLI),
to obtain help, to change operator mode, and to terminate a session. You can access a SmartNode as follows:
•Directly, via the console port (if available)
•Remotely, via the IP network (by using a Telnet application)
The ports available for connection and their labels are shown in the getting started guide that came with your
unit.
Remember that the CLI supports a command history and command completion. By scrolling with the up and
down arrow keys, you can find many of your previously entered commands. Another timesaving tool is com-
mand completion. If you type part of a command and then press the <tab> key, the SmartWare shell will
present you with either the remaining portion of the command or a list of possible commands. These features
are described in chapter 3, “Command line interface (CLI)” on page 49. The telnet server can be disabled
if desired.
Accessing the SmartWare CLI task list
The following sections describe the basic tasks involved in accessing the SmartWare command line interface.
Depending on your application scenario, some tasks are mandatory while others could be optional.
•Accessing via the console port (see page 55)
•Accessing via a Telnet session (see page 55)
•Using an alternate TCP listening port for the Telnet server (see page 56)
•Disabling the Telnet server (see page 56)
•Logging on (see page 56)
•Selecting a secure password (see page 57)
•Configuring operators and administrators (see page 58)
•Displaying the CLI version (see page 60)
•Displaying account information (see page 60)
•Switching to another log-in account (see page 61)
•Checking identity and connected users (see page 61)
Although SmartWare supports concurrent sessions via Telnet or
the console port, we do not recommend working with more than
one session to configure a specific SmartNode. However, using
one session for configuration and another for debugging is a
good idea.
IMPORTANT
Accessing the SmartWare CLI task list 55
SmartWare Software Configuration Guide 4 • Accessing the CLI
•Ending a Telnet or console port session (see page 64)
Accessing via the console port
If a console port is available, the host computer can be connected directly to it with a serial cable (see figure 6).
The host must use a terminal emulation application that supports serial interface communication.
Figure 6. Setup for initial configuration via the console port
Note You do not need to configure IP settings if you access the SmartNode via the
console port.
Console port procedure
Before using the CLI to enter configuration commands, do the following:
1. Set up the hardware as described in the getting started guide.
2. Configure your serial terminal as described in the getting started guide.
3. Connect the serial terminal to your SmartNode. Use a serial cable according to the description in the get-
ting started guide included with your SmartNode device.
4. Power on your SmartNode. A series of boot messages are displayed on the terminal screen. At the end of
the boot sequence, press the <return> key and the login screen will be displayed.
5. Proceed with logging in.
Node
Node
Console
Host
Serial interface
Accessing the SmartWare CLI task list 56
SmartWare Software Configuration Guide 4 • Accessing the CLI
Accessing via a Telnet session
This is the most commonly used and recommended method for connecting to a SmartNode. It is way faster
than console access.The Telnet host accesses the SmartNode via its network interface.
Note If the IP configuration of the Ethernet port (LAN port) is not known or is
incorrectly configured, you will have to use the console interface.
Telnet Procedure
Before you begin to use the CLI to input configuration commands, do the following:
1. Set up the SmartNode as described in the getting started guide included with your SmartNode device.
2. Connect the host (PC) or hub to the SmartNode as described in the getting started guide.
3. Power on your SmartNode and wait until the Run LED lights.
4. Open a Telnet session to the IP address shown in the getting started guide.
5. Proceed with logging in.
Using an alternate TCP listening port for the Telnet server
The following command defines an alternate listening port for the telnet server.
Mode: Configure
Disabling the Telnet server
The telnet server can be disabled using the following command.
Mode: Configure
Logging on
Accessing your SmartNode via the local console port or via a Telnet session opens a login screen. The following
description of the login process is based on a Telnet session scenario but is identical to that used when accessing
via the local console port.
The opening Telnet screen you see resembles that shown in figure 7. The window header bar shows the IP
address of the target SmartNode.
A factory preset administrator account with name administrator and an empty password is available when you
first access the unit. For that reason, use the name administrator after the login prompt and simply press the
<enter> key after the password prompt.
Step Command Purpose
1 [name](cfg)# terminal telnet port <port> Uses TCP port <port> for accepting
telnet connections
Step Command Purpose
1 [name](cfg)# no terminal telnet Disables the telnet server
Accessing the SmartWare CLI task list 57
SmartWare Software Configuration Guide 4 • Accessing the CLI
Figure 7. Login display
Upon logging in you are in operator execution mode, indicated by the “>” as command line prompt. Now you
can enter system commands.
Note Details on screen in figure 7, such as the IP address in the system prompt
and window header bar, may be different on your unit.
Selecting a secure password
It is not uncommon for someone to try to break into (often referred to as hacking) a network device. The net-
work administrator should do everything possible to make the network secure. Carefully read the questions
below and see if any applies to you:
•Do your passwords consist of a pet’s name, birthdays or names of friends or family members, your license
plate number, social security number, favorite number, color, flower, animal, and so on?
•Do you use the same password repeatedly? (Example: Your ATM PIN, cell phone voice mail, house alarm
setting code, etc.)
•Could your password or a portion thereof be found in the dictionary?
•Is your password less than six characters long?
To prevent unauthorized access, you should select passwords that are not dictionary words or any of the above-
mentioned examples. Every password should be at least 6 characters long and include at least one capital letter,
one number, and one lowercase letter.
A good example of a password is: 3Bmshtr
You are probably asking yourself, “How am I going to remember that?” It’s easy, the password above is an acro-
nym taken from: “three blind mice, see how they run.” Making a good password is that easy—but please, don’t
use the above example password for your SmartNode device!
You are responsible for creating a new administrator account to
maintain system security. Patton Electronics accepts no responsi-
bility for losses or damage caused by loss or misuse of pass-
words. Please read the following sections to secure your network
equipment properly.
IMPORTANT
Accessing the SmartWare CLI task list 58
SmartWare Software Configuration Guide 4 • Accessing the CLI
Password encryption
Unencrypted passwords can be stolen by hackers using protocol analyzers to scan packets or by examining the
configuration file—to protect against that type of theft, SmartWare encrypts passwords by default. Encryption
prevents the password from being readable in the configuration file.
•Plain text
•Encrypted text (for example, the password mypassword always appears in encrypted form as
HUAvCYeILWZz3hQvS0IEpQ== encrypted when doing a show command)
The command show running-config always displays the passwords in encrypted format. To encrypt a pass-
word, enter the password in plain format and retrieve the encrypted format from the running-config or store it
permanently into the startup-config (with the command copy running-config startup-config).
Factory preset administrator account
SmartWare contains a factory preset administrator account with the name administrator and an empty pass-
word. After adding a new administrator account, the factory preset administrator account is automatically
deleted and only the newly created administrator account is available. You can create more than one adminis-
trator account, but there has to be at least one administrator account defined. If, for some reason, the last
administrator account is deleted, the factory preset administrator account with the name administrator and an
empty password is automatically recreated.
Configuring operators and administrators
Creating an operator account
Operators do not have the privileges to run the enable command and therefore cannot modify the system
configuration. Operators can view partial system information.
Creating a new operator account is described in the following procedure:
Mode: Operator execution
Example: Create an operator account
The following example shows how to add a new operator account with a login name support and a matching
password of s4DF&qw. The changed configuration is then saved.
node>enable
node#configure
node(cfg)#operator support password s4DF&qw
Step Command Purpose
1node>enable Enters administration execution mode
2node#configure Enters configuration mode
3node(cfg)# operator name password password Creates a new operator account name and
password password
4 copy running-config startup-config Saves the change made to the running config-
uration of the SmartNode, so that it will be
used following a reload
Accessing the SmartWare CLI task list 59
SmartWare Software Configuration Guide 4 • Accessing the CLI
node(cfg)#copy running-config startup-config
Creating an administrator account
Administrators can run the enable command and access additional information within the SmartWare config-
uration modes. Therefore administrators can modify the system configuration, as well as view all relevant sys-
tem information.
Creating a new administrator account is described in the following procedure:
Mode: Operator execution
Example: Create an administrator account
The following example shows how to add a new administrator account with a login name super and a matching
password Gh3*Ke4h.
node>enable
node#configure
node(cfg)#administrator super password Gh3*Ke4h
node(cfg)#copy running-config startup-config
Opening a secure configuration session over SSH
A partial implementation of secure shell according RFC 4251, RFC 4252, RFC 4253 and RFC 4254 is pro-
vided. It is possible to open a secure configuration session over SSH to a SmartNode.
Note The Web-GUI and the copy tftp function are still unsecure!
The SSH Transport Layer supports the following Algorithms: “ssh-rsa” public key for signing, “diffie-hell-
mann-group1-sha1” and “diffie-hellmann-group14-sha1” for key exchange, “3des-cbc”, “aes256-cbc”, “aes192-
cbc” and “aes128-cbc” for encryption, “hmac-sha1” and “hmac-md5” for data integrity. For user authentica-
tion, only the method “password” is supported. On the Connection Layer, only the request for an interactive
command shell is supported.
After the first startup of SmartWare, the RSA server host key is going to be calculated. This calculation is done
in the background and with low priority, so that the SmartNode can operate normally. Until the RSA server
host key is calculated, which takes several minutes, it is not possible to open SSH sessions. The RSA server host
key is calculated only once and always remains the same.
Step Command Purpose
1node>enable Enters administration execution mode
2node#configure Enters configuration mode
3node(cfg)# administrator name password password Creates a new administrator account
name and password password
4node(cfg)#copy running-config startup-config Permanently stores the new administrator
account parameters.
Accessing the SmartWare CLI task list 60
SmartWare Software Configuration Guide 4 • Accessing the CLI
Mode: Configure
Mode: Enable
Mode: Enable
Displaying the CLI version
This procedure displays the version of the currently running CLI.
Mode: Operator execution
Example: Displaying the CLI version
The following example shows how to display the version of the current running CLI on your device, if you
start from the operator execution mode.
node>show version cli
CLI version : 3.00
Displaying account information
You can use the show command to display information about existing administrator and operator accounts.
This command is not available for an operator account.
The following procedure describes how to display account information:
Mode: Administrator execution
Step Command Purpose
1 [name](cfg)#terminal ssh use authentication <AAA
profile name>
Set the AAA profile which is going to be
used for user authentication. The AAA
profile “default” is uses as when not
specified otherwise.
Step Command Purpose
1 [name]#show ssh Displays status information of the SSH
server.
Step Command Purpose
1 [name]#debug ssh Prints debug information of the SSH
server.
Step Command Purpose
1node>show version cli Displays the CLI version
Step Command Purpose
1node#show accounts Displays the currently-configured administrator and operator
accounts
Accessing the SmartWare CLI task list 61
SmartWare Software Configuration Guide 4 • Accessing the CLI
Example: Display account information
The following example shows how to display information about existing administrator and operator accounts.
node#show accounts
administrator accounts:
super
operator accounts:
support
Switching to another account
A user can use the su command to switch from one user account to working in another. With this command,
a user can change from his current account to another existing account ‘name’. After executing su with the
account name to which the user wants to change as argument, he must enter the password of the particular
account to get privileged access.
Mode: Administrator or operator execution
Example: Switching to another account
The following example shows how to change from your current user account to an administrator account,
starting from the operator execution mode. In the example below the who command is used to check the
identity within both accounts
login: support
password: <password>
node>who
You are operator support
node>su super
Enter password: <password>
node>who
You are administrator super
Checking identity and connected users
The who command displays who is logged in or gives more detailed information about users and process
states. Depending on the execution mode, the command displays varying information. In administrator execu-
tion mode, the command output is more detailed and shows information about the ID, user name, state, idle
time, and location. In operator execution mode, only the user name being used at the moment is reported,
which helps checking the identity.
Mode: Administrator or operator execution
Step Command Purpose
1node>su account-name Changes to the user account account-name.
Step Command Purpose
1node#who Shows more detailed information about the users ID, name, state, idle time and
location
or
node>who Shows the user login identity
Accessing the SmartWare CLI task list 62
SmartWare Software Configuration Guide 4 • Accessing the CLI
Example: Checking identity and connected users
The following example shows how to report who is logged in or more detailed information about users and
process states, depending on the execution mode in which you are working.
Used in administrator execution mode:
node#who
ID User name State Idle Location
* 0 administrator exec 00:00:00 172.16.224.44:1160
1 support exec 00:01:56 172.16.224.44:1165
Note The “*” character identifies the user executing the who command. ID repre-
sents the ID of the account. State represents the actual running condition of
the user, which can be logout, login, exec, or config.
Used in operator execution mode:
node>who
You are operator support
Command index numbers
A command index number (indicated by the boldface 1, 2, and 3 index numbers in the example below) indi-
cates the position of a command in a list of commands (that is, a command with index 1 will appear higher in
the configuration file than one with index 3).
192.168.1.1(pf-voip)[default]#show running-config
...
profile voip default
codec 1 g711ulaw64k rx-length 20 tx-length 20
codec 2 g711alaw64k rx-length 20 tx-length 20
codec 3 g723-6k3 rx-length 30 tx-length 30
dejitter-max-delay 200
...
commands that make use of index numbers always show the index in the running config. However, the index
can be omitted when entering the command. If you enter such a command with an index, it is inserted into list
at the position defined by the index. If you enter such a command without an index, it is placed at the bottom
of the list. Also, you can change a commands position in a listing (moving it up or down in the list) by chang-
ing its index number.
Example 1: Moving the G.723 codec from position 3 in the list to position 1 at the top of the list.
Listing before changing the G.723 codec index number:
profile voip default
codec 1 g711ulaw64k rx-length 20 tx-length 20
codec 2 g711alaw64k rx-length 20 tx-length 20
codec 3 g723-6k3 rx-length 30 tx-length 30
dejitter-max-delay 200
...
Listing after changing index number:
Accessing the SmartWare CLI task list 63
SmartWare Software Configuration Guide 4 • Accessing the CLI
192.168.1.1(pf-voip)[default]#codec 3 before 1
192.168.1.1(pf-voip)[default]#show running-config
...
profile voip default
codec 1 g723-6k3 rx-length 30 tx-length 30
codec 2 g711ulaw64k rx-length 20 tx-length 20
codec 3 g711alaw64k rx-length 20 tx-length 20
dejitter-max-delay 200
...
Note Succeeding indexes are automatically renumbered.
Example 2: Moving the G.723 codec back position 3
This command moves the G.723 codec from the top to third place. As a result, the other two codecs move up
in the list as their indexes are automatically renumbered to accommodate the new third-place codec.
192.168.1.1(pf-voip)[default]#codec 1 after 3
192.168.1.1(pf-voip)[default]#show running-config
...
profile voip default
codec 1 g711ulaw64k rx-length 20 tx-length 20
codec 2 g711alaw64k rx-length 20 tx-length 20
codec 3 g723-6k3 rx-length 30 tx-length 30
dejitter-max-delay 200
...
Example 3: Inserting a codec at a specific position in the list.
This command assigns the G.729 codec the index number 1 so the codec appears at the top of the list.
192.168.1.1(pf-voip)[default]#codec 1 g729 tx-length 30 rx-length 30 silence-supression
192.168.1.1(pf-voip)[default]#show running-config
...
profile voip default
codec 1 g729 rx-length 30 tx-length 30 silence-supression
codec 2 g711ulaw64k rx-length 20 tx-length 20
codec 3 g711alaw64k rx-length 20 tx-length 20
codec 4 g723-6k3 rx-length 30 tx-length 30
dejitter-max-delay 200
...
Accessing the SmartWare CLI task list 64
SmartWare Software Configuration Guide 4 • Accessing the CLI
Ending a Telnet or console port session
Use the logout command in the operator or administration execution mode to end a Telnet or console port ses-
sion. To confirm the logout command, you must enter yes on the dialog line as shown in the example below.
Mode: Operator execution
Example: End a Telnet or console port session
The following example shows how to terminate a session from the administrator execution configuration
mode.
node>logout
Press 'yes' to logout, 'no' to cancel :
After confirming the dialog with “yes”, the Telnet session is terminated.
Note Using the command exit in the operator execution mode also terminates a
Telnet or console port session, but without any confirmation dialog.
Showing command default values
If a command is set to its default value, it is not displayed in the running-config in order to make it more read-
able. There are a few exceptions to this rule. The command cli config defaults makes commands also appearin
the running-config that are set to default values. no li config defaults turns it off.
Step Command Purpose
1node>logout Terminates the session after a confirmation by the user.
65
Chapter 5 System image handling
Chapter contents
Introduction..........................................................................................................................................................66
Memory regions in SmartWare..............................................................................................................................67
System image handling task list .............................................................................................................................68
Displaying system image information ..............................................................................................................69
Copying system images from a network server to Flash memory .....................................................................69
Upgrading the software directly ......................................................................................................................71
Auto provisioning of firmware and configuration ..................................................................................................72
Boot procedure......................................................................................................................................................74
Factory configuration ............................................................................................................................................75
Default Startup Configuration ........................................................................................................................75
IP Addresses in the Factory Configuration ......................................................................................................75
Introduction 66
SmartWare Software Configuration Guide 5 • System image handling
Introduction
This chapter describes how to load, maintain, and update the various software images in the SmartNode. The
SmartWare system software consists of the application image and the driver images. The images are stored in
persistent (non-volatile) memory. The application image is the software which actually operates the
SmartNode. Driver images are used to operate the various optional PMC interface cards.
This chapter includes the following sections:
•Memory regions in Smartware
•System image handling task list (see page 68)
•Boot procedure and bootloader (see page 74)
Note Section “System image handling task list” on page 68 describes the standard
way to upgrade the SmartWare. If you encounter problems that won’t let you
upgrade using the standard method, refer to section “Factory configuration”
on page 75.
Note Refer to appendix F, “Notes for upgrading from R3.10 to R3.20” on
page 618 for information on converting from SmartWare release R3.10
to R3.20
•Factory configuration (see page 75)
Patton SmartNode devices are shipped with default system software which is stored in persistent memory.
Along with the default system software (application image and driver images), a factory configuration, factory-
config, has been loaded into the SmartNode at the factory. This configuration file sets the initial basic operating
parameters of the SmartNode, such as enabling the Ethernet ports, setting the default IP addresses and the
DHCP server.
Other configuration files may be stored in the SmartNode persistent memory. A configuration file is an ordered
list of commands. Some of the various configuration files are
•factory-config (read-only)
•startup-config
•running-config
•user-config1, user-config2, etc. (these are specific application configurations created by the user)
Backups of the configuration files can be stored on a remote trivial file transfer protocol (TFTP) server. The
remote tftp server must be accessible via one of the SmartNode IP interfaces. Tftp cannot be used from the
console interface.
The following sections focus on SmartWare memory regions, as well as the software components you can copy
into the memory or move between a TFTP server and the memory of the SmartNode. As SmartWare uses a
specific vocabulary in naming those software components, refer to appendix A, “Terms and definitions” on 644
to ensure that you understand the concepts.
Memory regions in SmartWare 67
SmartWare Software Configuration Guide 5 • System image handling
Memory regions in SmartWare
The SmartNode’s memory contains several logical regions and several physical regions as shown in figure 8 on
page 68, each separate from the other.
Note You will use a remote TFTP server for uploading and downloading the
application image, the driver images, and the various configuration files to
the SmartNode. The command syntax in SmartWare requires you to prefix
the file path on the TFTP server with tftp: followed by the absolute file path.
You need to start from the root directory of the TFTP server.
The three physical regions of memory are the remote tftp server’s memory, the Volatile memories, and the Per-
sistent memory in the SmartNode. The remote tftp server has one logical region, tftp:, which can contain vari-
ous configuration files and batch files for system software upgrade/download. Within the SmartNode the
Volatile physical region contains one logical region, system:, which is random access memory (RAM). When no
power is applied to the SmartNode, the system: region contains no data, no configuration—nothing; it is vola-
tile. The system: region contains the current running configuration, called running-config.
The third and last physical memory region is the Persistent portion. It has two logical regions called flash:
and nvram:.
•The logical region flash: stores the application image, the driver images and the bootloader image. These
images are not lost when the SmartNode is powered off.
•The logical region nvram: stores the various configuration files. The factory default configuration file is
always present in nvram:, and can be restored as the running-config by pressing the reset button. For those
models that do not have a reset button, use the copy command. The startup-config and user-specific con-
figurations are also stored in nvram:.
The factory configuration is read-only. It is contained in the logical region nvram: of the SmartNode. It is
used—if no user-specific configuration is available—to start-up SmartWare with a minimal functionality. This
configuration is named factory-config in SmartWare terminology.
On powering up a SmartNode (or pressing the Reset button on applicable units) with no pre-configured user
configuration files, the default factory-config file is also the startup-config and the running-config. Upon changing
any configuration parameters, the changes are made to the running-config in the system: region of the Volatile
memory. Unless these changes are copied into startup-config or another user-named configuration file, all con-
figuration changes will be lost if the SmartNode is powered down.
A dedicated user-specific configuration must be created and stored in the nvram: region of persistent memory.
In fact, you may create numerous user-specific configurations in the same SmartNode, but if only one dedi-
cated user-specific config is required, you may save it in startup-config by using the copy running-config
startup-config command. Any future time you restart the SmartNode, it will use this saved configuration. In
other words, the startup-config configuration file becomes your default operating configuration.
If you have created and saved numerous user-defined operating configuration files, you can change the startup
default configuration file simply by copying the selected config file into startup-config and rebooting
the SmartNode.
Any configuration stored in logical region nvram: or system: can be copied to a remote server by using TFTP.
System image handling task list 68
SmartWare Software Configuration Guide 5 • System image handling
Operating configurations cannot be executed from the persistent memory, so the configuration used for oper-
ating the SmartNode is copied into the volatile memory of the SmartNode prior to normal operation. This
procedure takes place after the system bootstrap, where the application image (i.e. SmartWare) is started and a
configuration must be available. Shortly before SmartWare has completed all startup processes, the configura-
tion startup-config is copied from nvram: in persistent memory to the running-config configuration in system: in
volatile memory.
You can back up the running-config to nvram: or to a remote TFTP server with a user-defined name.
Note When returning to the factory-config by using the copy factory-config star-
tup-config command, all user-specific configurations saved in nvram:
remain even after reload.
Figure 8. SmartNode memory regions logically defined in SmartWare
System image handling task list
To load and maintain system images, perform the tasks described in the following sections:
•Displaying system image information
•Copying system images from a network server to the Flash memory (see page 69)
•Copying the driver software from a network server to the Flash memory (see page 71)
VolatilePersistent
nvram :
• Factory
Configuration
“factory-config”
(read-only)
• Startup
Configuration
“startup-config”
• User specific
Configuration
“user-config”
system:
• current Running
Configuration
“running-config”
tftp:
• Configuration
Files
• Batchfiles for
System Image
download
flash:
• Application Image
• Bootloader Image
• Microcode Image
Memory Regions in
Embedded Software
Storing the current Configuration locally
Configuration File Upload
Storing the current Running Configuration remotely
Remote (TFTP Server) Local
Image / Microcode Download
Configuration File Download
Only on Startup to execute the
Startup or Factory Configuration
System image handling task list 69
SmartWare Software Configuration Guide 5 • System image handling
Displaying system image information
This procedure displays information about system images and driver software
Mode: Administrator execution
Example: Display system image information
The following example shows the information that is available for a SmartNode 2000 series device with an
optional IC-4BRV interface card mounted in slot 2.
node#show version
Productname : SN4638/5BIS/UI
Software Version : R3.T 2006-12-04 H323 SIP BRI
Supplier :
Provider :
Subscriber :
Information for Slot 0:
SN4638/5BIS/UI (Admin State: Application Started, Real State:
Application Started)
Hardware Version : 1, 3
Serial number : 00A0BA0209B1
PLD Version : 0x46010102
Software Version : R3.T 2006-12-04 H323 SIP BRI
Copying system images from a network server to Flash memory
As mentioned previously, the system image file contains the application software that runs SmartWare; it is
loaded into the flash memory at the Patton Electronics Co. factory. Since most of the voice and data features of
the SmartNode are defined and implemented in the application software, upgrading to a new release might be
necessary if you want to have additional voice and data features available. A new system image file must be
stored permanently into the flash memory of your SmartNode to be present when booting the device.
Since the system image file is preloaded at the Patton Electronics Co. factory, you will have to download a new
SmartWare application software only if a major software upgrade is necessary or if recommended by Patton
Electronics Co. Under normal circumstances, downloading a system image file should not be needed.
Downloading a new system image file means storing it permanently at a defined location within the Smart-
Node flash memory. To store the system image file, you must use a special download script file. This script file
defines how to handle the system image file and where to store it. You cannot download any system image file
without an appropriate script file.
Each line in the script file is a command for the CLI of your SmartNode. To download a system image file,
which will replace the currently running SmartWare application software, a script file with only one command
is necessary.
Step Command Purpose
1 show version Lists the system software release version, information about optional interface
cards mounted in slots and other information that is the currently running system
software. If you have just completed a download of new system software from the
tftp server, you must execute the reload command in order to be running with the
new system software. This applies equally to driver software.
System image handling task list 70
SmartWare Software Configuration Guide 5 • System image handling
Comment lines must have a hash character # in column one and can appear anywhere in the script file. Com-
ment lines contain information for administrators or operators who maintain or use the script file.
The following example shows a script file used to download a system image and command line syntax defini-
tion file from a TFTP server.
# script file for system image download
# Patton Electronics Co. 2001-10-24
image.bin 1369474 21; ver 2300.1,2300.2;
cli.xml
+/flash/cli/spec.xml
*UÊDä
Note The script file includes a 32-bit CRC on the last line, displayed as four char-
acters when seen in an ordinary text editor. Do not delete the line containing
the CRC entry or the download will fail!
You can download the script file with the copy command. The copy command source defines the TFTP path
to the script file and the target is set to use the script parser. After downloading the script file, the system image
file and command line syntax definition file download starts automatically.
Mode: Administrator execution
Example: Copy system images from a network server to the Flash memory
The following example shows how to download the driver software image file from the TFTP server at IP
address 172.16.36.80. The download is defined by a script file, which has to be downloaded first. After down-
loading the script file, the driver software image file is downloaded automatically.
SN>enable
SN#configure
SN(cfg)#copy tftp://172.16.36.80/sn2300/build22032/b flash:
Completed image download
Completed file download /flash/cli/spec.xml
SN(cfg)#
Note When encountering problems due to memory exhaustion (message Parsing
batch file...% APP - OUT OF MEMORY). shutdown the H.323 gateway
prior to initiating the download command as follows (which will tempo-
rarily free the required memory): node(gw-h323)[h323]#shutdown
Step Command Purpose
1node(cfg)# copy tftp://node-ip-address/b flash: Downloads the script file b from the TFTP
server at address node-ip-address and starts
the system image download process. This
progress is visualized with a counter, count-
ing up from 0 to 100% according to the
downloaded amount of the file size for each
file that needs to be downloaded.
System image handling task list 71
SmartWare Software Configuration Guide 5 • System image handling
After the successful download, either issue the reload command (in order to start the IPNode with the new
software) or restart the H.323 gateway, thus enabling calls again (with the current software):
node(gw-h323)[h323]#no shutdown
Upgrading the software directly
It is possible to upgrade the software directly by passing the name of the delivered zip-file to the CLI command
“copy”. The SmartWare downloads the whole ZIP file. During this time the download progress is displayed in
bytes. After downloading, the ZIP file containing batch file “bw” or “b” will be extracted and executed. This
leads to writing the SmartWare image, which is also part of the ZIP file, to the flash. The web pages are
updated too. After writing the image to the flash, the Smartware needs to be reloaded with the command
reload.
Mode: enable
Example: An example of such a Smartware upgrade session, where the new software is in the file
SN1000_SIP_R3.T_2006-08-10.zip which is stored on a tftp-server with the ip address 192.186.22.44:
node#copy tftp://192.186.22.44/SN1000_SIP_R3.T_2006-08-10.zip flash:
Download... 3124510 Bytes
Downloading image...completed (2715796 bytes)
Erasing flash...completed.
Writing to flash...completed
Processing files...completed
node#reload
Step Command Purpose
1node(cfg)# copy tftp://<server-ip-address>/
<path>/<smartwaredeliveryfile>.zip :flash
Downloads the specified delivery file from
the TFTP server and starts the driver soft-
ware image upgrade process.
Auto provisioning of firmware and configuration 72
SmartWare Software Configuration Guide 5 • System image handling
Auto provisioning of firmware and configuration
The new auto provisioning capability enables you to automatically distribute up-to-date configurations and
firmware to a large number of units using TFTP. It works as follows:
The unit downloads a specific file from a TFTP server. If this file has changed since the last download, it is
stored and executed. If the file on the server did not change since the last download, no action is taken. If the
units are configured to do auto provisioning, a network operator can only update the firmware files on the
TFTP server, which automatically distributes it to all units. The “profile provisioning” configures this. Here’s
an example for firmware provisioning:
profile provisioning FIRMWARE
destination script
location 1 tftp://172.16.1.2/firmware/b
location 2 tftp://172.16.1.33/firmware/b
activation reload graceful
Explanation:
Here’s an example for configuration provisioning:
profile provisioning CONFIG
destination configuration
location 1 tftp://tftp1.provider.net/configs/$(system.mac).cfg location 2 tftp://172.16.1.33/configs/$(system.mac).cfg activa-
tion reload graceful
Explanation:
Step Command Purpose
1 [name] (pf-prov)[FIRMWARE]#destination script Chooses the unit’s script interpreter as des-
tination of the downloaded file. Use this
for firmware updates. Script files are the
b, b1, … files that come with each unit
firmware update.
2 [name] (pf-prov)[FIRMWARE]#location 1
tftp://172.16.1.2/firmware/b
Specifies the location of the file to check
for changes.
3 [name] (pf-prov)[FIRMWARE]#location 2
tftp://172.16.1.33/firmware/b
Specifies alternate locations of the file. If
the first could not be contacted, the sec-
ond is tried, and so on.
4 [name] (pf-prov)[FIRMWARE]#activation reload
graceful
Specifies how the new firmware is to be
activated. Choose between immediate or
graceful reload.
Step Command Purpose
1 [name] (pf-prov)[CONFIG]#destination
configuration
Chooses the unit’s startup-configuration as
destination of the downloaded file.
Auto provisioning of firmware and configuration 73
SmartWare Software Configuration Guide 5 • System image handling
Note the placeholder used in the file location. Placeholders can be used for each part of the location, be it
server address, path or filename. The following place holders are available:
•$(system.mac)—MAC address of ETH 0/0 (without “:” between the hexadecimal characters)
•$(system.serial)—serial number of the unit
•$(dhcp.66)—DHCP option 66 (TFTP server IP), as delivered by the DHCP server (only if DHCP
is enabled)
•$(dhcp.67)—DHCP option 67 (Boot file name), as delivered by the DHCP server (only if DHCP
is enabled)
To use and debug provisioning:
To continuously poll for firmware or configuration changes, use the provisioning execute command together
with the new timer command as described below. Here’s how to do both firmware and configuration provi-
sioning, with a polling interval of 10 minutes.
timer FIRMWARE_UPDATE now + 2 minutes every 10 minutes “provisioning execute FIRMWARE”
timer CONFIG_UPDATE now + 2 minutes every 10 minutes “provisioning execute CONFIG”
2 [name] (pf-prov)[CONFIG]#location 1
tftp://tftp1.provider.net /configs/
$(system.mac).cfg
Specifies the location of the file to check
for changes. $(system.mac) is a place-
holder for the unit’s MAC address of
ETH 0/0. Using host names instead of IP
addresses works only if DNS resolver is
enabled and configured.
3 [name] (pf-prov)[CONFIG]#location 2
tftp://172.16.1.33/configs/$(system.mac).cfg
Specifies alternate locations of the file. If
the first could not be contacted, the sec-
ond is tried, and so on.
4 [name] (pf-prov)[CONFIG]#activation reload
graceful
Specifies how the new configuration
should be activated. Choose between
immediate or graceful reload.
Step Command Purpose
1 [name] (cfg)provisioning execute FIRMWARE Executes the provisioning profile
FIRMWARE once
2 [name] (cfg)debug provisioning Enables debug output for all
provisioning operations
Step Command Purpose
Boot procedure 74
SmartWare Software Configuration Guide 5 • System image handling
Boot procedure
During a normal boot procedure of a SmartNode, the bootstrap application checks for an application image in
the persistent memory of the logical region nvram:. The application image is then executed, i.e. the SmartWare
is started module by module. One of the last start-up tasks to finish in bringing up the entire system is han-
dling the operating configuration. The configuration startup-config is copied from the logical region nvram: in
nonvolatile memory to the logical region running-config in the volatile memory. The SmartWare now uses the
running-config to set up the operating configuration of the SmartNode. Figure 9 illustrates the boot procedure.
Figure 9. Boot procedure
There are two situations during bootstrap when the bootloader takes control:
•“If the user has pressed the system button, it launches the bootloader, the bootstrap application checks the
status of the Reset button (not available for SN4xxx) on the back panel of the SmartNode.”
•If a valid application image is not available
Bootstrap Bootloader
Application
Application
Reset Button
pressed
invalid
released
valid
start Software Modules
System Button
use startup-config use factory-config
pressed
released
Power-On
System Up
Factory configuration 75
SmartWare Software Configuration Guide 5 • System image handling
The bootloader ensures that basic operations, network access, and downloads are possible in case of interrupted
or corrupted application image downloads.
After downloading an application image (that is, new system software/software upgrade), the bootloader
ensures that basic operations, network access, and downloads are possible in case of interrupted or corrupted
application image downloads. After downloading an application image, the bootstrap will only switch to the
newly loaded application image if it is valid. If it is not valid, the bootstrap still uses the application image
which existed prior to doing a software upgrade.
If the application image is valid, it is started and SmartWare is brought into operation module by module.
During this system initialization phase (when the message Press reset button to restore factory defaults... appears
on the console screen), the status of the reset button on the back panel of the SmartNode is checked. If the but-
ton has been pressed, the factory configuration is loaded into the volatile memory and is used to parameterize
the SmartWare (not available for SN4xxx). If the button has not been pressed, the startup configuration is
loaded into the volatile memory and is used to parameterize the SmartWare.
Factory configuration
SmartNodes are delivered with a factory configuration stored in the logical region nvram: of the memory. It is used
to initially parameterize the network and component settings of SmartWare, which makes sense at the very begin-
ning. Moreover, in case of SmartWare malfunction, you can reset to the initial state by reloading the factory con-
figuration. The factory configuration consists of the default settings for the IP networking subsystem.
Once the user-specific configuration is created and stored as startup configuration, the factory configuration is
no longer used but it remains in the persistent memory. It is possible to switch back to the factory configura-
tion at any time during the operation of a SmartNode.
Default Startup Configuration
The SmartNodes delivered from the factory contain both a factory configuration and a default startup configu-
ration. While the factory configuration contains only basic IP connectivity settings, the default startup config-
uration includes settings for most SmartWare functions. Note that if you press and hold the system button
(Reset) for 5 seconds the factory configuration is copied onto the startup configuration (overwrite). The default
startup config is then lost.
IP Addresses in the Factory Configuration
The factory configuration contains the following IP interfaces and address configurations bound by the Ether-
net ports 0/0 and 0/1:
interface eth0
ipaddress dhcp
mtu 1500
interface eth1
ipaddress 192.168.1.1 255.255.255.0
mtu 1500
Avoid downloading any system image if you do not completely
understand what you have to do!
IMPORTANT
76
Chapter 6 Configuration file handling
Chapter contents
Introduction..........................................................................................................................................................77
Understanding configuration files ...................................................................................................................77
Factory configuration ............................................................................................................................................79
Configuration file handling task list.......................................................................................................................79
Copying configurations within the local memory ............................................................................................80
Replacing the startup configuration with a configuration from Flash memory ................................................81
Copying configurations to and from a remote storage location ........................................................................82
Replacing the startup configuration with a configuration downloaded from TFTP server ...............................83
Displaying configuration file information .......................................................................................................83
Modifying the running configuration at the CLI .............................................................................................84
Modifying the running configuration offline ...................................................................................................85
Deleting a specified configuration ...................................................................................................................86
Encrypted file download .................................................................................................................................87
Encrypted Configuration Download .........................................................................................................87
Use Cases ..................................................................................................................................................88
Introduction 77
SmartWare Software Configuration Guide 6 • Configuration file handling
Introduction
This chapter describes how to upload and download configuration files from and to SmartWare. A configura-
tion file is a batch file of SmartWare commands used in the software modules that perform specific functions of
the SmartNode. This chapter also describes some aspects of configuration file management. Refer to chapter 5,
“System image handling” on page 65 for more information.
This chapter includes the following sections:
•Factory configuration (see page 79)
•Configuration file handling task list (see page 79)
All Patton SmartNode devices are shipped with a factory configuration file, which is stored in their flash mem-
ory.
A configuration file is like a script file containing SmartWare commands that can be loaded into the system.
Configuration files may also contain only partial configurations. This allows you to keep a library of command
sequences that you may want to use as required. By default, the system automatically loads the factory configu-
ration from the flash memory if no user-specific configuration is defined as the startup configuration.
Changing the current running configuration is possible as follows:
•You may change the running configuration interactively. Interactive configuring requires that you access the
CLI by using the enable command to enter administrator execution mode. You must then switch to the
configuration mode with the command configure. Once in configuration mode, enter the configuration
commands that are necessary to configure your SmartNode.
•You can also create a new configuration file or modify an existing one offline. You can copy configuration
files from the flash memory to a remote server. Transferring configuration files between the flash memory
and a remote system requires the Trivial File Transfer Protocol (TFTP). The TFTP server must be reachable
through one of the SmartNode network interfaces.
See chapter 4, “Accessing the CLI” on page 53 for information concerning access to the CLI.
The following sections focus on SmartWare memory regions and software components that can be copied
within the memory or uploaded/downloaded between a TFTP server and the memory of the SmartNode.
Since SmartWare uses a specific vocabulary in naming those software components, refer to appendix A, “Terms
and definitions” on page 644 to ensure that you understand the concepts. Refer to chapter 5, “System image
handling” on page 65 for a brief description of how SmartWare uses system memory.
Understanding configuration files
Configuration files contain commands that are used to define the functionality of SmartWare. During system
startup, the command parser reads the factory or startup configuration file command-by-command, organizes the
arguments, and dispatches each command to the command shell for execution. If you use the CLI to enter a com-
mand during operation, you alter the running configuration accordingly. In other words, you are modifying a live,
in-service system configuration.
Introduction 78
SmartWare Software Configuration Guide 6 • Configuration file handling
Figure 10, shows the characteristics of a configuration file. It is stored on a TFTP server in the file myconfig.cfg
for later download. The command syntax used to enter commands with the CLI and add commands in config-
uration files is identical. For better comprehension, you can add comments in configuration files. To add a line
with a comment to your configuration file, simply begin the line with the hash (#) character. The command
parser skips everything after the hash character to the end of the line.
#----------------------------------------------------------------#
# My Configuration File
#----------------------------------------------------------------#
# SNTP configuration used for time synchronization
cli version 3.00
sntp-client
sntp-client server primary 172.16.1.10 port 123 version 4
sntp-client poll-interval 600
sntp-client gmt-offset + 01:00:00
# system definitions
system
clock-source 1 2
hostname node
# IP context configuration
context ip router
route 0.0.0.0 0.0.0.0 172.19.32.2 1
route 172.19.41.0 255.255.255.0 172.19.33.250
route 172.19.49.0 255.255.255.0 172.19.33.250
# interface LAN used for connection to internal network
interface lan
ipaddress 172.19.33.30 255.255.255.0
mtu 1500
# interface WAN used for connection to access network
interface wan
ipaddress 172.19.32.30 255.255.255.0
mtu 1500
# CS context configuration
context cs switch
no shutdown
# routing table configuration
routing-table called-e164 rtab
route 2.. dest-interface telecom-operator
# interface used to access the PSTN telecom operator
interface isdn telecom-operator
route call dest-interface h323
# interface used to access the VoIP telecom provider
interface h323 voip-provider
route call dest-table rtab
remoteip 172.19.33.60
Factory configuration 79
SmartWare Software Configuration Guide 6 • Configuration file handling
bind gateway h323
# H.323 gateway primarily used
gateway h323
faststart
no ras
gatekeeper-discovery auto
bind interface lan router
no shutdown
port ethernet 0 0
medium auto
encapsulation ip
bind interface lan router
no shutdown
port ethernet 0 1
medium 10 half
encapsulation ip
bind interface wan router
no shutdown
Figure 10. Sample configuration file
Each configuration file stored in the flash memory needs a unique name. The user has to assign a file name to
any user-specific configuration. SmartWare predefines some names for configuration files. These are the factory
configuration (factory-config), startup configuration (startup-config), and running configuration (running-
config) file names. Refer to appendix A, “Terms and definitions” on page 644 to learn more about configura-
tion file types.
Factory configuration
SmartNodes are delivered with a factory configuration in the logical region nvram:. This factory configuration
initially parameterizes the most useful network and component settings of SmartWare.
Once a user-specific configuration is created and stored as the startup configuration, the factory configuration
is no longer used, but still remains in the persistent memory. It is possible to switch back to the factory config-
uration at any time during the operation of a SmartNode configuration. The getting started guide included
with your SmartNode device describes the restoration procedure for restoring the default settings.
Configuration file handling task list
This section describes how to create, load, and maintain configuration files. Configuration files contain a set of
user-configured commands that customize the functionality of your SmartNode device to suit your own oper-
ating requirements.
The tasks in this chapter assume that you have at least a minimal configuration running on your system. You
can create a basic configuration file by using the configure command; see section “Modifying the running
configuration at the CLI” on page 84 for details.
To display, copy, delete, and download or upload configuration files, perform the tasks described in the follow-
ing sections:
Configuration file handling task list 80
SmartWare Software Configuration Guide 6 • Configuration file handling
•Copying configurations within the local memory (see page 80)
•Replacing the startup configuration with a configuration from the Flash memory (see page 81)
•Copying configurations to and from a remote storing location (see page 82)
•Replacing the startup configuration with a configuration downloaded from the TFTP server (see page 83)
•Displaying configuration file information (see page 83)
•Modifying the running configuration at the CLI (see page 84)
•Modifying the running configuration offline (see page 85)
•Deleting a specified configuration (see page 86)
•Downloading encrypted files (see page 87)
Copying configurations within the local memory
Configuration files may be copied into the local memory in order to switch between different configurations.
Remember the different local memory regions in SmartWare as shown in figure 11.
Figure 11. Local memory regions
In most cases, the interactively modified running configuration known as the running-config, which is located
in the volatile memory region system:, is copied into the persistent memory region nvram:. This running config
is stored under the name startup-config and replaces the existing startup configuration.
VolatilePersistent
nvram:
• Factory
Configuration
“factory-config”
(read-only)
• Startup
Configuration
“startup-config”
• User specific
Configuration
“user-config”
system:
• current Running
Configuration
“running-config”
Local Memory Regions Store the current Running
Configuration persistently
Local
Only on Startup to execute
the Startup or Factory
Configuration
Copy Configuration Files within
the persistent Memory Region
Configuration file handling task list 81
SmartWare Software Configuration Guide 6 • Configuration file handling
You can copy the current running configuration into the persistent memory region nvram: under a user-speci-
fied name, if you want to preserve that configuration.
In addition, an already existing configuration is usually copied into the persistent memory region nvram: by
using a user-specified name, for conservation or later activation.
As shown in figure 11 the local memory regions are identified by their unique names, like nvram:, which is
located in flash memory, and system:, which is the system RAM, i.e. the volatile memory. As already men-
tioned, configuration files in the same memory region need a unique name. For example, it is not possible to
have two configuration files with the name running-config in the memory region nvram:.
As you might expect, the copy command does not move but replicates a selected source to a target configura-
tion file in the specified memory region. Therefore the source configuration file is not lost after the copy pro-
cess. There are three predefined configuration file names for which it is optional to specify the memory region,
namely factory-config, startup-config and running-config.
Mode: Administrator execution
Example: Backing up the startup configuration
The following example shows how to make a backup copy of the startup configuration. It is copied under the
name backup into the flash memory region nvram:.
node#copy startup-config nvram:backup
Replacing the startup configuration with a configuration from Flash memory
It is possible to replace the startup configuration by a configuration that is already present in the flash memory.
You can do so by copying it to the area of the flash memory where the startup configuration is stored.
Mode: Administrator execution
Note The configuration backup can be a previously backed up configuration or
previously downloaded from a TFTP server.
Step Command Purpose
1node#copy {factory-config | startup-
config | running-config | nvram: source-
name } nvram:target-name
Copies the selected source configuration file
source-name as target configuration file target-
name into the local memory.
Step Command Purpose
1node# copy nvram:backup startup-config Replaces the existing persistent startup con-
figuration with the startup configuration
backup already present in flash memory.
Configuration file handling task list 82
SmartWare Software Configuration Guide 6 • Configuration file handling
Copying configurations to and from a remote storage location
Configuration files can be copied from local memory (persistent or volatile region) to a remote data store. From
within SmartWare, the remote TFTP server is represented by the memory region tftp: in combination with the IP
address of the TFTP server and the name and path of the configuration file. We will explain the usage of the
remote memory region tftp: in the following section more detailed. Another typical task is uploading the current
running configuration to the remote data store for backup purpose, or if an extensive configuration file is to be
edited on the remote host. In this case the running configuration, named running-config, which is to be found in
the volatile memory region system: is transferred to the TFTP server. On the TFTP server the running configura-
tion is stored to a file whose name is defined as one of the arguments of the copy command.
Figure 12. Remote memory regions for SmartWare
Finally, configuration files, i.e. the startup configuration or a user-specific configuration that is stored in the
persistent memory region nvram: are often uploaded to the remote data store for backup, edit or cloning pur-
poses. The latter procedure is very helpful when you have several SmartNode devices, each using a configura-
tion which does not greatly differ from the others, or which is the same for all devices. During the
configuration of the first SmartNode according to your requirements, the running configuration of this device,
named running-config and located in the volatile memory region system:, is edited. Next, the configuration is
tested and if everything is as required, the running configuration is copied as startup configuration, named star-
tup-config, into the persistent memory region nvram: of the target device. After this, the startup configuration is
transferred to the TFTP server, where it can be distributed to other SmartNode devices. These devices therefore
get clones of the starting system if the configuration does not need any modifications.
VolatilePersistent
nvram:
• Factory
Configuration
“factory-config”
(read-only)
• Startup
Configuration
“startup-config”
• User specific
Configuration
“user-config”
system:
• current Running
Configuration
“running-config”
Remote Memory
Regions
Store the current Running
Configuration remotely
Local (Intelligent Access Device)
Configuration File Download
tftp:
• Configuration Files
• Batchfiles for
System Image
download
Remote (TFTP Server)
Configuration File Upload
Configuration file handling task list 83
SmartWare Software Configuration Guide 6 • Configuration file handling
Replacing the startup configuration with a configuration downloaded from
TFTP server
From within the administration execution mode, you can replace the startup-configuration by downloading a
configuration from the TFTP server into the flash memory area where to store the startup configuration.
Mode: Administrator execution
Example: Sample configuration download from the TFTP server
The following example shows how to replace the persistent startup configuration in the flash memory of a
SmartNode by overwriting it with the configuration contained in the file new-startup located on the TFTP
server at IP address 172.16.36.80.
1. Download the startup configuration with the copy command into the flash memory area where to store
the startup configuration.
node>enable
node#configure
node(cfg)#copy tftp://172.16.36.80/user/new-startup nvram:startup-config
Download...100%
node(cfg)#
2. Check the content of the persistent startup configuration by listing its command settings with the show
command.
node#show nvram:startup-config
Displaying configuration file information
This procedure describes how to display information about configuration files
Mode: Administrator execution
Step Command Purpose
1 node(cfg)# copy tftp://ip-address[:port]/
new-startup nvram:startup-config
Downloads the configuration file new-startup from
the TFTP server at address ip-address replacing the
existing persistent startup configuration. Optionally
you can enter the UDP port where the TFTP server lis-
tens. If the port is not specified, the default port 69 is
used. This progress is visualized with a counter,
counting up from 0 to 100% according to the down-
loaded amount of the file size. Should the download
fail, an error message % File Transfer - Get failed is
displayed.
Command Purpose
show nvram: Lists all persistent configurations
show running-config Displays the contents of the running configuration file
show startup-config Displays the contents of the startup configuration file
Configuration file handling task list 84
SmartWare Software Configuration Guide 6 • Configuration file handling
Note Application files can be very long when displayed (by using the show com-
mand). To make them easier to read, many default commands are not dis-
played when executing the show running-config command. However, the
administrator may want to see the entire configuration, including these nor-
mally “hidden” default commands. To see all commands, execute the cli
config defaults command. By issuing a show running-config command
afterwards, you will see all the commands, a list which is significantly longer.
To hide these hidden commands again, issue the no cli config
defaults command.
Modifying the running configuration at the CLI
SmartWare accepts interactive modifications on the currently running configuration via the CLI. Interactive
configuring needs access to the CLI. Use the enable command to enter administrator execution mode, and
then switch to the configuration mode by typing the command configure. Once in configuration mode, you
can enter the configuration commands that are necessary to your SmartNode’s operation. When you configure
SmartWare by using the CLI, the shell executes the commands as you enter them.
When you log in using the CLI, all commands you enter directly modify the running configuration located in
the volatile memory region system: (or RAM) of your SmartNode. Because it is located in volatile memory, to
be made permanent, your modifications must be copied to the persistent (non-volatile) memory. In most cases
you will store it as the upcoming startup configuration in the persistent memory region nvram: under the name
startup-config. On the next start-up the system will initialize itself using the modified configuration. After the
startup configuration has been saved to persistent memory, you have to restart the SmartNode by using the
reload command to cause the system to initialize with the new configuration.
The execution command reload accepts with the following options:
•graceful—reloads the system only if no voice calls are ongoing. If there are voice calls, the system waits until
they all are closed to reload.
•forced—reloads the system without prompting for confirmation or for saving the running-configuration
(no need to type yes or no). The question whether to save the running-configuration is automatically
answered with no, the question whether to reload or not with yes.
Mode: Administrator execution
It is recommended that you never save a configuration in startup-
config or a user-specific configuration with the cli config defaults
command because the additional list of default commands con-
sumes significant portions of the nvram: memory.
Step Command Purpose
1node#configure Enters administrator configuration mode
2Enter all necessary configuration commands.
3node(cfg)#copy running-config startup-config Saves the running configuration file as the
upcoming startup configuration
4node(cfg)#reload Restarts the system
IMPORTANT
Configuration file handling task list 85
SmartWare Software Configuration Guide 6 • Configuration file handling
Example: Modifying the running configuration at the CLI
The following example shows how to modify the currently running configuration via the CLI and save it as the
startup configuration.
node#configure
node(cfg)#…
node(cfg)#copy running-config startup-config
node(cfg)#reload
Press 'yes' to restart, 'no' to cancel : yes
The system is going down
Modifying the running configuration offline
In cases of complex configuration changes, which are easier to do offline, you may store a configuration on a
TFTP server, where you can edit and save it. Since the SmartNode is acting as a TFTP client, it initiates all file
transfer operations.
First, upload the running configuration, named running-config, from the SmartNode to the TFTP server. You
can then edit the configuration file located on the TFTP server by using any regular text editor. Once the con-
figuration has been edited, download it back into the SmartNode as upcoming startup configuration and store
it in the persistent memory region nvram: under the name startup-config. Finally, restart the SmartNode by
using the reload command to activate the changes.
Mode: Administrator execution
Step Command Purpose
1node#copy running-config tftp://node-ip-
address[:port]/current-config
Uploads the current running configuration as file
current-config to the TFTP server at address node-
ip-address. Optionally you can enter the UDP
port where the TFTP server listens. If the port is
not specified, the default port 69 is used. This
progress is visualized with a counter, counting up
from 0 to 100% according to the downloaded
amount of the file size. If the upload should fail
an error message “% File Transfer - Put failed” is
displayed.
2Offline editing of the configuration file current-
config on the TFTP server using any regular text
editor.
3node#copy tftp://node-ip-address/current-config
nvram: startup-config
Downloads the modified configuration file cur-
rent-config from the TFTP server at address node-
ip-address into the persistent memory region
nvram: by using the name startup-config. This
progress is visualized with a counter, counting up
from 0 to 100% according to the downloaded
amount of the file size. Should the download fail,
an error message “% File Transfer - Get failed” is
displayed.
4node#reload Restarts the system
Configuration file handling task list 86
SmartWare Software Configuration Guide 6 • Configuration file handling
Example: Modifying the running configuration offline
The following example shows how to upload the running configuration from the SmartNode to the file cur-
rent-config on a TFTP server at IP address 172.16.36.80. The uploaded configuration file is written into the
root directory specified by the TFTP server settings, and overwrites any existing file with the same name. Read
your TFTP server manual to get a thorough understanding of its behavior. After this, the configuration file is
available for offline editing on the TFTP server. Once the configuration file current-config has been modified, it
is downloaded from the TFTP server, at IP address 172.16.36.80, into the persistent memory region nvram:
using the name startup-config. It will become active after a reload.
node#copy running-config tftp://172.16.36.80/user/current-config
Upload...100%
At this point in time, the offline editing of the configuration file current-config on the TFTP server takes place.
node#copy tftp://172.16.36.80/user/ current-config nvram:startup-config
Download...100%
node#reload
Press 'yes' to restart, 'no' to cancel : yes
The system is going down
Deleting a specified configuration
This procedure describes how to delete configuration files from the SmartNode flash memory region nvram:.
Mode: Administrator execution
Example: Deleting a specified configuration
The following example shows how to delete a specific configuration from among a set of three available config-
urations in Flash memory. The configuration named minimal is to be deleted, since it is no longer used.
1. Use the command show nvram: to list all available configurations.
node#show nvram:
Persistent configurations:
backup
minimal
startup-config
factory-config
2. Delete the configuration named minimal explicitly.
node#erase nvram:minimal
3. Enter again the command show nvram: to check if the selected configuration was deleted successfully
from the set of available configurations.
node#show nvram:
Persistent configurations:
backup
Step Command Purpose
1node#show nvram: Lists the loaded configurations
2node#erase name Deletes the configuration name from the flash memory.
Configuration file handling task list 87
SmartWare Software Configuration Guide 6 • Configuration file handling
startup-config
factory-config
Encrypted file download
This section explains how configuration files can be transported encrypted over IP.
TFTP as a configuration download mechanism has the advantage of being extremely simple (trivial) and appli-
cable in any network without any requirements for specialized management servers or applications. It has the
disadvantage of being completely insecure.
The security hole of downloading complete configurations—which may contain IP addresses, login names,
ect.—using TFTP becomes particularly pressing in combination with the auto-provisioning feature which
allows large scale distribution of configurations in entire networks.
To alleviate this problem and maintain the simplicity of TFTP downloads support for encrypted configuration
file downloads is introduced.
Goal: Prevent maliciously intercepted configurations to be readable by unauthorized users.
Pre-requisites: Only authorized users have configuration access to the SmartNode. The configurations can be
stored in plain form on the SmartNode. SNMP Write Access shall be restricted by means of communities and
ACLs to prevent unauthorized SNMP initiated configuration downloads. Telnet access shall be restricted by
means of credentials and ACLs.
Encrypted Configuration Download
An external encryption tool on the PC is used to encrypt the configuration file:
enctool encrypt <plain-config-file> <enc-config-file> [<key>]
The encrypted configuration file can then be downloaded with TFTP triggered by
•The CLI copy command: copy tftp://<host>/<path> <config-file>
•Auto provisioning
•SNMP
•HTTP
On the SmartNode the encryption is detected and the configuration file is automatically decrypted before
stored to flash.
A custom encryption key can be:
•Downloaded to the SmartNode
•Specified with the PC encryption tool
The encryption key may include the MAC address and/or serial number of the SmartNode using the place-
holders $(system.mac) and $(system.serial) respectively.
An encrypted configuration file can be uploaded to a TFTP server on request, specifying the encrypted flag:
copy <config-file> tftp://<host>/<path> encrypted
On the PC the encryption tool can be used to decrypt the file:
Configuration file handling task list 88
SmartWare Software Configuration Guide 6 • Configuration file handling
enctool decrypt <enc-config-file> <plain-config-file> [<key>]
A log file lists the last up/downloads:
show log file-transfer
Use Cases
Install a custom encryption key (optional)
You can install a custom encryption key with the SmartNode. The encryption key is used to automatically
decrypt an encrypted configuration file that is downloaded later. A default encryption key is already installed
on the SmartNode.
To install an encryption key you have to create a file on your TFTP server that contains the key. Then you have
to download this key file to the SmartNode using the copy command of the SmartNode.
The key file shall contain a key string of at most 24 characters on a single line. Spaces, tabs and LF/CR charac-
ters are trimmed. The key must not contain LF/CR or the null character and must not start or end with a space
or tab. If the key contains more than 24 characters, only the first 24 characters are considered.
The key may contain variables that are resolved when the key file is downloaded to a SmartNode. Using this
mechanism you can specify device-specific encryption keys. We currently support the following variables:
•$(system.mac): The MAC address of the first ethernet port. Execute the show port ethernet command on a
SmartNode to display the MAC address of a SmartNode. This value without the colon separators and with
all lower-case hexadecimal letters is used instead of the variable on the SmartNode.
•$(system.serial): The serial number of the SmartNode. Execute the show version command on the Smart-
Node to display the serial number.
When your key file contains the following line:
123$(system.serial)abc$(system.mac)XYZ
The command show port ethernet shows the following:
Ethernet Configuration
-------------------------------------
Port : ethernet 0 0 0
State : OPENED
MAC Address : 00:0C:F1:87:D9:09
Speed : 10MBit/s
Duplex : Half
Encapsulation : ip
Binding : interface eth0 router
The command show version displays the following:
[...]
Serial number : 100000020002
[...]
The encryption key on this SmartNode will be interpreted as:
Configuration file handling task list 89
SmartWare Software Configuration Guide 6 • Configuration file handling
123100000020002abc000cf187d909XYZ
Then you have to download the created key file to the SmartNode. Open a telnet session and type in the fol-
lowing commands:
>enable
#copy tftp://<ip>/<path> key:
where <ip> is the IP address of your TFTP server and <path> is the path to the key file relative to the
TFTP root.
Encrypt a configuration file
Use the encryption tool to encrypt a configuration file on your PC. Therefore you have to enter the
following command.
enctool encrypt <plain-file> <encrypted-file> [<key>]
Where <plain-file> is the path of the non-encrypted input configuration file and <encrypted-file> is the path of
the encrypted output configuration file. <key> specifies the encryption key which shall be used to encrypt the
configuration file. If omitted the default key is used.
Download an encrypted configuration file
Now you can download the configuration file as usual using the CLI copy-command, the auto-provisioning
feature, HTTP or SNMP download. The SmartNode automatically detects that a downloaded file is encrypted
and tries to decrypt the file using the pre-installed key.
Upload an encrypted configuration file
The SmartNode immediately decrypts a configuration file after downloading it. This is the configuration
file is stored non-encrypted in the flash memory. Thus when you upload a configuration it is
uploaded non-encrypted.
You may upload an encrypted configuration file specifying the encrypted flag at the end of the copy command:
#copy startup-config tftp://<ip>/<path> encrypted
This encrypts the configuration file before sending it to the TFTP server. Use the enctool decrypt command
on the PC to regain the original configuration.
The downloaded key also defines how the passwords are
encrypted in your configuration files. After you downloaded a
key file you have to regenerate the startup-config from the
running-config by executing the command.
copy running-config startup-config
If you don’t do this, the device will fail executing the commands
that have encrypted password arguments in the startup-config.
IMPORTANT
90
Chapter 7 Basic system management
Chapter contents
Introduction..........................................................................................................................................................91
Basic system management configuration task list ...................................................................................................91
Managing feature license keys .........................................................................................................................92
Setting system information .............................................................................................................................93
Setting the system banner ................................................................................................................................94
Setting time and date ......................................................................................................................................95
Display clock information ...............................................................................................................................95
Display time since last restart ..........................................................................................................................96
Configuring the Web server ............................................................................................................................96
Determining and defining the active CLI version ............................................................................................96
Restarting the system ......................................................................................................................................97
Displaying the system logs ..............................................................................................................................97
Displaying reports ...........................................................................................................................................98
Controlling command execution .....................................................................................................................98
Timed execution of CLI command ...............................................................................................................100
Displaying the checksum of a configuration ..................................................................................................100
Configuration of terminal sessions ................................................................................................................100
Introduction 91
SmartWare Software Configuration Guide 7 • Basic system management
Introduction
This chapter describes parameters that report basic system information to the operator or administrator, and
their configuration. The following are basic parameters that can be established when setting up a new system:
•Defining the system's hostname
•Setting the location of the system
•Providing reference contact information
•Setting the clock
Additionally, the following tasks are described in this chapter:
•Checking the CRC of configuration files
•Displaying the currently running SmartWare commands
•Moving SmartWare commands into the foreground
•Setting the system banner
•Enabling the embedded web server
Basic system management configuration task list
All tasks in the following sections are optional, though some such as setting time and calendar services and sys-
tem information are highly recommended.
To configure basic system parameters, perform the tasks described in the following sections.
•Managing feature license keys (see page 92)
•Setting system information (see page 93)
•Setting the system banner (see page 94)
•Setting time and date (see page 95)
•Displaying clock information (see page 95)
•Displaying time since last restart (see page 96)
•Configuring and starting the web server (see page 96)
•Determining and defining the active CLI version (see page 96)
•Restarting the system (see page 97)
•Displaying the system event log (see page 97)
•Controlling command execution (see page 98)
•Setting timed execution of CLI commands (see page 100)
•Displaying the checksum of a configuration (see page 100)
•Configuration of terminal sessions (see page 100)
•Identifying a unit by flashing all LED’s (see page 100)
Basic system management configuration task list 92
SmartWare Software Configuration Guide 7 • Basic system management
Managing feature license keys
Several features of the firmware require a system specific license key to be installed to enable the feature.
This section describes how to install the feature license keys on your equipment. Because license keys comprise
very long strings of characters, the standard way of installing them is to download the file containing the
license keys from a TFTP server to the equipment. Therefore, a TFTP server must be present in the IP network
where you can store the license keys file obtained from the distributor. If no TFTP server is available, the
license key can also be manually typed (or copied and pasted) in a console or Telnet window. Both procedures
are described below.
Mode: Configure
Example: Installing license keys from a TFTP server
The following example shows the command used to install license keys, which are stored in a license file on a
TFTP server.
node(cfg)#copy tftp://172.16.4.3/keystore/myLicense.lic licenses:
Mode: Configure
Example: Installing license keys from the console
The following example shows the command used to install license keys manually on the console.
node(cfg)#install license 10011002R1Ws63yKV5v28eVmhDsVGj/JwKqIdpC4Wr1BHaNtenXUYF/
2gNLoihifacaTPLKcV+uQDG8LJis6EdW6uNk/
GxVObDEwPFJ5bTV3bIIfUZ1eUe+8c5OpCCd7PSAe83Ty2c/
CnZPSlEjIrVlJrr8VhOr1DYxkEV9evBp+tSY+y9sCeXhDWt5Xq15SAPlznTLQmym7fDakvm+zltzswX/
KX13sdkR0ub9IX4Sjn6YrvkyrJ2dCGivTTB3iOBmRjV1u
After installing license keys, you can check if the license keys have been added successfully to your system using
the following command.
Mode: Configure
Example: Displaying installed licenses
The following example shows the command used to display all installed licenses on a system and a sample of its
output.
Step Command Purpose
1node(cfg)#copy tftp://tftp-server/path/file-
name licenses:
Downloads the license key file and install the
licenses.
Step Command Purpose
1node(cfg)#install license license-key Install the license key
2Repeat step 1 for any additional license keys
Step Command Purpose
1node(cfg)#show licenses Display all installed licenses
Basic system management configuration task list 93
SmartWare Software Configuration Guide 7 • Basic system management
node(cfg)#show licenses
VPN [vpn]
License serial number: 14343534
Status: Active
node(cfg)#
Setting system information
The system information includes the following parameters:
•Contact
•Hostname
•Location
•Provider
•Subscriber
•Supplier
By default there is no information specified for any of the above parameters.
System contact information tells the user how to contact the information service, e.g. the help line of the ser-
vice provider. The contact information may be any alphanumeric string, including spaces, that is no longer
than one line. This entry corresponds to the MIB II system sysContact object.
The system name, also called the hostname, is used to uniquely identify the SmartNode in your network. The
selected name should follow the rules for ARPANET hostnames. Names must start with a letter, end with a let-
ter or digit, and have as interior characters only letters, digits, and hyphens. Names must be 63 characters or
fewer. For more information, refer to RFC 1035. This entry corresponds to the MIB II system sysName object.
After setting the hostname of the SmartNode the CLI prompt will be replaced with the chosen name.
Assigning explanatory location information to describe the system physical location of your SmartNode (e.g.
server room, wiring closet, 3rd floor, etc.) is very supportive. This entry corresponds to the MIB II system sys-
Location object.
The system provider information is used to identify the provider contact for this SmartNode device, together
with information on how to contact this provider. The provider is a company making services available to sub-
scribers. The provider information may be any alphanumeric string, including spaces, that is no longer than
one line. This entry corresponds to the Patton Electronics enterprise-specific MIB provider object.
The system subscriber information is used to get in touch with subscriber for this SmartNode device, together
with information on how to contact this subscriber. The subscriber is a company or person using one or more
services from a provider. The subscriber information may be any alphanumeric string, including spaces, that is
no longer than one line. This entry corresponds to the Patton Electronics enterprise-specific MIB subscriber
object.
The system supplier information is used to get in touch with the supplier for this SmartNode device, together
with information on how to contact this supplier. The supplier is a company delivering SmartNode devices to
a provider. The supplier information may be any alphanumeric string, including spaces, that is no longer than
one line. This entry corresponds to the Patton Electronics enterprise-specific MIB supplier object.
Basic system management configuration task list 94
SmartWare Software Configuration Guide 7 • Basic system management
Mode: Configure
Note If the system information must have more than one word, enclose it in dou-
ble quotes.
Example: Setting system information
The following example shows the commands used to configure the contact information for your device, if you
start from the operator execution mode.
node(cfg)#system contact "Bill Anybody, Phone 818 700 1504"
node(cfg)#system hostname node
node(cfg)#system location “Wiring Closet, 3rd Floor”
node(cfg)#system provider “Best Internet Services, contact@bis.com, Phone 818 700
2340”
node(cfg)# system subscriber “Mechanical Tools Inc., jsmith@mechtool.com, Phone 818
700 1402”
node(cfg)# system supplier “WhiteBox Networks Inc., contact@whitebox.com, Phone 818
700 1212”
Setting the system banner
The system banner is displayed on all systems that connect to your SmartNode via Telnet or a serial connection
(see figure 13). It appears at login and is useful for sending messages that affect administrators and operators,
such as scheduled maintenance or system shutdowns. By default no banner is present on login.
To create a system banner use the banner command followed by the message you want displayed. If the ban-
ner message has to be formed out of more than one word the information is enclosed by double quotes. Adding
the escape sequence “\n” to the string forming the banner creates a new line on the connected terminal screen.
Use the no banner command to delete the message.
Mechanical Tools Inc.
jsmith@mechtool.com
Phone 818 700 1402
login:
Figure 13. System banner with message to operators
Mode: Configure
Step Command Purpose
1node(cfg)#system contact information Sets the contact information to information
2node(cfg)#system hostname information Sets the hostname to information
3node(cfg)#system location information Sets the location information to information
4node(cfg)#system provider information Sets the provider information to information
5node(cfg)#system subscriber information Sets the subscriber information to information
6node(cfg)#system supplier information Sets the supplier information to information
Step Command Purpose
1node(cfg)#banner message Sets the message for the system banner to message
Basic system management configuration task list 95
SmartWare Software Configuration Guide 7 • Basic system management
Example: Setting the system banner
The following example shows how to set a message for the system banner for your device, if you start from the
configuration mode.
node(cfg)#banner \n#\n# The password of all operators has changed\n# please contact
the administrator\n#"
Setting time and date
All SmartNode devices provide time-of-day and date services. These services allow the products to accurately
keep track of the current time and date. The system clock specifies year, month, day, hour, minutes, and
optionally seconds. The time is in 24-hour format yyyy-mm-ddThh:mm:ss and is retained after a reload.
Mode: Configure
Note The integrated SNTP client allows synchronization of time-of-day and date
to a reference time server. Refer to chapter 26, “SNTP client configuration”
on page 282 for more details.
Example: Setting time and date
The following example shows the commands used to set the system clock of your device to August 6, 2001 at
16:55:57, if you start from the operator execution mode.
node(cfg)#clock set 2001-08-06T16:55:57
Display clock information
This procedure describes how to display the current date and time
Mode: Both in operator and administrator execution
Example: Display clock information
The following example shows the commands used to display the time and date settings of your device in local
time, if you start from the operator execution mode.
node>show clock
2001-08-06T16:55:57
Step Command Purpose
1node(cfg)#clock set yyyy-mm-ddThh:mm:ss Sets the system clock to yyyy-mm-ddThh:mm:ss
Step Command Purpose
1node>show clock Display the local time.
Basic system management configuration task list 96
SmartWare Software Configuration Guide 7 • Basic system management
Display time since last restart
This procedure describes how to display the time since last restart
Mode: Operator execution
Example:
The following example shows how to display the uptime of your device, if you start from the configuration mode.
node>show uptime
The system is up for 54 days, 23 hours, 44 minutes, 18 seconds
Configuring the Web server
The embedded web server has two parameters that are configurable.
Note Changing the language parameter does not affect the language of the web
configuration pages.
Mode: Configure
Example: Configuring and starting the Web server
The following example shows how to set the web server language and the listening port of your device, if you
start from the configuration mode.
node(cfg)#webserver language en
node(cfg)#webserver port 80
Determining and defining the active CLI version
SmartWare allows having a number of CLI version installed together, whereas only one CLI version is acti-
vated. There are commands available to determine the currently running CLI version and if necessary switch to
another CLI version. The idea of having several CLI version available on a system is mostly to offer reduced or
enhanced command sets to users.
Mode: Configure
Step Command Purpose
1node>show uptime Display the time since last restart.
Step Command Purpose
1node(cfg)#webserver language
{de | en}
Sets the language to either German (de) or English (en).
2node(cfg)#webserver port port-
number
Sets the listening port number in the 1 to 65535, default
port number for the web server is 80.
Step Command Purpose
1node(cfg)#show version cli Displays the currently running CLI version
2node(cfg)#cli version version.revision Selects the active CLI version in the form version.revi-
sion
Basic system management configuration task list 97
SmartWare Software Configuration Guide 7 • Basic system management
Example: Defining the desired CLI version
The following example shows how to determine the running CLI version and define CLI version 2.10 for your
device, if you start from the configuration mode.
node(cfg)#show version cli
CLI version : 3.00
node(cfg)#cli version 2.10
Restarting the system
In case the SmartNode has to be restarted, the reload command must be used. The reload command includes
a two-dialog, where the user is allowed to store any unsaved configuration data and finally confirms the
system restart.
The execution command reload has been enhanced with the following options:
•graceful—reloads the system only if no voice calls are ongoing. If there are voice calls, the system waits until
they all are closed to reload.
•forced—reloads the system without prompting for confirmation or for saving the running-configuration
(no need to type yes or no). The question whether to save the running-configuration is automatically
answered with no, the question whether to reload or not with yes.
Mode: Administrator execution
Example: Restarting the system
The following example shows how to restart the currently running system, if you start from the administrator
execution mode.
node#reload
System configuration has been changed.
Press 'yes' to store, 'no' to drop changes : yes
Press 'yes' to restart, 'no' to cancel : yes
The system is going down
Displaying the system logs
The system logs contain warnings and information from the system components of SmartWare. In case of
problems it is often useful to check the event or the supervisor logs for information about malfunctioning sys-
tem components. The event log stores general events such as flash full, DSP failed etc., comparable with the
event log on Windows NT. The supervisor log stores information from the system supervisor such as memory
full, task failed etc.
Restarting the system interrupts running data transfers and all
voice calls.
Step Command Purpose
1node#reload Restarts the system
IMPORTANT
Basic system management configuration task list 98
SmartWare Software Configuration Guide 7 • Basic system management
System resets may have a number of reasons, the most prominent being a manual reset issued on the Telnet/
console (‘reload’). Other reset reasons include power off failures and system failures. In order to pinpoint the
problem, the reset log contains the reset cause.
Mode: Administrator execution
Displaying reports
The show reports command is used to dump combined system information. The show reports command
sequentially executes the following log commands:
show version
show clock
show uptime
show licenses
show memory stat
show log reset
show log boot
show log event
show log supervisor
show factory-config
show startup-config
show running-config
Mode: Administrator execution
Controlling command execution
The SmartWare command shell includes a basic set of commands that allow you to control the execution of
other running commands. In SmartWare, the commands jobs and fg are used for such purposes. The com-
mand jobs lists all running commands, and fg allows switching back a suspended command to the fore-
ground. Moreover using <ctrl>-<z> suspends an active command and lets the system prompt reappear. With
<ctrl>-<c> the currently active command can be terminated.
Step Command Purpose
1node#show log [event] Show event log.
2node#show log supervisor Show log of the system supervisor. Used For example, after an unex-
pectedly reboot.
3node#show log reset Output a list of reset reasons (with date and time).
4node#show log boot Displays the console and log messages captured during startup of the
unit.
5node#show log login Displays a list of succeeded and failed CLI login attempts.
6node#show log file-
transfer
Displays the history of all recently executed file transfer operations
(up to 50 entries).
Step Command Purpose
1node#show reports Dumps the combined system information.
Basic system management configuration task list 99
SmartWare Software Configuration Guide 7 • Basic system management
Mode: Administrator execution
Example: Controlling Command Execution
The following example shows how to suspend an active command, list the running commands, switch back a
suspended command and terminate a currently active command on your device, if you start from the configu-
ration mode.
node>ping 172.16.36.80 1000 timeout 3
Sending 1000 ICMP echo requests to 172.16.36.80, timeout is 3 seconds:
Reply from 172.16.36.80: Time <10ms
Reply from 172.16.36.80: Time <10ms
Reply from 172.16.36.80: Time <10ms
Reply from 172.16.36.80: Time <10ms
<Ctrl>-<z> suspend active command
% Suspended
System prompt reappears and is ready to execute further commands
node>show ip interface
------------------------------------------------------------
Context: router
…
Show the currently running commands
node>jobs
* [run ] jobs
0 [bg ] ping
Bring job 0 to foreground
node>fg
% Resumed [ping]
Reply from 172.16.36.80: Time <10ms
Reply from 172.16.36.80: Time <10ms
<Ctrl>-<c> terminate current command
% Aborted (ping)
Step Command Purpose
1Execute the first command
2node#<Ctrl-Z> Suspend the active command and get system prompt back
3Execute the second command
4node#jobs Shows the currently running commands
5node#fg jobid Brings job with jobid back to foreground
6node#<Ctrl-C> Terminates the currently running command
Basic system management configuration task list 100
SmartWare Software Configuration Guide 7 • Basic system management
Timed execution of CLI command
The command timer allows the timed execution of CLI commands. The timer command is incremental; this
means for each time it is entered, a new timer is created. All timers appear in the running-configuration, except
if they have been created with the volatile option. It is possible to specify for each timer the start time and the
reoccurrence. Use the CLI help (tab completion) for detailed description of all configuration options.
Some examples:
timer FIRMWARE_UPDATE now + 2 minutes every 10 minutes “provisioning execute FIRMWARE”
Starts a timer named FIRMWARE_UPDATE, whose first execution time is 2 minutes after the command is
entered (2 minutes after device startup if the command is in the startup-configuration), and is executed every
10 minutes afterwards. This timer does not expire. The executed CLI command is provisioning
execute FIRMWARE.
timer volatile RELOAD midnight + 1 hour “reload graceful”
Starts a volatile timer named RELOAD (does not appear in the running-configuration, and thus is not stored in
the startup-configuration). The timer is executed once, 1 hour after midnight, and reloads the
system gracefully.
Displaying the checksum of a configuration
In SmartWare configuration files, e.g. startup configuration, running configuration, and user-specific configu-
ration, contain a checksum entry. This checksum informs the user about the validity and helps distinguish con-
figuration files on the basis of the checksum.
Mode: Administrator execution
Example: Displaying the checksum of a configuration
The following example shows how to display the checksum of the configuration test of your device, if you start
from the configuration mode.
node#show crc nvram:test
File nvram: test:
checksum: 0xfaddc88a
Configuration of terminal sessions
In certain cases it may be desirable to change the settings of the current terminal session.
Mode: System
Step Command Purpose
1node#show crc filename Displays checksum of a configuration
Step Command Purpose
1 [name] (sys)#terminal height Configures the terminal height.
Basic system management configuration task list 101
SmartWare Software Configuration Guide 7 • Basic system management
When there are many VoIP units in the same location, use this command to flash all the LED’s on a specific
unit for a specified period of time. This makes identification of the physical unit very easy.
2 [name] (sys)#[no] terminal idle-time-
logout
After 30 minutes without user input, a terminal session
is automatically closed. If longer session periods are
required (logging/debugging) this command allows
to increase the session timeout, or to disable it com-
pletely.
3 [name] (sys)#terminal more Enables pausing of display for commands which pro-
duce more output than the current terminal window
can display at once.
4 [name] (sys)#terminal width Configures the terminal width.
Step Command Purpose
1 [name] #blink <seconds> Enter an integer for the period of time you want the
LED’s to flash on the physical unit.
Step Command Purpose
102
Chapter 8 RADIUS Client Configuration
Chapter contents
Introduction........................................................................................................................................................103
The AAA component ..........................................................................................................................................103
General AAA Configuration ..........................................................................................................................104
RADIUS configuration........................................................................................................................................106
Configuring RADIUS clients ........................................................................................................................107
Configuring RADIUS accounting .................................................................................................................108
Configuring the RADIUS server ...................................................................................................................110
Attributes in the RADIUS request message .............................................................................................110
Attributes in the RADIUS accept message ...............................................................................................111
Configuring the local database accounts ..............................................................................................................111
Storing call logs with quality information ............................................................................................................113
Introduction 103
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
Introduction
This chapter provides an overview of the authentication, authorization, and accounting (AAA) component and
describes how to configure the RADIUS client, a subpart of the AAA component. It is important to under-
stand how AAA works before configuring the RADIUS client. This chapter also describes the local database
accounts configuration, which is another subpart of AAA.
To use the authentication and authorization service on SmartWare you have to configure the AAA component,
the RADIUS component and the local database accounts.
This chapter includes the following sections:
•The AAA component
•RADIUS configuration (see page 106)
•Configuration of the local database accounts (see page 111)
The AAA component
Authentication, authorization, and accounting (AAA) is a term for controlling access to client resources,
enforcing policies, auditing usage, and providing information necessary to invoice users for services.
Authentication provides a way of identifying a user (usually in the form of a login window where the user is
expected to enter a username and password) before allowing access to a client. The AAA component compares
the user's authentication login information with credentials stored in a database. If the information is verified,
the user is granted access to the network. Otherwise, authentication fails and network access is denied.
Following authentication, authorization determines the activities, resources, or services a user is permitted to
access. For example, after logging into a system, a user may try to issue commands, the authorization process
determines whether the user has the authority to issue such commands.
Accounting, which keeps track of the resources a user consumes while connected to the client, can tally the
amount of system time used or the amount of data transferred during a user’s session. The accounting process
records session statistics and usage information that is used for authorization control, billing, and monitoring
resource utilization.
AAA information can be stored in a local database or in a database on a remote server. A current standard by
which network access servers interface with the AAA server is the Remote Authentication Dial-In User Service
(RADIUS).
The AAA component 104
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
Figure 14 illustrates the authentication procedure for a user logging into a SmartNode that is configured to use
RADIUS as authentication method.
Figure 14. Authentication procedure with a RADIUS server
General AAA Configuration
The AAA component consists of AAA profiles and AAA methods. A service (e.g. Telnet) has to specify a profile it
wants to apply to all login requests. The profile then specifies the sequence in which methods are applied to obtain
AAA information. Figure 15 illustrates the correlation between the Telnet login and console login services.
Figure 15. How to use AAA methods and AAA profiles
The Telnet service uses an AAA profile called cli-login. This profile specifies that the following methods are used
in the order they appear in the configuration:
1. Query RADIUS server radius_deepblue.
2. Query RADIUS server radius_extern.
Node
IP
AAA Server
(RADIUS)
1. Login Request
User
2. Authentication requested
3. Authentication accepted
4. Access granted
cli-login
Telnet
radius_deepblue
1
2
3
radius_extern
local database
2
none
console-
login
Console 1
AAA profile
AAA method
Service
The AAA component 105
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
3. Query the local database (see “Configuring the local database accounts” on page 111 for information on
how to configure the local database)
If, e.g. radius_deepblue is not available, radius_extern will be queried after a timeout. But if radius_deepblue
gives an answer that rejects the login request, the remaining methods are not used and the login is denied. The
same applies to the console service, which uses the profile console-login. This profile uses the following sequence
of methods:
1. Ask radius server radius_deepblue.
2. Ask predefined method none. This method always grants access as system operator.
If radius_deepblue is not available, access will be granted by the method none. If radius_deepblue rejects the
login request, console access is denied. If radius_deepblue confirms the request, console access is granted.
Do the following to configure the AAA component.
Mode: Configure
Example: Create the AAA profiles for login over Telnet and login over console, as they are shown in figure 15,
and use them on the Telnet login and console login services.
node>enable
node#configure
node(cfg)#profile authentication remote-radius
node(pf-auth)[remote-~]#method radius radius_deepblue
node(pf-auth)[remote-~]#method radius radius_extern
node(pf-auth)[remote-~]#method local
node(pf-auth)[remote-~]#server-timeout 15
Step Command Purpose
1node(cfg)#profile authentication name Creates an authentication profile with name
name and enters profile authentication configura-
tion mode.
2 node(pf-auth)[name]#method [index]
{local | none | {radius name}}
Adds an AAA method to the profile. For RADIUS
you have to specify a name. For information on
how to configure local accounts and RADIUS
servers, refer to chapter 9, “IP context overview”
on page 114. With index you can add a method
between to others.
3Repeat step 2 for all AAA methods you want to
add
4 node(pf-auth)[name]#server-timeout
seconds
Sets the timeout after that the next AAA method
in the list is requested if no answer is received.
5 node(pf-auth)[name]#exit Goes back to the parent configuration mode
6node(cfg)#terminal Telnet use
authentication profile-name
Specifies which AAA profile the Telnet login service
has to use.
7node(cfg)#terminal console use
authentication profile-name
Specifies which AAA profile the console login
service has to use.
8node(cfg)#show profile authentication
[name]
Displays the configured profiles
RADIUS configuration 106
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
node(pf-auth)[remote-~]#exit
node(cfg)#
node(cfg)#profile authentication local-only
node(pf-auth)[local-o~]#method local
node(pf-auth)[local-o~]#method none
node(pf-auth)[local-o~]#exit
node(cfg)#terminal Telnet use authentication remote-radius
node(cfg)#terminal console use authentication local-only
node(cfg)#show profile authentication
Authentication Profile: default
Server-Timeout: 10
Methods:
local (Type=local)
none (Type=none)
Authentication Profile: remote-radius
Server-Timeout: 15
Methods:
radius_deepblue (Type=radius)
radius_extern (Type=radius)
local (Type=local)
Authentication Profile: local-only
Server-Timeout: 10
Methods:
local (Type=local)
none (Type=none)
node(cfg)#
Note If you do not configure AAA, a default AAA profile exists containing the
AAA local as the first AAA method and the AAA none as the second. The Tel-
net login and the console login service use this profile. If an emergency
occurs, you can reload this default configuration by reloading the factory
configuration as described in section “Boot procedure” on page 74.
RADIUS configuration
RADIUS is a protocol for carrying authentication, authorization, and configuration information between a
network access server (NAS) that desires to authenticate its links and a shared authentication server. A NAS
operates as a client of RADIUS. The client is responsible for passing user information to designated RADIUS
servers and then acting on the response that is returned. RADIUS servers are responsible for receiving user con-
nection requests, authenticating the user, and then returning all configuration information necessary for the
client to deliver service to the user.
Possible lock-out —If you delete the local and none methods
from the default AAA profile, or if you create and use a profile
without methods local and none, you will be unable to access
your device if the network or RADIUS server is not available.
IMPORTAN
RADIUS configuration 107
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
Transactions between the RADIUS client and server are authenticated through the use of a shared secret, which is
never sent over the network—the same secret must thus be known to the server and the client by configuration.
Using this secret as an encryption key, user passwords are sent encrypted between the client and RADIUS server.
Configuring RADIUS clients
If the AAA profiles you have defined make use of the RADIUS AAA method, you must configure the corre-
sponding RADIUS clients. To configure RADIUS clients, do the following steps:
Mode: Configure
Example: Configure the RADIUS clients as shown in figure 15.
node>enable
node#configure
node(cfg)#radius-client radius_deepblue
node(radius)[radius_~]#radius-server deepblue
node(radius)[radius_~]#shared-secret authentication 78f8a23b
node(radius)[radius_~]#exit
node(cfg)#radius-client radius_extern
node(radius)[radius_~]#radius-server 219.144.12.1
node(radius)[radius_~]#shared-secret authentication dd9351e13cc335
node(radius)[radius_~]#exit
node(cfg)#
node(cfg)#show radius-client
RADIUS clients:
radius_deepblue
radius_extern
node(cfg)#show radius-client radius_deepblue
AAA RADIUS Module: radius_deepblue
Authentication Shared Secret: 78f8a23b
Timeout: 6
Sessions:
UDP Interface:
Configured Server Hostname: deepblue
node(cfg)#show radius-client radius_extern
AAA radius Module: radius_extern
Authentication Shared Secret: dd9351e13cc335
Timeout: 6
Sessions:
UDP Interface:
Configured Server Hostname: 219.144.12.1
Step Command Purpose
1node(cfg)#radius-client name Adds a RADIUS client with name name and
enters RADIUS-client configuration mode
2 node(radius)[name]#radius-server host-
name
Sets the hostname (or IP address) of the remote
RADIUS server
3 node(radius)[name]#shared-secret
authentication secret
Sets the password shared between the RADIUS
client and the remote RADIUS server.
4 node(radius)[name]#exit Goes back to the parent configuration mode
5 node(cfg)#show radius-client name Displays configured RADIUS servers
RADIUS configuration 108
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
node(cfg)#
Configuring RADIUS accounting
The RADIUS accounting functionality can be added to a call-router configuration by inserting an AAA call-
control service between two call-router elements. Any call that is then routed through the AAA service will
cause call detail records (CDRs) to be sent to the radius server. Normally an accounting start record is sent
when the call is connected and the accounting stop record is sent, when the call is disconnected. If enabled, the
AAA service is also able to send interim update records, after a specified interval. The AAA service can include
the following standard RADIUS attributes in the CDRs:
ATTRIBUTE Acct-Status-Type
ATTRIBUTE Acct-Session-Time
ATTRIBUTE Acct-Session-Id
ATTRIBUTE NAS-Identifier
ATTRIBUTE Called-Station-Id
ATTRIBUTE Calling-Station-Id
Additionally, the following vendor specific attributes are available to support voice service specific information:
#
# dictionary.patton
#
VENDOR Patton 1768
#
# Name Id Type Vendor Note
#
ATTRIBUTE Setup-Time 32 string Patton a)
ATTRIBUTE Connect-Time 33 string Patton a)
ATTRIBUTE Disconnect-Time 34 string Patton a)
ATTRIBUTE Disconnect-Cause 35 integer Patton b)
ATTRIBUTE Disconnect-Source 36 string Patton c)
ATTRIBUTE Called-Unique-Id 48 string Patton d)
ATTRIBUTE Called-IP-Address 49 ipaddr Patton
ATTRIBUTE Called-Numbering-Plan 50 string Patton e)
ATTRIBUTE Called-Type-Of-Number 51 string Patton f)
ATTRIBUTE Calling-Unique-Id 80 string Patton d)
ATTRIBUTE Calling-IP-Address 81 ipaddr Patton
ATTRIBUTE Calling-Numbering-Plan 82 string Patton e)
ATTRIBUTE Calling-Type-Of-Number 83 string Patton f)
ATTRIBUTE Calling-Presentation-Indicator 88 string Patton g)
ATTRIBUTE Calling-Screening-Indicator 89 string Patton h)
a) Format of timestamps is "WWW MMM DD HH:MM:SS YYYY" Example: "Wed Jun 15 09:20:55 2005"
b) ITU-T Q.931 cause value (1-127)
c) { originator | terminator | internal }
d) Contains the Call-Id for SIP or H.323
e) { e.164 | data | telex | national | private }
f) { international | national | network specific | subscriber | abbreviated }
g) { allowed | restricted | unavailable }
h) { user-provided, not screened | user-provided, verified and passed | user-provided, verified and failed | network provided }
Note The subset of information elements that is actually included in a CDR is
dependant on the type of call and the information already available at the
time the CDR is sent.
RADIUS configuration 109
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
The following procedure guides you through the steps necessary to enable RADIUS accounting in an
existing configuration:
Mode: Configure
Step Command Purpose
1node(cfg)# radius-client
<client-name>
Create a new RADIUS client
2node(radius)[client-name]#
radius-server <server-
name-or-ip> [<udp-port>]
Define the RADIUS server to be used. If the UDP port is omit-
ted, the default port 1812 is used.
Note For accounting RADIUS servers often use
port 1813)
Note There might also be RADIUS servers, which still
use the old RADIUS ports 1645 or 1646)
3node(radius)[client-name]#
shared-secret authentica-
tion <secret>
Define the shared secret to access the RADIUS server
4node(radius)[client-name]#
profile aaa <pf-name>
Create an AAA profile, which uses the RADIUS client
5node(pf-auth)[pf-name]#
method radius <radius-
client-name>
Define your newly created radius client as the AAA method
to be used.
Note If you require redundancy, you can create multi-
ple radius clients and add all of them to the
AAA profile.
6node(pf-auth)[pf-name]#
context cs
Switch to the circuit-switching context.
7node(ctx-cs)[ctx-name]#
service aaa <name>
Create an AAA call-control service
8node(svc-aaa)[svc-name]#
accounting use profile
<aaa-profile-name>
Define the newly created AAA profile to be used for account-
ing using this AAA service.
9 node(svc-aaa)[svc-name]#
nas-identifier <nas-identi-
fier>
Define the NAS-Identifier string to be included in RADIUS
requests sent from this AAA service.
10
(Optional)
node(svc-aaa)[svc-name]#
authentication use profile
<aaa-profile-name>
Optionally, you can also configure the AAA service to
request authentication using the calls calling E.164 number.
If this is required, you can define the AAA profile used for
authentication using this command.
11
(Optional)
node(svc-aaa)[svc-name]#
accounting-failure-action
[drop-calls | ignore]
Define, if calls shall be dropped, if accounting fails. The
default is to ignore accounting failures.
RADIUS configuration 110
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
Configuring the RADIUS server
Each message to and from a RADIUS server includes several attributes. Attributes are, For example, in a login
request, the name and password of the user that requires to log in. For more information about each attribute, or
other possible attributes, see RFC 2865 or the documentation of the radius server you use.
Attributes in the RADIUS request message
The SmartNode sends a RADIUS request with the following attributes:
12
(Optional)
node(svc-aaa)[svc-name]#
accounting-start-trigger
[setup | connect]
Define, if accounting shall be started at call-setup or call-con-
nect time. The default is at call-connect time.
Note If setup is specified, an interim update will be
sent at call-connect time.
Note The Acct-Session-Time is always calculated from
call-connect to call-disconnect time)
13
(Optional)
node(svc-aaa)[svc-name]#
[no] interim-update-interval
<seconds>
Define the interval, after which an interim update shall be
sent, if necessary. The default is not to send periodic interim
updates.
14 node(svc-aaa)[svc-name]#
port <name>
Create a port for the routing path, you want to route through
the AAA service.
15 node(port)[port-name]#
route call-dest- …..
Define the routing destination for all calls received over
this port.
16 node(svc-aaa)[svc-name]#
accounting-start-trigger
[setup | connect]
Go to the routing element, which is the source of the traffic to
be sent to this AAA service and configure its routing destina-
tion to this AAA service port using the following command:
route call dest-service <service-name>.<port-
name>
17 Repeat steps 14 to 16 for each for each additional routing
path you want to route through the AAA service
Attribute
number Attribute Type Description
1User-Name Indicates the name of the user to be authenticated
2User-Password Indicates the password of the user to be authenticated
26 Protocol Is a vendor specific attribute that indicates the protocol with that the
user wants to log on. Currently it can have the value 'console' or 'Tel-
net'. Thus it is possible for the RADIUS Server to grant access depend-
ing on whether the user wants to log on over console or Telnet
Step Command Purpose
Configuring the local database accounts 111
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
Attributes in the RADIUS accept message
After the user and his credentials are approved by the authentication procedure on the RADIUS server, the
SmartNode expects a RADIUS accept message with the following attributes:
Most of the attributes are standard RADIUS attributes and are supported by the RADIUS servers. You have to
specify a value for each of them as it is described in your RADIUS server’s user manual.
The attribute Protocol (26) is vendor specific and defined by Patton. Servers not equipped to interpret the ven-
dor-specific information will ignore it. It is defined as follows:
0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Type | Length | Vendor-Id
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
Vendor-Id (cont) | Vendor-Type | Vendor-Length |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Vendor-String ...
+-+-+-+-+-+-+-+-+-+-+-+-
Type: 26
Length: Length of the whole attribute including the vendor data
Vendor-Id: 1768
Vendor-Type: 16
Vendor-Length: Length of all vendor data including Vendor-Type and Vendor-Length
Vendor-String: Not null terminated String with the value console or Telnet
Configuring the local database accounts
The final step in configuring the authentication and authorization service in SmartWare is to set up local user
accounts. The local database—which is queried with the AAA method local as described previously—can con-
tain administrator and operator accounts. For example, to grant access to the local SmartNode if all RADIUS
Attribute
number Attribute Type Description
6Service-Type If the value is set to 'administrative', the user has administrator rights on
the SmartNode, otherwise operator rights
18 Reply-Message Contains the text that is printed to the user after login. If the attribute is not
included in the message, no text will be printed
27 Session-Timeout Number of seconds the user is allowed to logged on. If the attribute is
not included, the default value is infinite
28 Idle-Timeout Number of seconds to stay in idle state before automatic logout pro-
ceeds. If the attribute is not included, the default value is 30 minutes. The
command terminal idle-time-logout overwrites the value set by the
attribute
Configuring the local database accounts 112
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
servers are down or the network is not reachable, you can create an emergency user in the local database so that
you can still access the SmartNode. Perform the following steps to configure the local accounts.
Mode: Configure
Example: Create an administrator and an operator account
node>enable
node#configure
node(cfg)#administrator meier password pencil
node(cfg)#operator james password ""
node(cfg)#show accounts
Administrator accounts:
meier
Operator accounts:
james
node(cfg)
Note If you are creating an account that does not require a password, type "" to
indicate that no password is needed. For example, if you were configuring an
account for an operator named James that did not need a password, the
entry would be:
node(cfg)#operator james password ""
Step Command Purpose
1 node(cfg)#[no] administrator name pass-
word password
Adds an administrator account to the local data-
base. The no form removes an existing account
2 node(cfg)#[no] operator name password
password
Adds an operator account to the local database.
The no form removes an existing account
3 node(radius)[name]#shared-secret
authentication secret
Sets the password shared between the RADIUS
client (the SmartNode) and the remote RADIUS
server.
4 node(pf-auth)[name]#show accounts Display existing accounts
Storing call logs with quality information 113
SmartWare Software Configuration Guide 8 • RADIUS Client Configuration
Storing call logs with quality information
It is possible to store call logs with quality information in the local aaa data sink. To do so, a service aaa is
needed where the calls are routed through. Create a profile aaa with the method local. Then create a service aaa
to route the calls through.
Example:
profile aaa default
method 1 local
context cs switch
routing-table called-e164 TAB_OUT
route 200 dest-interface IF_SIP
interface isdn IF_BRI_00
route call dest-service QoS_LOG.OUT.bri
interface sip IF_SIP
bind context sip-gateway sip
route call dest-service QoS_LOG.OUT.ethernet
service aaa QoS_LOG.OUT
accounting use profile aaa LOCAL_AAA
port bri
route call dest-table TAB_OUT
port ethernet
route call dest-interface IF_BRI_00
To see the collected logs use the command show accounting or use the Web-GUI to see the logs. In the Web-
GUI, go to the 'Reports' page and select “Call Quality Log” in the tab bar on top of the page. On that page,
ou will also have the option to export the log as a comma separated text file.
114
Chapter 9 IP context overview
Chapter contents
Introduction........................................................................................................................................................115
IP context overview configuration task list...........................................................................................................116
Planning your IP configuration ...........................................................................................................................117
IP interface related information .....................................................................................................................117
QoS related information ...............................................................................................................................117
Configuring physical ports...................................................................................................................................117
Creating and configuring IP interfaces.................................................................................................................117
Configuring NAPT .............................................................................................................................................118
Configuring static IP routing...............................................................................................................................118
Configuring RIP..................................................................................................................................................118
Configuring access control lists............................................................................................................................119
Configuring quality of service (QoS) ...................................................................................................................119
Introduction 115
SmartWare Software Configuration Guide 9 • IP context overview
Introduction
This chapter outlines the SmartWare Internet protocol (IP) context and its related components. You will get the
fundamental understanding on how to set up your SmartNode to make use of IP related services.
The following sections describe the configuration steps necessary to put together certain IP services and the ref-
erences to the related chapters that explain the issue in more details.
To understand the information given in the following chapters, carefully read to the end of the current chapter.
Before proceeding, make sure that you feel comfortable with the underlying SmartWare configuration concept
by reading chapter 2, “Configuration concepts” on page 44.
The IP context in SmartWare is a high level conceptual entity that is responsible for all IP-related protocols and
services for data and voice. The IP context performs much the same function as a standalone IP router, and
since every context is defined by a name, the IP context is named router by default. This IP context can contain
interface static routes, RIP parameters, NAPT, QoS and access control profiles.
In figure 16 on page 115, the IP context with all its related elements is contained within the area on the left,
which has a gray fill. The right side displays the related CS context, which communicates with the IP context
via different types of gateways. Since the CS context and its related components are not the subject of this
chapter, they are illustrated in figure 16 with gray lines instead of black ones.
Figure 16. IP context and related elements
Serial
PVC
Context
IP
router
H.323 GW
SIP GW
Context
CS
switch
ISDN
FXS
bind command bind command
bind command
Service
Policy
Profile
Ethernet
use command
bind command
bind commands
bind command
use command
NAPT
Profile
ACL
Profile
Gateway
Context
Interfaces
Circuit
Ports
IP context overview configuration task list 116
SmartWare Software Configuration Guide 9 • IP context overview
The IP context undertakes the task of doing all IP-related transport of data and voice packets via the logical inter-
faces and available gateways. In addition, using profiles—which together with the IP context pinpoint how to
handle packets for specific services—enhances the possible field of application. Moreover, voice packets are
transported via a voice gateway to the CS context for further processing and forwarding to the PSTN.
IP context overview configuration task list
As previously described, this chapter outlines the IP context configuration. It does not give you all the details of
a configuration task, but refers you to the chapters in which you will find the full description.
•You can find all the information you need to configure an IP Interface in chapter 10, “IP interface configu-
ration” on page 120.
•You can find the information regarding network address port translation (NAPT) in chapter 11, “NAT/
NAPT configuration” on page 132.
•If you need to configure a physical port, chapter 12, “Ethernet port configuration” on page 141 or
chapter 14, “Serial port configuration” on page 170 may prove helpful.
•To set up the IP router contained in SmartWare, chapter 22, “Basic IP routing configuration” on page 235
and chapter 23, “RIP configuration” on page 242 give you the required information.
•For essential knowledge related to network security requirements, refer to chapter 24, “Access control list
configuration” on page 253.
•If your network shall provide better service to selected network traffic, chapter 13, “Link scheduler configu-
ration” on page 151 will help you to get in-depth knowledge about quality of service (QoS) management
with SmartWare.
The following sections describe the basic tasks involved in IP context configuration. Many parameters have
acceptable default values, which in most cases do not need to be explicitly configured. Hence not all of the con-
figuration tasks below are required. Depending on your application scenario, some tasks are mandatory or
might be optional. The following tasks use a bottom-up approach, starting from the ports, followed by the
interfaces up to the services running on the SmartNode. The first tasks below shall help you obtaining the nec-
essary overview, in view of the fact that there is always a risk getting lost in details before gaining a general
understanding of the whole network.
•Planning your IP configuration (see page 117)
•Configuring Ethernet and serial ports (see page 117)
•Creating and configuring IP interfaces (see page 117)
•Configuring NAPT (see page 118)
•Configuring static IP routing (see page 118)
•Configuring RIP (see page 118)
•Configuring access control lists (see page 119)
•Configuring quality of service (see page 119)
Planning your IP configuration 117
SmartWare Software Configuration Guide 9 • IP context overview
Planning your IP configuration
The following subsections provide network connection considerations for several types of physical ports types.
Patton recommends that you draw a network overview diagram displaying all neighboring IP nodes and serial
connected elements. Do not begin configuring the IP context until you have completed the planning of your
IP environment.
IP interface related information
Setting up the basic IP connectivity for your SmartNode requires the following information:
•IP addresses used for Ethernet LAN and WAN ports
•IP Subnet mask used for Ethernet LAN and WAN ports
•Length for Ethernet cables
•IP addresses of the central H.323 gatekeeper or SIP registrar
•IP addresses of the central PSTN gateway for H.323 and SIP based calls
•IP address of the central TFTP server used for configuration upload and download
QoS related information
Check with your access service provider if there are any QoS related requirements, which you need to know
prior to configuring SmartWare QoS management. Check the following with your access service provider:
•What is the dedicated bandwidth, which you have agreed with your access service provider?
•How does your provider perform packet classification, e.g. which ToS bits have to be used to define the sup-
ported classes of service?
Configuring physical ports
The configuration of a port includes parameters for the physical and data link layer such as framing and encapsu-
lation formats or media access control. Before any higher-layer user data can flow through a physical port, you
must associate that port with an interface within the IP context. This association is referred to as a binding.
For information and examples on how to configure ports, refer to the respective port type’s chapter.
Creating and configuring IP interfaces
The number and names of IP interfaces depend upon your application scenario. An interface is a logical con-
struct that provides higher-layer protocol and service information, such as layer 3 addressing. Hence interfaces
are configured as part of the IP context and represent logical entities that are only usable if a physical port is
bound to them.
An interface name can be any arbitrary string, but for ease of identification you should use self-explanatory
names that describe the use of the interface.
Several IP-related configuration parameters are necessary to define the behavior of such an interface. The most
obvious parameters are the IP address and an IP net mask that belongs to it.
For information and examples on how to create and configure an IP interface, refer to chapter 10, “IP interface
configuration” on page 120.
Configuring NAPT 118
SmartWare Software Configuration Guide 9 • IP context overview
Configuring NAPT
Network address port translation (NAPT), which is an extension to NAT, uses TCP/UDP ports in addition to
network addresses (IP addresses) to map multiple private network addresses to a single outside address. NAPT
enables small offices to save money by requiring only one official outside IP address to connect several hosts via
a SmartNode to the access network. Moreover, NAPT provides additional security, because the IP addresses of
hosts attached via the SmartNode are invisible to the external world. You can configure NAPT by creating a
profile that is afterwards used on an explicit IP interface. In SmartWare terminology, an IP interface uses a
NAPT profile, as shown in figure 16 on page 115.
For information and examples on how to configure NAPT refer to chapter 11, “NAT/NAPT configuration”
on page 132.
Configuring static IP routing
SmartWare allows to define static routing entries, which are table mappings established by the network admin-
istrator prior to the beginning of routing. These mappings do not change unless the network administrator
alters them. Algorithms that use static routes are simple to design and work well in environments in which net-
work traffic is relatively predictable and where network design is relatively simple.
For information and examples on how to configure static IP routing, refer to chapter 22, “Basic IP routing
configuration” on page 235.
Configuring RIP
The Routing Information Protocol (RIP) is a distance-vector protocol that uses hop count as its metric. RIP is
widely used for routing traffic in the global Internet and is an interior gateway protocol (IGP), which means
that it performs routing within a single autonomous system.
RIP sends routing-update messages at regular intervals and also when the network topology changes. When a
router receives a routing update that includes changes to an entry, it updates its routing table to reflect the new
route. The metric value for the path is increased by one, and the sender is indicated as the next hop. RIP rout-
ers maintain only the best route (the route with the lowest metric value) to a destination. After updating its
routing table, the router immediately begins transmitting routing updates to inform other network routers of
the change. These updates are sent independently of the regularly scheduled updates that RIP routers send.
RIP uses a single routing metric (hop count) to measure the distance between the source and a destination net-
work. Each hop in a path from source to destination is assigned a hop-count value, which is typically 1. When
a router receives a routing update that contains a new or changed destination-network entry, the router adds
one to the metric value indicated in the update and enters the network in the routing table. The IP address of
the sender is used as the next hop.
RIP prevents routing loops from continuing indefinitely by implementing a limit on the number of hops
allowed in a path from the source to a destination. The maximum number of hops in a path is 15. If a router
receives a routing update that contains a new or changed entry, and if increasing the metric value by one causes
the metric to be infinity (i.e. 16), the network destination is considered unreachable.
For information and examples on how to configure Routing Information Protocol (RIP) refer to chapter 23,
“RIP configuration” on page 242.
Configuring access control lists 119
SmartWare Software Configuration Guide 9 • IP context overview
Configuring access control lists
Packet filtering helps to control packet movement through the network. Such control can help to limit net-
work traffic and to restrict network use by certain users or devices.
An access control list is a sequential collection of permit and deny conditions that apply to packets on a certain
interface. Access control lists can be configured for all routed network protocols (IP, ICMP, TCP, UDP, and
SCTP) to filter the packets of those protocols as the packets pass through a SmartNode. SmartWare tests pack-
ets against the conditions in an access list one by one. The first match determines whether SmartWare accepts
or rejects the packet. Because SmartWare stops testing conditions after the first match, the order of the condi-
tions is critical. If no conditions match, the software rejects the address.
For information and examples on how configure access control lists, refer to chapter 24, “Access control list
configuration” on page 253.
Configuring quality of service (QoS)
The link scheduler enables the definition of QoS profiles for network traffic on a certain interface, as shown in
figure 16 on page 115. QoS refers to the ability of a network to provide improved service to selected network
traffic over various underlying technologies including Frame Relay, Ethernet and 802.x type networks, and IP-
routed networks. In particular, QoS features provide improved and more predictable network service by pro-
viding the following services:
•Supporting dedicated bandwidth
•Improving loss characteristics
•Avoiding and managing network congestion
•Shaping network traffic
•Setting traffic priorities across the network
The QoS features described in chapter 13, “Link scheduler configuration” on page 151 address these diverse
and common needs.
120
Chapter 10 IP interface configuration
Chapter contents
Introduction........................................................................................................................................................121
IP interface configuration task list........................................................................................................................121
Creating an IP interface ................................................................................................................................121
Deleting an IP interface ................................................................................................................................122
Setting the IP address and netmask ...............................................................................................................123
Configuring a NAPT DMZ interface ............................................................................................................123
ICMP message processing .............................................................................................................................124
ICMP redirect messages ................................................................................................................................124
Router advertisement broadcast message .......................................................................................................124
Defining the MTU and MSS of the interface ................................................................................................125
Configuring an interface as a point-to-point link ..........................................................................................126
Displaying IP interface information ..............................................................................................................126
Displaying dynamic ARP entries ...................................................................................................................127
Flushing dynamic ARP entries ......................................................................................................................127
Processing gratuitous ARP requests ...............................................................................................................127
Testing connections with the ping command ................................................................................................127
IP link supervision ........................................................................................................................................128
Check connectivity of an IP link .............................................................................................................129
Show IP link status ..................................................................................................................................129
Debug connectivity .................................................................................................................................129
Debug ARP ...................................................................................................................................................129
Traceroute ....................................................................................................................................................130
Configuring the IGMP Proxy..............................................................................................................................131
Introduction 121
SmartWare Software Configuration Guide 10 • IP interface configuration
Introduction
This chapter provides a general overview of IP interfaces and describes the tasks involved in their configura-
tion.
An interface is a logical entity that provides higher-layer protocol and service information, such as Layer 3
addressing. Interfaces are configured as part of a context and are independent of physical ports and circuits.
The separation of the interface from the physical layer allows for many advanced features. For higher layer pro-
tocols to become active, a physical port or circuit must be bound to an interface. IP interfaces can be bound
physically to Ethernet, SDSL or Frame Relay ports according to the appropriate transport network layer.
IP interface configuration task list
To configure interfaces, perform the tasks in the following sections:
•Creating an IP interface (see page 121)
•Deleting an IP interface (see page 122)
•Setting the IP address and netmask (see page 123)
•ICMP message processing (see page 124)
•ICMP redirect messages (see page 124)
•Router advertisement broadcast message (see page 124)
•Defining the MTU of the interface (see page 125)
•Configuring an interface as a point-to-point link (see page 126)
•Displaying IP interface information (see page 126)
•Testing connections with the ping command (see page 127)
Creating an IP interface
Interface names can be any arbitrary string. Use self-explanatory names for your interfaces, which reflect their usage.
Mode: Context IP
Step Command Purpose
1node(ctx-ip)[router]#interface name Creates the new interface name, which represents an IP
interface. This command also places you in interface
configuration mode for the interface just created.
2node(if-ip)[name]# You are now in the interface configuration mode, where
you can enter specific configuration parameters for the
IP interface name.
IP interface configuration task list 122
SmartWare Software Configuration Guide 10 • IP interface configuration
Example: Create IP interfaces
The procedure illustrated below assumes that you would like to create an IP interface named lan Use the fol-
lowing commands in administrator configuration mode.
node>enable
node#configure
node(cfg)#context ip router
node(ctx-ip)[router]#interface lan
node(if-ip)[lan]#
Deleting an IP interface
Almost every configuration command has a no form. In general, use the no form to disable a feature or func-
tion. Use the command without the no keyword to re-enable a disabled feature or to enable a feature that is
disabled by default.
Deleting an existing interface in the IP context is often necessary.
Mode: Context IP
Example: Delete IP interfaces
The procedure below assumes that you would like to delete an IP interface named external. Use the following
commands in IP context configuration mode.
List the existing interfaces:
node(ctx-ip)[router]#interface <?>
<interface> New interface
lan Existing interface
wan Existing interface
external Existing interface
internal Existing interface
Delete the interfaces named eth3 with the no interface command:
node(ctx-ip)[router]#no interface external
List the interfaces again to check if the appropriate interface was deleted:
node(ctx-ip)[router]#interface <?>
<interface> New interface
lan Existing interface
wan Existing interface
internal Existing interface
Step Command Purpose
1node(ctx-ip)[router]#no interface name Deletes the existing interfaces name
IP interface configuration task list 123
SmartWare Software Configuration Guide 10 • IP interface configuration
Setting the IP address and netmask
Each IP interface needs its explicit IP address and an appropriate net mask to be set. You can use the
ipaddress interface configuration command to perform the following tasks:
•Set the IP address to ip-address
•Set the network mask to netmask
•Enable IP processing for the IP interface name without assigning an explicit IP address
The ipaddress command offers the following options:
Mode: Context IP. This command also places you in interface configuration mode.
Example: Configure IP interface address and netmask
To set the IP address to 192.168.1.3 and net mask to 255.255.255.0 for the IP interface lan, use the following
commands in IP context configuration mode.
node(ctx-ip)[router]#interface lan
node(if-ip)[lan]#ipaddress 192.168.1.3 255.255.255.0
Configuring a NAPT DMZ interface
The NAPT allows one or more specific IP interfaces to be excluded from NAPT translations although their
traffic is routed through an IP interface to which a NAPT profile is bound. This configuration is usually neces-
sary, for DMZ networks connected to an Ethernet port, which uses public IP addresses.
Mode: interface ip <if-name>
unnumbered Enables IP processing on an interface without assigning an explicit IP address to the inter-
face.
ip-address Specifies the IP address of the subscriber in the form A.B.C.D.
netmask Specifies the network mask in the form A.B.C.D.
dhcp Enables the DHCP client on this interface. For more information on DHCP-client configura-
tion refer to chapter 27, “DHCP configuration” on page 292.
Step Command Purpose
1node(ctx-ip)[router]#interface name Selects the existing interface name, which shall be
configured
2node(if-ip)[name]# ipaddress {unnum-
bered | (ip-address netmask) | dhcp}
Sets the IP address ip-address and netmask net-
mask for interface name
Step Command Purpose
1 [name] (if-ip)[if-name]# [no] napt-
inside
If no napt-inside is specified, the interface is excluded from
NAPT. if however napt-inside is specified, the interface will
be handled normally by the NAPT.
IP interface configuration task list 124
SmartWare Software Configuration Guide 10 • IP interface configuration
ICMP message processing
The IP suite offers a number of services that control and manage IP connections. The Internet Control Mes-
sage Protocol (ICMP) provides many of these services. Routers send ICMP messages to hosts or other routers
when a problem is discovered with the Internet header. For detailed information on ICMP, see RFC 792.
SmartWare supports the following ICMP message processing features:
•ICMP redirect messages
•Router advertisement broadcast message
ICMP redirect messages
Routes are sometimes less than optimal. For example, the router may be forced to resend a packet through the
same interface on which it was received. In this case, an ICMP redirect message is sent to the originator of the
packet telling that the router is on a subnet directly connected to the receiving device, and that it must forward
the packet to another system on the same subnet. The software sends an ICMP redirect message to the origina-
tor of the packet because the originating host presumably could have sent that packet to the next hop without
involving this device at all. The redirect message instructs the sender to remove the receiving device from the
route and substitute a specified device representing a more direct path. This feature is enabled by default.
ICMP message processing offers two options for host route redirects:
•accept—accepts ICMP redirect messages
•send—sends ICMP redirect messages
Mode: Interface
Example: ICMP redirect messages
The following example shows how to configure ICMP messages processing to accept ICMP redirect messages
on the IP interface lan. Use the following commands in IP context configuration mode.
node(ctx-ip)[router]#interface lan
node(if-ip)[lan]#icmp redirect accept
Router advertisement broadcast message
This message configures the behavior of the router when receiving an ICMP router solicitation message, and
determines if the router shall send periodic ICMP router advertisement messages or not.
By default, ICMP router advertisement messages are sent, either as a reply to ICMP router solicitation mes-
sages or periodically. If the feature is disabled, ICMP router advertisement messages are not sent in any case,
neither as a reply to ICMP router solicitation messages nor periodically.
Step Command Purpose
1node(ctx-ip)[router]#interface name Selects the interface name for ICMP mes-
sage processing configuration
2node(if-ip)[name]#icmp redirect { accept | send} Enables to send or accept ICMP redirect
messages
IP interface configuration task list 125
SmartWare Software Configuration Guide 10 • IP interface configuration
Mode: Interface
Example: Router advertisement broadcast message
The following example shows how to enable sending router advertisement broadcast messages on IP interface
lan. Use the following commands in IP context configuration mode.
node(ctx-ip)[router]#interface lan
node(if-ip)[lan]#icmp router-discovery
Defining the MTU and MSS of the interface
All interfaces have a default MTU packet size. You can adjust the IP MTU size so that the IP packet that
exceeds the MTU set for an interface is exceeded. The default MTU packet size is set to 1500 for an interface.
In cases where fragmentation is not allowed along the IP connection, forcing a reduction of the MSS (maxi-
mum segment size) is the only viable solution.
Note All devices on a physical medium must have the same protocol MTU in
order to operate accurately.
Procedure: To set the MTU packet size or the MSS to size on the interface name
Mode: Interface
Example: Defining the MTU of the interface
Step Command Purpose
1node(ctx-ip)[router]#interface name Selects the interface name for ICMP message pro-
cessing configuration
2node(if-ip)[name]# icmp router-discovery Enables to send router advertisement broadcast
messages
Step Command Purpose
1node(ctx-ip)[router]#interface name Selects the interface name for ICMP message processing
configuration
2node(if-ip)[name]#mtu size Sets the IP MTU packet size to size of the interface name.
The MTU packet size value must be in the range from 48
to 1500.
3
(optional)
node(if-ip)[name]#tcp adjust-mss {
rx|tx } { mtu | mss }
Limits to the MSS (Maximum Segment Size) in TCP SYN
packets to mss or to MTU (Maximum Transmit Unit) - 40
Bytes, if ‘mtu’ is used. ‘rx’ applies to packets which
arrive inbound at this IP interface, ‘tx’ to packets which
leave outbound of this IP interface.
It is recommended to use ‘mtu’ inbound and outbound.
IP interface configuration task list 126
SmartWare Software Configuration Guide 10 • IP interface configuration
The following example shows how to define the MTU of the IP interface lan to 1000 and to adjust the MSS in
both directions to MTU-40. Use the following commands in IP context configuration mode.
node(ctx-ip)[router]#interface lan
node(if-ip)[lan]#mtu 1000
node(if-ip)[lan]#tcp adjust-mss rx mtu
node(if-ip)[lan]#tcp adjust-mss tx mtu
Configuring an interface as a point-to-point link
A point-to-point network joins a single pair of routers. It is in particular used for interfaces, which have a bind-
ing to a Frame Relay PVC.
Mode: Configure
Example: Configuring an interface as a point-to-point link
The following example shows how to define the interface lan as point-to-point link. Use the following com-
mands in configuration mode.
node(cfg)#context ip router
node(ctx-ip)[router]#interface lan
node(if-ip)[lan]#point-to-point
Displaying IP interface information
The show ip interface command displays IP information for all interfaces. The command is available in
operator execution mode or in any of the administrator execution modes.
Mode: Operator execution or any administrator execution
Example: Displaying IP interface information
The following example shows how to display the IP information for all interfaces by using the show ip
interface command from operator execution mode.
node>show ip interface
------------------------------------------------------------
Context: router
Name: lan
IP Address: 172.16.40.77 255.255.0.0
MTU: 1500
ICMP router-discovery: enabled
ICMP redirect: send only
State: OPENED
Binding: ethernet 0 0 0/ethernet/ip
Step Command Purpose
1node(cfg)#context ip router Selects the IP router context
2node(ctx-ip)[router]#interface name Selects the defined interface name for configuration
3node(if-ip)[name]#point-to-point Configures the interface ifname as point-to-point link
Step Command Purpose
1node>show ip interface Displays the IP information for all interfaces
IP interface configuration task list 127
SmartWare Software Configuration Guide 10 • IP interface configuration
------------------------------------------------------------
Context: router
Name: wan
IP Address: 172.17.100.210 255.255.255.0
MTU: 1500
ICMP router-discovery: enabled
ICMP redirect: send only
State: CLOSED
Binding: ethernet 0 0 1/ethernet/ip
…
Displaying dynamic ARP entries
The following command can be used to display the dynamically learned ARP entries on an IP interface or on
the entire system.
Flushing dynamic ARP entries
The following command can be used to flush the dynamically learned ARP entries on an IP interface or on the
entire system.
Processing gratuitous ARP requests
The following command can be used to accept and process gratuitous ARP requests and replies. ARP requests
and replies in which the target protocol address and sender protocol address are the same are considered.
Because of security reasons, this feature is deactivated as default and must be enabled by the user.
Mode: configure
Testing connections with the ping command
As an aid to diagnosing basic network connectivity, many network protocols support an echo protocol. The
protocol involves sending a special datagram to the destination host, then waiting for a reply datagram from
that host. Results from this echo protocol can help in evaluating the path-to-host reliability, delays over the
path, and whether the host can be accessed or is functioning.
Step Command Purpose
1 [name]#show arp [<ip-if-name>] Display the ARP entries for the specified or all IP interfaces.
Step Command Purpose
1 [name]#arp flush[<ip-if-name>] Flushes the ARP entries for the specified or all IP interfaces.
Step Command Purpose
1 [name](cfg)#[no] arp gratuitous Enables or disables the processing of gratuitous arp requests
and replies.
IP interface configuration task list 128
SmartWare Software Configuration Guide 10 • IP interface configuration
Mode: Either operator or administrator execution
Where the parameters are defined as follows:
•[<number>] optional parameter which indicates how many pings are sent
•[timeout <seconds>] optional parameter which indicates the time-out period of the ping
•[packet-size <packet-size>] optional parameter which indicates the number of octets in the ping
•[ttl <ttl>] optional parameter which indicates the time-to-live value
•[traffic-class <traffic-class>] which indicates the IP packets in a traffic class are routed via the defined
Nexthop in the routing table entry for that traffic-class. Default: local-default.
When using ping for fault isolation, you should first run it on the respective IP interface to verify that the local
LAN or WAN interface is up and running. Then, you should “ping” hosts and gateways further away. Round-
trip times and packet loss statistics are computed. If duplicate packets are received, they are not included in the
packet loss calculation, although the round trip time of these packets is used to calculate the minimum/aver-
age/maximum round-trip time numbers. When five ICMP echo requests packets have been sent and received,
a brief summary is displayed.
Example: Testing connections with the ping command
The following example shows how to invoke the echo protocol to the destination host at IP address
172.16.1.10 by using the ping command from operator execution mode.
node>ping 172.16.1.10
Sending 5 ICMP echo requests to 172.16.1.10, timeout is 1 seconds:
Reply from 172.16.1.10: Time <10ms
Reply from 172.16.1.10: Time <10ms
Reply from 172.16.1.10: Time <10ms.
Reply from 172.16.1.10: Time <10ms
Reply from 172.16.1.10: Time <10ms
Ping statistics for 172.16.1.10:
Packets: Sent 5, Received 5, Lost 0 (0% loss),
RTT: Minimum <10ms, Maximum <10ms, Average <10ms
IP link supervision
IP Link Supervision is one of the modules you have to configure in order to use the PPP dial-up over ISDN
feature. Also consider the dial-up command (page 337) on the IP interface and the interface dialer mode
(page 331) in context cs.
IP link supervision can be used to periodically check the reachability of some hosts over a specific link. There-
fore an ICMP echo request is sent to the configured IP address. After a configurable number of failed requests
the host is considered unreachable. If all configured hosts are unreachable, the interface will be closed for nor-
Step Command Purpose
1node#ping <address> [<num-
ber> ] [timeout <seconds> ]
[packet-size <packet-size> ] [ttl
<ttl> ] [traffic-class <traffic-
class> ]
Sends ICMP ECHO_REQUEST packets to network hosts at IP
address <address>
IP interface configuration task list 129
SmartWare Software Configuration Guide 10 • IP interface configuration
mal traffic and the IP router removes all routes pointing to that interface. Now, traffic previously flowing over
that interface is routed through the interface with IP routes of a higher metric. However the interface contin-
ues to send ICMP echo requests. After a configurable number of ICMP replies the host is reachable again, and
the interface will be opened for normal traffic.
Check connectivity of an IP link
Mode: context ip/interface
Show IP link status
The following command shows the status of connectivity.
Mode: enable
Debug connectivity
The following command enables logging of connectivity events.
Mode: enable
Debug ARP
You may use the debug arp and show arp commands to assist you in debugging IP connectivity and its cor-
responding interfaces.
Step Command Purpose
1 [name] (if-ip) [interface]#[no] check-con-
nectivity ping <ip-address> [source-
address <ip-address>] [tolerance-down
<number>] [tolerance-up <number>]
[interval <seconds>] [timeout <sec-
onds>]
Configures or removes a host to ping. Source-
address specifies the IP source address for the
ICMP packets. Tolerance-down specifies the
number of pings allowed to fail (Default 3).
Tolerance-up specifies the number of success-
ful pings required to activate link (Default 1).
Interval specifies the interval in which the
pings are sent (Default 10). Timeout specifies
the time in seconds to wait for an answer
(Default 3).
Step Command Purpose
1 [name]#show ip connectivity [<inter-
face>]
Shows the status of connectivity.
Step Command Purpose
1 [name]#debug connectivity Enables logging of connectivity events and
state changes.
IP interface configuration task list 130
SmartWare Software Configuration Guide 10 • IP interface configuration
Mode: Either operator or administrator execution
Traceroute
This procedure describes how to print the route (list of hops) packets take to the network host.
Example: Debug ARP output
node(cfg)#debug arp
node(cfg)#ping 10.9.10.11
Sending 5, 56 bytes, ICMP echo requests to 10.9.10.11:
17:25:40 ARP > Entry 10.9.10.11: Sending first request
17:25:40 ARP > Tx ARP Request: Who has 10.9.10.11 tell 10.9.10.1 at
00:A0:BA:00:92:4F
17:25:40 ARP > Rx ARP Reply: 10.9.10.11 is at 00:50:04:74:94:6C tell 10.9.10.1 at
00:A0:BA:00:92:4F
17:25:40 ARP > Entry 10.9.10.11: Updated by 00:50:04:74:94:6C
56 bytes from 10.9.10.11: Time 10ms
17:25:40 ARP > Rx ARP Request: Who has 10.9.10.1 tell 10.9.10.3 at
00:09:5B:53:D2:B0
17:25:40 ARP > Entry 10.9.10.3: Updated by 00:09:5B:53:D2:B0
17:25:40 ARP > Tx ARP Reply: 10.9.10.1 is at 00:A0:BA:00:92:4F tell 10.9.10.3 at
00:09:5B:53:D2:B0
% Aborted
Ping statistics for 10.9.10.11:
Packets: Sent 1, Received 1, Lost 0 (0% loss),
RTT: Minimum 10ms, Maximum 10ms, Average 10ms
Step Command Purpose
1node(cfg)# [no] debug arp Enables or disables the ARP debug monitor.
2node(cfg)# show arp Summarizes the ARP information for each of the Ethernet ports.
Step Command Purpose
1node#traceroute <ip_host>
[probe-count
<probe_count> ] [timeout
<seconds> ] [destination-
port <port_number> ] [min-
ttl <min_ttl> ] [max-ttl
<max_ttl> ] [verbose ]
[packet-size <packet-size> ]
[mtu ] [traffic-class <traffic-
class> ]
Prints the route that the packets take to the network host.
Optionally, a traffic-class can be specified in the ‘traceroute’ com-
mand. ‘traceroute’ follows the route of the specified traffic-class.
Default: local-default
Configuring the IGMP Proxy 131
SmartWare Software Configuration Guide 10 • IP interface configuration
Example: Display the ARP information.
node(cfg)#show arp
IP Interface eth0:
-----------------------------------------------------------------------------
Remote IP Remote MAC State TTL TxReq RxRep Usage
-----------------------------------------------------------------------------
69.138.216.1 00:01:5C:22:46:C2 reachable 342s 2 2 12
-----------------------------------------------------------------------------
IP Interface eth1:
-----------------------------------------------------------------------------
Remote IP Remote MAC State TTL TxReq RxRep Usage
-----------------------------------------------------------------------------
10.9.10.20 00:11:1A:4C:B1:1C reachable 408s 1454 1451 67939
10.9.10.12 00:02:2D:BB:13:FB reachable 326s 533 571 16819
10.9.10.2 00:09:5B:6F:93:06 reachable 518s 0 515 1054
10.9.10.166 00:09:5B:41:30:33 stale 556s 2 9 2277
10.9.10.10 00:80:AD:78:BB:DD reachable 394s 0 2 1982
10.9.10.11 00:50:04:74:94:6C reachable 433s 1 1 2
10.9.10.3 00:09:5B:53:D2:B0 reachable 521s 0 2 18
-----------------------------------------------------------------------------
Configuring the IGMP Proxy
To enable the IGMP proxy functionality, you need to define which interface shall be used to receive multicast
streams (upstream interface) and to which interfaces the multicast streams shall be forwarded (downstream
interfaces). The router then listens on the downstream interfaces for IGMP join messages and forwards them
to the upstream interface.
Mode: Context IP
Step Command Purpose
1node(ctx-ip)[ctx-name]#
interface <if-name>
Go to the IP interface, which shall act as the IGMP proxy
upstream interface
2 node(if-ip)[if-name]# igmp
interface-type proxy-
upstream
Define the interface as the IGMP proxy upstream interface
3node(ctx-ip)[ctx-name]#
interface <if-name>
Go to an IP interface, which shall act as an IGMP proxy down-
stream interface
4node(if-ip)[if-name]# igmp
interface-type proxy-
downstream
Define the interface as an IGMP proxy downstream interface
5Repeat steps 3 & 4 for any additional interface, which shall act
as an IGMP proxy downstream interface.
132
Chapter 11 NAT/NAPT configuration
Chapter contents
Introduction........................................................................................................................................................133
Dynamic NAPT ...........................................................................................................................................133
Static NAPT .................................................................................................................................................134
Dynamic NAT ..............................................................................................................................................134
Static NAT ...................................................................................................................................................135
NAPT traversal .............................................................................................................................................135
NAT/NAPT configuration task list .....................................................................................................................136
Creating a NAPT profile ...............................................................................................................................136
Configuring a NAPT DMZ host .............................................................................................................137
Defining NAPT port ranges ....................................................................................................................137
Preserving TCP/UDP port numbers in NAPT ........................................................................................138
Defining the UDP NAPT type ...............................................................................................................138
Activate NAT/NAPT ....................................................................................................................................139
Displaying NAT/NAPT configuration information ......................................................................................139
Configuring NAT static protocol entries .......................................................................................................140
Introduction 133
SmartWare Software Configuration Guide 11 • NAT/NAPT configuration
Introduction
This chapter provides a general overview of Network Address (Port) Translation and describes the tasks
involved in its configuration.
For further information about the functionality of Network Address Translation (NAT) and Network Address
Port Translation (NAPT), consult the RFCs 1631 and 3022. This chapter applies the terminology defined in
RFC 2663.
SmartWare provides four types of NAT/NAPT:
•Dynamic NAPT (Cisco terminology: NAT Overload)
•Static NAPT (Cisco terminology: Port Static NAT)
•Dynamic NAT
•Static NAT
You can combine these types of NAT/NAPT without any restriction. One type of profile, the ‘NAPT Profile’,
holds the configuration information for all four types where configuration is required. The remainder of this
Section shortly explains the behavior of the different NAT/NAPT types.
Dynamic NAPT
Dynamic NAPT is the default behavior of the NAT/NAPT component. It allows hosts on the local network to
access any host on the global network by using the global interface address as source address. It modifies not
only the source address, but also the source port, so that it can tell different connections apart (NAPT source
ports are in the range 8,000 to 16,000). UDP and TCP connections from the local to the global network trig-
ger the creation of a dynamic NAPT entry for the reverse path. If a connection is idle for some time (UDP: 2
minutes, TCP: 12 hours) or gets closed (only TCP), the dynamic NAPT entry is removed.
An enhancement of the Dynamic NAPT allows to define subsets of hosts on the local network that shall use
different global addresses. Up to 20 subsets with their respective global addresses are possible. Such a global
NAPT address can be any IP address as long as the global network routes the traffic to the global interface of
the NAT/NAPT component.
Figure 17 illustrates the basic and enhanced behavior of the Dynamic NAPT. The big arrows indicate the
direction of the connection establishment. Although only a local host can establish a connection, traffic always
flows in both directions.
Introduction 134
SmartWare Software Configuration Guide 11 • NAT/NAPT configuration
Figure 17. Dynamic NAPT
Static NAPT
Dynamic NAPT does not permit hosts on the global network to access hosts on the local network. Static
NAPT makes selected services (i.e. ports) of local hosts globally accessible. Static NAPT entries map global
addresses/ports to local addresses/ports. The global address can either be the address of the global interface or a
configured global NAPT address. Usually, the local and the global port of a static NAPT entry are the same;
however, they may be different.
Figure 18. Static NAPT
Note Be careful when mapping ports the SmartNode uses itself (e.g. Telnet,
TFTP) because the SmartNode might become inaccessible.
Dynamic NAT
NAT only modifies addresses but not ports. Dynamic NAT assigns a global address from a global NAT address
pool each time a local host wants to access the global network. It creates a dynamic NAT entry for the reverse
path. If a connection is idle for some time (2 minutes), the dynamic NAT entry is removed. Should Dynamic
NAT run out of global addresses, it lets Dynamic NAPT handle the connection (which may lead to an unex-
pected behavior).
Global Network
131.1.1.1 (Global Interface Address)
131.1.1.10 - 131.1.1.15 (Global NAT Address Pool)
192.168.1.30 - 192.168.1.39131.1.1.10 - 131.1.1.15
WAN
Source Address modified
Destination Address modified
Local Network
LAN
(Local Interface Address) 192.168.1.1
131.1.1.1 (Global Interface Address)
131.1.1.3 (Global NAPT Address)
192.168.1.20:80
131.1.1.1:80
131.1.1.3:23
WAN
192.168.1.20:23
Source Address modified
Destination Address modified
LAN
(Local Interface Address) 192.168.1.1
Introduction 135
SmartWare Software Configuration Guide 11 • NAT/NAPT configuration
Dynamic NAT is particularly useful for protocols that do not build on UDP or TCP but directly on IP (e.g.
GRE, ESP). See also section “NAPT traversal” on page 135.
Figure 19. Dynamic NAT
Static NAT
Dynamic NAT does not permit hosts on the global network to access hosts on the local network. Static NAT
makes local hosts globally accessible. Static NAT entries map global addresses to local addresses. The global
address must be a configured global NAT address. It cannot be the address of the global interface since this
would break connectivity to the SmartNode itself.
Static NAT is particularly useful for protocols that do not build on UDP or TCP but directly on IP (e.g. GRE,
ESP). See also section “NAPT traversal” on page 135.
Figure 20. Static NAT
NAPT traversal
Protocols that do not build on UDP or TCP but directly on IP (e.g. GRE, ESP), and protocols that open addi-
tional connections unknown to the NAT/NAPT component (e.g. FTP, H.323, SIP), do not easily traverse
a NAPT.
The SmartWare NAPT can handle one GRE (Generic Routing Encapsulation) connection and one ESP
(Encapsulating Security Payload) connection at a time. It also routes ICMP messages back to the source of the
concerned connection or to the source of an ICMP Ping message.
To enable NAPT traversal of protocols that open additional connections, the NAPT component must analyze
these protocols at the Application Level in order to understand which NAPT entries for additional connections
131.1.1.1 (Global Interface Address)
131.1.1.20 (Global NAT Address)
WAN
192.168.1.40
131.1.1.20
Source Address modified
Destination Address modified
LAN
(Local Interface Address) 192.168.1.1
131.1.1.1 (Global Interface Address)
131.1.1.20 (Global NAT Address)
WAN
192.168.1.40
131.1.1.20
Source Address modified
Destination Address modified
LAN
(Local Interface Address) 192.168.1.1
NAT/NAPT configuration task list 136
SmartWare Software Configuration Guide 11 • NAT/NAPT configuration
it should create and which IP addresses/ports it must modify (e.g. for voice connections in addition to signal-
ing connections). It performs this task for the protocol FTP. Other protocols such as H.323 and SIP cannot
traverse the SmartWare NAPT.
NAT/NAPT configuration task list
To configure the NAT/NAPT component, perform the tasks in the following sections:
•Creating a NAPT profile (see page 136)
•Activating NAT/NAPT (see page 136)
•Displaying NAT/NAPT configuration information (see page 139)
Creating a NAPT profile
A NAPT profile defines the behavior of the NAT/NAPT component, comprising all four types of NAT/NAPT
(this profile is called ‘NAPT profile’ and not ‘NAT/NAPT profile for historical reasons). Several NAPT profiles
are admissible but there is only one NAT/NAPT component.
Procedure: To create a NAPT profile and to configure the required types of NAT/NAPT
Mode: Configure
Step Command Purpose
1node(cfg)#profile napt name Creates the NAPT profile name and activates the
basic behavior of the Dynamic NAPT
2
(optional)
node(pf-napt)[name]#range local-
ip-range-start local-ip-range-stop
global-ip
Configures and activates the enhanced behavior of
the Dynamic NAPT: local-ip-range-start and local-ip-
range-stop define the subset of local hosts that use
the global NAT address global-ip to access to global
network.
(max. 20 entries)
The IP ranges of different Dynamic NAPT entries must
not overlap each other.
3
(optional)
node(pf-napt)[name]#static
{ udp | tcp } local-ip local-port
[global-ip] [global-port]
Creates a Static NAPT entry: local-ip/local-port is
mapped to global-ip/global-port. If global-port is
omitted, local-port is used on both sides. If global-ip
is omitted, the global address is the address of the
global interface.
(max. 20 UDP and 20 TCP entries)
4
(optional)
node(pf-napt)[name]#range local-
ip-range-start local-ip-range-stop
global-ip-start global-ip-stop
Configures and activates the Dynamic NAT: local-ip-
range-start and local-ip-range-stop define the subset
of local hosts that use an address from the global
NAT address pool to access to global network. glo-
bal-ip-start and global-ip -stop define the global NAT
address pool.
(max. 20 entries)
The IP ranges of different Dynamic NAT entries must
not overlap each other.
NAT/NAPT configuration task list 137
SmartWare Software Configuration Guide 11 • NAT/NAPT configuration
Use no in front of the above commands to delete a specific entry or the whole profile.
Note The command icmp default is obsolete.
Example: Creating a NAPT Profile
The following example shows how to create a new NAPT profile access that contains all settings necessary to
implement the examples in section “Introduction” on page 133.
node(cfg)#profile napt access
node(pf-napt)[access]#range 192.168.1.10 192.168.1.19 131.1.1.2
node(pf-napt)[access]#static tcp 192.168.1.20 80
node(pf-napt)[access]#static tcp 192.168.1.20 23 131.1.1.3
node(pf-napt)[access]#range 192.168.1.30 192.168.1.39 131.1.1.10 131.1.1.15
node(pf-napt)[access]#static 192.168.1.40 131.1.1.20
node(pf-napt)[access]static ah 192.168.1.41 131.1.1.120
Configuring a NAPT DMZ host
The NAPT allows a DMZ host to be configured, which receives any inbound traffic on the global NAPT
interface, which:
•Is not translated by any static or dynamic NAPT entry and
•Is not handled by the device itself.
The following procedure shows how a DMZ host can be configured.
Mode: profile napt <pf-name>
Defining NAPT port ranges
The TCP/UDP port ranges to be used by the NAPT can be defined using the following procedure. The default
port ranges for both TCP/UDP are 8000 to 15999.
5
(optional)
node(pf-napt)[name]#static local-
ip global-ip
Creates a Static NAT entry: local-ip is mapped to
global-ip.
(max. 20 entries)
6
(optional)
node(pf-napt)[name]#static
{ ah|esp|gre|ipv6 } local_ip
[global_ip].
Creates a static NAT entry: traffic of the IP protocol
AH, ESP, GRE, or IPv6 respectively directed to the
global_ip is forwarded to the local_ip.
Step Command Purpose
1 [name] (pf-napt)[pf-name]# [no]
dmz-host <dmz-host-ip-address>
[<global-ip-address>]
Configures a DMZ host. The global-ip-address must
only be specified, if the DMZ host shall handle the
inbound traffic for a different NAPT global IP address
than the gateways global interface IP address.
Step Command Purpose
NAT/NAPT configuration task list 138
SmartWare Software Configuration Guide 11 • NAT/NAPT configuration
Mode: profile napt <pf-name>
Preserving TCP/UDP port numbers in NAPT
The NAPT can be configured to preserve the TCP/UDP port number of outbound packets sent from local
hosts towards the global NAPT interface. If this option is enabled the NAPT tries not to change these port
numbers. If the port is however already in use, the NAPT will ignore this setting and assign a port number
from the configured TCP/UDP port ranges.
Mode: profile napt <pf-name>
Defining the UDP NAPT type
The NAPT type to be applied for UDP packets is configurable using the following procedure. The NAPT sup-
ports the UDP translation types shown in the following list. The list is ordered by the security of the NAPT
type starting with the highest security type.
•symmetric
•port-restricted-cone
•address-restricted-cone
•full-cone
You find a detailed description of these NAPT types in section 5 of RFC3489. To allow STUN to work
through the NAPT the full-cone setting is usually required. The default setting is symmetric.
Mode: profile napt <pf-name>
Step Command Purpose
1 [name] (pf-napt)[pf-name]# tcp-port-
range <range-start-tcp-port>
<range-end-tcp-port>
Define the TCP port range
2 [name] (pf-napt)[pf-name]# udp-
port-range <range-start-udp-
port> <range-end-udp-port>
Define the UDP port range
Step Command Purpose
1 [name] (pf-napt)[pf-name]# [no]
preserve-tcp-ports
Enable/disable preserving of TCP ports.
2 [name] (pf-napt)[pf-name]# [no]
preserve-udp-ports
Enable/disable preserving of UDP ports.
Step Command Purpose
1 [name] (pf-napt)[pf-name]# udp-handling {symmetric|address-
restricted-cone|port-restricted-cone|full-cone}
Define the UDP
translation type
NAT/NAPT configuration task list 139
SmartWare Software Configuration Guide 11 • NAT/NAPT configuration
Activate NAT/NAPT
To activate a NAT/NAPT component, bind its NAPT profile to an IP interface. This binding identifies the
global interface of the respective NAT/NAPT component. All other IP interfaces are local relative to this NAT/
NAPT.
Note If both a NAPT profile and an ACL profile are bound to the same IP inter-
face, the ACL (Access Control List) acts on the local side of the NAT/
NAPT component.
Procedure: To activate a NAT/NAPT component
Mode: Configure
Example: Configuring NAPT Interface
The following example shows how to activate a NAT/NAPT component with the NAPT profile access on the
IP interface lan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface lan
node(if-ip)[lan]#use profile napt access
Displaying NAT/NAPT configuration information
Two commands are available to display an existing NAPT profile. There is no command yet to display the
dynamic entries of a NAT/NAPT component.
Procedure: To display NAT/NAPT configuration information
Mode: Configure
Step Command Purpose
1node(cfg)#context ip router Selects the IP router context
2node(ctx-ip)[router]#interface
name
The NAPT profile shall be used on the interface name
3node(if-ip)[name]#use profile
napt profile
Defines that the NAPT profile profile shall be used on
the interface name
Step Command Purpose
1node(cfg)#show profile napt Displays the available NAPT profiles
2node(cfg)#show profile napt
name
or
node(cfg)#show napt interface
name
Displays the NAPT profile name
or
Displays the NAPT profile bound to the IP interface
name
NAT/NAPT configuration task list 140
SmartWare Software Configuration Guide 11 • NAT/NAPT configuration
Example: Display NAT/NAPT configuration information
node(pf-napt)[access]#show profile napt access
NAPT profile access:
--------------------------
STATIC NAPT MAPPINGS
Protocol Local IP Local Port Global IP Global Port
-------- --------------- ----------- --------------- -----------
tcp 192.168.1.20 80 0.0.0.0 80
tcp 192.168.1.20 23 131.1.1.3 23
STATIC NAT PROTOCOL MAPPINGS
Protocol Local IP Global IP
-------- --------------- ---------------
ah 192.168.1.41 131.1.1.120
STATIC NAT MAPPINGS
Local IP Global IP
--------------- ---------------
192.168.1.40 131.1.1.20
STATIC NAPT RANGE MAPPINGS
Local IP Start Local IP Stop Global IP
--------------- --------------- ---------------
192.168.1.10 192.168.1.19 131.1.1.15
STATIC NAT RANGE MAPPINGS
Local IP Start Local IP Stop Global IP Start Global IP Stop
--------------- --------------- --------------- ---------------
192.168.1.30 192.168.1.39 131.1.1.10 131.1.1.15
Configuring NAT static protocol entries
The following command adds a static NAT entry, which causes any packets of the specified protocol received
on the global side of the NAT to be forwarded to the host specified on the local side of the NAT.
node(pf-napt)[ name]#static { udp | tcp } local-ip local-port [ global-ip] [ global-port]
Mode: profile napt <pf-napt>
Step Command Purpose
1 [name](pf-napt)# static <protocol>
<local-ip-address> [<global-ip-
address>]
Adds a static NAT protocol entry
141
Chapter 12 Ethernet port configuration
Chapter contents
Introduction........................................................................................................................................................142
Ethernet port configuration task list ....................................................................................................................142
Entering the Ethernet port configuration mode ............................................................................................142
Configuring medium for an Ethernet port ....................................................................................................142
Configuring Ethernet encapsulation type for an Ethernet port ......................................................................143
Binding an Ethernet port to an IP interface ..................................................................................................143
Multiple IP addresses on Ethernet ports ........................................................................................................144
Configuring a VLAN ....................................................................................................................................145
Configuring layer 2 CoS to service-class mapping for an Ethernet port .........................................................146
Adding a receive mapping table entry ......................................................................................................147
Adding a transmit mapping table entry ...................................................................................................148
Closing an Ethernet port ...............................................................................................................................148
Using the built-in Ethernet sniffer .......................................................................................................................149
Introduction 142
SmartWare Software Configuration Guide 12 • Ethernet port configuration
Introduction
This chapter provides an overview of Ethernet ports and describes the tasks involved in configuring Ethernet
ports through the SmartWare.
Ethernet port configuration task list
To configure Ethernet ports, perform the tasks described in the following sections. Most of the task are required to
have an operable Ethernet port, some of the tasks are optional, but might be required for your application.
•Entering the Ethernet port configuration mode (see page 142)
•Configuring medium for an Ethernet port (see page 142)
•Configuring Ethernet encapsulation type for an Ethernet port (see page 143)
•Binding an Ethernet port to an IP interface (see page 143)
•Configuring multiple IP addresses on the Ethernet ports (see page 144)
•Configuring a VLAN (see page 145)
•Configuring layer 2 CoS to service-class mapping for an Ethernet port (advanced) (see page 146)
•Closing an Ethernet port (see page 148)
Entering the Ethernet port configuration mode
To enter port configuration mode and begin configuring an Ethernet port, enter the command port ethernet
slot port in administrator execution mode. The keywords slot and port represent the number of the respective
physical entity.
Configuring medium for an Ethernet port
All Ethernet ports are configured by default to auto-sense both the port speed and the duplex mode. This is the
recommended configuration. Command options are (if supported by the platform):
•10—for 10 Mbps
•100—for 100 Mbps
•1000—for Gigabit Ethernet
•auto—for auto-sense the port speed
•half—for half-duplex
•full—for full-duplex
This procedure describes how to configure the medium for the Ethernet port on slot and port
Mode: Configure
Step Command Purpose
1node(cfg)#port ethernet slot port Enters Ethernet port configuration mode for the
interface on slot and port.
2node(prt-eth)[slot/port]#medium (10 |
100 | 1000 | auto} (half | full)
Configures the interface on slot and port to
medium according to the selected option.
Ethernet port configuration task list 143
SmartWare Software Configuration Guide 12 • Ethernet port configuration
Example: Configuring medium for an Ethernet port
The following example shows how to configure medium auto-sense for the Ethernet port on slot 0 and port 0
of a SmartNode 4524 device.
node(cfg)#port ethernet 0 0
node(prt-eth)[0/0]#medium auto
Configuring Ethernet encapsulation type for an Ethernet port
This procedure describes how to configure the encapsulation type to IP for the Ethernet port on slot and port.
Mode: Configure
Example: Configuring Ethernet encapsulation type for an Ethernet port
The following example shows how to configure the encapsulation type to IP for the Ethernet port on slot 0 and
port 0.
node(cfg)#port ethernet 0 0
node(prt-eth)[0/0]#encapsulation ip
Binding an Ethernet port to an IP interface
You must bind the Ethernet port to an existing IP interface. When executing the bind command, the
requested interface must exist. If no IP context is given, the system attaches the interface to the default IP con-
text known as router.
Step Command Purpose
1node(cfg)#port ethernet slot port Enters Ethernet port configuration mode for the
interface on slot and port.
2node(prt-eth)[slot/port]#encapsulation ip Configures the encapsulation type to IP.
Ethernet port configuration task list 144
SmartWare Software Configuration Guide 12 • Ethernet port configuration
Figure 21 shows the logical binding of the Ethernet port at slot 0 on port 0 to the IP interface lan which is
defined in the IP context router.
Figure 21. Binding of an Ethernet port to an IP interface
This procedure describes how to bind the Ethernet port to an already existing IP interface
Mode: Configure
Example: Binding an Ethernet port to an IP interface
The following example shows how to bind the Ethernet port on slot 0 and port 0 to an already existing IP
interface lan.
node(cfg)#port ethernet 0 0
node(prt-eth)[0/0]#bind interface lan router
Multiple IP addresses on Ethernet ports
It is possible to use multiple IP addresses on an Ethernet port by binding the port to multiple IP interfaces.
Each of the IP interfaces uses an IP address of one of the subnets on the Ethernet ports.
The procedures below demonstrate how IP addresses of two different networks can be used on an Ethernet
port. However, if necessary any number of IP interfaces can be bound to an Ethernet port.
Step Command Purpose
1node(cfg)#port ethernet slot port Enters Ethernet port configuration
mode for the interface on slot and
port
2node(prt-eth)[slot/port]#bind interface name router Binds the Ethernet port to the already
existing IP interface if-name
Context
IP
“router”
Port
Ethernet
0 0
Port
Ethernet
0 1
interface lan
bind command
interface wan
bind command
Ethernet port configuration task list 145
SmartWare Software Configuration Guide 12 • Ethernet port configuration
Mode: Configure
Configuring a VLAN
By default no VLAN ports are configured on an Ethernet port. One or more VLAN ports can be created on
each Ethernet port.
You must bind the VLAN port to an existing IP interface. When executing the bind command, the requested
interface must exist.
For incoming VLAN packets each of the 8 possible layer 2 class of services (CoS) can be mapped to a traffic
class. Unless otherwise specified all CoS values map to the default traffic class.
By default all VLAN ports are initially disabled. They can be enabled with the no shutdown command. The
corresponding Ethernet port must also be enabled for the VLAN port to work. If the Ethernet port is disabled,
all associated VLAN ports are also disabled.
When a VLAN port is closed, the IP interface that is bound to this port is also closed. All static routing entries
that are using this interface change their state to invalid and all dynamic routing entries will be removed from
the route table manager.
Step Command Purpose
1 [name] (cfg)# context ip Enter the IP context configuration
mode.
2 [name] (ctx-ip)[router]# interface <ip-if-1-name> Create the first IP interface.
3 [name] (if-ip)[ <ip-if-1-name>]# ipaddress <ip-
address-1> <subnet-mask-1>
Set the IP address for the first IP inter-
face
4 [name] (if-ip)[ <ip-if-1-name>]# interface <ip-if-2-name> Create the second IP interface.
5 [name] (if-ip)[ <ip-if-2-name>]# ipaddress <ip-address-2>
<subnet-mask-2>
Set the IP address for the second IP
interface
6 [name] (if-ip)[ <ip-if-2-name>]# port ethernet <slot>
<port>
Enter Ethernet port configuration
mode
7 [name] (prt-eth)[<slot>/<port>]# encapsulation ip Set the encapsulation to IP
8 [name] (prt-eth)[<slot>/<port>]# bind interface <ip-if-
1-name>
Bind the port to the first IP interface
9 [name] (prt-eth)[<slot>/<port>]# bind interface <ip-if-
2-name>
Bind the port to the second IP inter-
face
10 [name] (prt-eth)[<slot>/<port>]# no shutdown Enable the Ethernet port
Ethernet port configuration task list 146
SmartWare Software Configuration Guide 12 • Ethernet port configuration
Mode: Configure
Configuring layer 2 CoS to service-class mapping for an Ethernet port
To enable to transport real-time and delay sensitive services such as VoIP traffic across the network, the firm-
ware application software supports the delivery of Quality of Service (QoS) information in the ToS (Type of
Service) field. This is an eight-bit field, the second field in the IP header packet. To define the Class of Service
(CoS) to service class mapping, the cos command is used, with one of the following arguments:
•default—Default service class when no Layer 2 CoS present
•rx-map—Receive mapping table - Layer 2 CoS to service class mapping
•tx-map—Transmit mapping table - Service class to Layer 2 CoS mapping
This procedure describes how to change layer 2 CoS to service class mapping.
Step Command Purpose
1node(config)#port ethernet slot port Enter Ethernet port configura-
tion.
2node(prt-eth)[slot/port]#vlan id Create new VLAN port.
3node(vlan)[id]#encapsulation {ip|pppoe|multi} Defines the payload type(s) to
be used on this VLAN:
•ip: IP traffic only (not used
for PPP)
•pppoe: PPPoE sessions only
•multi: both IP traffic and
PPPoE sessions
For more information on the
PPP/PPPoE configuration see
chapter 30, “PPP configuration”
on page 313.
4node(vlan)[id]#bind interface name [router] Bind the VLAN port to the exist-
ing interface name. If no IP con-
text is given, the system attaches
the interface to the default IP
context known as router.
5node(vlan)[id]#map cos layer-2-CoS-value to traffic-class-name Selects the layer 2 CoS (Class of
Service) to traffic class map-
ping. The traffic class must
already exist.
6node(vlan)[id]#no shutdown Activate the VLAN port.
7node(vlan)[id]#exit node(prt-eth)[slot/port]# no shutdown Make sure the hosting Ethernet
port is also activated.
Ethernet port configuration task list 147
SmartWare Software Configuration Guide 12 • Ethernet port configuration
Mode: Configure
If the frame format is set to standard, the cos default command value defines which class of service to use for
the data traffic.
The cos rx-map and cos tx-map commands above need service class mapping table entries, which has to be
entered as additional command argument. The command syntax is:
•cos rx-map—layer 2 class of service value as service class value
•cos tx-map—service class value as layer 2 class of service value
Do the following to configure the class of service map:
1. Configure the class of service map table for the outgoing data traffic. Every provided service can be
mapped to a Class of Service.
2. Configure the class of service map table for the incoming data traffic. Every received Class of Service can be
assigned to a service type.
Adding a receive mapping table entry
The receive mapping table defines the conversion of receiving Layer 2 CoS to service class value into a firm-
ware-specific service class value. Each conversion is stored as a mapping table entry, so the receive mapping
table consists of several mapping table entries.
This procedure describes how to add a receive mapping table entry.
Mode: Configure
Example: Adding a receive mapping table entry
The following example shows how to add a receive mapping table entry, which converts a layer 2 class of ser-
vice value of 2 into a service class value of 4 for the Ethernet port on slot 0 and port 0 of a SmartNode.
node(cfg)#port ethernet 0 0
node(prt-eth)[0/0]#cos rx-map 2 as 4
Step Command Purpose
1node(cfg)#port ethernet slot port Enters Ethernet port configura-
tion mode for the interface on
slot and port
2node(prt-eth)[slot/port]#map cos layer 2 class of service value
to traffic class name
Selects the layer 2 CoS to traffic-
class mapping. The traffic class
name can be freely chosen.
Step Command Purpose
1node(cfg)#port ethernet slot port Enters Ethernet port configuration mode for the
interface on slot and port.
2node(prt-eth)[slot/port]#cos rx-map layer
2 class of service value as service class value
Adds a receive mapping table entry, which con-
verts a layer 2 class of service into a service class
value.
Ethernet port configuration task list 148
SmartWare Software Configuration Guide 12 • Ethernet port configuration
Adding a transmit mapping table entry
The transmit mapping table defines the conversion of transmitting firmware-specific service class value into a
Layer 2 CoS to service class value. Each conversion is stored as a mapping table entry, so the transmitting map-
ping table consists of several mapping table entries.
This procedure describes how to add a transmit mapping table entry.
Mode: Configure
Example: Adding a transmit mapping table entry
The following example shows how to add a transmit mapping table entry, which converts a service class value
of 4 into a layer 2 class of service value of 2 for the Ethernet port on slot 0 and port 0.
node(cfg)#port ethernet 0 0
node(prt-eth)[0/0]#cos tx-map 4 as 2
Closing an Ethernet port
An Ethernet port can be closed with the shutdown command. This command also disables and closes the IP
interface that is bound to that port. All static routing entries that are using this interface change their state to
‘invalid’ and all dynamic routing entries will be removed from the route table manager.
This command can be used as soon as an encapsulation type is defined and the port was bound successful to an
IP interface.
This procedure describes how to disable the Ethernet port on slot and port.
Mode: Configure
The no prefix causes to open the port with the interface to which it is bound.
Step Command Purpose
1node(cfg)#port ethernet slot port Enters Ethernet
port configura-
tion mode for
the interface on
slot and port.
2node(prt-eth)[slot/port]#cos tx-map service class value as layer 2 class of
service value
Adds a transmit
mapping table
entry, which
converts a ser-
vice class value
into a layer 2
class of service.
Step Command Purpose
1node(cfg)#port ethernet slot port Enters Ethernet port configuration mode for the interface on
slot and port
2node(prt-eth)[slot/port]#shutdown Disables Ethernet port on slot and port
Using the built-in Ethernet sniffer 149
SmartWare Software Configuration Guide 12 • Ethernet port configuration
Example: Disabling an Ethernet port
The following example shows how to disable the Ethernet port on slot 0 and port 0.
node(cfg)#port ethernet 0 0
node(prt-eth)[0/0]#shutdown
Checking the state of the Ethernet port on slot 0 and port 0 shows that the interface was closed.
node(prt-eth)[0/1]#show port ethernet 0 1
Ethernet Configuration
-------------------------------------
Port : ethernet 0 0 1
State : CLOSED
MAC Address : 00:30:2B:00:1D:D4
Speed : 10Mbps
Duplex : Half
Encapsulation : ip
Binding : wan@router
Frame Format : standard
Default Service: 0
Moreover the IP interface, which is bound to the Ethernet port on slot 0 and port 0 gets also closed. Checking
the state of the IP interface wan indicates this with the CLOSED for parameter state.
node(prt-eth)[0/1]#show ip interface
…
------------------------------------------------------------
Context: router
Name: wan
IP Address: 172.17.100.210 255.255.255.0
MTU: 1500
ICMP router-discovery: enabled
ICMP redirect: send only
State: CLOSED
Binding: ethernet 0 0 1/ethernet/ip
…
Using the built-in Ethernet sniffer
The software contains a built-in sniffer, which can be used to capture data packets on Ethernet ports. The
sniffer saves the captured data to a file in the systems flash file system. The file can later be uploaded via TFTP
for viewing. The files can be viewed with many sniffer applications, for example, Ethereal. The capture buffer
can hold a maximum of 1000 packets or 100kByte of data.
The sniffer is controlled via the following CLI command:
Command Purpose
[name] (cfg)# [no] sniff ethernet
<slot> <port> [wrap]
Enable/disable the sniffer
Using the built-in Ethernet sniffer 150
SmartWare Software Configuration Guide 12 • Ethernet port configuration
The following is an example of how the sniffer is normally used:
Note It is possible to capture packets on multiple Ethernet ports at the same time.
Step Command Purpose
1 [name] (cfg)# sniff ethernet
0 1 [wrap]
Enable the sniffer on ethernet port 0 1. (Normally the sniffer stops
capturing, if the capture buffer is full. However, if the ‘wrap’ option is
specified, the sniffer starts discarding the oldest packets and retains
the newest ones, if the capture buffer is full.)
2Now the sniffer is active and will capture the datapackets on the
specified ethernet port.
3 [name] (cfg)# no sniff ether-
net 0 1]
Disable the sniffer on ethernet port 0 1. (Note, that the captured
data is not stored to flash memory unless you issue this command)
The file in the flash memory will be named as follows:
nvram:ethernet-0-<slot>-<port>.cap
In this example the name will be:
nvram:ethernet-0-0-1.cap
4 [name] (cfg)# copy
nvram:ethernet-0-0-1.cap
tftp://tftp.mypc.net/
capture.cap
Copy the capture file via TFTP to a workstation.
5 [name] (cfg)# erase
nvram:ethernet-0-0-1.cap
Erase the capture file on the system to save flash memory.
6Now the capture file capture.cap can be viewed on a workstation
with Ethereal for example.
151
Chapter 13 Link scheduler configuration
Chapter contents
Introduction........................................................................................................................................................152
Applying scheduling at the bottleneck ...........................................................................................................152
Using traffic classes .......................................................................................................................................152
Introduction to Scheduling ...........................................................................................................................153
Priority ....................................................................................................................................................153
Weighted fair queuing (WFQ) ................................................................................................................153
Shaping ...................................................................................................................................................153
Burst tolerant shaping or wfq ..................................................................................................................154
Hierarchy ................................................................................................................................................154
Quick references..................................................................................................................................................155
Setting the modem rate .................................................................................................................................155
Command cross reference .............................................................................................................................156
Link scheduler configuration task list...................................................................................................................156
Defining the access control list profile ...........................................................................................................157
Packet classification .................................................................................................................................157
Creating an access control list ..................................................................................................................158
Creating a service policy profile .....................................................................................................................159
Specifying the handling of traffic-classes ........................................................................................................161
Defining fair queuing weight ...................................................................................................................161
Defining the bit-rate ...............................................................................................................................162
Defining absolute priority .......................................................................................................................162
Defining the maximum queue length ......................................................................................................162
Specifying the type-of-service (TOS) field ...............................................................................................162
Specifying the precedence field ................................................................................................................163
Specifying differentiated services codepoint (DSCP) marking .................................................................163
Specifying layer 2 marking ......................................................................................................................164
Defining random early detection .............................................................................................................165
Discarding Excess Load ...........................................................................................................................165
Quality of Service for routed RTP streams ....................................................................................................165
Devoting the service policy profile to an interface .........................................................................................167
Displaying link arbitration status ..................................................................................................................168
Displaying link scheduling profile information .............................................................................................168
Enable statistics gathering .............................................................................................................................168
Introduction 152
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Introduction
This chapter describes how to use and configure the Quality of Service (QoS) features. Refer to chapter 24,
“Access control list configuration” on page 253 more information on the use of access control lists.
This chapter includes the following sections:
•Quick references (see page 155)
•Packet Classification (see page 157)
•Assigning bandwidth to traffic classes (see page 155)
•Link scheduler configuration task list (see page 156)
QoS in networking refers to the capability of the network to provide a better service to selected network traffic.
In the context of VoIP, the primary issue is to control the coexistence of voice and data packets such that voice
packets are delayed as little as possible. This chapter shows you how to configure SmartWare to best use the
access link.
In many applications you can gain a lot by applying the minimal configuration found in the quick reference
section, but read sections “Applying scheduling at the bottleneck” and “Using traffic classes” first to understand
the paradox of why we apply a rate-limit to reduce delay and what a “traffic-class” means.
Applying scheduling at the bottleneck
When a SmartNode acts as an access router and voice gateway, sending voice and data packets to the Internet,
the access link is the point where intelligent use of scarce resources really makes a difference. Frequently, the
access link modem is outside of the SmartNode and the queueing would happen in the modem, which does
distinguish between voice and data packets. To improve QoS, you can configure the SmartNode to send no
more data to the Internet than the modem can carry. This keeps the modem’s queue empty and gives the
SmartNode control over which packet is sent over the access link at what time.
Using traffic classes
The link scheduler needs to distinguish between different types of packets. We refer to those types as “traffic-
classes”. You can think of the traffic-class as if every packet in the SmartNode has a tag attached to it on which
the classification can be noted. The access control list “stage” (ACL) can be used to apply such a traffic-class
name to some type of packet based on its IP-header filtering capabilities. The traffic-class tags exist only inside
the SmartNode, but layer 2 priority bits (802.1pq class-of-service) and IP header type-of-service bits (TOS
field) can be used to mark a specific packet type for the other network nodes. By default the traffic-class tag is
empty. Only two types of packets are automatically marked by the SmartWare: voice packets and data packets
origination from or destined to the SmartNode itself are marked as “local-voice” and “local-default” respec-
tively. Please refer to figure 22 on page 153 when using the ACL to classify traffic. It illustrates the sequence of
processing stages every routed packet passes. Only stages that have been installed in the data path with a “use
profile...” statement in the corresponding interface configuration are present. Both an input direction ACL on
the receiving interface as well as an output ACL on the transmitting interface can be used to classify a packet
for special handling by the output link scheduler on the transmit interface. But as visible from the figure no
ACL can be used for an input link scheduler.
Introduction 153
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Figure 22. Packet routing in SmartWare
The QoS features in SmartWare are a combination of an access control list (used for packet classification) and
a service-policy profile (used by the link arbiter to define the arbitration mode and the order in which packets
of different classes are served).
Introduction to Scheduling
Scheduling essentially means to determine the order in which packets of the different traffic-classes are served.
The following sections describe the ways this arbitration can be done.
Priority
One way of ordering packets is to give priority to one traffic-class and to serve the other traffic-classes when the
first has nothing to send. SmartWare uses the priority scheme to make sure that voice packets generated by the
SmartNode will experience as little delay as possible. Voice packets can receive this treatment because they will
not use up the entire bandwidth.
Weighted fair queuing (WFQ)
This arbitration method assures a given minimal bandwidth for each source. An example: you specify that traf-
fic-class A gets three times the bandwidth of traffic-class B. So A will get a minimum of 75% and B will get a
minimum of 25% of the bandwidth. But if no class A packets are waiting B will get 100% of the bandwidth.
Each traffic-class is in fact assigned a relative weight, which is used to share the bandwidth among the currently
active classes. Patton recommends that you specify the weight as percent which is best readable.
Shaping
There is another commonly used way to assign bandwidth. It is called shaping and it makes sure that each traf-
fic-class will get just as much bandwidth as configured and not more. This is useful if you have subscribed to a
Link Scheduler
Network address
translation (NAT)
Voice mux/
demux
Access control
list (ACL)
IPSec encryption/
decryption
Local applications (CLI, Web Server)
To/from network port (Ethernet, PPPoE,
Frame relay, etc.)
Routing
Voice
processing
Sequence of processing stages
passed by a routed packet
Introduction 154
SmartWare Software Configuration Guide 13 • Link scheduler configuration
service that is only available for a limited bandwidth e.g. low delay. When connecting the SmartNode to a Diff-
Serv network shaping might be a required operation.
Burst tolerant shaping or wfq
For weighted fair queuing and shaping there is a variation of the scheduler that allows to specify if a traffic class
may temporarily receive a higher rate as long as the average stays below the limit. This burstiness measure
allows the network to explicitly assign buffers to bursty sources.
When you use shaping on the access link the shaper sometimes has the problem that multiple sources are
scheduled for the same time - and therefore some of them will be served too late. If the rate of every source had
to strictly obey its limit, all following packets would also have to be delayed by the same amount, and further
collisions would reduce the achieved rate even further. To avoid this effect, the SmartWare shaper assumes that
the burstiness needed for sources to catch up after collisions is implicitly allowed. Future versions of SmartWare
might allow setting the burst rate and bursting size if more control over its behavior is considered necessary.
Burst tolerance has a different effect when used with weighted fair queuing. Think of it as a higher initial rate
when a source device starts transmitting data packets. This allows giving a higher weight to short data transfers.
This feature is sometimes referred to as a service curve.
Hierarchy
An arbiter can either use wfq or shaping to determine which source to serve next. If you want the scheduler to
follow a combination of decision criteria you can combine different schedulers in hierarchy to do a multi-level
arbitration.Hierarchical scheduling is supported in SmartWare with service-policy profiles used inside service-
policy profiles.In figure 23 an example of hierarchical scheduling is illustrated. The 1st level arbiter Level_1 uses
weighted fair queuing to share the bandwidth among source classes VPN, Web and incorporates the traffic
from the 2nd level arbiter Low_Priority, which itself uses shaping to share the bandwidth among source classes
Mail and Default.
Quick references 155
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Figure 23. Example of Hierarchical Scheduling
Quick references
The following sections provide a minimal “standard” link scheduler configuration for the case where voice and
data share a (DSL/cable) modem link. You will also find a command cross reference list for administrators
familiar with Cisco’s IOS QoS features and having to become acquainted with SmartWare QoS configuration.
Setting the modem rate
To match the voice and data multiplexing to the capacity of the access link is the most common application of
the SmartWare link scheduler.
1. Create a minimal profile.
profile service-policy modem-512
rate-limit 512 header-length 20 atm-modem
source traffic-class local-voice
priority
2. Apply the profile just created to the interface connected to the modem.
context ip
interface wan
use profile service-policy modem-512 out
Some explanations:
•“modem-512” is the title of the profile which is referred to when installing the scheduler
Low_Priority
Level_1
local voice
VPN
Web
Mail
Default
priority
min. 30%
min. 40%
min. 30%
Define 2nd level
arbiter
Define 1st level
arbiter Use arbiter on
an interface
Mode
WFQ
Mode
Shaper
Link scheduler configuration task list 156
SmartWare Software Configuration Guide 13 • Link scheduler configuration
•“rate-limit 512” allows no more than 512 kbit/sec to pass which avoids queueing in the modem.
•“header-length 20” specifies how many framing bytes are added by the modem to “pack” the IP packet on
the link. The framing is taken into account by the rate limiter.
•“atm-modem” tells the rate limiter that the access link is ATM based. This option includes the ATM over-
head into the rate limit calculation. Please add 8 bytes to the header-length for AAL5 in this case.
•“source traffic-class” enters a sub-mode where the specific handling for a traffic-class is described. The list of
sources in the service-policy profile tells the arbiter which “traffic sources” to serve.
•“local-voice” is the predefined traffic-class for locally terminated voice packet streams.
•“priority” means that packet of the source being described are always passed on immediately, packets of
other classes follow later if the rate limit permits.
Command cross reference
Comparing SmartWare with the Cisco IOS QoS software command syntax often helps administrators to
straightforwardly configure SmartNode devices. In table 4 the Cisco IOS Release 12.2 QoS commands are in
contrast with the respective SmartWare commands.
Link scheduler configuration task list
To configure QoS features, perform the tasks described in the following sections. Depending on your require-
ments some of the tasks are required while other tasks are optional.
•Defining the access control list profile
•Creating a service-policy profile (see page 159)
•Specifying the handling of traffic-classes (see page 161)
•Devoting the service policy profile to an interface (see page 167)
•Displaying link arbitration status (see page 168)
•Displaying link scheduling profile information (see page 168)
Table 4. Command cross reference
Action IOS command SmartWare command
Specifies the name of the policy map or profile
to be created or modified.
policy-map policy-map-
name
profile service-policy
profile-name
Specifies the name of the class map or class to
be created.
class-map class-map-name source traffic-class class-
name
For IOS specifies average or peak bit rate
shaping. For SmartWare assigns the average
bit rate to a source.
shape {average | peak} cir
[bc] [be]
rate bit-rate
For IOS specifies or modifies the bandwidth
allocated for a class belonging to a policy
map. Percent defines the percentage of avail-
able bandwidth to be assigned to the class. For
SmartWare assigns the weight of the selected
source (only used with wfq).
bandwidth {bandwidth-
kbps | percent percent}
share percent-of-bandwidth
Link scheduler configuration task list 157
SmartWare Software Configuration Guide 13 • Link scheduler configuration
•Enable statistics gathering (see page 168)
Figure 24. Elements of link scheduler configuration
Defining the access control list profile
Packet classification
The basis for providing any QoS lies in the ability of a network device to identify and group specific packets.
This identification process is called packet classification. In SmartWare access control lists are used for packet
classification.
An access control list in SmartWare consists of a series of packet descriptions like “addressed to xyz”. Those
descriptions are called rules. For each packet the list of descriptions is sequentially checked and the first rule
that matches decides what happens to the packet. As far as filtering is concerned the rule decides if the packet is
discarded (“deny”) or passed on (“permit”). You can also add a traffic-class to the rule and if this rule is the first
matching rule for a packet it is tagged with the traffic-class name.
Some types of packets you do not have to tag with ACL. Voice and data packets from of for the SmartNode
itself are automatically tagged with predefined traffic-class names: Predefined internal classes for voice and
other data are:
•local-voice—VoIP packets that originate from the SmartNode itself.
Packet
Classification
ACL
Profile
Link Arbiter
Different Types (Classes) of Traffic
Predefined
Classes
IP Interface “wan”
Service
Policy
Profile
The service-policy profile
defines the arbitration
mode and order in which
packets of different
classes are served.
This interface is used as
access link and normally
represents the bottleneck
of the system.
Link scheduler configuration task list 158
SmartWare Software Configuration Guide 13 • Link scheduler configuration
•local-default—All other packets that originate from the SmartNode itself.
•default—All traffic that has not otherwise been labeled.
Creating an access control list
The procedure to create an access control list is described in detail in chapter 24, “Access control list configura-
tion” on page 253.
At this point a simple example is given, that shows the necessary steps to tag any outbound traffic from a Web
server. The scenario is depicted in figure 25. The IP address of the Web server is used as source address in the
permit statement of the IP filter rule for the access control list.
Figure 25. Scenario with Web server regarded as a single source host
A new access control list has to be created. In the example above, the traffic-class that represents outbound Web
related traffic is named Web.
Access control list have an implicit “deny all” entry at the very end, so packets that do not match the first crite-
ria of outbound Web related traffic will be dropped. That is why a second access control list entry—one that
allows all other traffic—is necessary.
This procedure describes creating an access control list for tagging web traffic from the single source host at a
certain IP address.
Web-Server
172.16.1.20/24
Node
Node
17.254.0.91/16172.16.1.1/24
lan wan
172.16.1.0
IP Access
Network
Link scheduler configuration task list 159
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Mode: Configure
Example: Defining the access control list profile
In the example below a new access control list profile named Webserver is created. In addition an IP access con-
trol list entry that permits access for host at IP address 172.16.1.20, and specifies that packets matched by this
rule belong to the traffic-class Web is added. Finally an IP access control list entry that permits IP traffic to or
from all IP addresses is added to the access control list.
node(cfg)#profile acl Webserver
node(pf-acl)[Webserv~]#permit ip host 172.16.1.20 any traffic-class Web
node(pf-acl)[Webserv~]#permit ip any any
After packet classification is done using access control lists, the link arbiter needs rules defining how to handle the
different traffic-classes. For that purpose you create a service-policy profile. The service policy profile defines how
the link arbiter has to share the available bandwidth among several traffic classes on a certain interface.
Creating a service policy profile
The service-policy profile defines how the link scheduler should handle different traffic-classes. The overall
structure of the profile is as follows:
Step Command Purpose
1node(cfg)#profile acl name Creates a new access
control list profile named
name
2node(pf-acl)[name]#permit ip host ip-address any traffic-class
class-name
Creates an IP access con-
trol list entry that permits
access for host at IP
address ip-address, and
specifies that packets
matched by this rule
belong to the traffic-class
class-name.
3node(pf-acl)[name]#permit ip any any Creates an IP access con-
trol list entry that permits
IP traffic to or from all IP
addresses.
Link scheduler configuration task list 160
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Figure 26. Structure of a Service-Policy Profile
The template shown above specifies an arbiter with three inputs which we call “sources”: x, y and “default”.
The traffic-class “default” stands for all other packets that belong neither to traffic-class x nor y. There is no
limit on the number of sources an arbiter can have.
Example: Creating a service policy profile
The following example shows how to create a top service-policy profile named sample. This profile does not
include any hierarchical sub-profiles. The bandwidth of the outbound link is limited to 512 kbps therefore the
interface rate-limit is set to 512. In addition weighted fair queuing (wfq) is used as arbitration scheme among
the source classes.
profile service-policy sample
rate-limit 512
mode wfq
source traffic-class local-voice
priority
source traffic-class Web
share 30
source traffic-class local-default
share 20
source traffic-class default
queue-limit 40
share 50
The first line specifies the name of the link arbiter profile to configure. On the second line the global band-
width limit is set. The value defining the bandwidth is given in kilobits per second. Each service-policy profile
must have a “rate-limit” except if no scheduling is used i.e. the link scheduler is used for packet marking only
(like setting the TOS byte).
How the bandwidth on an IP interface is shared among the source classes is defined on the third line. The
mode command allows selecting between the weighted fair queuing and shaping arbitration mode. The default
mode is wfq - the command shown above can therefore be omitted.
profile service-policy <profile-name>
common settings link rate, arbitratio
n
source traffic-class <x>
settings for class x
source traffic-class <y>
settings for class y
source traffic-class default
settings for all other
traffic-classes not listed
common parameters
bandwidth, packet mark
queue-size, etc.
Link scheduler configuration task list 161
SmartWare Software Configuration Guide 13 • Link scheduler configuration
The following lines configure the source traffic-classes. When using weighted fair queuing (wfq) each user-
specified source traffic-class needs a value specifying its share of the overall bandwidth. For this purpose the
share command is used, which defines the relative weights of the source traffic-classes and policies.
At a some point the source traffic-class default must be listed. This class must be present, because it defines how
packets, which do not belong to any of the traffic-classes listed in the profile are to be handled. When all listed
“traffic-classes” have “priority” the handling of the remaining traffic is implicitly defined and the “default” sec-
tion can be omitted. Similarly if no scheduling is used i.e. the link scheduler is used for packet marking only
(e.g. setting the TOS byte) the “default” section can also be omitted.
The table below shows the basic syntax of the service-policy profile structure:
Mode: Configure
Specifying the handling of traffic-classes
Several commands are available to specify what happens to a packet of a specific traffic-class.
Defining fair queuing weight
The command share is used with wfq link arbitration to assign the weight to the selected traffic-class. When
defining a number of source classes, the values are relative to each other. It is recommended to split 100—
which can be read as 100%—among all available source classes, e.g. with 20, 30 and 50 as value for the respec-
tive share commands, which represent 20%, 30% and 50%.
Step Command Purpose
1node(cfg)# profile service-policy name Creates a new service policy profile
named name
2node(pf-srvpl)[name]#rate-limit value Limits global interface rate to value in
kbps. Be aware, that the actual rate-
limit on a given interface has to be
defined for reliable operation.
3node(pf-srvpl)[name]#mode {shaper | wfq} Sets the arbitration scheme to mode
shaper or weighted fair queuing (wfq).
If not specified wfq is default.
4node(pf-srvpl)[name]#source {traffic-class | policy}
src-name
Enters source configuration mode for a
traffic-class or a hierarchical lower
level service-policy profile named src-
name.
5node (src)[src-name]… At this point the necessary commands
used to specify the handling of the traf-
fic-class(es) have to be entered.
6node (src)[src-name]exit Leaves the source configuration mode
(optional)
7node(pf-srvpl)[name]#… Repeat steps 4 to 6 for all necessary
source classes or lower level service
policy profiles.
8node(pf-srvpl)[name]#exit Leaves the service-policy profile mode
Link scheduler configuration task list 162
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Mode: Source
Defining the bit-rate
The command rate is used with shaper link arbitration to assign the (average) bit-rate to the selected source.
When enough bandwidth is available each source will exactly receive this bandwidth (but no more), when
overloaded the shaper will behave like a wfq arbiter. Bit-rate specification for shaper (kilobits).
Mode: Source
Defining absolute priority
This command priority can only be applied to classes, but not to lower level polices. The class is given absolute
priority effectively bypassing the link arbiter. Care should be taken, as traffic of this class may block all other
traffic. The packets given “priority” are taken into account by the “rate-limit”. Use the command police to
control the amount of “priority” traffic.
Mode: Source
Defining the maximum queue length
The command queue-limit specifies the maximum number of packets queued for the class name. Excess pack-
ets are dropped. Used in “class” mode—queuing only happens at the leaf of the arbitration hierarchy tree. The
no form of this command reverts the queue-limit to the internal default value, which depends on
your configuration.
Mode: Source
Specifying the type-of-service (TOS) field
The set ip tos command specifies the type-of-service (TOS) field value applied to packets of the class name. TOS
and DSCP markings cannot be used at the same time. The no form of this command disables TOS marking.
Command Purpose
node(src)[name]#share percentage Defines fair queuing weight (relative to other sources) to percent-
age for the selected class or policy name
Command Purpose
node(src)[name]#rate [kilobits |
remaining]
Defines the (average) bit-rate to the selected in kbps kilobits or as
remaining if a second priority source is getting the unused band-
width for the selected class or policy name
Command Purpose
node(src)[name]#priority Defines absolute priority effectively bypassing the link arbiter for the
selected class or policy name
Command Purpose
node(src)[name]#queue-limit
number-of-packets
Defines the maximum number of packets queued for the selected class
or policy name
Link scheduler configuration task list 163
SmartWare Software Configuration Guide 13 • Link scheduler configuration
The type-of-service (TOS) byte in an IP header specifies precedence (priority) and type of service (RFC791,
RFC1349). The precedence field is defined by the first three bits and supports eight levels of priority. The next
four bits—which are set by the set ip tos command—determine the type-of-service (TOS).
Historically those bits had distinct meanings but since they were never consistently applied routers will ignore
them by default. Nevertheless you can configure your routers to handle specific TOS values and SmartWare
allows you to inspect the TOS value in the ACL rules and to modify the TOS value with the link scheduler set
ip tos command.
Mode: Source
Specifying the precedence field
The set ip precedence command specifies the precedence marking applied to packets of the class name. Pre-
cedence and DSCP markings cannot be used at the same time.
The type-of-service (TOS) byte in an IP header specifies precedence (priority) and type of service (RFC791,
RFC1349). The precedence field is defined by the first three bits and supports eight levels of priority. The low-
est priority is assigned to 0 and the highest priority is 7.
The no form of this command disables precedence marking.
Mode: Source
Specifying differentiated services codepoint (DSCP) marking
Differentiated services enhancements to the Internet protocol are intended to enable the handling of “traffic-
classes” throughout the Internet. In this context the IP header TOS field is interpreted as something like a
Table 5. TOS values and their meaning
TOS Value SmartWare Value Meaning
1000 8 Minimize delay.
0100 4 Maximize throughput.
0010 2 Maximizes reliability.
0001 1 Minimize monetary costs.
0000 0 All bits are cleared, normal service, “default TOS.”
Command Purpose
node(src)[name]#set ip tos value Defines the type-of-service (TOS) value applied to packets of for the
selected class or policy name. Standard ToT values are 0, 1, 2, 4,
and 8, as given in table 5 on page 163, but any number from 0 to
15 can be configured.
Command Purpose
node(src)[name]#set ip precedence value Defines the precedence marking value applied to pack-
ets of for the selected class or policy name. The range
for value is from 0 to 7, but only values from 0 to 5
should be used.
Link scheduler configuration task list 164
SmartWare Software Configuration Guide 13 • Link scheduler configuration
“traffic-class” number called. With SmartWare you can inspect the DSCP value in the ACL rules and modify
the DSCP value with the link scheduler set ip dscp command.
Note When configuring service differentiation on the SmartNode, ensure that
codepoint settings are arranged with the service provider.
The command set ip dscp sets the DS field applied to packets of the class name. Additionally shaping may be
needed to make the class conformant. The no form of this command disables packet marking.
Mode: Source
Specifying layer 2 marking
The IEEE ratified the 802.1p standard for traffic prioritization in response to the realization that different traf-
fic classes have different priority needs. This standard defines how network frames are tagged with user priority
levels ranging from 7 (highest priority) to 0 (lowest priority). 802.1p-compliant network infrastructure devices,
such as switches and routers, prioritize traffic delivery according to the user priority tag, giving higher priority
frames precedence over lower priority or non-tagged frames. This means that time-critical data can receive pref-
erential treatment over non-time-critical data.
Under 802.1p, a 4-byte Tag Control Info (TCI) field is inserted in the Layer 2 header between the Source
Address and the MAC Client Type/Length field of an Ethernet Frame. Table 6 lists the tag components.
802.1p-compliant infrastructure devices read the 3-bit user priority field and route the frame through an inter-
nal buffer/queue mapped to the corresponding user priority level.
The command set layer2 cos specifies the layer 2 marking applied to packets of this class by setting the 3-bit
priority field (802.1p). The no form of this command disables packet marking.
Please note that the Ethernet port must be configured for 802.1Q framing. Standard framing has no class-of-
service field.
Mode: Source
Command Purpose
node(src)[name]#set ip dscp value Defines the Differentiated Services Codepoint value applied to
packets of for the selected class or policy name. The range for
value is from 0 to 63.
Table 6. Traffic control info (TCI) field
Tag Control Field Description
Tagged Frame Type Interpretation Always set to 8100h for Ethernet frames (802.3ac tag format)
3-Bit Priority Field (802.1p) Value from 0 to 7 representing user priority levels (7 is the highest)
Canonical Always set to 0
12-Bit 802.1Q VLAN Identifier VLAN identification number
Command Purpose
node(src)[name]#set layer2 cos value Defines the Class-Of-Service value applied to packets of for the
selected class or policy name. The range for value is from 0 to 7.
Link scheduler configuration task list 165
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Defining random early detection
The command random-detect is used to request random early detection (RED). When a queue carries lots of
TCP transfers that last longer than simple web requests, there is a risk that TCP flow-control might be ineffi-
cient. A burst-tolerance index between 1 and 10 may optionally be specified (exponential filter weight). The no
form of this command reverts the queue to default “tail-drop” behavior.
Mode: Source
Discarding Excess Load
The command police controls traffic arriving in a queue for class name. The value of the first argument aver-
age-kilobits defines the average permitted rate in kbps, the value of the second argument kilobits-ahead defines
the tolerated burst size in kbps ahead of schedule. Excess packets are dropped.
This procedure describes defining discard excess load
Mode: Source
Quality of Service for routed RTP streams
SmartWare supports including routed RTP packets in the QoS process. This is possible for plain streams as
well as for encrypted streams in up- and downlink direction. The identification of the packets that have to be
included in the QoS process base upon their size. In the service-policy profile exists a command that allows
mapping of a specific packet size or a range to a traffic class.
There are two predefined ranges the user can choose. One of them is ‘routed-voice’ that specifies a packet size
range from 50 Byte to 280 Byte the other one is ‘routed-voice-encrypted’ that specifies a packet size range from
92 Byte to 324 Byte. By selecting this predefined ranges all voice packets from G.729/10ms to G.711/30ms
will be assigned to the configured traffic-class.
Be aware that also other packets matching the configured size or range will be assigned to the specified traffic-
class. All values to be configured are in Byte and are IP Packet sizes (IP Header plus Payload).
Command Purpose
node(src)[name]#random-detect {burst-tolerance}Defines random early detection (RED) for
queues of for the selected traffic-class or policy
name. The range for the optional value burst-
tolerance is from 1 to 10.
Command Purpose
node(src)[name]#police average-kilobits
burst-size kilobits-ahead
Defines how traffic arriving in a queue for the selected
class or policy name has to be controlled. The value aver-
age-kilobits for average rate permitted is in the range
from 0 to 10000 kbps. The value kilobits-ahead for burst
size tolerated ahead of schedule is in the range from 0 to
10000.
Link scheduler configuration task list 166
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Mode: profile service-policy/profile
The following procedure guides through the steps required for creating, configuring and using service policy
profiles on a WAN link that has an upstream and downstream capacity of 256kBit/s and is based on ADSL
technology. The access device must be able to process the RTP traffic generated by a VoIP Phone located in the
LAN like the local generated RTP stream.
Mode: Configure
Command Purpose
[name] (pf-srvp)[<name>]# [no] map packet-size
{routed-voice | routed-voice-encrypted | [<lower-size>
<upper-size>] } traffic-class <traffic-class-name>
Assigns IP packets of a predefined or speci-
fied range to a traffic-class. To name a spe-
cific size, configure lower-range and upper-
range with the same value.
Step Command Purpose
1 [name] (cfg)# profile service-policy <name-
out>
Creates a new service policy profile will be con-
figured for the uplink.
2 [name] (pf-srvp)[<name-out>]# rate-limit 256
atm-modem
Configures the uplink capacity.
3 [name] (pf-srvp)[<name-out>]# map packet-
size routed-voice traffic-class local-voice
Specifies that routed voice traffic will be pro-
cessed like local generated voice traffic.
4 [name] (pf-srvp)[<name-out>]# source traffic-
class local-voice
Enters traffic-class configuration mode
5 [name] (src)[local-v~]# priority Specifies that local-voice has priority. Because
route-voice is mapped to local-voice, also routed-
voice has priority.
6 [name] (src)[local-v~]# profile service-policy
<name-in>
Creates a new service policy profile will be con-
figured for the downlink.
7 [name] (pf-srvp)[<name-in>]# rate-limit 256
atm-modem voice-margin 80
Configures the downlink capacity and sets a
voice-margin of 80kBit/s
8 [name] (pf-srvp)[<name-in>]# map packet-
size routed-voice traffic-class local-voice
Specifies that routed voice traffic will be pro-
cessed like local generated voice traffic.
9 [name] (pf-srvp)[<name-in>]# source traffic-
class local-voice
Enters traffic-class configuration mode
10 [name] (src)[local-v~]# priority Specifies that local-voice has priority. Because
route-voice is mapped to local-voice, also routed-
voice has priority.
11 [name] (src)[local-v~]# context ip Changes to IP configuration mode
12 [name] (ctx-ip)[router]# interface <if-wan> Enters WAN interface configuration mode
13 [name] (if-ip)[<if-wan>]# use profile service-
policy <name-in> in
Assigns the downlink profile on the WAN inter-
face.
14 [name] (if-ip)[<if-wan>]# use profile service-
policy <name-out> out
Assigns the uplink profile on the WAN interface.
Link scheduler configuration task list 167
SmartWare Software Configuration Guide 13 • Link scheduler configuration
Devoting the service policy profile to an interface
Any service policy profile needs to be bound to a certain IP interface to get activated. According the terminol-
ogy of SmartWare a service policy profile is used on a certain IP interface, as shown in figure 27.
Figure 27. Using a Service Policy Profile on an IP Interface
Therefore the use profile service-policy command allows attaching a certain service policy profile to an IP
interface that is defined within the IP context. This command has an optional argument that defines whether
the service policy profile is activated in receive or transmit direction.
Providers may use input shaping to improve downlink voice jitter in the absence of voice support. The default
setting no service-policy sets the interface to FIFO queuing.
Mode: Interface
Example: Devoting the service policy profile to an interface
The following example shows how to attach the service policy profile Voice_Prio to the IP interface wan that is
defined within the IP context for outgoing traffic.
node>enable
node#configure
node(cfg)#context ip router
Step Command Purpose
1node(if-ip)[if-name]#use profile service-
policy name {in | out}
Applies the service policy profile name to the
selected interface if-name. Depending on select-
ing the optional in or out argument the service
policy profile is active on the receive or transmit
direction. Be aware that service policy profiles
can only be activated on the transmit direction at
the moment.
Context
IP
“router”
use command
Service
Policy
Profile
bind command
PVC Serial
Ethernet
Link scheduler configuration task list 168
SmartWare Software Configuration Guide 13 • Link scheduler configuration
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#use profile service-policy Voice_Prio out
Displaying link arbitration status
The show service-policy command displays link arbitration status. This command supports the optional
argument interface that select a certain IP interface. This command is available in the operator mode.
Mode: Operator execution
Example: Displaying link arbitration status
The following example shows how to display link arbitration status information.
node>show service-policy
available queue statistics
--------------------------
default
- packets in queue: 10
Displaying link scheduling profile information
The show profile service-policy command displays link scheduling profile information of an existing ser-
vice-policy profile. This command is only available in the administrator mode.
Mode: Administrator execution
Example: Displaying link scheduling profile information
The following example shows how to display link scheduling profile information of an existing service-policy
profile VoIP_Layer2_CoS.
node#show profile service-policy VoIP_Layer2_CoS
VoIP_Layer2_CoS
default (mark layer 2 cos -1)
Enable statistics gathering
Using the debug queue statistics commands enables statistic gathering of link scheduler operations.
Step Command Purpose
1node>show service-policy {interface name}Displays the link arbitration status
Step Command Purpose
1node#show profile service-policy name Displays link scheduling profile information of the
service-policy profile name
Link scheduler configuration task list 169
SmartWare Software Configuration Guide 13 • Link scheduler configuration
The command has optional values (in the range of 1 to 4) that define the level of detail (see table 7).
Note The debug features offered by SmartWare require the CPU resources of your
SmartNode. Therefore do not enable statistic gathering or other debug fea-
tures if it is not necessary. Disable any debug feature after use with the no
form of the command.
You can enable queue statistics for all queues of a link scheduler by placing the debug queue statistics com-
mand in the profile header. Queue statistics are reset whenever the configuration is changed or SmartWare is
reloaded.
Mode: Source
Example: Enable statistics gathering for all queues of a profile
The following example shows how to enable statistic gathering for all traffic-classes
node>enable
node#configure
node(cfg)#profile service-policy sample
node(pf-srvpl)[sample]#debug queue statistics 4
Table 7. Values defining detail of the queuing statistics
Optional Value Implication on Command Output
0 Statistic gathering is switched off
1 Display amount of packets passed (did
not have to wait), queued (arrived ear-
lier than rate permitted) and discarded
(due to overflowing queue)
2 Also collects byte counts for the catego-
ries listed above
3 Also keeps track of the peek queue
lengths ever reached since the last con-
figuration change or reload
4 Adds delay time monitoring
Step Command Purpose
1node(src)[name]#debug queue statistics level Enables statistic gathering for the selected class
or policy name. The optional argument level,
which is in the range from 1 to 4, defines the ver-
bosity of the command output.
170
Chapter 14 Serial port configuration
Chapter contents
Introduction........................................................................................................................................................171
Serial port configuration task list .........................................................................................................................171
Disabling an interface ...................................................................................................................................171
Enabling an interface ....................................................................................................................................172
Configuring the serial encapsulation type ......................................................................................................173
Configuring the hardware port protocol ........................................................................................................173
Configuring the active clock edge ..................................................................................................................174
Configuring the baudrate ..............................................................................................................................175
Introduction 171
SmartWare Software Configuration Guide 14 • Serial port configuration
Introduction
This chapter provides an overview of the serial port and describes the tasks involved in its configuration
includes the following sections:
•Serial port configuration task list
•Configuration tasks
•Examples
The V.35 standard is recommended for speeds up to 48 kbps, although in practice it is used successfully at 4
Mbps. The X.21 standard is recommended for data interfaces transmitting at rates up to 2 Mbps and is used
primarily in Europe and Japan.
The synchronous serial interface supports full-duplex operation and allows interconnection to various serial
network interface cards or equipment. Refer to the getting started guide included with your SmartWare for
specific information regarding the connector pinout and the selection of cables to connect with third-party
equipment.
Serial port configuration task list
Perform the tasks in the following sections to configure a synchronous serial interface:
•Disabling an interface (see page 171)
•Enabling an interface (see page 172)
•Configuring the serial encapsulation type (see page 173)
•Configuring the hardware port protocol (see page 173)
•Configuring the active clock edge (see page 174)
•Configuring the baudrate
Disabling an interface
Before you replace a compact serial cable or attach your SmartNode to other serial equipment, use the
shutdown command to disable the serial interfaces. This prevents anomalies and hardware faults. When you
shut down an interface, it has the state CLOSED in the show port serial command display.
Note Use the no shutdown command to enable the serial interface after the con-
figuration procedure.
This procedure describes how to shut down a serial interface
Mode: Administrator execution
Step Command Purpose
1node(cfg)#port serial slot port Selects the serial interface on slot and port
2node(prt-ser)[slot/port]#shutdown Shuts the selected interface down
3node(prt-ser)[slot/port]#show port serial Displays the serial interface configuration.
Serial port configuration task list 172
SmartWare Software Configuration Guide 14 • Serial port configuration
Example: Disabling an interface
The example shows how to disable the built-in serial interface on slot 0 and port 0 of a SmartNode. Check that
State is set to CLOSED in the command output of show port serial.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#shutdown
node(prt-ser)[0/0]#show port serial
Serial Interface Configuration
------------------------------
Port : serial 0 0 0
State : CLOSED
Hardware Port : V.35
Transmit Edge : normal
Port Type : DTE
CRC Type : CRC-16
Max Frame Length: 2048
Recv Threshold : 1
Encapsulation :
Enabling an interface
After configuring the serial interface or connecting other serial devices, use the no shutdown command to
enable the serial interfaces again. When you enable an interface, it has the state OPENED in the show port
serial command display.
Note Use the shutdown command to disable the serial interface for any software
or hardware configuration procedure.
This procedure describes how to enable a serial interface.
Mode: Administrator execution
Example: Enabling an interface
The example shows how to enable the built-in serial interface on slot 0 and port 0. Check that State is set to
OPENED in the command output of show port serial.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#no shutdown
node(prt-ser)[0/0]#show port serial
Serial Interface Configuration
------------------------------
Port : serial 0 0 0
State : OPENED
Step Command Purpose
1node(cfg)#port serial slot port Selects the serial interface on slot and port
2node(prt-ser)[slot/port]#no shutdown Enables the interface
3node(prt-ser)[slot/port]#show port serial Displays the serial interface configuration.
Serial port configuration task list 173
SmartWare Software Configuration Guide 14 • Serial port configuration
Hardware Port : V.35
Transmit Edge : normal
Port Type : DTE
CRC Type : CRC-16
Max Frame Length: 2048
Recv Threshold : 1
Encapsulation :
Configuring the serial encapsulation type
The synchronous serial interface supports the Frame Relay and PPP serial encapsulation method. For more
information how to configure Frame Relay and PPP, please see Chapter15, “Frame Relay configuration” on
page 177 and Chapter 30, “PPP configuration” on page 313.
To set the encapsulation method used by a serial interface, use the encapsulation interface
configuration command.
This procedure describes how to set the encapsulation type of the serial interface.
Mode: Administrator execution
Example: Configuring the serial encapsulation type
The following example enables Frame Relay encapsulation for the serial interface on slot 0 and port 0. Check
that in the command output of show port serial Encapsulation is set to framerelay.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#encapsulation framerelay
node(prt-ser)[0/0]#show port serial
Serial Interface Configuration
------------------------------
Port : serial 0 0 0
State : CLOSED
Hardware Port : V.35
Transmit Edge : normal
Port Type : DTE
CRC Type : CRC-16
Max Frame Length: 2048
Recv Threshold : 1
Encapsulation : framerelay
Configuring the hardware port protocol
Note Only available on certain devices.
Step Command Purpose
1node(cfg)#port serial slot port Selects the serial interface on slot and
port.
2node(prt-ser)[slot/port]#[no] encapsulation
{framerelay | ppp}
Sets the encapsulation type for the
selected interface.
3node(prt-ser)[slot/port]#show port serial Displays the serial interface configuration.
Serial port configuration task list 174
SmartWare Software Configuration Guide 14 • Serial port configuration
Before using the serial interface the hardware port protocol has to be specified. There are two command
options available to select the suitable hardware port protocol:
•v35 for V.35 protocol to be used
•x21 for X.21 protocol to be used
Mode: Administrator execution
Example: Configuring the hardware port protocol
The following example enables X.21 as hardware port protocol for the serial interface on slot 0 and port 0.
Check that Hardware Port is set to X.21 in the command output of show port serial.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#hardware-port x21
node(prt-ser)[0/0]#show port serial
Serial Interface Configuration
------------------------------
Port : serial 0 0 0
State : CLOSED
Hardware Port : X.21
Transmit Edge : normal
Port Type : DTE
CRC Type : CRC-16
Max Frame Length: 2048
Recv Threshold : 1
Encapsulation : framerelay
Configuring the active clock edge
Depending on the system configurations—i.e. when using long cables, with certain modem types or data
rates—synchronization problems may occur on the serial port. In these cases, it may be necessary to configure
the clock edge on which data is transmitted.
This procedure describes how to set the active clock edge of the serial interface
Mode: Port serial
Step Command Purpose
1node(cfg)#port serial slot port Selects the serial interface on slot and port
2node(prt-ser)[slot/port]#hardware-port {v35 | x21} Sets the hardware port protocol
3node(prt-ser)[slot/port]#show port serial Displays the serial interface configuration
Step Command Purpose
1node(prt-ser)[slot/port]# transmit-data-
on-edge positive
Configures the serial interface to transmit on the
positive edge of the clock (normal, default).
2node(prt-ser)[slot/port]# transmit-data-
on-edge negative
Configures the serial interface to transmit on the
negative edge of the clock (inverted).
Serial port configuration task list 175
SmartWare Software Configuration Guide 14 • Serial port configuration
Example: Configuring the active clock edge
The following example enables to send data on the negative edge on slot 0 and port 0. Check that Transmit
Clock is set to inverted in the command output of show port serial.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#transmit-data-on-edge negative
node(prt-ser)[0/0]#show port serial
Serial Interface Configuration
------------------------------
Port : serial 0 0 0
State : CLOSED
Hardware Port : X.21
Transmit Edge : inverted
Port Type : DTE
CRC Type : CRC-16
Max Frame Length: 2048
Recv Threshold : 1
Encapsulation : framerelay
Configuring the baudrate
A DCE interface has to provide the signal clocks. The desired baudrate can be configured.
Note Only available on certain devices.
This procedure describes how to set the baudrate for the serial interface.
Mode: Port serial
Example: Configuring baudrate to 64,000 bps
The following example configures a baudrate of 64,000 bps on the serial interface. Verify that the command
show port serial detail 5 output displays the correct baudrate. True baudrate in the Status section shows the
baudrate of the selected hardware.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#transmit-data-on-edge negative
node(prt-ser)[0/0]#show port serial detail 5
HDLC Driver: 0x8496b8
=====================
Slot: 0
Number of Ports: 1
Port: serial 0 0 0
------------------
Step Command Purpose
1node(prt-ser)[slot/port]# baudrate
baudrate
Configures the baudrate for the serial interface.
Serial port configuration task list 176
SmartWare Software Configuration Guide 14 • Serial port configuration
State: OPENED
Configuration
Hardware Port: X.21
Port Type: DCE
CRC: CRC-16
Transmit Edge: Normal
Max Frame Length: 1920
Baudrate: 64000 bps
Recv Threshold: 1
Statistics
Received frames: 116101
Rx good frames: 116099
Rx CD lost: 0
Rx Overrun: 0
Rx CRC errors: 0
Rx abort sequence: 0
Rx non octet: 2
Rx frame len violation: 0
Rx DPLL error: 0
Sent frames: 116106
Tx good frames: 116106
Tx CTS lost: 0
Tx underrun: 0
Status
Link: Up
Control Line: enabled
True Baudrate: 64000 bps
177
Chapter 15 Frame Relay configuration
Chapter contents
Introduction........................................................................................................................................................178
Frame Relay configuration task list ......................................................................................................................178
Configuring Frame Relay encapsulation ........................................................................................................178
Configuring the LMI type .............................................................................................................................179
Configuring the keep-alive interval ...............................................................................................................179
Enabling fragmentation ................................................................................................................................180
Entering Frame Relay PVC configuration mode ...........................................................................................181
Configuring the PVC encapsulation type ......................................................................................................182
Binding the Frame Relay PVC to IP interface ...............................................................................................182
Enabling a Frame Relay PVC ........................................................................................................................184
Disabling a Frame Relay PVC .......................................................................................................................184
Debugging Frame Relay ................................................................................................................................185
Displaying Frame Relay information .............................................................................................................186
Integrated service access ................................................................................................................................187
Example 1: Frame Relay on e1t1 without a channel-group ...........................................................................189
Introduction 178
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Introduction
This chapter provides an overview of the Frame Relay protocol and describes the tasks involved in its configu-
ration includes the following sections:
•Frame Relay configuration task list
•Configuration tasks
•Examples
Frame Relay is an example of a packet-switched technology. Packet-switched networks enable end stations to
dynamically share the network medium and the available bandwidth. Variable-length packets are used for more
efficient and flexible transfers. These packets are then switched between the various network segments until the
destination is reached. Statistical multiplexing techniques control network access in a packet-switched net-
work. The advantage of this technique is that it provides more flexibility and more efficient use of bandwidth.
Frame Relay configuration task list
Perform the tasks in the following sections to configure Frame Real on various ports:
•Configuring Frame Relay encapsulation
•Configuring the LMI type
•Configuring the keep-alive interval
•Enabling fragmentation
•Entering Frame Relay PVC configuration mode
•Configuring the PVC encapsulation type
•Binding the Frame Relay PVC to IP interface
•Disabling a Frame Relay PVC
•Displaying Frame Relay information
Configuring Frame Relay encapsulation
Normally, Frame Relay is used over a HDLC framed link. Different kind of physical ports can be configured
for HDLC framed data transmission. On some ports the hdlc mode must be explicitly enabled (PRI, BRI),
other ports have a HDLC framed nature (Serial). That means, Frame Relay encapsulation can be configured in
different configuration modes. For this reason, the command description below refers to the configuration
mode in which Frame Relay can be enabled by setting the encapsulation to ‘framerelay’. This configuration
mode is called here ‘hdlc-sub’ but it is only an alias for the real mode. Once encapsulation framerelay has been
configured, the Frame Relay configuration mode can be entered.
Mode: hdlc-sub
Step Command Purpose
1node(hdlc-sub)#[no] encapsulation framerelay Enables/Disables Frame Relay
2node(hdlc-sub)#framerelay Enters the framerelay configuration mode
Frame Relay configuration task list 179
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Configuring the LMI type
For a Frame Relay network, the line protocol is the periodic exchange of local management interface (LMI)
packets between the SmartNode and the Frame Relay provider equipment. If the SmartNode is attached to a
public data network (PDN), the LMI type must match the type used on the public network.
You can set one of the following three types of LMIs:
•ansi for ANSI T1.617 Annex D,
•gof for Group of 4, which is the default for Cisco LMI, and
•itu for ITU-T Q.933 Annex A.
This procedure describes how to set the LMI type.
Mode: Frame Relay
Example: Configuring the LMI type
The following example sets the LMI type to ANSI T1.617 Annex D for Frame Relay over the serial interface
on slot 0 and port 0.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#lmi-type ansi
Configuring the keep-alive interval
A keep-alive interval must be set to configure the LMI. By default, this interval is 10 seconds and, according to
the LMI protocol, must be less than the corresponding interval on the switch. The keep-alive interval in sec-
onds, which is represented by number, has to be in the range from 1 to 3600.
This procedure describes how to set the keep-alive interval
Mode: Frame Relay
To disable keep-alives on networks that do not utilize LMI, use the no keepalive interface
configuration command.
Example: Configuring the keep-alive interval
The following example sets the keepalive interval to 10 seconds for Frame Relay over the serial interface on slot
0 and port 0.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#keepalive 10
Step Command Purpose
1node(frm-rel)[slot/port]#lmi-type {ansi | gof | itu} Sets the LMI type
Step Command Purpose
1node(frm-rel)[slot/port]#keepalive number Sets the LMI keep-alive interval
Frame Relay configuration task list 180
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Enabling fragmentation
FRF.12 interface and end-to-end fragmentation of large IP packets is supported to reduce the delay imposed
on voice packets on slow links (less than 512 kbps). As opposed to IP fragmentation, Frame Relay fragmenta-
tion is transparent to the IP layer. This leaves IP packets unchanged, which may be important for IP-based
applications susceptible to IP fragmentation.
This procedure describes how to enable Frame Relay fragmentation
Mode: Frame Relay
Note For proper functioning, do not specify a scheduler mode (burst-shaper,
burst-WFQ, shaper, WFQ) for the Frame Relay service policy profile. Fur-
thermore, do not use the Frame Relay service policy profile on the IP layer,
but rather on the Frame Relay layer (mode framerelay). Make sure voice traf-
fic is being given priority over data (command source class local-
voice priority).
Note FRF.12 end-to-end fragmentation and FRF.12 interface fragmentation are
incompatible. Thus make sure that both ends of a Frame Relay link run the
same fragmentation mode.
Note When running data and voice over a Frame Relay link, it is advisable to only
configure fragmentation for the PVC that carries data traffic. This way, frag-
mentation protocol overhead and fragmentation processing overhead is only
spent for data traffic—voice packets (whose length should be smaller than the
fragmentation length) do not consume processing power and protocol over-
head for fragmentation.
The purpose of end-to-end FRF.12 fragmentation is to support real-time and non-real-time data packets on
lower-speed links without causing excessive delay to the real-time data. The FRF.12 Implementation Agree-
ment defines FRF.12 fragmentation. This standard was developed to allow long data frames to be fragmented
into smaller pieces (fragments) and interleaved with real-time frames. In this way, real-time and non-real-time
data frames can be carried together on lower-speed links without causing excessive delay to the real-time traffic.
Step Command Purpose
1node(frm-rel)[slot/port]#use pro-
file service-policy name out
Uses the previously defined service policy profile on Frame
Relay layer (and not on IP interface level) in outward direc-
tion.
2node(frm-rel)[slot/port]#frag-
ment size
Defines the maximum size (in Bytes) of the Frame Relay pay-
load (excluding Frame Relay header and trailer overhead)
for all PVCs (FRF.12 interface fragmentation).
See also the table below
3node(frm-rel)[slot/port]#pvc dlci Enters the PVC configuration mode by assigning a DLCI num-
ber to be used on the specified virtual circuit.
4node(pvc)[dlci]#fragment size Defines the maximum size (in bytes) of the Frame Relay pay-
load (excluding Frame Relay header and trailer overhead)
for this PVC only (FRF.12 end-to-end fragmentation).
See also the table below
Frame Relay configuration task list 181
SmartWare Software Configuration Guide 15 • Frame Relay configuration
End-to-end FRF.12 fragmentation is recommended for use on permanent virtual circuits (PVCs) that share
links with other PVCs transporting voice and on PVCs transporting Voice over IP (VoIP).
The fragmentation size depends on the available bandwidth, the chosen codec, and its packet length:
•The less bandwidth available per call, the smaller the fragment size has to be configured.
•The shorter the voice packets, the smaller the fragment size can be configured.
•The smaller the fragment size, the bigger the overhead for long data packets.
The following table shows the minimum fragment size depending on the configured codec and its packet
length without fragmenting the voice packets:
Entering Frame Relay PVC configuration mode
The permanent virtual circuit (PVC) is a virtual circuit that is permanently established. PVCs save bandwidth associ-
ated with circuit establishment and tear down in situations where certain virtual circuits must exist all the time.
The Frame Relay network provides a number of virtual circuits that form the basis for connections between
stations attached to the same Frame Relay network.
The resulting set of interconnected devices forms a private Frame Relay group, which may be either fully inter-
connected with a complete mesh of virtual circuits, or only partially interconnected.
In either case, each virtual circuit is uniquely identified at each Frame Relay interface by a Data Link Connection
Identifier (DLCI). In most circumstances, DLCIs have strictly local significance at each Frame Relay interface.
Assigning a DLCI to a specified Frame Relay sub interface is done in the PVC configuration mode. The DLCI
has to be in the range from 1 to 1022.
Note A maximum of eight PVCs can be defined.
This procedure describes how to enter the PVC configuration.
Mode: Frame Relay
Codec (bytes) Packet Period (ms) Minimum Fragment Size
G.729 10 52
G.729 20 62
G.729 30 72
G.723 30 66
G.723 60 90
G.723 90 114
G.711 10 122
G.711 20 202
G.711 30 282
Step Command Purpose
1node(frm-rel)[slot/port]#pvc dlci Enters the PVC configuration mode by assigning a DLCI number
to be used on the specified sub interface
Frame Relay configuration task list 182
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Example: Entering Frame Relay PVC configuration mode
The following example enters the configuration mode for PVC with the assigned DLCI of 1 for Frame Relay
over the serial interface on slot 0 and port 0.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#pvc 1
node(pvc)[1]#
Configuring the PVC encapsulation type
You must use the PVC configuration command encapsulation rfc1490 to set the encapsulation type to com-
ply with the Internet Engineering Task Force (IETF) standard (RFC 1490). Use this keyword when connecting
to another vendor’s equipment across a Frame Relay network.
This procedure describes how to set the encapsulation type to comply with RFC 1490
Mode: Frame Relay/PVC
Example: Configuring the PVC encapsulation type
The following example sets the encapsulation type to comply with RFC 1490 for PVC with the assigned DLCI
of 1 for Frame Relay over the serial interface on slot 0 and port 0.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#pvc 1
node(pvc)[1]#encapsulation rfc1490
Binding the Frame Relay PVC to IP interface
A newly created permanent virtual circuit (PVC) for Frame Relay has to be bound to an IP interface for further
use. The logical IP interface has to be already defined and should be named according to the use of the serial
Step Command Purpose
1node(pvc)[dlci]#encapsulation rfc1490 Sets RFC1490 PVC compliant encapsulation
Frame Relay configuration task list 183
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Frame Relay PVC. If serial Frame Relay PVC shall be used as WAN access, a suitable name for the logical IP
interface could be wan as in figure 28 below.
Figure 28. IP interface wan is bound to PVC 1 on port serial 0 0
This procedure describes how to bind the Frame Relay PVC DLCI on the serial interface to the logical IP
interface name, which is related to the IP context router.
Mode: PVC
Example: Binding the Frame Relay PVC to IP interface
The following example binds the Frame Relay PVC 1 to the IP interface wan of IP context router to the serial
interface on slot 0 and port 0.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#pvc 1
node(pvc)[1]#bind interface wan router
Step Command Purpose
1node(pvc)[dlci]#bind interface name router Binds Frame Relay PVC dlci to the IP interface
name of IP context router
Context
IP
“router”
Port
Ethernet
0 0
Port
Ethernet
0 1
IP
interface
eth0
Port
Serial
0 0
IP
interface
eth1
IP
interface
wan
PVC
Frame Relay configuration task list 184
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Enabling a Frame Relay PVC
After binding Framerelay PVC to an ip interface it must be enabled for packet processing. This procedure acti-
vates the PVC by opening the bound ip interface.
This procedure describes how to enable Framerelay PVC for packet processing
Mode: PVC
Example: Disabling a Frame Relay PVC
The following example enables Frame Relay PVC with the DLCI 1 on the serial interface on slot 0 and port 0.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#pvc 1
node(pvc)[1]#no shutdown
Check the PVC 1 status using show running-config and verify that the entry no shutdown occurs in the con-
figuration part responsible for this PVC.
node(pvc)[1]#show running-config
Running configuration:
#----------------------------------------------------------------#
# #
…
pvc 1
encapsulation rfc1490
bind interface wan router
no shutdown
Disabling a Frame Relay PVC
Frame Relay PVCs can be disabled whenever it is necessary. Be aware that disabling a specific PVC also disables
the related serial interface and vice versa.
This procedure describes how to disable the Frame Relay PVC DLCI on the serial interface.
Mode: PVC
Example: Disabling a Frame Relay PVC
The following example disables Frame Relay PVC 1 on the serial interface on slot 0 and port 0.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#pvc 1
Step Command Purpose
1node(pvc)[dlci]#no shutdown Enables the Frame Relay PVC
Step Command Purpose
1node(pvc)[dlci]#shutdown Disables the Frame Relay PVC DLCI.
Frame Relay configuration task list 185
SmartWare Software Configuration Guide 15 • Frame Relay configuration
node(pvc)[1]#shutdown
Check the PVC 1 status by using show running-config and verify that the entry shutdown occurs in the con-
figuration part responsible for this PVC.
node(pvc)[1]#show running-config
Running configuration:
#----------------------------------------------------------------#
# #
# 2500 #
…
pvc 1
encapsulation rfc1490
bind interface wan router
shutdown
exit
…
Debugging Frame Relay
A set of commands is available to check the status of the Framerelay connections, fragmentation process and
keepalive message exchange. Be aware that some monitors generate a lot of output and can seriously impact
your system performance.This procedure describes how to display the Frame Relay configuration settings for
the serial interface
Mode: Administrator execution
Command Purpose
[no] debug framerelay Prints the status of the different monitors (ON or
OFF)
[no] debug framerelay all Enables/Disables all framerelay debug monitors
[no] debug framerelay error Enables/Disables monitor which prints only
occurred errors.
[no] debug framerelay lmi Enables/Disables monitor which prints keepalive
events and messages
[no] debug framerelay management Enables/Disables monitor which prints management
and configuration events
[no] debug framerelay packets Enables/Disables monitor which prints dlci, size and
fragmentation status of every incoming and outgo-
ing packet. Be aware that this monitor can seriously
impact your system performance.
Frame Relay configuration task list 186
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Displaying Frame Relay information
Since Frame Relay configuration for the serial interface is complex and requires many commands, it is helpful
to list the frame relay configuration on screen.
This procedure describes how to display the Frame Relay configuration settings for the serial interface.
Mode: Port serial
Example: Displaying Frame Relay information
The following example shows the commands used to display Frame Relay configuration settings.
node>enable
node#configure
node(cfg)#show framerelay
Framerelay Configuration:
Port LMI-Type Keepalive Fragmentation
----------------------------------------------------------
serial 0 0 0 ansi 10 disabled
PVC Configuration:
Port DLCI State Fragment Encaps Binding
--------------------------------------------------------------
serial 0 0 0 1 open disabled rfc1490 wan@router
Step Command Purpose
1node(prt-ser)[slot/port]#show framerelay Displays Frame Relay information.
Frame Relay configuration task list 187
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Figure 29. Typical Integrated Service Access Scenario with dedicated PVCs
Integrated service access
The example in figure 29 shows a typical integrated service access scenario, where different service providers are
accessed via permanent virtual circuits (PVCs) on Frame Relay over the serial interface of a SmartNode.
The multi service provider (MSP) offers both Internet access and voice services based on IP. The virtual private
network (VPN) provider offers secure interconnections of local access networks (LAN) via its public wide area
network based on IP. Since both providers are working independently, the SmartNode needs a configuration,
which has two dedicated PVCs on Frame Relay. The first PVC, labeled as PVC 1, connects to the MSP access
device. The second PVC, labeled PVC 2, connects to the VPN provider access device on the leased line network.
A SmartNode is working as a DTE and accesses the leased line network via a leased line modem connected to
the serial interface. The hardware port protocol X.21 is used on the serial interface on slot 0 and port 0.
Devices accessing the MSP and VPN services are attached to the 100 Mbps Ethernet port 0/0 on the
SmartNode. For that reason, an IP context with three logical IP interfaces bound to Ethernet port 0/0, PVC 1
and PVC 2 on serial port 0/0 as shown in figure 29 has to be configured for the SmartNode. The IP interfaces
are labeled to represent the function of their configuration. Hence Ethernet port 0/0 is named lan, PVC 1 is
named external since external services are accessed via this PVC, and PVC 2 is named internal to indicate the
private network interconnection via this PVC.
Between the leased line modem and the SmartNode, ANSI T.617 type of LMI packets have to be exchanged. In
addition, the keep-alive interval has to be set to 20 seconds. To guarantee voice quality, fragmentation is enabled
on the PVC which carries voice (PVC 1) and a service profile is assigned which gives priority to voices packets.
Node
2300
Node Leased Line
Network
Multi
Service
Provider
Multi
Service
Provider
VPN
Provider
VPN
Provider
Modem
Modem
InternetPSTN
GW
GW
X.21
PVC 1
PVC 2
Frame Relay configuration task list 188
SmartWare Software Configuration Guide 15 • Frame Relay configuration
Figure 30. IP Context with logical IP interfaces bound to Ethernet port, serial port PVC 1 and PVC 2
The related IP, serial interface and Frame Relay configuration procedure is listed below. Where necessary, com-
ments are added to the configuration for better understanding.
1. Enter the configuration mode.
node>enable
node#configure
…
2. Set up the IP interface configuration first. Be aware that not all of the necessary settings are listed below.
node(cfg)#context ip router
node(ctx-ip)[router]#interface external
node(if-ip)[external]#interface internal
node(if-ip)[internal]#interface lan
node(if-ip)[lan]#exit
node(ctx-ip)[router]#interface internal
node(if-ip)[internal]#ipaddress 192.168.3.1 255.255.255.0
node(if-ip)[internal]#interface external
node(if-ip)[external]#ipaddress 192.168.2.1 255.255.255.0
node(if-ip)[external]#interface lan
node(if-ip)[lan]#ipaddress 192.168.1.1 255.255.255.0
…
3. Define a voice profile which gives priority to voice packets. Set the rate limit according to the bandwidth
available for voice and data on PVC 1 (512kBits/s in this case).
node(cfg)#profile service-policy VoicePrio
node(pf-srvpl)[VoicePr~]#rate-limit 512
node(pf-srvpl)[VoicePr~]#source class local-voice
node(src)[local-v~]#priority
node(src)[local-v~]#source class local-default
node(src)[local-d~]#priority
node(src)[local-d~]#source class default
…
Frame Relay configuration task list 189
SmartWare Software Configuration Guide 15 • Frame Relay configuration
4. Configure the serial interface settings.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#shutdown
node(prt-ser)[0/0]#encapsulation framerelay
node(prt-ser)[0/0]#hardware-port x21
node(prt-ser)[0/0]#port-type dte
…
5. Configure the Frame Relay. You must thus change to the Frame Relay configuration mode. Use the ser-
vice-policy profile defined above to give voice priority over data.
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#lmi-type ansi
node(frm-rel)[0/0]#keepalive 20
node(frm-rel)[0/0]#use profile service-policy VoicePrio out
…
6. Configure the introduced PVCs. Enable fragmentation for PVC 1. The voice uses codec G.723 at a packet
size of 30ms, so the minimum fragment size must be 66 Bytes. Setting the fragment size to 300 (Bytes)
introduces an additional delay of at most 4.7ms (300 * 8/512k) but does not cause too much fragmenta-
tion overhead on large data packets.
node(frm-rel)[0/0]#pvc 1
node(pvc)[1]#encapsulation rfc1490
node(pvc)[1]#fragment 300
node(pvc)[1]#bind interface external router
node(pvc)[1]#no shutdown
node(pvc)[1]#pvc 2
node(pvc)[2]#encapsulation rfc1490
node(pvc)[2]#bind interface internal router
node(pvc)[2]#no shutdown
…
7. Check that the Frame Relay settings are correct.
node(frm-rel)[0/0]#show framerelay
Framerelay Configuration:
Port LMI-Type Keepalive Fragmentation
----------------------------------------------------------
serial 0 0 0 ansi 20 disabled
PVC Configuration:
Port DLCI State Fragment Encaps Binding
--------------------------------------------------------------
serial 0 0 0 1 open 300 rfc1490 external@router
serial 0 0 0 2 open disabled rfc1490 internal@router
Example 1: Frame Relay on e1t1 without a channel-group
port e1t1 0 3
port-type e1
clock master
framing crc4
encapsulation hdlc
Frame Relay configuration task list 190
SmartWare Software Configuration Guide 15 • Frame Relay configuration
hdlc
encapsulation framerelay
framerelay
pvc 100
encapsulation rfc1490
bind interface pvc100 router
no shutdown
port e1t1 0 0
no shutdown
Example 2: Frame Relay on e1t1 with a channel-group
port e1t1 0 0
port-type e1
clock master
framing crc4
encapsulation channelized
channel-group myGroup
timeslots 13-17
encapsulation hdlc
hdlc
encapsulation framerelay
framerelay
lmi-type gof
keepalive 20
pvc 100
encapsulation rfc1490
bind interface pvc100 router
no shutdown
port e1t1 0 0
no shutdown
191
Chapter 16 PRI port configuration
Chapter contents
Introduction........................................................................................................................................................192
PRI port configuration task list............................................................................................................................192
Enable/Disable PRI port ...............................................................................................................................193
Configuring PRI port-type ............................................................................................................................193
Configuring PRI clock-mode ........................................................................................................................193
Configuring PRI line-code ............................................................................................................................193
Configuring PRI framing ..............................................................................................................................194
Configuring PRI line-build-out (E1T1 in T1 mode only) .............................................................................195
Configuring PRI used-connector (E1T1 in E1 mode only) ...........................................................................195
Configuring PRI application mode (E1T1 only) ...........................................................................................195
Configuring PRI LOS threshold (E1T1 only) ...............................................................................................196
Configuring PRI Loopback detection (E1T1 only) .......................................................................................196
Configuring PRI encapsulation .....................................................................................................................197
Create a Channel-Group ...............................................................................................................................198
Configuring Channel-Group Timeslots ........................................................................................................198
Configuring Channel-Group Encapsulation .................................................................................................198
Entering HDLC Configuration Mode ..........................................................................................................199
Configuring HDLC CRC-Type ...................................................................................................................199
Configuring HDLC Encapsulation ...............................................................................................................200
PRI Debugging .............................................................................................................................................200
PRI Configuration Examples ........................................................................................................................201
Example 1: ISDN ....................................................................................................................................202
Example 2: RBS without a channel-group ...............................................................................................202
Example 3: RBS with a channel-group ....................................................................................................202
Example 4: Frame Relay without a channel-group ...................................................................................203
Example 5: Framerelay with a channel-group ..........................................................................................204
Example 6: PPP without a channel-group ...............................................................................................204
Example 7: PPP with a channel-group .....................................................................................................204
Introduction 192
SmartWare Software Configuration Guide 16 • PRI port configuration
Introduction
This chapter provides an overview of the PRI (Primary Rate Interface) ports, their characteristics and the tasks
involved in the configuration. The SmartNode devices know three different kinds of PRI ports, E1, T1 and
E1T1 whereas an E1T1 port can either work as E1 or T1. This chapter describes the superset of all commands
are available on the different PRI ports. If a command is only executable for a specific port then this circum-
stance will be noted or highlighted in the command description. Further will be explained here, how to prepare
the ports for the usage of the different application protocols like ISDN, RBS, PPP or Frame Relay. Fore some
applications there must be the possibility to access user defined sets of timeslots of an E1 or T1 port. On
SmartNode’s this feature is called a Channel Group and it will be described in this chapter as well.
Terminology
Hardware Type: Dependent on the device it can either be E1, T1 or E1T1. The Hardware Type and its belong-
ing Slot and Port Number must be specified for entering the configuration mode of a port. It is not possible to
change the Hardware Type, it is given by the system.
Port Type: This expression is used in relation with the E1T1 port and describes if the E1T1 port is currently
running in E1 or in T1 mode. On an E1 or T1 port, the Port Type can not be changed, it is static and matches
the Hardware Type.
PRI port configuration task list
This section describes the configuration tasks for the PRI port.
•Enable/Disable PRI port
•Configuring the PRI port type (E1T1 only)
•Configuring PRI clock mode
•Configuring PRI line code
•Configuring PRI framing (E1T1 only)
•Configuring PRI line build out (E1T1 in T1 mode only)
•Configuring PRI impedance/connector (E1T1 in E1 mode only)
•Configuring PRI application mode (E1T1 only)
•Configuring PRI LOS threshold (E1T1 only)
•Configuring PRI Loopback detection (E1T1 only)
•Configuring PRI encapsulation
•Create a Channel-Group
•Configuring channel-group timeslots
•Configuring channel-group encapsulation
•Entering HDLC configuration mode
•Configuration HDLC CRC-type
•Configuring HDLC encapsulation
PRI port configuration task list 193
SmartWare Software Configuration Guide 16 • PRI port configuration
•PRI Debugging
Enable/Disable PRI port
By default, the PRI port is disabled. The following command is used for enabling or disabling it.
Mode: port <hw-type> <slot> <port>
Configuring PRI port-type
An E1T1 Port can either work in T1 or in E1 (G.704) mode. This mode can be changed dynamically as long
as no encapsulation or encapsulation ‘hdlc’ is set. Be aware that changing the port-type also resets the framing
and linecode parameters to the default values of the new port-type. If port-type change is not allowed due to
current configuration, an error message will be issued.
Mode: port e1t1 <slot> <port>
Configuring PRI clock-mode
The PRI Port can either work in clock-master or in clock-slave mode. This setting defines the clock depen-
dency of the internal data processing. In clock-master mode the internal data processing is running on an inde-
pendent clock source. In clock-slave mode the clock source for internal data processing is recovered from the
receive line interface. Be aware that always a port-pair of clock-master and clock-slave are connected together.
In the other case the data transmission will fail due to bit failures. This command has also the option ‘auto’ that
can be used if the application running on the port is also of an asymmetric nature like master/slave, server/cli-
ent or user/net. Normally, the option ‘auto’ is used if the port is setup for ISDN. In this case, the clock mode
will automatically derived from the Q.921 protocol. If the UNI-Side (User-Network Interface) of Q.921 is set
to ‘net’, then clock mode of the port is automatically set to ‘master’ and if Q.921 is configured as ‘user’ it will
be set to ‘slave’.
Mode: port <hw-type> <slot> <port>
Configuring PRI line-code
Three different line codes can be selected on the PRI port whereas only ‘ami’ is standardized for E1 and T1. If
the port is running in E1 mode, ‘hdb3’ is also configurable and in T1 mode ‘b8zs’. If a linecode will be selected
that is not standardized for the current port mode, an error message will be advised.
Step Command Purpose
1 [name] (hw-type)[slot/port]# [no]
shutdown
Enable/Disable the PRI port.
Default: shutdown (which is disabled)
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]# port-type
{e1 | t1}
Changes operation mode of the port.
Restriction: Only available for e1t1 ports
Default: e1
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]# clock {auto |
master | slave}
Configures the clock-mode of the port.
Default: master
PRI port configuration task list 194
SmartWare Software Configuration Guide 16 • PRI port configuration
Mode: port <hw-type> <slot> <port>
Configuring PRI framing
Four framing formats are available for selection on the E1T1 port. Unframed can only be used if the encapsula-
tion is set for hdlc. All other currently available upper layer (encapsulation) protocols do not run in unframed
mode, but in one of the framed modes.
In structured mode, E1 can be configured for crc4 or non-crc4 and T1 has the framing option esf and sf.
•CRC4 (E1): Cyclic Redundancy Check 4. A CRC4 Multi-Frame consists of 16 continuous Basic-Frames.
Each Multi-Frame can be divided into two Sub Multi-Frames. The first bit of Timeslot 0 of each even Sub
Multi-Frame is called the C-Bit and belongs to the CRC4 check sum.
•ESF (T1): Extended Super Frame. The ESF if made up of 24 Basic-Frames. Each Basic-Frame includes one
overhead bit, the F-Bit. The 24 F-Bits of one Extended Super Frame are used for synchronization (6 Bit),
transmitting data link information (12 Bit) and for CRC6 calculation (6 Bit).
•SF (T1): Super Frame: The SF is made up of 12 Basic-Frames. Each Basic-Frame includes one overhead bit,
the F-Bit. The 12 F-Bits of one Super-Frame represent the frame alignment pattern that is used for synchro-
nization.
•Unframed: The advantage of the unframed mode (obviously with hdlc encapsulation) is the utilization of
the whole link speed for user data transmission, 2.048MBit/s for E1 and 1.544MBit/s for T1. However
note that HDLC has its own overhead which decreases the actual data rate.
Mode: port e1t1 <slot> <port>
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]# linecode
{ami | b8zs | hdb3}
Configures the line-code of the port.
Default for e1: hdb3
Default for t1: b8zs
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]# framing
{crc4 | non-crc4 | esf | sf | unframed}
Configures the framing of the port.
Restriction: Only available for e1t1 ports
E1 mode formats are: crc4, non-crc4, unframed.
T1 mode formats are: esf, sf, unframed.
Default for e1: crc4
Default for t1: esf
PRI port configuration task list 195
SmartWare Software Configuration Guide 16 • PRI port configuration
Configuring PRI line-build-out (E1T1 in T1 mode only)
The line build out configuration is used in long haul applications to prevent cross talk in the far end device.
Mode: port e1t1 <slot> <port>
Configuring PRI used-connector (E1T1 in E1 mode only)
If the E1T1 WAN-Card provides several line interface connector types this command specifies which one is
currently in use. Sure, the signal is always on all connectors available but dependent on the wiring technology
the internal impedance matching must be adapted (RJ45 = 120 Ohm; BNC = 75 Ohm).
Mode: port e1t1 <slot> <port>
Configuring PRI application mode (E1T1 only)
The PRI port can be configured to work in either short-haul or in long-haul mode. Short-haul is the default
application and should be used for transmission distances up to 180m/600ft. For transmission distances up to
1800m/6000ft, select the long-haul application.
Mode: port e1t1 <slot> <port>
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]# line-build-
out {0 | -7.5 | -15 | -22.5}
Specifies the pulse attenuation in dB on the line inter-
face.
Restriction: Only available for e1t1 ports in T1
mode.
Default for t1: 0 dB
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]# used-con-
nector {bnc | rj45}
Specifies the currently used connector.
Restriction: Only available for e1t1 ports in E1
mode.
Default for e1: rj45
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]#application
{long-haul | short-haul}
Specifies the e1/t1 application mode
Restriction: Only available for e1t1 ports
Default: short-haul
PRI port configuration task list 196
SmartWare Software Configuration Guide 16 • PRI port configuration
Configuring PRI LOS threshold (E1T1 only)
This command takes effect only if the PRI port is configured for long-haul applications. It specifies the sensi-
tivity for Loss Of Signal threshold. A signal suffers more attenuation over long distances than over short dis-
tances. Therefore the LOS-Threshold must be set higher for longer transmission distances. This command has
a default value of -46dB what should be enough for distances up to 1600 m/5250 ft.
Mode: port e1t1 <slot> <port>
Configuring PRI Loopback detection (E1T1 only)
In T1 mode the E1T1 PRI port has the capability for auto detection of inband sent loop back codes. Once a
loopback-up code is detected, the module automatically enables the proper loopback function and disables it a
soon as the corresponding loopback-down code appears. This feature is used by carrier equipment for testing
the line to the customer. It sends the loopback-up code to the customer device, then subsequently starts, for
example, a Pseudo Random Bit Sequence (PRBS) to determinate the quality of the connection.
Depending on the configured T1 framing, the right loopback code detection mode will be enabled as soon as
the command loop-back auto-detection will be executed. For framing type uses a different loop-
back code detection mechanism:
•ESF: The loopback codes are transmitted via the 4kBit/s EOC-Channel, that is part of the 8kBit/s F-Bit
Channel. The following codes are supported:
•SF and Unframed: An inband loop code pattern is sent for at least 5 seconds in all 24 timeslots. The follow-
ing codes are supported:
Step Command Purpose
1 [ name] (prt-e1t1)[slot/port]#los-thresh-
old {-4dB | -6dB | -8dB … -46dB | -
48dB}
Specifies Loss Of Signal Threshold
Restriction: Only available for e1t1 ports
Default: -46dB
Command Binary Code
Line Loopback Activate 0 000111 0
Line Loopback Deactivate 0 011100 0
Payload Loopback Acti-
vate
0 001010 0
Payload Loopback Deacti-
vate
0 011001 0
Universal Loopback Deac-
tivate
0 010010 0
Loopback Retention 0 010101 0
Command Binary Repetition Code
Line Loopback Activate 00001
Line Loopback Deactivate 001
PRI port configuration task list 197
SmartWare Software Configuration Guide 16 • PRI port configuration
The command has three other options that allow you to manually switch on/off different loops. All these addi-
tional options are applicable in T1 and E1 mode.
The ‘line-interface’ loop sends back the whole link bandwidth (2048kBit/s or 1544kBit/s).
In ‘payload’ the entire user data bandwidth (1984 kbps or 1536 kbps) is looped back.
For some tests it is helpful to loop back the system data. For example, system data are sent from the router to
the PRI port. To switch on this feature the option ‘back-plane’ must be selected.
Mode: port e1t1 <slot> <port>
Configuring PRI encapsulation
The PRI encapsulation command prepares the port for a specific application protocol. After the right encapsu-
lation type has been set, the configuration mode command for the selected protocol can be executed for proto-
col specific configuration.
•channelized: This special encapsulation type pushes the port in mode where it is possible to setup an appli-
cation for a user defined set of timeslots. Normally, all timeslots of a port are under full control of the appli-
cation specified with the encapsulation command. In ‘channelized’ mode, an application uses only the
specified timeslots. If the encapsulation is set to ‘channelized’, use the channel-group command to create a
new Channel Group an to enter its configuration mode. In the Channel Group configuration mode, the
same encapsulation types as on the port configuration mode are available again, except channelized.
•hdlc: Enables HDLC Framing on the selected port. After encapsulation hdlc has been specified, the hdlc
configuration mode can be entered to configure hdlc specific parameters and to define the link layer proto-
col must run over hdlc.
•q921: This encapsulation type automatically binds the signaling timeslot (D-channel) of the selected port to
the ISDN Layer 2 protocol. This is timeslot 16 for an E1 and timeslot 24 for a T1 port. If in the q921 con-
figuration mode q931 is specified as next encapsulation, the control of all remaining timeslots (B-channels)
is given to the ISDN Layer 3 protocol. For more information please see Chapter18, “ISDN Overview” on
page 212 and Chapter19, “ISDN configuration” on page 217.
•rbs: Robbed Bit Signaling encapsulation is only available for T1 ports.
On specifying this encapsulation type, all the 24 timeslots will be bound to the RBS protocol. Enter the
RBS configuration mode for RBS specific configuration (see Chapter 20, “RBS configuration” on
page 225).
Mode: port <hw-type> <slot> <port>
Step Command Purpose
1[ name] (prt-e1t1)[slot/port]#[no] loop-back
{line-interface | back-plane | payload | auto-
detection}
Enables/Disables type of data loopback, line-inter-
face, payload, back-plane, or auto-detection.
Restriction: Only available for e1t1 ports
Default: disabled
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]#[no] encapsu-
lation {channelized | hdlc | q921 | rbs}
Specifies the encapsulation type of the PRI port.
Default: no encapsulation
PRI port configuration task list 198
SmartWare Software Configuration Guide 16 • PRI port configuration
Create a Channel-Group
If the desired encapsulated channel uses only selected time slots (not the entire PRI), then it is necessary to set
up a channel-group. To create a channel-group, set the PRI port’s encapsulation to channelized. (See section
“Configuring PRI encapsulation”.) On creating a new channel-group the channel-group configuration mode is
immediately entered. To remove an existing channel-group the ‘no’ form of the command has to be used.
Mode: port e1t1 <slot> <port>
Configuring Channel-Group Timeslots
The ‘timeslots’ command configures an arbitrary sequence of timeslots for use in data transmission. The syntax
of the command accepts comma-separated groups of timeslots. A group can be a single timeslot or a range of
timeslots. The channel-group timeslots do not have to be contiguous. The ‘no’ form of the command releases
all previously selected timeslots.
Example:
>timeslots 1,4,6 Selects three timeslots (1, 4 an 6)
>timeslots 1,4-6 Selects four timeslots (1, 4, 5 and 6)
>timeslots 1-3,4-6 Selects six timeslots (1, 2, 3, 4, 5 and 6)
Mode: channel-group group-name
Configuring Channel-Group Encapsulation
The encapsulation command prepares the Channel Group for a specific application protocol. After the right
encapsulation type has been set, the configuration mode command for the selected protocol can be executed
for protocol specific configuration.
•hdlc: Enables HDLC Framing on the selected Channel Group. After encapsulation hdlc has been specified,
the hdlc configuration mode can be entered to configure hdlc specific parameters and to define the link
layer protocol must run over hdlc. The number of selected timeslots in the Channel Group also defines the
data transmission rate of the hdlc protocol (n * 64kBit/s).
•q921: This encapsulation type can only be chosen if on the Channel Group only one timeslot is selected. It
is NOT possible to bind multiple timeslots to the q921 protocol.
•rbs: Robbed Bit Signaling encapsulation is only available for T1 ports.
On specifying this encapsulation type, all the timeslots specified in the Channel Group will be bound to the
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]#[no] channel-
group group-name
Enters the channel-group configuration mode of
group-name. If the group does not yet exist a new
one will be created. The ‘no’ form of the command
removes an existing channel-group.
Step Command Purpose
1 [name] (ch-grp)[group-name]#[no]
timeslots timeslots
Selects the timeslots to be used.
Default: no timeslots
PRI port configuration task list 199
SmartWare Software Configuration Guide 16 • PRI port configuration
RBS protocol. Enter the RBS configuration mode for RBS specific configurations (see Chapter 20, “RBS
configuration” on page 225).
Mode: channel-group group-name
Entering HDLC Configuration Mode
The hdlc configuration mode can be entered either from the “port e1t1” configuration mode or from the
“channel-group” configuration mode. If you cannot enter the hdlc mode, it may be due to an invalid or incom-
plete configuration, and an error message will be issued. In “port e1t1” configuration mode, you only need to
set the encapsulation for ‘hdlc’ in order to enter the hdlc configuration mode. In “channel-group” configura-
tion mode the encapsulation must be set to ‘hdlc’ as well followed by configuring at least one timeslot per the
‘timeslots’ command.
Mode: port e1t1 <slot> <port>
Mode: channel-group <group>
Configuring HDLC CRC-Type
This command specifies the length of the checksum for calculating the CRC of the hdlc-frame. It can be either
a 16-bit or a 32-bit checksum.
Mode: hdlc
Step Command Purpose
1 [name] (ch-grp)[group-name]#[no] encap-
sulation {hdlc | q921 | rbs}
Specifies the encapsulation type of the channel-
group. Default: no encapsulation
Step Command Purpose
1 [name] (prt-e1t1)[slot/port]# hdlc Entering the hdlc configuration mode
Step Command Purpose
1 [name] (ch-grp)[group-name]#hdlc Entering the hdlc configuration mode
Step Command Purpose
1 [name] (hdlc)#crc-type {crc16 | crc32} Selects the checksum-type to be used.
Default: crc16
PRI port configuration task list 200
SmartWare Software Configuration Guide 16 • PRI port configuration
Configuring HDLC Encapsulation
The hdlc encapsulation command specifies what kinds of upper layer data are contained in the hdlc frames.
Two encapsulation types are available, framerelay and ppp. For more details see Chapter 15, “Frame Relay con-
figuration” on page 177 and Chapter 30, “PPP configuration” on page 313.
Mode: hdlc
PRI Debugging
For the investigation of possible problems in link establishment, data transmission or synchronization, there
exists a debug command with the options ‘event’ and ‘error’. The command has a hierarchical characteristic
and can be applied to all ports of given type on the whole device, or to all ports of slot or just to one specific
port.
Step Command Purpose
1 [name] (hdlc)#encapsulation {framere-
lay | ppp}
Specifies the encapsulation type of hdlc.
Default: no encapsulation
PRI port configuration task list 201
SmartWare Software Configuration Guide 16 • PRI port configuration
Mode: Operator execution
Mode: Operator execution
PRI Configuration Examples
Here is a group of seven configuration examples.
•Example 1: ISDN
•Example 2: RBS without a channel-group
•Example 3: RBS with a channel-group
Step Command Purpose
1 [name]#[no] debug hw-type
[ ( [<slot> | [<port>] ] ) | [ [event] |
[error] ] ]
Enables/Disables the PRI event/error monitor for the
device a slot or a port.
Examples:
1)[no] debug e1t1
Enables/Disables the event and the error monitor for
all e1t1 ports of the device.
2)[no] debug e1 event
Enables/Disables the event monitor for all e1 ports
of the device.
3)[no] debug t1 error
Enables/Disables the error monitor for all t1 ports of
the device.
4)[no] debug e1 3
Enables/Disables the event and error monitor for all
e1 ports on slot 3.
5)[no] debug e1t1 1 event
Enables/Disables the event monitor for all e1t1
ports on slot 1.
6)[no] debug t1 2 error
Enables/Disables the error monitor for all t1 ports
on slot 2.
7)[no] debug t1 0 0
Enables/Disables the event and error monitor for the
t1 port 0 on slot 0.
8)[no] debug e1 1 0 event
Enables/Disables the event monitor for the e1 port 0
on slot 1.
9)[no] debug e1t1 2 0 error
Enables/Disables the error monitor for the e1t1 port
0 on slot 2.
Step Command Purpose
1 [name]#show port hw-type
[ [<slot> <port>] | [detail <level>] ]
Prints information about the specified port with a
given detail level.
PRI port configuration task list 202
SmartWare Software Configuration Guide 16 • PRI port configuration
•Example 4: Frame Relay without a channel-group
•Example 5: Frame Relay with a channel-group
•Example 6: PPP without a channel-group
•Example 7: PPP with a channel-group
Example 1: ISDN
port e1t1 0 0
port-type t1
clock auto
linecode b8zs
framing esf
encapsulation q921
q921
uni-side auto
encapsulation q931
q931
protocol ni2
uni-side net
bchan-number-order ascending
encapsulation cc-isdn
bind interface pri00 switch
port e1t1 0 0
no shutdown
Example 2: RBS without a channel-group
port e1t1 0 0
port-type t1
clock master
linecode b8zs
framing esf
encapsulation rbs
rbs
protocol ground-start exchange
encapsulation cc-rbs
bind interface pri00 switch
port e1t1 0 0
no shutdown
Example 3: RBS with a channel-group
port e1t1 0 0
port-type t1
clock master
linecode b8zs
framing esf
encapsulation channelized
channel-group group_1_8
timeslots 1-8
encapsulation rbs
rbs
PRI port configuration task list 203
SmartWare Software Configuration Guide 16 • PRI port configuration
protocol eam-wink-start
encapsulation cc-rbs
bind interface pri00_1_8 switch
channel-group group_9_16
timeslots 9-16
encapsulation rbs
rbs
protocol ground-start exchange
encapsulation cc-rbs
bind interface pri00_9_16 switch
channel-group group_17_24
timeslots 17-24
encapsulation rbs
rbs
protocol eam-double-wink-start
encapsulation cc-rbs
bind interface pri00_17_24 switch
port e1t1 0 0
no shutdown
Example 4: Frame Relay without a channel-group
port e1t1 0 0
port-type e1
framing crc4
encapsulation hdlc
hdlc
encapsulation framerelay
framerelay
lmi-type itu
pvc 100
encapsulation rfc1490
bind interface pvc100 router
no shutdown
port e1t1 0 0
no shutdown
PRI port configuration task list 204
SmartWare Software Configuration Guide 16 • PRI port configuration
Example 5: Framerelay with a channel-group
port e1t1 0 0
port-type e1
framing crc4
encapsulation channelized
channel-group myGroup
timeslots 13-17
encapsulation hdlc
hdlc
encapsulation framerelay
framerelay
lmi-type itu
pvc 100
encapsulation rfc1490
bind interface pvc100 router
no shutdown
port e1t1 0 0
no shutdown
Example 6: PPP without a channel-group
port e1t1 0 0
port-type e1
framing crc4
encapsulation hdlc
hdlc
encapsulation ppp
bind interface myPPP router
port e1t1 0 0
no shutdown
Example 7: PPP with a channel-group
port e1t1 0 0
port-type e1
framing crc4
encapsulation channelized
channel-group yourGroup
timeslots 1,9,16,23
encapsulation hdlc
hdlc
encapsulation ppp
bind interface myPPP router
port e1t1 0 0
no shutdown
205
Chapter 17 BRI port configuration
Chapter contents
Introduction........................................................................................................................................................206
BRI port configuration task list............................................................................................................................206
Enable/Disable BRI port ...............................................................................................................................206
Configuring BRI clock-mode ........................................................................................................................206
Configuring BRI Power-Feed ........................................................................................................................207
Configuring BRI encapsulation .....................................................................................................................207
Creating a channel group ..............................................................................................................................207
Configuring channel-group timeslots ............................................................................................................208
Configuring channel-group encapsulation .....................................................................................................208
Entering HDLC configuration mode ............................................................................................................208
Configuring HDLC encapsulation ................................................................................................................208
BRI Debugging .............................................................................................................................................209
BRI Configuration Examples ........................................................................................................................210
Example 1: ISDN with auto clock/uni-side settings ................................................................................210
Example 2: ISDN with manual clock/uni-side settings ............................................................................210
Example 3: Multi-Link PPP over two B-Channels ..................................................................................211
Introduction 206
SmartWare Software Configuration Guide 17 • BRI port configuration
Introduction
This chapter provides an overview of the BRI (Basic Rate Interface) ports, their characteristics and the tasks
involved in the configuration. A BRI port supports two 64kbit/s B-channels for switched voice or data connec-
tions, one 16kbit/s D-channel for signaling and always-on data transfer. This results a usable data bit rate of
144kBit/s.
BRI port configuration task list
This section describes the configuration tasks for the BRI port.
•Enable/Disable BRI port
•Configuring BRI clock mode
•Configuring BRI Power-Feed
•Configuring BRI encapsulation
•BRI Debugging
Enable/Disable BRI port
By default, the BRI port is disabled. The following command is used for enabling or disabling it.
Mode: port bri <slot> <port>
Configuring BRI clock-mode
The BRI Port can either work in clock-master or in clock-slave mode. This setting defines the clock depen-
dency of the internal data processing. In clock-master mode the internal data processing is running on an inde-
pendent clock source. In clock-slave mode the clock source for internal data processing is recovered from the
receive line interface. Be aware that always a port-pair of clock-master and clock-slave are connected together.
In the other case the data transmission will fail due to bit failures. This command has also the option ‘auto’ that
can be used if the application running on the port is also of an asymmetric nature like master/slave, server/cli-
ent or user/net. Normally, the option ‘auto’ is used if the port is setup for ISDN. In this case, the clock mode
will automatically derived from the Q.921 protocol. If the UNI-Side (User-Network Interface) of Q.921 is set
to ‘net’, then clock mode of the port is automatically set to ‘master’ and in the other case to ‘slave’.
Mode: port bri <slot> <port>
Step Command Purpose
1 [name] (prt-bri)[slot/port]# [no] shutdown Enable/Disable the selected port.
Default: shutdown (which is disabled)
Step Command Purpose
1 [name] (prt-bri)[slot/port]# clock {auto |
master | slave}
Configures the clock-mode of the port.
Default: auto
BRI port configuration task list 207
SmartWare Software Configuration Guide 17 • BRI port configuration
Configuring BRI Power-Feed
Enables the application of power on the BRI port to provide power to ISDN terminals. This command applies
only if the port is clock master (network side). It is only available on products with an internal, configurable
ISDN power supply.
Mode: port bri <slot> <port>
Configuring BRI encapsulation
The BRI encapsulation command prepares the port for a specific application protocol. After the right encapsu-
lation type has been set, the configuration mode command for the selected protocol can be executed for proto-
col specific configuration.
•q921: This encapsulation type automatically binds the signaling timeslot of the selected port to the ISDN
Layer 2 protocol. For the BRI port this is the 16kbit/s D-channel. If in the q921 configuration mode q931
is specified as next encapsulation, the control of the two remaining timeslots (B-channels) is given to the
ISDN Layer 3 protocol. For more information please consult Chapter 19, “ISDN configuration” on
page 217.
•channelized: This special encapsulation type pushed the port in a mode where it is possible to setup an
application for a user-defined timeslot. Normally, all timeslots of a port are under full control of the appli-
cation specified with the encapsulation command. In ‘channelized’ mode, and application uses only the
specified timeslot. If the encapsulation is set to ‘channelized’, use the channel-group command to create a
new Channel Group and to enter its configuration mode. The requested can then be selected with the
Channel Group’s encapsulation command.
Mode: port bri <slot> <port>
Creating a channel group
If the desired encapsulated channel uses only a selected time slot (not the entire BRI), then it is necessary to set
up a channel-group. To create a channel-group, set the BRI port’s encapsulation to channelized. (See s“Config-
uring BRI encapsulation”.) On creating a new channel-group the channel-group configuration mode is imme-
diately entered. To remove an existing channel-group, the ‘no’ form of the command must be used.
Mode: port bri <slot> <port>
Step Command Purpose
1 [name] (prt-bri)[slot/port]#[no] power-
feed
Enables/Disables power-feed on the selected port.
Default: disabled
Step Command Purpose
1 [name] (prt-bri)[slot/port]#[no] encapsu-
lation { channelized | q921}
Specifies the encapsulation type of the BRI port.
Default: q921
Step Command Purpose
1 [name] (prt-bri)[slot/port]#[no] channel
group <group-name>
Enters the channel-group configuration mode of
group-name. If the group does not yet exist a new
one will be created. The ‘no’ form of the command
removes an existing channel-group.
BRI port configuration task list 208
SmartWare Software Configuration Guide 17 • BRI port configuration
Configuring channel-group timeslots
The ‘timeslots’ command configures the timeslot for use in data transmission. On a BRI port, only the B-
Channels can be selected (0 or 1).
Mode: channel-group <group-name>
Configuring channel-group encapsulation
The encapsulation command prepares the Channel Group for a specific application protocol. After the right
encapsulation type has been set, the configuration mode command for the selected protocol can be executed
for protocol specific configuration.
•hdlc: Enables HDLC Framing on the selected Channel Group. After encapsulation hdlc has been specified,
the hdlc configuration mode can be entered to configure hdlc specific parameters and to define the link
layer protocol must run over hdlc.
Mode: channel-group <group-name>
Entering HDLC configuration mode
The hdlc configuration mode can be entered from the ‘channel-group’ configuration mode if the encapsulation
is set to ‘hdlc’ and a timeslot has been specified. If the hdlc configuration mode is not accessible, it may be due
to an invalid or incomplete configuration. In this case, an error message will be issued.
Mode: channel-group <group-name>
Configuring HDLC encapsulation
The hdlc encapsulation command specifies what kinds of upper layer data are contained in the hdlc frames.
Currently, only PPP can be chosen. For more details about PPP configuration, see Chapter 30, “PPP configu-
ration” on page 313. Also, see “Example 3: Multi-Link PPP over two B-Channels” on page 211.
Mode: channel-group <group-name>
Step Command Purpose
1 [name] (ch-grp)[group-name]#[no]
timeslots <timeslots>
Selects the timeslot to be used.
Default: no timeslots
Step Command Purpose
1 [name] (ch-grp)[group-name]#[no] encap-
sulation {hdlc}
Specifies the encapsulation type of the channel-
group.
Default: no encapsulation
Step Command Purpose
1 [name] (ch-grp)[group-name]#hdlc Enters the hdlc configuration mode.
Step Command Purpose
1 [name] (hdlc)#[no] encapsulation {ppp} Specifies the encapsulation type of hdlc.
Default: no encapsulation
BRI port configuration task list 209
SmartWare Software Configuration Guide 17 • BRI port configuration
BRI Debugging
For the investigation of possible problems in link establishment, data transmission or synchronization, there
exists a debug command with the options ‘event’ and ‘error’. The command has a hierarchical characteristic
and can be applied to all ports on the whole device, or to all ports of slot or just to one specific port. In addi-
tion, the ‘show port’ command can be used to printout information about the current configuration and about
received and transmitted frames.
Mode: Operator execution
Mode: Operator execution
Step Command Purpose
1 [name]#[no] debug bri
[ ( [<slot> | [<port>] ] ) | [ [event] |
[error] ] ]
Enables/Disables the BRI event/error monitor for the
device a slot or a port.
Default: no debug bri
Examples:
1)[no] debug bri
Enables/Disables the event and the error monitor for
all bri ports of the device.
2)[no] debug bri event
Enables/Disables the event monitor for all bri ports
of the device.
3)[no] debug bri error
Enables/Disables the error monitor for all bri ports
of the device.
4)[no] debug bri 3
Enables/Disables the event and error monitor for all
bri ports on slot 3.
5)[no] debug bri 1 event
Enables/Disables the event monitor for all bri ports
on slot 1.
6)[no] debug bri 2 error
Enables/Disables the error monitor for all bri ports
on slot 2.
7)[no] debug bri 0 0
Enables/Disables the event and error monitor for the
bri port 0 on slot 0.
8)[no] debug bri 1 0 event
Enables/Disables the event monitor for the bri port 0
on slot 1.
9)[no] debug bri 2 0 error
Enables/Disables the error monitor for the bri port 0
on slot 2.
Step Command Purpose
1 [name]#show port bri
[ [<slot> <port>] | [detail <level>] ]
Prints information about the specified port with a
given detail level.
BRI port configuration task list 210
SmartWare Software Configuration Guide 17 • BRI port configuration
BRI Configuration Examples
•Example 1: ISDN with auto clock/uni-side settings
•Example 2: ISDN with manual clock/uni-side settings
•Example 3: Multi-Link PPP over two B-Channels
Example 1: ISDN with auto clock/uni-side settings
port bri 0 4
power-feed
encapsulation q921
q921
uni-side auto
encapsulation q931
q931
protocol dss1
uni-side net
bchan-number-order ascending
encapsulation cc-isdn
bind interface bri04 switch
port bri 0 4
no shutdown
Example 2: ISDN with manual clock/uni-side settings
port bri 0 4
clock slave
encapsulation q921
q921
uni-side user
encapsulation q931
q931
protocol dss1
uni-side user
bchan-number-order ascending
encapsulation cc-isdn
bind interface bri04 switch
port bri 0 4
no shutdown
BRI port configuration task list 211
SmartWare Software Configuration Guide 17 • BRI port configuration
Example 3: Multi-Link PPP over two B-Channels
context ip router
interface wan-bri
ipaddress 10.10.10.2 255.255.255.0
subscriber ppp bri_0_0
dial in
multilink max-links 2 fragmentation equal-distribution 320
bind interface wan-bri router
port bri 0 0
clock slave
encapsulation channelized
channel-group Group0
timeslots 0
encapsulation hdlc
hdlc
encapsulation ppp
bind subscriber bri_0_0
channel-group Group1
timeslots 1
encapsulation hdlc
hdlc
encapsulation ppp
bind subscriber bri_0_0
port bri 0 0
no shutdown
212
Chapter 18 ISDN Overview
Chapter contents
Introduction........................................................................................................................................................213
ISDN reference points ..................................................................................................................................213
Possible SmartNode port configurations .......................................................................................................214
ISDN UNI Signaling ....................................................................................................................................214
ISDN Configuration Concept.............................................................................................................................216
ISDN Layering .............................................................................................................................................216
Introduction 213
SmartWare Software Configuration Guide 18 • ISDN Overview
Introduction
This chapter provides an overview of ISDN ports and describes the tasks involved in configuring ISDN ports
in SmartWare.
ISDN ports are the physical ISDN connections on the SmartNode devices. There are two types of ISDN ports:
•The ISDN basic rate interface (BRI), and
•The ISDN primary rate interface (PRI).
A BRI port supports two 64kbit/s B-channels for switched voice or data connections, one 16kbit/s D-channel
for signaling and always-on data transfer. BRI ports are sometimes called S0 ports. The related PSTN access
service is also called Basic Rate Access (BRA).
The PRI port supports thirty 64kbit/s B-channels, one 64kbit/s D-channel and one synchronization timeslot
on a standard E1 (G.704) physical layer. PRI ports are also called S2m ports. The related PSTN access service
is also called Primary Rate Access (PRA).
ISDN reference points
The ISDN standards define a number of reference points on the interfaces between the various equipment
types on an ISDN access line. Figure 31 illustrates these reference points. The understanding of these reference
points and where they are located is necessary for the configuration of the SmartNode ISDN ports.
Figure 31. ISDN reference points
S/T
SUT
LE
Basic Rate Access point-to-multipoint (S-bus)
Basic Rate Access Line point-to-point
Primary Rate Access Line
PBX
Legend:
TE Terminal Equipment (Phone)
NT1 Network Termination 1 (Modem)
NT2 Network Termination 2 (PBX)
V
TE
NT1
Local Exchange
TE
LT ET
LT ET
TE
Phones
Phone
NT2 NT1
NT2 NT1
TE
Phone
U
U
LT ET
ST
PBX
LE Local Exchange
LT Line Termination
ET Exchange Termination
Introduction 214
SmartWare Software Configuration Guide 18 • ISDN Overview
The S reference point is on the subscriber interface. This is the typical 4-wire connection between an ISDN
phone and an ISDN PBX. Be aware that many ISDN PBX vendors use non-standard proprietary 2-wire inter-
faces to connect the Terminals to the PBX.
The T reference point is on the trunk interface of a PBX. This is the standard 4-wire interface between the PBX
and the network termination unit (NTU) also known as NT1 in standard terminology. The ISDN layer 2 pro-
tocol at this point is in point-to-point mode between the NTU and the PBX.
The 4-wire layer 1 specification S and T interfaces is foreseen for in-house installations and carries a maximum
of 150 meters.
The S/T reference point is on a point-to-multipoint S-Bus. Here several terminals are connected directly to the
same BRI NTU. The S and T reference points are “collapsed”. The NT2 is not represented by any equipment
unit.
The U reference point is on the transmission side of the NTU designed to carry the ISDN line over the last
mile. For basic rate interfaces this is typically a DSL technology working on legacy copper pairs over a distance
up to 12 kilometers. For primary rate lines, DSL, coax and fiber transmission is in use. In most European
countries the U interface is not accessible to the subscriber, the operator always provides the NT1. In the US
and some other countries the NT1 can be integrated into the NT2, i.e. the PBX is connected directly to the U
interface.
The V reference point is typically a y-wire interface between the line card of the public switch and the 2 Mbps
transmission equipment which transports the PRI signal over copper (DSL), coax or fiber.
Possible SmartNode port configurations
The SmartNode ISDN ports can be configured for connection to S, T, S/T, and V interfaces. Refer to
figure 33, which illustrates some of the possible network integration options.
ISDN UNI Signaling
ISDN is a User-Network Interface (UNI) signaling protocol with a user and a network side. The user side is
implemented in ISDN terminals (phones, terminal adapters, etc.) while the network side is implemented in
the exchange switches of the network operator. Both sides have different signaling states and messages. Smart-
Ware ISDN ports can be configured to work as user (USR) or network (NET) interfaces.
A SmartNode in some applications does not replace a standard ISDN equipment (PBX or Terminal) but is
inserted between an existing NT and PBX. In such cases the SmartNode ISDN ports are configured to operate
the opposite side of the connected equipment as illustrated in figure 33.
Figure 32. ISDN signaling side
S UT
PBX
Legend:
USR User Side Signaling
NET Network Side Signaling
TE
Phone
NT2 NT1
T
NodeUSR NET NETUSR
IP Network
Introduction 215
SmartWare Software Configuration Guide 18 • ISDN Overview
Figure 33. Integration of ISDN access lines
Port activation deactivation—ISDN ports can be config-
ured while they are active. However they will be internally dis-
abled to modify the configuration and then re-enabled. All active
calls on the port are dropped during this process. Configuration
changes should only be performed during planned down times.
Reference clock source and synchronization—The
SmartNode uses a single reference clock source for the synchro-
nization of the 64kbit/s PCM channels on the ISDN ports and in
the CS context. This reference clock source can be internal or it
can be derived from one of the ISDN ports. If the clock reference
is not configured in accordance with the network environment,
clock slips and related voice quality degradations can occur.
Refer to chapter 31, “CS context overview” on page 339 on
how to configure the reference clock
S/T
SUT
LE
Basic Rate Access point-to-multipoint (S-bus)
Basic
Rate
Access
Line
point
-
to
-
point
Primary Rate Access Line
PBX
Legend:
TE Terminal Equipment (Phone)
NT1 Network Termination 1 (Modem)
NT2 Network Termination 2 (PBX)
V
TE
NT1
Local Exchange
TE
LT ET
LT ET
TE
Phones
Phone
NT2 NT1
NT2
TE
Phone
U
ET
ST
PBX
LE Local Exchange
LT Line Termination
ET Exchange Termination
T
Node
Node Node
IP Network
Node
S/T
IP Network
IP Network
IMPORTAN
IMPORTAN
ISDN Configuration Concept 216
SmartWare Software Configuration Guide 18 • ISDN Overview
ISDN Configuration Concept
ISDN Layering
ISDN consists of 3 layers. Each layer has its own parameters that need to be configured.
•Layer 1, often called the physical layer, is responsible to transport single bits between two systems. Layer 1
does not guarantee that a message can be transmitted without errors.
Parameters: Clock mode, line codes.
•Layer 2 allows a station to reliably send messages to another station using the D channel. Layer 2 imple-
ments flow control, error detection and correction (retransmission) as well as addressing mechanism to
direct messages to individual devices.
Parameters: point-to-point or point-to-multipoint mode, network/user side, permanent layer 2 enabled.
•Layer 3 does send and receive application level messages (i.e. call control). It cares for sending broadcast
messages and collecting the individual results of the attached devices. It also handles the assignment of the B
channels.
Parameters: network/user side, protocol (i.e. DSS1), maximum number of channels.
Figure 34. ISDN layering model
The layered model of ISDN is reflected in the configuration by the use of different modes for each layer. The
layers are connected by using encapsulations and bindings. The encapsulation defines what the next higher
layer protocol will be. On the topmost layer, the binding finally selects a logical interface to connect the
port to. For more information how to configure and setup the physical ports for ISDN, please see Chapter 17,
“BRI port configuration” on page 205 and Chapter 16, “PRI port configuration” on page 191. Detailed infor-
mation about Q.921 and Q.931 configuration are available in Chapter 19, “ISDN configuration” on
page 217.
Connector pin-out and short circuits—Some of the Smart-
Node ISDN BRI ports are configurable to operate as network or
terminal ports. The pin-out of the sockets is switched according to
this configuration. Wrong port configurations, wrong cabling or
wrong connections to neighboring equipment can lead to short
circuits in the BRI line powering. Refer to the HW installation
guide and the port configuration sections below to avoid miscon-
figurations.
IMPORTAN
Encapsulation: cc-
Bind: <call control interface>
Encapsulation: q931
Encapsulation: q921
Phys. Port
Layer 1
Layer 2 (Q.921)
Layer 3 (Q.931)
Call
Control
217
Chapter 19 ISDN configuration
Chapter contents
Introduction........................................................................................................................................................218
ISDN configuration task list................................................................................................................................218
Enter Q.921 configuration mode ..................................................................................................................218
Configuring Q.921 parameters .....................................................................................................................218
Configuring Q.921 encapsulation .................................................................................................................219
Enter Q.931 configuration mode ..................................................................................................................219
Configuring Q.931 parameters .....................................................................................................................220
Configuring Q.931 encapsulation .................................................................................................................222
Debugging ISDN ..........................................................................................................................................222
ISDN Configuration Examples .....................................................................................................................223
Introduction 218
SmartWare Software Configuration Guide 19 • ISDN configuration
Introduction
This chapter describes the configuration of the Q.921 and Q.931 protocol and how to bind the ISDN proto-
col to an application like the Call Control. To get an overview of the ISDN protocol and the layered configura-
tion model of SmartWare, please see Chapter 18, “ISDN Overview” on page 212. In this chapter it is
supposed, the lower layer on which ISDN will be setup is correctly configured. If ISDN has to run on a TDM
port like BRI or PRI, please see Chapter 17, “BRI port configuration” on page 205 or Chapter 16, “PRI port
configuration” on page 191.
ISDN configuration task list
Configuring ISDN typically consists of the following tasks:
•Enter Q.921 configuration mode
•Configuring Q.921 parameters
•Configuring Q.921 encapsulation
•Enter Q.931 configuration mode
•Configuring Q.931 parameters
•Configuring Q.931 encapsulation
Enter Q.921 configuration mode
Normally, Q.921 is running as ISDN Layer 2 protocol on a BRI or PRI port. But it is also possible another
protocol is using Q.921 as its next encapsulation step an then Q.921 will not be configured out of a port con-
text. That means, Q.921 encapsulation can be configured in different configuration modes. For this reason, the
command description below refers to the configuration mode in which Q.921 can be enabled by setting the
encapsulation to ‘q921’. This configuration mode is called here ‘base-mode’ but it is only an alias for the real
mode. Once encapsulation q921 has been configured, the Q.921 configuration mode can be entered.
Mode: base-mode
Configuring Q.921 parameters
This chapter provides an overview of the Q.921 configuration parameters, their syntax and possible restric-
tions. In case of ISDN, Q.921 settings apply to both BRI and PRI ports. They are defined in the q921 mode.
To use Q921, the lower layer encapsulation must be set to q921.
Step Command Purpose
1node(base-mode)]#[no] encapsulation
q921
Enables/Disables Q.921
2node(base-mode)]#q921 Enter the Q.921 configuration mode
ISDN configuration task list 219
SmartWare Software Configuration Guide 19 • ISDN configuration
Mode: q921
Configuring Q.921 encapsulation
This command specifies the next protocol or application has to be attached to the Q.921 protocol. In case of
ISDN this will always be the Q.931 protocol but in a distributed system for example, it could also be a net-
work protocol.
Mode: q921
Enter Q.931 configuration mode
Normally, Q.931 is running as ISDN Layer 3 protocol on Q.921. But it is also possible another protocol is
using Q.931 as its next encapsulation step an then Q.931 will not be configured out of the Q.921 context.
That means, Q.931 encapsulation can be configured in different configuration modes. For this reason, the
Step Command Purpose
1node(q921)[slot/port]#protocol pp
or
node(q921)[slot/port]#protocol pmp
Specify Q.921 operating mode (Default: BRI:
pmp, PRI: pp).
The Q.921 protocol running on BRI ports can
operate in point-to-point (pp) or point-to-multi-
point (pmp) mode. Point-to-multipoint is used
to connect multiple terminals to an ISDN S-
Bus. In some cases small PBXs are also con-
nected to the public ISDN in point-to-multi-
point mode. Point-to-point is typically used to
connect PBXs to a public or private ISDN.
The Q.921 protocol of PRI ports always run in
point-to-point (pp) mode.
2node(q921)[slot/port]#uni-side auto
or
node(q921)[slot/port]#uni-side net
or
node(q921)[slot/port]#uni-side user
Specify the UNI side of the interface (Default:
auto)
If layer1 clock mode is not defined or set to
auto this setting also specifies the clock mode
for layer1.
NET: clock mode = master
USR: clock mode = slave
If set to auto the UNI side setting is taken from
layer3.
3node(q921)[slot/port]#[no] permanent-
layer2 Enables the Q.921 permanent activity
(Default: disabled).
By default, the Q.921 protocol is not enabled
permanently, i.e. the first call enables it.
Step Command Purpose
1node(q921)[slot/port]#[no] encapsula-
tion q931
Enables/Disables the next application or pro-
tocol. Currently only Q.931 is supported.
ISDN configuration task list 220
SmartWare Software Configuration Guide 19 • ISDN configuration
command description below refers to the configuration mode in which Q.931 can be enabled by setting the
encapsulation to ‘q931’. This configuration mode is called here ‘base-mode’ but it is only an alias for the real
mode. Once encapsulation q931 has been configured, the Q.931 configuration mode can be entered.
Mode: base-mode
Configuring Q.931 parameters
This chapter provides an overview of the Q.931 configuration parameters, their syntax and possible restric-
tions. In case of ISDN, Q.931 settings apply to both BRI and PRI ports. They are defined in the q931 mode.
To use Q931, the lower layer encapsulation must be set to q931.
Note QSIG is an ISDN based protocol for signaling between nodes of a Private
Integrated Services Network. The formal name of the signaling system by
ISO / IEC is PSS1. Both names will co-exist and QSIG will continue to be
used as the marketing name.
Mode: q931
Step Command Purpose
1[name](base-mode)]#[no] encapsulation
q931
Enables/Disables Q.931
2[name](base-mode)]#q931 Enter the Q.931 configuration mode
Step Command Purpose
1node(q931)[slot/port]#protocol dss1
or
node(q931)[slot/port]#protocol pss1
or
node(q931)[slot/port]#protocol ni2
or
node(q931)[slot/port]#protocol ntt
or
node(q931)[slot/port]#protocol dms-
100
Specify the ISDN layer 3 protocol (Default:
BRI: dss1, E1: dss1, T1: ni2)
The ISDN layer 3 is the network signaling
protocol. SmartWare ISDN supports:
•Euro-ISDN (E-DSS1)
•Q.SIG (PSS1)
•National ISDN (NI2)
•Nippon Telecom NTT for BRI
•Nortel Dms-100 for T1
The layer 3 signaling must correspond to the
connected ISDN equipment or network.
ISDN configuration task list 221
SmartWare Software Configuration Guide 19 • ISDN configuration
2node(q931)[slot/port]#signalling-rule
etsi
or
node(q931)[slot/port]#signalling-rule
pss1old
or
node(q931)[slot/port]#no signalling-rule
Specify channel numbering (Default: etsi)
Some older Q-SIG variants make use of a
channel numbering scheme that differs from
the standard ETSI method. In most cases the
ETSI numbering applies. Unless the connected
ISDN devices and configured protocols
require a different scheme, make sure the
numbering is set to ETSI.
3node(q931)[slot/port]#uni-side net
or
node(q931)[slot/port]#uni-side user
Specify the UNI side of the interface.
If not defined on layer2 (q921 mode) this set-
ting also specifies the UNI side setting for
layer2.
The layer 2 settings also apply to Q.SIG
(PSS1) interfaces.
Make sure that the device connected to a
SmartNode ISDN port is operating the oppo-
site side of the configured uni-side.
4node(q931)[slot/port]#max-calls number-
of-calls
or
node(q931)[slot/port]#no max-calls
Limits the total number of concurrent calls
on the port.
The no form of the command restores the
default settings.
Note if the channel-range and
max-calls command are
used simultaneously, the
lower number of chan-
nels is the limiting
parameter.
5node(prt-pstn)[slot/port]#channel-range
min max
or
node(prt-pstn)[slot/port]#no channel-
range
Specify B-channel range to be used on a PRI
port (Default: E1: 0-31, T1: 0-23)
Limits the time-slots to be used for calls to the
range between min and max. This is in some
cases required for interoperability with ISDN
services that impose the same limitations.
Call slots outside the defined range are
rejected (busy line). If no range is defined
(Default) all 30 (T1: 23) time-slots are avail-
able for use.
The no form of the command restores the
default settings.
Step Command Purpose
ISDN configuration task list 222
SmartWare Software Configuration Guide 19 • ISDN configuration
Configuring Q.931 encapsulation
This command specifies the next protocol or application has to be attached to the Q.931 protocol. In case of
ISDN this will always be the CC-ISDN (Call Control) application. For this case also a binding to a pre-created
ISDN interface is necessary. For information about creation and configuration of an ISDN interface please see
Chapter 34, “ISDN interface configuration” on page 390.
Mode: q931
Debugging ISDN
For the investigation of possible Q.921/Q.931 protocol problems or to get call signaling information, there
exists a debug command with the options ‘event’ and ‘error’. The command can be applied to the port on
which ISDN is configured and has a further option to switch on or off a specific ISDN layer. In addition, the
‘show port isdn’ command can be used to printout information about the current state and statistic informa-
tion about received and transmitted frames.
Mode: Operator execution
6node(q931)[slot/port]# bchan-number-
order ascending
or
node(q931)[slot/port]#bchan-number-
order ascending-cyclic
or
node(q931)[slot/port]#bchan-number-
order descending
or
node(q931)[slot/port]#bchan-number-
order descending-cyclic
Specify B-channel allocation strategy (Default:
ascending)
The numbering mode defines how the avail-
able time slots are filled. The cyclic modes use
a “round-robin” implementation. The “up”
and “down” modes define whether the time
slots are filled at the lowest or highest avail-
able slot, i.e. up means that always the lowest
available slot is used, down uses always the
highest available slot.
Step Command Purpose
1node(q931)[slot/port]#[no] encapsula-
tion cc-isdn
Enables/Disables the next application or pro-
tocol. Currently only CC-ISDN is supported.
2node(q931)[slot/port]#[no] bind inter-
face if-name
Bind the Q.931 protocol to an existing call
control interface.
Step Command Purpose
1node#debug isdn {event | error} slot port
{all | layer2 | layer3}
Enables/Disables the ISDN event/error moni-
tor
Step Command Purpose
ISDN configuration task list 223
SmartWare Software Configuration Guide 19 • ISDN configuration
Mode: Operator execution
ISDN Configuration Examples
Example: Configuring BRI port as Euro-ISDN interface
The following example shows how to configure port 0/0 as a Euro ISDN interface with user side signaling.
172.16.40.71(cfg)#port bri 0 0
172.16.40.71(prt-bri)[0/0]#q921
172.16.40.71(q921)[0/0]#q931
172.16.40.71(q931)[0/0]#uni-side user
172.16.40.71(q931)[0/0]#encapsulation cc-isdn
172.16.40.71(q931)[0/0]#bind interface bri00
172.16.40.71(q931)[0/0]#exit
172.16.40.71(q921)[0/0]#exit
172.16.40.71(prt-bri)[0/0]#no shutdown
Example: being clock slave on uni network interface
The following example shows how to configure both ports of a SmartNode with network signaling but receive
the clock (via port 0) from the peer. The peer must be configured accordingly, i.e. port 0 as USR/clock master
and port 1 NET/clock slave.
172.16.40.71(cfg)#port bri 0 0
172.16.40.71(prt-bri)[0/0]#clock slave
172.16.40.71(prt-bri)[0/0]#q921
172.16.40.71(q921)[0/0]#q931
172.16.40.71(q931)[0/0]#uni-side net
172.16.40.71(q931)[0/0]#encapsulation cc-isdn
172.16.40.71(q931)[0/0]#bind interface bri00
172.16.40.71(q931)[0/0]#exit
172.16.40.71(q921)[0/0]#exit
172.16.40.71(prt-bri)[0/0]#no shutdown
172.16.40.71(cfg)#port bri 0 1
172.16.40.71(prt-bri)[0/0]#q921
172.16.40.71(q921)[0/0]#q931
172.16.40.71(q931)[0/0]#uni-side net
172.16.40.71(q931)[0/0]#encapsulation cc-isdn
172.16.40.71(q931)[0/0]#bind interface bri01
172.16.40.71(q931)[0/0]#exit
172.16.40.71(q921)[0/0]#exit
172.16.40.71(prt-bri)[0/0]#no shutdown
Step Command Purpose
1node#show port isdn [slot port] [detail <-
level>]Show the status of one or more ISDN ports.
If the optional arguments slot/port are omitted the
status of all ISDN ports is displayed.
Level could be 1 to 5. Level 1 shows less, level 5
shows all available information. Default level is 3.
ISDN configuration task list 224
SmartWare Software Configuration Guide 19 • ISDN configuration
Example: QSIG
Assume the scenario as illustrated in figure 35:
Figure 35. PBX connected to ISDN port 1/0
Configure the ISDN port 1/0 to work as a Q-SIG master port but clock-slave and allow a maximum of eight
parallel B-channel connections.
172.16.40.71(cfg)#port e1 1 0
172.16.40.71(prt-e1)[1/0]#clock slave
172.16.40.71(prt-e1)[1/0]#q921
172.16.40.71(q921)[1/0]#q931
172.16.40.71(q931)[1/0]#uni-side net
172.16.40.71(q931)[1/0]#protocol pss1
172.16.40.71(q931)[1/0]#signalling-rule etsi
172.16.40.71(q931)[1/0]#max-channels 8
172.16.40.71(q931)[0/0]#exit
172.16.40.71(q921)[0/0]#exit
172.16.40.71(prt-e1)[0/0]#no shutdown
Example: PRI
Configure PRI port 1/0 as clock master. From the Local Exchange timeslots 1 through 20 are available and the
total number of concurrent calls shall be limited to 10. Use down-cyclic channel numbering.
172.16.40.71(cfg)#port e1 1 0
172.16.40.71(prt-e1)[1/0]#q921
172.16.40.71(q921)[1/0]#q931
172.16.40.71(q931)[1/0]#uni-side net
172.16.40.71(q931)[1/0]#max-channels 10
172.16.40.71(q931)[1/0]#channel-range 1 20
172.16.40.71(q931)[1/0]#bchan-number-order descending-cyclic
172.16.40.71(q931)[0/0]#exit
172.16.40.71(q921)[0/0]#exit
172.16.40.71(prt-e1)[0/0]#no shutdown
Node
Node
ISDN Port 1/0
225
Chapter 20 RBS configuration
Chapter contents
Introduction........................................................................................................................................................226
RBS configuration task list ..................................................................................................................................226
Enter RBS configuration mode .....................................................................................................................226
Configuring RBS protocol ............................................................................................................................226
Configuring RBS encapsulation ....................................................................................................................227
Debugging RBS ............................................................................................................................................227
RBS Configuration Examples ........................................................................................................................228
Introduction 226
SmartWare Software Configuration Guide 20 • RBS configuration
Introduction
This chapter describes the configuration of the Robbed Bit Signaling (RBS) protocol and how to bind it to the
Call Control application. RBS is used on T1 links to provide per-channel circuit signaling information. In this
application no common signaling channel is used like in ISDN, each channel (Time Slot) is carrying its signal-
ing information by itself. For this purpose, in every sixth frame the least significant bit of each timeslot is used
(robbed) to transmit the signaling state. In the Super Frame (SF) format that is built on 12 basic frames, the bit
robbed from the 6th frame is called the A-Bit and the bit robbed from the 12th frame is called the B-Bit. If the
Extended Super Frame (ESF) format issued, that exists on 24 basic frames, the robbed bits are called A-Bit (6th
frame), B-Bit (12th frame), C-Bit (18th frame) and D-Bit (24th frame). The information carried in these 2/4
bits is representing the current signaling state in a format it is known from the Analog Telephony (FXS/FXO).
These states are for example On-Hook, Off-Hook and Ringing.
RBS configuration task list
Configuring RBS typically consists of the following tasks:
•Enter RBS configuration mode
•Configuring RBS protocol
•Configuring RBS encapsulation
Enter RBS configuration mode
There are two different ways how to use RBS. First, RBS encapsulation can be directly configured on the
requested T1 port. In this case, all timeslots will use the same configured RBS protocol and will be bound to
the same Call Control interface. But if not all timeslots of a T1 port have to be configured for RBS or some
timeslots have to use a different RBS protocol or different groups of timeslots have to be bound to different
Call Control interfaces, then the channelized port configuration model must be selected. For more information
about the channelized model and the creation of channel groups, please consult Chapter16, “PRI port config-
uration” on page 191. Because RBS encapsulation can be set in different configuration modes (Port and Chan-
nel Group), an independent mode name ‘base-mode’ is used in the command description below. It refers to the
real mode where encapsulation ‘rbs’ can be configured.
Mode: base-mode
Configuring RBS protocol
RBS knows several different signaling protocols. Dependent on the application requirements the right one
must be selected.
•Loop Start: It is the most common protocol and primarily used for local loop services. The protocol is
asymmetric what means, the exchange and the subscriber side are different. Always an Exchange/Subscriber
pair must be connected together. There is a provisioning for ring indication in this protocol.
Step Command Purpose
1node(base-mode)]#[no] encapsulation
rbs
Enables/Disables RBS
2node(base-mode)]#rbs Enter the RBS configuration mode
RBS configuration task list 227
SmartWare Software Configuration Guide 20 • RBS configuration
•Ground Start: This protocol is commonly used for local loop PBX services. The protocol is asymmetric
what means, the exchange and the subscriber side are different. Always an Exchange/Subscriber pair must
be connected together. There is a provisioning for ring indication in this protocol.
•E&M Wink Start: This protocol is used between exchanges, is symmetric and has NO provisioning for ring
indication. The ‘wink’ serves as an indication that the terminating side is ready to receive the called party
number, it is analogous to the dial tone.
•E&M Immediate Start: This protocol is almost the same as E&M Wink Start but the originating side must
have the capability for inband dial tone detection due to a missing ‘ready to receive digits’ indication.
•E&M Double Wink Start: This protocol is almost the same as E&M Wink Start with the difference after
the terminating side has received all digits of the called party number, it sends back an acknowledge ‘wink’
to the originating side.
Mode: rbs
Configuring RBS encapsulation
This command specifies the next protocol or application has to be attached to the RBS protocol. Here it will
always be the CC-RBS (Call Control) application and also a binding to a pre-created RBS interface is neces-
sary. For information about creation and configuration of a RBS interface please consult Chapter 37, “RBS
interface configuration” on page 426.
Mode: rbs
Debugging RBS
For the investigation of possible RBS protocol problems or to get information about the call signaling state,
there exist two debug commands with the options ‘event’ and ‘error’. The first command is called ‘debug cas’
(Channel Associated Signaling) and outputs information about sent and received A, B, C and D bits as well as
information about the debouncing state. Debouncing of the received signaling state bits is necessary due to
possible transmission failures on the TDM line. The second debug command is called ‘debug rbs’ and outputs
information about call signaling state changes (On-Hook, Off-Hook, Ringing, Wink).
Step Command Purpose
1node(rbs)]#[no] protocol {loop-start
{exchange | subscriber} | ground-start
{exchange | subscriber} | eam-double-
wink-start | eam-immediate-start |
eam-wink-start}
Selects the RBS protocol.
Step Command Purpose
1node(rbs)]#[no] encapsulation cc-rbs Enables/Disables the next application or pro-
tocol. Only CC-RBS is supported.
2node(rbs)]#[no] bind interface interface Bind the RBS protocol to an existing call con-
trol interface.
RBS configuration task list 228
SmartWare Software Configuration Guide 20 • RBS configuration
Mode: Operator execution
Mode: Operator execution
RBS Configuration Examples
Example: Configuring RBS Ground Start on a E1T1 port
port e1t1 0 0
port-type t1
clock slave
linecode b8zs
framing esf
encapsulation rbs
rbs
protocol ground-start subscriber
encapsulation cc-rbs
bind interface RBS00 switch
port e1t1 0 0
no shutdown
Example: Configuring different RBS protocols with a Channel Group on an E1T1 port
port e1t1 0 0
port-type t1
clock slave
linecode b8zs
framing esf
encapsulation channelized
channel-group RBS_GROUP_1_8
timeslots 1-8
encapsulation rbs
rbs
protocol eam-wink-start
encapsulation cc-rbs
bind interface RBS00_1_8 switch
channel-group RBS_GROUP_9_16
timeslots 9-16
encapsulation rbs
rbs
protocol eam-immediate-start
encapsulation cc-rbs
bind interface RBS00_9_16 switch
Step Command Purpose
1node#[no] debug cas {event | error} Enables/Disables CAS event/error monitor
Step Command Purpose
1node#[no] debug rbs {event | error} Enables/Disables RBS event/error monitor
RBS configuration task list 229
SmartWare Software Configuration Guide 20 • RBS configuration
channel-group RBS_GROUP_17_24
timeslots 17-24
encapsulation rbs
rbs
protocol eam-double-wink-start
encapsulation cc-rbs
bind interface RBS00_17_24 switch
port e1t1 0 0
no shutdown
230
Chapter 21 DSL Port Configuration
Chapter contents
Introduction........................................................................................................................................................231
Line Setup ...........................................................................................................................................................231
Configuring PPPoE.............................................................................................................................................231
Configuration Summary......................................................................................................................................232
Setting up permanent virtual circuits (PVC)........................................................................................................233
Using PVC channels in bridged Ethernet mode ............................................................................................233
Using PVC channels with PPPoE .................................................................................................................233
Diagnostics ...................................................................................................................................................234
Troubleshooting DSL Connections.....................................................................................................................234
Introduction 231
SmartWare Software Configuration Guide 21 • DSL Port Configuration
Introduction
This chapter provides an overview of the DSL ports (ADSL and G.SHDSL), their characteristics and the tasks
involved in the configuration.
Figure 36. Configuring the G.SHDSL card for PPPoE
Line Setup
There is no line modulation setting. The modems automatically adapt to the bit rate and modulation used.
The status LED on the back of the device is blinking while the modem attempts to connect and lit when the
link is established. If the modem keeps blinking, check the cabling,
Configuring PPPoE
Figure 36 explains how to configure PPPoE on the SmartNode’s built-in G.SHDSL card. To configure the
DSL port for PPPoE, first you need to log in to the SmartNode via the CLI and enter configuration mode.
login: administrator
password: <enter>
node>enable
node>#configure
The Modem setup uses IP messages within its own subnet:
192.0.2.0/24. SmartNodes with built-in modems cannot use this
subnet in any other way.
Subscriber PPP
MySubscriber
Profile
napt
WAN
port
dsl 0 0
pvc
vpi 8 vci 35
pppoe
session MyISP
bind subscriber
MySubscriber
bind interface
WAN router
use profile napt
WAN
context
ip
WAN
interface
\ \
CAUTION
Configuration Summary 232
SmartWare Software Configuration Guide 21 • DSL Port Configuration
Next, you will need to create a WAN profile, create a WAN interface, and create a subscriber. Then, you can
configure the DSL port (port dsl 0 0) for PPPoE.
Follow this example:
profile napt WAN
context ip router
interface WAN
ipaddress unnumbered
point-to-point
use profile napt WAN
tcp adjust-mss rx mtu
tcp adjust-mss tx mtu
subscriber ppp MySubscriber
dial out
authentication chap
identification outbound <username> password <password>
bind interface WAN router
port dsl 0 0
pvc vpi 8 vci 35
pppoe
session MyISP
bind subscriber MySubscriber
no shutdown
The line - use profile napt WAN - defines that the NAPT profile <profile> will be used on the ip interface
<name>. For PPPoE, you will only use outbound for identification. You will want to use authentication, which
is why you bind to a subscriber. You can use authentication chap or authentication pap. The line - bind sub-
scriber MySubscriber - binds the PPPoE session to the PPP subscriber, in case authentication is required. If
you do not use authentication, then you will not have a subscriber and you will bind directly to the interface.
Configuration Summary
The modems offer multiple bridged Ethernet connections through logical channels within the DSL link. A
logical connection is called a Permanent Virtual Circuit (PVC) and is identified by a VPI/VCI number pair.
Consult your provider's configuration instructions for connections used on your DSL link. You define those
PVCs inside "port dsl 0 0":
port dsl 0 0
pvc vpi 8 vci 35
Iin the mode "pvc", you define what to do with the bridged Ethernet connection it offers:
•Bind one or more IP interfaces when your providers uses fixed ip addresses or DHCP in the network
•Enter PPPoE mode and define a PPP session if the provider is using PPPoE.
Note PPPoA is not supported.
Setting up permanent virtual circuits (PVC) 233
SmartWare Software Configuration Guide 21 • DSL Port Configuration
Setting up permanent virtual circuits (PVC)
The modems currently available are using ATM to multiplex traffic over the DSL framing connection. ATM
allows you to have separate logical connections running in parallel. Those connections are called permanent
virtual circuits (PVC). All permanent virtual circuits use AAL5 framing.
Using PVC channels in bridged Ethernet mode
The PVC offers a bridged Ethernet connection as specified in RFC1483, which can be used as an IP link e.g.
with DHCP to assign the address, DNS server, and default gateway. To do this, you bind an IP interface to the
PVC like it would be done to a normal Ethernet port.
Using PVC channels with PPPoE
The RFC1483 bridged Ethernet connection can also be used for PPPoE. To do this, you enter PPPoE mode
within the PVC mode. All PPPoE commands apply as if the PVC was a regular Ethernet port.
Note The bridged PVC connections are internally mapped to VLANs on a virtual
Ethernet port 0/2. You will therefore see references to this third Ethernet
port when displaying PPPoE status information or debug logs.
Table 8. PVC Commands
Command Purpose
Step 1 node(prt-dsl)[0/0]# [no] pvc vpi 8 vci 35 Creates PVC 8/35 and enters configuration
mode for this PVC. The "no"-variant deletes the
PVC configuration.
Step 2 node(pvc)[8/35]# encapsulation {llc|vc} Sets the encapsulation to be used. Optionally
select either LLC encapsulation or VC multiplex-
ing for this PVC.
Default: llc
Table 9. PVC channels in bridged Ethernet mode
Command Purpose
Step 1 node(pvc)[vpi/vci]# [no] bind interface
<if-name>
Associates an IP interface configuration with this
PVC.
Table 10. PVC channels in PPPoE mode
Command Purpose
Step 1 node(pvc)[vpi/vci]# pppoe Enters PPPoE configuration mode for this PVC.
Step 2 node(pppoe)# session <name> Defines a PPPoE session.
Step 3 node(session)[<name>]# bind sub-
scriber <subscriber-name>
Links the session to a subscriber definition.
Step 4 node(session)[<name>]# no shutdown Enables the PPPoE session
Troubleshooting DSL Connections 234
SmartWare Software Configuration Guide 21 • DSL Port Configuration
Diagnostics
Troubleshooting DSL Connections
Link State:
•Verify that the DSL link is established (status LED is continuously on)
PPPoE access:
•Check if "show pppoe detail 3" shows "State: .... opened". This indicates that the PVC is valid and a that
you reached a PPPoE server through it.
•Check if "show ppp networks detail 3" shows "State: .... opened" for both the "LCP" and the "CHAP" sec-
tion. If LCP is not working, there is probably no compatible authentication protocol configured. Make sure
"authentication chap" and "authentication pap" are included in the subscriber setup. If only CHAP failed
there may be an error with the username or password.
•Run the “debug” command: node# debug dsl-setup (See table 11 above).
Table 11. Diagnostics commans
Command Purpose
Step 1 node> show dsl type Displays the type of modem installed.
Step 2 node> show dsl line-state Displays information about the state of the DSL
link.
Step 3 node> show dsl version Display firmware version information for the
modem.
Step 4 node# debug dsl-setup Lists the configuration interactions between the
gateway and the modem module.
235
Chapter 22 Basic IP routing configuration
Chapter contents
Introduction........................................................................................................................................................236
Routing tables ...............................................................................................................................................236
Static routing ................................................................................................................................................236
Policy routing ...............................................................................................................................................236
Basic IP routing configuration task list ................................................................................................................236
Configuring static IP routes ..........................................................................................................................237
Deleting static IP routes ................................................................................................................................238
Displaying IP route information ...................................................................................................................238
Configuring policy routing ...........................................................................................................................239
Examples .............................................................................................................................................................240
Basic static IP routing example ......................................................................................................................240
Changing the default UDP port range for RTP and RTCP .................................................................................241
Introduction 236
SmartWare Software Configuration Guide 22 • Basic IP routing configuration
Introduction
This chapter provides an overview of IP routing and describes the tasks involved in configuring static IP rout-
ing.
IP routing moves information across an internetwork from a source to a destination, typically passing through
one or more intermediate nodes along the way. The primary difference between routing and bridging is the
two different access levels of information that are used to determine how to transport packets from source to
destination; routing occurs at Layer 3 (the network layer), while bridging occurs at Layer 2 (the link layer) of
the OSI reference model. In addition to transporting packets through an internetwork, routing involves deter-
mining optimal paths to a destination. Routing algorithms use metrics, or standards of measurement, to estab-
lish these optimal paths and for initializing and maintaining routing tables that contain all route information.
Routing tables
The routing table stores routes to:
•Directly-attached interfaces or networks
•Static IP routes
•Routes learned dynamically from the Routing Information Protocol (RIP)
In the routing table, next-hop associations specify that a destination can be reached by sending packets to a
next-hop router located on an optimal path to the destination. When the SmartNode receives an incoming
packet, it checks the destination address, and attempts to associate this address with a next-hop address and
outgoing interface. Routing algorithms must converge rapidly — i.e. all routers must agree on optimal routes.
When a network event causes routes either to go down or to become unavailable, routers distribute routing
update messages that permeate networks, causing recalculation of optimal routes that are eventually agreed
upon by all routers. Routing algorithms that converge slowly can cause routing loops or network outages.
Many algorithms can quickly select next-best paths and adapt to changes in network topology.
Static routing
Static routing involves packet forwarding on the basis of static routes configured by the system administrator.
Static routes work well in environments where network traffic is relatively predictable and where the network
topology is relatively simple. In contrast, dynamic routing algorithms adjust to changing network circum-
stances by analyzing incoming routing update messages. RIP uses dynamic routing algorithms.
Policy routing
IP routing makes decisions based on IP addresses. Policy Routing allows the user to configure IP routing based
on more criteria than only the destination IP address. Within the IP Context, IP packets are categorized into
traffic-classes which are used as a routing criterion. Three traffic-classes are defined—default, local-voice, and
local-default. In addition packets can be categorized into user-defined traffic-classes by using ACL.
Basic IP routing configuration task list
To configure IP routes, perform the tasks described in the following sections. The tasks in the first two sections
are required; the task in the remaining section is optional, but might be required for your application.
•Configuring static IP routes
•Deleting static IP routes (see page 238)
Basic IP routing configuration task list 237
SmartWare Software Configuration Guide 22 • Basic IP routing configuration
•Displaying IP route information (see page 238)
Configuring static IP routes
Rather than dynamically selecting the best route to a destination, you can configure one or more static routes
to that destination. Once configured, a static route stays in the routing table indefinitely. When multiple static
routes are configured for a single destination and the outbound interface of the current static route goes down,
a backup route is activated, thus improving network reliability. Each route is assigned a default precedence
value and cost value. Modifying these values allow you to set a preference for one route over the next. If static
routes are redistributed through dynamic routing protocol to neighboring devices, only the active static route
to a destination is advertised.
This procedure describes how to configure one or more static IP routes to the same destination
Mode: Administrator execution
Where the syntax is:
•network—The IP address of the target network or subnet.
•mask—A network mask where the 1 bits indicate the network or subnet, and the 0 bits indicate the host
portion of the network address provided.
•address—The IP address of a next-hop router that can access the target network or subnet.
•interface—The name of the outgoing interface to use for the target network or subnet.
•metric—This is an optional parameter. Specifies the desirability of the route when compared against other
routes. The range is 0 through 15, where 0 is the preferred route. If no metric is specified, the static route is
assumed to have a metric of 0.
Note To configure a default static IP route, use 0.0.0.0 for the network number
and mask. A valid next-hop address or interface is required.
Example: Adding a static IP route
In the following example, packets for network 20.0.0.0/24 will be routed to the device at 172.17.100.2. The
Ethernet port 0 1 has the address 172.17.100.1/24 and is bound to the interface wan.
node>enable
node#configure
node(cfg)#context ip router
node(ctx-ip)[router]#route 20.0.0.0 255.255.255.0 172.17.100.2
The route is added to the routing database with the default metric 0. The router will forward packets to the
20.0.0.0 network via the interface wan to the router on 172.17.100.2.
Step Command Purpose
1node(cfg)#context ip router Enters the IP router
context
2node(ctx-ip)[router]#route network mask {address | interface} [metric]Adds a static route
Basic IP routing configuration task list 238
SmartWare Software Configuration Guide 22 • Basic IP routing configuration
Deleting static IP routes
The no form of the route command deletes a static IP route from the routing table.
This procedure describes how to delete one or more static IP routes from the routing table
Mode: Administrator execution
Example: Deleting a static IP route
In the following example, the route for packets to network 20.0.0.0/24, which are routed to device with IP
address 172.17.100.2, shall be deleted.
node>enable
node#configure
node(cfg)#context ip router
node(ctx-ip)[router]#no route 20.0.0.0 255.255.255.0 172.17.100.2
Displaying IP route information
This procedure describes how to display static IP routes
Mode: Operator or administrator execution
This command displays the destination address, next-hop interface, protocol (local, static, RIP, or ICMP),
metric, flags (U–up, H–host, G–Gateway, L–local, D–default), and amount of use for each route in the routing
table. If there are multiple routes to the same destination, the preferred route is indicated by an asterisk (*).
Example: Displaying IP route
In the following example, IP route information is displayed.
node>show ip route
Routes of IP context 'router':
Status codes: * valid, U up, H host, G Gateway, L local, D default
Destination Nexthop Protocol Metric Flags Used
---------------------------------------------------------------------
* 127.0.0.1/32 local 0 LHG n/a
* 172.16.40.77/32 local 0 LHG n/a
* 172.17.100.210/32 local 0 LHG n/a
* 172.17.100.0/24 wan local 1 UL 0
* 20.0.0.0/24 172.17.100.2 static 0 U 0
* 172.16.0.0/16 lan local 1 UL 6
Step Command Purpose
1node(cfg)#context ip router Enters the IP router context
2node(ctx-ip)[router]#no route network mask {address | interface}Deletes a static route
Step Command Purpose
1node>show ip route Displays IP route information
Basic IP routing configuration task list 239
SmartWare Software Configuration Guide 22 • Basic IP routing configuration
Configuring policy routing
Where the syntax is:
•destination—The IP address of the target network or subnet.
•Netmask—A network mask where the 1 bits indicate the network or subnet, and the 0 bits indicate the
host portion of the network address provided.
•Interface|gateway—the name of the outgoing interface to use for the target network or subnet, or the IP
address of the outgoing interface
•Metric—(optional) Specifies the desirability of the route when compared against other routes. The range is
0 through 15, where 0 is the preferred route. If no metric is specified, the static route is assumed to have a
metric of 0.
•Traffic class—indicates that this static route is for IP traffic in the following <traffic-class>.” If no traffic-
class is specified, the routing table entry is of no traffic-class and is thus valid for packets of all traffic-classes.
Within IP context, IP packets are categorized into traffic-classes which are used as routing criteria. The follow-
ing traffic-classes are defined:
ß Default:all IP packets that are arriving from the WAN or the LAN and need to be routed through.
ß Local-voice:IP packets that are created within the unit and contain voice data (RTP).
ß Local-default:IP packets that are created within the unit and do not contain voice, e.g., SIP signaling, DNS
lookup, Telnet, etc.
In addition packets can be categorized into user-defined traffic-classes by using ACL.
A routing table entry may or may not have a traffic-class assigned. In the case that a routing table has no traf-
fic-class assigned, it is valid for packets of all traffic-classes. On the other hand, if it does have a traffic-class
assigned, the route is valid is restricted for packets of that given traffic-class.
Consider the following simple routing table example:
-----------------------------------------------------------------------------
V Destination TrafficClass Nexthop Protocol Metric Flags
* 172.16.32.0/24 eth1 local 1 UL
* 127.0.0.0/8 loopback local 1 UL
* 0.0.0.0/0 local-voice 172.16.32.1 static 0 UDG
* 0.0.0.0/0 172.16.32.2 static 0 UDG
Step Command Purpose
1node(cfg)#context ip router Enters the IP router
context
2 node(ctx-ip)[router]#[no] route destination netmask inter-
face|gateway [metric ] [traffic-class <traffic-class> ]
Define a static routing
table entry
Examples 240
SmartWare Software Configuration Guide 22 • Basic IP routing configuration
In this routing table two default routes (0.0.0.0/0) are defined. The first default route is valid for packets of the
class local-voice only. The second default route is valid for all packets. Thus voice packets generated locally
(traffic-class local-voice) will travel via the gateway (Nexthop) 172.16.32.1. All other packets will travel via the
gateway (Nexthop) 172.16.32.2.
NOTE: If the second default route was missing, there would be no default route for packets of traffic-class
other than local-voice.
The following modified commands are used with policy routing:
Route—refer to the ‘route’ command in the subsection “Configuring static IP routes” on page 237 in this
chapter.
Ping—refer to the ‘ping’ command described in the subsection “Testing connections with the ping command”
on page 127 in Chapter 10: IP interface configuration.
Traceroute—refer to the ‘traceroute’ command described in the subsection “Traceroute” on page 130 in Chap-
ter 10: IP interface configuration.
Examples
Basic static IP routing example
Figure 37 shows an Internetwork consisting of three routers, a SmartNode device in the middle, and the four
autonomous networks, with network addresses 10.1.5.0/16, 172.16.40.0/24, 172.17.100.0/24, and 10.2.5.0/
16. The SmartNode shall be configured for the following IP routing scenario:
All packets for the Workstation with IP address 10.1.5.10 shall be forwarded to the next-hop router Calvin. All
packets for network 10.2.5.0/16 shall be forwarded to the next-hop router Hobbes.
Figure 37. Internetwork with three routers and four networks
Node
Node
172.17.100.2/24
172.17.100.1/24172.16.40.1/24
172.16.40.2/2410.1.5.2/16 10.2.5.2/16
lan wan
Calvin Hobbes
Hub
Hub
10.1.5.10/16
Workstation
Changing the default UDP port range for RTP and RTCP 241
SmartWare Software Configuration Guide 22 • Basic IP routing configuration
The necessary routing-table entries for the scenario described are listed below.
node>enable
node#configure
node(cfg)#context ip router
node(ctx-ip)[router]# route 10.1.5.10 255.255.255.255 172.16.40.2
node(ctx-ip)[router]# route 10.2.0.0 255.255.0.0 172.17.100.2
node>show ip route
Routes of IP context 'router':
Status codes: * valid, U up, H host, G Gateway, L local, D default
Destination Nexthop Protocol Metric Flags Used
---------------------------------------------------------------------
* 127.0.0.1/32 local 0 LHG n/a
* 172.16.40.1/24 local 0 LHG n/a
* 172.17.100.1/24 local 0 LHG n/a
* 172.17.100.0/24 wan local 1 UL 0
* 172.16.40.0/16 lan local 1 UL 0
* 10.1.5.10/32 172.16.40.2 static 0 U 0
* 10.2.0.0/16 172.17.100.2 static 0 U 0
Changing the default UDP port range for RTP and RTCP
The UDP port range to be used for RTP streams can be configured using the following procedure:
Mode: context ip
Step Command Purpose
1 [name] (ctx-ip)[router]# rtp-port-range <start-port> <end-port> Define the UDP port range
for RTP/RTCP streams.
242
Chapter 23 RIP configuration
Chapter contents
Introduction........................................................................................................................................................243
Routing protocol .................................................................................................................................................243
RIP configuration task list ...................................................................................................................................244
Enabling send RIP ........................................................................................................................................244
Enabling an interface to receive RIP ..............................................................................................................245
Specifying the send RIP version ....................................................................................................................245
Specifying the receive RIP version .................................................................................................................246
Enabling RIP learning ...................................................................................................................................246
Enabling an interface to receive RIP ..............................................................................................................247
Enabling RIP announcing .............................................................................................................................247
Enabling RIP auto summarization ................................................................................................................248
Specifying the default route metric ................................................................................................................248
Enabling RIP split-horizon processing ...........................................................................................................249
Enabling the poison reverse algorithm ...........................................................................................................249
Enabling holding down aged routes ..............................................................................................................250
Setting the RIP route expiry ..........................................................................................................................250
Displaying RIP configuration of an IP interface ............................................................................................251
Displaying global RIP information ................................................................................................................251
Introduction 243
SmartWare Software Configuration Guide 23 • RIP configuration
Introduction
This chapter provides an overview of the Routing Information Protocol (RIP) and describes the tasks involved
in configuring RIP features includes the following sections:
•Routing protocol
•RIP configuration task list (see page 244)
RIP is a relatively old but still commonly used interior gateway protocol created for use in small, homogeneous
networks. It is a classical distance-vector routing protocol. RIP is documented in RFC 1058.
RIP uses broadcast User Datagram Protocol (UDP) data packets to exchange routing information. Smart-
Nodes can send routing information updates every 30 seconds, which is termed advertising. If a router does not
receive an update from another router for 180 seconds or more, it marks the routes served by the non-updating
router as being unusable. If there is still no update after 240 seconds, the router removes all routing table
entries for the non-updating router.
The metric that RIP uses to rate the value of different routes is the hop count. The hop count is the number of
routers that can be traversed in a route. A directly connected network has a metric of zero; an unreachable net-
work has a metric of 16. This small range of metrics makes RIP an unsuitable routing protocol for large networks
A SmartNode that is running RIP can receive a default network via an update from another router that is run-
ning RIP, or the router can source (generate) the default network itself with RIP. In both cases, the default net-
work is advertised through RIP to other RIP neighbors.
a SmartNode will send and receive RIP information from the specified interface if the following conditions are
met:
•The rip supply flag for a specific interface is enabled
•The rip listen flag for a specific interface is enabled
The default route is learned via a static route and then redistributed into RIP.
RIP sends updates to the specified interfaces. If an interface is not specified, it will not be advertised in any
RIP update.
Routing protocol
Routers exchange information about the most effective path for packet transfer between various end points. There
are a number of different protocols, which have been defined to facilitate the exchange of this information.
Routing Information Protocol (RIP) 1 is the most widely used routing protocol on IP networks. All gateways
and routers that support RIP 1 periodically broadcast routing information packets. These RIP 1 packets con-
tain information concerning the networks that the routers and gateways can reach as well as the number of
routers/gateways that a packet must travel through to reach the receiving address.
RIP 2 is an enhancement of RIP 1 which allows IP subnet information to be shared among routers, and pro-
vides for authentication of routing updates. When this protocol is chosen, the router will use the multicast
address 224.0.0.9 to send and/or receive RIP 2 packets for this network interface. As with RIP 1, the router's
routing table will be periodically updated with information received in these packets.
RIP configuration task list 244
SmartWare Software Configuration Guide 23 • RIP configuration
RIP 2 is more useful in a variety of environments and allows the use of variable subnet masks on your network.
It is also necessary for implementation of classless addressing as accomplished with CIDR (classless inter-
domain routing).
It is recommended that RIP 2 be used on any segment where all routers can use the same IP routing protocol.
If one or more routers on a segment must use RIP 1, then all other routers on that segment should also be set
to use RIP 1.
RIP configuration task list
To configure RIP, perform the tasks described in the following sections. The tasks in the first two sections are
required; the tasks in the remaining sections are optional. Most of the RIP commands have the character of a
flag, which is either enabled or disabled.
•Enabling send RIP
•Enabling an interface to receive RIP (see page 245)
•Specifying the send RIP version (see page 245)
•Specifying the receive RIP version (see page 246)
•Enabling RIP learning (see page 246)
•Enabling an interface to receive RIP (see page 247)
•Enabling RIP announcing (see page 247)
•Enabling RIP auto summarization (see page 248)
•Specifying the default route metric (see page 248)
•Enabling RIP split-horizon processing (see page 249)
•Enabling the poison reverse algorithm (see page 249)
•Enabling holding down aged routes (see page 250)
•Displaying RIP Configuration of an IP interface (see page 251)
•Displaying global RIP information (see page 251)
Enabling send RIP
By default an interface does not send any routing information. This procedure describes how to enable sending
RIP packets on interface
Mode: Interface
Step Command Purpose
1node(if-ip)[name]#rip supply Enables send RIP on interface name
RIP configuration task list 245
SmartWare Software Configuration Guide 23 • RIP configuration
Example: Enabling send RIP
The following example shows how to enable send RIP on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip supply
Enabling an interface to receive RIP
By default an interface does not listen to routing information. This procedure describes how to enable interface
to receive RIP information
Mode: Interface
Example: Enabling receive RIP
The following example shows how to enable receive RIP on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip receive
Specifying the send RIP version
By default, RIP 1compatible packets are sent. Alternatively, you can explicitly configure the RIP version to be
sent with the last command argument as following:
•1—RIPv1
•1compatible—RIPv1 compatible
•2—RIPv2
This procedure describes how to select the sending RIP version on interface
Mode: Interface
Example: Specifying the send RIP
The following example shows how to select send RIP version 1compatible on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip send version 1compatible
Step Command Purpose
1node(if-ip)[name]#rip receive Enables receive RIP on interface name
Step Command Purpose
1node(if-ip)[name]# rip send version {1 | 1compatible | 2} Selects send RIP version for inter-
face name
RIP configuration task list 246
SmartWare Software Configuration Guide 23 • RIP configuration
Specifying the receive RIP version
By default, RIP version 1 and version 2 packets are received. Alternatively, you can explicitly configure the RIP
version to be received with the last command argument as following:
•1—to receive RIP version 1 packets
•1or2—to receive RIP version 1 and version 2 packets
•2—to receive RIP version 2 packets
This procedure describes how to set receiving RIP version on an interface
Mode: Interface
Example: Specifying the receive RIP
The following example shows how to select receive RIP version 1or2 on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip receive version 1or2
Enabling RIP learning
A new route is added to the local routing table, if the routing update contains a route to a destination that does
not already exist. If the update describes a route whose destination is already in the local table, the new route is
used only if it has a lower cost. The cost of a route is determined by adding the cost of reaching the gateway
that sent the update to the metric contained in the RIP update packet. If the total metric is less than the metric
of the current route, the new route is used. Two RIP learning mechanisms are offered, which are represented by
a specific argument of the command rip learn:
•host—for RIP learn host and
•default—for RIP learn default
See the following sections on how to configure those two RIP learning mechanisms.
This procedure describes how to enable accepting of IP host and default routes received on an interface for
RIP learning
Mode: Interface
Example: Enabling RIP learn host and default
Step Command Purpose
1node(if-ip)[name]# rip receive version {1 | 1or2 | 2} Selects receive RIP version for interface
name
Step Command Purpose
1node(if-ip)[name]# rip learn host Enables accepting of IP host routes received on interface
name
2node(if-ip)[name]#rip learn default Enables learning using a default route advertised by an RIP
neighbor on interface name
RIP configuration task list 247
SmartWare Software Configuration Guide 23 • RIP configuration
The following example shows how to enable RIP learn host and default on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip learn host
node(if-ip)[wan]#rip learn default
Enabling an interface to receive RIP
This procedure describes how to enable receive RIP on an IP interface
Mode: Interface
Example: Enables an interface to receive RIP
The following example shows how to enable receive RIP for IP interface lan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface lan
node(if-ip)[lan]#rip listen
Enabling RIP announcing
The RIP protocol supports announcing features, which are used to proclaim specific routing information to
other elements in a network. The RIP announcing command is used for this purpose and offers options for
•default—for RIP default routes,
•host—for IP host routes,
•self-as-default—for self as RIP default routes and
•static—for static IP routes.
Depending on the RIP announcing method the last option for the command in 3 must be explicitly selected. It
is possible to have more than one RIP announcing method enabled concurrently.
This procedure describes how to enable RIP announcing on an interface
Mode: Interface
Example: Enabling RIP announcing
The following example shows how to enable the RIP default routes and IP host routes RIP announcing
method on IP interface wan.
Step Command Purpose
1node(if-ip)[name]#rip listen Enables receive RIP on IP interface name
Step Command Purpose
1node(if-ip)[name]#rip announce {default | host | self-
as-default | static}
Selects the RIP announcing
method on interface name
RIP configuration task list 248
SmartWare Software Configuration Guide 23 • RIP configuration
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip announce default
node(if-ip)[wan]#rip announce host
Enabling RIP auto summarization
Summarizing routes in RIP Version 2 improves scalability and efficiency in large networks.
Auto-summarization attempts to automatically summarize groups of adjacent routes into single entries, the
goal being to reduce the total number of entries in the RIP routing table, reducing the size of the table and
allowing the router to handle more routes.
RIP auto-summarization (automatic network number summarization) is disabled by default. With auto-sum-
marization, the SmartNode summarizes sub prefixes to the Class A, Class B, and Class C network boundary
when class network boundaries are crossed.
This procedure describes how to enable RIP auto-summarization on an interface
Mode: Interface
Example: Enabling RIP auto-summarization
The following example shows how to enable auto-summarization on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip auto-summary
Specifying the default route metric
RIP uses a single routing metric (hop count) to measure the distance between the source and a destination net-
work. Each hop in a path from source to destination is assigned a hop-count value, which is typically 1. When
a SmartNode receives a routing update that contains a new or changed destination-network entry, the Smart-
Node adds one to the metric value indicated in the update and enters the network in the routing table. The IP
address of the sender is used as the next hop.
RIP prevents routing loops from continuing indefinitely by implementing a limit on the number of hops
allowed in a path from the source to a destination. The maximum number of hops in a path is 15. If a Smart-
Node receives a routing update that contains a new or changed entry, and if increasing the metric value by one
causes the metric to be infinity (i.e. 16), the network destination is considered unreachable.
Because metrics cannot be directly compared, you must specify the default metric in order to designate the cost
of the redistributed route used in RIP updates. All routes that are redistributed will use the default metric.
Setting the default route metric, which is a number, indicating the distance to the destination network ele-
ment, e.g. another router or SmartNode in a network, is possible with the rip default-route-value command.
The value is between 1 and 15 for a valid route, or 16 for an unreachable route.
This procedure describes how to set the routing metric on an interface
Step Command Purpose
1node(if-ip)[name]#rip auto-summary Enables RIP auto-summarization on interface name
RIP configuration task list 249
SmartWare Software Configuration Guide 23 • RIP configuration
Mode: Interface
Example: Specifying the default route metric
The following example shows how to set the routing metric to 4 on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip default-route-value 4
Enabling RIP split-horizon processing
Normally, routers that are connected to broadcast-type IP networks and that use distance-vector routing proto-
cols employ the split horizon mechanism to reduce the possibility of routing loops. Split horizon blocks infor-
mation about routes from being advertised by a router out of any interface from which that information
originated. This behavior usually optimizes communications among multiple routers, particularly when links
are broken. However, with non-broadcast networks (such as Frame Relay), situations can arise for which this
behavior is less than ideal. For these situations, you might want to disable split horizon for RIP.
This procedure describes how to enable split horizon on an interface
Mode: Interface
Example: Enabling RIP split-horizon processing
The following example shows how to enable split horizon on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip split-horizon
Enabling the poison reverse algorithm
Normally, RIP uses a technique called split horizon to avoid routing loops and allow smaller update packets.
This technique specifies that when the router sends a RIP update out a particular network interface, it should
never include routing information acquired over that same interface.
There is a variation of the split horizon technique called poison reverse which specifies that all routes should be
included in an update out a particular interface, but that the metric should be set to infinity for those routes
acquired over that interface. Poison reverse updates are then sent to remove the route and place it in hold-
down. One drawback is that routing update packet sizes will be increased when using poison reverse.
This procedure describes how to enable the poison reverse algorithm on an interface
Step Command Purpose
1node(if-ip)[name]#rip default-route-value value Sets the routing metric to value indicating the
distance to the destination on interface name
Step Command Purpose
1node(if-ip)[name]#rip split-horizon Enables RIP split-horizon processing on interface name
RIP configuration task list 250
SmartWare Software Configuration Guide 23 • RIP configuration
Mode: Interface
Example: Enabling the poison reverse algorithm
The following example shows how to enable the poison reverse algorithm on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip poison-reverse
Enabling holding down aged routes
Holding down or locking aged routes learned from RIP packets on the specified interface helps, if an aged
route cannot be refreshed to a non-aged status but must be deleted and then relearned. Enabling this function
enhances the stability of the RIP topology in the presence of transients.
This procedure describes how to enable holding down of aged routes on an interface
Mode: Interface
Example: Enabling holding down aged routes
The following example shows how to enable holding down of aged routes on IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#rip route-holddown
Setting the RIP route expiry
The rip route-expiry command sets the route expiry timeout for routes learned from RIP.
Mode: interface ip
Step Command Purpose
1node(if-ip)[name]#rip poison-reverse Enables the poison reverse algorithm on interface name
Step Command Purpose
1node(if-ip)[name]#rip route-holddown Enables holding down aged routes on interface name
Step Command Purpose
1node(if-ip)[name]#rip route-expiry
[1...3600]
Sets the RIP route expiry timeout.
Default: 180 seconds
RIP configuration task list 251
SmartWare Software Configuration Guide 23 • RIP configuration
Displaying RIP configuration of an IP interface
Displaying the RIP configuration of an IP interface is useful to list the settings. This procedure describes how
to display the RIP configuration of an interface
Mode: Interface
Example: Displaying RIP configuration of an IP interface
The following example shows how to display the RIP configuration of IP interface wan.
node(cfg)#context ip router
node(ctx-ip)[router]#interface wan
node(if-ip)[wan]#show rip interface wan
Interface wan (IP context router):
--------------------------------------------------
listen: disabled
supply: enabled
send version: 1compatible
receive version: 1or2
learn host: disabled
learn default: disabled
announce host: disabled
announce static: disabled
announce default: disabled
announce self-as-default: disabled
route-holddown: enabled
poison-reverse: disabled
auto-summary: disabled
split-horizon: disabled
default-route-value: 0
--------------------------------------------------
Displaying global RIP information
SmartWare also support displaying global RIP information for the IP router context. This procedure describes
how to display the global RIP information
Mode: Configure
Example: Displaying global RIP information
The following example shows how to display the global RIP information.
node(cfg)#show rip
RIP information:
Step Command Purpose
1node(if-ip)[name]#show rip interface ifname Displays the RIP binding of an IP interface on
name
Step Command Purpose
1node(cfg)#show rip Displays the RIP information
RIP configuration task list 252
SmartWare Software Configuration Guide 23 • RIP configuration
rip enabled
253
Chapter 24 Access control list configuration
Chapter contents
Introduction........................................................................................................................................................254
About access control lists .....................................................................................................................................254
What access lists do .......................................................................................................................................254
Why you should configure access lists ...........................................................................................................254
When to configure access lists .......................................................................................................................255
Features of access control lists .......................................................................................................................255
Access control list configuration task list..............................................................................................................256
Mapping out the goals of the access control list .............................................................................................256
Creating an access control list profile and enter configuration mode .............................................................257
Adding a filter rule to the current access control list profile ...........................................................................257
Adding an ICMP filter rule to the current access control list profile ..............................................................259
Adding a TCP, UDP or SCTP filter rule to the current access control list profile .........................................261
Binding and unbinding an access control list profile to an IP interface ..........................................................263
Displaying an access control list profile .........................................................................................................264
Debugging an access control list profile .........................................................................................................264
Examples .............................................................................................................................................................266
Denying a specific subnet ..............................................................................................................................266
Introduction 254
SmartWare Software Configuration Guide 24 • Access control list configuration
Introduction
This chapter provides an overview of IP Access Control Lists and describes the tasks involved in configuring
them.
This chapter includes the following sections:
•About access control lists
•Access control list configuration task list (see page 256)
•Examples (see page 266)
About access control lists
This section briefly describes what access lists do, why and when you should configure access lists, and basic
versus advanced access lists.
What access lists do
Access lists filter network traffic by controlling whether routed packets are forwarded, dropped or blocked at
the router's interfaces. Your router examines each packet to determine whether to forward or drop the packet,
based on the criteria you specified within the access lists.
Access list criteria could be the source address of the traffic, the destination address of the traffic, the upper-
layer protocol, or other information.
Note Sophisticated users can sometimes successfully evade or fool basic access lists
because no authentication is required.
Why you should configure access lists
There are many reasons to configure access lists. For example, you can use access lists to restrict contents of
routing updates, or to provide traffic flow control. But one of the most important reasons to configure access
lists is to provide security for your network, and this is the reason explored in this chapter.
You should use access lists to provide a basic level of security for accessing your network. If you do not configure
access lists on your router, all packets passing through the router could be allowed onto all parts of your network.
About access control lists 255
SmartWare Software Configuration Guide 24 • Access control list configuration
For example, access lists can allow one host to access a part of your network, and prevent another host from
accessing the same area. In figure 38 host A is allowed to access the Human Resources network and host B is
prevented from accessing the Human Resources network.
Figure 38. Using traffic filters to prevent traffic from being routed to a network
You can also use access lists to decide which types of traffic are forwarded or blocked at the router interfaces.
For example, you can permit e-mail traffic to be routed but at the same time block all Telnet traffic.
When to configure access lists
Access lists should be used in firewall routers, which are often positioned between your internal network and an
external network such as the Internet. You can also use access lists on a router positioned between two parts of
your network, to control traffic entering or exiting a specific part of your internal network.
To provide the security benefits of access lists, you should configure access lists at least on border routers, i.e.
those routers situated at the edges of your networks. This provides a basic buffer from the outside network or
from a less controlled area of your own network into a more sensitive area of your network.
On these routers, you should configure access lists for each network protocol configured on the router interfaces.
You can configure access lists so that inbound traffic or outbound traffic or both are filtered on an interface.
Features of access control lists
The following features apply to all IP access control lists:
•A list may contain multiple entries. The order access of control list entries is significant. Each entry is pro-
cessed in the order it appears in the configuration file. As soon as an entry matches, the corresponding
action is taken and no further processing takes place.
Host A
Host B
Human
Resource
Network
Research &
Development
Network
Node
Node
Access control list configuration task list 256
SmartWare Software Configuration Guide 24 • Access control list configuration
•All access control lists have an implicit deny ip any any at the end. A packet that does not match the criteria
of the first statement is subjected to the criteria of the second statement and so on until the end of the access
control list is reached, at which point the packet is dropped.
•Filter types include IP, Internet Control Message Protocol (ICMP), Transmission Control Protocol (TCP),
User Datagram Protocol (UDP), and Stream Control Transmission Protocol (SCTP).
•An empty access control list is treated as an implicit deny ip any any list.
Note Two or more administrators should not simultaneously edit the configura-
tion file. This is especially the case with access lists. Doing this can have
unpredictable results.
Once in access control list configuration mode, each command creates a statement in the access control list.
When the access control list is applied, the action performed by each statement is one of the following:
•permit statement causes any packet matching the criteria to be accepted.
•deny statement causes any packet matching the criteria to be dropped.
To delete an entire access control list, enter configuration mode and use the no form of the profile acl com-
mand, naming the access list to be deleted, e.g. no profile acl name. To unbind an access list from the interface
to which it was applied, enter the IP interface mode and use the no form of the access control list command.
Access control list configuration task list
To configure an IP access control list, perform the tasks in the following sections.
•Mapping out the goals of the access control list
•Creating an access control list profile and enter configuration mode (see page 257)
•Adding a filter rule to the current access control list profile (see page 257)
•Adding an ICMP filter rule to the current access control list profile (see page 259)
•Adding a TCP, UDP or SCTP filter rule to the current access control list profile (see page 261)
•Binding and unbinding an access control list profile to an IP interface (see page 263)
•Displaying an access control list profile (see page 264)
•Debugging an access control list profile (see page 264)
Mapping out the goals of the access control list
To create an access control list you must:
•Specify the protocol to be filtered
•Assign a unique name to the access list
•Define packet-filtering criteria
A single access control list can have multiple filtering criteria statements.
Access control list configuration task list 257
SmartWare Software Configuration Guide 24 • Access control list configuration
Before you begin to enter the commands that create and configure the IP access control list, be sure that you
are clear about what you want to achieve with the list. Consider whether it is better to deny specific accesses
and permit all others or to permit specific accesses and deny all others.
Note Since a single access control list can have multiple filtering criteria state-
ments, but editing those entries online can be tedious. Therefore, we recom-
mend editing complex access control lists offline within a configuration file
and downloading the configuration file later via TFTP to your
SmartNode device.
Creating an access control list profile and enter configuration mode
This procedure describes how to create an IP access control list and enter access control list configuration mode
Mode: Administrator execution
name is the name by which the access list will be known. Entering this command puts you into access control list
configuration mode where you can enter the individual statements that will make up the access control list.
Use the no form of this command to delete an access control list profile. You cannot delete an access control
list profile if it is currently linked to an interface. When you leave the access control list configuration mode,
the new settings immediately become active.
Example: Create an access control list profile
In the following example the access control list profile named WanRx is created and the shell of the access con-
trol list configuration mode is activated.
node>enable
node#configure
node(cfg)#profile acl WanRx
node(pf-acl)[WanRx]#
Adding a filter rule to the current access control list profile
The commands permit or deny are used to define an IP filter rule. This procedure describes how to create an
IP access control list entry that permits access
Mode: Profile access control list
This procedure describes how to create an IP access control list entry that denies access
Step Command Purpose
1node(cfg)#profile acl name Creates the access control list profile name and enters the configura-
tion mode for this list
Step Command Purpose
1node(pf-acl)[name]#permit ip {src src-wildcard | any |
host src} {dest dest-wildcard | any | host dest} [cos group]
Creates an IP access of control list
entry that permits access defined
according to the command
options
Access control list configuration task list 258
SmartWare Software Configuration Guide 24 • Access control list configuration
Mode: Profile access control list
Where the syntax is:
If you place a deny ip any any rule at the top of an access control list profile, no packets will pass regardless of
the other rules you defined.
Example: Create IP access control list entries
Select the access-list profile named WanRx and create some filter rules for it.
node(cfg)#profile acl WanRx
node(pf-acl)[WanRx]#permit ip host 62.1.2.3 host 193.14.2.11 cos Urgent
node(pf-acl)[WanRx]#permit ip 62.1.2.3 0.0.255.255 host 193.14.2.11
node(pf-acl)[WanRx]#permit ip 97.123.111.0 0.0.0.255 host 193.14.2.11
node(pf-acl)[WanRx]#deny ip any any
node(pf-acl)[WanRx]#exit
node(cfg)#
Step Command Purpose
1node(pf-acl)[name]#deny ip {src src-wildcard | any | host
src} {dest dest-wildcard | any | host dest} [cos group]
Creates an IP access of control list
entry that denies access defined
according to the command
options
Keyword Meaning
src The source address to be included in the rule. An IP address in dotted-decimal-format,
e.g. 64.231.1.10.
src-wildcard A wildcard for the source address. Expressed in dotted-decimal format this value specifies
which bits are significant for matching. One-bits in the wildcard indicate that the corre-
sponding bits are ignored. An example for a valid wildcard is 0.0.0.255, which speci-
fies a class C network.
any Indicates that IP traffic to or from all IP addresses is to be included in the rule.
host src The address of a single source host.
dest The destination address to be included in the rule. An IP address in dotted-decimal-for-
mat, e.g. 64.231.1.10.
dest-wildcard A wildcard for the destination address. See src-wildcard
host dest The address of a single destination host.
cos Optional. Specifies that packets matched by this rule belong to a certain Class of Service
(CoS). For detailed description of CoS configuration refer to chapter 13, “Link scheduler
configuration” on page 151.
group CoS group name.
Access control list configuration task list 259
SmartWare Software Configuration Guide 24 • Access control list configuration
Adding an ICMP filter rule to the current access control list profile
The command permit or deny are used to define an ICMP filter rule. Each ICMP filter rule represents an
ICMP access of control list entry.
This procedure describes how to create an ICMP access control list entry that permits access
Mode: Profile access control list
This procedure describes how to create an ICMP access control list entry that denies access
Mode: Profile access control list
Step Command Purpose
1node(pf-acl)[name]#permit icmp {src src-wildcard | any |
host src} {dest dest-wildcard | any | host dest} [msg name |
type type | type type code code] [cos group]
Creates an ICMP access of con-
trol list entry that permits access
defined according to the com-
mand options
Step Command Purpose
1node(pf-acl)[name]#deny icmp {src src-wildcard |
any | host src} {dest dest-wildcard | any | host dest}
[msg name | type type | type type code code] [cos
group]
Creates an ICMP access of control list
entry that denies access defined accord-
ing to the command options
Access control list configuration task list 260
SmartWare Software Configuration Guide 24 • Access control list configuration
Where the syntax is as following:
If you place a deny ip any any rule at the top of an access-list profile, no packets will pass regardless of the other
rules you defined.
Example: Create ICMP access control list entries
Select the access-list profile named WanRx and create the rules to filter all ICMP echo requests (as used by the
ping command).
node(cfg)#profile acl WanRx
node(pf-acl)[WanRx]#deny icmp any any type 8 code 0
node(pf-acl)[WanRx]#exit
node(cfg)#
Keyword Meaning
src The source address to be included in the rule. An IP address in dotted-decimal-format, e.g.
64.231.1.10.
src-wildcard A wildcard for the source address. Expressed in dotted-decimal format this value specifies
which bits are significant for matching. One-bits in the wildcard indicate that the corre-
sponding bits are ignored. An example for a valid wildcard is 0.0.0.255, which specifies
a class C network.
any Indicates that IP traffic to or from all IP addresses is to be included in the rule.
host src The address of a single source host.
dest The destination address to be included in the rule. An IP address in dotted-decimal-format,
e.g. 64.231.1.10
dest-wildcard A wildcard for the destination address. See src-wildcard.
host dest The address of a single destination host.
msg name The ICMP message name. The following are valid message names:
administratively-prohibited, alternate-address, conversion-error, dod-host-prohibited, dod-
net-prohibited, echo, echo-reply, general-parameter-problem, host-isolated, host-prece-
dence-unreachable, host-redirect, host-tos-redirect, host-tos-unreachable, host-unknown,
host-unreachable, information-reply, information-request, mask-reply, mask-request, mobile-
redirect, net-redirect, net-tos-redirect, net-tos-unreachable, net-unreachable, network-
unknown, no-room-for-option, option-missing, packet-too-big, parameter-problem, port-
unreachable, precedence-unreachable, protocol-unreachable, reassembly-timeout, redirect,
router-advertisement, router-solicitation, source-quench, source-route-failed, time-exceeded,
timestamp-reply, timestamp-request, traceroute, ttl-exceeded, unreachable
type type The ICMP message type. A number from 0 to 255 (inclusive)
code code The ICMP message code. A number from 0 to 255 (inclusive)
cos Optional. Specifies that packets matched by this rule belong to a certain Class of Service
(CoS). For detailed description of CoS configuration refer to chapter 13, “Link scheduler
configuration” on page 151.
group CoS group name.
Access control list configuration task list 261
SmartWare Software Configuration Guide 24 • Access control list configuration
The same effect can also be obtained by using the simpler message name option. See the following example.
node(cfg)#profile acl WanRx
node(pf-acl)[WanRX]#deny icmp any any msg echo
node(pf-acl)[WanRX]#exit
node(cfg)#
Adding a TCP, UDP or SCTP filter rule to the current access control list profile
The commands permit or deny are used to define a TCP, UDP or SCTP filter rule. Each TCP, UDP or SCTP
filter rule represents a respective access of control list entry.
This procedure describes how to create a TCP, UDP or SCTP access control list entry that permits access
Mode: Profile access control list
This procedure describes how to create a TCP, UDP or SCTP access control list entry that denies access
Mode: Profile access control list
Step Command Purpose
1node(pf-acl)[name]#permit {tcp | udp | sctp} {src src-wild-
card | any | host src} [{eq port | gt port | lt port | range
from to}] {dest dest-wildcard | any | host dest} [{eq port | gt
port | lt port | range from to}] [{cos group | cos-rtp group-
data group-ctrl}]
Creates a TCP, UDP or SCTP
access of control list entry that
permits access defined according
to the command options
Step Command Purpose
1node(pf-acl)[name]#deny {tcp | udp | sctp} {src src-
wildcard | any | host src} [{eq port | gt port | lt port |
range from to}] {dest dest-wildcard | any | host dest} [{eq
port | gt port | lt port | range from to}] [{cos group | cos-
rtp group-data group-ctrl}]
Creates a TCP, UDP or SCTP
access of control list entry that
denies access defined according
to the command options
Access control list configuration task list 262
SmartWare Software Configuration Guide 24 • Access control list configuration
Where the syntax is:
Example: Create TCP, UDP or SCTP access control list entries
Select the access-list profile named WanRx and create the rules for:
Permitting any TCP traffic to host 193.14.2.10 via port 80, and permitting UDP traffic from host 62.1.2.3 to
host 193.14.2.11 via any port in the range from 1024 to 2048.
node(cfg)#profile acl WanRx
node(pf-acl)[WanRx]#permit tcp any host 193.14.2.10 eq 80
node(pf-acl)[WanRx]#permit udp host 62.1.2.3 host 193.14.2.11 range 1024 2048
node(pf-acl)[WanRx]#exit
node(cfg)#
Keyword Meaning
src The source address to be included in the rule. An IP address in dotted-decimal-format,
e.g. 64.231.1.10.
src-wildcard A wildcard for the source address. Expressed in dotted-decimal format this value specifies
which bits are significant for matching. One-bits in the wildcard indicate that the corre-
sponding bits are ignored. An example for a valid wildcard is 0.0.0.255, which speci-
fies a class C network.
any Indicates that IP traffic to or from all IP addresses is to be included in the rule.
host src The address of a single source host.
eq port Optional. Indicates that a packets port must be equal to the specified port in order to
match the rule.
lt port Optional. Indicates that a packets port must be less than the specified port in order to
match the rule.
gt port Optional. Indicates that a packets port must be greater than the specified port in order to
match the rule
range from to Optional. Indicates that a packets port must be equal or greater than the specified from
port and less than the specified to port to match the rule.
dest The destination address to be included in the rule. An IP address in dotted-decimal-for-
mat, e.g. 64.231.1.10.
dest-wildcard A wildcard for the destination address. See src-wildcard.
host dest The address of a single destination host.
cos Optional. Specifies that packets matched by this rule belong to a certain Class of Service
(CoS). For detailed description of CoS configuration refer to chapter 13, “Link scheduler
configuration” on page 151.
cos-rtp Optional. Specifies that the rule is intended to filter RTP/RTCP packets. In this mode you
can specify different CoS groups for data packets (even port numbers) and control pack-
ets (odd port numbers). Note: this option is only valid when protocol UDP is selected.
group CoS group name.
group-data CoS group name for RTP data packets. Only valid when the rtp option has been specified
group-ctrl CoS group name for RTCP control packets. Only valid when the rtp option has been spec-
ified.
Access control list configuration task list 263
SmartWare Software Configuration Guide 24 • Access control list configuration
Binding and unbinding an access control list profile to an IP interface
The command use is used to bind an access control list profile to an IP interface. This procedure describes how
to bind an access control list profile to incoming packets on an IP interface
Mode: Profile access control list
Where the syntax is:
The no form of the use command is used to unbind an access control list profile from an interface. When
using this form the name of an access control list profile, represented by the name argument above, is not
required. This procedure describes how to unbind an access control list profile to incoming packets on an IP
interface
Mode: Interface
Where the syntax is:
Thus for each IP interface only one incoming and outgoing access control list can be active at the same time.
Example: Bind and unbind an access control list entries to an IP interface
Bind an access control list profile to incoming packets on the interface wan in the IP router context.
node(cfg)#context ip router
node(cfg-ip)[router]#interface wan
node(cfg-if)[wan]#use profile acl WanRx in
Step Command Purpose
1node(if-ip)[if-name]#use profile acl name in Binds access control list profile name to incom-
ing packets on IP interface if-name
Keyword Meaning
if-name The name of the IP interface to which an access control list profile gets bound
name The name of an access control list profile that has already been created using the profile acl
command. This argument must be omitted in the no form
in Specifies that the access control list profile applies to incoming packets on this interface.
out Specifies that the access control list applies to outgoing packets on this interface.
Step Command Purpose
1node(if-ip)[if-name]#no use profile acl in Unbinds access control list profile for incoming pack-
ets on IP interface if-name
Keyword Meaning
if-name The name of the IP interface to which an access control list profile gets bound
in Specifies that the access control list profile applies to incoming packets on this interface.
out Specifies that the access control list applies to outgoing packets on this interface.
Access control list configuration task list 264
SmartWare Software Configuration Guide 24 • Access control list configuration
Unbind an access control list profile from an interface.
node(cfg)#context ip router
node(cfg-ip)[router]#interface wan
node(cfg-if)[wan]#no use profile acl in
Note When unbinding an access control list profile the name argument is not
required, since only one incoming and outgoing access control list can be
active at the same time on a certain IP interface.
Displaying an access control list profile
The show profile acl command displays the indicated access control list profile. If no specific profile is selected
all installed access control list profiles are shown. If an access control list is linked to an IP interface the number
of matches for each rule is displayed. If the access control list profile is linked to more than one IP interface, it
will be shown for each interface.
This procedure describes how to display a certain access control list profile
Mode: Administrator execution or any other mode, except the operator execution mode
Example: Displaying an access control list entries
The following example shows how to display the access control list profile named WanRx.
node#show profile acl WanRx
IP access-list WanRx. Linked to router/wan/in.
deny icmp any any msg echo
permit ip 62.1.2.3 0.0.255.255 host 193.14.2.11
permit ip 97.123.111.0 0.0.0.255 host 193.14.2.11
permit tcp any host 193.14.2.10 eq 80
permit udp host 62.1.2.3 host 193.14.2.11 range 1024 2048
deny ip any any
Debugging an access control list profile
The debug acl command is used to debug the access control list profiles during system operation. Use the no
form of this command to disable any debug output.
This procedure describes how to debug the access control list profiles
Mode: Administrator execution or any other mode, except the operator execution
This procedure describes how to activate the debug level of an access control list profiles for a specific interface.
Step Command Purpose
1node#show profile acl name Displays the access control list profile name
Step Command Purpose
1 node#debug acl Enables access control list debug monitor
Access control list configuration task list 265
SmartWare Software Configuration Guide 24 • Access control list configuration
Mode: Interface
Where the syntax is:
Example: Debugging access control list profiles
The following example shows how to enable debugging for incoming traffic of access control lists on interface
wan. On level 7 all debug output is shown.
node(cfg)#context ip router
node(cfg-ip)[router]#interface wan
node(cfg-if)[wan]#debug acl in 7
The following example enables the debug monitor for access control lists globally.
node#debug acl
The following example disables the debug monitor for access control lists globally.
node#no debug acl
Step Command Purpose
1node(cfg)#context ip router Selects the IP router context
2node(ctx-ip)[router]#interface if-name Selects IP interface if-name for which access
control list profile shall be debugged
3node(if-ip)[if-name]#debug acl {in | out} [level] Enables access control list debug monitor
with a certain debug level for the selected
interface if-name
Keyword Meaning
if-name The name of the IP interface to which an access control list profile gets bound
level The detail level. Level 0 disables all debug output, level 7 shows all debug output.
in Specifies that the settings for incoming packets are to be changed.
out Specifies that the settings for outgoing packets are to be changed.
Examples 266
SmartWare Software Configuration Guide 24 • Access control list configuration
Examples
Denying a specific subnet
Figure 39 shows an example in which a server attached to network 172.16.1.0 shall not be accessible from outside
networks connected to IP interface lan. To prevent access, an incoming filter rule named Jamming is defined,
which blocks any IP traffic from network 172.16.2.0 and has to be bound to IP interface lan.
Figure 39. Deny a specific subnet on an interface
The commands that have to be entered are listed below.
172.16.2.1>enable
172.16.2.1#configure
172.16.2.1(cfg)#profile acl Jamming
172.16.2.1(pf-acl)[Jamming]#deny ip 172.16.2.0 0.0.0.255 172.16.1.0 0.0.0.255
172.16.2.1(pf-acl)[Jamming]#permit ip any any
172.16.2.1(pf-acl)[Jamming]#exit
172.16.2.1(cfg)#context ip router
172.16.2.1(cfg-ip)[router]#interface lan
172.16.2.1(if-ip)[lan]#use profile acl Jamming in
172.16.2.1(if-ip)[lan]#exit
172.16.2.1(cfg-ip)#copy running-config startup-config
Host
Server
Node
Node
172.16.2.1/24172.16.1.1/24
secure lan
172.16.1.0 172.16.2.0
172.16.2.13/24
267
Chapter 25 SNMP configuration
Chapter contents
Introduction........................................................................................................................................................268
Simple Network Management Protocol (SNMP) ................................................................................................268
SNMP basic components ..............................................................................................................................268
SNMP basic commands ................................................................................................................................268
SNMP management information base (MIB) ...............................................................................................269
Network management framework .................................................................................................................269
Identification of a SmartNode via SNMP............................................................................................................269
SNMP tools.........................................................................................................................................................270
SNMP configuration task list ..............................................................................................................................270
Setting basic system information..........................................................................................................................270
Setting access community information ................................................................................................................272
Setting allowed host information .........................................................................................................................274
Specifying the default SNMP trap target .............................................................................................................274
Displaying SNMP related information ................................................................................................................275
Using the AdventNet SNMP utilities ..................................................................................................................275
Using the MibBrowser ..................................................................................................................................276
Using the TrapViewer ...................................................................................................................................277
Standard SNMP version 1 traps...........................................................................................................................279
SNMP interface traps ..........................................................................................................................................280
Introduction 268
SmartWare Software Configuration Guide 25 • SNMP configuration
Introduction
This chapter provides overview information about Simple Network Management Protocol (SNMP) and
describes the tasks used to configure those of its features supported.
This chapter includes the following sections:
•Simple Network Management Protocol (SNMP)
•SNMP tools (see page 270)
•SNMP configuration task list (see page 270)
•Using the AdventNet SNMP utilities (see page 275)
•Standard SNMP version 1 traps (see page 279)
Simple Network Management Protocol (SNMP)
The Simple Network Management Protocol (SNMP) is an application-layer protocol that facilitates the
exchange of management information between network devices. It is part of the Transmission Control Proto-
col/Internet Protocol (TCP/IP) suite. SNMP enables network administrators to manage network performance,
find and solve network problems, and plan for network growth.
SNMP basic components
An SNMP managed network consists of three key components: managed devices, agents, and network-man-
agement systems (NMSs).
A managed device is a network SN that contains an SNMP agent and resides on a managed network. Managed
devices collect and store management information and make this information available to NMSs using SNMP.
Managed devices, sometimes called network elements, can be routers and access servers, switches and bridges,
hubs, computer hosts, or printers.
An agent is a network-management software module that resides in a managed device. An agent has local
knowledge of management information and translates that information into a form compatible with SNMP.
An NMS executes applications that monitor and control managed devices. NMSs provide the bulk of the pro-
cessing and memory resources required for network management. One or more NMSs must exist on any man-
aged network.
SNMP basic commands
Managed devices are monitored and controlled using four basic SNMP commands: read, write, trap, and tra-
versal operations.
•The read command is used by an NMS to monitor managed devices. The NMS examines different vari-
ables that are maintained by managed devices.
•The write command is used by an NMS to control managed devices. The NMS changes the values of vari-
ables stored within managed devices.
•The trap command is used by managed devices to asynchronously report events to the NMS. When certain
types of events occur, a managed device sends a trap to the NMS.
Identification of a SmartNode via SNMP 269
SmartWare Software Configuration Guide 25 • SNMP configuration
•Traversal operations are used by the NMS to determine which variables a managed device supports and to
sequentially gather information in variable tables, such as a routing table.
SNMP management information base (MIB)
A Management Information Base (MIB) is a collection of information that is organized hierarchically. MIBs
are accessed using a network-management protocol such as SNMP. They are comprised of managed objects
and are identified by object identifiers.
Managed objects are accessed via a virtual information store, termed the Management Information Base or
MIB. Objects in the MIB are defined using the subset of abstract syntax notation one (ASN.1) defined in the
SMI. In particular, an object identifier, an administratively assigned name, names each object type. The object
type together with an object instance serves to uniquely identify a specific instantiation of the object. For
human convenience, a textual string, termed the descriptor, to refer to the object type, is often used.
An object identifier (OID) world-wide identifies a managed object in the MIB hierarchy. The MIB hierarchy
can be depicted as a tree with a nameless root, the levels of which are assigned by different organizations.
Network management framework
This section provides a brief overview of the current SNMP management framework. An overall architecture is
described in RFC 2571 “An Architecture for Describing SNMP Management Frameworks”. The SNMP man-
agement framework has several components:
•Mechanisms for describing and naming objects and events for the purpose of management. The first ver-
sion, Structure of Management Information (SMIv1) is described in RFC 1155 “Structure and Identifica-
tion of Management Information for TCP/IP-based Internets”, RFC 1212 “Concise MIB Definitions”,
RFC 1213 “Management Information Base for Network Management of TCP/IP-based Internets: MIB-
II”, and RFC 1215 “A Convention for Defining Traps for use with the SNMP”. The second version,
SMIv2, is described in RFC 2233 “The Interfaces Group MIB using SMIv2”, RFC 2578 “Structure of
Management Information Version 2 (SMIv2)”, RFC 2579 “Textual Conventions for SMIv2”, and RFC
2580 “Conformance Statements for SMIv2”.
•Message protocols for transferring management information. The first version, SNMPv1, is described in
RFC 1157 “A Simple Network Management Protocol (SNMP).” The second version, SNMPv2, which is
not an Internet standards track protocol, is described in RFC 1901 “Introduction to Community-Based
SNMPv2” and RFC 1906 “Transport Mappings for Version 2 of the Simple Network Management Proto-
col (SNMPv2)”.
•Protocol operations for accessing management information. The first set of protocol operations and associ-
ated protocol data unit (PDU) formats is described in RFC 1157. The second set of protocol operations
and associated PDU formats is described in RFC 1905 “Protocol Operations for Version 2 of the Simple
Network Management Protocol (SNMPv2)”.
•A set of fundamental applications described in RFC 2573 “SNMP Applications” and the view-based access
control mechanism described in RFC 2575 “View-Based Access Control Model (VACM) for the Simple
Network Management Protocol (SNMP)”.
Identification of a SmartNode via SNMP
All product models have assigned sysObjectID.
Refer to the getting started guide of your product, or see the MIB definition file (.my) for sysObjectIDs.
SNMP tools 270
SmartWare Software Configuration Guide 25 • SNMP configuration
SNMP tools
Patton recommends the AdventNet MibBrowser, TrapViewer and other SNMP tools. Check the AdventNet
Web server at http://www.adventnet.com for latest releases.
Refer to section “Using the AdventNet SNMP utilities” on page 275 for more detailed information on how to
use these tools.
SNMP configuration task list
To configure SNMP, perform the tasks described in the following sections. The tasks in the first three sections
are required; the tasks in the remaining sections are optional, but might be required for your application.
•Setting basic system information (required) (see page 270)
•Setting access community information (required) (see page 272)
•Setting allowed host information (required) (see page 274)
•Specifying the default SNMP trap target (optional) (see page 274)
•Displaying SNMP related information (optional) (see page 275)
Setting basic system information
The implementation of the MIB-II system group is mandatory for all systems. By default, an SNMP agent is
configured to have a value for any of these variables and responds to get commands from a NMS.
The following MIB II panels should be set::
•sysContact
•sysLocation
•sysName
The system sysContact object is used to define the contact person, together with information on how to con-
tact that person.
Assigning explanatory location information to describe the system physical location (e.g. server room, wiring
closet, 3rd floor, etc.) is very supportive. Such an entry corresponds to the MIB II system sysLocation object.
The name used for sysName should follow the rules for ARPANET host names. Names must start with a letter,
end with a letter or digit, and have as interior characters only letters, digits, and hyphens. Names must be 63
characters or fewer. For more information, refer to RFC 1035.
This procedure describes how to set these MIB-II system group objects
The SNMP agent running in SmartWare is SNMP version 1
(SNMPv1) compliant. SNMP version 2 (SNMPv2) and SNMP
version 3 (SNMPv3) are not currently supported.
IMPORTAN
Setting basic system information 271
SmartWare Software Configuration Guide 25 • SNMP configuration
Mode: Administrator execution
If any of the command options name, location, or hostname has to be formed out of more than one word, the
information is put in “double quotes”.
Note Enter an empty string “” to get rid of any of the system settings.
The MIB-II system group values are accessible for reading and writing via the following SNMP objects:
•.iso.org.dod.internet.mgmt.mib-2.system.sysContact
•.iso.org.dod.internet.mgmt.mib-2.system.sysName
•.iso.org.dod.internet.mgmt.mib-2.system.sysLocation
After setting these values according to 1 through 3 any SNMP MIB browser application should read the values
using a get or get-next command as shown in figure 40.
The procedure to use the SNMP MIB browser is:
•Enter the community string public into the Community field in the upper right corner of the window. For
safety reasons each entered character is displayed with a “*”.
•Access any of the supported MIB system group object by using the GetNext button from the button bar of
the window.
Step Command Purpose
1node(cfg)#system contact name Sets the contact persons name
2node(cfg)#system location location Sets the system location
3node(cfg)#system hostname hostname Sets the system hostname and command line prompt
Setting access community information 272
SmartWare Software Configuration Guide 25 • SNMP configuration
Figure 40. AdventNet MibBrowser displaying some of the System Group objects
Example: Setting the system group objects
In the following example the system information is set for later access via SNMP. See figure 40 for a typical
MIB browser application accessing these MIB-II system group objects representing the system information.
node>enable
node#configure
node(cfg)#system contact "Bill Anybody, Phone 818 700 1504"
node(cfg)#system location "Wiring Closet, 3rd floor"
node(cfg)#system hostname "node"
(cfg)#
After entering a host name the prompt on the CLI no longer displays the IP address of the Ethernet port over
which the Telnet session is running but shows the newly entered host name.
Setting access community information
SNMP uses one or more labels called community strings to delimit groups of objects (variables) that can be
viewed or modified on a device. The SNMP data in such a group is organized in a tree structure called a Man-
agement Information Base (MIB). A single device may have multiple MIBs connected together into one large
structure, and various community strings may provide read-only or read-write access to different, possibly
overlapping portions of the larger data structure. An example of a read-only variable might be a counter show-
ing the total number of octets sent or received through an interface. An example of a read-write variable might
be the speed of an interface, or the hostname of a device.
Setting access community information 273
SmartWare Software Configuration Guide 25 • SNMP configuration
Community strings also provide a weak form of access control in earlier versions of SNMP version 1 and 2.
SNMP version 3 provides much improved access control using strong authentication and should be preferred
over SNMP version 1 and 2 wherever it is supported. If a community string is defined, then it must be pro-
vided in any basic SNMP query if the requested operation is to be permitted by the device. Community strings
usually allow read-only or read-write access to the entire device. In some cases, a given community string will
be limited to one group of read-only or read-write objects described in an individual MIB.
In the absence of additional configuration options to constrain access, knowledge of the single community
string for the device is all that is required to gain access to all objects, both read-only and read-write, and to
modify any read-write objects.
Note Security problems can be caused by unauthorized individuals possessing
knowledge of read-only community strings so they gain read access to confi-
dential information stored on an affected device. Worse can happen if they
gain access to read-write community strings that allow unauthorized remote
configuration of affected devices, possibly without the system administrators
being aware that changes are being made, resulting in a failure of integrity
and a possible failure of device availability. To prevent these situations, define
community strings that only allow read-only access to the MIB objects
should be the default.
By default SNMP uses the default communities public and private. You probably do not want to use those, as
they are the first things an intruder will look for. Choosing community names is like choosing a password. Do
not use easily guessed ones; do not use commonly known words, mix letters and other characters, and so on. If
you do not intend to allow anyone to use SNMP write commands on your system, then you probably only
need one community name.
This procedure describes how to define your own SNMP community
Mode: Configure
Use the no command option to remove a SNMP community setting.
Example: Setting access community information
In the following example the SNMP communities for the default community public with read-only access and
the undisclosed community Not4evEryOne with read/write access are defined. Only these valid communities
have access to the information from the SNMP agent.
node(cfg)#snmp community public ro
node(cfg)#snmp community Not4evEryOne rw
Note If no community is set on your SmartNode accessing any of the MIB objects
is not possible!
Step Command Purpose
1node(cfg)#snmp community name
{ ro | rw }
Configures the SNMP community name with read-only
or read/write access
Setting allowed host information 274
SmartWare Software Configuration Guide 25 • SNMP configuration
Setting allowed host information
If a host has to access SNMP MIB objects on a certain node, it explicitly needs the right to access the SNMP
agent. Therefore a host needs an entry, which allows accessing the device. The host is identified by its IP
address and has to use a certain community string for security precautions.
Note The community which is to be used as security name to access the MIB
objects has to be defined prior to the definition of allowed hosts.
This procedure describes adding a host that is allowed to access the MIB of this system
Mode: Configure
Use the no command option to remove a SNMP allowed host setting.
Example: Setting allowed host information
In the following example the host with IP address 172.16.224.45 shall be able to access the MIB using com-
munity public as security name.
node(cfg)#snmp host 172.16.224.45 security-name public
Specifying the default SNMP trap target
An SNMP trap is a message that the SNMP agent sends to a network management station. For example, an
SNMP agent would send a trap when an interface's status has changed from up to down. The SNMP agent
must know the address of the network management station so that it knows where to send traps. It is possible
to define more than one SNMP trap target.
The SNMP message header contains a community field. The SNMP agent uses a defined community name,
which is inserted in the trap messages header sent to the target. In most cases the target is a NMS, which only
accepts a SNMP message header of a certain community.
This procedure describes how to define a SNMP trap target and enter community name
Mode: Configure
Use the no command option to remove s SNMP trap target setting.
Example: Specifying the default SNMP trap target
Step Command Purpose
1node(cfg)#snmp host IP-address-of-SN security-
name community
Configures a host that with IP address IP-
address-of-SN can access the MIB, using
the security name community.
Step Command Purpose
1node(cfg)#snmp target IP-address-of-SN
security-name community
Configures a SNMP trap target with IP-address-of-
hostanme SN that receives trap messages using
the security name community on the target.
Displaying SNMP related information 275
SmartWare Software Configuration Guide 25 • SNMP configuration
In the following example the NMS running on host with IP address 172.16.224.44 shall be defined as SNMP
trap target. Since the NMS requires that SNMP message headers have a community of Not4evEryOne the secu-
rity-name argument is set accordingly.
node(cfg)#snmp target 172.16.224.44 security-name Not4evEryOne
Displaying SNMP related information
Displaying the SNMP related configuration settings is often necessary to check configuration modifications or
when determining the behavior of the SNMP agent.
This procedure describes how to display information and configuration settings for SNMP
Mode: Configure
Example: Displaying SNMP related information
This example shows how to display SNMP configuration information.
node(cfg)#show snmp
SNMP Information:
hostname : node
location : Wiring Closet, 3rd floor
contact : Bill Anybody, Phone 818 700 1504
Hosts:
172.16.224.44 security-name public
Targets:
172.16.224.44 security-name Not4evEryOne
Communities:
public access-right ro
Not4evEryOne access-right rw
Using the AdventNet SNMP utilities
The AdventNet SNMP utilities are a set of cross-platform applications and applets for SNMP and Web-based
network management. These utilities can be used for device, element, application and system management.
The following tools are the most useful:
•MibBrowser—used to view and operate on data available through a SNMP agent on a managed device
•TrapViewer—used to parse and view the received traps
The AdventNet MibBrowser is a complete SNMP MibBrowser that enables the loading of MIBs, MIB brows-
ing, walking a MIB tree, searching MIBs and performing all other SNMP-related functions to users.
Viewing and operating the data available through an SNMP agent on a managed device, e.g. a router, switch,
hub etc., is made possible by using the MibBrowser.
Step Command Purpose
1node(cfg)#show snmp Displays information and configuration settings for SNMP
Using the AdventNet SNMP utilities 276
SmartWare Software Configuration Guide 25 • SNMP configuration
The TrapViewer is a graphical tool to view the Traps received from one or more SNMP agents. The Trap viewer
can listen to one or more port at a time and the traps can be sent from any host. Moreover the TrapViewer con-
tains a Trap parser editor, which is a tool to create a trap parser file. The Trap viewer parses the file created using
Trap parser editor to match each incoming traps with certain criteria. Since Traps typically contain cryptic
information, which is not easily understandable to the users, trap parsers are required to translate or parse traps
into understandable information.
Using the MibBrowser
Figure 41 depicts the primary window of the AdventNet MibBrowser. It consists of a menu bar, a toolbar, a left
frame and a right frame.
The operations that can be performed by the MibBrowser are available in a series of buttons in the toolbar on
top of the MibBrowser's main window. The toolbar can be hidden or made visible using the options available.
The menu bar has various options that perform the same operations as the options available in the toolbar.
The left frame holds the MIB tree. A MIB tree is a structure through which all the MIBs loaded can be viewed.
The MIB tree component enables us to traverse through the tree, view the loaded MIBs and learn the definition
for each SN. The AdventNet MibBrowser allows loading additional MIB files in the text format (the “my” file
contains enterprise specific MIB definitions).
The right frame has labeled text fields to specify the basic parameters like host, community etc. and a Result
text area display to view the results.
There are three ways in which the primary window of the MibBrowser can be viewed. It can be viewed with
the result display, MIB description panel or multi-variable bind panel in the right frame. The view can be
altered in three ways.
•The desired view can be set by the options provided in the display menu item under the view menu.
(View Display ).
•The other way of altering the view is through the general settings panel in the settings menu item in the edit
menu. (Edit ‡ Settings)
•The same can be done through clicking the MibBrowser settings button on the toolbar. See figure 41.

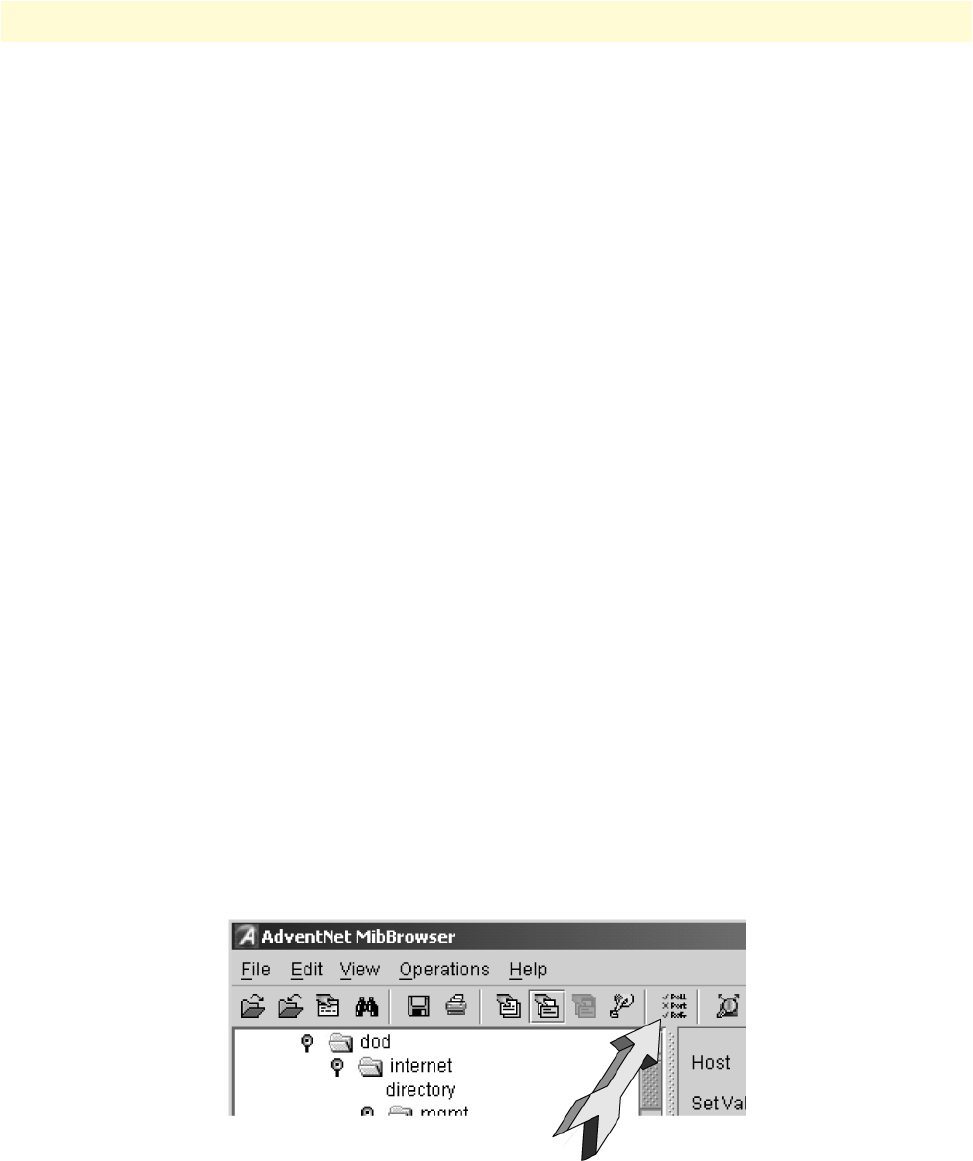

Figure 41. AdventNet MibBrowser Settings Button on the Toolbar
By default the MIB description display and the result display are visible in the MibBrowser.
Using the AdventNet SNMP utilities 277
SmartWare Software Configuration Guide 25 • SNMP configuration
Using the TrapViewer
TrapViewer is a graphical tool to view the traps received from one or more SNMP agents. The TrapViewer can
listen to one or more port at a time and the traps can be sent from any host.
Invoke the TrapViewer through the usage of the MibBrowser. To get to know more about the MibBrowser refer
to section “Using the MibBrowser” on page 276. Figure 42 is a screen shot of the TrapViewer.
Figure 42. AdventNet TrapViewer displaying received traps
The TrapViewer has a table that displays the trap information, the common parameters text fields where neces-
sary information has to be entered and other options such as Start, Stop, Trap Details, Delete Trap and
ParserEditor.
Follow these steps to work on the Trap Viewer and to know more about the available options:
•By default the value in the Port text field is 162. Enter the desired port in the field on which the viewer will
listen.
•The default value in the Community text field is public. Set the community of the incoming traps as desired,
depending on the SNMP configuration.
•Click on Add button to add the port and community list on which the trap has to listen to. This is visible in
the TrapList combo box.
•The port and community list can be deleted by clicking on the Del button.
•When you need to load a trap parser file, click on the Load button, which will open up a dialog box, from
which you can load the parser file.
•In order to receive the traps now, click on the Start button. Upon clicking this button, TrapViewer begins to
receive traps according to the as-specified port and community.
•Once received, the traps are listed in the trap table of the TrapViewer. By default, the trap table has the fol-
lowing four columns:
-Class that defines the severity of the trap.
-Source that displays the IP address of the source from where the traps were sent.
-Date that shows the date and time when the trap was received.
Using the AdventNet SNMP utilities 278
SmartWare Software Configuration Guide 25 • SNMP configuration
-Message that by default has the object identifier format (sequence of numeric or textual labels on the SNs
along a path from the root to the object) of the trap if any, or it is blank.
•The details of the traps can be viewed by clicking the Trap Details button or right click the trap in the trap
table and select the option View Trap Details. Figure 43 show the screen of such a trap details window.
Figure 43. AdventNet Trap Details window of TrapViewer
The various details available in the Trap Details window are listed in table 12:
Table 12. Details available in the Trap Details window
Trap Details Description
TimeStamp The TimeStamp is a 32-bit unsigned value indicating the number of hundredths-of-a-second
that have elapsed since the (re)start of the SNMP agent and the sending of the trap. This
field shows the value stored in the MIB-II sysUpTime variable converted into hours, minutes
and seconds.
Enterprise This field shows the OID of the management enterprise that defines the trap message. The
value is represented as an OBJECT IDENTIFIER value and has a variable length.
Generic Type The Generic type value is categorized and numbered 0 to 6. They are 0-coldStart, 1-warm-
Start, 2-linkDown, 3-linkUp, 4-authenticationFailure, 5-egpNeighborLoss. The trap type
value 6 is identified as enterprise-specific value. This field shows the value based on the
type of trap.
Specific Type The specific trap type indicates the specific trap as defined in an enterprise-specific MIB. If
the Generic type value is 6 then, this field shows a value greater than 0. If the generic type
value is a value other than 6, then the field shows a value 0. This field can have values
from 0 to 2147483647.
Message This is a text field. By default, this field will always contain the Varbinds in the Trap PDU.
This can be substituted with text.
Severity This field shows the Severity or the intensity of the trap. They could be 0-All, 1-Critical, 2-
Major, 3-Minor, 4-warning, 5-Clear and 6-info.
Standard SNMP version 1 traps 279
SmartWare Software Configuration Guide 25 • SNMP configuration
You can stop the listening by clicking the Stop button.
When you need to delete the trap, select the trap to be deleted and click the Delete Trap button or right click
on the trap in the trap table and select option Delete the Selected Rows.
Yet another option in the Trap Viewer is the ParserEditor. The TrapViewer can filter incoming traps according
to certain criteria called the parser criteria. The configuration of the criteria is made possible by using the parser
editor. Refer to the AdventNet SNMP Utilities documentation for a detailed description of the parser editor
configuration and its use.
Standard SNMP version 1 traps
The following standard SNMP version 1 traps are supported. The descriptions are taken from RFC 1215
“Convention for defining traps for use with the SNMP”.
warmStart TRAP-TYPE
ENTERPRISE snmp
DESCRIPTION
"A warmStart trap signifies that the sending protocol entity is reinitializing
itself such that neither the agent configuration nor the protocol entity implementa-
tion is altered."
::= 1
linkDown TRAP-TYPE
ENTERPRISE snmp
VARIABLES { ifIndex }
DESCRIPTION
"A linkDown trap signifies that the sending protocol entity recognizes a failure in
one of the communication links represented in the agent's configuration."
::= 2
Note The linkDown trap is not sent if any of the ISDN ports has gone down.
Entity The source IP address from which the Trap was sent is displayed here.
RemotePort This field reveals the port on which the Trap was sent by the originator.
Community The Community string is displayed here.
Node Source
TimeReceived This displays the Date and Time when the trap was received.
HelpURL The URL shown here gives more details of the received trap. By default, the URL file name is
<generic-type value> - <specific-type value>.html
Table 12. Details available in the Trap Details window (Continued)
Trap Details Description
SNMP interface traps 280
SmartWare Software Configuration Guide 25 • SNMP configuration
linkUp TRAP-TYPE
ENTERPRISE snmp
VARIABLES { ifIndex }
DESCRIPTION
"A linkUp trap signifies that the sending protocol entity recognizes that one of the
communication links represented in the agent's configuration has come up."
::= 3
Note The linkUp trap is not sent if any of the ISDN ports has come up.
authenticationFailure TRAP-TYPE
ENTERPRISE snmp
DESCRIPTION
"An authenticationFailure trap signifies that the sending protocol entity is the
addressee of a protocol message that is not properly authenticated. While implemen-
tations of the SNMP must be capable of generating this trap, they must also be capa-
ble of suppressing the emission of such traps via an implementation-specific
mechanism."
::= 4
Note The authenticationFailure trap is sent after trying to access any MIB object
with a SNMP community string, which does not correspond to the system
setting.
coldStart TRAP-TYPE
ENTERPRISE snmp
DESCRIPTION
"A coldStart trap signifies that the sending protocol entity is reinitializing
itself such that the agent's configuration or the protocol entity implementation may
be altered."
::= 0
Note The standard SNMP version 1 trap coldStart as listed below is not sup-
ported. After powering up, a warmStart trap message is sent if any trap target
host is defined.
SNMP interface traps
The SmartNode sends Interface Traps (linkUp, linkDown) when the status of logical or physical interfaces
change. Logical interfaces are interfaces defined in the IP context and CS context. Physical interfaces are ports.
The SmartNode adds an entry to event log for each Interface Traps it sends:
node(cfg)#show log
...
2002-09-06T14:54:35 : LOGINFO : Link up on interface h323_60.
2002-09-06T14:54:35 : LOGINFO : Link up on interface h323_30.
2002-09-06T14:54:35 : LOGINFO : Link up on interface isdn20.
2002-09-06T14:54:38 : LOGINFO : Link up on interface ETH00.
2002-09-06T14:54:38 : LOGINFO : Link up on interface ETH01.
SNMP interface traps 281
SmartWare Software Configuration Guide 25 • SNMP configuration
2002-09-06T14:54:39 : LOGINFO : Link up on interface eth00.
2002-09-06T14:54:39 : LOGINFO : Link up on interface eth01.
2002-09-06T14:56:02 : LOGINFO : Link up on interface SLOT2:00 ISDN D
2002-09-10T14:21:20 : LOGINFO : Link down on interface SLOT2:00 ISDN
...
282
Chapter 26 SNTP client configuration
Chapter contents
Introduction........................................................................................................................................................283
SNTP client configuration task list......................................................................................................................283
Selecting SNTP time servers .........................................................................................................................284
Defining SNTP client operating mode ..........................................................................................................284
Defining SNTP local UDP port ....................................................................................................................285
Enabling and disabling the SNTP client .......................................................................................................286
Defining SNTP client poll interval ...............................................................................................................286
Defining SNTP client constant offset to GMT .............................................................................................287
Defining the SNTP client anycast address .....................................................................................................287
Enabling and disabling local clock offset compensation .................................................................................288
Showing SNTP client related information ....................................................................................................289
Debugging SNTP client operation ................................................................................................................289
Recommended public SNTP time servers............................................................................................................290
NIST Internet time service ............................................................................................................................290
Additional information on NTP and a list of other NTP servers ...................................................................291
Introduction 283
SmartWare Software Configuration Guide 26 • SNTP client configuration
Introduction
This chapter describes how to configure Simple Network Time Protocol (SNTP) client, it includes the follow-
ing sections:
•SNTP client configuration task list
•Recommended Public SNTP Time Servers (see page 290)
The Simple Network Time Protocol (SNTP) is an adaptation of the Network Time Protocol (NTP) that is
used to synchronize computer clocks in the Internet. SNTP can be used when the ultimate performance of the
full NTP implementation is not needed. SNTP is described in RFC-2030, “Simple Network Time Protocol
(SNTP) Version 4 for IPv4, IPv6 and OSI”.
SNTP typically provides time within 100 milliseconds of the accurate time, but it does not provide the com-
plex filtering and statistical mechanisms of NTP. In addition, SNTP does not authenticate traffic, although you
can configure extended access lists to provide some protection. An SNTP client is more vulnerable to misbe-
having servers than an NTP client and should only be used in situations where strong authentication is not
required.
SNTP client configuration task list
To configure an SNTP client, perform the tasks described in the following sections. The tasks in the first four
sections are required; the tasks in the remaining sections are optional, but might be required for your applica-
tion.
•Selecting SNTP time servers (see page 284)
•Defining SNTP client operating mode (see page 284)
•Defining SNTP local UDP port (see page 285)
•Enabling and disabling the SNTP client (see page 286)
•Defining the SNTP client anycast address (see page 287)
•Defining SNTP client constant offset to GMT (see page 287)
•Enabling and disabling local clock offset compensation (see page 288)
•Defining SNTP client poll interval (see page 286)
•Showing SNTP client related information (see page 289)
•Debugging SNTP client operation (see page 289)
SNTP client configuration task list 284
SmartWare Software Configuration Guide 26 • SNTP client configuration
Selecting SNTP time servers
This procedure describes how to select a primary and secondary SNTP time server
Mode: Configure
Example: Selecting SNTP time servers
In the following example an internal SNTP time server (172.16.1.10) is selected as primary and utcnist.colo-
rado.edu (128.138.140.44) as secondary SNTP time server.
node(cfg)#sntp-client server primary 172.16.1.10
node(cfg)#sntp-client server secondary 128.138.140.44
Defining SNTP client operating mode
A SNTP client can operate in multicast mode, unicast mode or anycast mode:
•In unicast mode (point to point), the client sends a request to a designated server at its unicast address and
expects a reply from which it can determine the time and, optionally, the roundtrip delay and local clock
offset relative to the server.
•In anycast mode (multipoint to point), the client sends a request to a designated local broadcast or multicast
group address and expects a reply from one or more anycast servers.
•In multicast mode (point to multipoint), the client sends no request and waits for a broadcast from a desig-
nated multicast server.
Note Unicast mode is the default SNTP client operating mode.
This procedure describes how to configure the SNTP client operating mode
Mode: Configure
Note When selecting the anycast operating-mode you have to define the IP
address where the anycast request is sent. Refer to section “Defining the
SNTP client anycast address” on page 287 for more details.
Step Command Purpose
1node(cfg)#sntp-client server primary host Enter the SNTP primary server IP
address or hostname
2node(cfg)#sntp-client server secondary host Enter the SNTP secondary server IP
address or hostname
Step Command Purpose
1node(cfg)#sntp-client operating-mode
{unicast | anycast | multicast}
Configures the SNTP client operating mode to uni-
cast, anycast or multicast mode
SNTP client configuration task list 285
SmartWare Software Configuration Guide 26 • SNTP client configuration
Example: Configuring SNTP client operating mode
Configures the SNTP client operating mode to unicast operation
node(cfg)#sntp-client operating-mode unicast
Configures the SNTP client operating mode to anycast operation
node(cfg)#sntp-client operating-mode anycast
Configures the SNTP client operating mode to multicast operation
node(cfg)#sntp-client operating-mode multicast
Defining SNTP local UDP port
The communication between an SNTP client and its the primary or secondary SNTP time server uses UDP.
The UDP port number assigned to SNTP is 123, which should be used in both the source port (on the Smart-
Node) and destination port (on SNTP time server) fields in the UDP header. The local port number, which
the SNTP client uses to contact the primary or secondary SNTP time server in unicast mode, has to be
defined.
Note The local port number setting is used when contacting the SNTP time
server. The SNTP time server will send its reply to the SNTP client (Smart-
Node) using the same port number as used in the request. The local port
number is set to 123 by default.
This procedure describes how to define the local port number, which uses the SNTP client to contact the
SNTP time server, unicast mode
Mode: Configure
Example: Defining the local UDP port for SNTP
Configures the SNTP client UDP port number to 123
node(cfg)#sntp-client local-port 123
Step Command Purpose
1node(cfg)# sntp-client local-port number Specifies the SNTP local UDP port number. The port
number can be defined in the range from 1 to
65535. The UDP port number assigned to SNTP is
123.
SNTP client configuration task list 286
SmartWare Software Configuration Guide 26 • SNTP client configuration
Enabling and disabling the SNTP client
The SNTP client is disabled by default and has to be enabled if clock synchronization shall be used. This pro-
cedure describes how to enable or disable the SNTP client
Mode: Configure
Example: Enabling the SNTP client operation
node(cfg)#sntp-client
Example: Disabling the SNTP client operation
node(cfg)#no sntp-client
Defining SNTP client poll interval
Specifies the seconds between each SNTP client request in unicast or anycast mode.
This SNTP client poll interval can be defined to be within the range from 1 to 4’294’967’295. The default
value is 60 seconds.
This procedure describes how to set the SNTP client poll interval
Mode: Configure
Example: Setting the SNTP client poll interval
In the following example the SNTP client poll interval is set to 30 seconds.
node(cfg)#sntp-client poll-interval 30
Step Command Purpose
1node(cfg)#[no] sntp-client Enables the SNTP client operation. Using the no command syntax dis-
ables this feature.
Step Command Purpose
1node(cfg)#sntp-client poll-interval value Sets the SNTP client poll interval to value seconds
SNTP client configuration task list 287
SmartWare Software Configuration Guide 26 • SNTP client configuration
Defining SNTP client constant offset to GMT
Setting the offset of the device local time zone from Greenwich Mean Time is required if the local time shall be
used for time dependent routing decisions or other reasons. Greenwich Mean Time (GMT) is also known as
Zulu Time and Universal Time Coordinated (UTC), refer to http://greenwichmeantime.com/ for more details
and information about your time zone and offset to GMT.
Note Be aware that summertime offset is not automatically adjusted!
Use the “clock local offset” command to configure the local clock offset.
This procedure describes how to display the local time.
Mode: Configure
This procedure describes how to use the clock local offset command.
Mode: Configure
Defining the SNTP client anycast address
Anycast mode is designed for use with a set of cooperating servers whose addresses are not known beforehand.
An anycast client sends a request to the designated local broadcast or multicast group address as described
below. For this purpose, the NTP multicast group address assigned by the IANA is used. One or more anycast
servers listen on the designated local broadcast address or multicast group address. Each anycast server, upon
receiving a request, sends a unicast reply message to the originating client. The client then binds to the first
such message received and continues operation in unicast mode. Subsequent replies from other anycast servers
are ignored.
In anycast mode, the SmartNode sends a request to a designated local broadcast or multicast group address and
expects a reply from one or more anycast servers. The SmartNode uses the first reply received to establish the
particular server for subsequent unicast operations. Later replies from this server (duplicates) or any other
server are ignored.
Other than the selection of address in the request, the operations of anycast and unicast clients are identical.
This procedure describes how to set local broadcast address or multicast group address to which the anycast
request is sent
Step Command Purpose
1 [name]#show clock local Displays the local time, UTC and the offset of the local
time from UTC.
Step Command Purpose
1 [name](cfg)#clock local offset (+|-
)hh:mm
Sets the offset from UTC to local time.
SNTP client configuration task list 288
SmartWare Software Configuration Guide 26 • SNTP client configuration
Mode: Configure
Note This command is only relevant in anycast operating-mode.
Example: SNTP client anycast address
In the following example anycast requests are sent to SNTP server at IP address 132.163.4.101 using port 123
of the SNTP server.
node(cfg)#sntp-client anycast-address 132.163.4.101 port
Enabling and disabling local clock offset compensation
The Simple Network Time Protocol (SNTP) Version 4 is an adaptation of the Network Time Protocol (NTP)
that is used to synchronize computer clocks in the Internet. While not necessary in a conforming SNTP client,
in unicast and anycast modes it is highly recommended that the transmit timestamp in the request is set to the
time of day according to the client clock in NTP timestamp format. This allows a simple calculation to deter-
mine the propagation delay between the server and client and to align the local clock generally within a few
tens of milliseconds relative to the server. In addition, this provides a simple method to verify that the server
reply is in fact a legitimate response to the specific client request and to avoid replays.
In multicast mode, the client has no information available to calculate the propagation delay or to determine
the validity of the server unless the NTP authentication scheme is used.
This procedure describes how to enable or disable the compensation for local clock offset.
Mode: Configure
Example: Enabling the SNTP client root delay compensation
node(cfg)#sntp-client root-delay-compensation
Step Command Purpose
1node(cfg)#sntp-client anycast-address ip-
address {port | port-number}
Set the anycast-address to ip-address a designated
local broadcast or multicast group address to
which a request is sent. In addition an explicit
SNTP server port-number in the range from 1 to
65535 can be defined or the argument port is
selected, which sets the value for port to 123. If
none of the optional argument is used the value for
port is set to 123.
Step Command Purpose
1node(cfg)#[no] sntp-client local-clock-
offset
Enables the SNTP client’s compensation for local
clock offset. Using the no command syntax dis-
ables this feature.
SNTP client configuration task list 289
SmartWare Software Configuration Guide 26 • SNTP client configuration
Example: Disabling the SNTP client root delay compensation
node(cfg)#no sntp-client root-delay-compensation
Showing SNTP client related information
During set-up and operation of the SNTP client, displaying the information and status of the SNTP client is
very useful.
This procedure describes how to display information and status of the SNTP client
Mode: Configure
Example: Showing SNTP client related information
node(cfg)#show sntp-client
-------------------------------------------
SNTP client enabled
Operating mode unicast
Local port 123
Primary server 172.16.1.10:123 v4
Secondary server 128.138.140.44:123 v4
Anycast address 224.0.1.1:123
Poll interval 30sec
Local clock offset disabled
GMT offset +2:00:00
-------------------------------------------
Debugging SNTP client operation
During setup and operation, debugging the behavior of the SNTP client is very useful.
Note The debug sntp client is only available in superuser mode.
This procedure describes how to enable or disable debugging
Mode: Configure
Step Command Purpose
1node(cfg)#show sntp-client Displays information and status of the SNTP client
Step Command Purpose
1node(cfg)#debug sntp client Enables and disables SNTP debug monitor. Using the no com-
mand syntax disables this feature.
Recommended public SNTP time servers 290
SmartWare Software Configuration Guide 26 • SNTP client configuration
Example: Enable the SNTP debug monitor
The following example shows how to enable the SNTP debug monitor and some typical debug information.
node(cfg)#debug sntp client
node(cfg)#14:44:21 SNTP > SNTP message sent with Timestamp: 2001-10-26T14:44:21
14:44:21 SNTP > SNTP message received:
------------------------------------------------
Server: 172.16.1.10:123 v4
Stratum: 2
Time: 2001-10-26T12:44:21
InternetTime: 20010926@530
------------------------------------------------
14:44:21 SNTP > Set the system time to 2001-10-26T14:44:21
14:44:51 SNTP > SNTP message sent with Timestamp: 2001-10-26T14:44:51
14:45:21 SNTP > SNTP message sent with Timestamp: 2001-10-26T14:45:21
14:45:51 SNTP > SNTP message sent with Timestamp: 2001-10-26T14:45:51
14:46:21 SNTP > SNTP message sent with Timestamp: 2001-10-26T14:46:21
14:46:51 SNTP > SNTP message sent with Timestamp: 2001-10-26T14:46:51
Example: Disable the SNTP debug monitor
The following example shows how to disable the SNTP debug monitor and end any debug information.
node(cfg)#no debug sntp client
Recommended public SNTP time servers
NIST Internet time service
The National Institute of Standards and Technology (NIST) Internet Time Service allows users to synchronize
computer clocks via the Internet. The time information provided by the service is directly traceable to UTC.
Table 13 contains information about all of the time servers operated by NIST. Please note that while NIST
makes every effort to ensure that the names of the servers are correct, NIST only controls the names of the
nist.gov severs.
Table 13. Time servers operated by NIST
Server Name IP Address Location
nist1.aol-va.truetime.com 205.188.185.33 DC/Virginia
utcnist.colorado.edu 128.138.140.44 Colorado
nist1.aol-ca.truetime.com 207.200.81.113 California
nist1-dc.glassey.com 216.200.93.8 DC/Virginia
nist1.datum.com 63.149.208.50 California
nist1-ny.glassey.com 208.184.49.9 New York City
nist1-sj.glassey.com 207.126.103.204 California
time-a.timefreq.bldrdoc.gov 132.163.4.101 Colorado
time-b.timefreq.bldrdoc.gov 132.163.4.102 Colorado
time-c.timefreq.bldrdoc.gov 132.163.4.103 Colorado
Recommended public SNTP time servers 291
SmartWare Software Configuration Guide 26 • SNTP client configuration
For more information about NIST Internet Time Service (ITS) check their web server at
http://www.boulder.nist.gov/timefreq/service/its.htm
Additional information on NTP and a list of other NTP servers
The site http://ntp.isc.org contains a maintained list of available NTP/SNTP servers. Please only use the ones
with an open access policy!
292
Chapter 27 DHCP configuration
Chapter contents
Introduction........................................................................................................................................................293
DHCP-client configuration tasks.........................................................................................................................294
Enable DHCP-client on an IP interface ........................................................................................................294
Release or renew a DHCP lease manually (advanced) ...................................................................................296
Get debug output from DHCP-client ...........................................................................................................296
DHCP-server configuration tasks ........................................................................................................................297
Configure DHCP-server profiles ...................................................................................................................297
Use DHCP-server profiles and enable the DHCP-server ...............................................................................299
Define the bootfile (Option 67) for the DHCP-server ..................................................................................300
Define the TFTP server (Option 66) for the DHCP-server ...........................................................................300
Check DHCP-server configuration and status ...............................................................................................300
Get debug output from the DHCP-server .....................................................................................................301
Configure DHCP-relay .................................................................................................................................302
Create/Modify DHCP-Relay profile .......................................................................................................302
Enable/Disable DHCP-Relay Agent ........................................................................................................303
Introduction 293
SmartWare Software Configuration Guide 27 • DHCP configuration
Introduction
This chapter provides an overview of the Dynamic Host Configuration Control Protocol (DHCP) and
describes the tasks involved in their configuration. This chapter includes the following sections:
•DHCP-client configuration tasks (see page 294)
•DHCP-server configuration tasks (see page 297)
The Dynamic Host Configuration Protocol (DHCP) automates the process of configuring new and existing
devices on TCP/IP networks. DHCP performs many of the same functions a network administrator carries out
when connecting a computer to a network. Replacing manual configuration by a program adds flexibility,
mobility, and control to networked computer configurations.
The tedious and time-consuming method of assigning IP addresses was replaced by automatic distributing IP
addresses. The days when a network administrator had to manually configure each new network device before
it could be used on the network are past.
In addition to distributing IP addresses, DHCP enables configuration information to be distributed in the
form of DHCP options. These options include, for example, the default router address, domain name server
addresses, the name of a boot file to load etc.
A new expression in DHCP is lease. Rather than simply assigning each DHCP-client an IP address to keep
until the client is done with it, the DHCP-server assigns the client an IP address with a lease; the client is
allowed to use the IP address only for the duration of that lease. When the lease expires, the client is forced to
stop using that IP address. To prevent a lease from expiring, which essentially shuts down all network access for
the client, the client must renew its lease on its IP address from time to time.
DHCP-client configuration tasks 294
SmartWare Software Configuration Guide 27 • DHCP configuration
DHCP-server and DHCP-client are illustrated in figure 44.
Figure 44. DHCP-client and DHCP-server
DHCP-client configuration tasks
To configure the SmartNode as DHCP-client perform the steps mentioned below.
•Enable DHCP-client on an IP interface
•Release or renew a DHCP lease manually (advanced) (see page 296)
•Get debug output from DHCP-client (see page 296)
•Configure DHCP agent
Enable DHCP-client on an IP interface
On every created IP interface a DHCP-client could be enabled. If enabled, the SmartNode gets the IP address
for this interface from a DHCP-server. Additionally other configuration information is received for this IP
Node
Node
WAN
LAN
DHCP Server
DHCP Clients
DHCP Clients
Node
Node
Node
Node
LAN
LAN
DHCP Server
DHCP-client configuration tasks 295
SmartWare Software Configuration Guide 27 • DHCP configuration
interface, e.g. the default gateway, DNS server IP addresses, etc. To enable the DHCP-client on an IP interface
perform the steps described below.
Mode: context IP
Note If you are connected to the SmartNode by Telnet over the IP interface on
which you enable the DHCP-client, the connection is lost after entering the
command ipaddress dhcp. You need to know the new IP address distrib-
uted from the DHCP-server to connect to the SmartNode again!
Example: Enable DHCP-client on an IP interface
node(cfg)#context ip
node(ctx-ip)[router]#interface eth0
node(if-ip)[eth0]#ipaddress dhcp
node(if-ip)[eth0]#show dhcp-client
------------------------------------------------------------
Context: router
Name: eth0
IpAddress: 172.16.224.102 255.255.0.0
Default gateway: 172.16.1.10
Domain Name: pacific
DNS: 172.16.1.10
146.228.10.16
Next Server Ip: 172.16.1.10
DHCP Server: 172.16.1.10
Lease obtained: 2001-01-01T01:03:51
Lease expires: 2001-01-01T09:03:51
State: Bound
Step Command Purpose
1node(ctx-ip)[router]#interface name Creates an IP interface with name name and enters
‘configure’ configuration mode
2node(if-ip)[name]#ipaddress dhcp Enables the DHCP-client on this IP interface. (See
note)
3node(if-ip)[name]#show dhcp-client Displays status information about the DHCP-client
For example, default gateway, lease expire time,
etc.
DHCP-client configuration tasks 296
SmartWare Software Configuration Guide 27 • DHCP configuration
Release or renew a DHCP lease manually (advanced)
After enabling the DHCP-client, the interface receives a DHCP lease from the DHCP-server. To manually
release and/or renew this DHCP lease use the command described below.
This procedure describes how to release and renew the DHCP lease
Mode: interface
Note If you are connected by Telnet over the IP interface on which you release the
DHCP lease, the connection is lost after entering the command dhcp-client
release. You need an other way (e.g. a serial connection) to connect to the
SmartNode again and to enter the command dhcp-client renew!
Get debug output from DHCP-client
This procedure describes how to enable/disable DHCP-client debug monitor
Mode: Any
Example: Enable DHCP debug monitor
This example shows how to enable the DHCP-client debug monitor and the debug output of the command
dhcp-client release and dhcp-client renew.
node(cfg)#context ip
node(ctx-ip)[router]#interface eth0
node(if-ip)[eth0]#debug dhcp-client
node(if-ip)[eth0]#dhcp-client release
01:12:28 DHCPC > router/eth0 (Rels): Unicasting DHCP release (xid 490cb56b, secs
1).
01:12:29 DHCPC > router/eth0 (Rels): Shutting down.
01:12:29 DHCPC > router/eth0 (Rels): Tearing down IP interface
2001-01-01T01:12:30 : LOGINFO : Link down on interface eth0.
2001-01-01T01:12:30 : LOGINFO : Link up on interface eth0.
node(if-ip)[eth0]#dhcp-client renew
01:17:46 DHCPC > router/eth0 (Init): Tearing down IP interface
01:17:46 DHCPC > router/eth0 (Init): Broadcasting DHCP discover (xid 0f839e56, secs
0).
01:17:46 DHCPC > router/eth0 (Init): Requesting IP address 172.16.224.102
01:17:47 DHCPC > router/eth0 (Slct): Got offer from 172.16.1.10 for IP
172.16.224.102
01:17:47 DHCPC > router/eth0 (Slct): Selected offer for 172.16.224.102
01:17:47 DHCPC > router/eth0 (Slct): Broadcasting DHCP request (select) (xid
6ff42c38, secs 1).
Step Command Purpose
1node(if-ip)[name]#dhcp-client release Releases DHCP lease. (See note)
2node(if-ip)[name]#dhcp-client renew Gets a new DHCP lease from the DHCP-server
Step Command Purpose
1node(if-ip)[name]#[no] debug dhcp-client Enables/disables the DHCP-client debug monitor
DHCP-server configuration tasks 297
SmartWare Software Configuration Guide 27 • DHCP configuration
2001-01-01T01:17:47 : LOGINFO : router/eth0 (Rqst): Got DHCP lease for
172.16.224.102
01:17:47 DHCPC > router/eth0 (Rqst): DHCP ACK received.
01:17:47 DHCPC > router/eth0 (Rqst): Lease is valid for 28800 seconds
01:17:47 DHCPC > router/eth0 (Rqst): (t1: 14400, t2: 25200)
01:17:47 DHCPC > router/eth0 (Rqst): Got DHCP lease for 172.16.224.102
01:17:47 DHCPC > router/eth0 (Rqst): Configuring IP interface
2001-01-01T01:17:48 : LOGINFO : Link down on interface eth0.
2001-01-01T01:17:48 : LOGINFO : Link up on interface eth0.
DHCP-server configuration tasks
To configure the SmartNode as DHCP-server perform the steps mentioned below.
•Configure DHCP-server profiles
•Use DHCP-server profiles and enable the DHCP-server (and to clear lease database) (see page 299)
•Define the bootfile for the DHCP-server (see page 300)
•Define the TFTP server for the DHCP-server (see page 300)
•Check DHCP-server configuration and status (see page 300)
•Get debug output from the DHCP-server (see page 301)
•Configure DHCP-relay (see page 302)
Configure DHCP-server profiles
The DHCP-server profiles hold the configuration information for the DHCP-server. The DHCP-server is capa-
ble of serving up to 8 subnets. Each subnet requires its own DHCP-server profile. The IP address/mask configu-
ration of the IP interface implicitly links an IP interface to a subnet and hence to a DHCP-server profile.
Note A profile can only be modified if it is not assigned to the DHCP-server yet or
if the DHCP-server is disabled. Use the command no dhcp-server to dis-
able the DHCP-server (see below).
This procedure describes how to configure a DHCP-server profile
DHCP-server configuration tasks 298
SmartWare Software Configuration Guide 27 • DHCP configuration
Mode: Configure
Step Command Purpose
1node(cfg)#profile dhcp-server name Enter DHCP-server profile mode
2node(pf-dhcps)[name]#network ip-
address ip-mask
Defines the IP address range for which this pro-
file is responsible
IP address: basic DHCP information (‘your (cli-
ent) IP address’)
IP mask: DHCP Option 1
3node(pf-dhcps)[name]#[no] include ip-
address-from ip-address-to
Defines up to 4 contiguous IP address ranges
the server may use in the subnet defined in 2
(incremental command)
4node(pf-dhcps)[name]#[no] default-
router default-router-ip-address
Defines up to 2 default routers (default gate-
ways) (incremental command)
DHCP Option 3
5node(pf-dhcps)[name]#lease infinite
or
node(pf-dhcps)[name]#lease time
days|hours|minutes
Defines the time a lease is valid
DHCP Option 51
6
(optional)
node(pf-dhcps)[name]#[no] domain-
name domain-name
A PC DHCP client may use this domain name to
complete host names to fully qualified domain
names.
DHCP Option 15
7
(optional)
node(pf-dhcps)[name]#[no] domain-
name-server domain-name-server-ip-address
Defines up to 2 domain name servers (DNS) to
be used by the client (incremental command)
DHCP Option 6
8
(optional)
node(pf-dhcps)[name]#[no] netbios-
name-server netbios-name-server-ip-address
Typical installation use h-node for hybrid.
Refer to the Windows administration manuals
for details about NetBIOS options.
DHCP Option 44
9
(optional)
node(pf-dhcps)[name]#[no] netbios-
node-type b-node|h-node|m-node|p-
node
Defines the NetBIOS node type (b: uses broad-
casts, h: hybrid – queries the name server first,
then broadcasts, m: broadcasts first, then que-
ries the name server, p: only point-to-point
name queries to a name server)
DHCP Option 46
DHCP-server configuration tasks 299
SmartWare Software Configuration Guide 27 • DHCP configuration
Example: Define a DHCP-server profile
This example shows how to configure a standard DHCP-server profile for a LAN with a private IP address
range.
node(cfg)#profile dhcp-server LAN
node(pf-dhcps)[lan]#network 192.168.1.0 255.255.255.0
node(pf-dhcps)[lan]#include 192.168.1.32 192.168.1.63
node(pf-dhcps)[lan]#lease 2 days
node(pf-dhcps)[lan]#default-router 192.168.1.1
node(pf-dhcps)[lan]#domain-name-server 80.254.161.125
node(pf-dhcps)[lan]#domain-name-server 80.254.161.126
Use DHCP-server profiles and enable the DHCP-server
If you have specified at least one profile, you can assign it to the DHCP-server and start the DHCP-server.
This procedure describes how to assign one or more DHCP-server profiles and enable the DHCP-server
Mode: Context IP
Example: Start the DHCP-server
This example shows how to assign a profile to the DHCP-server and to start the DHCP-server.
node(ctx-ip)[router]#dhcp-server use LAN
node(ctx-ip)[router]#dhcp-server
10
(optional)
node(pf-dhcps)[name]#[no] bootfile boot-
file-name
Defines the bootfile the client shall use when
starting. Usually this is used in conjunction with
the next-server command.
Basic DHCP information (‘Boot file name’)
11
(optional)
node(pf-dhcps)[name]#[no] next-server
next-server-ip-address
Defines the address of the next server in the
boot process. This could be a server different
from the DHCP-server which provides configu-
ration files for the clients to be downloaded.
Basic DHCP information (‘Next server IP
address’)
Step Command Purpose
1 [name](ctx-ip)[router]#dhcp-server use profile
<profile name>
Chooses a DHCP profile.
profile: Name of the DHCP profile to
choose.
2node(ctx-ip)[router]#[no] dhcp-server Enables/disables DHCP-server
3node(ctx-ip)[router]#dhcp-server clear-lease
{ all | ip-address }
Removes all or a specific lease from the
server’s database, which in turn marks the
IP address(es) as available again.
Step Command Purpose
DHCP-server configuration tasks 300
SmartWare Software Configuration Guide 27 • DHCP configuration
Define the bootfile (Option 67) for the DHCP-server
The DHCP server can define bootfile (DHCP option 67). In contrast to the existing options bootfile and
next-server, these options do not use BOOTP fields but DHCP options.
Mode: profile dhcp-server
Define the TFTP server (Option 66) for the DHCP-server
The DHCP server can define tftp-server (DHCP option 66). In contrast to the existing options bootfile and
next-server, these options do not use BOOTP fields but DHCP options.
Mode: profile dhcp-server
Check DHCP-server configuration and status
This procedure describes how to check the configuration and current status of the DHCP-server
Mode: Any
Example:
node(ctx-ip)[router]#show dhcp-server
The DHCP server is running
Profiles
LAN (active)
Network : 192.168.1.0 255.255.255.0
Include : 192.168.1.32 - 192.168.1.63
Lease Time : 2 days
Default Router : 192.168.1.1
Domain Name Server : 80.254.161.125
: 80.254.161.126
Bound leases
192.168.1.32 (Dufour)
Address : ethernet:00.10.A4.7C.7A.F8
Client Id : 01.00.10.A4.7C.7A.F8
Expires : 2002-12-06T21:18:04
Step Command Purpose
1[name](pf-dhcps)[profile]#[no] bootfile-
opt67 <bootfile>
Defines bootfile (option 67).
Step Command Purpose
1[name](pf-dhcps)[profile]#[no] tftp-
server-opt66 <tftp-server>
Defines TFTP server (option 66).
Step Command Purpose
1node(cfg) #show dhcp-server Displays configuration and status information
DHCP-server configuration tasks 301
SmartWare Software Configuration Guide 27 • DHCP configuration
Get debug output from the DHCP-server
This procedure describes how to enable/disable the DHCP-server debug monitor
Mode: Any
Example: Enable DHCP debug monitor
This example shows how to enable the DHCP-server debug monitor. The debug output shows an activation of
the DHCP-server, a DHCP-client requesting a lease, and a DHCP-client releasing a lease.
node(ctx-ip)[router]#debug dhcp-server
21:40:29 DHCPS > New network 'LAN' created
21:41:29 DHCPS > Discover from ethernet:00.10.A4.7C.7A.F8, client
id:01.00.10.A4.7C.7A.F8 via 192.168.1.1
21:41:29 DHCPS > Offering this hosts existing lease 192.168.1.32
21:41:29 DHCPS > Sending DHCP OFFER to 192.168.1.32 via 255.255.255.255 (68)
21:41:29 DHCPS > Deferring save of lease database
21:41:29 DHCPS > Last saved at 2002-12-04T21:40:29, next at 2002-12-04T21:55:29
21:41:29 DHCPS > Request from ethernet:00.10.A4.7C.7A.F8, client
id:01.00.10.A4.7C.7A.F8 via 192.168.1.1
21:41:29 DHCPS > Offer 192.168.1.32 has been selected
21:41:29 DHCPS > Sending DHCP ACK to 192.168.1.32 via 255.255.255.255 (68)
21:41:29 DHCPS > Deferring save of lease database
21:41:29 DHCPS > Last saved at 2002-12-04T21:40:29, next at 2002-12-04T21:55:29
21:44:37 DHCPS > Release from ethernet:00.10.A4.7C.7A.F8, client
id:01.00.10.A4.7C.7A.F8 via 192.168.1.1
21:44:37 DHCPS > Lease 192.168.1.32 released
21:44:37 DHCPS > Deferring save of lease database
21:44:37 DHCPS > Last saved at 2002-12-04T21:40:29, next at 2002-12-04T21:55:29
Step Command Purpose
1node(cfg) #[no] debug dhcp-server Enables/disables the debug monitor of the DHCP-server
DHCP-server configuration tasks 302
SmartWare Software Configuration Guide 27 • DHCP configuration
Configure DHCP-relay
SmartNodes support the DHCP-Relay functionality. To avoid having a DHCP-Server in every subnet, Smart-
Nodes now can forward DHCP-Requests either directly to a DHCP-Server or to another DHCP-Relay. To
configure the relay, there is a profile type dhcp-relay. The minimum configuration of such a profile only needs
one IP where DHCP-Requests are sent to. Note that a SmartNode can be configured either as DHCP-Server
or as DHCP-Relay, but not both in parallel.
Create/Modify DHCP-Relay profile
To use a SmartNode as DHCP-Relay Agent, a dhcp-relay profile must be created. Some things you should
know about the Relay Agent profile:
•In order to create valid profile, a dhcp-relay profile must contain at least one destination IP.
•There is no limit of dhcp-relay profiles, but there is only one active profile at the time.
•Modification of the dhcp-relay profile currently in use can be made anytime. Changes are activated imme-
diately. When all destination IPs are removed the profile is considered invalid and the DHCP-Relay is shut
down.
Mode: Configure
Step Command Purpose
1[name](cfg) #[no] profile dhcp-
relay name
Enter dhcp-relay profile mode. A new profile is created if
none with the given name exists.
2[name] (pf-dhcpr)[name]#destina-
tion <ip-address>
or
[name] (pf-dhcpr)[name]#destina-
tion after <index> <ip-address>
or
[name] (pf-dhcpr)[name]#destina-
tion before <index> <ip-address>
or
[name] (pf-dhcpr)[name]#no desti-
nation <index>
Add or remove an IP-Address to the profile. The IP-
Address can be any kind of address, means uni-, mulit-, or
broadcast. Be aware that every DHCP- Request will be
relayed to all ip- addresses in the list in the order they
are listed. The DHCP-Relay profile is only valid if it con-
tains at least one destination IP. The maximum amount of
destinations is limited to 16.
3[name] (pf-dhcpr)[name]#max-
hops <1...16>
or
[name] (pf-dhcpr)[name]#no max-
hops
Sets the max-hops a packet may have passed so far.
When a packet exceeds the max-hops limit, it is silently
discarded.
Max-hops is by default set to 4. This is an optional config-
uration command.
4[name] (pf-dhcpr)[name]#traffic-
class <traffic-class>
Sets traffic class for DHCP packets. The traffic class may
be new or may already exist. This is an optional configu-
ration command.
DHCP-server configuration tasks 303
SmartWare Software Configuration Guide 27 • DHCP configuration
Enable/Disable DHCP-Relay Agent
Mode: Context IP
Step Command Purpose
1[name] (ctx-ip)[name]# dhcp-relay
use <profile>
or
[name] (ctx-ip)[name]# no dhcp-
relay
Enable or disable DHCP-Relay. DHCP-Relay cannot be
enabled if a DHCP-Server is running.
304
Chapter 28 DNS configuration
Chapter contents
Introduction........................................................................................................................................................305
DNS configuration task list .................................................................................................................................305
Enabling the DNS resolver ............................................................................................................................305
Enabling the DNS relay ................................................................................................................................306
Introduction 305
SmartWare Software Configuration Guide 28 • DNS configuration
Introduction
The domain name system (DNS) enables users to contact a remote host by using easily remembered text labels
(www.patton.com, for example) instead of having to use the host’s numeric address (209.45.110.15, for exam-
ple). When DNS names are entered as part of configuration commands or CLI exec mode commands in appli-
cations like Ping, Traceroute, or Tftp, the SmartNode uses a DNS resolver component to convert the DNS
names into the numeric address.
The SmartNode can be configured as a caching DNS relay server to speed data transfers, acting as the DNS
server for a private network. In this configuration, hosts in the network send their DNS queries to the Smart-
Node, which checks to see if the DNS name is in its DNS resolver cache. If it finds the name in cache, the
SmartNode uses the cached data to resolve the DNS name into a numeric IP address. If the name is not in
cache, the query is forwarded on to a DNS server. When the SmartNode receives the answer from the server, it
adds the name to the cache, and forwards it on to the host that originated the query. This process enables the
SmartNode to provide answers more quickly to often-queried DNS names, reducing the number of DNS que-
ries that must be sent across the access link.
DNS configuration task list
The following sections describe how to configure the DNS component:
•Enabling the DNS resolver
•Enabling the DNS relay
Enabling the DNS resolver
To enable the SmartNode DNS resolver, you must configure it with the address of one or more DNS servers
that will be used to resolve DNS name queries. If multiple DNS servers are configured, the SmartNode will
query each server in turn until a response is received. DNS servers are configured as follows:
Mode: Configure
Example: Configuring DNS servers
The following example shows how to add DNS servers to the SmartNode DNS resolver and increase the size of
the DNS cache to 100 entries.
node>enable
node#configure
node(cfg)#dns-client server 62.2.32.5
node(cfg)#dns-client server 62.2.100.45
node(cfg)#dns-client cache 100
Step Command Purpose
1node(cfg)#dns domain-name server
server-ip-address
Add an IP address of a DNS server to be used
resolving DNS names
2Repeat step 1 for each additional DNS server
you want to add
2node(cfg)#dns-client cache number-of-entries Optional. Defines the maximum number of DNS
answers stored within the cache (default is 30)
DNS configuration task list 306
SmartWare Software Configuration Guide 28 • DNS configuration
You can test the DNS server configuration using the dns-lookup command as follows:
Example: Testing DNS server configuration
node(cfg)#dns-lookup www.patton.com
Name: www.patton.com
Address: 209.49.110.5
Note The DNS resolver automatically learns domain name servers if it receives
them through PPP or DHCP protocols. You can verify that the DNS
resolver has received domain name servers by using the show dns-client
command as follows:
node(cfg)#show dns-client
The following DNS servers are currently available:
Configured IP: 195.186.1.110
Discovered IP: 81.221.250.10 (Not used)
Discovered IP: 81.221.252.10 (Not used)
node(cfg)#
Configured IP indicates a domain name server that has been configured as
shown at the beginning of this section. Discovered IP indicates a domain
name server that was learned automatically.
Figure 45. DNS relay diagram
Enabling the DNS relay
DNS (Domain Name System) is a distributed database used in IP networks to provide the numerical IP
address for a URL’s host name. There are DNS Servers, DNS Relays, and DNS Clients (see figure 45). DNS
clients send queries with the host-name of interest to the DNS Server. The DNS server responds with the IP
DNS Client
TCP UDP
User’s PC
IP
ENET
DNS Relay
TCP UDP
Node
IP
ENET WAN
IP
ENET W
Localized DNS
query traffic
DNS Server
TCP UDP
Remote Location
(somewhere on
the Internet)
IP
WAN
WA
DNS query on
the WAN side
DNS configuration task list 307
SmartWare Software Configuration Guide 28 • DNS configuration
address. DNS Relay agents maintain a cache of host names and IP addresses, much smaller than a DNS Server.
It acts as a liaison between the DNS Server and the DNS client
Advantages in configuring a DNS Relay in the SmartNode are:
•Network traffic is reduced since only a single query is sent to the DNS server although numerous users may
be requesting an IP address for the same host name
•The DNS queries are localized between the Users and the SmartNode which reduces congestion on the
WAN side of the SmartNode
•Multiple DNS servers can be consulted from the SmartNode
The DNS resolver must be configured before you can use the DNS relay feature (see section “Enabling the
DNS resolver” on page 305 to enable the DNS resolver, if you have not already done so).
Do the following to enable the DNS relay feature:
Mode: Configure
Example: Enabling DNS relay
The following example shows how to enable the DNS relay feature.
node>enable
node#configure
node(cfg)#dns-relay
Note If a DHCP server profile has been set up, you can announce the SmartNode
as domain name server to the DHCP clients as follows:
node(cfg)#profile dhcp-server LAN
node(pf-dhcps)[LAN]#domain-name-server <ip-address>
Where ip-address must be the IP address of the SmartNode IP interface to
which the DHCP clients are connected.
Step Command Purpose
1node(cfg)#dns-relay Enables DNS relay feature
308
Chapter 29 DynDNS configuration
Chapter contents
Introduction........................................................................................................................................................309
DynDNS configuration task list ..........................................................................................................................309
Creating a DynDNS account ........................................................................................................................309
Configuring the DNS resolver ......................................................................................................................309
Configuring basic DynDNS settings .............................................................................................................310
Configuring the DynDNS server ..................................................................................................................310
Configuring advanced DynDNS settings (optional) ......................................................................................311
Defining a mail exchanger for your hostname .........................................................................................311
Troubleshooting ...........................................................................................................................................311
Introduction 309
SmartWare Software Configuration Guide 29 • DynDNS configuration
Introduction
SmartNodes are often used in applications where the addresses of their IP interfaces are not assigned statically
(i.e. permanently) but instead are configured dynamically. In these applications, the IP address is assigned
dynamically using protocols like DHCP or PPP. The problem with dynamically assigning addresses is that
when the IP address changes, remote devices can no longer contact the SmartNode because they do not know
what the new address is.
Dynamic DNS (DynDNS) addresses this problem by registering a permanent hostname for your SmartNode.
DynDNS then directs traffic sent to the registered host name on to the SmartNode’s ISP-assigned dynamic IP
address, enabling the SmartNode to be accessed from the Internet without knowing its current dynamic IP
address.
The DNS server used for registration is operated by Dynamic Network Services, Inc. You can find detailed
information about the company and the services it offers on the webpage www.dyndns.org. The company
offers different levels of service. The basic services are offered free of charge, while the more advanced services
are chargeable.
The SmartNode supports the following DynDNS services:
•Dynamic DNS
•Static DNS
•Custom DNS
DynDNS configuration task list
This section describes configuring the DynDNS service. All possible configurations, which are involved in a
specific configuration topic are described in the respective configuration task. To get a minimal working config-
uration of the DynDNS client, you must execute all the configuration tasks of the list below, except the tasks
explicitly marked as optional.
•Creating a DynDNS account
•Configuring the DNS resolver
•Configuring basic DynDNS settings
•Configuring advanced DynDNS settings (optional)
Creating a DynDNS account
Before using the DynDNS service, you must create a DynDNS account on the DynDNS server and add a
hostname to your account, which can be updated by the SmartNode. Go to the DynDNS website at
www.dyndns.org and follow the instructions on the webpage to create the account and add a hostname.
Configuring the DNS resolver
The DynDNS client requires that the SmartNode’s DNS resolver be enabled. You can find additional informa-
tion about how to configure the DNS resolver in chapter 28, “DNS configuration” on page 304.
DynDNS configuration task list 310
SmartWare Software Configuration Guide 29 • DynDNS configuration
Configuring basic DynDNS settings
The following procedure describes the steps necessary to enable the DynDNS feature.
Mode: DynDNS
Example: Configuring DynDNS
The following example shows the necessary steps required for a basic working configuration of the
DynDNS client.
node>enable
node#configure
node(cfg)#context ip
node(ctx-ip)[router]#dyndns
node(dyndns)#authentication Bob 245gf46te
node(dyndns)#service dynamic
node(dyndns)#hostname myhostname.dyndns.org
node(dyndns)#observe eth1
Configuring the DynDNS server
A DynDNS server other than “dyndns.org” can be configured in case you or your provider runs an own
DynDNS server.
Mode: context cs/dyndns
Step Command Purpose
1 node(dyndns)#authentication user pass-
word
Defines the authentication credentials of your
DynDNS account
2 node(dyndns)#service
{dynamic|static|custom}
Defines the DynDNS service to use
3 node(dyndns)#hostname name Defines the hostname that will be assigned to the
SmartNode
Step Command Purpose
1 [name](dyndns)# server [<server-
name>]
Set the DynDNS server name. The default value is
“dyndns.org”.
DynDNS configuration task list 311
SmartWare Software Configuration Guide 29 • DynDNS configuration
Configuring advanced DynDNS settings (optional)
Defining a mail exchanger for your hostname
If required, you can define a mail exchanger or a backup mail exchanger for your hostname on the
DynDNS server.
Mode: DynDNS
Example: Defining a mail exchanger
The following example shows how to define a mail exchanger named mail.mycompany.com, which should be
used as the primary mail-exchanger for the registered DynDNS hostname.
node>enable
node#configure
node(cfg)#context ip
node(ctx-ip)[router]#dyndns
node(dyndns)#mail-exchanger mail.mycompany.com
Troubleshooting
The DynDNS component provides several commands to analyze and solve DynDNS problems. You can
retrieve basic DynDNS status information as follows:
Mode: DynDNS
Example: Displaying DynDNS status information
The following example displays status information of a properly configured and working DynDNS client.
node(dyndns)#show dyndns
Current state: Idle
Last registered address: 243.232.39.64
Hostname: test.dyndns.org
You can also monitor current activities of the DynDNS client. This includes ongoing DNS queries for
DynDNS servers, verification of the currently registered IP address and updating the registration on the
DynDNS server. The debug monitor can be enabled as follows;
Mode: Configure
Step Command Purpose
1 node(dyndns)# mail-exchanger
hostname [backup-mx]
Defines the host, which is the mail exchanger for your host-
name. If the backup-mx parameter is specified, the mail-
exchanger will be registered as backup mail exchanger only
Step Command Purpose
1 node(dyndns)#show dyndns Display basic DynDNS status information
Step Command Purpose
1 node(cfg)#debug dyndns Enable the DynDNS debug monitor
DynDNS configuration task list 312
SmartWare Software Configuration Guide 29 • DynDNS configuration
Example: Displaying DynDNS status information
The following example shows how to enable the debug monitor and the output of the monitor when the IP
address on the DynDNS server can be updated successfully.
node(dyndns)#debug dyndns
16:20:43 DYNDNS> Resolving 'checkip.dyndns.org'...
16:20:43 DYNDNS> Resolved 'checkip.dyndns.org'.
16:20:43 DYNDNS> Retrieving current IP address...
16:20:43 DYNDNS> Sending request...
16:20:43 DYNDNS> Current IP address (57.32.59.64) does not match last
registered one
(43.23.44.2). DNS update is required.
16:20:43 DYNDNS> Resolving 'update.dyndns.org'...
16:20:43 DYNDNS> Resolved 'update.dyndns.org'.
16:20:43 DYNDNS> Updating DNS...
16:20:43 DYNDNS> Sending request...
16:20:44 DYNDNS> DNS updated successfully
16:20:44 DYNDNS> Registered IP address is (57.32.59.64).
If required, you can force the DynDNS component to re-register the current IP address on the DynDNS
server—even if the dynamic IP address has not changed—using the following command (this command could
also be useful for observing the update process in the debug monitor).
You can also force the DynDNS client to resume normal operation, if the state of the DynDNS client is shown
as blocked and the problem which led to the blocked state has been solved. The DynDNS client will enter the
blocked state if the DynDNS server reports an unrecoverable error during DNS updates that require user inter-
vention. These are mainly configuration problems, such as invalid credentials or an invalid hostname.
Mode: DynDNS
Possible blocking—Do not use this command too often,
because the DynDNS server will block your hostname, if you
trigger too many unnecessary updates of your IP address.
Step Command Purpose
1 node(dyndns)#dyndns reset Forces a re-registration of the current IP address on the
DynDNS server, even if an update is not necessary
IMPORTANT
313
Chapter 30 PPP configuration
Chapter contents
Introduction........................................................................................................................................................314
PPP configuration task list...................................................................................................................................315
Creating an IP interface for PPP ...................................................................................................................315
Disable interface IP address auto-configuration from PPP .............................................................................317
Creating a PPP subscriber .............................................................................................................................317
Trigger forced reconnect of PPP sessions using a timer .................................................................................319
Disable interface IP address auto-configuration from PPP .............................................................................319
Configuring a PPPoE session ........................................................................................................................319
Configuring PPP over a HDLC Link ............................................................................................................321
Creating a PPP profile ...................................................................................................................................321
Configuring the local and remote PPP MRRU .............................................................................................323
Displaying PPP configuration information ...................................................................................................324
Debugging PPP ............................................................................................................................................325
Sample configurations .........................................................................................................................................329
PPP over Ethernet (PPPoE) ..........................................................................................................................329
Without authentication, encapsulation multi, with NAPT ......................................................................329
With authentication, encapsulation PPPoE .............................................................................................329
PPP over a HDLC Link (Serial Port) ............................................................................................................330
Without authentication, numbered interface ...........................................................................................330
With authentication, unnumbered interface ............................................................................................330
PPP over a HDLC Link (E1T1 Port) ............................................................................................................330
Without authentication, numbered interface ...........................................................................................330
PPP Dial-up over ISDN ......................................................................................................................................331
PPP Dialer ....................................................................................................................................................331
Create a dialer .........................................................................................................................................332
Create outbound destinations ..................................................................................................................332
Configure recovery strategy .....................................................................................................................333
Create inbound destinations ....................................................................................................................334
Debug dialer functionality .......................................................................................................................336
Example – Dial-on demand feature .........................................................................................................336
Dial-up .........................................................................................................................................................337
Dial-up on demand .................................................................................................................................337
Dial-up on monitor .................................................................................................................................338
Dial-up nailed .........................................................................................................................................338
.....................................................................................................................................................................338
Introduction 314
SmartWare Software Configuration Guide 30 • PPP configuration
Introduction
This chapter describes how to configure the point-to-point protocol over different link layers.
The point-to-point protocol (PPP) provides a standard method for transporting multi-protocol datagrams over
point-to-point links as defined by the RFC1661 etc. SmartWare offers PPP over the following link layers:
•PPP over Ethernet (PPPoE)
•PPP over HDLC
Figure 46 shows the elements involved in the configuration of PPP. The elements required to configure PPP
over Ethernet are located in the upper left corner of the figure. The elements for PPP over a HDLC Framed
Serial Link are in the lower left corner. For PPP over ISDN, the elements are in the middle and the lower right
corner.
Figure 46. PPP configuration overview
Since the purpose of PPP is providing IP connectivity over different types of link layers, all PPP configuration
elements connect to the IP context through an IP interface. This connection is relayed via a subscriber profile if
either PPP peer requires authentication.
For PPP over Ethernet, a PPPoE session must be configured on the respective Ethernet port. It is possible to
set-up several (limited by the available memory) PPPoE sessions on the same Ethernet port, each session with
Context
IP
'router'
interface
ppp / pppout
port
isdn port
isdn
bind
subscriber
SR
bind port
<slot>
<port> *
port
serial
bind
subscriber
port
ethernet
* multiple occurrencies
PPPoE Session
Session
interface (ip)
Subscriber
PPP
Profile
PPP
bind
interface
bind
interface
bind
interface
bind
subscriber
use
profile ppp
bind
interface
Subscriber
PPP
Subscriber
PPP
interface
pstn
Context
CS
'switch'
Profile
PPP
use
profile ppp
PPP configuration task list 315
SmartWare Software Configuration Guide 30 • PPP configuration
its own IP interface. In addition to these PPPoE sessions, pure IP traffic can run concurrently over the same
Ethernet port. This is achieved by binding the Ethernet port directly to an IP interface.
PPP configuration task list
To configure PPP, perform the following tasks:
•Creating an IP interface for PPP
•Configuring for IP address auto-configuration from PPP (see page 317)
•Creating a PPP subscriber (for authentication) (see page 317)
•Configuring a PPPoE session (see page 319)
•Configuring PPP over a HDLC Link
•Creating a PPP interface within the CS context (not currently available)
•Creating a PSTN interface for PPP dial-in/dial-out (not currently available)
•Creating a PPP profile (see page 321)
•Displaying PPP configuration information (see page 324)
•Debugging PPP (see page 325)
Creating an IP interface for PPP
An IP interface is required to link a PPP connection to the IP context. The IP interface must apply a network
address port translation (NAPT) if the PPP service provider only offers a single IP address and not an IP sub-
net, or if the IP addresses on the LAN shall be private and hidden behind a public IP address (see 11, “NAT/
NAPT configuration” on page 132 for more information about NAPT).
This procedure describes how to create an IP interface for PPP
Mode: Context IP
Step Command Purpose
1node(ctx-ip)[router]#interface name Creates the new interface name, which repre-
sents an IP interface.
2node(if-ip)[name]#point-to-point Only defines what route is entered into the IP
routing table:
•point-to-point: A route to the IP address of
the PPP interface (assigned by the PPP peer)
is entered into the routing table.
•no point-to-point: A route to the subnet
defined by IP address of the PPP interface
(assigned by the PPP peer) is entered into
the routing table. The class of the IP address
determines the size of the subset.
Recommendation: Use ‘point-to-point’ and spec-
ify a default route.
PPP configuration task list 316
SmartWare Software Configuration Guide 30 • PPP configuration
3node(if-ip)[name]#ipaddress
unnumbered
or
node(if-ip)[name]#ipaddress dhcp
or
node(if-ip)[name]# ipaddress ip-address
netmask
The PPP remote peer offers an IP address for the
IP interface. The IP interface adopts this IP
address
Once PPP has established an IP connection, the
IP interface can use DHCP to acquire an IP
address. It sends a DHCP Discover message
(which is an IP broadcast) to the IP network to
which PPP has established connection. If no
DHCP Server is present, the IP interface does
not adopt the IP address offered by the PPP
remote peer but leaves the IP address unde-
fined.
The IP interface requests from the PPP remote
peer to use the IP address ip-address. PPP
repeatedly tries to set-up a connection until the
remote peer accepts this IP address. It does not
accept any other IP address offered by the PPP
remote peer. The parameter netmask specifies
the size of the subnet in case ‘no point-to-point’
is configured
4
(optional)
node(if-ip)[name]# [no] tcp adjust-mss {
rx | tx } { mtu | mss }
Limits to the MSS (Maximum Segment Size) in
TCP SYN packets to mss or to MTU (Maximum
Transmit Unit) - 40 Bytes, if ‘mtu’ is used. ‘rx’
applies to packets which arrive inbound at this
IP interface, ‘tx’ to packets which leave out-
bound of this IP interface.
PPP over Ethernet connections impose an over-
head of 8 Bytes (PPP: 2 Bytes, PPPoE: 6 Bytes).
Some Ethernets do not allow payloads larger
than the 1500 Bytes which the standard
defines, so IP packets must not contain more
than 1492 bytes when transmitted over such
connections. Reducing the MTU/MRU to 1492
Bytes does not always solve the problem
because many sources do not allow fragmenta-
tion of the IP packets they send (they set the
‘Don’t fragment’). However, these sources limit
the size of the IP packets according to the MSS
which their peers announce in the TCP SYN
packets.
It is recommended to use ‘mtu’ inbound and
outbound.
Step Command Purpose
PPP configuration task list 317
SmartWare Software Configuration Guide 30 • PPP configuration
Example: Create an IP interface for PPP
The following procedure creates an IP interface that can be used for all three types of link layers. The com-
mand lines tcp adjust-mss only apply to Ethernet link layers.
node(cfg)#context ip router
node(ctx-ip)[router]#interface ppp_interface
node(if-ip)[ppp_int~]#point-to-point
node(if-ip)[ppp_int~]#ipaddress unnumbered
node(if-ip)[ppp_int~]#tcp adjust-mss rx mtu
node(if-ip)[ppp_int~]#tcp adjust-mss tx mtu
Disable interface IP address auto-configuration from PPP
This procedure enables/disables automatic configuration of the interface IP address from the PPP network
control protocol negotiation.
Mode: profile ppp
Creating a PPP subscriber
One or more PPP subscriber shall be configured if either PPP peer requires authentication. This procedure
describes how to create a PPP subscriber
Mode: Configure
5
(optional)
node(if-ip)[name]#use profile napt name Assigns the NAPT profile name to applied to
this IP interface. See 11, “NAT/NAPT configu-
ration” on page 132 to learn how to create a
NAPT profile.
Step Command Purpose
1 [name] (pf-ppp)# [no] local-address-
autoconfig
Enables or disables auto-configuration of the
local IP address from PPP. Default: enabled.
Step Command Purpose
1node(cfg) # subscriber ppp name Creates the new subscriber name, which con-
tains the authentication settings.
Step Command Purpose
PPP configuration task list 318
SmartWare Software Configuration Guide 30 • PPP configuration
Example: Create a PPP subscriber
The procedure below creates a PPP subscriber for a PAP authentication with some Internet Service Provider.
node(cfg)#subscriber ppp joe_example
node(subscr)[joe_exa~]#dial out
node(subscr)[joe_exa~]#authentication pap
node(subscr)[joe_exa~]#identification outbound joeexample@isp.com password blue4you
node(subscr)[joe_exa~]#bind interface ppp_interface router
2node(subscr)[name]# dial {in|out} Defines the direction of the connection establish-
ment with PPP over ISDN. This information allows
to use different subscribers for incoming and out-
going calls.
With the other two link layers, set the direction as
follows:
•PPP over Ethernet: ‘dial out’
•PPP over Serial: ‘dial in’
3node(subscr)[name]# [no] authentication {
(chap pap) | {chap|pap} }
Defines the authentication protocol to be used,
PAP and/or CHAP
4
(optional)
node(subscr)[name]# [no] identification
{outbound|inbound} user [password
password]
Sets the credentials to be provided during the
authentication procedure: the user name user
and the password password.
The keywords ‘inbound’ and ‘outbound’ define
the direction of authentication:
•‘inbound’: The local peer checks the creden-
tials that the remote peer sends.
•‘outbound’: The local peer sends its creden-
tials if the remote peer requests them.
The following restrictions apply to the direction of
authentication:
•- PPP over Ethernet: ‘outbound’ only
•- PPP over Serial: ‘inbound only’
5node(subscr)[name]# [no] bind interface
interface [router]
Binds the subscriber to the IP interface to be used
for this PPP connection. The IP interface must
already exist and shall have the configuration as
outlined in section “Creating an IP interface for
PPP” on page 315.
Step Command Purpose
PPP configuration task list 319
SmartWare Software Configuration Guide 30 • PPP configuration
Trigger forced reconnect of PPP sessions using a timer
In some situations, it is useful to disconnect and reconnect a PPP session at a clearly defined time. The follow-
ing procedure shows how PPP can be configured to reconnect the connection every time a timer expires.
A common application for this feature: some ISPs disconnect the PPP session after a fixed period of time, for
example, 16 hours. This may cause call interruptions if it happens during the day. The timer allows to discon-
nect and reopen the PPP session at a predefined time, such as 0200 hours.
Mode: subscriber ppp <subscriber>
Disable interface IP address auto-configuration from PPP
This procedure enables/disables automatic configuration of the interface IP address from the PPP network
control protocol negotiation.
Mode: profile ppp
Configuring a PPPoE session
PPP can run over Ethernet (PPPoE). The active discovery protocol identifies the PPP remote peer on the Ether-
net and establishes a PPPoE session with it. The PPPoE session provides a logical point-to-point link that to
runs PPP as if it was a physical point-to-point link (e.g. a serial link).
This procedure describes how to configure an Ethernet port and a session for PPPoE
Step Command Purpose
1 [name] (subscr)[subscriber]# [no] timeout on-
timer <timer>
Enables/disables forced reconnect every time
the timer <timer> expiries.
Step Command Purpose
1 [name] (pf-ppp)[no]# [no] local-address-
autoconfig
Enables/disables autoconfiguration of the local
IP address from PPP. Default: enabled.
PPP configuration task list 320
SmartWare Software Configuration Guide 30 • PPP configuration
Mode: Configure
Step Command Purpose
1node(cfg) #port ethernet slot port Enters Ethernet port configuration mode for the
interface on slot and port
2node (prt-eth)[slot/port]# encapsulation
{ip|pppoe|multi}
Defines the payload type(s) to be used on the
Ethernet:
•‘ip’: IP traffic only (not used for PPP)
•‘pppoe’: PPPoE sessions only
•‘multi’: both IP traffic and PPPoE sessions
3node (prt-eth)[slot/port]# [no] bind inter-
face name [router ]
Binds the Ethernet port to the IP interface to be
used for the direct IP traffic (only required if
encapsulation ‘ip’ or ‘multi’ is selected)
4node(prt-eth)[slot/port]#[no] shutdown Enables the ethernet port
5node(prt-eth)[slot/port]#pppoe Enters PPPoE mode
6node(pppoe)[slot/port]#session name Creates PPPoE session with the name name
7node(pppoe)[slot/port]# [no] bind inter-
face name [router]
or
node (pppoe)[slot/port]# [no] bind sub-
scriber name
Binds the PPPoE session directly to the IP inter-
face name in case no authentication is required
Binds the PPPoE session to the PPP subscriber
name in case authentication is required
8
(optional)
node (pppoe)[slot/port]# [no] use profile
ppp name
Assigns a PPP profile other than the default pro-
file to this PPPoE session
9
(optional)
node(session)[name]#service Service-
Name
Defines the tag ‘Service-Name’ to be supplied
with Active Discovery in order to identify the
desired remote peer (check whether the remote
peer supports this feature)
10
(optional)
node(session)[name]#access-concentra-
tor AC-Name
The Active Discovery only accepts the PPPoE ses-
sion if the remote peer provides tag ‘AC-Name’
with its Active Discovery Offer as specified. This
allows to identify the desired remote peer
11 node(session)[name]#[no] shutdown Initiates the establishment of the PPPoE session
and the PPP connection
PPP configuration task list 321
SmartWare Software Configuration Guide 30 • PPP configuration
Example: Configure a PPPoE session
The procedure below configures a PPPoE session for the connection to a DSL provider using the credentials
specified in the subscriber profile above.
node(cfg)#port ethernet 0 0
node(prt-eth)[0/0]#encapsulation pppoe
node(prt-eth)[0/0]#no shutdown
node(prt-eth)[0/0]#pppoe
node(pppoe)[0/0]#session green
node(session)[green]#bind subscriber joe_example
node(session)[green]#no shutdown
Configuring PPP over a HDLC Link
This procedure describes how to configure PPP over a HDLC link. Different kind of physical ports can be
configured for HDLC framed data transmission. On some ports the hdlc mode must be explicitly enabled
(PRI, BRI), other ports have a HDLC framed nature (Serial). That means, PPP can be configured in different
configuration modes. For this reason, the command description below refer always to the configuration mode
in which ppp has been enabled by setting the encapsulation to ‘ppp’. This configuration mode is called here
‘hdlc-sub’ but it is only an alias for the real mode.
Mode: hdlc-sub
Creating a PPP profile
A PPP profile allows to adjust additional PPP parameters like the maximum transmit unit (MTU) and maxi-
mum receive unit (MRU). Only the most important parameters are listed here.
The profile default is always present and supplies the parameters if no other profile has been created or no pro-
file can be used with a certain type of PPP connection. Profiles created by the user can only be used with PPP
over Ethernet connections. For all other types of PPP connections the default profile applies.
This procedure describes how to create a PPP profile or to modify the default PPP profile
Step Command Purpose
1node(hdlc-sub)#[no] encapsulation ppp Enables/Disables PPP
3node(hdlc-sub)#[no] bind interface name
[router]
or
node(hdlc-sub)#[no] bind subscriber name
or
node(hdlc-sub)#[no] bind subscriber
authentication { chap pap | { chap | pap
} }
Binds the HDLC link directly to the IP interface
name in case no authentication is required
Binds the HDLC link to the PPP subscriber name
in case authentication is required
Only the credentials provided at the establish-
ment of the PPP session select the PPP sub-
scriber. This allows to bind the HDLC link to the
set of all PPP subscribers.
4
(optional)
node(hdlc-sub)#[no] use profile ppp name Assigns a PPP profile other than the default pro-
file.
PPP configuration task list 322
SmartWare Software Configuration Guide 30 • PPP configuration
Mode: Configure
Example: Create a PPP profile
The procedure below creates a PPP profile, sets some of its parameters, and assigns it to a PPPoE session.
node(cfg)#profile ppp PPPoE
node(pf-ppp)[PPPoE]#mtu min 68 max 1492
node(pf-ppp)[PPPoE]#mru min 68 max 1492
node(pf-ppp)[PPPoE]#van-jacobson compression
node(pf-ppp)[PPPoE]#port ethernet 0 0
node(prt-eth)[0/0]#pppoe
node(pppoe)[0/0]#session green
node(session)[green]#use profile ppp PPPoE
Step Command Purpose
1node(cfg) #[no] profile ppp { name |
default }
Creates the new PPP profile name and enters
the PPP profile configuration. The profile
‘default’ already exists.
2
(optional)
node(pf-ppp)[name]#mtu min min max
max
Defines the minimum and maximum size of IP
packets (in Bytes) allowed on the outbound PPP
connection. Outbound packets larger than the
maximum size are fragmented into smaller
ones if allowed.
The default value is 1492 Bytes.
On the IP interface over which the PPP connec-
tion runs, the minimum of the IP interface MTU
and PPP MTU applies.
3
(optional)
node(pf-ppp)[name]#mru min min max
max
Defines the minimum and maximum size of IP
packets (in Bytes) allowed on the inbound PPP
connection. The default value is 1492 Bytes.
Inbound packets larger than the maximum size
are fragmented into smaller ones if allowed.
The default value is 1492 Bytes.
4
(optional)
node(pf-ppp)[name]#[no] van-jacobson
{compression|decompression} max-slots
max-slots
Allows PPP to use Van Jacobson header com-
pression for TCP packets. Only the negotiation
between the PPP peers determines whether this
header compression is really used. max-slots
determines the maximum number of concurrent
TCP sessions for which header compression
shall be done. The default is 31.
PPP configuration task list 323
SmartWare Software Configuration Guide 30 • PPP configuration
Configuring the local and remote PPP MRRU
The PPP Maximum Receive Reconstructed Unit (MRRU) denotes the maximum reassembled MRU we are
able to receive above the multi-link PPP protocol, i.e. this is the MRU after reassembling frames from individ-
ual links inside a multi-link bundle. The valid range and default value of MRRU can be configured in the PPP
profile.
Mode: profile ppp
Step Command Purpose
1 [name] (pf-ppp)[profile]# mrru [min
<min>] [max <max>] [default
<default>]
Configures the minimum, maximum and default
value of the local MRRU. The configured range
(min..max) is forced during PPP LCP negotiation,
while the default value is offered first. Note that the
MRRU option is only offered when multi-link is
enabled.
The default minimum value is 68.
The default maximum value is 1920.
The default default value is 1500.
2 [name] (pf-ppp)[profile]# mtru [min
<min>] [max <max>] [default
<default>]
Configures the minimum, maximum and default
value of the remote MRRU, i.e. the MRRU of the
remote side that we are willing to accept. The con-
figured range (min..max) is forced during PPP LCP
negotiation, while the default value is used when
not offered.
The default minimum value is 68.
The default maximum value is 1920.
The default default value is 1500.
PPP configuration task list 324
SmartWare Software Configuration Guide 30 • PPP configuration
Displaying PPP configuration information
This section shows how to display and verify the PPP configuration information.
Mode: Configure
Example: Display PPP subscriber configuration information
node(session)[green]#show subscriber ppp joe_example
Subscribers:
------------
Name: joe_example
Direction: dial-out
Authentication: pap
Identification (inbound): (none)
Identification (outbound): patton/patton
Timeout for disconnect: no absolute timeout, no idle timeout
Max. sessions: no limit
IP address: (none)
Callback: (none)
Binding: interface ppp_interface router
Binding: interface ppp_interface router
Step Command Purpose
1node(cfg) #show running-config Gives the best overview of all PPP related configura-
tion information. The following parts are of interest:
•profile ppp default
•profile ppp name
•interface name
•subscriber ppp name
•port ethernet slot port
•session name
2node(cfg) #show subscriber ppp [ name ] Displays configuration information of the PPP sub-
scriber name or of all PPP subscribers
3node(pf-ppp)[name]#show profile ppp
{ name | default }
Displays the PPP profile name or the default PPP
profile
PPP configuration task list 325
SmartWare Software Configuration Guide 30 • PPP configuration
Example: Display a PPP profile
node(pf-ppp)[PPPoE]#show profile ppp PPPoE
Profiles:
---------
Name: default
LCP Configure-Request: interval 3000 ms, max 10
LCP Configure-Nak: max 5
LCP Terminate-Request: interval 3000 ms, max 2
LCP Echo-Request: interval 10000 ms, max 3
MTU: 68 - 1920
MRU: 68 - 1920
Callback: both
CHAP: allowed
PAP: allowed
Authentication: interval 3000 ms, max 3
IPCP Configure-Request: interval 3000 ms, max 10
IPCP Configure-Nak: max 5
IPCP Terminate-Request: interval 3000 ms, max 2
Van-Jacobson Compression: allowed, max-slots 31
Van-Jacobson Decompression:allowed, max-slots 31
Name: PPPoE
LCP Configure-Request: interval 3000 ms, max 10
LCP Configure-Nak: max 5
LCP Terminate-Request: interval 3000 ms, max 2
LCP Echo-Request: interval 10000 ms, max 3
MTU: 68 - 1492
MRU: 68 - 1492
Callback: both
CHAP: allowed
PAP: allowed
Authentication: interval 3000 ms, max 3
IPCP Configure-Request: interval 3000 ms, max 10
IPCP Configure-Nak: max 5
IPCP Terminate-Request: interval 3000 ms, max 2
Van-Jacobson Compression: allowed, max-slots 24
Van-Jacobson Decompression:allowed, max-slots 31
Van-Jacobson Decompression:allowed, max-slots 31
Debugging PPP
A set of commands is available to check the status of the PPP connection and the PPPoE session. Furthermore,
two debug monitors help to analyze the dynamic behavior. The commands are listed in the order which you
should follow in case you encounter problems with PPP. This procedure describes how to display PPP configu-
ration information
PPP configuration task list 326
SmartWare Software Configuration Guide 30 • PPP configuration
Mode: Configure
Step Command Purpose
1node(cfg) #show ppp links [ level ] Displays status and configuration information of
the Link Control Protocol (LCP) and the authentica-
tion protocol(s) (PAP and/or CHAP). Check
whether the states of the two protocols are
‘Opened’.
level specifies to level of details displayed (1..4,
default is 1).
2node(cfg) #show ppp networks [ level ] Displays status and configuration information of
the Network Control Protocol(s) (NCP), in particu-
lar the IP Control Protocol (IPCP). Check whether
the states of this protocol is ‘Opened’.
Under ‘Local configuration options’, you find the IP
address proposed by this SmartNode and under
‘Local acknowledged options’, the IP address
assigned by the remote peer.
level specifies to level of details displayed (1..4,
default is 1).
3node(cfg) #show pppoe [ name ] Displays status, configuration information, and sta-
tistics of PPPoE in general and of the PPPoE ses-
sion(s). Check whether state of the respective
session is ‘Opened’.
level specifies to level of details displayed (1..4,
default is 1).
4node(cfg) #show port interface name Displays status and configuration information of the
IP interface at which a PPP connection terminates.
Check whether state of the interface is ‘OPENED’.
Under ‘Local IP Address’, you find the IP address
assigned to the IP interface. If it does not corre-
spond to the IP address assigned by the PPP
remote peer, check whether the ‘ipaddress’ of the
IP interface is set to ‘unnumbered’.
5node(cfg) #show port ethernet slot port Displays status and configuration information of the
Ethernet/serial port over which a PPP connection/
PPPoE sessions runs. Check whether state of the port
is ‘OPENED’ and whether the encapsulation is set to
‘pppoe’ or ‘multi’ (only for Ethernet ports).
6node(cfg) # [no] debug ppp [ all | ... ] Enables all or a particular PPP debug monitor.
7node(cfg) # [no] debug pppoe [ all | ... ] Enables all or a particular PPPoE debug monitor.
PPP configuration task list 327
SmartWare Software Configuration Guide 30 • PPP configuration
Example: Display PPP link information
node(cfg)#show ppp links 4
PPP Link Information:
=====================
Link:
ID: 0
Name: ethernet 0 0 0/pppoe/ppp_green
Protocols: LCP, PAP
LCP:
ID: 0
Name: ethernet 0 0 0/pppoe/ppp_green
State: Opened
Conf-Req send rate: 3000ms
Max. Conf-Req: 10
Term-Req send rate: 3000ms
Max. Term-Req: 2
Echo-Req send rate: 10000ms
Max. Echo-Req: 3
Local ID: 100000020390
Remote ID:
Local configured options:
Magic Number = 0x00000000
MRU = 1492 [68,1492]
ACCM = 0xffffffff
Local acknowledged options:
Remote configured options:
Magic Number = 0xb89d9e6b
MRU = 1492 [68,1492]
ACCM = 0xffffffff
Authentication Protocol = { PAP }
Remote acknowledged options:
MRU = 1492 [68,1492]
Magic Number = 0xb89d9e6b
Authentication Protocol = { PAP }
Remote denied options:
Remote rejected options:
PAP:
ID: 0
Name: ethernet 0 0 0/pppoe/ppp_green
State: Opened
Direction: supplying
Local authentication:
ID: patton
Password: patton
Success:
Remote authentication:
ID:
Password:
Success: Greetings!!
Auth-Req send rate: 3000ms
Max. Auth-Req: 3
PPP configuration task list 328
SmartWare Software Configuration Guide 30 • PPP configuration
Example: Display PPP network protocol information
node(session)[green]#show ppp networks 4
PPP Network Information:
========================
Network:
ID: 0
Name: ethernet 0 0 0/pppoe/ppp_green/net
State: up
IPCP:
ID: 0
Name: ethernet 0 0 0/pppoe/ppp_green/net
State: Opened
Conf-Req send rate: 3000ms
Max. unanswered Conf-Req: 10
Local configured options:
IP Address = 172.16.40.98
IP Compression Protocol = VJC (Max-Slot-Id=31, Comp-Slot-Id=1)
Local acknowledged options:
IP Address = 10.10.10.2
IP Compression Protocol = VJC (Max-Slot-Id=31, Comp-Slot-Id=1)
Remote configured options:
IP Address = 0.0.0.0
IP Compression Protocol = VJC (Max-Slot-Id=24, Comp-Slot-Id=1)
Remote acknowledged options:
IP Address = 10.10.10.1
IP Compression Protocol = VJC (Max-Slot-Id=15, Comp-Slot-Id=1)
Remote denied options:
Remote rejected options:
Example: Display PPPoE information
node(session)[green]#show pppoe 4
PPPoE Information:
==================
Instance:
ID: 0
Name: ethernet 0 0 0/pppoe
Initiation Send Interval 3000 ms
Request Send Interval 1000 ms
Max. Initiations 20
Max. Requests 3
Received Octets 7247
Received Packets 181
Received Discards 0
Received Errors 2
Received Unknown Protos 0
Transmitted Octets 2952
Transmitted Packets 152
Transmitted Discards 1
Transmitted Errors 0
Session:
ID: 1
Name: green
Sample configurations 329
SmartWare Software Configuration Guide 30 • PPP configuration
Service:
Access-Concentrator:
State: Opened
Sent Initiations: 1
Sent Requests: 1
Peer Session-ID: 3786
Peer MAC-Address: 00:01:02:B8:4E:E4
Sample configurations
PPP over Ethernet (PPPoE)
Without authentication, encapsulation multi, with NAPT
profile napt WAN
context ip router
interface normal_ip_interface
ipaddress 172.16.1.1 255.255.0.0
interface ppp_interface
ipaddress unnumbered
point-to-point
tcp adjust-mss rx mtu
tcp adjust-mss tx mtu
use profile napt WAN
context ip router
route 0.0.0.0 0.0.0.0 ppp_interface 0
port ethernet 0 0
encapsulation multi
bind interface normal_ip_interface
no shutdown
pppoe
session green
bind interface ppp_interface
no shutdown
With authentication, encapsulation PPPoE
context ip router
interface ppp_interface
ipaddress unnumbered
point-to-point
tcp adjust-mss rx mtu
tcp adjust-mss tx mtu
subscriber ppp joe_example
dial out
authentication pap
Sample configurations 330
SmartWare Software Configuration Guide 30 • PPP configuration
identification outbound <user> password <password>
bind interface ppp_interface router
port ethernet 0 0
encapsulation pppoe
no shutdown
pppoe
session green
bind subscriber joe_example
no shutdown
PPP over a HDLC Link (Serial Port)
Without authentication, numbered interface
context ip router
interface ppp_interface
ipaddress 172.17.1.1 255.255.255.252
point-to-point
port serial 0 0
encapsulation ppp
bind interface ppp_interface
no shutdown
With authentication, unnumbered interface
context ip router
interface ppp_interface
ipaddress unnumbered
point-to-point
subscriber ppp joe_example
dial in
authentication pap
identification inbound <user> password <password>
bind interface ppp_interface router
port serial 0 0
encapsulation ppp
bind interface ppp_interface
no shutdown
PPP over a HDLC Link (E1T1 Port)
Without authentication, numbered interface
context ip router
interface myPPP
ipaddress 172.17.1.1 255.255.255.252
point-to-point
PPP Dial-up over ISDN 331
SmartWare Software Configuration Guide 30 • PPP configuration
port e1t1 0 0
port-type e1
framing crc4
encapsulation hdlc
hdlc
encapsulation ppp
bind interface myPPP router
port e1t1 0 0
no shutdown
PPP Dial-up over ISDN
The following modules in this section must be configured in order to use the PPP dial-up over ISDN feature:
•PPP Dialer (see page 331)
•Dial-up (see page 337)
•IP Link Supervision (see page 338)
PPP Dialer
The PPP Dialer is one of the modules you have to configure in order to use the PPP dial-up over ISDN fea-
ture. Also, consider the dial-up command (page 337) and the check-connectivity command (page 338) on the
IP interface.
The dialer is responsible for establishing and tearing down call-signaling connections to the remote-access
server. The dialer is a virtual interface of the circuit-switching (CS) context. Thus the dialer belongs to the
domain of switch-circuit connectivity even if the established link finally runs the IP protocol.
To establish a connection, the dialer must be triggered by an external source, for example, a spoofing IP inter-
face (an IP interface configured for dial-up). Whether this trigger is fired on the first packet sent over that IP
interface or if the primary link to the destination goes down, is configured using the dial-up command on
bound IP interface.
When the dialer receives the trigger event it tries to establish one or more connections to the configured desti-
nation. You can specify a list of destinations to be tried. Each destination configuration contains all informa-
tion needed to dial and log in to a certain remote-access server (i.e. remote party number, login credentials,
PPP parameters, etc.). However some of the parameters are indirectly configured using a PPP subscriber con-
figuration entity.
The following configuration parameters are the same for all destinations:
•Recovery Strategy: If and when a retry is started after a failed dial attempt.
•Destinations: A list of destinations, each of which contains the parameters below.
The following configuration parameters can be configured for each destination separately:
•Local and Remote Party Number: Calling- and Called-E.164 number for the signaling connection.
•Call Route: A link to a call-router element, for example an ISDN interface. This route defines over which
interface the dial-up call is placed. Instead of routing a call directly to an ISDN interface, you can also route
the call to a hunt-group service that hunts for a free B-channel over multiple BRI interfaces.
PPP Dial-up over ISDN 332
SmartWare Software Configuration Guide 30 • PPP configuration
•Retry List: A list of up to 8 retry timeouts that define if and when a retry is started for the same destination
after a failed dial attempt.
•Binding: By binding a dialer destination to a PPP subscriber configuration entity, you define the PPP pro-
tocol parameters (e.g. multi-link) and credentials that are applied to the dial-up connection. Note that each
dialer destination (link to a dial-up provider) may define its own credentials and PPP parameters. The PPP
subscriber configuration entity also defines from which IP interface the dial-trigger is received.
•PPP Profile: A PPP profile can be used to fine-tune PPP protocol parameters.
Create a dialer
The following command creates a new PPP dialer.
Mode: context cs
Create outbound destinations
Follow the steps below to create an outbound destination instance. Each destination contains all information
needed to dial and log into a certain remote-access server (i.e. remote party number, login credentials, PPP
parameters, ect.). You can create more than one destination in order to fall back to another provider if the first
provider is not accessible at the moment.
Mode: context cs/interface dialer
Step Command Purpose
1 [name] (ctx-cs)[router]# interface dialer
<dialer-name>
Creates a new dialer and enters its configura-
tion mode.
Step Command Purpose
1 [name] (if-dialer)[dialer]#outbound
PROVIDER1
Creates an outbound destination where all
dial-up and login information for a certain
provider can be configured.
2 [name] (outbound)[provider]#local-e164
<e164>
Configures the calling-party number that shall
be used to establish the call. This is the num-
ber of the local system.
3 [name] (outbound)[provider]#remote-e164
<e164>
Configures the called-party number that shall
be used to establish the call. This is the num-
ber of the remote access server.
4 [name] (outbound)[provider]#route call
dest-interface <if-name>
[name] (outbound)[provider]#route call
dest-table <table-name>
[name] (outbound)[provider]#route call
dest-service <if-name>
Specifies a destination interface for call estab-
lishment (basic interface routing) or a destina-
tion table or call service (advanced call
routing).
See Chapter 33, “CS interface configuration”
on page 381 for further information.
PPP Dial-up over ISDN 333
SmartWare Software Configuration Guide 30 • PPP configuration
Configure recovery strategy
The recovery strategy defines whether and when new dial-attempts are made after all configured outbound des-
tinations are tried. When receiving a dial-trigger from a spoofing IP interface, the dialer iterates over its list of
outbound destinations once and tries to establish the first link. Each outbound destination may define a time-
out list for internal retries. If this timeout list is executed without the link being established, the dialer goes over
to the next destination. The recovery strategy is only needed if all configured outbound destinations did not
manage to establish the link.
The default recovery strategy is as follows:
•If the first link could not be established because of call-signaling problems (e.g. no ISDN CONNECT
received), the dialer retries the first destination again after 30 seconds.
•If the first signalling connection could be established (e.g. ISDN CONNECT received), and therefore you
probably have to pay for the connection, but if the PPP negotiation failed, the dialer does not start another
retry. The operator has to manually reset the dialer (executing the reset command in the context cs/interface
dialer mode).
5 [name] (outbound)[provider]#[no] retry
<timeout1> [<timeout2> [timeout3>...]]
Specifies how many times and after which
timeouts the dialer shall redial the same pro-
vider if the previous dial-attempt failed. Up to
8 retry timeouts can be specified. The speci-
fied timeouts are relative to the previous try.
So, if you specify a timeout list of retry 5
10 10, calls are made at time 0, 5, 15, 25.
Use the no-form of the command to only dial
once to the current destination. The dialer
goes over to the next destination if the retry-
list is executed without the link being estab-
lished.
6 [name] (outbound)[provider]#encapsula-
tion ppp
Defines the data protocol that shall run over
the established signalling connection. Cur-
rently only PPP is available, which is the
default.
7 [name] (outbound)[provider]#bind sub-
scriber <subscriber>
Indirectly binds to a spoofing IP interface over
a PPP subscriber. The PPP subscriber contains
all PPP protocol parameters (e.g. authentica-
tion protocol, credentials, multi-link, etc.)
See “Creating a PPP subscriber” on page 317
for further information.
8 [name] (outbound)[provider]#use profile
ppp <profile>
Defines the PPP profile that shall be used. The
PPP profile stores advanced PPP protocol
parameters.
See “Creating a PPP profile” on page 321 for
further information.
9Repeat Steps 1-8 for all required backup pro-
viders you want to use.
Step Command Purpose
PPP Dial-up over ISDN 334
SmartWare Software Configuration Guide 30 • PPP configuration
•If an additional link (when using multi-link PPP) was up and is accidentally disconnected, we retry to
establish it after 5 seconds.
•If an additional link (when using multi-link PPP) could not be established because of call-signaling prob-
lems (e.g. no ISDN CONNECT received), the dialer retries the same destination again after 10 seconds.
•If an additional link (when using multi-link PPP) could be established (e.g. ISDN CONNECT received),
and therefore you probably have to pay for the connection, but if the PPP negotiation failed, the dialer does
not start another retry. It does not try to establish further links until the whole multi-link bundle is torn
down.
Use the following commands to configure the recovery strategy:
Mode: context cs/interface dialer
Create inbound destinations
You can also create inbound destinations. Inbound destinations can be used for dial-in connections. In that
case the call-router must be configured to route certain calls (e.g. calls with information transfer capability of
unrestricted-digital) to the dialer interface.
If you want two devices to be symmetrically connected, each being able to establish a dial-on-demand connec-
tion to the other, you have to create an outbound and an inbound destination with the same configuration
parameters.
Step Command Purpose
1 [name] (if-dialer)[dialer]#[no] recovery ini-
tial-link on-signaling-failure <timeout>
Configures the recovery timeout from a call-
signaling failure of the first link of a multi-link
bundle. The default value is 30 seconds.
2 [name] (if-dialer)[dialer]#[no] recovery ini-
tial-link on-network-error <timeout>
Configures the recovery timeout from a net-
work-establishment error (e.g. a PPP negotia-
tion problem) of the first link of a multi-link
bundle. The default is not to automatically
recover from this situation. The operation has
to execute the reset command manually in this
case.
3 [name] (if-dialer)[dialer]#[no] recovery
additional-link if-already-up <timeout>
Configures the recovery timeout from a link
teardown after the link was already up. The
default value is 5 seconds.
4 [name] (if-dialer)[dialer]#[no] recovery
additional-link on-signaling-failure
<timeout>
Configures the recovery timeout from a call-
signaling failure of an additional link of a
multi-link bundle. The default value is 10 sec-
onds.
5 [name] (if-dialer)[dialer]#[no] recovery
additional-link on-network-error <time-
out>
Configures the recovery timeout from a net-
work-establishment error (e.g. a PPP negotia-
tion problem) of an additional link of a multi-
link bundle. The default is not to automatically
recover from this situation. The bundle will
drain out of links. When all links of the bundle
are down, the dialer recovers from this situa-
tion without a manual intervention.
PPP Dial-up over ISDN 335
SmartWare Software Configuration Guide 30 • PPP configuration
The local and remote E.164 number configuration on inbound destinations have different meanings than for
outbound destinations. On inbound destinations these numbers are used to dispatch incoming calls to one of
the configured inbound destinations.
Follow the steps below to create an inbound destination instance. Each destination contains all information
needed to accept an incoming call and identify towards the remote party. You can create more than one
inbound destination in order to filter inbound calls and to apply different PPP subscribers and PPP profile to
call from different parties.
Mode: context cs/interface dialer
Step Command Purpose
1 [name] (if-dialer)[dialer]#inbound
PROVIDER1
Creates an inbound destination to accept
incoming calls from a certain remote party.
2 [name] (inbound)[provider]#local-e164
<e164>
The incoming call must have the configured
called-party number to be accepted. Use the
no-form of the command to accept calls to all
numbers.
3 [name] (inbound)[provider]#remote-e164
<e164>
The incoming call must have the configured
calling-party number to be accepted. Use the
no-form of the command to accept calls from
all numbers.
4 [name] (inbound)[provider]#encapsulation
ppp
Defines the data protocol that shall run over
the established signalling connection. Cur-
rently only PPP is available, which is the
default.
5 [name] (inbound)[provider]#bind sub-
scriber <subscriber>
Indirectly binds to a spoofing IP interface over
a PPP subscriber. The PPP subscriber contains
all PPP protocol parameters (e.g. authentica-
tion protocol, credentials, multi-link, etc.)
See “Creating a PPP subscriber” on page 317
for further information.
6 [name] (inbound)[provider]#use profile
ppp <profile>
Defines the PPP profile that shall be used. The
PPP profile stores advanced PPP protocol
parameters.
See “Creating a PPP profile” on page 321 for
further information.
7Repeat steps 1-6 for all required backup pro-
viders you want to use.
PPP Dial-up over ISDN 336
SmartWare Software Configuration Guide 30 • PPP configuration
Debug dialer functionality
The following commands show how to display information and events of a PPP dialer.
Mode: enable
Mode: enable
Example – Dial-on demand feature
The following example shows a configuration snippet to configure a backup-interface that uses the dial-on
demand feature to establish a backup-connection to the remote network. The remote network can be reached
either over the dial-in infrastructure of provider 1 or provider 2. Both need different credentials.
context ip
interface IF_PRIMARY
ipaddress 10.1.1.2 255.255.255.0
check-connectivity ping 10.1.1.1
interface IF_SECONDARY
ipaddress unnumbered
point-to-point
dial-up monitor interface IF_PRIMARY
route 0.0.0.0 0.0.0.0 10.1.1.1 0
route 0.0.0.0 0.0.0.0 IF_SECONDARY 1
subscriber ppp SUB_PROVIDER1
dial out
authentication chap pap
identification outbound MY_NAME password MY_PASSWORD
bind interface IF_SECONDARY
subscriber ppp SUB_PROVIDER2
dial out
authentication pap
identification outbound USER password PWD
bind interface IF_SECONDARY
context cs
Step Command Purpose
1 [name] #show call-control provider
<dialer> detail <detail>
Shows configuration and state information
about a certain dialer instance.
Step Command Purpose
1 [name] #debug dialer detail <detail> Enables logging of dialer events and state
changes.
2 [name] #debug ppp <type> Enables logging of PPP protocol events. See
“Debugging PPP” on page 325 for further
information.
PPP Dial-up over ISDN 337
SmartWare Software Configuration Guide 30 • PPP configuration
interface dialer IF_DIALUP
outbound 1 PROVIDER1
local-e164 100
remote-e164 0312345678
route call dest-interface BRI0
retry 5 10 10
encapsulation ppp
bind subscriber SUB_PROVIDER1
use profile ppp default
outbound 2 PROVIDER2
local-e164 100
remote-e164 0998887766
route call dest-interface BRI0
retry 5
encapsulation ppp
bind subscriber SUB_PROVIDER2
use profile ppp default
Dial-up
Dial-up is one of the modules you have to configure in order to use the PPP dial-up over ISDN feature. Also
consider the check-connectivity command (page 338) on the IP interface and the interface dialer mode
(page 331) in context cs.
Dial-up brings up an IP interface even if the link is not established (spoofing). On some trigger conditions the
spoofer gives the signal to dial or to drop the connection to dialer that is bound to the IP interface. There are
three different trigger conditions available.
Dial-up on demand
Dial when the first packet is sent out that interface and drop after a certain time where no packet is routed
through that interface.
Mode: context ip/interface
Step Command Purpose
1 [name] (if-ip) [interface]#[no] dial-up on-
demand [idle timeout <seconds>]
[queue-limit <number>]
Configure dial-up on demand. Idle timeout
specifies the idle time in seconds before drop-
ping connection (Default 300). Queue-limit
specifies the max. number of packets to
queue while the link is down (Default 4).
PPP Dial-up over ISDN 338
SmartWare Software Configuration Guide 30 • PPP configuration
Dial-up on monitor
Dial when a monitored interface is reported down and drop when that interface is reported up again. A delay
time prevents to dial or drop if the monitored interface changes the state only for a short time.
Mode: context ip/interface
Dial-up nailed
Dial if possible, and never drop.
Mode: context ip/interface
Step Command Purpose
1 [name] (if-ip) [interface]#[no] dial-up mon-
itor interface <ip-interface> [dial delay
<seconds>] [drop delay <seconds>]
[queue-limit <number>]
Configure dial-up to monitor the interface
specified. Dial delay specifies the timeout
before dialing (Default 10). Drop delay speci-
fies the timeout before dropping connection
(Default 10). Queue-limit specifies the max.
number of packets to queue while the link is
down (Default 4).
Step Command Purpose
1 [name] (if-ip) [interface]#[no] dial-up
nailed [queue-limit <number>]
Configure dial-up nailed. Queue-limit speci-
fies the max. number of packets to queue
while the link is down (Default 4).
339
Chapter 31 CS context overview
Chapter contents
Introduction........................................................................................................................................................340
CS context configuration task list ........................................................................................................................341
Planning the CS configuration ............................................................................................................................341
Configuring general CS settings...........................................................................................................................343
Configuring the clock source ...................................................................................................................343
Debugging the clock source .....................................................................................................................344
Selecting PCM law compression ..............................................................................................................345
Configuring call routing ......................................................................................................................................345
Creating and configuring CS interfaces................................................................................................................346
Specify call routing ........................................................................................................................................346
Configuring dial tones.........................................................................................................................................347
Configuring voice over IP parameters ..................................................................................................................347
Configuring ISDN ports .....................................................................................................................................348
Configuring FXS ports ........................................................................................................................................348
Configuring an H.323 VoIP connection .............................................................................................................348
Configuring a SIP VoIP connection ....................................................................................................................348
Activating CS context configuration ....................................................................................................................349
Planning the CS context ...............................................................................................................................352
Configuring general CS settings ....................................................................................................................353
Configuring call routing ................................................................................................................................353
Configuring VoIP settings ............................................................................................................................355
Configuring BRI ports ..................................................................................................................................355
Configuring an H.323 VoIP connection .......................................................................................................356
Activating the CS context configuration ........................................................................................................356
Showing the running configuration ...............................................................................................................358
Introduction 340
SmartWare Software Configuration Guide 31 • CS context overview
Introduction
This chapter gives an overview of the circuit-switching (CS) context and associated components, and describes
the tasks involved in its configuration. It describes the steps needed configure voice connectivity, and refers to
other chapters where a configuration topic is explained in more detail. Before reviewing the content in this
chapter, read the configuration concepts as described in chapter 2, “Configuration concepts” on page 44.
The CS context is a high level conceptual entity that is responsible for all aspects of circuit signaling, switching,
and emulation. Besides the CS context itself, the CS entity consists of the following (indicated by the shaded
area enclosed by a dashed line in figure 47):
•The CS interfaces
•ISDN and FXS ports
•Tone-set profiles
•SIP and H.323 gateways
•VoIP profiles
The CS Context is enabled by default.
Figure 47. CS context configuration components
ACL
Profile
Serial
PVC
Context
IP
router
H.323 GW
SIP GW
Context
CS
switch
ISDN
FXS
bind command
bind command
bind command
use
commands
use command
use
commands
QoS
Profile
Ethernet
use command
bind command
bind commands
Tone-set
Profile
bind command
use commands
VoIP
Profile
Tone-set
Profile Tone-set
Profile
Tone-set
Profile
VoIP
Profile
NAPT
Profile
Gateway
Context
Interfaces
Circuit
Ports
CS context configuration task list 341
SmartWare Software Configuration Guide 31 • CS context overview
The CS context and its associated components route and establish voice calls. For example, the signaling for
dial-up circuits is routed and the corresponding voice call circuits are switched between PSTN interfaces and
via VoIP interfaces to the VoIP gateways and the IP context (see section “Configuring call routing” on
page 345 for more details).
CS context configuration task list
Information needed for CS entity configuration is distributed among several configuration tasks, depending on
its logical content. For example, information pertaining to call routing is described in section “Configuring call
routing” on page 345. These configuration tasks can be described in other chapters; thus, to configure call
routing you have to refer to chapter 33, “CS interface configuration” on page 381 and chapter 40, “Call router
configuration” on page 456.
This chapter shows you the relationship between the CS configuration components. We recommend that you
perform the CS context configuration in the sequence described below. Many of the parameters have default
values that do not need to be changed, which means that you do have to modify all of the described configura-
tion tasks. In such cases it is stated in the text that you can skip the optional configuration task.
1. Planning the CS configuration
2. Configuring general CS settings
3. Configuring call routing
4. Configuring dial tones (advanced)
5. Configuring voice over IP settings (advanced)
6. Configuring ISDN ports
7. Configuring FXS ports
8. Configuring a H.323 VoIP connection
9. Configuring a SIP VoIP connection
10. Activating the CS context configuration
Planning the CS configuration
There are many policies and factors that can influence the CS context configuration. It depends on what your
application is and how your network is configured. Several factors to consider for planning your CS configura-
tion are listed below:
•Application/network scenario
•Peripheral devices, such as PBX or remote VoIP gateway.
•VoIP protocol
•Number and type of physical telephony ports available
•Call routing
Planning the CS configuration 342
SmartWare Software Configuration Guide 31 • CS context overview
Figure 48 shows a typical application with a remote office in an enterprise network. The example focuses on the
SmartNode in the remote office. There is an ISDN phone, a personal computer, a connection to the public ISDN
network, and a connection to the IP backbone. The VoIP protocol used is H.323 with a codec G.711. A call can
be routed to the IP backbone and the public ISDN network depending on its prefix and number length.

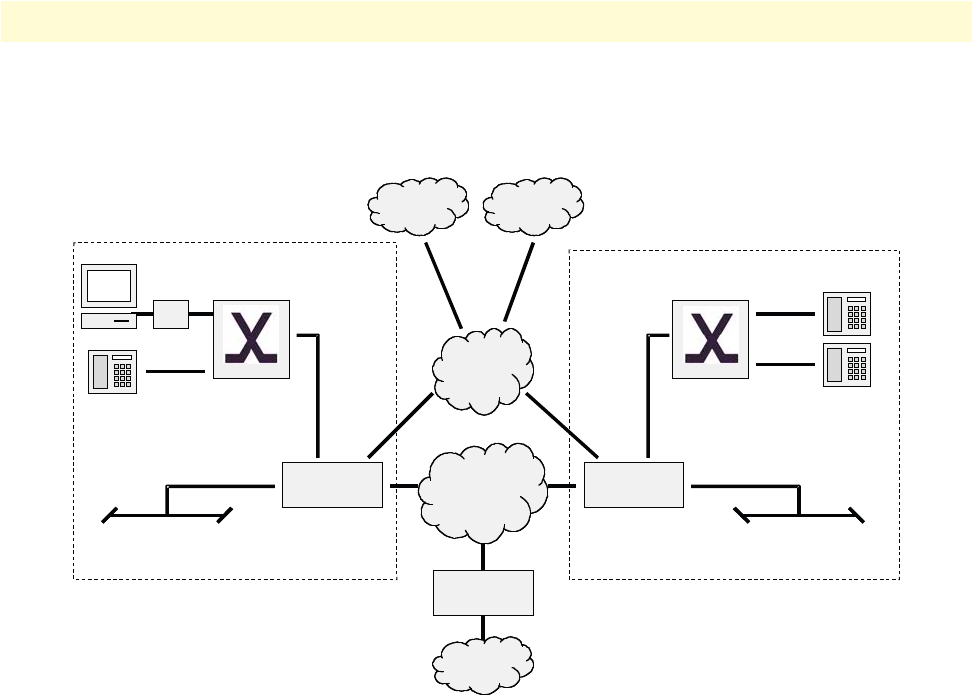

Figure 48. Remote office in an Enterprise network
An application like that shown in figure 48 would require the following CS configuration:
•Since the remote office is connected to the public switched telephone network, the clock-source comes from
the corresponding ISDN port. (Described in section “Configuring general CS settings” on page 343).
Node
Node IP
Backbone
PSTN
Remote Office
ISDN PhonePC
193.192.37.12
172.16.101.1
Main Office
H.323, Codec G.711
H.323 GW
eth 0/0
bri
bri
eth 0/1
Context CS
switch
Context IP
router
Session
Router
Ethernet interfaces
Call routing
ISDN interfaces
H.323 interface
IP
Backbone PSTN
PC
193.192.37.8
Call Routing
Configuring general CS settings 343
SmartWare Software Configuration Guide 31 • CS context overview
Note Be careful when choosing where you get your clock source, if the clock used
for packaging the ISDN voice frames is not synchronized with the remote
ISDN clock, bit errors may result (such synchronization problems would
probably cause a fax transmission to fail).
•Two BRI ports will be needed, the first port for the ISDN phone and the second for the public ISDN net-
work (see section “Configuring ISDN ports” on page 348).
•Two ISDN interfaces will be needed, each bound to a BRI port (see section “Configuring call routing” on
page 345)
•An H.323 interface is required in order to use H.323 (see section “Configuring call routing” on page 345)
•The call router routing tables, and the H.323 and ISDN interfaces will have to be configure to support call
routing (see section “Configuring call routing” on page 345).
Calls are routed from an ISDN phone with a number in the range of 1xx–5xx to the main office with a fall-
back to the PSTN. All other calls are routed from the ISDN phone to the PSTN and from the PSTN or
main office to the ISDN phone.
•The H.323 gateway must be configured to use the G.711 codec (see section “Configuring an H.323 VoIP
connection” on page 348)
•Two Ethernet ports and their corresponding IP interfaces will be needed.
You must not start to configure the CS context and its components until you have finished planning your voice
environment. The following chapters explain how to convert the planned voice environment into the Smart-
Ware CS configuration. The IP configuration is not a topic in this example. For more information on IP con-
figuration refer to chapter 9, “IP context overview” on page 114.
Configuring general CS settings
There are several parameters that cannot be collected into one specific configuration task, because they are
independent of the rest of the CS context configuration and apply mostly to an interface card or even to the
entire SmartNode.
Configuring the clock source
A reference clock is needed for packaging the ISDN voice frames. The reference clock can be generated inter-
nally or obtained from an external source (e.g. public ISDN). SmartNode devices have a feature called ‘Clock
Source Hunting’. This feature allows to configure an index-based list of clock sources. The source with the low-
est index has the highest priority and vice versa. On SmartNode devices populated with several PRI or BRI
ports where more than one port is working in ‘clock slave’ mode, all these ports can be entered in the clock
source list. The algorithm behind this feature always takes the first synchronized ‘slave’ port in the list as the
current clock source. If the links of all the ports in the list are down or not synchronized, the system is falling
back to its internal clock source. It is also possible to enter all PRI or BRI ports of the device in the list, inde-
pendent on their clock mode. The Clock Source Hunting algorithm ignores all entered ports that are not
working in ‘slave’ mode.
Configuring general CS settings 344
SmartWare Software Configuration Guide 31 • CS context overview
Mode: System
Debugging the clock source
To control the system behaviour at runtime, there exists a debug command with the options ‘event’ and ‘error’.
If the user enables the ‘event’ command, he can follow the system’s Clock Source Hunting algorithm, the out-
put informs about the occurrence of a clock source change. In addition exists a ‘show’ command that prints the
clock source configuration and marks the ports that are synchronized. Further, the port that has been chosen
by the system as the current clock source will also be displayed.
Mode: Operator execution
Mode: Operator execution
node#show system-clock
Current clock source
====================
t1 0 2 0
Registered clock sources
========================
Name Sync
e1 0 1 0
t1 0 2 0 X
bri 0 3 0
bri 0 3 1
bri 0 3 2
bri 0 3 3
internal X
Step Command Purpose
1node(sys)#clock-source hw-type slot port Add an entry to the end of the list
node(sys)#clock-source index hw-type slot port Overwrite and entry at position ‘index’
node(sys)#clock-source before index hw-type slot port Insert an entry before position ‘index’
node(sys)#clock-source after index hw-type slot port Insert an entry after position ‘index’
node(sys)#clock-source index up positions Move entry at ‘index’ number of ‘posi-
tions’ up
node(sys)#clock-source index down positions Move entry at ‘index’ number of ‘posi-
tions’ down
Step Command Purpose
1node#[no] debug system-clock {event | error} Enables/Disables the system clock moni-
tor
Step Command Purpose
1node#show system-clock Print system clock information
Configuring call routing 345
SmartWare Software Configuration Guide 31 • CS context overview
Selecting PCM law compression
The PCM law-select specifies the voice characteristic compression curve. Two values are possible: a-Law (used
in Europe) and µ-Law (used in the USA).
Procedure: To set the general CS parameters
Mode: System
Configure: General CS settings
The following example configures the general CS parameters
node>enable
node#configure
node(cfg)#system
node(sys)#clock-source 1 0
node(sys)#ic voice 1
node(ic-voice)[1]#pcm law-select aLaw
node(ic-voice)[1]#exit
Configuring call routing
Calls through a SmartNode can be routed according to a set of routing criteria. The entity that manages call
routing is called the call router. Calls are routed from one CS interface to another. The call router determines
the destination interface for every incoming call. It supports complex call routing and call property manipula-
tion (e.g. number manipulation) functions. See chapter 40, “Call router configuration” on page 456.
Call routing occurs in the context CS element between several CS interfaces. Accordingly, a CS context and
two or more CS interfaces must be created.
Step Command Purpose
1node(sys)#clock-source internal
or
node (sys)#clock-source slot-number port-number
Generates the reference clock internally
or specifies a specific port to receive the
reference clock.
2node (sys)#ic voice slot-number Changes to ic_voice mode.
3node (ic-voice)[slot-number]#pcm law-select {
aLaw | uLaw }
Selects the PCM aLaw for Europe or
uLaw for USA.
Creating and configuring CS interfaces 346
SmartWare Software Configuration Guide 31 • CS context overview
Figure 49. Direct call routing from one SmartNode to another
Figure 49 shows a call set up from the A-party on the left to the B-party on the right. The call is routed from
the phone on the left-hand side over the ISDN interface directly to an H.323 interface. Once it has passed the
IP context and the IP network, the other SmartNode—from the H.323 interface to the ISDN interface and
then over the BRI port to the B-party phone—routes the call.
Note Because call routing occurs only in the CS context, in future figures the con-
text IP is omitted. For configuring call routing you have to create the CS
interfaces and the call router tables as described in the chapters below. For
simple call routing directly from one interface to another you can even omit
router tables.
Creating and configuring CS interfaces
Multiple instances of CS contexts are supported. The name of the default instance is switch. The name and
number of CS interfaces depends on your own configuration. The interfaces on the CS context represent logi-
cal connections to other equipment or networks. CS interfaces are used as source and destination in the call
router. VoIP CS interfaces are bound to a gateway. Telephony ports are bound to respective interfaces.
Interface names can be any arbitrary string with a maximum of 25 characters. For ease of identification, the
interface type can be a part of the name. For examples and information on how to create CS interfaces, refer to
chapter 33, “CS interface configuration” on page 381.
Specify call routing
As mentioned previously, for basic call routing you can omit creating call router tables. SmartWare offers two
levels of call routing:
•Basic interface routing
•Advanced call routing
Context CS
switch
SIP GW
ISDN Interface
H.323 Interface
BRI Port
Context IP
router
Ethernet Port
IP Interface
IP
Network
Context CS
switch
ISDN Interface
H.323 Interface
ISDN Port
Context IP
router
Ethernet Port
IP Interface
A party B party
H.323 GW
SIP GW
H.323 GW
Configuring dial tones 347
SmartWare Software Configuration Guide 31 • CS context overview
Basic interface routing allows you to forward all incoming calls on a CS interface directly to a destination CS
interface. The call router allows you to route calls to all available CS interfaces, based on a call property such as
calling number, destination number and ISDN bearer capability and many more.
We recommend that you first carefully consider what interfaces and call router tables are required to achieve
your goals on a sheet of paper, then start creating and configuring CS interfaces, and setting up call router
tables.
To configure basic interface routing refer to chapter 33, “CS interface configuration” on page 381. Other top-
ics that belong to call routing are also explained in this chapter.
To configure advanced call routing in relation to the call router tables refer to chapter 40, “Call router configu-
ration” on page 456. In this chapter, the differences between basic interface routing and advanced call routing
are described in more detail.
Configuring dial tones
SmartWare supports country-specific, configurable, in-band dial tones that are generated for specific events,
For example, alerting, and dialing or busy signals. The tones are configured in tone-set profiles that are used
from a specific CS interface.
If no tone-set profile is specified, a default tone-set profile is used. In most cases, the default profile can be used,
so you do not need to perform this configuration task.
Configuring voice over IP parameters
In SmartWare, there are many configurable parameters that can affect a voice over IP connection.
The voice over IP (VoIP) parameters are configured in the VoIP profile. A VoIP profile is used by a H.323 or
SIP interface. All calls going through that interface (see figure 49 on page 346) use the settings in the VoIP pro-
file. The following parameters are configured in the VoIP profile:
•Codecs
•Fax transmission
•Filters
•DTMF relay
•Echo canceller
•Silence compression
•Voice volume
•Dejitter buffer
Refer to chapter 47, “VoIP profile configuration” on page 573 to configure general VoIP parameters. Some set-
tings can adversely affect the voice quality perceived by the user and the bandwidth requirements of VoIP con-
nections, so be sure you understand the meaning of the commands before changing any settings. Most of the
default values of these parameters are adequate, so that you generally do not need to perform these configura-
tion tasks.
If no VoIP profile is specified to be used on an interface, a default VoIP profile is used. In most cases, the
default profile can be used, so you just need to change the default VoIP profile.
Configuring ISDN ports 348
SmartWare Software Configuration Guide 31 • CS context overview
Configuring ISDN ports
BRI and E1/T1 ports represent physical ports on the SmartNode. The configuration of the ISDN ports
depends on the port type (BRI, E1 or T1), and on the connected voice device. To configure the ISDN ports,
refer to chapter 34, “ISDN interface configuration” on page 390.
Configuring FXS ports
FXS ports represents physical ports on the SmartNode. To configure the FXS ports, refer to chapter 43, “FXS
port configuration” on page 537.
Configuring an H.323 VoIP connection
To configure a H.323 connection, you have to specify the voice codec selection used for the VoIP profile and
the call signaling.
Configuring the voice codec for an H.323 connection is done on a H.323 interface by specifying the VoIP pro-
file that shall be used. The VoIP profile contains an ordered list of codecs that must be used for codec negotia-
tion for all calls that pass this interface. During a call setup, the first codec that is specified in the VoIP profile is
taken. For information how to configure the codecs, refer to chapter 47, “VoIP profile configuration” on
page 573.
H.323 offers direct call signaling and gatekeeper routed call signaling methods. For direct call signaling, you have
to specify the remote terminal or gateway on each H.323 interface. Gatekeeper routed call signaling uses a
gatekeeper to find the destination address. For examples and information on how to configure direct call sig-
naling on H.323 voice connections, refer to chapter 38, “H.323 interface configuration” on page 431. To con-
figure gatekeeper routed call signaling on H.323 voice connections, refer to chapter 45, “H.323 gateway
configuration” on page 546.
Configuring a SIP VoIP connection
To configure a SIP connection, you have to specify the voice codec selection and the call signaling method for
the VoIP profile.
Configuring the voice codec for a SIP connection is similar to the H.323 connection. You have to specify the
VoIP profile that shall be used on a SIP interface. The VoIP profile contains an ordered list of codecs that shall
be used for codec negotiation for all calls that pass this interface. During a call setup, the first codec that is
specified in the VoIP profile is taken. For information on how to configure the codecs, refer to chapter 47,
“VoIP profile configuration” on page 573.
You can configure the SIP gateway to register to a registrar with multiple URIs. Optionally, you can configure
the SIP gateway to send all requests to an outbound proxy or redirect server.
You have several options on how to build a destination URI (To-URI) of an outgoing SIP call. You can use the
called party number in conjunction with the specified domain name or you can set a specific URI by the call
router, based on other call properties. For examples and information on how to configure the SIP gateway, refer
to chapter 46, “Context SIP gateway overview” on page 559. To configure SIP interfaces, refer to chapter 39,
“SIP interface configuration” on page 441.
Activating CS context configuration 349
SmartWare Software Configuration Guide 31 • CS context overview
Activating CS context configuration
After configuring the CS context and its components, the configuration must be activated. This includes bind-
ing the physical ports to the CS interfaces and enabling the gateways, ports, and the CS context.
In order to become functional, each interface must be bound from one port from which it receives incoming
calls, and to which it forwards outgoing calls. Unlike ISDN and FXS interfaces, VoIP interfaces must be bound
to a gateway.
Note The difference between VoIP and PSTN interface is that VoIP interfaces are
bound to a gateway while PSTN ports are bound to a CS interface. After
binding to become active, the BRI, E1, T1 or FXS port must be enabled.
To bind an ISDN port to an ISDN interface, refer to chapter 34, “ISDN interface configuration” on page 390.
To bind an FXS port to an FXS interface, refer to chapter 43, “FXS port configuration” on page 537. Likewise,
the H.323 or SIP gateway must be enabled. Additionally, the H.323 or SIP gateway must be bound to a spe-
cific IP interface. For more information, refer to chapter 45, “H.323 gateway configuration” on page 546 or
chapter 46, “Context SIP gateway overview” on page 559.
In order to become active, the CS context must be enabled. When recovering from the shutdown status, the
CS context and call router configuration is checked and possible errors are indicated. The call router debug
monitor can be enabled to show the loading of the CS context and call router configuration. SmartWare offers
a number of possibilities to monitor and debug the CS context and call router configurations. For example, the
call router debug monitor enables you to follow the sequence of tables and functions examined by the call
router for each call setup. Refer to chapter 52, “VoIP debugging” on page 624 for an introduction to the con-
figuration debugging possibilities in SmartWare.
Note You can modify the configuration at runtime; changes will be active after 3
seconds. It is not necessary to shutdown the CS context before making con-
figuration changes, a newly created or changed configuration is automati-
cally loaded as long as the context CS is not shut down. Currently open calls
are not affected by this reload.
There are several possibilities to show the actual CS context configuration. For more information on the show
command, refer to the respective configuration chapters or to the chapter 33, “CS interface configuration” on
page 381” and chapter 40, “Call router configuration” on page 456.
Procedure: Show the CS context configuration, enable the call router debug monitor and activate the
CS context
Activating CS context configuration 350
SmartWare Software Configuration Guide 31 • CS context overview
Mode: Context CS
Example: Enable CS Context
The following example shows how to enable the call router debug monitor and how to enable the CS context.
It also shows the output from the call router debug monitor.
node(cfg)#show call-router config detail 5
Table switch/TAB-ISDN-SERVICE:
Key Value Function Dest-Type Dest-Name
itc -
-------------------------------------------------------------------------------
unrestricted-digital - - dest-interface IF-LOCAL-BA
default - - dest-table TAB-DEST-A
Table switch/TAB-DEST-A:
Key Value Function Dest-Type Dest-Name
called-e164 -
-------------------------------------------------------------------------------
0 - MAP-CAC-ORANGE dest-interface IF-LOCAL-BA
00 - MAP-CLI-MELON dest-interface IF-NODE-C
07[4-6] - MAP-CAC-APPLE dest-interface IF-LOCAL-BA
0336652... - - dest-interface IF-NODE-B
default - - dest-interface IF-LOCAL-BA
Table switch/CAC-APPLE:
Key Value Function Dest-Type Dest-Name
called-e164 called-e164
-------------------------------------------------------------------------------
(.%) 1055\1 - - -
...
node(cfg)#debug call-router
node(cfg)#context cs
node(ctx-cs)[switch]#no shutdown
Step Command Purpose
1node(ctx-cs)[switch]#show call-router config detail
level
Show the CS context configuration.
Level could be 1..5. Level 1 shows less,
level 5 shows all information.
2node (ctx-cs)[switch]#debug call-router detail level Enable the call-router debug monitor.
Level could be 1..5. Level 1 only logs
errors, level 5 shows all relevant infor-
mation to track calls through routing
tables.
3node (ctx-cs)[switch]#no shutdown Enable the CS context, checks the inter-
face and call router configuration
4node(ctx-cs)[switch]#show call-router status detail
level
Show the actual state of the call router.
This includes all configured tables as
they were read-in from the configura-
tion.
Activating CS context configuration 351
SmartWare Software Configuration Guide 31 • CS context overview
02:14:30 CR > Updating tables in 3 seconds...
02:14:33 CR > [switch] Reloading tables now
02:14:33 CR > [switch] Flushing all tables
02:14:33 CR > [switch] Loading table 'TAB-ISDN-SERVICE'
02:14:33 CR > [switch] Loading table 'TAB-DEST-A'
02:14:33 CR > [switch] Loading table 'CAC-APPLE'
02:14:33 CR > [switch] Loading table 'CAC-ORANGE'
02:14:33 CR > [switch] Loading table 'CLI-MELON'
02:14:33 CR > [switch] Loading table 'MAP-CAC-APPLE'
02:14:33 CR > [switch] Loading table 'MAP-CAC-ORANGE'
02:14:33 CR > [switch] Loading table 'MAP-CLI-MELON'
02:14:33 CR > [switch] Loading table 'IF-LOCAL-BA-precall-service'
02:14:33 CR > [switch] Loading table 'IF-PBX-A-precall-service'
02:14:33 CR > [switch] Loading table 'IF-NODE-B-precall-service'
02:14:33 CR > [switch] Loading table 'IF-NODE-C-precall-service'
node(ctx-cs)[switch]#
Example: Configure SmartNode in an Enterprise Network
Situation: Figure 50 shows an enterprise network with a SmartNode configured with a BRI port. A PBX, a
LAN, the PSTN, and the company network are connected. The VoIP protocol used is H.323. There is no gate-
keeper, so direct call signaling is used. The voice codec used is G.723, so the DTMF relay is enabled. Because
no special dial tones have to be specified, the default tone-set profile is used.
Figure 50. SmartNode in an Enterprise network
Call routing is specified as follows:
•Calls from office C with number 1xx to office A with a fallback to PSTN
•Calls from office C with number 2xx to office B with a fallback to PSTN
•All other calls from office C to PSTN
Node
Company
Backbone
PSTN
PBX
Office A
Office B
Office C
147.86.130.1
147.86.130.24
147.86.130.11
User
2/3 User
2/2 Net
2/1
Net
2/0
clock distribution
Activating CS context configuration 352
SmartWare Software Configuration Guide 31 • CS context overview
•Calls from office A or B with number 5xx to office C
•All other calls from office A or B to the PSTN (local breakout)
Figure 51. CS Configuration
Planning the CS context
Based on the criteria used in the previous example, the following configuration information applies (see
figure 51):
•It is very important to specify from where to get the clock source for the packaging of the ISDN voice
frames. In the example we are connected to the PSTN network and get the clock source from the ISDN
over the ISDN port 2/3.
•We need four BRI ports, two for the PSTN and another two for the PBX. (Refer to section “Configuring
ISDN ports” on page 348).
•Furthermore we need four ISDN interfaces. Then we have to bind each BRI port to one of the ISDN inter-
faces. A hunt group that summarizes two ISDN interfaces is configured later during call router configura-
tion.
•For every remote H.323 device we need a H.323 interface. There are two in total. One gets the remote IP
address of the SmartNode in office A, the other the IP address of the SmartNode in office B. (Refer to sec-
tion “Configuring call routing” on page 345).
•We need a call router routing table to route the calls depending on the called party number. (Refer to sec-
tion “Configuring call routing” on page 345).
•We further need two hunt groups, one that hunts calls to the two BRI interfaces to the PSTN and one for
the two BRI interfaces to the PBX.
•Then we need two other hunt group that tries to make a call over a VoIP and if this fails, falls back to the
PSTN.
Port
ISDN
2/3
Port
ISDN
2/0
Gateway
H.323
H.323 interface: IF-COMPOFF-A
PBX
PSTN
PSTN interfaces:
IF-PBX1
and
IF-PBX2
PSTN interfaces
IF-PUBLIC-PSTN1
and
IF-PUBLIC-PSTN2
H.323 interface: IF-COMPOFF-B
Context CS
switch
Session
Router
Port
ISDN
2/1
Port
ISDN
2/2
Activating CS context configuration 353
SmartWare Software Configuration Guide 31 • CS context overview
•We enable DTMF relay and specify codec G.723. (Refer to section “Configuring voice over IP parameters”
on page 347).
•We define H.323 direct call signaling. (Refer to section “Configuring an H.323 VoIP connection” on
page 348).
Configuring general CS settings
First we set clock-source to ISDN port 2/3.
node>enable
node#configure
node(cfg)#system
node(sys)#clock-source 2 3
node(sys)#exit
node(cfg)#
Configuring call routing
Next we create the ISDN interfaces and configure call routing. Each interface is configured to route all incom-
ing calls to the routing table TAB-CALLED-NUMBER. This table is part of the call router and configured
below:
node(cfg)#context cs
node(ctx-cs)[switch]#interface isdn IF-PBX1
node(if-pstn)[IF-PBX1]#route call dest-table TAB-CALLED-NUMBER
node(if-pstn)[IF-PBX1]#exit
node(ctx-cs)[switch]#interface isdn IF-PBX2
node(if-pstn)[IF-PBX2]#route call dest-table TAB-CALLED-NUMBER
node(if-pstn)[IF-PBX2]#exit
node(ctx-cs)[switch]#interface isdn IF-PUBLIC-PSTN1
node(if-pstn)[IF-PUBL~]#route call dest-table TAB-CALLED-NUMBER
node(if-pstn)[IF-PUBL~]#exit
node(ctx-cs)[switch]#interface isdn IF-PUBLIC-PSTN2
node(if-pstn)[IF-PUBL~]#route call dest-table TAB-CALLED-NUMBER
node(if-pstn)[IF-PUBL~]#exit
node(ctx-cs)[switch]#
In addition, we create the two H.323 interfaces and configure call routing, as well as the IP address of the
remote H.323 terminal, which is the IP address of the device in office A or office B, respectively.
node(ctx-cs)[switch]#interface h323 IF-COMPOFF-A
node(if-h323)[IF-COMP~]#route call dest-table TAB-CALLED-NUMBER
node(if-h323)[IF-COMP~]#remoteip 146.86.130.11
node(if-h323)[IF-COMP~]#bind gateway h323
node(if-h323)[IF-COMP~]#exit
node(ctx-cs)[switch]#interface h323 IF-COMPOFF-B
node(if-h323)[IF-COMP~]#route dest-table calledNumberRouting
node(if-h323)[IF-COMP~]#remoteip 146.86.130.24
node(if-h323)[IF-COMP~]#bind gateway h323
node(if-h323)[IF-COMP~]#exit
node(ctx-cs)[switch]#
Activating CS context configuration 354
SmartWare Software Configuration Guide 31 • CS context overview
Finally, we configure the call router. Here we create a routing table that examines the called party number of a
call and routes numbers starting with a 1 and containing at least 3 digits to the hunt group that tries to reach
company office A over VoIP and falls back to the PSTN. We route numbers starting with 2 and containing at
least 3 digits to the hunt group that tries to reach company office B over VoIP and falls back to the PSTN.
Calls with a prefix of 5 and at least 3 digits are routed to the hunt group that selects a free BRI to the PBX and
all other calls are routed to the hunt group that selects a free BRI to the PSTN:
node(ctx-cs)[switch]#routing-table called-e164 TAB-CALLED-NUMBER
node(rt-tab)[TAB-CAL~]#route 1.. dest-service HUNT-COMPOFF-A
node(rt-tab)[TAB-CAL~]#route 2.. dest-service HUNT-COMPOFF-B
node(rt-tab)[TAB-CAL~]#route 5.. dest-service HUNT-PBX
node(rt-tab)[TAB-CAL~]#route default dest-service HUNT-PUBLIC-PSTN
node(rt-tab)[TAB-CAL~]#show call-router config
Table switch/TAB-CALLED-NUMBER:
Key Value Function Dest-Type Dest-Name
called-e164 -
-------------------------------------------------------------------------------
1.. - - dest-service HUNT-COMPOFF-A
2.. - - dest-service HUNT-COMPOFF-B
5.. - - dest-service HUNT-PBX
default - - dest-service HUNT-PUBLIC-PSTN
node(rt-tab)[TAB-CAL~]#exit
node(ctx-cs)[switch]#
The hunt group HUNT-COMPOFF-A tries to reach the company office A routing the call directly to the
H.323 interface IF-COMPOFF-A. When this call fails (e.g. because the data network is broken), we route the
call to the PSTN hunt group. Likewise, hunt group HUNT-COMPOFF-B works, but tries to route the call to
the H.323 interface IF-COMPOFF-B first.
node(ctx-cs)[switch]#service hunt-group HUNT-COMPOFF-A
node(rt-tab)[HUNT-CO~]#no cyclic
node(rt-tab)[HUNT-CO~]#timeout 5
node(rt-tab)[HUNT-CO~]#route call 1 dest-interface IF-COMPOFF-A
node(rt-tab)[HUNT-CO~]#route call 2 dest-service HUNT-PUBLIC-PSTN
node(rt-tab)[HUNT-CO~]#exit
node(ctx-cs)[switch]#service hunt-group HUNT-COMPOFF-B
node(rt-tab)[HUNT-CO~]#no cyclic
node(rt-tab)[HUNT-CO~]#timeout 5
node(rt-tab)[HUNT-CO~]#route call 1 dest-interface IF-COMPOFF-B
node(rt-tab)[HUNT-CO~]#route call 2 dest-service HUNT-PUBLIC-PSTN
node(rt-tab)[HUNT-CO~]#exit
node(ctx-cs)[switch]#
The hunt group HUNT-PBX routes the call either to the interface IF-PBX1 or IF-PBX2, depending on which
interface there is a free B channel. Likewise the hunt group HUNT-PUBLIC-PSTN works on the PSTN inter-
faces.
node(ctx-cs)[switch]#service hunt-group HUNT-PBX
node(rt-tab)[HUNT-PB~]#cyclic
node(rt-tab)[HUNT-PB~]#route call 1 dest-interface IF-PBX1
node(rt-tab)[HUNT-PB~]#route call 2 dest-interface IF-PBX2
node(rt-tab)[HUNT-PB~]#exit
node(ctx-cs)[switch]#service hunt-group HUNT-PUBLIC-PSTN
Activating CS context configuration 355
SmartWare Software Configuration Guide 31 • CS context overview
node(rt-tab)[HUNT-PU~]#cyclic
node(rt-tab)[HUNT-PU~]#route call 1 dest-interface IF-PUBLIC-PSTN1
node(rt-tab)[HUNT-PU~]#route call 2 dest-interface IF-PUBLIC-PSTN2
node(rt-tab)[HUNT-PU~]#exit
node(ctx-cs)[switch]#exit
node(cfg)#
Configuring VoIP settings
Because we need G.723 as codec we enable DTMF relay:
node(cfg)#profile voip H323-VOIP-PROFILE
node(pf-voip)[H323-VO~]#codec 1 g723-6k3
node(pf-voip)[H323-VO~]#dtmf-relay
node(pf-voip)[H323-VO~]#exit
node(cfg)#
We want to use this profile on our H.323 interfaces:
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 IF-COMPOFF-A
node(if-h323)[IF-COMP~]#use profile voip H323-VOIP-PROFILE
node(if-h323)[IF-COMP~]#exit
node(ctx-cs)[switch]#interface h323 IF-COMPOFF-B
node(if-h323)[IF-COMP~]#use profile voip H323-VOIP-PROFILE
node(if-h323)[IF-COMP~]#exit
node(cfg)#
Configuring BRI ports
Next step is to configure the BRI ports and to bind the ports to the ISDN interfaces. We configure the layer 2
(Q.921) to use point-to-point mode and layer 3 (Q.931) for user or net operation mode:
node(cfg)#port bri 2 0
node(prt-bri)[2/0]#q921
node(q921)[2/0]#protocol pp
node(q921)[2/0]#q931
node(q931)[2/0]#uni-side net
node(q931)[2/0]#encapsulation cc-isdn
node(q931)[2/0]#bind interface IF-PBX1
node(q931)[2/0]#exit
node(q921)[2/0]#exit
node(prt-bri)[2/0]#no shutdown
node(cfg)#port bri 2 1
node(prt-bri)[2/1]#q921
node(q921)[2/1]#protocol pp
node(q921)[2/1]#q931
node(q931)[2/1]#uni-side net
node(q931)[2/1]#encapsulation cc-isdn
node(q931)[2/1]#bind interface IF-PBX1
node(q931)[2/1]#exit
node(q921)[2/1]#exit
node(prt-bri)[2/1]#no shutdown
node(cfg)#port bri 2 2
node(prt-bri)[2/2]#q921
node(q921)[2/2]#protocol pp
node(q921)[2/2]#q931
Activating CS context configuration 356
SmartWare Software Configuration Guide 31 • CS context overview
node(q931)[2/2]#uni-side user
node(q931)[2/2]#encapsulation cc-isdn
node(q931)[2/2]#bind interface IF-PBX1
node(q931)[2/2]#exit
node(q921)[2/2]#exit
node(prt-bri)[2/2]#no shutdown
node(cfg)#port bri 2 1
node(prt-bri)[2/3]#q921
node(q921)[2/3]#q931
node(q921)[2/3]#protocol pp
node(q931)[2/3]#uni-side user
node(q931)[2/3]#encapsulation cc-isdn
node(q931)[2/3]#bind interface IF-PBX1
node(q931)[2/3]#exit
node(q921)[2/3]#exit
node(prt-bri)[2/3]#no shutdown
Configuring an H.323 VoIP connection
Next we configure call signaling:
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#no ras
node(gw-h323)[h323]#faststart
node(gw-h323)[h323]#bind interface eth0
node(gw-h323)[h323]#exit
node(cfg)#
Activating the CS context configuration
Prior to activating our configuration we use two show commands to display part of our configuration:
node(cfg)#show call-router config detail 5
Table switch/IF-PBX1-precall-service:
Key Value Function Dest-Type Dest-Name
- -
-------------------------------------------------------------------------------
- - - dest-table TAB-CALLED-NUMBER
Table switch/IF-PBX2-precall-service:
Key Value Function Dest-Type Dest-Name
- -
-------------------------------------------------------------------------------
- - - dest-table TAB-CALLED-NUMBER
Table switch/IF-PUBLIC-PSTN1-precall-service:
Key Value Function Dest-Type Dest-Name
- -
-------------------------------------------------------------------------------
- - - dest-table TAB-CALLED-NUMBER
Table switch/IF-PUBLIC-PSTN2-precall-service:
Key Value Function Dest-Type Dest-Name
- -
-------------------------------------------------------------------------------
- - - dest-table TAB-CALLED-NUMBER
Activating CS context configuration 357
SmartWare Software Configuration Guide 31 • CS context overview
Table switch/IF-COMPOFF-A-precall-service:
Key Value Function Dest-Type Dest-Name
- -
-------------------------------------------------------------------------------
- - - dest-table TAB-CALLED-NUMBER
Table switch/IF-COMPOFF-B-precall-service:
Key Value Function Dest-Type Dest-Name
- -
-------------------------------------------------------------------------------
- - - dest-table TAB-CALLED-NUMBER
Table switch/TAB-CALLED-NUMBER:
Key Value Function Dest-Type Dest-Name
called-e164 -
-------------------------------------------------------------------------------
1.. - - dest-service HUNT-COMPOFF-A
2.. - - dest-service HUNT-COMPOFF-B
5.. - - dest-service HUNT-PBX
default - - dest-service HUNT-PUBLIC-PSTN
node(cfg)#
node(cfg)#show gateway h323 config detail 5
H.323 Gateway: h323
===================
RAS Engine
----------
Administrative Status: no
Gatekeeper-Discovery: auto
Gatekeepers
Re-Registration Time: 90s
Local Aliases
Source Information
Faststart: yes
Early-H.245: no
H.245-Tunneling: no
Call-Signaling: 147.86.130.1/1720
Administrative Status: close
node(cfg)#
Finally, activate the gateway and CS context:
node(cfg)#gateway h323
node(gw-h323)[gw_name]#no shutdown
node(gw-h323)[gw_name]#exit
node(cfg)#debug call-router detail 5
node(cfg)#context cs
node(ctx-cs)[switch]#no shutdown
02:30:26 CR > Updating tables in 3 seconds...
02:30:28 CR > [switch] Reloading tables now
02:30:28 CR > [switch] Flushing all tables
02:30:28 CR > [switch] Loading table 'IF-PBX1-precall-service'
02:30:28 CR > [switch] Loading table 'IF-PBX2-precall-service'
02:30:28 CR > [switch] Loading table 'IF-PUBLIC-PSTN1-precall-service'
Activating CS context configuration 358
SmartWare Software Configuration Guide 31 • CS context overview
02:30:28 CR > [switch] Loading table 'IF-PUBLIC-PSTN2-precall-service'
02:30:28 CR > [switch] Loading table 'IF-COMPOFF-A-precall-service'
02:30:28 CR > [switch] Loading table 'IF-COMPOFF-B-precall-service'
02:30:28 CR > [switch] Loading table 'TAB-CALLED-NUMBER'
node(ctx-cs)[switch]#
Showing the running configuration
The configuration script for our application looks as follows:
cli version 3.00
system
clock-source 2 3
profile voip H323-VOIP-PROFILE
codec 1 g723-6k3 rx-length 30 tx-length 30
codec 2 g711alaw64k rx-length 20 tx-length 20
codec 3 g711ulaw64k rx-length 20 tx-length 20
context ip router
interface eth0
ipaddress 147.86.130.1 255.255.225.0
mtu 1500
interface eth1
ipaddress 10.0.0.1 255.255.225.0
mtu 1500
context cs switch
routing-table called-e164 TAB-CALLED-NUMBER
route 1.. dest-service HUNT-COMPOFF-A
route 2.. dest-service HUNT-COMPOFF-B
route 5.. dest-service HUNT-PBX
route default dest-service HUNT-PUBLIC-PSTN
interface h323 IF-COMPOFF-A
bind gateway h323
route call dest-table TAB-CALLED-NUMBER
remoteip 146.86.130.11
use profile voip H323-VOIP-PROFILE
interface h323 IF-COMPOFF-A
bind gateway h323
route call dest-table TAB-CALLED-NUMBER
remoteip 146.86.130.24
use profile voip H323-VOIP-PROFILE
interface isdn IF-PBX1
route call dest-table TAB-CALLED-NUMBER
interface isdn IF-PBX2
route call dest-table TAB-CALLED-NUMBER
Activating CS context configuration 359
SmartWare Software Configuration Guide 31 • CS context overview
interface isdn IF-PUBLIC-PSTN1
route call dest-table TAB-CALLED-NUMBER
interface isdn IF-PUBLIC-PSTN2
route call dest-table TAB-CALLED-NUMBER
service hunt-group HUNT-COMPOFF-A
timeout 5
drop-cause normal-unspecified
drop-cause no-circuit-channel-available
drop-cause network-out-of-order
drop-cause temporary-failure
drop-cause switching-equipment-congestion
drop-cause access-info-discarded
drop-cause circuit-channel-not-available
drop-cause resources-unavailable
route call 1 dest-interface IF-COMPOFF-A
route call 2 dest-service HUNT-PUBLIC-PSTN
service hunt-group HUNT-COMPOFF-B
timeout 5
drop-cause normal-unspecified
drop-cause no-circuit-channel-available
drop-cause network-out-of-order
drop-cause temporary-failure
drop-cause switching-equipment-congestion
drop-cause access-info-discarded
drop-cause circuit-channel-not-available
drop-cause resources-unavailable
route call 1 dest-interface IF-COMPOFF-B
route call 2 dest-service HUNT-PUBLIC-PSTN
service hunt-group HUNT-PBX
cyclic
drop-cause normal-unspecified
drop-cause no-circuit-channel-available
drop-cause network-out-of-order
drop-cause temporary-failure
drop-cause switching-equipment-congestion
drop-cause access-info-discarded
drop-cause circuit-channel-not-available
drop-cause resources-unavailable
route call 1 dest-interface IF-PBX1
route call 2 dest-interface IF-PBX2
service hunt-group HUNT-PUBLIC-PSTN
cyclic
drop-cause normal-unspecified
drop-cause no-circuit-channel-available
drop-cause network-out-of-order
drop-cause temporary-failure
drop-cause switching-equipment-congestion
drop-cause access-info-discarded
drop-cause circuit-channel-not-available
drop-cause resources-unavailable
Activating CS context configuration 360
SmartWare Software Configuration Guide 31 • CS context overview
route call 1 dest-interface IF-PUBLIC-PSTN1
route call 2 dest-interface IF-PUBLIC-PSTN2
context cs switch
no shutdown
gateway h323 h323
faststart
bind interface eth0 router
no shutdown
port ethernet 0 0
medium 10 half
encapsulation ip
bind interface eth0 router
no shutdown
port ethernet 0 1
medium 10 half
encapsulation ip
bind interface eth1 router
shutdown
port bri 2 0
clock auto
encapsulation q921
q921
protocol pp
uni-side auto
encapsulation q931
q931
protocol dss1
uni-side net
encapsulation cc-isdn
bind interface IF-PBX1
port bri 2 0
no shutdown
port bri 2 1
clock auto
encapsulation q921
q921
protocol pp
uni-side auto
encapsulation q931
q931
protocol dss1
uni-side net
encapsulation cc-isdn
bind interface IF-PBX2
Activating CS context configuration 361
SmartWare Software Configuration Guide 31 • CS context overview
port bri 2 1
no shutdown
port bri 2 2
clock auto
encapsulation q921
q921
protocol pp
uni-side auto
encapsulation q931
q931
protocol dss1
uni-side user
encapsulation cc-isdn
bind interface IF-PUBLIC-PSTN1
port bri 2 2
no shutdown
port bri 2 3
clock auto
encapsulation q921
q921
protocol pp
uni-side auto
encapsulation q931
q931
protocol dss1
uni-side user
encapsulation cc-isdn
bind interface IF-PUBLIC-PSTN2
port bri 2 3
no shutdown
362
Chapter 32 VPN configuration
Chapter contents
Introduction........................................................................................................................................................363
Authentication ..............................................................................................................................................363
Encryption ....................................................................................................................................................363
Transport and tunnel modes .........................................................................................................................364
Permanent IKE Tunnels ..........................................................................................................................364
Key management ..........................................................................................................................................364
VPN configuration task list .................................................................................................................................365
Creating an IPsec transformation profile .......................................................................................................365
Creating an IPsec policy profile .....................................................................................................................365
Creating/modifying an outgoing ACL profile for IPsec .................................................................................367
Configuration of an IP interface and the IP router for IPsec ..........................................................................368
Displaying IPsec configuration information ..................................................................................................368
Debugging IPsec ...........................................................................................................................................369
Key management (IKE) .......................................................................................................................................370
Main differences between manual & IKE IPSEC configurations .............................................................370
Creating an ISAKMP transform profile ...................................................................................................371
Creating an ISAKMP IPSEC policy profile .............................................................................................372
Creating/modifying an outgoing ACL profile for IPSEC .........................................................................373
Configuration of an IP interface and the IP router for IPSEC .................................................................373
Policy matching ......................................................................................................................................373
Sample configuration snippet ..................................................................................................................373
Troubleshooting ...........................................................................................................................................374
Encrypted Voice - Performance considerations ....................................................................................................375
Performance considerations ...........................................................................................................................375
Enabling RTP encryption support.......................................................................................................................375
Using an alternate source IP address for specific destinations...............................................................................376
Sample configurations .........................................................................................................................................377
IPsec tunnel, DES encryption .......................................................................................................................377
SmartNode configuration ........................................................................................................................377
Cisco router configuration .......................................................................................................................378
IPsec tunnel, AES encryption at 256 bit key length, AH authentication with HMAC-SHA1-96 ..................378
SmartNode configuration ........................................................................................................................378
Cisco router configuration .......................................................................................................................378
IPsec tunnel, 3DES encryption at 192 bit key length, ESP authentication with HMAC-MD5-96 ................379
SmartNode configuration ........................................................................................................................379
Cisco router configuration .......................................................................................................................379
Introduction 363
SmartWare Software Configuration Guide 32 • VPN configuration
Introduction
This chapter describes how to configure the VPN connections between two SmartNodes or between a
SmartNode and a third-party device.
A virtual private network (VPN) is a private data network that uses the public telecommunications infrastruc-
ture, maintaining privacy through the use of a tunneling protocol and security procedures.
There are different technologies to implement a VPN. SmartWare applies the internet protocol security (IPsec)
Architecture (see RFC 2401). The following sections describe the main building blocks of the IPsec architec-
ture as implemented in SmartWare.
Authentication
Authentication verifies the integrity of data stream and ensures that it is not tampered with while in transit. It
also provides confirmation about data stream origin.
Two authentication protocols are available:
•Authentication header (AH): protects the IP payload, the IP header, and the authentication header itself
•Encapsulating security payload (ESP): protects the IP payload and the ESP header and trailer, but not the
IP header
Two algorithms perform the authentication:
•HMAC-MD5-96: is a combination of the keyed-hashing for message authentication (HMAC) and the mes-
sage digest version 5 (MD5) hash algorithm. It requires an authenticator of 128-bit length and calculates a
hash of 96 bits over the packet to be protected (see RFC 2403).
•HMAC-SHA1-96: is a combination of the (HMAC) and the secure hash algorithm version 1 (SHA1). It
requires an authenticator of 160 bit length and calculates a hash of 96 bits over the packet to be protected
(see RFC 2404).
Encryption
Encryption protects the data in transit from unauthorized access. Encapsulating security payload (ESP) is the
protocol to transport encrypted IP packets over IP (see RFC 2406).
The following encryption algorithms are available:
The single DES algorithm no longer offers adequate security because of its short key length (a minimum key
length 100 bits is recommended). The AES algorithm is very efficient and allows the fastest encryption. AES
with a key length of 128 bits is therefore the recommended algorithm.
Key Length [Bit] RFC
DES-CBC (Data Encryption Standard - Cipher Block Chaining) 56 2405
3DES-CBC (Triple Data Encryption Standard - Cipher Block Chaining) 128 or 192a
a. The 3DES algorithm uses only 112 out of the 128 Bit or 168 out of the 192 Bit as key information. Cisco only supports 192 Bit keys with 3DES.
1851
AES-CBC (Advanced Encryption Standard - Cipher Block Chaining) 128, 192, or 256 3268
Introduction 364
SmartWare Software Configuration Guide 32 • VPN configuration
Transport and tunnel modes
The mode determines the payload of the ESP packet and hence the application:
•Transport mode: Encapsulates only the payload of the original IP packet, but not its header, so the IPsec
peers must be at the endpoints of the communications link.
•A secure connection between two hosts is the application of the transport mode.
•Tunnel mode: Encapsulates the payload and the header of the original IP packet. The IPsec peers can be
(edge) routers that are not at the endpoints of the communications link.
A secure connection of the two (private) LANs, a ‘tunnel’, is the application of the tunnel mode.
Permanent IKE Tunnels
By default, IKE tunnels are established as late as possible (when the first packet is flowing through) and IKE
tunnels with expired lifetimes are reestablished only in case there is traffic flowing through. With the perma-
nent option set, IKE tunnels are established shortly after boot and are reestablished after the expiration of their
lifetime even if there was no traffic flowing through.
Mode: Configure
Key management
The current implementation of IP works with pre-shared keys (also called manual keying or manual IPsec) or
using Internet Key Exchange (IKE). Keys are manually generated, distributed, and stored as a hexa-decimal
string in the startup-configuration of the SmartNode and its peer.
Note Depending on the processing hardware applied to reverse engineering a DES
key, it can take from 3 hours to 3 days to break the key. Thus, for maximum
security, DES keys must be manually updated regularly. AES- or 3DES-keys,
because they are much more complex, take so much longer to break as to be
practically infinite.
The automatically keyed IPSEC connections using the Internet Key Exchange (IKE / RFC2409) protocol that
is based on Internet Security Association and Key Management Protocol (ISAKMP / RFC2408) is the other
option. IKE supports authentication using pre-shared keys. There is currently no support for authentication
using Public Key Infrastructure (PKI) and digital certificates.
Step Command Purpose
1node(pf-ipsik)[name]#protected- net-
work {host <local-host-ip>}|{subnet
<local-subnet-address> <local-subnet-
mask>}|{range <local-range-start>
<local-range-end>} {host <remote-host-
ip>}|{subnet <remote-subnet-address>
<remote-subnet-mask>}|{range
<remote-range-start><remote-range-
end>} [permanent-tunnel]
Optionally, if the remote system requires protected
networks to be specified in the identity payload of
the quick mode, you can define one or more pro-
tected networks using this command. If the tunnel
shall be established permanently the permanent-
tunnel flag must be set.
VPN configuration task list 365
SmartWare Software Configuration Guide 32 • VPN configuration
VPN configuration task list
To configure a VPN connection, perform the following tasks:
•Creating an IPsec transformation profile
•Creating an IPsec policy profile
•Creating/modifying an outgoing ACL profile for IPsec
•Configuration of an IP Interface and the IP router for IPsec
•Displaying IPsec configuration information
•Debugging IPsec
Creating an IPsec transformation profile
The IPsec transformation profile defines which authentication and/or encryption protocols, which authentica-
tion and/or encryption algorithms shall be applied.
Procedure: To create an IPsec transformation profile
Mode: Configure
mac-sha1-96 }Enables authentication and defines the authentication protocol and the hash algorithm
Use no in front of the above commands to delete a profile or a configuration entry.
Example: Create an IPsec transformation profile
The following example defines a profile for AES-encryption at a key length of 128.
node(cfg)#profile ipsec-transform AES_128
node(pf-ipstr)[AES_128]#esp-encryption aes-cbc 128
Creating an IPsec policy profile
The IPsec policy profile supplies the keys for the encryption and/or the authenticators for the authentication,
the security parameters indexes (SPIs), and IP address of the peer of the secured communication. Furthermore,
the profile defines which IPsec transformation profile to apply and whether transport or tunnel mode shall be
most effective.
The SPI identifies a secured communication channel. The IPsec component needs the SPI to select the suitable
key or authenticator. Inbound and outbound channels can have the same SPI, but the channels in the same
direction—inbound or outbound—must have unique SPIs. The SPI is not encrypted and can be monitored.
Step Command Purpose
1node(cfg)#profile ipsec-transform name Creates the IPsec transformation profile name
2
optional
node(pf-ipstr)[name]#esp-encryption {
aes-cbc | des-cbc | 3des-cbc } [key-length]
Enables encryption and defines the encryp-
tion algorithm and the key length
Supported key lengths see section “Encryp-
tion” on page 363
3
optional
node(pf-ipstr)[name]#{ ah-authentication
| esp-authentication } {hmac-md5-96 |
hmac-sha1-96 }
Enables authentication and defines the
authentication protocol and the hash algo-
rithm
VPN configuration task list 366
SmartWare Software Configuration Guide 32 • VPN configuration
Procedure: To create an IPsec policy profile
Mode: Configure
Step Command Purpose
1node(cfg)#profile ipsec-policy-man-
ual name
Creates the IPsec policy profile name
2node(pf-ipstr)[name]#use profile
ipsec-transform name
Selects the IPsec transformation profile to be
applied
3
optional
node(pf-ipstr)[name]#session-key
{ inbound | outbound }
{ ah-aauthentication | esp-
authentication | esp-encryption } key
Sets a key for encryption or an authenticator for
authentication, either for inbound or outbound
direction. The key shall consist of hexadecimal
digits (0..9, A..F); one digit holds 4 Bit of key
information.
The key setting must match definitions in the
respective IPsec transformation profile. In particu-
lar, the length of the key or authenticator must
match the implicit (see section “Authentication”
on page 363 and “Encryption” on page 363) or
explicit specification.
Keys must be available for inbound and out-
bound directions. They can be different for the
two directions. Make sure that the inbound key
of one peer matches the outbound key of the
other peer.
4node(pf-ipstr)[name]#spi
{ inbound | outbound } { ah | esp } spi
Sets the SPI for encryption (esp) or authentication
(ah), either for inbound or outbound direction.
The SPI shall be a decimal figure in the range
1..232–1.
SPIs must be available for encryption and/or
authentication as specified in the respective IPsec
transformation profile.
SPIs must be available for inbound and outbound
directions. They can be identical for the two
directions but must be unique in one direction.
Make sure that the inbound SPI of one peer
matches the outbound SPI of the other peer.
5node(pf-ipstr)[name]#peer ip-address Sets the IP address of the peer
Note The peers of the secured
communication must have
static IP address. DNS reso-
lution is not available yet.
6node(pf-ipstr)[name]#mode
{ tunnel | transport }
Selects tunnel or transport mode
VPN configuration task list 367
SmartWare Software Configuration Guide 32 • VPN configuration
Use no in front of the above commands to delete a profile or a configuration entry.
Example: Create an IPsec policy profile
The following example defines a profile for AES-encryption at a key length of 128.
node(cfg)#profile ipsec-policy-manual ToBerne
node(pf-ipsma)[ToBerne]#use profile ipsec-transform AES_128
node(pf-ipsma)[ToBerne]#session-key inbound esp-encryption
1234567890ABCDEF1234567890ABCDEF
node(pf-ipsma)[ToBerne]#session-key outbound esp-encryption
FEDCBA0987654321FEDCBA0987654321
node(pf-ipsma)[ToBerne]#spi inbound esp 1111
node(pf-ipsma)[ToBerne]#spi outbound esp 2222
node(pf-ipsma)[ToBerne]#peer 200.200.200.1
node(pf-ipsma)[ToBerne]#mode tunnel
Creating/modifying an outgoing ACL profile for IPsec
An access control list (ACL) profile in the outgoing direction selects which outgoing traffic to encrypt and/or
authenticate, and which IPsec policy profile to use. IPsec does not require an incoming ACL.
Note Outgoing and incoming IPsec traffic passes an ACL (if available) twice, once
before and once after encryption/authentication. So the respective ACLs
must permit the encrypted/authenticated and the plain traffic.
For detailed information on how to set-up ACL rules, see chapter 24, “Access control list configuration” on
page 253.
Procedure: To create/modify an outgoing ACL profile for IPsec
Mode: Configure
Note New entries are appended at the end of an ACL. Since the position in the list
is relevant, you might need to delete the ACL and rewrite it completely.
Example: Create/modify an ACL profile for IPsec
The following example configures an outgoing ACL profile that interconnects the two private networks
192.168.1/24 and 172.16/16.
node(cfg)#profile acl VPN_Out
node(pf-acl)[VPN_Out]#permit ip 192.168.1.0 0.0.0.255 172.16.0.0 0.0.255.255 ipsec-
policy ToBerne
node(pf-acl)[VPN_Out]#permit ip any any
Step Command Purpose
1node(cfg)#profile acl name Creates or enters the ACL profile name
2node(pf-ipstr)[name]#permit ...
[ ipsec-policy name ]
The expression ‘ipsec-policy name’ appended to a
permit ACL rule activates the IPsec policy profile
name to encrypt/authenticate the traffic identified
by this rule.
VPN configuration task list 368
SmartWare Software Configuration Guide 32 • VPN configuration
Configuration of an IP interface and the IP router for IPsec
The IP interface that provides connectivity to the IPsec peer, must now activate the outgoing ACL profile con-
figured in the previous section. Furthermore, the IP router must have a route for the remote network that
points to the respective IP interface.
Procedure: To activate the outgoing ACL profile and to establish the necessary route
Mode: Configure
Example: Activate outgoing ACL and establish route
The following example configures an outgoing ACL profile that interconnects the two private networks
192.168.1/24 and 172.16/16.
node(cfg)#context ip router
node(ctx-ip)[router]#interface WAN
node(if-ip)[WAN]#use profile acl VPN_Out out
node(if-ip)[WAN]#context ip router
node(ctx-ip)[router]#route 172.16.0.0 255.255.0.0 WAN 0
Displaying IPsec configuration information
This section shows how to display and verify the IPsec configuration information.
Procedure: To display IPsec configuration information
Mode: Configure
Step Command Purpose
1node(cfg)#context ip router Enter IP context
2node(ctx-ip)[router]#interface if-name Create/enter the IP interface if-name
3node(if-ip)[if-name]# use profile acl
name out
Activate the outgoing ACL profile name
4node(if-ip)[if-name]#context ip router Enter IP context
5
optional
node(ctx-ip)[router]#route remote-net-
work-address remote-network-mask if-name 0
Creates a route for the remote network that
points the above IP interface if-name
You can omit this setting if the default route
already points to this IP interface or to a next hub
reachable via this IP interface, and if there is no
other route.
Make also sure that the IP router knows how to
reach the peer of the secured communication.
Usually, a default route does this job.
Step Command Purpose
1
optional
node(cfg)#show profile ipsec-trans-
form
Displays all IPsec transformation profiles
2
optional
node(cfg)#show profile ipsec-policy-
manual
Displays all IPsec policy profiles
VPN configuration task list 369
SmartWare Software Configuration Guide 32 • VPN configuration
Example: Display IPsec transformation profiles
node(cfg)#show profile ipsec-transform
IPSEC transform profiles:
Name: AES_128
ESP Encryption: AES-CBC, Key length: 128
Example: Display IPsec policy profiles
node(cfg)#show profile ipsec-policy-manual
Manually keyed IPsec policy profiles:
Name: ToBerne, Peer: 200.200.200.1, Mode: tunnel, transform-profile: AES_128
ESP SPI Inbound: 1111, Outbound: 2222
ESP Encryption Key Inbound: 1234567890ABCDEF1234567890ABCDEF
ESP Encryption Key Outbound: FEDCBA0987654321FEDCBA0987654321
Debugging IPsec
A debug monitor and an additional show command are at your disposal to debug IPsec problems.
Procedure: To debug IPsec connections
Mode: Configure
Example: IPsec Debug Output
node(cfg)#debug ipsec
IPSEC monitor on
23:11:04 ipsec > Could not find security association for inbound ESP packet.
SPI:1201
Example: Display IPsec Security Associations
node(cfg)#show ipsec security-associations
Active security associations:
Dir Type Policy Mode Udp-Encapsulation
Peer SPI AH SPI ESP AH ESP-Auth ESP-Enc
Bytes (processed/lifetime) Seconds (age/lifetime)
Step Command Purpose
1node(cfg)#debug ipsec Enables IPsec debug monitor
2
optional
node(cfg)#show ipsec security-associ-
ations
Summarizes the configuration information of all
IPsec connections. If an IPsec connection does
not show up, then one or more parameters are
missing in the respective Policy Profile.
The information ‘Bytes (processed)’ supports
debugging because it indicates whether IPsec
packets depart from (‘OUT’) or arrive at (‘IN’) the
SmartNode.
Key management (IKE) 370
SmartWare Software Configuration Guide 32 • VPN configuration
IN MANUAL ToBerne Tunnel no
200.200.200.1 - 1111 - - AES-CBC 128
3622/unlimited 19047/unlimited
OUT MANUAL ToBerne Tunnel no
200.200.200.1 - 2222 - - AES-CBC 128
2857/unlimited 19047/unlimited
Key management (IKE)
In addition to manual keyed IPSEC connections, support for automatically keyed IPSEC connections using
the Internet Key Exchange (IKE / RFC2409) protocol has been integrated, which is based on Internet Security
Association and Key Management Protocol (ISAKMP / RFC2408). The IKE module supports authentication
using pre-shared keys. There is currently no support for authentication using Public Key Infrastructure (PKI)
and digital certificates.
IKE is used to establish a shared secret between two peers, which can be used to derive encryption and/or
authentication keys for the exchange of encrypted and or authenticated packets between the peers through an
IPSEC connection. IKE also authenticates the two peers to thwart man in the middle attacks. In addition IKE
empowers IPSEC to do replay protection to prevent re-injection of previously captured packets into the pro-
tected network. Furthermore IKE negotiates a set of cryptographic transforms used by IPSEC for encryption
and/or authentication of IP packets. IKE is also responsible for periodic establishment of new session keys for
the ISPEC security associations.
To achieve all of this, IKE is split into two phases called MAIN MODE and QUICK MODE.
In MAIN MODE, IKE mutually authenticates the peers, establishes a shared secret between them and negoti-
ates cryptographic transforms in order to create an ISAKMP security association between the two peers. The
ISAKMP security association is only used to provide a secure, authenticated and encrypted channel between
the peers, which can be used for any further communication.
In QUICK MODE, IKE negotiates all the security parameters like cryptographic transforms, SPIs and sessions
keys, which are required to establish one or more IPSEC security association. All the communication in
QUICK MODE is protected by a previously established ISAKMP security association. Note that the same
ISAKMP security association can be used to establish multiple quick modes.
Main differences between manual & IKE IPSEC configurations
•For IKE connections the ACLs must allow traffic from and to UDP port 500 in plaintext, because this port
is used by IKE to negotiate security associations.
•In addition to the ¨profiile ipsec-transform¨, which defines the cryptographic transforms used for the
IPSEC connections, it is necessary to define also a ¨profiile isakmp-transform¨, which defines the crypto-
graphic transforms used to protect the negotiation of new IPSEC security associations using ISAKMP.
•Instead of the ¨profile ipsec-policy-manual¨, which is used to create manual keyed IPSEC connections, you
need to create a ¨profile ipsec-policy-isakmp¨, which contains all the IKE specific configuration options.
Creating an IPSEC transform profile
First you need to create at least one IPSEC transform profile as described in Chapter 26 of the Software Con-
figuration Guide. In addition to the parameters used also for manually keyed IPSEC security associations, you
Key management (IKE) 371
SmartWare Software Configuration Guide 32 • VPN configuration
can optionally also specify a security association lifetime for IKE security associations. If the lifetime of the
security association expires, IKE will automatically negotiate a new security association. The default lifetime
for ISPEC security associations is one hour without any limit on the transmitted data volume. The parameters
defined in this profile are used for the negotiation of IPSEC security associations in quick mode.
The following commands can be used to change the security association lifetime:
Mode: profile ipsec-transform <transform-name>
Creating an ISAKMP transform profile
To define which cryptographic transforms should be used to protect the negotiation of IPsec security associa-
tion and the mutual authentication of the IPSEC peers, you need to create at least one isakmp transform pro-
file. The parameters defined in this profile are used for the negotiation of ISAKMP security associations in
main mode.
The following commands can be used to create and configure an ISAKMP transform profile:
Mode: configure
Step Command Purpose
1
(optional)
node(pf-ipstr)[ctx-name]# key-life-
time-seconds <seconds>
Define a new maximum lifetime of the security
associations in seconds.
2
(optional)
node(pf-ipstr)[ctx-name]# key-life-
time-kilobytes <kilobytes>
Define a new maximum lifetime of the security
associations in kilobytes.
Step Command Purpose
1node(cfg)# profile isakmp-transform
<name>
Create the transform profile with the specified
name and enter its configuration mode.
2node(pf-ikptr)[<name>]# authentica-
tion-algorithm md5|sha1
Define the authentication algorithm to be used,
which can be either md5 or sha1.
3node(pf-ikptr)[<name>]# encryption
des-cbc|3des-cbc|aes-cbc [key-
length]
Define the encryption and optionally the length
of the encryption keys in bits to be used.
4
(optional)
node(pf-ikptr)[<name>]# key-life-
time-seconds <seconds>
Optionally, you can also change the default
ISAKMP security association lifetime in seconds.
The default lifetime is 1 day.
5
(optional)
node(pf-ikptr)[<name>]# key-life-
time-sessions <sessions>
Optionally, you can also change the default
ISAKMP security association lifetime in sessions.
This is the maximum number of quick modes,
which can be created by the ISAKMP SA. By
default there is no limit on the number of ses-
sions.
Key management (IKE) 372
SmartWare Software Configuration Guide 32 • VPN configuration
Creating an ISAKMP IPSEC policy profile
To define all the settings and profiles needed to establish an IPSEC security association, you need to create an
ISAKMP IPSEC policy profile There you can specify the ISAKMP and IPSEC transforms you created above,
which should be used and other necessary parameters. You can later specify using an ACL, what traffic should
be treated by a specify ISAKMP IPSEC policy.
The following commands can be used to create and configure an ISAKMP IPSEC policy profile:
Mode: configure
Step Command Purpose
1node(cfg)# profile ipsec-policy-
isakmp <name>
Create the policy profile with the specified name
and enter its configuration mode.
2node(pf- ipsik)[<name>]# authentica-
tion-method pre-shared-key <key>
Define the pre-shared key, which sould be used
to authenticate the peers. The key can be a char-
acter string of any length.
3node(pf- ipsik)[<name>]# diffie-hell-
man-group {group1|group2|group5}
Define the diffie-hellman group to be used.
Note: The higher the group number is, the
higher is the key length during the diffie-hellman
exchange and the higher is the processing time
for the establishment of the shared secret. Espe-
cially Group 5 requires a considerable amount
of time for processing. You should not use this
group in time critical applications unless you
know that the tunnel will always be established.)
4node(pf- ipsik)[<name>]# use profile
isakmp-transform <name>
Define one or more ISAKMP transform profiles to
be used by this policy. If more than one is
defined, IKE will negotiate a transform set, which
is supported by both peers.
5node(pf- ipsik)[<name>]# use profile
ipsec-transform <name>
Define one or more IPSEC transform profiles to
be used by this policy. If more than one is
defined, IKE will negotiate a transform set, which
is supported by both peers.
6node(pf- ipsik)[<name>]# mode
transport|tunnel
Define the IPSEC encapsulation mode to be used
by this policy.
7
(optional)
node(pf- ipsik)[<name>]# peer <ip or
FQDN>
Optionally define the peer, for which this policy
should be used. Do not specify a peer, if this pol-
icy shall be used for multiple peers in transport
mode. The peer can either be an IP address or a
fully qualified domain name.
Key management (IKE) 373
SmartWare Software Configuration Guide 32 • VPN configuration
Creating/modifying an outgoing ACL profile for IPSEC
This is basically the same as for manual keyed IPSEC connections and can be done as described in Chapter 26
of the Software Configuration Guide. Make sure that your ACL allows traffic from and to UDP port 500 in
plaintext to allow ISAKMP messages to be exchanged.
Configuration of an IP interface and the IP router for IPSEC
This is exactly the same as for manual keyed IPSEC connections and can be done as described in Chapter 26 of
the Software Configuration Guide.
Policy matching
Normally, if an initial ISAKMP message is received from the network, the system tries to find the correspond-
ing ISAKMP IPSEC policy by matching the received source-ip address with the peer IP address of an IPSEC
policy.
However, in applications with dynamic IP addressing, an FQDN might be specified as the peer instead of an
IP address. In this case, it is not possible to find the correct policy using the source-ip address. To solve this
problem, you can specify the same protection-group ID in the ISAKMP IPSEC policy profiles of all the peers,
which should use the same remote policy. In this case, if the system receives an initial IKE packet, it will search
for an ISAKMP IPSEC policy profile, which has the same protection-group ID as the policy, which created the
ISAKMP packet.
Sample configuration snippet
Below you see a sample of the minimal required settings to be added to a configuration file in order to establish
an IKE IPSEC connection:
profile acl WAN_Out
permit 1 esp any any
permit 2 ah any any
permit 3 udp any any eq 500
8
(optional)
node(pf- ipsik)[<name>]# protected-
network {host <local-host-ip>}|{sub-
net <local-subnet-address> <local-
subnet-mask>}|{range <local-range-
start> <local-range-end>} {host
<remote-host-ip>}|{subnet <remote-
subnet-address> <remote-subnet-
mask>}|{range <remote-range-start>
<remote-range-end>}
Optionally if the remote system requires pro-
tected networks to be specified in the identity
payload of the quick mode, you can define one
or more protected networks using this command.
9
(optional)
node(pf- ipsik)[<name>]# protection-
group <group>
If required, you can specify a protection-group.
The protection-group is a proprietary feature and
is not compatible with third-party devices. There-
fore do not configure it for connections to third
party devices.
Step Command Purpose
Key management (IKE) 374
SmartWare Software Configuration Guide 32 • VPN configuration
permit 4 ip any 10.0.0.0 0.255.255.255 ipsec-policy VPN
permit 5 ip any any
profile ipsec-transform IPSEC_3DES_192
esp-encryption 3des-cbc 192
profile isakmp-transform ISAKMP_3DES_192
encryption 3des-cbc 192
authentication-algorithm sha1
profile ipsec-policy-isakmp VPN
authentication-method pre-shared-key sdfkl@hgdslkfs/iuçkfld$gus+ghf
mode tunnel
peer 1.2.3.4
diffie-hellman-group group2
use profile ipsec-transform 1 IPSEC_3DES_192
use profile isakmp-transform 1 ISAKMP_3DES_192
context ip
interface WAN
use profile acl WAN_Out out
Troubleshooting
To analyze configuration or networking problems related to IKE, the IKE module contains the following
debug monitors which log important information about the exchanged ISAKMP messages:
debug ike event
•This monitor prints every ISAKMP message sent or received as well as the current state of the ISAKMP
main and quick modes.
debug ike error
•This monitor prints information about errors detected during the ISAKMP exchange.
Encrypted Voice - Performance considerations 375
SmartWare Software Configuration Guide 32 • VPN configuration
In addition to the monitors there are also show commands, which display current information about IKE and
IPSEC.
show ike policy <policy-name>
•Displays information about the configuration options of specific policy as well as an indication, if the policy
is valid or not. A policy might be invalid, if one or more configuration option is missing.
show ike status
•Displays information about the state of current IKE main and quick modes.
show ipsec security-associations
•Displays information about currently established IPSEC security associations including SPIs, peer IP
addresses and security association lifetime.
Encrypted Voice - Performance considerations
Firmware versions that support IKE allow encrypting and decrypting locally generated voice data streams
(RTP). However, because enabling support for RTP encryption has a performance impact for the system even
if RTP packets are not encrypted, this feature must be enabled manually on a per interface basis.
Performance considerations
Because encryption/decryption of RTP streams causes a very high workload on the systems CPU, this feature
cannot be used on all systems without limitation. However several newer systems contain a dedicated crypto-
graphic accelerator hardware, which does these computationally intensive tasks for the main CPU. On such
systems RTP encryption has almost no impact on the overall system performance. You can see using the com-
mand ‘show crypto offload’, whether your systems contains the cryptographic accelerator or not.
Systems without the crEncrptedyptographic accelerator hardware will display the following line:
Crypto offload capabilities: None
Systems containing the cryptographic accelerator hardware will display the following line:
Crypto offload capabilities: DES, 3DES, AES, MD5, SHA1
On systems, which do not contain the cryptographic accelerator hardware, concurrent routing of data traffic
and RTP streams through an IPSEC connection, can cause excessive jitter of the RTP packets. Therefore con-
current routing of data and RTP streams through IPSEC tunnels should be avoided on systems without the
cryptographic accelerator hardware. Note that the CPU usage percentage does not give an indication about the
introduced jitter, because the jitter stems form short CPU usage peaks, which are filtered out by the time aver-
aging of the CPU workload calculation algorithm.
Enabling RTP encryption support
The following command can be used to enable/disable RTP encryption support for an IP interface. If this is
enabled, RTP streams can be selected for encryption like any other data traffic using the ACL. Note that RTP
encryption must be enabled on every interface, which shall be used to send or receive encrypted RTP streams.
Using an alternate source IP address for specific destinations 376
SmartWare Software Configuration Guide 32 • VPN configuration
Mode: Context ip /interface <if-name>
Using an alternate source IP address for specific destinations
Normally, locally originated IP packets use the IP address of the outbound IP interface as their source address.
However, when using VPN tunnels there are situations, where locally originated IP packets must be sent using
the source IP address of an alternate interface. You can specify using the following command that for one or
more destination network the IP address of an alternate IP interface should be used. This configuration com-
mand affects all locally originated IP packets except those, which originate from explicitly bound components
like SIP and H.323.
Mode: context ip
Step Command Purpose
1node(if-ip)[if-name]# [no] rtp-encryp-
tion
Enable or disable RTP encryption support on an
IP interface.
Step Command Purpose
1node(ctx-ip)[ctx-name]# [no] source-
address-map <destination-network>
<destination-mask> <ip-interface-
name>
Defines that locally originated packets destined
for the specified destination network shall use the
IP address of the specified IP interface as their
source address.
Sample configurations 377
SmartWare Software Configuration Guide 32 • VPN configuration
Sample configurations
The following sample configurations establish IPsec connections between a SmartNode and a Cisco router. To
interconnect two SmartNodes instead, derive the configuration for the second SmartNode by doing the follow-
ing modifications:
•Swap ‘inbound’ and ‘outbound’ settings
•Adjust the ‘peer’ setting
•Swap the private networks in the ACL profiles
•Adjust the IP addresses of the LAN and WAN interfaces
•Adjust the route for the remote network
IPsec tunnel, DES encryption
SmartNode configuration
profile ipsec-transform DES
esp-encryption des-cbc 64
profile ipsec-policy-manual VPN_DES
use profile ipsec-transform DES
session-key inbound esp-encryption 1234567890ABCDEF
session-key outbound esp-encryption FEDCBA0987654321
spi inbound esp 1111
spi outbound esp 2222
peer 200.200.200.1
mode tunnel
profile acl VPN_Out
permit ip 192.168.1.0 0.0.0.255 172.16.0.0 0.0.255.255 ipsec-policy VPN_DES
permit ip any any
profile acl VPN_In
permit esp any any
permit ah any any
permit ip 172.16.0.0 0.0.255.255 192.168.1.0 0.0.0.255
deny ip any any
context ip router
interface LAN
ipaddress 192.168.1.1 255.255.255.0
interface WAN
ipaddress 200.200.200.2 255.255.255.252
use profile acl VPN_In in
use profile acl VPN_Out out
context ip router
route 0.0.0.0 0.0.0.0 200.200.200.1 0
route 172.16.0.0 255.255.0.0 WAN 0
Sample configurations 378
SmartWare Software Configuration Guide 32 • VPN configuration
Cisco router configuration
crypto ipsec transform-set DES esp-des
!
crypto map VPN_DES local-address FastEthernet0/1
crypto map VPN_DES 10 ipsec-manual
set peer 200.200.200.2
set session-key inbound esp 2222 cipher FEDCBA0987654321
set session-key outbound esp 1111 cipher 1234567890ABCDEF
set transform-set DES
match address 110
!
access-list 110 permit ip 172.16.0.0 0.0.255.255 192.168.1.0 0.0.0.255
!
interface FastEthernet0/0
ip address 172.16.1.1 255.255.0.0
!
interface FastEthernet0/1
ip address 200.200.200.1 255.255.255.252
crypto map VPN_DES
!
ip route 192.168.1.0 255.255.255.0 FastEthernet0/1
IPsec tunnel, AES encryption at 256 bit key length, AH authentication with HMAC-
SHA1-96
SmartNode configuration
profile ipsec-transform AES_SHA1
esp-encryption aes-cbc 256
ah-authentication hmac-sha1-96
profile ipsec-policy-manual VPN_AES_SHA1
use profile ipsec-transform AES_SHA1
session-key inbound ah-authentication 1234567890ABCDEF1234567890ABCDEF12345678
session-key outbound ah-authentication FEDCBA0987654321FEDCBA0987654321FEDCBA09
session-key inbound esp-encryption
1234567890ABCDEF1234567890ABCDEF1234567890ABCDEF1234567890ABCDEF
session-key outbound esp-encryption
FEDCBA0987654321FEDCBA0987654321FEDCBA0987654321FEDCBA0987654321
spi inbound ah 3333
spi outbound ah 4444
spi inbound esp 5555
spi outbound esp 6666
peer 200.200.200.1
mode tunnel
...
Rest of the configuration, see above, just change the name of the IPsec policy pro-
file in the ACL profile ‘VPN_Out’
Cisco router configuration
crypto ipsec transform-set AES_SHA1 ah-sha-hmac esp-aes 256
!
crypto map VPN_AES_SHA1 local-address FastEthernet0/1
crypto map VPN_AES_SHA1 10 ipsec-manual
set peer 200.200.200.2
Sample configurations 379
SmartWare Software Configuration Guide 32 • VPN configuration
set session-key inbound esp 6666 cipher
FEDCBA0987654321FEDCBA0987654321FEDCBA0987654321FEDCBA0987654321
set session-key outbound esp 5555 cipher
1234567890ABCDEF1234567890ABCDEF1234567890ABCDEF1234567890ABCDEF
set session-key inbound ah 4444 FEDCBA0987654321FEDCBA0987654321FEDCBA09
set session-key outbound ah 3333 1234567890ABCDEF1234567890ABCDEF12345678
set transform-set AES_SHA1
match address 110
!
...
For the remainder of the configuration (see above), just change the name of the IPsec policy profile in the ACL
profile VPN_Out
IPsec tunnel, 3DES encryption at 192 bit key length, ESP authentication with
HMAC-MD5-96
SmartNode configuration
profile ipsec-transform TDES_MD5
esp-encryption 3des-cbc 192
esp-authentication hmac-md5-96
profile ipsec-policy-manual VPN_TDES_MD5
use profile ipsec-transform TDES_MD5
session-key inbound esp-authentication 1234567890ABCDEF1234567890ABCDEF
session-key outbound esp-authentication FEDCBA0987654321FEDCBA0987654321
session-key inbound esp-encryption
1234567890ABCDEF1234567890ABCDEF1234567890ABCDEF
session-key outbound esp-encryption
FEDCBA0987654321FEDCBA0987654321FEDCBA0987654321
spi inbound esp 7777
spi outbound esp 8888
peer 200.200.200.1
mode tunnel
...
For the remainder of the configuration (see above), just change the name of the IPsec policy profile in the ACL
profile VPN_Out
Cisco router configuration
crypto ipsec transform-set 3DES_MD5 esp-3des esp-md5-hmac
!
crypto map VPN_3DES_MD5 local-address FastEthernet0/1
crypto map VPN_3DES_MD5 10 ipsec-manual
set peer 200.200.200.2
set session-key inbound esp 8888 cipher
FEDCBA0987654321FEDCBA0987654321FEDCBA0987654321 authenticator
FEDCBA0987654321FEDCBA0987654321
set session-key outbound esp 7777 cipher
1234567890ABCDEF1234567890ABCDEF1234567890ABCDEF authenticator
1234567890ABCDEF1234567890ABCDEF
set transform-set 3DES_MD5
match address 110
!
Sample configurations 380
SmartWare Software Configuration Guide 32 • VPN configuration
...
For the remainder of the configuration (see above), just change the name of the IPsec policy profile in the ACL
profile VPN_Out.
381
Chapter 33 CS interface configuration
Chapter contents
Introduction........................................................................................................................................................382
CS interface configuration task list ......................................................................................................................382
Creating and configuring CS interfaces................................................................................................................383
Configuring call routing ......................................................................................................................................384
Configuring the interface mapping tables ............................................................................................................385
Configuring the precall service tables...................................................................................................................388
Introduction 382
SmartWare Software Configuration Guide 33 • CS interface configuration
Introduction
This chapter provides an overview of interfaces in the CS context and describes the tasks involved in their con-
figuration. Within the CS context, an interface is a logical entity providing call signaling for incoming and out-
going calls to and from telephony ports and voice over IP gateways. It represents logical connections to other
equipment or networks. CS interfaces are used as source and destination in the call router and are bound to
physical ports or logical gateways.
Interface names can be any arbitrary string with a maximum of 25 characters. For ease of identification, the
interface type can be a part of the name. Figure 52 illustrates the function of the CS interfaces. The types of CS
interfaces are:
•PSTN interfaces telephony. Binding is done from a port to an interface.
•VoIP interface provide voice over IP settings in addition to the general CS interface parameters. These inter-
faces must be explicitly bound to an existing VoIP gateway.
Figure 52. CS interfaces on the CS context
Interfaces can use mapping tables and precall service tables to manipulate call properties before the call is being
offered to the call router.
CS interface configuration task list
Several parameters depend upon the interface type. If it is not specifically stated otherwise, the configuration
task is valid for all interfaces. This is not described in this chapter, but in chapter 42, “Tone configuration” on
Context CS
switch
H.323 GW
SIP GW
bind command
FXS interface
H.323 interface
SIP interface
ISDN Port FXS Port
ISDN interface
mappping
table
use command
Creating and configuring CS interfaces 383
SmartWare Software Configuration Guide 33 • CS interface configuration
page 529 and chapter 47, “VoIP profile configuration” on page 573. To create and configure CS interfaces you
have to perform the configuration tasks listed below.
•Creating and configuring CS interfaces
•Configuring call routing
•Configuring the interface mapping tables (optional)
•Configuring the precall service tables (optional)
•Configuring interface type specific parameters
Creating and configuring CS interfaces
To configure CS interfaces, you must first enter the CS context mode where you can create and configure your
required interface through the CS interface configuration mode. Each interface has a name that can be any
arbitrary string of not more than 25 characters. Use a name describing the purpose of the interface, as shown in
the examples or—for ease of identification—the interface type can be used as part of the name. Already-
defined CS interfaces can be displayed or deleted as described in the following table.
Procedure: Create and configure CS interfaces.
Mode: Configure
Examples: Create CS interfaces and delete another
Step Command Purpose
1node(cfg)#context cs Enter the CS Context Configuration Mode.
2node(ctx-cs)[switch]#interface if-type if-
name
Enter the CS Interface Configuration Mode & select
the CS interface with type if-type and name if-name
for configuration. Valid interface types are h323,
sip, isdn and fxs.
3node(if-type)[if-name]#… Perform the configuration tasks to configure the CS
interface.
4node(ctx-cs)[switch]#show call-control
provider
Display the configuration of the current CS interface.
5node(if-type)[if-name]#exit Go back to the CS Context Configuration Mode
6Repeat step 1 to 5 to create and configure your CS
interfaces
7node(ctx-cs)[switch]#show call-control
provider
or
node(ctx-cs)[switch]#show call-control
status
Display already defined CS interfaces.
Note: The show call-control provider command can
also be used to display the configuration details of a
provider either by specifying its name as a parame-
ter or by being inside its configuration mode.
8node(ctx-cs)[switch]#no interface if-type if-
name
Delete an existing interface.
Configuring call routing 384
SmartWare Software Configuration Guide 33 • CS interface configuration
The following example shows how to create and configure an interface, how to display it, and how to delete
another.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface isdn IF-PBX1
node(if-pstn)[IF-PBX1]#route call dest-interface TAB-CALLED-NUMBER
node(if-pstn)[IF-PBX1]#show call-control provider
Provider: IF-PBX1
=================
Binding: (none)
Protocol: (unknown)
DTMF Dialing: disabled
Tone-Set Profile: (none)
PSTN Profile: default
Routing Destination: router (IF-PBX1-precall-service)
Active Endpoints: 0
Suspended endpoints: 0
node(if-pstn)[IF-PBX1]#exit
node(ctx-cs)[switch]#show call-control provider
Call Control: switch
====================
Providers
---------
local
router
sn43
IF-PBX1
IF-PBX2
IF-PUBLIC-PSTN1
IF-PUBLIC-PSTN2
IF-COMPOFF-A
HUNT-COMPOFF-A
HUNT-PBX
HUNT-PUBLIC-PSTN
node(ctx-cs)[switch]#no interface isdn IF-PBX1
node(ctx-cs)[switch]#
Configuring call routing
SmartWare offers two levels of call routing: basic interface routing and advanced call routing. Basic interface
routing allows you to forward all incoming calls on a CS interface to a destination CS interface.
Advanced call routing allows you to route calls to all available CS interfaces, based on a criteria such as calling
number, destination number, ISDN bearer capability, or other call properties. Using mapping tables, you can
modify call properties like the calling or called party number, URI, etc. Furthermore, you can collect numbers
using the digit-collection feature of called party number routing tables. Call services like hunt or distribution
groups can be used to distribute calls to multiple destination interfaces.
Configuring the interface mapping tables 385
SmartWare Software Configuration Guide 33 • CS interface configuration
In the environment of the CS interfaces, it is necessary to specify whether the call will be routed directly to
another CS interface (basic interface routing) or to a first lookup table from the call router (advanced call rout-
ing).
In this chapter. only the configuration task on a CS interface is described. For configuration of the call routing
tables, mapping tables and call services refer to chapter 40, “Call router configuration” on page 456, which also
describes the difference between the two levels of call routing in more detail.
Procedure: To configure basic interface routing
Mode: Context CS
Example: Configure call routing
The following example shows how to configure basic interface routing.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface pstn IF-PBX1
node(if-pstn)[IF-PBX1]#route call dest-interface IF-H323-0
node(if-pstn)[IF-PBX1]#exit
node(ctx-cs)[switch]#
Configuring the interface mapping tables
Call router mapping tables are normally used by the call router to manipulate call properties during the call
setup phase, i.e. when a call arrives on a CS interface and is routed to another interface through routing and
mapping tables. This imposes a limitation to call property manipulation: When a call property like a party’s
number is changed during a call, the call is not routed through the call router again and thus, the mapping
tables are not processed for the new number. Call property manipulation, e.g. removing a prefix from a num-
ber, cannot be done for the new number.
Consider, for example, an ISDN call, which may send a connected party number in the Connect message. This
connected party number has the same meaning as the original called party number, but may differ from it.
Another example of a call property that changes during a call is a SIP call transfer. A SIP call may be transferred
Step Command Purpose
1node(ctx-cs)[switch]#interface if-type if-
name
Enters CS Interface Configuration Mode and config-
ure interface if-type with name if-name
2node(if-type)[if-name]#route call dest-
interface if-name
or
node(if-type)[if-name]#route call dest-
table table-name
or
node(if-type)[if-name]#route call dest-
service service-name
Specifies a destination interface for incoming calls
(basic interface routing) or a destination table or call
service (advanced call routing)
3node(if- type)[if-name ]#exit Returns to CS context configuration mode
4Repeat steps 1–3 for all the required CS interfaces
Configuring the interface mapping tables 386
SmartWare Software Configuration Guide 33 • CS interface configuration
to another user agent having a different URI than the called one. This new URI as well as the derived E.164
number cannot be manipulated using the call router before presenting it to the other party.
To circumvent this limitation, you can use mapping tables directly on an interface. In that case the mapping
tables can be thought as input or output filters, which manipulate call properties at any stage of a call.
As with the SIP transfer example, differentiating called from calling party properties does not make sense for
these manipulations, because the calling as well as the called party can be transferred in a SIP call. Therefore,
mapping tables that are used on an interface manipulate both at the same time, called and calling party proper-
ties!
You can chose different mapping tables for filtering parameters in each direction, input and output. While an
input mapping table is applied to all properties that are received by the port or gateway that is bound to the
interface before sending them to the peer interface in the CS context, an output mapping table is applied to all
properties before sending them to the bound port or gateway.
Refer to the chapter 40, “Call router configuration” on page 456 for more information about how to create and
configure mapping tables.
Procedure: To use mapping tables to filter properties on an CS interface
Mode: Context CS
Example: Use interface mapping tables for dialing plan conversion
The following example shows how to configure a dialing plan conversion on an interface. In this case, you can
plan your call-routing tables to deal only with international numbers while converting private numbers on the
CS interface that interfaces the private network.
node(ctx-cs)[switch]#mapping-table e164 to e164 PRIV-TO-GLOB
node(map-tab)[PRIV-TO~]#map (..) to 00419988825\1
node(map-tab)[PRIV-TO~]#exit
node(ctx-cs)[switch]#mapping-table e164 to e164 GLOB-TO-PRIV
node(map-tab)[GLOB-TO~]#map 00419988825(..) to \1
node(map-tab)[GLOB-TO~]#exit
node(ctx-cs)[switch]#interface isdn IF-PHONES
node(if-isdn)[IF-PHON~]#route dest-table TAB-CALLED-NUMBER
node(if-isdn)[IF-PHON~]#use mapping-table in PRIV-TO-GLOB
node(if-isdn)[IF-PHON~]#use mapping-table out GLOB-TO-PRIV
node(if-isdn)[IF-PHON~]#exit
node(ctx-cs)[switch]#
Step Command Purpose
1node(ctx-cs)[switch]#interface if-type if-
name
Enters CS Interface Configuration Mode and config-
ure interface if-type with name if-name
2node(if-type)[if-name]#use mapping-
table in table-name
and/or
node(if-type)[if-name]#use mapping-
table out table-name
Specifies an input and/or an output mapping table
that shall be applied to all call properties in the
specified direction.
Configuring the interface mapping tables 387
SmartWare Software Configuration Guide 33 • CS interface configuration
Figure 53. Incoming call passing an interface mapping table
Figure 53 shows two incoming calls arriving to the ISDN interface IF-PHONES. The calling and called party
numbers are private numbers containing only two digits. Before accessing the call router, those numbers can be
transformed into the global numbering plan. Which is why the interface was configured to use mapping table
PRIV-TO-GLOB on all incoming call properties.
Incoming call #1 originally has a calling party number of 20 and a called party number of 21. Before offering
this call to the call router, mapping table PRIV-TO-GLOB is applied to the called party number and the call-
ing party number. The mapping table adds a prefix of 00419988825 to the called and calling party number.
Incoming call #2 originally has a calling party number of 20 but already a called party number of the global
numbering plan. Again, the mapping table is applied to both number, but only the calling party number of 20
is translated into 0041998882520. The called party number does not match an entry in the mapping table, so
it is not changed.
Context CS switch
Mapping-Table: PRIV-TO-GLOB
E.164 E.164
input property output property
(..) 00419988825\1
Incoming Call #1
Calling
E.164
Called
E.164
20
21
interface isdn IF-PHONES
use (input)
Routing-Table: TAB-CALLED-NUMBER
Incoming Call #2
Calling
E.164
Called
E.164
20
0041778881111
Incoming Call #1
Calling
E.164
Called
E.164
0041998882520
0041998882521
Incoming Call #2
Calling
E.164
Called
E.164
0041998882520
0041778881111
Configuring the precall service tables 388
SmartWare Software Configuration Guide 33 • CS interface configuration
Figure 54. Call passing an input and an output mapping table
Let’s assume we manipulate an incoming ISDN call using the PRIV-TO-GLOB mapping table as in the previ-
ous example. Figure 54 shows this situation again. Let’s further assume the call router routes back the call to
the interface IF-PHONES. In that case, the output mapping table used on this interface is applied to all call
parameters. The calling and called party number is transformed form the global to the private numbering plan
before the call is offered to the remote ISDN terminal.
Note For interface mapping you can use only mapping tables that examine general
call parameters. For example, you cannot use a called-e164 to called-e164
mapping table, use a e164 to e164 mapping table instead.
Configuring the precall service tables
Precall service mapping tables are used to convert dialed special numbers like *61 to invocation commands for
supplementary services like call-waiting, etc. Precall service tables are configured as part of the call router in the
context CS configuration mode. Precall service tables are used on an FXS interface where the attached phone
should be able to activate or deactivate services by dialing a special number. SmartWare currently supports the
following service commands:
•activate-cw—Activates call-waiting on the interface that uses the precall service table. Once activated a sec-
ond incoming call is possible on the interface. The second call is announced to the first call. The user can
then decide whether to accept or reject the new call.
•deactivate-cw—Deactivates call-waiting on the interface that uses the precall service table.
Context CS switch
Outgoing Call
Calling
E.164
Called
E.164
0041998882520
0041998882521
Mapping-Table: PRIV-TO-GLOB
E.164 E.164
input property output property
(..) 00419988825\1
Incoming Call
Calling
E.164
Called
E.164
20
21
interface isdn IF-PHONES
use (input)
Routing-Table: TAB-CALLED-NUMBER
Outgoing Call
Calling
E.164
Called
E.164
20
21
Incoming Call
Calling
E.164
Called
E.164
0041998882520
0041998882521
Mapping-Table: GLOB-TO-PRIV
E.164 E.164
input property output property
00419988825(..) \1
use (output)
Configuring the precall service tables 389
SmartWare Software Configuration Guide 33 • CS interface configuration
•interrogate-cw—Detects whether or not the call-waiting supplementary service is active on the interface
that uses the precall service table.
Note Currently you can only use precall service tables on FXS interfaces.
Procedure: To create precall service table and use it on an FXS interface
Mode: Context CS
Example: Create and use a precall service table
The following example shows how to create a precall service table that treats *43# as activation command for
the call-waiting supplementary service, while #43# is used to deactivate call-waiting and *#43# is used to query
the call-waiting supplementary service:
node(ctx-cs)[switch]#precall-service-table SUPP-SVC
node(pcs-tab)[SUPP-SVC]#map *43# to activate-cw
node(pcs-tab)[SUPP-SVC]#map #43# to deactivate-cw
node(pcs-tab)[SUPP-SVC]#map *#43# to interrogate-cw
node(pcs-tab)[SUPP-SVC]#exit
node(ctx-cs)[switch]#interface fxs IF-PHONE
node(if-fxs)[IF-PHONE]#use mapping-table precall-service SUPP-SVC
node(if-fxs)[IF-PHONE]#exit
node(ctx-cs)[switch]#
Step Command Purpose
1node(ctx-cs)[switch]#precall-service-
table table-name
Creates a new table that maps special numbers into
supplementary service invocation commands
2node(pcs-tab)[table-name]#map special-
number to command
Adds a new entry to map a special-number into a
supplementary service invocation command.
3Repeat Step 2 to add other special number map-
pings.
4node(pcs-tab)[table-name]#exit Returns to context CS Configuration Mode
5node(ctx-cs)[switch]#interface fxs if-name Enters FXS Interface Configuration Mode of inter-
face if-name
6node(if-fxs)[if-name]#use mapping-
table precall-service table-name
Uses the precall service table created with step 1 to
4 on this FXS interface.
390
Chapter 34 ISDN interface configuration
Chapter contents
Introduction........................................................................................................................................................391
ISDN interface configuration task list..................................................................................................................391
Configuring DTMF dialing (optional) ..........................................................................................................392
Configuring an alternate PSTN profile (optional) .........................................................................................392
Configuring ringback tone on ISDN user-side interfaces ..............................................................................393
Configuring call waiting (optional) ...............................................................................................................393
Disabling call-waiting on ISDN DSS1 network interfaces .............................................................................393
Configuring Call-Hold on ISDN interfaces ..................................................................................................394
Enabling Display Information Elements on ISDN Ports ...............................................................................394
Configuring date/time publishing to terminals (optional) .............................................................................394
Sending the connected party number (COLP) (optional) ..............................................................................395
Enabling sending of date and time on ISDN DSS1 network interfaces .........................................................395
Defining the ‘network-type’ in ISDN interfaces ............................................................................................395
ISDN Explicit Call Transfer support (& SIP REFER Transmission) ............................................................395
ISDN Advice of Charge support ...................................................................................................................397
ISDN DivertingLegInformation2 Facility .....................................................................................................401
Transmit Direction .................................................................................................................................401
Receive Direction ....................................................................................................................................401
T1 Caller-Name Support ..............................................................................................................................401
Introduction 391
SmartWare Software Configuration Guide 34 • ISDN interface configuration
Introduction
This chapter provides an overview of ISDN interfaces, and the tasks involved in their configuration. This chap-
ter does not explain the basic configuration steps equal to all CS interfaces. Information about basic interface
configuration can be found in the general chapter about CS interface configuration (see chapter 33, “CS inter-
face configuration” on page 381)
An ISDN interface represents the connection of an ISDN signaling channel to the call control. It encapsulates
the ISDN layer 3 protocol of an ISDN port’s D-channel, allows incoming and outgoing calls on this port, con-
trols its B-channels and provides a set of services.
There is a one-to-one relation between the port and the interface: Only one port can bind to an existing inter-
face, and there must be a port that binds to the interface for the interface to become functional (see figure 55).
An ISDN interface can encapsulate user and network side of the following protocols: DSS1, NI2, NTT. The
settings are automatically taken from the port that binds to the interface, and changes on the port are automat-
ically reflected on the interface.
Figure 55. ISDN interfaces on the CS context
ISDN interface configuration task list
This section describes the configuration tasks for ISDN interfaces. There are no mandatory configurations on
ISDN interfaces, because all protocol relevant settings are inherited from the port that binds to the interface.
The settings on the interface are those of basic CS interface configuration, as well as settings for interoperabil-
ity and supplementary services:
•Configuring ringback tone on ISDN user-side interfaces
•Configuring call waiting (optional)
•Disabling call waiting on ISDN DSS1 network interfaces
•Configuring date/time publishing to terminals (optional)
•Enabling sending of date and time on ISDN DSS1 network interfaces
•Defining the ‘network-type’ in ISDN interfaces
•ISDN explicit call transfer, SIP REFER transmission
•ISDN Advice of Charge support
Context CS
ISDN Interfaces
encapsulation cc-isdn
bind commands
ISDN
Port
ISDN
Port
ISDN interface configuration task list 392
SmartWare Software Configuration Guide 34 • ISDN interface configuration
Configuring DTMF dialing (optional)
Most ISDN terminals support two modes of call setup: En-bloc dialing and overlap dialing. En-bloc dialing
transports the full called party information in the first SETUP message from the terminal. This means that the
user must dial the number before going off-hook. Overlap dialing transports the called-party number digit by
digit, after the first SETUP message, which contains no called-party information at all. Combinations between
en-bloc and overlap dialing are possible.
Most terminals use ISDN keypad facility messages to transport digits one-by-one in overlap dialing. But some
terminals, especially terminal adapters for analog devices, might transport the digits only using DTMF tones,
without associated keypad facility messages.
The DTMF dialing command enables the ISDN port for the use with such devices.
Be sure to only use this command when needed. Otherwise, called party information can be corrupted because
the digits arrive twice, as keypad facility messages and also as DTMF tones.
Procedure: To enable DTMF dialing
Mode: Interface ISDN
Example: Enable DTMF dialing
The following example shows how to enable DTMF dialing for a given ISDN interface.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface isdn MyIsdnIf
node(if-isdn)[myIsdnIf]#dtmf-dialing
Configuring an alternate PSTN profile (optional)
The PSTN profile contains the configuration for data/voice transmission on circuit-switched channels (see
chapter 48, “PSTN profile configuration” on page 597). In the case of ISDN interfaces, the PSTN profile
applies to the ISDN B-Channels associated with the interface.
There is a PSTN profile named default, which always exists in the system. If no different PSTN profile name is
explicitly configured on the ISDN interface, the profile default is used.
Procedure: To define an alternate PSTN profile for the ISDN interface
Mode: Interface ISDN
Step Command Purpose
1node(if-isdn)[if-name]#[no] dtmf-dialing Enables/Disables DTMF dialing (default: disabled)
Step Command Purpose
1node(if-isdn)[if-name]#[no] use profile
pstn profile-name
Defines an alternate PSTN profile to be used for
this ISDN interface/Reverts the setting to its default
(use profile PSTN default)
ISDN interface configuration task list 393
SmartWare Software Configuration Guide 34 • ISDN interface configuration
Example: Configure an alternate PSTN profile
The following example shows how to replace the PSTN profile default of the ISDN interface with the PSTN
profile myprofile.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface isdn myIsdnIf
node(if-isdn)[myIsdnIf]#use profile pstn myprofile
Configuring ringback tone on ISDN user-side interfaces
If a ring-back tone needs to be played towards the PSTN from an ISDN user-side interface, this can be forced
using the following command.
Mode: interface isdn <if-name>
Configuring call waiting (optional)
The term “call waiting” is used as follows in this context: If the port bound to this interface is configured to be
network side, and both ISDN B-Channels are engaged with calls, and there is a new outgoing call over this
interface, the interface can
a) Signal the new call to all connected terminals, although both B-Channels are in use. One terminal can then
put its current call on hold to accept the new one (putting the call on hold frees its B-Channel).
b) Not signal the new call, because there is no B-Channel available. This is the desired behavior particularly if
the bound port is part of a hunt-group, and no user terminals are connected.
Default behavior is a), using the command below in the inverted form, behavior b) is selected.
Procedure: To configure call waiting
Mode: Interface ISDN
Disabling call-waiting on ISDN DSS1 network interfaces
This procedure disables support for call-waiting on an ISDN DSS1 network interface.
Mode: interface isdn <if-name>
Step Command Purpose
1[name] (pf-isdn)[if-name]# [no] user-side-
ringback-tone
Enables ringback tone to be played on ISDN user-
side interfaces. Default: disabled.
Step Command Purpose
1node(if-isdn)[if-name]#[no] call-waiting Enable/disable call waiting feature as described
above (default: enabled)
Step Command Purpose
1[name] (if-isdn)[if-name]# no call-waiting Disable call-waiting.
ISDN interface configuration task list 394
SmartWare Software Configuration Guide 34 • ISDN interface configuration
Configuring Call-Hold on ISDN interfaces
Normally, the call-hold feature is disabled on ISDN point-to-point links and enabled on ISDN point-to-mul-
tipoint links. However, you can manually enable or disable the Call-Hold feature using the following com-
mand: The default setting can be achieved using the ‘auto’ configuration option.
Mode: interface isdn
Enabling Display Information Elements on ISDN Ports
By default no display information elements are sent in ISDN signaling messages. You can enable sending of
ISDN Display Information elements in ISDN signaling messages using the following command.
Mode: interface isdn
Configuring date/time publishing to terminals (optional)
ISDN allows to propagate current time and date information from a port configured as network to the con-
nected terminals. You can configure each ISDN interface to propagate the current SmartNode system time and
date to the connected terminals with the following command:
Procedure: To configure date and time publishing
Mode: Interface ISDN
Date and time information can only be contained in the ISDN CONNECT message. This message is only
delivered to a terminal when a call from the terminal to the SmartNode is made, and reaches connected state.
Step Command Purpose
1node(if-isdn)[if-name]# call-hold
{auto|enable|disable}
Enable or disable the call-hold functionality for
an isdn interface. If ‘auto’ is selected, call-hold is
automatically disabled on p2p links and enabled
on p2mp links.
Default: auto
Step Command Purpose
1node(if-isdn)[if-name]# [no] display
emit
Enable sending of the display information ele-
ment for an isdn interface.
Default: disabled
Step Command Purpose
1node(if-isdn)[if-name]#[no] isdn-date-time Enable/disable publishing of system time to con-
nected ISDN terminals (default: disabled)
ISDN interface configuration task list 395
SmartWare Software Configuration Guide 34 • ISDN interface configuration
Sending the connected party number (COLP) (optional)
Sending the connected party number (COLP) can be suppressed by the command send-connected- party-num-
ber.
Mode: context cs/interface isdn
Enabling sending of date and time on ISDN DSS1 network interfaces
This procedure enables sending of date and time information on an ISDN network side interface.
Mode: interface isdn <if-name>
Defining the ‘network-type’ in ISDN interfaces
The following command defines the location code to be inserted in ISDN causes code information elements.
Mode: interface isdn <if-isdn>
ISDN Explicit Call Transfer support (& SIP REFER Transmission)
Additional call transfer support is enabled by default for ISDN interfaces (BRI ports) by accepting or rejecting
explicit call-transfer (ECT) invocations. An ISDN phone that is connected to a BRI port and that has two
active calls can send an ECT invocation to connect the two calls inside the device. An ISDN interface can be
configured to accept or reject ECT invocations.
SmartWare detects calls that are looped internally, i.e. calls that leave the device over the same ISDN interface
over which they enter the device. If an internal loop is detected for an ISDN interface bound by an ISDN user
port, SmartWare sends an explicit call-transfer (ECT) to push back the call to the connected network as soon
as the call is connected. An ISDN interface can be configured to emit ECT invocations.
SIP interfaces react similarly to internally looped calls. If a call leaves the device over the same SIP gateway over
which it entered the device, SmartWare sends a REFER message to one of the remote user agents to transfer
the call to the two parties. A SIP interface can be configured to emit REFER messages.
Figure 56 shows an example scenario where a SIP network connects two devices to give a home office (HO)
access to a PBX in the central office (CO).
Step Command Purpose
1node(if-isdn)[if-name]#[no] send-con-
nected-party-number
Enables/Disables sending the connected-party-
number. Default: enabled.
Step Command Purpose
1[name] (if-isdn)[if-name]# isdn-date-time Enable sending of date and time.
Step Command Purpose
1[name] (if-isdn)[if-name]# network-type
[international|private|public|transit|user}
Defines the type of network to which the system
belongs.
ISDN interface configuration task list 396
SmartWare Software Configuration Guide 34 • ISDN interface configuration
Figure 56. Example SIP network connecting two device to give a home office access to the CO PBX
The phone in the home office has two active calls to other subscribers of the PBX in the central office. The user
wants to connect the other two participants and (a) sends an explicit call-transfer invocation to the device HO.
The device HO internally connects the two calls and sends a DISCONNECT message to the phone for both
calls. In a second step (b) the firmware on HO detects an internal loop. Both call legs are connected to the
same network. In this example, both call legs are handled by the same SIP gateway. The firmware on device
HO sends a REFER message to device CO, which connects the two call legs internally and sends a BYE mes-
sage to the device HO. (c) Again the firmware of CO detect an internal loop. This time the call legs are han-
dled by the same SIP interface, connected to the PBX. Since the ISDN port is a user port it sends an explicit
call-transfer invocation to the PBX (d), which connects the call and sends the device CO a DISCONNECT
message for both calls. During all these push back operations the datapath of the two participants
keeps connected.
The push back mechanism over ISDN (using ECT) and SIP (using REFER) works independently of the pro-
tocol that invoked the call-transfer. For example, the same scenario also works if the phone in the home office
is connected to an FXS port.
Central Office
Console
VoIP Media Gateway
ToIP Access Device
SmartNode 4118
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
0/4
0/5
0/6
0/7
SIP
Home Office
(a)
ECT
Console
VoIP Media Gateway
ToIP Access Device
SmartNode 4118
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
0/4
0/5
0/6
0/7
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
SIP
(b)
REFER
Console
VoIP Media Gateway
ToIP Access Device
SmartNode 4118
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
0/4
0/5
0/6
0/7
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
SIP
(c)
ECT
Console
VoIP Media Gateway
ToIP Access Device
SmartNode 4118
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
0/4
0/5
0/6
0/7
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
SIP
(d)
DISCONNECT
BYE
DISCONNECT
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0 V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
ISDN interface configuration task list 397
SmartWare Software Configuration Guide 34 • ISDN interface configuration
The push-back mechanism can be configured on each interface separately. Per default push-back is enabled for
ISDN and SIP interfaces. You only have to change the configuration if you don’t want internally looped calls to
be pushed back to the network. The configuration command [no] call-transfer accept configures if an incom-
ing call-transfer request (e.g. ECT or REFER) shall be accepted. The configuration command [no] call-
transfer emit configures if a call reaching the device over this interface and leaving the device over this interface
shall be pushed back to the network, i.e. if a call-transfer request (ECT or REFER) shall be sent.
The following procedure disables the push-back mechanism on the ISDN interface connected to the PBX. No
ECT invocation is sent when a call is detected that is looped internally.
The following procedure disables the push-back mechanism on a SIP interface. No REFER message is sent
when a call is detected that is looped internally.
ISDN Advice of Charge support
The exchange of “Advice of Charge” information is supported between two ISDN interfaces. The charge infor-
mation can be transmitted and received over H.323. (See Chapter 38, “H.323 interface configuration” on
page 431 for additional information on AOC-D support for H.323). Without configuration changes Smart-
Ware tunnels the “Advice of Charge” information from an ISDN user interface to an ISDN network interface.
However you can disable AOC-S, AOC-D or AOC-E separately on each interface.
The network sends tariff information about a call using AOC-S messages at call (S)etup time and during the
call when the tariff changes. Then (D)uring the call, the network sends the current charge in AOC-D mes-
sages. Finally at the (E)nd of the call, the network sends the total charge in an AOC-E message encapsulated in
the DISCONNECT or RELEASE message.
Step Command Purpose
1node(ctx-ip)[ctx-name]# interface isdn
<if-name>
Go to the ISDN interface, for which you want to
disable the push back mechanism.
2node(if-isdn)[if-name]# no call-transfer
emit
Disable the push back mechanism
Step Command Purpose
1node(ctx-ip)[ctx-name]# interface sip
<if-name>
Go to the SIP interface, for which you want to dis-
able the push back mechanism.
2node(if-sip)[if-name]# no call-transfer
emit
Disable the push back mechanism
ISDN interface configuration task list 398
SmartWare Software Configuration Guide 34 • ISDN interface configuration
The following procedure disables the reception of AOC messages from the network on an ISDN user interface.
AOC is a network option that can be disable or set to be active for all calls or only on a per-call basis. If your
network provider offers AOC on a per-call basis the firmware needs to request AOC information on each out-
going call. The following procedure enables the reception of AOC messages on an ISDN user interface. Addi-
tionally the interface sends an AOC activation request for each outgoing call to the network.
In default, an ISDN network interface provides AOC information to the connected phones only if available,
i.e. only if the call is routed to an ISDN user interface that is connected to a network providing AOC informa-
tion. The following procedure enables the transmission of AOC message on an ISDN network interface even if
Step Command Purpose
1node(ctx-ip)[ctx-name]# interface isdn
<if-name>
Go to the ISDN interface, for which you want to
disable AOC
2node(if-isdn)[if-name]# no aoc-s Disables the reception of AOC-S messages at call
setup time
3node(if-isdn)[if-name]# no aoc-d Disables the reception of AOC-D messages during
the call
4node(if-isdn)[if-name]# no aoc-e Disables the reception of AOC-E messages at the
end of the call
Step Command Purpose
1node(ctx-ip)[ctx-name]# interface isdn
<if-name>
Go to the ISDN interface, for which you want to
enable AOC on a per-call basis
2node(if-isdn)[if-name]# aoc-s explicit Enables the reception of AOC-S messages and
sends an AOC-S activation request for each outgo-
ing call
3node(if-isdn)[if-name]# aoc-d explicit Enables the reception of AOC-D messages and
sends an AOC-D activation request for each outgo-
ing call
4node(if-isdn)[if-name]# aoc-e explicit Enables the reception of AOC-E messages and
sends an AOC-E activation request for each outgo-
ing call
ISDN interface configuration task list 399
SmartWare Software Configuration Guide 34 • ISDN interface configuration
there is no AOC information from the network. In that case a message containing the value noChargeAvailable
is sent.
The following procedure enables the transmission of AOC message on a per-call basis. That is AOC messages
are sent by the connected phone only if configured for a per-call basis.
Step Command Purpose
1node(ctx-ip)[ctx-name]# interface isdn
<if-name>
Go to the ISDN network interface, for which you
want to enable AOC for all calls
2node(if-isdn)[if-name]# aoc-s automatic Enables the transmission of AOC-S messages even
if there is no tariff information from the network for
all calls
3node(if-isdn)[if-name]# aoc-d automatic Enables the transmission of AOC-D messages even
if there is not charge information from the network
for all calls
4node(if-isdn)[if-name]# aoc-e automatic Enables the transmission of AOC-E message even
if there is no charge information from the network
for all calls
Step Command Purpose
1node(ctx-ip)[ctx-name]# interface isdn
<if-name>
Go to the ISDN network interface, for which you
want to enable AOC on a per-call basis
2node(if-isdn)[if-name]# aoc-s explicit Enables the transmission of AOC-S messages even
if there is no tariff information from the network on
a per-call basis
3node(if-isdn)[if-name]# aoc-d explicit Enables the transmission of AOC-D messages even
if there is not charge information from the network
on a per-call basis
4node(if-isdn)[if-name]# aoc-e explicit Enables the transmission of AOC-E message even
if there is no charge information from the network
on a per-call basis
ISDN interface configuration task list 400
SmartWare Software Configuration Guide 34 • ISDN interface configuration
The following table shows an overview of the AOC variants:
no aoc-xaoc-x
transparent aoc-x automatic aoc-x explicit
Default option no yes no no
ISDN User Interface (connected to a PBX switch etc.)
No message from
the network
No information for-
warded to the
peer interface
No information for-
warded to the
peer interface
No information for-
warded to the
peer interface
Sends an aoc-x
request to the net-
work. If the network
rejects the request,
no information is for-
warded to the
peer interface
AOC message from
the network
No information for-
warded to the peer
interface
Information for-
warded to the peer
interface
Information for-
warded to the peer
interface
Information for-
warded to the peer
interface
ISDN Network Interface (connected to phones)
Phone does not
request AOC on a
per-call basis
No information sent Information sent as
received from the
network, no informa-
tion sent if the net-
work does not
provide information
Always send infor-
mation,
noChargeAvailable
sent if the network
does not provide
information
No information sent
Phone requests
AOC on a per-call
basis
No information sent Information sent as
received from the
network, no informa-
tion sent if the net-
work does not
provide information
Always send infor-
mation,
noChargeAvailable
sent if the network
does not provide
information
Always send infor-
mation,
noChargeAvailable
sent if the network
does not provide
information
ISDN interface configuration task list 401
SmartWare Software Configuration Guide 34 • ISDN interface configuration
ISDN DivertingLegInformation2 Facility
SmartWare is now able to extract the redirecting information from the DiverstingLegInformation2 Facility and
to provide them to the call control. In the other direction, the redirecting information can be sent as
DiverstingLegInformation2 Facility in addition to the Redirecting Number Information Element.
Transmit Direction
Mode: interface isdn <interface>
Receive Direction
Mode: interface isdn <interface>
T1 Caller-Name Support
The ISDN implementation now supports reception and transmission of the caller-name on T1 links as it is
used in NI2 networks according to Bellcore GR-1367-CORE. Transmission of the caller-name is part of the
Calling Name Delivery (CNAM) service.
In previous build series (R3.20), the caller-name was already supported for DSS-1 networks using User-User
information elements and for Q.SIG (PSS-1) networks using FACILITY messages. Now the caller-name is also
supported for NI2 networks following the Bellcore standard.
As a prerequisite, the caller-name feature must be enabled on each ISDN interface in the CS context separately.
This command now has additional arguments to configure the SETUP retention as follows:
In NI2 networks an incoming ISDN SETUP message may contain a NameInfomationFollowing indication
instead of the name. This means that the calling-party name is not available yet, but will be sent later, for exam-
ple, after the dictionary database lookup in progress succeeded. If such an incoming ISDN call is internally
routed to another network (e.g. to a SIP network or to a ISDN DSS-1 network), we must know the name
before sending the initial INVITE or SETUP message towards the destination network. Therefore we must
retain the SETUP message of the incoming ISDN call until the name is present. The caller-name command
now allows you to configure the behaviour of this SETUP retention mechanism. There are three possible
options:
•caller-name ignore-absence <timeout>: This configuration command specifies the behaviour for incoming
ISDN calls. When a NameInformationFollowing indication is received with the SETUP message, the call-
initiation is retained until the name is received or until this timeout elapses. After that, the call is forwarded
to the configured destination interface. When forwarding a call without a caller-name to a SIP network,
please note that there is no chance to send the caller-name later over SIP.
Step Command Purpose
1 [name] (if-isdn)[interface]#[no] diversion
emit
Enables or disables transmitting of the
DivertingLegInformation2 Facility.
Step Command Purpose
1 [name] (if-isdn)[interface]#[no] diversion
accept
Enables or disables receiving of the
DivertingLegInformation2 Facility.
ISDN interface configuration task list 402
SmartWare Software Configuration Guide 34 • ISDN interface configuration
•caller-name early-alerting <timeout>: This configuration command specifies the behaviour for incoming
ISDN calls. Some networks only deliver the name after an alerting indication. These networks simulate the
mid-ring name delivery feature of analog lines. If early alerting is enabled, we send back a faked ALERT-
ING message after a configurable timeout when we receive a NameInformationFollowing indication. This
command can be used together with the ignore-absence command. For example, you can configure an
interface to first generate an ALERTING message and later forward the call anyway. If used that way, the
early-alerting timeout should be smaller than the ignore-absence timeout.
•caller-name send-information-following: This configuration command specifies the behaviour for outgo-
ing ISDN calls. If there is no name from the originating network, the ISDN interface configured with this
command sends a NameInformationFollowing indication to the remote side itself.
The following example enables and configures the caller-name feature on a T1 ISDN interface for incoming
calls. If no name is present in the SETUP message, but the SETUP message contains the NameInformationFol-
lowing indication, an ALERTING message is sent back after 500ms. If there is no name after additional 500ms
the call is routed to the destination network anyway.
Mode: context cs / interface isdn
Step Command Purpose
1node(if-isdn)#caller-name Enables reception of the caller-name.
2node(if-isdn)#caller-name early-alerting
500
(optional) If no name is present in an incoming
ISDN call and if the incoming SETUP message con-
tains the NameInformationFollowing indication,
we send a fake ALERTING message after 500ms
towards the caller. The SETUP message is retained
for this period, i.e. the call is not forwarded to the
configured destination.
This step is optional. When not configured, an
ALERTING message is faked after 2s by default.
You can disable faking an ALERTING message by
using the “no” form of the command.
Note: If the ignore-absence timeout is also config-
ured, the early-alerting timeout should have a
smaller value than the ignore-absence timeout.
ISDN interface configuration task list 403
SmartWare Software Configuration Guide 34 • ISDN interface configuration
The following example enables and configures the caller-name feature on a T1 ISDN interface for outgoing
calls. It enables the transmission of the NameInformationFollowing indication (encapsulated into sent SETUP
message) when no name is present from the originating network:
Mode: context cs / interface isdn
3node(if-isdn)#caller-name ignore-
absence 1000
(optional) If no name is present in an incoming
ISDN call and if the incoming SETUP message con-
tains the NameInformationFollowing indication,
we forward the call to the routing destination any-
way after 1000ms (500ms after faking the ALERT-
ING message in this example).
This step is optional. When not configured, the call
is forwarded after 4s by default.
You can disable forwarding a call without a name
by using the “no” form of the command.
Note: The specified timeout is measured starting
at the reception of the SETUP message, not when
the early-alerting timeout elapses.
Step Command Purpose
1node(if-isdn)#caller-name Enables transmission of the caller-name.
2node(if-isdn)#caller-name send-informa-
tion-following
If no name has been received from the originating
network a NameInformationFollowing indication is
send encapsulated into the SETUP message for the
outgoing ISDN call. This feature is disabled
by default.
Step Command Purpose
404
Chapter 35 FXS interface configuration
Chapter contents
Introduction........................................................................................................................................................405
FXS interface configuration task list ....................................................................................................................405
Configuring a subscriber number (recommended) ........................................................................................405
Configuring an alternate PSTN profile (optional) .........................................................................................406
Configuring caller-ID presentation (optional) ...............................................................................................406
Configuring flash hook processing (optional) ................................................................................................406
Configuring ringing-cadence (optional) ........................................................................................................407
Configuring the Message Waiting Indication feature for FXS .......................................................................408
Configuration .........................................................................................................................................408
Frequency-shift keying ............................................................................................................................409
FXS supplementary services description...............................................................................................................410
Call hold .......................................................................................................................................................411
Call waiting ...................................................................................................................................................411
Call waiting reminder ring ............................................................................................................................412
Drop passive call ...........................................................................................................................................412
Drop active call .............................................................................................................................................412
Call toggle .....................................................................................................................................................412
Call transfer ..................................................................................................................................................412
Conferencing ................................................................................................................................................413
Call park .......................................................................................................................................................413
Introduction 405
SmartWare Software Configuration Guide 35 • FXS interface configuration
Introduction
This chapter provides an overview of FXS interfaces, and the tasks involved in their configuration. This chapter
does not explain the basic configuration steps equal to all CS interfaces. Information about basic interface con-
figuration can be found in the general chapter about CS interface configuration (see chapter 33, “CS interface
configuration” on page 381).
An FXS interface represents the connection of an analog FXS port signaling to the call control of SmartWare.
It encapsulates the signaling of the exchange side of a FXS line, allows incoming and outgoing calls on this line,
controls the line events, tones and datapath, and provides a set of supplementary services. There is a one-to-one
relation between the port and the interface: Only one port can bind to an existing interface, and there must be
a port that binds to the interface for the interface to become functional (see figure 57).
Figure 57. FXS interfaces on the CS context
FXS interface configuration task list
This section describes the configuration tasks for FXS interfaces. There is no mandatory configuration for basic
FXS operation.
•Configuring a subscriber number (recommended) (see page 405)
•Using an alternate PSTN profile (optional) (see page 406)
•Configuring caller-id presentation (optional) (see page 406)
•Configuring flash hook processing (optional) (see page 406)
Configuring a subscriber number (recommended)
Contrary to ISDN, where each terminal knows its own subscriber number (MSN), an analog device doesn't
have this capability. If such a device is connected to an FXS port and makes an outgoing call (goes off hook and
dials), the dialed digits form the called party number. But there is no calling party information available from
the FXS protocol. To insert calling party information and make it available to other protocols over which the
call may be transported, a subscriber number must be configured on the interface.
Note The configured subscriber number does not affect the routing of incoming
calls on the interface.
Context CS
FXS Interfaces
encapsulation cc-fxs
bind commands
FXS
Port
FXS
Port
FXS interface configuration task list 406
SmartWare Software Configuration Guide 35 • FXS interface configuration
Mode: Interface FXS
Configuring an alternate PSTN profile (optional)
The PSTN profile contains the configuration for data/voice transmission on circuit-switched channels (See
chapter 48, “PSTN profile configuration” on page 597). In the case of FXS interfaces, the PSTN profile applies
to the analog line associated with the interface. There is a PSTN profile named default, which always exists in
the system. If no different PSTN profile name is explicitly configured on the FXS interface, the profile named
default is used.
Mode: Interface FXS
Configuring caller-ID presentation (optional)
FXS/FXO protocols allow the presentation of the caller-ID (calling party number and name of an incoming
call) to an analog terminal when the terminal is ringing. (See Chapter 43, “FXS port configuration” on
page 537 for other caller-ID related settings.) Use this command to configure presentation of the calling party
number to the analog device connected to the FXS port associated with the interface.
Mode: Interface FXS
Configuring flash hook processing (optional)
The flash-hook command specifies if the flash hook pattern must be handled locally or if it must be relayed to
the remote subscriber. Per default flash hook is handled locally because it is the initial pattern for local initiated
supplementary services. If the flash hook is relayed to the remote subscriber, the local user will not be able to
initiate a second call. The relay feature is used if the termination instance of the remote protocol is configured
to handle all the supplementary services.
Mode: Interface FXS
Step Command Purpose
1[name](if-fxs)[name]#[no] subscriber-
number <number>
Applies a subscriber number for the fxs interface.
The no form of the command clears an existing one.
Default: none
Step Command Purpose
1[name](if-fxs)[name]#use profile pstn
profile-name
Defines an alternate PSTN profile to be used for this
FXS interface.
Step Command Purpose
1[name](if-fxs)[name]#[no] caller-id-pre-
sentation {pre-ring | mid-ring}
Enables/Disables the caller-id presentation and
defines if it must be sent before ring starts or in the
first ring pause.
Step Command Purpose
1[name](if-fxs)[name]#flash-hook {han-
dle-locally | relay}
Defines processing instance of the flash hook pat-
tern.
Default: handle-locally
FXS interface configuration task list 407
SmartWare Software Configuration Guide 35 • FXS interface configuration
Configuring ringing-cadence (optional)
The ringing-cadence on FXS Ringing-cadence profiles can be used on FXS interfaces. Each profile consists of a
sequence of different rings and ring pauses. Arbitrary ring cadences of up to 10 elements can be configured.
The sequence in which the commands are entered (or appear in the config file) defines the sequence in which
the corresponding elements are played. If the profile consists of only one element, the element will be repeated
forever, causing an endless ring or pause. An empty ringing-cadence will lead to an endless pause.
The profile ringing-cadence must be bound from the respective interface to become effective. Alternatively the
profile ringing-cadence default can be modified to modify the ringing-cadence on all FXS interfaces.
Mode: Configure
Example: Define an example ringing-cadence
The first line defines the first element of the cadence: 500ms. The second line a pause of 500ms and so on. The
cadence is repeated infinitely.
node(cfg)#profile ringing-cadence example
node(pf-ringingcad)[example]#play 500
node(pf-ringingcad)[example]#pause 500
node(pf-ringingcad)[example]#play 500
node(pf-ringingcad)[example]#pause 3000
Step Command Purpose
1[name](cfg)#profile ringing-cadence
name
Creates a ringing-cadence profile with name name
and enters ringing-cadence configuration mode.
2[name](pf-ringingcad)[name]#play
<duration>
Defines a ring with duration duration.
3[name](pf-ringingcad)[name]#pause
<duration>
Defines a pause with duration duration.
4[name](pf-ringingcad)[name]#... Repeat step 2 and/or step 3 to define a ringing-
cadence. If not specified otherwise, the new entries
are appended to the existing cadence.
5[name](pf-ringingcad)[name]#flush-ele-
ments
Resets the ringing cadence. Same as deleting and
re-creating the profile.
FXS interface configuration task list 408
SmartWare Software Configuration Guide 35 • FXS interface configuration
Configuring the Message Waiting Indication feature for FXS
Note Message Waiting Indication is programmed in two sections of SmartWare,
the FXS interface and the SIP Location service. The information below
refers to information for configuring the Message Waiting Indication feature
for FXS. For information on configuring the Message Waiting Indication
feature for SIP, see “Configuring the Message Waiting Indication feature for
SIP” on page 619.
FXS interface configuration mode allows a selection of the way in which notifications about new voice mes-
sages are performed. Supported modes are:
1. Stuttered dial tone (if there is a new message/messages in users voice mailbox, for 3 seconds after taking the
phone off-hook the dial-tone will “stutter”, producing short delays between the dial-tone cadence)
2. Visual Message Waiting Indication utilizing frequency shift keying signaling. Visual MWI-enabled FXS
phones have a LED on the case to represent a new voice message. The led will blink (or will simply light
up) when a new message arrives to the voice mailbox.
3. Both Stuttered dial tone from p.1 and Visual Message Waiting Indication from p.2.
Configuration
You can enable both stutter dial tone and visual message waiting indication at the same time issuing both mes-
sage-waiting-indication commands independently.
Step Command Purpose
1[node](if-fxs)[name]#[no] message-wait-
ing-indication stutter-dial-tone
Enables/Disables Message Waiting Indication
through Stuttered Dial Tone
Step Command Purpose
1[node](if-fxs)[name]#[no] message-wait-
ing-indication frequency-shift-keying
Enables Visual Message Waiting Indication through
frequency shift keying signaling
FXS interface configuration task list 409
SmartWare Software Configuration Guide 35 • FXS interface configuration
Frequency-shift keying
Frequency-shift keying signaling can be specified in FXS port configuration mode, in one of the following for-
mats:
1. Multiple Data Message Format (MDMF) (etsi standard) (default).
2. Single Data Message Format (SDMF) (bell standard).
To enable frequency-shift keying by MDMF standard, use the existing caller-id format command.
Note MDMF(etsi) is a default value and it will not be visible in “show running-
config” output.
To enable frequency-shift keying by SDMF standard, use existing caller-id format command (please note that
as of May 21st, 2008 there were no confirmed test results about SDMF frequency-shift keying signaling func-
tioning properly):
Note The tone cadence for stutter dial tone can be set in profile tone-set mode.
The tone type name for a tone that should represent a waiting message is
message-waiting-tone and by default it is set to defaultStuttertone
(on,100,425,-7,off,100). Refer to Chapter 42, “Tone configuration” on
page 529 for information on setting up tone profiles.
Step Command Purpose
1[node](prt-fxs)[num/num]#caller-id for-
mat etsi
Selects MDMF standard for sending frequency-shift
keyed messages
Step Command Purpose
1[node](prt-fxs)[num/num]#caller-id for-
mat bell
Selects SDMF standard for sending frequency-shift
keyed messages
FXS supplementary services description 410
SmartWare Software Configuration Guide 35 • FXS interface configuration
FXS supplementary services description
FXS interfaces offer a set of supplementary services. Some of these services are locally terminated. Others, like
conferencing, push the involved subscribers to an external service. These supplementary services are:
•Call hold (see page 411)
•Call waiting (see page 411)
•Call waiting reminder ring (CWRR) (see page 411)
•Drop passive call (held or waiting) (see page 412)
•Drop active call (connected call), accept passive call (held or waiting) (see page 412)
•Call toggle (see page 412)
•Call transfer (see page 412)
•Conferencing (see page 413)
•Call park (see page 413)
Note The local subscriber is always the one who executes the service.
The services call hold and call waiting allow the local subscriber to open or accept a second call. This is the
condition for all the other services that are applied as soon as the local subscriber has two calls initiated to
remote subscribers. That means the call hold service can only be applied as long as only one call is ongoing. All
the above described service can be executed by a key pattern. Some of these services have permanent patterns
for the others they can be configured by the user.
Note The flash pattern always has the short notation, '!'.
Table 14. FXS services with permanent patterns
Service Default Pattern
Call hold !
Call transfer On-Hook
Table 15. FXS services with configurable patterns
Service Default Pattern
Drop passive call !0
Drop active call, accept passive call !1
Call toggle !2
Conferencing !3
Call park *98
FXS supplementary services description 411
SmartWare Software Configuration Guide 35 • FXS interface configuration
The command to change the key patterns is available in the interface fxs configuration mode. If the patterns
start with the same key sequence, they should also have the same length. The key parser is of type best match-
ing so it executes the service of the first pattern that represents a full match.
Mode: Interface FXS
Call hold
This service is used to set the remote subscriber on hold and offers the possibility to set up a second call to the
local subscriber. Call hold is activated by flash and then the local subscriber will hear the dial tone and the
remote subscriber will be set on hold. For the action on the remote side, the far end device is responsible. It can
play the hold tone, hold music or an inband message. In this state, the held subscriber can be retrieved by
touching flash. If the local subscriber hears the dial tone and doesn't start dialing, the call waiting tone will play
after a timeout of five seconds. To retrieve the held subscriber in this state, touch flash. It is possible to disable
this service by executing the command no additional-call-offering on the fxs interface.
Mode: Interface FXS
Call waiting
The call waiting service doesn't need a special pattern. The user can use either drop passive call to reject the
incoming call, can use call toggle to hold the active call and to accept the incoming call or can use drop active
call to disconnect the current one and to switch to the incoming call. Call waiting can be explicitly disabled by
executing the no call-waiting command on the fxs interface.
The user of the device connected to the FXS port can be given the option to activate/deactivate call waiting by
means of a special digit sequence touched on the keypad of his device (see section, “Configuring the precall ser-
vice tables” on page 388). The configuration in the fxs interface is administrative what means if call waiting is
disabled here, the user cannot activate it anymore.
Mode: Interface FXS
Step Command Purpose
1[name](if-fxs)[name]#[no] {drop-passive
| drop-active | toggle | coference} <pat-
tern>
Defines a new key pattern for the selected service.
The no form of the command clears the existing pat-
tern and disables the service.
Use '!' for flash in a service pattern.
Step Command Purpose
1[name](if-fxs)[name]#[no] additional-
call-offering
Enables or disables the call hold feature.
Default: enabled
Step Command Purpose
1[name](if-fxs)[name]#[no] call-waiting Enables or disables the call-waiting service
Default: enabled
FXS supplementary services description 412
SmartWare Software Configuration Guide 35 • FXS interface configuration
Call waiting reminder ring
If a remote subscriber disconnects the call, the local subscriber will hear the release tone and go on-hook. But,
if there is still a pending remote subscriber that has been previously set on hold, the phone rings right after on-
hook. If the local subscriber goes off-hook, the user will be connected again with the previously held remote
subscriber. It is possible to navigate to the pending held subscriber. As soon as the release tone appears, the local
subscriber can touch flash to connect again.
Drop passive call
If the local subscriber hears the call waiting tone that indicates a second incoming call and decides not to dis-
turb the current one, the drop passive call feature rejects the waiting call. It can also be used to drop a pending
call that has been previously set on hold.
Drop active call
The drop active call service can be used if the local subscriber has an active call and a call previously set on
hold. This feature provides the possibility to drop the active call and to switch to the hold one without going
on-hook first.
Call toggle
In general, the call toggle feature is used to switch between an active and a passive call. The passive call can
either be a call previously set on hold or a waiting call.
Call transfer
The call transfer feature is only available if the second call was originated by the local subscriber. For execution,
the local subscriber goes on-hook and the active call and the held call will be transferred together. If the second
call was an incoming call, the active call will be dropped and the CWRR will appear to signal a pending hold
call. It is possible to disable this service by executing the command no call-transfer on the fxs interface.
Mode: Interface FXS
Step Command Purpose
1[name](if-fxs)[name]#[no] call-transfer Enables or disables the call transfer feature.
Default: enabled
FXS supplementary services description 413
SmartWare Software Configuration Guide 35 • FXS interface configuration
Conferencing
When executing a conference, all involved calls will be handed to a given call-router conference service. It is
then the responsibility of this service to initiate the conference. Conference services are configured in the Con-
text CS and are protocol specific. The sip-conference service can be used to address a SIP Media Server for con-
ferencing according to RFC4240 (see section, “SIP conference-service” on page 525).
Conferencing can only be executed if the second call was originated by the local subscriber. If the second call is
an incoming call and the local subscriber tries to conference, the call toggle service will be executed.
Mode: Interface FXS
Call park
The call park service allows parking an ongoing call on a specific number. This park number starts with a spe-
cific Park Code that must be configured with the 'service-pattern' command. After the user presses 'flash' to
open a new call and the dialed number starts with the defined park service-pattern, the service will be executed
five seconds after the last digit has been pressed or the user completes the number with the '#' character. This
service is not handled locally, which means that another entity must be contacted that offers it.
On some SIP servers, it is possible to park a call on a specific number by using the blind-transfer feature. This
is what the FXS park-call service achieves in an FXS/SIP call. It forces the SIP endpoint to execute a blind
transfer where the Refer-To header contains the park number.
To change the park service pattern, the already existing 'service-pattern' command has the option 'park' that
allows the user to overwrite the default setting.
Mode: Interface FXS
Step Command Purpose
1[name](if-fxs)[name]#[no] route confer-
ence dest-service <service-name>
Specifies the routing destination for a conference.
The no form of the command clears an existing
route.
Step Command Purpose
1[name](if-fxs)[name]#[no] {drop-passive |
drop-active | toggle | conference | park}
<pattern>
Defines a new key pattern for the selected service.
The no form of the command clears the existing pat-
tern and disables the service. Use '!' for flash in a
service pattern.
414
Chapter 36 FXO interface configuration
Chapter contents
Introduction........................................................................................................................................................415
FXO services description .....................................................................................................................................416
Creating an FXO interface...................................................................................................................................416
Deleting an FXO interface...................................................................................................................................417
FXO interface configuration task list ...................................................................................................................418
FXO off-hook on caller ID ...........................................................................................................................418
Configuring an alternate PSTN profile (optional) .........................................................................................418
Configuring when the digits are dialed (optional) .........................................................................................419
Configuring the number of rings to wait before answering the call (optional) ...............................................421
Configuring how to detect a call has disconnected (optional) ........................................................................422
Configuring how to detect an outgoing call is connected (optional) ..............................................................423
Configuring the destination of the call ..........................................................................................................424
FXO Mute dialing ........................................................................................................................................424
FXO interface examples ................................................................................................................................425
Introduction 415
SmartWare Software Configuration Guide 36 • FXO interface configuration
Introduction
This chapter provides an overview of FXO interfaces and the tasks involved in configuring them. This chapter
does not explain the basic configuration steps common to all Context Switch (CS) interfaces. Information
about basic interface configuration can be found in chapter 33, “CS interface configuration” on page 381.
An FXO, Foreign eXchange Office, interface connects to an FXS, Foreign eXchange Subscriber, interface. These two
interfaces are used in analog telephony. The FXS interface is provided at the central office in order to connect to
telephones, modems, PBXs, faxes, etc. Telephones and modems are FXO interfaces and want to connect to the
central office. The FXO interface in the SmartNode products is like the telephone and modem interface.
In SmartWare, an FXO interface functions to connect the analog FXO port’s call signaling to the call control
process in SmartWare. Recall that an interface in SmartNode products is a logical device and a port is a physical
device. So the FXO feature consists of the logical interface with all its processes together with its configurable
parameters and the physical interface for the actual analog, 2-wire connection to an FXS device. There is a one-
to-one correspondence between the port and the interface.
In order for the interface to be able to make a connection over the 2-wire analog line, there must be a port bound
to the interface (see figure 58). For more information on ports, interfaces, and binding, see section “Interfaces,
Ports, and Bindings” on page 47. For specific details on binding the FXO port to an FXO interface, see section
“Bind FXO ports to higher layer applications” on page 543.
Figure 58. FXO interfaces on the CS context
This chapter includes the following sections:
•FXO services description (see page 416)
•Creating an FXO interface (see page 416)
•Deleting an FXO interface (see page 417)
•FXO interface configuration task list (see page 418)
Context CS
FXO Port
(physical)
FXO Interfaces
(logical)
“encapsulation cc-fxo”
and
"bind" commands
FXO Port
(physical)
FXO services description 416
SmartWare Software Configuration Guide 36 • FXO interface configuration
FXO services description
The wide variety of applications and services are supported through a rich feature set. The major characteristics
and features are
•2-wire loop-start
•Off-hook and ring detection supervision
•Automatic and programmable line gain
•Programmable ring count before call pick-up
•End-of-call detection by line drop (call release indication), busy tone detection and battery reversal detection
•Hook-flash sending: programmable duration, H.245 hook-flash relay (“!” in user input) which provides
Cisco compatibility
•DTMF send and detect: programmable interdigit timer, DTMF-relay
•Caller ID (CLID) and Caller ID names FSK command line interface reception and relay to VoIP signaling
(Bellcore/ANSI and ETSI/ITU)
•Call routing based on caller ID
•Second dial-tone for two-stage DTMF dialing with call routing based on DTMF numbers.
Creating an FXO interface
Interface names can be any arbitrary string. Use self-explanatory names for your interfaces to reflect their
usage in your application. After creating the FXO interface, it is necessary to bind the FXO interface. Refer
to chapter 44, “FXO port configuration” on page 542 for details.
Mode: Context CS
You enter Context CS, one of the configuration modes, as follows.
Note Node is the host name you have assigned to your SmartNode and is the
basic prompt.
Step Prompt & command Purpose
1 node> Basic prompt in Operator Exec mode
2 node>enable Enters Administration execution mode
node# The prompt in administration execution mode
3 node#configure Enters the Configure configuration mode
node(cfg)# The prompt in the Configure configuration mode
4 node(cfg)#context cs Enters the context “CS” for Circuit Switch
node(ctx-cs)[switch]# The prompt in the Context CS configuration mode
Deleting an FXO interface 417
SmartWare Software Configuration Guide 36 • FXO interface configuration
Once you are in the Context CS mode, you can enter the FXO configuration mode with the next steps.
Example: Create an FXO interface named PSTN-FALLBACK
The following commands would be used—in Context CS mode—to create an FXO interface named
PSTN-FALLBACK:
node(ctx-cs)[switch]#interface fxo PSTN-FALLBACK
node(if-fxo)[PSTN-FA~]#
Deleting an FXO interface
Almost every configuration command has a no form. In general, use the no form to disable a feature or func-
tion. Use the command without the no keyword to re-enable a disabled feature or to enable a feature that is
disabled by default. The no form of the FXO interface deletes the interface.
Mode: Context CS.
Step Prompt & command Purpose
5 node(ctx-cs)[switch]#interface fxo name The “interface fxo” command creates the new
interface name, which represents an FXO inter-
face. This command also places you in the FXO
interface configuration mode for the created inter-
face.
6 node(if-fxo)[name]# You are now in the FXO interface configuration
mode. In this mode, you may configure the param-
eters for the FXO interface name
Step Prompt & command Purpose
1 node> Basic prompt in Operator Exec mode
2 node>enable Enters Administration execution mode
node# The prompt in administration execution mode
3 node#configure Enters the Configure configuration mode
node(cfg)# The prompt in the Configure configuration mode
4 node(cfg)#context cs Enters the context “CS” for Circuit Switch
node(ctx-cs)[switch]# The prompt in the Context CS configuration
mode
5 node(ctx-cs)[switch]#no interface fxo name Deletes the existing interface name
FXO interface configuration task list 418
SmartWare Software Configuration Guide 36 • FXO interface configuration
FXO interface configuration task list
There are numerous configurable parameters that apply to the FXO interface. The basic commands are listed
with a short description of their function.
•ring-number on-caller-id—Determines if the FXO interface will go off-hook upon reception of a speci-
fied caller-ID.
•use profile pstn—Defining and applying an alternate PSTN profile for a specific FXO interface
•dial-after—Selecting whether the FXO interface dials after a pre-defined time or after detection of dial-tone
•ring-number—Defining how many rings are received before answering an incoming call
•disconnect-signal—Selecting the method of determining a call has been disconnected
•connect-signal—Choosing how to detect the connection on the remote end of an outgoing call
•route—Determining the destination (interface) for the incoming call
FXO off-hook on caller ID
A new option has been added to the command “ring-number”. Instead of specifying the number of ring bursts
to wait before going off-hook (for calls coming in through FXO), it is now also possible to go off-hook upon
reception of the caller-ID. With this setting, if a caller ID is available, the time before FXO goes off-hook to
accept the call can be decreased by 2 to 3 seconds. If no caller ID is detected, the call is accepted upon recep-
tion of the second ring-burst.
Mode: Interface FXO
Configuring an alternate PSTN profile (optional)
The PSTN profile has the following configurable parameters:
•Echo canceller (can be enabled or disabled)
•Output gain, which sets the volume of the output of the PSTN interface and port, in this case, FXO.
To define an alternate PSTN profile for the FXO interface, first create the profile according to instructions in
chapter 48, “PSTN profile configuration” on page 597. Then you can apply the newly defined PSTN profile to
a specific FXO interface with the use command as follows.
First enter the Interface FXO configuration mode.
Step Prompt, command & response Purpose
1 [name] (if-fxo)# ring-number on-caller-id Accepts a call coming in through FXO after
reception of the caller ID or the second ring
burst. Default: 1 ring.
FXO interface configuration task list 419
SmartWare Software Configuration Guide 36 • FXO interface configuration
Mode: Interface FXO
Now we can apply the PSTN profile for the FXO interface named name as follows.
Configuring when the digits are dialed (optional)
When the FXO port goes off-hook to make an outgoing call, the FXS switch normally sends a dial-tone to
indicate it is ready to received dialed digits. Alternatively, you can specify the FXO interface to wait a specific
period of time after going off-hook before dialing the first digit.
Note All countries do not have the same dial-tone. For information on configur-
ing the dial-tone for your country, refer to chapter 42, “Tone configuration”
on page 529.
The default setting is to wait for the dial-tone. If you choose to wait a specific time after going off-hook, the
variable is timeout and specify the number of seconds to wait. Zero (0) seconds means that the interface dials
immediately.
Step Prompt, command & response Purpose
1 node> Basic prompt in Operator Exec mode
2 node>enable Enters Administration execution mode
node# Response: The prompt in administration execu-
tion mode is the #
3 node#configure Enters the Configure configuration mode
node(cfg)# Response: The prompt in the Configure configu-
ration mode is (cfg)#
4 node(cfg)#context cs Enters the Context CS configure mode
node(ctx-cs)[switch]# Response: The prompt in the Context CS configu-
ration mode is (ctx-cs)[switch]#
5 node(ctx-cs)[switch]#interface fxo if-name Enter the Interface FXO configuration mode
node(if-fxo)[if-name]#Response: The prompt in the Interface FXO con-
figuration mode is (if-fxo)[if-name]#
Step Prompt, command & response Purpose
6 node(if-fxo)[if-name]#[no] use profile pstn profile-name The “profile pstn” command is
applied to the FXO interface
named if-name
node(if-fxo)[if-name]#Response: You are now in the
FXO interface configuration
mode. In this mode, you may con-
figure the parameters for the FXO
interface name.
FXO interface configuration task list 420
SmartWare Software Configuration Guide 36 • FXO interface configuration
Mode: Interface FXO
Example: Setting the timeout to be 4 seconds after going off-hook when initiating a call. The timeout is set for
the FXO interface named Line0.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface fxo Line0
node(if-fxo)[Line0]#dial-after timeout 4
You can verify the change in configuration by using the show running-config command.
This is one of the few commands that does not have a no inverse operation of the command. If you want to
change the timeout period, re-enter the command with the new timeout period. The other option is to wait
for dial-tone. To return to the default (waiting for dial-tone before dialing), enter the command again
using dial-tone.
Step Prompt, command & response Purpose
1 node> Basic prompt in Operator
Exec mode
2 node>enable Enters Administration execu-
tion mode
node# Response: The prompt in
administration execution
mode is the #
3 node#configure Enters the Configure configu-
ration mode
node(cfg)# Response: The prompt in the
Configure configuration
mode is (cfg)#
4 node(cfg)#context cs Enters the Context CS config-
ure mode
node(ctx-cs)[switch]# Response: The prompt in the
Context CS configuration
mode is (ctx-cs)[switch]#
5 node(ctx-cs)[switch]#interface fxo if-name Enter the Interface FXO con-
figuration mode
node(if-fxo)[if-name]#Response: The prompt in the
Interface FXO configuration
mode is (if-fxo)[if-name]#
6 node(if-fxo)[if-name]#dial-after {dial-tone | timeout seconds}Specifies whether to dial
after detection of dial-tone
(default) or to wait for a
specified timeout (in sec-
onds). Zero (0) seconds will
initiate dialing immediately
after going off-hook.
FXO interface configuration task list 421
SmartWare Software Configuration Guide 36 • FXO interface configuration
Note Verify that you have configured the dial-tone for the country in which the
SmartNode is installed. (see chapter 42, “Tone configuration” on page 529).
If the dial-tone is not configured for the proper country, the FXO interface
will not detect when the remote FXS switch is sending dial-tone.
Configuring the number of rings to wait before answering the call (optional)
An FXO port identifies an incoming call by detecting the ring from the FXS switch. The ring-number is a
configurable parameter which selects the number of rings before answering the incoming call, that is, before
going off-hook and establishing the call. The minimum value for ring-number is zero (0). With a ring-num-
ber of zero, the FXO interface never answers an incoming call.
Due to variations between countries, the proper setting may be 1 or 2. In the USA the Caller-ID (CLID) is sent
to the FXO port between the first and second ring, so a ring-number of 2 would be appropriate. On the other
hand, numerous countries send the CLID prior to the first ring, so the default setting of 1 would be satisfactory.
Mode: Interface FXO
Example: Configure the ring number to wait for CLID by setting the count to 2. The name of the specific FXO
interface is pstn-local.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface fxo pstn-local
node(if-fxo)[pstn-local]#ring-number 2
You can verify the change in configuration by using the show running-config command.
Step Prompt, command & response Purpose
1 node> Basic prompt in Operator Exec mode
2 node>enable Enters Administration execution mode
node# Response: The prompt in administration execu-
tion mode is the #
3 node#configure Enters the Configure configuration mode
node(cfg)# Response: The prompt in the Configure configu-
ration mode is (cfg)#
4 node(cfg)#context cs Enters the Context CS configure mode
node(ctx-cs)[switch]# Response: The prompt in the Context CS configu-
ration mode is (ctx-cs)[switch]#
5 node(ctx-cs)[switch]#interface fxo if-name Enter the Interface FXO configuration mode
node(if-fxo)[if-name]#Response: The prompt in the Interface FXO con-
figuration mode is (if-fxo)[if-name]#
6 node(if-fxo)[if-name]#ring-number count Specifies the number of rings to wait before
going off-hook. Default = 1 ring.
FXO interface configuration task list 422
SmartWare Software Configuration Guide 36 • FXO interface configuration
Configuring how to detect a call has disconnected (optional)
When a call has disconnected, the FXO interface may detect and verify the termination of the phone call by
three different methods.
•Detect a busy tone or release tone
•Detect a loop break (if provided by the FXS switch)
•Detect battery reversal (if provided by the FXS switch)
•Detect a dtmf signal
•Configure loop break timing
The selection of the method, if any of the three, is via the disconnect-signal command. The default enables
only loop-break. Upon detecting a loop break, the FXO interface proceeds to clear the call on the SmartNode.
In some instances, the user may need to transmit all of the in-band information (tone signal, announcement)
to the end party after disconnection has occurred.
The disconnect-signal command can be used to enable or disable the three detection methods. If all three
methods are disabled, the call is cleared after a period of 30 seconds from reception of the disconnect signal.
Consequently it becomes the responsibility of the end party to execute the on-hook (completing the discon-
nection phase) for the call to be completely cleared.
Note Verify that the busy and release tones are correctly configured for the country
where the SmartNode is installed (see chapter 42, “Tone configuration” on
page 529 for configuration information. If the tones are improperly config-
ured, the FXO port will not detect them, resulting in missed phone calls.
Mode: Interface FXO
Step Prompt, command & response Purpose
1 node(if-fxo)[if-name]#[no] disconnect-signal
{battery-reversal | busy-tone | loop-break}
The default is Loop-break. To disable it, use
the no inverse command. Should all three
methods be disabled, the call is cleared 30
seconds after receiving the disconnect signal.
The default setting of loop-break is not dis-
played in the running-config output.
2 [name] (if-fxo) [interface]# [no] disconnect-sig-
nal dtmf <dtmf-digits>
Disconnects the call upon reception of one of
the specified DTMF digits.
3 [name] (if-fxo) [interface]#loop-break-duration
[min <min-time>] [max <max-time>]
Specifies the timing of the loop break signal.
Shorter breaks are ignored, longer breaks
are treated as line down.
Min specifies the minimum time of a valid
loop break (Default 60ms). Max specifies the
maximum time of a valid loop break (Default
600ms). Please note that the internal timer
has a resolution of 40ms.
FXO interface configuration task list 423
SmartWare Software Configuration Guide 36 • FXO interface configuration
Note Use the battery-reversal disconnect signal with caution, and use only if the
battery-reversal connect signal is also enabled.
Configuring how to detect an outgoing call is connected (optional)
An FXO interface has the following methods for verifying the connection of an outgoing call after the dialing
has been completed:
•Detect battery reversal (if provided by the FXS switch)
•Detect the first tax pulse (if provided by the FXS switch)
Note Tax Impulse Signals: European telephone companies in Austria, Belgium,
Czechoslovakia, Germany, Spain and Switzerland place a pulse signal on the
phone line to meter the length of the telephone call for billing purposes.
The command to enable or disable these methods is connect-signal. If both are enabled, only one needs to
occur for the FXO interface to verify a properly connected call with the remote party. Should both be disabled,
the SmartNode waits for the call-connect signal from the FXS switch.
Mode: Interface FXO
Note Only disable connect-signal if you are sure that the FXS switch provides a
call connect signal.
Step Prompt, command & response Purpose
1 node> Basic prompt in Operator Exec mode
2 node>enable Enters Administration execution mode
node# Response: The prompt in administration
execution mode is the #
3 node#configure Enters the Configure configuration mode
node(cfg)# Response: The prompt in the Configure
configuration mode is (cfg)#
4 node(cfg)#context cs Enters the Context CS configure mode
node(ctx-cs)[switch]# Response: The prompt in the Context CS
configuration mode is (ctx-cs)[switch]#
5 node(ctx-cs)[switch]#interface fxo if-name Enter the Interface FXO configuration
mode
node(if-fxo)[if-name]#Response: The prompt in the Interface FXO
configuration mode is (if-fxo)[if-name]#
6 node(if-fxo)[if-name]#[no] connect-signal
{battery-reversal | tax-pulse}
Selects battery-reversal, tax-pulse or nei-
ther to determine when outgoing calls are
connected.
Default: both methods are disabled.
FXO interface configuration task list 424
SmartWare Software Configuration Guide 36 • FXO interface configuration
Configuring the destination of the call
The last command in configuring the FXO Interface is the route command. This command configures the call
router. You can configure the routing-destination for call setup and for service activation. For complete details,
see chapter 40, “Call router configuration” on page 456.
Mode: Interface FXO
FXO Mute dialing
A new command has been added. With this command, the FXO interface can mute its receive path during
dialtone detection and DTMF digits sending. This to avoid unwanted noises on the calling side (for calls going
out of the device through FXO).
Mode: interface fxo
Step Prompt, command & response Purpose
1 node> Basic prompt in Operator Exec mode
2 node>enable Enters Administration execution mode
node# Response: The prompt in administra-
tion execution mode is the #
3 node#configure Enters the Configure configuration
mode
node(cfg)# Response: The prompt in the Configure
configuration mode is (cfg)#
4 node(cfg)#context cs Enters the Context CS configure mode
node(ctx-cs)[switch]# Response: The prompt in the Context
CS configuration mode is (ctx-
cs)[switch]#
5 node(ctx-cs)[switch]#interface fxo if-name Enter the Interface FXO configuration
mode
node(if-fxo)[if-name]#Response: The prompt in the Interface
FXO configuration mode is (if-fxo)
[if-name]#
6 node(if-fxo)[if-name]#[no] route {call {dest-interface
interface-name | dest-service table-name | dest-table
service-name} | precall {dest-interface interface-name |
dest-service table-name | dest-table service-name }
Use this command to route a call (dest-
interface) directly to an interface speci-
fied with the interface-name parame-
ter, (dest-table) to the call router using
the table-name table as the first routing
table, or (dest-table) directly to a ser-
vice specified with the service-name
parameter.
Step Command Purpose
1 [name] (if-fxo)# [no] mute-dialing Enables or disables mute of receive path during dialtone
detection and dialing. Default: Disabled.
FXO interface configuration task list 425
SmartWare Software Configuration Guide 36 • FXO interface configuration
FXO interface examples
Example 1: Configuring an FXO interface which is to be connected to a PSTN network for analog line exten-
sion over IP. The FXS switch provides caller-id between the first and second ring and uses battery reversal to
indicate a connected call. The FXO interface is named pstn-local. The incoming call is routed directly to the
interface named pstn-1-voip.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface fxo pstn-local
node(if-fxo)[pstn-local]#connect-signal battery-reversal
node(if-fxo)[pstn-local]#ring-number 2
node(if-fxo)[pstn-local]#route call dest-interface pstn-1-voip
Example 2: Configuring an FXO interface to be used as fallback if the IP network link is down. This means
that there are only out-going calls. You are not sure whether the FXS switch provides a connect signal. In this
case, you only have to create the interface and bind the FXO port to the FXO interface. (For binding the FXO
port to the FXO interface, see chapter 44, “FXO port configuration” on page 542.)
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface fxo pstn-fb
node(if-fxo)[pstn-fb]#connect-signal battery-reversal
node(if-fxo)[pstn-fb]#connect-signal tax-pulse
426
Chapter 37 RBS interface configuration
Chapter contents
Introduction........................................................................................................................................................427
RBS interface configuration task list ....................................................................................................................427
Creating/Deleting a RBS interface.......................................................................................................................427
Configuring an alternate PSTN profile .........................................................................................................427
Configuring an alternate Tone-Set profile .....................................................................................................428
Configuring B-Channel allocation strategy ...................................................................................................428
Configuring additional disconnect signals .....................................................................................................428
Configuring number of Rings before Off-Hook ............................................................................................429
Configuring ready to dial strategy .................................................................................................................429
RBS interface debugging ...............................................................................................................................429
Introduction 427
SmartWare Software Configuration Guide 37 • RBS interface configuration
Introduction
This chapter provides an overview of RBS interfaces, and the tasks involved in their configuration. This chap-
ter does not explain the basic configuration steps equal to all CS interfaces. Information about basic interface
configuration can be found in the general chapter about CS interface configuration (see Chapter 33, “CS inter-
face configuration” on page 381). An RBS interface represents the connection of a T1 timeslot or of a group of
timeslots. For every timeslot bound to the interface exist a RBS protocol endpoint that masters incoming and
outgoing calls, controls the B-channel and provides different services. A RBS interface can encapsulate sub-
scriber and exchange side of the following protocols: Loop Start, Ground Start, E&M Immediate Start, E&M
Wink Start, E&M Double Wink Start. The settings are automatically taken from the RBS protocol that binds
to the interface and changes of the protocol configuration are automatically reflected on the interface. See
Chapter 20, “RBS configuration” on page 225 for more details.
RBS interface configuration task list
•Creating/Deleting a RBS interface
•Configuring an alternate PSTN profile
•Configuring an alternate Tone-Set profile
•Configuring B-Channel allocation strategy
•Configuring additional disconnect signals
•Configuring number of Rings before Off-Hook
•Configuring ready to dial strategy
Creating/Deleting a RBS interface
Interface names can be any arbitrary string. Use self-explanatory names for your interfaces to reflect their
usage in your application. After creating the RBS interface, it is necessary to bind the requested RBS proto-
col to it. See Chapter 20, “RBS configuration” on page 225 for more details.
Mode: Context CS
Configuring an alternate PSTN profile
The PSTN profile contains the configuration for data/voice transmission on circuit-switched channels (see
Chapter 48, “PSTN profile configuration” on page 597). In the case of RBS interfaces, the PSTN profile
applies to the B-Channels of the timeslots associated with the interface.
There is a PSTN profile named default, which always exists in the system. If no different PSTN profile name is
explicitly configured on the RBS interface, the profile default is used.
Step Prompt & command Purpose
1 node(ctx-cs)[switch]#[no] interface rbs
name
The “interface rbs” command creates a new inter-
face, the ‘no’ form deletes an existing one.
Creating/Deleting a RBS interface 428
SmartWare Software Configuration Guide 37 • RBS interface configuration
Mode: Interface RBS
Configuring an alternate Tone-Set profile
The Tone-Set profile contains the mapping of the different Call Progress Tones like Dial-Tone, Ringback-Tone
or Release-Tone to programmed tone sequences. Dependent on the configuration, the RBS protocols must be
able to detect inband played Dial or Release Tones. Therefore it is important, both communication parties
using the same tone specifications. For details how to setup and alternate Tone-Set profile, please consult chap-
ter 42, “Tone configuration” on page 529.
There is a Tone-Set profile named default, which always exists in the system. If no different Tone-Set profile
name is explicitly configured on the RBS interface, the profile default is used.
Mode: Interface RBS
Configuring B-Channel allocation strategy
If a group of timeslots is bound to the interface and a call is originated by the Call Control, the B-Channel
allocation strategy defines if the highest available timeslot number must be chosen for initiating the outgoing
call or the lowest one. For incoming calls over TDM this command has no effect because the timeslot has
already been selected by the remote party.
Mode: Interface RBS
Configuring additional disconnect signals
Most of the RBS protocols define a ABCD-Bit pattern can be sent to indicate a call disconnection to the
remote party. In case of the Loop Start protocol where the exchange side terminates the call, this is not possible.
This protocol is really similar to an analog telephony line where the subscriber will be informed with a release
tone about a call release. With this command it is possible to configure additional signals must be interpreted
as a disconnect event.
Step Command Purpose
1node(if-rbs)[if-name]#use profile pstn pro-
file-name
Defines an alternate PSTN profile to be used for
this RBS interface/Reverts the setting to its default
(use profile PSTN default)
Step Command Purpose
1node(if-rbs)[if-name]#use profile tone-set
profile-name
Defines an alternate Tone-Set profile to be used for
this RBS interface/Reverts the setting to its default
(use profile Tone=-Set default)
Step Command Purpose
1node(if-rbs)[if-name]#bchan-number-
order {ascending | descending}
Defines the B-Channel allocation strategy
Default: descending
Creating/Deleting a RBS interface 429
SmartWare Software Configuration Guide 37 • RBS interface configuration
Mode: Interface RBS
Configuring number of Rings before Off-Hook
The Loop Start and the Ground Start protocol on the subscriber side identifying an incoming call by detecting
the Ring-Signal sent by the exchange side. This command specifies the number of ring cycles before the sub-
scriber side is going Off-Hook and answers the call.
Mode: Interface RBS
Configuring ready to dial strategy
If on the Loop Start or Ground Start protocol the subscriber side originates a call, there is no protocol specifi-
cation for the exchanges side to signal readiness for accepting the called party number. Even the E&M Imme-
diate Start protocol is symmetric, the terminating side is also unable to do that. This command specifies for
these protocols the strategy they must apply to determine the right moment for sending the called party num-
ber.
•Dialtone: The originating side sends the called party number as soon as it detects the dial tone.
•Timeout: The originating side sends the called party number after a timeout that starts at the Off-Hook
moment.
Mode: Interface RBS
RBS interface debugging
For the investigation of possible call signaling or interoperability problems, there exists a debug command with
the options ‘datapath’, ‘error’ and ‘signaling’. In addition exists a ‘show’ command that outputs information
about the current interface configuration and about the states of the protocol endpoints.
Mode: Operator execution
Step Command Purpose
1node(if-rbs)[if-name]#[no] disconnect-sig-
nal {busy-tone}
Enables/Disables the busy/release-tone as addi-
tional disconnect signal.
Default: Enabled
Step Command Purpose
1node(if-rbs)[if-name]#ring-number value Defines the number of ring cycles before the sub-
scriber side answers the call.
Default: 1
Step Command Purpose
1node(if-rbs)[if-name]#[no] dial-after {dial-
tone | timeout seconds}
Defines the ready to dial strategy.
Default: dialtone
Step Command Purpose
1node#[no] debug ccrbs {datapath | error
| signaling}
Enables/Disables different RBS interface monitors.
Creating/Deleting a RBS interface 430
SmartWare Software Configuration Guide 37 • RBS interface configuration
Mode: Operator execution
Step Command Purpose
1node#show ccrbs call if-name [detail level]Prints information about ongoing calls on the
selected interface.
node#show ccrbs interface if-name [detail
level]
Prints information about the configuration of the
selected interface and about the states of the
belonging protocol endpoints.
431
Chapter 38 H.323 interface configuration
Chapter contents
Introduction........................................................................................................................................................432
H.323 interface configuration task list.................................................................................................................432
Binding the interface to an H.323 gateway ...................................................................................................433
Configuring an alternate VoIP profile (optional) ...........................................................................................434
Configuring CLIP/CLIR support (optional) .................................................................................................435
Enabling ‘early-proceeding’ on H.323 interfaces ...........................................................................................436
Enabling the early call connect (optional) .....................................................................................................436
Enabling the early call disconnect (optional) .................................................................................................437
Enabling the via address support (optional) ...................................................................................................437
Override the default destination call signaling port (Optional) ......................................................................437
Configuring status inquiry settings (optional) ...............................................................................................438
AOC-D Support for H.323 ..........................................................................................................................439
Introduction 432
SmartWare Software Configuration Guide 38 • H.323 interface configuration
Introduction
This chapter provides an overview of H.323 interfaces used by H.323 gateways and describes the specific tasks
involved in their configuration. This chapter does not explain the basic configuration steps required for all CS
interfaces. Information about basic interface configuration can be found in the general chapter about CS inter-
face configuration.
Within the CS context of SmartWare, an H.323 interface is a special type of CS interface providing call rout-
ing for incoming and outgoing calls to and from the H.323 gateway (see figure 59).
Figure 59. H.323 interfaces on the CS context
An H.323 interface is a CS interface type that also provides voice over IP settings in addition to the general CS
interface parameters. All H.323 interfaces must be explicitly bound to an H.323 gateway. Calls, which are
routed from the Context CS to one of the H.323 interfaces, will be forwarded for call establishment to the
H.323 gateway to which the H.323 interface is bound. All the parameters configured in the H.323 interface
will be applied to the forwarded call.
When a call arrives over H.323 in the H.323 gateway. The gateway looks for the best matching H.323 inter-
face, which is bound to that gateway. If there is an H.323 interface, which contains the IP address of the source
of the H.323 call in its remoteip configuration parameter, the call will be handed over to that interface for fur-
ther call processing. If no such interface is found, the gateway looks for an interface, which is bound to that
gateway and does not contain a remoteip parameter. If such an interface is found the call will be handed over to
that interface for further processing. If however such an interface is also not available, the call will be dropped.
H.323 interface configuration task list
This section describes the configuration tasks for H.323 interfaces listed below. You must at least perform the
tasks, which are not marked as optional, to define a working H.323 interface. The optional tasks are usually
only required in advanced configurations. Before you can start with the H.323 interface specific configuration
tasks, you need to create the H323 interface and define the routing for it as defined in chapter 33, “CS inter-
face configuration” on page 381.
•Binding the interface to an H.323 gateway
•Configuring a remote IP address
•Using an alternate VoIP profile (optional)
bind commands
H.323 Interface
Context CS
H.323
Gateway
H.323 interface configuration task list 433
SmartWare Software Configuration Guide 38 • H.323 interface configuration
•Configuring information transfer capability handling (optional)
•Configuring CLIP/CLIR support (optional)
•Enabling the early-proceeding feature for call setup
•Enabling the early call disconnect (optional)
•Enabling the via address support (optional)
•Overriding the default destination call-signaling port (optional)
•Configuring status inquiry settings (optional)
Binding the interface to an H.323 gateway
Every H.323 interface must be explicitly bound to an H.323 gateway instance.
Procedure: To bind an H.323 interface to an H.323 gateway.
Mode: Interface H.323
Examples: Bind the H.323 interfaces to an H.323 gateway instance
The following example shows how to bind an H.323 interface named MyH323If to an H.323 gateway instance
named h323.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#bind gateway h323
Configure a remote IP address
If the gateway to which the H.323 interface is bound does not use a gatekeeper, it is required to specify the IP
address of the remote entity for which the H.323 interface is used directly within the H.323 interface. This is
done using the procedure below. If the H.323 gateway however uses a gatekeeper, the gatekeeper is responsible
for resolving the remote entities IP address. In that case this procedure must not be used.
Procedure: To specify the remote H.323 entities IP address in the H.323 interface.
Mode: Interface H.323
Examples: Define the IP address of the remote H.323 entity
Step Command Purpose
1node(if-h323)[if-name]#bind gateway
gw-name
Binds the gateway to an H.323 gateway.
Step Command Purpose
1node(if-h323)[if-name]#remoteip ip-
address
Defines the IP address of the remote H.323
entity, for which this interface shall be used.
H.323 interface configuration task list 434
SmartWare Software Configuration Guide 38 • H.323 interface configuration
The following example shows how to associate an H.323 interface named MyH323If with a remote H.323
entity, which has the IP address 1.2.3.4
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[myh323if]#remoteip 1.2.3.4
Configuring an alternate VoIP profile (optional)
Normally, the VoIP profile defined in the H.323 gateway is used for all the calls over that gateway. However, it
is possible to specify an alternate VoIP profile in the H.323 interface. In that case the VoIP profile defined
within the VoIP interface is used for all the calls established using that H.323 interface instead of the VoIP pro-
file defined in the H.323 gateway.
Procedure: To define an alternate VoIP profile for the H.323 interface
Mode: Interface H.323
Example: Configure an alternate VoIP profile
The following example shows how to replace the default VoIP profile of the H.323 gateway with a VoIP profile
named myprofile for an H.323 interface named MyH323If.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#use profile voip myprofile
Configure information transfer capability handling (Optional)
Normally, the H.323 gateway transparently forwards the information transfer capability information element
between the H.323 network and other gateways of the SmartNode. There are, however, several H.323 clients
that do not provide correct information transfer capability information. One of the most often used clients of
this type is Microsoft Netmeeting. When communicating to one of these clients, it is necessary to define the
correct information transfer capability in the H.323 interface. It is possible to define for each direction (for
calls from or to H.323) separately, whether the information transfer capability received from the network, or
another information transfer capability should be used for the calls.
Note The default behavior when not configured otherwise is to set the informa-
tion transfer capability of incoming calls to 3k1-audio and to transparently
pass the information transfer capability for outgoing calls.
Procedure: To configure information transfer capability overriding
Step Command Purpose
1node(if-h323)[if-name]#use profile voip
profile-name
Defines an alternate VoIP profile to be used
for this VoIP interface
H.323 interface configuration task list 435
SmartWare Software Configuration Guide 38 • H.323 interface configuration
Mode: Interface H.323
Example: Configure information transfer capability handling
In the following example the information transfer capability for inbound calls through the H.323 interface
Myh323If is forced to speech. This is an appropriate setting, when communicating to Microsoft Netmeeting
clients.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#itc rx speech
Configuring CLIP/CLIR support (optional)
According to the H.323 standard, information about calling line identification presentation/calling line identifi-
cation restriction (CLIP/CLIR) is not provided, when using the H.323 protocol. However, there are H.323
equipment vendors, which allow tunneling this information through an H.323 connection. The additional
information is inserted in octed 3a of the calling party number information element in the Q.931 part of the
H.323 setup message.
Note This functionality is not standardized and might cause interoperability prob-
lems, if enabled.
Procedure: To enable tunnelling of CLIP/CLIR information over H.323
Step Command Purpose
1node(if- h323)[if-name]#itc rx {3k1-
audio | 7k-audio | restricted-digital |
unrestricted-digital | speech | video |
transparent }
Specifies the information transfer capability to
be used for calls from the H.323 gateway to
another gateway of the system (incoming
calls). All settings force the specified informa-
tion transfer capability to be used except for
the transparent setting, which indicates that
the information transfer capability of the call
should be forwarded transparently.
2node(if- h323)[if-name]#itc tx {3k1-
audio | 7k-audio | restricted-digital |
unrestricted-digital | speech | video |
transparent }
Specifies the information transfer capability to
be used for calls from any gateway of the sys-
tem to the H.323 gateway (outgoing calls).
All settings force the specified information
transfer capability to be used except for the
transparent setting, which indicates that the
information transfer capability of the call
should be forwarded transparently.
H.323 interface configuration task list 436
SmartWare Software Configuration Guide 38 • H.323 interface configuration
Mode: Interface H.323
Example: Enable CLIP/CLIR support
The following example shows how to enable CLIP/CLIR support on the H.323 interface MyH323If.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#clip-clir-support
Enabling ‘early-proceeding’ on H.323 interfaces
The early-proceeding command can enable the early-proceeding feature on H.323. If this feature is enabled,
the gateway will immediately reply with an H.225 (H.323) call-proceeding message in response to a received
H.225 (H.323) setup message without waiting for a response from the destination.
Mode: interface h323 <if-h323>
Example: Enable early call disconnect
The following example shows how to enable early call disconnect on an H.323 interface named MyH323If.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#early-disconnect
Enabling the early call connect (optional)
The early-connect command can be enabled to open a data path before the call is connected to play inband
information from the ISDN side.
Mode: interface h323
Step Command Purpose
1node(if- h323)[if-name]#clip-clir-support Enables CLIP/CLIR support on the H.323
interface
Step Command Purpose
1[name](if-h323)[if-name]#early-proceeding Enables the early-proceeding feature.
Step Command Purpose
1[name](if-h323)[name]#early-connect Enables the early-connect feature.
H.323 interface configuration task list 437
SmartWare Software Configuration Guide 38 • H.323 interface configuration
Enabling the early call disconnect (optional)
Early call disconnect suppresses busy tones (e.g. disturbing a telephone conference) and post-call announce-
ments by sending an H.323 Release message to the remote peer when the connected terminal hangs up (ISDN:
when Disconnect message is received; analog line: when busy tone is detected, loop current is interrupted, or
battery voltage is reversed).
Procedure: To enable early call disconnect
Mode: Interface H.323
Example: Enable early call disconnect
The following example shows how to enable early call disconnect on an H.323 interface named MyH323If.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#early-disconnect
Enabling the via address support (optional)
Some LAN Voice applications require the H.323 gateway to add the calling party number of the connected
terminal as an H.323 E.164 Alias to the Facility message when transferring a call to another gateway. This
enables a gatekeeper to detect loops of call forwarding and to stop them.
Procedure: To enable sending of the via address in call transfers
Mode: Interface H.323
Example: Enabling the via address support
The following example shows how to enable the via address support on an H.323 interface named MyH323If.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#via-address-support
Override the default destination call signaling port (Optional)
Normally, if no gatekeeper is used, the TCP call-signaling connection for outbound H.323 calls is established
to the H.323 standard call-signaling port 1720. If your destination uses a different call-signaling port, it is pos-
sible to define an alternate port using this procedure.
Step Command Purpose
1node(if-h323)[if-name]#early-disconnect Enables early call disconnect (Default: dis-
abled)
Step Command Purpose
1node(if-h323)[if-name]#via-address-sup-
port
Enables sending of the via address in call
transfers (Default: disabled)
H.323 interface configuration task list 438
SmartWare Software Configuration Guide 38 • H.323 interface configuration
Note The call-signaling port specified here has no effect, if a gatekeeper is used. In
that case the gatekeeper will provide the portnumber to use for establishing
the call signaling connection
Procedure: To configure an alternate destination TCP call-signaling port
Mode: Interface H.323
Example: Specifying an alternate destination call-signaling port
The following example shows how to set the destination call-signaling port number for the H.323 interface
MyH323If to 2300.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#remoteport 2300
Configuring status inquiry settings (optional)
Normally, the H.323 gateway will send out status inquiries every minute on each connected H.323 call.
According to the H.323 standard, the remote entity must respond to these status inquiries, which allows the
H.323 gateway to detect, if the call on the remote H.323 entity is still alive. If no response is received after
another minute, the call will be dropped.
Unfortunately, there are H.323 entities, which do no respond to these status inquiries. This causes every call to
be dropped after being connected for two minutes using the default setting.
As a workaround for these non-compliant implementations, it is possible to disable the status inquiry check-
ing.
It is also possible to change the default status inquiry interval of 60 seconds to a different value, if required.
Procedure: To disable status inquiries
Mode: Interface H.323
Example: Disable status inquiries
The following example shows how to disable status inquiries for calls handled by the H.323 interface
MyH323If.
node>enable
node#configure
Step Command Purpose
1node(if-h323)[if-name]# remoteport port Specifies the TCP port to which the call-signal-
ing connection should be established.
Step Command Purpose
1node(if-h323)[if-name]#no status-
inquiry
Disables status inquiries on the interface
H.323 interface configuration task list 439
SmartWare Software Configuration Guide 38 • H.323 interface configuration
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#no status-inquiry
Procedure: To change the default status inquiry interval
Mode: Interface H.323
Example: Disable status inquiries
The following example
the status inquiry interval for the H.323 interface MyH323If to 120 seconds.
node>enable
node#configure
node(cfg)#context cs
node(ctx-cs)[switch]#interface h323 MyH323If
node(if-h323)[MyH323If]#status-inquiry timeout 120
AOC-D Support for H.323
The H.323 gateway is able to accept and send Advice of Charge during the call (AOC-D) messages according
to the ITU-T standard Q.956. Facility Information Elements (IEs) in the Q.931 portion of the protocol are
used to transport AOC-D PDUs. (Refer to “Chapter 28: ISDN interface configuration”, section “ISDN
Advice of Charge support.”)
You can enable/disable reception and transmission of AOC-D messages separately on each H.323 interface.
When reception is enabled, AOC-D messages received in incoming H.323 FACILITY messages are forwarded
to the ISDN side of the call. In addition to the H.323 interface, AOC support must also be enabled on the
ISDN interface (see ISDN Advice Of Charge support section of Chapter 28 ISDN interface configuration of
the Software Configuration Guide).
When transmission is enabled, AOC-D messages received from the ISDN side of the call are sent as H.323
FACILITY to the remote terminal or gatekeeper.
The following commands can be used to change the AOC-D over H.323 tunneling behavior on an H.323
interface:
Step Command Purpose
1node(if-h323)[if-name]#status-inquiry
timeout seconds
Changes the status inquiry interval on the
interface to the specified number of seconds
H.323 interface configuration task list 440
SmartWare Software Configuration Guide 38 • H.323 interface configuration
Mode: context cs/interfce h.323 <interface-name.
Step Command Purpose
1node(if-h323)[if-name]# [no] aoc-d
accept
Enables or disables reception of AOC-D infor-
mation in FACILITY messages received in calls
over the current interface.
Default: Reception is disabled.
When enabled, Advice of Charge informa-
tion is received and accepted from the other
side of the gateway.
2node(if-h323)[if-name]# [no] aoc-d emit Enables or disables transmission of AOC-D
information in FACILITY messages received
from the other side of the gateway.
Default: Transmission is disabled.
When enabled, the H.323 gateway sends
FACILITY messages containing AOC-D PDUs
whenever the charge of a call changes.
441
Chapter 39 SIP interface configuration
Chapter contents
Introduction........................................................................................................................................................442
SIP interface configuration task list......................................................................................................................442
Binding the interface to a SIP gateway ..........................................................................................................443
Configure a remote host ................................................................................................................................443
Configuring a local host (Optional) ..............................................................................................................444
Using an alternate VoIP profile (Optional) ...................................................................................................444
Using an alternate SIP profile (Optional) ......................................................................................................445
Using an alternate Tone-Set profile (Optional) .............................................................................................445
Configuring early call connect / disconnect (Optional) .................................................................................446
Configuring address translation (Optional) ...................................................................................................446
Mapping call-control properties in SIP headers .......................................................................................446
Mapping SIP headers to call-control properties .......................................................................................447
Configuring ISDN Redirecting Number Tunneling Over SIP ................................................................447
Enabling SIP RFC Privacy, Asserted-Identity, & Preferred-Identity headers (RFC 3323/3325) ..............448
Updating caller address parameters ..........................................................................................................448
SIP Diversion Header ..............................................................................................................................449
Transmit Direction ........................................................................................................................... 450
Receive Direction .............................................................................................................................. 450
SIP REFER Transmission (& ISDN Explicit Call Transfer support) ............................................................451
AOC Over SIP (Optional) ............................................................................................................................453
Enabling the session timer (Optional) ...........................................................................................................454
Enabling the SIP penalty-box feature (Optional) ...........................................................................................454
Initiating a new SIP session for redirected SIP calls (Optional) .....................................................................454
Configure the SIP hold method (Optional) ..................................................................................................455
Introduction 442
SmartWare Software Configuration Guide 39 • SIP interface configuration
Introduction
This chapter provides an overview of SIP interfaces used by context SIP gateways and describes the specific
tasks involved in their configuration. This chapter does not explain the basic configuration steps required for
all CS interfaces. See Chapter 33, “CS interface configuration” on page 381 for information about configuring
basic CS interfaces.
Within the CS context, a SIP interface is a special type of CS interface providing call routing for incoming and
outgoing calls to and from the context SIP gateway (see Figure 60).
Figure 60. SIP interfaces on the CS context
A SIP interface is a CS interface type that is responsible for the address translation between the SIP environ-
ment and the call control. It provides configurable translation rules that define which parameter of which SIP
header has to be translated to call control properties and vice versa. In addition, it offers VoIP settings and the
possibility to configure SIP supplementary services like Call Transfer, Call Reroute or Session Timer. All SIP
interfaces must be explicitly bound to a context SIP gateway. Calls that are routed from the Context CS to one
of the SIP interfaces will be forwarded for call establishment to the context SIP gateway to which the SIP inter-
face is bound. All of the parameters configured in the SIP interface will be applied to the forwarded call.
SIP interface configuration task list
This section describes the configuration tasks for SIP interfaces listed below. You must at least perform the
tasks that are not marked as optional to define a working SIP interface. The optional tasks are only required in
advanced configurations. Before you can start with the SIP interface specific configuration tasks, you need to
create the SIP interface and define the routing for it as defined in Chapter 33, “CS interface configuration” on
page 381.
Context
CS
Context CS
SIP Interfaces
Bind Command
Context
SIP
Gateway
SIP interface configuration task list 443
SmartWare Software Configuration Guide 39 • SIP interface configuration
•Binding the interface to a context SIP gateway (see page 443)
•Configure a remote host (see page 443)
•Configure a local host (Optional) (see page 444)
•Using an alternate VoIP profile (Optional) (see page 444)
•Using an alternate SIP profile (Optional) (see page 445)
•Using an alternate Tone-Set profile (Optional) (see page 445)
•Configuring early call connect /disconnect (Optional) (see page 446)
•Configuring address translation (Optional) (see page 446)
•SIP REFER Transmission (& ISDN Explicit Call Transfer support) (Optional) (see page 451)
•AOC over SIP (Optional) (see page 453)
•Enable the session timer (Optional) (see page 454)
•Enable the SIP penalty-box feature (Optional) (see page 454)
•Initiating a new SIP session for redirected SIP calls (Optional) (see page 454)
•Configure the SIP hold method (Optional) (see page 455)
Binding the interface to a SIP gateway
Every SIP interface must be explicitly bound to a context SIP gateway. It defines the transport interfaces to be
used to send requests and also from where it expects to receive incoming calls.
Mode: Interface SIP
Configure a remote host
The remote host parameter is used to build the host part of the To-Header-URI and the Request-URI. All calls
forwarded to the context SIP gateway through this SIP interface will be sent to that host unless an outbound
proxy has been configured for the outgoing Request-URI. In this case, all requests will be sent to the specified
proxy independent of the Request-URI. For details about proxy configuration, see Chapter 51, “Location Ser-
vice” on page 607.
The remote host parameter may contain a Domain Name, a Full Qualified Domain Name or an IP Address. If
domain names are used, do not forget to configure the DNS client for address resolving. See Chapter 28,
“DNS configuration” on page 304 for more information.
An optional port number can be entered on this command. It specifies the destination port of the requests to
be sent. If no port has been defined, the default SIP signaling port 5060 will be taken.
Step Command Purpose
1[node](if-sip)[if-name]# [no] bind context
sip-gateway gw-name
Binds the interface to a context SIP gateway.
The no form of the command removes an
existing binding.
Default: none
SIP interface configuration task list 444
SmartWare Software Configuration Guide 39 • SIP interface configuration
Mode: Interface SIP
Configuring a local host (Optional)
The local host parameter is used to build the host part of the From-Header-URI. Optionally, a port can be
entered. If no port has been specified, it will not appear in the From-Header-URI. This command is optional
in a SIP network setup where no DNS names are involved and only IP addresses applied. If no local host name
has been specified, the IP address of the outgoing IP interface will be taken as host part of the From-Header-
URI.
There are some exceptions where a local host name must be entered. One exception is if the bound gateway has
two transport interfaces and the From-Header-URI call outbound properties have been configured. Such a call
outbound property is the outbound proxy. To find the right identity in the location service, the From-Header-
URI must exist. But, if there is more than one transport interface, it is not clear which one will be used to send
the request because the proxy influences the routing. In such a case, it is recommended that the user configures
the local host name and knows which IP interface the request should be sent over.
The SIP server expects its own IP address in the From-Header-URI because of security or routing reasons. This
can be solved by manually entering a local host name.
Mode: Interface SIP
Using an alternate VoIP profile (Optional)
A VoIP profile is a container for all datapath-related settings on VoIP connections. The predefined default pro-
file exists persistently in the system and it is preconfigured with proper default parameters. It will always be
taken if no other profile has been specified. This command allows the user to specify an alternate VoIP profile
to use for all calls routed over this interface. For details about VoIP profile configuration see Chapter 47, “VoIP
profile configuration” on page 573.
When a profile has been specified on the interface, it is possible to provide a special one for specific identities or
group of identities. It can be configured in location service identities for call inbound and call outbound. See
Chapter 51, “Location Service” on page 607 for details about identities and VoIP profile configurations. The
identity lookup to find a possible configured VoIP profile will always be applied to the remote SIP URI. For
outgoing calls, the SIP Request-URI will be taken. For incoming calls, the SIP From-URI will be taken.
Step Command Purpose
1[node](if-sip)[if-name]# [no] remote <host-
name> [port]
Specifies the remote host name and port. The
no form of the command removes a config-
ured host name.
Default Hostname: none
Default Port: 5060
Step Command Purpose
1[node](if-sip)[if-name]# [no] local <host-
name> [port]
Specifies the local host name and port. The
no form of the command removes a config-
ured host name.
Default Hostname: none
Default Port: none
SIP interface configuration task list 445
SmartWare Software Configuration Guide 39 • SIP interface configuration
Mode: Interface SIP
Using an alternate SIP profile (Optional)
The SIP profile contains a cause and reason mapping from SIP notation to the call control notation and vice
versa. The predefined default profile exists persistently in the system and it is preconfigured with proper default
mappings. It will always be taken if no other profile has been specified. This command allows the user to spec-
ify an alternate SIP profile to use for all calls routed over this interface. For details about SIP profile configura-
tion see Chapter 49, “SIP profile configuration” on page 601.
When a profile has been specified on the interface, it is possible to provide a special one for specific identities or
group of identities. It can be configured in location service identities for call inbound and call outbound. See
Chapter 51, “Location Service” on page 607 for details about identities and SIP profile configurations. The
identity lookup to find a possible configured SIP profile will always be applied to the remote SIP URI. For out-
going calls, the SIP Request-URI will be taken. For incoming calls, the SIP From-URI will be taken.
Mode: Interface SIP
Using an alternate Tone-Set profile (Optional)
A Tone-Set profile contains a mapping of call-progress tones to defined tone sequences. The predefined default
profile exists persistently in the system and it is preconfigured with the Swiss standard call-progress tone map-
ping. It will always be taken if no other profile has been specified. This command allows the user to specify an
alternate Tone-Set profile to be use for all calls routed over this interface. For details about Tone-Set profile
configuration see Chapter 42, “Tone configuration” on page 529.
When a profile has been specified on the interface, it is possible to provide a special one for specific identities or
group of identities. It can be configured in location service identities for call inbound and call outbound. See
Chapter 51, “Location Service” on page 607 for details about identites and Tone-Set profile configurations.
The identity lookup to find a possible configured Tone-Set profile will always be applied to the remote SIP
URI. For outgoing calls, the SIP Request-URI will be taken. For incoming calls, the SIP From-URI will be
taken.
Step Command Purpose
1[node](if-sip)[if-name]#use profile voip
profile-name
Defines an alternate VoIP profile to be used
for this SIP interface.
Default: default
Step Command Purpose
1[node](if-sip)[if-name]#use profile sip pro-
file-name
Defines an alternate SIP profile to be used for
this SIP interface.
Default: default
SIP interface configuration task list 446
SmartWare Software Configuration Guide 39 • SIP interface configuration
Mode: Interface SIP
Configuring early call connect / disconnect (Optional)
Normally, SIP calls are fully connected by sending a 200 OK response to the INVITE request, if the called
party answers the call. Any call progress tones or announcements are transmitted in the early SIP dialog. How-
ever, there are several SIP user agents that do not support media to be transmitted or received in an early dia-
log. To solve this problem, it is possible to connect the SIP call using a 200 OK response to the initial INVITE
request as soon as in-band information is available. This will allow any SIP user agent to receive pre-call inband
information.
Early call disconnect suppresses busy tones (e.g. disturbing a telephone conference) and post-call announce-
ments by sending a BYE message to the remote SIP user agent when the connected terminal hangs up (ISDN:
when Disconnect message is received; analog line: when busy tone is detected, loop current is interrupted, or
battery voltage is reversed).
Mode: Interface SIP
Configuring address translation (Optional)
Mapping call-control properties in SIP headers
This functionality specifies rules for building the SIP headers for outgoing SIP requests. The user can configure
which call-control property should take place as the user-part, the host-part or as additional parameter in a SIP
header's URI.
Mode: Interface SIP
Step Command Purpose
1[node](if-sip)[if-name]#use profile tone-
set profile-name
Defines an alternate Tone-Set profile to be
used for this SIP interface.
Default: default
Step Command Purpose
1[node](if-sip)[if-name]#[no] early-connect Enables/Disables early call connect
Default: disabled
2[node](if-sip)[if-name]#[no] early-discon-
nect
Enables/Disables early call disconnect
Default: disabled
Step Command Purpose
1[node](if-sip)[if-name]#[no] address-
translation outgoing-call {header} {parame-
ter} {source} {property}
Specifies an outgoing address translation
rule.
SIP interface configuration task list 447
SmartWare Software Configuration Guide 39 • SIP interface configuration
Mapping SIP headers to call-control properties
This functionality specifies rules that describe which SIP header should take place as a specific call-control
property like the called-e164 or the calling-e164 number.
Mode: Interface SIP
Configuring ISDN Redirecting Number Tunneling Over SIP
A SIP interface can be configured to tunnel the ISDN Redirecting E.164 Number and Redirecting Reason.
This is implemented per the IETF draft standard method according to draft-jennings-sip-voicemail-uri-05.
The figure below shows a call that is redirected in the PSTN network and reaches the device over an ISDN
interface. The incoming ISDN SETUP message contains additional information elements for the Redirecting
Party Number (B) and the Redirecting Reason (Call-Forwarding-Unconditional, for example). When the
Redirecting Number Tunneling over SIP has been enabled, the Request-URI of the outgoing SIP INVITE
message has additional parameters for the redirected number (target) and the redirecting reason (cause).
Normally, the Redirecting Number Tunneling over SIP is disabled. However, you can manually enable this fea-
ture for each SIP interface separately using the following commands. Note that transmission and reception of
the target and cause parameters must be configured separately.
Step Command Purpose
1[node](if-sip)[if-name]#[no] address-
translation incoming-call {property}
{header}
Specifies an incoming address translation
rule.
SIPISDN
A
C
B (CFU to C)
1. SETUP(CdPN=B
CnPN=A)
2. SETUP(CdPN=C
CnPN=A
RedirPN=B
RedirReason=cfu)
3. INVITE C;target=B;cause=486
To: C
From: A
SIP interface configuration task list 448
SmartWare Software Configuration Guide 39 • SIP interface configuration
Mode: Interface SIP
Enabling SIP RFC Privacy, Asserted-Identity, & Preferred-Identity headers (RFC 3323/3325)
The following command sequence enables support for the SIP Privacy and Asserted-Identity headers, sending
and receiving of the Privacy as well as the Asserted-Identity headers of RFCs 3323 & 3325. This provides the
required identity to SIP entities. The privacy header suppresses the forwarding of the identity to the final sta-
tion. Handling of the Asserted-Identity header can be configured in the same way as for any other SIP header
using the address-translation command in the SIP interface configuration mode. The privacy header is mapped
to the call-control's presentation indicator property field.
The type of header sent depends on the screening-indicator property of the call-control. When receiving one of
these privacy headers the screening-indicator is also set depending on the received header type.
Mode: Interface SIP
Updating caller address parameters
A SIP User Agent Client (UAC) can use the sip update method for modifying caller-name and caller-number.
These parameters must be included in the P-Asserted-Identity header of the sip update message. This feature is
often required if sip has to interwork with an analog telephone network where the Caller-Id cannot be deliv-
ered together with the call offering. If SmartWare is working as SIP to FXS Gateway, the UAC can send the
update at any time between the initial invite and the final response. The delivered parameters will be presented
to the FXS subscriber during the current or the next ring pause.
Step Command Purpose
1[node](if-sip)[if-name]# address-transla-
tion outgoing-call request-uri target-
param call redir
Enables Redirecting Party Number Tunneling
ISDN ‡ SIP: Enables transmission of the target
and cause parameters in the Request-URI for
outgoing SIP calls. Whenever the (incoming
ISDN) call has a redirecting party number
information element, the Request-URI is
extended by the target and cause parame-
ters.
Default: disabled
2[node](if-sip)[if-name]# address-transla-
tion incoming-call calling-redir
requesturi-target-param
Enables Redirecting Party Number Tunneling
SIP ‡ ISDN: Enables reception of the target
and cause parameters in the Request-URI for
incoming SIP calls. Sets the redirecting party
number information element for (outgoing
ISDN) calls where the target parameter is
present in the Request-URI.
Default: disabled
Step Command Purpose
1[node](if-sip)[if-name]#[no] privacy Enables/Disables privacy.
Default: disabled
SIP interface configuration task list 449
SmartWare Software Configuration Guide 39 • SIP interface configuration
It is possible to configure the sip interface to wait for the caller-name, caller-number or both parameters before
routing the call. If the caller-address parameters are sent with sip update and the call will be forwarded to a net-
work where these parameters must be present at call setup time (ISDN), this wait-service must be enabled.
Note The SIP interface of the call-router must be configured to take the caller
addresses parameters for incoming calls from the P-Asserted-Identity header.
See “Enabling SIP RFC Privacy, Asserted-Identity, & Preferred-Identity
headers (RFC 3323/3325)” on page 448 for more information.
Mode: Interface SIP
SIP Diversion Header
SmartWare supports the SIP Diversion Header for transmitting redirecting information over SIP according to
draft-levy-sip-diversion-08. Sending and receiving of the header can be configured independent of each other.
Even though the Diversion Header standard would allow appending a header for each diversion occurred in
the network, SmartWare only records the last and the first diversion. If only one Diversion Header is attached
to the INVITE request, then it represents the last diversion.
Step Command Purpose
1[node](if-sip)[interface]#[no] update accept
address {wait-for-name | wait-for-num-
ber | wait-for-name-and-number} [[pro-
ceeding-timeout <timeout>][early-alerting
timeout <timeout>]]
Enables or disables wait service.
Wait Options:
•wait-for-name
The call will be routed as soon as a valid
caller name is present.
•wait-for-number
The call will be routed as soon as a valid
caller number is present.
•wait-for-name-and-number
The call will be routed as soon as a valid
caller name and a valid caller number are
present.
Wait Timeouts:
•proceeding-timeout
After this time, the call will be routed and
the specified caller parameters are not
present. Default: 4000ms
•early-alerting-timeout
If the specified caller parameters are not
present after this time, a 180 RINGING
will be sent to UAC. Default: 0ms (immedi-
ately)
SIP interface configuration task list 450
SmartWare Software Configuration Guide 39 • SIP interface configuration
Transmit Direction. For enabling sending of the Diversion Header, an outgoing address translation expres-
sion must be configured on the sip interface. This expression specifies how to create the Diversion URI of the
header. As the User Part of the URI, the Calling Redirecting number will always be taken. The user must con-
figure the Host Part that is set per default to none. Setting the Host Part to none disables transmission of the
Diversion Header.
Mode: Interface SIP
Receive Direction. For receiving of the Diversion Header, an incoming address translation expression must be
configured on the sip interface. Because several methods for transmitting redirecting information are available,
this expression specifies that they must be taken from the Diversion Header when providing them to the call
control.
Mode: Interface SIP
Step Command Purpose
1 [name] (if-sip)[interface]#address-transla-
tion outgoing-call diversion-header
host-part {call | default-server | domain
| fix | interface | none}
Enables or disables sending of the Diversion
Header and specifies the Host Part of the URI.
•call: If available, the Host Part of the call-
ing from-header will be taken else the
local ip address.
•default-server: The ip address of the
configured default-server will be taken.
•domain: The configured domain name
will be taken.
•fix: Allows to specify a user configured
Host Part.
•interface: The local ip address will be
taken.
•none: Disables sending of the Diversion
Header.
Step Command Purpose
1 [name] (if-sip)[interface]#address-transla-
tion incoming-call calling-redir diver-
sion-header
Enables or disables extracting of the redirec-
tion information from the Diversion Header.
SIP interface configuration task list 451
SmartWare Software Configuration Guide 39 • SIP interface configuration
SIP REFER Transmission (& ISDN Explicit Call Transfer support)
Additional call transfer support, a push-back mechanism, is enabled by default for SIP interfaces by sending
REFER messages.
SmartWare detects calls that are looped internally, i.e. calls that leave the device over the same SIP interface
over which they enter the device. If an internal loop is detected for a SIP interface, SmartWare sends a REFER
message to push back the call to the connected network as soon as the call is connected.
ISDN interfaces react similarly to internally looped calls. The push-back mechanism is enabled by default for
ISDN interfaces (BRI ports) by accepting or rejecting explicit call-transfer (ECT) invocations. An ISDN
phone that is connected to a BRI port and that has two active calls can send an ECT invocation to connect the
two calls inside the device. An ISDN interface can be configured to accept or reject ECT invocations.
SmartWare detects calls that are looped internally, i.e. calls that leave the device over the same ISDN interface
over which they enter the device. If an internal loop is detected for an ISDN interface bound by an ISDN user
port, SmartWare sends an explicit call-transfer (ECT) to push back the call to the connected network as soon
as the call is connected. An ISDN interface can be configured to emit ECT invocations.
Figure 61 on page 452 shows an example scenario where a SIP network connects two devices to give a home
office access to a PBX in the central office.
SIP interface configuration task list 452
SmartWare Software Configuration Guide 39 • SIP interface configuration
Figure 61. Example SIP network connecting two devices to give a home office access to the CO PBX
The phone in the home office has two active calls to other subscribers of the PBX in the central office. The user
wants to connect the other two participants and (a) sends an explicit call-transfer invocation to the device HO.
The device HO internally connects the two calls and sends a DISCONNECT message to the phone for both
calls. In a second step (b) the firmware on HO detects an internal loop. Both call legs are connected to the
same network. In this example, both call legs are handled by the same SIP gateway. The firmware on device
HO sends a REFER message to device CO, which connects the two call legs internally and sends a BYE mes-
sage to the device HO. (c) Again the firmware of CO detect an internal loop. This time the call legs are han-
dled by the same SIP interface, connected to the PBX. Since the ISDN port is a user port it sends an explicit
call-transfer invocation to the PBX (d), which connects the call and sends the device CO a DISCONNECT
message for both calls. During all these push back operations the datapath of the two participants keeps con-
nected.
The push back mechanism over ISDN (using ECT) and SIP (using REFER) works independently of the pro-
tocol that invoked the call-transfer. For example, the same scenario also works if the phone in the home office
is connected to an FXS port.
Central Office
Console
VoIP Media Gateway
ToIP Access Device
SmartNode 4118
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
0/4
0/5
0/6
0/7
SIP
Home Office
(a)
ECT
Console
VoIP Media Gateway
ToIP Access Device
SmartNode 4118
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
0/4
0/5
0/6
0/7
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
SIP
(b)
REFER
Console
VoIP Media Gateway
ToIP Access Device
SmartNode 4118
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
0/4
0/5
0/6
0/7
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
SIP
(c)
ECT
Console
VoIP Media Gateway
ToIP Access Device
SmartNode 4118
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
0/4
0/5
0/6
0/7
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
SIP
(d)
DISCONNECT
BYE
DISCONNECT
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0 V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
Console
VoIP Gateway Router
ToIP Integrated Access Device
SmartNode 4524
Link
100M
Activity
0/0
0/1
0/2
0/3
Enet 0V
oice Ports
Power
Run
VoIP Link
Link
100M
Activity
Enet 1
SIP interface configuration task list 453
SmartWare Software Configuration Guide 39 • SIP interface configuration
The push-back mechanism can be configured on each interface separately. Per default push-back is enabled for
ISDN and SIP interfaces. You only have to change the configuration if you don't want internally looped calls
to be pushed back to the network. The configuration command [no] call-transfer accept configures if an
incoming call-transfer request (e.g. ECT or REFER) shall be accepted. The configuration command [no] call-
transfer emit configures if a call reaching the device over this interface and leaving the device over this interface
shall be pushed back to the network, i.e. if a call-transfer request (ECT or REFER) shall be sent.
The following procedure disables the push-back mechanism on the ISDN interface connected to the PBX. No
ECT invocation is sent when a call is detected that is looped internally.
Mode: Interface ISDN
The following procedure disables the push-back mechanism on a SIP interface. No REFER message is sent
when a call is detected that is looped internally.
Mode: Interface SIP
AOC Over SIP (Optional)
This enhancement sends AOC information transparently from ISDN (or H.323) to SIP and vice versa. AOC-
D elements are hex-encoded and sent as application/QSIG content in SIP INFO messages during a session.
Mode: Interface SIP
Step Command Purpose
1[node](if-isdn)[if-name]#no calll-transfer
emit
Disables the ISDN push back mechanism.
Step Command Purpose
1[node](if-sip)[if-name]#no calll-transfer
emit
Disables the SIP push back mechanism.
Step Command Purpose
1 [name] (if-sip)[interface]#[no] aoc-d
accept
Enables or disables the reception of SIP Info
messages containing AOC-D elements and
propagate charging information to adjacent
peer.
2 [name] (if-sip)[interface]#[no] aoc-d emit Enables or disables the sending of SIP Info
messages with AOC-D elements containing
charging information from adjacent peer. If
no charging information is available, no mes-
sage is sent.
SIP interface configuration task list 454
SmartWare Software Configuration Guide 39 • SIP interface configuration
Enabling the session timer (Optional)
The gateway implements the SIP session timer feature, which is currently only defined in SIP draft standards.
The session timer feature allows a gateway to check periodically during a call, if the remote gateway is still alive
and if the call is still connected on the remote gateway. You can enable this feature using the command shown
below. If the session timer feature detects that the call is no longer connected on the remote side, it will also
drop the call locally.
Mode: Interface SIP
Enabling the SIP penalty-box feature (Optional)
The following command enables the SIP penalty-box feature, which causes a non-responsive server not to be
contacted again for the specified duration. A server will be in the penalty box for the specified time as soon as a
single transaction with that server fails.
Mode: Interface SIP
Initiating a new SIP session for redirected SIP calls (Optional)
Normally, if a SIP call is redirected to a different location by receiving a SIP 3xx response, only the request
header is replaced in the original INVITE message and the INVITE is sent to the new destination. Using the
following procedure, the SIP gateway can be forced to create a completely new session for forwarded calls.
Mode: Interface SIP
Step Command Purpose
1[node](if-sip)[if-name]#[no] session-timer
seconds
Enables/Disables the session timer with a
refresh period of the specified number of sec-
onds.
Default: disabled
Step Command Purpose
1[node](if-sip)[if-name]#[no] penalty-box Enables/Disables the SIP penalty box feature.
Default: disabled
Step Command Purpose
1[node](if-sip)[if-name]#[no] new-session-
after-redirect
Enables/disables creation of a new session
after a redirect response.
Default: disabled
SIP interface configuration task list 455
SmartWare Software Configuration Guide 39 • SIP interface configuration
Configure the SIP hold method (Optional)
There are different ways to set a remote SIP subscriber On Hold. This command specifies which method the
SmartNode uses to indicate this call state. In receive direction, all of them will be accepted.
Mode: Interface SIP
Step Command Purpose
1[node](if-sip)[if-name]#hold-method
{direction-attribute | zero-ip}
Configures the method to be used to signal
the hold state.
Default: zero-ip
456
Chapter 40 Call router configuration
Chapter contents
Introduction........................................................................................................................................................458
Call router configuration task list.........................................................................................................................460
Map out the goals for the call router .............................................................................................................460
Enable advanced call routing on circuit interfaces .........................................................................................461
Configure general call router behavior ...........................................................................................................461
Configure address completion timeout ....................................................................................................461
Configure default digit collection timeout and terminating character ......................................................462
Configure number prefix for ISDN number types ........................................................................................463
Configure call routing tables .........................................................................................................................464
Create a routing table ..............................................................................................................................464
Called party number routing table ................................................................................................................466
Regular Expressions .................................................................................................................................466
Digit Collection ......................................................................................................................................468
Digit Collection Variants ........................................................................................................................469
Calling party number routing table .........................................................................................................472
Number type routing table ............................................................................................................................472
Numbering plan routing table .......................................................................................................................473
Name routing table .......................................................................................................................................474
IP address routing table .................................................................................................................................474
URI routing table ..........................................................................................................................................475
Presentation Indicator Routing Table ...........................................................................................................475
Screening Indicator Routing Table ...............................................................................................................476
Information transfer capability routing table .................................................................................................477
Call-router support for redirecting number and redirect reason .....................................................................478
Time of day routing table ..............................................................................................................................479
Day of Week Routing Table .........................................................................................................................479
Date routing table .........................................................................................................................................479
Deleting routing tables ..................................................................................................................................480
Configure mapping tables .............................................................................................................................481
E.164 to E.164 Mapping Tables ...................................................................................................................485
Custom SIP URIs from called-/calling-e164 properties .................................................................................488
Other mapping tables ...................................................................................................................................488
Deleting mapping tables ...............................................................................................................................489
Creating complex functions ..........................................................................................................................490
Deleting complex functions ..........................................................................................................................491
Digit collection & sending-complete behavior ..............................................................................................492
Sending-Complete ..................................................................................................................................492
Ingress interface .......................................................................................................................................492
Call-Router .............................................................................................................................................493
457
SmartWare Software Configuration Guide 40 • Call router configuration
Egress Interface .......................................................................................................................................495
Creating call services .....................................................................................................................................497
Creating a hunt group service ........................................................................................................................497
Creating a distribution group service .............................................................................................................506
Distribution-Group Min-Concurrent setting ................................................................................................508
Call-router ‘limiter’ service ............................................................................................................................508
Priority service ..............................................................................................................................................509
CS Bridge service—‘VoIP Leased Line’ .........................................................................................................511
Configuring the service second-dialtone ........................................................................................................513
Deleting call services .....................................................................................................................................514
Activate the call router configuration ............................................................................................................514
Test the call router configuration ..................................................................................................................515
Configure partial rerouting ...........................................................................................................................521
Call reroute .............................................................................................................................................522
Enable acceptation of rerouting requests on ISDN. ........................................................................... 522
Enable emission of rerouting requests on ISDN. ............................................................................... 522
Enable sending of “302 moved temporary” message on SIP............................................................... 522
Allow Push-Back .....................................................................................................................................522
Enable push-back – aaa service .......................................................................................................... 522
Enable push-back – bridge service ..................................................................................................... 523
Enable push-back – distribution-group service .................................................................................. 523
Enable push-back – hunt group service.............................................................................................. 523
Enable push-back – limiter service..................................................................................................... 523
Enable push-back – priority service ................................................................................................... 523
Introduction 458
SmartWare Software Configuration Guide 40 • Call router configuration
Introduction
This chapter provides an overview of call router tables, mapping tables and call services and describes the tasks
involved in configuring the call router in SmartWare. This chapter includes the following sections:
•Call router configuration task list
•Call router configuration tasks
•Examples
There are two options for deciding where an incoming call on a CS interface is forwarded to:
•Basic interface call routing: Basic interface routing can be configured directly on the CS interfaces. It’s also
called direct call routing.
•Advanced call routing: More complex call forwarding decisions can be configured in the call router.
The call router is a very efficient and flexible tool for routing calls between CS interfaces. Based on a set of
routing criteria, the call router determines the destination (interface) for every incoming call. The forwarding
decisions and features are based on a set of routing tables, mapping-tables and call services.
Each routing table is responsible for a specific routing criterion such as the called party number or the bearer
capability of the call. Multiple tables can be linked together to form a decision tree. The mapping tables can be
used to modify call properties like the calling and called party numbers according to the network requirements.
Call services can be used in the routing path to observe the call state and spawn other calls. The hunt-group
Introduction 459
SmartWare Software Configuration Guide 40 • Call router configuration
service is an example for a call service. Figure 62 illustrates direct call and advanced call routing. In this chapter,
advanced call routing is explained. For configuring direct call routing refer to chapter 40, “Call router configu-
ration” on page 456.
Figure 62. Direct call routing vs. advanced call routing
Due to the tree search algorithm implemented in the call router very large routing tables can be scanned very
quickly with minimal impact on the call setup delay. The SmartWare call router supports the following routing
criteria:
•Calling party number (calling-e164); also called source-Nr, A-Nr, MSN, DDI, or CLIP
•Called party number (called-e164); also called destination-Nr or B-Nr
•Calling and called party number type
•Calling and called party number plan
•Calling and called party name, the display name
•Calling and called party IP address (for VoIP calls)
•Calling and called party URIs (for SIP calls)
•Presentation indicator; whether the number shall be presented to the other party
•Screening indicator; whether the number has been screened
•Information transfer capability; also called ISDN bearer capability or ISDN service
•Day of week; Monday–Sunday
Context
interface interface
Call Router
a
b
c
first routing table
a A
b B
mapping table
i
j
k
routing table
service
route
execute route
route
x
y
z
route
route
routing table
Advanced call
routing through
Call Router
Direct call routing
Call router configuration task list 460
SmartWare Software Configuration Guide 40 • Call router configuration
•Time of day; hour:minute:second
•Date; day.month.year
Call router configuration task list
To configure the call router, perform the tasks in the following sections and in the order as listed below.
•Map out the goals for the call router
•Enable advanced call routing on circuit interfaces
•Configure general call router behavior
•Configure call router tables
•Configure mapping tables and complex functions
•Configure call services
•Deleting routing tables and functions
•Activate the call router configuration
•Test the call router configuration
Map out the goals for the call router
There are many possible policies and factors that may influence the call router configuration. Some
examples are:
•On-net off-net call routing
•ISDN service routing
•Carrier selection
•Service quality
•Fallback strategies
•Network and gateway selection
Other factors that must be taken into account are:
•Available number ranges (DDI, MSN, PISN)
•Potential restrictions imposed by neighboring equipment (Gatekeepers, Remote Gateways, PBXs) on the
number length or range to be used.
The call router allows you to solve practically any call routing
and call property manipulation requirement that you may have.
The call router is very flexible in allowing the construction of
decision trees based on linked routing tables. However you
should take care not to use too many tables and an over-elabo-
rate structure. The configuration may become large and difficult
to manage. For complex configurations we recommend offline
editing and configuration downloads.
IMPORTAN
Call router configuration task list 461
SmartWare Software Configuration Guide 40 • Call router configuration
The call router is able to accommodate almost every combination of these requirements through a customized
configuration.
In order to keep this configuration compact we recommend that you first define the routing requirements and
restrictions that apply to your installation. Then define the routing and mapping tables and the call services
that you need to fulfill these requirements. Finally define the decision tree (i.e. the sequence in which the tables
are linked together). In this step you may realize that you need multiple tables of the same type to achieve your
goals. On the other hand an alternative sequence may help you to reduce the number of tables or the size of
each table while still achieving the set goal. Only when you are happy with the planned tables, functions and
sequence should you start configuration.
Enable advanced call routing on circuit interfaces
To activate the advanced call routing the first routing table in the CS interface has to be specified as you can see
in figure 62. Make sure the route parameter on the CS interface is configured in order to forward the incoming
calls to the first table of the call router.
Procedure: To enable advanced call routing on a circuit interface
Mode: Context CS
Configure general call router behavior
Configure address completion timeout
A call that is routed through a called party number routing table possibly has a called party number that is too
short for a routing decision to be made. In this case the call router waits for additional digits being entered by
the calling user. When the user does not enter additional digits during the address completion timeout, the call
router drops the call. You can configure the address completion timeout following the procedure below. The
default address completion timeout is 12 seconds and is restarted after each digit that is sent during
overlap dialing.
Note The address completion timeout is active when the call router waits for man-
datory digits before being able to complete call routing. Contrary to this, the
digit collection timeout, described below, waits for additional optional digits.
Procedure: To configure the address completion timeout
Step Command Purpose
1node(ctx-cs)[switch]#interface if-type if-name Change to Interface Configuration Mode to specify
the entry table in the interface
2node(if-type)[if-name]#route call dest-interface
interface-name
or
node(if-type)[if-name]#route call dest-table
table-name
or
node(if-type)[if-name]#route call dest-service
service-name
Use these commands to route a call
(1) directly to an interface specified with the inter-
face-name parameter;
(2) to the call router, using the table-name table as
first routing table;
(3) directly to a service specified with the service-
name parameter.
Call router configuration task list 462
SmartWare Software Configuration Guide 40 • Call router configuration
Mode: Context CS
Example: Configure address completion timeout
node[switch]#address-completion timeout 20
Configures the address completion timeout to 20s. A call with an incomplete called party number is dropped
20 seconds after receiving the last called party address update (overlap dialed digit).
Configure default digit collection timeout and terminating character
You can enter called party routing table entries that specify an incomplete number (extended by the T-indica-
tor; refer to section “Called party number routing table” on page 466). When the call router selects such an
entry, the call router waits for additional digits and starts the digit collection timeout. When the digit collec-
tion timeout elapses or when the user enters the terminating character, the call is placed to the destination
specified with the routing table entry.
The digit collection timeout has a default value of 5 seconds, the terminating character is the pound character
(#) by default.
Note The digit completion timeout is active when the call router waits for
optional digits of a called party number before placing the call to the selected
destination. Contrary to this, the address completion timeout, described
above, waits for mandatory digits.
Procedure: To configure the digit collection timeout and terminating character
Mode: Context CS
Step Command Purpose
1node(ctx-cs)[switch]#
address-completion timeout timeout
Configures the address completion timeout by
specifying the timeout in seconds. If not config-
ured, the default address completion timeout is
12 seconds.
Step Command Purpose
1node(ctx-cs)[switch]#
digit-collection timeout timeout
Configures the digit collection timeout by specify-
ing the timeout in seconds. If not configured, the
default digit collection timeout is 5 seconds.
2node(ctx-cs)[switch]#
digit-collection terminating-char char
or
no digit-collection terminating-char
Configures the digit collection terminating charac-
ter by specifying the char. This can be any charac-
ter out of 0123456789*#. The default
terminating character is the pound (#). You can
also use this command in the no-form to disable
that the user can stop digit collection by a termi-
nating character.
Call router configuration task list 463
SmartWare Software Configuration Guide 40 • Call router configuration
Example: Configure address completion timeout
node[switch]#digit-collection timeout 3
node[switch]#digit-collection terminating-char *
Configures the digit collection timeout to 3s. The digit-collection timeout can be stopped by the user entering
the asterisk (*) character.
Configure number prefix for ISDN number types
The called and calling party numbers in an ISDN signaling message are of a defined number type; national,
international or unknown. Depending on where the message originates (PSTN, mobile network, PBX) this
number type may differ. Table 16 illustrates the three number types.
The missing prefix in the national and international number types can complicate the call router configuration,
so SmartWare offers the possibility to expand these numbers before entering the first call router table.
Note The configured prefix is not removed at the exit of the call router (i.e. when
a destination interface is found), but the number has the number type
unknown.
Procedure: To configure number prefix
Mode: Context CS
Example: Configure number prefix
node[switch]#national-prefix 0041
Input: 99888xxxx Result: 004199888xxxx
node[switch]#international-prefix 00
Input: 4199888xxxx Result: 004199888xxxx
Table 16. ISDN number types
Type Format Description Example
unknown as dialed with all leading zeros or other prefix numbers 0041 99 888xxxx
national (area code) (local extension number) 99 888xxxx
international (country code) (area code) (local extension number) 41 99 888xxxx
Step Command Purpose
1node(ctx-cs)[switch]#
national-prefix prefix
Adds prefix to all E.164 numbers of type national
before entering the call router.
2node(ctx-cs)[switch]#
international-prefix prefix
Adds prefix to all E.164 numbers of type interna-
tional before entering the call router.
Call router configuration task list 464
SmartWare Software Configuration Guide 40 • Call router configuration
Configure call routing tables
Routing tables are identified by names that can be any arbitrary string. For ease of identification the table type
is typically used as part of the name.
Call router tables are created by entering the routing-table command, which also brings you into the routing
table configuration mode. There you can add, modify or delete entries of the routing tables. Refer to the indi-
vidual table types detailed below on how to configure table entries.
Note The sequence of the lines is not important. The call router creates a search
tree out of the table lines to ensure optimal search speed.
Note To remove a specific entry of a table, enter the table configuration mode and
use the no-form on a previously entered entry. To remove a whole table, use
the no form of the table mode command.
Create a routing table
A routing table forwards the call to another table, interface or service based on a specific call property like the
called party number or the current date. The call router provides a number of different routing table types. A
routing table looks like the following:
Figure 63. Routing table outline
Each table contains a header and one or more entries. The header declares the type of the routing table as well
as its name.
The name of the routing table is unique inside the context and serves as identifier for referencing the table
from other tables or interfaces. The routing table type specifies which call property the table shall examine.
Table 17 lists the call properties that can be used as a routing table type.
Table 17. Routing table types
Type Description
called-e164 Route calls based on the called party E.164 number. Entries of called-e164 tables can
use wildcards to summarize routes. Digit collection can be configured on a per-entry
basis.
Type
Name NATIONAL
called-e164
Key Destination Function
001 if USVOIP-A
0044 if EUROVOIP
Header
Entries
0049 if EUROVOIP
default if DEFACC ADD-PREFIX
001320 if USVOIP-B
Call router configuration task list 465
SmartWare Software Configuration Guide 40 • Call router configuration
Besides the header (name and type) a routing table contains multiple entries. Each entry specifies a specific
value of the routing table type and a destination interface and an optional function. When a call arrives at a
routing table, the following procedure is applied:
1. Examine the call property as specified with the routing table type.
2. Select the best matching entry. This means that the key of each of the entries is compared to the call prop-
erty and the entry that matches best is chosen.
3. Execute the entry. This means executing the referenced function of the entry if specified, and routing the
call to the specified destination interface, table or service.
Procedure: To create a routing table and add entries
calling-e164 Route calls based on the calling party E.164 number. Entries of calling-e164 tables can
use wildcards to summarize routes.
called-type-of-number Route calls based on the called party number type. ISDN distinguishes different type of
numbers.
calling-type-of-number Route calls based on the calling party number type. ISDN distinguishes different type of
numbers.
called-numbering-plan Route calls based on the called party numbering plan. ISDN distinguishes different
numbering plans.
calling-numbering-plan Route calls based on the calling party numbering plan. ISDN distinguishes different
numbering plans.
called-name Route calls based on the display name of the called party.
calling-name Route calls based on the display name of the calling party.
called-ip Route calls based on the signaling IP address of the destination VoIP peer.
calling-ip Route calls based on the signaling IP address of the origination VoIP peer.
called-uri Route calls based on the URI of the destination VoIP peer (for SIP calls: the To-URI).
calling-uri Route calls based on the URI of the origination VoIP peer (for SIP calls: the From-URI).
calling-pi Route calls based on the presentation indicator.
calling-si Route calls based on the screening indicator.
itc Route calls based on the information transfer capability (bearer capability) to distin-
guish speech from data calls.
time Route calls based on the current time of day. .
date Route calls based on the current date.
day-of-week Route calls based on the current day of week.
Table 17. Routing table types (Continued)
Type Description
Call router configuration task list 466
SmartWare Software Configuration Guide 40 • Call router configuration
Mode: Context CS
Example: Called party number routing table
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table called-e164 NATIONAL
node(rt-tab)[NATIONAL]#route 001 dest-interface USVOIP-A
node(rt-tab)[NATIONAL]#route 001320 dest-interface USVOIP-B
node(rt-tab)[NATIONAL]#route 0044 dest-interface EUROVOIP
node(rt-tab)[NATIONAL]#route 0049 dest-interface EUROVOIP
node(rt-tab)[NATIONAL]#route default dest-interface DEFACC ADD-PREFIX
Called party number routing table
The called party number (called-e164) table is used to route calls based on the called party E.164 number in
the call set-up message. The call router scans the table to find the longest matching key starting with the first
digit.
Regular Expressions
The key of an entry can be either a complete number or a partial number with wildcard digits, represented by a
period (.) character. Each (.) represents a wildcard for an individual digit. For example, if the key is defined as
888 . . . ., then any called party number beginning with 888, plus at least four additional digits matches this
entry.
In addition to the period (.), there are several other symbols that can be used as wildcard characters in the key.
These symbols provide additional flexibility in designing call routing and decrease the need for multiple entries
in configuring number ranges.
Step Command Purpose
1node(ctx-cs)[switch]#routing-table
table-type table-name
Create a routing table table-name of the specified table-type.
This enters the table mode where entries can be added or
removed. To enter a previously created table from the context
CS mode, you may leave away the table-type.
2node(rt-tab)[table-name]#route key
dest-interface if-name function
or
node(rt-tab)[table-name]#route key
dest-table table-name function
or
node(rt-tab)[table-name]#route key
dest-service service-name function
Add an entry to the routing table for destination interface if-
name, destination table table-name or destination service
service-name. Optionally you can specify a function (map-
ping-table or complex function) that shall be executed before
the call is routed to the destination interface, table or service.
The format of the key depends on the type of table. The next
sections explain key formats for the different table types.
3Repeat step 2 to add lines for additional table entries.
Call router configuration task list 467
SmartWare Software Configuration Guide 40 • Call router configuration
The following table shows the wildcard characters that are supported:
Table 18. Wildcard symbols used as keys in E.164 tables (calling-e164, called-e164)
Symbol Description
.Indicates a single-digit placeholder. For example, 888 . . . . matches any dialed number beginning
with 888, plus at least four additional digits. Note that the key only specifies the prefix. Thus the num-
ber may be longer, but also matches.
[ ] Indicates a range of digits. A consecutive range is indicated with a hyphen (-); e.g. [5-7]. A noncon-
secutive range is indicated without a delimiter. For example, [58]. Both can be used in combination;
e.g. [5-79], which is the same as [5679]. A (^) symbol may be placed right after the opening bracket
to indicate that the specified range is an exclude list. For example, [^01] specifies the same range as
[2-9].
Note: Only single-digit ranges are supported. You cannot specify the range of numbers between 99
and 102 using [99-102].
( ) Indicates a pattern. For example, 888(2525). It is used in conjunction with the symbol (?), (%) or (+)
or when replacing a number in a mapping table.
?Indicates that the preceding digit or pattern occurred zero or one time. Enter Ctrl-V before entering
(?) from your keyboard, since the CLI normally uses the question mark to display help texts.
%Indicates that the preceding digit or pattern occurred zero or more times. This functions the same as
the asterisk (*) used in regular expression. Here the percent (%) symbol is used to be able to handle
the asterisk (*) as part of a dialed number.
+Indicates that the preceding digit or pattern occurred one or more times.
TEnables digit-collection for this entry. The call router pauses to collect additional dialed digits. The
default digit collection timeout is 5 seconds. The collection can be aborted pressing the pound (#)
key.
Note: The terminating character is used only to terminate the timeout and is therefore removed from
the dialed number.
Note: The timeout (T) symbol is only allowed for Called Party Number table entries, while all other
wildcards are also allowed for Calling Party Number tables.
Call router configuration task list 468
SmartWare Software Configuration Guide 40 • Call router configuration
The next table shows some examples of how these wildcard symbols are applied to the key of a table entry:
In addition to wildcard characters, the following characters can also be used in the key of the table entry:
•Asterisk (*) and pound sign (#) – These characters can be used anywhere in the key like other digits, for
example, they can be used as the leading character (e.g. *21), which is handled like normally dialed number.
•Dollar sign ($) – Disables prefix matching. Must be used at the end of the dial string.
Digit Collection
Fixed-length dialing plans, in which all the numbers have fixed length, are sufficient for most voice networks,
because the telephone number strings are of known lengths. Some voice networks, however, require variable-
length dial plans, particularly for international calls, which use telephone numbers of different length. Further-
more some voice networks do not support overlap dialing. In this case the call-router must collect the digits
before placing a call to that network with the complete number.
If you enter the timeout T-indicator at the end of the key in a Called-Party Number table, the call router
accepts a fixed-length number and then waits for additional dialed digits. The timeout character must be an
uppercase T. The following example shows how the T-indicator is set to allow variable-length numbers:
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table called-e164 collect
node(rt-tab)[collect]#route 0041T dest-interface CHVoIP-A
In the example above, the call router accepts the digits 0041, and then waits for an unspecified number of addi-
tional digits as long as the interdigit timeout has not expired. When the interdigit timeout expires, the router
places the call.
Table 19. Wildcard symbols used as keys in E.164 tables (calling-e164, called-e164)
Expression Description
88825.+ 88825, followed by one or more wildcard digits. This expression implies that the number must
contain at least 6 digits starting with 88825; for example, 888251, 8882512 or
888251234567890
88825.% 88825, followed by zero or more wildcard digits. This expression implies that the string must
contain at least 88825; for example, 88825, 888256, 8882567.
Note: The “.%” expression postfix can be left away, because the expression is always com-
pared as prefix to the dialed number. Thus each expression automatically contains a “.%” post-
fix.
88825+ 8882, followed by 5 repeated one ore more times; for example, 88825, 888255, or
8882555555555
888(25)+ 888, followed by 25 repeated one or more times; for example, 88825, 8882525 or
8882525252525
0?111 An optional 0, followed by 111; for example, 0111, 111, 11123456789
8882[56]… 8882 followed by 5 or 6, plus at least three more wildcard digits.
.%45$ Any number that has a postfix of 45; for example, 45, 045, 0041998882545.
Note: The dollar sign ($) at the end is used to disable prefix matching.
Call router configuration task list 469
SmartWare Software Configuration Guide 40 • Call router configuration
The default value for the interdigit timeout is 5 seconds and can be configured using the digit-collection
timeout command in the context CS configuration mode. You may want to override this default timeout for a
specific entry. Just place the timeout in seconds after the T-indicator; e.g. T3 to set the inter digit timeout to 3
seconds for that entry.
The user may press the pound (#) as terminating character to immediately place the call. If the pound (#) char-
acter is entered while the router is waiting for additional digits, the pound (#) character is treated as a termina-
tor; it is not treated as part of the dialed number sent across the network. But if the pound (#) character is
entered before the router begins waiting for additional digits (meaning that the pound (#) is entered as part of
the fixed-length key), then the pound (#) character is treated as a dialed digit.
For example, if the key is configured as 888 . . . . T, then the entire dialed string of 888#2525 is collected, but
if the dialed string is 888#252#5, the #5 at the end of the dialed number is not collected, because the final
pound (#) character is treated as terminator. You can change the default terminating character using the digit-
collection terminating-char command in the context CS configuration mode. You may want to override this
default terminating character for a specific entry. Just place the character after the timeout and a comma; for
example, T3,* to set the terminating character to asterisk (*).
Digit Collection Variants
There are three different ways how a called party routing-table can be used to perform address completion or
digit collection. Consider the following examples:
routing-table called-e164 TAB-PREFIX
route 099 dest-interface IF-OUT
routing-table called-e164 TAB-COMPLETE
route 099.... dest-interface IF-OUT
routing-table called-e164 TAB-COLLECT
route 099T dest-interface IF-OUT
Now assume someone picks up a phone and dials a number using overlap dialing. After picking up the phone,
an empty called party number is offered to the routing tables. All three routing tables require the called party
number to contain at least the prefix 099. Thus the number is incomplete and the call router waits for addi-
tional digits being entered. Now the user presses the digit one (1). The resulting called party number is 0991.
The call router is again asked for routing the call to a destination. The TAB-PREFIX table performs a prefix
match with its only entry and finds out that the number is long enough, so TAB-PREFIX immediately routes
the call to the destination interface IF-OUT. Unlike the first table, TAB-COMPLETE needs at least three
more digits. Thus the address is not complete yet and the call router waits for more digits. TAB-COLLECT
has enough digits but uses the T-indicator to perform digit-collection. The call router waits for the digit-collec-
tion timeout and then places the call to the destination interface IF-OUT.
Note There is a difference between the address completion and the digit collection
timeout. The address completion timeout is active when a route is incom-
plete, e.g. when the dialed number of 0991 is tried to match to the entry
099….. In this case, the call router cannot forward the call to the destination
unless the user enters three more digits. Thus the address completion time-
out is active when the call router waits for mandatory digits. The address
completion timeout can be configured using the address-completion
timeout command in the context CS mode. If the user does not enter more
Call router configuration task list 470
SmartWare Software Configuration Guide 40 • Call router configuration
digits, the address completion timeout elapses and the call is dropped. The
digit collection timeout is active when a route is complete but a T-indicator
is specified on the selected route, e.g. when the dialed number of 0991 is
tried to match the entry 099T. In this case the call router waits for some
period of time for the user to enter additional optional digits. The digit col-
lection timeout can be configured using the digit-collection timeout com-
mand in the context CS mode. If the user does not enter more digits, the
digit collection timeout elapses and the call is forwarded to the
destination interface.
Example: Simple called party number routing table
The following table routes call based on the called party number. An internal number starting with 5 and con-
taining at least 3 digits is routed to the interface that is connected to the local PBX. An international call to the
US is routed to the VoIP interface USVOIP. All other calls (local, national and international) are routed to the
interface that is connected to the PSTN.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table called-e164 DIST
node(rt-tab)[DIST]#route 5.. dest-interface PBX
node(rt-tab)[DIST]#route 001T dest-interface USVOIP
node(rt-tab)[DIST]#route default dest-interface PSTN
Example: Digit collection of any number
If you want to route calls from interface A directly to interface B, wanting to collect dialed digits, you have to
route calls from interface A to a routing table like the one shown in this example. This table does not require
the dialed number to be of any format or length but waits for arbitrary number of digits that can be entered
using overlap dialing. This allows the user to enter any number to reach the destination interface.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table called-e164 COLLECT
node(rt-tab)[COLLECT]#route T dest-interface OUT
Example: Called party number routing table explained
Regular expressions are very powerful for E.164 lookups. A routing table always tries to find the table entry
with the best matching prefix. Determining the best match is often not a very simple process. There are several
rules that define the match quality of a rule for an entered number:
1. A longer rule matches better than a shorter one.
2. An explicitly specified digit matches better than a wildcard.
3. A wildcard that include less possible digits matches better that a wildcard that include more possible digits.
Consider the following routing table:
routing-table called-e164 test
route 1 dest-interface IF1entry #1
route 1[0-4] dest-interface IF2entry #2
route 11 dest-interface IF3entry #3
route 111T dest-interface IF4entry #4
Call router configuration task list 471
SmartWare Software Configuration Guide 40 • Call router configuration
route default dest-interface IF5entry #5
Note The numbers that are normally dialed are longer than the prefixes listed in
the table test. For example, if the numbering plan is defined using five digits,
a user normally dials a number like 12345 to reach a destination. Anyway
the lookup result must be the same for en-bloc and for overlap dialing. This
example shows how the table is looked up after each overlap-dialed digit and
how a destination is finally found. This selected destination is the same as if
the user dialed the number en-bloc.
The following table contains a list of overlap-dialed number examples that use the routing table above for a lookup:
Dialed
Number
Selected
Entry Description
empty
(after picking up the
phone without dialing a
number beforehand)
— The number is incomplete for entries #1-#4, which all want at least
know whether the number starts with a 1. Thus no entry is selected and
the call router waits for additional mandatory digits or drops the call
after 12 seconds (address-completion timeout).
1 — No entry is selected. Though the dialed number matches entry #1 there
are other entries that are still incomplete (the entered number is a prefix
of the entry). In this state the call router waits for additional mandatory
digits or drops the call after 12 seconds (address-completion timeout).
2 #5 No entry matches, so the default entry is selected; the call is placed
immediately.
11 — No entry is selected. Though the dialed number completely matches
entry #1, #2 and #3, entry #4 is still incomplete. The call router waits for
additional mandatory digits or drops the call after 12 seconds (address-
completion timeout).
12 #2 Entry #1 and #2 match the dialed number of 12, but entry #2 matches
better because the expression is more precise (longer) than entry #1.
Thus the call is immediately routed to interface IF2.
19 #1 Entry #1 is the only that matches. The call is immediately placed.
111 #4 All entries match the dialed number of 111, but entry #4 matches best
because the expression is more precise (longer) than entry #1-#3.
Entry #4 is selected but the call is not placed immediately because the
entry contains the T-indicator. The router waits for additional digits and
then places call to interface IF4 when the digit-collection timeout
elapses.
Note: If the user enters an additional digit during digit-collection on a
T-indicator, the router must not change the destination entry anymore.
112 #3 Entry #1, #2 and #3 match the dialed number of 112. Entry #1 has
only an expression of one digit while entry #2 and #3 have an expres-
sion that specify two digits. Entry #3 matches better than entry #2
because entry #3 explicitly specifies the digits while entry #2 contains
a wildcard for the second digit. Thus entry #3 is selected and the call is
placed immediately to interface IF3.
Call router configuration task list 472
SmartWare Software Configuration Guide 40 • Call router configuration
Calling party number routing table
The calling party number (calling-e164) table is used to route calls based on the calling-e164 in the call setup
message. This number in general corresponds to the extension number of a PBX or MSN of an ISDN termi-
nal. The table can be used to route calls from extensions, which have particular call routing requirements (i.e.
Terminals which require non VoIP capable ISDN services). The call router looks for the longest match starting
with the first digit of the calling party number.
Note The calling party number is sometimes inserted or modified by a PBX.
Sometimes there is no calling party number at all. This all depends on the
equipment you connect to the device.
Note The T-indicator cannot be used in calling party number tables. (Overlap
dialing only makes sense for called party numbers).
Example: Calling party number routing table
This example shows how to create a calling party number routing table that routes calls based on the last three
digits of the calling party number (the extension part). The key .%52[35]$ means that every number that starts
with any digit (.) appearing zero or more times (%) followed by 52 and a 3 or 5 matches the entry. For exam-
ple, the following calling party numbers match the first entry: 0998882523 or 0998882525 or simply 523
or 525.
Note This table does not contain a default entry. All calls where the calling party
number does not match to one of the entries are dropped.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table calling-e164 EXTS
node(rt-tab)[EXTS]#route .%52[35]$ dest-interface breakout
node(rt-tab)[EXTS]#route .%572 dest-interface DefAcc
Number type routing table
The calling or called party number type (calling-type-of-number or called-type-of-number) table is used to
route calls based on the calling or called party type of number field in the ISDN setup message. This can be
used, for example, to differentiate between national and international calls.
121 #2 Entry #1 and #2 match the dialed number of 121, but entry #2
matches better. The call is immediately placed to IF2.
191 #1 Only entry #1 matches the dialed number of 191. Thus the call is
routed immediately to interface IF1.
1111 #4 The lookup procedure is the same as for dialled number 111. The call
router waits for additional digits and places the call after the digit-col-
lection timeout to interface IF4.
1111# #4 Same as for 1111, but the pound (#) terminates the digit collection; the
call is immediately placed to interface IF4.
Dialed
Number
Selected
Entry Description
Call router configuration task list 473
SmartWare Software Configuration Guide 40 • Call router configuration
Note When you specified a national or international prefix using the commands
national-prefix or international-prefix respectively. in the context CS config-
uration mode, the calling or called party number is extended with the speci-
fied prefix and the type-of-number is set to unknown in the incoming
interface. Thus an international number can enter the call-router as
unknown number.
Note This property is only set by incoming ISDN calls. A call that arrives the call
router from a FXS or SIP interface has a number type of Unknown as those
interfaces do not support the number type property.
The call router can route calls according to the following number types. These values beside default can be used
for the key parameter to create a routing table entry:
•unknown—Unknown number type. This is the default value for calls that arrive through an interface that
does not support the number type property.
•international—International number; the number does not include prefix or escape digits.
•national—National number; the number does not include prefix or escape digits.
•network-specific—Network specific number, used to indicate administration or service number specific to
the serving network, e.g. used to access an operator.
•subscriber—Subscriber number; the number does not include prefix or escape digits.
•abbreviated—Abbreviated number.
Example: Calling type-of-number routing table
The following example routes calls with an international calling party number to the next table TAB-INCOM-
ING-INT, calls with a national calling party number to the next table TAB-INCOMING-NAT and all other
calls to the next table TAB-INCOMING-UNKNOWN.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table calling-type-of-number TON
node(rt-tab)[TON]#route international dest-table TAB-INCOMING-INT
node(rt-tab)[TON]#route national dest-table TAB-INCOMING-NAT
node(rt-tab)[TON]#route default dest-table TAB-INCOMING-UNKNOWN
Numbering plan routing table
The calling party numbering plan or called party numbering plan (calling-number-plan or called-numbering-
plan) table is used to route calls based on the calling or called party numbering plan field in the ISDN setup
message. This can be used to differentiate calls between numbers of an ISDN, data, telex, national standard or
private numbering plan.
Note This call property is only set by incoming ISDN calls. A call that arrives the
call router from a FXS or SIP interface has a numbering plan of unknown.
Call router configuration task list 474
SmartWare Software Configuration Guide 40 • Call router configuration
The call router can route calls according to the following numbering plans. These values beside default can be
used for the key parameter to create a routing table entry:
•unknown—Unknown numbering plan. This is the default value for calls that arrive through an interface
that does not support the numbering plan property.
•isdn-telephony—ISDN/Telephony numbering plan according to CCITT Recommendation E.164/E.163).
•data—Data numbering plan according to CCITT Recommendation X.121.
•telex—Telex numbering plan according to CCITT Recommendation F.69.
•national-standard—Numbering plan according to a national standard.
•private—Any private numbering plan.
Example: Calling numbering-plan routing table
The following example shows how to create a routing table with name NP that routes calls based on the calling
part numbering plan. Calls with calling party numbers formed according to the ISDN/Telephony numbering
plan are routed to the next table TAB-INCOMING-ISDN, calls with calling party numbers formed according
to the data numbering plan to the next table TAB-INCOMING-DATA and all other calls to the next table
TAB-INCOMING-UNKNOWN.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table calling-numbering-plan NP
node(rt-tab)[NP]#route isdn-telephony dest-table TAB-INCOMING-ISDN
node(rt-tab)[NP]#route data dest-table TAB-INCOMING-DATA
node(rt-tab)[NP]#route default dest-table TAB-INCOMING-UNKNOWN
Name routing table
The calling display name or called display name (calling-name or called-name) table is used to route calls based
on the human-readable name of the calling or called party. The key you specify in a routing table entry must be
identical to the display name of the calling or called party for the entry to match.
Note Incoming SIP calls use this call property to store the display name part of the
SIP URI. Other interfaces set the display name to the empty string.
Example: Calling display name routing table
This example routes calls based on the display name part of the From-URI of an incoming SIP call.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table calling-name name
node(rt-tab)[name]#route “John Smith” dest-table TAB-FROM-JOHN
node(rt-tab)[name]#route Administrator dest-table TAB-FROM-ADMIN
node(rt-tab)[name]#route default dest-table TAB-FROM-UNKNOWN
IP address routing table
The calling party IP address (calling-ip) table is used to route calls based on the signaling IP address of the orig-
inating VoIP peer, e.g. the IP address of the originating H.323 peer terminal. The called party IP address
(called-ip) table is used to route calls based on the called IP address property. The called IP address of incoming
calls is set to 0.0.0.0 unless modified by a previous mapping table in the routing path. Thus the called IP
address table is of limited use only.
Call router configuration task list 475
SmartWare Software Configuration Guide 40 • Call router configuration
You may specify a whole subnet with the key parameter of the routing table entry. The format of the key
parameter is ipaddress[/mask-size]; the mask size may be omitted.
Note Incoming SIP and H.323 calls use the calling party IP address property to
store the IP address of the remote SIP user agent or H.323 terminal, respec-
tively. Other interfaces like ISDN or FXS set the IP address to 0.0.0.0.
Example: Calling IP address routing table
The following example routes all calls from a remote H.323 terminal in the LAN to the next table TAB-
FROM-LAN and all other calls to TAB-FROM-WAN.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table calling-ip ip
node(rt-tab)[ip]#route 172.16.32.0/24 dest-table TAB-FROM-LAN
node(rt-tab)[ip]#route default dest-table TAB-FROM-WAN
URI routing table
The calling party URI (calling-uri) table is used to route calls based on the URI of the originating VoIP peer,
e.g. the From-URI of the incoming SIP call. The called party URI (called-uri) table is used to route calls based
on the To-URI. The called URI of incoming calls is not set unless modified by a previous mapping table in the
routing path.
You can use regular expressions to specify the parts of an URI that must match in order to route the call to a
specified destination.
The following example shows how to create a routing table to route all SIP calls from John Smith to the next
table TAB-FROM-JOHN while all other calls are routed to the next table TAB-FROM-UNKNOWN.
Mode: Context CS
Presentation Indicator Routing Table
The presentation indicator (calling-pi) table is used to route calls based on the presentation indicator of the
calling party number. A user that doesn’t want its number being displays sets the presentation indicator to
restricted. There is no presentation indicator on the called party number. Thus you cannot create a called-
pi table.
Step Command Purpose
1node(ctx-cs)[switch]#routing-
table calling-uri name
Creates a routing-table that examines the From-URI of an
incoming SIP call
2node(rt-tab)[name]#route
sip:john\.smith@.% dest-table
TAB-FROM-JOHN
Routes all SIP calls from john.smith@<anywhere> to the
table TAB-FROM-JOHN. Note that the dot (.) between john
and smith must be escaped with a backslash (\), because
the dot (.) means ‘any character’ in a regular expression.
3node(rt-tab)[name]#route default
dest-table TAB-FROM-UNKNOWN
Routes all other SIP calls to the table TAB-FROM-
UNKNOWN
Call router configuration task list 476
SmartWare Software Configuration Guide 40 • Call router configuration
Note Incoming ISDN calls set the presentation indicator according to the received
ISDN Setup message. Incoming H.323 calls only set the presentation indi-
cator transparently when Octet3a handling is enabled. Other interfaces set
the presentation indicator to allowed.
The call router can route calls according to the following presentation indicators. These values beside default
can be used for the key parameter to create a routing table entry:
•allowed—Presentation of the calling party number is allowed. This is the default value for calls that arrive
through an interface that does not support presentation indicators.
•restricted—Presentation of the calling party number is restricted.
•interworking—The calling party number is not available due to interworking.
Note At the originating user-network interface, the presentation indicator is used
for indicating the intention of the calling user for the presentation of the
calling party number to the called user. You possibly want to remove the call-
ing party number when the user set the presentation indicator to restricted.
To achieve this, route restricted calls to a mapping table that sets the calling-
e164 to the empty string (“”) as it is shown in the example below.
Example: Presentation indicator routing table
This example uses a pseudo routing table that just forwards all calls to the interface IF-OUT but first executes
the mapping table NO-CNPN. This mapping table examines the presentation indicator and modifies the call-
ing party number. If the presentation indicator is restricted, the calling party number is cleared. For all other
presentation indicator values, the calling party number is not modified.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table calling-pi PI
node(rt-tab)[PI]#route default dest-interface IF-OUT NO-CNPN
node(rt-tab)[PI]#exit
node(rt-tab)[switch]#mapping-table calling-pi to calling-e164 NO-CNPN
node(map-tab)[NO-CNPN]#map restricted to “”
Screening Indicator Routing Table
The screening indicator (calling-si) table is used to route calls based on the screening indicator of the calling
party number. A network validates the calling party’s number and puts the validation result to the screening
indicator. This allows a network to transparently pass the calling party number set by the calling user, but tell
the called user whether or not the number selected by the calling party really belongs to him or her.
Note Incoming ISDN calls set the screening indicator according to the received
ISDN Setup message. Incoming H.323 calls only set the screening indicator
transparently when Octet3a handling is enabled. Other interfaces set the
screening indicator to user-not-screened.
Call router configuration task list 477
SmartWare Software Configuration Guide 40 • Call router configuration
The call router can route calls according to the following screening indicators. These values beside default can
be used for the key parameter to create a routing table entry:
•user-not-screened—The calling party number is provided by the user but not screened by the network.
Thus the calling party possibly send a number that is not owned by the calling party. (This is the default
value for calls that arrive through an interface that does not support presentation indicators).
•user-passed—The calling party number is provided by the user, screened by the network and really belongs
to the calling party.
•user-failed—The calling party number is provided by the user, screened by the network and does not
belong to the calling party.
•network—The calling party number, because it is provided by the network, can be trusted.
Note You possibly want to remove the calling party number when the calling party
number is not screened or screening failed. To achieve this, route these calls
to a mapping table that sets the calling-e164 to the empty string (“”). If you
want to drop calls when the calling party number is not screened or screen-
ing failed, use the routing destination none.
Example: Screening indicator routing table
A call that is routed to this table is examined for the screening indicator of the calling party number. If the call-
ing party provided a number that was not accepted by the network (user-failed), we drop the call. Else we route
the call to the interface IF-OUT but first execute the mapping table NO-CNPN. This mapping table again
examines the screening indicator. If the user provided a number that was not screened by the network, the table
sets the calling party number to an empty string. For all other screening indicator values, the calling party is
not modified.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table calling-si SI
node(rt-tab)[SI]#route user-failed none
node(rt-tab)[SI]#route default dest-interface IF-OUT NO-CNPN
node(rt-tab)[SPI]#exit
node(rt-tab)[switch]#mapping-table calling-si to calling-e164 NO-CNPN
node(map-tab)[NO-CNPN]#map user-not-screened to “”
Information transfer capability routing table
The information transfer capability (itc) table is used to route calls based on the information transfer capability
field of the bearer capability information element in the ISDN setup message. This can be used to differentiate
between ISDN data services and ISDN speech connections.
Note Terminals connected to analog extensions (e.g. of a PBX) do not supply infor-
mation transfer capability values in their call set-up, so it is up to the configu-
ration of the analog port on the Terminal Adapter, NT or PBX to insert this
value. The configuration of this value is however often omitted or wrong. The
ITC value may therefore not be a reliable indication to differentiate between
analogue speech, audio or Fax Group 3 connections. Also, calls from SIP and
FXS interfaces do not differentiate between bearer capabilities. They always set
the information transfer capability property to 3.1kHz Audio.
Call router configuration task list 478
SmartWare Software Configuration Guide 40 • Call router configuration
The call router can route calls according to the following information transfer capabilities. These values beside
default can be used for the key parameter to create a routing table entry:
•speech—Voice terminals (Telephones)
•unrestricted-digital—Unrestricted digital information (64kBit/s)
•restricted-digital—Restricted digital information (64kBit/s)
•3k1-audio—Transparent 3.1kHz audio channel. This is the default value set by interfaces that do not sup-
port the ITC property.
•7k-audio—Transparent 7.1kHz audio channel
•video—Video conference terminals
Example: Information transfer capability routing table
The following example creates an itc routing table that routes all unrestricted digital calls to the interface IF-
ACCESS, all 7kHz audio calls to the interface IF-LOCAL-BREAKOUT, all video calls to the interface IF-
ACCESS and all other calls to the interface IF-VOIP-CARRIER-A.
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table itc ITC
node(rt-tab)[ITC]#route unrestricted-digital dest-interface IF-ACCESS
node(rt-tab)[ITC]#route 7k-audio dest-interface IF-LOCAL-BREAKOUT
node(rt-tab)[ITC]#route video dest-interface IF-ACCESS
node(rt-tab)[ITC]#route default dest-interface IF-VOIP-CARRIER-A
Call-router support for redirecting number and redirect reason
The call.router can be used to manipulate and make routing decisions depending on the call-control redirect-
ing number and redirect reason properties. The following command creates a call-router routing-table, which
uses the redirecting number for routing decisions. The contents of the routing table are the same as for any
other E.164 number based call-router routing table.
Mode: context cs
The following command creates a redirect-reason call-router routing-table. Possible reason values for routing
decisions are:
•cd: Call deflection
•cfb: Call forwarding on busy
•cfd: Call forwarding by called DTE
•cfnr: Call forwarding on no reply
•cfu: Call forwarding unconditional
•ooo: Called DTE out of order
Step Command Purpose
1 [name] (ctx-cs)[router]# routing-table call-
ing-redir-e164 <table-name>
Creates a redirecting number routing table.
Call router configuration task list 479
SmartWare Software Configuration Guide 40 • Call router configuration
•default: Any other unhandled case
Mode: context cs
Both the redirecting-number and the redirect-reason can also be used in any call-router mapping tables.
Time of day routing table
The time table is used to route calls based upon the current system time during one day, i.e. an 24hr. period
from midnight to midnight. Times are matched within the ranges defined in the time routing table.
The key parameter of the routing table entry has the format: hh:mm:ss-hh:mm:ss
The full range must be specified. The range must not cross a day boundary at midnight.
Example: Time of day routing table
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table time WORKDAY
node(rt-tab)[WORKDAY]#route 08:00:00-16:59:59 dest-table TAB-BEST-QUAL
node(rt-tab)[WORKDAY]#route 17:00:00-20:59:59 dest-interface IF-VOIP-A
node(rt-tab)[WORKDAY]#route 21:00:00-23:59:59 dest-interface IF-VOIP-B
node(rt-tab)[WORKDAY]#route 00:00:00-07:59:59 dest-interface IF-VOIP-B
Day of Week Routing Table
The day-of-week table is used to route calls according to the day of the week. The days are defined by the long
lowercase names monday; tuesday; wednesday; thursday; friday; saturday; and sunday. To configure weekday
routing table entries use the following commands starting in the CS context configuration mode.
Example: Day of week routing table
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table day-of-week TAB-DAY
node(rt-tab)[TAB-DAY]#route saturday dest-table TAB-LEAST-COST
node(rt-tab)[TAB-DAY]#route sunday dest-table TAB-LEAST-COST
node(rt-tab)[TAB-DAY]#route default dest-interface IF-VOIP
Date routing table
The date table is used to route calls according to the current system date. It can be used, for example, to repre-
sent holidays in the routing decision tree. The table matches exact dates or date ranges.
The key parameter of the routing table entry has the format: dd:mm:yyyy-dd:mm:yyyy
The full range must be specified.
Example: Date routing table
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table day-of-week HOLIDAY2001
node(rt-tab)[HOLIDAY~]#route 01.01.2001-02.01.2001 dest-table TAB-HOL
node(rt-tab)[HOLIDAY~]#route 05.01.2001-05.01.2001 dest-table TAB-HOL
node(rt-tab)[HOLIDAY~]#route 24.12.2001-31.12.2001 dest-table TAB-HOL
Step Command Purpose
1 [name] (ctx-cs)[router]# routing-table
calling-redir-reason <table-name>
Creates a redirect reason routing table.
Call router configuration task list 480
SmartWare Software Configuration Guide 40 • Call router configuration
node(rt-tab)[HOLIDAY~]#route default dest-interface IF-VOIP
Deleting routing tables
To remove individual routing tables you can use the no form of the routing table command. Alternatively
you can remove specific entries of a routing table by entering the routing table configuration mode and use the
no form of the route command.
Procedure: To delete an entry from a routing table
Mode: Context CS
Example: Remove entries from a routing table
The running-config shows the following table:
routing-table called-e164 MY-TABLE
route 10 dest-interface IF1
route 11 dest-interface IF2
route 12 dest-interface IF3
route default dest-interface IF4
To remove the first two entries from the table enter the following commands:
node(cfg)#context cs
node(ctx-cs)[switch]#routing-table MY-TABLE
node(rt-tab)[MY-TABLE]#no route 10
node(rt-tab)[MY-TABLE]#no route 11
The resulting running-config is:
routing-table called-e164 MY-TABLE
route 12 dest-interface IF3
route default dest-interface IF4
Procedure: To delete an entire routing table
Step Command Purpose
1node(ctx-cs)[switch]#routing-table
table-name
Enter the routing table from which you want to remove an
entry.
Note: You do not have to enter the type of the table when
just entering it. The type must only be specified when creating
a table.
2node(rt-tab)[table-name]#no route key Remove the entry with the specified key.
3Repeat Step 2 to remove additional entries.
Call router configuration task list 481
SmartWare Software Configuration Guide 40 • Call router configuration
Mode: Context CS
Example: Remove an entire routing table
node(cfg)#context cs
node(ctx-cs)[switch]#no routing-table MY-TABLE
Configure mapping tables
Mapping tables are used to modify the call setup message and thus influence the routing decision and or the
outgoing setup message leaving the call router. Mapping tables are identified by a name (string) and referenced
in the routing tables for execution. Like the routing table, a mapping table finds the best matching entry and
executes it; but unlike the routing table, the execution means manipulating a call property. Thus a mapping
table always examines one call property (the input-type) and changes another property (the output-type). As
for the routing tables the call router provides a number of different mapping table types. A mapping table looks
like the following:
Figure 64. Mapping table outline
Each table contains a header and one or more entries. The header declares the input and output-type of the
mapping table as well as its name.
Unlike a routing table, a call property pair characterizes a mapping table, the input and output-type. While the
input-type defines which call property is examined by the call router, the output-type defines which property is
modified once the best matching entry is found, for example, you may want to find a best matching entry in a
mapping table based on the presentation indicator and, once found, you want to manipulate the calling party
number of the call. In this case you chose an input-type of calling-pi and an output-type of calling-e164
There are three different kinds of call properties, calling party properties, called party properties and generic
properties. When a call setup is to be routed by the call router, most properties appear as calling and as called
party properties, for example, you have a calling party number and a called party number to examine. There
are other properties (e.g. the information transfer capability), which is a property of the whole call and not of
either party.
Step Command Purpose
1node(ctx-cs)[switch]#no routing-table
table-name
Delete the routing table table-name.
Note: You do not have to enter the type of the table when
just deleting it. The type must only be specified when creating
a table.
Output-Type
Name REMOVE-CNPN
calling-e164
Key
restricted if USVOIP-A
Header
Entries
Input-Type calling-pi
Value
Call router configuration task list 482
SmartWare Software Configuration Guide 40 • Call router configuration
You can create a mapping table that examines and modifies a specific kind of property, e.g. the called party
number. In this case you have to specify an input-type of called-e164 and an output-type of called-164. If you
want to replace both, the called and the calling party property with the same mapping table, you can create a
mapping table with input-type e164 and output-type e164, i.e. without prefixing the input- and output-type
with “called-“.
The name of the mapping table is unique inside the context and serves as identifier for referencing the map-
ping table from other routing tables. Almost every type explained with the routing table above can be used as
input and output-type of a mapping table.
Table 20. Mapping table types
Type Description Input-Type Description Output-Type
called-e164 Select an entry based on the called party
E.164 number. You can use wildcards to
summarize entries.
Modifies the called party E.164 number.
If the input-type is a called-e164 or a
calling-e164 type, you can use replace-
ment operators to use parts of the lookup
key.
calling-e164 Select an entry based on the calling party
E.164 number. You can use wildcards to
summarize entries.
Modifies the calling party E.164 num-
ber. If the input-type is a called-e164 or
a calling-e164 type, you can use
replacement operators to use parts of the
lookup key.
e164 If the output-type is also a generic kind of
property, this mapping table is applied to
both, this calling-e164 and the called-e164
property.
If the input-type is also a generic kind of
property, this mapping table is applied
to both, the calling-e164 and the called-
e164 property.
called-type-of-number Select an entry based on the called party
number type. ISDN distinguishes different
type of numbers.
Sets the called party number type.
calling-type-of-number Selects an entry based on the calling party
number type. ISDN distinguishes different
type of numbers.
Sets the calling party number type.
type-of-number If the output-type is also a generic kind of
property, this mapping table is applied to
both, this calling-type-of-number and the
called- type-of-number.
If the input-type is also a generic kind of
property, this mapping table is applied
to both, the calling-type-of-number and
the called-type-of-number property.
called-numbering-plan Selects an entry based on the called party
numbering plan. ISDN distinguishes differ-
ent numbering plans.
Sets the called party numbering plan.
calling-numbering-plan Selects an entry based on the calling party
numbering plan. ISDN distinguishes differ-
ent numbering plans.
Sets the calling party numbering plan.
numbering-plan If the output-type is also a generic kind of
property, this mapping table is applied to
both, this calling-numbering-plan and the
called-numbering-plan.
If the input-type is also a generic kind of
property, this mapping table is applied
to both, the calling-numbering-plan and
the called-numbering-plan property.
Call router configuration task list 483
SmartWare Software Configuration Guide 40 • Call router configuration
Besides the header (name, input and output-type) a mapping table contains multiple entries. Each entry speci-
fies a specific value of the routing table input-type and a value that shall be applied to the call property specified
with the output-type of the table. When a call arrives a mapping table, the following procedure is applied:
1. Examine the call property as specified with the mapping table input-type.
2. Select the best matching entry. This means that the key of each of the entries is compared to the call prop-
erty and the entry that matches best is chosen.
3. Execute the entry. This means replacing the property specified with the output-type of the mapping table
with the value of the selected entry.
called-name Selects an entry based on the display name
of the called party.
Sets the display name of the called
party.
calling-name Selects an entry based on the display name
of the calling party.
Sets the display name of the calling
party.
name If the output-type is also a generic kind of
property, this mapping table is applied to
both, this calling-name and the called-
name.
If the input-type is also a generic kind of
property, this mapping table is applied
to both, the calling-name and the called-
name property.
called-ip Selects an entry based on the remote sig-
naling IP address of the destination VoIP
peer.
Sets the remote IP address of the destina-
tion VoIP peer.
calling-ip Selects an entry based on the remote sig-
naling IP address of the origination VoIP
peer.
Sets the remote IP address of the origina-
tion VoIP peer.
ip If the output-type is also a generic kind of
property, this mapping table is applied to
both, this calling-ip and the called-ip.
If the input-type is also a generic kind of
property, this mapping table is applied
to both, the calling-ip and the called-ip
property.
calling-pi Selects an entry based on the presentation
indicator.
Sets the presentation indicator.
calling-si Selects an entry based on the screening
indicator.
Sets the screening indicator.
itc Selects an entry based on the information
transfer capability (bearer capability) to
distinguish speech from data calls.
Sets the information transfer capability.
time Route calls based on the current time of
day.
Cannot be set.
date Route calls based on the current date. Cannot be set.
day-of-week Route calls based on the current day of
week.
Cannot be set.
Table 20. Mapping table types (Continued)
Type Description Input-Type Description Output-Type
Call router configuration task list 484
SmartWare Software Configuration Guide 40 • Call router configuration
Let’s examine the mechanism of mapping tables in more detail. Figure 65 shows three mapping tables and a
call that is routed through this mapping table. The call contains various call properties that are examined and
modified by the mapping tables:
Figure 65. Mapping table examples
Example #1: This example shows a mapping table that selects the best matching entry based on the called party
number of a call and, once found, sets the called party URI. In the example a call arrives to the mapping table
with a called party number of 201. The mapping table selects the first entry, which matches best, and sets the
called party URI of the call to sip:john.smith@nil.net.
Example #2: This example shows a mapping table that selects the best matching entry based on the presenta-
tion indicator and, once found, sets the called party number. In the example a call arrives to the mapping table
with a presentation indicator of restricted. The mapping table selects the only entry (which matches) and sets
the called party number to the empty string.
Example #3: This example shows a mapping table that selects the best matching entry based on the called party
number and, once found, changes the same property, the called party number. This is a very powerful method
to manipulate numbers using regular expressions. In this example a call arrives to the mapping table with a
called party number of 234. The mapping table selects the only entry (which matches) and adds a prefix of
5551 to the called party number.
Mapping-Table
Mapping-Table
Mapping-Table
Called E.164 Called URI
input property output property
201 sip:john.smith@nil.net
202 sip:jane.smith@nil.net
Calling E.164Presentation Indicator
output propertyinput property
restricted
Called E.164 Called E.164
input property output property
(1..) 5551\1
Incoming Call
Calling
E.164
URI
Called
E.164
URI
200
201
Outgoing Call
Calling
E.164
URI
Called
E.164
URI
200
201
sip:john.smith@nil.net
Incoming Call
Calling
E.164
PI
Called
E.164
200
restricted
201
Outgoing Call
Calling
E.164
PI
Called
E.164
restricted
201
Incoming Call
Calling
E.164 100
Outgoing Call
Calling
E.164 100
Example #1
Example #2
Example #3
Mapping-Table
E.164 E.164
input property output property
(1..) 5551\1
Incoming Call Outgoing Call
Example #3
Called
E.164 234 Called
E.164 5551234
Calling
E.164 100
Called
E.164 234
Calling
E.164 5551100
Called
E.164 5551234
Call router configuration task list 485
SmartWare Software Configuration Guide 40 • Call router configuration
Example #4: This example shows the same input call properties as in example #3. The mapping table is also
almost the same, but unlike in the previous example, here we don’t look for a specific number type (e.g. called
party number, calling party number), but for any E.164 number property of the call. The output property is
also a generic number. In this case the mapping table replaces both, the calling and the called party number.
For example, the mapping table applies its algorithm to all E.164 numbers of the call.
Note Like a routing table, a mapping table selects the best matching entry based
on the input property type. This is done using the best matching prefix
method for E.164 numbers and string compare for other properties. Unless
you don’t have a default entry in a mapping table, no action is performed
when no match can be found and the call is not dropped. In the above exam-
ple #3, if a call arrives the mapping table with a called party number of 200,
which does not match the entry (1..), the called party number is not
changed.
Procedure: To create a mapping table and add entries
Mode: Context CS
Example: Called and calling party manipulation mapping table
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table e164 to uri SETURI
node(rt-tab)[SETURI]#map 100 to sip:john.smith@nil.net
node(rt-tab)[SETURI]#map 101 to sip:jane.smith@nil.net
E.164 to E.164 Mapping Tables
As with routing tables you can use regular expressions when selecting an entry in a mapping table based on a
calling or called party number. If the output property type of a mapping table is also a calling or called party
number, you may use parts of the matched expressions when building the modified number as shown in exam-
ple #3 above.
Step Command Purpose
1node(ctx-cs)[switch]#mapping-table
input-type to output-type table-name
Create a mapping table table-name that examines the call
property specified with input-type and modifies the call prop-
erty specified with output-type. This enters the table mode
where entries can be added or removed. To enter a previ-
ously created table from the context CS mode, you may leave
away the input-type and output-type.
2node(map-tab)[table-name]#map key to
value
Add an entry to the mapping that sets the output-type call
property to value if the output-type call property matches the
key. The format of the key depends on the input-type of the
table, and the format of the value depends on the output-type
of the table.
3Repeat step 2 to add lines for additional table entries.
Call router configuration task list 486
SmartWare Software Configuration Guide 40 • Call router configuration
Detailed Example: You have an internal dial plan that uses three digit numbers starting with a 2 (e.g. 200, 201,
etc.). So when an internal subscriber makes a call, its calling party number contains three digits.
1. You want to route calls to the public switched telephone network (PSTN), that is reachable over and
ISDN interface. From the PSTN provider you have an assigned number range from 099-8882500 to 099-
8882599.
2. You want to pass the last two digits of your internal subscribers when they are making calls to the PSTN.
Thus subscriber 244 should make a call to the PSTN using a calling party number of 099-8882544.
To achieve this, create a mapping table that looks like the following:
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table calling-e164 to calling-e164 MAP-PSTN
node(rt-tab)[MAP-PSTN]#map 2(..) to 09988825\1
When a call reaches this table with a calling party number of 244, this number is tried to match to the entries
of this table:
2(44) matches 2(. .)
Thus the only entry is selected and executed. This means setting the calling party number to 09988825\1. The
last part of the value (a backslash followed by a single digit number) is a placeholder and means that the first
pattern (expression in brackets) of the key shall be used instead.
Thus the called party number is replaced with the specified prefix 09988825 concatenated with the bracketed
pattern in the key (44). The result is 0998882544.
Like this you can use brackets around any party of the expression of the key and use the part that matches to
this bracket in the value you set.
Example: Mapping table to add a prefix to the called party number
Input:called-e164 = 0998882525
Output:called-e164 = *50998882525
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table called-e164 to called-e164 ADD-PFX
node(rt-tab)[ADD-PFX]#map (.%) to *5\1
The input 0998882525 matches the expression (.%) – any character repeated zero or more times.
The first bracket encloses the whole number: (.%) == (0998882525) -> \1 = 0998882525
The output is built as concatenation of *5 and the first bracket \1.
The called party number is set to *50998882525
Example: Mapping table to remove a prefix from the called party number
Input:called-e164 = *50998882525
Output:called-e164 = 0998882525
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table called-e164 to called-e164 REM-PFX
node(rt-tab)[REM-PFX]#map *5(.%) to \1
Call router configuration task list 487
SmartWare Software Configuration Guide 40 • Call router configuration
The input *50998882525 matches the expression *5(.%) – the prefix *5 followed by any character repeated
zero or more times.
The first bracket encloses the number after the prefix: *5(.%) == *5(0998882525) -> \1 = 0998882525
The output is built from the first bracket \1.
The called party number is set to 0998882525.
Example: Mapping table to truncate the called party number
Input:called-e164 = 0998882525
Output:called-e164 = 525
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table called-e164 to called-e164 TRUNC
node(rt-tab)[TRUNC]#map .%(...) to \1
The input 0998882525 matches the expression .%(…) – any character repeated zero or more times followed
by three mandatory digits.
The first bracket encloses the last three digits: .%(…) == 0998882(525) -> \1 = 525
The output is built from the first bracket \1.
The called party number is set to 525.
Example: Mapping table to remove the calling party number when restricted
Input:calling-e164 = 0998882525; calling-pi = restricted
Output:calling-e164 = “”; calling-pi = restricted
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table calling-pi to calling-e164 REM-CNPN
node(rt-tab)[REM-CNPN]#map restricted to “”
The input (presentation indicator) restricted matches the expression restricted.
The output (calling party number) is an empty string (“”).
The calling party number is cleared.
Example: Mapping table to replace the calling party number with the called party number
If you route a call to an FXS interface, the Bellcore standard only allows to signal the calling party number to
the connected analog terminal instead of the called party number. Thus you cannot communicate e.g. which
extension is being called at a destination PBX. This command allows sending the called party number as call-
ing party number property. The called party number still remains the same.
Input:calling-e164 = 0998882525; called-e164 = 0778881111
Output:calling-e164 = 0778881111; called-e164 = 0778881111
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table called-e164 to calling-e164 COPY-PN
node(rt-tab)[COPY-PN]#map (.%) to \1
Call router configuration task list 488
SmartWare Software Configuration Guide 40 • Call router configuration
The input called party number 0778881111 matches the expression (.%) – any character repeated zero or
more times.
The first bracket encloses the last whole called party number: (.%) == (0778881111) -> \1 = 0778881111
The output (calling party number) is built from the first bracket \1.
The calling party number is set to 0778881111.
Custom SIP URIs from called-/calling-e164 properties
The regular expression engine used for mapping-tables and routing-tables in the Call Router can handle not
only handle digits, but whole strings. You can construct custom SIP URIs from call leg properties as called and
calling e.164. See the following examples.
Example 1: Use regular expressions to create mapping tables that map the called-party-e164 number to the
called-party-URI for SIP calls. The following example shows how to build a SIP To-URI from the called-
party number.
Mode: Context CS
Example 2: Use a mapping table to set the display name field of To-URIs for outgoing SIP calls from the
called-party number of an incoming call. The following example shows how to set the called-party name based
on the called-party number.
Mode: Context CS
Other mapping tables
Example: Mapping table to set the called party number type to international (unconditionally)
Input:called-e164 = 0041998882525; calling-type-of-number = unknown
Result:called-e164 = 0041998882525; calling-type-of-number = international
Step Command Purpose
1 node(ctx-cs)[switch]#mapping-
table called-e164 to called-uri
name
Creates a mapping table that examines the called-party
number and sets the called-party URI (To-URI).
2 node(map-tab)[name]#map (.+) to
sip:user_\1@example.com
If the called-party number exists (at least one digit) the
called-party URI is set to user_<called-e164>@exam-
ple.com
3 node(map-tab)[name]#map
default to
sip:anonymous@example.com
If the called-party number does not exist (calls that don’t
match to the rule of step 2), the called-party URI is set to
anonymous@example.com
Step Command Purpose
1 node(ctx-cs)[switch]#mapping-
table called-e164 to called-name
name
Creates a mapping table that examines the called-party
number and sets the called-party name.
2 node(map-tab)[name]#map (.%) to
\1
Copies the whole called-party number to the called-
party name.
Call router configuration task list 489
SmartWare Software Configuration Guide 40 • Call router configuration
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table called-type-of-number to called-type-of-number
SET-INT
node(rt-tab)[SET-INT]#map default to international
Any called party number type matches the default entry. Note that the input-type of the table does not matter
when the mapping table contains only the default entry. Anyway an input-type must be specified when creat-
ing the mapping table.
The output (called party number type) is international.
The called party number type is set to international.
Example: Mapping table to replace called party numbers (translation table)
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table called-e164 to called-e164 TRANS
node(rt-tab)[TRANS]#map 550 to 250
node(rt-tab)[TRANS]#map 551 to 251
node(rt-tab)[TRANS]#map 552 to 252
node(rt-tab)[TRANS]#map 553 to 253
node(rt-tab)[TRANS]#map 554 to 254
node(rt-tab)[TRANS]#map 555 to 255
node(rt-tab)[TRANS]#map 556 to 256
node(rt-tab)[TRANS]#map 557 to 257
node(rt-tab)[TRANS]#map 558 to 258
node(rt-tab)[TRANS]#map 559 to 259
Note The translation table above can be reduced using regular expressions.
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table called-e164 to called-e164 TRANS
node(rt-tab)[TRANS]#map 55(.) to 25\1
Deleting mapping tables
To remove individual mapping tables you can use the no form of the mapping table command. Alternatively
you can remove specific entries of a mapping table by entering the mapping table configuration mode and use
the no form of the map command.
Procedure: To delete an entry from a mapping table
Mode: Context CS
Step Command Purpose
1node(ctx-cs)[switch]#mapping-table
table-name
Enter the mapping table from which you want to remove an
entry.
Note: You do not have to enter the type of the table when
just entering it. The type must only be specified when creating
a table.
2node(map-tab)[table-name]#no map
key
Remove the entry with the specified key.
3Repeat Step 2 to remove additional entries.
Call router configuration task list 490
SmartWare Software Configuration Guide 40 • Call router configuration
Example: Remove entries from a mapping table
The running-config shows the following table:
mapping-table called-e164 to called-e164 MY-TABLE
map 10 to 20
map 11 to 21
map 12 to 22
map 13 to 23
To remove the first two entries from the table enter the following commands:
node(cfg)#context cs
node(ctx-cs)[switch]#mapping-table MY-TABLE
node(map-tab)[MY-TABLE]#no map 10
node(map-tab)[MY-TABLE]#no map 11
The resulting running-config is:
mapping-table called-e164 to called-e164 MY-TABLE
map 12 to 22
map 13 to 23
Procedure: To delete an entire mapping table
Mode: Context CS
Example: Remove an entire mapping table
node(cfg)#context cs
node(ctx-cs)[switch]#no mapping-table MY-TABLE
Creating complex functions
Complex functions allow combining mapping tables, which need to be executed in sequence. This is useful if,
for example, the calling and the called party number have to be modified in the same step. Complex function
names can be any arbitrary string.
Procedure: To create a complex number manipulation function
Step Command Purpose
1node(ctx-cs)[switch]#no mapping-
table table-name
Delete the mapping table table-name.
Note: You do not have to enter the type of the table when
just deleting it. The type must only be specified when creating
a table.
Call router configuration task list 491
SmartWare Software Configuration Guide 40 • Call router configuration
Mode: Context CS
Example: Create a complex function
node(cfg)#context cs
node(ctx-cs)[switch]#complex function CARRIER-TO-LOCAL
node(func)[CARRIER~]#execute 1 TRUNCATE-3-CNPN
node(func)[CARRIER~]#execute 2 DDI-TO-PISN
Deleting complex functions
To remove individual complex functions you can use the no form of the complex function command. Alter-
natively you can remove specific entries of a complex function by entering the complex function configuration
mode and use the no form of the execute command.
Procedure: To delete an entry from a complex function
Mode: Context CS
Example: Remove entries from a complex function
The running-config shows the following complex function:
complex function MY-FUNC
execute 1 MAP1
execute 2 MAP2
execute 3 MAP3
execute 4 MAP4
Step Command Purpose
1node(ctx-cs)[switch]#complex-
function function-name
Create a complex function function-name.
2node(func)[function-name]#execute
function
or
node(func)[function-name]#execute
index function
Add or inserts an entry to the complex function. function can
be another complex function or a mapping table that shall be
executed.
Note: Unlike routing and mapping tables, complex functions
are ordered lists of entries, which means that the entries are
executed in the order of appearance. You can optionally
specify an index of where to insert the function.
3Repeat step 2 to add lines for additional functions to execute.
Step Command Purpose
1node(ctx-cs)[switch]#complex-
function function-name
Enter the complex function from which you want to remove
an entry.
2node(func)[table-name]#no execute
index
Remove the entry with the specified index.
3Repeat Step 2 to remove additional entries.
Call router configuration task list 492
SmartWare Software Configuration Guide 40 • Call router configuration
To remove the first two entries from the complex function enter the following commands. Pay attention on the
index. When removing the first entry, the MAP2 function becomes entry with index 1. Thus you have to spec-
ify index 1 twice to remove the first two entries:
node(cfg)#context cs
node(ctx-cs)[switch]#complext-function MY-FUNC
node(func)[MY-FUNC]#no execute 1
node(func)[MY-FUNC]#no execute 1
The resulting running-config is:
complex function MY-FUNC
execute 1 MAP3
execute 2 MAP4
Procedure: To delete an entire complex function
Mode: Context CS
Example: Remove an entire complex function
node(cfg)#context cs
node(ctx-cs)[switch]#no complex-function MY-FUNC
Digit collection & sending-complete behavior
Sending-Complete
The call-router can be configured how to handle address-complete indications (e.g. ISDN Sending-Complete
IE). On ISDN, H.323 and SIP interfaces, an address-complete-indication command controls the tunneling of
address-complete indications separately for incoming and outgoing calls.
Each interface can be configured to pass transparently address-complete indications, or to explicitly insert or
remove it for incoming and outgoing calls. In addition the behavior of the call-router can be configured.
Some call signaling protocols allow a user to dial a destination by using the overlap-sending procedure. These
protocols include analog telephony (FXS/FXO), ISDN and H.323. ISDN and H.323 support address-com-
plete indication using the Sending-Complete Information Element. Other protocols wait on a timeout or send
a terminating character, e.g. pound (#), to indicate address-completion. The following commands control the
tunneling of address-complete indications from the signaling protocol to the internal call-control representa-
tion and vice-versa. In addition, the context cs introduces command extensions that control the address-com-
pletion handling in the internal call-router.
Ingress interface
On the ingress interface (ISDN, H.323 or SIP) the address-complete-indication accept <type> command
configures how to map the address-complete indication of the signaling-protocol to the internal call-control.
There the indication can be used for call-routing (see below) or mapped again to an address-complete indica-
tion on an egress interface (see below).
Step Command Purpose
1node(ctx-cs)[switch]#no complex-
function function-name
Delete the complex function function-name.
Call router configuration task list 493
SmartWare Software Configuration Guide 40 • Call router configuration
The possible values for the type argument are:
•transparent: Transparently passes an address-complete indication (e.g. ISDN Sending Complete Informa-
tion Element) to the call-control.
•set: Always sets the address-complete indication flag towards the call-control even when no such indication
is received from the calling party. This configuration can be used to disable overlap-sending on an interface.
•clear: Never signals the address-complete indication towards the call-control even when the indication is
received from the calling party. This configuration may be used in rare cases to solve interoperability prob-
lems with attached PBXs.
Some interface types do not support all of the mentioned arguments. The following table shows the supported
address-complete indication conversion types and the default setting for each interface type:
Call-Router
The call-router is extended to be able to set the address-complete indication or append a terminating-character
in some circumstances. This includes:
•Setting the address-complete indication when the digit-collection timeout elapses
•Appending the terminating-character when the digit-collection timeout elapses
•Filtering-out the terminating-character and optionally set the address-complete indication
•Setting the address-complete indication when a called-party number matches a fully specified call-router
rule ($-terminated entry).
•Appending the terminating-character when the called-party number matches a fully specified call-router
rule ($-terminated entry).
The command digit-collection timeout <secs> has been extended with two optional arguments that specify
whether a terminating-character is appended or the address-complete indication set when the digit-timeout
elapses. The command syntax is
[no] digit-collection timeout <secs> [append-terminating-char] [set-address-complete-indication]
The extensions configure the action(s) to be performed when the digit-collection timeout elapses. The digit-
collection timeout runs when a call is routed to a called-e164 routing-table of which a T-terminated rule is
selected. Two actions are available; both can be enabled independently. The append-terminating-char action
appends the configured terminating-character when the timeout elapses. The set-address-complete-indication
action sets the address-complete indication. Whether or not the egress interface propagates the address-com-
plete indication depends on the interface configuration (see below).
Interface Type Transparent Set Clear
ISDN supported; default supported Supported
H.323 supported; default supported Supported
SIP not supported supported supported; default
Call router configuration task list 494
SmartWare Software Configuration Guide 40 • Call router configuration
The following table shows the different digit-collection timeout configurations and their effect on a T-termi-
nated route when the digit-collection timeout elapses. Important settings are marked bold.
The command digit-collection terminating-char <char> has been extended with two optional arguments that
specify whether the terminating-character is re-appended or the address-complete indication is set when a
digit-collection timeout is stopped by the user sending the terminating-character. The new command syntax is:
[no] digit-collection terminating-char <char> [append-terminating-char] [set-address-complete-indication]
The extensions configure what action(s) shall be performed when the digit-collection timeout is stopped by the
reception of a terminating-character. Normally, without specifying an action, the received terminating-charac-
ter is removed from the called-party number. The append-terminating-char action re-appends the terminat-
ing-character. The set-address-complete-indication action sets the address-complete indication. Whether or
Digit Collection Timeout
Configuration Ingress Properties Egress Properties (Result
of call-routing)
Timeout append-
terminating-
char
set-address-
complete-
indication
called-e164 Address-
Complete
Indication
called-e164 Address-
Complete
Indication
no no no 123 false no call
true
yes false
true
yes no false
true
yes false
true
yes no no false 123 false
true true
yes false true
true true
yes no false 123# false
true true
yes false true
true true
Call router configuration task list 495
SmartWare Software Configuration Guide 40 • Call router configuration
not the egress interface propagates the address-complete indication depends on the interface configuration
(see below).
The next table shows the different digit-collection terminating-character configurations and their effect on a T-
terminated route when the terminating-character is received.
The command digit-collection full-match has been introduced. The syntax is:
digit-collection full-match [append-terminating-char] [set-address-complete-indication]
This command configures what action(s) shall be performed when a dollar-($)-terminated rule is selected in a
called-e164 routing-table. We call such an entry a fully specified number entry. The append-terminating-char
action appends the terminating-character; while the set-address-complete-indication action sets the address-
complete indication. Whether or not the egress interface propagates the address-complete indication depends
on the interface configuration (see below).
Egress Interface
On the egress interface (ISDN, H.323) the address-complete-indication emit <type> command configures
how the internal representation of the address-complete indication shall be mapped to the representation of the
signaling-protocol.
Digit Collection Terminating-Char
Configuration Ingress Properties Egress Properties
(Result of call-routing)
Terminating-
Char
append-
terminating-
char
set-
address-
complete-
indication
called-e164 Address-
Complete
Indication
called-e164 Address-
Complete
Indication
No no no 123# False 123# false
true true
yes false false
true true
yes no false false
true true
yes false false
true true
Yes no no false 123 false
true true
yes false true
true true
yes no false 123# false
true true
yes false true
true true
Call router configuration task list 496
SmartWare Software Configuration Guide 40 • Call router configuration
The possible values for the type argument are:
•transparent: Transparently passes an address-complete indication to the signaling-protocol (e.g. ISDN by
sending a Sending Complete Information Element).
•set: Always sends a Sending Complete Information Element with the SETUP message. This configuration
can be used to disable overlap-sending on an interface.
•clear: Never sends a Sending Complete Information Element. This configuration may be used in rare cases
to solve interoperability problems with attached PBXs, e.g. when the attached PBX does not support the
Sending Complete Information Element.
Some interface types do not support all arguments. SIP does not support this configuration at all, because SIP
does not support overlap dialing. The following table shows the supported address-complete indication conver-
sion types and the default setting for each interface type:
The following procedure demonstrates how to disable overlap-sending for incoming SIP calls. SIP does not
provide an overlap-dialing procedure; so for most applications, address-complete indications should be cleared.
Mode: context cs / interface sip
The following procedure demonstrates how to create a routing-table that allows overlap dialing. When the tim-
eout elapses or when the terminating-character is received, the address-complete indication shall be set toward
the egress interface.
Mode: context cs
Interface Type Transparent Set Clear
ISDN supported; default supported Supported
H.323 supported; default supported Supported
SIP ———
Step Command Purpose
1node(if-sip)[if-name]#address-
complete-indication clear
Clear the address-complete indication for all incoming calls
over this interface
Step Command Purpose
1node(cts-cs)[ctx-name]#routing-
table called-e164 <tab-name>
Creates a routing-table that examines the called-
party number
2node(rt-tab)[tab-name]#route T
dest-interface <if-name>
Routes any number (after the waiting for digits) to the
egress interface
Call router configuration task list 497
SmartWare Software Configuration Guide 40 • Call router configuration
Creating call services
Routing tables, mapping tables and complex functions only manipulate address properties of a call (like the
called party number). A call service is another call router entity that actively accesses the state of a call. A call
service is able to spawn other calls or merge existing calls together. This allows building services like hunt
groups etc.
You can view a call service as a virtual endpoint that accepts a call and creates new calls to other destinations. A
call that is routed to a call service is not served by a human being but by a machine that accepts the call and
performs needed actions.
The hunt group service, for example, accepts a call that is routed to it and spawns a second call that is placed to
the first final destination. If this destination is not reachable, another destination is tried until one of the con-
figured destinations accept the call.
Creating a hunt group service
A hunt group service hunts an incoming call to multiple interfaces. Figure 66 shows an example scenario where
a call from a SIP interface is first processed by several tables. The second table decides that the call must be for-
warded to the PSTN. The device is connected to the PSTN over four BRIs, which are bound to the context CS
3node(rt-tab)[tab-name]#exit Leaves the routing table configuration mode and returns to
the context cs configuration mode
4node(cts-cs)[ctx-name]#digit-col-
lection timeout 5 set-address-
complete-indication
Configures the digit-collection timeout to 5 seconds and sets
the address-complete indication if the timeout elapses
5node(cts-cs)[ctx-name]#digit-col-
lection terminating-char # set-
address-complete-indication
Configures the terminating-character that can stop the digit-
collection timeout and immediately place the call to ‘#’ and
sets the address-complete indication if the character
is received
Step Command Purpose
Call router configuration task list 498
SmartWare Software Configuration Guide 40 • Call router configuration
interfaces IF-BRI0 up to IF-BRI3. All four ISDN interfaces lead to the same provider. Since the call router
does not know the load on the BRIs, it has to be able to try BRI0 and, if BRI0 already serves two calls, use
BRI1, and so on.
Figure 66. Hunt group service
The hunt group service accepts a call routed to it by a routing table or directly from an interface and creates
another call that is offered to one of the configured destination interfaces.
The interface tried first (IF-BRI0) may drop the call telling the service that the interface has no resources to
handle the call (e.g. no circuit channel available). Note that only the call between the hunt group and the des-
tination interface is dropped, while the original call between the SIP interface and the hunt group service
remains connected.
The hunt group then decides to try the next destination (IF-BRI1), which in turn also drops the call due to
unavailable resources. In our example the hunt group then tries the third and eventually the fourth destination.
When an interface accepts a call, the interface hunting is complete and the hunt group service merges the orig-
inal with the new call to the interface that accepted the call.
You can influence the algorithm of the hunt group by several configuration commands. You can specify
whether the hunt group shall always start with the same destination interface or whether it shall immediately
try the next one in a round-robin fashion. This is called cyclic operation mode.
You can specify a timeout after which the next destination interface is tried when there is no answer at all from
the destination interface.
You can specify drop causes that trigger hunting for the next destination. All other causes (e.g. user busy) will
drop the original call.
Context
interface sip IF-SIP interface isdn IF-BRI0
Call Router
a
b
c
first routing table
a A
b B
mapping table
i
j
k
routing table
hunt group
service
route
execute
route
route
interface isdn IF-BRI1
interface isdn IF-BRI2
interface isdn IF-BRI3
route
route
route
Call router configuration task list 499
SmartWare Software Configuration Guide 40 • Call router configuration
Note Unlike previous versions of SmartWare, now you can hunt a call over differ-
ent interface types, not only over ISDN interfaces. You can, e.g. create a
hunt group to try to call over a H.323 interface and, if this call fails, do a
fallback to an ISDN interface.
Procedure: To create and configure a hunt group service
Mode: Context CS
When a destination interface drops the call, the hunt group service has to decide whether this is because the
interface is not able to handle the call (e.g. no bearer channel available) or whether the destination user does
not want or is not able to communicate (e.g. user busy). In the first case, the hunt group service hunts for the
next destination interface, while in the second case the original call is dropped with the same cause.
Step Command Purpose
1node(ctx-cs)[switch]#service hunt-
group service-name
Creates a new hunt group service and enters hunt group con-
figuration mode.
2node(svc-hunt)[service-name]#cyclic
or
node(svc-hunt)[service-name]#no cyclic
Configure the hunt group for cyclic operation mode. Subse-
quent calls try another first destination in a round-robin
method. Default is not to use cyclic mode – always to start
with the first configured destination.
Note: When you use the hunt-group for a fallback scenario,
you must switch off cyclic operation mode.
3node(svc-hunt)[service-name]#timeout
timeout
Configures a timeout in seconds after which the next destina-
tion is tried when the current destination does not answer at
all. (Some interface (e.g. SIP) may wait an arbitrary long
time until an answer is returned.) Default is not to use a time-
out.
4node(svc-hunt)[service-name]#drop-
cause cause
or
node(svc-hunt)[service-name]#no drop-
cause cause
Enables or disables another drop cause to the list. When an
interface has a problem placing a call to the final destination
it drops the call specifying a drop cause (e.g. user busy, no
resource available). Some drop causes drop the original call
while other causes trigger the hunt for another destination.
This command can be used to configure the hunt behavior on
destination call drop. See the list below for a summary of all
available drop causes and their default state.
5node(svc-hunt)[service-name]#route
call dest-interface interface-name
or
node(svc-hunt)[service-name]#route
call dest-table table-name
or
node(svc-hunt)[service-name]#route
call dest-service service-name
Adds a route to a destination. This is the destination that is
tried during hunt group’s interface hunting. The destination
can either be an interface or you can route the call again to
a routing table or directly to another service. This allows you
cascading services.
6Repeat step 5 to add additional hunting destinations.
Call router configuration task list 500
SmartWare Software Configuration Guide 40 • Call router configuration
The following table lists all drop causes and specifies whether the cause is used for hunting the next destination
or dropping the original call. The behavior can be configured for each hunt group individually for each cause
using the drop-cause command in the hunt group service mode.
Table 21. Hunt group drop causes
Class Cause
Default Behavior
of the Hunt
Group Service
Description
Normal Event unallocated-number Drop original call The number is sent in the correct format.
However, the number is not assigned to
the destination equipment.
no-route-to-network Drop original call The destination is asked to route the call
through an unrecognized network. This
cause indicates that the equipment send-
ing this cause has received a request to
route the call through a particular transit
network, which it does not recognize. The
equipment sending this cause does not
recognize the transit network either
because the transit network does not exist
or because that particular network, while
it does exist, does not serve the equipment
that is sending this cause.
no-route-to-destination Drop original call The call routes through an intermediate
network that does not serve the destination
address. The called user cannot be
reached because the network through
which the call has been routed does not
serve the destination desired.
channel-unacceptable Drop original call The service quality of the specified chan-
nel is insufficient to accept the connection.
The call attempt failed because the chan-
nel cannot be used.
call-awarded Drop original call The user assigns an incoming call that is
connecting to an already established call
channel.
normal-call-clearing Drop original call Normal call clearing occurs. This cause
indicates that the call is being cleared
because one of the users involved in the
call has requested that the call be cleared.
Under normal situations, the source of this
cause is not the network.
user-busy Drop original call The called system acknowledges the con-
nection request but cannot accept the call
because all channels are in use. It is noted
that the user equipment is compatible with
the call.
Call router configuration task list 501
SmartWare Software Configuration Guide 40 • Call router configuration
Normal Event
(Cont.) no-user-responding Drop original call The connection fails because the destina-
tion does not respond to the call. This
cause is used when a user does not
respond to a call establishment message
with either an alerting or a connect indica-
tion with the prescribed period of time
allocated.
no-answer-from-user Drop original call The destination responds to the connection
request but fails to complete the connec-
tion within the prescribed time. This cause
is used when the user has provided an
alerting indication but has not provided a
connect indication within a prescribed
period of time.
subscriber-absent Drop original call The remote device you attempted to reach
is unavailable and has disconnected from
the network.
call-rejected Drop original call The destination can accept the call but
rejects it for an unknown reason. This
cause indicates that the equipment send-
ing this cause does not wish to accept this
call, although it could have accepted the
call because the equipment sending this
cause is neither busy nor incompatible.
number-changed Drop original call The number used to set up the call is not
assigned to a system. This cause is
returned to a calling user when the called
party number indicated by the calling user
is no longer assigned.
non-selected-user-clear-
ing
Drop original call The destination can accept the call but
rejects it because it is not assigned to the
user.
destination-out-of-order Drop original call The destination cannot be reached
because of an interface malfunction, and
a signaling message cannot be delivered.
This can be a temporary condition, but it
could last for an extended period.
invalid-number-format Drop original call The connection fails because the destina-
tion address is presented in an unrecog-
nizable format, or the destination address
is incomplete.
facility-rejected Drop original call The network cannot provide the facility
requested by the user.
Table 21. Hunt group drop causes (Continued)
Class Cause
Default Behavior
of the Hunt
Group Service
Description
Call router configuration task list 502
SmartWare Software Configuration Guide 40 • Call router configuration
Normal Event
(Cont.) response-to-status-
enquiry
Drop original call The status message is generated in direct
response to receiving a status inquiry mes-
sage.
normal-unspecified Drop original call Reports the occurrence of a normal event
when no standard cause applies.
Resource
Unavailable
no-circuit-channel-avail-
able
Hunt for next desti-
nation
The connection fails because no appropri-
ate channel is available to take the call.
network-out-of-order Hunt for next desti-
nation
The destination cannot be reached
because of a network malfunction, and the
condition can last for an extended period.
An immediate reconnect attempt will
probably fail.
temporary-failure Hunt for next desti-
nation
An error occurs because of a network
malfunction. The problem will be resolved
shortly.
switching-equipment-
congestion
hunt for next desti-
nation
The destination cannot be reached
because the network switching equipment
is temporary overloaded.
access-info-discarded Hunt for next desti-
nation
The network cannot provide the requested
access information. This cause indicates
that the network could not deliver access
information to the remote user as
requested.
circuit-channel-not-
available
Hunt for next desti-
nation
The equipment cannot provide the
requested channel for an unknown rea-
son.
resources-unavailable Hunt for next desti-
nation
The requested channel or service is
unavailable for an unknown reason.
Service or
Option Not
Available
qos-unavailable Drop original call The network cannot provide the requested
quality of service.
facility-not-subscribed Drop original call The remote equipment supports the
requested supplementary service by sub-
scription only. This cause indicates that the
network could not provide the requested
supplementary service because the user
has not completed the necessary adminis-
trative arrangements with its supporting
networks.
bearer-capability-not-
authorized
Drop original call The user requests a bearer capability the
network provides, but the user is not
authorized to use it. This can be a sub-
scription problem.
Table 21. Hunt group drop causes (Continued)
Class Cause
Default Behavior
of the Hunt
Group Service
Description
Call router configuration task list 503
SmartWare Software Configuration Guide 40 • Call router configuration
Service or
Option Not
Available
(Cont.)
bearer-capability-not-
available
Drop original call The network normally provides the
requested bearer capability, but it is
unavailable at the present time. This can
be due to a temporary network problem
or subscription problem.
service-or-option-not-
available
Drop original call The network or remote equipment cannot
provide the requested service option for
an unspecified reason. This can be a sub-
scription problem.
Service or
Option Not
Implemented
bearer-capability-not-
implemented
Drop original call The network cannot provide the bearer
capability requested by the user.
channel-type-not-imple-
mented
Drop original call The network or the destination equipment
does not support the requested channel
type.
facility-not-implemented Drop original call The remote equipment does not support
the requested supplementary service.
only-restricted-digital-
available
Drop original call The network cannot provide unrestricted
digital information bearer capability. This
cause indicates that a device has
requested an unrestricted bearer service
but the equipment sending this cause only
supports the restricted version of the
requested bearer capability.
service-or-option-not-
implemented
Drop original call The network or remote equipment cannot
provide the requested service option for
an unspecified reason. This can be a sub-
scription problem.
Invalid Message invalid-call-reference Drop original call The remote equipment receives a call with
a call reference value that is not currently
in use.
channel-does-not-exist Drop original call The receiving equipment is requested to
use a channel that is not activated on the
interface for calls. This cause indicates that
the equipment sending this cause has
received a request to use a channel not
activated on the interface for a call.
call-identity-does-not-
exist
Drop original call This cause indicates that a call resume has
been attempted with a call identity, which
differs from that in use for any presently
suspended call.
Table 21. Hunt group drop causes (Continued)
Class Cause
Default Behavior
of the Hunt
Group Service
Description
Call router configuration task list 504
SmartWare Software Configuration Guide 40 • Call router configuration
Invalid Message
(Cont.) call-identity-in-use Drop original call This cause indicates that the network has
received a call suspends request. The call
suspend request contained a call identity
which is already in use for a suspended
call within the domain of interfaces over
which the call might be resumed.
no-call-suspended Drop original call The network receives a call resume request
when there is not a suspended call pend-
ing. This can be a transient error that will
be resolved by successive call retries.
call-has-been-cleared Drop original call The network receives a call resume
request. This call resume request contains
a call identity that once indicated a sus-
pended call. However, the suspended call
was cleared either by time-out or by the
remote user.
incompatible-destination Drop original call Indicates that an attempt is made to con-
nect incompatible equipment.
invalid-transit-network Drop original call This cause indicates that a transit network
identification of an incorrect format was
received.
invalid-message Drop original call Received an invalid message with no stan-
dard cause.
Protocol Error mandatory-ie-missing Drop original call The receiving equipment receives a
message that does not include one of the
mandatory information elements. This
cause indicates that the equipment
sending this cause has received a
message that is missing a call property
that must be present in the message before
that message can be processed.
message-type-not-imple-
mented
Drop original call The receiving equipment receives an
unrecognized message, because the mes-
sage type is invalid or the message type is
valid but not supported.
message-type-not-state-
compatible
Drop original call The remote equipment receives an invalid
message with no standard cause. This
cause indicates that the equipment send-
ing this cause has received a message
such that the procedures do not indicate
that this is a permissible message to
receive while in the current call state.
Table 21. Hunt group drop causes (Continued)
Class Cause
Default Behavior
of the Hunt
Group Service
Description
Call router configuration task list 505
SmartWare Software Configuration Guide 40 • Call router configuration
Example: Create a hunt group service
This example shows how to configure the hunt group service as shown in figure 66 on page 498.
node(cfg)#context cs
node(ctx-cs)[switch]#service hunt-group HUNT-BRI
node(func)[HUNT-BRI]#cyclic
node(func)[HUNT-BRI]#timeout 6
node(func)[HUNT-BRI]#route dest-interface IF-BRI0
node(func)[HUNT-BRI]#route dest-interface IF-BRI1
node(func)[HUNT-BRI]#route dest-interface IF-BRI2
node(func)[HUNT-BRI]#route dest-interface IF-BRI3
Protocol Error
(Cont.) ie-does-not-exist Drop original call The remote equipment receives a message
that includes information elements or call
properties that are not recognized.
invalid-ie-contents Drop original call The remote equipment receives a message
that includes invalid information in the
information element or call property.
recovery-on-timer-
expiry
Drop original call Your call was not completed, probably
because an error occurred.
protocol-error Drop original call An unspecified protocol error with no
other standard cause occurred.
Interworking interworking Drop original call An event occurs, but the network does not
provide causes for the action it takes. The
precise problem is unknown.
Table 21. Hunt group drop causes (Continued)
Class Cause
Default Behavior
of the Hunt
Group Service
Description
Call router configuration task list 506
SmartWare Software Configuration Guide 40 • Call router configuration
Creating a distribution group service
A distribution group service distributes a call to multiple destinations interfaces. Figure 67 shows an example
scenario where a call from a SIP interface is first processed by several tables. The second table decides that the
call must be forwarded to phones that are connected to various FXS interfaces. The distribution now lets ring
all the four phones at the same time.
Figure 67. Distribution group service
The distribution group service accepts a call routed to it by a routing table or directly from an interface and
creates four other calls that are offered to each of the configured destination interfaces.
All phones connected to the FXS interfaces (PHONE10–PHONE13) start ringing. Eventually one of the
phones (e.g. PHONE10) goes off-hook. The other three calls to interfaces PHONE11, PHONE12, and
PHONE13 are immediately dropped and the phones on these interfaces stop ringing. Now the distribution
service is no longer needed. Thus the service merges the original call to the accepted destination call to inter-
face PHONE10.
You can configure how the distribution algorithm works in many ways. You can specify the maximum number
of destination interfaces that are called at the same time. Then you can specify a timeout after which a next des-
tination is added to the destination calls. This makes it possible to configure a scenario where a call is offered to
two destinations, and (when no one answers) stop ringing the first phone but try another third destination.
Context
interface sip IF-SIP interface fxs PHONE10
Call Router
a
b
c
first routing table
a A
b B
mapping table
i
j
k
routing table
distribution group
service
route
execute
route
route
interface fxs PHONE11
interface fxs PHONE12
interface fxs PHONE13
route
route
route
Call router configuration task list 507
SmartWare Software Configuration Guide 40 • Call router configuration
Figure 68. Distribution group service examples
Procedure: To create and configure a distribution group service
Mode: Context CS
Note If you specified the maximum number of concurrent destinations and the
distribution group tried each destination, the final destinations ring until
someone picks up one of the phones.
Step Command Purpose
1node(ctx-cs)[switch]#service distribu-
tion-group service-name
Creates a new distribution group service and enters distribu-
tion group configuration mode.
2node(svc-hunt)[service-name]#cyclic Configure the distribution group for cyclic operation mode.
Subsequent calls try another first destination in a round-robin
method. Default is not to use cyclic mode – always to start
with the first configured destination(s).
3node(svc-hunt)[service-name]#max –
concurrent max-concurrent
Configures how many destinations shall be called at the
same time. If you also configure a timeout, the first call is
cleared and an additional call is made after that timeout.
Thus only the specified number of destinations is ringing at
the same time.
4node(svc-hunt)[service-name]#timeout
timeout
Configures a timeout in seconds after which one destination
is dropped and a next destination is called.
5node(svc-hunt)[service-name]#route
call dest-interface interface-name
or
node(svc-hunt)[service-name]#route
call dest-table table-name
or
node(svc-hunt)[service-name]#route call
dest-service service-name
Adds a route to a destination. This is the interface, table or
service that is tried to call during the distribution group’s
attempt to make calls to the destinations. The destination can
either be an interface or you can route the call again to a
routing table or directly to another service. This allows you
cascading services.
6Repeat step 5 to add additional hunting destinations.
- 4 call destinations
- No max. concurrent
- 4 call destinations
- max. concurrent = 2
- timeout = 5 after 5s after 10s
4 picks up
4 picks up
Call router configuration task list 508
SmartWare Software Configuration Guide 40 • Call router configuration
Note It does not make sense to configure the maximum number of concurrent
destinations but no timeout, though the software does not prevent this con-
figuration.
Distribution-Group Min-Concurrent setting
A new command in the call-control’s distribution-group service lets the user specify how many of the config-
ured call destinations should be tried first: min-concurrent <number>. Together with the max-concurrent
and timeout commands, you can configure the behavior of the call distribution. The distribution-group starts
with min-concurrent calls and after the timeout one destination call is added until max-concurrent is reached.
Then, again after the timeout, a call to the next destination is placed while the first destination call is dropped.
Mode: service distribution-group <name>
Example: To configure a distribution group that first rings on the phone#1 and then, after 5 seconds, on
phone#1 and phone#2, enter the following commands:
node(svc-hunt)[service-name]#min-concurrent 1
node(svc-hunt)[service-name]#max-concurrent 2
node(svc-hunt)[service-name]#timeout 3
node(svc-hunt)[service-name]#route call dest-interface PHONE1
node(svc-hunt)[service-name]#route call dest-interface PHONE2
Call-router ‘limiter’ service
The call-router ‘limiter’ service limit offers a flexible technique to limit the maximum number of concurrent
calls within the system. It also limits the call-setup rate within a system. Calls exceeding the defined limits can
either be simply dropped or they can be handled differently. A call is counted as an active call as soon as the
call-setup message reaches the limiter service. The call remains active until the signaling has completed tearing
down the call.
In the figure is a call-router configuration which uses the limiter service to limit the maximum number of con-
current calls between SIP and ISDN to 20. In this scenario, if the limit is reached, any additional call received
from sip will be dropped. If however an additional call arrives from ISDN, it will be forwarded to the special
ISDN interface called ‘voicemail’.
Step Command Purpose
1 [name](svc-dist)[name]# min-
concurrent <number>
Sets the minimum number of concurrent calls.
Call router configuration task list 509
SmartWare Software Configuration Guide 40 • Call router configuration
Figure 69. ‘Limiter’ service diagram
context cs switch
interface isdn localexchange
route call dest-service mylimiter.inbound
interface isdn voicemail
interface sip sip
bind gateway sip
route call dest-service mylimiter.outbound
service limiter mylimiter
max-calls 20
port inbound
route call dest-interface sip
exceed max-calls route call dest-interface voicemail
port outbound
route call dest-interface localexchange
Similarly the call-setup-rate could be limited by using the ‘exceed max-call-rate’ instead of the ‘exceed max-
calls’ command in the limiter-port configuration mode. There is no limitation on the number of ports a limiter
can have. You can create as many as you need for your application.
Priority service
The service ‘priority’ can automatically free resources if a high priority call needs to be established while no
resources are available. The service ‘priority’ can have multiple ports. You can assign a priority level for each
port. This priority level defines the priority level of each call, which is received through the port. If a call with
higher priority fails to be established, the service tries dropping lower priority calls to free resources for the
higher priority call. Subsequently it tries to establish the higher priority call again. Figure 70 is a typical appli-
cation for this service in which non-.emergency calls are dropped to free resources for emergency calls.
Call router configuration task list 510
SmartWare Software Configuration Guide 40 • Call router configuration
Figure 70. Priority service diagram
By default, the service drops any lower priority calls if a higher priority call fails. However, you have the option
to limit the number of lower priority calls to be dropped if a higher priority call fails. It also blocks new lower
priority calls for a configurable time after a higher priority call failed.
The following procedure demonstrates how to configure a priority service.
Mode: context cs
Note Although this service improves the probability that higher priority calls can
be established successfully, there is no guarantee that a higher priority task
can be established successfully at any time.
Step Command Purpose
1node(ctx-cs)[ctx-name]# service
priority <svc-name>
Create a priority service.
2node(svc-prio)[svc-name]# port
<port-name>
Create a port within the service.
3node(port)[port-name]# route
dest-….
Define the routing destination for calls received on this
port.
4
(Optional)
node(port)[port-name]# service
priority
Define the priority for calls received through this port.
(The default priority level is 0)
5node(port)[port-name]# exit Leave the port configuration mode
6Repeat steps 2 to 5 for any additional calls you need to
create.
7
(Optional)
node(svc-prio)[svc-name]# max-
calls-to-drop <calls>
Define the maximum number of lower priority calls to be
droppedif a higher priority call fails. (Default is to drop
any lower priority calls.)
8
(Optional)
node(svc-prio)[svc-name]#
quiesce-time <seconds>
Define the time for which lower priority calls are
blocked after a higher priority call failed. (Default is
15 seconds.)
9
(Optional)
node(svc-prio)[svc-name]# retry-
timeout <seconds>
Define the time for which the service waits after a
higher priority call failed until it tries to establish it for a
second time. This allows resources used by dropped
lower priority calls to get available again. (Default is
3 seconds.)
SIP
route 911 dest-service prio.high
route default dest-service prio.low1 high
low1
priority: 2
priority: 0
priority: 0
services priority (prio)
routing table
service hunt-group
FXO If1
FXO If2
low2
Call router configuration task list 511
SmartWare Software Configuration Guide 40 • Call router configuration
CS Bridge service—‘VoIP Leased Line’
The circuit switch (CS) bridge service provides the functional ability to create a leased line between two FXS
ports, with the FXS ports on different SmartNodes. The call is point-to-point in an always connected state, also
known as nailed up. This Call Control service is called Bridge services.”
The application for this feature is when a constantly connected VoIP link is required between two FXS ports. It
is as if you connected a regular telephone that is always off-hook to the FXS port. However it is not identical
since the other end of the VoIP leased-line connection does not ring like in a PLAR application. There is no
end-to-end call setup so no call-progress tones are required nor needed.
Here is another way to describe the application. A user has an FXO port in two remote locations and wants to
connect these two locations over an IP network. Clearly the FXO port at a location must connect to an FXS
port. But since the network between the two sites is IP, there needs to be a mapping of the information on the
FXS–FXO link to a method of transporting the information over an IP network. Additionally, you do not
want any ringing to occur when the connection is made; you simply want it to be connected, so the Smart-
Nodes and IP network operate transparently. See figure 71 to visualize the VoIP leased-line connection.
Figure 71. CS Bridge service—‘VoIP Leased Line’ diagram
Now we will describe the technical details and logical structure to implement this application. From the per-
spective of just one SmartNode, the SmartNode makes two independent calls. These two calls are made from a
logical structure, called a Bridge Service. The Bridge Service has two interfaces, the listener port and the dialer
FXO Device,
always off-hook
IP Connectivity
Routing Table
H.323/SIP
Interface
FXS
Interfaces
Context CS
BRIDGE
Service
FXO Device – always off-hook FXO Device – always off-hook
ETH 0/0
FXO Device,
always off-hook
H.323/SIP
Interface
FXS
Interfaces
Context CS
BRIDGE
Service
ETH 0/0
Leased Line VoIP Call
Routing Table
Node
Node
Call router configuration task list 512
SmartWare Software Configuration Guide 40 • Call router configuration
port (see figure 72). Each of these interfaces is responsible for one of the two independent calls. The listener
port terminates the “FXS call” and the dialer port terminates the “RTP call.”
Figure 72. Bridge services diagram
The listener port interface listens to the FXS interface of the SmartNode for an active FXS–FXO connection. It
recognizes an active connection by detecting current in the FXS–FXO loop, and the FXS call is established.
The dialer port interface attempts to make and keep an RTP connection session or call with a dialer port in a
remote SmartNode. It is called an RTP call. This connection is over the IP network. The listener port and the
dialer port both try to keep their individual calls up and operating at all times. However if the listener port
loses its connection (that is, its call), the dialer port does not disconnect its RTP call but remains connected to
the other SmartNode’s dialer port. Similarly, if the local dialer port loses its connection with the remote Smart-
Node’s dialer port, the SmartNode’s listener port does not disconnect its FXS call but remains connected to the
FXO device. Though the calls operate independently, they operate over a single data path from end-to-end.
The dialer port is bound to the Routing Table which is subsequently bound to either an H.323 or SIP inter-
face. The routing table makes the connection to the proper FXS interface.
Listener Port – This port listens for a call from the
FXO device and connects immediately upon
detecting loop current. This is the “Listener Connection.”
Dialer ConnectionDialer Connection
Dialer Port – This port “dials” to the
Dialer Port on the other SmartNode to
create the “Dialer Connection”
BRIDGE
Service
Context CS
Routing
Table
H.323/SIP
Interface
FXS
Interfaces FXO Device,
always off-hook
Call router configuration task list 513
SmartWare Software Configuration Guide 40 • Call router configuration
Mode: Context CS
Configuration Example:
context cs switch
routing-table called-e164 DISPATCH
route 1 dest-service BRIDGE1.dialer
…
service bridge BRIDGE1
port listener
mode listening
no shutdown
port dialer
mode dial-persistent 1 dest-interface REMOTE
no shutdown
interface h323 REMOTE
bind gateway h323
route call dest-table DISPATCH
remote 172.16.32.37
interface fxs PHONE1
route call dest-service BRIDGE1.listener
Configuring the service second-dialtone
If a call is routed into the service second-dialtone, the service establishes the call and plays a dial tone to the
caller.When a call is entering the service it is first routed to the configured destination. In case the call cannot
be placed, the service plays the second dial-tone or the configured announcement to the caller until the caller
enters the first DTMF digit.
Step Command Purpose
1 [name] (ctx-cs)[switch]#[no] ser-
vice bridge BRIDGE1 Enters the bridge service configuration mode / deletes a
bridge service.
2 [name] (svc-bridg)[BRIDGE1]#port
DIALER Creates a port on the service that can accept or spawn calls
(the max number of ports is currently limited to two)
3 [name] (port)[DIALER]# dial persis-
tent 123 dest-interface REMOTE Configures the port to actively dial the called-party “123” to
the destination REMOTE. This connection is kept open until
the service is shut down, or a “no dial” command is issued. If
the remote side terminates the connection, the port tries to
reconnect. As soon as the connection is established, the call
is connected to all other calls present on the service.
4 [name] (svc-bridg)[BRIDGE1]#port
LISTENER Creates a port on the service that can accept or spawn calls
(the max number of ports is currently limited to two)
5 [name] (port)[DIALER]# no dial Without entering a “dial” command, or by specifying “no
dial”, this port does not dial, but listen for incoming calls. If a
call comes in, it is automatically connected to all other calls
present on the service.
Call router configuration task list 514
SmartWare Software Configuration Guide 40 • Call router configuration
Caveat: For calls from the IP side, the service only works if the G711.alaw codec is chosen. On the SmartNode
4960 the service is available for all configurable codecs.
Mode: Context CS
Deleting call services
To remove individual call services you can use the no form of the service command.
Procedure: To delete a call service
Mode: Context CS
Example: Remove an entire mapping table
node(cfg)#context cs
node(ctx-cs)[switch]#no service HUNT-BRI
Activate the call router configuration
Prior to activate the call router configuration you can show the whole context CS configuration and the entire
call routing tables.
The call router configuration is activated as soon as the CS context comes out of shutdown (e.g. at boot time or
by manually entering command no shutdown). You can modify the configuration at runtime; changes will be
active after 3 seconds. SmartWare offers a number of possibilities to monitor and debug the CS context and
call router configurations. For more information refer to chapter 52, “VoIP debugging” on page 624.
Note It is not necessary to shutdown the CS context prior to making any configu-
ration changes.
Step Command Purpose
1node(ctx-cs)[switch]#service second-
dialtone name
Enters the service second-dialtone mode.
2node(svc-2dt)[name]#route call dest-
interface|dest-service|dest-table
name
Defines the call destination. If the call cannot be placed the
second-dialtone is played.
3node(svc-2dt)[name]#route
announcement dest-inter-
face|dest-service|dest-table
name
Instead of playing a dialtone locally, the service sets up a call
to the configured message provider.
4node(svc-2dt)[name]#use profile
tone-set name
Apply to use a alternative tone-set profile. If not configured
the profile tone-set default will be used.
Step Command Purpose
1node(ctx-cs)[switch]#no service service-
name
Delete the service service-name.
Note: You do not have to enter the type of the service when
just deleting it. The type must only be specified when creating
a service.
Call router configuration task list 515
SmartWare Software Configuration Guide 40 • Call router configuration
Procedure: To show and activate the call router configuration
Mode: Context CS
Note Unlike previous versions of SmartWare you must explicitly enter the no
shutdown command to activate the call router.
Test the call router configuration
After activating the call router configuration you can test the call router by simulating a route lookup as if a call
is routed to a table. You have to execute the test call-router command and specify all necessary call properties
together with the routing table you want to test.
Note You must activate the call router using the no shutdown command first.
Procedure: To test the call router configuration
Mode: Context CS
Example: Create and test a routing table
node(cfg)#context cs
node(cts-cs)[switch]#routing-table called-e164 TEST
node(rt-tab)[TEST]#route 1 dest-interface IF1
node(rt-tab)[TEST]#route 1[0-4] dest-interface IF2
node(rt-tab)[TEST]#route 11 dest-interface IF3
node(rt-tab)[TEST]#route 111T dest-interface IF4
Step Command Purpose
1node(ctx-cs)[switch]#show call-router
config
Show the actual call router configuration. This displays all
routing and mapping tables in the current context CS. When
you are inside a routing or mapping table configuration
mode, only the current table is displayed.
2node(ctx-cs)[switch]#show running-
config
Show the whole running config includes the call routing
tables
3node(ctx-cs)[switch]#debug call-
router detail level
Enable the call router debug monitor. Use level 1 for get
informed about errors and increase the level up to 5 to track
calls during route lookups.
4node(ctx-cs)[switch]#no shutdown Activate the whole CS context configuration including the call
router configuration.
5node(ctx-cs)[switch]#show call-router
status
Show the actual call router status. This command can be used
to examine whether or not the call router accepted all routing
entries as entered in the configuration.
Step Command Purpose
1node(ctx-cs)[switch]#debug call-
router detail level
Enables the call router debug monitor. Chose level 5 to trace
route lookups in detail.
2node(ctx-cs)[switch]#test call-router
table-name [property-type property-
value]
Tests the routing or mapping table table-name with the speci-
fied call property. You can repeat the optional section multi-
ple times and thus enter as many call properties as you want.
Call router configuration task list 516
SmartWare Software Configuration Guide 40 • Call router configuration
node(rt-tab)[TEST]#route default dest-interface IF5
node(rt-tab)[TEST]#exit
node(ctx-cs)[switch]#no shutdown
node(ctx-cs)[switch]#debug call-router detail 5
node(ctx-cs)[switch]#test call-router TEST called-e164 123
Parameters
==========
Time: 2004-03-02T16:55:33<-- Time of the lookup
Result: route-found-place-call<-- Lookup result
Destination: IF2<-- Dest. Interface
Timeout: 0<-- Digit-Coll. TO
Property Containers
-------------------
Properties
Properties
E164-Number: 123 (String)<-- CdPN after lookup/change
Properties
16:55:33 CR > [switch] Routing-Lookup:
16:55:33 CR > Find best-matching called-element in table test
16:55:33 CR > 01: Prefix Timeout Expression: E164-Number of 123 completely
(no timeout) matches 1
16:55:33 CR > 02: Prefix Timeout Expression: E164-Number of 123 completely
(no timeout) matches 1[0-4]
16:55:33 CR > 03: Prefix Timeout Expression: E164-Number of 123 does not
match 11
16:55:33 CR > 04: Prefix Timeout Expression: E164-Number of 123 does not
match 111
16:55:33 CR > Selecting entry 2
16:55:33 CR > Execute all elements in table IF2
16:55:33 CR > Execute all elements in table route-found-place-call
16:55:33 CR > Lookup result: Route found; place call (timeout=0)
Call router configuration task list 517
SmartWare Software Configuration Guide 40 • Call router configuration
Example: Enterprise network with local breakout and IP carrier access
Consider the following Enterprise Network.
Figure 73. Call routing example network
Note The SmartNodes in this Network may be owned and operated by the Com-
pany or by a Service Provider.
The goal of this scenario is to connect the two PBX of sites A and B. The two sites are connected to a broad-
band IP provider. The IP network is used to exchange data and voice calls between the two sites. On the IP
network there is also a PSTN gateway (Node C) to an alternative voice carrier Melon that shall be used for most
call destinations.
Sites A and B also have connections to the local ISDN network. This is called the local breakout connection.
The local breakout is to be used as a fallback for ISDN data connections.
We assume the following:
•The number block for site A is 022 782 55 00 to 99
•The number block for site B is 033 665 2 000 to 999
•The Carrier Access Code (CAC) for Apple is 1055
•The Carrier Access Code (CAC) for Orange is 1066
•Carriers Apple, Orange and Melon do not support ISDN data calls (PC with ISDN Terminal Adapter
behind PBX A)
Node A
IP
WAN
Site A
Node B
PBX
ISDN
Site B
TA
PBX
LAN LAN
Carrier
Apple
Carrier
Orange
Carrier
Melon
Node C
Call router configuration task list 518
SmartWare Software Configuration Guide 40 • Call router configuration
•When calling through carrier Melon the CLI (calling party number) must not use the public number blocks
of Site A and B
•Carrier Orange is to be used for national calls
•Carrier Apple is to be used for calls to mobile
The requirements for the call router can be summarized as:
1. Route ISDN data calls to the local breakout.
2. Route inter-site calls to the opposite SmartNode (node A to node B and vice versa).
3. Route international calls to carrier Melon.
4. Provide a fallback for all VoIP calls on the local breakout.
5. Route local calls to the local breakout.
6. Route national calls to carrier Orange.
7. Route mobile calls to carrier Apple.
8. Calls from the PSTN, nodes B and C are forwarded directly to the PBX.
The remainder of this example will focus on the configuration for Node A. The configuration for Node B can
be built accordingly. Node C has an even simpler configuration.
It is a good idea to specify the required call router elements and names before starting the configuration. A
sketch may be helpful:
•Bearer capability table named TAB-ISDN-SERVICE, needed for requirement 1.
•Called party number table named TAB-DEST-A, needed for requirements 2, 3, 6 and 7
•CAC insertion for Apple MAP-CAC-APPLE, needed to add a carrier access code for Apple
•CAC insertion for Orange MAP-CAC-ORANGE, needed to add carrier access code for Orange
•CLI replacement for Melon MAP-CLI-MELON, needed to add carrier access code for Melon
•PSTN interfaces IF-PBX-A and IF-LOCAL-BREAKOUT, needed for requirements 4, 5 and 8.
•H.323 interface IF-NODE-B, needed for requirement 2.
•SIP interface IF-NODE-C, needed for requirement 3.
Call router configuration task list 519
SmartWare Software Configuration Guide 40 • Call router configuration
Figure 74 shows the corresponding CS Context and call router elements in node A:
Figure 74. CS context and call router elements
We assume that the CS interfaces have already been created and configured. So we can start directly with the
call router elements.
Since the command sequence is quite long it is useful to create the configuration offline and download it using
TFTP.
Note In the following lines the prompt is omitted as in a configuration file and for
better readability.
#-------------------------------------------------------------
# Call Router Config File
#-------------------------------------------------------------
context cs switch
#
# Hunt-group service "SVC-FALLBACK" to catch VoIP network errors
#
service hunt-group SVC-FALLBACK
no cyclic
timeout 6
route call 1 dest-table ISDN-SERVICE
route call 2 dest-interface LOCAL-BREAKOUT
Context
interface isdn IF-PBX-A interface isdn IF-LOCAL-BREAKOUT
Call Router
TAB-
ISDN-
SERVICE
MAP-
CAC-
MELON
interface h323 IF-NODE-B
interface sip IF-NODE-C
SVC-
FALL
BACK
TAB-
DEST-
A
MAP-
CAC-
APPLE
MAP-
CAC-
ORANGE
Call router configuration task list 520
SmartWare Software Configuration Guide 40 • Call router configuration
#
# Bearer capability routing table “TAB-ISDN-SERVICE”
#
routing-table itc TAB-ISDN-SERVICE
route unrestricted-digital dest-interface IF-LOCAL-BREAKOUT
route default dest-table TAB-DEST-A
#
# Called party number routing table “TAB-DEST-A”
#
routing-table called-e164 TAB-DEST-A
route 0 dest-interface IF-LOCAL-BREAKOUT MAP-CAC-ORANGE
route 00 dest-interface IF-NODE-C MAP-CLI-MELON
route 07[4-6] dest-interface IF-LOCAL-BREAKOUT MAP-CAC-APPLE
route 0336652... dest-interface IF-NODE-B
route default dest-interface IF-LOCAL-BREAKOUT
#
# Number manipulation “CAC-APPLE”; add prefix 1055
#
mapping-table called-e164 to called-e164 MAP-CAC-APPLE
map (.%) to 1055\1
#
# Number manipulation “CAC-ORANGE”; add prefix 1066
#
mapping-table called-e164 to called-e164 MAP-CAC-ORANGE
map (.%) to 1066\1
#
# Number manipulation “CLI-MELON”
# Truncate CLI to last 2 digits and add 08004455 prefix in front
#
mapping-table calling-e164 to calling-e164 MAP-CLI-MELON
map .%(..) to 08004455\1
Prior to downloading this file you should make sure there are no other tables and functions in the call router.
node(ctx-cs)[switch]#copy tftp://172.16.36.20/configs/SRconf.cfg running-config
Download...100%
Now we have to enable advanced call routing for outgoing calls and basic interface routing for incoming calls:
Calls arriving on the interface from the PBX are routed to the SVC-FALLBACK service while incoming calls
from the other interfaces are routed directly to the IF-PBX-A interface.
node(ctx-cs)[switch]#interface isdn IF-PBX-A
node(if-pstn)[IF-PBX-A]#route dest-service SVC-FALLBACK
node(if-pstn)[IF-PBX-A]#exit
node(ctx-cs)[switch]#interface isdn IF-LOCAL-BREAKOUT
node(if-isdn)[IF-LOCA~]#route dest-interface IF-PBX-A
Call router configuration task list 521
SmartWare Software Configuration Guide 40 • Call router configuration
node(if-isdn)[IF-LOCA~]#exit
node(ctx-cs)[switch]#interface h323 IF-NODE-B
node(if-h323)[IF-NODE-B]#route dest-interface IF-PBX-A
node(if-h323)[IF-NODE-B]#exit
node(ctx-cs)[switch]#interface sip IF-NODE-C
node(IF-NODE-C)[IF-NODE-C]#route dest-interface IF-PBX-A
node(IF-NODE-C)[IF-NODE-C]#exit
The configuration is now complete. Prior to activating the configuration enable the call router debug monitor
to check the loading of the call router elements.
node(cfg)#debug call-router
node(cfg)#context cs
node(ctx-cs)[switch]#no shutdown
02:14:30 CR > Updating tables in 3 seconds...
02:14:33 CR > [switch] Reloading tables now
02:14:33 CR > [switch] Flushing all tables
02:14:33 CR > [switch] Loading table 'TAB-ISDN-SERVICE'
02:14:33 CR > [switch] Loading table 'TAB-DEST-A'
02:14:33 CR > [switch] Loading table 'CAC-APPLE'
02:14:33 CR > [switch] Loading table 'CAC-ORANGE'
02:14:33 CR > [switch] Loading table 'CLI-MELON'
02:14:33 CR > [switch] Loading table 'MAP-CAC-APPLE'
02:14:33 CR > [switch] Loading table 'MAP-CAC-ORANGE'
02:14:33 CR > [switch] Loading table 'MAP-CLI-MELON'
02:14:33 CR > [switch] Loading table 'IF-LOCAL-BREAKOUT-precall-service'
02:14:33 CR > [switch] Loading table 'IF-PBX-A-precall-service'
02:14:33 CR > [switch] Loading table 'IF-NODE-B-precall-service'
02:14:33 CR > [switch] Loading table 'IF-NODE-C-precall-service'
node(ctx-cs)[switch]#
Configure partial rerouting
To save bandwidth and B-Channels, SmartWare supports partial rerouting. SmartWare accepts rerouting
requests from PBX, which want to push-back a diverted or forwarded call with a Rerouting Request. Smart-
Ware can generate such a reroute request to push-back a looped call. Both, acceptation and emission of rerout-
ing requests can be configured separately.
To prevent rerouting when a particular service is invoked in a call, services can be configured to allow or to for-
bid rerouting of calls of the service. In order that a call can be rerouted, all services participating in this call
must allow rerouting. In addition rerouting emit must be configured on the interface where this call comes in
and is routed out.
To accept or emit rerouting requests, see “Call reroute” on page 522.
To allow push-back, see “Allow Push-Back” on page 522.
Call router configuration task list 522
SmartWare Software Configuration Guide 40 • Call router configuration
Call reroute
The call-reroute commands enable acceptation and emission of rerouting requests.
Enable acceptation of rerouting requests on ISDN. If a reroute is accepted, the participant who sends the
reroute request is disconnected and the call is established from the SmartNode to the new destination.
Mode: context cs/interface isdn
Enable emission of rerouting requests on ISDN. To reroute a call must enter and leave SmartNode through
the same ISDN interface and every service invoked must allow push-back.
Mode: context cs/interface isdn
Enable sending of “302 moved temporary” message on SIP. To reroute a call must enter and leave Smart-
Node through the same SIP gateway and every service invoked must allow push-back.
Mode: context cs/interface sip
Allow Push-Back
The push-back command allows or forbids rerouting of a call, if the service is invoked.
Enable push-back – aaa service.
Mode: context cs/service aaa
Step Command Purpose
1 [name](if-isdn)[interface]#[no] call-
reroute accept
Enables acceptation of rerouting requests from ISDN.
Default is disabled.
Step Command Purpose
1 [name](if-isdn)[interface]#[no] call-
reroute emit
Enables emission of rerouting requests from ISDN.
Default is disabled.
Step Command Purpose
1 [name](if-sip)[interface]#[no] call-
reroute emit
Enables emission of “302 moved temporarily” message on
SIP. Default is disabled.
Step Command Purpose
1 [name](svc-aaa)[service]#[no]
allows-push-back
Enables push-back of a call of this service.
Default is disabled.
Call router configuration task list 523
SmartWare Software Configuration Guide 40 • Call router configuration
Enable push-back – bridge service.
Mode: context cs/service bridge
Enable push-back – distribution-group service.
Mode: context cs/service distribution-group
Enable push-back – hunt group service.
Mode: context cs/service hunt-group
Enable push-back – limiter service.
Mode: context cs/service limiter
Enable push-back – priority service.
Mode: context cs/service priority
Step Command Purpose
1 [name](svc-brdg)[service]#[no]
allows-push-back
Enables push-back of a call of this service.
Default is disabled.
Step Command Purpose
1 [name](svc-dist)[service]#[no]
allows-push-back
Enables push-back of a call of this service.
Default is disabled.
Step Command Purpose
1 [name](svc-hunt)[service]#[no]
allows-push-back
Enables push-back of a call of this service.
Default is disabled.
Step Command Purpose
1 [name](svc-lim)[service]#[no]
allows-push-back
Enables push-back of a call of this service.
Default is enabled.
Step Command Purpose
1 [name](svc-prio)[service]#[no]
allows-push-back
Enables push-back of a call of this service.
Default is enabled.
524
Chapter 41 SIP call-router services
Chapter contents
Introduction........................................................................................................................................................525
SIP conference-service .........................................................................................................................................525
SIP conference-service configuration task list ................................................................................................525
Entering conference-service configuration mode .....................................................................................525
Configuring the call routing destination ..................................................................................................525
Configuring the conference server ...........................................................................................................526
SIP location-service..............................................................................................................................................526
SIP location-service configuration task list ....................................................................................................527
Entering SIP location-service configuration mode ...................................................................................527
Binding a location service ........................................................................................................................528
Configuring multi-contact behavior ........................................................................................................528
Configuring the hunt timeout .................................................................................................................528
Introduction 525
SmartWare Software Configuration Guide 41 • SIP call-router services
Introduction
This chapter contains the description of all SIP specific call router services, which are only available if the soft-
ware includes the SIP component.
SIP conference-service
RFC4240 describes how to address different services on a media server without additional SIP headers or
header parameters. This mechanism makes use of the fact media servers do not manage users, they manage
media services. For that reason RFC4240 defines how to use the user part of the Request-URI as a service
indictor. The conference-service provides the functionality described in RF4240 as 'Conference Service'. It
builds the Request-URI to address a conference room instance on a media server according to this standard.
The user part of the Request URI will start with the service indicator 'conf=' followed by a unique conference
room identifier. All calls with the same conference room identifier will attend the same session. The host part
of the Request-URI that represents the media server host name has to be configured by the user. The confer-
ence room identifier and the called party number will be taken concatenated with the serial number of the
device.
This looks as follows: conf=<called-nbr><serial-nbr>@<media-server>
SIP conference-service configuration task list
The following section describes how to create a new conference-service and how to enter the configuration
mode of an existing one. In addition it describes all commands and sub commands of the conference-service
configuration mode. All configuration tasks for a conference-service are listed below.
•Enter conference-service configuration mode (see page 525)
•Configure the call routing destination (see page 525)
•Configure the conference server (see page 526)
Entering conference-service configuration mode
The service sip-conference command enters the configuration mode of an existing conference-service or cre-
ates a new one with a specified name. It also destroys an existing service by using the no form of the command.
Mode: Context CS
Configuring the call routing destination
The call routing destination specifies the next interface, table or service to which the current call has to be for-
warded. Detailed information about call routing of a call control service can be found in Chapter 40, “Call
router configuration” on page 456. Because this is a SIP specific service, the user should be aware that the final
destination of the configured call routing must be a SIP interface. This SIP interface will then set up the call to
the configured conference server. Be aware that the elements in the routing path do not modify the Request-
URI because it has been built by this service. Therefore the final SIP interface must not have configured a
remote host.
Step Command Purpose
1 [name] (ctx-cs)[switch]#[no] service sip-
conference <service-name>
Creates/Destroys a SIP conference-service or
enters the configuration mode of an existing
one.
SIP location-service 526
SmartWare Software Configuration Guide 41 • SIP call-router services
Mode: Service SIP conference
Configuring the conference server
As described in the introduction, one of the responsibilities of this service is to build the conference server
Request-URI according to RFC4240. The user part will be built from the called-e164 property and the serial
number whereas the host part is specified by this command.
Mode: Service SIP conference
SIP location-service
Note To avoid possible name conflicts, two expressions will be declared here.
Location Service: Domain based identity data base.
Service Location-Service: A call-route service that accesses the Location Ser-
vice declared above.
This service is the main consumer of the address bindings (mapping of the users identity to a contact address)
deposited in the location service data base (see 51, “Location Service” on page 607). Address bindings have
been entered to location service data base either by inbound registration or manually by the user. An address
binding is an entry that describes on which host a user is currently reachable. If a call is routed to this service, it
performs a lookup with the requested URI to find the right contact information.
If the call is originated by the PSTN network, then this URI does not yet exist and must be built first with a
mapping table. If this is not done, the lookup uses the called-e164 number and checks if a registered identity
matches this number. For more information about this process, see section, “B2B User Agent with Registered
Clients” on page 571.
It is also possible a user is registered with more than one contact. This can be if the user registers with its office
SIP phone and also with its SIP soft client. In this case, the location-service's behavior can be configured. On
the location-service, no routing command is available. The call will automatically be routed to that SIP inter-
face on which the register request has been received, therefore manually entered address bindings must be pro-
vided with a SIP interface as routing destination.
Step Command Purpose
1 [name] (svc-sip-conf)[name]#[no] route
call dest-interface <name>
or
dest-table <name>
or
dest-service <name>
Specifies the next call routing destination for
an incoming call. The no form of the com-
mand deletes the current routing entry.
Step Command Purpose
1 [name] (svc-sip-conf)[name]#[no] scon-
ference-server <host-name> [<port>]
Specifies the conference server host name
and the port. The no form of the command
removes the current entry.
SIP location-service 527
SmartWare Software Configuration Guide 41 • SIP call-router services
Figure 75. Registration and Lookup
SIP location-service configuration task list
The following section describes how to create a new location-service and how to enter the configuration mode
of an existing one. In addition, it describes all commands and sub commands of the location-service configura-
tion mode. All configuration tasks for a location-service are listed below.
•Enter location-service configuration mode (see page 527)
•Bind a location service (see page 528)
•Configure multi contact behavior (see page 528)
•Configure the hunt timeout (see page 528)
Entering SIP location-service configuration mode
The service sip-location-service command enters the configuration mode of an existing location-service or cre-
ates a new one with a specified name. It also destroys an existing service by using the no form of the command.
Mode: Context CS
Step Command Purpose
1 [name] (ctx-cs)[switch]#[no] service sip-
location-service <service-name>
Creates/Destroys a SIP location-service or
enters the configuration mode of an existing
one.
Location Service
Domain:
biloxy.com
Context CS
Service
Location - Service
sip2 sip1
Lookup
Domain: biloxy.com
Identity: john.doe
Contact: 192.168.10.1:5060
Create address binding:
Identity: john.doe
Contact: 192.168.10.1:5060
Interface: sip1
REGISTER biloxy.com
From: john.doe@biloxy.com
To: john.doe@biloxy.com
Contact: 192.168.10.1:5060
INVITE sip:john.doe@192.168.10.1:5060
INVITE sip:john.doe@biloxy.com
SIP location-service 528
SmartWare Software Configuration Guide 41 • SIP call-router services
Binding a location service
If a call is route to the location-service it performs a lookup with the requested URI to the bound location ser-
vice to find the address bindings. This command is optional because if no location service is bound, all existing
location services will be considered to find the right contact information.
Mode: Service SIP location-service
Configuring multi-contact behavior
There may be cases when a user has registered with several contacts in the location service database to be reach-
able on several SIP clients. If a call is routed to this service and the lookup in the location service database
results in several contacts, this command specifies the behavior for such a case. One possibility is to contact all
clients at the same time (distribute) or to contact the clients one after the other (hunt). At time of registration
a priority value can be provided. In hunt mode, this priority defines the sequence of contacting the clients. The
following modes are available:
•Hunt: Contact one registration after the other, depending on the priority. Highest priority first.
•Distribute: Contact all registrations at the same time.
•Distribute and Hunt: Registrations with the same priority build a distribution group. Hunt over this
groups beginning with the highest priority.
Mode: Service SIP location-service
Configuring the hunt timeout
The hunt-timeout command is used in 'hunt' mode and 'distribute-and-hunt' mode. It specifies the time that
the service must hunt to the next contact if one is not responding. The user must configure this value because
it is set per default to zero. This means that the hunting process will stay on the first contact and will never pro-
ceed with the next registered contact.
Mode: Service SIP location-service
Step Command Purpose
1 [name] (svc-ls)[name]#[no] bind loca-
tion-service name
Binds the service to a location service. The no
form of the command removes an existing
binding.
Step Command Purpose
1 [name] (svc-ls)[name]#mode {hunt | dis-
tribute | distribute-and-hunt}
Specifies the multi contact behavior of the SIP
location-service.
Default: distribute-and-hunt
Step Command Purpose
1[name] (svc-ls)[name]#[no] hunt-timeout
<seconds>
Defines the seconds to wait before hunting to
the next contact or group of contacts.
529
Chapter 42 Tone configuration
Chapter contents
Introduction........................................................................................................................................................530
Tone-set profiles..................................................................................................................................................530
Tone configuration task list .................................................................................................................................531
Configuring call-progress-tone profiles ..........................................................................................................531
Configure tone-set profiles ............................................................................................................................532
Enable tone-set profile ..................................................................................................................................533
Show call-progress-tone and tone-set profiles ................................................................................................534
Introduction 530
SmartWare Software Configuration Guide 42 • Tone configuration
Introduction
This chapter gives an overview of call-progress-tone profiles and tone-set profiles, and describes the tasks
involved in their configuration.
In-band tones keep the user informed about the state of his call or additional services such as call-waiting, hold
etc. Other tones can be assigned to any event that occurs during a call, a call waiting tone, for example. The in-
band tones are referred to as call-progress-tones.
Tone-set profiles
In traditional PSTN networks the in-band tones (dial tone, alerting tone, busy tone etc.) are generated by the
network, i.e. the Central Office switch or a similar device, and are relayed transparently by the SmartNode. In
voice over IP networks however this model of a network side providing services including in-band tones is not
given in all situations. For example, two SmartNodes may be connected directly to each other over the access
network without the intervention of a traditional Central Office switch. This imposes the need to generate the
local in-band tones directly on the gateways since none of the attached ISDN devices (PBXs, phones) will do
so itself (ISDN USR side). The in-band tones that can be generated by the SmartNode are the following:
•Busy tone—Tone you hear when you try to reach a remote extension but it is busy.
•Confirmation tone—Tone you hear when you enable a supplementary service and the system has accepted
and activated it (for future use).
•Congestion tone—Tone you hear when you try to reach a remote extension but the network is busy or out
of order (for future use).
•Dial tone—Tone you hear when you lift the handset and the network is ready to accept the dialed digits of
the called party number.
•Hold tone—Tone you hear when you are in an active connection and the remote extension sets you ‘On
Hold’ to reach a third party extension.
•Release tone—Tone you hear when you are in an active connection and the remote extension terminates the
call.
•Ringback tone—Tone you hear when the called party number is complete and the remote extension is ring-
ing.
•Special dial tone—Tone you hear when you lift the handset and the network is ready to accept the dialed
digits of the called party number but on your system is still a supplementary service activated (for future
use).
•Special Information tone—Tone you hear when you try to reach a nonexistent remote extension (for future
use).
•Waiting tone—Tone you hear when you already have an active connection and a second new extension tries
to reach you.
All call-progress-tones are collected in a tone-set profile. A tone-set profile collects typically all the required
tones for one country. The tone-set profile is assigned to the PSTN interface (ISDN, FXS, FXO) or if it is
required to have different tones for individual PSTN interfaces it’s possible to assign for each PSTN interface
its own tone-set profile. If no tone-set is assigned to a PSTN interface the default tone-set is taken. Figure 76
illustrates the relation ship between call-progress-tone profiles, tone-set profiles and PSTN interfaces.
Tone configuration task list 531
SmartWare Software Configuration Guide 42 • Tone configuration
Figure 76. Assign tone-sets to a PSTN interfaces
Note There is a default tone-set named default, which maps the three Swiss stan-
dard in-band tones. Create a tone-set profile only if this default profile corre-
sponds not with your country.
Tone configuration task list
To configure call progress tones, perform the tasks described in the following sections.
•Configuring call-progress-tone profiles
•Configuring tone-set profiles
•Enabling the generation of local in-band tones
•Showing call-progress-tone and tone-set profiles
Configuring call-progress-tone profiles
Each call-progress-tone consists of a sequence of different tones and pauses. Arbitrary tone cadences can be
configured. With these parameters all country specific tones can be defined. Tone configuration knows only
one command that have to be used repeatedly. The sequence in which the commands are entered (or appear in
the config file) defines the sequence in which the corresponding elements are played.
Context CS
Switch
ISDN Interface 11
ISDN Interface 10
ISDN
ISDN
Dial-A Ring-A Busy-A
call-progress-tone
profiles
tone-set
Profile
A
Dial-B Ring-B Busy-B
call-progress-tone profiles
tone-set
Profile
B
Call Setup A
Call Setup B
Tone Play-Out Ring -B
Tone Play-Out Ring -A
H323 Interface MyH323
Call Setup B
Call Setup A
SIP Interface MySIP
Tone configuration task list 532
SmartWare Software Configuration Guide 42 • Tone configuration
Procedure: To configure a tone-set profile
Mode: Configure
Example: Define the Belgian special information tone
The first line defines the first element of the tone: 330ms of 950Hz at –4dB. The second line the element that
is played when the first element has finished: 330ms of 144Hz at –4dB, and so on. The last line defines a pause
of 1 second after the three tones. The cadence is repeated infinitely.
node(cfg)#profile call-progress-tone belgianSpec
node(pf-callp)[belgian~]#play 330 950 -4
node(pf-callp)[belgian~]#play 330 1400 -4
node(pf-callp)[belgian~]#play 330 1800 -4
node(pf-callp)[belgian~]#pause 1000
Tones and pauses can be arbitrarily sequenced up to a number of 10 elements per call-progress-tone. The
default call-progress-tone is an empty tone. The total number of different play elements across all configured
call-progress-tones must not exceed 15 (an error is thrown if it does). If the call-progress-tone consists of only
one element, this element has infinite duration. The duration parameter is ignored in this case.
Configure tone-set profiles
A tone-set profile maps one call-progress-tone profile to each internal call-progress-tone. A tone-set profile typ-
ically includes all the call-progress-tones for one country.
Procedure: To configure a tone-set profile
Mode: Configure
Step Command Purpose
1node(cfg)#profile call-progress-tone
name
Creates a call-progress-tone profile with name
name and enters call-progress-tone configura-
tion mode.
2node(pf-callp)[name]#play duration
frequency1 level1 [frequency2 level2]
Defines a tone with duration duration, fre-
quency frequency1 and volume level1. If a sec-
ond frequency is defined both frequencies are
played in parallel and for the same duration
3node(pf-callp)[name]#pause duration Defines a pause of duration milliseconds
4node(pf-callp)[name]#... Repeat step 2 and/or step 3 to define a tone
sequence. Always when you enter a play or
pause command, it is appended to the
already existing tone.
5node(pf-callp)[name]#flush-play-list Resets the tone cadence. Same as deleting
and re-creating the tone.
Step Command Purpose
1node(cfg)#profile tone-set name Creates tone-set name and enters tone-set pro-
file configuration mode.
Tone configuration task list 533
SmartWare Software Configuration Guide 42 • Tone configuration
Example: Configuring a tone-set
The following example shows how to configure a tone-set profile for UK.
node(cfg)#profile tone-set UK
node(pf-tones)[UK]#map call_progress_tone dialtone dialUK
node(pf-tones)[UK]#map call_progress_tone alertingtone ringUK
node(pf-tones)[UK]#map call_progress_tone busytone busyUK
Enable tone-set profile
A call on the SmartNode always has two signaling protocol endpoints. At the moment it is only possible to
play locally generated tones on PSTN endpoints (ISDN, FXS) and not on IP based signaling endpoints
(H.323, SIP). Dependent on the configuration several combinations of signaling protocol endpoints are possi-
ble (ISDN–ISDN, H.323-ISDN, FXS-SIP etc.). The SmartNode will always generate the tones locally and
play it on the PSTN line as long as the other endpoint doesn’t notifies availability of inband information and
the PSTN endpoint is NOT of type ISDN-USER or FXO. If availability of inband information will be noti-
fied by one endpoint, the bearer channel already contains the necessary tone information and must not be gen-
erated locally.
If the user has not specified a tone-set profile, the default tone-set will be taken to generate the local inband
information. For enabling a user defined tone-set profile on a specific interface proceed as follows.
Procedure: To assign a tone-set profile to a PSTN interface
2node(pf-tones)[name]#map
call_progress_tone
{
busy-tone |
confirmation-tone|
congestion-tone |
dial-tone |
hold-tone |
release-tone |
ringback-tone |
special-dial-tone |
special-information-tone |
waiting-tone
} call-progress-tone
Map a call-progress-tone profile to an internal
tone. An internal tone represents the call event
for which a tone indication can be provided.
Use the CLI help to get a list of all available
events.
3Repeat step 2 for all internal tone events.
4[name](pf-tones)[name]#[dtmf-signal-level Defines the output level of DTMF signals gen-
erated lcoally. This applies also to relayed
DTMF signals.
Step Command Purpose
Tone configuration task list 534
SmartWare Software Configuration Guide 42 • Tone configuration
Mode: Interface
Example: Assign tone-set profiles to an ISDN interface
The example shows how to use the SWISS tone-set for the CS context, and use the USA tone-set for an indi-
vidual interface.
node(cfg)#context cs
node(ctx-cs)[switch]#interface isdn bri0
node(if-isdn)[bri0]#use profile tone-set USA
Show call-progress-tone and tone-set profiles
Use the show commands to display the call-progress-tone profiles as well as the tone-set profiles.
Procedure: To show call-progress-tone profiles
Mode: Administrator execution
Example: Show call-progress-tone profile
The following example shows how to display the call-progress-tone profiles.
node#show profile call-progress-tone belgianSpec
Profiles:
---------
belgianSpec:
Play 330ms (950Hz at -4dB)
Play 330ms (1400Hz at -4dB)
Play 330ms (1800Hz at -4dB)
Pause 100ms
Procedure: To show tone-set profiles
Mode: Administrator execution
Example: Show tone-set profile
Step Command Purpose
1node(ctx-cs)[switch]#interface if-type if-
name
Enter interface configuration mode.
2node(if-type)[if-name]#use profile tone-
set name
Assign a user defined tone-set profile to an
interface.
Step Command Purpose
1node#show profile call-progress-tone
[name] Display all call-progress-tone profiles or a spe-
cific with name name
Step Command Purpose
1node#show profile tone-set [name] Display all tone-set profiles or a specific with
name name
Tone configuration task list 535
SmartWare Software Configuration Guide 42 • Tone configuration
The following example shows how to display the tone-set profile.
node#show profile tone-set test
Tone Profile: test
==================
Used: by 0 module(s)
DTMF Duration: 80ms
DTMF Interspace: 80ms
Tones
-----
dial-tone: belgianSpec
ringback-tone: defaultAlertingtone
hold-tone: defaultHoldtone
waiting-tone: defaultWaitingtone
confirmation-tone: defaultConftone
busy-tone: defaultBusytone
congestion-tone: defaultCongestiontone
release-tone: defaultReleasetone
special-information-tone: defaultSItone
special-dial-tone: defaultSDtone
Example: The following example shows how to configure a tone-set profile for UK and apply it to the isdn
interface bri0.
Create the call-progress-tone profiles:
node(cfg)#profile call-progress-tone dial-UK
node(pf-callp)[dial-UK]#play 5000 350 0 440 0
node(pf-callp)[dial-UK]#profile call-progress-tone alerting-UK
node(pf-callp)[alertin~]#play 400 400 0 450 0
node(pf-callp)[alertin~]#pause 200
node(pf-callp)[alertin~]#play 400 400 0 450 0
node(pf-callp)[alertin~]#pause 2000
node(pf-callp)[alertin~]#profile call-progress-tone busy-UK
node(pf-callp)[busy-UK]#play 400 400 0
node(pf-callp)[busy-UK]#pause 400
node(pf-callp)[busy-UK]#exit
Create the tone-set profile:
node(cfg)#profile tone-set UK
node(pf-tones)[UK]#map call_progress_tone dialtone dial-UK
node(pf-tones)[UK]#map call_progress_tone alertingtone alerting-UK
node(pf-tones)[UK]#map call_progress_tone busytone busy-UK
node(pf-tones)[UK]#exit
Assign the tone-set to the isdn interface bri0
node(cfg)#context cs
Tone configuration task list 536
SmartWare Software Configuration Guide 42 • Tone configuration
node(ctx-cs)[switch]#interface isdn bri0
node(if-isdn)[bri0]#use profile tone-set UK
537
Chapter 43 FXS port configuration
Chapter contents
Introduction........................................................................................................................................................538
Shutdown and enable FXS ports..........................................................................................................................538
Bind FXS ports to higher layer applications .........................................................................................................539
Configure country-specific FXS port parameters..................................................................................................539
Other FXS port parameters..................................................................................................................................540
Example ..............................................................................................................................................................541
Introduction 538
SmartWare Software Configuration Guide 43 • FXS port configuration
Introduction
This chapter provides an overview of POTS signaling and SmartNode FXS ports and describes the tasks
involved in configuring FXS ports in SmartWare.
This chapter includes the following sections:
•Shutdown and enable FXS ports (see page 538)
•Bind FXS ports to higher layer protocols (see page 540)
•Configure country specific FXS port parameters (see page 539)
•Configure other FXS port parameters (see page 540)
•Select a low-bit-rate codec for FXS ports
•Example
FXS stands for foreign exchange station and is the exchange side of a POTS (plain old telephone system) line. Even
though POTS is seen as old technology it still plays an important part in today's telecommunications networks.
There are still a large number of analog phone sets in use worldwide and will do so in the future. These analog
devices, be they phones, facsimile machines and the like, represent a large investment and it is desirable to have
the technical means to hook such devices to a Voice over IP enabled network. POTS signaling.
The signaling procedure used on FXS ports is different throughout different countries, but the basic idea is to
use the POTS line itself as a current loop which signals off-hook and on-hook of the handset. Going off-hook
establishes a connection between the phone and whatever is on the other side (CO switch, SmartNode, etc.).
Shutdown and enable FXS ports
FXS ports are enabled by default. They also can be configured when they are active. But keep in mind that con-
figuration of an active port temporarily disables the port for a short time (some milliseconds).
Mode: Context CS
Step Command Purpose
1 (config)#port fxs slot port Enter FXS port configuration mode
2 (prt-fxs)[slot/port]#shut-
down
Shutdown the port. All active calls are dropped!
3 (prt-fxs) [slot/port]#no shut-
down
Activate the port.
Bind FXS ports to higher layer applications 539
SmartWare Software Configuration Guide 43 • FXS port configuration
Bind FXS ports to higher layer applications
An FXS port needs to be associated to an fxs interface in a CS context. The same mechanism of encapsulation
and binding is used as known for e.g. Ethernet ports (see “Interfaces, Ports, and Bindings” on page 47).
Procedure: To bind an FXS port to an FXS interface of a CS context
Mode: Port FXS
Configure country-specific FXS port parameters
Unlike ISDN, POTS is heavily country specific even though there is a good chance that a phone for one coun-
try works reasonably good in another country. Country specific settings are contained in a so-called fxs profile
which is integrated in the firmware of the SmartNode. It can be updated independently from the firmware by
means of tftp download.
As there are more than 190 countries, SmartWare does not support all country parameters, so make sure that
the country parameter for your country is available as a profile, before you begin operation.
Procedure: Configure country-specific FXS parameters
Mode: Port FXS
Step Command Purpose
1node(config)#port fxs slot port Enter configuration mode for FXS port
2node(prt-fxs)[slot/port]#encap-
sulation cc-fxs
Sets the encapsulation for the port. cc-fxs designs
the encapsulation is a context CS interface
3node(prt-fxs)[slot/port]#bind
interface interface
Binds the port to an interface in a CS context
Step Command Purpose
1node(config)#port
fxs slot port
Enter configuration mode for FXS port
2node(prt-fxs)[slot/
port]#use profile
fxs profile
Select a profile containing the country specific settings of the port attributes
(ring voltage etc.). The available country profiles are listed when entering
this command. The names listed are composed as follows:
ISO3166-1-Alpha-2 2 digit country code
Examples (currently available profiles):
•ch Switzerland
•etsi ETSI EG 201 188 Configuration (Europe)
•gb Great Britain
•nl Netherlands
•us United States of America/Canada
•us-115vpp USA, higher ring voltatge (115 Vpp)
•za South Africa
The default profile (not displayed in the list when entering the command) is etsi.
Other FXS port parameters 540
SmartWare Software Configuration Guide 43 • FXS port configuration
Other FXS port parameters
This section describes the commands available for the configuration of an FXS port.
Procedure: Configure the FXS port parameters
Mode: Configure
Mode: IC voice in system
Step Command Purpose
1node(config)#port fxs slot port Enter FXS port configuration mode
2
optional
node(prt-fxs) [slot/port]#[no] battery-
reversal
Reverses the line polarity at connect/disconnect of
the call. This might be required by certain PBX to
work correctly. Default: disabled.
3
optional
node(prt-fxs) [slot/port]#end-of-call-sig-
naling
{ busy-tone |
{ loop-break <duration> } }
Selects the method how SmartNode signals the
end of a call to the connected analog terminal,
playing a busy-tone or interrupting the loop-current
for a certain time (duration in ms). Default: busy-
tone.
4
optional
node(prt-fxs)[slot/port]#caller-id for-
mat { bell | etsi }
Specifies which line protocol is used for caller-id
transmission. Use bell for US/Canada, etsi for
Europe.
Caller-id is enabled/disabled in the higher layer
application (interface fxs in context CS). Default:
etsi
5
optional
node(prt-fxs)[slot/port]#[no] caller-id
attenuation attenuation
Attenuates the modulated caller-id signal (dB).
Default: disabled.
6
optional
node(prt-fxs) [slot/port]#flash-hook-
duration duration
Specifies for what time the connected device goes
on-hook for flash-hook signaling (ms). When enter-
ing this command without an argument, the default
duration of 1000ms is applied. Default: 1000ms.
In US or Canada, try 350ms. To ensure that the
flash-hook event can be relayed over SIP or H.323
in analog line extension applications, disable all
local call features in the fxs interface in the cs con-
text: no call-waiting, no additional-call-offering, no
call-hold.
7
optional
node(prt-fxs) [slot/port]#[no] pulse-
dialing
Enables the port for use with pulse dialing termi-
nals. Recommended only when a terminal is con-
nected that allows pulse dialing only. Enabling
pulse dialing disables the use of all flash-hook fea-
tures. Default: Disabled.
Example 541
SmartWare Software Configuration Guide 43 • FXS port configuration
Example
The following example shows how to enter the configuration mode for FXS port 0/0, configure it with typical US
settings, and bind it to an interface named fxs00 in context CS switch.
172.16.40.71>enable
172.16.40.71#configure
172.16.40.71(cfg)#port fxs 0 0
172.16.40.71(prt-fxs)[0/0]#use profile fxs us
172.16.40.71(prt-fxs)[0/0]#caller-id format bell
172.16.40.71(prt-fxs)[0/0]#flash-hook-duration 350
172.16.40.71(prt-fxs)[0/0]#encapsulation cc-fxs
172.16.40.71(prt-fxs)[0/0]#bind interface fxs00 switch
172.16.40.71(prt-fxs)[0/0]#exit
172.16.40.71(cfg)#system
542
Chapter 44 FXO port configuration
Chapter contents
Introduction........................................................................................................................................................543
Shutdown and enable FXO ports.........................................................................................................................543
Bind FXO ports to higher layer applications........................................................................................................543
Configure country specific FXO port parameters.................................................................................................544
Other FXO port parameters ................................................................................................................................544
Introduction 543
SmartWare Software Configuration Guide 44 • FXO port configuration
Introduction
This chapter provides an overview of POTS signaling and SmartNode FXO ports and describes the tasks
involved in configuring FXO ports in SmartWare.
This chapter includes the following sections:
•Shutdown and enable FXO ports (see page 543)
•Bind FXO ports to higher layer protocols (see page 544)
•Configure country specific FXO port parameters (see page 544)
•Configure other FXO port parameters (see page 544)
FXO stands for foreign exchange office and is the subscriber side of a POTS (plain old telephone system) line.
An FXO port on the SmartNode simulates thus an analog phone set, which must actively go on-hook and off-
hook, detect ringing and caller-id, and dial the called-party number using DTMF keypad.
Shutdown and enable FXO ports
FXO ports are enabled by default. They also can be configured when they are active. But keep in mind that
configuration of an active port temporarily disables the port for a short time (some milliseconds).
Mode: Configure
Bind FXO ports to higher layer applications
An FXO port needs to be associated to an fxo interface in a CS context. The same mechanism of encapsulation
and binding is used as known for e.g. ethernet ports (see section “Interfaces, Ports, and Bindings” on page 47).
Procedure: To bind an FXO port to an fxo interface of a CS context
Mode: Port FXO
Step Command Purpose
1 (config)#port fxo slot port Enter FXO port configuration mode
2 (prt-fxo)[slot/port]#shut-
down
Shutdown the port. All active calls are dropped!
3(prt-fxo) [slot/port]#no shut-
down
Activate the port.
Step Command Purpose
1node(config)#port fxo slot port Enter configuration mode for FXO port
2node(prt-fxo)[slot/port]#encap-
sulation cc-fxo
Sets the encapsulation for the port. cc-fxo designs
the encapsulation is a context CS interface
3node(prt-fxo)[slot/port]#bind
interface interface
Binds the port to an interface in a CS context
Configure country specific FXO port parameters 544
SmartWare Software Configuration Guide 44 • FXO port configuration
Configure country specific FXO port parameters
Unlike ISDN, POTS is heavily country specific even though there is a good chance that a setting for one coun-
try works reasonably good in another country. Country specific settings are contained in a so-called fxo profile
which is integrated in the firmware of the SmartNode. It can be updated independently from the firmware by
means of tftp download.
As there are over 190 countries SmartWare of course does not support all different country parameters. Thus
before operation make sure that the country parameter for your country is available as profile.
Procedure: Configure country specific FXO parameters
Mode: Port FXO
Other FXO port parameters
This section describes the commands available for the configuration of an FXO port.
Procedure: Configure the FXO port parameters
Step Command Purpose
1node(config)#port fxo slot port Enter configuration mode for FXO port
2node(prt-fxo)[slot/port]#use
profile fxo profile
Select a profile containing the country specific set-
tings of the port. Available profiles are:
•‘etsi’ according to ETSI standard
•‘fcc68_25Hz’ for the United States of America /
Canada, according to the FCC86 standard,
with 25Hz ringing detection.
•‘fcc68_50Hz’ for the United States of America /
Canada, according to the FCC86 standard,
with 50Hz ringing detection.
•‘tbr21_25Hz’, according to the TBR 21 stan-
dard, with 25Hz ringing detection.
•‘tbr21_50Hz’, according to the TBR 21 stan-
dard, with 50Hz ringing detection.
The default profile (not displayed in the list when
entering the command) is etsi.
Other FXO port parameters 545
SmartWare Software Configuration Guide 44 • FXO port configuration
Mode: Configure
Step Command Purpose
1node(config)#port fxo slot port Enter FXO port configuration mode
2
optional
node(prt-fxo)[slot/port]#caller-id for-
mat { bell | etsi }
Specifies which line protocol is used for caller-id
transmission. Use bell for US / Canada, etsi for
Europe.
If caller-id is not enabled or wrong configured,
detection of caller-id is not possible. Default: etsi
3
optional
node(prt-fxo) [slot/port]#flash-hook
duration duration
Specifies for what time the SmartNode should go
on-hook to signal flash-hook to the CO. Default of
duration is 200ms, for US and Canada try 350ms
or higher.
546
Chapter 45 H.323 gateway configuration
Chapter contents
\Introduction.......................................................................................................................................................547
Gateway configuration task list............................................................................................................................548
Binding the gateway to an IP interface ..........................................................................................................548
Enable the gateway ........................................................................................................................................548
Configure registration authentication service (RAS) (Optional) ....................................................................549
Configure H.235 Security (optional) ............................................................................................................550
H.235 configuration .....................................................................................................................................551
Advanced configuration options (optional) ...................................................................................................554
Enabling H.245 Tunneling .....................................................................................................................554
Enabling the fastconnect procedure .........................................................................................................555
Enabling the early H.245 procedure ........................................................................................................555
Changing the TCP port for inbound call-signaling connections ..............................................................556
Configuring the traffic class for H.323 signaling .....................................................................................556
Setting the response timeout ...................................................................................................................556
Setting the connect timeout ....................................................................................................................557
Configuring the terminal type for registration with the gatekeeper ..........................................................557
Troubleshooting ...........................................................................................................................................558
Introduction 547
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Introduction
This chapter provides an overview of the H.323 gateway and describes the tasks involved in its configuration.
A gateway is always needed when communication is required between different networks. A gateway provides:
•Data format translation, e.g. audio and video CODEC translation
•Control signaling translation, e.g. call setup and tear-down functionality on both sides of a network.
The gateway manages connections between two different contexts, essentially functioning as a protocol con-
verter. Additionally it also contains general gateway configuration parameters.
One type of gateway is the H.323 gateway and is an implementation of the ITU-T H.323 Version 4 standard.
The H.323 gateway has bindings to interfaces on the two different contexts. The CS Context has H.323 CS
interfaces and the IP context has IP interfaces. The H.323 CS interfaces are explained in detail in chapter 38,
“H.323 interface configuration” on page 431.
The H.323 interfaces in the CS context must be explicitly bound to a H.323 gateway instance, and the H.323
gateway must be bound explicitly to an IP interface in the IP context. Figure 77 illustrates the relationship of
the H.323 gateway to the contexts and their interfaces.
Figure 77. Gateway between IP and CS contexts
SmartWare currently supports only one instance of the H.323 gateway. The default name of the H.323 gate-
way is h323. The H.323 gateway is enabled by default.
bind interface
bind gateway
H.323
Interface
H
.
323
Gateway
Context IP
“router”
IP interfaces
Context CS
“switch”
Gateway configuration task list 548
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Gateway configuration task list
This chapter describes the configuration of the H.323 gateway. Some parameters can be configured in the gate-
way configuration mode and may be overwritten in another configuration mode, For example, in the H.323
CS interface. For example, the default VoIP profile to be used with the gateway is configured in the gateway
configuration mode. However it can be overwritten by another VoIP profile specified in the H.323 CS inter-
face. All possible configurations, which are involved in a specific configuration topic are described in the
respective configuration task.
•Configure datapath related settings
•Binding the gateway to an IP interface
•Enable the Gateway
•Configure Registration Authentication Service (RAS) (Optional)
•Configure H.235 Security (Optional)
•Advanced configuration options (Optional)
Binding the gateway to an IP interface
Binding the gateway to one of the available IP interfaces is required to allow the gateway to determine the local
IP address it should use. The gateway needs to know the local IP address For example, when it needs to tell the
remote gateway in the call-signaling to which IP address the remote gateway should send the media streams
(RTP data). The gateway always uses the IP address of the interface to which it is bound, when a local IP
address is required. The following procedure describes how to bind the gateway to a local IP interface.
Mode: Gateway H.323
Example: Binding the gateway
The following example shows how to bind the gateway to an IP interface.
node>enable
node#configure
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#bind interface eth0
Enable the gateway
In order to become active the H.323 gateway must be enabled. The following procedure enables the
H.323 gateway:
Mode: Gateway H.323
Example: Enabling an H.323 gateway
Step Command Purpose
1node(gw-h323)[h323]#bind interface if-name Binds the gateway to the IP interface if-name.
Step Command Purpose
1node(gw-h323)[h323]#no shutdown Enable the H.323 gateway
Gateway configuration task list 549
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
The following example shows how to enable an already defined H.323 Gateway.
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#no shutdown
Configure registration authentication service (RAS) (Optional)
The H.323 gateway can either work in combination with a gatekeeper, which uses the RAS protocol for com-
munication with the gateways or it can be used for direct calls between gateways without a gatekeeper. If you
do not use a gatekeeper, you can skip this section. Otherwise you need to provide some information for the
registration with the gatekeeper using the procedures described in this chapter.
The SmartNode can register one or more names, E.164 numbers or gatekeeper prefixes, which can be specified
using this procedure too. Furthermore the gatekeeper discovery method must be specified as automatic
or manual.
Normally the remote IP address which could be specified in the CS interface is not set if gatekeepers are used,
because the gatekeeper supplies the remote destination IP address.
Redundancy is of great importance in communication networks. An H.323 gatekeeper offers a critical service
in a network – failure of a single gatekeeper may result in non-availability of the voice service in the entire net-
work. The SmartNode allows configuring up to three different gatekeeper s, when using the manual gatekeeper
discovery method. These gatekeepers are tried in a round-robin fashion. Once communication with one of the
gatekeepers is lost the SmartNode falls back to the next gatekeeper in the list.
Procedure: To enable the registration authentication service (RAS)
Gateway configuration task list 550
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Mode: Gateway H.323
Example: Configuring RAS
The following example shows how to configure the registration authentication service (RAS) for a SmartNode
in an H.323 network.
node>enable
node#configure
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#gatekeeper-discovery auto
node(gw-h323)[h323]#alias h323-id Berne1
node(gw-h323)[h323]#alias e164 007
node(gw-h323)[h323]#alias e164 *5
node(gw-h323)[h323]#alias e164 19421
node(gw-h323)[h323]#supported-prefix 03198525
node(gw-h323)[h323]#ras
Configure H.235 Security (optional)
H.235 is an ITU-T Recommendation for security and encryption for H-series (H.323 and other H.245-based)
multimedia terminals. It describes enhancements within the framework of the H.3xx-Series Recommendations
to incorporate security services such as Authentication and Privacy (data encryption).
Step Command Purpose
1node(gw-h323)[h323]#gatekeeper-discov-
ery auto [gkid]
or
node(gw-h323)[h323]#gatekeeper-discov-
ery manual ip-address ip-port [gkid]
Specify that gatekeeper discovery has to be
done automatically
or
Specify the gatekeeper explicitly. You can
repeat this command to add multiple gate-
keepers.
2node(gw-h323)[h323]#alias h323-id name
or
node(gw-h323)[h323]#alias e164 number
Add an H.323_ID or E.164 alias for registra-
tion.
3Repeat step 2 to add more than one alias to
the configuration.
4node(gw-h323)[h323]#supported-prefix pre-
fix
Add a gatekeeper prefix to be registered on
the gatekeeper
5Repeat step 4 to add more than one prefix to
the configuration.
6node(gw-h323)[h323]#ras Enable the RAS protocol to make use of gate-
keepers and initiate gateway registration.
Gateway configuration task list 551
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
H.235v2 Annex D provides H.323 RAS and H.225 message authentication and integrity check thus thwarting
any replay and spoofing attacks on H.323 calls. If H.235 is switched on, the following security attacks are
thwarted:
•Denial of Service attacks
•Man-in-the-middle attacks
•Replay attacks (replay of recorded messages)
•Spoofing
•Connection hijacking
Among other information such as time stamp, sender and general ID, the H.235 needs a password for crypto
token generation. Since this password is intelligible when being configured by means of a Telnet session or dis-
played in a running configuration, it is possible to configure an encrypted password, which will be decrypted
on the SmartNode. For decryption a master password is needed. Configuration of the master password should
not be done over insecure links (links subject to wire-tapping). It is recommended to do so in a secure network
(local area network) only (before delivery to the customer).
Henceforth, the H.235 password can be reconfigured securely even over insecure links.
To generate an H.235 encrypted password by means of the master password as key, the password encryption
tool is used (‘getcryptopassword.exe’). The usage of the Windows based command line tool is as follows:
getcryptopassword <h235-password> <master-password>
The H.235 password must be a random alphanumeric character string of 1 through 12 characters (e.g.
12ygR34230kG). The master password must be a 32 digit hex number (characters 0-9, a-f). To achieve best
encryption security, choose a random value (no repeating character sequences). The tool generates the
encrypted H.235 password and the hash of the master password. The encrypted H.235 password is then to be
used for remote (over insecure link) configuration of the H.235 password. The hash value of the master pass-
word can be used to verify proper configuration of all parameters. The command show h235security displays
all H.235 settings including a hash value of the master password. If this value is identical to the hash value out-
put by the tool gencryptopassword.exe, the configuration of the master password was successful. Note that this
last verification step can be done securely even over insecure links (subject to wire-tapping) since the algorithm
used for hash value calculation is a mathematical one-way function (virtually impossible to derive the password
from the hash value). To enable H.235 security on H.323 perform the steps described below.
Procedure: To enable H.235 security on H.323 gateway
H.235 configuration
You can control on a per-message-type basis which RAS messages are sent H.235 signed and of which RAS
messages the H.235 signature shall be verified. Therefore the commands h235-security ras-auth-int-rx and
h235-security ras-auth-int-tx have a new optional parameter that specifies the message type. The new
format is:
•[no] h235-security ras-auth-int-rx [<msg>]
•[no] h235-security ras-auth-int-tx [<msg>]
Gateway configuration task list 552
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Mode: Gateway H.323
Step Command Purpose
1node(gw-h323)[h323]#h235security master-
password master-password
Sets the master password (32 hex digits, 0–9,
A–F) with which the H.235 password is
decrypted.
Note Configure the master password only
over secure links (e.g. in LAN envi-
ronments only or with serial connec-
tion), which cannot be wiretapped.
2 C:\getcryptopassword h235-password mas-
ter-password
Generates H.235 password by means of the
master password with the encryption tool.
3node(gw-h323)[h323]#h235security pass-
word h235-password encrypted
or
node(gw-h323)[h323]#h235security pass-
word h235-password
Sets the password used for crypto token cal-
culation. The password is entered encrypted.
The password to be entered is the output of
the tool getcryptopassword.exe.
Configures the password used for crypto
hashed token calculation. The password is
entered in clear text (min. 1, max. 12 alpha-
numeric characters).
Note Do not use this command over inse-
cure links (subject to wiretapping). If
you enter the password as clear text,
you don’t need to configure a
master-password.
4node(gw-h323)[h323]#h235security time-
window time-window
Sets the time window used for timestamp com-
parison by H.235. If a received H.323 mes-
sage with H.235 crypto token has a timestamp
outside the time window (relative to the local
time) the message is refused.
5node(gw-h323)[h323]#h235security ver-
sion {v1 | v2}
There are two H.235 versions, use v1 if v2
does not work. In v1, sender-id and general-id
must not be specified.
6node(gw-h323)[h323]#h235-security ras-
auth-int-rx [<msg>]
or
node(gw-h323)[h323]#no h235-security
ras-auth-int-rx [<msg>]
Enables or disables H.235 security for received
RAS packets. msg is the message type.
Gateway configuration task list 553
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
For example to disable signature verification of RCF messages enter the command no h235-security ras-
auth-int-rx rcf. When not specifying the message type, you change the behavior of all message types. Addi-
tionally there are special message-types that manipulate the behavior of message-groups:
'request' ==> ARQ, BRQ, DRQ, GRQ, IRQ, LRQ, RAI, RRQ, SCI, URQ
'response' ==> ACF, BCF, DCF, GCF, IACK, IRR, LCF, RAC, RCF, RIP, SCR, UCF
'reject' ==> ARJ, BRJ, DRJ, GRJ, INAK, LRJ, RRJ, URJ
E.g. 'no h235-security ras-auth-int-rx reject' disables verification of the H.235
signature of all received reject messages, e.g. GRJ, RRJ, ARJ.
The default setting is:
h235-security ras-auth-int-rx request
h235-security ras-auth-int-rx response
no h235-security ras-auth-int-rx reject
h235-security ras-auth-int-tx request
h235-security ras-auth-int-tx response
no h235-security ras-auth-int-tx reject
The command show h235-security shows the current setting.
7node(gw-h323)[h323]#h235-security ras-
auth-int-tx [<msg>]
or
node(gw-h323)[h323]#no h235-security
ras-auth-int-tx [<msg>]
Enables or disables H.235 security for trans-
mitted RAS packets. msg is the message type.
8node(gw-h323)[h323]#h235-security q931-
auth-int
or
node(gw-h323)[h323]#no h235-security
q931-auth-int
Enables or disables H.235 security for call-
signaling.
9node(gw-h323)[h323]#h235security If all parameters are set, enables H.235 secu-
rity. Otherwise returns an error message.
10 node(gw-h323)[h323]#show h235security Shows status of H.235 security module.
11 node(gw-h323)[h323]#debug h235security
[detail debug-level]
Enables the H.235 debug monitor to display
information for every received and sent H.323
signaling message.
Step Command Purpose
Gateway configuration task list 554
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Example: Switch on H.235 security
The following example shows how to use the password encryption tool and how to enable H.235 security.
Additionally the H.235 security debug monitor is enabled.
Generate the encrypted H.235 password from ‘myh235pwd’:
C:\>getcryptopassword myh235pwd 12d3f4e76a83c6dd1067a6d34fe5cb21
H.235 Password : myh235pwd
Encrypted H.235 Password: 21dafa5dfc7399e5cef9cc138dabd22f
Master Password : 12d3f4e76a83c6dd1067a6d34fe5cb21
Hash of Master Password : bc210d2244a1afd2e7da7a54a1a8c179403220c4
C:\>
Configure and enable H.235:
172.16.224.102(cfg)#gateway h323 h323
172.16.224.102(gw-h323)[h323]#h235security master-password
12d3f4e76a83c6dd1067a6d34fe5cb21
172.16.224.102(gw-h323)[h323]#h235security password
21dafa5dfc7399e5cef9cc138dabd22f encrypted
172.16.224.102(gw-h323)[h323]#h235security time-window 100
172.16.224.102(gw-h323)[h323]#h235security version v2
172.16.224.102(gw-h323)[h323]#h235security ras-auth-int-tx
172.16.224.102(gw-h323)[h323]#h235security ras-auth-int-rx
172.16.224.102(gw-h323)[h323]#h235security q931-auth-int
172.16.224.102(gw-h323)[h323]#show h235security
H.235 SECURITY SETTINGS
-----------------------
H.235 Security : Disabled
H.235 Module Version : 2.02.01
H.235 Version : 2
Sender ID : NODE13
General ID : GK01
Time Window : 100 seconds
Master Password Hash : bc210d2244a1afd2e7da7a54a1a8c179403220c4
Debug Monitor: : Disabled
172.16.224.102(gw-h323)[h323]#
172.16.224.102(gw-h323)[h323]#debug h235security detail 3
172.16.224.102(gw-h323)[h323]#h235security
172.16.224.102(gw-h323)[h323]#14:27:35 H235 > Info: H.235 was started successfully
Advanced configuration options (optional)
Enabling H.245 Tunneling
If H.245 Tunneling is enabled, H.245 messages use the same TCP connection as the H.323 signaling. H.245
Tunneling is disabled by default. If enabled, it only takes place when both parties agree. When experiencing
problems with establishing H.323 calls, disabling H.245-Tunneling may help.
Gateway configuration task list 555
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Mode: Gateway H.323
Example: Enabling H.245 tunneling
The following example shows how to enable H.245 tunneling on an already defined H.323 Gateway.
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#h245-tunneling]
Enabling the fastconnect procedure
If the fastconnect procedure is enabled, no separate H.245 connection is opened and all media channel specific
messages are carried within the H.225 call signaling connection. Fastconnect is disabled by default. If enabled,
it only takes place when both parties agree. Fastconnect can be enabled using the following procedure:
Mode: Gateway H.323
Example: Enabling fastconnect
The following example shows how to enable the fastconnect procedure on an already defined H.323 Gateway.
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#faststart
Enabling the early H.245 procedure
If the early H.245 procedure is enabled, the H.245 connection is opened as soon as possible instead of waiting
for the call signaling connect message. Early H.245 is disabled by default. If enabled, it only takes place when
both parties agree. The early H.245 procedure can be enabled using the following procedure:
Mode: Gateway H.323
Example: Enabling early H.245
The following example shows how to enable early H.245 on an already defined H.323 Gateway.
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#early-h245
Step Command Purpose
1node(gw-h323)[h323]#h245-tunneling Enables H.245 tunneling.
Step Command Purpose
1node(gw-h323)[h323]#faststart Enables the fastconnect procedure.
Step Command Purpose
1node(gw-h323)[h323]#early-h245 Enables the early H.245 procedure.
Gateway configuration task list 556
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Changing the TCP port for inbound call-signaling connections
The default TCP listening port for inbound call-signaling connections is per default 1720 as defined in the
H.323 standard. The following procedure describes how to change the port number.
Mode: Gateway H.323
Example: Defining an alternate call-signaling port
The following example shows how to define an alternate call-signaling port on an already defined H.323 Gate-
way.
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#call-signaling-port 1721
Configuring the traffic class for H.323 signaling
The traffic class for H.323 signaling is configurable. The configured traffic class is used as additional routing
criterion in the IP routing table.
Mode: Gateway H.323
Setting the response timeout
Per default the H.323 gateway waits for 12s from the time it initiated a call towards the IP network until it ter-
minates the call, if no response has been received. This time can be changed using the following procedure:
Mode: Gateway H.323
Example: Defining an alternate response timeout
The following example shows how to define an alternate response timeout of 6 seconds on an already defined
H.323 Gateway.
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#timeout response 6
Step Command Purpose
1node(gw-h323)[h323]#call-signaling-port
port
Define the TCP port to use for inbound call-sig-
naling connections
Step Command Purpose
1[ name] (gw-h323)[gateway]# call-signal-
ing-trafficclass <traffic-class>
Sets traffic class for H.323 signaling packets.
The traffic class may be new or may already
exist.
Step Command Purpose
1node(gw-h323)[h323]# timeout response
seconds
Defines the response timeout in seconds.
Gateway configuration task list 557
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Setting the connect timeout
Per default the H.323 gateway waits for 60s when the call is in the alerting phase for the call to be answered. If
the call is not answered within that time, the call is dropped. The value of this timer can be changed using the
following procedure:
Mode: Gateway H.323
Example: Defining an alternate connect timeout
The following example shows how to define an alternate connect timeout of 20 seconds on an already defined
H.323 Gateway.
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#timeout connect 20
Configuring the terminal type for registration with the gatekeeper
H.323 gatekeepers may differentiate between two terminal types (terminals and gateways) of the registrant. In
some applications it is necessary for the gateway to register as a terminal, while in other applications it is neces-
sary to register as a gateway.with the gatekeeper. The default terminal type is gateway. It can be changed using
the following procedure: Usually you do not need to change this setting.
Procedure: Configure the registration type of the registration with the gatekeeper
Mode: Gateway H.323
Example: Configuring RAS registration type
The following example shows how to configure the RAS registration type.
node(cfg)#gateway h323 h323
node(gw-h323)[h323]#terminal-type gateway
Step Command Purpose
1node(gw-h323)[h323]# timeout connect sec-
onds
Defines the connect timeout in seconds.
Step Command Purpose
1node(gw-h323)[h323]#terminal-type { termi-
nal | gateway }
Set the registration type of the gatekeeper reg-
istration.
Gateway configuration task list 558
SmartWare Software Configuration Guide 45 • H.323 gateway configuration
Troubleshooting
You can display basic status information of the H.323 gateway using the following command:
Mode: Configure
Example: Display H.323 gateway status information
The following example shows how to display H.323 gateway status information and a sample output of the
command.
node(cfg)#show gateway h323 status
H.323 Gateway: h323
State: UP
Stack Handle: 0xb6a70c
RAS Engine
State: UNREGISTERED
Allocated Endpoints: 0
Allocated RAS Engines: 1
Allocated Control Channels: 0
Allocated Outgoing Logical Slowstart Channels: 0
Allocated Outgoing Logical Faststart Channels:0
Allocated Incoming Logical Channels:0
The H.323 gateway also provides several debugging monitors to observe its dynamic behavior. These monitors
allow efficient troubleshooting of H.323 problems. The most often used monitors are listed in the following
table.
Step Command Purpose
1node(gw-h323)[h323]# show gateway
h323 status [detail level]
Displays H.323 gateway status information.
The detail level parameter is a number in the
range 0 to 5 and indicates how much detail
should be displayed.
Command to enable the monitor Output of the monitor
node(cfg)#debug gateway h323 error Logs all errors detected within the H.323 gateway
node(cfg)#debug gateway h323 tpktchan Logs all H.225 call signaling messages sent or received
over the IP network.
node(cfg)#debug gateway h323 udpchan Logs all H.225 RAS messages sent or received over
the IP network
node(cfg)#debug gateway h323 datapath Logs information related to media channels
node(cfg)#debug gateway h323 signaling Logs call signaling related information
559
Chapter 46 Context SIP gateway overview
Chapter contents
Introduction........................................................................................................................................................560
Context SIP Gateway configuration task list........................................................................................................561
Creating a context SIP gateway .....................................................................................................................561
Creating a transport interface ........................................................................................................................562
Configuring the IP binding ...........................................................................................................................562
Configuring a priority ...................................................................................................................................562
Configuring a spoofed contact address ..........................................................................................................563
Binding location services ...............................................................................................................................563
Enabling/disabling the context SIP gateway ..................................................................................................563
Troubleshooting..................................................................................................................................................564
Show status information ...............................................................................................................................564
Debug commands .........................................................................................................................................564
Configuration Examples ......................................................................................................................................565
Example 1 .....................................................................................................................................................565
Example 2 .....................................................................................................................................................565
Example 3 .....................................................................................................................................................565
Applications.........................................................................................................................................................566
Outbound Authentication ............................................................................................................................566
Inbound Authentication ...............................................................................................................................567
Outbound Registration .................................................................................................................................568
Inbound Registration ....................................................................................................................................570
B2B User Agent with Registered Clients .......................................................................................................571
Introduction 560
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
Introduction
This chapter provides an overview of the context SIP gateway. The main purpose of a context SIP gateway is
forwarding and reception of SIP packets according to a RFC 3261 User Agent. In SmartWare, the context SIP
gateway represents the interface between the Call-Router (Context CS) and the IP Router (Context IP). It is
responsible for dispatching incoming initial SIP requests to the right call control SIP interface and for the
determination of the right IP interface for outgoing SIP messages. This is also called SIP Transport Routing.
Figure 78 shows where the context SIP gateway is located in SmartWare and how it interacts with other com-
ponents.
Figure 78. Routing Architecture
There is a relationship between the call control SIP interface and the context SIP gateway. Every call control
SIP interface must be bound to a context SIP gateway. One of the responsibilities of this interface is to build
Request-URI and to determine a possible outbound proxy. If a proxy is available, it represents the next SIP hop
and all outgoing messages will be sent to this host. If no proxy has been configured, the messages will be sent to
the Request-URI's host. Depending on these two SIP parameters, the context SIP gateway chooses the right
outgoing IP interface. The IP address of the outgoing IP interface will be placed in all SIP and SDP headers
that need a direct routable contact address (VIA, Contact).
In the other direction, the context SIP gateway dispatches incoming SIP requests according to the Request-
URI and the From-URI. The call control SIP interface has configuration parameters called “remote” and
“local” to build the Request-URI, the To-URI and the From-URI for outgoing requests. These parameters will
also used for identifying the best matching call control SIP interface for incoming requests according to the fol-
lowing rule:
Call Routing
Tables
Location Services
IP Routing
Tables
Context
CS
Context
SIP
Gateway
Context
IP
Call Routing
Context CS Interfaces
Transport Routing
Context SIP - Gateway Interfaces
Network Routing
Context IP Interfaces
Context SIP Gateway configuration task list 561
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
1. From-URI-Host equal Remote
and
Request-URI-Host equal Local
2. From-URI-Host equal Remote
3. Request-URI-Host equal Local
4. No match, the first configured will be taken
For detailed information about call control SIP interface configuration, see Chapter 39, “SIP interface config-
uration” on page 441.
Context SIP Gateway configuration task list
The following section describes how to create a new context SIP gateway and how to enter the configuration
mode of an existing context SIP gateway. Additionally, it describes all commands and sub commands of the
context SIP gateway configuration mode. All configuration tasks for a Context SIP Gateway are listed below.
•Create a context SIP gateway (see page 561)
•Create a transport interface (see page 562)
•Configure the IP binding (see page 562)
•Configure a priority (see page 562)
•Configure a spoofed contact address (see page 563)
•Bind location services (see page 563)
•Enable/Disable (see page 563)
Creating a context SIP gateway
The context sip-gateway command enters the configuration mode of a context SIP gateway. If the requested
one does not exist, a new one will be created. The no form of the command removes an existing context SIP
gateway. This command can be entered without specifying a name. In this case, the default name sip will be
taken.
Mode: Configure
Step Command Purpose
1[node](cfg)# [no] context sip-gateway
[<name>]
Creates/Destroys a context SIP gateway or
enter configuration mode.
Context SIP Gateway configuration task list 562
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
Creating a transport interface
The interface command enters the configuration mode of a transport interface. If the requested interface does
not exist, a new one will be created. The no form of the command removes an existing transport interface.
Mode: Context SIP Gateway
Configuring the IP binding
The following commands specify the ip parameters for the transport layer. A listening socket for UDP and
TCP will be created according to the entered parameters. If the ip-interface parameter exists, the ip address of
the interface will be used. If the ip parameter does not exist, 0.0.0.0 will be used. If no port has been entered,
the default SIP port 5060 will be used. The no form of the command removes an existing binding.
Mode: Transport Interface
Configuring a priority
The priority is used if a SIP request is sent out over an ip interface to which the context SIP gateway has no
binding. In this case, the Contact (SIP/SDP) and VIA headers will get the ip address of the transport interface
with the highest priority. The lower the priority number, then the higher the priority. The highest priority is 0.
The no form of command sets the default priority to 0.
Mode: Transport Interface
Step Command Purpose
1[node](sip-gw)[name]# [no] interface
<name>
Creates/Destroy sa transport interface or
enter configuration mode.
Step Command Purpose
1[node](sip-if)[name]# [no] bind
or
[node](sip-if)[name]#bind interface ip-inter-
face
or
[node](sip-if)[name]#bind port <port>
or
[node](sip-if)[name]#bind interface ip-inter-
face port <port>
Binds the transport interface to the IP layer or
removes an existing binding.
Step Command Purpose
1[node](sip-if)[name]# [no] priority <prior-
ity>
Applies a priority to the transport interface.
Context SIP Gateway configuration task list 563
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
Configuring a spoofed contact address
If the device is located behind a NAT, this command can be used to provide the Contact (SIP/SDP) and VIA
headers of outgoing requests with the public ip address.
Mode: Transport Interface
Binding location services
The bind location-service command binds predefined location services to the context SIP gateway. The no
form of the command removes a bound location service. All bound location services define the domains and
identities for the context SIP gateway. Identity features, such as outbound registration, inbound registration,
and authentication, may or may not be executed, depending on the specific confirguation for the identity. Also,
they provide transport properties, like Proxy or Traffic Class, and media configuration parameters, like VoIP
Profile, SIP Profile or Tone Profile. For more information about configuration of location services and identi-
ties, see Chapter 51, “Location Service” on page 607.
Mode: Context SIP Gateway
Enabling/disabling the context SIP gateway
The shutdown command disables the context SIP gateway. The no shutdown command enables the context
SIP gateway.
Mode: Context SIP Gateway
Step Command Purpose
1[node](sip-if)[name]# [no] spoofed-con-
tact <address>
Applies a spoofed contact address to the
transport interface.
Step Command Purpose
1[node](sip-gw)[name]# [no] bind loca-
tion-service locationservice
Add a location service binding to this context
SIP gateway or removes an existing one.
Step Command Purpose
1[node](sip-gw)[name]# [no] shutdown Disables the Context SIP Gateway. The no
form of the command enables the Context SIP
Gateway.
Troubleshooting 564
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
Troubleshooting
Show status information
Mode: Administrator Execution
Debug commands
Mode: Administrator Execution
Step Command Purpose
1[node]#show context sip-gateway [gw-
name] [detail <level>]
Displays status and configuration information
about a context sip-gateway and its bound
resources like the call-control sip interfaces.
Step Command Purpose
1[node]#debug context sip-gateway data-
path [detail <level>]
Logs information related to the media chan-
nels.
[node]#debug context sip-gateway error
[detail <level>]
Logs all errors detected within the Context SIP
Gateway.
[node]#debug context sip-gateway regis-
tration [detail <level>]
Logs information about user registration activ-
ities.
[node]#debug context sip-gateway sig-
naling [detail <level>]
Logs call signaling related information.
[node]#debug context sip-gateway
transport [detail <level>]
Logs all SIP messages sent or received over
the IP network.
Configuration Examples 565
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
Configuration Examples
Example 1
This is the minimal configuration of a working context sip-gateway. It has one transport interface that is bound
to the ip address 0.0.0.0 and to the port 5060. With this configuration, the context sip-gateway processes all
SIP requests addressed to port 5060 independent on which ip interface they arrive.
context sip-gateway SIP-GW
interface lan
bind port 5060
context sip-gateway SIP-GW
no shutdown
Example 2
The following example shows a context sip-gateway that is explicitly bound to a LAN-Side and a WAN-Side ip
interface. In this case, only SIP requests sent to ip interface 'eth0' and 'pvc100' will be processed. This could be
a Back-To-Back User Agent application that interconnects a private SIP environment and a public SIP envi-
ronment.
context sip-gateway SIP-GW
interface lan
bind interface eth0 context router port 5060
interface wan
bind interface pvc100 context router port 5060
context sip-gateway SIP-GW
no shutdown
Example 3
If special features like Outbound Registration, Inbound Registration or Authentication is required, one or
more location services must be configured that enables theses capabilities in general, for a group of identities or
just for a single identity. These location services must be bound to the context sip-gateway that is responsible to
manage the location service's domains. For detailed description about location service configuration, see Chap-
ter 50, “Authentication Service” on page 604.
context sip-gateway SIP-GW
interface lan
bind interface eth0 context router port 5060
interface wan
bind interface pvc100 context router port 5060
context sip-gateway SIP-GW
bind location-service SIP_LS_1
no shutdown
Applications 566
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
Applications
Outbound Authentication
The back-to-back user agent can provide credentials for authentication on another sip user agent or proxy. The
username and password used for authentication must be configured in an authentication-service. If one or
more realms are configured in the authentication-service, the credentials are only provided to challenges con-
taining one of these realms. If no realm is configured, the credentials are provided to any realm.
In an authentication-service, there can be multiple usernames and passwords. An identity which should
authenticate can direct the authentication outbound face to a pair of credentials. There can be multiple identi-
ties using the same credentials. An identity can also point to multiple credentials, but each of these credentials
needs to be in another authentication-service with another realm. It is possible to authenticate to multiple
realms with multiple credentials at the same time.
If the gateway has to provide credentials for unknown identities or for any identity which belongs to a certain
domain, there can be a “default” identity-group configured. The authentication credentials configured in the
identity-group “default” are used for any identity in this location-service that is not explicitly configured.
authentication-service AUTH_INALP
realm inalp.com
username hermes password Wh6Xbk9G= encrypted
username john password Fa0Y9e4L= encrypted
authentication-service AUTH_ANY
username bob password Co7s3bUp= encrypted
location-service INALP
domain inalp.com
domain patton.com
identity-group default
authentication outbound
authenticate 1 authentication-service AUTH_ANY username bob
identity 400
authentication outbound
authenticate 1 authentication-service AUTH_INALP username hermes
authenticate 2 authentication-service AUTH_ANY username bob
identity 500
authentication outbound
authenticate 1 authentication-service AUTH_INALP username hermes
identity 600
authentication outbound
authenticate 1 authentication-service AUTH_INALP username john
If the gateway needs to provide authentication credentials on a sip request, the following procedure takes place:
1. Determine the location-service which provides credentials. The domain of the location service must match
the host part of the from-uri and the location-service is bound to the context sip-gateway which sends the
request.
Applications 567
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
2. Determine the identity which provides credentials. The name or the alias of the identity must match the
user part of the from-uri. If there is no identity that matches and an identity-group with the name
“default” is configured, the identity-group “default” is taken.
3. Determine the authentication-service which provides credentials. The authentication entries of the taken
identity or identity-group are searched for an authentication-service that matches exactly the realm
requested in the answer to our request. Then this authentication service is taken. If no match was found,
an authentication service with no realm configured is taken.
4. Determine the authentication username which provides credentials. If the authentication entry of the
identity which configures the taken authentication service has also configured a username this username is
taken. If there is no username configured the name of the identity is taken as username.
5. Take the credentials in the authentication service with the according username and provide username and
password for re-issuing the request.
If one of these steps has no result and fails, authentication is not possible for that request.
Inbound Authentication
The back-to-back user agent can challenge another sip user agent or proxy for authentication credentials. The
username and password used for challenges must be configured in an authentication-service. There must be at
least one realm configured in the authentication-service. The first realm configured is used for challenging
requests.
In an authentication-service, there can be multiple usernames and passwords. An identity which should be
challenged can direct the authentication inbound face to a pair of credentials. There can be multiple identities
using exactly the same credentials. An identity can also point to multiple credentials, but only the first entry is
used for challenging. If an identity points to multiple credentials, any of these credentials are accepted in the
answer as long as it is valid for the challenged realm.
If the gateway has to challenge credentials for unknown identities or for any identity which belongs to a certain
domain, there can be a “default” identity-group. The challenging credentials configured in the identity-group
“default” are used for any identity in this location-service that is not explicitly configured.
authentication-service AUTH_PATTON
realm patton.com
username kevin password Wh6Xbk9G= encrypted
username dirk password Fa0Y9e4L= encrypted
username boss password Q9Gns6Nd4= encrypted
location-service PATTON
domain patton.com
identity-group default
authentication inbound
authenticate 1 authentication-service AUTH_PATTON username kevin
identity 400
authentication inbound
authenticate 1 authentication-service AUTH_PATTON username kevin
authenticate 2 authentication-service AUTH_PATTON username dirk
identity 555
authentication inbound
Applications 568
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
authenticate 1 authentication-service AUTH_PATTON username boss
If the gateway receives an incoming request without credentials, the following procedure takes place:
1. Determine the location-service which challenges credentials. The domain of the location service must
match the host part of the request-uri and the location-service is bound to the context sip-gateway which
handles the request.
2. Determine the identity which challenges credentials. The name or the alias of the identity must match the
user part of the request-uri. If there is no identity that matches and an identity-group with the name
“default” is configured, the identity-group “default” is taken.
3. Determine the authentication-service which challenges credentials. The first authentication entry of the
taken identity or identity-group where a realm is configured is taken.
4. The first realm in the authentication-service is used for challenging the request. If no realm was found no
challenging is possible.
If one of these steps has no result and fails, challenging is not possible for that request and the request is
accepted.
If the gateway receives an incoming request with credentials, the following procedure takes place:
1. Determine the location-service which challenges credentials. The domain of the location service must
match the host part of the request-uri and the location-service is bound to the context sip-gateway which
handles the request.
2. Determine the identity which challenges credentials. The name or the alias of the identity must match the
user part of the request-uri. If there is no identity that matches and an identity-group with the name
“default” is configured, the identity-group “default” is taken.
3. Check credentials. All authentication entries of the taken identity or identity-group are compared with the
provided credentials. If one matches the request is accepted.
4. An authentication entry matches if the username and password matches with the configured credentials
and one realm in the authentication-service match exactly the realm challenged or the authentication-ser-
vice has no realm configured.
If one of these steps has no result and fails, the request is treated as a request without credentials.
Outbound Registration
The back-to-back user agent can register identities on a sip registrar. Therefore, a registration outbound face
with the register “auto” command is needed. The address of record is built with the domain of the location-ser-
vice and the name of the identity. The REGISTER request is sent to the configured registrar or, if missing, to
the domain configured in the location-service.
If the registration is successful, the registrar forwards requests that are destined to the address of record to the
back-to-back user agent.
Applications 569
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
location-service INALP
domain inalp.com
identity-group register
registration outbound
register auto
identity 400
registration outbound
registrar sip.inalp.com
register auto
identity 555 inherits register
context sip-gateway GW_SIP
sip-interface SIP_WAN
bind interface IF_WAN port 5060
context sip-gateway GW_SIP
bind location-service INALP
If an identity is added to a location-service which is bound to a context sip-gateway, the following procedure
takes place:
1. Determine if identity should be registered.
a. The location-service containing the identity must have at least one domain configured.
b. The identity must have a registration outbound face configured or inherited.
c. The register command must be set to “auto”.
2. Build the address of record to register. The name of the identity builds the user-part. The first domain con-
figured in the location-service builds the host-part.
3. Build the address of the registrar. The registrar configured in the registration outbound face is taken as
request-uri. If no registrar is configured the first domain configured in the location-service builds the
request-uri.
4. Build expire header. If a lifetime is configured in the registration outbound face an expire header with the
desired lifetime is added.
5. Build contact address to register. The spoofed-contact parameter of the sip-interface in the context sip-
gateway through which the REGISTER request is sent is set as contact address. If no spoofed-contact is
configured the ip-address and port of the sip-interface in the context sip-gateway through which the REG-
ISTER request is sent builds the contact address.
6. Send the REGISTER request.
If one of these steps has no result and fails, the registration fails. After a certain timeout (which is configurable
in the registration outbound face), the request is re-issued.
Applications 570
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
Inbound Registration
With the according license, the back-to-back user agent can allow registrations from other user agents. There-
fore, identities must be configured with a registration inbound face. Contacts to forward requests for this iden-
tity can be configured or added dynamically with REGISTER requests.
If the gateway has to accept register requests for unknown identities or for any identity that belongs to a certain
domain, there can be a “default” identity-group configured. The configuration of the identity-group “default”
with the registration inbound face allows registration for any identity in this location-service that is not explic-
itly configured.
location-service INALP
domain inalp.com
identity-group default
registration inbound
identity 400
registration inbound
lifetime default 4000 min 600 max 36000
contact 172.16.40.22 switch IF_SIP priority 500
context sip-gateway GW_SIP
sip-interface SIP_WAN
bind interface IF_WAN port 5060
context sip-gateway GW_SIP
bind location-service INALP
If the gateway receives an incoming REGISTER request, the following procedure takes place:
1. Determine to which sip interface in the context cs the request should be forwarded. This happens accord-
ing the same rules as an incoming INVITE is forwarded. Outgoing calls to the registered contacts will
pass through the same sip interface as the incoming REGISTER request.
2. Check request-uri. The host part of the request-uri must match a domain of a location-service which has
configured imperative “authoritative” and is bound to the context sip-gateway which received the request.
3. Check to header. The host part of the to-uri must match the host part of the request-uri.
4. Check if registration is allowed. There must be an identity in the location-service that match with name or
alias the host part of the to-uri or a identity-group “default” with a registration inbound face configured.
5. Create a dynamic identity if the identity to register does not already exist. This happens when the identity-
group “default” is configured with a registration inbound face. The dynamic created identity inherits from
the identity-group “default”.
6. Add all contacts with expires≠0 to the requested identity. The expiration time is taken out of the expire
parameter from the contact or from the expire header. This time is adjusted to fit into the configured life-
time boarder. If there is no expires parameter the default expired from the configured lifetime is taken.
7. Remove all contacts with expires=0 from the requested identity.
8. Remove a dynamic identity if the identity contains no more contacts.
Applications 571
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
9. Return 200 OK with all contacts registered or configured from the requested identity
If one of these steps fails the registration fails and an according message is sent. A registered contact is removed
out of the location-service after the expiration time has passed and the registration was not refreshed. The “SIP
location-service” (on page 526) in the context cs is able to forward calls to the registered contacts.
B2B User Agent with Registered Clients
The sip-location-service in the context cs is used to route calls according to the contact bindings. Calls can be
routed from other services, interfaces or tables to the sip-location-service. The sip-location-service routes the
call directly to the sip-interface over which the according contact was registered. If there are some mappings or
adjustments of call parameters needed, this has to be done before routing to the sip-location-service. The
address-translation of the destined sip interface is the only mapping that happens after the sip-location-service.
If calls from an ISDN, FXS or FXO interface are routed to the sip-location-service, it is necessary to bind a
location-service to the sip-location-service because the domain information is needed. An alternative way
would be to map a complete sip-uri to the call destination properties.
The mode command in the sip-location-service configures the behavior of the service when multiple contacts
are registered for one address of record. In “distribute” mode, the call is distributed to all contacts at the same
time. The first phone that picks up receives the call. In “hunt” mode, one contact after each other is called, and
the hunt-timeout parameter defines how long to wait until proceeding to the next contact. The contacts with
higher priority are hunted first. In “distribute-and-hunt” mode, all contacts with the same priority are distrib-
uted together and the hunt searches from the higher priority contacts to the lower priority contacts. If no hunt-
timeout is configured, there is no hunting.
context cs switch
interface sip IF_SIP
bind context sip-gateway GW_SIP
route call dest-service SERVICE_SIP
remote inalp.com
local inalp.com
interface isdn IF_ISDN
route call dest-service SERVICE_SIP
service sip-location-service SERVICE_SIP
bind location-service INALP
location-service INALP
domain inalp.com
identity-group default
registration inbound
context sip-gateway GW_SIP
sip-interface SIP_WAN
bind interface IF_WAN port 5060
context sip-gateway GW_SIP
bind location-service INALP
Applications 572
SmartWare Software Configuration Guide 46 • Context SIP gateway overview
If the sip-location-service receives a call, the following procedure takes place:
1. Determine the requested domain. If none of these three possibilities matches the call is dropped.
a. If the call has a destination-uri set the host part of that uri is taken as requested domain.
b. If there is no destination-uri set, but a destination-ip-address, this is taken as requested domain.
c. If there is no destination-uri and no destination-ip-address set, but a location-service bound, the
requested domain is taken from there.
2. Determine the requested user.
a. If the call has a destination-uri set the user part of that uri is taken as requested user.
b. If there is no destination-uri set, the destination-e164 is taken as requested user.
3. Determine the location-service. The location-services are checked if one domain matches the requested
domain and if the imperative of the location-service is “authoritative”. If a location-service is bound and it
does not match for the requested domain the call is dropped.
4. Determine the identity. The location-service is searched for an identity where the name or an alias matches
the requested user.
5. Get the registered and configured contacts of that identity. The contacts are sorted according to the priori-
ties.
6. Distribute or Hunt the contacts according the configured mode.
If one of these steps fails, the call fails. It is recommended to configure a hunt-group in front of that service to
have a fall-back when the call fails because the requested identity is not registered.
573
Chapter 47 VoIP profile configuration
Chapter contents
Introduction........................................................................................................................................................574
VoIP profile configuration task list ......................................................................................................................575
Creating a VoIP profile .................................................................................................................................575
Configure codecs ..........................................................................................................................................576
Configuring the transparent-clearmode codec ...............................................................................................578
Configuring the Cisco versions of the G.726 codecs .....................................................................................578
Configuring DTMF relay .............................................................................................................................579
Configuring RTP payload types ....................................................................................................................579
Configuring RTP payload type for transparent-clearmode ............................................................................580
Configuring RTP payload types for the g726-32k and g726-32k-cisco coders ..............................................580
Configuring RTP payload type for Cisco NSE ..............................................................................................580
Configuring Cisco NSE for Fax ....................................................................................................................580
Configuring the dejitter buffer (advanced) ....................................................................................................581
Enabling/disabling filters (advanced) .............................................................................................................583
Configuring Fax transmission .......................................................................................................................584
T.38 CED retransmission .............................................................................................................................587
T.38 No-Signal Retransmission ....................................................................................................................588
Fax bypass method ........................................................................................................................................588
Configuring fax failover ................................................................................................................................588
Configuring modem transmission .................................................................................................................589
Modem bypass method .................................................................................................................................589
Configuring the traffic class for Voice and Fax data ......................................................................................590
Configuring IP-IP codec negotiation .............................................................................................................590
Examples .............................................................................................................................................................591
Home office in an enterprise network ...........................................................................................................591
Home office with fax ....................................................................................................................................593
Soft phone client gateway ..............................................................................................................................594
Introduction 574
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Introduction
This chapter gives an overview of VoIP profiles, and describes how they are used and the tasks involved in VoIP
profile configuration.
A VoIP profile is a container for all datapath-related settings on VoIP connections. The profile settings apply to
all calls going through the interface. A VoIP profile can be assigned to VoIP gateways and VoIP interfaces in
context CS. If no profile is specified for a particular interface, a profile from the gateway the interface binds to
is used instead. Figure 1 illustrates the relations between VoIP profiles, gateways and CS interfaces. The follow-
ing components are configurable:
•Codecs and codec parameters (such as silence suppression, RTP payload type, and audio filters)
•DTMF relay
•Dejitter buffer
•Fax transmission
•Modem transmission
Figure 1. VoIP profile association
Configuring voice datapath options can improve or degrade
the quality of the transmitted voice data. Many of the default val-
ues of these components have configured defaults that should only
be changed if required. Misconfiguration can strongly affect the
voice quality perceived by the user and the bandwidth require-
ments of VoIP connections. Be sure you understand the meaning
and impact of all commands prior to changing any settings.
Context IP
router ContextCS
switch
H.323 GW
SIP GW
VoIP
Profile
AVoIP
Profile
B
VoIP
Profile
C
IMPORTANT
VoIP profile configuration task list 575
SmartWare Software Configuration Guide 47 • VoIP profile configuration
VoIP profile configuration task list
The following tasks describe components that can be configured through the VoIP profile:
•Creating a VoIP profile
•Configuring codecs
•Enabling DTMF relay (see page 576)
•Configuring RTP payload types (see page 579)
•Configuring the dejitter buffer (advanced) (see page 579)
•Enabling/disabling filters (advanced) (see page 583)
•Configuring fax transmission (see page 584)
•Configuring modem transmission (see page 589)
If a VoIP profile is modified, the saved modification is applied to all open calls and is valid for all future calls on
the gateway or interface using this VoIP profile.
Creating a VoIP profile
Before configuring voice parameters, a VoIP profile must be created. Each VoIP profile has a name that can be
any arbitrary string of not more than 25 characters. When you create the VoIP profile, the VoIP profile config-
uration mode appears so you can configure VoIP components.
Note The VoIP profile named default always exists in the system. It is used by all
interface components if there is no other VoIP profile available. If VoIP
parameters are the same throughout all interfaces, you can simply change the
profile default instead of creating a new profile.
Procedure: Create a VoIP profile and enter the VoIP profile configuration mode
Mode: Configure
Example: Creating a VoIP profile
This example shows how to create a VoIP profile named g729_FaxRelay and enter VoIP profile configuration
mode.
node>enable
node#configure
node(cfg)#profile voip g729_FaxRelay
node(pf-voip)[g729_fa~]#...
Step Command Purpose
1node(cfg)#profile voip name Creates a VoIP profile with name name and enters VoIP profile
configuration mode. The newly created profile contains default
values for all parameters.
If a profile with name name already exists, only the VoIP profile
configuration mode is entered.
2node(pf-voip)[name]#... Configuration steps are described in the following sections.
VoIP profile configuration task list 576
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Configure codecs
The VoIP profile contains a list of codecs the forms the set of allowed codecs that can be used to set up a VoIP
connection. The list is assembled in order of priority (i.e. the first entered codec is the most preferred one). For
each codec in the list, a set of parameters can be configured.
Procedure: Add a codec to the list (this procedure is valid for all other codecs as well).
Note If you press the <tab> key after entering a few letters of a configuration com-
mand, the full command name will display or a listing of commands that
begin with those letters will display. Press the <enter> key to select the
desired command.
Signaling protocols have a codec negotiation mechanism, it is not
guaranteed that the first codec in the list is used to set up the con-
nection. Each codec in the list may be used. To make sure that
only one codec is possible, configure this codec alone. See how
to display the currently configured codecs in a VoIP profile on
page 589.
The default VoIP profile contains the codecs G.711uLaw and
G.711aLaw. If you don’t want to use these, you must explicitly
remove them from the list.
IMPORTANT
IMPORTANT
VoIP profile configuration task list 577
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Mode: Profile VoIP
Procedure: Remove a codec from the list
Mode: Profile VoIP
Procedure: Insert a codec at a specific position in the list
Step Command Purpose
1node(pf-voip)[name]#codec g729 tx-
length 30 rx-length 30 silence-
suppression
Appends codec g729 to the list of codecs. Speci-
fies the payload duration for transmitted RTP pack-
ets of this codec, and the maximum supported
payload duration for received RTP packets of this
codec. Allows silence suppression to be used with
this codec.
If the codec g729 already existed in the list, its
parameters are updated with the entered values.
The following codecs are available:
•g711alaw64k
•g711ulaw64k
•g723-5k3
•g723-6k3
•g726-16k
•g726-16k-ciscoa
•g726-24k
•g726-24k-cisco
•g726-32k
•g726-32k-cisco
•g726-40k
•g727-16k
•g727-24k
•g727-32k
•g729
•netcoder-6k4
•netcoder-9k6
•transparent
•transparent-cisco
a. Cisco does not use the standard ITU G.726 version of G.726, but the ATM AAL2 version. This build series now supports both versions of these codecs. The Cisco
G.726 codecs are available in profile voip as separate codecs with their name ending in -cisco.
Step Command Purpose
1node(pf-voip)[name]#no codec g729 Remove codec g729 from the list of codecs.
VoIP profile configuration task list 578
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Mode: Profile VoIP
Configuring the transparent-clearmode codec
To be compatible with RFC4040, transparent-clearmode was made available as a codec in the voip profile. The
codec can be used if exclusively packetisation and no coding/decoding is needed.
Mode: configure/profile voip
Configuring the Cisco versions of the G.726 codecs
The Cisco versions of codecs are listed in the previous section as separate codecs with their name ending in –
cisco. SmartWare supports four Cisco codec versions: g726-16k-cisco, g726-24k-cisco, g726-32k-cisco,
and transparent-cisco. Three of the codecs are variations of G.726, the fourth is transparent-cisco.
The transparent-cisco codec provides full compatibility with Cisco’s clear-channel codec used for transmission of
Unrestricted Digital Information over a VoIP (SIP or H.323) network.
Cisco does not use the standard ITU G.726 version of G.726, instead it uses the ATM AAL2 version.
All supported Cisco codecs are available in profile voip.
Mode: VoIP name
The next table indicates the method of configuring a Cisco-variant codec as the most preferred codec. This
example sets the ‘transparent-cisco´ as number 1, the most preferred.
Mode: VoIP name
Step Command Purpose
1node(pf-voip)[name]#codec 1 g729 tx-
length 30 rx-length 30 silence-
suppression
Inserts codec g729 at the first position of the list
(most preferred codec). The parameters are the
same previously described.
If the codec g729 had yet existed in the list, it is
moved to the first position of the list, adopting the
entered parameter values.
Step Command Purpose
1 [name](pf-voip)[profile]#[no] codec transpar-
ent-clearmode
Allows to use the codec transparent-
clearmode.
Step Command Purpose
1node(pf-voip)[name]#codec { g726-16k-cisco |
g726-24k-cisco | g726-32k-cisco | … }
To operate with Cisco’s G.726 codecs.
Step Command Purpose
1 node(pf-voip)[name]#codec 1 transparent-cisco Configures transparent-cisco as the most
preferred codec.
VoIP profile configuration task list 579
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Configuring DTMF relay
Dual tone multi-frequency (DTMF) tones are usually transported accurately in band when using high bit-rate
voice codecs such as G.711. Low bit-rate codecs such as G.729 and G.723.1 are highly optimized for voice pat-
terns and tend to distort DTMF tones. The dtmf relay command solves the problem of DTMF distortion by
transporting DTMF tones out-of-band or separate from the encoded voice stream as shown in figure 2. H.323
signals the DTMF tones as H.245 user input indications, SIP uses a mechanism of RTP to reliably transport
tones (according to RFC2833).
Figure 2. DTMF Relay
This procedure describes how to configure DTMF relay
Mode: Profile VoIP
Configuring RTP payload types
If you are using DTMF relay with SIP, the DTMF digits are transported in RTP packets with a special payload
type. The default value for this payload type can be configured in the profile VoIP.
Procedure: Configure RTP NTE payload type
Mode: Profile VoIP
Step Command Purpose
1node(pf-voip)[pf-name]#dtmf-relay
{default|rtp|signaling}
Define how DTMF digits shall be transmitted.
You can configure the SIP gateway to send
DTMF digits either by using the SIP INFO
method or in the RTP stream (RFC 2833). The
gateway will always receive both types of
DTMF digits. The command has currently no
effect for H.323 calls.
Step Command Purpose
1node(pf-voip)[name]#rtp payload-
type nte payload-type
Specifies the RTP payload-type for named tone
events NTE (RFC2833). Default: 101.
encoder decoder
payload
Signalling of dtmf tones
Generates dtmf tonesDetects dtmf tones
VoIP profile configuration task list 580
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Configuring RTP payload type for transparent-clearmode
The following command configures the RTP payload type used for the transparent-clearmode codec.
Mode: configure/profile voip
Configuring RTP payload types for the g726-32k and g726-32k-cisco coders
The following command specifies the RTP payload types for the g726-32k and the g726-32k-cisco coders to
be used. It allows changing the payload types to a value in the range of 96 to 127 whereas the default value is 2
for both. Once a payload type has been changed, the ‘no’ form of the command must be used to go back to the
default value.
Mode: profile voip
Configuring RTP payload type for Cisco NSE
Configure the RTP payload-type when transmitting the NSE events. This payload-type is negotiated during
call-setup when using SIP.
Named Service Events (NSE) are the Cisco-proprietary version of Named Telephony Events (NTEs). NTEs
are defined in RFC 2833. Various telephony signaling events use tones, for example, DTMF. NSEs and NTEs
communicate these tones (for representing signaling events), not by the presence of tones, but by sending a
binary code representing the tone that is recreated at the destination. Cisco’s proprietary NSEs use different
values to represent tones and events than the NTEs use.
NSEs are normally sent with RTP payload type 100. The RTP packets have the same source and destination
IP addresses and UDP ports as the other packets in the media stream, but differ in the RTP payload types so
they can be distinguished from the stream’s audio packets.
Mode: Profile VoIP
Configuring Cisco NSE for Fax
This command specifies the method to be used for signaling the remote device the RTP Stream has switched to
a voice-band Modem transmission. This feature is only available on the SIP protocol. If the command option
Step Command Purpose
1 [name](pf-voip)[profile]#[no] crtp payload-
type transparent-clearmode <payload-
type>
Specifies the rtp payload type used for
transparent clearmode. Value must be
between 97 and 127. Default value is
97.
Step Command Purpose
1 [name](pv-voip)[name]#[no] rtp
payload-type [g726-32k | g726-
32k-cisco] <value 96..127>
Defines the RTP payload types for the g726-32k
and the g726-32k-cisco coders.
Default: 2
Step Command Purpose
1 node(pf-voip)[ name]#rtp payload-type nse
payload-type
Specifies the RTP payload-type for Named Sig-
naling Events (NSE).
Default: 100
VoIP profile configuration task list 581
SmartWare Software Configuration Guide 47 • VoIP profile configuration
‘v150-vbd’ is selected, a re-invite will be sent even if the current voice coder is configured the same as the
modem bypass coder. Furthermore the re-invite contains a gpmd-attribute line with the value
‘vbd=yes;ecan=off ’ in the media description part. This attribute signals the remote device of the new media
transmission. If the command option ‘default’ is selected, the system behavior is the same as before.
SmartWare also supports the Cisco NSE standard which uses RFC2833 events for modem transmission over a
VoIP (SIP or H.323) network. Upon detecting a modem transmission, the called peer issues NSE Event 192.
NSE Event 192 indicates a Voice Band Data stream that forces the calling peer to deactivate Voice Activity
Detection and to reconfigure the de-jitter buffer for data reception. Afterwards it issues the NSE Event 193 to
trigger the calling peer to switch off Echo-Cancellation.
Configuring the dejitter buffer (advanced)
Packet networks always introduce a certain amount of jitter in the arrival of voice packets. To compensate for
the fluctuating network conditions, a dejitter buffer is integrated in the RTP processing engine. Typical voice
sources generate voice packets at a constant rate, the matching voice decompression algorithm also expects
incoming voice packets to arrive at a constant rate. However, the packet-by-packet delay inflicted by the net-
work may be different for each packet. As shown in figure 3, the result of the delays is that packets which are
sent equally spaced from the left-hand gateway arrive irregularly spaced at the right-hand gateway.
Figure 3. Jitter and dejitter buffer
The dejitter buffer delays incoming packets so it can present them to the decompression algorithm at fixed
intervals. It will also fix any out-of-order packets by looking at the sequence number in the RTP packets. Such
buffering has the effect of smoothing packet flow, and increasing the resiliency of the codec to packet loss,
delayed packets, and other transmission effects. The negative side of dejitter buffering is that it can add signifi-
cant delay. The dejitter buffer size is configurable and can be optimized for given network conditions, the size
is usually set to be a multiple of the expected packet arrival time in order to buffer an integral number of pack-
ets. It is not uncommon to see dejitter buffer settings around 80 ms for each direction.
Node
Node
Voice Packets
Voice
Decoder
Buffer
x x + dx
x
Node
Node Network
VoIP profile configuration task list 582
SmartWare Software Configuration Guide 47 • VoIP profile configuration
The operating modes for the dejitter buffer are illustrated in figure 4:
•Adaptive—The adaptive buffer automatically adapts to variations in the network’s delay characteristics and
in general yields the best results for voice conversations.
•Static—The static buffer is useful for voice conversations if you have specific information about your net-
work’s delay characteristics (such as jitter period, etc.), so it should only be used by experienced users.
•Static-data—The static-data mode if you want to create a profile for fax or modem transmission without
using the T.38 or fax bypass features described later in this chapter
Figure 4. Adaptive versus static dejitter buffer
Procedure: Configure the dejitter buffer.
In the adaptive dejitter buffer there are parameters that can be
configured (such as shrink-speed, grow-step, etc.) that should not
be changed unless it is necessary to do so. An incorrect configura-
tion can lead to interoperability problems and loss of service.
Therefore, it is strongly recommended that only expe-
rienced users change these parameters.
IMPORTANT
Adaptive Fixed
max delay => max fill level
Adaptive algorithm resizes
buffersize up to max delay,
depending on network traffic !
voice packets
max delay => buffersize
Fixed algorithm sets buffersize to max delay.
Generally mean delay of voice packets is
max delay / 2
voice packets
mean delay = max delay / 2
VoIP profile configuration task list 583
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Mode: Profile VoIP
Enabling/disabling filters (advanced)
The voice decoder output is normally filtered through a perceptual post-filter to improve voice quality. Like-
wise a high pass filter is normally used to cancel noises at the coder input. When the communication channels
include several SmartNodes in tandem as shown in figure 5, sequential post filtering or high pass filtering can
cause degrade signal quality. In this case, the user can choose to disable the post-filter and the high-pass-filter.
Note Filtering only occurs with G.723 and G.729 codecs.
Figure 5. Multiple tandem and sequential post filtering
This procedure describes how to disable post-filtering and high-pass-filtering.
Mode: Profile VoIP
Example: Disable filters
The following example shows how to disable the decoder output post-filter and the input high-pass filter.
node>enable
node#configure
node(cfg)#profile voip myProfile
node(pf-voip)[myProfi~]#no post-filter
node(pf-voip)[myProfi~]#no high-pass-filter
Step Command Purpose
1node(pf-voip)[name]#dejitter-mode mode Specify the dejitter buffer as adaptive, static or
static-data.
2node(pf-voip)[name]#dejitter-max-delay
max-delay
Specify the maximum delay in milliseconds that the
dejitter buffer is allowed to introduce. This setting
is valid for all modes.
Step Command Purpose
1node(pf-voip)[name]#no post-filter Disable decoder output filter
2node(pf-voip)[name]#no high-pass-filter Disable decoder input high pass filter
VoIP VoIPISDN
ISD
N
Sequential post filtering
Node
Node PSTN
Node
Node Node
Node Node
Node
VoIP profile configuration task list 584
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Configuring Fax transmission
Fax is a protocol for electronically transmitting written material in-band over a voice channel. In public
switched telephone networks (PSTN), a fax is handled the same way as a voice conversation. A G3 Fax device
transforms (modulates) a scanned page into audible tones that are transmitted in-band. The receiving device
converts the tones (demodulates) and reconstructs the page. In IP networks, problems can make it difficult to
handle a faxed call in the same way as a voice call:
•If one or more RTP packets that transport the voice (tones) are lost, the receiver can’t reconstruct what the
sender sent.
•Codecs other than G.711 compress the voice streams. They are optimized for compressing voice and not
modulated data. Compressing and decompressing always incurs a loss of data.
SmartWare provides two solutions for fax transmission problems:
•Fax bypass—When a fax transmission is detected by the SmartNode, it automatically switches to a config-
ured fallback codec that does no or little compression. The dejitter buffer is configured with settings opti-
mized for fax transmission.
•Fax relay—Terminates the fax protocol on the SmartNode and sends the reference data over a fax protocol
(T.38) to the receiver. Fax relay has a smaller bit-error-rate than bypass.
•Fax failover—When using fax transmission in SIP, you can configure the SIP gateway first to try T.38, but if
the remote gateway does not support T.38, it will automatically fall back to a high-rate codec.
Both solutions require changing codecs during an established call, which imposes several requirements on the
signaling protocol and the remote gateway. Make sure these requirements are met when configuring a fax trans-
mission mode.
Figure 6 illustrates the difference between Fax relay and Fax bypass.
VoIP profile configuration task list 585
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Figure 6. Fax relay and Fax bypass
Fax transmission modes are organized the same way codecs are: there is an ordered list of fax transmission
modes; the most preferred fax transmission mode is the first one in the list.
Procedure: Configure fax bypass
RTP Stream
Node
Node Node
Node
Node
Node Node
Node
generated tones transported
in RTP payload
FAX
B
ypass
FAX Relay reference data
transported over T.38
Terminate fax protocol Terminate fax protocol
Modulated data Modulated data Modulated data
Modulated data reference data Modulated data
VoIP profile configuration task list 586
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Mode: Profile VoIP
Procedure: Configure fax relay (T.38)
Mode: Profile VoIP
Step Command Purpose
1node(pf-voip)[name]#fax transmis-
sion bypass g711alaw64k
Adds fax bypass transmission with codec G.711
to the list of fax transmission modes.Alternative
codecs available are:
•G.711uLaw
•G.726 32kbps
•G.726 24kbps.
2
optional
node(pf-voip)[name]#fax dejitter-
max-delay buffer-size
Sets the size of the dejitter buffer during fax trans-
missions. The operating mode of the dejitter buffer
is automatically set to fax optimized static-data
mode.
Patton recommends that you keep the size for fax
transmissions higher than that used for voice, since
fax is less sensitive to delay than packet loss.
The default value is 200ms which should be nomi-
nal for almost any transmission network. In excep-
tional cases it may be necessary to increase this
value (maximum 400ms).
Step Command Purpose
1node(pf-voip)[name]# fax transmis-
sion relay t38-udp
Adds fax relay transmission with T.38 protocol
over UDP to the list of fax transmission modes.
2
(optional)
node(pf-voip)[name]#fax
redundancy ls low-speed-redundancy hs
high-speed-redundancy
Packet loss can be avoided by transmitting the fax
data packets several times. This can be configured
separately for low speed and the high speed traf-
fic. The default for both parameters is 0 (no redun-
dant transmission). Note that values greater than 0
provide more reliable transmissions, but consume
additional bandwidth.
3
(optional)
node(pf-voip)[name]# fax dejitter-
max-delay buffer-size
For proper operation, a dejitter buffer is used on
the receiver. The dejitter period can be set to com-
pensate for the jitter imposed by the network. The
default value is 200ms which should be nominal
for almost any transmission network. Only in
exceptional cases it may be necessary to increase
this value (maximum 400ms). The dejitter buffer,
by default, applies the operation mode ‘static-
data’, i.e. minimizes the packet loss.
VoIP profile configuration task list 587
SmartWare Software Configuration Guide 47 • VoIP profile configuration
T.38 CED retransmission
Even if the user has configured redundant transmission for low-speed and high-speed packets the T.30 Indica-
tor messages are not included in this process. If the CED message gets lost, the remote device only receives the
CED Tone that is sent in-band. But the transmitted in-band tone may be short due to T.38 switchover or too
much distortion, such as by using a low bit-rate voice coder like G.723. In this case it is possible that the
remote device never starts the initial T.30 procedure, because it has never received the CED tone. For that rea-
son SmartWare sends the CED three times in an interval of 100ms with the same sequence number. With this
command, you can disable this feature or set the number of retransmissions to a user defined value.
Mode: profile voip profile-name
4
(optional)
node(pf-voip)[name]#fax volume
volume
Adjusts the volume of the fax signals re-generated
on the receiver side. The volume is in dB, in the
range -18.5 ... -3.5 (Default: -9.5dB).
5
(optional)
node(pf-voip)[name]# fax max-bit-
rate { 2400 | 4800 | 7200 | 9600 |
12000 | 14400 }
Sets maximum allowed bit-rate for fax relay
(Default 14400 Bit/sec).
6
(optional)
node(pf-voip)[name]# fax detection
{ ced-tone | fax-frames }
Selects the method when fax transmissions are
detected: By CED tone or by fax frames (Default:
ced-tone). It takes longer to detect Fax frames than
CED tones, but the risk of misdetection is mini-
mized.
7
(optional)
node(pf-voip)[name]#no fax error-
correction
Disables error correction mode (Default: enabled).
If the error correction mode is disabled, the con-
nected fax devices cannot negotiate error correc-
tion mode. Connections with error correction mode
enabled are more sensitive to packet loss. Disable
error correction mode when packet loss is more
than 2–3%.
Note Error correction mode does
not cancel IP packet loss.
8
(optional)
node(pf-voip)[name]#no fax hdlc Disables HDLC image transfer (Default: enabled).
If HDLC mode is enabled, the SmartNode removes
bit-stuffing, checks CRCs of fax frames arriving
from the PSTN and regenerates the CRCs before
sending fax frames towards the PSTN. HDLC can
only be enabled together with error correction.
Disable HDLC when the fax peer does not support
this mode.
Step Command Purpose
1[name] (pf-voip)[name]#[no] fax ced-
retransmission number
Specifies the number of CED retransmissions.
Default: 2
Step Command Purpose
VoIP profile configuration task list 588
SmartWare Software Configuration Guide 47 • VoIP profile configuration
T.38 No-Signal Retransmission
Some SIP gateways change their port number when switching from audio to T.38. This behavior causes prob-
lems if the SmartNode is located on the A-Side behind a NAT. Due to T.30 is a unidirectional. protocol and
the B-Side is normally the initiator of the T.30 handshaking, the SmartNode never receives the initial packets
of the B-Side because the NAT ports are not yet opened.
To open the NAT ports SmartWare no sends T.38 ‘no-signal’ packets when a codec change is detected. By
default SmartNode sends 3 such packets. To adjust the number of ‘no-signal’ packets, use the following config-
uration command.
Mode: Configure/profile voip
Fax bypass method
This command specifies the method for notifying the remote device that the RTP Stream has switched to a
voice-band FAX transmission. This feature is only available on the SIP protocol. If the command option ‘v150-
vbd’ is selected, a re-invite is sent even if the current voice coder is configured the same as the fax bypass coder.
Furthermore the re-invite contains a gpmd-attribute line with the value ‘vbd=yes’ in the media description
part. It signals the remote device of the new media transmission. If the command option ‘default’ is selected,
the system behavior is the same as before.
For a fax transmission over a VoIP (SIP or H.323) network, the Cisco NSE standard uses events defined by
RFC2833. These events are used for the setup of the fax transmission starting between the calling- and called-
peer. Upon detecting a fax transmission, the called-peer issues NSE Event 192. NSE Event 192 indicates the
data stream is via a voice band, and it forces the calling-peer to do two things—deactivate voice activity detec-
tion and reconfigure the de-jitter buffer for data reception. The option ‘nse’ enables this fax transmission stan-
dard.
Mode: profile voip
Configuring fax failover
When using fax transmission in SIP, it is possible configure the SIP gateway to first try to use T.38 and to fall
back to a high-rate codec, if the remote gateway does not support T.38. This can be configured as follows:
Mode: profile voip <pf-name>
Step Command Purpose
1[name] (pf-voip)[name]#fax nosig-
nal-retransmission [1...5]
Sets how many times a T.38 ‘nosignal’ is retrans-
mitted. Default: 3
Step Command Purpose
1[name] (pf-voip)[name]#fax bypass-
method {default | v150-vbd|nse}
Specifies the fax bypass signaling method.
Default: default
Step Command Purpose
1[name] (pf-voip)[pf-name]# fax
transmission 1 relay t38-udp
Define T.38 UDP as the first fax transmission
method to try
VoIP profile configuration task list 589
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Note The first codec must always be T.38, while the second one must be a high-
rate codec such as G.711, which supports fax transmission.
Configuring modem transmission
Modem transmission is similar to fax transmission, except that modem data is always transported in bypass
mode. This means that an ordered list of bypass codecs can be defined for modem transmission. If no modem
transmission codec is configured, no action is taken to change the codec when modem is detected.
Procedure: Configure modem bypass
Mode: Profile VoIP
Modem bypass method
This command specifies the method to be used for signaling the remote device the RTP Stream has switched to
a voice-band Modem transmission. This feature is only available on the SIP protocol. If the command option
v150-vbd is selected, a re-invite will be sent even if the current voice coder is configured the same as the
modem bypass coder. Furthermore the re-invite contains a gpmd-attribute line with the value vbd=yes;ecan=off
in the media description part. This attribute signals the remote device of the new media transmission. If the
command option default is selected, the system behavior is the same as before.
SmartWare also supports the Cisco NSE standard which uses RFC2833 events for modem transmission over a
VoIP (SIP or H.323) network. Upon detecting a modem transmission, the called peer issues NSE Event 192.
NSE Event 192 indicates a Voice Band Data stream that forces the calling peer to deactivate Voice Activity
Detection and to reconfigure the Dejitter Buffer for data reception. Afterwards it issues the NSE Event 193 to
trigger the calling peer to switch off Echo-Cancellation.
Mode: profile voip
2[name] (pf-voip)[pf-name]# fax
transmission 2 bypass
g711alaw64k
Define G.711 A-Law as the second fax transmis-
sion method to try, if T.38 is not supported by the
remote gateway.
Step Command Purpose
1node(pf-voip)[name]#modem trans-
mission bypass g711alaw64k
Adds modem transmission with codec G.711 to
the list of fax transmission modes.Alternative
codecs available are:
•G.711uLaw
•G.726 32kbps
•G.726 24kbps.
Step Command Purpose
1[ name] (pf-voip)[name]#modem
bypass- method {default | v150-
vbd | nse}
Specifies the modem bypass signaling method.
Default: default
Step Command Purpose
VoIP profile configuration task list 590
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Configuring the traffic class for Voice and Fax data
The traffic class for voice data and fax data is configurable. The configured traffic class is used as additional
routing criterion in the IP routing table.
Mode: Profile VoIP
Configuring IP-IP codec negotiation
This command is only available on the SN4960 and applies to calls between two IP endpoints (e.g. SIP-SIP or
H.323-SIP). It is in mode “profile voip”.
Disabled “codec negotiation” honors the codec lists from each call leg independently, formed out of the remote
and local capabilities. The DSP is inserted into the RTP path to make sure each side can use its codec. The
DSP is transcoding between the codecs of the two RTP streams.
Enabled “codec negotiation” will keep the DSP out of the picture for IP-IP calls and tries to negotiate a com-
mon codec for both call legs.
Step Command Purpose
1[ name] (pf-voip)[profile]# rtp trafficclass
<traffic-class>
Sets traffic class for voice data and fax data
packets. The traffic class may be new or may
already exist.
Step Command Purpose
1node(pf-voip)[default]#[no] codec
negotiation
Enables/disables codec negotiation.
Examples 591
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Examples
Different applications require different VoIP profiles. This section includes a variety of applications and show
how the VoIP profile for these applications would be configured.
Home office in an enterprise network
Figure 7 is an example of a home office in an enterprise network. The connection bandwidth is 128 kbps and
is of very low quality, so the low bit-rate G.723_6k3 codec is used. Likewise, silence suppression is enabled.
Because of the low bit-rate codec, DTMF relay is also enabled. As 80 to 100 ms jitter is anticipated, the dejitter
buffer is set to adaptive with a maximum delay of 100 ms.
Figure 7. Home office in an enterprise network
First, configure the required CS interfaces (see chapter 33, “CS interface configuration” on page 381) and call
routing (see chapter 40, “Call router configuration” on page 456).
Next, configure the voice over IP settings as needed based on the previous description. First we create the VoIP
profile with the needed configurations.
1 node>enable
2 node#configure
3 node(cfg)#profile voip Wire128kbit
4 node(pf-voip)[Wire128~]#no codec g711aLaw64k
5 node(pf-voip)[Wire128~]#no codec g711uLaw64k
6 node(pf-voip)[Wire128~]#codec g723-6k3 tx-length 30 rx-length 30 silence-suppres-
sion
7 node(pf-voip)[Wire128~]#dejitter-max-delay 100
8 node(pf-voip)[Wire128~]]#show profile voip Wire128kbit
VoIP Profile: Wire128kbit
=========================
Used: by 0 module(s)
Codecs
------
Node
Node Node
Node
IP
Network PSTN
PBX
LANPC
ISDN Phone
128 kbit/s Codec G.723_5k3
Examples 592
SmartWare Software Configuration Guide 47 • VoIP profile configuration
G.723 6k3: rxlen=30;txlen=30;ss
Fax Transmission
Modem Transmission
Dejitter
--------
Mode: Adaptive
Max. Delay: 100ms
Max. Packet Loss: 4/1000
Shrink Speed: 1
Grow Step: 1
Grow Attenuation: 1
High Pass Filter: enabled
Post Filter: enabled
Fax
---
Detection: CED Tone
T.38 High Speed Redundant Packets: 0
T.38 Low Speed Redundant Packets: 0
Max. Bit Rate: 14400bps
Volume: -9.500dB
Error Correction: enabled
HDLC: enabled
Dejitter Max Delay: 200ms
Modem
-----
Max. Bit Rate: 14400
Volume: -9.500dB
HDLC: enabled
DTMF
----
Relay: enabled
Mute Encoder: enabled
RTP
---
Payload Type NTE: 101
Description:
3. Create VoIP profile and give it a name. All settings have default values
4., 5. Remove the default codecs G.711alaw and G.711uLaw
6. Add codec g723-6k3 with silence-suppression enabled
7. Allow the dejitter buffer to compensate 100 milliseconds of network jitter.
Examples 593
SmartWare Software Configuration Guide 47 • VoIP profile configuration
8. Show the configured profile.
Home office with fax
Preconditions are those used in section “Home office in an enterprise network” on page 591: low bandwidth
and high jitter. In this example, bandwidth is 256 kbps, what enables us to use the G.729 codec. But since the
fax protocol must also be supported, the configuration is extended:
1 node>enable
2 node#configure
3 node(cfg)#profile voip g729_FaxRelay
4 node(pf-voip)[g729_Fa~]#no codec g711aLaw64k
5 node(pf-voip)[g729_Fa~]#no codec g711uLaw64k
6 node(pf-voip)[g729_Fa~]#codec g729 tx-length 20 rx-length 20 silence-suppression
7 node(pf-voip)[g729_Fa~]#dejitter-max-delay 100
8 node(pf-voip)[g729_Fa~]#fax transmission relay t38-udp
9 node(pf-voip)[g729_Fa~]#fax max-bit-rate 9600
10 node(pf-voip)[g729_Fa]]#show profile voip g729_FaxRelay
VoIP Profile: g729_FaxRelay
===========================
Used: by 0 module(s)
Codecs
------
G.729A: rxlen=20;txlen=20;ss
T.38 UDP
Fax Transmission
----------------
T.38 UDP
Modem Transmission
Dejitter
--------
Mode: Adaptive
Max. Delay: 100ms
Max. Packet Loss: 4/1000
Shrink Speed: 1
Grow Step: 1
Grow Attenuation: 1
High Pass Filter: enabled
Post Filter: enabled
Fax
---
Detection: CED Tone
T.38 High Speed Redundant Packets: 0
T.38 Low Speed Redundant Packets: 0
Max. Bit Rate: 9600bps
Volume: -9.500dB
Examples 594
SmartWare Software Configuration Guide 47 • VoIP profile configuration
Error Correction: enabled
HDLC: enabled
Dejitter Max Delay: 200ms
Modem
-----
Max. Bit Rate: 14400
Volume: -9.500dB
HDLC: enabled
DTMF
----
Relay: enabled
Mute Encoder: enabled
RTP
---
Payload Type NTE: 101
Description:
3. Create VoIP profile and give it a name. All settings have default values
4., 5. Remove the default codecs G.711alaw and G.711uLaw
6. Add codec g729 with silence-suppression enabled
7. Allow the dejitter buffer to compensate 100 milliseconds of network jitter.
8. Enable fax relay over T.38 protocol
9. Limit the maximum bit rate the fax devices can communicate with each other to 9600 kbps
10. Show the configured profile.
Soft phone client gateway
A soft phone client can only use G.711uLaw or G.723 codes, neither of which can use silence suppression,
DTMF relay, or fax.
1 node>enable
2 node#configure
3 node(cfg)#profile voip softPhone
4 node(pf-voip)[softPho~]#no codec g711aLaw64k
5 node(pf-voip)[softPho~]#codec g723-6k3 tx-length 30 rx-length 30 no-silence-sup-
pression
6 node(pf-voip)[softPho~]#no dtmf-relay
7 node(pf-voip)[softPho]]#show profile voip softPhone
VoIP Profile: softPhone
=======================
Used: by 0 module(s)
Codecs
------
Examples 595
SmartWare Software Configuration Guide 47 • VoIP profile configuration
G.711 u-law: rxlen=20;txlen=20
G.723 6k3: rxlen=30;txlen=30
Fax Transmission
Modem Transmission
Dejitter
--------
Mode: Adaptive
Max. Delay: 60ms
Max. Packet Loss: 4/1000
Shrink Speed: 1
Grow Step: 1
Grow Attenuation: 1
High Pass Filter: enabled
Post Filter: enabled
Fax
---
Detection: CED Tone
T.38 High Speed Redundant Packets: 0
T.38 Low Speed Redundant Packets: 0
Max. Bit Rate: 14400bps
Volume: -9.500dB
Error Correction: enabled
HDLC: enabled
Dejitter Max Delay: 200ms
Modem
-----
Max. Bit Rate: 14400
Volume: -9.500dB
HDLC: enabled
DTMF
----
Relay: disabled
Mute Encoder: disabled
RTP
---
Payload Type NTE: 101
Description:
3. Create VoIP profile and give it a name. All settings have default values
4. Remove the default codec G.711alaw that is not supported.
5. Add codec g723-6k3 without silence-suppression
Examples 596
SmartWare Software Configuration Guide 47 • VoIP profile configuration
6. Disable DTMF relay.
7. Show the configured profile.
597
Chapter 48 PSTN profile configuration
Chapter contents
Introduction........................................................................................................................................................598
PSTN profile configuration task list ....................................................................................................................598
Creating a PSTN profile ...............................................................................................................................598
Configuring the echo canceller ......................................................................................................................599
Configuring output gain ...............................................................................................................................599
Introduction 598
SmartWare Software Configuration Guide 48 • PSTN profile configuration
Introduction
This chapter gives an overview of PSTN profiles, and describes how they are used and the tasks involved in
PSTN profile configuration.
A PSTN profile is a container for all datapath-related settings on PSTN connections. It can be assigned to
PSTN interfaces in context CS. If no profile is specified in a particular interface, the profile default is used. The
settings apply to all calls crossing the interface. Figure 8 illustrates the relationship between PSTN profiles and
CS interfaces. The following components are configurable:
•Echo canceller
•Output gain
Figure 8. PSTN profile association
PSTN profile configuration task list
The following tasks describe components that can be configured through the PSTN profile.
•Creating a PSTN profile
•Configuring the echo canceller (see page 599)
•Configuring output gain (see page 599)
If a PSTN profile is modified, the saved modification is applied to all open calls and is valid for all future calls
on the interface using this PSTN profile.
Creating a PSTN profile
Before configuring voice parameters, a PSTN profile must be created. Each PSTN profile has a name that can
be any arbitrary string of not more than 25 characters. When you create the PSTN profile, the PSTN profile
configuration mode appears so you can configure PSTN components.
Note The PSTN profile named default always exists in the system. It is used by all
interface components if there is no other PSTN profile available. If PSTN
parameters are the same throughout all interfaces, you can simply change the
profile default instead of creating a new profile.
Context CS
“switch”
PSTN
Profile
B
PSTN
Profile
A
ISDN
port FXS
port
PSTN profile configuration task list 599
SmartWare Software Configuration Guide 48 • PSTN profile configuration
Procedure: Create a PSTN Profile and enter the PSTN profile configuration mode
Mode: Configure
Configuring the echo canceller
Echoes are reflections of the transmitted signal that result from impedance mismatches in the hybrid (bi-direc-
tional 2-wire to 4-wire conversion) device, causing an echo on the wire. Echo cancellation provides near-end
echo compensation for this effect as shown in figure 9.
Figure 9. Echo Cancellation
Procedure: Disable echo cancellation.
Mode: Profile PSTN
Configuring output gain
The output gain determines the voice output volume gain towards PSTN ports as shown in figure 10.
Figure 10. Applying output gain
Procedure: Configure voice output gain.
Step Command Purpose
1node(cfg)#profile pstn name Create a PSTN profile with name name and enter PSTN profile
configuration mode. The newly created profile contains default
values for all parameters.
If a profile with name name already exists, only the PSTN profile
configuration mode is entered.
2node(pf-pstn)[name]#... Configuration steps as described in the chapters below
Step Command Purpose
1node(pf-pstn)[name]#no echo-canceller Disable echo canceller (Default: Enabled)
Echo Echo canceller
Node
Node
Context CS
“switch”
PSTN interface
Outgoing voice is amplified by
“output gain”
voice volume: 10 dB
PSTN
Profile
B
PSTN profile configuration task list 600
SmartWare Software Configuration Guide 48 • PSTN profile configuration
Mode: Profile PSTN
Step Command Purpose
1node(pf-pstn)[name]#output-gain gain Set the output gain to value in dB
601
Chapter 49 SIP profile configuration
Chapter contents
Introduction........................................................................................................................................................602
SIP profile configuration task list.........................................................................................................................602
Entering the configuration mode for a SIP profile .........................................................................................602
Mapping from a SIP disconnect cause ...........................................................................................................602
Mapping to a SIP cause .................................................................................................................................603
Mapping from a SIP redirection reason .........................................................................................................603
Mapping to a SIP redirection code ................................................................................................................603
Introduction 602
SmartWare Software Configuration Guide 49 • SIP profile configuration
Introduction
The SIP profile specifies disconnect cause mappings from SIP codes to Q.931 causes, and vice versa. As for all
profiles, there is a default profile at system startup that can be modified. Only those causes that differ from the
default mapping have to be configured. If a new profile is created, all mappings are set to their default and are
only overwritten if configured. The default mapping in both directions is according to RFC3398 - ISUP to SIP
Mapping.
A SIP profile can either be attached to SIP interfaces or to identities. To see how to configure a SIP profile for
an interface, see Chapter 39, “SIP interface configuration” on page 441. For information about SIP profile
configuration for identities, see Chapter 51, “Location Service” on page 607.
SIP profile configuration task list
This section describes the configuration tasks for SIP profile listed below.
•Enter the configuration mode for a SIP profile (see page 602)
•Map from a SIP disconnect cause to a Q.931 cause (see page 602)
•Map to a SIP cause from a Q.931 disconnect cause (see page 603)
•Map from a SIP redirection code to a Q.931 redirect reason (see page 603)
•Map to a SIP redirection code from a Q.931 redirect reason (see page 603)
Entering the configuration mode for a SIP profile
The profile sip command enters the configuration mode of an existing profile or creates a new one with a spec-
ified name. It also destroys an existing profile except the default, which always exists.
Mode: Configure
Mapping from a SIP disconnect cause
The map cause from-sip command maps a specific SIP disconnect cause to a Q.931 cause used by the call con-
trol. All causes are pre-defined in the system and are provided by the command.
Mode: Profile SIP
Step Command Purpose
1 [name](cfg)#[no] profile name <name> Creates/Destroys a SIP profile or enter the con-
figuration mode of an existing one.
Step Command Purpose
1 [name](pf-sip)[name]#map cause from-
sip sip-cause to q931-cause
Maps a specific SIP disconnect cause to a
Q.931 cause.
SIP profile configuration task list 603
SmartWare Software Configuration Guide 49 • SIP profile configuration
Mapping to a SIP cause
The map cause to-sip command can be used to map a call control Q.931 cause to a SIP cause. All causes are
pre-defined in the system and are provided by the command.
Mode: Profile SIP
Mapping from a SIP redirection reason
The map redir-reason from-sip command can be used to map a specific SIP redirect code to a Q.931 redirect
reason used by the call control. All redirect codes and reasons are pre-defined in the system and are provided by
the command.
Mode: Profile SIP
Mapping to a SIP redirection code
The map redir-reason to-sip command can be used to map a Q.931 redirect reason to a specific SIP redirect
code. All redirect codes and reasons are pre-defined in the system and are provided by the command.
Mode: Profile SIP
Step Command Purpose
1 [name](pf-sip)[name]#map cause to-sip
q931-cause to sip-cause
Maps a specific Q.931 disconnect cause to a
SIP cause code.
Step Command Purpose
1 [name](pf-sip)[name]#map redir-reason
from-sip code to reason
Maps a SIP redirection code to a Q.931 redirec-
tion reason.
Step Command Purpose
1 [name](pf-sip)[name]#map redir-reason
to-sip reason to code
Maps a Q.931 redirect reason to a SIP redirect
code.
604
Chapter 50 Authentication Service
Chapter contents
Introduction........................................................................................................................................................605
Authentication Service configuration task list ......................................................................................................605
Creating an Authentication Service ...............................................................................................................605
Configuring a Realm .....................................................................................................................................606
Configuring the authentication protocol .......................................................................................................606
Creating credentials ......................................................................................................................................606
Configuration Examples ......................................................................................................................................606
Introduction 605
SmartWare Software Configuration Guide 50 • Authentication Service
Introduction
This chapter describes how to configure authentication services in SmartWare. The Authentication Service is a
data base that manages Authentication Credentials of one or more Realm. A Realm is an Authentication Zone or
Authentication Domain that defines the authentication responsibility in a network. Each Authentication Creden-
tial created in an Authentication Service belongs to the defined Realm and exists on a User Name and an
optional Password. It is also possible to create an Authentication Service without specifying a Realm, which
represents the default realm. Whenever authentication is required and the provided Realm doesn't exist in an
Authentication Service, this default realm will be considered to find the right Authentication Credentials.
Authentication Service configuration task list
The following section describes how to create a new authentication service and how to enter the configuration
mode of an existing service. Additionally, it describes all commands and sub commands of the authentication
service configuration mode. All configuration tasks for Authentication Services are listed below.
•Create an Authentication Service (see page 605)
•Configure a Realm (see page 606)
•Configure the authentication protocol (see page 606)
•Create credentials (see page 606)
Creating an Authentication Service
The authentication-service command enters the configuration mode of an existing authentication or creates a
new one if the requested service does not yet exist. The no form of the command destroys the authentication
service.
Mode: Configure
Step Command Purpose
1 [node](cfg)# [no] authentication-service
<name>
Creates/Destroys an authentication service or
enters configuration mode.
Configuration Examples 606
SmartWare Software Configuration Guide 50 • Authentication Service
Configuring a Realm
The following commands add a new Realm to the authentication service. If more than one Realm has to be
entered, the order of the list can be modified by using the index and/or before and after keywords. The no form
of the command removes an existing Realm from the list.
Mode: Authentication Service
Configuring the authentication protocol
The protocol command specifies the authetnication protocol.
Mode: Authentication Service
Creating credentials
The following command creates Authentication Credentials identified by the entered username. The no form
of the command removes an existing Credential. It is possible to enter this command without a password.
Mode: Authentication Service
Configuration Examples
authentication-service AUTH_SRV
realm 1 voip-public
realm 2 voip-intranet
realm 3 ms-exchange
username 433 password fK+bfnzL45Goh/VdjrWxAA== encrypted
username john.doe password D60t7CBZ58k7JK2jxdlw4w== encrypted
Step Command Purpose
1 [node](ls)[name]# [no] realm <name>
or
[node](ls)[name]#realm <index> <name>
or
[node](ls)[name]#realm before <index>
<name>
or
[node](ls)[name]#realm after <index>
<name>
Adds or removes a Realm to/from the authentica-
tion service.
Step Command Purpose
1 [node](ls)[name]#protocol {http} Specifies the authentication protocol to be used.
Step Command Purpose
1 [node](ls)[name]# [no] username <user>
[password <password>]
Creates or removes authentication credentials.
607
Chapter 51 Location Service
Chapter contents
Introduction........................................................................................................................................................608
Location Service configuration task list................................................................................................................608
Creating a Location Service ...........................................................................................................................608
Adding a domain ..........................................................................................................................................608
Creating an identity ......................................................................................................................................609
Authentication outbound face .................................................................................................................610
Authentication inbound face ...................................................................................................................611
Registration outbound face ......................................................................................................................613
Registration inbound face ........................................................................................................................615
Call outbound face ..................................................................................................................................616
Call inbound face ....................................................................................................................................617
Creating an identity group ............................................................................................................................618
Inheriting from an identity group to an identity ...........................................................................................618
Configuring the Message Waiting Indication feature for SIP ........................................................................619
Subscription ............................................................................................................................................619
Notification .............................................................................................................................................620
Configuration .........................................................................................................................................620
Message Waiting Indication through Call-Control .......................................................................................622
Configuration Examples ......................................................................................................................................623
Introduction 608
SmartWare Software Configuration Guide 51 • Location Service
Introduction
This chapter describes how to configure location services in SmartWare.
Location Service configuration task list
The following section describes how to create a new location service and how to enter the configuration mode
of an existing service. Additionally, it describes all commands and sub commands of the location service config-
uration mode. All configuration tasks for Location Services are listed below:
•Create a Location Service (see page 608)
•Add a domain (see page 608)
•Create an identity (see page 609)
•Create an identity group (see page 618)
•Inherit from an identity group to an identity (see page 618)
Creating a Location Service
The location-service command enters the configuration mode of a location service. If the requested service
does not yet exists, a new one will be created. The no form of the command removes an existing location ser-
vice.
Mode: Configure
Adding a domain
The domain command specifies the domains that the location service is responsible for. If the application
needs information from the location service, it performs a lookup with the Host Part of the Request-URI or
the From-URI to find the right instance. The header selection from which the URI will be taken depends on
the call direction (Outgoing/Incoming SIP-Call) and the requested information. The SIP environment deter-
mines which format the Domain has; it can either be a Domain-Name, a Host-Name or a Host-Address. If all
components of the SIP environment are set up to operate in one specified domain, Domain is a Domain-
Name. If point-to-point routing is used, Domain is either a Host-Name or a Host-Address. In this case, Host-
Name is a FQDN (Full Qualified Domain Name).
Domain Examples:
Domain-Name: biloxy.com
Host-Name: sip-ua.biloxy.com or sip-server.biloxy.com
Host-Address: 192.168.10.1 or 10.10.10.1
In case of point-to-point routing, local host-addresses may not be added to the domain list of a location ser-
vice; the own addresses are known by the application. But, if an identity exists in two different location services
Step Command Purpose
1 [node](cfg)# [no] location-service <name> Creates/Destroys a location service or enters con-
figuration mode.
Location Service configuration task list 609
SmartWare Software Configuration Guide 51 • Location Service
and the Context SIP Gateway has more than one transport binding, it is recommended to add the local host
addresses as Domain to the appropriated location services.
Mode: Location Service
Creating an identity
An identity represents one of multiple possible addresses over which a user is reachable (e.g.
sip:john@inalp.com). Many configuration parameters related to call signaling, which were configured on the
gateway or the sip interface, can now be configured per identity. This leads to a huge range of configuration
possibilities in the identity.
According to the relationship between an identity and user, there can be many different aspects configured. If
you are the user agent for a certain identity, use the outbound faces to specify the behavior when sending
requests. If you are not the user agent of an identity but know this identity, then use the inbound faces to con-
figure the behavior when this identity sends requests.
When creating an identity, it is important to consider that the name of the identity is always used as user-part
when building a sip-uri. The name of the identity is also used when comparing to or matching with a sip-uri.
Mode: Location Service
Mode: Identity
Mode: Identity
Step Command Purpose
1 [node](ls)[name]# [no] domain <name>
or
[node](ls)[name]#domain <index> <name>
or
[node](ls)[name]#domain before <index>
<name>
or
[node](ls)[name]#domain after <index>
<name>
Adds a new domain to the location service. If
more than one domain has to be entered, the
order of the list can be modified by using the index
and/or the insert keywords before and after. The
no form of the command removes an existing
domain from the list.
Step Command Purpose
1 [node](ls)[name]# [no] identity <name> Adds a new identity to the location service. The no
form of the command removes an existing identity.
Step Command Purpose
1 [node](identity)[name]# [no] display-
name <display-name>
Adds a display-name to the identity. The no form
removes the display-name.
Step Command Purpose
1 [node](identity)[name]# [no] phone-con-
text <phone-context>
Adds a phone-context to the identity. The no form
removes the phone-context.
Location Service configuration task list 610
SmartWare Software Configuration Guide 51 • Location Service
An alias is an alternative way to express the user-part of an identity. An alias is never used to build a sip-uri and
will never be used in communication with another device. The alias is used for comparing or matching the
identity with a sip-uri received from an external device.
Mode: Identity
The huge amount of possible configuration parameters has been separated into different configuration enti-
ties–the faces. The faces refer to authentication, registration and call. Each face works in two directions–out-
bound and inbound. Outbound faces refer to to requests originating from your identity. Inbound faces refer to
requests destined to your identity.
•Authentication outbound face (see page 610)
•Authentication inbound face (see page 611)
•Registration outbound face (see page 613)
•Registration inbound face (see page 615)
•Call outbound face (see page 616)
•Call inbound face (see page 617)
Authentication outbound face
The authentication outbound face is used to provide authentication credentials to challenges from other user
agents or proxies.
Mode: Identity
An authentication entry establishes a link between an identity and exactly one pair of credentials in an authen-
tication-service. To link multiple credentials to an identity, there must be one authentication entry in the
authentication outbound face for each pair of credentials to link. The parameter username selects the entry in
the authentication-service to use. The parameter username can be omitted if and only if the name of the iden-
tity matches exactly the username in the authentication-service.
Step Command Purpose
1 [node](identity)[name]# [no] alias name
<alias>
Adds a new alias to the identity. The no form of the
command removes an existing alias.
Step Command Purpose
1 [node](identity)# [no] authentication out-
bound
Adds a new face to the identity. The no form of the
command removes an existing face with all content
in it.
Location Service configuration task list 611
SmartWare Software Configuration Guide 51 • Location Service
Mode: Authentication outbound
Mode: Authentication outbound
Mode: Authentication outbound
Authentication inbound face
The authentication inbound face is used when you want to challenge other user agents.
Mode: Identity
An authentication entry establishes a link between an identity and a pair of credentials in an authentication-
service. To link multiple credentials to an identity, there must be one authentication entry in the authentica-
tion inbound face for each pair of credentials to link. The parameter username selects the entry in the authen-
tication-service to use. The parameter username can be omitted if and only if the name of the identity matches
the username in the authentication-service exactly.
Step Command Purpose
1 [node](authout)#authenticate authentica-
tion-service <authentication-service> [user-
name <username>]
or
[node](authout)#authenticate <index>
authentication-service <authentication-ser-
vice> [username <username>]
or
[node](authout)#authenticate before
<index> authentication-service <authentica-
tion-service> [username <username>]
or
[node](authout)#authenticate after
<index> authentication-service <authentica-
tion-service> [username <username>]
Adds a new authentication entry to the authentica-
tion outbound face. If more than one authentica-
tion entry has to be entered, the order of the list
can be modified by using the index and/or the
insert keywords before and after.
Step Command Purpose
1 [node](authout)#no authenticate [<index>]Removes the authentication entry at the index or
removes all authentication entries if no index is
given.
Step Command Purpose
1 [node](authout)#authenticate none Removes all authentication entries and disables
explicitly authentication outbound.
Step Command Purpose
1 [node](identity)[name]# [no] authentica-
tion inbound
Adds a new face to the identity. The no form of the
command removes an existing face with all content
in it.
Location Service configuration task list 612
SmartWare Software Configuration Guide 51 • Location Service
Mode: Authentication inbound
Mode: Authentication inbound
Mode: Authentication inbound
Step Command Purpose
1 [node](authin)#authenticate authentica-
tion-service <authentication-service> [user-
name <username>]
or
[node](authin)#authenticate <index>
authentication-service <authentication-ser-
vice> [username <username>]
or
[node](authin)#authenticate before
<index> authentication-service <authentica-
tion-service> [username <username>]
or
[node](authin)#authenticate after <index>
authentication-service <authentication-ser-
vice> [username <username>]
Adds a new authentication entry to the authentica-
tion inbound face. If more than one authentication
entry has to be entered, the order of the list can be
modified by using the index and/or the insert key-
words before and after.
Step Command Purpose
1 [node](authin)#no authenticate [<index>]Removes the authentication entry at the index or
removes all authentication entries if no index is
given.
Step Command Purpose
1 [node](authin)#authenticate none Removes all authentication entries and disables
explicitly authentication inbound.
Location Service configuration task list 613
SmartWare Software Configuration Guide 51 • Location Service
Registration outbound face
The registration outbound face is used to register an identity on an external registrar. Then, the registrar for-
wards calls from the registered identity to your identity.
Mode: Identity
Mode: Registration outbound
Mode: Registration outbound
Mode: Registration outbound
Mode: Registration outbound
Step Command Purpose
1 [node](identity)[name]# [no] registration
outbound
Adds a new face to the identity. The no form of the
command removes an existing face with all content
in it.
Step Command Purpose
1 [node](regout)# [no] register [auto|none] Enables registration with auto or disables registra-
tion explicitly with none.
Step Command Purpose
1 [node](regout)# [no] registrar <host>
[<port>]
Configures the address of the registrar to send
your register requests. When no registrar is config-
ured, the register requests are sent to the first
domain entry in the location-service.
Step Command Purpose
1 [node](regout)# [no] lifetime <seconds> Configures the desired lifetime of the registration.
When no lifetime is configured the desired lifetime
is set to 3600 seconds.
Step Command Purpose
1 [node](regout)# [no] retry-timeout (on-cli-
ent-error|on-sysstem-error|on-server-
error) <seconds>
Configures the time to wait after a failed registra-
tion according to three different error categories.
After this time we begin to register from new. If no
retry-timeout is configured the retry-timeout is set to
10 seconds.
Location Service configuration task list 614
SmartWare Software Configuration Guide 51 • Location Service
Mode: Registration outbound
Mode: Registration outbound
Mode: Registration outbound
Mode: Registration outbound
Step Command Purpose
1 [node](regout)#proxy <host> [<port>]
[strict-route]
or
[node](regout)#proxy <index> <host>
[<port>] [strict-route]
or
[node](regout)#proxy before <index>
<host> [<port>] [strict-route]
or
[node](regout)#proxy after <index> <host>
[<port>] [strict-route]
Adds a new proxy entry to the registration out-
bound face. For each proxy configured there is a
route-header added. If more than one proxy entry
has to be entered, the order of the list can be mod-
ified by using the index and/or the insert key-
words before and after.
Step Command Purpose
1 [node](regout)#proxy <index> down <posi-
tions>
or
[node](regout)#proxy <index> up <posi-
tions>
If multiple proxies are configured the entry at the
index can be moved in the proxy list up or down
the number of positions given in the command.
Step Command Purpose
1 [node](regout)#no proxy [<index>] Removes the proxy entry at the index or remove all
proxy entries if no index is given.
Step Command Purpose
1 [node](regout)#proxy none Removes all proxy entries and disables explicitly
the use of a proxy.
Location Service configuration task list 615
SmartWare Software Configuration Guide 51 • Location Service
Registration inbound face
The registration inbound face is used when you want to allow external user agents to register, so that you can
route calls to the registered contacts.
Mode: Identity
Mode: Registration inbound
Mode: Registration inbound
Step Command Purpose
1 [node](identity)[name]# [no] registration
inbound
Adds a new face to the identity. The no form of the
command removes an existing face with all content
in it.
Step Command Purpose
1 [node](regin)# [no] lifetime [default <sec-
onds>] [min <seconds>] [max <seconds>]
Configures the range of the expiration time
accepted for inbound registration. If there is a time
requested which is out of the range the time is set
to a value which fits the range. If there is no time
requested it is set to the default lifetime.
Step Command Purpose
1 [node](regin)# [no] contact <host> [<port>]
<context cs> <interface sip> [priority <prom-
ille>
Adds a contact to the registration inbound face.
The interface and context parameter defines where
the sip-location-service routes a call destined to
that contact. The higher priority a contact has the
sooner a contact is chosen. The default priority is
1000 which is also the maximum priority. The no
form of the command removes a contact.
Location Service configuration task list 616
SmartWare Software Configuration Guide 51 • Location Service
Call outbound face
The call outbound face is used to configure call properties for outgoing calls.
Mode: Identity
Mode: Call outbound
Mode: Call outbound
Mode: Call outbound
Mode: Call outbound
Step Command Purpose
1 [node](identity)[name]# [no] call out-
bound
Adds a new face to the identity. The no form of the
command removes an existing face with all content
in it.
Step Command Purpose
1 [node](callout)[name]# [no] use profile
(sip|tone-set|voip) <profile>
Adds or removes a profile to use if an outgoing
call destines this identity
Step Command Purpose
1 [node](callout)[name]# [no] preferred-
transport-protocol (tcp|udp)
Selects which protocol to prefer if an outgoing call
destines this identity.
Step Command Purpose
1 [node](callout)[name]# [no] traffic-class
<traffic-class>
Selects which traffic class to set if an outgoing call
destines this identity.
Step Command Purpose
1 [node](callout)#proxy <host> [<port>]
[strict-route]
or
[node](callout)#proxy <index> <host>
[<port>] [strict-route]
or
[node](callout)#proxy before <index>
<host> [<port>] [strict-route]
or
[node](callout)#proxy after <index> <host>
[<port>] [strict-route]
Adds a new proxy entry to the call outbound face.
If the from-uri of a call originating from us matches
the identity for each proxy configured there is a
route-header added. If more than one proxy entry
has to be entered, the order of the list can be mod-
ified by using the index and/or the insert key-
words before and after.
Location Service configuration task list 617
SmartWare Software Configuration Guide 51 • Location Service
Mode: Call outbound
Mode: Call outbound
Mode: Call outbound
Call inbound face
The call inbound face is used to configure call properties for incoming calls.
Mode: Identity
Mode: Call inbound
Step Command Purpose
1 [node](callout)#proxy <index> down <posi-
tions>
or
[node](callout)#proxy <index> up <posi-
tions>
If multiple proxies are configured the entry at the
index can be moved in the proxy list up or down
the number of positions given in the command.
Step Command Purpose
1 [node](callout)#no proxy [<index>]Removes the proxy entry at the index or remove all
proxy entries if no index is given.
Step Command Purpose
1 [node](callout)#proxy none Removes all proxy entries and disables explicitly
the use of a proxy.
Step Command Purpose
1 [node](identity)[name]# [no] call inbound Adds a new face to the identity. The no form of the
command removes an existing face with all content
in it.
Step Command Purpose
1 [node](callin)[name]# [no] use profile
(sip|tone-set|voip) <profile>
Adds or removes a profile to use if an incoming
call destines this identity.
Location Service configuration task list 618
SmartWare Software Configuration Guide 51 • Location Service
Creating an identity group
Multiple identities with the same properties can be grouped in an identity-group. The identity-group can be
configured exactly in the same way and with the same parameters as an identity. An identity-group can only
inherit configurations to identities, but they never play an active role.
The special identity-group “default” inherits parameters to identities which are unknown or not configured.
Even dynamically created identities from registration inbound inherits from the identity-group “default”. Con-
figured identities do not inherit from the identity-group “default” unless is it explicitly configured to do so.
Mode: Location Service
Inheriting from an identity group to an identity
An identity only inherits parameters from an identity-group if the parameters are not configured in the identity
itself. Some commands allow the identity to explicitly disable some configurations that were otherwise inher-
ited.
Mode: Location Service
Mode: Location Service
Mode: Location Service
Mode: Location Service
Step Command Purpose
1 [node](ls)[name]# [no] identity-group
<name>
Adds a new identity-group to the location service.
The no form of the command removes an existing
identity-group.
Step Command Purpose
1 [node](ls)[name]#identity <name> inherit-
ance <identity-group>
Configures the identity to inherit parameters which
are not configured from the identity-group.
Step Command Purpose
1 [node](ls)[name]#identity-group <name>
inheritance <identity-group>
Configures the identity-group to inherit parameters
which are not configured from another identity-
group.
Step Command Purpose
1 [node](ls)[name]#identity <name> no-
inheritance
Configures the identity to not inherit parameters
from the identity-group.
Step Command Purpose
1 [node](ls)[name]#identity-group <name>
no-inheritance
Configures the identity-group to not inherit parame-
ters from the other identity-group.
Location Service configuration task list 619
SmartWare Software Configuration Guide 51 • Location Service
Configuring the Message Waiting Indication feature for SIP
Note Message Waiting Indication is programmed in two sections of SmartWare,
the FXS interface, and the SIP Location service. The information below
refers to information for configuring the Message Waiting Indication feature
for SIP. For information on configuring the Message Waiting Indication fea-
ture for FXS, see “Configuring the Message Waiting Indication feature for
FXS” on page 408.
The SIP part of SmartWare is now able to receive message waiting information. This is done according to the
subscribe notify mechanism described in RFC 3265 and RFC 3842. To be compatible with current installa-
tions, it is possible to choose between explicit and implicit subscription. In explicit subscription, SmartWare
establishes the subscription by sending SUBSCRIBE messages to a configured message server. In implicit sub-
scription, the message server gets the subscriber information due to configuration or another mechanism like
registration. In any case, SmartWare accepts and processes NOTIFY messages with message waiting informa-
tion, which is then forwarded to the according destination.
Subscription
If an identity is added to a location-service which is bound to a context sip-gateway, the following procedure
takes place:
1. Determine if identity should be subscribed.
a. The location-service containing the identity must have at least one domain configured.
b. The identity must have a message inbound face configured or inherited.
c. The subscription command must be set to “explicit”.
2. Build the address to subscribe. The name of the identity builds the user-part. The first domain configured
in the location-service builds the host-part.
3. Build the address of the message server. The message server configured in the message inbound face is
taken as request-uri. If no message server is configured the first domain configured in the location-service
builds the request-uri.
4. Build expire header. If a lifetime is configured in the message inbound face the expire header is set to
desired lifetime else the lifetime is set to 3600 seconds.
5. Build contact address. The spoofed-contact parameter of the sip-interface in the context sip gateway,
through which the SUBSCRIBE request is sent, is set as contact address. If no spoofed-contact is config-
ured the ip-address and port of the sip-interface in the context sip-gateway through which the SUB-
SCRIBE request is sent builds the contact address.
6. Send the SUBSCRIBE request.
If one of these steps has no result and fails, the subscription fails. After a certain timeout (which is configurable
in the registration outbound face), the request is re-issued.
Outgoing SUBSCRIBE requests can provide authentication credentials. See “Outbound Authentication” on
page 561 for more information.
Location Service configuration task list 620
SmartWare Software Configuration Guide 51 • Location Service
Notification
If the gateway receives an incoming NOTIFY request, the following procedure takes place:
1. Determine to which sip interface in the context cs the request should be forwarded. This happens accord-
ing the same rules as an incoming INVITE is forwarded.
2. Get Identity. All location services bound to the context sip-gateway are searched for the identity:
a. the identity matching the to-uri
b. the identity matching request-uri
c. the identity-group default
3. Get message inbound face. The identity found must have a message inbound face configured.
4. Check subscription. The option “subscription” must be set to “implicit” or “explicit”. In the case of explicit
subscription the real state of the subscription is not examined. According to RFC 3265 NOTIFY requests
must be handled even before subscription is completed.
5. Check event header. The event-header of the NOTIFY request must be set to “message-summary”.
6. Check content header. If present, the content header must be set to “application/simple-message-sum-
mary”
7. Forward message waiting information. Forward content of NOTIFY message through call-control accord-
ing normal call routing to the destination provider.
8. Return 200 OK if all of these steps are successful.
If one of these steps fails the notification fails and an according message is sent.
Incoming NOTIFY requests can be challenged to provide authentication credentials. “Inbound Authentica-
tion” on page 562 for more information.
Configuration
For configuration purposes, there is a new configuration face created in the identity of the location service. The
message inbound face is used to subscribe an identity on a message server and enables the reception of
NOTIFY messages with message waiting information.
Mode: Identity
Mode: Message inbound
Step Command Purpose
1 [node](identity)[name]#[no] message
inbound
Adds a new face to the identity. The no form of the
command removes an existing face with all content
in it.
Step Command Purpose
1 [node](msgin)#[no] subscribe [implicit |
explicit | none]
Enables subscription implicit, explicit or disables
subscription with none.
Location Service configuration task list 621
SmartWare Software Configuration Guide 51 • Location Service
Mode: Message inbound
Mode: Message inbound
Mode: Message inbound
Mode: Message inbound
Mode: Message inbound
Step Command Purpose
1 [node](msgin)#[no] message server <host>
[<port>]
Configures the address of the message server to
send your subscription requests for explicit sub-
scription. When no message-server is configured,
the subscription requests are sent to the first
domain entry in the location-service.
Step Command Purpose
1 [node](msgin)#[no] lifetime <seconds> Configures the desired lifetime of the explicit sub-
scription. When no lifetime is configured the
desired lifetime is set to 3600 seconds.
Step Command Purpose
1 [node](msgin)#[no] retry-timeout (on-cli-
ent-error | on-system-error | on-server-
error] <seconds>
Configures the time to wait after a failed subscrip-
tion according to three different error categories.
After this time we begin to subscribe from new. If
no retry-timeout is configured the retry-timeout is
set to 10 seconds.
Step Command Purpose
1 [node](msgin)#proxy <host> [<port>]
[strict-route]
or
[node](msgin)#proxy <index> <host>
[<port>] [strict-route]
or
[node](msgin)#proxy before <index>
<host> [<port>] [strict-route]
or
[node](msgin)#proxy after <index> <host>
[<port>] [strict-route]
Adds a new proxy entry to the message inbound
face. For each proxy configured there is a route-
header added to the SUBSCRIBE requests in
explicit subscription. If more than one proxy entry
has to be entered, the order of the list can be mod-
ified by using the index and/or the insert key-
words before and after.
Step Command Purpose
1 [node](msgin)#proxy none Removes all proxy entries and disables explicitly
the use of a proxy.
Location Service configuration task list 622
SmartWare Software Configuration Guide 51 • Location Service
Message Waiting Indication through Call-Control
The message waiting indication received on the SIP side is transported through the call control to the destina-
tion FXS interface. Currently, the SIP interface is the only source of message waiting indication information
and the FXS interface is the only possible destination of this information. The information is routed like a call
through the call-control. Therefore, it must exist a valid routing path for a call from the SIP interface handling
the NOTIFY to the destination fxs interface. This must be the case, because the phone connected to the FXS
interface must be able to get calls from SIP before it makes any sense to get message waiting information for
missed calls from SIP.
The message waiting information can be transported through routing-tables, service aaa, service limiter, service
priority, service distribution-group and service hunt-group.
•In case of routing through routing tables, the message waiting information will reach the right destination
only if the parameter according which the routing occurs is set to exactly the same value in an incoming
INVITE request for that FXS interface as in the incoming NOTIFY request for that FXS interface.
•In the case of “called-e164”, this is surely the same, but pay attention to the manipulation of parameters.
•In case of service distribution-group, the message waiting information is transported to any valid destina-
tion of the distribution-group.
•In case of service hunt-group, the message waiting information is transported only to the first destination of
the hunt group.
•In any other of the named services, the message waiting information is routed transparently through.
If the message waiting information is routed to a destination service or interface which is not explicitly listed
here, the information will be dropped.
Configuration Examples 623
SmartWare Software Configuration Guide 51 • Location Service
Configuration Examples
In this configuration example, inheritance is used.
Example:
location-service INALP
domain inalp.com
identity-group REGISTER
authentication outbound
authenticate 1 authentication-service AUTH_INALP username john
registration outbound
registrar sip.inalp.com
lifetime 600
register auto
identity 300 inherits REGISTER
identity
identity 400 inherits REGISTER
Exactly the same can be configured without inheritance. All inherited parameters can be configured in the
identity itself. Inheritance is useful if multiple identities share the same configuration.
Example:
location-service INALP
domain inalp.com
identity 300
authentication outbound
authenticate 1 authentication-service AUTH_INALP username john
registration outbound
registrar sip.inalp.com
lifetime 600
register auto
identity 400
authentication outbound
authenticate 1 authentication-service AUTH_INALP username john
registration outbound
registrar sip.inalp.com
lifetime 600
register auto
624
Chapter 52 VoIP debugging
Chapter contents
Introduction........................................................................................................................................................625
Debugging strategy..............................................................................................................................................625
Filtering debug monitor output...........................................................................................................................626
Verifying IP connectivity.....................................................................................................................................626
Debugging call signaling......................................................................................................................................627
Debugging ISDN signaling ...........................................................................................................................627
Verify an incoming call ...........................................................................................................................628
Verify an outgoing call ............................................................................................................................629
Verify ISDN layer 2 and 3 status .............................................................................................................631
Debugging FXS Signaling .............................................................................................................................632
Verify an incoming call ...........................................................................................................................632
Verify an outgoing call ............................................................................................................................633
Debugging H.323 Signaling .........................................................................................................................634
Verify an incoming call ...........................................................................................................................634
Verify an outgoing call ............................................................................................................................636
Debugging SIP signaling ...............................................................................................................................638
Verify an incoming call ...........................................................................................................................638
Verify an outgoing call ............................................................................................................................638
Using SmartWare’s internal call generator .....................................................................................................639
Debugging voice data ..........................................................................................................................................640
Check system logs .........................................................................................................................................642
How to submit trouble reports to Patton ......................................................................................................642
Introduction 625
SmartWare Software Configuration Guide 52 • VoIP debugging
Introduction
This chapter describes how to debug VoIP sessions, including the signaling part and the voice data path part
(speech, fax, and modem connectivity). It provides debugging strategies to help locate the source of a problem,
and describes the show and debug commands used to verify correct system operation and to troubleshoot
problems.
This chapter includes the following sections:
•Debugging strategy
•Verifying IP connectivity
•Debugging call signaling (see page 627)
•Debugging voice data (see page 640)
Debugging strategy
Multi-service IP networks comprise highly sophisticated systems and protocols that offer a great many possibil-
ities. Unfortunately, the possible sources of trouble are almost as many, so it is important to use a very method-
ical approach when tracking down a problem:
•Work from the bottom to the top of the protocol stack. Verify that cables and connectors are in good shape,
verify the link layer, and check IP connectivity before working on application problems.
•Work from the core to the edge. Problems always show up end-to-end, the phone does not ring, or the
browser cannot find the web site. To track down network problems it is however helpful to start with a min-
imal number of hops, make sure everything is ok and then increase the end-to-end distance hop by hop.
Note Event log files record warnings and other information from system compo-
nents. Entries in the logs are time-stamped with the actual system time, so
make sure the SmartNode always has the actual time as its system time. Oth-
erwise, you are not be able to get some cleverly information from the event
logs because the time stamps are always unusable.
You can enter the system time manually or have it be automatically set via
SNTP. Refer to chapter 7, “Basic system management” on page 90, or chap-
ter 26, “SNTP client configuration” on page 282.
Enabling some or all debug monitors may degrade system perfor-
mance (IP routing, call signaling). To avoid inadvertent permanent
system performance degradation make sure all monitors are
switched off once the configuration is debugged and running.
IMPORTANT
Filtering debug monitor output 626
SmartWare Software Configuration Guide 52 • VoIP debugging
Filtering debug monitor output
The output of the debug monitors can be filtered using the following command to let the terminal only print
important information. The specified expression is a regular expression, which is used by the filter to select
important lines.
Mode: Configure
The following example activates a filter, which causes the debug monitors to print only lines containing the
word ERROR on the terminal:
terminal monitor-filter .*ERROR
Note Only one filter expression can be active at a time. If you enter the command
a second time, the new filter expression will replace the old one.
The following command will disable the filter completely:
no terminal monitor-filter
Verifying IP connectivity
This procedure describes how to use the ping command to test IP connectivity. It verifies that your SmartNode
can communicate with such hosts as a gatekeeper, and IP phone, a registrar, and other VoIP gateways.
Use Telnet to access your SmartNode, then use the ping command to verify that an IP packet can be sent to,
and received from, all hosts with which the SmartNode should be able to communicate (e.g. Gatekeeper, IP
phone, Registrar, other VoIP gateways).
Mode: Administrator execution
Example: Verify IP connectivity
The following example uses the ping command to test connections to remote hosts 192.195.23.10 and
172.16.40.122. The results show an unsuccessful attempt to contact host 192.195.23.10 (as indicated by the “No
Step Command Purpose
1 [name](cfg)# [no] terminal monitor-filter
<expression>
Enables the monitor filter using the
specified expression.
Step Command Purpose
1unit#ping ipaddress [number-of-packets]
[timeout seconds]
Determines whether an IP host can be contacted.
Debugging call signaling 627
SmartWare Software Configuration Guide 52 • VoIP debugging
route to host” response) and a successful connection to host 172.16.40.122 (which received and sent packets with
no loss).
node#ping 192.195.23.1 10 timeout 5
Sending 10 ICMP echo requests to 192.195.23.10, timeout is 5 seconds:
% No route to host
node#
node#ping 172.16.40.122
Sending 5 ICMP echo requests to 172.16.40.122, timeout is 1 seconds:
Reply from 172.16.40.122: Time <10ms
Reply from 172.16.40.122: Time <10ms
Reply from 172.16.40.122: Time <10ms
Reply from 172.16.40.122: Time <10ms
Reply from 172.16.40.122: Time <10ms
Ping statistics for 172.16.40.122:
Packets: Sent 5, Received 5, Lost 0 (0% loss),
RTT: Minimum <10ms, Maximum <10ms, Average <10ms
Debugging call signaling
If calls do not connect, or disconnect during the process of connecting, there is a problem in call signaling. We
suggest the following steps to debug call signaling:
1. Work from the call source to the call destination.
2. Make sure that the call enters correctly the context CS of your unit (debug the source signaling protocol,
depending on where the call comes from).
3. Make sure that the call leaves correctly the context CS of your unit (debug the destination signaling proto-
col, depending on where the call goes to).
4. Debug call routing when the call enters the context CS, but it does not leave it. Remember that context CS
must be activated (“no shutdown”) for call routing to work.
Please make yourself familiar with the context CS concept described in chapter 31, “CS context overview” on
page 339. The following terminology will be used in this chapter:
•Incoming call: Call setup attempt from a call signaling protocol towards the context CS
•Outgoing call: Call setup attempt from the context CS towards a call signaling protocol
A basic call from an ISDN terminal connected to your unit over SIP to another SIP gateway is thus an incom-
ing and outgoing call a the same time, from the context CS perspective: It comes in from ISDN and goes out
over SIP.
Debugging ISDN signaling
Overview: ISDN debug monitors
Command Purpose
unit#debug ccisdn signaling Prints all ISDN layer 3 signaling messages, and
call control related activity of the ISDN interface.
This is a good monitor to start with when debug-
ging ISDN.
Debugging call signaling 628
SmartWare Software Configuration Guide 52 • VoIP debugging
Verify an incoming call
Make sure an incoming call is entering correctly context CS. In this example, an ISDN terminal connected to
an ISDN port places a call. The port is in NET mode. The port is bound to a context CS interface named
TERMINAL. The debug output below shows a normal (working) call setup sequence.
unit>enable
unit#configure
unit(cfg)#debug ccisdn error
unit(cfg)#debug ccisdn signaling
unit(cfg)#debug isdn error
unit(cfg)#18:34:10 ICC > [TERMINAL] << Message: primitive=64
18:34:10 ICC > [TERMINAL] Added endpoint TERMINAL-00b73348
18:34:10 ICC > [TERMINAL] NEW CALL. Allocated Endpoint TERMINAL-00b73348
18:34:10 ICC > [TERMINAL-00b73348] << SETUP (DSS1 Ntwk)
Bearer capability : speech - CCITT
circuit mode - 64kBit/s - G.711 A-law
Calling party number : 60
unknown number - unknown numbering plan
presentation allowed - user provided not screened
Called party number : 50
unknown number - E.164 numbering plan
High layer compatibility : telephony
CCITT
18:34:10 ICC > [TERMINAL-00b73348] State: NULL, Event: TERMINAL SETUP IND
18:34:10 ICC > [TERMINAL-00b73348] Set state to OVERLAP SENDING
unit#debug ccisdn error Prints all errors occurring in ISDN call control and
ISDN datapath control. Always switch this monitor
on when debugging ISDN.
unit#debug ccisdn datapath Prints operations on the ISDN part of the voice
data path. Use this monitor if you experience prob-
lems in the data path (no speech connectivity,
speech only in one direction). This monitor is not
needed to debug signaling.
unit#debug isdn error Prints all errors occurring on the ISDN port (proto-
col stack layers 1 to 3). Always switch this monitor
on when debugging ISDN.
unit#debug isdn event slot port {all |
layer2 | layer3}
Logs in detail the operation on the ISDN port (pro-
tocol stack layers 2 to 3).
unit#show port isdn slot port status Shows the status of an ISDN port. Among others,
indicates the link state of that port.
unit#show call-control provider name
[detail detail]
Shows the status of an ISDN interface in context
CS (call control part of ISDN signaling). Shown
are all calls currently ongoing on the interface,
with their call states, signaling peers and voice
data path parameters.
name is the name of the ISDN interface. Use detail
5 for most verbose output.
Command Purpose
Debugging call signaling 629
SmartWare Software Configuration Guide 52 • VoIP debugging
18:34:10 ICC > [TERMINAL-00b73348] >> SETUP ACKNOWLEDGEMENT (DSS1 Ntwk)
18:34:10 ICC > [TERMINAL-00b73348] State: OVERLAP SENDING, Event: PEER TRYING
18:34:10 ICC > [TERMINAL-00b73348] State: OVERLAP SENDING, Event: PEER ALERTING
18:34:10 ICC > [TERMINAL-00b73348] Set state to CALL DELIVERED
18:34:10 ICC > [TERMINAL-00b73348] >> ALERTING (DSS1 Ntwk)
Progress indicator : inband information available
private network serving local user - CCITT
18:34:18 ICC > [TERMINAL-00b73348] State: CALL DELIVERED, Event: PEER CONNECTED
18:34:18 ICC > [TERMINAL-00b73348] Set state to ACTIVE
18:34:18 ICC > [TERMINAL-00b73348] >> CONNECT (DSS1 Ntwk)
Connected number : 50
unknown number - E.164 numbering plan
presentation allowed - user provided not screened
Explanation:
•The terminal places the call using en-bloc sending (no overlap dialing). In the log, this is represented by the
lines 18:34:10 ICC > [TERMINAL-00b73348] << SETUP (DSS1 Ntwk) and below. This means there is a
message coming from ISDN as represented by the left angle brackets (<<). ISDN layer1, 2 and 3 work cor-
rectly in this case.
•If the SETUP message does not appear, one of the lower ISDN layers doesn’t work. Verify ISDN port status
using the show port isdn command , and the “debug isdn events” commands (see below).
•The SETUP message contains different elements, among others the calling party number (60), and the
called party number (50). Verify these (depending on your application, there might be as well other ele-
ments in the message).
•The line 18:34:10 ICC > [TERMINAL-00b73348] >> ALERTING (DSS1 Ntwk) shows that the dialed
number is alerting now. The ALERTING message is sent back to the terminals represented by the right
angle brackets (>>). You can be sure now that context CS functionality is working.
•The line 18:34:18 ICC > [TERMINAL-00b73348] >> CONNECT (DSS1 Ntwk) indicates that the call is now
established. The called party has answered the call.
•If instead of the ALERTING, a RELEASE or DISCONNECT message appears, continue debugging the out-
going call on the destination signaling protocol and the call-router.
Verify an outgoing call
Make sure a call from context CS is accepted by the connected ISDN terminal or the PSTN. In this example,
an ISDN port is connected to the PSTN. The port is bound to a context CS interface named PSTN.
The simplest way to verify the signaling of an outgoing call is to use the built-in call generator. You can dial any
number you know is reachable over this ISDN line. If it is the PSTN, you can dial e.g. your mobile
phone number.
unit>enable
unit#configure
unit(cfg)#debug ccisdn error
unit(cfg)#debug ccisdn signaling
unit(cfg)#debug isdn error
unit(cfg)#call 123456 dial 987654321 dest-interface PSTN
unit(cfg)#22:03:06 ICC > [PSTN] Added endpoint PSTN-00b70a20
Debugging call signaling 630
SmartWare Software Configuration Guide 52 • VoIP debugging
22:03:06 ICC > [PSTN] NEW CALL. Allocated Endpoint PSTN-00b70a20
22:03:06 ICC > [PSTN-00b70a20] >> SETUP (DSS1 User)
Bearer capability : speech - CCITT
circuit mode - 64kBit/s - G.711 A-law
Calling party number : 123456
unknown number - unknown numbering plan
presentation allowed - user provided not screened
Called party number : 987654321
unknown number - unknown numbering plan
High layer compatibility : telephony
CCITT
22:03:06 ICC > [PSTN-00b70a20] Set state to CALL PRESENT
22:03:06 ICC > [PSTN-00b70a20] State: CALL PRESENT, Event: PEER CONNECTED
22:03:06 ICC > [PSTN] << Message: primitive=31
22:03:06 ICC > [PSTN-00b70a20] << ALERTING (DSS1 User)
22:03:06 ICC > [PSTN-00b70a20] State: CALL PRESENT, Event: PSTN ALERTING IND
22:03:06 ICC > [PSTN-00b70a20] Set state to CALL RECEIVED
unit(cfg)#call 123456 drop
unit(cfg)#22:03:14 ICC > [PSTN-00b70a20] State: CALL RECEIVED, Event: PEER
RELEASED
22:03:14 ICC > [PSTN-00b70a20] Set state to DISCONNECT INDICATION
22:03:14 ICC > [PSTN-00b70a20] >> DISCONNECT (DSS1 User)
Cause : normal call clearing
private network serving local user - CCITT - Q.931
Progress indicator : inband information available
private network serving local user - CCITT
22:03:14 ICC > [PSTN] << Message: primitive=50
22:03:14 ICC > [PSTN-00b70a20] << RELEASE COMPLETE (DSS1 User)
22:03:14 ICC > [PSTN-00b70a20] State: DISCONNECT INDICATION, Event: PSTN RELEASE
IND
22:03:14 ICC > [PSTN-00b70a20] Set state to NULL
22:03:14 ICC > [PSTN] CLEARING CALL PSTN-00b70a20
22:03:14 ICC > [PSTN] Removed endpoint PSTN-00b70a20
22:03:14 ICC > [PSTN] Destroying finished calls.
22:03:14 ICC > [PSTN] Destroyed endpoint PSTN-00b70a20
Explanation:
•Place a call on the command line using the line unit(cfg)##call 123456 dial 987654321 dest-inter-
face PSTN. The calling party number is 123456 and the called party number 987654321. Replace the
called party with your mobile phone number, or any other number you know is reachable over
the interface.
•Verify the called party number in the SETUP message on the consecutive lines.
•The line 22:03:06 ICC > [PSTN-00b70a20] << ALERTING (DSS1 User) indicates that the called party
is ringing now, and has sent back the ALERTING message to us. This means that the ISDN layer 1, 2, 3
and that the ISDN signaling works.
•If there is a RELEASE or DISCONNECT message instead of the ALERTING, either ISDN connectivity is
not working (i.e. the message cannot be sent to the ISDN line), or the PSTN has rejected the call. Verify
Debugging call signaling 631
SmartWare Software Configuration Guide 52 • VoIP debugging
ISDN port status using the show port isdn command, and the debug isdn events commands (see
below).
•Because the ALERTING is indication enough that the signaling is working, we drop the call from the com-
mand line: unit(cfg)#call 123456 drop
•The interface then sends a DISCONNECT message to the line, and the PSTN answers with a RELEASE
COMPLETE
Verify ISDN layer 2 and 3 status
ISDN layer 2 and 3 can be verified using a show command:
node(cfg)#show port isdn 0 2 status
Logical Isdn Driver: 0 0
========================
Slot: 0
Number of Ports: 5
Statistics
----------
Leased buffers: 24
Max. leased buffers: 34
Next Call Key: 0
Logical Port: 0 0 2
-------------------
Admin State: Open
Real State: Open
Operating Layer: 3
Link State: up
Layer 2
Permanent Layer 2: off
Protocol: PointToMultiPoint
UniSide: Net
Layer 3
Protocol: Dss1
UniSide: Net
MinChannel: 0
MaxChannel: 1
MaxCalls: 2
Hunt Mode: Ascending
Signalling Mode: Etsi
The line “link state: up” tells you that layer 1 is up. To debug the layers 2-3 state machines, use the command
debug isdn event slot port {all | layer2 | layer3}.
Debugging call signaling 632
SmartWare Software Configuration Guide 52 • VoIP debugging
Debugging FXS Signaling
Overview: FXS debug monitors
Verify an incoming call
Make sure an incoming call is entering correctly context CS. In this example, a POTS terminal connected to
an FXS port goes off hook and places a call. The port is bound to a context CS interface named PHONE. The
debug output below shows a normal (working) call setup sequence.
unit>enable
unit#configure
unit(cfg)#debug ccfxs
unit(cfg)#debug fxs
unit(cfg)#09:00:11 FXS > [0 1] Off hook.
09:00:11 FXS > [0 1] Notifying off hook.
09:00:11 FXS > FXS-00/01: state=on-hook, event=off-hook
09:00:11 FXS > [0 1] Set state to 'Active'
09:00:11 FXS > FXS-00/01: new state=filtering-events
09:00:11 CFXS > [EP PHONE] Change state to DIAL-TONE.
09:00:11 CFXS > [EP PHONE] Change datapath direction to receive-only.
09:00:11 CFXS > [EP PHONE] Play tone: dial-tone
09:00:11 FXS > FXS-00/01: state=filtering-events, event=timeout
09:00:11 FXS > FXS-00/01: new state=off-hook
09:00:13 CFXS > [EP PHONE] Change state to DIALING.
09:00:13 CFXS > [EP PHONE] Stop tone.
09:00:43 CFXS > [EP PHONE] Play tone: ringback-tone
09:01:01 CFXS > [EP PHONE] Change state to CONNECTED.
09:01:01 CFXS > [EP PHONE] Stop tone.
09:01:01 CFXS > [EP PHONE] Change datapath direction to send/receive.
Explanation:
•unit(cfg)#09:00:11 FXS > [0 1] Off hook.: The phone went off-hook
•09:00:11 CFXS > [EP PHONE] Change state to DIAL-TONE.: The dial-tone is played.
•09:00:13 CFXS > [EP PHONE] Change state to DIALING.: The first digit has been touched. Dial-tone
stops.
Command Purpose
unit#debug ccfxs Prints all operations on the FXS interfaces (high-
level).
unit#debug fxs Prints all operations on the FXS ports (low-level).
unit#debug media-gateway control Prints the dialed digits.
unit#show call-control provider name
[detail detail]
Shows the status of an FXS interface in context CS
(call control part of FXS signaling). Shown are all
calls currently ongoing on the interface, with their
call states, signaling peers and voice data path
parameters.
name is the name of the FXS interface. Use detail 5
for most verbose output.
Debugging call signaling 633
SmartWare Software Configuration Guide 52 • VoIP debugging
•09:00:43 CFXS > [EP PHONE] Play tone: ringback-tone: The called-party is ringing, alerting-tone is
played to the phone. This means that the call arrived correctly in context CS, and has reached its destina-
tion.
•If the above line does not appear, the call has arrived in context CS, but has not reached its destination.
Continue debugging call-router and the outgoing call to the destination signaling protocol.
•If you want to see the dialed digits in the debug monitor, use “debug media-gateway control”.
•09:01:01 CFXS > [EP PHONE] Change state to CONNECTED.: the called party has accepted the call, and
the call is now established.
Verify an outgoing call
Make sure a call from context CS is accepted by the connected POTS terminal. The port is bound to a context
CS interface named PHONE.
The simplest way to verify the signaling of an outgoing call is to use the built-in call generator. You can place a
call to any called-party, and verify that the connected phone is ringing.
unit>enable
unit#configure
unit(cfg)#debug ccfxs
unit(cfg)#debug fxs
unit(cfg)#call 1 dial 2 dest-interface PHONE
unit(cfg)#09:13:55 CFXS > [EP PHONE] Change state to RINGING.
09:13:55 CFXS > [EP PHONE] Start Ring.
09:13:55 FXS > FXS-00/01: state=on-hook, event=ring-start
09:13:55 FXS > [0 1] Set state to 'Ringing'
09:13:55 FXS > FXS-00/01: new state=ringing
09:13:56 FXS > [0 1] Set state to 'RingPause'
09:14:00 FXS > [0 1] Set state to 'Ringing'
09:14:01 FXS > [0 1] Set state to 'RingPause'
09:14:02 FXS > [0 1] Off hook.
09:14:02 FXS > [0 1] Notifying off hook.
09:14:02 FXS > FXS-00/01: state=ringing, event=off-hook
09:14:02 FXS > [0 1] Set state to 'Idle'
09:14:02 FXS > [0 1] Set state to 'Active'
09:14:02 FXS > FXS-00/01: new state=off-hook
09:14:02 CFXS > [EP PHONE] Change state to CONNECTED.
09:14:02 CFXS > [EP PHONE] Stop ring.
09:14:02 FXS > FXS-00/01: state=off-hook, event=ring-stop
09:14:02 FXS > FXS-00/01: new state=off-hook
09:14:02 CFXS > [EP PHONE] Change datapath direction to send/receive.
Explanation:
•unit(cfg)#09:13:55 CFXS > [EP PHONE] Change state to RINGING.: The context CS interface changes
the state to RINGING, that means it has accepted the call.
•09:13:55 FXS > [0 1] Set state to 'Ringing': The port begins to ring on the analog line. This means
that the binding of the port to the context CS interface is correct, and your phone should now be ringing.
•If the phone does not start to ring, revise the binding of the port to the context CS interface, and the con-
nectors of the POTS line.
Debugging call signaling 634
SmartWare Software Configuration Guide 52 • VoIP debugging
•09:14:02 CFXS > [EP PHONE] Change state to CONNECTED.: The phone went off-hook and thus accepted
the call. The state of the CS interface goes to CONNECTED. The call is now established.
Debugging H.323 Signaling
Overview: H.323 debug monitors
See also section “Troubleshooting” on page 558 for further informations on debugging H.323. There are more
than 40 debug monitors, such as q931, ras, or signaling. For a list of all available debug monitors, refer to the
CLI online help.
Verify an incoming call
Make sure an incoming call is entering correctly context CS. In this example, a VoIP gateway or VoIP phone
on the network makes a call to your unit using a gatekeeper. The debug output below shows a normal (work-
ing) call setup sequence
unit#enable
unit#configure
unit(cfg)#debug gateway h323 error
unit(cfg)#debug gateway h323 signaling
unit#debug gateway h323 ras
unit(cfg)#show gateway h323 status
H.323 Gateway: h323
===================
State: UP
Stack Handle: 0x193ce44
RAS Engine
Command Purpose
unit#debug gateway h323 signaling Prints all signaling operations on H.323 interfaces.
unit#debug gateway h323 error General purpose error monitor of H.323. Always
enable this when debugging H.323.
unit#debug gateway h323 datapath Prints operations on the H.323 part of the voice
data path. Use this monitor if you experience prob-
lems in the data path (no speech connectivity,
speech only in one direction). This monitor is not
needed to debug signaling.
unit#show gateway h323 status Shows the state of the H.323 gateway. Among
others: enabled/disabled, RAS registration state.
unit#show gateway h323 call name
[detail detail]
Shows all calls ongoing on the H.323 interface on
context CS with name name.
unit#show call-control provider name
[detail detail]
Shows the status of an H.323 interface in context
CS (call control part of H.323 signaling). Shown
are all calls currently ongoing on the interface,
with their call states, signaling peers and voice
data path parameters.
name is the name of the H.323 interface. Use
detail 5 for most verbose output.
Debugging call signaling 635
SmartWare Software Configuration Guide 52 • VoIP debugging
----------
State: REGISTERED
Gatekeeper: 172.16.32.51/1719
Allocated Endpoints: 0
Allocated RAS Engines: 1
Allocated Control Channels: 0
Allocated Outgoing Logical Slowstart Channels: 0
Allocated Outgoing Logical Faststart Channels: 0
Allocated Incoming Logical Channels: 0
unit#
unit#00:29:03 H323 > [EP h323-00c13dc0] Stack: Allocated new call: 0x00be56b0
00:29:03 H323 > Provider node_33: Added endpoint h323-00c13dc0
00:29:03 H323 > [EP h323-00c13dc0] Stack: Dial to remote terminal
00:29:03 H323 > [EP h323-00c13dc0] Destination Address: TEL:60,60
00:29:03 H323 > [EP h323-00c13dc0] Source Address: TEL:50,50
00:29:03 H323 > [EP h323-00c13dc0] Presentation Indicator: Presentation
allowed
00:29:03 H323 > [EP h323-00c13dc0] Screening Indicator: User provided,
not screened
00:29:03 H323 > [EP h323-00c13dc0] Information Transfer Capability: Speech
00:29:03 H323 > [EP h323-00c13dc0] Display: 50
00:29:03 H323 > [EP h323-00c13dc0] User-User:
00:29:03 H323 > [EP h323-00c13dc0] Set state to TERMINAL TRYING
00:29:03 H323 > [EP h323-00c13dc0] State: TERMINAL TRYING, Call Event: PEER CON-
NECTED
00:29:03 H323 > [EP h323-00c13dc0] State: TERMINAL TRYING, Call Event: PROGRESS
00:29:03 HRAS > Stack: Received Admission Confirm
00:29:03 H323 > [EP h323-00c13dc0] Stack: State: DIALTONE
00:29:03 H323 > [EP h323-00c13dc0] Call-ID is
0213:4d80:eacb:11e0:2eee:0030:2b00:1e0e
00:29:03 H323 > [EP h323-00c13dc0] Stack: Received Incomplete-Address Indication
00:29:03 H323 > [EP h323-00c13dc0] Stack: State: RINGBACK
00:29:03 H323 > [EP h323-00c13dc0] Stack: Received ALERTING
00:29:03 H323 > [EP h323-00c13dc0] Progress Indicator: (none)
00:29:03 H323 > [EP h323-00c13dc0] State: TERMINAL TRYING, Call Event: TERMINAL
ALERTING
00:29:03 H323 > [EP h323-00c13dc0] Set state to TERMINAL ALERTING
00:29:08 H323 > [EP h323-00c13dc0] Stack: State: CONNECTED (CALL-SETUP)
00:29:08 H323 > [EP h323-00c13dc0] State: TERMINAL ALERTING, Call Event: TERMINAL
CONNECTED
00:29:08 H323 > [EP h323-00c13dc0] Set state to CONNECTED
00:29:08 H323 > [EP h323-00c13dc0] Stack: Send STATUS INQUIRY
00:29:08 H323 > [EP h323-00c13dc0] Stack: Opening the H.245 control-channel
00:29:08 H323 > [EP h323-00c13dc0] State: CONNECTED, Call Event: PROGRESS
00:29:08 H323 > [EP h323-00c13dc0] Stack: Received STATUS. Audit successful
00:29:08 H323 > [EP h323-00c13dc0] Channel State: IDLE, Channel Event: CONTROL-UP
00:29:08 H323 > [EP h323-00c13dc0] Set channel state to OPENING
00:29:08 H323 > [EP h323-00c13dc0] State: CONNECTED, Call Event: PROGRESS
00:29:08 H323 > [EP h323-00c13dc0] Stack: State: CONNECTED (CALL)
00:29:08 H323 > [EP h323-00c13dc0] Stack: New Incoming Logical Channel: 00bcca48
00:29:08 H323 > [EP h323-00c13dc0] Channel State: OPENING, Channel Event: MODE-UP
00:29:08 H323 > [EP h323-00c13dc0] Set channel state to UP
Debugging call signaling 636
SmartWare Software Configuration Guide 52 • VoIP debugging
Explanation:
•First the state of the gateway is checked. The state is “UP”, and the RAS engine is “REGISTERED”, which
is OK.
•The line 00:29:03 H323 > [EP h323-00c13dc0] Stack: Allocated new call: 0x00be56b tells that there
is a new call incoming from H.323. This means that transport layer is OK. If there is no debug output at
all, try to use debug gateway h323 tpktchan, which monitors all H.323 socket TCP traffic.
•The line 00:29:03 H323 > [EP h323-00c13dc0] Destination Address: TEL:60,60 and below show the
calling and called party properties. In the present case, the called party number is 60.
•00:29:03 HRAS > Stack: Received Admission Confirm says that the gatekeeper allowed us to accept the
call. Continue debugging call routing if the call does not reach its destination.
Verify an outgoing call
Make sure an outgoing call leaves correctly on text CS and the device. In this example, a terminal on the gate-
way to debug wants to make a call towards a H.323 VoIP network using a gatekeeper. The debug output below
shows a normal (working) call setup sequence
unit#enable
unit#configure
unit(cfg)#debug gateway h323 error
unit(cfg)#debug gateway h323 signaling
unit#debug gateway h323 ras
unit(cfg)#show gateway h323 status
H.323 Gateway: h323
===================
State: UP
Stack Handle: 0x193ce44
RAS Engine
----------
State: REGISTERED
Gatekeeper: 172.16.32.51/1719
Allocated Endpoints: 0
Allocated RAS Engines: 1
Allocated Control Channels: 0
Allocated Outgoing Logical Slowstart Channels: 0
Allocated Outgoing Logical Faststart Channels: 0
Allocated Incoming Logical Channels: 0
unit#
unit#01:00:10 H323 > [EP h323-00c07230] Stack: Allocated new call: 0x00be5968
01:00:10 H323 > Provider node_33: Added endpoint h323-00c07230
01:00:10 H323 > [EP h323-00c07230] Stack: Dial to remote terminal
01:00:10 H323 > [EP h323-00c07230] Destination Address: TEL:60,60
01:00:10 H323 > [EP h323-00c07230] Source Address: TEL:50,50
01:00:10 H323 > [EP h323-00c07230] Presentation Indicator: Presentation
allowed
01:00:10 H323 > [EP h323-00c07230] Screening Indicator: User provided,
not screened
01:00:10 H323 > [EP h323-00c07230] Information Transfer Capability: Speech
Debugging call signaling 637
SmartWare Software Configuration Guide 52 • VoIP debugging
01:00:10 H323 > [EP h323-00c07230] Display: 50
01:00:10 H323 > [EP h323-00c07230] User-User:
01:00:10 H323 > [EP h323-00c07230] Set state to TERMINAL TRYING
01:00:10 H323 > [EP h323-00c07230] State: TERMINAL TRYING, Call Event: PEER CON-
NECTED
01:00:10 H323 > [EP h323-00c07230] State: TERMINAL TRYING, Call Event: PROGRESS
01:00:10 HRAS > Stack: Received Admission Confirm
01:00:10 H323 > [EP h323-00c07230] Stack: State: DIALTONE
01:00:10 H323 > [EP h323-00c07230] Call-ID is
0213:4d8d:13ba:1db8:2eef:0030:2b00:1e0e
01:00:11 H323 > [EP h323-00c07230] Stack: Received Incomplete-Address Indication
01:00:11 H323 > [EP h323-00c07230] Stack: State: RINGBACK
01:00:11 H323 > [EP h323-00c07230] Stack: Received ALERTING
01:00:11 H323 > [EP h323-00c07230] Progress Indicator: (none)
01:00:11 H323 > [EP h323-00c07230] State: TERMINAL TRYING, Call Event: TERMINAL
ALERTING
01:00:11 H323 > [EP h323-00c07230] Set state to TERMINAL ALERTING
01:00:14 H323 > [EP h323-00c07230] Stack: State: CONNECTED (CALL-SETUP)
01:00:14 H323 > [EP h323-00c07230] State: TERMINAL ALERTING, Call Event: TERMINAL
CONNECTED
01:00:14 H323 > [EP h323-00c07230] Set state to CONNECTED
01:00:14 H323 > [EP h323-00c07230] Stack: Send STATUS INQUIRY
01:00:14 H323 > [EP h323-00c07230] Stack: Opening the H.245 control-channel
01:00:14 H323 > [EP h323-00c07230] State: CONNECTED, Call Event: PROGRESS
01:00:14 H323 > [EP h323-00c07230] Stack: Received STATUS. Audit successful
01:00:14 H323 > [EP h323-00c07230] Channel State: IDLE, Channel Event: CONTROL-UP
01:00:14 H323 > [EP h323-00c07230] Set channel state to OPENING
01:00:14 H323 > [EP h323-00c07230] State: CONNECTED, Call Event: PROGRESS
01:00:14 H323 > [EP h323-00c07230] Stack: State: CONNECTED (CALL)
01:00:14 H323 > [EP h323-00c07230] Stack: New Incoming Logical Channel: 00bccd68
01:00:14 H323 > [EP h323-00c07230] Channel State: OPENING, Channel Event: MODE-UP
01:00:14 H323 > [EP h323-00c07230] Set channel state to UP
Explanation:
•First the state of the gateway is checked. The state is UP, and the RAS engine is REGISTERED, which
is OK.
•The line 01:00:10 H323 > [EP h323-00c07230] Stack: Allocated new call: 0x00be5968 tells that
there is a new call incoming from H.323. This means that transport layer is OK. If there is no debug output
at all, try to use debug gateway h323 tpktchan, which monitors all H.323 socket TCP traffic.
•The line 01:00:10 H323 > [EP h323-00c07230] Destination Address: TEL:60,60 and below show the
calling and called party properties. In the present case, the called party number is 60.
•00:29:03 HRAS > Stack: Received Admission Confirm says that the gatekeeper allowed us to dial to
H.323 network with the given call parameters. If you can’t see any H.323 SETUP message on the net, or if
the called gateway does not indicate any H.323 message received, use debug gateway h323 tpktchan to
verify that a packet is being sent.
Debugging call signaling 638
SmartWare Software Configuration Guide 52 • VoIP debugging
Debugging SIP signaling
Mode: Administrator Execution
Verify an incoming call
Make sure that an incoming call from the SIP network enters correctly context CS. The following sequence
shows a working call setup.
unit(cfg)#debug gateway sip error
unit(cfg)#debug gateway sip transport
unit(cfg)#18:53:40 SIP_TR> Received INVITE sip:50@172.16.32.32 SIP/2.0
18:53:40 SIP_TR> Sent SIP/2.0 100 Trying
18:53:40 SIP_TR> Sent SIP/2.0 180 Ringing
18:53:43 SIP_TR> Sent SIP/2.0 200 OK
18:53:43 SIP_TR> Received ACK sip:50@172.16.32.32:5060 SIP/2.0
Explanation:
•The line 18:53:40 SIP_TR> Received INVITE sip:50@172.16.32.32 SIP/2.0 indicates that the INVITE
message has been received. This means that the SIP network is functional
•18:53:40 SIP_TR > Sent SIP/2.0 100 Trying and 18:53:40 SIP_TR> Sent SIP/2.0 180 Ringing indi-
cate that responses are sent back to the SIP network. This means that the call routing is working correctly,
and the call has found its destination on the gateway that is debugged. If there are no responses, or a nega-
tive response, continue debugging call routing and the destination protocol.
Verify an outgoing call
Make sure that an outgoing call from context CS leaves correctly to the SIP network. The following sequence
shows a working call setup.
unit(cfg)#debug gateway sip error
unit(cfg)#debug gateway sip transport
unit(cfg)#18:59:07 SIP_TR> Sent INVITE sip:60@172.16.32.33 SIP/2.0
18:59:07 SIP_TR> Received SIP/2.0 100 Trying
18:59:07 SIP_TR> Received SIP/2.0 180 Ringing
18:59:10 SIP_TR> Received SIP/2.0 200 OK
18:59:10 SIP_TR> Sent ACK sip:60@172.16.32.33:5060 SIP/2.0
Step Command Purpose
1[node]#debug context sip-gateway data-
path [detail <level>]
Logs information related to the media chan-
nels.
[node]#debug context sip-gateway error
[detail <level>]
Logs all errors detected within the Context SIP
Gateway.
[node]#debug context sip-gateway regis-
tration [detail <level>]
Logs information about user registration activ-
ities.
[node]#debug context sip-gateway sig-
naling [detail <level>]
Logs call signaling related information.
[node]#debug context sip-gateway
transport [detail <level>]
Logs all SIP messages sent or received over
the IP network.
Debugging call signaling 639
SmartWare Software Configuration Guide 52 • VoIP debugging
Explanation:
•The line 18:59:07 SIP_TR> Sent INVITE sip:60@172.16.32.33 SIP/2.0 indicates that the INVITE was
sent. Thus, call routing worked in context CS and the message left to the SIP network.
•18:59:07 SIP_TR > Received SIP/2.0 100 Trying indicate that responses are received from the SIP net-
work. This means that IP connectivity is OK and the remote gateway can be reached. If there are no
responses, or negative ones, continue debugging the remote SIP gateway.
Using SmartWare’s internal call generator
The SmartWare has a powerful internal call generator that creates calls from the center of context CS. It is very
useful to debug call signaling or call routing problems to verify the correct working of one call signaling proto-
col at a time. Calls can be placed towards any interface on context CS, or any routing table within context CS.
Example: Debug ISDN protocol using the call generator. Create a call from context CS to an ISDN interface
called TERMINAL.
unit(cfg)#debug ccisdn signaling
unit(cfg)#debug ccisdn error
unit(cfg)#debug isdn error
unit(cfg)#call 55 dial 50 dest-interface TERMINAL
unit(cfg)#19:17:38 ICC > [TERMINAL] Added endpoint TERMINAL-00df2760
19:17:38 ICC > [TERMINAL] NEW CALL. Allocated Endpoint TERMINAL-00df2760
19:17:38 ICC > [TERMINAL-00df2760] >> SETUP (DSS1 Ntwk)
Bearer capability : speech - CCITT
circuit mode - 64kBit/s - G.711 A-law
Calling party number : 55
unknown number - unknown numbering plan
presentation allowed - user provided not screened
Called party number : 50
unknown number - unknown numbering plan
High layer compatibility : telephony
CCITT
19:17:38 ICC > [TERMINAL-00df2760] Set state to CALL PRESENT
19:17:38 ICC > [TERMINAL-00df2760] State: CALL PRESENT, Event: PEER CONNECTED
19:17:38 ICC > [TERMINAL] << Message: primitive=31
19:17:38 ICC > [TERMINAL-00df2760] << ALERTING (DSS1 Ntwk)
19:17:38 ICC > [TERMINAL-00df2760] State: CALL PRESENT, Event: TERMINAL ALERTING
IND
19:17:38 ICC > [TERMINAL-00df2760] Set state to CALL RECEIVED
19:17:44 ICC > [TERMINAL] << Message: primitive=33
19:17:44 ICC > [TERMINAL-00df2760] << CONNECT (DSS1 Ntwk)
Connected number : 50
unknown number - unknown numbering plan
Command Purpose
call calling-party {accept | alerting |
dial|drop | inband-info | offer-state |
proceeding | reject-all | resume | sus-
pend | user-input } ....
Manipulates calls locally generated from the center
of context CS. To create a call, use “call calling-
party dial called-party”, to manipulate this call
afterwards use the same calling party. See the
examples below for usage.
Debugging voice data 640
SmartWare Software Configuration Guide 52 • VoIP debugging
presentation allowed - user provided not screened
19:17:44 ICC > [TERMINAL-00df2760] State: CALL RECEIVED, Event: TERMINAL CONNECT
IND
19:17:44 ICC > [TERMINAL-00df2760] Set state to ACTIVE
19:17:44 ICC > [TERMINAL-00df2760] >> CONNECT ACKNOWLEDGEMENT (DSS1 Ntwk)
unit(cfg)#
unit(cfg)#call 55 drop
unit(cfg)#19:19:29 ICC > [TERMINAL-00df2760] State: ACTIVE, Event: PEER RELEASED
19:19:29 ICC > [TERMINAL-00df2760] Set state to DISCONNECT INDICATION
19:19:29 ICC > [TERMINAL-00df2760] >> DISCONNECT (DSS1 Ntwk)
Cause : normal call clearing
private network serving local user - CCITT - Q.931
Progress indicator : inband information available
private network serving local user - CCIT
Explanation:
•unit(cfg)#call 55 dial 50 dest-interface TERMINAL: Dial the number 50, which calling-party 55 to
the interface TERMINAL. If a phone connected to the port that binds to interface TERMINAL has MSN
50 configured, it will start to ring. This is the case in our example.
•You just have verified that ISDN layer1–3 and the context CS interface TERMINAL are configured so that
a call with called-party 50 can be handled. If this is not the case (no response or a RELEASE message), con-
tinue debugging ISDN signaling.
•unit(cfg)#call 55 drop: Drops the call initiated with the dial command.
You can proceed as in this example with any other context CS interface, also for VoIP protocols like SIP
and H.323.
Debugging voice data
There are several debug monitors that can help identify problems in VoIP connections. The most common
VoIP problems are: voice quality problems (dropouts), fax transmission errors, no establishment of voice con-
nection, and wrong tone or playback. Dependent on the SmartNode devices, the output of the different Media
Gateway monitors can differ.
An overview of all available Media Gateway debug monitors is given below. Some more specific examples for
debugging cases follow after that.
Overview: Media Gateway debug monitors
[no] debug media-gate-
way dejitter
Displays changes to the settings of the dejitter buffer, exceptions (under-
run, overrun, packet drops) and size changes.
Usage: To investigate problems related to voice quality, voice packet
payload sizes, delays, jitter
[no] debug media-gate-
way control [detail level]
Displays control activities on the Data Path (path of voice/fax data
packets within your unit): State changes, tone start/stop, DTMF play-
back/detection, fax/modem detection.
Usage: To investigate problems with voice connections, DTMF, tone
playback, fax and modem transmissions.
Debugging voice data 641
SmartWare Software Configuration Guide 52 • VoIP debugging
Depending on the type of problem, some debug monitors are more useful than others. Try to avoid enabling all
monitors at the same time, as this generates a lot of output and can degrade system performance. The follow-
ing examples show some typical debug cases and what monitors should be switched on in these cases.
Example: Debugging voice connections
Symptoms: Voice quality is bad (dropouts), the voice connection is only established in one direction or not at
all, there is only noise instead of voice, no tones are played (e.g. dialtone).
Prerequisite: The call is established from a signaling point of view (see chapters Debug H.323 Data and Debug
Session Control Data).
Use the following debug monitors:
Example: Debugging Fax connections
Symptoms: Fax transmission starts but is interrupted and the Fax machines terminate with an error message,
Fax transmission does not start at all, the unit’s firmware does not detect Fax.
[no] debug media-gate-
way rtp
Displays RTP related call parameters at call setup: local/remote IP
address and port, SSRC. During operation, displays periodically
updated statistics containing the number of sent and received packets,
the number of lost packets.
Usage: To verify that RTP packets are sent/received, and to debug net-
work quality issues (lost packets).
[no] debug media-gate-
way switch
Displays control activities on the TDM part of the Data Path.
Usage: To investigate problems with hair pinning or timeslot switching.
[no] debug media-gate-
way dsp
Displays control activities on the DSP including all call parameters (e.g.
the used codec).
Usage: To document the DSP parameters used for each call setup.
[no] debug media-gate-
way fax-data
Traces detected Modem and Fax tones.
Traces the flow of T.30 communication states between the fax machines.
Decodes the IFP (Internet Fax Protocol) elements within T.38 packets.
Displays T.38 related call parameters and operational errors like lost
packets.
Tracks the operation of the dejitter buffer used for T.38 Fax transmis-
sions.
Usage: To investigate problems with T.38 Fax and Modem transmissions in
general.
[no] debug media-gate-
way error
Displays detected errors over all the different parts of the Media Gate-
way.
[no] debug media-gate-
way all
Enables/Disables all Media Gateway monitors
Step Command Purpose
1unit#debug media-gateway rtp Enable the RTP/RTCP debug moni-
tor
2unit#debug media-gateway dejitter Enable the dejitter buffer monitor.
Debugging voice data 642
SmartWare Software Configuration Guide 52 • VoIP debugging
Prerequisite: Fax transmission is configured for T.38 relay in the voip profile. The call is established from a sig-
naling point of view (see section “Debugging voice data” on page 640).
Attention: Special signaling procedures are used for the transition between voice and fax data transmission. It
may be that the initial call setup is correct, but that the signaling to T.38 over H.323 is faulty. The session-con-
trol and H.323 signaling monitors (see Debug Session Control Data, and Debug H.323 Data) might also be
helpful to identify these cases.
Use the following debug monitors if you assume that signaling is OK:
Check system logs
See section “Displaying the system logs” on page 97.
How to submit trouble reports to Patton
Due the wealth of functionality and complexity of the products there remains a certain number of problems,
either pertaining to the Patton product or the interoperability with other vendor's products.
If you have a problem for which you need supplier help please prepare and send the following information:
•Problem description—Add a description of the problem, if possible together with applicable augmented
information with a diagram of the network setup (with Microsoft tools).
•Running configuration and software and hardware version information—With the Command Line Inter-
face commands show running-config and show version you can display the currently active configura-
tion of the system (in a Telnet and/or console session). Adding to the submitted trouble report will help us
analyze the configuration and preclude possible configuration problems.
In the unlikely case of a suspected hardware problem also submit the serial number of your unit(s) and/or
interface cards.
•Event logs—Add the system event logs, which you can display with the Command Line Interface com-
mands show log and show log supervisor. To ensure that the logs are useful, it is necessary to set upon
start up the clock to actual date and time (by hand or by enabling SNTP client)
•Your location—For further enquiries please add your E-mail address and phone number.
If possible, add the following information in addition to the above:
•Logs of protocol monitors—Protocol traces contain a wealth of additional information which may be very
helpful in finding or at least pinpointing the problem. Various protocol monitors with different levels of
detail are an integral part of the firmware and can be started (in a Telnet and/or console session) individually
(debug command).
Note In order to correlate the output of different protocol monitors (e.g. ISDN
signaling and gateway SIP signaling), run the monitors concurrently. You
Step Command Purpose
1unit#debug media-gateway dsp Enable the dsp event monitor.
2unit#debug media-gateway fax-data Enable the Fax/Modem event monitor
3unit#debug media-gateway control Enable the control monitor
Debugging voice data 643
SmartWare Software Configuration Guide 52 • VoIP debugging
can do this either in the same Telnet session, or using different Telnet ses-
sions.
•Network traffic traces—In certain cases it may be helpful to have a trace of the traffic on the IP network in
order to inspect packet contents. Please use one of the following tools (supporting trace file formats which
our tools can read):
-Network Associates Sniffer—Details are available at www.sniffer.com
-TTC Firebird—Details are available at www.ttc.com
-Ethereal—Details are available at www.ethereal.com (freeware)
When possible, submit the package of trouble report files by mail to the following address:
support@patton.com (use fax only in exceptional cases).
644
Appendix A Terms and definitions
Chapter contents
Introduction........................................................................................................................................................645
SmartWare architecture terms and definitions .....................................................................................................645
Introduction 645
SmartWare Software Configuration Guide A • Terms and definitions
Introduction
This chapter contains the terms and their definitions that are used throughout this SmartWare Software Config-
uration Guide. This guide contains many terms that are related to specific networking technologies areas such
as LAN protocols, WAN technologies, routing, Ethernet, and Frame Relay. Moreover various terms are related
to telecommunication areas.
SmartWare architecture terms and definitions
Term or Definition Meaning
Administrator The person who has privileged access to the CLI.
Application Download A application image is downloaded from a remote TFTP server to the per-
sistent memory (flash:) of a SmartNode.
Application Image The binary operation code stored in the persistent memory (flash:) of a
SmartNode.
Batchfile Script file containing instructions to download one or more software com-
ponent from a TFTP server to the persistent memory (flash: or nvram:) of a
SmartNode.
Bootloader The bootloader is a “mini” application performing basic system checks and
starting the application image. The bootloader also provides minimal net-
work services allowing the SmartNode to be accessed and upgraded over
the network even if the application image should not start. The bootloader is
installed in the factory and is in general never upgraded.
Bootloader Image The binary code of the Bootloader stored in the persistent memory (flash:)
of a SmartNode.
Bootstrap The starting-up of a SmartNode, which involves checking the Reset button,
loading and starting the application image, and starting other software
modules, or—if no valid application image is available—the bootloader.
Build The released software is organized as builds. Each build has its unique
identification. A build is part of a release and has software bug fixes. See
also release.
Call Routing Calls through SmartNode can be routed based on a set of routing criteria.
See also Session Router.
Call Signaling The call signaling specifies how to set up a call to the destination Smart-
Node or 3rd party equipment.
Circuit A communication path between two or more devices.
Circuit Port Physical port connected to a switching system or used for circuit switching.
Circuit Switching The switching system in which a dedicated physical circuit path must exist
between the sender and the receiver for the duration of the call. Used in
the conventional telephone network.
Codec Abbreviation for the word construct Coder and Decoder. Voice channels
occupy 64 kbps using PCM (pulse code modulation) coding. Over the
years, compression techniques were developed allowing a reduction in
the required bandwidth while preserving voice quality. Such compression
techniques are implemented within a Codec.
SmartWare architecture terms and definitions 646
SmartWare Software Configuration Guide A • Terms and definitions
Comfort Noise Comfort noise is generated at the remote end of the silent direction to
avoid the impression that the connection is dead. See also Silence Com-
pression.
Command Line Interface An interface that allows the user to interact with the SmartWare operating
system by entering commands and optional arguments. Other operating
systems like UNIX or DOS also provide CLIs.
Configuration Download A configuration file is downloaded from a remote TFTP server via TFTP to
the persistent memory (nvram:) or volatile memory (system:)of a Smart-
Node.
Configuration File The configuration file contains the CLI commands, which are used to con-
figure the SmartNode.
Configuration Server A central server used as a store for configuration files, which are down-
loaded to or uploaded from a SmartNode using TFTP.
Configuration Upload A configuration file is uploaded from the persistent memory (nvram:) or
volatile memory (system:) of a SmartNode via TFTP to a TFTP server.
Context Represents one specific networking technology or protocol, e.g. IP or cir-
cuit switching.
Data Port Physical port connected to a network element or used for data transfer.
Dejitter Buffer The element used to compensate variable network delays. Storing packets
in a dejitter buffer before they are transferred to the local ISDN equip-
ment, e.g. telephone, a variable delay is converted into a fixed delay, giv-
ing voice a better quality. See also Jitter.
Digit Collection Some devices (PBX, ISDN network, remote gateways and gatekeepers)
may require bloc sending of the dialed number. Digit collection collects
the overlap dialed digits and forwards them in a single call setup message
Driver Software Download A driver software image is downloaded from a remote TFTP server to the
persistent memory (flash:) of a SmartNode.
Driver Software Image The software used for peripheral chips on the main board and optional
PMC interface cards is stored in the persistent memory (flash:) of a Smart-
Node.
DTMF Relay DTMF relay solves the problem of DTMF distortion by transporting DTMF
tones over low-bit-rate codecs out-of-band or separate from the encoded
voice stream
Echo Canceller Some voice devices unfortunately have got an echo on their wire. Echo
cancellation provides near-end echo compensation for this device.
Factory Configuration The factory configuration (factory-config) represents the system default set-
tings and is stored in the persistent memory (nvram:) of a SmartNode.
Fast Connect A “normal” call setup with H.323 requires several TCP segments to be
transmitted, because various parameters are negotiated. Since a normal
call setup is often too slow, fast connect is a new method of call setup that
bypasses some usual steps in order to make it faster.
Flash Memory Persistent memory section of a SmartNode containing the Application
Image, Bootloader Image and the driver software Image.
Term or Definition Meaning
SmartWare architecture terms and definitions 647
SmartWare Software Configuration Guide A • Terms and definitions
flash: A region in the persistent memory of a SmartNode. See also flash mem-
ory.
Gatekeeper Gatekeepers manage H.323 zones, which are logical collections of
devices such as all H.323 devices within an IP subnet. For example, gate-
keepers provide address translation (routing) for the devices in their zone.
Gateway A gateway refers to a special purpose component that connects two con-
texts of different types, For example, the CS and the IP context. It handles
connections between different technologies or protocols. SmartWare
includes an H.323 and SIP gateway.
H.323 ITU-T recommendation H.323 describes terminals, equipment and services
for multimedia communication over Local Area Networks (LAN) which do
not provide a guaranteed quality of service. H.323 terminals and equip-
ment may carry real-time voice, data and video, or any combination,
including video telephony.
H.323 RAS H.323 registration authentication service (RAS) is a sub protocol of
H.323. The RAS signaling protocol performs registration, admissions, and
bandwidth changes and disengage procedures between the VoIP gate-
way and the gatekeeper.
High-Pass Filter A high-pass filter is normally used to cancel noises at the voice coder
input. See also post filter
Host Computer system on a network. Similar to node, except that host usually
implies a PC or workstation, whereas node generally applies to any net-
worked system, including access servers and routers. See also node.
Hostname Name given to a computer system, e.g. a PC or workstation.
Hunt Group In SmartNode terminology, a hunt groups allows you to apply the inter-
face configuration to multiple physical ports. Within the hunt groups free
channels for outgoing calls are hunted on all available ports. In general a
hunt group represents a group of trunk lines as used for direct dialing in
(DDI).
Interface An interface is a logical construct that provides higher-layer protocol and
service information. An Interface is configured as a part of a context, and
is independent of a physical port or circuit.
Interface Card An optional plug-in card offering one or more ports of a specific physical
standard for connecting the SmartNode to the outside world.
ISDN Integrated Services Digital Network
ISDN Services ISDN Services comprise voice, data, video and supplementary services.
Supplementary services are services available in the ISDN network, such
as calling line identification presentation (CLIP) or call waiting (CW). See
also Q.SIG
Jitter Jitter is the variation on packets arriving on a SmartNode. See also dejitter
buffer.
Mode The CLI is comprised of modes. There are two basic mode groups, the exe-
cution mode group and the configuration mode group.
Term or Definition Meaning
SmartWare architecture terms and definitions 648
SmartWare Software Configuration Guide A • Terms and definitions
Network Management System System responsible for managing at least part of a network. An NMS is
generally a reasonably powerful and well-equipped computer, such as an
engineering workstation. NMSs communicate with agents to help keep
track of network statistics and resources.
Node Endpoint of a network connection or a junction common to two or more
lines in a network. A Node can be a router, e.g. a SmartNode. Nodes,
which vary in routing and other functional capabilities, can be intercon-
nected. Node sometimes is used generically to refer to any entity that can
access a network, and frequently is used interchangeably with device.
Nodename Name given to a SmartNode or network element.
nvram: Persistent memory section of a SmartNode containing the startup configu-
ration, the factory configuration and used defined configurations.
Operator The person who has limited access to the CLI.
PCI Local Bus The PCI Local Bus is a high performance, 32-bit or 64-bit bus with multi-
plexed address and data lines. The bus is intended for use as an intercon-
nect mechanism between highly integrated peripheral controller
components, peripheral add-in boards, and processor/memory systems.
PCM Highway A 30 channel interface connecting the switching engine with optional
interface cards containing circuit ports.
Port A port represents a physical connector on the SmartNode.
Port Address A port address can be assigned to a CS interface to realize a virtual voice
tunnel between two nodes.
Post Filter The voice decoder output is normally filtered using a perceptual post-filter
to improve voice quality. See also High-Pass Filter.
POTS Plain Old Telephone Service
Profile A profile provides configuration shortcutting. A profile contains specific
settings that can be used on multiple contexts, interfaces or gateways.
PSTN Public Switched Telephone Network. Contains ISDN and POTS
Q.931 Tunneling Q.931 tunneling is able to support ISDN services and Q.SIG over an IP
network.
Q.SIG ISDN Services comprise additional services for the Private ISDN network
such as CNIP (Calling Name Identification Presentation), CNIR (Calling
Name Identification Restriction) etc. See also ISDN Services.
Release A software release describes the main voice and data feature set. It con-
sists of a series of builds.
Routing Engine The routing engine handles the basic IP routing.
Running Configuration The currently running configuration (running-config), which is executed
from the volatile memory (system:).
Session Router Calls through SmartNode can be routed based on a set of routing criteria.
The entity that manages call routing is called Session Router.
Session Initiation Protocol (SIP) Used for setting up communications sessions (such as conferencing, instant
messaging, and telephony) on the Internet
Silence Compression Silence suppression (or compression) detects the silent periods in a phone
conversation and stops the sending of media packets during this periods.
Term or Definition Meaning
SmartWare architecture terms and definitions 649
SmartWare Software Configuration Guide A • Terms and definitions
Startup Configuration The startup configuration is stored in the persistent memory (nvram:) and is
always copied for execution to the running configuration in the volatile
memory (system:) after a system start-up.
Switching Engine Part of the SmartNode hardware which allows software controlled circuit
switching of circuit ports.
System Image A collective term for application images and interface card driver soft-
ware, excluding configuration files.
System Memory The volatile memory, that includes the system: region, holding the running-
config for the SmartWare during operation of a SmartNode.
system: A region in the volatile memory of a SmartNode. See also system mem-
ory.
TFTP Server A central server used for configuration up- and download, download of
application and interface card driver software, that is accessed using
TFTP.
tftp: Identification of a remote storing location used for configuration up- and
download, download of application and interface card driver software,
that is accessed using TFTP.
Term or Definition Meaning
650
Appendix B Mode summary
Chapter contents
Introduction........................................................................................................................................................651
Introduction 651
SmartWare Software Configuration Guide B • Mode summary
Introduction
Figure 1 on page 651, figure 2 on page 652, and figure 3 on page 653 show the configuration mode hierarchy.
Each box contains the mode name, the command to enter in this mode and the mode prompt printed in a Telnet
or console session. The commands are defined in appendix C, “Command summary” on page 654.
Figure 1. Mode overview, 1 of 3
Operator Exec
-
<hostname>
Administrator Exec
<hostname>#
Configure
<hostname>(cfg)#
Execution Modes Configuration Modes
Context CS
[switch]
<host>(ctx-cs)[<name>]#
Contexts and interfaces
<mode name>
<enter command>
<prompt>
Indicates that there could be more
than one instance of this component
Context IP
context ip [router]
<host>(ctx-ip)[<name>]# IP Interface
interface <name>
<host>(if-ip)[<name>]#
DYNDNS
<host>(dyndns)#
Service CFNR
service cfnr <name>
<host>(svc-cfnr)[<name>]#
Service Distribute
service distribution-group <name>
<host>(svc-dist)[<name>]#
Service Hunt-Group
service hunt-group <name>
<host>(svc-hunt)[<name>]#
Interface FXS
interface fxs <name>
<host>(if-fxs)[<name>]#
Interface ISDN
interface isdn <name>
<host>(if-isdn)[<name>]#
Interface H323
interface h323 <name>
<host>(if-h323)[<name>]#
Interface SIP
interface sip <name>
<host>(if-sip)[<name>]#
Complex Function
complex-function <name>
<host>(func)[<name>]#
Precall Service Table
precall-service-table <name>
<host>(pcs-tab)[<name>]#
Mapping Table
mapping-table <name>
<host>(map-tab)[<name>]#
Routing Table
routing-table <name>
<host>(rt-tab)[<name>]#
Introduction 652
SmartWare Software Configuration Guide B • Mode summary
Figure 2. Mode Overview, 2 of 3
Gateway H323IC Voice
<host>(ic-voice)[<slot>]#
Other
<host>(gw-h323)[<name>]#
Radius Client
radius-client <name>
<host>(radius)[<name>]#
Gateway H323
gateway h323 <name>
System
<host>(sys)#
port virtual <slot> <port>
Gateways
<host>(gw-h323)[<name>]#
Gateway SIP
gateway sip <name>
<host>(gw-sip)[<name>]#
Ports
Gateway H323
gateway h323 <name>
Gateway H323
gateway h323 <name>
<host>(gw-h323)[<name>]#
Port Ethernet
port ethernet <slot> <port>
<host>(prt-eth)[<slot>/<port>]#
PPPoE
<host>(pppoe)[<slot>/<port>]#
PPPoE Session
session <session>
<host>(session)[<session>]#
Gateway H323
gateway h323 <name>
Port E1T1 or BRI
port bri<slot> <port>
<host>(prt-bri)[<slot>/<port>]#
Gateway H323Q.921
<host>(q921)[<slot>/<port>]#
Gateway H323
gateway h323 <name>
Q.931
q931
<host>(q931)[<slot>/<port>]#
q921
Gateway H323
gateway h323 <name>
Port FXO
port fxo <slot> <port>
<host>(prt-fxo)[<slot>/<port>]#
Gateway H323
gateway h323 <name>
Port FXS
port fxs <slot> <port>
<host>(prt-fxs)[<slot>/<port>]#
Gateway H323
gateway h323 <name>
Port Serial
port serial <slot> <port>
<host>(prt-ser)[<slot>/<port>]#
Gateway H323Framerelay
<host>(frm-rel)#
Gateway H323
gateway h323 <name>
PVC
pvc <dlci>
<host>(pvc)[<dlci>]#
Gateway H323
gateway h323 <name>
Port Virtual
port virtual <slot> <port>
Subscriber PPP
subscriber ppp <name>
<host>(subscr)[<name>]#
ic voice <slot>
Introduction 653
SmartWare Software Configuration Guide B • Mode summary
Figure 3. Mode Overview, 3 of 3
port ethernet <slot> <port>
port virtual <slot> <port>
Profiles
Profile ACL
profile acl <profile_name>
Gateway H323
gateway h323 <name>
Profile Authentication
profile authentication <name>
<host>(pf-auth)[<name>]#
Gateway H323
gateway h323 <name>
Profile Call-Progress-Tone
profile call-progress-tone <name>
<host>(pf-callp)[<name>]#
Gateway H323
gateway h323 <name>
Profile DHCP Server
profile dhcp-server <name>
<host>(pf-dhcps)[<name>]#
Gateway H323
gateway h323 <name>
Profile IPSEC Manual Policy
profile ipsec-policy-manual <name>
<host>(pf-ipsma)[<name>]#
Gateway H323Profile IPSEC Transform
<host>(pf-ipstr)[<name>]#
Profile NAPT
profile napt <name>
<host>(pf-napt)[<name>]#
Gateway H323
gateway h323 <name>
Profile PPP
profile ppp <name>
<host>(pf-ppp)[<name>]#
Gateway H323
gateway h323 <name>
Profile PSTN
profile pstn <name>
<host>(pf-pstn)[<name>]#
profile ipsec-transform <name>
Gateway H323
gateway h323 <name>
Service CFNR
<host>(svc-cfnr)[<name>]#
service cfnr <name>
Gateway H323
gateway h323 <name>
Profile Service Policy
profile service-policy <none>
<host>(pf-srvlp)[<name>]#
Gateway H323
gateway h323 <name>
Profile Tone-Set
profile tone-set <name>
<host>(pf-tones)[<name>]#
Gateway H323
gateway h323 <name>
Profile VoIP
<host>(pf-voip)[<name>]#
profile voip <name>
Gateway H323Source
<host>(src)[<name>]#
Gateway H323Source
<host>(src)[<name>]#
source policy <name>
source class <name>
654
Appendix C Command summary
Chapter contents
Introduction........................................................................................................................................................655
New Configuration Commands ..........................................................................................................................656
Other...................................................................................................................................................................656
Show help .....................................................................................................................................................656
Show command history ................................................................................................................................656
Restart system ...............................................................................................................................................656
Introduction 655
SmartWare Software Configuration Guide C • Command summary
Introduction
This chapter provides an overview of all CLI commands and modes available. It is organized as follows:
Mode Name
Enter Command
Command 1
…
Exit
Mode Name
…
Several commands contain a lot of parameters and arguments. The command syntax is described as follows:
•Arguments where you must supply the value are surrounded by <angle brackets>.
•Optional arguments within commands are shown in square brackets ([ ])
•Alternative parameters within commands are separated by vertical bars ( | ).
•Alternative but required parameters are shown within grouped braces ({ }) and are separated by vertical bars
( | ).
Command syntax is illustrated by an example in figure 4.
Figure 4. EBNF syntax
param1
param2 <arg>
param 3
Null-Option
Key
Key
Key
Text
Key
Sequence
Option
Sequence
command { param1 | (param2 <arg>)} [ param3 ]
New Configuration Commands 656
SmartWare Software Configuration Guide C • Command summary
New Configuration Commands
The commands documented in the Release Note only cover new additions which are not yet included in the
current revision of the Software Configuration Guide. You may download the release notes at www.pat-
ton.com/support.
Current Revision:
Document Number: 13211U8-001 Rev. D
Part Number: 07MSWR320_SCG
Revised: July 17, 2006
Other
Show help
Show command history
Use CTRL-N and CTRL-P to browse. The cursor keys (up, down) are not working.
Restart system
Step Command Purpose
1 help [topic] Shows command help.
Step Command Purpose
1 history Shows command history.
Step Command Purpose
1 reset Restarts the system.
657
Appendix D Internetworking terms & acronyms
Chapter contents
Abbreviations.......................................................................................................................................................658
Abbreviations 658
SmartWare Software Configuration Guide D • Internetworking terms & acronyms
Abbreviations
Abbreviation Meaning
Numeric
10BaseT Ethernet Physical Medium
A
AAL ATM Adaptive Layer
ABR Available Bit Rate
AC Alternating Current
AOC Advice of Charge
ATM Asynchronous Transfer Mode
audio 3.1 ISDN Audio Service up to 3.1 kHz
audio 7.2 ISDN Audio Service up to 7.2 kHz
B
BRA Basic Rate Access
BRI Basic Rate Interface
C
CAC Carrier Access Code
CBR Constant Bit Rate
CD ROM Compact Disc Read Only Memory
CDR Call Detail Record
CFP Call Forwarding Procedure
CLEC Competitive Local Exchange Carriers
CLI Command Line Interface
CLIP Calling Line Identification Presentation
CO Central Office
CPE Customer Premises Equipment
CPU Central Processor Unit
CRC32 32 bit Cyclic Redundancy Check
D
DC Direct Current
DDI Direct Dialing In number
DHCP Dynamic Host Configuration Protocol
DLCI Data Link Connection Identifier
DSL Digital Subscriber Line
DSLAM Digital Subscriber Line Access Multiplexor
DSP Digital Signal Processor
DTMF Dual Tone Multi-frequency
E
E1 Transmission Standard at 2.048 Mb/s
Abbreviations 659
SmartWare Software Configuration Guide D • Internetworking terms & acronyms
E-DSS1 ETSI Euro ISDN Standard
EFS Embedded File System
ET Exchange Termination
ETH Ethernet
F
FAQ Frequently Asked Questions
FCC Federal Communication Commission
FR Frame Relay
G
G.711 ITU-T Voice encoding standard
G.723 ITU-T Voice compression standard
GUI Graphic User Interface
GW Gateway
H
H.323 ITU-T Voice over IP Standard
HFC Hybrid Fiber Coax
HTTP HyperText Transport Protocol
HW Hardware
I
IAD Integrated Access Device
ICMP Internet Control Message Protocol
ILEC Incumbent Local Exchange Carriers
IP Internet Protocol
ISDN Integrated Services Digital Network
ISDN NT ISDN Network Termination
ISDN S ISDN S(ubscriber Line) Interface
ISDN T ISDN T(runk Line) Interface
ISDN TE ISDN Network Terminal Mode
ITC Information Transfer Bearer Capability
L
L2TP Layer Two Tunneling Protocol
LAN Local Area Network
LCR Least Cost Routing
LDAP Lightweight Directory Access Protocol
LE Local Exchange
LED Light Emitting Diode
LT Line Termination
M
MIB II Management Information Base II
Abbreviation Meaning
Abbreviations 660
SmartWare Software Configuration Guide D • Internetworking terms & acronyms
Modem Modulator – Demodulator
MSN Multiple Subscriber Number
N
NAPT Network Address Port Translation
NAT Network Address Translation
NIC Network Interface Card
NT Network Termination
NT1 Network Termination 1
NT2 Network Termination 2
NT2ab Network Termination with 2a/b Connections
O
OEM Original Equipment Manufacturer
OSF Open Software Foundation
OSPF Open Shortest Path First
P
PBR Policy Based Routing (principles)
PBX Private Branch Exchange
PC Personal Computer
PMC Production Technology Management Commit-tee
POP Point of Presence
POTS Plain Old Telephony Service
PRA Primary Rate Access
PRI Primary Rate Interface
PSTN Public Switched Telephone Network
pt-mpt point-to-multi point
pt-pt point-to-point
PVC Permanent Virtual Circuit
pwd Password
PWR Power
Q
QoS Quality of Service
R
RIPv1 Routing Information Protocol Version 1
RIPv2 Routing Information Protocol Version 2
RJ-45 Western Connector Type
RTM Route Table Manager
RTP Real-time Protocol
S
S1 node-connection for Trunk Line
Abbreviation Meaning
Abbreviations 661
SmartWare Software Configuration Guide D • Internetworking terms & acronyms
S2 node-connection for Subscriber Line
SAR Segmentation and Reassembly
S-Bus Subscriber Line (Connection) Bus
SCN Switched Circuit Network
SCTP Stream Control Transmission Protocol
SDSL Symmetric Digital Subscriber Line
SGCP Simple Gateway Control Protocol
SIP Session Initiation Protocol.
SME Small and Medium Enterprises
SNMP Simple Network Management Protocol
SOHO Small Office Home Office
SONET Synchronous Optical Network
SS7 Signaling System No. 7
STM SDH Transmission at 155 Mb/s
SVC Switched Virtual Circuit
SW Software
T
TCP/IP Transport Control Protocol/Internet Protocol
TE Terminal Equipment
TFTP Trivial File Transfer Protocol
U
UBR Unspecified Bit Rate
UD 64 Unrestricted Data 64 kb/s
UDP User Datagram Protocol
V
VBR Variable Bit Rate
VCI Virtual Channel Identifier
VoIP Voice over Internet Protocol
VPI Virtual Path Identifier
W
WAN Wide Area Network
Abbreviation Meaning
662
Appendix E Used IP ports & available voice
codecs
Chapter contents
Used IP ports ......................................................................................................................................................663
Available voice codecs .........................................................................................................................................664
Used IP ports 663
SmartWare Software Configuration Guide E • Used IP ports & available voice codecs
Used IP ports
Component Port Description
H.323 UDP 1719 RAS for gatekeeper connection
TCP 1720 Call signaling port for H.323 (adjustable)
UDP 4864…5118 (even numbers) Voice data (RTP)
UDP 4865…5119 (odd numbers) Voice statistics (RTCP)
SIP UDP 5060 Call signaling port for SIP (configurable)
TCP 5060 Call signaling port for SIP (configurable)
UDP 4864…5118 (even numbers) Voice data (RTP)
UDP 4865…5119 (odd numbers) Voice statistics (RTCP)
NAPT TCP 8000-15999 NAPT port range
Telnet TCP 23 TCP server port
Webserver TCP 80 TCP server port
DHCP UDP 67 Source port DHCP Server
UDP 68 Source port DHCP Client
TFTP UDP 69 Control port of the TFTP Server (accessed by the
TFTP Client in the SmartNode)
Available voice codecs 664
SmartWare Software Configuration Guide E • Used IP ports & available voice codecs
Available voice codecs
Protocol Codec
Net Band-
width per
Call (kbps)
Min.
Compression
Delay (ms)
Used Band-
width per
Call (kbps,
incl. IP
header)
Usage
H.323
& SIP
G.711 A-law 64 10 96 Uncompressed, best voice qual-
ity, European audio-digitizing
G.711 U-law 64 10 96 Uncompressed, best voice qual-
ity, American audio-digitizing
G.723.1 6.3 30 17 Good voice quality at lowest
bandwidth, like analog phone,
acceptable delay
G.729/
G.729a
8 10 40 Best relationship between voice
quality and used bandwidth,
low delay
Transparent 64 10 96 Transparent ISDN data, no
echo cancellation
G.726 16, 24, 32, 40 20 32, 40, 48, 56 The G.726 is an ADPCM based
codec, with small memory foot-
print but fairly high CPU time
requirements. Also available in
Cisco compatible mode.
G.727 16, 24, 32 20 32, 40, 48 Embedded ADPCM. See also
G.726.
T.38 Variable This is a fax codec, not a
voice codec.
