Paxton Access 353110 353-110-US Proximity P50 Reader User Manual
Paxton Access Ltd 353-110-US Proximity P50 Reader
User manual
Ins-30002-US PROXIMITY P series reader
Reader covers
Additional covers are available in black, white, grey, blue and silver. Registered installers can order these free of
charge by logging onto the secure installer extranet: https://extranet.paxton-access.co.uk/index.asp
If you are not a registered installer please call us on +44 (0)845 838 1716 for more information.
Fitting
24/11/2006
Technical Support
Technical help is available Monday - Friday from 07:00 - 19:00 (GMT).
Other documentation on Net2 can be found on our web site - http://www.paxton-access.co.uk/
+44(0)845 8381716 support@paxton-access.co.uk
Suitability
Mounted on metal surface
Security sensitive doors
Wet environments
Readers mounted together between readers
500mm
Wiring
Cable extensions
Readers can be extended using Belden CR9540 10-core overall screened cable. The maximum cable length
between reader and control unit is 100m.
Serial number
241821
Test ID: 012345678901
z-1440
witch
2
S
CAUTION
Serial number
241821
Test ID: 012345678901
z-1440
witch
2
S

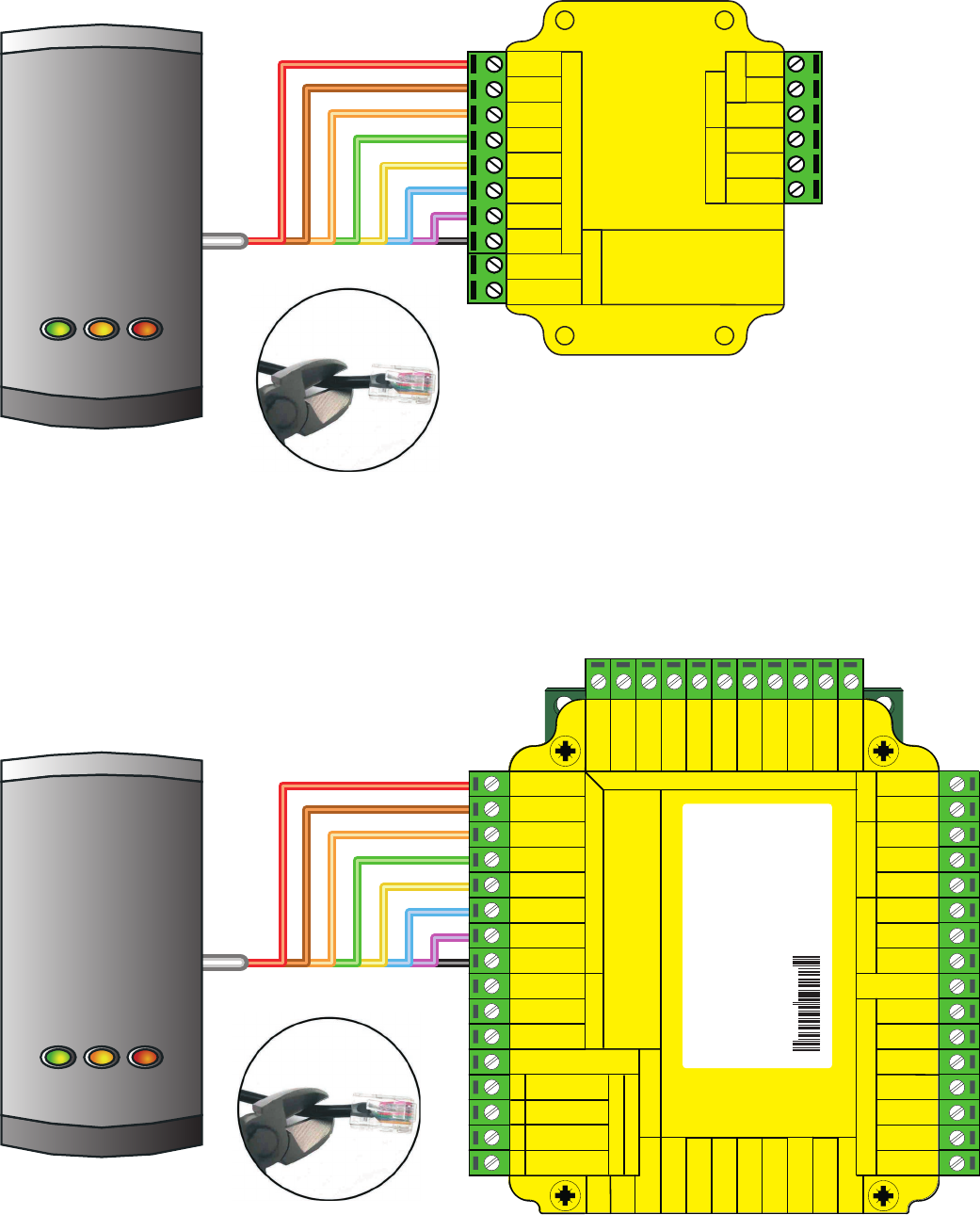

Screw connector wiring
Specifications
Dimensions
PROXIMITY P38 reader 38 w 78 h 12.5 d mm
PROXIMITY P50 reader 50 w 100 h 15 d mm
PROXIMITY P75 reader 75 w 143 h 16 d mm
Cable length 5 m
Electrical
Operating voltage 8 min 12 typ 14 max V DC
Carrier frequency 125 kHz
Clock & data bit period 600 µs
Operating temperature -20 min 70 max deg C
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
