Paxton Access 355110 355-110-US Proximity KP50 Keypad User Manual

Paxton Access Ltd 355-110-US Proximity KP50 Keypad

User manual

Ins-30004-US PROXIMITY KP series keypad
Suitability
Keypad bezels
Additional bezels are available in black, white, grey, blue and silver. Registered installers can order these free of
charge by logging onto the secure installer extranet: https://extranet.paxton-access.co.uk/index.asp
If you are not a registered installer please call us on +44 (0)845 838 176 for more information

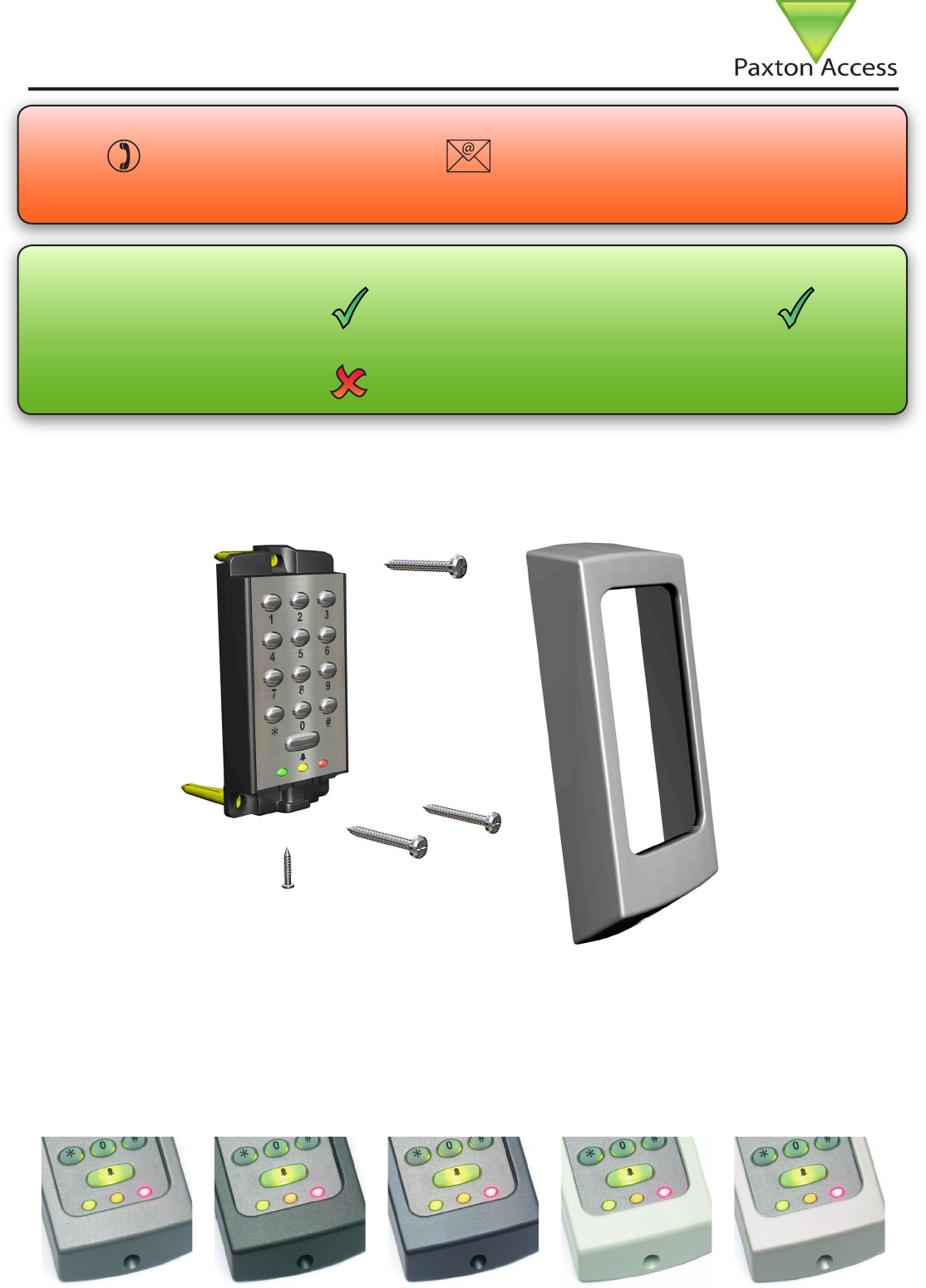

Fitting
24/11/2006
Security sensitive doors Wet environments
Readers mounted together
Mounted on metal surface
Technical Support
Technical help is available Monday - Friday from 07:00 - 19:00 (GMT).
Other documentation on Net2 can be found on our web site - http://www.paxton-access.co.uk/
+44 (0)845 8381716 support@paxton-access.co.uk
between readers
500mm
Wiring
The keypads in the K series range, including the stainless steel and KP versions, can only be used with Switch2
controllers fitted with yellow wiring labels. Earlier versions of the Switch2 are incompatible with these products.
Cable extensions
Readers can be extended using Belden CR9540 10-core overall screened cable. The maximum cable length
between reader and control unit is 100m.




















witch
2
S



CAUTION


123
456
789
0#
*
When using the K series keypads with Net2 the software version used must be v3.21 or later. Before this version
the K series keypads were not supported by Net2.































































Serial number
241821
Test ID: 012345678901
z-1440
         
123
456
789
0#
*


































































Serial number
241821
Test ID: 012345678901
z-1440
         
123
456
789
0#
*
Specifications
Dimensions
TOUCHLOCK K50 keypad 50 w 100 h 15 d mm
TOUCHLOCK K75 keypad 75 w 143 h 16 d mm
Cable length 5 m
Electrical
Operating voltage 8 min 12 typ 14 max V DC
Carrier frequency 125 kHz
Clock & data bit period 600 µs
Operating temperature -20 min 70 max deg C
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
