Paxton Access Ltd 568-855-US Proximity Vandal Proof Reader

User manual

Technical Support
Technical help is available Monday - Friday from 07:00 - 19:00.
Other documentation on Net2 can be found on our web site - http://www.paxton-access.co.uk/
+44(0)845 8381716 support@paxton-access.co.uk

Ins-138-US PROXIMITY vandal proof reader
Suitability

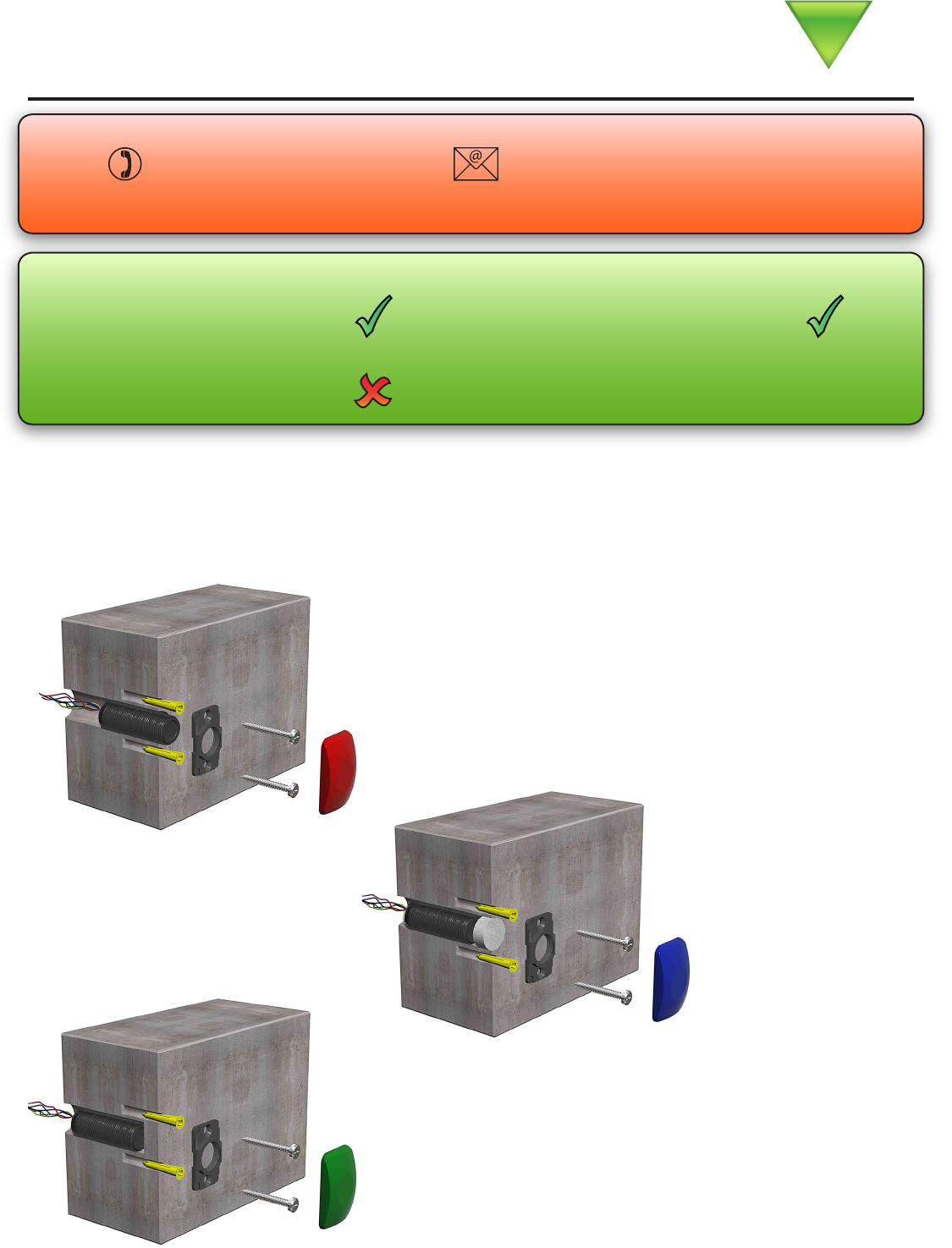

Fitting
Open hole - medium vandal resistance
Blind hole - very high vandal resistance
Cement plug - high
vandal resistance
28/11/2006
Security sensitive doors Wet environments
Mounted on metal surface Readers mounted together between readers
500mm

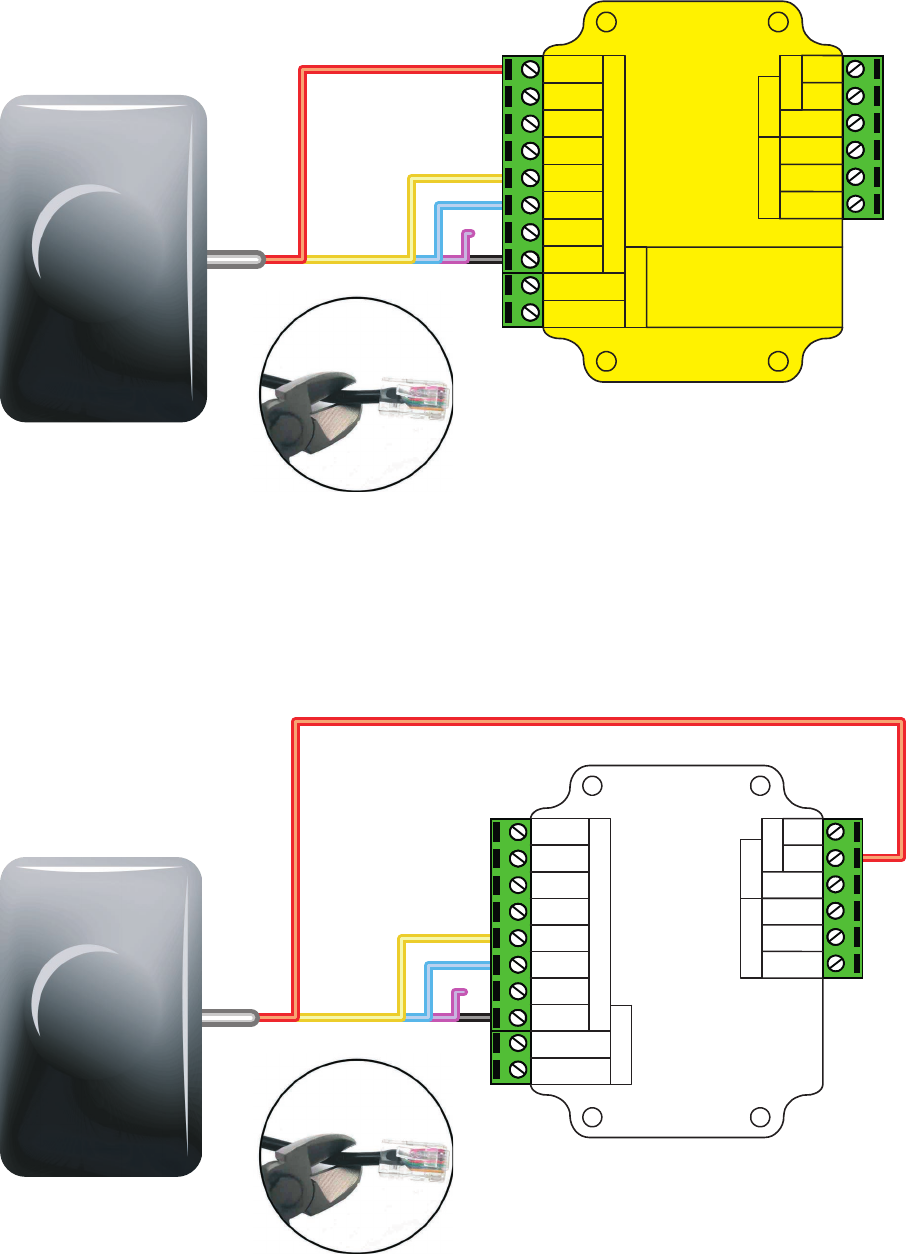

Wiring
Cable extensions


































































Serial number
241821
Test ID: 012345678901
z-1440
         































































Serial number
241821
Test ID: 012345678901
z-1440
         
Readers can be extended using Belden CR9540 10-core overall screened cable. The maximum cable length
between reader and control unit is 100m.




















witch
2
S



CAUTION






















witch
2
S



FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Specifications
Vandal proof reader - tube 19 dia 60 d mm
Vandal proof reader - cover cap 48 h 30 w mm
Panel mounting studs - position (in a square around
the center of the reader) 49 mm
Electrical
Operating voltage 9 12 14 V d.c.
Current consumption 50 min 120 max mA
Carrier frequency 125 kHz
Clock & data bit period 600 us
Product specific information
Water resistance IPX7
Vandal resistance Very high
Max read range: cards 100 mm
Max read range: keyfobs 55 mm
Security High
Width 30 mm
Height 48 mm
Depth 9 mm
Diameter 19 mm
Length 59 mm
Cable type - for extension Belden 8 core
CR9538
Max cable extension from control unit 100 m
Cable length 5 m
Token reads Not limited
