Mace Security User Manual
PAGE 1
Ins-50129-MS Mace Security proximity reader
Technical Support
Technical help is available: Monday - Friday 9am to 7pm (EST)
877-585-6223 support@mace.com
Fitting
Documentation on all Mace Security Products can be found on our web site - http://www.macepro.com/
Readers mounted together between
readers
12 inches
Mounted on metal surface
Suitability
Security sensitive doors
Wet environments
Security Products
08/01/2009
PAGE 2
-35 °C (-31 °F ) +66 °C (+151 °F )
9V DC 14V DC
150 mA
125 kHz
1 ms
1
3/8 inch 3 1/2 inch 1 inch
EM4100 2 inch 1 1/2 inch 1 1/2 inch
Cable extensions
Readers can be extended using Belden CR9540 10-core overall screened cable. The maximum length is 100 yards.

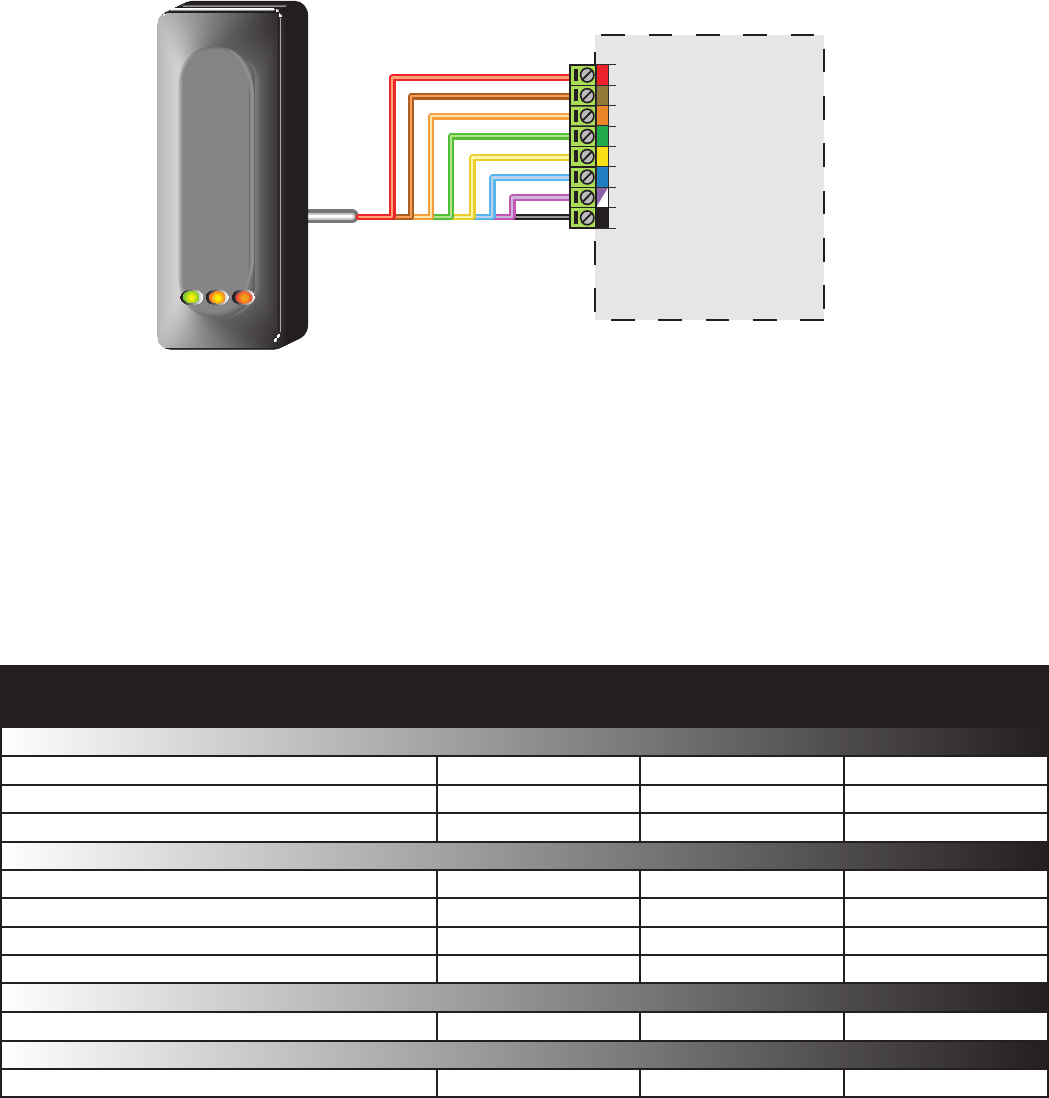

Wiring
Voltage
Clock and data bit period
Carrier frequency
Specications
Operating temperatures - all items
Electrical
Environment
Dimensions
Min Max
Width Height Depth
Current
Cable length
Read Range Prox disk
Minifob ISO Card
Waterproof
Min Max
Connection to a control
unit reader port
3 yards
Yes - Rated IPX7
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Changes or modications not expressly
approved by the party responsible for compliance could void the user’s authority to operate the equipment.
