5U000201C0A REV.00
User Guide
Guía del Usuario
USER GUIDE
OM8990VW
User Guide
OM8990VW
090610_WP8990_Zephyer.indd 1090610_WP8990_Zephyer.indd 1 2009.6.11 2:57:8 PM2009.6.11 2:57:8 PM
CHAPTER 1. BEFORE USING
BEFORE USING ................................................................................ 6
INSIDE THE PACKAGE .................................................................... 6
HANDSET DESCRIPTIONS .............................................................. 7
DISPLAY INDICATORS .................................................................... 9
INSTALLING THE BATTERY ........................................................... 12
REMOVING THE BATTERY ............................................................ 12
CHARGING YOUR BATTERY .......................................................... 13
BATTERY HANDLING INFORMATION ............................................. 13
INSTALLING A SIM CARD ........................................................... 14
REMOVING A SIM CARD ............................................................. 15
CHAPTER 2. BASIC OPERATION
BASIC OPERATION ......................................................................... 18
TURNING THE PHONE ON/OFF ..................................................... 18
ACCESSING THE MENU ................................................................ 18
MENU SUMMARY ....................................................................... 19
MAKING A CALL ......................................................................... 22
ANSWERING CALLS .................................................................... 22
ENDING A CALL .......................................................................... 22
MISSED CALL NOTIFICATION ........................................................ 22
WAIT/PAUSE .............................................................................. 22
MAKING CALLS OUTSIDE OF THE U.S. ........................................... 23
3 WAY CALLING .......................................................................... 24
CALL WAITING ........................................................................... 24
CALLING A NUMBER FROM CONTACTS .......................................... 24
ADJUSTING THE VOLUME ............................................................ 24
CALLER ID .................................................................................. 25
TURNING VIBRATE MODE ON OR OFF ........................................... 25
SPEAKERPHONE ......................................................................... 25
AVAILABLE OPTIONS DURING A CALL ........................................ 25
MAKING AN EMERGENCY CALL .................................................... 26
CHAPTER 3. MEMORY FUNCTION
MEMORY FUNCTION ...................................................................... 28
STORING A PHONE NUMBER ....................................................... 28
ENTERING LETTERS, NUMBERS & SYMBOLS ................................. 32
ONE, TWO, THREE TOUCH DIALING ............................................... 34
CHAPTER 4. MENU FUNCTION
CONTACTS .................................................................................... 36
NEW CONTACT ........................................................................... 36
2
Table of Contents
ContentsContents
CONTACT LIST ............................................................................ 36
BACKUP ASSISTANT .................................................................... 36
GROUPS .................................................................................... 36
SPEED DIALS .............................................................................. 38
IN CASE OF EMERGENCY ............................................................. 39
MY NAME CARD ......................................................................... 41
RECENT CALLS.............................................................................. 42
RECENT CALLS............................................................................ 42
MISSED ..................................................................................... 42
RECEIVED .................................................................................. 43
DIALED ...................................................................................... 43
BLOCKED ................................................................................... 44
ALL ........................................................................................... 44
VIEW TIMERS ............................................................................. 45
SETTINGS ..................................................................................... 45
BLUETOOTH ............................................................................... 45
SOUNDS SETTINGS ..................................................................... 48
DISPLAY SETTINGS ..................................................................... 51
PHONE SETTINGS ....................................................................... 57
CALL SETTINGS .......................................................................... 65
MEMORY ................................................................................... 67
PHONE INFO .............................................................................. 68
SIM INFO ................................................................................... 69
SET UP WIZARD.......................................................................... 69
VOICE TOOLS ................................................................................ 70
VOICE COMMANDS ..................................................................... 70
TOOLS .......................................................................................... 75
CALCULATOR .............................................................................. 75
TIP CALCULATOR ........................................................................ 76
CALENDAR ................................................................................. 76
ALARM CLOCK ............................................................................ 78
STOP WATCH .............................................................................. 79
WORLD CLOCK ........................................................................... 80
UNIT CONVERTER ....................................................................... 80
NOTEPAD ................................................................................... 81
MY VERIZON................................................................................. 82
MY VERIZON .............................................................................. 82
CHAPTER 5. MEDIA CENTER
MEDIA CENTER .............................................................................. 84
TUNES & TONES ......................................................................... 84
PICTURES .................................................................................. 86
GAMES ...................................................................................... 88
MOBILE WEB ............................................................................. 89
Table of Contents
3
ContentsContents
090610_WP8990_Zephyer.indd 2-3090610_WP8990_Zephyer.indd 2-3 2009.6.11 2:57:9 PM2009.6.11 2:57:9 PM
BEFORE USING
CHAPTER 1
BEFORE USING
This chapter provides important information about using your
handset.
Inside the package
Handset descriptions
Display indicators
Installing the battery
Removing the battery
Charging your battery
Battery handling information
Installing a SIM card
BROWSE & DOWNLOAD .............................................................. 90
EXTRAS ..................................................................................... 91
MEDIA CENTER INFO ................................................................... 91
VZ NAVIGATOR ........................................................................... 91
CHAPTER 6. MESSAGING MENU
MESSAGING .................................................................................. 94
WHEN A NEW MESSAGE ARRIVES ................................................ 94
NEW MESSAGE ........................................................................... 94
INBOX ....................................................................................... 97
SENT ......................................................................................... 97
MESSAGES ................................................................................. 98
DRAFTS ..................................................................................... 98
VOICEMAIL ................................................................................ 98
MOBILE IM ................................................................................ 99
EMAIL ....................................................................................... 99
CHAT ......................................................................................... 99
ERASE MESSAGES ......................................................................100
SETTINGS .................................................................................100
CHAPTER 7. SAFETY AND WARRANTY
SAFETY ........................................................................................104
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES ..........104
SAFETY INFORMATION FOR FCC RF EXPOSURE .............................107
SAR INFORMATION ....................................................................107
HEARING AID COMPATIBILITY HAC FOR WIRELESS
TELECOMMUNICATIONS DEVICES..............................................108
FDA CONSUMER UPDATE ............................................................109
AVOID POTENTIAL HEARING LOSS. ..............................................114
FCC COMPLIANCE INFORMATION ................................................115
CTIA BATERY CERTIFICATION REQUIREMENTS ...........................116
WARRANTY ..................................................................................117
12 MONTH LIMITED WARRANTY .................................................117
INDEX ..........................................................................................119
ContentsContents
4
Table of Contents
090610_WP8990_Zephyer.indd 4-5090610_WP8990_Zephyer.indd 4-5 2009.6.11 2:57:10 PM2009.6.11 2:57:10 PM

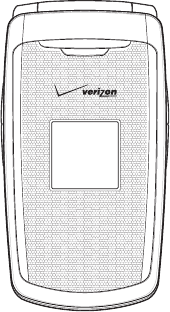

HANDSET DESCRIPTIONS
6
Chapter 1 − Before Using
Before UsingBefore Using
Before Using − Chapter 1
7
Before UsingBefore Using
1. Earpiece: Allows you to hear the other caller.
2. Main Display Screen: Displays all the information
needed to operate your phone.
3. [ ] Directional Key: Allows you to scroll
through phone menu options and provides a shortcut
to phone functions from idle mode.
4. [ ] Left Soft Key: Press to access the Message
menu or access the function listed above the key.
5. [ ] Speakerphone Key: With the flip open,
press to turn speakerphone on or off.
6. [ ] SEND Key: Press to make or receive a call. In
idle mode, press to access the ALL CALLS list.
7. [ ] Voicemail Key: In idle mode, press and
hold to automatically connect to your voicemail
server.
8. [ ] Shift Key: Press to enter an asterisk (*)
character for calling features. In text entry mode,
press to change the character input type. Press and
hold to display the plus sign (+) for international
dialing.
9. Microphone: Allows the other caller to hear you.
10. [ ] Vibrate Mode Key: Press and hold to
activate/deactivate vibrate mode in idle mode.
Press to enter the (#) character for calling features.
In text entry mode, press to accept the word in
T9 Word Mode or to add a space.
11. [ ] CLR Key: Press to clear a character from
the display. Press and hold to clear all characters.
Within a menu, press to return to the previous
menu.
12. [ ] END/PWR Key: Press and hold to turn the
phone on/off or press to end a call or browser
session. Within a menu, press to return to idle mode.
13. [ ] New TXT Message Key: With the flip
open, press to access the NEW TXT MESSAGE
menu.
14. [ ] Right Soft Key: Press to access Contacts
in idle mode or access the function listed above
the key.
15. [ ] OK Key: Press to access the MENU from
idle mode. It also allows you to accept choices when
navigating through a menu.
13
12
11
10
9
14
15
1
2
4
3
5
6
7
8
INSIDE THE PACKAGE
This package should include all items pictured below. If any are missing or different, immediately contact the retailer where you
purchased the phone.
Wall Charger
QRG
(Quick Reference Guide)
PSW
(Product Safety and
Warranty Information)
PRODUCT SAFETY
AND WARRANTY
INFORMATION
Handset
Battery Cover
Standard Battery 3 International Power
Plug Adapters
SIM Card
(Pre-installed)
Global Support Kit
090610_WP8990_Zephyer.indd 6-7090610_WP8990_Zephyer.indd 6-7 2009.6.11 2:57:12 PM2009.6.11 2:57:12 PM
8
Chapter 1 − Before Using
Before UsingBefore Using
Before Using − Chapter 1
9
Before UsingBefore Using
DISPLAY INDICATORS
Main Indicator Icons
1X Signal Strength: 1X service is available.
D Signal Strength: Digital service is available.
GSM Signal Strength: GSM service is available.
GPRS Signal Strength: GPRS service is available.
Airplane Mode: Transmitting and receiving information is restricted.
Roaming: The phone is outside of the home service area.
SSL (Secured Socket Layer): Indicates that secure communication
between client and server has been established during data
communication using encryption.
Voice Privacy: Indicates Voice Privacy mode is active.
Data Call: Data Session is in progress.
Dormant: Phone is in a dormant state during a data call. Phone reverts
to Dormant mode when there hasn’t been activity on a page for some
time. The connection is still active and you can make and receive calls.
No Service: Phone cannot receive a signal from the system.
Main Indicator Icons
TTY: TTY mode is active.
Voice Call: A call is in progress.
* No icon indicates the phone is in idle mode.
GPS E911 Icon: Location Service of your phone is E911.
GPS Location On Icon: Location Service of your phone is Location On.
Bluetooth: Indicates Bluetooth mode.
Bluetooth Active: Indicates Bluetooth Active mode.
Bluetooth Connected: Indicates a Bluetooth Device is connected.
Battery Level: Battery charging level - the more blocks, the stronger
the charge.
AVR Active: AVR mode is active.
AVR Listening: Indicates AVR listening.
16. External Speaker: Allows you to listen to music, sounds or ringtones.
17. Front Display Screen: Displays incoming calls, messages, signal, battery strength, time
and date.
18. Wrist Strap Eyelet: Accessory eyelet (optional straps and lanyards - sold separately).
19. Camera: Built-in camera lens.
20. Sim Card Slot: Allows you to insert a SIM card. The SIM Card comes pre-installed in the
device (located under the battery).
21. 2.5mm Headset Jack: Allows you to plug in an optional headset for convenient, hands-
free conversations.
22. [ / ] Volume Keys: Press to adjust the master volume in idle mode or adjust the voice
volume during a call.
23. [ ] Camera Key: Press and hold to access the built-in camera.
24. [ ] Voice Commands Key: Press for quick access to Voice Commands.
25. Charging / Data Jack: Plug in a wall charger or USB cable (USB cable sold separately).
1918
20
16
17
23
18
25
24
21
22
090610_WP8990_Zephyer.indd 8-9090610_WP8990_Zephyer.indd 8-9 2009.6.11 2:57:14 PM2009.6.11 2:57:14 PM
Main Indicator Icons
SIM Card: Indicates SIM Card memory in use.
All Sounds Off: All sounds are set to off.
Alarm Only: Phone will alert you only with an alarm alert.
Vibrate Only: Phone will vibrate when call is received.
Speakerphone: Speakerphone mode is active.
Missed Calls: Indicates you have missed calls.
Message: Indicates you have a new message.
Calendar Appointment: Event Alarm is active.
Voicemail: Indicates you have voicemail messages.
Alarm On: Appears when an alarm is set.
DST: DST (Daylight Saving Time) is active.
Recent Call Icons
Dialed Call Missed Call
Received Call
New Contact Icons
Mobile1 Ringtone
Mobile2 FAX
Home Speed Dial
Work Voice Dial
Email 1 Address
Email 2 WL Messenger
Group AIM
Picture Yahoo!
10
Chapter 1 − Before Using
Before UsingBefore Using
Message Icons
New/Unread Message Priority
Opened/Read Message Unopened Message
Notification
Unread EMS Opened Download
Picture Message
Read EMS Corrupt Message
Message Delivered Pending Message
Send
Incomplete Delivery Unread MMS
Sent Message,
Delivery Failed Read MMS
Message Locked Sent Message
Text Message Draft Message Delivered
Picture Message Draft Unread WAP Push
Message Icons
Read WAP Push Multiple Message
Pending
Multiple Message
Delivered
Multiple SMS/
MMS Ack
Multiple Message
Failed IM Screen
Multiple Message
Incomplete
Before Using − Chapter 1
11
Before UsingBefore Using
090610_WP8990_Zephyer.indd 10-11090610_WP8990_Zephyer.indd 10-11 2009.6.11 2:57:16 PM2009.6.11 2:57:16 PM
INSTALLING THE BATTERY
1. Push down on top of the battery cover and slide it off to remove.
2. Slide the battery into the slot (1) by aligning the contacts located at
the top of the unit and press (2) until you hear the “click”.
3. Align the cover tabs with the slots on the back of the device and slide
the battery cover onto the unit.
If the battery is not correctly placed in the compartment, the handset will not turn on
and/or the battery may detach during use.
REMOVING THE BATTERY
1. To remove the battery cover, push down on top of the battery cover
and slide it off of the unit.
2. Push the bottom of battery upwards while inserting your finger into
the slot (1) and remove the battery.
3. Align the cover tabs with the slots on the back of the device and slide
the battery cover onto the unit.
12
Chapter 1 − Before Using
Before UsingBefore Using
CHARGING YOUR BATTERY
1. To charge, open the Charging/Data Jack
cover, and connect the wall charger.
Make sure you align the wall charger
as shown in the image. If not it will
damage the charging connector on the
phone and will not charge.
2. Plug the other end into a standard outlet.
3. To remove the wall charger, press the
charger’s side buttons (1) and pull the
charger from the device (2).
•
When you charge the battery with the phone power off, you will see a charging status
screen. You cannot operate the phone until it is powered on.
•
The battery is not fully charged at the time of purchase. Fully charge the battery
before use.
•
It is more efficient to charge the battery with the handset powered off.
•
Battery operating time gradually decreases over time.
•
If the battery fails to perform normally, you may need to replace the battery.
When you charge the battery beside the state, you can use INTERNATIONAL POWER
PLUGS of Europe, Australia or UK/Hong Kong.
BATTERY HANDLING INFORMATION
DO’S
•
Only use the battery and charger approved for use with this device.
•
Only use the battery for its original purpose.
•
Try to keep batteries in a temperature between 41 °F (5 °C) and 95 °F (35 °C).
If the battery is stored in temperatures above or below the recommended range,
give it time to warm up or cool down before using.
•
Store the discharged battery in a cool, dark and dry place.
•
Purchase a new battery when operating time gradually decreases after fully
charging.
•
Properly dispose of the battery according to local laws.
Before Using − Chapter 1
13
Before UsingBefore Using
CORRECT INCORRECT
090610_WP8990_Zephyer.indd 12-13090610_WP8990_Zephyer.indd 12-13 2009.6.11 2:57:20 PM2009.6.11 2:57:20 PM
DON’TS
•
Don’t attempt to disassemble the battery. It is a sealed unit with no serviceable
parts.
•
Don’t accidentally short circuit the battery by carrying it in your pocket or purse
with other metallic objects such as coins, clips and pens. This may critically
damage the battery.
•
Don’t leave the battery in extremely hot or cold temperatures. Otherwise, it could
significantly reduce the capacity and lifetime of the battery.
•
Don’t dispose of the battery by placing into a fire.
INSTALLING A SIM CARD
Your wireless device comes with a SIM card installed which along with a
Global Feature on your account, enables you to make calls and access email in
GSM Networks while traveling overseas. Should your SIM card be lost or
damaged, please follow these instructions for the installation of your new SIM.
•
If your SIM card is lost or damaged within the United States, please dial *611 from
your device or 1.800.922.0204 to speak with a Customer Service Representative. From
outside of the United States dial +1- 908-559-4899.
•
Do not bend or scratch your SIM card. Avoid exposing your SIM card to static
electricity, water or dirt.
•
The SIM Card is pre-installed in your phone.
1. Remove the battery cover from the back of the unit.
2. Push the bottom of battery upwards while inserting your finger into
the slot (1) and remove the battery.
3. Make sure the gold contacts of the SIM card are face down, then slide
the SIM card completely into the socket.
14
Chapter 1 − Before Using
Before UsingBefore Using
4. Slide the battery (1) into the slot by aligning the contacts located at
the top of the unit and press (2) until you hear it “click”.
5. Align the cover tabs with the slots on the back of the device and slide
the battery cover onto the unit.
REMOVING A SIM CARD
1. Remove the battery cover by pushing down on top of the battery
cover and sliding it off of the unit.
2. Push the bottom of battery upwards while inserting your finger into
the slot (1) and remove the battery.
3. Remove the SIM card from the SIM card slot.
4. Slide the battery (1) into the slot by aligning the contacts located at
the top of the unit and press (2) until you hear it “click”.
Before Using − Chapter 1
15
Before UsingBefore Using
090610_WP8990_Zephyer.indd 14-15090610_WP8990_Zephyer.indd 14-15 2009.6.11 2:57:21 PM2009.6.11 2:57:21 PM

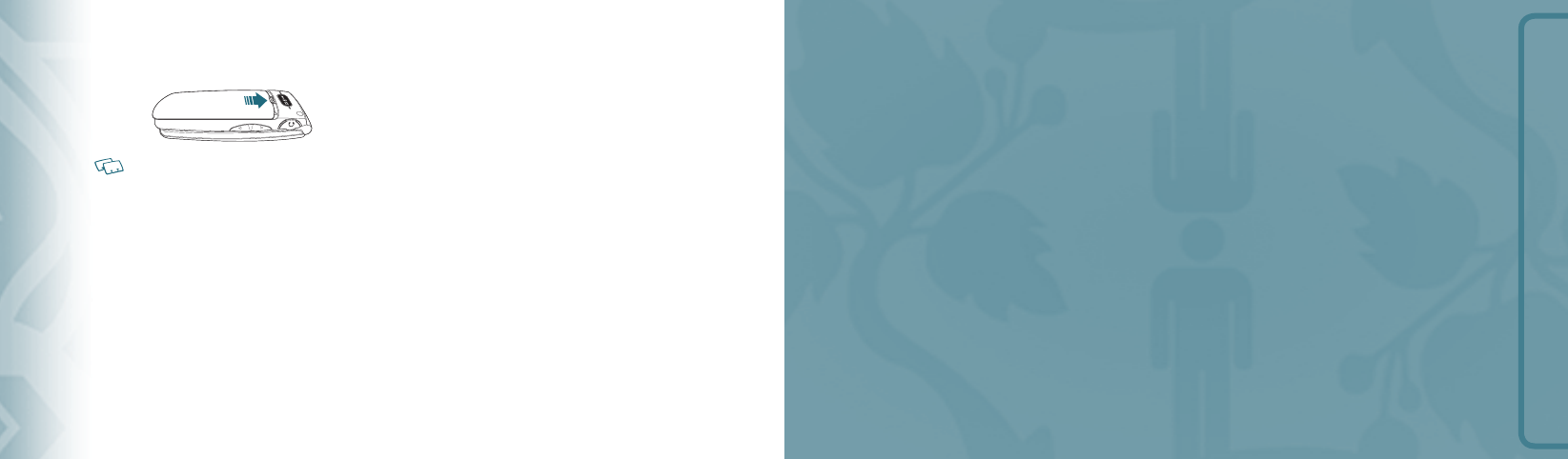

BASIC OPERATION
CHAPTER 2
BASIC OPERATION
This chapter addresses and explains the basic features of your
phone including:
5. Align the cover tabs with the slots on the back of the device and slide
the battery cover onto the unit.
Please do not move your SIM Card to another device as it may cause problems with
your Global Service.
16
Chapter 1 − Before Using
Before UsingBefore Using
Turning the phone on/off
Accessing the menu
Menu summary
Making a call
Answering calls
Ending a call
Missed call notification
Wait/Pause
Making calls outside of the U.S.
3 Way calling
Call waiting
Calling a number from contacts
Adjusting the volume
Caller ID
Turning vibrate mode on or off
Speakerphone
Available options during a call
Making an emergency call
090610_WP8990_Zephyer.indd 16-17090610_WP8990_Zephyer.indd 16-17 2009.6.11 2:57:23 PM2009.6.11 2:57:23 PM
TURNING THE PHONE ON/OFF
TURNING ON
1. Press and hold the END/PWR Key until your display turns on.
•
If Enter Lock Code appears on the display, enter your 4-digit lock code to
unlock your phone.
•
The default lock code is the last 4 digits of your Mobile Telephone
Number.
TURNING OFF
1. Press and hold the END/PWR Key until your display turns off.
•
Immediately change or recharge the battery when BATTERY LOW appears
on the display. Memory may possibly be damaged if the phone turns off
due to the battery completely draining.
•
Turn the phone off before removing or replacing the battery. If the phone
is on, unsaved data may be lost.
ACCESSING THE MENU
Your phone can be customized via the menu. Each function can be accessed by
scrolling with the Directional Key or by pressing the number that
corresponds with the menu item.
1. To access the menu, press the OK Key [MENU].
2. To scroll through the menu, press the Directional Key up,
down, left or right.
3. To return to the previous page, press the CLR Key . To exit the
current menu, press the END/PWR Key .
4. To access the MESSAGING menu, press the Left Soft Key
[Message].
5. To access the CONTACT LIST, press the Right Soft Key
[Contacts].
All directions in this manual are based on the List and Communicator Menu
Layout and The World Display Theme. If you have changed the settings, the
directions may vary.
18
Chapter 2 − Basic Operation
Basic OperationBasic Operation
MENU SUMMARY
Main Menu 2ND DEPTH 3RD DEPTH
1. Media Center 1. Tunes & Tones 1. Get New Ringtones
2. My Ringtones
3. My Sounds
2. Pictures 1. Get New Pictures
2. My Pictures
3. Take Picture
4. Online Album
3. Games 1. Get New Applications
4. Mobile Web
5. Browse & Download 1. Get New Applications
Backup Assistant
Mobile Email
VZ Navigator
6. Extras 1. Get New Applications
2. Messaging 1. New Message 1. TXT Message
2. Picture Message
3. Voice Message
Main Menu 2ND DEPTH 3RD DEPTH
2. Messaging 2. Inbox
3. Sent
4. Drafts
5. Voicemail
6. Mobile IM
7. Email 1. Mobile Email
2. Mobile Web Mail
8. Chat
3. My Ringtones 1. Get New Ringtones
4. My Pictures 1. Open Picture Gallery
5. Bluetooth 1. Add New Device
6. Contacts 1. New Contact
2. Contact List
Basic Operation − Chapter 2
19
Basic OperationBasic Operation
090610_WP8990_Zephyer.indd 18-19090610_WP8990_Zephyer.indd 18-19 2009.6.11 2:57:24 PM2009.6.11 2:57:24 PM
Main Menu 2ND DEPTH 3RD DEPTH
6. Contacts 3. Backup Assistant
4. Groups
5. Speed Dials
6. In Case of Emergency
7. My Name Card
7. Recent Calls 1. Missed
2. Received
3. Dialed
4. Blocked This
menu appears only
when Incoming Call
Restriction is set. For
details see page 61.
5. All
6. View Timers
Main Menu 2ND DEPTH 3RD DEPTH
8. VZ Navigator 1. Launch VZ Navigator
9. Settings &
Tools 1. My Verizon
2. Tools 1. Voice Commands
2. Calculator
3. Tip Calculator
4. Calendar
5. Alarm Clock
6. Stop Watch
7. World Clock
8. Unit Converter
9. Notepad
3. Bluetooth 1. Add New Device
4. Sounds Settings 1. Easy Set-up
2. Call Sounds
3. Alert Sounds
4. Keypad Sounds
5. Keypad Volume
6. Digit Dial Readout
7. Service Alerts
8. Device Connect
20
Chapter 2 − Basic Operation
Basic OperationBasic Operation
Main Menu 2ND DEPTH 3RD DEPTH
9. Settings &
Tools 4. Sounds Settings 9. Power On/Off
0. Open/Close Sounds
5. Display Settings 1. Easy Set-up
2. Banner
3. Backlight
4. Wallpaper
5. Display Themes
6. Main Menu Settings
7. Dial Fonts
8. Menu Font Size
9. Time & Date This menu
appears only in GSM or
Global Mode is set. For
details see page 64.
0. Clock Format
6. Phone Settings 1. Airplane Mode
2. Set Shortcuts
3. Voice Commands Settings
4. Language
5. Location
6. Current Country
7. Phone Security
Main Menu 2ND DEPTH 3RD DEPTH
9. Settings &
Tools 6. Phone Settings 8. SIM Security
9. Network Mode
0. System Select
7. Call Settings 1. Answer Options
2. Auto Retry
3. TTY Mode
4. One Touch Dial
5. Voice Privacy
6. DTMF Tones
7. Assisted Dialing
8. Memory 1. Phone Memory
9. Phone Info 1. My Number
2. SW/HW Version
3. Icon Glossary
4. Software Update
0. SIM Info
*. Set-up Wizard
Basic Operation − Chapter 2
21
Basic OperationBasic Operation
090610_WP8990_Zephyer.indd 20-21090610_WP8990_Zephyer.indd 20-21 2009.6.11 2:57:26 PM2009.6.11 2:57:26 PM
MAKING A CALL
1. Enter the phone number including the area code if needed and press
the SEND Key .
When you place or receive a call from phone numbers stored in your
Contact List, the name will be displayed.
ANSWERING CALLS
1. Press the SEND Key to answer the incoming call.
Depending on your phone’s settings, you may also answer incoming calls
by opening the phone or by pressing any key.
2. To ignore incoming calls, press the Right Soft Key [Ignore].
If Auto w/ Handsfree is set, a call is automatically answered after a preset
number of phone rings. For more details, see page 65.
ENDING A CALL
1. Press the END/PWR Key .
MISSED CALL NOTIFICATION
When an incoming call is not answered, the Missed Call icon appears on the
display.
DISPLAY THE MISSED CALL FROM THE NOTIFICATION
1. Select View Now and press the OK Key.
2. To dial the phone number, press the SEND Key .
DISPLAY A MISSED CALL FROM IDLE MODE
1. Press the OK Key [MENU], select Recent Calls and press the OK Key.
2. Select Missed and press the OK Key.
3. Select the missed call and press the OK Key [OPEN].
4. To dial the phone number, press the SEND Key .
WAIT/PAUSE
Pauses are used for automated systems (i.e., voice mail or calling cards). The
numbers entered after the pause will automatically be dialed after the pause.
It is useful for dialing into systems that require a code.
Wait (W)
The phone stops dialing until you press the SEND Key to dial the next
number.
1. Enter the phone number.
2. Press the Right Soft Key [Options].
22
Chapter 2 − Basic Operation
Basic OperationBasic Operation
3. Select and select Add Wait and press the OK Key.
4. Enter additional number(s).
5. Press the SEND Key to dial.
2-Sec Pause (P)
The phone waits 2 seconds before sending the next digits automatically.
1. Enter the phone number.
2. Press the Right Soft Key [Options].
3. Select Add 2-Sec Pause and press the OK Key.
4. Enter additional number(s) (pin number or credit card number).
5. Press the SEND Key to dial.
MAKING CALLS OUTSIDE OF THE U.S.
The SIM Card is pre-installed in your phone.
MAKING A GSM INTERNATIONAL CALL TO CDMA FROM
ANOTHER COUNTRY
The United States is the default (reference country) on your phone. When Assisted
Dialing is set to ON (default), and the reference country is the United States, you can
place a call to the U.S. from another country by using an existing number from you
contact list (as if you were in the U.S.). In this scenario, there is no need to add your
current country’s exit code when you are dialing contacts with these settings.
1. Press and hold the International Dial Key to display the “+” symbol.
The “+” symbol automatically inserts the exit code for the country
from which you are calling.
2. Press to insert the U.S. country code, then enter the area code
and number.
3. Press the SEND Key .
MAKING A GSM INTERNATIONAL CALL FROM ANOTHER
COUNTRY GSM ONLY
1. Press and hold the International Dial Key to display the “+” symbol.
The “+” symbol automatically inserts the exit code for the country
from which you are calling.
2. Enter the country code of the person you are calling. Enter the area
code, without the leading zero, followed by the number of the person
you are calling.
3. Press the SEND Key .
Basic Operation − Chapter 2
23
Basic OperationBasic Operation
090610_WP8990_Zephyer.indd 22-23090610_WP8990_Zephyer.indd 22-23 2009.6.11 2:57:27 PM2009.6.11 2:57:27 PM
There are some exceptions for leaving out the leading zero such as Italy,
Finland and Spain.
See page 66 for details on Assisted Dialing.
3 WAY CALLING
You can talk to two participants at the same time. During the call, the normal
airtime rates will be applied for each of the two calls.
1. Enter the phone number and press the SEND Key .
2. When you have connected, enter the second phone number to call
and press the SEND Key .
3. When you’re connected to the second party, press the SEND Key
again to begin your 3-Way call.
If one of the participants hangs up during the call, you and the remaining
participant stay connected. If you initiated the call and are the first one to
hang up, all three calls are disconnected.
CALL WAITING
If you are on a call and you receive another incoming call, you will hear one
beep and the caller’s phone number will appear on the display. With Call
Waiting, you may put the active call on hold while you answer the other
incoming call.
1. Press the SEND Key to answer the other call. The first call will
automatically be placed on hold. To switch back, press the SEND Key
again.
CALLING A NUMBER FROM CONTACTS
1. Press the Right Soft Key [Contacts].
2. Select the contact and press the OK Key [VIEW].
3. Select the phone number.
4. Press the SEND Key to place the call.
Dialing from the VIEW CONTACT screen will dial the default number auto-
matically. If the contact has multiple numbers saved, select the number to
dial and press the SEND Key .
ADJUSTING THE VOLUME
ADJUSTING THE MASTER VOLUME
1. Press the Volume Keys / up or down to select from: All Sounds
Off, Alarm Only, Vibrate Only, Low, Medium Low, Medium,
Medium High and High.
24
Chapter 2 − Basic Operation
Basic OperationBasic Operation
2. Press the OK Key [SET] to save.
3. To check the ringtone’s volume, press the Left Soft Key [Play].
ADJUSTING THE VOLUME DURING A CALL
1. To increase the volume, press the Volume Keys up.
2. To decrease the volume, press the Volume Keys down.
CALLER ID
Caller ID displays the name and the phone number of the person calling.
If the caller’s information is not stored in your Contacts List, only the
phone number is displayed.
TURNING VIBRATE MODE ON OR OFF
Vibrate Mode mutes the tones and activates an alert for an incoming call or
message.
1. To activate, press and hold the Vibrate Mode Key .
2. To deactivate, press and hold the Vibrate Mode Key again.
SPEAKERPHONE
The Speakerphone feature lets you hear audio through the speaker and talk
without holding the phone.
1. To activate, with the flip open, press the Speakerphone Key .
To deactivate, press the Speakerphone Key again.
If you activate Speakerphone when you are not on a call, it will deactivate
automatically after one minute.
AVAILABLE OPTIONS DURING A CALL
During a phone call, you can access the following features by pressing
the Right Soft Key [Options]. Press the OK Key to select any of the
following options:
•
New Message
•
Contact List
•
Recent Calls
•
Bluetooth
•
Main Menu
•
Notepad
•
Voice Privacy
Basic Operation − Chapter 2
25
Basic OperationBasic Operation
090610_WP8990_Zephyer.indd 24-25090610_WP8990_Zephyer.indd 24-25 2009.6.11 2:57:28 PM2009.6.11 2:57:28 PM
MEMORY FUNCTION
CHAPTER 3
MEMORY FUNCTION
This chapter addresses memory functions including:
Storing a phone number
Entering letters, numbers & symbols
One, Two, Three touch dialing
MAKING AN EMERGENCY CALL
The 911 feature automatically places the phone in Emergency Call Mode when
you dial the preprogrammed emergency number, 911. It also operates in Lock
Mode and out of the service area.
MAKING AN EMERGENCY CALL IN LOCK MODE
1. Enter any of the numbers 911, *911, #911 or 112 and press the SEND
Key .
The phone maintains Emergency Mode for 5 minutes. When the call ends,
the phone returns to Lock Mode.
MAKING AN EMERGENCY CALL IN ANY NETWORK MODE
1. Enter any of the numbers 911, *911, #911 or 112 and press the SEND
Key . In ALL NETWORK MODE - CDMA Mode, GSM Mode and
Global Mode.
The phone will stay in Emergency Mode for 5 minutes. While the phone
is in Emergency Mode, the phone can receive an incoming call from any
available system or you can make outgoing calls even in the Emergency
Callback Mode. In this case, making a call can automatically end the
Emergency Callback Mode.
The 911 call does not appear in the recent calls list.
26
Chapter 2 − Basic Operation
Basic OperationBasic Operation
090610_WP8990_Zephyer.indd 26-27090610_WP8990_Zephyer.indd 26-27 2009.6.11 2:57:30 PM2009.6.11 2:57:30 PM
STORING A PHONE NUMBER
The Contact List stores up to 500 entries.
ADDING A NEW CONTACT
1. Enter the phone number you want to save.
2. Press the Left Soft Key [Save].
3. Select Add New Contact and press the OK Key.
4. Select Mobile 1, Mobile 2, Home, Work or Fax. Press the OK Key.
5. Enter the remaining contact information (Name, Mobile 1, Home,
Work, Email 1, Group, Picture, Ringtone, Mobile 2, IM Screen
Name, Fax, Email 2, Street, City, State, Zip Code, Country) and
press the OK Key [SAVE].
6. With your SIM card inserted in the phone, you will see the following
message “SAVE A COPY OF THE CONTACT INTO THE SIM CARD?”
7. Select Yes or No and press the OK Key.
Select Update Existing to add another phone number to a contact already
stored in memory.
OPTIONS TO CUSTOMIZE YOUR CONTACTS
Once the basic phone number and name information is stored in your Contacts, you
can edit and/or customize the entries.
1. Press the Right Soft Key [Contacts] and select the Contact you
would like to edit.
2. Press the Left Soft Key [Edit].
3. Edit the information and press the OK Key [SAVE] to save.
ADDING OR CHANGING GROUPS
To organize your Contacts into groups:
1. Press the Right Soft Key [Contacts], then select the Contact
you want to add to a group.
2. Press the Left Soft Key [Edit].
3. Select Group, press the Left Soft Key [Set].
4. Select either Family, Friends or Work, press the OK Key [MARK],
then press the Left Soft Key [Done].
5. To create a new group, press the Right Soft Key [New]. Enter
the group name and press the OK Key [SAVE].
28
Chapter 3 − Memory Function
Memory FunctionMemory Function
6. Enter the remaining contact information then press the OK Key
[SAVE].
CHANGING THE CALL RINGTONE
You can identify who is calling by setting different ringtones for different phone
numbers in your Contacts.
1. Press the Right Soft Key [Contacts], then select the Contact
whose ringtone you want to edit.
2. Press the Left Soft Key [Edit].
3. Select Ringtone and press the Left Soft Key [Set].
4. To listen to the selected ringtone, press the Left Soft Key [Play].
To stop press the Left Soft Key [Stop]. To select, press the OK
Key.
5. Press the OK Key [SAVE] to save.
ADDING OR CHANGING THE PICTURE ID
To select a picture or graphic to assign to a Caller ID:
1. Press the Right Soft Key [Contacts], then select the Contact
you want to edit.
2. Press the Left Soft Key [Edit].
3. Select the Picture and press the Left Soft Key [Set].
4. Select and select the picture to set.
5. To view the selected picture press the Left Soft Key [View].
6. Press the OK Key to select the image.
7. Press the OK Key [SAVE] to save.
ADDING OR CHANGING AN EMAIL ADDRESS
To add or change an email address:
1. Press the Right Soft Key [Contacts], then select the Contact
you want to edit.
2. Press the Left Soft Key [Edit].
3. Select Email 1 or Email 2 to edit.
4. Enter the new email address and press the OK Key [SAVE] to save.
ADDING A SPEED DIAL ENTRY
To add a Speed Dial entry:
1. Press the Right Soft Key [Contacts], then select the Contact
Memory Function − Chapter 3
29
Memory FunctionMemory Function
090610_WP8990_Zephyer.indd 28-29090610_WP8990_Zephyer.indd 28-29 2009.6.11 2:57:32 PM2009.6.11 2:57:32 PM
you want to add to Speed Dial.
2. Press the Left Soft Key [Edit].
3. Select the phone number you want to add to Speed Dial and press
the Right Soft Key [Options].
4. Select Set Speed Dial and press the OK Key, choose a Speed Dial
location then press the OK Key [SET].
5. To assign the entry select Yes then press the OK Key.
6. Press the OK Key [SAVE] to save.
ADDING OR CHANGING A IM SCREEN NAME
To add or change a IM Service server:
1. Press the Right Soft Key [Contacts], then select the Contact
you want to edit.
2. Press the Left Soft Key [Edit].
3. Select IM Screen Name, then press the Left Soft Key [Set].
4. Select either AIM, Yahoo! or WL Messenger and press the OK Key.
5. Enter the user's Screen Name and press the OK Key to save.
6. Press the OK Key [SAVE] to save.
EDITING CONTACTS ENTRIES
ADDING A PHONE NUMBER FROM IDLE MODE
1. Enter the phone number you want to save (up to 32 digits).
2. Press the Left Soft Key [Save].
3. Select Update Existing and press the OK Key.
4. Select the contact to update and press the OK Key.
5. Select Mobile 1, Mobile 2, Home, Work or Fax and press the
OK Key.
6. If a phone number is already assigned to the category you selected,
select Yes to update and then press the OK Key.
ADDING A PHONE NUMBER FROM THE CONTACT LIST SCREEN
1. Press the Right Soft Key [Contacts]. Your Contacts display
alphabetically.
2. Select the contact to update and press the Left Soft Key [Edit].
3. Enter the phone number in the appropriate field.
4. Press the OK Key [SAVE] to save.
30
Chapter 3 − Memory Function
Memory FunctionMemory Function
DEFAULT NUMBERS
The phone number saved when a Contact is created is the Default Number. If more
than one number is saved in a Contact entry, another number can be set as the
Default Number.
The Default Number can not be deleted. The entire Contact entry can be
deleted or another number can be assigned as the Default Number
allowing you to delete the original number and keep the Contact entry.
CHANGING THE DEFAULT NUMBER
1. Press the Right Soft Key [Contacts]. Your Contacts display
alphabetically.
2. Select the contact to update and press the Left Soft Key [Edit].
3. Select the number to assign as the default number and press the
Right Soft Key [Options].
4. Select Set As Default and press the OK Key.
5. Select Yes then press the OK Key to set as the default number.
6. Press the OK Key [SAVE] to save.
EDITING STORED PHONE NUMBERS
1. Press the Right Soft Key [Contacts]. Your Contacts display
alphabetically.
2. Select the Contact entry you want to edit and press the Left Soft
Key [Edit].
3. Select and edit the phone number as necessary and press the
OK Key [SAVE].
DELETING
DELETING A PHONE NUMBER FROM A CONTACT
1. Press the Right Soft Key [Contacts]. Your Contacts display
alphabetically.
2. Select the contact to update and press the Left Soft Key [Edit].
3. Select the number to delete.
4. Press and hold the CLR Key to delete.
5. Press the OK Key [SAVE] to save.
Memory Function − Chapter 3
31
Memory FunctionMemory Function
090610_WP8990_Zephyer.indd 30-31090610_WP8990_Zephyer.indd 30-31 2009.6.11 2:57:34 PM2009.6.11 2:57:34 PM
DELETING A CONTACT ENTRY
1. Press the Right Soft Key [Contacts] and select the contact to
delete.
2. Press the Right Soft Key [Options], select Erase and press
the OK Key.
3. Select Yes and press the OK Key to erase.
DELETING A SPEED DIAL
1. Press the Right Soft Key [Contacts] and select the contact
to edit.
2. Press the Left Soft Key [Edit].
3. Select the phone number which has speed dial and press the Right
Soft Key [Options].
4. Select Remove Speed Dial and press the OK Key.
5. Select Yes and press the OK Key to erase.
6. Press the OK Key [SAVE] to save.
ENTERING LETTERS, NUMBERS & SYMBOLS
The text entering mode (Alpha editor) allows you to input text, numbers
and symbols. The default mode is [Abc] mode.
Key Key Functions
Abc: Press to change mode. [T9 Word][Abc][ABC][123][Symbols]
[Quick Text]
Next: Press to view the next matching word in the predictive mode.
Space: Press to select the word in predictive mode and/or add a space.
Caps Lock: Press to select a letter case of the standard text input or
text input mode. [Abc], [ABC] and [abc] indicate the standard text
input. [T9 Word], [T9 WORD] and [T9 word] indicate the predictive
text input. Press and hold to change mode.[Abc] -> [123] -> [T9
Word] -> [Abc].
Clear: Press to delete a character to the left of the cursor. Press and
hold to delete an entire word.
32
Chapter 3 − Memory Function
Memory FunctionMemory Function
MULTITAP MODE
Use the alphanumeric keypad to enter letters, numbers and characters.
Each of the following keys will scroll through these sequential options
listed by language. The limitation is 160 characters. Press the key labeled
with the target letter once for the first letter press twice for the second
letter and so on. Press and hold the key labeled with the target number
for that number.
Key English Spanish
. @ ? ! - , & : ' / and 1
a b c 2 a á b c 2
d e f 3 d e é f 3
g h i 4 g h i í 4
j k l 5
m n o 6 m n ñ o ó 6
p q r s 7
t u v 8
w x y z 9
PREDICTIVE MODE
T9 Word mode incorporates a built-in-dictionary to determine a word based on the
entered characters. A word can be entered more quickly by pressing each key once
per character. To type the word “Hello” follow these steps:
1. Press the Left Soft Key [Message], select New Message and
press the OK Key.
Shortcut: In idle mode, press the New TXT Message Key .
2. Select TXT Message and press the OK Key.
3. Enter the phone number or email address in the “To” field and press
the OK Key. In the Text field, press the Left Soft Key [Abc],
select T9 Word and press the OK Key.
4. Press , , , , to write “Hello”. Press the
Key to view the next word.
5. To select the word and add a space, press the Key.
Memory Function − Chapter 3
33
Memory FunctionMemory Function
090610_WP8990_Zephyer.indd 32-33090610_WP8990_Zephyer.indd 32-33 2009.6.11 2:57:35 PM2009.6.11 2:57:35 PM
MENU FUNCTION
CHAPTER 4
MENU FUNCTION
This chapter addresses accessing the menu and using its functions
and features to customize your phone.
34
Chapter 3 − Memory Function
Memory FunctionMemory Function
New contact
Contact list
Backup assistant
Groups
Speed dials
In case of emergency
My name card
Recent calls
Missed
Received
Dialed
Blocked
All
View timers
Bluetooth
Sounds settings
Display settings
Phone settings
Call settings
Memory
Phone info
SIM info
Set up wizard
Voice commands
Calculator
Tip calculator
Calendar
Alarm clock
Stop watch
World clock
Unit converter
Notepad
My Verizon
NUMERIC MODE
Allows you to enter numbers.
1. From the text entry screen, press the Left Soft Key [Abc], select
123 and press the OK Key.
2. Press the corresponding keys to input the number.
SYMBOL MODE
Allows you to enter symbols.
1. From the text entry screen, press the Left Soft Key [Abc], select
Symbols and press the OK Key.
2. Select the symbol you wish to enter by using the Directional Key
. Press the OK Key to select.
ONE, TWO, THREE TOUCH DIALING
Ideal for frequently dialed numbers, this feature allows contact entries to be
dialed via the keypad with only one, two or three key presses. For details on
assigning to Speed Dial, see page 38.
ONE TOUCH DIALING:
Press and hold the number you wish to connect to for more than
1 second.
TWO TOUCH DIALING:
Press the first digit then press and hold the second digit of the number
to dial.
THREE TOUCH DIALING:
Press the first and second digits then press and hold the third digit of the
number to dial.
090610_WP8990_Zephyer.indd 34-35090610_WP8990_Zephyer.indd 34-35 2009.6.11 2:57:37 PM2009.6.11 2:57:37 PM
Entries can be retrieved by name or group.
NEW CONTACT
TO ADD A NEW NUMBER TO YOUR CONTACTS
For details on adding a new contact, see page 28.
CONTACT LIST
You can review all the entries stored in your Contact List or quickly find an
entry by entering a name or its character.
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Contact List then press the OK Key.
2. Enter a name in the Go To field or select the contact.
3. To edit the contact, press the Left Soft Key [Edit]. To view the
details, press the OK Key [VIEW].
Shortcut: Access the Contact List by pressing the Right Soft Key .
BACKUP ASSISTANT
Backup Assistant is a wireless service that saves a copy of your phone’s address
book to a secure web site. If your phone is lost, stolen or damaged, Backup
Assistant restores your saved address book to a new phone - wirelessly!
Schedule daily automatic backups or manually backup your phone book
at your convenience. Login to your web account and get full access to your
address book. You can view, print, add, delete and edit contacts. Changes are
sent to your phone with one click!
Visit Web site: https://www.verizonwireless.com/backupassistant/.
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Backup Assistant and press the OK Key to launch the
application.
GROUPS
Allow you to classify phone entries into groups with up to 10 contacts in
each group. The default groups - Family, Friends or Work - cannot be erased
or renamed.
TO ADD NEW GROUP
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Groups then press the OK Key.
2. Press the Left Soft Key [New].
3. Enter a new group name and press the OK Key [SAVE].
36
Chapter 4 − Menu Function
ContactsContacts
TO ASSIGN PHONE NUMBER TO GROUP
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Groups then press the OK Key.
2. Select the group to add the contact to and press the OK Key [VIEW].
3. To add a contact, press the OK Key [ADD]. Select the contact to add
and press the OK Key [MARK] then press the Left Soft Key
[Done] to add.
TO CHANGE GROUP NAME
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Groups then press the OK Key.
2. Select the group to rename, press the Right Soft Key [Options],
select Rename, then press the OK Key.
3. Edit the group name and press the OK Key [SAVE].
ERASE GROUP
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Groups then press the OK Key.
2. Select the group to erase and press the Right Soft Key
[Options]. Select Erase and press the OK Key.
3. Select Yes and press the OK Key to erase the group.
TO SEND A TXT MESSAGE TO A GROUP
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Groups then press the OK Key.
2. Select the group you want to send a message to and press the Right
Soft Key [Options].
3. Select New TXT Message and press the OK Key, then write the
message.
4. To send, press the OK Key [SEND] or press the SEND Key .
For detail on writing text messages, see page 94.
TO SEND A PICTURE MESSAGE TO A GROUP
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Groups then press the OK Key.
2. Select the group you want to send a message to and press the Right
Soft Key [Options].
Menu Function − Chapter 4
37
ContactsContacts
090610_WP8990_Zephyer.indd 36-37090610_WP8990_Zephyer.indd 36-37 2009.6.11 2:57:39 PM2009.6.11 2:57:39 PM
3. Select New Picture Message and press the OK Key.
4. Select Picture and press the Left Soft Key [My Pics]. Select the
picture to insert and press the OK Key to select.
5. Enter the remaining message information and press the OK Key
[SEND] or press the SEND Key .
For detail on writing picture message, see page 95.
TO SEND A VOICE MESSAGE TO A GROUP
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Groups then press the OK Key.
2. Select the group to send a voice message to and press the Right Soft
Key [Options].
3. Select New Voice Message and press the OK Key.
4. Press the OK Key to being recording. Press the OK Key [STOP] to end
recording.
5. Enter any additional message information. To send, press the OK Key
[SEND] or press the SEND Key .
For detail on writing voice message, see page 96.
SPEED DIALS
Calls can be placed to numbers stored in speed dial by pressing & holding
the location number on the keypad. For a 2-digit location number, press
the first number then press and hold the second number. For a 3-digit
location number, press the first number and second numbers then press
and hold the third number.
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Speed Dials then press the OK Key.
2. Select the Speed Dial position or enter the Speed Dial digit and
press the OK Key [SET].
3. Select the Contact and press the OK Key.
4. Select the number to assign the speed dial to and press the OK Key.
5. Select Yes and press the OK Key.
Unassigned appears if the location is available.
TO ERASE A SAVED SPEED DIAL
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select Speed Dials then press the OK Key.
38
Chapter 4 − Menu Function
ContactsContacts
2. Select the Speed Dial entry to erase.
3. Press the Right Soft Key [Remove].
4. Select Yes and press the OK Key.
IN CASE OF EMERGENCY
Your phone has a special menu to organize your emergency contacts and
personal information.
TO ASSIGN EMERGENCY CONTACTS
Follow the procedures below to register a Contact to be contacted in case of emer-
gency or to register a medical record number or other personal information.
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select In Case of Emergency then press the OK Key.
2. Select Contact 1, Contact 2 or Contact 3 and press the OK Key
[ADD].
3. When selecting from ADD CONTACT, select From Contacts and
press the OK Key.
4. Select the desired contact entry and press the OK Key.
5. When adding a new contact, select New Contact and press the
OK Key.
6. Enter the contact information and press the OK Key [SAVE].
7. The contact name will be displayed in place of Contact 1,
Contact 2 or Contact 3.
TO REASSIGN EMERGENCY CONTACTS
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select In Case of Emergency then press the OK Key.
2. Select the contact to re-assign and press the Right Soft Key
[Options].
3. Select Re-assign and press the OK Key.
4. Select From Contacts and press the OK Key. Select a contact from
your Contact List. When adding a new contact, select New Contact
and press the OK Key.
5. Press the OK Key.
TO ERASE ASSIGNED EMERGENCY CONTACTS
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select In Case of Emergency then press the OK Key.
Menu Function − Chapter 4
39
ContactsContacts
090610_WP8990_Zephyer.indd 38-39090610_WP8990_Zephyer.indd 38-39 2009.6.11 2:57:40 PM2009.6.11 2:57:40 PM
2. Select the contact to erase and press the Right Soft Key
[Options].
3. Select Unassign and press the OK Key.
TO CALL AN ASSIGNED EMERGENCY CONTACT
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select In Case of Emergency then press the OK Key.
2. Select the contact to call and press the Left Soft Key [Call] or
press the SEND Key .
TO ADD PERSONAL INFO
To store a Medical Record Number or other information that may be useful in case
of an emergency:
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select In Case of Emergency then press the OK Key.
2. Select Personal Info and press the OK Key [VIEW].
3. Select Note 1, Note 2 or Note 3 and press the OK Key [ADD].
4. Enter the information and press the OK Key [SAVE].
5. The information you entered now appears in place of Note 1,
Note 2 or Note 3.
TO EDIT SAVED PERSONAL INFO
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select In Case of Emergency then press the OK Key.
2. Select Personal Info and press the OK Key [VIEW].
3. Select the note to edit and press the OK Key [VIEW].
4. Press the OK Key [EDIT]. Edit the note and press the OK Key [SAVE].
TO ERASE SAVED PERSONAL INFO
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select In Case of Emergency then press the OK Key.
2. Select Personal Info and press the OK Key [VIEW].
3. Select the note to erase and press the Right Soft Key [Erase].
4. Select Yes and press the OK Key.
40
Chapter 4 − Menu Function
ContactsContacts
MY NAME CARD
A Name Card with the handset’s mobile number automatically appears.
EDIT MY NAME CARD
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select My Name Card then press the OK Key.
2. Press the Left Soft Key [Edit].
3. Edit the MY NAME CARD options and press the OK Key [SAVE]
to save your changes.
SEND MY NAME CARD VIA TEXT OR PICTURE MESSAGE
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select My Name Card then press the OK Key.
2. Press the Right Soft Key [Send].
3. Select TXT Message or Picture Message and press the OK Key.
4. Enter the recipient’s contact information in the To field and press
the OK Key.
5. Enter any additional message information and press the OK Key
[SEND].
SEND MY NAME CARD WITH VOICE MESSAGE
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select My Name Card then press the OK Key.
2. Press the Right Soft Key [Send].
3. Select Voice Message and press the OK Key.
4. To record a new Voice Message, press the OK Key to start recording.
Press the OK Key [STOP] to stop recording and save it.
5. Enter the recipient’s contact information in the To field and press
the OK Key.
6. Enter any additional message information and press the OK Key
[SEND].
SEND MY NAME CARD TO ANOTHER BLUETOOTH DEVICE
Turn on Bluetooth on both devices (steps 1-4) and turn Discovery Mode to
On. Please reference to Bluetooth on page 45.
1. Press the OK Key [MENU], select Contacts and press the OK Key.
Select My Name Card then press the OK Key.
2. Press the Right Soft Key [Send].
Menu Function − Chapter 4
41
ContactsContacts
090610_WP8990_Zephyer.indd 40-41090610_WP8990_Zephyer.indd 40-41 2009.6.11 2:57:42 PM2009.6.11 2:57:42 PM
3. Select Via Bluetooth and press the OK Key.
4. With Add New Device selected, press the OK Key. The handset will
prompt you with the following message on the LCD screen: PLACE
DEVICE YOU ARE CONNECTING TO IN DISCOVERABLE MODE.
Press the OK Key.
5. Select the desired device and press the OK Key [PAIR].
6. If applicable, the device may prompt you for the Passkey. Consult the
Bluetooth® accessory (sold separately) instructions for the appropri-
ate password (typically 0000 - 4 zeroes). Enter the passkey and press
the OK Key.
7. The screen displays Before Connecting To [Device Name], select
either Always Ask or Always Connect and press the OK Key.
8. The information is then sent via Bluetooth to the receiving device.
RECENT CALLS
The Recent Calls menu is a list of the last phone numbers or Contact
entries for calls you placed, accepted, missed or blocked. It is continually
updated as new numbers are added to the beginning of the list and the
oldest entries are removed from the bottom of the list.
MISSED
Displays information about the 90 most recently missed calls.
1. Press the OK Key [MENU], select Recent Calls and press the OK Key.
Select Missed and press the OK Key.
2. Select an entry and press the OK Key [OPEN] to view the entry.
3. Press the Right Soft Key [Options] to access the following
options:
•
Save to Contacts: Store the phone number in your Contacts.
If save doesn't appear, that entry is already in your Contacts list.
•
Details: Displays details about the caller if entered in Contacts.
•
Erase: Erase a call listing.
•
Lock/Unlock: To lock or unlock a call listing.
•
View Timers: Display usage time.
4. Press the Left Soft Key [Message] to access the following
options.
•
TXT Message: Send a TXT message to the contact.
•
Picture Message: Send a Picture message to the contact.
•
Voice Message: Send a Voice message to the contact.
42
Chapter 4 − Menu Function
Recent CallsRecent Calls
RECEIVED
Displays information about the 90 most recently received calls.
1. Press the OK Key [MENU], select Recent Calls and press the OK Key.
Select Received and press the OK Key.
2. Select an entry and press the OK Key [OPEN] to view the entry.
3. Press the Right Soft Key [Options] to access the following
options:
•
Save to Contacts: Store the phone number in your Contacts.
If save doesn't appear, that entry is already in your Contacts list.
•
Details: Displays details about the caller if entered in Contacts.
•
Erase: Erase a call listing.
•
Lock/Unlock: To lock or unlock a call listing.
•
View Timers: Display usage time.
4. Press the Left Soft Key [Message] to access the following
options.
•
TXT Message: Send a TXT message to the contact.
•
Picture Message: Send a Picture message to the contact.
•
Voice Message: Send a Voice message to the contact.
DIALED
Displays information about the 90 most recently dialed numbers.
1. Press the OK Key [MENU], select Recent Calls and press the OK Key.
Select Dialed and press the OK Key.
2. Select an entry and press the OK Key [OPEN] to view the entry.
3. Press the Right Soft Key [Options] to access the following
options:
•
Save to Contacts: Store the phone number in your Contacts.
If save doesn't appear, that entry is already in your Contacts list.
•
Details: Displays details about the caller if entered in Contacts.
•
Erase: Erase a call listing.
•
Lock/Unlock: To lock or unlock a call listing.
•
View Timers: Display usage time.
4. Press the Left Soft Key [Message] to access the following
options.
•
TXT Message: Send a TXT message to the contact.
•
Picture Message: Send a Picture message to the contact.
•
Voice Message: Send a Voice message to the contact.
Menu Function − Chapter 4
43
Recent CallsRecent Calls
090610_WP8990_Zephyer.indd 42-43090610_WP8990_Zephyer.indd 42-43 2009.6.11 2:57:43 PM2009.6.11 2:57:43 PM
44
Chapter 4 − Menu Function
Recent CallsRecent Calls
•
Voice Message: Send a Voice message to the contact.
VIEW TIMERS
Timers allow you to check you usage time and manage your calls.
1. Press the OK Key [MENU], select Recent Calls and press the OK Key.
Select View Timers and press the OK Key.
2. Select Last Call, All Calls, Received Calls, Dialed Calls, Roaming
Calls, Transmit Data, Received Data, Total Data, Last Reset,
Lifetime Calls and Lifetime Data Counter to view the
information.
3. Press the Left Soft Key [Reset] to reset the highlighted timer.
4. Press the Right Soft Key [Reset All] to reset all timers.
BLUETOOTH
Bluetooth technology enables wireless connections between electronic devic-
es. If connected with a Bluetooth Handsfree device, you can use your phone
more freely. Since devices with Bluetooth connectivity communicate using
radio waves, your phone and the other device do not need to be in direct line-
of-sight. The two devices only need to be within 10 meters (30 feet) of each
other. The connection can be subject to interference from obstructions such as
walls or other electronic devices. This device is compliant with Bluetooth speci-
fication 2, supporting the following profiles: Headset, Handsfree, Phonebook
Access and Object Push for vCard. To ensure interoperability between other
devices supporting Bluetooth technology, use approved enhancements for
this model. Check with the manufacturers of other devices to determine their
compatibility with this phone. There may be restrictions on using Bluetooth
technology in some locations. Check with your local authorities or Verizon
Wireless. If you want more information on this function, visit the Bluetooth
Technology organization Web site: https://www.bluetooth.org/.
Features using Bluetooth technology or allowing such features to run in the
background while using other features, increase the demand on battery
power and reduce the battery life.
BLUETOOTH ON/OFF
To activate Bluetooth:
1. Press the OK Key [MENU], select Bluetooth and press the OK Key.
2. Press the Left Soft Key [Turn On/Turn Off].
ADD NEW DEVICE
Pairing is the process that allows the handset to locate, establish and register a
1-to-1 connection with the target device.
Menu Function − Chapter 4
45
SettingsSettings
BLOCKED
This menu appears only when Incoming Call Restriction is set.
1. Press the OK Key [MENU], select Recent Calls and press the OK Key.
Select Blocked and press the OK Key.
2. Enter the four-digit lock code and press the OK Key. The default lock
code is last 4 digits of your mobile telephone number.
3. Select an entry and press the OK Key [OPEN] to view the entry.
4. Press the Right Soft Key [Options] to access the following
options:
•
Save to Contacts: Store the phone number in your Contacts.
If save doesn't appear, that entry is already in your Contacts list.
•
Details: Displays details about the caller if entered in Contacts.
•
Erase: Erase a call listing.
•
Lock/Unlock: To lock or unlock a call listing.
•
View Timers: Display usage time.
5. Press the Left Soft Key [Message] to access the following
options.
•
TXT Message: Send a TXT message to the contact.
•
Picture Message: Send a Picture message to the contact.
•
Voice Message: Send a Voice message to the contact.
For details on Restrictions, see page 61.
ALL
Displays information about the most recently received, dialed and missed calls.
1. Press the OK Key [MENU], select Recent Calls and press the OK Key.
Select All and press the OK Key.
2. Select an entry and press the OK Key [OPEN] to view the entry.
3. Press the Right Soft Key [Options] to access the following
options:
•
Save to Contacts: Store the phone number in your Contacts.
If save doesn't appear, that entry is already in your Contacts list.
•
Details: Displays details about the caller if entered in Contacts.
•
Erase: Erase a call listing.
•
Lock/Unlock: To lock or unlock a call listing.
•
View Timers: Display usage time.
4. Press the Left Soft Key [Message] to access the following
options.
•
TXT Message: Send a TXT message to the contact.
•
Picture Message: Send a Picture message to the contact.
090610_WP8990_Zephyer.indd 44-45090610_WP8990_Zephyer.indd 44-45 2009.6.11 2:57:44 PM2009.6.11 2:57:44 PM
46
Chapter 4 − Menu Function
SettingsSettings
•
Device Info: Displays device information.
4. If a PC or other device is connected, press the Right Soft Key
[Options], to choose from the following options:
•
Remove Device: Removes a device from the pairing list.
•
Rename Device: Renames a paired device.
•
Incoming Security: Sets permissions for connecting to an incoming device.
•
Service Discovery: Search for the services that the selected device
supports.
•
Send Name Card: Send the stored phonebook to a selected device.
•
Get Name Card: Request and receive the Name card information of the
other side.
•
Device Info: Displays device information.
SETTINGS
MY PHONE NAME
To edit the Bluetooth® name of your phone:
1. Press the OK Key [MENU], select Bluetooth and press the OK Key.
2. Press the Right Soft Key [Options].
3. Select My Phone Name and press the OK Key.
4. Enter a new custom name.
5. Press the OK Key to save.
DISCOVERY MODE
Set your device to be searched for by other Bluetooth® devices in the area.
1. Press the OK Key [MENU], select Bluetooth and press the OK Key.
2. Press the Right Soft Key [Options].
3. Select Discovery Mode and press the OK Key.
If Bluetooth power is not on, you will be prompted to turn it on in order
to proceed.
4. Select On or Off and press the OK Key.
SUPPORTED PROFILES
To view brief descriptions of the profiles supported by the phone:
1. Press the OK Key [MENU], select Bluetooth and press the OK Key.
2. Press the Right Soft Key [Options].
3. Select Supported Profiles and press the OK Key.
4. Select a profile and press the OK Key [VIEW] for further details.
Menu Function − Chapter 4
47
SettingsSettings
1. Press the OK Key [MENU], select Bluetooth and press the OK Key.
2. Select Add New Device and press the OK Key.
3. If the Bluetooth® power is switched off, the following message will
appear on the screen: TURN BLUETOOTH POWER ON? Press the
OK Key to select Yes.
4. The handset will prompt you with the following message on the
screen: PLACE DEVICE YOU ARE CONNECTING TO IN DISCOVER
ABLE MODE. Press the OK Key.
5. The device will appear in the Add New Device menu. Select the
device to pair to and press the OK Key [PAIR].
6. If applicable, the handset may prompt you for the password. Consult
the Bluetooth® accessory (sold separately) instructions for the
appropriate passkey (typically 0000. 4 zeroes). Enter the passkey and
press the OK Key.
You do not need to input the passkey for pairing when the passkey of the
Bluetooth® Headset or hands-free kit is 0000.
7. Connect to: (device name) will appear on screen. Select Yes and
press the OK Key.
8. Once connected, you will see the device listed in the Bluetooth
menu and the Bluetooth® device connected icon
will appear at
the top of the screen when connected to the Bluetooth® device.
•
In the Bluetooth menu, you can disconnect the connected device with an
icon by pressing the OK Key [DROP]. Conversely, you can reconnect by
pressing the OK Key again.
•
When an audio device is connected, you can select another device and the
connection is automatically transferred from that audio device to the other
one.
•
If multiple devices are displayed, select the device you want to connect.
OPTIONS
1. Press the OK Key [MENU], select Bluetooth and press the OK Key.
2. Select the paired device.
3. If an audio device is connected, press the Right Soft Key
[Options], to choose from the following options:
•
Remove Device: Removes a device from the pairing list.
•
Rename Device: Renames a paired device.
•
Service Discovery: To search for the services that the selected device
supports.
•
Send Name Card: Send the stored phonebook to a selected device
(If selected device is HFK and supports OPP).
090610_WP8990_Zephyer.indd 46-47090610_WP8990_Zephyer.indd 46-47 2009.6.11 2:57:46 PM2009.6.11 2:57:46 PM
AUTO PAIR HANDSFREE
1. Press the OK Key [MENU], select Bluetooth and press the OK Key.
2. Press the Right Soft Key [Options].
3. Select Auto Pair Handsfree and press the OK Key.
4. Select On or Off and press the OK Key.
SOUNDS SETTINGS
EASY SET UP
To set up phone sounds using the Easy Set up Wizard:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Easy
Set-up then press the OK Key.
2. Select the ringer type and press the OK Key [SET]. To skip the step,
press the Right Soft Key [Skip].
3. Select the ringtone and press the OK Key [SET]. To listen to the
ringtone, press the Left Soft Key [Play].
4. Select the volume of the keypad and press the OK Key [SET].
5. Select the alerts ringer type for text messaging and press the OK
Key [SET].
6. Select the alerts ringtone for text messaging and press the OK Key
[SET]. To listen to the ringtone, press the Left Soft Key [Play].
7. Select the ringer type for multimedia messaging and press the OK
Key [SET].
8. Select the ringtone for multimedia messaging and press the OK Key
[SET]. To listen to the ringtone, press the Left Soft Key [Play].
9. Select the alerts ringer type for voicemail messaging and press the
OK Key [SET].
10. Select the alerts ringtone for voicemail messaging and press the
OK Key [SET]. To listen to the ringtone, press the Left Soft Key
[Play].
CALL SOUNDS
Set ringtones for types of incoming calls.
CALL RINGTONE
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Call Sounds
48
Chapter 4 − Menu Function
SettingsSettings
then press the OK Key.
2. Select Call Ringtone and press the OK Key.
3. Select a ringtone and press the OK Key to save the sound.
To listen to the ringtone, press the Left Soft Key [Play].
CALL VIBRATE
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Call Sounds
then press the OK Key.
2. Select Call Vibrate and press the OK Key.
3. Select On or Off and press the OK Key.
CALL ALERT
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Call Sounds
then press the OK Key.
2. Select Call Alert and press the OK Key.
3. Select Ring Only, Caller ID + Ring or Name Repeat and press
the OK Key.
ALERT SOUNDS
To select the alert type for a new message:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Alert Sounds
then press the OK Key.
2. Select TXT Message, Pic/Voice Message, Voicemail or Missed
Call then press the OK Key.
3. Select access the following options and press the OK Key.
•
Tone: Alerts you with the ringtone. Select the ringtone and press the OK Key.
•
Vibrate: Alerts you with vibration. Select On or Off and press the OK Key.
•
Reminder: Alerts you by time interval. Select Once, Every 2 Minutes, Every
15 Minutes or Off and press the OK Key.
EMERGENCY TONE
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Alert Sounds
then press the OK Key.
2. Select Emergency Tone and press the OK Key.
3. Select Alert, Vibrate or Off and press the OK Key.
Menu Function − Chapter 4
49
SettingsSettings
090610_WP8990_Zephyer.indd 48-49090610_WP8990_Zephyer.indd 48-49 2009.6.11 2:57:47 PM2009.6.11 2:57:47 PM
KEYPAD SOUNDS
To set the sound of for the alphanumeric keypad when pressed:
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Sounds Settings, press the OK Key, select Keypad
Sounds then press the OK Key.
2. Select DTMF, Cloud or Simple and press the OK Key.
KEYPAD VOLUME
To set the keypad volume:
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Sounds Settings, press the OK Key, select Keypad
Volume then press the OK Key.
2. Adjust the volume by pressing the Directional Key up or down and
press the OK Key.
DIGIT DIAL READOUT
The Digit Dial Readout setting controls if digits are read out loud when you type in a
phone number with the keypad.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Digit Dial
Readout then press the OK Key.
2. Select On or Off and press the OK Key.
SERVICE ALERTS
To set any of the three Alert options to either On or Off:
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Sounds Settings, press the OK Key, select Service
Alerts then press the OK Key.
2. Select access the following options and press the OK Key.
•
ERI: The Enhanced Roaming Indicator (ERI) feature displays a text banner on
the display screen informing the handset user of which systems the wireless
device is using as compared to the service plan they purchased.
The ERI Banner text changes to tell a customer if they are using the:
Verizon Wireless Network, Extended Network or Roaming.
•
Minute Beep: Alerts you every minute during a call.
•
Call Connect: Alerts you when the call is connected.
3. Select On or Off and press the OK Key.
DEVICE CONNECT
Allows you to turn the Device Connect On or Off:
1. Press the OK Key [MENU], select Settings & Tools and press the
50
Chapter 4 − Menu Function
SettingsSettings
OK Key. Select Sounds Settings, press the OK Key, select Device
Connect then press the OK Key.
2. Select On or Off and press the OK Key.
POWER ON/OFF
To set the phone to sound a tone when the phone is powered on/off:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Power On/
Off then press the OK Key.
2. Select Power On or Power Off and press the OK Key.
3. Select On or Off and press the OK Key.
OPEN/CLOSE SOUNDS
To set the phone to sound a tone when the phone is opened/closed.:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Sounds Settings, press the OK Key, select Open/Close
Sounds then press the OK Key.
2. Select Music, Simple, Beep or Off and press the OK Key.
DISPLAY SETTINGS
EASY SET UP
To set up display options using the Easy Set-up Wizard:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Easy Set-up
then press the OK Key.
2. Enter the text to be displayed on your main screen and press the OK
Key [SET]. To skip the step, press the Right Soft Key [Skip].
3. Select the duration for backlight and press the OK Key [SET].
4. Select the duration for keypad backlight and press the OK Key [SET].
5. Select the main wallpaper and press the OK Key [SET].
To preview the image, press the Left Soft Key [Preview].
6. Select the front wallpaper and press the OK Key [SET].
To preview the image, press the Left Soft Key [Preview].
7. Select the display theme and press the OK Key [SET].
To preview the image, press the Left Soft Key [Preview].
8. Select the menu layout and press the OK Key [SET]. To preview the
layout style, press the Left Soft Key [Preview].
Menu Function − Chapter 4
51
SettingsSettings
090610_WP8990_Zephyer.indd 50-51090610_WP8990_Zephyer.indd 50-51 2009.6.11 2:57:48 PM2009.6.11 2:57:48 PM
9. Select the menu type and press the OK Key [SET]. To view help for
the menu type, press the Left Soft Key [Help].
Step 9 appears only when List or Grid are selected.
10. Select the size of font for dialing and press the OK Key [SET].
To preview the font size, press the Left Soft Key [Preview].
11. Select the style of the clock for the main screen and press the OK
Key [SET]. To preview the style of the clock, press the Left Soft Key
[Preview].
12. Select the style of the clock for the front screen and press the OK
Key [SET]. To preview the style of the clock, press the Left Soft Key
[Preview].
BANNER
PERSONAL BANNER
The Personal Banner can be up to 16 characters and is displayed on your phone’s screen
in idle mode.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Banner then
press the OK Key.
2. Select Personal Banner and press the OK Key.
3. Enter the banner text (up to 16 characters).
4. Select Font Color, select the desired color and press the OK Key.
ERI BANNER
If you use ERI Service, ERI Text is shown on the sub banner.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Banner then
press the OK Key.
2. Select ERI Banner and press the OK Key.
3. Select On or Off and press the OK Key.
BACKLIGHT
To set the duration for backlight illumination for the Main Screen and Keypad:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Backlight
then press the OK Key.
2. Select Display or Keypad and press the OK Key.
3. Select 7 Seconds, 15 Seconds, 30 Seconds or Always On and
52
Chapter 4 − Menu Function
SettingsSettings
press the OK Key.
Even if Always On is selected for the Backlight setting, the backlight will
turn off when the phone is closed.
WALLPAPER
To choose the kind of Main LCD or Front LCD background to be displayed on the
phone:
MAIN SCREEN
To choose the kind of Main LCD background to be displayed on the phone:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Wallpaper
then press the OK Key.
2. Select Main Screen and press the OK Key.
3. Select the image and press the OK Key. To view the image, press the
Left Soft Key [View].
The default setting is World.
4. Press the Right Soft Key [Get New] select Get New
Applications and press the OK Key to download other available
selections.
FRONT SCREEN
To choose the Front LCD background to be displayed on the phone:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Wallpaper
then press the OK Key.
2. Select Front Screen and press the OK Key.
3. Select the image and press the OK Key. To view the image, press the
Left Soft Key [View].
The default setting is Verizon_Water.
4. Press the Right Soft Key [Get New] select Get New
Applications and press the OK Key to download other available
selections.
GLOBAL TRAVELER
To change the Main LCD background automatically:
1. Press the OK Key [MENU], select Settings & Tools and press
the OK Key. Select Display Settings, press the OK Key, select
Wallpaper then press the OK Key.
2. Select Global Traveler and press the OK Key.
Menu Function − Chapter 4
53
SettingsSettings
090610_WP8990_Zephyer.indd 52-53090610_WP8990_Zephyer.indd 52-53 2009.6.11 2:57:49 PM2009.6.11 2:57:49 PM
3. Select On or Off and press the OK Key.
Automatic LCD background change support at the following countries.
Belgium, Brazil, United Kingdom, France, Germany, Greece, Italy, Mexico,
Netherlands, Russia and Spain. To use the personal wallpaper without
changing by regions set the Global Traveler to Off.
DISPLAY THEMES
To choose the background screen:
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Display Settings, press the OK Key, select Display
Themes then press the OK Key.
2. Select either Business Diary, The World, Water or White and
press the OK Key [SET]. To preview the themes, press the Left Soft
Key [Preview].
The default setting is The World.
3. To view help for the themes, press the Right Soft Key [Help].
If you change this setting, you will not be able to follow the instructions as
written in the manual.
MAIN MENU SETTINGS
To change the Main Menu layout and type:
TO SET LIST MENU LAYOUT
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Main Menu
Settings then press the OK Key.
2. Select Menu Layout and press the OK Key.
3. Select List and press the OK Key.
4. Select Communicator or Messaging and press the OK Key.
If you change this setting, you will not be able to follow the instructions as
provided in the manual.
The default setting is List and Communicator.
REPLACE LIST MENU ITEMS
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Main Menu
Settings then press the OK Key.
2. Select Replace Menu Items and press the OK Key.
54
Chapter 4 − Menu Function
SettingsSettings
3. If using the Communicator profile, select My Ringtones, My
Pictures, Bluetooth or VZ Navigator and press the OK Key [EDIT].
Select Email or Mobile IM and press the OK Key [SET].
4. If using the Messaging profile, select Email, Mobile IM, My
Ringtones or VZ Navigator and press the OK Key [EDIT]. Select
Bluetooth or My Pictures and press the OK Key [SET].
5. To view help for the replace menu item, press the Right Soft Key
[Help].
6. Press the Left Soft Key [Done] to save your changes.
POSITION LIST MENU ITEMS
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Main Menu
Settings then press the OK Key.
2. Select Position Menu Items and press the OK Key.
3. Select the item to move and press the OK Key [MOVE].
4. Select change the position and press the OK Key [SET].
RESET LIST MENU SETTINGS
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Main Menu
Settings then press the OK Key.
2. Select Reset Menu Settings and press the OK Key.
3. Select access the following options and press the OK Key.
•
Menu Layout: Restore menu layout to the initial menu layout.
•
Menu Items: Restore menu items to the initial content of the menu.
•
Item Positions: Restore menu items to their initial positions.
•
All: Restore all to your initial menu settings.
If you change this setting, you will not be able to follow the instructions as
provided in the manual.
DIAL FONTS
To set the font size:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Dial Fonts
then press the OK Key.
2. Select Normal or Large and press the OK Key. To preview the font
size, press the Left Soft Key [Preview].
Menu Function − Chapter 4
55
SettingsSettings
090610_WP8990_Zephyer.indd 54-55090610_WP8990_Zephyer.indd 54-55 2009.6.11 2:57:51 PM2009.6.11 2:57:51 PM
MENU FONT SIZE
To set the menu font size:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Menu Font
Size then press the OK Key.
2. Select Normal or Large and press the OK Key.
TIME & DATE
To set the time and date for your phone:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Time & Date
then press the OK Key.
2. From the Date field, enter the date.
3. Scroll to the Time field and enter the time. Press the Left Soft Key
to change the am and pm setting.
4. Scroll to the DST field and press the Directional Key left or right to
select On or Off.
5. Scroll to the Current Time Zone field, then press the Left Soft Key
[Set]. Select the appropriate city and press the OK Key.
6. Press the OK Key to save.
This menu appears only in GSM or Global Mode.
CLOCK FORMAT
To choose the kind of clock to be displayed on the Main LCD or Front LCD screen:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Display Settings, press the OK Key, select Clock Format
then press the OK Key.
2. Select Main Clock or Front Clock and press the OK Key.
3. Select one of the following options and press the OK Key.
•
Main Clock: Set the type of clock for the main screen. Large Digital 12 is
the default setting.
•
Front Clock: Set the type of clock for the front screen. Digital is the default
setting.
56
Chapter 4 − Menu Function
SettingsSettings
PHONE SETTINGS
AIRPLANE MODE
In Airplane Mode, all menu functions can be accessed except making calls, receiving
calls, data connection and Bluetooth®. Activating Airplane Mode will disable all
wireless communications. In Airplane Mode, services that support location on
functions are temporarily disabled.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Airplane
Mode then press the OK Key.
2. Select On or Off and press the OK Key.
SET SHORTCUTS
Your phone offers you the option of assigning a shortcut key (Directional Key left,
right, up and down) to a favorite or often-used function. In addition, choose menu
settings for each of the shortcut options under Set Directional Keys (Directional
Key right).
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select Set Shortcuts
then press the OK Key.
2. Select Set My Shortcuts and press the OK Key.
3. Select Shortcut 1, Shortcut 2, Shortcut 3 or Shortcut 4 and press
the OK Key [SET].
4. Select the desired option and press the OK Key.
The Download Application Alphabet option only appears when you have
downloaded Brew Applications. In idle mode, pressing the Directional Key
right will display the My Shortcuts screen. On the My Shortcuts
screen, you can select a function and press the OK Key to access the func-
tion. On the My Shortcuts screen, you can relocate a function by pressing
the Right Soft Key [Move], pressing the Directional Key up or down
for placement and pressing the OK Key [SAVE]. Or you can press the Left
Soft Key [Settings] to Set My Shortcuts or Set Directional Keys.
RESETTING MY SHORTCUTS
To restore My Shortcuts to their original defaults:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select Set Shortcuts
then press the OK Key.
2. Select Set My Shortcuts and press the OK Key.
3. Select Shortcut 1, Shortcut 2, Shortcut 3 or Shortcut 4 and press
the Right Soft Key [Options].
Menu Function − Chapter 4
57
SettingsSettings
090610_WP8990_Zephyer.indd 56-57090610_WP8990_Zephyer.indd 56-57 2009.6.11 2:57:52 PM2009.6.11 2:57:52 PM
4. Select Reset Shortcut (1, 2, 3 or 4) or Reset My Shortcuts and
press the OK Key.
5. Select Yes and press the OK Key.
SET DIRECTIONAL KEYS
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select Set Shortcuts
then press the OK Key.
2. Select Set Directional Keys and press the OK Key.
3. Select UP Directional Key, LEFT Directional Key or DOWN
Directional Key and press the OK Key [SET].
4. Select the desired option and press the OK Key.
RESETTING THE DIRECTIONAL KEY SETTINGS
Use the following procedure to return to the default Directional Key settings.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select Set Shortcuts
then press the OK Key.
2. Select Set Directional Keys and press the OK Key.
3. Select UP Directional Key, LEFT Directional Key or DOWN
Directional Key and press the Right Soft Key [Options].
4. Select Reset (UP, LEFT or DOWN) Key or Reset Directional Keys
and press the OK Key.
5. Select Yes and press the OK Key.
VOICE COMMANDS SETTINGS
You can use Voice Commands to control your device.
CONFIRMATION
When voice recognition is not confident it has recognized a name or number correctly, it
will show you a list of up to three choices.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Voice
Commands Settings then press the OK Key.
2. Select Confirmation and press the OK Key.
3. Select Automatic, Always Confirm or Never Confirm and press
the OK Key.
58
Chapter 4 − Menu Function
SettingsSettings
SENSITIVITY
The Sensitivity setting controls how the voice recognition software determines when a
spoken word is a match. If you frequently experience the messages Please Repeat or No
Match Found, adjust the sensitivity toward Reject Less. If you frequently experience false
activations (when the phone recognizes a name you didn’t say), adjust the sensitivity
toward Most Sensitive.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Voice
Commands Settings then press the OK Key.
2. Select Sensitivity and press the OK Key.
3. Select Most Sensitive, Recommended or Least Sensitive and
press the OK Key.
ADAPTATION
Voice Commands are speaker independent, which means that no training or adaptation
is required. Some users with heavy accents or unusual voice characteristics may find
difficulty in achieving high accuracy with speaker independent Voice Commands, so the
Adapt Voice feature allows users to dramatically improve the recognition accuracy through
adaptation. Users who get acceptable recognition accuracy may not find any additional
benefits from performing the Adapt Voice adaptation.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Voice
Commands Settings then press the OK Key.
2. Select Adaptation and press the OK Key.
3. Select Adapt Voice or Reset Voice and press the OK Key.
To begin press the OK Key.
•
Adapt Voice: Requires that you make recordings of your voice to customize
the voice recognitions system. It will take a few minutes.
•
Reset Voice: Once you finish the adaptation process, you can reset the
adaptation to the factory default settings.
The Reset Voice menu option only appears after you finish the Adapt
Voice process.
4. Wait for the beep and then repeat the sentences using a normal
tone of voice.
5. Repeat steps 1 - 4 when you are finished with a full session, you will
reach a screen that reads Adaptation Complete.
PROMPTS
Allows you to select the Voice Commands system characteristics.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Voice
Commands Settings then press the OK Key.
Menu Function − Chapter 4
59
SettingsSettings
090610_WP8990_Zephyer.indd 58-59090610_WP8990_Zephyer.indd 58-59 2009.6.11 2:57:53 PM2009.6.11 2:57:53 PM
2. Select Prompts and press the OK Key.
3. Select Mode or Audio Playback and press the OK Key.
•
Mode: Select the Voice Commands system mode from the following:
- Prompts: Reads out Voice Commands prompts.
- Readout+Alerts: Read out and Alert tone prompts, dialing digits and
menus at the same time.
- Readout: Read out prompts, dialing digits and menus.
- Tones Only: Prompts you with a tone only.
•
Audio Playback: Allows audio playback to play through the speakerphone
or through the earpiece. Select Automatic, Speakerphone or Earpiece and
press the OK Key.
ABOUT
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Voice
Commands Settings then press the OK Key.
2. Select About and press the OK Key.
3. The Nuance version appears.
4. Press the OK Key to return to the previous screen.
LANGUAGE
To set the bilingual feature to either English or Español:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select Language
then press the OK Key.
2. Select English or Español and press the OK Key.
LOCATION
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select Location then
press the OK Key.
2. Select access the following options and press the OK Key.
•
Location On: Your location is now available to the network.
•
E911 Only: Your location will be hidden from the network and applications,
except for 911.
When the Lock Setting is selected for Location Settings under Restrictions
on the Security Menu, you will need to enter a Lock Code. The default lock
code is the last 4 digits of your mobile telephone number.
60
Chapter 4 − Menu Function
SettingsSettings
CURRENT COUNTRY
The Current Country menu allows you to select your current location.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Current
Country then press the OK Key.
2. Enter a country name in the Go To field or select the appropriate
country and press the OK Key [SET].
PHONE SECURITY
The Security menu allows you to electronically secure the phone. The default lock
code is the last 4 digits of your Mobile Telephone Number.
EDIT CODES
To set a new Lock Code:
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Phone
Security then press the OK Key.
2. Enter the four-digit lock code and press the OK Key. The default lock
code is last 4 digits of your mobile telephone number.
3. Select Edit Codes and press the OK Key.
4. Select access the following options and press the OK Key.
•
Phone Only: Allows you to edit the lock code for Phone Security. The default
lock code is the last 4 digits of your mobile telephone number.
•
Calls & Services: Allows you to edit the lock code for Restrictions. The
default lock code is the last 4 digits of your mobile telephone number.
5. If Phone Only is selected, enter the new four-digit code in the
Enter New Code field. Enter the new four-digit code again in the
Re-enter New Code field and press the OK Key.
6. If Calls & Services is selected, enter the current lock code in the
Enter Current Code field. Enter the new four-digit code in the
Enter New Code field. Enter the new four-digit code again in the
Re-enter New Code field and press the OK Key.
RESTRICTIONS
Use the following procedure to configure Location Setting, Calls and Messages restrictions.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Phone
Security then press the OK Key.
2. Enter the four-digit lock code and press the OK Key. The default lock
code is last 4 digits of your mobile telephone number.
Menu Function − Chapter 4
61
SettingsSettings
090610_WP8990_Zephyer.indd 60-61090610_WP8990_Zephyer.indd 60-61 2009.6.11 2:57:54 PM2009.6.11 2:57:54 PM
3. Select Restrictions and press the OK Key.
4. Enter the four-digit lock code again and press the OK Key. The default
lock code is the last 4 digits of your mobile telephone number.
5. Select one of the following settings and press the OK Key:
•
Location Setting: Select Unlock Setting or Lock Setting and press the
OK Key.
•
Calls: Select Incoming Calls or Outgoing Calls and press the OK Key. Select
Allow All, Contacts Only, or Block All and press the OK Key.
•
Messages: Select Incoming Messages or Outgoing Messages and press the
OK Key. Select Allow All or Block All and press the OK Key.
PHONE LOCK SETTING
This setting specifies whether the phone should be locked whenever it is turned on. Lock
Mode prevents the unauthorized use of your phone. Once the phone is locked, it is in
restricted mode until the Lock Code is entered. You can still make emergency calls.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Phone
Security then press the OK Key.
2. Enter the four-digit lock code and press the OK Key. The default lock
code is last 4 digits of your mobile telephone number.
3. Select Phone Lock Setting and press the OK Key.
4. Select from the following options and press the OK Key:
•
Unlocked: Phone is unlocked.
•
On Power Up: Phone will lock when it is turned on.
LOCK PHONE NOW
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Phone
Security then press the OK Key.
2. Enter the four-digit lock code and press the OK Key. The default lock
code is the last 4 digits of your mobile telephone number.
3. Select Lock Phone Now and press the OK Key.
4. To unlock the phone, in idle mode, press the Right Soft Key
[Unlock] and enter the four-digit lock code and press the OK Key.
RESTORE PHONE
To delete all User Data and restore all settings to their initial defaults:
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Phone
Security then press the OK Key.
62
Chapter 4 − Menu Function
SettingsSettings
2. Enter the four-digit lock code and press the OK Key. The default lock
code is the last 4 digits of your mobile telephone number.
3. Select Restore Phone and press the OK Key.
4. Select Yes and press the OK Key.
5. Follow the on-screen prompt and press the OK Key. The phone will
turn off and then back on again automatically.
SIM SECURITY
The SIM Security menu allows you to select the security settings for your SIM card.
The SIM Card is pre-installed in your phone.
PIN CODE
Allows you to edit/lock your PIN code:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select SIM Security
then press the OK Key.
2. Enter the four-digit SIM lock code and press the OK Key. The default
SIM lock code is last 4 digits of your mobile telephone number.
3. Select PIN Code and press the OK Key.
4. Select one of the following options and press the OK Key:
•
PIN Lock: Allows you to lock/unlock the PIN code.
•
Edit PIN Code: Allows you to edit the PIN code. (PIN number must be
locked before editing.)
Verizon Wireless offers 24/7 Customer Support while you are traveling
abroad. If you need Customer Service assistance or Technical Support for
your global device, dial:
While in the United States
•
1-800-922-0204 from any phone or your wireless phone.
•
*611 from your wireless phone while in the U.S.
While outside of the United States
•
+1 (908) 559-4899
SIM LOCK
Allows you to lock/unlock the SIM code.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select SIM Security
then press the OK Key.
2. Enter the four-digit SIM lock code and press the OK Key. The default
SIM lock code is last 4 digits of your mobile telephone number.
Menu Function − Chapter 4
63
SettingsSettings
090610_WP8990_Zephyer.indd 62-63090610_WP8990_Zephyer.indd 62-63 2009.6.11 2:57:55 PM2009.6.11 2:57:55 PM
3. Select SIM Lock and press the OK Key.
4. Select either Unlocked or Locked and press the OK Key.
5. To unlock the SIM card, enter the PIN Unlock Code and press the
OK Key.
NETWORK MODE
Your phone is Quad-Band Capable, which means it will work in both CDMA and GSM
Destinations. While in the United States or on other CDMA roaming networks, use
your phone in Verizon CDMA Mode. Use your phone in Global Mode while outside of
the U.S.. You must have a SIM card in order to select GSM and Global Mode. The SIM
Card is pre-installed in your phone.
For a complete list of destinations, please visit: www.verizonwireless.com/
goglobal. Network mode allows you to select from CDMA, GSM or Global
network modes.
When your phone is in Verizon (CDMA) mode, it does not necessarily mean
that you are on the Verizon Wireless Network. You may roam on other
carrier’s networks domestically and internationally when your phone is in
Verizon (CDMA) mode. For more information,
visit: www.verizonwireless.com.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Phone Settings, press the OK Key, select Network
Mode then press the OK Key.
2. Select either CDMA Mode, GSM Mode or Global Mode and press
the OK Key.
SYSTEM SELECT
You can set your phone to search or roam on another network when you are not in
your home area. Leave this setting as default unless you want to alter the system
selection as instructed by your service provider.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Settings, press the OK Key, select System Select
then press the OK Key.
2. Select either CDMA Settings or GSM Settings and press the OK Key.
•
CDMA Settings: Select either Automatic B, Automatic A or Home Only and
press the OK Key.
•
GSM Settings: Select either Automatic or Manual and press the OK Key.
64
Chapter 4 − Menu Function
SettingsSettings
CALL SETTINGS
ANSWER OPTIONS
To determine how to handle an answered call:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Call Settings, press the OK Key, select Answer Options
then press the OK Key.
2. Select either Flip Open, Any Key or Auto w/ Handsfree and press
the OK Key [MARK].
3. Press the Left Soft Key [Done].
•
Flip Open is the default setting for this device.
•
When the phone is closed, the Auto w/ Handsfree Mode will not
function, except when a headset is connected.
•
Auto w/ Handsfree will function after about five seconds and is available
only when connected to a headset or hands-free device.
•
To answer all incoming calls, press the SEND Key .
AUTO RETRY
Set the length of time the phone waits before automatically redialing a number
when the attempted call fails.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Call Settings, press the OK Key, select Auto Retry then
press the OK Key.
2. S elect either 10 Seconds, 30 Seconds, 60 Seconds or Off and
press the OK Key.
TTY MODE
You can attach a TTY device to your phone enabling you to communicate with
parties also using a TTY device. A phone with TTY support is able to translate typed
characters to voice. Voice can also be translated into characters and then displayed
on the TTY.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Call Settings, press the OK Key, select TTY Mode then
press the OK Key.
2. S elect either TTY Full, TTY + Talk, TTY + Hear or TTY Off and
press the OK Key.
Menu Function − Chapter 4
65
SettingsSettings
090610_WP8990_Zephyer.indd 64-65090610_WP8990_Zephyer.indd 64-65 2009.6.11 2:57:56 PM2009.6.11 2:57:56 PM
ONE TOUCH DIAL
To initiate a speed dial call by holding down the speed dial digit:
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Call Settings, press the OK Key, select One Touch
Dial then press the OK Key.
2. Select On or Off and press the OK Key.
If One Touch Dial is disabled, speed dial numbers designated in your
contacts will not function.
VOICE PRIVACY
Turn the voice privacy feature On or Off.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Call Settings, press the OK Key, select Voice Privacy
then press the OK Key.
2. S elect On or Off and press the OK Key.
DTMF TONES
To set the Key Tone length and touch tone playback speed:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Call Settings, press the OK Key, select DTMF Tones then
press the OK Key.
2. Select one of the following options and press the OK Key.
•
Normal: Sends out a tone for a fixed period of time even if you continue
to press the key.
•
Long: Sends out a continuous tone for the duration the key is pressed
and held.
ASSISTED DIALING
This menu allows you to select Assisted Dialing for a destination where you are
making a call.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Call Settings, press the OK Key, select Assisted Dialing
then press the OK Key.
Press the Right Soft Key [Help], to view the help menu.
2. Under Assisted Dialing, press the Directional Key left or right to
select On or Off.
3. When selecting On, scroll down to the Reference Country field,
and then press the Left Soft Key [Set]. Enter a country name
in the Go To field or select the appropriate country and press the
OK Key.
66
Chapter 4 − Menu Function
SettingsSettings
4. While on the screen with the list of Countries, press the Left Soft Key
[Details] to edit the following options:
•
Country Code
•
IDD Prefix
•
NDD Prefix
•
Area/City Code
•
National Number Length
5. Press the OK Key to save.
When Assisted Dialing is On, the number edit screen will display “Assisted
Dialing On” when dialing a number.
MEMORY
Select this option to display phone memory information and to delete in
phone memory.
PHONE MEMORY USAGE
Check the available phone memory.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Memory, press the OK Key, select Phone Memory then
press the OK Key.
2. Select Memory Usage and press the OK Key.
3. Press the OK Key to return to the previous screen.
DELETING FILES
To delete files stored in Phone Memory:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Memory, press the OK Key, select Phone Memory then
press the OK Key.
2. Select either My Pictures, My Ringtones, My Sounds or My
Contacts and press the OK Key.
3. Press the Right Soft Key [Options].
4. Select Erase and press the OK Key.
5. Select a file, press the OK Key [MARK] or the Right Soft Key
[Mark All], then press the Left Soft Key [Done].
6. Select Yes and press the OK Key to delete.
Menu Function − Chapter 4
67
SettingsSettings
090610_WP8990_Zephyer.indd 66-67090610_WP8990_Zephyer.indd 66-67 2009.6.11 2:57:57 PM2009.6.11 2:57:57 PM
PHONE INFO
MY NUMBER
To view your phone number:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Info, press the OK Key, select My Number then
press the OK Key.
2. Select one of the following options and press the OK Key:
•
CDMA Number: Displays the MDN, MIN and service provider.
•
GSM Number: Displays the Mobile Device Number.
3. Press the OK Key to return to the previous screen.
SW/HW VERSION
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Info, press the OK Key, select SW/HW Version
then press the OK Key.
2. Displays the Software Version, PRL Version, ERI Version,
Browser Version, Media Center Version, MSUI Version, HW
Version and MEID.
3. Press the OK Key to return to the previous screen.
ICON GLOSSARY
To view all the icons and their meanings:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Info, press the OK Key, select Icon Glossary then
press the OK Key.
2. Press the OK Key to return to the previous screen.
For details on icons, see page 9.
SOFTWARE UPDATE
The update phone firmware (software) option allows you to download and update
the software in your phone automatically. Only the internal software is updated; no
contacts entries or other information saved to your phone will be deleted.
STATUS
To check the latest software download or update status:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Info, press the OK Key, select Software Update
then press the OK Key.
2. Select Status and press the OK Key.
68
Chapter 4 − Menu Function
SettingsSettings
CHECK NEW
To check Download Server for new Software updates:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Phone Info, press the OK Key, select Software Update
then press the OK Key.
2. Select Check New and press the OK Key.
SIM INFO
To view the SIM ID number for your phone.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select SIM Info and press the OK Key.
2. The SIM ID number is displayed.
3. Press the OK Key to return to the previous screen.
SET UP WIZARD
To set up options using the Set up Wizard:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Set-up Wizard and press the OK Key.
2. Select the call sounds ringer type and press the OK Key [SET]. To skip
the step, press the Right Soft Key [Skip].
3. Select the ringtone and press the OK Key [SET]. To listen to the
selected ringtone, press the Left Soft Key [Play].
4. Select the display theme and press the OK Key [SET].
To preview the theme, press the Left Soft Key [Preview].
5. Select the main menu layout and press the OK Key [SET]. To preview
the style of the layout, press the Left Soft Key [Preview].
6. Select the menu type by pressing the OK Key [SET].
For an explanation, press the Left Soft Key [Help].
Step 6 appears only when List or Grid main menu selected.
7. Select the type of clock for the main screen and press the OK Key
[SET]. To preview the type of clock, press the Left Soft Key
[Preview].
8. Select the type of clock for the front screen and press the OK Key
[SET]. To preview the type of clock, press the Left Soft Key
[Preview].
Menu Function − Chapter 4
69
SettingsSettings
090610_WP8990_Zephyer.indd 68-69090610_WP8990_Zephyer.indd 68-69 2009.6.11 2:57:59 PM2009.6.11 2:57:59 PM
VOICE COMMANDS
Your phone is equipped with an AVC (Advanced Voice Commands) feature.
This feature allows you to make calls or use the phone’s functions by simply
using your voice. All you have to do is talk into the phone and the phone will
recognize your voice and complete tasks by itself.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: With the flip open, press the Voice Commands Key on the
right side of your phone to access Voice Commands.
2. The phone displays the Voice Commands menu and prompts you
to say the name of the command you want to use. To complete your
task, simply follow the voice prompts. You can speak the name of the
command after you hear a beep.
You can hear a beep in the Tone Only Mode (Settings & Tools > Phone
Settings > Voice Commands Settings > Prompts > Mode > Tones Only)
while you can see a prompt without a beep sound in the Prompts or
Readout.
3. Select either Call <Name or #>, Send <MSG Type>, Go To
<Shortcut>, Check <Item>, Contact <Name>, Redial,
My Verizon or Help and press the OK Key.
4. When it recognizes one of these commands, the phone launches the
associated application. If the phone does not hear a command within
approximately eight seconds, AVC mode will turn itself off.
CALL <NAME OR #>
Use the Call command to voice dial a name from your Contact List or a phone
number. When dialing a number, pronounce each digit, but do not pause noticeably
between the digits.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. You will hear Please say a command and the Voice Commands
menu will be displayed.
3. If calling a contact from your list, say Call <Name>. Your phone
will ask you to confirm the name you said. Say Yes if it was repeated
correctly. That phone number will be dialed. If there is more than one
number saved for that contact, you will be asked to confirm which
70
Chapter 4 − Menu Function
Voice ToolsVoice Tools
number to dial.
Examples: - Call Tom Smith, - Call 617-555-1212, - Call Bob Carson’s
mobile, - Call Dee Harper at Home.
SEND <MSG TYPE>
Use the Send command to send a text or other type of message to a specified name
or number.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. You will hear Please say a command and the Voice Commands
menu will be displayed.
3. S a y Send followed immediately by one of Text, Picture or Voice.
Examples: - Send Text Tom Smith, - Send Picture to Dee Harper’s
Mobile.
GO TO <SHORTCUT>
Use the Go To command to open an application on your phone. You can say Go To by
itself and be prompted to say the application name or you can skip the prompt by
saying Go To followed by the application name.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. You will hear Please say a command and the Voice Commands
menu will be displayed.
3. S a y Go To followed immediately by one of the Alarm Clock,
Bluetooth, Bluetooth On/Off, Browse & Download, Calculator,
Calendar, Call Settings, Chat, Contacts, Contact List, Display
Settings, Extras, Games, Get New Browse & Download,
Get New Extra, Get new Game, Get new Pictures, Get New
Ringtones, Media Center, Messaging, Messaging Inbox,
Mobile Email, Mobile IM, Mobile Web Mail, My Pictures, My
Ringtones, My Sounds, My Verizon, New Contact, New Picture
Message, New TXT message, New Voice Message, Notepad,
Online Album, Phone Settings, Pictures, Recent Calls, Settings
& Tools, Sounds Settings, Tip Calculator, Tools, Tunes & Tones,
Menu Function − Chapter 4
71
Voice ToolsVoice Tools
090610_WP8990_Zephyer.indd 70-71090610_WP8990_Zephyer.indd 70-71 2009.6.11 2:58:0 PM2009.6.11 2:58:0 PM
Unit Converter, VZ Navigator, Memory, Phone Info.
CHECK <ITEM>
The Check command lets you check status information for your phone. You can say
Check or Check Status to see and hear all status information.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. You will hear Please say a command and the Voice Commands
menu will be displayed.
3. S a y Check followed immediately by one of the following: Status,
Voicemail, Messages, Missed Calls, Time, Signal Strength,
Battery Level, Volume, Balance, Minutes, Payment or My
Number.
CONTACTS <NAME>
Use the Contacts command to retrieve and display information for any name stored
in your Contact List.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. You will hear Please say a command and the Voice Commands
menu will be displayed.
3. S a y Contact <Name>.
Examples: - Contact Tom Jones.
4. The View Contact page will be displayed for that contact name.
REDIAL
Use the Redial command to redial with the directory number which talks over the
phone recentry.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
72
Chapter 4 − Menu Function
Voice ToolsVoice Tools
2. You will hear Please say a command and the Voice Commands
menu will be displayed.
3. S a y Redial.
MY VERIZON
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. You will hear Please say a command and the Voice Commands
menu will be displayed.
3. S a y My Verizon.
4. Your phone will make a web connection.
HELP
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. You will hear Please say a command and the Voice Commands
menu will be displayed.
3. S a y Help.
4. The Help guide will be displayed on your phone.
5. Press the OK Key to return to the previous screen.
VOICE COMMANDS SETTINGS
CONFIRMATION
When voice recognition is not confident it has recognized a name or number correctly, it
will show you a list of up to three choices. You can control when choice lists appear.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. Press the Right Soft Key [Settings], select Confirmation and
press the OK Key.
Menu Function − Chapter 4
73
Voice ToolsVoice Tools
090610_WP8990_Zephyer.indd 72-73090610_WP8990_Zephyer.indd 72-73 2009.6.11 2:58:1 PM2009.6.11 2:58:1 PM
3. Select Automatic, Always Confirm or Never Confirm and press
the OK Key.
SENSITIVITY
The Sensitivity setting controls how the voice recognition software determines when a
spoken word is a match. If you frequently experience the messages Please Repeat or No
Match Found, adjust the sensitivity toward Reject Less. If you frequently experience false
activations (when the phone recognizes a name you didn’t say), adjust the sensitivity
toward Most Sensitive.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. Press the Right Soft Key [Settings], select Sensitivity and
press the OK Key.
3. Select Most Sensitive, Recommended or Least Sensitive and
press the OK Key.
ADAPTATION
Voice Commands are speaker independent, which means that no training or adaptation
is required. Some users with heavy accents or unusual voice characteristics may find
difficulty in achieving high accuracy with speaker independent Voice Commands, so the
Adapt Voice feature allows users to dramatically improve the recognition accuracy through
adaptation. Users who get acceptable recognition accuracy will find no additional benefit
to performing the Adapt Voice adaptation.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. Press the Right Soft Key [Settings], select Adaptation and
press the OK Key.
3. Select Adapt Voice or Reset Voice and press the OK Key.
To begin press the OK Key.
•
Adapt Voice: Requires that you make recordings of your voice to customize
the voice recognitions system. It will take a few minutes.
•
Reset Voice: Once you finish the adaptation process, you can reset the
adaptation to the factory default settings.
The Reset Voice menu option only appears after you finish the Adapt
Voice process.
4. Wait for the beep and then repeat the sentences using a normal
tone of voice.
74
Chapter 4 − Menu Function
Voice ToolsVoice Tools
5. Repeat steps 1 - 4 when you are finished with a full session, you will
reach a screen that reads Adaptation Complete.
PROMPTS
Allows you to select the Voice Commands system characteristics.
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. Press the Right Soft Key [Settings], select Prompts and press
the OK Key.
3. Select Mode or Audio Playback and press the OK Key.
•
Mode: Select the Voice Commands system mode from the following:
- Prompts: Read out Voice Commands prompts.
- Readout+Alerts: Read out and Alert tone prompts, dialing digits and
menus at the same time.
- Readout: Read out prompts, dialing digits and menus.
- Tones Only: Prompts you with a tone only.
•
Audio Playback: Allows audio playback to play through the speakerphone
or through the earpiece. Select Automatic, Speakerphone or Earpiece and
press the OK Key.
ABOUT
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Voice Commands then
press the OK Key.
Shortcut: In idle mode, press the Voice Commands Key located on the
right side of the phone.
2. Press the Right Soft Key [Settings], select About and press
the OK Key.
3. The Nuance version appears.
4. Press the OK Key to return to the previous screen.
CALCULATOR
Allows you to perform simple mathematical calculations.
USING THE CALCULATOR
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Calculator then press
the OK Key.
2. Follow the instructions below to calculate 8×6÷4-2.5=9.5
Menu Function − Chapter 4
75
ToolsTools
090610_WP8990_Zephyer.indd 74-75090610_WP8990_Zephyer.indd 74-75 2009.6.11 2:58:3 PM2009.6.11 2:58:3 PM
Directional
Key
right
Directional
Key
down
Directional
Key
left
Directional
Key
up
OK Key
×÷+=
•
Input 8 and press the Directional Key right.
•
Input 6 and press the Directional Key left.
•
Input 4 and press the Directional Key down.
•
Input 2 and press the International Dial Key to input (.).
•
Input 5.
•
Press the OK Key and you will see the answer (9.5).
•
Press the Right Soft Key [Operator] to use the following:
( / ) / Exponent.
•
Press the Left Soft Key [Clear] to reset.
•
To change the displayed number from positive (+) to negative (-) and
vice versa, press the Vibrate Key .
TIP CALCULATOR
Calculates the tip and determines how much each person should pay.
USING THE TIP CALCULATOR
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Tip Calculator then
press the OK Key.
2. From the Total Bill field, enter the amount of the total bill.
3. Select the Tip(%) field and press the Directional Key left or right to
adjust the Tip Percentage.
4. Select the Split field and press the Directional Key left or right to
adjust the amount of people paying.
5. In the area below, the calculator will automatically display the Tip,
and the share of the bill for each person.
6. Press the Left Soft Key [Reset] to reset.
7. Press the Right Soft Key [Close] to return to the previous
screen.
CALENDAR
The Calendar tool provides easy and convenient access to your schedule.
Simply store your appointments and your phone will alert you to them.
SETTING THE SCHEDULE
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Calendar then press
76
Chapter 4 − Menu Function
ToolsTools
the OK Key.
Shortcut: In idle mode, press the Directional Key down to access
Calendar.
2. Select the scheduled day and press the Left Soft Key [Add].
3. From the Appointment field, enter the appointment.
4. Select Start Time and enter the time. Press the Left Soft Key
for am/pm.
5. Select End Time and enter the time. Press the Left Soft Key
for am/pm.
6. Select Start Date and enter the date.
7. Select Recurrence and press the Directional Key left or right to
select either Once, Daily, Weekly, Monthly or Yearly.
8. Select End Date and enter the date.
9. Select Time Zones and press the Left Soft Key [Set], select the
time zone and press the OK Key.
10. Select Alert and press the Left Soft Key [Set]. Select the
desired ringtone and press the OK Key.
11. Select Vibrate and press the Directional Key left or right to turn
Off or On.
12. Select Reminder and press the Directional Key left or right
to select either Off, Once, Every 2 Minutes or Every 15 Minutes.
13. Select Alert Time and press the Directional Key left or right to
select either On Time, 5 min before, 10 min before, 15 min
before, 30 min before, 1 hour before, 3 hours before,
5 hours before or 1 day before.
14. Press the OK Key [SAVE] to save it. The date of the event will be
marked on your calendar.
VIEWING EVENT LIST
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Calendar then press
the OK Key.
2. Select the event and press the OK Key [VIEW].
ERASING SAVED EVENT
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Calendar then press
the OK Key. Menu Function − Chapter 4
77
ToolsTools
090610_WP8990_Zephyer.indd 76-77090610_WP8990_Zephyer.indd 76-77 2009.6.11 2:58:4 PM2009.6.11 2:58:4 PM
2. Select the event and press the OK Key [VIEW].
3. Press the Left Soft Key [Erase], select Yes and press the OK Key.
ERASING ALL PASSED EVENTS
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Calendar then press
the OK Key.
2. Select the event and press the OK Key [VIEW].
3. Press the Right Soft Key [Options], select Erase Passed and
press the OK Key, select Yes and press the OK Key.
ALARM CLOCK
The Alarm Clock tool allows you to set up to three alarms. When you set an
alarm, the current time is displayed at the top of the screen. When the alarm
goes off, Alarm 1 (or 2 or 3, as applicable) will be displayed on the LCD screen
and the alarm will sound.
SETTING THE ALARM
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Alarm Clock then press
the OK Key.
2. Select Alarm 1, Alarm 2 or Alarm 3 and press the OK Key.
3. From the Alarm field, press the Directional Key left or right to turn
On or Off.
4. Select Time and enter the time. Press the Left Soft Key for
am/pm.
5. Select Frequency and press the Directional Key left or right to select
either Once, Daily, Mon–Fri or Weekends.
6. Select Ringtone and press the Left Soft Key [Set]. Select the
desired ringtone and press the OK Key.
7. To save an alarm setting, press the OK Key [SAVE].
TURNING ON/OFF THE ALARM
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Alarm Clock then press
the OK Key.
2. Select Alarm 1, Alarm 2 or Alarm 3 and press the Right Soft Key
[Options].
3. Select Turn On/Turn Off and press the OK Key.
78
Chapter 4 − Menu Function
ToolsTools
RESETTING THE ALARM
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Alarm Clock then press
the OK Key.
2. Select Alarm 1, Alarm 2 or Alarm 3 and press the Right Soft Key
[Options].
3. Select Reset Alarm and press the OK Key. Select Yes and press the
OK Key.
RESET ALL ALARM SETTINGS
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Alarm Clock then press
the OK Key.
2. Press the Right Soft Key [Options].
3. Select Reset All and press the OK Key. Select Yes and press the OK
Key.
STOP WATCH
Measures elapsed time for activities.
USING THE STOP WATCH
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select Stop Watch then press
the OK Key.
2. Press the OK Key [START] to start.
3. Press the OK Key [STOP] to pause.
4. Press the Right Soft Key [Reset] to reset.
MEASURING MORE THEN ONE EVENT
1. Press the OK Key [START] to start.
2. Press the Left Soft Key [Lap] to stop a time period and continue
measuring another one.
3. Press the Left Soft Key [Lap] to stop the second and continue
measuring a third one. Repeat this step as necessary.
4. Press the OK Key [STOP] to pause.
5. Press the Left Soft Key [View] to review the results.
6. Press the OK Key to return to the stop watch.
You can measure up to 8 lap times.
Menu Function − Chapter 4
79
ToolsTools
090610_WP8990_Zephyer.indd 78-79090610_WP8990_Zephyer.indd 78-79 2009.6.11 2:58:6 PM2009.6.11 2:58:6 PM
WORLD CLOCK
To display the time and date in pre-programmed cities:
SETTING THE CLOCK
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select Tools, press the OK Key, select World Clock then press
the OK Key.
2. Press the Directional Key left or right to select the city.
3. Press the Left Soft Key [Cities] to access the CITIES LIST.
4. Select the city and press the OK Key.
SETTING DST DAYLIGHT SAVING TIME
1. Press the Right Soft Key [DST] to set the DST options.
2. From the City field, press the Directional Key left or right to select
the desired city.
3. Select DST and press the Directional Key left or right to turn
On or Off.
4. Select Start Date and enter the start date.
5. Select Start Time and enter the start time. Press the Left Soft Key
for am/pm.
6. Select End Date and enter the end date.
7. Select End Time and enter the end time. Press the Left Soft Key
for am/pm.
8. Press the OK Key [SAVE] to set.
UNIT CONVERTER
This function converts any measurement into a unit you want. There are
5 types of units that can be converted: Length, Area, Volume, Weight and
Temperature.
USING THE UNIT CONVERTER
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Unit Converter then
press the OK Key.
2. Press the Directional Key left or right to select either either Length,
Area, Volume, Weight or Temperature.
3. Press the Directional Key up or down to select the measure for the
quantity you want converted field.
80
Chapter 4 − Menu Function
ToolsTools
4. When inputting a number, the conversion is automatically calculated
in the different fields.
5. Press the Left Soft Key [Reset] to reset. Press the Right Soft Key
[.] to enter a decimal point.
NOTEPAD
Your phone includes an internal notepad that can be used to compose and
store reminders and notes.
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Notepad then press
the OK Key.
2. Press the Left Soft Key [New] to write a new note.
3. Enter the note.
4. Press the OK Key [SAVE].
VIEW SAVED MEMO
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Notepad then press
the OK Key.
2. Press the OK Key [VIEW] to view a selected note.
ERASE SAVED MEMO
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Notepad then press
the OK Key.
2. Select the desired saved memo.
3. Press the Right Soft Key [Options], select Erase and press
the OK Key.
4. Select Yes and press the OK Key.
ERASE ALL SAVED MEMOS
1. Press the OK Key [MENU], select Settings & Tools and press the
OK Key. Select Tools, press the OK Key, select Notepad then press
the OK Key.
2. Select the desired saved memo.
3. Press the Right Soft Key [Options], select Erase All and press
the OK Key.
4. Select Yes and press the OK Key.
Menu Function − Chapter 4
81
ToolsTools
090610_WP8990_Zephyer.indd 80-81090610_WP8990_Zephyer.indd 80-81 2009.6.11 2:58:7 PM2009.6.11 2:58:7 PM
MY VERIZON
To access your Verizon account information:
1. Press the OK Key [MENU], select Settings & Tools and press the OK
Key. Select My Verizon and press the OK Key
Shortcut: In idle mode, press the Directional Key left to access
My Verizon.
2. Select access the following options.
•
Balance: Information about your balance.
•
Usage: Information about your usage.
•
Payments: Information about your payments.
•
My Plan: Information about your plan.
•
My Features: Information about your service features.
•
Chg Vmail Pswd: Resetting about your voicemail password.
•
Find Store: Information about stores near you.
•
Mobile2Mobile: Information about gift card options.
•
FAQs: Frequently asked questions.
82
Chapter 4 − Menu Function
My VerizonMy Verizon
MEDIA CENTER
CHAPTER 5
MEDIA CENTER
Your phone provides a unique feature -Media Center- that enables
you to download ringtones, wallpapers, games and more from your
network to your phone. Please contact your service provider for the
availability of these services.
Tunes & Tones
Pictures
Games
Mobile Web
Browse & Download
Extras
Media Center info
VZ Navigator
090610_WP8990_Zephyer.indd 82-83090610_WP8990_Zephyer.indd 82-83 2009.6.11 2:58:9 PM2009.6.11 2:58:9 PM
TUNES & TONES
GET NEW RINGTONES
To connect to MEDIA CENTER and download various ringtones:
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Tunes & Tones and press the OK Key.
2. Select Get New Ringtones and press the OK Key.
3. Select one of the following options and press the OK Key:
•
VZW Tones Deluxe: To launch VZW Tones Deluxe application.
•
Select Get New Applications and press the OK Key.
4. Choose the application which you want to download from the list
displayed on the screen.
MY RINGTONES
PLAY DOWNLOADED TUNES OR TONES
1. Press the OK Key [MENU], select My Ringtones and press the OK
Key.
2. Select the tune or tone to play and press the OK Key [PLAY].
3. To stop, press the OK Key [STOP].
ERASE DOWNLOADED TUNES OR TONES
1. Press the OK Key [MENU], select My Ringtones and press the OK
Key.
2. Select the tune or tone to erase and press the Right Soft Key
[Options].
3. Select Erase and press the OK Key.
4. Select Yes and press the OK Key.
The preloaded Ringtones cannot be erased.
ASSIGNING DOWNLOADED TUNES OR TONES
To select a desired ringtone:
1. Press the OK Key [MENU], select My Ringtones and press the OK
Key.
2. Select the desired ringtone and press the Left Soft Key
[Set As].
•
Ringtone: Setting as default ringtone.
•
Contact ID: Setting the ringtone for each contact.
84
Chapter 5 − Media Center
Media CenterMedia Center
•
Alert Sounds: Setting the alert tone for All Messages, TXT Message,
Pic/Voice Msg or Voicemail.
3. Press the Right Soft Key [Options] to access the following
options.
•
Erase: Erase the current ringtone.
•
Rename: Rename the ringtone’s title.
•
Lock/Unlock: Lock or unlock the current ringtone.
•
Erase All: Erase all the ringtones.
•
File Info: Displays information about the selected ringtone.
MY SOUNDS
To select a desired sound or record a new sound:
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Tunes & Tones and press the OK Key.
2. Select My Sounds and press the OK Key.
3. Select the desired sound and press the OK Key [PLAY] to play.
4. Press the OK Key [STOP] to stop playing. Press the Right Soft Key
[Options] to access the following options:
• DOWNLOADED or RECORDED SOUND:
Send: Send the sound.
To Online Album: Upload the selected sound to Online Album.
Rename: Rename the sound’s title.
Lock/Unlock: Lock or unlock the selected sound.
Erase: Erase the selected sound.
Erase All: Erase all the sounds.
File Info: Displays information for the selected sound.
• PRELOADED SOUND:
Send: Send a sound.
To Online Album: Upload the selected sound to Online Album.
File Info: Displays information for the selected sound.
RECORDING NEW SOUNDS
To record a new sound:
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Tunes & Tones and press the OK Key.
2. Select My Sounds and press the OK Key.
3. Select Record New and press the OK Key.
4. Press the OK Key to begin recording.
Media Center − Chapter 5
85
Media CenterMedia Center
090610_WP8990_Zephyer.indd 84-85090610_WP8990_Zephyer.indd 84-85 2009.6.11 2:58:10 PM2009.6.11 2:58:10 PM
5. Press the OK Key [STOP] to finish recording. It will automatically be
saved in My Sounds.
6. To rename, press the Right Soft Key [Options].
7. Select Rename and press the OK Key.
8. Enter the new name and press the OK Key.
ERASE A SOUND
To erase a sound:
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Tunes & Tones and press the OK Key.
2. Select My Sounds and press the OK Key.
3. Select the sound to erase and press the Right Soft Key
[Options].
4. Select Erase and press the OK Key.
5. Select Yes and press the OK Key.
The preloaded sounds cannot be erased.
PICTURES
GET NEW PICTURES
To connect to MEDIA CENTER and download a variety of Pictures (images):
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Pictures, press the OK Key, select Get New Pictures
then press the OK Key.
2. Select Get New Applications and press the OK Key.
3. Choose the application you want to download from the list displayed
on the screen and follow the prompts.
4. The downloaded contents are saved in My Pictures.
The downloaded application will be included in the list displayed when
you access Menu > Media Center > Pictures > Get New Pictures > Get
New Applications.
MY PICTURES
In My Pictures you can view all the pictures you have taken, store selected images in
your phone, send pictures to the Online Album, delete images and access additional
picture options.
1. Press the OK Key [MENU], select My Pictures and press the OK Key.
86
Chapter 5 − Media Center
Media CenterMedia Center
2. Select the desired image. Press the Right Soft Key [Options] to
access the following options.
•
Send: Send a picture message, or upload to online album.
•
Set As: Assigns the selected picture to display for specific tasks.
•
Take Picture: Take a new picture.
•
Get New Pictures: Download various pictures.
•
Rename: Rename the selected picture.
•
Lock/Unlock: Lock or unlock the selected picture. Locked pictures cannot be
deleted by the Erase All function. Only pictures you downloaded or took with
the camera can be erased.
•
Erase All: Erase all the pictures in your phone.
•
File Info: Displays information about the selected picture.
TO ERASE THE CURRENT PICTURE
1. Press the OK Key [MENU], select My Pictures and press the OK Key.
2. Select the picture to erase and press the Left Soft Key [Erase].
3. Select Yes and press the OK Key.
TAKE PICTURE
1. To access the camera, with the flip open, press and hold the Side
Camera Key .
2. Focus on the object.
3. Press the Directional Key left or right to zoom in or out. (Except for
the 1600X1200 resolution mode). Press the Right Soft Key
[Options] to access the following options.
Name Description
Resolution 1600x1200, 1280x960, 640x480, 320x240
Self Timer Off, 3 Seconds, 5 Seconds, 10 Seconds
Brightness -2, -1, 0, +1, +2
White Balance Auto, Sunny, Cloudy, Tungsten, Fluorescent, Darkness
Shutter Sound Shutter, Silent, Say “Cheez”, Ready! 123
Color Effects Normal, Antique, Black & White, Negative
Capture Mode Landscape, Portrait
Sub Display Take a self-portrait by activating the sub display.
To view captured images, press the Left Soft Key [My Pics].
Media Center − Chapter 5
87
Media CenterMedia Center
090610_WP8990_Zephyer.indd 86-87090610_WP8990_Zephyer.indd 86-87 2009.6.11 2:58:12 PM2009.6.11 2:58:12 PM
4. Press the side Camera Key or press the OK Key [TAKE] to take the
picture.
5. To save the picture, press the Left Soft Key [Save]. To take
another picture without saving, press the Right Soft Key
[Erase]. To send as a Picture Message, press the OK Key [SEND].
ONLINE ALBUM
To access Online Album:
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Pictures, press the OK Key, select Online Album then
press the OK Key.
2. The browser launches and the Online Album sign-on screen
appears.
3. Follow the on-screen prompts.
GAMES
DOWNLOADING NEW GAMES
To download games and applications from MEDIA CENTER:
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Games and press the OK Key.
2. Select Get New Applications and press the OK Key.
3. Choose the game you want to download from the list displayed on
the screen.
4. Once the application has downloaded, select Yes to run or No to
return to the Games menu.
All applicable charges or fees will be incurred to download the selected
application.
PLAYING DOWNLOADED GAMES
1. From the GAMES menu, select the game you downloaded and press
the OK Key [PLAY] to run the application.
88
Chapter 5 − Media Center
Media CenterMedia Center
MOBILE WEB
Now you can access news, sports, weather and Email from your phone. Mobile
Web keeps you updated by providing access to up-to-date information such as
news, sports, weather and stock quotes when you subscribe to Internet service
with your service provider. Stay connected to email, text and picture
messaging, web, and wireless networks while you’re on the go in multiple
data destinations around the world. Visit vzw.com/vzglobal for details.
1. To start your Internet browser and access websites through your
wireless handset, press the OK Key [MENU], select Media Center
and press the OK Key. Select Mobile Web and press the OK Key.
Shortcut: In idle mode, press the Directional Key up.
BROWSER MENU
The browser menu lists the actions necessary to operate the browser. To access press
the Directional Key up and press the Right Soft Key [Menu].
VZW HOME
Return to the home page.
ADD FAVORITE
Takes the user to the Add to Favorites page.
For favorites, page name and URL need to auto-populate.
SEARCH
Takes the user to the VZW Search page.
GO TO URL
Takes the user to the VZW Search > Go to Site page.
SHOW URL
Display the current URL.
BACK
Return to the previously viewed page.
MANAGE MEMORY
Displays the following options:
•
Clear Cache: Clears the cache.
•
Clear History: Clears the list of recently visited URLs.
•
Clear Cookies: Clears saved cookies.
•
Autofill: Automatically fills in character for browser recognized words.
SETTINGS
•
Downloads: Selecting the Downloads item allows the user to enable/disable
downloading images, background sounds and object downloads when a URL
is accessed.
Media Center − Chapter 5
89
Media CenterMedia Center
090610_WP8990_Zephyer.indd 88-89090610_WP8990_Zephyer.indd 88-89 2009.6.11 2:58:13 PM2009.6.11 2:58:13 PM
•
Restart Browser: Selecting Restart Browser causes the history and cache to be
cleared and returns the user to the homepage.
•
Scroll Mode: Selecting Scroll Mode from the Settings menu allows the user to
select the way text scrolls and the scroll speed.
•
Send Referrer: When the Send Referrer item is selected from the Settings menu,
the browser allows the user to turn on or off sending the referrer URL.
•
Key Press Time Out: When the Key Press Time Out item is selected from the
Settings menu, the browser allows the user to set the key press timeout to Fast,
Medium, Slow, or OFF. Medium is 1.5 seconds, slow 2 seconds and fast is 1 second.
The key press timeout is the period of time after which the cursor auto-advances
to the next entry position. In most cases, a single key can be used to enter more
than one character. Each time the key is pressed the last character of the line
is replaced by the next choice for that key. As long as the same key is repressed
within key press timeout, the last character cycles between all the choices for
the key.
•
Connection Time Out: When the Connection Time Out item is selected from the
Settings menu, the browser allows the user to set the connection timeout. The
connection timeout determines how long the browser will wait for a response
from the network for a network request.
ADVANCED
•
About: Displays the name of the supplier of the Browser and the Browser SW
version.
•
Refresh: Allows the user to reload the current URL.
•
History: Displays the 20 previously visited URLs.
•
Encryption: Displays the following options.
1. Authentication: Gives the option to turn Authentication Caching, ON or OFF.
2. Root Certificate: Shows the root security keys for TLS.
3. Current Certificate: Shows the current site security key for TLS (if applicable).
EXIT
Press the END/PWR Key to exit out of the browser and return to
idle mode.
BROWSE & DOWNLOAD
DOWNLOADING NEW APPLICATIONS
To download Tools that can help you navigate to entertainment spots, restaurants
and provide you with up-to-date weather information:
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Browse & Download and press the OK Key.
2. Select one of the following options and press the OK Key.
•
Get New Applications: To connect to the Browse & Download server.
•
Backup Assistant: To connect to the Backup Assistant Smartlink.
•
Mobile Email: To connect to the Mobile Email Smartlink.
•
VZ Navigator: To connect to the VZ Navigator Smartlink.
90
Chapter 5 − Media Center
Media CenterMedia Center
3. Choose the application which you want to download from the list
displayed on the screen and follow the prompts.
EXTRAS
DOWNLOADING NEW APPLICATIONS
To download Applications:
1. Press the OK Key [MENU], select Media Center and press the OK
Key. Select Extras and press the OK Key.
2. Select Get New Applications and press the OK Key.
3. Choose the application which you want to download from the list
displayed on the screen and follow the prompts.
MEDIA CENTER INFO
To view App. Memory, Phone Memory, View Log and Help information:
1. Press the OK Key [MENU], select Media Center and press the OK
Key.
2. Press the Right Soft Key [Info].
3. Select App. Memory, Phone Memory, View Log or Help and
press the OK Key.
4. Press the OK Key to return to the previous screen.
VZ NAVIGATOR
USING THE VZ NAVIGATOR
VZ Navigator — Now you can find the address of a great restaurant or the nearest
ATM. Check movie times. Discover the latest hot spots. And know exactly how to get
where you’re going. VZ Navigator puts all the advanced features of the latest GPS
devices and systems on your wireless device — at a fraction of the price.
VZ Navigator provides:
•
Heads-up, voice-prompted, turn-by-turn directions with auto-rerouting if you
miss a turn
•
Local search of nearly 14 million points of interest in the U.S.
•
Detailed color maps that can be quickly panned and zoomed With VZ Navigator,
you’ll know exactly where you are, what’s around you and how to get there.
Download, subscription, and airtime required for use; only in National Enhanced
Services Coverage Area; accuracy and completeness of information is not guaran-
teed; information about location of device will be used to deliver service.
1. Press the OK Key [MENU], select VZ Navigator and press the OK Key.
To use VZ Navigator, your phone’s location capability must first be enabled.
To turn Location On, see details on page 60.
Media Center − Chapter 5
91
Media CenterMedia Center
090610_WP8990_Zephyer.indd 90-91090610_WP8990_Zephyer.indd 90-91 2009.6.11 2:58:14 PM2009.6.11 2:58:14 PM
92
Chapter 5 − Media Center
Media CenterMedia Center
MESSAGING MENU
CHAPTER 6
MESSAGING MENU
This chapter addresses Voicemail, TXT, Picture,
Voice Messaging functions including:
When a new message arrives
New message
Inbox
Sent
Messages
Drafts
Voicemail
Mobile IM
Email
Chat
Erase messages
Settings
Changing this setting does not automatically enable retrieval of the
location of the phone, you must still grant VZ Navigator access to the
location capability before it can acquire the phone’s location. The first time
you run VZ Navigator, you will be prompted to grant this permission to
the application.
090610_WP8990_Zephyer.indd 92-93090610_WP8990_Zephyer.indd 92-93 2009.6.11 2:58:15 PM2009.6.11 2:58:15 PM
WHEN A NEW MESSAGE ARRIVES
1. The received message display appears when a new message arrives.
2. To display the message, select View Now and press the OK Key.
NEW MESSAGE
TXT MESSAGE
Verizon Wireless voice coverage is available in multiple destinations worldwide, so
you’ll use one number wherever you travel. Plus, stay connected to email, text and
picture messaging, web, and wireless networks while you’re on the go in multiple
data destinations around the world. Visit vzw.com/vzglobal for details.
•
The SIM card must be installed in order to send Text Messages in GSM
mode.
•
The SIM Card is pre-installed in your phone.
1. Press the Left Soft Key [Message], select New Message and
press the OK Key. Select TXT Message and press the OK Key.
Shortcut: In idle mode, press the New TXT Message Key .
2. Enter the phone number and press the OK Key. Or press the Right Soft
Key [Add] to access the following options.
•
From Contacts: Search for a phone number which is stored in the contacts
list.
•
Recent Calls: Search for a phone number which is stored in the recent
calls list.
•
Groups: Search the groups stored in the contacts list.
•
To Contacts: Save the number or email you’ve entered to the contacts list,
when you enter the number.
3. Press the Right Soft Key [Options] to access the following
options.
•
Insert Quick Text: Inserts already written sentences in TXT message.
•
Save As Draft: Save the TXT message.
•
Add: Attach Graphic, Sound, Name Card.
•
Format Text: Edit the Alignment, Font Size, Font Style, Font Color and
Background Color.
•
Priority Level: Set the level of the priority to High or Normal.
•
Cancel Message: Cancel message.
4. Enter the message and press the OK Key [SEND].
As long as one field is complete in the TXT Message, the message will be
saved in the Draft box.
94
Chapter 6 − Messaging Menu
MessagingMessaging
PICTURE MESSAGE
•
The SIM card must be installed in order to send Picture Messages in
GSM mode.
•
The SIM Card is pre-installed in your phone.
1. Press the Left Soft Key [Message], select New Message and
press the OK Key. Select Picture Message and press the OK Key.
2. Enter the phone number and press the OK Key. Or press the Right Soft
Key [Add] to access the following options.
•
From Contacts: Search for a phone number which is stored in the contacts
list.
•
Recent Calls: Search for a phone number which is stored in the recent calls
list.
•
Groups: Search the groups stored in the contacts list.
•
To Online Album: Send picture message by using online address.
•
To Contacts: Save the number or email you’ve entered to the contacts list,
when you enter the number.
3. Enter the message in the Text field.
4. Select Picture and press the Left Soft Key [My Pics]. Select the
desired picture and press the OK Key to select. You can only send one
picture file at a time.
5. Select Sound and press the Left Soft Key [Sounds]. Select the
desired sound and press the OK Key to select. You can only send one
sound file at a time.
6. Select Subject and write the subject.
7. Select Name Card. Press the Left Soft Key [Add] and select My
Name Card or Contacts and press the OK Key. Select the card or the
contact and press the OK Key.
8. Press the Right Soft Key [Options] to access the following
options.
•
Preview: Preview a written Picture Message.
•
Save As Draft: Save the Picture Message.
•
Add Quick Text: Inserts already written sentences in Picture Message.
•
Add Slide: Add another message.
•
Priority Level: Set the level of the priority to High or Normal.
•
Remove Picture: Remove inserted picture in Picture field.
•
Remove Slide: Remove inserted Slide Message.
•
Remove Sound: Remove inserted sound in Sound field.
•
Remove Name Card: Remove inserted name card in Name Card field.
•
Cancel Message: Cancel message.
9. Press the OK Key [SEND].
Messaging Menu − Chapter 6
95
MessagingMessaging
090610_WP8990_Zephyer.indd 94-95090610_WP8990_Zephyer.indd 94-95 2009.6.11 2:58:17 PM2009.6.11 2:58:17 PM
As long as one field is complete in Picture Message, the message will be
saved in the Draft box.
VOICE MESSAGE
1. Press the Left Soft Key [Message], select New Message and
press the OK Key. Select Voice Message and press the OK Key.
2. To record a new Voice Message, press the OK Key to start recording.
Press the OK Key [STOP] to stop recording and save it.
3. Enter the phone number and press the OK Key. Or press the Right Soft
Key [Add] to access the following options.
•
From Contacts: Search for a phone number which is stored in the contacts
list.
•
Recent Calls: Search for a phone number which is stored in the recent calls
list.
•
Groups: Search the groups stored in the contacts list.
•
To Contacts: Save the number or email you’ve entered to the contacts list,
when you enter the number.
4. From the Voice field, you can re-record the message by pressing
the Left Soft Key [Record]. You can only send one voice file
at a time.
5. Select Text and enter the message.
6. Select Subject and write the subject.
7. Select the Name Card field. Press the Left Soft Key [Add] and
select My Name Card or Contacts and press the OK Key. Select the
card or the contact and press the OK Key.
8. Press the Right Soft Key [Options] to access the following
options.
•
Review: Review a written Voice Message.
•
Save As Draft: Save the Voice Message.
•
Add Quick Text: Inserts already written sentences in the message.
•
Priority Level: Set the level of the priority to High or Normal.
•
Remove Recording: Remove inserted recorded voice memo in Voice field.
•
Remove Name Card: Remove inserted name card in Name Card field.
•
Cancel Message: Cancel message.
9. Press the OK Key [SEND].
As long as one field is complete in the Voice Message, the message will be
saved in the Draft box.
96
Chapter 6 − Messaging Menu
MessagingMessaging
INBOX
The Inbox manages received messages. To access:
1. Press the Left Soft Key [Message], select Inbox and press
the OK Key.
2. Select a message and press the OK Key [OPEN]. To delete a
message, press the Left Soft Key [Erase] and press the OK Key
to select Yes. With the message opened, press the Right Soft Key
[Options] to access the following options.
•
Play Again: Play a received Picture or Voice message.
•
Erase: Erase an inbox message.
•
Reply w. Copy: Reply with the original message included.
•
Forward: Forward the TXT, Picture or Voice message.
•
Save Picture (MMS Picture): Save a picture to the My Pictures folder.
•
Save As Ringtone (MMS Sound): Save a sound to the My Ringtones folder.
•
Save Sound (MMS Sound): Save a sound to the My Sounds folder.
•
Save Objects (EMS Save Objects): Save a graphic, sound, name card.
•
Save Name Card: Save a name card to the contacts.
•
Save Quick Text: Save received text msg to Quick Text.
•
Lock/Unlock: Locks or unlock the TXT, Picture or Voice message.
•
Add To Contacts: Save a number to contacts.
•
Extract Addresses: Extract all phone numbers, Email addresses and URLs
from the received message.
•
Message Info: Show received TXT, Picture or Voice message information.
SENT
Manages TXT, Picture and Voice messages already sent or waiting to be sent.
1. Press the Left Soft Key [Message], select Sent and press the
OK Key.
2. Select a message and press the OK Key [OPEN]. To delete a
message, press the Left Soft Key [Erase] and press the OK Key
to select Yes.
3. With the message opened, press the Right Soft Key [Options]
to access the following options.
•
Play Again: Play a received Picture or Voice message.
•
Forward: Forward the TXT, Picture or Voice message.
•
Lock/Unlock: Locks or unlock the TXT, Picture or Voice message.
•
Save Quick Text: Save sent text message to quick text.
•
Add To Contacts: Save number to contacts.
•
Erase: Erase a sent message.
•
View Name Card: View included name card with in message.
•
Message Info: Show sent TXT, Picture or Voice message information.
Messaging Menu − Chapter 6
97
MessagingMessaging
090610_WP8990_Zephyer.indd 96-97090610_WP8990_Zephyer.indd 96-97 2009.6.11 2:58:19 PM2009.6.11 2:58:19 PM
MESSAGES
1. Press the Left Soft Key [Message], select Messages and press
the OK Key.
2. Select the contact name to view and press OK Key.
The latest message will be shown.
3. Press the Directional Key right to view the next message.
4. With the message opened, press the Right Soft Key [Options]
to access the following options.
•
Forward: Forward the TXT, Picture or Voice message.
•
Lock/Unlock: Locks or unlock the TXT, Picture or Voice message.
•
Save Quick Text: Save sent text message to quick text.
•
Add To Contacts: Save number to contacts.
•
Message Info: Show sent TXT, Picture or Voice message information.
DRAFTS
The Drafts folder contains any draft messages or saved messages. If a message
was interrupted by a voice call or other interrupting event, the message will
automatically be saved here.
1. Press the Left Soft Key [Message], select Drafts and press
the OK Key.
2. Select a message to edit and press the OK Key [EDIT].
Edit the message.
3. To delete a message, press the Left Soft Key [Erase] and press
the OK Key to select Yes.
4. Press the Right Soft Key [Options] to access the following
options.
•
Send: Send a selected message.
•
Lock/Unlock: Locks or unlock the TXT, Picture or Voice message.
•
Add To Contacts: Save number to contacts.
•
Erase Drafts: Erase all drafts messages.
VOICEMAIL
New voicemail alerts are sent by your network. These messages indicate how
many new and urgent voicemails are in your voicemail box.
WHEN A NEW VOICEMAIL ARRIVES
When you receive a new voicemail message you’ll hear a sound and a Voicemail icon
appears in the display.
1. Select Listen Now and press the OK Key to access your voicemail
box.
98
Chapter 6 − Messaging Menu
MessagingMessaging
2. Select Listen Later and press the OK Key to ignore the voicemail
message and return to idle mode.
TO ACCESS YOUR VOICE MAILBOX
1. To dial your voicemail box directly, press , ,
and then press the SEND Key . Press the Left Soft Key
[Message], select Voicemail and press the OK Key then press the
OK Key [CALL] to dial.
Shortcut: In idle mode, press and hold to access Voicemail.
One Touch Dial must be enabled, please see page 66 for details.
2. Follow the prompts to enter your password and listen your messages.
MOBILE IM
LAUNCHING MOBILE IM
1. Press the Left Soft Key [Message], select Mobile IM and press
the OK Key.
2. When you access this application for the first time, an Accept/
Decline screen will appear. Select Accept and press the Left Soft Key
[Accept]. Or press the OK Key.
3. Select either AIM, WL Messenger or Yahoo!® and press the OK Key.
4. Enter your Login ID and Password and press the OK Key [Sign In].
EMAIL
1. Press the Left Soft Key [Message], select Email and press the
OK Key.
2. Select one of the following options and press the OK Key.
•
Mobile Email: To connect Brew Smartlink.
•
Mobile Web Mail: To connect WAP Browser.
3. The Browser launches.
4. Select the desired Email provider and press the OK Key.
5. Follow the on-screen prompts and functions.
CHAT
1. Press the Left Soft Key [Message], select Chat and press the
OK Key.
2. The Browser launches.
Messaging Menu − Chapter 6
99
MessagingMessaging
090610_WP8990_Zephyer.indd 98-99090610_WP8990_Zephyer.indd 98-99 2009.6.11 2:58:21 PM2009.6.11 2:58:21 PM
3. Select one of the displayed chat rooms and press the Left Soft Key
[Select].
4. Follow the on-screen prompts and functions.
ERASE MESSAGES
To erase all messages stored in your Inbox, Drafts or Sent folders:
1. Press the Left Soft Key [Message] and then press the Right Soft
Key [Options].
•
Erase Inbox: Erase all messages or only read messages stored in the Inbox.
•
Erase Sent: Erase all messages stored in Sent Folder.
•
Erase Drafts: Erase all messages stored in the Drafts folder.
•
Erase All: Erase all messages or all except unread messages stored in the
Inbox, Sent and Drafts folders.
2. Select Yes to erase the selected messages and press the OK Key.
Locked messages cannot be erased.
SETTINGS
To configure received message settings:
1. Press the Left Soft Key [Message] and then press the Left Soft
Key [Settings].
2. Select one of the settings below and press the OK Key to select it.
MESSAGES VIEW
1. Select Time or Contact and press the OK Key.
•
Time: All received and sent messages are stored in the Inbox and Sent
folders.
•
Contact: All received and sent messages are stored in each of the contacts
name folders.
ENTRY MODE
Set a default entry mode. For example, if Abc mode is the default, its icon will
appear.
1. Select T9 Word, Abc, ABC or 123 and press the OK Key.
AUTO SAVE SENT
1. Select On, Off or Prompt and press the OK Key.
100
Chapter 6 − Messaging Menu
MessagingMessaging
•
On: All sent messages saved in the Sent box.
•
Off: All sent messages not saved in the Sent box.
•
Prompt: Dialogue box displayed after sent message.
AUTO ERASE INBOX
Automatically erases the oldest read inbox message when a new message arrives.
1. Select On or Off and press the OK Key.
•
On: The oldest read message is erased from the Inbox automatically when
the Inbox is full.
•
Off: The oldest read message is not erased from the Inbox automatically
even though the Inbox is full.
MESSAGING FONT SIZE
1. Select Normal or Large and press the OK Key.
TXT AUTO VIEW
1. Select On or Off and press the OK Key.
•
On: The TXT message is displayed automatically when a new message
arrives.
•
Off: View a new text message by entering the Inbox or responding to the
new message notification.
MULTIMEDIA AUTO RECEIVE
1. Select On or Off and press the OK Key.
•
On: Picture/Voice messages download automatically.
•
Off: Picture/Voice messages must be retrieved from the Inbox
or at the new Picture/Voice message prompt.
QUICK TEXT
To create a new quick text or edit the quick text you have saved:
1. Select a quick text from the list and press the OK Key [EDIT].
2. To add a new quick text, press the Right Soft Key [Options] to
select New. Enter the new text and press the OK Key [SAVE].
3. To move the saved quick text, press the Right Soft Key
[Options] and select Move by pressing the OK Key. Select the
desired location and press the OK Key [SAVE].
4. To erase a saved quick text, press the Left Soft Key [Erase].
Press the OK Key to select Yes.
Messaging Menu − Chapter 6
101
MessagingMessaging
090610_WP8990_Zephyer.indd 100-101090610_WP8990_Zephyer.indd 100-101 2009.6.11 2:58:22 PM2009.6.11 2:58:22 PM
102
Chapter 6 − Messaging Menu
MessagingMessaging
SAFETY AND WARRANTY
CHAPTER 7
SAFETY AND WARRANTY
This chapter addresses the safety guidelines and precautions to follow when
operating your phone. Before operating your phone, please be aware of all the
safety details. This chapter contains the warranty for your phone.
Please review this manual thoroughly.
Safety information for wireless handheld phones
Safety information for FCC RF exposure
SAR information
Hearing aid compatibility (HAC) for wireless telecommunications devices
FDA consumer update
Avoid potential hearing loss.
FCC compliance information
CTIA batery certification requirements
12 month limited warranty
Index
VOICEMAIL#
1. Enter a new voicemail number or edit the voicemail number and
press the OK Key.
CALLBACK #
Edit a default callback number so that the recipient can callback or reply.
1. Select On or Off and press the OK Key.
2. If On is selected, input a new callback number and press the OK Key.
SIGNATURE
Create a signature that can be inserted at the end of a TXT, Picture or Voice Message.
1. To deactivate Signature, select None and press the OK Key.
2. To input a Signature, select Custom. Enter your signature in the
text box and press the OK Key.
090610_WP8990_Zephyer.indd 102-103090610_WP8990_Zephyer.indd 102-103 2009.6.11 2:58:23 PM2009.6.11 2:58:23 PM
SAFETY INFORMATION FOR WIRELESS HANDHELD
PHONES
READ THIS INFORMATION BEFORE USING YOUR HANDHELD
PORTABLE CELLULAR TELEPHONE
EXPOSURE TO RADIO FREQUENCY SIGNALS
Your wireless handheld portable telephone is a low power radio transmitter and
receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.
In August 1996, the Federal Communications Commissions (FCC) adopted RF expo-
sure guidelines with safety levels for handheld wireless phones. Those guidelines
are consistent with the safety standards previously set by both U.S. and interna-
tional standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986) *
ICNIRP (1996) *
Those standards were based on comprehensive and periodic evaluations of the rel-
evant scientific literature. For example, over 120 scientists, engineers and physicians
from universities, government health agencies and industry reviewed the available
body of research to develop the ANSI Standard (C951).
The design of your phone complies with the FCC guidelines (and those standards).
1* : American National Standards Institute.
2* : National Council on Radiation protection and measurements.
3* : International Commission on Nonionizing Radiation Protection.
ANTENNA SAFETY
Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications or attachments could impair call quality, damage the phone or result
in violation of FCC regulations. Please contact your local dealer for replacement
antenna.
Do not use the phone with a damaged antenna. If a damaged antenna comes into
contact with the skin, a minor burn may result. Please contact your local dealer for
replacement antenna.
DRIVING SAFETY
Talking on the phone while driving is extremely dangerous and is illegal in some
states. Remember, safety comes first. Check the laws and regulations on the use of
phones in the areas where you drive. Always obey them. Also, if using your phone
while driving, please:
•
Give full attention to driving. Driving safely is your first responsibility.
•
Use hands-free operation, if available.
•
Pull off the road and park before making or answering a call, if driving conditions
so require.
104
Chapter 7 − Safety and Warranty
SafetySafety
If you must use the phone while driving, please use one-touch, speed dialing and
auto answer modes.
An airbag inflates with great force. DO NOT place objects, including both installed
or portable wireless equipment, in the area over the airbag or in the air bag deploy-
ment area. If in-vehicle wireless equipment is improperly installed and the air bag
inflates, serious injury could result.
WARNING: Failure to follow these instructions may lead to serious personal injury and
possible property damage.
ELECTRONIC DEVICES
Your wireless handheld portable telephone is a low power radio transmitter and
receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.
Most modern electronic equipment is shielded from RF energy. However, certain
electronic equipment may not be shielded against the RF signals from your wireless
phone. Therefore, use of your phone must be restricted in certain situations.
PACEMAKERS
The Health Industry Manufacturers Association recommends that a minimum
separation of six (6”) inches be maintained between a handheld wireless phone
and a pacemaker to avoid potential interference with the pacemaker. These recom-
mendations are consistent with the independent research by and recommendations
of Wireless Technology Research. Persons with pacemakers:
•
ALWAYS keep the phone more than six inches from your pacemaker when the
phone is turned on.
•
Do not carry the phone in a breast pocket.
•
Use the ear opposite the pacemaker to minimize the potential for interference.
•
If you have any reason to suspect that interference is taking place, turn your
phone OFF immediately.
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event
of such interference, you may want to consult your service provider (or call the
customer service line to discuss alternatives).
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult the manufacturer of your
device to determine if they are adequately shielded from external RF energy.
Your physician may be able to assist you in obtaining this information.
Turn your phone OFF in healthcare facilities when any regulations posted in these
areas instruct you to do so. Hospitals or healthcare facilities may be using
equipment that could be sensitive to external RF energy.
VEHICLES
RF signals may affect improperly installed or inadequately shielded electronic sys-
tems in motor vehicles. Check with the manufacturer or its representative regarding
Safety and Warranty − Chapter 7
105
SafetySafety
090610_WP8990_Zephyer.indd 104-105090610_WP8990_Zephyer.indd 104-105 2009.6.11 2:58:25 PM2009.6.11 2:58:25 PM
your vehicle. You should also consult the manufacturer of any equipment that has
been added to your vehicle.
POSTED FACILITIES
Turn your phone OFF where posted notices so require.
OTHER SAFETY GUIDELINES
AIRCRAFT
FCC regulations prohibit using your phone while in the air. Turn your phone OFF
before boarding an aircraft. Always request and obtain prior consent and approval
of an authorized airline representative before using your phone aboard an aircraft.
Always follow the instructions of the airline representative whenever using your
phone aboard an aircraft, to prevent any possible interference with airborne
electronic equipment.
BLASTING AREAS
To avoid interfering with blasting operations, turn your phone OFF when in a
“blasting area” or in areas posted: “Turn off two-way radio.” Obey all signs and
instructions.
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere and
obey all signs and instructions. Sparks in such areas could cause an explosion or fire
resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly
marked. They include fueling areas such as gas stations; below deck on boats; fuel or
chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such
as propane or butane); areas where the air contains chemicals or particles, such as
grain, dust or metal powders; and any other area where you would normally be
advised to turn off your vehicle’s engine.
PRECAUTIONS
Your Handheld Portable Telephone is a high quality piece of equipment. Before
operating, read all instructions and cautionary markings on (1) AC/DC Travel Adaptor
(2) Battery and (3) Product Using Battery.
Failure to follow the directions below could result in serious bodily injury and/or
property damage due to battery liquid leakage, fire or rupture.
•
DO NOT keep your mobile phone and its accessories in reach of children and pets.
•
DO NOT use this equipment in an extreme environment where high temperature
or high humidity exists.
•
DO NOT try to dry your phone in a microwave oven.
•
DO NOT abuse the equipment. Avoid striking, shaking or shocking. When not
using, lay down the unit to avoid possible damage due to instability.
•
DO NOT expose this equipment to rain or spilled beverages.
•
DO NOT use unauthorized accessories.
•
DO NOT disassemble the phone or its accessories. If service or repair is required,
106
Chapter 7 − Safety and Warranty
SafetySafety
return the unit to an authorized PCD cellular service center. If the unit is disas-
sembled, the risk of electric shock or fire may result.
•
DO NOT short-circuit the battery terminals with metal items etc.
SAFETY INFORMATION FOR FCC RF EXPOSURE
WARNING! READ THIS INFORMATION BEFORE USING
CAUTIONS
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard pre-
viously set by both U.S. and international standards bodies. The design of this phone
complies with the FCC guidelines and these international standards.
BODYWORN OPERATION
This device was tested for typical body-worn operations with the back of the
phone kept 2 cm. from the body. To maintain compliance requirements, use only
belt-clips, holsters or similar accessories that maintain a 2 cm separation distance
between the user’s Body and the back of the phone, including the antenna.
The use of belt-clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirements and should be
avoided.
For more information about RF exposure, please visit the FCC website at www.fcc.gov.
SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufac-
tured not to exceed the emission limits for exposure to radiofrequency (RF) energy
set by the Federal Communications Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on standards that were developed
by independent scientific organizations through periodic and thorough evaluation
of scientific studies. The standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate or SAR. The SAR limit set by the FCC is 1.6 W/
kg. * Tests for SAR are conducted with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone while operating
can be well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower
the power output.
Safety and Warranty − Chapter 7
107
SafetySafety
090610_WP8990_Zephyer.indd 106-107090610_WP8990_Zephyer.indd 106-107 2009.6.11 2:58:26 PM2009.6.11 2:58:26 PM
Before a phone model is available for sale to the public, it must be tested and
certified to the FCC that it does not exceed the limit established by the government
adopted requirement for safe exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as required by the FCC for each
model. The highest SAR value for this model phone when tested for use at the
ear is 1.29 W/Kg and when worn on the body, is 1.33 W/Kg. (Body-worn measure-
ments differ among phone models, depending upon available accessories and FCC
requirements). While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government requirement for
safe exposure.
The SAR testing for Body-worn operation was performed with a belt clip that
provided a 20mm separation. The User’s Manual indicates that any holsters/clips
used with this device should contain no metallic components.
The FCC has granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model phone is on file with the FCC and can be found
under the Display Grant section of http://www.fcc.gov/oet/ea after searching on
PP4ZEPHYR.
Additional information on Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Association (CTIA) web-site
at http://www.wow-com.com.
* In the United States and Canada, the SAR limit for mobile phones used by the
public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a sub-stantial margin of safety to give additional protection for the
public and to account for any variations in measurements.
HEARING AID COMPATIBILITY HAC FOR WIRELESS
TELECOMMUNICATIONS DEVICES
PCD’S COMMITMENT
PCD believes that all of our customers should be able to enjoy the benefits of digital
wireless technologies. We are committed to providing a selection of compatible
devices for our customers who wear hearing aids.
THIS PHONE HAS A HAC RATING OF M3
WHAT IS HEARING AID COMPATIBILITY?
The Federal Communications Commission has implemented rules and a rating
system designed to enable people who wear hearing aids to more effectively
use these wireless telecommunications devices. The standard for compatibility of
digital wireless phones with hearing aids is set forth in American National Standard
Institute (ANSI) standard C63.19. There are two sets of ANSI standards with ratings
from one to four (four being the best rating): an “M” rating for reduced interference
making it easier to hear conversations on the phone when using the hearing aid
microphone, and a “T” rating that enables the phone to be used with hearing aids
operating in the telecoil mode thus reducing unwanted background noise.
108
Chapter 7 − Safety and Warranty
SafetySafety
HOW WILL I KNOW WHICH WIRELESS PHONES ARE HEARING AID
COMPATIBLE?
The Hearing Aid Compatibility rating is displayed on the
wireless phone box.
A phone is considered Hearing Aid Compatible for acoustic coupling (microphone
mode) if it has an “M3” or “M4” rating. A digital wireless phone is considered Hearing
Aid Compatible for inductive coupling (telecoil mode) if it has a “T3” or “T4” rating.
HOW WILL I KNOW IF MY HEARING AID WILL WORK WITH A
PARTICULAR DIGITAL WIRELESS PHONE?
You’ll want to try a number of wireless phones so that you can decide which works
the best with your hearing aids.
You may also want to talk with your hearing aid professional about the extent to
which your hearing aids are immune to interference, if they have wireless phone
shielding, and whether your hearing aid has a HAC rating.
FOR MORE INFORMATION ABOUT HEARING AIDS AND DIGITAL
WIRELESS PHONES:
•
FCC Hearing Aid Compatibility and Volume Control –
http://www.fcc.gov/cgb/dro/hearing.html
•
Hearing Loss Association of America –
http://www.hearingloss.org/learn/cellphonetech.asp
•
CTIA – http://www.accesswireless.org/hearingaid/
•
Gallaudet University, RERC – http://tap.gallaudet.edu/voice
FDA CONSUMER UPDATE
U.S. FOOD AND DRUG ADMINISTRATION CENTER
FOR DEVICES AND RADIOLOGICAL HEALTH
CONSUMER UPDATE ON WIRELESS PHONES
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are associ-
ated with using wireless phones. There is no proof, however, that wireless phones
are absolutely safe. Wireless phones emit low levels of radiofrequency energy (RF)
in the microwave range while being used. They also emit very low levels of RF
when in the stand-by mode. Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low level RF exposures
have not found any biological effects. Some studies have suggested that some bio-
logical effects may occur, but such findings have not been confirmed by additional
research. In some cases, other researchers have had difficulty in reproducing those
studies or in determining the reasons for inconsistent results.
Safety and Warranty − Chapter 7
109
SafetySafety
090610_WP8990_Zephyer.indd 108-109090610_WP8990_Zephyer.indd 108-109 2009.6.11 2:58:27 PM2009.6.11 2:58:27 PM
2. What is FDA’s role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new drugs
or medical devices. However, the agency has authority to take action if wireless
phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to
the user. In such a case, FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or recall the phones so that
the hazard no longer exists. Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone industry to take a number of
steps, including the following:
•
Support needed research into possible biological effects of RF of the type emitted
by wireless phones;
•
Design wireless phones in a way that minimizes any RF exposure to the user that
is not necessary for device function;
and
•
Cooperate in providing users of wireless phones with the best possible informa-
tion on possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at the
federal level. The following agencies belong to this working group:
•
National Institute for Occupational Safety and Health
•
Environmental Protection Agency
•
Federal Communications Commission
•
Occupational Safety and Health Administration
•
National Telecommunications and Information Administration
The National Institutes of Health participates in some inter-agency working group
activities, as well. FDA shares regulatory responsibilities for wireless phones with the
Federal Communications Commission (FCC). All phones that are sold in the United
States must comply with FCC safety guidelines that limit RF exposure. FCC relies on
FDA and other health agencies for safety questions about wireless phones. FCC also
regulates the base stations that the wireless phone networks rely upon. While these
base stations operate at higher power than do the wireless phones themselves, the
RF exposures that people get from these base stations are typically thousands of
times lower than those they can get from wireless phones. Base stations are thus
not the subject of the safety questions discussed in this document.
3. What kinds of phones are the subject of this update?
The term “wireless phone” refers here to hand-held wireless phones with built-in
antennas, often called “cell,” “mobile,” or “PCS” phones. These types of wireless
phones can expose the user to measurable radiofrequency energy (RF) because of
the short distance between the phone and the user’s head. These RF exposures are
limited by Federal Communications Commission safety guidelines that were devel-
oped with the advice of FDA and other federal health and safety agencies. When the
phone is located at greater distances from the user, the exposure to RF is drastically
lower because a person’s RF exposure decreases rapidly with increasing distance
from the source. The so-called “cordless phones,” which have a base unit connected
110
Chapter 7 − Safety and Warranty
SafetySafety
to the telephone wiring in a house, typically operate at far lower power levels and
thus produce RF exposures far below the FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results and many studies have
suffered from flaws in their research methods. Animal experiments investigating
the effects of radiofrequency energy (RF) exposures characteristic of wireless phones
have yielded conflicting results that often cannot be repeated in other laboratories.
A few animal studies, however, have suggested that low levels of RF could acceler-
ate the development of cancer in laboratory animals.
However, many of the studies that showed increased tumor development used
animals that had been genetically engineered or treated with cancer-causing
chemicals so as to be predisposed to develop cancer in the absence of RF exposure.
Other studies exposed the animals to RF for up to 22 hours per day. These condi-
tions are not similar to the conditions under which people use wireless phones,
so we don’t know with certainty what the results of such studies mean for human
health. Three large epidemiology studies have been published since December
2000. Between them, the studies investigated any possible association between the
use of wireless phones and primary brain cancer, glioma, meningioma or acoustic
neu-roma, tumors of the brain or salivary gland, leukemia or other cancers. None of
the studies demonstrated the existence of any harmful health effects from wireless
phone RF exposures. However, none of the studies can answer questions about
long-term exposures, since the average period of phone use in these studies was
around three years.
5. What research is needed to decide whether RF exposure from wireless
phones poses a health risk?
A combination of laboratory studies and epidemiological studies of people actually
using wireless phones would provide some of the data that are needed. Lifetime
animal exposure studies could be completed in a few years. However, very large
numbers of animals would be needed to provide reliable proof of a cancer promot-
ing effect if one exists. Epidemiological studies can provide data that is directly
applicable to human populations, but 10 or more years’ follow-up may be needed to
provide answers about some health effects, such as cancer. This is because the inter-
val between the time of exposure to a cancer-causing agent and the time tumors
develop - if they do - may be many, many years. The interpretation of epidemiologi-
cal studies is hampered by difficulties in measuring actual RF exposure during day-
to-day use of wireless phones. Many factors affect this measurement, such as the
angle at which the phone is held or which model of phone is used.
6. What is FDA doing to find out more about the possible health effects of
wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of inves-
tigators around the world to ensure that high priority animal studies are conducted
to address important questions about the effects of exposure to radiofrequency
energy (RF). FDA has been a leading participant in the World Health Organization
International Electromagnetic Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the development of a detailed agenda
of research needs that has driven the establishment of new research programs
Safety and Warranty − Chapter 7
111
SafetySafety
090610_WP8990_Zephyer.indd 110-111090610_WP8990_Zephyer.indd 110-111 2009.6.11 2:58:28 PM2009.6.11 2:58:28 PM
around the world. The Project has also helped develop a series of public information
documents on EMF issues. FDA and the Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative Research and Development Agreement
(CRADA) to do research on wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government, industry and academic
organizations. CTIA-funded research is conducted through contracts to independent
investigators. The initial research will include both laboratory studies and studies of
wireless phone users. The CRADA will also include a broad assessment of additional
research needs in the context of the latest research developments around the world.
7. How can I find out how much radiofrequency energy exposure I can get
by using my wireless phone?
All phones sold in the United States must comply with Federal Communications
Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC
established these guidelines in consultation with FDA and the other federal health
and safety agencies. The FCC limit for RF exposure from wireless telephones is set
at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC
limit is consistent with the safety standards developed by the Institute of Electrical
and Electronic Engineering (IEEE) and the National Council on Radiation Protection
and Measurement. The exposure limit takes into consideration the body’s ability to
remove heat from the tissues that absorb energy from the wireless phone and is set
well below levels known to have effects. Manufacturers of wireless phones must
report the RF exposure level for each model of phone to the FCC. The FCC website
(http://www.fcc.gov/oet/rfsafety) gives directions for locating the FCC identifica-
tion number on your phone so you can find your phone’s RF exposure level in the
online listing.
8. What has FDA done to measure the radiofrequency energy coming from
wireless phones ?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical
standard for measuring the radiofrequency energy (RF) exposure from wireless
phones and other wireless handsets with the participation and leadership of FDA
scientists and engineers. The standard, “Recommended Practice for Determining
the Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless
Communications Devices: Experimental Techniques,” sets forth the first consistent
test methodology for measuring the rate at which RF is deposited in the heads of
wireless phone users. The test method uses a tissue-simulating model of the human
head. Standardized SAR test methodology is expected to greatly improve the con-
sistency of measurements made at different laboratories on the same phone. SAR is
the measurement of the amount of energy absorbed in tissue, either by the whole
body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of
matter. This measurement is used to determine whether a wireless phone complies
with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency energy
from my wireless phone?
If there is a risk from these products—and at this point we do not know that there
is—it is probably very small. But if you are concerned about avoiding even potential
112
Chapter 7 − Safety and Warranty
SafetySafety
risks, you can take a few simple steps to minimize your exposure to radiofrequency
energy (RF). Since time is a key factor in how much exposure a person receives,
reducing the amount of time spent using a wireless phone will reduce RF exposure.
•
If you must conduct extended conversations by wireless phone every day, you
could place more distance between your body and the source of the RF, since the
exposure level drops off dramatically with distance.
For example, you could use a headset and carry the wireless phone away from your
body or use a wireless phone connected to a remote antenna. Again, the scientific
data do not demonstrate that wireless phones are harmful. But if you are concerned
about the RF exposure from these products, you can use measures like those
described above to reduce your RF exposure from wireless phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones,
including children and teenagers. If you want to take steps to lower exposure to
radiofrequency energy (RF), the measures described above would apply to children
and teenagers using wireless phones. Reducing the time of wireless phone use and
increasing the distance between the user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised that children
be discouraged from using wireless phones at all. For example, the government
in the United Kingdom distributed leaflets containing such a recommendation in
December 2000. They noted that no evidence exists that using a wireless phone
causes brain tumors or other ill effects. Their recommendation to limit wireless
phone use by children was strictly precautionary; it was not based on scientific
evidence that any health hazard exists.
11. What about wireless phone interference with medical equipment?
Radiofrequency energy (RF) from wireless phones can interact with some electronic
devices. For this reason, FDA helped develop a detailed test method to measure
electromagnetic interference (EMI) of implanted cardiac pacemakers and
defibrillators from wireless telephones. This test method is now part of a standard
sponsored by the Association for the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by FDA, medical device manufacturers and
many other groups, was completed in late 2000. This standard will allow manufac-
turers to ensure that cardiac pacemakers and defibrillators are safe from wireless
phone EMI. FDA has tested hearing aids for interference from handheld wireless
phones and helped develop a voluntary standard sponsored by the Institute of
Electrical and Electronic Engineers (IEEE). This standard specifies test methods and
performance requirements for hearing aids and wireless phones so that no interfer-
ence occurs when a person uses a “compatible” phone and a “compatible” hearing
aid at the same time. This standard was approved by the IEEE in 2000. FDA continues
to monitor the use of wireless phones for possible interactions with other medical
devices. Should harmful interference be found to occur, FDA will conduct testing to
assess the interference and work to resolve the problem.
Safety and Warranty − Chapter 7
113
SafetySafety
090610_WP8990_Zephyer.indd 112-113090610_WP8990_Zephyer.indd 112-113 2009.6.11 2:58:28 PM2009.6.11 2:58:28 PM
12. Where can I find additional information?
For additional information, please refer to the following resources:
•
FDA web page on wireless phones
(http://www.fda.gov/cellphones)
•
Federal Communications Commission (FCC) RF Safety Program
(http://www.fcc.gov/oet/rfsafety)
•
International Commission on Non-Ionizing Radiation Protection
(http://www.icnirp.de)
•
World Health Organization (WHO) International EMF Project
(http://www.who.int/emf)
•
National Radiological Protection Board (UK) (http://www.hpa.org.uk/radiation/)
AVOID POTENTIAL HEARING LOSS.
Prolonged exposure to loud sounds (including music) is the most common cause
of preventable hearing loss. Some scientific research suggests that using portable
audio devices, such as portable music players and cellular telephones, at high
volume settings for long durations may lead to permanent noise-induced
hearing loss. This includes the use of headphones (including headsets, earbuds and
Bluetooth® or other wireless devices). Exposure to very loud sound has also been
associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to
sound and distorted hearing. Individual susceptibility to noise-induced hearing loss
and other potential hearing problems varies.
The amount of sound produced by a portable audio device varies depending on
the nature of the sound, the device, the device settings and the headphones. You
should follow some commonsense recommendations when using any portable
audio device:
•
Set the volume in a quiet environment and select the lowest volume at which you
can hear adequately.
•
When using headphones, turn the volume down if you cannot hear the people
speaking near you or if the person sitting next to you can hear what you are
listening to.
•
Do not turn the volume up to block out noisy surroundings. If you choose to listen
to your portable device in a noisy environment, use noise-cancelling headphones
to block out background environmental noise.
•
Limit the amount of time you listen. As the volume increases, less time is required
before your hearing could be affected.
•
Avoid using headphones after exposure to extremely loud noises, such as rock
concerts, that might cause temporary hearing loss. Temporary hearing loss might
cause unsafe volumes to sound normal.
•
Do not listen at any volume that causes you discomfort. If you experience ringing
in your ears, hear muffled speech or experience any temporary hearing difficulty
after listening to your portable audio device, discontinue use and consult your
doctor.
114
Chapter 7 − Safety and Warranty
SafetySafety
YOU CAN OBTAIN ADDITIONAL INFORMATION ON THIS SUBJECT FROM
THE FOLLOWING SOURCES:
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: 800-AAA-2336, 703-790-8466
Email: info@audiology.org
Internet: www.audiology.org
National Institute on Deafness and Other Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD USA 20892-2320
Voice: (301) 496-7243
Email: nidcdinfo@nidcd.nih.gov
Internet: http://www.nidcd.nih.gov/health/hearing
National Institute for Occupational Safety and Health
1600 Clifton Rd. Atlanta, GA 30333, USA
1-800-CDC-INFO (1-800-232-4636)
TTY: 1-888-232-6348
E-mail: cdcinfo@cdc.gov
Internet: http://www.cdc.gov/niosh/topics/noise/default.html
FCC COMPLIANCE INFORMATION
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful Interference in a residential instal-
lation This equipment generates, uses and can radiate radio frequency energy and,
if Not installed and used in accordance with the instructions, may cause harmful
Interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular Installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet of a circuit different from that to which the
receiver is connected.
Safety and Warranty − Chapter 7
115
SafetySafety
090610_WP8990_Zephyer.indd 114-115090610_WP8990_Zephyer.indd 114-115 2009.6.11 2:58:29 PM2009.6.11 2:58:29 PM
•
Consult the dealer or an experienced radio/TV technician for assistance.
CAUTION: Changes or modification not expressly approved by the party responsible for
Compliance could void the user’s authority to operate the equipment. Connecting of
peripherals requires the use of grounded shielded signal cables.
CTIA BATERY CERTIFICATION REQUIREMENTS
•
Do not disassemble or open crush, bend or deform, puncture or shred.
•
Do not modify or remanufacture, attempt to insert foreign objects into the
battery, immerse or expose to water or other liquids, expose to fire, explosion or
other hazard.
•
Only use the battery for the system for which it is specified.
•
Only use the battery with a charging system that has been qualified with the
system per this standard. Use of an unqualified battery or charger may present a
risk of fire, explosion, leakage or other hazard.
•
Do not short circuit a battery or allow metallic conductive objects to contact
battery terminals.
•
Replace the battery only with another battery that has been qualified with the
system per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may
present a risk of fire, explosion, leakage or other hazard.
•
Promptly dispose of used batteries in accordance with local regulations.
•
Battery usage by children should be supervised.
•
Avoid dropping the phone or battery. If the phone or battery is dropped,
especially on a hard surface and the user suspects damage, take it to a service
center for inspection.
•
Improper battery use may result in a fire, explosion or other hazard.
•
For those host devices that utilize a USB port as a charging source, the host
device's user manual shall include a statement that the phone shall only be
connected to products that bear the USB-IF logo or have completed the USB-IF
compliance program.
©2008 Verizon Wireless. All Rights Reserved.
116
Chapter 7 − Safety and Warranty
SafetySafety
12 MONTH LIMITED WARRANTY
PCD Personal Communications (the Company) warrants to the original retail pur-
chaser of this PCD handheld portable cellular telephone, that should this product or
any part thereof during normal consumer usage and conditions, be proven defective
in material or workmanship that results in product failure within the first twelve
(12) month period from the date of purchase, such defect(s) will be repaired or
replaced (with new or rebuilt parts) at the Company’s option, without
charge for parts or labor directly related to the defect(s).
The antenna, keypad, display, rechargeable battery and battery charger, if included,
are similarly warranted for twelve (12) months from date of purchase.
This Warranty extends only to consumers who purchase the product in the United
States or Canada and it is not transferable or assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect,
unauthorized alteration, misuse, improper installation or repair or improper
storage;
(b) Product whose mechanical serial number or electronic serial number has been
removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme
environmental conditions;
(d) Damage resulting from connection to or use of any accessory or other product
not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing
and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather
conditions, battery leakage, blown fuse, theft or improper usage of any electri-
cal source.
The Company disclaims liability for removal or reinstallation of the product, for
geographic coverage, for inadequate signal reception by the antenna or for
communications range or operation of the cellular system as a whole.
When sending your wireless device to PCD Personal Communications for repair or
service, please note that any personal data or software stored on the device may be
inadvertently erased or altered. Therefore, we strongly recommend you make a back
up copy of all data and software contained on your device before submitting it for
repair or service. This includes all contact lists, downloads (i.e. third-party software
applications, ringtones, games and graphics) and any other data added to your
device. In addition, if your wireless device utilizes a SIM or Multimedia card, please
remove the card before submitting the device and store for later use when your
device is returned, PCD Personal Communications is not responsible for and does not
guarantee restoration of any third-party software, personal information or memory
data contained in, stored on or integrated with any wireless device, whether under
warranty or not, returned to PCD Personal Communications for repair or service.
To obtain repairs or replacement within the terms of this Warranty, the product
should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the
Safety and Warranty − Chapter 7
117
WarrantyWarranty
090610_WP8990_Zephyer.indd 116-117090610_WP8990_Zephyer.indd 116-117 2009.6.11 2:58:30 PM2009.6.11 2:58:30 PM
consumer’s return address, daytime phone number and/or fax number and com-
plete description of the problem, transportation prepaid, to the Company at the
address shown below or to the place of purchase for repair or replacement process-
ing. In addition, for reference to an authorized Warranty station in your area, you
may telephone in the United States (800) 229-1235 and in Canada (800) 465-9672
(in Ontario call 416-695-3060).
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO
THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE
COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE
PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED
TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF
ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE
LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF
USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.
No person or representative is authorized to assume for the Company any liability
other than expressed herein in connection with the sale of this product.
Some states or provinces do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damage so the
above limitation or exclusions may not apply to you. This Warranty gives you specific
legal rights and you may also have other rights, which vary from state to state or
province to province.
IN USA: PCD Personal Communications
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA: PCD Canada Company
5535 Eglinton Avenue West
Suite# 234
Toronto, ON M9C 5K5
(800) 465-9672
118
Chapter 7 − Safety and Warranty
WarrantyWarranty
A
ACCESSING THE MENU 18
ADJUSTING THE VOLUME 24
ADJUSTING THE MASTER VOLUME 24
ADJUSTING THE VOLUME DURING A
CALL 25
ALARM CLOCK 78
SETTING THE ALARM 78
TURNING ON/OFF THE ALARM 78
RESETTING THE ALARM 78
RESET ALL ALARM SETTINGS 79
ANSWERING CALLS 22
AVAILABLE OPTIONS DURING A
CALL 25
B
BATTERY HANDLING
INFORMATION 13
BLUETOOTH 45
BLUETOOTH ON/OFF 45
ADD NEW DEVICE 45
BLUETOOTH OPTIONS 46
BLUETOOTH SETTINGS 47
MY PHONE NAME 47
DISCOVERY MODE 47
SUPPORTED PROFILES 47
AUTO PAIR HANDSFREE 48
C
CALCULATOR 75
CALENDAR 76
SETTING THE SCHEDULE 76
VIEWING EVENT LIST 77
ERASING SAVED EVENT 77
ERASING ALL PASSED EVENTS 77
CALLER ID 25
CALL SETTINGS 65
ANSWER OPTIONS 65
AUTO RETRY 65
TTY MODE 65
ONE TOUCH DIAL 66
VOICE PRIVACY 66
DTMF TONES 66
ASSISTED DIALING 66
CALL WAITING 24
CALLING A NUMBER FROM
CONTACTS 24
CHARGING YOUR BATTERY 13
CONTACTS 36
NEW CONTACT 36
CONTACT LIST 36
BACKUP ASSISTANT 36
GROUPS 36
TO ADD NEW GROUP 36
TO ASSIGN PHONE NUMBER TO
GROUP 37
TO CHANGE GROUP NAME 37
ERASE GROUP 37
TO SEND A TXT MESSAGE TO A
GROUP 37
TO SEND A PICTURE MESSAGE TO A
GROUP 37
TO SEND A VOICE MESSAGE TO A
GROUP 38
SPEED DIALS 38
TO ERASE A SAVED SPEED DIAL 38
IN CASE OF EMERGENCY 39
TO ASSIGN EMERGENCY
CONTACTS 39
TO REASSIGN EMERGENCY
CONTACTS 39
TO ERASE ASSIGNED EMERGENCY
CONTACTS 39
TO CALL AN ASSIGNED EMERGENCY
CONTACT 40
TO ADD PERSONAL INFO 40
TO EDIT SAVED PERSONAL INFO 40
TO ERASE SAVED PERSONAL
INFO 40
MY NAME CARD 41
EDIT MY NAME CARD 41
SEND MY NAME CARD WITH TXT,
PICTURE MESSAGE 41
SEND MY NAME CARD WITH VOICE
MESSAGE 41
SEND MY NAME CARD TO ANOTHER
BLUETOOTH DEVICE 41
Safety and Warranty − Chapter 7
119
INDEXINDEX
090610_WP8990_Zephyer.indd 118-119090610_WP8990_Zephyer.indd 118-119 2009.6.11 2:58:30 PM2009.6.11 2:58:30 PM
D
DISPLAY INDICATORS 9
DISPLAY SETTINGS 51
EASY SET UP 51
BANNER 52
PERSONAL BANNER 52
ERI BANNER 52
BACKLIGHT 52
WALLPAPER 53
MAIN SCREEN 53
FRONT SCREEN 53
GLOBAL TRAVELER 53
DISPLAY THEMES 54
MAIN MENU SETTINGS 54
TO SET LIST MENU LAYOUT 54
REPLACE LIST MENU ITEMS 54
POSITION LIST MENU ITEMS 55
RESET LIST MENU SETTINGS 55
DIAL FONTS 55
MENU FONT SIZE 56
TIME & DATE 56
CLOCK FORMAT 56
E
ENDING A CALL 22
ENTERING LETTERS, NUMBERS &
SYMBOLS 32
MULTITAP MODE 33
PREDICTIVE MODE 33
NUMERIC MODE 34
SYMBOL MODE 34
H
HANDSET DESCRIPTIONS 7
I
INSIDE THE PACKAGE 6
INSTALLING A SIM CARD 14
INSTALLING THE BATTERY 12
M
MAKING A CALL 22
MAKING AN EMERGENCY CALL 26
MAKING AN EMERGENCY CALL IN LOCK
MODE 26
MAKING AN EMERGENCY CALL IN ANY
NETWORK MODE 26
MAKING CALLS OUTSIDE OF THE
U.S. 23
MAKING A GSM INTERNATIONAL
CALL TO CDMA FROM ANOTHER
COUNTRY 23
MAKING A GSM INTERNATIONAL
CALL FROM ANOTHER COUNTRY
GSM ONLY 23
MEDIA CENTER 83
TUNES & TONES 84
GET NEW RINGTONES 84
MY RINGTONES 84
MY SOUNDS 85
PICTURES 86
GET NEW PICTURES 86
MY PICTURES 86
TAKE PICTURE 87
ONLINE ALBUM 88
GAMES 88
DOWNLOADING NEW GAMES 88
PLAYING DOWNLOADED
GAMES 88
MOBILE WEB 88
BROWSER MENU 89
BROWSE & DOWNLOAD 90
DOWNLOADING NEW
APPLICATIONS 90
EXTRAS 91
DOWNLOADING NEW
APPLICATIONS 91
MEDIA CENTER INFO 91
MEMORY 67
PHONE MEMORY USAGE 67
DELETING FILES 67
MENU SUMMARY 19
MESSAGING MENU 93
WHEN A NEW MESSAGE ARRIVES 94
NEW MESSAGE 94
TXT MESSAGE 94
PICTURE MESSAGE 95
VOICE MESSAGE 96
INBOX 97
SENT 97
120
Chapter 7 − Safety and Warranty
INDEXINDEX
MESSAGES 98
DRAFTS 98
VOICEMAIL 98
WHEN A NEW VOICEMAIL
ARRIVES 98
TO ACCESS YOUR VOICE
MAILBOX 99
MOBILE IM 99
EMAIL 99
CHAT 99
ERASE MESSAGES 100
SETTINGS 100
MESSAGES VIEW 100
ENTRY MODE 100
AUTO SAVE SENT 100
AUTO ERASE INBOX 101
MESSAGING FONT SIZE 101
TXT AUTO VIEW 101
MULTIMEDIA AUTO RECEIVE 101
QUICK TEXT 101
VOICEMAIL# 102
CALLBACK # 102
SIGNATURE 102
MISSED CALL NOTIFICATION 22
DISPLAY THE MISSED CALL FROM THE
NOTIFICATION 22
DISPLAY A MISSED CALL FROM IDLE
MODE 22
MY VERIZON 82
N
NOTEPAD 81
VIEW SAVED MEMO 81
ERASE SAVED MEMO 81
ERASE ALL SAVED MEMOS 81
O
ONE, TWO, THREE TOUCH DIALING 34
P
PHONE INFO 68
MY NUMBER 68
SW/HW VERSION 68
ICON GLOSSARY 68
SOFTWARE UPDATE 68
STATUS 68
CHECK NEW 69
PHONE SETTINGS 57
AIRPLANE MODE 57
SET SHORTCUTS 57
RESETTING MY SHORTCUTS 57
SET DIRECTIONAL KEYS 58
RESETTING THE DIRECTIONAL KEY
SETTINGS 58
VOICE COMMANDS SETTINGS 58
CONFIRMATION 58
SENSITIVITY 59
ADAPTATION 59
PROMPTS 59
ABOUT 60
LANGUAGE 60
LOCATION 60
CURRENT COUNTRY 61
PHONE SECURITY 61
EDIT CODES 61
RESTRICTIONS 61
PHONE LOCK SETTING 62
LOCK PHONE NOW 62
RESTORE PHONE 62
SIM SECURITY 63
PIN CODE 63
SIM LOCK 63
NETWORK MODE 64
SYSTEM SELECT 64
CDMA SETTINGS 64
GSM SETTINGS 64
R
RECENT CALLS 42
RECENT CALLS 42
MISSED 42
RECEIVED 43
DIALED 43
BLOCKED 44
ALL 44
VIEW TIMERS 45
REMOVING A SIM CARD 15
REMOVING THE BATTERY 12
Safety and Warranty − Chapter 7
121
INDEXINDEX
090610_WP8990_Zephyer.indd 120-121090610_WP8990_Zephyer.indd 120-121 2009.6.11 2:58:31 PM2009.6.11 2:58:31 PM
INDEXINDEX
Safety and Warranty − Chapter 7
123
SENSITIVITY 73
ADAPTATION 74
PROMPTS 74
ABOUT 75
VZ NAVIGATOR 91
USING THE VZ NAVIGATOR 91
W
WAIT/PAUSE 22
WARRANTY 117
WORLD CLOCK 80
SETTING THE CLOCK 80
SETTING DST DAYLIGHT SAVING
TIME 80
S
SAFETY 104
SAFETY INFORMATION FOR WIRELESS
HANDHELD PHONES 104
SAFETY INFORMATION FOR FCC RF
EXPOSURE 107
SAR INFORMATION 107
HEARING AID COMPATIBILITY HAC
FOR WIRELESS TELECOMMUNICATIONS
DEVICES 108
FDA CONSUMER UPDATE 109
AVOID POTENTIAL HEARING
LOSS 114
FCC COMPLIANCE INFORMATION 115
CTIA BATERY CERTIFICATION
REQUIREMENTS 116
SET UP WIZARD 69
SIM INFO 69
SOUNDS SETTINGS 48
EASY SET UP 48
CALL SOUNDS 48
CALL RINGTONE 48
CALL VIBRATE 49
CALL ALERT 49
ALERT SOUNDS 49
EMERGENCY TONE 49
KEYPAD SOUNDS 50
KEYPAD VOLUME 50
DIGIT DIAL READOUT 50
SERVICE ALERTS 50
DEVICE CONNECT 50
POWER ON/OFF 51
OPEN/CLOSE SOUNDS 51
SPEAKERPHONE 25
STOP WATCH 79
USING THE STOP WATCH 79
MEASURING MORE THEN ONE
EVENT 79
STORING A PHONE NUMBER 28
ADDING A NEW CONTACT 28
OPTIONS TO CUSTOMIZE YOUR
CONTACTS 28
ADDING OR CHANGING
GROUPS 28
CHANGING THE CALL
RINGTONE 29
ADDING OR CHANGING THE
PICTURE ID 29
ADDING OR CHANGING AN EMAIL
ADDRESS 29
ADDING A SPEED DIAL ENTRY 29
ADDING OR CHANGING A IM SCREEN
NAME 30
EDITING CONTACTS ENTRIES 30
ADDING A PHONE NUMBER FROM
IDLE MODE 30
ADDING A PHONE NUMBER FROM
THE CONTACT LIST SCREEN 30
DEFAULT NUMBERS 31
CHANGING THE DEFAULT
NUMBER 31
EDITING STORED PHONE
NUMBERS 31
DELETING 31
DELETING A PHONE NUMBER FROM
A CONTACT 31
DELETING A CONTACT ENTRY 32
DELETING A SPEED DIAL 32
T
3WAY CALLING 24
TIP CALCULATOR 76
TURNING THE PHONE ON/OFF 18
TURNING VIBRATE MODE ON OR
OFF 25
U
UNIT CONVERTER 80
V
VOICE COMMANDS 70
CALL <NAME OR #> 70
SEND <MSG TYPE> 71
GO TO <SHORTCUT> 71
CHECK <ITEM> 72
CONTACTS <NAME> 72
REDIAL 72
MY VERIZON 73
HELP 73
VOICE COMMANDS SETTINGS 73
CONFIRMATION 73
122
Chapter 7 − Safety and Warranty
INDEXINDEX
090610_WP8990_Zephyer.indd 122-123090610_WP8990_Zephyer.indd 122-123 2009.6.11 2:58:32 PM2009.6.11 2:58:32 PM
