Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com
© 2014-2016 Acuity Brands Lighting, Inc. All rights reserved. Rev. 06/06/16 nPODM
1 of 2

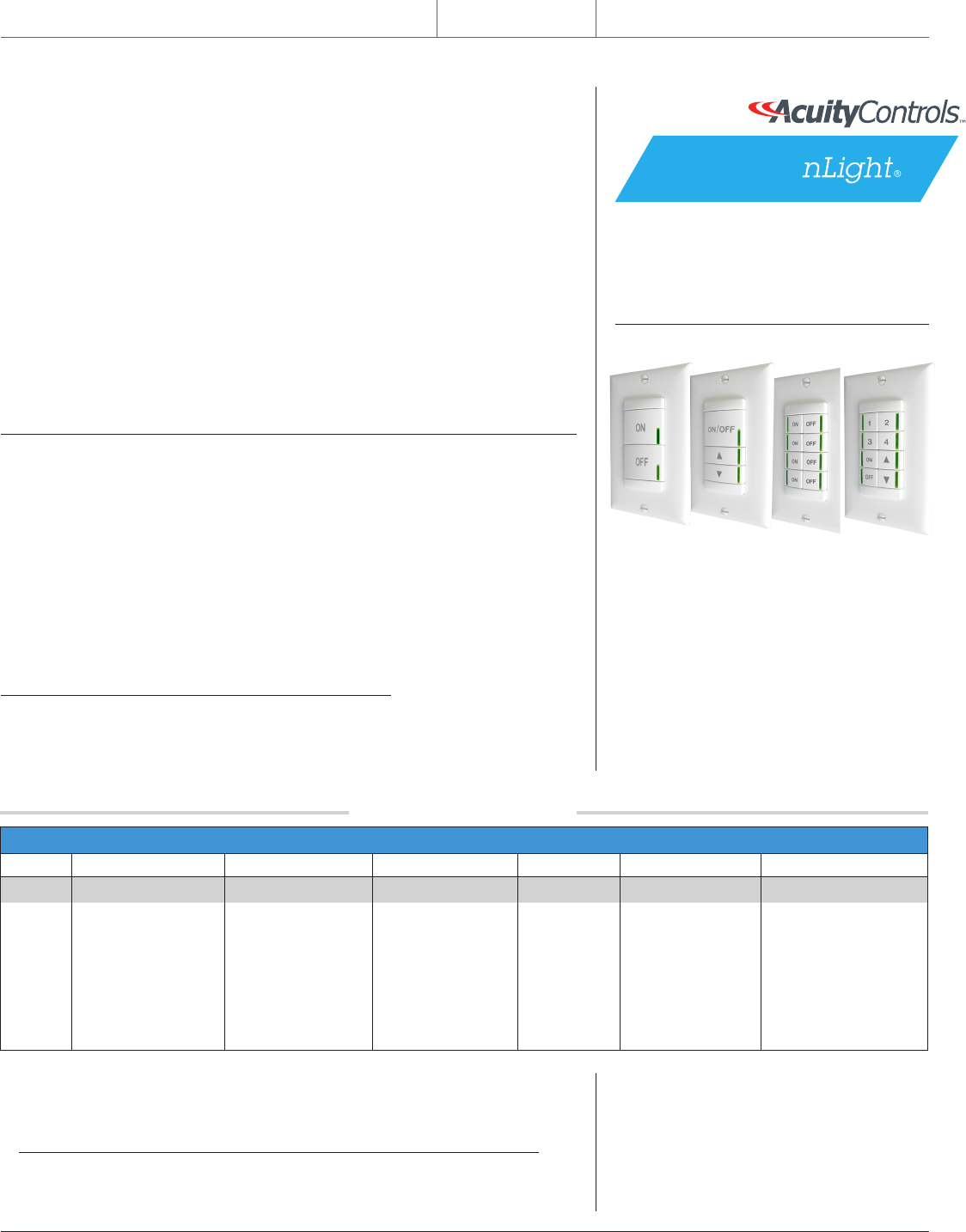

nPODM Example: nPODM 2P WH
Series Preset Type Dimming Control Tunable White Color Temp/ Humidity Point of Manufacture
nPODM [blank] Single channel
2P Two channels
4P Four channels
[blank] On/off control
DX On/off + raise/
lower control
[blank] Standard
CCT1Correlated color
temperature
WH White
IV Ivory
GY Gray
AL Almond
BK Black
RD Red
[blank] Normal
LT Low temp
[blank] Standard
USPOM2,3 Manufactured
in the USA
OVERVIEW
The nPODM Series WallPods are nLight-enabled toggle and/or raise/lower switches that provide a user with
local control of a lighting zone. These single gang decorator style devices have soft-click buttons and have
a green LED indicator for each button. WallPods communicate with other nLight devices via a CAT-5e cable
that connects to one of its two RJ-45 connectors. A basic low voltage WallPod can work with an nLight power
pack or nLight enabled xture to provide toggle switch operation. WallPods with the DX option have the
added ability to adjust the level of any nLight controlled dimmable lighting.
FEATURES
• Communicates with nLight network
• Remotely congurable/upgradeable
• Soft-click push-button control
• Custom button engraving at no charge (WH, IV, AL GY units only)
• 1, 2, or 4 channel on/off
• 1, 2, or 4 channel raise/lower
nPODM
Wallpod: On/Off & On/
Off+Raise/Lower
ORDERING INFORMATION
SPECIFICATIONS
Catalog Number: Date: Project:
• Standard button labeling is shown on back.
• Custom lettering for WH, IV, AL, and GY units can be specied and ordered at no charge at:
http://www.acuitybrands.com/products/-/media/Files/Acuity/Brands/Controls/nLight/NGRAVE.PDF
• To ensure color uniformity, ordering templates facilitate speciying all buttons on a unit as custom
lettered. Replacing single buttons not recommended.
• Buttons may ship separately and require eld installation.
CUSTOM BUTTON ENGRAVING
Size: (not including ground strap) 2.74” H x 1.68” W x 1.63” D
(6.96 cm x 4.27 cm x 4.14 cm)
Weight: 2 oz
Mounting: Single Gang Switch Box or Low Voltage Ring
Color: White, Ivory, Lt. Almond, Gray, Black
nLight Network Ports: 2 RJ-45
Power Consumption: < 5 mA
Wires: None
RoHS Compliant, Title 24 System Component
Warranty
Three-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
Specications subject to change without notice.
Notes
1. Only available on 2P DX congurations
2. Not available with LT or CCT.
3. Only available with WH
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com
© 2014-2016 Acuity Brands Lighting, Inc. All rights reserved. Rev. 06/06/16 nPODM
2 of 2
WIRING
TYPICAL WIRING
WallPods and/or nLight wall switch sensors can be configured together to create zones with multiple switching locations.
• Mount WallPod using holes that align with standard single gang switch box or low voltage ring
• Access RJ-45 ports by sliding plastic guard up
• Insert CAT-5e cable(s), T568B wiring convention recommended
• Slide guard back onto metal strap
• Interconnect unit with other nLight devices in lighting zone using CAT-5e cables
• Once power is received via CAT-5e connection, all devices in zone will automatically begin
functioning together according to respective device’s defaults
nPP16
CAT-5
LOAD
CAT-5
120 V
277 V
-
-
BLK
ORN
Power to WallPod device is provided via the CAT-5e connection to an nLight enabled fixture, nLight power pack (e.g. nPP16), power supply (nPS80), or Bridge (nBRG 8).
SLIDE
TO RJ-45 PORT
TO RJ-45 PORT
nPP16
CAT-5
LOAD
CAT-5
CAT-5
120 V
277 V
-
-
BLK
ORN
CAT-5
CAT-5
PROGRAMMING
Refer to instruction card IN-11.3 for directions on programming the sensor via the upper-most left push-button. All buttons are factory set to the matching switch channel (button
1 - channel 1, button 2 - channel 2, etc). For nPODM 4P DX, channels to be controlled are selected first, then the control button (on/off or raise/lower).
nPODM nPODM DX nPODM 2P nPODM 2P DX nPODM 2P DX CCT nPODM 4P nPODM 4P DX
ON/OFF ON/OFF + DIMMMING (nPODM DX)
Custom lettering for WH, IV, AL, and GY units can be specified and ordered at no charge at:
http://www.acuitybrands.com/products/-/media/Files/Acuity/Brands/Controls/nLight/NGRAVE.PDF
3-WAY CONFIGURATION WIRING
DEFAULT LABELING
INSTALLATION
[D] Dimming Control
nPP16 D
CAT-5
LOAD
CAT-5
120 V
277 V
-
-
BLK
ORN
VIO
GRY
Attention! Only use non-booted CAT5e cables.
ON/OFF
CCT
