GE Control Table of Contents/Introduction
Section 1: NEMA Full Voltage Power Devices
Section 2: Reduced Voltage Starters
Section 3: Lighting Contactors
Section 4: Definite Purpose Controls
Section 5: IEC Power Devices
Section 6: IEC Manual Motor Starters
Section 7: Miniature Circuit Breakers
Section 8: IEC Switches and Disconnects
Section 9: Pilot and Signaling Devices
Section 10: Logic Control
Section 11: Terminal Blocks
Section 12: Enclosures
Section 13: Control Renewal Parts
Section 14: Transformers
Section 15: Drives
Section 16: GE Publication Index
Section 17: Product Index

www.geindustrial.com Control Catalog 3-1

Lighting Contactors

Rev. 7/13

Prices and data subject to

change without notice

Section 3

Contents

Lighting Contactors Electrical Features and Benefits ...........3-2

Lighting Contactors Mechanical Features and Benefits.......3-3

Lighting Contactors CR460 Series.....................................................3-4

Application Information..........................................................................3-4

The Choice is yours: Three ways to order......................................3-5

Components ................................................................................................3-6

Enclosure Accessories.............................................................................3-7

Project Submittal Form...........................................................................3-8

Lighting Contactors CR463L .................................................................3-9

Standard Assembled Forms.................................................................3-9

Modified Assembled Forms - Electrically Held..........................3-11

Lighting Contactors CR463M .............................................................3-13

Standard Assembled Forms ..............................................................3-13

Modified Assembled Forms - Mechanically Held ....................3-15

Lighting Contactors CR460, CR463 ...............................................3-17

Technical Data ..........................................................................................3-17

Lighting Contactors CR463L, CR463M..........................................3-18

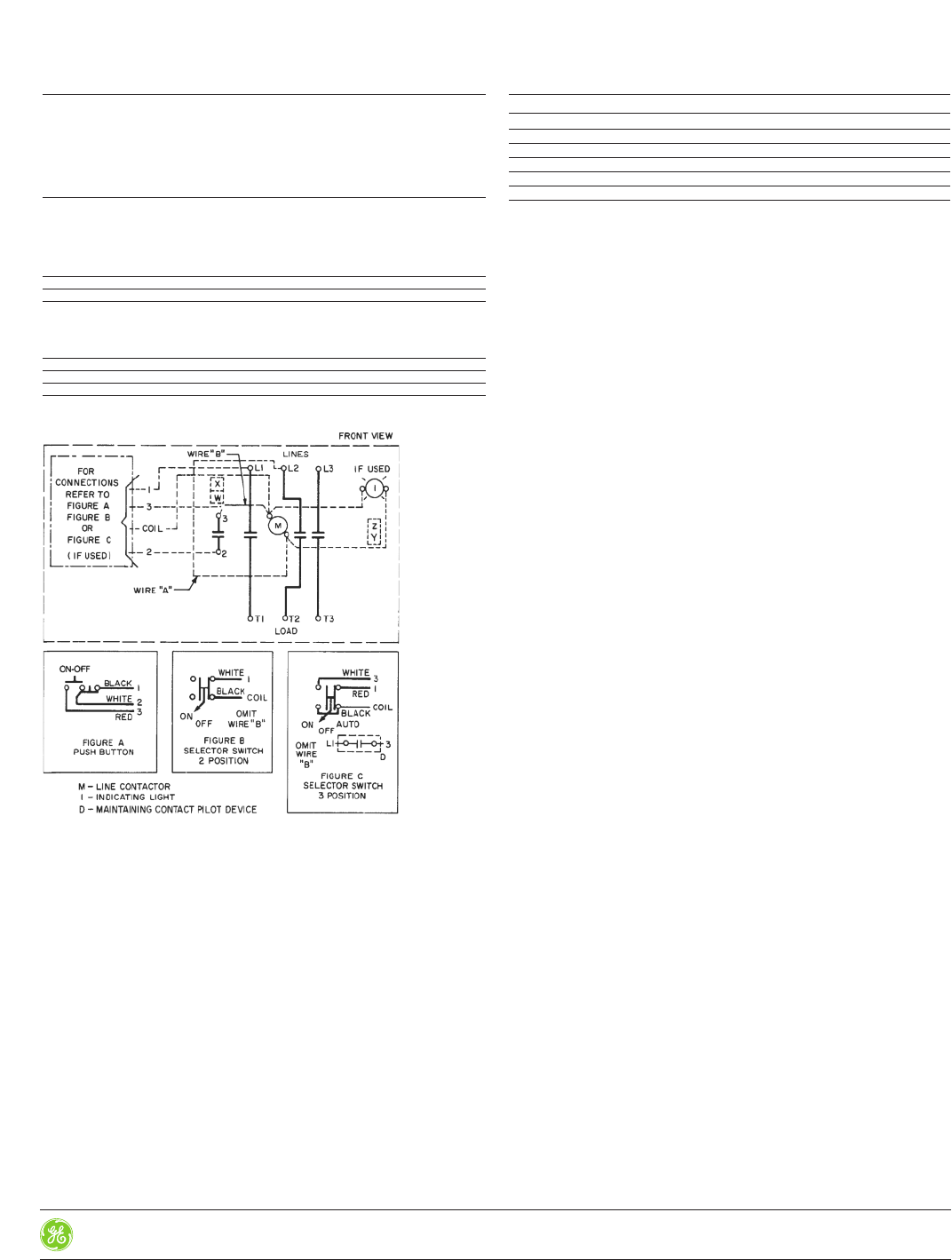

Wiring Diagrams.....................................................................................3-18

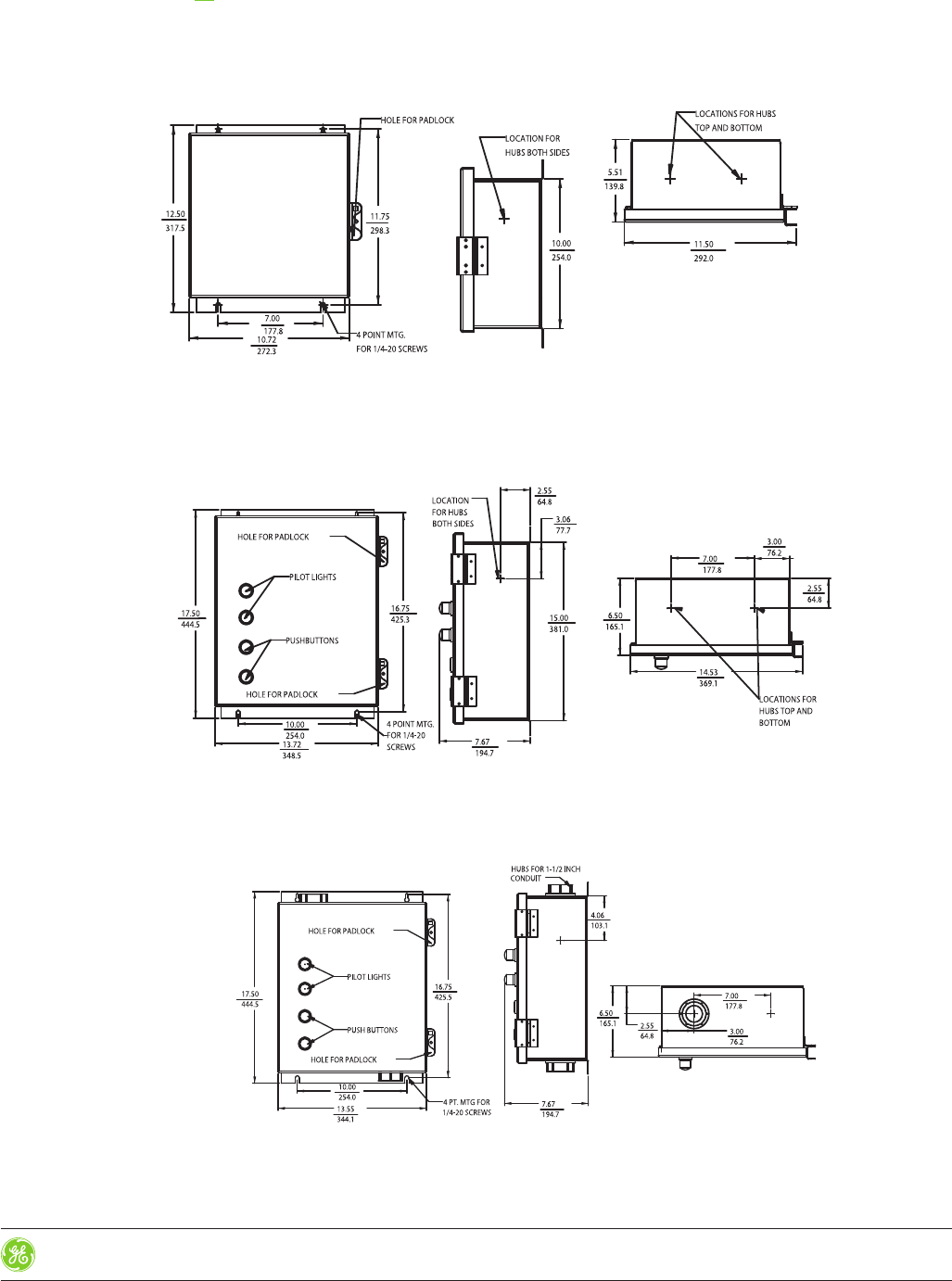

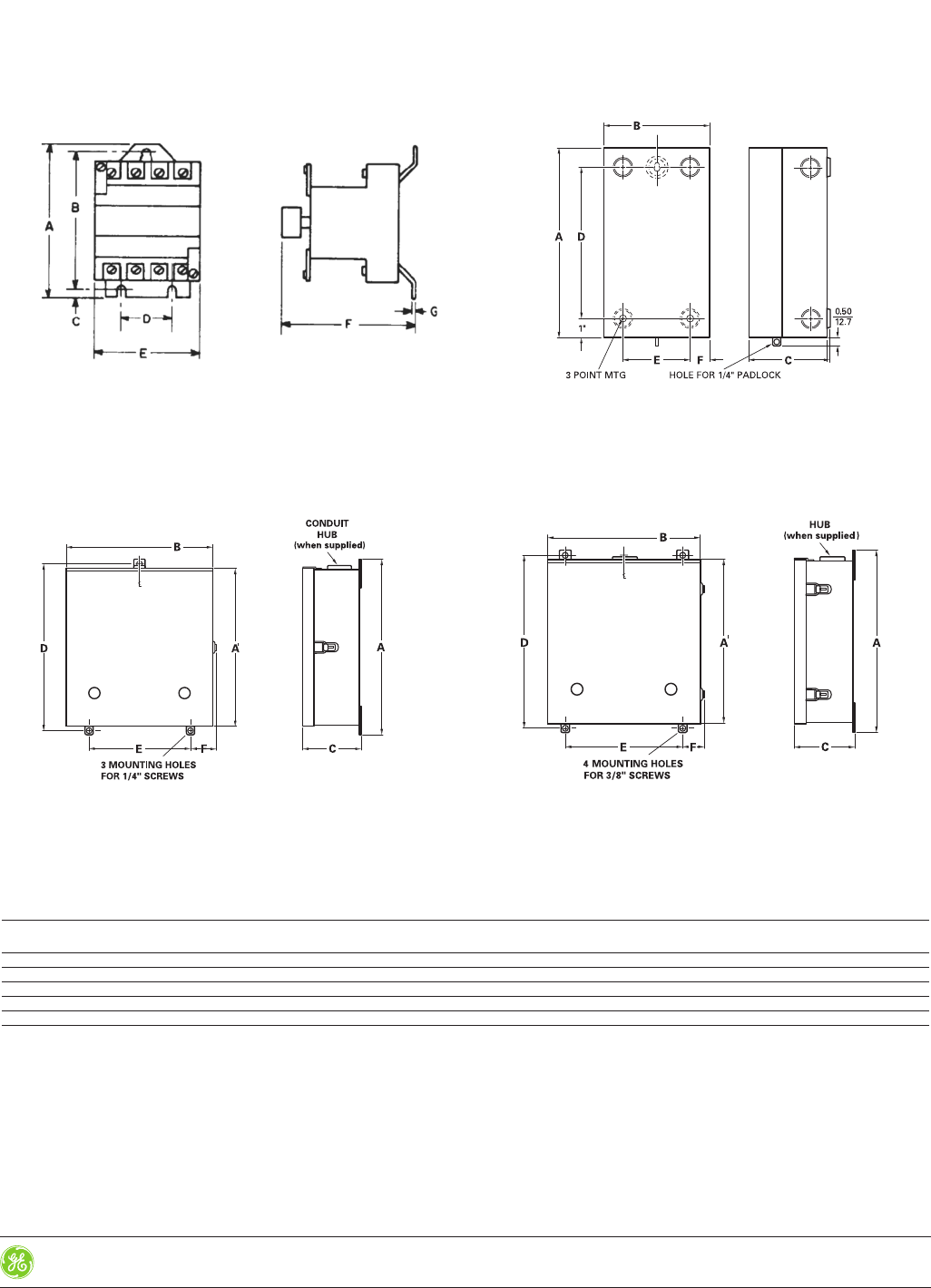

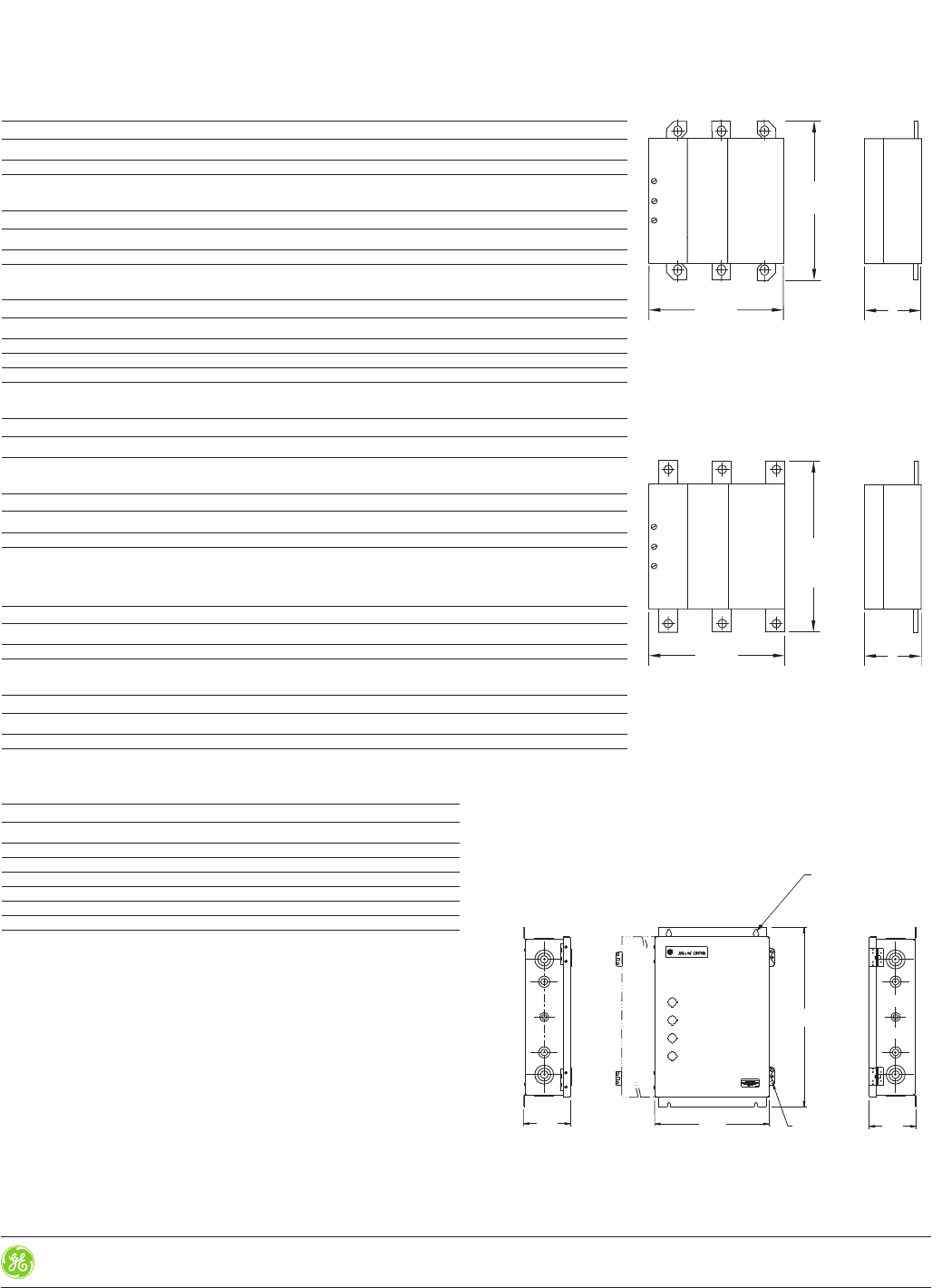

Outlines and Dimensions For Estimating Only.........................3-19

Lighting Contactors CR360L...............................................................3-22

Application Information.......................................................................3-22

Selection......................................................................................................3-23

Technical Data .........................................................................................3-25

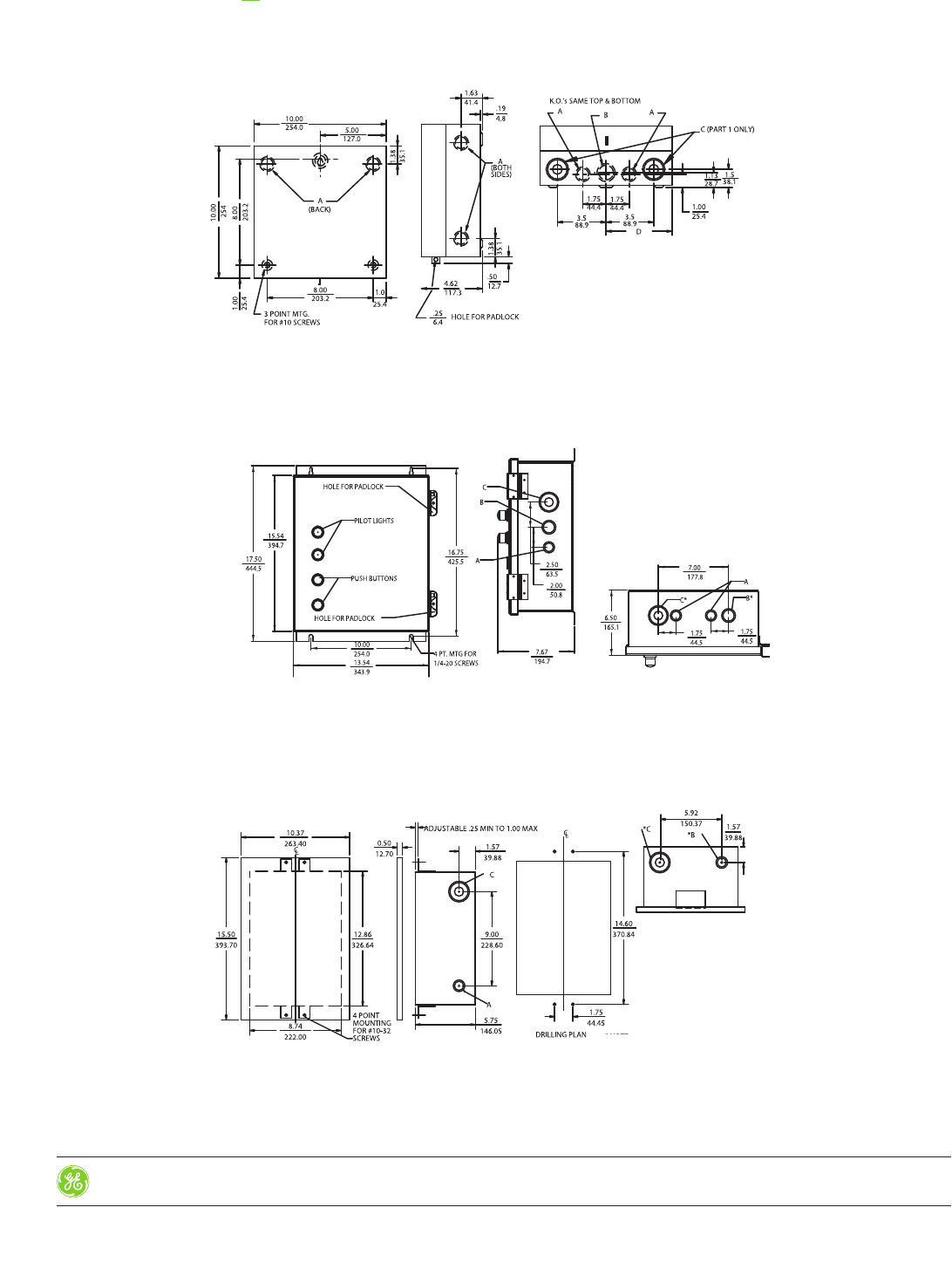

Outlines and Dimensions For Estimating Only.........................3-26

Lighting Contactors CR360ML...........................................................3-28

Application Information.......................................................................3-28

Selection......................................................................................................3-29

Lighting Contactors CR160MC..........................................................3-31

Application Information.......................................................................3-31

Modified Assembled Forms - Mechanically Held ....................3-32

Technical Data .........................................................................................3-35

Outlines and Dimensions For Estimating Only.........................3-36

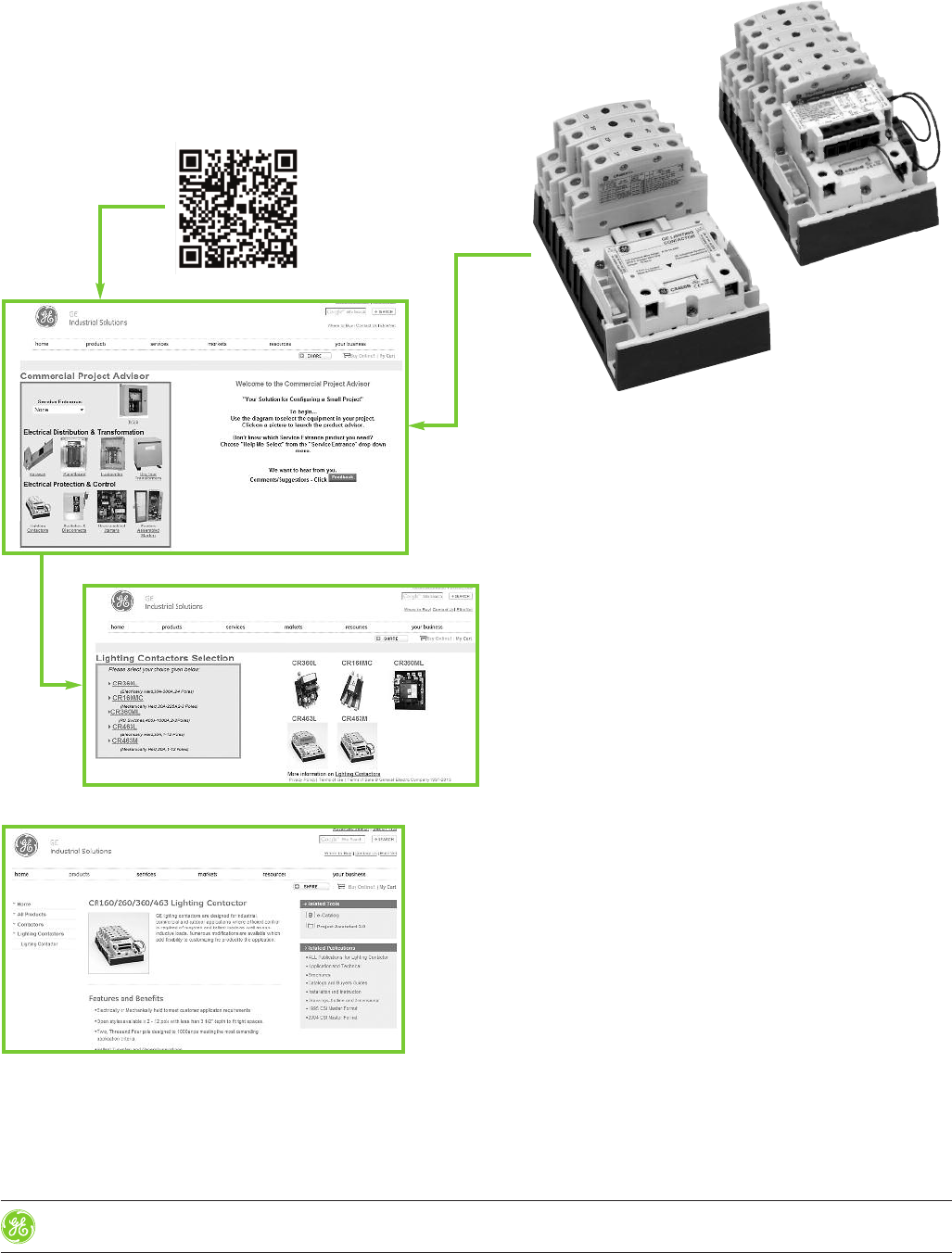

Check out this useful

selection tool on the web!

Select a Lighting Contactor

for your specific application.

Visit our

Lighting Contactor information page at:

www.geindustrial.com/lightingcontactors

Section Updated 01 / 2014

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-2

Lighting Contactors Section 3

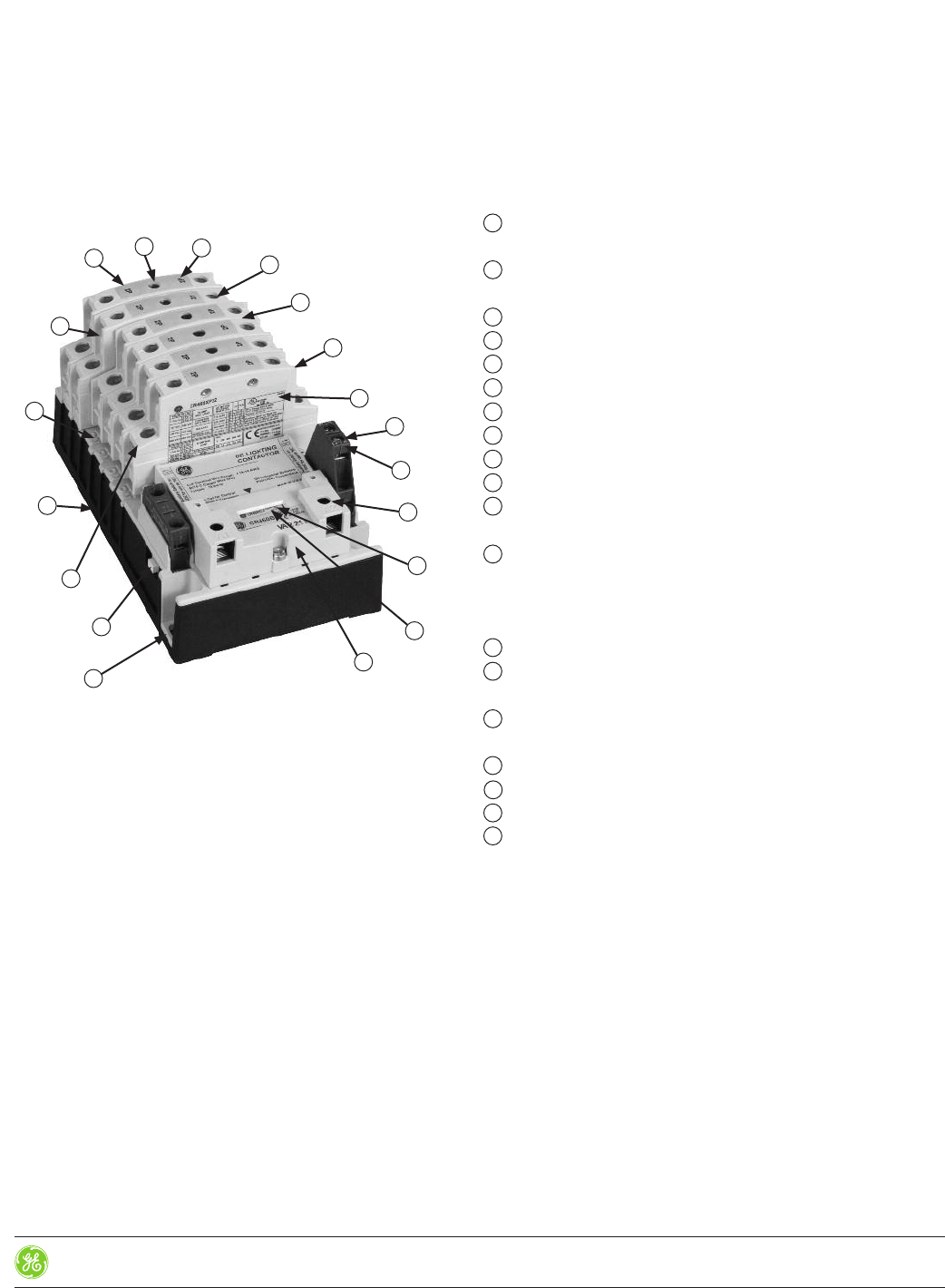

Electrical Features and Benefits

GE’s CR460 Series lighting contactors deliver unprecedented

versatility in application, simplicity in configuration and

performance in operation. Ingenious design, rugged construction

and a host of truly useful features make them uniquely appealing

to all those who use them.

A Contact position indication—when button protrudes,

contact is closed.

B Power poles are available as single or double poles,

creating 74 different circuit combinations.

C Convenient side access field power wiring

D Contact configuration indicator

E Standard base for all pole configurations

F Robust pole terminals accept up to two #8 AWG wires

G Manual operator

H Fast, sure three-point mounting

I Enclosed contacts resist contaminants for greater reliability

J Combination slotted/#2 Phillips screws

K Common, easily installed power poles change from NO to

NC (or vice versa) simply by unlatching and rotating 180°.

L Power poles rated for the range of tasks:

—30A rated contacts

—15A motor rated

—A600 Pilot duty rated

M Easy-to-read rating label

N Auxiliary contacts, rated A600, are suitable for use on low

level circuits down to 12V, 5mA

O Plug-in auxiliary contacts are NO when installed on the left

side of the base, NC on the right

P Finger and back-of-hand safe power terminals

Q Quick-view coil voltage

R Easy-change coil

S Low magnetic noise results in quiet operation

Electrically Held Contactor

www.geindustrial.com Control Catalog 3-3

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

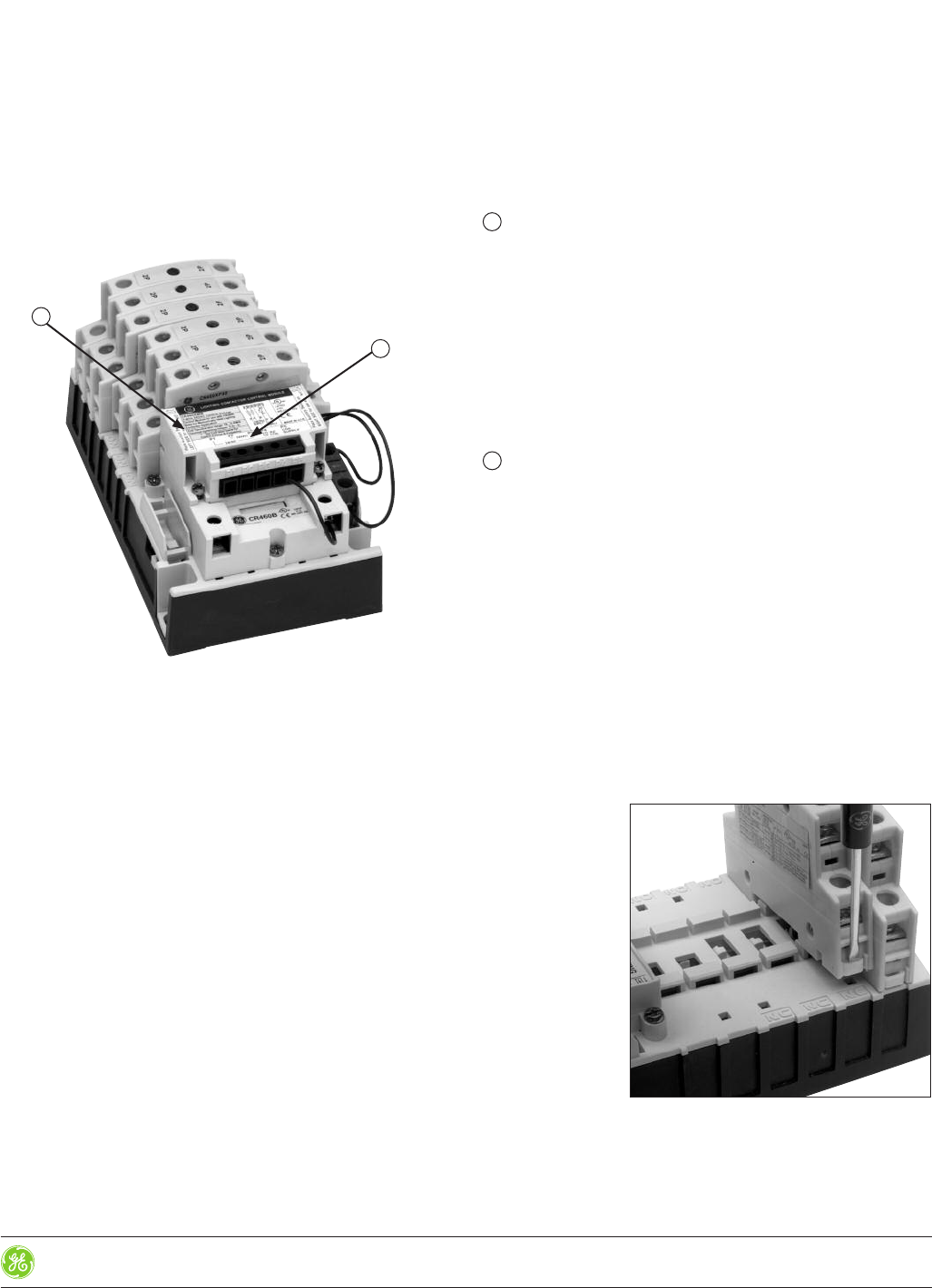

Mechanically Held Contactor

A Two-or-three-wire control module:

—low input VA permits long wire runs

—verifies contact status and has

built-in delays that minimize

excessively frequent signals from

faulty controllers

—come in a wide range of input

voltages. Four modules cover input

voltages from 24-277 VAC and 12-24

VDC. All modules may be used with

coil voltage from 24 VAC-277 VAC.

B Clear labeling shows control module rating,

wire size and torque

Field configurable from standard electrically held contactor with

simple, easy-to-install kits of control modules, latch mechanisms

and auxiliary contacts.

Mechanically held contactors also feature:

Mechanical Features and Benefits

The ultimate in versatility, simplicity and performance

All CR460 Series lighting contactors deliver unprecedented versatility in application,

simplicity in configuration and performance in operation. Their revolutionary design and

unique features meet most lighting control needs better than ever before.

—Modular design permits fast, on-site configuration

—2-12 power poles

—30 amp rating

—Snap-in auxiliary contacts

—Common components for both electrically and mechanically held versions

—Continuously rated, interchangeable coils

—Finger-safe terminals

Power poles latch easily onto the base,

and designating them as NO or NC is a

simple matter of left or right positioning.

Additional poles may be added

at any time.

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-4

Section 3

Lighting Contactors

CR460 Series

Application Information

CR460 lighting contactors switch ballast (fluorescent or HID), tungsten and general use

loads and carry motor load, resistive and pilot duty ratings as well.

CR463L Electrically Held Contactors

Operational Mode

• 3-wire control is typically used when control is desired from multiple locations. The

contactor is operated from a momentary pilot device and requires an auxiliary contact

to be used as a holding interlock.

• 2-wire control is used for single location control with power continuously supplied to

the coil for contactor operation.

CR463M Mechanically Held Contactors

A mechanical latch with a 2- or 3-wire electronic control module delivers reliable

performance and protection from such application abnormalities as line noise,

leakage currents from controller outputs, or short repetitive commands burst from

faulty controllers.

Mechanical Operation

• Latches after contactor command and removes coil from circuit for

noise-free operation

• Eliminates all coil losses after contactor is latched

Control Module

• Coil operation and control circuit at same or different voltages

• Allows longer control wiring runs

• Microprocessor validates control signal before operation

—will not respond to momentary voltage spikes or noise

—operation command has built in delay (0.4 sec) to avoid multiple short-term

commands that can cause contact fatigue or failure

—feedback loop prevents contactor from getting out of sequence with switches,

even after power failures

Operational Modes

• 3 wire control is the choice for use with momentary devices allowing operation from

multiple locations

—a momentary pulse of energy operates contactor; a second pulse on alternate

leg returns contactor to original state

• 2-wire control is the choice for single-output automatic operation or for operation

from single-pole devices

—latches contactor into position when voltage is applied to input terminals (coil is

removed from circuit while control voltage is continuously supplied); disengages

latch and returns contactor to original state when control voltage is removed.

CR463L Electrically Held

CR463M Mechanically Held

www.geindustrial.com Control Catalog 3-5

Rev. 7/13

Prices and data subject to

change without notice

Section 3

Lighting Contactors

CR460 Series

The choice is yours:

3 ways to order CR460 Series Lighting Contactors

Ordering the correct contactor for your application may be

accomplished in any of three ways. Choose the one that’s right

for you.

1. Order components and assemble in minutes

(see pages 3-6 and 3-7).

—Cost-effective

—Allows late-point configuration

—Greatest flexibility

—Parts in stock for immediate delivery

2. Order standard assembled contactor and rotate poles to meet

pole requirements (see pages 3-9, 3-10, 3-13 and 3-14).

—Available from stock or short cycle for timely delivery

—Single product number to order

—Allows local stocking of most common assembled forms via

pole reconfiguration

When you receive the contactor, simply reconfigure it to the NO-NC

arrangement you require by rotating the appropriate power plates.

It just takes a minute.

Example: 4NO-4NC required. Order CR463L80AJA.

3. Order assembled contactor configured to the exact

application need (see pages 3-11, 3-12, 3-15 and 3-16)

—Order contactor as required by application

—Arrives fully assembled, ready to install

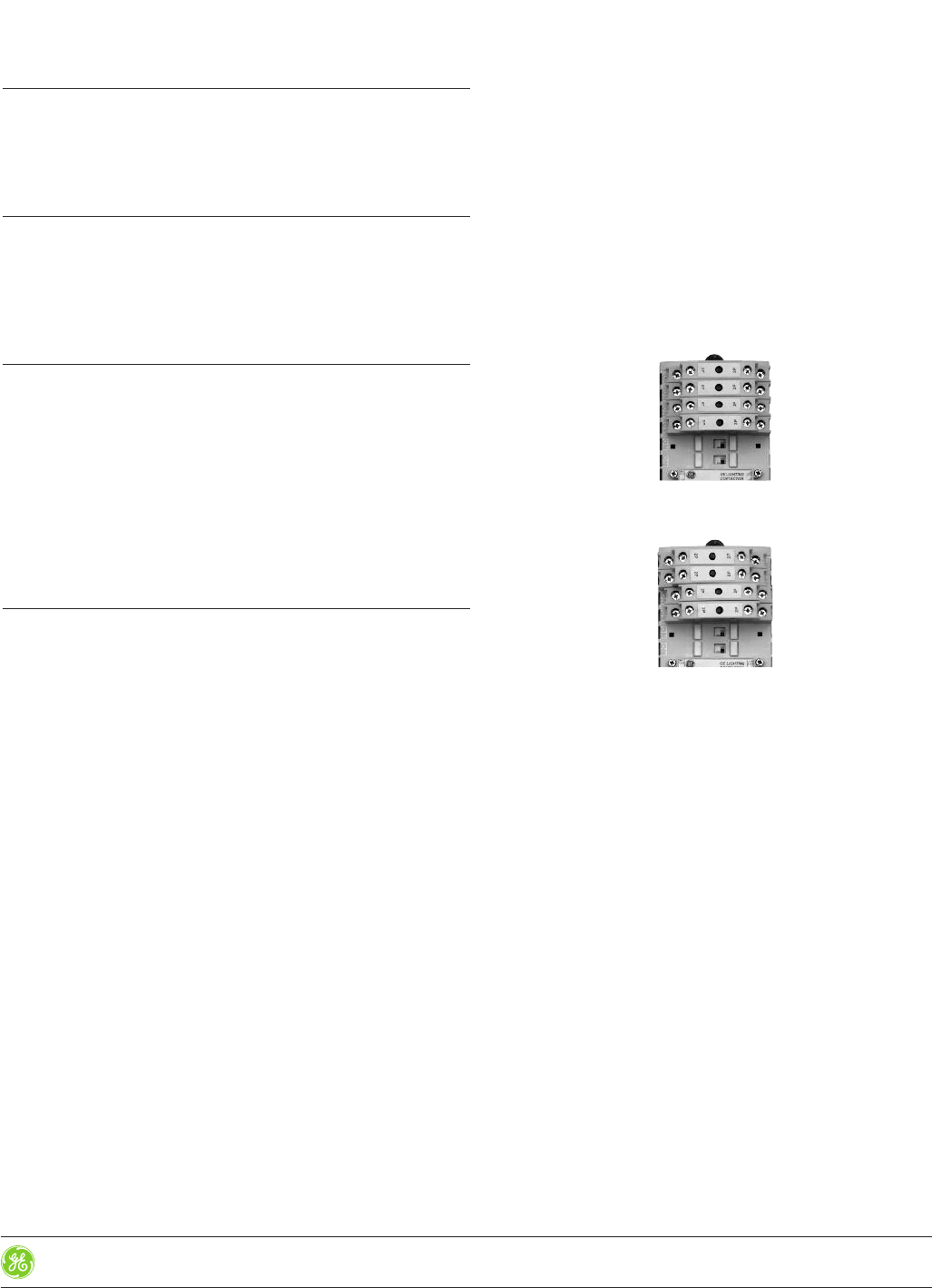

CR463L80AJA (8NO)

Contactor reconfigured as 4NO-4NC

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-6

Section 3

CR460XC Spare Coils

Lighting Contactors

CR460

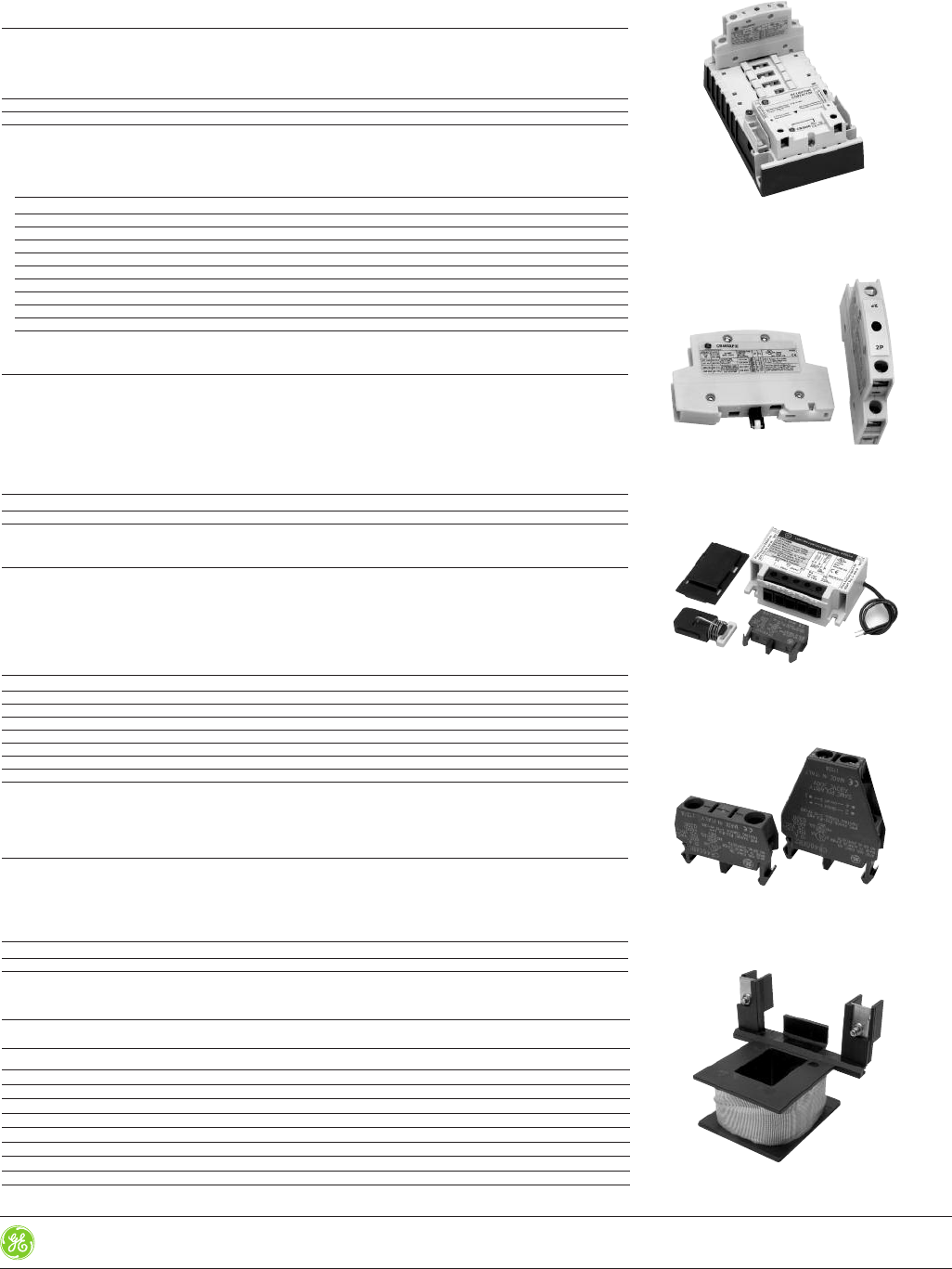

Components

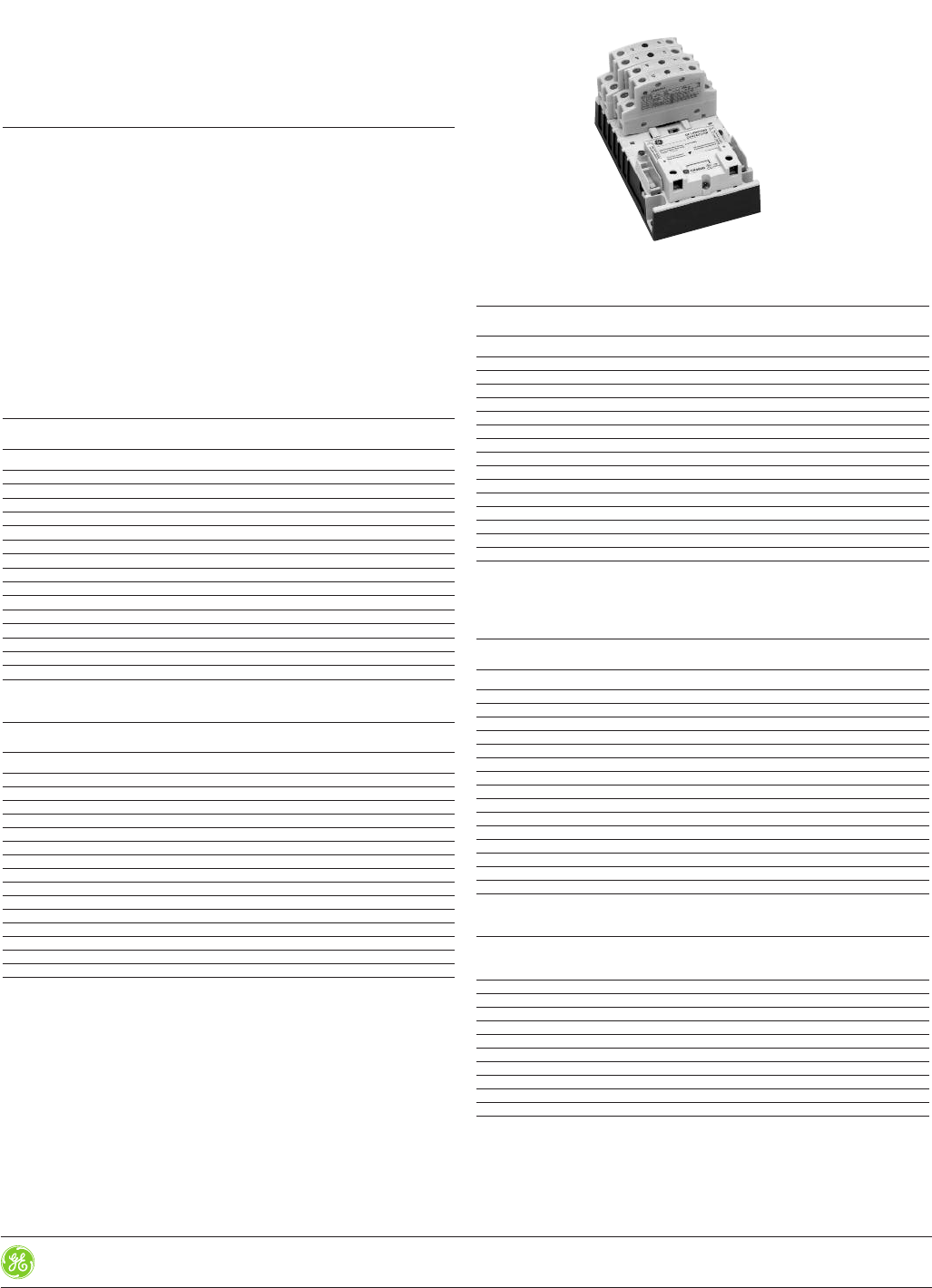

Basic Contactor

Combined with other appropriate components, basic contactors allow configuration into

any available electrically or mechanically held model. Includes two power poles.

List Price

Contact Configuration Product Number GO-10MB

1NO-1NC CR463L11A*A $165.00

2NO CR463L20A*A $160.00

Replace * in the product number with the appropriate digits from the Coil Voltage table. The resulting product

number will be for an assembled contactor with no additional auxiliary contacts, pilot devices, pilot lights,

control circuit fuses or CPTs. There is no list price adder to Coil Selection.

Coil Voltage

AC, 60Hz AC, 50Hz Electrically Held Mechanically Held Coil Digit

24V 20V √√C

28V 24V √√D

115-120V 110V √√J

200-208V —√ √ L

230-240V 220V √√S

277V 240V √√N

347V —√ 1T

460-480V 440V √ 1U

575-600V 550V √ 1Y

1Control module switching device rated 277V max; use CPT for higher voltage

Power Poles

CR460 Series basic contactors accept up to 6 single- or double-pole power poles. These

can be used to form up to:

—12 NO poles when 6 double-poles are used in the NO positions (1-6) or

—8 NC poles with 4 double-poles in the NC positions (1-4) + 4 NO poles with 2

double-poles in the 2 NO positions (5-6)

List Price

Type Product Number GO-10MB

Single Pole CR460XP31 $43.00

Double Pole CR460XP32 $82.00

Packaged individually and overpacked in multiple of 5.

Conversion Kits for Mechanically Held Contactors

Kits for converting electrically held contactors to a mechanically held version. Kits

includes control module, latch, latch cover and auxiliary contact(s) plus installation

instructions. Conversion kits are suitable for coil voltages 277V and below. Use CPT to

reduce coil voltage if line voltage is higher than 277V.

Coil Voltage Control Circuit Auxiliary Control Circuit List Price

Range Wiring Contacts1Voltage Product Number GO-10MB

24-277 Vac 2-wire (1) 1 Pole 24 Vac CR460XMB $105.00

24-277 Vac 2-wire (1) 1 Pole 110-120 Vac CR460XMC $105.00

24-277 Vac 2-wire (1) 1 Pole 200-277 Vac CR460XMD $105.00

24-277 Vac 2-wire (1) 1 Pole 12-28 Vdc CR460XME $105.00

24-277 Vac 3-wire (2) 1 Pole 24 Vac CR460XMM $115.00

24-277 Vac 3-wire (2) 1 Pole 110-120 Vac CR460XMN $115.00

24-277 Vac 3-wire (2) 1 Pole 200-277 Vac CR460XMP $115.00

24-277 Vac 3-wire (2) 1 Pole 12-28 Vdc CR460XMR $115.00

1Auxiliary contact block required for feedback loop, alternate 2 pole blocks may be required for status feedback

and/or pilot lights. See Fuse and Transformer Kits table on page 3-7 for CPT selection. See wiring diagrams on

page 3-17.

Auxiliary Contacts

Each contactor may use one single or one double auxiliary contact block on each side of

the base. When installed on the left side the contacts are NO, when installed on the right

side the contacts are NC. This allows a total of 2NO + 2NC contacts maximum.

List Price

Type Product Number GO-10MB

Single Pole CR460XB1 $9.00

Double Pole CR460XB2 $17.00

See Additional Auxiliary Contacts tables on pages 3-13 and 3-15 for contact selection data.

CR460XB—Auxiliary Contacts

CR460XM—Conversion Kits

CR460XP—Power Poles

CR463L—Basic Contactor

Spare Coils

List Price

Coil Voltage @ 60 Hz Coil Voltage @ 50 Hz Product Number GO-10MB

24 20 CR460XCC $45.00

28 24 CR460XCD $45.00

115-120 110 CR460XCJ $45.00

200-208 — CR460XCL $45.00

230-240 220 CR460XCS $45.00

277 240 CR460XCN $45.00

347 — CR460XCT $45.00

460-480 440 CR460XCU $45.00

575-600 550 CR460XCY $45.00

www.geindustrial.com Control Catalog 3-7

Rev. 7/13

Prices and data subject to

change without notice

Section 3

Lighting Contactors

CR460

Enclosure Accessories

Enclosure Kits (with no CPT or pilot light devices, lights)

List Price

Description Enclosure Type Product Number GO-10MB

Standard

With no CPT or pilot device NEMA Type 1 CR460XE1B $43.00

With no CPT or pilot device NEMA Type 1 Flush Mount CR460XE8B $80.00

With no CPT or pilot device NEMA Type 12/3R CR460XE2B $100.00

Oversized

With provision for CPT and/or pilot devices, lights NEMA Type 1 CR460XE1D $83.00

With provision for CPT and/or pilot devices, lights NEMA Type 12/3R CR460XE2D $140.00

With provision for CPT and/or pilot devices, lights NEMA Type 4 CR460XE4D $235.00

See pages 3-19 to 3-20 for enclosure dimensions.

Pilot Devices (Requires oversize enclosure)

List Price

Pilot Device Type For Use With Product Number GO-10MB

Momentary ON/OFF Push Button Electrically Held with Interlock Aux. CR460XP1 $122.00

Mechanically Held 3-wire Control Module

Maintained ON/OFF or OFF/AUTO Electrically Held w/o Interlock Aux. CR460XP2 $122.00

Selector Switch Mechanically Held 2-wire Control Module

Mechanically Held 3-wire Control Module

Momentary ON/OFF Selector Switch, Electrically Held with Interlock Aux. CR460XP3 $122.00

Spring Return to Center Mechanically Held 3-wire Control Module

Maintained H-O-A or ON/OFF/AUTO Electrically Held w/o Interlock Aux. CR460XP4 $122.00

Keyed Selector Switch Mechanically Held 3-wire Control Module

Maintained H-O-A or ON/OFF/AUTO Electrically Held w/o Interlock Aux. CR460XP5 $158.00

Keyed Selector Switch Mechanically Held 3-wire Control Module

(Key Removal All Positions)

Enclosure accessory kits contain accessory and complete installation wiring and hardware. Some kits contain

multiple nameplates for alternate markings.

Pilot Lights (Requires oversize enclosure)

List Price

Pilot Light Type Nameplate Product Number GO-10MB

Standard ON or OFF CR460XLB* $152.00

Push-to-Test ON or OFF CR460XLD* $170.00

Pilot light kits come with interchangeable red and green lenses. Pilot lights may require auxiliary contacts.

Replace * in pilot light product number with appropriate voltage digit from the table below.

See extra contact limitations in the Additional Auxiliary Contacts tables on pages 3-11 and 3-15.

Pilot Light Voltage

Voltage Digit

24 Vac/dc C

120 Vac J

208 Vac L

240 Vac S

277 Vac N

347 Vac T

480 Vac U

600 Vac Y

Transformer Kits - Includes 2 primary and 2 secondary fuse. (Requires oversize enclosure)

List Price

CPT Primary Volts CPT Secondary Volts Product Number GO-10MB

100VA CPT Kit1208V 120V CR460XTB $347.00

100VA CPT Kit1220-240V 120V CR460XTC $347.00

100VA CPT Kit1277V 120V CR460XTD $347.00

100VA CPT Kit1440-480V1120V CR460XTE $347.00

100VA CPT Kit1600V 120V CR460XTF $347.00

100VA CPT Kit1120V 24V CR460XTL $347.00

100VA CPT Kit1208V 24V CR460XTM $347.00

100VA CPT Kit1220-240V124V CR460XTN $347.00

100VA CPT Kit1277V 24V CR460XTP $347.00

100VA CPT Kit1440-480V 24V CR460XTR $347.00

100VA CPT Kit1600V 24V CR460XTS $347.00

1May be reconnected in field for 440-480 volts; requires substitution of two 0.5 amp primary fuses.

Control Circuit Fuse Kit

List Price

For Use With Product Number GO-10MB

Contactor Without CPT CR460XF $155.00

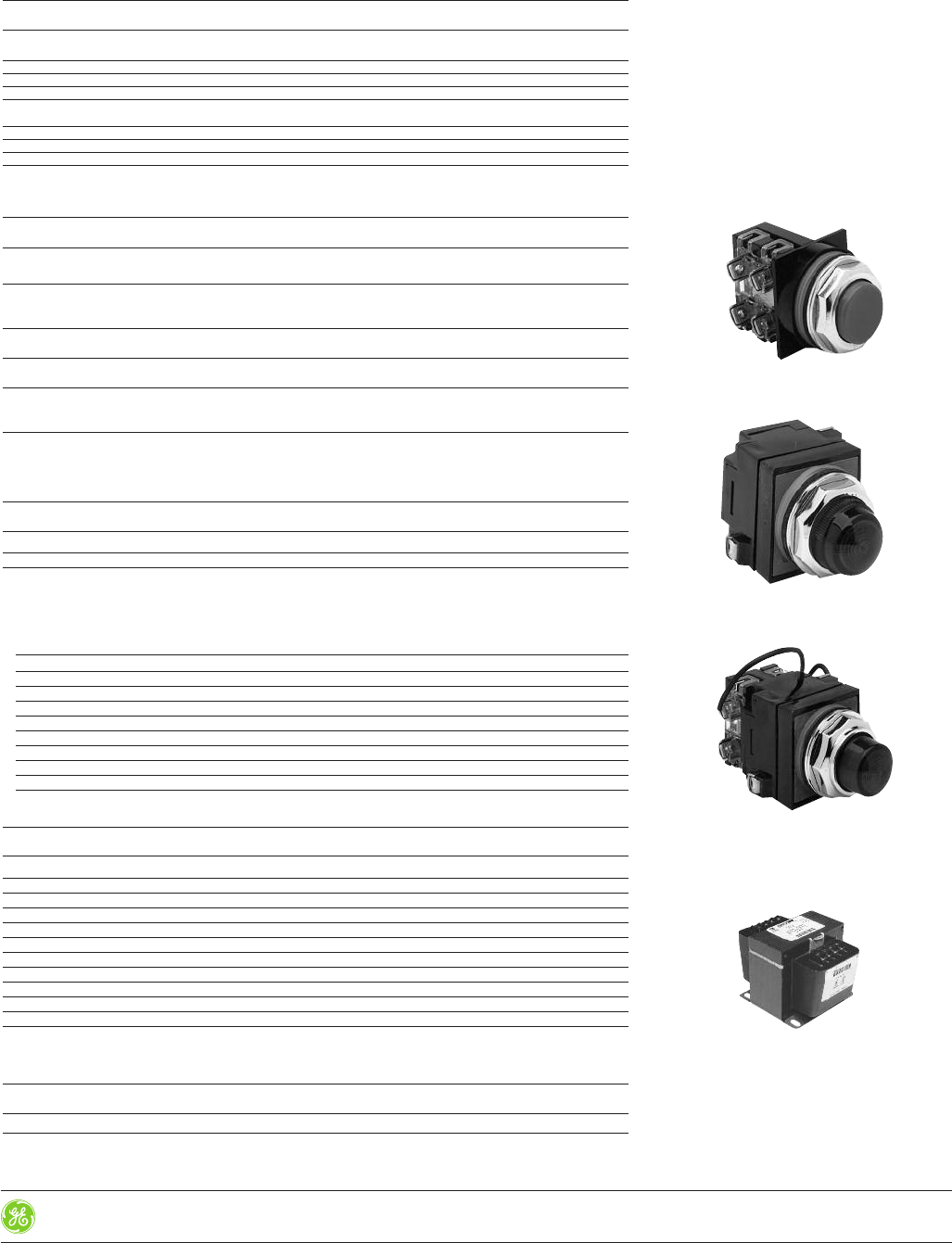

Extended Button

Standard

Push-to-Test

Control Power

Transformer

Lighting Contactors

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-8

Section 3

CR460 Series Lighting Contactors – Project Submittal Form

Item No. Proposition No.

CR460 Series lighting contactors feature:

—A modular design that permits fast, on-site configuration

—2-12 power poles that latch easily onto the base as either

NO or NC and that can be added at any time

—30 amp rating

—Snap-in auxiliary contacts

Type 1, Standard Enclosure Type 1, Oversized Enclosure

Extended description (if any):

Main Power Pole Ratings

Maximum AC Voltage and Amp Ratings

Load Type Amps Continuous 1 Phase 3 Phase

Ballast 30 347 Vac 600 Vac

General Use 30 600 Vac 600 Vac

Tungsten 20 277 Vac 480 Vac

AC Resistive 30 600 Vac 600 Vac

Maximum Horsepower Rating (Normal Starting Duty)

1 Pole Single Phase 3 Poles, Three Phase

Volts 110-120V 220-240V 200-208V 220-240V 440-480V 550-600V

HP 1 2 3 5 10 15

Power pole

configuration Electrically Held Contactor Mechanically Held Contactor

NO NC Standard Type 1 Enclosure Oversized Type 1 Enclosure Standard Type 1 Enclosure Oversized Type 1 Enclosure

2 0 ❐CR463L20A*A10A0 ❐CR463L20A*A10AA ❐CR463M20##A10A0 ❐CR463M20##A10AA

3 0 ❐CR463L30A*A10A0 ❐CR463L30A*A10AA ❐CR463M30##A10A0 ❐CR463M30##A10AA

4 0 ❐CR463L40A*A10A0 ❐CR463L40A*A10AA ❐CR463M40##A10A0 ❐CR463M40##A10AA

6 0 ❐CR463L60A*A10A0 ❐CR463L60A*A10AA ❐CR463M60##A10A0 ❐CR463M60##A10AA

8 0 ❐CR463L80A*A10A0 ❐CR463L80A*A10AA ❐CR463M80##A10A0 ❐CR463M80##A10AA

10 0 ❐CR463LB0A*A10A0 ❐CR463LB0A*A10AA ❐CR463MB0##A10A0 ❐CR463MB0##A10AA

12 0 ❐CR463LD0A*A10A0 ❐CR463LD0A*A10AA ❐CR463MD0##A10A0 ❐CR463MD0##A10AA

___ ___ __________________ __________________ __________________ __________________

* 60Hz Coil Voltage (✓) for Electrically Held

115- 200- 230- 460- 575-

24V 120V 208V 240V 277V 488V 600V

❐C ❐J ❐L ❐S ❐T ❐U ❐Y

## Control Module (✓) for Mechanically Held

2-wire Control 3-wire Control

Coil Voltage Coil Voltage

Control Volts 115-120V 277V 115-120V 277V

24-28V ❐BJ ❐BN ❐MJ ❐MN

110-120V ❐CJ ❐CN ❐NJ ❐NN

200-277V — ❐PN — ❐PN

4.62 .50

1.38

1.63

35.1

12.7

1.38

35.1

1.00 8.00

254

41.4

25.4 203.2

10.00

1.0

25.4

117.3

1.13

1.00

1.75

44.4 44.4

ABA

K.O.'s SAME TOP & BOTTOM

28.7

25.4

ÿ.25

ÿ6.4 HOLE FOR PADLOCK

3 POINT MTG.

FOR #10 SCREWS

(BACK)

(BOTH

SIDES)

ACOMBINATION KNOCKOUT FOR

1/2 or 3/4-INCH CONDUIT

COMBINATION KNOCKOUT FOR

3/4 or 1-INCH CONDUIT

10.00

4.8

.19

3.5

88.9 3.5

88.9

1.5

38.1

COMBINATION KNOCKOUT FOR

1/2, 1 1/4 OR 1 1/2 INCH CONDUI

254.0 5.00

127.0

203.2

8.00

C (PART 1 ONLY)

—Common components for both electrically and mechanically

held versions

—Continuously rated, interchangeable coils

—Finger-safe terminals

13.54

343.9

10.00

254.0

16.75

425.5

17.50

444.5

6.50

165.1

7.67

194.7

2.50

63.5

2.00

50.8

7.00

177.8

1.75

44.5

1.75

44.5

15.54

394.7

PILOT LIGHTS

PUSH BUTTONS

HOLE FOR PADLOCK

4 PT. MTG FOR

1/4-20 SCREWS

C* B*

A- COMBINATION KNOCKOUT FOR

1/2 OR 3/4 INCH CONDUIT

B- COMBINATION KNOCKOUT FOR

3/4 OR 1 INCH CONDUIT

C- COMBINATION KNOCKOUT FOR

1/2, 1-1/4 OR 1-1/2 INCH CONDUIT

* NOTE : KNOCKOUTS REVERSED ON BOTTOM

www.geindustrial.com Control Catalog 3-9

Rev. 7/13

Prices and data subject to

change without notice

Lighting Contactors

CR463L

Electrically Held Contactors

CR463L - 30A (2-12 pole)

Standard Assembled Forms

Product Number Selection Instructions

Replace * in the product number with the appropriate digits from

the Coil Voltage table. The resulting product number will be for

an assembled contactor with no additional auxiliary contacts,

pilot devices, pilot lights, control circuit fuses or CPTs. There is no

list price adder for Coil Selection.

For modified assembled forms with those modifications, see

pages 3-11 and 3-12.

—Items listed here are the most common pole configurations.

—Poles may be reconfigured by the user into alternative combi-

nations of NO and NC contacts.

—All configurations are available as factory-assembled forms.

Open

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463L11A*A $165.00

2 2NO CR463L20A*A $160.00

3 3NO CR463L30A*A $204.00

4 3NO-1NC CR463L31A*A $248.00

4 4NO CR463L40A*A $243.00

5 5NO CR463L50A*A $287.00

6 5NO-1NC CR463L51A*A $331.00

6 6NO CR463L60A*A $326.00

7 7NO CR463L70A*A $370.00

8 7NO-1NC CR463L71A*A $414.00

8 8NO CR463L80A*A $409.00

9 9NO CR463L90A*A $453.00

10 9NO-1NC CR463L91A*A $497.00

10 10NO CR463LB0A*A $492.00

11 11NO CR463LC0A*A $536.00

12 12NO CR463LD0A*A $575.00

Enclosed NEMA Type 1 Surface Mount

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463L11A*A10A0 $183.00

2 2NO CR463L20A*A10A0 $178.00

3 3NO CR463L30A*A10A0 $222.00

4 3NO-1NC CR463L31A*A10A0 $266.00

4 4NO CR463L40A*A10A0 $261.00

5 5NO CR463L50A*A10A0 $335.00

6 5NO-1NC CR463L51A*A10A0 $379.00

6 6NO CR463L60A*A10A0 $374.00

7 7NO CR463L70A*A10A0 $418.00

8 7NO-1NC CR463L71A*A10A0 $462.00

8 8NO CR463L80A*A10A0 $457.00

9 9NO CR463L90A*A10A0 $501.00

10 9NO-1NC CR463L91A*A10A0 $545.00

10 10NO CR463LB0A*A10A0 $540.00

11 11NO CR463LC0A*A10A0 $584.00

12 12NO CR463LD0A*A10A0 $623.00

Enclosed NEMA Type 1 Surface Mount (Oversize)1

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463L11A*A10AA $223.00

2 2NO CR463L20A*A10AA $218.00

3 3NO CR463L30A*A10AA $262.00

4 3NO-1NC CR463L31A*A10AA $306.00

4 4NO CR463L40A*A10AA $301.00

5 5NO CR463L50A*A10AA $375.00

6 5NO-1NC CR463L51A*A10AA $419.00

6 6NO CR463L60A*A10AA $414.00

7 7NO CR463L70A*A10AA $458.00

8 7NO-1NC CR463L71A*A10AA $502.00

8 8NO CR463L80A*A10AA $497.00

9 9NO CR463L90A*A10AA $541.00

10 9NO-1NC CR463L91A*A10AA $585.00

10 10NO CR463LB0A*A10AA $580.00

11 11NO CR463LC0A*A10AA $624.00

12 12NO CR463LD0A*A10AA $663.00

1Oversize enclosures required for field installed pilot devices, pilot lights and control

power transformers.

Enclosed NEMA Type 1 Flush Mount

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463L11A*A80A0 $245.00

2 2NO CR463L20A*A80A0 $240.00

3 3NO CR463L30A*A80A0 $284.00

4 3NO-1NC CR463L31A*A80A0 $328.00

4 4NO CR463L40A*A80A0 $323.00

5 5NO CR463L50A*A80A0 $367.00

6 5NO-1NC CR463L51A*A80A0 $411.00

6 6NO CR463L60A*A80A0 $406.00

7 7NO CR463L70A*A80A0 $450.00

8 7NO-1NC CR463L71A*A80A0 $494.00

8 8NO CR463L80A*A80A0 $489.00

9 9NO CR463L90A*A80A0 $533.00

10 9NO-1NC CR463L91A*A80A0 $577.00

10 10NO CR463LB0A*A80A0 $572.00

11 11NO CR463LC0A*A80A0 $616.00

12 12NO CR463LD0A*A80A0 $655.00

Coil Voltage

Insert coil digit in place of * in digit 10.

Coil Voltage

AC, 60Hz AC, 50Hz Coil Digit

24V 20V C

28V 24V D

115-120V 110V J

200-208V —L

230-240V 220V S

277V 240V N

347V —T

460-480V 440V U

575-600V 550V Y

Section 3

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-10

Section 3Lighting Contactors

Enclosed NEMA Type 12/3R

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463L11A*A20A0 $275.00

2 2NO CR463L20A*A20A0 $270.00

3 3NO CR463L30A*A20A0 $314.00

4 3NO-1NC CR463L31A*A20A0 $358.00

4 4NO CR463L40A*A20A0 $353.00

5 5NO CR463L50A*A20A0 $397.00

6 5NO-1NC CR463L51A*A20A0 $441.00

6 6NO CR463L60A*A20A0 $436.00

7 7NO CR463L70A*A20A0 $480.00

8 7NO-1NC CR463L71A*A20A0 $524.00

8 8NO CR463L80A*A20A0 $519.00

9 9NO CR463L90A*A20A0 $563.00

10 9NO-1NC CR463L91A*A20A0 $607.00

10 10NO CR463LB0A*A20A0 $602.00

11 11NO CR463LC0A*A20A0 $646.00

12 12NO CR463LD0A*A20A0 $685.00

Enclosed NEMA Type 12/3R (Oversize)1

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463L11A*A20AA $315.00

2 2NO CR463L20A*A20AA $310.00

3 3NO CR463L30A*A20AA $354.00

4 3NO-1NC CR463L31A*A20AA $398.00

4 4NO CR463L40A*A20AA $353.00

5 5NO CR463L50A*A20AA $437.00

6 5NO-1NC CR463L51A*A20AA $481.00

6 6NO CR463L60A*A20AA $476.00

7 7NO CR463L70A*A20AA $520.00

8 7NO-1NC CR463L71A*A20AA $564.00

8 8NO CR463L80A*A20AA $559.00

9 9NO CR463L90A*A20AA $603.00

10 9NO-1NC CR463L91A*A20AA $647.00

10 10NO CR463LB0A*A20AA $642.00

11 11NO CR463LC0A*A20AA $686.00

12 12NO CR463LD0A*A20AA $725.00

1Oversize enclosures required for field installed pilot devices, pilot lights and control

power transformers.

Enclosed NEMA Type 4/4X

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463L11A*A40A0 $369.00

2 2NO CR463L20A*A40A0 $364.00

3 3NO CR463L30A*A40A0 $408.00

4 3NO-1NC CR463L31A*A40A0 $452.00

4 4NO CR463L40A*A40A0 $447.00

5 5NO CR463L50A*A40A0 $491.00

6 5NO-1NC CR463L51A*A40A0 $535.00

6 6NO CR463L60A*A40A0 $530.00

7 7NO CR463L70A*A40A0 $574.00

8 7NO-1NC CR463L71A*A40A0 $618.00

8 8NO CR463L80A*A40A0 $613.00

9 9NO CR463L90A*A40A0 $657.00

10 9NO-1NC CR463L91A*A40A0 $701.00

10 10NO CR463LB0A*A40A0 $696.00

11 11NO CR463LC0A*A40A0 $740.00

12 12NO CR463LD0A*A40A0 $779.00

Coil Voltage

Insert coil digit in place of * in digit 10.

Coil Voltage

AC, 60Hz AC, 50Hz Coil Digit

24V 20V C

28V 24V D

115-120V 110V J

200-208V —L

230-240V 220V S

277V 240V N

347V —T

460-480V 440V U

575-600V 550V Y

CR463L

Electrically Held Contactors

CR463L - 30A (2-12 pole)

Standard Assembled Forms

www.geindustrial.com Control Catalog 3-11

Rev. 7/13

Prices and data subject to

change without notice

Section 3

Lighting Contactors

CR463L

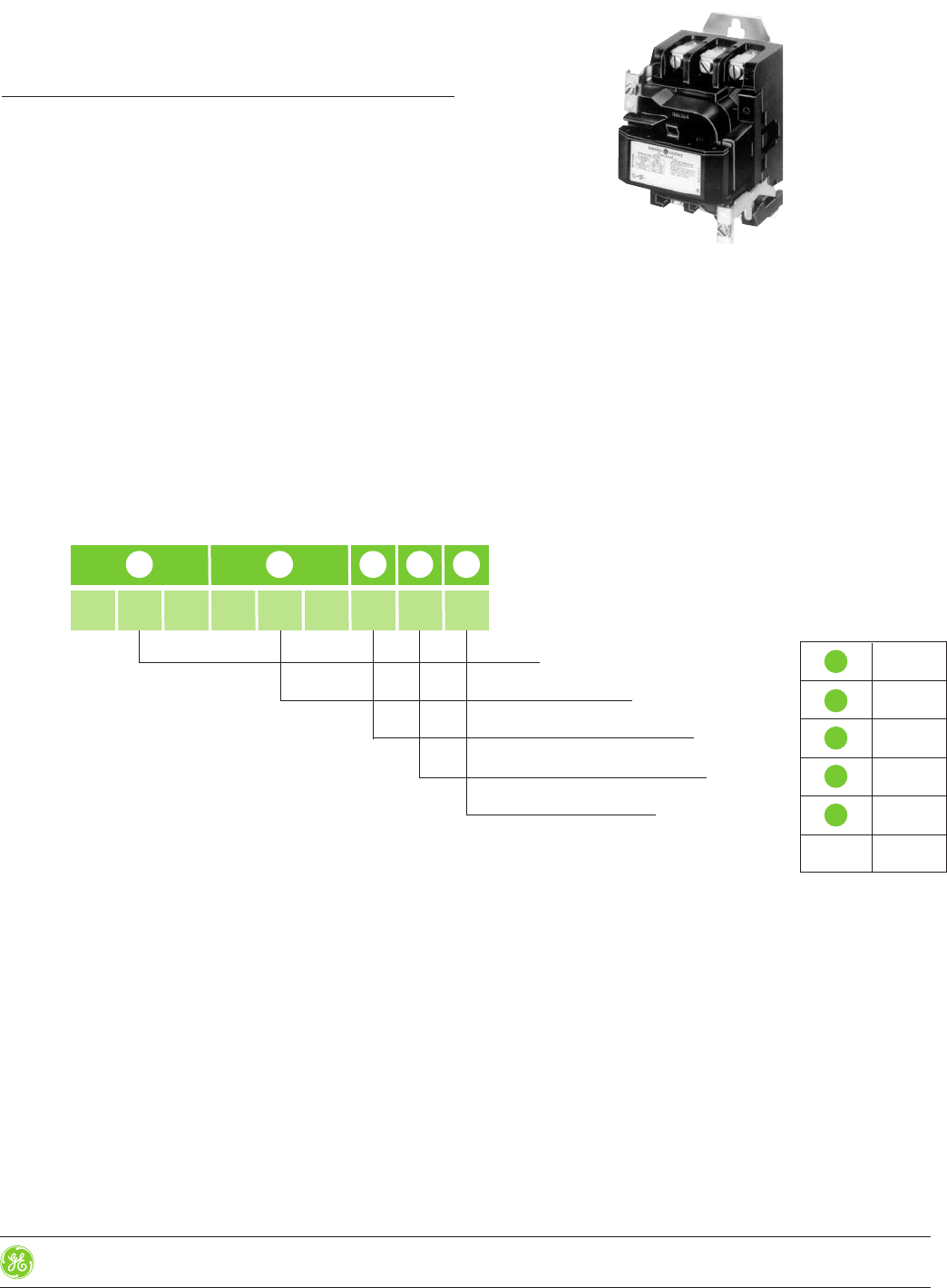

Modified Assembled Forms – Electrically Held

CR463L

CR463L Electrically Held Contactors

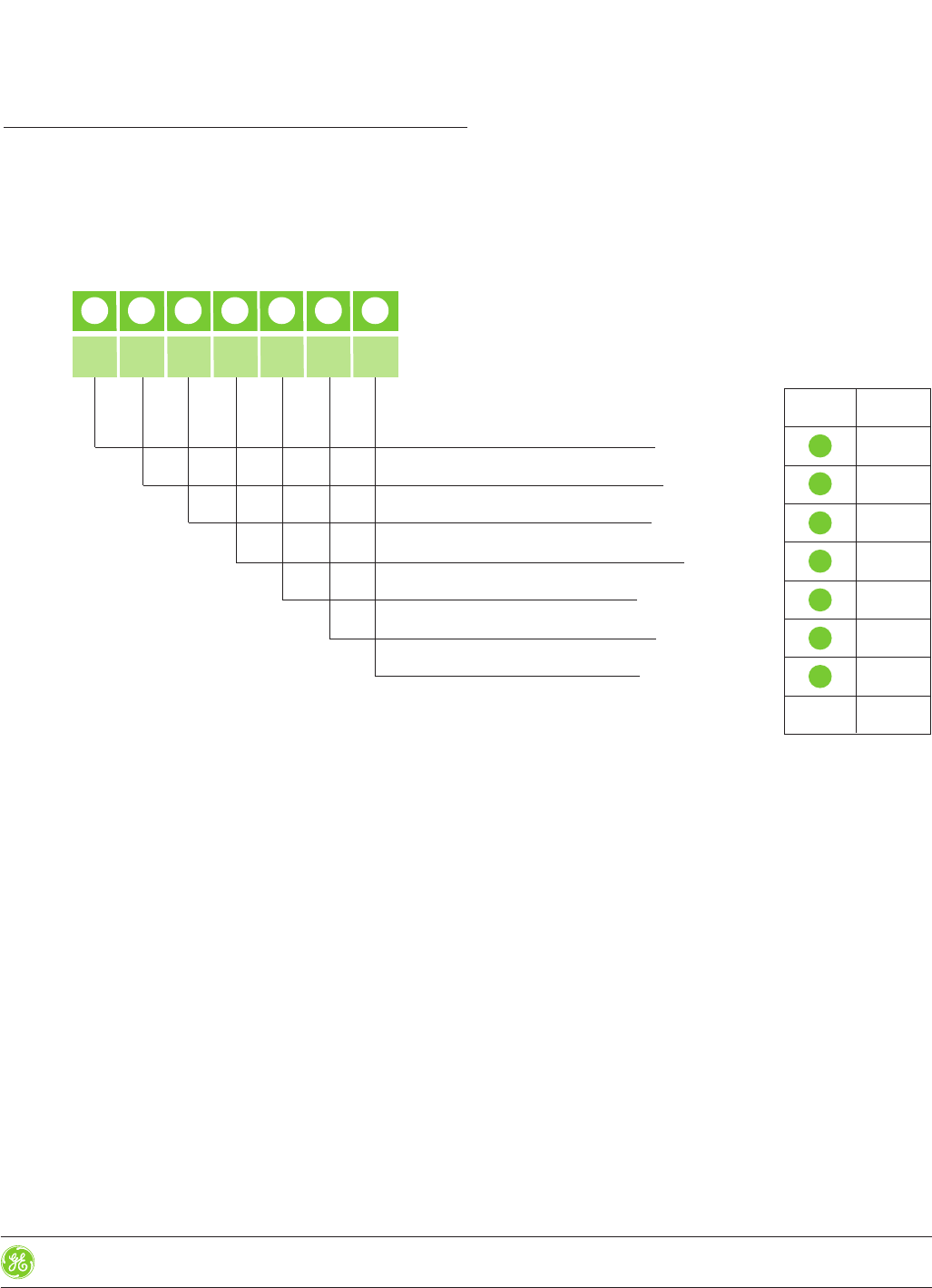

Follow the diagram and tables below to select the options and corresponding product number digits for your modified contactor.

Total the prices for each selection to arrive at the total list price, GO-10MB.

CR463L Base Price

NO Power Pole Contact Configuration

NC Power Pole Contact Configuration

Standard Control

Coil Voltage

Additional Auxiliary Contacts

Enclosures

Pilot Devices

Pilot Lights

Control Circuit Fuses/

Control Power Transformers

Total

List Price, GO-10MB

& Power Pole Contact Configuration

The number of NO contacts is digit 1 and the number of NC contacts is digit 2.

123456789

AC, 60Hz AC, 50Hz

24V 20V C

28V 24V D

115-120V 110V J

200-208V —L

230-240V 220V S

277V 240V N

347V —T

460-480V 440V U

575-600V 550V Y

Coil Voltage

Digit 4

Coil Voltage

There is no price adder to coil selection.

Standard Control

Digit 3: A

$77.00

$0.00

012345678

0— — $83.00 $127.00 $166.00 $210.00 $249.00 $293.00 $332.00

1— $88.00 $127.00 $171.00 $210.00 $254.00 $293.00 $337.00 $376.00

2 $83.00 $127.00 $166.00 $210.00 $249.00 $293.00 $332.00 $376.00 $415.00

3$127.00 $171.00 $210.00 $254.00 $293.00 $337.00 $376.00 $420.00 $459.00

4$166.00 $210.00 $249.00 $293.00 $332.00 $376.00 $415.00 $459.00 $498.00

5$210.00 $254.00 $293.00 $337.00 $376.00 $420.00 $459.00

6$249.00 $293.00 $332.00 $376.00 $415.00 $459.00 $498.00

7$293.00 $337.00 $376.00 $420.00 $459.00

8$332.00 $376.00 $415.00 $459.00 $498.00

9$376.00 $420.00 $459.00

10 (B) $415.00 $459.00 $498.00

11 (C) $459.00

12 (D) $498.00

Contacts

Digit 1

List Price Adder, GO-10MB

NC Contacts Digit 2

1For digit 1 with 10 NO contacts, use B;

for 11 NO contacts, use C; for 12 NO contacts, use D.

1For digit 1 with 10 NO contacts use B; for 11 No contacts, use C; for 12 NO contacts, use D.

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-12

Section 3

—None 0

$0.00

Without CPT $165.00

CPT Primary

Volts

CPT Secondary

Volts

208 B $367.00

220-240 C $367.00

277 D $367.00

440-480 E $367.00

600 F $367.00

120 L $367.00

208 M $367.00

220-240 N $367.00

277 P $367.00

440-480 R $367.00

600 S $367.00

With

100VA CPT

120

Digit 9

List Price Adder,

GO-10MB

Control Circuit Fuses

Contactor

Type Description

4Contactor supplied in oversize enclosure with these options.

Additional Auxiliary Contacts

Each side of the contactor base will accept one single- or double-pole auxiliary contact block, for a maximum of 2NO-2NC contacts.

Enclosures with OFF pilot lights require 1NC contact. Specify an additional 1NO contact if a holding interlock is required and “not”

selected as part of Digit 7 (1 or 3). For open forms, this is the final digit.

Lighting Contactors

CR463L

6Pilot Devices

Heavy-duty, 30mm pilot devices. Contractor supplied in oversize enclosures with these

options. Not available in Type 1 flush enclosure.

Pilot Lights

Heavy-duty 30mm pilot lights with interchangeable red and

green lenses. See the Additional Auxiliary Contacts table above

for contact limitations. OFF light includes extra auxiliary contact.

Not available in Type 1 flush enclosure.

8Control Circuit Fuses/Control Power Transformers

CPT secondary voltage must match control voltage. Not available

in Type 1 flush enclosure.

Additional

(field use)

Auxiliary

Contacts

Digit 5

(Aux)

Open

Type

List Price Adder,

GO-10MB

No pilot

devices or

pilot lights

Digit 8

= A

ON light

across coil

Digit 8

= B,D

OFF light

thru NC

contact

Digit 8

= C,E

ON light

across coil

and OFF light

thru NC

contact

Digit 8

= F,G

No pilot

devices or

pilot lights

Digit 8

= A

ON light

across coil

Digit 8

= B,D

OFF light

thru NC

contact

Digit 8

= C,E

ON light

across coil

and OFF light

thru NC

contact

Digit 8

= F,G

None A √√ √ √ √ √ √ √ √

√√√√√√√√

√√√√

√√

$0.00

1NO B √$10.00

1NC C √$10.00

1NO-1NC D √$20.00

2NO E √$20.00

2NO-1NC F √

√√

√

$30.00

2NC G

√√

√

— —

√√

$20.00

1NO-2NC H

√√

√

— — $30.00

2NO-2NC J $40.00

Enclosed with Pilot Device Codes

(Digit 7) 0, 2, 4, 5, 6, 7, 8 below

Enclosed with Pilot Device Codes

(Digit 7) 1, 3 below

Type 1 Surface for

2-4 pole contactors 1 $18.00

Type 1 Surface for

5-12 pole contactors 1 $48.00

Type 1 Flush 8 $80.00

Type 12/3R 2 $110.00

Type 4/4X 4 $204.00

Enclosure Type Digit 6

List Price Adder,

GO-10MB

Not Required Included2

None $0.00

ON/OFF Push Button (Momentary) $142.00

ON/OFF Selector Switch (Maintained) $132.00

ON-OFF Selector Switch, Spring Return to Center (Momentary) $142.00

H-O-A Selector Switch (Maintained) $132.00

ON-OFF-AUTO Keyed Selector Switch (Removal All Positions) (Maintained) $168.00

H-O-A Keyed Selector Switch (Removal All Positions) (Maintained) $168.00

OFF-AUTO Selector Switch (Maintained) $132.00

ON-OFF-AUTO Selector Switch (Maintained) $132.00

2One holding interlock is included in pilot device digit and pricing.

Pilot Device

Holding Interlock

Digit 7

List Price

Adder,

GO-10MB

Enclosures

—None A $0.00

ON B $152.00

OFF C

$162.00

ON and OFF $314.00

ON D

$170.00

OFF $180.00

ON and OFF $350.00

Push-to-Test

Standard

3ON is across coil; OFF is through NC contact, which is included in pilot

light digit and pricing.

Type Pilot Light(s)

Digit 8

List Price Adder,

GO-10MB

www.geindustrial.com Control Catalog 3-13

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

Product Number Selection Instructions

To specify control and coil voltage, replace ** in the product

number with the appropriate digits from the Control Circuit table,

and add the price adder (if any) to the contactor list price. The

resulting product number will be for an assembled contactor with

no additional auxiliary contacts, pilot devices, pilot lights, control

circuit fuses or CPTs. If coil supply voltage is greater than 277V,

use a CPT.

For modified assembled forms with those modifications, see

pages 3-15 and 3-16. Items listed here are the most common

pole

configurations.

Open

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463M11**A $275.00

2 2NO CR463M20**A $270.00

3 3NO CR463M30**A $314.00

4 3NO-1NC CR463M31**A $358.00

4 4NO CR463M40**A $353.00

5 5NO CR463M50**A $397.00

6 5NO-1NC CR463M51**A $441.00

6 6NO CR463M60**A $436.00

7 7NO CR463M70**A $480.00

8 7NO-1NC CR463M71**A $524.00

8 8NO CR463M80**A $519.00

9 9NO CR463M90**A $563.00

10 9NO-1NC CR463M91**A $607.00

10 10NO CR463MB0**A $602.00

11 11NO CR463MC0**A $646.00

12 12NO CR463MD0**A $685.00

Enclosed NEMA Type 1 Surface Mount

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463M11**A10A0 $293.00

2 2NO CR463M20**A10A0 $288.00

3 3NO CR463M30**A10A0 $332.00

4 3NO-1NC CR463M31**A10A0 $376.00

4 4NO CR463M40**A10A0 $371.00

5 5NO CR463M50**A10A0 $445.00

6 5NO-1NC CR463M51**A10A0 $489.00

6 6NO CR463M60**A10A0 $484.00

7 7NO CR463M70**A10A0 $528.00

8 7NO-1NC CR463M71**A10A0 $572.00

8 8NO CR463M80**A10A0 $567.00

9 9NO CR463M90**A10A0 $611.00

10 9NO-1NC CR463M91**A10A0 $655.00

10 10NO CR463MB0**A10A0 $650.00

11 11NO CR463MC0**A10A0 $694.00

12 12NO CR463MD0**A10A0 $733.00

Enclosed NEMA Type 1 Surface Mount (Oversize)1

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463M11**A10AA $333.00

2 2NO CR463M20**A10AA $328.00

3 3NO CR463M30**A10AA $372.00

4 3NO-1NC CR463M31**A10AA $416.00

4 4NO CR463M40**A10AA $411.00

5 5NO CR463M50**A10AA $485.00

6 5NO-1NC CR463M51**A10AA $529.00

6 6NO CR463M60**A10AA $524.00

7 7NO CR463M70**A10AA $568.00

8 7NO-1NC CR463M71**A10AA $612.00

8 8NO CR463M80**A10AA $607.00

9 9NO CR463M90**A10AA $651.00

10 9NO-1NC CR463M91**A10AA $695.00

10 10NO CR463MB0**A10AA $690.00

11 11NO CR463MC0**A10AA $734.00

12 12NO CR463MD0**A10AA $773.00

1Oversize enclosures required for field installed pilot devices, pilot lights and control

power transformers.

Enclosed NEMA Type 1 Flush Mount

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463M11**A80A0 $355.00

2 2NO CR463M20**A80A0 $350.00

3 3NO CR463M30**A80A0 $394.00

4 3NO-1NC CR463M31**A80A0 $438.00

4 4NO CR463M40**A80A0 $433.00

5 5NO CR463M50**A80A0 $477.00

6 5NO-1NC CR463M51**A80A0 $421.00

6 6NO CR463M60**A80A0 $516.00

7 7NO CR463M70**A80A0 $560.00

8 7NO-1NC CR463M71**A80A0 $604.00

8 8NO CR463M80**A80A0 $599.00

9 9NO CR463M90**A80A0 $643.00

10 9NO-1NC CR463M91**A80A0 $687.00

10 10NO CR463MB0**A80A0 $682.00

11 11NO CR463MC0**A80A0 $726.00

12 12NO CR463MD0**A80A0 $765.00

Insert control circuit rating digits in place of the ** in digit 9 and

10 of product number.

Control Circuit Rating

Product No. Digits by Coil Voltage (60 Hz)2

Control Control Module Input 115-120 Vac 277 Vac List Price Adder

2 Wire 110-120 Vac CJ — $0.00

200-277 Vac — DN $0.00

3 Wire 110-120 Vac NJ — $10.00

200-277 Vac — PN $10.00

2For 50 Hz coil ratings see coil table, page 3-6.

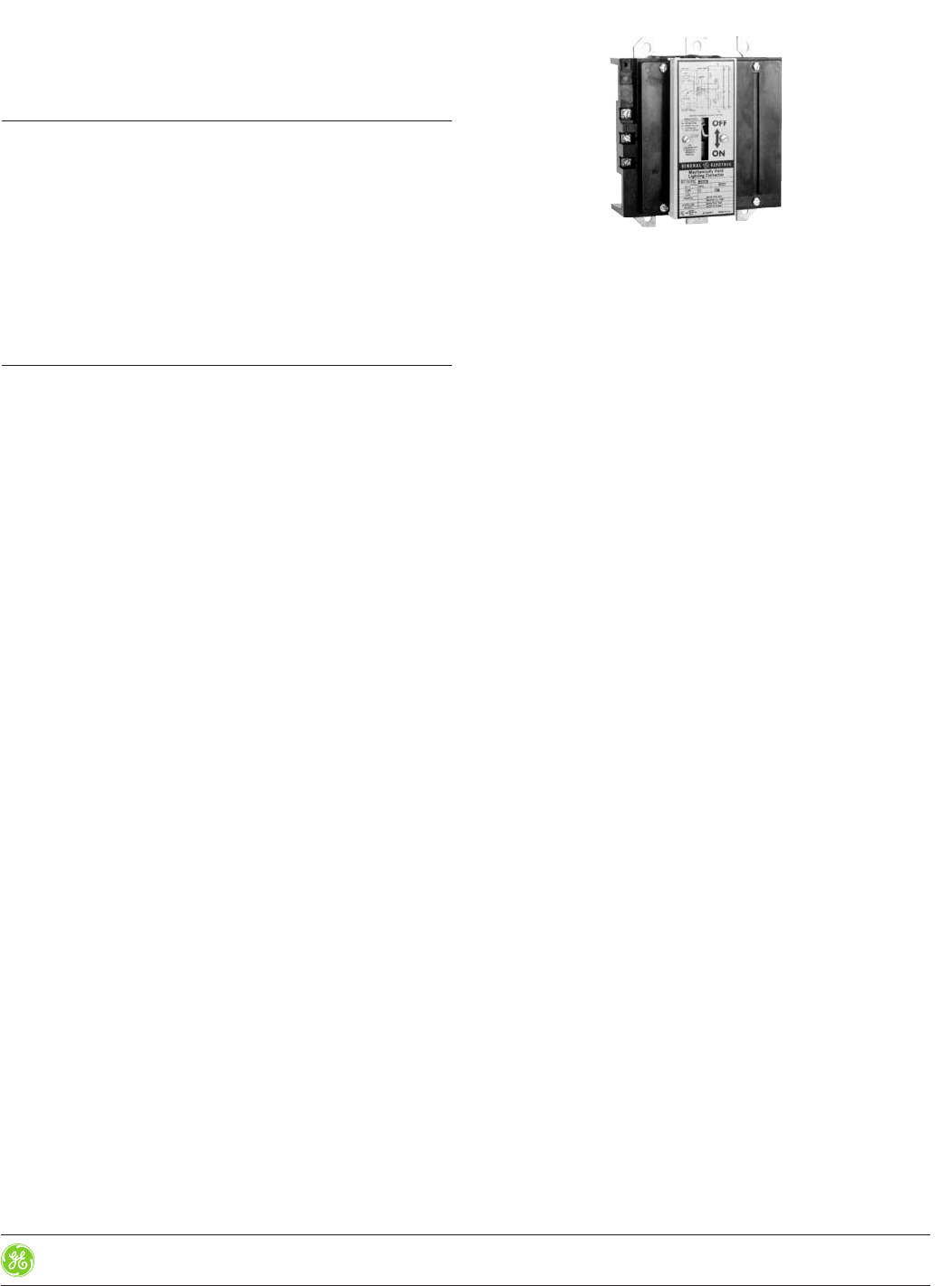

CR463M

Mechanically Held Contactors

CR463M - 30A (2-12 pole)

Standard Assembled Forms

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-14

Section 3Lighting Contactors

Enclosed NEMA Type 12/3R

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463M11**A20A0 $385.00

2 2NO CR463M20**A20A0 $380.00

3 3NO CR463M30**A20A0 $424.00

4 3NO-1NC CR463M31**A20A0 $468.00

4 4NO CR463M40**A20A0 $463.00

5 5NO CR463M50**A20A0 $507.00

6 5NO-1NC CR463M51**A20A0 $551.00

6 6NO CR463M60**A20A0 $546.00

7 7NO CR463M70**A20A0 $590.00

8 7NO-1NC CR463M71**A20A0 $634.00

8 8NO CR463M80**A20A0 $629.00

9 9NO CR463M90**A20A0 $673.00

10 9NO-1NC CR463M91**A20A0 $717.00

10 10NO CR463MB0**A20A0 $712.00

11 11NO CR463MC0**A20A0 $756.00

12 12NO CR463MD0**A20A0 $795.00

Enclosed NEMA Type 12/3R (Oversize)1

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463M11**A20AA $425.00

2 2NO CR463M20**A20AA $420.00

3 3NO CR463M30**A20AA $464.00

4 3NO-1NC CR463M31**A20AA $508.00

4 4NO CR463M40**A20AA $503.00

5 5NO CR463M50**A20AA $547.00

6 5NO-1NC CR463M51**A20AA $591.00

6 6NO CR463M60**A20AA $586.00

7 7NO CR463M70**A20AA $630.00

8 7NO-1NC CR463M71**A20AA $674.00

8 8NO CR463M80**A20AA $669.00

9 9NO CR463M90**A20AA $713.00

10 9NO-1NC CR463M91**A20AA $757.00

10 10NO CR463MB0**A20AA $752.00

11 11NO CR463MC0**A20AA $796.00

12 12NO CR463MD0**A20AA $835.00

1Oversize enclosures required for field installed pilot devices, pilot lights and control

power transformers.

Enclosed NEMA Type 4/4X

List Price

No. of Poles Contact Configuration Product Number GO-10MB

2 1NO-1NC CR463M11**A40A0 $479.00

2 2NO CR463M20**A40A0 $474.00

3 3NO CR463M30**A40A0 $518.00

4 3NO-1NC CR463M31**A40A0 $562.00

4 4NO CR463M40**A40A0 $557.00

5 5NO CR463M50**A40A0 $610.00

6 5NO-1NC CR463M51**A40A0 $645.00

6 6NO CR463M60**A40A0 $640.00

7 7NO CR463M70**A40A0 $484.00

8 7NO-1NC CR463M71**A40A0 $728.00

8 8NO CR463M80**A40A0 $723.00

9 9NO CR463M90**A40A0 $767.00

10 9NO-1NC CR463M91**A40A0 $811.00

10 10NO CR463MB0**A40A0 $806.00

11 11NO CR463MC0**A40A0 $850.00

12 12NO CR463MD0**A40A0 $889.00

Insert control circuit rating digits in place of the ** digit 9 and 10

of product number.

Control Circuit Rating

Product No. Digits by Coil Voltage (60 Hz)2

Control Control Module Input 115-120 Vac 277 Vac List Price Adder

2 Wire 110-120 Vac CJ — $0.00

200-277 Vac — DN $0.00

3 Wire 110-120 Vac NJ — $10.00

200-277 Vac — PN $10.00

2For 50 Hz coil ratings see coil table, page 3-6.

CR463M

Mechanically Held Contactors

CR463M - 30A (2-12 pole)

Standard Assembled Forms

www.geindustrial.com Control Catalog 3-15

Rev. 7/13

Prices and data subject to

change without notice

Section 3

24 Vac 115-120 Vac 200-208 Vac 230-240 Vac 277 Vac

24 Vac $0.00

110-120 Vac

BNBC

CJ CL

BL BS

$0.00

200-277 Vac $0.00

12-28 Vdc $0.00

24 Vac $10.00

110-120 Vac $10.00

200-277 Vac $10.00

12-28 Vdc $10.00

2For 50 Hz coil ratings see coil table, page 3-6.

Control

Module

Input

Digits 1 & 2 by Coil Voltage (60 Hz) 2List Price

Adder,

GO-10MB

2 Wire

3 Wire

Lighting Contactors

CR436M

Modified Assembled Forms – Mechanically Held

CR436M Mechanically Held Contactors

Follow the diagram and tables below to select the options and corresponding catalog number digits for your modified contactor.

Total the prices for each selection to arrive at the total list price, GO-10MB.

012345678

0— — $83.00 $127.00 $166.00 $210.00 $249.00 $293.00 $332.00

1— $88.00 $127.00 $171.00 $210.00 $254.00 $293.00 $337.00 $376.00

2 $83.00 $127.00 $166.00 $210.00 $249.00 $293.00 $332.00 $376.00 $415.00

3$127.00 $171.00 $210.00 $254.00 $293.00 $337.00 $376.00 $420.00 $459.00

4$166.00 $210.00 $249.00 $293.00 $332.00 $376.00 $415.00 $459.00 $498.00

5$210.00 $254.00 $293.00 $337.00 $376.00 $420.00 $459.00

6$249.00 $293.00 $332.00 $376.00 $415.00 $459.00 $498.00

7$293.00 $337.00 $376.00 $420.00 $459.00

8$332.00 $376.00 $415.00 $459.00 $498.00

9$376.00 $420.00 $459.00

10 (B) $415.00 $459.00 $498.00

11 (C) $459.00

12 (D) $498.00

Contacts

Digit 1

List Price Adder, GO-10MB

NC Contacts Digit 2

1For digit 1 with 10 NO contacts, use B;

for 11 NO contacts, use C; for 12 NO contacts, use D.

& Power Pole Contact Configuration

The number of NO contacts is digit 1 and the number of NC contacts is digit 2.

& Control Circuit

If coil supply voltage is greater than 277V, use CPT.

CR463M

CR463M Base Price

NO Power Pole Contact Configuration

NC Power Pole Contact Configuration

Control Circuit

Additional Auxiliary Contacts

Enclosures

Pilot Devices

Pilot Lights

Control Circuit Fuses/

Control Power Transformers

Total

List Price, GO-10MB

123456789

$77.00

1For digit 1 with 10 NO contacts use B;

for 11 No contacts, use C; for 12 NO contacts, use D.

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-16

Section 3

Additional Auxiliary Contacts

Each side of the contactor base will accept one single- or double-pole auxiliary contact block, for a maximum of 2NO-2NC contacts.

The 2-wire control module uses 1NC contact and the 3-wire uses 1NO-1NC for feedback and control. The table below indicates the

additional auxiliary contacts available for customer or field use when factory-assembled forms are supplied. For open forms, this is

the final digit.

Lighting Contactors

CR463M

Pilot Devices

Heavy-duty, 30mm pilot devices. Oversize enclosure required for field installed

Pilot Devices, Pilot Lights and Control Power Transformers. Not available in Type 1

flush enclosure.

Enclosures

Pilot Lights

Heavy-duty 30mm pilot lights with interchangeable red and

green lenses. See the Additional Auxiliary Contacts table above

for contact limitations. OFF light includes extra auxiliary contact.

Not available in Type 1 flush enclosure.

8Control Circuit Fuses/Control Power Transformers

CPT secondary voltage must match control voltage. Not

available in Type 1 flush enclosure.

No pilot

lights

Digit 8

= A

ON light

thru NO

contact

Digit 8

= B, D

OFF light

thru NC

contact

Digit 8

= C, E

ON light thru

NO contact

and OFF light

thru NC contact

Digit 8 = F, G

No pilot

devices or

pilot lights

Digit 8

= A

ON light

thru NO

contact

Digit 8

= B, D

OFF light

thru NC

contact

Digit 8

= C, E

ON light thru

NO contact

and OFF light

thru NC contact

Digit 8 = F, G

None A $0.00

1NO B $10.00

1NC C $10.00

1NO-1NC D $20.00

2NO E $20.00

Additional

(field use)

Aux.

Contacts Digit 5

List Price

Adder,

GO-10MB

2- wire control (when Digit 3 = B, C, D, E)

Enclosed (when Digit 7 below = 0, 2, 4, 5, 6, 7, 8) Enclosed (when Digit 7 below = 1, 2, 3)

3-wire control (when Digit 3 = M, N, P, R)

Available with

Open

Type

Open

Type

√√√√ √√√√√

√√ √ √ √ √ √

√√ √ √ √

√ √

√√√

√

—None A $0.00

ON B $162.00

OFF C

$162.00

ON and OFF $324.00

ON D

$180.00

OFF $180.00

ON and OFF $360.00

Push-to-Test

Standard

3Contactor supplied in oversize enclosure with these options.

ON is through NO contact; OFF is through NC contact.

Auxiliary contacts are included in pilot light digit and pricing.

Type Pilot Light(s)3Digit 8

List Price Adder,

GO-10MB

—None 0

$0.00

Without CPT $165.00

CPT Primary

Volts

CPT Secondary

Volts

208 B $367.00

220-240 C $367.00

277 D $367.00

440-480 E $367.00

600 F $367.00

120 L $367.00

208 M $367.00

220-240 N $367.00

277 P $367.00

440-480 R $367.00

600 S $367.00

With

100VA CPT

120

Digit 9

List Price Adder,

GO-10MB

Control Circuit Fuses

Contactor

Type Description

4Oversize enclosure required for field installed pilot devices, pilot lights and

control power transformers

Type 1 Surface for

2-4 pole contactors 1 $18.00

Type 1 Surface for

5-12 pole contactors 1 $48.00

Type 1 Flush 8 $80.00

Type 12/3R 2 $110.00

Type 4/4X 4 $204.00

Enclosure Type Digit 6

List Price Adder,

GO-10MB

Pilot Device 2-wire 3-wire Digit 7

None $0.00

ON/OFF Push Button (Momentary) $132.00

ON/OFF Selector Switch (Maintained) $132.00

ON-OFF Selector Switch, Spring Return to Center (Momentary) $132.00

H-O-A Selector Switch (Maintained) $132.00

ON-OFF-AUTO Keyed Selector Switch (Removal All Positions) (Maintained) $168.00

H-O-A Keyed Selector Switch (Removal All Positions) (Maintained) $168.00

OFF-AUTO Selector Switch (Maintained) $132.00

ON-OFF-AUTO Selector Switch (Maintained) $132.00

Control Module List Price Adder,

GO-10MB

www.geindustrial.com Control Catalog 3-17

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

Main Power Poles Ratings

Maximum AC Voltage and Amp Ratings

Poles

Load Type Amps Continuous 1 Phase 3 Phase

Ballast 30 347 Vac 600 Vac

Tungsten 20 277 Vac 480 Vac

General Use/AC Resistive 30 600 Vac 600 Vac

Maximum Horsepower Rating (Normal Starting Duty)

1 Pole Single Phase 3 Poles, Three Phase

Volts 110-120V 220-240V 200-208V 220-240V 440-480V 550-600V

HP 123510 15

Short Circuit Current Ratings

For 463 Series Contactors Available Amps (RMS) Symmetrical

Circuit Breakers Enclosure Type Enclosure Type

Inverse Trip Type CR460X*B CR460X*D or Larger

AC Service Breaker TEY/ All other inverse All other inverse

Voltage Size THHQB trip breakers THHQB TEY SE trip breakers

240 30 22,000 14,000 22,000 65,000 100,000 22,000

40 14,000 10,000 22,000 65,000 100,000 22,000

277 30 14000110,000 N/A 14,000 30,000 14,000

40 1400015,000 N/A 14,000 30,000 14,000

480 40 N/A 5,000 N/A N/A 30,000 14,000

600 40 N/A 5,000 N/A N/A 14,000 10,000

1TEY only

Withstand Current Ratings

For 463 Series Contactors - Available Amps (RMS)

Symmetrical Fuses

Enclosure Type Enclosure Type

CR460X*B CR460X*D or Larger

AC Service Fuse Fuse Type Fuse Type

Voltage Size J RK1 J/RK1/RK5 KH

600 and below 30 100,000 50,000 100,000 50,000 10,000

Control Circuit Characteristics

Coil

Inrush 340 VA

Sealed 45 VA

Control Module Steady State Current

Input Voltage @ Rated Voltage (mA) Maximum VA

12-28 VDC 42 2

24 VAC 80 5

115-120 VAC 83 12

200-277 VAC 91 30

Minimum pulse duration (3-wire control module) 250 ms

Maximum allowable leakage current 1.8 mA

EMI 35 V/m

Surge transient peak 6 kV

Frequency range 40-70 Hz

Auxiliary Contacts Rating

A600, 10A, 600VAC

Wire Size Ratings

Wire Range (AWG)

Component Number of Cables (Solid or Stranded) Wire Temp.

Power Poles 1 #14-8 75°C Cu

Power Poles 2 #14-8275°C Cu

Coil 1 or 2 #18-14 60°/75°C Cu

Control Module 1 or 2 #22-12 60°/75°C Cu

Auxiliary Contacts 1 or 2 #22-12 60°/75°C Cu

2#8 AWG stranded only.

Standards and Listings

UL508 File, E1811 Vol 19, cUL, CE

Ambient Operating Temperature

-25° to 40°C

Reference Publications

Instructions DEH-40460

Wiring Diagrams

Wiring Diagrams and Outline Drawings Reference Page

CR463L Electrically Held 3-18

CR463M Mechanically Held 3-18

55-217114P01 3-19

55-217069 (CR460XE1B) 3-20

55-217105 (CR460XE1D) 3-20

55-217108 (CR460XE8B) 3-20

55-217109(CR460XE2B) 3-21

55-217106 (CR460XE2D) 3-21

55-217107 (CR460XE4D) 3-21

CR460, CR463

Technical Data

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-18

Section 3Lighting Contactors

CR463L, CR463M

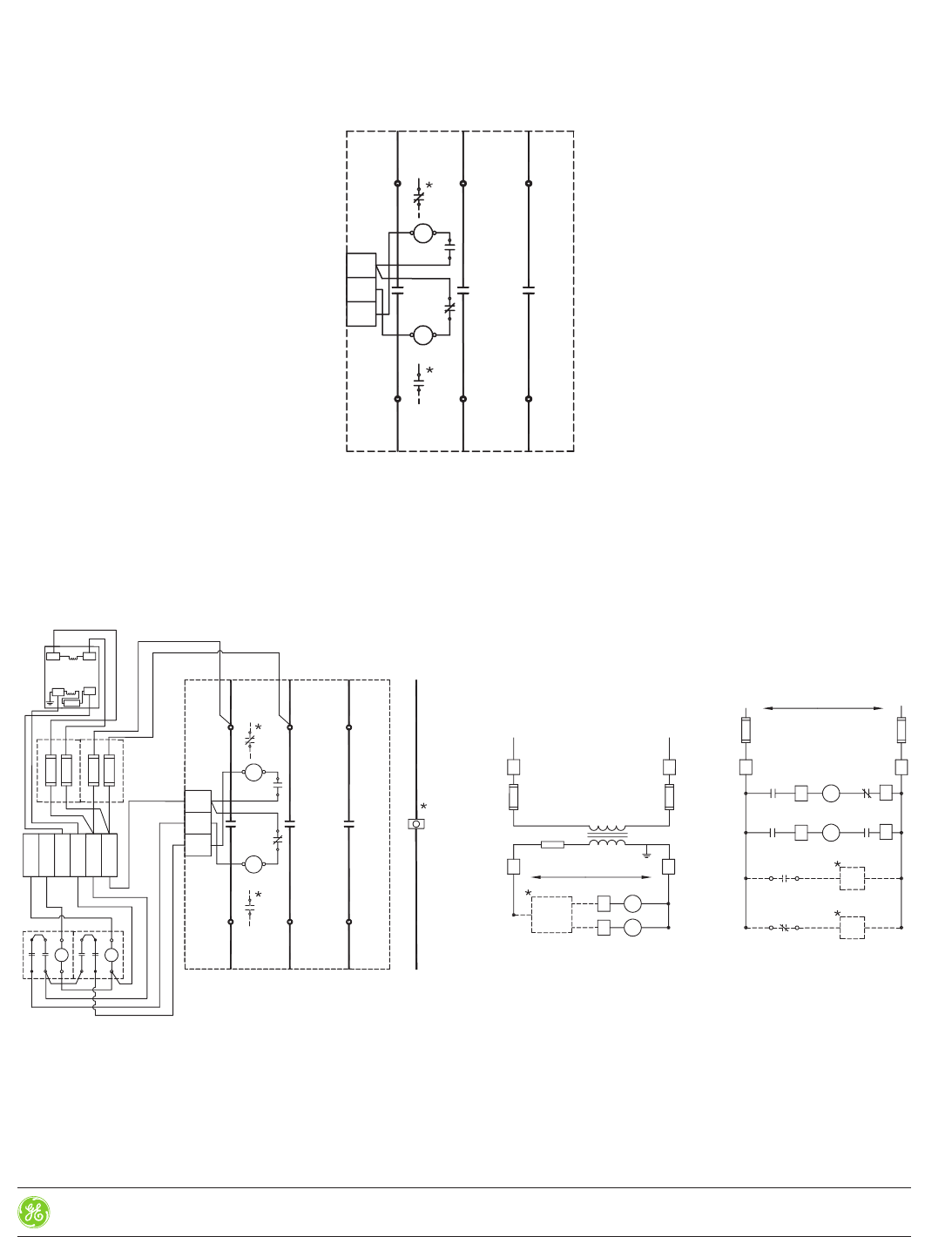

Wiring Diagrams

CR463L Electrically Held

CR463M Mechanically Held

www.geindustrial.com Control Catalog 3-19

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

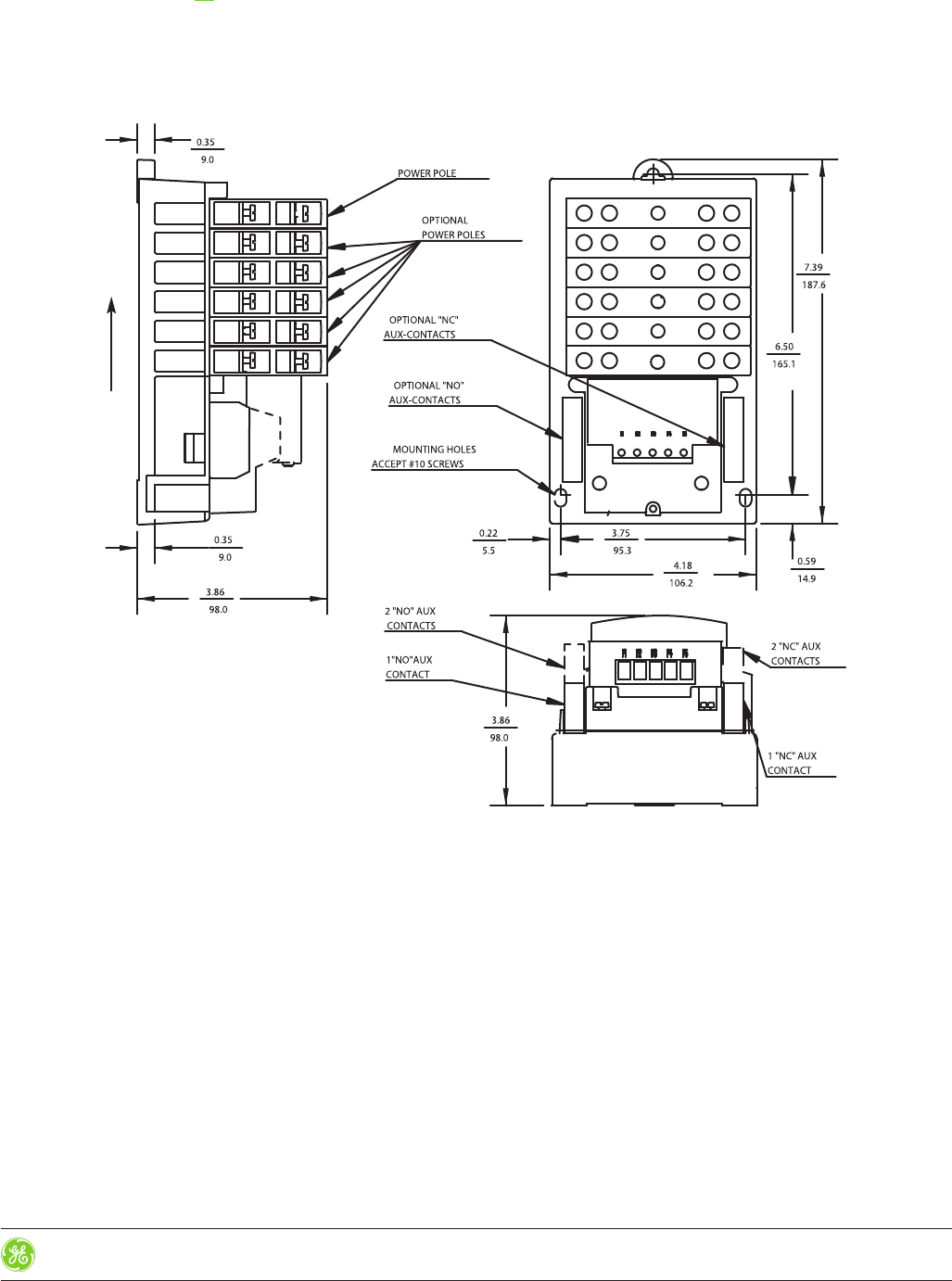

Contactor CR463L and CR463M, Drawing #55-217114P01

Features:

1 Mounting Dimensions remain the same for 1 to 12 Poles

2 Line and Load terminals are interchangeable

3 Up to 2NO and 2NC auxiliary contacts can be added onto the base product

4 Same Power Pole can be configured as NO type or NC type in pole positions 1-4; NO type only in positions 5-6.

CR463L, CR463M

Outlines and Dimensions ( in.

mm) For Estimating Only

NONONONONONO

Only

mount in

vertical

position

as shown

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-20

Lighting Contactors Section 3

NEMA Type 1 with no CPT, pilot devices or pilot lights, Drawing #55-217069 (CR460XE1B)

NEMA Type 1 oversized or with provision for CPT and/or pilot device/pilot lights, Drawing #55-217105 (CR460XE1D)

NEMA Type 1 Flush Drawing #55-217108 (CR460XE8B)

K.O.’s same top and bottom

A. Combination knockout for 1/2 or 3/4-inch conduit

B. Combination knockout for 3/4 or 1-inch conduit

C. Combination knockout for 1/2, 1-1/4 or 1-1/2-inch conduit

A. Combination knockout for 1/2 or 3/4-inch conduit

B. Combination knockout for 3/4 or 1-inch conduit

C. Combination knockout for 1/2, 1-1/4 or 1-1/2-inch conduit

*Features: Knockouts reversed on bottom

A. Combination knockout for 1/2 or 3/4-inch conduit

B. Combination knockout for 3/4 or 1-inch conduit

C. Combination knockout for 1/2, 1-1/4 or 1-1/2-inch conduit

*Features: Knockouts reversed on bottom

CR463L, CR463M

Outlines and Dimensions ( in.

mm) For Estimating Only

www.geindustrial.com Control Catalog 3-21

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

NEMA Type 12/3R with no CPT, pilot device or pilot lights, Drawing #55-217109 (CR460XE2B)

NEMA Type 12/3R oversized with provision for CPT and/or pilot device/pilot lights, Drawing #55-217106 (CR460XE2D)

NEMA Type 4/4X oversized with provision for CPT and/or pilot devices/pilot lights, Drawing #55-217107 (CR460XE4D)

CR463L, CR463M

Outlines and Dimensions ( in.

mm) For Estimating Only

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-22

Section 3Lighting Contactors

CR360L

Electrically Held Contactors

CR360L - 30A - 300A (2, 3 & 4 pole)

Application Information

GE’s CR360L series lighting contactors are electrically held, and

offer solutions for applications between 30 and 300 amps. This is

accomplished in five frame sizes, all built on the successful, and

long established NEMA starters. The ratings are established for

fluorescent, mercury arc, tungsten and sodium lamp loads, cov-

ering a wide spectrum of industrial and commercial applications.

The CR360L contactors offer a wide range of features that include:

—NEMA Type 1, Type 12, Type 3R, and Type 4 stainless steel

enclosures

—A full selection of pilot devices, including pushbuttons, selec-

tor switches, and multi-colored indicating lights wired in

needed configurations

—Main contactors with 2, 3 and 4 power poles

—Generous offering of auxiliary contacts

—Complete list of renewal parts for field installation

—Stock or quick delivery on the majority of products

—UL listing and CSA certification

—Order by complete product number

—Coils will be connected line-to-line unless otherwise specified

—Complete product number must contain 15 digits

Open 60-Amp Electrically Held Lighting Contactor

CR360L

Enclosure and Number of NO Poles

Control Circuit Option

Pilot Devices

Pilot Lights

Auxiliary Contacts

Total

List Price, GO-10MB

1 2 3 4 5

www.geindustrial.com Control Catalog 3-23

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

Open

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

30A 2 CR360L302 $186.00

30A 3 CR360L303 $204.00

30A 4 CR360L304 $252.00

60A 2 CR360L402 $348.00

60A 3 CR360L403 $372.00

60A 4 CR360L404 $480.00

100A 2 CR360L502 $552.00

100A 3 CR360L503 $600.00

100A 4 CR360L504 $768.00

200A 2 CR360L602 $1332.00

200A 3 CR360L603 $1440.00

200A 4 CR360L604 $2004.00

300A 2 CR360L702 $2886.00

300A 3 CR360L703 $3138.00

300A 4 CR360L704 $5766.00

Enclosed NEMA Type 1

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

30A 2 CR360L312 $198.00

30A 3 CR360L313 $216.00

30A 4 CR360L314 $264.00

60A 2 CR360L412 $408.00

60A 3 CR360L413 $432.00

60A 4 CR360L414 $540.00

100A 2 CR360L512 $672.00

100A 3 CR360L513 $720.00

100A 4 CR360L514 $888.00

200A 2 CR360L612 $1584.00

200A 3 CR360L613 $1692.00

200A 4 CR360L614 $2256.00

300A 2 CR360L712 $3348.00

300A 3 CR360L713 $3600.00

300A 4 CR360L714 $6690.00

Enclosed NEMA Type 12

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

30A 2 CR360L322 $288.00

30A 3 CR360L323 $306.00

30A 4 CR360L324 $354.00

60A 2 CR360L422 $573.00

60A 3 CR360L423 $597.00

60A 4 CR360L424 $705.00

100A 2 CR360L522 $867.00

100A 3 CR360L523 $915.00

100A 4 CR360L524 $1083.00

200A 2 CR360L622 $2229.00

200A 3 CR360L623 $2337.00

200A 4 CR360L624 $2901.00

300A 2 CR360L722 $4998.00

300A 3 CR360L723 $5250.00

300A 4 CR360L724 $8340.00

Enclosed NEMA Type 3R

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

30A 2 CR360L362 $288.00

30A 3 CR360L363 $306.00

30A 4 CR360L364 $354.00

60A 2 CR360L462 $573.00

60A 3 CR360L463 $597.00

60A 4 CR360L464 $705.00

100A 2 CR360L562 $867.00

100A 3 CR360L563 $915.00

100A 4 CR360L564 $1083.00

200A 2 CR360L662 $2229.00

200A 3 CR360L663 $2337.00

200A 4 CR360L664 $2901.00

300A 2 CR360L762 $4998.00

300A 3 CR360L763 $5250.00

300A 4 CR360L764 $8340.00

Enclosed NEMA Type 4, SS

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

30A 2 CR360L342 $468.00

30A 3 CR360L343 $486.00

30A 4 CR360L344 $534.00

60A 2 CR360L442 $948.00

60A 3 CR360L443 $972.00

60A 4 CR360L444 $1080.00

100A 2 CR360L542 $1437.00

100A 3 CR360L543 $1485.00

100A 4 CR360L544 $1653.00

200A 2 CR360L642 $2889.00

200A 3 CR360L643 $2997.00

200A 4 CR360L644 $3561.00

300A 2 CR360L742 $4998.00

300A 3 CR360L743 $5250.00

300A 4 CR360L744 $8340.00

CR360L

Electrically Held Contactors

CR360L - 30A - 300A (2, 3 & 4 pole)

Select Size, Number of Poles, and Enclosure

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-24

Section 3Lighting Contactors

CR360L

Electrically Held Contactors

CR360L - 30A - 300A (2, 3 & 4 pole)

Select Coil Voltage and Control Circuit Type (Following available only with Enclosure)

Continuous Ampere Rating

30A 60A 100A 200A 300A

Control Product List Price Product List Price Product List Price Product List Price Product List Price

Circuit Coil Number Adder, Number Adder, Number Adder, Number Adder, Number Adder,

Options Voltage Digits GO-10MB Digits GO-10MB Digits GO-10MB Digits GO-10MB Digits GO-10MB

None 24 24A — 24A — 24A — 24A — 24A —

120 02A — 02A — 02A — 02A — 02A —

208123A — 23A — 23A — 23A — 23A —

240103A — 03A — 03A — 03A — 03A —

277113A — 13A — 13A — 13A — 13A —

480104A — 04A — 04A — 04A — 04A —

2 Control 24 24D $165.00 24D $165.00 24D $165.00 24D $165.00 24D $165.00

Circuit Fuses 120 02D $165.00 2D $165.00 02D $165.00 02D $165.00 02D $165.00

208 23D $165.00 23D $165.00 23D $165.00 23D $165.00 23D $165.00

240 03D $165.00 03D $165.00 03D $165.00 03D $165.00 03D $165.00

277 13D $165.00 13D $165.00 13D $165.00 13D $165.00 13D $165.00

480 04D $165.00 04D $165.00 04D $165.00 04D $165.00 04D $165.00

CPT Primary

Volts

CPT w/120V 208 82T $367.00 82T $440.00 62T $585.00 48T $675.00 40T $743.00

secondary, 240 03T $367.00 03T $440.00 03T $585.00 03T $675.00 03T $743.00

includes 2 277 61T $367.00 61T $440.00 61T $585.00 61T $675.00 61T $743.00

primary, 1 480 04T $367.00 04T $440.00 04T $585.00 04T $675.00 04T $743.00

secondary fuse

1Control circuit fuses required for 200 and 300 amp forms if pilot devices selected in steps 3 or 4.

Select Push Buttons or Selector Switch

NEMA Type 1 Only Standard-Duty Any Enclosure Heavy-Duty

Product No. List Price Product No. List Price

Push Button, Selector Switch Options Digit GO-10MB Digit GO-10MB

None A $0.00 A$0.00

On-Off Push Button C2$60.00 K$166.00

Hand-Off-Auto Selector Switch D $60.00 L$165.00

Off-On Selector Switch E $60.00 M$165.00

Hand-Off-Auto Selector Switch With Key ——N$210.00

On-Off-Auto Selector Switch F $60.00 P$165.00

2Add holding interlock with this modification

Select Indicating Lights

NEMA Type 1 Only Standard-Duty Any Enclosure Heavy-Duty

Product No. List Price Product No. List Price

Light Option Digit GO-10MB Digit GO-10MB

None A $0.00 A$0.00

Red Across Coil B $112.00 J$202.00

Green Across Coil ——K$202.00

Select Auxiliary Contacts

List Price

Product Number Digit G0-10MB

None Z—

Holding Interlock A $82.00

Holding Interlock Plus 1 NO B $164.00

Holding Interlock Plus 1 NC C $164.00

Holding Interlock Plus 1 NO, 1 NC D $246.00

Holding Interlock Plus 2 NO E $246.00

Holding Interlock Plus 2 NC F $246.00

Holding Interlock Plus 2 NO, 1 NC G $328.00

www.geindustrial.com Control Catalog 3-25

Rev. 7/13

Prices and data subject to

change without notice

Section 3

Lighting Contactors

CR360L

Electrically Held Contactors

CR360L - 30A - 300A (2, 3 & 4 pole)

Technical Data

For your convenience, examples of possible wiring schemes are

provided on this page. Please review the ratings tables below and

use the quick step-by-step selection guide provided, to choose

the exact product required for your application.

Ratings

Open or enclosed ratings are 30-, 60-, 100-, 200-, and 300-

ampere, ac full-load current.

Maximum AC Voltage Rating

Lighting Load Line Load

Tungsten 480 480

Ballast: Fluorescent, Mercury, Sodium, e.g. 600 600

DC Tungsten Rating

Contactor Size, Continuous No. Poles in Series for:

Ampere Rating 125 V Maximum 250 V Maximum

30 23

60 24

100-300 22

Reference Publications

Instructions

Continuous Ampere Rating CR360L Contactors

30 GEH-5099

60 GEH-5100

100 GEH-5101

200 GEH-5102

300 GEH-5103

Typical Schematic Diagram for

CR360L Lighting Contactor

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-26

Section 3Lighting Contactors

CR360L

Electrically Held Contactors

Outlines, Dimensions in.(mm) and Weights (For Estimating Only)

Fig. 2, Enclosed CR360L Type 1,30-100A

w/ Standard Pilot Devices

Fig. 4, Enclosed CR360L Type 1, 12, 3R,

4/4X 4-Point Mounting

Fig. 3, Enclosed CR360L Type 12,

3R, 4/4X 3-Point Mounting

Open CR360L - 30A - 300A (2, 3 & 4 pole)

Product Dimension in.(mm) Approx. Shipping

Number Figure No. ABCDEFGWt. (Lbs)

CR360L302 1 4.50 (114.3) 4.00 (101.6) 0.25 (6.4) 1.50 (38.1) 3.06 (77.7) 3.81 (96.7) 0.06 (1.5) 2.8

CR360L402 1 6.63 (168.4) 6.00 (152.4) 0.31 (7.8) 2.00 (50.8) 3.75 (95.2) 5.38 (136.6) 0.09 (2.2) 7

CR360L502 1 8.75 (222.2) 7.75 (196.8) 0.63 (16.0) 4.50 (114.3) 5.75 (146.0) 6.50 (165.1) — 17.5

CR360L602 1 12.00 (304.8) 10.88 (276.4) 0.63 (16.0) 3.00 (76.2) 11.50 (292.1) 9.00 (228.6) 0.12 (3.0) 48

CR360L702 1 12.00 (304.8) 10.88 (276.4) 0.63 (16.0) 3.00 (76.2) 11.50 (292.1) 9.00 (228.6) 0.12 (3.0) 50

Fig. 1, Open CR360L 30- to 300-Ampere

2- and 3-Pole Forms

www.geindustrial.com Control Catalog 3-27

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

CR360L

Electrically Held Contactors

Outlines, Dimensions in.(mm) and Weights (For Estimating Only)

Enclosed CR360L NEMA Type 1

Fig. Hub Dimension in.(mm) Approx. Shipping

Device No. Size A A’ BCDEFWt. (Lbs.)

(30 A) w/o CPT 2— 10 (254) — 6 (152.4) 4.63 (117.6) 8 (203.2) 4 (101.6) 1 (25.4) 6

(30 A) w/ CPT 2— 10 (254) — 10 (254) 4.63 (117.6) 8 (203.2) 8 (203.2) 1 (25.4) 10

(30 A) w/ Heavy 4— 17.4 (442) 14.75 (374.7) 13 (330.2) 5.14 (130.6) 16.4 (416.6) 8 (203.2) 3.25 (82.6) 18

Duty Pilot Devices

(60 A) w/o CPT, 2— 13.25 (336.6) — 7.38 (187.5) 6.13 (155.7) 11 (279.4) 5 (127) 1.19 (30.2) 13

2- to 3-Pole

(60 A) w/ CPT 2— 13.25 (336.6) — 12 (304.8) 6.13 (155.7) 11 (279.4) 9 (228.6) 1.5 (38.1) 18

(60 A) w/ Heavy 4— 19.4 (492.8) 16.68 (423.7) 15 (381) 6.62 (168.1) 18.4 (467.4) 10 (254) 3.25 (82.6) 27

Duty Pilot Devices

(100 A) w/o CPT, 2— 20.25 (514.4) — 8.75 (222.3) 7.31 (185.7) 17 (431.8) 5.75 (146.1) 1.5 (38.1) 35

2- to 3-Pole

(100 A) All other 2— 24.2 (614.7) 21.62 (549.1) 18 (457.2) 8.4 (213.4) 23.2 (589.3) 13 (330.2) 3.25 (82.6) 50

(200 A) w/o CPT, 4— 45.5 (1155.7) 42.75 (1085.9) 17 (431.8) 10.75 (273.1) 44.5 (1130.3) 12 (304.8) 2.5 (63.5) 38

2- to 3-Pole

(200 A) All other 4— 45.5 (1155.7) 42.75 (1085.9) 23 (584.2) 10.75 (273.1) 44.5 (1130.3) 18 (457.2) 2.5 (63.5) 55

(300 A) w/o CPT, 4— 45.5 (1155.7) 42.75 (1085.9) 17 (431.8) 10.75 (273.1) 44.5 (1130.3) 12 (304.8) 2.5 (63.5) 130

2- to 3-Pole

(300 A) All other 4— 45.5 (1155.7) 42.75 (1085.9) 23 (584.2) 10.75 (273.1) 44.5 (1130.3) 18 (457.2) 2.5 (63.5) 140

Enclosed CR360L NEMA Type 12

Fig. Hub Dimension in.(mm) Approx. Shipping

Device No. Size A A’ BCDEFWt. (Lbs.)

(30 A) w/o CPT 3— 15.62 (396.7) 14.25 (362) 6.28 (159.5) 5.5 (139.7) 15 (381) 3 (76.2) 2.26 (57.4) 16

(30 A) All other 3— 15.62 (396.7) 14.25 (362) 14.25 (362) 5.5 (139.7) 15 (381) 11 (279.4) 2.26 (57.4) 20

(60 A) w/o CPT, 3— 17.62 (447.5) 16.25 (412.8) 7.63 (193.8) 6.25 (158.8) 17 (431.8) 4.38 (111.3) 2.26 (57.4) 29

2- to 3-Pole

(60 A) All other 3— 17.62 (447.5) 16.25 (412.8) 12.25 (311.2) 6.25 (158.8) 17 (431.8) 9 (228.6) 2.26 (57.4) 38

(100 A) w/o CPT, 4— 30 (762) 27.25 (692.2) 10.5 (266.7) 7.25 (184.2) 29 (736.6) 5.75 (146.1) 3.25 (82.6) 40

2- to 3-Pole

(100 A) All other 4— 24 (609.6) 21.38 (543.1) 18 (457.2) 7.88 (200.2) 23 (584.2) 13 (330.2) 3.25 (82.6) 55

(200 A) w/o CPT, 4— 45.5 (1155.7) 42.75 (1085.9) 17 (431.8) 10.25 (260.4) 44.5 (1130.3) 12 (304.8) 3.25 (82.6) 44

2- to 3-Pole

(200 A) All other 4— 45.5 (1155.7) 42.75 (1085.9) 23 (584.2) 10.25 (260.4) 44.5 (1130.3) 18 (457.2) 3.25 (82.6) 60

(300 A) w/o CPT, 4— 45.5 (1155.7) 42.75 (1085.9) 17 (431.8) 10.25 (260.4) 44.5 (1130.3) 12 (304.8) 3.25 (82.6) 140

2- to 3-Pole

(300 A) All other 4— 45.5 (1155.7) 42.75 (1085.9) 23 (584.2) 10.25 (260.4) 44.5 (1130.3) 18 (457.2) 3.25 (82.6) 150

Enclosed CR360L NEMA Type 3R

Fig. Hub Dimension in.(mm) Approx. Shipping

Device No. Size A A’ BCDEFWt. (Lbs.)

(30 A) w/o CPT 3 1" 15.62 (396.7 14.5 (368.3) 6.88 (174.8) 5.5 (139.7) 15 (381) 3 (76.2) 2.31 (58.7) 16

(30 A) All other 3 1" 15.62 (396.7) 14.5 (368.3) 10.38 (263.7) 5.5 (139.7) 15 (381) 7 (177.8) 2.31 (58.7) 20

(60 A) w/o CPT 3 1.5" 17.62 (447.5) 16.5 (419.1) 7.84 (199.1) 6.5 (165.1) 17 (431.8) 4.38 (111.3) 2.32 (58.9) 29

(60 A) All other 3 1.5" 17.62 (447.5) 16.5 (419.1) 12.5 (317.5) 6.5 (165.1) 17 (431.8) 8 (203.2) 2.88 (73.2) 38

(100 A) All 4 2" 24.5 (622.3) 22 (558.8) 17.2 (436.9) 7.25 (184.2) 23.5 (596.9) 11 (279.4) 3.62 (91.9) 55

(200 A) All 4 3" 44.5 (1130.3) 41.5 (1054.1) 22 (558.8) 10.25 (260.4) 43.5 (1104.9) 16 (406.4) 3.62 (91.9) 60

(300 A) All 4 3" 44.5 (1130.3) 42 (1066.8) 22 (558.8) 10.25 (260.4) 43.5 (1104.9) 16 (406.4) 3.62 (91.9) 150

Enclosed CR360L NEMA Type 4/4X

Fig. Hub Dimension in.(mm) Approx. Shipping

Device No. Size A A’ BCDEFWt. (Lbs.)

(30 A) w/o CPT 3 1" 15.62 (396.7) 14.5 (368.3) 6.38 (162.1) 5.5 (139.7) 15 (381) 3 (76.2) 1.69 (42.9) 16

(30 A) All other 3 1" 15.52 (394.2) 14.5 (368.3) 10.38 (263.7) 5.5 (139.7) 15 (381) 7 (177.8) 1.69 (42.9) 20

(60 A) w/o CPT 3 1.5" 17.62 (447.5) 16.5 (419.1) 7.75 (196.9) 6.5 (165.1) 17 (431.8) 4.38 (111.3) 1.69 (42.9) 29

(60 A) All other 3 1.5" 17.62 (447.5) 16.5 (419.1) 12.5 (317.5) 6.25 (158.8) 17 (431.8) 8 (203.2) 2.25 (57.2) 38

(100 A) All 4 2" 24.5 (622.3) 22 (558.8) 17 (431.8) 7.25 (184.2) 23.5 (596.9) 11 (279.4) 3 (76.2) 55

(200 A) All 4 3.5" 44.5 (1130.3) 41.5 (1054.1) 22 (558.8) 10.25 (260.4) 43.5 (1104.9) 16 (406.4) 3 (76.2) 60

(300 A) All 4 3.5" 44.5 (1130.3) 41.5 (1054.1) 22 (558.8) 10.25 (260.4) 43.5 (1104.9) 16 (406.4) 3 (76.2) 150

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-28

Section 3

CR360ML

Mechanically Held Contactors

CR360ML - 400A - 1000A (2 & 3 pole)

Description

GE Mechanically Held RC Switches Adapt to Your Application

and Your Imagination

In commercial or industrial environments where you need to

control power, heating and lighting loads from across the floor,

across the plant, or across the world, the CR360ML RC switches

from GE are a great solution. These electromagnetically operat-

ed, mechanically held switches, unlike other devices, will not

open or close if the power fails.

By allowing convenient and automatic control of lighting circuits

through wall stations, timers, photocells, or energy management

control systems, GE RC switches provide savings in energy costs

by being the most economical and reliable switching means in

any power distribution system. Because the operator is energized

only during the instant the switch changes position, there is no

ac hum or chatter. Furthermore, because constant power is not

required, an even greater energy savings can be realized along

with lower operating costs. These units are ideally suited for

energy management applications because they are able to

handle all classes of loads up to 1000 amps.

Circuit breakers were designed for overload protection, not for

repetitively turning blocks of lighting on and off on a daily basis.

GE RC switches provide the most reliable, convenient, and

economical means to control lighting, leaving the circuit breakers

for the purpose of overload protection.

GE RC switches work effectively in a broad range of applications

including tungsten, ballast lighting, motor, general use, and total

system loads.

Application Information

Tungsten loads are made up entirely of tungsten filament lamps,

where the inrush current may be as high as 20 times the steady

state current and have a duration of up to 14 cycles.

Ballast lighting (electric discharge lamp) loads are made up

entirely of electric discharge lamps such as fluorescent or

mercury vapor lamps. Depending on the type of ballast used,

the power factor can range from 0.4 to 0.9 or better.

Motor loads are made up entirely of motors capable of drawing

locked rotor current of six times normal running current at 0.4

to 0.5 power factor.

General use loads are made up of heaters, incandescent lamps,

and other resistive loads, in addition to small reactive loads such

as office machinery where the power factor can range from 0.7

to 0.8.

Total system loads are made up from all of the above. The sum

of the motor full load current and the current of the other loads

shall not exceed the amp rating of the switch, and the tungsten

load shall not exceed 30% of the switch rating unless the switch

has been found to be suitable for a higher tungsten load. GE RC

switches are rated for 100% tungsten load in ratings through

400 amps.

The GE CR360ML RC switch reduces wear on the overcurrent

protective devices, provides more flexibility, and increases

system reliability. It can be used for remotely controlled feeder

disconnect applications such as energy management and bulk

load control.

—These units are suitable for heating, ballast lighting, or motor

loads to 480 Vac, in either open or enclosed forms.

—They will also handle 100% tungsten loads rated at 250 Vac up

to 400 amps, and 30% tungsten loads at 600 amps and up.

—Units are UL listed and (WCR) Withstand Current Rated.

—Not only is the interrupting capacity 600% of the rated current

at 480 Vac at a 0.4 to 0.5 power factor, but their thermal

capacity is 20 times the full load rating.

—With contacts that are power-driven and locked into place by

a reliable single-solenoid operator, the GE CR360ML has no

continuous control power consumption, and its rugged con-

struction allows it to be mounted in any position with its flush

dead back.

—There are no extra wires or contacts needed to install signal

lamps at single or multiple control stations.

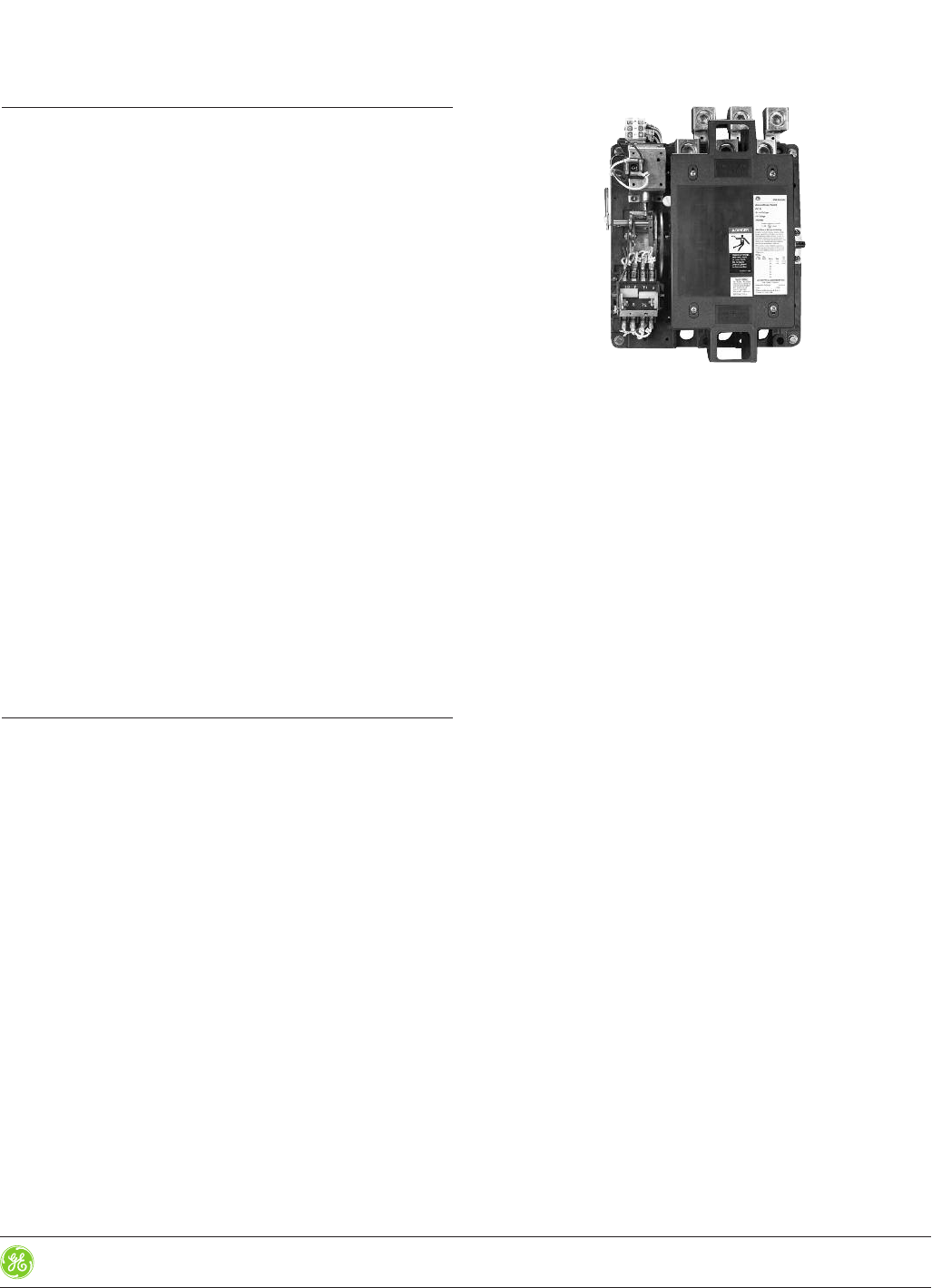

CR360ML RC Switch

Lighting Contactors

www.geindustrial.com Control Catalog 3-29

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

Product Number Selection Instructions

Selection and Pricing—Assembled Forms

Here is an easy, step-by-step way to select and order assembled forms

of GE CR360ML switches. In each step, find the options—amperes,

enclosures, voltages, etc., that you need. Transfer the product number

digits to the corresponding boxes in the product number line and the

price to the appropriate boxes in the price column.

CR360ML

Mechanically Held Contactors

CR360ML - 400A - 1000A (2 & 3 pole)

Pricing Schedule for Options 1, 2, 3

CR360ML

CR360ML Base Price

Ampere Ratings

Enclosure Type

Number of Poles

Coil Voltage

Auxiliary & Neutral

Auxiliary Relays

Contactor Voltage

Total

List Price, GO-10MB

1234567

$77.00

$0.00

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-30

Section 3

Select Contactor Coil Control Voltage

Select the control voltage for driving the contactor coil through

an interposing relay.

List Price

Control Voltage (Relay) Product Number Digit Adder, GO-10MB

No Option A $0.00

24 Volts AC B $0.00

120 Volts AC C $0.00

208 Volts AC D $100.00

240 Volts AC E $100.00

277 Volts AC F $100.00

24 Volts DC G $0.00

110 Volts DC H $0.00

Lighting Contactors

CR360ML

Mechanically Held Contactors

CR360ML - 400A - 1000A (2 & 3 pole)

Optional

Select the desired configuration of the RC switch from the table

below. If none of these options are selected, fill in only digits

through .

Product Number List Price

Auxiliary/Neutral Options Digit Adder, GO-10MB

No Auxiliary Contact or Neutral Plate A $0.00

Auxiliary Contacts: Closed—Main Contacts: Closed (1A) B $75.00

Auxiliary Contacts: Closed—Main Contacts: Open (1B) C $75.00

Fully Rated Neutral Plate D $225.00

Auxiliary Contacts (1A) with Neutral E $295.00

Auxiliary Contacts (1B) with Neutral F $295.00

Select Auxiliary Relays

Select the auxiliary relay configuration needed for the RC switch

from the table below.

Product Number List Price

Auxiliary Relays Digit Adder, GO-10MB

No Option—Standard 1 $0.00

Auxiliary Control Relay—2-Wire 2 $625.00

Auxiliary Control Relay—3-Wire 3 $1075.00

Auxiliary Control Relay—Form 3 Control 4 $125.00

Select Current Rating

Select the current rating for the RC switch from the table below.

Current Rating Product Number Digit

400 Amperes 4

600 Amperes 6

800 Amperes 8

1000 Amperes 1

Select Enclosure

Select the type of enclosure, if any, for the RC switch from the

table below.

Enclosure Product Number Digit

Open (No Enclosure) 0

NEMA Type 1 1

NEMA Type 12 2

NEMA Type 3R 6

Select Number of Poles

Select either a 2-pole or 3-pole configuration from the table below.

Number of Poles Product Number Digit

2 Poles 2

3 Poles 3

Select Contactor Coil Voltage Rating

Select the voltage rating of the RC switch from the table below.

Voltage Rating (Coil) Product Number Digit

110 to 120 Volts AC 31

208 to 240 Volts AC 6

265 to 277 Volts AC 7

440 to 480 Volts AC 9

1Only available on CR360L4 Series

Open

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

400A 2 CR360ML402 $6850.00

600A 2 CR360ML602 $8800.00

800A 2 CR360ML802 $10750.00

1000A 2 CR360ML102 $19950.00

400A 3 CR360ML403 $8025.00

600A 3 CR360ML603 $10125.00

800A 3 CR360ML803 $12225.00

1000A 3 CR360ML103 $22975.00

Enclosed NEMA Type 1

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

400A 2 CR360ML412 $8750.00

600A 2 CR360ML612 $10750.00

800A 2 CR360ML812 $12750.00

1000A 2 CR360ML112 $27750.00

400A 3 CR360ML413 $9925.00

600A 3 CR360ML613 $12075.00

800A 3 CR360ML813 $14275.00

1000A 3 CR360ML113 $31025.00

Enclosed NEMA Type 12

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

400A 2 CR360ML422 $10350.00

600A 2 CR360ML622 $12350.00

800A 2 CR360ML822 $14250.00

1000A 2 CR360ML122 $29950.00

400A 3 CR360ML423 $11525.00

600A 3 CR360ML623 $13725.00

800A 3 CR360ML823 $15875.00

1000A 3 CR360ML123 $33425.00

Enclosed NEMA Type 3R

List Price

Continuous Amp Rating No. of Poles Product Number GO-10MB

400A 2 CR360ML462 $10350.00

600A 2 CR360ML662 $12350.00

800A 2 CR360ML862 $14250.00

1000A 2 CR360ML162 $29950.00

400A 3 CR360ML463 $11525.00

600A 3 CR360ML663 $13725.00

800A 3 CR360ML863 $15875.00

1000A 3 CR360ML163 $33425.00

www.geindustrial.com Control Catalog 3-31

Rev. 7/13

Prices and data subject to

change without notice

Section 3

CR160MC

Mechanically Held Contactors

CR160MC shallow mount 30A - 225A (2 & 3 pole)

Application Information

The CR160MC mechanically held lighting contactors are

designed for control of lighting loads such as tungsten, fluores-

cent, mercury, and sodium, as well as for general noninductive

loads. The shallow-type design makes these contactors particu-

larly adaptable for wall-cavity mounting applications.

The silver cadmium oxide main contacts and silver tungsten arc-

ing contacts give the devices capability of handling a wide vari-

ety of lighting loads. Built-in clearing interlocks allow control

from either momentary or maintained pilot devices.

Features

—Can be mounted in enclosures that fit six-inch thick walls.

—Device is listed by Underwriters Laboratories, Inc.

—Front connected—for convenient wiring.

—Manually operated—by screwdriver or similar tool which

reduces chances of tampering.

—Direct bus-mounted forms—for space savings, reduced

mounting and wiring costs.

—Withstand current rating—22,000 amperes rms symmetrical

at 480 Volts ac maximum and when used with molded case

circuit breaker.

Lighting Contactors

CR160MC Lighting Contactor for Bus Mounting

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-32

Section 3

1Separate control voltages may be ordered.

2When no auxiliary contacts are needed with an Open Bus Mounting and Open Sub-Panel device, the 12 digit product number must be ordered.

If auxiliary contacts are required, digits 13 through 16 must be “ACAA” and digit 17 should reflect the needed contacts.

3Replace digits 2 or A for 2 or 3 poles with correct digit if a neutral terminal board is required. Neutral terminal board is not available with flush mount or sub panel

with baseplate controllers.

CR160MC

Modified Assembled Forms — Mechanically Held

Product Number Selection Instructions

Order by complete product number.

Lighting Contactors

CR160MC

CR160MC Mechanically Held Contactors

Follow the diagram and tables below to select the options and corresponding product number digits for your modified contactor.

Total the prices for each selection to arrive at the total list price, GO-10MB.

CR160MC Base Price

Ampere Ratings

Enclosure Type

Coil & Control Voltage1,2

Poles & Neutral2,3

Factory Wired Option

Control Circuit

Pilot Devices

Pilot Lights

Auxiliary Contacts2

Total

List Price, GO-10MB

1 2 3 4 5 6 7 8 9

$77.00

www.geindustrial.com Control Catalog 3-33

Rev. 7/13

Prices and data subject to

change without notice

Section 3

CR160MC

Mechanically Held Contactors

CR160MC shallow mount 30A - 225A (2 & 3 pole)

Neutral Terminal Option

Use in place of the last 2 or A for 2 or 3 poles if a Neutral

Terminal board is required. Only available on enclosed products

except flush mount or sub panel with baseplate controllers.

List Price Adder

Description Product No. Digit GO-10MB

30 to 100 Amps, 2-Pole 7 $50.00

30 to 100 Amps, 3-Pole 8 $50.00

150 to 225 Amps, 2-Pole 7 $100.00

150 to 225 Amps, 3-Pole 8 $100.00

1Replace ** with coil and control voltages selection.

2Replace digits 2 or A for 2 or 3 poles with correct digit if a neutral terminal board is

required. Neutral terminal board is not available with flush mount or sub panel

with baseplate controllers.

Select Ampere Rating, Enclosure Type

and Number of Poles

Continuous Enclosure No. of Product List Price

Amp Rating Type Poles Number1,2 GO-10MB

30A Enclosed NEMA Type 1 2 CR160MC32**2 $1195.00

30A Enclosed NEMA Type 1 3 CR160MC32**A $1320.00

30A Enclosed NEMA Type 1 Flush Mount 2 CR160MC3G**2 $1582.00

30A Enclosed NEMA Type 1 Flush Mount 3 CR160MC3G**A $1707.00

30A Enclosed NEMA Type 12 / 3R 2 CR160MC3E**2 $1872.00

30A Enclosed NEMA Type 12 / 3R 3 CR160MC3E**A $1997.00

30A Enclosed NEMA Type 4/4X 2 CR160MC3F**2 $2568.00

30A Enclosed NEMA Type 4/4X 3 CR160MC3F**A $2693.00

30A Open Bus Mounting 2 CR160MC35**2 $832.00

30A Open Bus Mounting 3 CR160MC35**A $944.00

30A Open Sub Panel 2 CR160MC31**2 $985.00

30A Open Sub Panel 3 CR160MC31**A $1110.00

30A Sub Panel w/ Baseplate 2 CR160MC3H**2 $1100.00

30A Sub Panel w/ Baseplate 3 CR160MC3H**A $1200.00

60A Enclosed NEMA Type 1 2 CR160MC42**2 $1253.00

60A Enclosed NEMA Type 1 3 CR160MC42**A $1406.00

60A Enclosed NEMA Type 1 Flush Mount 2 CR160MC4G**2 $1640.00

60A Enclosed NEMA Type 1 Flush Mount 3 CR160MC4G**A $1793.00

60A Enclosed NEMA Type 12 / 3R 2 CR160MC4E**2 $1994.00

60A Enclosed NEMA Type 12 / 3R 3 CR160MC4E**A $2147.00

60A Enclosed NEMA Type 4/4X 2 CR160MC4F**2 $2678.00

60A Enclosed NEMA Type 4/4X 3 CR160MC4F**A $2831.00

60A Open Bus Mounting 2 CR160MC45**2 $861.00

60A Open Bus Mounting 3 CR160MC45**A $986.00

60A Open Sub Panel 2 CR160MC41**2 $1037.00

60A Open Sub Panel 3 CR160MC41**A $1190.00

60A Sub Panel w/ Baseplate 2 CR160MC4H**2 $1100.00

60A Sub Panel w/ Baseplate 3 CR160MC4H**A $1200.00

75A Enclosed NEMA Type 1 2 CR160MC82**2 $1253.00

75A Enclosed NEMA Type 1 3 CR160MC82**A $1406.00

75A Enclosed NEMA Type 1 Flush Mount 2 CR160MC8G**2 $1640.00

75A Enclosed NEMA Type 1 Flush Mount 3 CR160MC8G**A $1793.00

75A Enclosed NEMA Type 12 / 3R 2 CR160MC8E**2 $1994.00

75A Enclosed NEMA Type 12 / 3R 3 CR160MC8E**A $2147.00

75A Enclosed NEMA Type 4/4X 2 CR160MC8F**2 $2678.00

75A Enclosed NEMA Type 4/4X 3 CR160MC8F**A $2831.00

75A Open Bus Mounting 2 CR160MC85**2 $861.00

75A Open Bus Mounting 3 CR160MC85**A $986.00

75A Open Sub Panel 2 CR160MC81**2 $1037.00

75A Open Sub Panel 3 CR160MC81**A $1190.00

75A Sub Panel w/ Baseplate 2 CR160MC8H**2 $1100.00

75A Sub Panel w/ Baseplate 3 CR160MC8H**A $1200.00

100A Enclosed NEMA Type 1 2 CR160MC52**2 $1417.00

100A Enclosed NEMA Type 1 3 CR160MC52**A $1622.00

100A Enclosed NEMA Type 1 Flush Mount 2 CR160MC5G**2 $1804.00

100A Enclosed NEMA Type 1 Flush Mount 3 CR160MC5G**A $2009.00

100A Enclosed NEMA Type 12 / 3R 2 CR160MC5E**2 $2278.00

100A Enclosed NEMA Type 12 / 3R 3 CR160MC5E**A $2483.00

100A Enclosed NEMA Type 4/4X 2 CR160MC5F**2 $2925.00

100A Enclosed NEMA Type 4/4X 3 CR160MC5F**A $3130.00

100A Open Bus Mounting 2 CR160MC55**2 $985.00

100A Open Bus Mounting 3 CR160MC55**A $1128.00

100A Open Sub Panel 2 CR160MC51**2 $1173.00

100A Open Sub Panel 3 CR160MC51**A $1378.00

100A Sub Panel w/ Baseplate 2 CR160MC5H**2 $1200.00

100A Sub Panel w/ Baseplate 3 CR160MC5H**A $1500.00

150A Enclosed NEMA Type 1 2 CR160MC62**2 $1786.00

150A Enclosed NEMA Type 1 3 CR160MC62**A $2202.00

150A Enclosed NEMA Type 1 Flush Mount 2 CR160MC6G**2 $2251.00

150A Enclosed NEMA Type 1 Flush Mount 3 CR160MC6G**A $2667.00

150A Enclosed NEMA Type 12 / 3R 2 CR160MC6E**2 $2889.00

150A Enclosed NEMA Type 12 / 3R 3 CR160MC6E**A $3305.00

150A Enclosed NEMA Type 4/4X 2 CR160MC6F**2 $3583.00

150A Enclosed NEMA Type 4/4X 3 CR160MC6F**A $3999.00

150A Open Bus Mounting 2 CR160MC65**2 $1230.00

150A Open Bus Mounting 3 CR160MC65**A $1560.00

150A Open Sub Panel 2 CR160MC61**2 $1464.00

150A Open Sub Panel 3 CR160MC61**A $1880.00

Continuous Enclosure No. of Product List Price

Amp Rating Type Poles Number1,2 GO-10MB

150A Sub Panel w/ Baseplate 2 CR160MC6H**2 $1600.00

150A Sub Panel w/ Baseplate 3 CR160MC6H**A $2000.00

200A Enclosed NEMA Type 1 2 CR160MC72**2 $1969.00

200A Enclosed NEMA Type 1 3 CR160MC72**A $2408.00

200A Enclosed NEMA Type 1 Flush Mount 2 CR160MC7G**2 $2434.00

200A Enclosed NEMA Type 1 Flush Mount 3 CR160MC7G**A $2873.00

200A Enclosed NEMA Type 12 / 3R 2 CR160MC7E**2 $3071.00

200A Enclosed NEMA Type 12 / 3R 3 CR160MC7E**A $3510.00

200A Enclosed NEMA Type 4/4X 2 CR160MC7F**2 $3765.00

200A Enclosed NEMA Type 4/4X 3 CR160MC7F**A $4204.00

200A Open Bus Mounting 2 CR160MC75**2 $1412.00

200A Open Bus Mounting 3 CR160MC75**A $1765.00

200A Open Sub Panel 2 CR160MC71**2 $1646.00

200A Open Sub Panel 3 CR160MC71**A $2085.00

200A Sub Panel w/ Baseplate 2 CR160MC7H**2 $1800.00

200A Sub Panel w/ Baseplate 3 CR160MC7H**A $2200.00

225A Enclosed NEMA Type 1 2 CR160MC92**2 $2737.00

225A Enclosed NEMA Type 1 3 CR160MC92**A $2846.00

225A Enclosed NEMA Type 1 Flush Mount 2 CR160MC9G**2 $3202.00

225A Enclosed NEMA Type 1 Flush Mount 3 CR160MC9G**A $3311.00

225A Enclosed NEMA Type 12 / 3R 2 CR160MC9E**2 $3516.00

225A Enclosed NEMA Type 12 / 3R 3 CR160MC9E**A $3948.00

225A Enclosed NEMA Type 4/4X 2 CR160MC9F**2 $4210.00

225A Enclosed NEMA Type 4/4X 3 CR160MC9F**A $4642.00

225A Open Bus Mounting 2 CR160MC95**2 $1646.00

225A Open Bus Mounting 3 CR160MC95**A $2088.00

225A Open Sub Panel 2 CR160MC91**2 $2091.00

225A Open Sub Panel 3 CR160MC91**A $2523.00

225A Sub Panel w/ Baseplate 2 CR160MC9H**2 $2400.00

225A Sub Panel w/ Baseplate 3 CR160MC9H**A $2600.00

Lighting Contactors

15a

12&

Select Enclosure Mounted Pilot Lights11,12

(Available only when there is an enclosure.)

Heavy Duty, 30mm Pilot Lights

with Interchangeable Product No. List Price

Red and Green Lenses. Type Digit GO-10MB

None —A—

Red/Green Light (“On”) Standard B $202.00

Red/Green Light (“Off”) Standard C $202.00

Red/Green (“On”) & Red/Green (“Off”) Lights Standard F $404.00

Red/Green Light (“On”) Push-to-Test D $202.00

Red/Green Light (“Off”) Push-to-Test E $202.00

Red/Green (“On”) & Red/Green (“Off”) Lights Push-to-Test G $404.00

11Not available in flush mount or sub panel with baseplate controllers.

12“On” pilot lights use the NO auxiliary contact; for off lights use the NC

auxiliary contact.

Select Auxiliary Contacts

List Price,

Description Product No.Digit GO-10MB

None A —

1 NO Extra B $154.00

1 NC Extra C $154.00

1 NO and 1 NC Extra D $308.00

Note: “On” pilot lights use a NO auxiliary contact. “Off” pilot lights use a NC

auxiliary contact.

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-34

Section 3

CR160MC

Mechanically Held Contactors

CR160MC shallow mount 30A - 225A (2 & 3 pole)

Select Factory Wiring

Factory

Control Wiring Product No. Digit Enclosure Type

No A Open or Enclosed

Yes B Enclosed

Note: Factory Wiring must be “B” when Coil and Control Voltages are different, or if

Pilot Devices or Pilot Lights are required.

Select Control Circuit Type6

Control Circuit Product No. Digit Enclosure Type

2 Wire Control B Enclosed Only

3 Wire Control C Open or Enclosed

6Devices with factory wiring “A” are only available with 3 wire control circuits.

Select Enclosure Mounted Pilot Devices7

(Available only when there is an enclosure.)

Heavy Duty, List Price

30mm Operators Product No.Digit GO-10MB

None A —

On-Off Push Buttons8B$248.00

Off-On Selector Switch8,9 C$165.00

On-Off-Auto Selector Switch9D$165.00

Hand-Off-Auto Selector Switch9E$165.00

Off-Auto Selector Switch8,9 F$165.00

Off-On Selector Switch With Spring Return To Center8G$195.00

On-Off-Auto Keyed Selector Switch9,10 H$195.00

Hand-Off-Auto Keyed Selector Switch9,10 J$195.00

7Not available in flush mount or sub panel with baseplate controllers.

8Momentary operation of pilot device to control contactor. Available with 3 wire control.

9Maintained operation of pilot device to control contactor. Available with 2 wire control.

10Key removable in all positions.

Select Contactor, Coil, Control Module and Relay Voltages1,2

Contactor and Control Module and & List Price

Coil Voltage3,4 Relay Voltage2,3,5 Product No. Digits Enclosure Type Factory Wiring CPT and Fusing GO-10MB

115-120V 60Hz 115-120V 60Hz 02 Open or Enclosed No No CPT or fusing —

200-208V 60Hz 200-208V 60Hz 23 Open or Enclosed No No CPT or fusing —

230-240V 60Hz 230-240V 60Hz 03 Open or Enclosed No No CPT or fusing —

265-277V 60Hz 265-277V 60Hz 82 Open or Enclosed No No CPT or fusing —

460-480V 60Hz 460-480V 60Hz 04 Open or Enclosed No No CPT or fusing —

115-120V 60Hz 24V 60Hz 30 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

200-208V 60Hz 24V 60Hz 32 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

230-240V 60Hz 24V 60Hz 34 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

265-277V 60Hz 24V 60Hz 36 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

460-480V 60Hz 24V 60Hz 38 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

115-120V 60Hz 24V DC 40 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

200-208V 60Hz 24V DC 42 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

230-240V 60Hz 24V DC 44 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

265-277V 60Hz 24V DC 46 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

460-480V 60Hz 24V DC 48 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

200-208V 60Hz 120V 60Hz 52 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

230-240 V 60Hz 120V 60Hz 54 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

265-277 V 60Hz 120V 60Hz 56 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

460-480 V 60Hz 120V 60Hz 58 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00

115-120 V 60Hz 24V 60Hz 60 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

200-208V 60Hz 24V 60Hz 62 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

230-240 V 60Hz 24V 60Hz 64 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

265-277 V 60Hz 24V 60Hz 66 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

460-480 V 60Hz 24V 60Hz 68 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

200-208V 60Hz 120V 60Hz 92 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

230-240 V 60Hz 120V 60Hz 94 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

265-277 V 60Hz 120V 60Hz 96 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

460-480 V 60Hz 120V 60Hz 98 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00

1For Open Bus Mounting and Open Sub-Panel devices, no other selections are needed unless auxiliary contacts are required. If auxiliary contacts are not needed, the 12 digit

product number must be ordered.

2For products where Factory Wiring is provided, an interposing relay is supplied. The relay energizes contactor and has a coil voltage equal to the selected control voltage.

See wiring diagrams for details.

3Contacts used to operate the device’s coil and control module must have a B600 rating as a minimum.

4For applications where the coil is energized independently the source must be able to switch 3000VA.

5For applications where the control module will be independently energized, the source must be able to switch 26VA inrush and 4VA holding (AC circuits) or 3VA inrush and

holding (DC circuits).

Lighting Contactors

www.geindustrial.com Control Catalog 3-35

Rev. 7/13

Prices and data subject to

change without notice

Section 3

CR160MC

Mechanically Held Contactors

CR160MC shallow mount 30A - 225A (2 & 3 pole)

Technical Data

Maximum AC Voltage Ratings

Maximum AC Volts

Type of Load Line Load Load

Tungsten 480 277 480

Ballast 600 277 600

General Use 600 277 600

Control Line Wiring

Control lines extending several hundred feet from the voltage

source and pilot device(s) to the lighting contactor may require

special consideration. Select a wire size adequate to provide not

less than 85% of rated coil voltage at the coil, for pickup, while

passing inrush current through the control circuit. Suggested

wire sizes, for use with a “stiff” source of control voltage, are

listed below. Interposing control relays are available for greater

distances, and for use with pilot devices having ratings lower

than those required for direct operation of the contactor coils.

Approx. Resistance of

Contactor Wire Single Conductor Copper Max. Control Line Distance1

Size Size Wire Ohms/1000 Ft 115V-60 Hz 230V-60 Hz

30-225A 10 1 500 ft 1500 ft

30-225A 12 1.6 315 ft 950 ft

30-225A 14 2.5 200 ft 600 ft

1The use of two contactors on one remote control station would reduce the maxi-

mum control line distance to 1/2 the specified table value, etc.

Coil Inrush Current and Recommended Control

Circuit Fuse Size

Inrush (Amperes) NEC Fuse Size (Amperes)

Voltage 60 Hertz CR160MC CR160MC

115 26 8

230 13 4

277210 3

460272

2Breaking all lines

Note: Use of energy management systems, multiple control stations, or signals

require prime control logic or use of a 2-wire control relay/module, to assure

that on and off signals are never applied simultaneously to a mechanically held

contactor.

Control Transformer Data

When the lighting contactor is used on the secondary of a trans-

former, the transformer must be sized to provide the required

inrush current with 90% voltage applied to the transformer pri-

mary. As an alternative, utilize an interposing relay with a lower

VA CPT. Connect the circuit with the line voltage driving the coil

and the control voltage driving the relay coil.

Reference Publications

Instructions GEH-3202

Lighting Contactors

www.geindustrial.com Rev. 7/13

Prices and data subject to

change without notice

Control Catalog

3-36

Section 3

Lighting Contactors

CR160MC

Mechanically Held Contactors

Outlines, Dimensions and Weights (For Estimating Only)

Open Wiring Example

Enclosed Wiring Example

T1 T2 T3

L1 L2 L3

N.C. AUX.

CONTACT

N.O. AUX.

CONTACT

L1 L2 L3 N

N.C. AUX.

CONTACT

N.O. AUX.

CONTACT

T1 T2 T3 N

NTB

01 C1 X1 X2 X3 X4

CPT

H1 H2

X2 X1

FUSE

CR1 CR2

PFU

CCF

FUSE

PFU

CONTROL VOLTAGE

PFU

X1 X2

CR1

CR2

H1 H4

CPT

PILOT

DEVICE

PILOT

LIGHT

PILOT

LIGHT

AUX. CONTACT

OFF

CR2

O OP

X3 Z1

X3 Z2

CR1

C CL

L1 L2

CCF

COIL VOLTAGE

www.geindustrial.com Control Catalog 3-37

Rev. 7/13

Prices and data subject to

change without notice

Section 3Lighting Contactors

CR160MC

Mechanically Held Contactors

Outlines, Dimensions and Weights (For Estimating Only)

Open Bus Mounting Contactor

Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.

30, 60, 75 & 100 9.0 4.1 8.31 x 7.13 x 3.13 211.0 x 181.1 x 79.5 55-172305

150, 200, & 225 10.0 4.5 9.50 x 7.13 x 3.13 241.3 x 181.1 x 79.5 55-172305

Type 1 Enclosures

Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.

30, 60, 75 & 100 62.0 28.10 25.0 x 15.9 x 6.5 635.0 x 404.4 x 165.9 55-217830

150, 200, & 225 92.0 41.70 42.6 x 18.3 x 6.6 1081.0 x 463.3 x 167.9 55-217831

Open Sub Panel Contactor

Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.

30 13.0 5.9 10.5 x 7.5 x 3.8 266.7 x 190.5 x 95.3 55-172306

60, 75 & 100 14.0 6.4 11.4 x 7.8 x 3.8 289.1 x 196.8 x 95.3 55-172306

150 16.5 7.5 13.3 x 9.0 x 3.8 336.6 x 228.3 x 95.3 55-172306

200 & 225 16.5 7.5 14.0 x 9.0 x 3.8 355.6 x 228.6 x 95.3 55-172306

Open Sub Panel Contactor with Baseplate

Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.

30, 60, 75, 100, 150, 200 & 225 32.0 14.5 20.5 x 13.0 x 4.6 519.2 x 330.2 x 116.0 55-217838

Type 1 Flush Mount Enclosures

Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.

30, 60, 75 & 100 62.0 28.10 21.6 x 14.5 x 5.0 549.1 x 368.3 x 127.0 55-217836

150, 200, & 225 92.0 41.70 39.2 x 14.5 x 5.0 999.5 x 368.3 x 127.0 55-217837

Note: Dimensions do not include flange.

Type 12/3R Enclosures

Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.

30, 60, 75 & 100 62.0 28.10 28.2 x 17.8 x 7.7 715.8 x 452.1 x 194.2 55-217832

150, 200, & 225 92.0 41.70 45.7 x 21.2 x 7.7 1161.8 x 537.7 x 194.2 55-217833

Type 4/4X Enclosures

Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.

30, 60, 75 & 100 62.0 28.10 25.0 x 15.9 x 6.5 635.0 x 404.4 x 165.9 55-217834

150, 200, & 225 92.0 41.70 42.6 x 18.3 x 6.5 1081.0 x 463.3 x 165.9 55-217835

Wiring Diagrams

Control Circuit Enclosure Type Drawing No.

3 wire Open 55-686607

2 wire, No CPT, Control & Coil voltage same Enclosed 55-686608

3 wire, No CPT, Control & Coil voltage same Enclosed 55-686609

2 wire, No CPT, Control & Coil voltage different Enclosed 55-686610

3 wire, No CPT, Control & Coil voltage different Enclosed 55-686611

2 wire, CPT Enclosed 55-686612

3 wire, CPT Enclosed 55-686613

Open Bus Mounting Contactor

150, 200 and 225 Amp

Type 1 Enclosure

HOLE

FOR PADLOCK

DOOR OPEN 160° MAX

2MTG. HOLES

FOR 3/8" BOLTS

Open Bus Mounting Contactor

30, 60, 75 and 100 Amp

GE Control Catalog Section 3 1000247987

1000482106-Brochure 1000482106-Brochure 1000482106-Brochure B4 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
