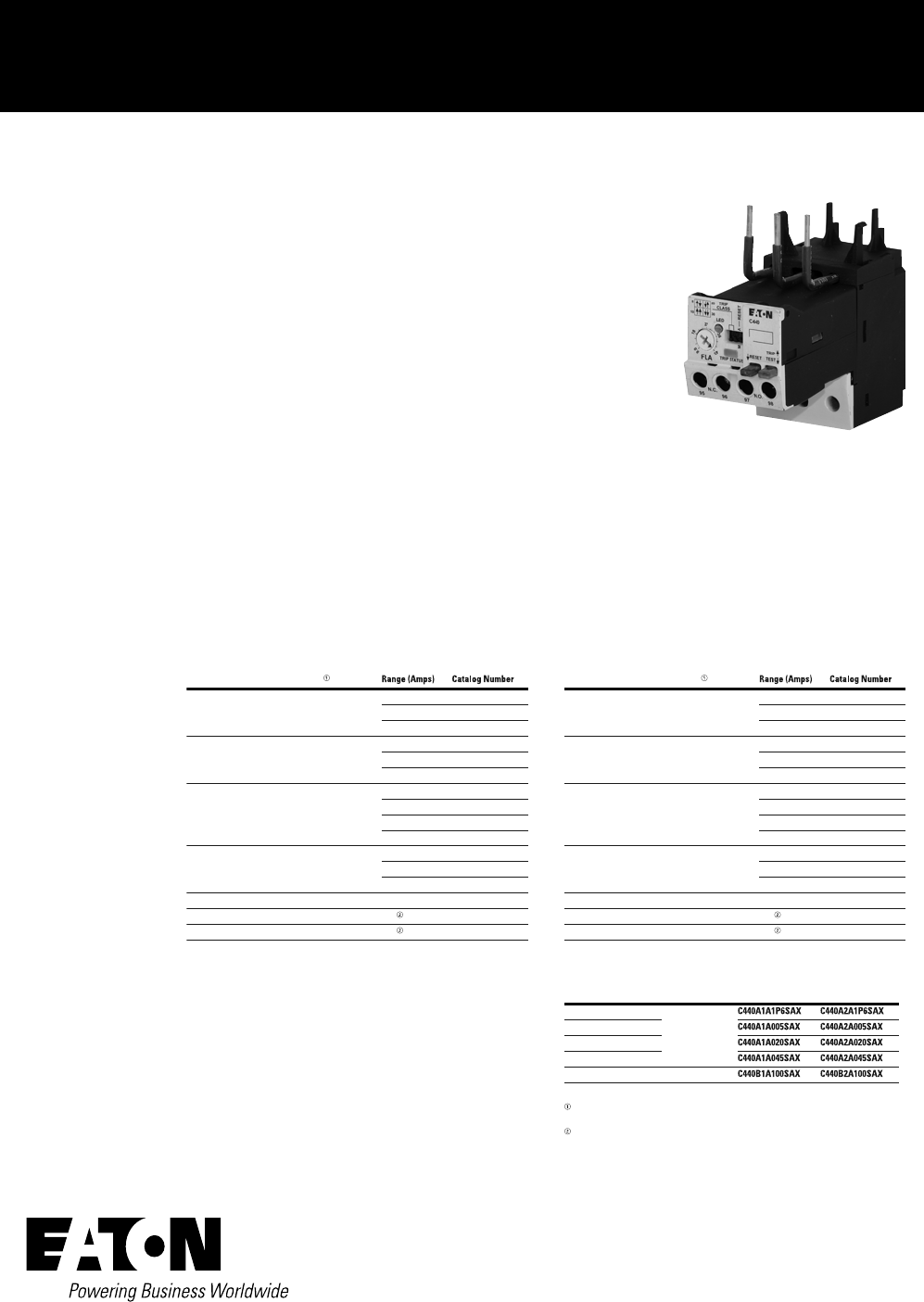

C440 – Overview

Eaton’s new solid-state overload relay (SSOL) is the most compact,

high featured, economical product in its class. Designed on a global

platform, the new SSOL covers the entire power control spectrum

including NEMA, IEC and DP contactors. The NEMA and DP versions

are offered with the C440 designation while the IEC offering includes

the XTOE version. The electronic design provides reliable, accurate and

value driven protection, and communications capabilities in a single compact device. It is the fl exible

choice for any application requiring easy-touse, reliable protection.

• Reliable, accurate, solid-state motor protection

• Easy to select, install and maintain

• Compact size and fl exible, intelligent design

• Global product offering—available with NEMA, IEC and DP power control

Quick Selector TD04200001E Effective May 2010

C440 Electronic

Overload Relay

C440 Electronic Overload Relays for Direct Mount to

Freedom Series Contactors

For Use with

Freedom NEMA

Contactor Size

For Use with

Contactor

Overload

00 CN15AN3_B 0.33–1.65 C440A1A1P6SF00

1–5 C440A1A005SF00

4–20 C440A1A020SF00

0 CN15BN3_B 0.33–1.65 C440A1A1P6SF0

1–5 C440A1A005SF0

4–20 C440A1A020SF0

1 CN15DN3_B 0.33–1.65 C440A1A1P6SF1

1–5 C440A1A005SF1

4–20 C440A1A020SF1

9–45 C440A1A045SF1

2 CN15GN3_B 1–5 C440A1A005SF2

4–20 C440A1A020SF2

9–45 C440A1A045SF2

3 CN15KN3_ 20–100 C440B1A100SF3

4 CN15NN3_ 1–5 C440A1A005SAX

5 CN15SN3_ 1–5 C440A1A005SAX

C440 Electronic Overload Relays with Ground Fault for Direct

Mount to Freedom Series Contactors

For Use with

Freedom NEMA

Contactor Size

For Use with

Contactor

Overload

00 CN15AN3_B 0.33–1.65 C440A2A1P6SF00

1–5 C440A2A005SF00

4–20 C440A2A020SF00

0 CN15BN3_B 0.33–1.65 C440A2A1P6SF0

1–5 C440A2A005SF0

4–20 C440A2A020SF0

1 CN15DN3_B 0.33–1.65 C440A2A1P6SF1

1–5 C440A2A005SF1

4–20 C440A2A020SF1

9–45 C440A2A045SF1

2 CN15GN3_B 1–5 C440A2A005SF2

4–20 C440A2A020SF2

9–45 C440A2A045SF2

3 CN15KN3_ 20–100 C440B2A100SF3

4 CN15NN3_ 1–5 C440A2A005SAX

5 CN15SN3_ 1–5 C440A2A005SAX

C440 Electronic Overload Relays for Separate Mount

Notes

CN15 contactor listed is non-reversing with a 120 Vac coil. For more options, see Tab 33

in the Controls Catalog.

Starters available with 60–300A CTs and C440A1A005SAX overload relay.

Overload

Range

Frame

Size

Overload Relay

Catalog Number

With Ground Fault

Catalog Number

0.33–1.65 45 mm

1–5

4–20

9–45

20–100 55 mm

Eaton Corporation

Electrical Group

1000 Cherrington Parkway

Moon Township, PA 15108

United States

877-ETN-CARE (877-386-2273)

Eaton.com

© 2010 Eaton Corporation

All Rights Reserved

Publication No. TD04200001E

May 2010

PowerChain Management is a registered

trademark of Eaton Corporation.

All other trademarks are property of their

respective owners.

Quick Selector TD04200001E

May 2010

C440 Electronic

Overload Relay

42

42

42

42

42

42

Type AN19/59 Freedom Series Starters

Type AN19/59 Freedom Series Starters with C440 Electronic Overload Relays

Non-Reversing and Reversing

Type AN19/59 Freedom Series Starters with C440 with Ground Fault Electronic Overload Relays

Non-Reversing and Reversing

)ylnO sretratS RVF dna RNVF( egnaR ALF 044C sedoC xfifuS lioC

Notes

Underscore (_) indicates coils suffix required, see Coil Suffix table above.

Underscore (_) indicates OLR designation required, see Coil Suffix table above.

Size 4 and 5 starters available with 60–300A panel mounted CTs. Please use (1–5A) overload relays with these CTs.

Starters are not shipped as assembled units.

NEMA

Size

Continuous

Ampere

Rating

Service Limit

Current Rating

(Amps)

Maximum UL Horsepower Three-Pole

Non-Reversing

Three-Pole

Reversing

Single-Phase Three-Phase

115V 230V 208V 240V 480V 600V Catalog Number Catalog Number

00 9 11 1/3 1 1-1/2 1-1/2 2 2 AN19AN0_ 5E _ AN59AN0_ 5E _

0 18 21 123355AN19BN0_ 5E _ AN59BN0_ 5E _

1 27 32 2 3 7-1/2 7-1/2 10 10 AN19DN0_ 5E _ AN59DN0_ 5E _

2 45 52 3 7-1/2 10 15 25 25 AN19GN0_ 5E _ AN59GN0_ 5E _

3 90 104 ——25305050AN19KN0_ 5E _ AN59KN0_ 5E _

4 135 156 — — 40 50 100 100 AN19NN0_ 5E _ AN59NN0_ 5E _

5 270 311 — — 75 100 200 200 AN19SN0_ 5E _ AN59SN0_ 5E _

NEMA

Size

Continuous

Ampere

Rating

Service Limit

Current Rating

(Amps)

Maximum UL Horsepower Three-Pole

Non-Reversing

Three-Pole

Reversing

Single-Phase Three-Phase

115V 230V 208V 240V 480V 600V Catalog Number Catalog Number

00 9 11 1/3 1 1-1/2 1-1/2 2 2 AN19AN0_ 5G _ AN59AN0_ 5G _

0 18 21 123355AN19BN0_ 5G _ AN59BN0_ 5G _

1 27 32 2 3 7-1/2 7-1/2 10 10 AN19DN0_ 5G _ AN59DN0_ 5G _

2 45 52 3 7-1/2 10 15 25 25 AN19GN0_ 5G _ AN59GN0_ 5G _

3 90 104 ——25305050AN19KN0_ 5G _ AN59KN0_ 5G _

4 135 156 — — 40 50 100 100 AN19NN0_ 5G _ AN59NN0_ 5G _

5 270 311 — — 75 100 200 200 AN19SN0_ 5G _ AN59SN0_ 5G _

Suffix Coil Volts and Hertz Suffix Coil Volts and Hertz

A120/60 or 110/50 L380–415/50

B240/60 or 220/50 N550/50

C480/60 or 440/50 T24/60, 24/50

D600/60 or 550/50 U24/50

E208/60 V32/50

H277/60 W48/60

J208–240/60 Y48/50

K240/50

NEMA Size FLA Range

00 1P6 0.33–1.65A 020 4.0–20A

005 1.0–5.0A — —

01P6 0.33–1.65A 020 4.0–20A

005 1.0–5.0A — —

11P6 0.33–1.65A 020 4.0–20A

005 1.0–5.0A 045 9.0–45A

2005 1.0–5.0A 045 9.0–45A

020 4.0–20A — —

3100 20–100A — —

4 —— 300 60–300A

5 300 60–300A — —
