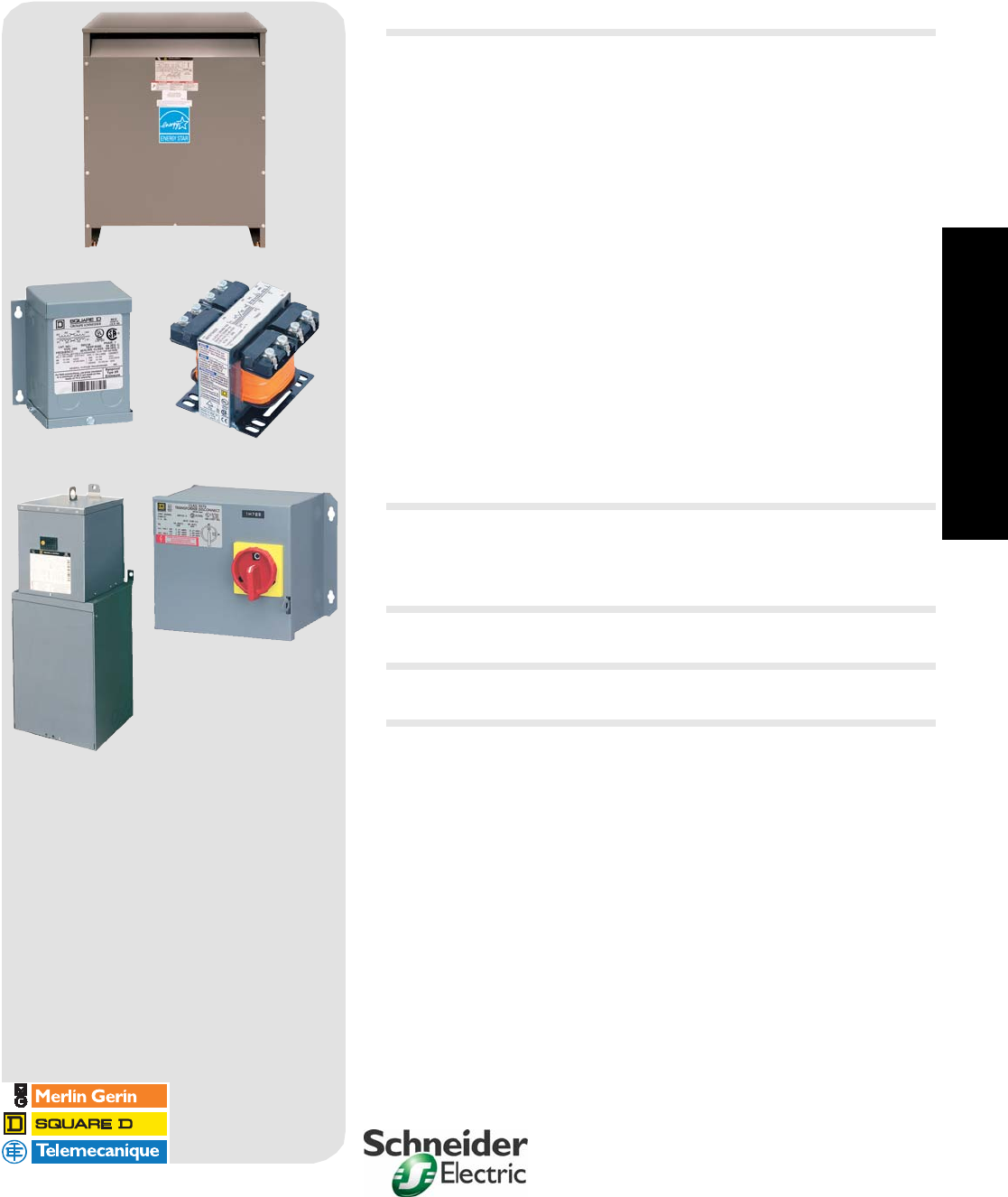

Table of Contents
Transformers

14-1

14 TRANSFORMERS

Table of Contents

Section 14

Transformers

General Purpose Transformer, see page 14-2

Sealed Transformer, see

page 14-8

90701050D2 Industrial Control

Transformer see page 14-13

Mini Power-Zone®

Transformer, see page

14-10

1H729A Transformer Disconnect,

see page 14-18

General Purpose Dry Type 600 Volts and Below

EE Single-Phase Transformers 14-2

EE Three-Phase Transformers 14-2

EE Three-Phase Copper Wound Transformers 14-3

EE Single- and Three-Phase Watchdog® Low Temperature Rise

Transformers

14-3

Sealed Single- and Three-Phase Transformers 14-4

Sealed Single-Phase Export Model Transformers 14-4

Sealed Single-Phase Buck and Boost Transformers 14-4

Sealed Single- and Three-Phase Stainless Steel Enclosed

Transformers

14-5

Non-Ventilated Single- and Three-Phase Transformers 14-5

EE NL and NLP Series Transformers 14-6

EE Harmonic Mitigating Transformers 14-7

Drive Isolation Transformers 14-7

Enclosures and Accessories 14-8

Lug and Terminal Block Kits; Wall and Ceiling Mounting Brackets;

Sound Levels

14-9

Sealed Mini Power-Zone® Tran sfo r me rs 14-10

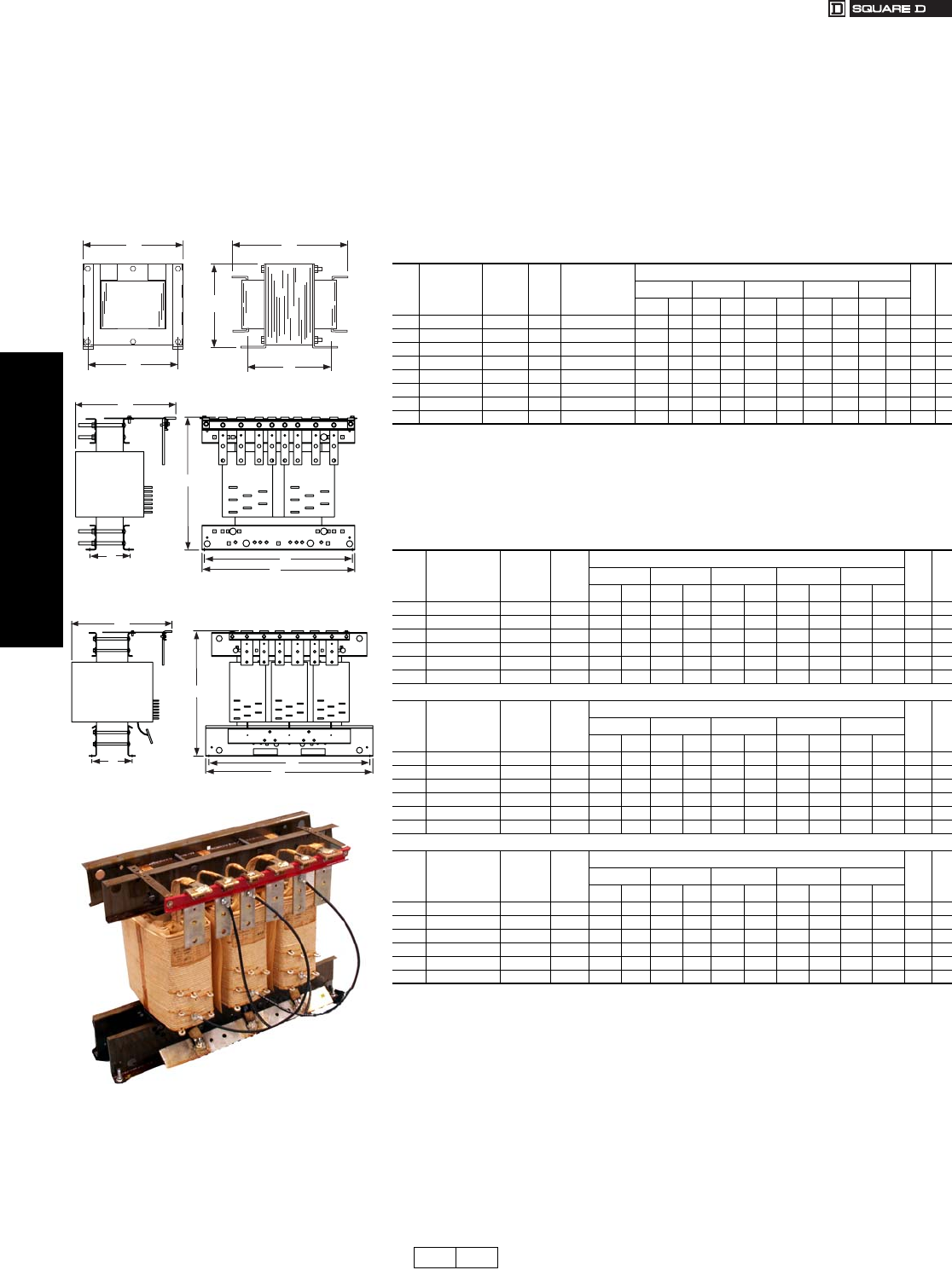

Open Core and Coil Transformers Designed for General

Applications for 600 V and Below

14-12

Industrial Control

Square D® Type T and MultiTap™ Transformers 14-13

Square D® Typ e T F Tr a n s for m er s 14-15

Accessories 14-16

Instrument, 600 Volt Class

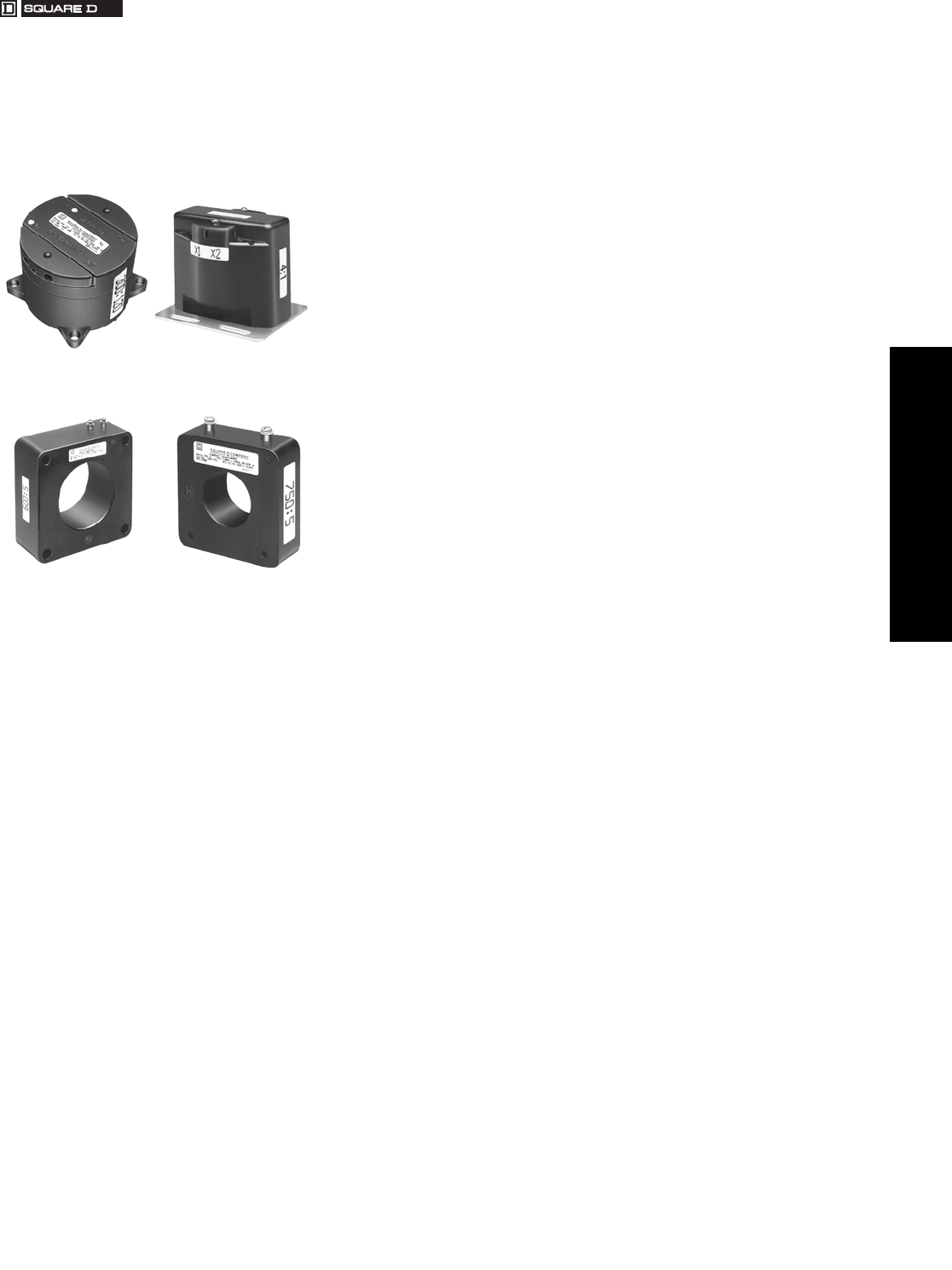

Voltage and Current Transformers 14-17

Transformer Disconnects

NEMA 1 and NEMA 12 Enclosures 14-18

Dry Type Over 2.4, 5, and 15 kV

1201–15,000 Volts Three-Phase Indoor Transformers 14-20

1201–15,000 Volts Single-Phase Indoor Transformers 14-20

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry

Type 600 Volts and Below

Single- and Three-Phase

Class 7400 / Refer to Catalogs 7400CT0601, 7400CT9601

Public Law 109-58 of the Energy Policy Act of 2005

requires the manufacturing of Energy Efficient

Transformers after January 1, 2007 for all General

Purpose Distribution Applications. Energy Efficient

Transformers meet Table 4-2 of The Guide for

Determining Energy Efficiency for Distribution

Transformers, published by the National Electrical

Manufacturers Association® (NEMA TP1–2002), set at

24-hour average loading of 35 percent. Energy Savings

calculations are available at SquareDleantools.com.

EE Single-Phase Transformers

aFor enclosure styles, see Dimensions on page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

or your local Schneider Electric distributor.

cWhen 240 V tap is used, there will be 3–5% taps, 1 above and 2 below.

Note: FCBN = Full capacity below normal

Note: Lugs: Furnished by customer

Note: Refer to www.squared.com/eexfmr for additional information.

EE Three-Phase Transformers

dFor enclosure styles, see Dimensions on page 14-8.

eNot for construction. Contact your local Schneider Electric sales office

or your local Schneider Electric distributor.

Note: FCBN = Full capacity below normal

Note: Lugs: Furnished by customer

kVA Catalog

No. $ Price Full Capacity

Taps

Degree C

Temp.

Rise

Weight

(lbs) b

Enclosure ab

Single Phase—240 X 480 V Primary

120/240 V Secondary

60 Hz; cULus Listed through 167 kVA

15 EE15S3H 3072.00 6–2.5%2+4–c150 215 17D

25 EE25S3H 4151.00 6–2.5%2+4–c150 275 17H

37.5 EE37S3H 5534.00 6–2.5%2+4–c150 340 18H

50 EE50S3H 6731.00 6–2.5%2+4–c150 395 18H

75 EE75S3H 9128.00 6–2.5%2+4–c150 619 21D

100 EE100S3H 15091.00 6–2.5%2+4–c150 682 22D

167 EE167S3H 17333.00 6–2.5%2+4–c150 982 24D

250 EE250S3H 35837.00 6–2.5%2+4–c150 1060 25D

333 EE333S3H 44586.00 6–2.5%2+4–c150 1854 31D

Single Phase—600 V Primary 120/240 V Secondary 60

Hz; cULus Listed through 167 kVA

15 EE15S3534H 3303.00 6–2.5%2+4–c150 215 17D

25 EE25S3534H 4463.00 6–2.5%2+4–c150 275 17H

37.5 EE37S3534H 5949.00 6–2.5%2+4–c150 400 18H

50 EE50S3534H 7236.00 6–2.5%2+4–c150 450 18H

75 EE75S3534H 9813.00 6–2.5%2+4–c150 605 21D

100 EE100S3534H 16223.00 6–2.5%2+4–c150 795 22D

167 EE167S3534H 18633.00 6–2.5%2+4–c150 985 24D

250 EE250S3534H 38526.00 6–2.5%2+4–c150 1065 25D

333 EE333S3534H 44586.00 6–2.5%2+4–c150 1865 31D

Single Phase—208 V Primary 120/240 V Secondary 60

Hz; cULus Listed through 167 kVA

15 EE15S60H 3987.00 2-5%FCBN 150 200 17D

25 EE25S60H 5191.00 2-5%FCBN 150 275 17H

37.5 EE37S60H 6918.00 2-5%FCBN 150 397 18H

50 EE50S60H 8414.00 2-5%FCBN 150 420 18H

75 EE75S60H 11407.00 2-5%FCBN 150 621 21D

100 EE100S60H 17356.00 2-5%FCBN 150 795 22D

167 EE167S60H 21667.00 2-5%FCBN 150 985 24D

Single Phase—277 V Primary 120/240 V Secondary 60

Hz; cULus Listed through 167 kVA

15 EE15S61H 3987.00 2-5%FCBN 150 225 17D

25 EE25S61H 5191.00 2-5%FCBN 150 285 17H

37.5 EE37S61H 6918.00 2-5%FCBN 150 410 18H

50 EE50S61H 8414.00 2-5%FCBN 150 460 18H

75 EE75S61H 11407.00 2-5%FCBN 150 630 21D

100 EE100S61H 17356.00 2-5%FCBN 150 695 22D

167 EE167S61H 21667.00 2-5%FCBN 150 995 24D

kVA Catalog

No. $ Price Full Capacity

Taps

Degree

Temp.

Rise

Weight

(lbs) e

Enclosure de

Three Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz; cULus Listed

15 EE15T3H 3941.00 6–2.5%2+4– 150 220 17D

30 EE30T3H 5181.00 6–2.5%2+4– 150 260 17D

45 EE45T3H 6234.00 6–2.5%2+4– 150 368 18D

75 EE75T3H 9393.00 6–2.5%2+4– 150 585 20D

112.5 EE112T3H 12513.00 6–2.5%2+4– 150 620 21D

150 EE150T3H 16334.00 6–2.5%2+4– 150 835 22D

225 EE225T3H 21776.00 6–2.5%2+4– 150 1110 24D

300 EE300T3H 27924.00 6–2.5%2+4– 150 1350 25D

500 EE500T68H 39052.00 4–2.5%2+2– 150 1875 30D

750 EE750T68H 75516.00 4–2.5%2+2– 150 2965 31D

1000 EE1000T77H 121263.00 2–5%1+1– 150 5200 33F

Three Phase—600 V Delta Primary

208Y/120 V Secondary 60 Hz; cULus Listed

15 EE15T65H 4434.00 6–2.5%2+4– 150 240 17D

30 EE30T65H 5828.00 6–2.5%2+4– 150 290 17D

45 EE45T65H 7013.00 6–2.5%2+4– 150 372 18D

75 EE75T65H 10567.00 6–2.5%2+4– 150 585 20D

112.5 EE112T65H 14077.00 6–2.5%2+4– 150 712 21D

150 EE150T65H 18376.00 6–2.5%2+4– 150 790 22D

225 EE225T65H 24498.00 6–2.5%2+4– 150 945 24D

300 EE300T65H 31414.00 6–2.5%2+4– 150 1305 25D

500 EE500T79H 43933.00 4–2.5%2+2– 150 1870 30D

750 EE750T79H 84956.00 4–2.5%2+2– 150 2990 31D

1000 EE1000T79H 136422.00 4–2.5%2+2– 150 5800 33F

Three-Phase—208 V Delta Primary

208Y/120 V Secondary 60 Hz; cULus

15 EE15T211H 4434.00 3–5%1+2– 150 210 17D

30 EE30T211H 5828.00 3–5%1+2– 150 210 17D

45 EE45T211H 7013.00 3–5%1+2– 150 374 18D

75 EE75T211H 10567.00 3–5%1+2– 150 575 20D

112.5 EE112T211H 14077.00 3–5%1+2– 150 604 21D

150 EE150T211H 18376.00 3–5%1+2– 150 795 22D

225 EE225T211H 24498.00 3–5%1+2– 150 1000 24D

300 EE300T211H 31414.00 3–5%1+2– 150 1425 25D

500 EE500T211H 43933.00 3–5%1+2– 150 1870 30D

Three-Phase—240 V Delta Primary

208Y/120 V Secondary 60 Hz; cULus

15 EE15T67H 4434.00 6–2.5%2+4– 150 240 17D

30 EE30T67H 5828.00 6–2.5%2+4– 150 260 17D

45 EE45T67H 7013.00 6–2.5%2+4– 150 379 18D

75 EE75T67H 10567.00 6–2.5%2+4– 150 590 20D

112.5 EE112T67H 14077.00 6–2.5%2+4– 150 620 21D

150 EE150T67H 18376.00 6–2.5%2+4– 150 805 22D

225 EE225T67H 24498.00 6–2.5%2+4– 150 972 24D

300 EE300T239H 31414.00 3–5%1+2– 150 1360 25D

500 EE500T239H 43933.00 3–5%1+2– 150 1900 25D

Three-Phase—480 V Primary

240 V Delta Secondary w/120 Center Tap 60 Hz;

cULus Listed

240 Delta with 120 center taps have historically been

limited to 5% capacity on the center tap. The new units from Schneider Electric

offer greater limits on 120 V center tap. Limits are determined by the total

transformer loading and the following formula used to size new 120 V center tap

units:

(240 V balanced loads) + 2.5 x (120 V loads)= kVA required

15 EE15T151HCT 4079.00 2–5%– 150 220 17D

30 EE30T151HCT 6119.00 2–5%– 150 295 17D

45 EE45T151HCT 7364.00 2–5%– 150 385 18D

75 EE75T151HCT 11095.00 2–5%– 150 590 19D

112.5 EE112T151HCT 14781.00 2–5%– 150 635 21D

150 EE150T151HCT 19293.00 2–5%– 150 783 22D

225 EE225T151HCT 25722.00 2–5%– 150 1080 24D

300 EE300T151HCT 32987.00 2–5%– 150 1355 25D

500 EE500T151HCT 46131.00 2–5%– 150 2137 30D

750 EE750T151HCT 84943.00 2–5%– 150 2982 31D

1000 EE1000T151HCT 136401.00 2–5%– 150 5800 33F

PE2E Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

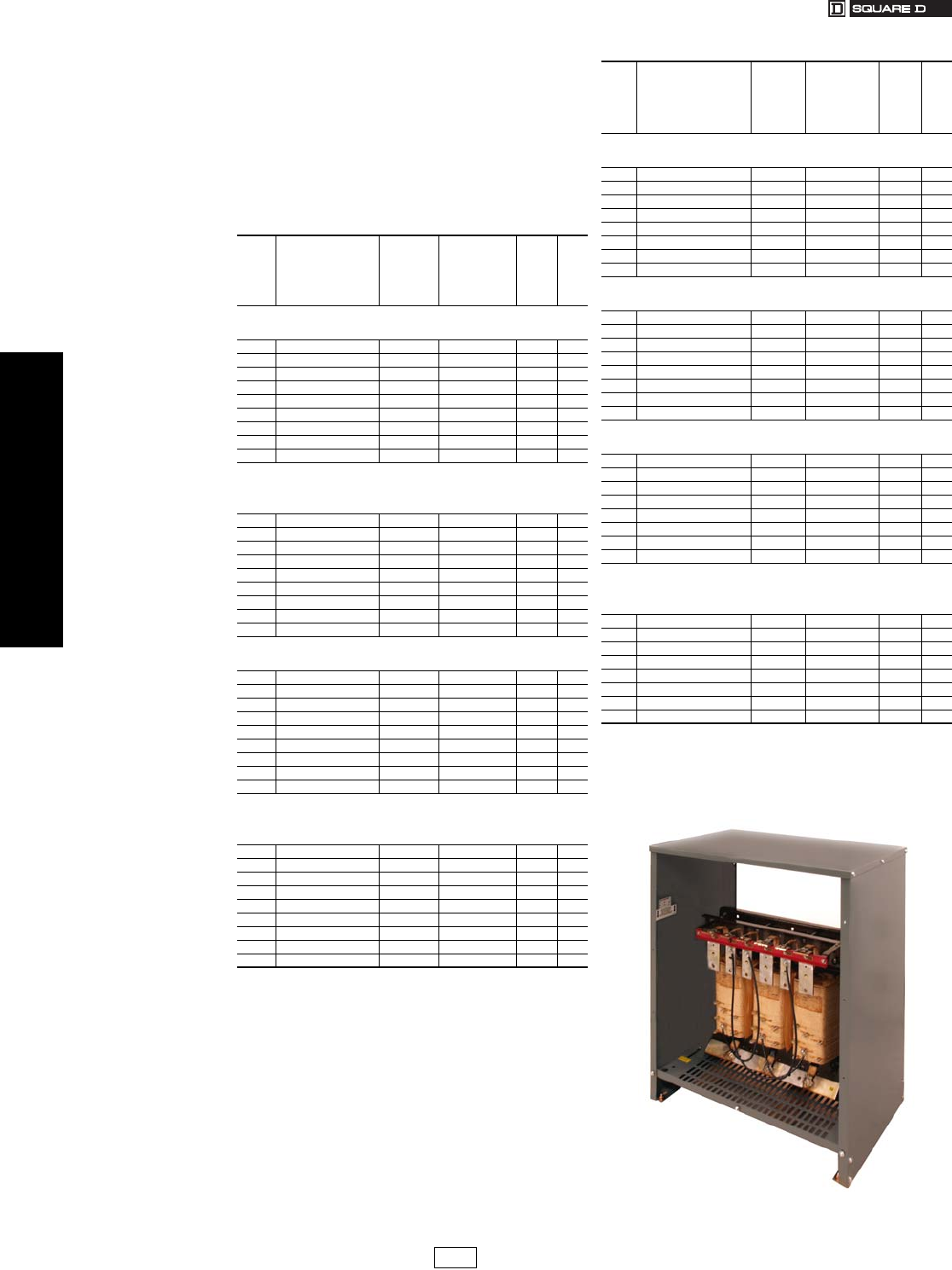

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Copper Wound; Watchdog®

Class 7400 / Refer to Catalogs 7400CT0601, 7400CT9601

aFor enclosure styles, see Dimensions Table, on page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

or your local Schneider Electric distributor.

Note: FCBN = Full capacity below normal

Note: Lugs: Furnished by customer

EE Three-Phase Copper Wound

Transformers

All Square D transformers are available with optional copper

windings. Contact your nearest Schneider Electric sales

office for voltage or kVA not listed below.

aFor enclosure styles, see Dimensions Table, on page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

or your local Schneider Electric distributor.

Note: Connect “B” Ø to X3 to meet NEC 408.3

Note: FCBN = Full capacity below normal

Note: Lugs: Furnished by customer

EE Single- and Three-Phase Watchdog®

Low Temperature Rise Transformers

Designed to maximize energy efficiency, supplies highest

efficient levels for 24 hour loading greater than 50%. Extra

long life expectancy using 220° C insulation system

designed for full load operation at a maximum temperature

rise of 115° C or 80° C instead of 150° C. Continuous

emergency overload capability of 15% on 115° C rise and

30% on 80° C rise.

aFor enclosure styles, see Dimensions Table, on page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

or your local Schneider Electric distributor.

cWhen 240 V tap is used, there will be 3–5% taps, 1 above and 2 below.

Note: FCBN = Full capacity below normal

Note: Lugs: Furnished by customer

kVA Catalog

No. $ Price Full Capacity

Taps

Deg. C

Temp.

Rise

Weight

(lbs) b

Enclosure ab

Three-Phase—208 V Delta Primary

480Y/277 V Secondary 60 Hz; cULus Listed

15 EE15T212H 4434.00 3–5%1+2– 150 230 17D

30 EE30T212H 5828.00 3–5%1+2– 150 260 17D

45 EE45T212H 7013.00 3–5%1+2– 150 375 18D

75 EE75T212H 10567.00 3–5%1+2– 150 550 20D

112.5 EE112T212H 14077.00 3–5%1+2– 150 615 21D

150 EE150T212H 18376.00 3–5%1+2– 150 800 22D

225 EE225T212H 24498.00 3–5%1+2– 150 991 24D

300 EE300T212H 31414.00 3–5%1+2– 150 1425 25D

500 EE500T212H 43933.00 3–5%1+2– 150 1919 30D

Three Phase—480 V Delta Primary

480Y/277 V Secondary 60 Hz; cULus Listed

15 EE15T1814H 4434.00 6–2.5%2+4– 150 215 17D

30 EE30T1814H 5828.00 6–2.5%2+4– 150 260 17D

45 EE45T1814H 7013.00 6–2.5%2+4– 150 385 18D

75 EE75T1814H 10567.00 6–2.5%2+4– 150 660 20D

112.5 EE112T1814H 14077.00 6–2.5%2+4– 150 615 21D

150 EE150T1814H 18376.00 6–2.5%2+4– 150 820 22D

225 EE225T1814H 24498.00 6–2.5%2+4– 150 998 24D

300 EE300T1814H 31414.00 6–2.5%2+4– 150 1500 25D

500 EE500T76H 43933.00 4–2.5%2+2– 150 2040 30D

kVA Catalog

No. $ Price Full Capacity

Taps

Deg. C

Temp.

Rise

Weight

(lbs) b

Enclosure ab

Three-Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz;

cULus Listed. Copper Windings

15 EE15T3HCU 5912.00 6–2.5%2 + 4– 150 310 17D

30 EE30T3HCU 8261.00 6–2.5%2 + 4– 150 340 17D

45 EE45T3HCU 9943.00 6–2.5%2 + 4– 150 418 18D

75 EE75T3HCU 14979.00 6–2.5%2 + 4– 150 642 20D

112.5 EE112T3HCU 19955.00 6–2.5%2 + 4– 150 725 21D

150 EE150T3HCU 26049.00 6–2.5%2 + 4– 150 915 22D

225 EE225T3HCU 34725.00 6–2.5%2 + 4– 150 1125 24D

300 EE300T3HCU 44531.00 6–2.5%2 + 4– 150 1535 25D

500 EE500T68HCU 62277.00 4–2.5%2 + 2– 150 2350 30D

750 EE750T68HCU 114674.00 4–2.5%2 + 2– 150 3485 31D

Three-Phase—480 V Primary

240 V Delta Secondary w/120 Center Tap 60 Hz;

cULus Listed. Copper Windings

15 EE15T151HCUCT 6947.00 2–5%– 150 310 17D

30 EE30T151HCUCT 9707.00 2–5%– 150 310 17D

45 EE45T151HCUCT 11683.00 2–5%– 150 430 18D

75 EE75T151HCUCT 17601.00 2–5%– 150 655 20D

112.5 EE112T151HCUCT 23447.00 2–5%– 150 735 21D

150 EE150T151HCUCT 30608.00 2–5%– 150 925 22D

225 EE225T151HCUCT 40802.00 2–5%– 150 1135 24D

300 EE300T151HCUCT 52324.00 2–5%– 150 1545 25D

500 EE500T151HCUCT 73175.00 2–5%– 150 2360 30D

kVA Catalog

No. $ Price Full Capacity

Taps

Weight

(lbs) b

Enclosure

115° C Rise Single-Phase—240x480 V Primary

120/240 V Secondary 60 Hz; cULus Listed

15 EE15S3HF 4453.00 6–2.5%2 + 4–c 275 17H

25 EE25S3HF 5797.00 6–2.5%2 + 4–c340 18H

37.5 EE37S3HF 7726.00 6–2.5%2 + 4–c 395 18H

50 EE50S3HF 9396.00 6–2.5%2 + 4–c 620 21D

75 EE75S3HF 12738.00 6–2.5%2 + 4–c 685 22D

100 EE100S3HF 19381.00 6–2.5%2 + 4–c985 24D

80° C Rise Single-Phase—240x480 V Primary

120/240 V Secondary 60 Hz; cULus Listed

15 EE15S3HB 4918.00 6–2.5%2 + 4–c 280 17H

25 EE25S3HB 6403.00 6–2.5%2 + 4–c 345 18H

37.5 EE37S3HB 8533.00 6–2.5%2 + 4–c 400 18H

50 EE50S3HB 10378.00 6–2.5%2 + 4–c625 21D

75 EE75S3HB 14069.00 6–2.5%2 + 4–c690 22D

100 EE100S3HB 21406.00 6–2.5%2 + 4–c995 24D

115° C Rise Three-Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz; cULus Listed

15 EE15T3HF 4861.00 6–2.5%2 + 4– 220 17D

30 EE30T3HF 7292.00 6–2.5%2 + 4– 368 18D

45 EE45T3HF 8777.00 6–2.5%2 + 4– 585 20D

75 EE75T3HF 13222.00 6–2.5%2 + 4– 620 21D

112.5 EE112T3HF 17614.00 6–2.5%2 + 4– 835 22D

150 EE150T3HF 22993.00 6–2.5%2 + 4– 980 24D

225 EE225T3HF 30652.00 6–2.5%2 + 4– 1349 25D

300 EE300T68HF 39094.00 6–2.5%2 + 4– 2050 30D

500 EE500T68HF 54673.00 6–2.5%2 + 2– 2330 30D

115° C Rise Three-Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz;

cULus Listed. Copper Windings

15 EE15T3HFCU 7292.00 6–2.5%2 + 4– 260 17D

30 EE30T3HFCU 10938.00 6–2.5%2 + 4– 420 18D

45 EE45T3HFCU 13164.00 6–2.5%2 + 4– 642 20D

75 EE75T3HFCU 19833.00 6–2.5%2 + 4– 675 20D

112.5 EE112T3HFCU 26421.00 6–2.5%2 + 4– 741 21D

150 EE150T3HFCU 34491.00 6–2.5%2 + 4– 1050 22D

225 EE225T3HFCU 45978.00 6–2.5%2 + 4– 1220 24D

300 EE300T68HFCU 58641.00 6–2.5%2 + 4– 2300 30D

500 EE500T68HFCU 82010.00 6–2.5%2 + 2– 2409 30D

80° C Rise Three-Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz; cULus Listed

15 EE15T3HB 5304.00 6–2.5%2 + 4– 220 17D

30 EE30T3HB 7956.00 6–2.5%2 + 4– 368 18D

45 EE45T3HB 9574.00 6–2.5%2 + 4– 585 20D

75 EE75T3HB 14424.00 6–2.5%2 + 4– 620 21D

112.5 EE112T3HB 19215.00 6–2.5%2 + 4– 835 22D

150 EE150T3HB 24641.00 6–2.5%2 + 4– 980 24D

225 EE225T3HB 33438.00 6–2.5%2 + 4– 1349 25D

300 EE300T68HB 43282.00 6–2.5%2 + 4– 2400 30D

500 EE500T68HB 60531.00 6–2.5%2 + 2– 2964 31D

80° C Rise Three-Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz;

cULus Listed. Copper Windings

15 EE15T3HBCU 7956.00 6–2.5%2 + 4– 260 17D

30 EE30T3HBCU 11934.00 6–2.5%2 + 4– 418 18D

45 EE45T3HBCU 14361.00 6–2.5%2 + 4– 642 20D

75 EE75T3HBCU 21636.00 6–2.5%2 + 4– 725 21D

112.5 EE112T3HBCU 28823.00 6–2.5%2 + 4– 910 21D

150 EE150T3HBCU 36962.00 6–2.5%2 + 4– 1125 24D

225 EE225T3HBCU 45143.00 6–2.5%2 + 4– 1425 24D

300 EE300T68HBCU 64923.00 6–2.5%2 + 4– 2400 30D

500 EE500T68HBCU 90797.00 6–2.5%2 + 2– 2578 30D

PE2E Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Export Model; Buck and Boost

Class 7400 / Refer to Catalogs 7400CT0601, 7400CT9601, 7414CT0201

Sealed Single- and Three-Phase

Transformers

aFor enclosure styles, see Dimensions Table, on page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

or your local Schneider Electric distributor.

Note: FCBN = Full capacity below normal

cContact your nearest Schneider Electric sales office or plant for

weights and enclosure types.

Sealed Single-Phase Export Model

Transformers

These general purpose transformers are designed to

accommodate voltage systems worldwide. Export model

transformers 10 kVA and smaller, certified by TUV (File no.

E9571881.01) to meet EN61558-1, are CE marked in

addition to being UL and cULus Listed. For CE marked

transformers in other ratings, contact your nearest Schneider

Electric sales office for CE marked transformers up to 300

kVA, single and three phase. See page 14-9 for optional

Fingersafe® terminal block cover kit.

Sealed Single-Phase Buck and Boost

Transformers

Buck and boost transformers are isolating transformers

that have 120 x 240 volt primaries and either 12/24 or

16/32 volt secondaries. When used as isolating

transformers they carry the full load stated on the

nameplate. By special interconnection of the windings, an

autotranformer is obtained.

NOTE: When used to supply a 3-phase, 4-wire load,

the source must be 3-phase, 4-wire.

dDimensions: 14.50 (H) x 8.60 (W) x 6.50 (D).

Note: Refer to www.us.squared.com/buckboost for additional information.

kVA Catalog No. $ Price Full Capacity

Taps

Degree C

Temp.

Rise

Weight

(lbs) b

Enclosure ab

Single Phase—240 X 480 V Primary

120/240 V Secondary 60 Hz; cULus Listed

.050 50SV1A 182.00 None 55 4.2 1A

.100 100SV1A 214.00 None 55 4.5 2A

.150 150SV1A 254.00 None 55 6.2 3A

.250 250SV1B 270.00 None 80 10.5 4A

.500 500SV1B 386.00 None 80 13.8 5A

.750 750SV1F 460.00 None 115 15.5 6A

11S1F 602.00 None 115 21.2 7A

1.5 1.5S1F 724.00 None 115 30.1 8A

22S1F 896.00 None 115 39.1 9A

33S1F 1144.00 None 115 60 10A

55S1F 1556.00 None 115 115 13B

7.5 7S1F 2188.00 None 115 135 13B

10 10S1F 2712.00 None 115 165 13B

15 15S1F 4344.00 None 115 225 15B

25 25S1F 6944.00 None 115 300 15B

Single Phase—600 V Primary

120/240 V Secondary 60 Hz; cULus Listed

.050 50SV51A 182.00 None 55 4.2 1A

.100 100SV51A 214.00 None 55 4.5 2A

.150 150SV51A 262.00 None 55 6.2 3A

.250 250SV51B 290.00 None 80 10.5 4A

.500 500SV51B 408.00 None 80 13.8 5A

.750 750SV51F 486.00 None 115 15.5 6A

11S51F 634.00 None 115 21.2 7A

1.5 1.5S51F 758.00 None 115 30.1 8A

22S51F 940.00 None 115 39.1 9A

33S4F 1240.00 2–5%FCBN 115 60 10A

55S4F 1676.00 2–5%FCBN 115 115 13B

7.5 7S4F 2348.00 2–5%FCBN 115 135 13B

10 10S4F 2922.00 2–5%FCBN 115 165 13B

15 15S4F 4680.00 2–5%FCBN 115 225 15B

25 25S4F 5986.00 2–5%FCBN 115 300 15B

120x240 V Primary 120/240 V

Secondary 60 Hz; cULus Listed

11S6F 1090.00 None 115 21.2 7A

1.5 1.5S6F 1558.00 None 115 30.1 8A

22S6F 1746.00 None 115 39.1 9A

33S6F 1892.00 None 115 60 10A

55S6F 2418.00 None 115 110 13B

7.5 7S6F 3216.00 None 115 135 13B

10 10S6F 3992.00 None 115 150 13B

15 15S6F 5934.00 None 115 225 15B

25 25S6F 7591.00 None 115 300 15B

208 V Primary

120/240 V Secondary 60 Hz; cULus Listed

11S7F 1090.00 None 115 21.2 7A

1.5 1.5S7F 1558.00 None 115 30.1 8A

22S7F 1746.00 None 115 39.1 9A

33S7F 1892.00 None 115 60 10A

55S7F 2418.00 None 115 110 13B

7.5 7S7F 3216.00 None 115 135 13B

10 10S7F 3992.00 None 115 150 13B

15 15S7F 5934.00 None 115 225 15B

25 25S7F 7591.00 None 115 300 15B

277 V Primary

120/240 V Secondary 60 Hz; cULus Listed

11S8F 1090.00 None 115 21.2 7A

1.5 1.5S8F 1558.00 None 115 30.1 8A

22S8F 1746.00 None 115 39.1 9A

33S8F 1892.00 None 115 60 10A

55S8F 2418.00 None 115 110 13B

7.5 7S8F 3216.00 None 115 135 13B

10 10S8F 3992.00 None 115 150 13B

15 15S8F 5934.00 None 115 225 15B

25 25S8F 7591.00 None 115 300 15B

New!

kVA Catalog

No. $ Price Full Capacity

Taps

Deg. C

Temp.

Rise

Weight

(lbs) b

Enclosure

Three Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz; UL/cULus Listed;

Copper Windings

33T2F 2016.00 2–5%FCBN 115 120 12C

66T2F 2310.00 2–5%FCBN 115 145 12C

99T2F 3088.00 2–5%FCBN 115 235 14C

15 15T2F 4644.00 2–5%FCBN 115 300 14C

30 30T2F 8536.00 2–5%FCBN 115 660 16C

45 45T2F 22348.00 2–5%FCBN 115 cc

75 75T2F 28422.00 2–5%FCBN 115 cc

Three Phase—480 V Delta Primary

240 V Delta Secondary 60 Hz; UL/cULus Listed;

Copper Windings

33T5F 2522.00 2–5%FCBN 115 120 12C

66T5F 2310.00 2–5%FCBN 115 145 12C

99T75F 3088.00 4–2.5%FCBN 115 235 14C

15 15T75F 4644.00 4–2.5%FCBN 115 300 14C

30 30T75F 8536.00 4–2.5%FCBN 115 660 16C

45 45T75F 22348.00 4–2.5%FCBN 115 cc

75 75T75F 28422.00 4–2.5%FCBN 115 cc

kVA Catalog

No. $ Price

Full

Capacity

Taps

Deg. C

Temp.

Rise

Weight

(lbs) b

Enclosure

1e 1S67F 1180.00 None 115 21.2 7A

2 2S67F 1716.00 None 115 39.1 9A

3 3S67F 2290.00 None 115 55.2 10A

5 5S67F 2554.00 None 115 135 13B

7.5 7S67F 3314.00 None 115 165 13B

10 10S67F 4004.00 None 115 165 13B

kVA

120 x 240 V Primary 60 Hz 240 x 480 V Primary

60 Hz

Degree C

Temp. Rise

Weight

(lbs) b

Enclosure ab

12/24 V

Secondary

16/32 V

Secondary $ Price 24/48 V

Secondary $ Price

.05 50SV43A 50SV46A 206.00 50SV82A 284.00 55 4.2 1A

.10 100SV43A 100SV46A 246.00 100SV82A 344.00 55 4.5 2A

.15 150SV43A 150SV46A 276.00 150SV82A 386.00 55 6.2 3A

.25 250SV43B 250SV46B 328.00 250SV82B 460.00 80 10.5 4A

.50 500SV43B 500SV46B 420.00 500SV82B 588.00 80 13.8 5A

.75 750SV43F 750SV46F 552.00 750SV82F 774.00 115 15.5 6A

1.0 1S43F 1S46F 676.00 1S82F 948.00 115 21.2 7A

1.5 1.5S43F 1.5S46F 830.00 1.5S82F 1162.00 115 30.1 8A

2.0 2S43F 2S46F 1072.00 2S82F 1500.00 115 39.1 9A

3.0 3S43F 3S46F 1480.00 3S82F 2072.00 115 60 d

PE2 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Stainless Steel Enclosed; Non-Ventilated

Class 7400

Sealed Single- and Three-Phase Stainless

Steel Enclosed Transformers

Stainless steel enclosures provide better corrosion resistance

than standard painted enclosures. Schneider Electric has a

complete line of stainless steel transformers to meet

demands for extra protection in corrosive environments.

The transformers listed below are built with an epoxy-resin

encapsulated core and coil assembly inside of a non-

ventilated #316 stainless steel enclosure. Terminals are

flexible copper lead wire. When connections are made

using an appropriate method, the final transformer

installation is virtually impervious to contamination from

materials such as acids, food products, organic solvents,

salt water, or similar. Transformers are cULus Listed for

NEMA 3R indoor or outdoor use.

Ventilated and non-ventilated transformers built using #316

stainless steel enclosures are also available. These are well

suited for moderately corrosive locations where enclosure

protection and appearance are important. Contact your

nearest Schneider Electric sales office for details.

Additional voltages not listed below are available. Contact

your nearest Schneider Electric sales office for details.

Stainless steel is painted.

aFor enclosure styles, see Dimensions on page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

for certified prints.

Note: FCBN = Full capacity below normal

Note: Lugs: Furnished by customer

Non-Ventilated Single- and Three-Phase

Transformers

Non-ventilated enclosures are used in environments where

large quantities of dust, airborne contaminants, metal

particles, or moisture make ventilated transformers

impractical. These transformers are also used when water

spray from any direction is possible.

The 150oC rise transformers listed below are built using

220 class insulated core and coil assemblies similar to

ventilated units. However, the core and conductors are

oversized to maintain proper temperature rise with the

limited cooling capacity of a non-ventilated enclosure.

Therefore, non-ventilated transformers are larger and

heavier than the same kVA and voltage ventilated

equivalent.

The 115oC rise epoxy-resin encapsulated transformers

listed below are furnished non-ventilated at standard price.

Non-ventilated enclosures meet protection code IP55 (dust

and jetting water protection) per standard IEC-605.29.

While not listed to a specific NEMA standard, they are

suitable for indoor or outdoor use.

aFor enclosure styles, see Dimensions on page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

for certified prints.

cWhen 240 V tap is used, there will be 3–5% taps, 1 above and 2 below.

Note: FCBN = Full capacity below normal

Note: Lugs: Furnished by customer

kVA Catalog

No. $ Price

Full

Capacity

Taps

Degree C

Temp.

Rise

Weight

(lbs)

Enclosure

Single-Phase—240x480 V Primary

120/240 V Secondary 60 Hz; cULus Listed

11S1FSS 1274.00 None 115 21 7A

1.5 1.5S1FSS 1778.00 None 115 30 8A

22S1FSS 1914.00 None 115 39 9A

33S1FSS 2684.00 None 115 60 10A

55S1FSS 3880.00 None 115 110 13B

7.5 7S1FSS 4164.00 None 115 135 13B

10 10S1FSS 4764.00 None 115 150 13B

15 15S1FSS 7036.00 None 115 225 15B

25 25S1FSS 9606.00 None 115 300 15B

Single-Phase—480 V Primary

120/240 V Secondary 60 Hz; cULus Listed

33S40FSS 2684.00 2–5% FCBN 115 60 10A

55S40FSS 3880.00 2–5% FCBN 115 110 13B

7.5 7S40FSS 4164.00 2–5% FCBN 115 135 13B

10 10S40FSS 4764.00 2–5% FCBN 115 150 13B

15 15S40FSS 7036.00 2–5% FCBN 115 225 15B

25 25S40FSS 9606.00 2–5% FCBN 115 300 15B

Three-Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz; cULus Listed

33T2FSS 4116.00 2–5% FCBN 115 120 12C

66T2FSS 4924.00 2–5% FCBN 115 145 12C

99T2FSS 6072.00 2–5% FCBN 115 234 14C

15 15T2FSS 7726.00 2–5% FCBN 115 300 14C

30 30T2FSS 13022.00 2–5% FCBN 115 660 16C

NEMA 4X Single-Phase—480 V Primary

120/240 V Secondary 60 Hz

kVA Catalog

No. $ Price

Full

Capacity

Taps

Degree C

Temp.

Rise

1 1S40F4XSS 9720.00 2–5% FCBN 115

22S40F4XSS 10380.00 2–5% FCBN 115

33S40F4XSS 10816.00 2–5% FCBN 115

55S40F4XSS 12332.00 2–5% FCBN 115

7.5 7S40F4XSS 13426.00 2–5% FCBN 115

10 10S40F4XSS 14460.00 2–5% FCBN 115

15 15S40F4XSS 18496.00 2–5% FCBN 115

25 25S40F4XSS 27720.00 2–5% FCBN 115

NEMA 4X Three-Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz

33T2F4XSS 12676.00 2–5% FCBN 115

66T2F4XSS 13906.00 2–5% FCBN 115

99T2F4XSS 17506.00 2–5% FCBN 115

15 15T2F4XSS 30540.00 2–5% FCBN 115

30 30T2F4XSS 41612.00 2–5% FCBN 115

kVA Catalog

No. $ Price

Full

Capacity

Taps

Degree C

Temp.

Rise

Weight

(lbs)

Enclosure

Single-Phase—240X480 V Primary

120/240 V Secondary 60 Hz

15 15S3HNV 5042.00 6–2.5%2 + 4–c150 230 17E

25 25S3HNV 7562.00 6–2.5%2 + 4–c150 310 18E

37.5 37S3HNV 11248.00 6–2.5%2 + 4–c150 350 18E

50 50S3HNV 14384.00 6–2.5%2 + 4–c150 450 21E

75 75S3HNV 17600.00 6–2.5%2 + 4–c150 880 24E

100 100S3HNV 22286.00 6–2.5%2 + 4–c150 975 25E

Single-Phase—600 V Primary

120/240 V Secondary 60 Hz

15 15S5HNV 5422.00 4–2.5%FCBN 150 230 17E

25 25S5HNV 8176.00 4–2.5%FCBN 150 310 18E

37.5 37S5HNV 12356.00 4–2.5%FCBN 150 350 18E

50 50S5HNV 14344.00 4–2.5%FCBN 150 450 21E

75 75S5HNV 19524.00 4–2.5%FCBN 150 880 24E

100 100S5HNV 24050.00 4–2.5%FCBN 150 975 25E

Three-Phase—480 V Delta Primary

208Y/120 V Secondary 60 Hz

30 30T3HNV 8090.00 6–2.5%2 + 4– 150 340 19E

45 45T3HNV 12396.00 6–2.5%2 + 4– 150 510 19E

75 75T3HNV 19118.00 6–2.5%2 + 4– 150 1025 22E

112.5 112T3HNV 25848.00 6–2.5%2 + 4– 150 1250 24E

150 150T3HNV 33348.00 6–2.5%2 + 4– 150 2000 25E

225 225T3HNV 50238.00 6–2.5%2 + 4– 150 2100 30E

300 300T3HNV 55152.00 6–2.5%2 + 4– 150 3950 31E

Three-Phase—480 V Delta Primary

240 V Delta Secondary 60 Hz

30 30T6HNV 8090.00 6–2.5%2 + 4– 150 340 19E

45 45T6HNV 12396.00 6–2.5%2 + 4– 150 510 19E

75 75T6HNV 19118.00 6–2.5%2 + 4– 150 1025 22E

150 112T6HNV 25848.00 6–2.5%2 + 4– 150 1250 24E

150 150T6HNV 33348.00 6–2.5%2 + 4– 150 2000 25E

225 225T6HNV 50238.00 6–2.5%2 + 4– 150 2100 30E

300 300T6HNV 55152.00 6–2.5%2 + 4– 150 3950 31E

Three-Phase—600 V Delta Primary

208Y/120 V Secondary 60 Hz

30 30T8HNV 8826.00 4–2.5%FCBN 150 340 19E

45 45T8HNV 13446.00 4–2.5%FCBN 150 510 19E

75 75T8HNV 20590.00 4–2.5%FCBN 150 1025 22E

112.5 112T8HNV 27944.00 4–2.5%FCBN 150 1250 24E

150 150T8HNV 33412.00 4–2.5%FCBN 150 2000 25E

225 225T8HNV 51704.00 4–2.5%FCBN 150 2100 30E

300 300T8HNV 56730.00 4–2.5%FCBN 150 3950 31E

PE2 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Transformers for High Harmonic Loads; NL and NLP

Class 7400 / Refer to Catalog 7400CT0301

EE NL and NLP Series Transformers

•Three-phase dry type transformers, 480 Delta—

208Y/120

•Aluminum or copper windings

•Electrostatic shield

•Class 220 insulation

•Double size neutral terminal for additional customer

neutral cables

•Additional coil capacity to compensate for higher

non-linear load loss

•cULus Listed

aFor enclosure styles, see Dimensions Table, page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

for certified prints.

cAvailable with optional 80° C temperature rise. To complete catalog

number, replace "F" with "B". Example: 15T3HBISNL

Note: Lugs: Furnished by customer

aFor enclosure styles, see Dimensions Table, page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

for certified prints.

cAvailable with optional 80° C temperature rise. To complete catalog

number, replace "F" with "B". Example: 15T3HBISNL.

Note: Lugs: Furnished by customer

kVA Catalog

No. $ Price Taps

Weight

(lbs)

Enclosure ab

NL Series for Typical Non-Linear Load Service—

K-4 Rated—Aluminum Windings; 150° C Rise

15 EE15T3HISNL 5253.00 6–2.5% 2+4– 266 17D

30 EE30T3HISNL 7880.00 6–2.5% 2+4– 360 18D

45 EE45T3HISNL 9484.00 6–2.5% 2+4– 515 20D

75 EE75T3HISNL 14287.00 6–2.5% 2+4– 560 21D

112.5 EE112T3HISNL 19033.00 6–2.5% 2+4– 800 22D

150 EE150T3HISNL 24845.00 6–2.5% 2+4– 1150 24D

225 EE225T3HISNL 34567.00 6–2.5% 2+4– 1349 25D

300 EE300T68HISNL 47885.00 4–2.5% 2+2– 2125 30D

500 EE500T68HISNL 66168.00 4–2.5% 2+2– 2595 31D

NLP Series for More Severe Non-Linear Load

Service—K-13 Rated—Aluminum Windings;

150° C Rise

15 EE15T3HISNLP 5976.00 6–2.5% 2+4– 261 17D

30 EE30T3HISNLP 8963.00 6–2.5% 2+4– 365 18D

45 EE45T3HISNLP 10789.00 6–2.5% 2+4– 415 20D

75 EE75T3HISNLP 17876.00 6–2.5% 2+4– 535 21D

112.5 EE112T3HISNLP 21650.00 6–2.5% 2+4– 750 22D

150 EE150T3HISNLP 28261.00 6–2.5% 2+4– 755 24D

225 EE225T3HISNLP 38507.00 6–2.5% 2+4– 775 25D

300 EE300T68HISNLP 51295.00 4–2.5% 2+2– 2350 30D

500 EE500T68HISNLP 71277.00 4–2.5% 2+2– 3150 31D

NL Series for Typical Non-Linear Load Service—

K-4 Rated—Aluminum Windings; 115° C Rise

15 EE15T3HFISNL 5834.00 6–2.5% 2+4– 256 17D

30 EE30T3HFISNL 8751.00 6–2.5% 2+4– 320 18D

45 EE45T3HFISNL 10533.00 6–2.5% 2+4– 515 20D

75 EE75T3HFISNL 15866.00 6–2.5% 2+4– 535 21D

112.5 EE112T3HFISNL 21137.00 6–2.5% 2+4– 800 22D

150 EE150T3HFISNL 27592.00 6–2.5% 2+4– 1110 24D

225 EE225T3HFISNL 38389.00 6–2.5% 2+4– 1349 25D

300 EE300T68HFISNL 53179.00 4–2.5% 2+2– 1750 30D

500 EE500T68HFISNL 73483.00 4–2.5% 2+2– 2295 31D

NLP Series for More Severe Non-Linear Load

Service—K-13 Rated—Aluminum Windings,

115° C Rise

15 EE15T3HFISNLP 6636.00 6–2.5% 2+4– 256 17D

30 EE30T3HFISNLP 9954.00 6–2.5% 2+4– 375 18D

45 EE45T3HFISNLP 11981.00 6–2.5% 2+4– 500 20D

75 EE75T3HFISNLP 18048.00 6–2.5% 2+4– 560 21D

112.5 EE112T3HFISNLP 24043.00 6–2.5% 2+4– 800 22D

150 EE150T3HFISNLP 31386.00 6–2.5% 2+4– 1110 24D

225 EE225T3HFISNLP 42764.00 6–2.5% 2+4– 1335 25D

300 EE300T68HFISNLP 56966.00 4–2.5% 2+2– 2350 30D

500 EE500T68HFISNLP 79157.00 4–2.5% 2+2– 3200 31D

kVA Catalog

No. $ Price Taps

Weight

(lbs)

Enclosure ab

NL Series for Typical Non-Linear Load Service—

K-4 Rated—Copper Windings; 150° C Rise

15 EE15T3HISCUNL 8838.00 6–2.5% 2+4– 260 17D

30 EE30T3HISCUNL 13258.00 6–2.5% 2+4– 395 18D

45 EE45T3HISCUNL 15957.00 6–2.5% 2+4– 730 20D

75 EE75T3HISCUNL 24040.00 6–2.5% 2+4– 640 20D

112.5 EE112T3HISCUNL 32025.00 6–2.5% 2+4– 935 22D

150 EE150T3HISCUNL 41806.00 6–2.5% 2+4– 1300 24D

225 EE225T3HISCUNL 55732.00 6–2.5% 2+4– 1450 24D

300 EE300T68HISCUNL 71470.00 4–2.5% 2+2– 2450 25D

NLP Series for More Severe Non-Linear Load

Service—K-13 Rated—Copper Windings; 150° C Rise

15 EE15T3HISCUNLP 9744.00 6–2.5% 2+4– 260 17D

30 EE30T3HISCUNLP 14618.00 6–2.5% 2+4– 430 18D

45 EE45T3HISCUNLP 17594.00 6–2.5% 2+4– 730 20D

75 EE75T3HISCUNLP 26506.00 6–2.5% 2+4– 640 20D

112.5 EE112T3HISCUNLP 35310.00 6–2.5% 2+4– 985 22D

150 EE150T3HISCUNLP 46094.00 6–2.5% 2+4– 1135 24D

225 EE225T3HISCUNLP 61448.00 6–2.5% 2+4– 1477 24D

300 EE300T68HISCUNLP 78800.00 4–2.5% 2+2– 2650 30D

NL Series for Typical Non-Linear Load Service—

K-4 Rated—Copper Windings; 115° C Rise

15 EE15T3HFISCUNL 8751.00 6–2.5% 2+4– 260 17D

30 EE30T3HFISCUNL 13127.00 6–2.5% 2+4– 395 18D

45 EE45T3HFISCUNL 15801.00 6–2.5% 2+4– 730 20D

75 EE75T3HFISCUNL 23799.00 6–2.5% 2+4– 640 20D

112.5 EE112T3HFISCUNL 31706.00 6–2.5% 2+4– 935 22D

150 EE150T3HFISCUNL 41388.00 6–2.5% 2+4– 1300 24D

225 EE225T3HFISCUNL 57584.00 6–2.5% 2+4– 1450 24D

300 EE300T68HFISCUNL 79769.00 4–2.5% 2+2– 2450 25D

NLP Series for More Severe Non-Linear Load

Service—K-13 Rated—Copper Windings;

115° C Rise

15 EE15T3HFISCUNLP 9954.00 6–2.5% 2+4– 260 17D

30 EE30T3HFISCUNLP 14931.00 6–2.5% 2+4– 430 18D

45 EE45T3HFISCUNLP 17972.00 6–2.5% 2+4– 730 20D

75 EE75T3HFISCUNLP 27072.00 6–2.5% 2+4– 640 20D

112.5 EE112T3HFISCUNLP 36065.00 6–2.5% 2+4– 985 22D

150 EE150T3HFISCUNLP 47079.00 6–2.5% 2+4– 1135 24D

225 EE225T3HFISCUNLP 64146.00 6–2.5% 2+4– 1477 24D

300 EE300T68HFISCUNLP 85449.00 4–2.5% 2+2– 2650 30D

PE2 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Transformers for High Harmonic Loads; DIT; HMT

Class 7400 / Refer to Catalog 7400CT0301

Drive Isolation Transformers

Special design considerations must be made for the

requirements of both adjustable frequency and dc motor

drive power isolation. Allowance for high surge, harmonic

and offset currents are taken into account in the design of

Square D® drive isolation transformers. Drive isolation

transformers are not shielded isolation transformers, but

act to lessen transient generation into the supply power

and act as a buffer for SCR current surges. cULus Listed.

EE Harmonic Mitigating Transformers

Harmonic mitigating transformers use phase shifting,

electromagnetic flux, and source impedance to help

reduce harmonics in electrical distribution systems.

•Meets NEMA Standard TPI for energy efficiency

•Copper windings (Aluminum Optional)

•150° C temperature with 220°C insulation system

•cULus Listed

aFor enclosure styles, see Dimensions Table, page 14-8.

bNot for construction. Contact your local Schneider Electric sales office

for certified prints.

cWhen 240 V tap is used, there will be 3–5% taps, 1 above and 2 below.

Note: FCBN = Full capacity below normal

Note: Lugs: Furnished by customer

kVA Catalog

No. $ Price Full Capacity

Taps

Degree C

Temp.

Rise

Weight

(lbs) b

Enclosure

a b

Three-Phase 60 Hz; Class B (IEEE Standard 597-1983)

460 V Delta Primary 460Y/265 V Secondary 60 Hz

7.5 7T145HDIT 4462.00 2–5%1 + 1– 150 180 17D

11 11T145HDIT 5298.00 2–5%1 + 1– 150 180 17D

15 15T145HDIT 5464.00 2–5%1 + 1– 150 190 17D

20 20T145HDIT 6550.00 2–5%1 + 1– 150 210 17D

27 27T145HDIT 6720.00 2–5%1 + 1– 150 250 17D

34 34T145HDIT 7392.00 2–5%1 + 1– 150 295 18D

40 40T145HDIT 8404.00 2–5%1 + 1– 150 350 18D

51 51T145HDIT 9826.00 2–5%1 + 1– 150 445 20D

63 63T145HDIT 10692.00 2–5%1 + 1– 150 465 20D

75 75T145HDIT 12498.00 2–5%1 + 1– 150 550 20D

93 93T145HDIT 16020.00 2–5%1 + 1– 150 845 22D

118 118T145HDIT 17844.00 2–5%1 + 1– 150 920 22D

145 145T145HDIT 20008.00 2–5%1 + 1– 150 1025 22D

175 175T145HDIT 23092.00 2–5%1 + 1– 150 1120 25D

220 220T145HDIT 28224.00 2–5%1 + 1– 150 1200 25D

275 275T145HDIT 37716.00 2–5%1 + 1– 150 1500 25D

330 330T145HDIT 39688.00 2–5%1 + 1– 150 1390 25D

440 440T145HDIT 48650.00 2–5%1 + 1– 150 2700 30D

550 550T145HDIT 60444.00 2–5%1 + 1– 150 3800 30D

460 V Delta Primary 230Y/132 V Secondary 60 Hz

7.5 7T144HDIT 4462.00 2–5%1 + 1– 150 180 17D

11 11T144HDIT 5298.00 2–5%1 + 1– 150 180 17D

15 15T144HDIT 5464.00 2–5%1 + 1– 150 190 17D

20 20T144HDIT 6550.00 2–5%1 + 1– 150 210 17D

27 27T144HDIT 6720.00 2–5%1 + 1– 150 250 17D

34 34T144HDIT 7392.00 2–5%1 + 1– 150 295 18D

40 40T144HDIT 8404.00 2–5%1 + 1– 150 350 18D

51 51T144HDIT 9826.00 2–5%1 + 1– 150 445 20D

63 63T144HDIT 10692.00 2–5%1 + 1– 150 465 20D

75 75T144HDIT 12498.00 2–5%1 + 1– 150 550 20D

93 93T144HDIT 16020.00 2–5%1 + 1– 150 845 22D

118 118T144HDIT 17844.00 2–5%1 + 1– 150 920 22D

145 145T144HDIT 20008.00 2–5%1 + 1– 150 1025 22D

175 175T144HDIT 23092.00 2–5%1 + 1– 150 1120 25D

220 220T144HDIT 28224.00 2–5%1 + 1– 150 1200 25D

275 275T144HDIT 37716.00 2–5%1 + 1– 150 1500 25D

330 330T144HDIT 39688.00 2–5%1 + 1– 150 1390 25D

440 440T144HDIT 48650.00 2–5%1 + 1– 150 2700 30D

550 550T144HDIT 60444.00 2–5%1 + 1– 150 3800 30D

230 V Delta Primary 460Y/265 V Secondary 60 Hz

7.5 7T143HDIT 4462.00 2–5%1 + 1– 150 180 17D

11 11T143HDIT 5298.00 2–5%1 + 1– 150 180 17D

15 15T143HDIT 5464.00 2–5%1 + 1– 150 190 17D

20 20T143HDIT 6550.00 2–5%1 + 1– 150 210 17D

27 27T143HDIT 6720.00 2–5%1 + 1– 150 250 17D

34 34T143HDIT 7392.00 2–5%1 + 1– 150 295 18D

40 40T143HDIT 8404.00 2–5%1 + 1– 150 350 18D

51 51T143HDIT 9826.00 2–5%1 + 1– 150 445 20D

63 63T143HDIT 10692.00 2–5%1 + 1– 150 465 20D

75 75T143HDIT 12498.00 2–5%1 + 1– 150 550 20D

93 93T143HDIT 16020.00 2–5%1 + 1– 150 845 22D

118 118T143HDIT 17844.00 2–5%1 + 1– 150 920 22D

145 145T143HDIT 20008.00 2–5%1 + 1– 150 1025 22D

175 175T143HDIT 23092.00 2–5%1 + 1– 150 1120 25D

220 220T143HDIT 28224.00 2–5%1 + 1– 150 1200 25D

275 275T143HDIT 37716.00 2–5%1 + 1– 150 1500 25D

330 330T143HDIT 39688.00 2–5%1 + 1– 150 1390 25D

440 440T14 3HDIT 48650.00 2–5%1 + 1– 150 2700 30D

550 550T143HDIT 60444.00 2–5%1 + 1– 150 3800 30D

230 V Delta Primary 230Y/132 V Secondary 60 Hz

7.5 7T142HDIT 4462.00 2–5%1 + 1– 150 180 17D

11 11T142HDIT 5298.00 2–5%1 + 1– 150 180 17D

15 15T142HDIT 5464.00 2–5%1 + 1– 150 190 17D

20 20T142HDIT 6550.00 2–5%1 + 1– 150 210 17D

27 27T142HDIT 6720.00 2–5%1 + 1– 150 250 17D

34 34T142HDIT 7392.00 2–5%1 + 1– 150 295 18D

40 40T142HDIT 8404.00 2–5%1 + 1– 150 350 18D

51 51T142HDIT 9826.00 2–5%1 + 1– 150 445 20D

63 63T142HDIT 10692.00 2–5%1 + 1– 150 465 20D

230 V Delta Primary 230Y/132 V Secondary 60 Hz (Continued)

75 75T142HDIT 12498.00 2–5%1 + 1– 150 550 20D

93 93T142HDIT 16020.00 2–5%1 + 1– 150 845 22D

118 118T142HDIT 17844.00 2–5%1 + 1– 150 920 22D

145 145T142HDIT 20008.00 2–5%1 + 1– 150 1025 22D

175 175T142HDIT 23092.00 2–5%1 + 1– 150 1120 25D

220 220T142HDIT 28224.00 2–5%1 + 1– 150 1200 25D

275 275T142HDIT 37716.00 2–5%1 + 1– 150 1500 25D

330 330T142HDIT 39688.00 2–5%1 + 1– 150 1390 25D

440 440T142HDIT 48650.00 2–5%1 + 1– 150 2700 30D

550 550T142HDIT 60444.00 2–5%1 + 1– 150 3800 30D

kVA Catalog

No. $ Price Taps Weight

(lbs) b

Enclosure

a b

0° Phase Shift; Delta—ZigZag—UL Listed/cULus

480 V Primary 208/120 Secondary

15 15T209HCUEE 12670.00 4-2.5% 2+2- 260 17D

30 30T209HCUEE 19416.00 4-2.5% 2+2- 360 17D

45 45T209HCUEE 23364.00 4-2.5% 2+2- 440 18D

75 75T209HCUEE 35204.00 4-2.5% 2+2- 765 20D

112 112T209HCUEE 46900.00 4-2.5% 2+2- 1006 21D

150 150T209HCUEE 61226.00 4-2.5% 2+2- 1440 22D

225 225T209HCUEE 81616.00 4-2.5% 2+2- 1655 24D

300 300T209HCUEE 104664.00 4-2.5% 2+2- 1763 25D

208 V Primary 208/120 Secondary

15 15T216HCUEE 12670.00 2.5% FCBN 260 17D

30 30T216HCUEE 19416.00 2.5% FCBN 360 17D

45 45T216HCUEE 23364.00 2.5% FCBN 440 18D

75 75T216HCUEE 35204.00 2.5% FCBN 740 20D

112 112T216HCUEE 46900.00 2.5% FCBN 1006 21D

150 150T216HCUEE 61226.00 2.5% FCBN 1440 22D

225 225T216HCUEE 81616.00 2.5% FCBN 1655 24D

300 300T216HCUEE 104664.00 2.5% FCBN 1760 25D

30° Phase Shift; Wye—ZigZag—UL Listed/cULus

480 V Primary 208/120 Secondary

15 15T220HCUEE 12670.00 4-2.5% 2+2- 280 17D

30 30T220HCUEE 19416.00 4-2.5% 2+2- 350 17D

45 45T220HCUEE 23364.00 4-2.5% 2+2- 440 18D

75 75T220HCUEE 35204.00 4-2.5% 2+2- 680 20D

112 112T220HCUEE 46900.00 4-2.5% 2+2- 980 21D

150 150T220HCUEE 61226.00 4-2.5% 2+2- 1100 22D

225 225T220HCUEE 81616.00 4-2.5% 2+2- 1655 24D

300 300T220HCUEE 104664.00 4-2.5% 2+2- 1630 25D

208 V Primary 208/120 Secondary

15 15T224HCUEE 12670.00 2.5% FCBN 260 17D

30 30T224HCUEE 19416.00 2.5% FCBN 360 17D

45 45T224HCUEE 23364.00 2.5% FCBN 454 18D

75 75T224HCUEE 35204.00 2.5% FCBN 717 20D

112 112T224HCUEE 46900.00 2.5% FCBN 1006 21D

150 150T224HCUEE 61226.00 2.5% FCBN 1440 22D

225 225T224HCUEE 81616.00 2.5% FCBN 1655 24D

300 300T224HCUEE 104664.00 2.5% FCBN 1760 25D

kVA Catalog

No. $ Price Full Capacity

Taps

Degree C

Temp.

Rise

Weight

(lbs) b

Enclosure

a b

PE2 Discount

Schedule

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Enclosures; Accessories

Class 7400

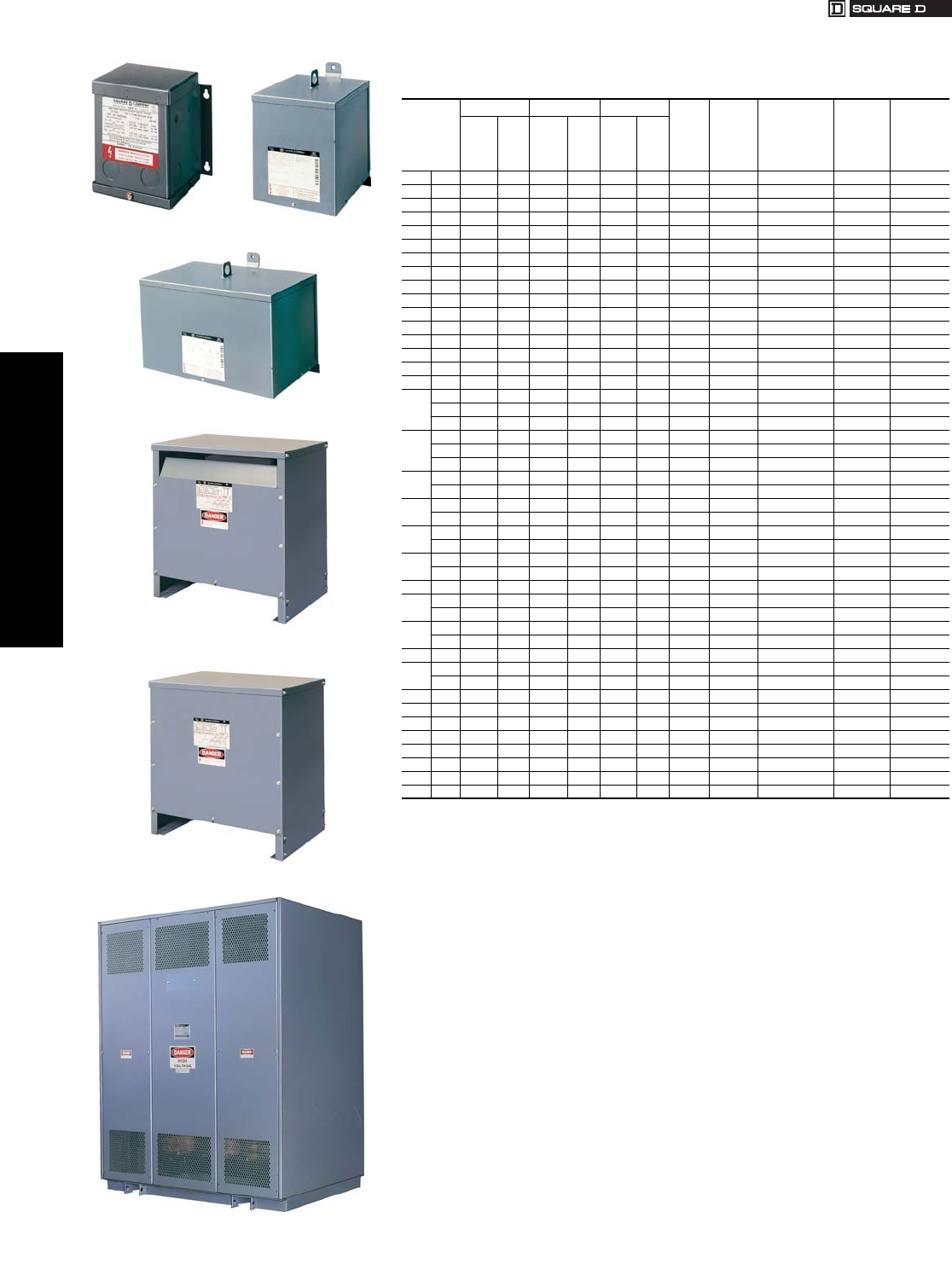

Enclosures and Accessories

aThese dimensions are not for construction. Contact your local Schneider Electric sales office for certified prints.

bTransformer is NEMA 3R Standard. Weathershield not required for outdoor use.

cWall mounting brackets are a standard part of transformer enclosure. Accessory not required.

dSpecial outdoor construction required for NEMA 3R applications. Contact your local Schneider Electric sales office

for details.

eIndoor/outdoor enclosure standard. Weathershield not required.

Note: Wall mounting/ceiling mounting bracket not available due to weight of these parts

Enclosure Dimensions and Accessories a

Enclosure

Number/

Style

Height Width Depth

Mounting

Weathershield

Wall Mounting

Bracket

Ceiling

Mounting

Bracket

Insulation

Class oC

in mm in mm in mm

1 A 5.00 127 4.47 114 3.44 87 Wall bc —105

2 A 5.50 140 4.47 114 3.44 87 Wall bc —105

3 A 5.00 127 4.85 123 3.75 95 Wall bc —105

4 A 5.50 140 5.23 133 4.06 103 Wall bc —130

5 A 6.19 157 6.19 157 4.69 119 Wall bc —130

6 A 6.69 170 6.19 157 4.69 119 Wall bc —180

7 A 8.13 270 6.94 176 5.31 135 Wall bc —180

8 A 8.25 210 8.68 220 6.56 167 Wall bc —180

9 A 9.56 243 8.68 220 6.56 167 Wall bc —180

10 A 10.50 267 8.62 219 6.50 165 Wall bc —180

11 A 12.56 319 8.62 219 6.50 165 Wall bc —180

12 C 13.50 343 14.75 375 9.00 229 Wall bc —180

13 B 14.75 375 9.75 248 11.75 298 Wall bc —180

14 C 14.75 375 19.10 485 12.25 311 Wall bc —180

15 B 20.00 508 15.00 381 13.50 343 Wall bc —180

16 C 22.00 559 25.00 635 13.50 343 Wall bc —180

D 27.00 686 20.00 508 16.00 406 Floor WS363 WMB361362 CMB363 220

E 27.00 686 20.00 508 16.00 406 Floor eWMB361362 CMB363 220

H 37.00 940 20.00 508 16.00 406 Floor WS363 WMB361362 CMB363 220

D 30.00 762 20.00 508 20.00 508 Floor WS363 WMB363364 CMB363 220

E 30.00 762 20.00 508 20.00 508 Floor eWMB363364 CMB363 220

H 37.00 940 20.00 508 20.00 508 Floor WS363 WMB363364 CMB363 220

19 D 30.00 762 30.00 762 20.00 508 Floor WS364 WMB363364 CMB364 220

E 30.00 762 30.00 762 20.00 508 Floor eWMB363364 CMB364 220

20 D 37.00 940 30.00 762 20.00 508 Floor WS364 WMB363364 CMB364 220

E 37.00 940 30.00 762 20.00 508 Floor eWMB363364 CMB364 220

21 D 37.00 940 30.00 762 24.00 610 Floor WS364 — CMB364 220

E 37.00 940 30.00 762 24.00 610 Floor e— CMB364 220

22 D 43.75 1111 32.00 813 27.00 686 Floor WS380 — CMB380 220

E 43.75 1111 32.00 813 27.00 686 Floor e— CMB380 220

23 E 48 1219 48 1219 29.5 749 Floor e——220

24 D 49.5 1257 35 889 28.5 724 Floor WS381 — CMB381 220

E 49.5 1257 35 889 28.5 724 Floor Note 5 — CMB381 220

25 D 49.5 1257 41 1041 32 813 Floor WS382 — — 220

E 49.5 1257 41 1041 32 813 Floor e——220

26 D 57.5 1461 41 1041 32 813 Floor WS382 — — 220

28 D 60 1524 56 1422 36 914 Floor WS370A — — 220

E 60 1524 56 1422 36 914 Floor e——220

29 D 68 1727 56 1422 36 914 Floor WS370A — — 220

30 D 71 1803 48 1219 36 914 Floor WS383 — — 220

31 D 74 1880 56 1422 40.5 1029 Floor WS384 — — 220

31 E 60 1524 56 1422 36 914 Floor e——220

32 F 91.5 2388 56 1422 54 1372 Floor d——220

33 F 942388721829541372Floor d——220

34 F 942388842134541372Floor d——220

35 F 942388962438541372Floor d——220

Style A–NEMA 3R Rated Style B–NEMA 3R Rated

Style C –NEMA 3R Rated

Styles D and H–NEMA 2 Rated

Converts to NEMA 3R with Weathershield

Style E–IP55 Rated

Style F–NEMA 1 Rated

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Lug and Terminal Block Kits; Brackets

Class 7400 / Refer to Catalog 7400CT0501

Lug and Terminal Block Kits; Wall and Ceiling Mounting Brackets; Sound Levels

aSubject to minimum billing and freight charges when not ordered with transformer.

bSubject to minimum billing and freight charges when not ordered with transformer.

Fingersafe® terminal block cover kits for encapsulated transformers can be used to meet touch-safe requirements of

EN60-204.

cWall mounting brackets may be prohibited in some California areas requiring 12-inch spacing from wall.

dBase Channels are supplied for ceiling mounting–trapeze hangers must be furnished by user.

Note: Lugs are not supplied with transformer units. They must be purchased separately.

Note: Square D transformers meet NEMA standards for sound level.

Lower sound levels are available at an additional charge.

Primary Mechanical Lug Kits

Catalog No. a$ Price Per Kit Lugs Per Kit Wire Range Cap Screws Current Range

7400DASKP100 42.00 3 1/0–14 STR. 1/4 x 1 in Up to 100 A

7400DASKP250 108.00 3 350 kcmil–6 STR. 1/4 x 1 in 101 to 250 A

7400DASKP400 208.00 3600 kcmil–4 STR.

(2) 250 kcmil–1/0 STR. 1/4 x 1 ¾ in 201 to 400 A

7400DASKP600 382.00 6600 kcmil–4 STR.

(2) 250 kcmil–1/0 STR. 1/4 x 1 ¾ in 601 to 800 A

7400DASKP1000 578.00 9 600 kcmil–2 STR. 3/8 x 2 in 601 to 800 A

7400DASKP1200 758.00 12 600 kcmil–2 STR. 3/8 x 2 in 801 to 1200 A

Secondary Mechanical Lug Kits

Catalog No. a$ Price Per Kit Lugs Per Kit Wire Range Cap Screws Current Range Bonding Lugs

per Kit Wire Range

7400DASKS100 72.00 5 1/0–14 STR. 1/4 x 1 in Up to 100 A 1 2–14 STR.

7400DASKS250 102.00 5 350 kcmil–6 STR. 1/4 x 1 in 101 to 250 A 1 2–14 STR.

7400DASKS400 174.00 5600 kcmil–4 STR.

(2) 250 kcmil–1/0 STR. 1/4 x 1 ¾ in 201 to 400 A 1 1/0–14 STR.

7400DASKS600 328.00 10 600 kcmil–2 STR. 1/4 x 1 ¾ in 601 to 800 A 1 250 kcmil–6 STR.

7400DASKS1000 474.00 15 600 kcmil–2 STR. 3/8 x 2 in 601 to 800 A 1 250 kcmil–6 STR.

7400DASKS1200 622.00 20 600 kcmil–2 STR. 3/8 x 2 in 801 to 1200 A 1 250 kcmil–6 STR.

7400DASKS2000 772.00 25 600 kcmil–2 STR. 3/8 x 2 in 1201 to 2000 A 1 350 kcmil–6 STR.

VERSAtile™ Compression Lugs and Mechanical Set-Screw Types—UL Listed Lugs AL9CU (90° C Rated)

Transformer kVA Sizes Kit Catalog No. $ Price Per Kit

Terminal Lugs Aluminum or Copper

Conductor Range (AWG

or kcmil)

Hardware Included

Qty. Catalog No. Qty. Cap Screws

15–37 ½ 1Ø

15–45 3Ø VCELSK1 402.00 8

VCEL02114S1

VCEL030516H1

#8–1/0

#4–300 kcmil

1/4 x 1 in

1/4 x 2 in

50–75 1Ø

75–112 ½ 3 Ø VCELSK2 652.00 13 VCEL030516H1 #4–300 kcmil 8

1/4 x 1 in

1/4 x 2 in

100–167 1Ø

150–300 3Ø VCELSK3 3708.00 3

VCEL030516H1 #4–300 kcmil 3 1/4 x 3/4 in

VCEL07512H1 500–750 kcmil Al

500 kcmil Cu 16 3/8 x 2 in

500 3Ø VCELSK4 4034.00 34 VCEL07512H1 500–750 kcmil Al

500 kcmil Cu 21 3/8 x 2 in

Fingersafe Terminal Block Cover Kits

Fits Enclosure Kit Catalog No. $ Price

7A (1 kVA) 7400ENT9 200.00

9A (2 kVA) 7400ENT11 200.00

10A (3 kVA) 7400ENT11 200.00

13B (5–10 kVA) 7400ENT13 284.00

Weathershields, Wall and Ceiling Mounting Brackets

Weathershields Wall Mounting Brackets c

Catalog No. $ Price Catalog No. $ Price

WS363 460.00 WMB361362 1020.00

WS364 460.00 WMB363364 1020.00

WS370A 3582.00 Ceiling Mounting Brackets d

WS380 1050.00 Catalog No. $ Price

WS381 1050.00 CMB363 462.00

WS382 1786.00 CMB364 462.00

WS383 3364.00 CMB380 1152.00

WS384 3796.00 CMB381 1152.00

Sound Levels

kVA NEMA Standard Sound Level

0–9 40 dB

10–50 45 dB

51–150 50 dB

151–300 55 dB

301–500 60 dB

501–700 62 dB

701–1000 64 dB

New!

PE2 Discount

Schedule

www.us.schneider-electric.com

FOR CURRENT INFORMATION

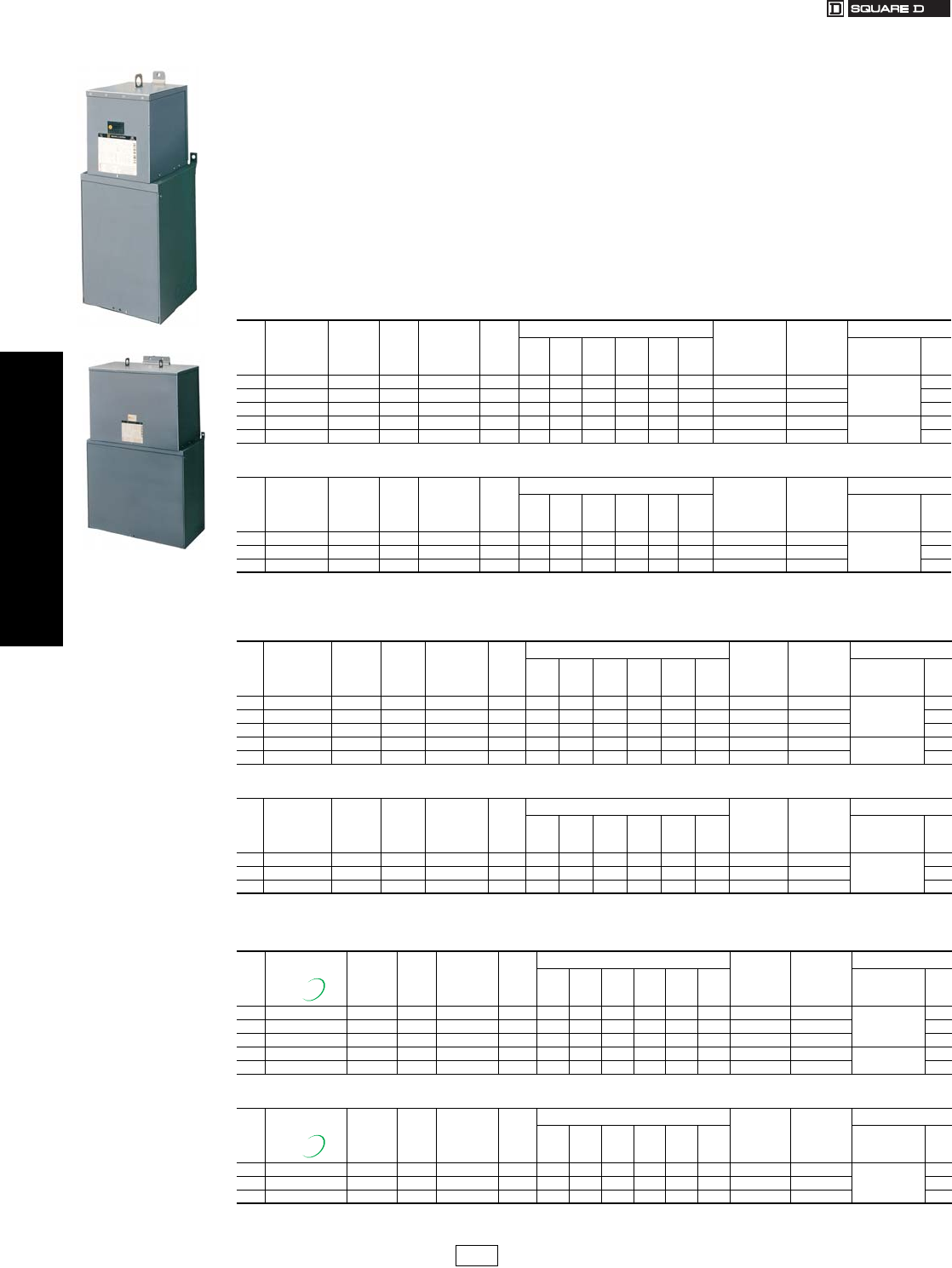

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Mini Power-Zone®

Class 7440 / Refer to Brochure 7440BR9401

Sealed Mini Power-Zone® Transformers

Square D® Mini Power-Zone® power supply from Schneider Electric provides the answer to requirements for a

portable, compact power supply for small loads. Because the Mini Power-Zone is furnished as a complete package,

considerable savings in installation time and costs can be realized. Its NEMA 3R enclosure is suitable for both indoor

and outdoor use. The transformer is copper wound, 115° C rise, and epoxy-resin encapsulated. The panel section has

copper bus and uses Square D QO® style circuit breakers.

Mini Power-Zone centers are furnished with factory-installed primary main and secondary main circuit breakers only.

Circuit breaker ratings are selected to meet National Electrical Code requirements and to coordinate with transformer

magnetizing inrush current. Feeder circuit breakers are standard QO plug-on type which should be ordered, as

required, from your local Schneider Electric distributor's stock. If ground fault protection is required, Qwik-Gard® circuit

breakers may be used in all sizes. Tandem breakers are not permitted.

The Mini Power-Zone uses a separate transformer and panel board section. This allows the panel section to be

removed and wired first if desired. Also the transformer can be replaced without disturbing the panel section and

associated wiring. The new transformer simply slides into the top of the panel section and primary and secondary leads

are reconnected to the main circuit breakers.

To accommodate QOB bolt-on feeder circuit breakers:

Note: Other input voltages are available. Contact local Schneider Electric office for part numbers and quotations.

Note: Input voltages that are available: 600, 240, 208 single- and three-phase.

aDimensions: DO NOT use for construction. Contact your local Schneider Electric sales office for certified prints.

Note: FCBN: Full capacity below normal

Output Single-Phase Panel Rated 120/240—Interrupting Rating 18 AIC

kVA Catalog

No. $ Price Input

Voltage

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary Main

Circuit Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

mm a

Maximum

Number 1-Pole

or 2-Pole

Max.

5MPZ5S40F 3890.00 480 2–5% FCBN 175 32.7 831 12.0 305 11.9 302 20 30

10 or 5

7.5 MPZ7S40F 4542.00 480 2–5% FCBN 200 32.7 831 12.0 305 11.9 302 30 40 30

10 MPZ10S40F 4938.00 480 2–5% FCBN 215 32.7 831 12.0 305 11.9 302 40 60 40

15 MPZ15S40F 6410.00 480 2–5% FCBN 390 42.9 1090 17.4 442 13.5 343 60 80 24 or 12 60

25 MPZ25S40F 9560.00 480 2–5% FCBN 390 42.9 1090 17.4 442 13.5 343 100 125 100

Output Three-Phase Panel Rated 208Y/120—Interrupting Rating 18 AIC

kVA Catalog

No. $ Price Input

Voltage

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary Main

Circuit Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

mm a

Maximum

Number 1-Pole

or 2-Pole

Max.

15 MPZ15T2F 10088.00 480 2–5% FCBN 710 44.6 1133 27.4 696 13.6 345 40 60

24 or 8

22.5 MPZ22T2F 12502.00 480 2–5% FCBN 725 44.6 1133 27.4 696 13.6 345 70 80 60

30 MPZ30T2F 15338.00 480 2–5% FCBN 755 44.6 1133 27.4 696 13.6 345 90 100 80

Output Single-Phase Panel Rated 120/240—Interrupting Rating 18 AIC

kVA Catalog

No. $ Price Input

Voltag e

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

mm a

Maximum

Number 1-Pole

or 2-Pole

Max.

5MPZB5S40F 4860.00 480 2–5% FCBN 175 41.0 1041 12.0 305 11.9 302 20 30

10 or 5

7.5 MPZB7S40F 5680.00 480 2–5% FCBN 200 41.0 1041 12.0 305 11.9 302 30 40 30

10 MPZB10S40F 6170.00 480 2–5% FCBN 215 41.0 1041 12.0 305 11.9 302 40 60 40

15 MPZB15S40F 8010.00 480 2–5% FCBN 390 51.0 1295 17.4 442 13.5 343 60 80 24 or 12 60

25 MPZB25S40F 11950.00 480 2–5% FCBN 390 51.0 1295 17.4 442 13.5 343 100 125 100

Output Three-Phase Panel Rated 208Y/120—Interrupting Rating 18 AIC

kVA Catalog

No. $ Price Input

Voltag e

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

mm a

Maximum

Number 1-Pole

or 2-Pole

Max.

15 MPZB15T2F 12610.00 480 2–5% FCBN 710 48.6 1234 27.4 696 13.6 345 40 60

24 or 8

22.5 MPZB22T2F 15624.00 480 2–5% FCBN 725 48.6 1234 27.4 696 13.6 345 70 80 60

30 MPZB30T2F 19176.00 480 2–5% FCBN 755 48.6 1234 27.4 696 13.6 345 90 100 80

Output Single-Phase Panel Rated 120/240—Interrupting Rating 25 AIC

kVA

Catalog

No. $ Price Input

Vol tage

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

mm a

Maximum

Number 1-Pole

or 2-Pole

Max.

5MPZ5S40F25K 6197.00 480 2–5% FCBN 175 32.7 831 12.0 305 11.9 302 20 30

10 or 5

7.5 MPZ7S40F25K 6849.00 480 2–5% FCBN 200 32.7 831 12.0 305 11.9 302 30 40 30

10 MPZ10S40F25K 7245.00 480 2–5% FCBN 215 32.7 831 12.0 305 11.9 302 40 60 40

15 MPZ15S40F25K 8717.00 480 2–5% FCBN 390 42.9 1090 17.4 442 13.5 343 60 80 24 or 12 60

25 MPZ25S40F25K 11867.00 480 2–5% FCBN 390 42.9 1090 17.4 442 13.5 343 100 125 100

Output Three-Phase Panel Rated 208Y/120—Interrupting Rating 25 AIC

kVA

Catalog

No. $ Price Input

Vol tage

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

mm a

Maximum

Number 1-Pole

or 2-Pole

Max.

15 MPZ15T2F25K 12395.00 480 2–5% FCBN 710 44.6 1133 27.4 696 13.6 345 40 60

24 or 8

22.5 MPZ22T2F25K 14809.00 480 2–5% FCBN 725 44.6 1133 27.4 696 13.6 345 70 80 60

30 MPZ30T2F25K 17645.00 480 2–5% FCBN 755 44.6 1133 27.4 696 13.6 345 90 100 80

New!

PE2 Discount

Schedule

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Mini Power-Zone®

Class 7440 / Refer to Brochure 7440BR9401

To accommodate QOB bolt-on feeder circuit breakers:

Painted 316 stainless steel enclosure (NEMA 3R):

To accommodate QOB bolt-on feeder circuit breakers:

aDimensions: DO NOT use for construction. Contact your local Schneider Electric sales office for certified prints.

Note: FCBN: Full capacity below normal

Output Single-Phase Panel Rated 120/240—Interrupting Rating 25 AIC

kVA

Catalog

No. $ Price Input

Voltag e

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

mm a

Maximum

Number 1-Pole

or 2-Pole

Max.

5MPZB5S40F25K 7168.00 480 2–5% FCBN 175 41.0 1041 12.0 305 11.9 302 20 30

10 or 5

7.5 MPZB7S40F25K 7987.00 480 2–5% FCBN 200 41.0 1041 12.0 305 11.9 302 30 40 30

10 MPZB10S40F25K 8478.00 480 2–5% FCBN 215 41.0 1041 12.0 305 11.9 302 40 60 40

15 MPZB15S40F25K 10317.00 480 2–5% FCBN 390 51.0 1295 17.4 442 13.5 343 60 80 24 or 12 60

25 MPZB25S40F25K 14257.00 480 2–5% FCBN 390 51.0 1295 17.4 442 13.5 343 100 125 100

Output Three-Phase Panel Rated 208Y/120—Interrupting Rating 25 AIC

kVA

Catalog

No. $ Price Input

Voltag e

Full

Capacity

Taps

Weight

(lbs)

Dimensions (Inches) aPrimary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

mm a

Maximum

Number 1-Pole

or 2-Pole

Max.

15 MPZB15T2F25K 14917.00 480 2–5% FCBN 710 48.6 1234 27.4 696 13.6 345 40 60

24 or 8

22.5 MPZB22T2F25K 17931.00 480 2–5% FCBN 725 48.6 1234 27.4 696 13.6 345 70 80 60

30 MPZB30T2F25K 21483.00 480 2–5% FCBN 755 48.6 1234 27.4 696 13.6 345 90 100 80

Output Single Phase Panel Rated 120/240—Interrupting Rating 65 AIC

kVA

Catalog

No. $ Price Input

Vol tage

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

Maximum

Number 1-Pole

or 2-Pole

Max.

5MPZB5S40F65K 7889.00 480 2–5% FCBN 175 41.0 1041 12.0 305 11.9 20 30

10 or 5

7.5 MPZB7S40F65K 8708.00 480 2–5% FCBN 200 41.0 1041 12.0 305 11.9 30 40 30

10 MPZB10S40F65K 9799.00 480 2–5% FCBN 215 41.0 1041 12.0 305 11.9 40 60 40

15 MPZB15S40F65K 11038.00 480 2–5% FCBN 390 51.0 1295 17.4 442 13.5 60 80 24 or 12 60

25 MPZB25S40F65K 14978.00 480 2–5% FCBN 390 51.0 1295 17.4 442 13.5 100 125 100

Output Three-Phase Panel Rated 208Y/120 - Interrupting Rating 65 AIC

kVA

Catalog

No. $ Price Input

Vol tage

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

Maximum

Number 1-Pole

or 2-Pole

Max.

15 MPZB15T2F65K 15638.00 480 2–5% FCBN 710 48.6 1234 27.4 696 13.6 40 60

24 or 8

22.5 MPZB22T2F65K 18652.00 480 2–5% FCBN 725 48.6 1234 27.4 696 13.6 70 80 60

30 MPZB30T2F65K 22204.00 480 2–5% FCBN 755 48.6 1234 27.4 696 13.6 90 100 80

Output Single-Phase Panel Rated 120/240—Interrupting Rating 18 AIC

kVA

Catalog

No. $ Price Input

Vol tage

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

Maximum

Number 1-Pole

or 2-Pole

Max.

5MPZ5S40FSS 11030.00 480 2–5% FCBN 175 32.7 831 12.0 305 11.9 302 20 30

10 or 5

7.5 MPZ7S40FSS 12428.00 480 2–5% FCBN 200 32.7 831 12.0 305 11.9 302 30 40 30

10 MPZ10S40FSS 12920.00 480 2–5% FCBN 215 32.7 831 12.0 305 11.9 302 40 60 40

15 MPZ15S40FSS 14758.00 480 2–5% FCBN 390 42.9 1090 17.4 442 13.5 343 60 80 24 or 12 60

25 MPZ25S40FSS 17266.00 480 2–5% FCBN 390 42.9 1090 17.4 442 13.5 343 100 125 100

Output Three-Phase Panel Rated 208Y/120—Interrupting Rating 18 AIC

kVA

Catalog

No. $ Price Input

Vol tage

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

Maximum

Number 1-Pole

or 2-Pole

Max.

15 MPZ15T2FSS 20108.00 480 2–5% FCBN 710 44.6 1133 27.4 696 13.6 345 40 60

24 or 8

22.5 MPZ22T2FSS 23122.00 480 2–5% FCBN 725 44.6 1133 27.4 696 13.6 345 70 80 60

30 MPZ30T2FSS 24376.00 480 2–5% FCBN 755 44.6 1133 27.4 696 13.6 345 90 100 80

Output Single-Phase Panel Rated 120/240—Interrupting Rating 18 AIC

kVA

Catalog

No. $ Price Input

Voltag e

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

Maximum

Number 1-Pole

or 2-Pole

Max.

5MPZB5S40FSS 13780.00 480 2–5% FCBN 175 41.0 1041 12.0 305 11.9 41.0 20 30

10 or 5

7.5 MPZB7S40FSS 15542.00 480 2–5% FCBN 200 41.0 1041 12.0 305 11.9 41.0 30 40 30

10 MPZB10S40FSS 16159.00 480 2–5% FCBN 215 41.0 1041 12.0 305 11.9 41.0 40 60 40

15 MPZB15S40FSS 18442.00 480 2–5% FCBN 390 51.0 1295 17.4 442 13.5 51.0 60 80 24 or 12 60

25 MPZB25S40FSS 21583.00 480 2–5% FCBN 390 51.0 1295 17.4 442 13.5 51.0 100 125 100

Output Three-Phase Panel Rated 208Y/120—Interrupting Rating 18 AIC

kVA

Catalog

No. $ Price Input

Voltag e

Full

Capacity

Taps

Weight

(lbs)

Dimensions Primary

Main Circuit

Breaker

Rating (A)

Secondary

Main Circuit

Breaker

Rating (A)

Feeder Breakers

in a

mm a

in a

mm a

in a

Maximum

Number 1-Pole

or 2-Pole

Max.

15 MPZB15T2FSS 25135.00 480 2–5% FCBN 710 48.6 1234 27.4 696 13.6 48.6 40 60

24 or 8

22.5 MPZB22T2FSS 28896.00 480 2–5% FCBN 725 48.6 1234 27.4 696 13.6 48.6 70 80 60

30 MPZB30T2FSS 30476.00 480 2–5% FCBN 755 48.6 1234 27.4 696 13.6 48.6 90 100 80

New!

PE2 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

General Purpose Dry Type

600 Volts and Below

Open Core and Coil

Class 7400 / Refer to Catalog 7400CT9601

Open Core and Coil Transformers Designed for General Applications

for 600 V and Below

Units are designed with 220° C insulation, aluminum windings, top terminations, compact

design to save space, and are UL component recognized for:

•Non-energy efficiency (less than 15 kVA)

Single-phase 5–10 VA

Three-phase 3–9 VA

•Energy efficiency (meets Table 4-2 of NEMA TP1–2002)

Single-phase 15–75 kVA

Three-phase 15–112.5 kVA

aNot for construction. Contact your local Schneider Electric sales office for certified prints.

bWhen 240 V tap is used, there will be 3–5% taps, 1 above and 2 below.

aNot for construction. Contact your local Schneider Electric sales office for certified prints.

bDimensions may vary due to manufacturing process.

Single-Phase Open Core and Coil Transformers—240 X 480 V Primary

120/240 V Secondary 60 Hz

kVA Catalog

No. $ Price

Deg.

Temp.

Rise

Full Capacity

Taps

Dimensions a

Weight

(lbs)

Figure

ABC DEb

in mm in mm in mm in mm in mm

55S1HFOC 2868.00 115 — 8.00 203 9.00 229 11.00 279 8.00 203 8.00 203 66 1

7.5 7S1HFOC 3062.00 115 — 8.00 203 9.00 229 14.25 362 8.00 203 8.50 216 80 1

10 10S1HFOC 3396.00 115 — 20.50 521 18.5 470 14.00 356 17.0 432 4.25 108 140 2

15 EE15S3HOC 3072.00 150 6–2.5% 2+4–b20.50 521 18.5 470 14.00 356 17.0 432 4.25 108 140 2

25 EE25S3HOC 4151.00 150 6–2.5% 2+4–b20.25 514 18.5 470 14.00 356 17.0 432 5.00 127 200 2

37.5 EE37S3HOC 5534.00 150 6–2.5% 2+4–b22.00 559 18.5 470 18.00 457 17.0 432 5.50 140 255 2

50 EE50S3HOC 6731.00 150 6–2.5% 2+4–b22.00 559 18.5 470 18.00 457 17.0 432 6.50 165 310 2

75 EE75S3HOC 9128.00 150 6–2.5% 2+4–b22.25 565 28.0 711 22.00 559 27.0 686 8.50 216 460 2

Three Phase Open Core and Coil Transformers—480 V to 208Y/120

kVA Catalog

No. $ Price

Degree

Temp.

Rise

Dimensions a

Weight

(lbs)

Figure

AB C DEb

in mm in mm in mm in mm in mm

99T3HFOC 3424.00 115 14.75 375 18.50 470 14.00 356 17.00 432 5.13 130 145 3

15 EE15T3HOC 4532.00 150 14.75 375 18.50 470 14.00 356 17.00 432 5.13 130 145 3

30 EE30T3HOC 6799.00 150 16.50 419 18.50 470 14.00 356 17.00 432 5.88 149 185 3

45 EE45T3HOC 6234.00 150 17.25 438 18.50 470 18.00 457 17.00 432 6.50 165 285 3

75 EE75T3HOC 9393.00 150 21.00 533 28.00 711 18.00 457 26.94 684 6.75 171 450 3

112.5 EE112T3HOC 12513.00 150 21.75 552 28.00 711 22.00 559 26.94 684 6.75 171 460 3

240 V to 208Y/120

kVA Catalog

No. $ Price

Degree

Temp.

Rise

Dimensions a

Weight

(lbs)

Figure

AB C DEb

in mm in mm in mm in mm in mm

99T67HFOC 3424.00 115 14.75 375 18.50 470 14.00 356 17.00 432 5.13 130 165 3

15 EE15T67HOC 4434.00 150 14.75 375 18.50 470 14.00 356 17.00 432 5.13 130 165 3

30 EE30T67HOC 5828.00 150 16.50 419 18.50 470 14.00 356 17.00 432 5.88 149 185 3

45 EE45T67HOC 7013.00 150 17.25 438 18.50 470 18.00 457 17.00 432 6.50 165 295 3

75 EE75T67HOC 10567.00 150 21.00 533 28.00 711 18.00 457 27.00 686 6.38 162 450 3

112.5 EE112T67HOC 14077.00 150 21.75 552 28.00 711 22.00 559 27.00 686 6.38 162 460 3

600 V to 208Y/120

kVA Catalog

No. $ Price

Degree

Temp.

Rise

Dimensions a

Weight

(lbs)

Figure

AB C DEb

in mm in mm in mm in mm in mm

99T65HFOC 3424.00 115 14.75 375 18.50 470 14.00 356 17.00 432 5.13 130 165 3

15 EE15T65HOC 4532.00 150 14.75 375 18.50 470 14.00 356 17.00 432 5.13 130 165 3

30 EE30T65HOC 6799.00 150 16.50 419 18.50 470 14.00 356 17.00 432 5.88 149 215 3

45 EE45T65HOC 7013.00 150 17.25 438 18.50 470 18.00 457 17.00 432 6.50 165 290 3

75 EE75T65HOC 10567.00 150 21.00 533 28.00 711 18.00 457 27.00 686 6.75 171 445 3

112.5 EE112T65HOC 14077.00 150 21.75 552 28.00 711 22.00 559 27.00 686 6.75 171 450 3

Figure 1

Figure 2

Figure 3

PE2E PE2 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

Industrial Control

Class 9070 / Refer to Catalogs 9070CT9901, 7400CT9601

Square D® Type T and MultiTap™ Transformers

Type T transformers are designed with low impedance windings for

excellent voltage regulation and can accommodate the high inrush current

associated with contactors, starters, solenoids, and relays. As the most

popular and complete line of control transformers with unmatched design

innovations for top performance, Type Ts are manufactured using the most

advanced insulating materials and are the best choice if size and cost are of

concern. It is available in the MultiTap version, designed to respond to the

increased need for voltage and stock flexibility. It combines multiple primary

voltages with one or more secondary voltages, all in a single transformer.

VA VA Catalog

No. $ Price

HWD

Weight

(lbs)

UL/

CSA/

NOM

CE in (mm) in (mm) in (mm)

Primary 240 x 480 Secondary 120; Primary 230 x 460 Secondary 115; or Primary 220 x 440

Secondary 110

25 25 9070T25D1 74.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

50 50 9070T50D1 77.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D1 92.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D1 103.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D1 110.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D1 136.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D1 159.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D1 176.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D1 187.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D1 233.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D1 322.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D1 390.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D1 558.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D1 678.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D1 941.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D1 1582.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

Primary 208 Secondary 120

50 50 9070T50D3 90.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D3 108.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D3 121.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D3 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D3 195.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D3 242.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D3 248.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D3 288.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D3 314.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D3 443.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D3 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D3 780.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D3 905.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D3 1276.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D3 2010.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

Primary 600 Secondary 120; Primary 575 Secondary 115; or Primary 550 Secondary 110

50 50 9070T50D5 90.00 2.58 (65.5) 3 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D5 108.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D5 121.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D5 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D5 195.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D5 242.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D5 248.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D5 288.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D5 314.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D5 443.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D5 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D5 780.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D5 905.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D5 1276.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D5 2010.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

Primary 120 Secondary 120; Primary 115 Secondary 115; or Primary 110 Secondary 110

50 50 9070T50D24 312.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D24 324.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D24 326.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D24 348.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D24 475.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D24 477.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D24 481.00 3.8 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D24 483.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D24 498.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D24 560.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D24 594.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D24 717.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D24 929.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D24 1463.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D24 2010.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

Primary 277 Secondary 120

50 50 9070T50D4 90.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D4 108.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D4 121.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D4 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

Primary 277 Secondary 120 (continued)

200 200 9070T200D4 195.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D4 242.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D4 248.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D4 288.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D4 314.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D4 443.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D4 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D4 780.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D4 905.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D4 1276.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D4 2010.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

VA VA Catalog

No. $ Price

HWD

Weight

(lbs)

UL/

CSA/

NOM

CE in (mm) in (mm in (mm)

Primary 240 x 480 Secondary 120/240; Primary 230 x 460 Secondary 115/230; or

Primary 220 x 440 Secondary 110/220

50 50 9070T50D31 125.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D31 131.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D31 138.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D31 182.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D31 235.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D31 248.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D31 290.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D31 303.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D31 339.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D31 473.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D31 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D31 816.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D31 905.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D31 1486.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D31 2010.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

Primary 120 x240 Secondary 120/240; Primary 115 x 230 Secondary 115/230; or

Primary 110 x 2200 Secondary 110/220

50 50 9070T50D55 312.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D55 324.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D55 326.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D55 348.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D55 475.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D55 477.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D55 481.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D55 483.00 3.80 (96.5) 4.50(114.3) 5.09 (129.3) 10.5

500 300 9070T500D55 498.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D55 560.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D55 594.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D55 856.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D55 929.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D55 1588.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D55 2010.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

Primary 240 X 480 Secondary 24/120 (24 V limited to 20% Capacity)

50 50 9070T50D15 90.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D15 108.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D15 138.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D15 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D15 195.00 3.2 0(81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D15 248.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D15 290.00 3.80 (96.5) 4.50 9114.3) 4.70 (119.4) 8.5

350 250 9070T350D15 303.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D15 339.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D15 473.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D15 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D15 816.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D15 905.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D15 1486.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D15 2010.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

Primary 480 Secondary 240

50 50 9070T50D12 90.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D12 324.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D12 121.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D12 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D12 195.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.20) 5.5

250 160 9070T250D12 242.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D12 248.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D12 288.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D12 314.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D12 443.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D12 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070T1500D12 780.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070T2000D12 905.00 6.16 (156.5) 7.06 (179.3) 7.04 (178.8) 47.0

3000 2000 9070T3000D12 1276.00 8.46 (214.9) 9.00 (228.6) 6.86 (174.2) 60.0

5000 3000 9070T5000D12 2010.00 8.46 (214.9) 9.00 (228.6) 8.73 (221.7) 89.0

VA VA Catalog

No. $ Price

HWD

Weight

(lbs)

UL/

CSA/

NOM

CE in (mm) in (mm) in (mm)

CP8 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

Industrial Control

Class 9070 / Refer to Catalogs 9070CT9901, 7400CT9601

VA VA Catalog

No. $ Price

HW D

Weight

(lbs)

UL/CSA/

NOM CE in (mm) in (mm) in (mm)

Primary 240 x 480 Secondary 24

50 50 9070T50D2 90.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D2 108.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D2 121.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D2 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D2 195.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D2 242.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D2 248.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D2 288.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D2 314.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D2 443.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D2 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

Primary 120 Secondary 12/24

50 50 9070T50D13 90.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D13 108.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D13 121.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D13 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D13 195.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D13 242.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D13 248.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D13 288.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D13 314.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D13 443.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D13 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

Primary 120 x 240 Secondary 24

50 50 9070T50D23 90.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D23 108.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D23 121.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D23 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D23 195.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D23 242.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D23 248.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D23 288.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D23 314.00 3.80 (96.5) 4.50(114.3) 5.46 (138.7) 11.9

750 500 9070T750D23 443.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D23 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

Primary 208 Secondary 24

50 50 9070T50D14 90.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D14 108.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D14 121.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D14 153.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D14 195.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D14 242.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D14 248.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D14 288.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D14 314.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D14 443.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D14 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

Primary 277 Secondary 24

50 50 9070T50D25 312.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D25 324.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D25 326.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D25 348.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D25 475.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D25 477.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D25 481.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D25 483.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D25 498.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D25 560.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D25 594.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

Primary 600 Secondary 12/24

50 50 9070T50D36 312.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D36 324.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D36 326.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D36 348.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D36 475.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D36 477.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D36 481.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D36 483.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D36 498.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D36 560.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D36 594.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

VA VA Catalog

No. $ Price

HWD

Weight

(lbs)

UL/CSA/

NOM CE in (mm) in (mm) in (mm)

Primary 208/277/380 Secondary 95/115

50 50 9070T50D18 125.00 2.89 (73.4) 3.38 (87.1) 3.34 (106.4) 4.0

75 75 9070T75D18 131.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

100 100 9070T100D18 138.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

150 150 9070T150D18 182.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D18 235.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

250 160 9070T250D18 248.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070T300D18 290.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

350 250 9070T350D18 303.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

500 300 9070T500D18 339.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

750 500 9070T750D18 473.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1000 630 9070T1000D18 558.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

Primary 208/230/460 Secondary 115

50 50 9070T50D20 125.00 2.89 (73.4) 3.38 (87.1) 3.34 (106.4) 4.0

75 75 9070T75D20 131.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

100 100 9070T100D20 138.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

150 150 9070T150D20 182.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D20 235.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

250 160 9070T250D20 248.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070T300D20 290.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

350 250 9070T350D20 303.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

500 300 9070T500D20 339.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

750 500 9070T750D20 473.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1000 630 9070T1000D20 558.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

Primary 230/460/575 Secondary 95/115

50 50 9070T50D32 125.00 2.89 (73.4) 3.38 (87.1) 3.34 (106.4) 4.0

75 75 9070T75D32 131.00 3.2 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

100 100 9070T100D32 138.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

150 150 9070T150D32 182.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D32 235.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

250 160 9070T250D32 248.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070T300D32 290.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

350 250 9070T350D32 303.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

500 300 9070T500D32 339.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

750 500 9070T750D32 473.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1000 630 9070T1000D32 558.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

Primary 380/400/415 Secondary 115/230

50 50 9070T50D33 125.00 2.58 (65.5) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070T75D33 131.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070T100D33 138.00 2.89 (73.4) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070T150D33 182.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070T200D33 235.00 3.20 (81.3) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070T250D33 248.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070T300D33 290.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070T350D33 303.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070T500D33 339.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070T750D33 473.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D33 558.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

Primary 240/416/480/600 Secondary 99/120/130;

Primary 230/400/460/575 Secondary 95/115/125

Primary 220/380/440/550 Secondary 90/110/120;

Primary 208/360/416/520 Secondary 85/104/115

50 50 9070T50D50 210.00 2.89 (73.4) 3.43 (87.1) 4.19 (106.4) 4.0

75 75 9070T75D50 227.00 3.20 (81.3) 3.75 (95.3) 4.88 (124) 7.2

100 100 9070T100D50 233.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

150 150 9070T150D50 244.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

200 200 9070T200D50 278.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

250 160 9070T250D50 303.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070T300D50 331.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

350 250 9070T350D50 341.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

500 300 9070T500D50 437.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

750 500 9070T750D50 507.00 4.43 (112.5) 5.25 (133.4) 6.04 (153.4) 20.6

1000 630 9070T1000D50 664.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

Primary 208/240/277/380/480 Secondary 24

50 50 9070T50D19 125.00 2.89 (73.4) 3.43 (87.1) 4.19 (106.4) 4.0

75 75 9070T75D19 131.00 3.20 (81.3) 3.75 (95.3) 4.88 (124) 7.2

100 100 9070T100D19 138.00 3.20 (81.3) 3.75 (95.3) 4.88 (124) 7.2

150 150 9070T150D19 182.00 3.25 (82.6) 3.75 (95.3) 5.25 (133.4) 7.1

200 200 9070T200D19 235.00 3.80 (96.5) 4.50 (114.3) 4.70 (119.4) 8.5

250 160 9070T250D19 248.00 3.80 (96.5) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070T300D19 290.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

350 250 9070T350D19 303.00 3.80 (96.5) 4.50 (114.3) 5.46 (138.7) 11.9

500 300 9070T500D19 339.00 4.43 (112.5) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070T1000D19 558.00 6.16 (156.5) 7.06 (179.3) 5.81 (147.6) 34.0

CP8 Discount

Schedule

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

Industrial Control

Class 9070 / Refer to Catalog 9070CT9901

Square D® Type TF Transformers

Schneider Electric offers Type TF transformers with factory-installed

overcurrent protection fuse blocks. The Type TF transformer consists of

two primary fuse blocks and one secondary fuse block, a configuration

that meets the majority of overcurrent needs by panel builders and

machinery OEMs.

Since the fuse blocks are pre-wired and mounted on top of the

transformer, the Type TF transformer has the same footprint as the

Type T transformer. This design frees up space normally used for

separate fuse blocks.

Schneider Electric also offers an extensive fuse block offering for

custom applications.

VA VA Catalog

No. $ Price

HWD

Weight

(lbs)

UL/CSA/

NOM CE in (mm) in (mm) in (mm)

Primary 240 x 480 Secondary 120; Primary 230 x 460 Secondary 115; or Primary 220 x 440

Secondary 110

25 25 9070TF25D1 73.00 4.00 (101.6) 3.00 (76.2) 3.09 (78.5) 2.5

50 50 9070TF50D1 110.00 4.00(101.6) 3.00 (76.2) 3.84 (78.5) 2.5

75 75 9070TF75D1 123.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070TF100D1 134.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070TF150D1 142.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070TF200D1 170.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070TF250D1 191.00 4.55 (115.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070TF300D1 208.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070TF350D1 220.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070TF500D1 263.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070TF750D1 354.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070TF1000D1 426.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070TF1500D1 589.00 7.46 (189.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070TF2000D1 710.00 7.46 (189.5) 7.06 (179.3) 7.04 (178.8) 47.0

Primary 208 Secondary 120

50 50 9070TF50D3 123.00 4.00 (101.6) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070TF75D3 191.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070TF100D3 153.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070TF150D3 184.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070TF200D3 195.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070TF250D3 254.00 4.55 (115.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070TF300D3 284.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070TF350D3 464.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070TF500D3 348.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070TF750D3 538.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070TF1000D3 604.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070TF1500D3 806.00 7.46 (189.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070TF2000D3 901.00 7.46 (189.5) 7.06 (179.3) 7.04 (178.8) 47.0

Primary 600 Secondary 120; Primary 575 Secondary 115; or Primary 550 Secondary 110

50 50 9070TF50D5 123.00 4.00 (101.6) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070TF75D5 318.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070TF100D5 153.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070TF150D5 184.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070TF200D5 195.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070TF250D5 458.00 4.55 (115.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070TF300D5 284.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070TF350D5 464.00 5.10 (129.6) 4.5 (114.3) 5.09 (129.3) 10.5

500 300 9070TF500D5 348.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070TF750D5 477.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070TF1000D5 579.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070TF1500D5 814.00 7.46 (189.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070TF2000D5 939.00 7.46 (189.5) 7.06 (179.3) 7.04 (178.8) 47.0

Primary 240 x 480 Secondary 120/240; Primary 230 x 460 Secondary 115/230; or

Primary 220 x 440 Secondary 110/220

50 50 9070TF50D31 365.00 4.00 (101.6) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070TF75D31 373.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070TF100D31 375.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070TF150D31 394.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070TF200D31 530.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070TF250D31 528.00 4.55 (115.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070TF300D31 519.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070TF350D31 536.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070TF500D31 547.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070TF750D31 583.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070TF1000D31 634.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

1500 1000 9070TF1500D31 880.00 7.46 (189.5) 7.06 (179.3) 5.81 (147.6) 34.0

2000 1500 9070TF2000D31 939.00 7.46 (189.5) 7.06 (179.3) 7.04 (178.8) 47.0

VA VA Catalog

No. $ Price

HWD

Weight

(lbs)

UL/CSA/

NOM CE in (mm) in (mm) in (mm)

Primary 208/277/380 Secondary 95/115

50 50 9070TF50D18 392.00 4.25 (107.9) 3.38 (87.1) 3.34 (106.4) 4.0

75 75 9070TF75D18 195.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

100 100 9070TF100D18 416.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

150 150 9070TF150D18 564.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070TF200D18 555.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

250 160 9070TF250D18 570.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070TF300D18 354.00 5.10 (129.6) 4.50(114.3) 5.09 (129.3) 10.5

350 250 9070TF350D18 369.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

500 300 9070TF500D18 638.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

750 500 9070TF750D18 920.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

1000 630 9070TF1000D18 920.00 7.46 (189.5) 7.06 (179.3) 5.81 (147.6) 34.0

Primary 208/230/460 Secondary 115

50 50 9070TF50D20 180.00 4.25 (107.9) 3.38 (87.1) 3.34 (106.4) 4.0

75 75 9070TF75D20 375.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

100 100 9070TF100D20 195.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

150 150 9070TF150D20 240.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070TF200D20 295.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

250 160 9070TF250D20 331.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070TF300D20 365.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

350 250 9070TF350D20 390.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

500 300 9070TF500D20 405.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

750 500 9070TF750D20 634.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

1000 630 9070TF1000D20 880.00 7.46 (189.5) 7.06 (179.3) 5.81 (147.6) 34.0

Primary 230/460/575 Secondary 95/115

50 50 9070TF50D32 189.00 4.25 (107.9) 3.38 (87.1) 3.34 (106.4) 4.0

75 75 9070TF75D32 413.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

100 100 9070TF100D32 416.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

150 150 9070TF150D32 564.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070TF200D32 555.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

250 160 9070TF250D32 579.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070TF300D32 577.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

350 250 9070TF350D32 577.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

500 300 9070TF500D32 411.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

750 500 9070TF750D32 920.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

1000 630 9070TF1000D32 920.00 7.46 (189.5) 7.06 (179.3) 5.81 (147.6) 34

Primary 380/400/415 Secondary 115/230

50 50 9070TF50D33 384.00 4.00 (101.6) 3.00 (76.2) 3.09 (78.5) 2.5

75 75 9070TF75D33 394.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

100 100 9070TF100D33 195.00 4.25 (107.9) 3.38 (85.8) 3.34 (84.8) 3.8

150 150 9070TF150D33 570.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

200 200 9070TF200D33 564.00 4.55 (115.6) 3.75 (95.3) 3.59 (91.2) 5.5

250 160 9070TF250D33 452.00 4.55 (115.6) 3.75 (95.3) 5.25 (133.4) 7.1

300 200 9070TF300D33 570.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

350 250 9070TF350D33 498.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

500 300 9070TF500D33 638.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

750 500 9070TF750D33 668.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

1000 630 9070TF1000D33 920.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

Primary 240/416/480/600 Secondary 99/120/130; Primary 230/400/460/575

Secondary 95/115/125 Primary 220/380/440/550 Secondary 90/110/120;

Primary 208/360/416/520 Secondary 85/104/115

50 50 9070TF50D50 274.00 4.25 (107.9) 3.43 (87.1) 4.19 (106.4) 4.0

75 75 9070TF75D50 290.00 4.55 (115.6) 3.75 (95.3) 4.88 (124) 7.2

100 100 9070TF100D50 297.00 4.55 (115.6) 3.75 (95.3) 5.25 (133.4) 7.1

150 150 9070TF150D50 312.00 5.10 (129.6) 4.50 (114.3) 4.70 (119.4) 8.5

200 200 9070TF200D50 341.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

250 160 9070TF250D50 429.00 5.10 (129.6) 4.50 (114.3) 5.09 (129.3) 10.5

300 200 9070TF300D50 394.00 5.10 (129.6) 4.50 (114.3) 5.46 (138.7) 11.9

350 250 9070TF350D50 405.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

500 300 9070TF500D50 502.00 5.73 (145.6) 5.25 (133.4) 5.66 (143.8) 11.0

750 500 9070TF750D50 572.00 5.73 (145.6) 5.25 (133.4) 6.04 (153.4) 20.6

1000 630 9070TF1000D50 727.00 7.46 (189.5) 7.06 (179.3) 5.81 (147.6) 34.0

CP8 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

Industrial Control

Class 9070 / Refer to Catalog 9070CT9901

Accessories

The Type T control transformers offer multiple field installable accessories:

aKits must be ordered separately. Also supplied in bulk packages of 100 individual covers.

Add “B” to Type number (available only on FSC1B and FSC2B).

Note: User must drill mounting holes. See pages 16-106 and 16-107 for dimensions.

Note: Jumpers are supplied with voltage codes that require them. If additional kits are required,

order per above chart.

Field Installed Fuse Options

bSF41 can be installed on the following voltage codes: D1, D5, D24, D3, D4, D51, D2, D23,

D14, D25, D20, D95, D19, D22, D36.

Selection Guide

1. Determine inrush and sealed VA of each coil in the control circuit

and VA of all other components.

2. Total all sealed VA of all operating coils and other loads VA

(determines minimal VA size required for the circuit).

3. Total the inrush VA of all coils that are starting at the same time and

all loads and coils that are running (using the regulation chart to give

possible units to be used).

4. Take VA size from step two, go to standard VA size in chart. Make

sure inrush VA from chart is greater than total VA from step three. (If

not, go to next larger VA size and repeat.)

If your supply voltage is stable and fluctuates less than 5%, Schneider

Electric recommends you use the 90% secondary voltage column. If

your supply voltage is not stable and fluctuates more than 10% we

recommend you use the 95% secondary voltage column. We

recommend that you never use the 85% secondary voltage column

since magnetic devices lose life expectancy if they are continuously

started at 85% of rated voltage.

Fingersafe® Covers (Not Supplied with Unit)

Type Type Accessory Key a

Description

$ Price

Each

Order

Qty.

Order

$ Price

I II III, IV

FSC1 T25–T200 T25–T150 — 2 covers per kit 14.00 10 136.00

FSC2 T250–T5000 T250–T5000 — 2 covers per kit 20.00 10 186.00

FSC23 — — T25–T5000 2 covers per kit 20.00 10 190.00

Separate NEMA 1 Enclosures for Transformers

Class 9991 Type For Use With

UE7 EO1, EO17, T50

LG1 EO2, EO3, EO4, EO15, EO16, EO18, EO19, T75, T100, T150, T200, T250,

T300, T350, T500

SDG4 EO51, EO61, T750, T1000, EO71

Jumper Kits

Catalog

No.

Type Accessory Key Description

$ Price

Each

Order

Qty.

Order

$ Price

I II III, IV

3003302753 T25–T200 T25–T150 — Two jumpers

per bag

Minimum order

of 50 kits

5.00 50 25.000

3003302754 T250–T5000 T200–T3000 T25–T3000 3.40 50 170.00

Fuse Pullers (For Use on TF and FB Accessory)

Catalog No. $ Price

Each

Order

Qty.

Order

$ Price

9070FP1 22.00 10 204.00

Primary and Secondary Fusing

Type Type Accessory Key Description

$ Price

Each

Order

Qty.

Order

$ Price

I II III, IV

FB3A 25–200 25–150 —

Three pole fuse block for

primary and secondary

fusing, accommodates

1-1/2 x 13/32 inch midget

fuse (2 rejection and

1 non-rejection)

58.00 154.60

FB3B 250–2000 200–2000 25–2000

Three pole fuse block for

primary and secondary

fusing, accommodates

1-1/2 x 13/32 inch midget

fuse (2 rejection and

1 non-rejection)

58.00 154.60

Primary Fusing

Type Type Accessory Key Description

$ Price

Each

Order

Qty.

Order

$ Price

I II III, IV

FB2A 25–200 25–150 —

Two pole fuse block for

primary fusing,

accommodates

1-1/2 x 13/32 inch midget fuse

(2 rejection)

50.00 147.00

FB2B 250–2000 200–2000 25–2000

Two pole fuse block for

primary fusing,

accommodates

1-1/2 x 13/32 inch midget fuse

(2 rejection)

50.00 147.00

Field-Installable Secondary Fuse Clips

Type Type Accessory Key Description

$ Price

Each

Order

Qty.

Order

$ Price

I II III, IV

SF25A 25–200 25–150 —

Secondary fuse block

accommodates

1-1/4 x 1/4 inch fuse

14.00 10 136.00

SF25B 250–2000 200–2000 25–2000

Secondary fuse block

accommodates

1-1/4 x 1/4 inch fuse

14.00 10 136.00

SF41A b 25–200 25–150 —

Secondary fuse clip

accommodates

1-1/2 x 13/32 inch

midget fuse

12.00 10 112.00

SF41B b 250–2000 200–2000 25–2000

Secondary fuse clip

accommodates

1-1/2 x 13/32 inch

midget fuse

12.00 10 112.00

FB1A 25–200 25–150 —

One pole fuse block

for secondary fusing,

accommodates

1-1/2 x 13/32 inch

midget fuse

(1 non-rejection)

35.00 132.80

FB1B 250–2000 200–2000 25–2000

One pole fuse block

for secondary fusing,

accommodates

1-1/2 x 13/32 inch

midget fuse

(1 non-rejection)

35.00 132.80

Regulation Chart for Type T

Inrush VA @ 20% power factor Inrush VA @ 40% power factor

95%

Secondary

Voltage

90%

Secondary

Voltage

85%

Secondary

Voltag e

95%

Secondary

Vol tage

90%

Secondary

Voltage

85%

Secondary

Voltag e

50 193 266 339 151 215 282

75 271 396 20 210 318 430

100 339 499 659 266 404 549

150 666 893 1120 529 731 942

200 588 815 1041 459 659 866

250 1416 1910 2388 1057 1494 1936

300 1634 2184 2709 1194 1681 2169

350 1894 2592 3261 1392 2005 621

500 3197 4104 4981 2374 3195 4019

750 3770 5515 7231 2887 4391 5945

000 6587 9079 11430 4706 6886 9051

1500 19324 23983 28607 15066 19361 23756

2000 31384 38777 6161 24794 31630 38667

3000 26539 39934 52713 19355 30721 42216

5000 53111 85265 116277 39368 66309 93882

Type

Accessory Voltage Codes

I D1, D2, D3, D4, D5, D12, D13, D14, D15, D23, D24, D25, D31, D32, D33, D36, D5

II D18, D20

III, IV D19, D50

CP8 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

Instrument, 600 Volt Class Voltage and Current

Class 4210 / Refer to Catalog 4210CT9701

Voltage and Current Transformers

•Schneider Electric offers voltage, current, and bushing instrument transformers.

•Square D® 600 volt rated voltage and current transformers are field proven in well over a

million installations, where accuracy and longer, more dependable operation are essential.

•Typical applications for instrument transformers are: indoor, switchgear assemblies,

motor controllers, over power transformer bushings, over circuit breaker bushings,

metering, relaying, and current sensing.

Voltage Transformers

Schneider Electric offers three models of voltage transformers, each suited for a particular

application.

•Model 450R is designed for applications requiring accurate voltage measurement within

the 0.3% accuracy class. Model 450R is ideal for switchboard use with 1%

instrumentation

•Model 460 is designed for voltage indication where accuracy is less critical or where

burden requirements are low. Model 460R is ideally suited for use with transducers and

panelboards and other monitoring applications.

•Model 470 is designed for extremely accurate voltage measurement where a very low

burden is to be used. Examples of such applications include the input to PLC modules

and other electronic devices with a high input impedance.

Current Transformers

Current transformers are low cost, compact units that offer good electrical performance in a

general purpose transformer.

•They are very easy to mount on the conductors.

•All current transformers feature permanent polarity marks molded into the case.

Type of CT available:

•General purpose

•Torroidal (single ratio)

•Rectangle window (single ratio)

•Split core

•Bushing (single ratio) (multi-ratio)

Part number listing is available in the Supplemental Digest.

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

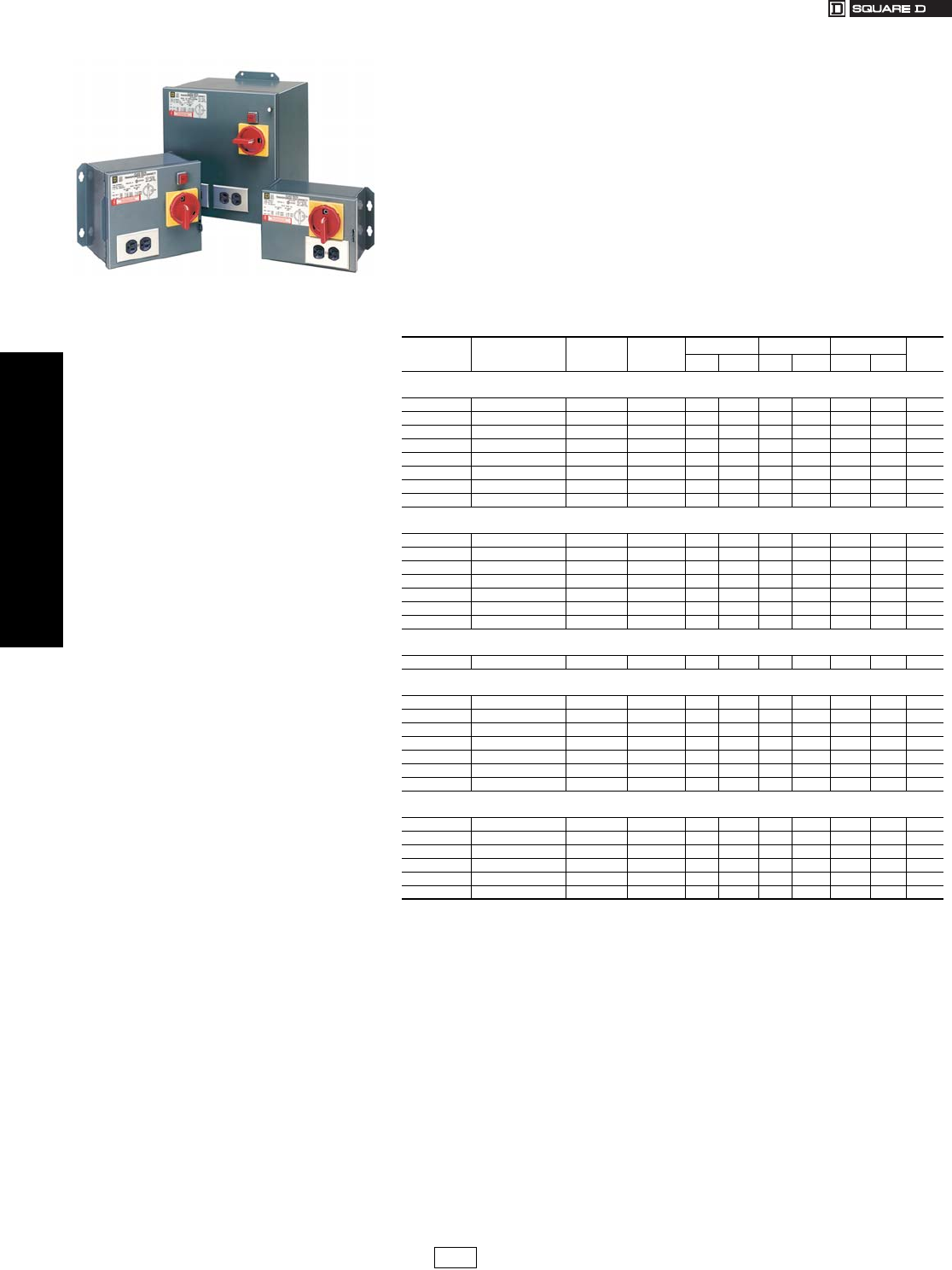

Transformer Disconnects NEMA 1; NEMA 12 Enclosures

Class 9070 / Refer to Catalog 9070CT0301

NEMA 1 and NEMA 12 Enclosures

Square D® transformer disconnects from Schneider Electric mount inside or outside a

control system enclosure and provide power to auxiliary, single-phase loads when the main

three-phase disconnect is either ON or OFF. The transformer disconnect is normally wired

to the line side of the control panel's main disconnect.

This convenient source of 120 V power can be used for auxiliary or isolated loads, such as

panel lighting, portable power tools, and programmable controller equipment.

Units consist of copper-wound transformers, a disconnect switch, and primary and

secondary fuse blocks. All blocks are installed in NEMA 1 or NEMA 12 enclosures.

Transformer disconnects meet UL standards and are UL Listed. Use Square D, Type TF

industrial control transformers and Square D disconnect switches.

Multiple enclosure options include:

•Standard NEMA 1

•Mini NEMA 1

•Compact NEMA 1

•NEMA 12

VA Catalog

No. $ Price Enclosure HW D

Weight

(lbs)

in mm in mm in mm

NEMA 1 Enclosure, Primary 240 x 480 Secondary 120 (Compact Design)

100 9070MN100G0D1 892.00 G0 7.00 178 11.30 287 7.81 198 16

250 9070MN250G0D1 992.00 G0 7.00 178 11.30 287 7.81 198 21

500 9070MN500G0D1 1093.00 G0 7.00 178 11.30 287 7.81 198 24

750 9070SK750G3D1 1147.00 G3 13.40 340 14.80 376 10.21 259 47

1000 9070SK1000G3D1 1506.00 G3 13.40 340 14.80 376 10.21 259 51

1500 9070SK1500G3D1 2234.00 G3 13.40 340 14.80 376 10.21 259 65

2000 9070SK2000G3D1 2838.00 G3 13.40 340 14.80 376 10.21 259 71

3000 9070SK3000G3D1 3797.00 G3 13.40 340 14.80 376 10.21 259 85

NEMA 1 Enclosure, Primary 240 x 480 Secondary 120

250 9070SK250G1D1 902.00 G1 9.40 239 11.80 300 8.96 228 26

500 9070SK500G1D1 992.00 G1 9.40 239 11.80 300 8.96 228 28

750 9070SK750G1D1 1116.00 G1 9.40 239 11.80 300 8.96 228 33

1000 9070SK1000G1D1 1466.00 G1 9.40 239 11.80 300 8.96 228 37

1500 9070SK1500G2D1 2170.00 G2 13.40 340 14.80 376 12.21 310 67

2000 9070SK2000G2D1 2466.00 G2 13.40 340 14.80 376 12.21 310 73

3000 9070SK3000G2D1 3303.00 G2 13.40 340 14.80 376 12.21 310 87

NEMA 1 Enclosure, Primary 480 Secondary 120

5000 9070SK5000G4D9 5165.00 G4 16.90 429 18.20 462 14.50 368 125

NEMA 12 Enclosure, Primary 240 x 480 Secondary 120

250 9070SK250A2D1 2187.00 A2 16.50 419 14.50 368 13.50 343 46

500 9070SK500A2D1 2278.00 A2 16.50 419 14.50 368 13.50 343 49

750 9070SK750A2D1 2414.00 A2 16.50 419 14.50 368 13.50 343 53

1000 9070SK1000A2D1 2482.00 A2 16.50 419 14.50 368 13.50 343 58

1500 9070SK1500A2D1 2730.00 A2 16.50 419 14.50 368 13.50 343 79

2000 9070SK2000A2D1 2909.00 A2 16.50 419 14.50 368 13.50 343 85

3000 9070SK3000A2D1 3632.00 A2 16.50 419 14.50 368 13.50 343 99

NEMA 12 Enclosure, Primary 240 x 480 Secondary 120, Flange Switch

250 9070SK250A3D1 2187.00 A3 15.50 394 17.00 432 10.00 254 48

500 9070SK500A3D1 2278.00 A3 15.50 394 17.00 432 10.00 254 53

750 9070SK750A3D1 2414.00 A3 15.50 394 17.00 432 10.00 254 57

1000 9070SK1000A3D1 2482.00 A3 15.50 394 17.00 432 10.00 254 61

1500 9070SK1500A3D1 2730.00 A3 15.50 394 17.00 432 10.00 254 75

2000 9070SK2000A3D1 2909.00 A3 15.50 394 17.00 432 10.00 254 86

Transformer Disconnects available in NEMA 1 Standard,

NEMA 12 Standard, and NEMA 1 Mini

CP8 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

Transformer Disconnects NEMA 1; NEMA 12 Enclosures; Door-Mounted

Class 9070 / Refer to Catalog 9070CT0301

Contact your local Schneider Electric field sales office for other available features.

VA Catalog

No. $ Price Enclosure HW D

Weight

(lbs)

in mm in mm in mm

NEMA 1 Enclosure, Primary 240 x 480 Secondary 120, Duplex receptacle,

Door-mounted (Compact Design)

100 9070MN100G0D1G13 1106.00 G0 7.00 178 11.30 287 7.81 198 16

250 9070MN250G0D1G13 1205.00 G0 7.00 178 11.30 287 7.81 198 21

500 9070MN500G0D1G13 1307.00 G0 7.00 178 11.30 287 7.81 198 24

750 9070SK750G3D1G13 1338.00 G3 13.40 340 14.80 376 10.21 259 47

1000 9070SK1000G3D1G13 1697.00 G3 13.40 340 14.80 376 10.21 259 51

1500 9070SK1500G3D1G13 2425.00 G3 13.40 340 14.80 376 10.21 259 65

2000 9070SK2000G3D1G13 2725.00 G3 13.40 340 14.80 376 10.21 259 71

3000 9070SK3000G3D1G13 3708.00 G3 13.40 340 14.80 376 10.21 259 85

NEMA 1 Enclosure, Primary 240 x 480 Secondary 120, Duplex receptacle,

Door-mounted

250 9070SK250G1D1G13 1116.00 G1 9.40 239 11.80 300 8.96 228 26

500 9070SK500G1D1G13 1205.00 G1 9.40 239 11.80 300 8.96 228 28

750 9070SK750G1D1G13 1329.00 G1 9.40 239 11.80 300 8.96 228 33

1000 9070SK1000G1D1G13 1680.00 G1 9.40 239 11.80 300 8.96 228 37

1500 9070SK1500G2D1G13 2384.00 G2 13.40 340 14.80 376 12.21 310 67

2000 9070SK2000G2D1G13 2680.00 G2 13.40 340 14.80 376 12.21 310 73

3000 9070SK3000G2D1G13 3516.00 G2 13.40 340 14.80 376 12.21 310 87

NEMA 1 Enclosure, Primary 480 Secondary 120, Duplex receptacle, Door-mounted

5000 9070SK5000G4D9 5165.00 G4 16.9 429 18.2 462 14.5 368 125

NEMA 12 Enclosure, Primary 240 x 480 Secondary 120, Duplex receptacle,

Door-mounted

250 9070SK250A2D1G13 2144.00 A2 16.50 419 14.50 368 13.50 343 46

500 9070SK500A2D1G13 2492.00 A2 16.50 419 14.50 368 13.50 343 49

750 9070SK750A2D1G13 2627.00 A2 16.50 419 14.50 368 13.50 343 53

1000 9070SK1000A2D1G13 2717.00 A2 16.50 419 14.50 368 13.50 343 58

1500 9070SK1500A2D1G13 2628.00 A2 16.50 419 14.50 368 13.50 343 79

2000 9070SK2000A2D1G13 3123.00 A2 16.50 419 14.50 368 13.50 343 85

3000 9070SK3000A2D1G13 3846.00 A2 16.50 419 14.50 368 13.50 343 99

NEMA 12 Enclosure, Primary 240 x 480 Secondary 120, Flange Switch,

Duplex receptacle, Door-mounted

250 9070SK250A3D1G13 2144.00 A3 15.50 394 17.00 432 10.00 254 48

500 9070SK500A3D1G13 2225.00 A3 15.50 394 17.00 432 10.00 254 53

750 9070SK750A3D1G13 2346.00 A3 15.50 394 17.00 432 10.00 254 57

1000 9070SK1000A3D1G13 2882.00 A3 15.50 394 17.00 432 10.00 254 61

1500 9070SK1500A3D1G13 2628.00 A3 15.50 394 17.00 432 10.00 254 75

2000 9070SK2000A3D1G13 2789.00 A3 15.50 394 17.00 432 10.00 254 86

Option—Description Factory Modification FORM Available On Enclosure

55° C rise transformer C G1, G2,A2

Electrostatically-shielded transformer E23 G0, G1, G2, G3, G4, A2, A3

Additional 1-1/2-inch x 13/32-inch secondary fuse block F11 G0, G1, G2, G3, G4, A2, A3

Primary fuse block—5-inch x 13/16-inch F30 G1, G2, G4, A2

Duplex receptacle, door-mounted G13 G0, G1, G2, G3, G4, A2, A3

Class A, GFI, duplex receptacle, door-mounted G14 G0, G1, G2, G3, G4, A2, A3

Two duplex receptacles, door-mounted G16 G1, G2, G3, G4, A2

“ON” red warning pilot light P1 G1, G2, G3, G4, A2, A3

“ON” red warning pilot light, with strain relief P2 G1, G2, G3, G4, A2

CP8 Discount

Schedule Modified

4/16/09

www.us.schneider-electric.com

FOR CURRENT INFORMATION

14 TRANSFORMERS

Dry Type 2.4, 5, and 15 kV Three- and Single-Phase; 1201–15,000 Volts

Class 7432

1201–15,000 Volts Three-Phase Indoor

Transformers

All transformers are built with 220oC insulation and

150oC temperature rise. For 115oC rise add 10% to price

and F to catalog number. For 80oC rise add 20% to price

and B to catalog number. Check with factory to verify

dimensional changes and weights. For copper windings

add 20%.

Standard high voltage taps: 4-2.5%, 2AN and 2BN. For

4-2.5% FCBN, add BN to catalog number.

aEnclosures for indoor use only. Letters in parenthesis refer to

enclosure styles on 14-8. Transformers suitable for outdoor use

available on special order.

bDimensions and prices listed for 480 volt secondary only. For 240 V or

208 V, contact your local Schneider Electric sales office.

Note: Lugs: Furnished by customer

1201–15,000 Volts Single-Phase Indoor

Transformers

All transformers are built with 220oC insulation and

150oC temp. rise. For 115oC rise add 10% to price and F

to catalog number. For 80oC rise add 20% to price and B

to catalog number, and check with factory for dimensional

changes.

Standard high voltage taps: 4–2.5%, 2AN and 2BN. For

4–2.5% FCBN, add BN to catalog number.

aEnclosures for indoor use only. Letters in parenthesis refer to

enclosure styles on 14-8. Transformers suitable for outdoor use

available on special order.

Note: Lugs: Furnished by customer

Special Notes

1. Distribution class lightning arresters are

recommended as good practice, but are not included

in the above prices. Arrester addition may affect

dimensions. Contact your nearest Schneider Electric

sales office.

2. For 15 kV transformers requiring bottom entrance or

exit, a separate compartment is required for adequate

termination space and clearance. Transformers 1500

kVA and above with top entrance or exit may require a

separate compartment to provide adequate wiring

space. Contact your nearest Schneider Electric sales

office, for special requirements.

3. If transformer requires a 94-inch high enclosure for

switchgear line-up, or if special enclosure is required,

contact your nearest Schneider Electric sales office.

4. For 95 kV BIL consult your nearest Schneider Electric

sales office. (May affect dimensions.)

To Complete Catalog Number

To complete the single-phase or three-phase catalog

numbers on this page:

1. Select the voltage you require from the chart above.

2. Insert the voltage code number in place of the ( ) in

the catalog number.

Example: 1000 kVA, 3Ø, 60 Hz, 150oC temp. rise, 60 kV

BIL, NEMA sound level, ventilated enclosure, 13.2 kV

delta 480Y/277 = 100051H with 2-2.5% full capacity taps.

2AN and 2BN.

The correct catalog number for a 167 kVA,

2400/4160Y-120/240, 1Ø 60 Hz unit is 167S13H. The unit

would be supplied with 2–2.5% above and 2–2.5% full

capacity below normal taps on the primary.

kVA Catalog

No. $ Price Weight

(lbs) Mounting

Enclosurea

See

14-8

2.4 kV and 5 kV Voltage Class 60 Hz 150oC Rise

112.5

150

225

300

112T( )H

150T( )H

225T( )H

00T( )H

42603.00

52338.00

70422.00

84972.00

1400

1600

1900

2100

Floor

28D

29D

500

750 b

1000 b

500T( )H

750T( )H

1000T( )H

99231.00

124257.00

154230.00

3200

3900

7400

Floor

31D

33F

1500 b

2000 b

2500 b

1500T( )H

2000T( )H

2500T( )H

185367.00

212721.00

257244.00

9000

10900

12200

Floor

33F

34F

15 kV Voltage Class 60 Hz 150oC Rise

112.5

150

225

300

500

112T( )H

150T( )H

225T( )H

300T( )H

500T( )H

48822.00

60033.00

81771.00

95448.00

116400.00

2000

2200

2800

3300

5000

Floor

30D

31D

32F

750 b

1000 b

1500 b

750T( )H

1000T( )H

1500T( )H

138225.00

175764.00

201081.00

6000

7400

9000

Floor

33F

2000 b

2500 b

3000 b

2000T( )H

2500T( )H

3000T( )H

235710.00

272958.00

351528.00

10900

12200

15400

Floor

34F

35F

kV Class Code Primary Secondary

2.4

30 kV BIL

2400 Delta

208Y/120

480Y/277

240 Delta

480 Delta

600 Delta

30 kV BIL

4160 Delta

4160Y/2400

4160/2400

4800 Delta

208Y/120

480Y/277

240 Delta

480 Delta

600 Delta

240 Delta

480 Delta

600 Delta

208Y/120

480Y/277

240 Delta

480 Delta

600 Delta

60 kV BIL

7200 Delta

12000 Delta

12470 Delta

12470Y/7200

13200 Delta

13200Y/7620

13800 Delta

208Y/120

480Y/277

240 Delta

480 Delta

600 Delta

208Y/120

480Y/277

240 Delta

480 Delta

600 Delta

208Y/120

480Y/277

240 Delta

480 Delta

600 Delta

240 Delta

480 Delta

600 Delta

208Y/120

480Y/277

240 Delta

480 Delta

600 Delta

240 Delta

480 Delta

600 Delta

208Y/120

480Y/277

240 Delta

480 Delta

600 Delta

kVA Catalog

No. $ Price Weight

(lbs) Mounting

Enclosure a

See

14-8

2.4 kV Voltage Class 60 Hz 150o C Rise

167

250

333

167S( )H

250S( )H

333S( )H

45444.00

59253.00

72783.00

1500

2200

3000

Floor

28D

29D

5 kV Voltage Class 60 Hz 150o C Rise

167

250

333

167S( )H

250S( )H

333S( )H

48777.00

63312.00

77478.00

1500

2200

3200

Floor

28D

29D

15 kV Voltage Class 60 Hz 150oC Rise

167

250

333

167S( )H

250S( )H

333S( )H

56136.00

72705.00

86835.00

2400

3400

5000

Floor

31D

PE6D Discount

Schedule

17414 Brochure

20257-Catalog 20257-Catalog 20257-Catalog 785901 Batch2_1 unilog cesco-content

51461-Catalog- 1 51461-Catalog-_1 51461-Catalog-_1 785901 Batch2_1 unilog cesco-content

51461-Catalog 1 51461-Catalog_1 51461-Catalog_1 785901 Batch2_1 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
