O-1www.hubbell-wiring.com

Section O

Floor Boxes

Index

Product Page

SystemOne Recessed Concrete Floor Boxes ........................O-2

Selecting a Concrete Floor Box .................................O-4

2-Gang and 4-Gang Floor Boxes and Covers ......................O-6

6-Gang and 10-Gang Floor Boxes and Covers .....................O-8

2-, 4-, -6 and 10-Gang Plates and Accessories ....................O-10

Floor Box Applications ..........................................O-12

SystemOne Flush Floor Boxes

Floor Box Family ............................................O-13

Covers and Sub-Plates .......................................O-14

Configuration Chart ..........................................O-15

Metal and Non-Metallic Concrete Floor Boxes ....................O-16

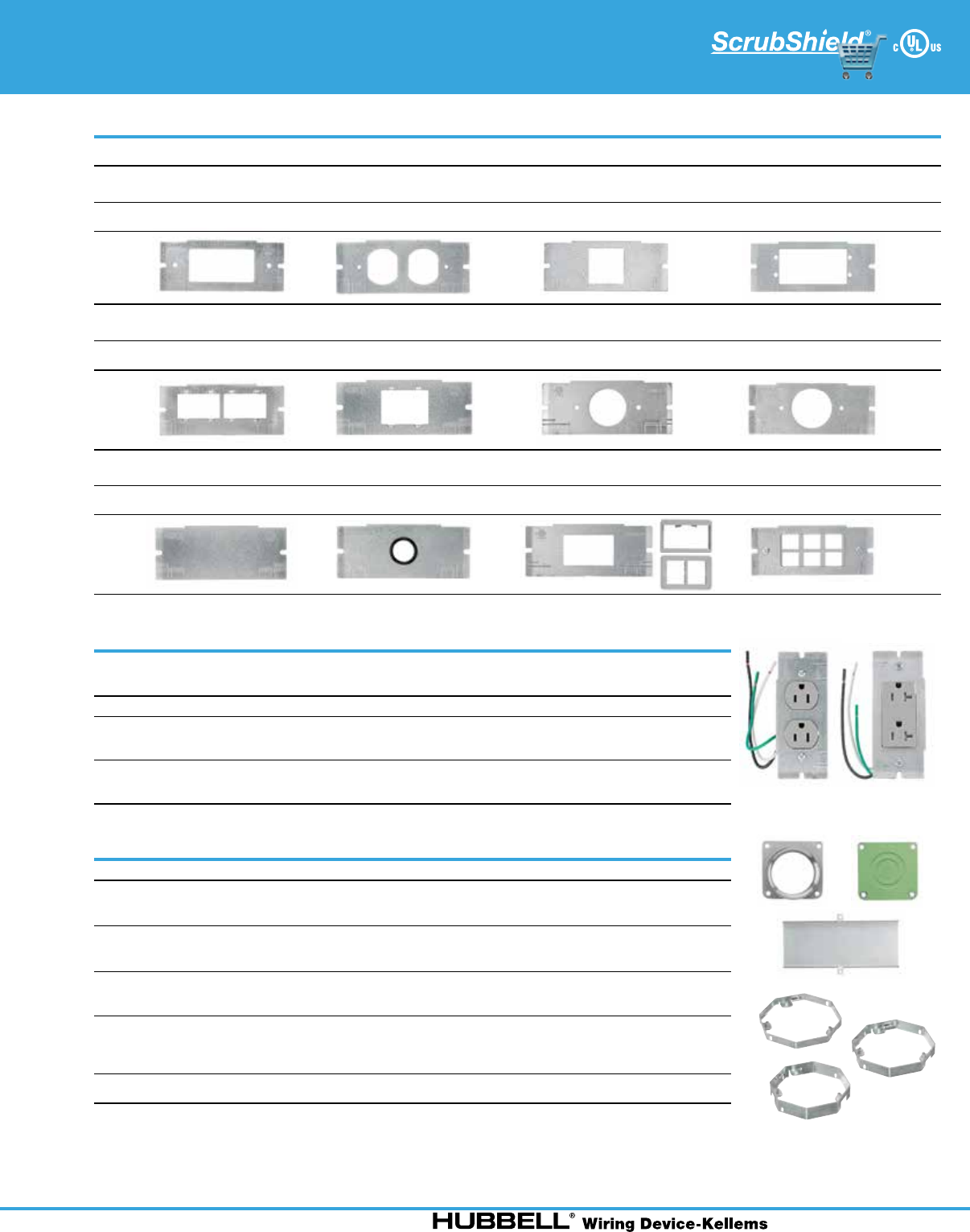

Sub-Plates .................................................O-17

Flush Concrete Floor Boxes and Covers

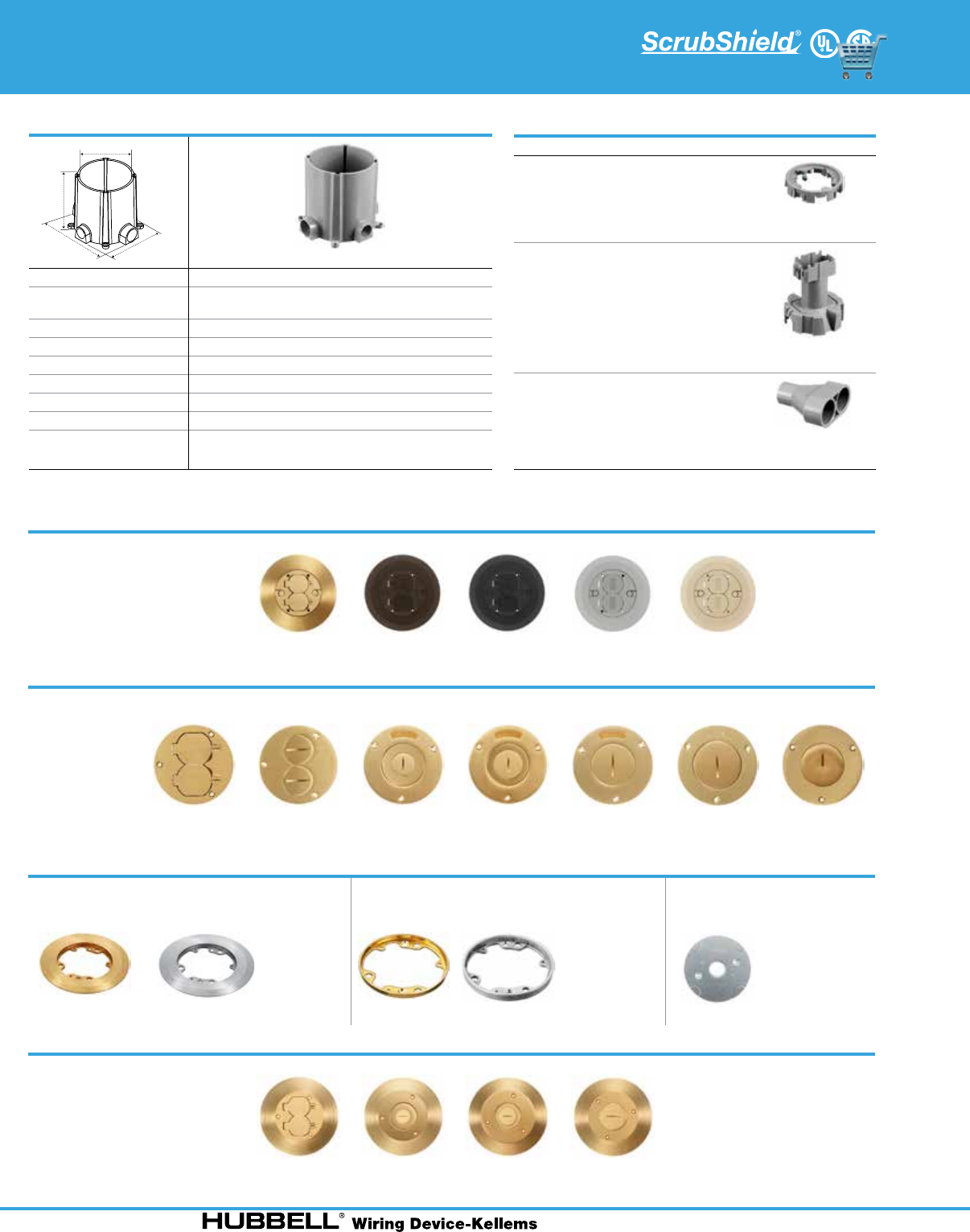

Round Non-Metallic, Single or Multi-Service ......................O-18

Round Metal, Single Service ...................................O-19

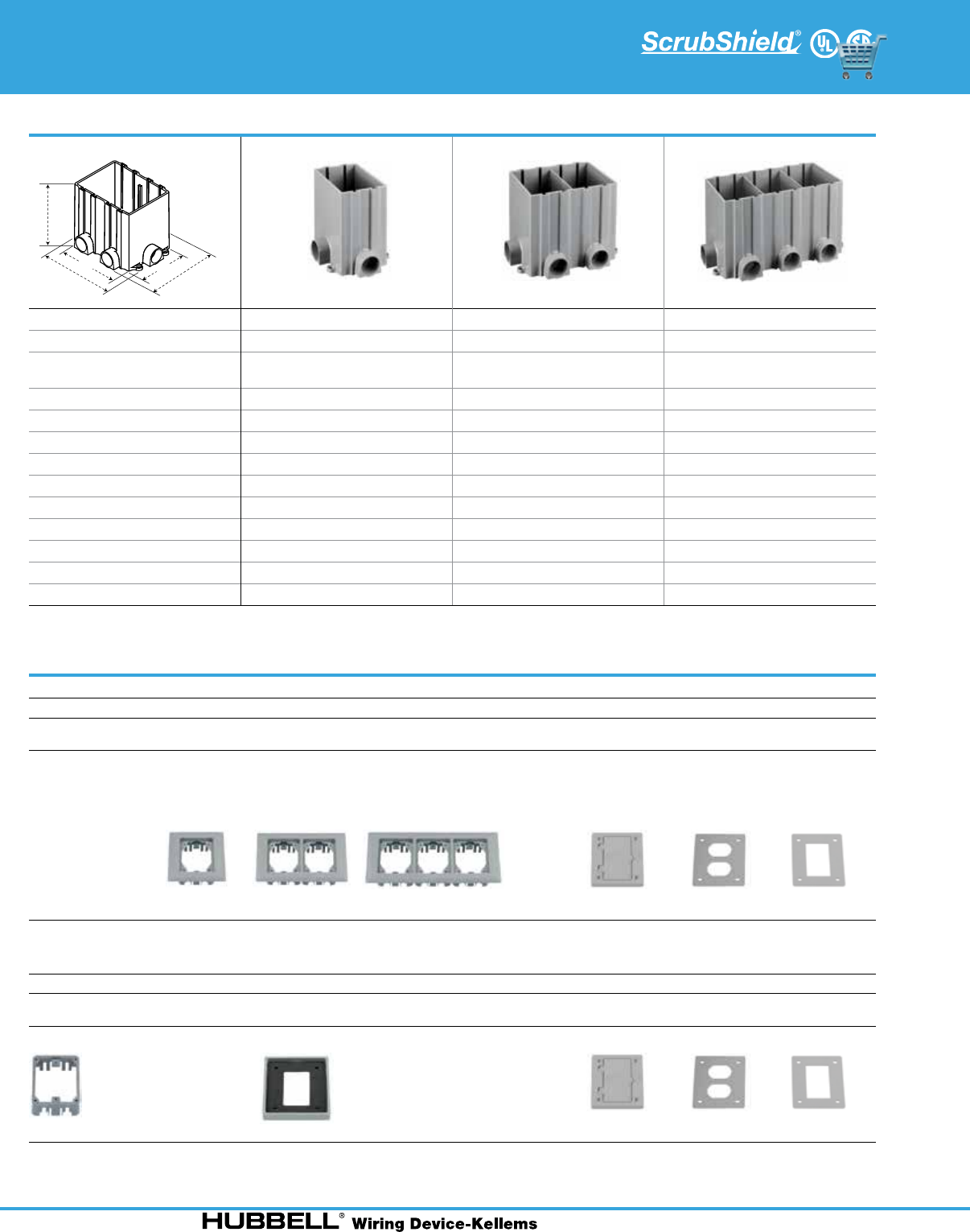

Rectangular Non-Metallic, 1-, 2-, and 3-Gang .....................O-20

Rectangular Cast Iron, 1-, 2-, and 3-Gang ........................O-22

Rectangular Stamped Steel, 1-, 2-, and 3-Gang ...................O-23

Flush Floor Boxes for Wooden Floors ............................O-24

Recessed Concrete Floor Boxes and Covers

2-Gang Stamped Steel and Cast Iron ............................O-25

7- and 11-Gang .............................................O-26

Ballroom Series .............................................O-27

Residential Delivery Systems ....................................O-28

Above-Floor Service Fittings (Single Service) .......................O-30

Accessories ...................................................O-31

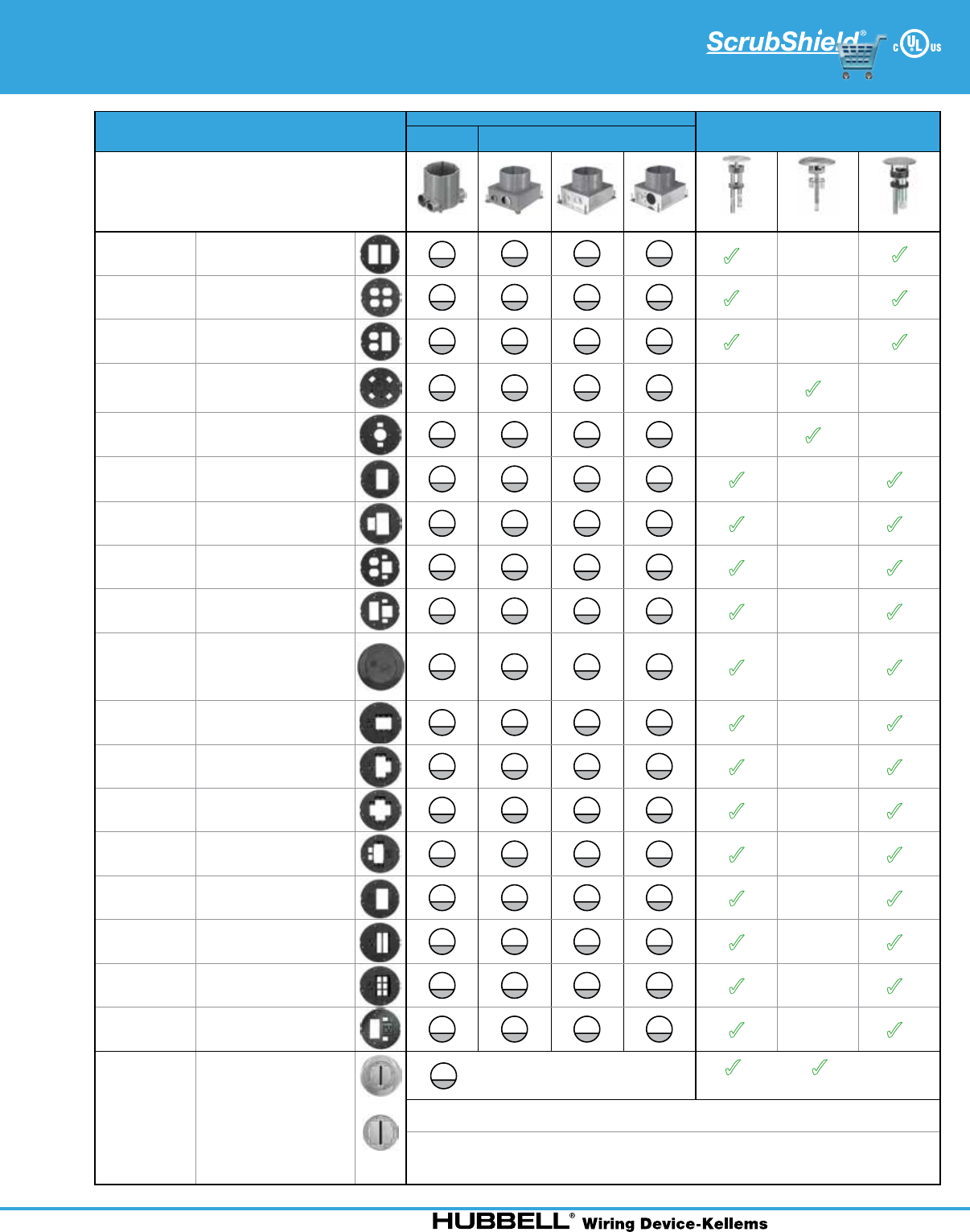

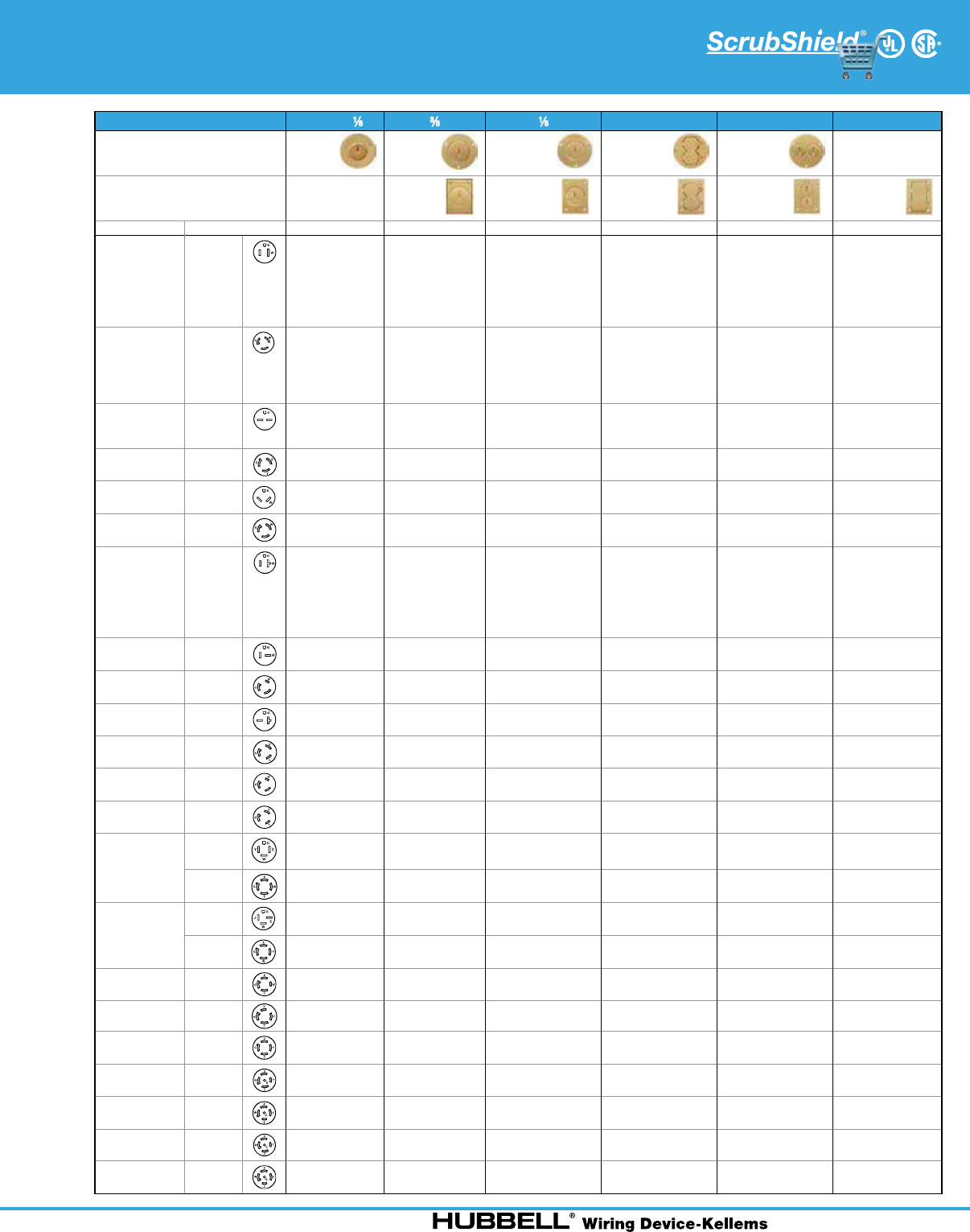

Floor Box Cover to Receptacle Compatibility Chart ...................O-33

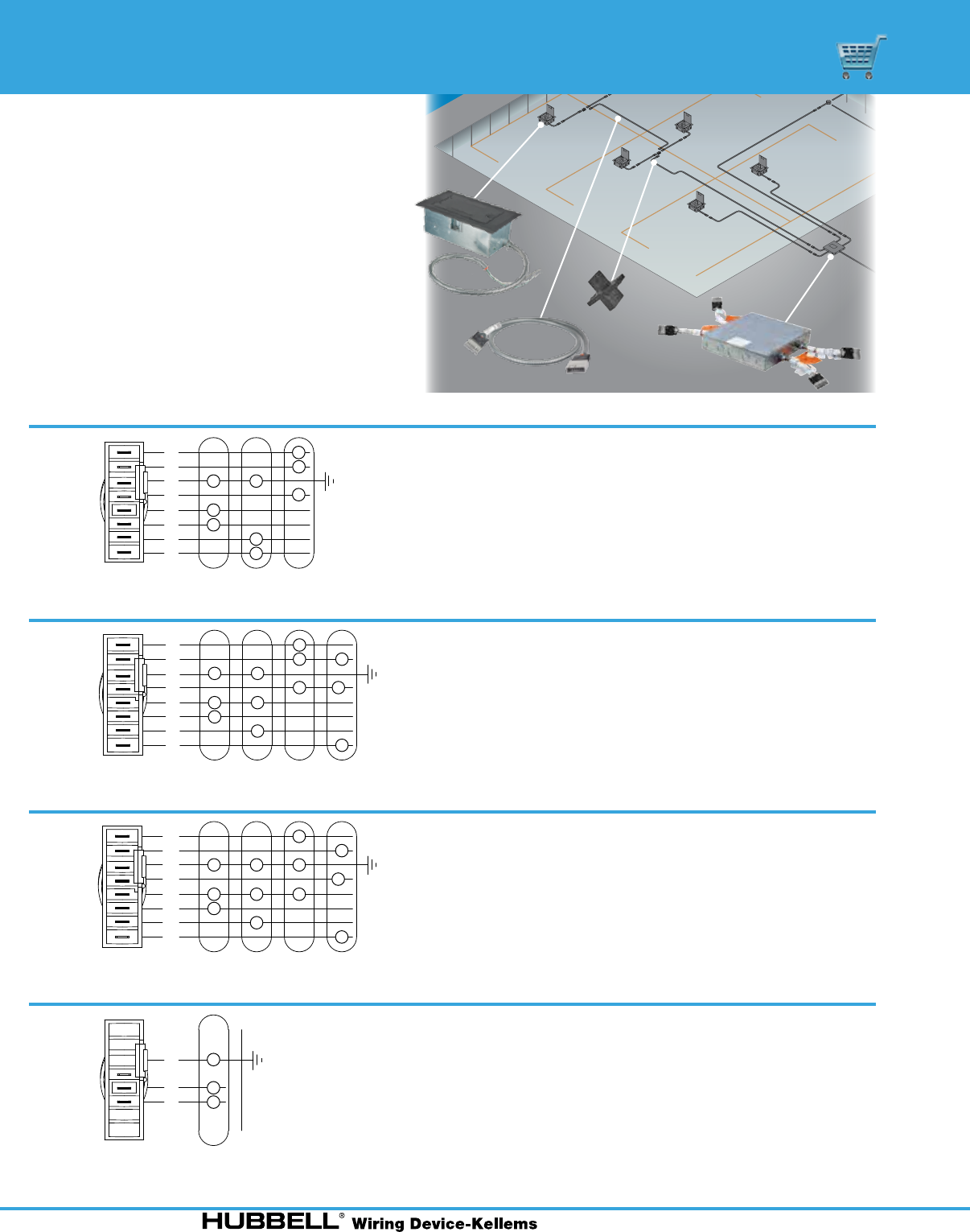

CONNEXION 2.0 Zone Distribution System .........................O-34

Zone Boxes, Splitters, Homerun and Extender Cables ..............O-35

Custom Pre-Wired Access Floor Boxes ..........................O-36

SystemOne Raised Access and Wood Floor Boxes ..................O-37

2-Gang and 4-Gang Rectangular Floor Boxes, Covers and Plates .....O-40

4-Gang Round Floor Boxes, Covers and Plates ...................O-42

10-Gang Rectangular Floor Boxes, Covers and Plates ..............O-43

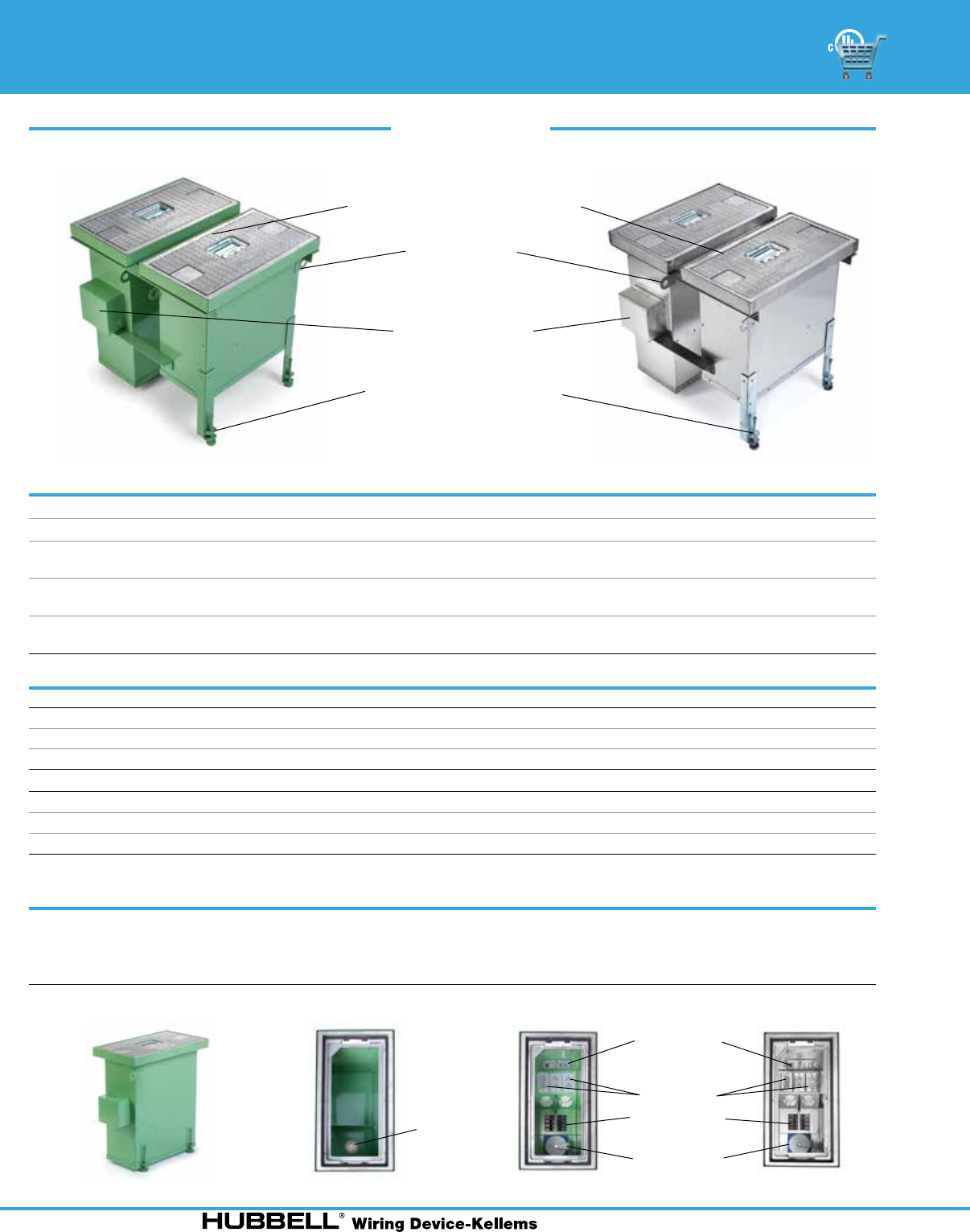

Convention Center Utility Boxes ..................................O-44

Furniture and Work Surface Connectivity Boxes and Table Top Boxes

Furniture and Work Surface Connectivity Boxes ...................O-47

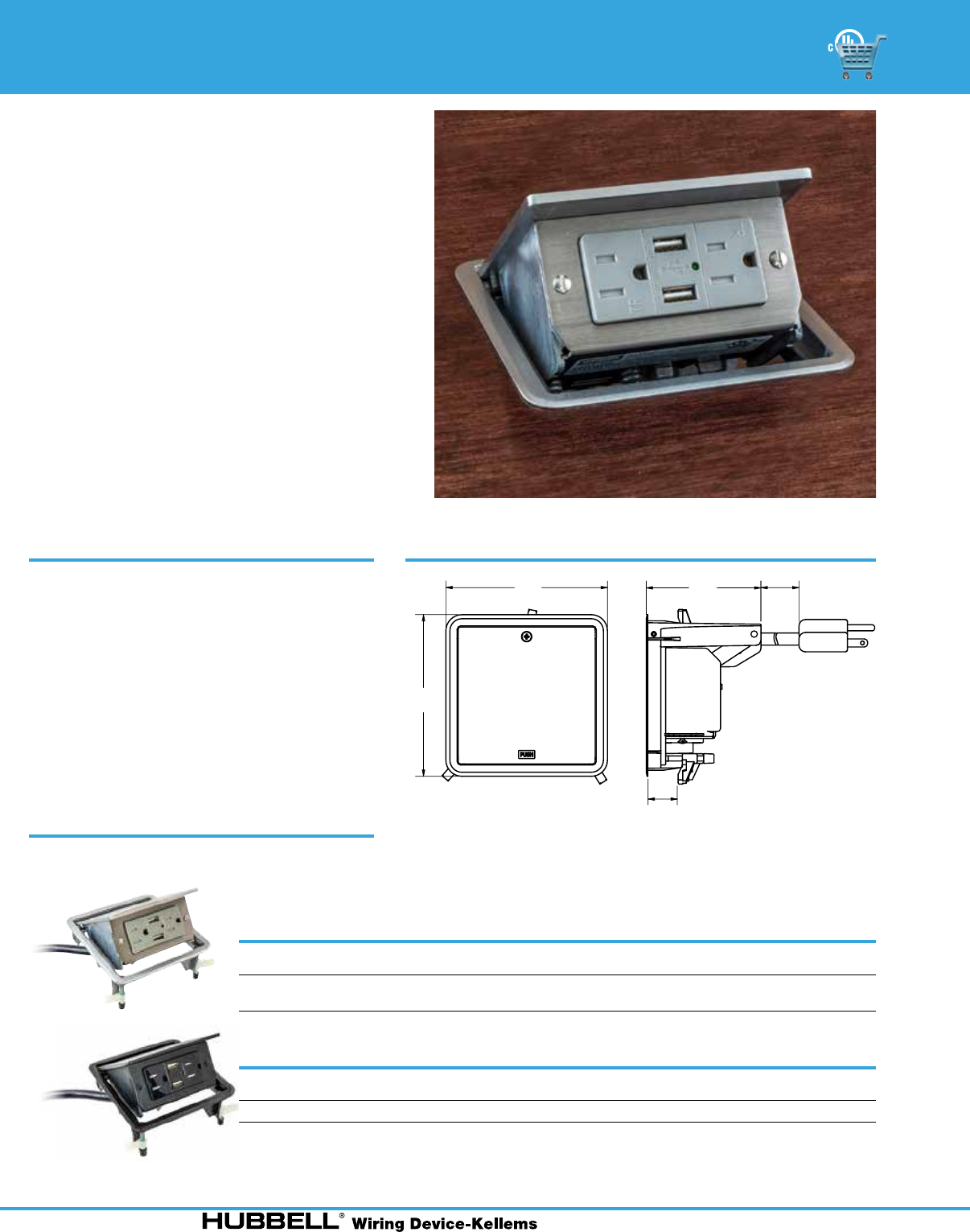

2X2 USB Work Surface Pop-Up Box ............................O-48

Pre-Wired Work Surface Series .................................O-49

Pre-Wired Work Surface Elite Series .............................O-50

AV In-Wall and Ceiling Enclosures ................................O-51

Large Capacity Wall Boxes and Gangable AV Wall Boxes .............O-52

SystemOne

Recssed Floor Boxes

Furniture and Work

Surface Boxes

CONNEXION 2.0

Zone Distribution System

SystemOne

Flush Floor Boxes

www.hubbell-wiring.comO-2

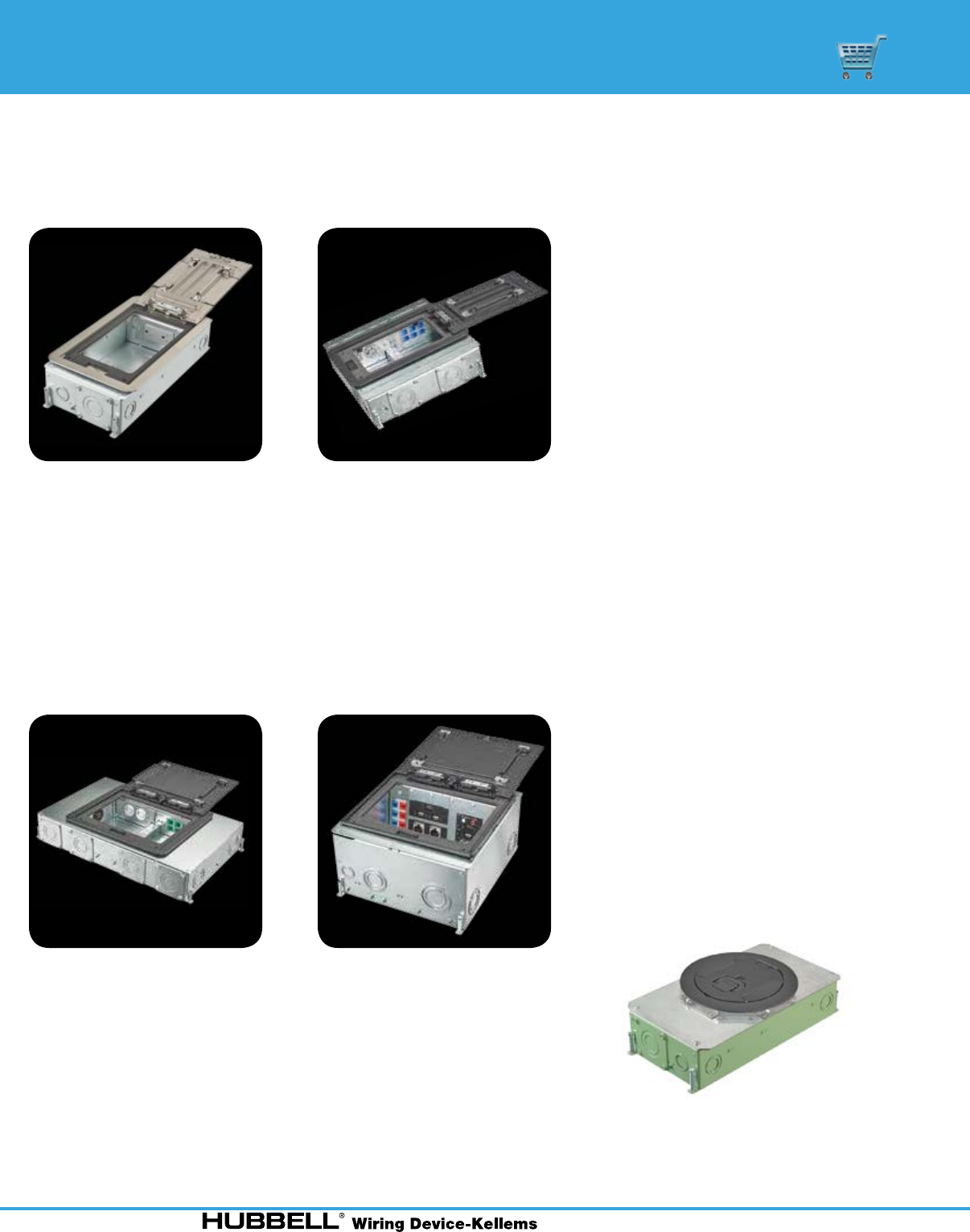

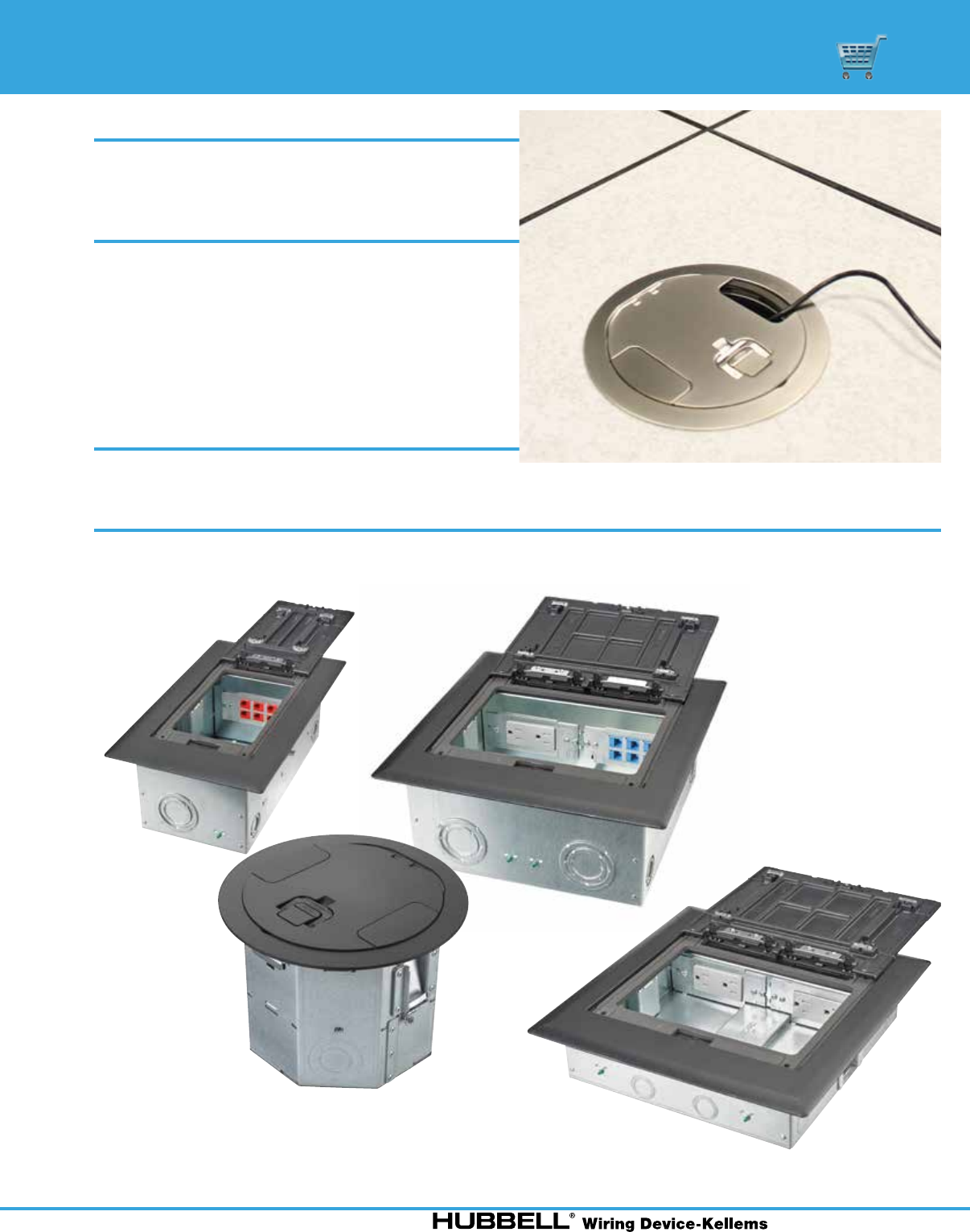

2-Gang Recessed

The Hubbell SystemOne 2-Gang

Recessed Concrete Floor Box offers

eight styles, satisfying the requirements

of almost any commercial building

application. Rectangular or round

covers, as well as furniture feed covers,

are available in a variety of finishes to

blend with any existing or new décor.

A parallel-device layout reduces plug

interference, maximizing functionality

and performance.

4-Gang Recessed

Similar to the 2-Gang Recessed Concrete

Floor Box, Hubbell’s SystemOne 4-Gang

Recessed Concrete Floor Box is available

with rectangular or round covers. Ten

different styles make it possible to meet

the electrical requirements of most

commercial projects - new construction

or renovation. The parallel device layout

maximizes functionality which can be

limited when devices are mounted 90°

from one another.

SystemOne Recessed Floor Box Applications…

Floor Boxes

SystemOne Recessed Concrete Floor Boxes

Applications

6-Gang Recessed

Increased power, data, and AV capacity

is what the Hubbell SystemOne 6-Gang

Recessed Concrete Floor Box was

designed to handle. Four styles allow

the floor box to work within almost any

commercial application to enhance

connectivity. Rectangular and round

covers are available in a variety of

finishes that work with any aesthetic

or finish.

10-Gang Recessed

With maximum capacity in a small

footprint, the 10-Gang box provides a

uniform look with rectangular or round

covers that are available in several

finishes to complement existing décor.

Electrical devices are mounted vertically

and are mounted to the plate prior

to securing it to the box. Two inch

knockouts are designed into each box

allowing for simple installation of AV

cables with pre-connectorized heads

and specific bend radius requirements.

Featuring the unique capabilities of Hubbell’s SystemOne family. Hubbell has expanded its floor box offering to provide

industry leading flexibility while accommodating an extensive range of applications. Hubbell SystemOne is constructed to

give customers the ability to create personal solutions for their most demanding, power, data and audio/video requirements.

Cover

• 180° cover opening

• Two large cable egress doors

• Listed to UL 514A and UL scrub

water compliant

• Die cast aluminum cover

construction

• Available in round, rectangular and

furniture feed styles

• All covers are ADA compliant

• Post pour adjustment

Box

• 16 gauge galvanized sheet metal

and cast iron construction

• Optional fusion-bonded, green

epoxy paint for on-grade use

• 6 in. solid conductor ground pigtail

in each gang

• 3 in. deep version accepts adapter

(CFBHUB2) for 2 in. conduit

• Pre pour adjustment

• Meets UL 514A requirements and

are UL scrub water compliant

• Patent pending, labor saving, easy

mount device plates

CR version is coated with

fusion-bonded epoxy paint to

help prevent corrosion and

intended for on-grade use.

O-3www.hubbell-wiring.com

Floor Boxes

SystemOne Recessed Floor Boxes

Features

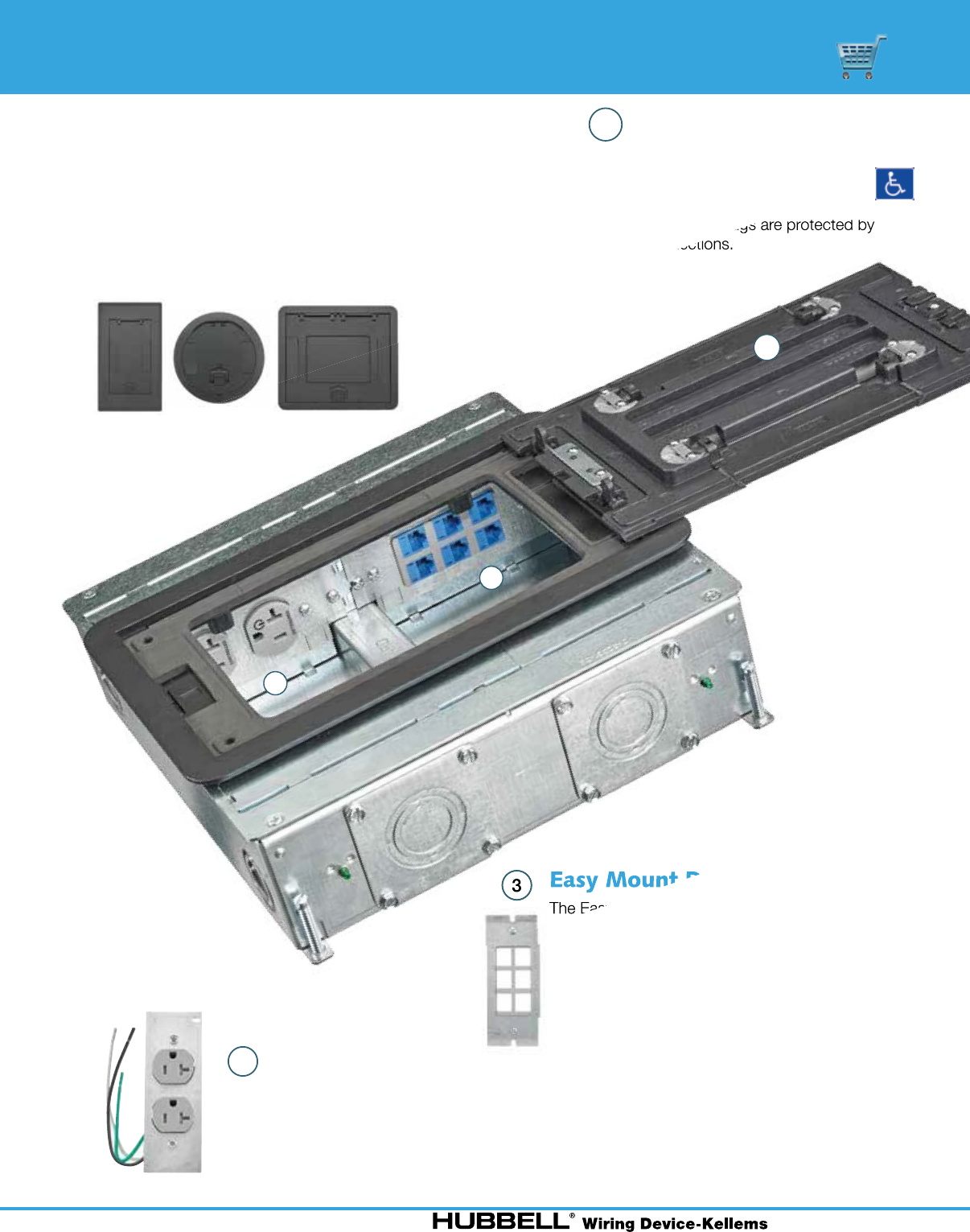

The Family Look

Hubbell SystemOne Recessed Floor Box line

offers a common look regardless of capacity

or installation. This simple concept ensures

a consistent look throughout a building with

rectangular or round covers. Round covers lend

themselves to multi-story buildings, also using

Fire-Rated Poke-Through devices.

Covers

All SystemOne covers are ADA compliant.

The doors open to 180° for maximum

access. Cables and plugs are protected by

recessed connections.

1

Easy Mount Device Plates

The Easy Mount device plates allow for a device to be

mounted to the plate and wired outside of the oor box.

The device and plate assembly are then easily installed

and secured with one stud that locates the plate and

one screw to secure it.

This patent pending device fastening method maximizes

efciency while reducing install time and comes standard

with all device plates for 2, 4 and 6-gang boxes.

3

1 Screw 3 Fasteners

Pre-wired duplex or Style Line® receptacles

with 8 in. stranded leads are installed into

plates to allow for even more labor savings.

2

access. Cables and plugs are protected by

recessed connections.

Easy Mount Device Plates

The Easy Mount device plates allow for a device to be

mounted to the plate and wired outside of the oor box.

3

1

3

2

www.hubbell-wiring.comO-4

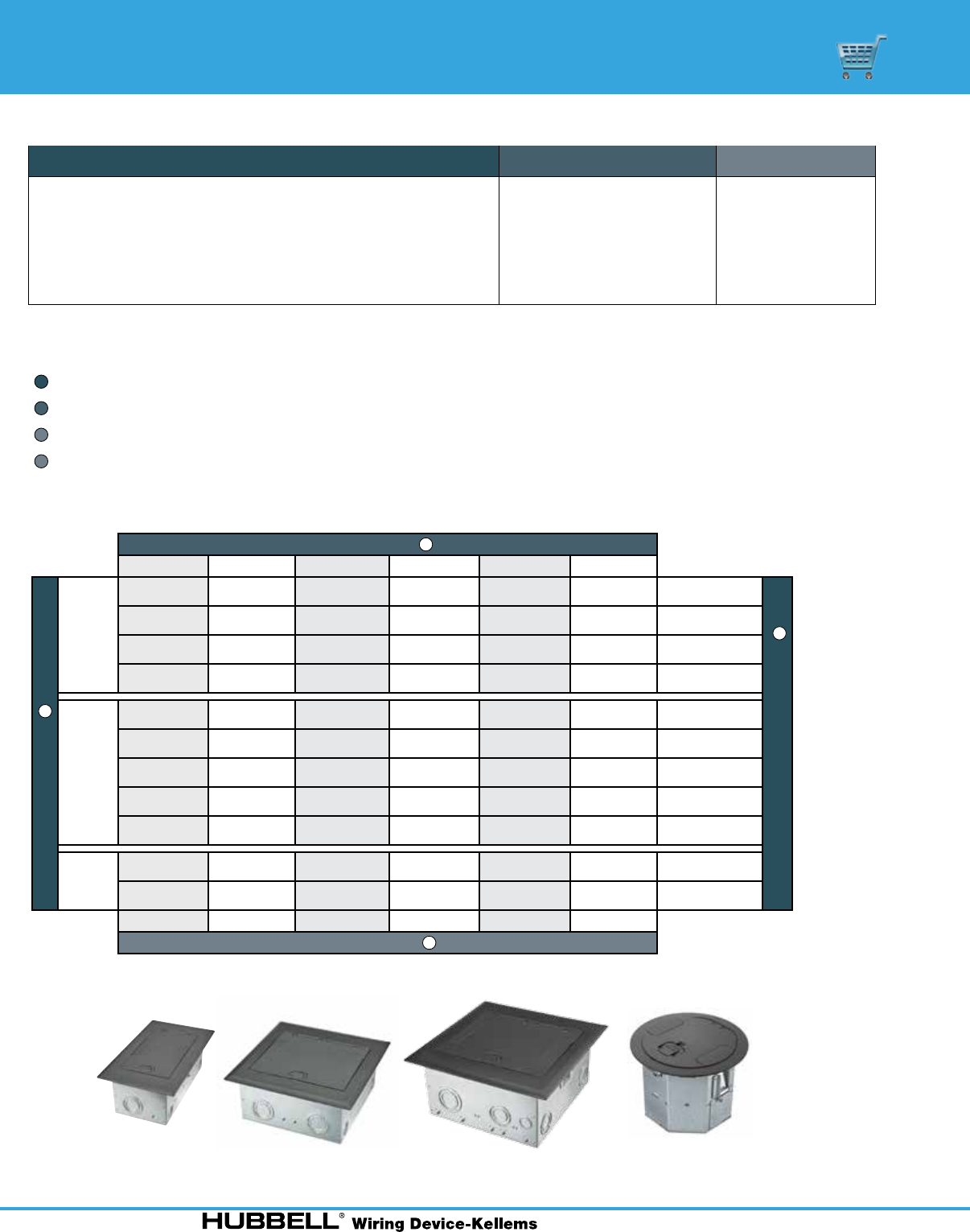

To assist with the oor box selection process, please have the following information available:

Electrical requirements: Application: Cover style:

Power (each electrical device requires one gang)

Data/AV (consult manufacturers’ specication for size/

volume requirements), number required.

Add up total number to determine needed capacity. If

necessary capacity is not shown round up to next size.

Example: 9-Gang rounds up to a 10-Gang oor box

On-grade (OG)

Above-grade (AG)

Minimum concrete

pour depth

Round

Rectangular

Once this information is gathered start on the capacity column:

1 Capacity: Select necessary box.

2 Application: Select the concrete pour depth and on-grade or above-grade application.

3 Cover style: Select round or rectangular cover.

4 Locate interconnecting point of all three categories and move to right to select correct catalog number.

Application - Minimum Pour Depth 2

2 ½ in. 3 in. 3 ¼ in. 3 ¾ in. 5 ½ in. 6 ¼ in.

AG OG AG OG AG OG AG OG AG OG AG OG

Electrical Requirements - Capacity 1

2-Gang

•CFB2G25

Select Correct Catalog Number 4

• CFB2G25CR

• CFB2G30

• CFB2G30CR

• CFB2G25R

• CFB2G25RCR

• CFB2G30R

• CFB2G30RCR

4-Gang

• CFB4G25

• CFB4G25CR

• CFB4G30

• CFB4G30CR

• CFB4G25R

• CFB4G25RCR

• CFB4G30R

• CFB4G30RCR

• CFB4G30CI

• CFB4G30RCI

6-Gang

• CFB6G30

• CFB6G30CR

• CFB6G30R

• CFB6G30RCR

10-Gang

• CFB10G55

• CFB10G55CR

• CFB10G55R

• CFB10G55RCR

Rectangular Rectangular Round Round Rectangular Round

Cover Style 3

Floor Boxes

Selecting a SystemOne Recessed Concrete Floor Box

O-5www.hubbell-wiring.com

Safety

• Flush flange available for tile, finished concrete or Terrazzo

• Surface flange available for carpeted floors with 0.15 in. rise

meets ADA requirements

• Hideaway egress doors fold under cover while in use

• 180° opening of main door

Functionality

• Cables and connections are protected by recessed functionality

• Open architecture sub-plate design

• Common door layout regardless of flange for harmonized look

• Meets UL 514A scrub water requirements with

ScrubShield® technology

• Easy selection with common look for all floor types

Value

• Enhance building décor with numerous finishes

• Increase durability and longevity with cast aluminum covers

Online Resources

• BIM models, customer drawings and technical specifications are available on www.hubbell-wiring.com

Corrosion Resistant

Epoxy Paint

Intended for on-grade use,

the CR version is coated with

fusion-bonded epoxy paint to

help prevent corrosion.

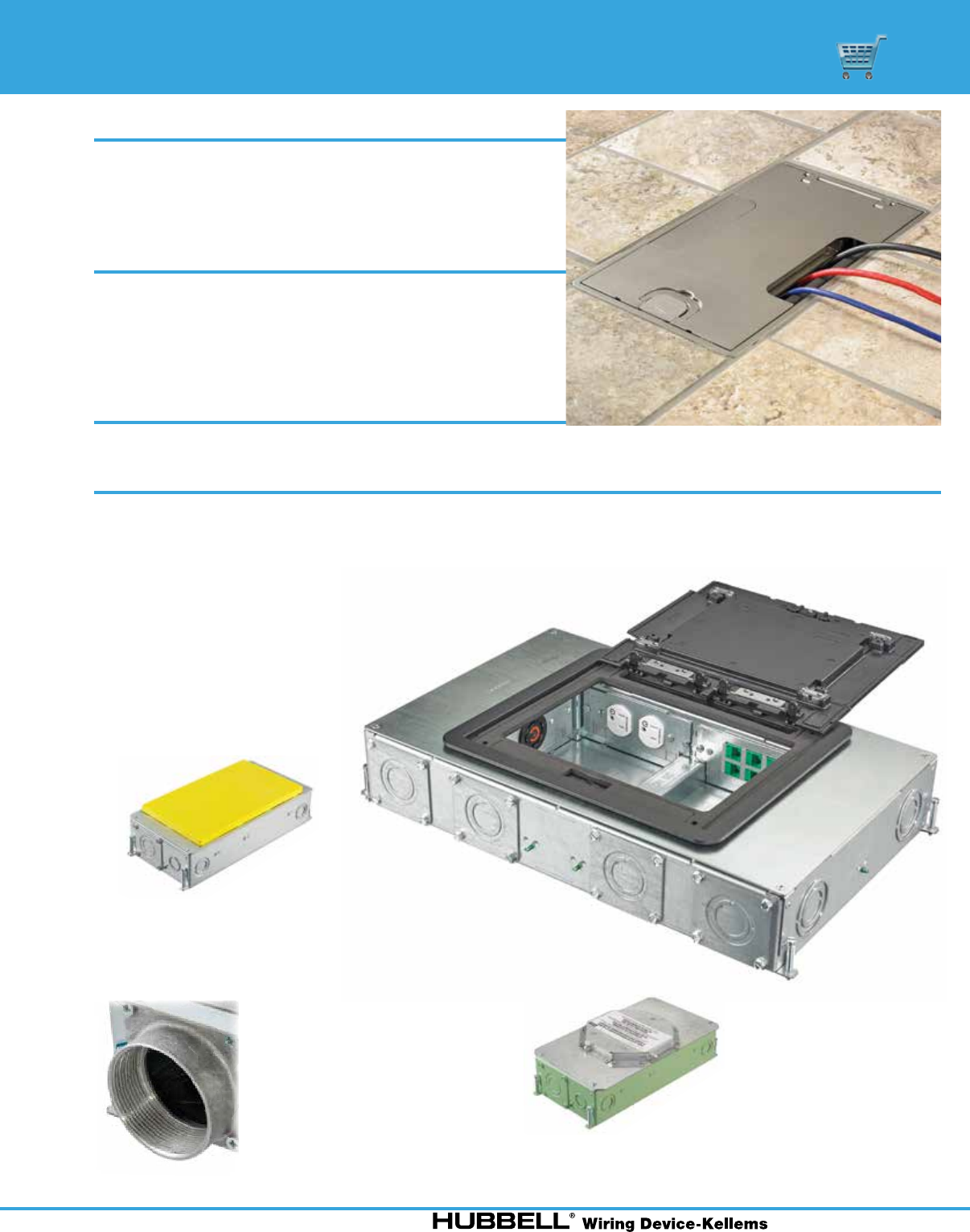

2 Inch Conduit Ready

To meet expanding AV and data

needs, the Hubbell SystemOne

Recessed Floor Box line readily

accepts 2 inch conduits with the use

of a 2 inch threaded conduit hub.

The offset design allows for less

conduit lifting while threading and the

hub mounting holes are asymmetrical

for installation efciency.

Concrete Pour Pocket Cap

In concrete applications, all SystemOne

Recessed oor boxes include a yellow

pour pocket cap.

This factory-installed, eld-removable

pour pocket cap provides a pocket in the

nal oor to accept the covers intended

for terrazzo, tile, or nished concrete oor.

The cap may not be used for carpet,

wood or engineered oors.

Floor Boxes

SystemOne Recessed Benets and Enhancements

Dimensions in Inches (mm)

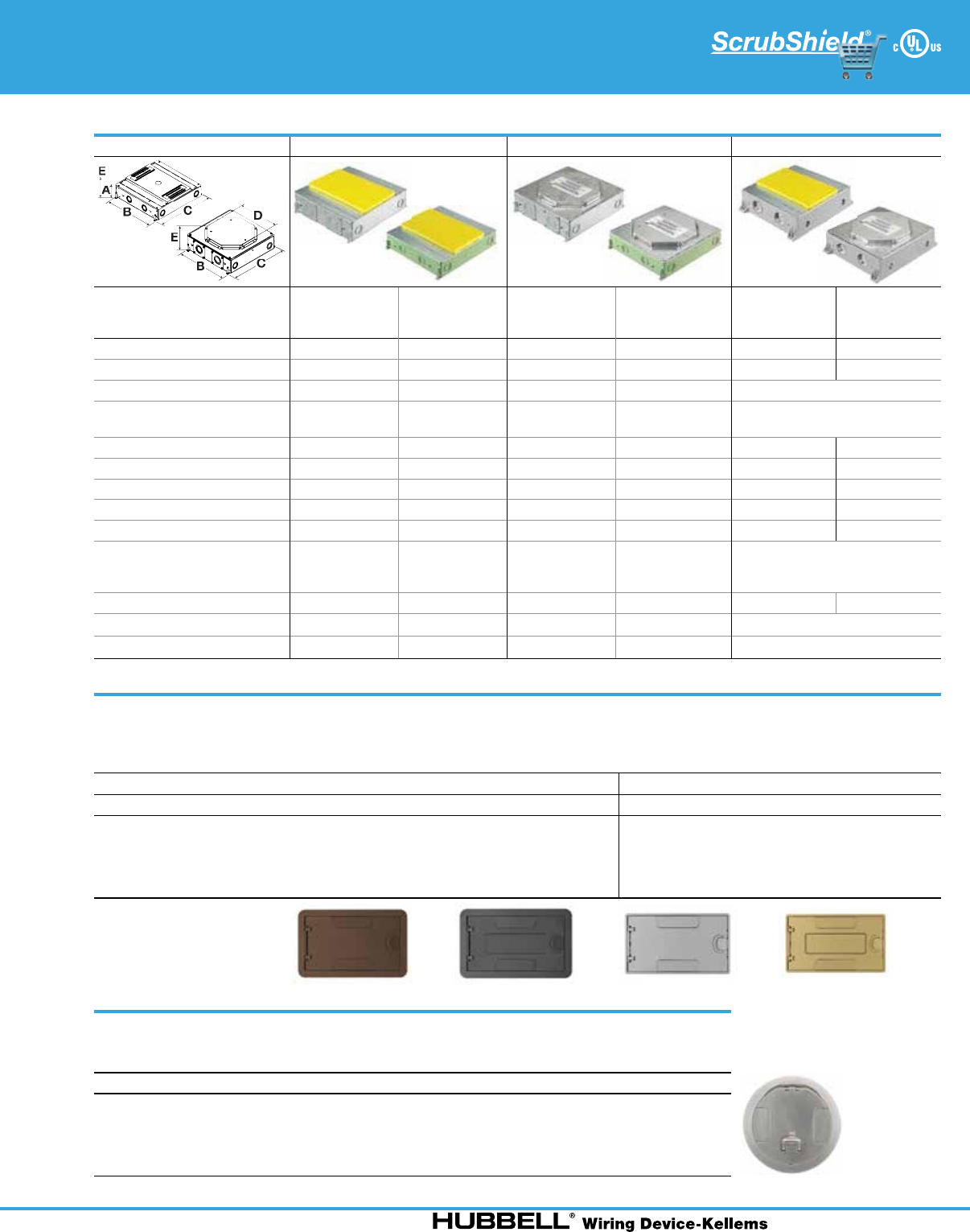

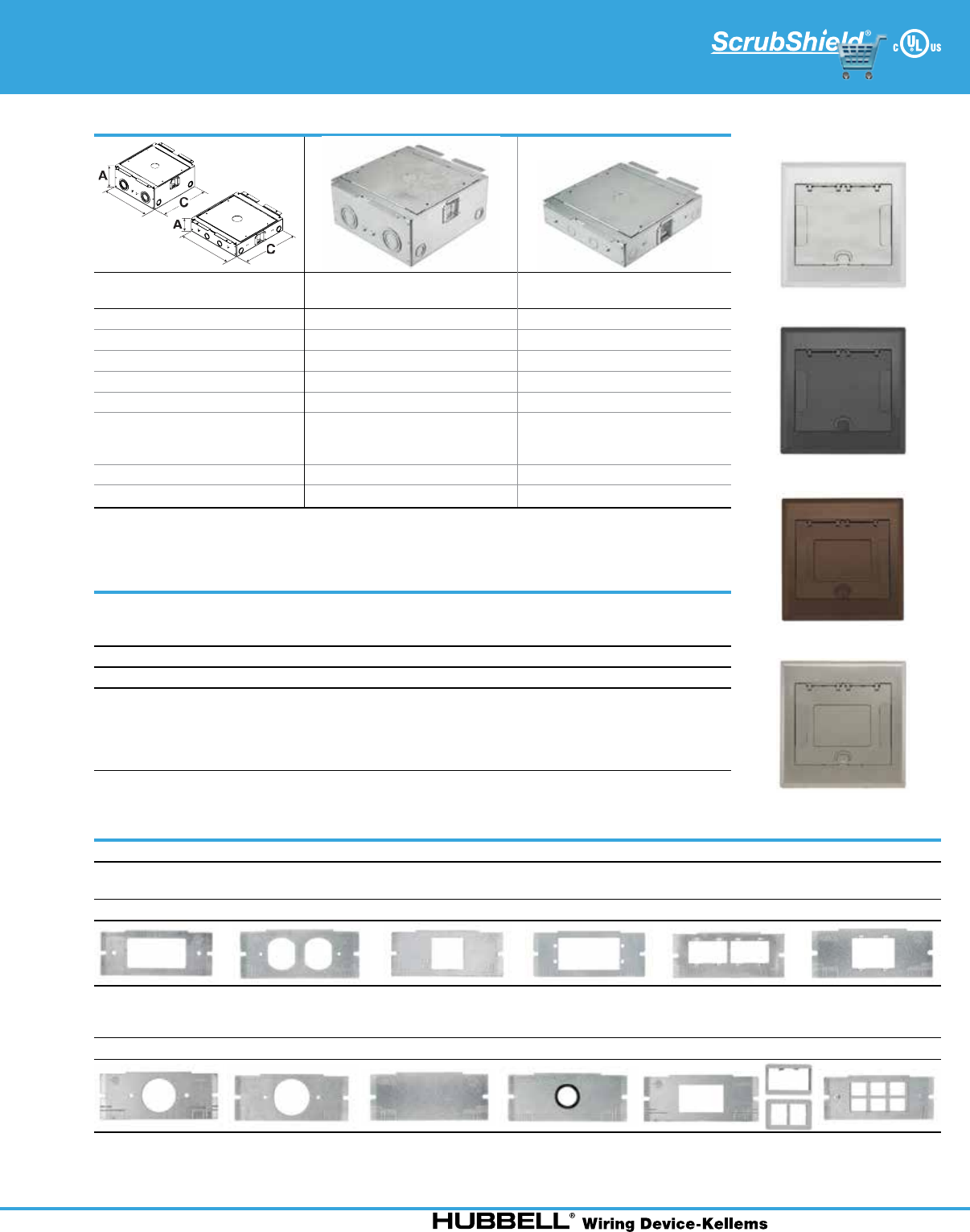

www.hubbell-wiring.comO-6

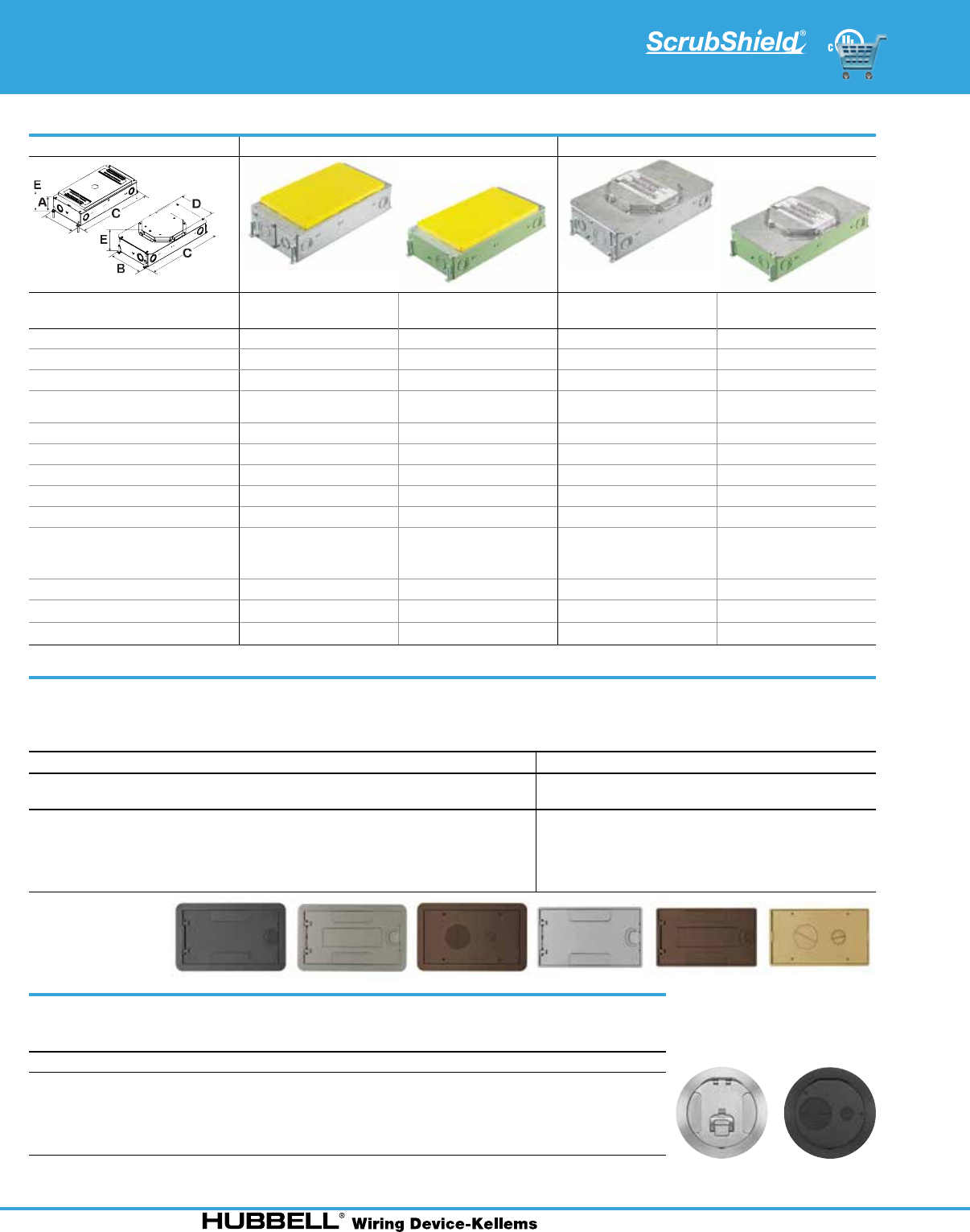

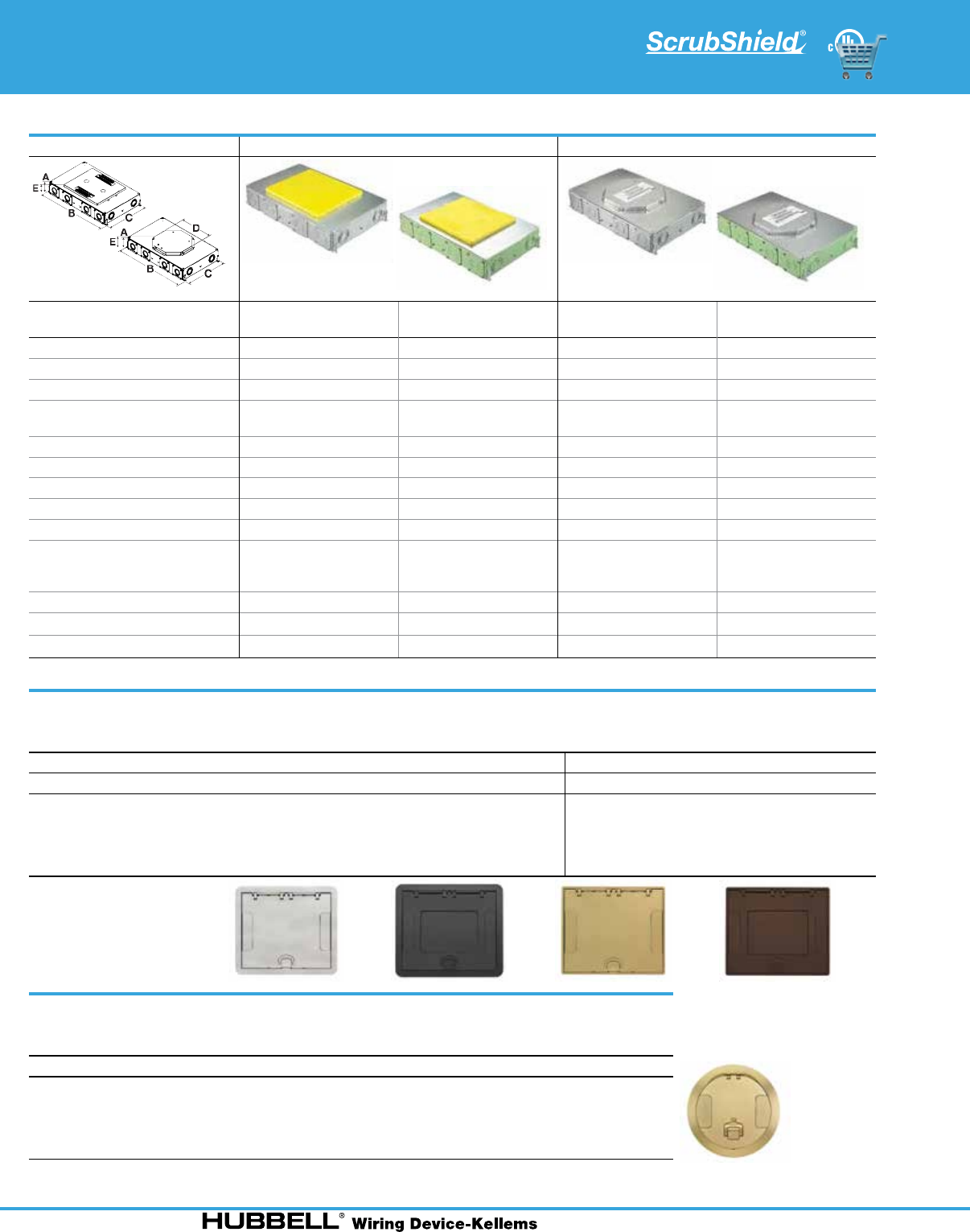

Complies with UL514A

Dimensions Inches (mm)

Style Rectangular Cover Round Cover

Box Type

Standard

On-grade (Corrosion-Resistant)

CFB2G30

CFB2G30CR

CFB2G25

CFB2G25CR

CFB2G30R

CFB2G30RCR

CFB2G25R

CFB2G25RCR

Recomended Pour Depth 3.50" (88.9) 3.00" (76.2) 3.75" (95.3) 3.25" (82.6)

Min. Depth of Pour 3.00" (76.2) 2.50" (63.5) 3.75" (95.3) 3.25" (82.6)

Adjustability Fully Fully Fully Fully

Cubic Inch (cm3)

Capacity per Gang 35.0 cu. in. (570 cm3) 30.0 cu. in. (490 cm3) 35.0 cu. in. (570 cm3) 30.0 cu. in. (490 cm3)

Dimensions – A 2.97" (75.3) 2.41" ( 61.1) – –

Dimensions – B 6.62" (168.2) 6.62" (168.2) 7.32" (185.9) 7.32" (185.9)

Dimensions – C 13.79" (350.3) 13.79" (350.3) 13.79" (350.3) 13.79" (350.3)

Dimensions – D – – 6.37" (161.7) TYP. 6.37" (161.7) TYP.

Dimensions – E 3.50" (88.9) 3.00" (76.2) 3.75" (95.3) 3.25" (82.6)

KO Trade Size: Front & Back

Sides

Bottom

(1) ¾", 1", 1¼"

(2) ¾", 1"

(4) ½", ¾"

(1) ¾", 1", 1¼"

(2) ½", ¾", 1"

(4) ½", ¾", 1"

(1) ¾", 1", 1¼"

(2) ½", ¾", 1"

(4) ½", ¾", 1"

(1) ½", ¾", 1"

(2) ½", ¾", 1"

(4) ½", ¾", 1"

Cover Family Rectangular Rectangular Round Round

Concrete Cover Included    

2 Inch Hub Compatible ––

B

Rectangular Covers

• Compatible with CFB2G25, CFB2G25CR, CFB2G30

and CFB2G30CR

• Two large cable egress doors and access 180° opening

• Maximum static load of 800 lbs. with 2x safety factor*

• Surface style typical applications: Carpet, VCT

• Flush style typical applications: Tile, nished concrete

and Terrazzo oors

Cover dimensions 11¹¹⁄₁₆ in. x 7³⁄₁₆ in. Cover dimensions 10¹¹⁄₁₆ in. x 6³⁄₁₆ in.

Finish Surface

Surface

with Insert

Furniture Feed

(1 in. and 2 in. Plugs)

Flush

Flush

with Insert

Furniture Feed

(1 in. and 2 in. Plugs)

Aluminum Powder Coated

Black Powder Coated

Brass Powder Coated

Bronze Powder Coated

Satin Nickel Powder Coated

24GCCVRALU

24GCCVRBK

24GCCVRBRS

24GCCVRBRZ

24GCCVRNK

24GCCVRALUC

24GCCVRBKC

24GCCVRBRSC

24GCCVRBRZC

24GCCVRNKC

2GCFFCVRALU

2GCFFCVRBK

2GCFFCVRBRS

2GCFFCVRBRZ

2GCFFCVRNK

24GTCVRALU

24GTCVRBK

24GTCVRBRS

24GTCVRBRZ

24GTCVRNK

24GTCVRALUC

24GTCVRBKC

24GTCVRBRSC

24GTCVRBRZC

24GTCVRNKC

2GTFFCVRALU

2GTFFCVRBK

2GTFFCVRBRS

2GTFFCVRBRZ

2GTFFCVRNK

Round Covers

• Compatible with CFB2G25R, CFB2G25RCR, CFB2G30R and CFB2G30RCR

• Cover has a 7

½

in. outer diameter and two large cable egress doors and access 180° opening

• Maximum static load of 1000 lbs. with 2x safety factor*

Finish Flush Surface Furniture Feed (¾ in. and 2 in. Plugs)

Brushed Aluminum

Black Powder Coated

Brass Plated

Bronze Plated

Satin Nickel Plated

CFBS1R6CVRALU

CFBS1R6CVRBLK

CFBS1R6CVRBRS

CFBS1R6CVRBRZ

CFBS1R6CVRNKL

CFBS1R6FFCVRALU

CFBS1R6FFCVRBLK

CFBS1R6FFCVRBRS

CFBS1R6FFCVRBRZ

CFBS1R6FFCVRNKL

Note: *Load applied through a 3 in. (76mm) mandrel in center of the cover.

Floor Boxes

SystemOne Recessed 2-Gang Floor Boxes and Covers

For Use In Concrete Floors

O-7

www.hubbell-wiring.com

Dimensions in Inches (mm)

Complies with UL514A

Dimensions Inches (mm)

Style Rectangular Cover Round Cover Cast Iron

Box Type

Standard

On-grade (Corrosion-Resistant)

Cast Iron

CFB4G30

CFB4G30CR

–

CFB4G25

CFB4G25CR

–

CFB4G30R

CFB4G30RCR

–

CFB4G25R

CFB4G25RCR

–

–

–

CFB4G30CI

–

–

CFB4G30RCI

Recomended Pour Depth 3.50" (88.9) 3.00" (76.2) 3.75" (95.3) 3.25" (82.6) 4.25" (108.0) 4.00" (101.6)

Min. Depth of Pour 3.00" (76.2) 2.50" (63.5) 3.75" (95.3) 3.25" (82.6) 3.75" (95.3) 4.00" (101.6)

Adjustability Fully Fully Fully Fully Fully

Cubic Inch (cm3)

Capacity per Gang

32.5 cu. in.

(530 cm3)

26.5 cu. in.

(430 cm3)

32.5 cu. in.

(530 cm3)

26.5 cu. in.

(430 cm3)

32.5 cu. in.

(430 cm3)

Dimensions – A 3.46" (87.8) 2.96" (75.1) – – 3.20" (81.3) –

Dimensions – B 12.08" (306.8) 12.08" (306.8) 12.08" (306.8) 12.08" (306.8) 13.19 " ( 335.1) 13.19 " (3 35.1)

Dimensions – C 11.20" (284.5) 11.20" (284.5) 11.20" (284.5) 11.20" (284.5) 11.44" (29 0. 5) 11.44" (29 0. 5)

Dimensions – D – – 8.37" (212.5) TYP. 8.37" (212.5) TYP. –8.37" (212.5) TYP.

Dimensions – E 3.50" (88.9) 3.00" (76.2) 3.75" (95.3) 3.25" (82.6) 3.68" (93.3) 4.00" (101.6)

KO Trade Size: Front & Back

Sides

Bottom

(2) ¾", 1", 1¼"

(2) ½", ¾", 1"

(4) ½", ¾", 1"

(2) ¾", 1", 1¼"

(2) ½", ¾", 1"

(4) ½", ¾", 1"

(2) ¾", 1", 1¼"

(2) ½", ¾", 1"

(4) ½", ¾", 1"

(2) ½", ¾", 1"

(2) ½", ¾", 1"

(4) ½", ¾", 1"

(4) 1½" NPT Thread

(4) ¾" NPT Thread

Cover Family Rectangular Rectangular Round Round Rectangular Round

Concrete Cover Included     

2 Inch Hub Compatible –– –

Rectangular Covers

•Compatible with CFB4G25, CFB4G25CR, CFB4G30

and CFB4G30CR

• Two large cable egress doors and access 180° opening

• Maximum static load of 800 lbs. with 2x safety factor*

• Surface style typical applications: Carpet, VCT

• Flush style typical applications: Tile, nished concrete

and Terrazzo oors

Cover dimensions 11¹¹⁄₁₆ in. x 7³⁄₁₆ in. Cover dimensions 10¹¹⁄₁₆ in. x 6³⁄₁₆ in.

Finish Surface Surface with Insert Flush Flush with Insert

Aluminum Powder Coated

Black Powder Coated

Brass Powder Coated

Bronze Powder Coated

Satin Nickel Powder Coated

24GCCVRALU

24GCCVRBK

24GCCVRBRS

24GCCVRBRZ

24GCCVRNK

24GCCVRALUC

24GCCVRBKC

24GCCVRBRSC

24GCCVRBRZC

24GCCVRNKC

24GTCVRALU

24GTCVRBK

24GTCVRBRS

24GTCVRBRZ

24GTCVRNK

24GTCVRALUC

24GTCVRBKC

24GTCVRBRSC

24GTCVRBRZC

24GTCVRNKC

Round Covers

•Compatible with CFB4G25R, CFB4G25RCR, CFB4G30R, CFB4G30RCR and CFB4G30RCI

• Cover has a 9

½

in. outer diameter and two large cable egress doors and access 180° opening

• Maximum static load of 1000 lbs. with 2x safety factor*

Finish Flush Surface

Brushed Aluminum

Black Powder Coated

Brass Plated

Bronze Plated

Satin Nickel Plated

CFBS1R8CVRALU

CFBS1R8CVRBLK

CFBS1R8CVRBRS

CFBS1R8CVRBRZ

CFBS1R8CVRNKL

Note: *Load applied through a 3 in. (76mm) mandrel in center of the cover.

Floor Boxes

SystemOne Recessed 4-Gang Floor Boxes and Covers

For Use In Concrete Floors

Dimensions in Inches (mm)

www.hubbell-wiring.comO-8

Complies with UL514A

Dimensions Inches (mm)

Style Rectangular Cover Round Cover

Box Type

Standard

On-grade (Corrosion-Resistant)

CFB6G30

–

–

CFB6G30CR

CFB6G30R

–

–

CFB6G30RCR

Recomended Pour Depth 3.50" (88.9) 3.50" (88.9) 3.75" (95.3) 3.75" (95.3)

Min. Depth of Pour 3.00" (76.2) 3.00" (76.2) 3.75" (95.3) 3.75" (95.3)

Adjustability Fully Fully Fully Fully

Cubic Inch (cm3)

Capacity per Gang

33 cu. in./89 cu. in.

(535 cm3/1450 cm3)

33 cu. in./89 cu. in.

(535 cm3/1450 cm3)

33 cu. in./89 cu. in.

(535 cm3/1450 cm3)

33 cu. in./89 cu. in.

(535 cm3/1450 cm3)

Dimensions – A 3.00" (76.2) 3.00" (76.2) – –

Dimensions – B 18.48" (469.4) 18.48" (469.4) 17.45" (443.2) 17.45" (443.2)

Dimensions – C 11.62" ( 29 5.1) 11.62" ( 29 5.1) 11.60 " (29 4.5 ) 11.6 0 " (2 94.5 )

Dimensions – D – – 8.37" (212.5) TYP. 8.37" (212.5) TYP.

Dimensions – E 3.46" (87.8) 3.46" (87.8) 3.75" (95.3) 3.75" (95.3)

KO Trade Size: Front & Back

Sides

Bottom

(4) ¾", 1", 1¼"

(4) ½", ¾", 1¼", 1½"

(4) ½", ¾", 1¼", 1½"

(4) ¾", 1", 1¼"

(4) ½", ¾", 1¼", 1½"

(4) ½", ¾", 1¼", 1½"

(4) ¾", 1", 1¼"

(2) ¾", 1", 1¼", 1½"

(4) ½", ¾", 1", 1¼", 1½"

(4) ¾", 1", 1¼"

(2) ¾", 1", 1¼", 1½"

(4) ½", ¾", 1", 1¼", 1½"

Cover Family Rectangular Rectangular Round Round

Concrete Cover Included    

2 Inch Hub Compatible    

Rectangular Covers

• Compatible with CFB6G30 and CFB6G30CR

• Two large cable egress doors and access 180° opening

• Maximum static load of 1500 lbs. with 2x safety factor*

• Surface style typical applications: Carpet, VCT

• Flush style typical applications: Tile, nished concrete

and Terrazzo oors

Cover dimensions 11½ in. x 10 in. Cover dimensions 10½ in. x 9 in.

Finish Surface Surface with Insert Flush Flush with Insert

Aluminum Powder Coated

Black Powder Coated

Brass Powder Coated

Bronze Powder Coated

Satin Nickel Powder Coated

610GCCVRALU

610GCCVRBK

610GCCVRBRS

610GCCVRBRZ

610GCCVRNK

610GCCVRALUC

610GCCVRBKC

610GCCVRBRSC

610GCCVRBRZC

610GCCVRNKC

610GTCVRALU

610GTCVRBK

610GTCVRBRS

610GTCVRBRZ

610GTCVRNK

610GTCVRALUC

610GTCVRBKC

610GTCVRBRSC

610GTCVRBRZC

610GTCVRNKC

Round Covers

• Compatible with CFB6G30R and CFB6G30RCR

• Two large cable egress doors and access 180° opening

• Maximum static load of 1000 lbs. with 2x safety factor*

Finish Surface

Brushed Aluminum

Black Powder Coated

Brass Plated

Bronze Plated

Satin Nickel Plated

CFBS1R8CVRALU

CFBS1R8CVRBLK

CFBS1R8CVRBRS

CFBS1R8CVRBRZ

CFBS1R8CVRNKL

Note: *Load applied through a 3 in. (76mm) mandrel in center of the cover.

Floor Boxes

SystemOne Recessed 6-Gang Floor Boxes and Covers

For Use In Concrete Floors

O-9

www.hubbell-wiring.com

Dimensions in Inches (mm)

Complies with UL514A

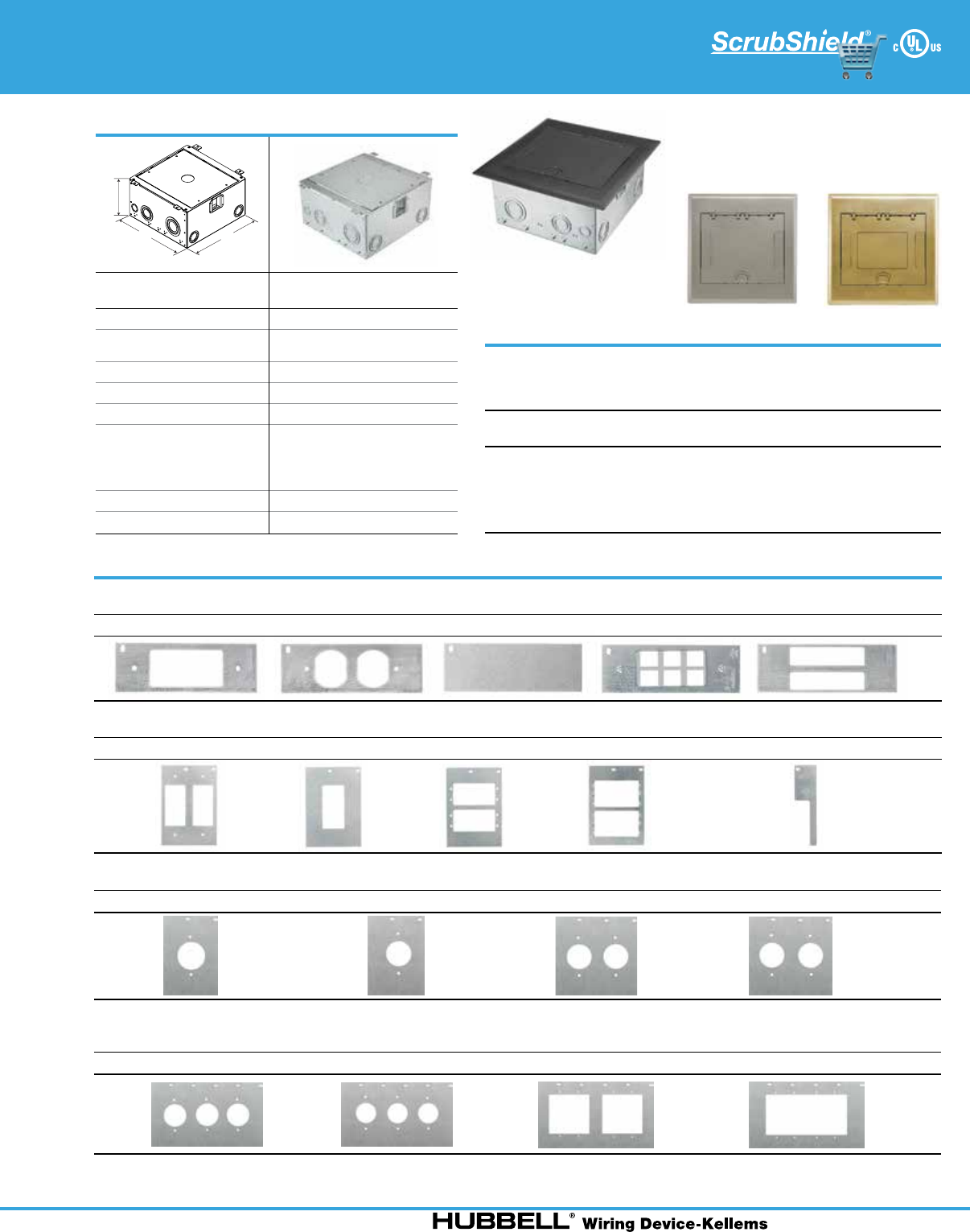

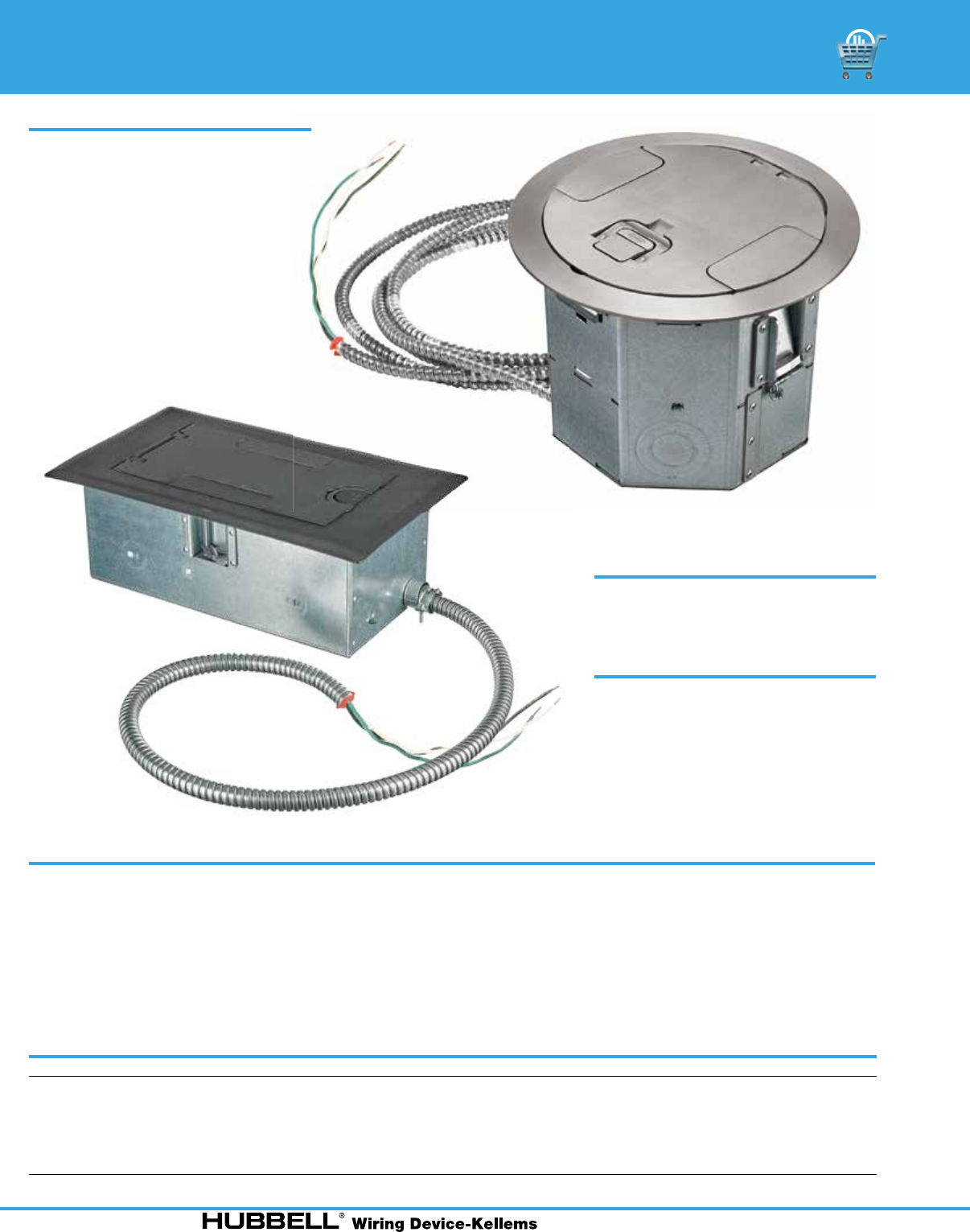

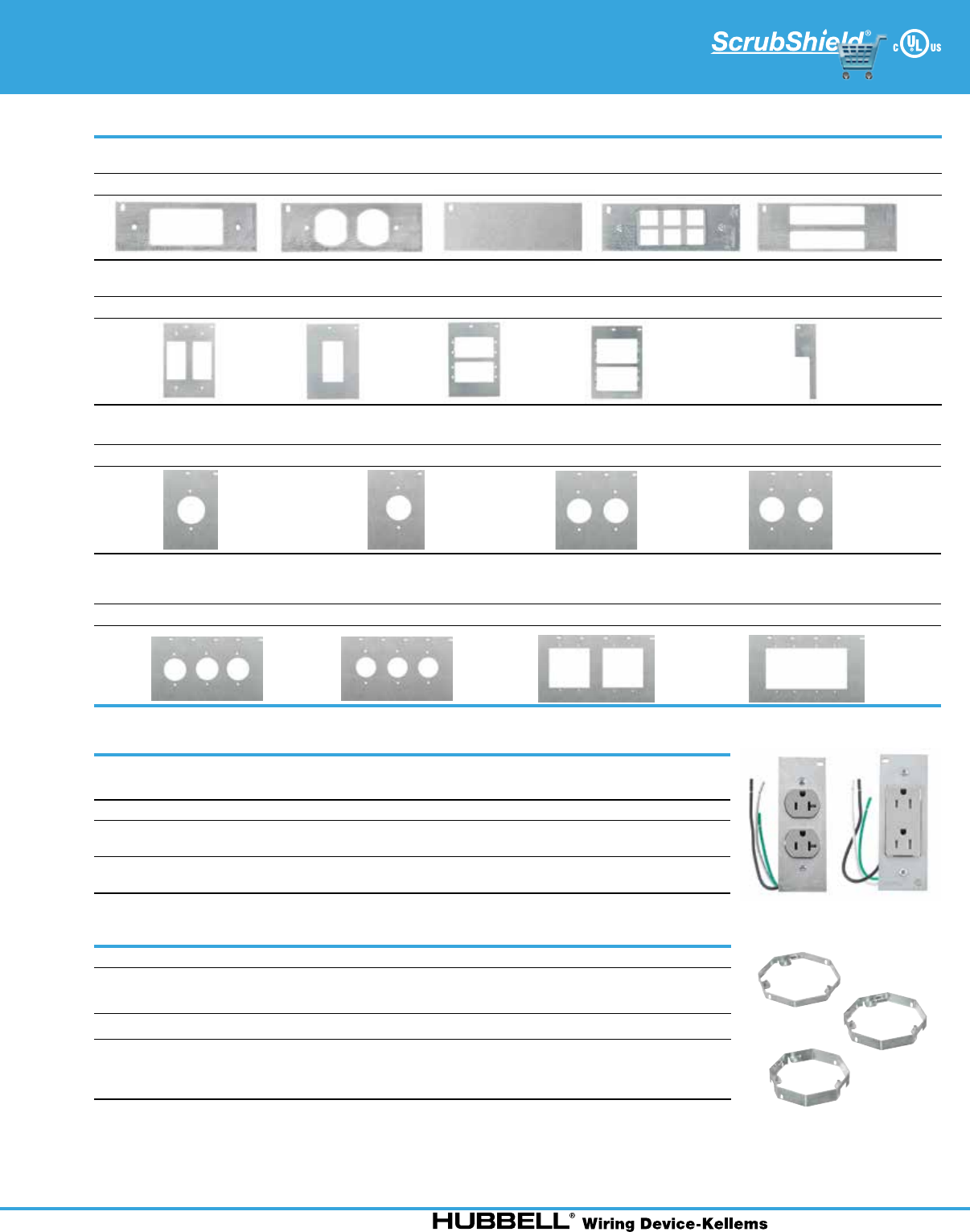

Pre-Wired Device Plates

•Reduces wiring and installation times

•8 in. stranded leads mounted to the face plate

Description Type 15A 20A

Duplex, Gray Standard

Tamper-Resistant

PWFBMPCR15GRY

PWFBMPCR15GRYTR

PWFBMPCR20GRY

PWFBMPCR20GRYTR

Decorator, Gray Standard

Tamper-Resistant

PWFBMPDR15GRY

PWFBMPDR15GRYTR

PWFBMPDR20GRY

PWFBMPDR20GRYTR

Accessories

Description Catalog Number

2 in. threaded zinc hub for use with CFB2G30, CFB4G30 and

CFB6G30 series oor boxes; replaces CFBKOPLATE

CFBHUB2

Replacement knock-out plate Standard

Epoxy Coating

CFBKOPLATE

CFBKOPLATECR

Replacement wire-way, used to pass wires from one

compartment to the other, for use in rectangular boxes

CFB4G30/CR

CFB4G25/CR

CFB46WW

CFB4WW

Finished oor height adjustment ring - increase post

pour adjustment; use with CFBS1R8 cover series

0 - ¼ in.

¼ in. - ½ in.

½ in. - ¾ in.

CFB8RCVRR1*

CFB8RCVRR2

CFB8RCVRR3

Replacement low voltage divider CFB46DIV

Note: *Included with standard CFB4G30R and CFB4G25R series.

Extron® is a registered trademark of Extron Electronics.

Crestron® is a registered trademark of Crestron Electronics, Inc.

FSR® is a registered trademark of FSR Inc.

TracJack®, Series II® and Ortronics® are registered trademarks of Ortronics/Legrand.

Floor Boxes

SystemOne 2-, 4- and 6-Gang Plates and Accessories

Plates for use in 2-, 4- and 6-Gang Floor Boxes

•UL 514A listed

Plate

Style

(1) Decorator

Opening

(1) Duplex

Opening

(2) Extron®

MAAP Openings

(2) Extron®

Openings

Cat. No. FBMPREC FBMPDUP FBMPMAAP FBMPAAP

Plate

Style

(2) 1U Hubbell

iStation Openings

(1) 1.5U Hubbell

iStation Opening

(1) Simplex Opening

1.40 in. Diameter

(1) Twist-Lock® Opening

1.60 in. Diameter

Cat. No. FBMP2IM FBMP15IM FBMP139 FBMP156

Plate

Style 1-Gang Blank

Cable Feed Through

with Bushing

(1) Opening for

TracJack® or Series II®

(1) Opening with Hubbell ISF6

Frame for Keystone Jacks

Cat. No. FBMPBNK FBMPFT FBMPTRAC FBMP6KS

Dimensions in Inches (mm)

www.hubbell-wiring.comO-10

Complies with UL514A

Dimensions Inches (mm)

Style Rectangular Cover Round Cover

Box Type

Standard

On-grade

CFB10G55

–

–

CFB10G55CR

CFB10G55R

–

–

CFB10G55RCR

Recomended Pour Depth 6.00" (152.4) 6.00" (152.4) 6.25" (158.8) 6.25" (158.8)

Min. Depth of Pour 5.50" (139.7) 5.50" (139.7) 6.25" (158.8) 6.25" (158.8)

Adjustability Fully Fully Fully Fully

Cubic Inch (cm3)

Capacity per Gang

33 cu. in./89 cu. in.

(535 cm3/1450 cm3)

33 cu. in./89 cu. in.

(535 cm3/1450 cm3)

33 cu. in./89 cu. in.

(535 cm3/1450 cm3)

33 cu. in./89 cu. in.

(535 cm3/1450 cm3)

Dimensions – A 5.50" (139.7) 5.50" (139.7) – –

Dimensions – B 10.96" (278.4) 10.96" (278.4) 10.96" (278.4) 10.96" (278.4)

Dimensions – C 10.96" (278.4) 10.96" (278.4) 12.10" ( 3 07. 4) 12.10" ( 3 07. 4)

Dimensions – D – – 8.37" (212.5) TYP. 8.37" (212.5) TYP.

Dimensions – E 6.00" (152.4) 6.00" (152.4) 6.25" (158.8) 6.25" (158.8)

KO Trade Size: Front & Back

Sides

Bottom

(2) ½", ¾", 1", 1¼", 1½", 2"

(4) ¾", 1", 1¼", 1½"

(4) ½", ¾", 1", 1¼"

(2) ½", ¾", 1", 1¼", 1½", 2"

(4) ¾", 1", 1¼", 1½"

(4) ½", ¾", 1", 1¼"

(2) ½", ¾", 1", 1¼", 1½", 2"

(2) ¾", 1", 1¼", 1½"

(4) ½", ¾", 1", 1¼"

(2) ½", ¾", 1", 1¼", 1½", 2"

(2) ¾", 1", 1¼", 1½"

(4) ½", ¾", 1", 1¼"

Cover Family Rectangular Rectangular Round Round

Concrete Cover Included    

2 Inch Hub Compatible – – – –

Rectangular Covers

• Compatible with CFB10G55 and CFB10G55CR

• Two large cable egress doors and access 180° opening

• Maximum static load of 1500 lbs. with 2x safety factor*

• Surface style typical applications: Carpet, VCT

• Flush style typical applications: Tile, nished concrete

and Terrazzo oors

Cover dimensions 11½ in. x 10 in. Cover dimensions 10½ in. x 9 in.

Finish Surface Surface with Insert Flush Flush with Insert

Aluminum Powder Coated

Black Powder Coated

Brass Powder Coated

Bronze Powder Coated

Satin Nickel Powder Coated

610GCCVRALU

610GCCVRBK

610GCCVRBRS

610GCCVRBRZ

610GCCVRNK

610GCCVRALUC

610GCCVRBKC

610GCCVRBRSC

610GCCVRBRZC

610GCCVRNKC

610GTCVRALU

610GTCVRBK

610GTCVRBRS

610GTCVRBRZ

610GTCVRNK

610GTCVRALUC

610GTCVRBKC

610GTCVRBRSC

610GTCVRBRZC

610GTCVRNKC

Round Covers

• Compatible with CFB10G55R and CFB10G55RCR

• Two large cable egress doors and access 180° opening

• Maximum static load of 1000 lbs. with 2x safety factor*

Finish Surface

Brushed Aluminum

Black Powder Coated

Brass Plated

Bronze Plated

Satin Nickel Plated

CFBS1R8CVRALU

CFBS1R8CVRBLK

CFBS1R8CVRBRS

CFBS1R8CVRBRZ

CFBS1R8CVRNKL

Note: *Load applied through a 3 in. (76mm) mandrel in center of the cover.

Floor Boxes

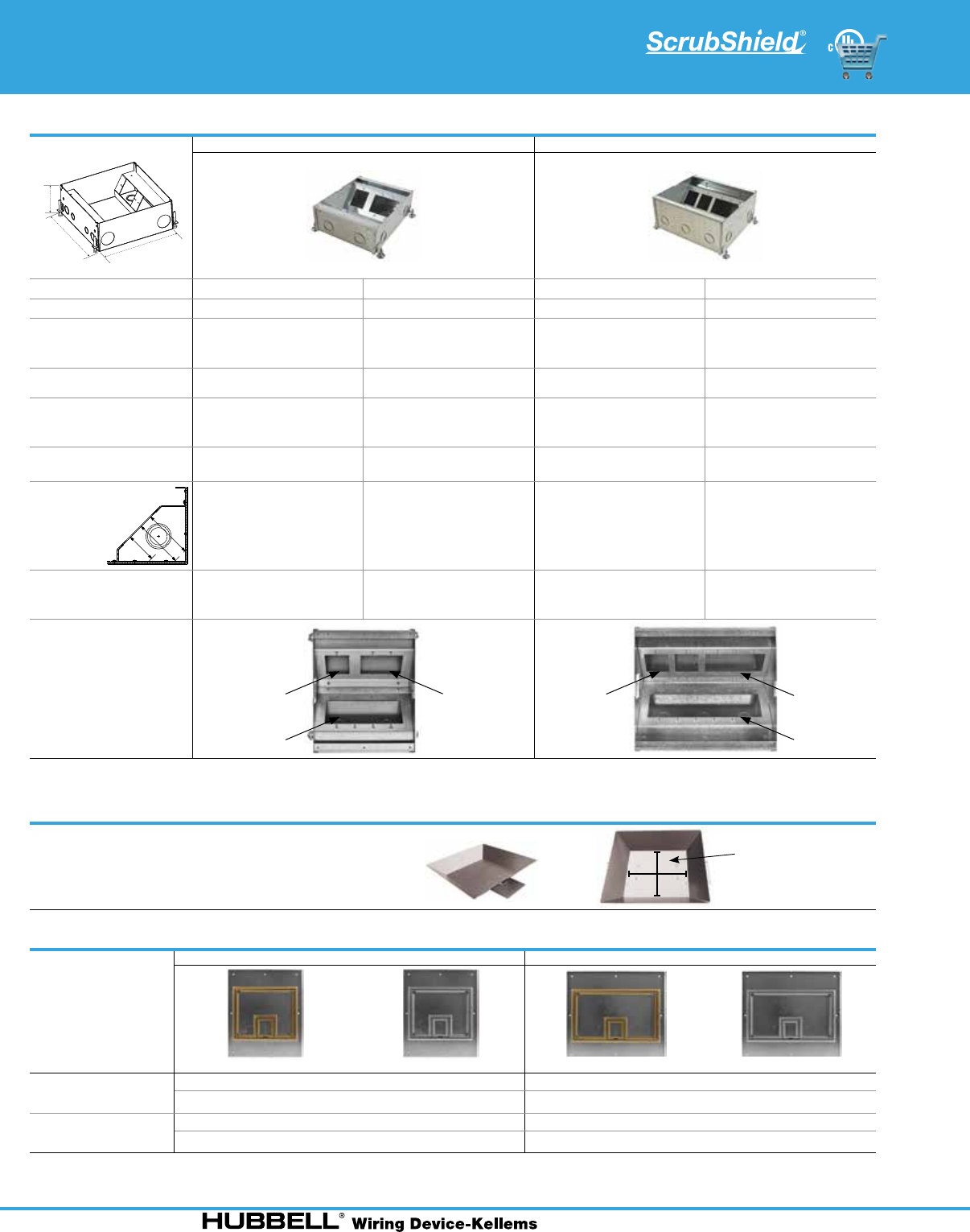

SystemOne Recessed 10-Gang Floor Boxes and Covers

For Use In Concrete Floors

O-11

www.hubbell-wiring.com

Dimensions in Inches (mm)

Complies with UL514A

Accessories

Description Catalog Number

Replacement wire-way, used to pass wires from one compartment

to the other, for use in CFB10G55/CR rectangular boxes

CFB10WW

Replacement low voltage divider CFB10DIV

Finished oor height adjustment ring - increase post

pour adjustment; use with CFB10G30R cover series

0 - ¼ in.

¼ in. - ½ in.

½ in. - ¾ in.

CFB8RCVRR1*

CFB8RCVRR2

CFB8RCVRR3

Note: *Included with standard CFB10G30R series.

Pre-Wired Device Plates

• Reduces wiring and installation times

• 8 inch stranded leads mounted to the face plate

Description Type 15A 20A

Duplex, Gray Standard

Tamper-Resistant

PWFB10MPCR15GRY

PWFB10MPCR15GRYTR

PWFB10MPCR20GRY

PWFB10MPCR20GRYTR

Decorator, Gray Standard

Tamper-Resistant

PWFB10MPDR15GRY

PWFB10MPDR15GRYTR

PWFB10MPDR20GRY

PWFB10MPDR20GRYTR

Extron® is a registered trademark of Extron Electronics.

Crestron® is a registered trademark of Crestron Electronics, Inc.

FSR® is a registered trademark of FSR Inc.

TracJack®, Series II® and Ortronics® are registered trademarks of Ortronics/Legrand.

Floor Boxes

SystemOne 10-Gang Plates and Accessories

CFB10 Series – Plates

Plate

Style

(1) Decorator

Opening

(1) Duplex

Opening Blank

Decorator Opening Plate

Including Hubbell ISF6GY

(2) Openings to Accommodate (6)

Ortronics TrackJack®

Cat. No. FB10MPREC FB10MPDUP FB10MPBNK FB10MPKEY FB10MPTRAC

Plate

Style (2) Decorator

(4) Extron® MAAP

Modules

(4) Extron® AAP

Modules

For (6) 1U Hubbell

iStation Modules

Replacement Spacer

Around Wire-Way

Cat. No. FB10MP2A FB10MPMAAP FB10MPAAP FB10MP2B FB10MPX

Plate

Style

(1) Twist-Lock® Opening

1.60 in. Dia. (Uses 2 Gangs)

(1) Simplex Opening

1.40 in. Dia. (Uses 2 Gangs)

(2) Twist-Lock® Opening

1.60 in. Dia. (Uses 3 Gangs)

(2) Simplex Opening

1.40 in. Dia. (Uses 3 Gangs)

Cat. No. FB10TLA FB10TLX FB10TLB FB10TLY

Plate

Style

(3) Twist-Lock® Opening

1.60 in. Dia. (Uses 5 Gangs)

(3) Simplex Opening

1.40 in. Dia. (Uses 5 Gangs)

(2) 2-Gang. Meets NEMA Spacing.

Ideal for Crestron®

DM –TX Product and Power

(4) Single Service Openings

Utilizing NEMA Wallplate

(Uses 5 Gangs)

Cat. No. FB10TLC FB10TLZ CFB10NEMA FB10NEMA4G

www.hubbell-wiring.comO-12

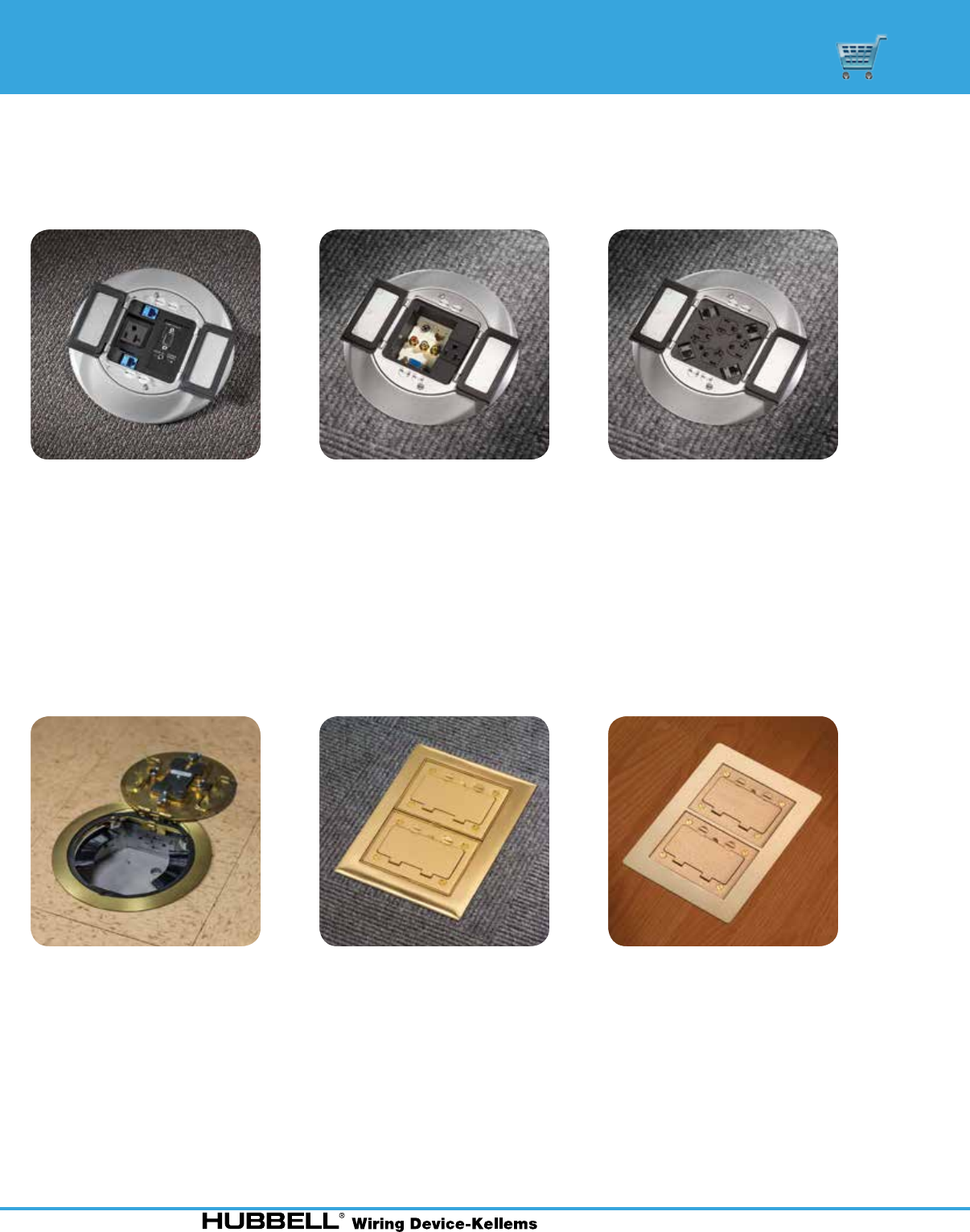

Multi-Service Applications

This Hubbell SystemOne sub-plate

incorporates a standard Style Line®

decorator opening, which can be used

for an active multimedia device. In

addition, a 20A outlet is supplied for

power and two keystone openings

for voice/data services.

Multimedia Applications

Other Hubbell SystemOne sub-plates are

designed to meet the growing needs of

the audio/video market. Some sub-plates

provide power outlets with Hubbell’s AV

products including 15-pin SVGA, RCA,

S-Video, 3.5mm stereo, HDMI and XLR

microphone jacks. Other sub-plates can

accommodate Extron® Electronics MAAP

and AAP series AV modules, as well as

FSR IPS plates.

4X4 Applications

Provides maximum power capacity

for flush, multi-service applications.

This sub-plate features a pre-wired

four outlet 20A, 125V receptacle and

four openings for flush mount Hubbell

modular jacks and audio/video Snap

Fit connectors. Receptacle wiring

permits dual- circuit, as well as

isolated ground applications.

SystemOne Floor Box Applications…

Traditional Floor Boxes…

Extron® is a registered trademark of Extron Electronics.

Floor Boxes

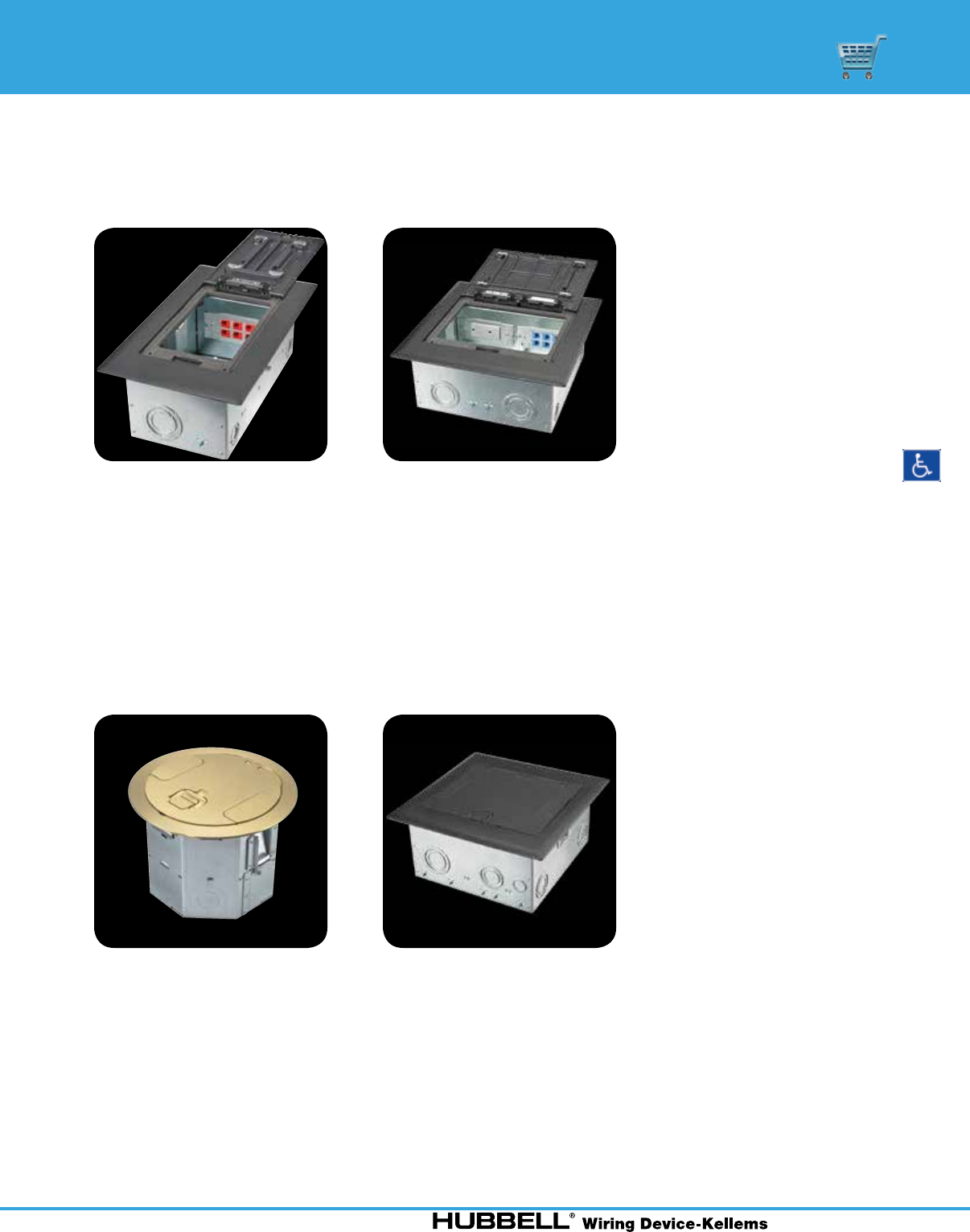

Flush Floor Boxes

Applications

Recessed Applications

For applications where recessed

connections are desired, Hubbell has

a complete line of recessed stamped

steel and cast iron floor boxes, from

two to eleven gangs. A variety of

modular face plates are available to

meet a wide array of power, data,

voice and audio/video requirements.

Carpet and tile cover assemblies

are offered in a variety of finishes

and styles.

Flush Applications

Hubbell offers a wide variety of traditional

solutions including single and multi-gang

cast iron, stamped steel and non-metallic

floor boxes in both round and rectangular

designs. These boxes can be finished

with either brass or aluminum covers

and flanges to match any office décor.

All Hubbell floor box assemblies exceed

UL scrub water exclusion requirements.

Wooden Floor Applications

Hubbell offers round, single service and

rectangular, multi-service floor boxes

for wooden floor applications. The

rectangular boxes are available in one,

two and three-gang options and feature

removable barriers for maximum

capacity while maintaining separation

of power and low voltage. A variety

of covers and flanges are available in

brushed aluminum or brass to meet

aesthetic requirements.

Featuring the unique capabilities of Hubbell’s SystemOne universal cover and sub-plate design, Hubbell has expanded

its floor box offering to provide industry leading flexibility while accommodating an extensive range of applications.

Hubbell SystemOne is constructed to give customers the ability to create personal solutions for their most demanding,

power, data and audio/video requirements.

O-13www.hubbell-wiring.com

Floor Boxes

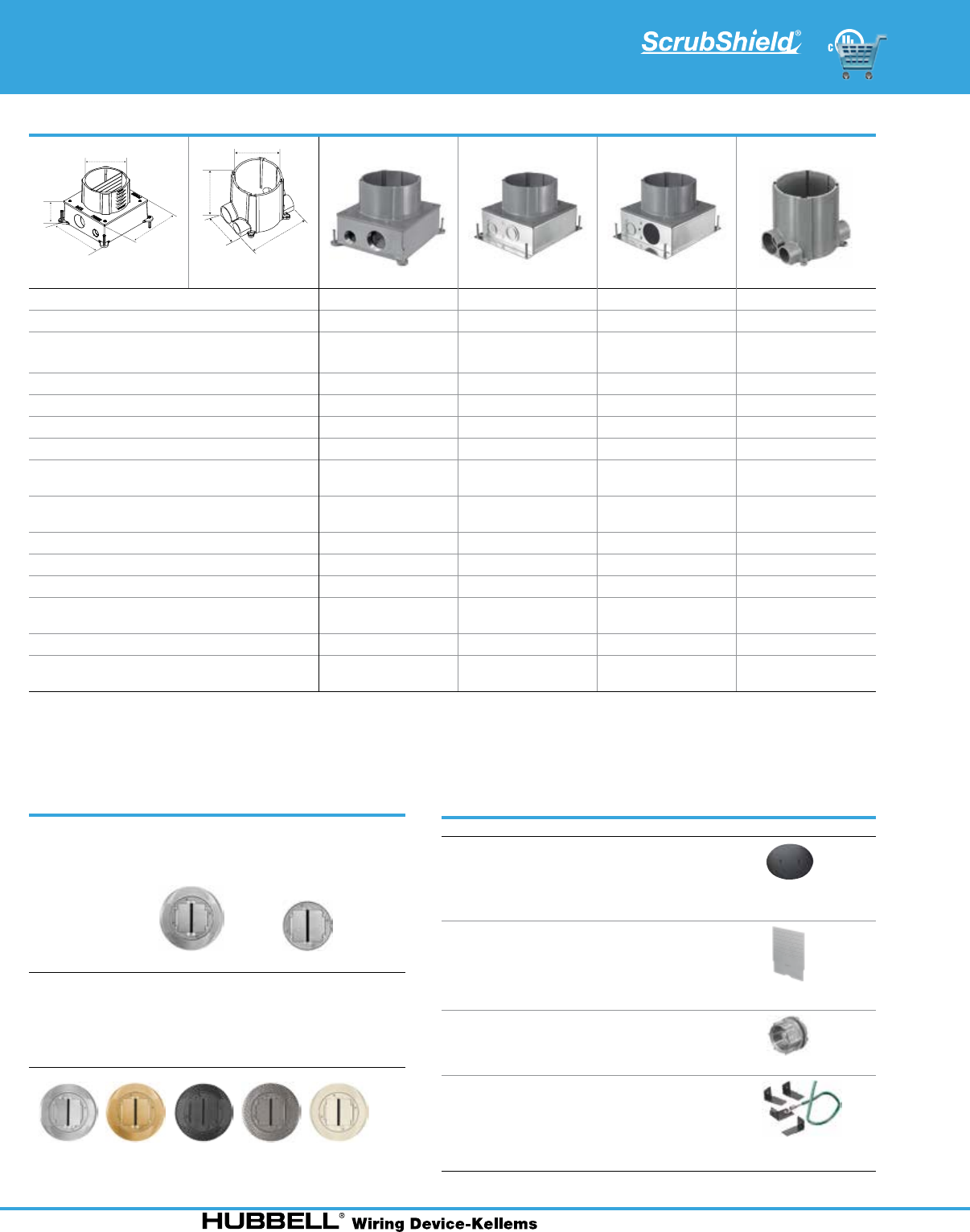

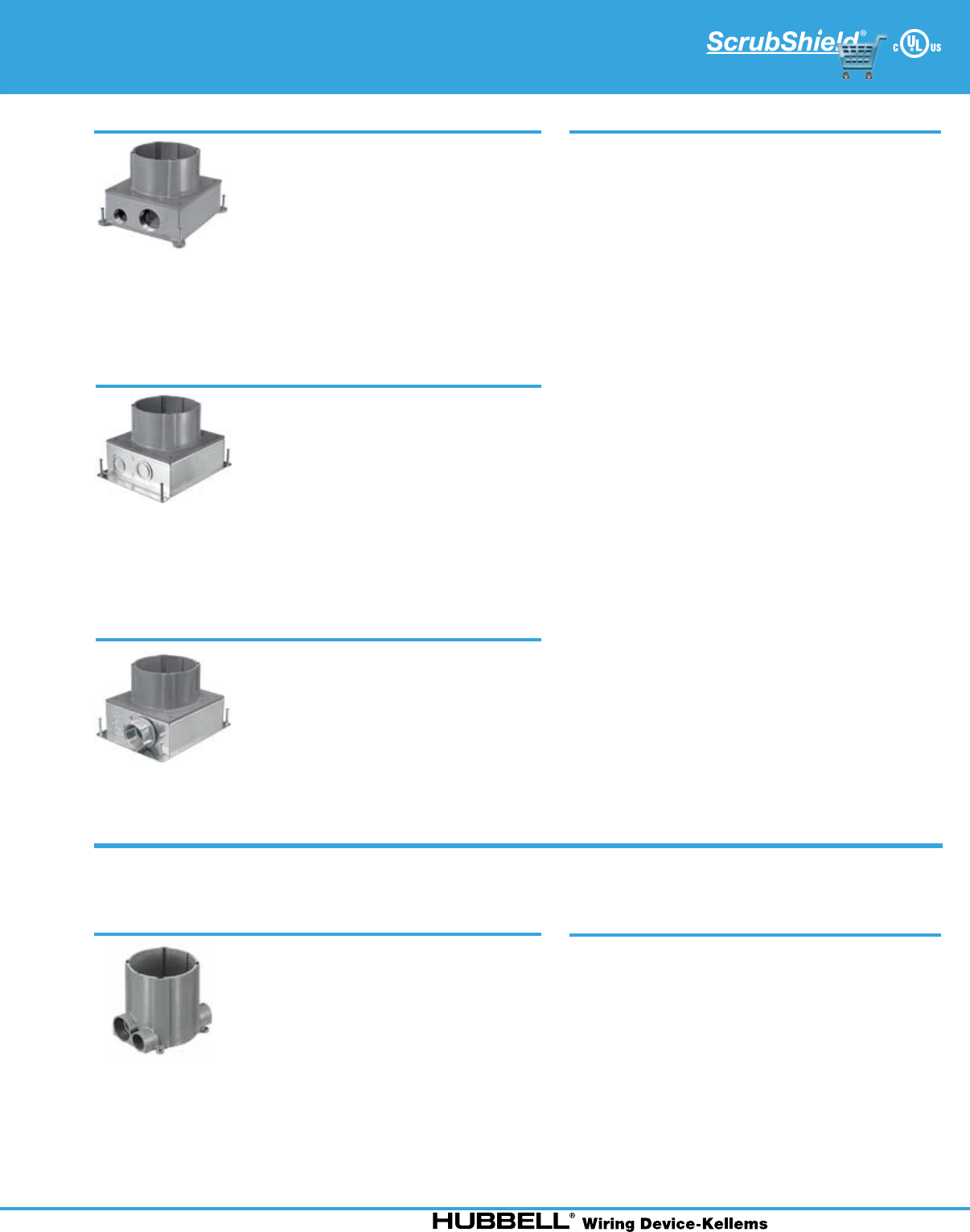

SystemOne Flush Floor Box Family

Features

• Easily installed, aesthetic and configurable floor box

solution, for open floor plans that require both power

and data services

• The Hubbell SystemOne Universal Cover mounts

directly to the floor box riser, eliminating the need

for an additional adapter collar

• The Hubbell SystemOne Universal Cover features

ScrubShield® technology that exceeds UL514 scrub

water exclusion requirements

• Convenient cubic inch capacity (cm3) markings on

interior of box

• Leveling feet provide before pour adjustability

• Non-metallic riser allows a simple saw cut for

adjustment after pour

• Supplied with concrete cover and closure plugs

(where applicable)

• Designed to accommodate multi-service

applications with the wide offering of Hubbell

SystemOne sub-plates

• Hubbell SystemOne Metal Floor Boxes are

approved for use in the City of Chicago

S1SFB

• Stamped steel construction

• Economical and light weight for

above-grade applications

• Concentric knockouts permit

various conduit sizes for both

power and data services

Steel

S1SFBAV

• Accommodates high-capacity

multimedia applications in a 3½"

minimum depth of pour

• Oversized 1½" NPT threaded

data hub

• ¾", 1" concentric knockouts for

power services

Steel AV

•Corrosion resistant for on-grade

applications

•Oversized 1½" NPT threaded conduit

access holes for low voltage

•1" NPT threaded conduit access

holes for power

S1CFB

Cast Iron

Features

• Economical, easy to install, in-floor delivery system

for open plan spaces

• The Hubbell SystemOne Universal Cover mounts

directly to the floor box riser, eliminating the need for

an additional adapter collar

• Concrete cover, conduit reducers and conduit hub

plugs included

•Non-corrosive plastic construction

•Oversized 1½" data conduit hub

for increased cable capacity and

bend radius

• Parallel conduit hubs reduce labor

and material cost, facilitating easier

wire pull

Non-Metallic

S1PFB

Complies with UL514A & C

www.hubbell-wiring.comO-14

Floor Boxes

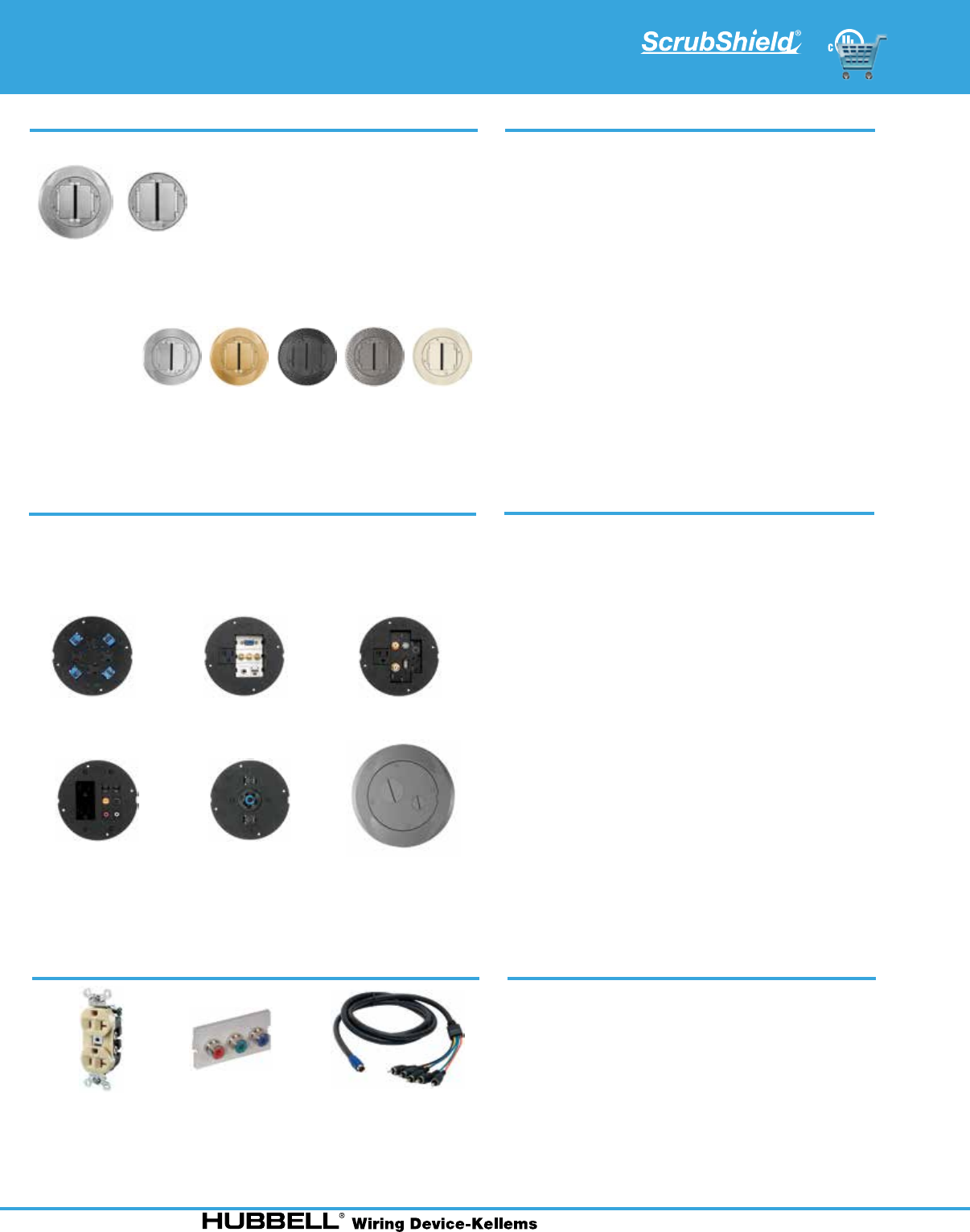

SystemOne Flush Covers

Features

• Durable cast aluminum construction, powder

coat finish

• Hubbell 4X4: four 20A, 125V receptacles, four

keystone openings for voice/data jacks and flush

multimedia connectors

• Hubbell X-END and Hubbell iSTATION modular

connectivity

• Accommodates Extron® Electronics Architectural

Series audio/video system integration products

• Accommodates GFCI, surge and standard

Style Line® Decorator receptacles

• Twist-Lock® receptacle with two flush keystone

openings

• Large capacity and multi-service furniture feed

applications

• Open system sub-plates permit maximum

data flexibility

Features

• Durable cast aluminum construction available in

black, gray, brass, aluminum and ivory powder

coat finishes

• Features ScrubShield® technology that exceeds

UL514 scrub water exclusion requirements

• Provides consistent look and maximum functionality

throughout the installed life

• Meets ADA standards for accessible design,

section 4.3.8

Features

• Choose from Hubbell’s industry leading selection

of wiring devices for power services

• Hubbell iSTATION connectivity modules integrate

with SystemOne to provide comprehensive multi-

media solutions

• Hubbell X-END application cables and tails allow

for more connectivity in a smaller footprint

Extron

®

is a registered trademark of Extron Electronics.

Hubbell’s modular sub-plate design allows users to economically

upgrade Hubbell SystemOne FRPT and Floor Boxes to

accommodate future moves, adds and changes.

See page O-17 for additional Information.

Extron® AAP/MAAP

and Power Sub-Plate

4x4 Sub-Plate Datacom and Power

Sub-Plate

Furniture Feed

Cover, Carpet

Dual Style Line®

Decorator Sub-Plate

Twist-Lock®

Sub-Plate

Carpet Tile • Hinged doors open 180 ° ush to

the carpet ange or tile

• Locking studs allow each door to

be secured independently

• The universal carpet or tile ange

can be used for Hubbell SystemOne

Floor Boxes and Fire-Rated

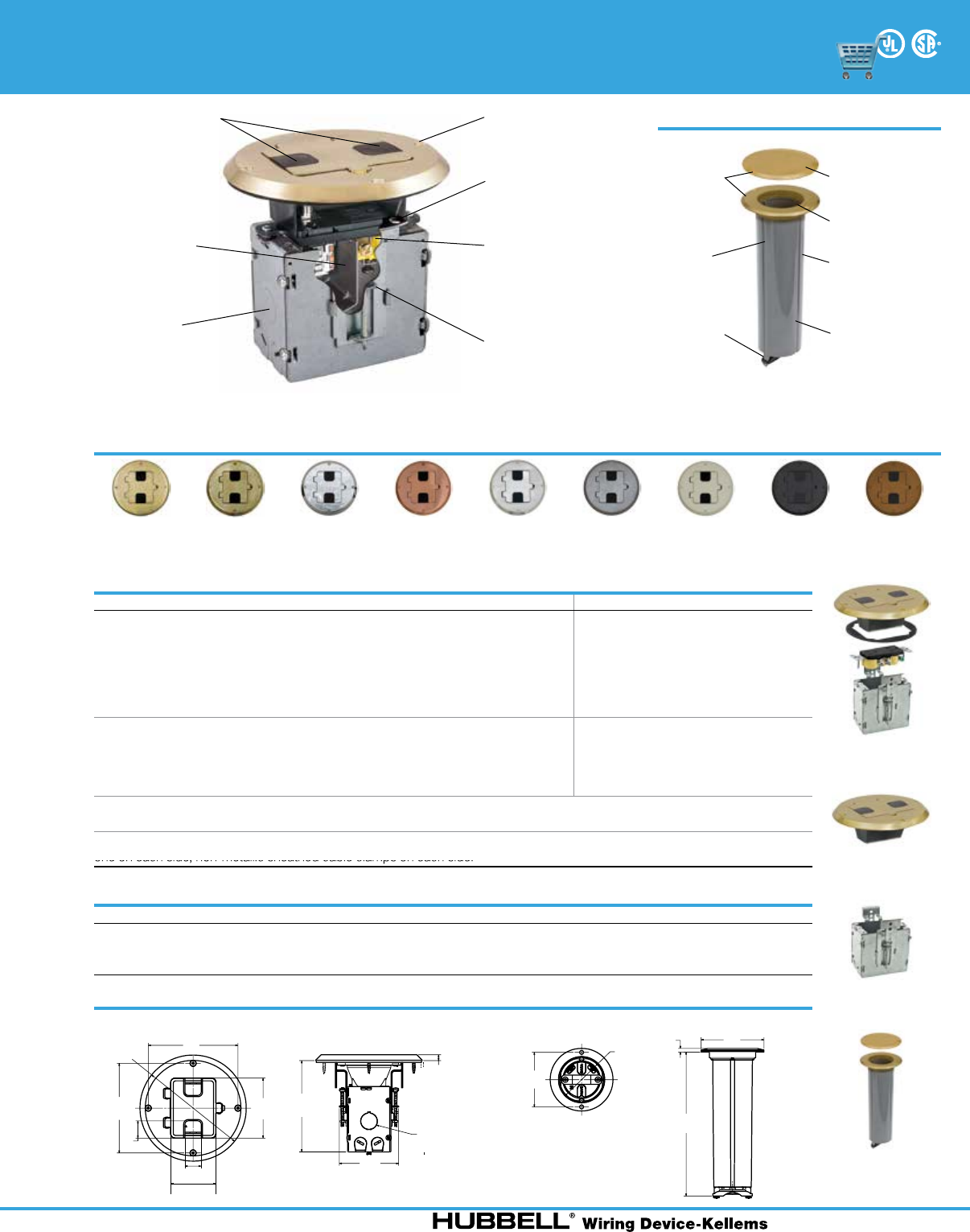

Poke-Throughs

• Finishes and colors available:

IvoryBrass

Finish

GrayBlackAluminum

Finish

Flange and Cover Assembly

SystemOne Sub-Plates

Power Devices and Connectivity

Hubbell

X-END

Hubbell-PRO

Receptacles

Hubbell

iSTATION

Complies with UL514A & C

O-15www.hubbell-wiring.com

Floor Boxes

SystemOne Flush Conguration Chart

Floor Boxes* 4" Core Hole

Fire-Rated Poke-Throughs

Non-

Metallic Metal

Sub-Plates S1PFB S1CFB S1SFB S1SFBAV

S1PTFIT

S1PT4X4FIT

S1PTAVFIT

S1SP Style Line® Decorator/GFCI

3

3.5 3.5 3.5



S1SPDU Duplex/Duplex

3

3.5 3.5 3.5



S1SPDUSL Duplex/Style Line®

Decorator

3

3.5 3.5 3.5



S1SP4X4

S1SP4X4PA

S1SP4X4SYS

Hubbell 4 X 4

Panduit Mini-Com® 4 X 4

SYSTIMAX® 4 X 4

4

4

4

4



S1SPTL Twist-Lock® Receptacle

+ Data

4

4

4

4



S1SP3IM Hubbell DataCom

+ Power

5

5

5

5



S1SP4IM Hubbell DataCom

3.5 3.5 3.5 3.5



S1SPDU2IM Hubbell DataCom

+ Duplex

5

5

5

5



S1SPSL2IM Hubbell DataCom

+ Style Line® Decorator

5

5

5

5



S1SPFFxx

(Carpet)

S1SPFFTx x

(Tile)

Furniture Feed Cover/Flange

(Replace “x” with BRS (brass

finish), AL (aluminum finish),

BL (black) or GY (gray).

3

3.5 3.5 3.5



S1SPEXT1 Extron® or FSR

+ Power

4

4

4

4



S1SPEXT2 Extron® or FSR

+ Power

4

4

4

4



S1SPEXT3 Extron® or FSR

Single-Service

4.5 4.5 4.5 4.5



S1SPEX T4 Extron® or FSR

+ Power

4

4

4

4



S1SPORT Ortronics Series II®

+ Power

5

5

5

5



S1SPTRAC Ortronics TracJack®

+ Power

5

5

5

5



S1SPMAX Siemon MAX® + Power

5

5

5

5



S1SPAMM20 Active Multimedia + Flush

Keystone + Power

5

5

5

5



S1CFCxx

SystemOne

Carpet Cover

SystemOne Floor Boxes

and FRPTs use SystemOne

Universal Covers (Replace

“x” with BRS (brass nish),

AL (aluminum nish),

BL (black), GY (gray) or

I (ivory).

Signifies minimum depth of concrete pour

in inches for Hubbell SystemOne Floor

Boxes.



Recommended

Floor Fitting



Alternative Floor

Fitting



Not Compatible

S1TFCxx

SystemOne

Tile Cover

Note: *Fire-Rated Poke-Throughs available with integral power junction box. Add “J” suffix to catalog

numbers listed above (Example: S1PT FITJ). See section P for additional Information.

Extron® is a registered trademark of Extron Electronics. MAX® is a registered trademark of The Siemon

Company. Mini-Com® and Panduit® are registered trademarks of Panduit Corp. SYSTIMAX® is a registered

trademark of CommScope, Inc. TracJack®, Series II® & Ortronics® are registered trademarks of

Ortronics/Legrand.

Complies with UL514A & C

www.hubbell-wiring.comO-16

Dimensions in Inches (mm)

IvoryBrass

Finish

GrayBlackAluminum

Finish

Dimensions Inches (mm)

Style

D

C

A

B

Metal

D

C

A

B

Non-Metallic

Cast Iron

S1CFB*

Steel

S1SFB*

Steel AV

S1SFBAV*

Non-Metallic

S1PFB

Min. Depth of Pour 3.50" (88.9) 3.50" (88.9) 3.50" (88.9) 3.00" (76.2)

Adjustability Fully Fully Fully Fully

Cubic Inch (cm3) Capacity 156.0 cu. in.

(2556.4 cm3)

175.7 cu. in.

(2879.2 cm3)

177.5 cu. in.

(2909.7 cm3)

100 cu. in.

(1638.7 cm3)

Dimensions – A 3.00" (76.2) 3.00" (76.2) 3.00" (76.2) 6.00" (152.4)

Dimensions – B 7. 2 6 " ( 18 4. 4) 7.50" (190.5) 7.50" (190.5) 5.58" (141.7)

Dimensions – C 7.45" (189.2) 7. 3 8 " (18 7.4 ) 7. 3 8 " (18 7.4 ) 7.08" (179.8)

Dimensions – D (Inside Diameter) 5.00" (127.0) 5.00" (127.0) 5.00" (127.0) 5.00" (127.0)

Power Entries 1" NPT

Access Holes

¾", 1"

Concentric KO

¾", 1"

Concentric KO 1" Conduit Hub

Data Entries 1½" NPT

Access Holes

¾", 1", 1¼"

Concentric KO

1½" Threaded Hub

(included) 1½" Conduit Hub

Concrete Cover Included 

Closure Plugs Included – 

Reducers –––(see below)

Accepts Hubbell SystemOne

Universal Cover 

Cover Mounting Clips Included 

Non-Metallic Low Voltage Divider Included (S1DIV1) 

Note: UL File Number E92074.

CSA File Number LR18416.

*S1CFB, S1SFB, S1SFBAV are approved for use in the City of Chicago.

S1PFB reducers included: Qty (2) combo plug/reducers 1" to ¾"

Qty (2) reducers 1½" to 1"

Qty (2) reducers 1½" to ¾"

Qty (2) plugs 1½"

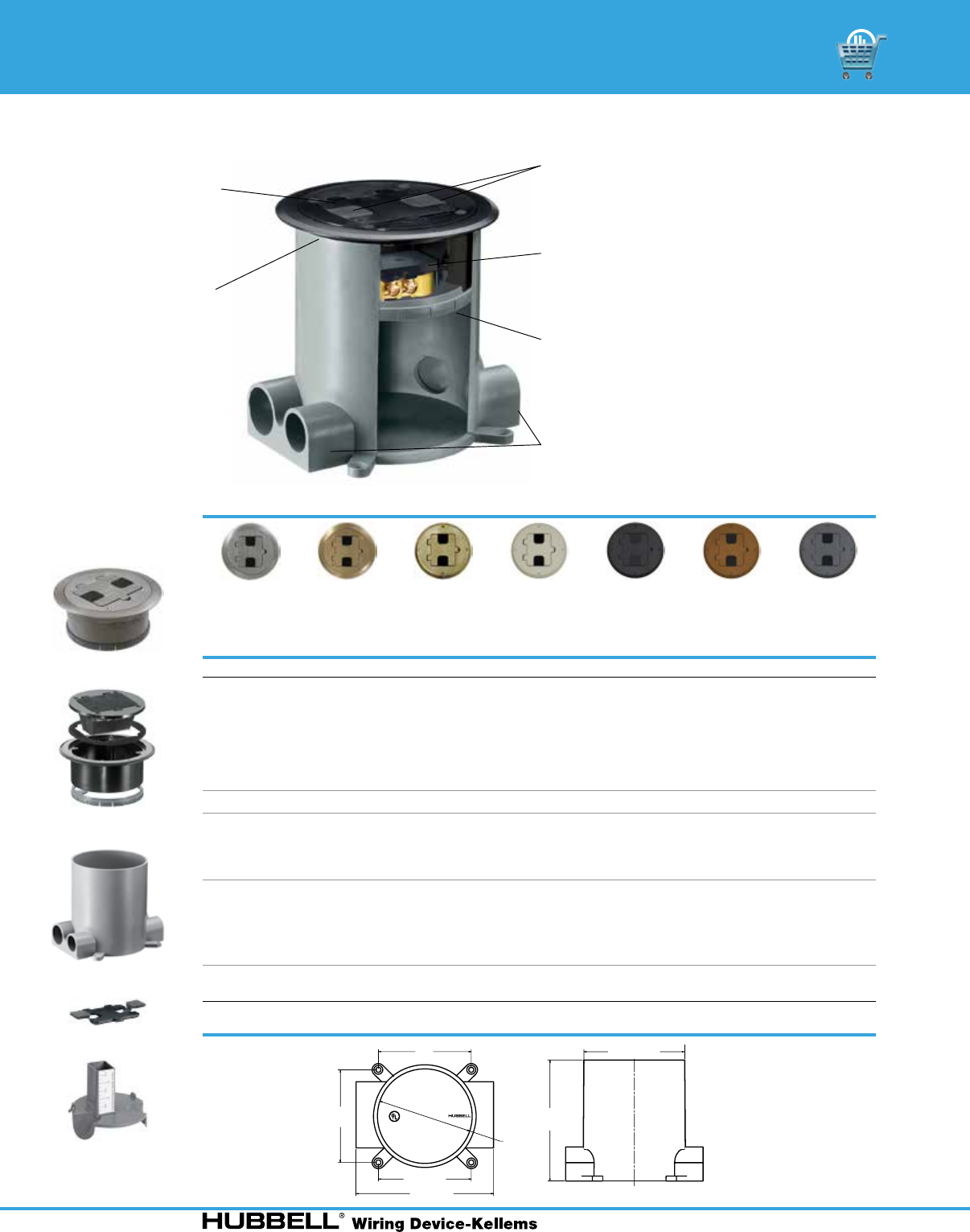

Floor Boxes

SystemOne Flush Metal and Non-Metallic

Concrete Floor Boxes

SystemOne Universal Covers Floor Box Accessories

Description Catalog Number

Abandonment Plates

Used to cover abandoned SystemOne Fire-Rated

Poke-Throughs or Floor Boxes.

S1AP4BL

S1AP4GY

Black

Gray

Replacement Side by Side Divider

Used to isolate compartments in S1SP, S1SPFFx,

S1SPFFTx, S1SPDU, S1SPDUSL, S1SPDU2IM

and S1SPSL2IM sub-plates. Included with all

SystemOne Floor Boxes. S1DIV1

1½" Threaded Hub

For use with S1SFBAV ONLY. Permits feed-

through applications. S1SFBAV oor box includes

one (1) threaded hub. S1AVHUB15

Replacement Universal Cover Mounting Clips

Used to mount SystemOne Universal Cover to

SystemOne metal and non-metallic oor boxes

(S1CFB, S1SFB, S1SFBAV, S1PFB). Includes clips

and ground leads for (5) oor boxes. All SystemOne

Floor Boxes include mounting clips.

S1FBCLIP5PK

Color Carpet Tile

Aluminum Finish

Brass Finish

Black

Gray

Ivory

S1CFCAL

S1CFCBRS

S1CFCBL

S1CFCGY

S1CFCI

S1TFCAL

S1TFCBRS

S1TFCBL

S1TFCGY

S1TFCI

• Cast aluminum construction

• Durable powder coat finish

Complies with UL514A & C

O-17www.hubbell-wiring.com

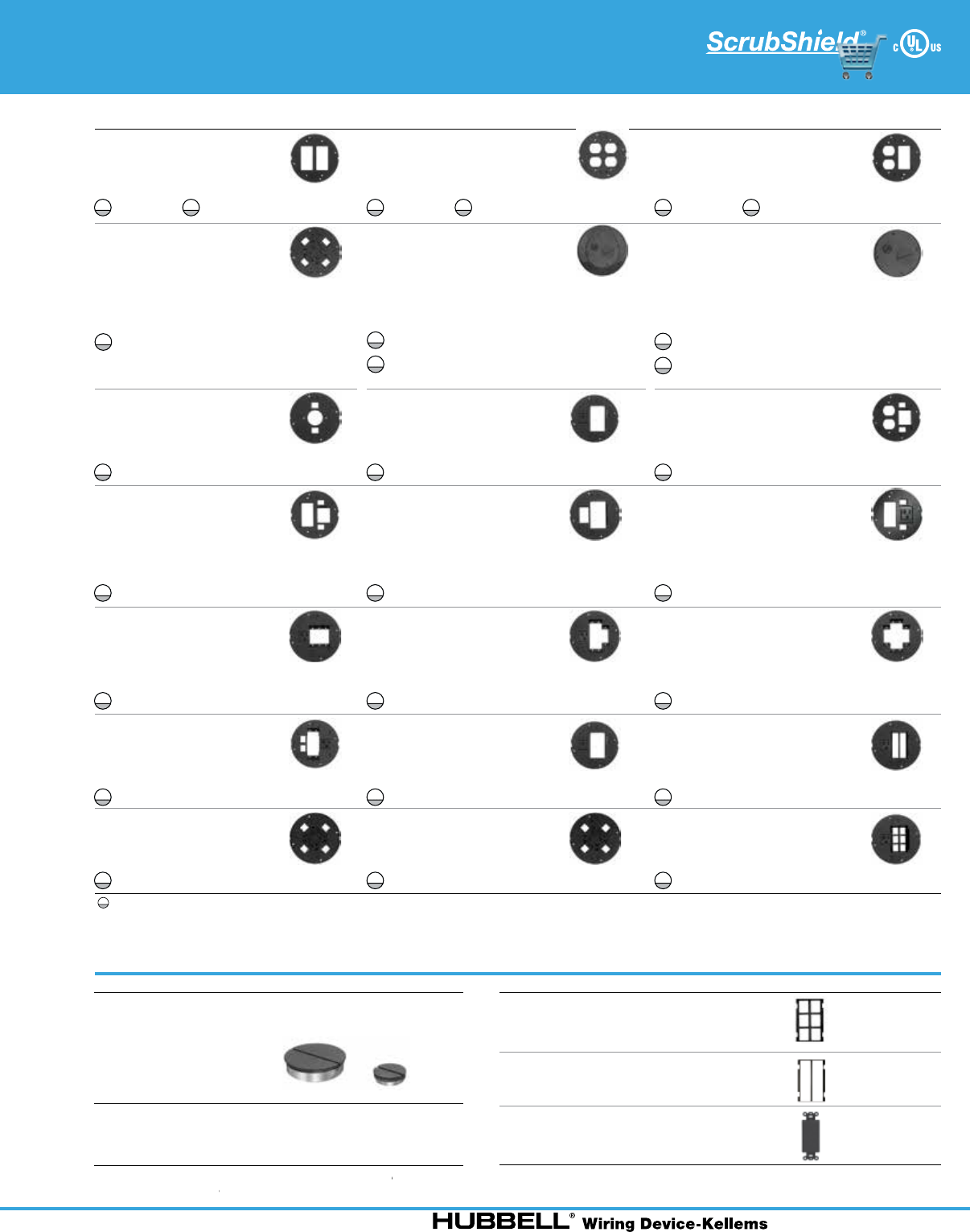

Floor Boxes

SystemOne Flush Sub-Plates

Extron

®

is a registered trademark of Extron Electronics. MAX

®

is a registered trademark of Extron Electronics. MAX®

is a registered trademark of Extron Electronics. MAX

is a registered trademark of The Siemon Company. Mini-Com

®

and Panduit

®

are registered trademarks of

Panduit Corp. SYSTIMAX

®

Panduit Corp. SYSTIMAX®

Panduit Corp. SYSTIMAX

is a registered trademark of CommScope, Inc. TracJack

®

, Series II

®

and Ortronics

®

are registered trademarks of Ortronics/Legrand.

Description Catalog Number Description Catalog Number Description Catalog Number

Style Line® Decorator/GFCI

(2) Style Line® decorator openings

for power and/or datacom

applications.

S1SP

Duplex/Duplex

(2) Duplex openings for power

and/or datacom applications.

S1SPDU

Duplex/Style Line® Decorator

(1) Duplex and (1) Style Line®

decorator opening for power and/or

datacom applications.

S1SPDUSL

Hubbell 4 X 4

(4) 20A, 125V receptacles.

(4) Keystone openings for Hubbell

jacks or flush AV connectors.

Power can be wired as single or

two circuit with isolated ground

capability.

S1SP4X4

Carpet Furniture Feed

Cover/Flange*

(1) ¾" and (1) 1½" NPT access

holes for power and/or datacom

applications. Universal Cover not

required. Includes carpet flange.

Tile Furniture Feed

Cover/Flange*

(1) ¾" and (1) 1½" NPT access

holes for power and/or datacom

applications. Universal Cover not

required. Includes tile flange.

4

Provided with 15 ft. wire leads

Provided with 30 ft. wire leads

S1SP4X415

S1SP4X430

3.5

Metal

3

Non-Metallic Aluminum Fin.

Brass Finish

Black

Gray

S1SPFFAL

S1SPFFBRS

S1SPFFBL

S1SPFFGY

3.5

Metal

3

Non-Metallic Aluminum Fin.

Brass Finish

Black

Gray

S1SPFFTAL

S1SPFFTBRS

S1SPFFTBL

S1SPFFTGY

Single Receptacle + Data

Opening for 20 or 30A Twist-Lock®

receptacle (1.56" OD) and (2)

Keystone openings for Hubbell

jacks or flush AV connectors.

S1SPTL

Hubbell DataCom + Power

(1) 20A, 125V receptacle and

3-unit recessed Hubbell iSTATION

opening for data, voice, and AV

applications. S1SP3IM

Hubbell DataCom + Duplex

(1) Duplex opening, (2) flush Keystone

openings and 1.5 unit recessed

Hubbell iSTATION opening for data,

voice and AV applications. S1SPDU2IM

Hubbell DataCom +

Style Line® Decorator

(1) Style Line® decorator opening,

(2) ush Keystone openings and

1.5 unit recessed Hubbell

iSTATION opening for data,

voice and AV applications.

S1SPSL2IM

Hubbell DataCom

1 unit flush Hubbell iSTATION

opening and 3-unit recessed

Hubbell iSTATION opening for

data, voice, and AV applications. S1SP4IM

Active Multimedia + Power

Single 20A, 125V receptacle;

(2) flush Keystone openings;

(1) rectangular Style Line® decorator

opening to accommodate active

multimedia modules or low voltage

outlet frames.

S1SPAMM20

Extron® or FSR + Power

(1) 20A, 125V receptacle.

Recessed opening for (3) single

Extron® MAAP series adapter

plates or FSR IPS plates. S1SPEXT1

Extron® or FSR + Power

(1) 20A, 125V receptacle.

Recessed opening for (1) single

Extron® MAAP and (2) single

AAP series adapter plates or

FSR IPS plates.

S1SPEXT2

Extron® or FSR

Single-Service

Recessed opening for (2) single

Extron® MAAP and (2) single

AAP series adapter plates or

FSR IPS plates. S1SPEXT3

Extron® AAP + Power

(1) 20A, 125V receptacle. (2) flush

Keystone and recessed opening

for (2) single Extron® AAP Series

adapter plates. S1SPEXT4

Ortronics Series II® + Power

(1) 20A, 125V receptacle.

Recessed opening for (3) 1 unit

Ortronics Series II® modules.

S1SPORT

Ortronics TracJack® + Power

(1) 20A, 125V receptacle.

Recessed bezel for (6) Ortronics

TracJack® modules.

S1SPTRAC

Panduit Mini Com® 4 X 4

(4) 20A, 125V receptacles.

(4) Openings for Panduit

Mini-Com Connectivity.

S1SP4X4PA

SYSTIMAX® 4 X 4

(4) 20A, 125V receptacles.

(4) Openings for SYSTIMAX®

Connectivity.

S1SP4X4SYS

Siemon MAX® + Power

(1) 20A, 125V receptacle.

Recessed bezel for

(6) Siemon MAX® modules.

S1SPMAX

Signifies minimum depth of concrete pour in inches for Metal Floor Boxes (S1CFB, S1SFB and S1SFBAV) and Non-Metallic Floor Box (S1PFB).

Note: *Furnished with two screw-in flexible metal conduit connectors.

See section W for datacom accessories.

4

5

4

4

4

3.5

Metal

3

Non-Metallic

5

5

3.5

4

4.5

5

5

5

5

4

Description

Replacement Threaded Conduit Plugs

Used with S1SPFFx and S1SPFFTx O NLY.

Sub-plate is supplied with plugs.

Color 1½" Plug ¾" Plug

Aluminum Finish

Brass Finish

Black

Gray

S1FP15AL

S1FP15BRS

S1FP15BL

S1FP15GY

S1FP34AL

S1FP34BRS

S1FP34BL

S1FP34GY

Description Catalog Number

6-Port Replacement Data Frames

Used with open systems sub-plates. Sub-plate

is supplied with data frame. Siemon MAX® for

use with S1SPMAX sub-plate.

S1DFMAX

Ortronics TracJack® for use with

S1SPTRAC sub-plate.

S1DFTRAC

Black Style Line® decorator blank frame. 2100BK

Sub-Plate Accessories

3.5

Metal

3

Non-Metallic

3.5

Metal

3

Non-Metallic

Complies with UL514A & C

www.hubbell-wiring.comO-18

Dimensions Inches (mm)

PFB1

Min. Depth of Pour 3.00" (76.2)

Capacity 100 cubic inches prior to cutting level to floor

(19.5 cubic inches per inch of depth).

Dimensions – A 6.00" (152.4)

Dimensions – B 7.08" (179.8)

Dimensions – C 6.69" (169.9)

Dimensions – D 5.38" (136.5)

Hubs (2) 1.0" and (2) ¾" conduit hubs

Concrete Cover Included 

Closure/Reducer Plugs (2) 1" plugs close off 1" hubs or reduce 1" to ¾"

(2) ¾" plugs close off ¾" hubs or reduce ¾" to ½"

Note: UL File Number E92074. CSA File Number LR18416.

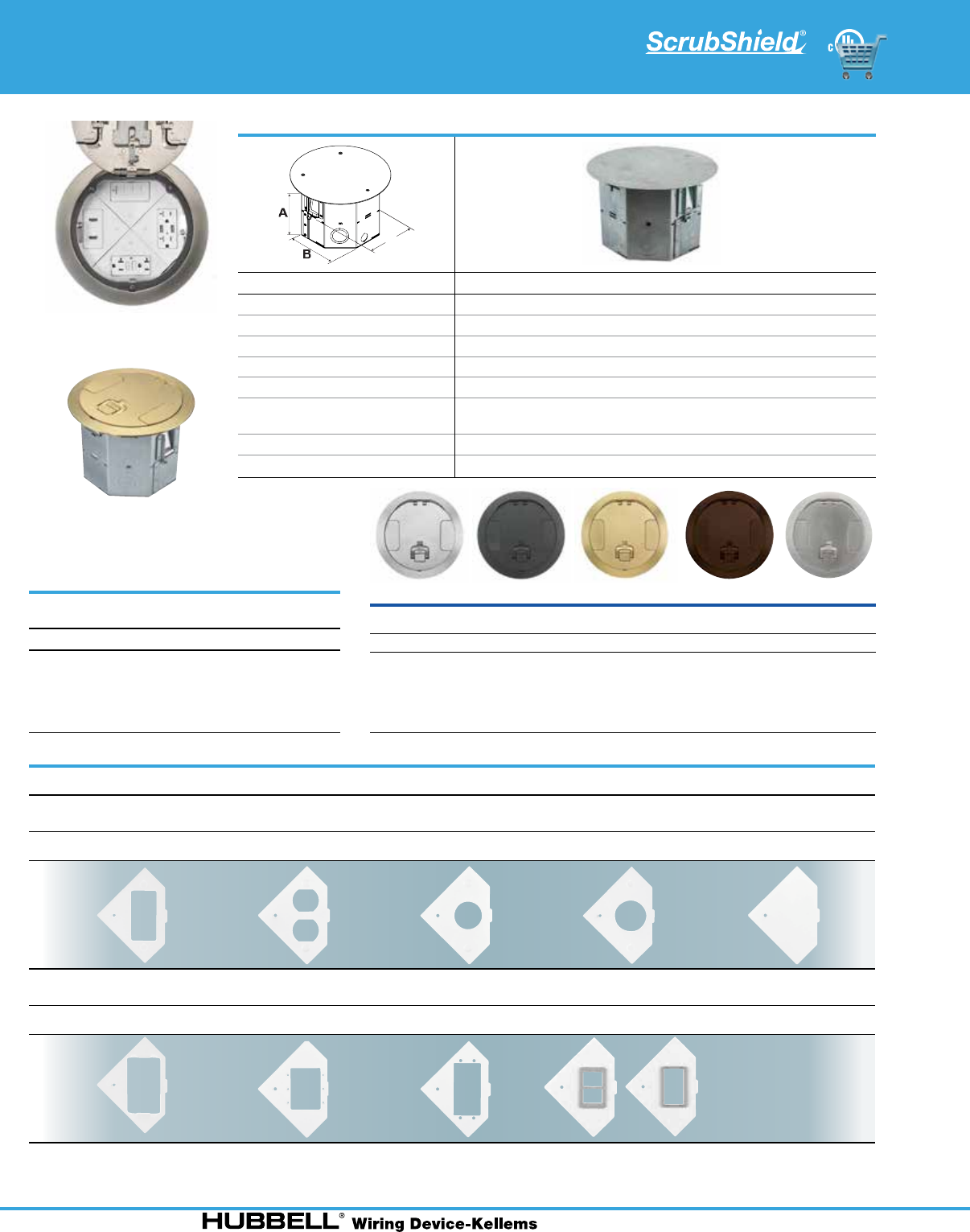

Floor Boxes

Flush Round Single or Multi-Service

Non-Metallic Concrete Floor Box

Description Catalog Number

Adapter

Required for all applications.

PFBA1A

Low Voltage Divider

Required for use with catalog number

PFB1 when used in multi-service

applications. Accepts Hubbell standard

duplex receptacles or 15A Twist-Lock®

duplex receptacles (HBL4700 series).

PFBT1A

“Y” Adapter

¾ in. “Y” adapter to feed parallel

runs of ¾ in. conduit.

PFBYA1

D

C

A

B

Flush Round Covers and Flanges

Multi-Service Cover and

Flange Assemblies

Includes oor box cover with

duplex aps, (2) ½ in. dia. low

voltage feed through holes

and matching carpet ange.

6.25 in. Diameter

SF39253A PFBCBRA PFBCBLA PFBCGYA PFBCIA

Brass Brown

Non-Metallic

Black

Non-Metallic

Gray

Non-Metallic

Ivory

Non-Metallic

Single Service Covers

Brass

Aluminum

3.88 in. Dia.

S3925

SA3925

S3725

SA3725

S2525

SA2525

S2725

SA2725

S2925

SA2925

S3525

—

S3325

—

Duplex

Flap

Duplex

Screw

2¹⁄₈" x ¾"

Combination

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

2³⁄₈" Single

Receptacle

2¹⁄₈" Single

Receptacle

(Terrazzo Floor)

Metal Carpet Flange Adapter Ring Furniture Feed Plate

Use with single service covers for carpet applications.

6.25 in. Diameter

Use with single service covers

for tile applications.

Unpainted plate with

1 in. threaded opening.

S3082 SA3082 S5016 SA5016 PFBP1

Brass Brushed Aluminum Brass Aluminum Steel

One Piece Brass Cover and Carpet Flange

6.25 in. Dia.

Note: Adapter ring S5016 is required for

mounting SF series covers onto PFBA1A.

SF3925 SF2525 SF2725 SF2925

Duplex

Flap

2¹⁄₈" x ¾"

Combination

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

Complies with UL514A & C

O-19www.hubbell-wiring.com

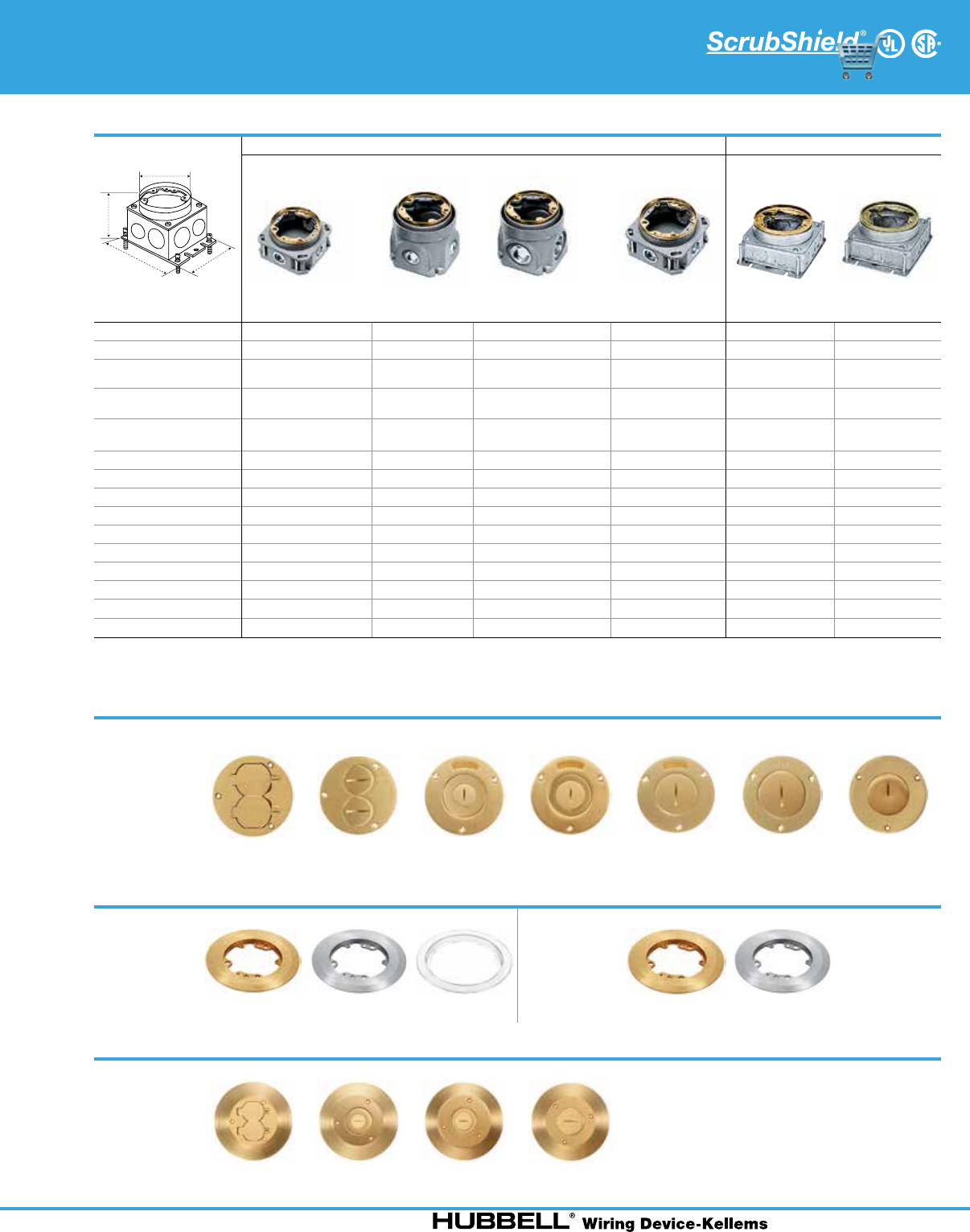

Floor Boxes

Flush Round Single Service

Metal Concrete Floor Boxes

Dimensions Inches (mm)

Style

D

C

A

B

Collar Material:

Brass

Aluminum

Cast Iron Stamped Steel

B2536 B253641

BA2536 BA253641

B2503

BA2503

B2506 B2506415

BA2506 BA2506415

B2537

BA2537

B2527

BA2527

B2529

BA2529

Min. Depth of Pour 3.25" (82.6) 3.75" (95.3) 4.75" (120.7) 3.00" (76.2) 4.00" (101.6) 3.00" (76.2)

Adjustability Fully Fully Fully Fully Fully Fully

Before Pour External Height

Adjustment

1.25" (31.8) – – – 1.25" (31.8) 1.25" (31.8)

After Pour Internal

Height Adjustment

.38" (9.5) .63" (15.9) .63" (15.9) .38" (9.5) .38" (9.5) .38" (9.5)

Cubic Inch (cm3) Capacity 33.0 cu. in.

(540.7 cm3)

36.0 cu. in.

(590.0 cm3)

50.8 cu. in.

(832.5 cm3)

30.0 cu. in.

(491.6 cm3)

54.0 cu. in.

(884.9 cm3)

37.3 cu. in.

(611.2 c m 3)

Dimensions – A 3.05" (77.5) 3.75" (95.3) 4.75" (120.7) 2.87" (72.9) 3.88" (98.6) 2.91" (73.9)

Dimensions – B 4.84" (122.9) 5.00" (127.0) 5.00" (127.0) 4.84" (122.9) 6.00" (152.4) 6.00" (152.4)

Dimensions – C 4.84" (122.9) 4.63" (117.6) 4.66 " (118.4) 4.84" (122.9) 4.81" (122.2) 4.81" (122.2)

Dimensions – D 4.19" (10 6.4) 4.19" (10 6.4) 4.19 " (10 6.4) 4.19" (10 6.4) 4.19 " (10 6.4) 4.19 " (10 6.4)

Threaded Access Holes (4) ¾" (4) 1" (4) ¾" (4) 1¼" (4) 1½" (4) ¾" – –

Knockouts – Sides – – – – (1) 1" & (1) ¾" (2) ½" & (1) ¾"

Knockouts – Ends – – – – (1) 1¼" & (1) ½" (1) ½" & (1) ¾"

Knockouts – Bottom – – – – (3) ½" & (2) ¾" (3) ½" & (2) ¾"

Concrete Cover Included      

Closure Plugs Included     – –

Note: UL File Number E31999.

CSA File Number LR18416.

Suitable for single service applications only.

Single Service Covers

Brass

Aluminum

3.88 in. Dia.

S3925

SA3925

S3725

SA3725

S2525

SA2525

S2725

SA2725

S2925

SA2925

S3525

—

S3325

—

Duplex

Flap

Duplex

Screw

2¹⁄₈" x ¾"

Combination

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

2³⁄₈" Single

Receptacle

2¹⁄₈" Single

Receptacle

(Terrazzo Floor)

Carpet Flanges

5.25 in. Dia. S3182 SA3182 S3079 6.25 in. Dia. S3082 SA3082

Brass Brushed

Aluminum

Clear

Polycarbonate

Brass Brushed

Aluminum

One Piece Brass Cover and Carpet Flange

6.25 in. Dia. SF3925 SF2525 SF2725 SF2925

Duplex

Flap

2¹⁄₈" x ¾"

Combination

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

Complies with UL514A

www.hubbell-wiring.comO-20

Dimensions Inches (mm)

Style

D

A

EBC

1-Gang

PFBRG1*

2-Gang

PFBRG2

3-Gang

PFBRG3

Min. Depth of Pour 3.00" (76.2) 3.00" (76.2) 3.00" (76.2)

Adjustability Fully Fully Fully

Cubic Inch (cm3) Capacity

Per Gang

14.3 cu. in. (234.3 cm3)

per 1" depth

14.3 cu. in. (234.3 cm3)

per 1" depth

14.3 cu. in. (234.3 cm3)

per 1" depth

Dimensions – A 6.00" (152.4) 6.00" (152.4) 6.00" (152.4)

Dimensions – B 3.60" (91.4) 6.82" (173.2) 10.04" (255.0)

Dimensions – C 5 .42 " (137.7 ) 5. 42 " (137.7 ) 5.4 2 " (13 7.7 )

Dimensions – D 6.90" (175.3) 6.90" (175.3) 6.90" (175.3)

Dimensions – E 5.44" (138.2) 8.66" (220.0) 11.87" (301.5)

Hubs (4) 1¼" (6) 1¼" (8) 1¼"

Reducers (4) 1" to ¾" and (4) 1¼" to 1" (6) 1" to ¾" and (6) 1¼" to 1" (8) 1" to ¾" and (8) 1¼" to 1"

Concrete Cover Included   

Closure Plugs Included   

Removable LV Barrier – 

Note: UL File Number E92074.

*Suitable for single service applications only.

Floor Boxes

Flush Rectangular Non-Metallic Concrete

Floor Boxes with Non-Metallic Covers

Flush Rectangular Non-Metallic Covers and Flanges

Required Components for Carpet Applications

Carpet Flanges Cover with Duplex and Style Line® decorator inserts included

Number of Gangs

Dimensions

1-Gang

6.00" x 4.88"

2-Gang

6.00" x 8.13"

3-Gang

6.00" x 11.35"

One Required per Gang

4.15" x 2.97"

Black

Brown

Gray

Ivory

PFBRFBL1

PFBRFBR1

PFBRFGY1

PFBRFI1

PFBRFBL2

PFBRFBR2

PFBRFGY2

PFBRFI2

PFBRFBL3

PFBRFBR3

PFBRFGY3

PFBRFI3

PFBR826BLA

PFBR826BRA

PFBR826GYA

PFBR826IA

Cover

Duplex

Insert

Style Line®

Decorator Insert

Required Components for Tile Applications

Mounting Collar Cover Frame Cover with Duplex and Style Line® decorator inserts included

One Required per Gang One Required per Gang

Dim. 4.47" x 3.25"

One Required per Gang

4.15" x 2.97"

PFBRMC PFBRFRA PFBR826GYA

Cover

Duplex

Insert

Style Line®

Decorator Insert

Complies with UL514A & C

Dimensions in Inches (mm)

O-21www.hubbell-wiring.com

Dimensions Inches (mm)

Style

D

A

EBC

1-Gang

PFBRG1*

2-Gang

PFBRG2

3-Gang

PFBRG3

Min. Depth of Pour 3.00" (76.2) 3.00" (76.2) 3.00" (76.2)

Adjustability Fully Fully Fully

Cubic Inch (cm3) Capacity

Per Gang

14.3 cu. in. (234.3 cm3)

per 1" depth

14.3 cu. in. (234.3 cm3)

per 1" depth

14.3 cu. in. (234.3 cm3)

per 1" depth

Dimensions – A 6.00" (152.4) 6.00" (152.4) 6.00" (152.4)

Dimensions – B 3.60" (91.4) 6.82" (173.2) 10.04" (255.0)

Dimensions – C 5 .42 " (137.7 ) 5. 42 " (137.7 ) 5.4 2 " (13 7.7 )

Dimensions – D 6.90" (175.3) 6.90" (175.3) 6.90" (175.3)

Dimensions – E 5.44" (138.2) 8.66" (220.0) 11.87" (301.5)

Hubs (4) 1¼" (6) 1¼" (8) 1¼"

Reducers (4) 1" to ¾" and (4) 1¼" to 1" (6) 1" to ¾" and (6) 1¼" to 1" (8) 1" to ¾" and (8) 1¼" to 1"

Concrete Cover Included   

Closure Plugs Included   

Removable LV Barrier – 

Note: UL File Number E92074.

*Suitable for single service applications only.

Flush Rectangular Metal Covers and Flanges Flush Rectangular Metal Covers and Flanges

Required Components for Carpet and Tile Applications Required Components for Carpet and Tile Applications

Adapter Collar

(One required per gang)

Adapter Frame with Grounding Lug (One

required per gang) Dim. 4.36" x 3.20"

Adapter Collar

(One required per gang)

Gray PFBRAC Brass

Aluminum

S5017G

SA5017G

Gray PFBRAC

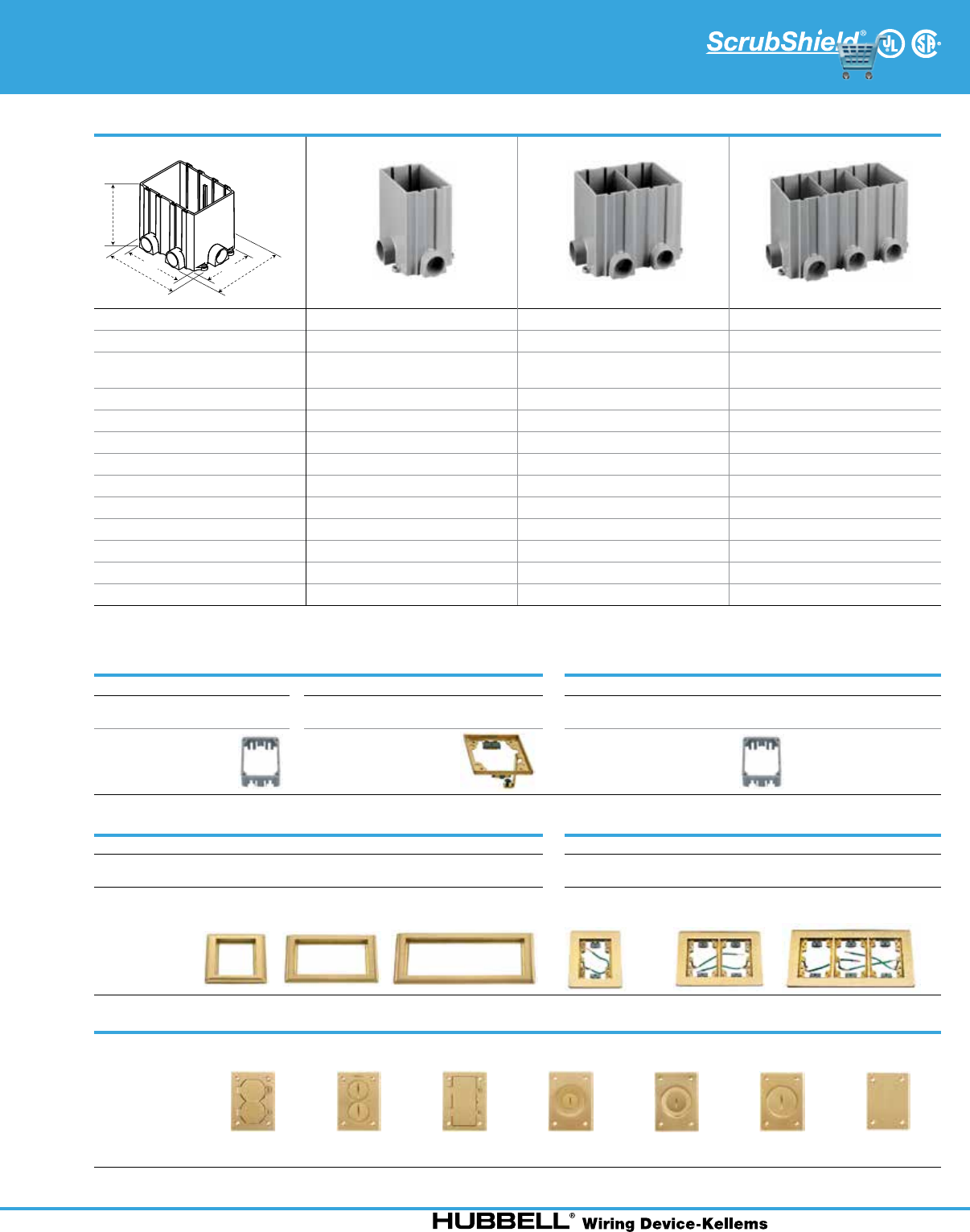

Floor Boxes

Flush Rectangular Non-Metallic Concrete

Floor Boxes with Metal Covers

Covers – One Required per Gang

Brass

Aluminum

Dimensions

4.15" x 2.99"

S3825

SA3825

S3625

SA3625

S3826

SA3826

S2425

SA2425

S2625

SA2625

S2825

—

S3813

SA3813

Duplex

Flap

Duplex

Screw

Style Line®

Decorator Opening

2¹⁄₈" x ¾"

Combination

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

Blank

Carpet Flanges (Not Required for Tile Applications) Rectangular Flanges (Required)

Tapered Flange

Number of Gangs

Dimensions

1-Gang

6.00" x 4.85"

2-Gang

6.00" x 8.13"

3-Gang

6.00" x 11.34"

1-Gang

6.00" x 4.85"

2-Gang

6.00" x 8.13"

3-Gang

6.00" x 11.34"

Brass

Aluminum

SB3083

SA3083

SB3084

SA3084

SB3085

SA3085

SB3083W

SA3083W

SB3084W

SA3084W

SB3085W

SA3085W

Complies with UL514A & C

Dimensions in Inches (mm)

Dimensions in Inches (mm)

www.hubbell-wiring.comO-22

Complies with UL514A

Dimensions Inches (mm)

Style

Collar Material:

Brass

Aluminum

Cast Iron

1-Gang Deep 2-Gang Deep 3-Gang Deep 1-Gang Shallow 2-Gang

Shallow

3-Gang

Shallow

B2436* B243641*

BA2436* BA243641*

B4233 B423341

BA4233 BA423341

B4333 B433361

BA4333 BA433361

B2437*

BA2437*

B2414*

BA2414*

B4214

BA4214

B4314

BA4314

Min. Depth of Pour 3.75" (95.3) 3.75" (95.3) 3.75" (95.3) 3.00" (76.2) 2.00" (50.8) 2.00" (50.8) 2.00" (50.8)

Adjustability Fully Fully Fully Fully Semi Semi Semi

Before Pour External

Height Adjustment

1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8)

After Pour Internal

Height Adjustment

.38" (9.5) .63" (15.9) .63" (15.9) .38" (9.5) – – –

Cubic Inch (cm3)

Capacity Per Gang

33.0 cu. in.

(540.7 cm3)

36.5 cu. in.

(598.1 cm3)

34.8 cu. in.

(570.3 cm3)

30.0 cu. in.

(491.7 cm3)

16.0 cu. in.

(262.2 cm3)

16.0 cu. in.

(262.2 cm3)

16.0 cu. in.

(262.2 cm3)

Dimensions – A 3.20" (81.3) 3.38" (85.9) 3.38" (85.9) 2.90" (73.7) 2.00" (50.8) 2.00" (50.8) 2.00" (50.8)

Dimensions – B 4.69" (119.1) 4.84" (122.9) 4.90" (122.5) 4.69" (119.1) 5.46" (138.7) 5.46" (138.7) 5.46" (138.7)

Dimensions – C 4.69" (119.1) 8.06" (204.7) 11.41" (289.8) 4.69" (119.1) 4.19" (106.4) 7.4 9" (190 . 2) 10.7" (271.8)

Dimensions – D 4.36" (110.7) 4.36" (110.7) 4.36" (110.7) 4.36" (110.8) 4.38" (111. 3) 4. 38" (111.3) 4.38" (111. 3)

Dimensions – E 3.19" (81.0) 6.42" (163.1) 9.64" (244.9) 3.20" (81.3) 3.19" (81.0) 6.38" (162.1) 9.56" (242.8)

Threaded Access

Holes

(4) ¾" (4) 1" (6) ¾" (4) 1" &

(2) ¾"

(8) ¾" (6) 1" &

(2) ¾"

(4) ¾" (2) ¾" (4) ¾" (6) ¾"

Concrete Cover

Included       

Closure Plugs

Included       

Removable

LV Barrier

–  – – – –

Note: UL File Number E92074.

CSA File Number LR18416.

*Suitable for single service applications only.

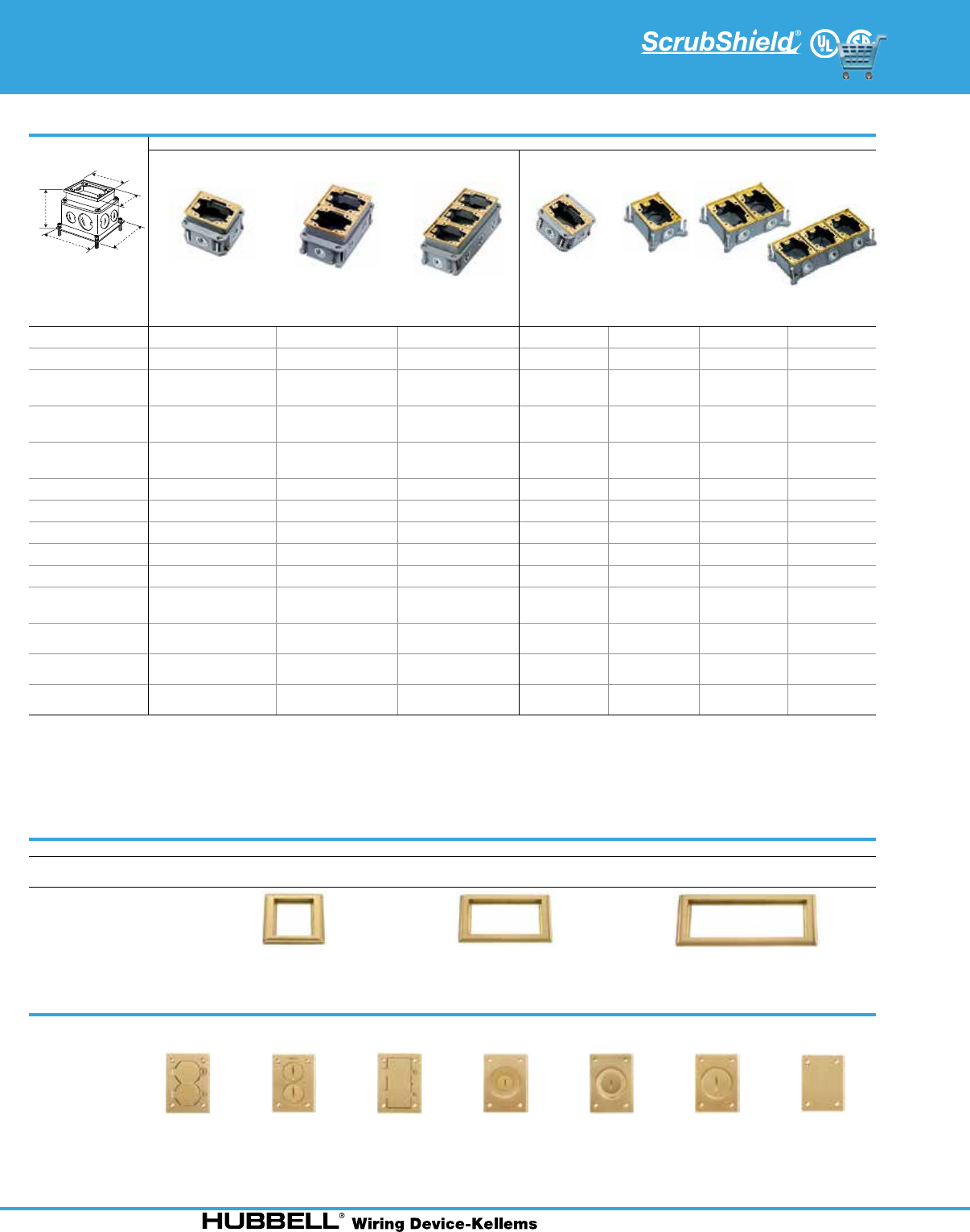

Floor Boxes

Flush Rectangular Cast Iron

Concrete Floor Boxes

E

C

A

D

B

Carpet Flanges

Tapered Flange

Number of Gangs

Dimensions

1-Gang

6.00" x 4.85"

2-Gang

6.00" x 8.13"

3-Gang

6.00" x 11.34"

Brass

Aluminum

Clear Polycarbonate

SB3083

SA3083

S3083

SB3084

SA3084

S3084

SB3085

SA3085

S3085

Covers – One Required per Gang

Brass

Aluminum

Dimensions

4.15" x 2.99"

S3825

SA3825

S3625

SA3625

S3826

SA3826

S2425

SA2425

S2625

SA2625

S2825

—

S3813

SA3813

Duplex

Flap

Duplex

Screw

Style Line®

Decorator Opening

2¹⁄₈" x ¾"

Combination

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

Blank

O-23

www.hubbell-wiring.com

Dimensions in Inches (mm)

Complies with UL514A

Dimensions Inches (mm)

Style

Collar Material:

Brass

Aluminum

Stamped Steel

1-Gang

Deep

B2431*

BA2431*

2-Gang

Deep

B2432

BA2432

3-Gang

Deep

B2433

BA2433

1-Gang

Shallow

B2421*

BA2421*

2-Gang

Shallow

B2422

BA2422

3-Gang

Shallow

B2423

BA2423

1-Gang

Deep

B2427*

BA2427*

1-Gang

Shallow

B2429*

BA2429*

Min. Depth of Pour 3.75" (95.3) 3.75" (95.3) 3.75" (95.3) 2.75" (69.9) 2.75" (69.9) 2.75" (69.9) 4.00" (101.6) 3.00" (76.2)

Adjustability Fully Fully Fully Fully Fully Fully Fully Fully

Before Pour External

Height Adjustment

1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8) 1.25" (31.8)

After Pour Internal

Height Adjustment

.50" (12.7) .50" (12.7) .50" (12.7) .50" (12.7) .50" (12.7) .50" (12.7) .38" (9.5) .38" (9.5)

Cubic Inch (cm3)

Capacity Per Gang

60.0 cu. in.

(983.2 cm3)

52.8 cu. in.

(865.2 cm3)

50.8 cu. in.

(832.5 cm3)

39.5 cu. in.

( 6 47.3 c m 3 )

35.0 cu. in.

(573.5 cm3)

34.0 cu. in.

( 5 57. 2 c m 3 )

54.0 cu. in.

(884.9 cm3)

37.3 cu. in.

(611.2 c m 3)

Dimensions – A 3.72" (94.5) 3.72" (94.5) 3.72" (94.5) 2.74" ( 69.6) 2.74" (6 9.6) 2.74" (6 9.6) 3.90" (99.1) 2.81" (71.4)

Dimensions – B 4.81" (122.2) 4.81" (122.2) 4.81" (122.2) 4.81" (122.2) 4.81" (122.2) 4.81" (122.2) 4.81" (122.2) 4.81" (122.2)

Dimensions – C 6.00" (152.4) 9.25" (235.0) 12.50" (317.5) 6.00" (152.4) 9.25" (235.0) 12.50" (317.5) 6.00" (152.4) 6.00" (152.4)

Dimensions – D 4.38" (111.3) 4.38" (111.3) 4.38" (111.3) 4.38" (111.3) 4.38" (111.3) 4.38" (111.3) 4.3 8" (111. 2) 4.3 8" (111.2)

Dimensions – E 3.19" (81.0) 6.44" (163.6) 9.67" (245.6) 3.19" (81.0) 6.44" (163.6) 9.67" (245.6) 3.19" (81.0) 3.19" (81.0 )

Knockouts – Sides (1) ¾",1",1¼" (2) ¾",1",1¼" (3) ¾",1",1¼" (2) ½",(1) ¾" (4) ½",(1) ¾" (6) ½",(1) ¾" (1) ½",(1) 1¼" (2) ½",(1) ¾"

Knockouts – Ends (1) ¾",1",1¼" (1) ¾",1",1¼" (1) ¾",1",1¼" (1) ½",(1) ¾" (2) ½",(1) ¾" (2) ½",(1) ¾" (1) ¾",(1) 1" (1) ½",(1) ¾"

Knockouts – Bottom (2) ¾",1",1¼" (4) ¾",1",1¼" (6 ) ¾",1",1¼" (2) ¾",1",1¼" (4) ¾",1",1¼" (6) ¾",1",1¼" (3) ½",(2) ¾" (3) ½",(2) ¾"

Concrete Cover

Included        

Closure Plugs

Included – – – – – – – –

Removable

LV Barrier –  –  – –

Note: UL File Number E92074.

CSA File Number LR18416.

*Suitable for single service applications only.

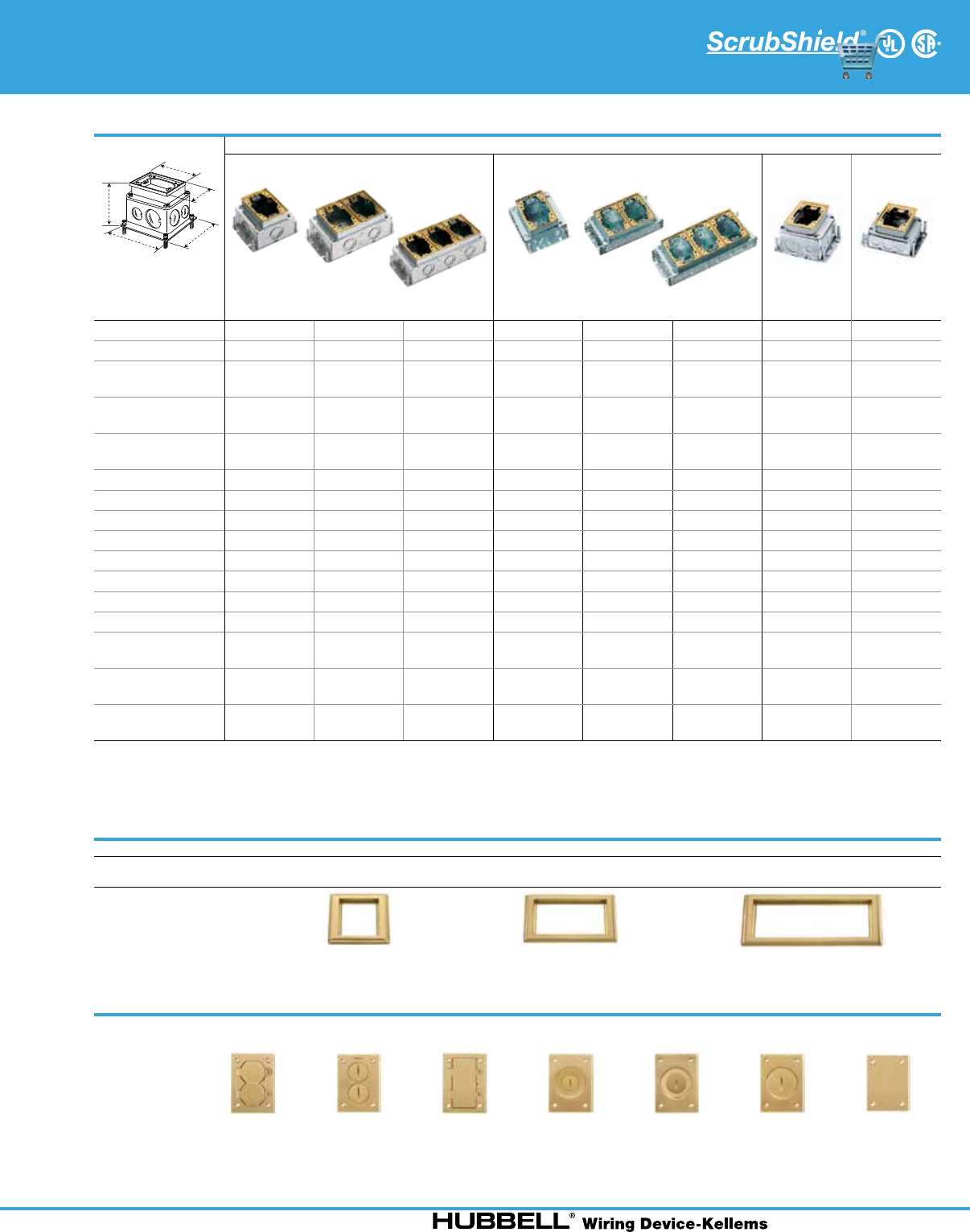

Floor Boxes

Flush Rectangular Stamped Steel

Concrete Floor Boxes

E

C

A

D

B

Carpet Flanges

Tapered Flange

Number of Gangs

Dimensions

1-Gang

6.00" x 4.85"

2-Gang

6.00" x 8.13"

3-Gang

6.00" x 11.34"

Brass

Aluminum

Clear Polycarbonate

SB3083

SA3083

S3083

SB3084

SA3084

S3084

SB3085

SA3085

S3085

Covers – One Required per Gang

Brass

Aluminum

Dimensions

4.15" x 2.99"

S3825

SA3825

S3625

SA3625

S3826

SA3826

S2425

SA2425

S2625

SA2625

S2825

—

S3813

SA3813

Duplex

Flap

Duplex

Screw

Style Line®

Decorator Opening

2¹⁄₈" x ¾"

Combination

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

Blank

Dimensions in Inches (mm)

www.hubbell-wiring.comO-24

Complies with UL514A

Dimensions Inches (mm)

Style

C

A

B

C

A

B

Collar Material

Brass

Rectangular Stamped Steel Round Cast Iron

1-Gang

B2481*

2-Gang

B2482

3-Gang

B2483

1-Gang

B2588*

1-Gang

B2588275*

Adjustability Semi Semi Semi Non Non

Cubic Inch (cm3) Capacity

Per Gang

42.0 cu. in.

(658.3 cm3)

42.5 cu. in.

(696.5 cm3)

42.5 cu. in.

(696.5 cm3)

18.5 cu. in.

(303.2 cm3)

18.5 cu. in.

(303.2 cm3)

Dimensions – A 3.13" (79.5) 3.13" (79.5) 3.13" (79.5) 3.65" (92.7) 3.65" (92.7)

Dimensions – B 4.50" (114.3) 4.50" (114.3) 4.50" (114.3) 3.22" (81.8) 3.22" (81.8)

Dimensions – C 3.20" (81.3) 6.42" (163.1) 9.64" (244.9) 4.09" (103.9) 4.09" (103.9)

Threaded Access Holes – – – Bottom (2) ½" Sides (2) ¾"

Bottom (2) ½"

Knockouts – Sides (1) ½", ¾", 1" (2) ½", ¾", 1" (3) ½", ¾", 1" – –

Knockouts – Ends –––––

Knockouts – Bottom (1) ½" - 1¼" (2) ½" - 1¼" (3) ½" - 1¼" – –

Debris Cover Included  – –

Closure Plugs Included ––– 

Removable LV Barrier –  – –

Note: UL File Number E31999. CSA File Number LR18416.

*Suitable for single service applications only.

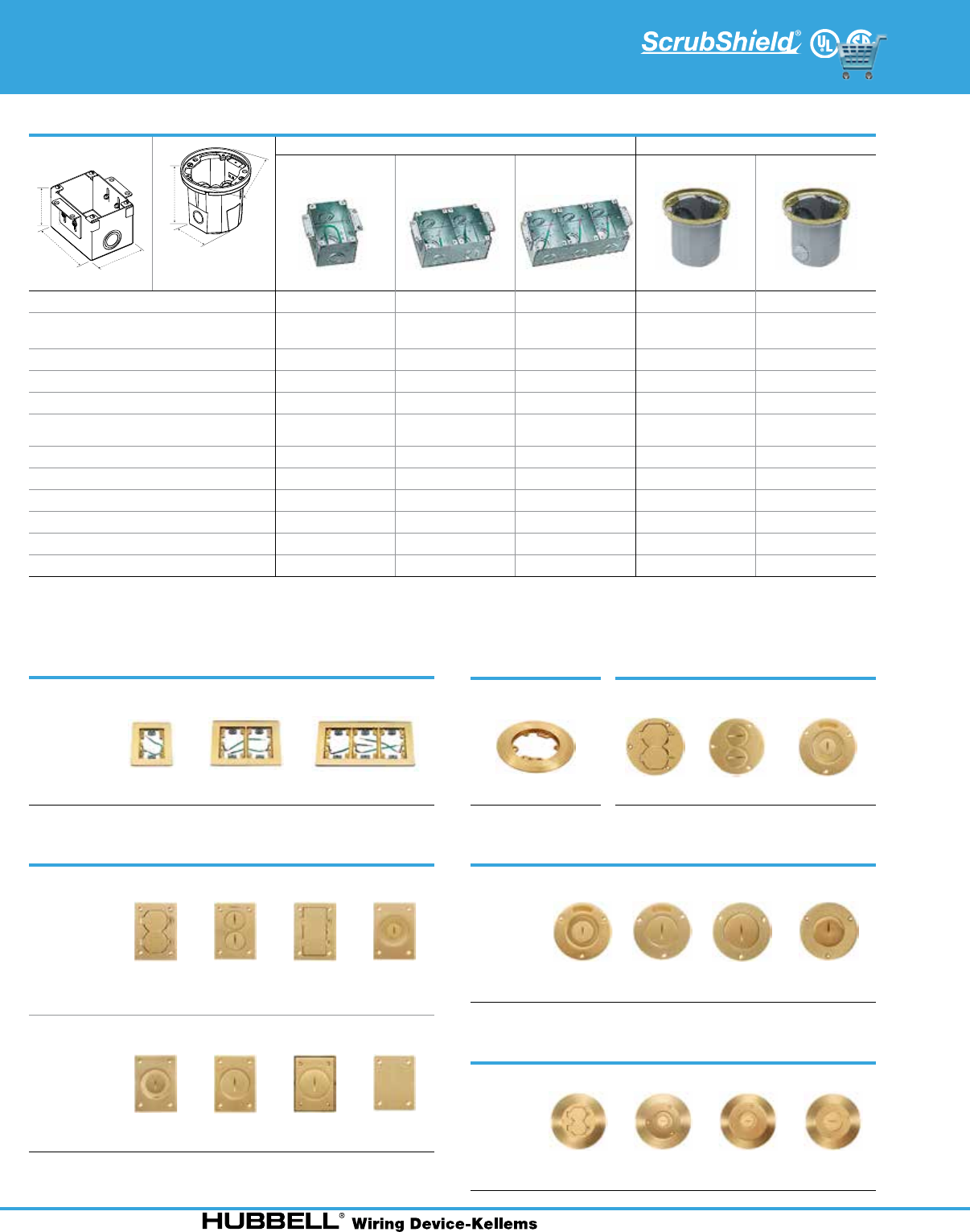

Floor Boxes

Flush Floor Boxes for Wooden Floors

Rectangular Flanges (Required)

Brass

Aluminum

SB3083W

SA3083W

SB3084W

SA3084W

SB3085W

SA3085W

No. of Gangs

Dimensions

1-Gang

6.00" x 4.85"

2-Gang

6.00" x 8.13"

3-Gang

6.00" x 11.34"

Round Flanges Round Covers (3.88" Dia.)

S3182

SA3182

S3082

SA3082

S3925

SA3925

S3725

SA3725

S2525

SA2525

5.25" Dia. 6.25" Dia. Duplex Flap Duplex Screw 2¹⁄₈" x ¾" Comb.

Covers – One Required per Gang

Brass

Aluminum

Dimensions

4.15" x 2.99"

S3825

SA3825

S3625

SA3625

S3826

SA3826

S2425

SA2425

Duplex

Flap

Duplex

Screw

Style Line®

Decorator

Opening

2¹⁄₈" x ¾"

Combination

Brass

Aluminum

Dimensions

4.15" x 2.99"

S2625

SA2625

S2825

–

S3425

–

S3813

SA3813

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

2³⁄₈" Single

Receptacle

Blank

Round Covers

Brass

Aluminum

3.88" Dia.

S2725

SA2725

S2925

SA2925

S3525

–

S3325

–

2¹⁄₈" x 1" Comb. 2¹⁄₈" Single

Receptacle

2³⁄₈" Single

Receptacle

2¹⁄₈" Single Rec.

(Terrazzo Floor)

One Piece Brass Cover and Carpet Flange

Brass

6.25" Dia.

SF3925 SF2525 SF2725 SF2925

Duplex Flap 2¹⁄₈" x ¾"

Combination

2¹⁄₈" x 1"

Combination

2¹⁄₈" Single

Receptacle

Dimensions in Inches (mm)

O-25

www.hubbell-wiring.com

Dimensions in Inches (mm)

Complies with UL514A

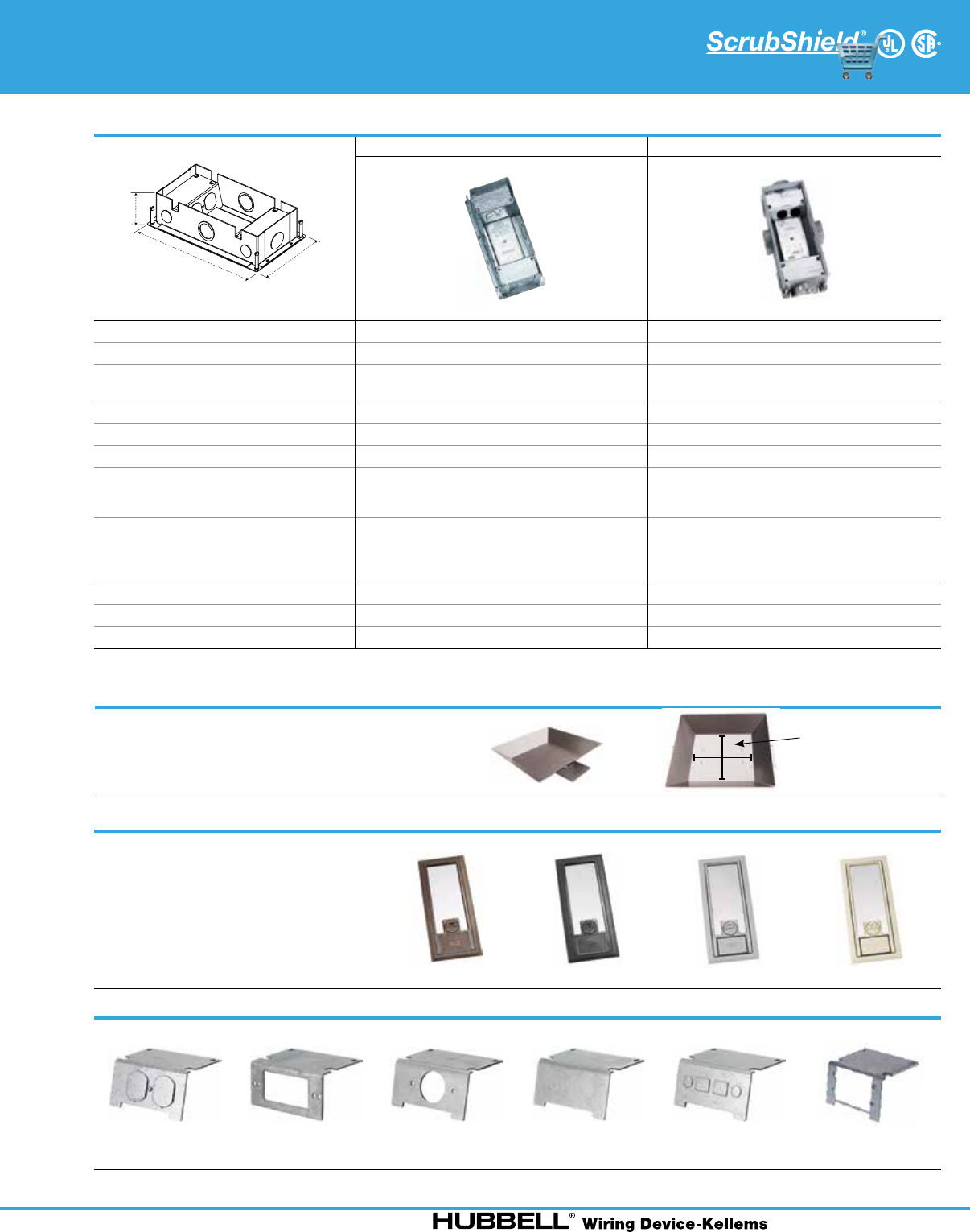

Floor Boxes

Recessed 2-Gang Concrete Floor Boxes

Dimensions Inches (mm)

Style

C

A

B

Stamped Steel Cast Iron

2-Gang

3SFBSS

2-Gang

3SFBC

Min. Depth of Pour 3.00" (76.2) 3.00" (76.2)

Adjustability Before pour Before pour

Cubic Inch (cm3) Capacity

Per Chamber

22.4 cu. in.

(3 67.1 c m 3 )

21.6 cu. in.

(354.0 cm3)

Dimensions – A 2.88" (73.2) 3.00" (76.2)

Dimensions – B 12.20" (309.9) 12.88" (327.2)

Dimensions – C 5.52" (140.2) 6.00" (152.4)

Threaded Access Holes –

Sides (2) ¾"

Ends (1) 1¼"

Center Area (1) 1¼" (each side)

Knockouts

Sides (2) ¾"

Ends (1) 1"

Center Area (1) Concentric 1",

1¼" (each side)

–

Concrete Cover Included  

Closure Plugs Included –

Face Plates Included (1) 3SFBRP and (1) 3SFBTP (1) 3SFBRP and (1) 3SFBTP

Note: UL File Number E31999.

CSA File Number LR18416.

Accessories

On-grade Barrier

The on-grade barrier is intended for use on installations at

grade level. This accessory is installed prior to the concrete

pour and provides a barrier between the soil. The on-grade

barrier comes with leveling feet and anchor points.

CFBOGPAN4 Pour Pan Dimensions:

15.75 in. sq.

4 in. depth

Floor Box Covers with Carpet Recess

Reinforced Non-Metallic Cover

Dimensions

11.88" x 5.20"

3SFBCBRA 3SFBCBKA 3SFBCGYA 3SFBCIA

Brown Black Gray Ivory

Face Plates

3SFBRP 3SFBDS 3SFBS 3SFBB 3SFBTP 3SFBIM

Duplex

Knockout

Style Line®

Decorator Opening

Single Receptacle

Opening

(1.39" boss dia.)

Blank Voice/Data

(2) Jack Knockouts

(.6" x .75")

3-Unit iSTATION Opening

(See Network Wiring section

for module options)

Dimensions in Inches (mm)

www.hubbell-wiring.comO-26

Complies with UL514A

Dimensions Inches (mm)

Style

C

A

B

CFB7G Series CFB11G Series

7-Gang 11-Gang

CFB7G4 CFB7G6 CFB11G4 CFB11G6

Min. Depth of Pour 4.08" (103.5) 6.08" (154.3) 4.08" (103.5) 6.08" (154.3)

Adjustability Before Pour Before Pour Before Pour Before Pour

Dimensions: A

B

C

4.08" (103.5)

10.0" (254.0)

12.2" (309.9)

6.08" (154.3)

10.0" (254.0)

12.2" (309.9)

4.08" (103.5)

13.5" (342.9)

12.2" (309.9)

6.08" (154.3)

13.5" (342.9)

12.2" (309.9)

Trade Size Knockouts:

Sidewalls (4) x 1", 1¼" Concentric (4) x 1", 1¼", 1½" Concentric (4) x 1", 1¼" Concentric (4) x 1", 1¼", 1½" Concentric

Back (3) x 1", 1¼", 1½" Concentric;

(1) x 2"

(3) x 1", 1¼", 1½" Concentric;

(1) 2"

(2) ¾", 1" Concentric;

(4) 1", 1¼", 1½" Concentric,

(1) 2"

(2) ¾", 1" Concentric;

(4) 1", 1¼", 1½" Concentric,

(1) 2"

Bottom (4) x 1", 1¼", 1½" Concentric (4) x 1", 1¼", 1½" Concentric (5) 1", 1¼", 1½" Concentric;

(2) ¾", 1" Concentric

(5) 1", 1¼", 1½" Concentric;

(2) ¾", 1" Concentric

Side View

Depth behind

mounting

plate X

Y

Z

X - 1.01"

Y - 2.41"

Z - 3.51"

X - 2.37"

Y - 3.77"

Z - 3.65"

X - 1.02"

Y - 2.42"

Z - 3.50"

X - 2.37"

Y - 3.81"

Z - 3.72"

Accepts industry

standard size wallplates (sold

separately)

(1) 1-Gang

(1) 2-Gang

(1) 4-Gang

(1) 1-Gang

(1) 2-Gang

(1) 4-Gang

(2) 1-Gang

(1) 3-Gang

(1) 6-Gang

(2) 1-Gang

(1) 3-Gang

(1) 6-Gang

Interior Conguration

Note: UL File Number E31999.

CSA File Number LR18416.

Floor Box Covers

CFB7G Series CFB11G Series

Brass Aluminum Brass Aluminum

Flange and cover;

Beveled edge for carpet

¼" Edging ¼" Edging

CFB7CVRBRS CFB7CVRALU CFB11CVRBRS CFB11CVRALU

Flange and cover;

Square edge for tile

½" Edging ¼" Edging

CFB7TBRS CFB7TALU CFB11TBRS CFB11TALU

Note: Covers provide a recessed area, allowing floor covering to be inserted.

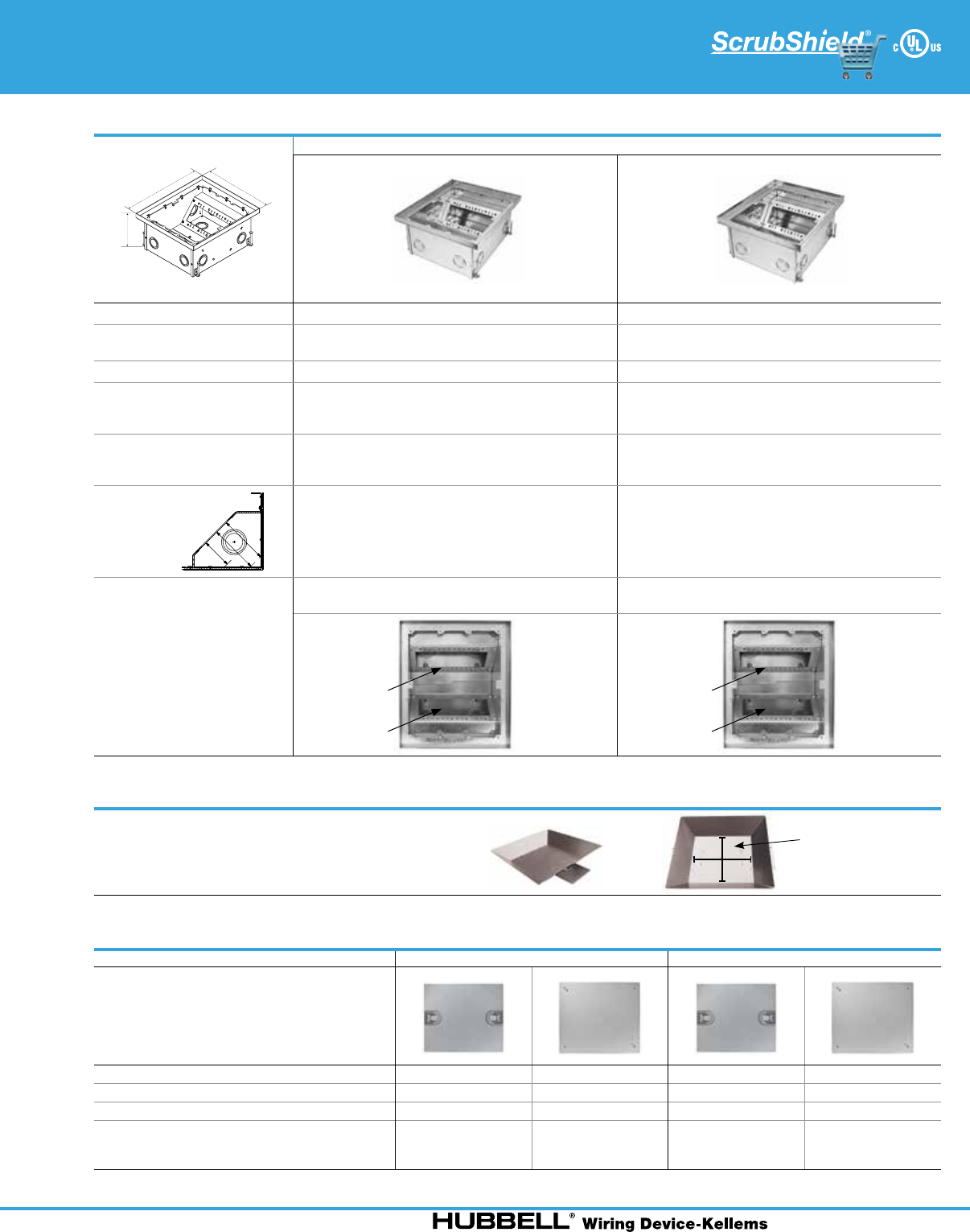

Floor Boxes

Recessed 7- and 11-Gang Concrete Floor Boxes

Accessories

On-grade Barrier

The on-grade barrier is intended for use on installations at

grade level. This accessory is installed prior to the concrete

pour and provides a barrier between the soil. The on-grade

barrier comes with leveling feet and anchor points.

CFBOGPAN4 Pour Pan Dimensions:

15.75 in. sq.

4 in. depth

Dimensions in Inches (mm)

1-Gang 1-Gang

2-Gang 3-Gang

6-Gang

4-Gang

O-27

www.hubbell-wiring.com

Dimensions in Inches (mm)

Complies with UL514A

Floor Boxes

Recessed Ballroom Series Floor Boxes

8-Gang 20,000 lb Cover

Dimensions Inches (mm)

Style

C

A

B

CFB8FC Series

8-Gang 8-Gang

CFB8FC1 CFB8FC2

Application Carpet Tile, Finished Concrete

Min. Depth of Pour 6.95” [177mm] 7.15” [18 2 m m ]

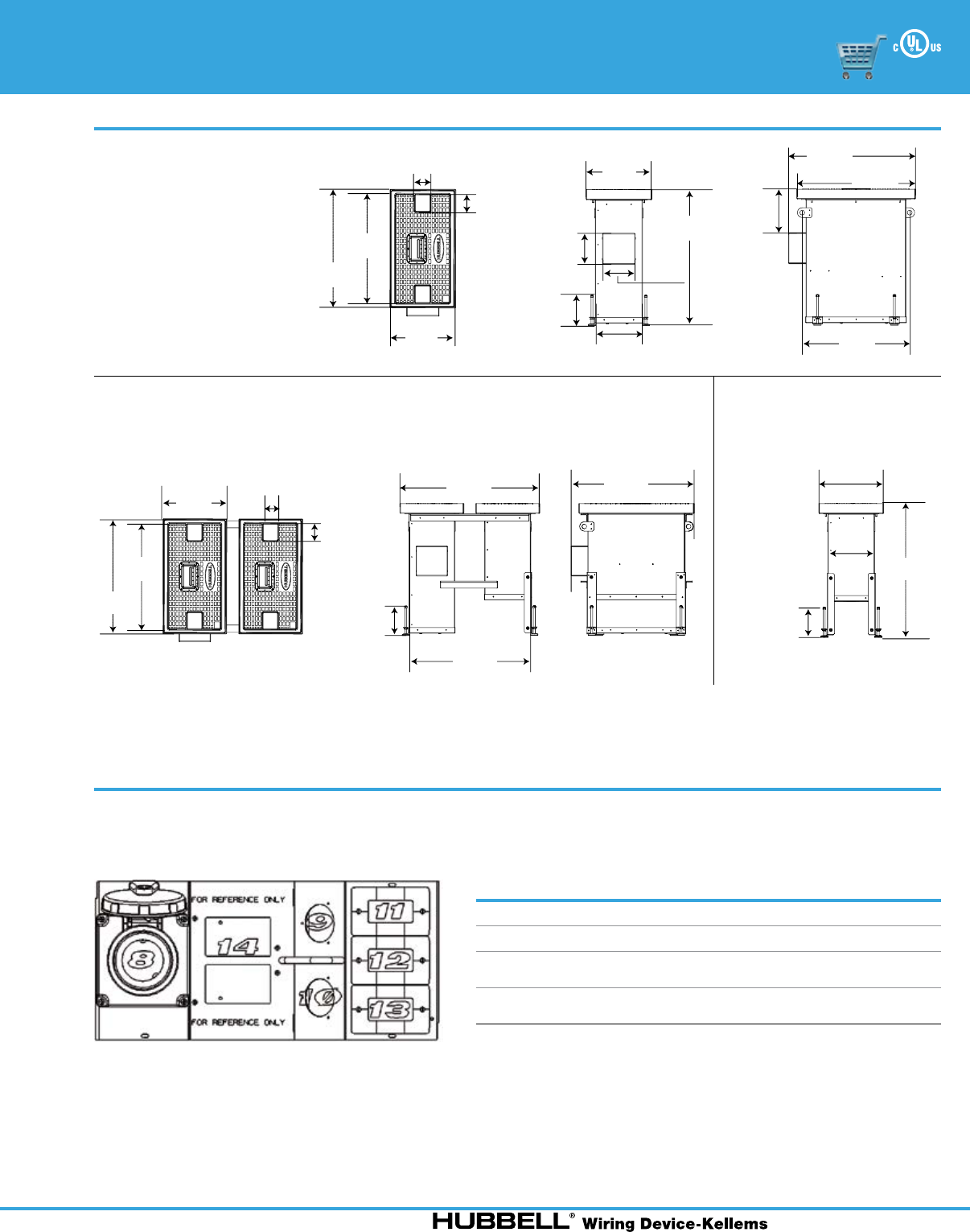

Adjustability Before Pour Before Pour

Dimensions: A

B

C

6.95" (176.5)

15.00" (176.5)

13.00" (330.2)

7.15" (181.6)

14.75" (374.7)

12.75" (323.9)

Trade Size

Knockouts:

Sidewalls

Back

Bottom

(4) x 1.5", 1.25", 1" concentric

(4) x 1.5", 1.25", 1" concentric

(4) x 1.5", 1.25", 1" concentric

(4) x 1.5", 1.25", 1" concentric

(4) x 1.5", 1.25", 1" concentric

(4) x 1.5", 1.25", 1" concentric

Side View

Depth behind

mounting

plate X

Y

Z

X = 2.27" (57.7)

Y = 4.01" (101.9)

Z = 3.13" (79.5)

X = 2.27" (57.7)

Y = 4.01" (101.9)

Z = 3.13" (79.5)

Accepts industry standard

size wallplates (sold separately)

4.63" Maximum Cover Height

One, two, three and four gang plates.

Customer configuration dependant.

One, two, three and four gang plates.

Customer configuration dependant.

Covers

CFB8FC1 Covers CFB8FC2 Covers

All ballroom oor box covers are

machined from Aluminum and have

no additional nish options

Carpet Cover, with 2 egress doors (0.20” depth) CFB8CVRALU1 – – –

Flush cover, with 2 egress doors – – CFB8CVRALU2 –

Blank box cover –CFB8JBC1 –CFB8JBC2

Cover Load Ratings*:

Recommended Loading

Maximum Load

20,000 lb

40,000 lb

20,000 lb

40,000 lb

20,000 lb

40,000 lb

20,000 lb

40,000 lb

Note: *Load applied through 3" (76mm) mandrel in center of cover. Loads are static and don't apply to rolling loads.

Accessories

On-grade Barrier

The on-grade barrier is intended for use on installations at

grade level. This accessory is installed prior to the concrete

pour and provides a barrier between the soil. The on-grade

barrier comes with leveling feet and anchor points.

CFBOGPAN4 Pour Pan Dimensions:

15.75 in. sq.

4 in. depth

Dimensions in Inches (mm)

4-Gang

4-Gang

4-Gang

4-Gang

www.hubbell-wiring.comO-28

Floor Boxes

Flush Non-Metallic Floor Box For Concrete Floors

Residential Delivery Systems

The Hubbell Round Non-Metallic Floor Box offers an economical solution for electrical power or a combination of power and

voice/data applications. Designed specically for slab-on-grade installation. Quick and easy installation is assured using a

push in place leveling system.

Removable neoprene gaskets

allow for independent use of either

side of the receptacle with the

cover closed

Recessed receptacle minimizes plug

protrusion; allowing furniture to be

located over the plug

Apply PVC glue to the leveling ring

and simply push into place; hold

and wait 10 seconds; automatically

levels the cover to the oor

Cut box after pour for

height adjustment

Pre-assembled ange;

cover and leveling ring

for quick installation

Parallel PVC hubs for

1 and ¾ inch conduit

Floor Box for Structural Concrete Floors

Description Material Color Catalog Number

Flange and hinged door cover assembly; includes tamper-

resistant duplex receptacle 15A 125V; gasket; oor leveling

PVC ring; high impact and chemically resistant nylon;

factory pre-assembled for easy drop-in installation.

Brushed Aluminum

Brushed Brass Plated

Solid Brass

Thermoplastic

Thermoplastic

Thermoplastic

Thermoplastic

—

—

—

Almond

Black

Chestnut Brown

Gray

RF406ALU

RF406BP

RF406BR

RF406AL

RF406BK

RF406BN

RF406GY

Flush t for hardwood and tile oors (same as above). Solid Brass — RF409BR

Floor box with concrete protective cover; accepts ¾ in. and

1 in. schedule 40 and schedule 80 PVC conduit; includes

round box (4 7/8 in. dia. x 6.0 in. deep); four reducers;

closure plugs; and concrete cover with locator ag.

PVC Gray RF400

Hinged nylon replacement door cover; includes neoprene

gasket to seal plug openings; replacement cover for

RF406 series.

Solid Brass

Thermoplastic

Thermoplastic

Thermoplastic

Thermoplastic

—

Almond

Black

Chestnut Brown

Gray

RF407BR

RF407AL

RF407BK

RF407BN

RF407GY

Low voltage divider; for use in PVC box RF400; when

JLOAD® multimedia outlet is used.

Thermoplastic Gray RF408

RF408

RF407BK

RF400

RF406BK

6.0"

(152)

Ø 4.7"

(119)

Ø 5.0" (127)

4.6"

(117)

4.6" (117)

6.8" (173)

4.6"

(117)

PVC

P-7853-01

98 CU. IN.

(1600 cm3) MAX

VOL. 16 CU IN

(266 cm3) PER

IN OF DEPTH

MINIMUM CONCRETE

DEPTH 4 IN (10.2 cm)

6.0"

(152)

Ø 4.7"

(119)

Ø 5.0" (127)

4.6"

(117)

4.6" (117)

6.8" (173)

4.6"

(117)

PVC

P-7853-01

98 CU. IN.

(1600 cm3) MAX

VOL. 16 CU IN

(266 cm3) PER

IN OF DEPTH

MINIMUM CONCRETE

DEPTH 4 IN (10.2 cm)

Dimensions Inches (mm)

The Right Choice for that Perfect Finishing Touch!

Aluminum Brass Plated Solid Brass Almond Black Chestnut Brown Gray

Note: Not all configurations are available in all colors. See below for details.

Dimensions in Inches (mm)

RF406ALU

O-29www.hubbell-wiring.com

Floor Boxes

Flush Floor Boxes for Wooden Floors

Residential Delivery Systems

Floor Boxes for Structural Wood Floors

Description Material Finish Cat. Number Material Finish Cat. Number

Decorator duplex receptacle oor

box kit; includes steel box, ange

and hinged door cover assembly

with 15A 125V tamper-resistant

duplex receptacle; designed for

installation in wood oors;

mounts to sub-oor or joists.

Solid Brass

Aluminum

Aluminum

Aluminum

Aluminum

Clear Lacquer

Stainless Paint

Almond Paint

Black Paint

Chestnut Brown Paint

RF515BR

RF515SS

RF515AL

RF515BK

RF515BN

Aluminum

Aluminum

Aluminum

Aluminum

Brass Plated

Chrome Plated

Copper Plated

Nickel Plated

RF515BP

RF515CH

RF515CU

RF515NI

Flange and hinged door cover

assembly; includes tamper-resistant

duplex receptacle; neoprene gaskets;

for use with steel box RF500.

Solid Brass

Aluminum

Aluminum

Aluminum

Aluminum

Clear Lacquer

Stainless Paint

Almond Paint

Black Paint

Chestnut Brown Paint

RF506BR

RF506SS

RF506AL

RF506BK

RF506BN

Aluminum

Aluminum

Aluminum

Aluminum

Brass Plated

Chrome Plated

Copper Plated

Nickel Plated

RF506BP

RF506CH

RF506CU

RF506NI

Flush t for hardwood and tile oors

(similar to above).

Solid Brass Clear Lacquer RF509BR

Adjustable oor box; 3 inch deep; three (3) ½ inch knockouts: one on bottom;

one on each side; non-metallic sheathed cable clamps on each side.

Steel — RF500

one on each side; non-metallic sheathed cable clamps on each side.

Drop-In Floor Box for Structural Wood Floors

Description Material Rating Cat. Number

Drop-in oor box; mounts in 2.50 inch hole opening; includes solid brass cover;

single 125V tamper-resistant receptacle; optional device mounts for two

voice/data video ports; suitable for feed through circuitry; impact resistant box.

Solid Brass

Solid Brass

15 Amp

20 Amp

RF151R

RF201R

Drop-In Floor Box

Low prole

2½ inch hole

For use with single

or feed through

service

Ample wiring room

Solid brass

ange and

cover

Line and

low voltage

options

Strain relief

RF151R

RF500

RF506BR

RF515BR

Ø 5.6"

(143)

4.8"

(121)

4.8"

(121)

4.8"

(121)

3.2"

(81)

3.1"

(80)

½"

Knockout

3 Places

0.9"(22)

0.3"

(8)

0.9"

(22)

2.4" (61)

Ø 5.6"

(143)

4.8"

(121)

4.8"

(121)

4.8"

(121)

3.2"

(81)

3.1"

(80)

½"

Knockout

3 Places

0.9"(22)

0.3"

(8)

0.9"

(22)

2.4" (61)

2.9"

(75)

Ø 2.5"

(63)

0.2"

(5)

Ø 3.4"

(86)

7.8"

(197)

2.9"

(75)

Ø 2.5"

(63)

0.2"

(5)

Ø 3.4"

(86)

7.8"

(197)

Wood Floor Boxes Drop-In Floor Box

Dimensions Inches (mm)

Pre-assembled ange

and cover for fast

installation

Top screw fastening

and side joist mounting

provided

Recessed receptacle

minimizes plug

protrusion; allowing

furniture to be located

over the plug

Height accessible

adjustments after the

box is mounted

Removable neoprene

gaskets allow for

independent use

of either side of the

receptacle with

the cover closed

Low voltage divider

optional provides

for power and

voice/data in a

compact space

Back and side

knockouts for proper

wiring access

Note: Template cutout provided with instructions for proper installation.

The Right Choice for that Perfect Finishing Touch!

Solid Brass Brass Plated Chrome Plated Copper Plated Nickel Plated Stainless Finish Almond Black Chestnut Brown

Note: Not all configurations are available in all colors. See below for details.

Dimensions in Inches (mm)

www.hubbell-wiring.comO-30

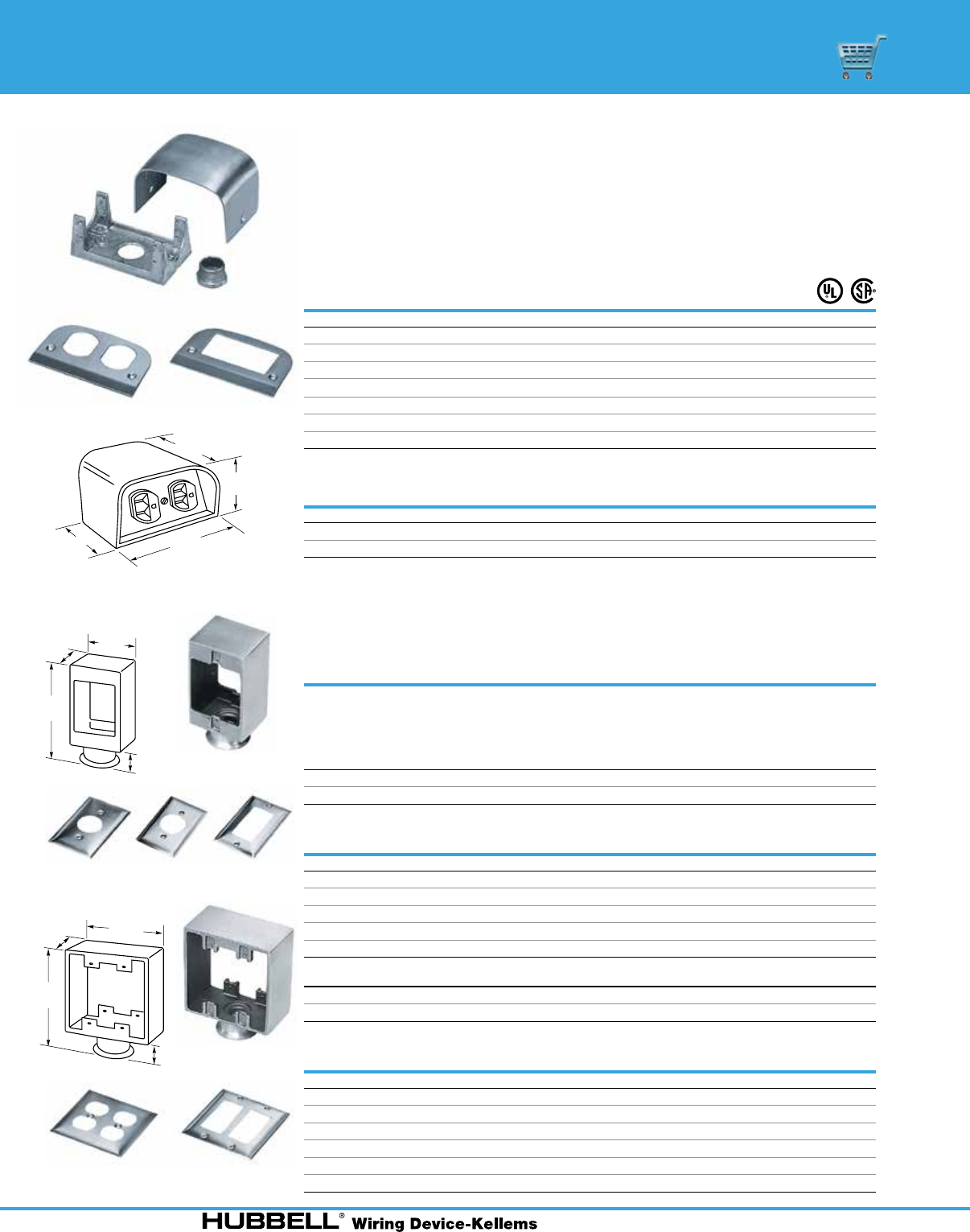

2.63"

(66.8)

4.38"

(111.3)

3.00"

(76.2)

2.62"

(66.5)

SC3098A

SC3099A

SS309D SS309DS

SS82 SS262

Hubbell offers a variety of above-oor service pedestals to satisfy just about any

requirement. Large capacity enables a choice of services—you can even create your own

unique pedestal to satisfy specic requirements. Above oor service ttings are ideal for

furniture feed applications.

Pedestals – Metallic – LO-CON (single service only)

Traditional metallic pedestals with die-cast aluminum frame, brushed aluminum housing and

stainless steel faceplates. These pedestals are offered as component parts. They mount on

oor box covers or oor deck/duct systems with ¾-inch or 1-inch threaded openings.

Pedestals – Specialized Service – Large Capacity Pedestals

(single service only)

Designed to accommodate receptacles up to 50A (4-gang only). These brushed aluminum pedestals

are furnished with either a ¾-inch or 1-inch hub and are designed for mounting to oor box covers

with ¾-inch or 1-inch threaded openings. Create your own unique pedestal with a wide choice of

stainless steel plates and devices.

Description (2-Gang Housing) Catalog Number

2-gang (front and back) with ¾ in. hub. SA6685

2-gang (front and back) with 1 in. hub. SA6686

Plate Option – 1-Gang

Description Catalog Number

Duplex opening. SS8

Style Line® decorator opening. SS26

Single receptacle opening – boss diameter 1.36 to 1.39 in. (34.5 to 35.3). SS7

Single receptacle opening – boss diameter 1.55 to 1.58 in. (39.4 to 40.1). SS720

Blank plate. SS13

Description (4-Gang Housing) Catalog Number

4-gang (2 front and 2 back), with ¾ in. hub. SA6687

4-gang (2 front and 2 back), with 1 in. hub. SA6688

Plate Option – 2-Gang

Description Catalog Number

Two duplex openings. SS82

Two Style Line® decorator openings. SS262

Two single receptacle openings – boss diameter 1.36 to 1.39 in. (34.5 to 35.3). SS72

Single receptacle opening – boss diameter 2.41 to 2.44 in. (61.2 to 62.0). SS701

Single receptacle opening – boss diameter 2.09 to 2.13 in. (53.1 to 54.1). SS703

Blank plate. SS23

Create Pedestal – Create your own pedestal to meet specic service

requirements. Order housing, face plates and devices separately.

Description Catalog Number

Frame, housing, ¾ in. chase nipple, without plates. SC3098A

Frame, housing, 1 in. chase nipple, without plates. SC3099A

Blank plate. SS309B

Telephone bushing with 1 in. I.D. and (2) ³⁄₈ in. KO for coax. SS309T

Single receptacle plate with 1.39 in. (35.3) opening. SS309S

Duplex receptacle plate. SS309D

Style Line® decorator plate. SS309DS

Furniture Feed Plates – Use with SC3098A or SC3099A housings to feed

furniture systems in ofce settings or display cases in retail applications.

Description Catalog Number

Aluminum plate with ¾ in. trade size knockout. SS309SF

Aluminum plate, blank. SS309BF

Note: When using SS309SF on Hubbell’s LO-CON pedestals, SS309BF must be used on the opposite side.

Floor Boxes

Above-Floor Service Fittings (Single Service)

2-Gang

2.88"

(73.1)

2.50"

(63.5)

5.63"

(143.0)

1"

(25.3)

SA6685

SA6686

4-Gang

1"

(25.3)

5.63"

(143.0)

2.50"

(63.5)

4.69"

(119.1)

SA6687

SA6688

SS720SS7 SS26

Dimensions in Inches (mm)

O-31www.hubbell-wiring.com

Experiencing a problem? Let Hubbell accessories help solve it. Hubbell stacking

(adjustable) collars are the answer if the box is set too low. Need a replacement? Choose

from a full line of replacement covers and ttings. Hubbell accessories also help you with

the protection you need for plugs and receptacles.

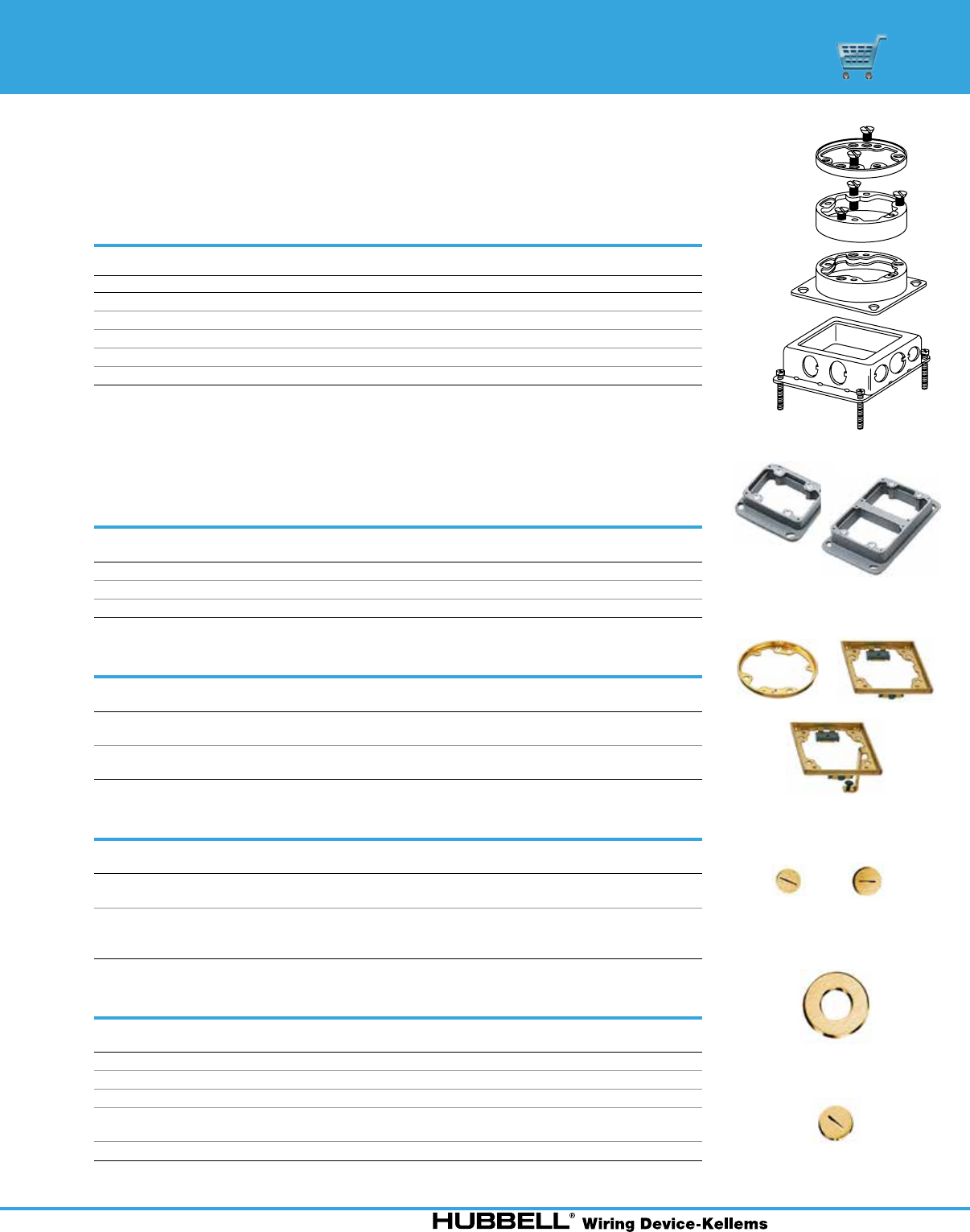

Problem Solvers and Replacement Components

Stacking (Adjustable) Collars and Frames

Designed to be used if oor box is set too low beneath the oor surface or the adjustable collar and/or adapter on the box

is damaged.

If the box number is... Extension Value Use Collar Number

B2429, B2427, B2436 or B2437 .81" (20.5) C2400*

B2503, B2506 1.06" (26.9) C2504*

B2529, B2536, B2527 or B2537 1.06" (26.9) C2500*

B4233 1.03" (26.2) C4200*

B4333 1.03" (26.2) C4300*

Note: *Only available as sets (collars and adapters). In cases where the adapter on the floor box is not damaged, and only

stacking is required, discard the adapter and use only the collar. The adjustable collars listed above can be stacked

as required to reach the floor surface. Longer screws will be required if more than one collar is stacked (screws not

provided). These screws are commercially available. Flat head #12-24 UNC machine screw x (approx. length). Minor

Upward Adjustments: Round or Rectangular cover frames (trim rings) may be stacked if the floor box is only slightly

recessed below the floor surface.

Replacement Components for Floor Box

Covers and Fittings

Catalog Number

Box Type Dimension Extension Value Brass Aluminum

Round 4.19" (106.4) diameter . 3 1" ( 7. 9 ) S5016 SA5016

Rectangular 3.19" (81.0) x 4.38" (111.2) . 31" ( 7. 9 ) S5017A SA5017A

Rectangular, grounding 3.19" (81.0) x 4.38" (111.2) . 31" ( 7.9 ) S5017G SA5017G

Crown Plugs

Catalog Number

Description Used in the following covers Brass Aluminum

¾" thread size. S2525, SA2525, S881, S2555,

S2530, S2425, SA2425, SF2525

S5012 SA5012

1" thread size. S2725, SA2725, S2755, S2730,

S2625, SA2625, SF2725

S5013 SA5013

Flush Cap Rings

Catalog Number

Description Used in the following covers Brass Aluminum

2¹⁄₈" threaded plug with

¾" thread size opening.

S2525, SA2525, S881, S2555,

S2530, S2425, SA2425, SF2525

S5010 SA5010

2¹⁄₈" threaded plug

with 1" thread

size opening.

S2725, SA2725, S2755, S2730,

S2625, SA2625, SF2725

S5025 SA5025

Flush Plugs

Catalog Number

Description Used in the following covers Brass Aluminum

¾" I.P.S. thread size. F1339, F1340 S5002 –

1" I.P.S. thread size. F1539 S5003 –

1½" ne thread size. S3725, SA3725, S3625, SA3625 S5007 SA5007

2¹⁄₈" ne thread size. S2925, SA2925, S88, S2930,

S2955, SF2925, S2825

S5020 SA5020

2³⁄₈" ne thread size. S3525, S3425 S5030 –

Floor Boxes

Accessories

Cover

Frame

A

djustable

Collar

Adapter

Box

C2400

C4200

Replacement Adjustable Collar

Flush Cap Rings

S5010

Flush Plugs

S5007

S5012 S5013

Crown Plugs

S5016 S5017A

Replacement Cover Frames

S5017G

Dimensions in Inches (mm)

www.hubbell-wiring.comO-32

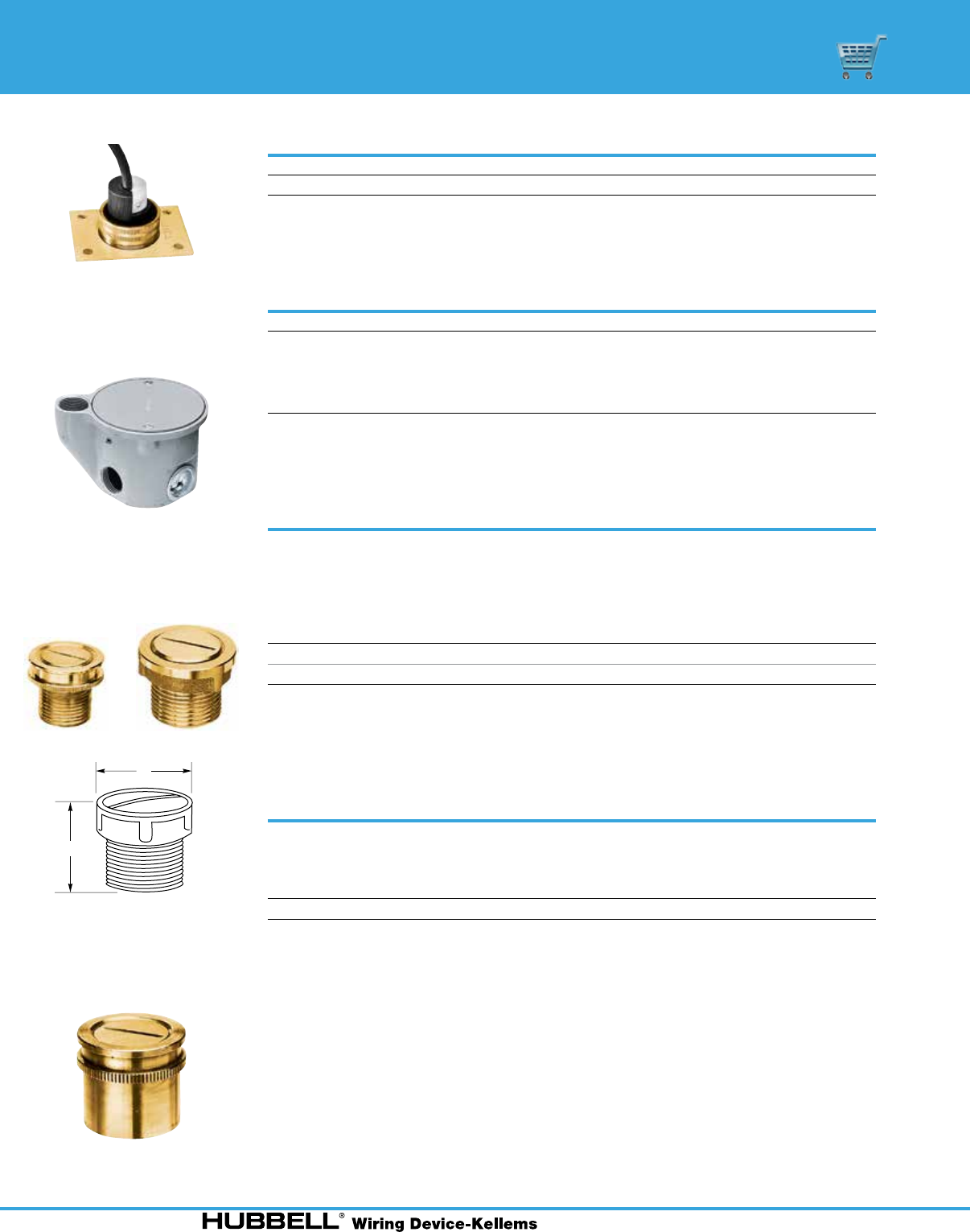

Problem Solvers and Replacement Components

Protective Ring for 2¹⁄₈ Inch Threaded Covers

Description Catalog Number

Provides mechanical and wet mop protection for plugs and receptacles (brass). S3061

Theater Seating Floor Box

Description Catalog Number

The theater seating oor box is nonadjustable and provides a ¾ in. threaded hub for

conduit connection to theater aisle lights. It permits opening of the enclosure for

wiring without disturbing above oor connections. Other features include a cast iron

box with a corrosion-resistant nish and a blank steel cover. Knockouts: (¾ in. surface,

¾ in. sides, ¾ in. bottom) 18.80 cu. in. (380 cubic cm).

F3185

Adjustable Tops (Brass)

Brass Outlet Fittings for Conduit Systems

Future requirements for oor outlets may be accommodated by systematically studding the oor with

these ttings, all radiating from one or more oor boxes, from which any changes or additions may be

subsequently made by the pulling of wires from box to the outlet. Adjustment tops are male connections

to be mounted on elbow or tee ttings. They provide a pre-pour adjustment and an available connection

for above-oor service heads.

Description A B Catalog Number

¾ in. threaded conduit size (male). 1.25" (31.8) 1.44" (36.6) F1339

1 in. threaded conduit size (male). 1.31" (33.3) 1.75" (44.5) F1539

Note: Adjustment: ¾ in. and 1 in. fittings permit ½ in. vertical adjustment.

Coupling (Brass)

Couplings are utilized for straight conduit connections when a oor box is not required. The conduit stub

is brought to within approximately 1¼ in. of the planned surface, and the coupling is mounted and adjusted

prior to the concrete pour. Standard service heads may be mounted to the couplings as required.

Description A B Catalog Number

¾ in. threaded conduit size (female). 1.44" (36.6) 1.25" (31.8) F1340

Floor Boxes

Accessories

F3185

Theater Seating Floor Box

Adjustable Tops

B

A

F1339 F1539

Adjustable Tops (Brass)

F1340

Coupling (Brass)

S3061

Protective Ring for 2¹⁄₈"

Threaded Covers

Dimensions in Inches (mm)

O-33www.hubbell-wiring.com

Cover Style Terazzo (2¹⁄₈") 2³⁄₈" 2¹⁄₈"Duplex Flap Duplex Plug Style Line®

Round S3325 S3525 S(A)2925

S(A)2725

S(A)2525

S(A)3925 S(A)3725

Rectangular S3425 S2825

S(A)2625

S(A)2425

S(A)3825 S(A)3625 S(A)3826

Rating NEMA Config.

2P, 3W

15A, 125V

5-15R HBL5251

HBL5261

IG5261

HBL5251

HBL5261

IG5261

HBL5251

HBL5261

IG5261

5252AB

5262B

CR5252IG

HBL5252

HBL5262

IG5262

5252AB

5262B

CR5252IG

HBL5252

HBL5262

IG5262

HBL2152

IG2152

GF15LA

HBL5260SA

HBL5262SA

2P,3W

15A, 125V

L5-15R HBL4710

IG4710

HBL4710

IG4710

HBL4710

IG4710

HBL4700

IG4700A

HBL4792

HBL4794

HBL4795

HBL4700

IG4700A

HBL4792

HBL4794

HBL4795

2P, 3W

15A, 250V

6-15R HBL5661

IG5661

HBL5661

IG5661

HBL5661

IG5661

HBL5652

HBL5662

IG5662

HBL5652

HBL5662

IG5662

2P, 3W

15A, 250V

L6-15R HBL4560

IG4560

HBL4560

IG4560

HBL4560

IG4560

HBL4550

IG4550A

HBL4550

IG4550A

2P, 3W

15A, 277V

7-15R HBL5302 HBL5302

2P, 3W

15A, 277V

L7-15R HBL4760 HBL4760 HBL4760 HBL4750 HBL4750

2P, 3W

20A, 125V

5-20R HBL5361

IG5361

HBL5361

IG5361

HBL5361

IG5361

5352AB

5362B

CR5352IG

HBL5352

HBL5362

IG5362

5352AB

5362B

CR5352IG

HBL5352

HBL5362

IG5362

HBL2162

IG2162

GF20LA

HBL5360SA

HBL5362SA

2P, 3W

20A, 125V

5-20R HBL5392 HBL5392

2P, 3W

20A, 125V

L5-20R HBL2310

IG2310

HBL2310

IG2310

HBL2310

IG2310

2P, 3W

20A, 250V

6-20R HBL5461

IG5461

HBL5461

IG5461

HBL5461

IG5461

HBL5462

IG5462

HBL5462

IG5462

2P, 3W

20A, 250V

L6-20R HBL2320

IG2320

HBL2320

IG2320

HBL2320

IG2320

2P, 3W

30A, 125V

L5-30R HBL2610

IG2610

HBL2610

IG2610

HBL2610

IG2610

2P, 3W

30A, 250V

L6-30R HBL2620

IG2620

HBL2620

IG2620

HBL2620

IG2620

3P, 4W, 20A

125/250V

14-20R HBL8410 HBL8410 HBL8410

L14-20R HBL2410

IG2410

HBL2410

IG2410

HBL2410

IG2410

3P, 4W, 20A

3Ø 250V

15-20R HBL8420 HBL8420 HBL8420

L15-20R HBL2420

IG2420

HBL2420

IG2420

HBL2420

IG2420

3P, 4W, 30A

125/250V

L14-30R HBL2710

IG2710

HBL2710

IG2710

HBL2710

IG2710

3P, 4W, 30A

3Ø 250V

L15-30R HBL2720

IG2720

HBL2720

IG2720

HBL2720

IG2720

3P, 4W, 30A

3Ø 600V

L17-30R HBL2740 HBL2740 HBL2740

4P, 5W, 20A

3ØY 120/208V

L21-20R HBL2510

IG2510

HBL2510

IG2510

HBL2510

IG2510

4P, 5W, 20A

3ØY 347/600V

L23-20R HBL2530 HBL2530 HBL2530

4P, 5W, 30A

3ØY 120/208V

L21-30R HBL2810

IG2810

HBL2810

IG2810

HBL2810

IG2810

4P, 5W, 30A

3ØY 347/600V

L23-30R HBL2830 HBL2830 HBL2830

Floor Boxes

Floor Box Cover to Receptacle Compatibility Chart Complies with UL514A

www.hubbell-wiring.comO-34

Floor Boxes

CONNEXION Zone Distribution System

System Planning

The Hubbell CONNEXION 2.0 Zone Distribution

System is a factory assembled, exible, modular

plug-n-play system that delivers power in raised oor

installations. This unique system increases the value

of the infrastructure and meets the challenges posed

by new construction and renovation in commercial

ofces, retail outlets and educational facilities.

By improving cable management, enhancing

exibility, and reducing administration expense, the

CONNEXION 2.0 Zone Distribution System allows

power needs to be addressed in a timely and

effective manner. The basic CONNEXION 2.0

building blocks are shown below.

Note: Contact factory for custom wiring configurations.

L3

IG

L1

N3

L2

N1

G

BLUE >

WHITE >

BLACK >

RED >

GRAY>

GREEN>

GREEN/YELLOW >

L3

N3

IG

L2

N2

L1

GG

N1

CIRCUIT

"A"

CIRCUIT

"B"

CIRCUIT

"C"

WHITE/BLACK > N2

Appropriate for a 120/208 volt 3ØY power distribution and dedicated neutrals

are desired.

• Three circuit capacity.

• Isolated ground capability for sensitive equipment.

• Each circuit has its own #12 AWG neutral.

• Component Rating: 20 amperes at 120/208 volt.

• 8-Wires (3 hots, 3 neutrals, 2 grounds).

3/3/2 System Conguration (3-Hots, 3-Neutrals, 2-Grounds)

L3

IG

L2

N1

L4

L1

G

BLUE >

BLACK >

RED >

PINK >

WHITE >

GREEN>

GREEN/YELLOW >

GRAY> N2

CIRCUIT

"A"

CIRCUIT

"B"

CIRCUIT

"C"

CIRCUIT

"D"

L3

IG IG

GG

L4

L2

N1

N1

L1

N2

N2

Appropriate in areas where shared neutral conductors are utilized.

• Two circuits share one #10 AWG neutral to manage harmonics for general purpose.

• Two additional circuits share one #10 AWG neutral to manage harmonics for

general purpose.

• Isolated ground capability for sensitive equipment.

• Component Rating: 20 amperes at 120/208 volt.

• 8-Wires (4 hots, 2 neutrals, 2 grounds).

4/2/2 System Conguration (4 Hots, 2 Neutrals, 2 Grounds) 2 + 2 Wiring Conguration

L3

IG

L2

N1

L4

L1

G

BLUE >

BLACK >

RED >

PINK >

WHITE >

GREEN>

GREEN/YELLOW >

GRAY> N2

CIRCUIT

"A"

CIRCUIT

"B"

CIRCUIT

"C"

CIRCUIT

"D"

L3

IG

GGG

L4

L2

N1

N1 N1

L1

N2

Appropriate in areas where shared neutral conductors are utilized.

• Three circuits share #10 AWG neutral to manage harmonics for general purpose.

• One circuit on dedicated #10 AWG neutral for sensitive equipment.

• Isolated ground capability for sensitive equipment.

• Component Rating: 20 amperes at 120/208 volt.

• 8-Wires (4 hots, 2 neutrals, 2 grounds).

4/2/2 System Conguration (4 Hots, 2 Neutrals, 2 Grounds) 3+ 1 Wiring Conguration

N1

L1

G

BLACK >

WHITE >

GREEN>

CIRCUIT

"A"

G

N1

L1

• One circuit capacity.

• Component Rating: 20 amperes at 120/208 volt.

• 3-Wires (1 hot, 1 neutral, 1 ground).

1/1/1 System Conguration (1 Hot, 1 Neutral, 1 Ground)

O-35www.hubbell-wiring.com

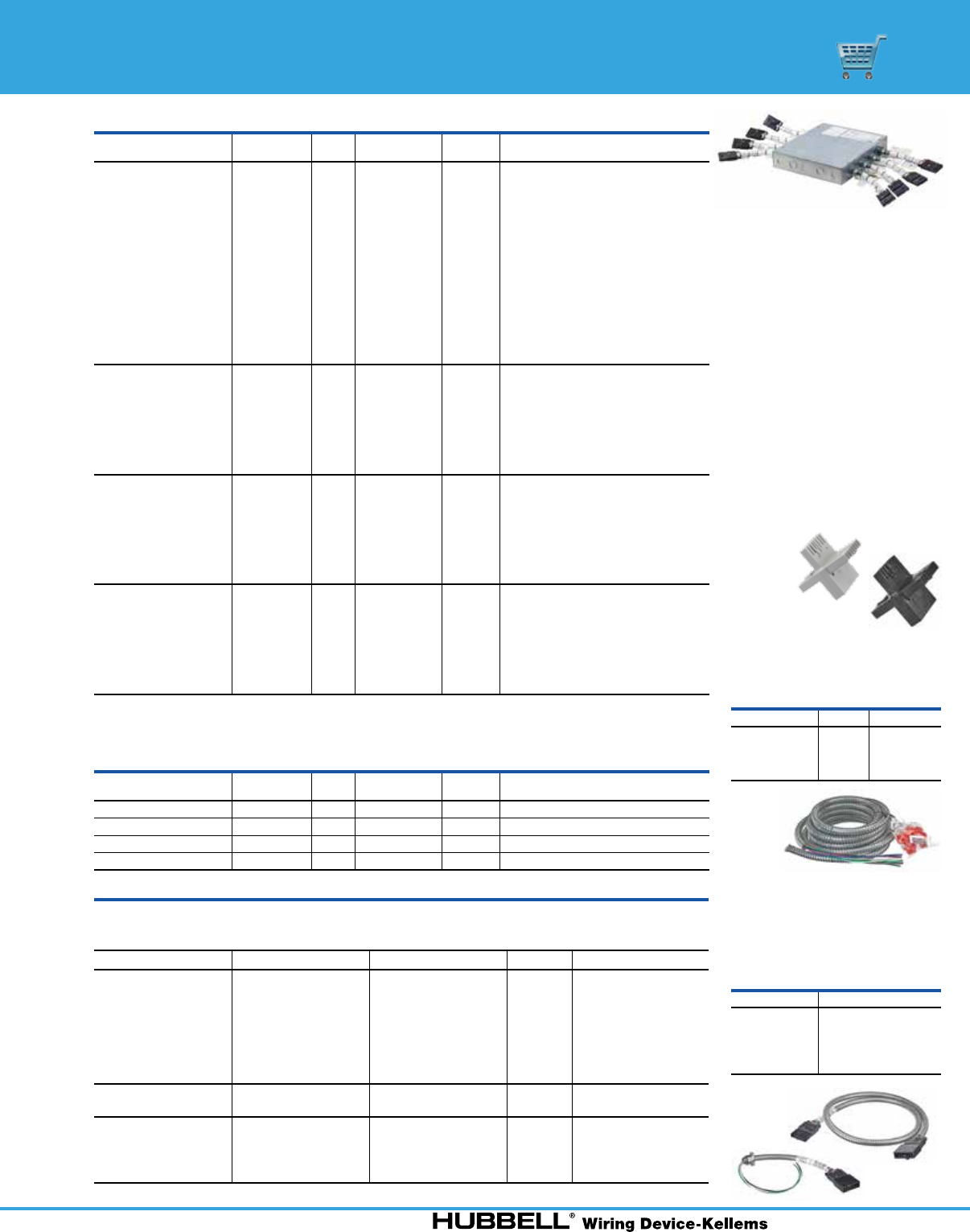

Floor Boxes

CONNEXION Zone Distribution System

2.0 Extender Cables

Hubbell Connexion 2.0 extender cables have male (power "IN") / female (power "OUT") ends allowing

them to be connected in the eld as needed. Available in three different versions, 422, 332, and 111,

in 5 ft. increments up to 30 ft.

422 Family 332 Family 111 Family Length Connectors

CEXT422MFL01

CEXT422MFL05

CEXT422MFL10

CEXT422MFL15

CEXT422MFL20

CEXT422MFL25

CEXT422MFL30

CEXT332MFL01

CEXT332MFL05

CEXT332MFL10

CEXT332MFL15

CEXT332MFL20

CEXT332MFL25

CEXT332MFL30

CEXT111MFL01

CEXT111MFL05

CEXT111MFL10

CEXT111MFL15

CEXT111MFL20

CEXT111MFL25

CEXT111MFL30

1 ft.

5 ft.

10 ft.

15 ft.

20 ft.

25 ft.

30 ft.

Male / Female

Male / Female

Male / Female

Male / Female

Male / Female

Male / Female

Male / Female

CEXT422FWL01

CEXT422FWL01XP*

CEXT332FWL01

CEXT332FWL01XP*

CEXT111FWL01

CEXT111FWL01XP*

1 ft.

1 ft.

Female / Open

Female / Open

CEXT422MWL01

CEXT422MWL01XP*

CEXT422MWL05

CEXT422MWL15

CEXT332MWL01

CEXT332MWL01XP*

CEXT332MWL05

CEXT332MWL15

CEXT111MWL01

CEXT111MWL01XP*

CEXT111MWL05

CEXT111MWL15

1 ft.

1 ft.

5 ft.

15 ft.

Male / Open

Male / Open

Male / Open

Male / Open

Note: *Standard lead length is 12 in. long. XP Sufx denotes 18 in. long leads for installments requiring extra-long wires.

2.0 Zone Boxes

Zone Box

Part Number

Wiring

Conguration

Output

Whips

Total Number of

Circuits per Box

Circuits

per Whip Field Connection Type

ZB111C1W1POUT*

ZB111C2W2P

ZB111C4W4P

ZB111C6W6P

ZB111C8W8P

ZB111C1W2TC

ZB111C1W4TC

ZB111C1W6TC

ZB111C1W8TC

ZB111C2W2TM

ZB111C4W4TM

ZB111C6W6TM

ZB111C8W8TM

111

111

111

111

111

111

111

111

111

111

111

111

111

1

2

4

6

8

2

4

6

8

2

4

6

8

1

2

4

6

8

1

1

1

1

2

4

6

8

1

1

1

1

1

1

1

1

1

1

1

1

1

Wire nuts to open leads

Wire nuts to open leads

Wire nuts to open leads

Wire nuts to open leads

Wire nuts to open leads

Single Screw down terminal block

Single Screw down terminal block

Single Screw down terminal block

Single Screw down terminal block

Multi Screw down terminal block

Multi Screw down terminal block

Multi Screw down terminal block

Multi Screw down terminal block

ZB332C3W1POUT*

ZB332C6W2P

ZB332C12W4P

ZB332C3W2TC

ZB332C3W4TC

ZB332C6W2TM

ZB332C12W4TM

332

332

332

332

332

332

332

1

2

4

2

4

2

4

3

6

12

3

3

6

12

3

3

3

3

3

3

3

Wire nuts to open leads

Wire nuts to open leads

Wire nuts to open leads

Single Screw down terminal block

Single Screw down terminal block

Multi Screw down terminal block

Multi Screw down terminal block

ZB422S2C4W1POUT*

ZB422S2C8W2P

ZB422S2C16W4P

ZB422S2C4W2TC

ZB422S2C4W4TC

ZB422S2C8W2TM

ZB422S2C16W4TM

422, 2+2

422, 2+2

422, 2+2

422, 2+2

422, 2+2

422, 2+2

422, 2+2

1

2

4

2

4

2

4

4

8

16

4

4

8

16

4

4

4

4

4

4

4

Wire nuts to open leads

Wire nuts to open leads

Wire nuts to open leads

Single Screw down terminal block

Single Screw down terminal block

Multi Screw down terminal block

Multi Screw down terminal block

ZB422S3C4W1POUT*

ZB422S3C8W2P

ZB422S3C16W4P

ZB422S3C4W2TC

ZB422S3C4W4TC

ZB422S3C8W2TM

ZB422S3C16W4TM

422, 3+1

422, 3+1

422, 3+1

422, 3+1

422, 3+1

422, 3+1

422, 3+1

1

2

4

2

4

2

8

4

8

16

4

4

4

16

4

4

4

4

4

4

4

Wire nuts to open leads

Wire nuts to open leads

Wire nuts to open leads

Single Screw down terminal block

Single Screw down terminal block

Multi Screw down terminal block

Multi Screw down terminal block

Note: *OUT suffix denotes single whip output zone box, which will not be further expanded.

2.0 Furniture Feeds

Furniture feeds are junction boxes which come with a pre attached power “IN” connector allowing

transition to building hard-wiring underneath the raised oor.

Zone Box

Part Number

Wiring

Conguration

Output

Whips

Total Number of

Circuits per Box

Circuits

per Whip Field Connection Type

ZB111C1W1PIN 111 1 1 1 Wire nuts to open leads

ZB332C3W1PIN 332 1 3 3 Wire nuts to open leads

ZB422S2C4W1PIN 422, 2+2 1 4 4 Wire nuts to open leads

ZB422S3C4W1PIN 422, 3+1 1 4 4 Wire nuts to open leads

2.0 Splitters

Distributes all cable conductors to

up to three locations (one “IN”, three

“OUTS”) to increase the amount of

oor boxes fed from a singe Zone

Distribution Box output whip.

Catalog Number Wires Hot Circuits

SP31

SP83

SP84

3

8

8

1

3

4

2.0 Homerun Cables

The Homerun cable is a dedicated

9-conductor (#10 AWG, THHN /

THWN) cable from the panel to the

zone box and allows for savings by

removing the need to lay conduit and

pull wire.

Catalog Number Length

ZBHR25

ZBHR50

ZBHR75

ZBHR100

25 ft.

50 ft.

75 ft.

100 ft.

Zone distribution Boxes are

the core of the Connexion

2.0 system. They serve as

the main interface between

the conventionally connected

electrical system and the labor

saving Connexion 2.0 system.

With a large array of knock outs,

they can accept most conduit

sizes when run from the circuit

breaker panel. They also accept

labor saving Homerun cables

as part of the Connexion 2.0

system. With depth of 3 inches,

the zone boxes will t in almost

any raised ooring system.

Custom congurations are also

available. Contact Hubbell Wiring

Systems for ordering information.

www.hubbell-wiring.comO-36

Floor Boxes

Custom Pre-Wired Access Floor Boxes

Features and Benefits

Pre-Wired Raised Access Floor Box Options

Box Series Description Cover Style Cut Out Dimensions Conduit Knockouts

AFB2G25PW

AFB2G50PW

AFB4G25PW

AFB4G50PW

AFB10G55PW

RAFB4PW

2-Gang, 2½" Depth

2-Gang, 5.0" Depth

4-Gang, 2½" Depth

4-Gang, 5.0" Depth

10-Gang, 5½" Depth

4-Gang, 8.0" Depth

Rectangular

Rectangular

Rectangular

Rectangular

Rectangular

Round

6¾" x 13¹⁄₈"

6¾" x 13¹⁄₈"

11¼" x 11¹⁄₈"

11¼" x 11¹⁄₈"

11" x 11¼"

8" Diameter

½" – ¾"

½" – 2"

½" – ¾"

½" – 2"

½" – 2"

½" – 2"

Features and Benets

• Reduce job site fabrication time and installation labor

• Reduce job site waste

• Access Floor Box pre-wired to your specifications

– Choose from Hubbell quality devices

– Single or multiple circuit wiring configurations

– Various cable lengths

• Pigtail terminates beneath raised floor

• Box covers available in five finishes

• Contact Hubbell Wiring Systems for ordering information

• UL Listed Wiring Assembly, file number E7305156

Cover

• 180° cover opening

• Two large cable egress doors

• Die cast aluminum construction

• Five powder coat nishes

• ADA compliant

Box

• 16 gauge galvanized sheet metal

construction

Cable Whip

• Wire leads for eld termination

• Pre-wired cable whip

O-37www.hubbell-wiring.com

2-Gang Rectangular

Ideal for applications that call for basic

power and data/AV requirements. The

2-Gang boxes can be used as an

access point to electrical or data

connections, or as a furniture feed to

power interior furniture partitions. Available

in two box depths, the 2 ½ in. depth

works well in floors using short pedestals;

the 5 in. depth is ideal for furniture feed

applications. The rectangular covers are

available in assorted finishes to enhance

any design scheme.

4-Gang Rectangular

The Hubbell SystemOne 4-Gang Recessed

Raised Access or Wood Floor Box delivers

AV plus power. Similar to the 2-Gang

recessed raised access floor box, the

4-Gang 2 ½ inch box depth provides a

solution for floors using short pedestals.

The 5 inch depth is ideal for applications

with a lot of requirements. Rectangular

covers in a variety of finishes will match any

existing or new style.

SystemOne Recessed Raised Access and Wood Floor Applications…

4-Gang Round

With an 8 in. diameter, the Hubbell

SystemOne 4-Gang Round Recessed

Floor Box is ideal for use in raised

access floors with pre-cut tile or wood

floor coverings. With a variety of finish

selections, the round covers blend in

with the flooring and overall design

of the building. Deep, 2 ¾ in. wiring

compartments are ready to accommodate

today’s most advanced, high-performance

power, data, and AV needs to supply

reliable connectivity.

10-Gang Rectangular

Designed to serve high-capacity, multi-

service applications, the 10-Gang floor

box supports installation with an array

of Hubbell power, data and AV devices.

Third-party mounting plates are available

for other manufacturers’ devices, including

FSR®, Crestron® and Extron®. A 5 ½

in. box depth offers great capacity for

connectivity, with the ability accept 2 in.

conduit to meet growing AV and data

needs. The rectangular covers come in a

variety of colors and finishes to enhance

any building’s design.

Featuring the unique capabilities of Hubbell’s SystemOne universal cover and sub-plate design, Hubbell has expanded

its floor box offering to provide industry leading flexibility while accommodating an extensive range of applications.

Hubbell SystemOne is constructed to give customers the ability to create personal solutions for their most demanding,

power, data and audio/video requirements.

Cover

• 180° cover opening

• Two large cable egress doors

• Listed to UL 514A and UL scrub

water compliant

• Die cast aluminum cover

construction

• Available in round, rectangular and

furniture feed styles

• All covers are ADA compliant

Rectangular Boxes

• 16 gauge galvanized sheet metal

• 6 in. solid conductor ground pigtail

in each gang

• Many boxes allow for 2 in. conduits

• Mounts in tiles ¾ in. to 2 in. thick

• Patent pending, labor saving, easy

mount device plates

Round Box

• Fits in 8 in. diameter air diffuser holes

• 16 gauge galvanized sheet metal

construction

• Individual grounding screws for

each gang

• 2 in. knock-out on the bottom

allows for large amounts of data

and/or AV devices

• Mounts in tiles ¾ in. to 2 in. thick

Floor Boxes

SystemOne Recessed Raised Access or Wood Floor Boxes

Applications

www.hubbell-wiring.comO-38

Box Depth 2

2 ½ in. 3 in. 2 ½ in. 5 in. 5 ½ in. 6 ¼ in.

Capacity 1

2-Gang

• AFB2G25

Select Correct Catalog Number 4

• AFB2G25CHI

• AFB2G50

• AFB2G50CHI

4-Gang

• AFB4G25

• AFB4G25CHI

• AFB4G50

• AFB4G50CHI

• RAFB4BASE

10-Gang

• AFB10G55

•AFB10G55CHI

Rectangular Rectangular Furniture Feed Furniture Feed Rectangular Round

Cover Style 3

To assist with the oor box selection process please have the following information available:

Electrical requirements: Box depth Cover style:

Power (each electrical device requires one gang) Data/AV (consult

manufacturers’ specication for size/volume requirements),

number required.

Add up total number to determine needed capacity. If necessary

capacity is not shown round up to next size. Example: 9-Gang

rounds up to a 10-Gang oor box.

Determine maximum tile

thickness and stantion height

and add together. Box depth

can not exceed total.

Round

Rectangular

Once this information is gathered start on the right column “capacity” select necessary box, then select the concrete pour

depth and on-grade or above-grade application, and nally cover style. Locate inter connecting point of all three categories

and move to right to select correct catalog number.

1 Capacity: Select necessary box.

2

Box Depth: Determine maximum possible depth (tile and stantion height total) and select a depth less than the calculated height.

3 Cover Style: Select Round or Rectangular, not all box sizes are available in round.

4 Locate interconnecting point of all three categories and move to right to select correct catalog number.

Floor Boxes

Selecting a SystemOne Recessed Raised Access or Wood Floor Box

O-39www.hubbell-wiring.com

Safety

• Low profile flanges meet ADA requirements

• Hide-away egress door fold under cover while in use

• 180° opening of main doors

Functionality

• Cables and connections are protected by recessed

functionality

• Open architecture sub-plate design

• Dirt ingress reduced by egress door brushes

• Meets UL 514A scrub water requirements with

ScrubShield® technology

• Easy selection with common flange for all floor types

• Round and rectangular box versions available

Value

• Enhance building décor with numerous finishes

• Increase durability and longevity with cast aluminum covers

Online Resources

• BIM models, customer drawings and technical specifications are available on www.hubbell-wiring.com

Visit web site for information on Hubbell's Pre-wired, Plug and Play, Connexion® System.

Floor Boxes

SystemOne Recessed Benefits and Enhancements

Dimensions in Inches (mm)

www.hubbell-wiring.comO-40

Complies with UL514A

Extron® is a registered trademark of Extron Electronics. Crestron® is a registered trademark of Crestron Electronics, Inc.

FSR® is a registered trademark of FSR Inc. TracJack®, Series II® and Ortronics® are registered trademarks of Ortronics/Legrand.

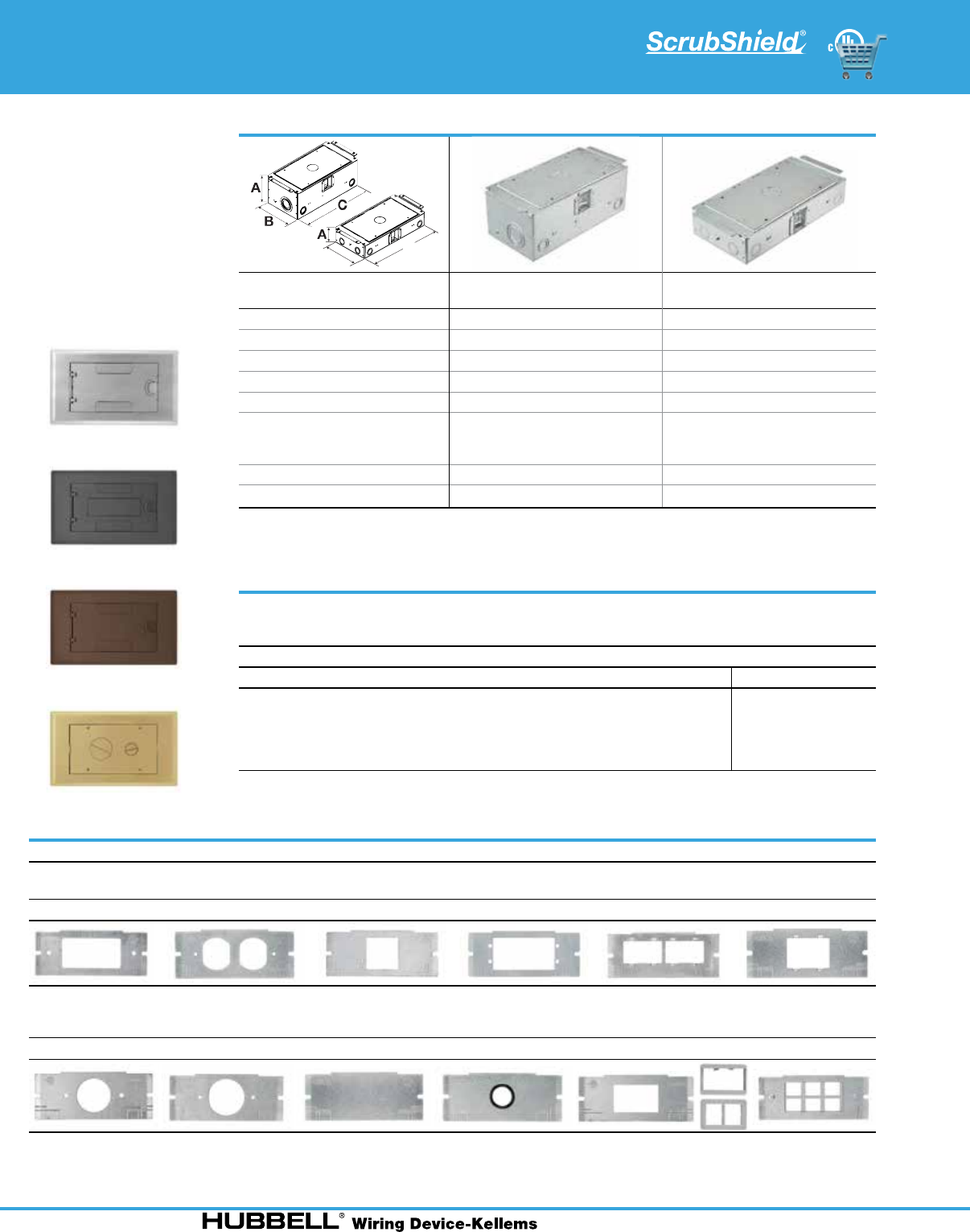

Floor Boxes

SystemOne Recessed 2-Gang Rectangular Floor Boxes,

Covers and Plates For Use In Raised Access or Wood Floors

Dimensions Inches (mm)

Style

Box Type

Standard

Chicago

AFB2G50

AFB2G50CHI

AFB2G25

AFB2G25CHI

Minimum Depth from Top of Floor Tile 5.00" (127.0) 2.50" (63.5)

Cubic Inch (cm3) Capacity per Gang 60 cu. in. (980 cm3) 30 cu. in. (490 cm3)

Dimensions – A 5.06" (128.5) 2.88" (73.2)

Dimensions – B 6.62" (168.2) 6.62" (168.2)

Dimensions – C 14.08" (357.6) 14.08" (357.6)

KO Trade Size: Front & Back

Sides

Bottom

(1) 1", 1¼", 1½", 2"

(2) ¾", 1", 1¼"

(4) ¾", 1", 1¼"

(4) ½", ¾"

(2) ½", ¾"

(2) ½", ¾", 1"

Cover Family Rectangular Rectangular

Temporary Cover Included  

Rectangular Covers (for use with raised access tiles and wood oors)

•Die cast construction available in ve nishes

•Furniture feed includes one 2 in. conduit hub and one 1 in. conduit hub with reducer to ¾ in.

•Maximum static load of 800 lbs. with 2x safety factor*

Cover dimensions 15 in. x 8¾ in.

Finish Surface Surface with Insert Furniture Feed

Aluminum Powder Coated

Black Powder Coated

Brass Powder Coated

Bronze Powder Coated

Satin Nickel Powder Coated

2GAFBCVRALU

2GAFBCVRBK

2GAFBCVRBRS

2GAFBCVRBRZ

2GAFBCVRNK

2GAFBCVRALUC

2GAFBCVRBKC

2GAFBCVRBRSC

2GAFBCVRBRZC

2GAFBCVRNKC

2GAFBFFCVRALU

2GAFBFFCVRBK

2GAFBFFCVRBRS

2GAFBFFCVRBRZ

2GAFBFFCVRNK

Note: *Load applied through a 3 in. (76mm) mandrel in center of the cover.

Plates - for use in 2, 4 and 6-Gang Floor Boxes

• UL 514A listed

Plate

Style

(1) Decorator

Opening

(1) Duplex

Opening

(2) Extron®

MAAP Openings

(2) Extron®

Openings

(2) 1U Hubbell

iStation Openings

(1) 1.5U Hubbell

iStation Opening

Cat. No. FBMPREC FBMPDUP FBMPMAAP FBMPAAP FBMP2IM FBMP15IM

Plate

Style

(1) Simplex

Opening 1.40 in.

Diameter

(1) Twist-Lock®

Opening 1.60 in.

Diameter 1-Gang Blank

Cable Feed

Through

with Bushing

(1) Opening for

TracJack® or

Series II®

(1) Opening w/

Hubbell ISF6 Frame

for Keystone Jacks

Cat. No. FBMP139 FBMP156 FBMPBNK FBMPFT FBMPTRAC FBMP6KS

B

CC

O-41

www.hubbell-wiring.com

Dimensions in Inches (mm)

Complies with UL514A

Plates - for use in 2, 4 and 6-Gang Floor Boxes

•UL 514A listed

Plate

Style

(1) Decorator

Opening

(1) Duplex

Opening

(2) Extron®

MAAP Openings

(2) Extron®

Openings

(2) 1U Hubbell

iStation Openings

(1) 1.5U Hubbell

iStation Opening

Cat. No. FBMPREC FBMPDUP FBMPMAAP FBMPAAP FBMP2IM FBMP15IM

Plate

Style

(1) Simplex

Opening 1.40 in.

Diameter

(1) Twist-Lock®

Opening 1.60 in.

Diameter 1-Gang Blank

Cable Feed

Through

with Bushing

(1) Opening for

TracJack® or

Series II®

(1) Opening w/

Hubbell ISF6 Frame

for Keystone Jacks

Cat. No. FBMP139 FBMP156 FBMPBNK FBMPFT FBMPTRAC FBMP6KS

Floor Boxes

SystemOne Recessed 4-Gang Rectangular Floor Boxes,

Covers and Plates For Use In Raised Access or Wood Floors

Dimensions Inches (mm)

Style

Box Type

Standard

Chicago

AFB4G50

AFB4G50CHI

AFB4G25

AFB4G25CHI

Minimum Depth from Top of Floor Tile 5.00" (127.0) 2.50" (63.5)

Cubic Inch (cm3) Capacity per Gang 57.5 cu. in. (940 cm3) 26.5 cu. in. (434 cm3)

Dimensions – A 5.17 " (131.4) 2.69" (68.2)

Dimensions – B 10.96" (278.4) 11.03" (280.3)

Dimensions – C 12.37" (314.1) 12.37" (314.1)

KO Trade Size: Front & Back

Sides

Bottom

(2) 1", 1¼", 1½", 2"

(4) ½", ¾", 1"

(4) ½", ¾", 1"

(2) ½", ¾"

(4) ½", ¾"

(4) ½", ¾", 1"

Cover Family Rectangular Rectangular

Temporary Cover Included  

Rectangular Covers (for use with raised access tiles and wood oors)

•Die cast construction available in ve nishes

•UL 514A listed

•Maximum static load of 1500 lbs. with 2x safety factor*

Cover dimensions 15 in. x 8¾ in.

Finish Flush Surface With Insert

Aluminum Powder Coated

Black Powder Coated

Brass Powder Coated

Bronze Powder Coated

Satin Nickel Powder Coated

4GAFBCVRALU

4GAFBCVRBK

4GAFBCVRBRS

4GAFBCVRBRZ

4GAFBCVRNK

4GAFBCVRALUC

4GAFBCVRBKC

4GAFBCVRBRSC

4GAFBCVRBRZC

4GAFBCVRNKC

Note: *Load applied through a 3 in. (76mm) mandrel in center of the cover.

Extron® is a registered trademark of Extron Electronics. Crestron® is a registered trademark of Crestron Electronics, Inc.

FSR® is a registered trademark of FSR Inc. TracJack®, Series II® and Ortronics® are registered trademarks of Ortronics/Legrand.

B

B

B

B

Dimensions in Inches (mm)

www.hubbell-wiring.comO-42

Complies with UL514A

RAFB4 Series – Plates

• All RAFB4SP series plates are powder coated white

Plate

Style (1) Decorator (1) Duplex

(1) Simplex Opening

1.40 in. Diameter

(1) Twist-Lock® Opening

1.60 in. Diameter Blank

Cat. No. RAFB4SPDECO RAFB4SPDUPLEX RAFB4SPTL14 RAFB4SPTL16 RAFB4SPBLANK

Plate

Style

(1) Hubbell iStation

Opening for 3 Units

(3) Extron®

MAAP Modules

(2) Extron®

AAP Modules

Opening to Accept Bezels

for Ortronics TracJack®

Cat. No. RAFB4SP3UIS RAFB4SP3MAAP RAFB4SP2AAP RAFB4SPORT

Floor Boxes

SystemOne Recessed 4-Gang Round Floor Boxes,

Covers and Plates For Use In Raised Access or Wood Floors

Extron® is a registered trademark of Extron Electronics. Crestron® is a registered trademark of Crestron Electronics, Inc.

FSR® is a registered trademark of FSR Inc. TracJack®, Series II® and Ortronics® are registered trademarks of Ortronics/Legrand.

Dimensions Inches (mm)

Style

Box Type

Round RAFB4BASE

Minimum Depth from Top of Floor Tile 6.25" (158.8)

Cubic Inch (cm3) Capacity per Gang 28.5 cu. in. (460 cm3)

Dimensions – A 6.41" (162.9)

Dimensions – B 7.33" (186.2)

Dimensions – C 8.05" (204.6)

KO Trade Size: Sides

Bottom

(2) ½"

(1) 1½", 2"

(2) ¾", 1½" - Concentric, (2) 1", 1¼" - Concentric

(1) ¾", 1" - Concentric, (1) ¾", 1", 1¼" - Concentric

Cover Family Round

Temporary Cover Included 

RAFB4 Series – Round Floor Box

with Cover

Includes:

• RAFB4BASE and 8 in. cover

Cover Finish Catalog Number

Brushed Aluminum

Black Powder Coated

Brass Plated

Bronze Plated

Satin Nickel Plated

RAFB4ALU

RAFB4BLK

RAFB4BRS

RAFB4BRZ

RAFB4NKL

CC

RAFB4NKL

with Devices

RAFB4BRS

Round Covers

Round covers are suitable for use with all oor types

Plate Style Catalog Number

Brushed Aluminum

Black Powder Coated

Brass Plated

Bronze Plated

Satin Nickel Plated

CFBS1R8CVRALU

CFBS1R8CVRBLK

CFBS1R8CVRBRS

CFBS1R8CVRBRZ

CFBS1R8CVRNKL

O-43

www.hubbell-wiring.com

Dimensions in Inches (mm)

Complies with UL514A

Extron® is a registered trademark of Extron Electronics. Crestron® is a registered trademark of Crestron Electronics, Inc.

FSR® is a registered trademark of FSR Inc. TracJack®, Series II® and Ortronics® are registered trademarks of Ortronics/Legrand.

Floor Boxes

SystemOne Recessed 10-Gang Rectangular Floor Boxes,

Covers and Plates

For Use In Raised Access or Wood Floors

Dimensions Inches (mm)

Style

Box Type

Standard

Chicago

AFB10G55

AFB10G55CHI

Min. Depth from Top of Floor Tile 5.50" (139.7)

Cubic Inch (cm3)

Capacity per Gang 25 cu. in. (400 cm3)

Dimensions – A 5.74" (145.9)

Dimensions – B 10.96" (278.4)

Dimensions – C 12.37" (314.1)

KO Trade Size: Front & Back

Sides

Bottom

(1) ½", ¾", (1) ¾", 1", 1¼", 1½",

(1) 1", 1¼", 1½", 2"

(4) ¾", 1", 1¼", 1½"

(4) ½", ¾", 1", 1¼"

Cover Family Rectangular

Temporary Cover Included 

Rectangular Covers

(for use with raised access tiles and wood oors)

•Die cast construction available in ve nishes

•UL 514A listed

•Maximum static load of 1500 lbs with 2x safety factor*

Finish Surface Style Cover

Surface Style Cover

with Insert

Aluminum Powder Coated

Black Powder Coated

Brass Powder Coated

Bronze Powder Coated

Satin Nickel Powder Coated

10GAFBCVRALU

10GAFBCVRBK

10GAFBCVRBRS

10GAFBCVRBRZ

10GAFBCVRNK

10GAFBCVRALUC

10GAFBCVRBKC

10GAFBCVRBRSC

10GAFBCVRBRZC

10GAFBCVRNKC

Note: *Load applied through a 3 in. (76mm) mandrel in center of the cover.

A

C

B

Plate

Style

(1) Twist-Lock® Opening

1.60 in. Dia. (Uses 2 Gangs)

(1) Simplex Opening

1.40 in. Dia. (Uses 2 Gangs)

(2) Twist-Lock® Opening

1.60 in. Dia. (Uses 3 Gangs)

(2) Simplex Opening

1.40 in. Dia. (Uses 3 Gangs)

Cat. No. FB10TLA FB10TLX FB10TLB FB10TLY

Plate

Style

(3) Twist-Lock® Opening

1.60 in. Dia. (Uses 5 Gangs)

(3) Simplex Opening

1.40 in. Dia. (Uses 5 Gangs)

(2) 2-Gang. Meets NEMA

Spacing. Ideal for Crestron®

DM –TX Product and Power

(4) Single Service Openings

Utilizing NEMA Wallplate

(Uses 5 Gangs)

Cat. No. FB10TLC FB10TLZ CFB10NEMA CFB10NEMA4G

RAFB10 Series – Plates

Plate

Style

(1) Decorator

Opening

(1) Duplex

Opening Blank

Decorator Opening Plate

Including Hubbell ISF6GY

(2) Openings to Accommodate

(6) Ortronics TrackJack®

Cat. No. FB10MPREC FB10MPDUP FB10MPBNK FB10MPKEY FB10MPTRAC

Plate

Style (2) Decorator

(4) Extron® MAAP

Modules

(4) Extron® AAP

Modules

For (6) 1U Hubbell

iStation Modules

Replacement Spacer

Around Wire-Way

Cat. No. FB10MP2A FB10MPMAAP FB10MPAAP FB10MP2B FB10MPX

www.hubbell-wiring.comO-44

Features Benefits

UL Listed and CSA Certified Third party approved and certified.

Heavy Duty Covers 32,000 lb. load capacity with 2x safety factor.

Scrub Water Meets UL514 requirements for scrub water and prevents water, dirt and debris from entering

the electrical devices.

Custom Built Panels Accepts a wide variety of electrical configurations including 100A pin and sleeve,

30A Twist-Lock®, straight blade devices and circuit breakers available.

Separate Enclosure for Compressed

Air and Water Utilities

Prevents air and water utilities from coming in contact with electrical services.

Metallic Convention Center Utility Boxes*

Painted Galvanized Steel Box Description Catalog Number

Steel Convention Center Utility Box with Cover for Power and Data/Communications. HBLSCCUBPD

Steel Convention Center Utility Box with Cover for Power, Data/Communications and Air/Water Box. HBLSCCUBPDW

Steel Convention Center Utility Box with Cover for Air/Water Only. HBLSCCUBW

Stainless Steel Box Description

Steel Convention Center Utility Box with Cover for Power and Data/Communications in Stainless Steel. HBLSCCUBPDSS

Steel Convention Center Utility Box with Cover for Power, Data/Communications and Air/Water Box in Stainless Steel. HBLSCCUBPDWSS

Steel Convention Center Utility Box with Cover for Air/Water Only in Stainless Steel. HBLSCCUBWSS

Note: *All boxes provided with temporary galvanized steel concrete covers.

Power and Data Panels**

Custom manufactured and pre-wired to your project specifications. Panel options include 60A pin and sleeve, 20A and 30A

Twist-Lock®, 20A GFCI, isolated ground or industrial straight blade devices. Optional circuit breaker protection is available.

Up to two-gangs available for audio/video/data communication requirements. Both power and data panels are shipped

separately after the boxes have been set in concrete.

Note: **Contact Hubbell for available configurations of power and data panels.

Floor Boxes

Convention Center Utility Box

Metallic Series

2-gang low voltage

compartment

4-inch pre-pour adjustability

Separate enclosure to keep water

away from electrical components

Hooks for tying

onto rebar

HBLSCCUBPDW HBLSCCUBPDWSS

HBLSCCUBPD HBLSCCUBW HBLSCCUBPD HBLSCCUBPDSS

2 in. drain

20A and

30A devices

Up to 2-gangs

of data

Circuit breakers

Up to 60A

Pin and Sleeve

Stand Alone Power/Data Box Inside View Inside View Inside View

Painted Galvanized Steel Box (14 Gauge G90)

Cost effective, corrosion resistant paint. Suitable for

both on and above-grade applications.

Stainless Steel Box (14 Gauge 304)

Corrosion resistant enclosure suitable for both on

and above-grade applications.

O-45www.hubbell-wiring.com

Painted Galvanized or Stainless Steel Metallic Box

Stand Alone Power/Data

HBLSCCUBPD (Painted Galvanized)

HBLSCCUBPDSS (Stainless Steel)

Pre-Wired Power Panels

Combination Power/Data/Water Stand Alone Water/Air Box

HBLSCCUBPDW (Painted Galvanized) HBLSCCUBW (Painted Galvanized)

HBLSCCUBPDWSS (Stainless Steel) HBLSCCUBWSS (Stainless Steel)

23.51"

(597.2)

24.27"

(616.5)

27.50"

(698.5)

2X

13.47"

(342.1)

4X

3.38"

(85.9)

4X

3.67"

(93.2)

29.48"

(748.8)

25.60"

(650.2)

25.96"

(659.4)

13.46"

(341.9)

9.65"

(245.1)

0-4"

(0-101.6)

Adjustment

0-4"

(0-101.6)

Adjustment

27.50"

(698.50)

6.00"

(152.4)

6.44"

(163.6)

8.90"

(226.1)

13.46"

(341.9)

2X

3.38"

(85.9)

24.26"

(616.2)

9.65"

(245.11) 21.97"

(558.0)

0-4"

(0-101.6)

Adjustment

2X

3.67"

(93.2)

25.96"

(659.4)

23.51"

(597.2)

24.27"

(616.5)

13.47"

(342.1)

Floor Boxes

Convention Center Utility Box

Dimensional Information

Position Device Options

8Qty. (1) Pin and Sleeve Receptacle 60A.

9 & 10 Qty. (2) Twist-Lock® Receptacles (20A or 30A).

11,12,13 Qty. (3) Duplex Receptacles (20A Standard,

GFCI or Isolated Ground).

14 Load Center for Circuit Breakers, 8-Pole

Positions Max.

Convention Center Power Panels are custom built to order and pre-wired in the factory to make installation quick

and easy. Please contact the factory to congure a power panel for your specic needs.

Dimensions in Inches (mm)

www.hubbell-wiring.comO-46

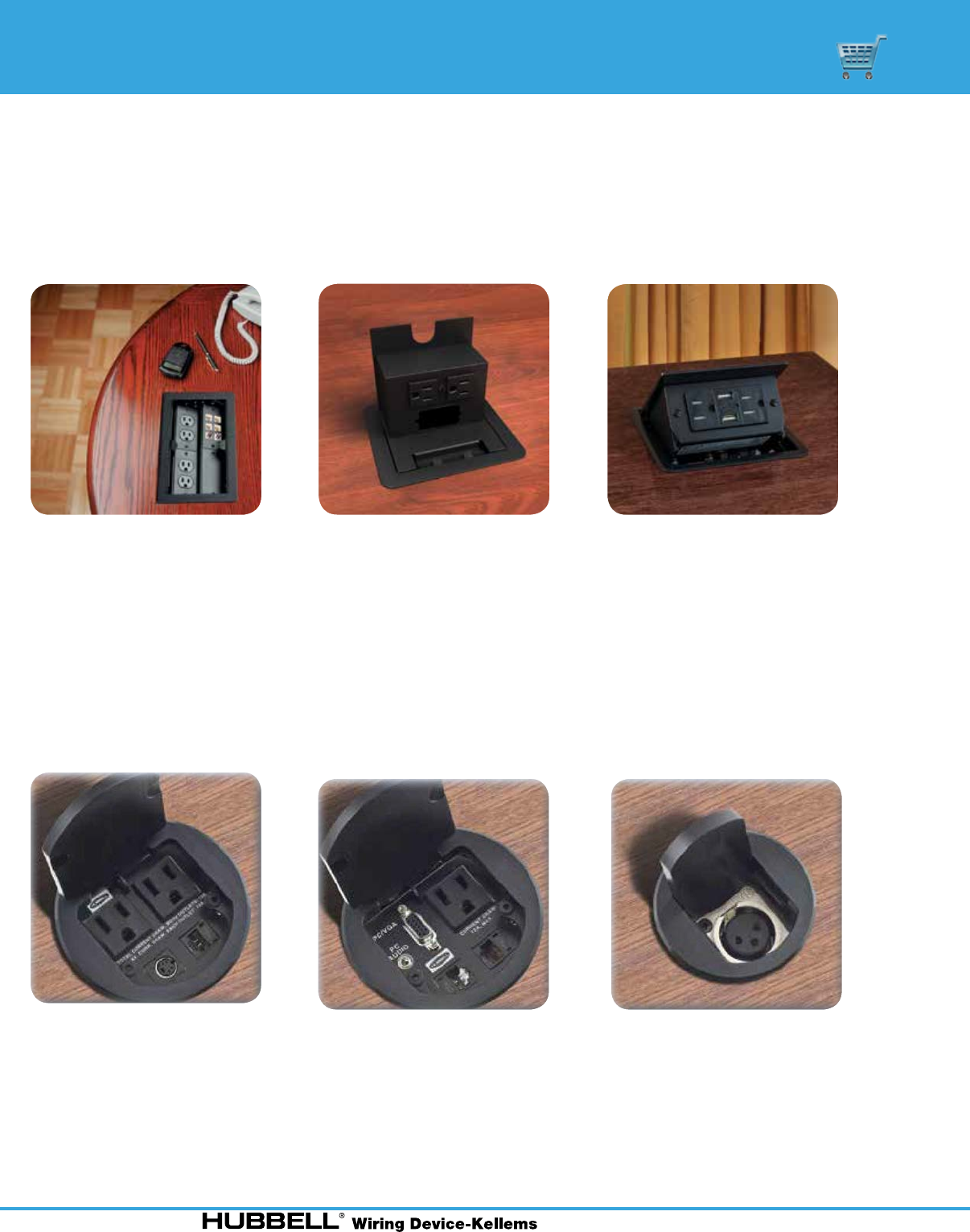

Floor Boxes

Furniture and Work Surface Connectivity Boxes

Applications

Furniture and Work Surface Connectivity Boxes

Flush Mount Boxes

Hubbell offers square and rectangular

flush mount boxes in a variety of

configurations. These boxes are available

in stainless steel, anodized aluminum

or painted finishes to match any décor.

Boxes are designed for easy installation

and are available pre-wired or empty for

field wiring.

Lift-up Style Boxes

Offering a convenient and attractive

method for work surface power and data

connections, these boxes are available

in several nishes. When not in use,

services are concealed by ipping

the unit down.

2X2 USB Work Surface Pop-Up Box

Simple push-down method for opening

and closing, two 125V receptacles

plus two USB charging ports, 3 Amps

of USB charging, with minimal 5 inch

square footprint, pre-wired 5 foot cord,

NEMA 5-15P plug. Available in brushed

aluminum or black powder coat nishes.

Table Top Boxes

Pre-Wired Boxes

Round dual-service boxes easily install

into a 3½-inch diameter core hole.

Power is pre-wired and keystone

openings accommodate data or

multi-media activation.

Pre-Wired Boxes

Configured with 15A power outlet,

15-pin feed through and 3.5mm

audio jack. This unit allows for further

customization by populating two

keystone openings.

Low Voltage Boxes

Low voltage only units are available

pre-loaded with XLR microphone jack

or with keystone opening for Hubbell

snap-fit modules.

This family of furniture and work surface connectivity boxes installs into conference tables and workstations to bring power,

voice, data, and multimedia directly to the point of use. In addition, they offer an aesthetic design with improved cable

management. Now, users can plug in laptops, projectors and other equipment at the desktop level - no more crawling

under the table or moving obstacles to get to the electrical outlet and network connectivity.

O-47www.hubbell-wiring.com

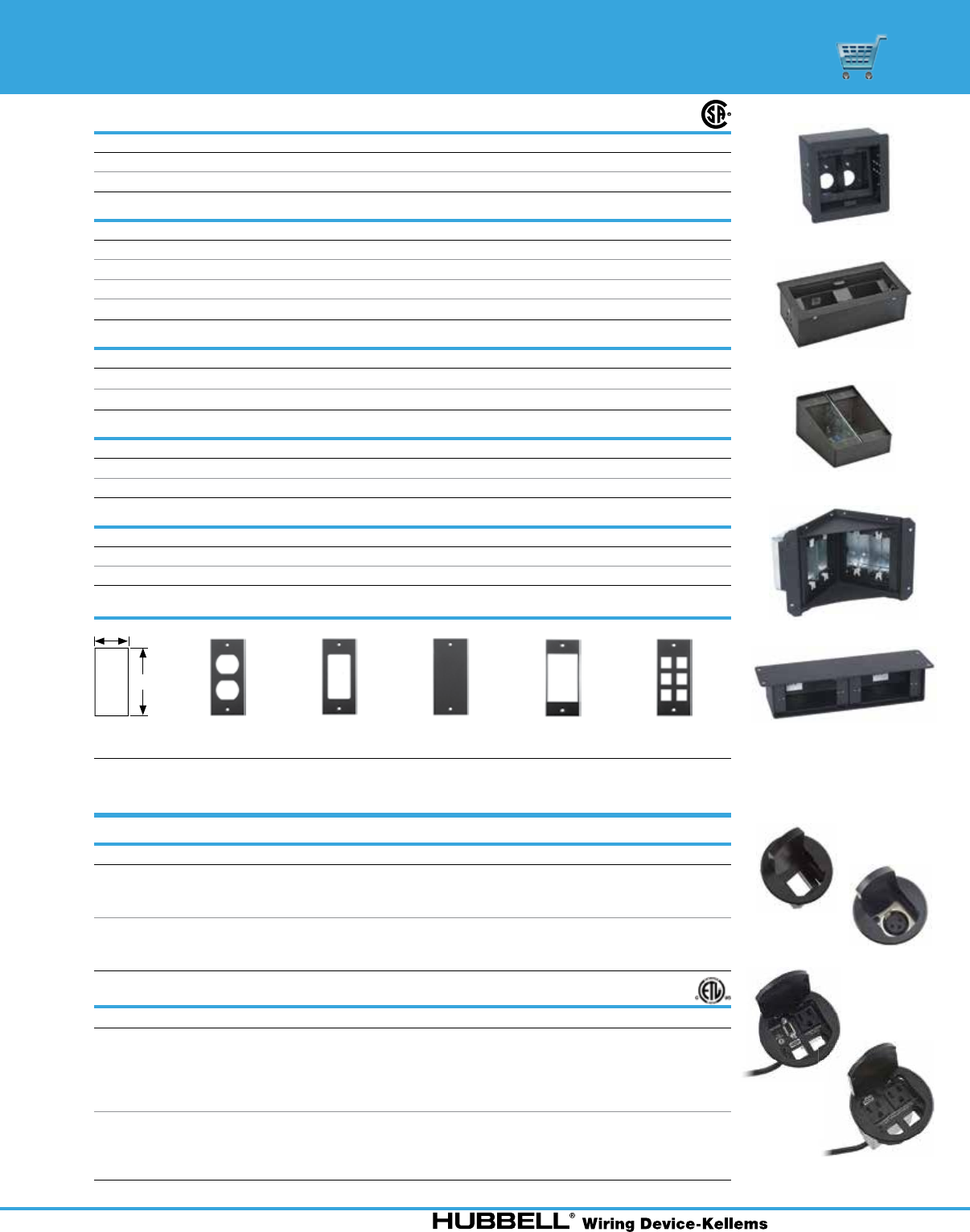

TTBDS2BK

TTBDS1BK

Square Flush Mount Boxes

Description Finish Dimensions Catalog Number

2-Gang Square Flush Mount Box with Cover. Black 6.5"L x 6.5"W x 3.75"H HBLSHA2

2-Gang Square Flush Mount Box with Cover. Stainless Steel 6.5"L x 6.5"W x 3.75"H HBLSHA2BSS

Rectangular Flush Mount Boxes

Description Finish Dimensions Catalog Number

2-Gang Rectangular Flush Mount with Cover. Black 10.75"L x 4.06"W x 3.5"H HBLPHA2

2-Gang Rectangular Flush Mount with Cover. Stainless Steel 10.75"L x 4.06"W x 3.5"H HBLPHA2BSS

4-Gang Rectangular Flush Mount with Cover. Black 10.75"L x 6.5"W x 3.5"H HBLPHA4

4-Gang Rectangular Flush Mount with Cover. Stainless Steel 10.75"L x 6.5"W x 3.5"H HBLPHA4BSS

Surface Mount Boxes

Description Finish Dimensions Catalog Number

2-Gang Surface Mount Box. Black 4.19"L x 4.81"W x 2.44"H HBLCON2

3-Gang Surface Mount Box. Black 6.19"L x 4.81"W x 2.44"H HBLCON3

Recessed Mount Boxes

Description Finish Dimensions Catalog Number

2-Gang Recessed Mount. Black 10.25"L x 7.0"W x 5.88"H HBLMIR2

4-Gang Recessed Mount. Black 31.0"L x 10.25"W x 5.88"H HBLMIR4

Under Desk Mount Boxes

Description Finish Dimensions Catalog Number

2-Gang Under Desk Mount. Black 9.19"L x 3.0"W x 2.88"H HBLMAR2

3-Gang Under Desk Mount. Black 13.69"L x 3.0"W x 2.88"H HBLMAR3

HBLMAR2

HBLMIR2

HBLPHA2

HBLSHA2

HBLCON2

Floor Boxes

Furniture and Work Surface Connectivity Boxes

Table Top Boxes

Low Voltage Only

Description Finish Dimensions Catalog Number

Table Top box; 2 inch diameter hole;

(1) keystone opening; Keystone modules

sold separately.

Black Anod. Alum.

Clear Anod. Alum.

Solid Brass

2.19" Diameter TTBKSBK

TTBKSAL

TTBKSBR

Table Top box; 2 inch diameter hole;

(1) XLR microphone jack installed.

Black Anod. Alum.

Clear Anod. Alum.

Solid Brass

2.19" Diameter TTBXLRBK

TTBXLRAL

TTBXLRBR

Pre-Wired Dual-Service

Description Finish Dimensions Catalog Number

Table Top box; 3.5 inch diameter hole; (1)

pre-wired 15A outlet with 9 foot power supply

cord; (1) 3.5mm screw terminal audio jack;

(1) 15-pin gender changer F/F; (2) keystone

openings; Keystone modules sold separately.

Black Anod. Alum.

Clear Anod. Alum.

Solid Brass

3.88" Diameter TTBDS1BK

TTBDS1AL

TTBDS1BR

Table Top box; 3.5 inch diameter hole;

(2) pre-wired 15A outlets with 9 foot power

supply cord; (2) keystone openings;

Keystone modules sold separately.

Black Anod. Alum.

Clear Anod. Alum.

Solid Brass

3.88" Diameter TTBDS2BK

TTBDS2AL

TTBDS2BR

Note: See section A for power devices and section W for datacom accessories.

TTBXLRBK

TTBKSBK

Hubbell – Screw Type Face Plates

HBLST302SBK HBLDE301SBK HBLBL300SBK HBLIMFSBK HBL317SBK

Duplex Style Line® Blank 3-Unit Hubbell iSTATION Hubbell

Decorator Opening

(See Network Wiring section 6-Port

for module options)

Note: See page O-30 for open systems screw type face plates.

2.00"

Typical

4.50"

www.hubbell-wiring.comO-48

Floor Boxes

Furniture and Work Surface Connectivity Boxes

Pre-Wired 2X2 USB Work Surface Pop-Up Box

Features

•15A duplex with two USB charging ports,

3A USB charging capacity

•5', pre-wired, 12 gauge, 3 wire electrical cord - making it

excellent for conference rooms or classrooms that are

frequently rearranged

•Tamper-resistant receptacle

•Gas-spring actuation for smooth opening and closing

•Die cast aluminum construction

•Rated for +10,000 open/close cycles

•Simple three-screw installation

•Unobtrusive low profile flange at 0.05"

•LED power-indicating light

•Easily replaceable receptacle

Specications

•cULus

•Listed to UL962A for Furniture Power Distribution Units

Hubbell's UL listed 2X2 USB Work Surface Pop-Up

Box is ideal for work surfaces, such as desks, which

require power for a computer and USB charging for

smart devices. Developed with coordination from

the hotel industry, the Hubbell Pop-Up Box utilizes a

pneumatic spring for providing a smooth action for

opening and closing. Available in brushed aluminum

or black powder coat, the Pop-Up Box is suited for

installation with any modern décor.

Installation is simple and only requires a jig-saw or

similar saw plus a screwdriver. The unit is supplied

with a 5 foot cord with a molded plug end allowing

it to be installed with ease. Designed to be installed

into existing desks or by furniture manufactures.

The Hubbell 2X2 USB Work Surface Pop-Up Box is

ideally suited for any work surface application.

2X2 USB Work Surface

Pop-Up Box

Charging convenience at the push of a button

2X2 USB Work Surface Pop-Up Box

Surface

Dimensions

Cut out

dimensions

Product

Depth

Maximum

Surface Thickness Finish Catalog Number

5" x 5"

5" x 5"

4.62" x 4.62"

4.62" x 4.62"

3.55"

3.55"

1.125"

1.125"

Brushed Aluminum

Black Powder Coat

WSBUSB2X2ALU

WSBUSB2X2BLK

Electrical Specications

Voltage Current

USB Charging

Current Plug Type Cord Length

125V 15A 3A NEMA 5-15P 5 Feet

WSBUSB2X2BLK

WSBUSB2X2ALU

5.00"

(127.0)

5.00"

(127.0) 5 Feet

3.55"

(90.2)

1.13" (28.7)

Dimensions

Dimensions in Inches (mm)

O-49www.hubbell-wiring.com

WSBA11BK

WSBE22SV

WSBC21UBK

WSBD21UBK

WSBB23UBK

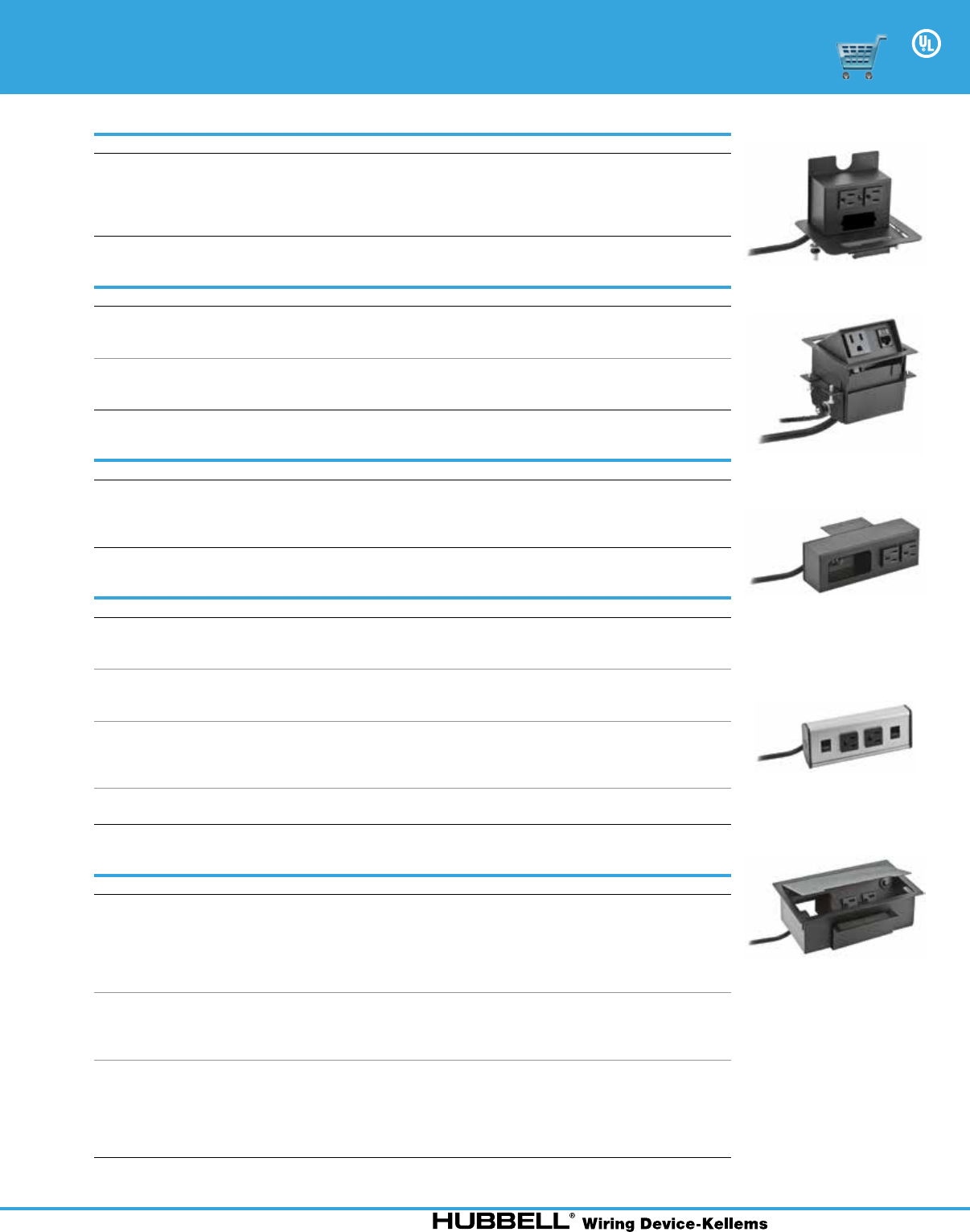

Floor Boxes

Furniture and Work Surface Connectivity Boxes

Pre-Wired Work Surface Series

Square Lift-Up Style

Description Finish Dimensions Catalog Number

Two (2) pre-wired 15A outlets with 6-ft.

power supply cord; 1-Unit opening for

Hubbell iSTATION modules. Unit rotates

up when in use and down to conceal

services when not in use.

Black

Silver

5.75"L x 5.39"W x 4.25"H WSBC21UBK

WSBC21USV

Square Mini Lift-Up Style

Description Finish Dimensions Catalog Number

One (1) pre-wired 15A outlet with 9-ft.

power supply cord; One (1) RJ-45 jack

installed with 6-ft. patch cord.

Black

Brushed Stainless

Steel

3.7"L x 3.7"W x 2.93"H WSBA11BK

WSBA11BSS

Two (2) pre-wired 15A outlets with 9-ft.

power supply cord (power only).

Black

Brushed Stainless

Steel

3.7"L x 3.7"W x 2.93"H WSBA2BK

WSBA2BSS

Under Table Mount

Description Finish Dimensions Catalog Number

Two (2) pre-wired 15A outlets with 9-ft.

power supply cord; One (1) Low Voltage

Plate included with 1-Unit opening for

Hubbell iSTATION modules.

Black 6.50"L x 1.75"W x 2.25"H WSBD21UBK

Work Surface Mount

Description Finish Dimensions Catalog Number

One (1) pre-wired 15A outlet with 9-ft.

power supply cord; One (1) Hubbell

Keystone opening.

Black

Silver

3.57"L x 2.19"W x 2.50"H WSBE11BK

WSBE11SV

Two (2) pre-wired 15A outlets with 9-ft.

power supply cord; Two (2) Hubbell

Keystone openings.

Black

Silver

6.32"L x 2.19"W x 2.50"H WSBE22BK

WSBE22SV

Three (3) pre-wired 15A outlets with 9-ft.

power supply cord; One (1) Low Voltage

Plate included with 1-Unit opening for

Hubbell iSTATION modules.

Black

Silver

8.25"L x 2.19"W x 2.50"H WSBE31UBK

WSBE31USV

Mounting bracket with thumb screw

(optional).

n/a n/a WSBECLAMP

Recessed Concealed Services

Description Finish Dimensions Catalog Number

Two (2) pre-wired 15A outlets with 6-ft.

power supply cord; One (1) Low Voltage

Plate included with 1-Unit opening for

Hubbell iSTATION modules; Two (2)

additional 1-Unit openings provided

in base of unit.

Black

Brushed Anod. Alum.

Brushed Stainless

Steel

8.98"L x 5.47"W x 2.97"H WSBB23UBK

WSBB23UBAL

WSBB23UBSS

Four (4) pre-wired 15A outlets with 6-ft.

power supply cord; Two (2) 1-Unit

opening for Hubbell iSTATION modules

provided in base of unit.

Black

Brushed Anod. Alum.

Brushed Stainless

Steel

8.98"L x 5.47"W x 2.97"H WSBB43UBK

WSBB43UBAL

WSBB43UBSS

Empty Enclosure with one (1) duplex

opening, One (1) Low Voltage Plate

included with 1-Unit opening for Hubbell

iSTATION modules; Two (2) additional

1-Unit openings provided in base of unit;

intended for eld wiring.

Black 8.98"L x 5.47"W x 2.97"H WSBBHWBK

www.hubbell-wiring.comO-50

WSBH42U with

WSBHTRBK

WSBF22BK

WSBFGROMSV

WSBPLATE1

WSBPLATE2

WSBG43USV

(cover doors shown open)

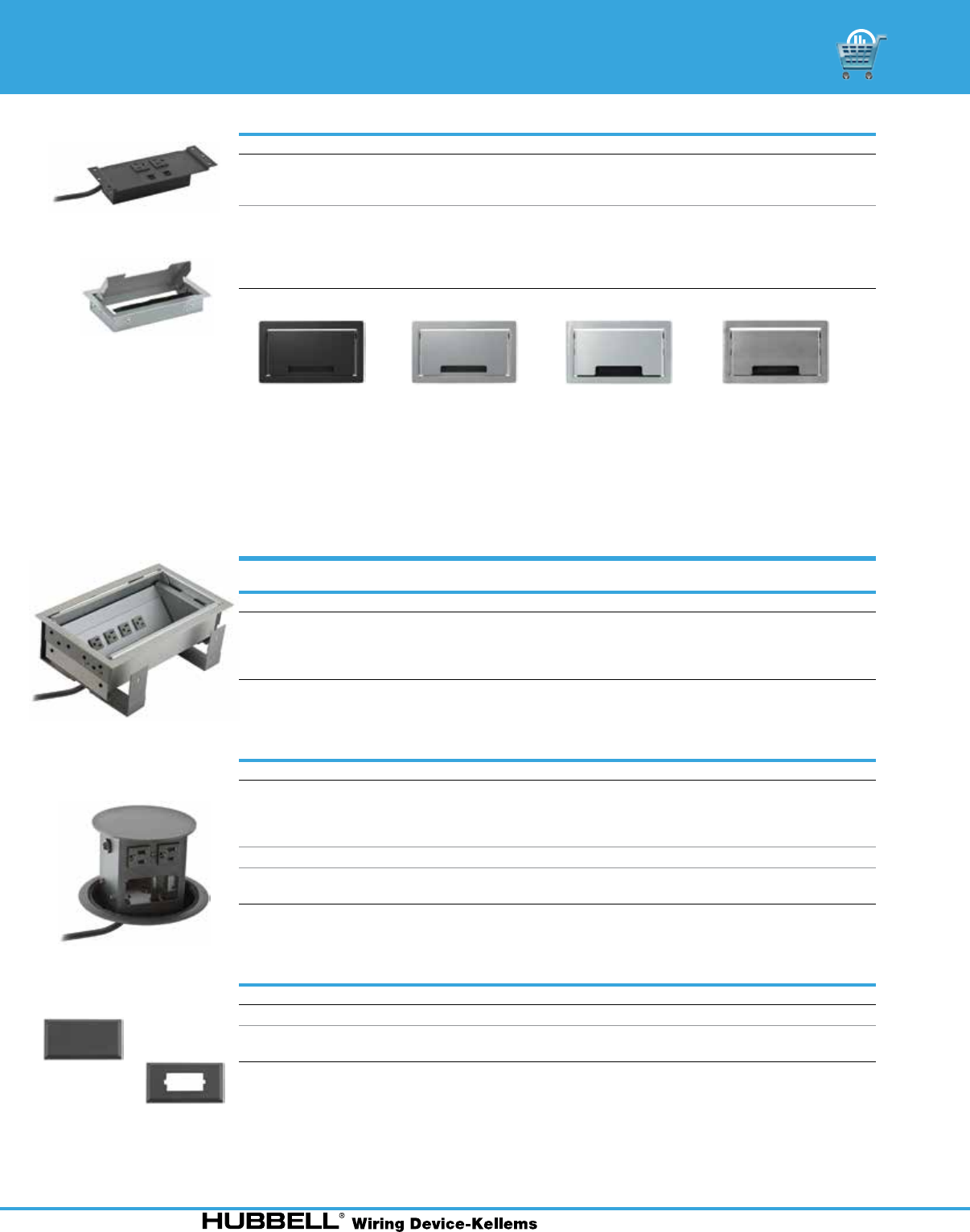

Floor Boxes

Furniture and Work Surface Connectivity Boxes

Pre-Wired Work Surface Elite Series

Pre-Wired Work Surface Elite Series

Recessed Concealed Services

Description Finish Dimensions Catalog Number

Four (4) pre-wired 15A outlets with 6-ft.

power supply cord; Three (3) Low Voltage

Plates included with 1-Unit opening for

Hubbell iSTATION modules.

Black

Silver

Clear Anodized

Black Anodized

15.0"L x 9.0"W x 6.25"H WSBG43UBK

WSBG43USV

WSBG43UBAL

WSBG43UBBA

Pop-Up Style*

Description Finish Dimensions Catalog Number

Base Unit with Four (4) pre-wired 15A

outlets with 6-ft. power supply cord; Two

(2) Low Voltage plates included with 1-Unit

opening for Hubbell iSTATION modules.

— 8.90"L x 8.90"W x 13.9"H WSBH42U*

Trim Ring and Decorative Round Top. Black 5.25" Diameter WSBHTRBK

Trim Ring and Decorative Round Top. Brushed Stainless

Steel

5.25" Diameter WSBHTRBSS

Note: *WSBH42U is CSA Certified only.

Replacement Low Voltage Data Plates

Description Finish Dimensions Catalog Number

Non-metallic low voltage plate, blank. Black 3.18"L x 1.88"W WSBPLATE1

Non-metallic low voltage plate,

1-Unit Hubbell iSTATION cut-out.

Black 3.18"L x 1.88"W WSBPL ATE2

Grommet Style

Description Finish Dimensions Catalog Number

Two (2) pre-wired 15A outlets with 6-ft.

power supply cord; Two (2) Hubbell

Keystone openings.

Black

Silver

8.62"L x 3.0"W x 2.25"H WSBF22BK

WSBF22SV

Flush Grommet Cover with

dust shield.

Black

Silver

Brushed Aluminum

Brushed Stainless

Steel

5.68"L x 3.39"W x 0.96"H WSBFGROMBK

WSBFGROMSV

WSBFGROMBAL

WSBFGROMBSS

WSBFGROMBK WSBFGROMSV WSBFGROMBSSWSBFGROMBAL

O-51www.hubbell-wiring.com

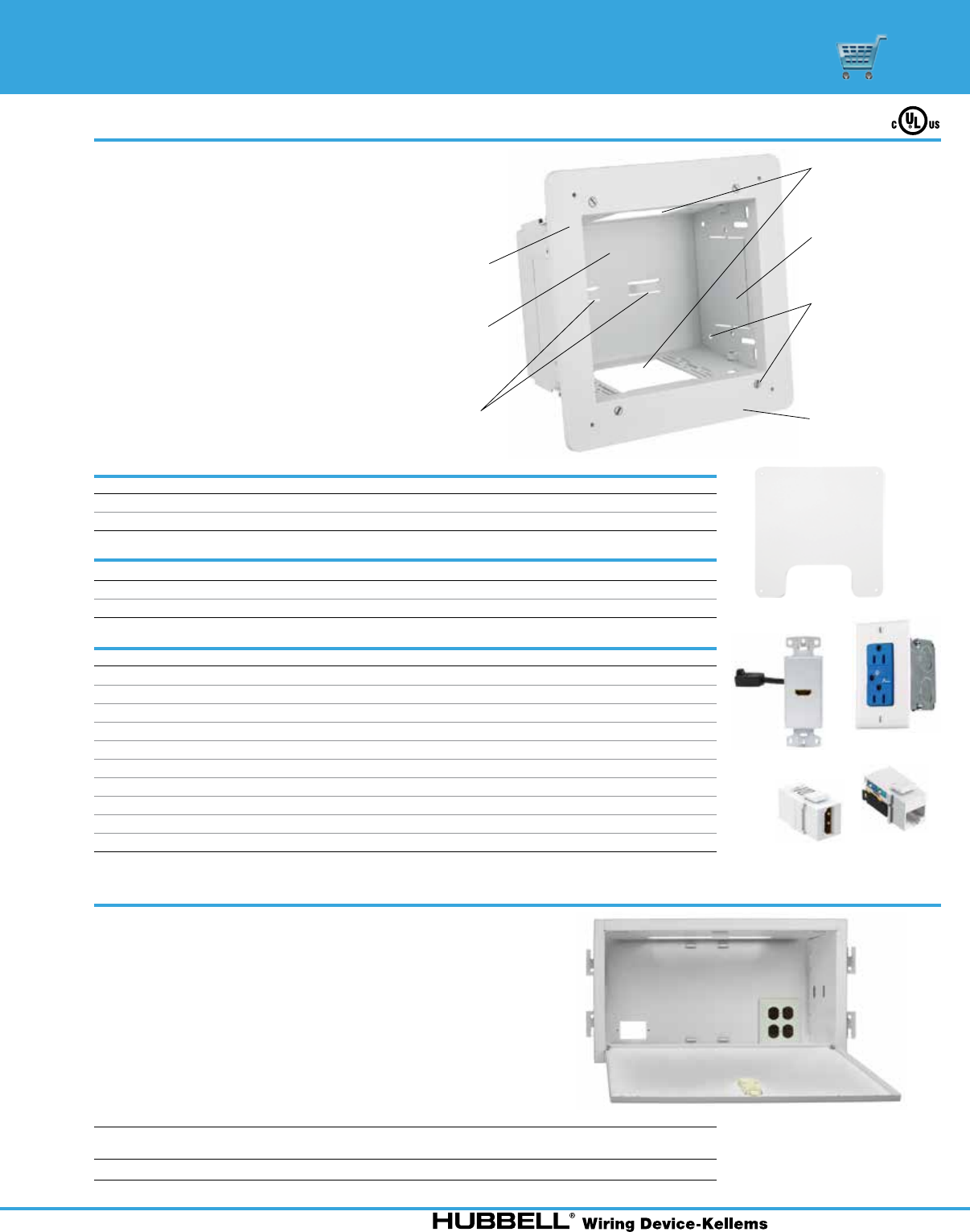

Floor Boxes

AV In-Wall and Ceiling Enclosures

Hubbell’s netSELECT® Flat Panel Television (FPTV) connection

enclosure delivers high-density connectivity and power in the

wall. This allows flat panel displays and interactive “smart”

boards to sit flush against walls with no dangling cords.

It quickly installs to studs or sheetrock without additional

components or hardware.

• Optional screw on cover

reduces tampering

• cULus 1863 Listed

The AV Ceiling Enclosure is designed to work with active AV devices to

integrate AV distribution, data connections and power in one location,

providing a direct connection to a projector or a display device. An additional

AV/data kit can be added or customized to address all connector, mounting

and patching needs, reducing multiple pieces on site.

• Manage multiple applications inside one enclosure

• Flush mounted, white enclosure for consistent look

when mounted in the ceiling

• Loaded with two Hubbell 20A duplex receptacles

and a 2-gang back box

• All steel rugged construction provides the ultimate

strength for installation

FPTV Connection Enclosure

Description Color Catalog Number

2-Gang In-Wall Enclosure White NSAV62M

Steel Cover for NSAV6 series White NSAV6C

Power Kits (For use with NSAV62M only)

Description Color Catalog Number

Standard Power Kit White NSOKPTR

Surge Protected Power Kit Blue NSOKPS

AV Connectors and Plates

Description Color Catalog Number

1-Gang Blank Plate White NP14W

1-Gang Decorator Plate White NP26W

1-Gang iSTATION Plate White IMF1W

1-Gang 4-Port Keystone Plate White NSP14W

1-Port HDMI Frame White NS801W

2-Port HDMI Frame White NS802W

HDMI Snap Fit White SFHC14W

F-Connector Snap Fit White NSF70W

USB A-to-B Snap Fit White SFUSBABW

Cat 6 Snap Fit Jack White NSJ6W

Note: See Network Wiring section for other connector options.

AV In-Wall Enclosure

AV Ceiling Enclosure

NSOKPS

NS801W

NSJ6W

NSAV6C

AVCE1H

Sheet Metal Base

White Powder

Coat Finish

Integrated Cable

Management

Multiple Device

Mounting Options

Easily Mounts to

Studs or Sheetrock

Trim Ring Covers

Rough-In

NSAV62M

1½" and

1¼" Conduit

Knockouts

Accepts Standard

Electrical Boxes

SFHC14W

Description

Height

Inches (mm)

Width

Inches (mm)

Depth

Inches (mm) Color Catalog Number

AV Ceiling Enclosure 12" (305) 24" (610) 8" (203) White AVCE1H

Note: Enclosure includes two 20 amp duplex receptacles and 2-gang back box.

www.hubbell-wiring.comO-52

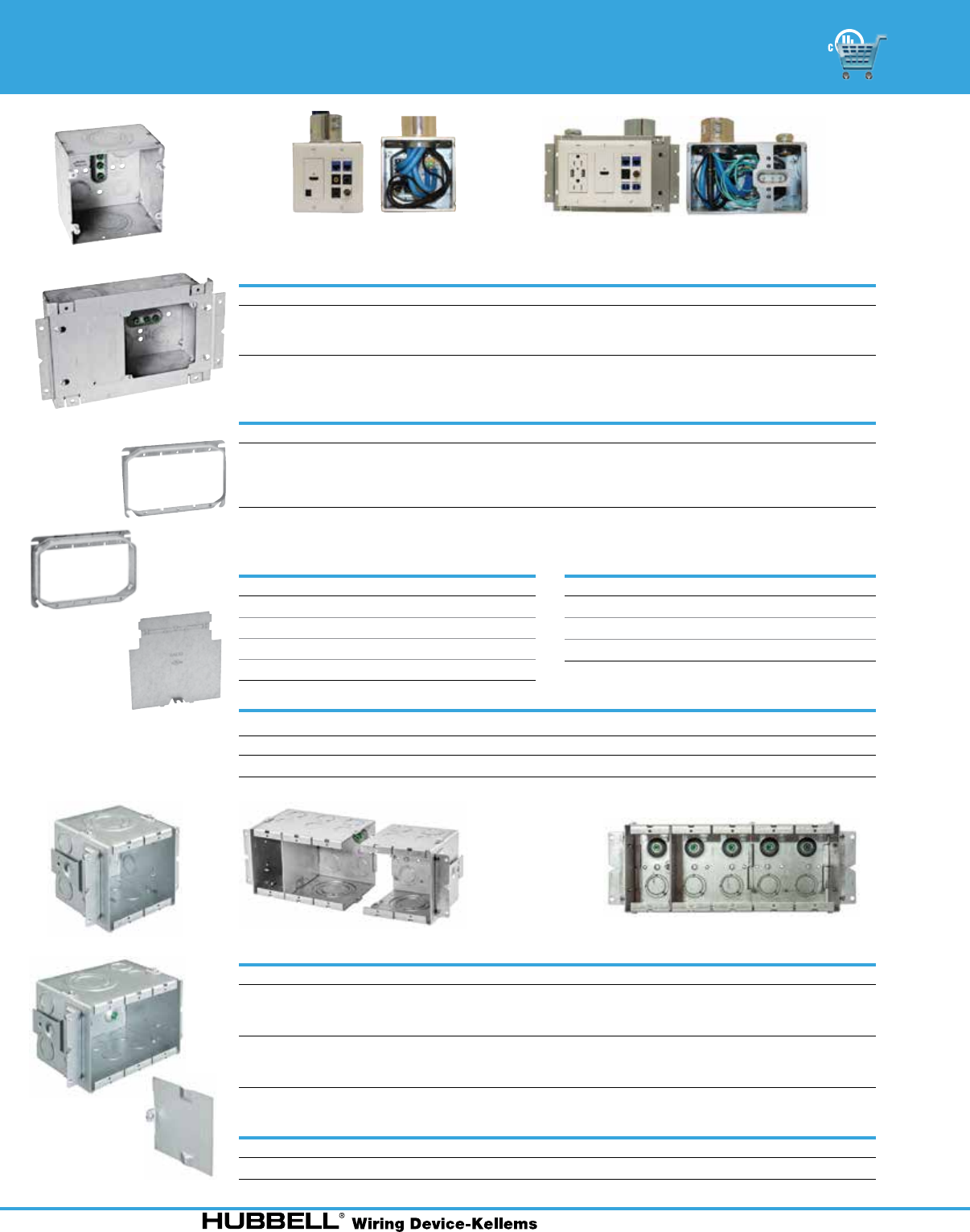

Floor Boxes

Large Capacity Wall Boxes and Gangable AV Wall Boxes

2-Gang Large Capacity Wall Box - 66.7 Cubic Inch Capacity

Description Dimensions Knockouts Sides* Knockouts Back* Catalog Number

Square 2-gang

wall box

4¹¹/₁₆"H x 4¹¹/₁₆"W x 3¼"D (2) ¾" – 1" TKO;

(2) 1" – 1¼" TKO;

(2) 1" – 2" conc. KO

(2) ¾" – 1" TKO

(2) ½" TKO

HBL260

Note: Use with industry standard 4¹¹⁄₁₆" square mud rings for 1- or 2-gang applications.

* TKO (Tangential Knockout)

3-Gang Large Capacity Wall Box - 113.3 Cubic Inch Capacity

Description Dimensions Knockouts Sides Knockouts Back Catalog Number

Square 2- or 3-gang

wall box

4¹¹⁄₁₆"H x 7¾"W x 3¼"D (4) ½" – ¾" TKO,

(4) ¾" – 1" TKO,

(2) 1" – 1¼" TKO,

(2) 1" – 2" conc. KO

(2) ½" – ¾" TKO,

(2) ¾" – 1" TKO,

(2) 1" – 1¼" TKO

HBL263

Note: Use with industry standard 4" square mudrings for 1- or 2-gang applications.

Accessories

Low Voltage Partition

Description Compatible with Compatible Mud Ring Depth Packing Quantity Catalog Number

Low voltage partition HBL260 and HBL263 ½", ¾" and 1¼" 1 HBL981

Note: Cutaway images are for demonstration purposes only.

Front Back (Cutaway) Front Back (Cutaway)

2-Gang Mud Rings -

Compatible with HBL260

Description Capacity (cu. in.) Catalog Number

⁵⁄₈" height 7. 3 HBL818

¾" height 8.8 HBL840

1" height 12.0 HBL819

1¼" height 15.0 HBL820

3-Gang Mud Rings -

Compatible with HBL263

Description Capacity (cu. in.) Catalog Number

½" height 10.1 HBL792

⁵⁄₈" height 12.3 HBL793

1¼" height 24.3 HBL794

Two and Three Gangable AV Wall Boxes

Box Dimensions Top Knockouts Bottom Knockouts Back Knockouts Catalog Number

2-Gang, 2 in. KO,

54 in.3 capacity

H: 4.21 in.

W: 4.06 in.

D: 4.0 in.

(2) ½"

(2) ½" - ¾" TKO*

(1) 1", 1¼", 1½" and 2" (2) ½" - ¾" TKO HBL985

3-Gang, 2 in. KO,

79 in.3 capacity

H: 4.21 in.

W: 5.87 in.

D: 4.0 in.

(3) ½"

(3) ½" - ¾" TKO*

(1) ½"

(1) ½" - ¾" TKO*

(1) 1", 1¼", 1½" and 2"

(3) ½" - ¾" TKO HBL986

Note: *TKO (Tangential Knockout).

Low Voltage Partition

Compatible with Packaging Quantity Catalog Number

HBL985 and HBL986 1 HBL989

HBL260

HBL981

HBL263

HBL792

HBL794

HBL985

HBL986

HBL989

HBL985 and HBL986

with HBL989 Low

Voltage Partition
