www.tnb.ca C25

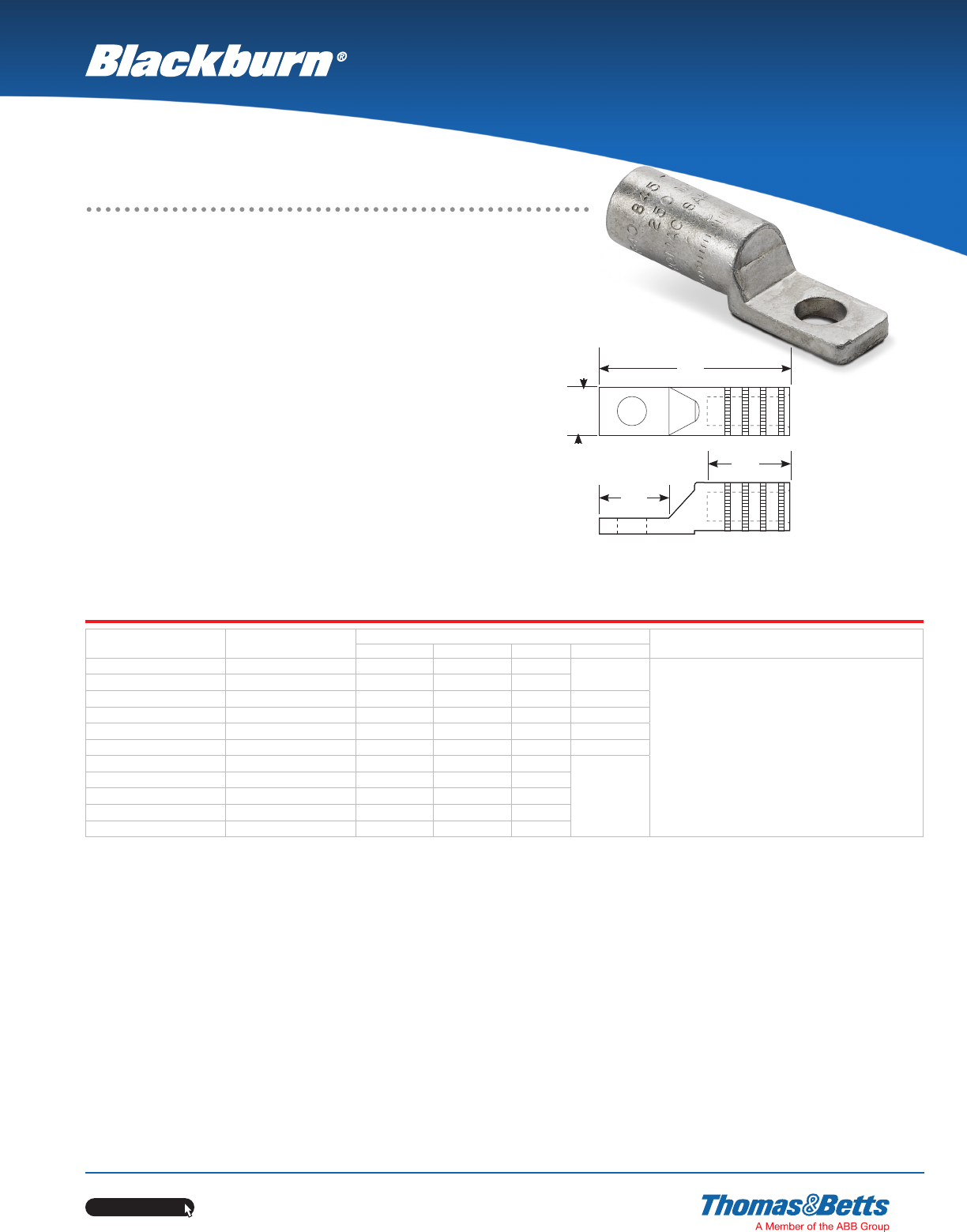

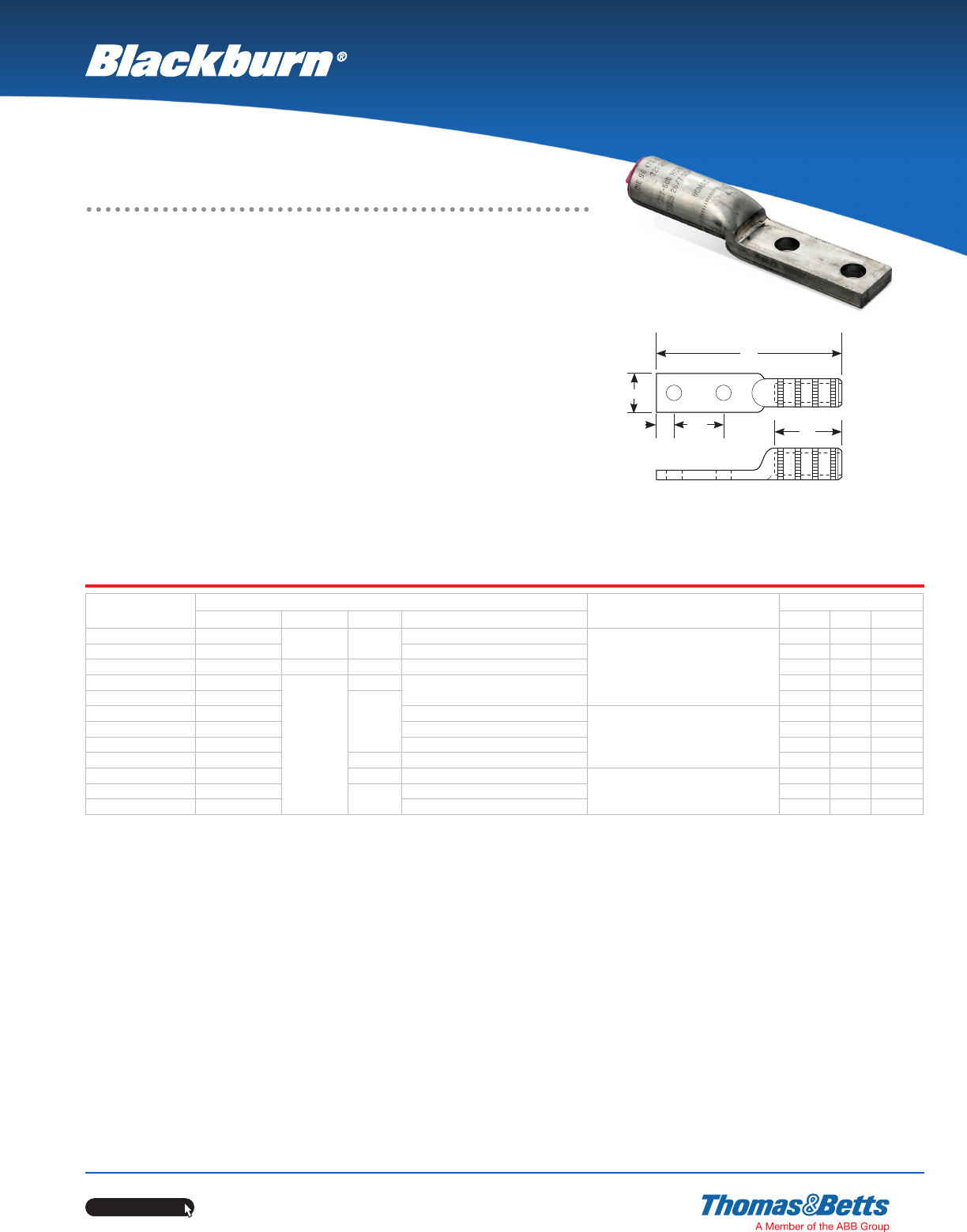

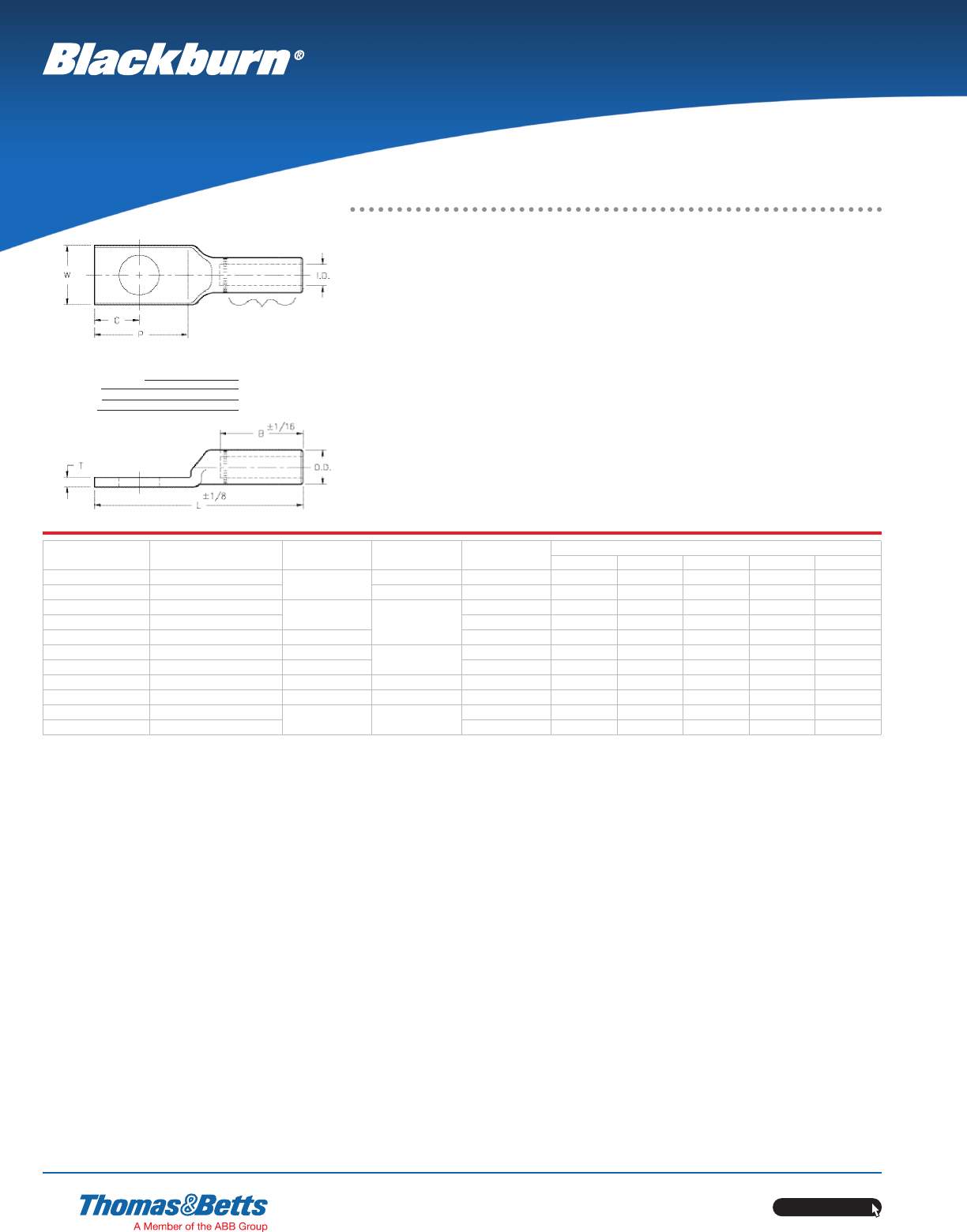

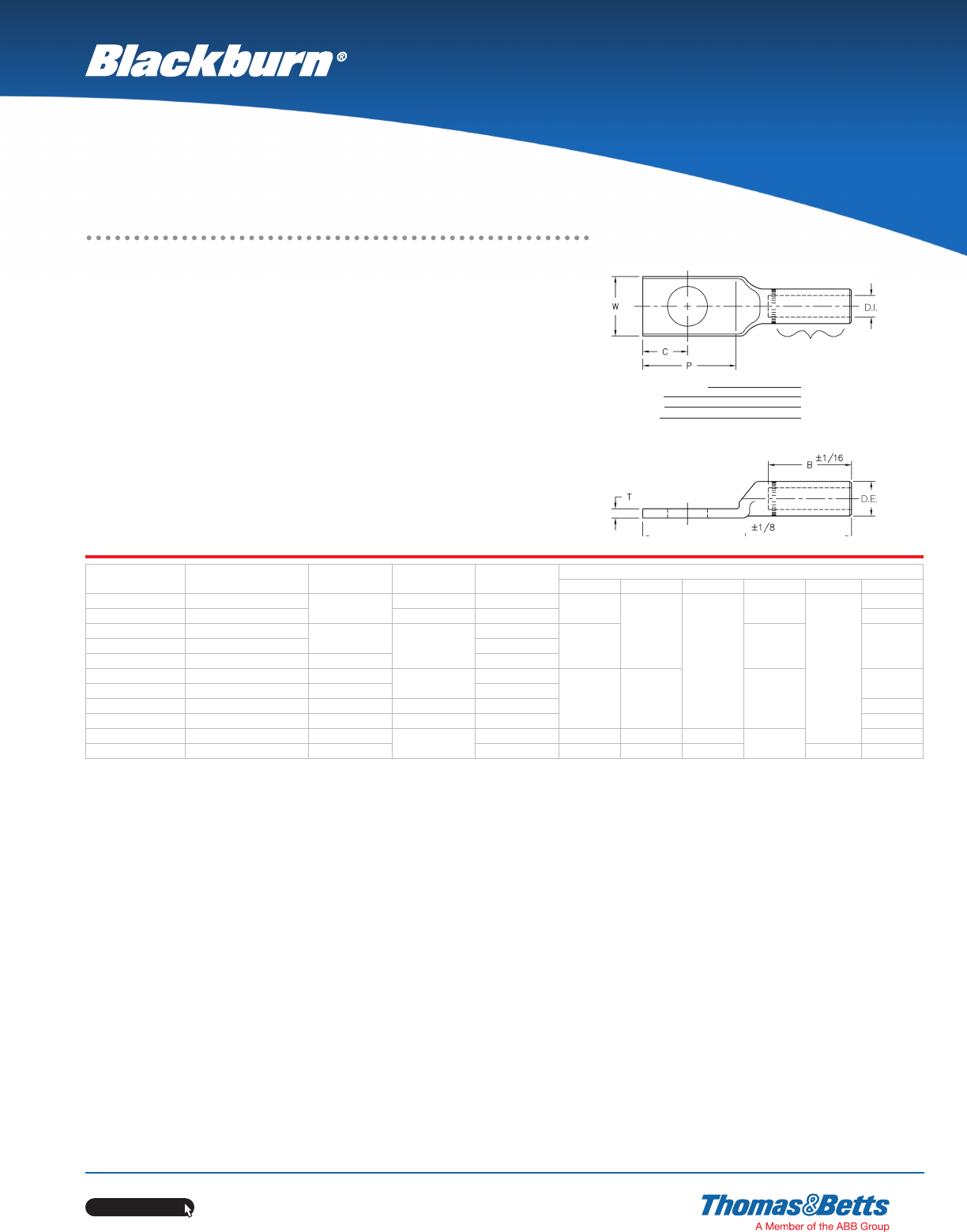

Compression Connectors
Aluminum Lugs
One-Hole CSA Die Lugs
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•

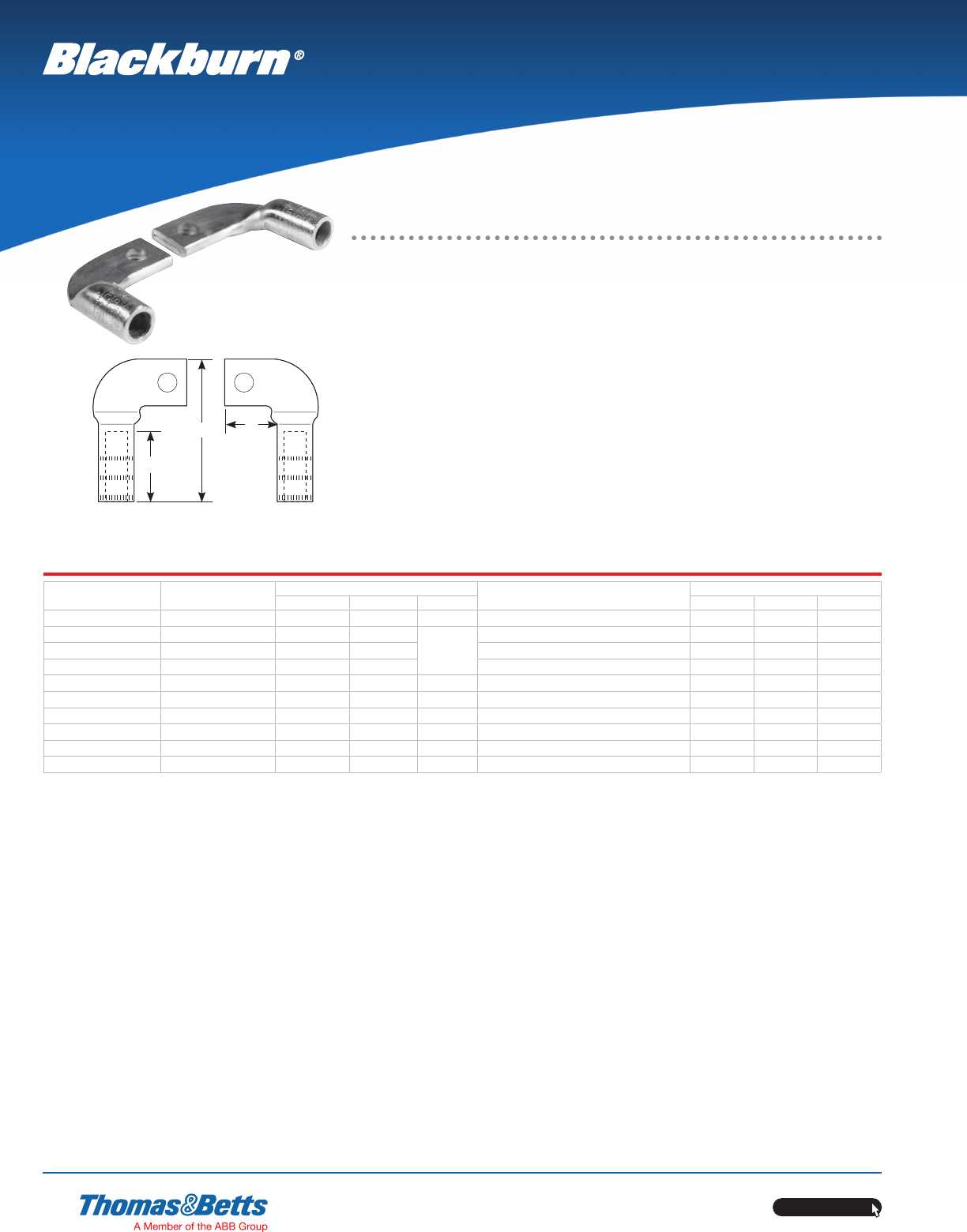

Easy identification
•
Meet or exceed ANSI C119.4 specifications
Cat. No.
Wire Size CSA Die O.D. I.D. Dimensions
L B P W C T
GLE 2-48
2 str.–Compr–CPT 22 0.635 0.340 3.13
1.37
1.31
0.88
0.63
0.20
GLE 1/0-48
1/0 str.–Compr–CPT 0.640 0.420 0.21
GLE 2/0-48
2/0 str. Compr–CPT 24 0.840
0.503
3.44 1.14 0.28
GLE 3/0-48
3/0 str.–Compr–CPT 0.547
GLE 4/0-48
4/0 str.–Compr–CPT 24–6T 0.597
GLE 250-48
250 str.–Compr–CPT 26 1.000 0.620
3.75 1.63 1.25
0.36
GLE 300-48
300 str.–Compr–CPT 26–12T 0.670
GLE 350-48
350 str.–Compr–CPT 28 1.189 0.730 0.34
GLE 500-48
500 str.–Compr–CPT 28–12T 1.187 0.836 0.36
GLE 500-48-30
500 str.–Compr–CPT 30–12T 1.438 0.880 5.00 2.50 1.50 1.75 0.52
GLE 750-48
750 str.–Compr–CPT 30 1.031 5.88 3.00 1.88 0.88 0.56
Finish: Tin-plated optional, use suffix “-TN”.
Material: E.C. Grade Aluminum.
Connector bores are coated with HM 53 an oxide inhibiting compound and capped.
Mounting holes sized for 1/2 in. bolts (9/16 hole size).
Optional suffix “–38” for 3/8 bolts (13/32 hole size).
Marking Information
Cat. No.
Wire Size
Die Size
# of crimps and locations to be determined
according to connector
www.tnb.ca
C26
Compression Connectors
Aluminum Lugs
Two-Hole CSA Die Lugs
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•
Easy identification
•
Meet or exceed ANSI C119.4 specifications
Cat. No.
Wire Size CSA Die O.D. I.D. Dimensions
L B P W T
GLE 2 N
2 str.–Compr–CPT 22 0.635 0.350 5.29 1.50 3.13 0.88 0.20
GLE 1/0 N
1/0 str.–Compr–CPT 0.640 0.420 5.25 1.50 3.13 0.87 0.21
GLE 2/0 N
2/0 str. Compr–CPT 24 0.840
0.503 5.29 1.50 3.13 1.04 0.28
GLE 3/0 N
3/0 str.–Compr–CPT 0.547 5.38 1.50 3.13 1.14 0.28
GLE 4/0 N
4/0 str.–Compr–CPT 24–6T 0.594 5.38 1.50 3.13 1.14 0.28
GLE 250 N
250 str.–Compr–CPT 26 1.000 0.620 6.00 2.00 3.13 1.25 0.36
GLE 300 N
300 str.–Compr–CPT 26–12T 0.670 6.00 2.00 3.13 1.25 0.36
GLE 350 N
350 str.–Compr–CPT 28 1.189 0.730 6.00 2.00 3.13 1.25 0.37
GLE 500 N
500 str.–Compr–CPT 28–12T 1.187 0.836 6.38 2.25 3.13 1.25 0.37
GLE 500 N-30
500 str.–Compr–CPT 30 1.438 0.880 6.38 2.50 3.13 1.75 0.40
GLE 750 N
750 str.–Compr–CPT 1.031 7.50 3.00 3.13 1.75 0.40
Finish: Tin-plated optional, use suffix “-TN”.
Material: E.C. Grade Aluminum.
Connector bores are coated with HM 53 a oxide inhibiting compound and capped.
Mounting holes sized for 1/2 in. bolts (9/16 hole size).
Optional suffix “–38” for 3/8 bolts (13/32 hole size).
Marking Information
Cat. No.
Wire Size
Die Size
# of crimps and locations to be determined
according to connector
www.tnb.ca C27
Compression Connectors
Cat. No.
Conductor Range Bolt Size Installing Dies Dimensions
Concentric Compressed Compact ACSR B L P W
AL 6-14
#6
–
––
1/4 TP, 29, 161, 5/16 3/4 2-5/32 7/8 9/16
AL 4-516
#4 5/16 TB, 37, 375, 162 15/16 2-1/4 31/32 5/8
AL 4-14
1/4 15/16 2-1/4 31/32 5/8
AL 2-14
#2 1/4
TQ, 45, 348, 163, 1/2, 6A
59/64 2-5/8 1-1/32 3/4
AL 2-38
3/8 59/64 2-5/8 1-1/32 3/4
AL 1-38
#1 3/8 59/64 2-5/8 1-1/32 3/4
AL 1/0-38
1/0 3/8 TU, 52, BG, 243, 5/8 1-3/8 3-1/8 1-5/16 7/8
AL 1/0-48
1/2 1-3/8 3-1/8 1-5/16 7/8
AL 2/0-38
2/0 3/8 TW-TY, 58, 297, 5/8 -1 1-5/16 3-3/16 1-7/32 15/16
AL 2/0-48
1/2 1-5/16 3-3/16 1-7/32 15/16
AL 3/0-38
3/0 3/8 737, 467 1-9/16 3-7/16 1-5/16 1-1/16
AL 3/0-48
1/2 1-9/16 3-7/16 1-5/16 1-1/16
AL 4/0-38
4/0 3/8 TX, 71H, 298, 840, 11A 1-7/16 3-9/16 1-11/32 1-3/16
AL 4/0-48
1/2 1-7/16 3-9/16 1-11/32 1-3/16
AL 250-48
250, 4/0 4/0 1/2 TX, 76, 249, 840, 11A 1-9/16 3-5/8 1-5/16 1-15/64
AL 300-48
300, 266.8 350 266.8 (18/1) 1/2 TH, 87H, 251, 470, 1, 12A 2-3/16 41-5/16 1-3/8
AL 350-48
350, 336.4 400 266.8 (26/7), 336.4 (18/1) 1/2
96, 299, 655, 1-1/8-1, 13A
2-3/16 4-1/4 1-5/16 1-1/2
AL 400-48
400, 397.5 –336.4 (26/7), 397.5 (18/1) 1/2 2-1/2 4-7/8 1-1/4 1-5/8
AL 400-58
5/8 2-1/2 4-7/8 1-1/4 1-5/8
AL 500-48
500, 477 600 379.5 (26/7), 477 (18/1) 1/2 106A, 300, 317, 1-5/16, 14A 35-7/16 1-1/2 1-3/4
AL 500-58
5/8 35-7/16 1-1/2 1-3/4
AL 600-48
600, 550
–
477 (26/7), 556.5 (18/1) 1/2 1-5/16, 115H, 786, 936, 473 35-21/32 1-9/16 1-15/16
AL 600-58
5/8 35-21/32 1-9/16 1-15/16
AL 750-48
750, 700 636 (26/7) 1/2 140H, 301, 342, 1-1/2 3-3/8 6-3/8 1-7/8 1-3/4
AL 750-58
5/8 3-3/8 6-3/8 1-7/8 1-3/4
AL 800-48
800 –1/2 1-1/2, 474, 140H 3-9/16 6-5/8 2-1/32 1-3/4
AL 800-58
5/8 3-9/16 6-5/8 2-1/32 1-3/16
AL 1000-48
1000, 954 795 (26/7), 954 (45/7) 1/2 161, 292, 302, 319, 1-3/4 4-5/8 7-15/16 1-7/8 2-7/16
AL 1000-58
5/8 4-5/8 7-15/16 1-7/8 2-7/16
For tin-plated, add “-TN” suffix to the catalogue number. All tin-plated lugs are UL Listed through 1000 kcmil.
For straight lugs with tapered ends used in high-voltage applications, please consult your Thomas & Betts representative.

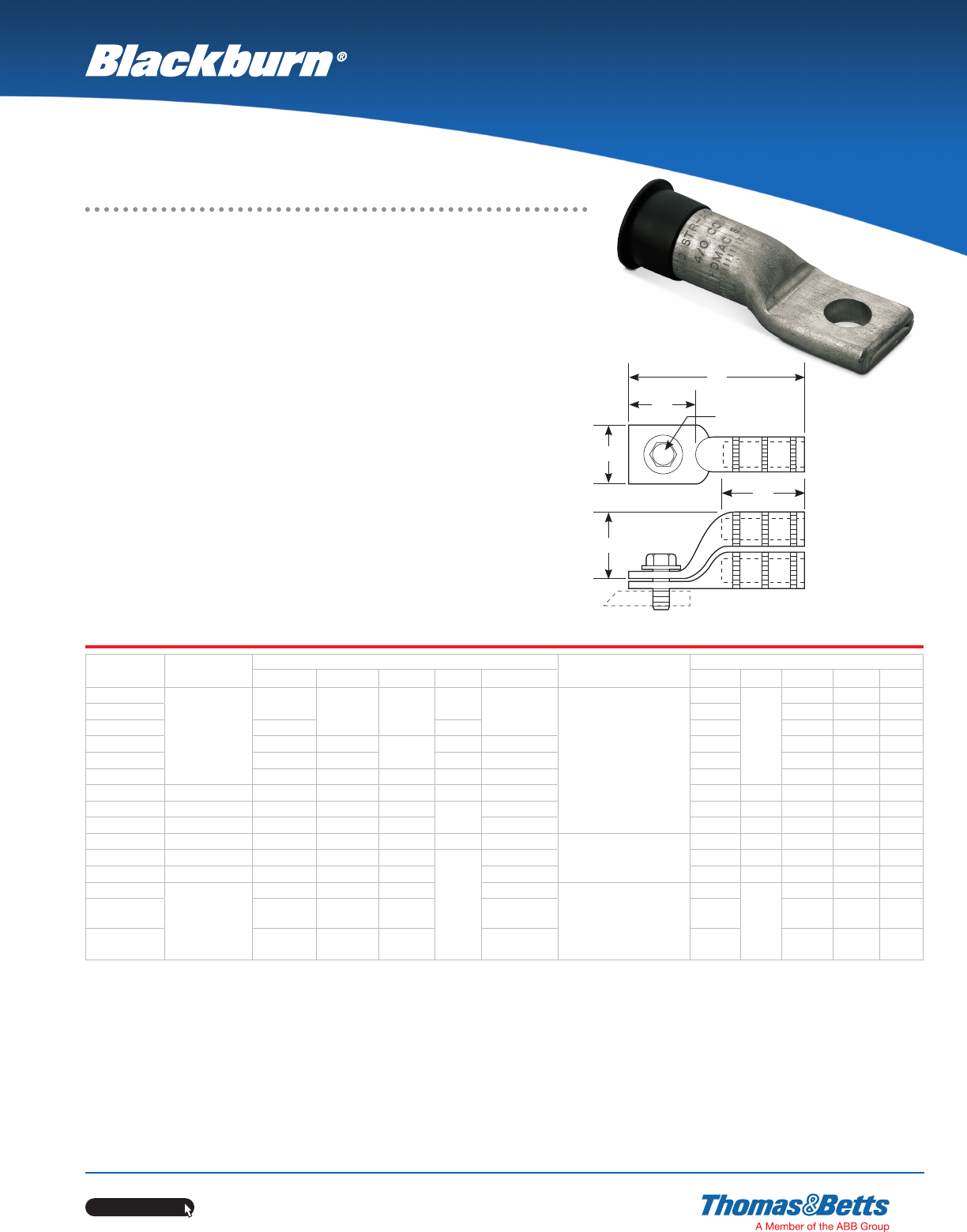

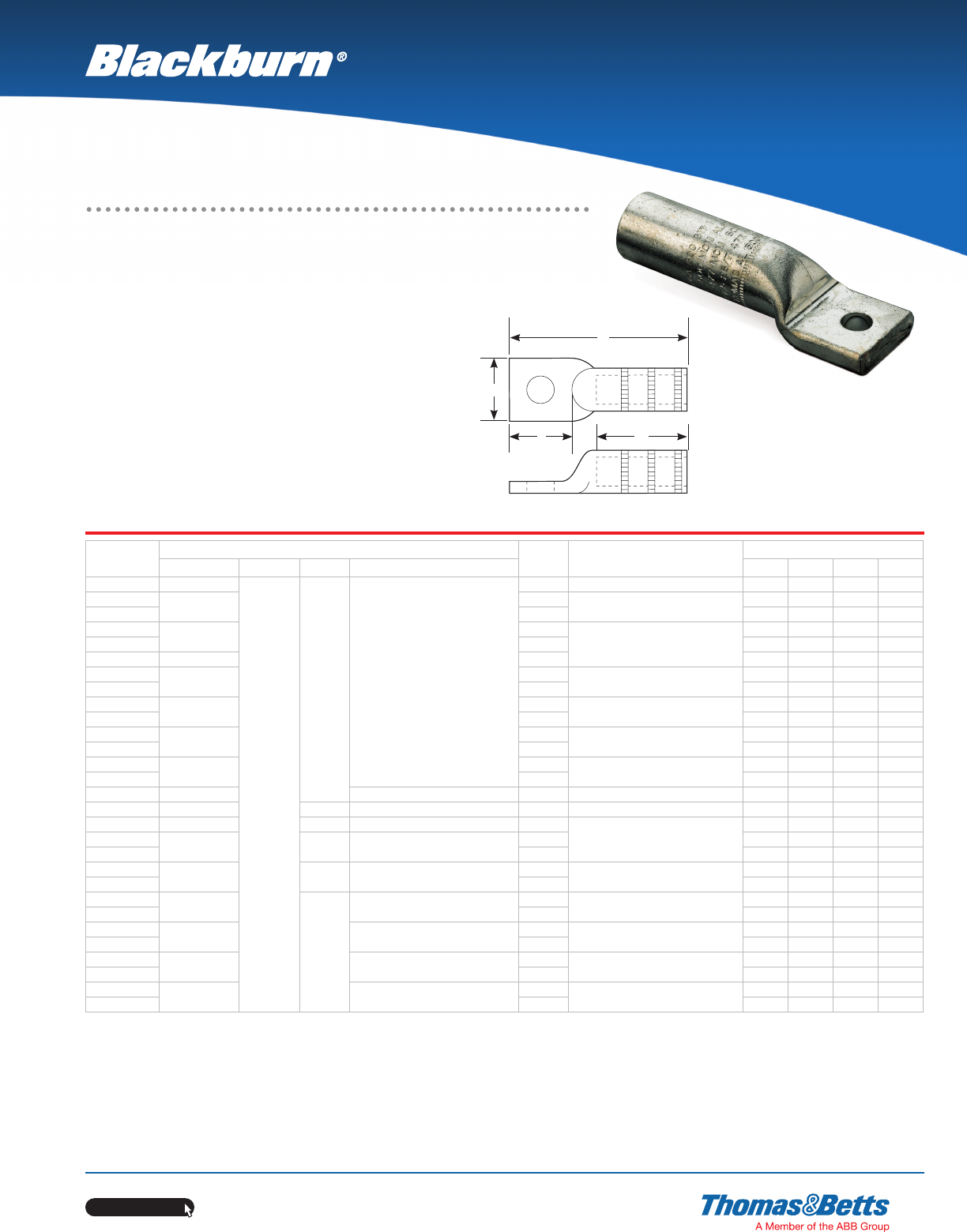

Aluminum Lugs
One-Hole NEMA Die Lugs
General-purpose lugs for aluminum and
copper terminations
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•
Easy identification
•
Meet or exceed ANSI C119.4 specifications
AL 500-48
W
PB
L
www.tnb.ca
C28
Compression Connectors
Aluminum Lugs

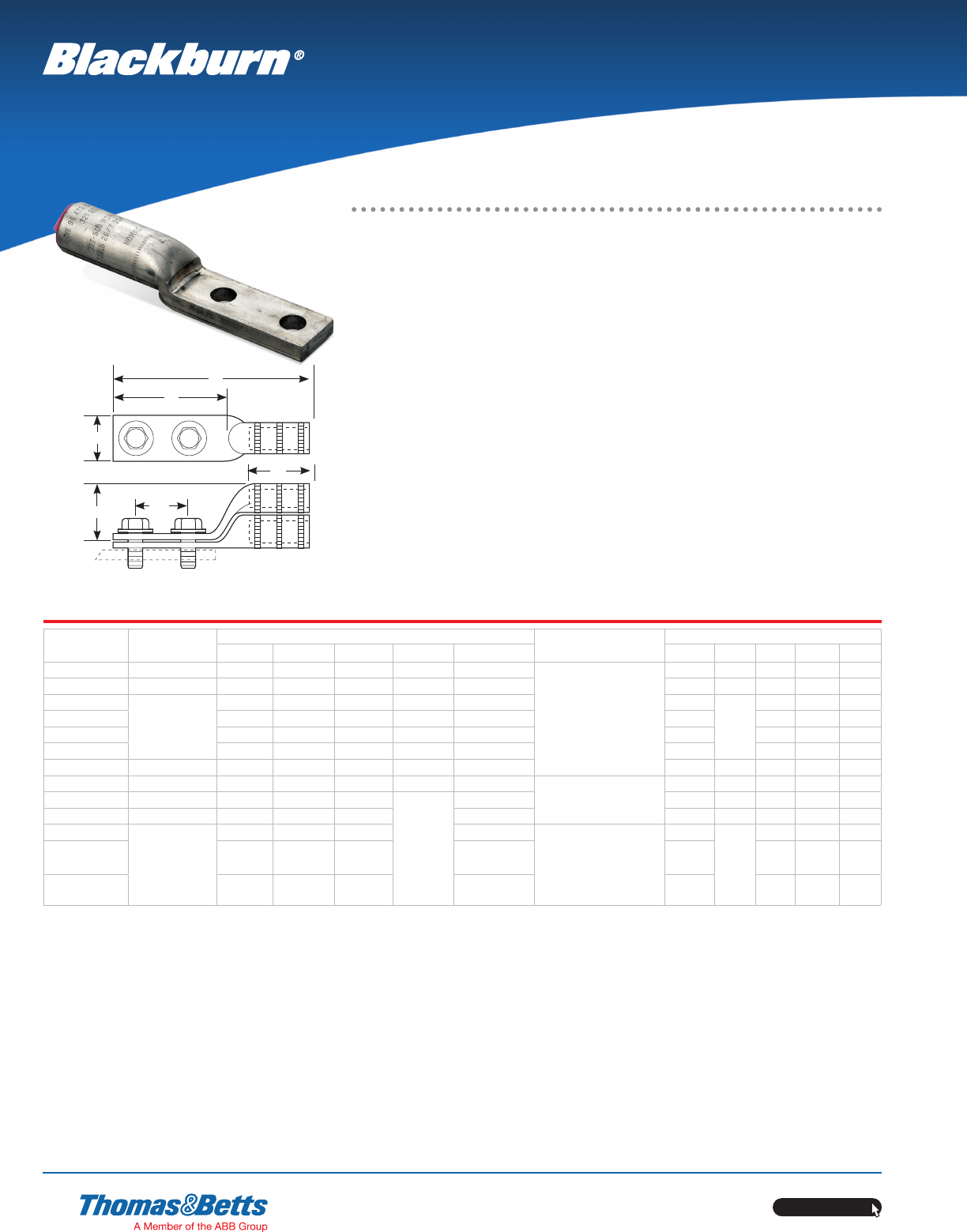

Two-Hole NEMA Lugs
General-purpose lugs for aluminum and copper
terminations
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•
Easy identification
•
Meet or exceed ANSI C119.4 specifications
Straight Lug
Cat. No.
Stacking Lug
Cat. No.
Conductor Range Installing Dies Dimensions
Concentric Compr. Compact ACSR Solid B L P W
SA 6 N ASL 6 N
#6 #6 #6, #4 #6 4
TU, 52, BG, 243, 5/8, CSA 22
1-15/32 5-1/4 3-3/16 7/8
SA 4 N ASL 4 N
#4 #4 –#4 21-15/32 5-1/4 3-3/16 7/8
SA 2 N ASL 2 N
#2-#1 #1 #1 #2 1/0 1-1/2 5-3/16 3-1/4 1
AL 1/0 N ASL 1/0 N
1/0
–
2/0 1/0 2/0 TU, 52, BG, 243, 5/8 1-1/2 5-1/4 3-3/16 7/8
AL 2/0 N ASL 2/0 N
2/0
– –
–
TW-TY, 58, 297, 5/8-1 1-1/2 5-1/4 3-3/16 15/16
AL 3/0 N ASL 3/0 N
3/0 TV, 66, 167, 467, 10A 1-7/16 5-1/2 3-1/4 1-1/16
AL 4/0 N ASL 4/0 N
4/0 TX, 71H, 298, 840, 11A 1-15/16 63-11/32 1-15/64
AL 250 N ASL 250 N
250, 4/0 250-300 4/0 (6/1) TX, 76, 249, 840, 11A 1-15/16 63-11/32 1-15/64
AL 300 N ASL 300 N
300, 266.8 350 266.8 (18/1) TH, 87H, 251, 470, 1, 12A 2-3/16 6-9/16 3-9/16 1-11/32
AL 350 N ASL 350 N
350, 336.4
–
266.8 (26/7), 336.4 (18/1) 96, 299, 655, 1-1/8-1, 705, 13A 2-3/16 6-9/16 3-11/16 1-3/4
AL 336 NSC –
397.5-400
336.4 (26/7), 397.5 (18/1)
1-1/4, 99H, 317, 20AH 4-3/16 93-11/16 1-21/32
AL 400 N ASL 400 N
400, 397.5 96, 472, 655, 1-1/8-1, 1-1/8-2,
705, 316, 13A 2-7/16 7-5/16 3-9/16 1-3/4
AL 500 N ASL 500 N
500, 477 500-600 397.5 (26/7), 477 (18/1)
106A, 300, 317, 1-5/16,
14A, 15A 2-15/16 8-1/4 3-9/16 1-3/4
AL 500 N 608 –
600 608 3-1/3 8-1/4 3-9/16 1-3/4
AL 600 N ASL 600 N
600, 550 –477 (26/7), 556.5 (18/1) 1-5/16, 115H, 786, 936, 473 2-15/16 7-3/4 3-5/8 1-3/4*
AL 700 N 608 –
700, 600 700-795 –125H, 608 3-1/6 7-3/8 3-1/2 1-3/4
AL 750 N ASL 750 N
750, 700
–
636 (26/7) 140H, 301, 342, 1-1/2 3-5/16 8-1/4 3-3/4 1-3/4*
AL 750 N 608 ASL 750 N 608
125H, 608 3-3/8 8-1/4 3-5/8 1-3/4
AL 800 N ASL 800 N
800, 795 663 (30/19), 715.5 (54/7) 140H, 474, 342, 724, 1-1/2 3-11/32 8-5/16 3-5/8 1-3/4*
AL 800 N 608 –
800, 700 636 (30/19), 715.5 (54/7) 608 3-1/3 8-1/4 3-5/8 1-3/4
AL 1000 N ASL 1000 N
1000, 954 795 (26/7, 30/19),
954 (45/7)
161, 292, 302, 319, 1-3/4
4-11/16 8-9/16 3-5/8 2-7/16
AL 1000 SSN ASL 1000 SSN
1000 –4-11/16 9-7/8 1-7/8 2-7/16
AL 1000 NMSNP –
4-11/16 9-1/2 3-5/8 1-3/4
AL 954 NMSNP
–954 (54/7) 4-11/16 9-3/8 3-5/8 1-3/4
AL 1250 N ASL 1250 N
1200-1300 1113 (45/7), 1192.5 (45/7) 161, 727, 352 4-11/16 9-11/16 3-5/8 2-21/32
AL 1750 N ASL 1750 N
1750 –214, 735, 225 5-1/2 10-7/8 3-7/8 3-13/32
AL 2000 N ASL 2000 N
2000 479 6-1/16 11-15/16 3-7/8 3-13/32
For tin-plated, add “-TN” suffix to the catalogue number. All tin-plated lugs are UL Listed through 2000 kcmil.
For straight lugs with tapered ends used in high-voltage applications, please consult your Thomas & Betts representative.
Trimmed to 1-3/4 maximum to fit side by side on NEMA spades.
ASL 750 N
AL 750 N
W
For 1/2 Bolts
P
B
L
1-3⁄4
www.tnb.ca C29
Compression Connectors
Straight Lug
Cat. No.
Stacking Lug
Cat. No.
Conductor Range Installing
Dies
Dimensions
Concentric Compr. Compact ACSR Solid B L P W
SA 6 NTN ASL 6 NTN
#6 #6 #6, #4 #6 #4
TU, 52, BG, 243, 5/8, CSA 22
1-15/32 5-1/4 3-3/16 7/8
SA 4 NTN ASL 4 NTN
#4 #4 –#4 #2 1-15/32 5-1/4 3-3/16 7/8
SA 2 NTN ASL 2 NTN
#2-#1 #1 #1 #2 1/0 1-1/2 5-3/16 3-1/4 1
AL 1/0 NTN* ASL 1/0 NTN*
1/0
–
2/0 1/0 2/0 TU, 52, BG, 243, 5/8 1-1/2 5-1/4 3-3/16 7/8
AL 2/0 NTN* ASL 2/0 NTN*
2/0
– –
–
TW-TY, 58, 297, 5/8-1 1-1/2 5-1/4 3-3/16 15/16
AL 3/0 NTN* ASL 3/0 NTN*
3/0 TV, 66, 167, 467, 10A 1-7/16 5-1/2 3-1/4 1-1/16
AL 4/0 NTN* ASL 4/0 NTN*
4/0 TX, 71H, 298, 840, 11A 1-15/16 63-11/32 1-15/64
AL 250 NTN* ASL 250 NTN*
250, 4/0 250-300 4/0 (6/1) TX, 76, 249, 840, 11A 1-15/16 63-11/32 1-15/64
AL 300 NTN* ASL 300 NTN*
300, 266.8 350 266.8 (18/1) TH, 87H, 251, 470, 1, 12A 2-3/16 6-9/16 3-9/16 1-11/32
AL 350 NTN* ASL 350 NTN*
350, 336.4
–
266.8 (26/7), 336.4 (18/1) 96, 299, 655, 1-1/8-1,
705, 13A 2-3/16 6-9/16 3-11/16 1-3/4
AL 336 NSCTN –
397.5-400
336.4 (26/7), 397.5 (18/1)
1-1/4, 99H, 317, 20AH 4-3/16 93-11/16 1-21/32
AL 400 NTN* ASL 400 NTN*
400, 397.5 96, 472, 655, 1-1/8-1,
1-1/8-2, 705, 316, 13A 2-7/16 7-5/16 3-9/16 1-3/4
AL 500 NTN* ASL 500 NTN*
500, 477 500-600 397.5 (26/7), 477 (18/1)
106A, 300, 317, 1-5/16,
14A, 15A 2-15/16 8-1/4 3-9/16 1-3/4
AL 500 N 608 TN –
600 608 3-1/3 8-1/4 3-9/16 1-3/4
AL 600 NTN* ASL 600 NTN*
600, 550 –477 (26/7), 556.5 (18/1) 1-5/16, 115H, 786, 936, 473 2-15/16 7-3/4 3-5/8 1-3/4*
AL 700 N 608TN –
700, 600 700-795 –125H, 608 3-1/6 7-3/8 3-1/2 1-3/4
AL 750 NTN* ASL 750 NTN*
750, 700
–
636 (26/7) 140H, 301, 342, 1-1/2 3-5/16 8-1/4 3-3/4 1-3/4*
AL 750 N 608* ASL 750 N 608*
750, 700 125H, 608 3-3/8 8-1/4 3-5/8 1-3/4
AL 800 NTN* ASL 800 NTN*
800, 795 663 (30/19), 715.5 (54/7) 140H, 474, 342, 724, 1-1/2 3-11/32 8-5/16 3-5/8 1-3/4*
AL 800 N 608 TN –
800, 700 636 (30/19), 715.5 (54/7) 608 3-1/3 8-1/4 3-5/8 1-3/4
AL 954 NMS
–954 (54/7)
161, 292, 302, 319, 1-3/4
4-11/16 9-3/8 1-7/8 1-3/4
AL 1000 NTN* ASL 1000 NTN*
1000, 954 795 (26/7, 30/19),
954 (45/7) 4-9/16 8-9/16 3-5/8 2-7/16
AL 1000 SSNTN ASL 1000 SSNTN
1000 –4-9/16 9-7/8 3-5/8 2-7/16
AL 1000 NMS –
4-11/16 9-1/2 3-5/8 1-3/4
AL 1250 NTN ASL 1250 NTN
1200-1300 1113 (45/7), 1192.5 (45/7) 161, 727, 352 4-11/16 9-11/16 3-5/8 2-21/32
AL 1750 NTN ASL 1750 NTN
1750 –214, 735, 225 5-1/2 10-7/8 3-7/8 3-13/32
AL 2000 NTN ASL 2000 NTN
2000 479 6-1/16 11-15/16 3-7/8 3-13/32
* UL Listed.
For two-hole lugs without tin-plated, see page C28. For straight lugs with tapered ends used in high-voltage applications, please consult your Thomas & Betts representative.
Aluminum Lugs
Tin-Plated Two-Hole NEMA Lugs
General-purpose lugs for aluminum and
copper terminations
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•
Easy identification
•
Meet or exceed ANSI C119.4 specifications
L
W
For 1/2 Bolts
P
B
1-3⁄4
ASL 750 N
AL 750 N
www.tnb.ca
C30
Compression Connectors
Aluminum Lugs

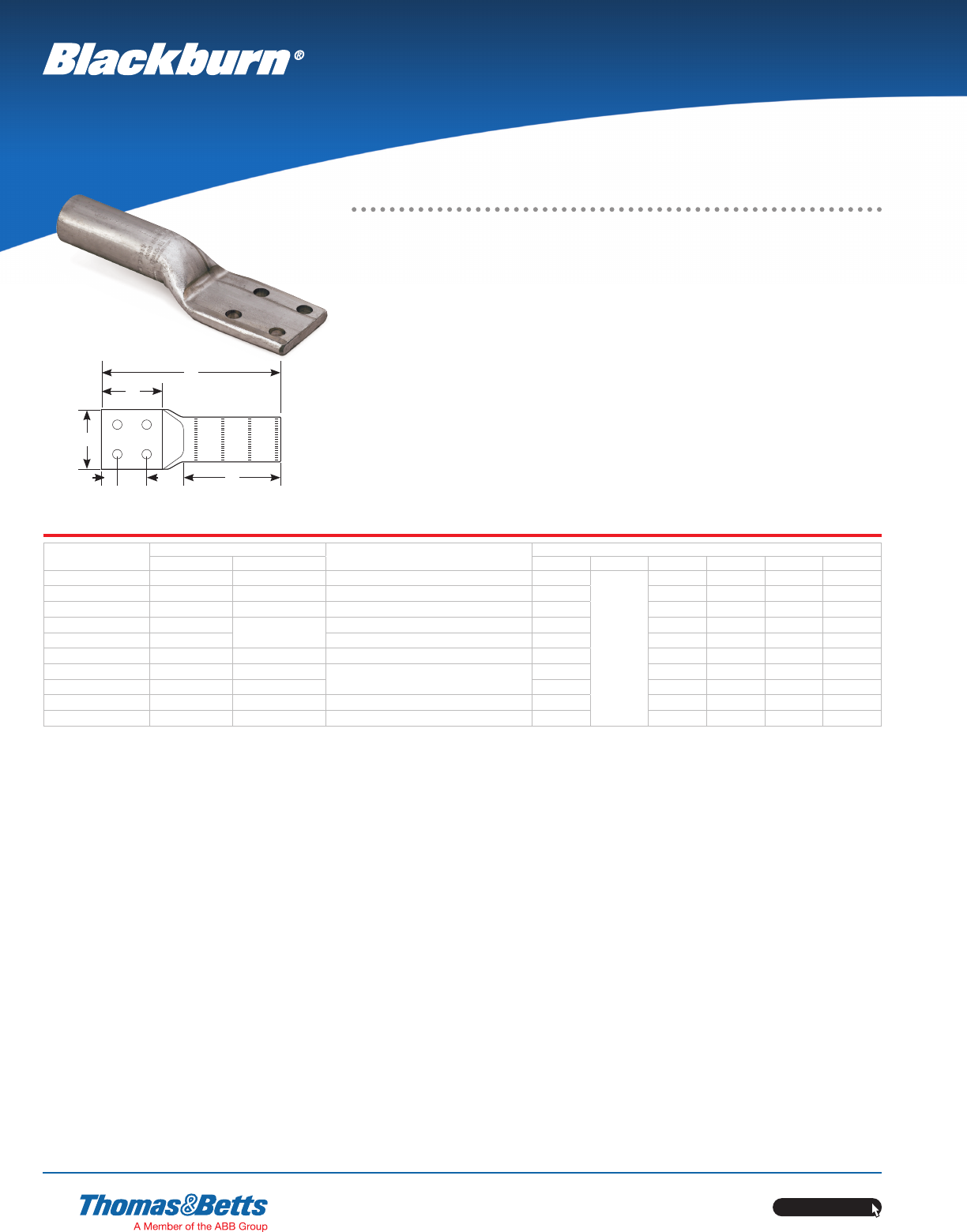

Four-Hole NEMA Lugs
General-purpose lugs for aluminum and copper
terminations
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•
Easy identification
Cat. No.
Conductor Range Installing Dies Dimensions
Concentric ACSR B N C W P L
AL 1000-4N
1000 –161, 302, 292, 319, 1-3/4 4-9/16
1-3/4
5/8 3 4 10
AL 14136 X
1033.5-1300 900-1113 161, 727, 352 7-11/16 5/8 34-1/4 13-3/4
AL 1033-4N
–1033.5 (54/7) 34 AH 6-3/16 5/8 3-3/8 3-11/16 12-3/4
AL 1250-4N
1250 –161, 727, 352 4-5/8 5/8 33-9/16 10
AL 1272-4N
1272 161, 727, 352, 579 6-7/16 5/8 33-5/8 11-1/4
AL 1590-4N
1590 1272 (45/7) 728, 38AH, 189 8-7/16 5/8 33-5/8 13-1/2
AL 1750-4N
1750 –214, 735, 40AH, 225 6-11/16 7/8 3-1/2 3-3/4 12-1/8
AL 2000-4N
1700-2000 1510.5-1590 6-11/16 7/8 3-1/2 3-3/4 12-1/8
AL 2300-4N
2250-2300 2167 (72/7) 44AH 11-3/4 1-1/8 44-1/2 18-1/2
AL 2500-4N
2500 2156-2167 214 9-1/8 1-1/8 3-1/2 415-3/8
For tin-plated option, add “-TN” suffix to the catalogue number.
L
P
W
NC B
AL 1000-4N
www.tnb.ca C31
Compression Connectors
Aluminum Lugs
One-Hole NEMA Lugs — Common Die Series
Designed for general applications and for
installation on Homac® 125 Series
insulated buses
•
Lessens your die inventory
•
Double terminal capacity of transformer spades and buses to save money
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Easy identification
•
Meet or exceed ANSI C119.4 specifications
W
P
B
H
L
For 1⁄2 Bolts
Straight Lug
Cat. No.
Stacking Lug
Cat. No.
Conductor – Al or Cu Installing Dies Dimensions
Concentric Compressed Compact Solid ACSR B H L P W
SA 12-48
–
#12 – – #12 –
TU, 52, BG, 243,
5/8, CSA 22
23/32
–
2-9/16 1-1/4 7/8
SA 10-48
23/32 2-9/16 1-1/4 7/8
SA 8-48
#8 #6 1-5/16 3-1/8 1-5/16 7/8
SA 6-48
#6 #6 #4
#4 #6 1-5/16 3-1/8 1-5/16 7/8
SA 4-48
#4 #4 #2 #4 1-5/16 3-1/8 1-5/16 7/8
SA 3-48
#2 #2 #1, #2 #1 –1-5/16 3-1/8 1-5/16 7/8
SA 2-48 SASL 2-48
#1, #2 #1 #1 1/0 #2 1-5/16 1-1/2 3-1/8 1-5/16 7/8
SA 386-48 –
#1 1/0 1/0 ––1-5/16 –3-1/8 1-5/16 7/8
SA 1/0-48 SASL 1/0-48
1/0 2/0 2/0 1/0 1-5/16 1-1/2 3-1/8 1-5/16 7/8
SA 2/0-48 SASL 2/0-48
2/0 3/0 3/0 3/0 2/0 (6/1)
TX, 76, 249, 840, 845,
11A, CSA 24
1-25/64 1-3/4 3-21/64 1-11/32 1-5/32
SA 3/0-48 SASL 3/0-48
3/0 4/0 4/0
–
3/0 1-25/64 1-3/4 3-21/64 1-11/32 1-5/32
SA 4/0-48 SASL 4/0-48
4/0, 250 4/0, 250 250, 300 4/0 1-25/64 1-3/16 3-21/64 1-11/32 1-5/32
SA 300-48
–
300 300 350 266.8 (18/1)
96, 299, 655, 321,
316, 13A, 1 (1/8-1),
472, CSA 28
1-19/32
–
3-5/8 1-11/32 1-1/4
SA 350-48
336.4-350 350 400 266.8 (26/7),
336.4 (18/1) 1-19/32 3-5/8 1-11/32 1-1/4
SA 400-48
336.4-400 400 500 336.4 (18/1),
397.5 (18/1) 1-19/32 3-5/8 1-11/32 1-1/4
For tin-plated option, add “-TN” suffix to the catalogue number.
To order a stud size not specified with a terminal lug on this page, change the last two digits from “48” (designating a 1⁄2 in. stud) to “38” (for a 3⁄8 in. stud).
SA 3/0-48
www.tnb.ca
C32
Compression Connectors
Straight Lug
Cat. No.
Stacking Lug
Cat. No.
Conductor – Al or Cu Installing Dies Dimensions
Concentric Compressed Compact Solid ACSR B H L P W
SA 8 N –
#8 – – #6 –
TU, 52, BG,
243, 5/8, CSA 22
1-15/16 –5-1/8 3-3/16 7/8
SA 6 N SASL 6 N
#6 #6 #4 #4 #6 1-15/16 1-1/2 5-1/8 3-3/16 7/8
SA 4 N
–
#4 #4 #4 #2 #4 1-15/16
–
5-1/8 3-3/16 7/8
SA 3 N
#2 #2 #1, #2 #1 –1-15/16 5-1/8 3-3/16 7/8
SA 2 N
#1, #2 #1 #1 1/0 #2 1-1/2 5-3/16 3-1/8 1
SA 386N
#1, 1/0 #1, 1/0 1/0 –#1 1-27/32 5-1/2 37/8
AL 1/0 N SASL 1/0 N
1/0 1/0 2/0 2/0 1/0 1-1/2 1-1/2 5-1/4 3-3/16 7/8
SA 2/0 N SASL 2/0 N
2/0 2/0 3/0 3/0 2/0 (6/1)
TX, 76, 249, 840,
845, 11A, CSA 24
1-15/16 1-3/4 63-3/8 1-1/4
SA 3/0 N SASL 3/0 N
3/0 4/0 4/0
–
3/0 1-15/16 1-3/4 63-5/16 1-5/32
SA 4/0 N SASL 4/0 N
4/0, 250 4/0, 250 250, 300 4/0 1-15/16 1-3/16 63-5/16 1-7/32
SA 300 N
–
300 300 350 266.8 (18/1)
96, 299, 655, 705,
321, 316, 13A, 1 (1/8-1),
472, CSA 28
2-1/16
–
6-1/4 31-1/4
SA 350 N
336.4-350 350 400 266.8 (26/7),
336.4 (18/1) 2-3/16 6-1/4 31-1/4
SA 400 N
336.4-400 400 500 336.4 (18/1),
397.5 (18/1) 2-7/16 6-3/8 31-1/4
For tin-plated option, add “-TN” suffix to the catalogue number.
L
W
H
For 1⁄2 Bolts
P
B
1-3⁄4
Aluminum Lugs
Two-Hole NEMA Lugs — Common Die Series
Designed for general applications and for installation on
Homac® 125-N Series insulated buses
•
Lessens your die inventory
•
Double terminal capacity of transformer spades and buses to save money
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•
Easy identification
•
Meet or exceed ANSI C119.4 specifications
www.tnb.ca C33
Compression Connectors
1/2 Bolt
Cat. No.
3/8 Bolt
Cat. No.
Conductors – Al or Cu Installing Dies
Concentric Compressed Compact Solid
SAKM 6-48 SAKM 6-38
#6 #6 #6 –
840, 845, TX, 76, 249, 11A
SAKM 4-48 SAKM 4-38
#4 #4 #4
SAKM 2-48 SAKM 2-38
#2 #2 #2, #1 #1
SAKM1-48 SAKM 1-38
#1 #1 1/0 1/0
SAKM 1/0-48 SAKM 1/0-38
1/0 1/0 2/0 2/0
SAKM 2/0-48 SAKM 2/0-38
2/0 2/0 3/0 3/0
SAKM 3/0-48 SAKM 3/0-38
3/0 3/0 4/0
–
SAKM 4/0-48 SAKM 4/0-38
4/0 4/0 250
SAKM 250-48* SAKM 250-38*
250 250 300
SAKM 300-48* SAKM 300-38*
300 300 350
SAKM 350-48* SAKM 350-38*
350 350 –
* For aluminum conductors only.
For tin-plated option, add “-TN” suffix to the catalogue number.
3-1⁄4
15⁄16
1-3⁄8
1-5⁄16
SAKM 250-48
Aluminum Lugs
Meter Socket Lugs — 840 Common Die Series
Just one die installs the entire conductor range for meter
pan and general applications
•
Really lessens your die inventory
•
Provides high strength and high-conductivity
•
Use with aluminum and copper conductors
•
Prevents oxidation
•
Easy identification
•
Lugs meet or exceed ANSI C119.4 specifications
www.tnb.ca
C34
Compression Connectors
Aluminum Lugs

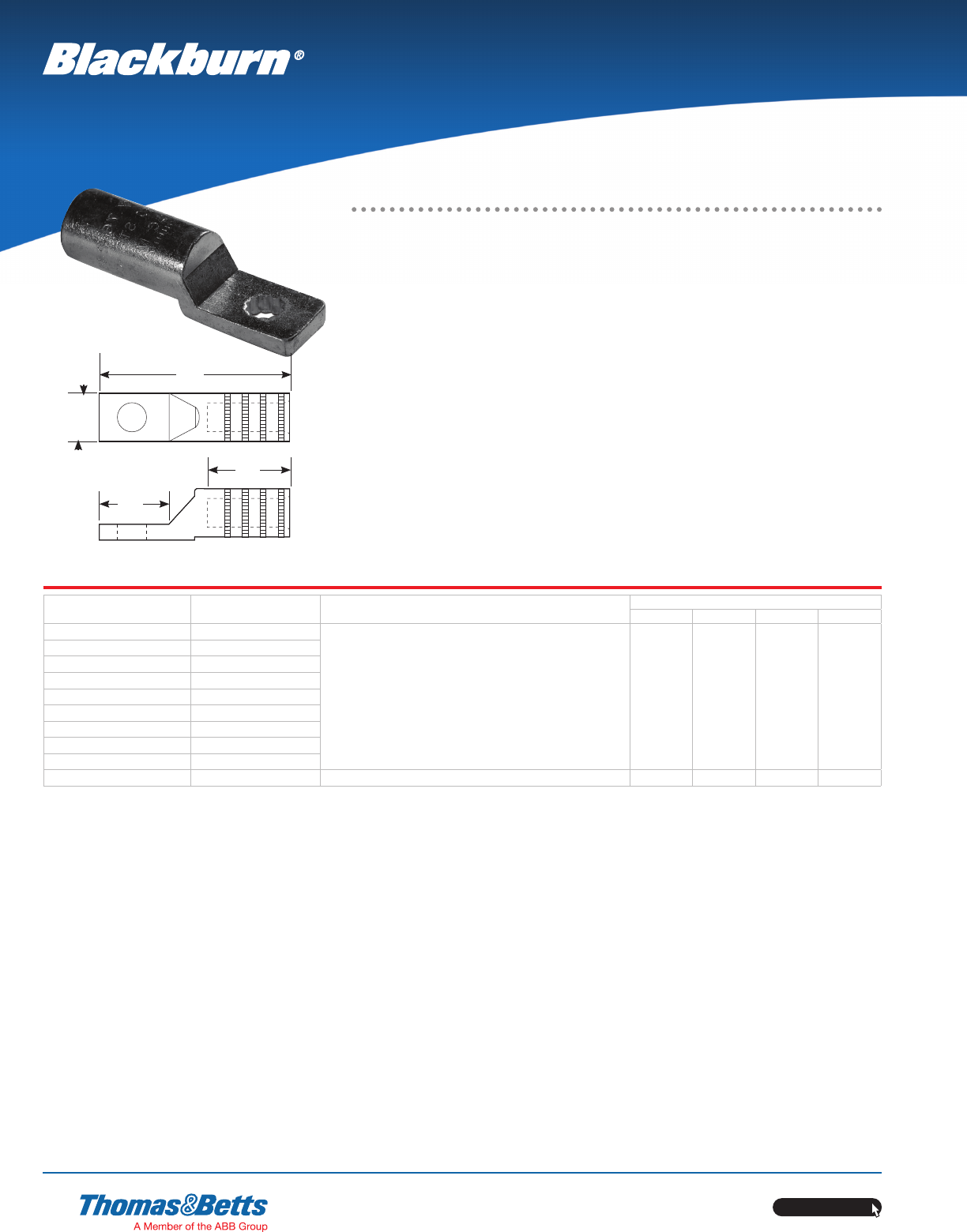

Tin-Plated Meter Socket Lugs — Star Hole
Dual-rated, corrosion-resistant lugs
available with star holes
•
Provides high strength and high-conductivity
•
Use with aluminum and copper conductors
•
Resistant to corrosion
•
Prevents oxidation and keeps out moisture
Cat. No.
Conductor Size Installing Dies Dimensions
W L P B
MSL 4
#4 str. cpt.
840, 845, TX, 76, 249, 11A 15/16 3-1/4 1-5/16 1-3/8
MSL 2
#2 str. cpt.
MSL 1/0
1/0 str. cpt.
MSL 2/0
2/0 str. cpt.
MSL 3/0
3/0 str. cpt.
MSL 4/0
4/0 str. cpt.
MSL 250
250 str. cpt.
MSL 300
300 str. cpt.
MSL 350
350 str. cpt.
MSL 500
500 str. 106A, 300, 317, 1-5/16, 15A 1-3/4 4-7/8 1-3/4 3-3/16
L
W
B
P
MSL 350
www.tnb.ca C35
Compression Connectors
Aluminum Lugs
Two-Hole NEMA Lugs — Common Die Series
Lugs designed for general-purpose substation
and switchyard equipment use
•
Lessens your die inventory
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•
Easy identification
Cat. No.
Conductor Range Installing Dies Dimensions
Concentric Compressed Compact ACSR L W B
SAK 4 N
#4 – – –
TX, 76, 249, 840, 11A
5-3/4 1-1/4 2
SAK 2 N
#1, #2 #2 5-3/4 1-1/4 2
SAK 1/0 N
1/0 2/0 2/0 1/0 5-3/4 1-1/4 2
SAK 300 N
–
–
350 –6-1/4 1-1/4 2-1/16
SAK 350 N
350
–
6-1/4 1-1/4 2-1/16
SAB 3/0 N
3/0 3/0
96, 299, 655, 1 (1/8-1), 13A
6-3/8 1-1/2 2-1/4
SAB 4/0 N
4/0, 250 4/0 6-3/8 1-1/2 2-1/4
SAB 250 N
266.8-300 266.8 (18/1) 6-3/8 1-1/2 2-1/4
SAB 500 N
477-500 600 397.5 (26/7, 30/7), 477 (18/1) 6-3/8 1-1/4 2-1/4
SAM 400 N
397.5-400 500 336.4 (30/7), 397.5 (18/1)
106, 300, 317, 1-5/16, 14A, 15A
8-29/64 1-3/4 3-13/16
SAM 556 N
500-556 –477 (26/7), 556.5 (18/1) 8-3/8 1-3/4 3-27/32
SAM 600 N
600 –8-3/8 1-3/4 3-27/32
L
B
1-3⁄4
5⁄8
W
SAB 500 N
www.tnb.ca
C36
Compression Connectors
Aluminum Lugs
Four-Hole NEMA Lugs — Common Die Series
Durable four-hole lugs for general-purpose substation
and switchyard equipment use
•
Lessens your die inventory
•
Use with aluminum and copper conductors
•
Provides high strength and high-conductivity
•
Prevents oxidation and keeps out moisture
•
Easy identification
Cat. No.
Conductor Range Installing Dies Dimensions
Concentric Compact ACSR L B
SAM 3/0-4N*
3/0
–
–
1-5/16, 300, 14A, 106, 317
8-1/8 3-5/16
SAM 4/0-4N*
4/0 4/0
SAM 250-4N*
250 –
SAM 300-4N*
300
7-5/8 3-21/64
SAM 350-4N*
336.4-350 266.8 (26/7), 336.4 (18/1)
SAM 400-4N*
397.5-400 336.4 (30/7), 397.5 (18/1)
SAM 500-4N*
500 –8-1/4 3-5/16
SAM 600-4N*
556.5-600
SAL 500-4N*
500 477 (18/1)
140H, 301, 342, 1-1/2
3-3/8
SAL 600-4N
600 477 (24/7, 30/7) 7-5/8
SAL 650-4N
600, 636, 650 556.5 (24/7, 26/7)
SAL 750-4N
700-750 636 (26/7) 94-7/32
SAL 800-4N
700-800 954 8-3/4 4-3/32
SAL 1000-4N
1000 1000 795 (30/19), 874 (54/7) 4-5/32
SAL 1033-4N
1033 –900 (54/7), 954 (45/7) 9
* Designates 2-piece welded design.
L
B
3
MSL 350
www.tnb.ca C37
Compression Connectors
L
1-1⁄4
I.D.
5⁄8
Style 1
Style 2
Aluminum Lugs

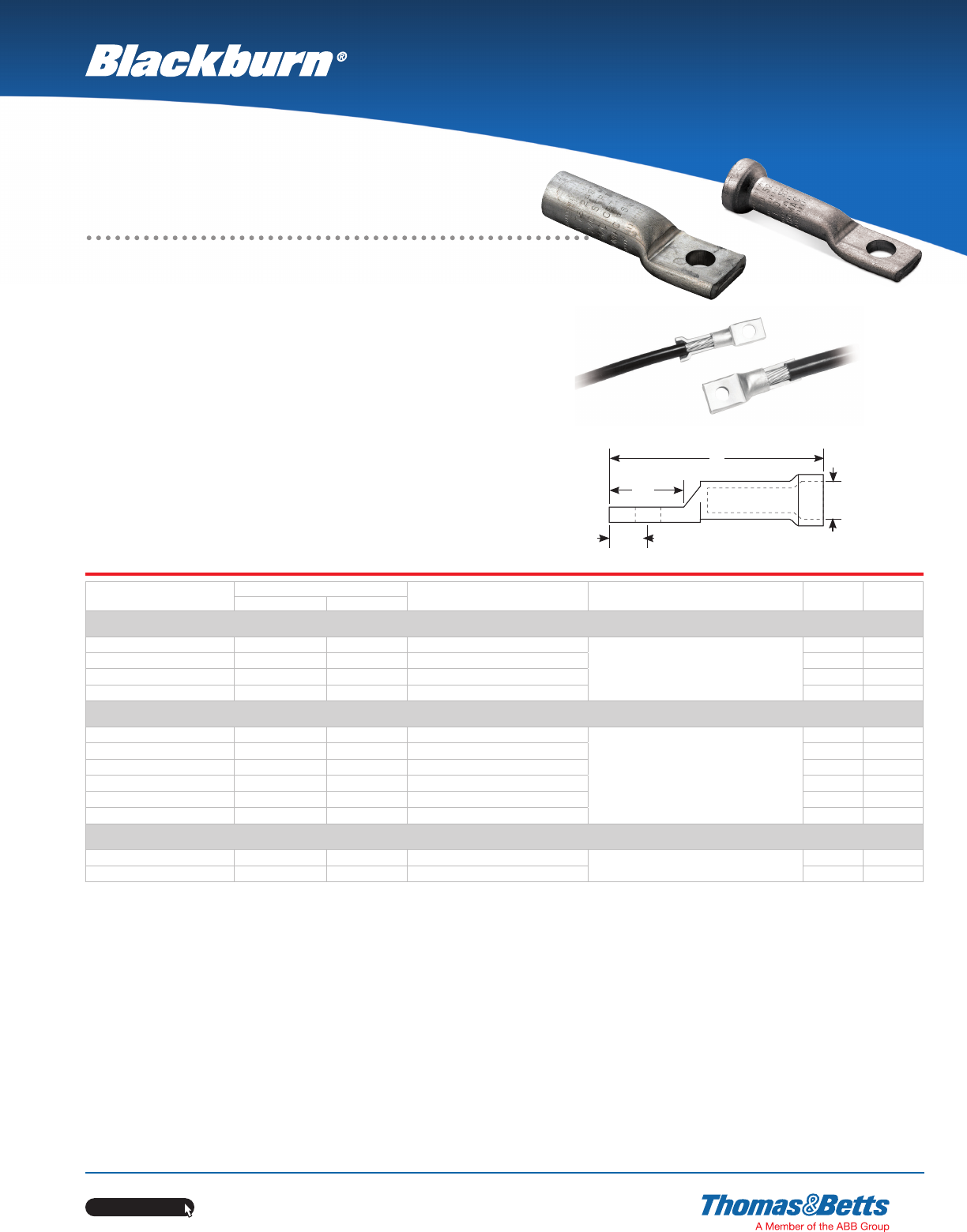

Shrouded One-Hole Lugs — Common Die Series
If you need rain protection, these lugs
have you covered
•
Prevents rainwater from entering cable
•
Lessens your die inventory
•
Provides high strength and high-conductivity
•
Use with aluminum and copper conductors
•
Prevents oxidation
•
Enable easy identification
•
Meet or exceed ANSI C119.4 specifications
Cat. No.
Conductor Sizes Shroud I.D. Comp. Die Size LStyle
Concentric Compact
5/8 Compression Die Series
RSG 6-48
#6 –0.400
5/8, 8A, 243, TU, 52, BG
3-3/8 2
RSG 4-48
#4 #4 0.450 3-3/8 2
RSG 2-48
#2, #1 #1 0.635 3-5/8 1
RSG 1/0-48
1/0 2/0 0.640 3-5/8 1
840 Compression Die Series
RSK 1/0-48
1/0 2/0 0.640
840, 11A, 249, 76, TX
3-3/4 2
RSK 2/0-48
2/0 3/0 0.750 3-3/4 2
RSK 3/0-48
3/0 4/0 0.750 3-3/4 2
RSK 4/0-48
4/0 4/0 0.750 3-3/4 2
RSK 250-48
4/0-250 350 0.812 3-3/4 2
RSK 350-48
350 –0.927 4-7/16 1
1-1/8 Compression Die Series
RSB 300-48
300 300 0.927 1 (1/8-1), 12A, 96, 299, 655 4-1/2 2
RSB 350-48
350 300 0.927 4-1/2 2
For tin-plated option, add “-TN” suffix to the catalogue number.
To order a terminal lug for a 3 ⁄8 in. stud, change a catalogue number’s “-48” suffix (designating a 1⁄ 2 in. stud) to a “-38” suffix.
To order with hardware as kits, add “-TMH” suffix to the catalogue number.
RSK 2-48
RSG 1/0-48
www.tnb.ca
C38
Compression Connectors
Aluminum Lugs
Tin-Plated One-Hole Lugs
For application in meter pans and in other metal-enclosed
gear to convenience wiring where clearances are minimal
•
Assures high strength and high-conductivity
•
Provides resistance against corrosion
•
Use with aluminum and copper conductors
•
Prevents oxidation
•
Easy identification
•
Meet or exceed ANSI C119.4 specifications
L
B
W
Left-Hand Lug
Cat. No.
Right-Hand Lug
Cat. No.
Conductor Sizes Installing Dies Dimensions
Concentric Compressed Compact B L W
AL 1/0-48 LTN AL 1/0-48 RTN
1/0 1/0 2/0 5/8, BG, TU 1-3/8 2-11/16 1-3/8
AL 2/0-48 LTN AL 2/0-48 RTN
2/0 2/0
–
1-5/8, 297, TW-TY 1-3/8 2-11/16 1-3/8
AL 3/0-48 LTN AL 3/0-48 RTN
3/0 3/0 737, 467 1-3/8 3-3/4 1-3/8
AL 4/0-48 LTN AL 4/0-48 RTN
4/0 4/0 840, 298, TX 1-1/2 41-3/4
AL 250-48 LTN AL 250-48 RTN
250 250 300 840, 324, TX 1-5/8 4-1/8 1-3/4
AL 300-48 LTN AL 300-48 RTN
300 300 350 1, 470, TH 1-5/8 4-3/8 1-1/2
AL 350-48 LTN AL 350-48 RTN
350 350 350 1 (1/8-1), 299, 96 1-5/8 4-3/8 1-1/2
AL 400-48 LTN AL 400-48 RTN
400 400 400 1-1/8, 472, 96 2-1/2 5-3/4 1-1/2
AL 500-48 LTN AL 500-48 RTN
500 500 500 1-5/16, 300, 106A 2-1/2 5-3/4 1-1/2
AL 750-48 LTN AL 750-48 RTN
700-750 800 800 1-1/2, 301, 140H 3-1/4 6-3/8 3-1/2
For NEMA-drilled lugs, substitute a “-NLTN” suffix for a “-48 xTN” suffix to the catalogue number.
Thus AL 350-48 RTN becomes AL 350-NLTN. NEMA drilling is 2-9⁄16 in. holes on 1-3⁄4 in. centers.
www.tnb.ca C39
Compression Connectors
Aluminum Lugs

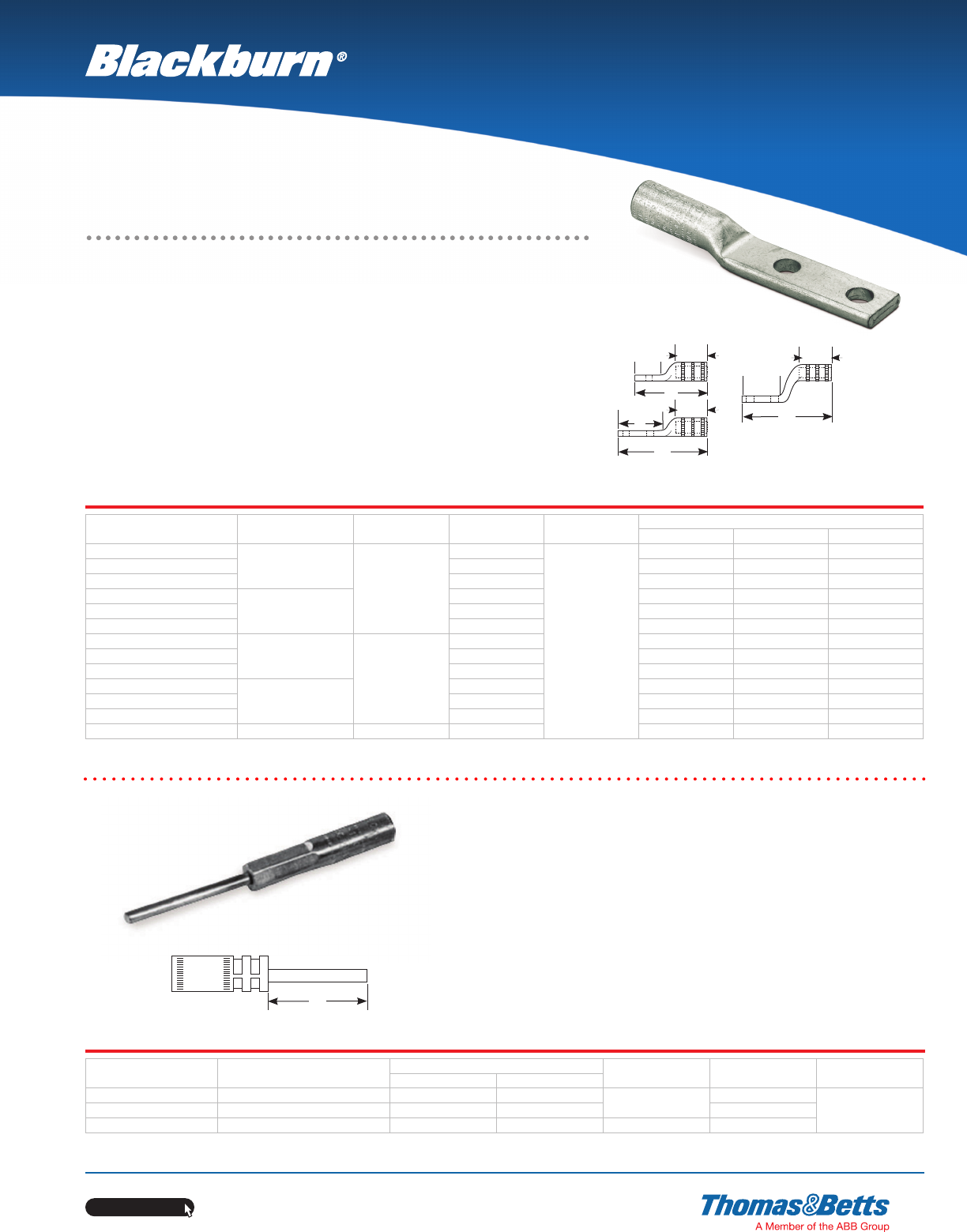

Multi-Range Die-Less Lugs
Save yourself a die job with these multi-range lugs
•
Assures high strength and high-conductivity
•
Provides resistance against corrosion
•
Use with aluminum and copper conductors
•
Prevents oxidation
•
Enables easy identification
P
B
P
B
B
L
L
Fig. 2
Fig. 1
Fig. 3
L
P
Cat. No.
Conductor Range
Alum. or Copper Tool Figure Bolt Size Dimensions
B L P
AL 1/0-48 TN
#6 str.-1/0 str.
VC 5/VC 6
1
1/2
1-3/8 3-3/16 1-5/16
AL 1/0 NTN
21-3/8 5-1/4 3-1/4
ASL 1/0 NTN
31-3/8 5-1/4 3
AL 4/0-48 TN
#2 str.-4/0 str.
11-7/16 3-9/16 1-3/8
AL 4/0 NTN
2 2 6 3-5/16
ASL 4/0 NTN
3 2 6 3
AL 300-48 TN
1/0 str.-300
VC 6
12-1/4 41-5/16
AL 300 NTN
22-1/4 6-9/16 3-9/16
AASL 300 NTN
32-1/4 6-9/16 3
SAB 500-48 TN
4/0 str.-500
12-1/2 4-9/16 1-1/2
SAB 500 NTN
22-1/4 6-3/8 3-1/8
AASL 500 NTN
32-1/2 6-7/8 2-7/8
AL 750 N 608 TN
4/0 str.-750 VC 8 23-3/4 8-1/4 3-3/8
To order a stud size not specified here with a terminal lug, substitute a “-58” suffix (designating a 5⁄8 in. stud) for a “-48” suffix (designating a 1⁄ 2 in. stud) to the catalogue number.
Pin Terminals
The pins you need for hassle-free terminations
•
The high strength and conductivity of aluminum
and the flexibility of copper
•
No compatibility
Cat. No.
Conductor Size Decimal Range Tool Cu Pin P
Min. O.D. Max. O.D.
PTA 1/0
#10 sol.-1/0 ACSR 0.102 0.398 VC 5/6 #2
6
PTA 4/0
#4 sol.-4/0 ACSR 0.204 0.563 2/0
PTA 350
2/0 str.-336.4 (18/1) ACSR 0.414 0.684 VC 6 4/0
For tin-plated option, add “-TN” suffix to the catalogue number. For other pin lengths, please contact your Thomas & Betts representative.
P
AL 4/0 NTN
www.tnb.ca
C40
Compression Connectors
Aluminum Lugs

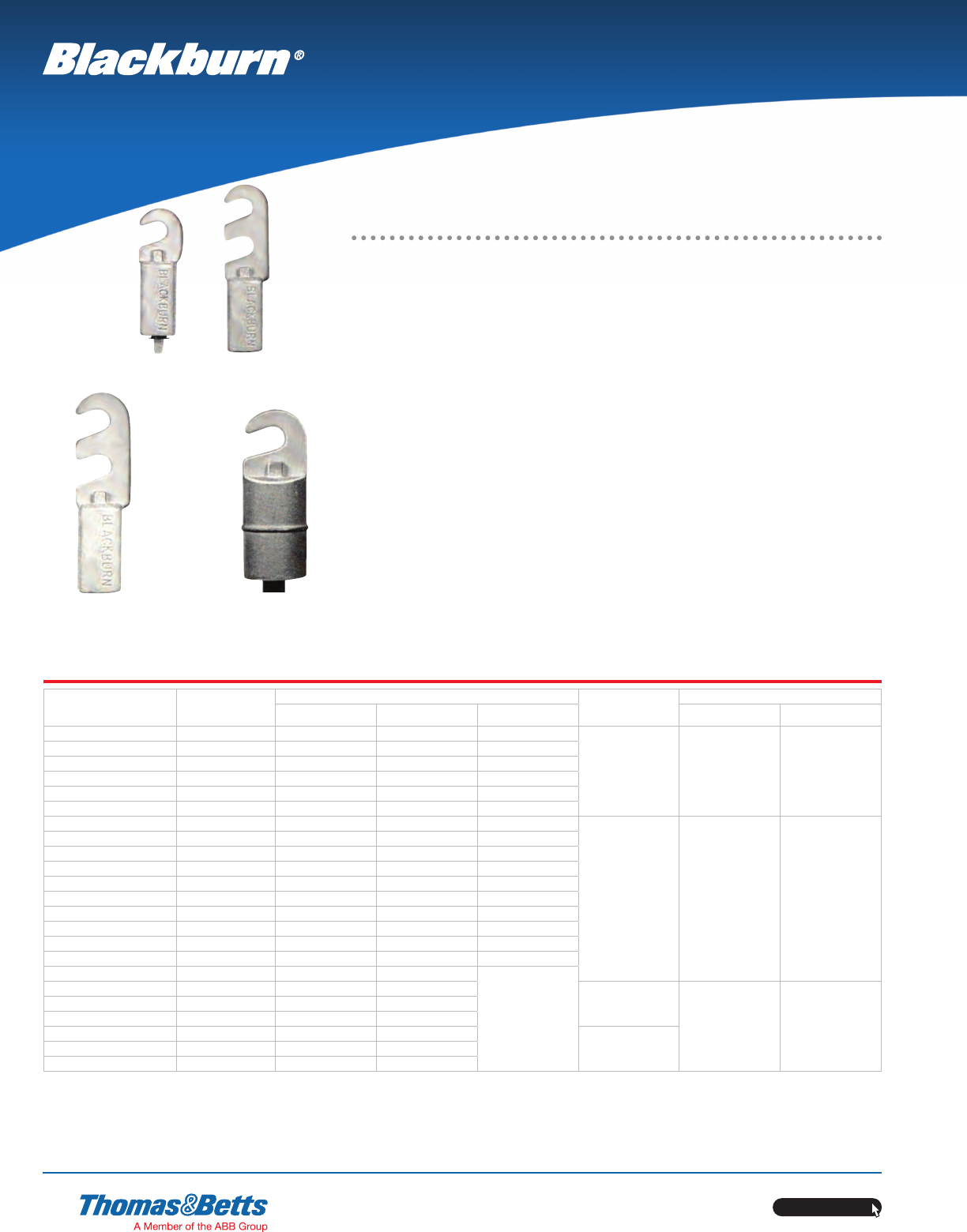

Blackburn® Slotted-Tang Compression Terminal Lugs
Compress these lugs with standard tools and dies
•
Use with a wide range of aluminum and copper conductors
•
Prevents oxidation and keeps out moisture
•
Boss fits the indent on the bus, preventing the lug from rotating
•
The bus doesn’t have to be removed
•
RUS Listed
Cat. No.
Colour Code
Conductor Size
Fig. No.
Installation Dies
Concentric Compressed
Compact Sol. Mech. Tool Hydr. Tool
LAC6
Blue #6 str. #6 #5
1BY37, 840 B49EA, U-K840
LAC4
Orange #4 str. #4 #3.
LAC3
Purple #3 str. –#2
LAC2
Red #2 str. #2 #1
LAC1
White #1 str. #1 1/0
LAC10
Yellow 1/0 str. 1/0 2/0
LAC20
Grey 2/0 str. 2/0 3/0
2BY37, 840U B49EA, K840
LAC30
Black 3/0 str. 3/0 4/0
LAC40
Pink 4/0 str. 4/0 –
LAC42
Orange #4 str. #4 #3
LAC32
Purple #3 str. –#2
LAC22
Red #2 str. #2 #1
LAC12
White #1 str. #1 1/0
LAC102
Yellow 1/0 str. 1/0 2/0
LAC202
Grey 2/0 str. 2/0 3/0
LAC302
Black 3/0 str. 3/0 4/0
LAC402
Pink 4/0 str. 4/0
–
LAC25
Green 350, 266.6 250
3
–B80EA, 1.1, 655
LAC35
Brown 300, 350 350
LAC50
Aqua 400, 500 500
LAC125
Green 250, 266.8 250
4
LAC135
Brown 300, 350 350
LAC150
Aqua 400, 500 500
Fig.1 Fig.2
Fig.3 Fig.4
www.tnb.ca C41
Compression Connectors
Aluminum Lugs

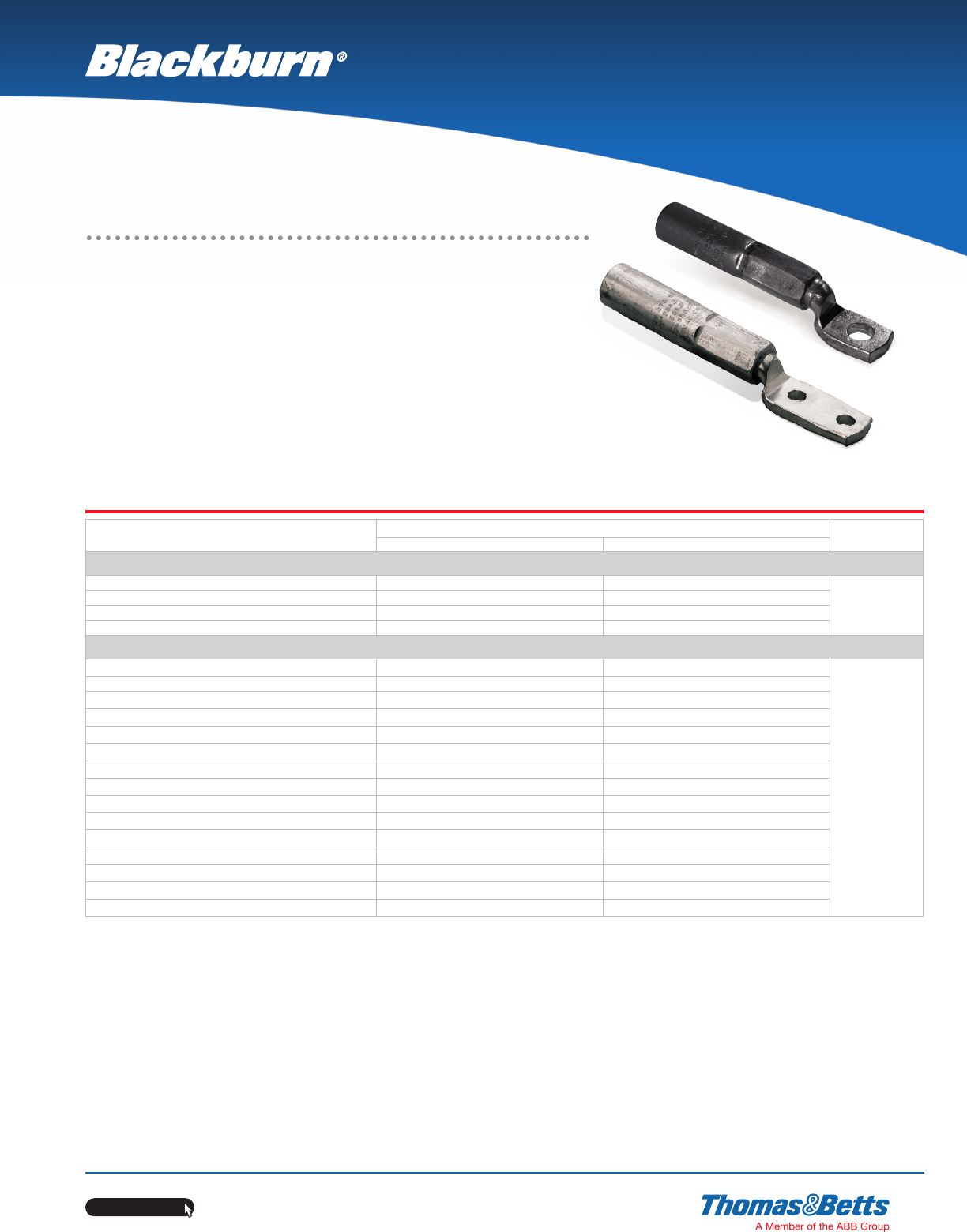

Bi-Metallic Lugs
Corrosion-resistant one- and two-hole lugs for ACSR
and aluminum conductors
•
Provides high strength
•
Provides high-conductivity and corrosion resistance
•
Prevents oxidation and keeps out moisture
Cat. No.
Conductor Size Bolt Size
ACSR Al
CPL Series – One Hole
CPL 4-48
#4 #4
1/2
CPL 2-48
#2 #2
CPL 1/0-48
1/0 1/0
CPL 4/0-48
4/0 4/0
CPL-N Series – Two Hole
CPL 4 N
#4 #4
1/2
CPL 2 N
#2 #2
CPL 1/0 N
1/0 1/0
CPL 2/0 N
2/0 2/0
CPL 3/0 N
3/0 3/0
CPL 4/0 N
4/0 4/0-250
CPL 300 N
266.8 266.8-300
CPL 350 N
336.4 336.4-350
CPL 477 N
397.5 396.5-477
CPL 556 N
477 500-556.5
CPL 600 N
556.5 600
CPL 800 N
605-666.6 715.5-800
CPL 1000 N
715.5-874.5 874.5-1000
CPL 1113 N
900-1113 1033.5-1113
CPL 2000 N
1780-1900 2000
CPL 600 N
CPL 2-48

Navigation menu
