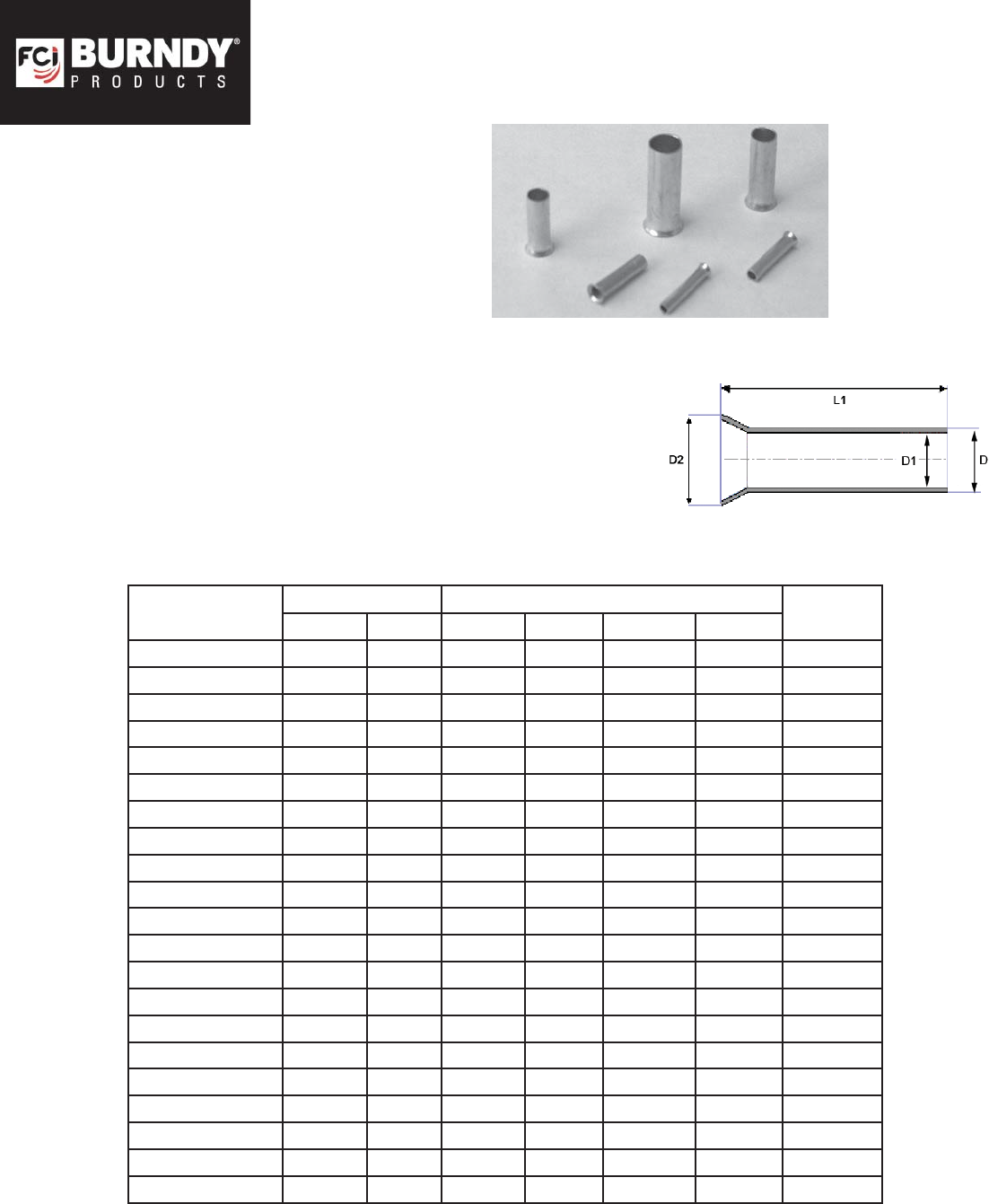

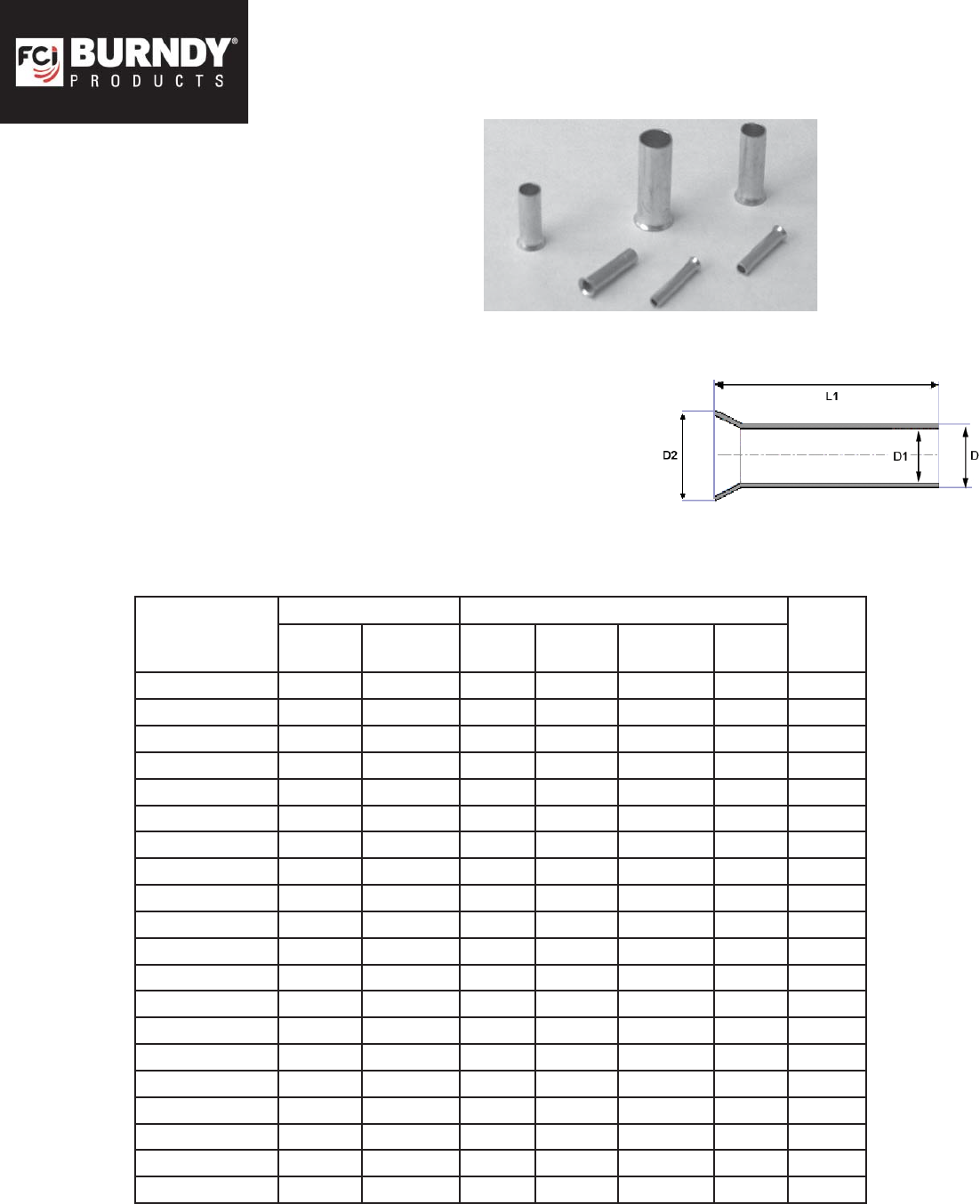

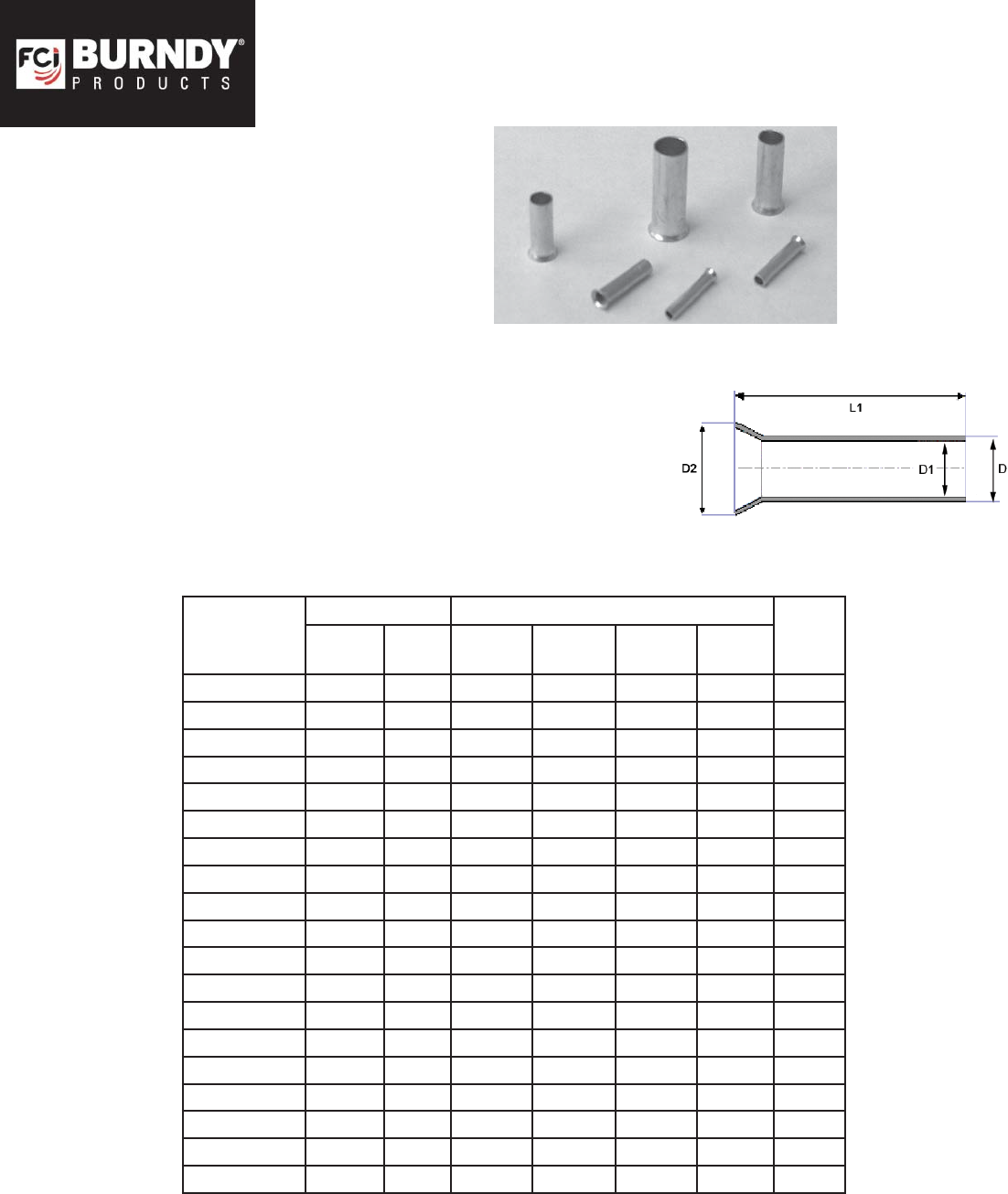

BURNDY® Products
TYPE YF
Bare Ferrules
Features and Benefi ts
For more information, contact FCI - BURNDY Products
In the U.S. call: 1-800-346-4175 International: 1-603-647-5299
Canada call: 1-800-361-6975 (Quebec) 1-800-387-6487 (All Other Provinces)
For Use On
Copper Conductor
Made of electrolytic copper, tin • plated
Seamless barrels• Smooth funnel entry to make wire • insertion easier
RoHS compliant•
Catalog # Wire Size Dimensions in inches Bag Qty
AWG mm2L1 Dim. D Dim. D1 Dim. D2 Dim.
YF2807UI 28 .14 .276 .035 .027 .063 1000
YF2605UI 26 .25 .196 .043 .031 .059 1000
YF2607UI 26 .25 .276 .043 .031 .059 1000
YF2405UI 24 .34 .196 .047 .031 .059 1000
YF2407UI 24 .34 .276 .047 .031 .059 1000
YF2206UI 22 .50 .236 .051 .039 .059 1000
YF2208UI 22 .50 .315 .051 .039 .067 1000
YF2210UI 22 .50 .394 .051 .039 .067 1000
YF2212UI 22 .50 .472 .051 .039 .067 1000
YF2006UI 20 .75 .236 .059 .047 .067 1000
YF2010UI 20 .75 .394 .059 .047 .075 1000
YF2012UI 20 .75 .472 .059 .047 .075 1000
YF1806UI 18 1.00 .236 .067 .055 .075 1000
YF1808UI 18 1.00 .315 .067 .055 .087 1000
YF1810UI 18 1.00 .394 .067 .055 .087 1000
YF1812UI 18 1.00 .472 .067 .055 .087 1000
YF1607UI 16 1.50 .276 .079 .067 .087 1000
YF1608UI 16 1.50 .315 .079 .067 .098 1000
YF1610UI 16 1.50 .394 .079 .067 .098 1000
YF1612UI 16 1.50 .472 .079 .067 .098 1000
YF1618UI 16 1.50 .709 .079 .067 .098 1000
Wire ferrules are also known as cord
end terminals or bootlace ferrules.
These are electrical connectors used
to terminate stranded wires. These
terminals are made of electrolytically
tin plated copper, uninsulated
ferrules are designed to form neat
end terminations to multi-strand
cables or wires. Smooth funnel entry
assists in wire insertion. Specifi cally
designed to aid in termination of
extra fl exible fi ne stranded conductor,
provides enhanced fl exibility relating
to wire termination and management.
A positive contact surface helps
insure system integrity.
BURNDY® Products
TYPE YF
Bare Ferrules
For more information, contact FCI - BURNDY Products
In the U.S. call: 1-800-346-4175 International: 1-603-647-5299
Canada call: 1-800-361-6975 (Quebec) 1-800-387-6487 (All Other Provinces)
For Use On
Copper Conductor
Catalog #
Wire Size Dimensions in inches
Bag Qty
AWG mm2L1 Dim. D Dim. D1 Dim. D2
Dim.
YF1407UI 14 2.50 .276 .102 .091 .130 1000
YF1408UI 14 2.50 .315 .102 .091 .130 1000
YF1410UI 14 2.50 .394 .102 .091 .130 1000
YF1412UI 14 2.50 .472 .102 .091 .130 1000
YF1418UI 14 2.50 .709 .102 .091 .130 1000
YF1209UI 12 4.00 .354 .126 .110 .154 1000
YF1212UI 12 4.00 .472 .126 .110 .154 1000
YF1215UI 12 4.00 .591 .126 .110 .154 1000
YF1218UI 12 4.00 .709 .126 .110 .154 1000
YF1010UI 10 6.00 .394 .154 .138 .185 250
YF1012UI 10 6.00 .472 .154 .138 .185 250
YF1015UI 10 6.00 .591 .154 .138 .185 250
YF1018UI 10 6.00 .709 .154 .138 .185 250
YF0812UI 8 10.00 .472 .193 .177 .228 250
YF0815UI 8 10.00 .591 .193 .177 .228 250
YF0818UI 8 10.00 .709 .193 .177 .228 250
YF0612UI 6 16.00 .472 .244 .228 .283 250
YF0615UI 6 16.00 .591 .244 .228 .283 250
YF0618UI 6 16.00 .709 .244 .228 .283 250
YF0625UI 6 16.00 .984 .244 .228 .283 250
Features and Benefi ts
Made of electrolytic copper, tin • plated
Seamless barrels• Smooth funnel entry to make wire • insertion easier
RoHS compliant•
Wire ferrules are also known as cord
end terminals or bootlace ferrules.
These are electrical connectors used
to terminate stranded wires. These
terminals are made of electrolytically
tin plated copper, uninsulated
ferrules are designed to form neat
end terminations to multi-strand
cables or wires. Smooth funnel entry
assists in wire insertion. Specifi cally
designed to aid in termination of
extra fl exible fi ne stranded conductor,
provides enhanced fl exibility relating
to wire termination and management.
A positive contact surface helps
insure system integrity.
BURNDY® Products
TYPE YF
Bare Ferrules
For more information, contact FCI - BURNDY Products
In the U.S. call: 1-800-346-4175 International: 1-603-647-5299
Canada call: 1-800-361-6975 (Quebec) 1-800-387-6487 (All Other Provinces)
For Use On
Copper Conductor
Catalog #
Wire Size Dimensions in inches Bag
Qty
AWG mm2L1 Dim. D Dim. D1 Dim. D2
Dim.
YF0412UI 4 25.00 .472 .311 .295 .358 100
YF0415UI 4 25.00 .591 .311 .295 .358 100
YF0418UI 4 25.00 .709 .311 .295 .358 100
YF0420UI 4 25.00 .787 .311 .295 .358 100
YF0425UI 4 25.00 .984 .311 .295 .358 100
YF0432UI 4 25.00 1.260 .311 .295 .358 100
YF0215UI 2 35.00 .591 .343 .327 .402 100
YF0220UI 2 35.00 .787 .343 .327 .402 100
YF0225UI 2 35.00 .984 .343 .327 .402 100
YF0232UI 2 35.00 1.260 .343 .327 .402 100
YF0122UI 1 50.00 .866 .429 .406 .500 50
YF0125UI 1 50.00 .984 .429 .406 .500 50
YF0132UI 1 50.00 1.260 .429 .406 .500 50
YF2/022UI 2/0 70.00 .866 .563 .531 .622 50
YF2/025UI 2/0 70.00 .984 .563 .531 .622 50
YF2/032UI 2/0 70.00 1.260 .563 .531 .622 50
YF3/025UI 3/0 95.00 .984 .614 .583 .681 50
YF3/030UI 3/0 95.00 1.180 .614 .583 .681 50
YF3/032UI 3/0 95.00 1.260 .614 .583 .681 50
Features and Benefi ts
Made of electrolytic copper, tin • plated
Seamless barrels• Smooth funnel entry to make wire • insertion easier
RoHS compliant•
Wire ferrules are also known as cord
end terminals or bootlace ferrules.
These are electrical connectors used
to terminate stranded wires. These
terminals are made of electrolytically
tin plated copper, uninsulated
ferrules are designed to form neat
end terminations to multi-strand
cables or wires. Smooth funnel entry
assists in wire insertion. Specifi cally
designed to aid in termination of
extra fl exible fi ne stranded conductor,
provides enhanced fl exibility relating
to wire termination and management.
A positive contact surface helps
insure system integrity.

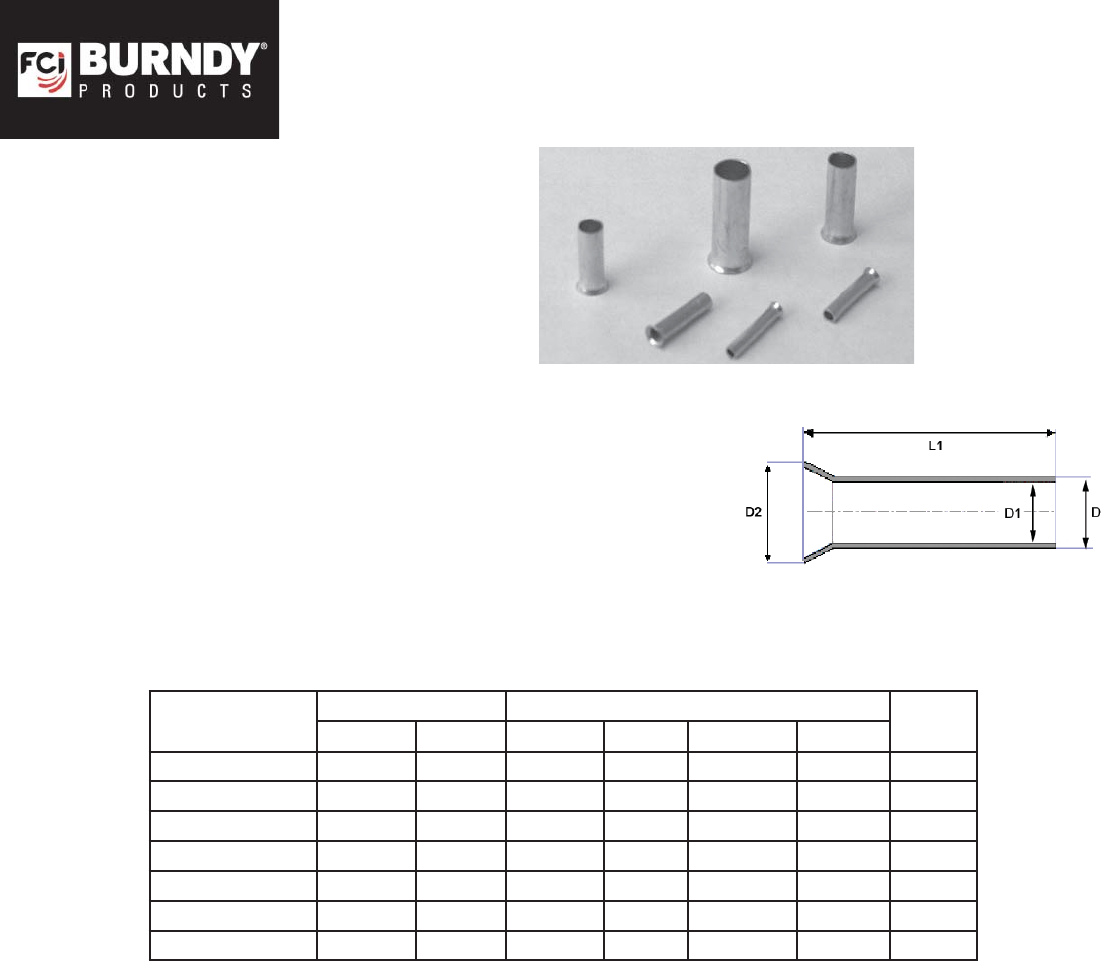

Catalog # Wire Size Dimensions in inches Bag
Qty
AWG mm2L1 Dim. D Dim. D1 Dim. D2 Dim.
YF4/032UI 4/0 120.00 1.260 .697 .657 .795 25
YF4/034UI 4/0 120.00 1.390 .697 .657 .795 25
YF4/040UI 4/0 120.00 1.570 .697 .657 .795 25
YF25032UI 250 150.00 1.260 .811 .722 .906 25
YF25040UI 250 150.00 1.570 .811 .722 .906 25
YF35032UI 350 185.00 1.260 .843 .795 .941 25
YF35040UI 350 185.00 1.570 .843 .795 .941 25
BURNDY® Products
TYPE YF
Bare Ferrules
For more information, contact FCI - BURNDY Products
In the U.S. call: 1-800-346-4175 International: 1-603-647-5299
Canada call: 1-800-361-6975 (Quebec) 1-800-387-6487 (All Other Provinces)
For Use On
Copper Conductor
Features and Benefi ts
Made of electrolytic copper, tin • plated
Seamless barrels• Smooth funnel entry to make wire • insertion easier
RoHS compliant•
Wire ferrules are also known as cord
end terminals or bootlace ferrules.
These are electrical connectors used
to terminate stranded wires. These
terminals are made of electrolytically
tin plated copper, uninsulated
ferrules are designed to form neat
end terminations to multi-strand
cables or wires. Smooth funnel entry
assists in wire insertion. Specifi cally
designed to aid in termination of
extra fl exible fi ne stranded conductor,
provides enhanced fl exibility relating
to wire termination and management.
A positive contact surface helps
insure system integrity.

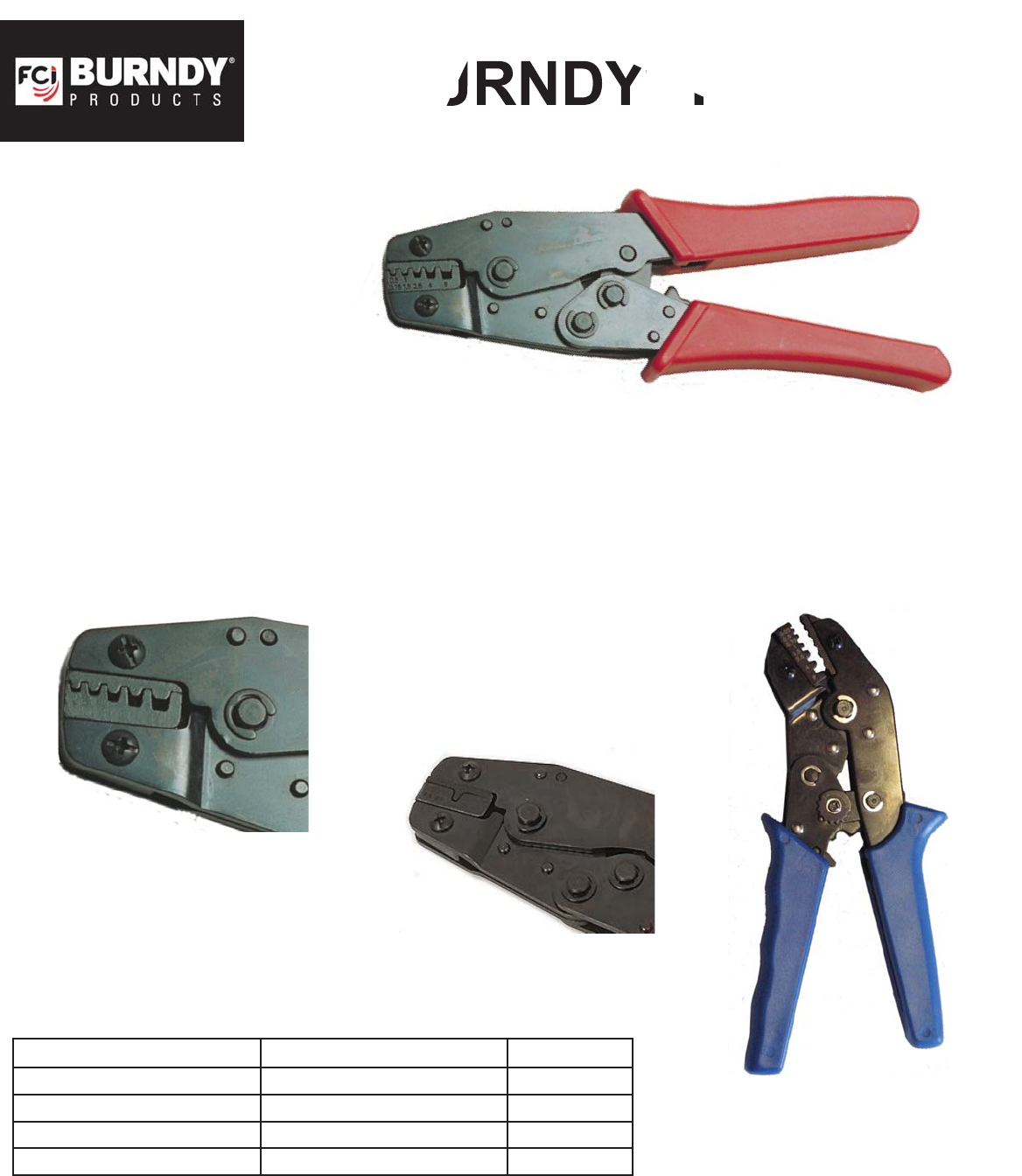

BURNDY® Products
TYPE YF-TOOL
Installation Ratchet Tool
for Bare and Insulated
Ferrules
Features and Benefi ts
For more information, contact FCI - BURNDY Products
In the U.S. call: 1-800-346-4175 International: 1-603-647-5299
Canada call: 1-800-361-6975 (Quebec) 1-800-387-6487 (All Other Provinces)
For Use On
Copper Ferrules
Ergonomic handle design to • help ease installer fatigue
Release mechanism• Low handle force required• Trapezoidal crimp• Full cycle ratchet mechanism•
These tools have been specifi cally
designed to work with both
the insulated and uninsulated
ferrules type YF. The tools have a
trapezoidal crimp type and a release
mechanism.
®
®
fi
t
s
Catalog Number Capacity Weight
YF2610TOOL 26-10 AWG 1.02 lbs
YF2214TOOL 22-14 AWG 1.05 lbs
YF2210TOOL 22-10 AWG 1.05 lbs
YF1006TOOL 10-6 AWG 1.05 lbs
YF2610TOOL, YF2210TOOL,
and YF1006TOOL have
multiple grooves for range
capacity.
YF2214TOOL has one groove
to accept 22-14 AWG range.
