Installers Know and Trust Ty-Rap High-Performance

Fastening Products from Thomas & Betts

Wire bundling is an integral part of modern electrical and electronic

installations. To finish your harnessing and bundling project as reliably and

economically as possible, choose genuine Ty-Rap cable ties. These

fastening systems include a full range or cable ties, identification ties,

clamps, bases, harnessing aids and installing tools. Using Ty-Rap fastening

systems for all wiring jobs, large and small, will speed and improve the

reliability of harnessing and wire bundling while saving you money.

T&B fastening systems for large volume cable tying combine high-speed

ergonomically designed automatic and semi-automatic tools, along with a

wide selection of ties and harnessing aids to meet your application

requirements. Accessories include various harnessing aids, retainers,

supports, posts, pins and guides that allow the wire to be quickly routed

with or without the use of nails.

Ty-Rap cable ties are remarkably well suited for a variety of other non-

electrical applications. Ty-Rap cable ties exceed UL E4940S requirements

for smoke developed and heat release for use in air handling spaces.

Ty-Rap cable ties meet international standards such as CSA and CE as well

as UL, , Belcor, ADC and military specifications in North America. T&B

also offers a complete stainless steel an DeltecTM cable fastening system

for demanding and weather-resistant applications. Choose genuine Ty-Rap

cable ties for the rugged “Grip of Steel®.” Look for the oval head.

Ty-Rap®Cable Fastening Systems

Overview

Trust Ty-Rap®to securely

fasten your cables!

Harnessing

•Harness Board pre-wiring

prior to installation

•Large OEMs-Automotive,

Aerospace, Computers,

Electronics, Copiers,

Appliances and other

Durable Goods

Point-to-point and Long Distance Wiring

•Bundling & fastening cables between equipment

•Panel & Machine Tool Builders

•Industrial & Commercial Applications, Refineries, Office Buildings

Installers prefer the ease of use and exceptional durability of genuine

Ty-Rap cable ties. Engineered for labor savings and high performance,

Ty-Rap cable ties are commonly used in a variety of applications.

Standoffs, bulkhead mounting bases, adhesive mounting bases and a wide

variety of clamping devices will meet or exceed any requirements.

Weatherable and special material Ty-Rap cable ties are exceptionally

suited for years of service in extreme environments.

Cable Fastening Accessories

Choose from one of the largest assortments of mounting bases, clips and

clamps, spacers, lashing straps, harness board accessories, braided wire

sleeve, and accessories for heavy-duty lashing. Use Thomas & Betts cable

fastening accessories for the finishing touch on your next wiring project.

Tools

Ty-Rap installing tools finish the installation of the cable tie. Ties are

cinched to the proper tension and the excess tail is cut off precisely flush

with the head, leaving no sharp corners or ragged edges. Ty-Rap installing

tools have narrow noses and slim profiles for work in tight spaces or

between harness board nails. The operation is quick, reliable and cost

effective.

Other Applications

•HVAC

•Recreational

•Telecom & Utility

•Packaging

Rounded, Low Profile Head

gives a professional, quality look to

wire bundling projects. The classic-

shaped head is designed to prevent

snags on uneven surfaces and more

easily pull through bulkheads. There

are no sharp edges, so these ties are

also easier on the installer’s hands.

The Turned-up Tail orients the tie

for easy assembly, making the ties

easier to pick up on a flat surface.

No-Slip Tail provides easy grip during

tensioning. Ty-Rap cable ties feature a

unique friction surface design that’s

appreciated by more tradespeople.

For a whole bundle of

reasons, trust

only Genuine

Ty-Rap Cable Ties

by Thomas & Betts in your

next wiring installation.

When you choose a cable tie from T&B,

you can count on quality, performance and

innovation to make your work easier.

Depending on your application, choose

genuine Ty-Rap Cable ties Cable Ties,

along with our wide assortment of quality

accessories and installing tools to make

installation hassle-free.

“The Grip of Steel®” Non-Magnetic

Stainless Steel Locking Barb insures

both maximum strength and the right tightness

every time. Because there are no notches, Ty-Rap

Cable Ties provide an infinite number of locking

positions while fastening the tie at the precise

bundle diameter.

Versatile Nylon 6/6 Material provides

high strength, a wide temperature range and

prevents toxic or irritating emissions. Ty-Rap

Cable Ties are also available in weather-resistant

versions, heat-stabilized, flame-retardant,

Polypropylene, Nylon12, Fluoropolymer, Halar,

and Stainless Steel materials for a variety of

extreme environments.

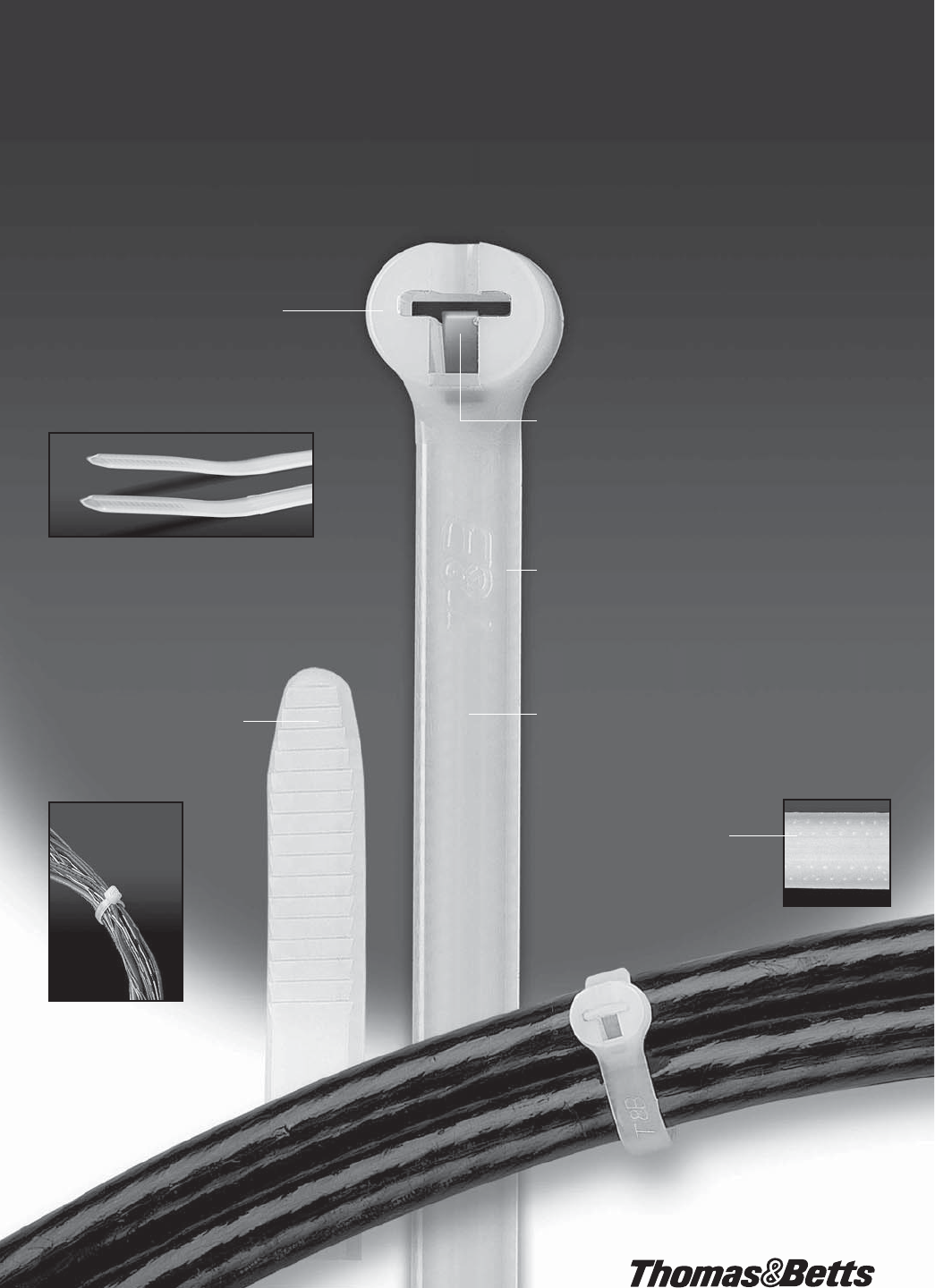

Smooth, Notchless Body reduces stress

concentration points under tension, making the tie

stronger and thinner than notched body ties.

Ribbed and Stippled Body

“grips” the bundle and prevents

slippage. Rounded edges protect

insulation, preventing sharp edges

from damaging cables.

Why Choose Genuine Ty-Rap®Cable Ties?

Ty-Rap®Cable Fastening Systems

Cable Ties

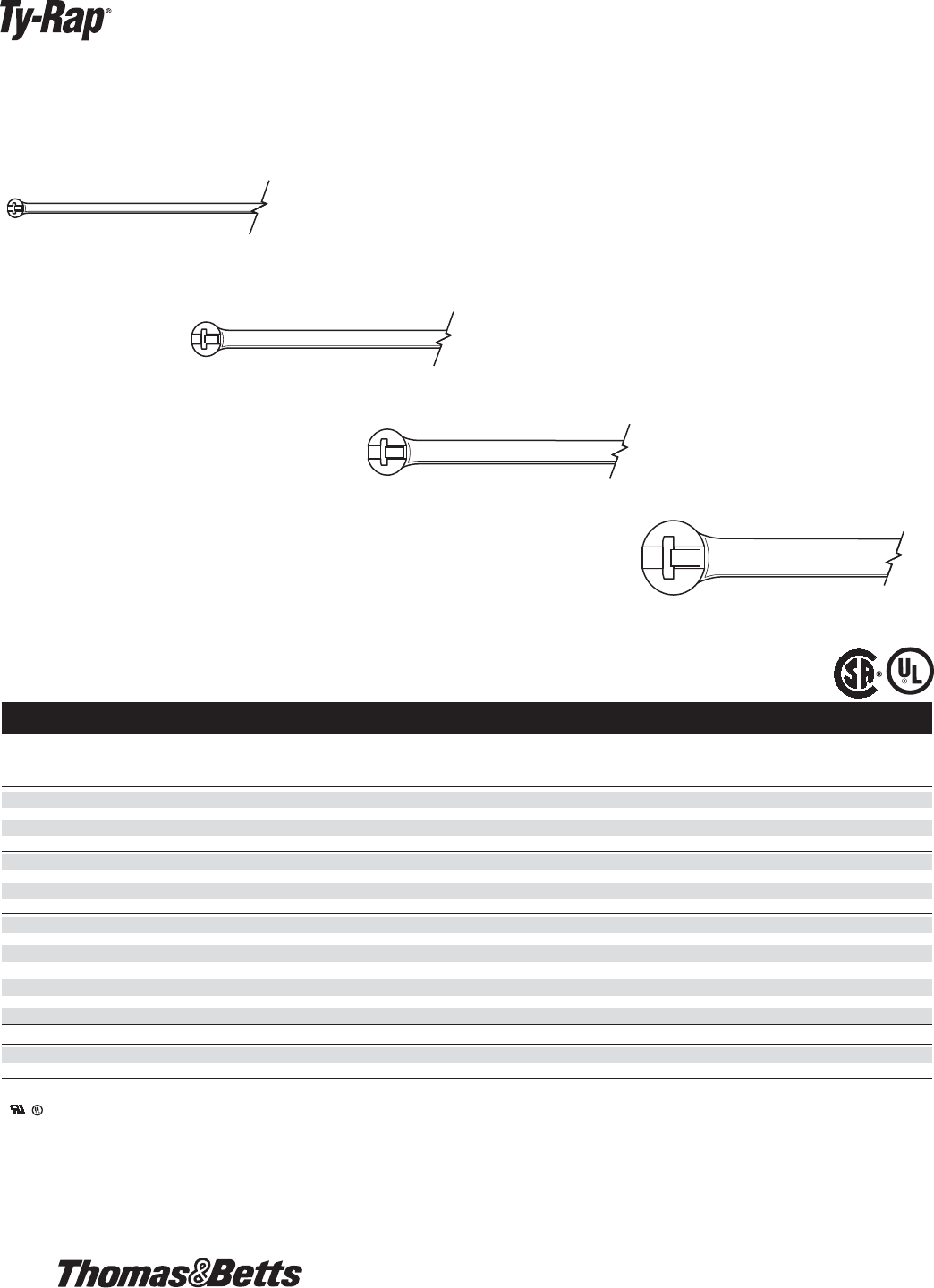

Standard Nylon 6/6 Cable Ties

Body Max. Wire Military Tensile

Std. Bulk Width Length Bundle Dia. Standard Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) Part No. (lb.) Pkg. Pkg.

TY523M TY23M .093 3.62 .625 MS3367-4 18 100 1000

TY52315M TYB2315M .092 7.00 1.500 – 18 100 1000

TY5232M TY232M .086 8.00 2.000 – 18 100 1000

TY5234M TY234M .086 14.00 4.000 – 18 100 1000

TY524M TY24M .140 5.50 1.125 MS3367-5 40 100 1000

TY5242M TY242M .140 8.19 2.000 – 40 100 1000

TY526M TY26M .140 11.10 3.000 – 40 100 1000

TY5244M TY244M .140 14.50 4.000 – 40 100 1000

TY525M TY25M .185 7.31 1.750 MS3367-1 50 100 1000

TY5253M TY253M .187 11.6 3.000 MS3367-7 50 100 1000

TY528M TY28M .187 14.20 4.000 MS3367-2 50 100 1000

TY5272M* TY272M* .270 8.75 2.000 – 120 50 500

TY527M†TY27M*†.270 13.40 3.500 MS3367-3 120 50 500

TY5275M TY275M .270 18.00 5.000 – 120 50 500

TY5277M TY277M .270 24.30 7.000 – 120 50 500

TY529M TY29M .270 30.00 9.000 MS3367-6 120 50 500

TY53510M†–.320 35.00 10.000 – 175 50 –

TY54513M†–.320 45.00 13.000 – 175 50 –

Cable ties made from natural nylon 6/6 are excellent performers in most applications. Nylon 6/6 is recommended for use in temperatures ranging from 185°F to -40°F.

†Recognized Models.

• CSA Certified Natural 6/6 Nylon Cable Ties are suitable for use in air handling spaces inaccordance with rules 12-010 (3), (4) and (5), and 12-020 of the CEC.

* Not CSA Certified

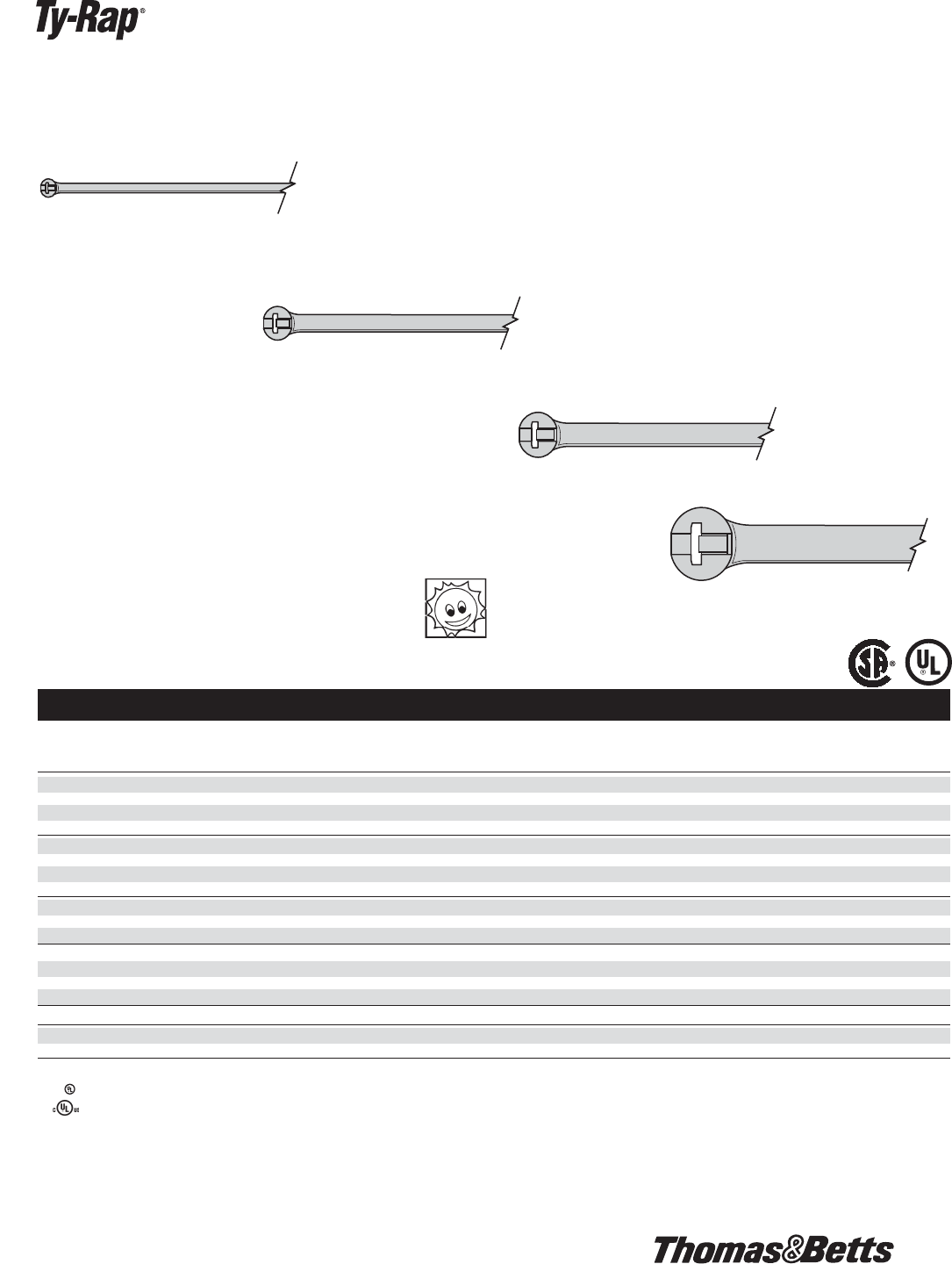

TY523M

Tie body width .091"

TY524

Tie body width .140"

TY525M

Tie body width .184"

TY5272M

Actual size body width .270"

Cable Ties

The MX series cable ties are recommended for outdoor use.

The addition of carbon black provides good ultraviolet

resistance and prolongs the useful life of the cable tie.

TY5272MX

Actual size body width .270"

TY523MX

Tie body width .091"

TY524MX

Tie body width .140"

TY525MX

Tie body width .184"

ULTRAVIOLET

RESISTANT

Nylon 6/6 Weather Resistant

Body Max. Wire Military Tensile

Std. Bulk Width Length Bundle Dia. Standard Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) Part No. (lb.) Pkg. Pkg.

TY523MX TY23MX .093 3.62 .625 MS3367-4 18 100 1000

TY52315MX TYB2315MX .092 7.00 1.500 – 18 100 1000

TY5232MX TY232MX .086 8.00 2.000 – 18 100 1000

TY5234MX TY234MX .086 14.00 4.000 – 18 100 1000

TY524MX TY24MX .140 5.50 1.125 MS3367-5 40 100 1000

TY5242MX TY242MX .140 8.19 2.000 – 40 100 1000

TY526MX TY26MX .140 11.10 3.000 – 30 100 1000

TY5244MX TY244MX .140 14.50 4.000 – 30 100 1000

TY525MX TY25MX .185 7.31 1.750 MS3367-1 50 100 1000

TY5253MX TY253MX .187 11.6 3.000 MS3367-7 50 100 1000

TY528MX TY28MX .187 14.20 4.000 MS3367-2 50 100 1000

TY5272MX†TY272MX(1) .270 8.75 2.000 – 120 50 500

TY527MX†TY27MX*(1) .270 13.40 3.500 MS3367-3 120 50 500

TY5275MX TY275MX** .270 18.00 5.000 – 120 50 500

TY5277MX TY277MX** .270 24.30 7.000 – 120 50 500

TY529MX TY29MX* .270 30.00 9.000 MS3367-6 120 50 500

TY53510MX†–.320 35.00 10.000 – 175 50 –

TY54513MX†–.320 45.00 13.000 – 175 50 –

* For military compliance of weather resistant black 120 lb. ties, replace suffix X with O (ie. TY27M-0).

†Not Listed or Recognized Models. / (1) Not CSA Certified

• CSA Certified Natural 6/6 Nylon Cable Ties are suitable for use in air handling spaces in accordance with rules 12-010 (3), (4) and (5), and 12-020 of the CEC.

Ty-Rap®Nylon 6/6 Cable Tie – Colour Assortment

Body Max. Wire Military Tensile

Std. Width Length Bundle Dia. Standard Strength Std.

Cat. No. (in.) (in.) (in.) Part No. (lb.) Pkg.

TY525M-CLRS 0.184 7.31 1.75 – 50 10

Cable ties are same size as TY525M shown above. 10 ties in each colour (black, brown, red, orange, yellow, green, blue, purple,

grey & white) are packaged. 100 total cable ties per package.

NEW

Now UV-Stabilized

Nylon 6.6

Std. Pkg. Bulk Pkg. Length Tensile Strength Std.

Cat. No. Cat. No. Description (in./mm) (lb./n.) Bulk Qty

–

TY525M-CLRS

Multi-Coloured, Natural Nylon, (10 each of standard ten colours) 7.31/185.67 50/222.40 100 Ties

–

TY25M-0

Black, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-1

Brown, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-2

Red, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-3

Orange, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-4

Yellow, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-5

Green, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-6

Blue, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-7

Purple, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-8

Grey, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

–

TY25M-9

White, Natural Nylon 7.31/185.67 50/222.40 1,000 Ties

Cable Ties

Ty-Rap®Nylon 6.6 Cable Ties —

Color Assortment

•Construction — nylon 6.6, 316 stainless steel locking device

The colors you need in convenient packs!

COLOR SUFFIX NO.

Black X

(outdoor)

Brown 1

COLOR SUFFIX NO.

Red

Orange

Yellow

COLOR SUFFIX NO.

Green

Blue

Purple

COLOR SUFFIX NO.

Gray

White

For use in temperatures ranging from -40º F to 185º F (-40º C to 85ºC)

• UL Listed Natural 6.6 Nylon Cable Ties are suitable for use in air handling

spaces (plenums) in accordance with Section 300.22 (C) & (D) of the National

Electrical Code.

• 100 standard ties in black, brown, red, orange, yellow, green, blue, purple,

grey and white (10 each)

• Recommended tooling – ERG-50, WT1-TB

Natural nylon is standard. For coloured Ty-Rap®ties, add the following suffix numbers to catalogue numbers.

Example:

TY25M-2 would be read TY25M. (Consult customer service for ordering information.)

How to Order Coloured

Ty-Rap®Cable Ties

and Accessories

Cable Ties

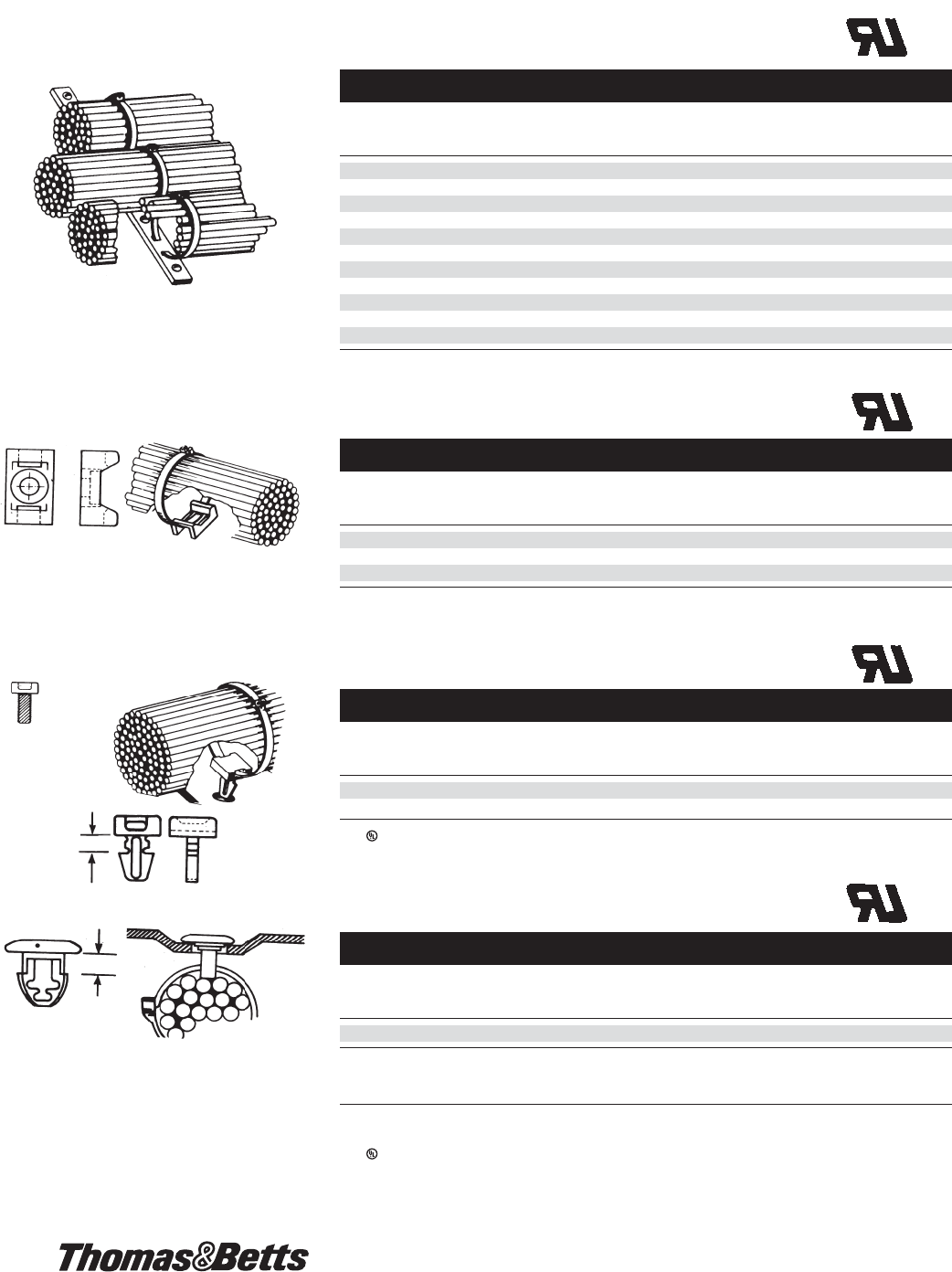

Ty-Rap®Mounting Head Cable Ties

Body Max. Wire Tensile

Std. Bulk Width Length Bundle Dia. Mounting Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) Hole (lb.) Pkg. Pkg.

TY533M TY33M .091 4.00 .625 #4 18 100 1000

TY534M TY34M .140 6.00 1.125 #8 40 100 1000

TY535M TY35M .184 7.80 1.750 #10 50 100 1000

TY5354M TY354M .184 14.60 4.000 #10 50 100 1000

TY1435M – .189 7.8 1.77 .248 50 – 1000

TY635M – .189 7.8 1.77 .138 50 – 1000

TYF535M TYF35M .189 7.24 1.77 .138 50 100 1000

TY537M TY37M .301 13.90 3.500 1/4 120 50 500

Cable ties made from natural nylon 6/6 are excellent performers in most applications. Nylon 6/6 is recommended for use in

temperatures ranging from 185°F to -40°F.

The MX series cable ties are recommended for

outdoor use. The addition of carbon black

provides good ultraviolet resistance and

prolongs the useful life of the cable tie.

TY533M

TY534M

TY537M

• Great for use with screws, nuts and bolts for

secure fastening to surfaces.

TY535M

TY5354M

TY534MX

TY535MX

TY5354MX

TY537MX

TY533MX

TY554M

TY538M

ULTRAVIOLET

RESISTANT

Nylon 6/6 Weather Resistant

Body Max. Wire Tensile

Std. Bulk Width Length Bundle Dia. Mounting Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) Hole (lb.) Pkg. Pkg.

TY533MX TY33MX .091 4.00 .625 #4 18 100 1000

TY534MX TY34MX .140 6.00 1.125 #8 40 100 1000

TY535MX TY35MX .184 7.80 1.750 #10 50 100 1000

TY5354MX TY354MX .184 14.60 4.000 #10 50 100 1000

TY538MX TY38MX .184 7.80 1.750 1¼450 – 1000

TY537MX TY37MX .301 13.90 3.500 1¼4120 50 500

Ty-Rap®Push Mount Cable Ties

For use in 3/16" and 1/4" pre-drilled holes. Thickness panel .094 max. (TY554M)

Range .04 - .156 (TY538M)

Body Max. Wire Tensile

Std. Bulk Width Length Bundle Dia. Mounting Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) Hole (lb.) Pkg. Pkg.

TY554M TY54M .140 5.96 1.125 3/16 40 100 1000

TY538M TY38M* .184 7.80 1.750 1/4 50 100 1000

Cable ties made from natural nylon 6/6 are excellent performers in most applications. Nylon 6/6 is recommended for use in

temperatures ranging from 185°F to -40°F.

* Nylon 6/6 UV weather resistant version available (TY38MX).

Note:

The base catalogue number for Ty-Rap®cable ties is for natural (non-coloured) nylon without the

UV-stabilizing additive, which is not suitable for outdoor use. For coloured UV-stabilized nylon Ty-Rap®

cable ties, add the following suffix numbers to the base catalogue numbers. For example, TY25M is

natural (non-coloured) nylon for indoor use only, while TY25M-2 is red UV-stabilized nylon for indoor or

outdoor use. (Consult customer service for ordering information.)

How to Order Colour-Coded Ty-Rap®Ties and Accessories

Colour Suffix No.

Black X

Brown 1

Red 2

Orange 3

Yellow 4

Green 5

Colour Suffix No.

Blue 6

Purple 7

Grey 8

White 9

Beige 22

Cable Ties

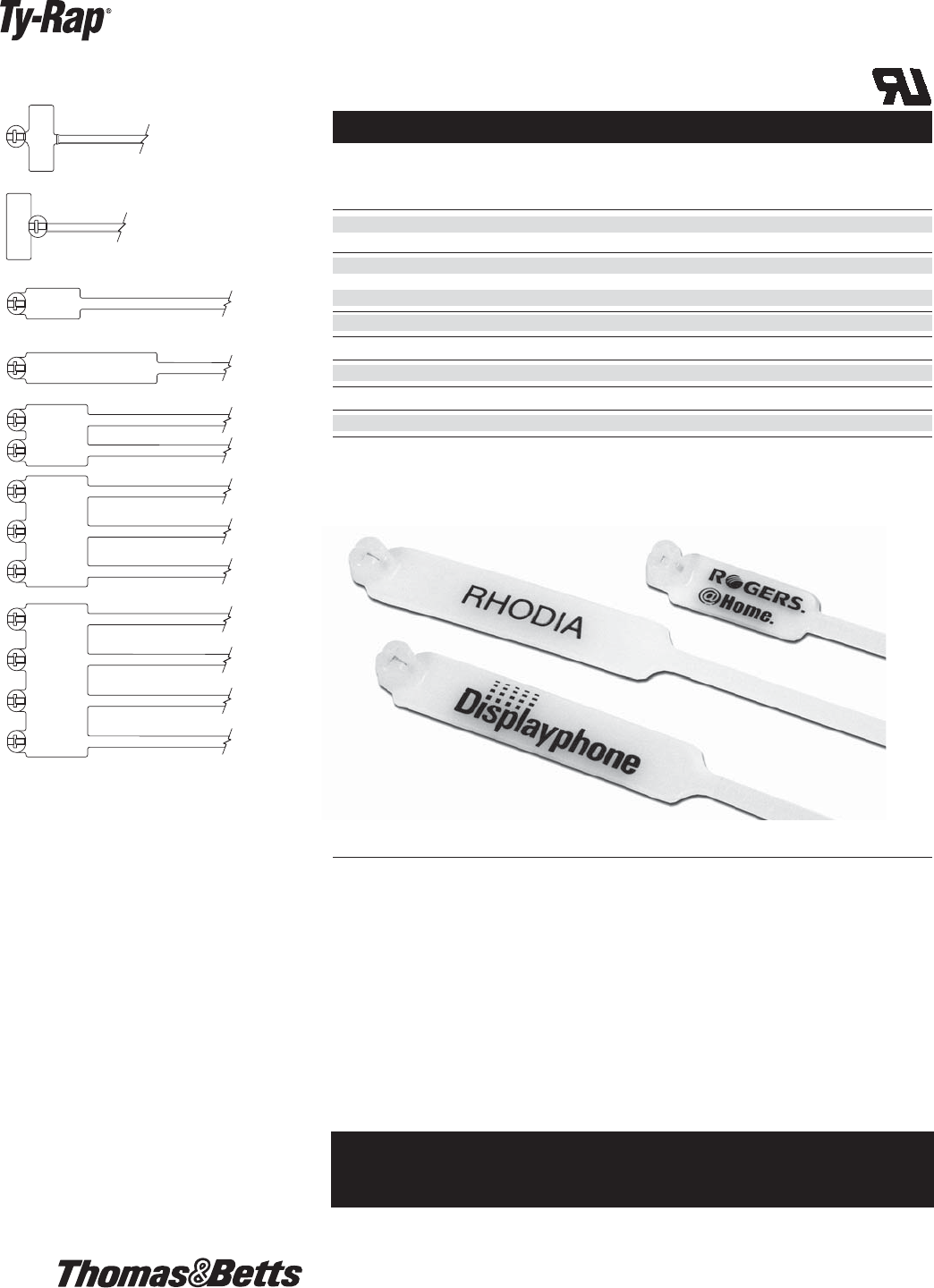

Ty-Rap®Identification Cable Ties

Marking

Body Total Max. Wire Military Pad Size Tensile

Std. Bulk Width Length Bundle Dia. Standard (in.) Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) Part No. W x H (lb.) Pkg. Pkg.

TY551M TY51M .093 3.60 0.625 MS3368-5 1 x .313 18 100 500

TY5512M TY512M .090 8.30 2 – 1 x .313 18 100 1000

TY553M TY53M .093 4.00 0.625 – .813 x .359 18 50 500

TY5532M TY532M .090 8.40 2 – .813 x .359 18 100 1000

– TY153M .097 4.35 0.625 – .781 x 1 18 – 500

TY546M TY46M .184 7.1 1.75 MS3368-1 .5 x .875 50 100 1000

TY548M TY48M* .187 14.2 4 MS3368-2 .5 x 2.125 50 100 1000

TY546MD TY46MD* .185 7.25 1.75 MS3368-3 1.172 x 1 50 50 500

TY546MT TY46MT* .185 7.25 1.75 MS3368-4 1.210 x 1 50 100 500

TY546MF TY46MF .185 7.25 1.75 – 2.48 x 1 50 – 500

Self-locking Ty-Rap®identification ties are available in both single and multiple configurations. They may be marked with the special

Thomas & Betts black or red marking pen which produces a permanent legend, or they can be heat stamped. Because the ties serve

the dual purpose of tying and identifying, you will achieve extra economies. They can be applied with the standard Ty-Rap® tying tools

used for regular ties.

* Nylon 6/6 UV weather resistant version available (add suffix “-x”).

TY551M

TY5512M

TY553M

TY5532M

TY153M

TY546M

TY548M

TY546MD

TY546MT

TY546MF

Custom Heat Stamping

Thomas & Bett’s Custom Heat Stamping

provides an economical way to fasten

and identify cable bundles. Mark nylon

cable ties, identification cable ties, and

identification plates to suit your

application.

• 1/16", 1/8", 3/16" characters available.

• Standard Type: Gothic Capitol.

• Character sizes can be mixed from line

to line on Identification cable ties.

• Alphanumeric and Sequential

numbering available.

• Six digit sequential numbering available

in 1/8" characters.

• Eight digit sequential numbering

available in 1/16"and 3/16"

characters.

• The following colours of heat stamping

are available – Black, Blue, Green,

Red, Yellow, Orange and White.

• Special logos and different type styles

can be accommodated when camera

ready artwork is provided.

• Minimum order quantity is 3000 pieces

per part number and message.

Contact your Regional Sales Office for Pricing, Availability,

Quotation and Order Entry.

TC123-TB

TC224-TB

TC223-TB

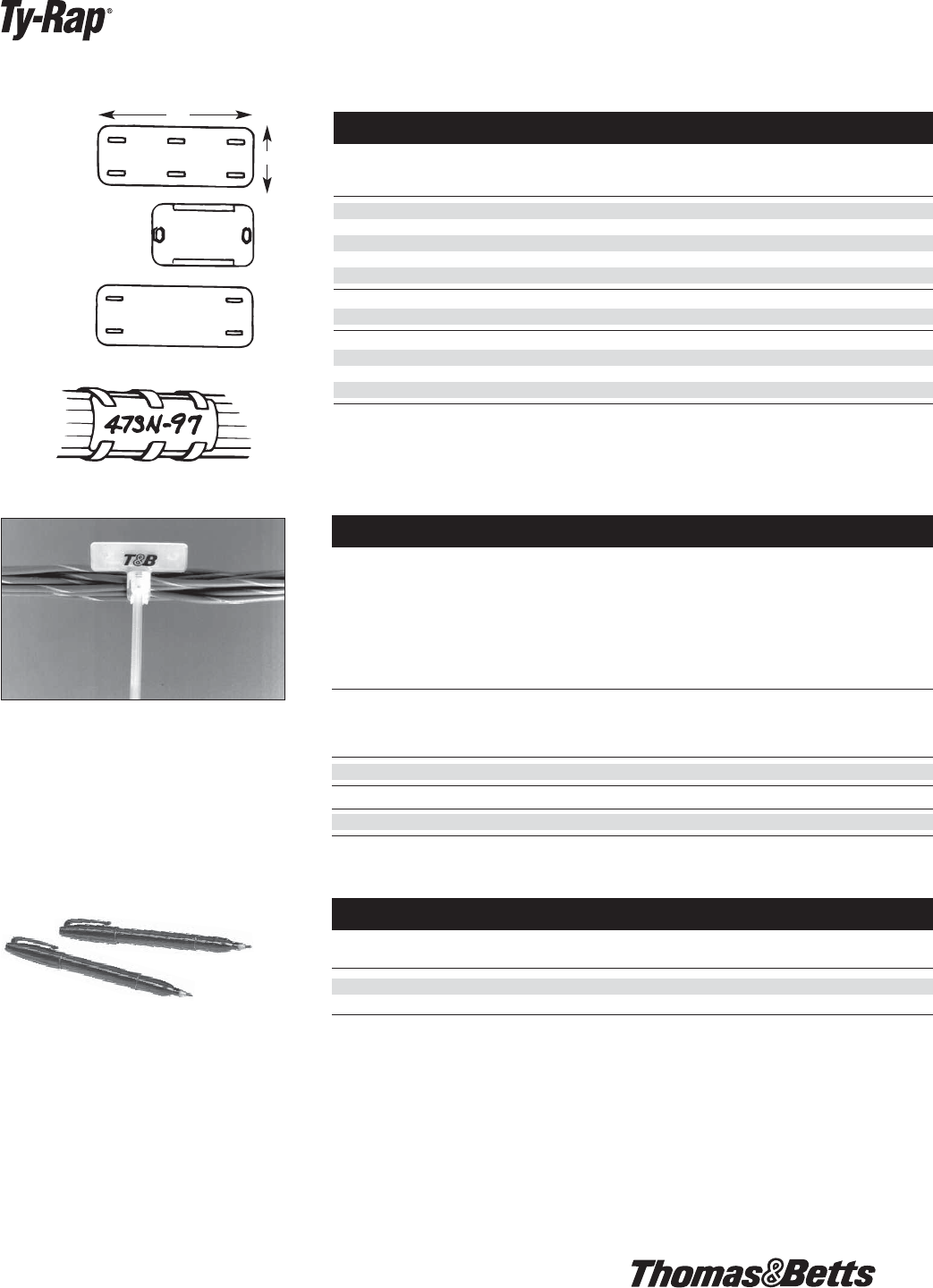

Identification Plates

Max. Cable Tie

Bulk Width Length Thickness Width Bulk

Cat. No. (in.) (in.) (in.) (in.) Pkg.

TC123-TB .75 1.25 .010 .190 1000

TC124-TB .75 1.50 .010 .190 1000

TC125-TB .75 1.75 .010 .190 1000

TC126-TB .75 2.00 .010 .190 1000

TC128-TB .75 2.50 .010 .190 1000

TC223-TB .75 1.28 .015 .190 1000

TCZ223 .75 1.28 .015 .190 1000

TC224-TB .75 1.28 .015 .190 1000

TC225-TB .75 1.75 .015 .190 1000

TC226-TB .75 2.00 .015 .190 1000

TC228-TB .75 2.50 .015 .190 1000

Ranging in length from 1-1/4" to 2-1/2", the identification plates are secured to the cable with Ty-Rap®ties. They are composed of

.010"- and .015"-thick nylon, and have a surface which can be marked easily. Thomas & Betts offers custom heat stamping of your

plates at the factory. Other materials are available. Contact customer service.

Cable Ties

Snaps onto the head of a conventional cable tie

to convert it to an identification tie.

• When snapped onto the tie head, the tag is

conveniently held in place until it is

permanently fastened.

• Offers maximized inventory control because

the I.D. tag will accommodate different tie

lengths and materials.

Snap-On Identification Marker Tag

• Allows marking and bundling to be

done in one operation.

• The marking can be made with a

Thomas & Betts permanent marking

pen (black or red); catalogue numbers:

WT163M-1 (black), WT163M-3 (red).

• The identification tags are sold

separately and can be conveniently

snapped on the cable ties at the

assembly location just before being

installed on the bundle.

Marking

Pad Size

Std. Bulk (in.) Std. Bulk

Cat. No. Cat. No. Description W x H Pkg. Pkg.

TC523 TC23 Snaps onto the heads of all miniature 18 lb. series cable ties 1" x .35" 100 1000

TC524 TC24 Snaps on to the heads of all intermediate 30 & 40 lb. series cable ties 1" x .50" 100 1000

TC525 TC25 Snaps onto the heads of all standard 50 lb. series cable ties 1" x .50" 100 1000

Note: Made of natural nylon 6/6.

Ty-Rap®Marking Pens

Std.

Cat. No. Colour Ink Pkg.

WT163M-1 Black 1

WT163M-3 Red 1

Note: Permanent, fine point.

Cable Ties

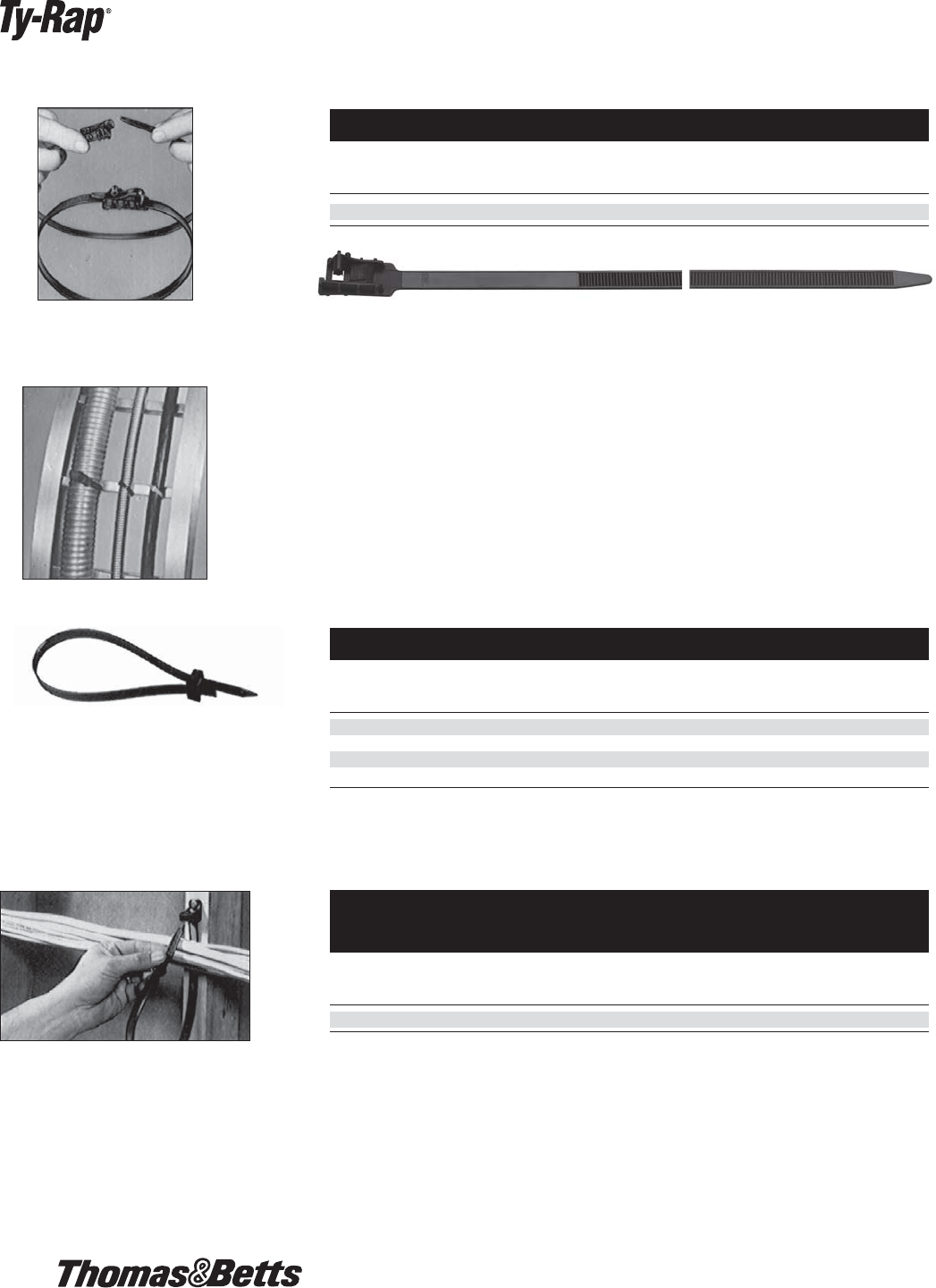

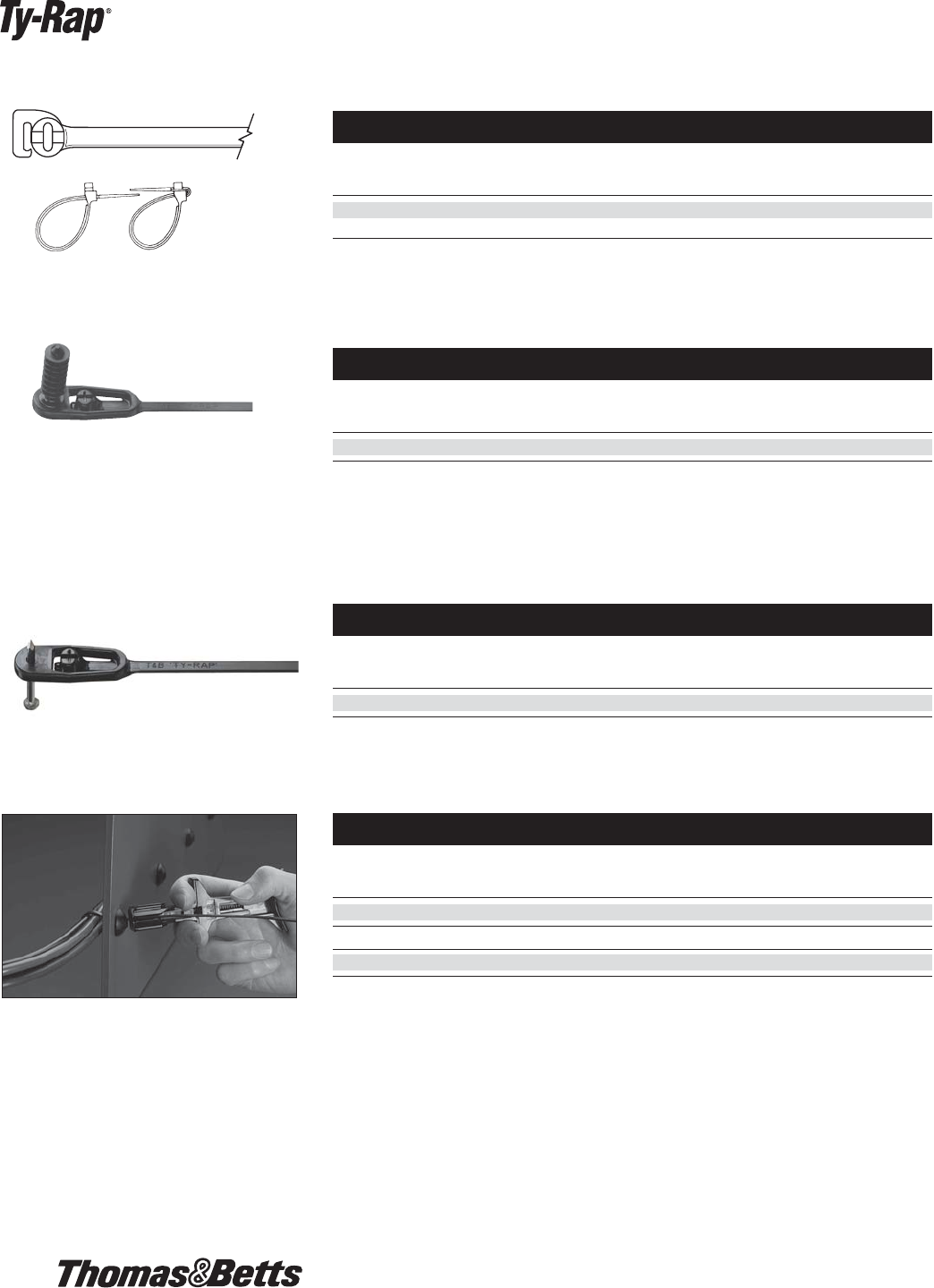

Reusable Ty-Rap®Cable Ties

Body

Width Length Bundle Dia. Tensile Std.

Cat. No. (in.) (in.) (in.) Strength Pkg.

TYR505 .184 7.50 1.75 50 100

TYR508 .184 14.30 4.00 50 100

Cable ties made from natural nylon 6/6 are excellent performers in most applications. Nylon 6/6 is recommended for use in

temperatures ranging from 185°F to -40°F.

This Ty-Rap®brand cable tie lets you secure wire

bundles up to 1-3/4 inches in diameter to all

masonry surfaces. It is equipped with a masonry

plug which is driven into the drilled hole. Once

installed, the tail is looped through the head to

provide a neat, safe, low-profile installation. It is

made of black, weather-resistant nylon.

The Drive-TyTM cable tie gives you a fast, safe

means of securing cables to wood surfaces.

• One-piece design, fast and convenient to use.

• Lowers your installed cost.

• Clamping range of 1/16 to 2 -3/8 inches

reduces your inventory – one clamp replaces

many.

• Visually attractive – head resembles rivet.

• Locking grooves maintain tight grip.

Drive-TyTM Cable Tie

Body Max. Wire

Width Bundle Dia. Pullout Std.

Cat. No. (in.) (in.) Force Pkg.

TY545MX .184 1.5 50 50

Universal Button Head Cable Tie

Body Max. Wire

Std. Bulk Width Length Bundle Dia. Hole Tensile Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) Size Strength Pkg. Pkg.

TY541M TY41M .225 9.60 2.37 .32-.68 65 50 1000

650-41600 – .225 10.25 2.5 .32-.68 65 500 1000

696-41848 – .225 12.5 3 .32-.68 65 500 1000

Note: Loop tie through hole in frame, around electrical, hydraulic, or air hoses to be clamped, and through head. Tighten and cut off

with Ty-Rap tool. Visually looks like a rivet.

Plug-TyTM Cable Tie for Masonry Surfaces

Body Max. Wire Masonry

Width Bundle Dia. Hole Pullout Std.

Cat. No. (in.) (in.) Size Force Pkg.

TY544MX .184 1.75 1/4 25 50

Cable Ties for Special Environments

Available Materials 5 = Most Suitable 1 = Least Suitable

Heat

Weather Stabilized Flame Weather Weather

Natural Resistant Natural Retardant Resistant Resistant Fluoro- Stainless Weatherable

66 Nylon 66 Nylon 66 Nylon 66 Nylon Nylon 12 Polypropylene polymer Halar®Steel Acetal

Ultraviolet Resistance 1 4 1 1 4 4 5 5 5 4

Radiation Resistance 1 1 1 1 1 1 4 4 5 1

Low Temperature 3 3 3 2 4 3 4 4 5 4

High Temperature 3 3 4 3 2 2 4 4 5 2

Flammablity 3 3 3 4 1 1 4 4 5 1

Tensile Strength 3 3 3 3 2 1 3 3 5 2

Relative Cost Low Low Low Med Med Low High High High High

Chemical Resistance See Table 3

Cable Ties – Material

Selection Ordering Guide

Thomas & Betts offers Ty-Rap®cable

ties and accessories in a wide variety of

materials, each suited for specific

environments. The purpose of this

document is to assist you in choosing

the best material for your particular

application. The effects of weathering,

flame, chemicals, extreme temperatures,

and radiation on the different materials

are clearly presented in the following

tables to simplify this process. Once you

have determined the most suitable

material, you can choose from the wide

variety of Ty-Rap®cable ties,

identification ties, mounting bases,

lashing ties, etc., offered by

Thomas & Betts.

How to use Table 1:

Table 1 simplifies the material selection

process by giving the relative

performance ratings of the materials

offered by Thomas & Betts. For example,

if your application is in an extremely cold

environment, four materials will answer

your need: Fluoropolymer, nylon 12,

Halar®+, and stainless steel. Then, cost

may be your next most important criteria,

so out of those four options, nylon 12

would be the most cost effective.

However, if tensile strength is important,

then stainless steel would be the better

choice.

Refer to tables 2 (page 38) and 3 (page

40-42) for more detailed information

regarding physical properties of the

materials and chemical resistance of the

materials respectively.

It is extremely difficult to provide data on

all the possible combinations or

conditions that can occur. This

information is based on data provided by

the manufacturers of the specific

materials listed and is provided only as a

general guide. No specific

recommendation is intended. As each

application may differ, cable tie samples

should be tested in the intended

application by the user to determine

suitability.

+ - Halar®is the trademark of Solvay Solexis, Inc.

TABLE 1

Cable Ties for Special Environments

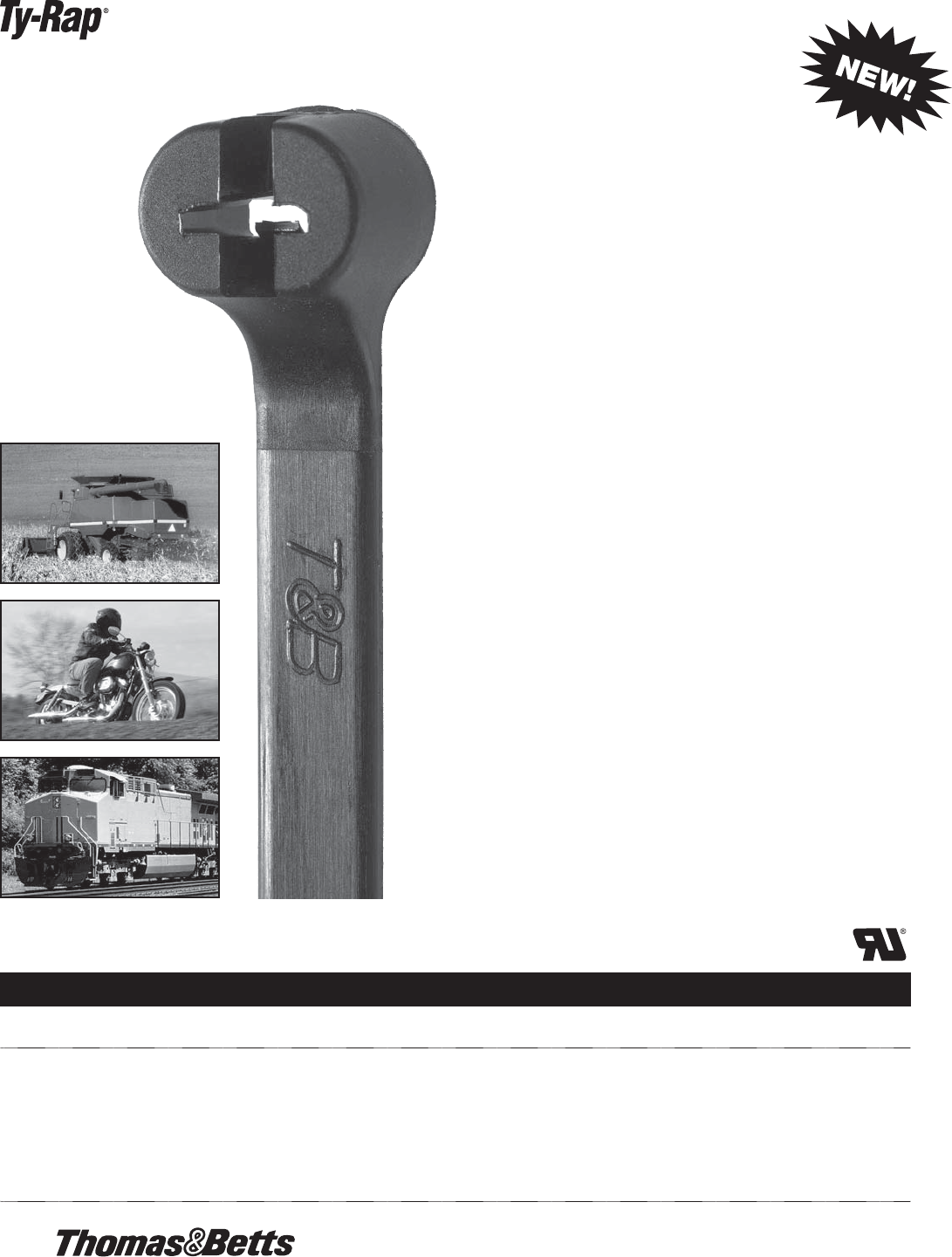

Heat Stabilized/Ultraviolet

Resistant Cable Ties

Ty-Rap®Heat Stabilized/Ultraviolet (UV) Resistant Cable

Ties are a durable, cost effective bundling solution

designed to be used in special applications and in harsh

environmental conditions. The new ties combine heat

stabilizing and UV resistant materials to provide a better

match for special applications both in outdoor and high

temperature areas. These ties also provide a smooth, low

profile look and they offer unlimited tensioning range for a

perfect fit. The convenience of a single tie for both

applications keeps installation time and cost to a

minimum. These ties are also an effective alternative to

expensive metallic fasteners, which are priced higher and

take longer to install. Remember to look for the oval head,

which is featured on every original Ty-Rap®Cable Tie.

• Ideal for industrial OEM and MRO (includes, but not

limited to industrial, lawn/garden/farming equipment,

recreation vehicules, heavy equipment)

• Can be placed in environments requiring heat stabilized

and UV resistance

• Provides a smooth, low profile look and offers unlimited

tensioning range for a perfect fit

• Features an oval head on every original Ty-Rap®

Cable Tie

• Quicker to install and less expensive than metallic

fasteners, lacing cord or tape

• Made of heat stabilized nylon

• UV Resistant

• Black Colour

• Temperature Rating: (-40ºF/-40ºC) to (221ºF/105ºC)

• UL Recognized

Ty-Rap®Heat Stabilized/UV Resistant Cable Ties

Cat.

Number Description Std. Pkg.

Qty.

UPC

Number

TY23MX-A Ty-Rap®Cable Ties, Heat Stabilized and UV Resistant Black Nylon, 3.62”

length, 18 lb. tensile strength 1000 Per Bag 78621081641

TY24MX-A Ty-Rap®Cable Ties, Heat Stabilized and UV Resistant Black Nylon, 5.5” length,

40 lb. tensile strength 1000 Per Bag 78621081615

TY25MX-A Ty-Rap®Cable Ties, Heat Stabilized and UV Resistant Black Nylon, 7.31”

length, 50 lb. tensile strength 1000 Per Bag 78621081636

TY27MX-A Ty-Rap®Cable Ties, Heat Stabilized and UV Resistant Black Nylon, 13.40”

length, 120 lb. tensile strength 500 Per Bag 78621081642

Cable Ties for Special Environments

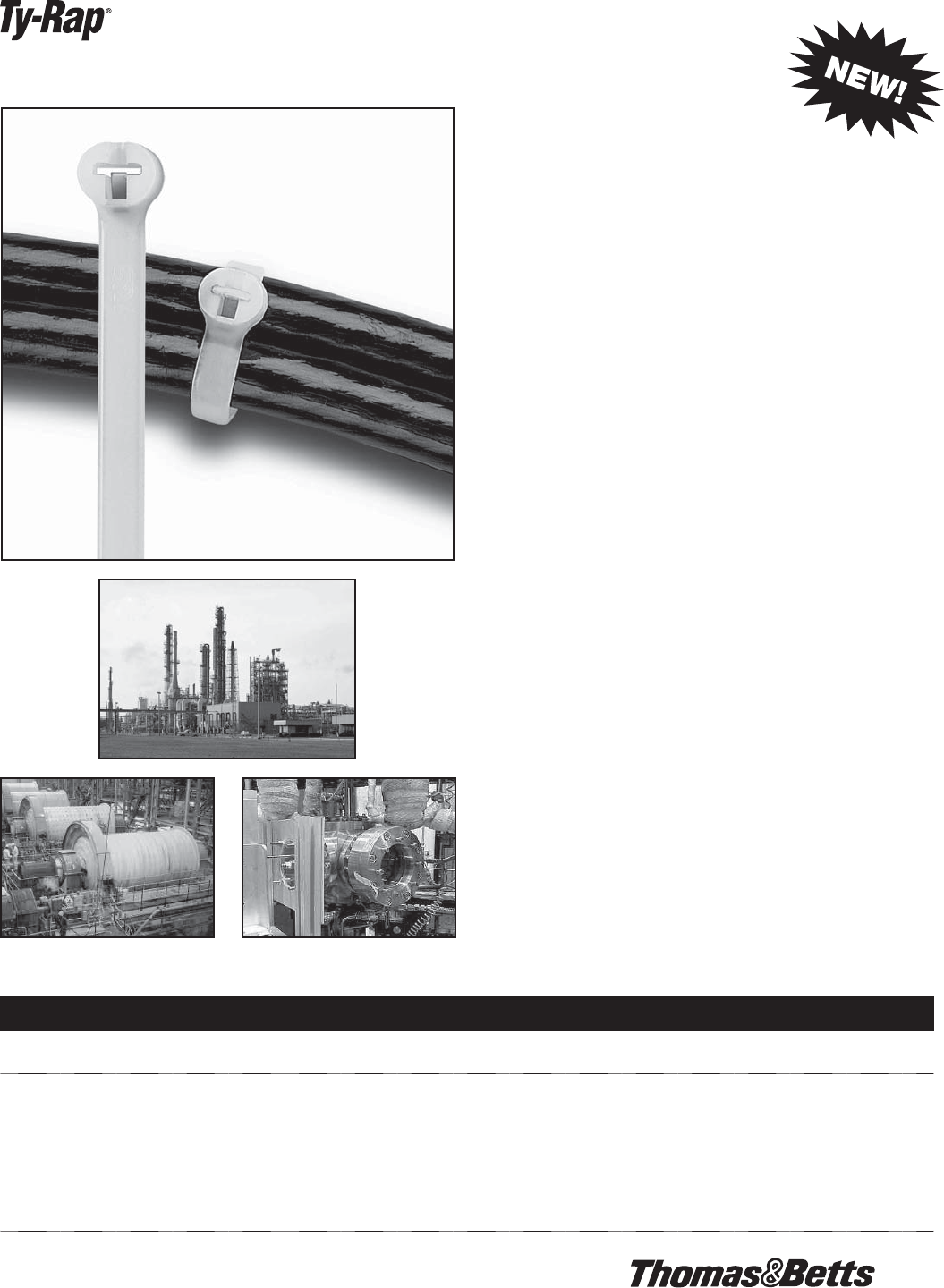

Extra High Temperature

Cable Ties

Ty-Rap®Extra High Temperature Cable Ties are

designed to withstand extended usage in extra high

temperature applications. The advanced nylon heat

stabilizing material is suitable in an extra high

temperature setting, thus reducing the need for

expensive metallic fasteners. These ties also provide a

smooth, low profile look and they offer unlimited

tensioning range for a perfect fit. Ty-Rap®Extra High

Temperature Cable Ties can save time, money and are a

solid match for applications where extra high

temperatures are present in the environment. Remember

to look for the oval head, which is featured on every

original Ty-Rap®Cable Tie.

• Ideal for industrial OEM and MRO (includes, but not

limited to metal processing, paper mills, lighting and

other high temperature environments) and

commercial construction markets

• Provides a smooth, low profile look and offers

unlimited tensioning range for a perfect fit

• Features an oval head on every original Ty-Rap®

Cable Tie

• Made of extra high temperature nylon

• Light Green Colour

• Quicker to install and less expensive than metallic

fasteners, lacing cord or tape

• Maximum continuous temperature rating in air:

(-40ºF/-40ºC) to (302ºF/150ºC)

Ty-Rap®Extra High Temperature Cable Ties

Cat.

Number Description Std. Pkg.

Qty.

UPC

Number

TYHT23M Ty-Rap®Cable Ties, High Temperature Light Green Nylon, 3.62” length,

18 lb. tensile strength 1000 Per Bag 78621095267

TYHT25M Ty-Rap®Cable Ties, High Temperature Light Green Nylon, 7.31” length,

50 lb. tensile strength 1000 Per Bag 78621095270

TYHT27M Ty-Rap®Cable Ties, High Temperature Light Green Nylon, 13.40” length,

120 lb. tensile strength 500 Per Bag 78621095272

TYHT28M Ty-Rap®Cable Ties, High Temperature Light Green Nylon, 14.20” length,

50 lb. tensile strength 1000 Per Bag 78621095271

4", 8", and 11"–14" Combination

Length Cable Tie Dispensers

Keep Ty-Rap®cable ties at your fingertips with Ty-Rap®Totes™.

Ty-Rap®Tote™cable tie dispensers are a fast and easy way to store

and dispense cable ties between 4", 8", 11"–14" in length. Clip one

to your belt or tool pouch, and free your hands for the rigors of the

job. Your Ty-Rap®cable ties will be easily accessible when and

where you need them.

• Durable, lightweight polyester exterior and tough vinyl interior

construction

• Rugged diamond-shaped cutout for easy access to cable ties (up

to 8", 11"–14" lengths) and rectangular-shaped (for 4" length)

• Handy belt clip and chrome steel loop for easy attachment

• Resealable hook-and-loop flap for easy refill

• Includes 100 genuine Ty-Rap®cable ties

• Refilling is a cinch

• Cable ties at your fingertips

• Free your hands for the job

• No more lost ties or dropped bags

Ty-Rap®Tote™Cable Tie Dispenser

Cat. Std. Pkg. UPC

Number Description Qty. Number

TY-TOTE-23 Ty-Rap®Tote™4" Cable Tie Dispenser (includes 1 pkg. TY523M) 1 Tote 78621095084

TY-TOTE-25 Ty-Rap®Tote™8" Cable Tie Dispenser (includes 1 pkg. TY525M) 1 Tote 78621083871

TY-TOTE-28 Ty-Rap®Tote™11"–14" Combination Cable Tie Dispenser (includes 1 pkg. TY528M) 1 Tote 78621097941

Order only genuine Ty-Rap®Cable Ties to refill your dispenser!

TY523M Ty-Rap®Cable Ties, Natural Nylon, 3.62" length, 18 lb. tensile strength (100 to a pkg.) 100 Ties 78621080507

TY523MX Ty-Rap®Cable Ties, UV Resistant (Black), 3.62" length, 18 lb. tensile strength (100 to a pkg.) 100 Ties 78621080508

TY525M Ty-Rap®Cable Ties, Natural Nylon, 7.31" length, 50 lb. tensile strength (100 to a pkg.) 100 Ties 78621080509

TY525MX Ty-Rap®Cable Ties, UV Resistant (Black), 7.31" length, 50 lb. tensile strength (100 to a pkg.) 100 Ties 78621080510

TY5253M Ty-Rap®Cable Ties, Natural Nylon, 11.6" length, 50 lb. tensile strength (100 to a pkg.) 100 Ties 78621086989

TY5253MX Ty-Rap®Cable Ties, UV Resistant (Black), 11.6" length, 50 lb. tensile strength (100 to a pkg.) 100 Ties 78621088513

TY528M Ty-Rap®Cable Ties, Natural Nylon, 14.2" length, 50 lb. tensile strength (100 to a pkg.) 100 Ties 78621080513

TY528MX Ty-Rap®Cable Ties, UV Resistant (Black), 14.2" length, 50 lb. tensile strength (100 to a pkg.) 100 Ties 78621080514

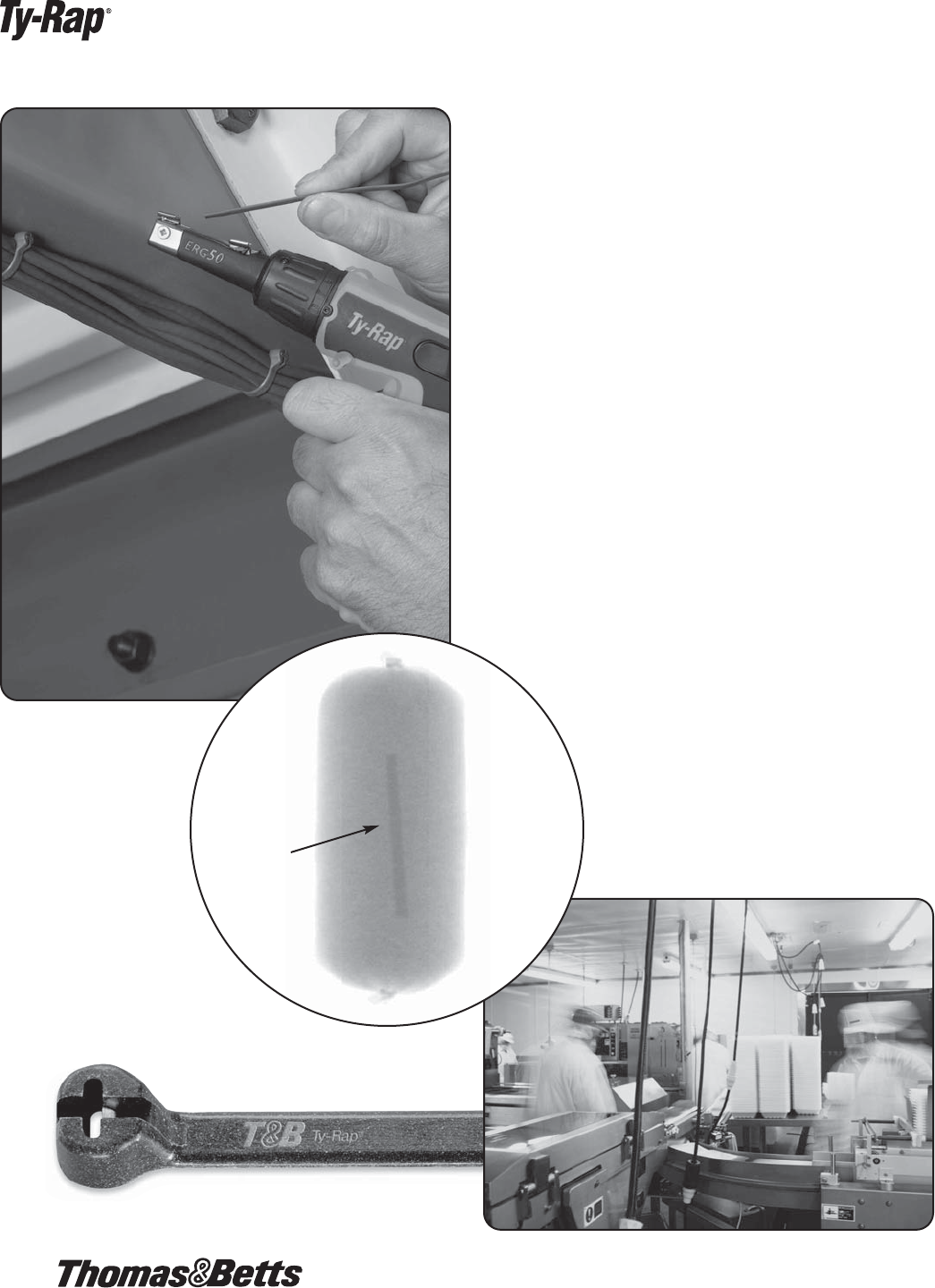

Because Secret Ingredients

Aren’t Always a Good Thing.

Cable Ties for Special Environments

Avoid Unpleasant

Surprises with Ty-Rap®

Detectable Cable Ties.

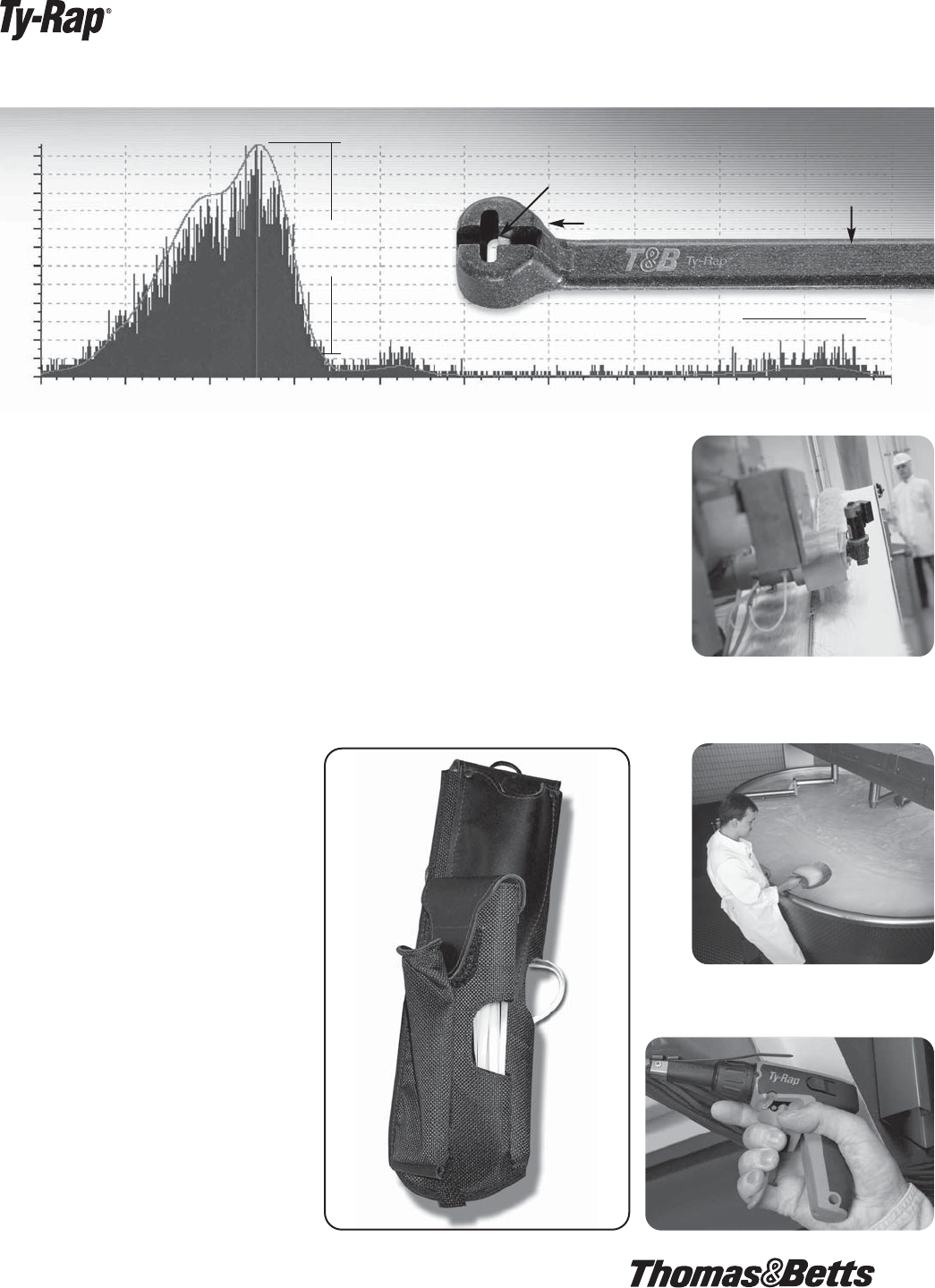

When you were six, you were thrilled to find the secret decoder

ring at the bottom of the cereal box. But since then, you probably

don’t think of hidden surprises in food as a good thing. And if

you’re employed in food, beverage or pharmaceutical processing,

the last thing you want is a consumer finding the trimmed-off end

of a cable tie packaged with your product.

In fact, some manufacturing plants in industries sensitive to

contamination have banned the use of nylon cable ties in their

manufacturing plants, because standard nylon can pass

unnoticed through metal detectors, x-ray equipment and standard

visual detection systems.

Now there’s an alternative to protect against potential

contamination of your product with standard nylon cable ties or

paying for expensive stainless steel fasteners. Ty-Rap®Detectable

Cable Ties are made from standard nylon or polypropylene, but

incorporate a unique, compound detectable by metal detectors

and x-ray equipment. Their bright blue colour makes them easy to

spot, and the polypropylene version is buoyant, making it ideal

for use in liquid processing areas.

With Ty-Rap®Detectable Cable Ties, you have all of

the advantages of the original Ty-Rap®Cable Tie,

including a smooth body with an infinitely

adjustable design, high-performance stainless

steel locking device for a perfect fit and superior

holding power — plus the peace of mind of

knowing the integrity of your product

is uncompromised.

Detectable by:

• Metal detectors

• X-ray equipment

• Visual detection

systems

Contains a unique, compound detectable by metal

detectors and x-ray equipment.

A piece of

Ty-Rap®

Detectable

Cable Tie

Ty-Rap®Detectable Cable Ties were

tested by leading metal-detection

and x-ray equipment manufacturers

to ensure detectability.

Features

• Detectable by metal detectors set at minimum 1.5mm ferrous sphere

• Detectable by x-ray equipment

• Bright blue colour allows easy visual detection, especially on white conveyor

systems

• Buoyant, polypropylene version available for use

in liquid-processing applications

• “The Grip of Steel®” locking device offers superior performance

• Oval, low-profile head and smooth molded body shed contaminants

• Half the price of stainless steel fasteners

• Infinitely adjustable design ensures the

right fit

• Maximum operating temperature:

185° F (85° C)

• Available in a variety of sizes and

tensile ratings

Typical Applications

• Food and beverage processing

• Pharmaceutical production

• Chemical and compounds

manufacturing

• Tobacco processing

• Tire and airbag manufacturing

• Any other industry sensitive to

contamination and using detection

equipment

The polypropylene version of Ty-Rap®

Detectable Cable Ties floats, making it

easy to spot in liquid-processing areas.

Cable Ties for Special Environments

Rounded, low-profile head

Stainless Steel Locking Device

Grey Scale Histogram

Grey Value

Food

Detection

Frequency

1200 2090 2980 3870 4760 5650 6540 7430 8320 9210 10100

Smooth body strap

Ty-Rap® Detection

Ty-Rap®- Ty-Pak®

Cable Ties for Special Environments

Great addition to the Ty-Rap®Detectable Cable Ties!

Ty-Rap®Detectable Cable Ties

Cat. Bundle Tensile Std. Pkg. UPC

Number Length Width Dia. Max. Rating Qty. Number

Bright Blue Detectable — Compound Nylon 6.6

TY523M-NDT 3.62" 0.093" 0.625" 18 lb./80N 100 78621099531

TY525M-NDT 7.31" 0.185" 1.750" 50 lb./220N 100 78621099533

TY527M-NDT 13.40" 0.270" 3.500" 120 lb./540N 50 78621099537

TY528M-NDT 14.20" 0.187" 4.000" 50 lb./220N 100 78621099535

Bright Blue Detectable — Compound Buoyant Polypropylene

TY523M-PDT 3.62" 0.093" 0.625" 18 lb./80N 100 78621099532

TY525M-PDT 7.31" 0.185" 1.750" 30 lb./135N 100 78621099534

TY527M-PDT 13.40" 0.270" 3.500" 60 lb./267N 50 78621099538

TY528M-PDT 14.20" 0.187" 4.000" 30 lb./135N 100 78621099536

Cat. Std. Pkg. UPC

Number Description Qty. Number

Ty-Rap®TY-Pak®

TB-RAP-100 Double-barrel module 1 78620986650

TB-RAP-200 Single-barrel module 1 78620986651

TB-RAP-300 Single-barrel module 1 78620986652

TB-RAP-110 Double-barrel module 1 78620986653

TB-RAP-210 Single-barrel module 1 78620986654

TB-RAP-310 Single-barrel module 1 78620986655

TB-RAP-211 Single-barrel module 1 78620986656

TB-RAP-311 Single-barrel module 1 78620986657

Cat. Handle Tie Body Std. Pkg. UPC

Number Colour Tension Width Range Qty. Number

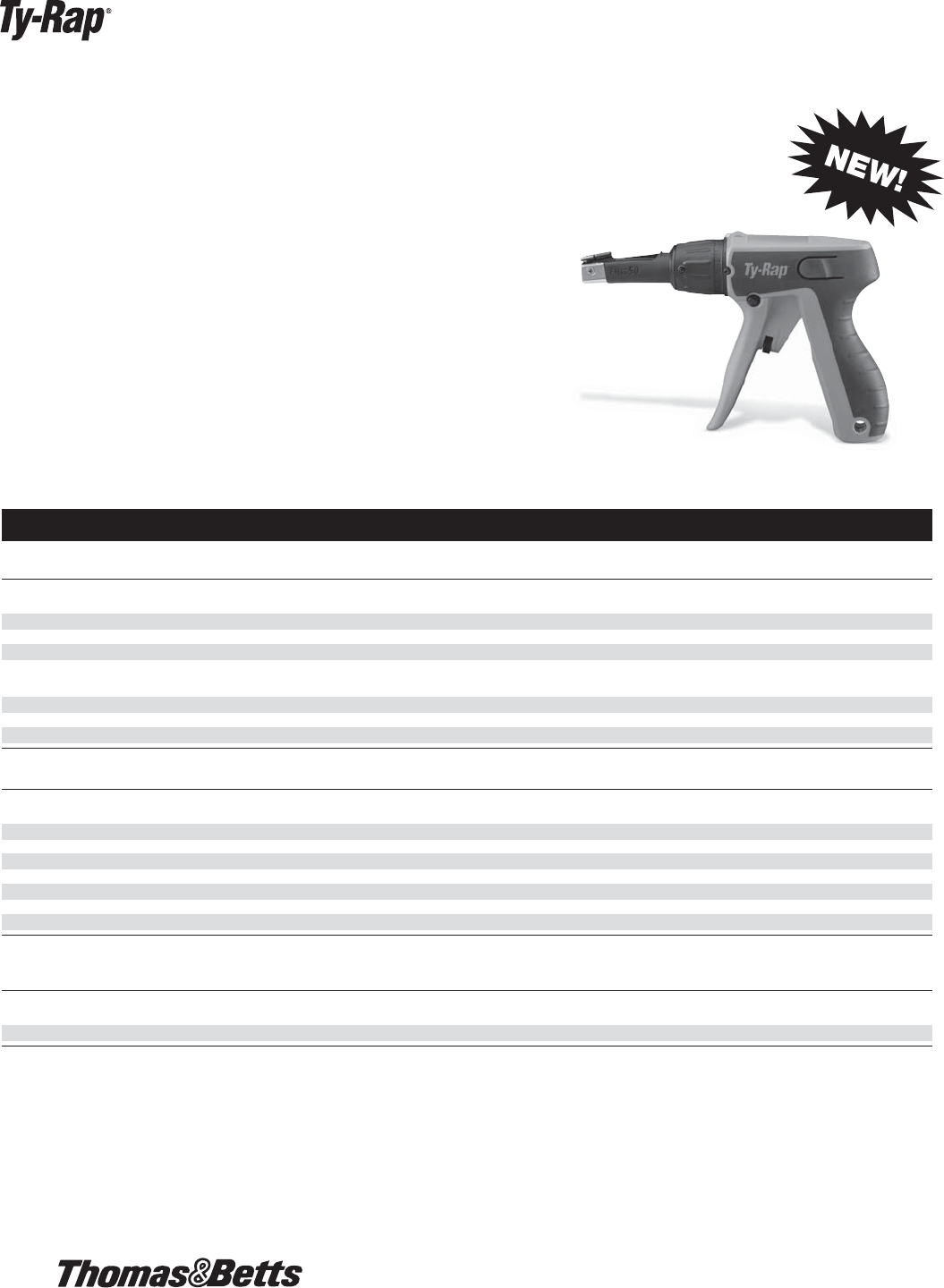

Ty-GunTM Cable Tie Tool

ERG50 Black 18-50 lb. 0.094" – 0.184" 1 78621058790

ERG120 Red 50-120 lb. 0.184" – 0.301" 1 78621058788

ERG50

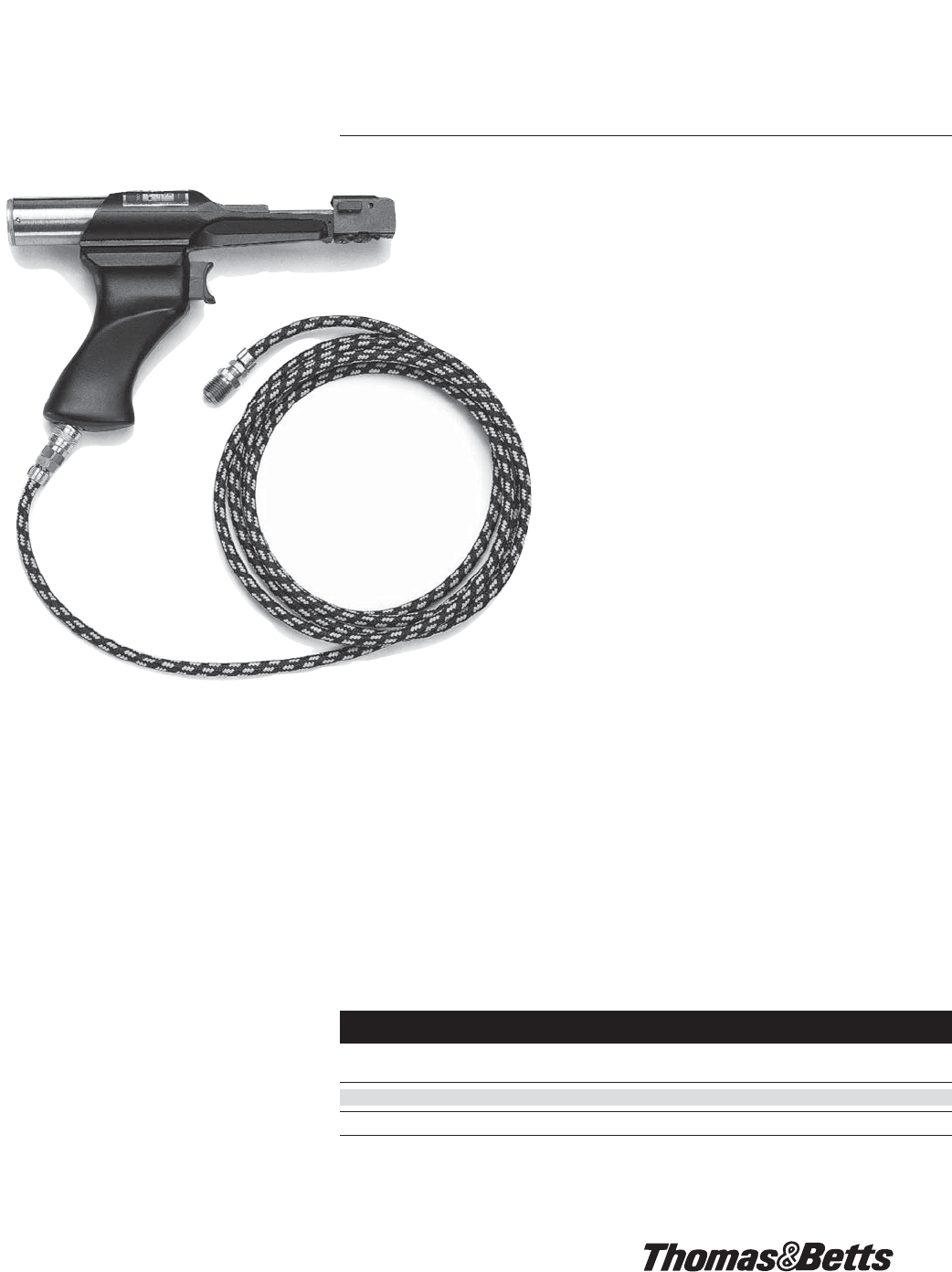

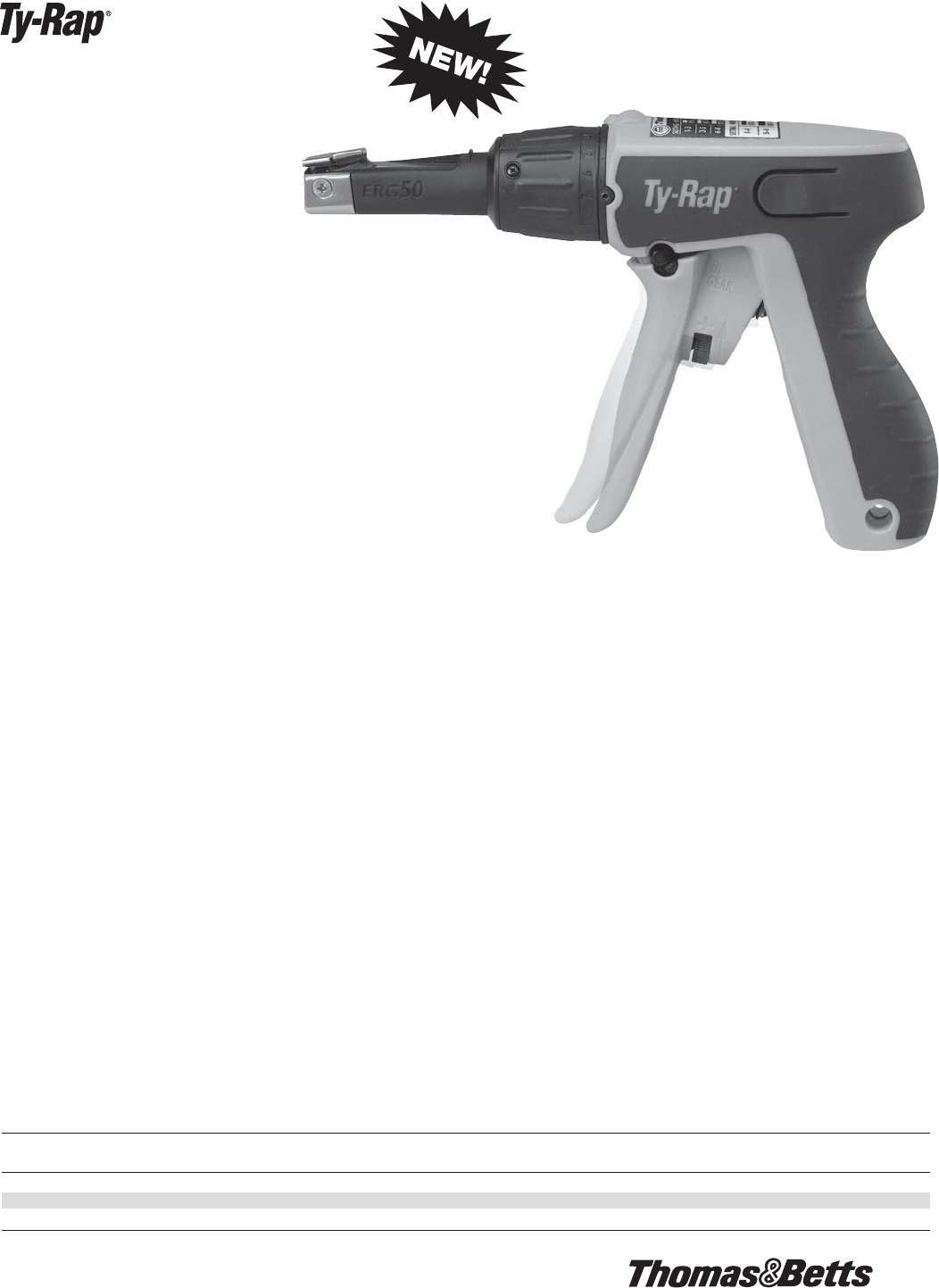

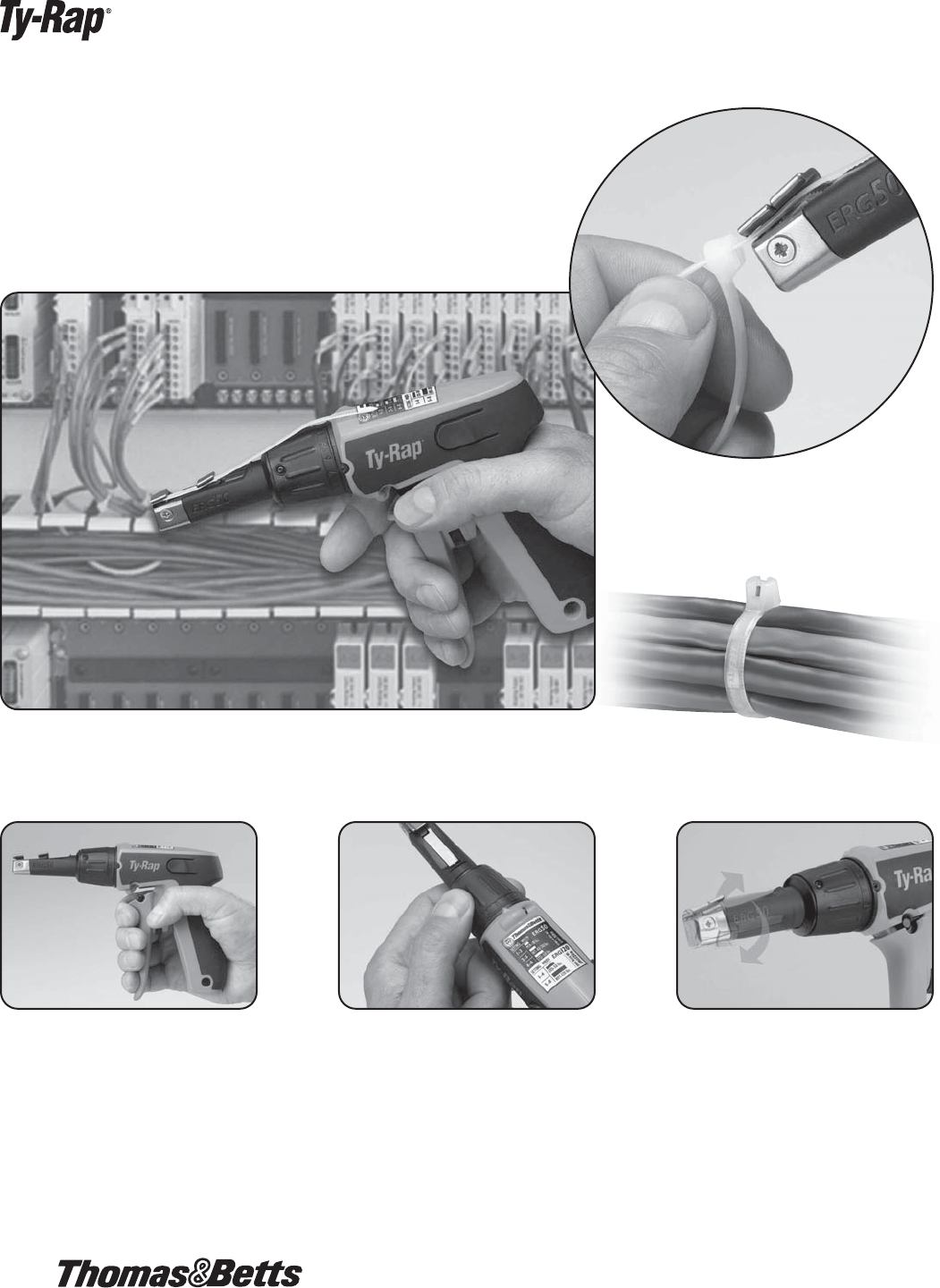

Ty-GunTM Cable Tie Tool

No More Flying Cable Tie Tails —Cleanly Cuts Ties and Holds Tails Captive!

• Lightweight, break-through ergonomic design dramatically reduces user

stress and strain

• 360° rotating nose enables operation from any position

• Front-access tension-adjustment wheel permits fast, easy changes

Temperature rating: -40oF (-40oC) to 185oF (85oC)

Cable Ties for Special Environments

Flame Retardant Ties

Body Max. Wire Marking Pad Tensile

Bulk Width Length Bundle Dia. Size (in.) Strength Bulk

Cat. No. (in.) (in.) (in.) W x H (lb.) Pkg.

TY23MFR .091 3.62 .625 NA 18 1000

TY232MFR .091 8.00 2.00 NA 18 1000

TY24MFR .140 5.50 1.125 NA 40 1000

TY25MFR .184 7.31 1.75 NA 50 1000

TY28MFR .184 14.20 4.00 NA 50 1000

TY272MFR†.301 8.00 2.00 NA 120 500

TY27MFR .301 13.20 3.50 NA 120 500

TY53MFR .091 4.00 .625 .813 x .359 18 500

TY153MFR .097 4.35 .625 .781 x 1 18 500

This material meets U.L. 94V-O flammability rating. (85°C / 185°F)

†Not Recognized Model.

Colour – White

FLAMMABILITY

WEATHER

RESISTANT

ULTRAVIOLET

RESISTANT

HIGH

TEMPERATURE

Nylon 12 Ties

Body Max. Wire Tensile

Std. Bulk Width Length Bundle Dia. Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) (lb.) Pkg. Pkg.

TC525MX TYC25MX .184 7.31 1.75 35 100 1000

– TYC28MX .184 14.20 4.00 35 – 1000

– TYC272MX .270 8.00 2.00 85 – 500

– TYC27MX .270 13.20 3.50 85 – 500

– TYC29MX .300 30.00 9.00 85 – 500

This material provides very good resistance to ultraviolet light and chemical exposure. Nylon 12 is a lower, moisture-absorbing material

than 6/6 nylon and the effect of water on properties is much less.

Colour – Black

Heat-Stabilized Ties

Body Max. Wire Tensile

Bulk Width Length Bundle Dia. Strength Bulk

Cat. No. (in.) (in.) (in.) (lb.) Pkg.

TYH23M .091 3.62 .625 18 1000

TYH232M .091 8.00 2.00 18 1000

TYH24M .140 5.50 1.125 30 1000

TYH242M .140 8.19 2.00 30 1000

TYH26M .140 11.10 3.00 30 1000

TYH25M .184 7.31 1.75 50 1000

TYH253M .184 11.40 3.00 50 1000

TYH28M .184 14.20 4.00 50 1000

TYH27M .270 13.20 3.50 120 500

TYH272M .270 8.75 2.00 120 500

TYH29M .301 30.00 9.00 120 500

Heat-stabilized ties are recommended for higher continuous temperature use (105°C / 221°F).

Material meets ASTM D4066 PA121.

Colour – Green Tint

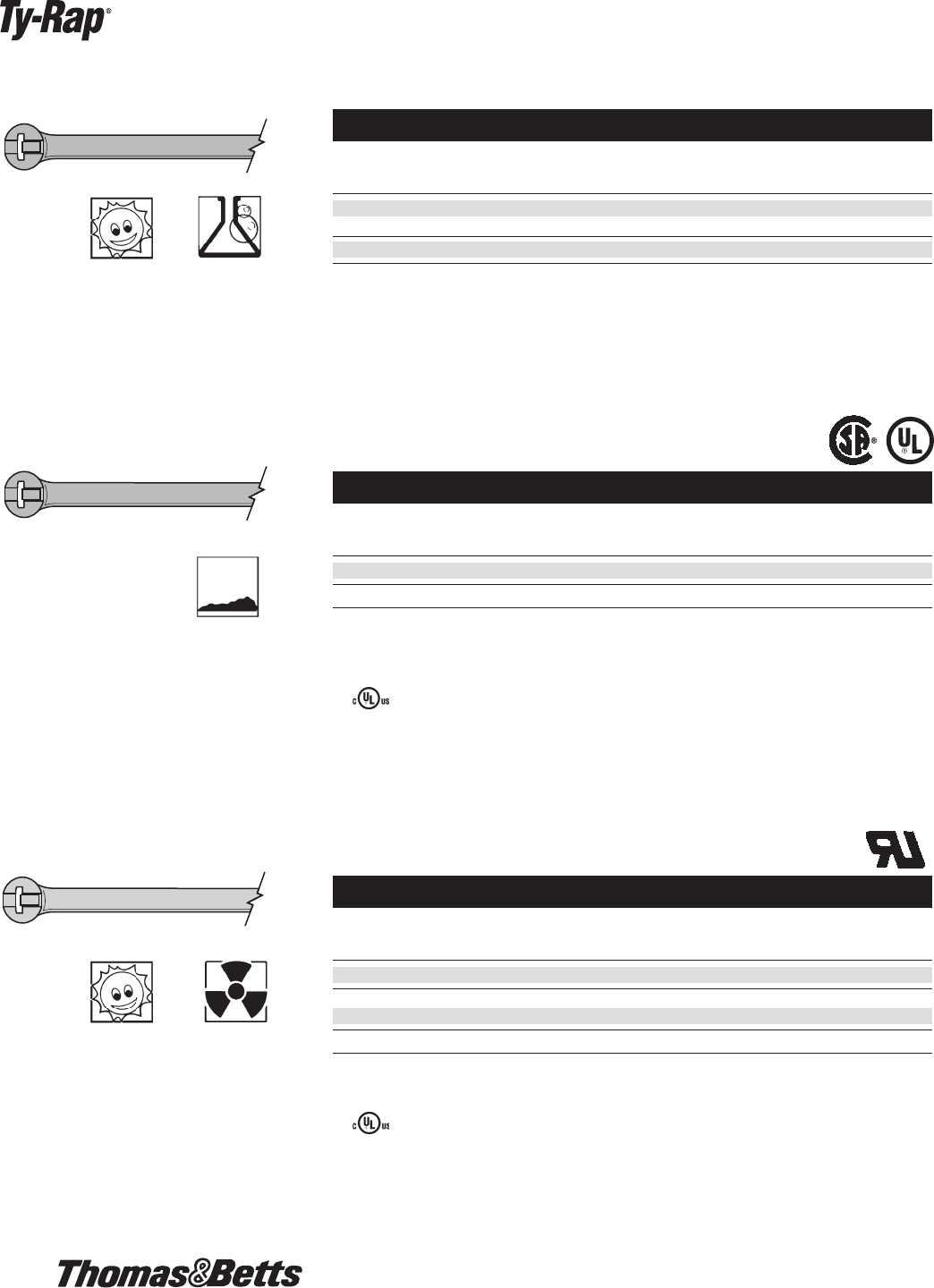

Cable Ties for Special Applications

Weather-Resistant Polypropylene Ties

Body Max. Wire Tensile

Bulk Width Length Bundle Dia. Strength Bulk

Cat. No. (in.) (in.) (in.) (lb.) Pkg.

TYP25MX .186 7.01 1.75 30 1000

TYP28MX .184 13.92 4.00 30 1000

TYP27MX .270 13.17 3.50 60 500

Colour – Black

Many factors combine to determine the useful

life of a cable tie, but none is as important as

chemical exposure. Polypropylene cable ties are

ideally suited for chemical environments.

Ty-Rap®cable ties, made of Halar®, are designed

for use in air-handling spaces. Due to its

UL 94V-O flammability rating and low-smoke

density characteristics, Halar®material is most

suitable in applications where flame resistance

and smoke generation is a concern.

Fluoropolymer cable ties offer high-radiation

resistance and temperature stability to 338°F.

Also, Fluoropolymer provides excellent

resistance to ultraviolet light and meets U.L.

flammability rating 94V-O.

ULTRAVIOLET

RESISTANT

CHEMICAL

RESISTANT

LOW

SMOKE

RADIATION

Halar®* Cable Ties

Body Max. Wire Tensile

Std. Bulk Width Length Bundle Dia. Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) (lb.) Pkg. Pkg.

TYV523M** TYV23M** .091 3.62 .625 18 100 1000

TYV525M(1) TYV25M(1) .184 7.31 1.750 50 100 1000

* Solvay Solexis, Inc. registered trademark.

Colour – Maroon

** CSA Certified Natural 6/6 Nylon Cable Ties are suitable for use in air handling spaces in accordance with rules 12-010 (3), (4) and

(5), and 12-020 of the CEC.

(1)

Radiation Resistant Fluoropolymer Cable Ties

Body Max. Wire Tensile

Std. Bulk Width Length Bundle Dia. Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) (lb.) Pkg. Pkg.

TYZ523M** TYZ23M** .091 3.62 .625 18 100 1000

TYZ525M(1) TYZ25M(1) .184 7.31 1.750 50 100 1000

TYZ528M TYZ28M .184 14.19 4.000 50 100 500

TYZ527M TYZ27M .301 13.38 3.500 120 50 100

Colour – Aqua

** CSA Certified Natural 6/6 Nylon Cable Ties are suitable for use in air handling spaces in accordance with rules 12-010 (3), (4) and

(5), and 12-020 of the CEC.

(1)

ULTRAVIOLET

RESISTANT

20-e.pdf 1 10/23/2012 4:08:33 PM

Stainless Steel Cable Ties and Accessories

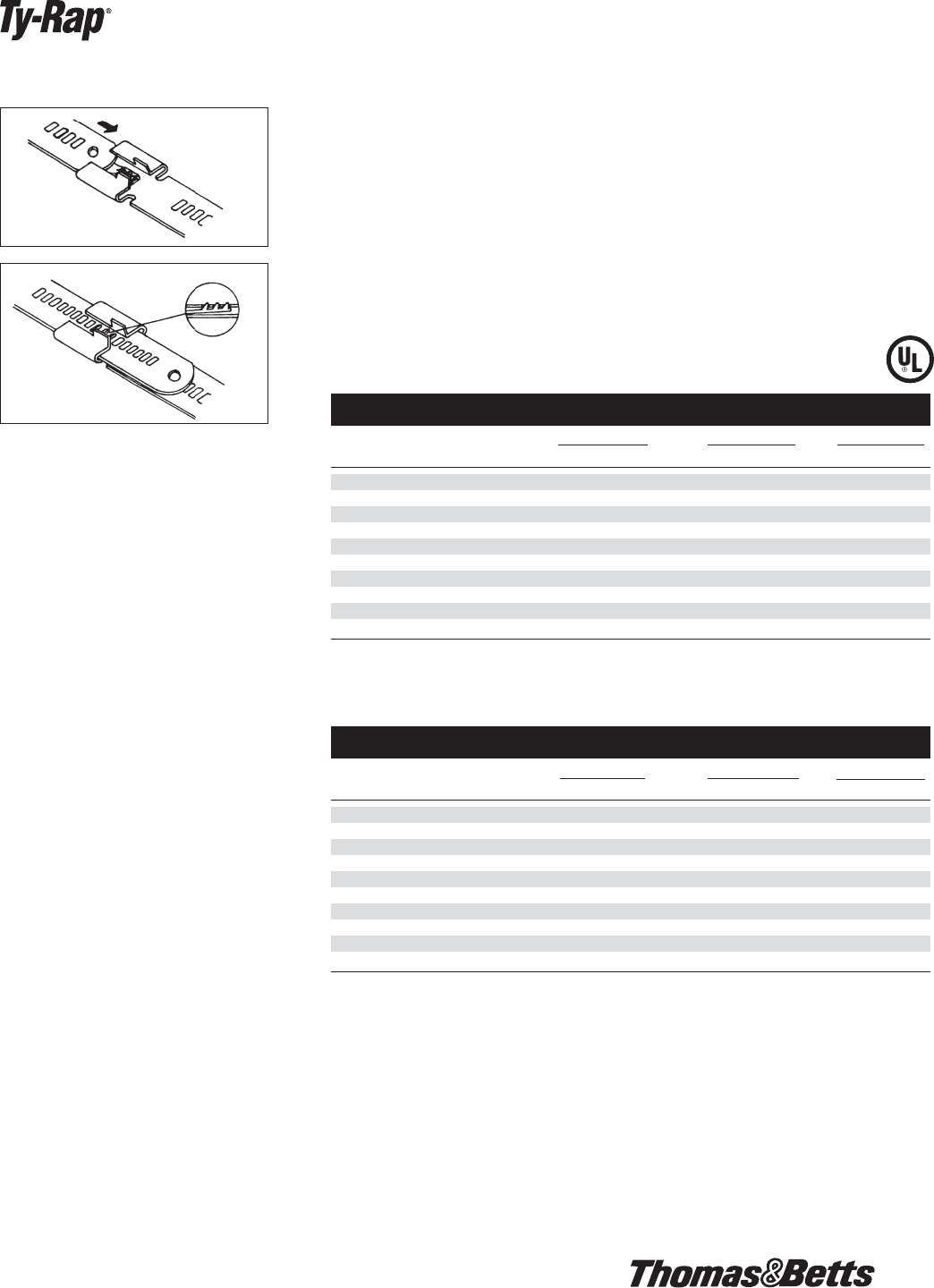

After wrapping the object to be tied, insert the

free end of the tie through the buckle and into

the tool.

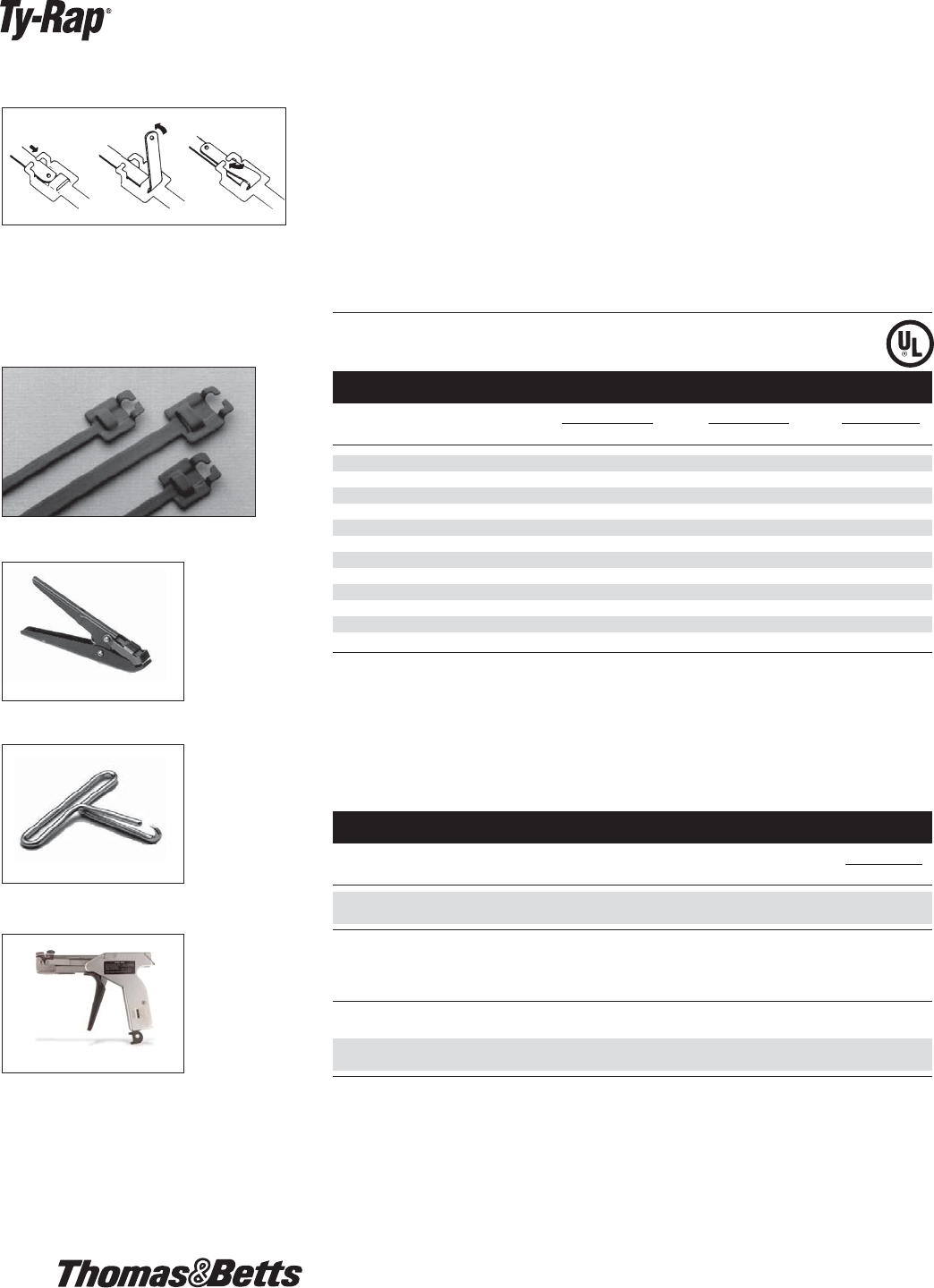

Squeeze the handle of the tool to create the dual

lock and cut off the tail.

The cable tie forms a low-profile dual lock.

• The tail is formed into a fold lock behind the

buckle.

• The tool forces a dimple in the band into a hole

in the buckle.

Catalogue Number System

TYS 6 280 C

CABLE TIE TYPE LENGTH INCHES WIDTH COATED

SS = Two-piece 6= 6.0" long 280 = .280" wide C= Nylon 11 coated

solid stainless _ = uncoated

steel cable tie

Type 304

TYS = Multi-lock

stainless steel

cable tie

Type 316

SSR = Reusable

stainless steel

cable tie

Type 200/300

SSH = Heavy duty

stainless steel

clamp Type 201

Dual Lock

Thomas & Betts has a complete

package of stainless steel cable ties and

accessories that are easy to apply and

superior in quality. These products have

been designed for tying, lashing and

identification applications in demanding

environments such as boiler rooms,

chemical plants, refin eries, pulp/paper

mills, shipyards and offshore oil

platforms. They are made of a variety of

high-quality stainless steel materials

which offer excellent corrosion

resistance, high temperature and

durability charac teristics. There is also a

variety of high-quality installation and

identification tools to complete your

cable tie accessory needs.

For cable bundling, I.D. tags and other

general bundling applications – especially

in hazardous environments – Thomas &

Betts Stainless Steel Cable Ties provide

a strong, safe, permanent installation

with a unique, dual lock.

The Type 304 stainless steel ties are

completely fireproof – no toxic fumes, no

sagging cables. They are extremely

resistant to corrosion and UV light, with

the ability to withstand the harshest

temperature extremes. Yet they are

surprisingly economical.

The low-profile ties are fast and easy to

apply. A quick squeeze of the installation

tool forms two strong locks– a dimple

lock and a fold lock.

Their two-piece configuration adds to its

versatility. Available in standard lengths to

wrap bundle diameters from 1 to 10

inches, Thomas & Betts Stainless Steel

Cable Ties can be supplied in other

lengths on special order.

Low-profile Thomas & Betts Stainless

Steel Ties are fireproof and resist

corrosion, UV light and extreme weather

conditions for safe, permanent cable

bundling.

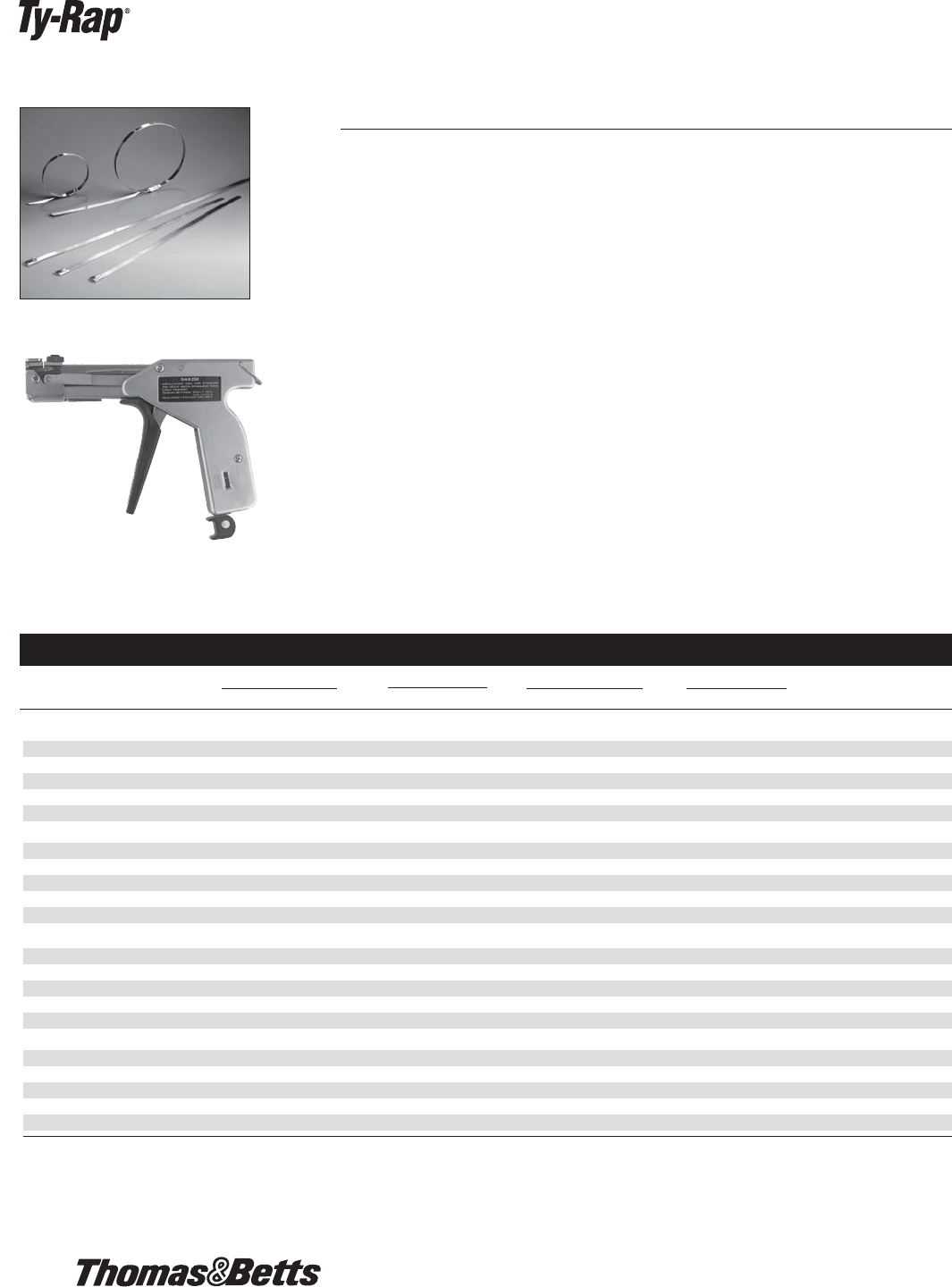

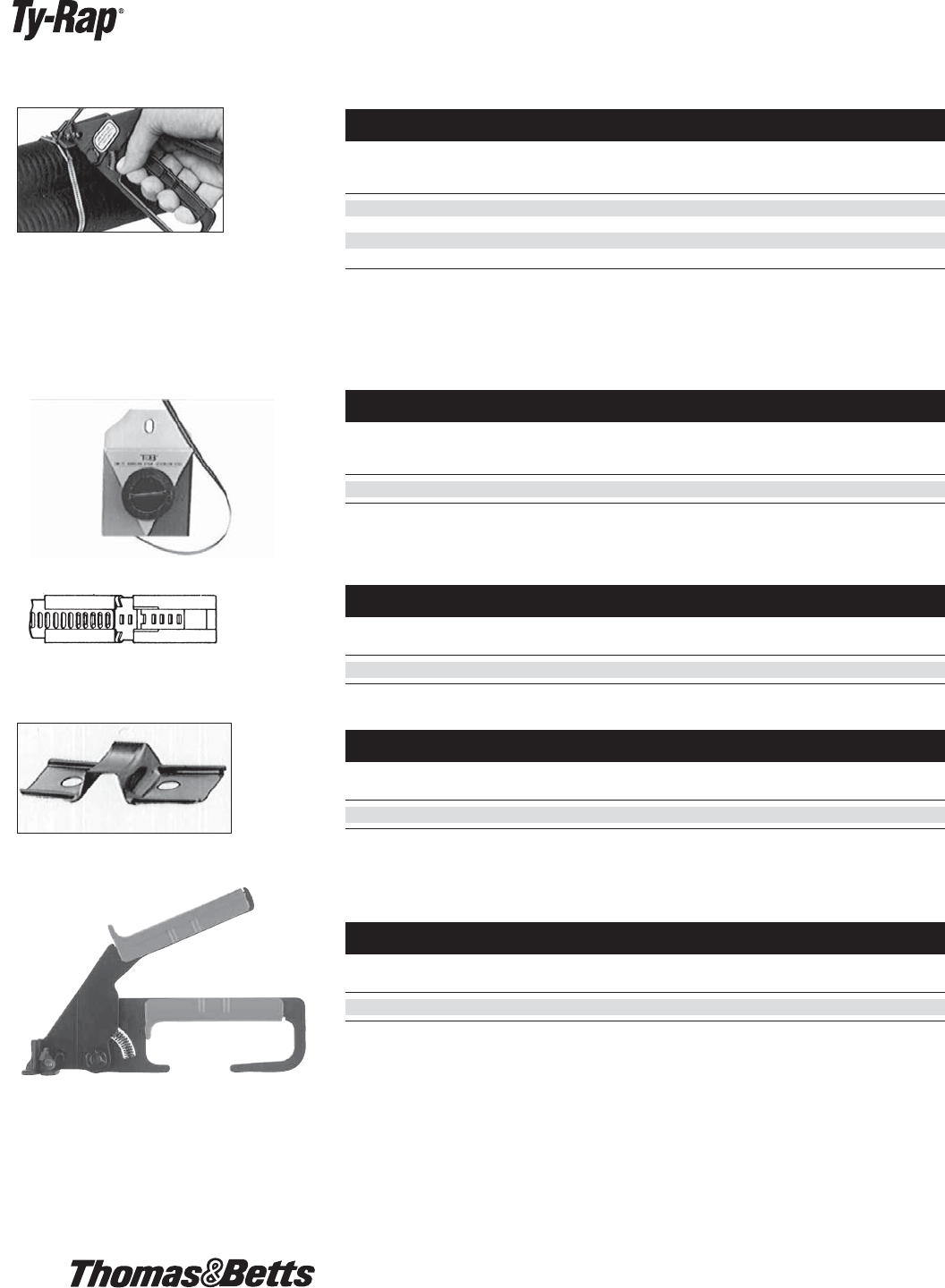

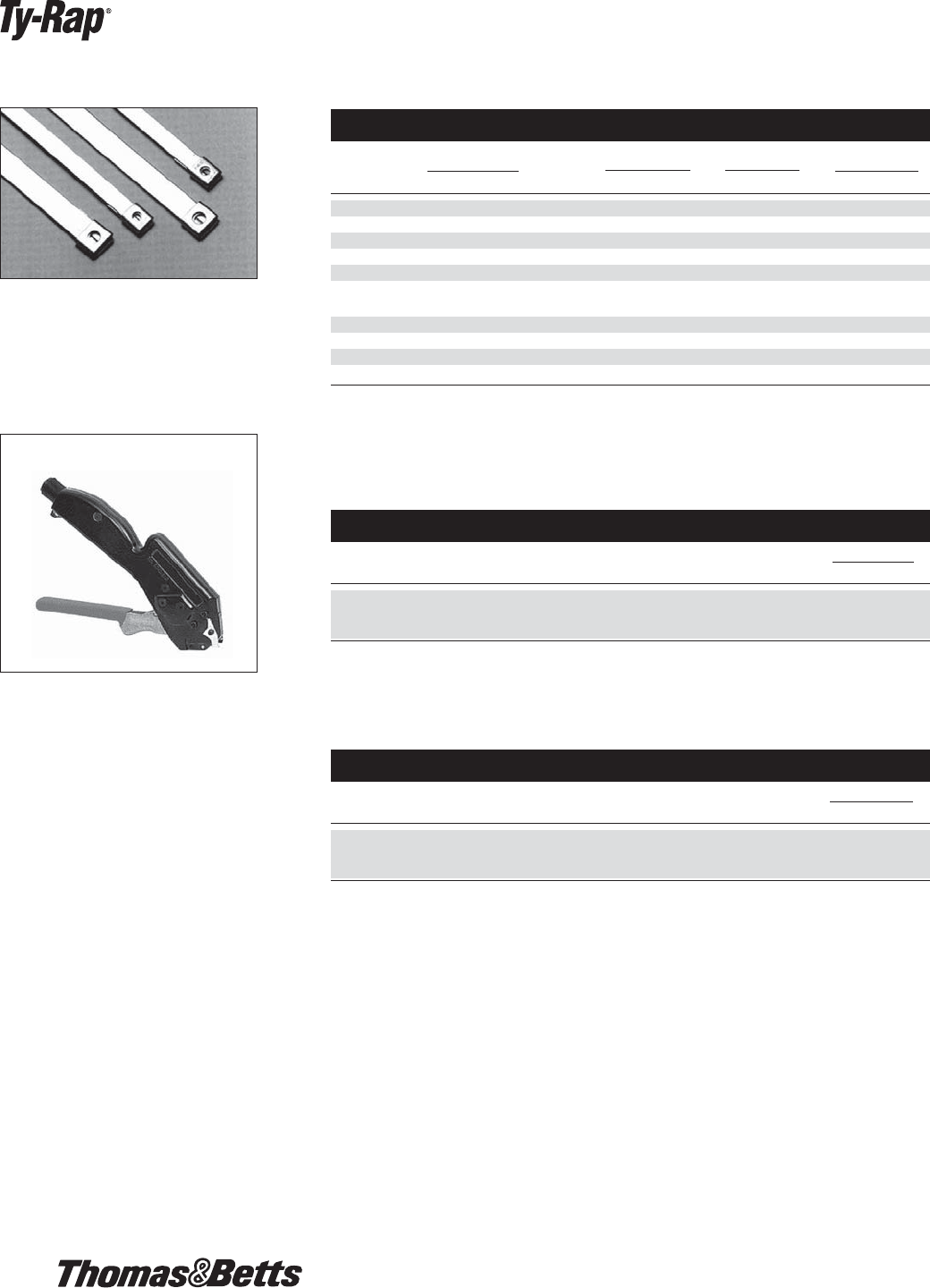

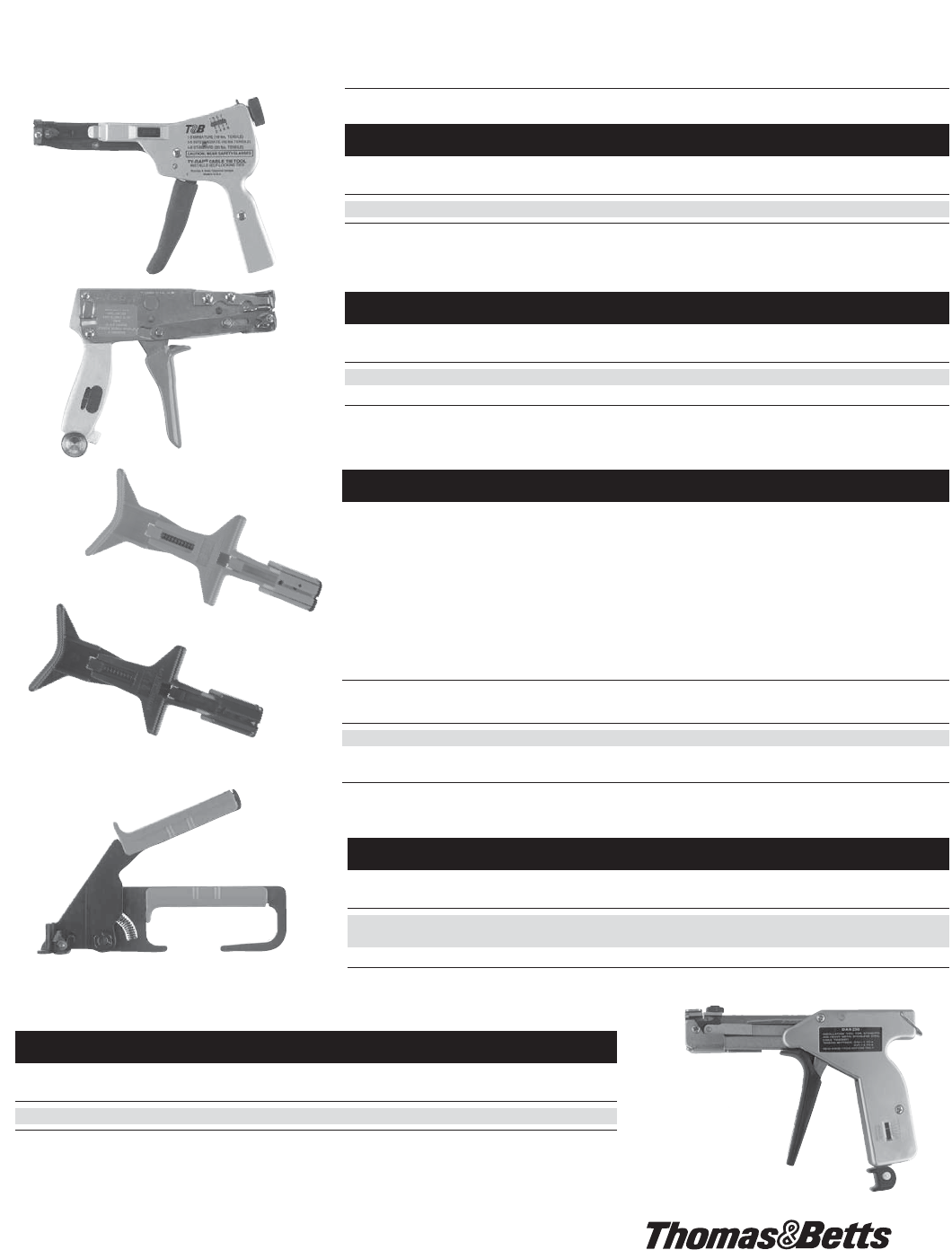

Installation Hand Tool

The installation hand tool is a

lightweight, pocket size hand tool which

quickly and easily applies the stainless

steel cable ties.

To use, simply separate the pull-up

handle from the body, push the release

lever down and insert the clamp tail as

far as possible. Squeeze the pull-up

handle until the band is tight. Finally,

move the pull-up handle to the

locking/cut-off position by moving it

away from the body as far as it will go.

Then squeeze to form the dual lock and

cut off the excess tail.

Stainless Steel Cable Ties and Accessories

Standard Stainless Steel Cable Ties

For Bundle Tensile

Diameter of Strength Width Length Weight

Cat. No. in. mm lb. in. mm in. mm lb. kg.

SS10-250 2 51 200 .25 6.35 10.0 254 1.1 6.50

SS17-250 4 101 200 .25 6.35 16.5 419 1.8 0.82

SS23-250 6 152 200 .25 6.35 22.5 572 2.5 1.14

SS29-250 8 203 200 .25 6.35 29.0 737 3.2 1.45

SS35-250 10 254 200 .25 6.35 35.0 889 3.8 1.73

Mini Stainless Steel Cable Ties

SS7-180 1 25 100 .177 4.5 6.5 165 0.7 0.32

SS10-180 2 51 100 .177 4.5 10.0 254 0.9 0.41

SS16-180 4 102 100 .177 4.5 16.0 406 1.4 0.64

SS23-180 6 152 100 .177 4.5 22.5 572 1.846 –

SS29-180 8 203 100 .177 4.5 29.0 737 2.346 –

304 Stainless Steel

Packaging Quantity: 100/bag

.015" (.38mm) Thickness

Note: Other lengths available on special request.

Add suffix -316 for 316 Stainless Steel.

Standard Tie Installation Tool

Weight

Cat. No. Description lb. kg.

Hand tool to apply standard stainless steel cable ties; easy to use tool

WTA250 applies tension, locks tie with the dual lock, and cuts off band 1.17 0.53

flush with top surface of buckle

Packaging Quantity: 1/box

Mini Tie Installation Tool

Weight

Cat. No. Description lb. kg.

Hand tool to apply standard stainless steel cable ties; easy to use tool

WTA290 applies tension, locks tie with the dual lock, and cuts off band 1.17 0.53

flush with top surface of buckle

Packaging Quantity: 1/box

Note: Mini Installation Tools will only apply mini-size ties.

Strong, safe, low-profile permanent single wrap

ties with a unique, dual lock.

A lightweight, pocket size hand tool which

quickly and easily applies standard-size

stainless steel ties.

Multi-LokTM Stainless Steel Self-Locking Cable Ties

As the free end of the Multi-LokTM tie passes

through the buckle, three separate teeth (four

teeth in the 12mm Multi-LokTM) mesh with

corresponding slots in the band automatically

locking the tie as it is being tensioned.

Self-locking Multi-LokTM Ties feature an

extremely strong, unique multiple locking

system.

Type 316 Stainless Steel–Nylon 11 Coated

Tensile Strength Width Length Weight

Cat. No. lb. in. mm in. mm lb. kg.

TYS6-280C 250 .276 7 6 150 .66 .30

TYS9-280C 250 .276 7 9 225 .99 .45

TYS12-280C 250 .276 7 12 300 1.32 .60

TYS18-280C 250 .276 7 18 450 1.76 .80

TYS24-280C 250 .276 7 24 610 2.64 1.20

TYS6-470C 250 .472 12 6 150 1.10 .50

TYS9-470C 250 .472 12 9 225 1.65 .75

TYS12-470C 250 .472 12 12 300 2.20 1.00

TYS18-470C 250 .472 12 18 450 2.97 1.35

TYS24-470C 250 .472 12 24 610 4.29 1.95

Packaging Quantity: 100/bag

.010" (.245mm) Thickness

Type 316 Stainless Steel–Uncoated

Tensile Strength Width Length Weight

Cat. No. lb. in. mm in. mm lb. kg.

TYS6-280 250 .276 7 6 150 .66 .30

TYS9-280 250 .276 7 9 225 .88 .40

TYS12-280 250 .276 7 12 300 1.21 .55

TYS18-280 250 .276 7 18 450 1.98 .90

TYS24-280 250 .276 7 24 610 2.64 1.20

TYS6-470 250 .472 12 6 150 1.10 .50

TYS9-470 250 .472 12 9 225 1.65 .75

TYS12-470 250 .472 12 12 300 2.20 1.00

TYS18-470 250 .472 12 18 450 3.19 1.45

TYS24-470 250 .472 12 24 610 4.29 1.95

Packaging Quantity: 100/bag

.010" (.245mm) Thickness

Fire hazards … corrosive environ ments

… temperature extremes … for many

cable bundling applications, plastic ties

are simply inadequate–or even

dangerous.

That’s why we developed stainless steel

Multi-LokTM Ties. Unaffected by fire, UV

or extreme temperatures, corrosion-

resistant Multi-LokTM Ties provide a safe,

strong, worry-free hold.

Quickly and easily applied by hand or

with the Thomas & Betts Cable Tie

Tensioner or Tensioning hook, Multi-

LokTM Ties feature a unique, self-locking,

multiple-locking system that holds in

excess of 200 lb.

Multi-LokTM Ties are manufactured from

Type 316 stainless steel and are

available either uncoated or coated with

halogen-free, non-toxic black Nylon 11.

This weather-resistant coating is

unaffected by UV sunlight. This adds

resistance to corrosion, chemicals, and

weathering. Ties are available in two

widths and various lengths.

Reusable Stainless Steel Cable Ties

Fast, Easy Installation.

Thomas & Betts Reusable Ties are fast and easy

to install. Simply pass free end of tie through

buckle bridge, tension by hand or with a Thomas

& Betts Tensioning Tool, bend over bridge, and

secure into preformed ears.

For Cable Bundling in Harsh Environments

Reusable Stainless Steel Cable Ties–Coated

Tensile Strength Width Length Weight

Cat. No. lb. in. mm in. mm lb. kg.

SSR6-250C 75 1/4 6.35 6 152 1.4 .6

SSR9-250C 75 1/4 6.35 9 229 1.8 .8

SSR12-250C 75 1/4 6.35 12 305 2.1 1.0

SSR18-250C 75 1/4 6.35 18 457 3.0 1.4

SSR24-250C 75 1/4 6.35 24 610 3.7 1.7

SSR6-375C 100 3/8 9.53 6 152 1.8 .8

SSR9-375C 100 3/8 9.53 9 229 2.5 1.1

SSR12-375C 100 3/8 9.53 12 305 3.1 1.4

SSR18-375C 100 3/8 9.53 18 457 4.4 2.0

SSR24-375C 100 3/8 9.53 24 610 6.6 3.0

SSR30-375C 100 3/8 9.53 30 762 7.0 3.2

SSR36-375C 100 3/8 9.53 36 914 8.3 3.8

Material: 200/300 Series Stainless Steel

Packaging Quantity: 100/bag

.015" (.38mm) Metal Thickness; .045" (1.1mm) Coated Thickness

Nylon 11 Coating

Note: This product may be double-wrapped for additional tensile strength. For additional colours and uncoated ties, consult Thomas &

Betts Customer Service for pricing and availability.

For 316 Stainless Steel, add “suffix -316” after catalogue number. Consult Customer Service for availability.

Tensioning Tools

Weight

Cat. No. Description lb. kg.

Cable Tie Tensioner

WTAE200 For tensioning Reusable Ties and Multi-Lok Ties .6 .3

Packaging Quantity: 1/box

Tensioning Hook

WTAE201 For tensioning Reusable Ties and Multi-Lok Ties .1 .05

Packaging Quantity: 1/box

Tie-It Tool

DAS250 For installing Multi-Lok Series Stainless Steel Ties 1.0 .45

Packaging Quantity: 1/box

U.L. listed

Reusable Stainless Steel Cable Ties

Cable Tie Tensioner

Tensioning Hook

Tie-It Tool DAS250

These reusable cable ties are made

from high-strength, corrosion-resistant

200/300 series stainless steel, coated

with a non-toxic, halogen-free, low-

smoke Nylon 11.

The unique buckle design provides

quick, easy application and can just as

easily be unfastened for reuse. The

weather-resistant Nylon 11 coating is

unaffected by UV, extremely flexible at

low temperatures and protects the

cables from damage or interference due

to direct contact with the stainless steel.

The coated product is also user-friendly

on the installer’s hands.

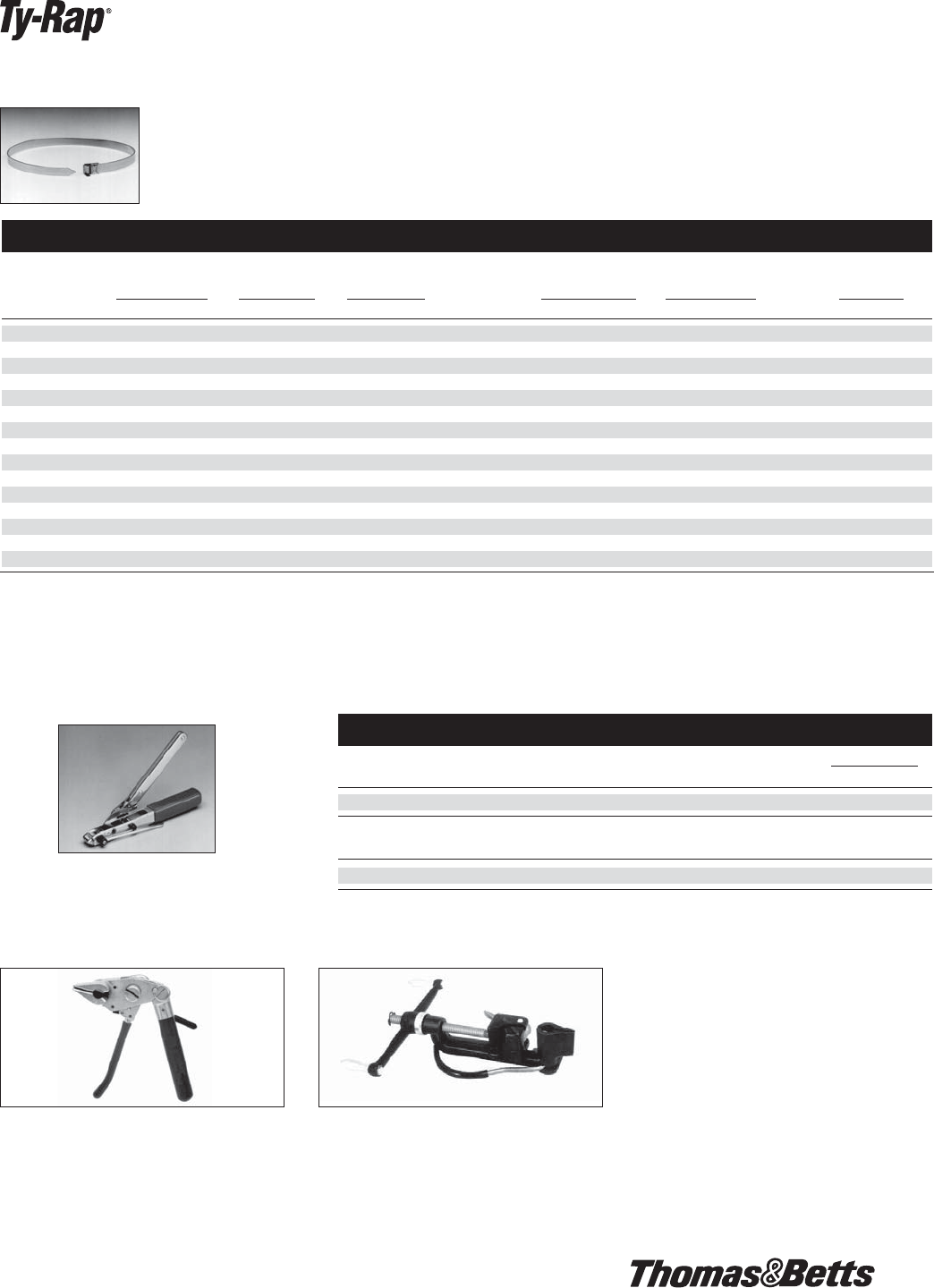

Heavy Duty Free-End Stainless Steel Clamps–Type 201

Max. Dia. Max. Dia. Tensile

Once Twice Total Strength Band Band

Around Around Length Single Wrap Width Thickness Pkg. Weight

Cat. No. in. mm in. mm in. cm lb. in. mm in. mm Qty. lb. kg.

SSH10-250 2 50 – – 10 25 450 1/4 6.35 .020 .51 100 2.2 .99

SSH16-250 3-1/2 88 1-1/2 38 16 40 450 1/4 6.35 .020 .51 100 3.1 1.40

SSH16-375 3-1/2 88 1-1/2 38 16 40 900 3/8 9.53 .025 .63 100 6.2 2.80

SSH18-500 4 101 2 50 18 45 1400 1/2 12.70 .030 .76 100 10.5 4.80

SSH21-625 5 127 2-1/2 63 21 53 1700 5/8 15.88 .030 .76 100 15.1 6.80

SSH24-750 6 152 3 76 24 60 2000 3/4 19.05 .030 .76 50 10.9 4.90

SSH27-250 7 177 3-1/2 88 27 68 450 1/4 6.35 .020 .51 100 4.6 2.10

SSH31-500 8 203 4 101 31 78 1400 1/2 12.70 .030 .76 25 4.7 2.10

SSH34-250 9 228 4-1/2 114 34 86 450 1/4 6.35 .020 .51 100 5.6 2.60

SSH37-750 10 254 5 127 37 93 2000 3/4 19.05 .030 .76 25 7.6 3.50

SSH44-375 12 304 6 152 44 112 900 3/8 9.53 .025 .63 25 3.6 1.60

SSH50-750 14 355 7 177 50 127 2000 3/4 19.05 .030 .76 25 9.7 4.40

SSH56-625 16 406 8 203 56 142 1700 5/8 15.88 .030 .76 25 9.0 4.10

SSH62-750 18 457 9 228 62 157 2000 3/4 19.05 .030 .76 25 11.6 5.30

SSH69-625 20 508 10 254 69 175 1700 5/8 15.88 .030 .76 25 10.7 4.80

Type 201 Stainless Steel

Other Free-End Clamp sizes and metals are available on special order.

Stainless Steel Ties–Free-End

Installation Tools

Weight

Cat. No. Description lb. kg.

WTJ020 Pok-It II Tool 1.1 .5

WTC075 Bantam Tool; Three-way handle version for one-hand

pistol grip or two-hand tensioning 2.6 1.2

WTC001 Heavy-Duty Clamp Tool 4.4 2.0

Packaging Quantity: 1/box

WTJ020

Lightweight pocket-size tool to install 1/4" and

3/8" wide Free-End Clamps. It applies tension

and has a built-in cutter.

WTC075

Designed to install 1/4" to 5/8" wide Free-End

Clamps. The lightweight, rachet-action tool

tensions, cuts and secures the buckle tab.

WTC001

A drop-forged tool with tensioning capability to

do all Free-End Clamps.

Pre-assembled Free-End Clamps

provide maximum strength and dura -

bility. They may be single-wrapped or,

for extra strength, double-wrapped.

Strong, durable Free-End Clamps are

available in a wide range of lengths,

widths, and thicknesses.

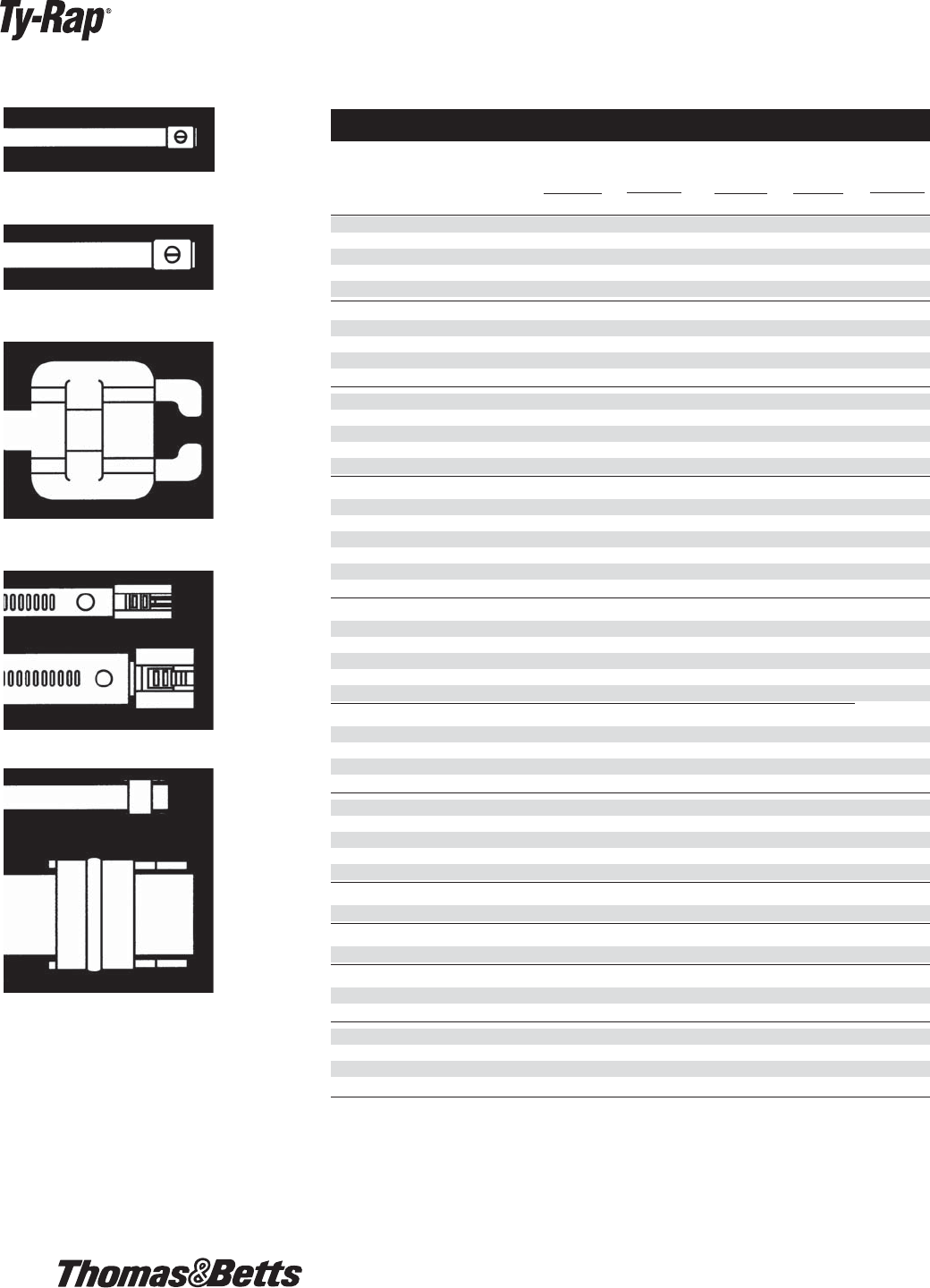

Stainless Steel Cable Ties

Specifications

Max. Dia. Max. Dia.

Single Double

Width Length Thickness Wrap Wrap

Cat. No. in. mm in. mm in. mm in. mm in. mm

SS7-180 .177 4.50 6.5 165 .015 .38 1.7 43 (single

SS10-180 .177 4.50 10 254 .015 .38 2.8 71 wrap

SS16-180 .177 4.50 16 406 .015 .38 4.7 119 only)

SS23-180 .177 4.5 22.5 572 .015 .38 6 152 –

SS29-180 .177 4.5 29.0 737 .015 .38 8 203 –

SS10-250 1/4 6.35 10 254 .015 .38 2.1 53

SS17-250 1/4 6.35 16.5 419 .015 .38 4.3 109 (single

SS23-250 1/4 6.35 22.5 572 .015 .38 6.5 165 wrap

SS29-250 1/4 6.35 29 737 .015 .38 8.5 215 only)

SS35-250 1/4 6.35 35 889 .015 .38 10.5 265

SSR6-250C 1/4 6.35 6 152 .015 .38 1.5 38 N.A. N.A.

SSR9-250C 1/4 6.35 9 229 .015 .38 2.5 63 1.1 28

SSR12-250C 1/4 6.35 12 305 .015 .38 3.4 86 1.5 38

SSR18-250C 1/4 6.35 18 457 .015 .38 5.4 137 2.5 64

SSR24-250C 1/4 6.35 24 610 .015 .38 7.3 185 3.5 89

SSR6-375C 3/8 9.53 6 152 .015 .38 1.5 38 N.A. N.A.

SSR9-375C 3/8 9.53 9 229 .015 .38 2.5 63 1.1 28

SSR12-375C 3/8 9.53 12 305 .015 .38 3.4 86 1.5 38

SSR18-375C 3/8 9.53 18 457 .015 .38 5.4 137 2.5 64

SSR24-375C 3/8 9.53 24 610 .015 .38 7.3 185 3.5 89

SSR30-375C 3/8 9.53 30 762 .015 .38 9.1 231 4.4 112

SSR36-375C 3/8 9.53 36 914 .015 .38 11.0 280 5.3 135

Uncoated Nylon 11 Coated

TYS6-280 TYS6-280C .28 7.00 6 152 .010 .25 1.9 48

TYS9-280 TYS9-280C .28 7.00 9 229 .010 .25 2.8 71

TYS12-280 TYS12-280C .28 7.00 12 305 .010 .25 3.8 96

(single

TYS18-280 TYS18-280C .28 7.00 18 457 .010 .25 5.7 144

wrap

TYS24-280 TYS24-280C .28 7.00 24 610 .010 .25 7.6 193

only)

TYS6-470 TYS6-470C .47 12.00 6 152 .010 .25 1.9 48

TYS9-470 TYS9-470C .47 12.00 9 229 .010 .25 2.8 71

TYS12-470 TYS12-470C .47 12.00 12 305 .010 .25 3.8 96

TYS18-470 TYS18-470C .47 12.00 18 457 .010 .25 5.7 144

TYS24-470 TYS24-470C .47 12.00 24 610 .010 .25 7.6 193

SSH10-250 1/4 6.35 10 250 .020 .51 2.0 50 N.A. N.A.

SSH16-250 1/4 6.35 16 400 .020 .51 3.5 88 1.5 38

SSH19-250 1/4 6.35 19 480 .020 .51 5.0 127 2.5 63

SSH27-250 1/4 6.35 27 680 .020 .51 7.0 177 3.5 88

SSH34-250 1/4 6.35 34 860 .020 .51 9.0 228 4.5 114

SSH16-375 3/8 9.53 16 400 .025 .63 3.5 88 1.5 38

SSH44-375 3/8 9.53 44 1120 .025 .63 12.0 304 6.0 152

SSH18-500 1/2 12.70 18 460 .030 .76 4.0 101 2.0 50

SSH31-500 1/2 12.70 31 780 .030 .76 8.0 203 4.0 101

SSH21-625 5/8 15.88 21 530 .030 .76 5.0 127 2.5 63

SSH56-625 5/8 15.88 56 1420 .030 .76 16.0 406 8.0 203

SSH69-625 5/8 15.88 69 1750 .030 .76 20.0 508 10.0 254

SSH24-750 3/4 19.05 24 600 .030 .76 6.0 152 3.0 76

SSH37-750 3/4 19.05 37 940 .030 .76 10.0 254 5.0 127

SSH50-750 3/4 19.05 50 1270 .030 .76 14.0 355 7.0 177

SSH62-750 3/4 19.05 62 1570 .030 .76 18.0 457 9.0 228

Mini Stainless

Steel Cable Ties

Standard Stainless

Steel Cable Ties

Reusable Stainless

Steel Cable Ties

Free-End Clamps

Multi-Lok Ties

Stainless Steel Cable Ties

Specifications–continued

Min. Loop Min. Loop

Tensile Tensile

Stainless Strength Strength

Steel Single Wrap Double Wrap Application

Cat. No. Type Coating or Finish Lb. Newtons Lb. Newtons Tools Used General Application

SS7-180* 304 Dull to Bright 100 445 (single • Wire/Cable bundling

SS10-180* 304 100 445 wrap • I.D. Tagging

SS16-180* 304 100 445 only)

SS23-180* 304 100 445

SS29-180* 304 100 445

SS10-250* 304 Dull to Bright 200 890

SS17-250* 304 200 890 (single • Wire/Cable bundling

SS23-250* 304 200 890 wrap • I.D. Tagging

SS29-250* 304 200 890 only)

SS35-250* 304 200 890

SSR6-250C 200/300 75 334 300 1334

SSR9-250C 200/300 75 334 300 1334

SSR12-250C 200/300 75 334 300 1334 • Reusable

SSR18-250C 200/300 Nylon 11 Coated 75 334 300 1334 • Cable bundling

SSR24-250C 200/300 (Uncoated or other 75 334 300 1334 • Oil Rigs

SSR6-375C 200/300 colours available on 100 445 500 2224 • Tele-Communications towers

SSR9-375C 200/300 special order) 100 445 500 2224 • Hazardous and

SSR12-375C 200/300 100 445 500 2224 corrosive environments

SSR18-375C 200/300 100 445 500 2224

SSR24-375C 200/300 100 445 500 2224

SSR30-375C 200/300 100 445 500 2224

SSR36-375C 200/300 100 445 500 2224

Uncoated Nylon 11 Coated

TYS6-280 TYS6-280C 316 250 1112

TYS9-280 TYS9-280C 316 250 1112

TYS12-280 TYS12-280C 316 250 1112

TYS18-280 TYS18-280C 316 Uncoated or 250 1112 (single • Self-locking

TYS24-280 TYS24-280C 316 Nylon 11 250 1112 wrap • Cable bundling

TYS6-470 TYS6-470C 316 Coated Black 250 1112 only) • Hazardous and

TYS9-470 TYS9-470C 316 250 1112 corrosive

TYS12-470 TYS12-470C 316 250 1112 environments

TYS18-470 TYS18-470C 316 250 1112

TYS24-470 TYS24-470C 316 250 1112

SSH10-250 201 450 2002 1200 5338

SSH16-250 201 450 2002 1200 5338

SSH19-250 201 Bright 450 2002 1200 5338 • Indus. hoses

SSH27-250 201 450 2002 1200 5338 • Cable bundling

SSH34-250 201 450 2002 1200 5338 • Hi-strength

SSH16-375 201 900 4003 2400 10675

SSH44-375 201 900 4003 2400 10675

SSH18-500 201 1400 6227 3300 14678

SSH31-500 201 1400 6227 3300 14678

SSH21-625 201 1700 7562 4000 17792

SSH56-625 201 1700 7562 4000 17792

SSH69-625 201 1700 7562 4000 17792

SSH24-750 201 2000 8896 5000 22240

SSH37-750 201 2000 8896 5000 22240

SSH50-750 201 2000 8896 5000 22240

SSH62-750 201 2000 8896 5000 22240

Thomas & Betts Stainless Steel Cable Ties have passed a variety of mechanical, environmental, and electrical tests. Other data can be made available upon request.

*S.S. series also available in (316) Stainless.

WTA290

WT5S

DAS-250

WTA250

WT5S

DAs-250

WTAE200

WTAE201

WTC075

WTAE200

WTAE201

WTC075

WTC001

WTC075

WTJ020

Stainless Steel Cable Ties

Body Max. Wire Tensile

Width Length Bundle Dia. Strength Std.

Cat. No. (in.) (in.) (in.) (lb.) Pkg.

TYS8 .310 10.65 2 200 100

TYS14 .310 14.65 4 200 50

TYS22 .310 22.65 6 200 50

TYS28 .310 28.65 8 200 50

Note: Use WT3S Tool for tensioning and cutoff.

• Cannot be coated with any covering material.

Stainless Steel Strap on a Reel

Body Tensile

Width Strength Std.

Cat. No. Description (in.) (lb.) Pkg.

TYS1000 1000 foot of strap, 2 reels of 500 feet each .310 200 1

Stainless steel ties of virtually any length can be produced from the 1000 foot reel in combination with the matching head.

Note: Use WT3S tool for tensioning and cutoff.

Stainless Steel Locking Heads

Std.

Cat. No. Description Pkg.

TYS5200H Heads only for stainless steel strap 50

Stainless Steel Mounting Base

Std.

Cat. No. Description Pkg.

TCS25 Mounting base for stainless steel ties 50

Stainless steel cable ties have been designed for

high-temperature applications as in boiler

rooms, and for use in areas of harsh, corrosive

environments such as shipyards and off-shore

oil platforms. They are made of type 316

stainless steel, and rated at 200 pound tensile

strength. Smooth edges protect both the cable

insulation and the installer.

WT3S

Ty-Rap®Stainless Steel Tool

Std. Wt.

Cat. No. Description Pkg. Each

WT3S Stainless steel cable tie installing tool. TYS body slots 1 8 oz.

Tool is designed to install tie. Do not attempt to cut excess strap with tool.

Note: Ability

to be hung on

cables

I.D. Tagging System

Width Length Weight

Cat. No. in. mm in. mm lb. kg.

SSID100 .75 19.05 2.0 51 0.5 .22

SSID101 1.50 38.10 2.5 63 1.2 .55

SSID102 .75 19.05 3.5 89 0.8 .36

304 Stainless Steel

Packaging Quantity: 100/box

.015" (.254mm) Thickness

Note: Customized pre-embossed tags are available. Please consult Technical Service for details.

Add suffix (316) for 316 Stainless Steel.

I.D. Tag Imprinter

Weight

Cat. No. Description lb. kg.

WTID200 I.D. Tag Imprinter 29.5 13.41

WTID290 3/32" character imprinting wheel – –

WTID281 1/8" character imprinting wheel – –

WTID283 3/16" character imprinting wheel – –

WTID300 I.D. Marking Kit – –

WTID204 (Kit) WTID200 and WTID 283 – –

Packaging Quantity: 1/box

S.S. Tape Embossing System

Weight

Cat. No. Description lb. kg.

WTID400 Hand-held tool for embossing S.S. I.D. Tape 2.57 1.17

WTID405 Replacement S.S. tape (21' long, 1/2” wide) .18 .01

304 Stainless Steel

Packaging Quantity: 1/box

Note: The embossing tool comes complete with two rolls of stainless steel tape.

Customized Embossed Tags Stainless Steel Tape Embossing System

Identify your cable bundles with permanent,

Type 304 stainless steel imprinted tags applied

with stainless steel cable ties. After imprinting

the tags, merely slip a tie through slots in the

tag and fasten with the installation tool.

• Works with 1/4" wide ties.

For imprinting Thomas & Betts stainless steel I.D.

tags. Includes special tag holder which provides

quick, accurate positioning of tag. Comes with a

3/32" character imprinting wheel, standard (no

substitutions allowed).

After making your tag, apply with stainless steel

cable ties.

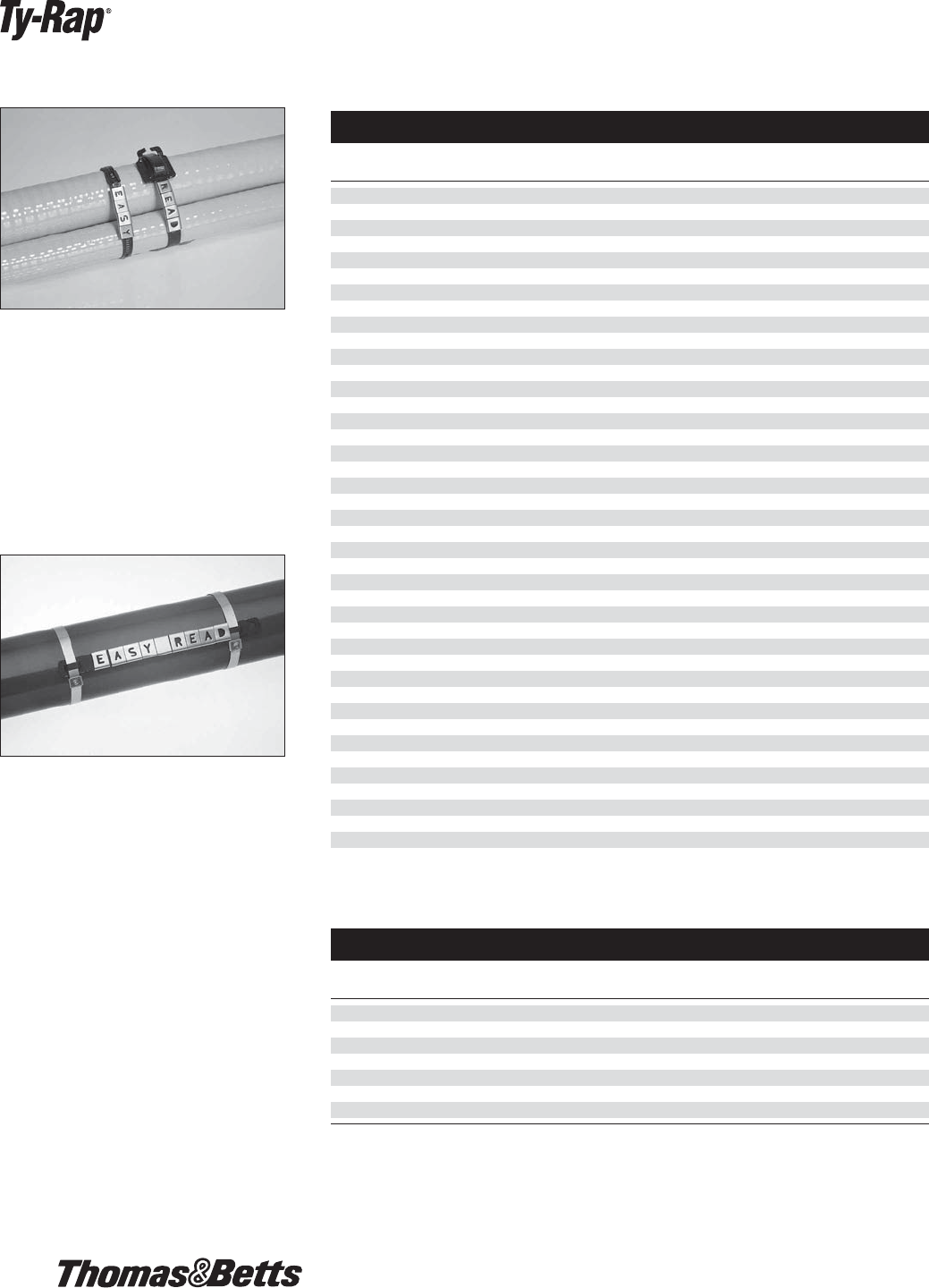

Stainless Steel I.D. Tag

The Thomas & Betts Stainless Steel R.D. Tagging

System includes a complete range of individual

letters, numbers, and symbols–slip them over

carriers (shown above) or strips (below) and

attach to your cable or hose with a variety of

Thomas & Betts Stainless Steel Cable Ties.

Thomas & Betts Stainless Steel I.D. Tag

Std. Wt.

Cat. No. Description Length Width Pkg. per 100

ER010 A .445" 375" 100 .31

ER011 B .445" 375" 100 .31

ER012 C .445" 375" 100 .31

ER013 D .445" 375" 100 .31

ER014 E .445" 375" 100 .31

ER015 F .445" 375" 100 .31

ER016 G .445" 375" 100 .31

ER017 H .445" 375" 100 .31

ER018 I .445" 375" 100 .31

ER019 J .445" 375" 100 .31

ER020 K .445" 375" 100 .31

ER021 L .445" 375" 100 .31

ER022 M .445" 375" 100 .31

ER023 N .445" 375" 100 .31

ER024 O .445" 375" 100 .31

ER025 P .445" 375" 100 .31

ER026 Q .445" 375" 100 .31

ER027 R .445" 375" 100 .31

ER028 S .445" 375" 100 .31

ER029 T .445" 375" 100 .31

ER030 U .445" 375" 100 .31

ER031 V .445" 375" 100 .31

ER022 W .445" 375" 100 .31

ER032 X .445" 375" 100 .31

ER033 Y .445" 375" 100 .31

ER034 Z .445" 375" 100 .31

ER018 1 .445" 375" 100 .31

ER037 2 .445" 375" 100 .31

ER038 3 .445" 375" 100 .31

ER039 4 .445" 375" 100 .31

ER040 5 .445" 375" 100 .31

ER041 6 .445" 375" 100 .31

ER021 7 .445" 375" 100 .31

ER042 8 .445" 375" 100 .31

ER041 9 .445" 375" 100 .31

ER024 0 .445" 375" 100 .31

ER035 Minus/Hyphen .445" 375" 100 .31

ER036 Blank .445" 375" 100 .31

ER046 Plus + .445" 375" 100 .31

ER047 Earth .445" 375" 100 .31

ER048 Sine .445" 375" 100 .31

ER049 Slash / .445" 375" 100 .31

Character size .218"

Material .025 316 stainless steel

Thomas & Betts Stainless Steel I.D. Tag Strips/Carriers

Std. Wt. Opening

Cat. No. Description Length Width Pkg. per 100 Width

ER043 6 Character Carrier 3.64" .38" 100 .73 0.395”

ER044 10 Character Carrier 5.14" .38" 100 1.25 0.395”

ER045 16 Character Carrier 7.39" .38" 100 1.47 0.395”

ER050 Short Strip 4.25" .38" 100 .98 0.395”

ER051 Medium Strip 5.75" .38" 100 1.33 0.395”

ER052 Long Strip 8.0" .38" 100 1.85 0.395”

ER060 I.D. Tag Kit – – 1 – 0.395”

I.D. Tag Kit contains 50 of each letter, number, symbol, carrier and strip in a handy carrying case.

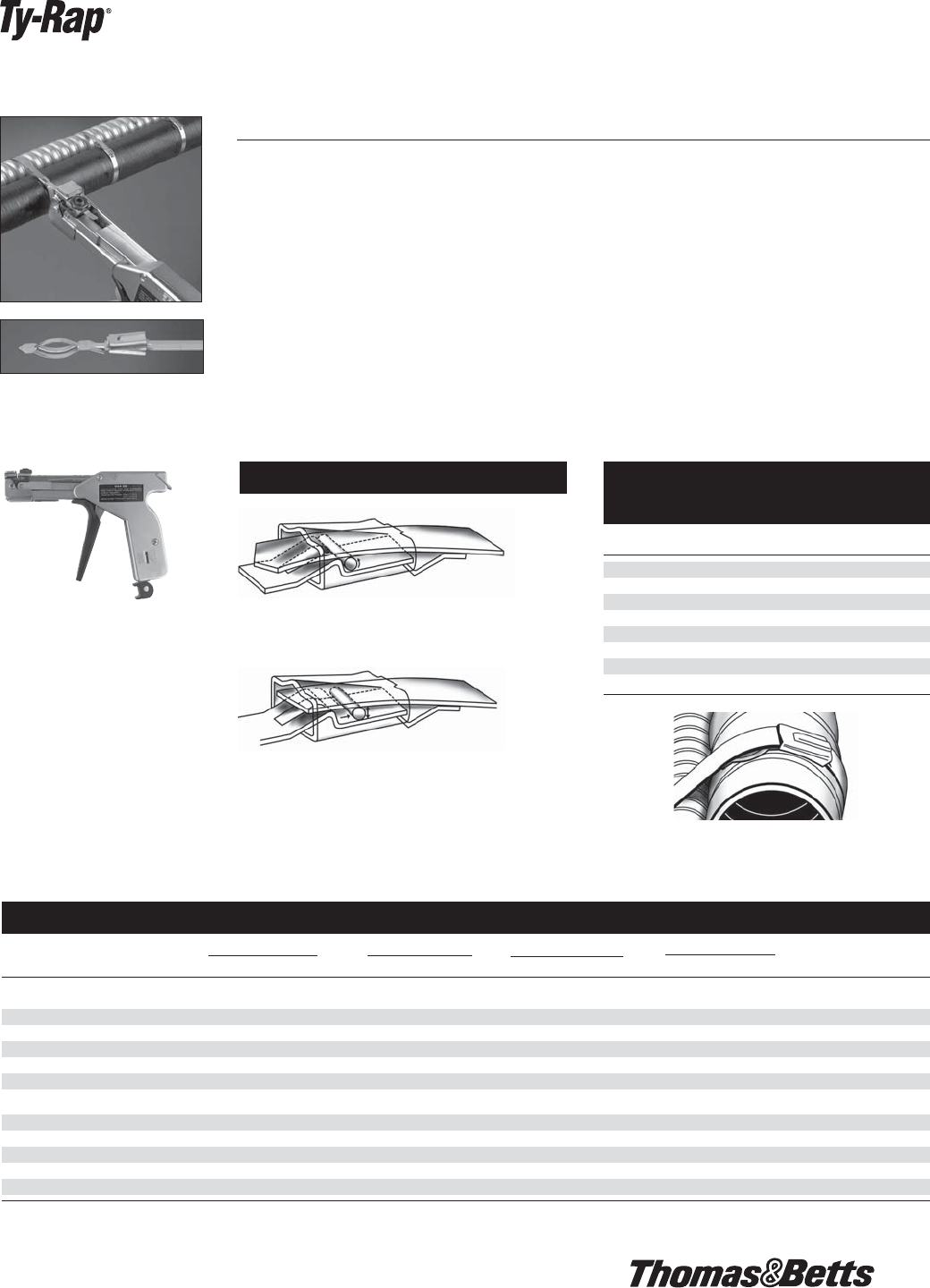

Stainless Steel Self-Locking Ties

Stainless Steel Ties With Roller Locking Mechanism

Ordering Information

Length Width Max. Bundle Dia. Tensile Qty./box

Cat. No. in. mm. in. mm. in. mm. lb. kg. pcs.

302/304 Grade Stainless Steel

TS-4.6-200A 8.8 222.9 0.18 4.6 2 50.8 150 68.0 100

TS-4.6-360A 15.3 388.0 0.18 4.6 4 101.6 150 68.0 100

TS-4.6-520A 21.3 540.4 0.18 4.6 6 152.4 150 68.0 100

TS-4.6-680A 27.8 705.5 0.18 4.6 8 203.2 150 68.0 100

TS-4.6-840A 33.8 857.9 0.18 4.6 10 254.0 150 68.0 100

316 Grade Stainless Steel

TS-4.6-200B 8.8 222.9 0.18 4.6 2 50.8 150 68.0 100

TS-4.6-360B 15.3 388.0 0.18 4.6 4 101.6 150 68.0 100

TS-4.6-520B 21.3 540.4 0.18 4.6 6 152.4 150 68.0 100

TS-4.6-680B 27.8 705.5 0.18 4.6 8 203.2 150 68.0 100

TS-4.6-840B 33.8 857.9 0.18 4.6 10 254.0 150 68.0 100

Application Tool

DAS-250 Hand Tool

(Adjustable tension,

automatic cut-off)

Spare Blades Part No.

BL250S

Insert the tail into the buckle. The internal

locking bar rolls freely as the tie is tightened.

Unique Spring-Tension Head Design provides extra snug fit

where bundle tightness is critical.

How It Works

Once the proper tension is reached the tool

automatically cuts off the tail. The bar then

wedges into the buckle locking it tightly against

both the top and bottom of the band.

Roller Locking Mechanism vs.

Ball Locking Mechanism

Characteristic Self-Lok Ball Lock

Rating (pounds) 150 100

Buckle Length (inch) .260 .420

Height Over Buckle (inch) .130 .170

Avg. Slip @ 100 Lb Load (inch) .090 .200

Normal Mode of Failure Cont. Slip Loss of Ball

Buckle Retention Smooth ID Fold Under

Tie Length Same Same

Material 304 or 316 SS 304 or 316 SS

Thomas & Betts offers a line of self-locking,

stainless steel ties for indoor and outdoor use.

This low profile design features an internal locking

roller and spring-tension head that ensures a

secure fit.

Features and Benefits

• Spring feature provides extra snug fit in

applications where bundle tightness is critical.

• Internal locking roller (Average slip, within the

locking mechanism at 100 lb. load is 55%

lower than conventional ball lock design).

• Rounded edges and smooth surfaces for fast,

safe hand installation.

• Buckle length is 38% less and height is 24%

less than the conventional ball locking design.

• 5 standard lengths with custom lengths

available.

• Available in two grades of stainless steel

(302/304 for standard applications and 316 for

extra corrosion resistance).

Ideal Applications

• High temperature locations.

• Marine environment (ship building, salt water

environment).

• Harsh environment (oil rigs, wash down areas,

refineries, food processing plants, auto car

washers).

• Automotive plants.

Ordering Information

Length Width Max. Bundle Dia. Tensile Qty./box

Cat. No. in. mm. in. mm. in. mm. lb. kg. pcs.

302/304 Grade Stainless Steel

LS-4.6-200A 7.9 201.0 0.18 4.6 2 51 100 45.3 100

LS-4.6-360A 14.2 360.0 0.18 4.6 4 102 100 45.3 100

LS-4.6-520A 20.5 520.0 0.18 4.6 6 152 100 45.3 100

LS-4.6-680A 26.7 679.0 0.18 4.6 8 203 100 45.3 100

LS-4.6-840A 33.0 838.0 0.18 4.6 10 254 100 45.3 100

LS-7.9-200A 7.9 201.0 0.31 7.9 3 51 250 113.3 50

LS-7.9-360A 14.2 360.0 0.31 7.9 4 102 250 113.3 50

LS-7.9-520A 20.5 520.0 0.31 7.9 6 152 250 113.3 50

LS-7.9-680A 26.7 679.0 0.31 7.9 8 203 250 113.3 50

LS-7.9-840A 33.0 838.0 0.31 7.9 10 254 250 113.3 50

LS-7.9-1010A 41.3 1050.0 0.31 7.9 12.5 318 250 113.3 50

316 Grade Stainless Steel

LS-4.6-200B 7.9 201.0 0.18 4.6 2 51 100 45.3 100

LS-4.6-360B 14.2 360.0 0.18 4.6 4 102 100 45.3 100

LS-4.6-520B 20.5 520.0 0.18 4.6 6 152 100 45.3 100

LS-4.6-680B 26.7 679.0 0.18 4.6 8 203 100 45.3 100

LS-4.6-840B 33.0 838.0 0.18 4.6 10 254 100 45.3 100

LS-7.9-200B 7.9 201.0 0.31 7.9 3 51 250 113.3 50

LS-7.9-360B 14.2 360.0 0.31 7.9 4 102 250 113.3 50

LS-7.9-520B 20.5 520.0 0.31 7.9 6 152 250 113.3 50

LS-7.9-680B 26.7 679.0 0.31 7.9 8 203 250 113.3 50

LS-7.9-840B 33.0 838.0 0.31 7.9 10 254 250 113.3 50

LS-7.9-1010B 41.3 1050.0 0.31 7.9 12.5 318 250 113.3 50

Stainless Steel Self-Locking Ties

Stainless Steel Ties with Ball Locking Mechanism

Thomas and Betts introduces a range of self-locking, one-piece stainless steel ties,

suitable for indoor or outdoor use.

Wide range of sizes

Six standard lengths up to 41" long will cover most applications with custom lengths

available. Two widths are offered with minimum loop tensile strengths of 100 and 250 lb.

Space requirements are minimized by the low head profile – 20" maximum.

Fast, Easy Installation

Thomas & Betts stainless steel ties are self-locking, requiring no time consuming

crimping or folding operations. The strong locking mechanism, incorporating a steel ball,

requires a low insertion force while the strap section has rounded edges and smooth

surfaces making the ties ideal for fast, safe, hand installation.

Two Materials

Two grades of stainless steel are available – 302/304 for standard applications and 316

for extra corrosion resistance. 302/304 and 316 stainless steels are non-magnetic and

are ideal for high temperature applications ranging –80 °C to

538 °C.

Applications

• High temperature locations

• Marine environment (shipbuilding, salt water environment)

• Harsh environment (oil rigs, wash-down areas, refineries, food processing plants, auto

car washers)

• Automotive plants

DAS-250

Preset tension tool

Automatic cut-off

Spare Blades Part No. BL 250 S

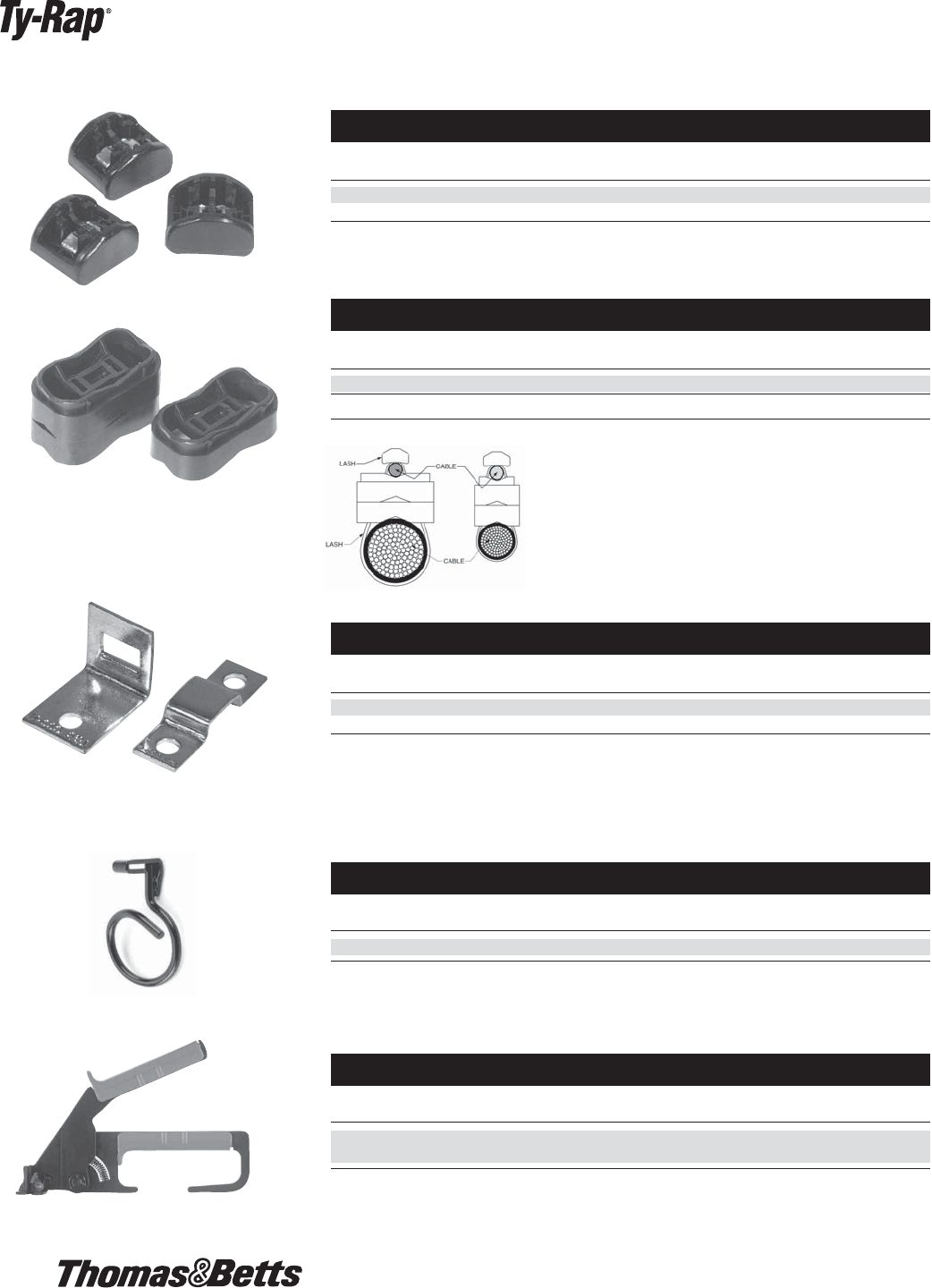

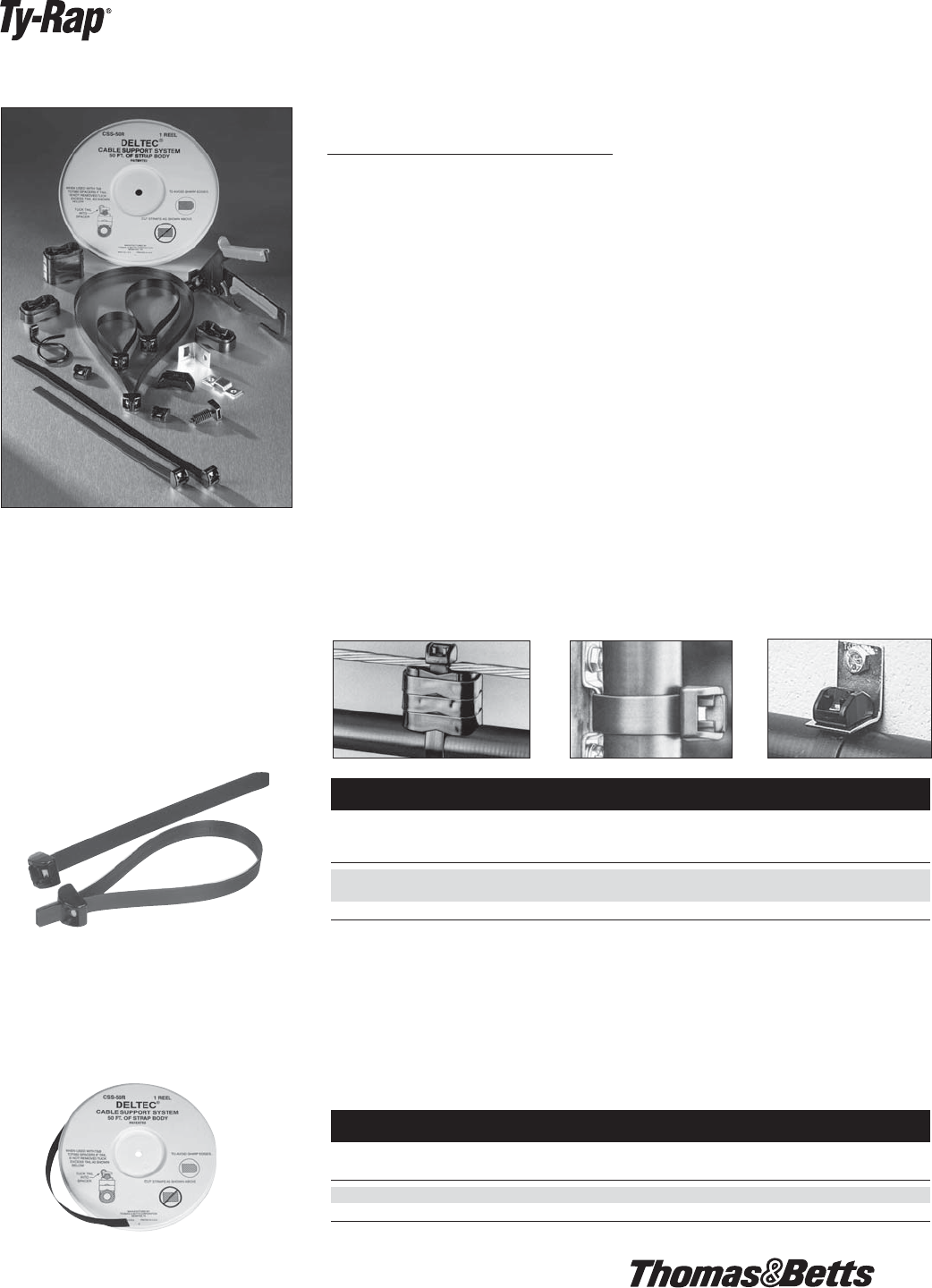

The DeltecTM Cable

Support System

Provides a strong, long-life and cost

saving method of securing

communication cables

The DeltecTM Cable Support System is a

user-friendly product designed to provide

ease and flexibility in fastening

communications cables to messenger

strand. It is equally well suited for copper

conductor cable, coaxial cable, fiber optic

cable and inner duct in aerial applications.

The DeltecTM system answers your aerial

cable needs with innovative design and

state of the art materials. This system

includes weather-resistant Delrin®cable

straps, marine grade locking devices, and

base hanger accessories for specific

applications where mounting is required.

DeltecTM cable straps are available in

standard lengths of 10, 13.5, 16 and 27

inches, and in convenient 50 foot reels

where specific lengths need to be

established by the installer in the field.

Additional “standard” lengths can be

established for applications where higher

volumes prevail.

Advantages of the DeltecTM System

Include:

• Proven years of service.

• No sharp edges - craft friendly! Cable

friendly!

• Ease of installation - one wrap, no re-

treading of re-strap.

• Lowers installation costs.

• High tensile strength after fastening.

• Total flexibility in lengths when using reel.

• Stackable spacers accommodate all

cable sizes - no need to stock multiple

sizes of individual height spacers.

• Spacer designed to retain strap on each

side and cradle the cable, providing

restricted movement of spacer and

preventing damage to cable.

• In situations where multiple cables are

supported, the T&B TCP360 stackable

spacer may be rotated 90 degrees and

installed similar to a single cable, yet

provide the same restricting features

(unlike those commonly used today).

• Month and year of manufacture stamped

into strap material.

• Squirrels and vermin won’t eat it!

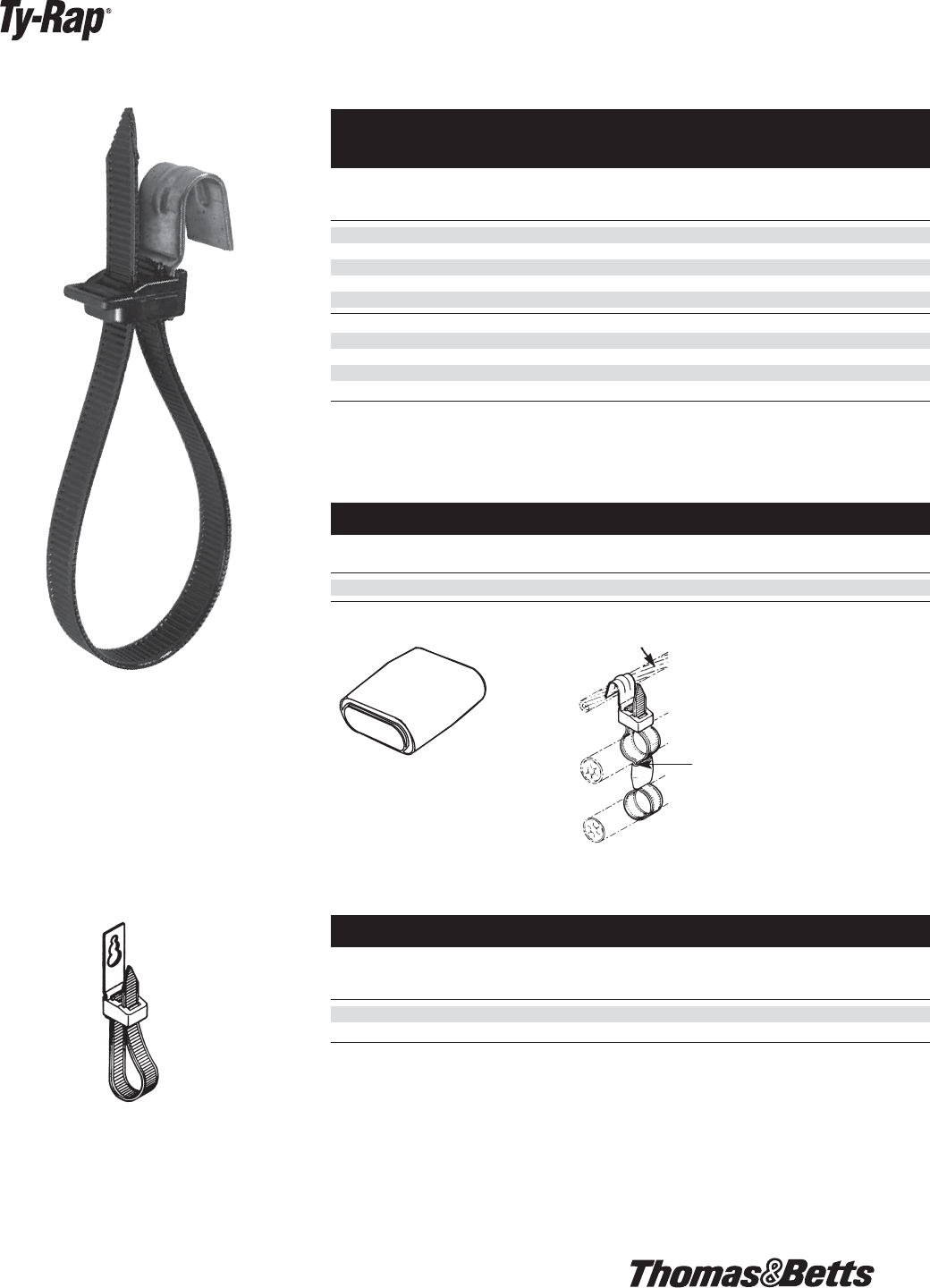

Cable Ties–DELTECTM

Cable Tie with Double-Locking Head

Max. Wire Tensile

Body Length Bundle Dia. Strength Std.

Cat. No. Width (in.) (in.) (lb.) Pkg.

TYD510M .394 51.2 – 250

TYD5135M .500 13.5 3.5 250 25

TYD5270M .500 27.0 8.0 250 10

The recommended maximum continuous static loading for the DELTECTM straps is 20 lb. per strap. For best results suggested spacing

is 15 inches. It is the responsibility of the user to determine whether or not their application meets our recommendation.

Note: Use WT3D Tool for tensioning and cutoff.

DELTECTM Strap on a Reel

Tensile Strength Std.

Cat. No. Description (lb.) Body Width Pkg.

TYD-50R 50' reel of strap 250 .500 1

696-41794 1000' reel 250 .500 2

SPECIFICATIONS

Strap and body Offers superior resistance to sunlight,

moisture, and salt environments.

Locking Device Marine grade corrosion-resistant silicon

bronze.

Installation Range -30°F to 150°F.

Minimum Tensile 250 lb. minimum.

Strength

Outdoor Life Designed to last a minimum of 20 years

Continuous Load 20 pounds

Locking Heads

Std.

Cat. No. Description Pkg.

TYD-LH Heads only for DELTEC strap 25

696-41795 1000 heads only for DELTEC strap 1000

Material: DeltecTM

Cable Ties–DELTECTM

DELTECTM Base and Hanger

Std.

Cat. No. Description Pkg.

CSS-B Base for DeltecTM strap 50

CSS-H Hanger for DeltecTM strap 50

• Made of zinc-plated steel

• Secures cables to all types of surfaces

CSS-B

CSS-H

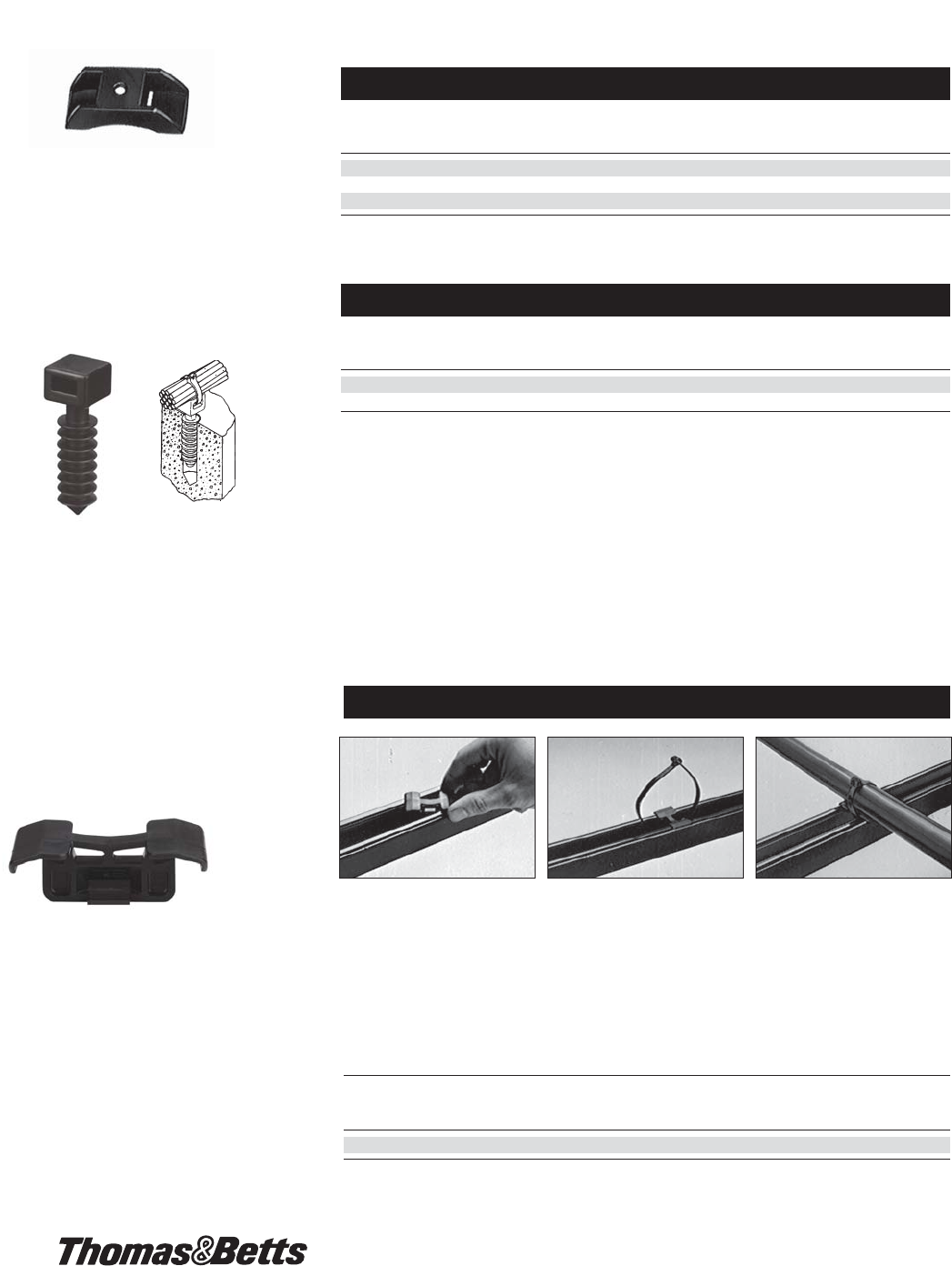

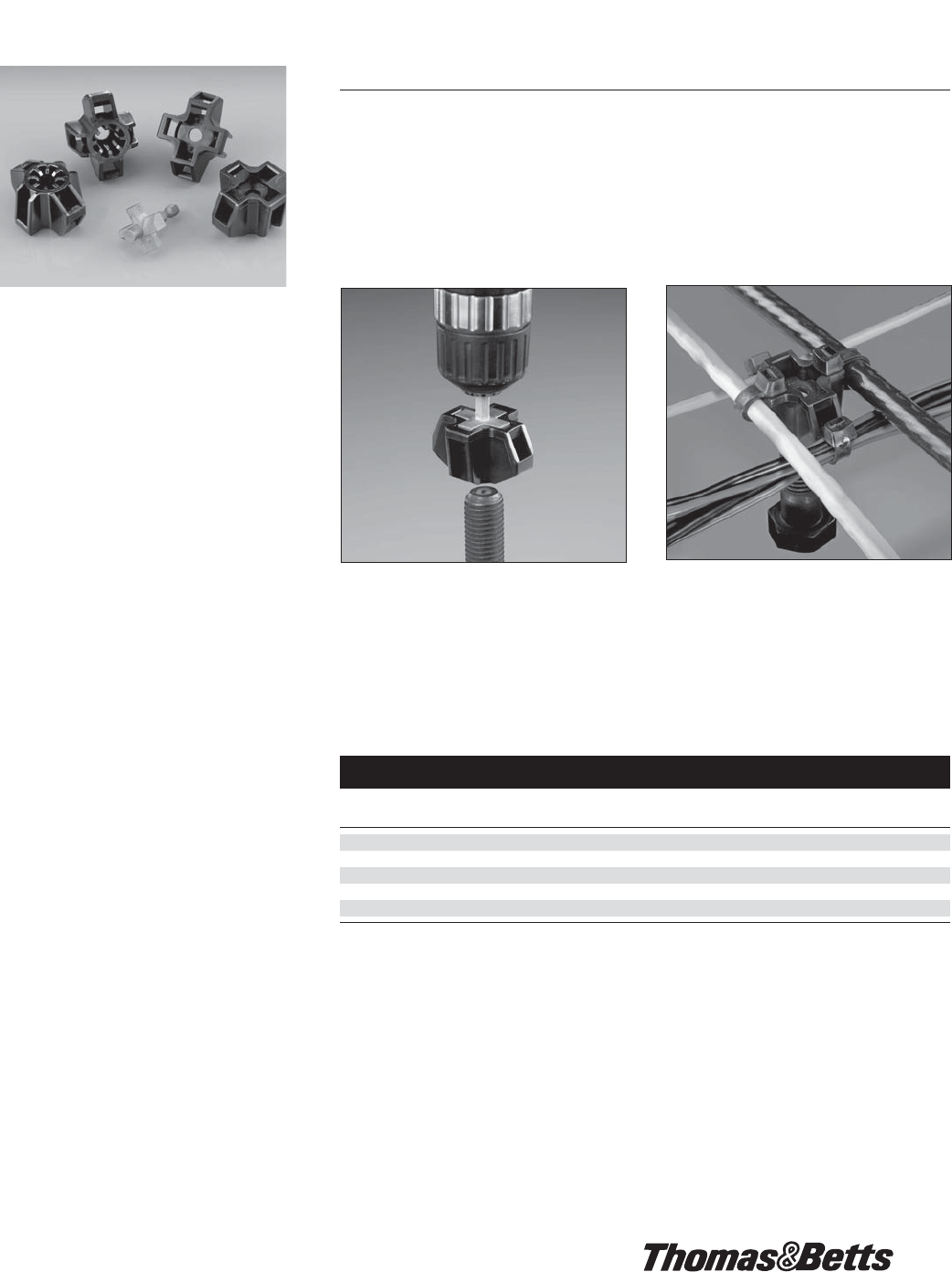

Modular Stackable Cable Spacers

Std.

Cat. No. Description Pkg.

TCP5255 Modular stackable spacer for DELTECTM straps 25

TCP360 For Coaxial Cable –

Drop Wire Support

Std.

Cat. No. Description Pkg.

CSS-DWS Nylon coated steel, order by each. 25

Installation/Cutting Tool

Std. Wt.

Cat. No. Description Range Pkg. Each

WT3D Installs self-locking Ty-Rap®cable ties and .184 thru .500 1 8 oz.

Thomas & Betts 2-piece lashing ties.

• One spacer for any cable size.

• Stackable for any desired spacing.

• Less inventory – one catalogue

number.

• Made of weather-resistant

polypropylene.

• 1/2" high.

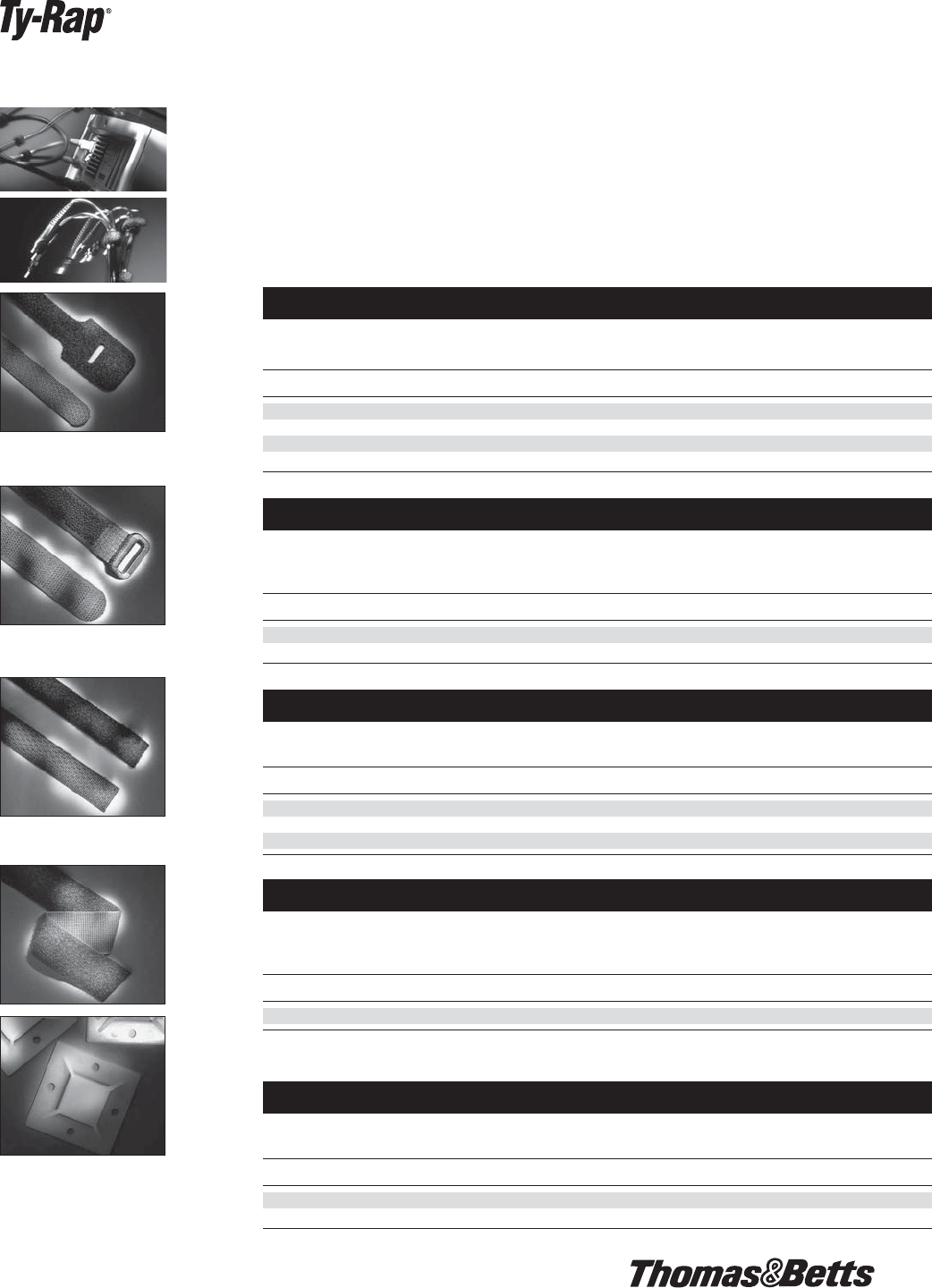

FO Series Loop Ties

Ideal for wrapping pre-determined bundle diameters because of the convenient slotted head

Cat. No. Min. Tensile Strength Max. Bundle Dia. Length Width Inner Pack Qty.

FO200-40* 40lb 2.0” 9.0” .50 10

FO200-50* 50lb 2.0” 9.0” .75 10

FO350-40* 40lb 3.5” 13.0” .50 10

FO350-50* 50lb 3.5” 13.0” .75 10

FOL Series Buckle Ties

Buckle ties provide added strength and stability because of the high performance polymer

buckle.

Cat. No. Min. Tensile Strength Max. Bundle Dia. Length Width Inner Pack Qty.

FOL300-50-0 50lb 3.0” 12.0” .75 10

FOL500-50-0 50lb 5.0” 18.0” .75 10

FOS Series Strip Ties

Pre-cut lengths which makes bundling a cinch.

Cat. No. Min. Tensile Strength Max. Bundle Dia. Length Inner Pack Qty.

FOS150-50-0 50lb 1.5” 6.0” 10

FOS320-50-0 50lb 3.2” 12.0” 10

FOS500-50-0 50lb 5.0” 18.0” 10

FOR Series Rolled Hook and Loop

Rolled hook and loop allows customers to conveniently cut pieces to desired lengths, eliminating

waste.

Cat. No. Min. Tensile Strength Max. Bundle Dia. Width Length Inner Pack Qty.

FOR180-50-0 50lb Various .75” 180” 1

Black is standard colour

* Add - “FR” for UL94V-2 rated material (after colour).

Mounting Bases

Two mounting bases specifically designed for use with hook and loop fasteners

Cat. No. Min. Tensile Strength Screw Size Length Inner Pack Qty.

TC368 2”x 2” Screw mounted #8 0.75” 500

TC368A 2”x 2” Adhesive mounted #8 0.75” 500

Available in these colours: (0) Black,

(1) Brown, (2) Red, (3) Orange, (4) Yellow, (5)

Green, (6) Blue, (8) Grey, and (9) White.

Please consult customer service for delivery

and availability.

Hook and Loop Fasteners

These handy ties are very easy to release and re-

use, making them ideal for appli cations where

changes are anticipated or continuous access is

required.

Features

• High quality Hook & Loop Fasteners designed

specifically for Thomas & Betts.

• Allows quick and convenient bundling of

Category 5 & Fiber optic cables.

• Multiple colours available for identifying specific

bundles.

• Sizes available to accommodate varying bundle

diameters.

• Screw and adhesive mounting bases provide

multiple mounting options.

• New version available UL94V-2 rated material.

Contact Customer Service for availability and

delivery.

Lashing Straps

Heavy Duty Lashing Tie (releasable)

Body Maximum Wire Tensile

Std. Bulk Pkg. Width Length Bundle Diameter Strength Std. Bulk

Cat. No. Cat. No. (in.) (in.) (in.) (lb.) Pkg. Pkg.

TY5409 TY409 .500 19.00 4.75 200 25 100

Length 19"

The heavy-duty lashing tie is made from

weather-resistant nylon. The addition of carbon

black provides good ultraviolet resistance and

prolongs the useful life of the cable tie.

This lashing tie is ideally suited for chemical

environments that are unsuitable for nylon.

Strapping is made of black, weather-resistant

polypropylene for outdoor use.

Head is made of nylon 66.

Many factors combine to determine the useful

life of a cable tie and chemical exposure can be

a very important consideration in certain

situations. Polypropylene cable ties are ideally

suited for chemical environments. It is black for

outdoor use.

Weather-Resistant Polypropylene Lashing Tie (releasable)

Body Maximum Wire Tensile

Width Length Bundle Diameter Strength Std.

Cat. No. (in.) (in.) (in.) (lb.) Pkg.

TY5418PX .500 18 5 150 25

TY5424PX .500 24 7 150 25

TY5442PX .500 42 12 150 10

TY5460PX .500 60 18 150 10

Weather-Resistant Polypropylene Hanger Lashing Tie

(releasable)

Body Maximum Wire Tensile

Width Length Bundle Diameter Strength Std.

Cat. No. (in.) (in.) (in.) (lb.) Pkg.

TY53418PX .500 18 5 150 25

Lashing Straps

Weather-Resistant Nylon 12 Messenger Hanger Straps

(releasable)

Body Maximum Wire Tensile

Width Length Bundle Diameter Hook Strength Std.

Cat. No. (in.) (in.) (in.) Material (lb.) Pkg.

TYM5412X .500 12 3 Bronze 200 50

TYM5418X .500 18 5 Bronze 200 25

TYM5423X .500 24 7 Bronze 200 25

TYM5430X .500 30 9 Bronze 200 25

TYM5436X .500 36 11 Bronze 200 25

TYM5412X-S .500 12 3 Stainless Steel 200 50

TYM5418X-S .500 18 5 Stainless Steel 200 25

TYM5423X-S .500 24 7 Stainless Steel 200 25

TYM5430X-S .500 30 9 Stainless Steel 200 25

TYM5436X-S .500 36 11 Stainless Steel 200 25

The recommended, maximum continuous static loading for the nylon 12 straps is 25 lb. per strap. For best results suggested spacing

is 15 inches. It is the responsibility of the user to determine whether or not their application meets our recommendation.

• Hook will accommodate 1/2" dia. messenger wire.

Messenger Hanger Spacer

Std.

Cat. No. Description Pkg.

TC5254 1" long stackable spacer for messenger straps 50

This one-inch long spacer

allows you to separate power

and signal cables with a

single-hanger, lashing strap if

desired. The spacer is

stackable so that you may

suspend the cable bundle at

any desired distance from the

messenger wire in order to

keep the cable runs parallel.

Nylon 12 provides very good resistance to

ultraviolet light and chemical exposure. Nylon 12

is a lower, moisture-absorbing material than 6/6

nylon and the effect of water on properties is

much less.

Nylon 12 provides very good resistance to

ultraviolet light and chemical exposure. Nylon 12

is a lower, moisture-absorbing material than 6/6

nylon and the effect of water on properties is

much less.

Messenger

wire

Spacer separating

cable bundles

Weather-Resistant Nylon 12 Hanger Strap (releasable)

Body Maximum Wire Tensile

Width Length Bundle Diameter Hook Strength Std.

Cat. No. (in.) (in.) (in.) Material (lb.) Pkg.

TY54407X .500 6.36 2 Steel 200 50

TY54413X .500 13.75 4 Steel 200 25

The recommended, maximum continuous static loading for the nylon 12 straps is 25 lb. per strap. For best results suggested spacing

is 15 inches. It is the responsibility of the user to determine whether or not their application meets our recommendation.

Cable Ties-Material Selection Ordering Guide

Table 2-Physical Properties of Ty-Rap®Cable Tie Materials

Weather Heat Stabilized Flame Weather Weather Radiation

Natural 66 Resistant 66 Natural 66 Retardant 66 Weatherable Resistant Resistant Resistant Stainless

Nylon Nylon Nylon Nylon Acetal Nylon 12 Polypropylene Fluoropolymer Halar (2) Steel

Tensile Strength (Yield)

@ 73º F (Dry-As-Molded) (1) psi 12,000 12,000 12,000 11,000 10,000 7500 4600 6,700 6,600 90,000

Flammability Rating - UL94V-2 UL94V-2 UL94V-2 UL94V-0 UL94HB - - UL94V-0 UL94V-0 -

Radiation Resistance rads 1 x 1051 x 1051 x 1051 x 1051 x 1061 x 1051 x 1052 x 1082 x 1062 x 108

Ultraviolet Light Resistance - Poor Good Poor Poor Very Good Good Good Excellent Excellent Excellent

Water Absorption (24 hrs) % 1.3 1.2 1.4 1.4 0.25 0.25 0.1 <.01 <0.1 None

Oxygen Index - 28 28 31 34 21 - - 30 52 -

Max. Continuous Use Temperature F / C 185 /85 185 /85 221 / 105 185 /85 185 /85 176 / 80 185 /85 338 / 170 284 / 140 1000 / 537

Min. Continuous Use Temperature F / C -40 / -40 -40 / -40 -40 / -40 -40 / -40 -40 / -40 -40 / -40 -40 / -40 -76 / -60 -50 / -46 -112 /

Colour - Natural Black Green tint White Black Black Black Aqua Maroon Stainless

(1) ASTM D638-878 except stainless steel which is ASTME8

(2) Halar is a trademark of Solvay Solexis, Inc.

Cable Ties-Material Selection Ordering Guide

Flammability ratings for

selecting Ty-Rap®cable ties

Note: Flammability ratings of Ty-Rap®

cable tie materials are shown in Table 2.

These tests for flammability of plastic

material are intended to serve as a

preliminary indication of accepta bility with

respect to flammability for particular

applications.

UL 94 vertical burn test

procedures

Test specimens of the material, with

dimensions 5" x 1/2", with the thickness

intended for use in the end product, are

tested in both the manufactured

condition and in the aged state. The test

requires that the specimen be supported

in a vertical fixture and a precisely

controlled flame applied for a 10 second

period. The flame is removed and the

duration of flaming is noted. If the flame

extinguishes, a second exposure to flame

for 10 seconds is applied and duration of

flaming is again noted. It is observed and

recorded whether or not test specimens

drip flaming particles that ignite a cotton

swatch.

Materials classed V-0

A material classed V-0 shall:

A. Not have any specimens that burn

with flaming combustion for more than

10 seconds after either application of

the test flame.

B. Not have a total flaming combustion

time exceeding 50 seconds for the 10

flame applications for each set of five

specimens.

C. Not have any specimens that burn

with flaming or glowing combustion up

to the holding fixture.

D. Not have any specimens that drip

flaming particles that ignite the dry

absorbent surgical cotton located 12"

below the test specimen.

E. Not have any specimens with glowing

combustion that persists for more than

30 seconds after the second removal

of the test flame.

Materials classed V-1

A material classed V-1 shall:

A. Not have any specimens that burn

with flaming combustion for more than

30 seconds after either application of

the test flame.

B. Not have a total flaming combustion

time exceeding 250 seconds for the

10 flame applications for each set of

five specimens.

C. Not have any specimens that burn

with flaming or glowing combustion up

to the holding fixture.

D. Not have any specimens that drip

flaming particles that ignite the dry

absorbent surgical cotton located 12"

below the test specimen.

E. Not have any specimens with glowing

combustion that persists for more than

60 seconds after the second removal

of the test flame.

Materials classed V-2

A material classed V-2 shall:

A. Not have any specimens that burn

with flaming combustion for more than

30 seconds after either application of

the test flame.

B. Not have a total flaming combustion

time exceeding 250 seconds for the

10 flame applications for each set of

five specimens.

C. Not have any specimens that burn

with flaming or glowing combustion up

to the holding fixture.

D. Be permitted to have specimens that

drip flaming particles that burn only

briefly, some of which ignite the dry

absorbent surgical cotton placed 12"

below the test specimen.

E. Not have any specimens with glowing

combustion that persists for more than

60 seconds after the second removal

of the test flame.

Cable Ties-Material Selection Ordering Guide

Chemical resistance

Table 3 shows the resistance of Ty-Rap®cable tie materials to various chemicals. The table is designed to help you determine the

cable tie material best suited for a particular chemical environment.

Table 3-Resistance of Available Materials to Various Chemicals Temp 20°C (70°F)

Weather-

Heat- 6/6 Weather- 6/6 Fire- Weather- Resistant Fluoro-

Stabilized 6/6 Weatherable Standard 6/6 Resistant Retardant Resistant Polypropylene Polypropylene polymer Stainless

Nylon as Halar®† as Acetal as Nylon as Nylon as Nylon as Nylon 12 as as Used in as Used in as Steel as Used

Used in TYH Used in TYV Used in TYD Used in TY Used in TY Used in TY Used in TYC TYP TYP Used in TYZ in TYS

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Reagents Concentration Series Series Series Series X Series FR Series X Series Series X Series Series Series

Arsenic Acid 40% – – – – – – – E E – E

Acetaldehyde 50% S – – S S S – – – – –

Acetone 100% E E F E E E E E E E E

Aluminum Hydroxide AQ – E – – – – – E E E E

Ammonia 100% – E – – – – E E E E

Ammonium Carbonate 5% S E – S S S E E E E E

Ammonium Hydroxide 10% E E F E E E – E E E E

Ammonium Nitrate – – E – – – – E E E E E

Ammonium Sulfate 10% – E – – – – S S S S S

Barium Carbonate 100% – E – – – – E E E E E

Barium Chloride 5% NR – NR NR NR E E E E E

Barium Sulfate 10% E – E E E E E E E E

Barium Sulfide 10% S – S S S E E E E E

Benzene 100% E E F E E E E S S E E

Benzoic Acid 100% NR E – NR NR NR E E E E E

Butyric Acid 50% NR E – NR NR NR – E E E E

Calcium Carbonate AQ – E – – – – – E E E E

Calcium Hydroxide 20% – F E – – – – E E E E

Calcium Hydrochlorite 2 NR – – NR NR NR – F F F F

Calcium Sulfate 2% – E – – – – – E E E E

Carbon Tetrachloride 100% E E E E E E E F F E E

Chlorine (WET) – NR – – NR NR NR – F F F F

Chlorine (DRY) – NR – – NR NR NR – NR NR F F

Chloroacetic Acid 30% NR – – NR NR NR – – – F F

Chloroform 100% – E – – – – F F F E E

Chromic Acid 50% NR S – NR NR NR – F F F F

Citric Acid 50% S E E S S S E E E E E

Copper Cyanide 10% – E – – – – – E E E E

Copper Nitrate 50% – E – – – – – E E E E

Cider – – E – – – – – E E E E

Dichloroethane 100% – E – – – – – – – E E

Diethyl Ether 100% – E S – – – E E E E E

Ethyl Alcohol 100% S E – S S S E E E E E

†Halar®Trademark of Solvay Solexis, Inc.

Ratings

E= Excellent

S= Satisfactory

F= Fair

NR = Not Recommended

(AQ = Aqueous)

Cable Ties-Material Selection Ordering Guide

Table 3-continued

Weather-

Heat- 6/6 Weather- 6/6 Fire- Weather- Resistant Fluoro-

Stabilized 6/6 Weatherable Standard 6/6 Resistant Retardant Resistant Polypropylene Polypropylene polymer Stainless

Nylon as Halar®† as Acetal as Nylon as Nylon as Nylon as Nylon 12 as as Used in as Used in as Steel as Used

Used in TYH Used in TYV Used in TYD Used in TY Used in TY Used in TY Used in TYC TYP TYP Used in TYZ in TYS

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Reagents Concentration Series Series Series Series X Series FR Series X Series Series X Series Series Series

Ethyl Chloride 100% – S E – – – F F F E E

Ethylene Glycol 100% E E S E E E – E E E E

Ferric Hydroxide 100% – E – – – – – E E E E

Ferric Nitrate 10% – E – – – – – E E E E

Ferrous Sulfate 10% – E – – – – – E E E E

Fuel Oil 100% – E – – – – E – – E E

Furfural 100% – E – – – – – F F E E

Gallic Acid AQ – E – – – – – – – E E

Gasoline 100% E E – E E E – S S E E

Glycerine 100% – E – – – – E E E – E

Hydrocyanic Acid 100% – E – – – – – E E E E

Hydrogen Peroxide 30% NR E F NR NR NR S E E E E

Hydrogen Sulfide Dry NR E – NR NR NR E E E E E

Iodoform 100% – E – – – – – – – E E

Isopropyl Alohol 100% S E – S S S E E E E E

Jet Fuel 100% E E – E E E – S S E E

Lactic Acid 10% E E – E E E S E E E E

Lanolin 10% E E – E E E E E E E E

Lead Acetate 5% – E – – – – – E E E E

Linseed Oil 10% E E E E E E E E E E E

Magnesium Carbonate 100% – E – – – – E E E E E

Magnesium Chloride 10% F – – F F F F F F F F

Magnesium Nitrate 100% – E – – – – E E E E E

Malic Acid AQ – E – – – – – E E E E

Mercury 100% – E – – – – E E E E E

Methyl Alcohol 100% S E – S S S E E E E E

Methyl Chloride 100% – S – – – – – S S E E

Methyl Ethyl Ketone 100% – E F – – – E E E E E

Naptha 100% – E – – – – – E E E E

Nitric Acid 30% NR E NR NR NR NR – E E E E

Nitric Acid 30-70% NR S NR NR NR NR – F F S E

Nitrous Acid 5% – E – – – – – F F E E

Oieic Acid 100% – E S – – – – E E E E

Oxalic Acid 10% – E – – – – S E E E E

Paraffin 100% E E – E E E E E E E E

Petroleum Ether 100% – E – – – – E F F E E

Phenol 90% NR E NR NR NR NR – E E E E

Phosphoric Acid 10% NR E – NR NR NR – E E E E

Picric Acid 1% – E – – – – – E E E E

Potassium Bromide AQ – – – – – – – S S S S

†Halar®Trademark of Solvay Solexis, Inc.

Ratings

E= Excellent

S= Satisfactory

F= Fair

NR = Not Recommended

(AQ = Aqueous)

Cable Ties-Material Selection Ordering Guide

Table 3–continued

Weather-

Heat- 6/6 Weather- 6/6 Fire- Weather- Resistant Fluoro-

Stabilized 6/6 Weatherable Standard 6/6 Resistant Retardant Resistant Polypropylene Polypropylene polymer Stainless

Nylon as Halar®†as Acetal as Nylon as Nylon as Nylon as Nylon 12 as as Used in as Used in as Steel as Used

Used in TYH Used in TYV Used in TYD Used in TY Used in TY Used in TY Used in TYC TYP TYP Used in TYZ in TYS

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Reagents Concentration Series Series Series Series X Series FR Series X Series Series X Series Series Series

Potassium Carbonate 1% – E – – – – E E E E E

Potassium Chlorate AQ – E – – – – S E E E E

Potassium Dichromate 40% NR E – NR NR NR F E E E E

Potassium Ferrocyanide 25% – E – – – – – E E E E

Potassium Hydroxide 5% S E – S S S – E E E E

Potassium Iodide 100% – E – – – – E E E E E

Potassium Nitrate 50% F E – F F F E E E E E

Potassium Permanganate 5% NR E S NR NR NR NR E E E E

Potassium Sulfate 5% – E – – – – E E E E E

Potassium Sulfide AQ – E – – – – – E E E E

Propyl Alcohol 100% E E – E E E – E E E E

Silver Nitrate 10% – E – – – – E E E E E

Sodium Acetate 60% E E – E E E – E E E E

Sodium Bicarbonate 100% E E – E E E E E E E E

Sodium Bisulfate 10% – E E – – – E E E E E

Sodium Borate 100% – E – – – – – E E E E

Sodium Carbonate 5% E E S E E E E E E E E

Sodium Chlorate 25% – E E – – – S E E E E

Sodium Chloride 2% E E S E E E E E E E E

Sodium Fluoride 5% – – – – – – – F F F F

Sodium Hydroxide 10% E E S E E E E E E E E

Sodium Hyposulfite AQ – E – – – – – – – E E

Sodium Nitrate 5% E E – E E E E E E E E

Sodium Nitrite AQ – E – – – – S E E E E

Sodium Perchlorate 10% – E – – – – – – – E E

Sodium Phosphate 5% – E – – – – E E E E E

Sodium Sulfate 5% S E – S E E E E E E E

Sodium Thiosulfate 5% – – S – – – S S S S S

Stearic Acid 100% – E – – – – F E E E E

Sulfur 100% – E – – – – E E E E E

Sulfur Dioxide 100% NR E – NR NR NR E E E E E

Sulfuric Acid Conc. NR E NR NR NR NR – S S E E

Sulfuric Acid 5% NR F F NR NR NR F F F F F

Tannic Acid 10% – E – – – – – E E E E

Tartaric Acid 50% – E E – – – E E E E E

Tetrahydrofuran 100% – F E – – – S F F E E

Toluene 100% E E F E E E E F F E F

Xylene 100% E – E E E E F F E E

Zinc Chloride 70% F E NR F F F E E E E E

Zinc Nitrate AQ – E – – – – E E E E E

Zinc Sulfate AQ – E – – – – E E E E E

†Halar®Trademark of Solvay Solexis, Inc.

Ratings

E= Excellent

S= Satisfactory

F= Fair

NR = Not Recommended

(AQ = Aqueous)

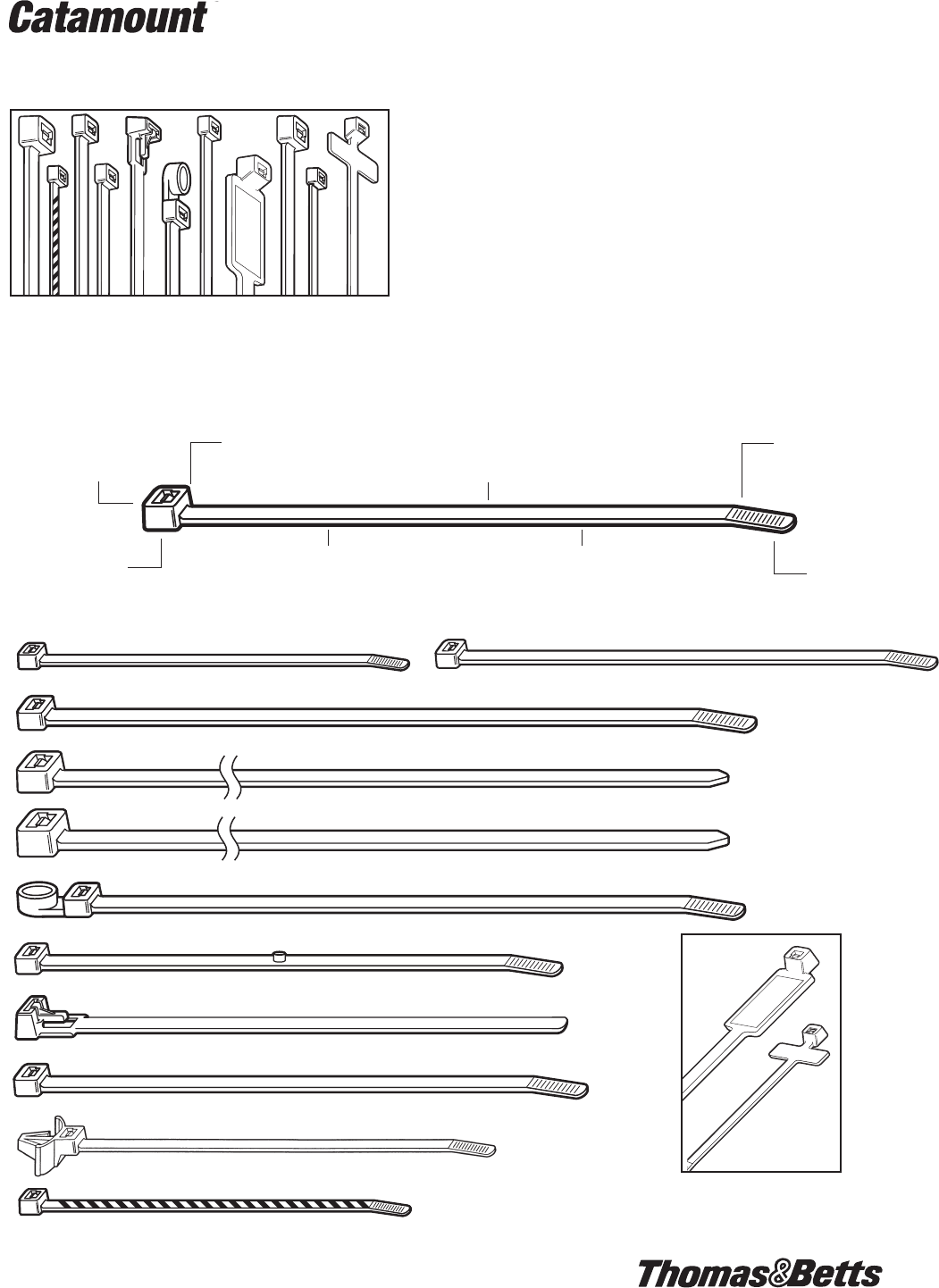

Cable Ties

MIL-SPEC (PAGE 51)

MINIATURE (PAGE 47) INTERMEDIATE (PAGE 47)

STANDARD (PAGE 47)

HEAVY-DUTY (PAGE 48)

EXTRA HEAVY-DUTY (PAGE 48)

MOUNTING HEAD (PAGE 49)

RESTRICTED BUNDLE (PAGE 49)

RELEASABLE (PAGE 50)

STRIPED (PAGE 54)

I.D. TIES (page 53)

PUSH MOUNT (PAGE 52)

Strict Tolerances

Assure Locking

Strength

Recessed

Entry to

Guide

Insertion

Generous Radii on All

Angles to

Reduce Friction

Raised Grips on

Tail to Assist

Operators

Gradual Strap to Tail

Transition for Lower

Insertion Force

Reinforced Head and

Strap Transition for

Added Strength

Highly Engineered Tooth

and Pawl Design for

Maximum Engagement

Bent Tip Design for

Easier Assembly

• MINIATURE

• HEAVY DUTY

• INTERMEDIATE

• EXTRA HEAVY DUTY

• STANDARD

• RELEASABLE TIES

• MOUNTING HEAD

• STRIPED TIES

• RESTRICTED BUNDLE

• IDENTIFICATION TIES

• MIL-SPEC TIES

CatamountTM Cable Ties are available in lengths from 4" to our

exclusive 48" strap. Cable Ties will satisfy bundling require ments from

1/16" to 15" and loop tensile strengths from 18 to 175 pounds.

Cable Ties are stocked in materials and colours as listed. Contact

your CatamountTM Distributor or Customer Service Representative for

availability in special colours.

Where applicable, CatamountTM Cable Ties are UL Recognized, Mil-

Spec Approved and/or QPL Listed.

State-of-the-art robotic and raw material handling equipment assures

product and material integrity throughout the manufacturing process.

Overall quality is achieved through statistical analysis and quality

driven operator objectives. CatamountTM has attained Mil-Spec

I-45208 quality ratings from a number of equipment manufacturers.

CatamountTM products are sold through stocking T&B Distributors.

Cable Ties

L 4 18 HS –9M

Quantity

Q- 25 pack

L- 50 pack

C- 100 pack

D- 500 pack

M- 1000 pack

Colour

Colour Chart

Tensile Strength

18 lb.

30 lb.

40 lb.

50 lb.

120 lb.

175 lb.

250 lb.

Length

Product Prefix

P- Plain Bagged Cable Ties

L- Cable Ties

MP NY - 750 - 9 C

Quantity

Q- 25 pack

L- 50 pack

C- 100 pack

D- 500 pack

M- 1000 pack

Colour

Colour Chart

Size / #

.75"

Material

Nylon

TZ - Fluoropolymer

PV - PVC

PE - Polyethylene

FR - Flame Retardant

TL - Teflon

Product Prefix

MP - Mounting Pad

ID - Identification

S# - Strapping Thickness

MC - Mounting Cradle

PM - Push Mounts

SM - Screw Mounts

N# - Plain-Edged Cable Clamps / Width

W# - Self-Aligning Cable Clamps / Dia.

UL - Adjustable cable clamps

GG - Gator Grip

FA - Flat Adhesive Clip

FS - Flat Screw Clip

FR - Flat Rubber Adhesive Clip

MS - Snap Mount

RA - Round Adhesive Clip

SR - Spiral Wrap

GS - Grommeting

GR - Extruded Grommeting

GRU - Extruded Grommeting Uncut

Colour Table

0 – Black

(Weather Resistant)

1 – Brown

2 – Red

3 – Orange

4 – Yellow

5 – Green

6 – Blue

7 – Purple

8 – Grey

9 – Natural

11 – Fluorescent Pink

16 – Fluorescent Orange

17 – Fluorescent Yellow

18 – Fluorescent Green

20 – Fluorescent Blue

Part Number Construction

Type of Product

Nylon 66 - Leave Blank

Heat Stabilized - HS

(Black and Natural Colour Only)

Fluorescent - FL

Mounting Head - MH

Pushmount - PM

Pushmount Releasable - PMR

Releasable - R

Restricted Bundle - TB

Identification - ID

44-47-e.pdf 1 2/22/2012 8:24:24 AM

Cable Ties

Materials for Molded Assembly Hardware

Heat

ASTM Molded 6/6 Stabilized UV Black

Property Method Test Condition Units Nylon Nylon Nylon

Tensile Strength D638 +73°F; 50% RH kpsi 11.2 11.2 9.0

Elongation at Break D638 +73°F; 50% RH % Ž300 Ž300 200

Yield Strength D638 +73°F; 50% RH kpsi 8.5 8.5 9.0

Shear Strength D732 Dry As Molded (DAM) kpsi 9.6 9.6 10.5

Deformation Under Load D621 2,000 psi % 1.4 1.4 1.2

+122°F; DAM

IZOD Impact D256 +73°F; 50% RH ft lb/in 2.1 2.1 2.0

Tensile Impact Strength D1822 +73°F; Long ft lb/in2240 240 N.R.

Specimen; DAM

Melting Point D789 Fisher-Johns °F 491 491 491

Thermal Linear Expansion D696 DAM in/in/°F 4 x 10-5 4 x 10-5 N.R.

Thermal Conductivity – DAM Conche-Fitch BTU - in/h . ft2. °F 1.7 1.7 1.7

Brittleness Temperature D746 50% RH °F -85 -85 -62

Oxygen Index D2863 DAM %0228 28 25

50% RH 31 31 31

UL Flammability UL 94 DAM – V-2 V-2 V-2

50% RH – V-2 V-2 V-2

• Material data as provided by our suppliers. • N.R. = Not Reported

• Tests conducted on 1/4" specimens.

44-47-e.pdf 2 2/22/2012 8:24:24 AM

Cable Ties

NBS Smoke Generation for 6/6 Nylon

Specific Optical Density

Sample UL Energy at Maximum

Thickness Flammability Source Smoke Accumulation at 2 Minutes

1/16"94 V-2 Radiant 13 0

(2.5 watts/sq cm)

1/8"94 V-2 Radiant Plus 26 1

Flaming Gas Jets

• Results as provided by National Bureau of Standards (NBS). Results may not be directly correlated with larger fires, such as

burning buildings. Materials should be tested to your application.

Temperature Index for Molded Nylons

Temperature Index

Minimum Mechanical Hot Wire

Material Thickness (in) Electrical (°C) w/o Impact (°C) Ignition (sec)

6/6 Nylon .058 125 85 15.0

UV Black .120 125 85 35.0

Nylon .240 125 85 35.0

Heat .058 130 105 11.0

Stabilized Nylon .120 130 110 20.0

• Temperature Index is the temperature at which the specific property will decrease to one-half its original value after 60,000 hours

exposure at that temperature.

About Nylon…

Nylons possess an outstanding balance of

properties combining strength, moderate stiffness,

high service temperature and a high level of

toughness. Nylon is particularly resistant to

repeated impact, has a low co-efficient of friction

and excellent abrasion resistance.

Nylon is resistant to fuels, lubricants and most

chemicals, but is attacked by phenols, strong acids

and oxidizing agents. Contact your CatamountTM

Customer Service Repre sentative or your

CatamountTM Distributor for chemical data relative

to your application.

Nylon is inherently susceptible to environ mental

conditions. CatamountTM Cable Ties are moisturized

to optimum performance levels at machine-side

and should be stored in cool dry areas out of direct

sunlight. Cable Ties are packaged in plastic bags to

contain moisture and should remain sealed until

ready for use.

44-47-e.pdf 3 2/22/2012 8:24:24 AM

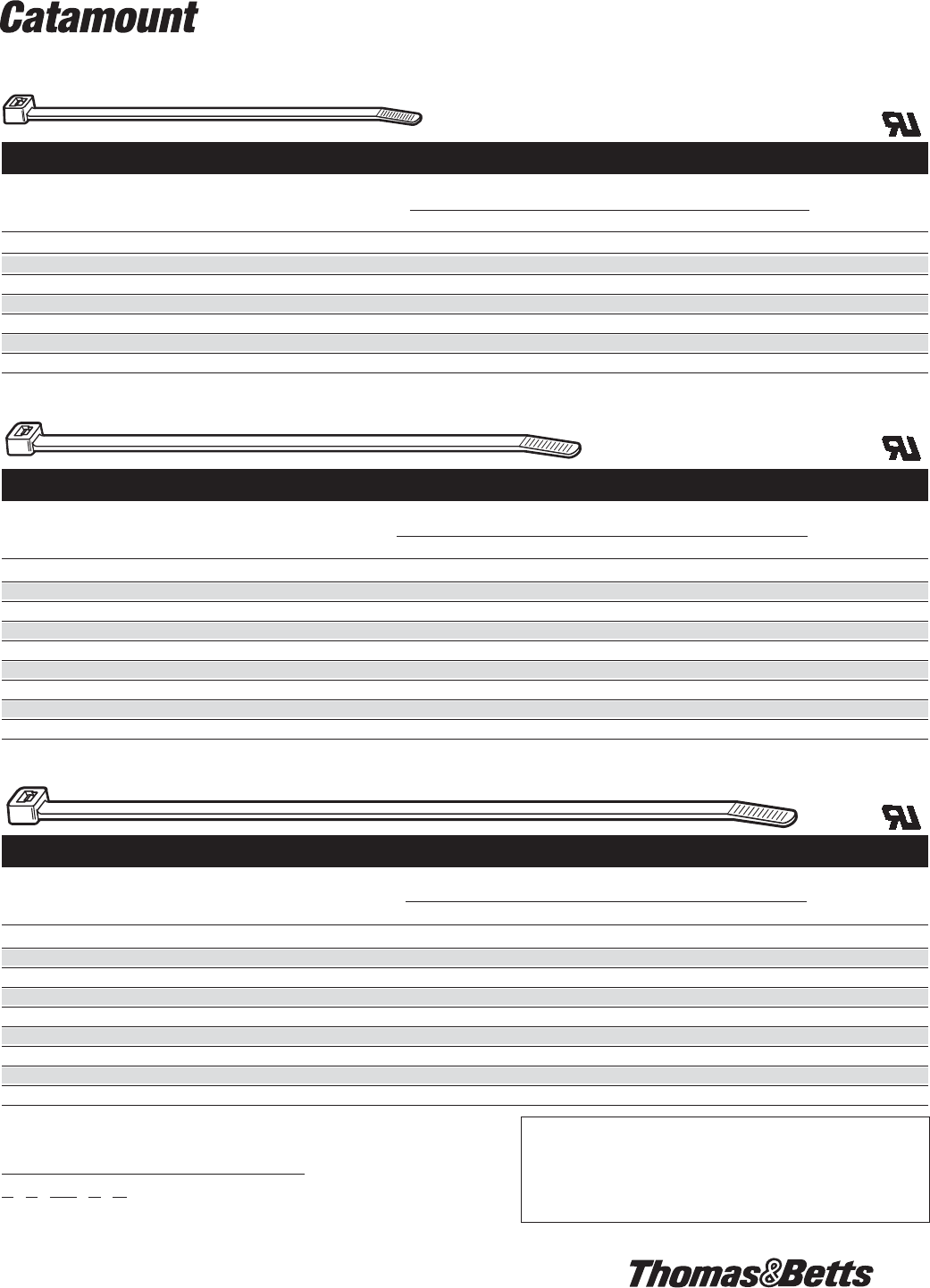

Cable Ties

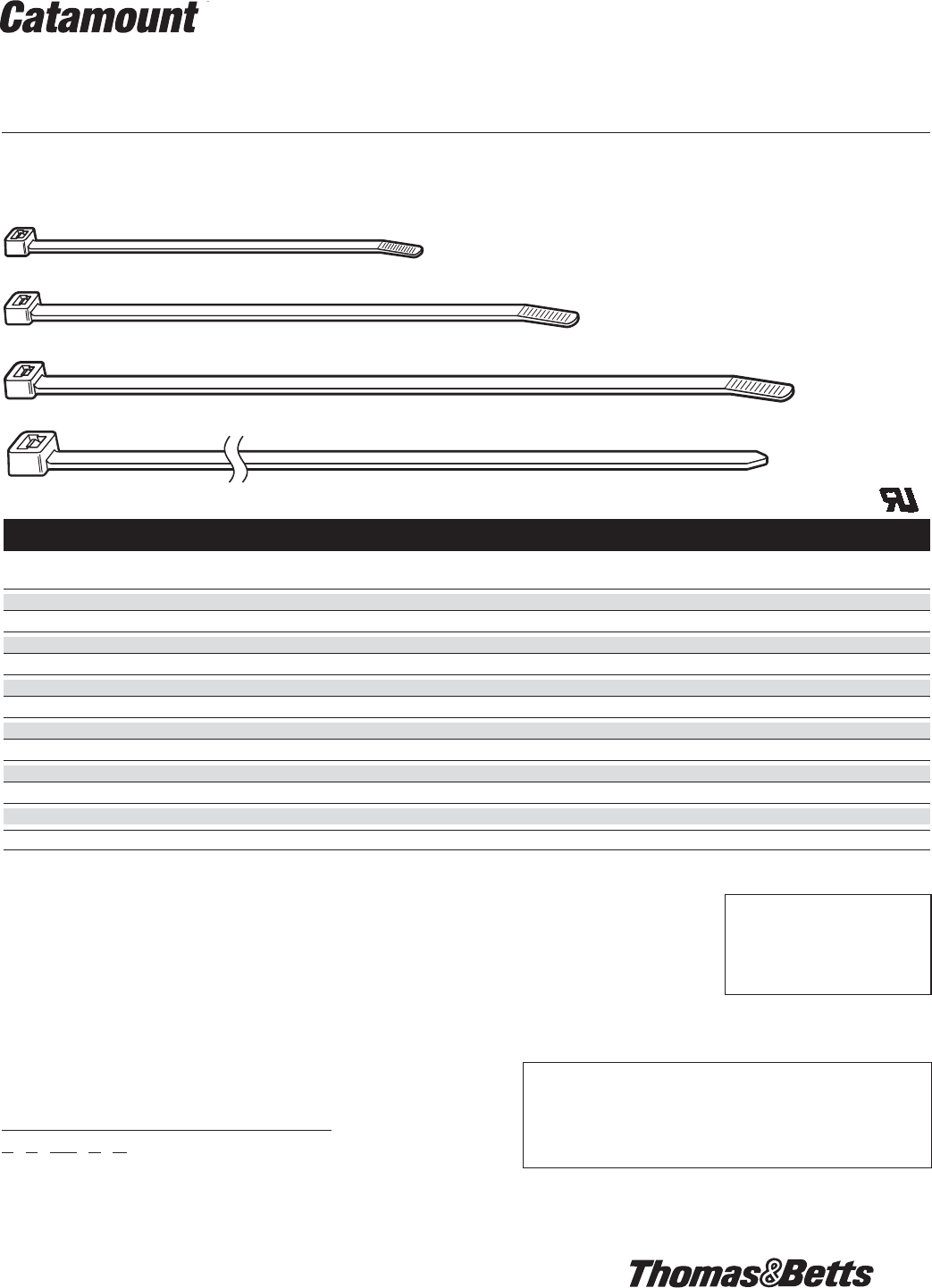

Miniature – Series 18

Bundle Minimum

Std. Bulk Diameter Length Width Loop Tensile Std. Bulk

Cat. No. Cat. No. Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg. Pkg.

L-4-18HS-0-C L-4-18HS-0-M Heat Stabilized Nylon Black 1/16 - 5/8 (2-16) 4.0 (102) .100 (3) 18 (8.2) 100 1000

L-4-18-9-C L-4-18-9-M Nylon Natural 1/16 - 5/8 (2-16) 4.0 (102) .100 (3) 18 (8.2) 100 1000

L-4-18-0-C L-4-18-0-M Nylon Black 1/16 - 5/8 (2-16) 4.0 (102) .100 (3) 18 (8.2) 100 1000

L-6-18-9-C L-6-18-9-M Nylon Natural 1 1/16 - 1 1/2 (2 - 38) 6.4 (163) .100 (3) 18 (8.2) 100 1000

L-6-18-0-C L-6-18-0-M Nylon Black 1 1/6 - 1 1/2 (2 - 38) 6.4 (163) .100 (3) 18 (8.2) 100 1000

L-8-18-9-C L-8-18-9-M Nylon Natural 1/16 - 2 (2 - 51) 8.0 (202) .100 (3) 18 (8.2) 100 1000

L-8-18-0-C L-8-18-0-M Nylon Black 1 1/6 - 2 (2 - 51) 8.0 (202) .100 (3) 18 (8.2) 100 1000

• Use QC-100, L-200, L-400-C, or ERG-299 Installation Tools.

Consult Customer Service for availability and colours.

Colour Table

0 – Black (Outdoor)

1 – Brown

2 – Red

3 – Orange

4 – Yellow

Intermediate - Series 30/40

Bundle Minimum

Std. Bulk Diameter Length Width Loop Tensile Std. Bulk

Cat. No. Cat. No. Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg. Pkg.

L-5-30HS-0-C L-5-30HS-0-M Heat Stabilized Nylon Black 1/16 - 1 1/4 (2 - 32) 5.6 (145) .130 (3) 30 (13.6) 100 1000

L-5-30-9-C L-5-30-9-M Nylon Natural 1/16 - 1 1/4 (2 - 32) 5.6 (145) .130 (3) 30 (13.6) 100 1000

L-5-30-0-C L-5-30-0-M Nylon Black 1/16 - 1 1/4 (2 - 32) 5.6 (145) .130 (3) 30 (13.6) 100 1000

L-8-40-9-C L-8-40-9-M Nylon Natural 1/16 - 2 (2-51) 8.5 (215) .140 (3) 40 (18.2) 100 1000

L-8-40-0-C L-8-40-0-M Nylon Black 1/16 - 2 (2-51) 8.5 (215) .140 (3) 40 (18.2) 100 1000

L-11-40-9-C L-11-40-9-D Nylon Natural 1/16 - 3 (2-76) 11.5 (282) .146 (4) 40 (18.2) 100 500

L-11-40-0-C L-11-40-0-D Nylon Black 1/16 - 3 (2-76) 11.5 (282) .146 (4) 40 (18.2) 100 500

L-14-40-9-C L-14-40-9-D Nylon Natural 1/16 - 4 (2-102) 14.5 (358) .146 (4) 40 (18.2) 100 500

L-14-40-0-C L-14-40-0-D Nylon Black 1/16 - 4 (2-102) 14.5 (358) .146 (4) 40 (18.2) 100 500

• Use QC-100, L-200, L-400-C, or ERG-299 Installation Tools.

Consult Customer Service for availability and colours.

Standard - Series 50

Bundle Minimum

Std. Bulk Diameter Length Width Loop Tensile Std. Bulk

Cat. No. Cat. No. Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg. Pkg.

L-5-50HS-0-C L-5-50HS-0-M Heat Stabilized Nylon Black 1/16 - 1 (2-25) 5.5 (140) .187 (5) 50 (22.7) 100 1000

L-5-50-9-C L-5-50-9-M Nylon Natural 1/16 - 1 (2-25) 5.5 (140) .187 (5) 50 (22.7) 100 1000

L-5-50-0-C L-5-50-0-M Nylon Black 1/16 - 1 (2-25) 5.5 (140) .187 (5) 50 (22.7) 100 1000

L-7-50-9-C L-7-50-9-M Nylon Natural 1/16 - 1 3/4 (2-44) 7.5 (193) .187 (5) 50 (22.7) 100 1000

L-7-50-0-C L-7-50-0-M Nylon Black 1/16 - 1 3/4 (2-44) 7.5 (193) .187 (5) 50 (22.7) 100 1000

L-11-50-9-C L-11-50-9-D Nylon Natural 1/16 - 3(2-76) 11.1 (282) .187 (5) 50 (22.7) 100 500

L-11-50-0-C L-11-50-0-D Nylon Black 1/16 - 3 (2-76) 11.1 (282) .187 (5) 50 (22.7) 100 500

L-14-50-9-C L-14-50-9-D Nylon Natural 1/16 - 4 (2-102) 14.1 (358) .187 (5) 50 (22.7) 100 500

L-14-50-0-C L-14-50-0-D Nylon Black 1/16 - 4 (2-102) 14.1 (358) .187 (5) 50 (22.7) 100 500

• Use QC-100, L-200, L-400-C, or ERG-299 Installation Tools.

Consult Customer Service for availability and colours.

5 – Green

6 – Blue

7 – Purple

8 – Grey

9 – Natural

FL11 – Fluorescent Pink

FL16 – Fluorescent Orange

FL17 – Fluorescent Yellow

FL18 – Fluorescent Green

FL20 – Fluorescent Blue

Sample Catalogue Order:

L 4 18 9 C = Natural Colour Type

44-47-e.pdf 4 2/22/2012 8:24:24 AM

Cable Ties

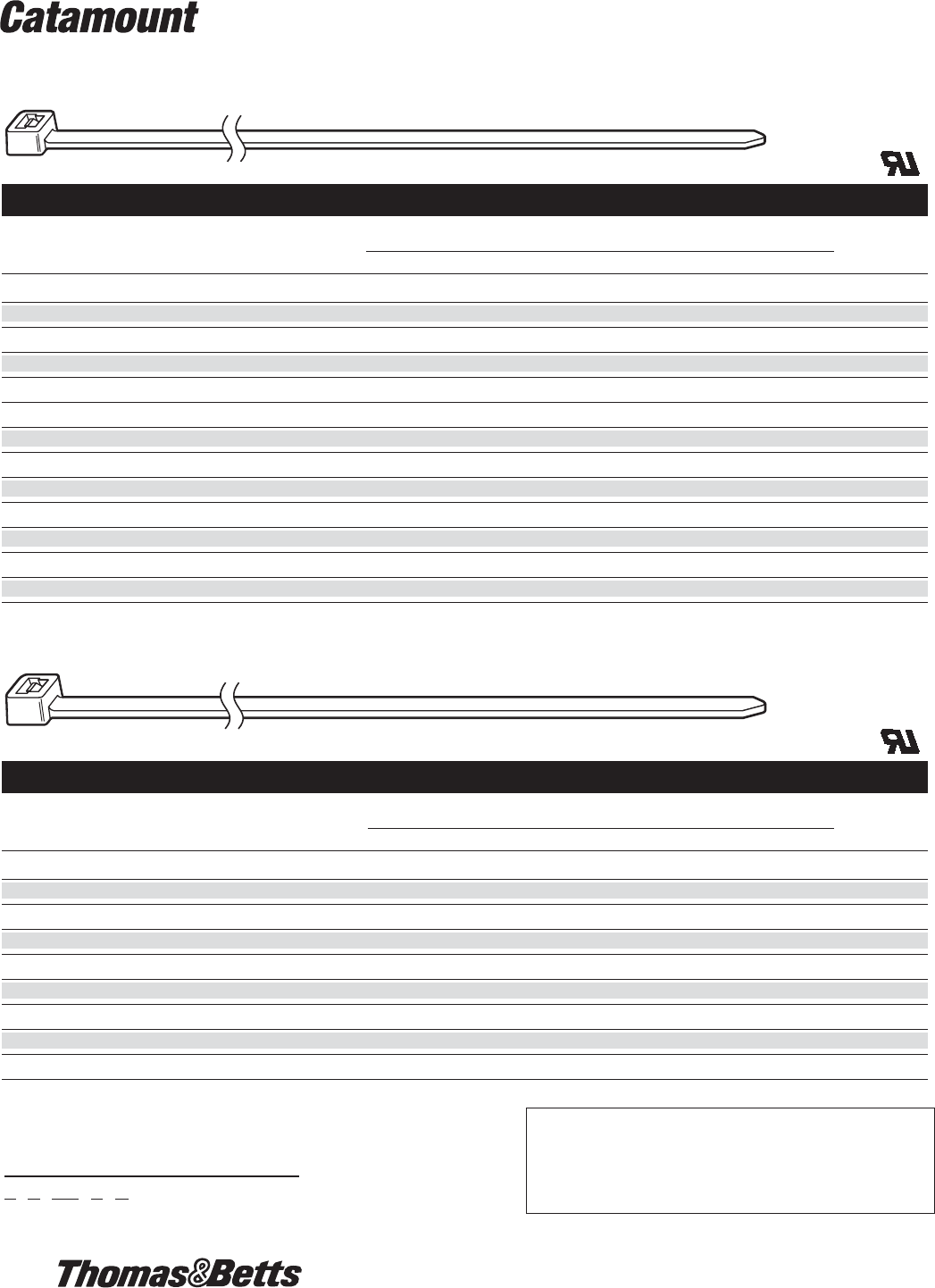

Heavy Duty - Series 120

Bundle Minimum

Std. Diameter Length Width Loop Tensile Std.

Cat. No. Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg.

L-8-120HS-0-C Heat Stabilized Nylon Black 3/16 - 2 (5-51) 8.0 (202) .300 (8) 120 (54.4) 100

L-8-120-9-C Nylon Natural 3/16 - 2 (5-51) 8.0 (202) .300 (8) 120 (54.4) 100

L-8-120-0-C Nylon Black 3/16 - 2 (5-51) 8.0 (202) .300 (8) 120 (54.4) 100

L-11-120-9-C Nylon Natural 3/16 - 3 (5-76) 11.1 (282) .300 (8) 120 (54.4) 100

L-11-120-0-C Nylon Black 3/16 - 3 (5-76) 11.1 (282) .300 (8) 120 (54.4) 100

L-14-120-9-C Nylon Natural 3/16 - 4 (5-102) 14.2 (363) .300 (8) 120 (54.4) 100

L-14-120-0-C Nylon Black 3/16 - 4 (5-102) 14.2 (363) .300 (8) 120 (54.4) 100

L-18-120-9-L Nylon Natural 3/16 - 4 7/8 (5-124) 18.0 (457) .300 (8) 120 (54.4) 50

L-18-120-0-L Nylon Black 3/16- 4 7/8 (5-124) 18.0 (457) .300 (8) 120 (54.4) 50

L-24-120-9-L Nylon Natural 3/16 - 7 (5-178) 24.2 (616) .300 (8) 120 (54.4) 50

L-24-120-0-L Nylon Black 3/16 - 7 (5-178) 24.2 (616) .300 (8) 120 (54.4) 50

L-28-120-9-L Nylon Natural 3/16 - 9 (5-230) 28.0 (816) .300 (8) 120 (54.4) 50

L-28-120-0-L Nylon Black 3/16 - 9 (5-230) 28.0 (816) .300 (8) 120 (54.4) 50

• Use L-300C or ERG-297 Installation Tool. Consult Customer Service for availability and colours.

Extra Heavy Duty - Series 175

Bundle Minimum

Std. Diameter Length Width Loop Tensile Std.

Cat. No. Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg.

L-24-175-9-L Nylon Natural 3/16 - 7.2 (5-184) 24.0 (612) .345 (9) 175 (79.3) 50

L-24-175-0-L Nylon Black 3/16 - 7.2 (5-184) 24.0 (612) .345 (9) 175 (79.3) 50

L-34-175-9-L Nylon Natural 3/16 - 10 (5-254) 34.0 (864) .345 (9) 175 (79.3) 50

L-36-175-9-L Nylon Natural 2 3/4 - 10 3/4 (70-273) 36.0 (914) .345 (9) 175 (79.3) 50

L-36-175-0-L Nylon Black 2 3/4 - 10 3/4 (70-273) 36.0 (914) .345 (9) 175 (79.3) 50

L-41-175-9-L Nylon Natural 3/16 - 12 (5-305) 41.0 (1032) .345 (9) 175 (79.3) 50

L-41-175-0-L Nylon Black 3/16 - 12 (5-305) 41.0 (1032) .345 (9) 175 (79.3) 50

L-48-175-9-L Nylon Natural 3/16 - 15 (5-375) 48.0 (1216) .345 (9) 175 (79.3) 50

L-48-175-0-L Nylon Black 3/16 - 15 (5-375) 48.0 (1216) .345 (9) 175 (79.3) 50

• Use L-300C Installation Tool. Consult Customer Service for availability and colours.

Colour Table

0 – Black (Outdoor)

1 – Brown

2 – Red

3 – Orange

4 – Yellow

5 – Green

6 – Blue

7 – Purple

8 – Grey

9 – Natural

11 – Fluorescent Pink

16 – Fluorescent Orange

17 – Fluorescent Yellow

18 – Fluorescent Green

20 – Fluorescent Blue

Sample Catalogue Order:

L 4 18 9 C = Natural Colour Type

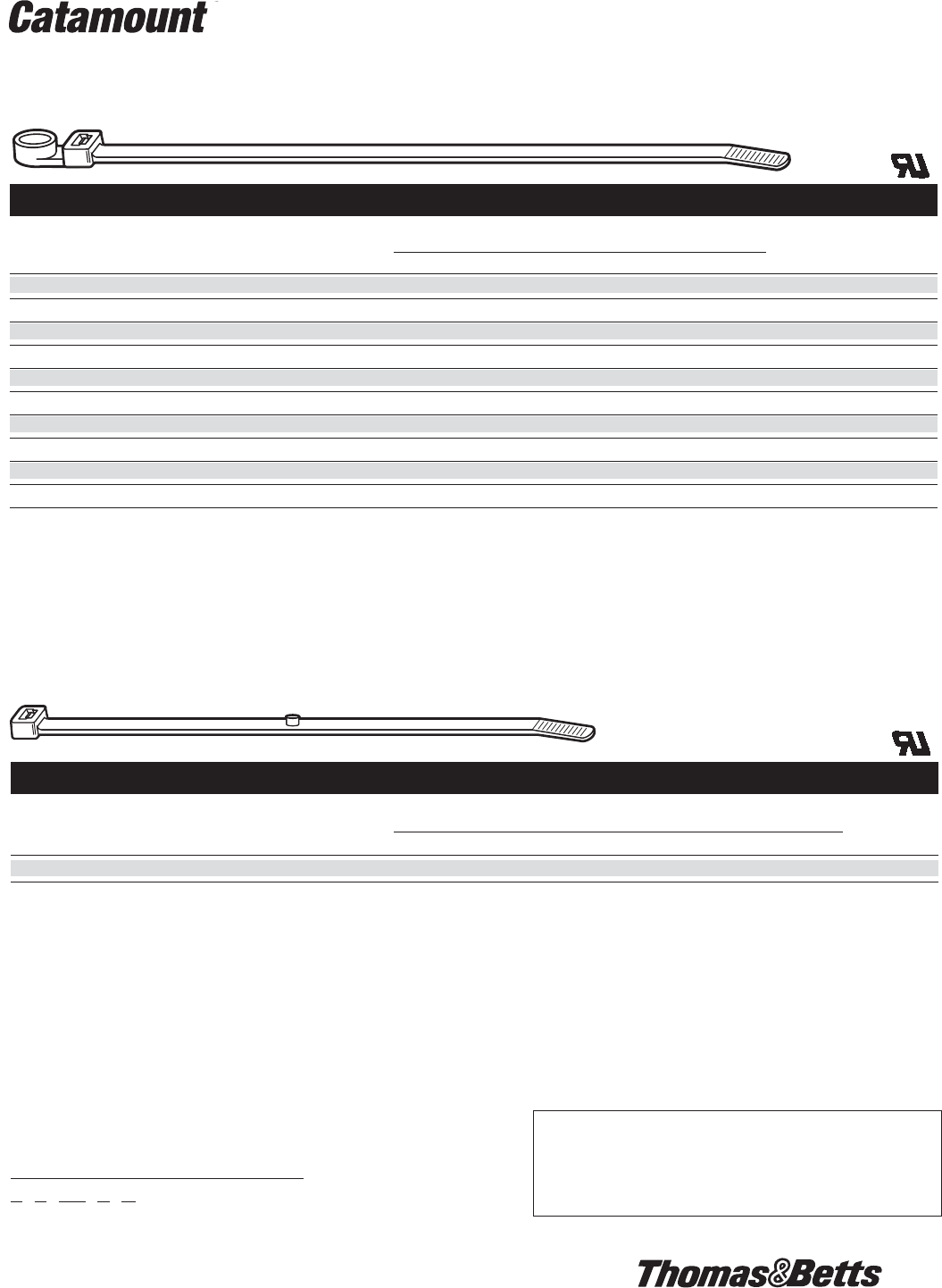

Restricted Bundle

Bundle Minimum Tab

Std. Cat. No. Diameter Length Width Loop Tensile Height Std. Bulk

Cat. No. Bulk Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Inch (mm) Pkg. Pkg.

L-5-30TB-3-M Nylon Orange 21/32 - 1 1/4 (17 - 32) 5.6 (142) .130 (3) 30 (13.6) .062 (1.58) – 1000

• Recommended for tote-box, security and temporary applications.

• Use QC-100, L-200, L-400-C, or ERG-299 Installation Tools on Low setting. Consult Customer Service for availability and colours.

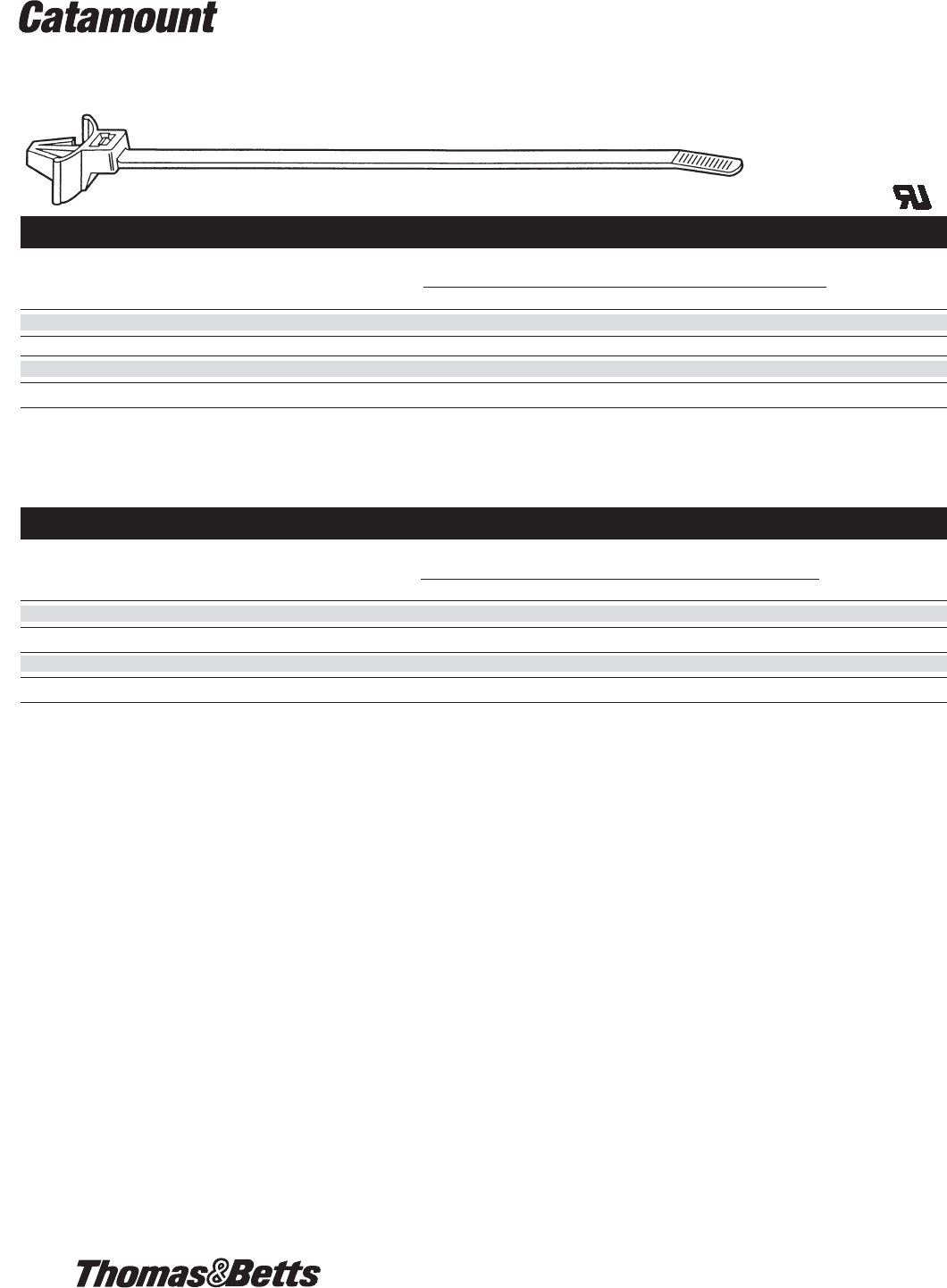

Mounting Head Ties

Bundle Minimum Mounting

Std. Cat. No. Diameter Length Width Loop Tensile Head Std. Bulk

Cat. No. Bulk Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Screw Size Pkg. Pkg.

L-5-30MH-9-C L-5-30MH-9-M Nylon Natural 1/16 - 1 1/4 (2 - 32) 5.85 (148.6) .140 (4) 30 (13.6) No. 8 100 1000

L-5-30MH-0-C L-5-30MH-0-M Nylon Black 1/16 - 1 1/4 (2 - 32) 5.85 (148.6) .140 (4) 30 (13.6) No. 8 100 1000

L-7-50MH-9-C L-7-50MH-9-M Nylon Natural 1/16 - 1 3/4 (2 - 44) 7.5 (191) .185 (5) 30 (13.6) No. 10 100 1000

L-7-50MH-0-C L-7-50MH-0-M Nylon Black 1/16 - 1 3/4 (2 - 44) 7.5 (191) .185 (5) 30 (13.6) No. 10 100 1000

L-11-50MH-9-C L-11-50MH-9-D Nylon Natural 1/16 - 3 (2 - 76) 11.1 (282) .187 (5) 50 (22.7) No. 10 100 500

L-11-50MH-0-C L-11-50MH-0-D Nylon Black 1/16 - 3 (2 - 76) 11.1 (282) .187 (5) 50 (22.7) No. 10 100 500

L-14-50MH-9-C L-14-50MH-9-D Nylon Natural 1/16 - 4 (2 - 102) 14.5 (365) .187 (5) 50 (22.7) No. 10 100 500

L-14-50MH-0-C L-14-50MH-0-D Nylon Black 1/16 - 4 (2 - 102) 14.5 (365) .187 (5) 50 (22.7) No. 10 100 500

L-14-120MH-9-C Nylon Natural 3/16- 4 (5 - 102) 14.85 (374) .300 (8) 120 (54.4) 1/4 inch 100 –

L-14-120MH-0-C Nylon Black 3/16 - 4 (5 - 102) 14.85 (374) .300 (8) 120 (54.4) 1/4 inch 100 –

• Use QC-100, L-200, L-400-C, ERG-297, or ERG-299 Installation Tool. Consult Customer Service for availability and colours.

Cable Ties

Colour Table

0 – Black (Outdoor)

1 – Brown

2 – Red

3 – Orange

4 – Yellow

5 – Green

6 – Blue

7 – Purple

8 – Grey

9 – Natural

11 – Fluorescent Pink

16 – Fluorescent Orange

17 – Fluorescent Yellow

18 – Fluorescent Green

20 – Fluorescent Blue

Sample Catalogue Order:

L 4 18 9 C = Natural Colour Type

Cable Ties

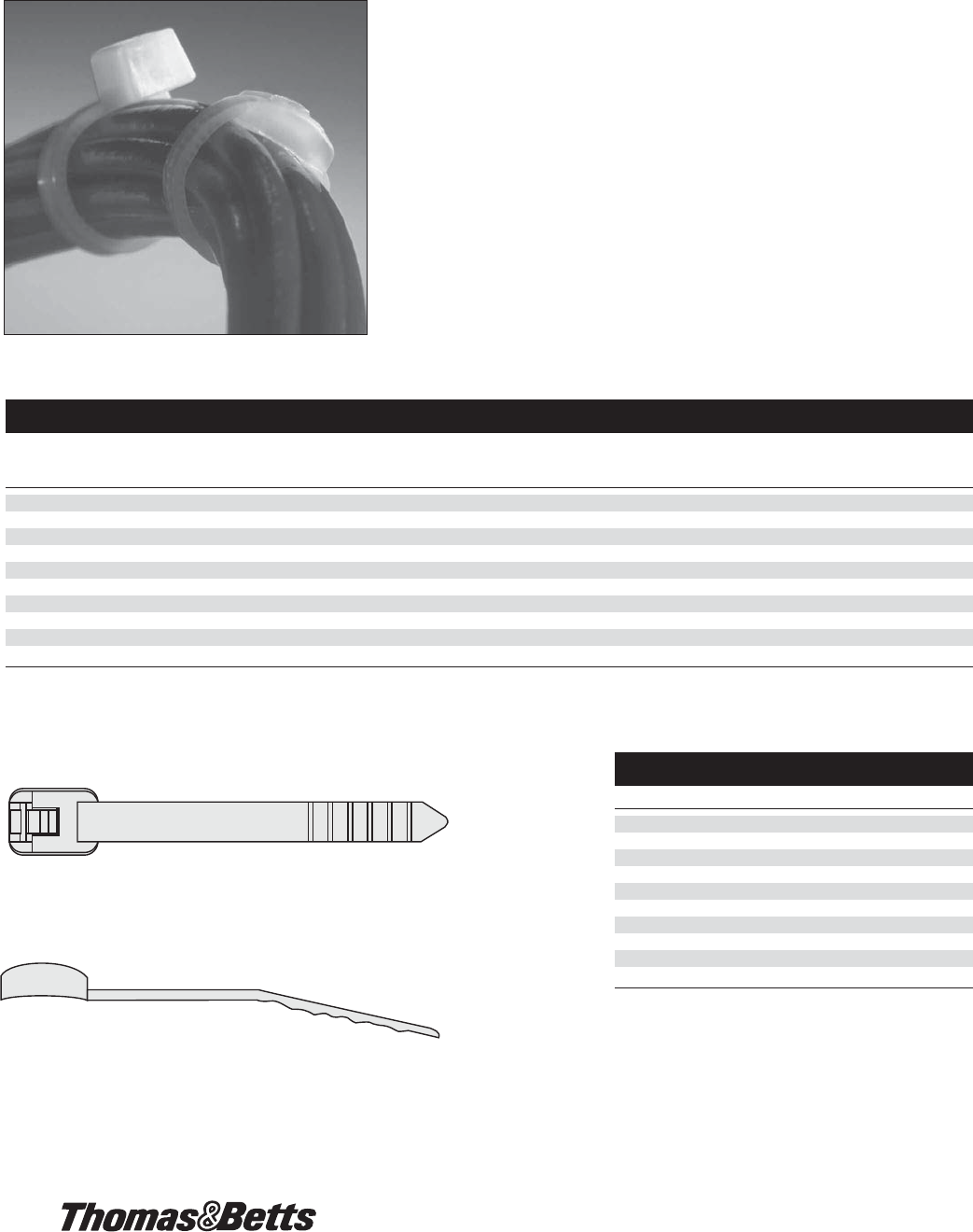

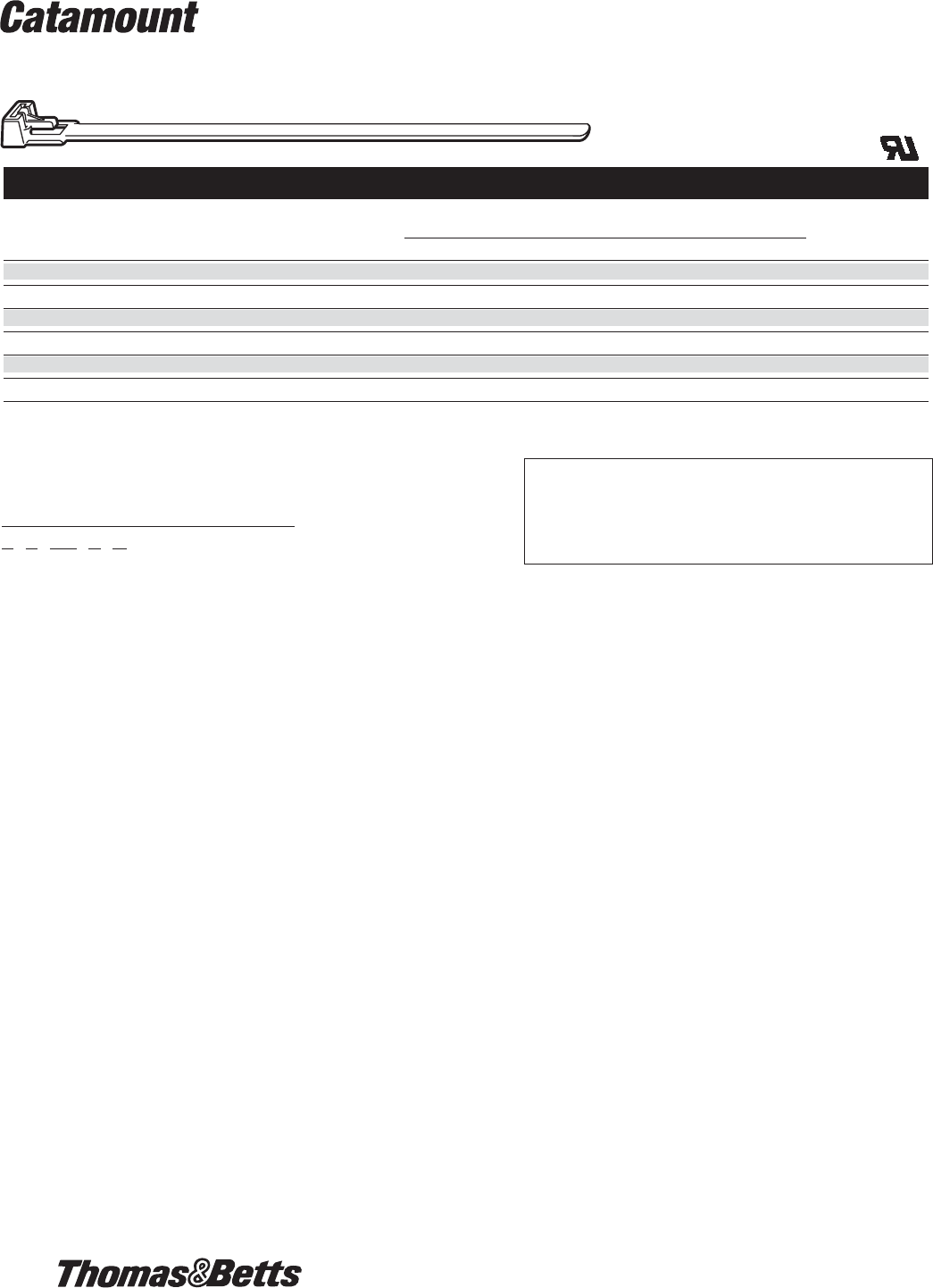

Releasable Ties

Bundle Minimum

Std. Cat. No. Diameter Length Width Loop Tensile Std. Bulk

Cat. No. Bulk Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg. Pkg.

L-5-50R-9-C L-5-50R-9-D Nylon Natural 1/8 - 1 1/4 (3 - 32) 5.9 (150) .295 (7.5) 50 (22.7) 100 500

L-5-50R-0-C L-5-50R-0-D Nylon Black 1/8 - 1 1/4 (3 - 32) 5.9 (150) .295 (7.5) 50 (22.7) 100 500

L-8-50R-9-C L-8-50R-9-D Nylon Natural 1/8 - 2 (3 - 51) 7.8 (198) .295 (7.5) 50 (22.7) 100 500

L-8-50R-0-C L-8-50R-0-D Nylon Black 1/8 - 2 (3 - 51) 7.8 (198) .295 (7.5) 50 (22.7) 100 500

L-10-50R-9-C L-10-50R-9-D Nylon Natural 1/8 - 3 (3 - 76) 11.265 (286) .295 (7.5) 50 (22.7) 100 500

L-10-50R-0-C L-10-50R-0-D Nylon Black 1/8 - 3 (3 - 76) 11.265 (286) .295 (7.5) 50 (22.7) 100 500

• Push Button Release.

• Use QC-100, L-200, L-400-C, ERG-297, ERG-299 Installation Tool. Consult Customer Service for availability and colours.

Colour Table

0 – Black (Outdoor)

1 – Brown

2 – Red

3 – Orange

4 – Yellow

5 – Green

6 – Blue

7 – Purple

8 – Grey

9 – Natural

11 – Fluorescent Pink

16 – Fluorescent Orange

17 – Fluorescent Yellow

18 – Fluorescent Green

20 – Fluorescent Blue

Sample Catalogue Order:

L 4 18 9 C = Natural Colour Type

Cable Ties

Mil-Spec Cable Ties

Std. Bulk ID Tool Std. Bulk

Mil-Spec Cat. No. Cat. No. Material Code Setting Pkg. Pkg.

MS-3367-2-9 L-14-50-9-C L-14-50-9-D Natural Nylon STD 6 to 8 100 500

MS-3367-2-0 L-14-50-0-C L-14-50-0-D UV Black Nylon STD 6 to 8 100 500

MS-3367-3-9 L-14-120-9-C – Natural Nylon HVY 5 to 8 100 –

MS-3367-3-0 L-14-120-0-C – UV Black Nylon STD 6 to 8 100 –

MS-3367-4-9 L-4-18-9-C – Natural Nylon MIN 1 to 3 100 –

MS-3367-4-0 L-4-18-0-C – UV Black Nylon MIN 1 to 3 100 –

MS-3367-5-9 L-5-30-9-C Natural Nylon INT 3 to 5 100 –

MS-3367-5-0 L-5-30-0-C – UV Black Nylon INT 3 to 5 100 –

MS-3367-7-9 L-11-50-9-C L-11-50-9-D Natural Nylon STD 6 to 8 100 500

MS-3367-7-0 L-11-50-0-C L-11-50-0-D UV Black Nylon STD 6 to 8 100 500

MS-3367-6-9 L-28-120-9-L – Natural Nylon HVY 5 to 8 50 –

MS-3367-6-0 L-28-120-0-L – UV Black Nylon HVY 5 to 8 50 –

•

Use L-200, L-400-C, or ERG-297

Installation Tools

• CatamountTM FSCM 65664

QPL Listed

MINIATURE

INTERMEDIATE

STANDARD

HEAVY DUTY Use L-300C Tool

To assure that military labeling

requirements are met when

ordering MIL-SPEC Cable Ties,

please reference the desired MS

number when ordering.

• UL File No. E151267

Electrical Construction Materials

Spiral Wrap

• UL File No. E132609

Wire Connectors

• UL File No. E107819

Fabricated Parts

Fasteners and Hardware for

Material Traceability

CatamountTM Military Specification Ties

The following cable ties meet the stringent requirements of military specifications. To locate ties that meet a particular specification,

refer to the chart below.

Colour Table

0 – Black (Outdoor)

1 – Brown

2 – Red

3 – Orange

4 – Yellow

5 – Green

6 – Blue

7 – Purple

8 – Grey

9 – Natural

11 – Fluorescent Pink

16 – Fluorescent Orange

17 – Fluorescent Yellow

18 – Fluorescent Green

20 – Fluorescent Blue

Sample Catalogue Order:

L 4 18 9 C = Natural Colour Type

Cable Ties

Push Mount Cable Ties

Bundle Minimum

Std. Cat. No. Tie Stripe Diameter Length Width Loop Tensile Std. Bulk

Cat. No. Bulk Colour Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg. Pkg.

L-5-50PM-9-C L-5-50PM-9-D Nylon Natural 1/16 - 1 (2-25) 5.8 (147) .187 (4.76) 50 (22.7) 100 500

L-5-50PM-0-C L-5-50PM-0-D Nylon Black 1/16 - 1 (2-25) 5.8 (147) .187 (4.76) 50 (22.7) 100 500

L-7-50PM-9-C L-7-50PM-9-D Nylon Natural 1/16 - 1 3/4 (2-44) 8.2 (208) .187 (4.76) 50 (22.7) 100 500

L-7-50PM-0-C L-7-50PM-0-D Nylon Black 1/16 - 1 3/4 (2-44) 8.2 (208) .187 (4.76) 50 (22.7) 100 500

• For use in .250 mounting hole.

• Maximum panel thickness .105.

Consult Customer Service for availability and colours.

Releasable Push Mount Cable Ties

Bundle Minimum

Std. Cat. No. Tie Stripe Diameter Length Width Loop Tensile Std. Bulk

Cat. No. Bulk Colour Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg. Pkg.

L-5-50PMR-9-C L-5-50PMR-9-D Nylon Natural 1/16 - 1 (2-25) 5.8 (147) .187 (4.76) 50 (22.7) 100 500

L-5-50PMR-0-C L-5-50PMR-0-D Nylon Black 1/16 - 1 (2-25) 5.8 (147) .187 (4.76) 50 (22.7) 100 500

L-7-50PMR-9-C L-7-50PMR-9-D Nylon Natural 1/16 - 1 3/4 (2-44) 8.2 (208) .187 (4.76) 50 (22.7) 100 500

L-7-50PMR-0-C L-7-50PMR-0-D Nylon Black 1/16 - 1 3/4 (2-44) 8.2 (208) .187 (4.76) 50 (22.7) 100 500

• For use in .250 mounting hole.

• Maximum panel thickness .105.

Consult Customer Service for availability and colours.

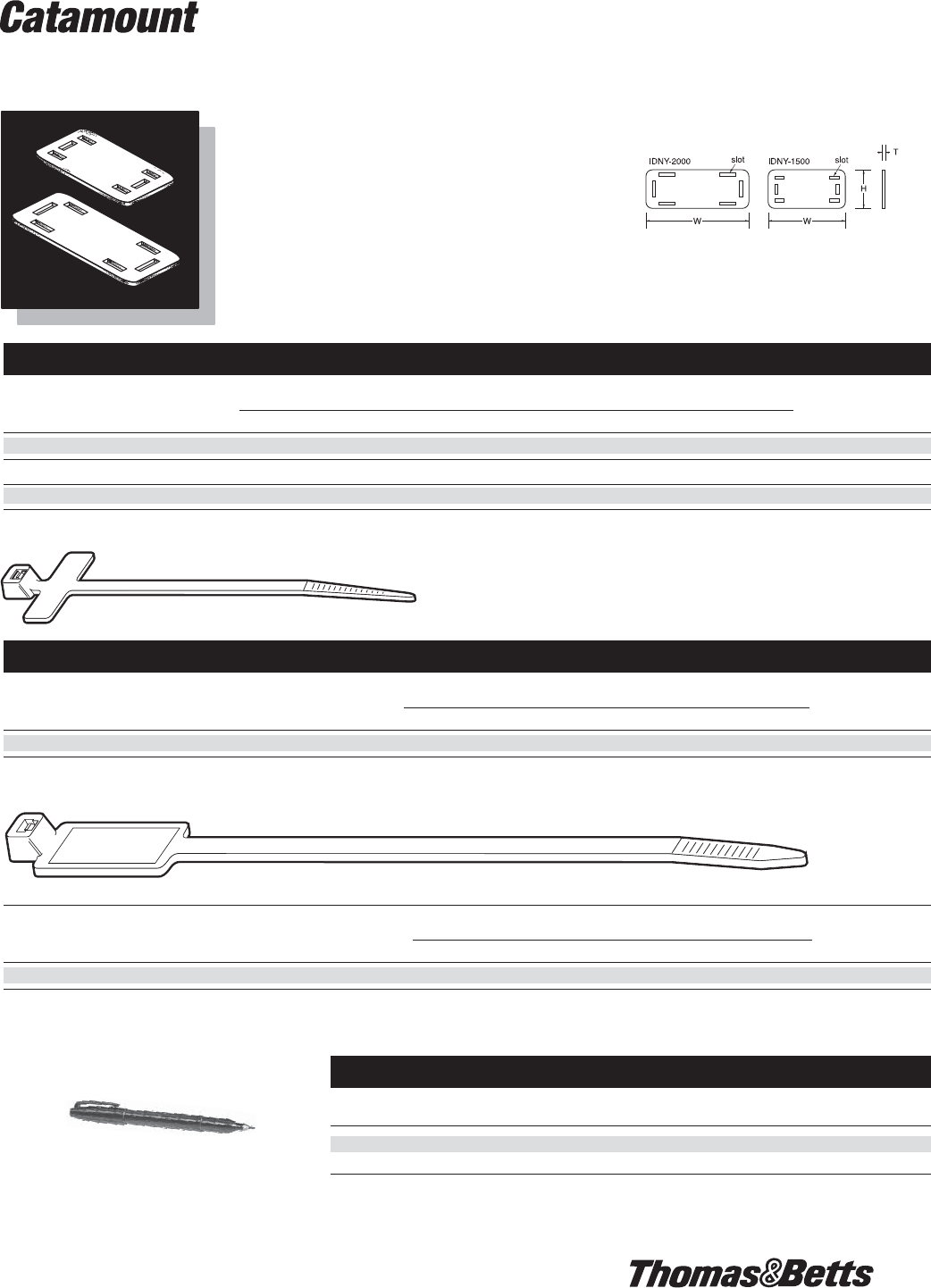

Marking Pens

Cat. Std.

No. Colour Ink Pkg.

WT163M-1 Black Marking Pen 1

WT163M-3 Red Marking Pen 1

Cable Ties

Identification Ties

Max. Bundle Minimum

Std. Bulk Diameter Length Width Loop Tensile Std. Bulk

Cat. No. Cat. No. Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg. Pkg.

L-4-18ID-9-C L-4-18ID-9-M Nylon Natural 3/4 (19) 4.0 (102) .100 (2.54) 18 (8.2) 100 1000

• Use QC-100, L-200 or L-400-C Installation Tool.

Consult Customer Service for availability and colours.

Max. Bundle Minimum

Std. Bulk Diameter Length Width Loop Tensile Std. Bulk

Cat. No. Cat. No. Material Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg. Pkg.

L-7-50ID-9-C L-7-50ID-9-M Nylon Natural 13/4 (44) 7.875 (200) .183 (4.65) 50 (22.7) 100 1000

• Use QC-100, L-200 or L-400-C Installation Tool

Consult Customer Service for availability and colours.

Identification Tags

H W T Slot Slot

Std. Bulk Height Width Thickness Height Width Std. Bulk

Cat. No. Cat. No. Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Pkg. Pkg.

– IDNY-1500-9-M .745 (18.92) 1.500 (38.08) .015 (.381) .090 (2.29) .200 (5.08) – 1000

– IDNY-2000-9-M .745 (18.92) 2.000 (50.78) .025 (.653) .113 (2.87) .336 (8.53) – 1000

Tolerance ± .015 (.381) .030 (.762) .005 (.127) – .010 (.254) – – –

• Matte finish for sharp legends.

Consult Customer Service for availability and colours.

• Two tags for marking bundles to 9" diameters.

• Run ties through opposing mounting holes lengthwise or

across the height of tags.

• IDNY-1500 accepts ties to 50 pound tensile;

IDNY-2000 accepts ties to 120 pound tensile.

• Stocked in 6/6 Natural Nylon.

• UL Flammability 94 V-2.

• Non-Conductive, Non-Corrosive; resistant

to fuels, lubricants and most chemicals.

• Plate Dimensions: .312 x .973

• Plate Dimensions: 1.081 x .522

Cable Ties

Striped Ties

Std. Tie Stripe Diameter Length Width Loop Tensile Std.

Cat. No. Colour Colour Inch (mm) Inch (mm) Inch (mm) LB (kg) Pkg.

L-4-18-1/10-L Brown White 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-1/2-L Brown Red 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-1/0-L Brown Black 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-1/4-L Brown Yellow 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-1/7-L Brown Purple 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-3/10-L Orange White 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-3/2-L Orange Red 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-3/0-L Orange Black 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-3/4-L Orange Yellow 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-3/7-L Orange Purple 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-5/10-L Green White 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-5/2-L Green Red 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-5/0-L Green Black 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-5/4-L Green Yellow 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-5/7-L Green Purple 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-6/10-L Blue White 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-6/2-L Blue Red 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-6/0-L Blue Black 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-6/4-L Blue Yellow 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-6/7-L Blue Purple 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-8/10-L Grey White 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-8/2-L Grey Red 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-8/0-L Grey Black 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-8/4-L Grey Yellow 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

L-4-18-8/7-L Grey Purple 1/16 - 7/8 (2 - 16) 4.0 (102) .100 (3) 18 (8.2) 50

• Also available in bulk packages of 1000.

• Use QC-100, L-200, L-400-C, or ERG-299 Installation Tool.

Consult Customer Service for availability and colours.

• Striped ties are used to identify wire in bundles.

Designed with OEMs in mind, this new

series of competitively priced T&B cable

ties holds down costs and speeds up

cable fastening. Our all-nylon design

lowers installation costs and provides

features to ease fastening for harness

fabrication and wire bundling in the

manufacturing environment.

T&B®cable ties are made of nylon

6/6 and perform well in most

applications in temperatures ranging

from 185°F to -40°F. The smooth edges

are designed to prevent damage to wire

insulation, reducing the opportunity for

shorting, and tails are “turned up” for fast

assembly. T&B®cable ties come in

natural or outdoor weatherable black, and

custom colours and options are available.

T&B®cable ties may be fastened with

standard Thomas & Betts tying tools.

All your favorite Ty-Rap®mounting

bases and accessories may be used

with T&B®cable ties. For harsh

industrial environments, use our “grip

of steel®” Ty-Rap cable ties with the

unique stainless steel barb. Ty-Rap and

T&B®cable ties combine to offer the

most complete package of cable ties and

accessories for the fastening market.

T&B®cable ties come in large poly bags

for convenient inventory and easy

access at the manufacturing site. Call

your local Thomas & Betts distributor

today and find out how well T&B cable

ties can fit your needs, from one end to

the other.

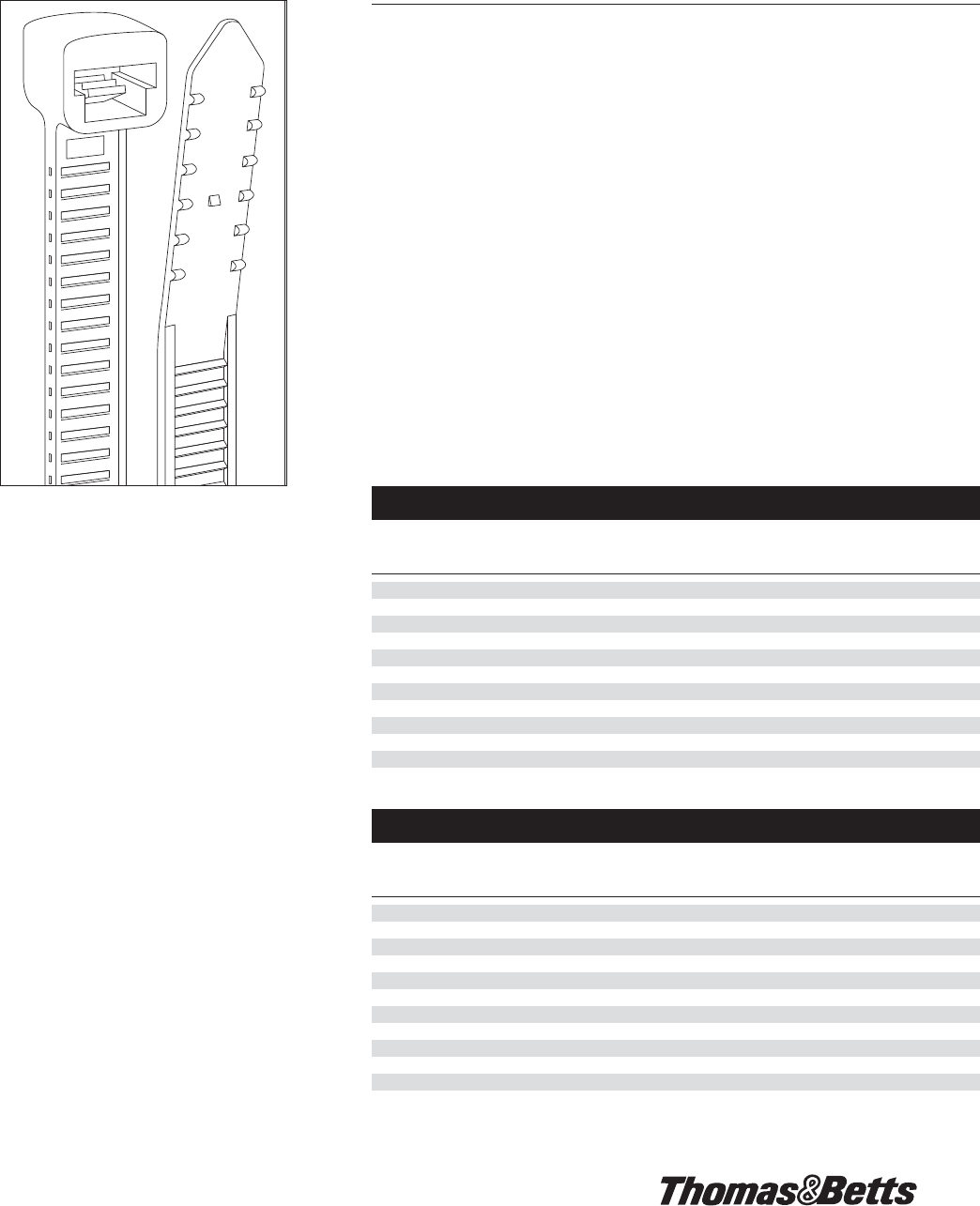

Cable Ties

From one end to the other, T&B®Cable Ties fit the needs of

OEMs

• The integrally formed nylon pawl combines

low insertion and high locking strength

• A rounded, low-profile head makes for less

snags

• Tails have an improved two-sided finger grip

design that helps the operator grasp and pull

ties snug

• “Sure Grip” tab keeps the tail from popping

out while being threaded, then holds it

securely for final tightening by hand or tool

• Quick, easy pull through increases

pro d uc tivity, reduces operator fatigue

T&B®Cable Ties

Min. Tensile Military Max. Bundle Std.

Strength Standard Tie Length Diameter Width Pkg.

Cat. No. (in lb) Part No. (in.) (in.) (in.) (pieces)

TY075-18 18 MS3367-4 3.60 .75 .095 1000

TY125-18 18 5.34 1.25 .095 1000

TY125-40 40 MS3367-5 5.60 1.25 .140 1000

TY200-18 18 7.75 2.00 .095 1000

TY200-40 40 8.00 2.00 .140 1000

TY200-120 120 8.63 2.00 .299 500

TY300-40 40 11.40 3.00 .140 1000

TY175-50 50 MS3367-1 7.30 1.75 .184 1000

TY300-50 50 MS3367-7 11.40 3.00 .184 1000

TY400-50 50 MS3367-2 14.30 4.00 .184 1000

TY400-120 120 MS3367-3 14.30 4.00 .301 500

Add suffix (-20) for cosmetic black, non-weatherable material.

Outdoor Weatherable (black)

Min. Tensile Military Max. Bundle Std.

Strength Standard Tie Length Diameter Width Pkg.

Cat. No. (in lb) Part No. (in.) (in.) (in.) (pieces)

TY075-18X 18 _ 3.60 .75 .095 1000

TY125-18X 18 _ 5.34 1.25 .095 1000

TY125-40X 40 _ 5.60 1.25 .140 1000

TY200-18X 18 _ 7.75 2.00 .095 1000

TY200-40X 40 _ 8.00 2.00 .140 1000

TY200-120X 120 _ 8.63 2.00 .299 500

TY300-40X 40 _ 11.40 3.00 .140 1000

TY175-50X 50 _ 7.30 1.75 .184 1000

TY300-50X 50 _ 11.40 3.00 .184 1000

TY400-50X 50 _ 14.30 4.00 .184 1000

TY400-120X 120 _ 14.30 4.00 .301 500

T&B ®

Cable Ties

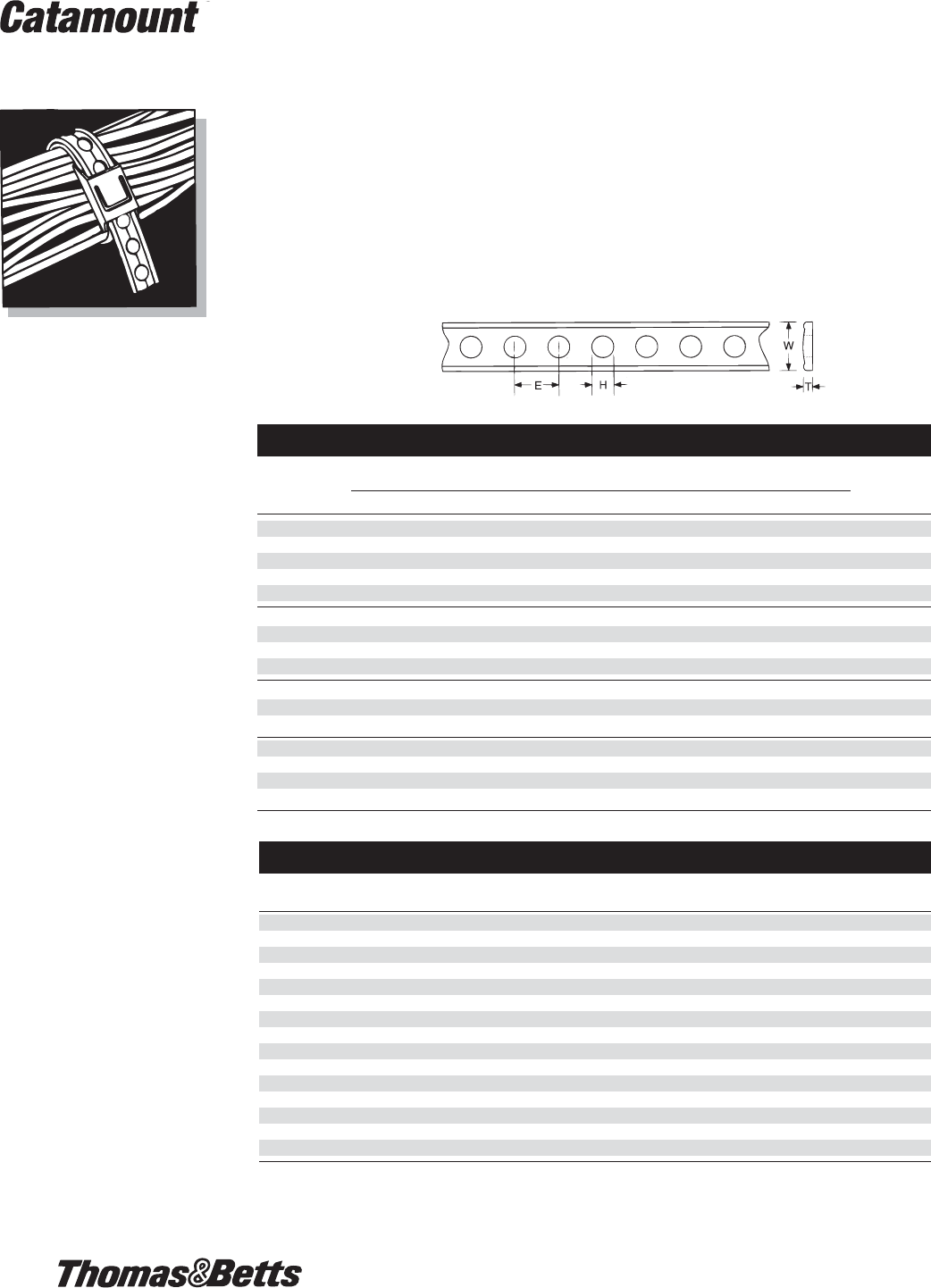

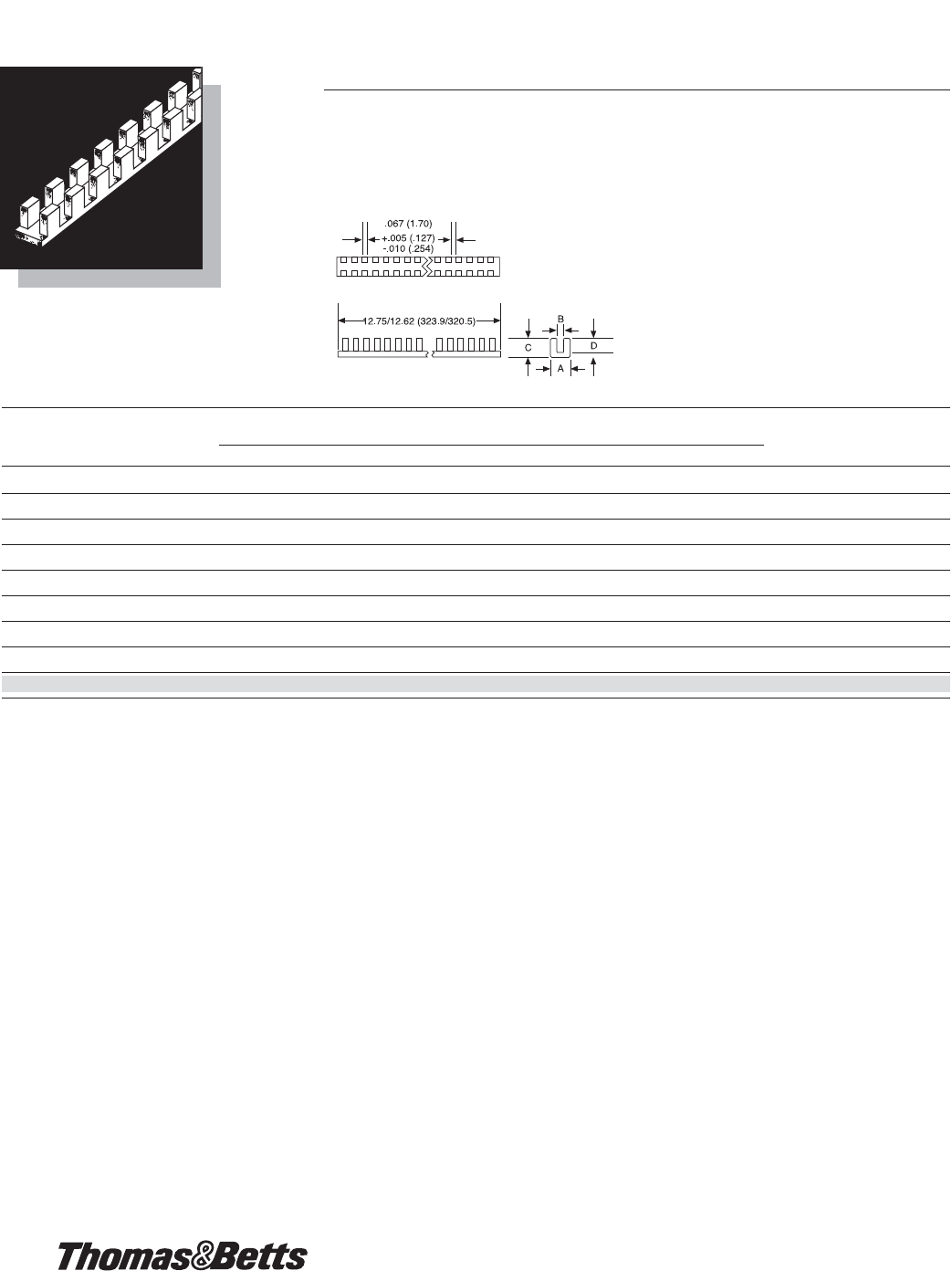

• Extruded in 5 widths with 8

mounting hole diameters for use

with a variety of standard and

custom fasteners.

• Extrusion grade Black Nylon.

• Hole spacing allows for greater

flexibility in meeting bundle

diameter requirements.

• Strapping provides a wide range

of tensile strengths depending on

mounting method

(S2NY-096-0 tested at 50 lb. with

BTNY-096).

• Non-Conductive, Non Corrosive;

resistant to fuels, lubricants and

most chemicals.

Strapping

WTHE

Width Thickness Hole Spacing

Item Number Inch (mm) Inch (mm) Inch (mm) Inch (mm) Quantity

S2NY-096-0-C .281 (7.13) .032 (.813) .096 (2.44) .187 (4.75) 100 foot rolls

S4NY-128-0-C .375 (9.52) .040 (1.02) .128 (3.25) .312 (7.92) 100 foot rolls

S4NY-140-0-C .375 (9.52) .040 (1.02) .140 (3.56) .312 (7.92) 100 foot rolls

S4NY-167-0-C .375 (9.52) .040 (1.02) .167 (4.24) .312 (7.92) 100 foot rolls

S4NY-167X-0-C .375 (9.52) .040 (1.02) .167 (4.24) .218 (5.54) 100 foot rolls

S6NY-000-0-C .500 (12.70) .060 (1.52) N/A N/A N/A N/A 100 foot rolls

S6NY-167-0-C .500 (12.70) .060 (1.52) .167 (4.24) .390 (9.90) 100 foot rolls

S6NY-203-0-C .500 (12.70) .060 (1.52) .203 (5.16) .390 (9.90) 100 foot rolls

S6NY-203X-0-C .500 (12.70) .060 (1.52) .203 (5.16) .281 (7.14) 100 foot rolls

S7NY-265-0-C .625 (15.87) .070 (1.78) .265 (6.73) .500 (12.70) 100 foot rolls

S7NY-265X-0-C .625 (15.87) .070 (1.78) .265 (6.73) .375 (9.52) 100 foot rolls

S7NY-281-0-C .625 (15.87) .070 (1.78) .281 (7.14) .500 (12.70) 100 foot rolls

S9NY-000-0-C .875 (22.22) .070 (1.78) N/A N/A N/A N/A 100 foot rolls

S9NY-203-0-C .875 (22.22) .070 (1.78) .203 (5.16) .500 (12.70) 100 foot rolls

S9NY-265-0-C .875 (22.22) .070 (1.78) .265 (6.73) .500 (12.70) 100 foot rolls

S9NY-390-0-C .875 (22.22) .070 (1.78) .390 (9.90) .625 (15.87) 100 foot rolls

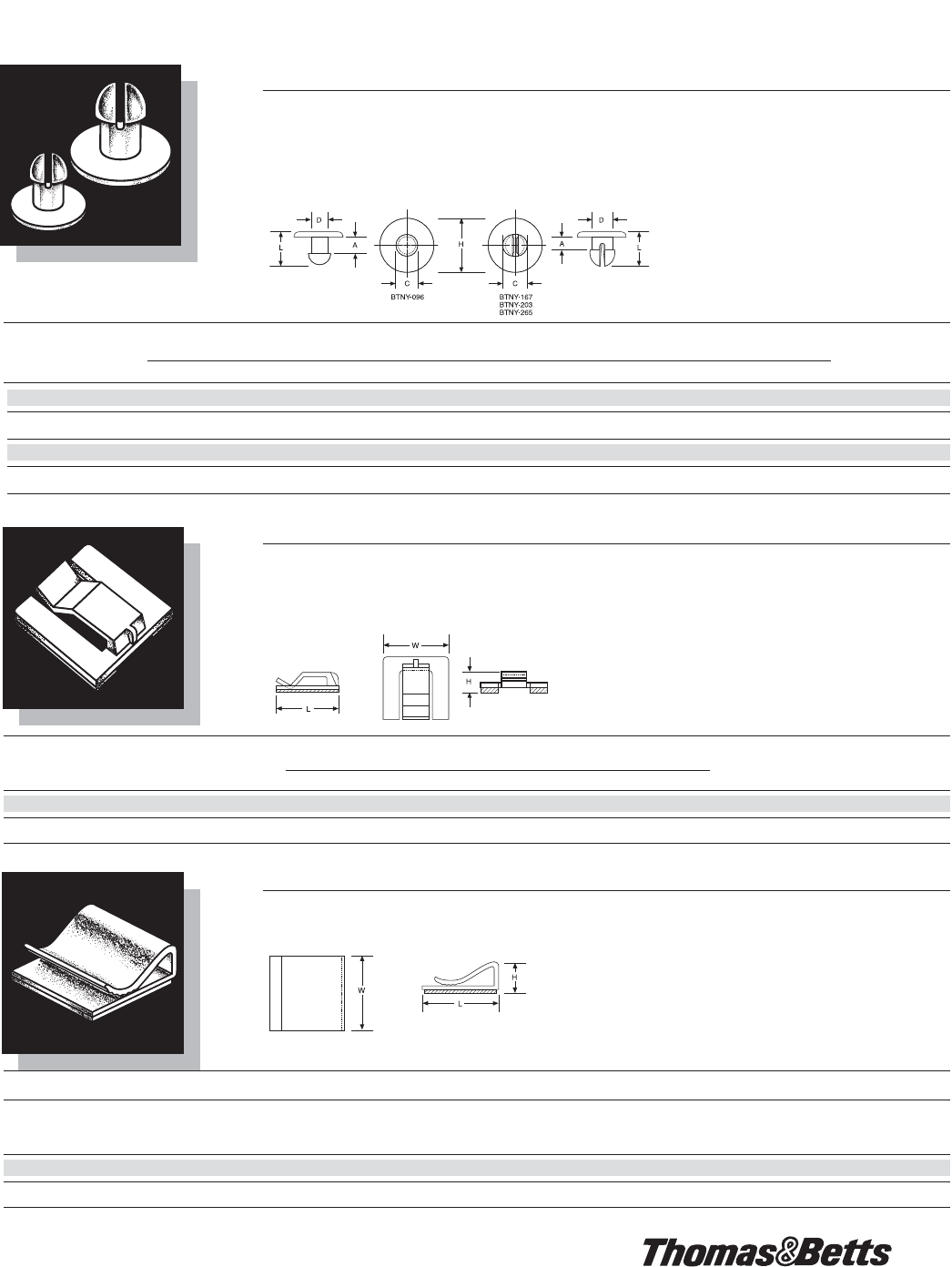

Strapping Accessories Reference

Strapping Strap-Tite Mounting Mounting Stud Machine

Number Buckle Tab Cradle Buttons Screw

S2NY-096-0-C N/A M4NY-203-0-D C4NY-203-0-D BTNY-096-0-D #2

S4NY-128-0-C N/A M4NY-203-0-D C4NY-203-0-D N/A #5

S4NY-140-0-C N/A M4NY-203-0-D C4NY-203-0-D N/A #6

S4NY-167-0-C B4NY-167-0-D M4NY-203-0-D C4NY-203-0-D BTNY-167-0-D #8

S4NY-167X-0-C B4NY-167-0-D M4NY-203-0-D C4NY-203-0-D BTNY-167-0-D #8

S6NY-000-0-C N/A M6NY-265-0-D N/A N/A N/A

S6NY-167-0-C N/A M6NY-265-0-D N/A N/A #8

S6NY-203-0-C B6NY-203-0-D M6NY-265-0-D N/A BTNY-203-0-D #10

S6NY-203X-0-C B6NY-203-0-D M6NY-265-0-D N/A BTNY-203-0-D #10

S7NY-265-0-C B7NY-265-0-D M7NY-328-0-D N/A BTNY-265-0-D 1/4

S7NY-265X-0-C B7NY-265-0-D M7NY-328-0-D N/A BTNY-265-0-D 1/4

S7NY-281-0-C N/A M7NY-328-0-D N/A N/A 1/4

S9NY-203-0-C N/A N/A N/A BTNY-203-0-D #10

S9NY-265-0-C N/A N/A N/A BTNY-265-0-D 1/4

S9NY-390-0-C N/A N/A N/A N/A 3/8

Cable Ties

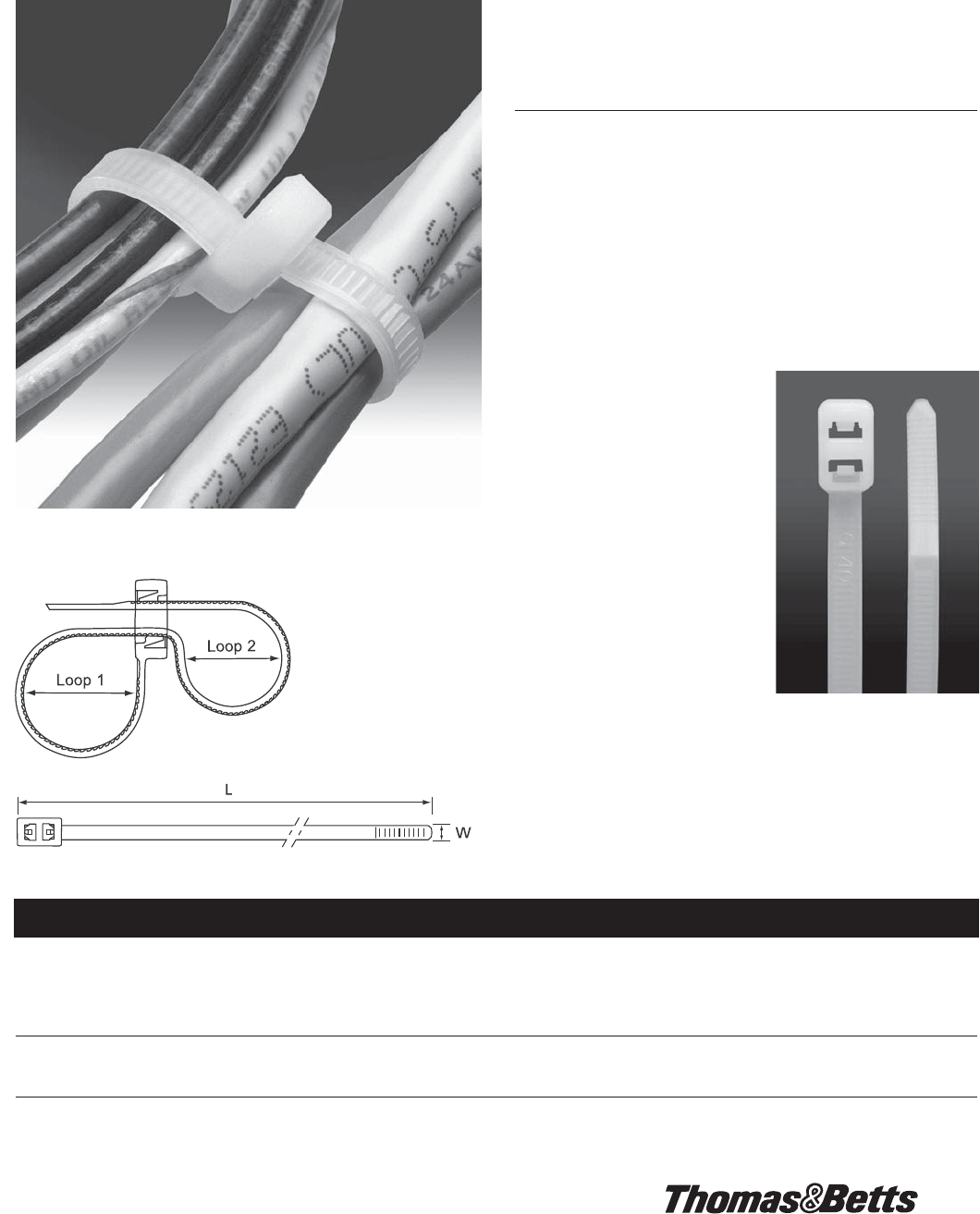

One Tie, Two Loops

Double Loop Cable Ties allow the parallel routing of two

bundles of cable with one single cable tie. The unique

design loops itself twice through the head of the tie in

separate latching pawls. Applications include appliance

manufacturers, automotive, aerospace, data

communications, and electrical equipment manufacturers.

Advantages:

• Manufactured of natural

colour nylon 6/6 material

• Temperature range of -40°F

to 185°F

• UL 94 V-2 flammability rating

• Halogen and silicone-free to

meet your application needs

• The integrally formed pawl

combines low insertion and

high locking strength

• A rounded, low-profile head

makes for less snags

• Tails have improved two-

sided finger grip design that

helps the operator grasp and pull ties snug

• Quick and easy pull through increases productivity,

reduces operator fatigue

Double Loop ties allow the parallel routing of two bundles of cable with one

single tie. Available in 3 different lengths.

Double Loop Cable Ties Information

Length Width Bundle Diameter Range M Installation Tooling

Package

Catalogue Number (in.) (in.) Loop 1 (in.) Loop 2 (in.) Strength For All Sizes Quantity

TB-50RLDH 7.8 .19 .1 - 1.8 .1 - 1.7 50 ERG-50 1000

TB-12-50RLDH 11.8 .19 .1 - 2.8 .1 - 2.7 50 ERG-120 1000

TB-15-50RLDH 14.6 .19 .1 - 3.9 .1 - 3.8 50 WT193A, TR227 1000

Cable Ties

T&B

Min. Tensile

Low profile contoured head compared with the profile of the traditional

T&B Cable Tie.

This fastener design from Thomas &

Betts is ideal for use where precision

bundling is required and clearance is

a necessity. A unique saddle back

design curves to form a snug fit

around the bundle, and allows for

easy pull-through in bulkheads and

any other tight spaces. Our

contoured head eliminates snagging

and sharp edges are reduced by our

safe-guard walls.

Features

• Low-profile, contoured head

reduces clearance required for the

bundle and enhances the

appearance of your harness.

• The safe-guard wall eliminates

exposure to sharp edges.

• The saddle back fits snug against

the contour of the wiring harness.

• Sizes and colours available to

accommodate varying

requirements.

• High-quality nylon strength.

How to Order Colour Cable Ties

Colour Suffix No.

Black (outdoor) X

Brown 1

Red 2

Orange 3

Yellow 4

Green 5

Blue 6

Purple 7

Grey 8

White 9

Packaged for handling convenience.

Natural nylon is standard. For coloured cable ties in-line fasteners add the

following suffix numbers to catalogue numbers.

Example: SF175-50-2 (Red)

For Distributor Packs (100), add suffix “-100”.

Example: SF175-50-100

(Consult customer service for ordering information)

Cable Ties Ordering Information

Bundle Tensile Tie Strap Strap

Std. Range Strength Length Width Thick Std. Bulk.

Cat. No. Dia. In. (mm) lb.(Kg) In (mm) In (mm) In (mm) Pkg. Pkg.

SF100-18 .125–1.00 (3.17–25.4) 18 (8.16) 4.65 (118.11) .095 (2.41) .043 (1.09) 100 1000

SF150-18 .125–1.50 (3.17–38.1) 18 (8.16) 6.45 (163.83) .095 (2.41) .043 (1.09) 100 1000

SF200-18 .125–2.00 (3.17–50.8) 18 (8.16) 8.10 (205.74) .095 (2.41) .043 (1.09) 100 1000

SF175-50 .187–1.75 (4.74–44.4) 50 (22.68) 7.70 (195.58) .187 (4.74) .048 (1.21) 100 1000

SF300-50 .187–3.00 (4.74–76.2) 50 (22.68) 11.33 (287.78) .187 (4.74) .052 (1.32) 100 1000

SF400-50 .187–4.00 (4.74–101.6) 50 (22.68) 14.53 (369.06) .187 (4.74) .052 (1.32) 100 1000

SF400-120 .375–4.00 (9.52–101.6) 120 (54.43) 14.58 (370.33) .300 (7.62) .075 (1.90) 100 1000

SF600-120 .375–6.00 (9.52–152.4) 120 (54.43) 21.00 (533.40) .300 (7.62) .075 (1.90) 100 1000

ERG120 Application tool for 50 lb. to 120 lb. tensile strength

ERG50 Application tool for 18 lb. to 50 lb. tensile strength

Material: Natural Nylon 6/6 in accordance with ASTM D4066 PA111. Also available in black outdoor weatherable (suffix “-X”).

Dimensions: Designed according to military standards (MS3367) except for the head length, which is slightly larger than MIL spec.

Packaging: Standard package is 1000 pieces.

Low-Profile In-Line Fasteners

T&B ®

T&B®Badge Holder

The ticket fastener that won't leave you out in the cold.

Thomas & Betts offers ski resorts a convenient, low-cost, quick, and

safe alternative to the metal wire clip currently used to attach ski lift

tickets to skiers' clothing.

T&B®cable ties offer these prominent advantages:

• Designed specifically for lift ticket attachment to prevent damage to

skiers’ clothing.

• Incorporates a loop diameter restriction device that forms the proper

sized 1-1/4 inch loop required to hold the lift ticket in place and lay

flat on the skier.

• Prevents the tie from being over-tightened and damaging the lift

ticket.

• May also serve to aid the skier in zipping their coat by extending the

zipper length.

• The Badge Holder is tamper resistant and smooth up to the

restriction point to keep it from being shared or reused by other

skiers.

• The smooth body eliminates the notch sensitivity issue inherent to

all-nylon cable ties.

• The Badge Holder is designed with a flexible short round tail, safely

eliminating sharp metal.

• Affordable at just pennies per fastener!

The Badge Holder comes in 9 different colours to match the resort's

colour schemes and is made of high quality Nylon 6/6 material to

withstand cold temperatures. It is 5 inches long and has a sturdy 30

pound tensile strength rating. Badge Holders may also be heat-

stamped with additional identification, such as the resort’s name or

web site.

When the snow starts, Badge Holders will be ready to keep things

snug, all the way down the mountain!

5”

T&B Badge Holder Ordering Information

Cat No. Description Qty. UPC

SJ-5-30SKI-9-M Ticket Fastener 1000 bag 78621017017

Natural nylon colour. Please consult Customer Service for ordering and

availability of colours and heat-stamping.

Dimensions: 5”

Construction: Nylon 6/6

Max. Tensile Strength: 30 lb.

Cable Ties

T&B ®

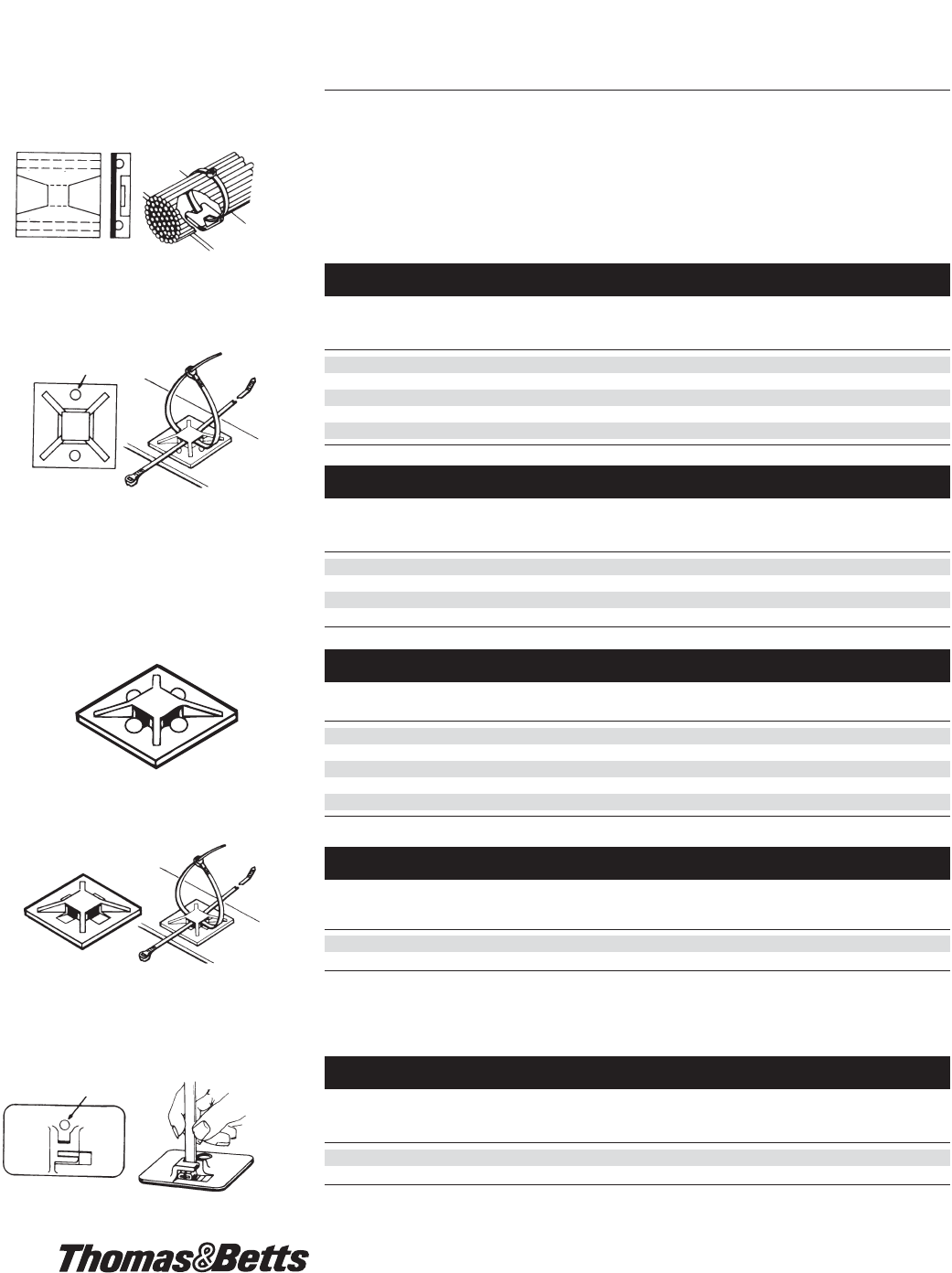

Cable Tie Mounting Bases

Mounting bases (adhesive backed, epoxy or screws)

TC5342A

TC5344A

TC5345A

Ordering Information

Adhesive Mounting Bases

Max. Tie

Std. Bulk Mounting Width Length Width Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Material Pkg. Pkg.

TC5342A TC342A Adhesive .190 1.125 1.125 Nylon 6/6 100 1000

–TC342A-X Adhesive .190 1.125 1.125 Weatherable nylon – 1000

–TC342 TC2PA .190 1.125 1.125 Nylon 6/6 – 1000

–TC342X TC2PA .190 1.125 1.125 Weatherable nylon – 1000

–TC342A-FR Adhesive .190 1.125 1.125 Flame-retardant nylon – 1000

Thomas & Betts has a mounting base or

clamp to suit most applications and cable

tie widths. For easier installation, some

bases are available with pressure

sensitive adhesive tape.

Features

• Available in a variety of materials for

both indoor and outdoor use.

• One-piece molding – no loss of parts.

• Adhesive backed with pressure sen si -

tive adhesive tape (where applicable).

This nylon base is neutral in colour, and for

indoor use.

Accepting cable ties in four directions at 90°,

this nylon, adhesive-backed base has two

advantages. It eliminates errors in

premounting the base with respect to its

orientation to wire bundle direction. It also is a

convenient way to mount wire bundles at

cross-over points. Four optional mounting

holes are included.

The four-way, pressure-sensitive, adhesive

mounting base for use on cable ties up to .140

maximum width.

Holes for no. 8 screws

Hole for no. 6 screw

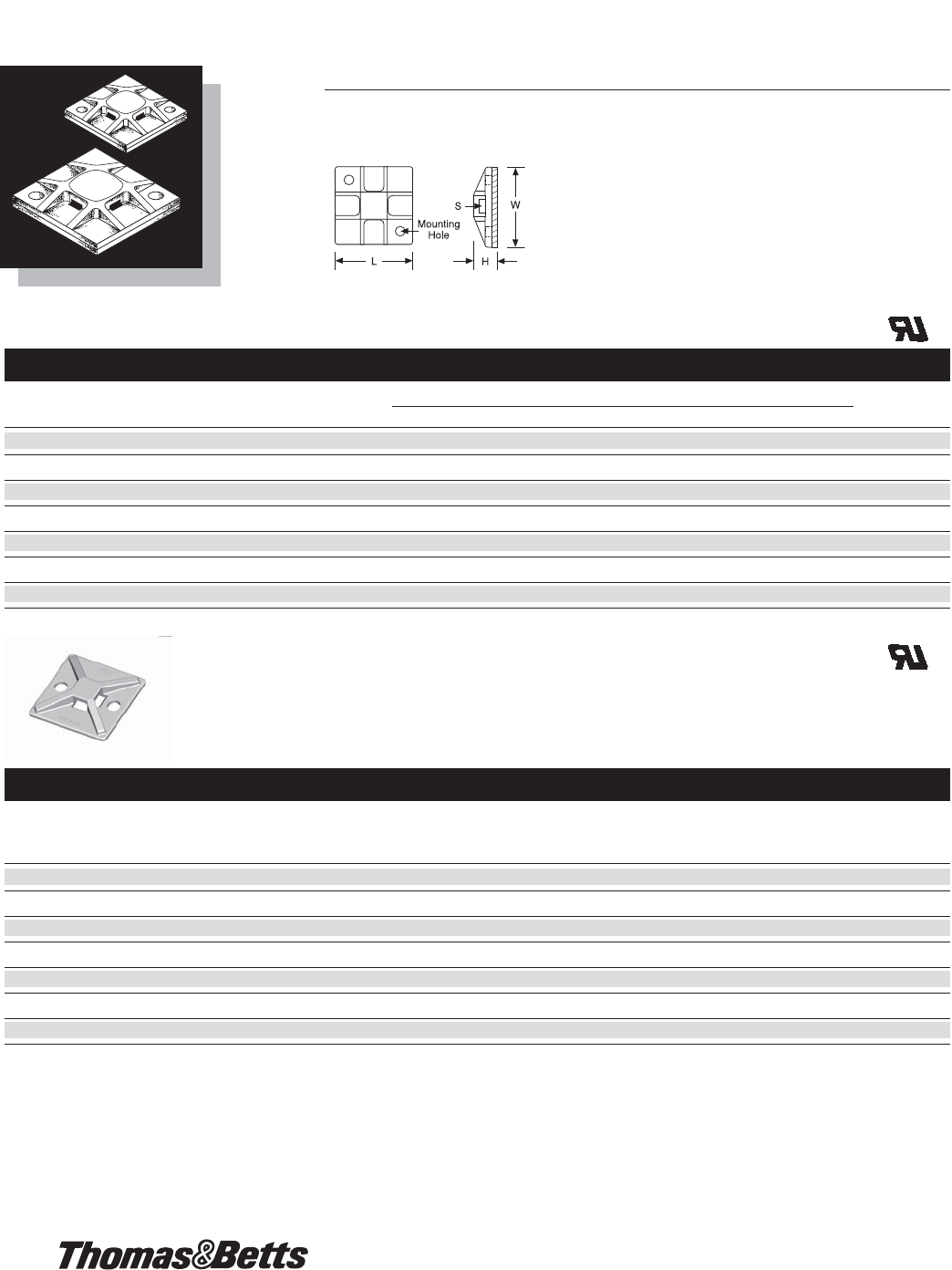

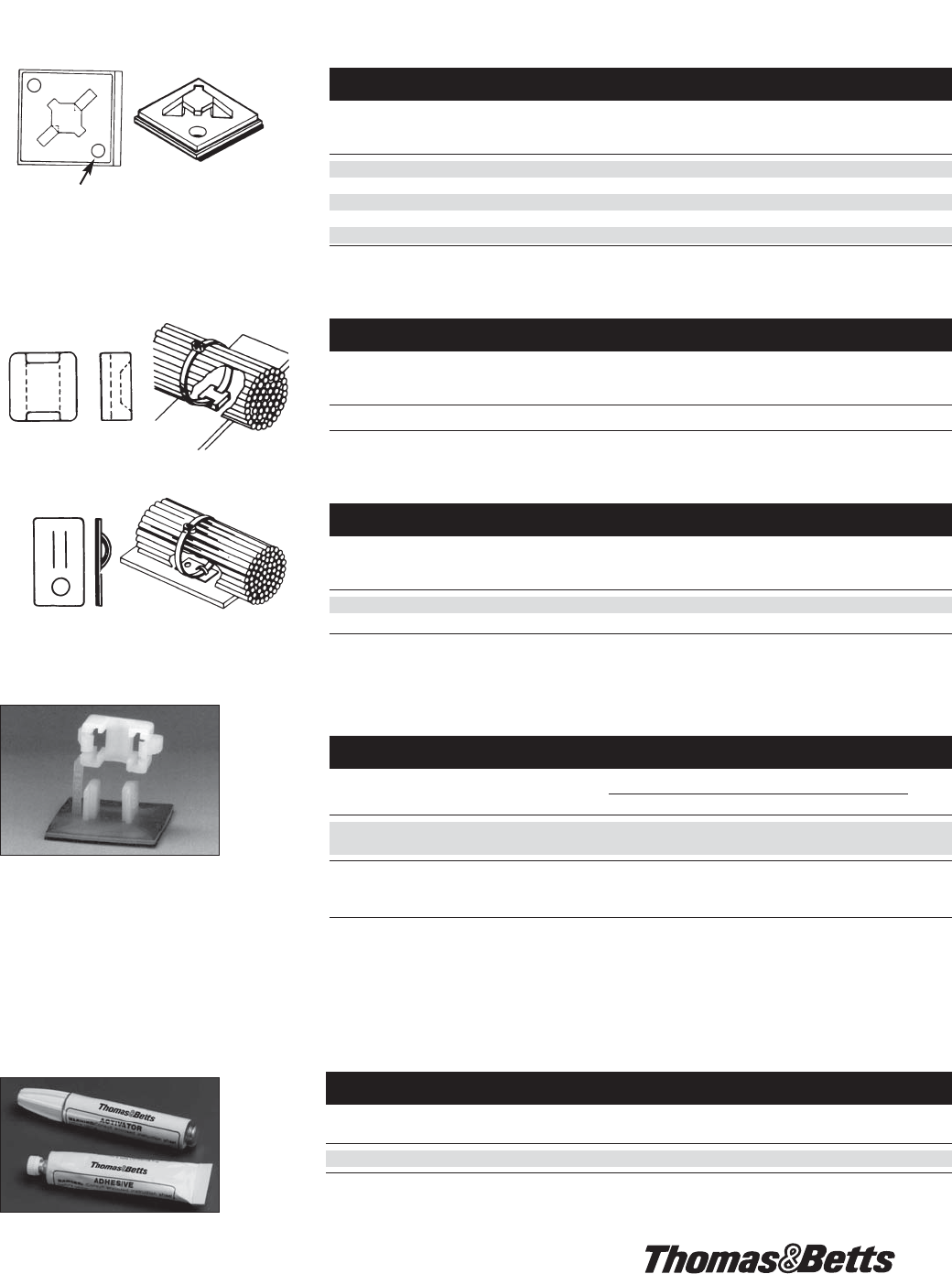

Larger Size Four-Way Mini Base

Std. Bulk Mounting Size

Cat. No. Cat. No. Method (in.) Material

TC050X050A-C TC050X050A Adhesive Backed 0.5 x 0.5 Nylon 6/6

TC150X150-L TC150X150 Screw Mount 1.50 x 1.50 Nylon 6/6

TC150X150A-L TC150X150A Adhesive Backed 1.50 x 1.50 Nylon 6/6

TC200X200-L TC200X200 Screw Mount 2.0 x 2.0 Nylon 6/6

TC200X200A-L TC200X200A Adhesive Backed 2.0 x 2.0 Nylon 6/6

TC5353A

Four-Way Mini Base

Max. Tie

Std. Bulk Mounting Width Length Width Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Material Pkg. Pkg.

TC5344A TC344A Adhesive .140 .750 .750 Nylon 6/6 100 1000

TC5344AX TC344AX Adhesive .140 .750 .750 Weatherable Nylon 100 1000

Flexible Adhesive Base for Preassembled Ties

Max. Tie

Std. Bulk Mounting Width Length Width Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Material Pkg. Pkg.

TC5353A TC353A Adhesive .190 2.000 1.000 Nylon 6/6 25 500

–TC353 TC2PA/Screws .190 2.000 1.000 Nylon 6/6 – 500

Four-Way Adhesive Mounting Base

Max. Tie

Std. Bulk Mounting Width Length Width Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Material Pkg. Pkg.

TC5345A TC345A Adhesive .190 1.125 1.125 Nylon 6/6 100 1000

–TC345AFR Adhesive .190 1.125 1.125 Flame-retardant – 1000

–TC345AX Adhesive .190 1.125 1.125 Weatherable nylon – 1000

–TC345 TC2PA/Screws .190 1.125 1.125 Nylon 6/6 – 1000

Cable Tie Mounting Bases

Mounting Base Adhesive

Std.

Cat. No. Description Pkg.

TC2PA Consists of one tube each adhesive and activator 1

Adhesive Mounting Base

Max. Tie

Std. Bulk Pkg. Mounting Width Length Width Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Material Pkg. Pkg.

TC5347A TC347A Adhesive .301 1.125 1.125 Nylon 6/6 100 1000

–TC347 TC2PA/Screws .301 1.125 1.125 Nylon 6/6 – 1000

–TC347FR TC2PA/Screws .301 1.125 1.125 Flame-retardant – 1000

–TC347X TC2PA/Screws .301 1.125 1.125 Weatherable nylon – 1000

–TCZ347 TC2PA/Screws .301 1.125 1.125 Fluoropolymer – 1000

Miniature Base

Max. Tie

Std. Bulk Pkg. Mounting Width Length Width Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Material Pkg. Pkg.

–TC817-TB TC2PA .190 .437 .437 Nylon 6/6 – 1000

Aluminum Adhesive Mounting Plates

Max. Tie

Std. Bulk Pkg. Mounting Width Length Width Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Material Pkg. Pkg.

–TC105 TC2PA .190 1.000 .500 Aluminum – 1000

–TC824-TB TC2PA .190 1.375 .375 Aluminum – 1000

Note: For adhesive back bases temperature rating is -18°C to +49°C (0°F to +120°F)

TC105

TC817

TC5347A

The TC347 series is a versatile base which

accommodates the entire line of standard cable

ties. It is a four-way base for cable ties up to

.184 maximum width, and a two-way base for

ties up to .301 maximum width. It may also be

mounted with #8 size screw (2 holes).

Holes for no. 8 screws

One-Piece Mounting Clamp

Base Maximum Clamping Area Std.

Cat. No. Style Height Minimum Maximum Pkg.

TC349A-TB Adhesive 1000

TC5349A-TB Adhesive 100

TC350-TB Screw Mount 1000

TC350A-TB Adhesive 0.89" (22.5mm) 0.20" x 0.59" (5.0mm x 15.0mm) 0.45" x 0.59" (11.5mm x 15.0mm) 1000

TC5350A-TB Adhesive 100

Note: Made of natural nylon 6/6.

Temperature Range: -40°C to +85°C (-40°F to +185°F)

Classified to U.L.94V-2.

Product Base is .94” (25.0 mm) x .94” (25.0 mm).

Utilizes #8 self-tapping screw for mounting the TC350-TB.

0.57" (14.5mm) 0.18" x 0.24" (4.5mm x 6.0mm) .035" x 0.24"(9.0mm x 6.0mm)

• Provides a fast and convenient method of

securing bundles.

•

Single piece design offers reduced installation

time and maximized inventory control.

• Integral top cover incorporates a unique ratchet

design that is fully adjustable and releasable.

• Available in a pressure sensitive adhesive or

screw mount design.

3/4" x 3/4" Mount

Std. Bulk Mount Height Length Width Slot Height Slot Width Std. Bulk

Cat. No. Cat. No. Material Method Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Pkg. Pkg.

MPNY-750-9-C MPNY-750-9-D Natural Nylon Synthetic Polymer .205 (5.21) .750 (19.04) .750 (19.04) .050 (1.27) .140 (3.18) 100 500

MPNY-750-0-C MPNY-750-0-D Black Nylon Synthetic Polymer .205 (5.21) .750 (19.04) .750 (19.04) .050 (1.27) .140 (3.18) 100 500

MPNY-750A-9-C MPNY-750A-9-D Natural Nylon Acrylic Adhesive .205 (5.21) .750 (19.04) .750 (19.04) .050 (1.27) .140 (3.18) 100 500

MPNY-750A-0-C MPNY-750A-0-D Black Nylon Acrylic Adhesive .205 (5.21) .750 (19.04) .750 (19.04) .050 (1.27) .140 (3.18) 100 500

MPNY-750S-9-C MPNY-750S-9-D Natural Nylon #6 Screw .205 (5.21) .750 (19.04) .750 (19.04) .050 (1.27) .140 (3.18) 100 500

MPNY-750S-0-C MPNY-750S-0-D Black Nylon #6 Screw .205 (5.21) .750 (19.04) .750 (19.04) .050 (1.27) .140 (3.18) 100 500

Tolerance ± .010 (.254) .015 (.381) .010 (.254)

For use with 18-40 lb. Cable Ties.

1 1/8" x 1 1/8" Mount

HLWSS

Std. Bulk Mount Height Length Width Slot Height Slot Width Std. Bulk

Cat. No. Cat. No. Material Method Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Pkg. Pkg.

MPNY-1000-9-C – Natural Nylon Synthetic Polymer .215 (5.46) 1.125 (28.58) 1.125 (28.58) .070 (1.78) .190 (4.83) 100 –

MPNY-1000-0-C – Black Nylon Synthetic Polymer .215 (5.46) 1.125 (28.58) 1.125 (28.58) .070 (1.78) .190 (4.83) 100 –

MPNY-1000A-9-C – Natural Nylon Acrylic Adhesive .215 (5.46) 1.125 (28.58) 1.125 (28.58) .070 (1.78) .190 (4.83) 100 –

MPNY-1000A-0-C – Black Nylon Acrylic Adhesive .215 (5.46) 1.125 (28.58) 1.125 (28.58) .070 (1.78) .190 (4.83) 100 –

MPNY-1000S-9-C MPNY-1000S-9-D Natural Nylon #6 Screw .215 (5.46) 1.125 (28.58) 1.125 (28.58) .070 (1.78) .190 (4.83) 100 1000

MPNY-1000S-0-C MPNY-1000S-0-D Black Nylon #6 Screw .215 (5.46) 1.125 (28.58) 1.125 (28.58) .070 (1.78) .190 (4.83) 100 1000

Tolerance ± .010 (.254) .015 (.381) .010 (.254)

For use with 18-50 lb. Cable Ties.

Cable Tie Mounting Bases

• 3/4" and 1" mounts for use with 18#

through 50# tensile cable ties.

• Supplied on rubber based (weatherproof

resistant nylon) closed cell foam

adhesive on acrylic based adhesive, or

with no adhesive for #6 screw mount

applications.

• Available in 6/6 Natural Nylon and heat

stabilized 6/6 Black Nylon.

• UL Flammability 94 V-2 (clip).

Mounting Pads

• Mounting Surface should be cleaned with alcohol

based (IPA) cleaner before application.

• Acrylic Based may be repositioned initially. Allow

24-72 hours set-up for maximum performance

with Acrylic Based adhesives.

• For rubber based, allow 15 minutes set-up for

maximum performance.

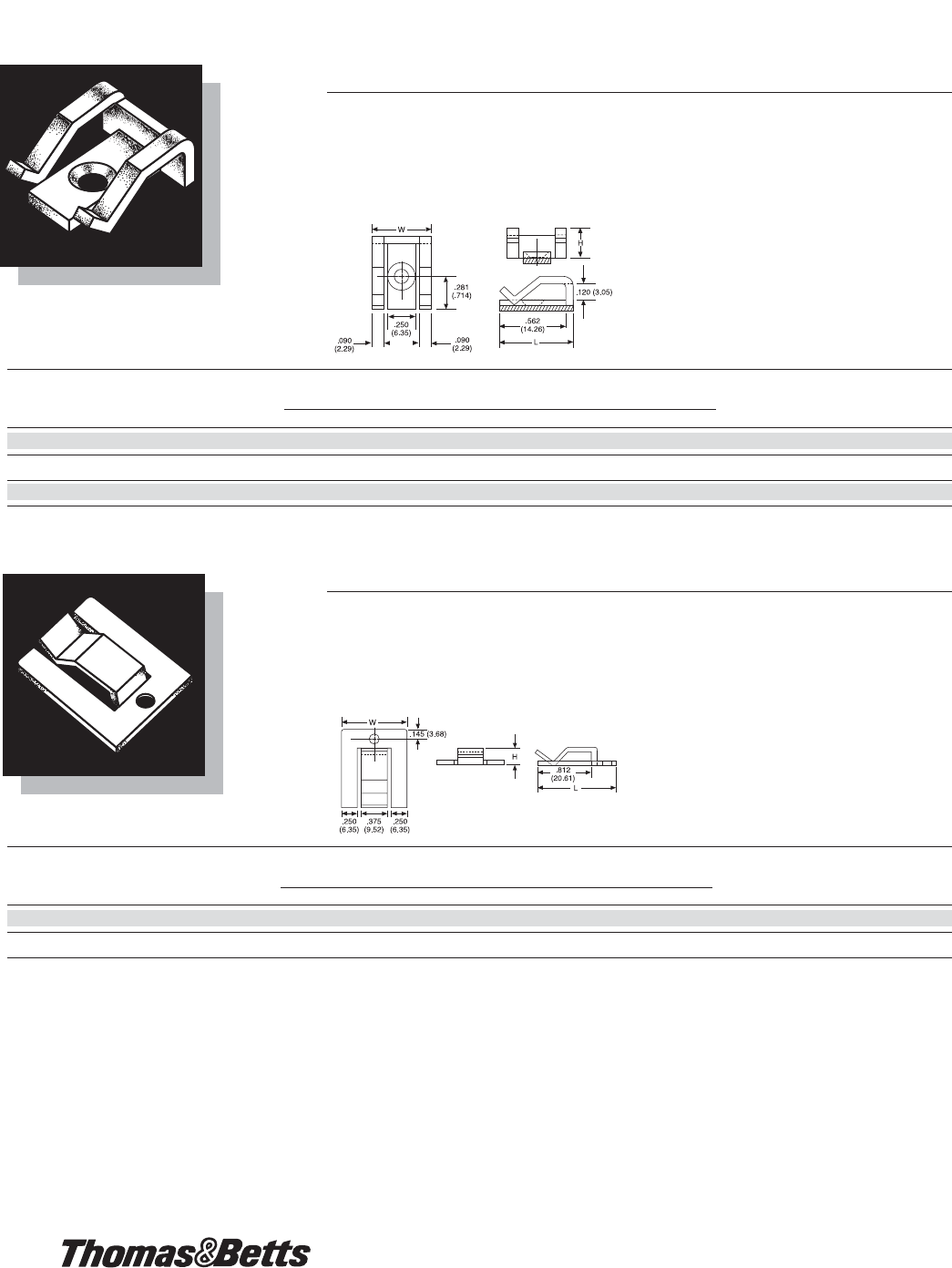

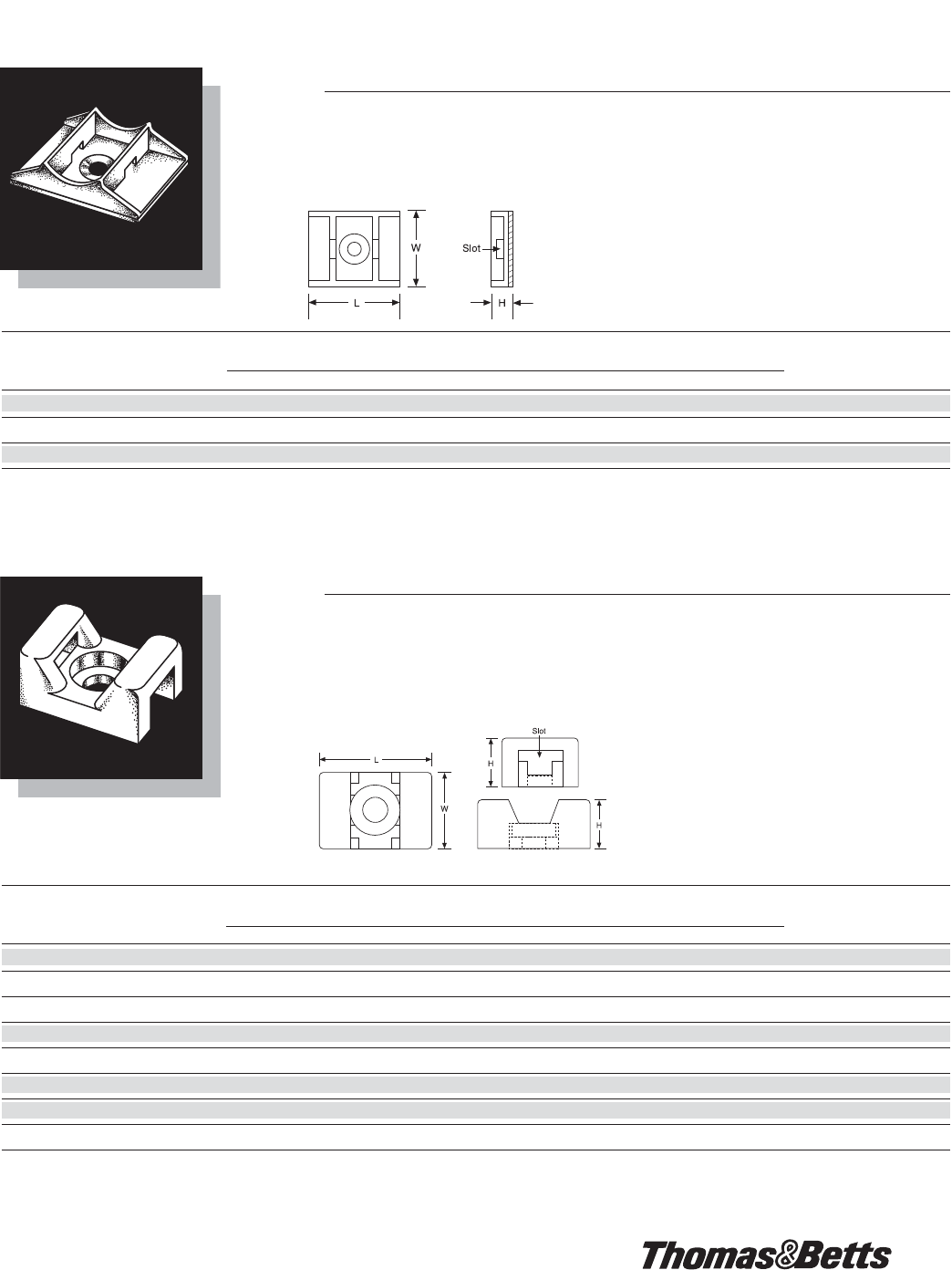

Cable Tie Mounting Bases

• Accepts cable ties to 50# tensile

(miniature through standard).

• Supplied on closed cell foam with

synthetic polymer “rubber” based

adhesive.

• Use #6 self-tapping screw for added

strength if desired.

• UL Flammability 94 V-2 (mount).

• Mount molded in 6/6 Natural Nylon.

H L W Slot Slot

Height Length Width Height Width Mount Bulk

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Method Pkg.

MCNY-1250-9-D Natural Nylon .285 (7.24) 1.250 (31.73) 1.000 (25.40) .090 (2.29) .300 (7.62) Adhesive 500

MCNY-1250-9-C Natural Nylon .285 (7.24) 1.250 (31.73) 1.000 (25.40) .090 (2.29) .300 (7.62) Adhesive 100

Tolerance ± .010 (.254) .015 (.381) .010 (.254)

Mounting Cradle

• SMNY-001 accepts cable ties to 50#

Tensile (miniature through standard).

• SMNY-002 accepts cable ties to 120#

Tensile (miniature through heavy duty).

• Use #4, #6, #8 or #10 machine screw

(as referenced) to apply.

• Stocked in 6/6 Natural or heat stabilized

Black Nylon.

• UL Flammability 94 V-2.

Screw Mount

H L W Slot Slot

Height Length Width Height Width Mount Bulk

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Method Pkg.

SMNY-000-9-D Natural Nylon .270 (6.86) .570 (14.48) .340 (8.64) .070 (1.78) .120 (3.10) #4 Screw 500

SMNY-001-9-D Natural Nylon .280 (7.11) .600 (15.24) .385 (9.77) .060 (1.52) .200 (5.08) #6, #8 Screw 500

SMNY-002-9-C Natural Nylon .390 (9.90) .875 (22.22) .625 (15.87) .090 (2.29) .325 (8.26) #8, #10 Screw 100

SMNY-002-9-D Natural Nylon .390 (9.90) .875 (22.22) .625 (15.87) .090 (2.29) .325 (8.26) #8, #10 Screw 500

SMNY-001-0-D Heat Stabilized Black Nylon .280 (7.11) .600 (15.24) .385 (9.77) .060 (1.52) .200 (5.08) #6, #8 Screw 500

SMNY-002-0-C Heat Stabilized Black Nylon .390 (9.90) .875 (22.22) .625 (15.87) .090 (2.29) .325 (8.26) #8, #10 Screw 100

SMNY-002-0-D Heat Stabilized Black Nylon .390 (9.90) .875 (22.22) .625 (15.87) .090 (2.29) .325 (8.26) #8, #10 Screw 500

Tolerance ± .015 (.381)

Cable Tie Mounting Bases

Multiple-Bundle Mounting Strips

Maximum

Bulk Mounting Tie Width Width Length Capacity Mil. Std. Bulk

Cat. No. Method Accom. (in.) (in.) (bundles) Part No. Pkg.

TC1101 #6 screws .190 .500 1.75 1 MS3339-1 100

TC1102 #6 screws .190 .500 3.00 2 MS3339-2 100

TC1103 #6 screws .190 .500 4.25 3 MS3339-3 100

TC1104 #6 screws .190 .500 5.50 4 MS3339-4 100

TC1105 #6 screws .190 .500 6.75 5 MS3339-5 100

TC1112 #6 screws .301 .625 9.60 6 MS3339-11 100

TC1113 #6 screws .301 .625 2.10 6 MS3339-6 100

TC1114 #6 screws .301 .625 3.60 2 MS3339-7 100

TC1115 #6 screws .301 .625 5.10 3 MS3339-8 100

TC1116 #6 screws .301 .625 6.60 4 MS3339-9 100

TC1117 #6 screws .301 .625 8.10 5 MS3339-10 100

These nylon mounting strips for parallel installation of wire bundles can accommodate up to six closely spaced bundles.

Saddle Support Base

Maximum

Std. Bulk Mounting Tie Width Width Length Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Pkg. Pkg.

–TC140 #4 Pan head – – – – 500

TC5141 TC141* #6 Pan head .190 .439 .672 100 500

TC5142 TC142 #10 Pan head .301 .563 .922 100 500

This mounting base provides a saddle for the wire run. Ty-Rap®tie is threaded under bundle and tied in usual manner.

Note: For additional materials see Technical Services.

* Add suffix FR for flame retardant material. (TC141 only.)

Push-In and Bolted Bases

Maximum

Std. Bulk Mounting Tie Width Width Length Std. Bulk

Cat. No. Cat. No. Hole Size Accom. (in.) (in.) Pkg. Pkg.

TC5823 TC823-TB 1/4 .190 .438 .625 100 1000

–TC107†#10-32 thd .190 .438 .688 – 1000

†Not Recognized.

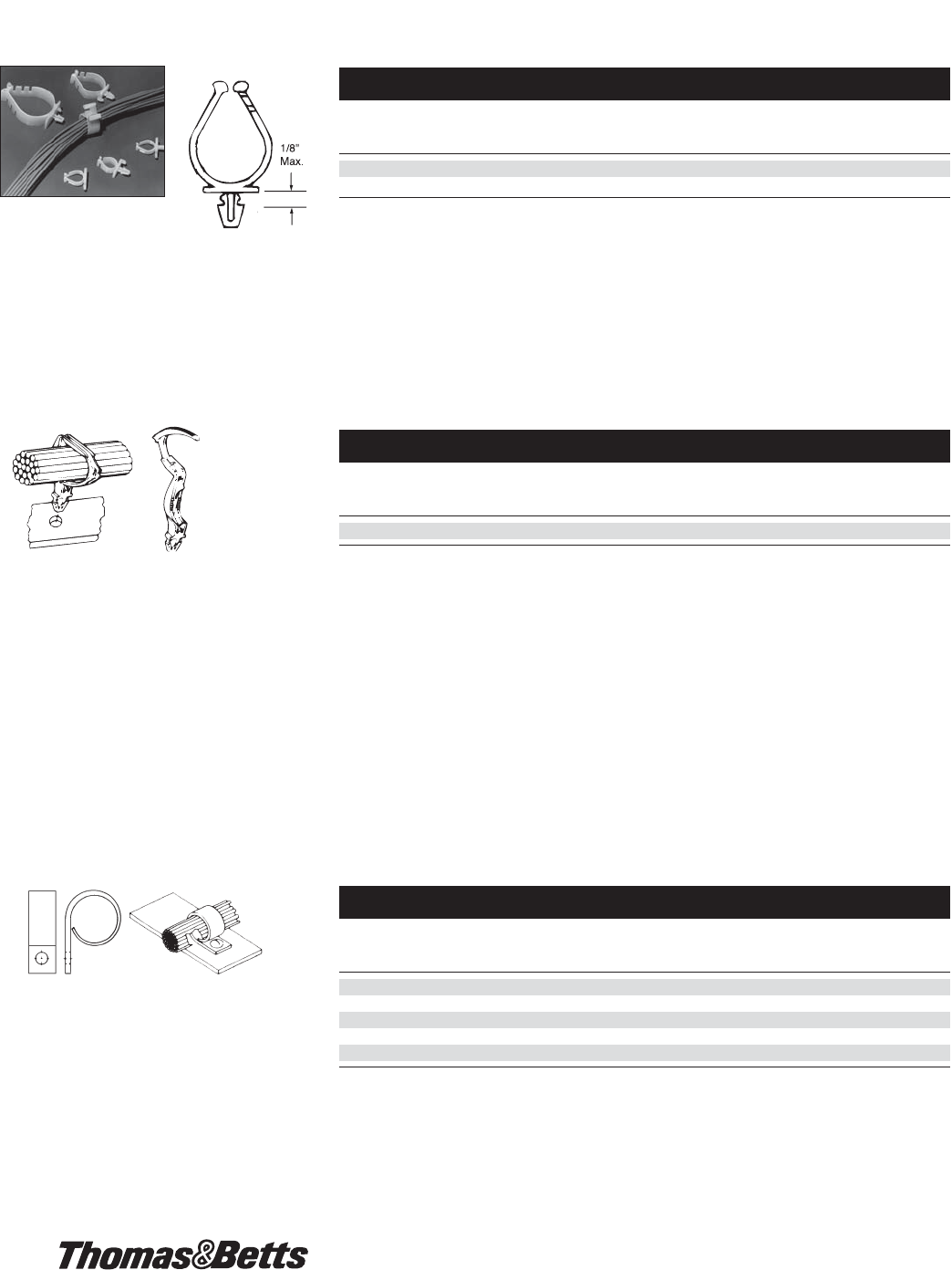

Snap-In Mounting Base Cap

Maximum

Bulk Mounting Tie Width Width Length Bulk

Cat. No. Hole Size Accom. (in.) (in.) Material Pkg.

TC121-TB .250 .190 .445 .415 Nylon 6/6 1000

Nylon 6/6

TCH121†.250 .190 .445 .415 heat 1000

stabilized

Snap-in, premountable base for securing wire bundles in cabinets maintains the attractive external appearance of the equipment

housing–TC121 Snap-Cap.

†Not Recognized.

1/8" max

TC823

TC107

Self-Riveting Base

Maximum

Bulk Mounting Tie Width Width Length Bulk

Cat. No. Hole Size Accom. (in.) (in.) Material Pkg.

TC116-TB .146 .190 .500 .750 Nylon 6/6 1000

(Red)

TC118-TB .169 .190 .500 .750 Nylon 6/6 1000

(Blue)

TC120 .196 .190 .500 .750 Nylon 6/6 1000

(Yellow)

Knock-in mounting base TC116-TB, TC118-TB, TC120–firmly locks into position when projecting pin is knocked into hollow peg. Slip

tie under base and tie as usual.

Ty-Rap®Mounting Blocks

Maximum

Bulk Mounting Tie Width Width Length Bulk

Cat. No. Bolt Size Accom. (in.) (in.) Pkg.

TC115-TB #10 .190 .469 1.00 1000

Mounting blocks permit vertical stacking and can be used in any direction.

Ty-Rap®Stand-Off Brackets

Maximum

Bulk. Tie Width Width Length Bulk

Cat. No. Accom. (in.) (in.) Pkg.

TC375 .190 .750 3.65 100

TC376 .190 .670 1.75 100

These brackets permit bundles to be mounted on either side. They also serve as means to raise bundles off the surface.

Right-Angle Bundle Support

Maximum

Bulk Tie Width Width Length Bulk

Cat. No. Accom. (in.) (in.) Pkg.

TC109 .190 .563 .438 200

TC106 .301 1.000 1.000 1000

This style meets Military Specification requirements as a support at holes in bulkheads and walls.

Aluminum Siding Clip

Wire

Cat. No. Accommodation

TC201 1/8" dia. wire (2 pair station wire)

Material:

• Transparent – Colour and texture of siding shows through.

• Material – Weather resistant grade polycarbonate.

• Designed to accommodate PITTSBURG INTERLOCK metal siding.

• Accommodates wires both vertically and/or horizontally.

• Provision for utilizing Ty-Rap®cable ties to secure large diameter bundles.

Cable Tie Mounting Bases

TC376

TC115

Cable Tie Mounting Bases

Miniature Mounting Bases

Maximum

Std. Bulk Pkg. Mounting Tie Width Width Length Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Pkg. Pkg.

TC502 TC102 #8 screw .190 .500 .750 100 1000

–TC104 #5 screw .091 .316 .406 – 1000

–TC804-TB #2 screw .091 .316 .406 – 1000

–TC112-TB #8 screw .190 .375 .750 – 1000

–TC812-TB #10 screw .190 .375 .750 – 1000

–TC814-TB #5 screw .190 .375 .750 – 1000

Threaded insert permits screw to come from outside of mounting surface.

Two-Direction Mounting Base

Maximum

Std. Bulk Pkg. Mounting Tie Width Width Length Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Pkg. Pkg.

–TC826-TB #8 screw .190 .500 1 – 1000

TC5828 TC828-TB #8 screw .190 .390 .875 100 1000

The TC826-TB mounting base can be used to tie bundles running parallel or perpendicular to length of base.

The TC828-TB mounting plate also handles ties installed in either direction and is somewhat smaller than TC826.

These miniature mounting bases are ideal for

high-density packaging. Simply slip Ty-Rap®tie

under slot in fastened mount, and complete tie in

usual manner. Check chart for mounting details.

In-Line Base

Maximum

Bulk Mounting Tie Width Width Length Bulk

Cat. No. Method Accom. (in.) (in.) Pkg.

TC815-TB #10 screws .301 .750 1.125 500

A standard two-hole base that installs in-line with the wire bundle which conceals it.

Single-Bundle Mounting Base

Maximum

Std. Bulk Mounting Tie Width Width Length Std. Bulk

Cat. No. Cat. No. Method Accom. (in.) (in.) Pkg. Pkg.

–TC101 #10 screws .190 .500 2.00 – 1000

TC503 TC103 1/4 screws .301 .625 3.08 100 500

The TC101 and TC103 nylon bases provide a mounting range for bundles from 1/4" through 4" in diameter. One mounting hole is

slotted to permit adjustment of the bundle position up to the time of actual bundle installation.

TC826-TB TC826-TB

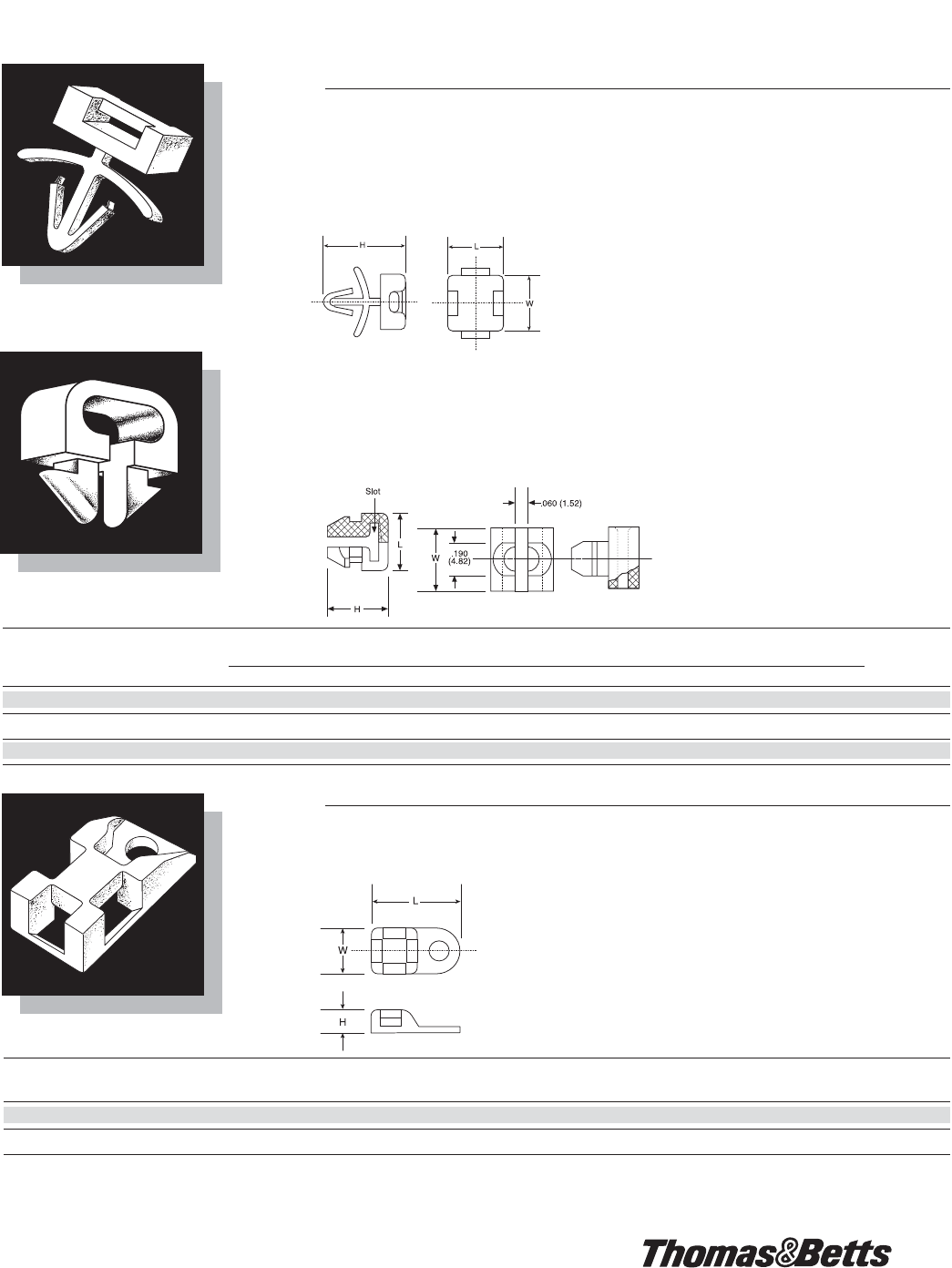

Cable Tie Mounting Bases

H L W Slot Slot

Height Length Width Height Width Bulk

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Pkg.

PMNY-185-9-D Natural Nylon .640 (16.26) .430 (10.92) .430 (10.92) .065 (1.65) .065 (1.65) 500

PMNY-245-9-D .355 (9.01) .320 (8.12) .320 (8.12) .050 (1.27) .220 (5.59) 500

Tolerance ± .010 (.254)

Push Mounts

PMNY-185

• Versatile push mount for cable ties to

50# tensile strength.

• For use in .187 / .192 mounting hole for

panel thickness .030 to .080.

• Stocked in 6/6 Natural Nylon.

• UL Flammability: 94 V-2.

• Oxygen index: 31.

PMNY-245

• Accepts cable ties to 50# tensile

(miniature through standard).

• For use in .250" mounting hole for

maximum panel thickness of .062".

• Stocked in 6/6 Natural Nylon.

•UL Flammability 94 V-2.

•Oxygen index: 31.

Bulk

Cat. No. Height Length Width Slot Width Mount Dia. Pkg.

SMNY-220-9-D .230 .950 .500 .220 .170 500

Tolerance ± .015

• 4-Way screw mounts for cable ties to

50# tensile strength.

• Mount with #6 or #8 screws.

• Available in 6/6 Natural Nylon.

• UL Flammability: 94 V-2.

4-Way Mount

Cable Clamps and Clips

Snap Mounts

• For panel thicknesses from .060" to

.150" to hold separate pieces of material

together.

• Used with W4 or N4 Series Cable

Clamps; allowable panel thickness is

.030" to .050".

• Stocked in Natural 6/6 Nylon.

• UL Flammability 94 V-2.

AB C D

Bulk

Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) inch (mm) Qty.

MSNY-166-0-M UV Black Nylon .485 (12.32) .312 (7.93) .281 (7.14) .180 (4.57) 1000

Tolerance ± .010 (.254)

Round Adhesive Clips

• Diverse cable clamps for bundle

diameters from .160 to .620.

• Mounted on a rubber based closed cell

foam adhesive.

• Natural nylon.

• UL Flammability 94 V-2 (clip).

• Flexible center tang for removal or

addition of cables.

H L W Bulk

Height Length Width Maximum Mounting Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Bundle Method Qty.

RANY-160-9-D Natural Nylon .250 (6.35) .630 (16.00) .580 (14.73) .160 Rubber Based Adhesive 500

RANY-280-9-D Natural Nylon .410 (10.41) 1.000 (25.40) 1.000 (25.40) .280 Rubber Based Adhesive 500

RANY-530-9-D Natural Nylon .620 (15.75) 1.000 (25.40) 1.000 (25.40) .530 Rubber Based Adhesive 500

RANY-620-9-D Natural Nylon .560 (14.22) 1.250 (31.75) 1.120 (28.45) .620 Rubber Based Adhesive 500

Tolerance ± .015 (.381)

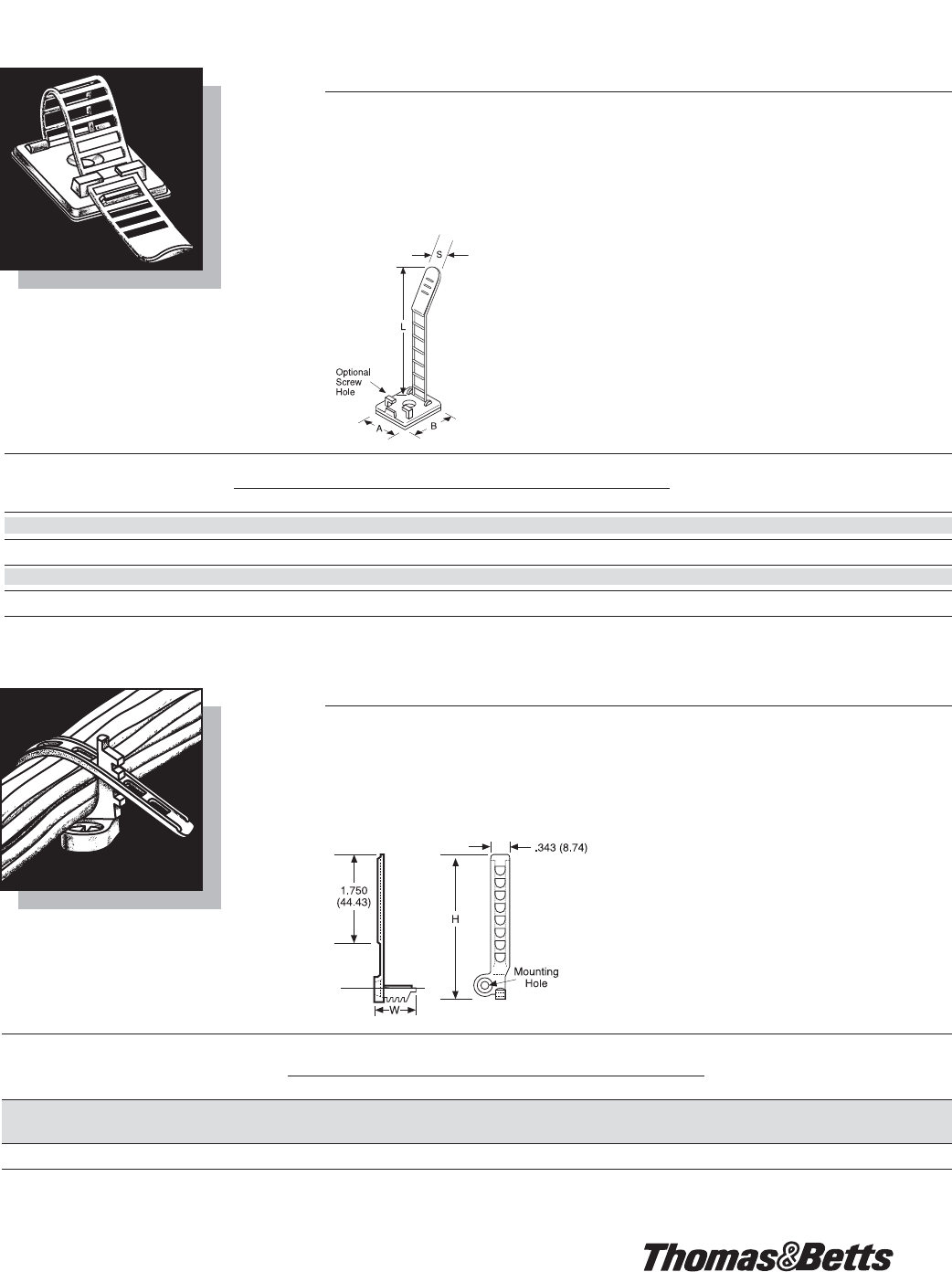

H W Adjustable Bulk

Height Width Diameter Mounting Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Method Qty.

TBNY-750-9-M Natural Nylon 2.833 (71.96) .850 (21.59) .375 - .750 #6, #8 Flat 1000

(9.52 - 19.05) Head Screw

Tolerance ± .030 (.762) .015 (.381)

Cable Clamps and Clips

Tab-Lock Cable Clamps

• Adjustable cable clamp for diameters to

3/4".

• Releasable and reusable. Add or remove

wires from bundles as required.

• #6 or #8 82° flat head machine screw

to mount.

• Stocked in 6/6 Natural Nylon.

• UL Flammability 94 V-2.

Adjustable Cable Clamps

AB S L

Applied Screw

Wire Hole Dia. Std.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Range Inch (mm) Pkg.

ULNY-013-8-C Grey Nylon .709 (18.00) .984 (25.00) .314 (8.00) 2.340 (59.50) .118 - .500 .110 (2.79) 100

ULNY-018-8-C Grey Nylon .827 (21.00) 1.180 (30.00) .472 (12.00) 3.120 (79.40) .197 - .827 .110 (2.79) 100

ULNY-023-8-C Grey Nylon .984 (25.00) 1.380 (35.00) .551 (14.00) 3.370 (85.50) .275 - .984 .135 (3.43) 100

Tolerance ± .015 (.381) .010 (.254) .030 (.762)

• Three sizes for bundles from .118" to

.984".

• Ladder style fastener is easily released

and refastened.

• Supplied “single-cut” on a rubber based

closed cell foam adhesive.

• Stocked in 6/6 Grey Nylon.

• UL Flammability 94 V-2 (clip).

• Optional screw hole for #4 or #5 flat

head screw.

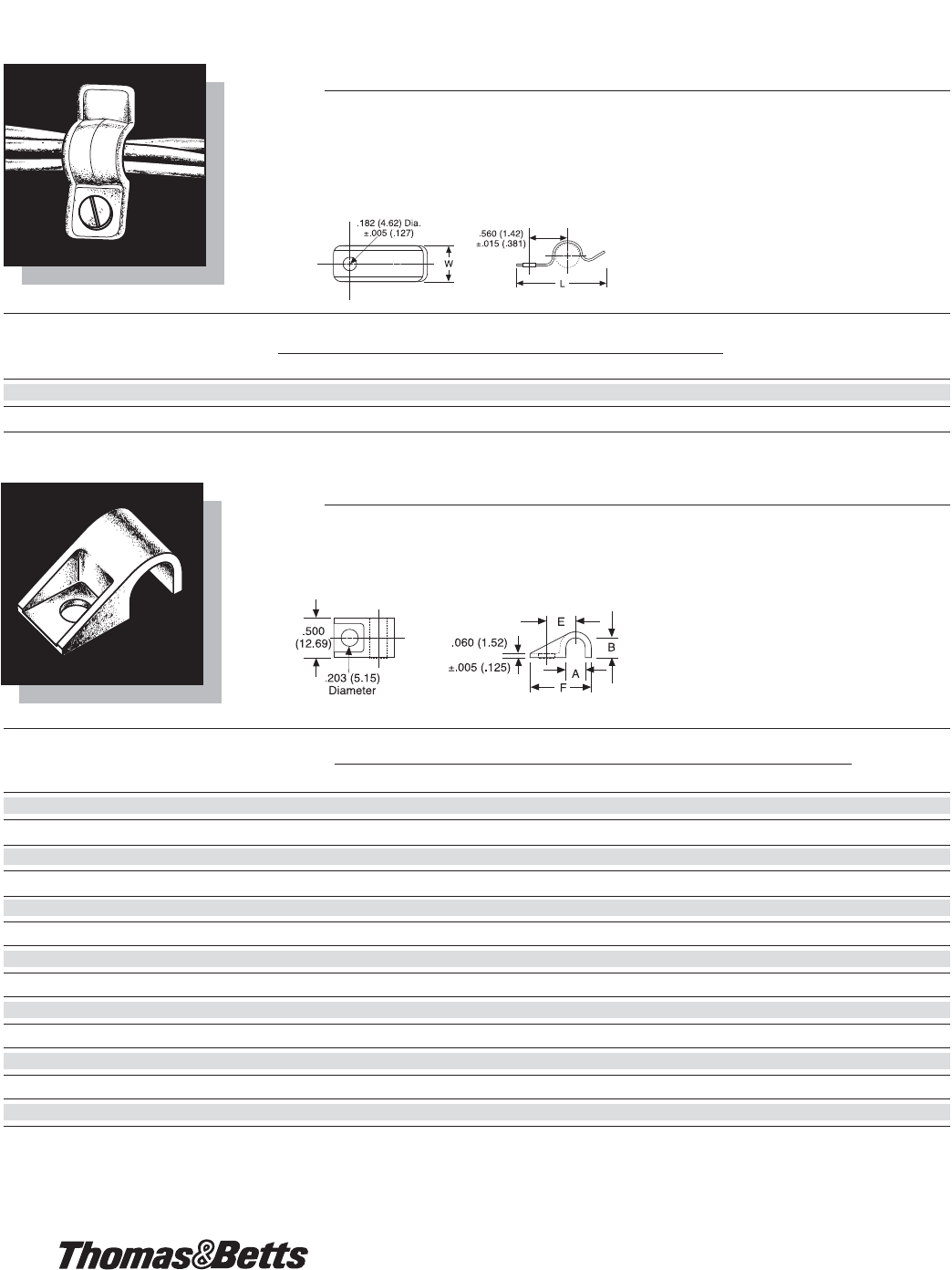

Cable Clamps and Clips

L W Max. Cable Bulk

Length Width Diameter Mounting Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Method Qty.

FCNY-312-9-M Natural Nylon 1.350 (34.29) .500 (12.69) .312 (7.93) #8 Screw 1000

Tolerance ± .020 (.508) .015 (.381)

Flex Clips

• Utilizes nylon’s “memory” to retain

original shape even after repeated use.

• Ideal for temporary applications.

• Mounts with one #8 machine screw.

• Stocked in Natural 6/6 Nylon.

• UL Flammability 94 V-2.

Half Clamps

AB E F

Bulk

Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) inch (mm) Qty.

CPNY-115-9-M Natural Nylon .115 (2.92) .115 (2.92) .314 (7.98) .675 (17.15) 1000

CPNY-172-9-M Natural Nylon .172 (4.36) .172 (4.36) .336 (8.53) .732 (18.59) 1000

CPNY-234-9-M Natural Nylon .234 (5.94) .234 (5.94) .370 (9.40) .793 (20.14) 1000

CPNY-297-9-M Natural Nylon .297 (7.54) .297 (7.54) .400 (10.16) .859 (21.82) 1000

CPNY-422-9-M Natural Nylon .422 (10.71) .422 (10.71) .470 (11.94) .980 (24.89) 1000

CPNY-484-9-M Natural Nylon .484 (12.29) .484 (12.29) .500 (12.69) 1.044 (26.52) 1000

CPNY-115-0-M Heat Stabilized Black Nylon .115 (2.92) .115 (2.92) .314 (7.98) .675 (17.15) 1000

CPNY-172-0-M Heat Stabilized Black Nylon .172 (4.36) .172 (4.36) .336 (8.53) .732 (18.59) 1000

CPNY-234-0-M Heat Stabilized Black Nylon .234 (5.94) .234 (5.94) .370 (9.40) .793 (20.14) 1000

CPNY-297-0-M Heat Stabilized Black Nylon .297 (7.54) .297 (7.54) .400 (10.16) .859 (21.82) 1000

CPNY-359-0-M Heat Stabilized Black Nylon .359 (9.11) .359 (9.11) .435 (11.05) .920 (23.37) 1000

CPNY-422-0-M Heat Stabilized Black Nylon .422 (10.71) .422 (10.71) .470 (11.94) .980 (24.89) 1000

Tolerance ± .010 (.254) .015 (.381)

• Rugged clamps with reinforced side

panels for bundle diameters to .484".

• 203 mounting hole accepts #6 through

#10 screws.

• Stocked in 6/6 Natural and heat

stabilized Black Nylon.

• UL Flammability 94 V-2.

Cable Clamps and Clips

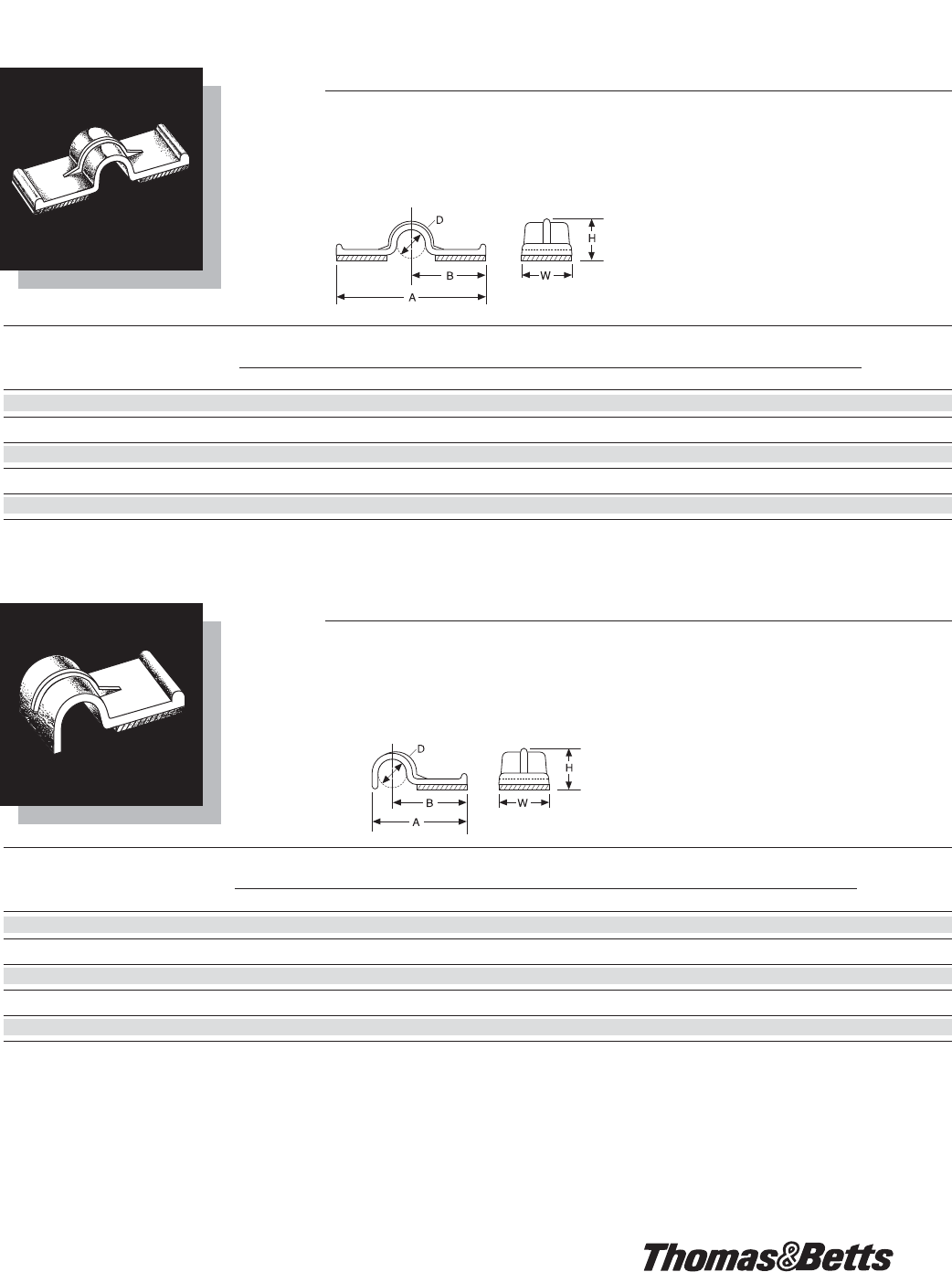

Half Press Clips

DABHW

Bulk

Diameter Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Qty.

PCNY-125-9-D Natural Nylon .125 (3.17) .760 (19.30) .380 (9.65) .211 (5.36) .375 (9.52) 500

PCNY-250-9-D Natural Nylon .250 (6.35) 1.380 (35.05) .690 (17.52) .324 (8.23) .500 (12.69) 500

PCNY-375-9-D Natural Nylon .375 (9.52) 1.470 (37.32) .735 (18.61) .444 (11.29) .625 (15.87) 500

PCNY-500-9-D Natural Nylon .500 (12.69) 1.590 (40.57) .795 (20.19) .585 (14.85) .750 (19.05) 500

Tolerance ± .010 (.254) .020 (.508) .010 (.254)

• 4 Sizes to accommodate bundles up to

1/2".

• Clips are provided on a rubber based

closed cell foam adhesive.

• Stocked in 6/6 Natural Nylon. Contact

factory for availability in special

materials.

• UL Flammability 94 V-2 (clip).

DABHW

Bulk

Diameter Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Qty.

HCNY-125-9-M Natural Nylon .125 (3.17) .493 (12.52) .380 (9.65) .180 (4.57) .375 (9.52) 1000

HCNY-250-9-M Natural Nylon .250 (6.35) .865 (21.97) .690 (17.52) .325 (8.25) .500 (12.69) 1000

HCNY-375-9-M Natural Nylon .375 (9.52) .980 (24.88) .750 (19.05) .415 (10.54) .625 (15.87) 1000

HCNY-500-9-M Natural Nylon .500 (12.69) 1.110 (28.19) .820 (20.83) .560 (14.22) .750 (19.05) 1000

Tolerance ± .010 (.254) .020 (.508) .010 (.254)

• 4 Sizes to accommodate bundles up to

1/2".

• Clips are provided on a rubber based

closed cell foam adhesive.

• Stocked in 6/6 Natural Nylon. Contact

factory for availability in special materials.

• UL Flammability 94 V-2 (clip).

Press Clips

Cable Clamps and Clips

Flat Cable Clips

Flat Cable Screw Clip

H L W Bulk

Height Length Width Mounting Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Method Qty.

FANY-562-9-D Natural Nylon .264 (6.70) .625 (15.87) .500 (12.69) Adhesive 500

FSNY-562-9-D Natural Nylon .233 (5.92) #4 Screw 500

Tolerance ± .010 (.254) .015 (.381)

• Low profile clip for single or multiple

layers of flat ribbon cable.

• FANY supplied on a rubber based closed

cell foam adhesive.

• Screw mountable with a #4 flat head

screw.

• Flexible tangs allow for easy removal and

replacement of desired cable.

• Stocked in 6/6 Natural Nylon.

• UL Flammability 94 V-2 (clip).

H L W Bulk

Height Length Width Mounting Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Method Qty.

FSNY-812-9-D Natural Nylon .250 (3.17) 1.187 (30.15) 1.000 (25.40) #8 Screw 500

Tolerance ± .010 (.254) .015 (.381)

• Flat ribbon cable clamp with mounting

hole for #8 screw.

• Stocked in Natural 6/6 Nylon.

• Flexible center tang allows for easy

removal and replacement of desired

cable.

• UL Flammability 94 V-2.

Flat Adhesive Clips

WBulk

Height Length Width Mounting Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Method Qty.

FANY-812-9-D Natural Nylon .281 (7.14) 1.000 (25.40) 1.000 (25.40) Adhesive 500

Tolerance ± .010 (.254) .015 (.381)

• Low profile clip for single or multiple layers of

flat ribbon cable.

• Supplied on a rubber based closed cell foam

adhesive.

• Flexible center tang for removal or addition of

cables.

• Stocked in 6/6 Natural Nylon.

• UL Flammability 94 V-2 (clip).

H A C D L Bulk

Head Dia. Pkg.

Cat. No. Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Qty.

BTNY-167-0-D .343 (8.71) .125 (3.17) .202 (5.13) .165 (4.19) .297 (7.54) 500

BTNY-203-0-D .468 (11.88) .156 (3.96) .238 (6.04) .200 (5.08) .359 (9.11) 500

BTNY-265-0-D .580 (14.73) .171 (4.34) .300 (7.62) .260 (6.60) .410 (10.41) 500

Tolerance ± .010 (.254)

Stud Buttons

• Utilize nylon’s “memory” to retain original

shape after compression.

• Part numbers contain recommended

mounting hole diameters.

• For use with CatamountTM strapping or panel

thickness through .165" with mounting holes

through #1/4.

• Stocked in heat stabilized Black Nylon for

high heat applications.

• UL Flammability 94 V-2.

Cable Clamps and Clips

Flat PVC Clips

H L W Bulk

Height Length Width Mounting Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Method Qty.

FRPV-1000-8-D Grey PVC .415 (5.84) 1.062 (26.97) 1.000 (25.40) Adhesive 500

Tolerance ± .015 (.381) .030 (.762) .015 (.381)

• Low profile clip for single or multiple layers of

flat ribbon cable.

• “Single-Cut” on a rubber based closed cell

foam adhesive.

• Grey PVC.

• UL Flammability 94 V-0 (clip).

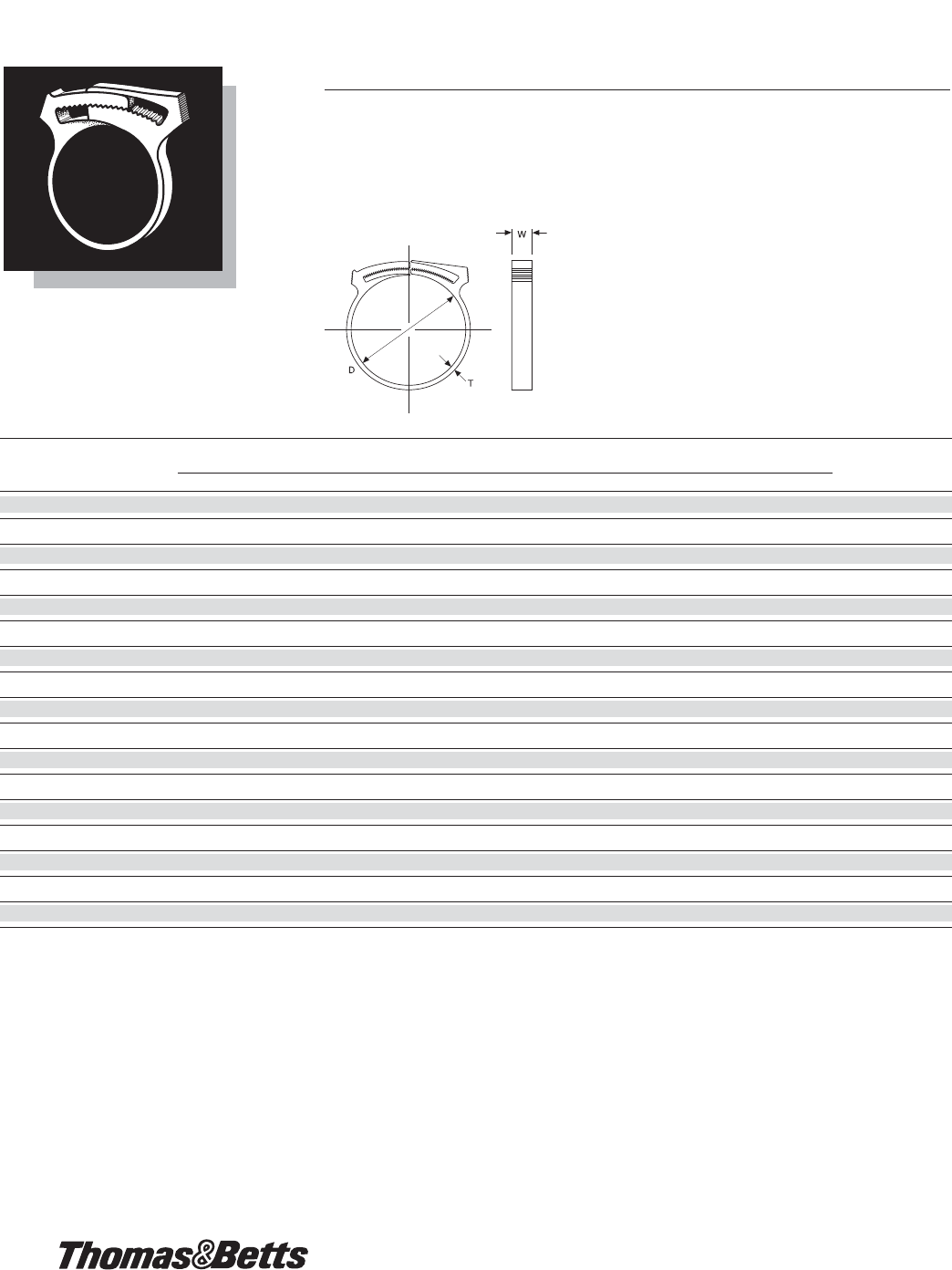

Cable Clamps and Clips

D D1 T W Bulk

Nominal Diameter Closed Diameter Thickness Width Pkg.

Cat. No. Inch (mm) Inch (mm) Inch (mm) inch (mm) Qty.

GGNY-344-0-C 13/32 (10.32) 11/32 (8.73) .070 (1.8) .220 (5.6) 100

GGNY-406-0-C 15/32 (11.92) 13/32 (10.32) .070 (1.8) .220 (5.6) 100

GGNY-468-0-C 17/32 (13.49) 15/32 (11.91) .070 (1.8) .220 (5.6) 100

GGNY-531-0-C 19/32 (15.08) 17/32 (13.49) .070 (1.8) .220 (5.6) 100

GGNY-593-0-C 21/32 (16.67) 19/32 (15.08) .070 (1.8) .220 (5.6) 100

GGNY-672-0-C 13/16 (20.64) 43/64 (17.07) .070 (1.8) .220 (5.6) 100

GGNY-750-0-C 7/8 (22.23) 3/4 (19.05) .070 (1.8) .220 (5.6) 100

GGNY-875-0-C 1 (25.40) 7/8 (22.23) .070 (1.8) .220 (5.6) 100

GGNY-953-0-C 13/32 (27.78) 61/64 (24.21) .070 (1.8) .310 (7.9) 100

GGNY-1031-0-C 1-13/16 (30.16) 1-1/32 (26.19) .070 (1.8) .310 (7.9) 100

GGNY-1250-0-C 1-7/16 (36.51) 1-1/4 (31.75) .070 (1.8) .360 (9.1) 100

GGNY-1406-0-C 1-5/8 (41.28) 1-13/32 (35.72) .070 (1.8) .360 (9.1) 100

GGNY-1593-0-C 1-13/16 (46.04) 1-19/32 (40.48) .070 (1.8) .360 (9.1) 100

GGNY-1687-0-C 1-29/32 (48.42) 1-11/16 (42.86) .070 (1.8) .360 (9.1) 100

GGNY-1875-0-C 2-1/8 (53.98) 1-7/8 (47.63) .070 (1.8) .400 (10.2) 100

GGNY-2125-0-C 2-1/8 (60.33) 2-3/8 (53.98) .070 (1.8) .400 (10.2) 100

Tolerance ± .010 (.254)

Gator Grip Hose Clamp

• 16 sizes for bundle diameters to 2-3/8”.

• Removable and reusable. Twist by hand

or with pliers to remove.

• Stocked in black Nylon. 100 pieces per

package.

• UL Flammability 94 V-2.

• Request samples for testing to your

application. Tested to 250 PSI.

Cable Clamps and Clips

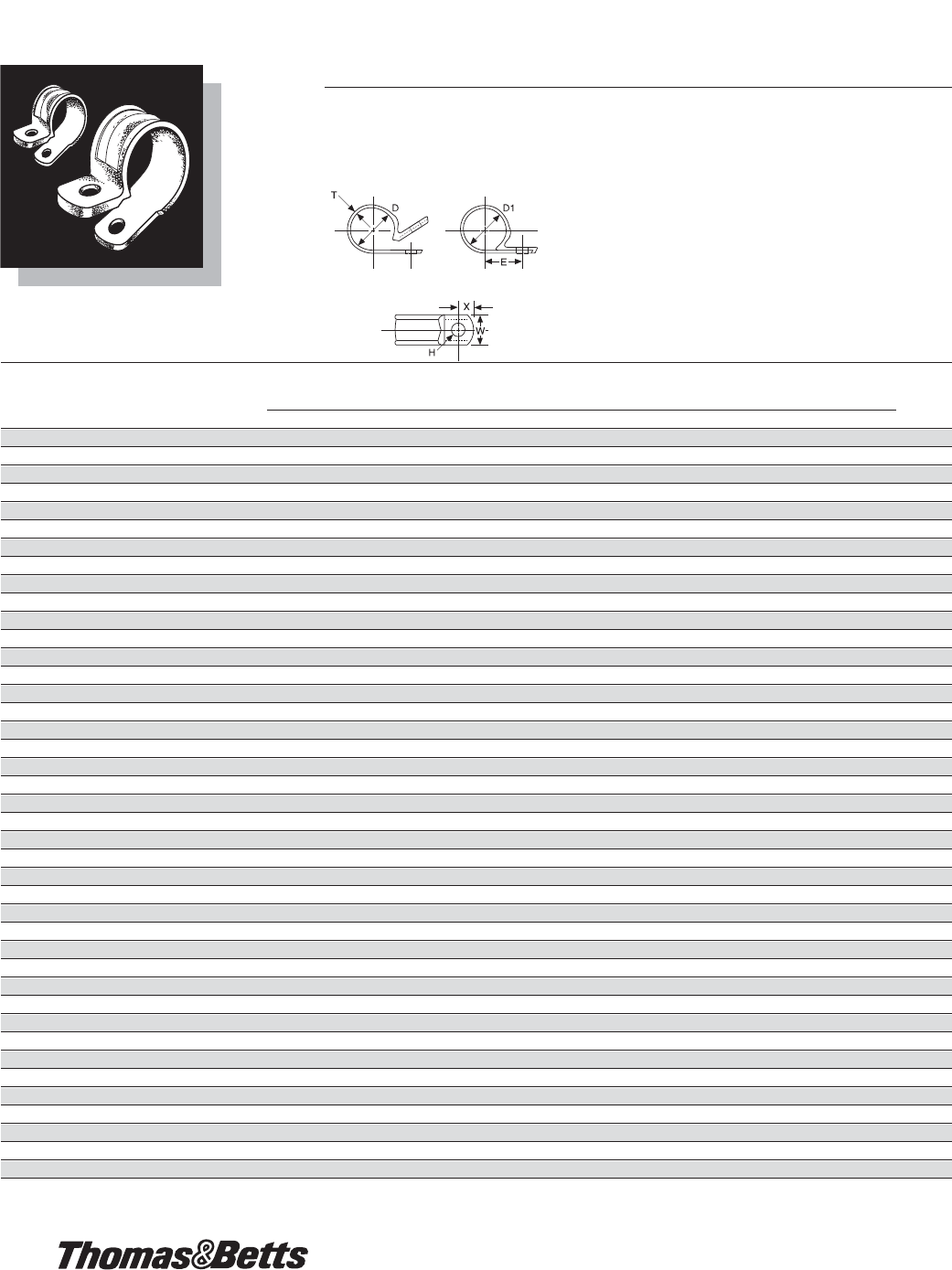

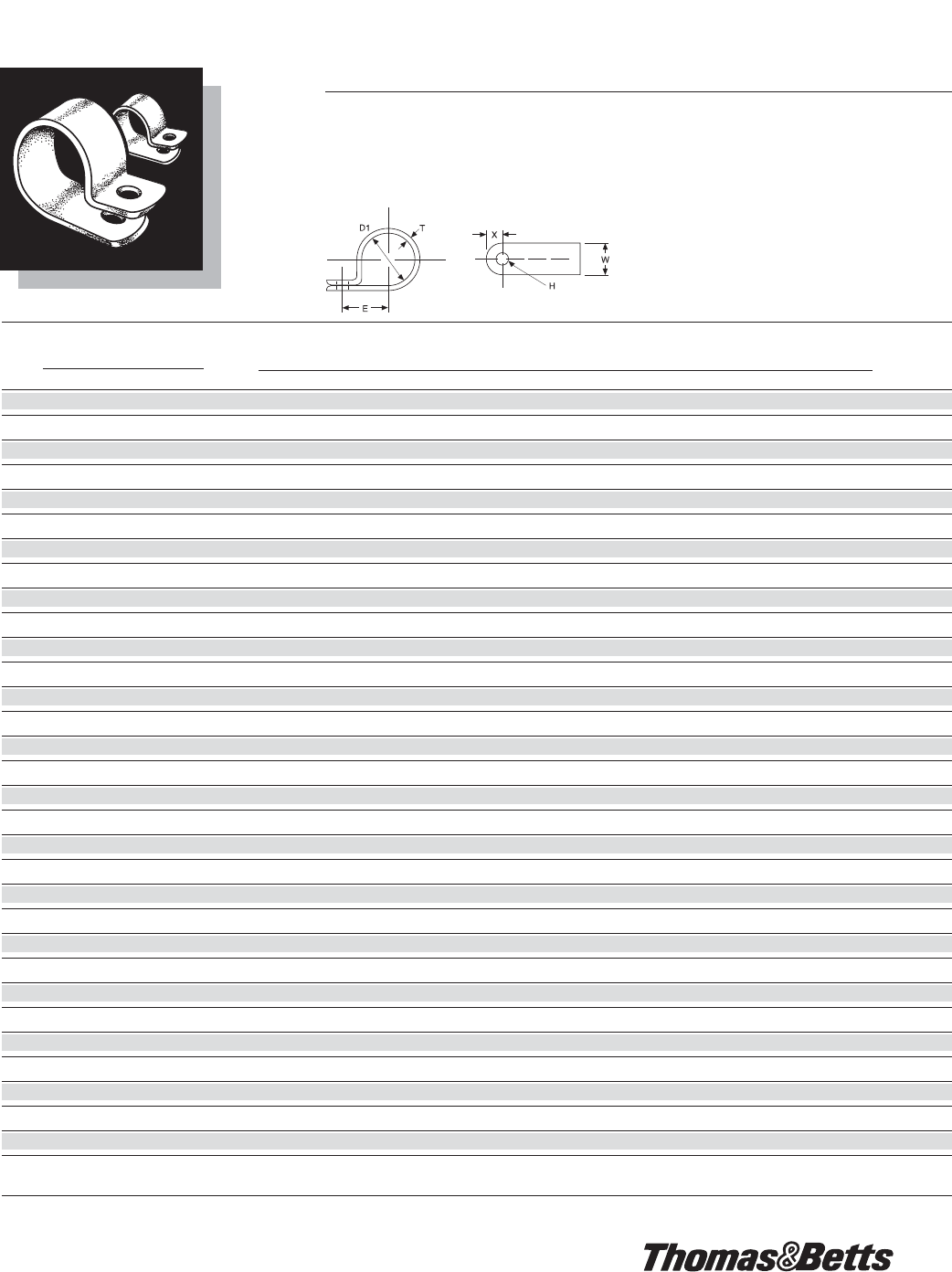

Plain Edge Cable Clamps

• Fully radiused inside edges with size

markings in inches and millimeters for

easy identification.

• Stocked in Natural White and Black

6/6 Nylon.

• 18 diameters and 2 widths with

mounting holes for #4 through #10

screws.

• Plain edge cable clamps are designed to

perform to NAS-1397P.

D1E T W HX

Cat. No. Closed Hole Bulk

Diameter Thickness Width Diameter Pkg.

White Black Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Qty.

N4NY-002-9-M N4NY-002-0-M .125 (3.2) .343 (8.7) .050 (1.3) .375 (9.5) .170 (4.3) .218 (5.5) 1000

N4NY-003-9-M N4NY-003-0-M .187 (4.8) .378 (9.6) .050 (1.3) .375 (9.5) .170 (4.3) .218 (5.5) 1000

N4NY-004-9-M N4NY-004-0-M .250 (6.4) .421 (10.7) .050 (1.3) .375 (9.5) .170 (4.3) .218 (5.5) 1000

N4NY-005-9-M N4NY-005-0-M .312 (7.9) .441 (11.2) .050 (1.3) .375 (9.5) .170 (4.3) .218 (5.5) 1000

N4NY-006-9-M N4NY-006-0-M .375 (9.5) .464 (11.8) .050 (1.3) .375 (9.5) .170 (4.3) .218 (5.5) 1000

N4NY-007-9-M N4NY-007-0-M .437 (11.1) .500 (12.7) .050 (1.3) .375 (9.5) .170 (4.3) .218 (5.5) 1000

N4NY-008-9-M N4NY-008-0-M .500 (12.7) .530 (13.5) .050 (1.3) .375 (9.5) .170 (4.3) .218 (5.5) 1000

N4NY-002B-9-M N4NY-002B-0-M .125 (3.2) .343 (8.7) .050 (1.3) .375 (9.5) .203 (5.2) .218 (5.5) 1000

N4NY-003B-9-M N4NY-003B-0-M .187 (4.8) .378 (9.6) .050 (1.3) .375 (9.5) .203 (5.2) .218 (5.5) 1000

N4NY-004B-9-M N4NY-004B-0-M .250 (6.4) .421 (10.7) .050 (1.3) .375 (9.5) .203 (5.2) .218 (5.5) 1000

N4NY-005B-9-M N4NY-005B-0-M .312 (7.9) .441 (11.2) .050 (1.3) .375 (9.5) .203 (5.2) .218 (5.5) 1000

N4NY-006B-9-M N4NY-006B-0-M .375 (9.5) .464 (11.8) .050 (1.3) .375 (9.5) .203 (5.2) .218 (5.5) 1000

N4NY-007B-9-M N4NY-007B-0-M .437 (11.1) .500 (12.7) .050 (1.3) .375 (9.5) .203 (5.2) .218 (5.5) 1000

N4NY-008B-9-M N4NY-008B-0-M .500 (12.7) .530 (13.5) .050 (1.3) .375 (9.5) .203 (5.2) .218 (5.5) 1000

N6NY-004C-9-M N6NY-004C-0-M .250 (6.4) .437 (11.1) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-005C-9-M N6NY-005C-0-M .312 (7.9) .474 (12.0) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-006C-9-M N6NY-006C-0-M .375 (9.5) .500 (12.7) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-007C-9-M N6NY-007C-0-M .437 (11.1) .533 (13.5) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-008C-9-M N6NY-008C-0-M .500 (12.7) .553 (14.1) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-009-9-M N6NY-009-0-M .562 (14.3) .603 (15.3) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-010-9-M N6NY-010-0-M .625 (15.9) .625 (15.9) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-011-9-M N6NY-011-0-M .687 (17.4) .665 (16.9) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-012-9-M N6NY-012-0-M .750 (19.1) .699 (17.8) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-013-9-M N6NY-013-0-M .812 (20.6) .765 (19.9) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-014-9-M N6NY-014-0-M .875 (22.2) .795 (20.2) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-016-9-M N6NY-016-0-M 1.000 (25.4) .825 (20.9) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 1000

N6NY-018-9-D N6NY-018-0-D 1.125 (28.6) .940 (23.8) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 500

N6NY-019-9-D N6NY-019-0-D 1.187 (30.1) .963 (24.5) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 500

N6NY-020-9-D N6NY-020-0-D 1.250 (31.8) .980 (24.9) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 500

N6NY-022-9-D N6NY-022-0-D 1.375 (34.9) 1.045 (26.5) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 500

N6NY-024-9-D N6NY-024-0-D 1.500 (38.1) 1.114 (28.3) .060 (1.5) .500 (12.7) .203 (5.2) .218 (5.5) 500

Tolerance ± .010 .030 .005 .015 .010 .030

(.254) (.762) (.127) (.381) (.254) (.762)

*Note: “C” Also 100 packs available.

Replace “-M” with “-C” for 100 pack.

Cable Clamps and Clips

DD1ETWHX

Nominal Closed Hole Bulk

Diameter Diameter Thickness Width Diameter Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Qty.

W4NY-125-9-M Natural Nylon .125 (3.17) .114 (2.89) .333 (8.46) .040 (1.02) .375 (9.52) .167 (4.24) .257 (6.53) 1000

W4NY-187-9-M Natural Nylon .187 (4.76) .172 (4.36) .355 (9.02) .040 (1.02) .375 (9.52) .167 (4.24) .218 (5.53) 1000

W4NY-250-9-M Natural Nylon .250 (6.34) .234 (5.94) .382 (9.70) .040 (1.02) .375 (9.52) .167 (4.24) .190 (4.83) 1000

W4NY-312-9-M Natural Nylon .312 (7.93) .297 (7.54) .422 (10.71) .040 (1.02) .375 (9.52) .167 (4.24) .205 (5.21) 1000

W4NY-375-9-M Natural Nylon .375 (9.52) .359 (9.11) .454 (11.53) .040 (1.02) .375 (9.52) .167 (4.24) .210 (5.33) 1000

W4NY-500-9-M Natural Nylon .500 (12.69) .484 (12.29) .490 (12.45) .040 (1.02) .375 (9.52) .167 (4.24) .266 (6.76) 1000

W6NY-187-9-M Natural Nylon .187 (4.76) .172 (4.36) .375 (9.52) .060 (1.52) .500 (12.69) .203 (5.15) .241 (6.12) 1000

W6NY-250-9-M Natural Nylon .250 (6.34) .234 (5.94) .407 (10.34) .060 (1.52) .500 (12.69) .203 (5.15) .241 (6.12) 1000

W6NY-312-9-M Natural Nylon .312 (7.93) .297 (7.54) .445 (11.30) .060 (1.52) .500 (12.69) .203 (5.15) .280 (7.11) 1000

W6NY-375-9-M Natural Nylon .375 (9.52) .359 (9.11) .484 (12.29) .060 (1.52) .500 (12.69) .203 (5.15) .291 (7.39) 1000

W6NY-437-9-M Natural Nylon .437 (11.11) .422 (10.71) .522 (13.25) .060 (1.52) .500 (12.69) .203 (5.15) .263 (6.68) 1000

W6NY-500-9-M Natural Nylon .500 (12.69) .484 (12.29) .560 (14.22) .060 (1.52) .500 (12.69) .203 (5.15) .272 (6.91) 1000

W6NY-562-9-M Natural Nylon .562 (14.28) .547 (13.90) .657 (16.68) .060 (1.52) .500 (12.69) .203 (5.15) .236 (5.99) 1000

W6NY-625-9-M Natural Nylon .625 (15.87) .609 (15.46) .637 (16.17) .060 (1.52) .500 (12.69) .203 (5.15) .290 (7.37) 1000

W6NY-687-9-M Natural Nylon .687 (17.46) .672 (17.06) .694 (17.63) .060 (1.52) .500 (12.69) .203 (5.15) .327 (8.31) 1000

W6NY-750-9-M Natural Nylon .750 (19.04) .734 (18.64) .726 (18.44) .060 (1.52) .500 (12.69) .203 (5.15) .326 (8.28) 1000

W6NY-812-9-M Natural Nylon .812 (20.63) .797 (20.24) .776 (19.71) .060 (1.52) .500 (12.69) .203 (5.15) .323 (8.20) 1000

W6NY-875-9-D Natural Nylon .875 (22.22) .859 (21.81) .733 (18.62) .060 (1.52) .500 (12.69) .203 (5.15) .310 (7.87) 500

W6NY-1000-9-D Natural Nylon 1.000 (25.39) .984 (24.99) .881 (22.38) .060 (1.52) .500 (12.69) .203 (5.15) .292 (7.42) 500

W6NY-1250-9-D Natural Nylon 1.250 (31.73) 1.227 (31.16) 1.010 (25.65) .060 (1.52) .500 (12.69) .203 (5.15) .339 (8.61) 500

W4NY-125-0-M Heat Stabilized Black Nylon .125 (3.17) .114 (2.89) .333 (8.46) .040 (1.02) .375 (9.52) .167 (4.24) .257 (6.53) 1000

W4NY-187-0-M Heat Stabilized Black Nylon .187 (4.76) .172 (4.36) .355 (9.02) .040 (1.02) .375 (9.52) .167 (4.24) .218 (5.53) 1000

W4NY-250-0-M Heat Stabilized Black Nylon .250 (6.34) .234 (5.94) .382 (9.70) .040 (1.02) .375 (9.52) .167 (4.24) .190 (4.83) 1000

W4NY-312-0-M Heat Stabilized Black Nylon .312 (7.93) .297 (7.54) .422 (10.71) .040 (1.02) .375 (9.52) .167 (4.24) .205 (5.21) 1000

W4NY-375-0-M Heat Stabilized Black Nylon .375 (9.52) .359 (9.11) .454 (11.53) .040 (1.02) .375 (9.52) .167 (4.24) .210 (5.33) 1000

W4NY-500-0-M Heat Stabilized Black Nylon .500 (12.69) .484 (12.29) .490 (12.45) .040 (1.02) .375 (9.52) .167 (4.24) .266 (6.76) 1000

W6NY-187-0-M Heat Stabilized Black Nylon .187 (4.76) .172 (4.36) .375 (9.52) .060 (1.52) .500 (12.69) .203 (5.15) .241 (6.12) 1000

W6NY-250-0-M Heat Stabilized Black Nylon .250 (6.34) .234 (5.94) .407 (10.34) .060 (1.52) .500 (12.69) .203 (5.15) .241 (6.12) 1000

W6NY-312-0-M Heat Stabilized Black Nylon .312 (7.93) .297 (7.54) .445 (11.30) .060 (1.52) .500 (12.69) .203 (5.15) .280 (7.11) 1000

W6NY-375-0-M Heat Stabilized Black Nylon .375 (9.52) .359 (9.11) .484 (12.29) .060 (1.52) .500 (12.69) .203 (5.15) .291 (7.39) 1000

W6NY-437-0-M Heat Stabilized Black Nylon .437 (11.11) .422 (10.71) .522 (13.25) .060 (1.52) .500 (12.69) .203 (5.15) .263 (6.68) 1000

W6NY-500-0-M Heat Stabilized Black Nylon .500 (12.69) .484 (12.29) .560 (14.22) .060 (1.52) .500 (12.69) .203 (5.15) .272 (6.91) 1000

W6NY-562-0-M Heat Stabilized Black Nylon .562 (14.28) .547 (13.90) .657 (16.68) .060 (1.52) .500 (12.69) .203 (5.15) .236 (5.99) 1000

W6NY-625-0-M Heat Stabilized Black Nylon .625 (15.87) .609 (15.46) .637 (16.17) .060 (1.52) .500 (12.69) .203 (5.15) .290 (7.37) 1000

W6NY-687-0-M Heat Stabilized Black Nylon .687 (17.46) .672 (17.06) .694 (17.63) .060 (1.52) .500 (12.69) .203 (5.15) .327 (8.31) 1000

W6NY-750-0-M Heat Stabilized Black Nylon .750 (19.04) .734 (18.64) .726 (18.44) .060 (1.52) .500 (12.69) .203 (5.15) .326 (8.28) 1000

W6NY-812-0-M Heat Stabilized Black Nylon .812 (20.63) .797 (20.24) .776 (19.71) .060 (1.52) .500 (12.69) .203 (5.15) .323 (8.20) 1000

W6NY-875-0-D Heat Stabilized Black Nylon .875 (22.22) .859 (21.81) .733 (18.62) .060 (1.52) .500 (12.69) .203 (5.15) .310 (7.87) 500

W6NY-1000-0-D Heat Stabilized Black Nylon 1.000 (25.39) .984 (24.99) .881 (22.38) .060 (1.52) .500 (12.69) .203 (5.15) .292 (7.42) 500

W6NY-1250-0-D Heat Stabilized Black Nylon 1.250 (31.73) 1.227 (31.16) 1.010 (25.65) .060 (1.52) .500 (12.69) .203 (5.15) .339 (8.61) 500

Tolerance ± .010 (.254) .030 (.762) .005 (.127) .015 (.381) .010 (.254) .030 (.762)

(Continued)

Self-Aligning Cable Clamps

• Molded-In saddle washer enhances

performance and appearance.

• Self-Alignment feature makes this clamp

ideal for assembly applications.

• 14 diameters and 2 widths with

mounting holes for #4 through #10

screws.

• UL Flammability W.NY 94 V-2; W.TZ 94

V-0.

• Stocked in Natural and heat stabilized

black 6/6 Nylon, and Fluoropolymer for

highest heat applications.

• Item numbers molded-in for easy

identification.

Self-Aligning Cable Clamps (continued) – For Extreme Applications

DD1ETWHX

Nominal Closed Hole Bulk

Diameter Diameter Thickness Width Diameter Pkg.

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Qty.

W4TZ-125-5-D Fluoropolymer .125 (3.17) .114 (2.89) .333 (8.46) .257 (6.53) 500

W4TZ-187-5-D Fluoropolymer .187 (4.76) .172 (4.36) .355 (9.02) .218 (5.53) 500

W4TZ-250-5-D Fluoropolymer .250 (6.34) .234 (5.94) .382 (9.70) .040 (1.02) .375 (9.52) .167 (4.24) .190 (4.83) 500

W4TZ-312-5-D Fluoropolymer .312 (7.93) .297 (7.54) .422 (10.71) .205 (5.21) 500

W4TZ-375-5-D Fluoropolymer .375 (9.52) .359 (9.11) .454 (11.53) .210 (5.33) 500

W4TZ-500-5-D Fluoropolymer .500 (12.69) .484 (12.29) .490 (12.45) .266 (6.76) 500

W6TZ-187-5-D Fluoropolymer .187 (4.76) .172 (4.36) .375 (9.52) .241 (6.12) 500

W6TZ-250-5-D Fluoropolymer .250 (6.34) .234 (5.94) .407 (10.34) 500

W6TZ-312-5-D Fluoropolymer .312 (7.93) .297 (7.54) .445 (11.30) .280 (7.11) 500

W6TZ-375-5-D Fluoropolymer .375 (9.52) .359 (9.11) .484 (12.29) .060 (1.52) .500 (12.69) .203 (5.15) .291 (7.39) 500

W6TZ-437-5-D Fluoropolymer .437 (11.11) .422 (10.71) .522 (13.25) .263 (6.68) 500

W6TZ-500-5-D Fluoropolymer .500 (12.69) .484 (12.29) .560 (14.22) .272 (6.91) 500

W6TZ-625-5-D Fluoropolymer .625 (15.87) .609 (15.46) .637 (16.17) .290 (7.37) 500

W6TZ-750-5-D Fluoropolymer .750 (19.04) .734 (18.64) .726 (18.44) .326 (8.28) 500

Tolerance ± Fluoropolymer .010 (.254) .030 (.762) .005 (.127) .015 (.381) .010 (.254) .030 (.762)

Cable Clamps and Clips

Harnessing Accessories

Mechanical-Locking Routing Clamps

Maximum Wire

Bulk Mounting Bundle Diameter Width Length Bulk

Cat. No. Hole Size (in.) (in.) (in.) Pkg.

TC88 .250 .500 .250 .891 100

TC95 .250 1.000 .500 1.590 100

The locking clamp is available in several mounting styles, as shown. This clamp acts as a retainer during wire routing and as a positive

clamp when desired. Anti-rotational peg is available.

1¼8" max

Snap-in 1¼4" hole

Here is an inexpensive harness clip for grouping

wires in appliances, office equipment and other

noncritical applications.

Designed to perform the same basic function as

a cable tie in holding wires together, the new

adjustable, self-locking clip requires no tools for

installation. A projecting prong is simply pressed

into a 1/4" hole where it compresses and locks.

The simple ratchet-type lock is released by

moving the locking lever.

AC-loop retaining clamp is ideal to support long

runs in point-to-point wiring or as a harness aid.

Rigid PVC.

Harness Clips

Maximum Wire

Bulk Mounting Bundle Diameter Bulk

Cat. No. Hole Size (in.) Pkg.

HCP438 1/4 .375 1000

HBundle-Retaining Clamp

Maximum Wire

Bulk Mounting Bundle Diameter Width Bulk

Cat. No. Method (in.) (in.) Pkg.

TC70 #10 screw .250 .400 100

TC71 #10 screw .500 .400 100

TC72 #10 screw .750 .500 100

TC73 #10 screw 1.000 .500 100

TC74 #10 screw 1.500 .500 100

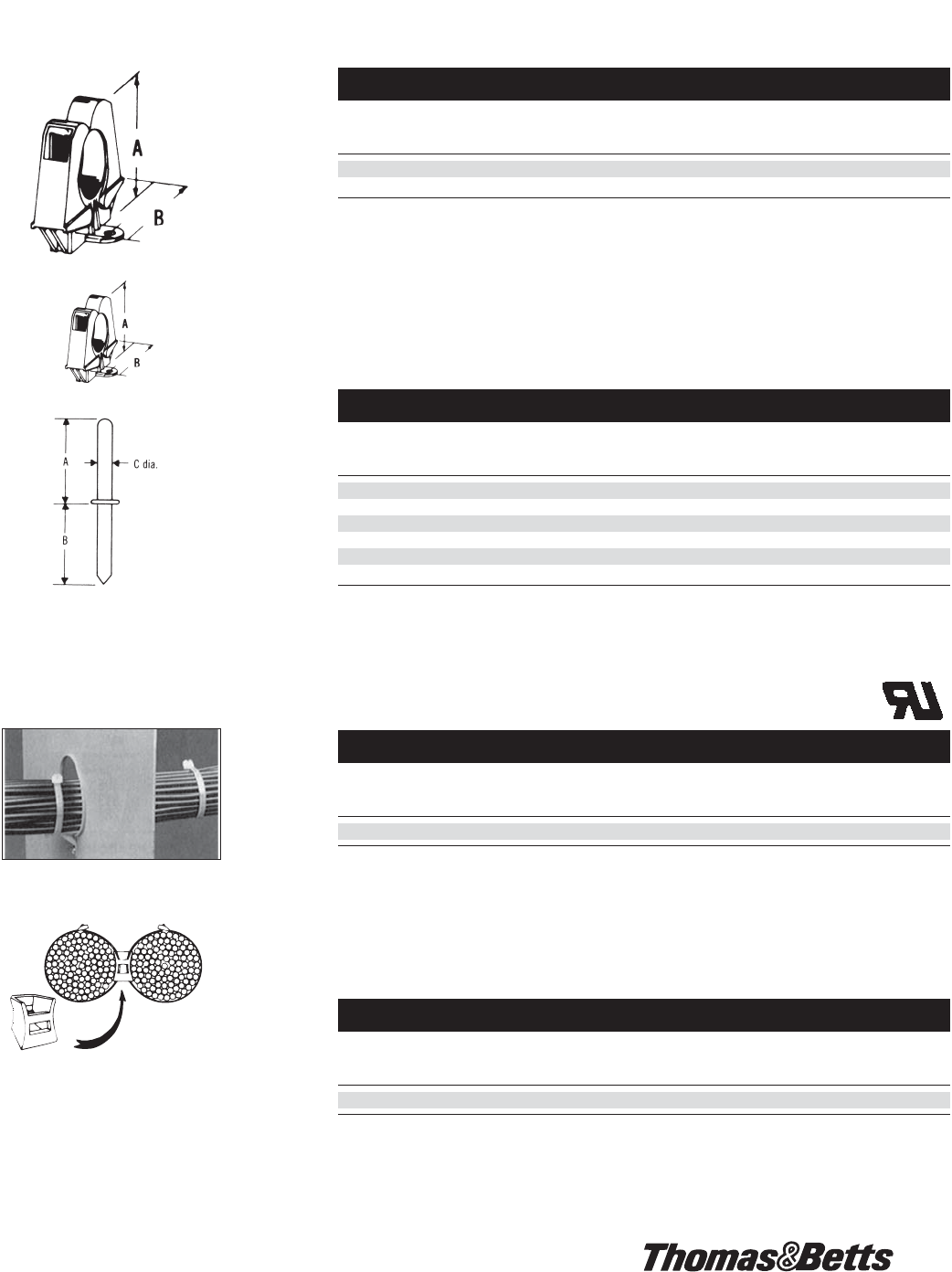

Harnessing Accessories

Bulkhead Bundle Support Feed-Through

Maximum

Bulk Mounting Tie Width Width Length Bulk

Cat. No. Method Accom. (in.) (in.) Pkg.

TC131 #6 screw .190 1.115 1.890 1000

TC131 bulkhead mounting base can be installed from either side. Ties are installed through the clamp on either side of the bulkhead.

Wire-Bundle Spacer

Maximum

Tie Width Width Length Std. Bulk

Cat. No. Accom. (in.) (in.) Pkg. Pkg.

TC5339 .190 .266 .500 100 500

Wire-Bundle Retainers

Maximum Wire

Bulk Bundle Diameter Width Height Bulk

Cat. No. Fastener (in.) (in.) (in.) Pkg.

TC86 #6 screws .750 1.750 1.813 25

TC87 #6 screws 1.250 2.469 2.281 10

These retainers consist of a spring-loaded clip and an elastic bundle support. Wires are inserted simply by snapping them through

spring-loaded clips. Wires are held 1¼2inch above work surface for easy tying.

Harness-Board Nails

Dimensions

Bulk A B C Bulk

Cat. No. (in.) (in.) (in.) Pkg.

HBP34 .750 .625 .072 100

HBP-1 1.000 .625 .072 100

HBP112 1.500 .625 .082 100

HBP2 2.000 .625 .092 100

HBP212 2.500 .625 .105 100

HBP3 3.000 .625 .120 100

Hardened, nickel plated steel.

Mounting Bases for Heavy-Duty Applications

Ty-Rap®Mounting Base for Lashing Tie

Maximum

Mounting Tie Width Width Length Std.

Cat. No. Method Accom. (in.) (in.) Pkg.

TC5355 #8 screw .500 .750 1.125 25

TC5356 #10 screw .500 .750 1.125 25

TC5357 1/4 screw .500 .750 1.125 25

Weather-resistant nylon mounting base for use with lashing tie Cat. No. TY-5409 (.500" wide).

Ty-Rap®Mounting Base for Masonry and Brick Surfaces

Hole Maximum

Size in Tie Width Std.

Cat. No. Masonry Accom. Pkg.

TC5358 1/4 .190 100

TC5359 3/8 .500 50

Only two sizes to stock–reduces inventory

The new base features a specially designed

head which is range-taking. Just two sizes

can accommodate virtually all of your cable-

to-masonry clamping needs.

• Quick, easy installation without

adhesives or epoxies.

• Provides a quick, easy means of

attaching cable and wires to masonry

surfaces.

• Installs simply by tapping it into a drilled

hole.

• It’s immediately ready to accept a cable

tie and wire bundle, no tedious surface

preparation, no waiting for adhesives to

set.

• Provides quick, dependable

merchanical installation.

• Replaces a variety of anchors, clamps,

screws, and adhesives.

• Designed for both indoor and outdoor

applications made of a special impact

and ultraviolet resistant black nylon, the

new base is designed for both indoor

and outdoor use, in addition, shelf life is

indefinite because it uses no adhesives.

• Installs with a push and twist

• Designed for indoor or outdoor use

• Smooth design protects cable insulation •

Takes range of cable diameters

Mounting bases for heavy duty applications are made from high-impact weather-

resistant nylon.

When fastening wire bundles, cables, or hoses to framing channels, you can cut costs

considerably by using the Ty-Rap®cable clamp. It is made of smooth, weather-

resistant nylon and designed to protect cable insulation and hoses from wear or

damage as can occur with metal clamps. The clamp may be used for both indoor or

outdoor applications. It installs in the framing channel with a simple push and twist. It

requires no screws, nuts or tools. The clamp fits all 1-1/2" and 1-5/8" channels

regardless of channel depth.

Maximum

Channel Tie Width Std.

Cat. No. Size Accom. Pkg.

TC5363X 1.5 & 1.625 .301 50

Framing Channel Clamp

Mounting Bases for Heavy-Duty Applications

Fast, easy wire management to last for the long haul.

Thomas & Betts’ Stud Mount Fastening System is a fast and simple harnessing

method for neat, versatile wire management. Using a custom drill bit for your 3/8"

power drill, the Stud Mount base is quickly attached onto a stud to the proper torque

every time. The innovative “X” design of the base reliably supports many types of

cable or hose assemblies using a wide range of conventional T&B cable ties.

Designed with ten separate lashing positions, the Stud Mount offers unlimited wire

harnessing arrangements. T&B’s Stud Mount is available in four convenient stud bolt

sizes.

The Stud Mount Cable Fastening System includes a

range of bases and the custom drill bit which mounts

all sizes.

Virtually unlimited harnessing flexibility is provided in

the unique 10-position harness design of the Stud

Mount base.

During installation, the custom Stud Mount drill bit

ejects itself from mounting base, ensuring proper

torque and preventing cracking or breaking of the

mount from being overtightened.

Ordering Information

Stud

Cat. No. Description Size Material Colour

XMNY-375-0-D Mount Fastener 3/8 Nylon 6/6, UV Stabilized Black

XMNY-500-0-D Mount Fastener 1/2 Nylon 6/6, UV Stabilized Black

XMNY-625-0-D Mount Fastener 5/8 Nylon 6/6, UV Stabilized Black

XMNY-750-0-D Mount Fastener 3/4 Nylon 6/6, UV Stabilized Black

WTXM Application Tool – Tool Steel –

Features and Benefits

• Fast, easy installation, using standard 3/8"

power drill

• Custom drill bit quickly installs base to proper

torque–won't crack or break mounting base

due to being overtightened

• Unlimited harnessing flexibility using

conventional T&B cable ties

• Unique 4-way multi-directional design

• 10 position harness capability

• Available for 3/8", 1/2", 5/8", & 3/4" stud/bolt

sizes

• Self-tapping thread design for reliable

installation onto stud

• High pull-out strength of 500 + lb.

• Custom application tool for standard 3/8"

power drill

• Material: Black 6/6 Nylon

Wire Protection Products

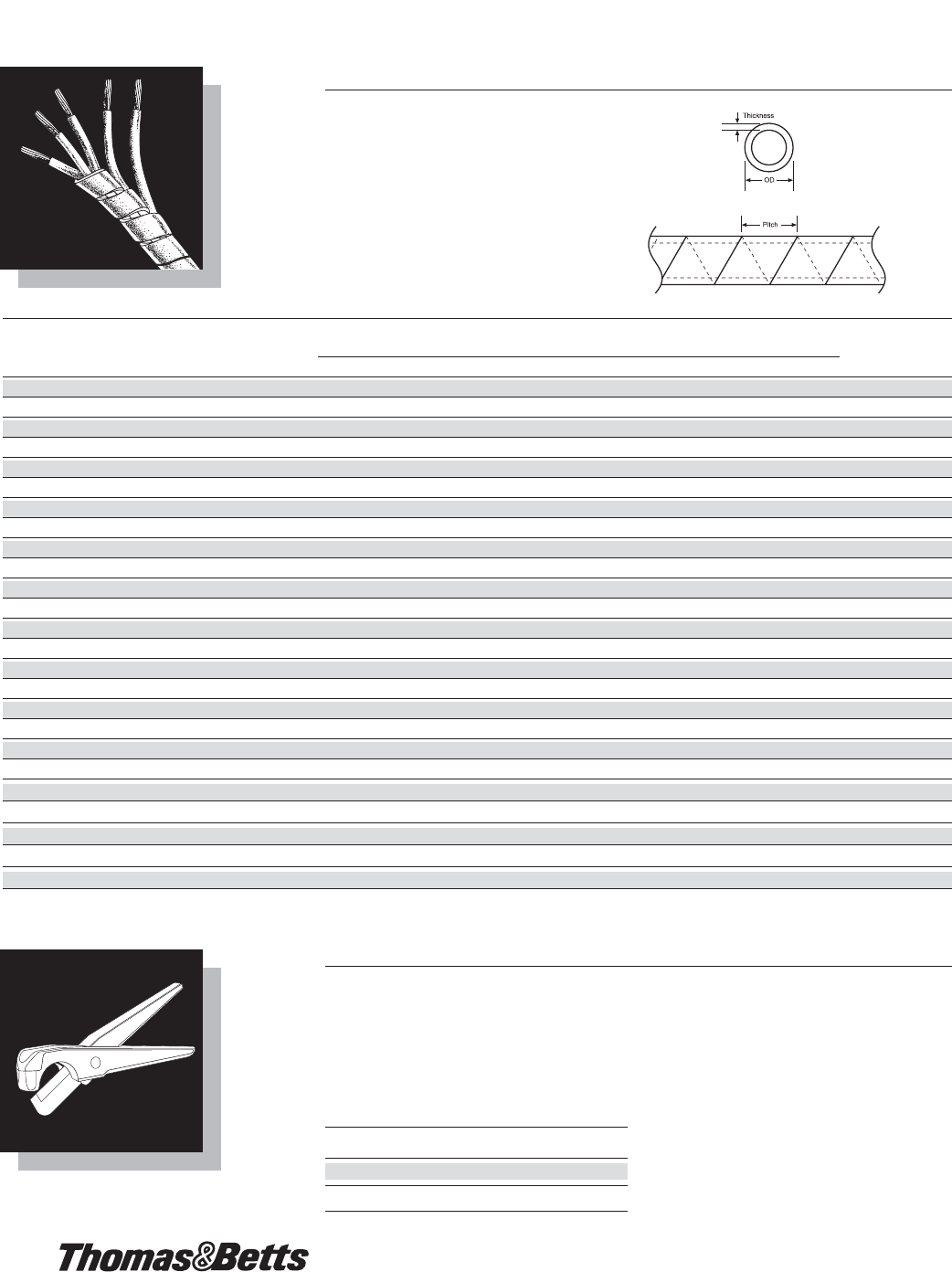

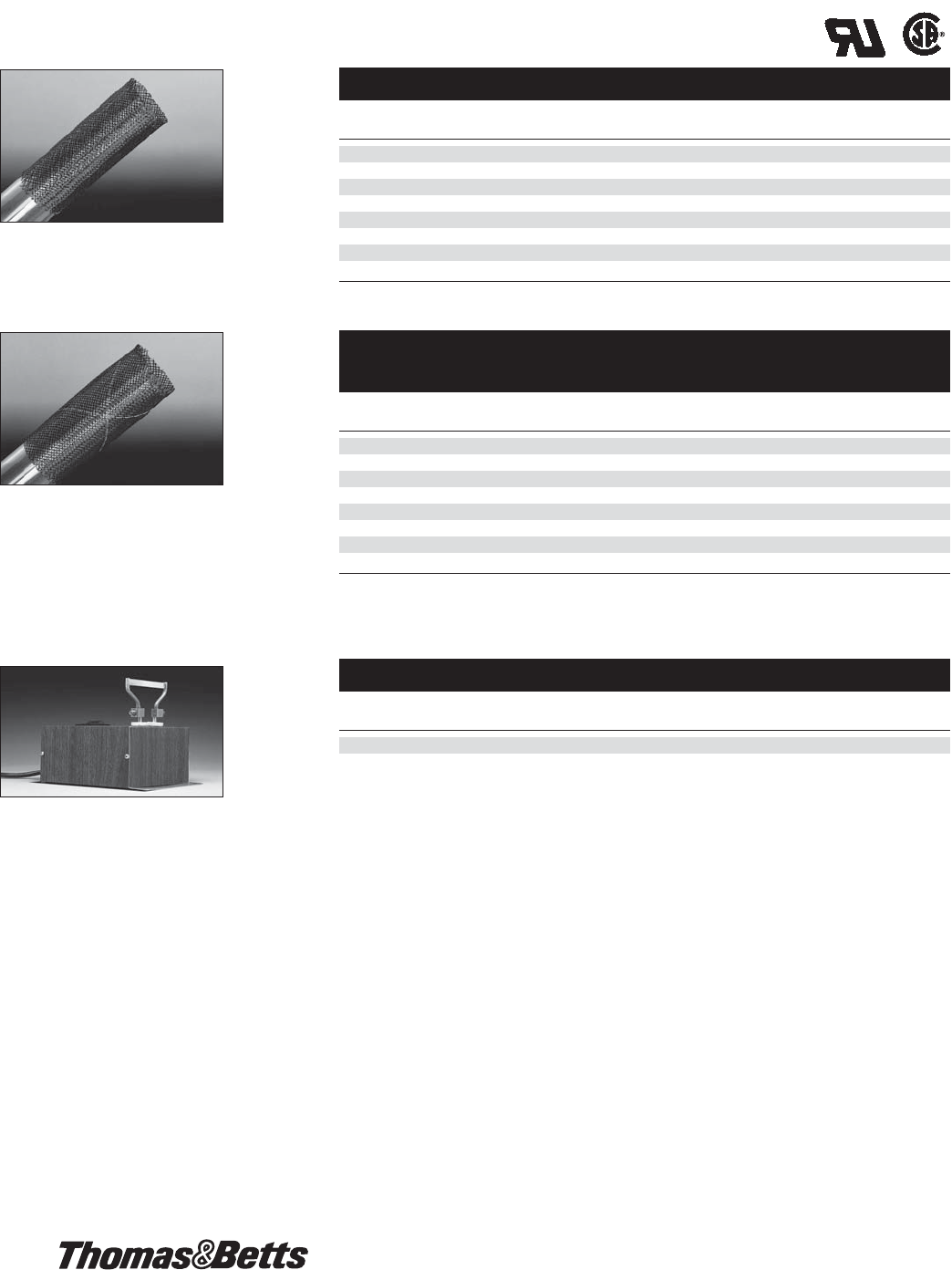

Spiral Wrap

• For protection of bundles from .063" to 7".

• Install gapped for greater flexibility or

butted for maximum abrasion resistance,

insulation and rigidity.

• Stocked in 3 materials including

Polyethylene and 6/6 Nylon.

• a.k.a.: Reverse cut, left-hand cut,

counter clockwise cut.

• Use cutting tool SR-100.

Outside Pitch Nominal Wall Min./Max.

Diameter Thickness Bundle Range UL

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Flammability

SRPE-125-9-C Natural Polyethylene .125 (3.2) .210 (5.3) .035 (0.9) .063 (1.6) to 0.500 (12.7) 94 HB

SRPE-187-9-C Natural Polyethylene .187 (4.8) .240 (6.1) .040 (1.0) .125 (3.2) to 1.500 (25.9) 94 HB

SRPE-250-9-C Natural Polyethylene .250 (6.4) .375 (9.5) .045 (1.1) .188 (4.8) to 2.000 (50.8) 94 HB

SRPE-375-9-C Natural Polyethylene .375 (9.5) .438 (11.1) .052 (1.3) .313 (7.9) to 3.000 (76.2) 94 HB

SRPE-500-9-C Natural Polyethylene .500 (12.7) .563 (14.3) .062 (1.6) .375 (9.5) to 4.000 (102.0) 94 HB

SRPE-625-9-C Natural Polyethylene .625 (15.9) .625 (15.9) .625 (15.9) to 4.500 (114.3) 94 HB

SRPE-750-9-C Natural Polyethylene .750 (19.1) .750 (19.1) .065 (1.7) .750 (19.1) to 5.000 (127.0) 94 HB

SRPE-1000-9-C Natural Polyethylene 1.000 (25.4) 1.110 (28.2) .070 (1.8) 1.000 (25.4) to 7.000 (177.8) 94 HB

SRPE-125-0-C UV Black Polyethylene .125 (3.2) .210 (5.3) .035 (0.9) .063 (1.6) to 0.500 (12.7) 94 HB

SRPE-187-0-C UV Black Polyethylene .187 (4.8) .240 (6.1) .040 (1.0) .125 (3.2) to 1.500 (25.9) 94 HB

SRPE-250-0-C UV Black Polyethylene .250 (6.4) .375 (9.5) .045 (1.1) .188 (4.8) to 2.000 (50.8) 94 HB

SRPE-375-0-C UV Black Polyethylene .375 (9.5) .438 (11.1) .052 (1.3) .313 (7.9) to 3.000 (76.2) 94 HB

SRPE-500-0-C UV Black Polyethylene .500 (12.7) .563 (14.3) .062 (1.6) .375 (9.5) to 4.000 (102.0) 94 HB

SRPE-625-0-C UV Black Polyethylene .625 (15.9) .625 (15.9) .625 (15.9) to 4.500 (114.3) 94 HB

SRPE-750-0-C UV Black Polyethylene .750 (19.1) .750 (19.1) .065 (1.7) .750 (19.1) to 5.000 (127.0) 94 HB

SRPE-1000-0-C UV Black Polyethylene 1.000 (25.4) 1.110 (28.2) .070 (1.8) 1.000 (25.4) to 7.000 (177.8) 94 HB

SRNY-250-9-C Natural Nylon 6/6 .250 (6.4) .375 (9.5) .025 (.6) .187 (4.8) to 2.000 (50.8) 94 HB

SRNY-375-9-C Natural Nylon 6/6 .375 (9.5) .438 (11.1) .312 (7.9) to 3.000 (76.2) 94 HB

SRNY-500-9-C Natural Nylon 6/6 .500 (12.7) .563 (14.3) .035 (.9) .375 (9.5) to 4.000 (102.0) 94 HB

SRTL-250-WH-C *Teflon®.250 (6.4) .375 (9.5) .030 (.76) .188 (4.8) to 2.000 (50.8) 94 V-0

SRTL-375-WH-C *Teflon®.375 (9.5) .438 (11.1) .030 (.76) .313 (7.9) to 3.000 (76.2) 94 V-0

SRTL-500-WH-C *Teflon®.500 (12.7) .563 (14.3) .030 (.76) .375 (9.5) to 4.000 (102.0) 94 V-0

SRTL-625-WH-C *Teflon®.625 (15.9) .625 (15.9) .030 (.76) .625 (15.9) to 4.500 (114.3) 94 V-0

SRTL-750-WH-C *Teflon®.750 (19.1) .750 (19.1) .030 (.76) .750 (19.1) to 5.000 (127.0) 94 V-0

Tolerance ± .030 (.762) .010 (.254)

• Stocked in 100 foot rolls.

SR-100 Cutting Tool

Use our SR-100 cutting tool for all your

plastic pipe and PVC conduit needs to 1

1/4" I.D.

Features:

• High-carbon, *Teflon®-coated

replacement steel blade.

• Contoured handle resists tube crushing.

• Produces no “sawdust”, no need to

debur.

• Lightweight, low-profile and no exposed

blade when stored.

*Teflon®is a trademark of E.I. DuPont de Nemours and Company.

Cat. No. Description

SR-100 Cutting Tool

SR-R Replacement Blade

Wire Protection Products

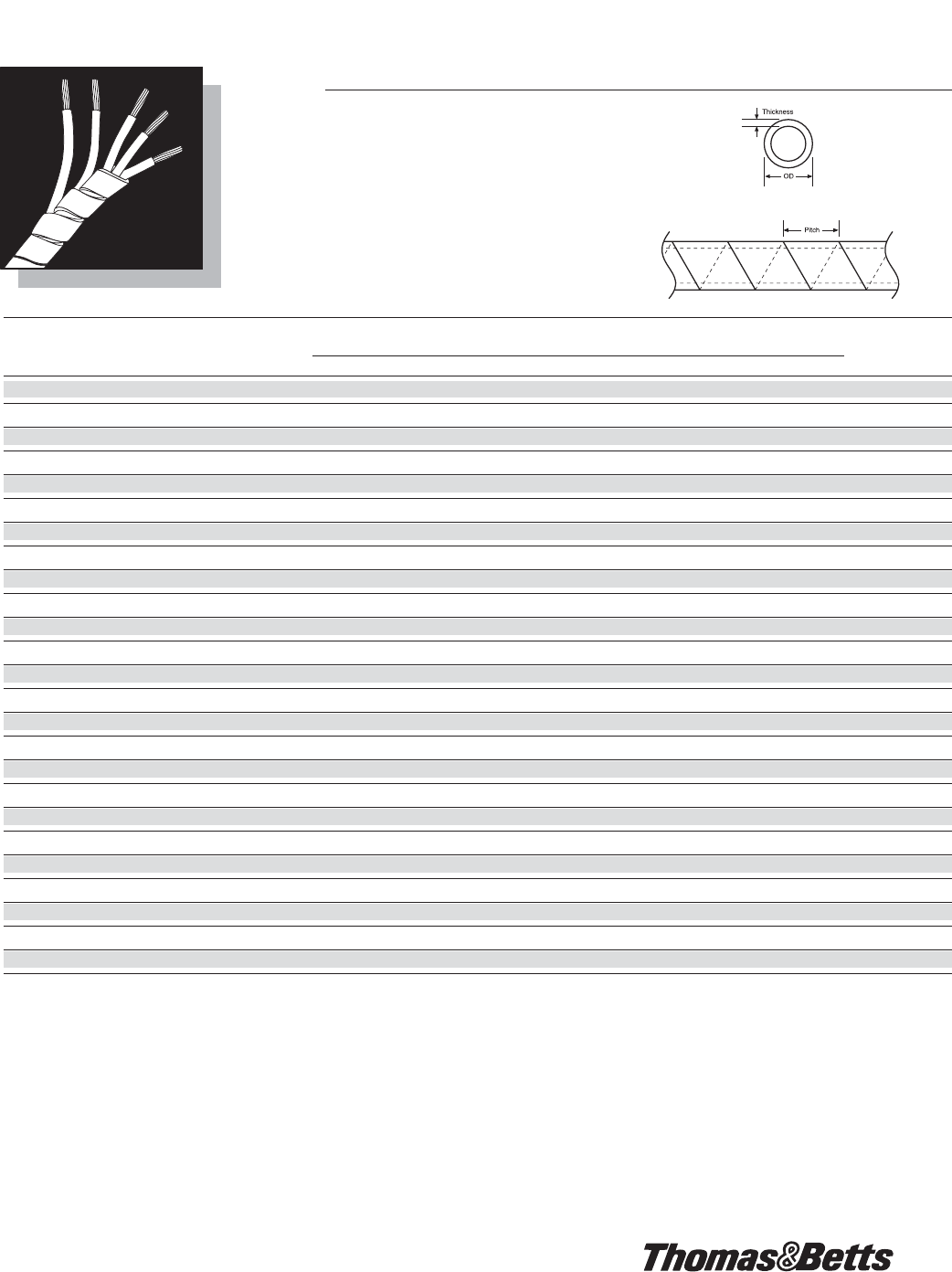

Forward Cut Spiral Wrap

• For protection of bundles from .063" to 7".

• Install gapped for greater flexibility or butted

for maximum abrasion resistance, insulation

and rigidity.

• Available in 4 materials including

Polyethylene, Nylon and Teflon®.

• a.k.a.: Right-hand cut, clockwise cut.

• Use cutting tool SR-100.

Outside Pitch Nominal Wall Min./Max.

Diameter Thickness Bundle Range UL

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Flammability

SRPE-250F-9-C Natural Polyethylene .250 (6.4) .375 (9.5) .045 (1.1) .188 (4.8) to 2.000 (50.8) 94 HB

SRPE-187F-9-C Natural Polyethylene .187 (4.8) .240 (6.1) .040 (1.0) .125 (3.2) to 1.500 (25.9) 94 HB

SRPE-250F-9-C Natural Polyethylene .250 (6.4) .375 (9.5) .045 (1.1) .188 (4.8) to 2.000 (50.8) 94 HB

SRPE-375F-9-C Natural Polyethylene .375 (9.5) .438 (11.1) .052 (1.3) .313 (7.9) to 3.000 (76.2) 94 HB

SRPE-500F-9-C Natural Polyethylene .500 (12.7) .563 (14.3) .062 (1.6) .375 (9.5) to 4.000 (102.0) 94 HB

SRPE-625F-9-C Natural Polyethylene .625 (15.9) .625 (15.9) .062 (1.6) .625 (15.9) to 4.500 (114.3) 94 HB

SRPE-750F-9-C Natural Polyethylene .750 (19.1) .750 (19.1) .065 (1.7) .750 (19.1) to 5.000 (127.0) 94 HB

SRPE-1000F-9-C Natural Polyethylene 1.000 (25.4) 1.110 (28.2) .070 (1.8) 1.000 (25.4) to 7.000 (177.8) 94 HB

SRPE-187F-0-C UV Black Polyethylene .187 (4.8) .240 (6.1) .040 (1.0) .125 (3.2) to 1.500 (25.9) 94 HB

SRPE-250F-0-C UV Black Polyethylene .250 (6.4) .375 (9.5) .045 (1.1) .188 (4.8) to 2.000 (50.8) 94 HB

SRPE-375F-0-C UV Black Polyethylene .375 (9.5) .438 (11.1) .052 (1.3) .313 (7.9) to 3.000 (76.2) 94 HB

SRPE-500F-0-C UV Black Polyethylene .500 (12.7) .563 (14.3) .062 (1.6) .375 (9.5) to 4.000 (102.0) 94 HB

SRPE-625F-0-C UV Black Polyethylene .625 (15.9) .625 (15.9) .062 (1.6) .625 (15.9) to 4.500 (114.3) 94 HB

SRPE-750F-0-C UV Black Polyethylene .750 (19.1) .750 (19.1) .065 (1.7) .750 (19.1) to 5.000 (127.0) 94 HB

SRPE-1000F-0-C UV Black Polyethylene 1.000 (25.4) 1.110 (28.2) .070 (1.8) 1.000 (25.4) to 7.000 (177.8) 94 HB

SRFR-187F-WH-C White Flame Retardant Polyethylene .187 (4.8) .240 (6.1) .040 (1.0) .125 (3.2) to 1.500 (25.9) 94 V-0

SRFR-250F-WH-C White Flame Retardant Polyethylene .250 (6.4) .375 (9.5) .045 (1.1) .188 (4.8) to 2.000 (50.8) 94 V-0

SRFR-375F-WH-C White Flame Retardant Polyethylene .375 (9.5) .438 (11.1) .052 (1.3) .313 (7.9) to 3.000 (76.2) 94 V-0

SRFR-500F-WH-C White Flame Retardant Polyethylene .500 (12.7) .563 (14.3) .062 (1.6) .375 (9.5) to 4.000 (102.0) 94 V-0

SRTL-250-F-9-C *Teflon®.250 (6.4) .375 (9.5) .030 (.76) .188 (4.8) to 2.000 (50.8) 94 V-0

SRTL-375-F-9-C *Teflon®.375 (9.5) .438 (11.1) .030 (.76) .313 (7.9) to 3.000 (76.2) 94 V-0

SRTL-500-F-9-C *Teflon®.500 (12.7) .563 (14.3) .030 (.76) .375 (9.5) to 4.000 (102.0) 94 V-0

SRTL-625-F-9-C *Teflon®.625 (15.9) .625 (15.9) .030 (.76) .625 (15.9) to 4.500 (114.3) 94 V-0

SRTL-750-F-9-C *Teflon®.750 (19.1) .750 (19.1) .030 (.76) .750 (19.1) to 5.000 (127.0) 94 V-0

Tolerance ± .030 (.762) .010 (.254)

• Stocked in 100 foot rolls.

*Teflon®is a trademark of E.I. DuPont de Nemours and Company.

Polyethylene

For general indoor use

to 122°F. Wrap is

flexible and easy to

work with.

UV Polyethylene

Available in black only.

Designed to resist

ultraviolet light in

outdoor applications.

*TEFLON®

PTFE Flexible Industrial

Tubing meets or

exceeds ASTM D 3295.

260°C

-240°C

Flame Retardant

Polyethylene

Material is UL rated

94 V-0. More

economical and less

rigid than nylon.

Nylon 6/6

Offers highest abrasion

resistance and rigidity.

Self-extinguishing to

UL 94 HB and a

Recognized

Component.

Molded Grommeting

• Meets MS21266-(1-4)N.

• Available in 3 materials for panel

thicknesses from .015" to .192".

• Grommet is used to protect panel edges

and knock-outs where the chafing of

passing wires is a concern.

• Suitable for round hole or odd

shape applications.

• Also Available in Fluoropolymer.

For Panel Military

A B C D Thickness Standard Per

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Inch (mm) Numbers Pkg.

GSNY-052-9-C Natural Nylon .150 (3.81) .056 (1.42) .155 (3.93) .100 (2.54) .015 (.381) to .052 (1.32) MS-21266-1N 100

GSNY-085-9-C Natural Nylon .175 (4.44) .090 (2.28) .155 (3.93) .100 (2.54) .053 (1.34) to .085 (2.15) MS-21266-2N 100

GSNY-128-9-C Natural Nylon .220 (5.58) .131 (3.32) .230 (5.84) .162 (4.12) .086 (2.18) to .128 (3.25) MS-21266-3N 100

GSNY-192-9-C Natural Nylon .323 (8.20) .192 (4.88) .230 (5.84) .162 (4.12) .128 (3.25) to .192 (4.88) MS-21266-4N 100

GSTZ-052-9-C Natural Fluoropolymer .150 (3.81) .045 (1.42) .155 (3.93) .100 (2.54) .015 (.381) to .052 (1.32) – 100

GSTZ-085-9-C Natural Fluoropolymer .175 (4.44) .090 (2.28) .155 (3.93) .100 (2.54) .053 (1.34) to .085 (2.15) – 100

GSTZ-128-9-C Natural Fluoropolymer .220 (5.58) .131 (3.32) .230 (5.84) .162 (4.12) .086 (2.18) to .128 (3.25) – 100

GSTZ-192-9-C Natural Fluoropolymer .323 (8.20) .192 (4.88) .230 (5.84) .162 (4.12) .128 (3.25) to .192 (4.88) – 100

Tolerance +.015 -.005 (+.381 -.127) +.020 -.005 (+.508 -.127)

Wire Protection Products

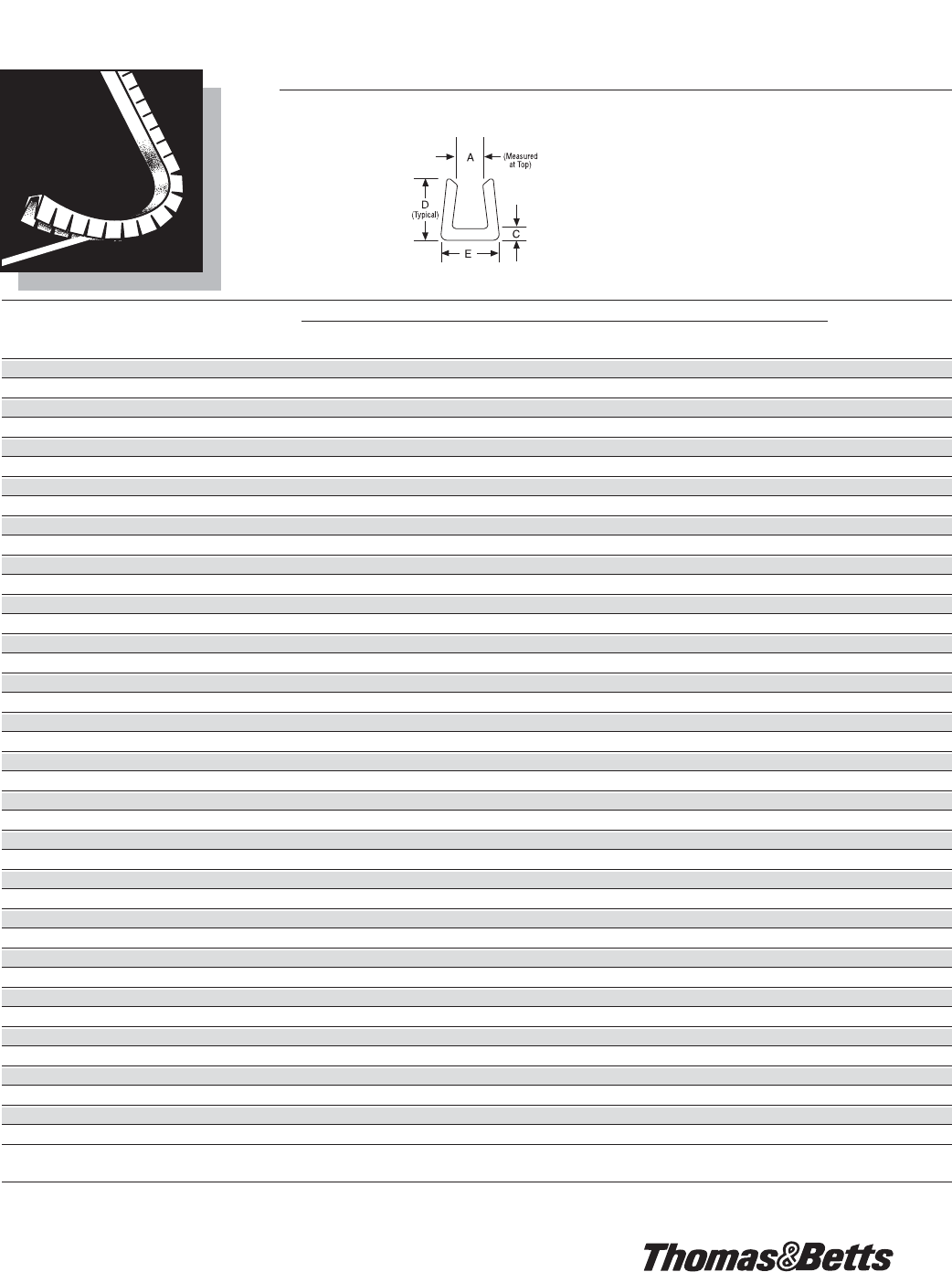

Extruded Grommeting

• Used to line panel edges and knock-outs

where the chafing of passing wires is a

concern.

• Available in 8 stock sizes in 100 foot lengths

for panels from .030" to .250" thick.

• A variety of stocked materials to cover a wide

range of applications.

• Un-cut Polyethylene is ideal for protection of

glass, sheet metal, wood panels or other

sheet-form materials.

• In most applications, grommeting will grip

tightly by itself. If not, a touch of epoxy will

keep it in place.

Wire Protection Products

AC DE

Max. Panel Thickness UL

Cat. No. Material Inch (mm) Inch (mm) Inch (mm) Inch (mm) Flammability

GRNY-040-9-C Natural Nylon .040 (1.01) .040 (1.01) .190 (4.82) .125 (3.17) 94 V-2

GRNY-052-9-C Natural Nylon .052 (1.32) .040 (1.01) .190 (4.82) .125 (3.17) 94 V-2

GRNY-062-9-C Natural Nylon .062 (1.57) .045 (1.14) .200 (5.08) .170 (4.32) 94 V-2

GRNY-085-9-C Natural Nylon .085 (2.15) .045 (1.14) .200 (5.08) .170 (4.32) 94 V-2

GRNY-100-9-C Natural Nylon .100 (2.54) .045 (1.14) .220 (5.58) .210 (5.33) 94 V-2

GRNY-125-9-C Natural Nylon .125 (3.17) .050 (1.27) .220 (5.58) .205 (5.23) 94 V-2

GRNY-187-9-C Natural Nylon .187 (4.74) .050 (1.27) .270 (6.85) .275 (6.98) 94 V-2

GRNY-250-9-C Natural Nylon .250 (6.35) .050 (1.27) .280 (7.11) .370 (9.39) 94 V-2

GRNY-040-0-C Black Nylon .040 (1.01) .040 (1.01) .190 (4.82) .125 (3.17) 94 V-2

GRNY-052-0-C Black Nylon .052 (1.32) .040 (1.01) .190 (4.82) .125 (3.17) 94 V-2

GRNY-062-0-C Black Nylon .062 (1.57) .045 (1.14) .200 (5.08) .170 (4.32) 94 V-2

GRNY-085-0-C Black Nylon .085 (2.15) .045 (1.14) .200 (5.08) .170 (4.32) 94 V-2

GRNY-100-0-C Black Nylon .100 (2.54) .045 (1.14) .220 (5.58) .210 (5.33) 94 V-2

GRNY-125-0-C Black Nylon .125 (3.17) .050 (1.27) .220 (5.58) .205 (5.23) 94 V-2

GRNY-187-0-C Black Nylon .187 (4.74) .050 (1.27) .270 (6.85) .275 (6.98) 94 V-2

GRNY-250-0-C Black Nylon .250 (6.35) .050 (1.27) .280 (7.11) .370 (9.39) 94 V-2

GRPE-040-9-C Natural Polyethylene .040 (1.01) .040 (1.01) .190 (4.82) .125 (3.17) 94 HB

GRPE-052-9-C Natural Polyethylene .052 (1.32) .040 (1.01) .190 (4.82) .125 (3.17) 94 HB

GRPE-062-9-C Natural Polyethylene .062 (1.57) .045 (1.14) .200 (5.08) .170 (4.32) 94 HB

GRPE-085-9-C Natural Polyethylene .085 (2.15) .045 (1.14) .200 (5.08) .170 (4.32) 94 HB

GRPE-100-9-C Natural Polyethylene .100 (2.54) .045 (1.14) .220 (5.58) .210 (5.33) 94 HB

GRPE-125-9-C Natural Polyethylene .125 (3.17) .050 (1.27) .220 (5.58) .205 (5.23) 94 HB

GRPE-187-9-C Natural Polyethylene .187 (4.74) .050 (1.27) .270 (6.85) .275 (6.98) 94 HB

GRPE-250-9-C Natural Polyethylene .250 (6.35) .050 (1.27) .280 (7.11) .370 (9.39) 94 HB

GRUPE-040-9-C Un-Cut Polyethylene .040 (1.01) .040 (1.01) .190 (4.82) .125 (3.17) 94 HB

GRUPE-052-9-C Un-Cut Polyethylene .052 (1.32) .040 (1.01) .190 (4.82) .125 (3.17) 94 HB

GRUPE-062-9-C Un-Cut Polyethylene .062 (1.57) .045 (1.14) .200 (5.08) .170 (4.32) 94 HB

GRUPE-085-9-C Un-Cut Polyethylene .085 (2.15) .045 (1.14) .200 (5.08) .170 (4.32) 94 HB

GRUPE-100-9-C Un-Cut Polyethylene .100 (2.54) .045 (1.14) .220 (5.58) .210 (5.33) 94 HB

GRUPE-125-9-C Un-Cut Polyethylene .125 (3.17) .050 (1.27) .220 (5.58) .205 (5.23) 94 HB

GRUPE-187-9-C Un-Cut Polyethylene .187 (4.74) .050 (1.27) .270 (6.85) .275 (6.98) 94 HB

GRUPE-250-9-C Un-Cut Polyethylene .250 (6.35) .050 (1.27) .280 (7.11) .370 (9.39) 94 HB

GRFR-040-WH-C Flame Retardant Polyethylene .040 (1.01) .040 (1.01) .190 (4.82) .125 (3.17) 94 V-0

GRFR-052-WH-C Flame Retardant Polyethylene .052 (1.32) .040 (1.01) .190 (4.82) .125 (3.17) 94 V-0

GRFR-062-WH-C Flame Retardant Polyethylene .062 (1.57) .045 (1.14) .200 (5.08) .170 (4.32) 94 V-0

GRFR-085-WH-C Flame Retardant Polyethylene .085 (2.15) .045 (1.14) .200 (5.08) .170 (4.32) 94 V-0

GRFR-100-WH-C Flame Retardant Polyethylene .100 (2.54) .045 (1.14) .220 (5.58) .232 (5.33) 94 V-0

GRFR-125-WH-C Flame Retardant Polyethylene .125 (3.17) .050 (1.27) .220 (5.58) .232 (5.32) 94 V-0

GRFR-187-WH-C Flame Retardant Polyethylene .187 (4.74) .050 (1.27) .270 (6.85) .275 (6.98) 94 V-0

GRFR-250-WH-C Flame Retardant Polyethylene .250 (6.35)) .050 (1.27) .280 (7.11) .370 (9.39) 94 V-0

Tolerance +.000 (+.000) ±.007 (.178) ±.010 (.254) +.015 (+.381)

-.015 (-.381) -.000 (-.000)

• 100 feet per roll.

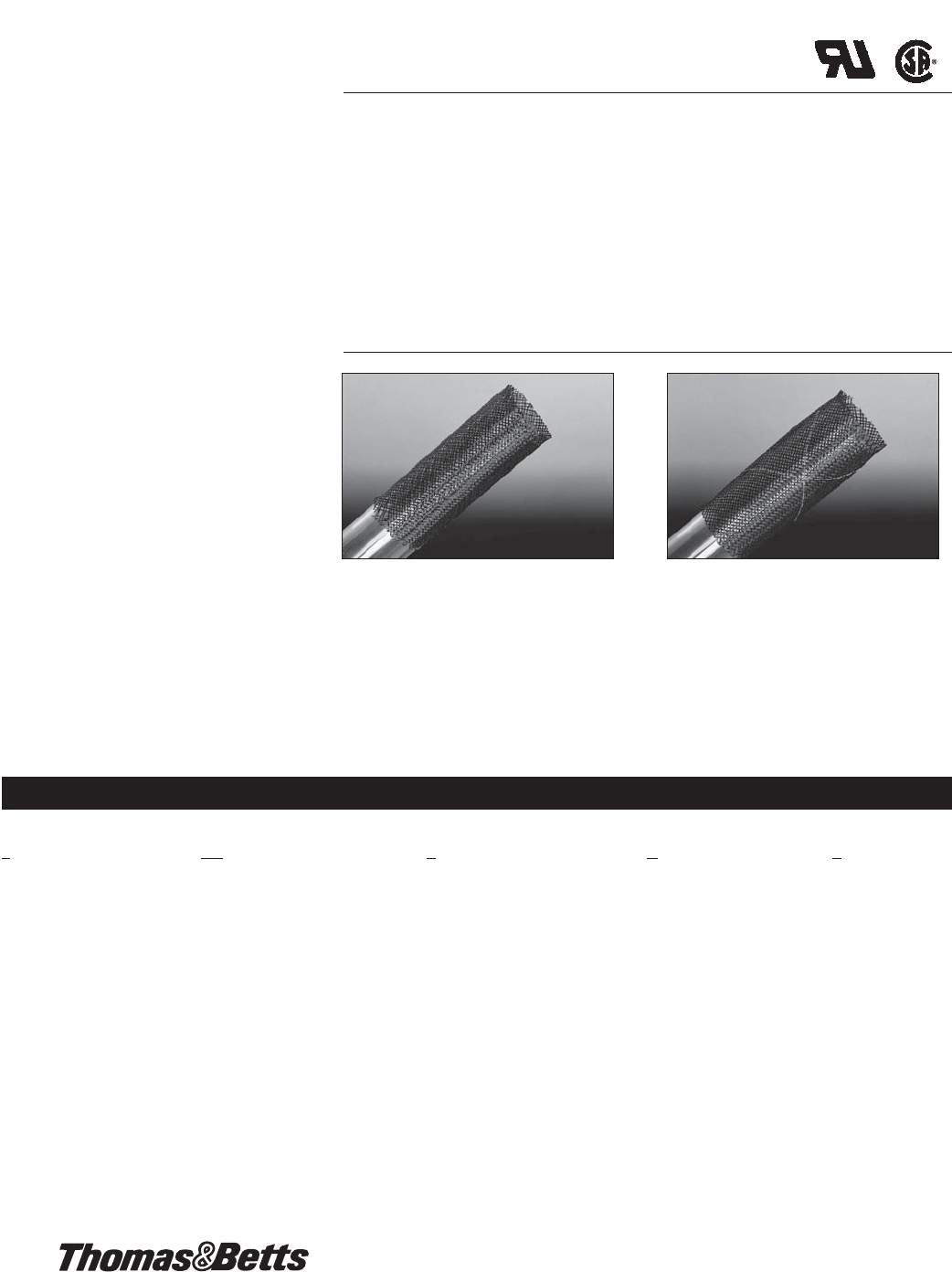

Braided Expandable Wire Sleeving

Product Description

Catalogue Number System

Example: S250PM-0

S250 P M O

Braided Nominal Material Reel/Spool Colour

Expandable I.D. P= PET (Polyethylene Size O = Weather

Wire Size Terephthalate) M= 1000 ft. Resistant

Sleeving 125 = 1/8" F= Flame-retardant D= 500 ft. Black

250 = 1/4" polyester K= 250 ft.

500 = 1/2" PW = PET hook & T= 200 ft.

750 = 3/4" loop wrap-around C= 100 ft.

1250 = 1-1/4" sleeving. L= 50 ft.

1750 = 1-3/4" FW = Flame retardant

2000 = 2" polyester hook & loop

2500 = 2-1/2" wrap-around sleeving

Min. orders may be required for non standard combinations.

Thomas & Betts braided expandable

wire sleeving is used to bundle and

protect wires and cables from abrasion

and excessive wear. Its flexible,

lightweight, open weave construction

installs easily over a variety of bundle

diameters and shapes. The sleeving is

resistant to chemicals, fungus, fuels, UV

sunlight and has an indefinite shelf life. It

is easily cut with a hot knife, which seals

the end-preventing fraying. Ends can be

secured using Ty-Rap®cable ties.

Available in:

• either handy mini spools or bulk reels.

• eight sizes from 1/8" to 2-1/2" nominal

I.D. size.

• solid or wraparound hook and loop

braided expandable wire sleeving.

PET – Polyethylene terephthalate

A black 0.010" polyester monofilament

material designed for indoor and

outdoor applications. It is rated for

continuous operating temp. -75°C to

125° C.

F – Flame Retardant Polyfyre-

polyester

A 0.010" self-extinguishing polyester

monofilament material that can be used

indoors and outdoors. It is provided in

black with white tracer for identification

and is rated for continuous operating

temp. -75°C to 125°C.

Types of Materials

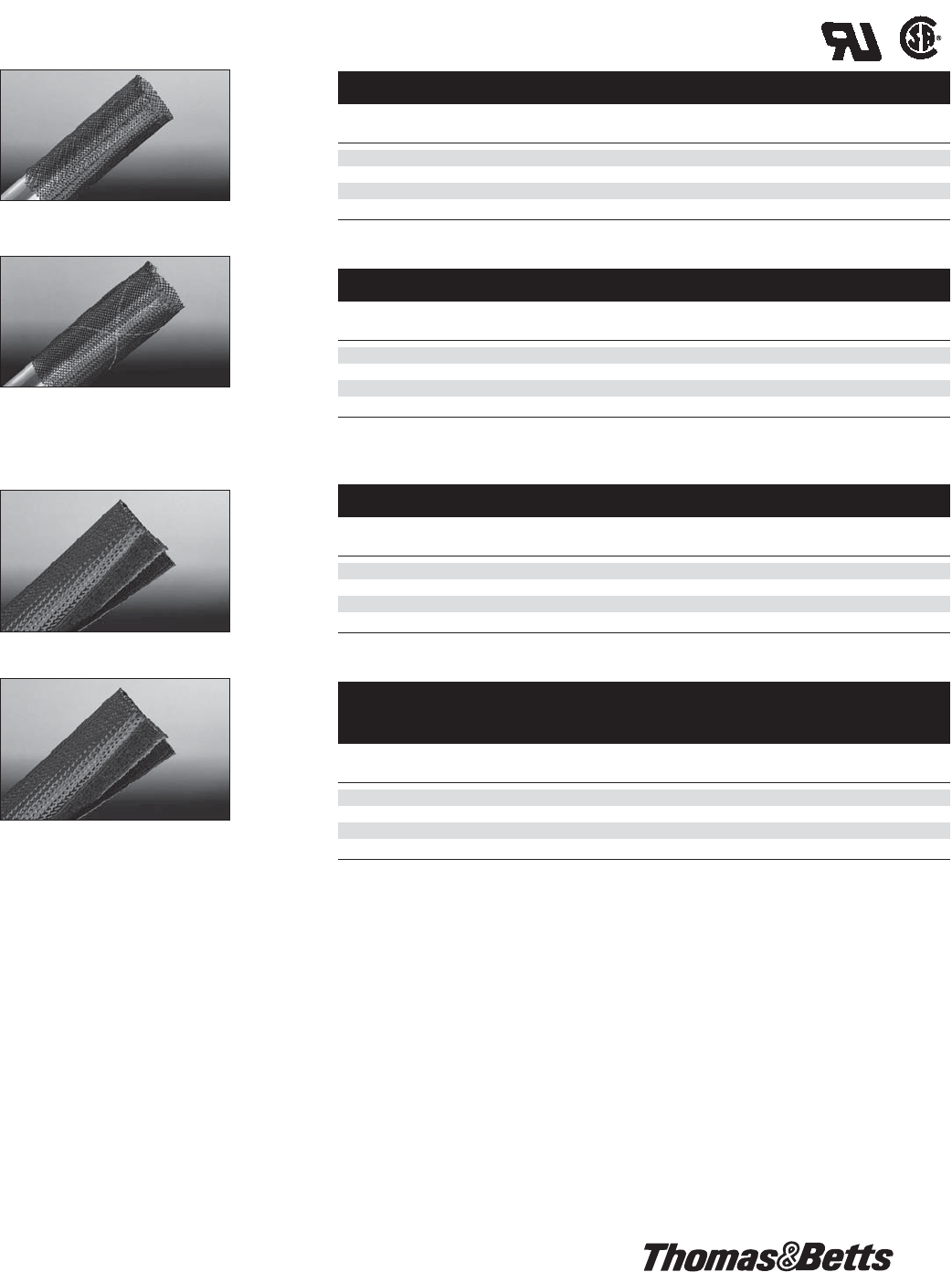

Braided Expandable Wire Sleeving

PET Braided Expandable Wire Sleeving – Mini Spool

Nominal I.D. Nominal Diameter Spool Std.

Cat. No. (in.) Colour Range (in.) Quantity Pkg.

S250PT-0 .250 .125 to .375 200 ft. 1

S500PC-0 .500 Black .250 to .750 100 ft. 1

S750PC-0 .750 .500 to 1.250 100 ft. 1

S1250PL-0 1.250 .750 to 1.750 50 ft. 1

Flame Retardant Braided Expandable Wire Sleeving – Mini Spool

Nominal I.D. Nominal Diameter Spool Std.

Cat. No. (in.) Colour Range (in.) Quantity Pkg.

S250FT-0 .250 .125 to .375 200 ft. 1

S500FC-0 .500 Black with white tracer .250 to .750 100 ft. 1

S750FC-0 .750 .500 to 1.250 100 ft. 1

S1250FL-0 1.250 .750 to 1.750 50 ft. 1

Note: Order by spool, not per foot.

PET Hook and Loop, Wraparound Sleeving – Mini Spool

Nominal I.D. Nominal Diameter Spool Std.

Cat. No. (in.) Colour Range (in.) Quantity Pkg.

S500PWL-0 .500 .250 to .750 50 ft. 1

S750PWL-0 .750 Black .500 to 1.250 50 ft. 1

S1250PWL-0 1.250 .750 to 1.750 50 ft. 1

S2000PWL-0 2.000 1.500 to 3.500 50 ft. 1

Flame Retardant Hook and Loop, Wraparound Sleeving –

Mini Spool

Nominal I.D. Nominal Diameter Spool Std.

Cat. No. (in.) Colour Range (in.) Quantity Pkg.

S500FWL-0 .500 .250 to .750 50 ft. 1

S750FWL-0 .750 Black with white tracer .500 to 1.250 50 ft. 1

S1250FWL-0 1.250 .750 to 1.750 50 ft. 1

S2000FWL-0 2.000 1.500 to 3.500 50 ft. 1

Note: Order by spool, not per foot.

• Hook and loop fastener design allows for

easy wrapping of existing wire

harnesses and cables.

• Convenient for rework without

disrupting existing connection.

• No tools required to close the sleeving.

• Hook and loop material is made of 100%

nylon.

Braided Expandable Wire Sleeving

PET Braided Expandable Wire Sleeving – Bulk Reel

Nominal I.D. Nominal Diameter Reel Std.

Cat. No. (in.) Colour Range (in.) Quantity Pkg.

S125PM-0 .125 .094 to .250 1000 ft. 1

S250PM-0 .250 .125 to .375 1000 ft. 1

S500PD-0 .500 .250 to .750 500 ft. 1

S750PK-0 .750 Black .500 to 1.250 250 ft. 1

S1250PK-0 1.250 .750 to 1.750 250 ft. 1

S1750PT-0 1.750 1.250 to 2.750 200 ft. 1

S2000PT-0 2.000 1.500 to 3.500 200 ft. 1

S2500PT-0 2.500 1.750 to 4.500 200 ft. 1

Flame Retardant Braided Expandable Wire Sleeving –

Bulk Reel

Nominal I.D. Nominal Diameter Reel Std.

Cat. No. (in.) Colour Range (in.) Quantity Pkg.

S125FM-0 .125 .094 to .250 1000 ft. 1

S250FM-0 .250 .125 to .375 1000 ft. 1

S500FD-0 .500 .250 to .750 500 ft. 1

S750FK-0 .750 Black with white tracer .500 to 1.250 250 ft. 1

S1250FK-0 1.250 .750 to 1.750 250 ft. 1

S1750FT-0 1.750 1.250 to 2.750 200 ft. 1

S2000FT-0 2.000 1.500 to 3.500 200 ft. 1

S2500FT-0 2.500 1.750 to 4.500 200 ft. 1

Note: order by reel, not per foot.

For other colours, lengths, sizes and materials please contact customer service.

Sleeving End Cutter/Sealer Tools

Std.

Cat. No. Description Pkg.

WTBM Bench mount end cutter/sealer tool, 110 volt AC 1

It is recommended that the sleeving be cut with hot knife for a straight cut and to seal the ends which prevents fraying.

WTBM

Cable Tie Installation Tools

Cat. Std. Pkg. UPC

Number Description Qty. Number

Cable Tie Installation Tool

ERG50 Tool for 18-50 lb. Cable Ties 1 78620986729

ERG120 Tool for 50-120 lb. Cable Ties 1 78620986730

Designed for Efficiency

• Wide cable-tie insertion gap makes it easier

to insert tie into tool

• Tension adjustment wheel on nose offers easy

access and quick setting — about five times faster

than competing tools!

• Tension-locking mechanism maintains constant

tension setting, even when tool is frequently put

down and picked up again

• Flush tail-to-head cut-off eliminates sharp cable

tie ends that can cut or scratch installers, wires

and nearby devices

• Longest stroke length available on the market —

a full 1" — means fewer handle-tensioning cycles

to save time and lower installation costs

The two Ty-Rap®Cable Tie Installation Tools install either 18-50 lb. tensile strength cable ties or 50-120 lb. tensile

strength cable ties.

Specifications:

Dimensions: 7” L x 5” H x 1-5/8” W

Weight: 9oz

Ty-Rap®Cable Tie

Installation Tool

The Most Comfortable and

Efficient Hand Tool Available

for Installing Cable Ties!!

Thomas & Betts set out to develop a high performance and very

reliable hand-operated cable tie installation tool. This new and

improved Ty-Rap®Cable Tie Installation Tool is the result, and it

fits the bill in every aspect. It’s ergonomic with more features

than any competing tool on the market.

Our engineers carefully considered user comfort and designed

this rugged yet lightweight, well-balanced tool to reduce stress,

fatigue and the risk of carpal tunnel syndrome and other

cumulative trauma disorders to the hand and wrist. They didn’t

stop with ergonomics, however. This new tool offers a flush cable

tie tail-to-head trim, a longer handle stroke requiring less handle

force, higher tension capabilities and much, much more!

Designed for Comfort

•

360° rotating nose offers maximum flexibility in

any position, especially in tight spaces — no twisting

of tool required!

•

Adjustable grip span adapts to fit large or small hands

•

Anti-recoil cut-off mechanism reduces shock and

vibration to hand and wrist

•

High-low handle travel feature offers lowest handle

force with highest tension in any hand-operated cable

tie installation tool on the market

•

Handles constructed from rugged, lightweight,

high-impact polymer in a balanced design with soft,

over-molded, round-edged grips for added user comfort

Cable Tie Installation Tools

The adjustable grip span offers a

comfortable custom fit for any size

hand, large or small.

The swivel head enables you to get into

any tight space — no twisting of tool

required!

The easy-access tension adjustment

wheel, located on the nose, enables

quick tension setting — up to five times

faster than other tools on the market.

Tension can be locked to maintain a

constant setting.

The Ty-Rap®Cable Tie Installation Tool

trims cable ties flush, leaving no sharp

edges behind to scratch or cut people or

wires. It holds trimmed-off tails captive,

leaving no mess behind to clean up.

A wide insertion

gap makes it

easier to insert

a cable tie

into the tool.

Ty-Rap®Cable Tie Installation Tool Features

Cable Tie Installation Tools

WT3D

WT3S

DeltecTM and Stainless Steel Tool

Body Width Std. Wt.

Cat. No. Description (in.) Pkg. Each

WT3D Installs self-locking Ty-Rap®cable ties and .184 thru .500 1 8 oz.

Thomas & Betts 2-piece lashing ties.

WT3S Stainless steel cable tie installing tool. 1 8 oz.

Installation Tools

WT193A Installation Tool

Body Width Std. Wt.

Cat. No. Description (in.) Pkg. Each

WT193A Pistol-type, easy tension adjustment, cuts tail off flush .094-.184 1 10 oz.

WT193A

WT199

WT197

WT1-TB/WT2-TB Installation Tool

Lightweight, hand-operated cable tying tools install cable ties up to .301 inch wide and

.080 inch thick. Made of high-impact plastic and steel to withstand shock and rough

handling, they are symmetrical in design for use by both left-hand and right-hand

operators.

They cinch up the tie with a squeeze action, and cut away the excess tail when twisted

180 degrees. A specially designed pawl cuts away the tail if the tension limit is

exceeded, thereby preventing the cable tie from being over tightened. Ideally suited to

spot-tying applications.

Body Width Std. Wt.

Cat. No. Description (in.) Pkg. Each

WT1-TB Compact hand tool made of high-impact .094 thru .184 1 1-1/4 oz.

WT2-TB plastic, preset tension, cuts off flush, .184-.301 1 1-1/4 oz.

lightweight and economical

WT2-TB

WT199/WT197 Installation Tool

Body Width Std. Wt.

Cat. No. Description (in.) Pkg. Each

WT197 Pistol-type, easy tension adjustment, cuts tail off flush .301 1 10 oz.

WT199 Pistol-type, easy tension adjustment, cuts tail off flush .094-.184 1 10 oz.

* Mil Spec Approved (WT197 - MS90387-2; WT199 - MS90387-1)

WT1-TB

Stainless Steel Installation Tool

Std.

Cat. No. Description Pkg.

DAS250 Installation Tool for Stainless Steel Ties 1 DAS250

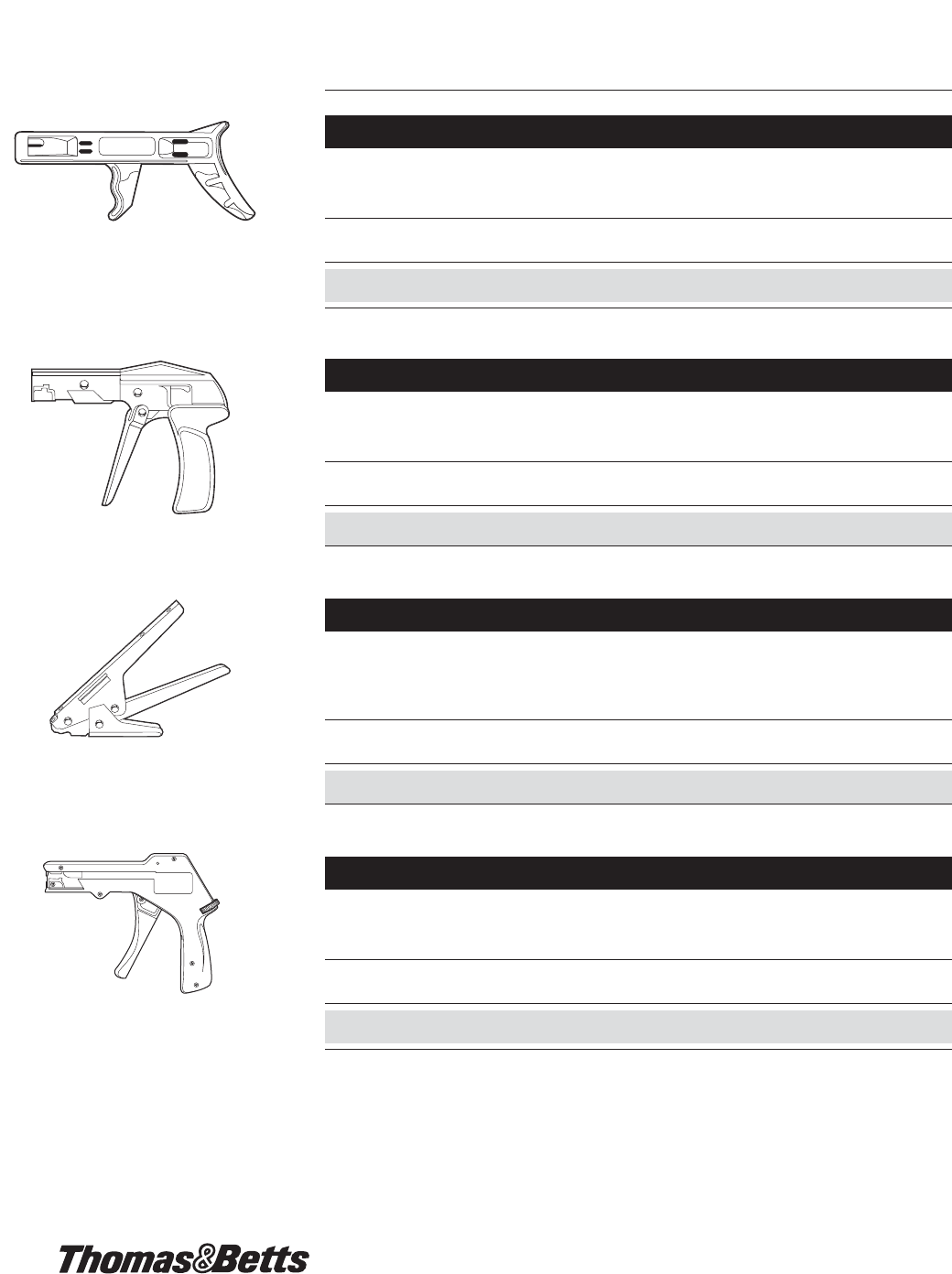

QC-100 (plastic)

L-200 Metal (steel)

L-300C Metal (steel)

L-400-C (plastic)

Cable Tie Tool

QC-100

A lightweight tool for least critical applications. Cinch tie to desired bundle and twist tool

to remove excess strap. Recommended for use with 18 - 50 pound ties.

Tie Body Std. Wt.

Cat. No. Description Width Pkg. Ea.

Cable Tie Tool, 18-50 lb. tension

QC-100 Plastic Handle .094-.184" 1 2.56 oz.

L-200

Economy tool for use with 18 - 50 pound ties. Automatic cut-off removes excess strap

flush against cable tie head. Tool is equipped with adjustable tensioning.

Tie Body Std. Wt.

Cat. No. Description Width Pkg. Ea.

Cable Tie Tool, 18-50 lb. tension

L-200 Steel Handle .094-.184" 1 13.44 oz.

L-300-C

Rugged construction makes this tool ideal for use with our 120 - 175 pound ties. Cinch

tie to desired bundle and pull trigger to cut excess flush at Cable Tie head. Field proven

durability.

Tie Body Std. Wt.

Cat. No. Description Width Pkg. Ea.

Cable Tie Tool, 120-175 lb. tension

L-300C Steel Handle .301-.345" 1 12 oz.

L-400-C

Heavy Duty tool for use with 18 - 50 pound ties. Automatic cut-off and adjustable

tensioning for dependable use in assembly applications.

Tie Body Std. Wt.

Cat. No. Description Width Pkg. Ea.

Cable Tie Tool, 18-50 lb. tension

L-400-C Plastic Handle .094-.184" 1 7.52 oz.

Cable Tie Installation Tools

Semi-automatic air tool speeds cable tying operation –

increases productivity

Ty-Rap®Pneumatic Tool

Body Width

Cat. No. Description (in.)

TR227 Semiautomatic hand tool .094-.184

TR227R Replaceable Head For TR227

• Semi-automatic operation–produces fast, effortless tying; cinches and trims

tie in one fast motion

• Positive tail ejection–ensures high operating efficiency

• Precision engineered–gives you long-term dependable service, reduces

operator fatigue

• Adjustable tension–provides uniform, quality installations over wide bundle

diameter range

The TR227 pistol-type, semiautomatic air tool provides quick, effortless

cable tying. It installs self-locking Ty-Rap®cable ties having body

widths of .091" to .187" regardless of the tie’s length or

diameter of the wire bundle.

The trigger activated pneumatic tool:

1. tightens the tie to a preset tension,

2. trims it flush to the head,

3. positively ejects the cut-off portion of the cable tie in a

single stroke.

The tool is so easy to operate that just installing a few

ties is all the training required. This lightweight, precision

tool is designed to be the workhorse in production tying

operations. Its long barrel and narrow nose make it ideal

for reaching into congested wire areas.

Designed with a comfort-grip handle to avoid operator

fatigue, the tool is quality engineered to provide years of

dependable service. Your wire harnessing and cable bundling will

be accomplished quickly, easily, and at low installed cost.

Consistent tension for all bundle diameters

The tool has a convenient tension adjustment permitting each tie to be installed with

the proper tension regardless of variations in the bundle diameter. To increase tension

on the tie, turn the tension disc clockwise–to decrease tension, turn the disc

counterclockwise.

The tension range is indicated on the disc from min. to max.

Modular head

If difficulty should arise with operation of the tool, a convenient modular head allows

quick replacement. Simple on-line repair–downtime reduced to an absolute minimum.

TR227

TR227R

1000291134 Catalog

119973-Catalog 119973-Catalog 119973-Catalog 786210 Batch6 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
