2013
2014
Pass & Seymour®
ELECTRICAL WIRING DEVICES
Portions of this document are reprinted with permission from NFPA 70-1999, the National Electrical Code®, Copyright© 2010, National Fire Protection Association, Quincy, MA
02269. This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced subject which is represented only by the
standard in its entirety. National Electrical Code® and NEC® are registered trademarks of the National Fire Protection Association, Inc., Quincy, MA 02269.
1. Color-coded section pages help you find products fast.
Plus, product and section headings on every page.
2. Clear, sans-serif typefaces remain legible after scanning
and photocopying.
3.
Product Features tell how our products work for you — fast!
4. Dimensions overlay photos and line art. No need to look in
three different spots to get a “full picture” of the product.
5. Key information at a glance:
- Features/Specifications - Catalog numbers
- Canadian models - 3rd Party listings
- NEMA ratings/configurations - Amperage/Voltage
- Dimensions - Application notes
6. Silhouetted product photos suitable for scanning
and photocopying.
7. NEMA configurations in 3 locations! At beginning
of catalog, in appropriate sections, and on pages with
NEMA-applicable products.
8. Additional information or accessory listing for
added convenience.
9. Catalog numbers below product photos and line
drawings let you identify what you want by sight.
10. NEC® requirements called out near products help
you keep current.
To make your job easier, Legrand has gone to great lengths to ensure the accuracy of this catalog’s data and graphics. Should you discover errors, please report them to
us; we will gladly correct future editions.
The data and dimensions listed in the following pages are accurate as of the publishing date. Legrand reserves the right to change the design, dimensions, materials
and manufacturing techniques of the products listed without notice. Therefore, you are encouraged to verify these characteristics before specifying, ordering or
installing these products.
© Copyright 2013 Legrand All Rights Reserved Printed in USA
PASS & SEYMOUR
WWW.LEGRAND.US
B-26
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Specification Grade Receptacles 15 & 20A, 125V
Features
• Thermoplastic dual mechanism shutter
system to help prevent insertion of
foreign objects.
• Exclusive patented feature, circuit
label on face allows permanent circuit
identification.
• Extra heavy-duty brass, one-piece
mounting strap with integral ground.
• One-piece, brass, triple-wipe power
contacts for lasting retention.
• Strap tabs wrap around and lock down
on face to prevent strap from separating
from face and back body.
• Impact-resistant nylon face and
back body.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Two drive screws anchor strap to back
body and face.
• Exclusive patented feature, external
screw-pressure-plate back wire clamp
on ground terminal for faster, easier
installation.
• External screw-pressure-plate back
wire clamps with #10 brass terminal
screws for visual assurance of agood
connection.
• Auto-ground clip assures positive
ground.
NEC® section 517.18(C) Pediatric Locations.
Receptacles located within the rooms, bathrooms, playrooms,
activity rooms, and patient care areas of pediatric wards shall
belistedundertamperresistantoremployalistedtamper
resistant cover.
This tamper-resistant receptacle, like all others, can be defeated
by actions such as inserting foreign objects in both sides of the
slots simultaneously.
For PlugTail™ Tamper-Resistant Receptacles, see Page B-16.
NEMA
5-15 R
NEMA
5-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RAT ING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
TR62I 15 125 Ivory 5-15R • • •
TR62W 15 125 White 5-15R • • •
TR62 15 125 Brown 5-15R • • •
TR62GRY 15 125 Gray 5-15R • • •
TR62BK 15 125 Black 5-15R • • •
TR62RED 15 125 Red 5-15R • • •
TR62LA 15 125 Light Almond 5-15R • • •
TR62BL 15 125 Blue 5-15R • • •
TR63I 20 125 Ivory 5-20R • • •
TR63W 20 125 White 5-20R • • •
TR63 20 125 Brown 5-20R • • •
TR63GRY 20 125 Gray 5-20R • • •
TR63BK 20 125 Black 5-20R • • •
TR63RED 20 125 Red 5-20R • • •
TR63LA 20 125 Light Almond 5-20R • • •
TR62I
3.28 1"
1.625"
1.104"
2.750 "
.900 "
Two-bladed plug
or grounding plug
compresses spring and
simultaneously opens
both shutters.
The Mechanical
Shutter System
Insertion of object in
any one side does not
open shutter.
Thermoplastic shutter
in closed position
covers access to
contacts.
4
3
9
6
1
2
5
7
8
10
Energy-saving products will display an energy logo
indicating the product reduces environmental impact
and helps control energy costs.
A catalog with a new look – but with the same helpful information.
The Pass & Seymour® Wiring Devices and Accessories Product Guide has a new look – but the functionality
of this useful tool remains the same. This helpful guide works for you, whether you’re a purchasing agent,
distributor salesperson, electrician, or specifying engineer – as you strive to choose the best product
for the job at hand.
WWW.LEGRAND.US/PASSANDSEYMOUR
TABLE OF CONTENTS
PASS & SEYMOUR
TABLE OF CONTENTS
STRAIGHT BLADE
PLUGS & CONNECTORS FDIMMERS & FAN SPEED
CONTROLS L
SWITCHES AINDUSTRIAL SPEC
GRADE TURNLOK®
LOCKING DEVICES GSLATER® PLASTIC
BOXES M
STRAIGHT BLADE
RECEPTACLES BCAMTYPE
DEVICES HREIKER® CELING FAN
& FIXTURE SUPPORT
PRODUCTS N
GFCIsCIEC 309 INDUSTRIAL
PRODUCTS IWEATHERPROOF BOXES
& COVERS O
HOSPITAL GRADE
DEVICES DFLEXCOR® WIRE
MESH GRIPS JWALL PLATES &
SPECIALTIES P
SURGE PROTECTIVE
& ISOLATED GROUND
DEVICES EOCCUPANCY & VACANCY
SENSORS & TIMERS KELECTRICAL
ACCESSORIES Q
REFERENCE
After Table of Contents
Featured New Products
Sustainability
Technical Specifications Section R
Glossary Section S
Index Section T
The most complete line of GFCIs
See Section C.
USB Charging Devices
See Section B.
Pass & Seymour Tamper-Resistant
Nightlight Combinations include either
a standard or GFCI receptacle. Add both
safety and convenience!
See Sections B, C.
Innovative solutions that improve functionality and energy savings.
Today’s homeowners demand more — and our
complete residential line delivers. With new
style that has any room or area looking good.
Energy-saving solutions to help counter high
utility rates. And fresh ideas to enhance safety.
Check out our pacesetting residential solutions
and you’ll find everything you’re looking for!
• Decorator-Style Wiring Devices and Wall Plates
• USB Charging Devices
• Screwless Wall Plates
• Harmony™ Tru-Universal Dimmers
• Digital Timers
• Vacancy and Occupancy Sensors
• Nightlight and Switch Combination Devices
• Tamper-Resistant Receptacles
• GFCIs with SafeLock™ Protection
• Home Locator Switches
• Weatherproof Receptacles and While-In-Use Covers
• Recessed Television Wall Boxes
• Surge Protective Receptacles
Pass & Seymour Tamper-Resistant Receptacles feature an
automatic shutter system to prevent kids from inserting
objects. Our complete line covers all applications.
See Section B.
Tamper-Resistant
Receptacles that
meet National
Electrical Code®
Requirements
LIGHTING CONTROLS
When you’re looking for quality energy-saving
solutions, you’ll find them in the broad line of
Pass & Seymour Lighting Controls. That includes
many stylish dimmer and fan-speed control choices,
vacancy and occupancy sensors, and timers.
See Sections K, L.
Pass & Seymour
Occupancy and Vacancy
Sensors add safety,
convenience and
energy savings.
See Section K.
PASS & SEYMOUR® RESIDENTIAL SOLUTIONS
PlugTail™ Wiring Devices — the fastest, most reliable
wiring device installation for any commercial job.
See Sections A, B.

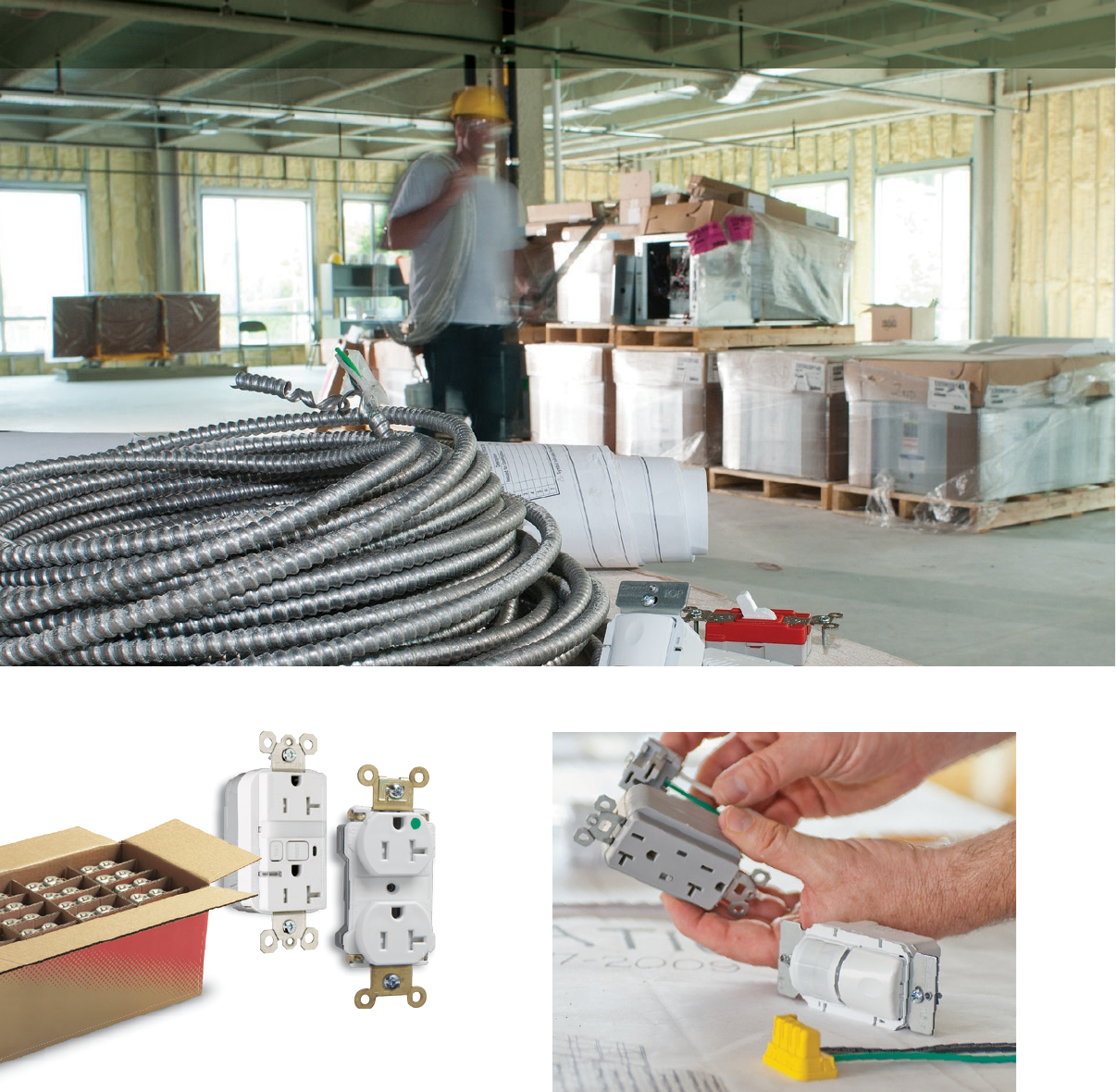

Subtract waste and add productivity
with Pass & Seymour bulk solutions.
Consult factory.
Innovative solutions that increase productivity and safety.
The full range of Pass & Seymour Commercial
devices is built with a quality look and feel. Built to
be easy to install. And built to stand up to constant
use. We engineer them to satisfy virtually every
need. And every user.
• Specification Grade Receptacles
• PlugTail™ Wiring Devices
• Specification Grade Switches
• Fed Spec and Hospital Grade USB
Charging Devices
• GFCIs with SafeLock™ Protection
• Occupancy and Vacancy Sensors
• Surge Protecting and Isolated
Ground Devices
• Hospital Grade Devices
• Straight Blade Plugs & Connectors
• Clamp-Lock™ Plugs & Connectors
• Titan® Dimmers
• Fan Speed Controls
• Wall Plates
PASS & SEYMOUR®COMMERCIAL PRODUCTS
Hospital Grade Devices — solutions
for every healthcare application.
See Section D.
Clamp-Lock™ Plugs & Connectors —
speedy, patented cam-lever termination
provides solid, dependable connections.
See Sections F.
Commercial Lighting Controls
See Sections K, L.
Turnlok® Locking Plugs
& Connectors
See Section G.
Innovative solutions that stand up to harsh environments.
Flexcor® Wire Mesh Grips
See Section J.
Cam-Type Devices
See Section H.

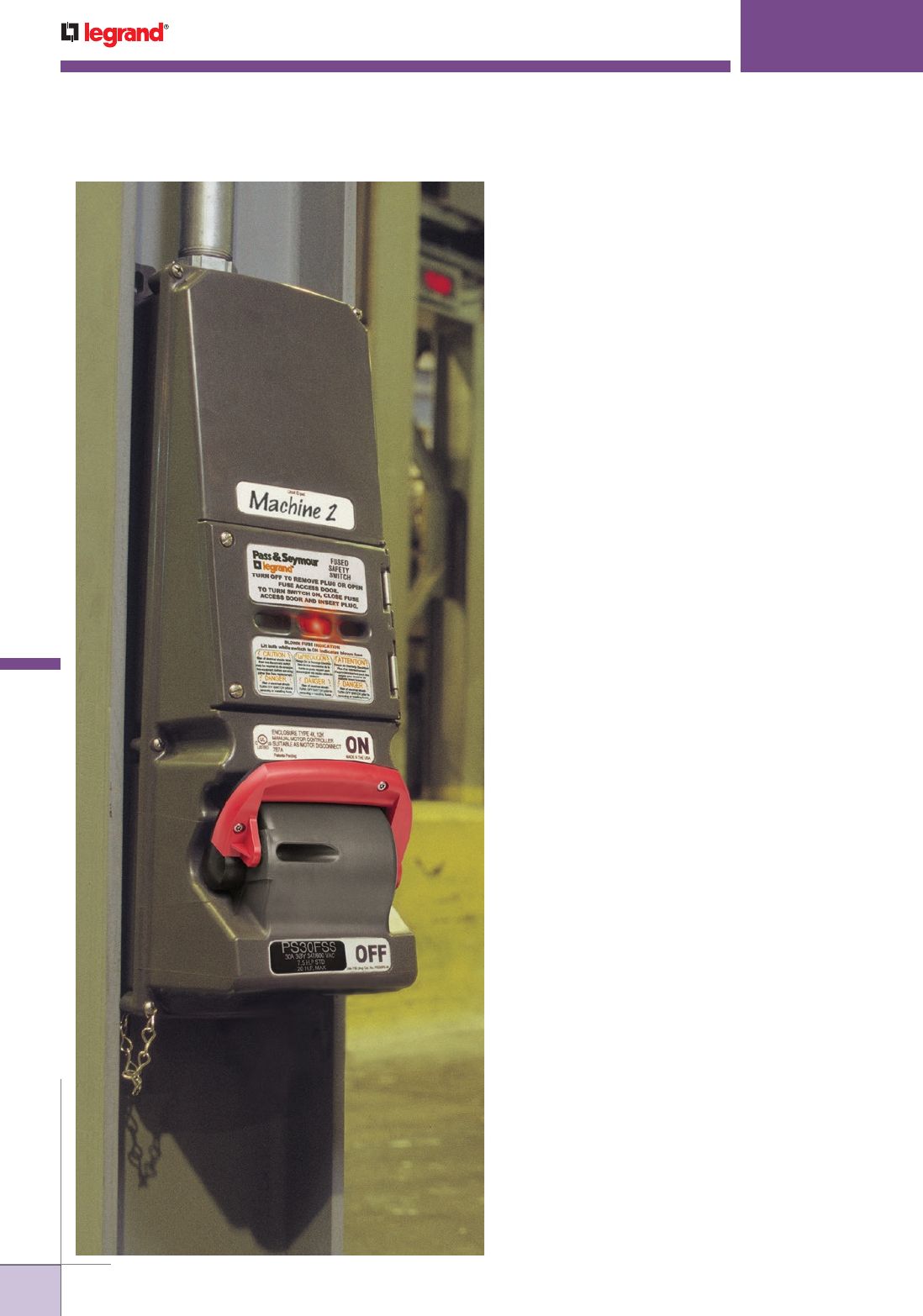

When we offered the first fusible mechanical
interlock with visible blown-fuse indication,
we helped plants avoid downtime. That’s typical
of the feature-rich Pass & Seymour Industrial
device line. These rugged, reliable workhorses
can take all the wear and tear industrial facilities
can dish out.
• Straight Blade Plugs, Connectors
and Receptacles
• Turnlok® Plugs, Connectors,
Receptacles, Flanged Inlets and Outlets
• Cam-Type Devices
• Flexcor® Wire Mesh Grips
• IEC Pin and Sleeve Devices
• Surge Protecting and
Isolated Ground Devices
• Industrial Grade Switches
• Manual Controllers
• Mechanical Interlocks
• Safety Switches
• Ground Continuity Monitoring
(GCM) Plugs and Connectors
See Section I.
Ground Continuity Monitoring Plugs
and Connectors add job site safety.
See Sections F, G.
PASS & SEYMOUR® INDUSTRIAL DEVICES
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
LEGRAND SUSTAINABILITY
Legrand has made a commitment to the path of sustainability. As such we are making an ongoing effort to understand
and responsibly address the intersection of social, environmental and economic issues in the course of conducting
our business. Sustainability serves as a new lens through which we are assessing the impact of our operations, the
expectations of our customers, employees and other key stakeholders, and the role of our products and solutions.
Like many companies we see sustainability as a journey of discovery and innovation. We are sharing our learning and
experience as we progress on this path. Visit www.legrand.us/sustainability to access useful tools to fulfill your own
sustainability journey.
Legrand North America is part of the Legrand Group, a global
organization that operates in over 170 countries. The Legrand
Group has developed an overall framework to sustainability
that is organized into three key areas - social responsibility,
environment and governance, which are defined below. The
approach to sustainability in North America is aligned with this
global framework – and adapted as appropriate and relevant to the
context of the local culture and economy.
These three “pillars” serve as the organizing principle for our
actions. They express our intention toward continuous improvement
in our approach to sustainability. We have initiatives underway in
each area and are actively exploring others. We are working to
ensure that our sustainability commitment translates into greater
benefits and tangible value for our customers, business partners,
employees and the broader communities in which we operate.
LEGRAND SUSTAINABILITY
Promote the welfare and
development of our employees
and communities in which we
operate and serve, and apply our
technology and products to meet
social needs.
Social
Advance environmental stewardship
at every stage of business from
product design, manufacturing,
distribution, marketing and delivery
of products that promote clean and
efficient energy.
Environment
Ensure Legrand employees all
over the world adhere to our stated
principles, values and standards;
seek out and work with suppliers
who operate in a manner consistent
with these commitments.
Governance
A Global Sustainable Development Framework
The FSC® certified paper used to print this catalog is Consoweb® Gloss, which is made from 10% post-consumer recycled paper.
Over 246,000 pounds of paper were used to produce this catalog, and by substituting Consoweb Gloss for standard gloss paper,
the following savings were realized:
• Wood Use – Post consumer content means a savings of more than 72 tons of wood.
• Greenhouse Gases – Eliminated more than 850 pounds of greenhouse gases vs. conventional paper production.
• Water – Saved more than 200,000 gallons of wastewater vs. water used to produce conventional paper.
• Solid Waste – 3000 pounds less solid waste was generated during papermaking that won’t need to be landfilled.*
Achieving these savings was a team effort:
Lindenmeyr Munroe – a leading paper broker.
NewPage Corporation – Manufacturer of Consoweb Gloss and other quality printing papers with certified and recycled options.
Quad/Graphics – Catalog printer, reduced the environmental impact by using a 27.3% renewable content (soy) ink.
The result is a catalog that significantly reduces environmental impacts without compromising quality. It’s the way Legrand
approaches sustainability across the entire company and its many products.
*Source: Environmental Paper Network Online Paper Calculator. FSC
®
is not responsible for the savings calculations by using this paper.
WWW.LEGRAND.US/PASSANDSEYMOUR
A-1
SWITCHES
PASS & SEYMOUR
Horsepower Rating Chart A-2
PlugTail™ Spec Grade Switches A-3
Industrial Extra Heavy-Duty Spec Grade Switches A-4
Lock Switch Replacement Keys A-5
Extra Heavy-Duty Spec Grade & Security Switches A-6
Hard Use & Commercial Spec Grade Switches A-7
Manual Controllers A-8
PlugTail™ Spec Grade Decorator Switches A-13
TradeMaster® Grounding Toggle Switches A-15
Combination Switches A-17
Specification Grade Decorator Switches A-19
TradeMaster® Decorator Switches A-20
Momentary & Maintained Contact Switches A-22
Spec Grade Decorator Combination Switches A-23
Shim-Lock A-23
TradeMaster® Decorator Combination Switches A-24
Decorator Combination Tamper-Resistant
Switch/GFCI Receptacles A-27
Canopy Switches & Locator Switches A-28
SWITCHES
PLUGTAIL™
SPEC GRADE
SWITCHES A-3
PLUGTAIL™ SPEC
GRADE DECORATOR
SWITCHES A-13
TRADEMASTER®
DECORATOR COMBO
SWITCHES A-24
Devices & Wall Plates Color Selection Chart available on Page A-29, B-82 and P-59.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-2
SWITCHES
SWITCHES
PlugTail™ Specification Grade Switches
A. Auto-ground clip assures positive ground.
B. One-piece nickel-plated mounting strap for superior
corrosion resistance.
C. No exposed terminals create a finger-safe application
before, during and after installation.
D. Built-in connector features large brass terminal blades
to ensure consistent, reliable electrical connections.
E. Large brass contacts snugly terminate on device blade
terminals. Audible snapping latch assures connection,
allows release.
F. Polycarbonate connector housing secures
terminations and conductors in a UL Listed,
finger-safe housing.
G. Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
H. Glass-reinforced nylon back body for durability
and strength.
Heavy-duty bumpers for quiet, smooth operation.
Shallow design for easier installation.
PT20AC1W
PlugTail™ Specification Grade Switches
H
D
A
B
C
F
G
E
HP CONVERSION TABLE – SWITCHES
15 Amp 1/2 Horsepower at 120VAC; 2 Horsepower at 240VAC
20 Amp 1 Horsepower at 120VAC; 2 Horsepower at 240VAC
30 Amp 2 Horsepower at 120VAC; 2 Horsepower at 240VAC
WWW.LEGRAND.US/PASSANDSEYMOUR
A-3
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
PlugTail™ Specification Grade Switches 15 & 20A, 120/277VAC
PT20AC1W
1.320"
3.281"
1.073"
2.195"
2.375"
PTJ
All PTS connectors are also available with WAGO connectors – add BP to the end of the catalog number.
Example: PTS6STR3BP. See Page A-14.
Available in 347VAC Canadian Catalog Numbers, add 347 to the end of the Catalog Number.
Example: PT15AC1W347. All Canadian Products have Combination Slotted/Robertson Head Brass Screws.
CATALOG NUMBER RATING
COLOR
3rd PARTY COMPLIANCE
FSUL
WS896 C22.2 111SINGLE POLE THREE-WAY A. VAC
TOGGLE SWITCHES
PT15AC1I PT15AC3I 15 120/277 Ivory • • •
PT15AC1W PT15AC3W 15 120/277 White • • •
PT15AC1 PT15AC3 15 120/277 Brown • • •
PT15AC1BK PT15AC3BK 15 120/277 Black • • •
PT15AC1GRY PT15AC3GRY 15 120/277 Gray • • •
PT15AC1RED PT15AC3RED 15 120/277 Red • • •
PT15AC1LA PT15AC3LA 15 120/277 Light Almond • • •
PT20AC1I PT20AC3I 20 120/277 Ivory • • •
PT20AC1W PT20AC3W 20 120/277 White • • •
PT20AC1 PT20AC3 20 120/277 Brown • • •
PT20AC1BK PT20AC3BK 20 120/277 Black • • •
PT20AC1GRY PT20AC3GRY 20 120/277 Gray • • •
PT20AC1RED PT20AC3RED 20 120/277 Red • • •
PT20AC1LA PT20AC3LA 20 120/277 Light Almond • • •
ILLUMINATED TOGGLE SWITCHES
PT15AC1CSL PT15AC3CSL 15 120/277 Clear • • •
PT15AC1ISL PT15AC3ISL 15 120/277 Ivory • • •
PT15AC1WSL PT15AC3WSL 15 120/277 White • • •
PT20AC1CSL PT20AC3CSL 20 120/277 Clear • • •
PT20AC1ISL PT20AC3ISL 20 120/277 Ivory • • •
PT20AC1WSL PT20AC3WSL 20 120/277 White • • •
PTS6STR3 PTS6STR4
1.125"
6.375"
CATALOG NUMBER WIRE TYPE WIRE LENGTH WIRE COLORS
PLUGTAIL CONNECTORS FOR SINGLE POLE SWITCHES 120/277VAC
PTS6STR3 3 Wire Stranded 6" Green, Black, Black
PTS6SOL3 3 Wire Solid 6" Green, Black, Black
PTS6STR3277 3 Wire Stranded 6" Green, Brown, Brown
PTS6SOL3277 3 Wire Solid 6" Green, Brown, Brown
PLUGTAIL CONNECTORS FOR THREEWAY SWITCHES 120/277VAC
PTS6STR4 4 Wire Stranded 6" Green, Red, Red, Black
PTS6SOL4 4 Wire Solid 6" Green, Red, Red, Black
PTS6STR4277 4 Wire Stranded 6" Green, Brown, Yellow, Yellow
PTS6SOL4277 4 Wire Solid 6" Green, Brown, Yellow, Yellow
CATALOG NUMBER DESCRIPTION
PLUGTAIL JUMPERS
PTJ PlugTail Cover for Rough In
PTJ5 PlugTail Cover for Rough In, 5-pack
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-4
SWITCHES
SWITCHES
Industrial Extra Heavy-Duty Specification Grade Switches
A. One-piece nickel-plated steel strap with integral
ground.
B. Auto-ground clip assures positive ground.
C. Shallow design for easier installation.
D. Glass-reinforced nylon back body for superior
durability and strength.
E. Locking support provides resistance to face and back
body separation.
F. Side and external screw-pressure-plate back wire
with #14 – #10 AWG copper or copper-clad wire.
G. Grounding terminal is standard with screw-pressure-
plate back wire.
Cam control and spring actuator for positive “makes
and breaks.”
Heavy-duty, brass alloy, one-piece contact arm virtually
eliminates contact bounce
Oversized silver alloy contacts for long life and better
heat dissipation.
Heavy-duty bumpers for quiet, smooth operation.
PS20AC1LA
B
A
C
D
E
F
G
PS20AC1LA
Industrial EHD Specification Grade Switches
WWW.LEGRAND.US/PASSANDSEYMOUR
A-5
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
For Bulk Packaging Solutions consult factory.
SWITCHES
Industrial Extra Heavy-Duty Specification Grade Switches 15, 20 & 30A, 120, 277 & 120/277VAC
15 & 20 Amp Lighted &
Pilot Lighted*
15 & 20 Amp*
1.320"
3.281"
2.375"
1.073"
2.196"
Locking*
*30AC series is 1.437" wide
1.320"
3.281"
2.375"
1.073"
2.196"
1.320"
3.281"
2.375"
1.073"
2.196"
Lock Switch Replacement Keys
(One key furnished with each switch)
500K
Fits current
Switches
1498
Fits Switches
manufactured
before 1976
1498-NT
Fits Switches
manufactured
1976-1982
CATALOG NUMBER RATING
COLOR
3rd PARTY COMPLIANCE
UL498 FSUL
WS896 C22.2 111SINGLE POLE DOUBLE POLE THREE-WAY FOUR-WAY A. VAC
TOGGLE SWITCHES BACK & SIDE WIRE
PS15AC1I PS15AC2I PS15AC3I PS15AC4I 15 120/277 Ivory • • •
PS15AC1W PS15AC2W PS15AC3W PS15AC4W 15 120/277 White • • •
PS15AC1 PS15AC2 PS15AC3 PS15AC4 15 120/277 Brown • • •
PS15AC1GRY PS15AC2GRY PS15AC3GRY PS15AC4GRY 15 120/277 Gray • • •
PS15AC1LA PS15AC2LA PS15AC3LA PS15AC4LA 15 120/277 Light Almond • • •
PS20AC1I PS20AC2I PS20AC3I PS20AC4I 20 120/277 Ivory • • •
PS20AC1W PS20AC2W PS20AC3W PS20AC4W 20 120/277 White • • •
PS20AC1 PS20AC2 PS20AC3 PS20AC4 20 120/277 Brown • • •
PS20AC1GRY PS20AC2GRY PS20AC3GRY PS20AC4GRY 20 120/277 Gray • • •
PS20AC1BK PS20AC2BK PS20AC3BK PS20AC4BK 20 120/277 Black • • •
PS20AC1GN PS20AC3GN 20 120/277 Green • • •
PS20AC1RED PS20AC2RED PS20AC3RED PS20AC4RED 20 120/277 Red • • •
PS20AC1LA PS20AC2LA PS20AC3LA PS20AC4LA 20 120/277 Light Almond • • •
PS30AC1I PS30AC2I PS30AC3I 30 120/277 Ivory • • •
PS30AC1W PS30AC2W 30 120/277 White • • •
PS30AC1 PS30AC2 PS30AC3 30 120/277 Brown • • •
LIGHTED TOGGLE SWITCHES LIGHTED WHEN OFF BACK & SIDE WIRE
PS15AC1CSL PS15AC3CSL 15 120/277 Clear • • •
PS15AC1ISL PS15AC3ISL 15 120/277 Ivory • • •
PS15AC1WSL PS15AC3WSL 15 120/277 White • • •
PS20AC1CSL PS20AC3CSL 20 120/277 Clear • • •
PS20AC1ISL PS20AC3ISL 20 120/277 Ivory • • •
PS20AC1WSL PS20AC3WSL 20 120/277 White • • •
PS20AC1LASL PS20AC3LASL 20 120/277 Light Almond • • •
PILOT LIGHTED SWITCHES LIGHTED WHEN ON BACK & SIDE WIRE
PS15AC1CPL PS15AC3CPL 15 120 Clear • • •
PS15AC1RPL PS15AC3RPL 15 120 Red • • •
PS20AC1CPL PS20AC3CPL 20 120 Clear • • •
PS20AC1CPL7 20 277 Clear • • •
PS20AC1RPL PS20AC3RPL 20 120 Red • • •
PS20AC1RPL7 PS20AC3RPL7 20 277 Red • • •
PS20AC2CPL 20 120/277 Clear • • •
PS20AC2RPL 20 120/277 Red • • •
PS30AC1RPL PS30AC3RPL 30 120 Red • • •
PS30AC2RPL 30 120/277 Red • • •
LOCK SWITCHES KEY CAN BE REMOVED IN BOTH POSITIONS BACK & SIDE WIRE
PS15AC1L PS15AC3L 15 120/277 Gray • • •
PS20AC1IL PS20AC2IL PS20AC3IL PS20AC4IL 20 120/277 Ivory • • •
PS20AC1WL PS20AC2WL PS20AC3WL PS20AC4WL 20 120/277 White • • •
PS20AC1L PS20AC2L PS20AC3L 20 120/277 Gray • • •
PS20AC1REDL PS20AC3REDL PS20AC4REDL 20 120/277 Red • • •
PS20AC1LAL PS20AC2LAL PS20AC3LAL PS20AC4LAL 20 120/277 Light Almond • • •
Features
• Heavy-gauge one-piece copper alloy
contact arm virtually eliminates contact
bounce.
• Cam controls fast “make” and positive
“break” to minimize arcing.
• Heavy-duty bumper pads for quiet
operation.
• High strength thermoplastic
polycarbonate toggle.
• Back body made of glass-reinforced nylon.
• Locking support provides resistance to
face and back body separation.
• Oversized silver alloy contacts for long
life and better heat dissipation.
• Grounding terminal is standard.
• Shallow design for ease of installation.
• Nickel-plated steel strap with integral
ground.
• Auto-ground clip assures postive ground.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-6
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Extra Heavy-Duty Specification Grade & Security Switches 15 & 20A, 347VAC; 20A, 120/277VAC
Stainless Steel Plate for PS20ACKL Switches Single Gang – SS717, Double Gang – SS727.
For custom combinations specify opening Style No. 302.
Catalog Number 4609 Security Switch Replacement Keys for PS20ACKL Switches (2 keys furnished with each switch). Security Switch
1.475"
4.071"
2.261"
.610"
15 & 20 Amp
Canadian 347VAC
1.320"
3.531"
2.375"
1.073"
2.196"
Denotes Canadian catalog number. All Canadian products have Combination Slotted/Robertson Head Brass Screws.
Features
• External screw-pressure-plate back
and side wired. Accepts #14 – #10 AWG
copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy
contact arm virtually eliminates
contact bounce.
• Cam controls fast “make” and positive
“break” to minimize arcing.
• Heavy-duty bumper pads for quiet
operation.
• High strength thermoplastic
polycarbonate toggle.
• Back body made of glass-reinforced
nylon.
• Locking support provides resistance to
face and back body separation.
• Oversized silver alloy contacts for long
life and better heat dissipation.
• Grounding terminal is standard.
• Shallow design for ease of installation.
• Nickel-plated steel strap with integral
ground.
• Auto-ground clip assures positive ground.
CATALOG NUMBER RATING
COLOR
3rd PARTY COMPLIANCE
C22.2 111SINGLE POLE THREE-WAY A. VAC
347VAC TOGGLE SWITCHES BACK & SIDE WIRE
PS371510I PS371530I 15 347 Ivory •
PS371510W PS371530W 15 347 White •
PS371510 PS371530 15 347 Brown •
PS371510GRY PS371530GRY 15 347 Gray •
PS371510BK PS371530BK 15 347 Black •
PS371510RED PS371530RED 15 347 Red •
PS372010I PS372030I 20 347 Ivory •
PS372010W PS372030W 20 347 White •
PS372010 PS372030 20 347 Brown •
PS372010GRY PS372030GRY 20 347 Gray •
PS372010BK PS372030BK 20 347 Black •
PS372010RED PS372030RED 20 347 Red •
PS372010LA PS372030LA 20 347 Light Almond •
PS372010L PS372030L 20 347 Gray, Locking •
Features
• Back and side wired. Accepts
#14 – #10 AWG.
• Operated by cam lock for maximum
security in critical areas.
• Recommended for tamper-proof
installation in schools, public housing,
trailer parks, freight yards, etc.
• Uses same key as Cat. #4600 cast
enclosure.
• Key can be removed in both positions.
CATALOG NUMBER RATING 3rd PARTY COMPLIANCE
UL20 FSUL
WS896 C22.255SINGLE POLE DOUBLE POLE THREE-WAY FOUR-WAY A. VAC
SECURITY SWITCHES BACK & SIDE WIRE
PS20AC1KL PS20AC2KL PS20AC3KL PS20AC4KL 20 120/277 • • •
PS372010KL 20 347 • •
WWW.LEGRAND.US/PASSANDSEYMOUR
A-7
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
15 & 20 Amp
1.320"
3.281"
2.375"
1.073"
2.196"
SWITCHES
Hard Use & Commercial Specification Grade Switches 15 & 20A, 120/277VAC
Features
• One-piece brass alloy contact arm for
reliable electrical performance.
• One-piece steel strap with integral
ground is plated for corrsion resistance.
• High strength thermoplastic
polycarbonate toggle resists breaking and
chipping under heavy abuse.
• Heavy-duty toggle bumpers for smooth
and quiet operation.
• Back body made of glass-reinforced
nylon.
• Locking support provides resistance to
face and back body separation.
• Available with side wire or external
screw-pressure-plate back and side wire
models capable of accepting #14 – #10
AWG copper or copper-clad wire.
• Cam designed for fast make with positive
break action to minimize arcing and
prolong switch life.
• Oversized silver alloy contacts for longer
dependable switch life.
• Tri-drive terminal and mounting screws.
CATALOG NUMBER RATING
COLOR
3rd PARTY COMPLIANCE
UL20
FSUL
WS896 C22.2 111SINGLE POLE DOUBLE POLE THREE-WAY FOUR-WAY A. VAC
HARD USE SPECIFICATION GRADE BACK & SIDE WIRE
CSB15AC1I CSB15AC2I CSB15AC3I CSB15AC4I 15 120/277 Ivory • • •
CSB15AC1W CSB15AC2W CSB15AC3W CSB15AC4W 15 120/277 White • • •
CSB15AC1 CSB15AC2 CSB15AC3 CSB15AC4 15 120/277 Brown • • •
CSB15AC1GRY CSB15AC2GRY CSB15AC3GRY CSB15AC4GRY 15 120/277 Gray • • •
CSB15AC1LA CSB15AC2LA CSB15AC3LA CSB15AC4LA 15 120/277 Light Almond • • •
CSB20AC1I CSB20AC2I CSB20AC3I CSB20AC4I 20 120/277 Ivory • • •
CSB20AC1W CSB20AC2W CSB20AC3W CSB20AC4W 20 120/277 White • • •
CSB20AC1 CSB20AC2 CSB20AC3 CSB20AC4 20 120/277 Brown • • •
CSB20AC1BK CSB20AC3BK 20 120/277 Black • • •
CSB20AC1GRY CSB20AC2GRY CSB20AC3GRY CSB20AC4GRY 20 120/277 Gray • • •
CSB20AC1LA CSB20AC2LA CSB20AC3LA CSB20AC4LA 20 120/277 Light Almond • • •
CATALOG NUMBER RATING
COLOR
3rd PARTY COMPLIANCE
UL20
FSUL
WS896 C22.2 111SINGLE POLE THREE-WAY A. VAC
COMMERCIAL SPECIFICATION GRADE SIDE WIRE
CS15AC1I CS15AC3I 15 120/277 Ivory • • •
CS15AC1W CS15AC3W 15 120/277 White • • •
CS15AC1 CS15AC3 15 120/277 Brown • • •
CS15AC1GRY CS15AC3GRY 15 120/277 Gray • • •
CS15AC1BK CS15AC3BK 15 120/277 Black • • •
CS15AC1LA CS15AC3LA 15 120/277 Light Almond • • •
CS20AC1I CS20AC3I 20 120/277 Ivory • • •
CS20AC1W CS20AC3W 20 120/277 White • • •
CS20AC1 CS20AC3 20 120/277 Brown • • •
CS20AC1GRY CS20AC3GRY 20 120/277 Gray • • •
CS20AC1LA CS20AC3LA 20 120/277 Light Almond • • •
For Bulk Packaging Solutions consult factory.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-8
SWITCHES
SWITCHES
Manual Controllers
NEMA Type 1 Enclosures
–
Intended for indoor use
primarily to provide a degree of protection against limited
amounts of falling dirt in locations where unusual service
conditions do not exist.
NEMA Type 7 Enclosures
–
Intended for indoor use in
locations classified as Class 1, Group A, B, C, or D, as
defined in the National Electrical Code. They shall be
capable of withstanding the pressures resulting from an
internal explosion of specified gases, and contain such
an explosion sufficient that an explosive gas-air mixture
existing in the atmosphere surrounding the enclosure will
not be ignited. Enclosed heat generating devices shall not
cause external surfaces to reach temperatures capable
of igniting explosive gas-air mixtures in the surrounding
atmosphere. Enclosures shall meet explosion, hydrostatic,
and temperature design tests.
NEMA Type 3R Enclosures
–
Intended for outdoor use
primarily to provide a degree of protection against rain
and sleet; and to be undamaged by the formation of ice on
the enclosure. They are not intended to provide protection
against conditions such as internal condensation, or
internal icing.
NEMA Type 9 Enclosures
–
Intended for indoor use in
locations classified as Class II, Groups E, F, or G, as
defined in the National Electrical Code. They shall be
capable of preventing the entrance of dust. Enclosed heat
generating devices shall not cause external surfaces to
reach temperatures capable of igniting or discoloring
dust on the enclosure or igniting dust-air mixtures in the
surrounding atmosphere. Enclosures shall meet dust
penetration and temperature design tests, and aging of
gaskets (if used).
NEMA Type Enclosures
A. Heavy-duty, zinc-plated strap resists corrosion; two
rolled-brass rivets secure the strap to the housing to
avoid field tampering.
B. Two-point contact arm design reduces overall unit
size; provides more enclosure space.
C. Thermoplastic housing resists tracking; withstands
impacts.
D. Two oversized silver alloy contacts withstand
years of use; improve heat dissipation by distributing
arc energy.
E. One-piece contact carrier constructed of glass-
reinforced thermoplastic ensures long-lasting “make
and break” performance.
F. Exclusive, ready-to-wire external screw-pressure-
plate back and side wire capability for easy installation
with solid or stranded wire.
G. Oversized #10 terminal screws increase contact with
wire and increase torque limit. Angled screw heads for
easier access.
7803
A
B
CD
E
F
G
7803
Manual Controller
WWW.LEGRAND.US/PASSANDSEYMOUR
A-9
SWITCHES
PASS & SEYMOUR
SWITCHES
Manual Controllers 30A, 1ø & 3ø
7802, 7803
2.375"
2.155"
3.280"
1.825"
3.67"
1.753"
7812EX, 7813EX
2.250"
5.250"
5.875"
4.625"
4.250"
3.375"
3.000"
7806P NEMA 1 Black Nylon Enclosure with 1/2" and 3/4" knockouts at each end.
7801P Handle Locking Guard has opening for padlock to secure control in either ON or OFF position.
7830 NEMA 3R Aluminum Enclosure.
All Industrial Control Equipment is suitable for use in a circuit capable of deliverable not more than 5,000 rms amperes at
600VAC maximum or equivalent.
Footnote 1. Suitable as Motor Disconnect – 10KA @ 600VAC, 30A max. Class J Fuse.
7812P, 7813P
3.910"
2.825"
2.80"
UL Listed. CSA Certified. All devices listed on this page conform to NEMA WD-1 and WD-6.
7832, 7833
5.75"
1.80"
4.50"
3.25"
Features – 7802 & 7803
• High horsepower rating of 20HP
• Compact design.
• Gull-wing shaped brass terminal
pressure clamps.
• Constructed of glass-reinforced
thermoplastic.
• Two-point contact arms.
• One-piece contact carrier.
• UL508 and cULus Listing of individual
device and assembled device within
enclosure.
• Heavy-duty zinc-plated steel strap.
• Two brass rivets secure strap to housing.
• External screw-pressure-plate back and
side wire terminal screws unstaked for
use with ring terminals.
• Oversized silver alloy contacts.
• 2-3/4" hubs (7812EX and 7813EX).
• 2-1/2" knockouts on back and 2-1/2"-3/4"
knockouts on top and bottom (7812P,
7813P, 7806P).
• 2-1/2" knockouts on bottom and back
(7832 and 7833).
CATALOG NUMBER DESCRIPTION
RATING
A. V. HP VAC
DOUBLE POLE, SINGLE PHASE
7802 Double Pole, Single Phase AC Manual Motor Controller
(No overload protection)
General Use
30
600 max. 2
3
7.5
10
120
240
480
600
7802MD 7802, See Footnote 1 Same as 7802
7812P 7802 in a NEMA 1 Enclosure Same as 7802
7812PMD 7812P, See Footnote 1 Same as 7802
7812EX 7802 in a NEMA 7 and 9 Enclosure for Hazardous Locations
Class I - Groups C, D;
Class II - Groups E, F, G
Same as 7802
7832 7802 in a NEMA 3R Enclosure Same as 7802
7832MD 7832, See Footnote 1 Same as 7802
THREE POLE, THREE PHASE
7803 Three Pole, Three Phase AC Manual Motor Controller
(No overload protection)
General Use
30
600 max. 3
7.5
10
20
120
240
480
600
7803MD 7803, See Footnote 1 Same as 7803
7813P 7803 in a NEMA 1 Enclosure Same as 7803
7813PMD 7813-P, See Footnote 1 Same as 7803
7813EX 7803 in a NEMA 7 & 9 Enclosure for Hazardous Locations
Class I - Groups C, D;
Class II - Groups E, F, G
Same as 7803
7833 7803 in a NEMA 3R Enclosure Same as 7803
7833MD 7833, See Footnote 1 Same as 7803
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-10
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Manual Controllers 40A, 1ø & 3ø
7842, 7843
2.375"
2.155"
3.280"
1.825"
3.67"
1.753"
CATALOG NO. PHASE POLE
7802 or 7842 1 2
7803 or 7843 3 3
USE 60 / 75°C WIRING
TORQUE TERMINAL SCREWS
TO 16 IN. LBS.
NO ALUMINUM DO NOT
REMOVE SCREWS
FROM 30A DEVICES
All Industrial Control Equipment is suitable for use in a circuit capable of deliverable not more than 5,000 rms amperes at
600VAC maximum or equivalent.
Footnote 2. Suitable as Motor Disconnect – 10KA @ 600VAC, 60A max. Class J Fuse or 100A max. Ferraz Shawmut HSJ Fuse.
RATINGS
RESISTANCE
7802 / 7803 30 AMP 600 VAC MAX.
7842 / 7843 40 AMP 600 VAC MAX.
MANUAL MOTOR CONTROLLER
30A 40A
VAC 1 PHASE 3 PHASE 1 PHASE 3 PHASE
HP HP HP HP
120 2 3 2 3
240 3 7.5 5 7.5
480 7.5 10 10 15
600 10 20 15 20
Features – 7842 & 7843
• High horsepower rating of 20HP
• Compact design.
• Gull-wing shaped brass terminal pressure
clamps.
• Constructed of glass-reinforced thermoplastic.
• Two-point contact arms.
• One-piece contact carrier.
• Heavy-duty yellow chromate plated steel strap.
• Two brass rivets secure strap to housing.
• External screw-pressure-plate back and side
wire terminal screws unstaked for use with
ring terminals.
• Oversized silver alloy contacts.
• UL508 and cULus Listing of individual device
and assembled device within enclosure.
CATALOG NUMBER DESCRIPTION
RATING
A. VAC HP VAC
DOUBLE POLE, SINGLE PHASE
7842 Double Pole, Single Phase AC Manual Motor Controller
(No overload protection)
40 600 max. 2
5
10
15
120
240
480
600
7842MD 7842, See Footnote 2 Same as 7842
THREE POLE, THREE PHASE
7843 Three Pole, Three Phase AC Manual Motor Controller
(No overload protection)
40 600 max. 2
7.5
15
20
120
240
480
600
7843MD 7843, See Footnote 2 Same as 7843
WWW.LEGRAND.US/PASSANDSEYMOUR
A-11
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Manual Controllers 60A NEMA 3R Manual Controller 20 & 30A 1ø
PS20AC2HP
PS30AC2HP
1.320”
3.281”
2.375”
1.073”
2.196”
Features
• High horsepower rating, up to 3 HP for heavy
duty applications.
• Compact design provides ease of installation.
• Box lug terminals.
• Single piece moveable and stationary contact
arms with oversized silver cadmium buttons
provides excellent continuity and long life.
• Made in USA.
• Wire pockets and thick wall arc barriers.
• Cold-rolled steel NEMA 3R enclosure with
polyester urethane finish conforms to OSHA
lockout requirements.
• Type 3R enclosure has 2-1/2", 3/4" and 1"
concentric knockouts on bottom.
• Accepts #4 AWG.
• cULus listed.
7863R
CATALOG NUMBER DESCRIPTION
RATING
A. VAC HP VAC
DOUBLE POLE MANUAL MOTOR CONTROLLER
7862R Double Pole AC Manual Motor Controller
in a NEMA 3R Enclosure
60 600 max. 3
5
15
15
120
240
480
600
7862 Double Pole AC Manual Motor Controller 60 600 max Same as 7862R
THREE POLE MANUAL MOTOR CONTROLLER
7863R Three Pole AC Manual Motor Controller
in a NEMA 3R Enclosure
60 600 max. 5
10
20
30
120
240
480
600
7863 Three Pole AC Manual Motor Controller 60 600 max Same as 7863R
NEMA 3R ENCLOSURE
7860 NEMA 3R Enclosure for 7862 & 7863
Features
• Oversize silver contacts for long life and
better heat dissipation.
• Single phase switches are side wired with
#14 AWG - #10 AWG copper or copper-
clad conductors.
• Shallow design for ease of installation.
• 2-3/4" hubs (HP30EX).
CATALOG NUMBER DESCRIPTION
RATING
A. VAC HP VAC
DOUBLE POLE, SINGLE PHASE
PS20AC2HP Double Pole, Single Phase AC Manual
Motor Starting Switch
(No overload protection)
20 120/277 1
2
120
240
PS30AC2HP Double Pole, Single Phase AC
Manual Motor Starting Switch
(No overload protection)
30 120/277 1
2
120
240
HP30EX PS30AC2HP in a NEMA 7 & 9
Enclosure for Hazardous Locations
Class I - Groups C, D;
Class II - Groups E, F, G
Same as
PS30AC2HP
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-12
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Manual Controllers 15, 20 & 30A, 120/277VAC – Maintained Contact
15, 20 & 30A, 120/277VAC – Momentary Contact
Applications
For ON-OFF control of motors on small machine tools, pumps, fans and air conditioning
equipment that require heavy-duty AC Double Throw Center OFF controls.
Locking
1.469"
Fiber
Insulator
1.500"
2.375"
3.281"
2.187"
Features
• Oversized silver alloy contacts for long
life and better heat dissipation.
• Side wired terminals accept #14 AWG –
#10 AWG copper or copper-clad
conductors.
• Fiber terminal insulation barriers
standard.
• Can be mounted in standard device boxes
or in NEMA 1 sheet steel enclosures.
• Bodies, covers and toggles molded of
durable nylon.
• Single Pole-Double Throw and Double
Pole-Double Throw.
• Locking Switches supplied with one
1498 NT key.
• Normally open.
Maintained and
Momentary Contact
1.469"
1.500"
2.375"
3.281"
2.187"
Fiber
Insulator
CATALOG
NUMBER DESCRIPTION
LOCK SWITCH REPLACEMENT KEYS
1498 Fits switches manufactured before 1976.
1498NT Fits switches manufactured between
1976-present.
1221 SERIES
15 Amp 1/2 Horsepower at 120VAC
2 Horsepower at 240VAC
20 Amp 1 Horsepower at 120VAC
2 Horsepower at 240VAC
30 Amp 2 Horsepower at 120VAC
2 Horsepower at 240VAC
1250 SERIES
15 Amp 1/2 Horsepower at 120VAC
2 Horsepower at 240VAC
20 Amp 1 Horsepower at 120VAC
2 Horsepower at 240VAC
30 Amp 2 Horsepower at 120VAC
2 Horsepower at 240VAC
HP Conversion Table
CATALOG NUMBER RATING
S.P.D.T. D.P.D.T. A. VAC COLOR
MAINTAINED CONTACT THREE POSITION – TWO CIRCUIT, CENTER OFF
1221I 1222I 15 120/277 Ivory
1221W 1222W 15 120/277 White
1221 1222 15 120/277 Brown
1221LA 15 120/277 Light Almond
1221L 1222L 15 120/277 Locking
1225I 1226I 20 120/277 Ivory
1225W 1226W 20 120/277 White
1225 1226 20 120/277 Brown
1225GRY 20 120/277 Gray
1225LA 20 120/277 Light Almond
1225L 1226L 20 120/277 Locking
1227I 1228I 30 120/277 Ivory
1227 1228 30 120/277 Brown
MAINTAINED CONTACT EITHER DIRECTION TWO POSITION, NO CENTER OFF
1275 1276 30 120/277 Brown
MOMENTARY CONTACT EITHER DIRECTION THREE POSITION, CENTER OFF
1250I 15 120/277 Ivory
1250W 15 120/277 White
1250 15 120/277 Brown
1250GRY 15 120/277 Gray
1250RED 15 120/277 Red
1250L 15 120/277 Locking
1251I 20 120/277 Ivory
1251W 20 120/277 White
1251 20 120/277 Brown
1251GRY 20 120/277 Gray
1251RED 20 120/277 Red
1251LA 20 120/277 Light Almond
1251L 20 120/277 Locking
1256I 30 120/277 Ivory
1256W 30 120/277 White
1255 1256 30 120/277 Brown
1255L 1256L 30 120/277 Locking
WWW.LEGRAND.US/PASSANDSEYMOUR
A-13
SWITCHES
PASS & SEYMOUR
DE
F
G
SWITCHES
PlugTail™ Specification Grade Decorator Switches
PT2626W
A. Auto-ground clip assures positive ground.
B. Heavy-gauge steel strap for superior strength.
C. No exposed terminals create a finger-safe application
before, during, and after installation.
D. Built-in connector features large brass terminal
blades to ensure consistent, reliable electrical
connections.
E. Large brass contacts snugly terminate on device blade
terminals. Audible snapping latch assures connection,
allows release.
F. Polycarbonate connector housing secures
terminations and conductors in a UL Listed,
finger-safe housing.
G. WAGO push-in connectors are available to
further speed up installation.
Shallow design for easier installation.
A
B
C
PT2626W
PlugTail™ Decorator Switches
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-14
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
PlugTail™ Specification Grade Decorator Switches 15 & 20A, 120/277VAC
PTJ
Available in 347VAC Canadian Catalog Numbers, add 347 to the end of the Catalog Number.
Example: PT2601W347. All Canadian Products have Combination Slotted/Robertson Head Brass Screws.
All PTS Connectors are 120/277VAC
PTS6STR3 PTS6STR4
1.125"
6.375"
PTS6STR3BP PTS6STR4BP
1.125"
6.375"
PT2626W
3.281"
1.2"
2.6"
1.6"
CATALOG NUMBER WIRE TYPE WIRE LENGTH WIRE COLORS
PLUGTAIL CONNECTORS FOR SINGLE POLE SWITCHES
PTS6STR3 3 Wire Stranded 6" Green, Black, Black
PTS6SOL3 3 Wire Solid 6" Green, Black, Black
PTS6STR3277 3 Wire Stranded 6" Green, Brown, Brown
PTS6SOL3277 3 Wire Solid 6" Green, Brown, Brown
PLUGTAIL CONNECTORS FOR THREEWAY SWITCHES
PTS6STR4 4 Wire Stranded 6" Green, Red, Red, Black
PTS6SOL4 4 Wire Solid 6" Green, Red, Red, Black
PTS6STR4277 4 Wire Stranded 6" Green, Brown, Yellow, Yellow
PTS6SOL4277 4 Wire Solid 6" Green, Brown, Yellow, Yellow
PLUGTAIL CONNECTORS FOR SINGLE POLE SWITCHES WITH WAGO CONNECTORS
PTS6STR3BP 3 Wire Stranded 6" Green, Black, Black
PTS6SOL3BP 3 Wire Solid 6" Green, Black, Black
PTS6STR3277BP 3 Wire Stranded 6" Green, Brown, Brown
PTS6SOL3277BP 3 Wire Solid 6" Green, Brown, Brown
PLUGTAIL CONNECTORS FOR THREEWAY SWITCHES WITH WAGO CONNECTORS
PTS6STR4BP 4 Wire Stranded 6" Green, Red, Red, Black
PTS6SOL4BP 4 Wire Solid 6" Green, Red, Red, Black
PTS6STR4277BP 4 Wire Stranded 6" Green, Brown, Yellow, Yellow
PTS6SOL4277BP 4 Wire Solid 6" Green, Brown, Yellow, Yellow
CATALOG NUMBER RATING
COLOR
3rd PARTY COMPLIANCE
UL20
FSUL
WS896 C22.2 111SINGLE POLE THREE-WAY A. VAC
DECORATOR SWITCHES
PT2601I PT2603I 15 120/277 Ivory • • •
PT2601W PT2603W 15 120/277 White • • •
PT2601 PT2603 15 120/277 Brown • • •
PT2601GRY PT2603GRY 15 120/277 Gray • • •
PT2601RED PT2603RED 15 120/277 Red • • •
PT2601BK PT2603BK 15 120/277 Black • • •
PT2601LA PT2603LA 15 120/277 Light Almond • • •
PT2621I PT2623I 20 120/277 Ivory • • •
PT2621W PT2623W 20 120/277 White • • •
PT2621 PT2623 20 120/277 Brown • • •
PT2621GRY PT2623GRY 20 120/277 Gray • • •
PT2621RED PT2623RED 20 120/277 Red • • •
PT2621BK PT2623BK 20 120/277 Black • • •
PT2621LA PT2623LA 20 120/277 Light Almond • • •
ILLUMINATED DECORATOR SWITCHES
PT2625I PT2626I 20 120/277 Ivory • • •
PT2625W PT2626W 20 120/277 White • • •
PT2625BK PT2626BK 20 120/277 Black • • •
PT2625LA PT2626LA 20 120/277 Light Almond • • •
CATALOG NUMBER DESCRIPTION
PLUGTAIL JUMPER
PTJ PlugTail Cover for Rough In
PTJ5 PlugTail Cover for Rough In, 5-pack
WWW.LEGRAND.US/PASSANDSEYMOUR
A-15
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
TradeMaster® Grounding Toggle Switches 15A, 120VAC
663IG
1.090"
3.281"
4.195"
1.25"
NAFTA-Compliant Switches are ideal for use on projects subject to the provisions of the Buy American Act.
* Available in bulk packs of 120. Add “U” to end of Catalog Number. Example: 660WGU.
** Available in bulk packs of 90. Add “U” to end of Catalog Number. Example: 663WGU.
Features
• Thermoplastic toggle and frame.
• Extra-long strap.
• High-impact resistant
construction.
• Side wire #12 and #14 AWG;
push wire #14 AWG.
• Tri-drive ground, terminal and
mounting screws.
• Easy-access green hex head
ground screw.
• Smooth, quiet toggle action.
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
UL20
FSUL
WS896 C22.2 111
A. VAC
SINGLE POLE TOGGLE SWITCHES GROUNDING
660IG* 15 120 Ivory • •
660WG* 15 120 White • •
660G* 15 120 Brown • •
660BKG 15 120 Black • •
660LAG* 15 120 Light Almond • •
SINGLE POLE TOGGLE SWITCHES GROUNDING WITHOUT EARS
660IGMH 15 120 Ivory • •
660WGMH 15 120 White • •
660GMH 15 120 Brown • •
NAFTACOMPLIANT SINGLE POLE TOGGLE SWITCHES GROUNDING
660NAIG 15 120 Ivory •
660NAWG 15 120 White •
660NAG 15 120 Brown •
660NABKG 15 120 Black •
660NALAG 15 120 Light Almond •
THREEWAY TOGGLE SWITCHES GROUNDING
663IG** 15 120 Ivory • •
663WG** 15 120 White • •
663G** 15 120 Brown • •
663BKG 15 120 Black • •
663LAG** 15 120 Light Almond • •
NAFTACOMPLIANT THREEWAY TOGGLE SWITCHES GROUNDING
663IG 15 120 Ivory •
663WG 15 120 White •
663G 15 120 Brown •
663BKG 15 120 Black •
663LAG 15 120 Light Almond •
FOURWAY TOGGLE SWITCHES GROUNDING
664IG 15 120 Ivory • •
664WG 15 120 White • •
664G 15 120 Brown • •
664BKG 15 120 Black • •
664LAG 15 120 Light Almond • •
664ICN 15 120 Ivory • •
664WCN 15 120 White • •
NAFTACOMPLIANT FOURWAY TOGGLE SWITCHES GROUNDING
664IG 15 120 Ivory •
664WG 15 120 White •
664G 15 120 Brown •
664BKG 15 120 Black •
664LAG 15 120 Light Almond •
Denotes Canadian catalog number. All Canadian products have Combination Slotted/Robertson
Head Brass Screws.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-16
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
TradeMaster® Grounding Illuminated & Self-Grounding Toggle Switches 15A, 120VAC
663SIG660ISLG
1.090"
3.281"
4.195"
1.25"
1.090"
3.281"
4.195"
1.25"
Features
• Thermoplastic toggle and frame.
• Extra-long strap.
• High-impact resistant construction.
• Side wire #12 and #14 AWG.
• Push wire #14 AWG.
• Tri-drive ground, terminal and
mounting screws.
• Easy-access green hex head
ground screw.
• Smooth, quiet toggle action.
• Self-grounding models provide automatic
ground clip.
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
UL20 C22.2 111A. VAC
SINGLE POLE ILLUMINATED TOGGLE SWITCHES GROUNDING LIGHTED WHEN OFF
660ISLG 15 120 Ivory • •
660WSLG 15 120 White • •
660LASLG 15 120 Light Almond • •
SELFGROUNDING SINGLE POLE TOGGLE SWITCHES
660SIG 15 120 Ivory • •
660SWG 15 120 White • •
660SG 15 120 Brown • •
660SLAG 15 120 Light Almond • •
THREEWAY ILLUMINATED TOGGLE SWITCHES GROUNDING LIGHTED WHEN OFF
663ISLG 15 120 Ivory • •
663WSLG 15 120 White • •
663LASLG 15 120 Light Almond • •
SELFGROUNDING THREEWAY TOGGLE SWITCHES
663SIG 15 120 Ivory • •
663SWG 15 120 White • •
663SG 15 120 Brown • •
663SLAG 15 120 Light Almond • •
SELFGROUNDING FOURWAY TOGGLE SWITCHES
664SIG 15 120 Ivory • •
664SWG 15 120 White • •
664SG 15 120 Brown • •
664SLAG 15 120 Light Almond • •
WWW.LEGRAND.US/PASSANDSEYMOUR
A-17
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Combination Switches 15 & 20A, 120/277VAC; 15 & 20A, 120/125VAC; 15A, 120VAC
NEMA
5-20R
NEMA
5-15R
Combination Switch
& Tamper-Resistant
Receptacle
3.81"
4.06"
1.15"
3.28"
3.69"
1.32"
Combination
Switches
3.28"
.94"
2.64"
1.32"
Combination
Switch & Pilot Light
3.81"
4.06"
1.15"
3.28"
3.69"
1.32"
Features
• Easily accessible break-off for separate
or common feed.
• Long-life red neon lamp in pilot light
rated 1/25 Watt, 125V.
• Side wire #12 and #14 AWG.
• Two devices fit into the space of one.
• Grounding combination devices meet NEC
Requirements.
• Tamper-resistant version features dual
mechanical shutter system to help
prevent insertion of foreign objects.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL20 UL498A. VAC
SINGLE POLE SWITCH & TAMPERRESISTANT SINGLE RECEPTACLE SIDE WIRE, GROUNDING
691TRI 15 120/125 Ivory 5-15R • •
691TRW 15 120/125 White 5-15R • •
691TR 15 120/125 Brown 5-15R • •
691TRLA 15 120/125 Light Almond 5-15R • •
671TRI 20 120/125 Ivory 5-20R • •
671TRW 20 120/125 White 5-20R • •
671TR 20 120/125 Brown 5-20R • •
671TRLA 20 120/125 Light Almond 5-20R • •
TWO SINGLE POLE SWITCHES SIDE WIRE, GROUNDING
690IG 15 120/277 Ivory •
690WG 15 120/277 White •
690G 15 120/277 Brown •
690LAG 15 120/277 Light Almond •
670IG 20 120/277 Ivory •
670WG 20 120/277 White •
670G 20 120/277 Brown •
670LAG 20 120/277 Light Almond •
SINGLE POLE & THREEWAY SWITCH SIDE WIRE, GROUNDING
696IG 15 120/277 Ivory •
696WG 15 120/277 White •
696G 15 120/277 Brown •
696LAG 15 120/277 Light Almond •
TWO THREEWAY SWITCHES SIDE WIRE, GROUNDING
693IG 15 120/277 Ivory •
693WG 15 120/277 White •
693G 15 120/277 Brown •
693LAG 15 120/277 Light Almond •
SINGLE POLE SWITCH & SINGLE RECEPTACLE SIDE WIRE, GROUNDING
691I 15 120/125 Ivory 5-15R • •
691W 15 120/125 White 5-15R • •
691 15 120/125 Brown 5-15R • •
691LA 15 120/125 Light Almond 5-15R • •
671I 20 120/125 Ivory 5-20R • •
671W 20 120/125 White 5-20R • •
671 20 120/125 Brown 5-20R • •
671LA 20 120/125 Light Almond 5-20R • •
SINGLE POLE SWITCH & PILOT LIGHT SIDE WIRE, GROUNDING
692IG 15 120 Ivory •
692WG 15 120 White •
692G 15 120 Brown •
692LAG 15 120 Light Almond •
THREEWAY SWITCH & PILOT LIGHT SIDE WIRE, GROUNDING
695IG 15 120 Ivory •
695WG 15 120 White •
695G 15 120 Brown •
695LAG 15 120 Light Almond •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-18
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Combination Switches 15 & 20A, 120/277VAC; 15A, 120/125VAC; 15A, 120VAC
NEMA
5-15R
Decorator
Combination
3.812"
4.121"
1.20"
3.268"
3.688"
1.313"
Combination
Switches
3.28"
.94"
2.64"
1.32"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL20 UL498
A. VAC
DECORATOR TWO SINGLE POLE SWITCHES SIDE WIRE GROUNDING
680IG 15 120/277 Ivory •
680WG 15 120/277 White •
680LAG 15 120/277 Light Almond •
DECORATOR SINGLE POLE SWITCH & SINGLE RECEPTACLE SIDE WIRE GROUNDING
681I 15 120/125 Ivory 5-15R • •
681W 15 120/125 White 5-15R • •
681LA 15 120/125 Light Almond 5-15R • •
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
UL20 UL498
A. VAC
TWO SINGLE POLE SWITCHES SIDE WIRE NONGROUNDING
690I 15 120/277 Ivory •
690W 15 120/277 White •
690 15 120/277 Brown •
670I 20 120/277 Ivory •
670W 20 120/277 White •
670 20 120/277 Brown •
SINGLE POLE & THREEWAY SWITCH SIDE WIRE NONGROUNDING
696I 15 120/277 Ivory •
696W 15 120/277 White •
696 15 120/277 Brown •
696LA 15 120/277 Light Almond •
TWO THREEWAY SWITCHES SIDE WIRE NONGROUNDING
693I 15 120/277 Ivory •
693W 15 120/277 White •
693 15 120/277 Brown •
693LA 15 120/277 Light Almond •
SINGLE POLE SWITCH & PILOT LIGHT SIDE WIRE NONGROUNDING
692I 15 120 Ivory • •
692W 15 120 White • •
692 15 120 Brown • •
692LA 15 120 Light Almond • •
THREEWAY SWITCH & PILOT LIGHT SIDE WIRE NONGROUNDING
695I 15 120 Ivory •
695W 15 120 White •
695 15 120 Brown •
695LA 15 120 Light Almond •
DECORATOR TWO SINGLE POLE SWITCHES SIDE WIRE NONGROUNDING
680I 15 120/277 Ivory •
680W 15 120/277 White •
680LA 15 120/277 Light Almond •
Non-Grounding
WWW.LEGRAND.US/PASSANDSEYMOUR
A-19
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Specification Grade Decorator Switches 15 & 20A, 120/277 & 347VAC; 20A, 120VAC
For Bulk Packaging Solutions consult factory.
2601
2.620"
4.200"
1.060"
3.281"
3.812"
1.300"
2625, 2626, 2629
2.620"
4.200"
1.060"
3.281"
3.812"
1.300"
2601347
2.620"
4.200"
1.060"
3.531"
4.063"
1.300"
Denotes Canadian catalog number. All Canadian products have Combination Slotted/Robertson Head Brass Screws.
Features
• Impact-resistant polycarbonate back body
and frame.
• Cushioned thermoplastic paddle assures
smooth, quiet long-term operation.
• Unique single rocking butterfly
contact provides long-term consistent
performance with significantly fewer
moving parts.
• Internal screw-pressure-plate back and
side wire capability for easy installation
with #14 - #10 AWG stranded or solid
copper/copper clad wire. Terminals made
of high conductivity brass and serrated
for maximum wire gripping.
• Silver alloy contacts integrally formed
to the butterfly actuator assures reliable
performance.
• Integral auto-ground clip for posivitve
ground to metal boxes.
• Tri-drive ground, terminal and mounting
screws. All terminal screws backed out,
ready-to-install.
CATALOG NUMBER RATING
COLOR
3rd PARTY COMPLIANCE
UL20 C22.2 111SINGLE POLE DOUBLE POLE THREE-WAY FOUR-WAY A. VAC
SPECIFICATION GRADE DECORATOR SWITCHES BACK & SIDE WIRE
2601I 2603I 2604I 15 120/277 Ivory • •
2601W 2603W 2604W 15 120/277 White • •
2601GRY 2603GRY 15 120/277 Gray • •
2601BK 2603BK 15 120/277 Black • •
2601LA 2603LA 2604LA 15 120/277 Light Almond • •
2621I 2622I 2623I 2624I 20 120/277 Ivory • •
2621W 2622W 2623W 2624W 20 120/277 White • •
2621 2622 2623 2624 20 120/277 Brown • •
2621GRY 2622GRY 2623GRY 2624GRY 20 120/277 Gray • •
2621BK 2622BK 2623BK 2624BK 20 120/277 Black • •
2621RED 2623RED 2624RED 20 120/277 Red • •
2621LA 2622LA 2623LA 2624LA 20 120/277 Light Almond • •
ILLUMINATED DECORATOR SWITCHES LIGHTED WHEN OFF BACK & SIDE WIRE
2625I 2626I 2628I 20 120 Ivory • •
2625W 2626W 2628W 20 120 White • •
2625 20 120 Brown • •
2625RED 20 120 Red • •
2625LA 2626LA 2628LA 20 120 Light Almond • •
PILOT LIGHTED DECORATOR SWITCHES LIGHTED WHEN ON BACK & SIDE WIRE
2629I 20 120 Ivory • •
2629W 20 120 White • •
2629LA 20 120 Light Almond • •
CATALOG NUMBER RATING
COLOR
3rd PARTY COMPLIANCE
UL20 C22.2 111SINGLE POLE THREE-WAY FOUR-WAY A. VAC
SPECIFICATION GRADE DECORATOR SWITCHES BACK & SIDE WIRE
2601347I 2603347I 15 347 Ivory • •
2601347W 2603347W 15 347 White • •
2601347GRY 15 347 Gray • •
2601347LA 15 347 Light Almond • •
2621347I 2623347I 2624347I 20 347 Ivory • •
2621347W 2623347W 2624347W 20 347 White • •
2621347GRY 2623347GRY 20 347 Gray • •
2621347BK 2623347BK 20 347 Black • •
2621347RED 2623347RED 20 347 Red • •
2621347LA 2623347LA 2624347LA 20 347 Light Almond • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-20
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
TradeMaster® Decorator Switches 15A, 120/277VAC
TM873LA
2.620"
1.43"
.99"
1.27"
4.19"
TM874LA
2.620"
1.43"
.99"
1.27"
4.19"
TM870LA
2.620"
1.43"
.99"
1.27"
4.19"
Features
• Designer-style satin-finish rocker.
• High-impact resistant
thermoplastic construction.
• External screw-pressure-plate
back and side wired. Accepts
#12 and #14 AWG.
• Push wire #14 AWG.
• Narrow back body leaves more
room for wires in the box.
• Extra-long, through-body strap
eliminates floating installations
and imperfect applications.
• Smooth, quiet paddle action.
• Easy-access green hex head
ground screw.
• Tri-drive ground, terminal and
mounting screws.
• ON-OFF switches conform to
NEC 430-104 requirements for
kitchen disposal units.
NAFTA-Compliant Switches are ideal for use
on projects subject to the provisions of the
Buy American Act.
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
UL20 C22.2 111A. V.
SINGLE POLE DECORATOR SWITCHES GROUNDING
TM870I 15 120/277 Ivory • •
TM870W 15 120/277 White • •
TM870 15 120/277 Brown • •
TM870GRY 15 120/277 Gray • •
TM870BK 15 120/277 Black • •
TM870LA 15 120/277 Light Almond • •
TM870NICC10 15 120/277 Nickel • •
TM870TI 15 120/277 Titanium • •
NAFTACOMPLIANT SINGLE POLE DECORATOR SWITCHES GROUNDING
TM870NAI 15 120 Ivory •
TM870NAW 15 120 White •
TM870NA 15 120 Brown •
TM870NAGRY 15 120 Gray •
TM870NABK 15 120 Black •
TM870NALA 15 120 Light Almond •
TM870ABCC10 15 120 Antique Brass •
TM870DBCC10 15 120 Dark Bronze •
THREEWAY DECORATOR SWITCHES GROUNDING
TM873I 15 120/277 Ivory • •
TM873W 15 120/277 White • •
TM873 15 120/277 Brown • •
TM873GRY 15 120/277 Gray • •
TM873BK 15 120/277 Black • •
TM873LA 15 120/277 Light Almond • •
TM873NICC10 15 120/277 Nickel • •
TM873TI 15 120/277 Titanium • •
NAFTACOMPLIANT THREEWAY DECORATOR SWITCHES GROUNDING
TM873NAI 15 120 Ivory •
TM873NAW 15 120 White •
TM873NA 15 120 Brown •
TM873NAGRY 15 120 Gray •
TM873NABK 15 120 Black •
TM873NALA 15 120 Light Almond •
TM873ABCC10 15 120 Antique Brass •
TM873DBCC10 15 120 Dark Bronze •
FOURWAY DECORATOR SWITCHES GROUNDING
TM874I 15 120/277 Ivory • •
TM874W 15 120/277 White • •
TM874 15 120/277 Brown • •
TM874BK 15 120/277 Black • •
TM874LA 15 120/277 Light Almond • •
TM874NICC6 15 120/277 Nickel • •
TM874TI 15 120/277 Titanium • •
NAFTACOMPLIANT FOURWAY DECORATOR SWITCHES GROUNDING
TM874I 15 120 Ivory •
TM874W 15 120 White •
TM874 15 120 Brown •
TM874BK 15 120 Black •
TM874LA 15 120 Light Almond •
TM874ABCC10 15 120 Antique Brass •
TM874DBCC10 15 120 Dark Bronze •
WWW.LEGRAND.US/PASSANDSEYMOUR
A-21
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
TradeMaster® Decorator Illuminated & Self-Grounding Switches 15A, 120 & 120/277VAC
TM870SLA
2.620"
1.43"
.99"
1.27"
4.19"
TM870LASL
2.620"
1.43"
.99"
1.27"
4.19"
Features
• Designer-style satin-finish rocker.
• High-impact resistant thermoplastic
construction.
• External screw-pressure-plate back and
side wired. Accepts #12 and #14 AWG.
• Push wire #14 AWG.
• Narrow back body leaves more room for
wires in the box.
• Extra-long, through-body strap eliminates
floating installations and imperfect
applications.
• Smooth, quiet paddle action.
• Easy-access green hex head ground
screw.
• Tri-drive ground, terminal and mounting
screws.
• Self-grounding models provide automatic
ground clip.
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
UL20 C22.2 111
A. VAC
SINGLE POLE ILLUMINATED DECORATOR SWITCHES GROUNDING LIGHTED WHEN OFF
TM870ISL 15 120 Ivory • •
TM870WSL 15 120 White • •
TM870LASL 15 120 Light Almond • •
SELFGROUNDING SINGLE POLE DECORATOR SWITCHES
TM870SI 15 120/277 Ivory • •
TM870SW 15 120/277 White • •
TM870S 15 120/277 Brown • •
TM870SBK 15 120/277 Black • •
TM870SLA 15 120/277 Light Almond • •
THREEWAY ILLUMINATED DECORATOR SWITCHES GROUNDING LIGHTED WHEN OFF
TM873ISL 15 120 Ivory • •
TM873WSL 15 120 White • •
TM873LASL 15 120 Light Almond • •
SELFGROUNDING THREEWAY DECORATOR SWITCHES
TM873SI 15 120/277 Ivory • •
TM873SW 15 120/277 White • •
TM873S 15 120/277 Brown • •
TM873SBK 15 120/277 Black • •
TM873SLA 15 120/277 Light Almond • •
FOURWAY ILLUMINATED DECORATOR SWITCHES GROUNDING LIGHTED WHEN OFF
TM874ISL 15 120 Ivory • •
TM874WSL 15 120 White • •
TM874LASL 15 120 Light Almond • •
SELFGROUNDING FOURWAY DECORATOR SWITCHES
TM874SI 15 120/277 Ivory • •
TM874SW 15 120/277 White • •
TM874S 15 120/277 Brown • •
TM874SBK 15 120/277 Black • •
TM874SLA 15 120/277 Light Almond • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-22
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Decorator & Specification Grade Momentary & Maintained Contact Switches
15A, 120 & 120/277VAC
TM870STMLACC6
2.620"
1.43"
.99"
1.27"
4.19"
Maintained
Contact
1.29"
1.59"
2.60"
3.281"
3.812"
Momentary
Contact
1.29"
1.59"
2.60"
3.281"
3.812"
Features
• Designer-style satin-finish rocker.
• High-impact resistant thermoplastic
construction.
• External screw-pressure-plate back and
side wired. Accepts #12 and #14 AWG.
• Push wire #14 AWG.
• Narrow back body leaves more room for
wires in the box.
• Extra-long, through-body strap eliminates
floating installations and imperfect
applications.
•Smooth, quiet paddle action.
• Easy-access green hex head ground
screw.
• Tri-drive ground, terminal and
mounting screws.
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
UL20 C22.2 111A. VAC
SINGLE POLE DECORATOR MOMENTARY CONTACT SWITCHES
TM870STMWCC6 15 120/277 White • •
TM870STMBKCC6 15 120/277 Black • •
M870STMLACC6 15 120/277 Light Almond • •
Features
• Unique "Up/Down" switches match the
look and feel of standard decorator
switches.
• Impact-resistant face and body.
• Side and external screw-pressure-plate
back wire accepts #12 and #14 AWG.
• All screws are tri-drive.
• Full wraparound heavy-gauge steel strap
is plated for corrosion resistance and
features lock-in tabs.
• Patent-pending split circuit tab – easily
accessible, and can be reinstalled without
a tool.
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
cULus UL20 UL508A. VAC
SPECIFICATION GRADE DOUBLE THROW MOMENTARY CONTACT SWITCHES
TM811DTMOI 15 120 Ivory • •
TM811DTMOW 15 120 White • •
TM811DTMOBK 15 120 Black • •
TM811DTMOLA 15 120 Light Almond • •
SPECIFICATION GRADE DOUBLE THROW MAINTAINED CONTACT SWITCHES
TM811DTMAI 15 120 Ivory • •
TM811DTMAW 15 120 White • •
TM811DTMABK 15 120 Black • •
TM811DTMALA 15 120 Light Almond • •
WWW.LEGRAND.US/PASSANDSEYMOUR
A-23
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Specification Grade Decorator Combination Switches & Shim-Lock 20A, 277VAC
Shim-Lock
.310"
15 & 20 Amp
1.29"
1.59"
2.60"
3.281"
3.812"
Features
• Unique "Up/Down" switches match the
look and feel of standard decorator
switches.
• Impact-resistant face and body.
• Side and external screw pressure plate
back wire accepts #12 and #14 AWG.
• All screws are tri-drive.
• Full wraparound heavy-gauge steel strap
is plated for corrosion resistance and
features lock-in tabs.
• Patent-pending split circuit tab – easily
accessible, and can be reinstalled without
a tool.
• Patent-pending snap-in light module
(sold separately) transforms a
combination switch into an illuminated
switch.
• Identification modules (sold separately)
identifies each switch – light, fan heat
lamp. See Page A-24 for details.
*For use with PS81120 and PS811120 only.
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
cULus UL20A. VAC
TWO SINGLE POLE SWITCHES
PS81120I 20 277 Ivory • •
PS81120W 20 277 White • •
PS81120LA 20 277 Light Almond • •
THREE SINGLE POLE SWITCHES
PS811120I 20 277 Ivory • •
PS811120W 20 277 White • •
PS811120LA 20 277 Light Almond • •
SNAPIN LIGHT MODULE*
PS8LM — — Clear
Features
• One Shim-Lock provides a device adjust-
ment depth range between 1/8" and 3/4".
• An inexpensive and quick fix for floating
installations.
• Provides a perfect flush mount every time
regardless of the wallboard, til or panel
condition.
• Made of steel and finished with clear zinc
chromate plating.
CATALOG NUMBER DIMENSIONS QTY. PER PACKAGE
SHIMLOCK
SHL20 Length: .310", Screw Opening: #6 20
SHL100 Length: .310", Screw Opening: #6 100
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-24
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
TradeMaster® Decorator Combination Switches
Adding a Snap-In
Light Module
TM8113WCC
H
I
E
J
F
G
B
D
A
C
TM8IDWCC
TM8LMCC
A. Unique “Up/Down” switches match the look and feel of
standard Decorator switches.
B. Easy-to-use oversized main switch for primary load.
C. Patented Snap-In Light Module (sold separately)
transforms a combination switch into an illuminated
switch in seconds.
D. Impact-resistant face and body.
E. Ground screw position under the end of the strap
minimizes the risk of contact.
F. Full wraparound metal strap, commercial grade with
lock-in tabs.
G. All screws are tri-drive.
H. Patented split circuit tab – easily accessible, and can
be reinstalled without a tool.
I. External screw-pressure-plate back and side wired.
Accepts #12 and #14 AWG.
J. Fully rounded back body protects wires from being
damaged by sharp edges.
Identification modules (sold separately) identifies each
switch — light, fan, heat lamp.
Shown with Snap-In Light Module TM8LMCC.
TM8113WCC
PlugTail™ Decorator Combination Switches
Features
• Module simply snaps-in for easy installation.
• Can be installed with the following devices:
TM811, TM813, TM833, TM818, TM838, TM8111,
TM8113, TM81111, TM8118, and the LS Series
of Dimmers & Fan Speed Controls (see Pages
L-14 through L-16).
Snap-In Light Module:
• Lights when OFF.
• Uses energy-efficient 1/4 watt LED light.
• LED light will not generate heat and will last
on average 47 years.
CATALOG NUMBER
RATING
COLOR
3rd PARTY
COMPLIANCE
cULus
A. VAC
SNAPIN LIGHT MODULE
TM8LMCC 15 120/125 Clear •
IDENTIFICATION MODULES
TM8IDICC — — Ivory
TM8IDWCC — — White
TM8IDCC — — Brown
TM8IDBKCC — — Black
TM8IDLACC — — Light Almond
WWW.LEGRAND.US/PASSANDSEYMOUR
A-25
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
TradeMaster® Decorator Combination Switches 15A, 120VAC
TM811WCC TM8111WCC TM81111WCC
3.28"
3.81"
2.60"
1.29"
1.59"
3.28"
3.81"
2.60"
1.29"
1.59"
3.28"
3.81"
2.60"
1.29"
1.59"
Features
• Impact-resistant face and body.
• Fully rounded back body protects wires
from being damaged by sharp edges.
• Clear identification of circuits.
• External screw-pressure-plate back and
side wired. Accepts #12 and #14 AWG.
• Ground screw position under the end of
the strap minimizes the risk of contact.
• Full wraparound metal strap with
lock-in tabs.
• Patented split circuit tab – easily
accessible, and can be reinstalled
without a tool.
• Unique "Up/Down" switches match the
look and feel of standard Decorator
switches.
• Largest breadth of 15 amp offering.
• All screws are tri-drive.
• Tamper-resistant version features dual
mechanical shutter system to help
prevent insertion of foreign objects
(see Page A-26).
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
UL20 cULusA. VAC
TWO SINGLE POLE SWITCHES
TM811ICC 15 120 Ivory • •
TM811WCC 15 120 White • •
TM811CC 15 120 Brown • •
TM811BKCC 15 120 Black • •
TM811LACC 15 120 Light Almond • •
SINGLE POLE SWITCH & THREEWAY SWITCH
TM813ICC 15 120 Ivory • •
TM813WCC 15 120 White • •
TM813CC 15 120 Brown • •
TM813BKCC 15 120 Black • •
TM813LACC 15 120 Light Almond • •
TWO THREEWAY SWITCHES
TM833ICC 15 120 Ivory • •
TM833WCC 15 120 White • •
TM833CC 15 120 Brown • •
TM833BKCC 15 120 Black • •
TM833LACC 15 120 Light Almond • •
THREE SINGLE POLE SWITCHES
TM8111ICC 15 120 Ivory • •
TM8111WCC 15 120 White • •
TM8111CC 15 120 Brown • •
TM8111BKCC 15 120 Black • •
TM8111LACC 15 120 Light Almond • •
TWO SINGLE POLE SWITCHES & THREEWAY SWITCH
TM8113WCC 15 120 White • •
TM8113BKCC 15 120 Black • •
FOUR SINGLE POLE SWITCHES
TM81111ICC 15 120 Ivory • •
TM81111WCC 15 120 White • •
TM81111CC 15 120 Brown • •
TM81111BKCC 15 120 Black • •
TM81111LACC 15 120 Light Almond • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-26
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
TradeMaster® Tamper-Resistant Decorator Combination Switches 15A, 120/125VAC
TM838TRLACC
TM818TRWCC
3.28"
3.81"
2.60"
1.29"
1.59"
3.28"
3.81"
2.60"
1.29"
1.59"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL20 UL498 cULusA. VAC
TAMPERRESISTANT SINGLE POLE SWITCH & SINGLE RECEPTACLE
TM818TRICC 15 120/125 Ivory 5-15R • • •
TM818TRWCC 15 120/125 White 5-15R • • •
TM818TRCC 15 120/125 Brown 5-15R • • •
TM818TRBKCC 15 120/125 Black 5-15R • • •
TM818TRLACC 15 120/125 Light Almond 5-15R • • •
TAMPERRESISTANT SINGLE POLE SWITCH & SINGLE RECEPTACLE WITH PILOT LIGHT
TM818TRPLICC 15 120/125 Ivory 5-15R • • •
TM818TRPLWCC 15 120/125 White 5-15R • • •
TM818TRPLBKCC 15 120/125 Black 5-15R • • •
TM818TRPLLACC 15 120/125 Light Almond 5-15R • • •
TAMPERRESISTANT THREEWAY SWITCH & SINGLE RECEPTACLE
TM838TRICC 15 120/125 Ivory 5-15R • • •
TM838TRWCC 15 120/125 White 5-15R • • •
TM838TRCC 15 120/125 Brown 5-15R • • •
TM838TRBKCC 15 120/125 Black 5-15R • • •
TM838TRLACC 15 120/125 Light Almond 5-15R • • •
TAMPERRESISTANT TWO SINGLE POLE SWITCHES & SINGLE RECEPTACLE
TM8118TRICC 15 120/125 Ivory 5-15R • • •
TM8118TRWCC 15 120/125 White 5-15R • • •
TM8118TRCC 15 120/125 Brown 5-15R • • •
TM8118TRBKCC 15 120/125 Black 5-15R • • •
TM8118TRLACC 15 120/125 Light Almond 5-15R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
A-27
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Decorator Combination Tamper-Resistant Switch/GFCI Receptacles 15A, 125VAC
NEMA
5-15R
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Up-down switching.
• 15 Amp single pole switch rated for
1/2 HP motor loads – perfect for bath or
kitchen vents and garbage disposals.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Two back wire holes per terminal.
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Ground screw has a back wire clamp for
easy installation.
• 1/4" thinner than competitors’ GFCIs;
leaves more room for wires in the box.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
CATALOG NUMBER
SWITCH
RATING
RECEPTACLE
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
UL20
C22.2 No. 111
A. VAC A. VAC
COMBINATION TAMPERRESISTANT SINGLE POLE SWITCH/GFCI
1595SWTTRICC4 15 120 15 125 Ivory 5-15R • • •
1595SWTTRWCC4 15 120 15 125 White 5-15R • • •
1595SWTTRBKCC4 15 120 15 125 Black 5-15R • • •
1595SWTTRLACC4 15 120 15 125 Light Almond 5-15R • • •
1595SWTTRWCC4
1.25"
4.20"
2.62"
1.72"
1.13"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
A-28
SWITCHES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SWITCHES
Canopy Switches & Locator Switches 15A, 120 & 250VAC; 15A, 120VAC
911LOCATOR
2.375"
2.406"
3.313"
4.000"
1.219" 1.453"
Features
• Equipped with wire leads.
• 1200 and 1201 complete with metal box
and plate.
• Only 14 oz. pressure actuates switch.
• Back box cold rolled steel.
• Plate is steel with a bronze coating.
Helps Emergency Personnel
Locate Address
Used in conjunction with your call for
assistance, the 911 Locator solves the
problem of night time house identification
for emergency personnel. After you have
placed your call for help, simply flick the
switch toggle to the “911” position and
your outdoor light will flash on and off
continuously, cutting response time to
insure effective action.
Features
• Functions as a standard ON/OFF switch.
• Installs in minutes. Replaces any
standard single-pole switch.
• 5" pre-stripped wire leads.
• All wire nuts and mounting hardware
included.
• Transparent wall plate sticker included.
• UL20 Listed.
Application
The 911 Locator should be used in place of a standard single-pole switch to turn outdoor
house or porch lights ON and OFF. In the 911 “flashing” position, the light becomes a
house locator for police, medical personnel, emergency utility service, foul weather
deliveries, etc.
• Illuminated toggle when switch is off.
• Toggle and attached load flashes when toggle in center position (in 911 mode).
1200, 1201
4.031"
3.188"
1.516"
2.656"
1.344"
1.547"
Application
In an emergency, seconds can make all the difference. Easily make a home instantly
identifiable with a P&S Decorator Home Locator Switch. Just a single touch on its lower
push button flashes the front outside lights continuously. The switch’s LED flashes red to
indicate the locator is in operation. When the locator flasher isn’t in use, the switch’s LED
glows green for easy location in the dark.
TM8LOCATORLA
1.13"
4.20"
2.62"
1.72"
Features
• ON/OFF switch with normal paddle
operation.
• Locator function flashes the outdoor
light ON and OFF signaling SOS in
Morse Code.
• Green LED illuminates and differentiates
switch for easy location in emergency.
• Red LED indicates the emergency
function is enabled.
• Wires the same as a single pole switch.
• cULus Listed.
CATALOG NUMBER RATING AC
LIGHT ON DOOR OPEN LIGHT ON DOOR CLOSED 120VAC 250VAC
PRESSURE SENSITIVE DOOR & CANOPY SWITCHES
1200 1201 15A 15A
INTERIORS ONLY, WITH LEADS & PLUNGER
1205 1206 15A 15A
INTERIORS ONLY, WITH LEADS, PLUNGER & FACE PLATE
1205A 1206A 15A 15A
CATALOG NUMBER DESCRIPTION RATING COLOR
DECORATOR HOME LOCATOR SWITCHES
TM8LOCATORI
Emergency Decorator
Home Locator
500 Watts, 15A,
120VAC
Ivory
TM8LOCATORW White
TM8LOCATORLA Light Almond
CATALOG NUMBER DESCRIPTION RATING
SINGLE POLE, DOUBLE THROW
911LOCATOR Emergency Flasher Switch 600 Watts, 120VAC
WWW.LEGRAND.US/PASSANDSEYMOUR
A-29
SWITCHES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
DEvICES & Wall PlaTES
Color Selection Chart
Devices & Plastic Wall Plate Colors
To order custom metal wall plates, see Pages P-41 – P-45.
For additional colors consult factory.
Custom Metal Wall Plates Paint Finish Colors
Paint Color
Metal Wall Plates
Metal Finish
Ivory Light Almond White Green
Black Blue Brown Gray Orange Red
See specific device and wall plate catalog charts for particular color availabilities.
Aluminum Brass (Brushed) Polished Brass Stainless Steel Brushed Bronze Chrome
Orange Green Gray Yellow Glossy Black Brown White
Primer Red Pink Flat Black Ivory Light Almond Blue
WWW.LEGRAND.US/PASSANDSEYMOUR
B-1
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
PLUGTAIL™
SPEC GRADE
RECEPTACLES B-14
STRAIGHT BLADE RECEPTACLES
PlugTail™. The fastest, most consistent and reliable wiring devices – ever!
Factory-terminated devices and connectors mean that device installation is
the same regardless of skill level of the installer. The UL-Listed connectors
are keyed to ensure proper wiring installation into each receptacle. The
connector simply snaps into the back of the device — no preparing, stripping
or looping conductors, no exposed terminals to tighten or tape, and no
mistakes mean no costly callbacks! Now device installation is a snap!
Devices & Wall Plates Color Selection Chart available on Pages A-29, B-82 and P-59.
EXTRA HEAVY-DUTY
HOSPITAL GRADE
RECEPTACLES B-7
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-2
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Table of Contents
PlugTail™ Extra Heavy-Duty
Specification Grade Receptacles B-3
Extra Heavy-Duty Hospital Grade Receptacles B-7
Industrial Extra Heavy-Duty
Specification Grade Receptacles B-9
Heavy-Duty Specification Grade Receptacles B-11
Heavy-Duty Hospital Grade Receptacles B-12
PlugTail™ Specification Grade Receptacles B-14
PlugTail™ Tamper-Resistant Specification &
Hospital Grade Duplex Receptacles B-16
PlugTail™ Tamper-Resistant Hospital Grade
Decorator Receptacles B-18
PlugTail™ Power Pre-Fab Wiring Systems &
Metal Box Kits B-19
Hard Use Specification Grade Receptacles B-21
Construction Specification Grade Receptacles B-22
Commercial Specification Grade Receptacles B-24
Hospital & Specification Grade Single Receptacles B-25
Tamper-Resistant Receptacles B-28
Weather-Resistant Receptacles B-32
Isolated Ground Receptacles B-33
USB Chargers with Tamper-Resistant Receptacles B-35
PlugTail™ Tamper-Resistant Duplex Receptacles B-37
PlugTail™ Decorator Receptacles B-38
Hospital & Specification Grade
Decorator Receptacles B-39
TradeMaster® Tamper-Resistant Receptacles B-45
Weather-Resistant Receptacles B-47
TradeMaster® Receptacles,
Hallway Lights & Combinations B-48
Tamper-Resistant GFCI Receptacles B-51
TradeMaster® & Spec Grade GFCI Receptacles B-53
Hospital Grade GFCI Receptacles B-54
Tamper-Resistant Switch/GFCI Receptacles B-55
Tamper-Resistant Nightlight/GFCI Receptacles B-56
Weather-Resistant GFCI Receptacles B-57
PlugTail™ GFCI Receptacles B-58
NAFTA-Compliant & RoHS-Compliant
GFCI Receptacles B-62, B-63
Surge Protective Spec Grade, Hospital Grade &
PlugTail™ Receptacles B-66
Quad Receptacles & Accessories B-73
Dust & Moisture Resistant &
Clock Hanger Receptacles B-75
Power Outlet Receptacles & Plugs B-76
Miscellaneous Configurations B-79
Power & Surge Protection Strips & Specifications B-80
WWW.LEGRAND.US/PASSANDSEYMOUR
B-3
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Extra Heavy-Duty Specification Grade Receptacles
D
PT5362AW
A
B
C
PT5362AW
Duplex Receptacles
A. Auto-ground clip ensures positive ground.
B. Exclusive patented feature, circuit label on face allows
permanent circuit identification.
C. .036 inch thick, brass, triple-wipe power contacts for
lasting retention.
D. Strap tabs wrap around and lock down on face to
prevent strap from separating from face and back body.
E. No exposed terminals create a finger-safe application
before, during, and after installation.
F. Built-in connector features large brass terminal blades
to ensure consistent, reliable electrical connections.
G. Large crimped and welded brass contacts snugly
terminate on device blade terminals.
H. Ultrasonically welded polycarbonate connector
housing secures terminations and conductors in a
UL Listed, finger safe housing. Audible snapping latch
assures connection, allows release.
I. Exclusive patented feature, circuit label on back
allows permanent circuit identification.
J. Pre-stripped connector leads fasten to conductors,
easier than standard pigtails.
Two drive screws anchor strap to back body and face.
Tamper-resistant version features dual mechanical
shutter system to help prevent insertion of foreign
objects.
F
E
I
G
J
H
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-4
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Extra Heavy-Duty Specification Grade Receptacles 15 & 20A, 125V
PT5362AW
.866"
3.281"
1.625"
1.104"
2.750"
PTTR63W
.866"
3.281"
1.625"
1.104"
2.750"
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
PTRA6STR PTRA6STRBP PTRA6STRG
1.125"
6.375"
For Bulk Packaging Solutions consult factory.
NAFTA-Compliant PlugTail Connectors are ideal for use on projects subject to the provisions of the Buy American Act.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
DUPLEX RECEPTACLES
PT5262AI 15 125 Ivory 5-15R • •
PT5262AW 15 125 White 5-15R • •
PT5262A 15 125 Brown 5-15R • •
PT5262AGRY 15 125 Gray 5-15R • •
PT5262ABK 15 125 Black 5-15R • •
PT5262ARED 15 125 Red 5-15R • •
PT5262ALA 15 125 Light Almond 5-15R • •
PT5262ABL 15 125 Blue 5-15R • •
PT5362AI 20 125 Ivory 5-20R • •
PT5362AW 20 125 White 5-20R • •
PT5362A 20 125 Brown 5-20R • •
PT5362AGRY 20 125 Gray 5-20R • •
PT5362ABK 20 125 Black 5-20R • •
PT5362ARED 20 125 Red 5-20R • •
PT5362ALA 20 125 Light Almond 5-20R • •
PT5362ABL 20 125 Blue 5-20R • •
TAMPER-RESISTANT DUPLEX RECEPTACLES
PTTR62I 15 125 Ivory 5-15R • •
PTTR62W 15 125 White 5-15R • •
PTTR62 15 125 Brown 5-15R • •
PTTR62GRY 15 125 Gray 5-15R • •
PTTR62BK 15 125 Black 5-15R • •
PTTR62RED 15 125 Red 5-15R • •
PTTR62LA 15 125 Light Almond 5-15R • •
PTTR62BL 15 125 Blue 5-15R • •
PTTR63I 20 125 Ivory 5-20R • •
PTTR63W 20 125 White 5-20R • •
PTTR63 20 125 Brown 5-20R • •
PTTR63GRY 20 125 Gray 5-20R • •
PTTR63BK 20 125 Black 5-20R • •
PTTR63RED 20 125 Red 5-20R • •
PTTR63LA 20 125 Light Almond 5-20R • •
PTTR63BL 20 125 Blue 5-20R • •
CATALOG NUMBER WIRE TYPE
CONNECTOR
HEAD WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6SOL
PTRA6STR
PTRA6SOLB25
PTRA6STRB25
Solid
Stranded
Solid
Stranded
6"
6"
25"
25"
NAFTACOMPLIANT PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6SOLNA
PTRA6STRNABL
PTRA6STRNAOR
PTRA6STRNARED
Solid
Stranded
Stranded
Stranded
Blue
Orange
Red
6"
6"
6”
6”
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE WITH WAGO CONNECTORS
PTRA6SOLBP
PTRA6STRBP
Solid
Stranded
6"
6"
PLUGTAIL CONNECTORS  RIGHT ANGLE WITH GROUND SCREW
PTRA6SOLG
PTRA6STRG
Solid
Stranded
6"
6"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-5
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Extra Heavy-Duty Hospital Grade Receptacles 15 & 20A, 125V
Features
• Exclusive patented feature, circuit
label on face allows permanent circuit
identification.
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Strap tabs wrap around and lock down
on face to prevent strap from separating
from face and back body.
• No exposed terminals create a finger
safe application before, during, and
after installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate
connector housing secures terminations
and conductors in a UL Listed, finger safe
housing.
• Large brass contacts snugly terminate on
device blade terminals.
• Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
• Auto-ground clip assures positive
ground.
• Tamper-resistant version features dual
mechanical shutter system to help
prevent insertion of foreign objects.
PTTR63HW
.866"
3.281"
1.625"
1.104"
2.750"
PT8300W
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
DUPLEX RECEPTACLES
PT8200I 15 125 Ivory 5-15R • •
PT8200W 15 125 White 5-15R • •
PT8200 15 125 Brown 5-15R • •
PT8200GRY 15 125 Gray 5-15R • •
PT8200BK 15 125 Black 5-15R • •
PT8200RED 15 125 Red 5-15R • •
PT8200LA 15 125 Light Almond 5-15R • •
PT8200BL 15 125 Blue 5-15R • •
PT8300I 20 125 Ivory 5-20R • •
PT8300W 20 125 White 5-20R • •
PT8300 20 125 Brown 5-20R • •
PT8300GRY 20 125 Gray 5-20R • •
PT8300BK 20 125 Black 5-20R • •
PT8300RED 20 125 Red 5-20R • •
PT8300LA 20 125 Light Almond 5-20R • •
PT8300BL 20 125 Blue 5-20R • •
TAMPER-RESISTANT DUPLEX RECEPTACLES
PTTR62HI 15 125 Ivory 5-15R • •
PTTR62HW 15 125 White 5-15R • •
PTTR62H 15 125 Brown 5-15R • •
PTTR62HGRY 15 125 Gray 5-15R • •
PTTR62HBK 15 125 Black 5-15R • •
PTTR62HRED 15 125 Red 5-15R • •
PTTR62HLA 15 125 Light Almond 5-15R • •
PTTR62HBL 15 125 Blue 5-15R • •
PTTR63HI 20 125 Ivory 5-20R • •
PTTR63HW 20 125 White 5-20R • •
PTTR63H 20 125 Brown 5-20R • •
PTTR63HGRY 20 125 Gray 5-20R • •
PTTR63HBK 20 125 Black 5-20R • •
PTTR63HRED 20 125 Red 5-20R • •
PTTR63HLA 20 125 Light Almond 5-20R • •
PTTR63HBL 20 125 Blue 5-20R • •
.866"
3.281"
1.625"
1.104"
2.750"
For PlugTail Connectors, see Page B-4.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-6
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Extra Heavy-Duty Hospital Grade Illuminated Receptacles 15 & 20A, 125V
Features
• Molded-in “IL” markings on face of
product.
• Illuminated face indicates power to
receptacle and makes it easy to identify
receptacle in dark applications.
• Exclusive patented feature, circuit
label on face allows permanent circuit
identification.
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Strap tabs wrap around and lock down
on face to prevent strap from separating
from face and back body.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate
connector housing secures terminations
and conductors in a UL Listed, finger safe
housing.
• Large brass contacts snugly terminate on
device blade terminals.
• Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
• Auto-ground clip assures positive
ground.
For PlugTail Connectors, see Page B-4.
Features
• Ensures proper connections and power
presence at both rough-in and device-
out stages during P&S PlugTail Device
installation.
• Fast, easy identification of circuit
connections.
• Easy-to-see indicator lights.
• Sturdy construction for long-term
dependability.
• Helps prevent call backs.
• Ensures proper wiring.
PT8300ILLA
.866"
3.281"
1.625"
1.104"
2.750"
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
Illuminated face indicates
power to receptacle and makes
it easy to identify receptacle in
dark applications.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
ILLUMINATED DUPLEX RECEPTACLES
PT8200ILI 15 125 Ivory 5-15R • •
PT8200ILW 15 125 White 5-15R • •
PT8200IL 15 125 Brown 5-15R • •
PT8200ILGRY 15 125 Gray 5-15R • •
PT8200ILBK 15 125 Black 5-15R • •
PT8200ILRED 15 125 Red 5-15R • •
PT8200ILLA 15 125 Light Almond 5-15R • •
PT8300ILI 20 125 Ivory 5-20R • •
PT8300ILW 20 125 White 5-20R • •
PT8300IL 20 125 Brown 5-20R • •
PT8300ILGRY 20 125 Gray 5-20R • •
PT8300ILBK 20 125 Black 5-20R • •
PT8300ILRED 20 125 Red 5-20R • •
PT8300ILLA 20 125 Light Almond 5-20R • •
CATALOG NUMBER DESCRIPTION
P&S PLUGTAIL™ TESTER
PTTESTER Red PlugTail Tester for Receptacles and Tails
PTTESTER
3.93"
1.06"
1.68"
For Bulk Packaging Solutions consult factory.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-7
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Extra Heavy-Duty Hospital Grade Receptacles 15 & 20A, 125V; 20A, 250V
.900"
3.281"
1.625"
1.104"
2.750"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
8200I 15 125 Ivory 5-15R • • •
8200W 15 125 White 5-15R • • •
8200 15 125 Brown 5-15R • • •
8200GRY 15 125 Gray 5-15R • • •
8200BK 15 125 Black 5-15R • • •
8200RED 15 125 Red 5-15R • • •
8200LA 15 125 Light Almond 5-15R • • •
8300I 20 125 Ivory 5-20R • • •
8300W 20 125 White 5-20R • • •
8300 20 125 Brown 5-20R • • •
8300GRY 20 125 Gray 5-20R • • •
8300BK 20 125 Black 5-20R • • •
8300RED 20 125 Red 5-20R • • •
8300LA 20 125 Light Almond 5-20R • • •
8800I 20 250 Ivory 6-20R • • •
8800W 20 250 White 6-20R • • •
8800 20 250 Brown 6-20R • • •
8800GRY 20 250 Gray 6-20R • • •
8800BK 20 250 Black 6-20R • • •
8800LA 20 250 Light Almond 6-20R • • •
8800RED 20 250 Red 6-20R • • •
LED ILLUMINATED FACE DUPLEX RECEPTACLES BACK & SIDE WIRE
8200ILI 15 125 Ivory 5-15R • • •
8200ILW 15 125 White 5-15R • • •
8200ILRED 15 125 Red 5-15R • • •
8300ILI 20 125 Ivory 5-20R • • •
8300ILW 20 125 White 5-20R • • •
8300ILGRY 20 125 Gray 5-20R • • •
8300ILRED 20 125 Red 5-20R • • •
8300ILLA 20 125 Light Almond 5-20R • • •
.900"
3.281"
1.625"
1.104"
2.750"
8300I
Features
• One-piece nickel-plated brass mounting
strap with integral ground.
• Strap tabs wrap around and lock down
on face to prevent strap from separating
from face and back body.
• Two drive screws anchor strap to back
body and face.
• Exclusive patented feature, circuit
label on face allows permanent circuit
identification.
• .040 inch thick, nickel-plated brass,
triple-wipe power contacts for lasting
retention.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face and back
body.
• Oversized #10 deep tri-drive head brass
terminal and ground screws.
• Exclusive patented feature, external
screw-pressure-plate back wire clamp
on ground terminal for faster, easier
installation.
• External nickel-plated screw-pressure-
plate back wire clamps with #10 brass
terminal screws for visual assurance of a
good connection.
• Line terminals accept #14 – #10 AWG
stranded or solid copper clad conductors.
• Auto-ground clip assures positive
ground.
• Illuminated version features exclusive
LED lamp with solder connection for long
durable life (10-12 years).
8300ILI
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-8
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Extra Heavy-Duty Hospital Grade MRI Receptacles 15 & 20A, 125V
For Bulk Packaging Solutions consult factory.
.900"
3.281"
1.625"
1.104"
2.750"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
HOSPITAL GRADE DUPLEX RECEPTACLES BACK & SIDE WIRE
8200IMRI 15 125 Ivory 5-15R • • •
8200WMRI 15 125 White 5-15R • • •
8200MRI 15 125 Brown 5-15R • • •
8200GRYMRI 15 125 Gray 5-15R • • •
8200BKMRI 15 125 Black 5-15R • • •
8200REDMRI 15 125 Red 5-15R • • •
8200LAMRI 15 125 Light Almond 5-15R • • •
8300IMRI 20 125 Ivory 5-20R • • •
8300WMRI 20 125 White 5-20R • • •
8300GRYMRI 20 125 Gray 5-20R • • •
8300BKMRI 20 125 Black 5-20R • • •
8300REDMRI 20 125 Red 5-20R • • •
8300LAMRI 20 125 Light Almond 5-20R • • •
Features
• Exclusive patented feature, circuit
label on face allows permanent circuit
identification.
• Extra heavy-duty, one-piece nickel-plated
brass mounting strap with integral
ground for superior structural integrity
and long-term performance.
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Strap tabs wrap around and lock down
on face to prevent strap from separating
from face and back body.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Exclusive patented feature, external
screw-pressure-plate back wire clamp
on ground terminal for faster, easier
installation.
• External screw-pressure-plate back
wire clamps with #10 brass terminal
screws for visual assurance of a good
connection.
• Auto-ground clip assures positive
ground.
8200LAMRI
Receptacles designed expressly for MRI applications – We build these exclusive P&S receptacles
with no ferrous metal, so they are perfect for high-magnetic-field environments such as
magnetic-resonance imaging (MRI) suites. With the same basic design as our standard
Extra Heavy-Duty Receptacles, they are extremely durable.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
WWW.LEGRAND.US/PASSANDSEYMOUR
B-9
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
F
E
C
D
B
A
5362AI
G
STRAIGHT BLADE RECEPTACLES
Industrial Extra Heavy-Duty Specification Grade Receptacles
5362AI
Industrial EHD Spec Grade Receptacles
A. .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
B. Exclusive patented feature, circuit label on face allows
permanent circuit identification.
C. Two drive screws anchor strap to back body and face
where abrupt removal torque is strongest.
D. Strap tabs wrap around and lock down on face to
prevent strap from separating from face and back body.
E. Exclusive, patented feature, external screw-pressure-
plate back wire clamp on ground terminal for faster,
easier installation.
F. External screw-pressure-plate back wire clamps with
#10 brass terminal screws for visual assurance of a
good connection.
G. Auto-ground clip assures positive ground.
Heavy-duty, one-piece brass strap and integral ground
for added strength and safety.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-10
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
5362AI
Features
• One-piece brass mounting strap with
integral ground.
• Strap tabs wrap around and lock down
on face to prevent strap from separating
from face and back body.
• Two drive screws anchor strap to back
body and face.
• Exclusive patented feature, circuit
label on face allows permanent circuit
identification.
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face and
back body.
• Oversized #10 deep tri-drive head brass
terminal and ground screws.
• Exclusive patented feature, external
screw-pressure-plate back wire clamp
on ground terminal for faster, easier
installation.
• External screw-pressure-plate back
wire clamps with #10 brass terminal
screws for visual assurance of a good
connection.
• Line terminals accept #14 – #10 AWG
stranded or solid copper clad conductors.
• Auto-ground clip assures positive
ground.
• Corrosion-resistant models have nickel-
plated straps and contacts.
For Bulk Packaging Solutions
consult factory.
NEMA
5-15R
NEMA
5-20R
NEMA
6-15R
NEMA
6-20R
2 Pole, 3 Wire
STRAIGHT BLADE RECEPTACLES
Industrial Extra Heavy-Duty Specification Grade Receptacles 15 & 20A, 125 & 250V
.900"
3.281"
1.625"
1.104"
2.750"
*Corrosion-Resistant.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
5262AI 15 125 Ivory 5-15R • • •
5262AW 15 125 White 5-15R • • •
5262A 15 125 Brown 5-15R • • •
5262AGRY 15 125 Gray 5-15R • • •
5262ABK 15 125 Black 5-15R • • •
5262ARED 15 125 Red 5-15R • • •
5262ALA 15 125 Light Almond 5-15R • • •
CR6200* 15 125 Yellow 5-15R • • •
CR6200GRY* 15 125 Gray 5-15R • • •
5362AI 20 125 Ivory 5-20R • • •
5362AW 20 125 White 5-20R • • •
5362A 20 125 Brown 5-20R • • •
5362AGRY 20 125 Gray 5-20R • • •
5362ABK 20 125 Black 5-20R • • •
5362ARED 20 125 Red 5-20R • • •
5362ALA 20 125 Light Almond 5-20R • • •
5362ABL 20 125 Blue 5-20R • • •
CR6300BR* 20 125 Brown 5-20R • • •
CR6300* 20 125 Yellow 5-20R • • •
5662AI 15 250 Ivory 6-15R • • •
5662AW 15 250 White 6-15R • • •
5662A 15 250 Brown 6-15R • • •
5662AGRY 15 250 Gray 6-15R • • •
5662ABK 15 250 Black 6-15R • • •
5662ARED 15 250 Red 6-15R • • •
5862AI 20 250 Ivory 6-20R • • •
5862AW 20 250 White 6-20R • • •
5862A 20 250 Brown 6-20R • • •
5862AGRY 20 250 Gray 6-20R • • •
5862ABK 20 250 Black 6-20R • • •
5862ARED 20 250 Red 6-20R • • •
5862ALA 20 250 Light Almond 6-20R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
B-11
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Heavy-Duty Specification Grade Receptacles 15 & 20A, 125 & 250V
Features
• Heavy-duty, brass strap for added
strength and ground conductivity.
• .032 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Strap tabs wrap around face to prevent
strap from separating from face and
back body.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• High strength nylon face.
• Internal screw-pressure-plate back and
side wired to accept #14 and #10 AWG
stranded or solid copper or copper-clad
conductors. Eight back wire holes.
• Auto-ground clip assures positive
ground.
PS5262I
.780"
2.635"
3.281"
1.322"
1.104"
NEMA
5-15R NEMA
5-20R
NEMA
6-15R NEMA
6-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
PS5262I 15 125 Ivory 5-15R • • •
PS5262W 15 125 White 5-15R • • •
PS5262 15 125 Brown 5-15R • • •
PS5262GRY 15 125 Gray 5-15R • • •
PS5262BK 15 125 Black 5-15R • • •
PS5262RED 15 125 Red 5-15R • • •
PS5262LA 15 125 Light Almond 5-15R • • •
PS5262BL 15 125 Blue 5-15R • • •
PS5362I 20 125 Ivory 5-20R • • •
PS5362W 20 125 White 5-20R • • •
PS5362 20 125 Brown 5-20R • • •
PS5362GRY 20 125 Gray 5-20R • • •
PS5362BK 20 125 Black 5-20R • • •
PS5362RED 20 125 Red 5-20R • • •
PS5362LA 20 125 Light Almond 5-20R • • •
PS5362BL 20 125 Blue 5-20R • • •
5662I 15 250 Ivory 6-15R • • •
5662W 15 250 White 6-15R • • •
5662 15 250 Brown 6-15R • • •
5862I 20 250 Ivory 6-20R • • •
5862W 20 250 White 6-20R • • •
5862 20 250 Brown 6-20R • • •
5862GRY 20 250 Gray 6-20R • • •
5862BK 20 250 Black 6-20R • • •
5862RED 20 250 Red 6-20R • • •
5862BL 20 250 Blue 6-20R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-12
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Heavy-Duty Hospital Grade Receptacles 15 & 20A, 125V
PS8200HI
.780"
3.281"
1.322"
1.104"
2.635"
PS8300HSLA
.780"
3.281"
1.322"
1.104"
2.635"
Features
• Heavy-duty, brass strap for added
strength and ground conductivity.
• .032 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Strap tabs wrap around face to prevent
strap from separating from face and
back body.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Two drive screws anchor strap to back
body and face.
• Tri-drive brass terminal screws. Internal
screw-pressure-plate back and side wire
capability. Two back wire holes for more
wiring flexibility.
• Auto-ground clip assures positive
ground.
• Smooth face version features an impact-
resistant nylon face for ease of cleaning
and less dirt build-up.
For Bulk Packaging Solutions consult factory.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
PS8200HI 15 125 Ivory 5-15R • • •
PS8200HW 15 125 White 5-15R • • •
PS8200H 15 125 Brown 5-15R • • •
PS8200HGRY 15 125 Gray 5-15R • • •
PS8200HRED 15 125 Red 5-15R • • •
PS8200HLA 15 125 Light Almond 5-15R • • •
PS8300HI 20 125 Ivory 5-20R • • •
PS8300HW 20 125 White 5-20R • • •
PS8300H 20 125 Brown 5-20R • • •
PS8300HGRY 20 125 Gray 5-20R • • •
PS8300HRED 20 125 Red 5-20R • • •
PS8300HLA 20 125 Light Almond 5-20R • • •
DUPLEX RECEPTACLES  SMOOTH FACE BACK & SIDE WIRE
PS8200HSI 15 125 Ivory 5-15R • • •
PS8200HSW 15 125 White 5-15R • • •
PS8200HS 15 125 Brown 5-15R • • •
PS8200HSGRY 15 125 Gray 5-15R • • •
PS8200HSRED 15 125 Red 5-15R • • •
PS8200HSLA 15 125 Light Almond 5-15R • • •
PS8300HSI 20 125 Ivory 5-20R •• •
PS8300HSW 20 125 White 5-20R • • •
PS8300HS 20 125 Brown 5-20R • • •
PS8300HSGRY 20 125 Gray 5-20R • • •
PS8300HSRED 20 125 Red 5-20R • • •
PS8300HSLA 20 125 Light Almond 5-20R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
B-13
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Heavy-Duty Hospital Grade Compact Design Receptacles 15 & 20A, 125V; 20A, 250V
Features
• Impact-resistant nylon face.
• One-piece heat-treated triple-wipe brass
power contacts.
• Easily accessible break-off line contact
connecting tab for split circuit wiring.
• Terminal compartments isolated from
each other for positive conductor
containment.
• Corrosion-resistant, zinc-plated steel
strap is locked in.
• Internal screw-pressure-plate back
wire and side wire line terminals accept
#14 – #10 AWG copper or copper-clad
conductors.
• High strength thermoplastic back body.
• Back wire holes allow entry of conductor
insulation partially into body but not into
wiring compartment.
• Auto-ground clip assures positive
ground.
• Compact design for easy installation.
• Tri-drive terminal and mounting screws.
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
2 Pole, 3 Wire
IG8300
1.322"
1.104"
2.635"
3.281"
.922"
8200HI
.780"
3.281"
1.322"
1.104"
2.635"
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES  COMPACT DESIGN BACK & SIDE WIRE
8200HI 15 125 Ivory 5-15R • • •
8200HW 15 125 White 5-15R • • •
8200H 15 125 Brown 5-15R • • •
8200HGRY 15 125 Gray 5-15R • • •
8200HRED 15 125 Red 5-15R • • •
8200HLA 15 125 Light Almond 5-15R • • •
8200HOR 15 125 Orange 5-15R • • •
8300HI 20 125 Ivory 5-20R • • •
8300HW 20 125 White 5-20R • • •
8300H 20 125 Brown 5-20R • • •
8300HGRY 20 125 Gray 5-20R • • •
8300HBK 20 125 Black 5-20R • • •
8300HRED 20 125 Red 5-20R • • •
8300HLA 20 125 Light Almond 5-20R • • •
8300HBL 20 125 Blue 5-20R • • •
8300HOR 20 125 Orange 5-20R • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK & SIDE WIRE
IG8200I 15 125 Ivory 5-15R • • •
IG8200 15 125 Orange 5-15R • • •
IG8200RED 15 125 Red W5-15R • • •
IG8300I 20 125 Ivory 5-20R • • •
IG8300W 20 125 White 5-20R • • •
IG8300 20 125 Orange 5-20R • • •
IG8300RED 20 125 Red 5-20R • • •
IG8300LA 20 125 Light Almond 5-20R • • •
IG8800 20 250 Orange 6-20R • • •
IG8800LA 20 250 Light Almond 6-20R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-14
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Specification Grade Receptacles
A
E
B
C
D
PTTR5362W
J
K
M
N
R
Q
P
O
PT5362SCI
L
PTTR5362W and PT5362SCI
PlugTail™ Spec Grade Receptacles
J. Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
K. Large brass contacts snugly terminate on
device blade terminals. Audible snapping
latch assures connection, allows release.
L. Exclusive patented feature, circuit label on
back allows permanent circuit identification.
M. Ultrasonically welded polycarbonate
connector housing secures terminations
and conductors in a UL Listed, finger safe
housing.
N. Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
0. Auto-ground clip assures positive ground.
P. .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
Q. Plated steel wrap strap design for
maximum durability and corrosion
resistance.
R. Pre-wired with one welded pre-stripped
wire lead to facilitate switched receptacle
circuit applications.
Three drive screws anchor strap to back body
and face.
H
G
F
A. Auto-ground clip assures positive ground.
B. .036 inch thick, brass, triple-wipe power contacts for
lasting retention.
C. Dual mechanical shutter system to help prevent
insertion of foreign objects.
D. Plated steel wrap strap design for maximum durability
and corrosion resistance.
E. Built-in connector features large brass terminal blades
to ensure consistent, reliable electrical connections.
F. Large brass contacts snugly terminate on device blade
terminals. Audible snapping latch assures connection,
allows release.
G. Ultrasonically welded polycarbonate connector
housing secures terminations and conductors in a
UL Listed, finger safe housing.
H. Pre-stripped connector leads fasten to conductors,
easier than standard pigtails.
I. No exposed terminals create a finger safe application
before, during, and after installation. I
WWW.LEGRAND.US/PASSANDSEYMOUR
B-15
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Plated steel wrap strap design for
maximum durability and corrosion
resistance.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
• Ultrasonically welded polycarbonate
connector housing
secures terminations and conductors in a
UL Listed, finger safe housing.
• Crimped and welded contacts.
• Large brass contacts snugly terminate on
device blade terminals.
• Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
• Auto-ground clip assures positive
ground.
• Isolated ground version features a plastic
barrier that isolates grounding terminal
from mounting strap and metal boxes.
PTIG5362LA
2.750"
3.281"
.625"
1.5"
1.104"
PT5362LA
2.750"
3.281"
.625"
1.5"
1.104"
For PlugTail Connectors,
see Page B-4.
For Bulk Packaging
Solutions consult factory.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
STRAIGHT BLADE RECEPTACLES
PlugTail™ Specification Grade Receptacles 15 & 20A, 125V
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
DUPLEX RECEPTACLES
PT5262I 15 125 Ivory 5-15R • •
PT5262W 15 125 White 5-15R • •
PT5262 15 125 Brown 5-15R • •
PT5262GRY 15 125 Gray 5-15R • •
PT5262BK 15 125 Black 5-15R • •
PT5262RED 15 125 Red 5-15R • •
PT5262LA 15 125 Light Almond 5-15R • •
PT5262BL 15 125 Blue 5-15R • •
PT5362I 20 125 Ivory 5-20R • •
PT5362W 20 125 White 5-20R • •
PT5362 20 125 Brown 5-20R • •
PT5362GRY 20 125 Gray 5-20R • •
PT5362BK 20 125 Black 5-20R • •
PT5362RED 20 125 Red 5-20R • •
PT5362LA 20 125 Light Almond 5-20R • •
PT5362BL 20 125 Blue 5-20R • •
CATALOG NUMBER RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
SPEC GRAD HOSPITAL GRADE A. V.
ISOLATED GROUND DUPLEX RECEPTACLES
PTIG5262I PTIG8200I 15 125 Ivory 5-15R • •
PTIG5262W 15 125 White 5-15R • •
PTIG5262 PTIG8200 15 125 Orange 5-15R • •
PTIG5262GRY 15 125 Gray 5-15R • •
PTIG5262RED PTIG8200RED 15 125 Red 5-15R • •
PTIG5262LA 15 125 Light Almond 5-15R • •
PTIG5362I PTIG8300I 20 125 Ivory 5-20R • •
PTIG5362W 20 125 White 5-20R • •
PTIG5362 PTIG8300 20 125 Orange 5-20R • •
PTIG5362GRY 20 125 Gray 5-20R • •
PTIG5362RED PTIG8300RED 20 125 Red 5-20R • •
PTIG5362LA PTIG8300LA 20 125 Light Almond 5-20R • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-16
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
For Bulk Packaging Solutions consult factory.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
PTTR5362W
2.750"
3.281"
.625"
1.5"
1.104"
STRAIGHT BLADE RECEPTACLES
PlugTail™ Tamper-Resistant Specification & Hospital Grade Receptacles 15 & 20A, 125V
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
DUPLEX RECEPTACLES
PTTR5262I 15 125 Ivory 5-15R • •
PTTR5262W 15 125 White 5-15R • •
PTTR5262 15 125 Brown 5-15R • •
PTTR5262GRY 15 125 Gray 5-15R • •
PTTR5262BK 15 125 Black 5-15R • •
PTTR5262RED 15 125 Red 5-15R • •
PTTR5262LA 15 125 Light Almond 5-15R • •
PTTR5362I 20 125 Ivory 5-20R • •
PTTR5362W 20 125 White 5-20R • •
PTTR5362 20 125 Brown 5-20R • •
PTTR5362GRY 20 125 Gray 5-20R • •
PTTR5362BK 20 125 Black 5-20R • •
PTTR5362LA 20 125 Light Almond 5-20R • •
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
HOSPITAL GRADE DUPLEX RECEPTACLES
PTTR8200I 15 125 Ivory 5-15R • •
PTTR8200W 15 125 White 5-15R • •
PTTR8200 15 125 Brown 5-15R • •
PTTR8200GRY 15 125 Gray 5-15R • •
PTTR8200BK 15 125 Black 5-15R • •
PTTR8200RED 15 125 Red 5-15R • •
PTTR8200LA 15 125 Light Almond 5-15R • •
PTTR8300I 20 125 Ivory 5-20R • •
PTTR8300W 20 125 White 5-20R • •
PTTR8300 20 125 Brown 5-20R • •
PTTR8300GRY 20 125 Gray 5-20R • •
PTTR8300BK 20 125 Black 5-20R • •
PTTR8300RED 20 125 Red 5-20R • •
PTTR8300LA 20 125 Light Almond 5-20R • •
PTTR8300W
2.750"
3.281"
.625"
1.5"
1.104"
Features
• Dual mechanical shutter system to help
prevent insertion of foreign objects.
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Plated steel wrap strap design for
maximum durability and corrosion
resistance.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate
connector housing secures terminations
and conductors in a UL Listed, finger safe
housing.
• Large brass contacts snugly terminate on
device blade terminals.
• Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
• Auto-ground clip assures positive
ground.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-17
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Specification Grade Receptacles Split Circuit 15 & 20A, 125V
For Bulk Packaging Solutions consult factory.
Features
• Pre-wired with one welded pre-stripped
wire lead to facilitate switched receptacle
circuit applications.
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Plated steel wrap strap design for
maximum durability and corrosion
resistance.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate
connector housing secures terminations
and conductors in a UL Listed, finger
safe housing.
• Large brass contacts snugly terminate on
device blade terminals.
• Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
• Auto-ground clip assures positive
ground.
• Tamper-resistant version features dual
mechanical shutter system to help
prevent insertion of foreign objects.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
PT5362SCI
2.750"
3.281"
.625"
1.5"
1.104"
6.0"
PTTR5362SCI
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
SPLIT CIRCUIT DUPLEX RECEPTACLES WITH 6" LEAD
PT5262SCI 15 125 Ivory 5-15R • •
PT5262SCW 15 125 White 5-15R • •
PT5262SC 15 125 Brown 5-15R • •
PT5262SCGRY 15 125 Gray 5-15R • •
PT5262SCBK 15 125 Black 5-15R • •
PT5262SCRED 15 125 Red 5-15R • •
PT5262SCLA 15 125 Light Almond 5-15R • •
PT5262SCBL 15 125 Blue 5-15R • •
PT5362SCI 20 125 Ivory 5-20R • •
PT5362SCW 20 125 White 5-20R • •
PT5362SC 20 125 Brown 5-20R • •
PT5362SCGRY 20 125 Gray 5-20R • •
PT5362SCBK 20 125 Black 5-20R • •
PT5362SCRED 20 125 Red 5-20R • •
PT5362SCLA 20 125 Light Almond 5-20R • •
PT5362SCBL 20 125 Blue 5-20R • •
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
TAMPER-RESISTANT SPLIT CIRCUIT DUPLEX RECEPTACLES WITH 6" LEAD
PTTR5262SCI 15 125 Ivory 5-15R • •
PTTR5262SCW 15 125 White 5-15R • •
PTTR5262SC 15 125 Brown 5-15R • •
PTTR5262SCBK 15 125 Black 5-15R • •
PTTR5262SCLA 15 125 Light Almond 5-15R • •
PTTR5362SCI 20 125 Ivory 5-20R • •
PTTR5362SCW 20 125 White 5-20R • •
PTTR5362SC 20 125 Brown 5-20R • •
PTTR5362SCBK 20 125 Black 5-20R • •
PTTR5362SCLA 20 125 Light Almond 5-20R • •
2.750"
3.281"
.625"
1.5"
1.104"
6.0"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-18
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
PTTR26262HGI
STRAIGHT BLADE RECEPTACLES
PlugTail™ Tamper-Resistant Hospital Grade Decorator Receptacles 15 & 20A, 125V
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6SOL Solid 6"
PTRA6STR Stranded 6"
PTRA6SOLB25 Solid 25"
PTRA6STRB25 Stranded 25"
PLUGTAIL CONNECTORS  RIGHT ANGLE WITH WAGO CONNECTORS
PTRA6SOLBP Solid 6"
PTRA6STRBP Standed 6"
PLUGTAIL CONNECTORS  RIGHT ANGLE W/GROUND SPADE TERMINAL
PTRA6SOLG Solid 6"
PTRA6STRG Stranded 6"
PTTR26262HGSCI
Features
• Dual mechanical shutter system to help
prevent insertion of foreign objects.
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Plated steel wrap strap design for
maximum durability and corrosion
resistance.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate
connector housing secures terminations
and conductors in a UL Listed, finger safe
housing.
• Large brass contacts snugly terminate on
device blade terminals.
• Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
• Auto-ground clip assures positive
ground.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
DECORATOR RECEPTACLES WITH 6" LEAD
PTTR26262HGI 15 125 Ivory 5-15R • •
PTTR26262HGW 15 125 White 5-15R • •
PTTR26262HG 15 125 Brown 5-15R • •
PTTR26262HGBK 15 125 Black 5-15R • •
PTTR26262HGLA 15 125 Light Almond 5-15R • •
PTTR26362HGI 20 125 Ivory 5-20R • •
PTTR26362HGW 20 125 White 5-20R • •
PTTR26362HG 20 125 Brown 5-20R • •
PTTR26362HGGRY 20 125 Gray 5-20R • •
PTTR26362HGBK 20 125 Black 5-20R • •
PTTR26362HGLA 20 125 Light Almond 5-20R • •
SPLIT CIRCUIT DECORATOR RECEPTACLES WITH 6" LEAD
PTTR26262HGSCI 15 125 Ivory 5-15R • •
PTTR26262HGSCW 15 125 White 5-15R • •
PTTR26262HGSC 15 125 Brown 5-15R • •
PTTR26262HGSCBK 15 125 Black 5-15R • •
PTTR26262HGSCLA 15 125 Light Almond 5-15R • •
PTTR26362HGSCI 20 125 Ivory 5-20R • •
PTTR26362HGSCW 20 125 White 5-20R • •
PTTR26362HGSC 20 125 Brown 5-20R • •
PTTR26362HGSCBK 20 125 Black 5-20R • •
PTTR26362HGSCLA 20 125 Light Almond 5-20R • •
PTRA6STR PTRA6STRBP PTRA6STRG
1.125"
6.375"
2.75" 3.281"
1.5"
.625"
2.75" 3.281"
1.5"
.625"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-19
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Power Pre-Fabricated Wiring Systems
Constructing a condominium complex, office building or
hotel and the wiring project is substantial or repetitive?
Look to PlugTail Power Products from Legrand/Pass &
Seymour. With PlugTail Power, much of the electrical
assembly is completed in advance, dramatically cutting
project completion times.
Rough-in is fast and easy. PlugTail Power floor brackets
slide under the sill plate so no vertical measuring is
necessary. Wall brackets that attach to the stud are also
available. Everything is pre-wired for fast rough in – P&S
PlugTail Connector is pre-wired to the ground screw.
And all PlugTail Power Products are pre-packaged and
shipped to the requirements of the contractor for fast job
starts.
Each PlugTail Power assembly includes:
• Floor or wall bracket with one or two gang openings
• Pre-installed boxes
• Pre-installed rings available in 5/8" or 3/4" rise
• Far side support arms
• PlugTail devices pre-wired to ground screw
PlugTail Power can benefit you in many ways:
• PlugTail Power assemblies are packaged per contractor
• Simple installation – no vertical measuring necessary for
mounting boxes
• Pre-mounted and grounded boxes cut install times
• Available in 2-1/2" and 3-1/2" depth, depending on wall
thickness
• Pre-wired PlugTail Connector allows you to make device
choices at finish
Floor Bracket Wired Assemblies – One and Two Gang
The P&S Floor Bracket Assembly consists of a floor
bracket, 4-inch ring, back side support arm, 4-11/16 x 2-1/8
inch metal boxes, and PlugTail Right Angle Connectors
with push-in connectors. The PlugTail Connectors are
sealed in plastic to keep them finish-ready. The boxes are
mounted independent of the rings to allow full box access
when wiring. Multiple wire openings in the push-in wire
connectors allow connection of in-line, end-of-line, or
multi-wire branch circuits. A large selection of PlugTail
Receptacles and GFCIs is available to complete the
installation.
Installation: The Floor Bracket is installed by kicking the
lower flange under the wall base. Two holes are provided for
attachment screws, if required.
Wall Bracket Wired Assemblies – One and Two Gang
The P&S Wall Bracket Wire Assembly consists of a 9-1/2 x 5
inch wall bracket, 4-inch mud rings, back side support arm,
4-11/16 x 2-1/8 inch metal boxes, and PlugTail Right Angle
Connectors with push-in wire connectors. The PlugTail
Connectors are sealed in plastic to keep them finish-ready.
The boxes are mounted independent of the rings to allow
full box access when wiring. Multiple wire openings in the
push-in wire connectors allow connection of in-line, end-of-
line, or multi-wire branch circuits.
Installation: The Wall Bracket Assembly is quickly installed
with screws using the holes provided in the bracket.
A large selection of PlugTail Receptacles and GFCIs is available to complete
the installation. For more information, see this Section and Section C.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-20
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Power Pre-Fabricated Wiring Systems & Metal-Box Kits
MRC2 & MRC1MBD4S1PTSTR
Features
• Ground wire pre-mounted to the box.
• Mud ring factory installed.
• 4" square x 1-1/2" or 2-1/8" metal boxes.
• Unit only ships in quantities of 24.
• PlugTail Right Angle Connectors with
12 AWG copper pigtails.
• All Double Gang Kits contain two right
angle PlugTail connectors.
Features
• Four-inch mud ring.
• Back side support arm.
• 18-inch box mounting height.
• 4-11/16" x 2-1/8" metal boxes.
• Push-in push wire connectors.
• PlugTail Right Angle Connectors
with 12 AWG copper pigtails.
• Floor brackets are 16-gauge
galvanized steel.
• Wall brackets are 18-gauge
galvanized steel.
PSF1185825
PSW15825 MBD4S1SPTSTR
Features
• Protects electrical box opening from dust, debris
and other contaminants.
• Removes easily upon installation of the device.
CATALOG NUMBER
DESCRIPTION
SINGLE GANG
SINGLE PLUGTAIL™
DOUBLE GANG
DOUBLE PLUGTAIL™
FLOOR BRACKET WIRED ASSEMBLIES WITH STRANDED COPPER PIGTAILS
PSF1185825 PSF2185825 5/8" ring rise, 2-1/2" wall depth
PSF1185835 PSF2185835 5/8" ring rise, 3-1/2" wall depth
PSF1187525 PSF2187525 3/4" ring rise, 2-1/2" wall depth
PSF1187535 PSF2187535 3/4" ring rise, 3-1/2" wall depth
FLOOR BRACKET WIRED ASSEMBLIES WITH SOLID COPPER PIGTAILS
PSFS1185825 PSFS2185825 5/8" ring rise, 2-1/2" wall depth
PSFS1187535 PSFS2187535 3/4" ring rise, 3-1/2" wall depth
WALL BRACKET WIRED ASSEMBLIES WITH STRANDED COPPER PIGTAILS
PSW15825 PSW25825 5/8" ring rise, 2-1/2" wall depth
PSW15835 PSW25835 5/8" ring rise, 3-1/2" wall depth
PSW17525 PSW27525 3/4" ring rise, 2-1/2" wall depth
WALL BRACKET WIRED ASSEMBLIES WITH SOLID COPPER PIGTAILS
PSWS15825 PSWS25825 5/8" ring rise, 2-1/2" wall depth
PSWS15835 PSWS25835 5/8" ring rise, 3-1/2" wall depth
PSWS17525 PSWS27525 3/4" ring rise, 2-1/2" wall depth
PSWS17535 PSWS27535 3/4" ring rise, 3-1/2" wall depth
PlugTail Receptacles and GFCIs sold separately.
CATALOG NUMBER
DESCRIPTIONSINGLE GANG DOUBLE GANG
METALBOX KITS WITH STRANDED COPPER PIGTAILS
MB4S1PTSTR 4 Sq. 1-1/2" Metal Box, 5/8 MR, PTRA6STR
MBD4S1PTSTR MBD4S2PTSTR 4 Sq. 2-1/8" Metal Box, 5/8 MR, PTRA6STR
MB4S2SPTSTR 4 Sq. 1-1/2" Metal Box, 3/4 MR, PTRA6STR
METALBOX KITS WITH SOLID COPPER PIGTAILS
MBD4S1PTSOL MBD4S2PTSOL 4 Sq. 2-1/8" Metal Box, 5/8 MR, PTRA6SOL
CATALOG NUMBER DESCRIPTION SIZE
P&S MUD RING COVERS
MRC1 Mud Ring Cover 1-Gang
MRC2 Mud Ring Cover 2-Gang
WWW.LEGRAND.US/PASSANDSEYMOUR
B-21
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Corrosion-resistant, plated and tabbed
steel strap is locked in to face and back
body to resist pulling away from face/
body assembly.
• .032 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face.
• 8 hole internal screw-pressure-plate
back wire terminals accept #10 – 14 AWG
solid or stranded copper or copper-clad
conductors.
• Terminal compartments isolated from
each other for positive conductor
containment.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive
ground.
STRAIGHT BLADE RECEPTACLES
Hard Use Specification Grade Receptacles 15A & 20A, 125 & 125/250V
5262I
1.104"
.780"
2.635"
3.281"
1.322"
For Bulk Packaging Solutions consult factory.
2 Pole, 3 Wire
NEMA
5-15R
NEMA
5-20R
NEMA
6-15R
NEMA
6-20R
5362GN
1.104"
.780"
2.635"
3.281"
1.322"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
5262I 15 125 Ivory 5-15R • • •
5262W 15 125 White 5-15R • • •
5262 15 125 Brown 5-15R • • •
5262GRY 15 125 Gray 5-15R • • •
5262BK 15 125 Black 5-15R • • •
5262RED 15 125 Red 5-15Ra • • •
5262LA 15 125 Light Almond 5-15R • • •
5262BL 15 125 Blue 5-15R • • •
5362I 20 125 Ivory 5-20R • • •
5362W 20 125 White 5-20R • • •
5362 20 125 Brown 5-20R • • •
5362GRY 20 125 Gray 5-20R • • •
5362BK 20 125 Black 5-20R • • •
5362RED 20 125 Red 5-20R • • •
5362LA 20 125 Light Almond 5-20R • • •
5362BL 20 125 Blue 5-20R • • •
5362GN 20 125 Green 5-20R • • •
5362OR 20 125 Orange 5-20R • • •
COMBINATION DUPLEX RECEPTACLES SIDE WIRE
5290I 15 125/250 Ivory 5/6-15R • • •
5290 15 125/250 Brown 5/6-15R • • •
5890I 20 125/250 Ivory 5/6-20R • •
5890W 20 125/250 White 5/6-20R • •
5890 20 125/250 Brown 5/6-20R • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-22
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Construction Specification Grade Receptacles 15 & 20A, 125V
For Bulk Packaging Solutions consult factory.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
Features
• Corrosion-resistant, plated steel strap
locked in to face and back body to resist
pulling away from face/body assembly.
• .032 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face and
thermoplastic back body.
• 8 hole internal screw-pressure-plate
back wire terminals accept #10 – 14 AWG
solid or stranded copper or copper-clad
conductors.
• Terminal compartments isolated from
each other for positive conductor
containment.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive
ground.
• Smooth face version features an impact-
resistant nylon face for ease of cleaning
and less dirt build-up.
CRB5362I
1.104"
.780"
2.635"
3.281"
1.322"
CRB5362SLA
1.104"
.780"
2.635"
3.281"
1.322"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
CRB5262I 15 125 Ivory 5-15R • • •
CRB5262W 15 125 White 5-15R • • •
CRB5262 15 125 Brown 5-15R • • •
CRB5262GRY 15 125 Gray 5-15R • • •
CRB5262BK 15 125 Black 5-15R • • •
CRB5262RED 15 125 Red 5-15R • • •
CRB5262LA 15 125 Light Almond 5-15R • • •
CRB5362I 20 125 Ivory 5-20R • • •
CRB5362W 20 125 White 5-20R • • •
CRB5362 20 125 Brown 5-20R • • •
CRB5362GRY 20 125 Gray 5-20R • • •
CRB5362BK 20 125 Black 5-20R • • •
CRB5362RED 20 125 Red 5-20R • • •
CRB5362LA 20 125 Light Almond 5-20R • • •
DUPLEX RECEPTACLES  SMOOTH FACE BACK & SIDE WIRE
CRB5262SI 15 125 Ivory 5-15R • • •
CRB5262SW 15 125 White 5-15R • • •
CRB5262S 15 125 Brown 5-15R • • •
CRB5262SGRY 15 125 Gray 5-15R • • •
CRB5262SRED 15 125 Red 5-15R • • •
CRB5262SLA 15 125 Light Almond 5-15R • • •
CRB5362SI 20 125 Ivory 5-20R • • •
CRB5362SW 20 125 White 5-20R • • •
CRB5362S 20 125 Brown 5-20R • • •
CRB5362SGRY 20 125 Gray 5-20R • • •
CRB5362SRED 20 125 Red 5-20R • • •
CRB5362SLA 20 125 Light Almond 5-20R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
B-23
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Construction Specification Grade Receptacles 15 & 20A, 125V
For Bulk Packaging Solutions consult factory.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
Features
• Corrosion-resistant, plated steel strap
locked in to face and back body to resist
pulling away from face/body assembly.
• .032 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Impact-resistant nylon face and
thermoplastic back body.
• Terminal compartments isolated from
each other for positive conductor
containment.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive ground.
• Pre-wired with welded wire leads that
create faster, more reliable connections.
Split circuit capable types have four
leads – 2 hot, 1 neutral, and 1 ground.
(Non-split circuit types have a total
of three leads – 1 hot, 1 neutral, and
1 ground.)
• Pre-stripped leads fasten to conductors,
faster than standard pigtails.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES WITH 6" LEADS
CRL5262IB 15 125 Ivory 5-15R • • •
CRL5262WB 15 125 White 5-15R • • •
CRL5262B 15 125 Brown 5-15R • • •
CRL5262GRYB 15 125 Gray 5-15R • • •
CRL5262BKB 15 125 Black 5-15R • • •
CRL5262LAB 15 125 Light Almond 5-15R • • •
CRL5362IB 20 125 Ivory 5-20R • • •
CRL5362WB 20 125 White 5-20R • • •
CRL5362B 20 125 Brown 5-20R • • •
CRL5362GRYB 20 125 Gray 5-20R • • •
CRL5362BKB 20 125 Black 5-20R • • •
CRL5362REDB 20 125 Red 5-20R • • •
CRL5362LAB 20 125 Light Almond 5-20R • • •
DUPLEX RECEPTACLES WITH 6" LEADS  SPLIT CIRCUIT CAPABLE
CRL5262SCIB 15 125 Ivory 5-15R • • •
CRL5262SCWB 15 125 White 5-15R • • •
CRL5262SCB 15 125 Brown 5-15R • • •
CRL5262SCBKB 15 125 Black 5-15R • • •
CRL5262SCLAB 15 125 Light Almond 5-15R • • •
CRL5362SCWB 20 125 White 5-20R • • •
CRL5362SCB 20 125 Brown 5-20R • • •
CRL5362SCGRYB 20 125 Gray 5-20R • • •
CRL5362SCLAB 20 125 Light Almond 5-20R • • •
1.104"
2.635"
3.281"
1.322"
CRL5262LAB
6.375"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-24
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Commercial Specification Grade Receptacles 15A, 125V; 20A, 125 & 250V
Features
• Corrosion-resistant, plated steel strap
locked in to face and back body to resist
pulling away from face/body assembly.
• .032 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face and
thermoplastic back body.
• Accepts #14 – #10 AWG solid or stranded
copper or copper-clad wire.
• Terminal compartments isolated from
each other for positive conductor
containment.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive
ground.
CR15I
1.104"
.780"
2.635"
3.281"
1.322"
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES SIDE WIRE
CR15I 15 125 Ivory 5-15R • •
CR15W 15 125 White 5-15R • •
CR15 15 125 Brown 5-15R • •
CR15GRY 15 125 Gray 5-15R • •
CR15LA 15 125 Light Almond 5-15R • •
CR20I 20 125 Ivory 5-20R • •
CR20W 20 125 White 5-20R • •
CR20 20 125 Brown 5-20R • •
CR20GRY 20 125 Gray 5-20R • •
CR20BK 20 125 Black 5-20R • •
CR20RED 20 125 Red 5-20R • •
CR20LA 20 125 Light Almond 5-20R • •
DUPLEX RECEPTACLES SIDE WIRE
5850I 20 250 Ivory 6-20R • •
5850W 20 250 White 6-20R • •
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
2 Pole, 3 Wire
WWW.LEGRAND.US/PASSANDSEYMOUR
B-25
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Hospital Grade Single Receptacles 15 & 20A, 125V; 20A, 250V
8284I
1.018" 8-32 Thd.
1.937"
1.38"
1.68"
1.32"
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 cUL/CSA
A. V.
SINGLE RECEPTACLES BACK & SIDE WIRE
8201I 15 125 Ivory 5-15R • • •
8201W 15 125 White 5-15R • • •
8201 15 125 Brown 5-15R • • •
8201GRY 15 125 Gray 5-15R • • •
8201BK 15 125 Black 5-15R • • •
8201RED 15 125 Red 5-15R • • •
8201LA 15 125 Light Almond 5-15R • • •
8301I 20 125 Ivory 5-20R • • •
8301W 20 125 White 5-20R • • •
8301 20 125 Brown 5-20R • • •
8301GRY 20 125 Gray 5-20R • • •
8301RED 20 125 Red 5-20R • • •
8301LA 20 125 Light Almond 5-20R • • •
8301OR 20 125 Orange 5-20R • • •
8801I 20 250 Ivory 6-20R • • •
8801W 20 250 White 6-20R • • •
8801 20 250 Brown 6-20R • • •
8801GRY 20 250 Gray 6-20R • • •
8801RED 20 250 Red 6-20R • • •
8801LA 20 250 Light Almond 6-20R • • •
TAMPERRESISTANT SINGLE RECEPTACLES, BACK & SIDE WIRE
TR8201I 15 125 Ivory 5-15R • • •
TR8201W 15 125 White 5-15R • • •
TR8201 15 125 Brown 5-15R • • •
TR8201GRY 15 125 Gray 5-15R • • •
TR8201BK 15 125 Black 5-15R • • •
TR8201RED 15 125 Red 5-15R • • •
TR8201LA 15 125 Light Almond 5-15R • • •
TR8301I 20 250 Ivory 5-20R • • •
TR8301W 20 250 White 5-20R • • •
TR8301 20 250 Brown 5-20R • • •
TR8301GRY 20 250 Gray 5-20R • • •
TR8301BK 20 250 Black 5-20R • • •
TR8301RED 20 250 Red 5-20R • • •
TR8301LA 20 250 Light Almond 5-20R • • •
SHORT STRAP SINGLE RECEPTACLES 1.937" SCREW SPACING, BACK & SIDE WIRE
8284I 15 125 Ivory 5-15R • • •
8284 15 125 Brown 5-15R • • •
8384I 20 125 Ivory 5-20R • •
8384 20 125 Brown 5-20R • •
8201I
1.093"
2.37"
3.28"
1.68"
1.32"
3.68"
1.38"
For Hospital Use Power Interrupting Device consult Turnlok® Section G.
TR8301LA
1.093"
2.37"
3.28"
1.68"
1.32"
3.68"
1.38"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-26
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Corrosion-resistant, plated steel strap
locked in to face and back body to resist
pulling away from face/body assembly.
• One-piece brass, triple-wipe power
contacts for lasting retention.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face and
thermoplastic back body.
• Internal screw-pressure-plate back wire
capable of accepting #14 – #10 AWG
solid or stranded copper or copper-clad
wire.
• Terminal compartments isolated from
each other for positive conductor
containment.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive
ground.
STRAIGHT BLADE RECEPTACLES
Heavy-Duty Specification Grade Single Receptacles 15 & 20A, 125 & 250V
NEMA
5-15R
NEMA
5-20R
NEMA
6-15R
NEMA
6-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
SINGLE RECEPTACLES BACK & SIDE WIRE
5261I 15 125 Ivory 5-15R • • •
5261W 15 125 White 5-15R • • •
5261 15 125 Brown 5-15R • • •
5261GRY 15 125 Gray 5-15R • • •
5261BK 15 125 Black 5-15R • • •
5261RED 15 125 Red 5-15R • • •
5261LA 15 125 Light Almond 5-15R • • •
5361I 20 125 Ivory 5-20R • • •
5361W 20 125 White 5-20R • • •
5361 20 125 Brown 5-20R • • •
5361GRY 20 125 Gray 5-20R • • •
5361BK 20 125 Black 5-20R • • •
5361RED 20 125 Red 5-20R • • •
5361LA 20 125 Light Almond 5-20R • • •
5671I 15 250 Ivory 6-15R • • •
5671 15 250 Brown 6-15R • • •
5671RED 15 250 Red 6-15R • • •
5671LA 15 250 Light Almond 6-15R • • •
5871I 20 250 Ivory 6-20R • • •
5871W 20 250 White 6-20R • • •
5871 20 250 Brown 6-20R • • •
5871GRY 20 250 Gray 6-20R • • •
5871BK 20 250 Black 6-20R • • •
5871RED 20 250 Red 6-20R • • •
5871LA 20 250 Light Almond 6-20R • • •
5361I
1.093"
2.37"
3.28"
1.68"
1.32"
3.68"
1.38"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-27
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Auto-ground clip assures positive
ground.
• Two drive screws anchor strap to back
body and face where abrupt removal
torque is greatest.
• Heavy-duty, corrosion-resistant zinc-
plated steel strap for added strength.
• Backed-out tri-drive steel terminal
screws. Internal screw-pressure-plate
back and side wire capability. Two back
wire holes for increased wiring flexibility.
• One-piece brass triple-wipe power
contacts for lasting retention.
STRAIGHT BLADE RECEPTACLES
Specification Grade Single Receptacles 15 & 20A, 125 & 250V
5371I
.950"
3.280"
1.380"
2.370"
1.320"
NEMA
5-15R
NEMA
5-20R
NEMA
6-15R
NEMA
6-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions
consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42
A. V.
SINGLE RECEPTACLES BACK & SIDE WIRE
5251I 15 125 Ivory 5-15R • •
5251W 15 125 White 5-15R • •
5251 15 125 Brown 5-15R • •
5251LA 15 125 Light Almond 5-15R • •
5351I 20 125 Ivory 5-20R • •
5351W 20 125 White 5-20R • •
5351 20 125 Brown 5-20R • •
5351LA 20 125 Light Almond 5-20R • •
5651I 15 250 Ivory 6-15R • •
5651W 15 250 White 6-15R • •
5651 15 250 Brown 6-15R • •
5651LA 15 250 Light Almond 6-15R • •
5851I 20 250 Ivory 6-20R • •
5851W 20 250 White 6-20R • •
5851 20 250 Brown 6-20R • •
5851LA 20 250 Light Almond 6-20R • •
SHORT STRAP SINGLE RECEPTACLES SCREW SPACING 2.370"
5251SSIB 15 125 Ivory 5-15R • •
5251SSWB 15 125 White 5-15R • •
5251SSBKB 15 125 Black 5-15R • •
5251SSLAB 15 125 Light Almond 5-15R • •
SINGLE RECEPTACLES SIDE WIRE RIGHT ANGLE SLOTS
5371I 20 125 Ivory Non-NEMA • •
5371W 20 125 White Non-NEMA • •
5371 20 125 Brown Non-NEMA • •
SHORT STRAP SINGLE RECEPTACLES SCREW SPACING 1.750"
5258I 15 125 Ivory 5-15R • •
5258W 15 125 White 5-15R • •
5258 15 125 Brown 5-15R • •
5258BK 15 125 Black 5-15R • •
5358I 20 125 Ivory 5-20R • •
5358W 20 125 White 5-20R • •
5358 20 125 Brown 5-20R • •
5358BK 20 125 Black 5-20R • •
5658I 15 250 Ivory 6-15R • •
5658 15 250 Brown 6-15R • •
5858I 20 250 Ivory 6-20R • •
5858W 20 250 White 6-20R • •
5858 20 250 Brown 6-20R • •
Supplied with mounting screws.
5258I
1.00"
1.49"
1.75"
.762"
5251I
3.280"
1.380"
2.370"
1.08"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-28
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Specification Grade Receptacles 15 & 20A, 125V
Features
• Thermoplastic dual mechanism shutter
system to help prevent insertion of
foreign objects.
• Exclusive patented feature, circuit
label on face allows permanent circuit
identification.
• Extra heavy-duty brass, one-piece
mounting strap with integral ground.
• One-piece, brass, triple-wipe power
contacts for lasting retention.
• Strap tabs wrap around and lock down
on face to prevent strap from separating
from face and back body.
• Impact-resistant nylon face and
back body.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Two drive screws anchor strap to back
body and face.
• Exclusive patented feature, external
screw-pressure-plate back wire clamp
on ground terminal for faster, easier
installation.
• External screw-pressure-plate back
wire clamps with #10 brass terminal
screws for visual assurance of a
good connection.
• Auto-ground clip assures positive
ground.
NEC® section 517.18(C) Pediatric Locations.
Receptacles located within the rooms, bathrooms, playrooms,
activity rooms, and patient care areas of pediatric wards shall
be listed under tamper resistant or employ a listed tamper
resistant cover.
This tamper-resistant receptacle, like all others, can be defeated
by actions such as inserting foreign objects in both sides of the
slots simultaneously.
For PlugTail™ Tamper-Resistant Receptacles, see Page B-16.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
TR62I 15 125 Ivory 5-15R • • •
TR62W 15 125 White 5-15R • • •
TR62 15 125 Brown 5-15R • • •
TR62GRY 15 125 Gray 5-15R • • •
TR62BK 15 125 Black 5-15R • • •
TR62RED 15 125 Red 5-15R • • •
TR62LA 15 125 Light Almond 5-15R • • •
TR62BL 15 125 Blue 5-15R • • •
TR63I 20 125 Ivory 5-20R • • •
TR63W 20 125 White 5-20R • • •
TR63 20 125 Brown 5-20R • • •
TR63GRY 20 125 Gray 5-20R • • •
TR63BK 20 125 Black 5-20R • • •
TR63RED 20 125 Red 5-20R • • •
TR63LA 20 125 Light Almond 5-20R • • •
TR63BL 20 125 Blue 5-20R • • •
TR62I
3.281"
1.625"
1.104"
2.750"
.900"
Two-bladed plug
or grounding plug
compresses spring and
simultaneously opens
both shutters.
The Mechanical
Shutter System
Insertion of object in
any one side does not
open shutter.
Thermoplastic shutter
in closed position
covers access to
contacts.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-29
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Hospital Grade Receptacles 15 & 20A, 125V
Features
• Thermoplastic dual mechanism shutter
system to help prevent insertion of
foreign objects.
• Exclusive patented feature, circuit
label on face allows permanent circuit
identification.
• Extra heavy-duty brass, one-piece
mounting strap with integral ground.
• One-piece, nickel-plated brass, triple-
wipe power contacts for lasting retention.
• Strap tabs wrap around and lock down
on face to prevent strap from separating
from face and back body.
• Impact-resistant nylon face and
back body.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Two drive screws anchor strap to back
body and face.
• Exclusive patented feature, external
screw-pressure-plate back wire clamp
on ground terminal for faster, easier
installation.
• External screw-pressure-plate back
wire clamps with #10 brass terminal
screws for visual assurance of a good
connection.
• Auto-ground clip assures positive
ground.
For PlugTail™ Tamper-Resistant Receptacles, see Page B-16.
TR62HI
.900"
1.625"
1.104"
2.750"
3.281"
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
HOSPITAL GRADE DUPLEX RECEPTACLES BACK & SIDE WIRE
TR62HI 15 125 Ivory 5-15R • • •
TR62HW 15 125 White 5-15R • • •
TR62H 15 125 Brown 5-15R • • •
TR62HGRY 15 125 Gray 5-15R • • •
TR62HRED 15 125 Red 5-15R • • •
TR62HLA 15 125 Light Almond 5-15R • • •
TR63HI 20 125 Ivory 5-20R • • •
TR63HW 20 125 White 5-20R • • •
TR63H 20 125 Brown 5-20R • • •
TR63HGRY 20 125 Gray 5-20R • • •
TR63HRED 20 125 Red 5-20R • • •
TR63HLA 20 125 Light Almond 5-20R • • •
TR63HBL 20 125 Blue 5-20R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-30
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 cULus C22.2 No. 42
A. V.
TAMPERRESISTANT DUPLEX RECEPTACLES SIDE WIRE
TR15I 15 125 Ivory 5-15R • • •
TR15W 15 125 White 5-15R • • •
TR15 15 125 Brown 5-15R • • •
TR15GRY 15 125 Gray 5-15R • • •
TR15LA 15 125 Light Almond 5-15R • • •
TR20I 20 125 Ivory 5-20R • • •
TR20W 20 125 White 5-20R • • •
TR20 20 125 Brown 5-20R • • •
TR20GRY 20 125 Gray 5-20R • • •
TR20BK 20 125 Black 5-20R • • •
TR20LA 20 125 Light Almond 5-20R • • •
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Hard Use & Commercial Grade Receptacles 15 & 20A, 125V
Features
• Dual mechanical shutter system to help
prevent insertion of foreign objects.
• Auto-ground clip assures positive ground.
• Easily accessed break-off line-contact
connecting tab for fast and easy split-
circuit wiring.
• Backed-out tri-drive brass terminal
screws for faster installation. Internal
screw-pressure-plate back and side
wire capability. Two back wire holes for
additional wiring flexibility.
• Corrosion-resistant plated steel strap
is locked in to face and back body to
resist pulling away from the face/body
assembly.
• .032 inch thick brass triple-wipe power
contacts.
• Two drive screws anchor steel strap to
back body and face where abrupt removal
torque is greatest.
TR5362LA
1.130"
1.322"
1.104"
2.635"
3.281"
Features
• Dual mechanical shutter system to help
prevent insertions of foreign objects.
• Two drive screws anchor strap to back
body and face where abrupt removal
torque is greatest.
• .032 inch thick brass triple-wipe power
contacts for lasting retention.
• Corrosion-resistant plated steel strap
is locked in to the face and back body to
resist pulling away from the face/body
assembly.
• Auto-ground clip assures positive
ground.
• Easily accessed break-off line-contact
connecting tab for fast and easy split-
circuit wiring.
• Backed-out tri-drive steel terminal
screws. Side wire capability.
For Bulk Packaging Solutions
consult factory.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
TAMPERRESISTANT DUPLEX RECEPTACLES BACK & SIDE WIRE
TR5262I 15 125 Ivory 5-15R • • •
TR5262W 15 125 White 5-15R • • •
TR5262 15 125 Brown 5-15R • • •
TR5262GRY 15 125 Gray 5-15R • • •
TR5262BK 15 125 Black 5-15R • • •
TR5262RED 15 125 Red 5-15R • • •
TR5262LA 15 125 Light Almond 5-15R • • •
TR5362I 20 125 Ivory 5-20R • • •
TR5362W 20 125 White 5-20R • • •
TR5362 20 125 Brown 5-20R • • •
TR5362GRY 20 125 Gray 5-20R • • •
TR5362BK 20 125 Black 5-20R • • •
TR5362RED 20 125 Red 5-20R • • •
TR5362LA 20 125 Light Almond 5-20R • • •
TR15LA
1.130"
1.322"
1.104"
2.635"
3.281"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-31
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Construction Grade Receptacles & Shim-Lock 15 & 20A, 125V
Features
• Dual mechanical shutter system to help
prevent insertions of foreign objects.
• Two drive screws anchor strap to back
body and face where abrupt removal
torque is greatest.
• Heavy-duty, corrosion-resistant zinc-
plated steel strap for added strength.
• Backed-out tri-drive steel terminal
screws. Internal screw-pressure-plate
back and side wire capability. Two back
wire holes for increased wiring flexibility.
• One-piece brass triple-wipe power
contacts for lasting retention.
TR5351LA
1.190"
1.296"
1.38"
3.28"
Features
• One Shim-Lock provides a device
adjustment depth range between 1/8"
and 3/4".
• An inexpensive and quick fix for floating
installations.
• Provides a perfect flush mount every
time, regardless of the wallboard, tile or
panel condition.
• Made of steel and finished with clear zinc
chromate plating.
Shim-Lock
.310"
For Bulk Packaging Solutions consult factory.
NEMA
5-15R NEMA
5-20R
2 Pole, 3 Wire
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
TAMPERRESISTANT SINGLE RECEPTACLES BACK & SIDE WIRE
TR5251I 15 125 Ivory 5-15R • • •
TR5251W 15 125 White 5-15R • • •
TR5251 15 125 Brown 5-15R • • •
TR5251LA 15 125 Light Almond 5-15R • • •
TR5351I 20 125 Ivory 5-20R • • •
TR5351W 20 125 White 5-20R • • •
TR5351 20 125 Brown 5-20R • • •
TR5351LA 20 125 Light Almond 5-20R • • •
CATALOG NUMBER DIMENSIONS QTY. PER PACKAGE
SHIMLOCK
SHL20 Length: .310", Screw Opening: #6 20
SHL100 Length: .310", Screw Opening: #6 100
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-32
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Weather-Resistant Heavy-Duty & Commercial Grade Receptacles 15 & 20A, 125 & 250V
Features
• Auto-ground clip assures positive
ground.
• WR marking on face as required by UL
Standard.
• Zinc-plated steel mounting screws for
greater ease of installation and removal
in wet or damp locations.
• Strap tabs wrap around face to prevent
strap from separating from face and
back body.
• Tri-drive brass terminal screws. Internal
screw-pressure-plate back and side wire
capability. Two back wire holes for more
wiring flexibility.
• Heavy-duty, brass strap for added
strength and ground conductivity.
• UV-resistant nylon face for longer life
under adverse environmental conditions.
• Two drive screws anchor strap to back
body and face where abrupt removal
torque is strongest.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• .032 inch thick brass triple-wipe power
contacts for lasting retention.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
National Electrical Code® Section 406.8 Receptacles in Wet or Damp Locations.
Requires that all 15- and 20-amp, 125- and 250-volt non-locking receptacles installed
in wet or damp locations shall be weather-resistant receptacles.
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
WEATHERRESISTANT DUPLEX RECEPTACLES BACK & SIDE WIRE
WR5262I 15 125 Ivory 5-15R • • •
WR5262W 15 125 White 5-15R • • •
WR5262GRY 15 125 Gray 5-15R • • •
WR5362I 20 125 Ivory 5-20R • • •
WR5362W 20 125 White 5-20R • • •
WR5362GRY 20 125 Gray 5-20R • • •
WR5662I 15 250 Ivory 6-15R • • •
WR5662W 15 250 White 6-15R • • •
WR5662GRY 15 250 Gray 6-15R • • •
WR5862I 20 250 Ivory 6-20R • • •
WR5862W 20 250 White 6-20R • • •
WR5862GRY 20 250 Gray 6-20R • • •
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42
A. V.
WEATHERRESISTANT DUPLEX RECEPTACLES SIDE WIRE
WR20TRI 20 125 Ivory 5-20R • •
WR20TRW 20 125 White 5-20R • •
WR20TR 20 125 Brown 5-20R • •
WR20TRGRY 20 125 Gray 5-20R • •
WR20TRLA 20 125 Light Almond 5-20R • •
WR20TR models are Tamper-Resistant.
1.322"
1.104"
2.635"
3.281"
.780"
WR5262W WR20TRW
1.322"
1.104"
2.635"
3.281"
.780"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-33
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Isolated Ground Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125V & 250V
NEMA
5-15R
NEMA
6-15R
NEMA
6-20R
NEMA
5-20R
For Bulk Packaging Solutions consult factory.
1.093"
1.32"
3.28"
2.37"
3.68"
1.38"
1.68"
IG5261
CATALOG NUMBER RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42SPEC GRADE HOSPITAL GRADE A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
IG5262I IG8200I 15 125 Ivory 5-15R • • •
IG5262W 15 125 White 5-15R • • •
IG5262 IG8200 15 125 Orange 5-15R • • •
IG5262GRY 15 125 Gray 5-15R • • •
IG5262RED IG8200RED 15 125 Red 5-15R • • •
IG5262LA 15 125 Light Almond 5-15R • • •
IG5362I IG8300I 20 125 Ivory 5-20R • • •
IG5362W IG8300W 20 125 White 5-20R • • •
IG5362 IG8300 20 125 Orange 5-20R • • •
IG5362GRY 20 125 Gray 5-20R • • •
IG5362BK 20 125 Black 5-20R • • •
IG5362RED IG8300RED 20 125 Red 5-20R • •
IG5362LA IG8300LA 20 125 Light Almond 5-20R • • •
IG5362BL IG8300BL 20 125 Blue 5-20R • • •
IG5662 15 250 Orange 6-15R • • •
IG5862 IG8800 20 250 Orange 6-20R • • •
IG8800LA 20 250 Light Almond 6-20R • • •
DECORATOR DUPLEX RECEPTACLES BACK & SIDE WIRE
IG26262I 15 125 Ivory 5-15R • • •
IG26262W IG26262HGW 15 125 White 5-15R • • •
IG26262 IG26262HG 15 125 Orange 5-15R • • •
IG26262GRY 15 125 Gray 5-15R • • •
IG26262BK 15 125 Black 5-15R • • •
IG26262RED IG26262HGRED 15 125 Red 5-15R • • •
IG26262LA 15 125 Light Almond 5-15R • • •
IG26362I 20 125 Ivory 5-20R • • •
IG26362W IG26362HGW 20 125 White 5-20R • • •
IG26362 IG26362HG 20 125 Orange 5-20R • • •
IG26362GRY 20 125 Gray 5-20R • • •
IG26362BK IG26362HGBK 20 125 Black 5-20R • • •
IG26362RED IG26362HGRED 20 125 Red 5-20R • • •
IG26362LA 20 125 Light Almond 5-20R • • •
SINGLE RECEPTACLES BACK & SIDE WIRE
IG5261 15 125 Orange 5-15R • • •
IG5361 IG8301 20 125 Orange 5-20R • • •
For Wall Plates for Isolated Ground Systems, consult Wall Plates Section P.
1.322"
1.104"
2.635"
3.281"
.922"
IG8300 IG26262GRY
1.322"
3.281"
2.635"
3.813"
.833"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-34
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Isolated Ground Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125V
1.187"
1.25"
1.125"
2.625"
3.625"
TRIG5362 TRIG8300W
1.187"
1.25"
1.125"
2.625"
3.625"
TRIG26362
1.187"
1.25"
3.625"
For Bulk Packaging Solutions consult factory.
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596SPEC GRADE HOSPITAL GRADE A. V.
TAMPERRESISTANT DUPLEX RECEPTACLES BACK & SIDE WIRE
TRIG5262I TRIG8200I 15 125 Ivory 5-15R • •
TRIG5262W TRIG8200W 15 125 White 5-15R • •
TRIG5262 TRIG8200 15 125 Orange 5-15R • •
TRIG5262BK TRIG8200BK 15 125 Black 5-15R • •
TRIG5262GRY TRIG8200GRY 15 125 Gray 5-15R • •
TRIG5262RED TRIG8200RED 15 125 Red 5-15R • •
TRIG5262LA TRIG8200LA 15 125 Light Almond 5-15R • •
TRIG5362I TRIG8300I 20 125 Ivory 5-20R • •
TRIG5362W TRIG8300W 20 125 White 5-20R • •
TRIG5362 TRIG8300 20 125 Orange 5-20R • •
TRIG5362BK TRIG8300BK 20 125 Black 5-20R • •
TRIG5362GRY TRIG8300GRY 20 125 Gray 5-20R • •
TRIG5362RED TRIG8300RED 20 125 Red 5-20R • •
TRIG5362LA TRIG8300LA 20 125 Light Almond 5-20R • •
TAMPERRESISTANT DECORATOR RECEPTACLES BACK & SIDE WIRE
TRIG26262I TRIG26262HGI 15 125 Ivory 5-15R • •
TRIG26262W TRIG26262HGW 15 125 White 5-15R • •
TRIG26262 TRIG26262HG 15 125 Orange 5-15R • •
TRIG26262BK TRIG26262HGBK 15 125 Black 5-15R • •
TRIG26262GRY TRIG26262HGGRY 15 125 Gray 5-15R • •
TRIG26262RED TRIG26262HGRED 15 125 Red 5-15R • •
TRIG26262LA TRIG26262HGLA 15 125 Light Almond 5-15R • •
TRIG26362I TRIG26362HGI 20 125 Ivory 5-20R • •
TRIG26362W TRIG26362HGW 20 125 White 5-20R • •
TRIG26362 TRIG26362HG 20 125 Orange 5-20R • •
TRIG26362BK TRIG26362HGBK 20 125 Black 5-20R • •
TRIG26362GRY TRIG26362HGGRY 20 125 Gray 5-20R • •
TRIG26362RED TRIG26362HGRED 20 125 Red 5-20R • •
TRIG26362LA TRIG26362HGLA 20 125 Light Almond 5-20R • •
WWW.LEGRAND.US/PASSANDSEYMOUR
B-35
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
USB Chargers with Tamper-Resistant Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125V & 120V
CATALOG NUMBER
RATING
COLOR
TOTAL
CHARGING
CAPACITY
3rd PARTY COMPLIANCE
A. V.
USB CHARGER WITH TAMPERRESISTANT RECEPTACLE
TM8USBICC6 15 125 Ivory 2.1 Amp •
TM8USBWCC6 15 125 White 2.1 Amp •
TM8USBBKCC6 15 125 Black 2.1 Amp •
TM8USBLACC6 15 125 Light Almond 2.1 Amp •
TM8USBNICC6 15 125 Nickel 2.1 Amp •
TM8USBTICC6 15 125 Titanium 2.1 Amp •
USB CHARGER WITH SINGLE POLE/3WAY SWITCH
TM83USBICC6 15 120 Ivory 2.1 Amp •
TM83USBWCC6 15 120 White 2.1 Amp •
TM83USBBKCC6 15 120 Black 2.1 Amp •
TM83USBLACC6 15 120 Light Almond 2.1 Amp •
TM83USBNICC6 15 120 Nickel 2.1 Amp •
TM83USBTICC6 15 120 Titanium 2.1 Amp •
USB QUAD CHARGER
TM8USB4ICC6 Ivory 4.2 Amp •
TM8USB4WCC6 White 4.2 Amp •
TM8USB4BKCC6 Black 4.2 Amp •
TM8USB4LACC6 Light Almond 4.2 Amp •
TM8USB4NICC6 Nickel 4.2 Amp •
TM8USB4TICC6 Titanium 4.2 Amp •
TM83USBW
1.60"
1.31"
4.18"
TM8USBW
1.60"
1.31"
4.18"
TM8USB4W
1.693"
1.33"
3.281"
Features
• Charge multiple USB powered devices at
the same time.
• Allow users to plug USB cables directly
without AC adapters or transformer
style plugs.
• Back and side wire terminals.
• Compatible with USB 2.0 and 3.0 devices.
• Accepts standard Pass & Seymour
Decorator wall plates.
• Compact design.
• All AC outlets are tamper-resistant.
• Meets 2011 NEC standards.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-36
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Fed Spec & Hospital Grade USB Chargers with Tamper-Resistant Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V & 120V
CATALOG NUMBER
RATING
COLOR
TOTAL
CHARGING
CAPACITY
3rd PARTY COMPLIANCE
A. V.
FED SPEC USB CHARGER WITH TAMPERRESISTANT RECEPTACLE
TR5261USBI 15 125 Ivory 2.1 Amp •
TR5261USBW 15 125 White 2.1 Amp •
TR5261USB 15 125 Brown 2.1 Amp •
TR5261USBGRY 15 125 Gray 2.1 Amp •
TR5261USBBK 15 125 Black 2.1 Amp •
TR5261USBRED 15 125 Red 2.1 Amp •
TR5261USBLA 15 125 Light Almond 2.1 Amp •
TR5261USBGN 15 125 Green 2.1 Amp •
TR5261USBNI 15 125 Nickel 2.1 Amp •
TR5361USBI 20 125 Ivory 2.1 Amp •
TR5361USBW 20 125 White 2.1 Amp •
TR5361USB 20 125 Brown 2.1 Amp •
TR5361USBGRY 20 125 Gray 2.1 Amp •
TR5361USBBK 20 125 Black 2.1 Amp •
TR5361USBLA 20 125 Light Almond 2.1 Amp •
TR5361USBGN 20 125 Green 2.1 Amp •
TR5361USBNI 20 125 Nickel 2.1 Amp •
HOSPITAL GRADE USB CHARGER WITH TAMPERRESISTANT RECEPTACLE
TR8201USBI 15 125 Ivory 2.1 Amp •
TR8201USBW 15 125 White 2.1 Amp •
TR8201USB 15 125 Brown 2.1 Amp •
TR8201USBGRY 15 125 Gray 2.1 Amp •
TR8201USBBK 15 125 Black 2.1 Amp •
TR8201USBRED 15 125 Red 2.1 Amp •
TR8201USBLA 15 125 Light Almond 2.1 Amp •
TR8301USBI 20 125 Ivory 2.1 Amp •
TR8301USBW 20 125 White 2.1 Amp •
TR8301USB 20 125 Brown 2.1 Amp •
TR8301USBGRY 20 125 Gray 2.1 Amp •
TR8301USBBK 20 125 Black 2.1 Amp •
TR8301USBRED 20 125 Red 2.1 Amp •
TR8301USBLA 20 125 Light Almond 2.1 Amp •
TR5361USBW TR8301USBW
Features
• Compact-design Tamper-Resistant
receptacle and two 5-volt DC USB ports
that work with USB 2.0 & 3.0 compatible
devices.
• 2.1A USB type A receptacle charges
fast, eliminates the need for bulky AC
adapters.
• Back and side wire terminals
accommodate #14 AWG - #10 AWG
stranded and solid wire.
• Zinc-plated ground terminal screw.
• Stainless steel auto-ground clip assures
positive ground.
• Tamper-Resistant, patented shutter
system prevents improper insertion of
foreign objects. Meets 2011 National
Electric Code® Tamper-Resistant
requirements.
4.18"
1.60"
1.31"
2.61"
4.18"
1.60"
1.31"
2.61"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-37
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Tamper-Resistant Duplex, Hospital Grade & Split Circuit Receptacles 15 & 20A, 125V
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596SPEC GRADE A. V.
TAMPERRESISTANT DUPLEX RECEPTACLES
PTTR26262I 15 125 Ivory 5-15R • •
PTTR26262W 15 125 White 5-15R • •
PTTR26262 15 125 Brown 5-15R • •
PTTR26262BK 15 125 Black 5-15R • •
PTTR26262LA 15 125 Light Almond 5-15R • •
PTTR26362I 20 125 Ivory 5-20R • •
PTTR26362W 20 125 White 5-20R • •
PTTR26362 20 125 Brown 5-20R • •
PTTR26362BK 20 125 Black 5-20R • •
PTTR26362LA 20 125 Light Almond 5-20R • •
TAMPERRESISTANT HOSPITAL GRADE DUPLEX RECEPTACLES
PTTR26262HGI 15 125 Ivory 5-15R • •
PTTR26262HGW 15 125 White 5-15R • •
PTTR26262HG 15 125 Brown 5-15R • •
PTTR26262HGGRY 15 125 Gray 5-15R • •
PTTR26262HGBK 15 125 Black 5-15R • •
PTTR26262HGRED 15 125 Red 5-15R • •
PTTR26262HGLA 15 125 Light Almond 5-15R • •
PTTR26362HGI 20 125 Ivory 5-20R • •
PTTR26362HGW 20 125 White 5-20R • •
PTTR26362HG 20 125 Brown 5-20R • •
PTTR26362HGBK 20 125 Black 5-20R • •
PTTR26362HGGRY 20 125 Gray 5-20R • •
PTTR26362HGRED 20 125 Red 5-20R • •
PTTR26362HGLA 20 125 Light Almond 5-20R • •
TAMPERRESISTANT SPLIT CIRCUIT DUPLEX RECEPTACLES
PTTR26262SCI 15 125 Ivory 5-15R • •
PTTR26262SCW 15 125 White 5-15R • •
PTTR26262SC 15 125 Brown 5-15R • •
PTTR26262SCBK 15 125 Black 5-15R • •
PTTR26262SCLA 15 125 Light Almond 5-15R • •
PTTR26362SCI 20 125 Ivory 5-20R • •
PTTR26362SCW 20 125 White 5-20R • •
PTTR26362SC 20 125 Brown 5-20R • •
PTTR26362SCBK 20 125 Black 5-20R • •
PTTR26362SCLA 20 125 Light Almond 5-20R • •
Features
• Dual mechanical shutter system
to help prevent insertion of foreign
objects.
• .036 inch thick, brass, triple-
wipe power contacts for lasting
retention.
• Plated steel wrap strap design for
maximum durability and corrosion
resistance.
• No exposed terminals create a
finger safe application before,
during, and after installation.
• Built-in connector features large
brass terminal blades to ensure
consistent, reliable electrical
connections.
• Crimped and welded contacts.
• Ultrasonically welded
polycarbonate connector housing
secures terminations and
conductors in a UL Listed, finger
safe housing.
• Large brass contacts snugly
terminate on device blade
terminals.
• Pre-stripped connector leads
fasten to conductors, easier than
standard pigtails.
• Auto-ground clip assures positive
ground.
• Split circuit models pre-wired with
one welded pre-stripped wire lead
to facilitate switched receptacle
circuit applications.
PTTR26262I
3.281"
1.5"
.625"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-38
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Decorator Receptacles 15 & 20A, 125V
PT26362HGI
Features
• .036 inch thick, brass, triple-wipe power
contacts for lasting retention.
• Plated steel wrap strap design for
maximum durability and corrosion
resistance.
• No exposed terminals create a finger
safe application before, during, and
after installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate
connector housing secures terminations
and conductors in a UL Listed, finger
safe housing.
• Large brass contacts snugly terminate
on device blade terminals.
• Pre-stripped connector leads fasten to
conductors, easier than standard pigtails.
• Auto-ground clip assures positive ground.
• Isolated ground version features nylon
isolator plate for isolating ground from
strap and box system.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
For PlugTail Connectors,
see Page B-4.
For Bulk Packaging Solutions
consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596
A. V.
DUPLEX RECEPTACLES
PT26252I 15 125 Ivory 5-15R • •
PT26252W 15 125 White 5-15R • •
PT26252 15 125 Brown 5-15R • •
PT26252GRY 15 125 Gray 5-15R • •
PT26252BK 15 125 Black 5-15R • •
PT26252RED 15 125 Red 5-15R • •
PT26252LA 15 125 Light Almond 5-15R • •
PT26252BL 15 125 Blue 5-15R • •
PT26352I 20 125 Ivory 5-20R • •
PT26352W 20 125 White 5-20R • •
PT26352 20 125 Brown 5-20R • •
PT26352GRY 20 125 Gray 5-20R • •
PT26352BK 20 125 Black 5-20R • •
PT26352RED 20 125 Red 5-20R • •
PT26352LA 20 125 Light Almond 5-20R • •
HOSPITAL GRADE DUPLEX RECEPTACLES
PT26262HGI 15 125 Ivory 5-15R • •
PT26262HGW 15 125 White 5-15R • •
PT26262HGGRY 15 125 Gray 5-15R • •
PT26262HGRED 15 125 Red 5-15R • •
PT26362HGI 20 125 Ivory 5-20R • •
PT26362HGW 20 125 White 5-20R • •
PT26362HGGRY 20 125 Gray 5-20R • •
PT26362HGRED 20 125 Red 5-20R • •
PT26362HGLA 20 125 Light Almond 5-20R • •
ISOLATED GROUND DUPLEX RECEPTACLES
PTIG26262I 15 125 Ivory 5-15R • •
PTIG26262W 15 125 White 5-15R • •
PTIG26262 15 125 Orange 5-15R • •
PTIG26262GRY 15 125 Gray 5-15R • •
PTIG26262RED 15 125 Red 5-15R • •
PTIG26262LA 15 125 Light Almond 5-15R • •
PTIG26362I 20 125 Ivory 5-20R • •
PTIG26362W 20 125 White 5-20R • •
PTIG26362 20 125 Orange 5-20R • •
PTIG26362GRY 20 125 Gray 5-20R • •
PTIG26362RED 20 125 Red 5-20R • •
PTIG26362LA 20 125 Light Almond 5-20R • •
PT26352LA
2.75" 3.281"
1.5"
.625"
2.75" 3.281"
1.5"
.625"
PTIG26362LA
2.75" 3.281"
1.5"
.625"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-39
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Heavy-Duty Hospital Grade Decorator Receptacles 15 & 20A, 125V
Features
• Corrosion-resistant, plated steel strap
locked into assembly to prohibit strap
from bending away from body.
• One-piece, brass, triple-wipe power
contacts for lasting retention.
• Heavy-duty compact design for
easier installation and long lasting
performance.
• Isolated ground version features nylon
isolator plate for isolating ground strap
and box system.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face.
• Terminal compartments isolated
from each other for positive
conductor containment.
• Side and internal screw-pressure-plate
back wire accepts #14 – #10 AWG solid
or stranded wire.
• All devices fit standard #26 opening
wall plate.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive ground.
For Bulk Packaging Solutions consult factory.
26262HGI
2.635"
3.281"
1.322"
3.813"
.833"
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
IG26262HG
.833"
1.322"
3.281"
2.635"
3.813"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 cUL/CSA
A. V.
HOSPITAL GRADE DUPLEX RECEPTACLES BACK & SIDE WIRE
26262HGI 15 125 Ivory 5-15R • • •
26262HGW 15 125 White 5-15R • • •
26262HGGRY 15 125 Gray 5-15R • • •
26262HGRED 15 125 Red 5-15R • • •
26362HGI 20 125 Ivory 5-20R • • •
26362HGW 20 125 White 5-20R • • •
26362HG 20 125 Brown 5-20R • • •
26362HGGRY 20 125 Gray 5-20R • • •
26362HGRED 20 125 Red 5-20R • • •
26362HGLA 20 125 Light Almond 5-20R • • •
HOSPITAL GRADE ISOLATED GROUND DUPLEX RECEPTACLES BACK & SIDE WIRE
IG26262HGW 15 125 White 5-15R • •
IG26262HG 15 125 Orange 5-15R • •
IG26262HGRED 15 125 Red 5-15R • •
IG26362HGW 20 125 White 5-20R • •
IG26362HG 20 125 Orange 5-20R • •
IG26362HGBK 20 125 Black 5-20R • •
IG26362HGRED 20 125 Red 5-20R • •
HOSPITAL GRADE ILLUMINATED DUPLEX RECEPTACLES BACK & SIDE WIRE
26222HGI 15 125 Ivory 5-15R • •
26322HGI 20 125 Ivory 5-20R • •
26322HGW 20 125 White 5-20R • •
26322HGRED 20 125 Red 5-20R • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-40
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Specification Grade Decorator Receptacles 15 & 20A, 125 & 250V
Features
• Corrosion-resistant, plated steel strap
locked into assembly to prohibit strap
from bending away from body.
• One-piece, brass, triple-wipe power
contacts for lasting retention.
• Heavy-duty compact design for
easier installation and long lasting
performance.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face.
• Terminal compartments isolated from
each other for positive conductor
containment.
• Side wire accepts #14 – #10 AWG solid
or stranded wire.
• All devices fit standard #26 opening
wall plate.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive ground.
For Bulk Packaging Solutions consult factory.
2 Pole, 3 Wire
NEMA
5-15R
NEMA
5-20R
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 cUL/CSA
A. V.
DUPLEX RECEPTACLES SIDE WIRE ONLY
26242I 15 125 Ivory 5-15R • • •
26242W 15 125 White 5-15R • • •
26242 15 125 Brown 5-15R • • •
26242GRY 15 125 Gray 5-15R • • •
26242BK 15 125 Black 5-15R • • •
26242RED 15 125 Red 5-15R • • •
26342I 20 125 Ivory 5-20R • • •
26342W 20 125 White 5-20R • • •
26342 20 125 Brown 5-20R • • •
26342GRY 20 125 Gray 5-20R • • •
26342BK 20 125 Black 5-20R • • •
26342RED 20 125 Red 5-20R • • •
26242I
2.635"
3.281"
1.322"
3.81"
.833"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-41
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 cUL/CSA
A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
26652I 15 250 Ivory 6-15R • • •
26652W 15 250 White 6-15R • • •
26652 15 250 Brown 6-15R • • •
26652GRY 15 250 Gray 6-15R • • •
26652BK 15 250 Black 6-15R • • •
26652RED 15 250 Red 6-15R • • •
26852I 20 250 Ivory 6-20R • • •
26852W 20 250 White 6-20R • • •
26852 20 250 Brown 6-20R • • •
26852GRY 20 250 Gray 6-20R • • •
26852BK 20 250 Black 6-20R • • •
26852RED 20 250 Red 6-20R • • •
26852LA 20 250 Light Almond 6-20R • • •
STRAIGHT BLADE RECEPTACLES
Specification Grade Decorator Receptacles 15 & 20A, 125 & 250V
Features
• Corrosion-resistant, plated steel strap
locked into assembly to prohibit strap
from bending away from body.
• One-piece, brass, triple-wipe power
contacts for lasting retention.
• Heavy-duty compact design for
easier installation and long lasting
performance.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face.
• Terminal compartments isolated from
each other for positive conductor
containment.
• Side and internal screw-pressure-plate
back wire accepts #14 – #10 AWG solid
or stranded wire.
• All devices fit standard #26 opening
wall plate.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive ground.
For Bulk Packaging Solutions consult factory.
2 Pole, 3 Wire
NEMA
5-15R
NEMA
5-20R
NEMA
6-15R NEMA
6-20R
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 cUL/CSA
A. V.
SPECIFICATION GRADE DUPLEX RECEPTACLES BACK & SIDE WIRE
26252I 15 125 Ivory 5-15R • • •
26252W 15 125 White 5-15R • • •
26252 15 125 Brown 5-15R • • •
26252GRY 15 125 Gray 5-15R • • •
26252BK 15 125 Black 5-15R • • •
26252RED 15 125 Red 5-15R • • •
26252LA 15 125 Light Almond 5-15R • • •
26352I 20 125 Ivory 5-20R • • •
26352W 20 125 White 5-20R • • •
26352 20 125 Brown 5-20R • • •
26352GRY 20 125 Gray 5-20R • • •
26352BK 20 125 Black 5-20R • • •
26352RED 20 125 Red 5-20R • • •
26352LA 20 125 Light Almond 5-20R • • •
26252I
2.635"
3.281"
1.322"
3.81"
.833"
26852I
2.635"
3.281"
1.322"
3.81"
.833"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-42
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Heavy-Duty Tamper-Resistant Decorator Receptacles 15 & 20A, 125V
Features
• Isolated ground version features nylon
isolator plate for isolating ground strap
and box system.
• Auto-ground clip assures positive
ground.
• Dual mechanical shutter system to help
prevent insertion of foreign objects.
• One-piece brass triple-wipe power
contacts for reliable plug retention.
• Two drive screws anchor strap to back
body and face where abrupt removal
torque is strongest.
• Patented external screw-pressure-plate
back wire clamp on ground terminal for
faster, easier installation.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• External screw-pressure-plate back
wire clamps with #10 brass terminal
screws for visual assurance of a good
connection.
• One-piece plated steel mounting strap
with integral ground for superior long-
term performance.
For Bulk Packaging Solutions consult factory.
NEMA
5-20R
NEMA
5-15R
2 Pole, 3 Wire
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 cUL/CSA
A. V.
TAMPERRESISTANT DECORATOR DUPLEX RECEPTACLES BACK & SIDE WIRE
TR26262I 15 125 Ivory 5-15R • • •
TR26262W 15 125 White 5-15R • • •
TR26262 15 125 Brown 5-15R • • •
TR26262GRY 15 125 Gray 5-15R • • •
TR26262BK 15 125 Black 5-15R • • •
TR26262RED 15 125 Red 5-15R • • •
TR26262LA 15 125 Light Almond 5-15R • • •
TR26362I 20 125 Ivory 5-20R • • •
TR26362W 20 125 White 5-20R • • •
TR26362 20 125 Brown 5-20R • • •
TR26362GRY 20 125 Gray 5-20R • • •
TR26362BK 20 125 Black 5-20R • • •
TR26362RED 20 125 Red 5-20R • • •
TR26362LA 20 125 Light Almond 5-20R • • •
TAMPERRESISTANT HOSPITAL GRADE DUPLEX RECEPTACLES BACK & SIDE WIRE
TR26262HGI 15 125 Ivory 5-15R • • •
TR26262HGW 15 125 White 5-15R • • •
TR26262HGGRY 15 125 Gray 5-15R • • •
TR26262HGRED 15 125 Red 5-15R • • •
TR26262HGLA 15 125 Light Almond 5-15R • • •
TR26362HGI 20 125 Ivory 5-20R • • •
TR26362HGW 20 125 White 5-20R • • •
TR26362HGGRY 20 125 Gray 5-20R • • •
TR26362HGBK 20 125 Black 5-20R • • •
TR26362HGRED 20 125 Red 5-20R • • •
TR26362HGLA 20 125 Light Almond 5-20R • • •
TR26362I
2.635"
3.281"
1.322"
3.813"
.833"
TR26362HGI
2.635"
3.281"
1.322"
3.813"
.833"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-43
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Heavy-Duty Tamper-Resistant Decorator Single Receptacles 15 & 20A, 125V
Features
• Auto-ground clip assures positive
ground.
• Backed-out tri-drive brass terminal
screws for faster installation. Internal
screw-pressure-plate back and side
wire capability. Two back wire holes for
additional wiring flexibility.
• Heavy-duty corrosion-resistant zinc-
plated strap for added strength.
•One-piece brass triple-wipe power
contact for lasting retention.
• Two drive screws anchor steel strap
to back body and face where abrupt
removal torque is greatest.
• Dual mechanical shutter system to help
prevent insertion of foreign objects.
NEMA
5-20R
NEMA
5-15R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
HEAVYDUTY TAMPERRESISTANT DECORATOR SINGLE RECEPTACLES BACK & SIDE WIRE
TR26261I 15 125 Ivory 5-15R • • •
TR26261W 15 125 White 5-15R • • •
TR26261 15 125 Brown 5-15R • • •
TR26261GRY 15 125 Gray 5-15R • • •
TR26261BK 15 125 Black 5-15R • • •
TR26261LA 15 125 Light Almond 5-15R • • •
TR26361I 20 125 Ivory 5-20R • • •
TR26361W 20 125 White 5-20R • • •
TR26361 20 125 Brown 5-20R • • •
TR26361GRY 20 125 Gray 5-20R • • •
TR26361BK 20 125 Black 5-20R • • •
TR26361LA 20 125 Light Almond 5-20R • • •
HEAVYDUTY TAMPERRESISTANT DECORATOR HOSPITAL GRADE SINGLE RECEPTACLES BACK & SIDE WIRE
TR26261HGI 15 125 Ivory 5-15R • • •
TR26261HGW 15 125 White 5-15R • • •
TR26261HG 15 125 Brown 5-15R • • •
TR26261HGGRY 15 125 Gray 5-15R • • •
TR26261HGBK 15 125 Black 5-15R • • •
TR26261HGLA 15 125 Light Almond 5-15R • • •
TR26361HGI 20 125 Ivory 5-20R • • •
TR26361HGW 20 125 White 5-20R • • •
TR26361HG 20 125 Brown 5-20R • • •
TR26361HGGRY 20 125 Gray 5-20R • • •
TR26361HGBK 20 125 Black 5-20R • • •
TR26361HGLA 20 125 Light Almond 5-20R • • •
TR26361LA
2.635"
3.281"
1.322"
3.813"
1.188"
TR26361HGLA
2.635"
3.281"
1.322"
3.813"
1.188"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-44
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Specification Grade Decorator & Combination Receptacles 15 & 20A, 125 & 250V; 20A, 120/125VAC
Features
• Impact-resistant face and body.
• GE Lexan™ high impact-resistant lens.
• External screw-pressure-plate back and
side wired. Accepts #12 and #14 AWG.
• Ground screw position under the end of
the strap minimizes the risk of contact.
•Energy-efficient LED has average
20-year life expectancy: eliminates bulb
replacement.
• Sensor automatically turns light ON in
the dark.
• Increased light output for better
illumination.
• Light sensor for enhanced sensitivity.
PS8HWLLA
3.281"
3.812"
2.60"
1.29"
1.59"
*FCD = Foot Candle Distance. 1 Lumen = 1 FCD. See Page R-63 for more information.
Features
• Corrosion-resistant, plated wraparound
steel strap locked into assembly to
prohibit strap from bending
away from body.
• One-piece, brass, triple-wipe power
contacts for lasting retention.
• Heavy-duty compact design for
easier installation and long lasting
performance.
• Easily accessed break-off, line-contact
connecting tab for fast, easy split-circuit
wiring.
• Impact-resistant nylon face.
• Terminal compartments isolated
from each other for positive
conductor containment.
• Side and internal screw-pressure-plate
back wire accepts #14 – #10 AWG solid
or stranded wire.
• All devices fit standard #26 opening
wall plate.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive
ground.
NEMA
5-20R
NEMA
6-15R
NEMA
6-20R
2 Pole, 3 Wire
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 cUL/CSA
A. V.
HEAVYDUTY SPECIFICATION GRADE SINGLE RECEPTACLES BACK & SIDE WIRE
26661I 15 250 Ivory 6-15R • • •
26661W 15 250 White 6-15R • • •
26661GRY 15 250 Gray 6-15R • • •
26661BK 15 250 Black 6-15R • • •
26861I 20 250 Ivory 6-20R • •
26861W 20 250 White 6-20R • •
26861 20 250 Brown 6-20R • •
26861GRY 20 250 Gray 6-20R • •
26861BK 20 250 Black 6-20R • •
26861LA 20 250 Light Almond 6-20R • •
26861LA
2.635"
3.281"
1.322"
3.813"
.833"
CATALOG NUMBER
RATING LIGHT OUTPUT
IN 1' FCD* COLOR
NEMA
CONFIG. NO.
3rd PARTY
COMPLIANCE
UL498
A. VAC
SPECIFICATION GRADE DECORATOR HALLWAY LIGHT & SINGLE RECEPTACLE
PS8HWLI 20 120/125 0.2561 Ivory 5-20R •
PS8HWLW 20 120/125 0.2561 White 5-20R •
PS8HWLLA 20 120/125 0.2561 Light Almond 5-20R •
For Bulk Packaging Solutions consult factory.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-45
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
TradeMaster® Tamper-Resistant Receptacles
Features
• Extra-long strap.
• Quickloop wire looping aid.
• Long-term blade retention.
• Longer tri-drive screws for easier
#12 AWG looping.
• Extra-large circuit break-off tabs.
• Side-access push wire release.
• Ultrasonic welding of face to
back body.
• Traditional contoured face
(3232 models).
• Self-grounding models provide
automatic ground clip.
National Electrical Code® Section 406.11 Tamper-Resistant Receptacles in
Dwelling Units.
In all areas specified in 210.52 all 125-volt, 15- and 20-amp receptacles shall
be listed tamper-resistant receptacles.
3232TRW
D
E
C
F
A
B
G
3232TRW
3.31"
4.20"
1.320"
1.0"
NAFTA-Compliant Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
NEMA
5-15R
2 Pole, 3 Wire
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42 cULus
A. V.
TAMPERRESISTANT DUPLEX RECEPTACLES  GROUNDING
3232TRI 15 125 Ivory 5-15R • • •
3232TRW 15 125 White 5-15R • • •
3232TR 15 125 Brown 5-15R • • •
3232TRBK 15 125 Black 5-15R • • •
3232TRLA 15 125 Light Almond 5-15R • • •
SELFGROUNDING TAMPERRESISTANT DUPLEX RECEPTACLES
3232TRSI 15 125 Ivory 5-15R • • •
3232TRSW 15 125 White 5-15R • • •
3232TRS 15 125 Brown 5-15R • • •
3232TRSLA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT TRADEMASTER® TAMPERRESISTANT 15 AMP DUPLEX RECEPTACLES
3232TRNAI 15 125 Ivory 5-15R • • •
3232TRNAW 15 125 White 5-15R • • •
3232TRNA 15 125 Brown 5-15R • • •
3232TRNABK 15 125 Black 5-15R • • •
3232TRNALA 15 125 Light Almond 5-15R • • •
3232TRW
TradeMaster® Tamper-Resistant Receptacles
Meets National Electrical Code® Tamper-Resistant
requirements.
A. High-impact resistant thermoplastic construction.
B. Low profile face.
C. Side wire accepts #12 – #14 AWG solid wire. Push
wire accepts #14 AWG solid only.
D. “TR” markings on strap per UL Tamper-Resistant
requirements.
E. Patented internal shutter system lets plugs in, but
keeps keys and other objects out with automatic
shutters that block access.
F. Traditional contoured face.
G. Safer and more effective than traditional plastic outlet
caps or protection plates.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-46
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
TradeMaster® Tamper-Resistant Receptacles 15A, 125V
Features
• Meets National Electrical Code®
Tamper-Resistant requirements.
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• High-impact resistant thermoplastic
construction.
• Extra-long strap.
• Quickloop wire looping aid.
• Long-term blade retention.
• Longer tri-drive screws for easier
12 AWG looping.
• Extra-large circuit break-off tabs.
• Side-access push wire release.
• Ultrasonic welding of face to back body.
• Side wire accepts #12 – #14 AWG
solid wire.
• Push wire accepts #14 AWG solid only.
• Superior protection than traditional
outlet “caps” or “protection plates.”
• Low profile face.
• Traditional contoured face (3232 models).
• Self-grounding models provide automatic
ground clip.
NEMA
5-15R
2 Pole, 3 Wire
885TRSLA
3.812" 2.60"
4.20"
1.290"
1.0"
880TRW
2.635"
3.28"
1.322"
1.104"
1.018"
NAFTA-Compliant Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42
A. V.
TAMPERRESISTANT 8 HOLE PUSH WIRE WITHOUT TERMINAL SCREWS
880TRI 15 125 Ivory 5-15R • •
880TRW 15 125 White 5-15R • •
880TRWMH* 15 125 White 5-15R • •
880TR 15 125 Brown 5-15R • •
*Without ears.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42 cULus
A. V.
DECORATOR TAMPERRESISTANT RECEPTACLES
885TRI 15 125 Ivory 5-15R • • •
885TRW 15 125 White 5-15R • • •
885TR 15 125 Brown 5-15R • • •
885TRGRY 15 125 Gray 5-15R • • •
885TRBK 15 125 Black 5-15R • • •
885TRLA 15 125 Light Almond 5-15R • • •
885TRTI 15 125 Titanium 5-15R • • •
885TRNICC12 15 125 Nickel 5-15R • • •
885TRABCC12 15 125 Antique Brass 5-15R • • •
885TRDBCC12 15 125 Dark Bronze 5-15R • • •
SELFGROUNDING DECORATOR TAMPERRESISTANT RECEPTACLES
885TRSI 15 125 Ivory 5-15R • • •
885TRSW 15 125 White 5-15R • • •
885TRSLA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT TRADEMASTER® TAMPERRESISTANT 15 AMP DECORATOR RECEPTACLE
885TRNAI 15 125 Ivory 5-15R • • •
885TRNAW 15 125 White 5-15R • • •
885TR 15 125 Brown 5-15R • • •
885TRNAGRY 15 125 Gray 5-15R • • •
885TRBK 15 125 Black 5-15R • • •
885TRNALA 15 125 Light Almond 5-15R • • •
885TRNAW
3.812" 2.60"
4.20"
1.290"
1.0"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-47
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Weather-Resistant Receptacles
National Electrical Code® Section 406.8 Receptacles in Wet or
Damp Locations.
Requires that all 15- and 20-amp, 125- and 250-volt non-locking receptacles
installed in wet or damp locations shall be weather-resistant receptacles.
NEMA
5-15R
2 Pole, 3 Wire
3232TRWRW
3.31"
4.20"
1.320"
1.0"
Features
• Specifically designed for increased
protection of children in the home.
• Extra-long strap.
• Quickloop wire looping aid.
• Long-term blade retention.
Listed to the Weather-Resistant supplement of UL498,
meeting demanding UL requirements including:
• Ultraviolet light exposure test
• Cold impact test
• Accelerated aging test
• Stringent material requirements for current-carrying
parts, wire binding screws and mounting straps to
ensure superior corrosion resistance.
3232TRWRW
E
G
C
B F
A
H
D
885TRWRW
3.812" 2.60"
4.20"
1.290"
1.0"
3232TRWR
Weather-Resistant Receptacles
Residential Weather-Resistant Receptacles are Tamper-
Resistant as required by National Electrical Code®
A. High-impact resistant thermoplastic construction.
B. Low profile face.
C. Side wire accepts #12 – #14 AWG solid wire. Push
wire accepts #14 AWG solid only.
D. “TR” markings identify devices as Tamper-Resistant.
E. “WR” markings on face per UL Weather-Resistant
requirements.
F. Traditional contoured face.
G. Patented internal shutter system lets plugs in, but
keeps keys and other objects out with automatic
shutters that block access.
H. Safer and more effective than plastic outlet caps.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42 cULus
A. V.
WEATHERRESISTANT DUPLEX RECEPTACLES
3232TRWRI 15 125 Ivory 5-15R • • •
3232TRWRW 15 125 White 5-15R • • •
3232TRWR 15 125 Brown 5-15R • • •
3232TRWRGRY 15 125 Gray 5-15R • • •
3232TRWRLA 15 125 Light Almond 5-15R • • •
DECORATOR WEATHERRESISTANT DUPLEX RECEPTACLES
885TRWRI 15 125 Ivory 5-15R • • •
885TRWRW 15 125 White 5-15R • • •
885TRWR 15 125 Brown 5-15R • • •
885TRWRLA 15 125 Light Almond 5-15R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-48
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
TradeMaster® Decorator Receptacles 15A, 125V
Features
• High impact-resistant thermoplastic
construction.
• Extra-long strap.
• Quickloop wire looping aid.
• Long-term blade retention.
• Tri-drive screws.
• Extra-large circuit break-off tabs.
• Side-access push wire release.
• Ultrasonic welding of face to back body.
• Side wire accepts #12 – #14 AWG solid.
• Push wire accepts #14 AWG solid only.
• Self-grounding models provide automatic
ground clip.
For Bulk Packaging
Solutions consult factory.
NEMA
5-15R
2 Pole, 3 Wire
Features
• Longer steel straps than competitive
devices, still fits under a standard
wall plate.
• High-impact thermoplastic face and back
body eliminate cracks, breaks
and callbacks.
• Ultrasonic welding of face to back body.
• Patented design provides better
plug retention.
• External screw-pressure-plate back wire
on all four terminal screws and ground
screw eliminates wrapping.
• Accepts #12 and #14 stranded and
solid wire.
• Break-off tabs that are big enough to
grab hold of – even if the contact screws
are backed-out. Scored deeper, for fast,
clean breaks every time.
• All four contact screws and the ground
screw are backed-out.
• All screws are tri-drive.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42
A. V.
DECORATOR DUPLEX RECEPTACLES
885I 15 125 Ivory 5-15R • •
885W 15 125 White 5-15R • •
885 15 125 Brown 5-15R • •
885BK 15 125 Black 5-15R • •
885LA 15 125 Light Almond 5-15R • •
SELFGROUNDING DECORATOR DUPLEX RECEPTACLES
885SI 15 125 Ivory 5-15R • •
885SW 15 125 White 5-15R • •
885SLA 15 125 Light Almond 5-15R • •
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
A. V.
DECORATOR DUPLEX RECEPTACLES WITH PRESSURE PLATES
TM885I 15 125 Ivory 5-15R •
TM885W 15 125 White 5-15R •
TM885 15 125 Brown 5-15R •
TM885GRY 15 125 Gray 5-15R •
TM885BK 15 125 Black 5-15R •
TM885LA 15 125 Light Almond 5-15R •
DECORATOR DUPLEX RECEPTACLES WITH PRESSURE PLATES SELFGROUNDING
TM885SI 15 125 Ivory 5-15R •
TM885SW 15 125 White 5-15R •
TM885SLA 15 125 Light Almond 5-15R •
DECORATOR DUPLEX RECEPTACLES WITH PRESSURE PLATES BULK PACK OF 150
TM885I150 15 125 Ivory 5-15R •
TM885W150 15 125 White 5-15R •
TM885LA150 15 125 Light Almond 5-15R •
885I
3.812" 2.60"
4.20"
1.290"
1.0"
TM885W
3.812" 2.60"
4.20"
1.290"
1.0"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-49
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
TradeMaster® Receptacles 15A, 125V
Features
• High-impact resistant thermoplastic
construction.
• Extra-long strap.
• Quickloop wire looping aid.
• Long-term blade retention.
• Longer tri-drive screws for easier
#12 AWG looping.
• Extra-large circuit break-off tabs.
• Side-access push wire release.
• Ultrasonic welding of face to back body.
• Side wire accepts #12 – #14 AWG solid wire.
• Push wire accepts #14 AWG solid only.
• Low profile face.
• Traditional contoured face (3232 models).
• Self-grounding models provide automatic
ground clip.
3232I
3.31"
4.20"
1.320"
.960"
3232IMH
3.31"
1.320"
.960"
3232SI
NEMA
5-20R
NEMA
5-15R
2 Pole, 3 Wire
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42
A. V.
8 HOLE PUSH WIRE WITHOUT TERMINAL SCREWS
880I 15 125 Ivory 5-15R • •
880W 15 125 White 5-15R • •
880 15 125 Brown 5-15R • •
8 HOLE PUSH WIRE  WITHOUT EARS WITHOUT TERMINAL SCREWS
880IMH 15 125 Ivory 5-15R • •
880WMH 15 125 White 5-15R • •
880MH 15 125 Brown 5-15R • •
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42 cULus
A. V.
DUPLEX RECEPTACLES  GROUNDING
3232I* 15 125 Ivory 5-15R • •
3232W* 15 125 White 5-15R • •
3232* 15 125 Brown 5-15R • •
3232BK 15 125 Black 5-15R • •
3232LA* 15 125 Light Almond 5-15R • •
SELFGROUNDING DUPLEX RECEPTACLES
3232SI 15 125 Ivory 5-15R • •
3232SW 15 125 White 5-15R • •
3232S 15 125 Brown 5-15R • •
3232SLA 15 125 Light Almond 5-15R • •
4 TERMINAL, SCREWS IN
3232I4 15 125 Ivory 5-15R • •
3232W4 15 125 White 5-15R • •
32324 15 125 Brown 5-15R • •
DUPLEX RECEPTACLES  WITHOUT EARS
3232IMH 15 125 Ivory 5-15R • •
3232WMH 15 125 White 5-15R • •
3232MH 15 125 Brown 5-15R • •
*Available in bulk packs of 150. Add “U” to end of Catalog Number. Example: 3232LAU.
3.31"
4.20"
1.320"
.960"
880I
2.635"
3.28"
1.322"
1.018"
1.104"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-50
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
TradeMaster® Decorator Hallway Lights & Combination Devices
Features
• Impact-resistant face and body.
• GE Lexan™ high impact-resistant lens.
• External screw-pressure-plate back and
side wired. Accepts #12 and #14 AWG.
• Ground screw position under the end of
the strap minimizes the risk of contact.
• Energy-efficient LED has average
20-year life expectancy: eliminates bulb
replacement.
• Sensor automatically turns light ON in
the dark.
• Increased light output for better
illumination.
• Light sensor for enhanced sensitivity.
Tamper-Resistant Combination Version:
• UL tested shutter mechanism for
protection against improper object
insertion per UL478.
• Specially designed for increased
protection of children in their homes.
• Superior protection than traditional
outlet “caps” or “protection plates.”
TMHWLCC
3.281"
3.812"
2.60"
1.29"
1.59"
CATALOG NUMBER
RATING
LIGHT OUTPUT IN 1' FCD* COLOR
3rd PARTY COMPLIANCE
UL1598
A. VAC
TRADEMASTER® DECORATOR FULL HALLWAY LIGHT WITH LIGHT SENSOR
TMHWLCC — 120 0.1328 Clear •
ENHANCED DECORATOR FULL HALLWAY LIGHT WITH LIGHT SENSOR
TMHWLECC — 120 1.079 Clear •
ENHANCED DECORATOR FULL HALLWAY LIGHT WITHOUT LIGHT SENSOR
TMHWLENSCC — 120 1.113 Clear •
FULL HALLWAY DECORATOR LIGHT FOR USE WITH P&S METAL LOUVER PLATES**
TMHWLLOUVCC — 120 0.0843 Clear •
*FCD = Foot Candle Distance, 1 Lumen = 1 FCD. See page R-63 for more information.
**For Louver Plates, see Page P-24.
CATALOG NUMBER
RATING LIGHT OUTPUT
IN 1' FCD* COLOR
NEMA
CONFIG. NO.
3rd PARTY
COMPLIANCE
UL498
A. V.
DECORATOR HALLWAY LIGHT WITH HIGH OUTPUT LIGHT & TAMPERRESISTANT SINGLE RECEPTACLE
TM8HWLTRICC 15 125 0.2561 Ivory 5-15R •
TM8HWLTRWCC 15 125 0.2561 White 5-15R •
TM8HWLTRCC 15 125 0.2561 Brown 5-15R •
TM8HWLTRBKCC 15 125 0.2561 Black 5-15R •
TM8HWLTRLACC 15 125 0.2561 Light Almond 5-15R •
*FCD = Foot Candle Distance. 1 Lumen = 1 FCD. See Page R-63 for more information.
TMHWLECC
3.281"
3.812"
2.60"
1.29"
1.59"
TM8HWLTRLACC
3.281"
3.812"
2.60"
1.29"
1.28"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-51
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
C22.2 No. 144 cULus
C22.2 No. 42 FSUL
WC596A. VAC
TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
1595TRI 15 125 Ivory 5-15R • • •
1595TRW 15 125 White 5-15R • • •
1595TR 15 125 Brown 5-15R • • •
1595TRBK 15 125 Black 5-15R • • •
1595TRLA 15 125 Light Almond 5-15R • • •
1595TRNICC4 15 125 Nickel 5-15R • • •
1595TRTI 15 125 Titanium 5-15R • • •
1595TRABCC4 15 125 Antique Brass 5-15R • • •
1595TRDBCC4 15 125 Dark Bronze 5-15R • • •
TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI WITH AUTOGROUND
1595TRSI 15 125 Ivory 5-15R • • •
1595TRSW 15 125 White 5-15R • • •
1595TRSLA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095TRI 20 125 Ivory 5-20R • • •
2095TRW 20 125 White 5-20R • • •
2095TR 20 125 Brown 5-20R • • •
2095TRGRY 20 125 Gray 5-20R • • •
2095TRBK 20 125 Black 5-20R • • •
2095TRRED 20 125 Red 5-20R • • •
2095TRLA 20 125 Light Almond 5-20R • • •
SPECIFICATION GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI WITH AUTOGROUND
2095TRSI 20 125 Ivory 5-20R • • •
2095TRSW 20 125 White 5-20R • • •
2095TRSLA 20 125 Light Almond 5-20R • • •
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10 kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon wall
plate (except NI, TR, AB, and DB models).
• Tri-drive screws.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
1595TRW
1.13"
1.72"
1.25"
2.62"
4.20"
NEMA
5-15R
NEMA
5-20R
2095TRSW
1.13"
1.72"
1.25"
2.62"
4.20"
National Electrical Code®
Section 406.12 Tamper-
Resistant Receptacles in
Dwelling Units.
In all areas specified in 210.52
all 125-volt, 15- and 20-amp
receptacles shall be listed
tamper-resistant receptacles.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-52
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Hospital Grade Tamper-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10 kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
NEMA
5-15R
NEMA
5-20R
1595HGTRW
1.13"
1.72"
1.25"
2.62"
4.20"
2095HGTRW
1.13"
1.72"
1.25"
2.62"
4.20"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
HOSPITAL GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
1595HGTRI 15 125 Ivory 5-15R • • •
1595HGTRW 15 125 White 5-15R • • •
1595HGTR 15 125 Brown 5-15R • • •
1595HGTRBK 15 125 Black 5-15R • • •
1595HGTRGRY 15 125 Gray 5-15R • • •
1595HGTRRED 15 125 Red 5-15R • • •
1595HGTRLA 15 125 Light Almond 5-15R • • •
HOSPITAL GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095HGTRI 20 125 Ivory 5-20R • • •
2095HGTRW 20 125 White 5-20R • • •
2095HGTR 20 125 Brown 5-20R • • •
2095HGTRBK 20 125 Black 5-20R • • •
2095HGTRGRY 20 125 Gray 5-20R • • •
2095HGTRRED 20 125 Red 5-20R • • •
2095HGTRLA 20 125 Light Almond 5-20R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
B-53
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
TradeMaster® & Specification Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
1595W
1.72"
1.25"
2.62"
4.20"
.98"
NEMA
5-15R
NEMA
5-20R
Features
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10 kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• GFCIs with Auto-Ground assure a positive
ground to metal box.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
1595SW
1.72"
1.25"
2.62"
4.20"
.98"
2095W
1.72"
1.25"
2.62"
4.20"
.98"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
TRADEMASTER®/SPEC GRADE 15 AMP DUPLEX GFCI
1595I 15 125 Ivory 5-15R • • •
1595W 15 125 White 5-15R • • •
1595 15 125 Brown 5-15R • • •
1595GRY 15 125 Gray 5-15R • • •
1595BK 15 125 Black 5-15R • • •
1595RED 15 125 Red 5-15R • • •
1595LA 15 125 Light Almond 5-15R • • •
TRADEMASTER®/SPEC GRADE 15 AMP DUPLEX GFCI WITH AUTOGROUND
1595SI 15 125 Ivory 5-15R • • •
1595SW 15 125 White 5-15R • • •
1595SLA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE 20 AMP DUPLEX GFCI
2095I 20 125 Ivory 5-20R • • •
2095W 20 125 White 5-20R • • •
2095 20 125 Brown 5-20R • • •
2095GRY 20 125 Gray 5-20R • • •
2095BK 20 125 Black 5-20R • • •
2095RED 20 125 Red 5-20R • • •
2095LA 20 125 Light Almond 5-20R • • •
SPECIFICATION GRADE 20 AMP DUPLEX GFCI WITH AUTOGROUND
2095SI 20 125 Ivory 5-20R • • •
2095SW 20 125 White 5-20R • • •
2095SLA 20 125 Light Almond 5-20R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-54
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Hospital Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
Features
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10 kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
HOSPITAL GRADE 15 AMP DUPLEX GFCI
1595HGI 15 125 Ivory 5-15R • • •
1595HGW 15 125 White 5-15R • • •
1595HG 15 125 Brown 5-15R • • •
1595HGBK 15 125 Black 5-15R • • •
1595HGGRY 15 125 Gray 5-15R • • •
1595HGRED 15 125 Red 5-15R • • •
1595HGLA 15 125 Light Almond 5-15R • • •
HOSPITAL GRADE 20 AMP DUPLEX GFCI
2095HGI 20 125 Ivory 5-20R • • •
2095HGW 20 125 White 5-20R • • •
2095HG 20 125 Brown 5-20R • • •
2095HGBK 20 125 Black 5-20R • • •
2095HGGRY 20 125 Gray 5-20R • • •
2095HGRED 20 125 Red 5-20R • • •
2095HGLA 20 125 Light Almond 5-20R • • •
1595HGW
1.72"
1.25"
2.62"
4.20"
.98"
2095HGW
1.72"
1.25"
2.62"
4.20"
.98"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-55
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
SWITCH
RATING
RECEPTACLE
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 UL20
C22.2 No. 111A. VAC A. VAC
COMBINATION TAMPERRESISTANT SINGLE POLE SWITCH/GFCI
1595SWTTRICC4 15 120 15 125 Ivory 5-15R • • •
1595SWTTRWCC4 15 120 15 125 White 5-15R • • •
1595SWTTRBKCC4 15 120 15 125 Black 5-15R • • •
1595SWTTRLACC4 15 120 15 125 Light Almond 5-15R • • •
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Up-down switching.
• 15 Amp single pole switch rated for
1/2 HP motor loads – perfect for bath or
kitchen vents and garbage disposals.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Two back wire holes per terminal.
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Ground screw has a back wire clamp for
easy installation.
• 10 kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Switch/GFCI Receptacles 15A, 125VAC
NEMA
5-15R
1595SWTTRWCC4
1.13"
1.25"
4.20"
2.62"
1.72"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-56
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
1595NTLTRWCC4
1.25"
1.13"
4.20"
2.62"
1.72"
NEMA
5-15R
NEMA
5-20R
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power
to receptacle is disconnected.
• Sealed nightlight with high impact-
resistant Lexan® lens prevents
tampering.
• Nightlight uses cooler LED illumination.
• Energy-efficient LED has average
20-year life expectancy, eliminating bulb
replacement.
• LED rated at 186 milliwatts at 120V.
• Two receptacles.
• Photocell turns nightlight ON in dark,
OFF in daylight.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10 kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon wall
plate (except NI, TI, AB, and DB models).
• Tri-drive screws.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
CATALOG NUMBER
RATING LIGHT
OUTPUT
IN 1' FCD* COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
COMBINATION TAMPERRESISTANT 15 AMP NIGHTLIGHT/GFCI
1595NTLTRICC4 15 125 0.180 Ivory 5-15R • • •
1595NTLTRWCC4 15 125 0.180 White 5-15R • • •
1595NTLTRBKCC4 15 125 0.180 Black 5-15R • • •
1595NTLTRLACC4 15 125 0.180 Light Almond 5-15R • • •
1595NTLTRNICC4 15 125 0.180 Nickel 5-15R • • •
1595NTLTRTICC4 15 125 0.180 Titanium 5-15R • • •
1595NTLTRABCC4 15 125 0.180 Antique Brass 5-15R • • •
1595NTLTRDBCC4 15 125 0.180 Dark Bronze 5-15R • • •
COMBINATION TAMPERRESISTANT 20 AMP NIGHTLIGHT/GFCI
2095NTLTRI 20 125 0.180 Ivory 5-20R • • •
2095NTLTRW 20 125 0.180 White 5-20R • • •
2095NTLTRGRY 20 125 0.180 Gray 5-20R • • •
2095NTLTRLA 20 125 0.180 Light Almond 5-20R • • •
HOSPITAL GRADE COMBINATION TAMPERRESISTANT 15 AMP NIGHTLIGHT/GFCI
1595HGNTLTRI 15 125 0.180 Ivory 5-15R • • •
1595HGNTLTRW 15 125 0.180 White 5-15R • • •
1595HGNTLTR 15 125 0.180 Brown 5-15R • • •
1595HGNTLTRGRY 15 125 0.180 Gray 5-15R • • •
1595HGNTLTRRED 15 125 0.180 Red 5-15R • • •
1595HGNTLTRLA 15 125 0.180 Light Almond 5-15R • • •
HOSPITAL GRADE COMBINATION TAMPERRESISTANT 20 AMP NIGHTLIGHT/GFCI
2095HGNTLTRI 20 125 0.180 Ivory 5-20R • • •
2095HGNTLTRW 20 125 0.180 White 5-20R • • •
2095HGNTLTRGRY 20 125 0.180 Gray 5-20R • • •
2095HGNTLTRRED 20 125 0.180 Red 5-20R • • •
2095HGNTLTRLA 20 125 0.180 Light Almond 5-20R • • •
2095HGNTLTRW
1.25"
1.13"
4.20"
2.62"
1.72"
*FCD = Foot
Candle Distance,
1 Lumen = 1 FCD.
See Page R-63 for
more information.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-57
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Weather-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Features
• Weather-Resistant: Meets National
Electrical Code® Weather-Resistant
requirements.
• Tamper-Resistant: Meets National
Electrical Code® Tamper-Resistant
requirements.
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Listed to the Weather-Resistant
supplement of UL498, meeting
demanding UL requirements including:
- Ultraviolet light exposure test
- Cold impact test
- Accelerated aging test
- Stringent material requirements for
current-carrying parts, wire binding
screws and mounting straps to ensure
superior corrosion resistance.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10 kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long nickel post-plated steel
mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
NEMA
5-15R
NEMA
5-20R
National Electrical Code® Section 406.8 Receptacles in Wet or Damp Locations.
Requires that all 15- and 20-amp, 125- and 250-volt non-locking receptacles
installed in wet or damp locations shall be weather-resistant receptacles.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
TRADEMASTER®/SPEC GRADE WEATHERRESISTANT 15 AMP DUPLEX GFCI
1595TRWRI 15 125 Ivory 5-15R • • •
1595TRWRW 15 125 White 5-15R • • •
1595TRWR 15 125 Brown 5-15R • • •
1595TRWRLA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE WEATHERRESISTANT 20 AMP DUPLEX GFCI
2095TRWRI 20 125 Ivory 5-20R • • •
2095TRWRW 20 125 White 5-20R • • •
2095TRWR 20 125 Brown 5-20R • • •
2095TRWRBK 20 125 Black 5-20R • • •
2095TRWRGRY 20 125 Gray 5-20R • • •
2095TRWRLA 20 125 Light Almond 5-20R • • •
1595TRWRW
1.13"
1.72"
1.25"
2.62"
4.20"
2095TRWRW
1.13"
1.72"
1.25"
2.62"
4.20"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-58
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Specification Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Features
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and
after installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to
PlugTail Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI
and receptacle openings.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• FSUL Listed (Federal Specification
WC596).
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• 10kA short circuit rating.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
For additional PlugTail Connectors, see Page B-4.
All PlugTail Connectors are available in any wire length
up to 25 inches, consult factory to order.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
SPECIFICATION GRADE 15 AMP DUPLEX GFCI
PT1595I 15 125 Ivory 5-15R • • •
PT1595W 15 125 White 5-15R • • •
PT1595 15 125 Brown 5-15R • • •
PT1595GRY 15 125 Gray 5-15R • • •
PT1595RED 15 125 Red 5-15R • • •
PT1595LA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE 20 AMP DUPLEX GFCI
PT2095I 20 125 Ivory 5-20R • • •
PT2095W 20 125 White 5-20R • • •
PT2095 20 125 Brown 5-20R • • •
PT2095GRY 20 125 Gray 5-20R • • •
PT2095BK 20 125 Black 5-20R • • •
PT2095RED 20 125 Red 5-20R • • •
PT2095LA 20 125 Light Almond 5-20R • • •
PT2095W
1.20"
1.72"
1.25"
2.62"
4.20"
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6STR Stranded 6"
PTRA6SOL Solid 6"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-59
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
1.125"
6.375"
STRAIGHT BLADE RECEPTACLES
PlugTail™ Hospital Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
For additional PlugTail Connectors, see Page B-4.
All PlugTail Connectors are available in any wire length
up to 25 inches, consult factory to order.
NEMA
5-15R
NEMA
5-20R
Features
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and
after installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a non-
feed-thru application for facility owners.
At rough-in just install the same right
angle connector for GFCI and receptacle
openings.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• FSUL Listed (Federal Specification
WC596).
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• 10kA short circuit rating.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
HOSPITAL GRADE 15 AMP DUPLEX GFCI
PT1595HGI 15 125 Ivory 5-15R • • •
PT1595HGW 15 125 White 5-15R • • •
PT1595HG 15 125 Brown 5-15R • • •
PT1595HGBK 15 125 Black 5-15R • • •
PT1595HGGRY 15 125 Gray 5-15R • • •
PT1595HGRED 15 125 Red 5-15R • • •
PT1595HGLA 15 125 Light Almond 5-15R • • •
HOSPITAL GRADE 20 AMP DUPLEX GFCI
PT2095HGI 20 125 Ivory 5-20R • • •
PT2095HGW 20 125 White 5-20R • • •
PT2095HG 20 125 Brown 5-20R • • •
PT2095HGBK 20 125 Black 5-20R • • •
PT2095HGGRY 20 125 Gray 5-20R • • •
PT2095HGRED 20 125 Red 5-20R • • •
PT2095HGLA 20 125 Light Almond 5-20R • • •
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6STR Stranded 6"
PTRA6SOL Solid 6"
PTRA6STRPT2095HGW
1.20"
1.72"
1.25"
2.62"
4.20"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-60
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
PTRA6STR
1.125"
6.375"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
SPECIFICATION GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
PT1595TRI 15 125 Ivory 5-15R • • •
PT1595TRW 15 125 White 5-15R • • •
PT1595TR 15 125 Brown 5-15R • • •
PT1595TRGRY 15 125 Gray 5-15R • • •
PT1595TRBK 15 125 Black 5-15R • • •
PT1595TRRED 15 125 Red 5-15R • • •
PT1595TRLA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095TRI 20 125 Ivory 5-20R • • •
PT2095TRW 20 125 White 5-20R • • •
PT2095TR 20 125 Brown 5-20R • • •
PT2095TRGRY 20 125 Gray 5-20R • • •
PT2095TRBK 20 125 Black 5-20R • • •
PT2095TRRED 20 125 Red 5-20R • • •
PT2095TRLA 20 125 Light Almond 5-20R • • •
HOSPITAL GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
PT1595HGTRI 15 125 Ivory 5-15R • • •
PT1595HGTRW 15 125 White 5-15R • • •
PT1595HGTRBK 15 125 Black 5-15R • • •
PT1595HGTRGRY 15 125 Gray 5-15R • • •
PT1595HGTRRED 15 125 Red 5-15R • • •
PT1595HGTRLA 15 125 Light Almond 5-15R • • •
HOSPITAL GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095HGTRI 20 125 Ivory 5-20R • • •
PT2095HGTRW 20 125 White 5-20R • • •
PT2095HGTRBK 20 125 Black 5-20R • • •
PT2095HGTRGRY 20 125 Gray 5-20R • • •
PT2095HGTRRED 20 125 Red 5-20R • • •
PT2095HGTRLA 20 125 Light Almond 5-20R • • •
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code® Tamper-
Resistant requirements.
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and
after installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to
PlugTail Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• FSUL Listed (Federal Specification
WC596).
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• 10kA short circuit rating.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Specification & Hospital Grade Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
For PlugTail Connector
catalog numbers, see Page
B-58 or B-59.
NEMA
5-15R
NEMA
5-20R
PT2095TRW
1.20"
1.72"
1.25"
2.62"
4.20"
PT2095HGTRW
1.20"
1.72"
1.25"
2.62"
4.20"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-61
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
PTRA6STR
1.125"
6.375"
CATALOG NUMBER
RATING LIGHT
OUTPUT
IN 1' FCD* COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
SPECIFICATION GRADE TAMPERRESISTANT 15 AMP COMBINATION NIGHTLIGHT/GFCI
PT1595NTLTRI 15 125 0.180 Ivory 5-15R • • •
SPECIFICATION GRADE TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095NTLTRI 20 125 0.180 Ivory 5-20R • • •
PT2095NTLTRW 20 125 0.180 White 5-20R • • •
HOSPITAL GRADE TAMPERRESISTANT 15 AMP COMBINATION NIGHTLIGHT/GFCI
PT1595HGNTLTRI 15 125 0.180 Ivory 5-15R • • •
PT1595HGNTLTRW 15 125 0.180 White 5-15R • • •
PT1595HGNTLTRRED 15 125 0.180 Red 5-15R • • •
HOSPITAL GRADE TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095HGNTLTRI 20 125 0.180 Ivory 5-20R • • •
PT2095HGNTLTRW 20 125 0.180 White 5-20R • • •
PT2095HGNTLTRGRY 20 125 0.180 Gray 5-20R • • •
PT2095HGNTLTRLA 20 125 0.180 Light Almond 5-20R • • •
STRAIGHT BLADE RECEPTACLES
PlugTail™ Specification & Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
For PlugTail Connector catalog numbers, see Page B-58 or B-59.
NEMA
5-15R
NEMA
5-20R
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code® Tamper-
Resistant requirements.
• Sealed nightlight with high impact-
resistant Lexan® lens prevents
tampering.
• Nightlight uses cooler LED illumination.
• Energy-efficient LED has average
20-year life expectancy, eliminating bulb
replacement.
• Photocell turns nightlight ON in dark,
OFF in daylight.
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to
PlugTail Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• 10kA short circuit rating.
PT1595NTLTRI
1.20"
1.72"
1.25"
2.62"
4.20"
PT1595HGNTLTRI
1.20"
1.72"
1.25"
2.62"
4.20"
*FCD = Foot Candle Distance, 1 Lumen = 1 FCD. See Page R-63 for more information.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-62
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
NAFTA-Compliant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
NEMA
5-15R
NEMA
5-20R
2095TRNAW
1.72"
1.25"
2.62"
4.20"
.98"
1595NAW
1.72"
1.25"
2.62"
4.20"
.98"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
NAFTACOMPLIANT TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
1595TRNAI 15 125 Ivory 5-15R • • •
1595TRNAW 15 125 White 5-15R • • •
1595TRNA 15 125 Brown 5-15R • • •
1595TRNAGRY 15 125 Gray 5-15R • • •
1595TRNABK 15 125 Black 5-15R • • •
1595TRNALA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095TRNAI 20 125 Ivory 5-20R • • •
2095TRNAW 20 125 White 5-20R • • •
2095TRNA 20 125 Brown 5-20R • • •
2095TRNAGRY 20 125 Gray 5-20R • • •
2095TRNABK 20 125 Black 5-20R • • •
2095TRNALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT TRADEMASTER®/SPEC GRADE 15 AMP DUPLEX GFCI
1595NAI 15 125 Ivory 5-15R • • •
1595NAW 15 125 White 5-15R • • •
1595NA 15 125 Brown 5-15R • • •
1595NAGRY 15 125 Gray 5-15R • • •
1595NABK 15 125 Black 5-15R • • •
1595NALA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT SPEC GRADE 20 AMP DUPLEX GFCI
2095NAI 20 125 Ivory 5-20R • • •
2095NAW 20 125 White 5-20R • • •
2095NA 20 125 Brown 5-20R • • •
2095NAGRY 20 125 Gray 5-20R • • •
2095NABK 20 125 Black 5-20R • • •
2095NALA 20 125 Light Almond 5-20R • • •
2095NABL 20 125 Blue 5-20R • • •
NAFTA-COMPLIANT TRADEMASTER®/SPEC GRADE TAMPER-RESISTANT WEATHER-RESISTANT 15 AMP DUPLEX GFCI
1595TRWRNAI 15 125 Ivory 5-15R • • •
1595TRWRNAW 15 125 White 5-15R • • •
1595TRWRNA 15 125 Brown 5-15R • • •
1595TRWRNALA 15 125 Light Almond 5-15R • • •
NAFTA-COMPLIANT SPECIFICATION GRADE TAMPER-RESISTANT WEATHER-RESISTANT 20 AMP DUPLEX GFCI
2095TRWRNAI 20 125 Ivory 5-20R • • •
2095TRWRNAW 20 125 White 5-20R • • •
2095TRWRNA 20 125 Brown 5-20R • • •
2095TRWRNAGRY 20 125 Gray 5-20R • • •
2095TRWRNALA 20 125 Light Almond 5-20R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
B-63
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
1595TRRW
1.13"
1.72"
1.25"
2.62"
4.20"
RoHS-Compliant GFCI Receptacles meet the requirements of Restriction of Hazardous Substances directives and regulations.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
ROHSCOMPLIANT TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 15 & 20 AMP DUPLEX GFCI
1595TRRI 15 125 Ivory 5-15R • • •
1595TRRW 15 125 White 5-15R •• •
1595TRRLA 15 125 Light Almond 5-15R • • •
2095TRRI 20 125 Ivory 5-20R • • •
2095TRRW 20 125 White 5-20R • • •
2095TRRLA 20 125 Light Almond 5-20R • • •
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
NAFTACOMPLIANT HOSPITAL GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095HGTRNAI 20 125 Ivory 5-20R • • •
2095HGTRNAW 20 125 White 5-20R • • •
2095HGTRNAGRY 20 125 Gray 5-20R • • •
2095HGTRNARED 20 125 Red 5-20R • • •
2095HGTRNALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT HOSPITAL GRADE 15 AMP DUPLEX GFCI
1595HGNAI 15 125 Ivory 5-15R • • •
1595HGNAW 15 125 White 5-15R • • •
1595HGNARED 15 125 Red 5-15R • • •
NAFTACOMPLIANT HOSPITAL GRADE 20 AMP DUPLEX GFCI
2095HGNAI 20 125 Ivory 5-20R • • •
2095HGNAW 20 125 White 5-20R • • •
2095HGNA 20 125 Brown 5-20R • • •
2095HGNAGRY 20 125 Gray 5-20R • • •
2095HGNARED 20 125 Red 5-20R • • •
2095HGNALA 20 125 Light Almond 5-20R • • •
STRAIGHT BLADE RECEPTACLES
NAFTA-Compliant Hospital Grade & RoHS-Compliant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
2095HGTRNAW
1.72"
1.25"
2.62"
4.20"
.98"
1595HGNAW
1.72"
1.25"
2.62"
4.20"
.98"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-64
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
NAFTACOMPLIANT SPEC GRADE 15 AMP DUPLEX GFCI
PT1595NAI 15 125 Ivory 5-15R • • •
PT1595NAW 15 125 White 5-15R • • •
PT1595NAGRY 15 125 Gray 5-15R • • •
PT1595NALA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT SPEC GRADE 20 AMP DUPLEX GFCI
PT2095NAI 20 125 Ivory 5-20R • • •
PT2095NAW 20 125 White 5-20R • • •
PT2095NAGRY 20 125 Gray 5-20R • • •
PT2095NABK 20 125 Black 5-20R • • •
PT2095NALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT SPEC GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095TRNAI 20 125 Ivory 5-20R • • •
PT2095TRNAW 20 125 White 5-20R • • •
PT2095TRNAGRY 20 125 Gray 5-20R • • •
PT2095TRNALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT SPEC GRADE TAMPERRESISTANT 15 AMP COMBINATION NIGHTLIGHT/GFCI
PT1595NTLTRNAW 15 125 White 5-15R • • •
NAFTACOMPLIANT SPEC GRADE TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095NTLTRNAI 20 125 Ivory 5-20R • • •
PT2095NTLTRNAW 20 125 White 5-20R • • •
STRAIGHT BLADE RECEPTACLES
NAFTA-Compliant PlugTail™ GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
Features
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and
after installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to
PlugTail Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• FSUL Listed (Federal Specification
WC596).
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• 10kA short circuit rating.
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
For PlugTail Connector catalog numbers, see Page B-58 or B-59.
PT1595NAW
1.72"
1.25"
2.62"
4.20"
.98"
PT2095TRNAW
1.72"
1.25"
2.62"
4.20"
.98"
PT2095NTLTRNAW
1.13"
1.72"
1.25"
2.62"
4.20"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-65
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
PTRA6STR
1.125"
6.375"
STRAIGHT BLADE RECEPTACLES
NAFTA-Compliant PlugTail™ Hospital Grade GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
For additional PlugTail Connectors, see Page B-4.
All PlugTail Connectors are available in any wire length up to 25 inches, consult factory to order.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
Features
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and
after installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to
PlugTail Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
• SafeLock™ Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• FSUL Listed (Federal Specification
WC596).
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• 10kA short circuit rating.
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6STR Stranded 6"
PTRA6SOL Solid 6"
CATALOG NUMBER
RATING LIGHT
OUTPUT
IN 1' FCD* COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
NAFTACOMPLIANT HOSPITAL GRADE 20 AMP DUPLEX GFCI
PT2095HGNAI 20 125 Ivory 5-20R • • •
PT2095HGNAW 20 125 White 5-20R • • •
PT2095HGNAGRY 20 125 Gray 5-20R • • •
PT2095HGNARED 20 125 Red 5-20R • • •
PT2095HGNALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT HOSPITAL GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095HGTRNAI 20 125 Ivory 5-20R • • •
PT2095HGTRNAW 20 125 White 5-20R • • •
PT2095HGTRNARED 20 125 Red 5-20R • • •
PT2095HGTRNALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT HOSPITAL GRADE TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095HGNTLTRNAI 20 125 0.180 Ivory 520R • • •
PT2095HGNTLTRNAW
1.13"
1.72"
1.25"
2.62"
4.20"
PT2095HGNAW
1.72"
1.25"
2.62"
4.20"
.98"
*FCD = Foot Candle Distance, 1 Lumen = 1 FCD. See Page R-63 for more information.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-66
STRAIGHT BLADE RECEPTACLES
STRAIGHT BLADE RECEPTACLES
Hospital Grade Surge Protective Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Specifications
• UL1449 (3rd Edition). (1.2 x 50µs 6000V, 8
x 20µs 3000A).
• 24,000 amps current handling capability
in each of 3 modes: line to neutral, line to
ground, neutral to ground.
• LED indication: Steady green = protected;
Flashing red = not protected OFF = no
power to unit
• Response time less than 1 nanosecond
for unmounted MOV.
• Overcurrent protection in all
3 modes.
• Printed circuit board conformally coated
to protect against condensing humidity
and airborne particulates.
• Thermal protection in all
3 modes.
• Leakage current: 0.5 mA at 25°C/120VAC.
• Common mode noise attenuation: 500
KHz to 30 MHz; up to 20 dB (50 ohm
source impedance).
• Varistor voltage: 130V RMS.
• Back and side wire capability including
ground terminal.
• Operating temperature: -40°C
to 85°C (-40°F to 185°F).
5262/5362, IG5262/5362, 8200/8300,
IG8200/8300, TR5262/5362,
TRIG5262/5362, TR8200/8300,
TRIG8200/8300
• 340 joules of energy absorption in each
of the 3 modes. Energy (measured for an
8x20µS duration) = 340J.
• Nominal let-through (suppressed)
voltage in all
3 modes, 500V.
• Audible alarm able to be turned on/off.
• 3 17mm dual pack MOVs to suppress
transients in all
modes – equally.
• Isolated Ground version complies with
NEC 410-56 (C) and 250-146.
5252/5352, TR5252/5352,
All PlugTail™
• 340 joules of energy absorption in line-
to-neutral and line-to-ground modes.
680 joules of energy absorption in
neutral-to-ground mode. Energy
(measured for an 8x20µS duration) =
340J; 680J for
N-G mode.
• 2 17mm dual pack MOVs to suppress
transients in all
modes – equally.
• Nominal let-through (suppressed)
voltage: Line-to-neutral and line-to-
ground modes = 500V; neutral-to-ground
= 1000V.
• PlugTail versions – factory-terminated
devices and connectors.
NEMA
5-20R
NEMA
5-15R
8300GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
Audible Alarm with LED Indicator
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
DUPLEX RECEPTACLES BACK & SIDE WIRE
8200ISP 15 125 Ivory 5-15R • • • •
8200WSP 15 125 White 5-15R • • • •
8200SP 15 125 Brown 5-15R • • • •
8200GRYSP 15 125 Gray 5-15R • • • •
8200REDSP 15 125 Red 5-15R • • • •
8200LASP 15 125 Light Almond 5-15R • • • •
8200BLSP 15 125 Blue 5-15R • • • •
8300ISP 20 125 Ivory 5-20R • • • •
8300WSP 20 125 White 5-20R • • • •
8300SP 20 125 Brown 5-20R • • • •
8300GRYSP 20 125 Gray 5-20R • • • •
8300REDSP 20 125 Red 5-20R • • • •
8300LASP 20 125 Light Almond 5-20R • • • •
8300BLSP 20 125 Blue 5-20R • • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK & SIDE WIRE
IG8200ISP 15 125 Ivory 5-15R • • • •
IG8200WSP 15 125 White 5-15R • • • •
IG8200GRYSP 15 125 Gray 5-15R • • • •
IG8200REDSP 15 125 Red 5-15R • • • •
IG8200LASP 15 125 Light Almond 5-15R • • • •
IG8200BLSP 15 125 Blue 5-15R • • • •
IG8200OSP 15 125 Orange 5-15R • • • •
IG8300ISP 20 125 Ivory 5-20R • • • •
IG8300WSP 20 125 White 5-20R • • • •
IG8300SP 20 125 Brown 5-20R • • • •
IG8300GRYSP 20 125 Gray 5-20R • • • •
IG8300REDSP 20 125 Red 5-20R • • • •
IG8300LASP 20 125 Light Almond 5-20R • • • •
IG8300BLSP 20 125 Blue 5-20R • • • •
IG8300OSP 20 125 Orange 5-20R • • • •
IG8300GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-67
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
NEMA
5-20R
NEMA
5-15R
Audible Alarm with LED Indicator
STRAIGHT BLADE RECEPTACLES
Surge Protective Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
5362GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
IG5362GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES BACK & SIDE WIRE
5262ISP 15 125 Ivory 5-15R • • • •
5262WSP 15 125 White 5-15R • • • •
5262SP 15 125 Brown 5-15R • • • •
5262GRYSP 15 125 Gray 5-15R • • • •
5262BKSP 15 125 Black 5-15R • • • •
5262REDSP 15 125 Red 5-15R • • • •
5262LASP 15 125 Light Almond 5-15R • • • •
5262BLSP 15 125 Blue 5-15R • • • •
5362ISP 20 125 Ivory 5-20R • • • •
5362WSP 20 125 White 5-20R • • • •
5362SP 20 125 Brown 5-20R • • • •
5362GRYSP 20 125 Gray 5-20R • • • •
5362BKSP 20 125 Black 5-20R • • • •
5362REDSP 20 125 Red 5-20R • • • •
5362LASP 20 125 Light Almond 5-20R • • • •
5362BLSP 20 125 Blue 5-20R • • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK & SIDE WIRE
IG5262ISP 15 125 Ivory 5-15R • • • •
IG5262WSP 15 125 White 5-15R • • • •
IG5262GRYSP 15 125 Gray 5-15R • • • •
IG5262LASP 15 125 Light Almond 5-15R • • • •
IG5262BLSP 15 125 Blue 5-15R • • • •
IG5262OSP 15 125 Orange 5-15R • • • •
IG5362ISP 20 125 Ivory 5-20R • • • •
IG5362WSP 20 125 White 5-20R • • • •
IG5362SP 20 125 Brown 5-20R • • • •
IG5362GRYSP 20 125 Gray 5-20R • • • •
IG5362LASP 20 125 Light Almond 5-20R • • • •
IG5362BLSP 20 125 Blue 5-20R • • • •
IG5362OSP 20 125 Orange 5-20R • • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-68
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
DUPLEX RECEPTACLES BACK & SIDE WIRE
5252ISP 15 125 Ivory 5-15R • • • •
5252WSP 15 125 White 5-15R • • • •
5252GRYSP 15 125 Gray 5-15R • • • •
5252BKSP 15 125 Black 5-15R • • • •
5252LASP 15 125 Light Almond 5-15R • • • •
5252BLSP 15 125 Blue 5-15R • • • •
5352ISP 20 125 Ivory 5-20R • • • •
5352WSP 20 125 White 5-20R • • • •
5352GRYSP 20 125 Gray 5-20R • • • •
5352BKSP 20 125 Black 5-20R • • • •
5352LASP 20 125 Light Almond 5-20R • • • •
5352BLSP 20 125 Blue 5-20R • • • •
STRAIGHT BLADE RECEPTACLES
Surge Protective Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
LED Indicator Only
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
TAMPERRESISTANT DUPLEX RECEPTACLES BACK & SIDE WIRE
TR5252ISP 15 125 Ivory 5-15R • • • •
TR5252WSP 15 125 White 5-15R • • • •
TR5252GRYSP 15 125 Gray 5-15R • • • •
TR5252BKSP 15 125 Black 5-15R • • • •
TR5252LASP 15 125 Light Almond 5-15R • • • •
TR5252BLSP 15 125 Blue 5-15R • • • •
TR5352ISP 20 125 Ivory 5-20R • • • •
TR5352WSP 20 125 White 5-20R • • • •
TR5352GRYSP 20 125 Gray 5-20R • • • •
TR5352BKSP 20 125 Black 5-20R • • • •
TR5352LASP 20 125 Light Almond 5-20R • • • •
TR5352BLSP 20 125 Blue 5-20R • • • •
5352GRYSP
3.75"
1.70"
.875"
1.29"
Behind Strap
2.75"
TR5352GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
WWW.LEGRAND.US/PASSANDSEYMOUR
B-69
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
STRAIGHT BLADE RECEPTACLES
PlugTail™ Surge Protective Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
All devices listed on this
page conform to NEMA
WD-1, WD-6. Conforms to
the latest revision ANSI/
IEEE C62.41 (formerly
IEEE587), ANSI/IEEE
C62.45.
For PlugTail Connectors,
see Page B-4.
NEMA
5-20R
NEMA
5-15R
Audible Alarm with LED Indicator
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES
PT5262ISP 15 125 Ivory 5-15R • • • •
PT5262WSP 15 125 White 5-15R • • • •
PT5262SP 15 125 Brown 5-15R • • • •
PT5262GRYSP 15 125 Gray 5-15R • • • •
PT5262BKSP 15 125 Black 5-15R • • • •
PT5262REDSP 15 125 Red 5-15R • • • •
PT5262LASP 15 125 Light Almond 5-15R • • • •
PT5262BLSP 15 125 Blue 5-15R • • • •
PT5362ISP 20 125 Ivory 5-20R • • • •
PT5362WSP 20 125 White 5-20R • • • •
PT5362SP 20 125 Brown 5-20R • • • •
PT5362GRYSP 20 125 Gray 5-20R • • • •
PT5362BKSP 20 125 Black 5-20R • • • •
PT5362REDSP 20 125 Red 5-20R • • • •
PT5362LASP 20 125 Light Almond 5-20R • • • •
PT5362BLSP 20 125 Blue 5-20R • • • •
ISOLATED GROUND DUPLEX RECEPTACLES
PTIG5262ISP 15 125 Ivory 5-15R • • • •
PTIG5262WSP 15 125 White 5-15R • • • •
PTIG5262GRYSP 15 125 Gray 5-15R • • • •
PTIG5262BKSP 15 125 Black 5-15R • • • •
PTIG5262REDSP 15 125 Red 5-15R • • • •
PTIG5262LASP 15 125 Light Almond 5-15R • • • •
PTIG5262OSP 15 125 Orange 5-15R • • • •
PTIG5262BLSP 15 125 Blue 5-15R • • • •
PTIG5362ISP 20 125 Ivory 5-20R • • • •
PTIG5362WSP 20 125 White 5-20R • • • •
PTIG5362GRYSP 20 125 Gray 5-20R • • • •
PTIG5362BKSP 20 125 Black 5-20R • • • •
PTIG5362REDSP 20 125 Red 5-20R • • • •
PTIG5362LASP 20 125 Light Almond 5-20R • • • •
PTIG5362OSP 20 125 Orange 5-20R • • • •
PTIG5362BLSP 20 125 Blue 5-20R • • • •
TAMPERRESISTANT DUPLEX RECEPTACLES
PTTR5262ISP 15 125 Ivory 5-15R • • • •
PTTR5262WSP 15 125 White 5-15R • • • •
PTTR5262SP 15 125 Brown 5-15R • • • •
PTTR5262GRYSP 15 125 Gray 5-15R • • • •
PTTR5262BKSP 15 125 Black 5-15R • • • •
PTTR5262REDSP 15 125 Red 5-15R • • • •
PTTR5262LASP 15 125 Light Almond 5-15R • • • •
PTTR5262BLSP 15 125 Blue 5-15R • • • •
PTTR5362ISP 20 125 Ivory 5-20R • • • •
PTTR5362WSP 20 125 White 5-20R • • • •
PTTR5362SP 20 125 Brown 5-20R • • • •
PTTR5362GRYSP 20 125 Gray 5-20R • • • •
PTTR5362BKSP 20 125 Black 5-20R • • • •
PTTR5362REDSP 20 125 Red 5-20R • • • •
PTTR5362LASP 20 125 Light Almond 5-20R • • • •
PTTR5362BLSP 20 125 Blue 5-20R • • • •
PTIG5362GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PTTR5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-70
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
STRAIGHT BLADE RECEPTACLES
PlugTail™ Hospital Grade Surge Protective Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES
PT8200ISP 15 125 Ivory 5-15R • • • •
PT8200WSP 15 125 White 5-15R • • • •
PT8200SP 15 125 Brown 5-15R • • • •
PT8200GRYSP 15 125 Gray 5-15R • • • •
PT8200REDSP 15 125 Red 5-15R • • • •
PT8200LASP 15 125 Light Almond 5-15R • • • •
PT8200BLSP 15 125 Blue 5-15R • • • •
PT8300ISP 20 125 Ivory 5-20R • • • •
PT8300WSP 20 125 White 5-20R • • • •
PT8300SP 20 125 Brown 5-20R • • • •
PT8300GRYSP 20 125 Gray 5-20R • • • •
PT8300REDSP 20 125 Red 5-20R • • • •
PT8300LASP 20 125 Light Almond 5-20R • • • •
PT8300BLSP 20 125 Blue 5-20R • • • •
ISOLATED GROUND DUPLEX RECEPTACLES
PTIG8200ISP 15 125 Ivory 5-15R • • • •
PTIG8200WSP 15 125 White 5-15R • • • •
PTIG8200GRYSP 15 125 Gray 5-15R • • • •
PTIG8200REDSP 15 125 Red 5-15R • • • •
PTIG8200LASP 15 125 Light Almond 5-15R • • • •
PTIG8200BLSP 15 125 Blue 5-15R • • • •
PTIG8200OSP 15 125 Orange 5-15R • • • •
PTIG8300ISP 20 125 Ivory 5-20R • • • •
PTIG8300WSP 20 125 White 5-20R • • • •
PTIG8300SP 20 125 Brown 5-20R • • • •
PTIG8300GRYSP 20 125 Gray 5-20R • • • •
PTIG8300REDSP 20 125 Red 5-20R • • • •
PTIG8300LASP 20 125 Light Almond 5-20R • • • •
PTIG8300BLSP 20 125 Blue 5-20R • • • •
PTIG8300OSP 20 125 Orange 5-20R • • • •
TAMPERRESISTANT DUPLEX RECEPTACLES
PTTR8200ISP 15 125 Ivory 5-15R • • • •
PTTR8200WSP 15 125 White 5-15R • • • •
PTTR8200SP 15 125 Brown 5-15R • • • •
PTTR8200GRYSP 15 125 Gray 5-15R • • • •
PTTR8200REDSP 15 125 Red 5-15R • • • •
PTTR8200LASP 15 125 Light Almond 5-15R • • • •
PTTR8200BLSP 15 125 Blue 5-15R • • • •
PTTR8300ISP 20 125 Ivory 5-20R • • • •
PTTR8300WSP 20 125 White 5-20R • • • •
PTTR8300SP 20 125 Brown 5-20R • • • •
PTTR8300GRYSP 20 125 Gray 5-20R • • • •
PTTR8300REDSP 20 125 Red 5-20R • • • •
PTTR8300LASP 20 125 Light Almond 5-20R • • • •
PTTR8300BLSP 20 125 Blue 5-20R • • • •
PT8300GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PTTR8300ISP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
PTIG8300GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
For PlugTail Connectors,
see Page B-4.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-71
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Surge Protective Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
NEMA
5-20R
NEMA
5-15R
Audible Alarm with LED Indicator
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES BACK & SIDE WIRE
TR5262ISP 15 125 Ivory 5-15R • • • •
TR5262WSP 15 125 White 5-15R • • • •
TR5262SP 15 125 Brown 5-15R • • • •
TR5262GRYSP 15 125 Gray 5-15R • • • •
TR5262BKSP 15 125 Black 5-15R • • • •
TR5262REDSP 15 125 Red 5-15R • • • •
TR5262LASP 15 125 Light Almond 5-15R • • • •
TR5262BLSP 15 125 Blue 5-15R • • • •
TR5362ISP 20 125 Ivory 5-20R • • • •
TR5362WSP 20 125 White 5-20R • • • •
TR5362SP 20 125 Brown 5-20R • • • •
TR5362GRYSP 20 125 Gray 5-20R • • • •
TR5362BKSP 20 125 Black 5-20R • • • •
TR5362REDSP 20 125 Red 5-20R • • • •
TR5362LASP 20 125 Light Almond 5-20R • • • •
TR5362BLSP 20 125 Blue 5-20R • • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK & SIDE WIRE
TRIG5262ISP 15 125 Ivory 5-15R • • • •
TRIG5262WSP 15 125 White 5-15R • • • •
TRIG5262GRYSP 15 125 Gray 5-15R • • • •
TRIG5262BKSP 15 125 Black 5-15R • • • •
TRIG5262REDSP 15 125 Red 5-15R • • • •
TRIG5262LASP 15 125 Light Almond 5-15R • • • •
TRIG5262BLSP 15 125 Blue 5-15R • • • •
TRIG5262OSP 15 125 Orange 5-15R • • • •
TRIG5362ISP 20 125 Ivory 5-20R • • • •
TRIG5362WSP 20 125 White 5-20R • • • •
TRIG5362GRYSP 20 125 Gray 5-20R • • • •
TRIG5362BKSP 20 125 Black 5-20R • • • •
TRIG5362REDSP 20 125 Red 5-20R • • • •
TRIG5362LASP 20 125 Light Almond 5-20R • • • •
TRIG5362BLSP 20 125 Blue 5-20R • • • •
TRIG5362OSP 20 125 Orange 5-20R • • • •
TR5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
TRIG5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-72
STRAIGHT BLADE RECEPTACLES
STRAIGHT BLADE RECEPTACLES
Tamper-Resistant Hospital Grade Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Audible Alarm with LED Indicator
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES BACK & SIDE WIRE
TR8200ISP 15 125 Ivory 5-15R • • • •
TR8200WSP 15 125 White 5-15R • • • •
TR8200SP 15 125 Brown 5-15R • • • •
TR8200GRYSP 15 125 Gray 5-15R • • • •
TR8200REDSP 15 125 Red 5-15R • • • •
TR8200LASP 15 125 Light Almond 5-15R • • • •
TR8200BLSP 15 125 Blue 5-15R • • • •
TR8300ISP 20 125 Ivory 5-20R • • • •
TR8300WSP 20 125 White 5-20R • • • •
TR8300SP 20 125 Brown 5-20R • • • •
TR8300GRYSP 20 125 Gray 5-20R • • • •
TR8300REDSP 20 125 Red 5-20R • • • •
TR8300LASP 20 125 Light Almond 5-20R • • • •
TR8300BLSP 20 125 Blue 5-20R • • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK & SIDE WIRE
TRIG8200ISP 15 125 Ivory 5-15R • • • •
TRIG8200WSP 15 125 White 5-15R • • • •
TRIG8200GRYSP 15 125 Gray 5-15R • • • •
TRIG8200REDSP 15 125 Red 5-15R • • • •
TRIG8200LASP 15 125 Light Almond 5-15R • • • •
TRIG8200BLSP 15 125 Blue 5-15R • • • •
TRIG8200OSP 15 125 Orange 5-15R • • • •
TRIG8300ISP 20 125 Ivory 5-20R • • • •
TRIG8300WSP 20 125 White 5-20R • • • •
TRIG8300SP 20 125 Brown 5-20R • • • •
TRIG8300GRYSP 20 125 Gray 5-20R • • • •
TRIG8300REDSP 20 125 Red 5-20R • • • •
TRIG8300LASP 20 125 Light Almond 5-20R • • • •
TRIG8300BLSP 20 125 Blue 5-20R • • • •
TRIG8300OSP 20 125 Orange 5-20R • • • •
TR8300GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
TRIG8300GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-73
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Quad Receptacles & Accessories 15 & 20A, 125V
Application
Pass & Seymour® quad receptacles are designed for dense, multiple-outlet applications
such as personal computers and peripherals, office equipment, and home entertainment
centers. The bidirectional outlet configuration allows use of up to four oversized plugs, in
close proximity. The clean, contemporary design of the quad receptacle allows for surface
mounting with minimal protrusion from the wall. No wall plate is required.
Features
• Rugged nylon face and body withstands
impacts and hard use.
• Built-in wire stripping gauge.
• Outward-facing ground terminals make
handling up to four straight or angled
plugs easy and convenient.
• Heavy-duty, phosphor bronze contacts.
• Shielding walls guard against live-circuit-
to-ground shorts.
• Split circuit break-off tabs.
• UL and CSA listed.
Quad Receptacle
3.38"
4.50" square
3.38"
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 UL1449 CSA
A. V.
HOSPITAL GRADE ISOLATED GROUND SURGE PROTECTIVE QUADS
IG420HISP 20 125 Ivory 5-20R • •
IG420HGRYSP 20 125 Gray 5-20R • •
IG420HBLSP 20 125 Blue 5-20R • •
HOSPITAL GRADE QUADS
420HI 20 125 Ivory 5-20R • •
420HW 20 125 White 5-20R • •
420H 20 125 Brown 5-20R • •
420HGRY 20 125 Gray 5-20R • •
420HRED 20 125 Red 5-20R • •
SPECIFICATION GRADE SURGE PROTECTIVE QUADS
420ISP 20 125 Ivory 5-20R • •
420BLSP 20 125 Blue 5-20R • •
SPECIFICATION ISOLATED GRADE QUADS
IG415 15 125 Orange 5-15R • •
IG420 20 125 Orange 5-20R • •
SPECIFICATION GRADE QUADS
415I 15 125 Ivory 5-15R • •
415W 15 125 White 5-15R • •
415GRY 15 125 Gray 5-15R • •
420I 20 125 Ivory 5-20R • •
420W 20 125 White 5-20R • •
420GRY 20 125 Gray 5-20R • •
QUAD ADAPTER PLATES
4API Ivory • •
4APW White • •
4AP Brown • •
4APGRY Gray • •
4APRED Red • •
4APBL Blue • •
4APORG Orange • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-74
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Quad Receptacles Specifications
Quad Receptacle Adapter Plate
Hard Use Spec Grade & Hard Use Surge Protective Spec Grade Quads
•Isolated ground complied with NEC® 410-56(c) and 250-74 exception 4
•Conforms to NEMA WD-1, WD-6.
Electrical
Frequency: 60Hz
Voltage: 125V
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 –12 AWG copper and copper-clad
Product Identification: Ratings are permanent part of device
Weight: 10.75 oz.
Environmental
Flammability: UL94 V2
Operating Temperature: -40°C to 65°C (-40°F to 150°F) continuous without impact
Materials
Face: Nylon
Body: Nylon
Line Terminals: .035" T-type Triple-Wipe Phosphor Bronze
Terminal Screws: Brass #8-32
Hex Head Grounding Screw: Steel (Green)
Mounting Screws: Zinc-plated steel
Additional Specifications for Hard Use Surge Protective Spec Grade Quads
•ANSI /IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45
•Installation Categories “A” (ring wave) and “B” (unidirectional impulse)
Electrical
MOV Rating: 18mm
UL1449 Suppressed
Voltage Rating: 500V (L-N, L-G, N-G)
Noise Attenuation: -35db Noise Filtering at 5kHz-50MHz
Thermal Protection: Fused
Green LED Indicator: ON when protection is active, OFF when protection is inactive
WWW.LEGRAND.US/PASSANDSEYMOUR
B-75
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Dust & Moisture Resistant & Clock Hanger Receptacles 15 & 20A, 125V
S3713I
1.471"
4.478"
2.473"
3.256"
2.740"
1.878"
Behind
6207
shown with neoprene
sealing mat
1.104"
4.865"
2.985"
Features – Dust & Moisture Resistant
• Duplex receptacle has face backed by
neoprene gasket which is slit to provide
wiping action on plug blades and to
provide positive closure when not in use.
• Cellular neoprene sealing mat fits
under wall plate.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
CLOCK HANGERS
S3713I 15 125 Recessed Receptacle with Ivory Smooth Wall Plate 5-15R • • •
S3713W 15 125 Recessed Receptacle with White Smooth Wall Plate 5-15R • • •
S3713GRY 15 125 Recessed Receptacle with Gray Smooth Wall Plate 5-15R • • •
S3713BK 15 125 Recessed Receptacle with Black Smooth Wall Plate 5-15R • • •
S3713LA 15 125 Recessed Receptacle with Light Almond Smooth
Wall Plate 5-15R • • •
S3733SS 15 125 Recessed Receptacle with Stainless Steel Wall Plate 5-15R • • •
S3733 15 125 Recessed Receptacle with Brass Wall Plate 5-15R • • •
TAMPERRESISTANT CLOCK HANGERS BACK & SIDE WIRE
S3713TRI 15 125 Recessed Receptacle with Ivory Smooth Wall Plate 5-15R • • •
S3713TRW 15 125 Recessed Receptacle with White Smooth Wall Plate 5-15R • • •
S3713TRGRY 15 125 Recessed Receptacle with Gray Smooth Wall Plate 5-15R • • •
S3713TRBK 15 125 Recessed Receptacle with Black Smooth Wall Plate 5-15R • • •
S3713TRLA 15 125 Recessed Receptacle with Light Almond Smooth
Wall Plate 5-15R • • •
S3713TRI
1.471"
4.478"
2.473"
3.256"
2.740"
1.878"
Behind
R885TRW
2.473"
4.688"
2.938"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
DUST & MOISTURE RESISTANT
6207 15 125 Duplex, Dust and Moisture Resistant, Gray 5-15R • • •
CR6207 15 125 Duplex, Corrosion, Dust and Moisture Resistant, Yellow 5-15R • • •
6307 20 125 Duplex, Dust and Moisture Resistant, Gray 5-20R • •
6307RED 20 125 Duplex, Dust and Moisture Resistant, Red 5-20R • •
CR6307 20 125 Duplex, Corrosion, Dust and Moisture Resistant, Yellow 5-20R • •
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
cULus
A. V.
RECESSED DUPLEX TAMPERRESISTANT RECEPTACLE
R885TRW 15 125 White 5-15R •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-76
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
‡In bulk pack of 40 with plastic snap-in wire clamp.
§Up to #3 AWG aluminum conductors.
#Up to #4 AWG aluminum conductors.
For further information consult Wall Plate Section P (for Stainless Steel versions of TP724 and TP703, refer to Pages P-14 and P-15).
† NAFTA-Compliant Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
STRAIGHT BLADE RECEPTACLES
Power Outlet Receptacles & Plugs 20, 30, 50, & 60A
RATING RECEPTACLE/PLUG
CONFIGURATION
& NEMA NO.
FLUSH
RECEPTACLE
WALL PLATE
*For 2 screw mounting
**For 4 screw mounting
SURFACE
RECEPTACLE
PLUG ANGLE PLUG CONNECTOR
A. V. CATALOG NUMBERS
2 POLE, 3 WIRE GROUNDING
30 125 5-30 3802§
AL/CU
1-Gang: TP724*
2-Gang: SS702*
2-Gang: TP703**
D0531
.57"-1.26"
D0533
.57"-1.26"
30 125 NEMA
TT30
3830
AL/CU
1-Gang: TP724*
2-Gang: SS702*
2-Gang: TP703**
For recreational vehicles.
30 250 6-30 3801
AL/CU
1-Gang: TP724*
2-Gang: SS702*
2-Gang: TP703**
D0631
.57"-1.26"
3869 D0633
.57"-1.26"
50 125 5-50 D0551
.57"-1.26"
D0553
.57"-1.26"
50 250 6-50 3804§
AL/CU
1-Gang: TP724*
2-Gang: SS702*
2-Gang: TP703**
3852#
AL/CU
D0651
.57"-1.26"
3869 D0653
.57"-1.26"
3 POLE, 3 WIRE NONGROUNDING
30 125/250
Dryer
10-30 3860
AL/CU
1-Gang: TP724*
2-Gang: SS702*
2-Gang: TP703**
388
AL/CU
1031 3861
50 125/250
Range
10-50 3890§
AL/CU
1-Gang: TP724*
2-Gang: SS702*
2-Gang: TP703**
385
AL/CU
1051
.57"-1.26"
3861 1053
.32"-.91"
3 POLE, 4 WIRE GROUNDING
20 125/250 14-20 3820 1-Gang: SS7*
30 125/250
Dryer
14-30 3864
AL/CU
3864NA†
2-Gang: SS702*
2-Gang: TP703**
3884#/388440‡
AL/CU
1431
.57"-1.26"
5746AN
3867
30 3ø, 250 15-30 5740
AL/CU
2-Gang: SS702*
2-Gang: TP703**
5741AN
50 125/250
Range
14-50 3894§
AL/CU
3894NA†
2-Gang: SS702*
2-Gang: TP703**
3854#/385440‡
AL/CU
1451
.57"-1.26"
5745AN
3867
50 3ø, 250 15-50 5750
AL/CU
2-Gang: SS702*
2-Gang: TP703**
5751AN
60 3ø, 250 15-60 5760
AL/CU
2-Gang: SS702*
2-Gang: TP703**
5761AN
4 POLE, 4 WIRE NONGROUNDING
20 3øY, 120/208 18-20 3822 1-Gang: SS7* 7251DF
.35"-1.05"
60 3øY, 120/208 18-60 3870§
AL/CU
2-Gang: SS701** D1861
.57"-1.26"
8302AN
WWW.LEGRAND.US/PASSANDSEYMOUR
B-77
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Power Outlet Receptacles & Plugs 20, 30, 50, & 60A
3861
2.77"
1.30"
1.36"
3.3"
1.22"
3869
2.86"
1.40"
3.43"
1.30"
1.22"
3867
2.77"
1.388"
1.36"
3.43"
1.22"
385 3854
388 3884
3852
2.80"
5.65"
2.41"
3822
3.28"
4.06"
2.37"
3.685"
3.812"
2.2"
1.38"
1.40"
3820
1.018"
2.20"
2.37"
3.281"
1.380"
1.23"
3870
2.20"
1.81"
2.49"
2.50"
3.75"
2.375"
1.70"
2.37"
3.29"
3801 3802
3804 3864
3894 5740
5750 5760
2.20"
1.81"
2.49"
2.50"
3.75"
2.375"
1.70"
2.37"
3.29"
3830
3860
3890
1.90"
1.81"
2.49"
2.50"
3.75"
2.10"
1.30"
2.37"
3.29"
5741AN 5751AN
5745AN 5761AN
5746AN 8302AN
1.22"
2.12"
2.62"
3.43"
1.388"
7251DF
.687"
Min.
1.77"
2.03"
.875"
Max.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-78
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Power Outlet Receptacles & Plugs 20, 30, 50 & 60A
Application
Power devices are for use in industrial, institutional, commercial, and certain residential
applications to provide higher amperage power to equipment such as air conditioners,
copiers, small welders, ranges, and dryers.
Flush Receptacle Angle PlugSurface Receptacle Plug Wall Plate
New Installations require 4 wire range and dryer outlets. Ref: 2002 NEC 250-134, 250-138
Existing Installations permitted to use 3 wire range and dryer outlets. Ref: 2002 NEC 250-140
Features
• Flush receptacle bodies are molded of
arc-resistant plastic.
• All devices are of dead front design.
• Receptacles have double-wipe contacts
of high
performance copper-based alloy.
• Recommended stainless steel wall plates
are listed with each flush receptacle.
• UL Listed for use with aluminum wiring.
RECEPTACLE AMP. RATING AWG SIZE MATERIAL
CONDUCTOR SIZE & MATERIAL FOR POWER OUTLET RECEPTACLES
20A #14 – #10 Copper/Copper-clad
30A #10 – #6 Copper/Copper-clad/Aluminum
50A #10 – #6 Copper/Copper-clad/Aluminum
60A #8 – #4 Copper/Copper-clad/Aluminum
AMPERE RATING WITH NONMETALLIC SHEATHED CABLE WITH CONDUIT
RECOMMENDED BOX SIZES FOR FLUSH RECEPTACLES
30A 4" sq. x 2-1/8" deep 4-11/16" sq. x 2-1/8" deep
50A 4-11/16" sq. x 2-1/8" deep 2-g deep box (4" sq. x 2-1/2" deep)
60A 4-11/16" sq. x 2-1/8" deep with 1/2" raised ring 2-g deep box (4" sq. x 2-1/2" deep)
DESCRIPTION COLOR
NYLON METAL WALL PLATES RECOMMENDED
FOR THE FOLLOWING
FLUSH RECEPTACLESTRADEMASTER®MATERIAL
ACCESSORIES  FLUSH RECEPTACLE WALL PLATES
• 2.156" hole for
2.125" dia. device
• 2 mtg. holes
Ivory TP724I 2 Pole, 3 Wire Grounded
White TP724W 3801 3804
Brown TP724 Chrome S384C 3802 3830
Gray TP724GRY
Black TP724BK
Light Almond TP724LA 302S/S SS724
• 2-5/32" hole for
2-1/8" dia. device
• 2 mtg. holes
3 Pole, 3 Wire Ungrounded
302S/S SS702 3860
3860
• 2.1563" hole for
2.125" dia. device
• 4 mtg. holes
Ivory TP703I 3 Pole, 4 Wire Ungrounded
White TP703W Chrome S3862C 3864 5740
Brown TP703 302S/S SS703 3894 5750
Gray TP703GRY 5760
Black TP703BK
Light Almond TP703LA
WWW.LEGRAND.US/PASSANDSEYMOUR
B-79
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Miscellaneous Configurations Straight Blade Receptacles, 3 Wire, Specification Grade
NEMA
10-20R
NEMA
7-15R
NEMA
7-20R
NEMA
7-15P NEMA
10-20P
NEMA
7-20P
5762
1.104"
.813"
2.635"
3.281"
1.656"
1.322"
6810I
1.750"
2.370"
3.280"
1.380"
1.150"
7621
1.740"
2.375"
4.031"
1.375"
1.144"
1.437"
.866"
1.555"
9977
1.781"
.531"
2.063"
2.156"
CATALOG
NUMBER
RATING
DESCRIPTION
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
POLE, 3 WIRE GROUNDING
5762 15 277 Duplex Receptacle, Self-Grounding 7-15R •
PS5766X 15 277 Plug, Yellow 7-15P • •
7621 20 277 Single Receptacle 7-20R •
PS5866X 20 277 Plug, Yellow 7-20P
3 POLE, 3 WIRE NONGROUNDING
6810I 20 125/250 Receptacle, Ivory 10-20R •
6810 20 125/250 Receptacle, Black 10-20R •
9977 20 125/250 Plug, Nylon 10-20P
7088 20 125/250 Connector, Armored 10-20R
7088
1.859"
.676"
1.953"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-80
STRAIGHT BLADE RECEPTACLES
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Power & Surge Protection Strips
TAP – PS1
1.9375"
2.875"
1.25"
STRIP – PNS7L
1.25"
14.0"
2.3125"
BLOCK – PS10PC
Application
There are an average of over 250 power disturbances per year
in each home or office in the United States. Over 8% data loss
is a direct result from lightning and the value of equipment
and data is sometimes much greater than that of equipment.
Surges and spikes can come through power lines as well as
phone and coax lines. So choose a protector which includes
phone and/or coax protection.
Features
• UL1449 listed.
• Heavy-duty cord from 3' to 15', depending on device.
• Circuit breaker switch.
CATALOG NUMBER
RATING
TYPE OF HOUSING # OF OUTLETS CORD LENGTH COLORA. V.
POWER STRIPS WITHOUT SURGE PROTECTION
PNS6 15 125 Strip 6 3' Black
PNS7L 15 125 Strip 7 8' Black
PNS10 15 125 Block 10 15' Black
CATALOG
NUMBER
RATING TYPE OF
HOUSING
# OF
OUTLETS
CORD
LENGTH
JOULE
RATING
RANGE
MAX. SPIKE
CURRENT
AMPS
TYPE OF PROTECTION
COLORA. V. PHONE/FAX COAX
POWER STRIPS WITH SURGE PROTECTION
PS1 15 125 Tap 1 740J 48K PC Gray
PS1P 15 125 Tap 1 740J 48K X PC Gray
PS6 15 125 Strip 6 3' 555J 36K PC Gray
PS7 15 125 Strip 7 6' 740J 48K PC Gray
PS7P 15 125 Strip 7 6' 740J 48K X PC Gray
PS7L 15 125 Strip 7 15' 740J 48K PC Gray
PS8C 15 125 Block 8 8' 1100J 72K X PC Gray
PS8P 15 125 Block 8 8' 1100J 72K X PC Gray
PS10PC 15 125 Block 10 8' 1100J 72K X X PC Gray
13.9"
4.2"
1.4"
Features
• 400V clamping voltage.
• UL1449 listed.
• Heavy-duty cord from 3' to 15', depending
on device.
• Multiple function protection available for
power, phone, fax, modem, coax or data.
• Extremely long life with dependable
protection.
• Surge protection indicator on surge
devices.
• Circuit breaker switch.
• Heavy-duty high-energy MOVs.
• Ground continuity indicator.
Protection Specifications
• Line protection modes: L-N, L-G, N-G.
• Spike protection for sudden, dramatic
surges, over 400V.
• Surge protection lasts for 1/120 of
a second, for moderate short term
overvoltage.
• EMI/RFI noise attenuation.
WWW.LEGRAND.US/PASSANDSEYMOUR
B-81
STRAIGHT BLADE RECEPTACLES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE RECEPTACLES
Power & Surge Protection Strips Specifications
Power Devices – Ratings
Catalog Number PNS6 PNS7L PNS10
Type of Housing Strip Strip Strip
Total Outlets 6 7 10
Standard Grounded Outlets 6 6 6
Transformer Ready Outlets 0 1 4
Power Indicator X
Circuit Breaker Switch Unlighted Lighted Lighted
Cord Length (exposed) ft. 3' 8' 15'
Plug Straight Straight Straight
Molded Add-On Safety Covers 0 0 5
Molded Housing Color Black Black Black
Power & Surge Protection Devices – Ratings
Catalog Number PS1 PS1P PS6 PS7 PS7P PS7L PS8C PS8P PS10PC
Type of Housing Tap Tap Strip Strip Strip Strip Block Block Block
Number of Outlets 1167778810
Standard Grounded Outlets 116666006
Transformer Ready Outlets 110111884
Joule Rating Range 740J 740J 555J 740J 740J 740J 1100J 1100J 1100J
MOV Configuration 4-20mm 4-20mm 3-20mm 4-20mm 4-20mm 4-20mm 6-20mm 6-20mm 6-20mm
Clamping Voltage 400V 400V 400V 400V 400V 400V 400V 400V 400V
Max. Spike Current (Amps) 48K 48K 36K 48K 48K 48K 72K 72K 72K
EMI Filter Capacitors XX XXXXXX
Protection (L-N, L-G, N-G) XXXXXXXXX
Surge Protection Indicator XXXXXXXXX
Ground/Wiring Indicator XXXXXX
Circuit Breaker Switch Unlighted Lighted Lighted Lighted Lighted Lighted Lighted
Cord Length (exposed) ft. 3' 6' 6' 15' 8' 8' 8'
Plug Straight Straight Straight Straight Rt. Angle Rt. Angle Rt. Angle
Phone/Fax Protection X X X X
Phone Line(s) Configuration 1 in/1 out 1 in/2 out 1 in/1 out
Phone Jack Spec RJ-11 RJ-11 RJ-45 RJ-45
Nickel-Coaxial Jack Protection X X
6' Phone Cable (6P2C) X X X X
6' Coax Cable (Nickel Plated) X X
Molded Add-On Safety Covers 000222445
Molded Housing Color PC Gray PC Gray PC Gray PC Gray PC Gray PC Gray PC Gray PC Gray PC Gray
UL1449 2nd Edition XXXXXXXXX
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
B-82
STRAIGHT BLADE RECEPTACLES
DEvICES & WALL PLATES
Color Selection Chart
Devices & Plastic Wall Plate Colors
To order custom metal wall plates, see Pages P-41 – P-45.
For additional colors consult factory.
Custom Metal Wall Plates Paint Finish Colors
Paint Color
Metal Wall Plates
Metal Finish
Ivory Light Almond White Green
Black Blue Brown Gray Orange Red
See specific device and wall plate catalog charts for particular color availabilities.
Aluminum Brass (Brushed) Polished Brass Stainless Steel Brushed Bronze Chrome
Orange Green Gray Yellow Glossy Black Brown White
Primer Red Pink Flat Black Ivory Light Almond Blue
WWW.LEGRAND.US/PASSANDSEYMOUR
C-1
GFCIs
PASS & SEYMOUR
Self-Test GFCI Receptacles C-2
TradeMaster® & Specification Grade
GFCI Receptacles C-4, C-7
Tamper-Resistant GFCI Receptacles C-5
Hospital Grade Tamper-Resistant GFCI Receptacles C-6
Hospital Grade GFCI Receptacles C-8
Specification Grade Dead Front GFCIs C-9
Tamper-Resistant Switch/GFCI Receptacles C-10
Tamper-Resistant Nightlight/GFCI Receptacles C-11
Weather-Resistant GFCI Receptacles C-12
Audible Alarm GFCI Receptacles C-13
Isolated-Ground GFCI Receptacles C-14
PlugTail™ Specification Grade GFCI Receptacles C-15
PlugTail™ Hospital Grade GFCI Receptacles C-16
PlugTail™ Tamper-Resistant GFCI Receptacles C-17
PlugTail™ Tamper-Resistant
Nightlight/GFCI Receptacles C-18
NAFTA-Compliant & RoHS-Compliant
GFCI Receptacles C-19, C-20
NAFTA-Compliant PlugTail™ GFCI Receptacles C-21
NAFTA-Compliant PlugTail™
Hospital-Grade GFCI Receptacles C-22
GFCI Portables C-23
TRADEMASTER® GFCI
RECEPTACLES
AUDIBLE ALARM GFCI
RECEPTACLES
C-4 C-13
ISOLATED-GROUND GFCI
RECEPTACLES C-14
GFCIs
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-2
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
The new Pass & Seymour Self-Test GFCI with SafeLock™
Protection conducts an automatic test every second,
ensuring it’s always ready to protect. If the test is failed,
the indicator light flashes to notify the end-user that
the GFCI should be replaced. It also has our proven
SafeLock™ Protection feature: if critical components are
damaged and protection is lost, power to the receptacle
will be locked out.
A. High-impact-resistant, thermoplastic construction
for superior strength and durability.
B. Captive screws make for easier installation.
C. Extra-long strap for better sheet rock contact
eliminates “floaters” yet takes standard wall plate.
D. Back wire clamp allows for fast installation of
ground wires.
E. Trip indicator light (LED) makes it easy to identify
tripped condition.
F. Two back wire holes per termination add wiring
flexibility, eliminate pigtailing, and save box space.
G. Side or internal screw-pressure-plate back wire
termination takes #10–#14 AWG stranded or solid,
copper or copper-clad conductors.
The most durable GFCI available. Exceeds UL943 voltage
surge requirements; survives 100x the required UL
3kA/6kV voltage surge test cycles.
FSUL Listed (Federal Specification WC596).
Prevents line-load reversal miswire: No power to the
face or downstream receptacles if wired incorrectly.
GFCIs
Self-Test GFCI Receptacles
1596TRLA
C
D
B
A
E
F
G
1596TRLA
Self-Test GFCI Receptacles
WWW.LEGRAND.US/PASSANDSEYMOUR
C-3
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs
Self-Test GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
National Electrical Code® Section 406.12 Tamper-Resistant Receptacles in Dwelling Units.
In all areas specified in 210.52 all 125-volt, 15- and 20-amp receptacles shall be listed tamper-resistant receptacles.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
1596TRLA
1.13"
1.25"
2.62"
4.20"
1.72"
Features
• Self-Test GFCI with SafeLock™
Protection – conducts an automatic test
every second, ensuring it’s always ready
to protect. If critical components are
damaged and protection is lost, power
to the receptacle will be locked out.
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Auto-ground clip assures a positive
ground to metal box.
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Supplied with matching TP26 nylon wall
plate (except NI, TI, AB, and DB models).
• Tri-drive screws.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943 UL498 FSUL
WC596A. VAC
TRADEMASTER TAMPER-RESISTANT DUPLEX
1596TRI 15 125 Ivory 5-15R • • •
1596TRW 15 125 White 5-15R • • •
1596TRLA 15 125 Light Almond 5-15R • • •
SPEC GRADE TAMPER-RESISTANT DUPLEX
2096TRI 20 125 Ivory 5-20R • • •
2096TRW 20 125 White 5-20R • • •
2096TRLA 20 125 Light Almond 5-20R • • •
SPEC GRADE DUPLEX
2096I 20 125 Ivory 5-20R • • •
2096W 20 125 White 5-20R • • •
2096 20 125 Brown 5-20R • • •
2096GRY 20 125 Gray 5-20R • • •
2096LA 20 125 Light Almond 5-20R • • •
HOSPITAL GRADE DUPLEX
2096HGI 20 125 Ivory 5-20R • • •
2096HGW 20 125 White 5-20R • • •
2096HG 20 125 Brown 5-20R • • •
2096HGGRY 20 125 Gray 5-20R • • •
2096HGRED 20 125 Red 5-20R • • •
2096HGLA 20 125 Light Almond 5-20R • • •
HOSPITAL GRADE TAMPER-RESISTANT DUPLEX
2096HGTRI 20 125 Ivory 5-20R • • •
2096HGTRW 20 125 White 5-20R • • •
2096HGTRLA 20 125 Light Almond 5-20R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-4
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs with patented SafeLock™ Protection
If critical components are damaged and ground fault
protection is lost, power to receptacle is disconnected.
A. High-impact-resistant, thermoplastic construction
for superior strength and durability.
B. Captive screws make for easier installation.
C. Extra-long strap for better sheet rock contact
eliminates “floaters” yet takes standard wall plate.
D. Back wire clamp allows for fast installation of
ground wires.
E. Trip indicator light (LED) makes it easy to identify
tripped condition.
F. Two back wire holes per termination add wiring
flexibility, eliminate pigtailing, and save box space.
G. Side or internal screw-pressure-plate back wire
termination takes #10–#14 AWG stranded or solid,
copper or copper-clad conductors.
The most durable GFCI available. Exceeds UL943 voltage
surge requirements; survives 100x the required UL
3kA/6kV voltage surge test cycles.
FSUL Listed (Federal Specification WC596).
Prevents line-load reversal miswire: No power to the
face or downstream receptacles if wired incorrectly.
GFCIs
TradeMaster® & Specification Grade GFCI Receptacles
1595TRLA
C
D
B
A
E
F
G
1595TRLA
TradeMaster/Spec. Grade GFCI Receptacles
WWW.LEGRAND.US/PASSANDSEYMOUR
C-5
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs
Tamper-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
National Electrical Code® Section 406.12 Tamper-Resistant Receptacles in Dwelling Units.
In all areas specified in 210.52 all 125-volt, 15- and 20-amp receptacles shall be listed tamper-resistant receptacles.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
1595TRW
1.13"
1.25"
2.62"
4.20"
1.72"
2095TRSW
1.13"
1.25"
2.62"
4.20"
1.72"
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLockTM Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Supplied with matching TP26 nylon wall
plate (except NI, TI, AB, and DB models).
• Tri-drive screws.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC UL943
C22.2 No. 144 UL498
C22.2 No. 42
TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
1595TRI 15 125 Ivory 5-15R • • •
1595TRW 15 125 White 5-15R • • •
1595TR 15 125 Brown 5-15R • • •
1595TRBK 15 125 Black 5-15R • • •
1595TRLA 15 125 Light Almond 5-15R • • •
1595TRNICC4 15 125 Nickel 5-15R • • •
1595TRTI0 15 125 Titanium 5-15R • • •
1595TRABCC4 15 125 Antique Brass 5-15R • • •
1595TRDBCC4 15 125 Dark Bronze 5-15R • • •
TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI WITH AUTOGROUND
1595TRSI 15 125 Ivory 5-15R • • •
1595TRSW 15 125 White 5-15R • • •
1595TRSLA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095TRI 20 125 Ivory 5-20R • • •
2095TRW 20 125 White 5-20R • • •
2095TR 20 125 Brown 5-20R • • •
2095TRGRY 20 125 Gray 5-20R • • •
2095TRBK 20 125 Black 5-20R • • •
2095TRRED 20 125 Red 5-20R • • •
2095TRLA 20 125 Light Almond 5-20R • • •
SPECIFICATION GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095TRSI 20 125 Ivory 5-20R • • •
2095TRSW 20 125 White 5-20R • • •
2095TRSLA 20 125 Light Almond 5-20R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-6
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs
Hospital Grade Tamper-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
2095HGTRW
1595HGTRW
1.13"
1.72"
1.25"
2.62"
4.20"
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
1.13"
1.72"
1.25"
2.62"
4.20"
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLockTM Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
•High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC UL943
C22.2 No. 144 UL498
C22.2 No. 42
HOSPITAL GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
1595HGTRI 15 125 Ivory 5-15R • • •
1595HGTRW 15 125 White 5-15R • • •
1595HGTR 15 125 Brown 5-15R • • •
1595HGTRBK 15 125 Black 5-15R • • •
1595HGTRGRY 15 125 Gray 5-15R • • •
1595HGTRRED 15 125 Red 5-15R • • •
1595HGTRLA 15 125 Light Almond 5-15R • • •
HOSPITAL GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095HGTRI 20 125 Ivory 5-20R • • •
2095HGTRW 20 125 White 5-20R • • •
2095HGTR 20 125 Brown 5-20R • • •
2095HGTRBK 20 125 Black 5-20R • • •
2095HGTRGRY 20 125 Gray 5-20R • • •
2095HGTRRED 20 125 Red 5-20R • • •
2095HGTRLA 20 125 Light Almond 5-20R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
C-7
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
For Bulk Packaging Solutions consult factory.
GFCIs
TradeMaster® & Specification Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
1595W
1.72"
1.25"
2.62"
4.20"
.98"
2095W
.98"
1.72"
1.25"
2.62"
4.20"
NEMA
5-15R
NEMA
5-20R
.98"
1.72"
1.25"
2.62"
4.20"
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
1595SW
Features
• SafeLockTM Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• GFCIs with Auto-Ground assure a positive
ground to metal box.
CATALOG NUMBER
RATING
COLOR NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC UL943
C22.2 No. 144 UL498
C22.2 No. 42
TRADEMASTER®/SPEC GRADE 15 AMP DUPLEX GFCI
1595I 15 125 Ivory 5-15R • • •
1595W 15 125 White 5-15R • • •
1595 15 125 Brown 5-15R • • •
1595GRY 15 125 Gray 5-15R • • •
1595BK 15 125 Black 5-15R • • •
1595RED 15 125 Red 5-15R • • •
1595LA 15 125 Light Almond 5-15R • • •
TRADEMASTER®/SPEC GRADE 15 AMP DUPLEX GFCI WITH AUTOGROUND
1595SI 15 125 Ivory 5-15R • • •
1595SW 15 125 White 5-15R • • •
1595SLA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE 20 AMP DUPLEX GFCI
2095I 20 125 Ivory 5-20R • • •
2095W 20 125 White 5-20R • • •
2095 20 125 Brown 5-20R • • •
2095GRY 20 125 Gray 5-20R • • •
2095BK 20 125 Black 5-20R • • •
2095RED 20 125 Red 5-20R • • •
2095LA 20 125 Light Almond 5-20R • • •
SPECIFICATION GRADE 20 AMP DUPLEX GFCI WITH AUTOGROUND
2095SI 20 125 Ivory 5-20R • • •
2095SW 20 125 White 5-20R • • •
2095SLA 20 125 Light Almond 5-20R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-8
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs
Hospital Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R NEMA
5-20R
1595HGW
1.72"
1.25"
2.62"
4.20"
.98"
2095HGW
.98"
1.72"
1.25"
2.62"
4.20"
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
Features
• SafeLockTM Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC
UL943
C22.2 No. 144
UL498
C22.2 No. 42
HOSPITAL GRADE 15 AMP DUPLEX GFCI
1595HGI 15 125 Ivory 5-15R • • •
1595HGW 15 125 White 5-15R • • •
1595HG 15 125 Brown 5-15R • • •
1595HGBK 15 125 Black 5-15R • • •
1595HGGRY 15 125 Gray 5-15R • • •
1595HGRED 15 125 Red 5-15R • • •
1595HGLA 15 125 Light Almond 5-15R • • •
HOSPITAL GRADE 20 AMP DUPLEX GFCI
2095HGI 20 125 Ivory 5-20R • • •
2095HGW 20 125 White 5-20R • • •
2095HG 20 125 Brown 5-20R • • •
2095HGBK 20 125 Black 5-20R • • •
2095HGGRY 20 125 Gray 5-20R • • •
2095HGRED 20 125 Red 5-20R • • •
2095HGLA 20 125 Light Almond 5-20R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
C-9
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs
Specification Grade Dead Front GFCI 20A, 125VAC
2085W
.98"
1.72"
1.25"
2.62"
4.20"
1594TPAW
EXENSION RING
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
Features
• Rated as a 1½HP motor control switch.
• SafeLockTM Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
CATALOG NUMBER
RATING
COLOR
3rd PARTY COMPLIANCE
A. VAC
UL943
C22.2 No. 144
UL498
C22.2 No. 42
SPECIFICATION GRADE DEAD FRONT GFCI  11⁄2 HP MOTOR CONTROL RATING
2085I 20 125 Ivory • •
2085W 20 125 White • •
2085BK 20 125 Black • •
2085LA 20 125 Light Almond • •
CATALOG NUMBER COLOR
GFCI EXTENSION RINGS
1594TPAI 7.0 cu. in. Extension Ring, Ivory
1594TPAW 7.0 cu. in. Extension Ring, White
1594TPA 7.0 cu. in. Extension Ring, Brown
1594TPALA 7.0 cu. in. Extension Ring, Light Almond
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-10
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs
Tamper-Resistant Switch/GFCI Receptacles 15A, 125VAC
1595SWTTRWCC4
NEMA
5-15R
1.13"
1.25"
4.20"
2.62"
1.72"
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLockTM Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Two back wire holes per terminal.
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
CATALOG NUMBER
SWITCH
RATING
RECEPTACLE
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
A. VAC A. VAC
UL943
C22.2 No. 144
UL498
C22.2 No. 42
UL943
C22.2 No. 144
COMBINATION TAMPERRESISTANT SINGLE POLE SWITCH/GFCI
1595SWTTRICC4 15 120 15 125 Ivory 5-15R • • •
1595SWTTRWCC4 15 120 15 125 White 5-15R • • •
1595SWTTRBKCC4 15 120 15 125 Black 5-15R • • •
1595SWTTRLACC4 15 120 15 125 Light Almond 5-15R • • •
WWW.LEGRAND.US/PASSANDSEYMOUR
C-11
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
GFCIs
Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
*FCD = Foot Candle
Distance, 1 Lumen =
1 FCD. See Page R-63
for more information.
1595NTLTRWCC4
1.25"
1.13"
4.20"
2.62"
1.72"
2095HGNTLTRW
1.25"
1.13"
4.20"
2.62"
1.72"
NEMA
5-15R
NEMA
5-20R
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLock™ Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Sealed nightlight with high impact-
resistant Lexan® lens prevents
tampering.
• Nightlight uses cooler LED illumination.
• Energy-efficient LED has average
20-year life expectancy, eliminating bulb
replacement.
• LED Rated at 186 milliwatts @ 120V.
• Two receptacles.
• Photocell turns nightlight ON in dark,
OFF in daylight.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon wall
plate (except 1595NTLTRNICC4 and
1595NTLTRTICC4).
CATALOG NUMBER
RATING LIGHT
OUTPUT
IN 1' FCD* COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC
UL943
C22.2 No. 144
UL498
C22.2 No. 42
COMBINATION TAMPERRESISTANT 15 AMP NIGHTLIGHT/GFCI
1595NTLTRICC4 15 125 0.180 Ivory 5-15R • • •
1595NTLTRWCC4 15 125 0.180 White 5-15R • • •
1595NTLTRBKCC4 15 125 0.180 Black 5-15R • • •
1595NTLTRLACC4 15 125 0.180 Light Almond 5-15R • • •
1595NTLTRNICC4 15 125 0.180 Nickel 5-15R • • •
1595NTLTRTICC4 15 125 0.180 Titanium 5-15R • • •
1595NTLTRABCC4 15 125 0.180 Antique Brass 5-15R • • •
1595NTLTRDBCC4 15 125 0.180 Dark Bronze 5-15R • • •
COMBINATION TAMPERRESISTANT 20 AMP NIGHTLIGHT/GFCI
2095NTLTRI 20 125 0.180 Ivory 5-20R • • •
2095NTLTRW 20 125 0.180 White 5-20R • • •
2095NTLTRGRY 20 125 0.180 Gray 5-20R • • •
2095NTLTRLA 20 125 0.180 Light Almond 5-20R • • •
HOSPITAL GRADE COMBINATION TAMPERRESISTANT 15 AMP NIGHTLIGHT/GFCI
1595HGNTLTRI 15 125 0.180 Ivory 5-15R • • •
1595HGNTLTRW 15 125 0.180 White 5-15R • • •
1595HGNTLTR 15 125 0.180 Brown 5-15R • • •
1595HGNTLTRGRY 15 125 0.180 Gray 5-15R • • •
1595HGNTLTRRED 15 125 0.180 Red 5-15R • • •
1595HGNTLTRLA 15 125 0.180 Light Almond 5-15R • • •
HOSPITAL GRADE COMBINATION TAMPERRESISTANT 20 AMP NIGHTLIGHT/GFCI
2095HGNTLTRI 20 125 0.180 Ivory 5-20R • • •
2095HGNTLTRW 20 125 0.180 White 5-20R • • •
2095HGNTLTRGRY 20 125 0.180 Gray 5-20R • • •
2095HGNTLTRRED 20 125 0.180 Red 5-20R • • •
2095HGNTLTRLA 20 125 0.180 Light Almond 5-20R • • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-12
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
GFCIs
Weather-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
National Electrical Code® Section 406.8 Receptacles in Wet or Damp Locations.
Requires that all 15- and 20-amp, 125- and 250-volt non-locking receptacles installed in wet or damp locations shall be
weather-resistant receptacles.
1595TRWRW
1.25"
1.13"
4.20"
2.62"
1.72"
2095TRWRW
1.25"
1.13"
4.20"
2.62"
1.72"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC
UL943
C22.2 No. 144
UL498
C22.2 No. 42
TRADEMASTER®/SPEC GRADE WEATHERRESISTANT 15 AMP DUPLEX GFCI
1595TRWRI 15 125 Ivory 5-15R • • •
1595TRWRW 15 125 White 5-15R • • •
1595TRWR 15 125 Brown 5-15R • • •
1595TRWRGRY 15 125 Gray 5-15R • • •
1595TRWRLA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE WEATHERRESISTANT 20 AMP DUPLEX GFCI
2095TRWRI 20 125 Ivory 5-20R • • •
2095TRWRW 20 125 White 5-20R • • •
2095TRWR 20 125 Brown 5-20R • • •
2095TRWRGRY 20 125 Gray 5-20R • • •
2095TRWRBK 20 125 Black 5-20R • • •
2095TRWRLA 20 125 Light Almond 5-20R • • •
Features
• Weather-Resistant: Meets National
Electrical Code® Weather-Resistant
requirements.
• Tamper-Resistant: Meets National
Electrical Code®Tamper-Resistant
requirements.
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Listed to the Weather-Resistant
supplement of UL498 meeting demanding
UL requirements including:
- Ultraviolet light exposure test
- Cold impact test
- Accelerated aging test
- Stringent material requirements
for current carrying parts, wire
binding screws and mounting
straps to ensure superior
corrosion resistance.
• SafeLockTM Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wired incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED)
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long nickel post-plated steel
mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
WWW.LEGRAND.US/PASSANDSEYMOUR
C-13
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
NEMA
5-15R
NEMA
5-20R
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC
UL943
C22.2 No. 144
UL498
C22.2 No. 42
TRADEMASTER® AUDIBLE ALARM TAMPERRESISTANT DUPLEX GFCI
1595TRAI 15 125 Ivory 5-15R • • •
1595TRAW 15 125 White 5-15R • • •
1595TRA 15 125 Brown 5-15R • • •
1595TRABK 15 125 Black 5-15R • • •
1595TRALA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE AUDIBLE ALARM TAMPERRESISTANT DUPLEX GFCI
2095TRAI 20 125 Ivory 5-20R • • •
2095TRAW 20 125 White 5-20R • • •
2095TRA 20 125 Brown 5-20R • • •
2095TRAGRY 20 125 Gray 5-20R • • •
2095TRABK 20 125 Black 5-20R • • •
2095TRARED 20 125 Red 5-20R • • •
2095TRALA 20 125 Light Almond 5-20R • • •
HOSPITAL GRADE AUDIBLE ALARM TAMPERRESISTANT DUPLEX GFCI
1595HGTRAI 15 125 Ivory 5-15R • • •
1595HGTRAW 15 125 White 5-15R • • •
1595HGTRA 15 125 Brown 5-15R • • •
1595HGTRAGRY 15 125 Gray 5-15R • • •
1595HGTRARED 15 125 Red 5-15R • • •
1595HGTRALA 15 125 Light Almond 5-15R • • •
2095HGTRAI 20 125 Ivory 5-20R • • •
2095HGTRAW 20 125 White 5-20R • • •
2095HGTRA 20 125 Brown 5-20R • • •
2095HGTRAGRY 20 125 Gray 5-20R • • •
2095HGTRARED 20 125 Red 5-20R • • •
2095HGTRALA 20 125 Light Almond 5-20R • • •
1595TRAW
GFCIs
Audible Alarm GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
National Electrical Code® Section 406.12 Tamper-Resistant Receptacles in Dwelling Units.
In all areas specified in 210.52 all 125-volt, 15- and 20-amp receptacles shall be listed tamper-resistant receptacles.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
Features
• Audible Alarm alert of tripped condition.
Alarm can be turned ON/OFF.
• Rated as a 1.5 HP motor control switch.
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Supplied with matching TP26 nylon wall
plate (except NI, TI, AB, and DB models).
• Tri-drive screws.
2095TRAW
1.13"
1.25"
2.62"
4.20"
1.72"
1.13"
1.25"
2.62"
4.20"
1.72"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-14
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
TRADEMASTER® ISOLATED GROUND TAMPER-RESISTANT DUPLEX GFCI
1595IGTRI 15 125 Ivory 5-15R • • •
1595IGTRW 15 125 White 5-15R • • •
1595IGTR 15 125 Brown 5-15R • • •
1595IGTRBK 15 125 Black 5-15R • • •
1595IGTRLA 15 125 Light Almond 5-15R • • •
1595IGTROCC4 15 125 Orange 5-15R • • •
SPECIFICATION GRADE ISOLATED GROUND TAMPERRESISTANT DUPLEX GFCI
2095IGTRI 20 125 Ivory 5-20R • • •
2095IGTRW 20 125 White 5-20R • • •
2095IGTR 20 125 Brown 5-20R • • •
2095IGTRGRY 20 125 Gray 5-20R • • •
2095IGTRBK 20 125 Black 5-20R • • •
2095IGTRRED 20 125 Red 5-20R • • •
2095IGTRO 20 125 Orange 5-20R • • •
2095IGTRLA 20 125 Light Almond 5-20R • • •
HOSPITAL GRADE ISOLATED GROUND TAMPERRESISTANT DUPLEX GFCI
1595IGHGTRI 15 125 Ivory 5-15R • • •
1595IGHGTRW 15 125 White 5-15R • • •
1595IGHGTR 15 125 Brown 5-15R • • •
1595IGHGTRGRY 15 125 Gray 5-15R • • •
1595IGHGTRRED 15 125 Red 5-15R • • •
1595IGHGTRO 15 125 Orange 5-15R • • •
1595IGHGTRLA 15 125 Light Almond 5-15R • • •
2095IGHGTRI 20 125 Ivory 5-20R • • •
2095IGHGTRW 20 125 White 5-20R • • •
2095IGHGTR 20 125 Brown 5-20R • • •
2095IGHGTRGRY 20 125 Gray 5-20R • • •
2095IGHGTRRED 20 125 Red 5-20R • • •
2095IGHGTR 20 125 Orange 5-20R • • •
2095IGHGTRLA 20 125 Light Almond 5-20R • • •
GFCIs
Isolated-Ground GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
National Electrical
Code® Section 406.12
Tamper-Resistant
Receptacles in
Dwelling Units.
In all areas specified in
210.52 all 125-volt, 15-
and 20-amp receptacles
shall be listed tamper-
resistant receptacles.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
1595IGTRO
1.13"
1.25"
2.62"
4.20"
1.72"
2095IGTRO
1.13"
1.25"
2.62"
4.20"
1.72"
Features
• GFCI receptacle's grounding system is
isolated from the building's grounding
system.
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Pre-stripped stranded wire lead for
isolated ground termination.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• Ground screw has a back wire clamp for
easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Supplied with matching TP26 nylon wall
plate (except NI, TI, AB, and DB models).
• Tri-drive screws.
WWW.LEGRAND.US/PASSANDSEYMOUR
C-15
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs
PlugTail™ Specification Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
For additional PlugTail Connectors, see Page B-4.
All PlugTail Connectors are available in any wire length up to 25 inches, consult factory to order.
NEMA
5-15R
NEMA
5-20R
PT2095W
1.25"
1.20"
4.20"
2.62"
1.72"
PTRA6STR
1.125"
6.375"
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
Features
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a non-feed-
thru application for facility owners.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• FSUL Listed (Federal Specificaiton
WC596).
• Exceed UL 943 voltage surge
requirements survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• 10kA short circuit rating.
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
SPECIFICATION GRADE 15 AMP DUPLEX GFCI
PT1595I 15 125 Ivory 5-15R • • •
PT1595W 15 125 White 5-15R • • •
PT1595 15 125 Brown 5-15R • • •
PT1595GRY 15 125 Gray 5-15R • • •
PT1595RED 15 125 Red 5-15R • • •
PT1595LA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE 20 AMP DUPLEX GFCI
PT2095I 20 125 Ivory 5-20R • • •
PT2095W 20 125 White 5-20R • • •
PT2095 20 125 Brown 5-20R • • •
PT2095GRY 20 125 Gray 5-20R • • •
PT2095BK 20 125 Black 5-20R • • •
PT2095RED 20 125 Red 5-20R • • •
PT2095LA 20 125 Light Almond 5-20R • • •
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6STR Stranded 6"
PTRA6SOL Solid 6"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-16
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIs
PlugTail™ Hospital Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
PT2095HGW
For additional PlugTail Connectors, see Page B-4.
All PlugTail Connectors are available in any wire length up to 25 inches, consult factory to order.
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
Features
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a non-feed-
thru application for facility owners.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• 10kA short circuit rating.
• FSUL Listed (Federal Specificaiton
WC596).
• Exceed UL 943 voltage surge
requirements survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
HOSPITAL GRADE 15 AMP DUPLEX GFCI
PT1595HGI 15 125 Ivory 5-15R • • •
PT1595HGW 15 125 White 5-15R • • •
PT1595HG 15 125 Brown 5-15R • • •
PT1595HGGRY 15 125 Gray 5-15R • • •
PT1595HGBK 15 125 Black 5-15R • • •
PT1595HGRED 15 125 Red 5-15R • • •
PT1595HGLA 15 125 Light Almond 5-15R • • •
HOSPITAL GRADE 20 AMP DUPLEX GFCI
PT2095HGI 20 125 Ivory 5-20R • • •
PT2095HGW 20 125 White 5-20R • • •
PT2095HG 20 125 Brown 5-20R • • •
PT2095HGGRY 20 125 Gray 5-20R • • •
PT2095HGBK 20 125 Black 5-20R • • •
PT2095HGRED 20 125 Red 5-20R • • •
PT2095HGLA 20 125 Light Almond 5-20R • • •
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6STR Stranded 6"
PTRA6SOL Solid 6"
1.25"
1.20"
4.20"
2.62"
1.72"
WWW.LEGRAND.US/PASSANDSEYMOUR
C-17
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC
UL943
C22.2 No. 144
UL498
C22.2 No. 42
SPECIFICATION GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
PT1595TRI 15 125 Ivory 5-15R • • •
PT1595TRW 15 125 White 5-15R • • •
PT1595TR 15 125 Brown 5-15R • • •
PT1595TRGRY 15 125 Gray 5-15R • • •
PT1595TRBK 15 125 Black 5-15R • • •
PT1595TRRED 15 125 Red 5-15R • • •
PT1595TRLA 15 125 Light Almond 5-15R • • •
SPECIFICATION GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095TRI 20 125 Ivory 5-20R • • •
PT2095TRW 20 125 White 5-20R • • •
PT2095TR 20 125 Brown 5-20R • • •
PT2095TRGRY 20 125 Gray 5-20R • • •
PT2095TRBK 20 125 Black 5-20R • • •
PT2095TRRED 20 125 Red 5-20R • • •
PT2095TRLA 20 125 Light Almond 5-20R • • •
HOSPITAL GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
PT1595HGTRI 15 125 Ivory 5-15R • • •
PT1595HGTRW 15 125 White 5-15R • • •
PT1595HGTRGRY 15 125 Gray 5-15R • • •
PT1595HGTRBK 15 125 Black 5-15R • • •
PT1595HGTRRED 15 125 Red 5-15R • • •
PT1595HGTRLA 15 125 Light Almond 5-15R • • •
HOSPITAL GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
PT2095HGTRI 20 125 Ivory 5-20R • • •
PT2095HGTRW 20 125 White 5-20R • • •
PT2095HGTRGRY 20 125 Gray 5-20R • • •
PT2095HGTRGBK 20 125 Black 5-20R • • •
PT2095HGTRRED 20 125 Red 5-20R • • •
PT2095HGTRLA 20 125 Light Almond 5-20R • • •
1.125"
6.375"
GFCIs
PlugTail™ Specification & Hospital Grade Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
For PlugTail Connector
catalog numbers, see
Page C-15 or C-16.
1.20"
1.25"
4.20"
2.62"
1.72"
NEMA
5-15R
NEMA
5-20R
PT2095HGTRW
1.25"
1.2"
4.20"
2.62"
1.72"
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a non-feed-
thru application for facility owners.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• 10kA short circuit rating.
• FSUL Listed (Federal Specificaiton
WC596).
• Exceed UL 943 voltage surge
requirements survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
PT2095TRW PTRA6STR
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-18
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
LIGHT
OUTPUT
IN 1' FCD* COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42
FSUL
WC596A. VAC
SPECIFICATION GRADE TAMPERRESISTANT 15 AMP COMBINATION NIGHTLIGHT/GFCI
PT1595NTLTRI 15 125 0.180 Ivory 5-15R • • •
SPECIFICATION GRADE TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095NTLTRI 20 125 0.180 Ivory 5-20R • • •
PT2095NTLTRW 20 125 0.180 White 5-20R • • •
HOSPITAL GRADE TAMPERRESISTANT 15 AMP COMBINATION NIGHTLIGHT/GFCI
PT1595HGNTLTRI 15 125 0.180 Ivory 5-15R • • •
PT1595HGNTLTRW 15 125 0.180 White 5-15R • • •
PT1595HGNTLTRRED 15 125 0.180 Red 5-15R • • •
HOSPITAL GRADE TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095HGNTLTRI 20 125 0.180 Ivory 5-20R • • •
PT2095HGNTLTRW 20 125 0.180 White 5-20R • • •
PT2095HGNTLTRGRY 20 125 0.180 Gray 5-20R • • •
PT2095HGNTLTRLA 20 125 0.180 Light Almond 5-20R • • •
GFCIs
PlugTail™ Specification & Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
For PlugTail Connector catalog numbers, see Page C-15 or C-16.
NEMA
5-15R
NEMA
5-20R
1.25"
1.20"
4.20"
2.62"
1.72"
PT1595NTLTRI PT1595HGNTLTRI
1.25"
1.20"
4.20"
2.62"
1.72"
PTRA6STR
1.125"
6.375"
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
Features
• Protects children: patented shutter
system helps prevent improper insertion
of foreign objects.
• Meets National Electrical Code®
Tamper-Resistant requirements.
• Sealed nightlight with high impact-
resistant Lexan® lens prevents
tampering.
• Nightlight uses cooler LED illumination.
• Energy-efficient LED has average
20-year life expectancy, eliminating bulb
replacement.
• Photocell turns nightlight ON in dark, OFF
in daylight.
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• 10kA short circuit rating.
• FSUL Listed (Federal Specification
WC596)
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermopastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
WWW.LEGRAND.US/PASSANDSEYMOUR
C-19
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
• 20 Amp feed-thru capacity
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
NAFTACOMPLIANT TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 15 AMP DUPLEX GFCI
1595TRNAI 15 125 Ivory 5-15R • • •
1595TRNAW 15 125 White 5-15R • • •
1595TRNA 15 125 Brown 5-15R • • •
1595TRNAGRY 15 125 Gray 5-15R • • •
1595TRNABK 15 125 Black 5-15R • • •
1595TRNALA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095TRNAI 20 125 Ivory 5-20R • • •
2095TRNAW 20 125 White 5-20R • • •
2095TRNA 20 125 Brown 5-20R • • •
2095TRNAGRY 20 125 Gray 5-20R • • •
2095TRNABK 20 125 Black 5-20R • • •
2095TRNALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT TRADEMASTER®/SPEC GRADE 15 AMP DUPLEX GFCI
1595NAI 15 125 Ivory 5-15R • • •
1595NAW 15 125 White 5-15R • • •
1595NA 15 125 Brown 5-15R • • •
1595NAGRY 15 125 Gray 5-15R • • •
1595NABK 15 125 Black 5-15R • • •
1595NALA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT SPEC GRADE 20 AMP DUPLEX GFCI
2095TRNAI 20 125 Ivory 5-20R • • •
2095TRNAW 20 125 White 5-20R • • •
2095TRNA 20 125 Brown 5-20R • • •
2095TRNAGRY 20 125 Gray 5-20R • • •
2095TRNABK 20 125 Black 5-20R • • •
2095TRNALA 20 125 Light Almond 5-20R • • •
2095TRNABL 20 125 Blue 5-20R • • •
NAFTACOMPLIANT TRADEMASTER®/SPEC GRADE TAMPERRESISTANT/WEATHERRESISTANT 15 AMP DUPLEX GFCI
1595TRWRNAI 15 125 Ivory 5-15R • • •
1595TRWRNAW 15 125 White 5-15R • • •
1595TRWRNA 15 125 Brown 5-15R • • •
1595TRWRNALA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT TRADEMASTER®/SPEC GRADE TAMPERRESISTANT/WEATHERRESISTANT 20 AMP DUPLEX GFCI
2095TRWRNAI 20 125 Ivory 5-20R • • •
2095TRWRNAW 20 125 White 5-20R • • •
2095TRWRNA 20 125 Brown 5-20R • • •
2095TRWRNAGRY 20 125 Gray 5-20R • • •
2095TRWRNALA 20 125 Light Almond 5-20R • • •
GFCIs
NAFTA-Compliant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
NAFTA-Compliant GFCI
Receptacles are ideal for
use on projects subject to
the provisions of the Buy
American Act.
1.72"
1.25"
2.62"
4.20"
.98"
1595NAW
1.72"
1.25"
2.62"
4.20"
.98"
2095TRNAW
1.72"
1.25"
2.62"
4.20"
1.13"
2095TRWRNAW
Features
• SafeLockTM Protection: if critical
components are damaged and
ground fault protection is lost,
power to receptacle is disconnected.
• Prevents line-load reversal miswire:
no power to the face or downstream
receptacles if wire incorrectly.
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification
WC596).
• Trip indicator light (red LED).
• Ground screw has a back wire clamp for
easy installation.
• Side or internal screw-pressure-plate
back wire with #10 – #14 AWG solid or
stranded copper wire.
• Two back wire holes per terminal.
• 10kA short circuit rating.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• GFCIs with Auto-Ground assure a
positive ground to metal box.
• WR models listed to the Weather-
Resistant supplement of UL498, meet
demanding UL requirements.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-20
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
NAFTACOMPLIANT HOSPITAL GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095HGTRNAI 20 125 Ivory 5-20R • • •
2095HGTRNAW 20 125 White 5-20R • • •
2095HGTRNAGRY 20 125 Gray 5-20R • • •
2095HGTRNARED 20 125 Red 5-20R • • •
2095HGTRNALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT HOSPITAL GRADE 15 AMP DUPLEX GFCI
1595HGNAI 15 125 Ivory 5-15R • • •
1595HGNAW 15 125 White 5-15R • • •
1595HGNARED 15 125 Red 5-15R • • •
NAFTACOMPLIANT HOSPITAL GRADE 20 AMP DUPLEX GFCI
2095HGNAI 20 125 Ivory 5-20R • • •
2095HGNAW 20 125 White 5-20R • • •
2095HGNA 20 125 Brown 5-20R • • •
2095HGNAGRY 20 125 Gray 5-20R • • •
2095HGNARED 20 125 Red 5-20R • • •
2095HGNALA 20 125 Light Almond 5-20R • • •
RoHS-Compliant GFCI Receptacles meet the requirements of Restriction of Hazardous Substances directives and regulations.
1595TRRW
1.13"
1.72"
1.25"
2.62"
4.20"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
FSUL
WC596A. VAC
UL943
C22.2 No. 144
UL498
C22.2 No. 42
ROHSCOMPLIANT TRADEMASTER®/SPEC GRADE TAMPERRESISTANT 15 AND 20 AMP DUPLEX GFCI
1595TRRI 15 125 Ivory 5-15R • • •
1595TRRW 15 125 White 5-15R • • •
1595TRRLA 15 125 Light Almond 5-15R • • •
2095TRRI 20 125 Ivory 5-20R • • •
2095TRRW 20 125 White 5-20R • • •
2095TRRLA 20 125 Light Almond 5-20R • • •
GFCIs
RoHS-Compliant & NAFTA-Compliant Hospital Grade GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
1.72"
1.25"
2.62"
4.20"
.98"
2095HGTRNAW
1.72"
1.25"
2.62"
4.20"
.98"
1595HGTRNAW
WWW.LEGRAND.US/PASSANDSEYMOUR
C-21
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
NAFTACOMPLIANT SPEC GRADE 15 AMP DUPLEX GFCI
PT1595NAI 15 125 Ivory 5-15R • • •
PT1595NAW 15 125 White 5-15R • • •
PT1595NAGRY 15 125 Gray 5-15R • • •
PT1595NALA 15 125 Light Almond 5-15R • • •
NAFTACOMPLIANT SPEC GRADE 20 AMP DUPLEX GFCI
PT2095NAI 20 125 Ivory 5-20R • • •
PT2095NAW 20 125 White 5-20R • • •
PT2095NAGRY 20 125 Gray 5-20R • • •
PT2095NABK 20 125 Black 5-20R • • •
PT2095NALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT SPEC GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095TRNAI 20 125 Ivory 5-20R • • •
PT2095TRNAW 20 125 White 5-20R • • •
PT2095TRNAGRY 20 125 Gray 5-20R • • •
PT2095TRNALA 20 125 Light Almond 5-20R • • •
NAFTACOMPLIANT SPEC GRADE TAMPERRESISTANT 15 AMP COMBINATION NIGHTLIGHT/GFCI
PT1595NTLTRNAW 15 125 White 5-15R • • •
NAFTACOMPLIANT SPEC GRADE TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095NTLTRNAI 20 125 Ivory 5-20R • • •
PT2095NTLTRNAW 20 125 White 5-20R • • •
PT1595NAW
GFCIs
NAFTA-Compliant PlugTail™ GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
1.72"
1.25"
2.62"
4.20"
.98"
NEMA
5-15R
NEMA
5-20R
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
For PlugTail Connector catalog numbers, see Page C-15 or C-16.
PT2095NTLTRNAW
1.72"
1.25"
2.62"
4.20"
1.13"
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
Features
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• FSUL Listed (Federal Specification
WC596).
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• 10kA short circuit rating.
1.72"
1.25"
2.62"
4.20"
.98"
PT2095NAW
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-22
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
GFCIS
NAFTA-Compliant PlugTail™ Hospital Grade GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
PT2095HGNAW
1.72"
1.25"
2.62"
4.20"
.98"
1.72"
1.25"
2.62"
4.20"
1.13"
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
All PlugTail Connectors are available in any wire length
up to 25 inches, consult factory to order.
PTRA6STR
1.125"
6.375"
NEMA
5-15R
NEMA
5-20R
Specifications
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trio Threshold: 5± 1mA
• Trip Time: 0.025 sec., nominal per
UL Standard
Features
• Faster, more reliable installation.
• No exposed terminals create a finger
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
• GFCI works with the existing 3 wire
PlugTail Connectors creating a non-
feed-thru application for facility owners.
At rough-in just install the same right
angle connector for GFCI and receptacle
openings.
• SafeLockTM Protection: if critical
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
• FSUL Listed (Federal Specification
WC596).
• Exceeds UL943 voltage surge
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
• Trip indicator light (red LED).
• Mounting screws are shipped captive
in the device and wall plate for easier
installation.
• High-impact-resistant thermoplastic
construction.
• Zinc-plated steel mounting strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP26 nylon
wall plate.
• Tri-drive screws.
• 10kA short circuit rating.
CATALOG NUMBER
RATING LIGHT
OUTPUT
IN 1' FCD* COLOR
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
NAFTACOMPLIANT HOSPITAL GRADE 20 AMP DUPLEX GFCI
PT2095HGNAI 20 125 0.180 Ivory 5-20R • • •
PT2095HGNAW 20 125 0.180 White 5-20R • • •
PT2095HGNAGRY 20 125 0.180 Gray 5-20R • • •
PT2095HGNARED 20 125 0.180 Red 5-20R • • •
PT2095HGNALA 20 125 0.180 Light Almond 5-20R • • •
NAFTACOMPLIANT HOSPITAL GRADE TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095HGTRNAI 20 125 0.180 Ivory 5-20R • • •
PT2095HGTRNAW 20 125 0.180 White 5-20R • • •
PT2095HGTRNARED 20 125 0.180 Red 5-20R • • •
PT2095HGTRNALA 20 125 0.180 Light Almond 5-20R • • •
NAFTACOMPLIANT HOSPITAL GRADE TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095HGNTLTRNAI 20 125 0.180 Ivory 5-20R • • •
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6STR Stranded 6"
PTRA6SOL Solid 6"
PT2095HGNTLTRW
For additional PlugTail Connectors, see Page B-4.
WWW.LEGRAND.US/PASSANDSEYMOUR
C-23
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
1594CMM
2.00"
4.00"
GFCIs
Portables
RoHS-Compliant Portable GFCIs meet the requirements of Restriction of Hazardous Substances directives and regulations.
Applications
All Pass & Seymour Portable GFCIs meet OSHA and NEC
requirements to provide ground fault protection for personnel
utilizing temporary power during construction, remodeling,
maintenance, repair and demolition. Can be used with power tools,
high-pressure power washers, wet vacuums, and grounds keeping
equipment. Also used on spas, hot tubs, vending machines, and
portable signs to provide ground fault protection.
Open Neutral Protection
All Pass & Seymour portable GFCIs have an open neutral relay
that automatically cuts off power to the line (hot) conductor
of the device in the event that the neutral wire preceding the
GFCI becomes severed. For example, if your portable GFCI were
plugged into an extension cord that was supplying the power and
the neutral conductor on that extension cord was accidentally cut
(as can happen on a job site), the open neutral relay would shut
off power to the hot conductor. This provides an additional level of
safety from possible ground faults.
Manual Reset GFCI
Requires the GFCI to be manually set for use by pressing the reset
button upon plug in and after loss of primary power (power failure
or unplugging the device). Must be manually reset after a ground
fault condition. Ideal for applications where operator injury might
occur if equipment were to restart after a power failure. Typical
equipment includes power drills, saws, lathes, and grinders.
Automatic Reset GFCI
Automatically energizes or sets the GFCI for use upon plug in and
after the loss of primary power (power failure or unplugging the
device). After a ground fault condition, must be reset by pushing
the reset button. This feature eliminates the need for unit to be
reset each time it is plugged in or powered up. Ideal for equipment
intended for continuous use where a temporary power failure is
likely and undesirable. Examples are pumps, pressure washers,
portable signs, or lighting and engine heaters.
Features and Specifications
• Durable polycarbonate case withstands
hard use.
• Indicator light is on when power is
available.
• Open neutral protection.
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage: 120-132VAC
• Operating Temperature: -35°C (-30°F)
to +66°C (150°F)
• Trip Time: .025 sec., nominal per
UL Standard
• Trip Threshold: 5 ±1mA
• Cord Grip Range: .30"-.46"
• RoHS-Compliant.
CATALOG
NUMBER DESCRIPTION RESET
RATING NEMA
CONFIG.
NO. PLUG CONN.
3rd PARTY COMPLIANCE
UL943 UL498A. V.
ADAPTER PLUG  PORTABLE GFCI
1594ADPTM Outlet adapter Manual 15 125 5-15P/R • •
CATALOG
NUMBER RESET
RATING NEMA
CONFIG.
NO. GFCI
RIGHT ANGLE
PLUG
3rd PARTY COMPLIANCE
UL943 UL498 C22.2 No. 144COLOR A. V.
RIGHT ANGLE PLUG  PORTABLE GFCI
1594CMM Manual Yellow 15 125 5-15P User attachable • • •
1594CMA Automatic Black 15 125 5-15P User attachable • • •
1594ADPTM
1.93"
2.80"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
C-24
GFCIs
All devices listed on this page conform to NEMA WD-1 and WD-6.
1594PC2A 1594CS1M
1594CS1A
RoHS-Compliant Portable GFCIs meet the requirements of Restriction of Hazardous Substances directives and regulations.
GFCIs
Portables
Features and Specifications
• Durable polycarbonate case withstands
hard use.
• Indicator light is on when power is
available.
• Open neutral protection.
• Optional Turnlok® plugs and connectors
prevent accidental disconnection.
• Optional tri-cord connector handles up to
three loads.
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage: 120-132VAC
• Operating Temperature: -35°C (-30°F) to
+66°C (150°F)
• Trip Time: .025 sec., nominal per
UL Standard
• Trip Threshold: 5 ±1mA
• RoHS-Compliant.
CATALOG NUMBER DESCRIPTION RESET COLOR
RATING NEMA
CONFIG
NO. PLUG CONN.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42A. V.
15 AMP INLINE  PORTABLE GFCI
1594PC6M 6' cord, straight blade Manual Yellow 15 125 5-15P/R • •
1594PC2M 2' cord, straight blade Manual Yellow 15 125 5-15P/R • •
1594PC2A 2' cord, straight blade Auto. Black 15 125 5-15P/R • •
1594TC2M 2' cord with tri-cord
connector Manual Yellow 15 125 5-15P/R • •
1594TC2A 2' cord with tri-cord
connector Auto. Black 15 125 5-15P/R • •
1594TL2M 2' cord, Turnlok®Manual Yellow 15 125 L5-15P/R
1594TL2A 2' cord, Turnlok®Auto. Black 15A 125V L5-15P/R
20 AMP INLINE PORTABLE GFCI
2094PC2A 2' cord, straight blade Auto. Black 20 125 5-20P/R • •
2094PC2M 2' cord, straight blade Manual Yellow 20 125 5-20P/R • •
2094TL2A 2' cord, Turnlok®Auto. Black 20 125 L5-20P/R • •
2094TL2M 2' cord, Turnlok®Manual Yellow 20 125 L5-20P/R • •
CATALOG NUMBER DESCRIPTION RESET COLOR
RATING NEMA
CONFIG.
NO.
RIGHT ANGLE
PLUG
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42A. V.
RIGHT ANGLE PLUG  PORTABLE GFCI
1594CS1M 1' cord with connector Manual Yellow 15 125 5-15P/R • •
1594CS1A 1' cord with connector Automatic Black 15 125 5-15P/R • •
1594PC2A
11.75"
9.6"
9.6"
11.75"
Total
Length
with Cord
27.75" 9.8"
Total
Length
with Cord
27.75"
Total
Length
with Cord
13.60"
WWW.LEGRAND.US/PASSANDSEYMOUR
C-25
GFCIs
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
5.287"
6.666"
Height
at rear
3.950"
GFCIs
Portables
Features and Specifications
• Handles up to four loads.
• Open neutral protection.
• High-impact-resistant thermoplastic
housing.
• Optional Turnlok® plugs and connectors
prevent accidental disconnection.
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage: 120-132VAC
• Trip Threshold: 5 ±1mA
• Trip Time: .025 sec., nominal per
UL Standard
• Case Material: Yellow Thermoplastic
CATALOG NUMBER DESCRIPTION
RATING NEMA
CONFIG.
NO. PLUG RECEPTACLE
3rd PARTY COMPLIANCE
UL943 UL498A. V.
AUTO RESET BOXES  PORTABLE GFCI
PS154S Four 15A, 125V straight blade
outlets. Cord has 15A, 125V plug 15 125 5-15P
5-15R • •
PS204S Four 20A, 125V straight blade
outlets. Cord has 20A, 125V plug 20 125 5-20P
5-20R • •
PL204L
Two 20A, 125V straight blade
outlets and one 20A 125V locking
outlet has 20A, 125V locking plug
20 125
L5-20P
L5-20R
5-20R
• •
PL204L
PLUGTAIL™ EXTRA
HEAVY-DUTY
RECEPTACLES D-3
ISOLATED GROUND
TAMPER-RESISTANT GFCI
RECEPTACLES D-21
WWW.LEGRAND.US/PASSANDSEYMOUR
D-1
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
Hospital Grade devices
Receptacle Test Requirements D-2
PlugTail™ Extra Heavy-Duty &
Tamper-Resistant Receptacles D-3
PlugTail™ Extra Heavy-Duty Illuminated Receptacles D-5
Extra Heavy-Duty Receptacles D-6
Extra Heavy-Duty MRI Receptacles D-7
Heavy-Duty Receptacles D-8
PlugTail™ Specification Grade Receptacles D-10
Single Receptacles D-11
Tamper-Resistant Receptacles D-12
Isolated Ground Receptacles D-13
Tamper-Resistant Isolated Ground Receptacles D-14
PlugTail™ Decorator Receptacles D-15
Heavy-Duty Decorator Receptacles D-16
USB Chargers D-18
GFCI Receptacles D-19
Self-Test GFCI Receptacles D-20
Isolated Ground & Audible Alarm
Tamper-Resistant GFCI Receptacles D-21
Decorator Combination Tamper-Resistant
Nightlight/GFCI Receptacles D-22
PlugTail™ GFCI Receptacles D-23
PlugTail™ Tamper-Resistant
Nightlight/GFCI Receptacles D-25
NAFTA-Compliant GFCI Receptacles D-26
NAFTA-Compliant PlugTail™ GFCI Receptacles D-27
Surge Protective Receptacles D-28
PlugTail™ Surge Protective Receptacles D-29
Tamper-Resistant Surge Protective Receptacles D-30
Straight Blade Plugs & Connectors D-31
Quad Receptacles D-32
Hospital Grade devices
Receptacle Test Requirements
All straight blade receptacles must pass a sequence
of tests established in UL498. To earn the “Hospital Grade”
rating a device must pass an additional series of abuse and
performance tests.
Abrupt Plug Removal Test
After ten conditioning insertion and withdrawal cycles
of an attachment plug of matching configuration
and ground pin, each outlet is to hold without any displace-
ment a fully inserted test pin for at least one minute from
a face down horizontal position. Then each receptacle is
mounted to represent a typical installation and go through
a series of abrupt removal tests – the full insertion of a test
plug that is removed by dropping an attached 10-pound
weight two feet, thus exerting excessive force on the
receptacle face and contacts. Each outlet must go through
eight cycles of this test, two in the initial position, then
rotated 180 degrees for the next four cycles, then back
to the original position for the final two cycles. Duplex
receptacles are tested by having one outlet with the ground
pin in the 12 o’clock and 6 o’clock positions, the other in
the 3 o’clock and 9 o’clock positions. After testing, each
outlet, while in the face down horizontal position must hold
without displacement a .184" diameter 4-ounce ground pin
for one minute. The outlet must have no breakage that would
interfere with its function and integrity.
Ground Contact Overstress Test
The receptacle ground contact is conditioned with twenty
cycles of full insertion and withdrawal of a .204" oversized
test pin. Then, with the receptacle in a horizontal face down
position, the same contact must retain a .184" diameter
4-ounce test pin for at least one minute without any
displacement.
Impact Test
Receptacles mounted in a cast metal box are placed on a
steel plate facing upward. A 5-pound weight is dropped from
18" above the device impacting at the center of the outlet.
The device must withstand the impact without having any
breakage that hinders its function.
Assembly Security Test
A device, supported at its mounting screws, must withstand
100 pounds through the slots in the receptacle face without
cracking the device back body or deforming the yoke.
Abrupt Plug Removal Test
Ground Contact
Overstress Test
Impact Test
Assembly Security Test
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-2
HOSPITAL GRADE DEVICES
Hospital Grade devices
All of our Hospital Grade devices are designed for
optimum durability, performance, and reliability —
to help make today’s facility maintenance operations
more productive and consistent.
PT8300W
A. Strap tabs wrap around and lock down on face to
prevent strap from separating from face and back body.
B. Auto-ground clip assures positive ground.
C. Exclusive patented feature, circuit label on face allows
permanent circuit identification.
D. No exposed terminals create a finger safe application
before, during, and after installation.
E. .036 inch thick, brass, triple-wipe power contacts for
lasting retention.
F. Built-in connector features large brass terminal blades
to ensure consistent, reliable electrical connections.
G. Large brass contacts snugly terminate on device blade
terminals. Audible snapping latch assures connection,
allows release.
H. Ultrasonically welded polycarbonate connector
housing secures terminations and conductors in a UL
Listed, finger safe housing.
I. Pre-stripped connector leads fasten to conductors,
easier than standard pigtails.
Two drive screws anchor strap to back body and face.
PT8300W
PlugTail™ Extra Heavy-Duty Duplex Receptacle
A
B
C
D
E
F
I
H
G
WWW.LEGRAND.US/PASSANDSEYMOUR
D-3
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
Features
      
allows permanent circuit identification.
      
contracts for lasting retention.
       
on face to prevent strap from separating
from face and back body.
      
safe application before, during, and after
installation.
     
terminal blades to ensure consistent,
reliable electrical connections.
    
   
connector housing secures terminations
and conductors in a UL Listed, finger
safe housing.
      
device blade terminals.
     
conductors, easier than standard pigtails.
     
    
mechanical shutter system to help
prevent insertion of foreign objects.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596A. V.
DUPLEX RECEPTACLES
PT8200I 15 125 Ivory 5-15R  
PT8200W 15 125 White 5-15R  
PT8200 15 125  5-15R  
PT8200GRY 15 125 Gray 5-15R  
PT8200BK 15 125  5-15R  
PT8200RED 15 125 Red 5-15R  
PT8200LA 15 125 Light Almond 5-15R  
PT8200BL 15 125  5-15R  
PT8300I 20 125 Ivory 5-20R  
PT8300W 20 125 White 5-20R  
PT8300 20 125  5-20R  
PT8300GRY 20 125 Gray 5-20R  
PT8300BK 20 125  5-20R  
PT8300RED 20 125 Red 5-20R  
PT8300LA 20 125 Light Almond 5-20R  
PT8300BL 20 125  5-20R  
TAMPERRESISTANT DUPLEX RECEPTACLES
PTTR62HI 15 125 Ivory 5-15R  
PTTR62HW 15 125 White 5-15R  
PTTR62H 15 125  5-15R  
PTTR62HGRY 15 125 Gray 5-15R  
PTTR62HBK 15 125  5-15R  
PTTR62HRED 15 125 Red 5-15R  
PTTR62HLA 15 125 Light Almond 5-15R  
PTTR62HBL 15 125  5-15R  
PTTR63HI 20 125 Ivory 5-20R  
PTTR63HW 20 125 White 5-20R  
PTTR63H 20 125  5-20R  
PTTR63HGRY 20 125 Gray 5-20R  
PTTR63HBK 20 125  5-20R  
PTTR63HRED 20 125 Red 5-20R  
PTTR63HLA 20 125 Light Almond 5-20R  
PTTR63HBL 20 125  5-20R  
Hospital Grade devices
PlugTail™ Extra Heavy-Duty Receptacles & Tamper-Resistant Receptacles 15 & 20A, 125V
For PlugTail Connectors, see Page D-15.
For Bulk Packaging Solutions consult factory.
PTTR63HW
.866"
3.281"
1.625"
1.104"
2.750"
PT8300W
.866"
3.281"
1.625"
1.104"
2.750"
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-4
HOSPITAL GRADE DEVICES
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
      
product.
     
receptacle and makes it easy to identify
receptacle in dark applications.
      
allows permanent circuit identification.
      
contacts for lasting retention.
       
on face to prevent strap from separating
from face and back body.
      
safe application before, during, and
after installation.
     
terminal blades to ensure consistent,
reliable electrical connections.
    
   
connector housing secures terminations
and conductors in a UL Listed, finger
safe housing.
      
device blade terminals.
     
conductors, easier than standard pigtails.
     
Hospital Grade devices
PlugTail™ Extra Heavy-Duty Illuminated Receptacles 15 & 20A, 125V
3.93"
1.06"
1.68"
PTTESTER
Illuminated face indicates power to receptacle and makes it easy to identify receptacle in dark applications.
For PlugTail Connectors, see Page D-15.
For Bulk Packaging Solutions consult factory.
PT8300ILLA
.866"
3.281"
1.625"
1.104"
2.750"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596A. V.
ILLUMINATED DUPLEX RECEPTACLES
PT8200ILI 15 125 Ivory 5-15R  
PT8200ILW 15 125 White 5-15R  
PT8200IL 15 125  5-15R  
PT8200ILGRY 15 125 Gray 5-15R  
PT8200ILBK 15 125  5-15R  
PT8200ILRED 15 125 Red 5-15R  
PT8200ILLA 15 125 Light Almond 5-15R  
PT8300ILI 20 125 Ivory 5-20R  
PT8300ILW 20 125 White 5-20R  
PT8300IL 20 125  5-20R  
PT8300ILGRY 20 125 Gray 5-20R  
PT8300ILBK 20 125  5-20R  
PT8300ILRED 20 125 Red 5-20R  
PT8300ILLA 20 125 Light Almond 5-20R  
Features
     
presence at both rough-in and device-
out stages during P&S PlugTail Device
installation.
     
connections.
   
    
dependability.
    
   
CATALOG NUMBER COLOR
P&S PLUGTAIL™ TESTER
PTTESTER Red PlugTail Tester for Receptacles and Tails
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-5
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596 C22.2 No. 42A. V.
DUPLEX RECEPTACLES   
8200I 15 125 Ivory 5-15R  
8200W 15 125 White 5-15R   
8200 15 125  5-15R   
8200GRY 15 125 Gray 5-15R   
8200BK 15 125  5-15R   
8200RED 15 125 Red 5-15R   
8200LA 15 125 Light Almond 5-15R  
8300I 20 125 Ivory 5-20R  
8300W 20 125 White 5-20R   
8300 20 125  5-20R   
8300GRY 20 125 Gray 5-20R   
8300BK 20 125  5-20R   
8300RED 20 125 Red 5-20R   
8300LA 20 125 Light Almond 5-20R  
8800I 20 250 Ivory 6-20R  
8800W 20 250 White 6-20R   
8800 20 250  6-20R   
8800GRY 20 250 Gray 6-20R   
8800BK 20 250  6-20R   
8800LA 20 250 Light Almond 6-20R  
8800RED 20 250 Red 6-20R   
LED ILLUMINATED FACE DUPLEX RECEPTACLES   
8200ILI 15 125 Ivory 5-15R  
8200ILW 15 125 White 5-15R   
8200ILRED 15 125 Red 5-15R   
8300ILI 20 125 Ivory 5-20R  
8300ILW 20 125 White 5-20R   
8300ILGRY 20 125 Gray 5-20R   
8300ILRED 20 125 Red 5-20R   
8300ILLA 20 125 Light Almond 5-20R   
Features
    
strap with integral ground.
       
on face to prevent strap from separating
from face and back body.
       
body and face.
      
allows permanent circuit identifcation.
     
triple-wipe power contacts for lasting
retention.
    
connecting tab for fast, easy split circuit
wiring.
    
back body.
      
terminal and ground screws.
    
pressure-plate back wire clamp on
ground terminal for faster, easier
installation.
   
      
terminal screws for visual assurance of a
good connection.
       
stranded or solid copper clad conductors.
     
    
LED lamp with solder connection for long
durable life (10-12 years).
Hospital Grade devices
Extra Heavy-Duty Receptacles 15 & 20A, 125V; 20A, 250V
For Bulk Packaging Solutions consult factory.
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
2 Pole, 3 Wire
8300I
.900"
3.281"
1.625"
1.104"
2.750"
8300ILI
.900"
3.281"
1.625"
1.104"
2.750"
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-6
HOSPITAL GRADE DEVICES
Features
      
allows permanent circuit identification.
    
plated brass mounting strap with integral
ground for superior structural integrity
and long-term performance.
      
contacts for lasting retention.
       
on face to prevent strap from separating
from and back body.
    
connecting tab for fast, easy split-circuit
wiring.
    
pressure-plate back wire clamp on
ground terminal for faster, easier
installation.
    
     
for visual assurance of a good connection.
     
Hospital Grade devices
Extra Heavy-Duty MRI Receptacles 15 & 20A, 125V
8200LAMRI
.900"
3.281"
1.625"
1.104"
2.750"
Receptacles designed expressly for MRI applications – We build these
exclusive P&S receptacles with non-ferrous metal, so they are perfect for
high-magnetic-field environments such as magnetic-resonance imaging
(MRI) suites. With the same basic design as our standard Extra Heavy-Duty
Receptacles, they are extremely durable.
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596 C22.2 No. 42A. V.
DUPLEX RECEPTACLES   
8200IMRI 15 125 Ivory 5-15R  
8200WMRI 15 125 White 5-15R  
8200MRI 15 125  5-15R  
8200GRYMRI 15 125 Gray 5-15R  
8200BKMRI 15 125  5-15R  
8200REDMRI 15 125 Red 5-15R  
8200LAMRI 15 125 Light Almond 5-15R  
8300IMRI 20 125 Ivory 5-20R  
8300WMRI 20 125 White 5-20R  
8300GRYMRI 20 125 Gray 5-20R  
8300BKMRI 20 125  5-20R  
8300REDMRI 20 125 Red 5-20R  
8300LAMRI 20 125 Light Almond 5-20R   NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-7
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
Features
     
strength and ground conductivity.
      
contacts for lasting retention.
       
strap from separating from face and
back body.
    
connecting tab for fast, easy split-circuit
wiring.
       
body and face.
     
screw-pressure-plate back and side wire
capability. Two back wire holes for more
wiring flexibility.
     
      
resistant nylon face for ease of cleaning
and less dirt build-up.
Hospital Grade devices
Heavy-Duty Receptacles 15 & 20A, 125V
PS8200HI
.780"
3.281"
1.322"
1.104"
2.635"
PS8300HSLA
.780"
3.281"
1.322"
1.104"
2.635"
     
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596 C22.2 No. 42A. V.
DUPLEX RECEPTACLES   
PS8200HI 15 125 Ivory 5-15R  
PS8200HW 15 125 White 5-15R  
PS8200H 15 125  5-15R   
PS8200HGRY 15 125 Gray 5-15R  
PS8200HRED 15 125 Red 5-15R   
PS8200HLA 15 125 Light Almond 5-15R   
PS8300HI 20 125 Ivory 5-20R  
PS8300HW 20 125 White 5-20R  
PS8300H 20 125  5-20R   
PS8300HGRY 20 125 Gray 5-20R  
PS8300HRED 20 125 Red 5-20R   
PS8300HLA 20 125 Light Almond 5-20R   
DUPLEX RECEPTACLES  SMOOTH FACE   
PS8200HSI 15 125 Ivory 5-15R  
PS8200HSW 15 125 White 5-15R  
PS8200HS 15 125  5-15R   
PS8200HSGRY 15 125 Gray 5-15R  
PS8200HSRED 15 125 Red 5-15R   
PS8200HSLA 15 125 Light Almond 5-15R   
PS8300HSI 20 125 Ivory 5-20R  
PS8300HSW 20 125 White 5-20R  
PS8300HS 20 125  5-20R   
PS8300HSGRY 20 125 Gray 5-20R  
PS8300HSRED 20 125 Red 5-20R   
PS8300HSLA 20 125 Light Almond 5-20R   
For Bulk Packaging Solutions consult factory.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-8
HOSPITAL GRADE DEVICES
*FCD = Foot Candle Distance, 1 Lumen = 1 FCD. See Page R-63 for more information.
Features
   
    
power contacts.
     
connecting tab for split circuit wiring.
    
each other for positive conductor
containment.
   
strap is locked in.
    
and side wire line terminals accept
     
conductors.
     
       
insulation partially into body but not into
wiring compartment.
     
     
     
Hospital Grade devices
Heavy-Duty Compact Design Receptacles 15 & 20A, 125V; 20A, 250V
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
2 Pole, 3 Wire
IG8300
1.322"
1.104"
2.635"
3.281"
.922"
8200HI
.780"
3.281"
1.322"
1.104"
2.635"
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596 C22.2 No. 42A. V.
DUPLEX RECEPTACLES  COMPACT DESIGN   
8200HI 15 125 Ivory 5-15R   
8200HW 15 125 White 5-15R   
8200H 15 125  5-15R   
8200HGRY 15 125 Gray 5-15R   
8200HRED 15 125 Red 5-15R   
8200HLA 15 125 Light Almond 5-15R   
8300HI 20 125 Ivory 5-20R   
8300HW 20 125 White 5-20R   
8300H 20 125  5-20R   
8300HGRY 20 125 Gray 5-20R   
8300HBK 20 125  5-20R   
8300HRED 20 125 Red 5-20R   
8300HLA 20 125 Light Almond 5-20R   
8300HBL 20 125  5-20R   
ISOLATED GROUND DUPLEX RECEPTACLES   
IG8200I 15 125 Ivory 5-15R   
IG8200 15 125 Orange 5-15R  
IG8200RED 15 125 Red 5-15R   
IG8300I 20 125 Ivory 5-20R  
IG8300W 20 125 White 5-20R   
IG8300 20 125 Orange 5-20R  
IG8300RED 20 125 Red 5-20R   
IG8300LA 20 125 Light Almond 5-20R   
IG8800 20 250 Orange 6-20R  
IG8800LA 20 250 Light Almond 6-20R   
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-9
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596A. V.
TAMPERRESISTANT DUPLEX RECEPTACLES
PTTR8200I 15 125 Ivory 5-15R  
PTTR8200W 15 125 White 5-15R  
PTTR8200 15 125  5-15R  
PTTR8200GRY 15 125 Gray 5-15R  
PTTR8200BK 15 125  5-15R  
PTTR8200RED 15 125 Red 5-15R  
PTTR8200LA 15 125 Light Almond 5-15R  
PTTR8300I 20 125 Ivory 5-20R  
PTTR8300W 20 125 White 5-20R  
PTTR8300 20 125  5-20R  
PTTR8300GRY 20 125 Gray 5-20R
PTTR8300BK 20 125  5-20R  
PTTR8300RED 20 125 Red 5-20R  
PTTR8300LA 20 125 Light Almond 5-20R  
Features
      
prevent insertion of foreign objects.
      
contacts for lasting retention.
      
maximum durability and corrosion
resistance.
      
safe application before, during, and after
installation.
     
terminal blades to ensure consistent,
reliable electrical connections.
    
   
connector housing secures terminations
and conductors in a UL Listed, finger
safe housing.
      
device blade terminals.
     
conductors, easier than standard pigtails.
     
Hospital Grade devices
PlugTail™ Specification Grade Receptacles 15 & 20A, 125V
PTIG8300LA
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
For PlugTail Connectors, see Page D-17.
PTTR8300W
2.750"
3.281"
.625"
1.5"
1.104"
For Bulk Packaging Solutions consult factory.
.625"
1.5"
2.750"
1.104"
3.281"
Features
      
contacts for lasting retention.
      
maximum durability and corrosion
resistance.
      
safe application before, during, and
after installation.
     
terminal blades to ensure consistent,
reliable electrical connections.
   
connector housing secures terminations
and conductors in a UL Listed, finger
safe housing.
    
      
device blade terminals.
     
conductors, easier than standard pigtails.
    
ground.
      
grounding terminal from mounting strap
and metal boxes.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596A. V.
ISOLATED GROUND DUPLEX RECEPTACLES
PTIG8200I 15 125 Ivory 5-15R  
PTIG8200 15 125 Orange 5-15R  
PTIG8200RED 15 125 Red 5-15R  
PTIG8300I 20 125 Ivory 5-20R  
PTIG8300 20 125 Orange 5-20R  
PTIG8300RED 20 125 Red 5-20R  
PTIG8300LA 20 125 Light Almond 5-20R  
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-10
HOSPITAL GRADE DEVICES
Hospital Grade devices
Single Receptacles 15 & 20A, 125V; 20A, 250V
8201I
1.093"
1.38"
2.37"
3.28"
3.68"
1.68"
1.32"
8284I
1.018"
8-32 Thd.
1.937"
1.38"
1.68"
1.32"
For Hospital Use Power Interrupting Device consult Turnlok® Section G.
For Bulk Packaging Solutions consult factory.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
FSUL
WC596 cUL/CSAA. V.
SINGLE RECEPTACLES   
8201I 15 125 Ivory 5-15R   
8201W 15 125 White 5-15R   
8201 15 125  5-15R   
8201GRY 15 125 Gray 5-15R   
8201BK 15 125  5-15R   
8201RED 15 125 Red 5-15R   
8201LA 15 125 Light Almond 5-15R   
8301I 20 125 Ivory 5-20R   
8301W 20 125 White 5-20R   
8301 20 125  5-20R   
8301GRY 20 125 Gray 5-20R   
8301RED 20 125 Red 5-20R   
8801I 20 250 Ivory 6-20R   
8801W 20 250 White 6-20R   
8801 20 250  6-20R   
8801GRY 20 250 Gray 6-20R   
8801RED 20 250 Red 6-20R   
SHORT STRAP SINGLE RECEPTACLES     
8284I 15 125 Ivory 5-15R   
8284 15 125  5-15R   
8384I 20 125 Ivory 5-20R  
8384 20 125  5-20R  
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-11
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
FSUL
WC596 C22.2 No. 42A. V.
DUPLEX RECEPTACLES   
TR62HI 15 125 Ivory 5-15R   
TR62HW 15 125 White 5-15R   
TR62H 15 125  5-15R   
TR62HGRY 15 125 Gray 5-15R   
TR62HRED 15 125 Red 5-15R   
TR62HLA 15 125 Light Almond 5-15R   
TR63HI 20 125 Ivory 5-20R   
TR63HW 20 125 White 5-20R   
TR63H 20 125  5-20R   
TR63HGRY 20 125 Gray 5-20R   
TR63HRED 20 125 Red 5-20R   
TR63HLA 20 125 Light Almond 5-20R   
TR63HBL 20 125  5-20R   
Features
    
system to help prevent insertion of
foreign objects.
      
allows permanent circuit identification.
    
mounting strap with integral ground.
    
wipe power contacts for lasting retention.
       
on face to prevent strap from separating
from face and back body.
     
body.
    
connecting tab for fast, easy split-circuit
wiring.
       
body and face.
    
pressure-plate back wire clamp on
ground terminal for faster, easier
installation.
    
     
for visual assurance of a good connection.
     
Hospital Grade devices
Tamper-Resistant Receptacles 15 & 20A, 125V
TR62HI
.900"
1.625"
1.104"
2.750"
3.281"
For PlugTail™ Tamper-Resistant Receptacles, see Page D-4.
For Bulk Packaging Solutions consult factory.
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-12
HOSPITAL GRADE DEVICES
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42A. V.
DUPLEX RECEPTACLES   
IG8200I 15 125 Ivory 5-15R   
IG8200 15 125 Orange 5-15R   
IG8200RED 15 125 Red 5-15R   
IG8300I 20 125 Ivory 5-20R   
IG8300W 20 125 White 5-20R   
IG8300 20 125 Orange 5-20R   
IG8300RED 20 125 Red 5-20R  
IG8300LA 20 125 Light Almond 5-20R   
IG8800 20 250 Orange 6-20R   
IG8800LA 20 250 Light Almond 6-20R   
DECORATOR DUPLEX RECEPTACLES   
IG26262HGW 15 125 White 5-15R   
IG26262HG 15 125 Orange 5-15R   
IG26262HGRED 15 125 Red 5-15R   
IG26362HGW 20 125 White 5-20R   
IG26362HG 20 125 Orange 5-20R   
IG26362HGBK 20 125  5-20R   
IG26362HGRED 20 125 Red 5-20R   
SINGLE RECEPTACLES   
IG8301 20 125 Orange 5-20R   
Hospital Grade devices
Isolated Ground Receptacles 15 & 20A, 125; 20A, 250V
IG8300
1.322"
1.104"
2.635"
3.281"
.922"
For Wall Plates for Isolated Ground Systems, consult Wall Plates Section P.
For Bulk Packaging Solutions consult factory.
IG26262HG
3.281"
1.322"
3.813"
.833"
2.635"
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-13
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596A. V.
TAMPERRESISTANT DUPLEX RECEPTACLES   
TRIG8200I 15 125 Ivory 5-15R  
TRIG8200W 15 125 White 5-15R  
TRIG8200 15 125 Orange 5-15R  
TRIG8200BK 15 125  5-15R  
TRIG8200GRY 15 125 Gray 5-15R  
TRIG8200RED 15 125 Red 5-15R  
TRIG8200LA 15 125 Light Almond 5-15R  
TRIG8300I 20 125 Ivory 5-20R  
TRIG8300W 20 125 White 5-20R  
TRIG8300 20 125 Orange 5-20R  
TRIG8300BK 20 125  5-20R  
TRIG8300GRY 20 125 Gray 5-20R  
TRIG8300RED 20 125 Red 5-20R  
TRIG8300LA 20 125 Light Almond 5-20R  
TAMPERRESISTANT DECORATOR RECEPTACLES   
TRIG26262HGI 15 125 Ivory 5-15R  
TRIG26262HGW 15 125 White 5-15R  
TRIG26262HG 15 125 Orange 5-15R  
TRIG26262HGBK 15 125  5-15R  
TRIG26262HGGRY 15 125 Gray 5-15R  
TRIG26262HGRED 15 125 Red 5-15R  
TRIG26262HGLA 15 125 Light Almond 5-15R  
TRIG26362HGI 20 125 Ivory 5-20R  
TRIG26362HGW 20 125 White 5-20R  
TRIG26362HG 20 125 Orange 5-20R  
TRIG26362HGBK 20 125  5-20R  
TRIG26362HGGRY 20 125 Gray 5-20R  
TRIG26362HGRED 20 125 Red 5-20R  
TRIG26362HGLA 20 125 Light Almond 5-20R  
Hospital Grade devices
Tamper-Resistant Isolated Ground Receptacles 15 & 20A, 125V
TRIG8300W
1.187"
1.25"
1.125"
2.625"
3.625"
For Bulk Packaging Solutions consult factory.
TRIG26362HG
1.187"
1.25"
3.625"
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-14
HOSPITAL GRADE DEVICES
For PlugTail Connector catalog numbers, see below.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596A. V.
DUPLEX RECEPTACLES
PT26262HGI 15 125 Ivory 5-15R  
PT26262HGW 15 125 White 5-15R  
PT26262HGGRY 15 125 Gray 5-15R
PT26262HGRED 15 125 Red 5-15R
PT26362HGI 20 125 Ivory 5-20R
PT26362HGW 20 125 White 5-20R
PT26362HGGRY 20 125 Gray 5-20R
PT26362HGRED 20 125 Red 5-20R
PT26362HGLA 20 125 Light Almond 5-20R
Hospital Grade devices
PlugTail™ Decorator Receptacles 15 & 20A, 125V
PT26362HGI
2.75" 3.281"
.625"
1.5"
For Bulk Packaging Solutions consult factory.
NAFTA-Compliant PlugTail Connectors are ideal for use on projects subject
       
PTRA6STR
1.125"
6.375"
PTRA6STRBP PTRA6STRG
Features
      
contacts for lasting retention.
      
maximum durability and corrosion
resistance.
      
safe application before, during, and after
installation.
     
terminal blades to ensure consistent,
reliable electrical connections.
    
   
connector housing secures terminations
and conductors in a UL Listed, finger
safe housing.
      
device blade terminals.
     
conductors, easier than standard pigtails.
     
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6SOL Solid 6"
PTRA6STR Stranded 6"
PTRA6SOLB25 Solid 25"
PTRA6STRB25 Stranded 25"
NAFTACOMPLIANT PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6SOLNA Solid 6"
PTRA6STRNA Stranded 6"
PLUGTAIL CONNECTORS  RIGHT ANGLE WITH WAGO CONNECTORS
PTRA6SOLBP Solid 6"
PTRA6STRBP Stranded 6"
PLUGTAIL CONNECTORS  RIGHT ANGLE WITH GROUND SCREW
PTRA6SOLG Solid 6"
PTRA6STRG Stranded 6"
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-15
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 cUL/CSA FSUL
WC596A. V.
DUPLEX RECEPTACLES   
26262HGI 15 125 Ivory 5-15R   
26262HGW 15 125 White 5-15R   
26262HGGRY 15 125 Gray 5-15R   
26262HGRED 15 125 Red 5-15R   
26362HGI 20 125 Ivory 5-20R   
26362HGW 20 125 White 5-20R   
26362HG 20 125  5-20R   
26362HGGRY 20 125 Gray 5-20R   
26362HGRED 20 125 Red 5-20R   
26362HGLA 20 125 Light Almond 5-20R   
ISOLATED GROUND DUPLEX RECEPTACLES   
IG26262HGW 15 125 White 5-15R  
IG26262HG 15 125 Orange 5-15R  
IG26262HGRED 15 125 Red 5-15R  
IG26362HGW 20 125 White 5-20R  
IG26362HG 20 125 Orange 5-20R  
IG26362HGBK 20 125  5-20R  
IG26362HGRED 20 125 Red 5-20R  
ILLUMINATED DUPLEX RECEPTACLES   
26222HGI 15 125 Ivory 5-15R  
26322HGI 20 125 Ivory 5-20R  
26322HGW 20 125 White 5-20R  
26322HGRED 20 125 Red 5-20R  
Hospital Grade devices
Heavy-Duty Decorator Receptacles 15 & 20A, 125V
For Bulk Packaging Solutions consult factory.
26262HGI
2.635"
3.281"
1.322"
3.813"
.833"
IG26262HGO
.833"
1.322"
3.281"
2.635"
3.813"
Features
    
locked into assembly to prohibit strap
from bending away from body.
    
contacts for lasting retention.
     
installation and long lasting performance.
    
connecting tab for fast, easy split-circuit
wiring.
   
    
each other for positive conductor
containment.
    
      
stranded wire.
      
wall plate.
     
     
NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-16
HOSPITAL GRADE DEVICES
Hospital Grade devices
Heavy-Duty Tamper-Resistant Decorator Receptacles 15 & 20A, 125V
TR26362HGI
2.635"
3.281"
1.322"
3.81"
.833"
For Bulk Packaging Solutions consult factory.
Features
     
     
prevent insertion of foreign objects.
    
contacts for reliable plug retention.
       
body and face where abrupt removal
torque is strongest.
   
back wire clamp on ground terminal for
faster, easier installation.
    
connecting tab for fast, easy split-circuit
wiring.
    
     
for visual assurance of a good connection.
     
with integral ground for superior long-
term performance.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596 cUL/CSAA. V.
TAMPERRESISTANT DUPLEX RECEPTACLES   
TR26262HGI 15 125 Ivory 5-15R   
TR26262HGW 15 125 White 5-15R   
TR26262HGGRY 15 125 Gray 5-15R   
TR26262HGRED 15 125 Red 5-15R   
TR26262HGLA 15 125 Light Almond 5-15R   
TR26362HGI 20 125 Ivory 5-20R   
TR26362HGW 20 125 White 5-20R   
TR26362HGGRY 20 125 Gray 5-20R   
TR26362HGBK 20 125  5-20R   
TR26362HGRED 20 125 Red 5-20R   
TR26362HGLA 20 125 Light Almond 5-20R    NEMA
5-15R
NEMA
5-20R
2 Pole, 3 Wire
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-17
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
straiGHt Blade receptacles
Hospital Grade USB Chargers with Tamper-Resistant Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V & 120V
CATALOG NUMBER
RATING
COLOR
TOTAL
CHARGING
CAPACITY
3rd PARTY COMPLIANCE
A. V.
HOSPITAL GRADE USB CHARGER WITH TAMPERRESISTANT RECEPTACLE
TR8201USBI 15 125 Ivory 2.1 Amp
TR8201USBW 15 125 White 2.1 Amp
TR8201USB 15 125  2.1 Amp
TR8201USBGRY 15 125 Gray 2.1 Amp
TR8201USBBK 15 125  2.1 Amp
TR8201USBRED 15 125 Red 2.1 Amp
TR8201USBLA 15 125 Light Almond 2.1 Amp
TR8301USBI 20 125 Ivory 2.1 Amp
TR8301USBW 20 125 White 2.1 Amp
TR8301USB 20 125  2.1 Amp
TR8301USBGRY 20 125 Gray 2.1 Amp
TR8301USBBK 20 125  2.1 Amp
TR8301USBRED 20 125 Red 2.1 Amp
TR8301USBLA 20 125 Light Almond 2.1 Amp
Features
  
     
       
devices.
      
fast, eliminates the need for bulky AC
adapters.
     
     
stranded and solid wire.
    
     
positive ground.
   
system prevents improper insertion of
foreign objects. Meets 2011 National
Electric Code® Tamper-Resistant
requirements.
TR8301USBW
4.18"
1.60"
1.31"
2.61"
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-18
HOSPITAL GRADE DEVICES
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144 UL498
C22.2 No. 42 FSUL
WC596A. VAC
TAMPERRESISTANT 15 AMP DUPLEX GFCI
1595HGTRI 15 125 Ivory 5-15R   
1595HGTRW 15 125 White 5-15R   
1595HGTRBK 15 125  5-15R   
1595HGTR 15 125  5-15R   
1595HGTRGRY 15 125 Gray 5-15R   
1595HGTRRED 15 125 Red 5-15R   
1595HGTRLA 15 125 Light Almond 5-15R   
TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095HGTRI 20 125 Ivory 5-20R   
2095HGTRW 20 125 White 5-20R   
2095HGTRBK 20 125  5-20R   
2095HGTR 20 125  5-20R   
2095HGTRGRY 20 125 Gray 5-20R   
2095HGTRRED 20 125 Red 5-20R   
2095HGTRLA 20 125 Light Almond 5-20R   
15 AMP DUPLEX GFCI
1595HGI 15 125 Ivory 5-15R   
1595HGW 15 125 White 5-15R   
1595HGBK 15 125  5-15R   
1595HG 15 125  5-15R   
1595HGGRY 15 125 Gray 5-15R   
1595HGRED 15 125 Red 5-15R   
1595HGLA 15 125 Light Almond 5-15R   
20 AMP DUPLEX GFCI
2095HGI 20 125 Ivory 5-20R   
2095HGW 20 125 White 5-20R   
2095HGBK 20 125  5-20R   
2095HG 20 125  5-20R   
2095HGGRY 20 125 Gray 5-20R   
2095HGRED 20 125 Red 5-20R   
2095HGLA 20 125 Light Almond 5-20R For PlugTail Connector catalog
numbers, see Page D-15.
Specifications
     
    
    
      
UL Standard
    
Features
 TM   
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
    
no power to the face or downstream
receptacles if wired incorrectly.
    
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
    
WC596)
     
    
      
stranded copper wire.
      
        
easy installation.
     
in the device and wall plate for easier
installation.
  
construction.
  
      
     
    
     
wall plate.
  
Tamper-Resistant Models
    
system helps prevent improper insertion
of foreign objects.
    ®
Tamper-Resistant requirements.
Hospital Grade devices
GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
1595HGTRW
1.13"
1.72"
1.25"
2.62"
4.20"
2095HGW
.98"
1.72"
1.25"
2.62"
4.20"
2095HGTRW
1.13"
1.72"
1.25"
2.62"
4.20"
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-19
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
Hospital Grade devices
Hospital Grade Self-Test GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
National Electrical Code® Section 406.12 Tamper-Resistant Receptacles in Dwelling Units.
In all areas specified in 210.52 all 125-volt, 15- and 20-amp receptacles shall be listed tamper-resistant receptacles.
Specifications
     
    
    
      
UL Standard
    
Features
    
system helps prevent improper insertion
of foreign objects.
    ®
Tamper-Resistant requirements.
      
conducts an automatic test every second,
ensuring it’s always ready to protect. If
critical components are damaged and
protection is lost, power to the receptacle
will be locked out.
    
no power to the face or downstream
receptacles if wire incorrectly.
    
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
    
WC596).
     
ground to metal box
     
    
        
stranded copper wire.
      
        
easy installation.
    
     
in the device and wall plate for easier
installation.
  
construction.
  
      
     
      
      
  
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943 UL498 FSUL
WC596A. VAC
HOSPITAL GRADE DUPLEX
2096HGI 20 125 Ivory 5-20R   
2096HGW 20 125 White 5-20R  
2096HG 20 125  5-20R   
2096HGGRY 20 125 Gray 5-20R   
2096HGRED 20 125 Red 5-20R  
2096HGLA 20 125 Light Almond 5-20R  
HOSPITAL GRADE TAMPER-RESISTANT DUPLEX
2096HGTRI 20 125 Ivory 5-20R   
2096HGTRW 20 125 White 5-20R  
2096HGTRLA 20 125 Light Almond 5-20R   
2096HGTRLA
1.13"
1.72"
1.25"
2.62"
4.20"
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-20
HOSPITAL GRADE DEVICES
Hospital Grade devices
Isolated Ground & Audible Alarm Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
2095IGHGTRO
1.13"
1.72"
1.25"
2.62"
4.20"
Features
 TM   
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
    
no power to the face or downstream
receptacles if wired incorrectly.
    
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
     
    
back wire termination speed installation;
     
copper or copper-clad conductors.
      
  
construction.
    
system helps prevent improper insertion
of foreign objects.
    ®
Tamper-Resistant requirements.
Isolated Ground versions:
     
isolated ground termination.
    
isolated from the buildings grounding
system.
Audible Alarm versions:
      
installation.
      
Alarm can be turned on/off.
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943 UL498
FSUL
WC596A. VAC
HOSPITAL GRADE ISOLATED GROUND TAMPERRESISTANT DUPLEX
1595IGHGTRI 15 125 Ivory 5-15R   
1595IGHGTRW 15 125 White 5-15R   
1595IGHGTR 15 125  5-15R   
1595IGHGTRGRY 15 125 Gray 5-15R   
1595IGHGTRRED 15 125 Red 5-15R   
1595IGHGTRLA 15 125 Light Almond 5-15R   
1595IGHGTRO 15 125 Orange 5-15R  
2095IGHGTRI 20 125 Ivory 5-20R   
2095IGHGTRW 20 125 White 5-20R   
2095IGHGTR 20 125  5-20R   
2095IGHGTRGRY 20 125 Gray 5-20R   
2095IGHGTRRED 20 125 Red 5-20R   
2095IGHGTRLA 20 125 Light Almond 5-20R   
2095IGHGTRO 20 125 Orange 5-20R  
HOSPITAL GRADE AUDIBLE ALARM TAMPERRESISTANT DUPLEX GFCI
1595HGTRAI 15 125 Ivory 5-15R   
1595HGTRAW 15 125 White 5-15R   
1595HGTRA 15 125  5-15R   
1595HGTRAGRY 15 125 Gray 5-15R   
1595HGTRARED 15 125 Red 5-15R   
1595HGTRALA 15 125 Light Almond 5-15R   
2095HGTRAI 20 125 Ivory 5-20R   
2095HGTRAW 20 125 White 5-20R   
2095HGTRA 20 125  5-20R   
2095HGTRAGRY 20 125 Gray 5-20R   
2095HGTRARED 20 125 Red 5-20R   
2095HGTRALA 20 125 Light Almond 5-20R    NEMA
5-15R
NEMA
5-20R
2095HGTRAW
1.13"
1.72"
1.25"
2.62"
4.20"
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-21
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
Hospital Grade devices
Decorator Combination Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
*FCD = Foot Candle Distance, 1 Lumen = 1 FCD. See Page R-63 for more information.
2095HGNTLTRW
1.25"
1.13"
4.20"
2.62"
1.72"
NEMA
5-15R
NEMA
5-20R
Specifications
     
    
    
      
UL Standard
    
Features
    
system helps prevent improper insertion
of foreign objects.
    ®
Tamper-Resistant requirements.
 TM   
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
     
resistant Lexan® lens prevents
tampering.
    
   
20-year life expectancy, eliminating bulb
replacement.
      
  
      
OFF in daylight.
    
no power to the face or downstream
receptacles if wired incorrectly.
    
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
    
WC596)
     
    
      
stranded copper wire.
      
        
easy installation.
     
in the device and wall plate for easier
installation.
  
construction.
  
      
     
    
     
wall plate.
  
CATALOG NUMBER
RATING
LIGHT
OUTPUT IN
1' FCD* COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
COMBINATION TAMPERRESISTANT 15 AMP NIGHTLIGHT/GFCI
1595HGNTLTRI 15 125 0.180 Ivory 5-15R  
1595HGNTLTRW 15 125 0.180 White 5-15R  
1595HGNTLTR 15 125 0.180  5-15R  
1595HGNTLTRGRY 15 125 0.180 Gray 5-15R  
1595HGNTLTRRED 15 125 0.180 Red 5-15R  
1595HGNTLTRLA 15 125 0.180 Light Almond 5-15R  
COMBINATION TAMPERRESISTANT 20 AMP NIGHTLIGHT/GFCI
2095HGNTLTRI 20 125 0.180 Ivory 5-20R  
2095HGNTLTRW 20 125 0.180 White 5-20R  
2095HGNTLTRGRY 20 125 0.180 Gray 5-20R  
2095HGNTLTRRED 20 125 0.180 Red 5-20R  
2095HGNTLTRLA 20 125 0.180 Light Almond 5-20R  
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-22
HOSPITAL GRADE DEVICES
Features and Specifications
    
      
safe application before, during, and after
installation.
     
terminal blades to ensure consistent,
reliable electrical connections to
PlugTail Connector.
       
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
    
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
    
WC596)
    
survives 100x the required UL 3kA/6kV
voltage surge test cycles.
     
     
in the device and wall plate for easier
installation.
  
construction.
    
      
     
    
     
wall plate.
  
PTRA6STR
1.125"
6.375"
Hospital Grade devices
PlugTail™ GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
PT2095HGW
1.25"
1.20"
4.20"
2.62"
1.72"
For additional PlugTail Connectors, see Page D-15.
All PlugTail Connectors are available in any wire length up to 25 inches,
consult factory to order.
NEMA
5-15R
NEMA
5-20R
Specifications
     
    
    
     
per UL Standard
    
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
15 AMP DUPLEX GFCI
PT1595HGI 15 125 Ivory 5-15R  
PT1595HGW 15 125 White 5-15R  
PT1595HGBK 15 125  5-15R  
PT1595HG 15 125  5-15R  
PT1595HGGRY 15 125 Gray 5-15R  
PT1595HGRED 15 125 Red 5-15R  
PT1595HGLA 15 125 Light Almond 5-15R  
20 AMP DUPLEX GFCI
PT2095HGI 20 125 Ivory 5-20R  
PT2095HGW 20 125 White 5-20R  
PT2095HGBK 20 125  5-20R  
PT2095HG 20 125  5-20R  
PT2095HGGRY 20 125 Gray 5-20R  
PT2095HGRED 20 125 Red 5-20R  
PT2095HGLA 20 125 Light Almond 5-20R  
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6STR Stranded 6"
PTRA6SOL Solid 6"
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-23
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
1.25"
1.2"
4.20"
2.62"
1.72"
Hospital Grade devices
PlugTail™ Tamper-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
PT2095HGTRW
For PlugTail Connector catalog numbers, see Page D-15.
PTRA6STR
1.125"
6.375"
Features
    
system helps prevent improper insertion
of foreign objects.
    ®
Tamper-Resistant requirements.
    
      
safe application before, during, and after
installation.
     
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
       
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
    
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
    
WC596).
    
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
     
     
in the device and wall plate for easier
installation.
  
construction.
    
      
     
    
     
wall plate.
  
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
TAMPERRESISTANT 15 AMP DUPLEX GFCI
PT1595HGTRI 15 125 Ivory 5-15R   
PT1595HGTRW 15 125 White 5-15R   
PT1595HGRBK 15 125  5-15R   
PT1595HGTRGRY 15 125 Gray 5-15R   
PT1595HGTRRED 15 125 Red 5-15R   
PT1595HGTRLA 15 125 Light Almond 5-15R   
TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095HGTRI 20 125 Ivory 5-20R   
PT2095HGTRW 20 125 White 5-20R   
PT209HGTRBK 20 125  5-20R   
PT2095HGTRGRY 20 125 Gray 5-20R   
PT2095HGTRRED 20 125 Red 5-20R   
PT2095HGTRLA 20 125 Light Almond 5-20R   
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-24
HOSPITAL GRADE DEVICES
PTRA6STR
1.125"
6.375"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
TAMPERRESISTANT 15 AMP COMBINATION NIGHTLIGHT/GFCI
PT1595HGNTLTRI 15 125 Ivory 5-15R   
PT1595HGNTLTRW 15 125 White 5-15R   
PT1595HGNTLTRRED 15 125 Red 5-15R   
TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095HGNTLTRI 20 125 Ivory 5-20R   
PT2095HGNTLTRW 20 125 White 5-20R   
PT2095HGNTLTRLA 20 125 Light Almond 5-20R   
Hospital Grade devices
PlugTail™ Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VA
NEMA
5-15R
NEMA
5-20R
For PlugTail Connector catalog numbers, see Page D-15.
PT1595HGNTLTRI
1.25"
1.20"
4.20"
2.62"
1.72"
Features
    
system helps prevent improper insertion
of foreign objects.
    ®
Tamper-Resistant requirements.
    
impact-resistant Lexan® lens
prevents tampering.
    
   
20-year life expectancy, eliminating bulb
replacement.
      
      
OFF in daylight.
    
      
safe application before, during, and after
installation.
     
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
       
PlugTail Connectors creating a non-
feed-thru application for facility owners.
At rough-in just install the same right
angle connector for GFCI and receptacle
openings.
 TM   
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
    
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
    
WC596).
     
     
in the device and wall plate for easier
installation.
  
construction.
    
      
     
    
     
wall plate.
  
Specifications
     
    
    
     
per UL Standard
    
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-25
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
NAFTACOMPLIANT TAMPERRESISTANT 20 AMP DUPLEX GFCI
2095HGTRNAI 20 125 Ivory 5-20R   
2095HGTRNAW 20 125 White 5-20R   
2095HGTRNAGRY 20 125 Gray 5-20R   
2095HGTRNARED 20 125 Red 5-20R   
2095HGTRNALA 20 125 Light Almond 5-20R   
NAFTACOMPLIANT 15 AMP DUPLEX GFCI
1595HGNAI 15 125 Ivory 5-15R   
1595HGNAW 15 125 White 5-15R   
1595HGNARED 15 125 Red 5-15R   
NAFTACOMPLIANT 20 AMP DUPLEX GFCI
2095HGNAI 20 125 Ivory 5-20R   
2095HGNAW 20 125 White 5-20R   
2095HGNA 20 125  5-20R   
2095HGNAGRY 20 125 Gray 5-20R   
2095HGNARED 20 125 Red 5-20R   
2095HGNALA 20 125 Light Almond 5-20R   
Hospital Grade devices
NAFTA-Compliant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
                
1.72"
1.25"
2.62"
4.20"
.98"
2095HGTRNAW 1595HGNAW
1.72"
1.25"
2.62"
4.20"
.98"
NEMA
5-15R
NEMA
5-20R
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-26
HOSPITAL GRADE DEVICES
Hospital Grade devices
NAFTA-Compliant PlugTail™ GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
PT2095HGNAW
1.72"
1.25"
2.62"
4.20"
.98"
PT2095HGNTLTRNAW
1.72"
1.25"
2.62"
4.20"
1.13"
PTRA6STR
1.125"
6.375"
                
For additional PlugTail Connectors, see Page D-15.
All PlugTail Connectors are available in any wire
length up to 25 inches, consult factory to order.
NEMA
5-15R
NEMA
5-20R
Features
    
      
safe application before, during, and after
installation.
     
terminal blades to ensure consistent,
reliable electrical connections to PlugTail
Connector.
       
PlugTail Connectors creating a
non-feed-thru application for facility
owners. At rough-in just install the
same right angle connector for GFCI and
receptacle openings.
 TM   
components are damaged and ground
fault protection is lost, power to
receptacle is disconnected.
    
WC596).
    
requirements; survives 100x the required
UL 3kA/6kV voltage surge test cycles.
     
     
in the device and wall plate for easier
installation.
  
construction.
    
      
     
    
     
wall plate.
  
Specifications
     
    
    
     
per UL Standard
    
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL943
C22.2 No. 144
UL498
C22.2 No. 42
FSUL
WC596A. VAC
NAFTACOMPLIANT 20 AMP DUPLEX GFCI
PT2095HGNAI 20 125 Ivory 5-20R  
PT2095HGNAW 20 125 White 5-20R  
PT2095HGNAGRY 20 125 Gray 5-20R  
PT2095HGNARED 20 125 Red 5-20R  
PT2095HGNALA 20 125 Light Almond 5-20R  
NAFTACOMPLIANT TAMPERRESISTANT 20 AMP DUPLEX GFCI
PT2095HGTRNAI 20 125 Ivory 5-20R  
PT2095HGTRNAW 20 125 White 5-20R  
PT2095HGTRNAGRY 20 125 Gray 5-20R  
PT2095HGTRNARED 20 125 Red 5-20R  
PT2095HGTRNALA 20 125 Light Almond 5-20R  
NAFTACOMPLIANT TAMPERRESISTANT 15 AMP COMBINATION NIGHTLIGHT/GFCI
PT1595HGNTLTRNAI 15 125 Ivory 5-15R  
PT1595HGNTLTRNAW 15 125 White 5-15R  
PT1595HGNTLTRNARED 15 125 Red 5-15R  
NAFTACOMPLIANT TAMPERRESISTANT 20 AMP COMBINATION NIGHTLIGHT/GFCI
PT2095HGNTLTRNAI 20 125 Ivory 5-20R  
PT2095HGNTLTRNAW 20 125 White 5-20R  
PT2095HGNTLTRNARED 20 125 Red 5-20R  
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6SOL Solid 6"
PTRA6STR Stranded 6"
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-27
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
Hospital Grade devices
Surge Protective Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
Specifications
      
    
     
        
to ground, neutral to ground.
     
Flashing red = not protected OFF = no
power to unit
      
for unmounted MOV.
      
     
to protect against condensing humidity
and airborne particulates.
      
      
    
       
(50 ohm source impedance)
   
      
ground terminal.
     
  
5262/5362, IG5262/5362, 8200/8300,
IG8200/8300, TR5262/5362,
TRIG5262/5362, TR8200/8300,
TRIG8200/8300
       
of the 3 modes. Energy (measured for an
   
   
voltage in all 3 modes, 500V.
       
       
transients in all modes – equally.
     
NEC 410-56 (C) and 250-146.
5252/5352, TR5252/5352, All PlugTail™
      
line-to-neutral and line-to-ground
modes. 680 joules of energy absorption
in neutral-to-ground mode. Energy
     
    
       
transients in all modes – equally.
   
   
ground modes = 500V; neutral-to-ground
= 1000V.
    
devices and connectors.
8300GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
IG8300GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
Audible Alarm with LED Indicator
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
DUPLEX RECEPTACLES   
8200ISP 15 125 Ivory 5-15R    
8200WSP 15 125 White 5-15R    
8200SP 15 125  5-15R    
8200GRYSP 15 125 Gray 5-15R    
8200REDSP 15 125 Red 5-15R   
8200LASP 15 125 Light Almond 5-15R    
8200BLSP 15 125  5-15R    
8300ISP 20 125 Ivory 5-20R    
8300WSP 20 125 White 5-20R    
8300SP 20 125  5-20R    
8300GRYSP 20 125 Gray 5-20R    
8300REDSP 20 125 Red 5-20R   
8300LASP 20 125 Light Almond 5-20R    
8300BLSP 20 125  5-20R    
ISOLATED GROUND DUPLEX RECEPTACLES   
IG8200ISP 15 125 Ivory 5-15R    
IG8200WSP 15 125 White 5-15R    
IG8200GRYSP 15 125 Gray 5-15R    
IG8200REDSP 15 125 Red 5-15R   
IG8200LASP 15 125 Light Almond 5-15R    
IG8200BLSP 15 125  5-15R    
IG8200OSP 15 125 Orange 5-15R   
IG8300ISP 20 125 Ivory 5-20R    
IG8300WSP 20 125 White 5-20R    
IG8300SP 20 125  5-20R    
IG8300GRYSP 20 125 Gray 5-20R    
IG8300REDSP 20 125 Red 5-20R   
IG8300LASP 20 125 Light Almond 5-20R    
IG8300BLSP 20 125  5-20R    
IG8300OSP 20 125 Orange 5-20R   
Conforms to the
latest revision ANSI/
IEEE C62.41 (formerly
IEEE587), ANSI/IEEE
C62.45.
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-28
HOSPITAL GRADE DEVICES
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL1449 UL498
FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES
PT8200ISP 15 125 5-15R Ivory    
PT8200WSP 15 125 5-15R White    
PT8200SP 15 125 5-15R     
PT8200GRYSP 15 125 5-15R Gray   
PT8200REDSP 15 125 5-15R Red    
PT8200LASP 15 125 5-15R Light Almond    
PT8200BLSP 15 125 5-15R     
PT8300ISP 20 125 5-20R Ivory    
PT8300WSP 20 125 5-20R White    
PT8300SP 20 125 5-20R     
PT8300GRYSP 20 125 5-20R Gray   
PT8300REDSP 20 125 5-20R Red    
PT8300LASP 20 125 5-20R Light Almond    
PT8300BLSP 20 125 5-20R     
ISOLATED GROUND DUPLEX RECEPTACLES
PTIG8200ISP 15 125 5-15R Ivory    
PTIG8200WSP 15 125 5-15R White    
PTIG8200GRYSP 15 125 5-15R Gray   
PTIG8200REDSP 15 125 5-15R Red    
PTIG8200LASP 15 125 5-15R Light Almond    
PTIG8200BLSP 15 125 5-15R     
PTIG8200OSP 15 125 5-15R Orange   
PTIG8300ISP 20 125 5-20R Ivory    
PTIG8300WSP 20 125 5-20R White    
PTIG8300GRYSP 20 125 5-20R Gray   
PTIG8300REDSP 20 125 5-20R Red    
PTIG8300LASP 20 125 5-20R Light Almond    
PTIG8300BLSP 20 125 5-20R     
PTIG8300OSP 20 125 5-20R Orange   
TAMPERRESISTANT DUPLEX RECEPTACLES
PTTR8200ISP 15 125 5-15R Ivory    
PTTR8200WSP 15 125 5-15R White    
PTTR8200SP 15 125 5-15R     
PTTR8200GRYSP 15 125 5-15R Gray   
PTTR8200REDSP 15 125 5-15R Red    
PTTR8200LASP 15 125 5-15R Light Almond    
PTTR8200BLSP 15 125 5-15R     
PTTR8300ISP 20 125 5-20R Ivory    
PTTR8300WSP 20 125 5-20R White    
PTTR8300SP 20 125 5-20R     
PTTR8300GRYSP 20 125 5-20R Gray   
PTTR8300REDSP 20 125 5-20R Red    
PTTR8300LASP 20 125 5-20R Light Almond    
PTTR8300BLSP 20 125 5-20R     
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Hospital Grade devices
PlugTail™ Surge Protective Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
NEMA
5-20R
NEMA
5-15R
Audible Alarm with LED Indicator
PT8300GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PTIG8300GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PTTR8300ISP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
For PlugTail
Connectors,
see Page D-15.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-29
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
Hospital Grade devices
Tamper-Resistant Surge Protective Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Audible Alarm with LED Indicator
NEMA
5-20R
NEMA
5-15R
TR8300GRYSP
3.75"
1.70"
.875"1.40"
Behind Strap
2.75"
TRIG8300GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL1449 UL498
FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES   
TR8200ISP 15 125 5-15R Ivory    
TR8200WSP 15 125 5-15R White    
TR8200SP 15 125 5-15R     
TR8200GRYSP 15 125 5-15R Gray   
TR8200REDSP 15 125 5-15R Red    
TR8200LASP 15 125 5-15R Light Almond    
TR8200BLSP 15 125 5-15R     
TR8300ISP 20 125 5-20R Ivory    
TR8300WSP 20 125 5-20R White    
TR8300SP 20 125 5-20R     
TR8300GRYSP 20 125 5-20R Gray   
TR8300REDSP 20 125 5-20R Red    
TR8300LASP 20 125 5-20R Light Almond    
TR8300BLSP 20 125 5-20R     
ISOLATED GROUND DUPLEX RECEPTACLES   
TRIG8200ISP 15 125 5-15R Ivory    
TRIG8200WSP 15 125 5-15R White    
TRIG8200GRYSP 15 125 5-15R Gray   
TRIG8200REDSP 15 125 5-15R Red    
TRIG8200LASP 15 125 5-15R Light Almond    
TRIG8200BLSP 15 125 5-15R     
TRIG8200OSP 15 125 5-15R Orange   
TRIG8300ISP 20 125 5-20R Ivory    
TRIG8300WSP 20 125 5-20R White    
TRIG8300GRYSP 20 125 5-20R Gray   
TRIG8300REDSP 20 125 5-20R Red    
TRIG8300LASP 20 125 5-20R Light Almond    
TRIG8300BLSP 20 125 5-20R     
TRIG8300OSP 20 125 5-20R Orange   
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-30
HOSPITAL GRADE DEVICES
Hospital Grade devices
Straight Blade Plugs & Connectors 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
IP20
Suitability
PS5266XHG
1.752"
2.791"
1.516" 1.358"
1.34"
1.21"
1.83"
PS8119PS8115
1.34"
1.21"
1.83"
.77"
PS5269XHG
2.638"
1.516" 1.358"
1.752"
PS5266HGAN
2.130"
1.350"
1.530"
NEMA
6-20R
NEMA
5-15P
NEMA
6-15P
NEMA
6-15R
NEMA
6-20P
NEMA
5-15R
NEMA
5-20P
NEMA
5-20R
*For further information consult the Flexcor® 
Features
    
cuts installation time significantly.
     
chemical resistance.
     
uniform cord retention.
      
of contaminants.
     
on Hospital Grade plugs and connectors
(angle plugs not included).
       
plane, allows for quick wire termination
from any angle.
     
contacts resist heat rise, provide
excellent conductivity.
     
installer against screwdriver head
slippage.
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
C22.2
NO.42A. V.
EXTRAHARD USE EHU
PS5266XHG 15 125     .230"-.720" 5-15P  
PS5266HGAN 15 125      .320"-.655" 5-15P   
PS5269XHG 15 125     .230"-.720" 5-15R   
PS5366XHG 20 125     .230"-.720" 5-20P  
PS5366HGAN 20 125      .320"-.655" 5-20P   
PS5369XHG 20 125     .230"-.720" 5-20R   
PS5666XHG 15 250     .230"-.720" 6-15P  
PS5666HGAN 15 250      .320"-.655" 6-15P  
PS5669XHG 15 250     .230"-.720" 6-15R   
PS5466XHG 20 250     .230"-.720" 6-20P  
PS5466HGAN 20 250      .320"-.655" 6-20P  
PS5469XHG 20 250     .230"-.720" 6-20R   
MAXGRIP® M3
PS8115 15 125 Plug, Gray .230"-.720" 5-15P  
PS8119 15 125 Connector, Gray .230"-.720" 5-15R   
CATALOG NUMBER DESCRIPTION
ACCESSORIES
EHU15AN        
FC22GL EHU-Strain Relief Grip*
FC30GL EHU-Strain Relief Grip*
FC40GL EHU-Strain Relief Grip*
FC52GL EHU-Strain Relief Grip*
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
D-31
HOSPITAL GRADE DEVICES
PASS & SEYMOUR
Hospital Grade devices
Quad Receptacles 20A, 125V
Quad Receptacle
3.38"
4.50" square
3.38"
NEMA
5-20R
2 Pole, 3 Wire
Application
Legrand/Pass & Seymour’s quad receptacles are designed for
dense, multiple-outlet applications such as personal computers
and peripherals, office equipment, and home entertainment
centers. The bidirectional outlet configuration allows use of up to
four oversized plugs, in close proximity. The clean, contemporary
design of the quad receptacle allows for surface mounting with
minimal protrusion from the wall. No wall plate is required.
Features
          
    
        
straight or angled plugs easy and convenient.
    
      
    
    
CATALOG NUMBER
RATING
COLOR
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 UL1449 CSAA. V.
ISOLATED GROUND SURGE PROTECTIVE QUADS
IG420HISP 20 125 Ivory 5-20R  
IG420HGRYSP 20 125 Gray 5-20R  
IG420HBLSP 20 125  5-20R  
QUADS
420HI 20 125 Ivory 5-20R  
420HW 20 125 White 5-20R  
420H 20 125  5-20R  
420HGRY 20 125 Gray 5-20R  
420HRED 20 125 Red 5-20R  
Hard Use Spec Grade & Hard Use Surge Protective Spec Grade Quads
     C® 410-56(c) and 250-74 exception 4
     
Electrical
Frequency 60Hz
Voltage 125V
Mechanical
          
       
Product Identification Ratings are permanent part of device
Weight 10.75 oz.
Environmental
Flammability UL94 V2
          
Materials
Face Nylon
 
      
   
Hex Head Grounding Screw Steel (Green)
   
Additional Specifications for Hard Use Surge Protective Spec Grade Quads
        
         
Electrical
MOV Rating 18mm
UL1449 Suppressed
Voltage Rating 500V (L-N, L-G, N-G)
Noise Attenuation -35db Noise Filtering at 5kHz-50MHz
Thermal Protection Fused
Green LED Indicator ON when protection is active, OFF when protection is inactive
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
D-32
HOSPITAL GRADE DEVICES
WWW.LEGRAND.US/PASSANDSEYMOUR
E-1
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Surge protective device offering with increased transient protection,
reliability and protection notification — for industrial, commercial, and
residential applications in the electronics age.
PLUGTAIL™
ISOLATED GROUND
RECEPTACLE E-16
Surge Protective Devices Product Description E-2
Product Specifications E-2
Hospital Grade Surge Protective Receptacles E-3
Surge Protective Receptacles E-4
PlugTail™ Surge Protective Receptacles E-6
PlugTail™ Hospital Grade Surge Protective Receptacles E-7
Tamper-Resistant Surge Protective Receptacles E-8
Tamper-Resistant Hospital Grade Surge Protective Receptacles E-10
Surge Protection Panels, Heavy-, Medium- & Light-Duty E-11
Isolated Ground Product Description E-9, E-14
PlugTail™ Isolated Ground Receptacles E-16
Isolated Ground Receptacles E-17
Tamper-Resistant Isolated Ground Receptacles E-18
Turnlok® Isolated Ground Receptacles E-19
Power & Surge Protection Strips & Specifications E-20
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-2
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Specifications – 5262/5362, IG5262/5362, 8200/8300, IG8200/8300, TR5262/5362, TRIG5262/5362, TR8200/8300,
TRIG8200/8300
• UL1449 (3rd Edition). (1.2 x 50µs 6000V, 8 x 20µs 3000A).
• 340 joules of energy absorption in each of the 3 modes. Energy
(measured for an 8x20µS duration) = 340J.
• 24,000 amps current handling capability in each of 3 modes: line
to neutral, line to ground, neutral to ground.
• Nominal let-through (suppressed) voltage in all 3 modes, 500V.
• Audible alarm able to be turned on/off.
• LED indication:
Steady green = protected
Flashing red = not protected
OFF = no power to unit
• Response time less than 1 nanosecond for unmounted MOV.
• Overcurrent protection in all 3 modes.
• Printed circuit board conformally coated to protect against
condensing humidity and airborne particulates.
• Thermal protection in all 3 modes.
• Leakage current: 0.5 mA at 25°C/120VAC.
• 3 17mm dual pack MOVs to suppress transients in
all modes – equally.
• Common mode noise attenuation:
500 KHz to 30 MHz; up to 20 dB (50 ohm source impedance)
• Varistor voltage: 130V RMS.
• Back and side wire capability including ground terminal.
• Operating temperature: -40°C to 85°C (-40°F to 185°F)
• Isolated Ground version complies with NEC 410-56 (C)
and 250-146.
• Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE
587), ANSI/IEEE C62.45.
Specifications – 5252/5352, TR5252/5352, All PlugTail™ Surge Protective Receptacles
• UL1449 (3rd Edition). (1.2 x 50µs 6000V, 8 x 20µs 3000A).
• 340 joules of energy absorption in line-to-neutral and line-to-
ground modes. 680 joules of energy absorption in neutral-to-
ground mode. Energy (measured for an 8x20µS duration) = 340J
(680J for N-G mode).
• 24,000 amps current handling capability in each of 3 modes; line
to neutral, line to ground, neutral to ground.
• Nominal let-through (suppressed) voltage: Line-to-neutral and
line-to-ground modes = 500V; neutral-to-ground mode = 1000V.
• LED indication:
Steady green = protected
Flashing red = not protected
OFF = no power to unit
• Response time less than 1 nanosecond for unmounted MOV.
• Overcurrent protection in all 3 modes.
• Printed circuit board conformally coated to protect against
condensing humidity and airborne particulates.
• Thermal protection in all 3 modes.
• Leakage current: 0.5 mA at 25°C/120VAC.
• 2 17mm dual pack MOVs to suppress transients in
all modes – equally.
• Common mode noise attenuation:
500 KHz to 30 MHz; up to 20 dB (50 ohm source impedance)
• Varistor voltage: 130V RMS.
• Back and side wire capability including ground terminal.
• PlugTail versions – factory-terminated devices and connectors.
• Operating temperature: -40°C to 85°C (-40°F to 185°F)
• Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE
587), ANSI/IEEE C62.45.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Product Description & Specifications
Surge Protective Devices
Office buildings, schools and campuses, hospitals
and medical facilities, and your own home; the use of
microprocessor-based equipment has become prevalent
in all day-to-day environments. Commercial and industrial
facilities have computer, IT, and telephone systems; and
control and automation equipment. Retail locations have
sophisticated cash registers, electronic scanning, and
security systems. At home, we have desktop and laptop
computers, smart telephones, high-definition TVs, audio
and home theater equipment, gaming systems, and control
systems (thermostats, garage door openers, etc.). In
today’s world we are dependent on (and take for granted)
the performance of all this sophisticated yet sensitive
equipment.
All microprocessor-based equipment is extremely sensitive
to momentary spikes and surges that occur daily over
AC circuits. Sources for these transient spikes and surges
range from lightning and utility switching to inductive
load switching such as air conditioners, power tools,
vacuum cleaners, and copy machines. Externally or
internally induced, high energy spikes and surges are
capable of causing catastrophic instantaneous damage
or cumulative transients that continue to erode the
effectiveness of the equipment, hindering performance
until it prematurely fails.
The best line of defense for any location is a coordination of
protection at the service entrance, branch service locations,
and at the point of use. Pass & Seymour’s Surge Protection
products offer single and multi-phase panel-mounted units
for installation at the main service entrance and branch
distribution locations and a full line of receptacles and
portable/plug-in units with multiple outlets, phone, and data
protection. This full package allows you to cost effectively
provide the right protection for your specific application.
Product Specifications
WWW.LEGRAND.US/PASSANDSEYMOUR
E-3
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Hospital Grade Surge Protective Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-20R
NEMA
5-15R
8300GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Audible Alarm with LED Indicator
CATALOG NUMBER
RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
DUPLEX RECEPTACLES BACK& SIDEWIRE
8200ISP 15 125 5-15R Ivory • • • •
8200WSP 15 125 5-15R White • • • •
8200SP 15 125 5-15R Brown • • • •
8200GRYSP 15 125 5-15R Gray • • • •
8200REDSP 15 125 5-15R Red • • • •
8200LASP 15 125 5-15R Light Almond • • • •
8200BLSP 15 125 5-15R Blue • • • •
8300ISP 20 125 5-20R Ivory • • • •
8300WSP 20 125 5-20R White • • • •
8300SP 20 125 5-20R Brown • • • •
8300GRYSP 20 125 5-20R Gray • • • •
8300REDSP 20 125 5-20R Red • • • •
8300LASP 20 125 5-20R Light Almond • • • •
8300BLSP 20 125 5-20R Blue • • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK& SIDEWIRE
IG8200ISP 15 125 5-15R Ivory • • • •
IG8200WSP 15 125 5-15R White • • • •
IG8200GRYSP 15 125 5-15R Gray • • • •
IG8200REDSP 15 125 5-15R Red • • • •
IG8200LASP 15 125 5-15R Light Almond • • • •
IG8200BLSP 15 125 5-15R Blue • • • •
IG8200OSP 15 125 5-15R Orange • • • •
IG8300ISP 20 125 5-20R Ivory • • • •
IG8300WSP 20 125 5-20R White • • • •
IG8300SP 20 125 5-20R Brown • • • •
IG8300GRYSP 20 125 5-20R Gray • • • •
IG8300REDSP 20 125 5-20R Red • • • •
IG8300LASP 20 125 5-20R Light Almond • • • •
IG8300BLSP 20 125 5-20R Blue • • • •
IG8300OSP 20 125 5-20R Orange • • • •
IG8300GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
CATALOG NUMBER DESCRIPTION COLOR
WALL PLATES FOR SURGE PROTECTIVE DUPLEX RECEPTACLES
SS26 Stainless Steel Decorator
SS26IG* Stainless Steel Decorator
SB26 Brass Decorator
TP26IG* Thermoplastic Decorator Orange
TP26BL Thermoplastic Decorator Blue
*For Isolated Ground
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-4
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Surge Protective Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-20R
NEMA
5-15R
Audible Alarm with LED Indicator
5362GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
IG5362GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
CATALOG NUMBER
RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES BACK& SIDEWIRE
5262ISP 15 125 5-15R Ivory • • • •
5262WSP 15 125 5-15R White • • • •
5262SP 15 125 5-15R Brown • • • •
5262GRYSP 15 125 5-15R Gray • • • •
5262BKSP 15 125 5-15R Black • • • •
5262REDSP 15 125 5-15R Red • • • •
5262LASP 15 125 5-15R Light Almond • • • •
5262BLSP 15 125 5-15R Blue • • • •
5362ISP 20 125 5-20R Ivory • • • •
5362WSP 20 125 5-20R White • • • •
5362SP 20 125 5-20R Brown • • • •
5362GRYSP 20 125 5-20R Gray • • • •
5362BKSP 20 125 5-20R Black • • • •
5362REDSP 20 125 5-20R Red • • • •
5362LASP 20 125 5-20R Light Almond • • • •
5362BLSP 20 125 5-20R Blue • • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK& SIDEWIRE
IG5262ISP 15 125 5-15R Ivory • • • •
IG5262WSP 15 125 5-15R White • • • •
IG5262GRYSP 15 125 5-15R Gray • • • •
IG5262LASP 15 125 5-15R Light Almond • • • •
IG5262BLSP 15 125 5-15R Blue • • • •
IG5262OSP 15 125 5-15R Orange • • • •
IG5362ISP 20 125 5-20R Ivory • • • •
IG5362WSP 20 125 5-20R White • • • •
IG5362SP 20 125 5-20R Brown • • • •
IG5362GRYSP 20 125 5-20R Gray • • • •
IG5362LASP 20 125 5-20R Light Almond • • • •
IG5362BLSP 20 125 5-20R Blue • • • •
IG5362OSP 20 125 5-20R Orange • • • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
WWW.LEGRAND.US/PASSANDSEYMOUR
E-5
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Surge Protective Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
CATALOG NUMBER
RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
DUPLEX RECEPTACLES BACK& SIDEWIRE
5252ISP 15 125 5-15R Ivory • • • •
5252WSP 15 125 5-15R White • • • •
5252GRYSP 15 125 5-15R Gray • • • •
5252BKSP 15 125 5-15R Black • • • •
5252LASP 15 125 5-15R Light Almond • • • •
5252BLSP 15 125 5-15R Blue • • • •
5352ISP 20 125 5-20R Ivory • • • •
5352WSP 20 125 5-20R White • • • •
5352GRYSP 20 125 5-20R Gray • • • •
5352BKSP 20 125 5-20R Black • • • •
5352LASP 20 125 5-20R Light Almond • • • •
5352BLSP 20 125 5-20R Blue • • • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
LED Indicator Only
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER
RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
TAMPERRESISTANT DUPLEX RECEPTACLES BACK& SIDEWIRE
TR5252ISP 15 125 5-15R Ivory • • • •
TR5252WSP 15 125 5-15R White • • • •
TR5252GRYSP 15 125 5-15R Gray • • • •
TR5252BKSP 15 125 5-15R Black • • • •
TR5252LASP 15 125 5-15R Light Almond • • • •
TR5252BLSP 15 125 5-15R Blue • • • •
TR5352ISP 20 125 5-20R Ivory • • • •
TR5352WSP 20 125 5-20R White • • • •
TR5352GRYSP 20 125 5-20R Gray • • • •
TR5352BKSP 20 125 5-20R Black • • • •
TR5352LASP 20 125 5-20R Light Almond • • • •
TR5352BLSP 20 125 5-20R Blue • • • •
5352GRYSP
3.75"
1.70"
.875"
1.29"
Behind Strap
2.75"
TR5352GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-6
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PlugTail™ Surge Protective Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
For PlugTail Connectors,
see Page B-4.
NEMA
5-20R
NEMA
5-15R
Audible Alarm with LED Indicator
CATALOG NUMBER
RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES
PT5262ISP 15 125 5-15R Ivory • • • •
PT5262WSP 15 125 5-15R White • • • •
PT5262SP 15 125 5-15R Brown • • • •
PT5262GRYSP 15 125 5-15R Gray • • • •
PT5262BKSP 15 125 5-15R Black • • • •
PT5262REDSP 15 125 5-15R Red • • • •
PT5262LASP 15 125 5-15R Light Almond • • • •
PT5262BLSP 15 125 5-15R Blue • • • •
PT5362ISP 20 125 5-20R Ivory • • • •
PT5362WSP 20 125 5-20R White • • • •
PT5362SP 20 125 5-20R Brown • • • •
PT5362GRYSP 20 125 5-20R Gray • • • •
PT5362BKSP 20 125 5-20R Black • • • •
PT5362REDSP 20 125 5-20R Red • • • •
PT5362LASP 20 125 5-20R Light Almond • • • •
PT5362BLSP 20 125 5-20R Blue • • • •
ISOLATED GROUND DUPLEX RECEPTACLES
PTIG5262ISP 15 125 5-15R Ivory • • • •
PTIG5262WSP 15 125 5-15R White • • • •
PTIG5262GRYSP 15 125 5-15R Gray • • • •
PTIG5262BKSP 15 125 5-15R Black • • • •
PTIG5262REDSP 15 125 5-15R Red • • • •
PTIG5262LASP 15 125 5-15R Light Almond • • • •
PTIG5262OSP 15 125 5-15R Orange • • • •
PTIG5262BLSP 15 125 5-15R Blue • • • •
PTIG5362ISP 20 125 5-20R Ivory • • • •
PTIG5362WSP 20 125 5-20R White • • • •
PTIG5362GRYSP 20 125 5-20R Gray • • • •
PTIG5362BKSP 20 125 5-20R Black • • • •
PTIG5362REDSP 20 125 5-20R Red • • • •
PTIG5362LASP 20 125 5-20R Light Almond • • • •
PTIG5362OSP 20 125 5-20R Orange • • • •
PTIG5362BLSP 20 125 5-20R Blue • • • •
TAMPERRESISTANT DUPLEX RECEPTACLES
PTTR5262ISP 15 125 5-15R Ivory • • • •
PTTR5262WSP 15 125 5-15R White • • • •
PTTR5262SP 15 125 5-15R Brown • • • •
PTTR5262GRYSP 15 125 5-15R Gray • • • •
PTTR5262BKSP 15 125 5-15R Black • • • •
PTTR5262REDSP 15 125 5-15R Red • • • •
PTTR5262LASP 15 125 5-15R Light Almond • • • •
PTTR5262BLSP 15 125 5-15R Blue • • • •
PTTR5362ISP 20 125 5-20R Ivory • • • •
PTTR5362WSP 20 125 5-20R White • • • •
PTTR5362SP 20 125 5-20R Brown • • • •
PTTR5362GRYSP 20 125 5-20R Gray • • • •
PTTR5362BKSP 20 125 5-20R Black • • • •
PTTR5362REDSP 20 125 5-20R Red • • • •
PTTR5362LASP 20 125 5-20R Light Almond • • • •
PTTR5362BLSP 20 125 5-20R Blue • • • •
PTIG5362GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PTTR5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
All devices listed on this
page conform to NEMA
WD-1 and WD-6.
Conforms to the latest
revision ANSI/IEEE C62.41
(formerly IEEE587), ANSI/
IEEE C62.45.
WWW.LEGRAND.US/PASSANDSEYMOUR
E-7
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PlugTail™ Hospital Grade Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
NEMA
5-20R
NEMA
5-15R
For PlugTail Connectors, see Page B-4.
Audible Alarm with LED Indicator
CATALOG NUMBER
RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES
PT8200ISP 15 125 5-15R Ivory • • • •
PT8200WSP 15 125 5-15R White • • • •
PT8200SP 15 125 5-15R Brown • • • •
PT8200GRYSP 15 125 5-15R Gray • • • •
PT8200REDSP 15 125 5-15R Red • • • •
PT8200LASP 15 125 5-15R Light Almond • • • •
PT8200BLSP 15 125 5-15R Blue • • • •
PT8300ISP 20 125 5-20R Ivory • • • •
PT8300WSP 20 125 5-20R White • • • •
PT8300SP 20 125 5-20R Brown • • • •
PT8300GRYSP 20 125 5-20R Gray • • • •
PT8300REDSP 20 125 5-20R Red • • • •
PT8300LASP 20 125 5-20R Light Almond • • • •
PT8300BLSP 20 125 5-20R Blue • • • •
ISOLATED GROUND DUPLEX RECEPTACLES
PTIG8200ISP 15 125 5-15R Ivory • • • •
PTIG8200WSP 15 125 5-15R White • • • •
PTIG8200GRYSP 15 125 5-15R Gray • • • •
PTIG8200REDSP 15 125 5-15R Red • • • •
PTIG8200LASP 15 125 5-15R Light Almond • • • •
PTIG8200BLSP 15 125 5-15R Blue • • • •
PTIG8200OSP 15 125 5-15R Orange • • • •
PTIG8300ISP 20 125 5-20R Ivory • • • •
PTIG8300WSP 20 125 5-20R White • • • •
PTIG8300GRYSP 20 125 5-20R Gray • • • •
PTIG8300REDSP 20 125 5-20R Red • • • •
PTIG8300LASP 20 125 5-20R Light Almond • • • •
PTIG8300BLSP 20 125 5-20R Blue • • • •
PTIG8300OSP 20 125 5-20R Orange • • • •
TAMPERRESISTANT DUPLEX RECEPTACLES
PTTR8200ISP 15 125 5-15R Ivory • • • •
PTTR8200WSP 15 125 5-15R White • • • •
PTTR8200SP 15 125 5-15R Brown • • • •
PTTR8200GRYSP 15 125 5-15R Gray • • • •
PTTR8200REDSP 15 125 5-15R Red • • • •
PTTR8200LASP 15 125 5-15R Light Almond • • • •
PTTR8200BLSP 15 125 5-15R Blue • • • •
PTTR8300ISP 20 125 5-20R Ivory • • • •
PTTR8300WSP 20 125 5-20R White • • • •
PTTR8300SP 20 125 5-20R Brown • • • •
PTTR8300GRYSP 20 125 5-20R Gray • • • •
PTTR8300REDSP 20 125 5-20R Red • • • •
PTTR8300LASP 20 125 5-20R Light Almond • • • •
PTTR8300BLSP 20 125 5-20R Blue • • • •
PT8300WSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PTTR8300ISP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
PTIG8300GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-8
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
NEMA
5-20R
NEMA
5-15R
Audible Alarm with LED Indicator
CATALOG NUMBER
RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSA
A. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES BACK& SIDEWIRE
TR5262ISP 15 125 5-15R Ivory • • • •
TR5262WSP 15 125 5-15R White • • • •
TR5262SP 15 125 5-15R Brown • • • •
TR5262GRYSP 15 125 5-15R Gray • • • •
TR5262BKSP 15 125 5-15R Black • • • •
TR5262REDSP 15 125 5-15R Red • • • •
TR5262LASP 15 125 5-15R Light Almond • • • •
TR5262BLSP 15 125 5-15R Blue • • • •
TR5362ISP 20 125 5-20R Ivory • • • •
TR5362WSP 20 125 5-20R White • • • •
TR5362SP 20 125 5-20R Brown • • • •
TR5362GRYSP 20 125 5-20R Gray • • • •
TR5362BKSP 20 125 5-20R Black • • • •
TR5362REDSP 20 125 5-20R Red • • • •
TR5362LASP 20 125 5-20R Light Almond • • • •
TR5362BLSP 20 125 5-20R Blue • • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK& SIDEWIRE
TRIG5262ISP 15 125 5-15R Ivory • • • •
TRIG5262WSP 15 125 5-15R White • • • •
TRIG5262GRYSP 15 125 5-15R Gray • • • •
TRIG5262BKSP 15 125 5-15R Black • • • •
TRIG5262REDSP 15 125 5-15R Red • • • •
TRIG5262LASP 15 125 5-15R Light Almond • • • •
TRIG5262BLSP 15 125 5-15R Blue • • • •
TRIG5262OSP 15 125 5-15R Orange • • • •
TRIG5362ISP 20 125 5-20R Ivory • • • •
TRIG5362WSP 20 125 5-20R White • • • •
TRIG5362GRYSP 20 125 5-20R Gray • • • •
TRIG5362BKSP 20 125 5-20R Black • • • •
TRIG5362REDSP 20 125 5-20R Red • • • •
TRIG5362LASP 20 125 5-20R Light Almond • • • •
TRIG5362BLSP 20 125 5-20R Blue • • • •
TRIG5362OSP 20 125 5-20R Orange • • • •
TR5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
TRIG5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Tamper-Resistant Surge Protective Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
WWW.LEGRAND.US/PASSANDSEYMOUR
E-9
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
C
D
B
G
TRIG8300LASP
F
A
E
TRIG8300LASP
Isolated Ground Receptacle
A. IG symbol and Isolated Ground markings on strap
make for easy identification and circuit delineation.
B. Dual mechanical shutter system to help prevent
insertion of foreign objects.
C. Solid-state LED monitor has 25-year minimum life
expectancy. A high visibility, wide-angle lens indicates
protection is in place.
D. Wrap-around steel strap for structural integrity.
Auto-ground is standard, for easier installation.
E. Impact-resistant thermoplastic exterior resists
impacts and scrapes.
F. External screw-pressure-plate back and side wire
terminals including ground with external back wire
clamps (exclusive) accept #14 – #10 AWG copper or
copper-clad, solid or stranded conductors. External
pressure plate feature allows two conductors to be
terminated by a single screw.
G. Triple-wipe, copper-alloy contacts for superior, more
dependable connection.
LED indication: Steady green = protected
Flashing red = not protected
OFF = no power to unit
Plastic barrier isolates grounding terminal from
mounting strap and metal boxes.
Audible alarm alert of MOV damage. Alarm able to be
turned On/Off.
Thermal protection in 3 modes. 3 17mm dual pack MOVs
absorb up to 340 Joules of excess energy in each leg
(L-N, L-G, N-G) with 24,000 amp current handling
capability for full, equal and symmetrical protection.
Protection response time in less than one nanosecond.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Isolated Ground Receptacle
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-10
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Tamper-Resistant Hospital Grade Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
All devices listed on this page conform to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Audible Alarm with LED Indicator
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER
RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL1449 UL498 FSUL
WC596 cUL/CSAA. VAC
EXTRA HEAVYDUTY DUPLEX RECEPTACLES BACK& SIDEWIRE
TR8200ISP 15 125 5-15R Ivory • • • •
TR8200WSP 15 125 5-15R White • • • •
TR8200SP 15 125 5-15R Brown • • • •
TR8200GRYSP 15 125 5-15R Gray • • • •
TR8200REDSP 15 125 5-15R Red • • • •
TR8200LASP 15 125 5-15R Light Almond • • • •
TR8200BLSP 15 125 5-15R Blue • • • •
TR8300ISP 20 125 5-20R Ivory • • • •
TR8300WSP 20 125 5-20R White • • • •
TR8300SP 20 125 5-20R Brown • • • •
TR8300GRYSP 20 125 5-20R Gray • • • •
TR8300REDSP 20 125 5-20R Red • • • •
TR8300LASP 20 125 5-20R Light Almond • • • •
TR8300BLSP 20 125 5-20R Blue • • • •
ISOLATED GROUND DUPLEX RECEPTACLES BACK& SIDEWIRE
TRIG8200ISP 15 125 5-15R Ivory • • • •
TRIG8200WSP 15 125 5-15R White • • • •
TRIG8200GRYSP 15 125 5-15R Gray • • • •
TRIG8200REDSP 15 125 5-15R Red • • • •
TRIG8200LASP 15 125 5-15R Light Almond • • • •
TRIG8200BLSP 15 125 5-15R Blue • • • •
TRIG8200OSP 15 125 5-15R Orange • • • •
TRIG8300ISP 20 125 5-20R Ivory • • • •
TRIG8300WSP 20 125 5-20R White • • • •
TRIG8300GRYSP 20 125 5-20R Gray • • • •
TRIG8300REDSP 20 125 5-20R Red • • • •
TRIG8300LASP 20 125 5-20R Light Almond • • • •
TRIG8300BLSP 20 125 5-20R Blue • • • •
TRIG8300OSP 20 125 5-20R Orange • • • •
TR8300WSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
TRIG8300GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
WWW.LEGRAND.US/PASSANDSEYMOUR
E-11
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Surge Protection Panels Heavy-, Medium- & Light-Duty
All devices listed on this page are UL & CSA Listed and conform to NEMA LS-1.
Medium-Duty
6.00"
4.00"
3.00"
MFKIT
Stronger Protection That’s Needed — And Required.
Our most rugged line of Surge Protection Panels deliver premise-wide
protection from electrical surges caused by lightning, utility grid switching,
and initial startup of electrical equipment such as motors, arc furnaces,
and welders.
When surges hit, few business owners can count on insurance to cover
full replacement value — and downtime can be devastating to businesses. UL
Standard for Safety for Surge Protective Devices, UL1449 3rd Edition requires
a higher degree of protection from panel Surge Protection units. P&S Surge
Protection Panels meet the new standard, bringing greater protection to any
residential, commercial, or industrial application where equipment surge
protection is needed.
•NEMA 12 enclosure made of epoxy painted steel with
gasketing, provides for indoor use protection against
dust, dirt and non-corrosive liquids.
•Audible alarm — visible on the enclosure cover
provides supplementary indication of failed surge
suppression components.
•LED visual indicators provide a method for determining
the status of the surge suppression components. Green
LED is illuminated at all times while unit is functioning
with no faults. A red LED will come on if any phase/mode
has a fault.
•Flanged mounting feet are standard with the
NEMA 12 enclosure.
•Lockable rotary disconnect switch allows for removal of
electrical power in the event that servicing is required.
Lockable only in the off position for increased safety.
•Three-position test switch allows for operational testing
of indicator lights and the audible alarm. Functions are:
enable/switch/test.
Heavy-Duty
14.00"
8.00"
16.00"
Light-Duty
2.2"
4.6"
2.8"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-12
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Surge Protection Panels Heavy-, Medium- & Light-Duty
All devices listed on this page are UL & CSA Listed and conform to NEMA LS-1.
CATALOG
NUMBER DESCRIPTION
NOMINAL
VOLTAGE
SYSTEM
APPLICATION
MAX
SURGE
CAPABILITY
AVAILABLE
INTERRUPT
CURRENT
UL 1449 VOLTAGE PROTECTION RATINGS VPK
LINE
TO
NEUTRAL
LINE
TO
GROUND
LINE
TO
LINE
NEUTRAL
TO GROUND
1224SL Light-Duty Surge
Protection Panel
120/240
VAC
Single Phase,
3W plus Ground
40KA 42kAIC 600 N/A 1200 N/A
1224SLI 50KA 22kAIC 600 700 1000 700
1224SM Medium-Duty Surge
Protection Panel 100KA 65kAIC 600 1000 1200 600
1224SH Heavy-Duty Surge
Protection Panel
200KA 200kAIC 800 900 1200 700
1224SHB 200KA 200kAIC 800 900 1200 700
1220TWLI Light-Duty Surge
Protection Panel
120/208
VAC
Three Phase,
Wye,
4W plus Ground
100KA 22kAIC 600 700 1000 700
1220TWM Medium-Duty Surge
Protection Panel 100KA 65kAIC 600 1000 1200 600
1220TWH Heavy-Duty Surge
Protection Panel
200KA 200kAIC 800 900 1200 700
1220TWHB 200KA 200kAIC 800 900 1200 700
1220TWES Surge Protection Panel
Extension 200KA 200kAIC 800 800 1000 700
1220TWH4B Heavy-Duty Surge
Protection Panel 400KA 200kAIC 800 900 1200 700
2748TWLI Light-Duty Surge
Protection Panel
277/480
VAC
Three Phase,
Wye,
4W plus Ground
100KA 22kAIC 1200 1200 2000 1200
2748TWM Medium-Duty Surge
Protection Panel 100KA 65kAIC 1000 1800 2000 1000
2748TWH
Heavy-Duty Surge
Protection Panel
200KA 200kAIC 1200 1200 2000 1000
2748TWHB 200KA 200kAIC 1200 1200 2000 1000
2748TWH4B 400KA 200kAIC 1200 1200 2000 1000
480TDH Heavy-Duty Surge
Protection Panel
480
VAC
Three Phase,
Delta,
3W plus Ground
200KA 200kAIC N/A 1800 3000 N/A
240TDM Medium-Duty Surge
Protection Panel
120/240
VAC
Three Phase,
Delta,
High Leg,
4W plus Ground
100KA 65kAIC
A-N,C-N: 600 B-N: 1200
A-G,C-G: 1000 B-G: 1500
N-G: 600 A-B: 1500
A-C: 1200 B-C:  1500
MFKIT Allows for flush mounting of Catalog Numbers 1224SM, 1220TWM, 2748TWM, 240TDM.
WWW.LEGRAND.US/PASSANDSEYMOUR
E-13
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Surge Protection Panels Heavy-, Medium- & Light-Duty
VISUAL
INDICATORS
AUDIO
ALARM
ALARM
DISABLE
SWITCH
TEST
SWITCH
FORM C
CONTRACT
EMI/RFI
FILTERING
ROTARY
DISCONNECT
CONNECTION MEANS
TRANSFORMER
CONFIGURATIONSRED GREEN TYPE GAUGE
02 Wire #10
01 X Wire #12
1 2 X X Wire #12
1 1 X X X X X X Screw Terminal #4 – #8
1 1 X X X X X Screw Terminal #10 – #4
1 1 X Wire #12
13X X Wire #12
1 1 X X X X X X Screw Terminal #4 – #8
1 1 X X X X X Screw Terminal #10 – #4
1 1 X X X X Terminal Block #4 – #10
1 1 X X X X X Screw Terminal #10 – #4
01 X Wire #12
13X X Wire #12
1 1 X X X X X X Screw Terminal #4 – #8
1 1 X X X X X Screw Terminal #10 – #4
1 1 X X X X X Screw Terminal #10 – #4
1 1 X X X X X X Screw Terminal #1/0 – #8
13X X Wire #12
All devices listed on this page are UL & CSA Listed and conform to NEMA LS-1.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-14
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Product Description – Isolated Ground Straight Blade & Turnlok®
The Problem of Electromagnetic Interference
Reduction of electromagnetic interference (EMI) in the
electrical grounding system is essential for proper
operation of many types of electronic equipment. In
conventional grounding circuits, the conduit system is used
as the grounding path. The conduit system is grounded at
the service entrance and connected to intervening sub-
panels, structural steel, and other grounded equipment.
Although this will provide personnel and equipment
protection, the entire conduit system becomes a large
antenna which collects EMI (i.e., electrical noise) and
transmits it throughout the grounding system. Whenever
that occurs, the signals may adversely affect the
performance of personal and small business computers,
electronic testing and calibration equipment, and solid-
state cash registers.
The Legrand® Solution: Pass & Seymour® Isolated Ground Receptacles
By running an insulated equipment grounding conductor
directly to the neutral at the service entrance, and
installing P&S Isolated Ground Receptacles, you effectively
isolate the grounding circuit from the conduit grounding
system. This significantly reduces the size of the antenna
and limits the amount of EMI that can be picked up in
the isolated grounding system. This provides a relatively
noise-free grounding path and improves the operation of
electronic equipment.
2014 National Electrical Code® Section 250.146(D) Isolated Ground Receptacles
Where installed for the reduction of electrical noise
(electromagnetic interference) on the grounding circuit, a
receptacle in which the grounding terminal is purposely
insulated from the receptacle mounting means shall be
permitted. The receptacle grounding terminal shall be
connected to an insulated equipment grounding conductor
run with the circuit conductors. This equipment grounding
conductor shall be permitted to pass through one or
more panelboards without a connection to the panelboard
grounding terminal bar as permitted in Section 408.40,
Exception, so as to terminate within the same building or
structure directly at an equipment grounding conductor
terminal of the applicable derived system or service.
Where installed in accordance with the provisions of this
section, this equipment grounding conductor shall also
be permitted to pass through boxes, wireways, or other
enclosures without being connected to such enclosures.
2014 National Electrical Code® Section 406.3(D) Isolated Ground Receptacles
Receptacles incorporating an isolated grounding conductor
connection intended for the reduction of electrical noise
(electromagnetic interference) as permitted in Section
250.146(D), shall be identified by an orange triangle located
on the face of the receptacle.
WWW.LEGRAND.US/PASSANDSEYMOUR
E-15
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
A. Auto-ground clip assures positive ground.
B. Plastic barrier isolates grounding terminal from
mounting strap and metal boxes.
C. .036 inch thick, brass, triple-wipe power contacts for
lasting retention.
D. Plated steel wrap strap design for maximum
durability and corrosion resistance.
E. Built-in connector features large brass terminal blades
to ensure consistent, reliable electrical connections.
F. No exposed terminals create a finger safe
application before, during, and after installation.
G. Large brass contacts snugly terminate on device
blade terminals. Audible snapping latch assures
connection, allows release.
H. Ultrasonically welded polycarbonate connector
housing secures terminations and conductors in
a UL Listed, finger safe housing.
I. Pre-stripped connector leads fasten to conductors,
easier than standard pigtails.
Three drive screws anchor strap to back body
and face.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Isolated Ground Receptacles
IG5262
A
E
B
C
D
F
G
PTIG5362LA
B
A
C
D
G
I
H
PTIG5362LA
PlugTail™ Isolated Ground Receptacle
IG5262
Isolated Ground Receptacle
A. IG symbol and Isolated Ground markings for easy
identification and circuit delineation.
B. Triple-wipe brass contacts ensure lasting, positive
contact with plug blades.
C. High-impact resistant nylon face resists impacts
and scrapes.
D. Corrosion-resistant plated steel strap.
E. Patented feature, external screw-pressure-plate
back wire clamp on ground terminal for faster, easier
installation.
F. Side and internal screw-pressure plate back wire
capability with #14 – #10 AWG copper or copper-clad,
solid or stranded wire.
G. Auto-ground clip assures positive ground.
Plastic barrier isolates grounding terminal from
mounting strap and metal boxes.
F
E
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-16
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PlugTail™ Isolated Ground Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125V
Features
• .036 inch thick brass triple wire contacts
for lasting retention.
• Impact-resistant nylon face.
• Corrosion-resistant plated steel wrap
strap for increased rigidity and strength.
• Auto-ground clip assures positive
ground.
• No exposed terminals for a finger
safe application.
• Ultrasonically welded polycarbonate
connector housing secures terminations
in a UL Listed finger safe housing.
• Pre-stripped connector leads.
• Nylon isolator plate for isolating ground
from strap and box system.
• Crimped and welded contacts.
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
For Bulk Packaging Solutions consult factory.
For additional PlugTail
Connectors, see Page B-4.
All PlugTail Connectors are
available in any wire length
up to 25 inches, consult
factory to order.
CATALOG NUMBER
RATING NEMA
CONFIG. NO. COLOR
3rd PARTY COMPLIANCE
UL498
FSUL
WC596
A. V.
DECORATOR DUPLEX RECEPTACLES
PTIG26262I 15 125 5-15R Ivory • •
PTIG26262W 15 125 5-15R White • •
PTIG26262 15 125 5-15R Orange • •
PTIG26262GRY 15 125 5-15R Gray • •
PTIG26262RED 15 125 5-15R Red • •
PTIG26262LA 15 125 5-15R Light Almond • •
PTIG26362I 20 125 5-20R Ivory • •
PTIG26362W 20 125 5-20R White • •
PTIG26362 20 125 5-20R Orange • •
PTIG26362GRY 20 125 5-20R Gray • •
PTIG26362RED 20 125 5-20R Red • •
PTIG26362LA 20 125 5-20R Light Almond • •
CATALOG NUMBER WIRE TYPE WIRE LENGTH
PLUGTAIL CONNECTORS  RIGHT ANGLE
PTRA6STR Stranded 6"
PTRA6SOL Solid 6"
CATALOG NUMBER RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL498
FSUL
WC596SPEC GRADE HOSPITAL GRADE A. V.
DUPLEX RECEPTACLES
PTIG5262I PTIG8200I 15 125 5-15R Ivory • •
PTIG5262W 15 125 5-15R White • •
PTIG5262 PTIG8200 15 125 5-15R Orange • •
PTIG5262GRY 15 125 5-15R Gray • •
PTIG5262RED PTIG8200RED 15 125 5-15R Red • •
PTIG5262LA 15 125 5-15R Light Almond • •
PTIG5362I PTIG8300I 20 125 5-20R Ivory • •
PTIG5362W 20 125 5-20R White • •
PTIG5362 PTIG8300 20 125 5-20R Orange • •
PTIG5362GRY 20 125 5-20R Gray • •
PTIG5362RED PTIG8300RED 20 125 5-20R Red • •
PTIG5362LA PTIG8300LA 20 125 5-20R Light Almond • •
PTIG5362LA
2.750"
3.281"
.625"
1.5"
1.104"
PTIG26362LA
2.750"
3.281"
.625"
1.5"
WWW.LEGRAND.US/PASSANDSEYMOUR
E-17
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Isolated Ground Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
NEMA
5-15R
NEMA
5-15P
NEMA
5-20R
NEMA
6-20R
NEMA
6-15R
CATALOG NUMBER RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
SPEC GRADE HOSPITAL GRADE A. V.
DUPLEX RECEPTACLES BACK & SIDE WIRE
IG5262I IG8200I 15 125 5-15R Ivory • • •
IG5262W 15 125 5-15R White • • •
IG5262 IG8200 15 125 5-15R Orange • • •
IG5262GRY 15 125 5-15R Gray • • •
IG5262RED IG8200RED 15 125 5-15R Red • • •
IG5262LA 15 125 5-15R Light Almond • • •
IG5362I IG8300I 20 125 5-20R Ivory • • •
IG5362W IG8300W 20 125 5-20R White • • •
IG5362 IG8300 20 125 5-20R Orange • • •
IG5362GRY 20 125 5-20R Gray • • •
IG5362BK 20 125 5-20R Black • • •
IG5362RED IG8300RED 20 125 5-20R Red • •
IG5362LA IG8300LA 20 125 5-20R Light Almond • • •
IG5362BL 20 125 5-20R Blue • • •
IG5662 15 250 6-15R Orange • • •
IG5862 IG8800 20 250 6-20R Orange • • •
IG8800LA 20 250 6-20R Light Almond • • •
DECORATOR DUPLEX RECEPTACLES BACK & SIDE WIRE
IG26262I 15 125 5-15R Ivory • • •
IG26262W IG26262HGW 15 125 5-15R White • • •
IG26262 IG26262HG 15 125 5-15R Orange • • •
IG26262GRY 15 125 5-15R Gray • • •
IG26262BK 15 125 5-15R Black • • •
IG26262RED IG26262HGRED 15 125 5-15R Red • • •
IG26262LA 15 125 5-15R Light Almond • • •
IG26362I 20 125 5-20R Ivory • • •
IG26362W IG26362HGW 20 125 5-20R White • • •
IG26362 IG26362HG 20 125 5-20R Orange • • •
IG26362GRY 20 125 5-20R Gray • • •
IG26362BK IG26362HGBK 20 125 5-20R Black • • •
IG26362RED IG26362HGRED 20 125 5-20R Red • • •
IG26362LA 20 125 5-20R Light Almond • • •
SINGLE RECEPTACLES BACK & SIDE WIRE
IG5261 15 125 5-15R Orange • • •
IG5361 IG8301 20 125 5-20R Orange • • •
PSIG5266X
1.752"
1.516" 1.358"
2.791"
1.093"
1.32"
3.28"
2.37"
3.68"
1.38"
1.68"
IG5261
1.322"
1.104"
2.635"
3.281"
.922"
IG8300 IG26262GRY
1.322"
3.281"
2.635"
3.813"
.833"
CATALOG
NUMBER
RATING NEMA
CONFIG. NO.
CORD
DIAMETER
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42
A. V.
STRAIGHT BLADE PLUGS, ORANGE
PSIG5266X 15 125 5-15P .230" – .720" • • •
Consult Straight Blade Section F for complete line of Straight Blade Plugs & Connectors.
For Wall Plates for Isolated Ground Systems, consult Wall Plates Section P.
For Bulk Packaging Solutions consult factory.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-18
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Tamper-Resistant Isolated Ground Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125V
For Bulk Packaging Solutions consult factory.
1.187"
1.25"
1.125"
2.625"
3.625"
TRIG5362 TRIG8300W
1.187"
1.25"
1.125"
2.625"
3.625"
TRIG26362
1.187"
1.25"
3.625"
NEMA
5-20R
NEMA
5-15R
CATALOG NUMBER RATING NEMA
CONFIG.
NO. COLOR
3rd PARTY COMPLIANCE
UL498 FSUL
WC596SPEC GRADE HOSPITAL GRADE A. V.
TAMPERRESISTANT DUPLEX RECEPTACLES BACK & SIDE WIRE
TRIG5262I TRIG8200I 15 125 5-15R Ivory • •
TRIG5262W TRIG8200W 15 125 5-15R White • •
TRIG5262 TRIG8200 15 125 5-15R Orange • •
TRIG5262BK TRIG8200BK 15 125 5-15R Black • •
TRIG5262GRY TRIG8200GRY 15 125 5-15R Gray • •
TRIG5262RED TRIG8200RED 15 125 5-15R Red • •
TRIG5262LA TRIG8200LA 15 125 5-15R Light Almond • •
TRIG5362I TRIG8300I 20 125 5-20R Ivory • •
TRIG5362W TRIG8300W 20 125 5-20R White • •
TRIG5362 TRIG8300 20 125 5-20R Orange • •
TRIG5362BK TRIG8300BK 20 125 5-20R Black • •
TRIG5362GRY TRIG8300GRY 20 125 5-20R Gray • •
TRIG5362RED TRIG8300RED 20 125 5-20R Red • •
TRIG5362LA TRIG8300LA 20 125 5-20R Light Almond • •
TAMPERRESISTANT DECORATOR RECEPTACLES BACK & SIDE WIRE
TRIG26262I TRIG26262HGI 15 125 5-15R Ivory • •
TRIG26262W TRIG26262HGW 15 125 5-15R White • •
TRIG26262 TRIG26262HG 15 125 5-15R Orange • •
TRIG26262BK TRIG26262HGBK 15 125 5-15R Black • •
TRIG26262GRY TRIG26262HGGRY 15 125 5-15R Gray • •
TRIG26262RED TRIG26262HGRED 15 125 5-15R Red • •
TRIG26262LA TRIG26262HGLA 15 125 5-15R Light Almond • •
TRIG26362I TRIG26362HGI 20 125 5-20R Ivory • •
TRIG26362W TRIG26362HGW 20 125 5-20R White • •
TRIG26362 TRIG26362HG 20 125 5-20R Orange • •
TRIG26362BK TRIG26362HGBK 20 125 5-20R Black • •
TRIG26362GRY TRIG26362HGGRY 20 125 5-20R Gray • •
TRIG26362RED TRIG26362HGRED 20 125 5-20R Red • •
TRIG26362LA TRIG26362HGLA 20 125 5-20R Light Almond • •
WWW.LEGRAND.US/PASSANDSEYMOUR
E-19
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Turnlok® Isolated Ground Receptacles 2 Pole, 3 Wire 15, 20 & 30A
NEMA
L6-20R
NEMA
L6-30R
NEMA
L14-30R
NEMA
L23-20R
NEMA
L5-15R
NEMA
L14-20R
NEMA
L15-30R
NEMA
L21-30R
NEMA
L7-20R
NEMA
L7-15R
NEMA
L8-20R
NEMA
L15-20R
NEMA
L21-20R
NEMA
L22-30R
NEMA
L5-20R
NEMA
L16-20R
NEMA
L22-20R
NEMA
L23-30R
NEMA
L5-30R
IGL620P
2.57"
2.20" 1.358"
3.75"
30 Amp Receptacle
1.28"
1.61"
3.28"
2.37"
2.42"
1.545"
IG4700
1.199"
.938" 1.50"
3.281"
2.635"
1.104"
1.322"
20 Amp Receptacle
1.19"
.14"
1.61"
3.28"
2.37"
2.29"
1.545"
CATALOG NUMBER
RATING NEMA
CONFIG. NO. COLOR
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42
A. V.
2 POLE, 3 WIRE GROUNDING, ORANGE BACKWIRE
IG4700RED 15 125 L5-15R Red • •
IG4700 15 125 L5-15R Orange • •
IG4710 15 125 L5-15R Orange • •
IG4760 15 277 L7-15R Orange • •
IGL520R 20 125 L5-20R Orange • •
IGL620R 20 250 L6-20R Orange • •
IGL720R 20 277 L7-20R Orange • •
IGL820R 20 480 L8-20R Orange • •
IGL530R 30 125 L5-30R Orange • •
IGL630R 30 250 L6-30R Orange • •
3 POLE, 4 WIRE GROUNDING, ORANGE BACKWIRE
IGL1420R 20 125/250 L14-20R Orange • •
IGL1520R 20 3ø, 250 L15-20R Orange • •
IGL1620R 20 3ø, 480 L16-20R Orange • •
IGL1430R 30 125/250 L14-30R Orange • •
IGL1530R 30 3ø, 250 L15-30R Orange • •
4 POLE, 5 WIRE GROUNDING, ORANGE BACKWIRE
IGL2120R 20 3øY, 120/208 L21-20R Orange • •
IGL2220R 20 3øY, 277/480 L22-20R Orange • •
IGL2320R 20 3øY, 347/600 L23-20R Orange • •
IGL2130R 30 3øY, 120/208 L21-30R Orange • •
IGL2230R 30 3øY, 277/480 L22-30R Orange • •
IGL2330R 30 3øY, 347/600 L23-30R Orange • •
CATALOG NUMBER
RATING NEMA
CONFIG. NO. CORD DIAMETER
3rd PARTY COMPLIANCE
UL498 C22.2 No. 42
A. V.
TURNLOK® PLUGS, ORANGE
IGL520P 20 125 L5-20P .385" – 1.150" • •
IGL630P 30 250 L6-30P .385" – 1.150" • •
IG4710
1.437"
1.375"
2.375"
2.25"
1.0"
4.031"
3.281"
1.203"
Consult Turnlok Section G for complete line of Turnlok Locking Devices.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
E-20
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
All devices listed on this page conform to NEMA WD-1 and WD-6.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Power & Surge Protection Strips
TAP – PS1
1.9375"
2.875"
1.25"
STRIP – PNS7L
1.25"
14.0"
2.3125"
Application
There are an average of over 250 power disturbances per year
in each home or office in the United States. Over 8% data loss
is a direct result from lightning and the value of equipment
and data is sometimes much greater than that of equipment.
Surges and spikes can come through power lines as well as
phone and coax lines. So choose a protector which includes
phone and/or coax protection.
Features
• 400V clamping voltage.
• UL1449 listed.
• Heavy-duty cord from 3' to 15', depending
on device.
• Multiple function protection available for
power, phone, fax, modem, coax or data.
• Extremely long life with dependable
protection.
• Surge protection indicator on surge
devices.
• Circuit breaker switch.
• Heavy-duty high-energy MOVs.
• Ground continuity indicator.
Protection Specifications
• Line protection modes: L-N, L-G, N-G.
• Spike protection for sudden, dramatic
surges, over 400V.
• Surge protection lasts for 1/120 of
a second, for moderate short term
overvoltage.
• EMI/RFI noise attenuation.
Features
• UL1449 listed.
• Heavy-duty cord from 3' to 15', depending on device.
• Circuit breaker switch.
CATALOG NUMBER
RATING
TYPE OF HOUSING # OF OUTLETS CORD LENGTH COLORA. V.
POWER STRIPS WITHOUT SURGE PROTECTION
PNS6 15 125 Strip 6 3' Black
PNS7L 15 125 Strip 7 8' Black
PNS10 15 125 Block 10 15' Black
CATALOG
NUMBER
RATING TYPE OF
HOUSING
# OF
OUTLETS
CORD
LENGTH
JOULE
RATING
RANGE
MAX. SPIKE
CURRENT
AMPS
TYPE OF PROTECTION
A. V. PHONE/FAX COAX COLOR
POWER STRIPS WITH SURGE PROTECTION
PS1 15 125 Tap 1 740J 48K PC Gray
PS1P 15 125 Tap 1 740J 48K XPC Gray
PS6 15 125 Strip 6 3' 555J 36K PC Gray
PS7 15 125 Strip 7 6' 740J 48K PC Gray
PS7P 15 125 Strip 7 6' 740J 48K XPC Gray
PS7L 15 125 Strip 7 15' 740J 48K PC Gray
PS8C 15 125 Block 8 8' 1100J 72K XPC Gray
PS8P 15 125 Block 8 8' 1100J 72K XPC Gray
PS10PC 15 125 Block 10 8' 1100J 72K X X PC Gray
BLOCK – PS10PC
13.9"
4.2"
1.4"
WWW.LEGRAND.US/PASSANDSEYMOUR
E-21
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Power & Surge Protection Strips Specifications
Power Devices – Ratings
Catalog Number PNS6 PNS7L PNS10
Type of Housing Strip Strip Strip
Total Outlets 6 7 10
Standard Grounded Outlets 6 6 6
Transformer Ready Outlets 014
Power Indicator X
Circuit Breaker Switch Unlighted Lighted Lighted
Cord Length (exposed) ft. 3' 8' 15'
Plug Straight Straight Straight
Molded Add-On Safety Covers 0 0 5
Molded Housing Color Black Black Black
Power & Surge Protection Devices – Ratings
Catalog Number PS1 PS1P PS6 PS7 PS7P PS7L PS8C PS8P PS10PC
Type of Housing Tap Tap Strip Strip Strip Strip Block Block Block
Number of Outlets 1 1 67778810
Standard Grounded Outlets 1 1 6666006
Transformer Ready Outlets 1 1 01118 8 4
Joule Rating Range 740J 740J 555J 740J 740J 740J 1100J 1100J 1100J
MOV Configuration 4-20mm 4-20mm 3-20mm 4-20mm 4-20mm 4-20mm 6-20mm 6-20mm 6-20mm
Clamping Voltage 400V 400V 400V 400V 400V 400V 400V 400V 400V
Max. Spike Current (Amps) 48K 48K 36K 48K 48K 48K 72K 72K 72K
EMI Filter Capacitors X X X X X X X X
Protection (L-N, L-G, N-G) XXXXXXXXX
Surge Protection Indicator XXXXXXXXX
Ground/Wiring Indicator XXXXXX
Circuit Breaker Switch Unlighted Lighted Lighted Lighted Lighted Lighted Lighted
Cord Length (exposed) ft. 3' 6' 6' 15' 8' 8' 8'
Plug Straight Straight Straight Straight Rt. Angle Rt. Angle Rt. Angle
Phone/Fax Protection X X X X
Phone Line(s) Configuration 1 in/1 out 1 in/2 out 1 in/1 out
Phone Jack Spec RJ-11 RJ-11 RJ-45 RJ-45
Nickel-Coaxial Jack Protection X X
6' Phone Cable (6P2C) X X X X
6' Coax Cable (Nickel Plated) X X
Molded Add-On Safety Covers 0002224 4 5
Molded Housing Color PC Gray PC Gray PC Gray PC Gray PC Gray PC Gray PC Gray PC Gray PC Gray
UL1449 2nd Edition XXXXXXXXX
WWW.LEGRAND.US/PASSANDSEYMOUR
F-1
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
STRAIGHT BLADE PLUGS & CONNECTORS
Ready-to-wire and ready-to-perform under adverse plant conditions — our
Straight Blade Plug & Connector line is an industrial-strength, on-the-job asset.
CLAMP-LOCK
DEVICES F-15
EHU GROUND CONTINUITY
MONITORING (GCM)
PLUGS &
CONNECTORS
EXTRA-HARD USE (EHU)
SPECIFICATION
GRADE F-5 F-7
NEMA Configurations F-3
Hospital Grade F-4
Extra-Hard Use Specification Grade F-2, F-5
Extra-Hard Use Angled Devices F-6
Extra-Hard Use Ground Continuity Monitoring F-7
MaxGrip® M3F-8
Rubber Housing F-9
Watertight F-10
Medium-Duty Devices F-11
Flanged Inlets & Outlets F-12
Miscellaneous Configurations F-13
Gator Grip Devices F-14
Clamp-Lock™ Devices F-15
Product Specifications & Performance F-16
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-2
STRAIGHT BLADE PLUGS & CONNECTORS
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE PLUGS & CONNECTORS
A. Quick-thread assembly screws and cord-grip screws
come backed-out, ready-to-wire.
B. See-through, thermoplastic terminal chamber for
clear view of terminals and wire connections.
C. Tapered wire wells guide conductors into captivated,
staked clamping nuts.
D. Housing is keyed for fast alignment with terminal
section.
E. Chemical- and impact-resistant nylon housing
features horizontal, easy-grip ribs on back body.
F. Industrial-strength, brass alloy plug blades and
connector contacts resist heat rise, provide excellent
conductivity; ground pin is reinforced for added
strength and safety.
G. Color-coded terminal screws are positioned on same
plane and backed-out for fast installation.
H. Double-wipe, firm-grip ground contact and triple-wipe
power contacts guarantee a superior connection.
I. Recessed cord-grip screw reduces screwdriver
slippage, improves safety.
J. Rugged external two-piece cord grip provides uniform
pressure for superior retention of conductors.
K. Internal dust shield keeps terminals free
of contaminants.
PS5266X & PS5269X
Straight Blade Plugs & Connectors - EHU
D
G
F
H
I
E
A
B
C
J
K
WWW.LEGRAND.US/PASSANDSEYMOUR
F-3
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Labels and Their Meanings
X, Y, Z Hot Lead
WNeutral Lead
GGrounding Lead
Open Slots
Indicate receptacle
configurations (female).
Closed Slots
Indicate plug blade
configurations (male).
Blade
Configuration
R = Female
(receptacle, connector,
flanged outlet)
P = Male
(plug, flanged inlet)
NEMA
Configuration
Line #
(refers to voltage) Amperage
5-15 R
STRAIGHT BLADE PLUGS & CONNECTORS
NEMA Configurations
15 Ampere 20 Ampere 30 Ampere 50 Ampere 60 Ampere
Receptacle Plug Receptacle Plug Receptacle Plug Receptacle Plug Receptacle Plug
2 POLE, 2 WIRE NON-GROUNDING
1
1-15R 1-15P
125V
2
250V
2 POLE, 3 WIRE GROUNDING
5
5-15R 5-15P 5-20R 5-20P 5-30R 5-30P 5-50P
125V
6
6-15R 6-15P 6-20R 6-20P 6-30R 6-30P 6-50R 6-50P
250V
7
7-15R 7-15P 7-20R 7-20P 7-30P 7-50P
277VAC
3 POLE, 3 WIRE NON-GROUNDING
10
10-20R 10-20P 10-30R 10-30P 10-50R 10-50P
125/250V
3 POLE, 4 WIRE GROUNDING
14
14-20R 14-20P 14-30R 14-30P 14-50R 14-50P 14-60P
125/250V
15
15-20P 15-30R 15-30P 15-50R 15-50P 15-60R 15-60P
3ø250V
4 POLE, 4 WIRE NON-GROUNDING
3øY18
18-20R 18-20P 18-60R 18-60P
120/208V
Straight Blade Plugs & Receptacles
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-4
STRAIGHT BLADE PLUGS & CONNECTORS
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE PLUGS & CONNECTORS
Hospital Grade Plugs & Connectors 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
PS5266XHG
1.752"
2.791"
1.516" 1.358"
NEMA
6-20R
NEMA
5-15P
NEMA
6-15P
NEMA
6-15R
NEMA
6-20P
NEMA
5-15R
NEMA
5-20P
NEMA
5-20R
IP20
Suitability
1.34"
1.21"
1.83"
PS8119PS8115
1.34"
1.21"
1.83"
.77"
PS5269XHG
2.638"
1.516" 1.358"
1.752"
PS5266HGAN
2.130"
1.350"
1.530"
Features – Extra-Hard Use (EHU)
• Unit arrives completely ready-to-wire,
cuts installation time significantly.
• Nylon housing provides impact and
chemical resistance.
• Rugged two-piece cord grip provides
more uniform cord retention.
• Internal dust shield keeps terminals free
of contaminants.
• Tri-drive assembly screws are standard
on Hospital Grade plugs and connectors
(angle plugs not included).
• All 3-wire terminals located on the same
plane, allows for quick wire termination
from any angle.
• Heavy-duty brass alloy blades and
contacts, resist heat rise, provide
excellent conductivity.
• Cord-grip screws recessed to protect
installer against screwdriver head
slippage.
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42A. V.
HOSPITAL GRADE – EXTRA-HARD USE (EHU)
PS5266XHG 15 125 Plug, Black & Clear .230"-.720" 5-15P • • •
PS5266HGAN 15 125 Angle Plug, Black & Clear .320"-.655" 5-15P • • •
PS5269XHG 15 125 Connector, Black & Clear .230"-.720" 5-15R • • •
PS5366XHG 20 125 Plug, Black & Clear .230"-.720" 5-20P • • •
PS5366HGAN 20 125 Angle Plug, Black & Clear .320"-.655" 5-20P • • •
PS5369XHG 20 125 Connector, Black & Clear .230"-.720" 5-20R • • •
PS5666XHG 15 250 Plug, Black & Clear .230"-.720" 6-15P • • •
PS5666HGAN 15 250 Angle Plug, Black & Clear .320"-.655" 6-15P • • •
PS5669XHG 15 250 Connector, Black & Clear .230"-.720" 6-15R • • •
PS5466XHG 20 250 Plug, Black & Clear .230"-.720" 6-20P • • •
PS5466HGAN 20 250 Angle Plug, Black & Clear .320"-.655" 6-20P • • •
PS5469XHG 20 250 Connector, Black & Clear .230"-.720" 6-20R • • •
HOSPITAL GRADE MAXGRIP® M3
PS8115 15 125 Plug, Gray .230"-.720" 5-15P • • •
PS8119 15 125 Connector, Gray .230"-.720" 5-15R • • •
CATALOG NUMBER DESCRIPTION
ACCESSORIES
EHU15AN 15 & 20A EHU Straight Blade, Right Angle Adapter
FC22GL EHU-Strain Relief Grip*
FC30GL EHU-Strain Relief Grip*
FC40GL EHU-Strain Relief Grip*
FC52GL EHU-Strain Relief Grip*
*For further information consult the Flexcor® Section J.
FC52GL
WWW.LEGRAND.US/PASSANDSEYMOUR
F-5
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION
ACCESSORIES
EHU15AN 15 & 20A EHU Straight Blade, Right Angle Adapter
L15RBC Weatherproof Boot-Connector**
L15RBP Weatherproof Boot-Plug**
FC22GL EHU-Strain Relief Grip†
FC30GL EHU-Strain Relief Grip†
FC40GL EHU-Strain Relief Grip†
FC52GL EHU-Strain Relief Grip†
**For further information consult the Turnlok® Section G.
†For further information consult the Flexcor® Section J.
STRAIGHT BLADE PLUGS & CONNECTORS
Extra-Hard Use (EHU) Specification Grade 2 Pole, 3 Wire Grounding 15 & 20A, 125, 250 & 277V
PS5269X
1.516" 1.358"
1.752"
2.638"
PS5266X
1.516" 1.358"
2.791"
1.752"
NEMA
5-15P
NEMA
6-15P
NEMA
6-15R
NEMA
5-15R
NEMA
5-20P
NEMA
7-20P
NEMA
7-15P
NEMA
6-20R
NEMA
6-20P
NEMA
5-20R
IP20
Suitability
Features – Extra-Hard Use (EHU)
• Unit arrives completely ready-to-wire,
cuts installation time significantly.
• Nylon housing provides impact and
chemical resistance.
• Rugged two-piece cord grip provides
more uniform cord retention.
• Internal dust shield keeps terminals free
of contaminants.
• Tri-drive assembly screws are standard
on all Specification Grade plugs and
connectors.
• All 3-wire terminals located on the same
plane, allows for quick wire termination
from any angle.
• Heavy-duty brass alloy blades and
contacts, resist heat rise, provide
excellent conductivity.
• Cord-grip screws recessed to protect
installer against screwdriver head
slippage.
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42A. V.
EHU – SPECIFICATION GRADE
PS5266X 15 125 Plug, Black & White .230"-.720" 5-15P • •
PS5266XGRY 15 125 Plug, Black & Gray .230"-.720" 5-15P • •
PS5266XBK 15 125 Plug, Black .230"-.720" 5-15P • •
CR5266X 15 125 Plug, Corrosion-Resistant, Yellow & White .230"-.720" 5-15P • •
PS5269X 15 125 Connector, Black & White .230"-.720" 5-15R • •
PS5269XGRY 15 125 Connector, Black & Gray .230"-.720" 5-15R • •
PS5269XBK 15 125 Connector, Black .230"-.720" 5-15R • •
CR5269X 15 125 Connector, Corrosion-Resistant,
Yellow & White .230"-.720" 5-15R • •
PS5366X 20 125 Plug, Black & White .230"-.720" 5-20P • • •
PS5369X 20 125 Connector, Black & White .230"-.720" 5-20R • •
PS5666X 15 250 Plug, Black & White .230"-.720" 6-15P • • •
PS5669X 15 250 Connector, Black & White .230"-.720" 6-15R • • •
PS5466X 20 250 Plug, Black & White .230"-.720" 6-20P • • •
PS5469X 20 250 Connector, Black & White .230"-.720" 6-20R • •
PS5766X 15 277 Plug, Black & White .230"-.720" 7-15P • •
PS5866X* 20 277 Plug, Black & White .385"-1.150" 7-20P • •
*For PS5866X right-angle applications, use L20303AN right-angle adapter.
CR5266X
1.516" 1.358"
2.791"
1.752"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-6
STRAIGHT BLADE PLUGS & CONNECTORS
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE PLUGS & CONNECTORS
Extra-Hard Use (EHU) Angled Devices 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
NEMA
6-15P
NEMA
6-20P
NEMA
5-15P
NEMA
5-20P
EHU15AN
2.97"
1.94"
1.37"
PS5266SSAN
2.130"
1.350"
1.530"
PS5266HGAN
2.130"
1.350"
1.530"
Features
• Angle plugs and adapters both allow for
4-position face rotation.
• Tri-drive assembly and cord-grip screws
are standard on all angle adapters.
• Angle adapter (sold separately as
catalog number EHU15AN) will
accommodate all Pass & Seymour
EHU-style Straight Blade plugs and
connectors on a retrofit basis. Simply
remove the straight handle body from
the plug or connector face assembly,
and replace with the angle adapter.
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498 FSUL
WC596 C22.2 No. 42A. V.
EHU – HOSPITAL GRADE
PS5266HGAN 15 125 Plug, Black & Clear .320"-.655" 5-15P • • •
PS5366HGAN 20 125 Plug, Black & Clear .320"-.655" 5-20P • • •
PS5666HGAN 15 250 Plug, Black & Clear .320"-.655" 6-15P • • •
PS5466HGAN 20 250 Plug, Black & Clear .320"-.655" 6-20P • • •
EHU – SPECIFICATION GRADE
PS5266SSAN 15 125 Plug, Black & White .320"-.655" 5-15P • • •
PS5366SSAN 20 125 Plug, Black & White .320"-.655" 5-20P • • •
PS5666SSAN 15 250 Plug, Black & White .320"-.655" 6-15P • • •
PS5466SSAN 20 250 Plug, Black & White .320"-.655" 6-20P • • •
CATALOG NUMBER DESCRIPTION
ACCESSORIES
EHU15AN 15 & 20A EHU Straight Blade, Right Angle Adapter
IP20
Suitability
WWW.LEGRAND.US/PASSANDSEYMOUR
F-7
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
PS5266XGCM
1.516" 1.358"
1.752"
2.791"
PS5269XGCM
1.516" 1.358"
1.752"
2.638"
250V products will show red and green
when hot and ground are reversed.
Plug – Power loss, open hot or neutral
conductor, or hot/ground reversal.
Connector – Assuming power is present
at the outlet, there’s an open hot or open
neutral conductor in the cordset, or a hot/
ground reversal.
No LED
Red LED
Plug – Power is present, but there is a
ground continuity fault or miswire between
the receptacle and the panel.
Connector – Power is present, but there’s
a ground continuity fault or miswire in the
cordset (or, if there’s a red indication in
the plug as well, between the receptacle
and the panel). It’s also possible there
could be a problem in both.
Green LED
Plug – There is proper ground continuity
from the panel to the outlet and power is
present.
Connector – Power is present and there is
proper ground continuity throughout the
cordset and back to the panel.
NEMA
6-15P
NEMA
6-15R
NEMA
6-20R
NEMA
6-20P
NEMA
5-15P
NEMA
5-15R
NEMA
5-20P
NEMA
5-20R
STRAIGHT BLADE PLUGS & CONNECTORS
Extra-Hard Use Ground Continuity Monitoring (GCM) Plugs & Connectors
2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Features – Extra-Hard Use (EHU) Straight Blade GCM
• Integral indication of ground continuity
and power status. Continuous monitoring
enhances personnel safety and adds
convenience.
• Dual, bright LED indicators with 360°
visibility. Green LEDs indicate proper
ground continuity and power status. Red
LEDs indicate ground continuity loss or
reversed polarity. No LED indicates open
hot, open neutral, or hot to ground cross.
For 250V configurations: Hot to ground
cross will be indicated by a green and
red LED.
• Chemical- and impact-resistant nylon
housing features horizontal, easy-grip
ribs on back body.
• Exclusive two-piece cord grip accepts
a wide range of cord widths. Provides
more consistent pressure for superior
conductor retention.
• Internal dust shield keeps terminals free
of contaminants.
• Recessed cord-grip screw reduces
screwdriver slippage, improves safety.
Quick-thread tri-drive assembly and
cord-grip screws come backed-out and
ready-to-wire.
• Color-coded terminal screws are
positioned on the same plane and
backed-out for fast installation.
• Industrial-strength, brass alloy plug
blades and connector contacts resist
heat rise, provide excellent conductivity.
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
cULus
FSUL
WC596A. V.
EHU – GCM
PS5266XGCM 15 125 Plug, Black & White .230"-.720" 5-15P • •
PS5266XGCMAN 15 125 Angled Plug, Black & White .320"-.655" 5-15P • •
PS5269XGCM 15 125 Connector, Black & White .230"-.720" 5-15R • •
PS5366XGCM 20 125 Plug, Black & White .230"-.720" 5-20P • •
PS5366XGCMAN 20 125 Angled Plug, Black & White .320"-.655" 5-20P • •
PS5369XGCM 20 125 Connector, Black & White .230"-.720" 5-20R • •
PS5666XGCM 15 250 Plug, Black & White .230"-.720" 6-15P • •
PS5666XGCMAN 15 250 Angled Plug, Black & White .320"-.655" 6-15P • •
PS5669XGCM 15 250 Connector, Black & White .230"-.720" 6-15R • •
PS5466XGCM 20 250 Plug, Black & White .230"-.720" 6-20P • •
PS5466XGCMAN 20 250 Angled Plug, Black & White .320"-.655" 6-20P • •
PS5469XGCM 20 250 Connector, Black & White .230"-.720" 6-20R • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-8
STRAIGHT BLADE PLUGS & CONNECTORS
All devices listed on this page conform to NEMA WD-1 and WD-6.
PS5965Y
.77"
1.83"
1.34" 1.21"
PS5969Y
1.83"
1.21"
1.34"
1.83"
1.21"
1.34"
.77"
PS5965O PS5969O
1.34"
1.83"
1.21"
B
A
C
D
NEMA
6-15P
NEMA
6-15R
NEMA
6-20R
NEMA
6-20P
NEMA
5-15P
NEMA
5-15R
NEMA
5-20P
NEMA
5-20R
STRAIGHT BLADE PLUGS & CONNECTORS
MaxGrip® M32 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
cULus
FSUL
WC596A. V.
HOSPITAL GRADE MAXGRIP® M3
PS8115 15 125 Hospital Grade Plug, Gray .230"-.720" 5-15P • •
PS8119 15 125 Hospital Grade Connector,
Gray .230"-.720" 5-15R • •
MAXGRIP M3
PS5965Y 15 125 Plug, Yellow .230"-.720" 5-15P • •
PS5965GRY 15 125 Plug, Gray .230"-.720" 5-15P • •
PS5965O 15 125 Plug, Orange .230"-.720" 5-15P • •
PS5969Y 15 125 Connector, Yellow .230"-.720" 5-15R • •
PS5969GRY 15 125 Connector, Gray .230"-.720" 5-15R • •
PS5969O 15 125 Connector, Orange .230"-.720" 5-15R • •
PS5364Y 20 125 Plug, Yellow .230"-.720" 5-20P • •
PS5364GRY 20 125 Plug, Gray .230"-.720" 5-20P • •
PS5369Y 20 125 Connector, Yellow .230"-.720" 5-20R • •
PS5369GRY 20 125 Connector, Gray .230"-.720" 5-20R • •
PS5666Y 15 250 Plug, Yellow .230"-.720" 6-15P • •
PS5669Y 15 250 Connector, Yellow .230"-.720" 6-15R • •
PS5464Y 20 250 Plug, Yellow .230"-.720" 6-20P • •
PS5469Y 20 250 Connector, Yellow .230"-.720" 6-20R • •
A. Enclosed terminals provide solid, internally-clamped
connections.
B. Molded finger grips promote safe, sure handling.
C. Self-hinge swings wide open to make quick, easy work
of tight, clean connections. Insert conductors into
terminals and tighten terminal screws; close hinge
housing around cord and tighten housing screws.
D. Tough nylon construction with crush/impact
resistance that exceeds hospital grade and Fed Spec
requirements; arc resistance exceeds UL requirements.
Hospital Grade version displays the Hospital Grade
green dot.
High-visibility yellow and orange, or gray.
PS5965Y & PS5969Y
Maxgrip® M3
WWW.LEGRAND.US/PASSANDSEYMOUR
F-9
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE PLUGS & CONNECTORS
Rubber Housing 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
1447
A
CD
B
1547
A
C
E
D
B
B
A
D
C
NEMA
5-15P
NEMA
6-15P
NEMA
6-15R
NEMA
5-15R
NEMA
6-20R
NEMA
6-20P
NEMA
5-20P
NEMA
5-20R
CATALOG NUMB ER
RATING
DESCRIPTION
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
UL498 C22.2 No. 42MA. V.
RUBBER HOUSING PLUGS & CONNECTORS
1447 15 125 Plug, Yellow 5-15P • •
1547 15 125 Connector, Yellow 5-15R • •
1433P 20 125 Plug, Yellow 5-20P • •
1533 20 125 Connector, Yellow 5-20R • •
1449 15 250 Plug, Yellow 6-15P • •
1549 15 250 Connector, Yellow 6-15R • •
1448 20 250 Plug, Yellow 6-20P • •
1548 20 250 Connector, Yellow 6-20R • •
(INCH) A B C D E
RUBBER STRAIGHT BLADE PLUG
15A 2.27" 1.44" 1.53" 1.53"
20A 2.59" 1.76" 1.93" 1.60"
RUBBER STRAIGHT BLADE CONNECTOR
15A 2.99" 2.16" 1.53" 1.66" 1.53"
20A 3.74" 2.19" 1.93" 2.07" 1.60"
Cord Grip Range: .335"-.640"
A. Nickel-plated blades and contacts for long-lasting,
superior corrosion resistance.
B. Rubber body construction stands up to impacts,
oils, chemicals, heat, and weather.
C. Quick-drive assembly screws allow for fast
installation, saving time and money.
D. Floating blades allow self-alignment with contacts
for a firm, even electrical connection.
Terminal screws backed-out, ready-to-wire, saving
time and money.
Self-centering cord clamps provide superior strain relief.
1447 & 1547
Rubber Housing Plugs & Connectors
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-10
STRAIGHT BLADE PLUGS & CONNECTORS
All devices listed on this page conform to NEMA WD-1 and WD-6.
A. Rubber body construction stands up to impacts, oils,
chemicals, heat, and weather.
B. Floating blades allow self-alignment with contacts for a
firm, even electrical connection.
C. Quick-drive assembly screws allow for fast installation,
saving time and money.
D. Nickel-plated blades and contacts for long-lasting,
superior corrosion resistance.
NEMA 4, 4X, Watertight. IP65, 66, 67. Rated watertight for
1,000 psi high-pressure hose-down.
Terminal screws backed-out, ready-to-wire, saving time
and money.
Multiple ring seals between plug and connector ensures
protection from water and contaminants.
Compression-type cord grip provides watertight seal and
205 lb. pull out strength.
STRAIGHT BLADE PLUGS & CONNECTORS
Watertight 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
A
C
B
D
NEMA
6-15P
NEMA
6-20P
NEMA
5-15P
NEMA
5-20P
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
IP67
Suitability
CATALOG
NUMBER
RATING
DESCRIPTION
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
UL498 C22.2 No. 42MA. V.
RUBBER HOUSING PLUGS & CONNECTORS – WATERTIGHT
14W47 15 125 Plug, Yellow, NEMA 4X 5-15P • •
15W47 15 125 Connector, Yellow, NEMA 4X 5-15R • •
14W33 20 125 Plug, Yellow, NEMA 4X 5-20P • •
15W33 20 125 Connector, Yellow, NEMA 4X 5-20R • •
14W49 15 250 Plug, Yellow, NEMA 4X 6-15P • •
15W49 15 250 Connector, Yellow, NEMA 4X 6-15R • •
14W48 20 250 Plug, Yellow, NEMA 4X 6-20P • •
15W48 20 250 Connector, Yellow, NEMA 4X 6-20R • •
CATALOG
NUMBER DESCRIPTION
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
UL498 C22.2 No. 42M
CAPS – WATERTIGHT ONLY
14WPS Male Cap All • •
50W50PS Female Replacement Cap All • •
(INCH) A B
WATERTIGHT PLUG
15A 2.62" 1.85"
20A 2.62" 1.85"
WATERTIGHT CONNECTOR
15A 4.03" 1.85"
20A 4.03" 1.85"
Cord Grip Range: .250"-.625"
15W47
A
B
14WPS 50W50PS14W47 shown with 14WPS cap.
Cap sold separately.
14W47
B
A
15W47 & 14W47
Rubber Housing Plugs & Connectors - Watertight
WWW.LEGRAND.US/PASSANDSEYMOUR
F-11
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
4867Y
2.500"
1.688"
1.563"
NEMA
6-20R
NEMA
5-15P
NEMA
6-15P
NEMA
6-15R
NEMA
6-20P
NEMA
5-15R
NEMA
5-20P
NEMA
5-20R
IP20
Suitability
STRAIGHT BLADE PLUGS & CONNECTORS
Medium-Duty Devices 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Features
• All nylon construction, provides excellent impact
and chemical resistance.
• Simple turn and twist assembly for quick
installation.
• Ready-to-wire from factory, saves time and money.
• All black, perfect for stage and entertainment
applications.
• Internal finger grips automatically adjust to
securely grip the cord jacket.
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
UL498A. V.
DEAD FRONT PLUGS & CONNECTORS
5276BK 15 125 Plug, Black .230"-.655" 5-15P •
5296BK 15 125 Connector, Black .230"-.655" 5-15R •
5765BK 20 125 Plug, Black .230"-.655" 5-20P •
5374BK 20 125 Connector, Black .230"-.655" 5-20R •
5666BK 15 250 Plug, Black .230"-.655" 6-15P •
5669BK 15 250 Connector, Black .230"-.655" 6-15R •
5864BK 20 250 Plug, Black .230"-.655" 6-20P •
5866BK 20 250 Connector, Black .230"-.655" 6-20R •
Features
• All nylon construction.
• Termination saddle clamps securely capture
stranded wires.
• All yellow, perfect for high-visibility cords.
• External cord grips are one-size-fits-all, no inserts
or flipping the clamps to fit the proper cord OD.
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
cULusA. V.
MEDIUM-DUTY PLUGS & CONNECTORS
4867Y 15 125 Plug, Yellow .250-.600" 5-15P •
4887Y 15 125 Connector, Yellow .250-.600" 5-15R •
5276BK
1.640"
.843" Max
1.530"
Dia.
1.840"
5296BK
2.140"
1.530"
Dia.
2.340"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-12
STRAIGHT BLADE PLUGS & CONNECTORS
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Glass-filled polycarbonate, impact- and
corrosion-resistant.
• Stainless steel hardware.
• Molded-in flat surface label area.
• OSHA lock-out/tag-out provision molded-in.
• Accepts competitor inlets and outlets.
CATALOG NUMBER
RATING
DESCRIPTION
NEMA
CONFIG. NO.
3rd PARTY
COMPLIANCE
UL498
FSUL
WC596A. V.
FLANGED INLETS & OUTLETS – BLACK
5278SSBK 15 125 Inlet, Black 5-15P • •
5279SSBK 15 125 Outlet, Black 5-15R • •
5279SS
2.0"
.156"
2.562"
1.374"
1.660"
.143"
WPG1
4.57"
3.25"
.19" (4 HOLES)
2.85"
1.88"
3.57"
NEMA
6-15P
NEMA
6-15R
NEMA
6-20R
NEMA
6-20P
NEMA
5-15P
NEMA
5-15R
NEMA
5-20P
NEMA
5-20R
IP20
Suitability
STRAIGHT BLADE PLUGS & CONNECTORS
Flanged Inlets & Outlets 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Features
• All thermoplastic construction, provides excellent
impact and chemical resistance.
• Available in Gray or Black.
• NEMA configuration molded on flange, easy field
identification.
CATALOG NUMBER
RATING
DESCRIPTION
NEMA
CONFIG. NO.
3rd PARTY
COMPLIANCE
UL498
FSUL
A. V. WC596
FLANGED INLETS & OUTLETS – GRAY
5278SS 15 125 Inlet, Gray 5-15P • •
5279SS 15 125 Outlet, Gray 5-15R • •
5378SS 20 125 Inlet, Gray 5-20P • •
5379SS 20 125 Outlet, Gray 5-20R • •
5678SS 15 250 Inlet, Gray 6-15P • •
5679SS 15 250 Outlet, Gray 6-15R • •
5478SS 20 250 Inlet, Gray 6-20P • •
5479SS 20 250 Outlet, Gray 6-20R • •
CATALOG NUMBER DESCRIPTION
WEATHERPROOF COVER FOR FLANGED DEVICES
WPG1 Weatherproof Cover for Flanged Inlets and Outlets
For further information consult the Weatherproof Section O.
5278SS
2.0"
.156"
2.562"
1.725"
1.655"
WWW.LEGRAND.US/PASSANDSEYMOUR
F-13
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE PLUGS & CONNECTORS
Miscellaneous Configurations
3861
2.77"
1.388"
1.36"
3.3"
1.22"
3869
2.86"
1.40"
3.43"
7088
1.859"
.676"
1.953"
NEMA
6-30P
NEMA
5-30P
NEMA
6-50P
NEMA
10-50P
NEMA
10-30P
NEMA
10-20P
NEMA
10-20R NEMA
14-30P
NEMA
15-30P
NEMA
5-50P
NEMA
14-50P
NEMA
14-60P
NEMA
15-50P
NEMA
15-60P
NEMA
18-20P
NEMA
18-60P
7251DF
.875"
Max.
.687"
Min.
1.77"
2.03"
8302AN
1.22"
1.362"
2.12"
2.62"
3.43"
5741AN
1.22"
2.12"
2.62"
3.43"
1.388"
9977
1.781"
.531"
2.063"
2.156"
IP20
Suitability
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 C22.2 No. 42A. V.
2 POLE, 3 WIRE GROUNDING
43379 30 125 Angled Plug, Yellow 5-30P •
43399 50 125 Angled Plug, Yellow 5-50P •
3869 30/50 250 Angled Plug, Black .56"-1.1" 6-30P/6-50P •
3 POLE, 3 WIRE NON-GROUNDING
3861 30/50 125/250 Angled Plug, Black .56"-1.1" 10-30P/10-50P • •
9977 20 125/250 Plug, Nylon 10-20P •
7088 20 125/250 Connector, Armored 10-20R
3 POLE, 4 WIRE GROUNDING
5746AN 30 125/250 Angled Plug, Yellow 14-30P • •
5741AN 30 3ø, 250 Angled Plug, Yellow 15-30P • •
5745AN 50 125/250 Angled Plug, Yellow 14-50P • •
14629 60 125/250 Angled Plug, Yellow 14-60P •
5751AN 50 3ø, 250 Angled Plug, Yellow 15-50P • •
5761AN 60 3ø, 250 Angled Plug, Yellow 15-60P • •
3867 30/50 125/250 Angled Plug, Black .56"-1.1" 14-30P/14-50P • •
4 POLE, 4 WIRE NON-GROUNDING
7251DF 20 3øY, 120/208 Plug, Yellow .365"-.775" 18-20P • •
8302AN 60 3øY, 120/208 Angled Plug, Yellow 18-60P •
3867
2.77"
1.388"
3.43"
1.22"
1.36"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-14
STRAIGHT BLADE PLUGS & CONNECTORS
All devices listed on this page conform to NEMA WD-1 and WD-6.
STRAIGHT BLADE PLUGS & CONNECTORS
Gator Grip Devices
NEMA
10-50P
NEMA
10-30P
NEMA
6-30P
NEMA
6-50P
NEMA
5-30P
NEMA
5-50P
NEMA
6-30R
NEMA
6-50R
NEMA
7-50P
NEMA
7-30P
NEMA
5-30R
NEMA
5-50R
NEMA
10-50R
NEMA
10-30R NEMA
14-30P
NEMA
14-50P
NEMA
18-60P
D0531
1.85" 1.72"
2.63"
D0653
1.85" 1.72"
2.22"
2.63"
D0533
1.85" 1.72"
2.63"
2.22"
1.85" 1.72"
2.63"
1431
Features – Gator Grip Devices
• Gator Grip Jaws grab cord tighter as you
hand turn the housing.
• Nylon jaws grip securely, but won’t
damage insulation.
• Self-locking Dardelet Thread holds
securely and assures firm clamping.
• Fast wiring — simply insert stranded
conductors into individual wiring
chambers and tighten oversized
terminal screws.
• Transparent wiring chamber cover
allows visual inspection of wiring
chambers to assure proper connections.
• Sloped shoulders won’t catch or snap.
• Automatic cord centering.
• Brilliant high-visibility yellow.
• Neoprene Dust Seal helps keep out dirt
and debris.
• Dead front construction.
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596A. V.
2 POLE, 3 WIRE GROUNDING 30 & 50A, 125, 250 & 277V
D0531 30 125 Plug, Yellow .57"-1.26" 5-30P • •
D0533 30 125 Connector, Yellow .57"-1.26" 5-30R • •
D0551 50 125 Plug, Yellow .57"-1.26" 5-50P • •
D0553 50 125 Connector, Yellow .57"-1.26" 5-50R • •
D0631 30 250 Plug, Yellow .57"-1.26" 6-30P • •
D0633 30 250 Connector, Yellow .57"-1.26" 6-30R •
D0651 50 250 Plug, Yellow .57"-1.26" 6-50P • •
D0653 50 250 Connector, Yellow .57"-1.26" 6-50R • •
D0731 30 277 Plug, Yellow .57"-1.26" 7-30P • •
D0751 50 277 Plug, Yellow .57"-1.26" 7-50P • •
3 POLE, 3 WIRE 30 & 50A, 125/250V
1031 30 125/250 Plug, Yellow .57"-1.26" 10-30P • •
1033 30 125/250 Connector, Yellow .57"-1.26" 10-30R •
1051 50 125/250 Plug, Yellow .57"-1.26" 10-50P • •
1053 50 125/250 Connector, Yellow .57"-1.26" 10-50R • •
3 POLE, 4 WIRE 30 & 50A, 125/250V
1431 30 125/250 Plug, Yellow .57"-1.26" 14-30P • •
1451 50 125/250 Plug, Yellow .57"-1.26" 14-50P • •
4 POLE, 4 WIRE 60A, 3øY 120/208V
D1861 60 3øY, 120/208 Plug, Yellow .57"-1.26" 18-60P • •
1.85" 1.72"
2.63"
D0651
WWW.LEGRAND.US/PASSANDSEYMOUR
F-15
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
A. Self-centering cord grip helps speed assembly.
B. Removable inserts accommodate the
widest possible range of cable diameters.
C. Rugged nylon housing and backbody withstand
chemicals, heat, wear and impact.
D. Color-coded levers enable terminal identification at a
glance and reduce the chance of wiring errors.
E. Speedy, patented cam-lever termination provides solid,
dependable connections.
F. Molded-in guide shows correct wire stripping length.
G. Solid brass blades and contacts provide excellent
conductivity.
H. Transparent polycarbonate terminal cover makes
terminals visible for visual termination verification.
U-drive combination slot/crosshead screws ensure
easy assembly.
Long, deep channels guide conductors and prevent
over-insertion.
STRAIGHT BLADE PLUGS & CONNECTORS
Clamp-Lock™ Devices 2 Pole, 3 Wire Grounding 15A, 125 & 250V; 20A, 125V
NEMA
5-15P
NEMA
6-15P
NEMA
6-15R
NEMA
5-15R
NEMA
5-20P
NEMA
5-20R
PS515PCLB
1.55" 1.40"
1.85"
2.10"
PS515CCLB
1.55"
1.85"
2.80"
1.40"
CATALOG NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
cULus
FSUL
WC596A. V.
P&S CLAMP-LOCK™ STRAIGHT BLADE PLUGS & CONNECTORS
PS515PCLB 15 125 Plug, Black & White .20"-.470" 5-15P • •
PS515CCLB 15 125 Connector, Black & White .20"-.470" 5-15R • •
PS520PCLB 20 125 Plug, Black & White .20"-.470" 5-20P • •
PS520CCLB 20 125 Connector, Black & White .20"-.470" 5-20R • •
PS615PCLB 15 250 Plug, Black & White .20"-.470" 6-15P • •
PS615CCLB 15 250 Connector, Black & White .20"-.470" 6-15R • •
F
G
H
A
D
B
C
E
PS515CCLB
Clamp-Lock™ Straight Blade Plugs & Connectors
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-16
STRAIGHT BLADE PLUGS & CONNECTORS
STRAIGHT BLADE PLUGS & CONNECTORS
Product Specifications & Performance
EHU Ground Continuity Monitoring (GCM)
Plugs & Connectors 15 & 20A Straight Blade
Plugs
Back Body Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Blades Brass
Terminal Clamp Zinc-Plated Steel
Terminal Screws Nickel- or Brass-Plated Steel
Ground Screws Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel #8
Assembly Screws Nickel-Plated Steel
Connectors
Back Body Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Contacts Brass
Terminal Clamp Zinc-Plated Steel
Terminal Screws Nickel- or Brass-Plated Steel
Ground Screws Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel #8
Assembly Screws Nickel-Plated Steel
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting
at full-rated current
Temperature Rise 30°C maximum after 50 cycles at
150% rated current
Mechanical
Cord Accommodation Round portable service cords
of diameters in accordance with
the device rating as defined in
UL62
Cord Grip Accommodation .230"–.720" diameter
Terminal Identification Green = Ground,
White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min.– #10 AWG max.
Product Identification Amperage, Voltage,
3rd Party Compliance,
NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous: +75°C
Minimum: -40°C without impact
EHU & Corrosion-Resistant Plugs & Connectors
15 & 20A Straight Blade
Plugs
Back Body Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Blades Brass*
Terminal Clamp Zinc-Plated Steel*
Terminal Screws Nickel- or Brass-Plated Steel
Ground Screws Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel #8
Assembly Screws Nickel-Plated Steel
Connectors
Back Body Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Contacts Brass*
Terminal Clamp Zinc-Plated Steel*
Terminal Screws Nickel- or Brass-Plated Steel
Ground Screws Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel #8
Assembly Screws Nickel-Plated Steel
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting
at full-rated current
Temperature Rise 30°C maximum after 50 cycles at
150% rated current
Mechanical
Cord Accommodation Round portable service cords
of diameters in accordance with
the device rating as defined in
UL62
Cord Grip Accommodation .230"–.720" diameter
Terminal Identification Green = Ground,
White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min.– #10 AWG max.
Product Identification Amperage, Voltage,
3rd Party Compliance,
NEMA configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous: +75°C
Minimum: -40°C without impact
*Nickel-Plated for Corrosion-Resistant Product.
WWW.LEGRAND.US/PASSANDSEYMOUR
F-17
STRAIGHT BLADE PLUGS & CONNECTORS
PASS & SEYMOUR
STRAIGHT BLADE PLUGS & CONNECTORS
Product Specifications & Performance
MaxGrip® M3 Plugs & Connectors
Plugs
Part Material
Body/Housing Nylon
Cord Grip Insert Nylon
Terminal Clamp Brass
Terminal Screws Zinc- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel
Blades Brass
Cord Clamp Assembly Screws Zinc-Plated Steel
Connectors
Part Material
Body/Housing Nylon
Cord Grip Insert Nylon
Terminal Clamp Brass
Terminal Screws Zinc- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel
Contacts Brass
Cord Clamp Assembly Screws Zinc-Plated Steel
Performance
Electrical
Dielectric Withstand Voltage 1500V
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting
at full-rated current
Temperature Rise 30°C maximum after 50 cycles at
150% rated current
Mechanical
Cord Accommodation Round portable service cords
of diameters in accordance
with the device rating as defined
in UL62
Cord Grip Accommodation .230"–.720" diameter cord
Terminal Identification Green = Ground,
Silver = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min.– #12 AWG max.
Product Identification Amperage, Voltage,
3rd Party Compliance,
NEMA Configuration
Environmental
Flammability UL94 HB
Operating Temperature Maximum continuous: +75°C;
Minimum: -40°C without impact
Gator Grip Devices Plugs & Connectors
30, 50 & 60A Straight Blade
Plugs
Back Body Glass-Filled Polypropylene
Front Body Glass-Filled Polypropylene
Terminal Chamber Polycarbonate
Cord Clamp Glass-Filled Nylon
Insert Nylon
Blades Brass
Terminal Clamp Zinc-Plated Steel
Terminal Screws Tin- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel
Cord Clamp Screws N/A
Assembly Screws Zinc-Plated Steel
Connectors
Back Body Glass-Filled Polypropylene
Front Body Glass-Filled Polypropylene
Terminal Chamber Polycarbonate
Cord Clamp Glass-Filled Polypropylene
Insert Nylon
Contacts Brass
Terminal Clamp Zinc-Plated Steel
Terminal Screws Tin- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel
Cord Clamp Screws N/A
Assembly Screws Zinc-Plated Steel
Performance
Electrical
Dielectric Withstand Voltage 1500V
Maximum Working Voltage Up to 277V
Current Interrupting Certified for current interrupting
at full-rated current
Temperature Rise 30°C maximum after 50 cycles at
150% rated current
Mechanical
Cord Accommodation Round portable service cords
of diameters in accordance with
the device rating as defined in
UL62
Cord Grip Accommodation .570"–1.260" diameter
Terminal Identification Green = Ground,
White = Neutral, Brass = Hot
Terminal Accommodation #10 AWG min.– #4 AWG max.
Product Identification Amperage, Voltage,
3rd Party Compliance,
NEMA Configuration
Environmental
Flammability UL94 V0
Operating Temperature Maximum continuous: +75°C
Minimum: -40°C without impact
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
F-18
STRAIGHT BLADE PLUGS & CONNECTORS
STRAIGHT BLADE PLUGS & CONNECTORS
Product Specifications & Performance
*Suitable for 208V motor applications at the HP rating specified.
Straight Blade Horsepower Rating for NEMA
Configuration Attachment Plugs & Receptacles
NEMA Configuration AC HP Rating
5-15 1⁄2
6-15 11⁄2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
Clamp-Lock™ Plugs & Connectors
Plugs
Part Material
Body/Housing Nylon
Cord Grip Insert Nylon
Terminal Clamp Brass
Terminal Screws Zinc- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel
Blades Brass
Cord Clamp Assembly Screws Zinc-Plated Steel
Connectors
Part Material
Body/Housing Nylon
Cord Grip Insert Nylon
Terminal Clamp Brass
Terminal Screws Zinc- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel
Contacts Brass
Cord Clamp Assembly Screws Zinc-Plated Steel
Performance
Electrical
Dielectric Withstand Voltage 1500V
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting
at full-rated current
Temperature Rise 30°C maximum after 50 cycles at
150% rated current
Mechanical
Cord Accommodation Round portable service cords
of diameters in accordance
with the device rating as defined
in UL62
Cord Grip Accommodation .20"–.470" diameter cord
Terminal Identification Green = Ground,
Silver = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min.– #12 AWG max.
Product Identification Amperage, Voltage,
3rd Party Compliance,
NEMA Configuration
Environmental
Flammability UL94 HB
Operating Temperature Maximum continuous: +75°C;
Minimum: -40°C without impact
WWW.LEGRAND.US/PASSANDSEYMOUR
G-1
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
RUBBER & WATERTIGHT
PLUGS &
CONNECTORS G-24
GCM PLUGS &
CONNECTORS G-25
NEMA Configurations G-3
Midget Connectors, Plugs, Inlets, Outlets G-4
15 & 20 Amp NEMA G-5
15 Amp NEMA G-6
Angle Plugs & Adapters G-8
20 Amp NEMA G-9
30 Amp NEMA G-16
Rubber & Watertight Plugs & Connectors G-24
Heavy-Duty Ground Continuity Monitoring (GCM)
Plugs & Connectors G-25
Non-NEMA G-27
20 Amp Non-NEMA G-28
30 Amp Non-NEMA G-29
Power Interrupting Devices G-30
California Standard & Corrosion-Resistant G-33
Accessories G-35
Product Specifications & Performance,
Horsepower Ratings G-37
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-2
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
A. Raised ribs provide non-slip gripping profile for turning
to lock and unlock.
B. Quick-thread assembly screws and cord-grip screws
come backed-out, ready-to-wire.
C. Industrial-strength, brass alloy plug blades, and
connector contacts resist heat rise, provide excellent
conductivity.
D. Rounded back contour reduces snags and hang-ups
on the job site.
E. Impact- and corrosion-resistant durable nylon 6/6
shell material.
F. Integral flexible rubber cord grommet conforms to
and seals around SO cord to provide protection from
oils, water, or chips entering wiring chamber.
G. New-design external cord grips provide visible
assurance of safe and proper cord retention.
H. Scallop shell design provides non-slip gripping
surface for insertion and withdrawal.
I. Double dovetail design provides superior protection
against cord pull-out forces.
J. Visible stamped NEMA configuration and
device rating.
L630C & L630P
Connector & Plug
A. Compact, impact-resistant nylon face and body are
ultrasonically welded together for unrivaled strength.
B. Clearly marked NEMA configuration, rating, and third
party listing on each unit’s face.
C. One-piece, high-grade brass contacts offer
excellent conductivity and heat-rise resistance.
D. Single-piece, solid brass mounting strap is free of
easily loosened rivets found on other brands.
E. Side and external screw-pressure-plate back wire
capability. Accepts #14 - #10 AWG.
L630R
Receptacles
P&S Turnlok Receptacles. Voltage color coding on the outside. Proven
designs and quality materials on the inside. Any way you look at them,
they're the standard of the industry.
125V 250V 277VAC 480VAC 600VAC 125/250V
A
B
C
H
I
D
E
J
G
F
AB
C
D
E
WWW.LEGRAND.US/PASSANDSEYMOUR
G-3
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
NEMA Configurations
Open Slots
Indicate receptacle
configurations (female).
Closed Slots
Indicate plug blade
configurations (male).
15 AMPERE 20 AMPERE 30 AMPERE
RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG
2 POLE, 2 WIRE NON-GROUNDING
L1
L1-15R L1-15P
125V
L2
L2-20P L2-20P
250V
2 POLE, 3 WIRE GROUNDING
L5
L5-15R L5-15P L5-20R L5-20P L5-30R 5-30P
125V
L6
L6-15R L6-15P L6-20R L6-20P L6-30R 6-30P
250V
L7
L7-15R L7-15P L7-20R L7-20P L7-30R 7-30P
277VAC
L24
L24-20R L24-20P
347VAC
L8
L8-20R L8-20P L8-30R L8-30P
480VAC
L9
L9-20R L9-20P L9-30R L9-30P
600VAC
3 POLE, 3 WIRE NON-GROUNDING
L10
L10-20R L10-20P L10-30R L10-30P
125/250V
L11
L11-20R L11-20P L11-30R L11-30P
3ø250V
L12
L12-20R L12-20P L12-30R L12-30P
3ø480V
L13
L13-30R L13-30P
3ø600V
3 POLE, 4 WIRE NON-GROUNDING
L14
L14-20R L14-20P L14-30R L14-30P
125/250V
L15
L15-20R L15-20P L15-30R L15-30P
3ø250V
L16
L16-20R L16-20P L16-30R L16-30P
3ø480V
L17
L17-30R L17-30P
3ø600V
4 POLE, 4 WIRE NON-GROUNDING
3øY L18
L18-20R L18-20P L18-30R L18-30P
120/208V
3øY L19
L19-20R L19-20P L19-30R L19-30P
277/480V
3øY L20
L20-20R L20-20P L20-30R L20-30P
347/600V
4 POLE, 5 WIRE NON-GROUNDING
3øY L21
L21-20R L21-20P L21-30R L21-30P
120/208V
3øY L22
L22-20R L22-20P L22-30R L22-30P
277/480V
3øY L23
L23-20R L23-20P L23-30R L23-30P
347/600V
Midget – Locking
15 AMPERE
RECEPTACLE PLUG
2 POLE, 2 WIRE NON-GROUNDING
ML1
ML-1R ML-1P
125V
2 POLE, 3 WIRE GROUNDING
ML2
ML-2R ML-2P
125V
3 POLE, 3 WIRE NON-GROUNDING
ML3
ML-3R ML-3P
125/250V
Locking Plugs & Receptacles
Labels & Their Meaning
X, Y, Z Hot Lead
WNeutral Lead
GGrounding Lead
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-4
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Midget Connectors, Plugs, Inlets, Outlets 2 Pole, 2 Wire Non-Grounding 15A, 125V 2 Pole, 3 Wire
Grounding 15A, 125V 3 Pole, 3 Wire Non-Grounding 15A, 125/250V
ML214
2.06"
1.75"
1.26"
1.29"
1.62"
ML314
2.06"
1.75"
1.26"
1.29"
1.62"
ML315
ML215
ML115
1.62"
1.38"
1.04"
1.13"
ML114
1.62"
1.38"
1.04"
1.13"
2.06"
1.75"
1.13"
1.29"
1.62"
2.06"
1.75"
1.13"
1.29"
1.62"
7427
1.0"
1.187"
ML1133
1.23"
1.08"
1.81"
.80"
.66"
ML3113
1.18"
.80"
1.23"
ML2133
1.81"
.80"
.66"
1.23"
1.08"
CATALOG
NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
A. V. UL498
CONNECTORS
7427 15 125 Black .312"-.50" ML1-15R •
ML1133 15 125 Black .10"-.35" ML1-15R •
ML2133 15 125 Black .18"-.52" ML2-15R •
ML3133 15 125/250 Black .18"-.52" ML3-15R •
PLUGS
ML1113 15 125 Black .10"-.35" ML1-15P •
ML2113 15 125 Black .18"-.52" ML2-15P •
ML3113 15 125/250 Black .18"-.52" ML3-15P •
FLANGED INLETS & OUTLETS
ML115 15 125 Inlet, Black Face, Gray Flange ML1-15P •
ML114 15 125 Outlet, Black Face, Gray Flange ML1-15R •
ML215 15 125 Inlet, Black Face, Gray Flange ML2-15P •
ML214 15 125 Outlet, Black Face, Gray Flange ML2-15R •
ML315 15 125/250 Inlet, Black Face, Gray Flange ML3-15P •
ML314 15 125/250 Outlet, Black Face, Gray Flange ML3-15R •
NEMA
ML-2P
NEMA
ML-3P
NEMA
ML-1P
NEMA
ML-1R
NEMA
ML-2R
NEMA
ML-3R
2 Pole, 2 Wire
2 Pole, 3 Wire
3 Pole, 3 Wire
WWW.LEGRAND.US/PASSANDSEYMOUR
G-5
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
15 & 20 Amp NEMA L115 & L220 2 Pole, 2 Wire Non-Grounding 15A, 125V & 20A, 250V
All devices listed on this page conform to NEMA WD-1 and WD-6.
NEMA
L1-15R
NEMA
L1-15P
NEMA
L2-20P
NEMA
L2-20R
*For replacement use only.
Reference Pages G-35 and G-36 for Accessories.
7101
1.140"
1.865"
1.368"
1.500"
7506
1.562"
.546"
1.312"
1.375"
7102
2.085"
1.510"
1.865"
.860"
1.560"
1.000"
.640"
1.560"
7547DF
7526
1.625"
TO
1.750"
1.375"
.146"
(2 HOLES)
2.031"
.093"
.985"
7535
.922"
1.750"
3.281"
1.562"
1.375"
2.375"
#6-32 TAP
7210
1.234"
2.375"
3.281"
1.437"
1.375"
2.375"
4.031"
#6-32 TAP
1.015"
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
A. V. UL498
RECEPTACLES
7535 15 125 Single Receptacle L1-15R •
7210 20 250 Single Receptacle L2-20R •
CONNECTORS
7506* 15 125 Black .296"-.562" L1-15R •
7101* 20 250 Black Back, White Front Body .296"-.562" L2-20R •
PLUGS
7547DF 15 125 Black .296"-.625" L1-15P •
7102* 20 250 Black Back, White Front Body .296"-.562" L2-20P •
FLANGED INLETS & OUTLETS
L0115 15 125 Inlet L1-15P •
7526 15 125 Outlet L1-15R •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-6
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
15 Amp NEMA L515 2 Pole, 3 Wire 15A, 125V
4716SS
2.0"
.156"
2.562"
1.655"
1.725"
4715SS
2.0"
.156"
2.562"
1.374"
1.660"
Reference Pages G-35 and G-36 for Accessories.
4710
1.203"
2.25"
1.0"
3.281"
1.437"
1.375"
2.375"
4.031"
4700
1.322"
1.104"
.0625"
3.281"
2.635"
1.50"
1.199"
.9375"
4792
3.28"
1.50"
1.199"
NEMA
L5-15P
NEMA
5-15R
NEMA
L5-15R
15A Connector
1.358"
1.516"
2.598"
1.752"
15A Plug
1.516" 1.358"
2.617"
1.752"
1.844"
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG. NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
4710 15 125 Single Receptacle L5-15R • •
IG4710 15 125 Single Receptacle, Orange,
Isolated Ground
L5-15R • •
4700 15 125 Duplex Receptacle L5-15R • •
IG4700 15 125 Duplex Receptacle, Orange,
Isolated Ground
L5-15R • •
4792 15 125 Combination Straight Blade
and Locking
5-15R and L5-15R •
CONNECTORS IP20 SUITABILITY
PSL515C 15 125 Black Back, White Front Body .230"-.720" L5-15R • • •
CRL515C 15 125 Yellow Back, White Front
Body, Corrrosion-Resistant
.230"-.720" L5-15R • • •
PLUGS IP20 SUITABILITY
PSL515P 15 125 Black Back, White Front Body .230"-.720" • • •
CRL515P 15 125 Yellow Back, White Front
Body, Corrrosion-Resistant
.230"-.720" • • •
FLANGED INLETS & OUTLETS
4716SS 15 125 Gray Inlet L5-15P • •
4715SS 15 125 Gray Outlet L5-15R • •
STRAIGHT BLADE/LOCKING ADAPTERS
44859 15 125 High-Visibility Yellow 5-15R/L5-15P
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
G-7
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
*Not designed for split circuits.
Reference Pages G-35 and G-36 for Accessories.
NEMA
L6-15R
NEMA
L6-15P
NEMA
L7-15R
NEMA
L7-15P
15A Connector
1.358"
1.516"
2.598"
1.752"
15A Plug
1.516" 1.358"
2.617"
1.844"
1.752"
4550
1.150"
.940"
3.281"
1.500"
2.270"
4560
2.375"
1.375"
1.500"
#6-32
TAP
.922"
1.125"
3.281"
4760
2.375"
2.250"
1.203"
1.000"
1.375"
3.281"
4.031"
1.437"
#6-32
TAP
4750
1.104"
3.281"
2.635"
.938"
1.199"
1.322"
1.50"
industrial spec grade turnlok® locking devices
15 Amp NEMA L615 & L715 2 Pole, 3 Wire 15A, 250 & 277V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
4560 15 250 Single Receptacle L6-15R •
4550* 15 250 Duplex Receptacle L6-15R •
4760 15 277 Single Receptacle L7-15R • •
IG4760 15 277 Single Receptacle, Orange,
Isolated Ground
L7-15R • •
4750 15 277 Duplex Receptacle L7-15R • •
CONNECTORS IP20 SUITABILITY
PSL615C 15 250 Black Back, White Front Body .230"-.720" L6-15R • • •
PSL715C 15 277 Black Back, White Front Body .230"-.720" L7-15R • • •
PLUGS IP20 SUITABILITY
PSL615P 15 250 Black Back, White Front Body .230"-.720" L6-15P • • •
PSL615PAN 15 250 Angled Plug, Black Back,
White Front Body
.320"-.655" L6-15P •
PSL715P 15 277 Black Back, White Front Body .230"-.720" L7-15P • • •
PSL715PAN 15 277 Angled Plug, Black Back,
White Front Body
.320"-.655" L7-15P •
PLUGS IP20 SUITABILITY
614 15 250 Gray Outlet L6-15R
L0714 15 277 Gray Outlet L7-15R
All devices listed on this page conform to NEMA WD-1 and WD-6.
15 Amp Angle Plug
2.130"
1.350"
1.530"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-8
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Angle Plugs & Adapters 2 Pole, 3 Wire 15A, 125, 250 & 277V; 3, 4 & 5 Wire 15, 20 & 30A Adapters
All devices listed on this page conform to NEMA WD-1 and WD-6.
NEMA
L5-15P
NEMA
L6-15P
NEMA
L7-15P
L203045AN
3.868"
2.675"
1.65"
L15AN
2.97"
1.94"
1.37"
L20303AN
3.868"
2.675"
1.65"
15 Amp
Angle Plug
2.130"
1.350"
1.530"
Features
• Angle plugs and adapters both allow
for 4-position face rotation. 20/30A 3
Wire Turnlok® Right Angle Adapters are
adjustable up to 8 positions.
• Angle adapters (sold separately) will
accommodate all P&S Turnlok style plugs
and connectors on a retrofit basis. Simply
remove the straight handle body from
the plug or connector face assembly, and
replace with the angle adapter.
• Tri-drive assembly and cord-grip screws
are standard on all angle plugs and
adapters.
• Angle plugs and adapters have the same
wide cord diameter range (.230"-1.150")
that is present on all Turnlok plugs and
connectors.
CATALOG
NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
A. V. UL498
FSUL
WC596
2 POLE, 3 WIRE GROUNDING
PS4720SSAN 15 125 Black Back Body, White Front Body .230"-.655" L5-15P
• •
PSL615PAN 15 250 Black Back Body, White Front Body .230"-.690" L6-15P
• •
PSL715PAN 15 277 Black Back Body, White Front Body .230"-.690" L7-15P
• •
CATALOG
NUMBER DESCRIPTION
ACCESSORIES
L15AN 15A Turnlok Right Angle Adapter
L20303AN 20/30A 3 Wire Turnlok Right Angle Adapter
L203045AN 20/30A 4 and 5 Wire Turnlok Right Angle Adapter
WWW.LEGRAND.US/PASSANDSEYMOUR
G-9
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
20 Amp NEMA L520 2 Pole, 3 Wire 20A, 125V
Reference Pages G-35 and G-36 for Accessories.
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L520R 20 125 Single Receptacle L5-20R • • •
IGL520R 20 125 Single Receptacle, Orange,
Isolated Ground
L5-20R • •
CRL520R 20 125 Single Receptacle, Yellow,
Corrosion-Resistant
L5-20R • • •
CONNECTORS IP20 SUITABILITY
L520C 20 125 Black Back, White Front Body .225"-.750" L5-20R • • •
L520CBK 20 125 Black Back, Black Front Body .225"-.750" L5-20R • • •
CRL520C 20 125 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L5-20R • • •
PLUGS IP20 SUITABILITY
L520P 20 125 Black Back, White Front Body .225"-.750" L5-20P • • •
L520PBK 20 125 Black Back, Black Front Body .225"-.750" L5-20P • • •
CRL520P 20 125 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L5-20P • • •
FLANGED INLETS & OUTLETS
L520FI 20 125 Gray Inlet L5-20P • •
L520FO 20 125 Gray Outlet L5-20R • • NEMA
L5-20R
NEMA
L5-20P
2.29"
1.19"
1.61"
2.37"
3.28"
1.545"
.14"
20A Receptacle
2.20"
3.33"
20A Connector
3.75"
2.57"
2.20"
20A Plug 20A Flanged Inlet & Outlet
2.09"
1.34"
ø.187"
2.87"
2.09"
ø.187"
1.65"
2.87"
3 HOLES ON ø2.50" C/L@ 120°
All devices listed on this page conform to NEMA WD-1 and WD-6.
SS720
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-10
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
20 Amp NEMA L620 & L720 2 Pole, 3 Wire 20A, 250 & 277V
NEMA
L6-20R
NEMA
L6-20P
NEMA
L7-20R
NEMA
L7-20P
2.29"
1.19"
1.61"
2.37"
3.28"
1.545"
.14"
20A Receptacle
2.20"
3.33"
20A Connector
3.75"
2.57"
2.20"
20A Plug
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
Reference Pages G-35 and G-36 for Accessories.
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
A. V. UL498
FSUL
WC596 CSA
RECEPTACLES
L620R 20 250 Single Receptacle L6-20R • • •
IGL620R 20 250 Single Receptacle, Orange,
Isolated Ground
L6-20R • •
L720R 20 277 Single Receptacle L7-20R • • •
IGL720R 20 277 Single Receptacle, Orange,
Isolated Ground
L7-20R • •
CONNECTORS IP20 SUITABILITY
L620C 20 250 Black Back, White Front Body .225"-.750" L6-20R • • •
CRL620C 20 250 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L6-20R • • •
L720C 20 277 Black Back, White Front Body .225"-.750" L7-20R • • •
PLUGS IP20 SUITABILITY
L620P 20 250 Black Back, White Front Body .225"-.750" L6-20P • • •
CRL620P 20 250 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L6-20P • • •
L720P 20 277 Black Back, White Front Body .225"-.750" L7-20P • • •
FLANGED INLETS & OUTLETS
L620FI 20 250 Gray Inlet L6-20P • •
L620FO 20 250 Gray Outlet L6-20R • •
L720FI 20 277 Gray Inlet L7-20P • •
L720FO 20 277 Gray Outlet L7-20R • •
2.09"
1.34"
ø.187"
2.87"
20A Flanged Inlet & Outlet
2.09"
ø.187"
1.65"
2.87"
3 HOLES ON ø2.50" C/L@ 120°
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
G-11
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
NEMA
L8-20R
NEMA
L8-20P
NEMA
L9-20P
NEMA
L9-20R
NEMA
L24-20R
NEMA
L24-20P
2.29"
1.19"
1.61"
2.37"
3.28"
1.545"
.14"
20A Receptacle
2.20"
3.33"
20A Connector
3.75"
2.57"
2.20"
20A Plug
Reference Pages G-35 and G-36 for Accessories.
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L820R 20 480 Single Receptacle L8-20R • •
IGL820R 20 480 Single Receptacle, Orange,
Isolated Ground
L8-20R • •
L920R 20 600 Single Receptacle L9-20R • •
L3720R 20 347 Single Receptacle L24-20R •
CONNECTORS IP20 SUITABILITY
L820C 20 480 Black Back, White Front Body .225"-.750" L8-20R • •
L920C 20 600 Black Back, White Front Body .225"-.750" L9-20R • •
L3720C 20 347 Black Back, White Front Body .225"-.750" L24-20R •
PLUGS IP20 SUITABILITY
L820P 20 480 Black Back, White Front Body .225"-.750" L8-20P • •
L920P 20 600 Black Back, White Front Body .225"-.750" L9-20P • •
L3720P 20 347 Black Back, White Front Body .225"-.750" L24-20P • • •
FLANGED INLETS & OUTLETS
L820FI 20 480 Gray Inlet L8-20P • •
L820FO 20 480 Gray Outlet L8-20R • •
L920FI 20 600 Gray Inlet L9-20P • •
L920FO 20 600 Gray Outlet L9-20R • •
L3720FO 20 347 Gray Outlet L24-20R •
industrial spec grade turnlok® locking devices
20 Amp NEMA L820, L920 & L2420 2 Pole, 3 Wire 20A, 347, 480 & 600V
20A Flanged Inlet & Outlet
SS720
2.09"
1.34"
ø.187"
2.87"
2.09"
ø.187"
1.65"
2.87"
3 HOLES ON ø2.50" C/L@ 120°
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-12
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
3.75"
2.57"
2.20"
NEMA
L10-20R
NEMA
L10-20P
NEMA
L11-20P
NEMA
L11-20R
NEMA
L12-20R
NEMA
L12-20P
Reference Pages G-35 and G-36 for Accessories.
2.29"
1.19"
1.61"
2.37"
3.28"
1.545"
.14"
20A Receptacle
2.20"
3.33"
20A Connector 20A Plug
industrial spec grade turnlok® locking devices
20 Amp NEMA L1020, L1120 & L1220 3 Pole, 3 Wire Non-Grounding, 20A, 125/250V; 3ø, 250 & 480V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L1020R 30 125/250 Single Receptacle L10-20R • •
L1120R 30 3ø, 250 Single Receptacle L11-20R • •
L1220R 30 277 Single Receptacle L12-20R • •
CONNECTORS IP20 SUITABILITY
L1020C 20 125/250 Black Back, White Front Body .225"-.750" L10-20R • • •
L1120C 20 3ø, 250 Black Back, White Front Body .225"-.750" L11-20R • • •
L1220C 20 3ø, 480 Black Back, White Front Body .225"-.750" L12-20R • • •
PLUGS IP20 SUITABILITY
L1020P 20 125/250 Black Back, White Front Body .225"-.750" L10-20P • • •
L1120P 20 3ø, 250 Black Back, White Front Body .225"-.750" L11-20P • • •
L1220P 20 3ø, 480 Black Back, White Front Body .225"-.750" L12-20P • • •
FLANGED INLETS & OUTLETS
L1020FI 20 125/250 Gray Inlet L10-20P • •
L1020FO 20 125/250 Gray Outlet L10-20R •
L1120FO 20 3ø, 250 Gray Outlet L11-20R •
L1220FI 20 3ø, 480 Gray Inlet L12-20P • •
L1220FO 20 3ø, 480 Gray Outlet L12-20R •
2.09"
2.87"
ø.187"
1.34"
2.09"
2.87"
1.65"
ø.187"
3 HOLES ON ø2.50" C/L @ 120°
20A Flanged Inlet & Outlet
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
G-13
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
Reference Pages G-35 and G-36 for Accessories.
2.29"
1.19"
1.61"
.14"
2.37"
3.28"
1.545"
20A Receptacle
2.20"
3.33"
20A Connector
3.75"
2.57"
2.20"
20A Plug
NEMA
L14-20R
NEMA
L14-20P
NEMA
L15-20R
NEMA
L15-20P
NEMA
L16-20R
NEMA
L16-20P
industrial spec grade turnlok® locking devices
20 Amp NEMA L1420, L1520 & L1620 3 Pole, 4 Wire 20A, 125/250V; 3ø, 250 & 480V
2.09"
2.87"
1.65"
ø.187"
3 HOLES ON ø2.50" C/L @ 120°
2.09"
2.87"
ø.187"
1.34"
20A Flanged Inlet & Outlet
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L1420R 20 125/250 Single Receptacle L14-20R • • •
IGL1420R 20 125/250 Single Receptacle, Orange,
Isolated Ground
L14-20R • •
L1520R 20 3ø, 250 Single Receptacle L15-20R • • •
IGL1520R 20 3ø, 250 Single Receptacle, Orange,
Isolated Ground
L15-20R • •
L1620R 20 3ø, 480 Single Receptacle L16-20R • • •
IGL1620R 20 3ø, 480 Single Receptacle, Orange,
Isolated Ground
L16-20R • •
CONNECTORS IP20 SUITABILITY
L1420C 20 125/250 Black Back, White Front Body .225"-.750" L14-20R • • •
CRL1420C 20 125/250 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L14-20R • • •
L1520C 20 3ø, 250 Black Back, White Front Body .225"-.750" L15-20R • • •
L1520CBK 20 3ø, 250 Black Back, Black Front Body .225"-.750" L15-20R • • •
L1620C 20 3ø, 480 Black Back, White Front Body .225"-.750" L16-20R • • •
PLUGS IP20 SUITABILITY
L1420P 20 125/250 Black Back, White Front Body .225"-.750" L14-20P • • •
CRL1420P 20 125/250 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L14-20P • • •
L1520P 20 3ø, 250 Black Back, White Front Body .225"-.750" L15-20P • • •
L1520PBK 20 3ø, 250 Black Back, Black Front Body .225"-.750" L15-20P • • •
L1620P 20 3ø, 480 Black Back, White Front Body .225"-.750" L16-20P • • •
FLANGED INLETS & OUTLETS
L1420FI 20 125/250 Gray Inlet L14-20P • •
L1420FO 20 125/250 Gray Outlet L14-20R • •
L1520FI 20 3ø, 250 Gray Inlet L15-20P • •
L1520FO 20 3ø, 250 Gray Outlet L15-20R • •
L1620FI 20 3ø, 480 Gray Inlet L16-20P • •
L1620FO 20 3ø, 480 Gray Outlet L16-20R • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-14
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
20 Amp NEMA L1820, L1920 & L2020
4 Pole, 4 Wire Non-Grounding 20A, 3øY, 120/208, 277/480 & 347/600V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L1820R
20 3øY, 120/208 Single Receptacle L18-20R • •
L1920R
20 3øY, 277/480 Single Receptacle L19-20R • •
L2020R
20 3øY, 347/600 Single Receptacle L20-20R • •
CONNECTORS IP20 SUITABILITY
L1820C
20 3øY, 120/208 Black Back, White Front Body
.225"-.750"
L18-20R • • •
L1920C
20 3øY, 277/480 Black Back, White Front Body
.225"-.750"
L19-20R • • •
L2020C
20 3øY, 347/600 Black Back, White Front Body
.225"-.750"
L20-20R • • •
PLUGS IP20 SUITABILITY
L1820P
20 3øY, 120/208 Black Back, White Front Body
.225"-.750"
L18-20P • • •
L1920P
20 3øY, 277/480 Black Back, White Front Body
.225"-.750"
L19-20P • • •
L2020P
20 3øY, 347/600 Black Back, White Front Body
.225"-.750"
L20-20P • • •
FLANGED INLETS & OUTLETS
L1820FI 20 3øY, 120/208 Gray Inlet L18-20P • •
L1820FO 20 3øY, 120/208 Gray Outlet L18-20R • •
L1920FI 20 3øY, 277/480 Gray Inlet L19-20P • •
L1920FO 20 3øY, 277/480 Gray Outlet L19-20R • •
L2020FI 20 3øY, 347/600 Gray Inlet L20-20P • •
L2020FO 20 3øY, 347/600 Gray Outlet L20-20R • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
NEMA
L18-20R
NEMA
L18-20P
NEMA
L19-20P
NEMA
L19-20R
NEMA
L20-20R
NEMA
L20-20P
Reference Pages G-35 and G-36 for Accessories.
3.75"
2.57"
2.20"
2.29"
1.19" 1.61"
.14"
2.37"
3.28"
1.545"
20A Receptacle
2.20"
3.33"
20A Connector 20A Plug
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
20A Flanged Inlet & Outlet
3 HOLES ON ø2.50" C/L @ 120°
2.09"
1.34"
ø.187"
2.87"
2.09"
ø.187"
1.65"
2.87"
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
WWW.LEGRAND.US/PASSANDSEYMOUR
G-15
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
20 Amp NEMA L2120, L2220 & L2320 4 Pole, 5 Wire 20A, 3øY, 120/208, 277/480 & 347/600V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSA
A. V.
RECEPTACLES
L2120R 20 3øY, 120/208 Single Receptacle L21-20R • • •
IGL2120R 20 3øY, 120/208 Single Receptacle, Orange,
Isolated Ground
L21-20R • •
L2220R 20 3øY, 277/480 Single Receptacle L22-20R • • •
IGL2220R 20 3øY, 277/480 Single Receptacle, Orange,
Isolated Ground
L22-20R • •
L2320R 20 3øY, 347/600 Single Receptacle L23-20R • • •
IGL2320R 20 3øY, 347/600 Single Receptacle, Orange,
Isolated Ground
L23-20R • •
CONNECTORS IP20 SUITABILITY
L2120C 20 3øY, 120/208 Black Back, White Front Body .225"-1.150" L21-20R • • •
L2220C 20 3øY, 277/480 Black Back, White Front Body .225"-1.150" L22-20R • • •
L2320C 20 3øY, 347/600 Black Back, White Front Body .225"-1.150" L23-20R • • •
PLUGS IP20 SUITABILITY
L2120P 20 3øY, 120/208 Black Back, White Front Body .225"-1.150" L21-20P • • •
L2220P 20 3øY, 277/480 Black Back, White Front Body .225"-1.150" L22-20P • • •
L2320P 20 3øY, 347/600 Black Back, White Front Body .225"-1.150" L23-20P • • •
FLANGED INLETS & OUTLETS
L2120FI 20 3øY, 120/208 Gray Inlet L21-20P • •
L2120FO 20 3øY, 120/208 Gray Outlet L21-20R • •
L2220FI 20 3øY, 277/480 Gray Inlet L22-20P • •
L2220FIBK 20 3øY, 277/480 Black Inlet L22-20P • •
L2220FO 20 3øY, 277/480 Gray Outlet L22-20R • •
L2220FOBK 20 3øY, 277/480 Black Outlet L22-20R • •
L2320FI 20 3øY, 347/600 Gray Inlet L23-20P • •
L2320FO 20 3øY, 347/600 Gray Outlet L23-20R • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
NEMA
L21-20P
NEMA
L22-20P
NEMA
L21-20R
NEMA
L23-20P
NEMA
L22-20R
NEMA
L23-20R
Reference Pages G-35 and G-36 for Accessories.
2.09"
ø.187"
1.65"
2.87"
2.09"
1.34"
ø.187"
2.87"
3 HOLES ON ø2.50" C/L @ 120°
20A Flanged Inlet & Outlet
2.29"
1.19"
1.61"
.14"
2.37"
3.28"
1.545"
20A Receptacle
2.20"
3.33"
20A Connector
3.75"
2.57"
2.20"
20A Plug
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-16
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
Reference Pages G-35 and G-36 for Accessories.
NEMA
L5-30R
NEMA
L5-30P
2.26"
3.12"
ø.187"
1.765"
2.26"
3.12"
1.750"
ø.187"
3 HOLES ON ø2.72" C/L @ 120°
30A Flanged Inlet & Outlet
2.42"
1.28"
1.61"
2.37"
3.28"
1.545"
.23"
30A Receptacle
2.20"
3.33"
30A Connector
3.75"
2.57"
2.20"
30A Plug
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
industrial spec grade turnlok® locking devices
30 Amp NEMA L530 2 Pole, 3 Wire 30A, 125V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L530R 30 125 Single Receptacle L5-30R • • •
IGL530R 30 125 Single Receptacle, Orange,
Isolated Ground
L5-30R • •
CRL530R 30 125 Single Receptacle, Yellow
Corrosion-Resistant
L5-30R • • •
CONNECTORS IP20 SUITABILITY
L530C 30 125 Black Back, White Front Body .225"-.750" L5-30R • • •
CRL530C 30 125 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L5-30R • • •
PLUGS IP20 SUITABILITY
L530P 30 125 Black Back, White Front Body .225"-.750" L5-30P • • •
CRL530P 30 125 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L5-30P • • •
FLANGED INLETS & OUTLETS
L530FI 30 125 Gray Inlet L5-30P • •
L530FO 30 125 Gray Outlet L5-30R • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
WWW.LEGRAND.US/PASSANDSEYMOUR
G-17
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
Reference Pages G-35 and G-36 for Accessories.
NEMA
L6-30R
NEMA
L6-30P
NEMA
L7-30R
NEMA
L7-30P
2.26"
3.12"
ø.187"
1.765"
2.26"
3.12"
1.750"
ø.187"
30A Flanged Inlet & Outlet
3.75"
2.57"
2.20"
2.20"
3.33"
30A Connector 30A Plug
2.42"
1.28"
1.61"
2.37"
3.28"
1.545"
.23"
30A Receptacle
industrial spec grade turnlok® locking devices
30 Amp NEMA L630 & L730 2 Pole, 3 Wire 30A, 250 & 277V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L630R 30 250 Single Receptacle L6-30R • • •
IGL630R 30 250 Single Receptacle, Orange,
Isolated Ground
L6-30R • •
L730R 30 277 Single Receptacle L7-30R • • •
CONNECTORS IP20 SUITABILITY
L630C 30 250 Black Back, White Front Body .225"-.750" L6-30R • • •
CRL630C 30 250 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L6-30R • • •
L730C 30 277 Black Back, White Front Body .225"-.750" L7-30R • • •
PLUGS IP20 SUITABILITY
L630P 30 250 Black Back, White Front Body .225"-.750" L6-30P • • •
CRL630P 30 250 Yellow Back, White Front Body,
Corrosion-Resistant
.225"-.750" L6-30P • • •
L730P 30 277 Black Back, White Front Body .225"-.750" L7-30P • • •
FLANGED INLETS & OUTLETS
L630FI 30 250 Gray Inlet L6-30P • •
L630FO 30 250 Gray Outlet L6-30R • •
L730FI 30 277 Gray Inlet L7-30P • •
L730FO 30 277 Gray Outlet L7-30R • •
3 HOLES ON ø2.72" C/L @ 120°
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-18
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
NEMA
L8-30R
NEMA
L8-30P
NEMA
L9-30R
NEMA
L9-30P
Reference Pages G-35 and G-36 for Accessories.
2.26"
3.12"
ø.187"
1.765"
2.26"
3.12"
1.750"
ø.187"
3 HOLES ON ø2.72" C/L @ 120°
30A Flanged Inlet & Outlet
3.75"
2.57"
2.20"
2.42"
1.28"
1.61"
2.37"
3.28"
1.545"
.23"
30A Receptacle
2.20"
3.33"
30A Connector 30A Plug
industrial spec grade turnlok® locking devices
30 Amp NEMA L830 & L930 2 Pole, 3 Wire 30A, 480 & 600V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L830R 30 480 Single Receptacle L8-30R • • •
L930R 30 600 Single Receptacle L9-30R • • •
CONNECTORS IP20 SUITABILITY
L830C 30 480 Black Back, White Front Body .225"-.750" L8-30R • • •
L930C 30 600 Black Back, White Front Body .225"-.750" L9-30R • • •
PLUGS IP20 SUITABILITY
L830P 30 480 Black Back, White Front Body .225"-.750" L8-30P • • •
L930P 30 600 Black Back, White Front Body .225"-.750" L9-30P • • •
FLANGED INLETS & OUTLETS
L830FI 30 480 Gray Inlet L8-30P • •
L830FO 30 480 Gray Outlet L8-30R • •
L930FI 30 600 Gray Inlet L9-30P • •
L930FO 30 600 Gray Outlet L9-30R • •
SS720
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
WWW.LEGRAND.US/PASSANDSEYMOUR
G-19
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
NEMA
L10-30R
NEMA
L10-30P
NEMA
L11-30P
NEMA
L11-30R
NEMA
L12-30R
NEMA
L12-30P
NEMA
L13-30R
NEMA
L13-30P
Reference Pages G-35 and G-36 for Accessories.
2.26"
3.12"
1.750"
ø.187"
3 HOLES ON ø2.72" C/L @ 120°
2.26"
3.12"
ø.187"
1.765"
30A Flanged Inlet & Outlet
3.75"
2.57"
2.20"
2.42"
1.28"
1.61"
2.37"
3.28"
1.545"
.23"
30A Receptacle
2.20"
3.33"
30A Connector 30A Plug
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
industrial spec grade turnlok® locking devices
30 Amp NEMA L1030, L1130, L1230 & L1330
3 Pole, 3 Wire Non-Grounding 30A, 125/250V; 3ø, 250, 480 & 600V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L1030R 30 125/250 Single Receptacle L10-30R • •
L1130R 30 3ø, 250 Single Receptacle L11-30R • •
L1230R 30 3ø, 480 Single Receptacle L12-30R • •
L1330R 30 3ø, 600 Single Receptacle L13-30R • •
CONNECTORS IP20 SUITABILITY
L1030C 30 125/250 Black Back, White Front Body .225"-.750" L10-30R • •
L1130C 30 3ø, 250 Black Back, White Front Body .225"-.750" L11-30R • • •
L1230C 30 3ø, 480 Black Back, White Front Body .225"-.750" L12-30R • • •
L1330C 30 3ø, 600 Black Back, White Front Body .225"-.750" L13-30R • • •
PLUGS IP20 SUITABILITY
L1030P 30 125/250 Black Back, White Front Body .225"-.750" L10-30P • •
L1130P 30 3ø, 250 Black Back, White Front Body .225"-.750" L11-30P • • •
L1230P 30 3ø, 480 Black Back, White Front Body .225"-.750" L12-30P • • •
L1330P 30 3ø, 600 Black Back, White Front Body .225"-.750" L13-30P • • •
FLANGED INLETS & OUTLETS
L1030FI 30 125/250 Gray Inlet L10-30P •
L1030FO 30 125/250 Gray Outlet L10-30R • •
L1130FI 30 3ø, 250 Gray Inlet L11-30P • •
L1130FO 30 3ø, 250 Gray Outlet L11-30R • •
L1230FI 30 3ø, 480 Gray Inlet L12-30P • •
L1230FO 30 3ø, 480 Gray Outlet L12-30R • •
L1330FO 30 3ø, 600 Gray Outlet L13-30R • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-20
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
Reference Pages G-35 and G-36 for Accessories.
NEMA
L14-30R
NEMA
L14-30P
NEMA
L15-30R
NEMA
L15-30P
2.42"
1.28" 1.61"
.23"
2.37"
3.28"
1.545"
30A Receptacle
2.20"
3.33"
30A Connector
3.75"
2.57"
2.20"
30A Plug
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
industrial spec grade turnlok® locking devices
30 Amp NEMA L1430 & L1530 3 Pole, 4 Wire 30A, 125/250V; 3ø, 250V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L1430R 30 125/250 Single Receptacle L14-30R • • •
IGL1430R 30 125/250 Single Receptacle, Orange,
Isolated Ground
L14-30R • •
L1530R 30 3ø, 250 Single Receptacle L15-30R • • •
IGL1530R 30 3ø, 250 Single Receptacle, Orange,
Isolated Ground
L15-30R • •
CONNECTORS IP20 SUITABILITY
L1430C 30 125/250 Black Back, White Front Body .225"-1.150" L14-30R • • •
CRL1430C 30 125/250 Yellow Back, White Front Body,
Corrosion Resistant
.225"-1.150" L14-30R • • •
L1530C 30 3ø, 250 Black Back, White Front Body .225"-1.150" L15-30R • • •
PLUGS IP20 SUITABILITY
L1430P 30 125/250 Black Back, White Front Body .225"-1.150" L14-30P • • •
CRL1430P 30 125/250 Yellow Back, White Front Body,
Corrosion Resistant
.225"-1.150" L14-30P • • •
L1530P 30 3ø, 250 Black Back, White Front Body .225"-1.150" L15-30P • • •
FLANGED INLETS & OUTLETS
L1430FI 30 125/250 Gray Inlet L14-30P • •
L1430FO 30 125/250 Gray Outlet L14-30R • •
L1530FI 30 3ø, 250 Gray Inlet L15-30P • •
L1530FIBK 30 3ø, 250 Black Inlet L15-30P • •
L1530FO 30 3ø, 250 Gray Outlet L15-30R • •
L1530FOBK 30 3ø, 250 Black Outlet L15-30R • •
2.26"
3.12"
1.750"
ø.187"
2.26"
3.12"
ø.187"
1.765"
30A Flanged Inlet & Outlet
3 HOLES ON ø2.72" C/L @ 120°
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION
WEATHERPROOF LOCKING INLET KIT FOR GENERATOR APPLICATIONS
L1430FIKIT Kit includes 30A Locking Gray Flanged Inlet L1430FI,
Weatherproof Cover WPG2, and Weatherproof Box WPB33
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
WWW.LEGRAND.US/PASSANDSEYMOUR
G-21
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
30A Flanged Inlet & Outlet
2.42"
1.28" 1.61"
..23"
2.37"
3.28"
1.545"
30A Receptacle
3.75"
2.57"
2.20"
NEMA
L17-30R
NEMA
L17-30P
NEMA
L16-30R
NEMA
L16-30P
Reference Pages G-35 and G-36 for Accessories.
2.20"
3.33"
30A Connector 30A Plug
industrial spec grade turnlok® locking devices
30 Amp NEMA L1630 & L1730 3 Pole, 4 Wire 30A; 3ø, 480 & 600V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L1630R 30 3ø, 480 Single Receptacle L16-30R • • •
L1730R 30 3ø, 600 Single Receptacle L17-30R • • •
CONNECTORS IP20 SUITABILITY
L1630C 30 3ø, 480 Black Back, White Front Body .225"-1.150" L16-30R • • •
L1730C 30 3ø, 600 Black Back, White Front Body .225"-1.150" L17-30R • • •
PLUGS IP20 SUITABILITY
L1630P 30 3ø, 480 Black Back, White Front Body .225"-1.150" L16-30P • • •
L1730P 30 3ø, 600 Black Back, White Front Body .225"-1.150" L17-30P • • •
FLANGED INLETS & OUTLETS
L1630FI 30 3ø, 480 Gray Inlet L16-30P • •
L1630FO 30 3ø, 480 Gray Outlet L16-30R • •
L1730FI 30 3ø, 600 Gray Inlet L17-30P • •
L1730FO 30 3ø, 600 Gray Outlet L17-30R • •
2.26"
3.12"
.187"
1.765"
2.26"
3.12"
1.750"
.187"
3 HOLES ON ø2.72" C/L @ 120°
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-22
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
30 Amp NEMA L1830, L1930 & L2030
4 Pole, 4 Wire Non-Grounding 30A, 3øY, 120/208, 277/480 & 347/600V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498A. V.
RECEPTACLES
L1830R
30 3øY, 120/208 Single Receptacle L18-30R •
L1930R
30 3øY, 277/480 Single Receptacle L19-30R •
L2030R
30 3øY, 347/600 Single Receptacle L20-30R •
CONNECTORS IP20 SUITABILITY
L1830C
30 3øY, 120/208 Black Back, White Front Body .225"-1.150" L18-30R •
L1930C
30 3øY, 277/480 Black Back, White Front Body .225"-1.150" L19-30R •
L2030C
30 3øY, 347/600 Black Back, White Front Body .225"-1.150" L20-30R •
PLUGS IP20 SUITABILITY
L1830P
30 3øY, 120/208 Black Back, White Front Body .225"-1.150" L18-30P •
L1930P
30 3øY, 277/480 Black Back, White Front Body .225"-1.150" L19-30P •
L2030P
30 3øY, 347/600 Black Back, White Front Body .225"-1.150" L20-30P •
FLANGED INLETS & OUTLETS
L1830FI 30 3øY, 120/208 Gray Inlet L18-30P •
L1830FO 30 3øY, 120/208 Gray Outlet L18-30R •
L1930FI 30 3øY, 277/480 Gray Inlet L19-30P •
L1930FO 30 3øY, 277/480 Gray Outlet L19-30R •
L2030FI 30 3øY, 347/600 Gray Inlet L20-30P •
L2030FO 30 3øY, 347/600 Gray Outlet L20-30R •
All devices listed on this page conform to NEMA WD-1 and WD-6.
3.75"
2.57"
2.20"
NEMA
L18-30P
NEMA
L19-30P
NEMA
L18-30R
NEMA
L20-30P
NEMA
L19-30R
NEMA
L20-30R
Reference Pages G-35 and G-36 for Accessories.
2.42"
1.28"
1.61"
..23"
2.37"
3.28"
1.545"
30A Receptacle
2.20"
3.33"
30A Connector 30A Plug
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
2.26"
3.12"
ø.187"
1.765"
2.26"
3.12"
1.750"
ø.187"
3 HOLES ON ø2.72" C/L @ 120°
30A Flanged Inlet & Outlet
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
WWW.LEGRAND.US/PASSANDSEYMOUR
G-23
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
30 Amp L2130, L2230 & L2330 4 Pole, 5 Wire 30A, 3øY, 120/208, 277/480 & 347/600V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
L2130R 30 3øY, 120/208 Single Receptacle L21-30R • • •
IGL2130R 30 3øY, 120/208 Single Receptacle, Orange,
Isolated Ground
L21-30R • •
L2230R 30 3øY, 277/480 Single Receptacle L22-30R • • •
IGL2230R 30 3øY, 277/480 Single Receptacle, Orange,
Isolated Ground
L22-30R • •
L2330R 30 3øY, 347/600 Single Receptacle L23-30R • • •
IGL2330R 30 3øY, 347/600 Single Receptacle, Orange,
Isolated Ground
L23-30R • •
CONNECTORS IP20 SUITABILITY
L2130C 30 3øY, 120/208 Black Back, White Front Body .225"-1.150" L21-30R • • •
L2230C 30 3øY, 277/480 Black Back, White Front Body .225"-1.150" L22-30R • • •
L2330C 30 3øY, 347/600 Black Back, White Front Body .225"-1.150" L23-30R • • •
PLUGS IP20 SUITABILITY
L2130P 30 3øY, 120/208 Black Back, White Front Body .225"-1.150" L21-30P • • •
L2230P 30 3øY, 277/480 Black Back, White Front Body .225"-1.150" L22-30P • • •
L2230PBK 30 3øY, 277/480 Black Back, Black Front Body .225"-1.150" L22-30P • • •
L2330P 30 3øY, 347/600 Black Back, White Front Body .225"-1.150" L23-30P • • •
FLANGED INLETS & OUTLETS
L2130FI 30 3øY, 120/208 Gray Inlet L21-30P • •
L2130FO 30 3øY, 120/208 Gray Outlet L21-30R • •
L2230FI 30 3øY, 277/480 Gray Inlet L22-30P • •
L2230FIBK 30 3øY, 277/480 Black Inlet L22-30P • •
L2230FO 30 3øY, 277/480 Gray Outlet L22-30R • •
L2230FOBK 30 3øY, 277/480 Black Outlet L22-30R • •
L2330FI 30 3øY, 347/600 Gray Inlet L23-30P • •
L2330FO 30 3øY, 347/600 Gray Outlet L23-30R • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
NEMA
L21-30P
NEMA
L22-30P
NEMA
L21-30R
NEMA
L23-30P
NEMA
L22-30R
NEMA
L23-30R
2.42"
1.28" 1.61"
.23"
2.37"
3.28"
1.545"
30A Receptacle
2.20"
3.33"
30A Connector
3.75"
2.57"
2.20"
30A Plug
2.26"
3.12"
ø.187"
1.765"
2.26"
3.12"
1.750"
ø.187"
3 HOLES ON ø2.72" C/L @ 120°
30A Flanged Inlet & Outlet
Reference Pages G-35 and G-36 for Accessories.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-24
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Rubber & Watertight Plugs & Connectors 2 Pole, 3 Wire 15, 20 & 30A, 125V; 15A, 277V
All devices listed on this page conform to NEMA WD-1 and WD-6.
PS26W47
2.620"
1.850"
2447
2.270"
1.440"
1.530"
Dia.
2547
1.530"
Dia.
2.990"
1.660"
2.16"
PS27W47
4.030"
1.850"
50W50PS
14WPS
NEMA
L5-15P
NEMA
L5-15R
NEMA
L7-15P
NEMA
L7-15R
NEMA
L5-30P
NEMA
L5-30R
NEMA
L5-20R
NEMA
L5-20P
Features
• Rubber body construction stands up
to impacts, oil, chemicals, heat, and
weather.
• Floating blades allow self-alignment with
contacts and reduce stress on blades and
contacts.
• Neoprene grommet keeps out
contaminants at cord entrance.
• Terminal screws come backed-out –
ready-to-wire.
• Nickel-plated blades and connectors
provide an extra measure of corrosion
resistance.
• Closure cap on watertight model forms
a seal to keep out contaminants when
connector is not in use.
• Multiple seals between plug and
connector on watertight version protects
electrical connection from contaminants.
CATALOG
NUMBER
RATING
DESCRIPTION
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
A. V. UL498 C22.2 42M
RUBBER
2447 15 125 Rubber Locking Plug L5-15P • •
2547 15 125 Rubber Locking Connector L5-15R • •
2434 15 277 Rubber Locking Plug L7-15P • •
2534 15 277 Rubber Locking Connector L7-15R • •
NEMA 4X – WATERTIGHT DEVICES
24W47 15 125 NEMA 4X Locking Plug L5-15P • •
25W47 15 125 NEMA 4X Locking Connector L5-15R • •
PS26W47 20 125 NEMA 4X Locking Plug L5-20P • •
PS27W47 20 125 NEMA 4X Locking Connector L5-20R • •
PS28W47 30 125 NEMA 4X Locking Plug L5-30P • •
PS29W47 30 125 NEMA 4X Locking Connector L5-30R • •
24W34 15 277 NEMA 4X Locking Plug L7-15P • •
25W34 15 277 NEMA 4X Locking Connector L7-15R • •
CATALOG
NUMBER DESCRIPTION
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
UL498 C22.2 42M
CAPS – WATERTIGHT ONLY
14WPS Male Cap All • •
50W50PS Female Replacement Cap All • •
IP20
Suitability
WWW.LEGRAND.US/PASSANDSEYMOUR
G-25
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
Heavy-Duty Ground Continuity Monitoring (GCM) Plugs & Connectors
2 Pole, 3 Wire 15A, 125 & 250V & 277VAC
250V products will show red and green
when hot and ground are reversed.
No LED
Plug – Power loss, open hot or neutral
conductor, or hot/ground reversal.
Connector – Assuming power is present
at the outlet, there’s an open hot or open
neutral conductor in the cordset, or a hot/
ground reversal.
Green LED
Plug – There’s proper ground continuity
from the panel to the outlet and power’s
present.
Connector – Power’s present and there’s
proper ground continuity throughout the
cordset and back to
the panel.
Red LED
Plug – Power’s present, but there’s
a ground continuity fault or miswire
between the receptacle and the panel.
Connector – Power’s present, but there’s
a ground continuity fault or miswire in the
cordset (or, if there’s a red indication in
the plug as well, between the receptacle
and the panel). It’s also possible there
could be a problem in both.
PSL515PGCM
1.358"
1.516"
1.752"
1.844"
2.617"
PSL515CGCM
1.516"
1.358"
1.752"
2.598"
Features – Heavy-Duty Turnlok GCM
• Integral indication of ground continuity
and power status. Continuous monitoring
enhances personnel safety and adds
convenience.
• Dual, bright LED indicators with 360°
visibility. Green LEDs indicate proper
ground continuity and power status. Red
LEDs indicate ground continuity loss or
reversed polarity. No LED indicates open
hot, open neutral, or hot to ground cross.
For 250V configurations: Hot to ground
cross will be indicated by a green and
red LED.
• NEMA configurations always visible for
fast identification without disconnecting.
• Exclusive neoprene dust shield on devices
seals cable entry. Optional weatherproof
boots (sold separately).
• Chemical- and impact-resistant nylon
housing features horizontal, easy-grip
ribs on back body.
• Exclusive, rugged two-piece cord grip (15
Amp only) accepts a wide range of cord
widths. Provides uniform pressure for
superior retention of conductors.
• Recessed cord-grip screw reduces
screwdriver slippage, improves safety.
Quick-thread tri-drive assembly and
cord-grip screws come backed-out and
ready-to-wire.
• Color-coded terminal screws are backed-
out for fast installation.
• Industrial-strength, brass alloy plug
blades and connector contacts resist heat
rise, provide excellent conductivity.
CATALOG
NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY COMPLIANCE
A. V. cULUS
FSUL
WC596
2 POLE, 3 WIRE GROUNDING
PSL515CGCM 15 125 Connector, Black & White .230"-.720" L5-15R • •
PSL515PGCM 15 125 Plug, Black & White .230"-.720" L5-15P ••
PSL615CGCM 15 250 Connector, Black & White .230"-.720" L6-15R • •
PSL615PGCM 15 250 Plug, Black & White .230"-.720" L6-15P • •
PSL715CGCM 15 277 Connector, Black & White .230"-.720" L7-15R • •
PSL715PGCM 15 277 Plug, Black & White .230"-.720" L7-15P • •
NEMA
L6-15R
NEMA
L6-15P
NEMA
L5-15P
NEMA
L5-15R
NEMA
L7-15P
NEMA
L7-15R
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-26
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Heavy-Duty Ground Continuity Monitoring (GCM) Plugs & Connectors
2 Pole, 3 Wire 20 & 30A; 125, 250, 277 & 347V; 3 Pole, 4 Wire 20 & 30A, 125/250V
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Integral indication of ground continuity
and power status. Continuous monitoring
enhances personnel safety and adds
convenience.
• Dual, bright LED indicators with 360°
visibility. Green LEDs indicate proper
ground continuity and power status. Red
LEDs indicate ground continuity loss or
reversed polarity. No LED indicates open
hot, open neutral, or hot to ground cross.
For 250V configurations: Hot to ground
cross will be indicated by a green and
red LED.
• NEMA configurations always visible for
fast identification without disconnecting.
• Exclusive neoprene dust shield on devices
seals cable entry. Optional weatherproof
boots (sold separately).
• Chemical- and impact-resistant nylon
housing features horizontal, easy-grip
ribs on back body.
• Exclusive, rugged two-piece cord grip (15
Amp only) accepts a wide range of cord
widths. Provides uniform pressure for
superior retention of conductors.
• Recessed cord-grip screw reduces
screwdriver slippage, improves safety.
Quick-thread tri-drive assembly and
cord-grip screws come backed-out and
ready-to-wire.
• Color-coded terminal screws are backed-
out for fast installation.
• Industrial-strength, brass alloy plug
blades and connector contacts resist heat
rise, provide excellent conductivity.
2.20"
2.57"
3.75"
L630PGCM
2.20"
3.33"
L630CGCM
CATALOG
NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
NEMA
CONFIG.
NO.
3rd PARTY
COMPLIANCE
A. V. cULUS
FSUL
WC596
2 POLE, 3 WIRE GROUNDING
L520CGCM 20 125 Connector, Black & White .225"-.750" L5-20R • •
L520PGCM 20 125 Plug, Black & White .225"-.750" L5-20P • •
L530CGCM 30 125 Connector, Black & White .225"-.750" L5-30R • •
L530PGCM 30 125 Plug, Black & White .225"-.750" L5-30P • •
L620CGCM 20 250 Connector, Black & White .225"-.750" L6-20R • •
L620PGCM 20 250 Plug, Black & White .225"-.750" L6-20P • •
L630CGCM 30 250 Connector, Black & White .225"-.750" L6-30R • •
L630PGCM 30 250 Plug, Black & White .225"-.750" L6-30P • •
L720CGCM 20 277 Connector, Black & White .225"-.750" L7-20R • •
L720PGCM 20 277 Plug, Black & White .225"-.750" L7-20P • •
L730CGCM 30 277 Connector, Black & White .225"-.750" L7-30R • •
L730PGCM 30 277 Plug, Black & White .225"-.750" L7-30P • •
L3720CGCM 20 347 Connector, Black & White .225"-.750" L24-20R • •
L3720PGCM 20 347 Plug, Black & White .225"-.750" L24-20P • •
3 POLE, 4 WIRE GROUNDING
L1420CGCM 20 125/250 Connector, Black & White .225"-1.150" L14-20R • •
L1420PGCM 20 125/250 Plug, Black & White .225"-1.150" L14-20P • •
L1430CGCM 30 125/250 Connector, Black & White .225"-1.150" L14-30R • •
L1430PGCM 30 125/250 Plug, Black & White .225"-1.150" L14-30P • •
NEMA
L5-20P
NEMA
L5-30R
NEMA
L6-30P
NEMA
L7-20R
NEMA
L14-20P
NEMA
L14-30R
NEMA
L5-30P
NEMA
L6-20R
NEMA
L7-20P
NEMA
L7-30R
NEMA
L14-30P
NEMA
L24-20R
NEMA
L6-20P
NEMA
L5-20R
NEMA
L6-30R
NEMA
L7-30P
NEMA
L14-20R
NEMA
L24-20P
WWW.LEGRAND.US/PASSANDSEYMOUR
G-27
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
*For replacement use only.
Reference Pages G-35 and G-36 for Accessories.
Non-NEMA
7580, 7580G
7582, 7555SS
7557SS
Non-NEMA
7554SS
7556SS
7572G
Non-NEMA
7310
7313SS
Non-NEMA
7311SS
7311G
Non-NEMA
3330, 3330G
3333SS
3335SS
Non-NEMA
S2348DF
Non-NEMA
S2347
Non-NEMA
3331SS
3334SS
3331G
7556SS
2.10"
2.56"
.25 x .15
(2 holes)
1.72"
7557SS
2.10"
.25 x .15
(2 holes)
2.57"
1.40" 2.56"
7582
2.375"
2.250"
#6-32 TAP
(2 HOLES)
1.208"
.970"
1.375"
3.281"
4.031"
1.437"
7580G
1.199"
.938"
3.281"
1.500"
1.322"
2.635"
1.104"
7555SS
1.406"
1.531"
1.812"
.812"
7554SS
1.406"
1.531"
1.105"
.812"
industrial spec grade turnlok® locking devices
Non-NEMA 3 Wire Grounding & Non-Grounding 10 & 15A, 125 & 250V; 20 & 30A, 125/250 & 250V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
7582* 15
10
125
250
Single Receptacle
7580 15
10
125
250
Duplex Receptacle
7580G 15
10
125
250
Duplex Receptacle, Grounding
7310* 20 125/250 Single Receptacle
3330 30 125/250 Single Receptacle
3330G 30 125/250 Single Receptacle, Grounding
CONNECTORS IP20 SUITABILITY
7555SS* 15
10
125
250
Yellow .296"-.625"
7555G 15 125 Yellow .280"-.710"
7313SS 20 125/250 Black Back, White Front Body .225"-.750" • • •
7313SSBK 20 125/250 Black Back, Black Front Body .225"-.750" • • •
3333SS 30 125/250 Black Back, White Front Body .225"-.750" • •
PLUGS IP20 SUITABILITY
S2348DF 14 125-480 Black Back, White Front Body
7554SS* 15
10
125
250
Yellow .296"-.625"
7572G 15 125 Yellow, Grounding .280"-.710"
7311SS 20 125/250 Black Back, White Front Body .225"-.750" • • •
7311SSBK 20 125/250 Black Back, Black Front Body .225"-.750" • • •
7311G 20 250 Yellow, Grounding .410"-1.060"
3331SS 30 125/250 Black Back, White Front Body .225"-.750" • • •
3331G 30 250 Yellow, Grounding .410"-1.060"
FLANGED INLETS & OUTLETS
S2347 14 125-480 Outlet
7556SS* 15
10
125
250
Gray Inlet
7557SS* 15
10
125
250
Gray Outletw
3334SS 30 125/250 Gray Inlet •
3335SS 30 125/250 Gray Outlet •
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-28
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
NON-NEMA
7409SS, 7410
7413SS
NON-NEMA
7410G
7413G
NON-NEMA
7408SS
7411SS
NON-NEMA
7411G
*For replacement use only.
Reference Pages G-35 and G-36 for Accessories.
20A Flanged Inlet & Outlet
3.75"
2.57"
2.20"
2.29"
1.19"
1.61"
.14"
2.37"
3.28"
1.545"
20A Receptacle
2.20"
3.33"
20A Connector 20A Plug
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
7410G* 20
10
3øY, 250
600
Single Receptacle, Grounded •
7410 20 3øY, 120/208 Single Receptacle • •
CONNECTORS IP20 SUITABILITY
7413G* 20
10
3øY, 250
600
Yellow .333"-1.060"
7413SS 20 3øY, 120/208 Black Back, White Front Body .225"-1.150" • •
PLUGS IP20 SUITABILITY
7411G* 20
10
3øY, 250
600
Yellow .333"-1.060"
7411SS 20 3øY, 120/208 Black Back, White Front Body .225"-1.150" • •
FLANGED INLETS & OUTLETS
7408SS 20 3øY, 120/208 Gray Inlet •
7409SS 20 3øY, 120/208 Gray Outlet •
industrial spec grade turnlok® locking devices
20 Amp Non-NEMA 3 Pole, 4 Wire 20A, 3øY, 250V; 10A, 600V; 4 Pole, 4 Wire 20A, 3øY, 120/208V
2.09"
ø.187"
1.65"
2.87"
2.09"
1.34"
ø.187"
2.87"
3 HOLES ON ø2.50" C/L@ 120°
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
WWW.LEGRAND.US/PASSANDSEYMOUR
G-29
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
30 Amp Non-NEMA 3 Pole, 4 Wire 30A, 3øY 250V; 10A, 600V; 4 Pole, 4 Wire 30A, 3øY, 120/208V
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
3430 30 3øY, 120/208 Single Receptacle • •
CONNECTORS IP20 SUITABILITY
3433SS 30 3øY, 120/208 Black Back, White Front Body .225"-1.150" • •
PLUGS IP20 SUITABILITY
3431G*30
10
30øY, 250
600
Yellow .333"-1.060"
3431SS 30 3øY, 120/208 Black Back, White Front Body .225"-1.150" • •
FLANGED INLETS & OUTLETS
3434SS 20 3øY, 120/208 Gray Inlet •
3435SS 20 3øY, 120/208 Gray Outlet •
All devices listed on this page conform to NEMA WD-1 and WD-6.
3.75"
2.57"
2.20"
2.42"
1.28"
1.61"
.23"
2.37"
3.28"
1.545"
NON-NEMA
3431SS
3434SS
NON-NEMA
3431G
NON-NEMA
3430, 3433SS
3435SS
NON-NEMA
3430G
3433G
*For replacement use only.
Reference Pages G-35 and G-36 for Accessories.
30A Receptacle
2.20"
3.33"
30A Connector 30A Plug
2.09"
ø.187"
1.65"
2.87"
2.09"
1.34"
ø.187"
2.87"
3 HOLES ON ø2.50" C/L@ 120°
20A Flanged Inlet & Outlet
CATALOG NUMBER DESCRIPTION COLOR
WEATHERPROOF COVER
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
STAINLESS STEEL WALL PLATE
SS720 Wall Plate for Locking Receptacles 302 S/S
WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-30
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Power Interrupting Devices 2 Pole, 3 Wire 20A, 125V Hospital Use; 2 Pole, 3 Wire 20A, 125V;
2 Pole, 3 Wire 20A, 125V; 10A, 250VDC, 480VAC
All devices listed on this page conform to NEMA WD-1 and WD-6.
23000
1.656"
3.281"
2.375"
1.387"
2.50"
#6-32 TAP
(2 HOLES)
23000HG
1.656"
3.281"
2.375"
1.387"
2.50"
#6-32 TAP
(2 HOLES)
23002N
23005N
1.50"
2.625"
3.25"
23054N
1.688"
3.625"
1.50"
23056N
23035N
1.50"
1.688"
2.313"
3.25"
1.50"
3.625"
CATALOG
NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
3rd PARTY COMPLIANCE
A. V. UL498
RECEPTACLES
23000HG 20 125 Hospital Use, Non-Metallic •
23050 20 125 Hospital Use, Black Bakelite •
23000G 20
10
125
250VDC, 480VAC
Grounding, Non-Metallic •
23000 20
10
125
250VDC. 480VAC
Non-Grounding, Non-Metallic •
CONNECTORS
23054N 20 125 Hospital Use, Non-Metallic .250"-.656" •
23002N 20
10
125
250VDC, 480VAC
Non-Metallic .250"-.656" •
PLUGS
23056N 20 125 Hospital Use, Non-Metallic .250"-.656" •
23035N 20 125 Non-Metallic .250"-.656" •
23005N 20
10
125
250VDC, 480VAC
Non-Metallic .250"-.656" •
WWW.LEGRAND.US/PASSANDSEYMOUR
G-31
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
Power Interrupting Devices
3 Pole, 4 Wire 30A, 480V; 3 Pole, 4 Wire 30A, 600VAC; 20A, 250VDC; 3 Pole, 4 Wire 60A, 600V
All devices listed on this page conform to NEMA WD-1 and WD-6.
20445N, 20415N
2.56"
Dia.
2.38"
Dia.
4.18"
20444N, 20414N
2.56"
Dia. 2.38"
Dia.
5.55"
26427
2.938"
3.688"
26415A
3.406"
2.25" 1.078"
3.75"
2.859"
.188"
2.688"
4.188"
26426
20418
2.87"
1.87"
.187" Dia.
(4 HOLES)
3.25"
4.59"
26414
2.938"
3.813"
26420
3.50"
2.875"
4.063"
20443N
1.813"
3.281"
2.688"
1.438"
1.938"
26415
2.688"
3.375"
CATALOG
NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
3rd PARTY
COMPLIANCE
A. V. UL498
RECEPTACLES
20443N 30 480 Non-Metallic
20403N 30
20
600VAC
250VDC
Non-Metallic •
21420 30
20
600VAC
250VDC
Angled, 3/4" Tap for Conduit,
Diecast
•
26420 60 600 Die-Cast with Lift Lid Enclosure •
CONNECTORS
20444N 30 480 Non-Metallic .400"-1.062"
20414 30
20
600VAC
250VDC
Metallic .562"-1.000"
20414N 30
20
600VAC
250VDC
Non-Metallic .400"-1.062" •
21414 30
20
600VAC
250VDC
Metallic with Rubber
Cord Grip
.360"-0.484"
26414 60 600 Metallic .750"-1.250"
26427 60 600 Metallic .750"-1.250" •
PLUGS
20445N 30 480 Non-Metallic .400"-1.062"
20415 30
20
600VAC
250VDC
Metallic .562"-1.000"
20415N 30
20
600VAC
250VDC
Non-Metallic .400"-1.062"
21415 30
20
600VAC
250VDC
Metallic with Rubber
Cord Grip
.360"-0.484"
21426 30
20
600VAC
250VDC
Metallic with Rubber
Cord Grip
.484"-0.750"
21426S 30
20
600VAC
250VDC
Metallic with Tab with
Rubber Cord Grip
.484"-0.750"
26415 60 600 Metallic .750"-1.250"
26426 60 600 Metallic .750"-1.250" •
FLANGED INLETS & OUTLETS
20418 30
20
600VAC
250VDC
Inlet, Die-Cast for
FS and FD Box
•
26415A 60 600 Inlet, Die-Cast
CATALOG
NUMBER DESCRIPTION
ACCESSORIES
WPG1 Weatherproof Cover for 20403N
26400 Box and Plate for 26420
26401 Box only for 26404 Angle Adapter
26402 Mounting Plate only for 26401 Box
26404 45° Angle Adapter
20446N Red Nylon Cover and Gasket for 20443N
20416N Nylon Cover and Gasket for 20403N
20417N Aluminum Cover (No Gasket) for 20403N
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-32
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Power Interrupting Devices 4 Pole, 5 Wire 30A, 600VAC; 20A 250VDC; 4 Pole, 5 Wire 60A, 600V
All devices listed on this page conform to NEMA WD-1 and WD-6.
25250
4.563"
3.250"
(4) NO.6-32
Screws 2.844"
25414N
2.94"
Dia.
3.95"
26520
3.50"
2.875"
4.063"
26527
2.938"
4.563"
.875"
26526
2.688"
4.188"
.875"
26514A
2.859" 3.344"
3.750"
2.578" 1.156"
3.813"
.844"
26515A
2.703"
3.750"
1.078"
.844"
3.344"
3.406"
2.25"
26402
4.50"
3.87"
2.87"
3.25"
diameter
26401
2.72" 1.5"
pipe thread
3.87"
4.50"
26404
3.50"
2.875"
3.875"
45°
angle
4.50"
CATALOG
NUMBER
RATING
DESCRIPTION
CORD
DIAMETER
3rd PARTY COMPLIANCE
A. V. UL498
RECEPTACLES
25250 30
20
600VAC;
250VDC
Die-Cast with Lift Lid Enclosure
26520 60 600 Die-Cast with Lift Lid Enclosure •
CONNECTORS
25414N 30
20
600VAC;
250VDC
Non-Metallic .625
"
-1.000
"
.725
"
-1.250
"
25414 30
20
600VAC;
250VDC
Metallic .625
"
-1.000
"
26514 60 600 Metallic .750
"
-1.250
"
•
26527 60 600 Metallic with Rubber Cord Grip .750
"
-1.250
"
•
PLUGS
25415N 30
20
600VAC;
250VDC
Non-Metallic .625"-1.000"
.725"-1.250"
25415 30
20
600VAC;
250VDC
Metallic .625"-1.000"
26515 60 600 Metallic .750"-1.250" •
26526 60 600 Metallic with Rubber Cord Grip .750"-1.250" •
FLANGED INLETS & OUTLETS
26515A 60 600 Inlet, Die-Cast •
26514A 60 600 Outlet, Die-Cast •
CATALOG NUMBER DESCRIPTION CATALOG NUMBER DESCRIPTION
ACCESSORIES ACCESSORIES
26400 Box and Plate for 26520 26402 Mounting Plate only for 26401 Box
26401 Box only for 26404 Angle Adapter 26404 45° Angle Adapter
WWW.LEGRAND.US/PASSANDSEYMOUR
G-33
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
California Standard & Corrosion-Resistant
3 Wire Grounding 50A, 125, 250 & 480V; 250VDC, 600VAC
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSA
A. V.
RECEPTACLES
CR6370 50 125 Corrosion-Resistant • •
CS6370 50 125 California Standard • •
CS8269 50 250 California Standard • •
CS8469 50 480 California Standard • •
3771 50 250VDC,
600VAC
Corrosion-Resistant • •
CONNECTORS IP20 SUITABILITY
CR6360 50 125 Corrosion-Resistant .680"-1.125" • •
CS6360 50 125 California Standard .680"-1.125" • •
CS8264 50 250 California Standard .680"-1.125" • •
CS8464 50 480 California Standard .680"-1.125" • •
3762 50 250VDC,
600VAC
Corrosion-Resistant .680"-1.125" • •
PLUGS IP20 SUITABILITY
CR6361 50 125 Corrosion-Resistant .680"-1.125" • •
CS6361 50 125 California Standard .680"-1.125" • •
CS8265 50 250 California Standard .680"-1.125" • •
CS8465 50 480 California Standard .680"-1.125" • •
3763M 50 250VDC,
600VAC
Corrosion-Resistant .680"-1.125" • •
FLANGED INLETS & OUTLETS
CS6377 50 125 California Standard • •
CS8275 50 250 California Standard • •
CS8475 50 480 California Standard • •
3777 50 250VDC,
600VAC
Corrosion-Resistant • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
Non-NEMA
CR6370
CR6360
Non-NEMA
3763
3777
Non-NEMA
CS6370
CS6360
Non-NEMA
CS8269
CS8264
Non-NEMA
CS8469
CS8464
Non-NEMA
3771
3762
Non-NEMA
CR6361
CR6377
Non-NEMA
CS6361
CS6377
Non-NEMA
CS8265
CS8275
Non-NEMA
CS8465
CS8475
Reference Pages G-35 and G-36 for Accessories.
California Standard
Connector
2.26"
3.90"
California Standard
Plug
2.29"
4.38"
California Standard
Receptacle
1.98"
3.28"
1.08"
California Standard
Flanged Inlet
3.50"
2.10"
2.25"
.185" DI A.
(4 HOLES)
CATALOG NUMBER DESCRIPTION
ACCESSORIES
7770 Weatherproof Cover for 50A Locking Receptacles, Thermoplastic
Note: 7770 covers not to be used with flanged devices.
CR7716N Weatherproof Boot, 50A Locking Connector
CR7717N Weatherproof Boot, 50A Locking Plug
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-34
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
California Standard & Corrosion-Resistant
4 Wire Grounding 50A, 125/250V; 3ø, 250 & 480V; 250VDC, 600VAC
CATALOG
NUMBER
RATING
DESCRIPTION/COLOR
CORD
DIAMETER
3rd PARTY COMPLIANCE
UL498
FSUL
WC596 CSAA. V.
RECEPTACLES
CR6369 50 125/250 Corrosion-Resistant • •
CS6369 50 125/250 California Standard • •
CS8369 50 3ø, 250 California Standard • •
CS8169 50 3ø, 480 California Standard • •
3769 50 250VDC, 600VAC Corrosion-Resistant • •
7379* 50 250VDC, 600VAC Corrosion-Resistant • •
CONNECTORS
CR6364 50 125/250 Corrosion-Resistant .680"-1.125" • •
CS6364 50 125/250 California Standard .680"-1.125" • •
CS8364 50 3ø, 250 California Standard .680"-1.125" • •
CS8164 50 3ø, 480 California Standard .680"-1.125" • •
3764 50 250VDC, 600VAC Corrosion-Resistant .680"-1.125" • •
7764* 50 250VDC, 600VAC Corrosion-Resistant .680"-1.125" • •
PLUGS
CR6365 50 125/250 Corrosion-Resistant .680"-1.125" • •
CS6365 50 125/250 California Standard .680"-1.125" • •
CS8365 50 3ø, 250 California Standard .680"-1.125" • •
CS8165 50 3ø, 480 California Standard .680"-1.125" • •
3765 50 250VDC, 600VAC Corrosion-Resistant .680"-1.125" • •
7765* 50 250VDC, 600VAC Corrosion-Resistant .680"-1.125" • •
FLANGED INLETS
CR6375 50 125/250 Corrosion-Resistant • •
CS6375 50 125/250 California Standard • •
CS8375 50 3ø, 250 California Standard • •
CS8175 50 3ø, 480 California Standard • •
CS8177 50 3ø, 480 California Standard
with Fliplid • •
3775 50 250VDC, 600VAC Corrosion-Resistant • •
7958P* 50 250VDC, 600VAC Corrosion-Resistant • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
All devices listed on this page conform to NEMA WD-1 and WD-6.
*Devices for replacement use only in existing installations. Reference Pages G-35 and G-36 for Accessories.
Corrosion-Resistant
Flanged Inlet
3.50"
2.10"
2.25"
.185" DIA .
(4 HOLES)
Corrosion-Resistant
Receptacle
1.98"
3.28"
1.08"
Corrosion-Resistant
Plug
2.29"
4.38"
Corrosion-Resistant
Connector
3.90"
2.26"
CATALOG NUMBER DESCRIPTION
ACCESSORIES
7770 Weatherproof Cover for 50A Locking Receptacles, Thermoplastic
Note: 7770 covers not to be used with flanged devices.
CR7716N Weatherproof Boot, 50A Locking Connector
CR7717N Weatherproof Boot, 50A Locking Plug
Non-NEMA
CR6364
CR6369
Non-NEMA
CS8365
CS8375
Non-NEMA
CS8165
CS8175
Non-NEMA
CS6365
CS6375
Non-NEMA
CR6365
CR6375
Non-NEMA
CS6364
CS6369
Non-NEMA
CS8364
CS8369
Non-NEMA
CS8164
CS8169
Non-NEMA
3764
3769
Non-NEMA
7379
7764
Non-NEMA
3765
3775
Non-NEMA
7765
7958
WWW.LEGRAND.US/PASSANDSEYMOUR
G-35
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
Accessories
All devices listed on this page conform to NEMA WD-1 and WD-6.
DC1
L15RBP
1.420"
.210"
.250"
Dia.
3.090"
L2030RBC
CRL2030RBC
2.81"
5.55"
L2030RBP
CRL2030RBP
2.61"
5.04"
CR7717N
3.031"
4.703"
.609"
.625"
CR7716N
.625"
3.0"
4.703"
.953"
.609"
3.031"
L15RBC
1.420"
.240"
.250"
Dia.
3.520"
CATALOG
NUMBER DESCRIPTION COLOR
WEATHERPROOF BOOTS
L15RBC Boot for 15A Locking Connector Black
L15RBP Boot for 15A Locking Plug Black
L2030RBC Boot for 20/30A Locking Connector Black
L2030RBP Boot for 20/30A Locking Plug Black
CORROSIONRESISTANT BOOTS
CRL2030RBC Boot for 20/30A Locking Connector Yellow
CRL2030RBP Boot for 20/30A Locking Plug Yellow
CR7716N Boot for 50A Locking Connector Yellow
CR7717N Boot for 50A Locking Plug Yellow
DUST COVERS
DC1 Replacement Cover, to be used with “old-style” 20 and 30A
Turnlok Plugs and Connectors only.
Black
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-36
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Accessories
L15AN
2.97"
1.94"
1.37"
L20303AN
3.868"
2.675"
1.65"
L203045AN
3.868"
2.675"
1.65"
7770
3.00"
3.281"
4.60"
2.35"
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
WPG1 WPG2
4.57"
3.25"
.19"
(4 HOLES)
2.85"
1.88"
3.57"
CATALOG
NUMBER DESCRIPTION COLOR
WEATHERPROOF BOOTS
WPG1 Cover for 15A Turnlok Flanged Inlets and Outlets Gray
WPG2 Cover for 20 and 30A Turnlok Flanged Inlets and Outlets Gray
7770 Cover for 50A Locking Receptacle, Thermoplastic Yellow
3720FS Clear Cover for Single Receptacle, Thermoplastic Gray
3710FS Clear Cover for Duplex Receptacle, Thermoplastic Gray
3722FS Clear Cover for Power Outlet, Thermoplastic Gray
3760 Cover for Single Receptacle Gray
STAINLESS STEEL PLATES
SS7 Plate for Single Receptacle S/S
SS8 Plate for Duplex Receptacle S/S
SS720 Plate for Locking Receptacle S/S
WP7 Dustproof Cover for Single Receptacle S/S
WP8 Dustproof Cover for Duplex Receptacle S/S
STRAIN RELIEF GRIPS
FC22GL Strain Relief Grip – .220"-.320"
FC30GL Strain Relief Grip – .300"-.430"
FC40GL Strain Relief Grip – .400"-.560"
FC52GL Strain Relief Grip – .520"-.730"
FC70GL Strain Relief Grip – .700"-.940"
FC94GL Strain Relief Grip – .940"-1.250"
TURNLOK RIGHT ANGLE ADAPTER
L15AN 15A Turnlok Right Angle Adapter Black
L20303AN 20 and 30A 3 Wire Turnlok Right Angle Adapter Black
L203045AN 20 and 30A 4 and 5 Wire Turnlok Right Angle Adapter Black
WWW.LEGRAND.US/PASSANDSEYMOUR
G-37
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
Plugs & Connectors Product Specifications & Performance
15 Amp Turnlok Plugs & Connectors
PLUGS Standard Product Corrosion-Resistant
Back Body Nylon Nylon
Front Body Nylon Nylon
Terminal Chamber Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Blades Brass Nickel-Plated Brass
Terminal Clamp Zinc-Plated Steel Nickel-Plated Steel
Terminal Screws Nickel- or Brass-Plated Steel Nickel-Plated Steel
Ground Screws Nickel-Plated Steel Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
CONNECTORS
Back Body Nylon Nylon
Front Body Nylon Nylon
Terminal Chamber Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Contacts Brass Nickel-Plated Brass
Terminal Clamp Zinc-Plated Steel Nickel-Plated Steel
Terminal Screws Nickel- or Brass-Plated Steel Nickel-Plated Steel
Ground Screws Nickel-Plated Steel Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
PERFORMANCE
Electrical
Dielectric Withstand Voltage 1600V minimum
Maximum Working Voltage 277VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance with the device rating as defined in UL62
Cord Grip Accommodations .230"–.720" diameter
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous: +75°C, Minimum: -40°C without impact
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-38
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Plugs & Connectors Product Specifications & Performance
PLUGS Standard Product Corrosion-Resistant
Back Body Super Tough Nylon Super Tough Nylon
Front Body Nylon Nylon
Terminal Chamber Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Dust Shield Neoprene Neoprene
Blades Brass 20A = Nickel-Plated Brass
30A = Tin-Plated Brass
Terminal Clamp 20A = Nickel-Plated Steel
30A = Brass
20A = Nickel-Plated Steel
30A = Nickel-Plated Brass
Terminal Screws Brass Nickel-Plated Brass
Ground Screws Brass Nickel-Plated Brass
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
CONNECTORS
Back Body Super Tough Nylon Super Tough Nylon
Front Body Nylon Nylon
Terminal Chamber Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Dust Shield Neoprene Neoprene
Contacts Brass 20A = Nickel-Plated Brass
30A = Tin-Plated Brass
Terminal Clamp 20A = Nickel-Plated Steel
30A = Brass
20A = Nickel-Plated Steel
30A = Nickel-Plated Brass
Terminal Screws Brass Nickel-Plated Brass
Ground Screws Brass Nickel-Plated Brass
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
PERFORMANCE
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance with device rating as defined in UL62
Cord Grip Accommodations 20 & 30A 3 Wire = .225"–.750" diameter 20 & 30A 4 & 5 Wire = .225"–1.150" diameter
Terminal Identification “GR” and Green Color = Ground, “WH” and White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation #18 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration hot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous: +75°C, Minimum: -40°C without impact
20 & 30 Amp Turnlok Plugs & Connectors
WWW.LEGRAND.US/PASSANDSEYMOUR
G-39
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
Receptacles Products Specifications & Performance
15, 20 & 30 Amp Turnlok Receptacles
50 Amp Turnlok Receptacles
RECEPTACLES Standard Product Corrosion-Resistant
Front Body Nylon Nylon
Back Body Nylon Nylon
Mounting Strap 15A = Steel; 20 & 30A = Brass Nickel-Plated Brass
Pressure Plate Brass Nickel-Plated Brass
Contacts Brass Nickel-Plated Brass
Terminal Clamps Brass Nickel-Plated Brass
Terminal Screws Brass Brass
Mounting Screws Zinc-Plated Steel Stainless Steel
PERFORMANCE
Electrical
Dielectric Withstand Voltage 2000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Terminal Accommodation 15A = #18 AWG min. – #10 AWG max, 20 & 30A = #14 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, NEMA Configuration molded into face
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous: +75°C, Minimum: -40°C without impact
RECEPTACLES Corrosion-Resistant California Standard
Front Body Glass-Filled Nylon Glass-Filled Nylon
Back Body Glass-Filled Nylon Glass-Filled Nylon
Mounting Strap Nickel-Plated Brass Nickel-Plated Brass
Contacts Nickel-Plated Brass Brass
Terminal Clamps Brass Brass
Ground Shunt Brass Brass
Mounting Screws Stainless Steel Zinc-Plated Steel
PERFORMANCE
Electrical
Dielectric Withstand Voltage 3000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Terminal Accommodation #10 AWG min. – #6 AWG max.
Product Identification Amperage, Voltage molded into face
Environmental
Flammability UL94 V0
Operating Temperature Maximum continuous: +115°C, Minimum: -40°C without impact
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-40
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Inlets & Outlets Product Specifications & Performance
15, 20 & 30 Amp Turnlok Inlets & Outlets
15 Amp 20 Amp 30 Amp
FLANGED INLETS
Flanged Casing Polycarbonate Polycarbonate Polycarbonate
Blade Holder Polycarbonate Polycarbonate Nylon
Blades Nickel-Plated Brass Brass Tin-Plated Stresscon
Terminal Clamp Zinc-Plated Steel Zinc-Plated Steel Brass
Terminal Screws Zinc- or Brass-Plated Steel Zinc- or Brass-Plated Steel Brass
Ground Screws Zinc-Plated Steel Zinc-Plated Steel Brass
Assembly Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
FLANGED OUTLETS
Flanged Casing Polycarbonate Polycarbonate Polycarbonate
Contact Carrier Polycarbonate Polycarbonate Nylon
Contacts Brass Brass Tin-Plated Brass
Terminal Clamp Zinc-Plated Steel Zinc-Plated Steel Brass- or Nickel-Plated Steel
Terminal Screws Zinc- or Brass- Plated Steel Zinc- or Brass-Plated Steel Brass- or Nickel-Plated Steel
Ground Screws Zinc-Plated Steel Zinc-Plated Steel Nickel-Plated Brass
Assembly Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
PERFORMANCE
Electrical
Dielectric Withstand Voltage 15A = 2000V minimum, 20 & 30A = 3000V minimum
Maximum Working Voltage 15A = 277VAC, 20 & 30A = 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation 15A = #18 AWG min.–#10 AWG max., 20 & 30A = #12 AWG min.– #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous: 15 & 20A = +115°C, 30A = +75°C, Minimum: -40°C without impact
WWW.LEGRAND.US/PASSANDSEYMOUR
G-41
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
Ground Continuity Monitoring Plugs & Connectors Product Specifications & Performance
*Dust Shield for 20 & 30 Amp Plugs & Connectors.
PLUGS
Back Body Super Tough Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Dust Shield* Neoprene
Blades Brass
Terminal Clamp 15A = Zinc-Plated Steel, 20A = Nickel-Plated Steel, 30A = Brass
Terminal Screws 15A = Nickel- or Brass-Plated Steel, 20 & 30A = Brass
Ground Screws 15A = Nickel-Plated Steel, 20 & 30A = Brass
Cord Clamp Screws Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel
CONNECTORS
Back Body Super Tough Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Dust Shield* Neoprene
Contacts Brass
Terminal Clamp 15A = Zinc-Plated Steel, 20A = Nickel-Plated Steel, 30A = Brass
Terminal Screws 15A = Nickel- or Brass-Plated Steel, 20 & 30A = Brass
Ground Screws 15A = Nickel-Plated Steel, 20 & 30A = Brass
Cord Clamp Screws Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel
PERFORMANCE
Electrical
Dielectric Withstand Voltage 15A = 1600V minimum, 20 & 30A = 2200V minimum
Maximum Working Voltage 15A = 277VAC, 20 & 30A = 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance with the device rating as defined in UL62
Cord Grip Accommodations 15A = .230"–.720" diameter, 20 & 30A 3 Wire = .225"–.750" diameter, 20 & 30A 4 & 5 Wire = .225"–1.150" diameter
Terminal Identification 15A = Green = Ground, White = Neutral, Brass = Hot, 20 & 30A = “GR” and Green Color = Ground,
“WH” and White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation 15A = #18 AWG min. – #10 AWG max, 20A = #18 AWG min. – #8 AWG max, 30A = #18 AWG min. – #6 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration hot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous: +75°C, Minimum: -40°C without impact
15, 20 & 30 Amp Turnlok GCM Plugs & Connectors
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
G-42
INDUSTRIAL SPEC GRADE TURNLOK® LOCKING DEVICES
industrial spec grade turnlok® locking devices
Plugs & Connectors Product Specifications & Performance
50 Amp Turnlok Plugs & Connectors
PLUGS Corrosion-Resistant California Standard
Plug Shroud Zytel Super Tough Nylon Zytel Super Tough Nylon
Back Body Nylon Nylon
Front Body Nylon Nylon
Terminal Chamber Nylon Nylon
Cord Clamp Nylon Nylon
Blades Nickel-Plated Brass Brass
Terminal Clamp Nickel-Plated Brass Brass
Terminal Screws Nickel-Plated Brass Brass
Ground Screw Nickel-Plated Brass Brass
Assembly Screws Stainless Steel Stainless Steel
CONNECTORS
Back Body Nylon Nylon
Front Body Nylon Nylon
Terminal Chamber Nylon Nylon
Cord Clamp Nylon Nylon
Contacts Nickel-Plated Brass Brass
Terminal Clamp Nickel-Plated Brass Brass
Terminal Screws Nickel-Plated Brass Brass
Ground Screw Nickel-Plated Brass Brass
Assembly Screws Stainless Steel Stainless Steel
PERFORMANCE
Electrical
Dielectric Withstand Voltage 3000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance with the device rating as defined in UL62
Cord Grip Accommodations .680"–1.125" diameter
Terminal Identification Color Coded Terminal Screws
Terminal Accommodation #10 AWG min. – #4 AWG max.
Product Identification Amperage, Voltage hot stamped on device
Environmental
Flammability UL94 HB or better
Operating Temperature Maximum continuous: +75°C, Minimum: -40°C without impact
WWW.LEGRAND.US/PASSANDSEYMOUR
G-43
IndustrIal spec Grade turnlok®lockInG devIces
pass & seYMour
industrial spec grade turnlok® locking devices
Inlets Product Specifications & Performance & Horsepower Rating Chart
50 Amp Inlet
*Suitable for 208V motor applications at the HP rating specified.
Turnlok Horsepower Rating for NEMA Configuration Attachment Plugs & Receptacles
INLETS
Flanged Casing Nylon
Contact Carrier Nylon
Blades Brass
Terminal Clamps Brass
Terminal Screws Brass
Assembly Screws Nickel-Plated Steel
PERFORMANCE
Electrical
Dielectric Withstand Voltage 3000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
MECHANICAL
Terminal Accommodation #10 AWG min. – #4 AWG max.
Product Identification Amperage, Voltage hot stamped onto face
ENVIRONMENTAL
Flammability UL94 V0
Operating Temperature Maximum continuous: +75°C, Minimum: -40°C without impact
NEMA Configuration AC HP Rating NEMA Configuration AC HP Rating
L1-15 1/2 L21-20 2
L5-15 1/2 L22-20 5
L6-15 1 1/2* L5-30 2
L7-15 2L6-30 2*
L2-20 2* L7-30 3
L5-20 1L8-30 5
L6-20 2* L10-30 2 Line to Line*
L7-20 22 Line to Neutral
L8-20 3L11-30 3
L10-20 2 Line to Line* L12-30 10
1 Line to Neutral L14-30 2 Line to Line*
L11-20 3L15-30 3
L12-20 5L16-30 10
L14-20 2 Line to Line* L18-30 3
L15-20 3L19-30 10
L16-20 5L21-30 3
L18-20 2L22-30 10
L19-20 5
WWW.LEGRAND.US/PASSANDSEYMOUR
H-1
CAM-TYPE DEVICES
PASS & SEYMOUR
Cam-Type DeviCes
H-7
SERIES 16 PROTECTIVE
CAPS AND
ADAPTERS H-8
SERIES 16 FLIP LID
COVERS
H-9
SERIES 16
ACCESSORIES
COMEALONG
TOOL
P&S Cam-Type Devices are built with top-quality materials for enhanced durability
and service life, with increased insulation protection for safety.
Series 15 In-Line Connectors,
Protective Caps & Adapters H-3
Series 15 Panel Mounts & Accessories H-4
Series 16 In-Line Connectors H-2, H-5
Series 16 Panel Mounts H-6
Series 16 Protective Caps & Adapters H-7
Series 16 Flip Lid Covers H-8
Series 16 Accessories H-9
Series 18 In-Line Connectors H-10
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
H-2
CAMTYPE DEVICES
Cam-Type DeviCes
A. Thermoplastic elastomer housing is chemical- and
impact-resistant.
B. Non-conductive retaining screw insures stability of the
fully assembled product.
C. Heavy-duty brass contacts provide superior and
consistent conductivity.
Rounded back contour reduces snags and hang-ups on
the job site.
Impact- and corrosion-resistant durable nylon 6/6
shell material.
Series 16 In-Line Connectors
Heavy-duty
hex set screws
allow greater
termination
torque.
Copper shim
bundles wire
strands to reduce
“splaying.”
Copper wire
provides superior
strain relief.
A
C
B
PS40MBBK
PS40FBBK
WWW.LEGRAND.US/PASSANDSEYMOUR
H-3
CAM-TYPE DEVICES
PASS & SEYMOUR
Cam-Type DeviCes
Series 15 In-Line Connectors, Protective Caps & Adapters
PSM2MBK
PSM2FBK
4.300"
4.300"
PSMFCBK
PSMMCBK
PSMADMF
PSMADFM
CATALOG NUMBER
RATING
CABLE SIZE COLOR
3rd PARTY
COMPLIANCE
A. V. UL cCSAus
SERIES 15 INLINE CONNECTORS  MALE
PSM2MBK 150 600 #8 – #2 Black • •
PSM2MW 150 600 #8 – #2 White • •
PSM2MR 150 600 #8 – #2 Red • •
PSM2MBL 150 600 #8 – #2 Blue • •
PSM2MG 150 600 #8 – #2 Green • •
SERIES 15 INLINE CONNECTORS  FEMALE
PSM2FBK 150 600 #8 – #2 Black • •
PSM2FW 150 600 #8 – #2 White • •
PSM2FR 150 600 #8 – #2 Red • •
PSM2FBL 150 600 #8 – #2 Blue • •
PSM2FG 150 600 #8 – #2 Green • •
CATALOG NUMBER COLOR
SERIES 15 PROTECTIVE CAPS  MALE
PSMMCBK Black
SERIES 15 PROTECTIVE CAPS  FEMALE
PSMFCBK Black
CATALOG NUMBER RATING COLOR
SERIES 15 ADAPTERS  CAM REDUCERS
PSMADMFBK 400A M – 150A F Black
PSMADMFW 400A M – 150A F White
PSMADMFR 400A M – 150A F Red
PSMADMFBL 400A M – 150A F Blue
PSMADMFG 400A M – 150A F Green
PSMADFMW 400A F – 150A M White
PSMADFMR 400A F – 150A M Red
PSMADFMBL 400A F – 150A M Blue
Features
• Thermoplastic elastomer housing
for outstanding impact and chemical
resistance, as well as an exceptional
seal for maintaining NEMA Type 3R
and 4 integrity.
• Non-conductive retaining screw helps
to insure no contact with live parts,
along with providing stability to the fully
assembled product.
• Heavy-duty brass male and female
contacts provide a superior and
consistent means of conductivity.
• Heavy-duty hex set screws allow greater
termination torque.
• Copper wire provides quality strain relief.
• Copper shim bundles wire strands to
reduce “splaying.”
Other colors available, please contact factory.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
H-4
CAMTYPE DEVICES
Cam-Type DeviCes
Series 15 Panel Mounts & Accessories
PSMMRSBK
PSMFRSBK
.500"*
*For double set screw, dimension is 1.000".
PS430171PS430244
PS430246
CATALOG NUMBER
RATING
CABLE SIZE COLOR
3rd PARTY
COMPLIANCE
A. V. UL cCSAus
SERIES 15 THREADED STUD PANEL MOUNTS  MALE
PSMMRSBK 150 600 #8 – #2 Black • •
PSMMRSW 150 600 #8 – #2 White • •
PSMMRSR 150 600 #8 – #2 Red • •
PSMMRSBL 150 600 #8 – #2 Blue • •
PSMMRSG 150 600 #8 – #2 Green • •
SERIES 15 THREADED STUD PANEL MOUNTS  FEMALE
PSMFRSBK 150 600 #8 – #2 Black • •
PSMFRSW 150 600 #8 – #2 White • •
PSMFRSR 150 600 #8 – #2 Red • •
PSMFRSBL 150 600 #8 – #2 Blue • •
PSMFRSG 150 600 #8 – #2 Green • •
SERIES 15 DOUBLE SET SCREW PANEL MOUNTS  MALE
PSMMRBK 150 600 #8 – #2 Black • •
PSMMRW 150 600 #8 – #2 White • •
PSMMRR 150 600 #8 – #2 Red • •
PSMMRBL 150 600 #8 – #2 Blue • •
PSMMRG 150 600 #8 – #2 Green • •
SERIES 15 DOUBLE SET SCREW PANEL MOUNTS  FEMALE
PSMFRBK 150 600 #8 – #2 Black • •
PSMFRW 150 600 #8 – #2 White • •
PSMFRR 150 600 #8 – #2 Red • •
PSMFRBL 150 600 #8 – #2 Blue • •
PSMFRG 150 600 #8 – #2 Green • •
CATALOG NUMBER DESCRIPTION
SERIES 15 ACCESSORIES
PS430246 Series 15 Strain Relief Wire
PS430244 Copper Shim
PS430171 Series 15 Set Screw
Features
• Nylon housing provides outstanding
impact and chemical resistance.
• Heavy-duty brass male and female
contacts provide a superior and
consistent means of conductivity.
• Heavy-duty hex set screws (available
on double set screw version only)
allow greater termination torque.
WWW.LEGRAND.US/PASSANDSEYMOUR
H-5
CAM-TYPE DEVICES
PASS & SEYMOUR
Cam-Type DeviCes
Series 16 In-Line Connectors
PS40MBR
(unassembled)
PS40MBBK
PS40FBBK
6.875"
6.800"
*All ratings both AC/DC.
CATALOG
NUMBER
RATING*
CABLE SIZE COLOR
3rd PARTY
COMPLIANCE
A. V. UL cCSAus
SERIES 16 INLINE CONNECTORS  MALE
PS20MBBK 400 600 #2 - 2/0 Black • •
PS20MBW 400 600 #2 - 2/0 White • •
PS20MBR 400 600 #2 - 2/0 Red • •
PS20MBBL 400 600 #2 - 2/0 Blue • •
PS20MBG 400 600 #2 - 2/0 Green • •
PS20MBBR 400 600 #2 - 2/0 Brown • •
PS20MBO 400 600 #2 - 2/0 Orange • •
PS20MBY 400 600 #2 - 2/0 Yellow • •
PS40MBBK 400 600 2/0 - 4/0 Black • •
PS40MBW 400 600 2/0 - 4/0 White • •
PS40MBR 400 600 2/0 - 4/0 Red • •
PS40MBBL 400 600 2/0 - 4/0 Blue • •
PS40MBG 400 600 2/0 - 4/0 Green • •
PS40MBBR 400 600 2/0 - 4/0 Brown • •
PS40MBO 400 600 2/0 - 4/0 Orange • •
PS40MBY 400 600 2/0 - 4/0 Yellow • •
CATALOG
NUMBER
RATING*
CABLE SIZE COLOR
3rd PARTY
COMPLIANCE
A. V. cULUS cCSAus
SERIES 16 INLINE CONNECTORS  FEMALE
PS20FBBK 400 600 #2 - 2/0 Black • •
PS20FBW 400 600 #2 - 2/0 White • •
PS20FBR 400 600 #2 - 2/0 Red • •
PS20FBBL 400 600 #2 - 2/0 Blue • •
PS20FBG 400 600 #2 - 2/0 Green • •
PS20FBBR 400 600 #2 - 2/0 Brown • •
PS20FBO 400 600 #2 - 2/0 Orange • •
PS20FBY 400 600 #2 - 2/0 Yellow • •
PS40FBBK 400 600 2/0 - 4/0 Black • •
PS40FBW 400 600 2/0 - 4/0 White • •
PS40FBR 400 600 2/0 - 4/0 Red • •
PS40FBBL 400 600 2/0 - 4/0 Blue • •
PS40FBG 400 600 2/0 - 4/0 Green • •
PS40FBBR 400 600 2/0 - 4/0 Brown • •
PS40FBO 400 600 2/0 - 4/0 Orange • •
PS40FBY 400 600 2/0 - 4/0 Yellow • •
Features
• Thermoplastic elastomer housing
for outstanding impact and chemical
resistance, as well as an exceptional seal
for maintaining NEMA Type 3R and
4 integrity.
• Non-conductive retaining screw helps
to insure no contact with live parts,
along with providing stability to the fully
assembled product.
• Heavy-duty brass male and female
contacts provide a superior and
consistent means of conductivity.
• Heavy-duty hex set screws allow greater
termination torque.
• Copper wire provides quality strain relief.
• Copper shim bundles wire strands to
reduce “splaying.”
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
H-6
CAMTYPE DEVICES
Cam-Type DeviCes
Series 16 Panel Mounts
PS40MRSBBK
PS 40 FRSBBK
*All ratings both AC/DC.
PS40MRBBK
PS40FRBBK
CATALOG
NUMBER
RATING*
CABLE SIZE COLOR
3rd PARTY
COMPLIANCE
A. V. UL cUL
SERIES 16 THREADED STUD PANEL MOUNTS  MALE
PS40MRSBBK 400 600 #2 - 4/0 Black • •
PS40MRSBW 400 600 #2 - 4/0 White • •
PS40MRSBR 400 600 #2 - 4/0 Red • •
PS40MRSBBL 400 600 #2 - 4/0 Blue • •
PS40MRSBG 400 600 #2 - 4/0 Green • •
PS40MRSBBR 400 600 #2 - 4/0 Brown • •
PS40MRSBO 400 600 #2 - 4/0 Orange • •
PS40MRSBY 400 600 #2 - 4/0 Yellow • •
SERIES 16 THREADED STUD PANEL MOUNTS  FEMALE
PS40FRSBBK 400 600 #2 - 4/0 Black • •
PS40FRSBW 400 600 #2 - 4/0 White • •
PS40FRSBR 400 600 #2 - 4/0 Red • •
PS40FRSBBL 400 600 #2 - 4/0 Blue • •
PS40FRSBG 400 600 #2 - 4/0 Green • •
PS40FRSBBR 400 600 #2 - 4/0 Brown • •
PS40FRSBO 400 600 #2 - 4/0 Orange • •
PS40FRSBY 400 600 #2 - 4/0 Yellow • •
CATALOG
NUMBER
RATING*
CABLE SIZE COLOR
3rd PARTY
COMPLIANCE
A. V. UL cUL
SERIES 16 DOUBLE SET SCREW PANEL MOUNTS  MALE
PS40MRBBK 400 600 2/0 - 4/0 Black • •
PS40MRBW 400 600 2/0 - 4/0 White • •
PS40MRBR 400 600 2/0 - 4/0 Red • •
PS40MRBBL 400 600 2/0 - 4/0 Blue • •
PS40MRBG 400 600 2/0 - 4/0 Green • •
PS40MRBBR 400 600 2/0 - 4/0 Brown • •
PS40MRBO 400 600 2/0 - 4/0 Orange • •
PS40MRBY 400 600 2/0 - 4/0 Yellow • •
SERIES 16 DOUBLE SET SCREW PANEL MOUNTS  FEMALE
PS40FRBBK 400 600 2/0 - 4/0 Black • •
PS40FRBW 400 600 2/0 - 4/0 White • •
PS40FRBR 400 600 2/0 - 4/0 Red • •
PS40FRBBL 400 600 2/0 - 4/0 Blue • •
PS40FRBG 400 600 2/0 - 4/0 Green • •
PS40FRBBR 400 600 2/0 - 4/0 Brown • •
PS40FRBO 400 600 2/0 - 4/0 Orange • •
PS40FRBY 400 600 2/0 - 4/0 Yellow • •
Features
• Nylon housing provides outstanding
impact and chemical resistance.
• Heavy-duty brass male and female
contacts provide a superior and
consistent means of conductivity.
• Heavy-duty hex set screws (available
on double set screw version only) allow
greater termination torque.
WWW.LEGRAND.US/PASSANDSEYMOUR
H-7
CAM-TYPE DEVICES
PASS & SEYMOUR
Cam-Type DeviCes
Series 16 Protective Caps & Adapters
PSPTBK
PSTTBK
PS40MCBK
PS40FCBK
PS3MG
PS3FBK
PSMMBK
PSFFCBK
CATALOG NUMBER COLOR
SERIES 16 PROTECTIVE CAPS  MALE
PS40MCBK Black
PS40MCW White
PS40MCR Red
PS40MCBL Blue
PS40MCG Green
PS40MCBR Brown
PS40MCO Orange
PS40MCY Yellow
CATALOG NUMBER COLOR
SERIES 16 PROTECTIVE CAPS  FEMALE
PS40FCBK Black
PS40FCW White
PS40FCR Red
PS40FCBL Blue
PS40FCG Green
PS40FCBR Brown
PS40FCO Orange
PS40FCY Yellow
CATALOG
NUMBER COLOR
3rd PARTY
COMPLIANCE
cCSAus
SERIES 16 MFF TAPPING “T” ADAPTERS
PSTTBK Black •
PSTTW White •
PSTTR Red •
PSTTBL Blue •
PSTTG Green •
PSTTBR Brown •
PSTTY Yellow •
SERIES 16 MMF PARALLELING “T” ADAPTERS
PSPTBK Black •
PSPTBR Brown •
PSPTO Orange •
PSPTY Yellow •
SERIES 16 FMMM 3FER ADAPTERS
PS3MW White
PS3MG Green
SERIES 16 MFFF 3FER ADAPTERS
PS3FBK Black •
PS3FW White •
PS3FR Red •
PS3FBL Blue •
PS3FG Green •
PS3FBR Brown •
PS3FO Orange •
PS3FY Yellow •
SERIES 16 MALETOMALE COUPLER
PSMMBK Black •
PSMMW White •
PSMMR Red •
PSMMBL Blue •
PSMMG Green •
SERIES 16 FEMALETOFEMALE COUPLER
PSFFCBK Black •
PSFFCW White •
PSFFCR Red •
PSFFCBL Blue •
PSFFCG Green •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
H-8
CAMTYPE DEVICES
Cam-Type DeviCes
Series 16 Flip Lid Covers
PS40WTCL
Description
Manufactured in UV-resistant polycarbonate, all snap back
plastic covers are made with stainless steel offset, spring
and pin. Designed for surface mount or internal mount, the
new snap back plastic covers are fully gasketed and NEMA
3R rated for weathertight protection.
CATALOG NUMBER COLOR
PLASTIC FLIP LID, THROUGHMOUNT FOR .070.090 WALL THICKNESS
PS40WTCLBK Black cover
PS40WTCLW White
PS40WTCLR Red
PS40WTCLBL Blue
PS40WTCLG Green
PS40WTCLBR Brown
PS40WTCLO Orange
PS40WTCLY Yellow
PLASTIC FLIP LID, THROUGHMOUNT FOR .370.400 WALL THICKNESS
PS40WTCSBK Black cover
PS40WTCSW White
PS40WTCSR Red
PS40WTCSBL Blue
PS40WTCSG Green
PS40WTCSBR Brown
PS40WTCSO Orange
PS40WTCSY Yellow
METAL FLIP LID
PS40WTCMBK Black cover
PS40WTCMW White
PS40WTCMBL Blue
PS40WTCMG Green
WWW.LEGRAND.US/PASSANDSEYMOUR
H-9
CAM-TYPE DEVICES
PASS & SEYMOUR
Cam-Type DeviCes
Series 16 Accessories
PS430245 PS430244
Restores damaged
female cam-type
contacts.
PS500072
PSCLSPRESS
PS520710
PS16CLM
PS16CLF
CATALOG NUMBER DESCRIPTION
SERIES 16 ACCESSORIES
PS430245 Series 16 Strain Relief Wire
PS430244 Copper Shim
PS520710 Series 16 Retaining Screw
PS16CLM Male Connector Extractor
PS16CLF Female Connector Extractor
PSCLSPRESS Come-Along Tool
PS500072 Female Reforming Tool
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
H-10
CAMTYPE DEVICES
Cam-Type DeviCes
Series 18 In-Line Connectors Weatherproof
PLS182MBK
PLS182FBK
6.875"
6.800"
*All ratings both AC/DC.
CATALOG NUMBER
RATING*
CABLE SIZE COLOR
3rd PARTY
COMPLIANCE
A. V. UL cUL cCSAus
SERIES 18 INLINE CONNECTORS  MALE
PLS182MBK 400 600 #6 – #2 Black • • •
PLS182MW 400 600 #6 – #2 White • • •
PLS182MR 400 600 #6 – #2 Red • • •
PLS182MBL 400 600 #6 – #2 Blue • • •
PLS182MG 400 600 #6 – #2 Green • • •
PLS1820MBK 400 600 #2 – 2/0 Black • • •
PLS1820MW 400 600 #2 – 2/0 White • • •
PLS1820MR 400 600 #2 – 2/0 Red • • •
PLS1820MBL 400 600 #2 – 2/0 Blue • • •
PLS1820MG 400 600 #2 – 2/0 Green • • •
PLS1840MBK 400 600 4/0 Black • • •
PLS1840MBL 400 600 4/0 Blue • • •
SERIES 18 INLINE CONNECTORS  FEMALE
PLS182FBK 400 600 #6 – #2 Black • • •
PLS182FW 400 600 #6 – #2 White • • •
PLS182FR 400 600 #6 – #2 Red • • •
PLS182FBL 400 600 #6 – #2 Blue • • •
PLS182FG 400 600 #6 – #2 Green • • •
PLS1820FBK 400 600 #2 – 2/0 Black • • •
PLS1820FW 400 600 #2 – 2/0 White • • •
PLS1820FR 400 600 #2 – 2/0 Red • • •
PLS1820FBL 400 600 #2 – 2/0 Blue • • •
PLS1820FG 400 600 #2 – 2/0 Green • • •
PLS1840FBK 400 600 4/0 Black • • •
PLS1840FBL 400 600 4/0 Blue • • •
Features
• Interchangeable with Canadian CAM
devices from other manufacturers.
• Ball nose design achieves NEMA 3R,
4 rating.
• Designed specifically for Sea Way cable.
• Accepts #6 through 4/0 size wire.
• Double set screws for premium wire
retention.
• Locking screw prevents contact from
rotating inside housing.
WWW.LEGRAND.US/PASSANDSEYMOUR
I-1
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
IEC 309 INDUSTRIAL PRODUCTS
Our durable, high-performance IEC 309 Industrial Products solutions
have a unifying principle: Just because a device has to endure difficult
conditions doesn’t mean it has to be difficult to wire and use.
FUSIBLE SAFETY
SWITCHES
I-14
Installers asked for quick, no-guesswork wiring… Plant and MRO
staff asked for maximum durability and minimum downtime…
And everyone wanted better selection to meet today’s demanding
requirements without compromise. Now take a close look at our
answers: Fusible Mechanical Interlocks that cut downtime, thanks to
the first-ever visible blown-fuse indication. Fusible Safety Switches
with the same innovative blown-fuse-indicating LEDs. And capacities
in P&S Non-Fusible Interlocks and Safety Switches.
Add proven feature-rich P&S Pin & Sleeve devices, and the result is
a problem-solving IEC 309-1 and -2 product family. It’s ready to work
for you anywhere — because P&S IEC 309 products are guaranteed
to be interchangeable with all IEC 309-1 and -2 devices, and because
more than 50 countries are IEC participants, including all the
world’s major trading nations. As a result, manufacturers can easily
standardize their electrical component specifications worldwide,
simplifying purchasing, training and application to reduce costs.
P&S IEC products work for you, helping you multiply those savings —
thanks to uncompromising materials and construction that deliver
long-term dependability.
Take a closer look at the complete P&S IEC 309 industrial family.
Compare construction, features, and specifications. Add the support
of a global company, ready to help you succeed no matter where you
do business. And see why this is the selection that works for you.
Configuration I-2
Clocking System I-3
Fusible Mechanical Interlock I-4
Non-Fusible Mechanical Interlock I-9
Fusible Safety Switches I-14
Non-Fusible Safety Switches I-19
Pin & Sleeve Devices I-24
Pin & Sleeve Devices Dimensional
Information & Technical Specifications I-31
Product Selection Guide I-38
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-2
IEC 309 INDUSTRIAL PRODUCTS
STRAIGHT BLADE PLUGS & CONNECTORS
Adapting To Worldwide Configuration Standards
Application
Pass & Seymour® Pin & Sleeve products are designed
to meet IEC 309-1, 309-2 specifications. These
specifications are recognized around the world and are
intended to prevent the mating of plugs and receptacles
of different voltage and current ratings (see Section
406.3(F) of the National Electrical Code® relating to this
noninterchangeability feature).
Global Product Offering
Legrand provides Pass & Seymour® IEC 309-1, 309-2 Pin &
Sleeve products in both Series I (International) and Series II
(North American) current ratings:
Series I (International) 16, 32, 63, 125 Amps
Series II (North American) 20, 30, 60, 100 Amps
North American Catalog Numbering System
Catalog numbers within the North American product
offering are structured to communicate the following:
manufacturer, number of conductors, amperage rating,
device type, clocking position of the ground sleeve, and
environmental rating. This applies to all receptacles, inlets,
plugs, and connectors in the Legrand North American Pass
& Seymour® Pin & Sleeve product line (see sample at right).
Here’s How It Works
The amperage rating is determined by the size of the device.
Voltage rating is determined by the location of the ground
sleeve on the receptacle and/or connector along with the
number of conductors.
Ground sleeve position for all connectors and receptacles
is based on a clock face with the keyway always being at
6 o’clock. The ground sleeve is positioned at a specific hour
point, depending on the device’s voltage rating.
The clocking position for plugs and inlets is a mirror image
of the mating device, allowing for interconnection.
In addition, voltage ratings for all Pin & Sleeve products are
color coded for visual identification.
WWW.LEGRAND.US/PASSANDSEYMOUR
I-3
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
IEC 309 INDUSTRIAL PRODUCTS
Clocking System
250VDC
2 POLE, 3 WIRE
12
3
9
6
1
2
11
10
8
75
4
125/250VAC 3 POLE, 4 WIRE
277VAC 2 POLE, 3 WIRE
250VAC 2 POLE, 3 WIRE
380-415VAC 3 POLE, 4 WIRE
220/380-240/415VAC 4 POLE, 5 WIRE
480VAC 2 POLE, 3 WIRE
3ø 480VAC 3 POLE, 4 WIRE
3øY 277VAC 4 POLE, 5 WIRE
3ø 250VAC
3 POLE, 4 WIRE
3øY 120/208VAC
4 POLE, 5 WIRE
380-415VAC
2 POLE, 3 WIRE
50-500VAC
300-500 Hz
2 POLE, 3 WIRE
3 POLE, 4 WIRE
4 POLE, 5 WIRE
50-500VAC
100-300 Hz
3 POLE, 4 WIRE
380/440VAC
3 POLE, 4 WIRE
(REFRIGERANT
CONTAINERS)
125VAC 2 POLE, 3 WIRE
600VAC 3 POLE, 4 WIRE
600VAC 4 POLE, 5 WIRE
PREFIX
PS
=
PASS &
SEYMOUR
1ST DIGIT
3 = 3 WIRE
4 = 4 WIRE
5 = 5 WIRE
2ND-4TH DIGIT
20 = 20 AMP
30 = 30 AMP
60 = 60 AMP
100 = 100 AMP
LETTER
R = RECEPTACLE
P = PLUG
C = CONNECTOR
B = INLET
CLOCK POSITION
POSITION OF
GROUNDING
SLEEVE
WATERTIGHT
OR
SPLASHPROOF
W = WATERTIGHT
S = SPLASHPROOF
P S 4 6 0 R 7 W
North American Catalog Numbering System
s
Application
Specific
IEC 309 Clocking System
North American Catalog Numbering System
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-4
IEC 309 INDUSTRIAL PRODUCTS
FUSIBLE mECHANICAL INTERLOCk
See everything you’re looking for
in a Fusible Mechanical Interlock.
Even if it’s a blown fuse.
Introducing the first interlocks to include visible blown-fuse
indication, a hinged, easy-access fuse door, and integral
fuse pullers. At last, you can easily locate and replace a
blown fuse in less than a minute.
Of course, saving time isn’t your only challenge. You face
dirt and dust. Corrosive liquids or vapors. Water or high
humidity. Heat. Vibration. And impacts. No wonder ensuring
safe, dependable, locally fused power to portable industrial
equipment can be tough! But now, these unique P&S Fusible
Mechanical Interlocks bring you a better solution.
Here’s the extra-rugged construction to stand up to
the toughest plant environments. Complete IEC 309
interchangeability. And an easy-installing design that fits
into most I-beams. Choose these 20 to 100 amp NEMA 4X
and 12 watertight-rated Fusible Mechanical Interlocks for
your most demanding applications — and Legrand’s
Pass & Seymour® devices are “designed to be better.”
WWW.LEGRAND.US/PASSANDSEYMOUR
I-5
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
FUSIBLE mECHANICAL INTERLOCk
Ordering Information & Dimensions
POLES/WIRES VOLTAGE
STANDARD
HORSEPOWER RATING
MAXIMUM
HORSEPOWER RATING
INTERLOCK RECEPTACLE
CATALOG #
PIN & SLEEVE
PLUG CATALOG #
20 AMPS
3P4W 120/240VAC 1/4 HP @ 120VAC 1 HP @ 120VAC
PS420FMIR12W PS420P12W
1/2 HP @ 208VAC 2 HP @ 208VAC
1/2 HP @ 240VAC 2 HP @ 240VAC
3P4W 3ø 240VAC 11/2 HP 5 HP PS420FMIR9W PS420P9W
3P4W 3ø 480VAC 3 HP 10 HP PS420FMIR7W PS420P7W
3P4W 3ø 600VAC 5 HP 15 HP PS420FMIR5W PS420P5W
30 AMPS
2P3W 240VAC 1 HP @ 208VAC 3 HP @ 208VAC
PS330FMIR6W PS330P6W11/2 HP @ 240VAC 3 HP @ 240VAC
1/2 HP @ 120VAC 2 HP @ 120VAC
3P4W 120/240VAC 1 HP @ 208VAC 3 HP @ 208VAC PS430FMIR12W PS430P12W
11/2 HP @ 240VAC 3 HP @ 240VAC
3P4W 3ø 240VA C 3 HP 71/2 HP PS430FMIR9W PS430P9W
3P4W 3ø 480VAC 5 HP 15 HP PS430FMIR7W PS430P7W
3P4W 3ø 600VAC 71/2 HP 15 HP PS430FMIR5W PS430P5W
3P4W 380/440VAC 5 HP @ 380VAC 15 HP @ 380VAC PS430FMIR3W PS430P3W
5 HP @ 440VAC 15 HP @ 440VAC
4P5W 3øY 120/208VAC 2 HP 5HP PS530FMIR9W PS530P9W
4P5W 3øY 277/480VAC 5 HP 15 HP PS530FMIR7W PS530P7W
60 AMPS
2P3W 240VAC 3 HP @ 208VAC 71/2 HP @ 208VAC
PS360FMIR6W PS360P6W3 HP @ 240VAC 71/2 HP @ 240VAC
11/2 HP @ 120VAC 3 HP @ 120VAC
3P4W 120/240VAC 3 HP @ 208VAC 71/2 HP @ 208VAC PS460FMIR12W PS460P12W
3 HP @ 240VAC 10 HP @ 240VAC
3P4W 3ø 240VAC 5 HP 15 HP PS460FMIR9W PS460P9W
3P4W 3ø 480VAC 10 HP 30 HP PS460FMIR7W PS460P7W
3P4W 3ø 600VAC 15 HP 40 HP PS460FMIR5W PS460P5W
4P5W 3øY 120/208VAC 5 HP 15 HP PS560FMIR9W PS560P9W
4P5W 3øY 277/480VAC 10 HP 30 HP PS560FMIR7W PS560P7W
4P5W 3øY 347/600VAC 15 HP 40 HP PS560FMIR5W PS560P5W
100 AMPS
3P4W 120/240VAC 2 HP @ 120VAC 5 HP @ 120VAC
PS4100FMIR12W PS4100P12W5 HP @ 208VAC 10 HP @ 208VAC
5 HP @ 240VAC 15 HP @ 240VAC
3P4W 3ø 240VAC 10 HP 25 HP PS4100FMIR9W PS4100P9W
3P4W 3ø 480VAC 20 HP 50 HP PS4100FMIR7W PS4100P7W
3P4W 3ø 600VAC 30 HP 50 HP PS4100FMIR5W PS4100P5W
4P5W 3øY 120/208VAC 10 HP 20 HP PS5100FMIR9W PS5100P9W
4P5W 3øY 277/480VAC 20 HP 50 HP PS5100FMIR7W PS5100P7W
4P5W 3øY 347/600VAC 30 HP 50 HP PS5100FMIR5W PS5100P5W
(HP Ratings subject to change.)
Fusible Mechanical Interlock Dimensions
Amps A B C D E F G H I J K L
20 9.13 1.19 10.09 23.34 24.50 1.97 4.75 6.88 7.75 20.13 22.25 23.13
3 & 4 Wire - 30 9.13 1.19 9.53 23.69 24.50 1.97 4.75 6.88 7.75 20.13 22.25 23.13
5 Wire - 30 9.13 1.19 9.53 23.78 24.50 1.97 4.75 6.88 7.75 20.13 22.25 23.13
60 9.13 1.19 9.94 24.59 24.50 2.25 4.75 6.88 7.75 20.13 22.25 23.13
100 11.13 1.75 11.06 27.94 28.31 2.41 6.75 8.88 9.75 23.94 26.06 26.94
All measurements shown in inches.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-6
IEC 309 INDUSTRIAL PRODUCTS
FUSIBLE mECHANICAL INTERLOCk
Fusible Mechanical Interlock Operating Sequence
1. When there is no plug in
the device, the lock tab is
in the “off” position and
prevents the lock gear
from turning. The handle
cannot be moved to the
“on” position.
2. Upon inserting a plug,
the lock tab moves from
the “off” position, freeing
the lock gear.
3. The handle can then
be moved to the “on”
position. This rotates the
lock gear and engages the
key on the plug to prevent
it from being removed. At
the same time, the rack is
actuated and rotates the
switch gear, turning on
the switch and inducing
power.
4. Returning the handle to
the “off” position frees the
lock gear, disengaging the
plug key from the switch
and allowing the plug to
be removed.
A. Hinged access door with
windows allows clear
viewing of blown-fuse
LED indicators and
provides fast, easy
access to fuse pullers.
B. Compact design fits in
most I-beams to provide
mounting versatility,
easy access, and
reduced possibility
of impact damage.
C. Corrosion-resistant,
stainless steel captive
screws speed installation,
minimize risk of lost parts,
and withstand abuse.
D. Captive, quick-release,
stainless steel screws
speed fuse removal, ensure
a watertight access door
seal, and won’t fall out.
E. Patent-pending integral
fuse pullers with easy-grip
ergonomics make removing
and replacing blown fuses
simple, comfortable, and
quick.
F. Time-saving LED indicators
identify blown fuses at a
glance.
G. Heavy-duty, steel-geared
switch mechanism
provides enhanced
durability and extra-long
service life.
B
A
C
D
E
F
G
I
J
K
L
M
N
O
H
WWW.LEGRAND.US/PASSANDSEYMOUR
I-7
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
Valox® is a registered trademark of the General Electric Co.
FUSIBLE mECHANICAL INTERLOCk
A. Hinged access door with windows
allows clear
viewing of blown-fuse
LED indicators and
provides fast, easy
access to fuse pullers.
B. Compact design fits in
most I-beams to provide
mounting versatility,
easy access, and
reduced possibility
of impact damage.
C. Corrosion-resistant,
stainless steel captive screws
speed installation, minimize risk of
lost parts, and withstand abuse.
D. Captive, quick-release, stainless
steel screws speed fuse removal,
ensure a watertight access door
seal, and won’t fall out.
E. Patent-pending integral fuse
pullers with easy-grip ergonomics
make removing and replacing blown
fuses simple, comfortable, and
quick.
F. Time-saving LED indicators identify
blown fuses at a glance.
G. Heavy-duty, steel-geared switch
mechanism
provides enhanced
durability and extra-long service
life.
H. Durable, stainless steel
cover-retaining chain makes
installation and maintenance
more convenient.
I. Easy to drill for bottom wiring
access, top wiring access — or
both. Only one catalog number per
amp rating — simplifies ordering
and provides maximum application
flexibility.
J. Adjustable mounting feet can be
moved to center of unit for instant
strut- or pole-mounting without
special brackets or harnesses.
Oversized foot design eliminates the
need for washers.
K. Completely interchangeable
with all manufacturers’ IEC 309-1
and 309-2 plugs for economy and
versatility.
L. Durable brass/nickel-plated
contacts ensure reliable, long-
lasting electrical performance and
corrosion resistance.
M. Color-coded label clearly identifies
voltage rating of mating IEC plug for
fast identification.
N. Heavy-duty, ergonomic switch
handle meets OSHA Lockout/
Tagout requirements and provides
plenty of grip for sure, easy
operation. Black/red color coding
and high-visibility ON/OFF markings
clearly indicate status from a
distance and at any visual angle.
O. Nonconductive, watertight,
corrosion- and impact-resistant
Valox® enclosure ensures NEMA
4X and 12 ratings. Withstands the
harshest industrial environments.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-8
IEC 309 INDUSTRIAL PRODUCTS
MATERIALS
Enclosure Cover Valox 357®
Enclosure Base Valox 357®
Enclosure Door Valox 357®
Enclosure Gasket Neoprene
Door Hinge 316 Stainless Steel
Switch Handle Valox 357®
Switch Handle Seal Neoprene
Shaft Brass
Gear Mechanism 1/8" Zinc-Plated Steel
Locktab 10% Glass-Filled Nylon
Switch Key 10% Glass-Filled Nylon
Mounting Feet Valox 357®
Mounting Feet Screws 300 Series Stainless Steel
Enclosure Assembly Screws 300 Series Stainless Steel
Enclosure Assembly Inserts Brass
Receptacle Lid Valox 357®
Receptacle Gasketing Neoprene
Receptacle Lid Hinge Spring 300 Series Stainless Steel
Receptacle Contact Carrier Polyamide 6
Receptacle Sleeves 20-60 amp Brass/Nickel Plate
100 amp Brass/Silver Plate
Receptacle Terminal Screws Zinc-Plated Steel
Grounding Plate Zinc-Plated Steel
Cover Chain 300 Series Stainless Steel
Conduit Hub Aluminum/Zinc
20/30 amp shipped with one (1) 1"
60 amp shipped with one (1) 11/4"
100 amp shipped with one (1) 11/2"
(will also fit a 2" hub, not provided)
Viewing Slots in Fuse-Access Door 1/8" thick glass lens
PERFORMANCE
Electrical:
Fuse Type Class “J”
Dielectric Voltage Withstand 3000V minimum
Maximum Working Voltage 600V RMS
Current Interrupting Listed for current
interrupting at full-rated
current and voltage
Short Circuit
Withstand Rating
For use on circuit capable
of delivering not more
than 10,000 RMS amps at receptacle
voltage rating
Operations Mechanical: 15,000 cycles
Electrical: 10,000 cycles
Auxiliary Contacts 10A @ 600VAC
1 N.O. & 1 N.C.
Mechanical:
Impact Resistance Per UL746C
Terminal Identification Per UL, CSA, and IEC
specifications
Product Identification Identification and rating on
external and internal labels
Mounting External adjustable feet with five (5)
positions Can be mounted directly
to channel or strut (no washers
required)
Environmental:
Moisture Resistance Per UL50, section 35,
NEMA Enclosure Type 4X
(watertight, hosedown)
Per UL50, section 35, NEMA
Enclosure Type 12K (dusttight,
falling dirt) IP67 suitability
Flammability UL94 5VA and VO Classification
Operating Temperature Maximum continuous: +60°C
Minimum continuous: -50°C
without impact
UV Resistance All enclosure materials are
UV stable
FUSIBLE mECHANICAL INTERLOCk
Materials of Manufacture Typical/Sample Spec
Front Side Back
Hub shown at bottom of unit for reference only;
may be field-installed for top or bottom entry.
(See dimensions on Page I-5.)
Typical Specifications
• Manufacturer’s Identification: Pass & Seymour® PS560FMIR5W
• Description: Fusible Pin & Sleeve Mechanical Interlock
• Electrical Type: 3 Pole + Neutral + Earth
• Rating: 60A 3ø 600VAC 15 HP standard, 50 HP maximum
• Configuration: IEC clock position 5
• Enclosure Type: NEMA 4X (watertight, hosedown), 12K (dusttight,
falling dirt), IP67 suitability
• Conduit Location: Top or bottom feed. Unit shipped with no holes
drilled; a top and bottom feed spot drill is provided for locating
hole saw or knockout. End user decides at installation whether
top or bottom feed is appropriate. No closure plug kits required.
WWW.LEGRAND.US/PASSANDSEYMOUR
I-9
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
NON-FUSIBLE mECHANICAL INTERLOCk
Performance and quality you
can see at a distance.
Now take a closer look.
P&S Non-Fusible Interlocks are easy to apply, thanks
to their versatile, adjustable mounting feet, compact
dimensions, and flexible wiring via either top or bottom
feed. And once installed, they’ll withstand tough conditions
— including water in wash-down areas, contamination
from shavings, dirt, and dust; accidental impacts, heat
from furnaces, welding or other processes; and vibration
from any type of equipment.
Here’s the safety that goes beyond ordinary requirements.
These Interlocks feature a patent-pending, tamper-
resistant activating assembly and cover-integral switch
mechanism that protect against unauthorized overrides.
And high-visibility ON/OFF designations plus a hefty black/
red handle make status easy to read at a glance.
Take a close look at our 20 to 100 amp Non-Fusible
Interlocks — and see the design and construction that
works for you.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-10
IEC 309 INDUSTRIAL PRODUCTS
NON-FUSIBLE mECHANICAL INTERLOCk
A
B
G
C
F
D
K
I
H
J
E
Non-Fusible Mechanical Interlock Operating Sequence
1. When there is no plug in
the device, the lock tab is
in the “off” position and
prevents the lock gear
from turning. The handle
cannot be moved to the
“on” position.
2. Upon inserting a plug,
the lock tab moves from
the “off” position, freeing
the lock gear.
3. The handle can then
be moved to the “on”
position. This rotates the
lock gear and engages the
key on the plug to prevent
it from being removed. At
the same time, the rack is
actuated and rotates the
switch gear, turning on
the switch and inducing
power.
4. Returning the handle to
the “off” position frees the
lock gear, disengaging the
plug key from the switch
and allowing the plug to
be removed.
WWW.LEGRAND.US/PASSANDSEYMOUR
I-11
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
NON-FUSIBLE mECHANICAL INTERLOCk
IP67
Suitability
Valox® is a registered trademark of the General Electric Co.
A. Top- or bottom-feed models offer
installation flexibility and eliminate
the need for time-consuming
modifications like drilling and
plugging that may nullify the NEMA
4X enclosure rating. Off-center
cable entry directs condensation
away from internal circuitry —
reducing the risk of shorts and
corrosion.
B. Stainless steel captive screws
speed up installation, minimize risk
of lost parts, and resist corrosion.
C. Exclusive circuit ID pad for fast
identification of the motor circuit.
Accepts preprinted labels or
handwritten data.
D. Nonconductive, watertight,
corrosion- and impact-resistant
Valox® enclosure ensures NEMA
4X and 12 ratings, withstands the
harshest industrial environments.
E. Adjustable mounting feet provide
optimum flexibility when mounting
to equipment and walls. Feet
can also be moved to center of
unit, for instant strut- or pole-
mounting without special brackets
or harnesses. And our oversized
foot design eliminates the need for
washers.
F. Patent-pending, tamper-resistant
activating assembly and cover-
integral switch mechanism protect
against unauthorized overrides,
ensuring operator safety.
G. Completely interchangeable with
all manufacturers’ IEC 309-1 and
309-2 plugs.
H. Durable brass/nickel-plated
contacts ensure reliable, long-
lasting electrical performance and
corrosion resistance.
I. Label is color coded to correspond
with the voltage ratings of all
mating IEC plugs for easy visual
identification.
J. Heavy-duty, lever-style switch
handle ensures a firm grip — even
with wet, greasy hands. Black/
red color-coded handle and high-
visibility ON/OFF markings clearly
indicate power supply status from
a distance and from all angles.
Handle enters enclosure from
one side to minimize damage due
to frontal impacts; entry is offset
and sealed to prevent moisture
contamination during washdowns.
K. Handle meets OSHA Lockout/
Tagout requirements.
Compact design doesn’t protrude,
avoids unnecessary knocks, allows
for versatile mounting, and fits into
standard I-beams and channels.
Top mount auxiliary contacts are
standard to simplify ordering,
purchasing, inventory, and installation
requirements.
Stainless steel cover retaining
chain allows for easy installation and
maintenance.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-12
IEC 309 INDUSTRIAL PRODUCTS
Non-Fusible Mechanical Interlock Dimensions
Amps A B C D E F G H I J K L
20 1.38 6.88 9.13 8.00 12.38 11.06 4.75 6.88 7.75 8.00 10.13 11.00
30 1.38 6.88 9.13 8.25 12.38 11.50 4.75 6.88 7.75 8.00 10.13 11.00
60 1.19 6.88 9.13 9.00 13.63 14.13 4.75 6.88 7.75 9.75 11.88 12.75
100 1.19 6.88 9.13 9.50 14.13 14.13 4.75 6.88 7.75 9.75 11.88 12.75
All measurements shown in inches.
NON-FUSIBLE mECHANICAL INTERLOCk
Ordering Information & Dimensions
(See dimensions above.)
POLES/WIRES VOLTAGE HORSEPOWER RATING RECEPTACLE CATALOG # PIN & SLEEVE PLUG CATALOG #
20 AMPS
3P4W 120/240VAC 1 HP (120VAC); 2 HP (208-240VAC L-L) PS420MIR12W PS420P12W
3P4W 3ø 240VAC 5 HP PS420MIR9W PS420P9W
3P4W 3ø 480VAC 10 HP PS420MIR7W PS420P7W
3P4W 3ø 600VAC 15 HP PS420MIR5W PS420P5W
30 AMPS
2P3W 120VAC 2 HP PS330MIR4W PS330P4W
3P4W 3ø 240VAC 71/2 HP PS430MIR9W PS430P9W
3P4W 3ø 480VAC 15 HP PS430MIR7W PS430P7W
3P4W 3ø 600VAC 20 HP PS430MIR5W PS430P5W
3P4W 380/440VAC 15 HP PS430MIR3W PS430P3W
4P5W 3øY 120/208VAC 5 HP PS530MIR9W PS530P9W
4P5W 3øY 277/480VAC 15 HP PS530MIR7W PS530P7W
4P5W 3øY 347/600VAC 20 HP PS530MIR5W PS530P5W
60 AMPS
2P3W 240VAC 71/2 HP (208-240VAC) PS360MIR6W PS360P6W
2P3W 480VAC 10 HP PS360MIR7W PS360P7W
3P4W 120/240VAC 3 HP (120VAC); 71/2 HP (208-240VAC L-L) PS460MIR12W PS460P12W
3P4W 3ø 240VAC 15 HP PS460MIR9W PS460P9W
3P4W 3ø 480VAC 30 HP PS460MIR7W PS460P7W
3P4W 3ø 600VAC 40 HP PS460MIR5W PS460P5W
4P5W 3øY 120/208VAC 15 HP PS560MIR9W PS560P9W
4P5W 3øY 277/480VAC 30 HP PS560MIR7W PS560P7W
4P5W 3øY 347/600VAC 40 HP PS560MIR5W PS560P5W
100 AMPS
2P3W 240VAC 10 HP (208VAC); 15 HP (240VAC) PS3100MIR6W PS3100P6W
2P3W 480VAC 30 HP PS3100MIR7W PS3100P7W
3P4W 3ø 600VAC 50 HP PS4100MIR5W PS4100P5W
3P4W 3ø 480VAC 50 HP PS4100MIR7W PS4100P7W
3P4W 3ø 240VAC 25 HP PS4100MIR9W PS4100P9W
3P4W 120/240VAC 5 HP (120VAC); 10 HP (208VAC L-L);
15 HP (240VAC L-L)
PS4100MIR12W PS4100P12W
4P5W 3øY 347/600VAC 50 HP PS5100MIR5W PS5100P5W
4P5W 3øY 277/480VAC 50 HP PS5100MIR7W PS5100P7W
4P5W 3øY 120/208VAC 20 HP PS5100MIR9W PS5100P9W
All products are top or bottom feed. Unit shipped with no holes drilled; a top and bottom feed spot drill is provided for locking hole saw or knockout.
End user decides whether top or bottom feed is appropriate. No closure plug kits required. HP ratings subject to change.
Front Side Back
WWW.LEGRAND.US/PASSANDSEYMOUR
I-13
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
NON-FUSIBLE mECHANICAL INTERLOCk
Materials of Manufacture Typical/Sample Spec
Typical Specifications
• Manufacturer’s Identification: Pass & Seymour® PS560MIR5W
• Description: Non-Fusible Pin & Sleeve Mechanical Interlock
• Electrical Type: 3 Pole + Neutral + Earth
• Rating: 60A 3ø 600VAC 15 HP standard, 40 HP maximum
• Configuration: IEC clock position 5
• Enclosure Type: NEMA 4X (watertight, hosedown), 12K (dust-
tight, falling dirt), IP67 suitability
• Conduit Location: Top or bottom feed. Unit shipped with no
holes drilled; a top and bottom feed spot drill is provided for
locating hole saw or knockout. End use r decides at installation
whether top or bottom feed is appropriate. No closure plug kits
required.
MATERIALS
Enclosure Cover Valox 357®
Enclosure Base Valox 357®
Enclosure Gasket Neoprene
Switch Handle Valox 357®
Switch Handle Seal Neoprene
Shaft Brass
Gear Mechanism 1/8" Zinc-Plated Steel
Locktab 10% Glass-Filled Nylon
Switch Key 10% Glass-Filled Nylon
Mounting Feet Valox 357®
Mounting Feet Screws 300 Series Stainless Steel
Enclosure Assembly Screws 300 Series Stainless Steel
Enclosure Assembly Inserts Brass
Receptacle Lid Valox 357®
Receptacle Gasketing Neoprene
Receptacle Lid Hinge Spring 300 Series Stainless Steel
Receptacle Contact Carrier Polyamide 6
Receptacle Sleeves Brass/Nickel Plate
Receptacle Terminal Screws Zinc-Plated Steel
Grounding Plate Zinc-Plated Steel
Cover Chain 300 Series Stainless Steel
Conduit Hub Aluminum/Zinc
20/30 amp shipped with one (1) 1"
60 amp shipped with one (1) 11/4"
100 amp shipped with one (1) 11/2"
(will also fit a 2" hub, not provided)
PERFORMANCE
Electrical:
Dielectric Voltage Withstand 3000V minimum
Maximum Working Voltage 600V RMS
Current Interrupting Listed for current interrupting at
full-rated current and voltage
Short Circuit
Withstand Rating
For use on circuit capable
of delivering not more
than 10,000 RMS amps at
receptacle voltage rating
Operations Mechanical: 15,000 cycles
Electrical: 10,000 cycles
Auxiliary Contacts 10A @ 600VAC
1 N.O. & 1 N.C.
Mechanical:
Impact Resistance Per UL746C
Terminal Identification Per UL, CSA, and IEC specifications
Product Identification Identification and rating on
external and internal labels
Mounting External adjustable feet with
five (5) positions
Can be mounted directly to channel
or strut (no washers required)
Environmental:
Moisture Resistance Per UL50, section 35,
NEMA Enclosure Type 4X
(watertight, hosedown)
Per UL50, section 35, NEMA
Enclosure Type 12K (dusttight,
falling dirt) IP67 suitability
Flammability UL94 5VA and VO Classification
Operating Temperature Maximum continuous: +60°C
Minimum continuous: -50°C
without impact
UV Resistance All enclosure materials are
UV stable
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-14
IEC 309 INDUSTRIAL PRODUCTS
FUSIBLE SAFETY SWITCHES
See blown fuses at a glance
in these Fusible Safety Switches.
Looking for safety switches that cut downtime? Take a
close look at these innovative P&S Fusible Safety Switches.
Here’s the same first-ever blown-fuse indication system
that’s in our pacesetting Fusible Mechanical Interlocks —
with individual LED indicators for each line, patent-pending
integral fuse pullers, and a hinged fuse-access door. That
means no time lost to locating a blown fuse — and no time
wasted in fuse replacement.
P&S Fusible Safety Switches deliver the same ultra-heavy-
duty construction as our Fusible Mechanical Interlocks,
too. So they provide maximum protection against water,
dirt, heat, and vibration — and just about any other harsh
condition you’ll encounter. You get the same installation
flexibility, too. With capacities available from 30 to 100 amps,
there’s a P&S Fusible Safety Switch that’s ready to work for
you in any industrial environment.
WWW.LEGRAND.US/PASSANDSEYMOUR
I-15
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
FUSIBLE SAFETY SWITCHES
Ordering Information & Dimensions
Fusible Safety Switches Dimensions
Amps A B C D E F G H I J K L
30 9.13 1.19 10.09 22.59 22.59 1.97 4.75 6.88 7.75 20.13 22.25 23.13
60 9.13 1.19 10.09 22.59 22.59 2.25 4.75 6.88 7.75 20.13 22.25 23.13
100 11.13 1.75 11.06 26.59 28.31 2.41 6.75 8.88 9.75 23.94 26.06 26.94
All measurements shown in inches.
VOLTAGE
STANDARD
HORSEPOWER RATING
MAXIMUM
HORSEPOWER RATING
FUSIBLE SAFETY SWITCH
CATALOG #
30 AMPS 600VAC
120VAC 1/2 HP 2 HP
PS30FSS
208VAC 1 HP 5 HP
240VAC 11/2 HP 5 HP
277VAC 11/2 HP 5 HP
480VAC 3 HP 10 HP
120/240VAC 1/2 HP @ 120VAC
11/2 HP @ 240VAC
2 HP @ 120VAC
5 HP @ 240VAC
3ø 240VAC 3 HP 10 HP
3ø 480VAC 5 HP 20 HP
3ø 600VAC 71/2 HP 20 HP
3øY 120/208VAC 2 HP 71/2 HP
3øY 277/480VAC 5 HP 20 HP
3øY 347/600VAC 71/2 HP 20 HP
60 AMPS 600VAC
120VAC 11/2 HP 3 HP
PS60FSS
208VAC 3 HP 71/2 HP
240VAC 3 HP 10 HP
277VAC 3 HP 10 HP
480VAC 5 HP 20 HP
120/240VAC 11/2 HP @ 120VAC
3 HP @ 240VAC
3 HP @ 120VAC
10 HP @ 240VAC
3ø 240VAC 5 HP 20 HP
3ø 480VAC 10 HP 40 HP
3ø 600VAC 15 HP 50 HP
3øY 120/208VAC 5 HP 20 HP
3øY 277/480VAC 10 HP 40 HP
3øY 347/600VAC 15 HP 50 HP
100 AMPS 600VAC
120VAC 2 HP 5 HP
PS100FSS
208VAC 5 HP 10 HP
240VAC 5 HP 15 HP
277VAC 71/2 HP 15 HP
480VAC 10 HP 30 HP
120/240VAC 2 HP @ 120VAC
5 HP @ 240VAC
5 HP @ 120VAC
15 HP @ 240VAC
3ø 240VAC 10 HP 25 HP
3ø 480VAC 20 HP 50 HP
3ø 600VAC 30 HP 50 HP
3øY 120/208VAC 10 HP 20 HP
3øY 277/480VAC 20 HP 50 HP
3øY 347/600VAC 30 HP 50 HP
(HP Ratings subject to change.)
Front
Side
Back
Hub shown at bottom of unit for
reference only; may be field-
installed for top or bottom entry.
(See dimensions below.)
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-16
IEC 309 INDUSTRIAL PRODUCTS
E
L
G
J
C
A
B
FH
I
D
K
FUSIBLE SAFETY SWITCHES
WWW.LEGRAND.US/PASSANDSEYMOUR
I-17
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
FUSIBLE SAFETY SWITCHES
Valox® is a registered trademark of the General Electric Co.
A. Compact design fits in most
I-beams to provide mounting
versatility, easy access, and reduced
possibility of impact damage.
B. Corrosion-resistant, stainless steel
captive screws speed installation,
minimize risk of lost parts, and
withstand abuse.
C. Captive, quick-release, stainless
steel screws speed fuse removal,
ensure a watertight access door
seal, and won’t fall out.
D. Patent-pending integral fuse
pullers with easy-grip ergonomics
make removing and replacing
blown fuses simple, comfortable,
and quick.
E. Time-saving LED indicators identify
blown fuses at a glance.
F. Nonconductive, watertight,
corrosion- and impact-resistant
Valox® enclosure ensures NEMA
4X and 12 ratings. Withstands the
harshest industrial environments.
G. Durable, stainless steel cover-
retaining chain makes installation
and maintenance more convenient.
H. Easy to drill for bottom wiring
access, top wiring access — or
both. Only one catalog number
per amp rating — simplifies
ordering and provides maximum
application flexibility.
I. Adjustable mounting feet can be
moved to center of unit for instant
strut- or pole-mounting without
special brackets or harnesses.
Oversized foot design eliminates
the need for washers.
J. Heavy-duty, ergonomic switch
handle meets OSHA Lockout/
Tagout requirements and provides
plenty of grip for sure, easy
operation. Black/red color coding
and high-visibility ON/OFF markings
clearly indicate status from a
distance and at any visual angle.
K. Heavy-duty steel-geared switch
mechanism provides enhanced
durability and extra-long
service life.
L. Hinged access door with windows
allows clear viewing of blown-fuse
LED indicators and provides fast,
easy access to fuse pullers.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-18
IEC 309 INDUSTRIAL PRODUCTS
FUSIBLE SAFETY SWITCHES
Materials of Manufacture Typical/Sample Spec
Typical Specifications
• Manufacturer’s Identifications: Pass & Seymour® PS60FSS
• Description: Fusible Safety Switch
• Rating: 60A, 600VAC maximum
• Enclosure Type: NEMA 4X (watertight, hosedown), 12K
(dusttight, falling dirt), IP67 suitability
• Conduit Location: Top or bottom feed. Unit shipped with no
holes drilled; a top and bottom feed spot drill is provided for
locating hole saw or knockout. End use r decides at installation
whether top or bottom feed is appropriate. No closure plug kits
required.
MATERIALS
Enclosure Cover Valox 357®
Enclosure Base Valox 357®
Enclosure Door Valox 357®
Enclosure Gasket Neoprene
Door Hinge 316 Stainless Steel
Switch Handle Valox 357®
Switch Handle Seal Neoprene
Shaft Brass
Gear Mechanism 1/8" Zinc-Plated Steel
Switch Key 10% Glass-Filled Nylon
Mounting Feet Valox 357®
Mounting Feet Screws 300 Series Stainless Steel
Enclosure Assembly Screws 300 Series Stainless Steel
Enclosure Assembly Inserts Brass
Grounding Plate Zinc-Plated Steel
Cover Chain 300 Series Stainless Steel
Conduit Hub Aluminum/Zinc
30 amp shipped with one (1) 1"
60 amp shipped with one (1) 11/4"
100 amp shipped with one (1) 11/2"
(will also fit a 2" hub, not provided)
Viewing Slots in Fuse-Access Door 1/8" thick glass le ns
PERFORMANCE
Electrical:
Fuse Type Class “J”
Dielectric Voltage Withstand 3000V minimum
Maximum Working Voltage 600V RMS
Current Interrupting Listed for current interrupting at
full-rated current and voltage
Short Circuit Withstand Rating For use on circuit capable of
delivering not more than 10,000 RMS
amps at receptacle voltage rating
Operations Mechanical: 15,000 cycles
Electrical: 10,000 cycles
Auxiliary Contacts 10A @ 600VAC 1 N.O. & 1 N.C.
Mechanical:
Impact Resistance Per UL746C
Terminal Identification Per UL and CSA
Product Identification Identification and rating on external
and internal labels
Mounting External adjustable feet with
five (5) positions
Can be mounted directly to channel
or strut (no washers required)
Environmental:
Moisture Resistance Per UL50, section 35, NEMA
Enclosure Type 4X (watertight,
hosedown)
Per UL50, section 35, NEMA
Enclosure Type 12K (dusttight,
falling dirt)
IP67 suitability
Flammability UL94 5VA and VO Classification
Operating Temperature Maximum continuous: +60°C
Minimum continuous: -50°C without
impact
UV Resistance All enclosure materials are
UV stable
WWW.LEGRAND.US/PASSANDSEYMOUR
I-19
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
NON-FUSIBLE SAFETY SWITCHES
Non-Fusible Safety Switches UL Listed
as “Suitable as Motor Disconnect.”
Here’s the first non-metallic NEMA 4X Non-Fusible Safety
Switch line UL Listed as “Suitable as Motor Disconnect” —
per NEC® Article 430.109(A)(6).
P&S Non-Fusible Safety Switches feature extra-tough
components, including an impact-resistant Valox® NEMA
4X enclosure. And an innovative design that delivers safe,
sure operation under the worst conditions. These rugged
performers are available in capacities from 30 to 100 amps.
And when you take a closer look, you’ll see even more to
like. For example, the fits-anywhere compact design. The
adjustable mounting feet that speed installation. Or the
no-confusion, at-a-glance ON/OFF status indication.
See how P&S Non-Fusible Safety Switches work better
for you.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-20
IEC 309 INDUSTRIAL PRODUCTS
D
E
F
B
C
A
NON-FUSIBLE SAFETY SWITCHES
A. Compact design fits in most
I-beams to provide mounting
versatility, easy access, and reduced
possibility of impact damage.
B. Nonconductive, watertight,
corrosion-, heat-, and impact-
resistant thermoplastic enclosure
ensures NEMA 4X and 12 ratings.
Withstands the harshest industrial
environments.
C. Corrosion-resistant, stainless steel
captive screws speed installation,
minimize risk of lost parts, and
withstand abuse.
D. Adjustable mounting feet can be
moved to center of unit for instant
strut- or pole-mounting without
special brackets or harnesses.
E. Durable, stainless steel cover-
retaining chain makes installation
and maintenance more convenient.
F. Heavy-duty, ergonomic switch
handle meets OSHA Lockout/
Tagout provisions and provides
plenty of grip for sure, easy
operation. Black/red color coding
and high-visibility ON/OFF markings
clearly indicate status from a
distance and at any visual angle.
Switch entry into the enclosure
is offset to the side and sealed to
provide enhanced water resistance.
Bottom and top wiring access
options. No unnecessary openings to
compromise water resistance.
Top mount auxiliary contact enables
additional control functions or
signal lights.
WWW.LEGRAND.US/PASSANDSEYMOUR
I-21
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
NON-FUSIBLE SAFETY SWITCHES
Ordering Information
RS30 AX30
Mounting Feet Replacement Kit
CATALOG NUMBER DESCRIPTION
SSMF Mounting Feet Replacement Kit for PS30SS and PS30SSAX
VOLTAGE
MAXIMUM
HORSEPOWER
RATING
NON-FUSIBLE
SAFETY SWITCH
CATALOG #
NON-FUSIBLE
SAFETY SWITCH
WITH AUXILIARY
CONTACT CATALOG #
AUXILIARY
CONTACT KIT*
REPLACEMENT
SWITCH
REPLACEMENT
SWITCH WITH
AUXILIARY
CONTACT
REPLACEMENT
COVER
30 AMPS 600VAC
120VAC 1 HP
PS30SSAX AX30 RS30 PS30RSAX PS30SSRC
208VAC 2 HP
240VAC 3 HP
277VAC 3 HP
480VAC 5 HP
3ø 240VAC 5 HP
3ø 480VAC 10 HP
3ø 600VAC 10 HP
3øY 120/208VAC 5 HP
3øY 277/480VAC 10 HP
3øY 347/600VAC 10 HP
60 AMPS 600VAC
120VAC 3 HP
PS60SS PS60SSAX AX60 RS60 N/A PS60SSRC
208VAC 10 HP
240VAC 10 HP
277VAC 15 HP
480VAC 20 HP
3ø 240VAC 20 HP
3ø 480VAC 40 HP
3ø 600VAC 50 HP
3øY 120/208VAC 20 HP
3øY 277/480VAC 40 HP
3øY 347/600VAC 50 HP
100 AMPS 600VAC
120VAC 5 HP
PS100SS PS100SSAX AX60 N/A N/A PS100SSRC
208VAC 10 HP
240VAC 15 HP
277VAC 15 HP
480VAC 30 HP
3ø 240VAC 25 HP
3ø 480VAC 50 HP
3ø 600VAC 50 HP
3øY 120/208VAC 20 HP
3øY 277/480VAC 50 HP
3øY 347/600VAC 50 HP
*For replacement of side mount auxiliary contact on previous design.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-22
IEC 309 INDUSTRIAL PRODUCTS
NON-FUSIBLE SAFETY SWITCHES
Materials of Manufacture Typical/Sample Spec
Typical Specifications
• Manufacturer’s Identification PS60SS
• Description: Non-Fusible Safety Switch
• Rating: 60A, 600VAC maximum
• Enclosure Type: NEMA 4X (watertight, hosedown), 12K (dust-
tight, falling dirt), IP67 suitability
• Conduit Location: Top, bottom, or back feed. Units are shipped
without holes for conduit. Spot drills for locating hole saw or
knockouts are provided for top, bottom, or back feed. End user
decides at installation whether top, bottom, or back feed is
appropriate. No closure plug kits required. Units are not pro-
vided with conduit hubs.
Interrupting Ratings — RMS Symmetrical Amperes
Suitable for use on circuits capable of delivering not more than
(see chart below for cat. no. and application) RMS symmetrical amperes,
600VAC maximum.
CATALOG
NUMBER
MANUAL
MOTOR CONTROLLER
MOTOR
DISCONNECT
PS30SS (AX) 10,000 AMP 10,000 AMP
PS60SS (AX) 10,000 AMP 5,000 AMP
PS100SS (AX)
MATERIALS
Enclosure Cover Valox 357®
Enclosure Base Valox 357®
Enclosure Gasket Neoprene
Switch Handle Valox 357®
Switch Handle Seal Neoprene
Switch Key 10% Glass-Filled Nylon
Mounting Feet Valox 357®
Mounting Feet Screws 300 Series Stainless Steel
Enclosure Assembly Screws 300 Series Stainless Steel
Enclosure Assembly Inserts Brass (60 and 100 amp units only)
Grounding Plate Galvanized Steel
Cover Chain 300 Series Stainless Steel
PERFORMANCE
Electrical:
Dielectric Voltage Withstand 3000V minimum
Maximum Working Voltage 600V RMS
Current Interrupting Listed for current interrupting at
full-rated current and voltage
Short Circuit Withstand Rating For use on circuit capable of
delivering not more than (see chart
below) RMS amps at 600VAC
Operations Mechanical: 15,000 cycles
Electrical: 10,000 cycles
Auxiliary Contacts (optional) 10A @ 600VAC
1 N.O. & 1 N.C.
Mechanical:
Impact Resistance Per UL746C
Terminal Identification Per UL and CSA
Product Identification Identification and rating on external
and internal labels
Mounting External adjustable feet with
five (5) positions
Can be mounted directly to channel
or strut (no washers required)
Environmental:
Moisture Resistance Per UL50, section 35, NEMA
Enclosure Type 4X (watertight,
hosedown)
Per UL50, section 35, NEMA
Enclosure Type 12K (dusttight,
falling dirt) • IP67 suitability
Flammability UL94 5VA and VO Classification
Operating Temperature Maximum continuous:
+60°C • Minimum continuous:
-50°C without impact
UV Resistance All enclosure materials are
UV stable
WWW.LEGRAND.US/PASSANDSEYMOUR
I-23
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
Non-Fusible Safety Switches Dimensions
Amps A B C D E F G H I J K
30 5.75 7.38 4.88 7.19 9.69 3.75 5.75 6.56 6.13 8.06 8.88
60 7.19 9.13 6.31 9.63 12.38 4.75 7.19 8.13 8.00 10.38 11.38
100 7.19 9.13 6.31 9.63 12.38 4.75 7.19 8.13 8.00 10.38 11.38
All measurements shown in inches.
NON-FUSIBLE SAFETY SWITCHES
Dimensions
Front Side Back
(See dimensions above.)
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-24
IEC 309 INDUSTRIAL PRODUCTS
Take a closer look at
fast-installing Pin & Sleeve
products that work for you.
There’s no better protection against moisture and industrial
contaminants than P&S IEC Pin & Sleeve products. With
spring-loaded covers, locking rings, and neoprene gaskets,
everything from water to dirt is completely shut out of the
electrical system — even if the connection is accidentally
submerged!
All P&S Watertight Pin & Sleeve plugs, connectors,
receptacles, and inlets bring you the features to enhance
versatility, reliability, and safety. For example, North
American products come completely ready to wire, for
quick, simple installation. And all feature impact- and
chemical-resistant thermoplastic construction. Shrouded,
nickel-plated, solid-brass pins provide corrosion protection
and excellent conductivity. And an exclusive, hinged cord
grip eliminates loose parts that get lost.
With a complete range of choices rated from 20 to 100
amps, you’ll find a Legrand works-for-you solution for every
Pin & Sleeve application in and around your plant.
PIN & SLEEvE DEvICES
WWW.LEGRAND.US/PASSANDSEYMOUR
I-25
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
H
G
A
F
E
B
D
C
PIN & SLEEvE DEvICES
P&S Pin & Sleeve products
provide installation ease,
enduring performance in harsh
conditions, and guaranteed IEC
309 compatibility.
Ratings, compliances visible on strap
for fast, long-lasting I.D.
A. Arrives ready to wire, with cord
grip open and cable-ready; terminal
screws come backed out and ready
to wire; front and back body require
no disassembly prior to assembly.
B. Nylon construction for high-impact
and corrosion resistance.
C. Nickel-plated brass pins provide
extracorrosion resistance without
sacrificing electrical conductivity.
D. Locking ring with an integral
neoprene gasket provides
watertight seal when plug and
connector/receptacle are mated.
E. Natural-rubber grommets provide
watertight protection at cable entry.
F. Combination-head screws for
added convenience and quick
installation.
G. Revolutionary, hinged cord grip for
durable performance and ease of
installation.
H. Cover with integral neoprene
gasket provides watertight seal.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-26
IEC 309 INDUSTRIAL PRODUCTS
PIN & SLEEvE DEvICES
North American Watertight Devices Ordering Information
PS330C4W PS330P4W
IP67
Suitability
VOLTAGE/
COLOR
CODING
WATERTIGHT BACK BOXES
REPLACEMENT PARTS
CONFIGURATION
BODIES CAPS
POLES &
WIRES
RECEP./
CONN.
PLUG/
INLET
RECEPTACLE PLUG CONNECTOR
METALLIC
BACK BOX
NON-METALLIC
BACK BOX PLUG CONNECTOR RECEPTACLE CONNECTOR
20 AMPS
2P3W 125 PS320R4W PS320P4W PS320C4W PSBB201W PSBBN201W PS320P4WR PS320C4WR PS320R4WL
2P3W 250 PS320R6W PS320P6W PS320C6W PSBB201W PSBBN201W PS320P6WR PS320C6WR PS320R6WL
2P3W 480 PS320R7W PS320P7W PS320C7W PSBB201W PSBBN201W PS320P7WR PS320C7WR PS320R7WL
2P3W 277 PS320R5W PS320P5W PS320C5W PSBB201W PSBBN201W PS320P5WR PS320C5WR PS320R5WL
3P4W 125/250 PS420R12W PS420P12W PS420C12W PSBB202W PSBBN202W PS420C12WR PS420R12WL
3P4W 3
ø
250 PS420R9W PS420P9W PS420C9W PSBB202W PSBBN202W PS420P9WR PS420C9WR
3P4W 3
ø
480 PS420R7W PS420P7W PS420C7W PSBB202W PSBBN202W PS420C7WR
3P4W 3
ø
600 PS420R5W PS420P5W PS420C5W PSBB202W PSBBN202W PS420P5WR PS420C5WR
4P5W 3
ø
Y 120/208 PS520R9W PS520P9W PS520C9W PSBB202W PSBBN202W PS520P9WR PS520C9WR
4P5W 3
ø
Y 277/480 PS520R7W PS520P7W PS520C7W PSBB202W PSBBN202W PS520P7WR PS520C7WR
4P5W 3
ø
Y 347/600 PS520R5W PS520P5W PS520C5W PSBB202W PSBBN202W PS520P5WR PS520C5WR
30 AMPS
2P3W 125 PS330R4W PS330P4W PS330C4W PSBB301W PSBBN301W PS330R4WL PS330C4WL
2P3W 250 PS330R6W PS330P6W PS330C6W PSBB301W PSBBN301W PS330C6WL
2P3W 480 PS330R7W PS330P7W PS330C7W PSBB301W PSBBN301W PS330P7WR PS330C7WR PS330R7WL PS330C7WL
3P4W 125/250 PS430R12W PS430P12W PS430C12W PSBB301W PSBBN301W PS430P12WR PS430C12WR PS430C12WL
3P4W 3
ø
250 PS430R9W PS430P9W PS430C9W PSBB301W PSBBN301W PS430P9WR PS430C9WR PS430R9WL
3P4W 3
ø
480 PS430R7W PS430P7W PS430C7W PSBB301W PSBBN301W PS430P7WR PS430C7WR
3P4W 3
ø
600 PS430R5W PS430P5W PS430C5W PSBB301W PSBBN301W PS430C5WL
3P4W*380/440 PS430R3W PS430P3W PS430C3W PSBB301W PSBBN301W PS430P3WR PS430C3WR PS430R3WL
4P5W 3
ø
Y 120/208 PS530R9W PS530P9W PS530C9W PSBB301W PSBBN301W PS530P9WR PS530C9WR PS530R9WL PS530C9WL
4P5W 3
ø
Y 277/480 PS530R7W PS530P7W PS530C7W PSBB301W PSBBN301W PS530P7WR PS530C7WR PS530R7WL PS530C7WL
4P5W 3
ø
Y 347/600 PS530R5W PS530P5W PS530C5W PSBB301W PSBBN301W PS530P5WR PS530C5WR PS530R5WL PS530C5WL
*Application specific, reference Page I-3.
North American Product Offering
WWW.LEGRAND.US/PASSANDSEYMOUR
I-27
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
PIN & SLEEvE DEvICES
North American Watertight Devices Ordering Information
North American Product Offering
VOLTAGE/
COLOR
CODING
WATERTIGHT BACK BOXES
REPLACEMENT PARTS
CONFIGURATION
BODIES CAPS
POLES &
WIRES
RECEP./
CONN.
PLUG/
INLET
RECEPTACLE†PLUG CONNECTOR INLET
METALLIC
BACK BOX
NON-METALLIC
BACK BOX PLUG
CONNECTOR RECEPTACLE CONNECTOR
60 AMPS
2P3W 125 PS360R4W PS360P4W PS360C4W PS360B4W PSBB601W PSBBN601W PS360C4WR PS360C4WL
2P3W 250 PS360R6W PS360P6W PS360C6W PS360B6W PSBB601W PSBBN601W PS360P6WR PS360C6WR
2P3W 480 PS360R7W PS360P7W PS360C7W PSBB601W PSBBN601W PS360P7WR PS360C7WR PS360R7WL PS360C7WL
3P4W 125/250 PS460R12W PS460P12W PS460C12W PS460B12W PSBB601W PSBBN601W PS460P12WR PS460C12WR PS460C12WL
3P4W 3ø 250 PS460R9W PS460P9W PS460C9W PS460B9W PSBB601W PSBBN601W PS460C9WR
3P4W 3ø 480 PS460R7W PS460P7W PS460C7W PS460B7W PSBB601W PSBBN601W
3P4W 3ø 600 PS460R5W PS460P5W PS460C5W PS460B5W PSBB601W PSBBN601W PS460R5WL
4P5W 3øY 120/208 PS560R9W PS560P9W PS560C9W PS560B9W PSBB601W PSBBN601W PS560P9WR
4P5W 3øY 277/480 PS560R7W PS560P7W PS560C7W PS560B7W PSBB601W PSBBN601W PS560P7WR PS560C7WR PS560R7WL PS560C7WL
4P5W 3øY 347/600 PS560R5W PS560P5W PS560C5W PS560B5W PSBB601W PSBBN601W PS560P5WR PS560C5WR PS560R5WL PS560C5WL
100 AMPS
2P3W 125 PS3100R4W PS3100P4W PS3100C4W PSBB1001W PS3100P4WR PS3100C4WR PS3100R4WL PS3100C4WL
2P3W 250 PS3100R6W PS3100P6W PS3100C6W PS3100B6W PSBB1001W PS3100C6WR PS3100R6WL PS3100C6WL
2P3W 480 PS3100R7W PS3100P7W PS3100C7W PS3100B7W PSBB1001W PS3100P7WR PS3100C7WR PS3100R7WL PS3100C7WL
3P4W 125/250 PS4100R12W PS4100P12W PS4100C12W PS4100B12W PSBB1001W PS4100C12WR PS4100C12WL
3P4W 3ø 250 PS4100R9W PS4100P9W PS4100C9W PS4100B9W PSBB1001W PS4100C9WR PS4100C9WL
3P4W 3ø 480 PS4100R7W PS4100P7W PS4100C7W PS4100B7W PSBB1001W PS4100R7WL PS4100C7WL
3P4W 3ø 600 PS4100R5W PS4100P5W PS4100C5W PS4100B5W PSBB1001W PS4100C5WR PS4100R5WL PS4100C5WL
4P5W 3øY 120/208 PS5100R9W PS5100P9W PS5100C9W PS5100B9W PSBB1001W PS5100P9WR PS5100C9WR PS5100C9WL
4P5W 3øY 277/480 PS5100R7W PS5100P7W PS5100C7W PS5100B7W PSBB1001W PS5100P7WR PS5100R7WL PS5100C7WL
4P5W 3øY 347/600 PS5100R5W PS5100P5W PS5100C5W PS5100B5W PSBB1001W PS5100P5WR PS5100C5WR PS5100R5WL PS5100C5WL
†Note: For straight 60 and 100 amp watertight receptacles, add “S” to catalog number after the R, example: PS4100RS5W.
IP67
Suitability
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-28
IEC 309 INDUSTRIAL PRODUCTS
PIN & SLEEvE DEvICES
North American Splashproof Devices Ordering Information
IP44
Suitability
VOLTAGE/
COLOR CODING
SPLASHPROOF BACK BOXES
NON-METALLIC
BACK BOX
*
ANGLED BOX
**
CONFIGURATION
POLES &
WIRES
RECEP./
CONN.
PLUG/
INLET
RECEPTACLE PLUG CONNECTOR INLET RECEPTACLE INLET RECEPTACLE
20 AMPS
2P3W 125 PS320P4S PS320C4S PSBB201W PSBB201SP PSBBN201W
2P3W 250 PS320R6S PS320P6S PS320C6S PS320B6S PSBB201W PSBB201SP PSBBN201W
2P3W 277 PS320R5S PS320P5S PSBB201W PSBB201SP PSBBN201W
3P4W 125/250 PS420R12S PS420P12S PS420C12S PSBB202W PSBB201SP PSBBN202W
3P4W 3ø 250 PS420R9S PS420P9S PS420C9S PS420B9S PSBB202W PSBB201SP PSBBN202W
3P4W 3ø 480 PS420R7S PS420P7S PS420C7S PS420B7S PSBB202W PSBB201SP PSBBN202W
3P4W 3ø 600 PS420R5S PS420B5S PSBB202W PSBB201SP PSBBN202W
4P5W 3øY 120/208 PS520R9S PS520C9S PS520B9S PSBB202W PSBB201SP PSBBN202W
4P5W 3øY 277/480 PS520C7S PS520B7S PSBB202W PSBB201SP PSBBN202W
4P5W 3øY 347/600 PS520R5S PS520C5S PS520B5S PSBB202W PSBB201SP PSBBN202W
30 AMPS
2P3W 125 PS330R4S PS330P4S PS330C4S PS330B4S PSBB301W PSBB301SP PSBBN301W
2P3W 250 PS330R6S PS330P6S PS330C6S PS330B6S PSBB301W PSBB301SP PSBBN301W
2P3W 480 PS330P7S PS330C7S PS330B7S PSBB301W PSBB301SP PSBBN301W
3P4W 125/250 PS430R12S PS430C12S PS430B12S PSBB301W PSBB301SP PSBBN301W
3P4W 3ø 250 PS430R9S PS430P9S PS430C9S PS430B9S PSBB301W PSBB301SP PSBBN301W
3P4W 3ø 480 PS430R7S PS430P7S PS430C7S PS430B7S PSBB301W PSBB301SP PSBBN301W
3P4W 3ø 600 PS430R5S PS430P5S PS430C5S PS430B5S PSBB301W PSBB301SP PSBBN301W
4P5W 3øY 120/208 PS530R9S PS530P9S PS530C9S PS530B9S PSBB301W PSBB301SP PSBBN301W
4P5W 3øY 277/480 PS530P7S PS530B7S PSBB301W PSBB301SP PSBBN301W
4P5W 3øY 347/600 PS530R5S PS530P5S PS530C5S PS530B5S PSBB301W PSBB301SP PSBBN301W
60 AMPS
2P3W 250 PS360R6S PS360P6S PS360C6S PS360B6S PSBB601W PSBB601W PSBBN601W
2P3W 480 PS360R7S PS360P7S PS360C7S PS360B7S PSBB601W PSBB601W PSBBN601W
3P4W 125/250 PS460R12S PS460P12S PS460C12S PS460B12S PSBB601W PSBB601W PSBBN601W
3P4W 3ø 250 PS460R9S PS460P9S PS460C9S PS460B9S PSBB601W PSBB601W PSBBN601W
3P4W 3ø 480 PS460R7S PS460P7S PS460C7S PS460B7S PSBB601W PSBB601W PSBBN601W
3P4W 3ø 600 PS460R5S PS460P5S PS460C5S PS460B5S PSBB601W PSBB601W PSBBN601W
4P5W 3øY 120/208 PS560R9S PS560P9S PS560C9S PS560B9S PSBB601W PSBB601W PSBBN601W
4P5W 3øY 277/480 PS560R7S PS560P7S PS560C7S PS560B7S PSBB601W PSBB601W PSBBN601W
4P5W 3øY 347/600 PS560R5S PS560P5S PS560C5S PS560B5S PSBB601W PSBB601W PSBBN601W
*Line art for 60 amp only. 20 and 30 amp inlets are angled.
**Line art for 20 and 30 amp only. 60 amp back box is angled.
North American Product Offering
WWW.LEGRAND.US/PASSANDSEYMOUR
I-29
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
PIN & SLEEvE DEvICES
International Splashproof Devices Ordering Information
International Product Offering
SPLASHPROOF (IP44 SUITABILITY)
CONFIGURATION
POLES &
WIRES
RECEP./
CONN.
PLUG/
INLET
VOLTAGE/
COLOR CODING
RECEPTACLE PLUG CONNECTOR INLET
NON-METALLIC
BACK BOX
16 AMPS
2P3W 110/120 51920 51940 51980 51970* 52029
2P3W 220/240 52022 52042 52082 52172* 52029
2P3W 380/415 52222 52242 52282 52272* 52029
3P4W 220/240 52023 52043 52083 52073* 52229
3P4W 380/415 52223 52243 52283 52229
4P5W 220/240 52044 52084 52074* 52229
4P5W 220/380
240/415 52224 52244 52284 52174 52229
32 AMPS
2P3W 110/120 51972*
2P3W 220/240 52718 52742 52782 52872*
2P3W 380/415 52942 52982 52972*
3P4W 220/240 52743 52783 52773*
3P4W 380/415 52943 52983 52873*
4P5W 220/240 52744 52774*
4P5W 220/380
240/415 52944 52984
63 AMPS
2P3W 110/120 53542 53582 53889
2P3W 220/240 53622 53642 53682 53772* 53889
3P4W 220/240 53623 53643 53683 53889
3P4W 380/415 53823 53843 53883 53773* 53889
4P5W 220/240 53644 53684 53889
4P5W 220/380
240/415 53824 53844 53884 53774* 53889
*Use with Back Box listed for surface mounting. Refer to chart on Page I-34.
Additional international configuration available — consult Factory Export Department.
Watertight versions available. Please consult factory.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-30
IEC 309 INDUSTRIAL PRODUCTS
PIN & SLEEvE DEvICES
Special Voltages & Frequencies
IP44
Suitability
Special Voltages and Frequencies
SPLASHPROOF
CONFIGURATION
POLES &
WIRES
RECEP./
CONN.
PLUG/
INLET
VOLTAGE/
COLOR CODING
SURFACE
RECEPTACLE RECEPTACLE PLUG CONNECTOR
16 AMPS
2P 24V 52421
2P 42VDC
3P 24V 52402* 52402
3P4W 50-500V
32 AMPS
2P 24V
2P 42V
3P4W 50-500V
100/300Hz 52371
*Use with Back Box listed below for surface mounting.
Additional international configuration available — consult Factory Export Department.
Size
BACK BOX FOR IP44 NON-METALLIC INLETS AND RECEPTACLES
16A: 2P3W 52079
63A: All 53879
Device Type
Adapter Plate Leviton,
Crouse Hinds/Appleton Device Type
Adapter Plate
Hubbell
COMPETITOR BACK BOX ADAPTER PLATE
20A 3 Wire PSAP320CA 20A 3 Wire PSAP320HBL
20A 4, 5 Wire PSAP4520CA 20A 4 Wire PSAP420HBL
All 30A PSAP30CA 20A 5 Wire & All
30A
PSAP52030HBL
All 60A All 60A PSAP60HB
WWW.LEGRAND.US/PASSANDSEYMOUR
I-31
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
AMPS WIRE CONFIGURATIONS A B C D E F
WATERTIGHT RECEPTACLES
60/63
2 Pole, 3 Wire 4.20 3.10 3.50 5.00 3.03 3.35
3 Pole, 4 Wire 4.20 3.10 3.50 5.00 3.03 3.35
4 Pole, 5 Wire 4.20 3.10 3.50 5.00 3.03 3.35
WATERTIGHT PLUGS
60/63
2 Pole, 3 Wire 10.00 4.50 .63-1.04
3 Pole, 4 Wire 10.00 4.50 .73-1.14
4 Pole, 5 Wire 10.00 4.50 .80-1.26
WATERTIGHT CONNECTORS
60/63
2 Pole, 3 Wire 10.90 4.50 4.70 .63-1.04
3 Pole, 4 Wire 10.90 4.50 4.70 .73-1.14
4 Pole, 5 Wire 10.90 4.50 4.70 .80-1.26
WATERTIGHT INLETS
60/63
2 Pole, 3 Wire 4.50 4.25 3.03 3.35
3 Pole, 4 Wire 4.50 4.25 3.03 3.35
4 Pole, 5 Wire 4.50 4.25 3.03 3.35
PIN & SLEEvE DEvICES
Watertight Dimensional Information
Receptacles
Plugs
Connectors
Inlets
Receptacle/Inlet
Drilling Pattern
16/20 & 30/32 Amp Watertight Devices/Dimensional Information
60/63 Amp Watertight Devices/Dimensional Information
100/125 Amp Watertight Devices/Dimensional Information
All measurements shown in inches.
AMPS WIRE CONFIGURATIONS A B C D E F
WATERTIGHT RECEPTACLES
16/20
2 Pole, 3 Wire 2.85 1.80 1.60 3.40 2.05 2.36
3 Pole, 4 Wire 3.20 1.90 1.60 3.80 2.36 2.75
4 Pole, 5 Wire 3.40 2.00 1.70 3.80 2.36 2.75
30/32
2 Pole, 3 Wire 3.72 2.60 1.80 4.30 2.75 3.15
3 Pole, 4 Wire 3.72 2.60 1.90 4.30 2.75 3.15
4 Pole, 5 Wire 3.98 2.70 1.95 4.30 2.75 3.15
WATERTIGHT PLUGS
16/20
2 Pole, 3 Wire 5.30 2.85 .31-.59
3 Pole, 4 Wire 5.50 3.20 .31-.59
4 Pole, 5 Wire 6.00 3.40 .39-.71
30/32
2 Pole, 3 Wire 6.50 3.70 .39-.71
3 Pole, 4 Wire 6.50 3.70 .47-.87
4 Pole, 5 Wire 6.70 3.98 .47-.87
WATERTIGHT CONNECTORS
16/20
2 Pole, 3 Wire 5.90 2.85 3.00 .31-.59
3 Pole, 4 Wire 6.00 3.20 3.40 .31-.59
4 Pole, 5 Wire 6.70 3.40 3.50 .39-.71
30/32
2 Pole, 3 Wire 7.00 3.70 3.90 .39-.71
3 Pole, 4 Wire 7.00 3.70 3.90 .47-.87
4 Pole, 5 Wire 7.30 3.98 4.10 .47-.87
AMPS WIRE CONFIGURATIONS A B C D E F
WATERTIGHT RECEPTACLES
100/125
2 Pole, 3 Wire 5.20 2.20 4.40 5.60 4.88 4.88
3 Pole, 4 Wire 5.20 2.20 4.40 5.60 4.88 4.88
4 Pole, 5 Wire 5.20 2.20 4.40 5.60 4.88 4.88
WATERTIGHT PLUGS
100/125
2 Pole, 3 Wire 13.40 5.20 .59-1.97
3 Pole, 4 Wire 13.40 5.20 .59-1.97
4 Pole, 5 Wire 13.40 5.20 .59-1.97
WATERTIGHT CONNECTORS
100/125
2 Pole, 3 Wire 14.30 5.20 5.30 .59-1.97
3 Pole, 4 Wire 14.30 5.20 5.30 .59-1.97
4 Pole, 5 Wire 14.30 5.20 5.30 .59-1.97
WATERTIGHT INLETS
100/125
2 Pole, 3 Wire 5.75 5.71 4.88 4.88
3 Pole, 4 Wire 5.75 5.71 4.88 4.88
4 Pole, 5 Wire 5.75 5.71 4.88 4.88
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-32
IEC 309 INDUSTRIAL PRODUCTS
PIN & SLEEvE DEvICES
Splashproof Dimensional Information
16/20 & 30/32 Amp Splashproof Devices/Dimensional Information
AMPS WIRE CONFIGURATIONS A B C D E F
SPLASHPROOF RECEPTACLES
16/20
2 Pole, 3 Wire 2.50 1.57 1.60 3.10 2.05 2.36
3 Pole, 4 Wire 2.90 1.57 1.73 3.46 2.36 2.75
4 Pole, 5 Wire 2.90 1.73 1.73 3.66 2.36 2.75
30/32
2 Pole, 3 Wire 3.30 2.10 1.97 4.06 2.75 3.15
3 Pole, 4 Wire 3.30 2.10 1.97 4.06 2.75 3.15
4 Pole, 5 Wire 3.30 2.20 2.05 4.20 2.75 3.15
SPLASHPROOF PLUGS
16/20
2 Pole, 3 Wire 5.30 2.17 .31-.59
3 Pole, 4 Wire 5.50 2.36 .31-.59
4 Pole, 5 Wire 6.00 2.60 .39-.71
30/32
2 Pole, 3 Wire 6.50 2.78 .39-.71
3 Pole, 4 Wire 6.50 2.78 .47-.87
4 Pole, 5 Wire 6.70 3.03 .47-.87
SPLASHPROOF CONNECTORS
16/20
2 Pole, 3 Wire 5.79 2.15 2.91 .31-.59
3 Pole, 4 Wire 5.94 2.42 3.19 .31-.59
4 Pole, 5 Wire 6.77 2.73 3.54 .39-.71
30/32
2 Pole, 3 Wire 6.97 2.80 3.66 .39-.71
3 Pole, 4 Wire 6.97 2.80 3.66 .47-.87
4 Pole, 5 Wire 7.20 3.05 3.94 .47-.87
SPLASHPROOF INLETS
16/20
2 Pole, 3 Wire 2.83 3.07 2.44 3.70
3 Pole, 4 Wire 3.70 3.39 3.27 4.29
4 Pole, 5 Wire 3.70 3.39 3.27 4.29
30/32
2 Pole, 3 Wire 3.98 4.37 3.54 5.86
3 Pole, 4 Wire 3.98 4.37 3.54 5.86
4 Pole, 5 Wire 3.98 4.25 3.54 5.86
Connectors
60/63 Amp Splashproof Devices/Dimensional Information
AMPS WIRE CONFIGURATIONS A B C D E F
SPLASHPROOF RECEPTACLES
60/63
2 Pole, 3 Wire 4.20 3.50 2.76 5.08 3.03 3.35
3 Pole, 4 Wire 4.20 3.50 2.76 5.08 3.03 3.35
4 Pole, 5 Wire 4.20 3.50 2.76 5.08 3.03 3.35
SPLASHPROOF PLUGS
60/63
2 Pole, 3 Wire 10.00 4.02 .63-1.04
3 Pole, 4 Wire 10.00 4.02 .73-1.14
4 Pole, 5 Wire 10.00 4.02 .80-1.26
SPLASHPROOF CONNECTORS
60/63
2 Pole, 3 Wire 10.75 3.78 4.67 .63-1.04
3 Pole, 4 Wire 10.75 3.78 4.67 .73-1.14
4 Pole, 5 Wire 10.75 3.78 4.67 .80-1.26
SPLASHPROOF INLETS
60/63
2 Pole, 3 Wire 4.50 4.25 3.03 3.35
3 Pole, 4 Wire 4.50 4.25 3.03 3.35
4 Pole, 5 Wire 4.50 4.25 3.03 3.35
All measurements shown in inches.
Inlets
Receptacle/Inlet
Drilling Pattern
Receptacles
D
Plugs
WWW.LEGRAND.US/PASSANDSEYMOUR
I-33
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
PIN & SLEEvE DEvICES
Watertight & Splashproof Material & Performance
Pin & Sleeve Product Specifications
16/20 AMP 30/32 AMP 60/63 AMP 100/125 AMP
RECEPTACLES
Housing Polyamide 6 Polyamide 6 Valox Valox
Cover Polyamide 66 Polyamide 66 Valox Valox
Cover Spring Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Sealing Gasket†Neoprene Neoprene Neoprene Neoprene
Mounting Gasket Neoprene Neoprene Neoprene Neoprene
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Sleeves Brass w/Nickel
Plate*†
Brass w/Nickel
Plate*†
Brass w/Nickel
Plate
Brass w/Nickel
Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
INLETS
Housing Polyamide 6 Polyamide 6 Valox Valox
Mounting Flange Polyamide 6 Polyamide 6 Valox Valox
Locking Ring*†Polyamide 66 Polyamide 66 Valox Valox
Sealing Gasket†Neoprene Neoprene Neoprene Neoprene
Mounting Gasket Neoprene Neoprene Neoprene Neoprene
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Pins Brass w/Nickel
Plate*†
Brass w/Nickel
Plate*†
Brass w/Nickel
Plate
Brass w/Nickel
Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
PLUGS
Housing Polyamide 6 Polyamide 6 Valox Valox
Locking Ring*†Polyamide 66 Polyamide 66 Valox Valox
Sealing Gasket†Neoprene Neoprene Neoprene Neoprene
Housing Gasket Neoprene Neoprene Neoprene Neoprene
Back Body Polyamide 6 Polyamide 6 Valox Valox
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Pins Brass w/Nickel
Plate*†
Brass w/Nickel
Plate*†
Brass w/Nickel
Plate
Brass w/Nickel
Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plate Steel
Cord Grip Polyamide 6 Polyamide 6 Polyamide 66 Polyamide 66
Grommet Natural Rubber Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Assembly Screws Stainless Steel Stainless Steel Stainless Steel Stainless Steel
CONNECTORS
Housing Polyamide 6 Polyamide 6 Valox Valox
Cover Polyamide 66 Polyamide 66 Valox Valox
Cover Spring Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Sealing Gasket†Neoprene Neoprene Neoprene Neoprene
Housing Gasket Neoprene Neoprene Neoprene Neoprene
Back Body Polyamide 6 Polyamide 6 Valox Valox
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Sleeves Brass w/Nickel
Plate*†
Brass w/Nickel
Plate*†
Brass w/Nickel
Plate
Brass w/Nickel
Plate
Terminal
Screws
Zinc-Plated
Steel
Zinc-Plated
Steel
Zinc-Plated
Steel
Zinc-Plated
Steel
Cord Grip Polyamide 6 Polyamide 6 Polyamide 66 Polyamide 66
Grommet Natural Rubber Natural Rubber Natural Rubber Natural Rubber
Cord Grip
Screws
Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Assembly
Screws
Stainless Steel Stainless Steel Stainless Steel Stainless Steel
METALLIC BACK BOX
Housing Cast Aluminum
Hub Cast Iron
NON-METALLIC BACK BOX
Housing Polyamide 6
Hub
†Does not apply to splashproof.
*16/20A and 30/32A sleeves and pins on splashproof products are brass only.
Splashproof inlets and plugs do not have locking rings.
Consult factory for additional details.
PERFORMANCE
Electrical:
Dielectric Voltage
Withstand
3000V maximum
Maximum Working
Voltage
600V RMS, 60Hz - 400Hz
Current Interrupting Certified for current interrupting
at full-rated current
Temperature Rise Maximum 30˚C temperature
rise at full-rated current after
50 cycles of 150% overload
(at 0.75 to 0.80 power factor)
Endurance 20 amp: 5000 cycles with
full-rated current and voltage
30, 60, 100 amp: 2000 cycles with
full-rated current and voltage
applied on every other cycle
Mechanical:
Impact Resistance Device dropped 8 times from a
height of 2.5 feet with 7.5 feet of
cord attached (per CSA 182.1)
Cord Grip Retention
Force, Lbs.** Torque, Ft.lbs.**
20A
30A
60A
100A
30
75
150
150
0.4
0.5
1.0
1.0
**Applied to minimum recommended cable size.
Cord Accommodation Round portable service cords
Diameters commensurate with
the device rating as defined in
UL62, CSA C22.2, No. 49, and
the harmonized (HAR) European
Standard
Terminal Identification Identified in accordance with
North American convention,
UL1682, and IEC 309-1, 309-2,
rated for copper conductors only
Product Identification Identification and ratings are
labeled on the device housing
Environmental:
Moisture Resistance Per IEC 309-1
Flammability Contact with live parts: V2 or V0
Enclosure: HB or better per UL94
Operating
Temperature
+80˚C maximum continuous;
-50˚C minimum without impact
UV Resistance All enclosure materials are
UV stable
Specimen
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-34
IEC 309 INDUSTRIAL PRODUCTS
Watertight: Inlets and Receptacles
Splashproof: 20, 30 & 60A Receptacles
60A Inlets
Splashproof: 20 & 30A Inlets
In both non-metallic (left) and metallic (right) Back Boxes, you’ll find
easy installation and no-compromises durability.
PSBBN201W PSBBN202W PSBBN301W PSBBN601W
Metallic Back Boxes Dimensions
PIN & SLEEvE DEvICES
Accessories/Dimensional Information
Catalog
Number A B C D E F G H J DIA K L
PSBB201W 5.60 5.00 3.17 5.00 2.05 2.36 8-32UNC 2.04 .20 DIA 1/2" NPT 2.75
PSBB202W 6.82 6.12 4.11 6.07 2.36 2.76 8-32UNC 2.55 .20 DIA 3/4" NPT 3.61
PSBB201SP 7.00 5.98 2.00 6.00 3.27 4.29 8-32UNC 3.00 .20 DIA 3/4" NPT 3.96
PSBB301W 6.82 6.12 4.11 6.07 2.76 3.15 8-32UNC 2.55 .20 DIA 3/4" NPT 3.61
PSBB301SP 8.60 7.58 2.00 7.60 3.54 5.87 8-32UNC 3.00 .20 DIA 3/4" NPT 4.22
PSBB601W 8.63 7.75 4.92 7.70 3.03 3.35 10-24UNC 3.87 .28 DIA 1 1/2" NPT 4.75
PSBB1001W 12.50 11.00 6.25 11.00 4.88 4.88 1/4-20UNC 4.75 .28 DIA 1 1/2" NPT 6.25
PSBB1002W 12.50 11.00 6.25 11.00 4.88 4.88 1/4-20UNC 4.75 .28 DIA 2" NPT 6.25
Non-Metallic Back Boxes Dimensions
Catalog
Number A B C D E Hub Size
PSBBN201W 2.50 2.31 4.16 2.28 0.78 3/4" NPT
PSBBN202W 3.34 3.78 4.81 2.38 0.63 3/4" NPT
PSBBN301W 3.53 4.03 6.38 3.53 1.03 1" NPT
PSBBN601W 6.00 6.69 11.81 5.91 1.56 1 1/2" NPT
All measurements shown in inches.
WWW.LEGRAND.US/PASSANDSEYMOUR
I-35
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
PIN & SLEEvE DEvICES
Accessories/Dimensional Information
Choose from a full range of P&S Strain Relief Adapters, all built
extra-tough for no-worries dependability.
Pin & Sleeve Strain Relief Adapters
PSCP320 PSCP60
Catalog
Number A B C D E F G
H
(Metric Thread)
PSAD3050 1/2" NPT 1.38 1.13 .54 .25 .47 .88 M32X1.5
PSAD3034 3/4" NPT 1.50 1.50 .56 .25 .47 .88 M32X1.5
PSAD301 1" NPT 1.75 1.75 .70 .25 .47 .88 M32X1.5
PSAD601 1" NPT 2.00 1.75 .70 .38 1.00 1.38 M45X2
PSAD60125 1 1/4" NPT 2.00 2.00 .70 .38 1.00 1.38 M45X2
PSAD60150 1 1/2" NPT 2.38 2.38 .70 .38 1.00 1.38 M45X2
PSAD100125 1 1/4" NPT 2.50 2.38 .70 .38 1.10 2.00 M60X2
PSAD100150 1 1/2" NPT 2.50 2.38 .70 .38 1.10 2.00 M60X2
PSAD1002 2" NPT 2.75 2.70 .75 .38 1.10 2.00 M60X2
All measurements shown in inches.
Back Box & Protective Covers
Device Type Back Box Hub Size
Protective Plug &
Inlet Cover
20A 3 Wire PSBB201W 1/2" PSCP320
20A 4 Wire PSBB202W 3/4" PSCP420
20A 5 Wire PSBB202W 3/4" PSCP520
20A 3, 4, 5 Wire (Inlet) PSBB201SP 3/4"
30A 3, 4 Wire PSBB301W 3/4" PSCP3430
30A 5 Wire PSBB301W 3/4"
30A 3, 4, 5 Wire (Inlet) PSBB301SP 3/4"
All 60A PSBB601W* 1 1/2" PSCP60
All 100A PSBB1001W 1 1/2" PSCP100
All 100A PSBB1002W 2"
*11/4” Reducer Supplied
Strain Relief Adapter Fittings
Device Type Fitting Size Catalog Number
20A 3, 4 Wire 1/2" NPT PSAD2050
20A 3, 4 Wire 3/4" NPT PSAD2034
20A 5W, All 30A 1/2" NPT PSAD3050
30A 3, 4 Wire 3/4" NPT PSAD3034
30A 3, 4 Wire 1" NPT PSAD301
All 60A 1" NPT PSAD601
All 60A 1 1/4" NPT PSAD60125
All 60A 1 1/2" NPT PSAD60150
All 100A 1 1/4" NPT PSAD100125
All 100A 1 1/2" NPT PSAD100150
All 100A 2" NPT PSAD1002
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-36
IEC 309 INDUSTRIAL PRODUCTS
PIN & SLEEvE DEvICES
Technical Specifications
Typical Specifications
• Manufacturer’s Identification: Pass &
Seymour PS460P7W
• Description: Plug, Power Supply
• Type: 3 Pole, 4 Wire Grounding
• Rating: 60A, 3 Phase 480VAC
• Configuration: IEC 309-2, Clock Position
7, Watertight (IP67)
• 3rd Party Compliance: UL Listed to UL
Standard 1682; CSA Certified to CSA 22.2
No. 182.2; UL Classified to IEC 309-1 and
IEC 309-2
Typical Specifications
• Manufacturer’s Identification: Pass &
Seymour PS460C7W
• Description: Connector, Power Supply
• Type: 3 Pole, 4 Wire Grounding
• Rating: 60A, 3 Phase 480VAC
• Configuration: IEC 309-2, Clock Position
7, Watertight (IP67)
• 3rd Party Compliance: UL Listed to UL
Standard 1682; CSA Certified to CSA 22.2
No. 182.2; UL Classified to IEC 309-1 and
IEC 309-2
Typical Specifications
• Manufacturer’s Identification: Pass &
Seymour PS460P7S
• Description: Plug, Power Supply
• Type: 3 Pole, 4 Wire Grounding
• Rating: 60A, 3 Phase 480VAC
• Configuration: IEC 309-2, Clock Position
7, Splashproof (IP44)
• 3rd Party Compliance: UL Listed to UL
Standard 1682; CSA Certified to CSA 22.2
No. 182.2; UL Classified to IEC 309-1 and
IEC 309-2
Typical Specifications
• Manufacturer’s Identification: Pass &
Seymour PS460C7S
• Description: Connector, Power Supply
• Type: 3 Pole, 4 Wire Grounding
• Rating: 60A, 3 Phase 480VAC
• Configuration: IEC 309-2, Clock Position
7, Splashproof (IP44)
• 3rd Party Compliance: UL Listed to UL
Standard 1682; CSA Certified to CSA 22.2
No. 182.2; UL Classified to IEC 309-1 and
IEC 309-2
Watertight Pin & Sleeve Plugs
20, 30, 60 & 100A
Watertight Pin & Sleeve Connectors
20, 30, 60 & 100A
Splashproof Pin & Sleeve Plugs
20, 30 & 60A
Splashproof Pin & Sleeve Connectors
20, 30 & 60A
WWW.LEGRAND.US/PASSANDSEYMOUR
I-37
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
PIN & SLEEvE DEvICES
Technical Specifications
IP Suitability Ratings are an international system for
classifying the degree of protection provided by enclosures
of electrical equipment. The higher the number, the greater
the degree of protection; they apply ONLY to properly
installed equipment. The numerals stand for the following:
1. First Number: Degree of protection for persons against
access to hazardous parts inside the enclosure and/or
against solid bodies.
2. Second Number: Degree of protection of equipment
inside enclosures against damage from the ingress of
water.
Example: IP44 = Ingress Protection; Solid bodies >=1.0 mm; Splashing
IP44
Suitability
IEC Enclosure Classification Designation
Code Letters First Number Second Number
Ingress
Protection
Against Ingress of
Solid Bodies
Against Ingress of Water
with Harmful Effects
IP 0 - Nonprotected 0 - Nonprotected
1 - >=50 mm diameter 1 - Vertically dripping
2 - >=12.5 mm diameter 2 - Dripping (15° Tilted)
3 - >=2.5 mm diameter 3 - Spraying
4 - >=1.0 mm 4 - Splashing
5 - Dust-protected 5 - Jetting
6 - Dusttight 6 - Power jetting
7 - Temporary immersion
8 - Continuous immersion
Note: >= denotes greater than or equal to. Dimensions in millimeters (mm).
Conversion Chart
Fractions to Decimals to Millimeters
Inches
Fraction Decimal mm
Inches
Fraction Decimal mm
Inches
Fraction Decimal mm
Inches
Fraction Decimal mm
1/64 0.0156 0.3969 17/64 0.2656 6.7469 33/64 0.5156 13.0969 49/64 0.7656 19.4469
1/32 0.0312 0.7938 9/32 0.2812 7.14 38 17/32 0.5312 13.4938 25/32 0.7812 19.8437
3/64 0.0468 1.1906 19/64 0.2968 7.5406 35/64 0.5468 13.8906 51/64 0.7968 20.2406
1/16 0.0625 1.5875 5/16 0.3125 7.9375 9/16 0.5625 14.2875 13/16 0.8125 20.6375
5/64 0.0781 1.9844 21/64 0.3281 8.3344 37/64 0.5781 14.6844 53/64 0.8281 21.0344
3/32 0.0937 2.3812 11/32 0.3437 8.7312 19/32 0.5937 15.0812 27/32 0.8437 21.4312
7/64 0.1093 2.7781 23/64 0.3593 9.1281 39/64 0.6093 15.4781 55/64 0.8593 21.8281
1/8 0.1250 3.1750 3/8 0.3750 9.5250 5/8 0.6250 15.8750 7/8 0.8750 22.2250
9/64 0.14 06 3.5719 25/64 0.3906 9.9219 41/64 0.6406 16.2719 57/64 0.8906 22.6219
5/32 0.1562 3.9688 13/32 0.4062 10.3188 21/32 0.6562 16.6688 29/32 0.9062 23.0188
11/64 0.1718 4.3656 27/64 0.4218 10.7156 43/64 0.6718 17.0656 59/64 0.9218 23.4156
3/16 0.1875 4.7625 7/16 0.4375 11.1125 11/16 0.6875 17.4625 15/16 0.9375 23.8125
13/64 0.2031 5.1594 29/64 0.4531 11.5094 45/64 0.7031 17.8594 61/ 64 0.9531 24.2094
7/32 0.2187 5.5562 15/32 0.4687 11.9062 23/32 0.7187 18.2562 31/32 0.9687 24.6062
15/64 0.2343 5.9531 31/64 0.4843 12.3031 47/64 0.7343 18.6531 63/64 0.9843 25.0031
1/4 0.2500 6.3500 1/2 0.5000 12.7000 3/4 0.7500 19.0500 11.0000 25.4000
IP Suitability Rating
IEC Enclosure Classification Designation
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-38
IEC 309 INDUSTRIAL PRODUCTS
North American Watertight
PIN & SLEEvE DEvICES
Product Selection Guide
Pg. I-14-18
Pg. I-19-23
Amps Volts
Pg. I-4-8 Pg. I-9-13 Pg. I-24-27 Pg. I-34
Fusible
Safety
Switches
Non-Fusible
Safety
Switches
Fusible Mech.
Interlock
Non-Fusible
Mech.
Interlock Plug Receptacle Connector Inlet
Metallic
Back Box
Non-Metallic
Back Box
120VAC PS320P4W PS320R4W PS320C4W PSBB201W PSBBN201W
240VAC PS320P6W PS320R6W PS320C6W PSBB201W PSBBN201W
480VAC PS320P7W PS320R7W PS320C7W PSBB201W PSBBN201W
277VAC PS320P5W PS320R5W PS320C5W PSBB201W PSBBN201W
120/240VAC PS420FMIR12W PS420MIR12W PS420P12W PS420R12W PS420C12W PSBB202W PSBBN202W
N/A N/A 20 3ø 240VAC PS420FMIR9W PS420MIR9W PS420P9W PS420R9W PS420C9W PSBB202W PSBBN202W
3ø 480VAC PS420FMIR7W PS420MIR7W PS420P7W PS420R7W PS420C7W PSBB202W PSBBN202W
3ø 600VAC PS420FMIR5W PS420MIR5W PS420P5W PS420R5W PS420C5W PSBB202W PSBBN202W
3øY 120/208VAC PS520P9W PS520R9W PS520C9W PSBB202W PSBBN202W
3øY 277/480VAC PS520P7W PS520R7W PS520C7W PSBB202W PSBBN202W
3øY 347/600VAC PS520P5W PS520R5W PS520C5W PSBB202W PSBBN202W
120VAC PS330MIR4W PS330P4W PS330R4W PS330C4W PSBB301W PSBBN301W
240VAC PS330FMIR6W PS330P6W PS330R6W PS330C6W PSBB301W PSBBN301W
480VAC PS330P7W PS330R7W PS330C7W PSBB301W PSBBN301W
120/240VAC PS430FMIR12W PS430R12W PS430C12W PSBB301W PSBBN301W
3ø 240VAC PS430FMIR9W PS430MIR9W PS430P9W PS430R9W PS430C9W PSBB301W PSBBN301W
PS30FSS PS30SS 30 3ø 480VAC PS430FMIR7W PS430MIR7W PS430P7W PS430R7W PS430C7W PSBB301W PSBBN301W
3ø 600VAC PS430FMIR5W PS430MIR5W PS430P5W PS430R5W PS430C5W PSBB301W PSBBN301W
380/440 VAC PS430FMIR3W PS430MIR3W PS430P3W PS430R3W PS430C3W PSBB301W PSBBN301W
3øY 120/208VAC PS530FMIR9W PS530MIR9W PS530P9W PS530R9W PS530C9W PSBB301W PSBBN301W
3øY 277/480VAC PS530FMIR7W PS530MIR7W PS530P7W PS530R7W PS530C7W PSBB301W PSBBN301W
3øY 347/600VAC PS530MIR5W PS530R5W PS530C5W PSBB301W PSBBN301W
120VAC PS360P4W PS360R4W PS360C4W PS360B4W PSBB601W PSBBN601W
240VAC PS360FMIR6W PS360MIR6W PS360P6W PS360R6W PS360C6W PS360B6W PSBB601W PSBBN601W
480VAC PS360MIR7W PS360P7W PS360R7W PS360C7W PSBB601W PSBBN601W
120/240VAC PS460FMIR12W PS460MIR12W PS460P12W PS460R12W PS460C12W PS460B12W PSBB601W PSBBN601W
PS60FSS PS60SS 60 3ø 240VAC PS460FMIR9W PS460MIR9W PS460P9W PS460R9W PS460C9W PS460B9W PSBB601W PSBBN601W
3ø 480VAC PS460FMIR7W PS460MIR7W PS460P7W PS460R7W PS460C7W PS460B7W PSBB601W PSBBN601W
3ø 600VAC PS460FMIR5W PS460MIR5W PS460P5W PS460R5W PS460C5W PS460B5W PSBB601W PSBBN601W
3øY 120/208VAC PS560FMIR9W PS560MIR9W PS560P9W PS560R9W PS560C9W PS560B9W PSBB601W PSBBN601W
3øY 277/480VAC PS560FMIR7W PS560MIR7W PS560P7W PS560R7W PS560C7W PS560B7W PSBB601W PSBBN601W
3øY 347/600VAC PS560FMIR5W PS560MIR5W PS560P5W PS560R5W PS560C5W PS560B5W PSBB601W PSBBN601W
120VAC PS3100P4W PS3100R4W PS3100C4W PSBB1001W
240VAC PS3100MIR6W PS3100P6W PS3100R6W PS3100C6W PS3100B6W PSBB1001W
480VAC PS3100MIR7W PS3100P7W PS3100R7W PS3100C7W PS3100B7W PSBB1001W
120/240VAC PS4100FMIR12W PS4100MIR12W PS4100P12W PS4100R12W PS4100C12W PS4100B12W PSBB1001W
PS100FSS PS100SS 100 3ø 240VAC PS4100FMIR9W PS4100MIR9W PS4100P9W PS4100R9W PS4100C9W PS4100B9W PSBB1001W
3ø 480VAC PS4100FMIR7W PS4100MIR7W PS4100P7W PS4100R7W PS4100C7W PS4100B7W PSBB1001W
3ø 600VAC PS4100FMIR5W PS4100MIR5W PS4100P5W PS4100R5W PS4100C5W PS4100B5W PSBB1001W
3øY 120/208VAC PS5100FMIR9W PS5100MIR9W PS5100P9W PS5100R9W PS5100C9W PS5100B9W PSBB1001W
3øY 277/480VAC PS5100FMIR7W PS5100MIR7W PS5100P7W PS5100R7W PS5100C7W PS5100B7W PSBB1001W
3øY 347/600VAC PS5100FMIR5W PS5100MIR5W PS5100P5W PS5100R5W PS5100C5W PS5100B5W PSBB1001W
WWW.LEGRAND.US/PASSANDSEYMOUR
I-39
IEC 309 INDUSTRIAL PRODUCTS
PASS & SEYMOUR
PIN & SLEEvE DEvICES
Product Selection Guide
North American Splashproof
Amps Volts
Pg. I-28 Pg. I-34
Plug Receptacle Connector Inlet Metallic Back Box
Non-Metallic
Back Box
120VAC PS320P4S PS320C4S PSBB201W PSBBN201W
240VAC PS320P6S PS320R6S PS320C6S PS320B6S PSBB201W PSBBN201W
277VAC PS320P5S PS320R5S PSBB201W PSBBN201W
120/240VAC PS420P12S PS420R12S PS420C12S PSBB202W PSBBN202W
20 3ø 240VAC PS420P9S PS420R9S PS420C9S PS420B9S PSBB202W PSBBN202W
3ø 480VAC PS420P7S PS420R7S PS420C7S PS420B7S PSBB202W PSBBN202W
3ø 600VAC PS420R5S PS420B5S PSBB202W PSBBN202W
3øY 120/208VAC PS520R9S PS520C9S PS520B9S PSBB202W PSBBN202W
3øY 277/480VAC PS520C7S PS520B7S PSBB202W PSBBN202W
3øY 347/600VAC PS520R5S PS520C5S PS520B5S PSBB202W PSBBN202W
120VAC PS330P4S PS330R4S PS330C4S PS330B4S PSBB301W PSBBN301W
240VAC PS330P6S PS330R6S PS330C6S PS330B6S PSBB301W PSBBN301W
480VAC PS330P7S PS330C7S PS330B7S PSBB301W PSBBN301W
120/240VAC PS430R12S PS430C12S PS430B12S PSBB301W PSBBN301W
3ø 240VAC PS430P9S PS430R9S PS430C9S PS430B9S PSBB301W PSBBN301W
30 3ø 480VAC PS430P7S PS430R7S PS430C7S PS430B7S PSBB301W PSBBN301W
3ø 600VAC PS430P5S PS430R5S PS430C5S PS430B5S PSBB301W PSBBN301W
3øY 120/208VAC PS530P9S PS530R9S PS530C9S PS530B9S PSBB301W PSBBN301W
3øY 277/480VAC PS530P7S PS530B7S PSBB301W PSBBN301W
3øY 347/600VAC PS530P5S PS530R5S PS530C5S PS530B5S PSBB301W PSBBN301W
240VAC PS360P6S PS360R6S PS360C6S PS360B6S PSBB601W PSBBN601W
480VAC PS360P7S PS360R7S PS360C7S PS360B7S PSBB601W PSBBN601W
120/240VAC PS460P12S PS460R12S PS460C12S PS460B12S PSBB601W PSBBN601W
60 3ø 240VAC PS460P9S PS460R9S PS460C9S PS460B9S PSBB601W PSBBN601W
3ø 480VAC PS460P7S PS460R7S PS460C7S PS460B7S PSBB601W PSBBN601W
3ø 600VAC PS460P5S PS460R5S PS460C5S PS460B5S PSBB601W PSBBN601W
3øY 120/208VAC PS560P9S PS560R9S PS560C9S PS560B9S PSBB601W PSBBN601W
3øY 277/480VAC PS560P7S PS560R7S PS560C7S PS560B7S PSBB601W PSBBN601W
3øY 347/600VAC PS560P5S PS560R5S PS560C5S PS560B5S PSBB601W PSBBN601W
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
I-40
IEC 309 INDUSTRIAL PRODUCTS
PIN & SLEEvE DEvICES
Product Selection Guide
International Splashproof
Amps Volts
Pg. I-29 Pg. I-29
Receptacle Plug Connector Inlet Non-Metallic Back Box
110/120 51920 51940 51980 51970 52029
220/240 52022 52042 52082 52172 52029
380/415 52222 52242 52282 52272 52029
16 220/240 52023 52043 52083 52073 52229
380/415 52223 52243 52283 52229
220/240 52044 52084 52074 52229
220/380; 240/415 52224 52244 52284 52174 52229
110/120 51972
220/240 52718 52742 52782 52872
380/415 52942 52982 52972
32 220/240 52743 52783 52773
380/415 52943 52983 52873
220/240 52744 52774
220/380; 240/415 52944 52984
110/120 53542 53582 53889
220/240 53622 53642 53682 53772 53889
220/240 53623 53643 53683 53889
63 380/415 53823 53843 53883 53773 53889
220/240 53644 53684 53889
220/380; 240/415 53824 53844 53884 53774 53889
WWW.LEGRAND.US/PASSANDSEYMOUR
J-1
Flexcor® Wire Mesh Grips
pAss & seYMoUr
Flexcor® Wire Mesh Grips
TURNLOK®/EHU
STRAIN RELIEF
GRIPS J-8
STRAIN RELIEF
LIQUID-TIGHT
GRIPS J-9
Product Description J-2
Split Support Grip Lace & Rod Mesh Termination J-3
Applications J-4
Strain Relief Deluxe Cord Grips J-7
Strain Relief Grips J-8
Strain Relief Liquid-Tight Grips J-9
Support Grips Standard-Duty, Closed Mesh J-10
Support Grips Standard-Duty, Split Lace J-11
Support Grips Standard-Duty, Split Rod J-12
Support Grips Heavy-Duty J-13
Support Grips Service & Bus Drop J-14
Support Grips Fiber Optic J-15
Pulling Grips Junior- & Light-Duty J-16
Pulling Grips Medium-Duty J-17
Pulling Grips Heavy-Duty J-18
Pulling Grips Multi-Weave J-19
Pulling Grips High Strength & Fiber Optic J-20
Pulling Grips Slack J-21
Selecting Properly Sized
Pulling & Support Grips J-22
Pulling & Support Grips Strength Information J-24
Rugged, easy-to-install and available in a wide range of sizes — our Flexcor®
Wire Mesh Strain Relief, Cable-Pulling, and Cable-Support Grips are engineered
to take some of the strain off of you.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-2
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Application
Flexcor® Wire Mesh Grips are used to support cable or conductor after
it has been installed, pull electrical cable or conductor into place,
provide strain relief at the point of wiring connections. Flexcor® devices
protect cables, relieve stress, and prevent cable pull-out from fittings
and terminations.
Flexcor® Wire Mesh Grips
Product Description
Available in four different attachments.
Load is distributed over entire length of grip and will not injure cable.
Support Grip Attachments
Double Eye Single Eye Offset Eye Locking Bale Eye
Prevents pull-out or damage to cable due to constant motion or flexing.
Also for Liquid-Tight, hose and box connections.
Strain Relief Grip Fittings
Male Straight Female Straight Male 45˚ Male 90˚
Available in three types and depends on availability of wire end.
Support Grip Mesh Types
Closed Mesh Split Lace Mesh Split Rod Mesh
Assortment of rugged pulling grips available
individually or in kits to make wire pulling easier.
Pulling Grips
Flexible Eye Rotating Eye
WWW.LEGRAND.US/PASSANDSEYMOUR
J-3
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Product Split Support Grip Lace & Rod Mesh Termination
1 2
Split Lace/Split Rod Attachments
(for use where end of cable is not accessible)
Split Rod Support Grip Mesh Termination
For Split Rod mesh termination, a
weaving rod is supplied with each grip.
The open mesh passes around the rod
and matches up with the open mesh from
the opposite direction. Split Rod support
grips are quick and easy to use and
reusable.
1. Wrap split mesh grip around cable.
Thread rod through the open loops in
a weaving motion, using end of the rod
to engage loops.
2. A steady push and twist motion is
required. Use other hand to bring
mesh loops together so as to weave
through them.
3. To remove, pull rod out.
34
1
3
2
Split Lace Support Grip Mesh Termination
For Split Lace mesh termination, Flexcor®
single weave Split Lace grips are provided
with an additional single lace, two laces are
provided with each double weave Split Lace
grip. Lace strands should be same material
as the grip.
1. Wrap split mesh grip around cable.
Start lacing at top or bottom end of
mesh. Thread lace through first two
loops of split mesh and pull through until
the lace is centered at this point. Lace
as you would your shoe, crossing laces
before lacing the next two loops.
2. Leave a space between adjoining loops
approximately equal to the width of one
diamond of the mesh.
3. Twist ends of lace strands together at
end of grip or tie in a knot.
4. Wrap ends of lace tightly around grip.
Excess lace may be cut off.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-4
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Applications
Liquid-Tight Conduit
Grip Strain Relief
(page J-9)
Bus/Service Drop
Support Grip
(page J-14)
Liquid-Tight Conduit
Grip Strain Relief
(page J-9)
Deluxe Cord Grip
Strain Relief
(page J-7)
Deluxe Cord Grip
Strain Relief
(page J-7)
Medium/Heavy-Duty
Support Grip
(pages J-17, J-18)
Bus/Service Drop
Support Grip
(page J-14)
Service Drop
Support Grip
(page J-14)
For assistance in selecting Flexcor® Wire Mesh
Grips, see pages J-23 – J-24.
WWW.LEGRAND.US/PASSANDSEYMOUR
J-5
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Deluxe Cord Grip
Strain Relief
(page J-7)
Bus Drop
Support Grip
(page J-14)
Deluxe Cord Grip
Strain Relief
(page J-7)
High
Strength
Pulling Grip
(page J-20)
Deluxe Cord Grip
Strain Relief
(page J-7)
Heavy-Duty
Underground
Pulling Grip
(page J-18)
Flexcor® Wire Mesh Grips
Applications
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-6
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
A. Corrosion-resistant, die cast aluminum fitting with
watertight seal (Deluxe Cord Connector Strain Relief)
protects connections from cable stress in damp
applications.
B. Mesh readily expands for a wide range of cord
diameters.
C. Non-corrosive, double-weave stainless steel mesh
(Deluxe Cord Grip) supports the cable, absorbs stress
caused by flexure and vibration, as well as controls arc
of cable.
Fittings available in male straight, female straight,
45° and 90° designs for fast installation in all kinds of
applications.
No special installation tools required.
Male Straight, Deluxe Cord Connectors Strain Relief.
CG610
A
B
C
WWW.LEGRAND.US/PASSANDSEYMOUR
J-7
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Strain Relief Deluxe Cord Grips
Straight Female Connector45º Male ConnectorStraight Male Connector 90º Male Connector
Description
Deluxe cord grips are woven of stainless steel mesh with an aluminum body for corrosion resistance. They
are offered in single/double weave construction to help absorb direct pull, to resist flexing and binding, and to
eliminate strain. They are recommended for indoor or outdoor use where subjected to moisture in the wiring
of pendant stations, processing equipment, hand tools, and extension cord sets.
Deluxe grips are suitable for use in hazardous locations per Class I, Div. 2; Class II, Div. 1 & 2; and Class III,
Div. 1 & 2.
NOTE: Stainless steel mesh is not suitable for marine use.
STRAIGHT
MALE
CATALOG
NUMBER
90° MALE
CATALOG
NUMBER
45° MALE
CATALOG
NUMBER
STRAIGHT
FEMALE
CATALOG
NUMBER
CABLE
DIAMETER
RANGE
1/2" NPT DELUXE CORD GRIPS
CG405 CG40590 CG40545 —0.250"-0.300"
CG406 CG40690 CG40645 — 0.310"-0.375"
CG407 CG40790 — — 0.375"-0.430"
CG408 CG40890 — — 0.440"-0.500"
CG409 CG40990 CG40945 — 0.500"-0.550"
CG410 CG41090 — CG410F 0.560"-0.625"
CG411 — — — 0.625"-0.750"
CG412 — — — 0.750"-0.875"
3/4" NPT DELUXE CORD GRIPS
CG606 — — — 0.250"-0.375"
CG607 — — — 0.375"-0.440"
CG608 CG60890 CG60845 — 0.440"-0.500"
CG609 CG60990 CG60945 — 0.500"-0.550"
CG610 CG61090 — — 0.560"-0.625"
CG611 CG61190 — — 0.625"-0.670"
CG612 CG61290 CG61245 — 0.670"-0.750"
1" NPT DELUXE CORD GRIPS
CG809 — — — 0.437"-0.562"
CG811 — — — 0.562"-0.687"
CG812 CG81290 CG81245 CG812F 0.625"-0.750"
CG814 CG81490 CG81445 — 0.750"-0.875"
CG816 CG81690 CG81645 CG816F 0.875"-1.000"
STRAIGHT
MALE
CATALOG
NUMBER
90° MALE
CATALOG
NUMBER
45° MALE
CATALOG
NUMBER
CABLE
DIAMETER
RANGE
1-1/4" NPT DELUXE CORD GRIPS
CG1016 CG101690 0.875"-1.000"
CG1018 CG101890 1.000"-1.125"
CG1020 — 1.125"-1.250"
CG1022 —CG102245 1.250"-1.375"
1-1/2" NPT DELUXE CORD GRIPS
CG1218 — 1.000"-1.125"
CG1220 CG122090 1.125"-1.250"
CG1222 CG122290 CG122245 1.250"-1.375"
2" NPT DELUXE CORD GRIPS
CG1422 CG142290 1.250"-1.375"
CG1424 CG142490 1.312"-1.437"
CG1426 CG142690 1.437"-1.562"
CG1428 CG142890 1.562"-1.687"
CG1430 CG143090 1.687"-1.812"
CG1432 CG143290 1.750"-1.875"
CG1434 — 1.812"-1.937"
CG1436 —1.937"-2.062"
CG1438 —2.062"-2.187"
CG1440 — 2.187"-2.312"
CG1442 — 2.312 "-2.437"
STRAIGHT
MALE
CATALOG
NUMBER
CABLE
DIAMETER
RANGE
2-1/2" NPT
DELUXE CORD GRIPS
CG1630 1.687"-1.812"
CG1634 1.812"-1.937"
CG1636 1.937"-2.062"
CG1638 2.062"-2.187"
CG1640 2.187"-2.312"
CG1642 2.312"-2.437"
3" NPT
DELUXE CORD GRIPS
CG1830 1.688"-1.812"
CG1834 1.812"-1.937"
CG1836 1.937"-2.062"
CG1838 2.062"-2.187"
CG1840 2.187"-2.312"
CG1842 2.312"-2.437"
CG1844 2.437"-2.625"
CG1846 2.625"-2.812"
CG1848 2.812"-3.000"
CG1850 3.000"-3.250"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-8
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Strain Relief Grips
Turnlok/EHU Strain Relief GripsWide Range, Straight Male, Dust Tight
Description
Wide range grips are recommended for use in wiring of
enclosures, power boxes, machine tools, and power centers.
Includes insulated bushing.
CATALOG NUMBER NPT SIZE CABLE DIAMETER RANGE
WIDE RANGE, STRAIGHT MALE, DUST TIGHT GRIPS
BOX22 1/2" 0.220"-0.320"
BOX30 1/2" 0.300"-0.430"
BOX40 1/2" 0.400"-0.540"
BOX52 3/4" 0.520"-0.730"
BOX70 1" 0.700"-1.000"
BOX94 1-1/4" 0.940"-1.250"
BOX120 1-1/2" 1.200"-1.500"
BOX140 2" 1.400"-1.750"
Description
Wire mesh grips for Turnlok and EHU straight blade plugs
and connectors provide additional strain-relief for wiring
device plugs and connectors used on portable equipment in
commercial and institutional applications, and industrial plant
and construction site areas, which incur abnormally high abuse.
CATALOG NUMBER CABLE DIAMETER RANGE MESH LENGTH
TURNLOK®/EHU STRAIN RELIEF GRIPS
FC22GL 0.220"-0.320" 4.00"
FC30GL 0.300"-0.430" 5.00"
FC40GL 0.400"-0.560" 5.00"
FC52GL 0.520"-0.730" 9.00"
FC70GL 0.700"-0.940" 7.50"
FC94GL 0.940"-1.250" 11.50"
WWW.LEGRAND.US/PASSANDSEYMOUR
J-9
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Non-Metallic
Straight Male Connector
Straight Female Connector
Flexcor® Wire Mesh Grips
Strain Relief Liquid-Tight Grips
Straight Male Connector 90º Male Connector 45º Male Connector
Description
Liquid-Tight grips are woven of stainless steel mesh with zinc plated steel or malleable iron
bodies and nuts for corrosion resistance. They are used to connect liquid-tight flexible conduit
to electrical enclosures to prevent conduit pullout. Each fitting is supplied with an insulated
throat to provide conductor insulation and protect against damage by flexing, heat expansion
and contraction.
Liquid-Tight grips are recommended in the wiring of motors and any electrical enclosure where
liquid-tight conduit is subject to motion or strain.
NOTE: Stainless steel mesh is not suitable for marine use.
STRAIGHT MALE
CATALOG NUMBER
90° MALE
CATALOG NUMBER
45° MALE
CATALOG NUMBER NPT SIZE MESH LENGTH
LIQUIDTIGHT FOR METALLIC FLEXIBLE CONDUIT
STB38SF — STB4538SF 3/8" 2.625"
STB50SF STB9050SF STB4550SF 1/2" 3.875"
STB75SF STB9075SF STB4575SF 3/4" 4.375"
STB100SF STB90100SF STB45100SF 1" 5.25"
STB125SF STB90125SF STB45125SF 1-1/4" 5.625"
STB150SF STB90150SF — 1-1/2" 5.75"
STB200SF STB90200SF STB45200SF 2" 7.5"
STB250SF — STB45250SF 2-1/2" 9.625"
STB300SF STB90300SF STB45300SF 3" 10.625"
STRAIGHT MALE
CATALOG NUMBER NPT SIZE MESH LENGTH
LIQUIDTIGHT GRIPS FOR NONMETALLIC
TYPE “A” FLEXIBLE CONDUIT
STBN38SF 3/8" 9"
STBN50SF 1/2" 10"
STBN75SF 3/4" 10.5"
STBN100SF 1" 12"
STBN125SF 1-1/4" 17"
STBN150SF 1-1/2" 21.5"
STBN200SF 2" 24"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-10
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Support Grips Standard-Duty, Closed Mesh
Offset Eye Grips
Single Eye Grips
Locking Bale Grips
(Universal Eye)
*For stainless steel support grips, add “SS” suffix to the catalog no.; For example, FC050UU becomes
FC050UUSS. Consult factory for price, availability and application. Stainless steel mesh is not suitable for
marine use.
**To determine workload safety factor, divide approximate break strength by 10.
See Page J-24 for strength information.
Double Eye Grips
Description
Standard closed mesh support grips are designed for loads up to 600 lbs. and vertical runs of
no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting
electrical and fiber optic cable, metal rods, and tubing. Closed mesh support grips are used
when the end of the cable is accessible. Support grips are woven of corrosion-resistant tinned-
bronze wire.
CATALOG NUMBER*
CABLE
DIAMETER RANGE BALE LENGTH MESH LENGTH
APPROXIMATE
BREAK STRENGTH**
STANDARDDUTY, CLOSED MESH, SINGLE EYE GRIPS
FC050U 0.500"-0.610" 7" 11" 770 lbs.
FC062U 0.620"-0.740" 8" 11" 960 lbs.
FC075U 0.750"-0.990" 8" 14" 1,300 lbs.
FC100U 1.000"-1.240" 9" 15" 1,680 lbs.
FC125U 1.250"-1.490" 10" 16" 1,680 lbs.
FC150U 1.500"-1.740" 12" 18" 1,680 lbs.
FC175U 1.750"-1.990" 14" 20" 2,640 lbs.
FC200U 2.000"-2.490" 16" 22" 3,760 lbs.
FC250U 2.500"-2.990" 18" 24" 3,760 lbs.
FC300U 3.000"-3.490" 21" 26" 5,040 lbs.
STANDARDDUTY, CLOSED MESH, DOUBLE EYE GRIPS
FC050UU 0.500"-0.610" 4" 11" 770 lbs.
FC062UU 0.620"-0.740" 4" 11" 1,150 lbs.
FC075UU 0.750"-0.990" 4" 14" 1,320 lbs.
FC100UU 1.000"-1.240" 5" 15" 1,920 lbs.
FC125UU 1.250"-1.490" 5" 16" 1,920 lbs.
FC150UU 1.500"-1.740" 6" 18" 1,920 lbs.
FC175UU 1.750"-1.990" 6" 20" 3,150 lbs.
FC200UU 2.000"-2.490" 6" 22" 3,360 lbs.
FC250UU 2.500"-2.990" 6" 24" 3,360 lbs.
STANDARDDUTY, CLOSED MESH, OFFSET EYE GRIPS
FC050OF 0.500"-0.610" 4" 11" 770 lbs.
FC062OF 0.620"-0.740" 4" 11" 960 lbs.
FC075OF 0.750"-0.990" 4" 14" 960 lbs.
FC100OF 1.000"-1.240" 5" 15" 1,680 lbs.
FC125OF 1.250"-1.490" 5" 16" 1,680 lbs.
FC150OF 1.500"-1.740" 5" 18" 1,680 lbs.
FC175OF 1.750"-1.990" 6" 20" 2,640 lbs.
FC200OF 2.000"-2.490" 6" 22" 3,760 lbs.
FC250OF 2.500"-2.990" 8" 24" 3,760 lbs.
FC300OF 3.000"-3.490" 9" 26" 5,040 lbs.
FC350OF 3.500"-3.990" 9" 28" 5,040 lbs.
STANDARDDUTY, CLOSED MESH, LOCKING BALE GRIPS UNIVERSAL EYE
FC050LB 0.500"-0.610" 18" 11" 770 lbs.
FC062LB 0.620"-0.740" 18" 11" 1,150 lbs.
FC075LB 0.750"-0.990" 18" 14" 1,320 lbs.
FC100LB 1.000"-1.240" 18" 15" 1,920 lbs.
FC125LB 1.250"-1.490" 18" 16" 1,920 lbs.
FC150LB 1.500"-1.740" 18" 18" 1,920 lbs.
FC175LB 1.750"-1.990" 18" 20" 3,150 lbs.
FC200LB 2.000"-2.490" 18" 22" 3,360 lbs.
FC250LB 2.500"-2.990" 18" 24" 3,360 lbs.
FC300LB 3.000"-3.490" 18" 26" 5,280 lbs.
FC350LB 3.500"-3.990" 18" 28" 5,280 lbs.
WWW.LEGRAND.US/PASSANDSEYMOUR
J-11
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
*For stainless steel support grips, add “SS” suffix to the catalog no.; For example, FS050OF becomes FS050OFSS.
Consult factory for price, availability and application. Stainless steel mesh is not suitable for marine use.
**To determine workload safety factor, divide approximate break strength by 10. See Page J-24 for strength
information.
Split Lace, Single Eye
Split Lace, Double Eye
Split Lace, Offset Eye
Split Lace, Locking Bale
(Universal Eye)
Flexcor® Wire Mesh Grips
Support Grips Standard-Duty, Split Lace
Description
Split lace support grips are designed for loads up to 600 lbs. and vertical runs of no more than
100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical
and fiber optic cable, metal rods, and tubing. Split lace support grips are used when the end of
the cable cannot easily be accessed and the support grip is intended for permanent installation.
Support grips are woven of corrosion-resistant tinned-bronze wire.
CATALOG NUMBER*
CABLE
DIAMETER RANGE BALE LENGTH MESH LENGTH
APPROXIMATE
BREAK STRENGTH**
STANDARDDUTY, SPLIT LACE, SINGLE EYE
FS050U 0.500"-0.610" 7" 11" 770 lbs.
FS062U 0.620"-0.740" 8" 11" 960 lbs.
FS075U 0.750"-0.990" 8" 14" 1,320 lbs.
FS100U 1.000"-1.240" 9" 15" 1,680 lbs.
FS125U 1.250"-1.490" 10" 16" 1,680 lbs.
FS150U 1.500"-1.740" 12" 18" 1,680 lbs.
FS175U 1.750"-1.990" 14" 20" 2,640 lbs.
FS200U 2.000"-2.490" 16" 22" 3,760 lbs.
FS250U 2.500"-2.990" 18" 24" 3,760 lbs.
FS300U 3.000"-3.490" 21" 26" 5,040 lbs.
FS350U 3.500"-3.990" 24" 28" 5,040 lbs.
STANDARDDUTY, SPLIT LACE, DOUBLE EYE
FS050UU 0.500"-0.610" 4" 11" 770 lbs.
FS062UU 0.620"-0.740" 4" 11" 1,150 lbs.
FS100UU 1.000"-1.240" 5" 15" 1,920 lbs.
FS125UU 1.250"-1.490" 5" 16" 1,920 lbs.
FS150UU 1.500"-1.740" 5" 18" 1,920 lbs.
FS175UU 1.750"-1.990" 6" 20" 3,150 lbs.
FS200UU 2.000"-2.490" 6" 22" 3,360 lbs.
FS250UU 2.500"-2.990" 6" 24" 3,360 lbs.
FS300UU 3.000"-3.490" 8" 26" 5,280 lbs.
FS350UU 3.500"-3.990" 8" 28" 5,280 lbs.
STANDARDDUTY, SPLIT LACE, OFFSET EYE
FS050OF 0.500"-0.610" 4" 11" 770 lbs.
FS062OF 0.620"-0.740" 4" 11" 960 lbs.
FS075OF 0.750"-0.990" 4" 14" 960 lbs.
FS100OF 1.000"-1.240" 5" 15" 1,680 lbs.
FS125OF 1.250"-1.490" 5" 16" 1,680 lbs.
FS150OF 1.500"-1.740" 5" 18" 1,680 lbs.
FS175OF 1.750"-1.990" 8" 20" 2,640 lbs.
FS200OF 2.000"-2.490" 8" 22" 3,760 lbs.
FS250OF 2.500"-2.990" 8" 24" 3,760 lbs.
FS300OF 3.000"-3.490" 9" 26" 5,040 lbs.
FS350OF 3.500"-3.990" 9" 28" 5,040 lbs.
STANDARDDUTY, SPLIT LACE, LOCKING BALE UNIVERSAL EYE
FS050LB 0.500"-0.610" 18" 11" 770 lbs.
FS062LB 0.620"-0.740" 18" 11" 1,150 lbs.
FS100LB 1.000"-1.240" 18" 15" 1,920 lbs.
FS125LB 1.250"-1.490" 18" 16" 1,920 lbs.
FS150LB 1.500"-1.740" 18" 18" 1,920 lbs.
FS175LB 1.750"-1.990" 18" 20" 3,150 lbs.
FS200LB 2.000"-2.490" 18" 22" 3,360 lbs.
FS250LB 2.500"-2.990" 18" 24" 3,360 lbs.
FS300LB 3.000"-3.490" 18" 26" 5,280 lbs.
FS350LB 3.500"-3.990" 18" 28" 5,280 lbs.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-12
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Support Grips Standard-Duty, Split Rod
Split Rod, Single Eye
Split Rod, Double Eye
Split Rod, Offset Eye
Split Rod, Locking Bale
(Universal Eye)
*For stainless steel support grips, add “SS” suffix to the catalog no.; For example, FR050LB becomes FR050LBSS.
Consult factory for price, availability and application. Stainless steel mesh is not suitable for marine use.
**To determine workload safety factor, divide approximate break strength by 10.
See Page J-24 for strength information.
CATALOG NUMBER*
CABLE
DIAMETER RANGE BALE LENGTH MESH LENGTH
APPROXIMATE
BREAK STRENGTH**
STANDARDDUTY, SPLIT ROD, SINGLE EYE
FR050U 0.500"-0.610" 7" 11" 770 lbs.
FR062U 0.620"-0.740" 8" 11" 960 lbs.
FR075U 0.750"-0.990" 8" 14" 1,320 lbs.
FR100U 1.000"-1.240" 9" 15" 1,680 lbs.
FR125U 1.250"-1.490" 10" 16" 1,680 lbs.
FR150U 1.500"-1.740" 12" 18" 1,680 lbs.
FR175U 1.750"-1.990" 14" 20" 2,640 lbs.
FR200U 2.000"-2.490" 16" 22" 3,760 lbs.
STANDARDDUTY, SPLIT ROD, DOUBLE EYE
FR050UU 0.500"-0.610" 4" 11" 770 lbs.
FR062UU 0.620"-0.740" 4" 11" 960 lbs.
FR075UU 0.750"-0.990" 4" 14" 960 lbs.
FR100UU 1.000"-1.240" 5" 15" 1,680 lbs.
FR125UU 1.250"-1.490" 5" 16" 1,680 lbs.
FR150UU 1.500"-1.740" 5" 18" 1,680 lbs.
FR175UU 1.750"-1.990" 6" 20" 2,640 lbs.
FR200UU 2.000"-2.490" 6" 22" 3,760 lbs.
STANDARDDUTY, SPLIT ROD, OFFSET EYE
FR050OF 0.500"-0.610" 4" 11" 770 lbs.
FR062OF 0.620"-0.740" 4" 11" 960 lbs.
FR075OF 0.750"-0.990" 4" 14" 960 lbs.
FR100OF 1.000"-1.240" 5" 15" 1,680 lbs.
FR125OF 1.250"-1.490" 5" 16" 1,680 lbs.
FR150OF 1.500"-1.740" 5" 18" 1,680 lbs.
FR175OF 1.750"-1.990" 6" 20" 2,640 lbs.
FR200OF 2.000"-2.490" 6" 22" 3,760 lbs.
STANDARDDUTY, SPLIT ROD, LOCKING BALE UNIVERSAL EYE
FR050LB 0.500"-0.610" 10" 9" 770 lbs.
FR062LB 0.620"-0.740" 10" 9" 1,150 lbs.
FR075LB 0.750"-0.990" 10" 11" 1,320 lbs.
FR100LB 1.000"-1.240" 14" 13" 1,920 lbs.
FR125LB 1.250"-1.490" 14" 15" 1,920 lbs.
FR150LB 1.500"-1.740" 14" 16" 1,920 lbs.
FR175LB 1.750"-1.990" 14" 17" 3,150 lbs.
FR200LB 2.000"-2.490" 18" 20" 3,360 lbs..
Description
Split rod support grips are designed for loads up to 600 lbs. and vertical runs of no more than
100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and
fiber optic cable, metal rods, and tubing. Split rod support grips are used when the end of the
cable cannot be easily accessed and the installation is temporary. Support grips are woven of
corrosion-resistant tinned-bronze wire.
WWW.LEGRAND.US/PASSANDSEYMOUR
J-13
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
*For stainless steel support grips, add “SS” suffix to the catalog no.; For example, FSHL075U becomes
FSHL075USS. Consult factory for price, availability and application. Stainless steel mesh is not suitable for
marine use.
**To determine workload safety factor, divide approximate break strength by 10.
See Page J-24 for strength information.
Closed Mesh,
Single Eye
Split Lace,
Single Eye
Closed Mesh,
Double Eye
Split Lace,
Double Eye
Flexcor® Wire Mesh Grips
Support Grips Heavy-Duty
Description
Heavy-duty support grips feature a double weave mesh and are available in a variety of eye styles
and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Support
grips are woven of corrosion-resistant tinned-bronze wire.
CATALOG NUMBER*
CABLE
DIAMETER RANGE BALE LENGTH MESH LENGTH
APPROXIMATE
BREAK STRENGTH**
HEAVYDUTY, CLOSED MESH, SINGLE EYE
FCHL075U 0.750"-0.990" 10" 26" 2,700 lbs.
FCHL100U 1.000"-1.240" 10" 29" 4,720 lbs.
FCHL125U 1.250"-1.490" 10" 31" 4,720 lbs.
FCHL150U 1.500"-1.990" 10" 35" 4,720 lbs.
HEAVYDUTY, CLOSED MESH, DOUBLE EYE
FCHL075UU 0.750"-0.990" 10" 26" 2,700 lbs.
FCHL100UU 1.000"-1.240" 10" 29" 4,720 lbs.
FCHL125UU 1.250"-1.490" 10" 31" 4,720 lbs.
FCHL150UU 1.500"-1.990" 10" 35" 4,720 lbs.
FCHL200UU 2.000"-2.490" 10" 37" 10,080 lbs.
FCHL250UU 2.500"-2.990" 10" 39" 10,080 lbs.
FCHL300UU 3.000"-3.490" 10" 41" 10,080 lbs.
FCHL350UU 3.500"-3.990" 10" 45" 13,120 lbs.
CATALOG NUMBER*
CABLE
DIAMETER RANGE BALE LENGTH MESH LENGTH
APPROXIMATE
BREAK STRENGTH**
HEAVYDUTY, SPLIT LACE, SINGLE EYE
FSHL075U 0.750"-0.990" 10" 26" 2,700 lbs.
FSHL100U 1.000"-1.240" 10" 29" 4,720 lbs.
FSHL125U 1.250"-1.490" 10" 31" 4,720 lbs.
FSHL150U 1.500"-1.990" 10" 35" 4,720 lbs.
HEAVYDUTY, SPLIT LACE, DOUBLE EYE
FSHL075UU 0.750"-0.990" 10" 26" 2,700 lbs.
FSHL100UU 1.000"-1.240" 10" 29" 4,720 lbs.
FSHL125UU 1.250"-1.490" 10" 31" 4,720 lbs.
FSHL150UU 1.500"-1.990" 10" 35" 4,720 lbs.
FSHL200UU 2.000"-2.490" 10" 37" 10,080 lbs.
FSHL250UU 2.500"-2.990" 10" 39" 10,080 lbs.
FSHL300UU 3.000"-3.490" 10" 41" 10,080 lbs.
FSHL350UU 3.500"-3.990" 10" 45" 13,120 lbs.
FSHL400UU 4.000"-4.490" 10" 47" 13,120 lbs.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-14
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Service Drop Closed
Mesh Locking Bale
Service Drop Closed
Mesh Single Eye
Bus Drop Closed
Mesh Single Eye
Bus Drop Closed
Mesh Locking Bale Bus Drop Accessories
*To determine workload safety factor, divide approximate break strength by 10.
See Page J-24 for strength information.
*To determine workload safety factor, divide approximate break strength by 10.
See Page J-24 for strength information.
Flexcor® Wire Mesh Grips
Support Grips Service & Bus Drop
Description
Service drop grips provide support for utility distribution lines from service pole to building or
from pole to pole. They can also be used for cable TV and fiber optic cable support. They are
woven from tinned bronze wire to provide superior corrosion resistance, and are available in
single eye and locking bale configurations.
CATALOG NUMBER
CABLE
DIAMETER RANGE BALE LENGTH MESH LENGTH
APPROXIMATE
BREAK STRENGTH*
SERVICE DROP, CLOSED MESH, SINGLE EYE
FCSD22 0.220"-0.320" 4" 4" 290 lbs.
FCSD30 0.300"-0.430" 5" 5" 500 lbs.
FCSD40 0.410"-0.560" 6" 5" 500 lbs.
FCSD52 0.530"-0.730" 8" 8" 790 lbs.
FCSD70 0.700"-0.970" 8" 9" 1,020 lbs.
FCSD94 0.940"-1.250" 10" 11" 1,020 lbs.
SERVICE DROP, CLOSED MESH, LOCKING BALE
FCSD30LB 0.300"-0.430" 11" 5" 500 lbs.
FCSD52LB 0.530"-0.730" 14" 8" 790 lbs.
FCSD70LB 0.700"-0.970" 14" 9" 1,020 lbs.
FCSD94LB 0.940"-1.250" 16" 11" 1,020 lbs.
Description
Bus drop grips are used as cable support. They relieve any direct tension from the critical
connection and absorb vibration and flexing. Bus drop grips are woven of galvanized steel wire.
They are offered with either the single eye or locking bale attachment.
CATALOG NUMBER
CABLE
DIAMETER RANGE BALE LENGTH MESH LENGTH
APPROXIMATE
BREAK STRENGTH*
BUS DROP, CLOSED MESH, SINGLE EYE
FC22 0.220"-0.320" 9" 3.5" 1,100 lbs.
FC30 0.300"-0.430" 9" 4.5" 1,100 lbs.
FC40 0.410"-0.560" 9" 5.0" 1,100 lbs.
FC52 0.530"-0.730" 9" 6.5" 1,100 lbs.
FC70 0.700"-0.850" 9" 8.5" 1,900 lbs.
FC94 0.940"-1.250" 9" 11.0" 1,900 lbs.
BUS DROP, CLOSED MESH, LOCKING BALE
FC30LB 0.300"-0.430" 12" 4.5" 1,100 lbs.
FC40LB 0.410"-0.560" 12" 5.0" 1,100 lbs.
FC52LB 0.530"-0.730" 15" 6.5" 1,100 lbs.
FC70LB 0.700"-0.850" 16" 8.5" 1,900 lbs.
FC94LB 0.940"-1.250" 17" 11.0" 1,900 lbs.
CATALOG
NUMBER NPT SIZE
BUS DROP ACCESSORIES
S40 Safety Spring, 40 Lb. Load
S80 Safety Spring, 80 Lb. Load
GH5 Support Hook
WWW.LEGRAND.US/PASSANDSEYMOUR
J-15
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Fiber Optic,
Split Rod,
Single Eye
Fiber Optic,
Closed Mesh,
Locking Bale
*To determine workload safety factor, divide approximate break strength by 10.
See Page J-24 for strength information.
Flexcor® Wire Mesh Grips
Support Grips Fiber Optic
Description
Fiber optic support grips are designed to reduce stress on fragile cables in vertical or sloping
runs. They are woven of nonmagnetic tinned bronze wire, and are available in both single eye
and locking bale configurations. A split rod version is offered for use on existing runs of cable or
where specific placement of the grip along the cable is desired.
CATALOG NUMBER
CABLE
DIAMETER RANGE BALE LENGTH MESH LENGTH
APPROXIMATE
BREAK STRENGTH*
FIBER OPTIC, CLOSED MESH, SINGLE EYE
FFO18U 0.180"-0.250" 3" 1.7" 300 lbs.
FFO24U 0.230"-0.320" 3" 2.5" 300 lbs.
FFO30U 0.300"-0.390" 4" 2.5" 300 lbs.
FFO38U 0.370"-0.480" 5" 4.0" 300 lbs.
FFO46U 0.460"-0.580" 6" 4.0" 400 lbs.
FFO56U 0.560"-0.710" 7" 5.5" 600 lbs.
FFO70U 0.690"-0.880" 8" 6.0" 800 lbs.
FIBER OPTIC, CLOSED MESH, LOCKING BALE
FFO18LB 0.180"-0.250" 9" 2.5" 300 lbs.
FFO24LB 0.230"-0.320" 9" 2.0" 300 lbs.
FFO30LB 0.300"-0.390" 9" 2.5" 300 lbs.
FFO38LB 0.370"-0.480" 10" 4.0" 300 lbs.
FFO46LB 0.460"-0.580" 10" 4.0" 400 lbs.
FFO56LB 0.560"-0.710" 10" 5.5" 600 lbs.
FFO70LB 0.690"-0.880" 10" 6.0" 800 lbs.
FIBER OPTIC, SPLIT ROD, SINGLE EYE
FFRO18U 0.180"-0.250" 3" 2.5" 300 lbs.
FFRO24U 0.230"-0.320" 3" 2.5" 300 lbs.
FFRO30U 0.300"-0.390" 4" 2.5" 300 lbs.
FFRO38U 0.370"-0.480" 5" 4.0" 300 lbs.
FFRO46U 0.460"-0.580" 6" 5.0" 400 lbs.
FFRO56U 0.560"-0.710" 7" 5.0" 600 lbs.
FFRO70U 0.690"-0.880" 8" 6.0" 800 lbs.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-16
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Light-Duty Short Length Flexible Eye
Junior-Duty Flexible Eye
*To determine workload safety factor, divide approximate break strength by 5.
See Page J-24 for strength information.
PJ1KIT
*To determine workload safety factor, divide approximate break strength by 5.
See Page J-24 for strength information.
Flexcor® Wire Mesh Grips
Pulling Grips Junior-Duty & Light-Duty
Description
Junior-duty series grips are indispensable tools for electricians with small job
requirements. They are used to connect insulated wire bundles to pulling tape
or to pull wire or rope through conduit.
CATALOG NUMBER
CABLE
DIAMETER RANGE MESH LENGTH
APPROXIMATE
BREAK STRENGTH*
JUNIORDUTY, FLEXIBLE EYE
PJ25 0.250"-0.360" 5" 1,700 lbs.
PJ37 0.370"-0.490" 7" 1,700 lbs.
PJ50 0.500"-0.610" 8" 1,700 lbs.
PJ62 0.620"-0.740" 10" 2,800 lbs.
PJ75 0.750"-0.990" 10" 4,100 lbs.
PJ100 1.000"-1.240" 12" 4,100 lbs.
Description
Light-Duty grips are the most economical pulling grips for many applications,
such as industrial plant wiring, and rewiring, and underground electrical pulls.
CATALOG NUMBER
CABLE
DIAMETER RANGE MESH LENGTH
APPROXIMATE
BREAK STRENGTH*
LIGHTDUTY, SHORT LENGTH, FLEXIBLE EYE
PL0501 0.500"-0.610" 11" 3,400 lbs.
PL0621 0.620"-0.740" 11" 4,100 lbs.
PL0751 0.750"-0.990" 13" 4,100 lbs.
PL1001 1.000"-1.240" 14" 5,800 lbs.
PL1251 1.250"-1.490" 15" 5,800 lbs.
PL1501 1.500"-1.740" 16" 7,500 lbs.
PL1751 1.750"-1.990" 18" 10,000 lbs.
PL2001 2.000"-2.490" 19" 10,000 lbs.
PL2501 2.500"-2.990" 19" 13,000 lbs.
LIGHTDUTY, STANDARD LENGTH, FLEXIBLE EYE
PL0622 0.620"-0.740" 16" 4,100 lbs.
PL0752 0.750"-0.990" 20" 4,100 lbs.
PL1002 1.000"-1.240" 20" 7,500 lbs.
PL1252 1.250"-1.490" 22" 7,500 lbs.
PL1502 1.500"-1.990" 25" 7,500 lbs.
PL2002 2.000"-2.490" 26" 10,000 lbs.
PL2502 2.500"-2.990" 28" 13,000 lbs.
PL3002 3.000"-3.490" 30" 16,200 lbs..
CATALOG NUMBER DESCRIPTION
JUNIORDUTY, FLEXIBLE EYE KIT
PJ1KIT Kit contains 1 each of PJ25, PJ37, PJ50,
PJ62, PJ75, PJ100
WWW.LEGRAND.US/PASSANDSEYMOUR
J-17
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Pulling Grips Medium-Duty
Medium-Duty Flexible Eye Short Length, Flexible Eye, T-Type
*To determine workload safety factor, divide approximate break strength by 5.
See Page J-24 for strength information.
Description
Medium-duty pulling grips are ideal for overhead and underground pulling
applications that require additional durability at an economical price. Medium-
duty pulling grips are hand crafted with single weave strands that graduate to
a double weave design for added strength and durability.
CATALOG NUMBER
CABLE
DIAMETER RANGE MESH LENGTH
APPROXIMATE
BREAK STRENGTH*
MEDIUMDUTY, FLEXIBLE EYE
PM037 0.370"-0.490" 13" 2,600 lbs.
PM050 0.500"-0.740" 17" 3,400 lbs.
PM075 0.750"-0.990" 20" 5,500 lbs.
PM100 1.000"-1.240" 28" 8,100 lbs.
PM125 1.250"-1.490" 33" 8,100 lbs.
PM150 1.500"-1.740" 36" 8,100 lbs.
MEDIUMDUTY, LONG LENGTH, FLEXIBLE EYE
PM0753 0.750"-0.990" 48" 8,100 lbs.
PM1003 1.000"-1.490" 48" 11,600 lbs.
PM1503 1.500"-1.990" 48" 19,400 lbs.
PM2003 2.000"-2.490" 48" 19,400 lbs.
PM2503 2.500"-2.990" 48" 25,900 lbs.
PM3003 3.000"-3.490" 48" 25,900 lbs.
PM3503 3.500"-3.990" 48" 32,400 lbs.
CATALOG NUMBER DESCRIPTION
MEDIUMDUTY, FLEXIBLE EYE KIT
PM1KIT Kit contains 1 each of PM037,
PM050, PM075, PM100, PM125,
PM150
*To determine workload safety factor, divide approximate break strength by 5.
See Page J-24 for strength information.
CATALOG NUMBER
CABLE
DIAMETER RANGE MESH LENGTH EYE DIAMETER
APPROXIMATE
BREAK STRENGTH*
MEDIUMDUTY, SHORT LENGTH, FLEXIBLE EYE, TTYPE
PM0501 0.500"-0.610" 21" 7/32" 4,500 lbs.
PM0751 0.750"-0.990" 24" 1/4" 6,800 lbs.
PM1001 1.000"-1.490" 24" 5/16" 9,600 lbs.
PM1501 1.500"-1.990" 24" 7/16" 16,400 lbs.
PM2001 2.000"-2.490" 24" 7/16" 18,500 lbs.
PM2501 2.500"-2.990" 24" 1/2" 24,500 lbs.
PM3001 3.000"-3.490" 24" 1/2" 24,500 lbs.
PM3501 3.500"-3.990" 26" 5/8" 31,000 lbs.
MEDIUMDUTY, STANDARD LENGTH, FLEXIBLE EYE, TTYPE
PM0752 0.750"-0.990" 36" 1/4" 6,800 lbs.
PM1002 1.000"-1.490" 36" 5/16" 9,600 lbs.
PM1502 1.500"-1.990" 36" 7/16" 16,400 lbs.
PM2002 2.000"-2.490" 36" 7/16" 18,500 lbs.
PM2502 2.500"-2.990" 36" 1/2" 24,500 lbs.
PM3002 3.000"-3.490" 36" 1/2" 24,500 lbs.
PM3502 3.500"-3.990" 40" 5/8" 31,000 lbs.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-18
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Pulling Grips Heavy-Duty
Short Length, Rotating Eye, K-Type
Description
K-type pulling grips feature a double weave of galvanized steel for greater strength and added
mesh contact with the cable as well as a forged steel compact rotating eye, which can be attached
to a swivel. They are designed to handle longer or heavier pulling jobs such as an installation of
underground cables, communication lines and service lines.
*To determine workload safety factor, divide approximate break strength by 5.
See Page J-24 for strength information.
CATALOG NUMBER
CABLE
DIAMETER RANGE MESH LENGTH EYE DIAMETER
APPROXIMATE
BREAK STRENGTH*
HEAVYDUTY, SHORT LENGTH, ROTATING EYE, KTYPE
PS0501 0.500"-0.610" 11" 7/8" 5,600 lbs.
PS0751 0.750"-0.990" 20" 1" 9,600 lbs.
PS1001 1.000"-1.240" 20" 1-3/8" 16,400 lbs.
PS1251 1.250"-1.490" 21" 1-3/8" 16,400 lbs.
PS1501 1.500"-1.990" 25" 1-5/8" 27,200 lbs.
PS2001 2.000"-2.490" 26" 1-7/8" 33,000 lbs.
PS2501 2.500"-2.990" 28" 1-7/8" 41,000 lbs.
PS3001 3.000"-3.490" 30" 1-7/8" 48,000 lbs.
PS3501 3.500"-3.990" 32" 1-7/8" 48,000 lbs.
PS4001 4.000"-4.490" 33" 1-7/8" 48,000 lbs
HEAVYDUTY, STANDARD LENGTH, ROTATING EYE, KTYPE
PS0502 0.500"-0.610" 16" 7/8" 5,600 lbs.
PS0622 0.620"-0.740" 16" 7/8" 6,800 lbs.
PS0752 0.750"-0.990" 32" 1" 9,600 lbs.
PS1002 1.000"-1.490" 33" 1-3/8" 16,400 lbs.
PS1502 1.500"-1.990" 34" 1-3/8" 16,400 lbs.
PS2002 2.000"-2.490" 36" 1-5/8" 27,200 lbs.
PS2502 2.500"-2.990" 38" 1-7/8" 33,000 lbs.
PS3002 3.000"-3.490" 39" 1-7/8" 41,000 lbs.
PS3502 3.500"-3.990" 41" 1-7/8" 48,000 lbs.
PS4002 4.000"-4.490" 42" 1-7/8" 48,000 lbs.
PS4502 4.500"-4.990" 58" 1-7/8" 48,000 lbs.
WWW.LEGRAND.US/PASSANDSEYMOUR
J-19
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Pulling Grips Multi-Weave
NOTE: it is recommended that a swivel be used for release of torque during a pull. Use a connecting link when a swivel
is not needed. Do not run grips or swivels over bullwheels while under tension. Do not use multi-weave for pulling
rope. When higher loads are required, use Pass & Seymour® high strength-style pulling grips. See installation
instructions supplied with grip for recommended swivels, links and clamps or accessories listing.
Multi-Weave Flexible Eye
*To determine workload safety factor, divide approximate break strength by 5. See Page J-24 for strength information.
Description – Multi-Weave
Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or
copper bare conductor, wire rope and insulated cables. These grips are used in applications such as distribution line
stringing and overhead transmission. Multi-weave pulling grips are available with a flexible and rotating eye, which
can be attached to a swivel.
Description – Rotating Eye
The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not
turn under tension. The rotating eye can turn to relieve pulling torque when tension is relaxed.
CATALOG NUMBER
CABLE
DIAMETER RANGE MESH LENGTH EYE DIAMETER
APPROXIMATE
BREAK STRENGTH* COLOR CODE
MULTIWEAVE, ROTATING EYE
P0501 0.500"-0.740" 32" 1" 10,000 lbs. Brown
P0751 0.750"-0.990" 41" 1" 14,400 lbs. Lt Blue
P1001 1.000"-1.240" 52" 1-3/8" 24,600 lbs. Gold
P1501 1.500"-1.740" 60" 1-7/8" 30,600 lbs. Red
P2001 2.000"-2.490" 50" 1-7/8" 48,000 lbs. Yellow
P2501 2.500"-2.990" 52" 1-7/8" 48,000 lbs. Orange
P3001 3.000"-3.490" 54" 1-7/8" 48,000 lbs. Aluminum
P3501 3.500"-3.990" 56" 1-7/8" 48,000 lbs. Lt Green
MULTIWEAVE, FLEXIBLE EYE
P0752 0.750"-0.990" 41" 3/8" 14,400 lbs. Lt Blue
P1002 1.000"-1.240" 52" 1/2" 24,600 lbs. Gold
P1502 1.500"-1.740" 60" 1/2" 30,600 lbs. Red
P2002 2.000"-2.490" 50" 5/8" 48,000 lbs. Yellow
P2502 2.500"-2.990" 52" 5/8" 48,000 lbs. Orange
P3002 3.000"-3.490" 54" 5/8" 48,000 lbs. Aluminum
P3502 3.500"-3.990" 56" 5/8" 48,000 lbs. Lt Green
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-20
FLEXCOR® WIRE MESH GRIPS
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Pulling Grips High Strength & Fiber Optic
Closed Mesh, Rotating Eye
*For rope, select smallest size grip which meets required workload.
**To determine workload safety factor, divide approximate break strength by 5.
See Page J-24 for strength information.
High Strength Flexible Eye
Rope Assembly Using High Strength Feed Tube
A feed tube is recommended when assembling synthetic rope into the High Strength
Pulling Grip and is required on the two largest grip sizes.
1. Insert feed tube into high strength pulling grip.
2. Insert rope end fully into feed tube.
3. Hold rope in feed tube by pinning rope to the ground with end of tube. Pull mesh
down onto feed so feed tube nose is protruding through shoulder protectors.
4. Push mesh to end of feed tube and pull feed tube through mesh. When pulled, the
mesh gripping action will hold rope in place.
5. Position rope so that its end is inside the shoulder protectors. Remove slack by
smoothing mesh tight to rope.
6. Apply clamps to mesh end as necessary.
*To determine workload safety factor, divide approximate break strength by 5.
See Page J-24 for strength information.
Description
High strength pulling grips are designed for situations where loads and safety considerations
require an extra high strength grip. They are most commonly used for attaching pulling lines to
conductors, conductors to running boards and conductor-to-conductor connections. These grips
can be used for pulling bare or insulated conductor, wire rope or synthetic rope.
CATALOG
NUMBER
CABLE DIAMETER
RANGE*
MESH
LENGTH
APPROXIMATE
BREAK STRENGTH**
WITH SWIVEL EYE SINGLEDOUBLETRIPLE WEAVE
MSPS025 0.250"-0.490" 26" 6,800 lbs.
MSPS050 0.500"-0.740" 32" 10,000 lbs.
MSPS075 0.750"-0.990" 41" 14,400 lbs.
MSPS100 1.000"-1.240" 52" 24,600 lbs.
MSPS125 1.250"-1.490" 56" 30,600 lbs.
MSPS150 1.500"-1.740" 60" 30,600 lbs.
MSPS175 1.750"-2.240" 70" 48,000 lbs.
MSPS200 2.000"-2.490" 50" 48,000 lbs.
MSPS250 2.500"-2.990" 52" 48,000 lbs.
MSPS300 3.000"-3.490" 54" 48,000 lbs.
CATALOG
NUMBER
CABLE DIAMETER
RANGE*
MESH
LENGTH
APPROXIMATE
BREAK STRENGTH**
WITH FLEXIBLE EYE SINGLEDOUBLETRIPLE WEAVE
MSP025 0.250"-.0490" 26" 6,800 lbs.
MSP050 0.500"-0.740" 32" 10,000 lbs.
MSP075 0.750"-0.990" 41" 14,400 lbs.
MSP100 1.000"-1.240" 52" 24,600 lbs.
MSP125 1.250"-1.490" 56" 30,600 lbs.
MSP150 1.500"-1.740" 60" 30,600 lbs.
MSP175 1.750"-2.240" 70" 48,000 lbs.
MSP200 2.000"-2.490" 50" 48,000 lbs.
Description
Fiber optic pulling grips are used for installation of fiber optic communication lines. Easily
installed on cables and reusable. Applications include underground, overhead, through conduit
and/or enclosure-type pulls.
CATALOG
NUMBER
CABLE
DIAMETER
RANGE
MESH
LENGTH
EYE
DIAMETER
NOSE
DIAMETER
APPROXIMATE
BREAK
STRENGTH*
FIBER OPTIC, CLOSED MESH, ROTATING EYE
PF100 0.100"-0.200" 9" 4.75" 0.8" 1,000 lbs.
PF210 0.210"-0.350" 14" 4.75" 0.8" 1,500 lbs.
PF350 0.350"-0.480" 18" 5.00" 0.9" 2,200 lbs.
PF420 0.420"-0.610" 21" 5.00" 0.9" 2,800 lbs.
PF540 0.530"-0.740" 24" 5.00" 1.2" 3,300 lbs.
PF640 0.640"-0.870" 27" 5.00" 1.2" 4,700 lbs.
WWW.LEGRAND.US/PASSANDSEYMOUR
J-21
FLEXCOR® WIRE MESH GRIPS
PASS & SEYMOUR
Most Flexcor products have UL and/or CSA Approvals. Please contact factory for approval information.
Flexcor® Wire Mesh Grips
Pulling Grips Slack
*To determine workload safety factor, divide approximate break strength by 5.
See Page J-24 for strength information.
Single Weave, Standard
Length, Split Rod, Offset Eye
Double Weave, Standard Length,
Closed Mesh, Offset Eye
Double Weave, Standard Length,
Split Lace, Offset Eye
Description
Slack grips are reusable grips used for pulling slack in underground cable
preparatory to final placement. They may also be used for cable removal.
Slack grips feature an offset eye for easy attachment to the pulling line.
CATALOG NUMBER
CABLE
DIAMETER RANGE MESH LENGTH
APPROXIMATE
BREAK STRENGTH*
DOUBLE WEAVE, STANDARD LENGTH, CLOSED MESH, OFFSET EYE
SCK0751 0.750"-0.990" 13" 3,000 lbs.
SCK1001 1.000"-1.240" 16" 4,200 lbs.
SCK1251 1.250"-1.490" 17" 5,500 lbs.
SCK1501 1.500"-1.740" 18" 7,400 lbs.
SCK1751 1.750"-1.990" 19" 11,000 lbs.
SCK2501 2.500"-2.990" 21" 11,000 lbs.
SCK3001 3.000"-3.490" 22" 16,000 lbs.
SCK3501 3.500"-3.990" 23" 16,000 lbs.
DOUBLE WEAVE, LONG LENGTH, CLOSED MESH, OFFSET EYE
SCK1502 1.500"-1.740" 26" 7,400 lbs.
SCK2002 2.000"-2.490" 27" 11,000 lbs.
SCK2502 2.500"-2.990" 30" 11,000 lbs.
SCK3002 3.000"-3.490" 33" 16,000 lbs.
DOUBLE WEAVE, STANDARD LENGTH, SPLIT LACE, OFFSET EYE
SSK0751 0.750"-0.990" 13" 3,000 lbs.
SSK1251 1.250"-1.490" 17" 4,100 lbs.
SSK1501 1.500"-1.740" 18" 5,500 lbs.
SSK1751 1.750"-1.990" 19" 7,300 lbs.
SSK2001 2.000"-2.490" 20" 7,300 lbs.
SSK3001 3.000"-3.490" 22" 9,200 lbs.
SSK3501 3.500"-3.990" 23" 11,000 lbs.
DOUBLE WEAVE, LONG LENGTH, SPLIT LACE, OFFSET EYE
SSK1002 1.000"-1.240" 21" 4,100 lbs.
SSK1252 1.250"-1.490" 24" 4,100 lbs.
SSK1502 1.500"-1.740" 25" 5,500 lbs.
SSK2002 2.000"-2.490" 27" 7,300 lbs.
SSK2502 2.500"-2.990" 30" 7,300 lbs.
SSK3002 3.000"-3.490" 33" 9,200 lbs.
DOUBLE WEAVE, STANDARD LENGTH, SPLIT LACE, OFFSET EYE
SRK050OF 0.500"-0.610" 7" 1,800 lbs.
SRK062OF 0.620"-0.740" 9" 1,900 lbs.
SRK075OF 0.750"-0.990" 11" 3,000 lbs.
SRK100OF 1.000"-1.240" 12" 4,100 lbs.
SRK125OF 1.250"-1.490" 14" 5,700 lbs.
SRK150OF 1.500"-1.740" 16" 5,800 lbs.
SRK175OF 1.750"-1.990" 17" 7,700 lbs.
SRK200OF 2.000"-2.490" 20" 9,300 lbs.
SRK250OF 2.500"-2.990" 21" 11,300 lbs.
SRK300OF 3.000"-3.490" 22" 15,100 lbs.
SRK350OF 3.500"-3.990" 25" 15,100 lbs.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-22
FLEXCOR® WIRE MESH GRIPS
Flexcor® Wire Mesh Grips
Selecting Properly Sized Pulling & Support Grips
Select grip size based upon the outside diameter or circumference
of the cable(s). See the following reference tables for convenience
in determining cable diameters.
Use the following grip selection tables to determine the grip
diameter range for your application.
Grip selection for one or more cables of equal diameter
1. Read across top line for number of cables in one grip.
2. Read down for diameter of each cable.
3. Read across to the right to grip diameter range column.
Example: For five cables together with diameter of 0.42" each
1. Locate “5 cables” column.
2. Read down column to range (0.38"-0.48").
3. Read across line to grip diameter range (1.00"-1.25").
DECIMAL & FRACTIONAL INCH CABLE DIAMETERS  FOR ONE OR MORE CABLES OF EQUAL DIAMETER
1
CABLE
2
CABLE
3
CABLE
4
CABLE
GRIP DIAMETER
RANGE
0.25-0.37 = ¼ - 3⁄80.16-0.25 = 1⁄64- ¼ 0.15-0.22 = 5⁄32 - 7⁄32 0.12-0.20 = 1⁄8 - 13⁄64 0.25"-0.375"
0.37-0.50 = 3⁄8 - ½ 0.25-0.36 = ¼ - 23⁄64 0.22-0.33 = 7⁄32 - 21⁄64 0.20-0.28 = 13⁄64 - 9⁄32 0.375"-0.50"
0.50-0. 62 = ½ - 5⁄80.27-0.36 = 17⁄64 - 23⁄64 0.26-0.33 = 17⁄64 - 21⁄64 0.24-0.28 = 15⁄64 - 9⁄32 0.50"-0.62"
0.62-0.75 = 5⁄8 - ¾0.36-0.45 = 23⁄64 - 29⁄64 0.33-0.36 = 21⁄64 - 23⁄64 0.28-0.31 = 9⁄32 - 5⁄16 0.62"-0.75"
0.75-1.00 = ¾ - 1 0.45-0.60 = 29⁄64 - 39⁄64 0.36-0.49 = 23⁄64 - 31⁄64 0.31-0.42 = 5⁄16 - 27⁄64 0.75"-1.00"
1.00-1.25 = 1 - 1¼0.60-0.76 = 39⁄64 - 49⁄64 0.49-0.63 = 31⁄64 - 5⁄80.42-0.54 = 27⁄64 - 35⁄64 1.00"-1.25"
1.25-1.50 = 1¼ - 1½0.76-0.91 = 49⁄64 - 29⁄32 0.63-0.75 = 5⁄8 - 49⁄64 0.54-0.65 = 35⁄64 - 21⁄32 1.25"-1.50"
1.50-1.75 = 1½ - 1¾0.91-1.23 = 29⁄32 - 115⁄64 0.76-0.89 = 49⁄64 - 57⁄64 0.65-0.77 = 21⁄32 - 49⁄64 1.50"-1.75"
1.75-2.00 = 1¾ - 2 1.23-1.54 = 115⁄64 - 135⁄64 0.89-1.02 = 57⁄64 - 11⁄64 0.77-0.88 = 49⁄64 - 7⁄81.75"-2.00"
2.00-2.50 = 2 - 2½1.54-1.84 = 135⁄64 - 127⁄32 1.02-1.28 = 11⁄64 - 19⁄32 0.88-1.00 = 7⁄8 - 1 2.00"-2.50"
2.50-3.00 = 2½ - 3 1.84-2.15 = 127⁄32 - 25⁄32 1.28-1.53 = 19⁄32 - 111⁄32 1.10-1.32 = 13⁄32 - 121⁄64 2.50"-3.00"
3.00-3.50 = 3 - 3½2.15-2.45 = 25⁄32 - 229⁄64 1.53-1.79 = 117⁄32 - 151⁄64 1.32-1.54 = 121⁄64 - 135⁄64 3.00"-3.50"
3.50-4.00 = 3½ - 4 1.79-2.05 = 151⁄64 - 23⁄64 1.54-1.76 = 135⁄64 - 149⁄64 3.50"-4.00"
DECIMAL & FRACTIONAL INCH CABLE DIAMETERS  FOR ONE OR MORE CABLES OF EQUAL DIAMETER
5
CABLE
6&7
CABLE
8
CABLE
9
CABLE
GRIP DIAMETER
RANGE
0.11-0.14 = 7⁄64 - 9⁄64 0.10-0.11 = 3⁄32 - 7⁄64 0.09-0.10 = 3⁄32 - 7⁄64 0.06-0.09 = 1⁄16 - 3⁄32 0.25"-0.375"
0.14-0.21 = 9⁄64 - ¼0.11-0.25 = 7⁄64 - ¼0.10-0.20 = 7⁄64 - 13⁄64 0.09-0.19 = 3⁄32 - 3⁄16 0.375"-0.50"
0.21-0.25 = 7⁄32 - ¼0.19-0.22 = 3⁄16 - 7⁄32 0.17-0.20 = 11⁄64 - 13⁄64 0.15-0.19 = 5⁄32 - 3⁄16 0.50"-0.62"
0.25-0.29 = ¼ - 19⁄64 0.22-0.26 = 7⁄32 - 17⁄64 0.20-0.23 = 13⁄64 - 15⁄64 0.19-0.22 = 3⁄16 - 7⁄32 0.62"-0.75"
0.29-0.38 = 19⁄64 - 3⁄80.26-0.34 = 17⁄64 - 11⁄32 0.23-0.31 = 15⁄64 - 5⁄16 0.22-0.31 = 7⁄32 - 5⁄16 0.75"-1.00"
0.38-0.48 = 3⁄8 - 31⁄64 0.34-0.43 = 11⁄32 - 7⁄16 0.31-0.39 = 5⁄16 - 25⁄64 0.29-0.36 = 19⁄64 - 23⁄64 1.00"-1.25"
0.48-0.58 = 31⁄64 - 41⁄64 0.43-0.52 = 7⁄16 - 33⁄64 0.39-0.46 = 25⁄64 - 15⁄32 0.36-0.43 = 23⁄64 - 7⁄16 1.25"-1.50"
0.58-0.67 = 37⁄64 - 43⁄64 0.52-0.60 = 33⁄64 - 39⁄64 0.46-0.54 = 15⁄32 - 35⁄64 0.43-0.49 = 7⁄16 - 31⁄64 1.50"-1.75"
0.67-0.77 = 43⁄64 - 49⁄64 0.60-0.69 = 39⁄64 - 11⁄16 0.54-0.62 = 35⁄64 - 5⁄80.49-0.57 = 31⁄64 - 37⁄64 1.75"-2.00"
0.77-0.96 = 49⁄64 - 31⁄32 0.69-0.86 = 11⁄16 - 55⁄64 0.62-0.77 = 5⁄8 - 49⁄64 0.57-0.72 = 37⁄64 - 23⁄32 2.00"-2.50"
0.96-1.16 = 31⁄32 - 15⁄32 0.86-1.03 = 55⁄64 - 11⁄32 0.77-0.93 = 49⁄64 - 15⁄16 0.72-0.86 = 23⁄32 - 55⁄64 2.50"-3.00"
1.16-1.35 = 15⁄32 - 123⁄64 1.03-1.20 = 11⁄32 - 113⁄64 0.93-1.08 = 15⁄16 - 15⁄64 0.86-1.00 = 55⁄64 - 1 3.00"-3.50"w
1.35-1.54 = 123⁄64 - 135⁄64 1.20-1.37 = 113⁄64 - 13⁄81.08-1.24 = 15⁄64 - 115⁄64 1.00-1.14 = 1 - 19⁄64 3.50"-4.00"
WWW.LEGRAND.US/PASSANDSEYMOUR
J-23
Flexcor® Wire Mesh Grips
pAss & seYMoUr
Flexcor® Wire Mesh Grips
Selecting Properly Sized Pulling & Support Grips
Grip circumference range refers to
circumference of all cables held together.
1. Determine grip circumference range by measuring
circumference of bundle of cables to be held
(as shown in illustration).
2. Read down to locate correct range.
3. Read across to grip diameter column.
Example: For three cables together with combined
circumference of 6.35"
1. Read down “inches (decimal)” column for 6.35" (6.29"-7.86").
2. Read across line to grip diameter range (2.00"-2.50").
Diameter
Diameter GRIP CABLE RANGE CONVERSION
INCHES
(FRACTIONAL)
INCHES
(DECIMAL)
GRIP DIAMETER
RANGE
25⁄32 - 111⁄64" 0.78"-1.17" 0.25"-.375"
111⁄64 - 137⁄64" 1.17"-1.57" 0.375"-0.50"
137⁄64 - 23⁄8" 1.57"-2.37" 0.50"-0.75"
115⁄16 - 23⁄8" 1.94"-2.37" 0.625"-0.75"
23⁄8 - 35⁄32" 2.37"-3.15" 0.75"-1.00"
35⁄32 - 315⁄16" 3.15"-3.94" 1.00"-1.25"
315⁄16 - 4" 3.94"-4.72" 1.25"-1.50"
423⁄32 - 533⁄64" 4.72"-5.51" 1.50"-1.75"
533⁄64 - 619⁄64" 5.51"-6.29" 1.75"-2.00"
619⁄64 - 755⁄64" 6.29"-7.86" 2.00"-2.50"
755⁄64 - 97⁄16" 7.86"-9.43" 2.50"-3.00"
97⁄16 - 111⁄64" 9.43"-11.01" 3.00"-3.50"
111⁄64 - 1237⁄64" 11.01"-12.58" 3.50"-4.00"
This table to be used as a guide only.
Sizes may vary by manufacturer.
AWG OR MCM WIRE SIZES
AWG OR
MCM
APPROX. DIA.
THHM
APPROX. DIA.
THW
14 0.105" 0.162"
12 0.122" 0.179"
10 0.153" 0.199"
8 0.201" 0.259"
6 0.257" 0.323"
4 0.328" 0.372"
3 0.356" 0.401"
2 0.388" 0.433"
1 0.450" 0.508"
1/0 0.491" 0.549"
2/0 0.537" 0.595"
3/0 0.588" 0.647"
4/0 0.646" 0.705"
250 0.716" 0.788"
300 0.771" 0.843"
350 0.822" 0.895"
400 0.869" 0.942"
500 0.955" 1.03"
600 1.06" 1.14"
700 1.13" 1.21"
750 1.16" 1.25"
1000 1.32" 1.40"
Nominal overall diameters (in inches) for flexible cord.
REFERENCE TABLE: CORD DIAMETERS
AVERAGE WIRE
SIZE AND TYPE
2
CONDUCTORS
3
CONDUCTORS
4
CONDUCTORS
5
CONDUCTORS
18 SO, STO 0.36" 0.38" 0.41" 0.49"
18 SJO, SJTO 0.30" 0.32" 0.35" —
16 SO, STO 0.39" 0.41" 0.44" 0.52"
16 SJO, SJTO 0.32" 0.34" 0.37" —
14 SO, STO 0.52" 0.55" 0.59" 0.67"
12 SO, STO 0.60" 0.62" 0.68" 0.74"
10 SO, STO 0.65" 0.69" 0.74" 0.80"
8 SO, STO 0.83" 0.88" 0.99" 1.08"
6 SO, STO 0.99" 1.04" 1.12" 1.25"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
J-24
FLEXCOR® WIRE MESH GRIPS
Flexcor® Wire Mesh Grips
Pulling & Support Grips Strength Information
Strength Information
The approximate breaking strength of any Pass & Seymour wire mesh cable grip is based on
working load information established by Legrand engineering laboratories. In making these
determinations, it is not possible to cover all applications and operating conditions. Variables
such as diameters, gripping surfaces, number of items gripped, tension, movement,
attachment, abrasion, corrosion, prior use, or abuse must be assessed by the user. Greater
safety factors should be utilized when the conditions of application are vague or unknown.
For specific applications where strength and holding power are important, consult the
manufacturer. To determine the recommended working load safety factor for listed cable
grips, divide the approximate breaking strength by 5 for pulling grips and 10 for support
grips. Legrand maintains a 6 sigma safety factor for pulling grips and a 5 sigma safety factor
for support grips for these recommended working loads (using average break strengths
obtained on new grips under lab test conditions).
Example: For pulling grips – 33,000÷5=6,600 lbs. which is the workload factor.
Example: For support grips – 10,080÷10=1,008 lbs. which is the workload factor.
All warranties concerning product quality or performance are based on wire mesh grips that
are properly stored and handled by the user, and grips that are maintained and inspected at
a proper frequency in keeping with their use and condition.
GRIP CABLE RANGE CONVERSION
INCHES
(FRACTIONAL)
INCHES
(DECIMAL)
GRIP DIAMETER
RANGE
¼ - 23⁄64"0.25"-0.36" 6.35 mm-9.13 mm
3⁄8 - 31⁄64"0.37"-0.49" 9.52 mm-12.30 mm
½ - 39⁄64"0.50"-0.61" 12.70 mm-15.48 mm
5⁄8 - 47⁄64"0.62"-0.74" 15.88 mm-18.65 mm
¾ - 63⁄64"0.75"-0.99" 19.05 mm-25.00 mm
1 - 115⁄64"1.00"-1.24" 25.40 mm-31.35 mm
1¼ - 131⁄64"1.25"-1.49" 31.75 mm-37.70 mm
1½ - 163⁄64" 1.50"-1.99" 38.10 mm-50.40 mm
2 - 231⁄64" 2.00"-2.49" 50.80 mm-63.10 mm
2½ - 263⁄64" 2.50"-2.99" 63.50 mm-75.80 mm
3 - 331⁄64" 3.00"-3.49" 76.20 mm-88.50 mm
3½ - 363⁄64" 3.50"-3.99" 88.90 mm-101.20 mm
WWW.LEGRAND.US/PASSANDSEYMOUR
K-1
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
OCCUPANCY/VACANCY
SENSORS K-6
TIMERS
K-20
Technology K-2
Applications K-3
120V Wall Box Vacancy Sensors K-4
120V Wall Box Occupancy Sensors K-5
120V Wall Box Occupancy/Vacancy Sensors K-6
120/277V Wall Box Occupancy/Vacancy Sensors K-8
Passive Infrared Occupancy/Vacancy Sensors
with Neutral K-9
Commercial Occupancy/Vacancy Sensors
Dual Technology Wall Box K-10
Wall Box Passive Infrared (PIR) K-11
Bi-Level Wall Box Passive Infrared (PIR) K-12
Commercial Occupancy Sensors
Wall or Ceiling Mount Passive Infrared (PIR) K-13
Ceiling Mount Passive Infrared (PIR) K-14
Ultrasonic Ceiling Mount K-15
Dual Technology Ceiling Mount K-16
High Bay Passive Infrared Line Voltage
Occupancy Sensors K-17
Power Packs & Add-A-Relay K-18
Useful Calculations K-19
Timers K-20
Wall Box Timers K-22
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-2
OCCUPANCY & VACANCY SENSORS & TIMERS
OCCUPANCY & VACANCY SENSORS & TIMERS
Technology
Passive Infrared Sensors (PIR)
Using a patented fresnel lens which minimizes optical aberrations, each Pass & Seymour®
PIR sensor breaks its coverage area into zones. Upon detecting an infrared energy change
within a zone, one of the elements in the dual-element pyroelectric sensing device of
an occupancy sensor generates a positive pulse. Within milliseconds, the other element
produces a negative pulse and the lights are turned on. Vacancy sensors turn lights off when
the room is vacant for a period of time, or when there is no infrared energy detected within
a zone.
Passive infrared sensors are unable to detect occupancy around barriers, and are more
effective when sensing movement across their field of sight rather than towards or away
from it.
All Pass & Seymour PIR occupancy sensors feature:
• Patented fresnel lenses with multi-segment design
• Dual-element pyroelectric sensors
• Low-profile design
• Daylight filter systems
• Adjustable settings for time and sensitivity
• Custom Detection Signature Analysis for high immunity to RFI and EMI, and reliability
• Self-adaptive technology is available on some models
Ultrasonic Sensors
Ultrasonic sensors use a multi-directional transmitter/receiver system to broadcast
ultrasonic sound waves generated by a quartz crystal oscillator, and then measure the
amount of time it takes the waves to return. Movement within the area results in the sound
waves returning to the sensor at a slower or faster rate, and thus occupancy is detected.
Ultrasonic sensors broadcast in three dimensions, and are therefore able to detect smaller
movements than PIR sensors. Proper placement of the sensors is essential as sound waves
can escape through open doorways, resulting in false triggering.
While Pass & Seymour ultrasonic sensors use special circuitry to filter out air-flow movement
caused by HVAC equipment or fans, sensors should be kept away from breezy areas. Also,
heavy carpeting and other sound-absorbing materials used in the construction
of a room will reduce coverage.
Pass & Seymour ultrasonic occupancy sensor features:
• Temperature- and humidity-resistant tuned receivers
• Signal Processing Circuitry
• Solid-state, crystal-controlled transmitter
• Adjustable controls for time and sensitivity
Dual Technology
Dual Technology sensors combine PIR and Ultrasonic sensing in one device. This minimizes
false ONs and nuisance OFFs. Sensitivity adjustments and user selectable operational
characteristics make dual technology sensors the most versatile, even in the most difficult
installations.
Use dual technology sensors for the most demanding sensor applications. Odd shaped rooms,
lots of partitions, and changing floor plans can be handled best by dual technology sensors.
WWW.LEGRAND.US/PASSANDSEYMOUR
K-3
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
Catalog
P&S Model Page # Best Suited For:
120V Wall Box Occupancy Sensors
RW500U K-5 Storage rooms, walk-in closets, pantries, garage where no neutral is available
RWU600U K-5 Storage rooms, walk-in closets, pantries, garage where a neutral is available
120V Wall Box Vacancy Sensors (T24 Compliant)
RW500B K-4 Bedrooms, basements bathrooms, laundry rooms, where no neutral is available
RWU600B K-4 Bedrooms, basements bathrooms, laundry rooms, where a neutral is available
RW600BTC K-4 Bedrooms, basements bathrooms, laundry rooms, where no neutral is available
3-Way 120V Wall Box Occupancy/Vacancy Sensor
RW3U600 K-6 Any room/hall with multiple entrances — allows manual ON/OFF control from both
locations. Can be switched between occupancy and vacancy.
RW3U603 K-6 Any room/hall with multiple entrances — allows manual ON/OFF control from both
locations. Can be switched between occupancy and vacancy.
120V Wall Box Occupancy/Vacancy Sensor with Dimmer
RWDU500 K-7 Any room where adjustable light level is desired
Commercial Passive Infrared (PIR) Wall Box Sensors
PTWSP250 K-8 Small offices, closets, utility rooms with no partitions or obstructions
WSP250 K-8 Small offices, closets, utility rooms with no partitions or obstructions
OS300S K-11 Small offices, closets, small conference rooms with no partitions or obstructions
OSR300S K-12 Small rooms with two individually-controlled loads or bi-level lighting with
no partitions or obstructions
WSP101; WSP201 K-9 Offices, conference rooms, restrooms, lunch/break rooms, classrooms, unique areas
Commercial Passive Infrared (PIR) and Ultrasonic Wall Sensors
WDT100 K-10 Small offices, executive suites, conference rooms, break rooms
WDT200 K-10
Commercial Passive Infrared (PIR) Ceiling Sensors
CS500, CS1200 K-14 Open offices, lunch, utility, storage, and computer rooms with no partitions or obstructions
CS1200LV K-14 Larger rooms, up to 1200 sq. ft., with open floor plans, no partitions or obstructions
Commercial Passive Infrared (PIR) Wall or Ceiling Mount Sensors
HS1001 K-13 Hallways, or aisles
WA1001 K-13 Entrances, vestibules, classrooms, for wide-angle applications
Commercial Ultrasonic Ceiling Mount Sensors
CSU600 K-15 Offices, computer, meeting, copy, and restrooms
CSU1100 K-15 Offices, lunch, break and classrooms, restrooms, and conference rooms
CSU2200 K-15 Offices, lunch, break and classrooms, restrooms, conference rooms, halls, storage areas
Commercial Dual Technology Sensors
CSD1000LV K-16 Meeting, conference and classrooms, restrooms, dressing rooms, libraries,
interview rooms, testing areas, lunch and break rooms
Timers
RT1 K-20 Closets, bathroom fans, exhaust fans, heat lamps, bedrooms
RT12 K-21 Garages, basements, laundry rooms, fans, motors, landscape lights
RT24 K-21 Exterior lights, landscape lighting, security lighting, holiday lighting
High Bay Sensors
PSHB120277L K-17 Warehouses, industrial, retail, education and institutional WL models for wet locations in
PSHB120277WL K-17 these applications
OCCUPANCY & VACANCY SENSORS & TIMERS
Applications
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-4
OCCUPANCY & VACANCY SENSORS & TIMERS
OCCUPANCY & VACANCY SENSORS & TIMERS
120V Wall Box Vacancy Sensors Passive Infrared (PIR)
RW500BLACC4
1.69"
2.63"
1.88"
1.69"
2.63"
1.88"
RWU600BLACC4
RW500B Wiring
Wiring for RW500B does not
require a neutral.
RWU600B Wiring
Coverage
RW600BTC
1.69"
2.63"
1.88"
RW600B Wiring
Wiring for RW600B does not
require a neutral.
Green -> GROUND
Black -> HOT (power
from circuit box)
Time
Delay
Motion Blink
OFF
30sec.
30min.
5min.
10min.
20min.
11543r1
Red -> LOAD (power
to lamp or fan)
OPEN
Wiring for RWU600B
requires a neutral.
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD
AUTO
ON
MANUAL
ON
SELECTABLE
AUTO/MAN.
ON COLOR
SINGLE POLE VACANCY SENSORS
RW500BICC4
No neutral required ideal for bedrooms and baths 120VAC
60Hz
25-500W
Incandescent
No Yes No Ivory
RW500BWCC4 No Yes No White
RW500BBKCC4 No Yes No Black
RW500BLACC4 No Yes No Light Almond
RWU600BICC4
Neutral required ideal for bedrooms and baths 120VAC
60Hz
0-600W
All
No Yes No Ivory
RWU600BWCC4 No Yes No White
RWU600BBKCC4 No Yes No Black
RWU600BLACC4 No Yes No Light Almond
RW600BTC No neutral required, ideal for bedrooms and baths.
Comes with three interchangeable face colors.
120VAC
60Hz
0-600W
All
No Yes No Ivory
White
Light Almond
Features
• California Title 24 compliant.
• Replaces a standard light or fan single
pole switch.
• Lighted switch for visibility in darkened
rooms.
• Manual-ON operation.
• Fixed 30-minute time delay, no
adjustment necessary.
• Low-profile styling with uniform
color-matched lens and device.
• Coverage: 180°, max. 600 ft.2 (56m2).
• cULus listed.
• 5-year warranty.
RW500B only
• Incandescent.
RWU600B only
• Load: Incandescent, fluorescent, compact
fluorescent (CFL), magnetic low-voltage
(MLV) and electronic low-voltage (ELV),
1/6 hp.
RW600BTC only
• Interchangeable face – Three colors in
one box (Ivory, White, Light Almond).
WWW.LEGRAND.US/PASSANDSEYMOUR
K-5
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Replaces a standard light or fan single
pole switch.
• Lighted switch for visibility in darkened
rooms.
• Automatic-ON operation.
• Fixed five-minute time delay.
• Low-profile styling with uniform
color-matched lens and device.
• Coverage: 180°, max. 600 ft.2 (56m2).
• cULus listed.
• 5-year warranty.
• Works with most common residential
lighting types.
RWU600U only
• Load: Incandescent, fluorescent,
compact fluorescent (CFL), magnetic
low-voltage (MLV) and electronic
low-voltage (ELV), 1/6 hp.
Coverage
OCCUPANCY & VACANCY SENSORS & TIMERS
120V Wall Box Occupancy Sensors Passive Infrared (PIR)
RW500ULACC4
1.69"
2.63"
1.88"
1.69"
2.63"
1.88"
RWU600ULACC4
RW500U Wiring
Wiring for RW500U does not require a neutral. Wiring for RWU600U requires a neutral.
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD
AUTO
ON
MANUAL
ON
SELECTABLE
AUTO/MAN.
ON COLOR
SINGLE POLE VACANCY SENSORS
RW500UICC4
No neutral required, ideal for storage and utility
rooms
120VAC
60Hz
25-500W
Incandescent
Yes No No Ivory
RW500UWCC4 Yes No No White
RW500UBKCC4 Yes No No Black
RW500ULACC4 Yes No No Light Almond
RWU600UICC4
Neutral required, controls most types of lighting,
ideal for storage & utility rooms
120VAC
60Hz
0-600W
All
Yes No No Ivory
RWU600UWCC4 Yes No No White
RWU600UBKCC4 Yes No No Black
RWU600ULACC4 Yes No No Light Almond
RW600UTC No neutral required, ideal for bedrooms
and baths. Comes with three interchangeable
face colors.
120VAC
60Hz
0-600W
All
Yes Yes Yes Ivory
Light Almond
White
RWU600U Wiring
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-6
OCCUPANCY & VACANCY SENSORS & TIMERS
Coverage
RW3U600 Wiring for 3-Way Operation
OCCUPANCY & VACANCY SENSORS & TIMERS
120V Wall Box Occupancy/Vacancy Sensors 3-Way Passive Infrared (PIR)
RW3U600W
shown with
SWP26W
2.8"
4.8"
1.5"
RW3U600W
RW3U603W
Dimensions for
RW3U603W:
2.67" (L) x
1.73" (W) x 1.77" (D)
Product Controls
RW3U600
RW3U603 Wiring for 3-Way Operation
*RW3U600 requires an additional RW3U600 in multi-way circuits.
**RW3U603 can be used with either a momentary contact switch or an additional RW3U603 unit for multi-way applications.
Momentary contact switches on Page A-22.
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD
AUTO
ON
MANUAL
ON
SELECTABLE
AUTO/MAN.
ON COLOR
LIGHT
LEVEL
SENSING
SINGLE POLE/3WAY OCCUPANCY/VACANCY SENSORS
RW3U600I*
Light-level sensing for optimum
operation – ideal for rooms with
multiple entrances.
120VAC
60Hz
0-600W
All
Yes Yes Yes Ivory Yes
RW3U600W* Yes Yes Yes White Yes
RW3U600BK* Yes Yes Yes Black Yes
RW3U600LA* Yes Yes Yes Light Almond Yes
RW3U603I**
Ideal for rooms with multiple
entrances.
120VAC
60Hz
0-600W
All
No Yes No Ivory No
RW3U603W** No Yes No White No
RW3U603BK** No Yes No Black No
RW3U603LA** No Yes No Light Almond No
Applications
The RW3U600 has the flexibility to work in a variety of applications including hallways, stairways, bathrooms, living and dining rooms, and
other areas with multiple entries. The RW3U600 vacancy sensor allows true multi-way operation with automatic ON/OFF control.
Features
• Occupancy-based control plus multi-way
operation.
• Two or more RW3U600s connected
together will allow enhanced coverage of
the controlled space.
• Works with most common residential
lighting types.
• Adjustable time delay of 15 seconds
to 30 minutes.
• Light level sensing prevents automatic
ON of lights when adequate daylight
exists.
• Replaces three-way or four-way switches
when used with other RW3U600s.
• Lighted switch for visibility in darkened
rooms.
• Manual- or automatic-ON operation.
• Adjustable light level setting of 10 to
150 fc (100 to 1500 lux).
• Coverage: 180°, max. 600 ft.2 (56m2).
• cULus listed.
• 5-year warranty.
• Load: Incandescent, fluorescent, compact
fluorescent (CFL), magnetic low-voltage
(MLV) and electronic low-voltage (ELV),
1/6 hp.
RW3U603 only
• Time delay 15 seconds, 5, 15, 30 minutes.
WWW.LEGRAND.US/PASSANDSEYMOUR
K-7
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
OCCUPANCY & VACANCY SENSORS & TIMERS
120V Wall Box Occupancy/Vacancy Sensors Passive Infrared (PIR) with Dimmer
1.73"
2.67"
1.77"
RWDU500W
RWDU500 Wiring
Green
->
GROUND
Black
->
HOT (power
from circuit box)
White
->
NEUTRAL
Red
->
LOAD (power
to dimmable lamp)
De-rating
When more that one dimmer is installed
in a multi-gang box, it is necessary
to reduce the maximum load on each
dimmer.
• For an RWDU500 in either end
position of a multi-gang box, reduce
the maximum load by 50W.
• For an RWDU500 in a central position
of a multi-gang box, reduce its
maximum load by 100W. Mounting in a
deep electrical box is recommended.
Coverage
Product Controls
RWDU500
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• California Title 24 compliant.
• Replaces standard single pole switch or
incandescent dimmer.
• Low-profile styling with uniform
color-matched lens and device.
• Lighted pushbutton for visibility in
darkened rooms.
•Manual-ON or automatic-ON operation.
• Adjustable time delay from 15 seconds
to 30 minutes.
• Soft start technology to prolong lamp life.
• Air gap isolation switch for safe
relamping.
• If enabled, light level sensing prevents
automatic-ON when adequate daylight
exists.
• Adjustable light level setting from 10-150
fc (100-1500 lux) for daylight sensing.
• Operating conditions: 32°-104°F
(0°-40°C), 95% RH, noncondensing.
• Coverage: 180°, max. 600 ft2 (56 m2).
• cULus listed.
• 5-year warranty.
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD
AUTO
ON
MANUAL
ON
SELECTABLE
AUTO/MAN.
ON COLOR
OCCUPANCY/VACANCY SENSORS WITH PRESET DIMMERS
RWDU500I
Neutral required, ideal for living,
dining and family rooms, master
bathrooms and bedrooms.
120VAC
60 Hz
25-500W
Incandescent
Yes Yes Yes Ivory
RWDU500W Yes Yes Yes White
RWDU500BK Yes Yes Yes Black
RWDU500LA Yes Yes Yes Light Almond
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-8
OCCUPANCY & VACANCY SENSORS & TIMERS
Manual Bi-level Lighting – WSP250
OCCUPANCY & VACANCY SENSORS & TIMERS
120/277 Wall Box Occupancy/Vacancy Sensors Wall Box Passive Infrared (PIR)
Single Level Lighting – WSP250
Planning a Layout
The WSP250’s 2-level lens provides superior coverage at desktop level by
allowing the sensor to detect vertical as well as horizontal motion. Coverage
shown is for walking motion. Under optimum conditions with a high level of
activity and with no barriers or obstacles, coverage can reach a maximum of
900 square feet. Under a typical, desktop level of activity, when mounted at
4 feet, coverage is 300 square feet.
WSP250
Factory settings: 30 min. time delay,
maximum light level and sensitivity
PTWSP250W
1.55"
2.6"
1.7"
WSP250W
Technical Specifications on Page R-147.
PTS6STR3
1.125"
6.375"
PlugTail™ Wall Switch Sensors
use PTS Single Pole PlugTail™
Connectors. See Page A-14.
1.55"
2.6"
1.7"
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Detection Signature Analysis provides
high immunity to RFI and EMI.
• Compact, decorator design replaces
existing wall switch.
• Shallow back body (1")
• Integrated light level sensor works from
10 to 150 footcandles.
• Compatible with all electronic and
magnetic ballasts, PL lamp ballasts,
compact fluorescent.
• Adjustable time delay of 30 seconds to
30 minutes.
• Dual 120/277VAC operation.
• 30% to 60% energy savings.
• Positive detection indicator.
• No minimum load requirement.
• Adjustable sensitivity from 20% to 100%.
• Patented voltage drop protection.
• Patented Zero Crossing Circuitry.
• 180° coverage of up to 900 sq. ft.
• cULus listed.
• 5-year warranty.
PlugTail™ PTWSP250 Only
• No exposed terminals create a finger-
safe application before, during, and after
installation.
• Built-in connector features large brass
terminal blades to ensure consistent,
reliable electrical connections.
WSP250 Only
• 6" flying leads
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD COLOR
PLUGTAIL™ AUTOMATIC WALL SWITCHES  3 WIRE TECHNOLOGY
PTWSP250I
PIR
Occupancy Sensor
120/277VAC
60Hz
800W Max. at 120V
1200W Max. at 277V
Ivory
PTWSP250W White
PTWSP250GRY Gray
PTWSP250LA Light Almond
AUTOMATIC WALL SWITCHES  3 WIRE TECHNOLOGY
WSP250I
PIR
Occupancy Sensor
120/277VAC
60Hz
800W Max. at 120V
1200W Max. at 277V
Ivory
WSP250W White
WSP250GRY Gray
WSP250LA Light Almond
WWW.LEGRAND.US/PASSANDSEYMOUR
K-9
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
WSP101W
1.55"
2.6"
1.7"
WSP201W
1.55"
2.6"
1.7"
All devices listed on this page conform to NEMA WD-1 and WD-6.
OCCUPANCY & VACANCY SENSORS & TIMERS
Passive Infrared Occupancy/Vacancy Sensors with Neutral
CATALOG NUMBER DESCRIPTION COVERAGE VOLTAGE COLOR
PASSIVE INFRARED OCCUPANCY/VACANCY SENSORS WITH NEUTRAL
WSP101I
PIR Occupancy/Vacancy Sensor
with Neutral
Major Coverage: 35' x 30';
Minor Coverage: 20' x 15' 120/230/277 VAC, 50/60 Hz
Ivory
WSP101W White
WSP101GRY Gray
WSP101LA Light Almond
WSP201I
Bi-Level PIR Occupancy/Vacancy Sensor
with Neutral
Major Coverage: 35' x 30';
Minor Coverage: 20' x 15' 120/230/277 VAC, 50/60 Hz
Ivory
WSP201W White
WSP201GRY Gray
WSP201LA Light Almond
Features
• Detection signature processing
eliminates false triggers and provides
immunity to RFI and EMI.
• Zero-crossing for long relay life.
• Vandal-resistant lens combines precise
coverage with durability.
• Choice of Auto-ON or Manual-ON
operation.
• Auto adjustable time delays: automatic,
fixed (5, 10, 15, 20, 25 or 30 minutes),
walk-through, test-mode.
• Selectable time delay automatically
adjusts for maximum savings.
• Walk-through mode turns lights off
3 minutes after the area is initially
occupied – ideal for brief visits such as
mail delivery.
• Selectable test mode allows quick and
easy adjustments.
• Selectable audible alert for impending
shutoff.
• In AUTO-ON mode, if the sensor is
manually turned OFF, AUTO-ON will not
enable until no motion is detected for
5 minutes. This prevents the light from
turning ON when it was intended they
remain OFF. Ideal for presentations.
• LED indicates occupancy detection.
• Built-in light level sensing with simple,
one-step setup.
• Override mode allows sensor to operate
as a service switch in the unlikely event of
a failure.
• NEMA WD 7 guideline utilized for
coverage testing.
• Sensitivity adjustment: PIR (high/low).
• Coverage: 180°, up to 1050 sq. ft.;
major motion 35' x 30'; minor motion
20' x 15'.
• cULus listed.
• 5-year warranty.
• Load: Incandescent, fluorescent, compact
fluorescent (CFL), magnetic low-voltage
(MLV) and electronic low-voltage (ELV),
1/6 hp
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-10
OCCUPANCY & VACANCY SENSORS & TIMERS
Technical Specifications on Page R-148.
All devices listed on this page conform to NEMA WD-1 and WD-6.
OCCUPANCY & VACANCY SENSORS & TIMERS
Commercial Occupancy/Vacancy Sensors Dual Technology Wall Box
WDT100W
1.76"
2.73"
1.83" Coverage
PIR Coverage
7.5’
(2.2m)
15’
(4.5m)
20’
(6.1m)
35’
(10.6m)
Major motion
Minor motion
Ultrasonic
Coverage
10'
(3.0m)
7.5’
(2.2m)
20’
(6.1m)
15’
(4.5m)
Major motion
Minor motion
Features
• Adjusts time delays automatically based
on actual usage patterns
• Assigns short delays (as low as 7
minutes) when the space is typically
vacant, and longer delays (up to 30
minutes) for busier times
• Differentiates electrical noise from
human motion
• Fixed mode – 5, 15, or 30 minutes
• Walk-through mode – turns lights off
3 minutes after the room is initially
occupied if no motion is detected after
30 seconds.
• Test mode – allows quick and easy
adjustments.
• Sensitivity adjustment.
• Color-matched lenses and low profile
for appealing design.
• Choice of auto-ON or manual-ON
operation.
• Fast, easy installation/switch-out.
• Zero-crossing for long relay life.
• High sensitivity and dense coverage for
exceptional performance.
• cULus listed.
• 5-year warranty.
• WDT200 offers bi-level control of two
loads independently from the same box.
- Built-in sensor holds secondary lights
off until daylight levels drop
- Each relay can be set for automatic or
manual ON
- Dual ON/OFF buttons can control each
of the loads manually as well
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD COVERAGE COLOR
DUAL TECHNOLOGY WALL SWITCH SENSORS
WDT100I
Dual Technology
Wall Switch Sensor
120/230/277VAC,
50/60Hz
120VAC, 0-800W ballast or tungsten,
1/6HP 230/277VAC, 0-1200 ballast 1050 sq. ft
Ivory
WDT100W White
WDT100BK Black
WDT100GRY Gray
WDT100LA Light Almond
WDT200I
Bi-Level Dual Technology
Wall Switch Sensor
120/230/277VAC,
50/60Hz
120VAC, 0-800W ballast or tungsten,
1/6HP 230/277VAC, 0-1200 ballast 1050 sq. ft
Ivory
WDT200W White
WDT200BK Black
WDT200GRY Gray
WDT200LA Light Almond
WWW.LEGRAND.US/PASSANDSEYMOUR
K-11
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
OCCUPANCY & VACANCY SENSORS & TIMERS
Commercial Occupancy/Vacancy Sensors Wall Box Passive Infrared (PIR)
For best performance, Legrand recommends using this sensor in spaces no larger than 15' x 20'.
OS300SW
1.76"
2.73"
1.83"
DIP Switch Settings
Technical Specifications on Page R-147.
Coverage
Product Controls
OS300S
ON/OFF Button
DIP Switches
Detection LED
PIR Lens
5
$XWR2Q
0DQXDO2Q
ON Mode
6PDUW6HW7HVW
PLQXWHV
PLQXWHV
PLQXWHV
PLQXWHV
PLQXWHV
RYHUULGH
PLQXWHV
123
Time Delay
',36ZLWFKV
21 2))
6
+LJK
/RZ
Sensitivity
4
'LVDEOHG
(QDEOHG
Walk Through

7LPH'HOD\
)$&725<
35(6(76
:DON7KURXJK
21
2Q0RGH
6HQVLWLYLW\
$XGLEOH$OHUWV
9LVLEOH$OHUWV
)DFWRU\6HWWLQJV
7
'LVDEOHG
(QDEOHG
Audible Alerts
',36ZLWFK
',36ZLWFK
8
'LVDEOHG
(QDEOHG
Visible Alerts
',36ZLWFK
',36ZLWFK
',36ZLWFK
%\SDVVRFFXSDQF\OLJKWOHYHOIXQFWLRQV
/RDGLVPDQXDOO\FRQWUROOHGZLWK:6EXWWRQ
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Detection signature processing
eliminates false triggers and provides
immunity to RFI and EMI.
• Zero-crossing for long relay life.
• Vandal-resistant lens combines precise
coverage with durability.
• Choice of Auto-ON or Manual-ON
operation.
• Auto adjustable time delays: automatic,
fixed (5, 10, 15, 20, 25 or 30 minutes),
walk-through, test-mode.
• Selectable time delay automatically
adjusts for maximum savings.
• Walk-through mode turns lights off
3 minutes after the area is initially
occupied – ideal for brief visits such as
mail delivery.
• Selectable test mode allows quick and
easy adjustments.
• Selectable audible alert for impending
shutoff.
• In AUTO-ON mode, if the sensor is
manually turned OFF, AUTO-ON will not
enable until no motion is detected for
5 minutes. This prevents the light from
turning ON when it was intended they
remain OFF. Ideal for presentations.
• LED indicates occupancy detection.
• Built-in light level sensing with simple,
one-step setup.
• Override mode allows sensor to operate
as a service switch in the unlikely event of
a failure.
• NEMA WD 7 guideline utilized for
coverage testing.
• Sensitivity adjustment: PIR (high/low).
• Coverage: 180°, up to 1050 sq. ft.;
major motion 35' x 30'; minor motion
20' x 15'.
• cULus listed.
• 5-year warranty.
• Load: Incandescent, fluorescent, compact
fluorescent (CFL), magnetic low-voltage
(MLV) and electronic low-voltage (ELV),
1/6 hp
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD
OCCUPANT
WARNING
BEFORE OFF COLOR
SINGLEPOLE OCCUPANCY/VACANCY SENSORS
OS300SI
Self-adaptive design
remembers ON/OFF cycles.
120/230/277VAC; 50/60Hz. @ 120VAC, 0-800 W ballast
or tungsten, 1/6 hp. @ 230/277VAC, 0-1200 W ballast. All
Yes Ivory
OS300SW Yes White
OS300SGRY Yes Gray
OS300SLA Yes Lt. Almond
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-12
OCCUPANCY & VACANCY SENSORS & TIMERS
Features
• Detection signature processing
eliminates false triggers and provides
immunity to RFI and EMI.
• Zero-crossing for long relay life.
• Vandal-resistant lens combines precise
coverage with durability.
• Choice of Auto-ON or Manual-ON
operation, selectable for each relay.
• Auto adjustable time delays: automatic,
fixed (5, 10, 15, 20, 25 or 30 minutes),
walk-through, test-mode.
• Selectable time delay automatically
adjusts for maximum savings.
• Selectable walk-through mode turns
lights off three minutes after the room is
initially occupied if no motion is detected
after the first 30 seconds.
• Selectable test mode allows quick and
easy adjustments.
• Selectable audible alert for impending
shutoff.
• In AUTO-ON mode, if the sensor is
manually turned OFF, AUTO-ON will not
enable until no motion is detected for
5 minutes. This prevents the light from
turning ON when it was intended they
remain OFF. Ideal for presentations.
• LED indicates occupancy detection.
• Built-in light level sensing with simple,
one-step setup.
• Override mode allows sensor to operate
as a service switch in the unlikely event of
a failure.
• NEMA WD 7 guideline utilized for
coverage testing.
• Sensitivity adjustment: PIR (high/low).
• Coverage: 180°, up to 1050 sq. ft.;
major motion 35' x 30'; minor motion
20' x 15'.
• cULus listed.
• 5-year warranty.
• Load: Incandescent, fluorescent,
compacth fluorescent (CFL), magnetic
low-voltage (MLV) and electronic
low-voltage (ELV), 1/6 hp.
OCCUPANCY & VACANCY SENSORS & TIMERS
Commercial Occupancy/Vacancy Sensors Bi-Level Wall Box Passive Infrared (PIR)
For best performance, Legrand recommends
using this sensor in spaces no larger than 15' x 20'.
Coverage OSR300S Bi-Level Wiring OSR300S Two Circuit Level Wiring
DIP Switch Settings
Technical Specifications on Page R-147.
OSR300SW
1.76"
2.73"
1.83"
Product Controls
OSR300S
DIP Switches
Detection LED
PIR Lens
ON/OFF Button
All devices listed on this page conform to NEMA WD-1 and WD-6.
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD
OCCUPANT
WARNING
BEFORE OFF
SELECTABLE
AUTO/MAN.
ON COLOR
SINGLEPOLE DUALRELAY OCCUPANCY/VACANCY SENSORS
OSR300SI
Operates both circuits of a
bi-level lighting system
120/230/277VAC; 50/60Hz. @ 120VAC,
0-800 W ballast or tungsten, 1/6 hp. @
230/277VAC, 0-1200 W ballast.
All
Yes Yes Ivory
OSR300SW Yes Yes White
OSR300SGRY Yes Yes Gray
OSR300SLA Yes Yes Light Almond
WWW.LEGRAND.US/PASSANDSEYMOUR
K-13
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
WA1001
OCCUPANCY & VACANCY SENSORS & TIMERS
Commercial Occupancy Sensors Wall or Ceiling Mount Passive Infrared (PIR)
For best results, the bracket should be
used in every installation to allow for
greatest flexibility of adjustment. Brackets
are included with each unit.
WA1001
HS1001
2.034"
3.335"
3.367"
HS1001
Wiring Diagram
Detection of motion toward
the sensor begins at a max.
of 90'. Technical Specifications on Pages
R-149 and R-150.
Reference Page K-18 for Power Packs.
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Detection Signature Analysis provides
high immunity to RFI and EMI.
• 2 coverage patterns to choose from.
• Wall mount or ceiling mount.
• Adjustable sensitivity settings.
• Digital time delay from 15 seconds to
30 minutes.
• Dual-element, temperature-compensated
pyroelectric sensor.
• LED occupancy detection indicator.
• Compatible with 120VAC or 277VAC,
60 Hz lighting systems.
• Class 2 low-voltage device.
• Positive detection indicator.
• cULus listed.
• 5-year warranty.
CATALOG NUMBER DESCRIPTION VOLTAGE
CURRENT
DRAW COVERAGE COLOR
WALL/CEILING MOUNT SENSORS
WA1001 Wide Angle PIR Occupancy Sensor 24VDC 8mA Up to 1200 sq. ft. White
HS1001 Long Range PIR Occupancy Sensor 24VDC 8mA Up to 90 linear ft. White
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-14
OCCUPANCY & VACANCY SENSORS & TIMERS
OCCUPANCY & VACANCY SENSORS & TIMERS
Commercial Occupancy Sensors Ceiling Mount Passive Infrared (PIR)
CS500
CS1200
2.2"
3.3"
Mounting – CS1200
DIP Switch Settings
CS500/CS1200 Wiring
Technical Specifications on Page R-151.
Extended Range Lens
(Standard)
CS1200
Coverage
High Density Lens
CS500
CS1200LV Wiring
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• ASIC technology reduces components and
enhances reliability.
• Pulse count processing eliminates false
offs without reducing sensitivity.
• Detection signature analysis eliminates
false triggers and provides immunity to
RFI and EMI.
• Low-profile design ensures a clean and
uncluttered ceiling appearance.
• User-adjustable time delay from
15 seconds to 30 minutes by two minute
increments.
• Sensitivity is programmed through a
DIP switch and has four settings from
minimum to maximum.
• Dual-element, temperature compensated
pyro-electric sensor.
• Mounting options: ceiling tile or 3.0 inch
round mudring.
• Units per power pack: up to 13.
• cULus listed.
• 5-year warranty.
Reference Page K-18 for Power Packs.
*Does not require power pack.
CATALOG NUMBER DESCRIPTION RATING COVERAGE
OVERRIDE AND
OUTPUT DISABLE COLOR
LOWPROFILE CEILING MOUNT SENSORS
CS500 PIR Occupancy Sensor 24VDC Input, requires
Power Pack 11mA
360°, 500 sq. ft. No White
CS1200 PIR Occupancy Sensor 360°, 1200 sq. ft. No White
CS1200LV* PIR Occupancy Sensor
0-800W Ballast/Tungsten @ 120V
0-1200W Ballast @ 277V
0-1500W Ballast @ 347V
360°, 1200 sq. ft. No White
WWW.LEGRAND.US/PASSANDSEYMOUR
K-15
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
OCCUPANCY & VACANCY SENSORS & TIMERS
Commercial Occupancy Sensors Ultrasonic Ceiling Mount
CSU1100
CSU2200
1.5"
4.8"
Reference Page K-18 for Power Packs.
Control Output 24VDC
Common
+24VDC
Lighting
Load
White (Neutral)
Red (Load)
Red (Line)
White
BlackHot
NPOWER PACK
Red
Black
Blue
Optional
Switch
(BLU)
(RED)
(BLK)
CSU600/CSU1100/CSU2200 Wiring
Coverage
Mounting
Attached to a vibration-free surface. Mount the
sensors with the receivers facing the area of coverage.
Note: Place 4' away from supply ducts, 6' from
horizontal discharge ducts, and 6" from power packs.
Technical Specifications on Page R-152.
CSU600
1.5"
4.8"
DIP Switch Settings
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Advanced signal processing circuitry
helps to eliminate false ONs.
• Utilizes advanced, omni-directional
(360°), Doppler technology for reliable
occupancy detection.
• Angled transmitter and receiver pairs
help optimize sensitivity while eliminating
unwanted detection from ceiling air
movement.
• Digital DIP switch time delay (15 seconds
to 30 minutes).
• LED indicates occupancy detection.
• Reliable solid-state construction.
• Temperature and humidity resistant
32 kHz receivers.
• Mounts to ceiling tiles or box.
• Units per power pack: up to 4.
• cULus listed.
• 5-year warranty.
CATALOG NUMBER DESCRIPTION RATING COVERAGE
OVERRIDE AND
OUTPUT DISABLE COLOR
ULTRASONIC CEILING MOUNT SENSORS
CSU600 Ultrasonic Occupancy Sensor 24VDC input, requires
Power Pack 27mA
360°, 500 sq. ft.
One-sided Yes White
CSU1100 Ultrasonic Occupancy Sensor 24VDC input, requires
Power Pack 30mA
360°, 1100 sq. ft.
Two-sided Yes White
CSU2200 Ultrasonic Occupancy Sensor 24VDC input, requires
Power Pack 30mA
360°, 2200 sq. ft.
Two-sided Yes White
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-16
OCCUPANCY & VACANCY SENSORS & TIMERS
Technical Specifications on Page R-153.
CSD1000
1.02"
4.5"
Control Output 24VDC
Common
+24VDC
Lighting
Load
White (Neutral)
Red (Load)
Red (Line)
White
BlackHot
NPOWER PACK
Red
Black
Blue
Optional
Switch
(BLU)
(RED)
(BLK)
CSD1000 Wiring
Coverage
Mounting
Nut
Washer
7/8" (22mm)
hole Threaded
Insert
Ceiling
Tile
Rotate
clockwise
Ceiling
Screws:
103mm (4.1") apart
Space:
3mm/(1/8")
DIP Switch Settings
OCCUPANCY & VACANCY SENSORS & TIMERS
Commercial Occupancy Sensors Dual Technology Ceiling Mount
CSD1000LV Wiring
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Advanced control logic based on RISC
microcontroller provides:
- Detection signature processing
eliminates false triggers and provides
immunity to RFI and EMI.
• Walk-through mode turns lights off
three minutes after the area is initially
occupied – ideal for brief visits such as
mail delivery.
• Simple, one-step setup.
• Ultrasonic diffusion technology spreads
coverage to a wider area (patented).
• LEDs indicate occupancy detection.
• Four occupancy logic options give users
the ability to customize control to meet
application needs.
• Ultrasonic frequency of 40 kHz.
• Time delays: automatic, fixed (5, 10, 15,
20, or 30 minutes), walk-through, test-
mode.
• Sensitivity adjustment: reduce sensitivity
(for PIR sensitivity); ultrasonic sensitivity
is variable with trimpot.
• Multi-level, 360° Fresnel lens for superior
occupancy detection.
• Mounting options: ceiling tile; 4 square
junction box with double gang mudring.
• Units per power pack: up to 4.
• cULus listed.
• 5-year warranty.
Reference Page K-18 for Power Packs.
*Does not require power pack.
CATALOG NUMBER DESCRIPTION RATING COVERAGE
OVERRIDE AND
OUTPUT DISABLE COLOR
LOWPROFILE CEILING MOUNT SENSORS
CSD1000 Dual Technology Occupancy Sensor 24VDC input, requires
Power Pack 35mA
360°, 1000 sq. ft.
Two-sided Yes White
CSD1000LV* Dual Technology Occupancy Sensor
0-800W Ballast/Tungsten @ 120V
0-1200W Ballast @ 277V
0-1500W Ballast @ 347V
360°, 10,000 sq. ft. Yes White
WWW.LEGRAND.US/PASSANDSEYMOUR
K-17
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
OCCUPANCY & VACANCY SENSORS & TIMERS
High Bay Passive Infrared Line Voltage Occupancy Sensors
PSHB120277WL3PSHB120277L1 PSHB120277L2 PSHB120277L3 PSHB120277WL2
Technical Specifications on Page R-154.
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Integrated occupancy sensor and lens
device.
• Multiple mounting options for easy
installation.
• Line voltage for directconnection to load.
• Lens choices for mounting between
20-40 feet.
• cULus listed.
• 5-year warranty.
PSHB120277WL2, PSHB120277WL3 Only
• IP65 rated for wet locations.
L1 Lens:
L3 Lens:
L2 Lens:
CATALOG NUMBER DESCRIPTION VOLTAGE LOAD COVERAGE
DRY LOCATION HIGH BAY SENSORS
PSHB120277L1 With aisleway lens
120/277 VAC, 60 Hz
0-800W Ballast/Tungsten
1/6 HP @ 120V
0-1200W Ballast @ 277V
60 ft. x 20 ft. @ 40 ft. mounting height
PSHB120277L2 For 20' mounting heights 40 ft. diameter @ 20 ft. mounting height
PSHB120277L3 For 40' mounting heights 60 ft. diameter @ 40 ft. mounting height
WET LOCATION HIGH BAY SENSORS
PSHB120277WL2 For 20' mounting heights
120/277 VAC, 60 Hz
0-800W Ballast/Tungsten
1/6 HP @ 120V
0-1200W Ballast @ 277V
40 ft. diameter @ 20 ft. mounting height
PSHB120277WL3 For 40' mounting heights 60 ft. diameter @ 40 ft. mounting height
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-18
OCCUPANCY & VACANCY SENSORS & TIMERS
OCCUPANCY & VACANCY SENSORS & TIMERS
Power Packs & Add-A-Relay
A cost-effective way to power Pass & Seymour® occupancy sensors.
Pass & Seymour universal voltage power packs consist of a transformer and high-current
relay in one small unit. In addition to a primary high input, power packs have a secondary
output of 24VDC, 114mA which provides operating power to sensors. Upon sensing motion
or insufficient light, sensors electrically close an internal circuit and send 24VDC back to
the power packs or Add-A-Relays that control lighting systems. Unlike power packs, Add-
A-Relay does not have transformer power supply, only an isolated relay.
Power packs can switch a maximum 20 Amps of fluorescent lighting. Both power packs and
Add-A-Relay are available for 120 and 277 Volt systems.
Installation
Power packs should be installed in
accordance with state, local, and
national electrical codes. They are
designed to attach to electrical
enclosures with 1/2 inch knockouts. In
plenum ceilings, power packs should
be installed in approved electrical
enclosures. Most applications require
UL listed, 18-22 AWG, 3-conductor,
class 2 cable for low-voltage wiring.
For plenum rated ceilings use UL
listed plenum-approved cables.
Power Pack SchematicsJ-Box Installation
Sensor Schematic with Add-A-RelayCeiling Sensor with Power Pack
Technical Specifications on Page R-155.
For additional Wiring Diagrams, see.
Pages R-20 and R-21.
2.805"
2.916"
1.634"
.842"
1.673"
PWP120277
AR120/277
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Efficient switching power supply provides
optimized current output based on
number of sensors.
• Essential to ceiling mount sensor
systems.
• Self-contained power supply
relay system.
• UL 2043 plenum rated for cost-effective
installation.
• UL-rated 94 V0 plastic enclosure.
• 1/2" snap-in nipple attaches to standard
electrical enclosures through
1/2" knockouts.
• LED indicates status of relay or
low-voltage overcurrent.
• Secondary voltage: 24VDC;
Secondary output: 225mA.
• Easy-to-install.
• cULus listed.
• 5-year warranty.
Constructed with environmentally friendly materials and is RoHS-compliant.
*1HP rated at 120/250VAC.
**Output is 225mA with relay connected.
†Add-A-Relay has a current consumption of 36mA.
CATALOG NUMBER DESCRIPTION INPUT VOLTAGE
LOAD RATINGS
OUTPUTBALLAST A INCAN. A MOTOR HP
POWER PACKS & ADDARELAY
PWP120277 Universal Voltage Power Pack 120/230/277 20 20 1* 24VDC'
225mA**
AR120/277 Add-A-Relay 120/277 20 13 1 0†
WWW.LEGRAND.US/PASSANDSEYMOUR
K-19
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
OCCUPANCY & VACANCY SENSORS & TIMERS
Useful Calculations
Multi-Sensor Installation
For applications requiring more than one sensor, the load per power pack should not exceed 225mA.
Use the following table to calculate the maximum number of sensors per power pack.
Examples:
2 x CSU1100 (30mA) = 60mA 4
This is an acceptable load because it is less than 150mA.
4 x CSU1100 (30mA) + 1 x AR120/277(36mA) = 156mA 7
This is not an acceptable load because it is greater than 150mA.
Large office using a WA1001 Passive Infrared Sensor
Six 88-watt, 3-lamp fixtures = 0.528 kW x $0.086/kWh* = $0.04541/hr
Savings = 35 hours per week
Total hours saved = 1,820 hrs/yr
Annual Savings = $82.65; 5 Year Savings = $413.23
Total estimated cost including power pack: (Product and Labor) = $140.00
Payback = 20.33 months
ROI = $82.65 ÷ $140.00 = 59.03%
Individual office using a CS500 PIR Ceiling Sensor
Three 88-watt, 3-lamp fixtures = 0.264 kW x $0.086/kWh* = $0.02270/hr
Savings = 50 hours per week
Total hours saved = 2,600 hrs/yr
Annual Savings = $59.02; 5 Year Savings = $295.10
Total estimated cost: (Product and Labor) = $54.00
Payback = 10.98 months
ROI = $59.02 ÷ $54.00 = 109.30%
EXAMPLE 2
Restroom using a CSU1100 Ultrasonic Occupancy Sensor
Four 88-watt, 3-lamp fixtures = 0.352 kW x $0.086/kWh* = $0.03027/hr
Savings = 75 hours per week
Total hours saved = 3,900 hrs/yr
Annual Savings = $118.05; 5 Year Savings = $590.27
Total estimated cost: (Product and Labor) = $160.00
Payback = 16.26 months
ROI = $118.05 ÷ $160.00 = 73.78%
*Based on 2004 US Government National average cost.
WA1001 CS500/1200 HS1001 CSU600 CSU1100/2200 AR120/277 CSD1000
8mA 11mA 8mA 27mA 30mA 36mA 35mA
Examples of savings and payback
EXAMPLE 1
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-20
OCCUPANCY & VACANCY SENSORS & TIMERS
OCCUPANCY & VACANCY SENSORS & TIMERS
Timers
RT1 Wiring
RT1LA
shown with
SWP26LA
1.69"
3.281"
1.88"
RT1LA
Product Controls
RT1
Six time selection
buttons with activation
indicator lights
ON/OFF Button
All devices listed on this page conform to NEMA WD-1 and WD-6.
Features
• Seven-button preset time switch.
• Manual ON/OFF.
• Adjustable time delay: 1, 5, 10, 20, 30,
60 minutes.
• Lighted switch for visibility in darkened
rooms.
• Controls most types of lighting.
• cULus listed.
• 5-year warranty.
• Load: Incandescent, fluorescent, compact
fluorescent (CFL), magnetic low-voltage
(MLV) and electronic low-voltage (ELV),
1/6 hp
CATALOG NUMBER DESCRIPTION RATING LOAD
TIMERUNNINGOUT
WARNING COLOR
DIGITAL TIMERS
RT1I
7-Button Digital Timer,
Neutral required
0-600W, 1/6 hp
@ 120VAC 60 Hz All
No Ivory
RT1W No White
RT1BK No Black
RT1LA No Light Almond
WWW.LEGRAND.US/PASSANDSEYMOUR
K-21
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
RT12 Wiring
RT12W
shown with
SWP26W
1.69"
3.281"
1.88"
RT12LA
Product Controls
RT12
LCD Display
Lock Bar
Programming Buttons
Slide Down:
ON/OFF Button
RT24W
shown with
SWP26W
OCCUPANCY & VACANCY SENSORS & TIMERS
Timers
Features
• Manual or programmed ON/OFF
switching.
• Real time clock with day/date calendar.
• Easy to read LED display.
• Programming buttons accessible
without removing wall plate.
• Eight programs can be assigned to any
day or combination of days of the week.
• Automatically calculates sunrise and
sunset times based on latitude and
longitude.
• Audible or visual occupant
warning before OFF.
• Power failure memory.
• Zero crossing circuitry.
• cULus listed.
• 5-year warranty.
• Load: Incandescent, fluorescent, compact
fluorescent (CFL), magnetic low-voltage
(MLV) and electronic low-voltage (ELV),
1/6 hp
Features
• Programmable countdown time switch.
• Manual ON/OFF.
• Digital countdown display.
• Adjustable time delay from 5-55 minutes
(five-minute increments) to 1-12 hours
(15-minute increments).
• Audible beep and visible light flash
warnings before automatic-OFF.
• Lighted switch for visibility in darkened
rooms.
• Works with most common lighting types.
• cULus listed.
• 5-year warranty.
• Load: Incandescent, fluorescent, compact
fluorescent (CFL), magnetic low-voltage
(MLV) and electronic low-voltage (ELV),
1/6 hp
CATALOG NUMBER DESCRIPTION RATING LOAD
TIMERUNNINGOUT
WARNING COLOR
DIGITAL TIMERS
RT12I
12-Button Digital Timer,
Neutral required
0-600W, 1/6 hp
@ 120VAC 60 Hz All
Yes Ivory
RT12W Yes White
RT12BK Yes Black
RT12LA Yes Light Almond
CATALOG NUMBER DESCRIPTION RATING LOAD
TIMERUNNINGOUT
WARNING COLOR
ASTRONOMIC PROGRAMMABLE TIMERS
RT24I
24-Hour Programmable Timer
0-800W @ 120V
0-1200W @ 277V
1/6 hp @ 120/277V
All
Yes Ivory
RT24W Yes White
RT24BK Yes Black
RT24LA Yes Light Almond
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
K-22
OCCUPANCY & VACANCY SENSORS & TIMERS
All devices listed on this page conform to NEMA WD-1 and WD-6.
97015I
2.62"
1.80"
4.20"
3.281"
1.30"
2.76"
1.85"
1.80"
OCCUPANCY & VACANCY SENSORS & TIMERS
Wall Box Timers 125, 125-T, 250 & 277VAC, 60 Hz
Applications
• Lighting
• Exhaust fans
• Whirlpools and spas
• Saunas
• Heating and heat lamps
• Ventilating and air conditioning
Features
• Units with “Hold” feature may be turned
counter-clockwise to hold the load on
without timing function.
• Turning clockwise causes unit to time
load off after desired time delay.
• Quiet operation.
• Time range from 5 minutes to 12 hours.
• Available with or without hold.
• Decorator styling.
• Easily installed.
• Large head screw terminals.
• Accurate to ± 5 percent.
• Motor rated.
• Energy saving.
CATALOG NUMBER DESCRIPTION TIME RANGE COLOR
DIGITAL TIMERS
97015I
Timeout, No Hold 15 Minutes
Ivory
97015W White
97015LA Light Almond
97030I
Timeout, No Hold 30 Minutes
Ivory
97030W White
97030LA Light Almond
97060I Timeout, No Hold 60 Minutes Ivory
97060W White
97115I Timeout, With Hold 15 Minutes Ivory
97115W White
97160I Timeout, With Hold 60 Minutes Ivory
97160W White
CATALOG NUMBER COLOR
REPLACEMENT KNOBS WITHOUT PLATE
PS55A1 White
PS55B1 Ivory
PS55G1 Light Almond
VAC Hz Amp HP
RATINGS
125 60 20 1
125T 60 7
250 60 10 1
277 60 10
WWW.LEGRAND.US/PASSANDSEYMOUR
K-23
OCCUPANCY & VACANCY SENSORS & TIMERS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6.
Operation: Catalog Number 97352
•When toggle is up, one or two loads
remain on.
• When toggle is down, load “A” is off,
load “B” times-off at preset time. In the
center position, both loads are off.
Wiring Diagram: Single Timed Load Application
97352I
4.15"
1.80"
3.281"
2.70"
1.70"
1.50"
Features
• Eliminates the need for two switches.
• Fits standard toggle opening for easy
ganging.
• Time range adjustable from 1-60
minutes.
• Easily installed.
• May control one or two loads
simultaneously.
• Motor rated.
• Silent operation.
• Reliable solid-state construction.
• Energy saving.
CATALOG NUMBER DESCRIPTION TIME RANGE RATING COLOR
DIGITAL TIMERS
97352I Double Pole, 1-60 Minutes, Adjustable 500W, 1/3 HP,
120VAC, 60 Hz
Ivory
97352W Double Throw White
OCCUPANCY & VACANCY SENSORS & TIMERS
Wall Box Timers 125, 125-T, 250 & 277VAC, 60 Hz
WWW.LEGRAND.US/PASSANDSEYMOUR
L-1
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
DIMMERS & FAN SPEED CONTROLS
Today’s home and business owners want optimum control of their electrical systems.
P&S Dimmers & Fan Speed Controls provide that control — along with aesthetics,
durability, trouble-free installation, and innovative technologies.
COMMERCIAL DIMMERS
& FAN SPEED CONTROLS
L-25
RESIDENTIAL DIMMERS
& FAN SPEED CONTROLS
L-5
RESIDENTIAL & LIGHT
COMMERCIAL DIMMERS
& FAN SPEED
CONTROLS L-15
Product Selection Guide L-2
Catalog Numbering System L-3
Residential Dimmers & Fan Speed Controls
RF Lighting Control System L-4
Scene Director L-8 L-31
Leandro®L-10, L-31
Harmony™ L-11, L-31
TradeMaster® Toggle L-19, L-33
Residential & Light Commercial Dimmers &
Fan Speed Controls
LS TradeMaster® Series L-14, L-32
DR TradeMaster® Series L-17, L-31
Wide Slide TradeMaster® Series L-18, L-33
TradeMaster® Toggle Dimmers L-19, L-33
Rotary TradeMaster® Series L-22, L-31
Commercial Dimmers & Fan Speed Controls
Titan™ Series L-23, L-34
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-2
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
DIMMERS & FAN SPEED CONTROLS
Product Selection Guide
Rotary Dimmers
•Models for incandescent and
low-voltage lights; preset and
illuminated features available.
•Simple to operate.
•Available in both preset and
non-preset models.
PAGE L-22
RF Lighting Control System
•Whole house and room scene
controls allow homeowners to
change their environment at the push
of a button.
•Frequency-agile Radio Frequency
(RF) wireless communications
technology.
•Simple, intuitive programming
without the use of a computer or
controller.
PAGES L-4 – L-7
Leandro® Decorator Dimmers
•Multi-location dimming.
•Light levels fade elegantly up/down.
•Green LEDs indicate preset level;
red LED makes dimmers easy to find
in the dark.
PAGE L-10
Harmony™ Decorator Dimmers
•Matches P&S Decorator devices.
•Combines ON/OFF Decorator switch
with separate slider for dimming
control.
•No lost settings during power
outages.
PAGE L-11, L-13
LS Series Decorator Slide Dimmers
•Smooth, ergonomic operation.
•Snap-in LED light modules make
dimmers easy to find at night.
•Available in both preset and
non-preset models.
PAGES L-14 – L-16
DR Series Decorator Rotary Dimmers
•Illuminated knob shows light level.
•Snap-in LED light modules make
dimmers easy to find at night.
•Available for incandescent and
low-voltage lighting.
PAGE L-17
Scene Director Control
•Select any lighting scene at the
touch of a button.
•Optional infrared remote enables
control from anywhere in the room.
•Master can control up to 30
dimmers.
•Easy to program – and won’t lose
programming during power outage.
PAGES L-8, L-9
•Match appearance of toggle
switches.
•No loss of settings during power
outages.
•Illuminated versions available.
PAGE L-21
Toggle Dimmers
•Convenient preset dimming control.
•Combines ON/OFF toggle with
separate preset for dimming control.
•Matches appearance of toggle
switches.
PAGE L-19, L-20
Energy concerns have created directives in some states for lighting controls in new residential construction and major
renovations. In an effort to reduce electrical power consumption, California has mandated one of the most stringent
energy codes in the country. California Title 24 requires high efficacy luminaires, vacancy sensors (Section K), or
dimmers to be placed in certain areas of the home. Other states are considering adopting similar mandates to answer
their own energy concerns. Legrand has an extensive selection of vacancy sensor and dimmer solutions to address this
growing industry trend.
WWW.LEGRAND.US/PASSANDSEYMOUR
L-3
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
Many P&S Dimmers & Fan Speed Controls are available boxed or VisionPak™ clam-shell packaging for high-impact merchandising.
Please see the Catalog Numbering System above or specific charts for ordering information.
See Pages L-4 – L-7 to order RF Lighting Control System products.
All P&S Dimmers and Fan Speed Controls use an easy-to-understand catalog numbering system:
TLV 600 - *
D600MLAV = Decorator Dimmer, Incandescent, 600W, Multilocation, Light Almond, in a VisionPak
LS600LA = Decorator Slide Dimmer, Incandescent, 600W, Light Almond, in a Box
WSSC53PWV = Wide Slide, Fan Speed Control, 5 Amp, White, in a VisionPak
Package
Blank = Box
V = VisionPak™
TK = Triple Knob
Control Type
D = Decorator
LS = Long Slide
SC = Scene Director
T = Toggle
R = Rotary
DR = Decorator
Rotary
H = Harmony
WS = Wide Slide
Load Size
300 = 300 Watt
600 = 600 Watt/VA
603 = 600 Watt/VA, 3-Way
700 = 700 Watt
703 = 700 Watt 3-Way
1000 = 1000 Watt/VA
1003 = 1000 Watt/VA,
3-Way
1100 = 1100 Watt
1103 = 1100 Watt 3-Way
1600 = 1600 Watt
1603 = 1600 Watt 3-Way
2000 = 2000 Watt
2003 = 2000 Watt 3-Way
3 = 3 Amps
5 = 5 Amps
7 = 7 Amps
8 = 8 Amps
10 = 10 Amps
15 = 1.5 Amps
16 = 1.6 Amps or 16 Amps
25 = 2.5 Amps
Options
E = Electronic
Preset
L = Lighted
M =
Multilocation
P = Preset
Color
BK = Black
(Blank) = Brown
CL = Clear
GRY = Gray
I = Ivory
LA = Light Almond
LC = Lighted Clear
W = White
TC = Tri-color
Load Type
Blank = Incandescent
FB = Fluorescent Ballast
IR = Infrared Remote
LV = Magnetic Low-Voltage
ELV = Electronic Low-
Voltage
MC = Master Controller
DC = Dual Dimmer/
De-Hummer Speed
Control
DV = Dimmer/Variable
Speed Control
DH = De-Hummer
Fan Speed Control
SC = Fan Speed Control
DIMMERS & FAN SPEED CONTROLS
Catalog Numbering System
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-4
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
RF Lighting Control System
The RF Lighting Control System allows homeowners to control lights, ceiling fans and
small appliances from anywhere in the home, without the need for special wiring or
expensive master controllers. The system can handle up to 127 rooms and 1,023 devices –
making it the perfect lighting control system for any size home.
System Features & Benefits
•Whole house and room scene controls allow homeowners
to change their environment at the
push of a button.
•Frequency-agile Radio Frequency (RF) wireless
communications technology.
•Simple, intuitive programming without the use of a
computer or controller.
•Increase control with RS232 and IR to RF interfaces.
•Plug-in modules allow control of small appliances and
table or floor lamps, giving homeowners the full control
of not only their lights, but also their energy bills.
A
B
C
D
G
E
F
MRH6G and DRD9W
Whole House Room and Scene Controls
A. Hand-held device includes wall-mounted holster for
easy storage.
B. Whole house and room scene control.
C. Program up to 15 scenes per room.
D. Whole house and room scene control.
E. One-touch whole house ON/OFF.
F. Decorator style device mounts in standard
one-gang box.
G. Program up to 10 whole-house scenes.
MRH6G
DRD9W
Shown with SWP26W
WWW.LEGRAND.US/PASSANDSEYMOUR
L-5
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
RF Lighting Control System Dimmers & Switches
4.92"
MR2000
4.92"
3.78"
NEUTRAL
LOAD LINE
GND
DRD3 & DRD4 Wiring Diagram
Mounting in deep electrical
boxes is recommended.
LOAD LINE
GND
Wire Legend
Ground
Line
DRD2 Wiring Diagram
For de-rating chart, see Page L-7.
CATALOG NUMBER DESCRIPTION RATINGS COLOR
INWALL UNIVERSAL DIMMERS
DRD4I The In-Wall Universal Dimmer operates most
dimmable lighting types, including neon and
compact fluorescent. Includes a CFL setting
to alleviate flickering and premature bulb
burn-out.
600W
Ivory
DRD4W White
DRD4B Black
DRD4A Light Almond
INWALL INCANDESCENT DIMMERS
DRD2I
Easily dim traditional incandescent bulbs,
without the requirement of a neutral
connection.
600W
Ivory
DRD2W White
DRD2B Black
DRD2A Light Almond
INWALL 3WAY SWITCHES
DRD8IV2
Provides convenient control from multiple
access points when used in conjunction
with any wireless switch or dimmer.
N/A
Ivory
DRD8WV2 White
DRD8BV2 Black
DRD8AV2 Light Almond
INWALL 2000W BOX DIMMERS
MR2000 The box dimmer operates as a mounted
dimmer for operating large lighting loads,
and works in conjunction with multi-location
controllers to provide true multi-way lighting.
2000W Black
1.69"
4.25"
DRD4A
DRD2A
DRD3AV2
DRD8AV2
Mount the MR2000 dimmer vertically and
provide 6" clearance above and below the
dimmer for airflow. Requires 100 BTW/
hour ventilation. Backbox (4" x 2-1/8") may
be surface or recess mounted. Extension
(1-1/2") must extend out from the wall.
MR2000 Mounting Diagram
CATALOG NUMBER DESCRIPTION RATINGS COLOR
INWALL SWITCHES
DRD3IV2 Perfect for controlling lights that don’t need
dimming, the In-Wall Switch can be included
in scene programming for use with Room and
Whole-House Scene Controllers.
800W
Ivory
DRD3WV2 White
DRD3BV2 Black
DRD3AV2 Light Almond
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-6
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
RF Lighting Control System Fan Speed & Master Controls & Plug-In Modules
DRD5/DRD6 Wiring Diagram
LINE
GND
Suppl
y
Wires
NEUTRA
L
Wire Legend
Ground
Line
Neutral
2.625"
5.125"
.75"
MRH6G
1.69"
4.25"
DRD6AV2 MRP6W
2.30"
3.56"
1.59"
DRD9W
Shown with
SWP26W
DRD9 Wiring Diagram
Mounting controls in
deep electrical boxes
is recommended.
CATALOG NUMBER DESCRIPTION RATINGS COLOR
INWALL FAN SPEED CONTROLLERS
DRD9I
This controller gives you four options for ceiling
fan speed and includes a built-in de-hummer to
reduce fan noise.
1.5 A
Ivory
DRD9W White
DRD9B Black
DRD9A Light Almond
CATALOG NUMBER DESCRIPTION RATINGS COLOR
INWALL WHOLE HOUSE SCENE CONTROLLERS
DRD5IV2
This product allows lighting control for the
entire home from any location. N/A
Ivory
DRD5WV2 White
DRD5BV2 Black
DRD5AV2 Light Almond
INWALL ROOM SCENE CONTROLLERS
DRD6IV2
Program up to five room scenes with this
in-wall controller. N/A
Ivory
DRD6WV2 White
DRD6BV2 Black
DRD6AV2 Light Almond
HANDHELD WHOLE HOUSE SCENE CONTROLLERS
MRH5G This remote whole house controller can be
programmed for up to five house scenes.
It also includes a panic button that when
pushed, turns the lights on or flashes them
in a pre-determined scene.
N/A Black
HANDHELD ROOM SCENE CONTROLLERS
MRH6G The hand-held room controller enables five
room and individual load control.
N/A Black
CATALOG NUMBER DESCRIPTION RATINGS COLOR
PLUGIN LAMP MODULE
MRP6W Control table and floor lamps up
to 300W with this plug-in module.
300W White
PLUGIN SMALL APPLIANCE MODULE
MRP7W Control small appliances,
including coffee machines,
radios, TVs and more with this
plug-in module.
800W White
WWW.LEGRAND.US/PASSANDSEYMOUR
L-7
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
RF Lighting Control System Interfaces
MKFOB
1.375"
2.375"
.625"
3.70"
.97"
3.20"
MR232G
3.70"
.97"
3.20"
MRR2G
MRR2G Product Controls
The wireless repeater easily plugs into
any standard outlet. It is best installed
in a central location.
CATALOG NUMBER DESCRIPTION
RS232 TO RF INTERFACE
MR232G Incorporate RS232-compliant home theater systems, computers and other devices by using this interface.
IR TO RF INTERFACE
MRIR1 Use this interface to program universal remotes to control lighting as well as audio/video components.
ROOM SCENE INTERFACE
MRRC3G The Room Scene Interface is used to connect the RFLC system with external devices at a room level. Common applications
include interfacing with security systems and occupancy or vacancy sensors.
HOUSE SCENE INTERFACE
MRHC3G The House Scene Interface is used to connect the RFLC system with external devices on a whole house level. Common
applications include interfacing with security systems and occupancy or vacancy sensors.
REPEATER & AWAY EMULATOR
MRR2G Record the normal usage of lights throughout the home and play them back while homeowners are away with the Repeater &
Away Emulator.
WIRELESS KEY FOB
MKFOB The Wireless Key Fob allows the lights to be turned on from a remote location, like the driveway. Visor Clip included.
DERATE DIMMERS AS FOLLOWS:
Single Dimmer
Maximum Capacity
Dimmer at End
of a Multi-Gang
Dimmer in Middle
of a Multi-Gang
Incandescent/Quartz Halogen 600W 500W 400W
Magnetic Low Voltage 500W 400W 300W
Electronic Low Voltage 500W 400W 300W
Cold Cathode/Neon 500W 400W 300W
Fluorescent:
2-Wire
Compact Fluorescent
500W
500W
400W
400W
300W
300W
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-8
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
A. Buttons glow when selected — glow levels are
adjustable, too.
B. Raises or lowers all lights in any scene simultaneously.
C. One-touch selection for up to five lighting environments
(scenes) — plus full Off.
No tools or plate removal necessary for programming
with our exclusive, patent-pending system. Set light levels
with product fully installed.
Easy to install, program, and operate for sophisticated
scene control dimming.
Constant memory returns lights to previously selected
level after power failure. No need to reset.
Controls up to 30 dimmers per Master, providing the
ability to control even complex, multiroom scenes.
Available infrared remote (SCIR) provides mobile control
flexibility.
Matching Fan Speed Control available.
Programmable fade rates enable users to easily select
the speed of fade-up and fade-down.
Provides powerful control via conventional wall-box
wiring. Wires like a 3-way switch. Communication among
devices requires just one additional conductor.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
Scene Director
For everything people do at home, there’s a combination of light sources and levels that will
work best. P&S Scene Director Controls let hom eowners capture these combinations (or
scenes) — and recall them whenever they want at the touch of a button.
SC600LAV
A
BE
C
D
SCMC5WV
B
A
C
P&S Scene Director Master
Controls Multiple Light Sources and Levels
P&S Scene Director Dimmer
Works with a Scene Director Master
A. Red LED glows when dimmer is OFF.
B. Green LEDs indicate light level selected and preset
level.
C. Touch pad raises or lowers individual light levels
without affecting preset.
D. Unobtrusive set button for simple programming of
preset scenes.
E. Sleek, ergonomic P&S Decorator style matches other
Decorator devices.
Can be operated individually.
Constant memory returns lights to previously selected
level after power failure.
WWW.LEGRAND.US/PASSANDSEYMOUR
L-9
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
Scene Director
Wiring Diagram
SCDH15LAV
4.25"
1.68"
1.37"
SC600LAV, SCELV300LAV
SCFB600LAV
4.25"
1.68"
1.37"
SCMC5WV
4.0"
1.68"
1.37"
SCRLAV
4.25"
1.68"
1.37"
SCIR
3.313"
0.25" 2.125"
CATALOG NUMBER DESCRIPTION RATINGS COLOR
600W INCANDESCENT SCENE DIRECTOR CONTROL DIMMERS
SC600IV
Preset, Controls 1 Load in a Scene
Ivory
SC600WV 120V, 600 Watt White
SC600LAV Light Almond
300VA ELECTRONIC LOWVOLTAGE SCENE DIRECTOR CONTROL DIMMERS
SCELV300IV
Preset, Controls 1 Load in a Scene
Ivory
SCELV300WV 120V, 300VA White
SCELV300LAV Light Almond
600VA FLUORESCENT BALLAST SCENE DIRECTOR CONTROL DIMMERS*
SCFB600IV
Preset, Controls 1 Load in a Scene
Ivory
SCFB600WV 120V, 600VA White
SCFB600LAV Light Almond
5 SCENE DIRECTOR MASTER CONTROLLERS
SCMC5IV
5-Button Preset Scene Controller
Ivory
SCMC5WV 120V White
SCMC5LAV Light Almond
REMOTE LOCATION CONTROL
SCRIV
For Full Dimming or Fan Speed Control
of 1 Load from Two or More Locations
Ivory
SCRWV 120V White
SCRLAV Light Almond
ACCESSORIES
SCIR Infrared Hand-Held Remote
SCMCK Preprinted Inserts for Master Controller
1.5A DEHUMMER** FAN SPEED CONTROLLERS
SCDH15IV
Preset, Controls 1 Fan Load in a Scene
Ivory
SCDH15WV 120V, 1.5A White
SCDH15LAV Light Almond
*Use with Advance Mark X® dimmable fluorescent ballasts.
** Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
Note: All Dimmers on this page may be ganged without de-rating.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-10
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
Leandro®
Features
•Enables full dimming control from up to
30 locations using the matching remote
dimmers.
•Constant memory returns lights to
previous level after power failure.
•LED indicators keep you informed. Green
LEDs indicate preset level and current
light level. Red LED night light glows
when load is OFF.
•Easy operation — Tap up once for preset,
twice for full ON. Tap down once for full
OFF. Hold paddle up to raise lights, down
to lower.
•Sleek, ergonomic P&S Decorator style
matches other Decorator devices.
•Unobtrusive preset selection button helps
prevent accidental setting changes.
•Elegant fade ON and OFF extends bulb
life. Easy on the eyes, too.
•Installs easily using the same wiring as
conventional 3-way switches.
•Change light level without affecting
preset.
Wiring Diagrams
D600MLAV, DFB600MLAV
DLV600MLAV, DRMLAV
4.25"
1.68"
1.37"
D1000MLAV
4.25"
2.50"
1.37"
DDH15MLAV
4.25"
1.68"
1.37"
CATALOG NUMBER DESCRIPTION RATINGS COLOR
600W INCANDESCENT PRESET DIMMERS†
D600MIV
Preset, Single Pole and 3-Way 120V
600 Watt
Ivory
D600MWV White
D600MBKV Black
D600MLAV Light Almond
1000W INCANDESCENT PRESET DIMMERS†
D1000MIV
Preset, Single Pole and 3-Way 120V
1000 Watt
Ivory
D1000MWV White
D1000MLAV Light Almond
600VA LOWVOLTAGE PRESET DIMMERS*†
DLV600MIV
Preset, Single Pole and 3-Way 120V
600VA
Ivory
DLV600MWV White
DLV600MLAV Light Almond
600VA FLUORESCENT BALLAST PRESET DIMMERS**†
DFB600MIV
Preset, Single Pole and 3-Way 120V
600VA
Ivory
DFB600MWV White
DFB600MLAV Light Almond
REMOTE DIMMERS†
DRMIV
Full Dimming or Fan Speed
Control from Two or More
Locations
120V
Ivory
DRMWV White
DRMBKV Black
DRMLAV Light Almond
1.5A DEHUMMER†† FAN CONTROLS
DDH15MIV
Preset, Single Pole, 3-Speed 120V
1.5A
Ivory
DDH15MWV White
DDH15MLAV Light Almond
* Use with MR16s with magnetic transformers, neon, cold cathode, general inductive loads.
** Use with Advance Mark X® dimmable fluorescent ballasts.
† All dimmers and fan controls can be dimmed from more than one location when used with
DRM remotes. Uses standard 3-way wiring. See wiring diagram.
†† Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
MAX. LOAD RATING
FINS REMOVED
ONE SIDE TWO SIDE
DERATING CHART
600W/VA No De-Rating Required
1000W 800W 600W
WWW.LEGRAND.US/PASSANDSEYMOUR
L-11
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
Harmony™ Incandescent and Low Voltage Dimmers
Features
•Convenient operation – combines ON/OFF
Decorator switch with separate slider for
dimming control.
•Green LED glows when OFF to make
dimmer easy to find in the dark.
•Constant memory returns lights to
previous level after a power failure.
•Sleek, ergonomic P&S Decorator style
matches other Decorator devices.
•Higher ratings.
•Single pole and 3-way operation.
•Works with standard 3-way switches and
wiring.
•Screw-pressure-plate back wire
terminals save time, space
and money.
H703P, HLV703P
•No de-rating.
•No fins to break.
Interchangeable Face Versions
•Package comes with three face colors –
Ivory, White, Light Almond (TC).
•White only option also available.
•Interchangeable faces available
in nine colors (sold separately,
see below).
H703PW
4.25"
1.75"
1.25"
H1103PL A
4.25"
2.50"
1.25"
CATALOG NUMBER DESCRIPTION RATINGS COLOR
INCANDESCENT SINGLE POLE/3WAY DIMMERS*
H703PW
Incandescent Preset, Single Pole and 3-Way 120V, 700W
White
H703PABCCV4 Antique Brass
H703PDBCCV4 Dark Bronze
H703PNICCV4 Nickel
H1103PW Incandescent Preset, Single Pole and 3-Way 120V, 1100W White
INTERCHANGEABLE FACE INCANDESCENT SINGLE POLE/3WAY DIMMERS
H703PTC Incandescent Preset, Single Pole and 3-Way
Three Interchangeable Face Colors 120V, 700W Ivory/White/Light Almond
H1103PTC Incandescent Preset, Single Pole and 3-Way
Three Interchangeable Face Colors 120V, 1100W Ivory/White/Light Almond
MAGNETIC LOW VOLTAGE PRESET, SINGLE POLE/3-WAY
HLV703PTC Preset, Single Pole/3-Way
Three Interchangeable Face Colors 120V, 700VA Ivory/White/Light Almond
HLV703PW Preset, Single Pole/3-Way White
HLV1103PTC Preset, Single Pole/3-Way
Three Interchangeable Face Colors 120V, 1100VA Ivory/White/Light Almondc
HLV1103PW Preset, Single Pole/3-Way White
INTERCHANGEABLE FACE COVERS†
HKITI
Harmony™ Interchangeable Face
Ivory
HKITW White
HKIT Brown
HKITGRY Gray
HKITBK Black
HKITLA Light Almond
HKITTI Titanium
HKITAB Antique Brass
HKITDB Dark Bronze
*Available in VisionPak™ packaging, add “CCV6” to Catalog Number. Example: H1103PWCCV6.
†Available in VisionPak™ packaging, add “BPCCV6” to Catalog Number. Example: HKITIBPCCV6.
HLV703PW
4.25"
1.75"
1.25"
HLV1103PLA
4.25"
2.50"
1.25"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-12
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
H703PTUW
4.25"
1.75"
1.25"
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
Harmony™ Tru-Universal and CFL/LED Dimmers
CATALOG NUMBER DESCRIPTION RATINGS COLOR
TRUUNIVERSAL DIMMER
H703PTUTC* Tru-Universal, Preset, Single-Pole/3-Way
Three Interchangeable Face Colors
120 VAC, 60 Hz
Incandescent, Halogen & ELV: 700W
MLV: 500VA
LED/CFL: 450W
EFL: 5.5A
Ivory/White/Light Almond
H703PTUW Tru-Universal, Preset, Single Pole/3-Way White
HARMONY™ CFL/LED DIMMWERS
HCL453PTC CFL/LED Single Pole and 3-Way, Preset
Three Interchangeable Face Colors 120 VAC, 60 Hz, 450 Watts Ivory/White/Light Almond
HCL453PW CFL/LED Single Pole and 3-Way, Preset White
*Available in VisionPak™ packaging, add “CCV6” to Catalog Number. Example: H703PTUTCCCV6.
HCL453PW
4.25"
1.75"
1.25"
Features
Harmony Tru-Universal (H703PTUW)
•Self-Calibration feature allows users
to select lamp type, which then
automatically sets the minimum voltage
for that lamp, eliminating flickering and
poor performance.
•Works with every lamps and load.
•Preset, single pole and 3-way operation.
•Wider slide controller for easier dimming
operation.
•Larger paddle switch that’s easier to see
and use.
•Green LED glows when off to make
dimmer easy to find in the dark.
•Sleek, modern design that matches
today’s styles.
•Interchangeable faces — Package comes
with three colors: Ivory, White, Light
Almond. Other face color kits available
separately, see page L-11.
Harmony CFL/LED Dimmer (HCL453PW)
•CFL/LED dimmable-bulb compatible (with
the exception of 0-10v LED drivers).
•Adjustment dial allows users to adjust the
bottom of the dimming range for a wide
range of CFL and LED bulbs.
•No derating required in multi-gang
applications.
WWW.LEGRAND.US/PASSANDSEYMOUR
L-13
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
Harmony™ Fluorescent Dimmers & Fan Speed Controls
Features
•Convenient operation – combines ON/OFF
Decorator switch with separate slider for
dimming control.
•Green LED glows when OFF to make
dimmer easy to find in the dark.
•Constant memory returns lights to
previous level after a power failure.
•Sleek, ergonomic P&S Decorator style
matches other Decorator devices.
•Higher ratings
•Single pole and 3-way operation.
•Works with standard 3-way switches
and wiring.
•Screw-pressure-plate backwire terminals
save time, space and money.
HDH163P
•No de-rating.
•No fins to break.
HDH163PW
4.25"
1.75"
1.25"
DERATING CHART FOR HARMONY DIMMERS
CATALOG
NUMBER
MAXIMUM
LOAD
MULTIGANG DERATING
2 GANG 3 GANG
H703P 700W 700W 700W
H1103P 1100W 1100W 800W
HLV703P 700VA 700VA 650VA
HLV1103P 1100VA 950VA 700VA
HFB83P 8A 8A 6.5A
HDH163P 1.6A 1.6A 1.6A
CATALOG NUMBER DESCRIPTION RATINGS COLOR
FLUORESCENT PRESET, SINGLE POLE/3WAY DIMMERS*
HFB83PTC Preset, Single Pole/3-Way
Three Interchangeable Face Colors 120V, 8A Ivory/White/Light Almond
HFB83PW Preset, Single Pole/3-Way White
FAN SPEED CONTROLS, DEHUMMER**, SINGLE POLE/3WAY
HDH163PTC†Preset, Single Pole/3-Way
Three Interchangeable Face Colors 120V, 1.6A Ivory/White/Light Almond
HDH163PW†Preset, Single Pole/3-Way White
*For use with Advance MK10 dimming ballasts. See instruction sheet for complete list of compatible ballasts.
**Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
†Available in VisionPak™ packaging, add “CCV6” to Catalog Number. Example: HDH163PTCCCV6.
1.25"
4.25"
2.50"
HFB83PW
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-14
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL & LIGHT COMMERCIAL
DIMMERS & FAN SPEED CONTROLS
LS TradeMaster® Series Dimmers
LS600LA
1.74"
4.19"
1.28"
LS600PLA
1.74"
4.19"
1.28"
LS1000PLA
2.50"
4.19"
1.28"
For wiring diagrams, see Page R-22.
CATALOG NUMBER
DESCRIPTION RATINGS COLOR
SINGLE POLE THREEWAY
600W INCANDESCENT SLIDE DIMMERS*
LS600I Ivory
LS600W White
LS600 Non-Preset 120V, 600W max. Brown
LS600BK Black
LS600LA Light Almond
LS600PI LS603PI Ivory
LS600PW LS603PW White
LS600P LS603P Preset 120V, 600W max. Brown
LS600PBK LS603PBK Black
LS600PLA LS603PLA Light Almond
1000W INCANDESCENT SLIDE DIMMERS*
LS1000I Ivory
LS1000W White
LS1000 Non-Preset 120V, 1000W max. Brown
LS1000BK Black
LS1000LA Light Almond
LS1000PI LS1003PI Ivory
LS1000PW LS1003PW White
LS1000P LS1003P Preset 120V, 1000W max. Brown
LS1000PBK LS1003PBK Black
LS1000PLA LS1003PLA Light Almond
600VA MAGNETIC LOWVOLTAGE SLIDE DIMMERS**
LSLV600I Ivory
LSLV600W White
LSLV600 Non-Preset 120V, 600VA max. Brown
LSLV600BK Black
LSLV600LA Light Almond
LSLV600PI LSLV603PI Ivory
LSLV600PW LSLV603PW White
LSLV600P LSLV603P Preset 120V, 600VA max. Brown
LSLV600PBK LSLV603PBK Black
LSLV600PLA LSLV603PLA Light Almond
*Available in VisionPak™ packaging, add “V” to Catalog Number. Example: LS600IV.
**Available in boxed packaging only.
MAX. LOAD RATING
FINS REMOVED
ONE SIDE TWO SIDE
DERATING CHART
LS600, LS603 No De-Rating Required
LS1000P, LS1003P 900W 750W
LS1000 850W 700W
Features
•Ergonomic design and solid, quality feel
combine for smooth, easy operation and
precise control.
•Electromagnetic and radio-frequency
interference protection built in.
•Sleek, sculpted contemporary design. No
dirt-catching crevices.
•Tough, impact-resistant thermoplastic
housing makes it a perfect choice for new
home construction. Matching, unbreakable
TradeMaster® wall plate available for all
models.
•Preset ON/OFF switch automatically
returns controlled lights to preset level
without readjusting dimmer setting.
•Exclusive, screw-pressure-plate back
wire terminals save time, space and
money. Designed for 12 and 14 gauge wire,
stranded or solid. No-wire-lead design
eliminates wire nuts.
•Superior heat management.
•No de-rating on 600W units.
•Patented Snap-In Light Module (sold
separately) transforms the dimmer into
an illuminated dimmer. See Page L-15
for information.
WWW.LEGRAND.US/PASSANDSEYMOUR
L-15
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL & LIGHT COMMERCIAL
DIMMERS & FAN SPEED CONTROLS
LS TradeMaster® Series Dimmers
For wiring diagrams, see Page R-22.
TM8LMCC
Features
•No tool needed, module snaps-in.
•Lights when OFF.
•Uses energy-efficient 1/4 watt LED light. •LED light will not generate heat and will
last on average 47 years.
LSDS300PWV
1.74"
4.19"
1.28"
LSDD300W
1.74"
4.19"
1.28"
CATALOG NUMBER DESCRIPTION
RATINGS
COLOR
DIMMER SWITCH
SINGLE POLE/3WAY PRESET DIMMERS & SWITCHES
LSDS300PIV
Single Pole/3-Way Preset
Dimmer and Independent
Single Pole/3-Way Switch
120V
300W
7A general purpose
resistive and ballast,
1/4 hp 900W tungsten
Ivory
LSDS300PWV White
LSDS300PV Brown
LSDS300PBKV Black
LSDS300PLAV Light Almond
DUAL SLIDE TO OFF SINGLE POLE DIMMERS
LSDD300I
Dual Slide to OFF
Single Pole Dimmers
120V
300W —
Ivory
LSDD300W White
LSDD300 Brown
LSDD300BK Black
LSDD300LA Light Almond
CATALOG NUMBER
MAXIMUM
LOAD
MULTIGANG DERATING
2 GANG 3 GANG
DERATING CHART
LSDS300 300W 300W 300W
LSDD300 300W 300W 300W
CATALOG NUMBER DESCRIPTION COLOR
ACCESSORIES FOR
LRKIV
Replacement Knobs for
Decorator Dual Slides
Ivory
LRKWV White
LRKV Brown
LRKBKV Black
LRKLAV Light Almond
LLRKIV
Large Replacement Knobs for
Decorator Single Slides
Ivory
LLRKWV White
LLRKV Brown
LLRKBKV Black
LLRKLAV Light Almond
CATALOG NUMBER
RATING
COLORA. VAC
SNAPIN LIGHT MODULE
TM8LMCC 15 120/125 Clear
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-16
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL & LIGHT COMMERCIAL
DIMMERS & FAN SPEED CONTROLS
LS TradeMaster® Series Fan Speed Controls
Features
•Tough impact-resistant thermoplastic
housing.
•Power-failure memory.
•Superior heat management: no time
wasting break off tabs.
•Exclusive, screw-pressure-plate back
wire terminals eliminates wire nuts.
•Can be used with patented Snap-In Light
Module (sold separately).
LSDC16LAV
1.74"
4.185"
1.28"
LSDC163PLAV
1.74"
4.185"
1.28"
For wiring diagrams, see Page S-20.
CATALOG NUMBER DESCRIPTION RATINGS COLOR
DECORATOR SLIDE FAN SPEED CONTROLS*
LSSC5I
Non-Preset, Single Pole, Adjustable Trim 5A
Ivory
LSSC5W White
LSSC5 Brown
LSSC5BK Black
LSSC5LA Light Almond
LSSC5PI
Preset, Single Pole, Adjustable Trim 5A
Ivory
LSSC5PW White
LSSC5P Brown
LSSC5PBK Black
LSSC5PLA Light Almond
DECORATOR SLIDE DEHUMMER CONTROLS**
LSDH16IV
Non-Preset, 4-Speed Fan Control 1.6A
Ivory
LSDH16WV White
LSDH16V Brown
LSDH16BKV Black
LSDH16LAV Light Almond
DUAL CONTROL DECORATOR SLIDES**
LSDC16IV
Non-Preset, 3-Speed De-Hummer Fan Control
With Single Pole Dimmer 1.6A/300W
Ivory
LSDC16WV White
LSDC16V Brown
LSDC16BKV Black
LSDC16LAV Light Almond
LSDC163PIV
Preset, Single Pole/3-Way 3-Speed De-Hummer
Fan Control with Single Pole/3 Way Dimmer 1.6A/300W
Ivory
LSDC163PWV White
LSDC163PV Brown
LSDC163PBKV Black
LSDC163PLAV Light Almond
LSDV25IV
Non-Preset, Variable Speed Fan Control
With Single Pole Dimmer 2.5A/300W
Ivory
LSDV25WV White
LSDV25V Brown
LSDV25BKV Black
LSDV25LAV Light Almond
*Available in VisionPak™ packaging, add “V” to Catalog Number. Example: LSSC5IV.
**Available in VisionPak™ only.
Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
For wiring diagrams, see Page R-22.
WWW.LEGRAND.US/PASSANDSEYMOUR
L-17
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
Features
•A new style that matches P&S Decorator
Combination devices.
•Accepts Snap-In Light Module (sold
separately) to convert decorator rotary
devices into illuminated-type in moments;
makes devices easy to find in the dark.
See Page L-15.
•Screw-pressure-plate backwiring speeds
installation and ensures solid, high-quality
electrical connections. Also supports
traditional, wire-loop side wiring.
•Heavy-gauge black anodized aluminum
strap provides superior heat management
and structural strength for mounting
against wall surfaces.
•Slim design leaves more room in the box
and makes installation faster and easier.
•Higher ratings of 700 and 1100 watts.
•No de-rating of 700 watt devices.
•Single pole and 3-way in same device.
DR703PLAV
1.74"
4.185"
1.28"
Illuminated knob
indicates light level.
DR1103PW V
2.50"
4.185"
1.28"
RESIDENTIAL & LIGHT COMMERCIAL
DIMMERS & FAN SPEED CONTROLS
Decorator Rotary DR TradeMaster® Series
CATALOG
NUMBER
MAXIMUM
LOAD
MULTIGANG DERATING
2 GANG 3 GANG
DERATING CHART FOR DR SERIES
DR703 No De-Rating Required
DR1103 1100W 900W 750W
CATALOG NUMBER DESCRIPTION RATINGS COLOR
INCANDESCENT PRESET DIMMERS
DR703PIV
Single Pole/3-Way
Dimmer with Pilot Light 120V, 700W
Ivory
DR703PWV White
DR703PV Brown
DR703PBKV Black
DR703PLAV Light Almond
DR1103PIV
Single Pole/3-Way
Dimmer with Pilot Light 120V, 1100W
Ivory
DR1103PWV White
DR1103PV Brown
DR1103PBKV Black
DR1103PLAV Light Almond
MAGNETIC LOWVOLTAGE DIMMERS
DRLV703PIV
Single Pole/3-Way
Dimmer with Pilot Light 120V, 700VA
Ivory
DRLV703PWV White
DRLV703PV Brown
DRLV703PBKV Black
DRLV703PLAV Light Almond
DRLV1103PIV
Single Pole/3-Way
Dimmer with Pilot Light 120V, 1100VA
Ivory
DRLV1103PWV White
DRLV1103PV Brown
DRLV1103PBKV Black
DRLV1103PLAV Light Almond
CONTINUOUSLY VARIABLE PRESET FAN SPEED CONTROLS
DRSC53PIV
Single Pole/3-Way
Fan Speed Control 120V, 5A
Ivory
DRSC53PWV White
DRSC53PV Brown
DRSC53PBKV Black
DRSC53PLAV Light Almond
3SPEED DEHUMMER* PRESET FAN SPEED CONTROLS
DRDH163PIV
Single Pole/3-Way
Fan Speed Control with
back-lit speed indication
120V, 1.6A
Ivory
DRDH163PWV White
DRDH163PV Brown
DRDH163PBKV Black
DRDH163PLAV Light Almond
Available in VisionPak™ only.
* Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-18
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
Features
•Convenient operation – combines ON/OFF
Decorator- style switch with separate
slider for dimming control.
•Constant memory returns lights to
previous level after a power failure.
•Sleek, ergonomic P&S Decorator-style
matches other Decorator devices.
•Higher ratings.
•Single pole and 3-way operation.
•Screw-pressure-plate back wire
terminals save time, space and money.
•700W maximum rated dimmers can be
ganged without de-rating.
•Package comes with three face colors –
Ivory, White, Light Almond (TC).
•White only option also available (W).
•Interchangeable faces available in four
colors (sold separately, see below).
Preset Models
4.25"
1.75"
1.25"
WS700TC
WSLV700TC
Shown with the Three Interchangeable Faces
All 1100W versions are 2.50" W
4.25"
1.75"
1.25"
RESIDENTIAL & LIGHT COMMERCIAL
DIMMERS & FAN SPEED CONTROLS
Wide Slide TradeMaster® Series
CATALOG NUMBER DESCRIPTION RATINGS COLOR
INTERCHANGEABLE FACE INCANDESCENT DIMMERS
WS700TC*
WS700W
Single Pole, Slide to OFF, 3 Face Colors
White Face Only
120V, 700W
120V, 700W
Ivory/White/Lt. Almond
White
WS703PTC*
WS703PW
Preset, Single Pole/3-Way, 3 Face Colors
White Face Only
120V, 700W
120V, 700W
Ivory/White/Lt. Almond
White
WS1100TC*
WS1100W
Single Pole, Slide to OFF, 3 Face Colors
White Face Only
120V, 1100W
120V, 1100W
Ivory/White/Lt. Almond
White
WS1103PTC*
WS1103PW
Preset, Single Pole/3-Way, 3 Face Colors
White Face Only
120V, 1100W
120V, 1100W
Ivory/White/Lt. Almond
White
INTERCHANGEABLE FACE MAGNETIC LOWVOLTAGE DIMMERS
WSLV700TC*
WSLV700W
Single Pole, Slide to OFF, 3 Face Colors
White Face Only
120V, 700VA
120V, 700VA
Ivory/White/Lt. Almond
White
WSLV703PTC*
WSLV703PW
Preset, Single Pole/3-Way, 3 Face Colors
White Face Only
120V, 700VA
120V, 700VA
Ivory/White/Lt. Almond
White
INTERCHANGEABLE FACE FAN SPEED CONTROLS
WSSC53PTC*
WSSC53PW
Preset, Variable Speed, 3 Face Colors
White Face Only
120V, 5A
120V, 5A
Ivory/White/Lt. Almond
White
INTERCHANGEABLE FACE COVERS**
WSKITI
WSKIT
WSKITBK
WSKITLA
Wide Slide Interchangeable Face
Ivory
Brown
Black
Light Almond
WSKITPI
WSKITP
WSKITPBK
WSKITPLA
Preset Wide Slide Interchangeable Face
Ivory
Brown
Black
Light Almond
*Available in VisionPak™ packaging, add “CCV6” to Catalog Number. Example: WS700TCCCV6.
**Available in VisionPak™ packaging, add “BPCC6” to Catalog Number. Example: WSKITIBPCC6.
MAX. LOAD
RATING
FINS REMOVED
ONE SIDE TWO SIDE
DERATING CHART
1000W 800W 700W
1000VA 800VA 700VA
Note: Each side removed reduces plate
size by 3/8".
WWW.LEGRAND.US/PASSANDSEYMOUR
L-19
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
TradeMaster® Toggle Dimmers
TD1103PW
700W versions are 1.75" W
4.25"
2.50"
1.25"
TD703PW
Shown with SWP1W
A
B
For wiring diagrams, see Page L-20.
TD703PW
Trademaster® Toggle Dimmers
A. Matches appearance of standard P&S toggle switch.
B. More versatile than standard toggle dimmers.
Provides easy ON/OFF. Separate preset allows
convenient dimming control.
No de-rating required in multi-gang applications (700W).
Uses conventional 3-way wiring when used in conjunction
with a 3-way switch.
Returns lights to previous level after power failure.
Screwless Toggle Wall Plates, see Page P-7.
CATALOG NUMBER DESCRIPTION RATINGS COLOR
INCANDESCENT SINGLE POLE/3WAY DIMMERS
TD703PI* Ivory
TD703PW* White
TD703P Preset, Single Pole/3-Way 120V, 700W Brown
TD703PBK Black
TD703PLA* Light Almond
TD1103PI* Ivory
TD1103PW* White
TD1103P Preset, Single Pole/3-Way 120V, 1100W Brown
TD1103PBK Black
TD1103PLA* Light Almond
*Available in VisionPak™ packaging, add “CCV6” to Catalog Number. Example: TD703PICCV6.
MAX. LOAD
RATING
FINS REMOVED
ONE SIDE TWO SIDE
DERATING CHART
1000W 800W 700W
Note: Each side removed reduces plate
size by 3/8".
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-20
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
TradeMaster® Toggle Dimmers & Fan Speed Controls
Wiring Diagrams
TDLV1103PW
700VA versions are 1.75" W
4.25"
2.50"
1.25"
MAX. LOAD
RATING
FINS REMOVED
ONE SIDE TWO SIDE
DERATING CHART
1000VA 800VA 700VA
Note: Each side removed reduces plate
size by 3/8".
CATALOG NUMBER DESCRIPTION RATINGS COLOR
MAGNETIC LOWVOLTAGE SINGLE POLE/3WAY DIMMERS
TDLV703PI
Preset, Single Pole/3-Way 120V, 700VA
Ivory
TDLV703PW White
TDLV703P Brown
TDLV703PBK Black
TDLV703PLA Light Almond
TDLV1103PI
Preset, Single Pole/3-Way 120V, 1100VA
Ivory
TDLV1103PW White
TDLV1103P Brown
TDLV1103PBK Black
TDLV1103PLA Light Almond
FLUORESCENT SINGLE POLE/3WAY DIMMERS*
TDFB83PI
Two Wire Fluorescent Single Pole/3-Way 120V, 8A
Ivory
TDFB83PW White
TDFB83P Brown
TDFB83PBK Black
TDFB83PLA Light Almond
DEHUMMER** FAN SPEED CONTROLS
TDDH163PI
De-Hummer Fan Speed Control 120V, 1.6A
Ivory
TDDH163PW White
TDDH163P Brown
TDDH163PBK Black
TDDH163PLA Light Almond
* For use with Advance MK10 dimming ballasts.
See instruction sheet for complete list of compatible ballasts.
**Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
WWW.LEGRAND.US/PASSANDSEYMOUR
L-21
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
T600I
TSC5I
1.60"
4.130"
1.450"
Features
•Tough impact-resistant thermoplastic
housing.
•Power-failure memory.
•Superior heat management: no time
wasting break off tabs.
•Exclusive, screw-pressure-plate back
wire terminals eliminates wire nuts.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
TradeMaster® Toggle Dimmers & Fan Speed Controls
MAX. LOAD RATING
GANG REDUCTION
2 CONTROLS 3+ CONTROLS
DERATING CHART
5A 4A 3A
MAX. LOAD RATING
GANG REDUCTION
2 DIMMERS 3+ DIMMERS
DERATING CHART
600W 500W 400W
1000W 700W 650W
CATALOG NUMBER
DESCRIPTION RATINGS COLOR
SINGLE POLE THREEWAY
600W INCANDESCENT TOGGLE DIMMERS
T600I* T603I**
Non-Preset 120V
600W
Ivory
T600W* T603W** White
T600* T603** Brown
T600LA* T603LA** Light Almond
600W INCANDESCENT  LIGHTED TOGGLE DIMMERS*
T600LI T603LI
120V
600W
Ivory
T600LW T603LW Non-Preset White
T600LLA T603LLA Light Almond
1000W INCANDESCENT TOGGLE DIMMERS
T1000I* T1003I**
Non-Preset 120V
1000W
Ivory
T1000W* T1003W** White
T1000* T1003** Brown
T1000LA* T1003LA** Light Almond
1000W INCANDESCENT  LIGHTED TOGGLE DIMMERS**
T1000LI T1003LI
120V
1000W
Ivory
T1000LW T1003LW Non-Preset White
T1000LLA T1003LLA Light Almond
600VA LOWVOLTAGE MAGNETIC TOGGLE DIMMERS*
TLV600I TLV603I
120V
600VA
Ivory
TLV600W TLV603W Non-Preset White
TLV600LA TLV603LA Light Almond
1000VA LOWVOLTAGE MAGNETIC TOGGLE DIMMERS**
TLV1000I TLV1003I
120V
1000VA
Ivory
TLV1000W TLV1003W Non-Preset White
TLV1000LA TLV1003LA Light Almond
TOGGLE FAN SPEED CONTROLS*
TSC5I
Non-Preset,
Adjustable Trim
120V
5A
Ivory
TSC5W — White
TSC5LA Light Almond
* Available in VisionPak™ packaging, add “V” to Catalog Number. Example: T600LAV.
**Available in boxed packaging only.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-22
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL DIMMERS & FAN SPEED CONTROLS
Rotary R TradeMaster® Series Dimmers
R600PWV
1.74"
4.19"
1.28"
R1000WV
2.50"
4.19"
1.28"
Features
•Slimmer design – the trimmest rotary
dimmers, 1/4" less depth than the leading
competitor's models.
•Easy-to-grip knob with soft,
contemporary curves goes with any
décor. Interchangeable with older-style
knobs.
•Excellent RFI/EMI filtering performance –
won't impact sensitive electronic devices.
•Pre-stripped leads speed termination.
•No de-rating of 600 watt models in multi-
gang applications.
•Leaves more room in the box for faster,
easier installation.
•Makes small adjustments in lighting
levels easier.
•Illuminated models are easy to find in
the dark.
CATALOG
NUMBER
MAXIMUM
LOAD
MULTIGANG DERATING
2 GANG 3 GANG
DERATING CHART FOR R SERIES
R600, R600P 600W No De-Rating Required
R1000 1000W 750W 700W
R1000P 1000W 900W 800W
R1003P 1000W 900W 800W
CATALOG NUMBER
SINGLE POLE THREEWAY DESCRIPTION RATINGS COLOR
600W INCANDESCENT RFI ROTARY DIMMERS
R600IV
120V
600W
Ivory
R600WV Non-Preset White
R600LAV Light Almond
R600PIV R603PIV
120V
600W
Ivory
R600PWV R603PWV Preset White
R600PLAV R603PLAV Light Almond
1000W INCANDESCENT RFI ROTARY DIMMERS
R1000IV
Non-Preset 120V
1000W
Ivory
R1000WV White
R1000LAV Light Almond
R1000PIV R1003PIV
Preset 120V
1000W
Ivory
R1000PWV R1003PWV White
R1000PLAV R1003PLAV Light Almond
Available in VisionPak™ only.
CATALOG NUMBER DESCRIPTION COLOR
ROTARY REPLACEMENT KNOBS
RRKIV Ivory
RRKWV Plain Replacement Knob White
RRKLAV Light Almond
RRKCLGV
Deluxe Replacement Knob
Clear
RRKIGV Ivory
RRKWGV White
RRKLAGV Light Almond
Rotary Dimmer 3-Way Wiring Diagram
WWW.LEGRAND.US/PASSANDSEYMOUR
L-23
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
COMMERCIAL DIMMERS & FAN SPEED CONTROLS
Titan™ Series
A complete solution for easy, economical
multi-gang installations.
The P&S Titan™ Series have key features designed to
increase installer productivity. Each comes with all the
screwless wall plate components necessary for single gang
or multi-gang installations. No need to order any additional
components such as long-lead time custom wall plates
to finish the job. Complete the installation with everything
right out of the box, increasing productivity by finishing up
in one visit instead of several.
Adaptor kit enables matching installation
of standard P&S Decorator Devices –
outlets, switches, GFCIs and more.
CDADAPTORKITW
D
F
C
E
A
B
CD703PW
CD703PW
Titan Commercial Dimmers
A. Exclusive labeling system has a built-in label holder
enabling instant circuit identification; looks clean and
professional.
B. Included end-caps and spacers screw directly to heat
sinks; center plate snaps easily on and off.
C. Enclosed slider helps prevent dust and dirt
contamination.
D. Exclusive adjustable limit control in incandescent
dimmers saves energy and extends bulb life —
reduces maximum output by up to 10 percent.
E. Air-gap switch
F. Improved heat management enables superior load
ratings.
Included screwless wall plate components make it
easy to assemble a custom multi-gang wall plate in any
configuration — saving money and time.
Preset models feature large ON/OFF button and single
pole/three-way functionality.
High-reliability design with built-in surge and static
protection plus oversize output devices to stand up to
abuse.
Power-failure memory retains presets through power
outages.
Widest choice of amperage ratings with minimal or no
de-rating for faster job planning.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-24
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
COMMERCIAL DIMMERS & FAN SPEED CONTROLS
Titan™ Series Incandescent Dimmers
CD703PW - Narrow
2.85"
4.87"
1.44"
CD1100W - Narrow
2.85"
4.87"
1.44"
CD1603PW - Wide
4.65"
4.87"
1.44"
CD2003PW - Wide
4.65"
4.87"
1.44"
Features
•Field configurable wall plate
system.
•Labeling system.
•Adjustable top end output
voltage.
•Shipped with protective film.
•Rugged construction.
•Superior ratings with a
minimum of de-rating
when ganged.
•Simple to plan the rough-in.
•Available in single pole slide-
to-OFF and single pole/3-way
preset models.
•Attractive European styling.
•Eye-catching packaging.
•Exclusive adaptor kit to
install other Decorator
opening devices under the
Titan™ wall plate system.
(See Page L-25.)
•Blank center plate included.
For technical specifications, de-rating, and rough-in box charts, see Pages R-156 and R-157.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE COLOR
INCANDESCENT
CD700I
Single Pole, Slide-to-OFF 120V, 700W Narrow
Ivory
CD700W White
CD700 Brown
CD700GRY Gray
CD700BK Black
CD700LA Light Almond
CD703PI
Single Pole/3-Way, Preset 120V, 700W Narrow
Ivory
CD703PW White
CD703P Brown
CD703PGRY Gray
CD703PBK Black
CD703PLA Light Almond
CD1100I
Single Pole, Slide-to-OFF 120V, 1100W Narrow
Ivory
CD1100W White
CD1100 Brown
CD1100GRY Gray
CD1100BK Black
CD1100LA Light Almond
CD1103PI
Single Pole/3-Way, Preset 120V, 1100W Narrow
Ivory
CD1103PW White
CD1103P Brown
CD1103PGRY Gray
CD1103PBK Black
CD1103PLA Light Almond
CD1600I
Single Pole, Slide-to-OFF 120V, 1600W Wide
Ivory
CD1600W White
CD1600 Brown
CD1600GRY Gray
CD1600BK Black
CD1600LA Light Almond
CD1603PI
Single Pole/3-Way, Preset 120V, 1600W Wide
Ivory
CD1603PW White
CD1603P Brown
CD1603PGRY Gray
CD1603PBK Black
CD1603PLA Light Almond
CD2000I
Single Pole, Slide-to-OFF 120V, 2000W Wide
Ivory
CD2000W White
CD2000 Brown
CD2000GRY Gray
CD2000BK Black
CD2000LA Light Almond
CD2003PI
Single Pole/3-Way, Preset 120V, 2000W Wide
Ivory
CD2003PW White
CD2003P Brown
CD2003PGRY Gray
CD2003PBK Black
CD2003PLA Light Almond
WWW.LEGRAND.US/PASSANDSEYMOUR
L-25
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE COLOR
MAGNETIC LOWVOLTAGE
CDLV700I
Single Pole, Slide-to-OFF 120V, 700W Narrow
Ivory
CDLV700W White
CDLV700 Brown
CDLV700GRY Gray
CDLV700BK Black
CDLV700LA Light Almond
CDLV703PI
Single Pole/3-Way, Preset 120V, 700W Narrow
Ivory
CDLV703PW White
CDLV703P Brown
CDLV703PGRY Gray
CDLV703PBK Black
CDLV703PLA Light Almond
CDLV1100I
Single Pole, Slide-to-OFF 120V, 1100W Narrow
Ivory
CDLV1100W White
CDLV1100 Brown
CDLV1100GRY Gray
CDLV1100BK Black
CDLV1100LA Light Almond
CDLV1103PI
Single Pole/3-Way, Preset 120V, 1100W Narrow
Ivory
CDLV1103PW White
CDLV1103P Brown
CDLV1103PGRY Gray
CDLV1103PBK Black
CDLV1103PLA Light Almond
CDLV1600I
Single Pole, Slide-to-OFF 120V, 1600W Wide
Ivory
CDLV1600W White
CDLV1600 Brown
CDLV1600GRY Gray
CDLV1600BK Black
CDLV1600LA Light Almond
CDLV1603PI
Single Pole/3-Way, Preset 120V, 1600W Wide
Ivory
CDLV1603PW White
CDLV1603P Brown
CDLV1603PGRY Gray
CDLV1603PBK Black
CDLV1603PLA Light Almond
ADAPTOR KIT
CDADAPTORKITI
Decorator Device
Adaptor Kit Narrow
Ivory
CDADAPTORKITW White
CDADAPTORKIT Brown
CDADAPTORKITGRY Gray
CDADAPTORKITBK Black
CDADAPTORKITLA Light Almond
COMMERCIAL DIMMERS & FAN SPEED CONTROLS
Titan™ Series Magnetic Low-Voltage Dimmers & Adaptor Kit
For technical specifications, de-rating, and rough-in box charts, see Pages R-156 and R-157.
Features
•Field configurable wall plate
system.
•Labeling system.
•Adjustable low end output
voltage.
•Shipped with protective film.
•Rugged construction.
•Superior ratings with a
minimum of de-rating when
ganged.
•Simple to plan the rough-in.
•Available in single pole slide-
to-OFF and single pole/3-way
preset models.
•Attractive European styling.
•Eye-catching packaging.
•Exclusive adaptor kit to
install other Decorator
opening devices under the
Titan™ wall plate system.
•Blank center plate included.
4.65"
4.87"
1.44"
CDLV1103PW - WideCDLV700W - Narrow
2.85"
4.87"
1.44"
Adaptor kit enables
matching installation of
standard P&S Decorator
Devices – outlets,
switches, GFCIs and
more. See Page L-23.
CDADAPTORKITW
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-26
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
COMMERCIAL DIMMERS & FAN SPEED CONTROLS
Titan™ Series Fluorescent 2 Wire Dimmers
CDFB5W - Narrow
2.85"
4.87"
1.44"
For technical specifications, de-rating, and rough-in box charts, see Pages R-158 and R-159.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE COLOR
FLUORESCENT
CDFB5I
2 Wire, Electronic,
Single Pole, Slide-to-OFF 5A, 120V Narrow
Ivory
CDFB5W White
CDFB5 Brown
CDFB5GRY Gray
CDFB5BK Black
CDFB5LA Light Almond
CDFB8I
2 Wire, Electronic,
Single Pole, Slide-to-OFF 8A, 120V Narrow
Ivory
CDFB8W White
CDFB8 Brown
CDFB8GRY Gray
CDFB8BK Black
CDFB8LA Light Almond
CDFB10I
2 Wire, Electronic,
Single Pole, Slide-to-OFF 10A, 120V Wide
Ivory
CDFB10W White
CDFB10 Brown
CDFB10GRY Gray
CDFB10BK Black
CDFB10LA Light Almond
CDFB16I
2 Wire, Electronic,
Single Pole, Slide-to-OFF 16A, 120V Wide
Ivory
CDFB16W White
CDFB16 Brown
CDFB16GRY Gray
CDFB16BK Black
CDFB16LA Light Almond
CDFB7277I
2 Wire, Electronic,
Single Pole, Slide-to-OFF 7A, 277V Wide
Ivory
CDFB7277W White
CDFB7277 Brown
CDFB7277GRY Gray
CDFB7277BK Black
CDFB7277LA Light Almond
CDFB10277I
2 Wire, Electronic,
Single Pole, Slide-to-OFF 10A, 277V Wide
Ivory
CDFB10277W White
CDFB10277 Brown
CDFB10277GRY Gray
CDFB10277BK Black
CDFB10277LA Light Almond
Features
•For use with 2 wire 120V and 277V
fluorescent dimming ballasts.
•Field configurable wall plate system.
•Labeling system.
•Adjustable low end output voltage.
•Shipped with protective film.
•Rugged construction.
•Superior ratings with a minimum of de
rating when ganged.
•Simple to plan the rough-in.
•Available in single pole slide-to-OFF and
single pole/3-way preset models.
•Attractive European styling.
•Eye-catching packaging.
•Exclusive adaptor kit to install other
Decorator opening devices under
the Titan™ wall plate system. (See
Page L-25.)
•Blank center plate included.
WWW.LEGRAND.US/PASSANDSEYMOUR
L-27
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
COMMERCIAL DIMMERS & FAN SPEED CONTROLS
Titan™ Series Fluorescent 2 Wire Dimmers
CDFB53PW - Narrow
2.85"
4.87"
1.44" 4.65"
4.87"
1.44"
CDFB103PW - Wide
Features
•For use with 2 wire 120V and 277V
fluorescent dimming ballasts.
•Field configurable wall plate system.
•Labeling system.
•Adjustable low end output voltage.
•Shipped with protective film.
•Rugged construction.
•Superior ratings with a minimum of
de-rating when ganged.
•Simple to plan the rough-in.
•Available in single pole slide-to-OFF and
single pole/3-way preset models.
•Attractive European styling.
•Eye-catching packaging.
•Exclusive adaptor kit to install other
Decorator opening devices under
the Titan™ wall plate system. (See
Page L-25.)
•Blank center plate included.
For technical specifications, de-rating, and rough-in box charts, see Pages R-158 and R-159.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE COLOR
FLUORESCENT
CDFB53PI
2 Wire, Electronic,
Single Pole/3-Way, Preset 5A, 120V Narrow
Ivory
CDFB53PW White
CDFB53P Brown
CDFB53PGRY Gray
CDFB53PBK Black
CDFB53PLA Light Almond
CDFB83PI
2 Wire, Electronic,
Single Pole/3-Way, Preset 8A, 120V Narrow
Ivory
CDFB83PW White
CDFB83P Brown
CDFB83PGRY Gray
CDFB83PBK Black
CDFB83PLA Light Almond
CDFB103PI
2 Wire, Electronic,
Single Pole/3-Way, Preset 10A, 120V Wide
Ivory
CDFB103PW White
CDFB103P Brown
CDFB103PGRY Gray
CDFB103PBK Black
CDFB103PLA Light Almond
CDFB163PI
2 Wire, Electronic,
Single Pole/3-Way, Preset 16A, 120V Wide
Ivory
CDFB163PW White
CDFB163P Brown
CDFB163PGRY Gray
CDFB163PBK Black
CDFB163PLA Light Almond
CDFB73P277I
2 Wire, Electronic,
Single Pole/3-Way, Preset 7A, 277V Wide
Ivory
CDFB73P277W White
CDFB73P277 Brown
CDFB73P277GRY Gray
CDFB73P277BK Black
CDFB73P277LA Light Almond
CDFB103P277I
2 Wire, Electronic,
Single Pole/3-Way, Preset 10A, 277V Wide
Ivory
CDFB103P277W White
CDFB103P277 Brown
CDFB103P277GRY Gray
CDFB103P277BK Black
CDFB103P277LA Light Almond
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-28
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
COMMERCIAL DIMMERS & FAN SPEED CONTROLS
Titan™ Series Fluorescent 3 Wire Dimmers
Features
•For use with 3 wire 120V and 277V
fluorescent dimming ballasts.
•Field configurable wall plate system.
•Labeling system.
•Adjustable low end output voltage.
•Shipped with protective film.
•Rugged construction.
•Superior ratings with a minimum
of de-rating when ganged.
•Simple to plan the rough-in.
•Available in single pole slide-to-OFF and
single pole/3-way preset models.
•Attractive European styling.
•Eye-catching packaging.
•Exclusive adaptor kit to install other
Decorator opening devices under
the Titan™ wall plate system. (See
Page L-25.)
•Blank center plate included.
CD3FB163PW - Narrow
2.85"
4.87"
1.44"
For technical specifications, de-rating, rough-in box charts, and complete list of compatible ballasts, see Pages R-158 – R-159.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE COLOR
FLUORESCENT
CD3FB16I
3 Wire Electronic,
Single Pole, Slide-to-OFF 120V, 16A Narrow
Ivory
CD3FB16W White
CD3FB16 Brown
CD3FB16GRY Gray
CD3FB16BK Black
CD3FB16LA Light Almond
CD3FB163PI
3 Wire Electronic,
Single Pole/3-Way, Preset 120V, 16A Narrow
Ivory
CD3FB163PW White
CD3FB163P Brown
CD3FB163PGRY Gray
CD3FB163PBK Black
CD3FB163PLA Light Almond
CD3FB10277I
3 Wire Electronic,
Single Pole, Slide-to-OFF 277V, 10A Narrow
Ivory
CD3FB10277W White
CD3FB10277 Brown
CD3FB10277GRY Gray
CD3FB10277BK Black
CD3FB10277LA Light Almond
CD3FB103P277I
3 Wire Electronic,
Single Pole/3-Way, Preset 277V, 10A Narrow
Ivory
CD3FB103P277W White
CD3FB103P277 Brown
CD3FB103P277GRY Gray
CD3FB103P277BK Black
CD3FB103P277LA Light Almond
WWW.LEGRAND.US/PASSANDSEYMOUR
L-29
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
COMMERCIAL DIMMERS & FAN SPEED CONTROLS
Titan™ Series Fluorescent 4 Wire Dimmers
Features
•For use with 0-10V, 4 wire, 120V and 277V
fluorescent dimming ballasts.
•Field configurable wall plate system.
•Labeling system.
•Adjustable low end output voltage.
•Shipped with protective film.
•Rugged construction.
•Superior ratings with a minimum
of de-rating when ganged.
•Must be used with power pack.
•Simple to plan the rough-in.
•Available in single pole slide-to-OFF and
single pole/3-way preset models.
•Attractive European styling.
•Eye-catching packaging.
•Exclusive adaptor kit to install other
Decorator opening devices under
the Titan™ wall plate system. (See
Page L-25.)
•Blank center plate included.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE COLOR
FLUORESCENT
CD4FBI
Single Pole, Slide-to-OFF 24VDC Narrow
Ivory
CD4FBW White
CD4FB Brown
CD4FBGRY Gray
CD4FBBK Black
CD4FBLA Light Almond
CD4FB3PI
Single Pole/3-Way, Preset 24VDC Narrow
Ivory
CD4FB3PW White
CD4FB3P Brown
CD4FB3PGRY Gray
CD4FB3PBK Black
CD4FB3PLA Light Almond
PWP120277 Power pack for switching load 24VDC —
Red available made to order.
CD4FB3PW - Narrow
2.85"
4.87"
1.4375"
For technical specifications, de-rating, rough-in box charts, and complete list of compatible ballasts, see Pages R-158 – R-159.
Power Pack technical specifications, see Page R-146.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-30
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
COMMERCIAL DIMMERS & FAN SPEED CONTROLS
Titan™ Series Fan Speed Controls
Features
•Field configurable wall plate system.
•Labeling system.
•Shipped with protective film.
•Rugged construction.
•Simple to plan the rough-in.
•Available in single pole slide-to-OFF
models.
•Attractive European styling.
•Eye-catching packaging.
•Exclusive adaptor kit to install other
Decorator opening devices under
the Titan™ wall plate system. (See
Page L-25.)
•Available in both continuously variable
and de-hummer styles.
•Blank center plate included.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE COLOR
FAN SPEED CONTROLS
CDSC6I
Continuously Variable Speed
Fan Speed Control 120V, 6A Narrow
Ivory
CDSC6W White
CDSC6 Brown
CDSC6GRY Gray
CDSC6BK Black
CDSC6LA Light Almond
CDSC12I
Continuously Variable Speed
Fan Speed Control 120V, 12A Wide
Ivory
CDSC12W White
CDSC12 Brown
CDSC12GRY Gray
CDSC12BK Black
CDSC12LA Light Almond
CDDH16I
De-Hummer, 4 Speed
Low/Low-Mid/High-Mid/High
Fan Speed Control
120V, 1.6A Narrow
Ivory
CDDH16W White
CDDH16 Brown
CDDH16GRY Gray
CDDH16BK Black
CDDH16LA Light Almond
CDSC6W
Narrow
2.85"
4.87"
1.4375"
WWW.LEGRAND.US/PASSANDSEYMOUR
L-31
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
HDH163PW
4.25"
1.75"
1.25"
RESIDENTIAL FAN SPEED CONTROLS
Scene Director, Leandro®, Harmony™ TradeMaster® &
Rotary DR TradeMaster® Series Fan Speed Controls
SCDH15LAV
4.25"
1.68"
1.37"
DDH15MLAV
4.25"
1.68"
1.37"
DRSC53PWV
1.74"
4.185"
1.28"
For additional Decorator Rotary DR Series products and information, see Page L-17.
RESIDENTIAL & LIGHT COMMERCIAL FAN SPEED CONTROLS
For additional Scene Director products including remotes, masters, and wiring diagrams, see Pages L-9.
CATALOG NUMBER DESCRIPTION RATINGS COLOR
SCENE DIRECTOR 1.5A DEHUMMER* FAN SPEED CONTROLLERS
SCDH15IV Ivory
SCDH15WV Preset, Controls 1 Fan Load in a Scene 120V, 1.5A White
SCDH15LAV Light Almond
*Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
For additional Harmony™ products and information, see Pages L-11 – L-13.
For additional Leandro®products including remotes, masters, and wiring diagrams, see Page L-10.
CATALOG NUMBER DESCRIPTION RATINGS COLOR
LEANDRO® 1.5A DEHUMMER* FAN CONTROLS
DDH15MIV Ivory
DDH15MWV Preset, Single Pole, 3-Speed 120V, 1.5A White
DDH15MLAV Light Almond
*Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
CATALOG NUMBER DESCRIPTION RATINGS COLOR
DR SERIES 5A CONTINUOUSLY VARIABLE PRESET FAN SPEED CONTROLS
DRSC53PIV Ivory
DRSC53PWV White
DRSC53PV Single Pole/3-Way Fan Speed Control 120V, 5A Brown
DRSC53PBKV Black
DRSC53PLAV Light Almond
DR SERIES 1.6A 3SPEED DEHUMMER* PRESET FAN SPEED CONTROLS
DRDH163PIV
Single Pole/3-Way Fan Speed Control
with back-lit speed indication
Ivory
DRDH163PWV White
DRDH163PV 120V, 1.6A Brown
DRDH163PBKV Black
DRDH163PLAV Light Almond
*Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
CATALOG NUMBER DESCRIPTION RATINGS COLOR
HARMONY™ FAN SPEED CONTROLS, DEHUMMER*, SINGLE POLE/3WAY
HDH163PTC** Preset, Single Pole/3-Way
Three Interchangeable Face Colors 120V, 1.6A Ivory/White/Light Almond
HDH163PW†Preset, Single Pole/3-Way White
*Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
**Available in VisionPak™ packaging, add “CCV6” to Catalog Number. Example: HDH163PTCCCV6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-32
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL & LIGHT COMMERCIAL FAN SPEED CONTROLS
LS TradeMaster® Series Fan Speed Controls
LSDC16LAV
1.74"
4.185"
1.28"
LSDC163PLAV
1.74"
4.185"
1.55"
For additional LS Series products and information, see Pages L-14 – L-16.
TM8LMCC
CATALOG
NUMBER DESCRIPTION COLOR
ACCESSORIES FOR LS SERIES
LRKIV
Replacement
Knobs for
Decorator
Dual Slides
Ivory
LRKWV White
LRKV Brown
LRKBKV Black
LRKLAV Light Almond
LLRKIV Large
Replacement
Knobs for
Decorator
Single Slides
Ivory
LLRKWV White
LLRKV Brown
LLRKBKV Black
LLRKLAV Light Almond
CATALOG NUMBER
RATING
A. VAC COLOR
SNAPIN LIGHT MODULE
TM8LMCC 15 120/125 Clear
CATALOG NUMBER DESCRIPTION RATINGS COLOR
DECORATOR SLIDE FAN SPEED CONTROLS*
LSSC5I
120V
5A
Ivory
LSSC5W White
LSSC5 Non-Preset, Single Pole, Adjustable Trim Brown
LSSC5BK Black
LSSC5LA Light Almond
LSSC5PI
120V
5A
Ivory
LSSC5PW White
LSSC5P Preset, Single Pole, Adjustable Trim Brown
LSSC5PBK Black
LSSC5PLA Light Almond
DECORATOR SLIDE DEHUMMER CONTROLS**
LSDH16IV
120V
1.6A
Ivory
LSDH16WV White
LSDH16V Non-Preset, 4-Speed Fan Control Brown
LSDH16BKV Black
LSDH16LAV Light Almond
DUAL CONTROL DECORATOR SLIDES**
LSDC16IV
Non-Preset, 3-Speed De-Hummer Fan Control
With Single Pole Dimmer
120V
1.6A/300W
Ivory
LSDC16WV White
LSDC16V Brown
LSDC16BKV Black
LSDC16LAV Light Almond
LSDC163PIV
Preset, 3-Speed De-Hummer Fan Control
With Single Pole 3-Way Dimmer
120V
1.6A/300W
Ivory
LSDC163PWV White
LSDC163PV Brown
LSDC163PBKV Black
LSDC163PLAV Light Almond
LSDV25IV
Non-Preset, Variable Speed Fan Control
With Single Pole Dimmer
120V
2.5A/300W
Ivory
LSDV25WV White
LSDV25V Brown
LSDV25BKV Black
LSDV25LAV Light Almond
* Available in VisionPak™ packaging, add “V” to Catalog Number. Example: LSSC5IV.
**Available in VisionPak™ only.
Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
WWW.LEGRAND.US/PASSANDSEYMOUR
L-33
DIMMERS & FAN SPEED CONTROLS
PASS & SEYMOUR
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
RESIDENTIAL & LIGHT COMMERCIAL FAN SPEED CONTROLS
Wide Slide TradeMaster® & TradeMaster® Toggle Fan Speed Controls
TSC5I
1.60"
4.130"
1.450"
Preset Models
1.75"
4.25"
1.25"
CATALOG NUMBER DESCRIPTION RATINGS COLOR
TRADEMASTER® TOGGLE DEHUMMER* FAN SPEED CONTROLS
TDDH163PI
De-Hummer Fan Speed Control 120V, 1.6A
Ivory
TDDH163PW White
TDDH163P Brown
TDDH163PBK Black
TDDH163PLA Light Almond
*Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
For additional TradeMaster®Toggle products and information, see Page L-19 – L-21.
CATALOG NUMBER DESCRIPTION RATINGS COLOR
TRADEMASTER® TOGGLE FAN SPEED CONTROLS*
TSC5I
Non-Preset, Adjustable Trim 120V, 5A
Ivory
TSC5W White
TSC5LA Light Almond
* Available in VisionPak™ packaging, add “V” to Catalog Number. Example: SS600LAV.
CATALOG NUMBER DESCRIPTION RATINGS COLOR
WIDE SLIDE TRADEMASTER® INTERCHANGEABLE FACE FAN SPEED CONTROLS
WSSC53PTC* Preset, Variable Speed, 3 Face Colors 120V, 5A Ivory/White/Lt. Almond
WSSC53PW White Face Only 120V, 5A White
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
L-34
DIMMERS & FAN SPEED CONTROLS
All devices listed on this page conform to NEMA WD-1 and WD-6. UL Listed and CSA Certified.
COMMERCIAL FAN SPEED CONTROLS
Titan™ Series Fan Speed Controls
Features
•Field configurable wall plate system.
•Labeling system.
•Shipped with protective film.
•Rugged construction.
•Simple to plan the rough-in.
•Available in single pole slide-to-OFF
models.
•Attractive European styling.
•Eye-catching packaging.
•Exclusive adaptor kit to install other
Decorator opening devices under the
Titan™ wall plate system. (See Page
L-25.)
•Available in both continuously variable
and de-hummer styles.
•Blank center plate included.
CDSC6W
Narrow
2.85"
4.87"
1.4375"
For additional Titan™ Series products and information, see Pages L-23 – L-30.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE COLOR
FAN SPEED CONTROLS
CDSC6I Ivory
CDSC6W White
CDSC6 Continuously Variable Speed 120V, 6A Narrow Brown
CDSC6GRY Fan Speed Control Gray
CDSC6BK Black
CDSC6LA Light Almond
CDSC12I Ivory
CDSC12W White
CDSC12 Continuously Variable Speed 120V, 12A Wide Brown
CDSC12GRY Fan Speed Control Gray
CDSC12BK Black
CDSC12LA Light Almond
CDDH16I Ivory
CDDH16W De-Hummer*, 4 Speed White
CDDH16 Low/Low-Mid/High-Mid/High 120V, 1.6A Narrow Brown
CDDH16GRY Fan Speed Control Gray
CDDH16BK Black
CDDH16LA Light Almond
* Feature specially designed capacitive circuitry to virtually eliminate fan motor “hum.”
WWW.LEGRAND.US/PASSANDSEYMOUR
M-1
PASS & SEYMOUR
Slater® PlaStic BoxeS
Durable, impact-resistant thermoplastic boxes in a full range of sizes —
complemented by innovative extras that cut installation time.
TAMPER-RESISTANT
FLOOR BOX
ASSEMBLIES M-13
Switch & Outlet Boxes M-2
Old Work Boxes & Shallow Boxes M-4
Low-Voltage Brackets M-5
Wood & Steel Stud Bracket Boxes M-6
Screw Mount Steel Stud Boxes M-7
4" Square Boxes & Covers M-8
4" Round Ceiling Boxes M-9
Round Ceiling Boxes M-12
Tamper-Resistant Floor Box Assemblies M-13, M-17
Tamper-Resistant Round Floor Box Assemblies M-15
Round Floor Box Covers M-16
Recessed TV Boxes M-18
Applications & Product Features M-19
4" ROUND CEILING
BOXES M-9
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-2
SLATER® PLASTIC BOXES
Slater® PlaStic BoxeS
Switch & Outlet Boxes With Captive Mounting Nails on Each End with Quick/Click®
S354RAC
S468RAC
S118R S235RAC
S122R S235RACMH
EXT1 EXT2
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE FILL
(AWG)
QTY. PER
CARTONL W D
SWITCH & OUTLET BOXES WITH QUICK/CLICK®
S118R 18.0 Single gang. 2 Quick/Entries®
each end.
3¾ 2¼ 223⁄32 9 No. 14
8 No. 12
7 No. 10
100
S235RAC 35.0 Two gang. 4 Auto/Clamps®
each end.
331⁄32 331⁄32 33⁄817 No. 14
15 No. 12
14 No. 10
50
S235RACMH 35.0 Two gang. 4 Auto/Clamps®
each end. 3" depth for
manufactured housing walls.
3¾ 41⁄16 317 No. 14
15 No. 12
14 No. 10
100
S354RAC 54.0 Three gang. 6 Auto/Clamps®
each end.
331⁄32 525⁄32 327 No. 14
24 No. 12
21 No. 10
50
S468RAC 68.0 Four gang. Rear stabilizing
bar virtually eliminates inward
movement. 6 Auto/Clamps®
each end.
313⁄16 713⁄16 334 No. 14
30 No. 12
27 No. 10
25
DEEP SWITCH & OUTLET BOXES WITH QUICK/CLICK®
S122R 22.5 Single gang deep. 2 Quick/Entries®
each end. Extra deep for dimmers,
GFCIs and thermostats, yet suitable
for 2 x 4 construction.
3¾ 2¼ 33⁄8 11 No. 14
10 No. 12
9 No. 10
100
All boxes are UL Listed.
UL Classified for 2 Hour Fire Resistance. (Does not apply to S468RAC.)
All devices listed on this page conform to NEMA OS2.
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
QTY. PER
CARTON
WALL BOX EXTENSION RINGS
EXT1 1.0 Single gang. ¼" thick. Stackable. 10
EXT2 2.0 Two gang. ¼" thick. Stackable. 10
WWW.LEGRAND.US/PASSANDSEYMOUR
M-3
SLATER® PLASTIC BOXES
PASS & SEYMOUR
Slater® PlaStic BoxeS
Switch & Outlet Boxes with Captive Mounting Nails on Each End
P122RN
P354RACMH
P118R P1-18-RN P1-22-R
PH1-22-R P1-22-C P2-35-RAC P2-35-RACMH
P1-22-N
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE FILL
(AWG)
QTY. PER
CARTONL W D
SWITCH & OUTLET BOXES WITH THREADED MOUNTING HOLES
P118R 18.0 Single gang. 2 Quick/Entries® each end. 3¾ 2¼ 223/32 9 No. 14
8 No. 12
7 No. 10
100
P118RN 18.0 Single gang. Reverse angled captive mounting nail.
2 Quick/Entries® each end. Used for manufactured housing.
3¾ 2¼ 223/32 9 No. 14
8 No. 12
7 No. 10
100
P122C 22.0 Single gang. With EZ Grip – a temporary hold feature. 3¾ 2¼ 4 11 No. 14
10 No. 12
9 No. 10
100
PH122R 22.0 Single gang. Horizontal. Captive mounting nail each side. 3¾ 2¼ 37/811 No. 14
10 No. 12
9 No. 10
100
P235RAC 35.0 Two gang. 4 Auto/Clamps® each end. 331/32 331/32 33/817 No. 14
15 No. 12
14 No. 10
100
P235RACMH 35.0 Two gang. 4 Auto/Clamps® each end. 3" depth for manufactured
housing walls.
331/32 331/32 317 No. 14
15 No. 12
14 No. 10
100
P354RACMH 54.0 Three gang. 6 Auto/Clamps® each end. 31/16" depth for manufactured
housing walls.
313/16 515/16 31/16 27 No. 14
24 No. 12
21 No. 10
50
DEEP SWITCH & OUTLET BOXES WITH THREADED MOUNTING HOLES
P122R 22.5 Single gang deep. 2 Quick/Entries® each end. Extra deep for
dimmers, GFCIs and thermostats, yet suitable for 2 x 4 construction.
3¾ 2¼ 33/811 No. 14
10 No. 12
9 No. 10
100
P122RN 22.5 Single gang deep. Reverse angled captive mounting nail. 2 Quick/
Entries® each end. Extra deep for dimmers, GFCIs and thermostats,
yet suitable for 2 x 4 construction.
3¾ 2¼ 33/811 No. 14
10 No. 12
9 No. 10
100
P122N 22.5 Single gang deep. Vertical bracket mount. 3¾ 2¼ 33/811 No. 14
10 No. 12
9 No. 10
100
All boxes are UL Listed.
UL Classified for 2 Hour Fire Resistance (Does not apply to P122N.)
All devices listed on this page conform to NEMA OS2.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-4
SLATER® PLASTIC BOXES
S122W P108WS118W S232W P108N
Slater® PlaStic BoxeS
Old Work Boxes & Shallow Boxes
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE FILL
(AWG)
QTY. PER
CARTONL W D
OLD WORK SWITCH & OUTLET BOXES WITH QUICK/CLICK
S116W 16.0 Single gang. Swing-bracket for mounting adjusts from 1¼" down to 1/8".
2 Auto/Clamps® each end.
3¾ 2¼ 2¾ 8 No. 14
7 No. 12
6 No. 10
100
S118W 18.0 Single gang. Swing-bracket for mounting adjusts from 1¼" down to 1/8".
2 Auto/Clamps® each end.
3¾ 2¼ 31/32 9 No. 14
8 No. 12
7 No. 10
100
S232W 32.0 Two gang. Swing-bracket for mounting adjusts from 1¼" down to 1/8".
4 Auto/Clamps® each end.
3¾ 41/16 31/32 16 No. 14
14 No. 12
12 No. 10
50
S352W 52.0 Three gang. Swing-bracket for mounting adjusts from 1¼" down to 1/8".
6 Auto/Clamps® each end.
3¾ 57/831/32 26 No. 14
23 No. 12
20 No. 10
10
M118W 18.0 Single gang metal box. Swing bracket for mounting adjusts 1¼" down
to ¼". Four ¾"/1¼" KOs plus integral Romex clamp.
3¼ 2¼ 3 8 No. 14
7 No. 12
6 No. 10
50
DEEP OLD WORK SWITH & OUTLET BOXES WITH QUICK/CLICK
S122W 22.0 Single gang deep. Swing-bracket for mounting adjusts from 1¼" down
to 1/8". 2 Auto/Clamps® each end.
3¾ 25/16 3½ – 50
OLD WORK SWITCH & OUTLET BOXES WITH THREADED MOUNTING HOLES
P116W 16.0 Single gang. Swing-bracket for mounting adjusts from 1¼" down to 1/8".
2 Auto/Clamps® each end.
3¾ 2¼ 2¾ 8 No. 14
7 No. 12
6 No. 10
100
SHALLOW SWITCH & OUTLET BOXES for use in limited depth application
P108W 8.0 Single gang. Old work flange box for retrofit applications. 3¾ 25/16 11/8– 20
P108N 8.0 Single gang. With vertical side bracket for new construction applications. 3¾ 25/16 11/8– 20
All boxes are UL listed.
UL Classified for 2 Hour Fire Resistance. (Does not apply to S232W, S352W, P108W, and P108N.)
A. Quick/Click feature secures devices quickly and easily.
Does not strip when over-torqued. See Page M-20
for details.
B. 4 Auto/Clamps® on each end eliminate the need for
separate cable clamps. See Page M-20 for details.
C. Metal swing bracket for quick mounting in
existing walls.
D. Divider plate (LVDIV1, sold separately) used when
installing line and low-voltage devices or multiple
277 volt devices in same box. See Page M-5 for details.
E. Swing bracket adjusts from 1-1⁄4" to 1⁄8".
Big 52 cubic inch capacity.
Easy installation, rectangular cutout.
C
A
B
D
E
3 Gang Old Work Box shown with Divider Plate, LVDIV1
S352W
Old Work Switch & Outlet Box with Quick/Click®
M118W
All devices listed on this page conform to NEMA OS2.
WWW.LEGRAND.US/PASSANDSEYMOUR
M-5
SLATER® PLASTIC BOXES
PASS & SEYMOUR
Slater® PlaStic BoxeS
Low-Voltage Brackets
SLV2B SLV3W PLVIR
PLV1W LVDIV1
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE FILL
(AWG)
QTY. PER
CARTONL W D
LOW-VOLTAGE BRACKETS WITH QUICK/CLICK® for class 2 low-voltage applications
SDV2B 22.5 Two gang. For dual-voltage. Face mount box and bracket
for new construction.
3¾ 4 3¾ 11 No. 14
10 No. 12
9 No. 10
12
SLV1R –Single gang. Nail on for new construction. 3¾ 2¼ – – 12
SLV1S –Single gang. Nail on for new construction. 3¾ 2¼ – – 12
SLV1B –Single gang. Face mount bracket for new construction. 3¾ 2¼ – – 12
SLV2B –Two gang. Face mount bracket for new construction. 3¾ 4 – – 12
SLV1W –Single gang. Swing bracket mount for old work. 3¾ 2¼ – – 12
SLV2W –Two gang. Swing bracket mount for old work. 3¾ 4 – – 12
SLV3W –Three gang. Swing bracket mount for old work. 3¾ 6 – – 12
LOW-VOLTAGE BRACKETS for class 2 low-voltage applications
P100WD 8.0 Single Gang. Gangable. Swing bracket for mounting, adjusts from
11⁄4" down to 1⁄8", for old work, stand alone applications.
3¾ 2 – – 15
P100ND 8.0 Single gang. With vertical side bracket for new construction,
with wire retaining fingers.
3¾ 23⁄8 1¼ – 15
PDV2B 22.5 Two gang. For dual-voltage. Face mount box and bracket for
new construction.
3¾ 4 3¾ 11 No. 14
10 No. 12
9 No. 10
12
PLV1R –Single gang. Nail on for new construction. 3¾ 2¼ – – 12
PLV1S –Single gang. Screw on for new construction. 3¾ 2¼ – – 12
PLV1B –Single gang. Face mount bracket for new construction. 3¾ 2¼ – – 12
PLV2B –Two gang. Face mount bracket for new construction. 3¾ 4 – – 12
PLV1W –Single gang. Swing bracket mount for old work. 3¾ 2¼ – – 12
PLV2W –Two gang. Swing bracket mount for old work. 3¾ 4 – – 12
PLV3W –Three gang. Swing bracket mount for old work. 3¾ 6 – – 12
DIVIDER PLATE
LVDIV1 -.5 Suitable for low-voltage or multiple 277V devices. For use with
S235RAC, S235RACS, P235RAC, S235S50AC, S354RAC and S352W.
– – – – 12
All boxes are UL listed.
All devices listed on this page conform to NEMA OS2.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-6
SLATER® PLASTIC BOXES
Slater® PlaStic BoxeS
Wood & Steel Stud Bracket Boxes With Offset Bracket for Wood and/or Steel Mounting
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE FILL
(AWG)
QTY. PER
CARTONL W D
WOOD & STEEL STUD BRACKET BOXES WITH QUICK/CLICK®
S118S50 18.0 Single gang. 3/8" offset for wood and steel stud mounting.
2 Quick/Entries® each end. For use with 3/8" to 5/8" wallboard.
3¾ 2¼ 223/32 9 No. 14
8 No. 12
7 No. 10
100
S118B50 18.0 Single gang. ½" offset for wood and steel stud mounting. Rear
stabilizing bar virtually eliminates inward movement. 2 Quick/
Entries® each end. For use with 3/8" to 5/8" wallboard.
3¾ 2¼ 2¾ 9 No. 14
8 No. 12
7 No. 10
100
S235S50AC 35.0 Two gang. 3/8" offset for wood and steel stud mounting. 4 Auto/
Clamps® each end. For use with 3/8" to 5/8" wallboard.
331/32 331/32 33/817 No. 14
15 No. 12
14 No. 10
50
S354S50AC 54.0 Three gang. 3/8" offset for wood and steel stud mounting.
6 Auto/Clamps® each end. For use with 3/8" to 5/8" wallboard.
3¾ 525/32 327 No. 14
24 No. 12
21 No. 10
25
S468S50AC 68.0 Four gang. 3/8" offset for wood and steel stud mounting. Rear
stabilizing bar virtually eliminates inward movement. 6 Auto/
Clamps® each end. For use with 3/8" to 5/8" wallboard.
3¾ 713/16 334 No. 14
30 No. 12
27 No. 10
25
DEEP WOOD & STEEL STUD BRACKET BOXES WITH QUICK/CLICK®
S122S50 22.5 Single gang deep. 3/8" offset for wood and steel stud mounting.
2 Quick/ Entries® each end. For use with 3/8" to 5/8" wallboard.
3¾ 2¼ 33/811 No. 14
10 No. 12
9 No. 10
100
All boxes are UL Listed.
UL Classified for 2 Hour Fire Resistance. (Does not apply to S468S50AC.)
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE FILL
(AWG)
QTY. PER
CARTONL W D
STEEL STUD BRACKET BOXES WITH QUICK/CLICK®
S122B 22.0 Single gang. 1⁄2" offset for steel stud mount only.
2 stabilizer legs.
3¾ 2¼ 4¼ 11 No. 14
10 No. 12
9 No. 10
100
SH122B 22.0 Single gang. Horizontal. 1⁄2" offset for wood or
steel stud mount. 2 stabilizer legs.
3¾ 2¼ 37⁄811 No. 14
10 No. 12
9 No. 10
100
STEEL STUD BRACKET BOXES
P122B 22.0 Single gang. 1⁄2" offset for steel stud mount only.
2 stabilizer legs.
3¾ 2¼ 4¼ 11 No. 14
10 No. 12
9 No. 10
100
PH122B 22.0 Single gang. Horizontal. 1⁄2" offset for wood or
steel stud mount. 2 stabilizer legs.
3¾ 2¼ 37⁄811 No. 14
10 No. 12
9 No. 10
100
S50BRACKET N/A Steel stud bracket only for use with P235RAC,
P354RAC, S235RAC, S354RAC, S468RAC
N/A N/A N/A N/A 50
All boxes are UL Listed. UL Classified for 2 Hour Fire Resistance.
All devices listed on this page conform to NEMA OS2.
S468S50AC
S118B50 S122S50 S235S50AC S354S50AC
S118S50
PH122B
P122B
WWW.LEGRAND.US/PASSANDSEYMOUR
M-7
SLATER® PLASTIC BOXES
PASS & SEYMOUR
Slater® PlaStic BoxeS
Screw Mount Steel Stud Boxes With Captive Combo Head Self Tapping Mounting Screws on Each End
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE
FILL
(AWG)
QTY. PER
CARTONL W D
SCREW MOUNT, STEEL STUD BOXES WITH QUICK/CLICK®
S118RS 18.0 Single gang. 2 Quick/Entries® each end. 3¾ 2¼ 223⁄32 9 No. 14
8 No. 12
7 No. 10
100
S235RACS 35.0 Two gang. 4 Auto/Clamps® each end. 331⁄32 331⁄32 33⁄817 No. 14
15 No. 12
14 No. 10
50
S235RACSMH 35.0 Two gang. 4 Auto/Clamps® each end.
3" depth for manufactured housing walls.
3¾ 41⁄16 317 No. 14
15 No. 12
14 No. 10
100
S354RACS 54.0 Three gang. 6 Auto/Clamps® each end. 331⁄32 525⁄32 327 No. 14
24 No. 12
21 No. 10
50
S468RACS 68.0 Four gang. 6 Auto/Clamps® each end. Rear stabilizing bar
virtually eliminates inward movement.
313⁄16 713⁄16 334 No. 14
30 No. 12
27 No. 10
25
DEEP SCREW MOUNT, STEEL STUD BOXES WITH QUICK/CLICK®
S122RS 22.5 Single gang deep. 2 Quick/Entries® each end.
Extra deep for dimmers, GFCIs and thermostats,
yet suitable for 2 x 4 construction.
3¾ 2¼ 33⁄811 No. 14
10 No. 12
9 No. 10
100
All boxes are UL Listed. UL Classified for 2 Hour Fire Resistance. (Does not apply to S468RACS.)
Note: 3¼" self-tapping, drill-point screws. Nails are 3¼".
All devices listed on this page conform to NEMA OS2.
CT1
S118RS S122RS S354RACSS235RACSMH S468RACSS235RACS
CATALOG NUMBER DESCRIPTION
QTY.
PER
CARTON
CRIMPING TOOL FOR ATTACHING STEEL STUD BOXES
CT1 Crimping tool for attaching boxes to steel studs. Comes equipped with long and
short anvils to meet most installation requirements.
1
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-8
SLATER® PLASTIC BOXES
CATALOG
NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE FILL
(AWG)
QTY. PER
CARTONL W D
COVERS FOR 4" SQUARE BOXES
4SBC –4" square flat blank cover – gray 4¼ 4¼ N/A – 50
4SBCW –4" square flat blank cover – white 4¼ 4¼ N/A – 50
RC1 3.2 Single gang device cover, raised 3⁄8" 4¼ 4¼ 3⁄8– 100
RC2 5.3 Two gang device cover, raised 3⁄8" 4¼ 4¼ 3⁄8– 100
4" SQUARE BOXES WITH THREADED MOUNTING HOLES
S4418BAC 17.0 Shallow 4" square. Captive mounting nail each end.
2 Auto/Clamps® each end. 2 #8 mounting screws
factory installed.
4¼ 4¼ 1¼ 9 No. 14
8 No. 12
7 No. 10
50
S4421RAC 21.0 4" square. Captive mounting nail each end. 3 Auto/
Clamps® each end, 2 on side opposite to nails.
2 #8 mounting screws factory installed.
4¼ 4¼ 1½ 10 No. 14
9 No. 12
8 No. 10
100
S4421SAC 21.0 4" square. For wood and steel stud mounting.
3 Auto/Clamps each end, 2 on side opposite bracket.
2 #8 mounting screws factory installed.
4¼ 4¼ 1½ 10 No. 14
9 No. 12
8 No. 10
50
S4435RAC 35.0 4" square. Captive mounting nail each end. 3 Auto/
Clamps® each end, 2 on side adjacent to nails.
2 #8 mounting screws factory installed.
4¼ 4¼ 23⁄817 No. 14
15 No. 12
14 No. 10
50
S4435SAC 35.0 4" square. For wood and steel stud mounting.
3 Auto/Clamps® each end, 2 on side opposite
bracket. 2 #8 mounting screws factory installed.
4¼ 4¼ 23⁄817 No. 14
15 No. 12
14 No. 10
50
All boxes are UL Listed. UL Classified for 2 Hour Fire Resistance. (Does not apply to 4SBC and 4SBCW.)
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS WIRE FILL
(AWG)
QTY. PER
CARTONL W D
RANGE & DRYER BOXES
P242SRD 42.0 ½" offset for wood or steel stud mount
with metal cable clamp. Captive
mounting screw each end.
3¾ 4 4 16 No. 10
14 No. 8
8 No. 6
12
P242RRD 42.0 ½" offset for wood or steel stud mount
with metal cable clamp. Captive
mounting nail each end.
3¾ 4 4 16 No. 10
14 No. 8
8 No. 6
12
All boxes are UL Listed. UL Classified for 2 Hour Fire Resistance (pending).
All devices listed on this page conform to NEMA OS2.
Slater® PlaStic BoxeS
4" Square Boxes & Covers
S4435RAC
S4421SAC
S4435SAC
RC2 S4421RACRC14SBC S4418BAC
P242SRD P242RRD
WWW.LEGRAND.US/PASSANDSEYMOUR
M-9
SLATER® PLASTIC BOXES
PASS & SEYMOUR
S120JFAN
Fan Box
S116FAN
4" Round Direct Mount Ceiling Fan Box
All devices listed on this page conform to NEMA OS2.
A. Angled, rugged, metal mounting bracket safely
and securely fastens fans or fixtures to the
building structure.
B. Dual mounting accepts fans or fixtures with 2.75" or
3.5" straps.
C. Auto Clamp® cable clamps molded in — hold wire
securely in box.
D. Phillips-head screws (#10-32 x 3") mount the fan or
fixture directly to the metal bracket.
E. Ringed nails for tighter grip.
F. Depth-mounting gauge at bottom of bracket helps you
align the box at the proper depth relative to the ceiling.
Fan mounts directly to bracket through box with #10-32
screws (provided).
Large, 20.25 cubic inch capacity for extra wiring space.
Constructed of impact-resistant Noryl® thermoplastic,
making it virtually unbreakable and non-conductive.
UL Listed for fan and fixture support.
Slater® PlaStic BoxeS
4" Round Ceiling Boxes
A. Impact-resistant Noryl®means no ground wiring as
with metal boxes.
B. Screw lock holds screws in box until needed. No lost
hardware and no broken spiral saw bits.
C. Mounts directly under a joist or on a joist cross
member.
Easy installation. One #10 x 1¼" screw holds the box at
rough in. Two factory-supplied #10 x 2" screws secure the
fan or fixture through the box, directly to the joist.
UL Listed for fan and fixture support.
A
B
C
A
BC
D
E
F
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-10
SLATER® PLASTIC BOXES
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS
(IN.) WIRES
(AWG)
QTY. PER
CARTON
UL LISTED
MAX. WEIGHT RATING
DIA. DEPTH FAN FIXTURE
FAN BOXES – FAN & FIXTURE RATED
S120JFAN 20.25 Ceiling Fan Box – Premium Grade with integral fan
mounting bracket and 4 Auto/Clamps®.
4 23⁄16 10 No. 14
9 No. 12
8 No. 10
12 70 lbs. 150 lbs.
S120BFAN 20.25 Ceiling Fan Box – Construction Grade with
4 Auto/Clamps®.
4 23⁄16 10 No. 14
9 No. 12
8 No. 10
30 70 lbs. 70 lbs.
S120RFAN 20.25 Ceiling Fan Box – Standard Grade 4 Auto/Clamps®
with 2 captive mounting nails.
4 23⁄16 10 No. 14 30 35 lbs. 50 lbs.
4" ROUND DIRECT MOUNT CEILING FAN BOXES – FAN & FIXTURE RATED
S116FAN 16 Ceiling Fan Box – with Direct Mount. 4 2¾ 8 No. 14
7 No. 12
6 No. 10
24 70 lbs. 210 lbs.
S109FAN 9Ceiling Fan Box – with Direct Mount.
Suitable for single or double joist.
4 2¾ 4 No. 14
4 No. 12
3 No. 10
24 70 lbs. 210 lbs.
All boxes are UL listed.
UL Classified for 2 Hour Fire Resistance.Dual mounting accommodates both 2.75" and 3.5" fixtures.
All devices listed on this page conform to NEMA OS2.
Slater® PlaStic BoxeS
4" Round Ceiling Boxes With Dual Threaded Mounting Holes
S116FANS120JFAN S120BFAN S120RFAN S109FAN
WWW.LEGRAND.US/PASSANDSEYMOUR
M-11
SLATER® PLASTIC BOXES
PASS & SEYMOUR
All devices listed on this page conform to NEMA OS2.
Slater® PlaStic BoxeS
4" Round Ceiling Boxes With Dual Threaded Mounting Holes
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS
(IN.) WIRES
(AWG)
QTY. PER
CARTON
UL LISTED
MAX. WEIGHT RATING
DIA. DEPTH FIXTURE
CEILING BOXES
S120RAC 20.25 4" round. 2 captive mounting nails. 4 Auto/Clamps. 4 23⁄16 10 No. 14
9 No. 12
8 No. 10
50 50 lbs.
S120RGAC 20.25 4" round with ground lug. 2 captive mounting nails.
4 Auto/Clamps.
4 23⁄16 10 No. 14
9 No. 12
8 No. 10
50 50 lbs.
S120JAC 20.25 4" round. J-bracket with 2 captive mounting nails.
4 Auto/Clamps.
4 23⁄16 10 No. 14
9 No. 12
8 No. 10
50 50 lbs.
S120JGAC 20.25 4" round with ground lug. J-bracket with 2 captive
mounting nails. 4 Auto/Clamps.
4 23⁄16 10 No. 14
9 No. 12
8 No. 10
50 50 lbs.
S120HAC 20.25 4" round. Bar-hanger adjusts to 16" or 24" joist
spacing. 4 Auto/Clamps.
4 23⁄16 10 No. 14
9 No. 12
8 No. 10
50 50 lbs.
S120HGAC 20.25 4" round with ground lug. Bar-hanger adjusts to
16" or 24" joist spacing. 4 Auto/Clamps.
4 23⁄16 10 No. 14
9 No. 12
8 No. 10
50 50 lbs.
S120RACS 20.25 4" round. 2 captive mounting screws. 4 Auto/Clamps. 4 23⁄16 10 No. 14
9 No. 12
8 No. 10
50 50 lbs.
All boxes are UL listed. UL Classified for 2 Hour Fire Resistance. Dual mounting accommodates both 2.75" and 3.5" fixtures.
4RBC
S120RAC S120JACS120RGAC S120JGAC
S120HAC S120RACS
S120HGAC
CATALOG NUMBER DESCRIPTION
QTY. PER
CARTON
COVERS FOR 4" ROUND BOXES
4RBC 4" round flat blank cover – gray 50
4RBCW 4" round flat blank cover – white 50
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-12
SLATER® PLASTIC BOXES
All devices listed on this page conform to NEMA OS2.
CATALOG
NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS
(IN.) WIRES
(AWG)
QTY. PER
CARTON
UL LISTED
MAX. WEIGHT RATING
DIA. DEPTH FIXTURE
3¾" ROUND OLD WORK CEILING BOXES
C118WAC 18.0 3¾" round. Swing brackets for mounting adjust from
1¼" down to 1⁄8". 4 Auto/Clamps®. Includes device
mounting holes.
3¾ 211⁄16 9 No. 14
8 No. 12
7 No. 10
50 20 lbs.
C118WGAC 18.0 3¾" round. With grounding lug. Swing brackets for
mounting adjust from 1¼" down to 1⁄8". 4 Auto/Clamps®.
Includes device mounting holes.
3¾ 211⁄16 9 No. 14
8 No. 12
7 No. 10
50 20 lbs.
3¾" ROUND OLD WORK CEILING BOXES
C118WACX 18.0 3¾" round. Same as C118WAC, except without swing
brackets, for screw mounting into OSB or plywood.
4 Auto/Clamps®.
3¾ 211⁄16 9 No. 14
8 No. 12
7 No. 10
50 8 lbs.
C118WGACX 18.0 3¾" round. Same as C118WGAC, except without swing
brackets, for screw mounting into OSB or plywood.
4 Auto/Clamps®.
3¾ 211⁄16 9 No. 14
8 No. 12
7 No. 10
50 8 lbs.
3¼" ROUND CEILING BOXES*
C118RAC 18.0 3¼" round. 2 captive mounting nails. 4 Auto/Clamps. 3¼ 35⁄32 9 No. 14
8 No. 12
7 No. 10
50 50 lbs.
C118RGAC 18.0 3¼" round with ground lug. 2 captive mounting nails.
4 Auto/Clamps®.
3¼ 35⁄32 9 No. 14
8 No. 12
7 No.10
50 50 lbs.
C118HAC 18.0 3¼" round. Bar-hanger adjusts to 16" or 24" joist spacing.
4 Auto/Clamps®.
3¼ 35⁄32 9 No. 14
8 No. 12
7 No. 10
50 50 lbs.
C118HGAC 18.0 3¼" round with ground lug. Bar-hanger adjusts to
16" or 24" joist spacing. 4 Auto/Clamps®.
3¼ 35⁄32 9 No. 14
8 No. 12
7 No. 10
50 50 lbs.
*UL Classified for 2 Hour Fire Resistance.
Slater® PlaStic BoxeS
Round Ceiling Boxes
C118WAC C118WGAC C118RAC C118RGAC
C118HACC118HGAC
WWW.LEGRAND.US/PASSANDSEYMOUR
M-13
SLATER® PLASTIC BOXES
PASS & SEYMOUR
All devices listed on this page conform to NEMA OS2.
FB1TRSRB
National Electrical Code® Section 406.11 Tamper-Resistant Receptacles in Dwelling Units.
In all areas specified in 210.52 all 125-volt, 15- and 20-amp receptacles shall be listed tamper-resistant receptacles.
Slater® PlaStic BoxeS
Tamper-Resistant Floor Box Assemblies For Wood Sub-Floors
Features – FB Series
• Tamper-resistant receptacles feature
dual mechanical shutter system to help
prevent insertion of foreign objects.
• Meets NEC 406.11 requirements.
• Rugged diecast cover plates.
• Meets UL514(c) and NEC 314.27(c).
• Scrub water compliant.
• With durable nickel or brass cover
plates.
• Swing brackets mounting option
eliminates drilling tile flooring for
mounting screws.
• Wood sub-floors only.
• Wire Fill (AWG): 10 No. 14, 9 No. 12,
8 No. 10.
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
COVER
PLATE
FINISH
DIMENSIONS (IN.) QTY. PER
CARTONL W D
FLOOR BOX ASSEMBLIES — ONE GANG FOR WOOD SUB-FLOORS
FB1TRSRB
FB1TRSRN
20.5 Single threaded screw plug. Includes 15A,
125V single tamper-resistant receptacle.
Brass
Nickel
4¾ 3¼ 4 1
FB1TRDRB
FB1TRDRN
20.5 #8 duplex opening, 2 threaded screw plugs.
Includes 3232 tamper-resistant 15A, 125V
duplex receptacle.
Brass
Nickel
4¾ 3¼ 4 1
FB1TRDRB
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-14
SLATER® PLASTIC BOXES
All devices listed on this page conform to NEMA OS2.
Slater® PlaStic BoxeS
Tamper-Resistant Floor Box Assemblies For Wood Sub-Floors
A. Rugged, die-cast cover plate with durable nickel or
brass finish.
B. Large box flange rests on finished floor — no
adjustments needed.
C. Swing-bracket mounting, great for tile floors —
eliminates drilling for mounting screws.
D. Dual-voltage models available. Includes 15 Amp, 125
Volt tamper-resistant duplex receptacle, lo w-voltage
divider, Cat 5e jack, F-connector, and blanks.
E. Extra-deep design leaves plenty of wiring room.
Scrub water compliant without caulking, supplied with
foam gasket and O-ring-equipped plugs.
Meets NEC Section 406.11 Tamper-Resistant
requirements.
Meet UL514C and NEC314.27c requirements including
scrub water for tile floors.
A
B
C
D
E
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
COVER
PLATE
FINISH
DIMENSIONS (IN.) QTY. PER
CARTONL W D
FLOOR BOX ASSEMBLIES — TWO GANG FOR WOOD SUB-FLOORS
FB2TRDR2B
FB2TRDR2N
42.5 Two #8 duplex openings, 4 threaded screw plugs. Includes two 3232
tamper-resistant 15A, 125V duplex receptacles.
Brass
Nickel
4¾ 6½ 4 1
FB2TRDRKS4B
FB2TRDRKS4N
42.5 Dual-voltage. Two #8 duplex openings, 4 threaded screw plugs.
Includes 3232 tamper-resistant 15A, 125V duplex receptacle,
Cat 5e jack, F-connector, 10 blanks & low-voltage divider.
Brass
Nickel
4¾ 6½ 4 1
Wire File (AWG): 21 No. 14, 18 No. 12, 17 No. 10.
FB2TRDRKS4N
Floor Box Assemblies
WWW.LEGRAND.US/PASSANDSEYMOUR
M-15
SLATER® PLASTIC BOXES
PASS & SEYMOUR
All devices listed on this page conform to NEMA OS2.
PS862TRT PS862TRGFICAL
Slater® PlaStic BoxeS
Tamper-Resistant Round Floor Box Assemblies For Wood or Concrete Sub-Floors
Features
• Tamper-resistant receptacles feature
dual mechanical shutter system to help
prevent insertion of foreign objects.
• Meets NEC 406.11 requirements.
• Rugged diecast cover plates.
• Brass or aluminum.
• Smooth, nearly flush installation.
• PS862 Series wood or concrete
sub-floors only.
• Wire Fill (AWG): 11 No. 14, 9 No. 12,
8 No. 10.
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
COVER PLATE
FINISH
DIMENSIONS (IN.) QTY. PER
CARTONDIA. DEPTH
ROUND FLOOR BOX ASSEMBLIES FOR HARDWOOD OR TILE FINISHED FLOORS
PS862TRT
PS862TRTAL
22.0 #8 duplex opening, 2 flip lids. Includes 3232 tamper-resistant 15A,
125V duplex receptacle.
Brass
Aluminum
4¼ 3¼ 1
PS862TRTGFI
PS862TRTGFIAL
22.0 #26 opening, flip lid. Includes 885 tamper-resistant 15A,
Aluminum 125V duplex Decorator receptacle.
Brass
Aluminum
4¼ 3¼ 1
ROUND FLOOR BOX ASSEMBLIES FOR CARPETED FINISHED FLOORS
PS862TRC
PS862TRCAL
22.0 #8 duplex opening, 2 flip lids. Includes 3232 tamper-resistant 15A,
125V duplex receptacle.
Brass
Aluminum
5½ 3¼ 1
PS862TRGFIC
PS862TRGFICAL
22.0 #26 opening, flip lid. Includes 885 tamper-resistant 15A,
125V duplex Decorator receptacle.
Brass
Aluminum
5½ 3¼ 1
PS862KIT
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
DIMENSIONS (IN.) WIRE
FILL
(AWG)
QTY. PER
CARTONDIA. DEPTH
ROUND FLOOR BOX FOR HARDWOOD, TILE OR CARPETED FINISH FLOORS
PS862 22.0 Box only. 3¾ 211⁄16 11 No. 14
9 No. 12
8 No. 10
1
CONCRETE KIT
PS862KIT –Mud Cap, Gasket.
Two 3/4" male PVC conduit fittings.
– – – 5
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-16
SLATER® PLASTIC BOXES
All devices listed on this page conform to NEMA OS2.
PS863TRGFIC
PS895GFIC
PS863TRC
Slater® PlaStic BoxeS
Tamper-Resistant Round Floor Box Assemblies & Covers For Wood Sub-Floors
Features
• Tamper-resistant receptacles feature
dual mechanical shutter system to help
prevent insertion of foreign objects.
• Meets NEC 406.11 requirements.
• Rugged diecast cover plates.
• Brass or aluminum.
• Dual-voltage.
• Smooth, nearly flush installation.
• PS863 series wood sub-floors only.
• Includes Cat 5e & F-Connector.
• Wire Fill (AWG): 11 No. 14, 10 No. 12,
9 No. 10.
CATALOG NUMBER
CU. IN.
VOL. DESCRIPTION
COVER
PLATE
FINISH
DIMENSIONS
(IN.) QTY. PER
CARTONDIA. DEPTH
ROUND FLOOR BOX ASSEMBLIES
PS863TRC
PS863TRCAL
23.5 Dual-voltage. #8 duplex opening, 2 flip lids and 2 low-voltage openings. Includes
3232 tamper-resistant 15A, 125V duplex receptacle, Cat 5e jack and F-connector.
Brass
Aluminum
5¾ 3½ 1
PS863TRGFIC
PS863TRGFICAL
23.5 Dual-voltage. #26 opening, flip lid and 2 low-voltage openings. Includes 885
tamper-resistant 15A, 125V duplex Decorator receptacle, Cat 5e jack and
F-connector.
Brass
Aluminum
5¾ 3½ 1
Round Floor Box Covers For Wood or Concrete Sub-Floors
CATALOG NUMBER DESCRIPTION
COVER PLATE
FINISH DIAMETER
QTY. PER
CARTON
ROUND FLOOR BOX COVERS FOR HARDWOOD OR TILE FINISHED FLOORS
PS895T
PS895TAL
#8 duplex opening, 2 flip lids. Cover only. Brass
Aluminum
4¼ 8
PS895TGFI
PS895TGFIAL
#26 Decorator opening, flip lid. Cover only. Brass
Aluminum
4¼ 8
ROUND FLOOR BOX COVERS FOR CARPETED FINISHED FLOORS
PS895C
PS895CAL
#8 duplex opening, 2 flip lids. Cover only. Brass
Aluminum
5½ 8
PS895GFIC
PS895GFICAL
#26 Decorator opening, flip lid. Cover only. Brass
Aluminum
5½ 8
WWW.LEGRAND.US/PASSANDSEYMOUR
M-17
SLATER® PLASTIC BOXES
PASS & SEYMOUR
All devices listed on this page conform to NEMA OS2.
CATALOG NUMBER DESCRIPTION COLOR
NEMA
CONFIG. NO.
FLOOR BOX
TM1542BOX 38 cu. in., with knockouts and Auto/Clamps®, 3 screws for mounting to floor. Gray 5-15R
THERMOPLASTIC COVERS
TM1542TRW
TM1542TRBR
TM1542TRGRY
TM1542TRLA
Includes 15A, 125V tamper-resistant Decorator receptacle, matching detachable and
replaceable hinged door; threaded device-mounting holes; drill guides for low-voltage
poke-through holes; accepts any Decorator device; mounts on carpeting, hardwood, linoleum,
tile floors; 4 mounting/leveling screws.
White
Brown
Paintable Gray
Light Almond
5-15R
5-15R
5-15R
5-15R
BRASS COVERS
1542TRFM
TM1542TRCF
Low-profile cover requires minimum 3/8" hardwood floor thickness.
High-profile cover fits any floor finish – including carpeting, linoleum, tile, etc.
Both covers include an 885 tamper-resistant 15A, 125V Decorator duplex receptacle and will
accept any Decorator device. Covers include captive screws to prevent loss.
Brass
Brass
5-15R
5-15R
UL listed in accordance with 314.27(e).
Slater® PlaStic BoxeS
Tamper-Resistant Floor Box Assemblies 2 Pole, 3 Wire Grounding 15A, 125V
1542TRFBA
3.015"
4.500"
1.675"
2.375"
2.750"
1.950"
1542TRDR
4.500"
1.675"
2.375"
2.750"
1.825"
TM1542BOX
5.5"
4.0"
4.71875"
TM1542TRLA
See available colors below.
6.5"
.4375"
TM1542TRFM
6.5"
.125"
Features
• Tamper-resistant receptacles feature
dual mechanical shutter system to help
prevent insertion of foreign objects.
• Meets NEC 406.11 requirements.
• Hinged door is removable and easily
replaceable.
• Durable construction, impact and scratch
resistant PVC construction.
• Standard Decorator opening that accepts
GFCI, TVSS, DataCom or other Decorator
devices.
• Auto/Clamps® and knockouts on both
sides of box.
• Meets UL514(c) scrub water exclusion
test.
• Threaded device mounting holes.
• Simple mounting box, fits into a 4-3/4"
hole and mounts with 3 screws included.
• Ready for low-voltage wiring, drill guides
on underside of cover.
• UL and cUL Listed.
• Captive screws on TM1542 series –
screws will not be lost – new.
• Made in USA.
Features
• Solid brass covered plate with matching flush fitting brass cap.
• 15A, 125V single receptacle made of durable thermoplastic.
• UL and FSUL listed.
CATALOG NUMBER
RATING
DESCRIPTION COLOR
NEMA
CONFIG. NO.A. V.
FLOOR BOX ASSEMBLY**
1542TRFBA 15 125 Tamper-resistant receptacle, brass plate,
1.01" recessed plug, gasket, O-ring, and metal
18 cu. in. box
Brown 5-15R
DISPLAY RECEPTACLE*
1542TRDR 15 125 Tamper-resistant receptacle, brass plate and
1.01" recessed plug
Brown 5-15R
*UL listed in accordance with 314.27(e).
**Conforms to NEMA OS2.
TM1542TRCF
6.5"
.5"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-18
SLATER® PLASTIC BOXES
All devices listed on this page conform to NEMA OS2.
Slater® PlaStic BoxeS
Recessed TV Boxes
Ideal for flat-screen TVs, home office, kitchen counter tops, and behind
furniture to allow snug-to-wall placement.
Today’s homeowners have more multimedia choices than ever — including
flat panel, wall-mounted televisions. P&S Recessed TV Boxes offer a clean
installation with the versatility to handle up to 12 multimedia connections,
while providing surge protected power.
Their recessed design saves space and simplifies connections to cable or
satellite boxes, DVRs, DVD players, surround-sound systems and more.
And they’re available with or without surge protective receptacles to
protect costly electronics from potentially damaging surges.
TV3WTVSSLA
TV1WTVSSBKTV1WW
Features
• Clean, flush-mount appearance —
snap-on end caps hide mounting screws.
• Flexible — position either line voltage or
low-voltage in all three openings.
• Low-voltage connectors offer both
terminated and pull-through capability.
• Plugs and multimedia connections stay
recessed behind the wall surface.
• Molded-in template and rectangular
cut-out.
• Accepts standard TP wall plates.
• Metal swing brackets ensure a solid
mounting.
• Uses old-work-style boxes for line
voltage.
• Accepts all P&S keystone low-voltage
connectors, including Cat 5e and
F-connectors (both supplied with Surge
Protective kit), as well as RCA and audio
binding posts.
CATALOG NUMBER DESCRIPTION COLOR
RECESSED TV BOXES
TV1WW
TV1WBK
TV1WLA Single Gang Recessed TV Box — Frame Only.
White
Black
Light Almond
TV1WTVSSW
TV1WTVSSBK
TV1WTVSSLA
Single Gang Recessed TV Box with Surge Protective and Low-Voltage Kit.
Includes Surge Protective Duplex Receptacle, Cat 5e Jack, F-Connector,
Blanks, and Wall Plates.
White
Black
Light Almond
TV3WW
TV3WBK
TV3WLA Three Gang Recessed TV Box — Frame Only.
White
Black
Light Almond
TV3WTVSSW
TV3WTVSSBK
TV3WTVSSLA
Three Gang Recessed TV Box with Surge Protective & Low-Voltage Kit.
Includes Surge Protective Duplex Receptacle, Cat 5e Jack, F-Connector,
Blanks, and Wall Plates.
White
Black
Light Almond
Single gang dimensions: 7.25" L x 4.875" W x 2.25" D
Three gang dimensions: 8.5" L x 4.875" W x 2.25" D
CATALOG NUMBER
CUBIC INCH
VOLUME DESCRIPTION L W D WIRE FILL (AWG)
METAL RECESSED TV BOXES
TV1WMTVSSWCC2 18 Single Gang Recessed TV Box with metal electrical box, White 8 5 3.5 17 #14; 15 #12; 14 #10
TV1WMLVKIT 18 Single Gang Recessed TV Box with metal electrical box and
low-voltage brush, White
8 5 3.5 17 #14; 15 #12; 14 #10
TV2MBK 37.5 Two Gang Commercial Metal Recessed TV Box, Black 6.9 7.6 3.5 9 #14; 8 #12; 7 #10
TV2MW 37.5 Two Gang Commercial Metal Recessed TV Box, White 6.9 7.6 3.5 9 #14; 8 #12; 7 #10
TV3WMTTVSSW 18 Three Gang Recessed TV Box with metal electrical box, White 8 5 3.5 17 #14; 15 #12; 14 #10
TV2MW TV1M
WWW.LEGRAND.US/PASSANDSEYMOUR
M-19
SLATER® PLASTIC BOXES
PASS & SEYMOUR
Slater® PlaStic BoxeS
Applications & Product Features
Quick/Click®
Fast, easy, and secure installations.
The unique, labor-saving Quick/Click® design secures the wiring
device quickly and easily. Simply push in the mounting screws with a
screwdriver and turn the screw one turn.
With Quick/Click® you cannot cross-thread or strip a device
mounting screw.
Wall boxes are tested for a minimum 100 lb. total device pull-out
resistance.
How Quick/Click® Works
The spring steel insert for quick mounting of switches and receptacles is a unique patented
feature. (Refer to illustration.) Note how the spring acts as a locking ratchet and allows the
screw to be pushed in and then tightened. The screw can only be released by unscrewing it
in the conventional fashion.
Application
Slater Plastic Boxes, the Contractor’s Choice designed with unique labor-
saving features, include a complete range of wall, ceiling, and old work
boxes for commercial and residential construction applications.
UL Classified
All Slater Plastic Boxes are Underwriters Laboratories Listed. Slater Plastic
Boxes shown that are UL Classified for Fire Resistance meet the requirements
of UL263 and have a two hour fire resistance rating. These boxes may be used
in fire resistant walls and ceilings. Installation information for Slater Plastic
Boxes Classified for Fire Resistance may be found in the UL Fire Resistance
Directory under category CEYY for Legrand/Pass & Seymour.
Quick/Entry®
Speeds installation by eliminating
need for tools
Another time-saving idea is Quick/
Entry®, a method that allows you to
push stripped or unstripped non-
metallic cable into a single gang
plastic box without removing knock-
outs. Jagged edges usually formed
in other boxes are eliminated. Staple
wire to stud within 8" of the box
(per NEC 314.17(c)] to complete
installation.
Location Ribs
Location Ribs enable the installer
to quickly and accurately maintain
a 1/2" offset. Dual ribs also make
it easy to keep the face of the box
parallel to the stud. The ribs are
.450" long to reduce the chance of
the box protruding beyond the 1/2"
sheetrock.They project .080" to span
the rounded edges of wood studs
but will not cause excessive
canting of the box when used with thinner wallboard.
Product Features – Exclusive Auto/Clamp®
Eliminates the need for separate cable clamps as well as the tools usually needed for installation.
Auto/Clamp® is available on all multigang boxes, old work boxes, 4" square boxes, and 3-1/4"
and 4" round ceiling boxes. A major installation advantage with Auto/Clamp® is that the clamp
is molded as an integral part of the box (there are no separate clamps and screws to install,
adjust or tighten). Each cable opening contains an Auto/Clamp®, therefore, the non-metallic
sheathed cable may be inserted where needed or where most convenient. Auto/Clamp® does
not take up as much room as conventional clamps, allowing more room for wire and devices –
another important feature.
To install the cable, insert stripped or unstripped non-metallic wire into the Auto/Clamp®
opening and pull through to the desired length. The cable is automatically secured and
the installation is complete. There are no other operations for the electrician to perform.
Contractors can look forward to saving time and money with every Auto/Clamp® plastic
box installation.
Note: no additional
cubic inch volume
deduction required.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-20
SLATER® PLASTIC BOXES
Screw Mount: Steel Stud Boxes – Application
Single, deep single, two, three, four gang, and 4" round ceiling boxes
come with combination Hex/Phillips washer head screws. They are
designed to save labor and speed installation in steel stud construction.
These innovative boxes are an alternative to bracket boxes, and can also
be used on wood studs. The specially designed drill point on the screw
rapidly penetrates medium gauge steel studs to securely fasten the box.
Locator ribs 0.450" long help align the box on the stud and insure correct
mounting depth.
Features
• Available in single, single deep, two, three and four gang, and 4" round
ceiling boxes.
• All multi-gang and ceiling boxes include exclusive Auto/Clamp® feature.
• Single gang include Quick/Entry® feature.
• Specially designed drill point rapidly penetrates medium gauge steel studs.
• Screws have combination Hex/Phillips washer heads.
• Quick/Click® feature on wall boxes offers fast and dependable installation
of devices.
• Can be used for steel, aluminum, or wood studs.
• Molded of high-impact thermoplastic.
• Locator ribs ensure proper alignment on stud and proper offset depth.
Slater® PlaStic BoxeS
Applications & Product Features
Wood & Steel Stud Bracket Boxes – Application
Single, two, three, four gang and 4" square wood and steel stud boxes
feature Quick/Click®, the labor-saving device that assures quick and
dependable installation of switches and receptacles. These high-impact
thermoplastic boxes can be mounted quickly to steel or aluminum studs
using the CT-1 Crimping Tool. They can also be mounted to wooden
studs with common nails or screws.
On the single, two, three and four gang steel stud boxes, a steel
mounting bracket is provided for mounting to the structural stud. The
non-mounting side of the two and four gang box has provisions for
attachment to a short section of stud (phantom stud), as shown in the
illustration below, to give additional rigidity to the installation. This
assembly may also be used without the phantom stud as a positioning
tab to automatically realign the box to the wallboard surface. The
brackets are 3/8" offset to accommodate 3/8" to 5/8" thick wallboard.
Features
• Available in single, two, three, four gang and 4" square boxes. Two, three and
four gang boxes and 4" square include exclusive Auto/Clamp® feature.
• Single gang include Quick/Entry® feature.
• Quick/Click® feature offers fast and dependable installation of devices
(single, two, three and four gang).
• Unique offset tab assures proper alignment to wall face. Available with
3/8" offsets.
• Can be used for steel, aluminum, or wooden studs. Can be installed on steel
studs with most standard crimping tools in addition to CT-1 Crimping Tool.
• Molded of high-impact thermoplastic.
WWW.LEGRAND.US/PASSANDSEYMOUR
M-21
SLATER® PLASTIC BOXES
PASS & SEYMOUR
Old Work Boxes provide fast, easy installation of an
electrical device in a finished (dry walled) area where
no box existed before. Old Work Boxes include the
Auto/Clamp® and Quick/Click® features for convenient,
labor-saving installations.
3.281"
3¼" Round 3¾" Round 4" Round
2.75"
3.5"
3.5"
3.281"
3.281"
1.8125"
3.281"
1.8125"
1.8125"
3.281"
1.8125"
1.8125"
1.8125"
Slater® PlaStic BoxeS
Applications & Product Features
Box Volume Required
TOTAL
CONDUCTOR
FILL COUNT
CUBIC INCHES REQUIRED FOR
#14 WIRE #12 WIRE #10 WIRE
1
2
3
4
5
2.0
4.0
6.0
8.0
10.0
2.25
4.50
6.75
9.00
11.25
2.50
5.00
7.50
10.00
12.50
6
7
8
9
10
12.0
14.0
16.0
18.0
20.0
13.50
15.75
18.00
20.25
22.50
15.00
17.50
20.00
22.50
25.00
11
12
13
14
15
22.0
24.0
26.0
28.0
30.0
24.75
27.00
29.25
31.50
33.75
27.50
30.00
32.50
35.00
37.50
16
17
18
19
20
32.0
34.0
36.0
38.0
40.0
36.00
38.25
40.50
42.75
45.00
40.00
42.50
45.00
47.50
50.00
In addition to counting 1 conductor fill allowance for each conductor,
1 additional allowance must be counted for all cable clamps, and 1
additional allowance for all ground conductors. 2 additional fill allowances
must be counted for each device strap. See NEC Section 314.16(b). The table
above defines box volume required for resulting total conductor fill count,
depending on AWG used.
Old Work Boxes
Application • Box designed so mounting strap of the device, with plaster
ears removed, fits flush, allowing use of standard depth wall
plate without unsightly gap between plate and wall surface.
• Swing out wing brackets permit installation of box in wall with
1-1/4" thick wallboard down to 1/8" thick paneling.
• New longer swing brackets have greater reach to clamp onto
oversized cutouts.
• Made of high impact thermoplastic.
• Combination slotted/Phillips head swing bracket screws.
• Include exclusive Auto/Clamp® feature.
• Wall boxes include exclusive Quick/Click® feature.
• Available in ceiling box versions.
Features
Standard Mounting Dimensions for Boxes
Standard Mounting Dimensions Round Boxes
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
M-22
SLATER® PLASTIC BOXES
WWW.LEGRAND.US/PASSANDSEYMOUR
N-1
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
PASS & SEYMOUR
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
RETROFIT BRACES
N-2
NEW CONSTRUCTION
SLIDES N-3
SPECIALTY BOXES
N-5
Retrofit Braces N-2
New Construction Slides N-3
Side, Direct & Shallow Boxes N-4
Specialty Boxes, Concrete Fan Support Boxes & Contractor Packs N-5
Specifications N-6
CONCRETE FAN
SUPPORT BOX
N-5
WWW.LEGRAND.US/PASSANDSEYMOUR
N-2
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
PASS & SEYMOUR
22200
Retrofit Braces
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
Retrofit Braces
A. Cast zinc self-leveling feet ease installation.
B. 25 cu. in. metal box included.
C. Heavy-duty hexagon brace expands from 16"-24",
perfect for existing ceiling applications.
D. Rotating dual supports accept both fan (#10-32
screws) and fixture (#8-32 screws) mounting.
Supports fans up to 70 lbs. and fixtures up to 150 lbs.
A
B
C
D
All devices listed on this page conform to NEMA OS1.
83300
22200 3330033310
CATALOG
NUMBER DESCRIPTION
VOLUME
CU. IN.
BOX
DEPTH
QUANTITY
PER
CARTON
UL LISTED MAX. WEIGHT
RATING AT 16" SPAN
FAN FIXTURE
RETROFIT BRACES
22200 Fan Brace – premium grade with deep box, rotating dual support
for 16-24” spans
25 cu. in. 2.5" 12 70 lbs. 150 lbs.
33310 Fan Brace – standard grade with standard box, single #10 support
for 16-24” spans
16 cu. in. 1.5" 12 70 lbs. 150 lbs.
33300 Fan Brace Only – use with standard octagon electrical box (33303),
single #10 support for 16-24” spans
N/A N/A 12 70 lbs. 150 lbs.
83300 Fan Brace — premium grade with standard box, rotating dual support
for 16-24” spans
16 cu. in. 1.5" 12 70 lbs. 150 lbs.
Features
• For spans from 16 to 24 inches.
• UL listed for fan and fixture support.
• Self-leveling feet.
• Maximum weight rating shown for
16” spans.
• Ground screw pre-installed.
• Boxes include top knockouts.
22200
WWW.LEGRAND.US/PASSANDSEYMOUR
N-3
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
PASS & SEYMOUR
65521 77702
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
New Construction Slides
55501 85502
All devices listed on this page conform to NEMA OS1.
Features
• For spans from 16 to 24 inches.
• UL listed for fan and fixture support.
• Peel-off tape for “hands-free”
installation.
• Maximum weight rating shown for
16” spans.
• Broadest line available, from shallow to
deep boxes.
• Pre-assembled with ground screw
installed.
• Boxes include top knockouts.
CATALOG
NUMBER DESCRIPTION
VOLUME
CU. IN.
BOX
DEPTH
QUANTITY
PER
CARTON
UL LISTED MAX. WEIGHT
RATING AT 16" SPAN
FAN FIXTURE
NEW CONSTRUCTION
55501* Slide Fan Support – heavy-duty slide with standard box, rotating
dual support for 16-24" spans
16 cu. in. 1.5" 24 70 lbs. 110 lbs.
65521 Slide Fan Support – same heavy-duty slide as 55501, but with 2.0"
deep box, to accommodate up to 1" firewall or soundproofed ceilings,
with rotating dual support for 16-24" spans, bulk packed
21 cu. in. 2.0" 25 70 lbs. 110 lbs.
85502 Slide Fan Support – heavy-duty slide with deep box, rotating dual
support for 16-24" spans
21 cu. in. 2.0" 24 70 lbs. 110 lbs.
77702 Slide Fan Support – heavy-duty slide with shallow box, rotating dual
support for 16-24" spans
8 cu. in. 5/8" 24 70 lbs. 110 lbs.
*Available in 12 Pack. Use Catalog Number 5550112.
WWW.LEGRAND.US/PASSANDSEYMOUR
N-4
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
PASS & SEYMOUR
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
Side, Direct & Shallow Boxes
All devices listed on this page conform to NEMA OS1.
7770555025
Features
• Direct mount to joist.
• UL listed for fan and fixture support.
• Peel-off tape for “hands-free”
installation.
• Broadest line available, from shallow
to deep boxes .
• Ground screw pre-installed.
• Supplied with hardware.
• Boxes include top knockouts.
CATALOG
NUMBER DESCRIPTION
VOLUME
CU. IN.
BOX
DEPTH
QUANTITY
PER
CARTON
UL LISTED MAX. WEIGHT
RATING AT 16" SPAN
FAN FIXTURE
SIDE MOUNT BOXES
55015 Side Mount Box – with rotating dual support 16 cu. in. 1.5" 24 70 lbs. 150 lbs.
55020* Side Mount Deep Box – with rotating dual support 21 cu. in. 2.0" 24 70 lbs. 150 lbs.
55025 Side Mount Deep Box – same as 55020 with 5 top knockouts and
rotating dual support
21 cu. in. 2.0" 24 70 lbs. 150 lbs.
DIRECT MOUNT BOXES
33303 Standard Electrical Box – for use with 33300 Brace 16 cu. in. 1.5" 36 N/A N/A
44400 Direct Mount Deep Box — with rotating dual support 25 cu. in. 2.5" 24 70 lbs. 150 lbs.
55528 Direct Mount Deep Box – with rotating dual support 21 cu. in. 2.0" 24 70 lbs. 150 lbs.
SHALLOW BOXES
77700 Direct Mount Shallow Box — with rotating dual support 8 cu. in. 5/8" 24 70 lbs. 150 lbs.
77705 Direct Mount Shallow Box — with rotating dual support 6.5 cu. in. 1/2" 24 70 lbs. 150 lbs.
*Available in 12 Packs. Use Catalog Numbers 55020012.
WWW.LEGRAND.US/PASSANDSEYMOUR
N-5
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
PASS & SEYMOUR
77706 15010 15040
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
Specialty Boxes, Concrete Fan Support Box & Contractor Packs
All devices listed on this page conform to NEMA OS1.
Features
• Direct mount to joist.
• UL listed for fan and fixture support.
• Peel-off tape for “hands-free”
installation.
• Maximum weight rating (slides and
braces) shown for 16” spans.
• Broadest line available, from shallow to
deep boxes.
• Ground screw pre-installed.
• Supplied with hardware.
• Boxes include top knockouts.
CATALOG
NUMBER DESCRIPTION
VOLUME
CU. IN.
BOX
DEPTH
QUANTITY
PER
CARTON
UL LISTED MAX. WEIGHT
RATING AT 16" SPAN
FAN FIXTURE
SPECIALTY BOXES
77706 Shallow Box – with wings for thick/ firewall ceilings, rotating
dual support
8 cu. in. 5/8" 24 70 lbs. 150 lbs.
15010* Drop Ceiling Support – single #10 support for 24-36" spans,
38" drop
16 cu. in. 1.5" 6 70 lbs. 150 lbs.
CONCRETE FAN SUPPORT BOX
15040 Concrete Box – single #10 support 47.5 cu. in. 4.0" 12 35 lbs. 50 lbs.
*UL Listed Fan/Fixture at 24" Span.
CATALOG
NUMBER DESCRIPTION
VOLUME
CU. IN.
BOX
DEPTH
QUANTITY
PER
CARTON BASE ITEM
UL LISTED MAX. WEIGHT
RATING AT 16" SPAN
FAN FIXTURE
BULK – CONTRACTOR PACK
65501 Slide Fan Support – heavy-duty slide with standard box,
rotating dual support for 16-24" spans
16 cu. in. 1.5" 25 55501 70 lbs. 110 lbs.
77708 Slide Fan Support – heavy-duty slide with shallow box,
rotating dual support for 16-24" spans
8 cu. in. 5/8" 24 77702 70 lbs. 110 lbs.
55500 Direct Mount Box 16 cu. in. 1.5" 24 33303 70 lbs. 150 lbs.
65505 Direct Mount Box – with rotating dual support 16 cu. in. 1.5" 50 70 lbs. 150 lbs.
67705 Direct Mount Shallow Box – with rotating dual support 6.5 cu. in. 1/2" 50 77705 70 lbs. 150 lbs.
WWW.LEGRAND.US/PASSANDSEYMOUR
N-6
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
PASS & SEYMOUR
Retrofit Braces
New Construction Slides
A
1.5"
4.0"
B
4.0"
2.5"
D
4.0"
2.0"
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
Specifications
COMPLIANCES
Compliant with UL514A
Compliant with NEC Section 422.18 and Section 314.27
Extension rating from 16 to 24 inches
Compliant with NEMA Standard OS1
COMPLIANCES
Compliant with UL514A
Compliant with NEC Section 422.18 and Section 314.27
Extension rating from 16 to 24 inches
Compliant with NEMA Standard OS1
MATERIALS OF CONSTRUCTION
Hex Tube 16 Gauge Extruded Steel with Chrome Plating
Square Tube 16 Gauge Extruded Steel with Chrome Plating
Die Cast Feet Die Cast Zinc
Plastic Feet Injection Molded Plastic
CATALOG
NUMBER DESCRIPTION
BOX INCLUDED
WEIGHT RATING (LBS.)
16" SPANS >16-24" SPANS
TYPE DEPTH CU. IN. FAN FIXTURE FAN FIXTURE
22200 Premium Brace with deep box B 2.5 25 70 150 35 50
33300 Premium Brace only None 70 150 35 50
33310 Standard Brace with standard box A 1.5 16 70 150 35 50
83300 Premium Brace with standard box A 1.5 16 70 150 35 50
MATERIALS OF CONSTRUCTION
Slide Parts 16 Gauge Stamped Steel
Inner Slide 14 Gauge Stamped Steel
CATALOG
NUMBER DESCRIPTION
BOX INCLUDED
WEIGHT RATING (LBS.)
16" SPANS >16-24" SPANS
TYPE DEPTH CU. IN. FAN FIXTURE FAN FIXTURE
55501 Heavy-Duty Slide with standard box A 1.5 16 70 110 35 50
65501 Heavy-Duty Slide with standard box A 1.5 16 70 110 35 50
65521 Heavy-Duty Slide with deep box D 2.0 21 70 110 35 50
77702 Heavy-Duty Slide with shallow box C 0.625 8 70 110 35 50
77708 Heavy-Duty Slide with shallow box C 0.625 8 70 110 35 50
85502 Heavy-Duty Slide with deep box D 2.0 21 70 110 35 50
C
4.0"
.625"
WWW.LEGRAND.US/PASSANDSEYMOUR
N-7
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
PASS & SEYMOUR
Side, Direct, Shallow & Specialty Boxes
Single #10 Support Rotating Dual Support
REIKER CEILING FAN & FIXTURE SUPPORT PRODUCTS
Specifications
COMPLIANCES
Compliant with UL514A
Compliant with NEC Sections 422.18 and 314.27
Compliant with NEMA Standard OS1
MATERIALS OF CONSTRUCTION
Box Steel 16 Gauge Stamped Steel
CATALOG NUMBER WIRE CLAMP TYPE
15010 Metal
15040 Plastic
22200 Plastic
33303 Metal
33310 Plastic
44400 Plastic
55015 Metal
55020 Plastic
55025 Plastic
55501 Metal
55528 Plastic
65501 Metal
65521 Metal
77700 Plastic
77702 Plastic
77705 Plastic
77706 Plastic
83300 Plastic
CATALOG
NUMBER DESCRIPTION BOX CAPACITY WEIGHT RATING
33303 Electrical box only 16 cu. in. N/A
44400 Direct Mount with rotating dual support 25 cu. in. Up to 70# Fan/150# Fixture
55015 Side Mount with rotating dual support 16 cu. in. Up to 70# Fan/150# Fixture
55020
55025
Side Mount with rotating dual support 21 cu. in. Up to 70# Fan/150# Fixture
55528 Direct Mount with rotating dual support 21 cu. in. Up to 70# Fan/150# Fixture
77700 Direct Mount shallow box with rotating dual support 8 cu. in. Up to 70# Fan/150# Fixture
77705 Direct Mount shallow box with rotating dual support 6.5 cu. in. Up to 70# Fan/150# Fixture
77706 Direct Mount with u-bracket for firewalls with rotating dual support 8 cu. in. Up to 70# Fan/150# Fixture
WWW.LEGRAND.US/PASSANDSEYMOUR
O-1
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
INDUSTRIAL GRADE
WEATHERPROOF
COVERS
WHILE-IN-USE
COVERS
We offer a complete line of durable, easy-to-install, and
environment-resistant weatherproof products — for first-rate
performance in worst-case applications.
O-2O-12
THERMOPLASTIC
COVERS O-9
While-In-Use Covers O-2
Cast Weatherproof Covers O-5
Thermoplastic Covers O-9
Heavy Cast Aluminum Covers O-13
Weatherproof Stainless Steel Covers O-14
Cast Weatherproof Boxes & Covers O-15
Weatherproof Boxes O-16
Weatherproof Round Boxes & Kits O-19
Cluster & Blank Covers O-20
Lighting Accessories & Swimming Pool
Junction Box O-21
Vapor Proof Lighting O-22
Gaskets & Accessories O-23
NEC Compliance O-24
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-2
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
A
WPG1 and WPG2
Two sizes: 1.96" and 2.32" diameters to cover 15A/20A
Straight Blade and 15A/20A/30A Turnlok® devices. Covers
fit all competitive flanged inlets and outlets.
Stainless steel mounting screws resist corrosion.
A. Pre-attached gaskets for easy installation and tight
seal to panel or weatherproof box — with no misaligned
or collapsed gaskets.
B. Tamper-proof hinge features permanent, locked-in
pins for added security.
C. Unbreakable glass-filled polycarbonate construction
withstands years of job site abuse and harsh
environmental exposure. Stainless steel mounting
screws resist corrosion.
D. Molded-in label area for pre-printed or handwritten
labels identifying circuits, ratings, and other data.
E. Lockable “bullnose” for OSHA Lockout/Tagout
compliance.
WPG1 and WPG2
Thermoplastic/Heavy Cast Aluminum Covers
B
H
C
J
E
DI
A
F
G
Snap-in device plates require no
tools to install and won’t fall out. See
chart for plates provided with each
catalog number.
WIUC10SC
The 2011 NEC® Section 406.9(B)(1) requires that all 15
and 20 Amp, 125 and 250 Volt outdoor receptacles in wet
locations have a cover that is weatherproof — even when
a plug is inserted into the receptacle.
A. Exclusive cord flap gasket inhibits water splash from
driving rain or sprinklers.
B. Sturdy polycarbonate construction resists impacts and
harsh weather.
C. Patented corner hinge and cord opening allow vertical
or horizontal installation.
D. Exclusive WaterShed™ Channel keeps water moving
outside while cord flap keeps the inside dry.
E. Preapplied gasket easier to install, saves time, won’t
get lost or damaged.
F. Paintable, textured finish hides scratches.
G. Patented trigger latch opens easily with one finger,
yet is lockable to prevent tampering.
H. Sturdy, molded-in hinge withstands hard use.
I. Installs without removing electrical device, thanks to
patented, keyed mounting holes.
J. Roomy interior provides space for plugs and
cord bends.
Shallow profile models have 1" shorter top lid than
prior models.
WIUC10SC
While-In-Use Cover
D
E
B
C
WWW.LEGRAND.US/PASSANDSEYMOUR
O-3
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
While-In-Use Covers
Features
•Comply with 2011 NEC®Section 406.9 (B)(1) for
wet location covers, and conform to NEMA 3R.
• Covers are self-closing as required by
UL514C42.3.
•Covers mount vertically or horizontally.
• Body, cover, and plates made of polycarbonate.
• Gasket made of closed cell foam, neoprene
blend regular density, UL Rated HBF.
•Mounting screws made of 302 stainless steel.
• Single receptacle plate available in 1.405"
and 1.595" openings.
•Deep model available for 20A locking plugs.
• Shallow covers accommodate up to 14/3 AWG
extension cords.
•New trigger latch opens easily with one finger.
SINGLE GANG COVERS
5.34"
7.40"
SINGLE GANG
3.00"
4.00"
SINGLE GANG
SHALLOW
3.00"
3.00"
SINGLE GANG
DEEP
3.00"
5.00"
TWO GANG COVER
4.47"
4.00"
7.08"
7.71"
CATALOG NUMBER
BOTTOM
COLOR
TOP
COLOR DEVICE PLATES PROVIDED
PLATE
WIDTH
PACKAGE
QUANTITY
3RD PARTY
COMPLIANCE
SINGLE GANG
WIUC10GL Gray Gray
WIUC10CL Gray Clear 23⁄8" 12 •
WIUC10WL White White
SINGLE GANG SHALLOW
WIUC10SG Gray Gray
23⁄8" 14 •
WIUC10SC Gray Clear
WIUC10SW White White
WIUC10SB White Clear
SINGLE GANG DEEP
WIUC10DGL Gray Gray
WIUC10DCL Gray Clear 23⁄8" 9 •
WIUC10DWL White White
TWO GANG
WIUC20GL Gray Gray
WIUC20CL Gray Clear 2" 8 •
WIUC20WL White White
EXTRA PLATE KITS
WIU10PK Gray Single Gang
Plate Kit 23⁄8"•
WIU10PKW White
WIU20PK Gray Two Gang
Plate Kit 2" •
WIU20PKW White
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-4
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Flush Mount While-In-Use Covers
Features
•One-piece box and cover design provides fast,
easy installation.
•Box serves as a template for a rectangular
wall cut-out.
•28 cubic-inch box provides ample space for
GFCIs; makes wiring easy.
•Accepts standard TP wall plates and devices
for virtually any application.
•One catalog style installs easily in most
exterior wall types.
•Mounting flange features large open areas,
cross-hatching, and tapered edges to enhance
stucco adherence and mounting.
•Corner hinge for either vertical or horizontal
mounting without field modifications.
•Easy-opening, one-finger latch.
•Factory installed cord-opening gasket to keep
water and insects out.
•Auto clamps and standard knock-outs simplify
installation.
•No caulking or gasket assembly required.
•Replaceable cover and frame assembly does
not require disruption of siding materials.
6.25"
8.0"
5.25"
WIUFC10S
For description of Quick/Click® feature, see Page M-19.
WIUFC10W
6.25"
8.0"
5.25"
CATALOG NUMBER DESCRIPTION COLOR
SINGLE GANG
WIUFC10S While-in-use cover and box assembly Smoke
WIUFC10SQC While-in-use cover and box assembly with Quick/Click®Smoke
WIUFC10W While-in-use cover and box assembly White
WIUFC10WQC While-in-use cover and box assembly with Quick/Click®White
WWW.LEGRAND.US/PASSANDSEYMOUR
O-5
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Cast Weatherproof Covers
Universal Cast Weatherproof Covers
can serve six applications
with a combination of
inserts and one gang
horizontal or
vertical mounting.
WIUCAST1
A. Self-closing lids as required by UL514C42.3.
B. Heavy-duty die-cast aluminum.
C. Exclusive cord flap gasket inhibits water splash from
driving rain or sprinklers.
D. Lockable cover accepts a standard sized padlock.
E. Patented corner hinge and cord opening allow vertical
or horizontal installation.
F. Preapplied gasket easier to install, saves time, won’t
get lost or damaged.
Meets 2011 NEC® Section 406.9(B)(1) suitable for
wet locations.
All components baked-on electrostatic, polyester,
powder paint coated prior to assembly for superior
corrosion resistance.
WIUCAST1
Cast Weatherproof Cover
CF
D
BE
A
WIUCAST1
4.875"
3.1875"
7.5"
4.625"
Zinc plated screws, and
three metal mounting
plates are supplied.
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY
COMPLIANCE
UNIVERSAL CAST WEATHERPROOF COVERS
CA1U2681G One Gang Cover with Metal
Device Plates for #26, #8 and
#1 Openings (One Each)
Gray •
CA2U2681G Two Gang Cover with Metal
Device Plates for #26, #8 and
#1 Openings (Two Each)
Gray •
Features
•Featuring one and two gang universal covers.
•Broad line of one gang covers for receptacles and power outlets.
•Heavy-duty die-cast zinc. Stainless steel springs.
•Baked-on electrostatic, polyester, powder paint for superior scratch and
corrosion resistance.
•Covers comply with 2011 NEC®Section 406.9(A).
*WIUCAST1 accepts WIU10PK inserts (see Page O-3).
CATALOG NUMBER COLOR DEVICE PLATES PROVIDED
PACKAGE
QUANTITY
3RD PARTY
COMPLIANCE
SINGLE GANG
WIUCAST1* Gray 12 •
WIUCAST2 Gray 10 •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-6
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Cast Weatherproof Covers
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY
COMPLIANCE
ONE GANG
CA7GV Single Receptacle Vertical –
1 Self-Closing Lid
Gray
CA8GH
CA8WH
Duplex Receptacle Horizontal –
2 Self-Closing Lids
Gray
White
•
CA8GJ Oversized Duplex Receptacle Horizontal –
2 Self-Closing Lids
Dimensions: H - 4.52", L - 4.58"
Gray •
CA8GVFS
CA8WV
Duplex Receptacle Vertical –
1 Self-Closing Lid
5 Screw Mounting
Gray
White
CA721G Power Outlet – 1.625 Diameter Vertical –
1 Self-Closing Lid
Gray •
CA723G Power Outlet – 2.125 Diameter Vertical –
1 Self-Closing Lid
Gray
CA8WVFS Duplex Receptacle Vertical –
1 Self-Closing Lid
4 Screw Mounting
White •
Horizontal
2 Self-Closing Lids
1.50"
4.57"
2.90"
Vertical
1 Self-Closing Lid
2.81"
4.56"
CA1U2681G
Horizontal
4.50"
2.75"
CA2U2681G
1.75"
4.60"
4.60"
2.75"
4.50"
CA1U2681G
Vertical
WWW.LEGRAND.US/PASSANDSEYMOUR
O-7
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Cast Weatherproof Covers
Features
•Broad line of single gang covers for switches
and GFCIs.
•Baked-on electrostatic, polyester, powder paint for
superior scratch and corrosion resistance.
•Heavy-duty die-cast zinc.
• Stainless steel springs.
•Covers comply with 2011 NEC Section 406.9(A).
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY
COMPLIANCE
SELFCLOSING COVER  MOTOR BASE  HORIZONTAL
3778 Single with 15A 125V Recessed Flanged Inlet. Gray •
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY
COMPLIANCE
ONE GANG
CA26GH
CA26WH
Decorator or GFCI
Horizontal – 1 Self-Closing Lid
Gray
White
•
•
CA26GV
CA26WV
Decorator or GFCI
Vertical – 1 Self-Closing Lid
Gray
White
•
CA1G Vertical – 1 Self-Closing Lid with Inserts
Accommodates Toggle Switch +1.750 Power Outlet
Gray •
CA1GS Toggle with 15A 120VAC Single Pole
Toggle Switch (Cat. # 660)
Included Vertical – 1 Self-Closing Lid
Gray •
CA1GL Toggle Switch Cover – with Actuating Lever –
Mounts Directly Over Switch
Gray •
Vertical
1 Self-Closing Lid
4.56"
2.81"
Horizontal
1 Self-Closing Lid
2.80"
4.56"
CA1GL
2.80"
4.5"
3778
4.5"
3.247"
1.850"
2.750"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-8
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Cast Weatherproof Covers
Two Gang Cover
1.78"
4.58"
4.52"
Two Gang Cover
4 Screw Mounting
1.78"
4.58"
3.75"
4.52"
3.25"
Features
•Broad line of two gang covers for switches,
receptacles, GFCIs, and power outlets.
•Baked-on electrostatic, polyester, powder paint for
superior scratch and corrosion resistance.
•Heavy-duty die-cast zinc.
• Stainless steel springs.
•All covers have 2 self-closing lids.
•Covers comply with 2011 NEC®Section 406.9(B)(1).
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY
COMPLIANCE
TWO GANG
CA82G
CA82W 2 Duplex Receptacles Gray
White •
CA72G 2 Single Receptacles Gray •
CA78G 1 Single/1 Duplex 4 Screw Mounting Gray •
CA726G 1 Single/1 Decorator 4 Screw Mounting Gray •
CA262G 2 Decorator 4 Screw Mounting Gray •
CA268G 1 Decorator/1 Duplex 4 Screw Mounting Gray •
CA17G 1 Toggle/1 Single 4 Screw Mounting Gray •
CA18G 1 Toggle/1 Duplex 4 Screw Mounting Gray •
CA126GRY 1 Toggle/1 Decorator 4 Screw Mounting Gray •
CA2G
CA2W
2 Toggles
4 Screw Mounting
Gray
White •
CA2GS 2 Toggles with 2 15A 120VAC
Single Pole Toggle Switches (Cat. # 660) Included
4 Screw Mounting
Gray •
WWW.LEGRAND.US/PASSANDSEYMOUR
O-9
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Thermoplastic Covers
3700
4.75"
2.813"
1.686"
Features
•Broad line of single gang
covers for switches,
receptacles, GFCIs and
power outlets.
•Clear polycarbonate lid
with reinforced
thermoplastic base.
•Covers comply with 2011
NEC®Section 406.9(A).
CATALOG NUMBER DESCRIPTION
GASKET
THICKNESS
3RD PARTY COMPLIANCE
SELFCLOSING COVERS  CLEAR POLYCARBONATE LID VERTICAL TWO SCREW MOUNTING  PADLOCKABLE
3710
3710WH
Duplex RV use Gray Base/Clear Cover
White Base/White Cover 3/8" • •
3720
3720WH
Single Receptacle 1.40" Diameter or Toggle
Switch (Toggle Switch Insert Included),
Gray Base/Clear Cover
White Base/White Cover
3/8" • •
3723
3723WH
Decorator RV use Gray Base/Clear Cover
White Base/White Cover
3/8" • •
SELFCLOSING COVERS  CLEAR POLYCARBONATE LID VERTICAL FOUR SCREW MOUNTING  PADLOCKABLE
3710FS Duplex Receptacle Gray Base 3/32" • •
3720FS Single Receptacle 1.40" Diameter or Toggle
Switch (Toggle Switch Insert Included),
Gray Base
3/32" • •
3723FS Decorator or GFCI Gray Base 3/32" • •
3722FS Power Outlet, 1.60" Diameter Gray Base 3/32" • •
3724FS Power Outlet, 1.73" Diameter Gray Base 3/32" • •
3795 Power Outlet, 2.13" Diameter Gray Base 3/8" • •
SELFCLOSING COVERS  CLEAR POLYCARBONATE LID HORIZONTAL TWO SCREW MOUNTING
3700 Duplex Receptacle Gray Base 3/32" • •
3703 Decorator Gray Base 3/32" • •
3703T Decorator RV Use Gray Base 3/8" • •
3703TCW Decorator RV Use Colonial White Base 3/8" • •
SELFCLOSING COVERS  CLEAR POLYCARBONATE LID HORIZONTAL FOUR SCREW MOUNTING
3700FS Duplex Receptacle Gray Base 3/32" • •
3703FS Decorator Receptacle Gray Base 3/32" • •
3720FS
3"
4.938"
1.125"
3723FS
3"
4.938"
1.125"
3710
3"
4.938"
1.125"
3703
4.750"
2.813"
1.688"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-10
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Thermoplastic Covers
FBOX13780 Series
4.68"
2.8"
Features
•Broadest line in the industry.
•All covers are self-closing with two flip lids.
•Covers comply with 2011 NEC®Section 406.9(A).
CATALOG NUMBER DESCRIPTION
GASKET
THICKNESS
3RD PARTY COMPLIANCE
OUTDOOR ASSEMBLIES AND SPECIAL COVERS FOR MOBILE HOMES, MANUFACTURED AND MODULAR HOUSING,
AND RV USE  HORIZONTAL INSTALLATION WITH TWO SELFCLOSING FLIP LIDS
3780SCFBX 3232 Duplex Receptacle, Gasket and Flanged Box,
Gray with Black Gasket
1/8" •
3780SCFBXCW 3232 Duplex Receptacle, Gasket and Flanged Box,
Colonial White with Black Gasket 1/8" •
3780SCFBXWH 3232 Duplex Receptacle, Gasket and Flanged Box,
White with Black Gasket
1/8" •
3780SCMH 3232 Duplex Receptacle & Gasket,
Gray with Black Gasket
3/8" •
3780SCMHCW 3232 Duplex Receptacle & Gasket,
Colonial White with Black Gasket
3/8" •
3780SCMHBG 3232 Duplex Receptacle & Gasket,
Beige with Black Gasket
3/8" •
3780SCMHWH 3232 Duplex Receptacle & Gasket,
White with Black Gasket
3/8" •
3780SCLV 3/8" Round Openings for 2 Coaxial Connections,
Gray with Black Gasket
1/8" • •
3780SCLVBG 3/8" Round Openings for 2 Coaxial Connections,
Beige with Black Gasket
1/8" • •
3780SCLVCW 3/8" Round Openings for 2 Coaxial Connections,
Colonial White with Black Gasket
1/8" • •
3780SCLVWH 3/8" Round Openings for 2 Coaxial Connections,
White with Black Gasket
1/8" • •
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
FLANGED BOXES FOR HORIZONTAL OR VERTICAL INSTALLATION
FBOX1 Flanged Box – 18.5 Cubic Inch Minimum Opening
Size 2.5" x 4.1" Depth 3.0"
Gray •
FBOX1WH Flanged Box – 18.5 Cubic Inch Minimum Opening
Size 2.5" x 4.1" Depth 3.0" White •
WWW.LEGRAND.US/PASSANDSEYMOUR
O-11
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Thermoplastic Covers
3780 Series
4.68"
2.8"
3726 Series 3760
2.785"
4.5"
Features
•Broadest line in the industry.
•Covers comply with 2011 NEC®Section 406.9(A).
•3780 series have two flip lids.
•3726 series have a single flip lid.
CATALOG NUMBER DESCRIPTION
GASKET
THICKNESS
3RD PARTY COMPLIANCE
HORIZONTAL SELFCLOSING FLIP LIDS
3780SC Duplex, Gray with Black Gasket 1/8" • •
3780SCCW Duplex, Colonial White with Black Gasket
1/8" • •
3780SCWH Duplex, White with Black Gasket 1/8" • •
3780SCBG Duplex, Beige with Black Gasket 1/8" • •
3780SCCWT Duplex, Colonial White with Black Gasket 3/8" • •
3726SC Decorator or GFCI, Gray with Black Gasket 3/32" • •
3726SCBG Decorator or GFCI, Beige with Black Gasket 3/32" • •
3726SCCW Decorator or GFCI, Colonial White Black
Gasket
3/32" • •
3726SCWH Decorator or GFCI, White Black Gasket 3/32" • •
HORIZONTAL SINGLE COVER SELFCLOSING FLIPLID
3770SC Single Receptacle 1.405" Diameter, Gray 3/32" • •
VERTICAL SINGLE COVER THREE POSITION FLIPLID CLOSED, OPENED 90° OR OPENED 180°
3760 Single Receptacle 1.563" Diameter, Gray 3/32" • •
3763 Cover with 5251-I Single Receptacle,
15A-125V, Gray
3/32" •
HORIZONTAL REINFORCED THERMOPLASTIC TWO POSITION FLIPLIDS, CLOSED OR OPENED 90°
3780 Duplex, Gray with Black Gasket, 2 Flip Lids 1/8" • •
2.875"
4.688"
.945"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-12
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Thermoplastic/Heavy Cast Aluminum Covers Specification Grade
WPG1
4.57"
3.25"
.19" (4 HOLES)
2.85"
1.88"
3.57"
4600*
7.19"
6.59"
INDUSTRIAL GRADE WEATHERPROOF COVERS
Features
• Unbreakable glass-filled polycarbonate
construction to withstand years of job site
abuse and harsh environmental exposure.
Stainless steel mounting screws also resist
corrosion.
• Covers comply with 2011 NEC®Section 406.9(A).
•Molded-in label area (2.8 sq. in.) for pre-
printed or handwritten labels for identification
of circuits, ratings, and other application data.
• WPG1 and WPG2 have lockable “bullnose” for
OSHA locktag/tagout compliance.
•Covers fit all competitive inlets and outlets.
•Pre-attached gaskets for easy installation and
tight seal to panel or weatherproof box – with
no misaligned or collapsed gaskets.
•Tamper-proof hinge features permanent,
locked-in pins for added security.
Features
•Adapter, frame, and cover are heavy
cast aluminum.
•No. 8-32 screws hold assembly firmly in place.
• Covers comply with 2011 NEC®Section 406.9(A).
•Mortar keys provide positive holding means
within wall.
•Neoprene gasket seals cover to frame.
Moisture and dust cannot enter enclosure.
•Two keys provided for lock.
•Purchase enclosure and mounting plate
separately
•Mounts on 4" or 4-11/16" box.
7770
HEAVY CAST ALUMINUM COVERS – FLUSH ENCLOSURES
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
MORTAREDIN APPLICATIONS
4600* Enclosure Only, without Mounting Plate Gray • •
46001P Mounting Plate for Toggle Switch Gray • •
46007P Mounting Plate for Single Receptacle Diameter: 2.156" Gray • •
46008P Mounting Plate for Duplex Receptacle Gray • •
460026P Mounting Plate for Decorator/GFCI Gray • •
4609 Replacement Key for Enclosure • •
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
THERMOPLASTIC WEATHERPROOF COVERS FOR FLANGED INLET/OUTLET
WPG1 1.96" Diameter Opening to Accommodate 15/20A Straight Blade, 15A
Turnlok, 20403 Power Interrupter Gray • •
WPG2 2.32" Diameter Opening to Accommodate 20A Turnlok, 30A Turnlok Gray • •
THERMOPLASTIC WEATHERPROOF COVER FOR SINGLE RECEPTACLES
7770 2.38" Diameter Opening to Accommodate 50A Turnlok (non-lockout) Yellow •
3.00"
3.281"
4.60"
2.35"
*Note: All locks keyed the same.
WWW.LEGRAND.US/PASSANDSEYMOUR
O-13
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Heavy Cast Aluminum Covers Specification Grade
Features
•Extremely durable for hard-use institutional applications.
• Spring-loaded covers close automatically when plugs
are removed.
•Die-cast copper-free aluminum construction.
• Stainless steel springs.
• Screws and spring covers are chrome-plated brass.
•Baked-on lacquer finish.
•Heavy rubber gaskets provide positive seal.
•All covers below are for 4 screw mounting only.
•Covers comply with 2011 NEC Section 406.9(A).
4512, 7420, 3393
2.813"
4.563"
.75"
4510
4.563"
2.813"
.75"
4511
4.56"
2.81"
.75"
3796, 3797
4.56"
4.5"
1.20"
Features
•Heavy-duty die cast aluminum covers and plate.
•3/32" gasket included.
• Stainless steel mounting screws.
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
HEAVY CAST ALUMINUM COVERS  ONE GANG
4510 Duplex Receptacle, 2 Doors, Horizontal Gray • •
4511 Decorator/GFCI, Horizontal Gray • •
4512 Decorator/GFCI, Vertical Gray • •
7420 1 Gang Power Outlet, 1.593" max. Diameter, Vertical Gray • •
3393 1 Gang Power Outlet, 1.750" max. Diameter, Vertical Gray • •
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
MULTIGANG COVERS  OUTDOOR
3796 2 Gang Power Outlet (2.156" Diameter Opening) Gray • •
3797 2 Gang Power Outlet (2.656" Diameter Opening) Gray • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-14
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Weatherproof Stainless Steel Covers Specification Grade
WP13
4.633" 3.281"
2.875"
Features
•Covers comply with 2011 NEC Section 406.9(A).
•Plate is Type 302 Stainless Steel for corrosion resistance.
•Ideal for hard-use and corrosive applications.
•Aesthetically pleasing.
Features
• Covers comply with 2011 NEC Section 406.9(A).
•Plate is Type 302 Stainless Steel for corrosion resistance.
•Transparent silicone rubber mat seals plate and opening
from contamination.
• Switch easily actuated through flexible silicone bubble.
• Silicone mat maintains pliability from -100° F to +250° F.
•Mat is resistant to grease, water, steam, detergents, aging,
and ozone.
4515
4.50"
2.75"
2.375"
1.375"
4515FS
4.50"
3.255"
2.750"
1.867"
4516
4.50"
3.812"
2.750"
1.375"
4517
4.50"
2.750"
1.872"
3.255"
For Dustproof Stainless Steel Covers, see Page P-29.
CATALOG NUMBER DESCRIPTION
3RD PARTY COMPLIANCE
STAINLESS STEEL COVERS
WP13
WP13FS
1 Gang Blank (Box Mounted) Gasketed
For 4 Screw Mounting
•
•
•
•
WP23 2 Gang Blank (Box Mounted) Gasketed • •
*For use with both 4516 and 4517.
CATALOG NUMBER
MAT
CATALOG NUMBER DESCRIPTION
3RD PARTY COMPLIANCE
STAINLESS STEEL COVERS
4515 4515GAS Round mat, mounts to Standard Switch Box • •
4515FS 4515FSGAS Round mat, 4 Screw Box mounting • •
4516 4516GAS* Rectangular mat, mounts to Standard Switch Box
(includes #348 strap for Despard switches)
• •
4517 Rectangular mat, 4 Screw Box mounting • •
WWW.LEGRAND.US/PASSANDSEYMOUR
O-15
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Cast Weatherproof Boxes & Covers
D
WPB23
C
A
B
CA8GH
A. Stainless steel springs.
B. Baked-on electrostatic, polyester, powder paint, for
superior scratch- and corrosion-resistant finish.
C. Heavy die-cast aluminum.
D. Available in 1/2" and 3/4" hub sizes, from 3 to 6 hole
configurations.
Product assembled after painting for complete
corrosion resistance.
Covers available in 1 & 2 gang in a variety of
configurations.
No rough edges.
Available in gray, white and bronze.
Available in standard and deep configurations.
UL Listed, for wet and/or damp locations with
appropriate cover.
Boxes available in 1, 2 & 3 gang.
CA8GH and WPB23
Cast Weatherproof Boxes and Covers
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-16
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Weatherproof Boxes
Single Gang Box
4.63"
2.09" 2.86"
Features
• Wide range of sizes, depths, and gangs.
•Baked-on electrostatic, polyester, powder paint
for superior scratch and corrosion resistance.
•2 closure plugs and mounting lugs furnished
with all boxes.
• UL Listed for wet and/or damp locations with
appropriate cover.
•Designed for both interior and exterior
applications.
• Will accept standard 4 screw mounting covers
and single gang weatherproof covers.
• Simply strike desired knockout studs with a
sharp hammer blow for clean mounting holes.
•Heavy die-cast aluminum.
CATALOG NUMBER DESCRIPTION
WEATHERPROOF LOCKING INLET KIT FOR GENERATOR APPLICATIONS
L1430FIKIT Kit includes 30A Locking Gray Flanged Inlet L1430FI, Weatherproof Cover
WPG2, and Weatherproof Box WPB33 with 3/4" knockout holes.
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
SINGLE GANG BOXES
WPB23
WPB23W
3 Hole 1/2", 18.5 Cu. In.
(1 Hole Each End, 1 Hole in Back)
Gray
White
• •
WPB33
WPB33W
3 Hole 3/4", 18.5 Cu. In.
(1 Hole Each End, 1 Hole in Back)
Gray
White
• •
WPB24
WPB24W
4 Hole 1/2", 18.0 Cu. In.
(2 Holes One End, 1 Hole Other End, 1 Hole in Back)
Gray
White
• •
WPB34
WPB34W
4 Hole 3/4", 18.0 Cu. In.
(2 Holes One End, 1 Hole Other End, 1 Hole in Back)
Gray
White
• •
WPB25
WPB25W
5 Hole 1/2", 17.0 Cu. In.
(2 Holes Each End, 1 Hole in Back)
Gray
White
• •
WPB35 5 Hole 3/4", 17.0 Cu. In. (2 Holes Each End, 1 Hole in Back) Gray • •
WPB26
WPB26W
5 Hole 1/2", 17.0 Cu. In.
(1 Hole Each End, 1 Hole Each Side, 1 Hole in Back)
Gray
White
• •
WPB36 5 Hole 3/4", 16.8 Cu. In. (1 Hole Each End, 1 Hole Each Side, 1 Hole in Back) Gray • •
WWW.LEGRAND.US/PASSANDSEYMOUR
O-17
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Weatherproof Boxes
Two Gang Box
4.50"
2.24" 4.50"
Features
• Wide range of sizes, depths, and gangs.
•Baked-on electrostatic, polyester, powder paint for superior scratch
and corrosion resistance.
•2 closure plugs and mounting lugs furnished with all boxes.
• UL Listed for wet and/or damp locations with appropriate cover.
•Designed for both interior and exterior applications.
• Will accept standard two gang weatherproof covers.
• Simply strike desired knockout studs with a sharp hammer blow for
clean mounting holes.
•Heavy die-cast aluminum.
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
TWO GANG BOXES
WPB232
WPB232W
2 Gang – 3 Hole 1/2", 30.5 Cu. In.
(1 Hole Each End, 1 Hole in Back)
Gray
White
• •
WPB332 2 Gang – 3 Hole 3/4", 30.5 Cu. In. (1 Hole Each End, 1 Hole in Back) Gray • •
WPB242 2 Gang – 4 Hole 1/2", 30.5 Cu. In.
(2 Holes One End, 1 Hole Other End, 1 Hole in Back)
Gray • •
WPB342
WPB342W
2 Gang – 4 Hole 3/4", 30.5 Cu. In.
(2 Holes One End, 1 Hole Other End,
Gray
White
• •
WPB252 2 Gang – 5 Hole 1/2", 30.5 Cu. In. (2 Holes Each End, 1 Hole in Back) Gray • •
WPB352 2 Gang – 5 Hole 3/4", 30.5 Cu. In. (2 Holes Each End, 1 Hole in Back) Gray • •
WPB262 2 Gang – 5 Hole 1/2", 30.5 Cu. In.
(1 Hole Each End, 1 Hole Each Side, 1 Hole in Back)
Gray • •
WPB362 2 Gang – 5 Hole 3/4", 30.5 Cu. In.
(1 Hole Each End, 1 Hole Each Side, 1 Hole in Back)
Gray • •
WPB272 2 Gang – 6 Hole 1/2", 30.5 Cu. In.
(2 Holes One End, 1 Hole Other End, 1 Hole Each Side, 1 Hole in Back)
Gray • •
WPB276 2 Gang – 6 Hole 1/2", 30.5 Cu. In.
(3 Holes One Side, 2 Holes Other Side, 1 Hole in Back)
Gray • •
WPB282 2 Gang – 7 Hole 1/2", 30.5 Cu. In.
(2 Holes Each End, 1 Hole Each Side, 1 Hole in Back)
Gray • •
WPB382 2 Gang – 7 Hole 3/4", 30.5 Cu. In.
(2 Holes Each End, 1 Hole Each Side, 1 Hole in Back)
Gray • •
WPB287 2 Gang – 7 Hole 1/2", 30.5 Cu. In. (3 Holes Each Side, 1 Hole in Back) Gray • •
WPB387 2 Gang – 7 Hole 3/4", 30.5 Cu. In. (3 Holes in Each Side, 1 Hole in Back) Gray • •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-18
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Weatherproof Boxes
Features
• Wide range of sizes, depths, and gangs.
•Baked-on electrostatic, polyester, powder paint for superior
scratch and corrosion resistance.
•2 closure plugs and mounting lugs furnished with all boxes.
• UL Listed for wet and/or damp locations with appropriate cover.
•Designed for both interior and exterior applications.
• Simply strike desired knockout studs with a sharp hammer blow
for clean mounting holes.
•Heavy die-cast aluminum.
Features
•Baked-on electrostatic, polyester, powder paint for superior
scratch and corrosion resistance.
•4 closure plugs and mounting lugs furnished with all boxes.
• UL Listed for wet and/or damp locations with appropriate cover.
•Designed for both interior and exterior applications.
• Will accept standard three-gang weatherproof covers.
• Simply strike desired knockout studs with a sharp hammer blow
for clean mounting holes.
•Heavy die-cast aluminum.
Three Gang Box
4.59"
6.438"
2.75"
1 Gang Deep Box
4.59"
2.82"
2.75"
2 Gang Deep Box
4.5"
4.5"
2.72"
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
THREE GANG BOX
WPB373 3 Gang – 7 Hole 3/4", 59.8 Cu. In.
(3 Holes Each Side, 1 Hole in Back)
Gray • •
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
1 GANG DEEP BOXES
WPBD23
WPBD23BR
WPBD23W
1 Gang Deep – 3 Hole 1/2", 23 Cu. In. with Threaded Holes
(1 Hole Each Side, 1 Hole in Back)
Gray
Bronze
White
• •
WPBD33 1 Gang Deep – 3 Hole 3/4", 23 Cu. In. with Threaded Holes
(1 Hole Each Side, 1 Hole in Back)
Gray • •
WPBD43 1 Gang Deep – 3 Hole 1", 23 Cu. In. with Threaded Holes
(1 Hole Each Side, 1 Hole in Back)
Gray • •
2 GANG DEEP BOXES
WPBD252 2 Gang Deep – 5 Hole 1/2", 37 Cu. In. with Threaded Holes
(2 Holes Each End, 1 Hole in Back)
Gray • •
WPBD352 2 Gang Deep – 5 Hole 3/4", 37 Cu. In. with Threaded Holes
(2 Holes Each End, 1 Hole in Back)
Gray • •
WPBD452 2 Gang Deep – 5 Hole 1", 37 Cu. In. with Threaded Holes
(2 Holes Each End, 1 Hole in Back)
Gray • •
WWW.LEGRAND.US/PASSANDSEYMOUR
O-19
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Weatherproof Round Boxes & Weatherproof Kits
WPRB25
Features – 4" Round Die-Cast Aluminum Boxes
•Baked-on electrostatic, polyester, powder paint for superior
scratch and corrosion resistance.
•4 closure plugs and mounting lugs furnished with all boxes.
• UL Listed for wet and/or damp locations with appropriate cover.
•Designed for both interior and exterior applications.
•Heavy die-cast aluminum.
WPWIUKITC WPGFIKIT WPOUTKIT WPFLDKIT
Features
•Easy-to-install, self-contained kits include everything needed for
installation – gaskets, plugs, and hardware.
•Clam-shell packaging designed for hanging displays.
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
4" ROUND DIECAST ALUMINUM BOXES
WPRB25 Round Cast Box – 5 Hole 1/2", 16.1 Cu. In., 4 Plugs Furnished Gray • •
WPRB35
WPRB35W
Round Cast Box – 5 Hole 3/4", 16.1 Cu. In., 4 Plugs Furnished Gray
White
• •
CATALOG NUMBER COLOR DESCRIPTION COMPONENTS
3RD PARTY COMPLIANCE
WEATHERPROOF KITS
WPWIUKITC Clear Weatherproof While-in-Use Safety Outlet (GFCI) Kit
includes GFCI, box, and While-In-Use cover
1595GRY, WPB23, WIUC10CL •
WPWIUKITW White 1595W, WPB23W, WIUC10WL •
WPWIUKITSC Clear Weatherproof Shallow While-in-Use Safety Outlet
(GFCI) Kit includes GFCI, box, and
Shallow While-In-Use cover
1595GRY, WPB23, WIUC10SC •
WPWIUKITSW White 1595W, WPB23W, WIUC10SW •
WPGFIKIT Gray Weatherproof Safety Outlet (GFCI) Kit includes
GFCI, box and cover
1595GRY, WPB23, CA26GH •
WPGFIKITW White 1595W, WPB23W, CA26WH •
WPOUTKIT Gray Weatherproof Outlet Kit includes outlet, box
and cover
3232I, WPB23, CA8GH •
WPOUTKITW White 3232W, WPB23W, CA8WH •
WPFLDKIT Gray Weatherproof Dual Floodlight Kit includes box,
cover, and lampholders
WPRB25, (2) PAR1, WPRB12 •
WPFLDKITW White WPRB25W, (2) PAR1W, WPRB12W •
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-20
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Cluster & Blank Covers
WPB11 WPRB1 WPRB13
Features
• Wide range of rectangular and round covers.
•Baked-on electrostatic, polyester, powder paint for superior
scratch and corrosion resistance.
•Kits available combining fixtures, lamp covers, and accessories.
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
OUTDOOR LAMP CLUSTER COVERS FOR SINGLE GANG BOXES
WPB11
WPB11W
Rectangular Single Gang Cover
1 Hole 1/2"
Gray
White
• •
WPB12
WPB12W
Rectangular Single Gang Cover
2 Hole 1/2", 1 Plug Furnished
Gray
White
• •
WPB13
WPB13W
Rectangular Single Gang Cover
3 Hole 1/2", 2 Plugs Furnished
Gray
White
• •
4" ROUND OUTDOOR CLUSTER COVERS
WPRB1
WPRB1W
Round Blank Cover
with Gasket and Screws
Gray
White
•
WPRB11
WPRB11W
Round Cover – 1 Hole 1/2"
with Gasket and Screws
Gray
White
• •
WPRB12
WPRB12W
Round Cover – 2 Hole 1/2"
with Gasket and Screws 1 Plug Furnished
Gray
White
• •
WPRB13
WPRB13W
Round Cover – 3 Hole 1/2"
with Gasket and Screws 2 Plugs Furnished
Gray
White
• •
Features
•Designed for both interior and exterior applications.
• Universal aluminum mounting plates.
•Gray, bronze and white models have baked-on electrostatic,
polyester, powder paint for superior scratch and corrosion
resistance.
WPB1
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
BLANK COVERS
WPB1 1 Gang Blank Aluminum Cover with
Gasket and Screws
Brushed Aluminum • •
WPB1G Gray
WPB1W White
WPB2 2 Gang Blank Aluminum Cover with
Gasket and Screws
Brushed Aluminum • •
WPB2G Gray
WPB2W White
WPB3 3 Gang Blank Aluminum Cover with
Gasket and Screws
Brushed Aluminum • •
WWW.LEGRAND.US/PASSANDSEYMOUR
O-21
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Lighting Accessories & Swimming Pool Junction Box
PAR1 WPLKIT2 GARD3BK
Features
•Medium base heat resistant.
•Fits 1/2" threaded outlet.
• Seal gasket included.
•Adjustable through 180°.
•Complete range of lamp covers in gray
and white.
•Corrosion-resistant finish.
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
DIECAST OUTDOOR LAMPHOLDER
PAR1 Outdoor Lampholder Gray •
PAR1W Outdoor Lampholder White •
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
OUTDOOR LAMPHOLDER KITS
WPLKIT1 Kit includes (1) WPRB13 and (2) PAR1 Lampholders Gray •
WPLKIT2 Kit includes (1) WPRB13W and (2) PAR1W Lampholders White •
WPLKIT3 Kit includes (1) WPB13 and (2) PAR1 Lampholders Gray •
WPLKIT4 Kit includes (1) WPB13W and (2) PAR1W Lampholders White •
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
OUTDOOR GARDEN LAMPS & ACCESSORIES
GARD3GR 3 Tier Garden Lamp Green • •
GARD3BK 3 Tier Garden Lamp Black • •
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
SWIMMING POOL JUNCTION BOX
WPBJ22 22 cu. in. Thermoplastic Base, Brass Cover.
Meets NEC® Article 680.Two 3/4" Hubs, one 1" Hub.
Four Ground Posts, Gasket, and Mounting Screws Included.
Gray • •
WPBJ22
5.438"
3.625"
1.5"
1.5"
.75"
NPT
1"
NPT
2.563"
3.250"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-22
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
Vapor Proof Lighting
VPP100G
VPP200G
VPC100G
VPC200G
VPW100G
VPW200G
VG100
VG200
VPG100
VPG200
Features
•Cast metal guards for greater impact resistance.
•Easy-to-install with time saving features.
•Lights include round cast box, lampholder,
glass globe, guard, and hardware.
•High-quality castings eliminate sharp edges.
•Dual rubber gaskets provide complete vapor proof seal.
•4 plugs furnished with wall and ceiling mounts.
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
100 WATT
VPW100G
VPP100G
VPC100G
Wall Mount, 5 Hole 1/2"
Pendant Mount, 1/2" NPT Top Hub
Ceiling Mount, 5 Hole 1/2"
Gray
Gray
Gray
•
•
•
200 WATT
VPW200G
VPP200G
VPC200G
Wall Mount, 5 Hole 1/2"
Pendant Mount, 1/2" NPT Top Hub
Ceiling Mount, 5 Hole 1/2"
Gray
Gray
Gray
•
•
•
GLOBES
VPG100
VPG200
Clear Globe – 100 Watt
Clear Globe – 200 Watt
Clear
Clear
CAST GUARD
VG100
VG200
Cast Guard – 100 Watt
Cast Guard – 200 Watt
Gray
Gray
WWW.LEGRAND.US/PASSANDSEYMOUR
O-23
WEATHERPROOF BOXES & COVERS
PASS & SEYMOUR
Weatherproof Boxes & Covers
Gaskets & Accessories
WPEX1
WPEX3
WPEX2
WPGAS100GASKET3726 GASKET3780 WPGAS101GASKET38 WPGASR101
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY
COMPLIANCE
GASKETS
GASKET2 1/8" Thick, 1 Gang, Multiuse Gasket, Closed Cell Polyethylene Black •
GASKET38
GASKET38W
3/8" Thick, Weatherproof, 1 Gang, Multiuse Gasket,
Closed Cell Polyethylene
Black
White
GASKET3726 3/32" Thick, Weatherproof, 1 Gang, Decorator Multiuse Gasket,
Closed Cell Polyethylene
Gray •
GASKET3780 3/32" Thick, Weatherproof, 1 Gang, Duplex Multiuse Gasket,
Closed Cell Polyethylene
Gray •
WPGAS100 1/8" Thick, Weatherproof, 1 Gang, Multiuse Gasket,
Closed Cell Polyethylene
Black
WPGAS101 1/8" Thick, Weatherproof, 2 Gang, Multiuse Gasket,
Closed Cell Polyethylene
Black
WPGASR101 1/8" Thick, Weatherproof, Round, Multiuse Gasket, Closed Cell
Polyethylene
Black
CATALOG NUMBER DESCRIPTION COLOR
3RD PARTY COMPLIANCE
ACCESSORIES
WPEX1 1 Gang Extension Ring,
9.5 Cu. In.,
2.75" x 4.5" x 1"
Gray •
WPEX2 2 Gang Extension Ring,
16.3 Cu. In.,
4.5" x 4.5" x 1"
Gray •
WPEX3 Round Device Box Extension,
4-1/2" Hubs
Gray •
WPEX4 1 Gang Extension Ring with
4-1/2" Hubs, 2-1/2" Plugs
Supplied, 9.5 Cu. In.
Gray •
WPEX5 1 Gang Flanged Extension Ring
with 4-1/2" Hubs, 2-1/2" Plugs
Supplied, 9.5 Cu. In.
Gray •
WPEX6 1 Gang Extension Ring, with
4-3/4" Hubs, 2-3/4" Plugs
Supplied, 9.5 Cu. In.
Gray •
WPBP50
WPBP50CC
WPBP50WCC
Closure Plug – 1/2" Metallic, Qty. 100
Gray, Qty. 3
White, Qty. 3
•
•
•
•
•
•
WPBP75
WPBP75CC
WPBP75WCC
Closure Plug – 3/4" Metallic, Qty. 100
Gray, Qty. 3
White, Qty. 3
•
•
•
•
•
•
WPBP100CC Closure Plug – 1" Metallic, Qty. 100 • •
WPBL100 Aluminum Lugs (2), and
Self-Tapping Screws
Gray
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
O-24
WEATHERPROOF BOXES & COVERS
Weatherproof Boxes & Covers
NEC® Compliance
Choose the cover according to the location in which it is to be used.
Damp Locations NEC 406.9(A)
Damp locations are defined as those protected from weather and not subject to saturation with water or other liquids,
but subject to moderate degrees of moisture. Examples of such locations include partially protected locations under
canopies, marquees, and roofed open porches not subjected to a beating rain or water runoff, as well as interior
locations such as some basements, barns, and cold-storage warehouses.
NEC Article 406.9(A) requires that receptacles installed in damp locations must have an enclosure that is weatherproof
when the receptacle is covered (attachment plug is not inserted and receptacle cover is closed).
An installation suitable for wet locations shall also be considered suitable for damp locations. Therefore, all catalog
numbers shown above are also suitable for use in damp locations. The covers below are suitable for damp locations
only, because the lid can be propped in the full open position.
3760 3763 3780
Weather-Resistant Receptacles in Damp and Wet Locations NEC 406.9(A) and 406.9(B)(1)
An additional requirement has been added which states that a listed weather-resistant receptacle must be used where
15- and 20-amp, 125- and 250-volt straight blade receptacle configurations are installed in damp or wet locations.
The goal of the change is to ensure that receptacles of sufficiently robust design are employed under these conditions.
Listed weather-resistant receptacles have improved resistance to sunlight exposure, corrosion and impact.
Switches in Damp or Wet Locations NEC 404.4
Surface-mounted switches and circuit breakers in damp or wet locations are required to be enclosed in a weatherproof
enclosure and flush-mounted switches and circuit breakers in damp or wet locations to be provided with weather-
proof covers. This change recognizes that exposure to adverse weather conditions requires comparable protection for
switches and receptacles used in damp or wet locations.
Outdoor Wet Locations NEC 406.9(B)(1)
Wet locations are defined as those subjected to saturation with water or other liquids, such as vehicle washing areas,
unprotected locations exposed to weather, or in installations under ground or in concrete slabs or masonry in direct
contact with the earth.
NEC Article 406.8(B)(1) requires that all 15 and 20 amp, 125 & 250 volt receptacles installed in wet locations must have
an enclosure that is weatherproof, whether or not a plug is inserted. These receptacles must use a while-in-use cover,
such as those shown below:
WIUC10GL
WIUC10CL
WIUC10WL
WIUC10SG
WIUC10SC
WIUC10SW
WIUC10SB
WIUC10DGL
WIUC10DCL
WIUC10DWL
WIUC20GL
WIUC20CL
WIUC20WL
WIUCAST1
WIUFC10S
WIUFC10SQC
WIUFC10W
WIUFC10WQC
Other Wet Locations NEC 406.8(B)(1)
(a) A receptacle installed in a wet location, where the product intended to be plugged into it is not attended while
in use, shall have an enclosure that is weatherproof with the attachment plug cap inserted or removed.
(b) A receptacle installed in a wet location where the product intended to be plugged into it will be attended while
in use (e.g., portable tools) shall have an enclosure that is weatherproof when the attachment plug is removed.
4510
4511
4512
4515
4515FS
4516
4517
4600
7420
7700
3726SCWH
3770SC
3778
3780SC
3780SCBG
3780SCCW
3780SCCWT
3780SCFBX
3780SCFBXCW
3780SCFBXWH
3780SCLV
3780SCLVBG
3780SCLVCW
3780SCLVWH
3780SCMH
3780SCMHBG
3780SCMHCW
3780SCMHWH
3780SCWH
3795
3796
3797
WPWIUKITW
3393
3700
3700FS
3703
3703FS
3703T
3703TCW
3710
3710FS
3710WH
3720
3720FS
3720WH
3722FS
3723
3723FS
3723WH
3724FS
3726SC
3726SCBG
3726SCCW
CA8GJ
CA8GVFS
CA8WH
CA8WV
CA8WVFS
CA82G
CA82W
WP13
WP13FS
WP23
WPBJ22
WPFLDKIT
WPFLDKITW
WPGFIKIT
WPGFIKITW
WPG1
WPG2
WPOUTKIT
WPOUTKITW
WPWIUKITC
WPWIUKITSC
WPWIUKITSW
CA1G
CA1GL
CA1GS
CA126GRY
CA17G
CA18G
CA2G
CA2GS
CA2W
CA26GH
CA26GV
CA26WH
CA26WV
CA262G
CA268G
CA7GV
CA72G
CA721G
CA723G
CA726G
CA78G
CA8GH
WWW.LEGRAND.US/PASSANDSEYMOUR
P-1
PASS & SEYMOUR
DECORATIVE FINISH
SCREWLESS
WALL PLATES
STUDIO WALL PLATES
P-8P-6
Specifications & Dimensions P-3
Screwless Wall Plates P-6
Studio Wall Plates P-8
Toggle Switch Openings P-9
Duplex Receptacle Openings & Decorator Openings P-10
Decorator Openings P-11
Blank Plates P-12
Single Receptacle Openings &
Power Outlet Openings P-14
Combination Openings P-16
Despard® Openings P-20
Two Gang with Center Opening
& Locking Switch Plates P-21
Louver & Biplex/Triplex Openings P-22
Toggle Switch, Duplex &
Single Receptacle Openings P-23
Decorator Openings & Blank Plates P-24
Combination Openings P-25
Sectional Wall Plates P-26
Tandem & Handy Box Plates P-27
Narrow Metal P-28
Dustproof Stainless Steel Covers P-29
Communication Devices & Plates P-30
Mounting Straps, Yokes & Jewels P-36
Incandescent Lampholders, Neon Pilot Lights
& Panelites P-37
Screws & Screwdrivers P-38
Engraved & Pad Printed P-39
Custom Metal Wall Plates P-41
Custom Panel Plates P-44
Style Selector Guide P-46
Wall Plates & sPecialties
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-2
WALL PLATES
Wall Plates & sPecialties
A. Molded of rugged .065" thick polycarbonate.
B. Seamless, sleek, super smooth construction provides
no dirt-catching channel around plate’s perimeter.
C. Two-piece plastic subplate bridges recessed boxes and
uneven sheet rock. Fixes floating installations.
D. Automatic alignment pins ensure that devices are
properly positioned so that wall plates fit perfectly.
E. Oversized opening to accommodate all NEMA 26
decorator-style openings.
F. An extra 1/8" width and height than standard size wall
plates for more tolerance in covering ragged sheet
rock openings.
SWP26LA
Screwless Polycarbonate Wall Plates
SWP26LA
A
B
C
D
E
F
WWW.LEGRAND.US/PASSANDSEYMOUR
P-3
WALL PLATES
PASS & SEYMOUR
Wall Plates
Specifications
Thermoset
SP Series Nylon
TP Series Screwless
Polycarbonate
SWP Series
Polished
Brass Brushed
Brass Aluminum302
Stainless
Steel
Studio
Polycarbonate
WP Series
Application
Legrand's broad line of Pass & Seymour® Standard Size Plastic and Metal Wall Plates
features the most complete range of types, sizes, colors, and finishes available. Choose
from more than 1,900 standard plates in non-combustible thermoset plastic material,
self-extinguishing nylon material, screwless polycarbonate material, or attractively
finished metal, for residential, commercial, institutional, and industrial applications.
All plastic wall plates color match to Pass & Seymour devices.
Thermoset Plastic Wall Plates
   
mar-proof material.
      
Junior-Jumbo, and Jumbo sizes.
      
White, Brown, Gray, Black, Red, and
Light Almond.
   
color-matching screws.
     
solvent and moisture.
   
TradeMaster® Thermoplastic
Wall Plates
    
indestructible self-extinguishing nylon.
  
      
width and height than Standard size
     
width and height than Junior-Jumbo
size plates.
     
Gray, Black, Blue, Orange, Red, and
Light Almond.
    
institutional, and other high-abuse
applications.
   
Studio Polycarbonate Wall Plates
       
polycarbonate Lexan 241R opaque.
    
   
Screwless Polycarbonate Wall Plates
     
matte finish.
     
polycarbonate.
      
Standard size plates.
      
Black, and Light Almond; and five
metallic and three wood finishes.
Metal Wall Plates
   
stainless steel, brass, aluminum,
chrome, brushed bronze or galvanized
steel.
     
plates available, as well as special
       
10-gangs wide.
     
finish-matching screws.
     
Paintable to match plastic plates.
     
and custom punched with over 300
opening styles.
Materials
     
   
brushed finish. This alloy contains
     
superior resistance to corrosion.
Recommended for use in food processing
plants, dairies, chemical plants, and
other industrial, institutional, and
commercial applications where corrosive
atmospheres exist.
      
nominal thickness, brushed finish. Less
corrosion-resistant than Type 302/304,
but ideal for general service in high
abuse applications in industrial plants,
commercial, and institutional buildings.
     
      
gives warm, appealing finish to modern
decor as well as retrofit applications.
Lacquered to prevent corrosion.
     
finish. Lacquered to prevent corrosion.
      
Box Plates.
      
    
corrosion.
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-4
WALL PLATES
Wall Plates
Dimensions
Standard
4.5"
2.75"
Trademaster
Standard
2.9375"
4.6875"
Studio
2.99"
4.9"
Screwless
3.10"
4.87"
Junior-Jumbo
3.125"
4.87"
Trademaster
Jumbo
3.3125"
5.0625"
Jumbo
3.5"
5.25"
Standard Size Wall Plates
      
applications.
      
      
Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
5 gang   
6 gang   
7 gang   
8 gang   
TradeMaster® Wall Plates
      
Standard size wall plates.
      
standard size appearance.
     
construction only.
 Screws pre-installed in the duplex, toggle
and decorator single gang plates.
Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
5 gang   
6 gang   
Studio Polycarbonate Wall Plates
       
polycarbonate Lexan 241R opaque.
      
 
Wall Plate Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
Back Plate Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
Screwless Polycarbonate Wall Plates
     
duplex openings.
      
Standard size wall plates.
      
standard size appearance.
     
     
polycarbonate.
       
finishes; and 6 standard colors.
Wall Plate Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
Subplate Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
Junior-Jumbo Wall Plates
      
Standard size wall plates.
      
      
Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
TradeMaster®
Jumbo Wall Plates
       
Jumbo size wall plates.
     
rock gaps, matching the appearance of
the TradeMaster Plates.
     
construction only.
     
toggle, and decorator single gang plates.
Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
Jumbo Wall Plates
      
Standard size wall plates.
       
wall damage.
      
Dimensions
1 gang   
2 gang   
3 gang   
4 gang   
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Sectional Wall Plates
End and center panels with each of five most-used configurations make it possible to
improvise custom wall plates on the job. Panels lock securely together on installation.
Blank sections furnished with mounting strap.
Wall Plate Mountings
            
non-standard methods which depend upon the special device used. Exact mounting
hole specifications for every device appear in the Selector Guide.
            
Wall Plates
Dimensions
Center
Strap
Box FS (4 Screw)
Decorator and
Interchangeable
Strap
2.375" 3.2812" 3.8125" 3.75"
1.875"
Wall Plate Sizes
Standard Size
Available in plastic and metal
JumboJunior-Jumbo
1.375" 1.8125"
1.8125" 1.8125"
4.5" 4.875"
1.5625"
1.8125"
1.8125" 1.75"
1.8125"
1.8125"
5.25"
TradeMaster® Size
Available in nylon only
TradeMaster Jumbo
Available in nylon only
Tandem Wall Plates
4.6875"
1.4687"
1.8125"
1.8125"
1.8125"
1.6562" 1.8125"
5.0625"
Metal only.
Plate mounting
dimensions are
non-standard.
Refer to Page
P-26 for details
and devices that
can be used.
1.75"
4.375"
6.125"
    
dimensions refer to Page P-3.
Screwless Wall Plate
Plastic Subplate
4.62"
1.812"1.812"1.812"
4.9062"
1.8125"
4.9062"
2.4687"
WP Plates SWP PlatesCenter Panel End Panel SP Plates
3.5"
3.125"
2.75"
4.5"
4.875"
5.25"
Jumbo
Junior-Jumbo
Standard
4.6875"
5.0625"
2.9375"
3.3125"
TPJ P late
TP Plate
2.99"
4.9"
3.10"
4.87"
TP Plates
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-6
WALL PLATES
Wall Plates
Decorative Finish Screwless Wall Plates Polycarbonate
Four Gang
Walnut
For Screwless Wall Plate and Plastic Subplate dimensions, see Page P-4.
One Gang
Nickel
Four Gang
Brass
Three Gang
Mahogany
Three Gang
Stainless Steel
Two Gang
Brushed Copper
Two Gang
Maple
One Gang
Brushed Bronze
DESCRIPTION COLOR DECORATOR OPENINGS
SCREWLESS DECORATOR OPENINGS 
One Gang Nickel 
Brushed Copper SWP26BC
Stainless Steel SWP26SS
Brass SWP26BR
Brushed Bronze SWP26BB
Maple SWP26MA
Mahogany 
Walnut SWP26WA
Antique Brass SWP26ABBPCC10
Dark Bronze SWP26DBBPCC10
Two Gang Nickel 
Brushed Copper SWP262BC
Stainless Steel SWP262SS
Brass SWP262BR
Brushed Bronze SWP262BB
Maple SWP262MA
Mahogany 
Walnut SWP262WA
Antique Brass SWP262ABBPCC10
Dark Bronze SWP262DBBPCC10
Three Gang Nickel 
Brushed Copper SWP263BC
Stainless Steel SWP263SS
Brass SWP264BR
Brushed Bronze SWP263BB
Maple SWP263MA
Mahogany 
Walnut SWP263WA
Antique Brass SWP263ABBPCC10
Dark Bronze SWP263DBBPCC10
Four Gang Nickel 
Brushed Copper SWP264BC
Stainless Steel SWP264SS
Brass SWP264BR
Brushed Bronze SWP264BB
Maple SWP264MA
Mahogany 
Walnut SWP264WA
Antique Brass SWP264ABBPCC10
Dark Bronze SWP264DBBPCC10
One Gang
Antique Brass
Two Gang
Dark Bronze
            
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
One Gang
3.10"
4.87"
Two Gang
4.912"
4.87"
One Gang
Plastic Subplate
2.85"
4.62"
4.662"
Two Gang
Plastic Subplate
Three Gang
6.724"
4.87"
Wall Plates
Screwless Wall Plates Polycarbonate
DESCRIPTION COLOR
DECORATOR
OPENINGS
TOGGLE SWITCH
OPENINGS
DUPLEX RECEPTACLE
OPENINGS
SCREWLESS WALL PLATES 
One Gang    
White SWP26W SWP1W 
Brown SWP26 SWP1 
Gray SWP26GRY SWP1GRY 
Black SWP26BK SWP1BK 
Light Almond SWP26LA SWP1LA 
Two Gang    
White SWP262W SWP2W 
Brown SWP262 SWP2 
Gray SWP262GRY SWP2GRY 
Black SWP262BK SWP2BK 
Light Almond SWP262LA SWP2LA 
Three Gang   
White SWP263W SWP3W
Brown SWP263 SWP3
Gray SWP263GRY SWP3GRY
Black SWP263BK SWP3BK
Light Almond SWP263LA SWP3LA
Four Gang   
White SWP264W SWP4W
Brown SWP264 SWP4
Gray SWP264GRY SWP4GRY
Black SWP264BK SWP4BK
Light Almond SWP264LA SWP4LA
DESCRIPTION HEIGHT WIDTH
SCREWLESS DECORATOR OPENINGS
PLASTIC SUBPLATE INCLUDED
One Gang  
Two Gang  
Three Gang  
Four Gang  
DESCRIPTION HEIGHT WIDTH
SCREWLESS PLASTIC
SUBPLATE DIMENSIONS
One Gang  
Two Gang  
Three Gang  
Four Gang  
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
Wall Plates
Studio Wall Plates Polycarbonate
WP5002NV WP5002SP
WP5002WH WP5002LA WP5002TI
WP5002KK WP5002SD WP5002TP WP5002AE WP5002CP WP5002CR
WP5002CZ WP5002CY WP5002MS
WP5002GB WP5002CM
Revolutionize the look of technology in the home with Studio Wall Plates.
Available in one, two, three, and four gang sizes — and
      
wall plates feature a design and form-factor never before
available to homeowners. The design, a sculptural flow of
curves with titanium edging and a screwless finish, offers a
new way to integrate home system products with personal
style and taste throughout the entire home.
WP5002BD
COLOR ONE GANG TWO GANG THREE GANG FOUR GANG
BASIC COLOR  SCREWLESS DECORATOR OPENING 
White    
Light Almond    
Titanium    
Gloss Black    
NEUTRALS  SCREWLESS DECORATOR OPENING 
Cement    
Khaki    
Sand    
Taupe    
HUES  SCREWLESS DECORATOR OPENING 
Aloe    
Bordeaux    
Cameo Pink    
Citrus    
Cozumel    
Cyan    
Moss    
Nirvana    
Spanish Red    
DESCRIPTION HEIGHT WIDTH
STUDIO WALL PLATE DIMENSIONS
One Gang  
Two Gang  
Three Gang  
Four Gang  
DESCRIPTION HEIGHT WIDTH
STUDIO BACK PLATE DIMENSIONS
One Gang  
Two Gang  
Three Gang  
Four Gang  
       
    
WWW.LEGRAND.US/PASSANDSEYMOUR
P-9
WALL PLATES
PASS & SEYMOUR
Wall Plates
Toggle Switch Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
TOGGLE SWITCH OPENINGS
One Gang    Aluminum SA1
White TP1W SP1W Brass SB1
Brown TP1 SP1 Polished Brass SB1PB
Gray TP1GRY SP1GRY 430S/S SL1
Black TP1BK 302/304 S/S SS1
Red TP1RED Brushed Bronze 
Light Almond TP1LA SP1LA Chrome 
Two Gang    Aluminum SA2
White TP2W SP2W Brass SB2
Brown TP2 SP2 Polished Brass SB2PB
Gray TP2GRY SP2GRY 430S/S SL2
Black TP2BK 302/304 S/S SS2
Red TP2RED Brushed Bronze 
Light Almond TP2LA SP2LA Chrome 
Three Gang    Aluminum SA3
White TP3W SP3W Brass SB3
Brown TP3 SP3 Polished Brass SB3PB
Gray TP3GRY SP3GRY 430S/S SL3
Black TP3BK 302/304 S/S SS3
Red TP3RED Brushed Bronze 
Light Almond TP3LA SP3LA Chrome 
Four Gang    Aluminum SA4
White TP4W SP4W Brass SB4
Brown TP4 SP4 Polished Brass SB4PB
Gray TP4GRY SP4GRY 430S/S SL4
Black TP4BK 302/304 S/S SS4
Red TP4RED
Light Almond TP4LA SP4LA
Five Gang   
White   Brass 
Brown   Polished Brass 
Gray  
Black  302/304 S/S 
Light Almond  
Six Gang   
White TP6W SP6W Polished Brass SB6PB
Brown TP6
Gray TP6GRY SP6GRY 302/304 S/S SS6
Black TP6BK
Light Almond TP6LA SP6LA
Seven Gang 302/304 S/S SS601
    
302/304 S/S Painted White SS601W
Eight Gang 302/304 S/S SS602
    
302/304 S/S Painted White SS602W
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-10
WALL PLATES
Wall Plates
Duplex Receptacle & Decorator Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
DUPLEX RECEPTACLE OPENINGS
One Gang   
White   Aluminum 
Brown   Brass 
Gray   Polished Brass 
Black  430S/S 
Red  302/304 S/S 
Light Almond   Brushed Bronze 
Blue  Chrome 
Orange 
Two Gang   
White   Aluminum 
Brown   Brass 
Gray   Polished Brass 
Black  430S/S 
Red  302/304 S/S 
Light Almond   Brushed Bronze 
Orange  Chrome 
Three Gang  
White  Brass 
Brown  Polished Brass 
Gray 
Light Almond  302/304 S/S 
Four Gang  
White  Polished Brass 
Brown 
Gray  302/304 S/S 
Five Gang
302/304 S/S 
Six Gang
302/304 S/S 
DECORATOR OPENINGS
One Gang   
White TP26W SP26W Aluminum SA26
Brown TP26 SP26 Brass SB26
Gray TP26GRY SP26GRY Polished Brass SB26PB
Black TP26BK SP26BK 430S/S SL26
Red TP26RED 302/304 S/S SS26
Light Almond TP26LA SP26LA Brushed Bronze 
Blue TP26BL Chrome 
Orange TP26OR
            
WWW.LEGRAND.US/PASSANDSEYMOUR
P-11
WALL PLATES
PASS & SEYMOUR
Wall Plates
Decorator Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
DECORATOR OPENINGS
Two Gang   
White TP262W SP262W Aluminum SA262
Brown TP262 SP262 Brass SB262
Gray TP262GRY SP262GRY Polished Brass SB262PB
Black TP262BK SP262BK 430S/S SL262
Red TP262RED 302/304 S/S SS262
Light Almond TP262LA SP262LA
Blue TP262BL
Orange TP262OR
Three Gang   
White TP263W SP263W Brass SB263
Brown TP263 Polished Brass SB263PB
Gray TP263GRY SP263GRY
Black TP263BK SP263BK 302/304 S/S SS263
Red TP263RED
Light Almond TP263LA SP263LA
Four Gang   
White TP264W SP264W Brass SB264
Brown TP264 SP264 Polished Brass SB264PB
Gray TP264GRY SP264GRY
Black TP264BK SP264BK 302/304 S/S SS264
Red TP264RED
Light Almond TP264LA SP264LA
Five Gang   
White  
Brown  302/304 S/S 
Gray  
Black  
Red 
Light Almond  
Six Gang
  
White TP266W SP266W
Brown TP266 SP266 302/304 S/S SS266
Gray TP266GRY SP266GRY
Black TP266BK SP266BK
Light Almond TP266LA SP266LA
Seven Gang 302/304 S/S 
    
302/304 S/S Painted White 
Eight Gang 302/304 S/S 
    
302/304 S/S Painted White 
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-12
WALL PLATES
Wall Plates
Blank Plates – Box Mounted Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
BLANK PLATES  BOX MOUNTED
One Gang Blank – Box Mtd.    Aluminum SA13
White TP13W SP13W Brass SB13
Brown TP13 SP13 Polished Brass SB13PB
Gray TP13GRY SP13GRY 430S/S SL13
Black TP13BK 302/304 S/S SS13
Red TP13RED     
Light Almond TP13LA SP13LA Brushed Bronze 
Chrome 
Two Gang Blank – Box Mtd.    Aluminum SA23
White TP23W SP23W Brass SB23
Brown TP23 SP23 Polished Brass SB23PB
Gray TP23GRY SP23GRY 430S/S SL23
Black TP23BK 302/304 S/S SS23
Light Almond TP23LA SP23LA     
Brushed Bronze 
Chrome 
Three Gang Blank – Box Mtd.   Polished Brass SB33PB
White SP33W
Brown SP33 302/304 S/S SS33
Gray SP33GRY     
Light Almond SP33LA
Four Gang Blank – Box Mtd.  
White SP43W
Brown SP43 302/304 S/S SS43
Gray SP43GRY
Five Gang Blank – Box Mtd.
302/304 S/S 
Six Gang Blank – Box Mtd.
302/304 S/S SS63
Seven Gang Blank – Box Mtd.
302/304 S/S SS6013
Eight Gang Blank – Box Mtd.
302/304 S/S SS6023
            
WWW.LEGRAND.US/PASSANDSEYMOUR
P-13
WALL PLATES
PASS & SEYMOUR
Wall Plates
Blank Plates – Strap Mounted Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
BLANK PLATES  STRAP MOUNTED WITH ADJUSTMENT YOKE
One Gang Blank – Strap Mtd.   
White TP14W SP14W Aluminum SA14
Brown TP14 SP14 Brass SB14
Gray TP14GRY SP14GRY 430S/S SL14
Black TP14BK SP14BK 302/304 S/S SS14
Red SP14RED     
Light Almond TP14LA SP14LA
Two Gang Blank – Strap Mtd.   
White TP24W SP24W Aluminum SA24
Brown TP24 SP24 Brass SB24
Gray TP24GRY SP24GRY 430S/S SL24
Black TP24BK SP24BK 302/304 S/S SS24
Red SP24RED     
Light Almond TP24LA SP24LA
Three Gang Blank – Strap Mtd.  
White SP34W
Brown SS34 302/304 S/S SS34
Gray SP34GRY
Four Gang Blank – Strap Mtd.  
White SP44W
Brown SP44 302/304 S/S SS44
Gray SP44GRY
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-14
WALL PLATES
Wall Plates
Single Receptacle & Power Outlet Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
SINGLE RECEPTACLE OPENINGS
One Gang   
White   Aluminum 
Brown   Brass 
Gray   Polished Brass 
Black  430S/S 
Red  302/304 S/S 
Light Almond  
Two Gang  
White 
Brown  302/304 S/S 
Three Gang 302/304 S/S 
    
302/304 S/S Painted White 
302/304 S/S Painted Gray 
POWER OUTLET RECEPTACLE OPENINGS  ONE GANG
   
     
  
White  
Brown   302/304 S/S 
Gray  
Light Almond  
   
      302/304 S/S 
   
dia. device-2 mtg. holes 302/304 S/S 
   
      302/304 S/S 
   
     
  
White 
Brown   Chrome 
Gray  302/304 S/S 
Black 
Light Almond 
            
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Power Outlet Receptacle Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
POWER OUTLET RECEPTACLE OPENINGS  TWO GANG
   
     
Chrome 
302/304 S/S 
   
     
302/304 S/S 
   
     
  
 
White  Chrome 
Brown   302/304 S/S 
Brown 
Gray 
Black 
Light Almond 
   
     
Aluminum 
302/304 S/S 
   
     
302/304 S/S 
   
     
302/304 S/S 
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-16
WALL PLATES
Wall Plates
Combination Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
TOGGLE SWITCH & DUPLEX RECEPTACLE OPENINGS
Two Gang
1 Toggle, 1 Duplex
  
White   Brass 
Brown   Polished Brass 
Gray  
Black  302/304 S/S 
Red 
Light Almond  
Three Gang
2 Toggles, 1 Duplex
  
White   Brass 
Brown   Polished Brass 
Gray  
Black  302/304 S/S 
Red 
Light Almond  
Four Gang
3 Toggles, 1 Duplex
  Polished Brass SB33PB
White 
Brown  302/304 S/S SS33
Gray  
Light Almond 
Five Gang
4 Toggles, 1 Duplex 302/304 S/S 
    
302/304 S/S Painted White 
TOGGLE SWITCH & DECORATOR OPENINGS
Two Gang
1 Toggle, 1 Decorator
  
White TP126W SP126W Aluminum SA126
Brown TP126 SP126 Brass SB126
Gray TP126GRY SP126GRY Polished Brass SB126PB
Black TP126BK SP126BK
Light Almond TP126LA SP126LA 302/304 S/S SS126
Three Gang
2 Toggles, 1 Decorator
  
White TP226W SP226W
Brown TP226 SP226 302/304 S/S SS226
Gray TP226GRY SP226GRY
Light Almond TP226LA SP226LA
Black TP226BK
Three Gang
1 Toggle, 2 Decorator
 
White SP1262W
Brown SP1262 302/304 S/S SS1262
Gray SP1262GRY
Black SP1262BK
Light Almond SP1262LA
Four Gang
3 Toggles, 1 Decorator
 
White SP326W
Brown SP326 302/304 S/S SS326
Gray SP326GRY
Light Almond SP326LA
            
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Combination Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
TOGGLE SWITCH & DECORATOR OPENINGS CONT.
Four Gang
2 Toggles, 2 Decorator
 
White SP2262W
Brown SP2262
Light Almond SP2262LA
TOGGLE SWITCH & BLANK STRAP MOUNTED OPENINGS
Two Gang
1 Toggle, 1 Blank 302/304 S/S SS114
Three Gang
2 Toggles, 1 Blank
302/304 S/S SS214
Four Gang
3 Toggles, 1 Blank
302/304 S/S SS314
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
Wall Plates
Combination Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
TWO GANG COMBINATION OPENINGS
Two Gang
1 Toggle, 1 Single
 
White 
Brown 
Gray  302/304 S/S 
Two Gang
Single/Duplex
 
White 
Brown  Aluminum 
Gray 
302/304 S/S 
Two Gang
Duplex/Decorator
  
White   Polished Brass 
Brown  
Gray   302/304 S/S 
Black 
Red 
Light Almond  
Two Gang
Telephone/Toggle
 
White SP112W
Brown SP112
Two Gang
Telephone/Duplex
 
White 
Brown 
Gray  302/304 S/S 
Two Gang
  
  
White TP226W SP226W
Brown TP226 SP226 302/304 S/S SS226
Gray TP226GRY SP226GRY
Light Almond TP226LA SP226LA
Black TP226BK
Three Gang
Telephone/Decorator
White SP1226W
Brown SP1226
302/304 S/S SS1226
Four Gang
  
  
White  
Brown  
Gray   302/304 S/S 
Black 
Red 
Light Almond 
Four Gang
  
 
White TP113W
Brown TP113
Gray TP113GRY 302/304 S/S SS113
Black TP113BK
Light Almond TP113LA
            
WWW.LEGRAND.US/PASSANDSEYMOUR
P-19
WALL PLATES
PASS & SEYMOUR
Wall Plates
Combination Openings Standard Size Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
TWO GANG COMBINATION OPENINGS CONT.
Two Gang
   
 
White 
Brown 
Gray  302/304 S/S 
Two Gang
  
 
White 
302/304 S/S 
Two Gang
  
 
White SP1426W
Brown SP1426
Gray SP1426GRY 302/304 S/S SS1426
Light Almond SP1426LA
THREE & FOUR GANG COMBINATION OPENINGS
Three Gang
Toggle/Duplex/Duplex
 
White  Polished Brass 
Brown 
Gray  302/304 S/S 
Light Almond 
Three Gang
  
  
302/304 S/S 
Two Gang
  
  
302/304 S/S SS14114
Three Gang
Telephone/Decorator
302/304 S/S 
Four Gang
  
302/304 S/S 
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-20
WALL PLATES
Wall Plates
Despard® Openings
           
See Page Q-11 for Devices.
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
ONE HORIZONTAL OPENING PER GANG
One Gang  
White K1W
Brown K1 302/304 S/S SSK1
Two Gang
302/304 S/S SSK12
Three Gang
302/304 S/S SSK13
TWO HORIZONTAL OPENINGS PER GANG
One Gang  
White K2W
Brown K2 302/304 S/S SSK2
Two Gang
302/304 S/S SSK22
THREE HORIZONTAL OPENINGS PER GANG
One Gang  
White K3W
Brown K3 302/304 S/S SSK3
Two Gang
302/304 S/S SSK32
Three Gang
302/304 S/S SSK33
ONE VERTICAL OPENING PER GANG
One Gang  
White K4W
Brown K4
            
WWW.LEGRAND.US/PASSANDSEYMOUR
P-21
WALL PLATES
PASS & SEYMOUR
Wall Plates
Two Gang with Center Opening Standard Size Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
ONE HORIZONTAL OPENING PER GANG
Toggle Switch
302/304 S/S 
Blank-Box Mount
302/304 S/S 
Decorator
302/304 S/S 
Single Receptacle
302/304 S/S 
Duplex Receptacle
302/304 S/S 
KL SERIES LOCKING SWITCH PLATES
One Gang
.906 diameter
Reference Page
  
302/304 S/S 
Two Gang
.906 diameter
Reference Page
  
302/304 S/S 
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-22
WALL PLATES
Wall Plates
Louver & Biplex/Triplex Openings Standard Size Metal
DESCRIPTION
NYLON THERMOSET METAL
COLOR TRADEMASTER® PLATES SMOOTH MATERIAL SMOOTH
LOUVER PLATES
One Gang

Brass 
302/304 S/S 
    
302/304 S/S Painted White 
302/304 S/S Painted Light Almond 
One Gang

Brass 
302/304 S/S 
    
302/304 S/S Painted White 
302/304 S/S Painted Brown 
302/304 S/S Painted Gray 
302/304 S/S Painted Light Almond 
Two Gang

302/304 S/S 
BIPLEX/TRIPLEX RECEPTACLE
One Gang
1 Biplex/Triplex
302/304 S/S SS9
            
WWW.LEGRAND.US/PASSANDSEYMOUR
P-23
WALL PLATES
PASS & SEYMOUR
Wall Plates
Toggle Switch, Duplex & Single Receptacle Openings Junior-Jumbo & Jumbo Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
TRADEMASTER®JUNIOR-JUMBO JUMBO
MATERIAL
JUNIOR-JUMBO JUMBO
COLOR JUMBO SMOOTH SMOOTH SMOOTH SMOOTH
TOGGLE SWITCH OPENINGS
One Gang    
White TPJ1W SPJ1W SPO1W Brass SBJ1 SBO1
Brown TPJ1 SPJ1 SPO1 302/304 S/S SSJ1 SSO1
Gray TPJ1GRY
Light Almond TPJ1LA SPJ1LA
Two Gang    
White TPJ2W SPJ2W SPO2W Brass SBJ2
Brown TPJ2 SPJ2 SPO2 302/304 S/S SSJ2 SSO2
Gray TPJ2GRY
Light Almond TPJ2LA SPJ2LA
Three Gang   
White TPJ3W SPJ3W 302/304 S/S SSJ3 SSO3
Brown TPJ3 SPJ3
Gray TPJ3GRY
Light Almond TPJ3LA SPJ3LA
Four Gang   
White TPJ4W SPJ4W 302/304 S/S SSO4
Brown TPJ4 SPJ4
Gray TPJ4GRY
Light Almond TPJ4LA SPJ4LA
DUPLEX RECEPTACLE OPENINGS
One Gang    
White    Brass  
Brown    302/304 S/S  
Gray 
Light Almond   
Two Gang    
White    302/304 S/S  
Brown   
Gray  
Light Almond  
Three Gang
302/304 S/S 
SINGLE RECEPTACLE OPENINGS
One Gang   
White   302/304 S/S  
Brown  
Gray 
Light Almond  
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-24
WALL PLATES
Wall Plates
Decorator Openings & Blank Plates Junior-Jumbo & Jumbo Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
TRADEMASTER®JUNIOR-JUMBO JUMBO
MATERIAL
JUNIOR-JUMBO JUMBO
COLOR JUMBO SMOOTH SMOOTH SMOOTH SMOOTH
DECORATOR OPENINGS
One Gang    
White TPJ26W SPJ26W SPO26W Brass SBJ26 SBO26
Brown TPJ26 SPJ26 SPO26 302/304 S/S SSJ26 SSO26
Gray TPJ26GRY
Red TPJ26RED
Light Almond TPJ26LA SPJ26LA SPO26LA
Two Gang    
White TPJ262W SPJ262W SPO262W 302/304 S/S SSJ262 SSO262
Brown TPJ262 SPJ262 SPO262
Gray TPJ262GRY
Light Almond TPJ262LA SPJ262LA
Three Gang   SPJ263
White TPJ263W SPJ263W 302/304 S/S SSJ263
Brown TPJ263 SPJ263
Gray TPJ263GRY
Light Almond TPJ263LA SPJ263LA
Four Gang   
White TPJ264W SPJ264W
Brown TPJ264 SPJ264
Gray TPJ264GRY
Light Almond TPJ264LA SPJ264LA
BLANK PLATES  BOX & STRAP MOUNTED
One Gang Blank
Box Mtd.
   
White TPJ13W SPJ13W SPO13W 302/304 S/S SSJ13 SSO13
Brown TPJ13 SPJ13 SPO13
Gray TPJ13GRY
Light Almond TPJ13LA SPJ13LA
Two Gang Blank
Box Mtd.
 
White SPO23W 302/304 S/S SSO23
Brown SPO23
Three Gang Blank
Box Mtd.
302/304 S/S SSO33
One Gang
Strap Mtd.
302/304 S/S SSO14
Two Gang Blank
Strap Mtd.
302/304 S/S SSO24
Three Gang Blank
Strap Mtd.
302/304 S/S SSO34
            
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Combination Openings Junior-Jumbo & Jumbo Plastic & Metal
DESCRIPTION
NYLON THERMOSET METAL
TRADEMASTER®JUNIOR-JUMBO JUMBO
MATERIAL
JUNIOR-JUMBO JUMBO
COLOR JUMBO SMOOTH SMOOTH SMOOTH SMOOTH
TWO GANG COMBINATION OPENINGS
Two Gang
Toggle/Duplex
   
White    302/304 S/S  
Brown   
Gray 
Light Almond  
Two Gang
Toggle/Decorator
  
White TPJ126W SPJ126W 302/304 S/S SSJ126 SSO126
Brown TPJ126 SPJ126
Gray TPJ126GRY
Light Almond TPJ126LA SPJ126LA
Two Gang
  
Supplied with 340 Yoke
302/304 S/S SSO114
Two Gang
  
   
White TPJ113W SPJ113W
Brown TPJ113 SPJ113 SPO113
Gray TPJ113GRY
Light Almond TPJ113LA
Two Gang
  
  
White  302/304 S/S 
Brown  
Two Gang
Duplex/Decorator
  
White  
Brown 
Gray 
Light Almond  
Two Gang
Blank/Decorator
  
White  
Brown  
Three Gang
2 Toggles/Duplex
302/304 S/S 
 
 
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-26
WALL PLATES
Wall Plates
Sectional
Thermoplastic Thermoplastic
DESCRIPTION
SEMI-JUMBO
COLOR SMOOTH NYLON
SECTIONAL WALL PLATES  END SECTIONS
Toggle Switch  
White PJSE1W
Light Almond PJSE1LA
Duplex Receptacle  
White 
Light Almond 
Single Receptacle  
White 
Light Almond 
Blank, Strap Mounted  
supplied
with
#340 Yoke
White PJSE14W
Light Almond PJSE14LA
Decorator  
White PJSE26W
Light Almond PJSE26LA
DESCRIPTION
SEMI-JUMBO
COLOR SMOOTH NYLON
SECTIONAL WALL PLATES  CENTER SECTIONS
Toggle Switch  
White PJSC1W
Light Almond PJSC1LA
Duplex Receptacle  
White 
Light Almond 
Single Receptacle  
White 
Light Almond 
Blank, Strap Mounted  
supplied
with
#340 Yoke
White PJSC14W
Light Almond PJSC14LA
Decorator  
White PJSC26W
Light Almond PJSC26LA
            
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Tandem & Handy Box Plates
342 Strap
4.375"
5.25"
1"
1"
1"
Features
       
wall and movable partitions or wherever
limited wiring exists.
       
tandern sizes, materials, and openings.
Features
         
to surface mounted boxes.
         
bright corrosion-resistant zinc-plated finish.
      
DESCRIPTION MATERIAL CATALOG NUMBER
TANDEM WALL PLATES
    
  
Supplied with
#342 Strap
302/304 S/S SSTK424
MATERIAL CATALOG NUMBER
GALVANIZED STEEL HANDY BOX PLATES
One Gang
Toggle Switch
Plated 
One Gang
Single Receptacle
Plated 
One Gang
Duplex Receptacle
Plated 
One Gang
  
Plated 
One Gang

Plated 
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
Wall Plates
Narrow Metal          
MADE TO ORDER WALL PLATES
     
DECORATOR OPENINGS MATERIAL CATALOG NUMBERS
Toggle Switch Aluminum SAN11 SAN14
302/304 S/S SSN11 SSN14 
Telephone Outlet
  
Box Mounted 302/304 S/S 
Telephone Outlet
  
Strap Mounted 302/304 S/S SSN121
Blank
Strap Mounted,
1 #340 Yoke
Aluminum SAN144
302/304 S/S SSN142 SSN144
Duplex Receptacle Aluminum 
302/304 S/S 
1 Despard®
Interchangeable
 
  
Mounting Strap
Aluminum SANK14
302/304 S/S SSNK14
2 Despard
Interchangeable
 
  
Mounting Strap
Aluminum SANK24
302/304 S/S SSNK24
3 Despard
Interchangeable
 
  
Mounting Strap
302/304 S/S SSNK34
1 Despard
Interchangeable
 
  
Mounting Strap
Aluminum SANK41 SANK43 SANK44
302/304 S/S SSNK41 SSNK43 SSNK44
1 Despard
Interchangeable
 
Device Mounted
   
Aluminum   
302/304 S/S   
      
            
WWW.LEGRAND.US/PASSANDSEYMOUR
P-29
WALL PLATES
PASS & SEYMOUR
WP2
4.5"
4.56"
3.56"
2.75"
1.75"
3.606" 4.5"
WP8, WP26
4.5"
2.75"
2.375"
1.75"
2.297"
WP1, WP7
Wall Plates
Dustproof Stainless Steel Covers  
WPH8, WPH26
Features
       
      
  
             
WPH1L, WPH7L
4.5"
2.75"
3.50"
2.32"
WP26L
3.594"
2.750"
4.50"
1.75"
3.594"
4.5"
1.75"
2.75"
CATALOG NUMBER DESCRIPTION
3rd PARTY COMPLIANCE
DUSTPROOF STAINLESS STEEL COVERS
WP1         
          
WP2 2 Toggle Switches
        
WP7 1 Single Receptacle
      
        
 
WP8 1 Duplex Receptacle
        
WPH8 1 Duplex Receptacle
        
WPD8 1 Duplex Receptacle
        
WP26  
        
WPH26  
        
DUSTPROOF LOCKING STAINLESS STEEL COVERS*
WPH1L   
WPH7L
   
WPH8L    
WP26L
 
            
*Catalog Number WP255K –
replacement key for all
Dustproof Locking Covers.
(Two keys furnished with
 
   
the same.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-30
WALL PLATES
Wall Plates
Communication Devices Telephone Wiring Devices
TPTE1
Features
   
   
      
       
     
Features
   
   
      
      
     
      
and washers.
     
4.6875"
3.281"
1.641"
2.9375" R J-11 JACK
C.S.K. FOR 6-32 x 1"
OVAL HEAD SCREW
(2 PLCS.)
TPTE2
C.S.K. FOR 6-32 x 1"
OVAL HEAD SCREW
(2 PLCS.)
RJ-11 JACK
4.6875"
3.281"
1.641"
.750"
.750"
2.9375"
3.812"
3.281"
1.300"
1.310"
2.625"
RJ-11
JACK
26TE14
26TE16
CATALOG NUMBER DESCRIPTION CONFIGURATION
3rd PARTY COMPLIANCE
UL1863
SINGLE GANG OPENING MODULAR TELEPHONE JACK WITH WALL PLATE
TPTE1I  4 Conductor
TPTE1W White 4 Conductor
TPTE1 Brown 4 Conductor
TPTE1GRY Gray 4 Conductor
TPTE1BK Black 4 Conductor
TPTE1LA Light Almond 4 Conductor
SINGLE GANG, TWO MODULAR RJ11 TELEPHONE JACKS WITH WALL PLATE
TPTE2I  4 Conductor
TPTE2W White 4 Conductor
TPTE2 Brown 4 Conductor
TPTE2BK Black 4 Conductor
TPTE2LA Light Almond 4 Conductor
CATALOG NUMBER DESCRIPTION CONFIGURATION
3rd PARTY COMPLIANCE
UL1863
DECORATOR MODULAR JACK   
26TE14I  4 Conductor
26TE14W White 4 Conductor
26TE14LA Light Almond 4 Conductor
26TE16I  6 Conductor
26TE16W White 6 Conductor
            
WWW.LEGRAND.US/PASSANDSEYMOUR
P-31
WALL PLATES
PASS & SEYMOUR
Wall Plates
Communication Devices Telephone Wiring Devices
Features
   
     
back body.
    
   
Features
     
  
       
      
high-impact thermoplastic.
26TE24 WMTE14
Features
      
    
      
     
      
and washers.
      
     
4.6875"
2.9375"
1.300"
1.570"
RJ-11 JACK
.550"
.360"
.710"
3.900"
RJ-11
JACK
3.000"
4.660"
SMTE14
.820"
RJ-11
JACK
2.000"
2.220"
CATALOG NUMBER COLOR CONFIGURATION
3rd PARTY COMPLIANCE
UL1863
DECORATOR DUPLEX MODULAR JACK WITH SMOOTH PLATE   
26TE24I  4 Conductor
26TE24W White 4 Conductor
26TE24LA Light Almond 4 Conductor
26TE26I  6 Conductor
26TE26W White 6 Conductor
CATALOG NUMBER COLOR CONFIGURATION
3rd PARTY COMPLIANCE
UL1863
MODULAR WALL MOUNT TELEPHONE JACK FOR HANGING PHONES
WMTE14I  4 Conductor
WMTE14W White 4 Conductor
WMTE14LA Light Almond 4 Conductor
CATALOG NUMBER COLOR CONFIGURATION
3rd PARTY COMPLIANCE
UL1863
SURFACE MOUNT MODULAR RJ11 TELEPHONE JACK
SMTE14I  4 Conductor
            
2.620"
3.281"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-32
WALL PLATES
Wall Plates
Communication Devices     
Features
   
       
      
  
      
Features
  
     
   
    
    
Features
  
   
     
   
    
    
TPCATV TPCATV2
4.6875"
3.281"
2.9375"
HOLE FOR #6
MOUNTING SCREW
TYP. (2)
CABLE TV
JACK
.500"
2.9375"
.500"
4.6875"
1.641"
.75"
.75"
3.281"
CABLE TV
JACK
HOLE FOR #6
MOUNTING SCREW
TYP. (2)
26CATV
F-T YPE
CONNECTOR
1.300"
1.300"
2.625"
3.281"
3.281"
TPTELTV
CABLE TV
JACK
.500"
2.9375"
1.641"
.75"
.75"
4.6875"
3.281"
C.S.K. FOR 6-32 x 1"
OVAL HEAD SCREW
(2 PLCS.)
RF-11 JACK
26TELTVCC10
C.S.K. FOR 6-32 x 1"
OVAL HEAD SCREW
(2 PLCS.)
RF-11 JACK
.500"
CABLE TV
JACK2.9375"
4.6875"
3.281"
.75"
.75"
1.641"
CATALOG NUMBER COLOR CONFIGURATION
3rd PARTY COMPLIANCE
UL1863
“F” TYPE WITH ONE COAXIAL CONNECTOR & WALL PLATE, 
TPCATVI    
TPCATVW White   
TPCATV Brown   
TPCATVBK Black   
TPCATVLA Light Almond   
“F” TYPE WITH TWO COAXIAL CONNECTORS & WALL PLATE, 
TPCATV2I     
TPCATV2W White    
TPCATV2 Brown    
TPCATV2BK Black    
TPCATV2LA Light Almond    
CATALOG NUMBER COLOR CONFIGURATION
3rd PARTY COMPLIANCE
UL1863
DECORATOR “F” TYPE COAXIAL CONNECTOR   
26CATVI    
26CATVW White   
26CATVLA Light Almond   
CATALOG NUMBER COLOR CONFIGURATION
3rd PARTY COMPLIANCE
UL1863
COMBINATION COAXIAL CONNECTOR & TELEPHONE JACK
TPTELTVI  
TPTELTVW White    
TPTELTV Brown 4 Conductor RJ-11 jack
TPTELTVBK Black
TPTELTVLA Light Almond
26TELTVICC10     
26TELTVWCC10 White one-piece molded plate
26TELTVLACC10 Light Almond Decorator outline.
            
WWW.LEGRAND.US/PASSANDSEYMOUR
P-33
WALL PLATES
PASS & SEYMOUR
Wall Plates
Communication Plates Standard Size Plastic & Metal
DESCRIPTION COLOR
NYLON THERMOSET METAL
TRADEMASTER®PLATES SMOOTH MATERIAL SMOOTH
TELEPHONE OR CABLE OUTLET   
One Gang
1 Outlet
(Metal plates have
  
   
   Brass SB11
White TP11W SP11W 302/304 S/S SS11
Brown TP11 SP11
Gray TP11GRY
Black TP11BK
Red TP11RED
Light Almond TP11LA
Two Gang
2 Outlets
 
White SP21W
Gray SP21GRY 302/304 S/S SS21
TELEPHONE OR CABLE OUTLET    
One Gang
1 Outlet, 1 #340 Yoke
(Metal plates have
  
   
   Brass SB12
White TP12W SP12W
Brown TP12 SP12 430S/S SL12
Gray TP12GRY 302/304 S/S SS12
Black TP12BK SP12BK
Red SP12RED
Light Almond TP12LA SP12LA
Two Gang
2 Oulets
302/304 S/S SS22
    
302/304 S/S Painted White SS22W
302/304 S/S Painted Gray SS22GRY
TELEPHONE OR CABLE OUTLET   
One Gang
1 Outlet
1 #340 Yoke
(Metal plates have
  
   
302/304 S/S 
TELEPHONE OR CABLE OUTLET   
One Gang
1 Outlet
1 #340 Yoke
 
Brown 
Gray 
TELEPHONE OR CABLE OUTLET   
One Gang
1 Outlet
  
White TP60W SP60W
Light Almond TP60LA SP60LA
TELEPHONE OR CABLE OUTLET   
One Gang
1 Outlet
Supplied With
#340 Yoke
302/304 S/S 
            
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-34
WALL PLATES
Wall Plates
Communication Plates
           
interconnections are required.
     
DESCRIPTION MATERIAL CATALOG
HORIZONTALSPLIT WALL PLATES FOR TELEVISION OR CABLE LEADIN*
One Gang
1 Outlet
Box Mounted. Removable
   
 
302/304 S/S 
One Gang
1 Outlet
Strap Mounted. Removable
    
hole.
302/304 S/S 
One Gang
1 Outlet
   
    
302/304 S/S 
One Gang
1 Outlet
Strap Mounted. Removable
     
302/304 S/S 
One Gang
1 Outlet
  
(Also Furnished for Strap Mounting Cat.
#SS786 with 2 #340 Yokes. Box Mounted.
      
Two Gang
1 Centered Outlet
  
(Also Furnished for Strap Mounting Cat.
#SS788 with 2 #340 Yokes. Box Mounted.
      
            
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
            
Wall Plates
Communication Plates
     
DESCRIPTION
THERMOSET METAL
COLOR SMOOTH MATERIAL SMOOTH
TWO GANG WITH CENTERED OPENINGS**
1 Centered Outlet
Box Mounted 302/304 S/S 
1 Centered Outlet
Strap Mounted
Supplied with
#340 Yoke
302/304 S/S 
COMPUTER JACK PLATES FOR RS232 CONNECTORS**
One Gang
One Jack Opening 302/304 S/S 
One Gang
Two Jack Opening 302/304 S/S 
STANDARD COMBINATION 
Two Gang
Telephone/Duplex
  302/304 S/S 
White 
Brown 
Gray 
Two Gang
Telephone/Blank
 
 
White SP1214W 302/304 S/S SS1214
Two Gang
Telephone/Decorator
White SP1226W
Brown SP1226 302/304 S/S SS1226
Two Gang
Telephone/Toggle
 
White SP112W
Brown SP112
DESCRIPTION
THERMOSET METAL
JUNIOR-JUMBO JUMBO
COLOR SMOOTH MATERIAL SMOOTH
TELEPHONE/CABLE OUTLET**
One Gang
1 Outlet
(Metal plates have removable
    

  302/304 S/S SSO11
White SPJ11W
Light Almond SPJ11LA
One Gang
1 Outlet
Supplied with #340 Yoke 302/304 S/S SSO12
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-36
WALL PLATES
JEWEL
COLOR
CATALOG
NUMBER
JEWELS JEWELS SHOWN
WITH WALL PLATES
FRONT VIEW SIDE VIEW
PLASTIC JEWELS  
Rectangular acrylic plastic
warning light jewel for toggle
switch plates with holding ring.
Red Jewel Standard.
Red 406RED
Green 406GN
White 406W
PLASTIC JEWELS  
Round acrylic plastic warning
light jewel for single receptacle
plates with holding ring.
Red Jewel Standard.
Red 
Green 
White 
sPecialties
Mounting Straps, Yokes & Jewels
DESCRIPTION FINISH COLOR
CATALOG
NUMBER DIMENSIONS
GALVANIZED STEEL HANDY BOX PLATES
Mounting strap for dimmer insert.
Box mounted. Change from
decorator to toggle opening.
Painted
Steel  
White 
Brown 
Light Almond 
Mounting strap for blank insert.
Box mounted. Change decorator
opening to blank.
Painted
Steel  
White 326W
Brown 326
Light Almond 326LA
Tandem mounting strap with two
vertical openings. Plate screw
  
Bright
 342
Mounting strap with three
horizontal openings. Plate
   
Box mounted.
Bright
 
Mounting strap with single vertical
opening. Plate screw hole spacing
  
Bright
 
Adjustment yoke for strap
mounted telephone and blank
      
      
Box mounted.
Bright
 340
Mounting strap for blank insert.
Changes toggle opening to blank,
box mounted.
Thermoset  
White 
Light Almond 
UL Listed.







3.812''
3.281''
2.625''
1.300''
SLATER
327 326 342
2.625"
3.2 81"
3.812"
1.300"
.940"
4.375"
5.25"
1"
1"
1"
.410"
348 347
.921875"
.921875"
3.28125"
3.28125"
1.46875" 1.3125"
2.375"
3.28125"
3.28125"
340 80700-1
3.28125"
1.21875"
3.65"
3.25"
2.37"
4.07"
1.30"
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Designed to give adequate light when
installed behind a louvre plate or indicator
jewel. Mounts in standard wall box. Plate
       
     
Description
Catalog Number
Standard lampholder, 4 Watt 2152
      
      
but increases lamp life more than ten times.
Plate not included.
Extra long life, 4 Watt 2156
All devices listed on this page conform to NEMA WD-1 and WD-6.
Wall Plates & sPecialties
Incandescent Lampholders, Neon Pilot Lights & Panelites
Energy Efficient Gasket
Gangable gasket, use for
toggle, duplex, GFCI or blank. ..... GASKET1
UL Listed and CSA Certified.
Neon Pilot Lights
2220PL
2219PL2200PL
Incandescent Lampholders
Application
Lampholders and louver plates are an ideal
combination for providing bright, shielded
light in hallways and pathways. They increase
safety in corridors, theater aisles, porches,
stairways, etc. A wide choice of plates gives
unlimited possibilities for designing the
perfect night light installation. Available in
brushed brass, custom-painted stainless
steel and stainless steel.
For the complete listing of Louver Plates, see
Page P-22 .
Description
Catalog Number
Long life neon bulb emits indicating light through
transparent lens to show power is on. May be
installed at the load, at switching posts or at remote
locations. We suggest the wall plate be engraved
to explain indication. Fits standard wall box and
takes standard toggle switch plate opening. Plate
      
Description
Catalog Number
With green lens ....................... 2151GN
With red lens ........................2151RED
With white lens ........................ 2151W
Panelites are attractive wall plates that light the
      
meeting areas, etc. Also available with a clear
face for user to apply his own message. Furnished
complete ready to wire. Panelites may be installed
in a feed-through wall box, with the Panelite on
one wall and a pilot light on the other. Panelite also
may be installed in a standard wall box with the
control switch in any desired location. With 4 Watt
   
Panelites
Description
Catalog Number
IN USE, for Horizontal mounting......... 2219PL
IN USE, for Vertical mounting ........... 2220PL
With clear unprinted face............... 2200PL
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
sPecialties
Screws & Screwdrivers

Specify screws by catalog number to designate type of screw, thread,
length, color or finish required.
Screws are available by the box only.
Order by number of boxes…not by the quantity of screws.
Each box contains 100 screws.
Metal screws are available with special finishes and can be painted.
DESCRIPTION
COLOR OR
FINISH
CATALOG
NUMBER
STANDARD & INTERCHANGEABLE WALL PLATE SCREWS
     
      White 
Brown 
Gray 
Light Almond 
Stainless 
Standard size for
Decorator Wall Plates.
     
      White 
Brown 
Brass 
Stainless 
Standard size for Duplex
Receptacles and Toggle Switch
Wall Plates.
     
      White 
Brown 
Light Almond 
Stainless 
     
      White 
Brown 
Light Almond 
Stainless 
Standard size for Blank Box
Mounted Wall Plates.
     
      White 
Brown 
Light Almond 
Stainless 
DESCRIPTION FINISH
CATALOG
NUMBER
TAMPERPROOF SPANNER HEAD SCREWS
  
      430S/S 
  
      430S/S 
DESCRIPTION CATALOG NUMBER
SCREWDRIVER FOR SPANNER HEAD OR KEY SLOT SCREWS
Screwdriver for Spanner
 

DESCRIPTION FINISH
CATALOG
NUMBER
NYLON SCREWS FOR STANDARD AND
INTERCHANGEABLE WALL PLATES
     
     
WWW.LEGRAND.US/PASSANDSEYMOUR
P-39
WALL PLATES
PASS & SEYMOUR
Wall Plates
Engraved & Pad Printed
ENGRAVED (1/8" CHARACTERS)
DESCRIPTION PLATE COLOR FILL COLOR NYLON TRADEMASTER®METAL SMOOTH
EMERGENCY
1 Gang Duplex 302/304 S/S Black 
1 Gang Duplex 302/304 S/S Black 
Painted Red
PAD PRINTED (1/8" CHARACTERS)
DESCRIPTION PLATE COLOR FILL COLOR NYLON TRADEMASTER®METAL SMOOTH
ISOLATED GROUND
1 Gang Duplex Orange Black 
1 Gang Duplex 302/304 S/S Black 
2 Gang Duplex 302/304 S/S Black 
1 Gang Single Orange Black 
1 Gang
Decorator Orange Black 
1 Gang
Decorator 302/304 S/S Black 
EMERGENCY
1 Gang Duplex  Red 
1 Gang Duplex White Red 
1 Gang Duplex Red Black 
1 Gang Duplex 302/304 S/S Black 
2 Gang Duplex Red Black 
1 Gang Toggle Red Black TP1ERED
2 Gang Toggle Red Black TP2ERED
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-40
WALL PLATES
Wall Plates
Engraved & Pad Printed
PAD PRINTED (1/8" CHARACTERS)
DESCRIPTION PLATE COLOR FILL COLOR NYLON TRADEMASTER®METAL SMOOTH
EMERGENCY
1 Gang Decorator Red Black TP26ERED
1 Gang Duplex Red Black 
GAS BURNER ON/OFF EMERGENCY SWITCH
1 Gang Toggle 302/304 S/S Black SS1GBRED
Painted Red
OIL BURNER ON/OFF EMERGENCY SWITCH
1 Gang Toggle 302/304 S/S Black SS1GBRED
Painted Red
GFCI PROTECTED
1 Gang Duplex  Black 
1 Gang Duplex White Black 
COMPUTER ONLY
1 Gang Duplex  Black 
1 Gang Duplex Orange Black 
Single Receptacle  Black 
Single Receptacle Orange Black 
1 Gang Decorator  Black 
1 Gang Decorator Blue Black TP26CBL
1 Gang Decorator Orange Black TP26CO
WWW.LEGRAND.US/PASSANDSEYMOUR
P-41
WALL PLATES
PASS & SEYMOUR
Wall Plates
Custom Metal Wall Plates  
3. Create the Complete Order Part Number by filling in items from previous steps in spaces below.
             
              
       
Catalog #_________________ G_____ Style _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____
              
  
Gang: 1 2 3 4 5 6 7 8 9 10
For help with configuring a Custom Metal Wall Plate, go to www.legrand.us/passandseymour
and select Downloads/Product Selection Guides/Custom Wall Plates.
1. Using the following charts, fill in the spaces provided to select the proper material, number of gangs, desired finish and color.
Ordering Instructions:
Review Your Requirements: For Example: Write Your Selection: Space #
      
       
      
Total Number of Gangs Ordered 4 2
        
        
MATERIAL PREFIX CODE
CHART A: MATERIAL SELECTION
 SA
Brushed Brass SB
302 Stainless Steel SS
2. Review the Plate Opening Styles on pages P-48 – P-60. Following the sequence of your installation (left to right), label each box
below with the appropriate Opening Style Number for each gang.
METAL PLATE STANDARD JR. JUMBO JUMBO
MAXIMUM GANGS FOR CUSTOM METAL WALL PLATES
  20 3 20
Aluminum N/A N/A
Brushed Brass 3 20
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-42
WALL PLATES
PAINT COLOR       
PAINT SUFFIX     
PAINT COLOR Glossy Black Brown White Primer Red
PAINT SUFFIX     
PAINT COLOR Orange Green Gray Yellow
PAINT SUFFIX    
Wall Plates
Custom Metal Wall Plates  
Only available on Stainless Steel and Aluminum Plate Material. Colors may vary slightly.
All Paint Finishes are gloss, except primer and flat black.
      
For additional colors consult factory.
METAL FINISH Polished Brass
US #3
Bright Chromium
US #26
Brushed Copper Brushed Bronze
US #10
Brushed Brass
Standard Finish
FINISH SUFFIX   BC  BB
These charts are for Custom Metal Wall Plates ONLY.
             
Chart B: Paint Finish Selection
Chart C: Metal Finish Selection
WWW.LEGRAND.US/PASSANDSEYMOUR
P-43
WALL PLATES
PASS & SEYMOUR
Wall Plates
Custom Metal Wall Plates Engraving & Pad Printing
Position
Marking may appear anywhere on the flat surface of smooth plates.
On Decorator plates, markings are restricted to the top and bottom flat panels.
                     
Letter Height
Unless specified otherwise, designers will select size and position
         
              
Letter Font
Pad printing is available in any True Type font in colors listed below, on 1 gang and 2 gang plates. Bitmap images can also be printed.
                
Engraving with color fill is available only in block letter font. While mixing of laser and color-filled engraving is allowed,
it is not recommended since the font types will not match.
Color
Color-filled engraving can be filled with red, orange, black, blue, or white paint.
Standard colors for pad printing are red, black, blue, green, orange or white, as shown below.
Ordering Instructions
Specify clearly the following information when you order.
        
             
3. Letters, numbers, characters required. 6. Special layout information, if applicable.
Custom Engraving & Pad Printing
                    
exposed edges could oxidize over time. Refer to current price sheet to select the better process that suits your needs.
Position
  
Color of Filler
Plate Style
by Catalog Number

Color/Finish
Red Black Blue Green Orange White
SSSSS
    
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-44
WALL PLATES
Wall Plates
Custom Panel Plates  
Example
SSPP-4-2
ROW #1:
Style Nos. 1 1
  
 
ROW #2:
Style Nos. 9 9
  
ROW #3:
Style Nos. 12 12
  
 
ROW #4:
Style Nos. 16 16
  
 
Figure 2
Figure 1 Custom Panel Plate
                      
the style selector guide can be custom punched to your specifications. For uniformity of design throughout the building, panel plates have
the same distinctive styling as all other plates, plastic and metal.
          
302/304 Stainless. This is a 302/304 Stainless plate, so the first
       
2. Determine the catalog number for a panel plate 4 gangs high
            
Your 302/304 Stainless Steel catalog number is SSPP-4-2.
3. Construct a chart upon which you can indicate the opening
            
Leave space to show any words or symbols that will be engraved.
Write the catalog number SSPP-4-2 at the top
of the chart. See Figure 1.
4. Refer to the Style Selector Guide and find the style numbers
for each of the desired openings. Write these numbers in their
appropriate position on your chart.
          
in parentheses if engraving is to be above or below the opening.
6. Send the chart with your order to the factory. You have provided
all required information. Refer to current price sheet for pricing
details.
For this example, use the 4 gang high by 2 gang wide panel plate illustrated in Figure 2.
Ordering Instructions
         
Style #149.
            
panel plate.
          
for price adds per gang.
        
detailed drawing.
Additional Information
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Custom Panel Plates  
41/8'' TYP.
41/8'' TYP.
41/8'' TYP.
41/8'' TYP.
113/16'' TYP.11/8'' TYP.
39/32'' TYP
.
41/8''
TYP.
27/32''
TYP.
1/4'' TYP.
1/4'' TYP.
302/304 Stainless Steel
PLATE HEIGHT CATALOG NUMBER GANGS WIDE PLATE WIDTH
PP21 One 
PP22 Two 
PP23 Three 
PP24 Four 
Two Gangs  Five 
  PP26 Six 
 Seven 
 Eight 
PP29 Nine 
PP210 Ten 
PP31 One 
PP32 Two 
PP33 Three 
PP34 Four 
Three Gangs  Five 
  PP36 Six 
 Seven 
 Eight 
PP39 Nine 
PP310 Ten 
PLATE HEIGHT CATALOG NUMBER GANGS WIDE PLATE WIDTH
PP41 One 
PP42 Two 
PP43 Three 
PP44 Four 
Four Gangs  Five 
  PP46 Six 
 Seven 
 Eight 
PP49 Nine 
PP410 Ten 
 One 
 Two 
 Three 
 Four 
Five Gangs  Five 
   Six 
 Seven 
 Eight 
 Nine 
 Ten 
Wall Box Dimensions
Panel Plates are limited to fit the box
configuration shown.
       
dimensions, but are built to exact standards
on device mounting holes. When boxes are
connected together, they should be shimmed
to ensure that the bottom hole to bottom hole
dimension between two vertically adjacent
       
dimensions circled.
      
the corners, indicate location and spacing.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
P-46
WALL PLATES
Wall Plates
Style Selector Guide Custom Metal Wall Plates
STYLE
1
TOGGLE SWITCH
#1 Standard Plate page P-9
STYLE
2STYLE
3STYLE
4
STYLE
5STYLE
7STYLE
8
STYLE
10 STYLE
11 STYLE
12 STYLE
13
STYLE
14 STYLE
16 STYLE
17
SINGLE OUTLET
    
DUPLEX OUTLET
    
BIPLEX/TRIPLEX
#9 Standard Plate page P-22
PUSH BUTTON TELEPHONE, BOX MTD.
#11 Standard Plate page P-33
TELEPHONE, STRAP MTD.
with #340 Yoke
#12 Standard Plate page P-33
BLANK, BOX MTD.
#13 Standard Plate page P-12
BLANK, STRAP MTD.
with #340 Yoke
#14 Standard Plate page P-13
SINGLE OUTLET
  
SINGLE RECEPTACLE
  
CENTERED 2 GANG
TOGGLE SWITCH
CENTERED 2 GANG
    
STYLE
18
STYLE
9
All wall plate dimensions shown above are in inches.
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Style Selector Guide Custom Metal Wall Plates
All wall plate dimensions shown above are in inches.
SINGLE OUTLET
CENTERED 2 GANG
    
STYLE
19 STYLE
20 STYLE
21 STYLE
22
BIPLEX/TRIPLEX
CENTERED 2 GANG
BLANK, BOX MTD.
#23 Standard Plate page P-12
BLANK, STRAP MTD.
with 2 #340 Yokes
#24 Standard Plate page P-13
TELEPHONE JACK OUTLET
   
DECORATOR/GFCI
#26 Standard Plate page P-10
ONE DESPARD®
INTERCHANGEABLE
  
Standard Plate page P-20
    
TWO DESPARD®
INTERCHANGEABLE
  
Standard Plate page P-20
    
THREE DESPARD®
INTERCHANGEABLE
  
Standard Plate page P-20
    
STYLE
23 STYLE
24 STYLE
25 STYLE
26
STYLE
27 STYLE
28 STYLE
30
STYLE
33 STYLE
36 STYLE
37 STYLE
38
ONE VERTICAL DESPARD®
INTERCHANGEABLE
  
Standard Plate page P-20
DUPLEX OUTLET
CENTERED 2 GANG
    
DECORATOR/GFCI
CENTERED 2 GANG
    
STYLE
32
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
Wall Plates
Style Selector Guide Custom Metal Wall Plates
STYLE
66
   
STYLE
40 STYLE
41 STYLE
42 STYLE
43
STYLE
44 STYLE
45 STYLE
46 STYLE
47
STYLE
48 STYLE
55
   
Standard Price per Character
    
      
     
      
with #340 Yoke
    
with #340 Yoke
    
with #340 Yoke
    
             
STYLE
64
STYLE
62
STYLE
57
STYLE
59
STYLE
49
All wall plate dimensions shown above are in inches.
WWW.LEGRAND.US/PASSANDSEYMOUR
P-49
WALL PLATES
PASS & SEYMOUR
Wall Plates
Style Selector Guide Custom Metal Wall Plates
All wall plate dimensions shown above are in inches.
    
     
    
     
    
POWER OUTLET
          
STYLE
68 STYLE
71 STYLE
73 STYLE
75
STYLE
77 STYLE
80 STYLE
83 STYLE
86
STYLE
89 STYLE
91 STYLE
92
    
             
   
    
    
     
   
     
    
     
POWER OUTLET
    
STYLE
99
STYLE
98
STYLE
94
STYLE
97 STYLE
100
with 2 # 340 Yokes
    
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
Wall Plates
Style Selector Guide Custom Metal Wall Plates
All wall plate dimensions shown above are in inches.
     
    
STYLE
135
STYLE
104 STYLE
106 STYLE
110
STYLE
112 STYLE
115 STYLE
116 STYLE
119
              
    
     
    
     
with #340 Yoke
    
    
POWER OUTLET
    
STYLE
123
STYLE
122
STYLE
121
STYLE
134
STYLE
132
STYLE
131
STYLE
124
STYLE
102
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Style Selector Guide Custom Metal Wall Plates
All wall plate dimensions shown above are in inches.
    
with #340 Yoke
    
 
with #340 Yoke
   
   
   
STYLE
136 STYLE
137 STYLE
138 STYLE
141
STYLE
142 STYLE
143
STYLE
163
    
     
    
    
    
DESP. INTCH. MTD.
TELEPHONE OUTLET
CENTERED
2 GANG, with #340 Yoke
    
     
POWER OUTLET
    
POWER OUTLET
    
STYLE
144
STYLE
152 STYLE
155
STYLE
149
STYLE
150
STYLE
162
STYLE
160
STYLE
156
POWER OUTLET
    
STYLE
165
POWER OUTLET
    
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
Wall Plates
Style Selector Guide Custom Metal Wall Plates
STYLE
199
3 GANG PLATELOUVRE
    
POWER OUTLET
    
 
    
 
      
    
    
     
STYLE
166 STYLE
171
STYLE
169 STYLE
172
STYLE
177 STYLE
181
STYLE
180 STYLE
182
STYLE
183 STYLE
187
STYLE
185 STYLE
188
STYLE
189 STYLE
194
STYLE
191
POWER OUTLET
    
    
     
All wall plate dimensions shown above are in inches.
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Style Selector Guide Custom Metal Wall Plates
All wall plate dimensions shown above are in inches.
with #340 Yoke
    
4-S Box Mtd. Plate available in any
Standard 1 Gang Opening
  
with #340 Yoke      
STYLE
200 STYLE
206 STYLE
210 STYLE
211
STYLE
213 STYLE
214 STYLE
215
STYLE
216
STYLE
217 STYLE
218 STYLE
219 STYLE
220
STYLE
221 STYLE
222 STYLE
223 STYLE
224
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
Wall Plates
Style Selector Guide Custom Metal Wall Plates
STYLE
243
STYLE
225 STYLE
226 STYLE
227 STYLE
228
STYLE
229 STYLE
230
    
   
with #340 Yoke
    
STYLE
232 STYLE
233
STYLE
235 STYLE
236 STYLE
237 STYLE
239
STYLE
240 STYLE
241 STYLE
242
All wall plate dimensions shown above are in inches.
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Wall Plates
Style Selector Guide Custom Metal Wall Plates
All wall plate dimensions shown above are in inches.
F.S. BOX MTD.
   
STYLE 262A
   
STYLE
244 STYLE
245 STYLE
246 STYLE
247
STYLE
248 STYLE
252 STYLE
257 STYLE
258
STYLE
259 STYLE
260 STYLE
261 STYLE
262
STYLE
267 STYLE
269 STYLE
270 STYLE
271
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
STYLE
285
JUMBO 2 GANG PLATE
Wall Plates
Style Selector Guide Custom Metal Wall Plates
All wall plate dimensions shown above are in inches.
STYLE
291
STYLE
272 STYLE
274
STYLE
273 STYLE
275
STYLE
276 STYLE
281
STYLE
279 STYLE
282
STYLE
283 STYLE
284 STYLE
286
STYLE
287 STYLE
289
STYLE
288
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
All wall plate dimensions shown above are in inches.
Wall Plates
Style Selector Guide Custom Metal Wall Plates
   
POWER OUTLET
    
    
FOR RS-232
COMPUTER JACK
    
FOR RS-232
COMPUTER JACKS
    
STYLE
292 STYLE
293 STYLE
295 STYLE
295A
STYLE
296 STYLE
296A STYLE
298
STYLE
299 STYLE
300 STYLE
301 STYLE
302
STYLE
305
STYLE
303
STYLE
297
STYLE
306 STYLE
307
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
Wall Plates
Style Selector Guide Custom Metal Wall Plates
TELEPHONE JACKTELEPHONE JACK AMP ELECTRONIC
CONNECTOR COAXIAL ELECTRONIC
CONNECTOR
COAXIAL ELECTRONIC
CONNECTOR COAXIAL ELECTRONIC
CONNECTOR LAN PORT
STYLE
308 STYLE
309 STYLE
310 STYLE
311
STYLE
312 STYLE
313 STYLE
314 STYLE
315
STYLE
315A STYLE
315B
All wall plate dimensions shown above are in inches.
WWW.LEGRAND.US/PASSANDSEYMOUR

WALL PLATES
PASS & SEYMOUR
Devices & Wall Plates
Color Selection Chart
Devices & Plastic Wall Plate Colors
          
For additional colors consult factory.
Custom Metal Wall Plates Paint Finish Colors
Paint Color
Metal Wall Plates
Metal Finish
 Light Almond White Green
Black Blue Brown Gray Orange Red
See specific device and wall plate catalog charts for particular color availabilities.
Aluminum   Polished Brass Stainless Steel Brushed Bronze Chrome
Orange Green Gray Yellow Glossy Black Brown White
Primer Red Pink Flat Black  Light Almond Blue
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-1
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
ElEctrical accEssoriEs
Looking for the classic porcelain lampholder? A hard-to-find household
adapter? Or a wide range of replacement appliance switches? You’ll find
them in our accessory line — along with quality materials, durability, and
time-tested designs.
MEDIUM BASE
LAMPHOLDERS
Q-4
Appliance Switches Q-2
Fluorescent Lampholders Q-3
Incandescent Lampholders Q-4
Household Devices Q-6
Fluorescent Starters & Wall Plate Inserts Q-10
Special Purpose Devices – Despard®Q-11
Low-Voltage Switching Components Q-13
Network Wiring Connectivity Q-16
Keystone Products, Wall Plates & Frames Q-16
Activate™ Products Q-17
Frames & Wall Plates Q-18
Patch Panels, 66 Block & Patch Cords Q-19
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-2
ELECTRICAL ACCESSORIES
ElEctrical accEssoriEs
Appliance Switches
APPLIANCE SWITCHES
CATALOG NUMBER RATING DESCRIPTION COLOR UL CSA cULus
1.375" 423 6A 125V In-line cord switch, light-duty. Brown • •
3A 250V
410WCC25 3A 125VT White •
.80" 1.18"
5406BK 6A 125V Heavy-duty, feed-thru cord
switch, single pole, ON-OFF
sequence, markings near
toggle.
Black • •
5406BKBPCC5
5406BKCC10
5406W White
5406WBPCC5
5406WCC10
18 AWG
6.5" long
0.63" 574T 3A 125V Rotary, single pole,
non-removable black
phenolic stem, 2 black leads.
18 AWG) 6.5" long, On-Off
sequence.
Black •
1A 125VT
1A 250V
0.80" 1.22" (ref)
6.00" (ref)
0.97" (ref)
575 3A 250V Push button canopy switch,
single pole, Bakelite plunger,
ON-OFF sequence, RU Listed.
Brown •
1A 250V
1.25"
653 6A 125VT Rotary, single pole, two circuit,
four position, heavy-duty,
black, blue, red leads, 1st
ON, 2nd ON, both ON, OFF
sequence. RU Listed.
•
3A 250V
90577 6A 125V Rotary, single pole, 2 position
ON-OFF sequence.
3A 250V
0.98"
18 AWG
6.5" long
1.48"
0.64"
738 8A 125V Toggle, single throw, ON-OFF
sequence, 2 black leads.
(18 AWG) 6.5" long, RU Listed.
•
1.38"
Red
Blue
Black
1.13"
168950 3A 125V-L Pull chain, two circuit, four
position, 1st ON, 2nd ON, both
ON, OFF sequence, RU Listed.
• •
6A 125V
3A 250V
1/4 HP @ 125/120V
0.88"
1.44"
18 AWG
6.5" long
220 6A 125V Heavy-duty single pole canopy
pull switch. 2 black leads (18
AWG) 6.5" long, RU Listed.
• •
3A 250V
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-3
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
ElEctrical accEssoriEs
Fluorescent Lampholders
FLUORESCENT LAMPHOLDERS
2.37"
0.75"
1.44"
CATALOG NUMBER RATING DESCRIPTION COLOR UL CSA
3901W 660W 600V Medium bi-pin, screw terminals. White • •
3911W 660W 600V Medium bi-pin, pressure
lock terminals, includes
starter base.
White • •
2.37"
1.630" 1.45"
464 660W 600V Pedestal type, recessed, contact, plunger,
with floor terminal screw cover (for 800 &
1500MA T-12 lamps).
White • •
2.375"
1.625" 1.50"
465 660W 600V Pedestal type, recessed, fixed, quick wire
terminals (for 800 & 1500MA T-12 lamps).
White • •
2.3125"
1.625"
1.4375"
466 660W 1000V Pedestal type, recessed, plunger, quick wire
terminals (for all sizes of lamps T-12, T-8,
and T-6).
White •
1.4375"
2.3125"
1.625"
467 660W 600V Pedestal type, recessed, fixed, quick wire
terminals (for all sizes of lamps T-12, T-8,
and T-6).
White •
1.88"
1.375"
623 660W 600V Snap-in, high output with plunger. White • •
1.74"
1.312"
1.468"
1.13" 2536 660W 1000V Slimline, for single pin lamps, shallow base,
slide plunger, push in terminal.
White • •
2537 660W 600V Slimline, for single pin lamps, shallow base,
slide fixed, 2 push in terminals.
White • •
0.75"
1.6875"
1.25"
13053UN 660W 660V Slide-on, short, for medium bi-pin lamps
with captive nut, 4 quick wire terminals.
White •
2.00"
1.375"
0.75"
13057UN 660W 600V Slide-on, for medium bi-pin with captive
4 quick wire terminals.
White • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-4
ELECTRICAL ACCESSORIES
276WH
280WH
288
7070PG, 7090PG
MEDIUM BASE LAMPHOLDERS
CATALOG NUMBER RATING DESCRIPTION COLOR cULus UL CSA
4.5"
272 660W 250V Medium base, porcelain, one piece keyless,
2 terminals with tri-drive screws, fits 3-1/4"
and 4" boxes, with cage neck.
White • •
272WH6 660W 250V Same with 6" leads. White • •
274 660W 250V Medium base, porcelain, one piece keyless,
4 terminals with tri-drive screws, fits 3-1/4"
and 4" boxes.
White • •
276WH 660W 250V Medium base, phenolic, one-piece keyless,
4 terminals with tri-drive screws, fits 3-1/4"
and 4" boxes, with cage neck.
White • •
276WH6 660W 250V Same with 6" leads. White • •
4.5"
282 250W 250V Medium base, porcelain, pullchain,
2 terminals with tri-drive screws, fits 3-1/4"
and 4" boxes, with cage neck.
White • •
284 250W 250V Medium base, porcelain, pullchain,
4 terminals with tri-drive screws, fits 3-1/4"
and 4" boxes, with cage neck.
White • •
280WH 250W 250V Medium base, phenolic, pullchain,
4 terminals with tri-drive screws, fits 3-1/4"
and 4" boxes, with cage neck.
White • •
280WH6 250W 250V Same with 6" leads. White • •
4.5" 29816C2 250W 250V Medium base, porcelain, pullchain,
2 terminals with tri-drive screws, 6" leads,
fits 3-1/4" and 4" boxes with cage neck.
White • •
288 250W 125V Medium base, porcelain, pullchain,
2 terminals with tri-drive screws, 15A
125V grounding receptacle, fits 3-1/4"
and 4" boxes, with cage neck.
White • •
CFL LAMPHOLDERS
277FL 13W 120V,
60Hz
Compact Fluorescent Lampholder, includes
GU24 lamp, Energy Star qualified White •
278FL 13W 120V,
60Hz
Compact Fluorescent Lampholder
with pull chain, includes GU24 lamp,
Energy Star qualified
White •
METAL SHELL LAMPHOLDERS
2.0"
2.5"
7070PG 250W 250V Medium base, metal shell, removable
turn knob, electrolier, 2 lamp controls,
3 terminals, 1st ON, 2nd ON, both ON,
OFF sequence.
• •
7070M Interior only for 7070-PG. •
7090PG 250W 250V Medium base, metal shell, removable turn
knob, electrolier, 3-way LO-MED-HIGH.
•
7090M Interior only for 7090-PG. •
7090MH Interior only with hickey for 7090-PG. •
2.0"
2.5"
6098PG 660W 250V Medium base, push through, metal shell,
electrolier, single circuit. • •
7080M Interior only for 6098-PG. •
2.0"
2.5"
1008316 250W 250V Medium base, metal shell, removable
turn knob, single circuit, electrolier,
1/8" IPS tapped bushing with set screw.
•
10083M Interior only for 10083-16. •
2.5"
5.50"
19980PG 660W 250V Medium base, metal shell, pull chain,
electrolier, single circuit, 1/8" IPS
bushing with set screw.
• •
8002M Interior only for 19980. •
277FL
278FL
All devices listed on this page conform to NEMA WD-1 and WD-6.
ElEctrical accEssoriEs
Incandescent Lampholders
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-5
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
METAL SHELL LAMPHOLDERS
CATALOG NUMBER RATING DESCRIPTION COLOR UL CSA cULus
975ABDCC10 660W 250V Medium base, metal shell, keyless. • •
MEDIUM BASE LAMPHOLDERS
8101 660W 250V Medium base, porcelain, keyless, single
circuit, 2 piece ring with leads. 1-3/8" to
1-1/2" hole.
White •
1.75"
1.75"
201 660W 600V Medium base, rubber, keyless, for
temporary lighting, 2 wire leads 6" long.
Black • •
2.00"
1.38"
31528 660W 250V Medium base, porcelain, screw terminals,
keyless, single circuit,
fixture pan with 1/8" IPS hickey.
White • •
w
3.38"
1.38"
3352F 660W 250V Medium base, porcelain, keyless, screw
terminals, short base.
White • •
8052CC10 660W 250V Medium base, porcelain, bracket mount. • •
9814 250W 250V Medium base, porcelain, 2-piece pull
chain, ring type, screw terminals,
gasket furnished.
White
1.53"
2.31"
9880 660W 250V Medium base, porcelain, surface mount
type, 2-piece.
White • •
2.00"
1.40" 10045 660W 250V Medium base, porcelain, keyless, single
circuit with screw terminals, aluminum
screw shell with set.
White • •
10085 660W 250V Medium base, porcelain, keyless, single
circuit with 2-18 AWG leads 6" long.
White • •
2.00"
1.75"
19062 660W 250V Medium base, porcelain, pony cleat type,
terminal screws.
White • •
S752WCC10 660W 250V Medium base, cleat sockets, front wire. White •
61 660W 125V Medium base, outlet to lampholder,
2 Pole, 2 Wire. Brown
All devices listed on this page conform to NEMA WD-1 and WD-6.
ElEctrical accEssoriEs
Incandescent Lampholders
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-6
ELECTRICAL ACCESSORIES
MEDIUM BASE LAMPHOLDERS
CATALOG NUMBER RATING DESCRIPTION COLOR UL CSA
4017CC10 660W 250V Medium base, single-to-twin. • •
4063CC10 250W 250V Medium base, turn knob, 3 way. • •
4.375"
2.75"
4155 660W 250V Candle socket, bottom turn knob,
one piece, phenolic body.
Black •
MOGUL BASE LAMPHOLDERS
4.25"
2.00" 8601 750W 250V Mogul base, porcelain, removable
turn knob, 2 circuits, hickey tapped
1/4" IPS x 7/8" high.
White •
3.25"
3.12"
8678 1500W 600V Mogul base, porcelain, keyless, single circuit,
1/4" IPS 13/16" hexagon x 9/16" high with
screw set.
White • •
2.56"
2.13"
8694 1500W 600V Mogul base, porcelain, screw terminals,
keyless, single pole with bushings,
4KV pulse rated.
White •
PONY CLEAT TYPE LAMPHOLDERS
.88"
1.44"
10020 75W 125V Pony cleat type, plastic, miniature base. White
10028 75W 125V Pony cleat type, plastic, candelabra base. White
CANDELABRA BOX LAMPHOLDERS
1.75"
0.75" 10027 75W 125V Candelabra base, keyless, screw terminals,
solid hickey, overall height 1-1/2",
paperboard sleeve.
•
TEMPORARY LIGHTING DEVICES
2.0"
1.44"
267 75W 125V Keyless, candelabra base, detachable wire hook,
two piece pin type, for temporary use.
Brown •
43308 660W 250V Medium base, phenolic, pin type hook supplied,
for temporary use.
Black •
SOCKET EXTENSIONS/CLUSTERS
2.0"
1.53"
2005 660W 250V Socket extensions, medium-to-medium,
one piece porcelain, 1.25" extension.
White • •
2006 660W 250V Socket extensions, medium-to-medium,
one piece phenolic, 1.1875" extension.
White • •
341DU4 660W 250V Medium base, multi-lampholder cluster,
3 lights 1/8" IPS male (top & bottom),
2 wire leads (18 AWG) 6.5" long.
Black
4015D4F 660W 250V Medium base, multi-lampholder cluster,
2 lights 1/8" IPS male (top & bottom).
Black
All devices listed on this page conform to NEMA WD-1 and WD-6.
ElEctrical accEssoriEs
Incandescent Lampholders & Household Devices
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-7
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
PLUGS & CONNECTORS
CATALOG NUMBER RATING DESCRIPTION COLOR UL CSA
1.13"
1.5"
101 15A 125V Clamptite plug, light-duty, 2 Pole, 2 Wire. Black •
101W White •
84BKCC20 15A 125V Angle plug, light-duty, 2 Pole, 2 Wire. Black • •
111MC 111GMC
114GMC
2.69"
1.50"
2.69"
1.56"
1.56"
2.3"
111MC 15A 125V Rubber plug, with vinyl cord clamp, 2 Pole, 2 Wire. Black •
111GMC 15A 125V Rubber plug, with vinyl cord clamp inner assembly,
2 Pole, 3 Wire, (mates with 114GMC).
Black •
114GMC 15A 125V Rubber connector, with vinyl cord clamp, 2 Pole,
3 Wire, (mates with 111GMC).
Black •
1.13"
1.38"
0.75"
123P 10A 125V Easy wire plug, 10A 125V use with 18-2 SPT-1 Cord,
3A 125V use with 20-2XT Cord, non-polarized.
Brown •
123PI 3A 125V Ivory •
123PW White •
2.13"
1.63" 0.75"
48643 15A 125V Plug, vinyl, short flat, 2 Pole, 2 Wire. Brown •
83CC4 30A 125V Angle travel trailer plug, 2 Pole, 3 Wire. Black • •
SA155
SA440
SA540
SA840
SA155BKCC10 15A 125V Straight blade connector, polarized, 2 Pole, 2 Wire. Black • •
SA155CC10 Brown • •
SA155WCC10 White • •
SA440BKCC10 15A 125V Straight blade plug, 2 Pole, 2 Wire. Black • •
SA440CC10 Brown • •
SA440WCC10 White • •
SA540BKCC10 15A 125V Straight blade plug, polarized, 2 Pole, 2 Wire. Black • •
SA540CC10 Brown • •
SA540WCC10 White • •
SA840BKCC10 15A 125V Straight blade plug, with cord clip, 2 Pole, 2 Wire. Black • •
SA840CC10 Brown • •
SA840WCC10 White • •
SA399
SA399BKCC10 15A 125V Straight blade plug, 2 Pole, 3 Wire. Black • •
SA399GRYCC10 Gray • •
SA399OCC10 Orange • •
SA399WCC10 White • •
SA993
SA993BKCC10 15A 125V Straight blade connector, 2 Pole, 3 Wire. Black • •
SA993GRYCC10 Gray • •
SA993OCC10 Orange • •
SA993WCC10 White • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
ElEctrical accEssoriEs
Household Devices
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-8
ELECTRICAL ACCESSORIES
QUICK CLAMP PLUGS & CONNECTORS
CATALOG NUMBER RATING DESCRIPTION COLOR UL CSA
123PQC 123C3W
123PQC 10A with 18AWG
SPT-1 & 2 Cord,
13A with 16AWG
SPT-1 Cord
2 wire Quick Clamp plug Brown •
123PQCW White •
123C3W 2 wire tri-tap Quick Clamp connector White •
ADAPTERS
125 15A 125V Lampholder to outlet, medium base. White •
660W
3.1"
1403 660W 125V Medium base lampholder/outlet adapter, keyless
lampholder with 2 outlets, 2 Pole, 2 Wire.
Black •
1406 250W 125V Medium base lampholder/outlet adapter, pull
chain lampholder with 2 outlets, 2 Pole, 2 Wire.
Black •
1406I Ivory •
128 15A 250V Single lampholder-to-twin lampholder, medium
base.
Brown •
660W
8681 660W 250V Mogul to medium socket adapter, 1 piece. 1.66"
Dia. x 2.0" Deep
White • •
313CC10 75W 125V Socket reducer, medium to candelabra, keyless. Black • •
1264 15, 20A 125V Travel trailer adapter, 2 Pole, 3 Wire.
1.75"
210G 15A 125V Adapter, parallel blades, molded rubber,
polarized, 3 Wire grounding.
Gray •
1482ICC10 15A 125V Cube tap, single to triple outlet, 2 Pole, 3 Wire. Ivory • •
68 15A 125V Cube tape, phenolic, single to triple, 2 Pole,
2 Wire.
Brown
68I Ivory
3.00" 1.06"
63 15A 125V Plug-in adapter, single to triple, polarized,
2 Pole, 2 Wire. Brown • •
63I Ivory • •
3.00"
1.08"
69I 15A 125V Plug-in adapter, single to triple, swivel,
polarized, 2 Pole, 2 Wire.
Ivory • •
69W White • •
All devices listed on this page conform to NEMA WD-1 and WD-6.
ElEctrical accEssoriEs
Household Devices
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-9
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
ADAPTERS
CATALOG NUMBER RATING DESCRIPTION COLOR UL CSA
697
3.25" 1.38"
697-RI
4.0"
1.38"
697 15A 125V Plug-in outlet adapter, single to triple,
2 Pole, 3 Wire.
Brown •
697I Ivory •
697RI 15A 125V Plug-in outlet adapter, single to triple,
rubber, 2 Pole, 3 Wire. Ivory •
697W 15A 125V Plug-in outlet adapter, single to triple,
2 Pole, 3 Wire. White •
3.2" 2.2" 699CC25 15A 120V Plug-in outlet adapter, single to triple,
2 Pole, 3 Wire.
Brown • •
699GRCC25 Green • •
226PAI 15A 125V Plug-in adapter, two to six, polarized,
2 Pole, 3 Wire.
Ivory • •
226PAW White • •
MISCELLANEOUS DEVICES
941904 150W 120V Dawn to dusk dimmer, automatic light
sensor fits into standard lamp socket.
Indoor or outdoor use.
Gray • •
13741 15A 125V Snap-in receptacle, 3 Wire grounding outlet
with 6" leads, No. 14 AWG 105°C plastic.
Black • •
746ICC10 15A 125V Surface outlet, 2 Pole, 2 Wire. Ivory • •
779CC5 15A 120/277V Cover-mounted switch. • •
735CC10 10A 125V Surface mount switch Black • •
5A 250V
735ICC10 Ivory • •
5SC Outlet safety caps. Clear •
All devices listed on this page conform to NEMA WD-1 and WD-6.
ElEctrical accEssoriEs
Household Devices
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-10
ELECTRICAL ACCESSORIES
FLUORESCENT STARTERS
1.34"
1.50"
0.84"
CATALOG NUMBER DESCRIPTION UL CSA
FS2 Glow switch starter without reset, 2 pins 14, 15 & 20W. • •
FS4 Glow switch starter without reset, 2 pins 13, 30 & 40W. • •
FS5 Glow switch starter without reset, 2 pins 4, 6 & 8W. • •
FS25 Glow switch starter without reset, 2 pins 22W Circline
25W Std.
• •
WALL PLATE INSERTS
DIMENSIONS CATALOG NUMBER DESCRIPTION FINISH COLOR
3.812''
3.281''
2.625
1.300''
SLATER
325I Mounting strap for blank insert. Box mounted. Polycarbonate Ivory
325W Changes decorator opening to blank. Plastic White
325 Brown
325BK Black
325LA Light Almond
325GRY Grey
3.812''
3.281''
2.625
1.300''
SLATER
326I Mounting strap for blank insert. Box mounted. Painted Ivory
326W Changes decorator opening to blank. Steel White
326 Brown
326LA Light Almond
1.300''
3.812''
3.281''
2.625''
.410''
.940''
327I Mounting strap for dimmer insert. Box mounted. Painted Ivory
327W Change from decorator to toggle opening. Steel White
327 Brown
327LA Light Almond
4.07''
2.37''
3.25''
3.65''
1.30'' 80700I Mounting strap for blank insert. Box mounted. Thermoset Ivory
80700W Changes toggle opening to blank. Plastic White
80700LA Light Almond
FS2
FS4
FS5
FS25
All devices listed on this page conform to NEMA WD-1 and WD-6.
ElEctrical accEssoriEs
Fluorescent Starters & Wall Plate Inserts
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-11
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
CATALOG NUMBER
COLOR
RATING 3RD PARTY COMPLIANCE
SINGLE POLE THREE-WAY A. V. UL20
TOGGLE SWITCHES SCREW TERMINALS
ACD1I ACD3I Ivory 15 120/277 •
ACD1W ACD3W White 15 120/277 •
ACD1 ACD3 Brown 15 120/277 •
ACD201I ACD203I Ivory 20 120/277 •
ACD201 ACD203 Brown 20 120/277 •
CATALOG NUMBER COLOR
RATING
DESCRIPTION
3RD PARTY COMPLIANCE
A. V. UL498
RECEPTACLES THREE WIRE GROUNDING
1432 Ivory 15 125
Must be installed in end opening of strap
with Ground Lead
•
1532 White 15 125 •
1332 Brown 15 125 •
1433 Ivory 15 125 •
1333 Brown 15 125 •
CATALOG NUMBER
RATING
DESCRIPTION
3RD PARTY COMPLIANCE
COLOR A. V. UL542
NEON PILOT LIGHTS
1375 Brown 1/25 125
Flush Red Neon Pilot Light with Screw
Terminals
•
1375220 Brown 1/8 220 •
1475 Ivory 1/25 125 •
1475277 Ivory 1/6 277 •
1575 White 1/25 125 •
CATALOG NUMBER COLOR
RATING
DESCRIPTIONA. V.
FLUSH PILOT LIGHTS WITH MOUNTING STRAPS
1376 Brown 6 125 Single, for Single Vertical Opening Plate
1377 Brown 6 125 Combination, for Switch or Outlet Plate
HP CONVERSION TABLE
15 Amp 1/2 Horsepower at 120VAC; 2 Horsepower at 240VAC
20 Amp 1 Horsepower at 120VAC; 2 Horsepower at 240VAC
30 Amp 2 Horsepower at 120VAC; 2 Horsepower at 240VAC
ElEctrical accEssoriEs
Special Purpose Devices – Despard®
.67”
.65”
.89” .97” 1.54”
.25”
1.11”
.58”
1.33”
1432
.759”
.656”
.562” .89” 1.258”
.968”
1.422”
1.218”
1475
.910”
.650”
1.650”
1.150”
1.680”
.867”
.910”
ACD1
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-12
ELECTRICAL ACCESSORIES
CATALOG NUMBER DESCRIPTION
SCREW
SPACING FINISH
RECEPTACLES THREE WIRE GROUNDING
342 Tandem mounting strap with two vertical openings.
Plate screw hole spacing 4-3/8".
4-3/8" Bright Zinc
347 Mounting strap with single vertical opening.
Plate screw hole spacing 3-13/16". Box mounted.
3-13/16" Bright Zinc
348 Mounting strap with three horizontal openings.
Plate screw hole spacing 3-13/16". Box mounted.
3-13/16" Bright Zinc
1354 Appliance Strap. 1-31/32"
ElEctrical accEssoriEs
Special Purpose Devices – Despard®
The correct style of mounting strap is furnished with each Despard wall plate, but straps may be ordered separately.
Consult Page P-36 for additional mounting straps.
Dimensions
Installation & Removal
To assemble Despard devices in strap, insert tab on strap into the slot in the device; a twist
of a screwdriver in the slots on the opposite side of the strap turns a slim strip of metal into
the mounting slot on that side of the device to lock the device securely in place. To remove
the device, reverse the procedure.
342
1"
1"
1"
4.375"
5.25"
To Insert To Remove
TWIST TWIST
347
2.375"
3.28125"
3.8125"
1.3125"
348
3.28125"
3.8125"
9.21875"
9.21875"
1.46875"
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-13
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
ElEctrical accEssoriEs
Low-Voltage Switching Components
Application
Legrand/Pass & Seymour’s Low-Voltage Remote
Control Products consist of reliable, field-tested
switching circuitry that provide central or local control
of lighting loads throughout a building. These are best
applied in institutions, schools, commercial buildings,
warehouses and other installations where the ON-OFF
switching of lighting is widely dispersed throughout the
structures.
The low-voltage system differs from conventional switch
wiring by actuating relays through the use of momentary
contact switches. This type of switching utilizes a
transformer to provide safe low-voltage current to
control line voltage circuits. The wiring of lights and other
electrical loads is installed in the conventional manner.
The above illustration simplifies a low-voltage circuit with
its basic components:
A. Transformer – Converts line voltage to low-voltage.
All low-voltage components operate using 24 volts
furnished by the step-down transformer. Secondary
output is 3-12A.
B. Relay – The magnetic relay switches line voltage.
A momentary 24 volt pulse energizes the “ON” or “OFF”
coils to make or break line voltage contacts.
C. Switches – Switches are momentary contact type used
to energize either the “ON” or “OFF” coils of a relay.
Momentary contact switches are normally open, single
pole, double throw.
Important:
Low-Voltage Switching Components are specifically
designed for switching incandescent and fluorescent
lighting (non-HID) loads.
Low-Voltage Switching Components are not to be used
with any components supplied by other manufacturers.
Misapplication or improper use may void product
warranties.
Basic Wiring Diagram
A
B
C
120/277VAC
120/277VAC
Switch
Load
Relay
Blue
(Common)
Black
(Off)
Red
(On)
The ABCs of Low-Voltage Wiring and Components
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-14
ELECTRICAL ACCESSORIES
ElEctrical accEssoriEs
Low-Voltage Switching Components
CATALOG NUMBER COLOR
RATING
DESCRIPTIONA. V.
MOMENTARY CONTACT SWITCHES
1091I Ivory 3 24 AC/DC Despard Interchangeable
1091W White 3 24 AC/DC Despard Interchangeable
1091 Brown 3 24 AC/DC Despard Interchangeable
1091GRY Gray 3 24 AC/DC Despard Interchangeable
1091KGRY Gray 3 24 AC/DC Despard Interchangeable,
Key-Locking
1050K Key only for Despard
Locking Switch
1081I Ivory 3 24 AC/DC Heavy-Duty Toggle
1081W White 3 24 AC/DC Heavy-Duty Toggle
1081 Brown 3 24 AC/DC Heavy-Duty Toggle
1081GRY Gray 3 24 AC/DC Heavy-Duty Toggle
1081LA Light Almond 324 AC/DC Heavy-Duty Toggle
1081RED Red 3 24 AC/DC Heavy-Duty Toggle
1081KGRY Gray 3 24 AC/DC Heavy-Duty Key-Locking
500K Key only for Heavy-Duty
Locking Switch
Note: When installing low-voltage control wiring, wires should not be bundled or run in
parallel with line voltage wires.
Features
• Mount in standard 1/2" KO through noise suppressing
nylon ring.
• Maximum ambient temp: 140°F (60°C).
• Insulated flame retardant nylon shell.
• Prestripped 5-1/2" (140mm) #22 AWG leads for easy wiring.
• Split coil design energizes ON coil to close line contacts, and
OFF coil to open contacts.
• Can be mounted in any position.
• Operates on momentary impulse.
• Draws .520 mA.
1070B
1.176''
Line Voltage Leads 1.290''
3.156''
Nylon Mounting Ring Control Leads
.818''
#12-19 Stranded Copper Wire
(Tinned) Type T-1/32 INS
Black - 6''
Type SRIR #22 Stranded
Tinned Wire Thermoplastic
Insulation - 5-1/2 '' Long
2.188''
1.062''
1.312''
2.375''
3.281''
4.093''
1081
1.70''
.25''
.50''
.39''
.88''
1.69''
1091
CATALOG NUMBER
RATING 3RD PARTY COMPLIANCE
A. V. UL Listed CSA Listed
MAGNETIC LATCHING RELAY, 24V/24VDC CONTROL
1070B 20 120/277V • •
20 347V
CSA listed for 347V.
Features
• Available in Despard®
interchangeable and heavy-
duty toggle versions.
• Side wired screw terminals.
• Heavy-duty toggles
recommended where low-
voltage switches must match
conventional switches.
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-15
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
CATALOG NUMBER VA RATING PRIMARY VOLTS SECONDARY VOLTS SECONDARY OUTPUT
RECEPTACLES THREE WIRE GROUNDING
1038 75 VA 120V 24V 3.12A
1039 75 VA 277V 24V 3.12A
ElEctrical accEssoriEs
Low-Voltage Switching Components
75VA transformer
(1038 or 1039) switch leg-length of run in feet (2 wires):
A 75VA transformer can drive a maximum of 7 relays simultaneously. However, the length
of a wire run as well as the size of the wire itself have an effect on a transformer’s output
capability. The following tables will be useful in selecting the proper wire size and length of
wire runs.
NO. OF RELAYS
IN PARALLEL #12 WIRE #14 WIRE #16 WIRE #18 WIRE #20 WIRE #22 WIRE
1 3000' 2000' 1200' 750' 500' 300'
2 1500' 1000' 600' 375' 250' 150'
3 1000' 650' 400' 250' 160' 100'
4 750' 500' 300' 180' 125' 75'
5600'400' 240' 150' 100' 60'
6500'330' 200' 125' 80' 50'
7 420' 280' 170' 100' 70' 40'
NOTES: Relays in Parallel – Relays so wired will all be activated by any switch in the circuit.
If more than one transformer is used, the load should be divided between transformers.
Features
• 100% HIPOT tested primary and secondary.
• Built-in overload protection.
• Base fits 4 Screw box.
1038 - Side
4.50''
1038 - Front
4.25''
4.25''
1038 - Top
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-16
ELECTRICAL ACCESSORIES
CATALOG NUMBER DESCRIPTION AVAILABLE COLORS
KS68AB_ Keystone RJ45 Category 6, T568A/B Universal Wiring BK, BL, G, I, LA, OR, RED, W, Y
KS58AB_ Keystone RJ45 Category 5e, T568A/B Universal Wiring BK, BL, G, I, LA, OR, RED, W, Y
KS6U_ Keystone RJ25C 6P/6C Category 3, USOC Wiring I, LA, W, BR
KS88_ Keystone RJ45 Category 5e, Female to Female Connector I, LA, W
Keystone Products
Keystone Multimedia & Fiber Adapters
CATALOG NUMBER DESCRIPTION AVAILABLE COLORS
KSFF_ Keystone Standard F Connector I, LA, W, BK, BR
KSFFST_ Keystone Self-Terminating F Connector I, LA, W, BK, BR
KSBNC_ Keystone BNC Connector I, LA, W
KS2BP_ Pair of Keystone Binding Posts, Red/Positive, Black/Negative I, LA, W, BK, BR
KSSV_ Keystone S-Video, 110 Termination I, LA, W
KSRCAB_ Keystone RCA (Black Insulator) Bulkhead I, LA, W
KSRCAR_ Keystone RCA (Red Insulator) Bulkhead I, LA, W
KSRCAY_ Keystone RCA (Yellow Insulator) Bulkhead I, LA, W
KSRCAF_ Keystone RCA (Red Insulator) to F Connector I, LA, W, BK, BR
KSSC_ Keystone SC Multimode, Phosphor Bronze Sleeve I, LA, W
KSST_ Keystone ST Multimode, Phosphor Bronze Sleeve I, LA, W
KSBL10_ Keystone Blank Inserts (Includes 10 Blanks) I, LA, W, BK, BR
WITHOUT LABEL WINDOWS AVAILABLE COLORS DESCRIPTION WITH LABEL WINDOWS AVAILABLE COLORS
KTPD1_ I, LA, W, BK, BR 1-Port Keystone Wall Plate KTPDL1_ I, LA, W
KTPD2_ I, LA, W, BK, BR 2-Port Keystone Wall Plate KTPDL2_ I, LA, W
KTPD3_ I, LA, W, BK, BR 3-Port Keystone Wall Plate KTPDL3_ I, LA, W
KTPD4_ I, LA, W, BK, BR 4-Port Keystone Wall Plate KTPDL4_ I, LA, W
KTPD6_ I, LA, W, BK, BR 6-Port Keystonew Wall Plate KTPDL6_ I, LA, W
KS226_ I, LA, W, BK, BR 2-Port Keystone Decorator Frame
KS326_ I, LA, W, BK, BR 3-Port Keystone Decorator Frame
KS426_ I, LA, W, BK, BR 4-Port Keystone Decorator Frame
ElEctrical accEssoriEs – NEtwork wiriNg coNNEctivity
Keystone Products, Wall Plates & Frames
Keystone Products
Enhanced Keystone product offering includes jacks and adapters that feature quick, snap-
in mounting that saves installation time. A flexible modular design allows for fast, easy
configuration. Use with TradeMaster® Keystone Wall Plates.
KS58LA KSFFLA KS2BPW KSBL10W
Color Codes for Keystone Products
**Each sold as a package of 10.
KTPD1W KTPDL1W KS226W
KS426W
TradeMaster® Keystone Wall Plates & Decorator Frames
Virtually unbreakable TradeMaster® Keystone Wall Plates provide better coverage with an extra
3/16" width and height than standard wall plates to reduce time-consuming drywall rework.
Available with label windows to help make identification easy.
Replace _ in Catalog Number with Keystone Color Code to designate color.
Replace _ in Catalog Number to designate color.
BK** BL** G** BR ILA OR** RED** WY**
Black Blue Green Brown Ivory Light Almond Orange Red White Yellow
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-17
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
ElEctrical accEssoriEs – NEtwork wiriNg coNNEctivity
Activate™ Products
2A245CC6 2A245C5EU ACSFP
Activate™ Products
Choose any combination of our Activate™ high performance modular inserts and wall
plates for complete multimedia capability at any point of use. Cut installation time, thanks
to this front-load, snap-in design.
CATALOG NUMBER DESCRIPTION AVAILABLE COLORS
2A145CC6_ Single Port RJ45 Category 6, T568A/B Universal Wiring LA†, BK, G
2A245CC6_ Dual Port RJ45 Category 6, T568A/B Universal Wiring LA†, BK, G, GY, WH
2A145C5EU_ Single Port RJ45 Category 5e, T568A/B Universal Wiring LA†, BK, G, GY, WH
2A245C5EU_ Dual Port RJ45 Category 5e, T568A/B Universal Wiring LA†, BK, G, GY, WH
Activate™ Category 6 & 5e Jack Inserts
CATALOG NUMBER DESCRIPTION AVAILABLE COLORS
2ABL_ Blank Insert LA†, BK, G, GY, WH
CATALOG NUMBER DESCRIPTION AVAILABLE COLORS
ACSFP_ Single Gang LA†, WH
ACSAP_ Single Gang Angled LA†, WH
ACSWRP_ Single Gang WallReadyTM LA†, WH
ACMFB_ Modular Furniture Bezel LA†, BK, G
Activate™ Wall Plates & Modular Furniture Bezel
Each sold as a package of 100.
Replace _ in Catalog Number with Icon Tab Color Code to designate color.
LA BK GGY WH
Light Almond Black Gray Light Gray White
Replace _ in Catalog Number with Activate™ Color Code to designate color.
† No color code designates Light Almond.
Color Codes for Activate™ Products
Activate™ Icon Tabs
Each sold as a package of 10.
Each sold as a package of 10.
Activate™ Blank Inserts
CATALOG NUMBER DESCRIPTION AVAILABLE COLORS
PSDT_ Data Icon Tabs
PSVT_ Voice Icon Tabs
BK BL BR GGRY LA I P RED Y
Black Blue Brown Green Gray Lt. Almond Ivory Purple Red Yellow
All devices listed on this page conform to NEMA WD-1 and WD-6.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-18
ELECTRICAL ACCESSORIES
CATALOG NUMBER DESCRIPTION AVAILABLE COLORS
C5EF_ Category 5e Jack and F Connector I, LA, W
C25E2F_ 2 Category 5e Jacks and 2 F Connectors I, LA, W
SF326_ 3-Port Decorator Frame I, LA, W
Multimedia & Decorator Frames
CATALOG NUMBER DESCRIPTION AVAILABLE COLORS
TPD1_ 1-Port TradeMaster Datacom Wall Plate, Single Gang GRY, I, LA, W
TPD2_ 2-Port TradeMaster Datacom Wall Plate, Single Gang GRY, I, LA, W
TPD3_ 3-Port TradeMaster Datacom Wall Plate, Single Gang GRY, I, LA, W
TPD4_ 4-Port TradeMaster Datacom Wall Plate, Single Gang GRY, I, LA, W
TPD6_ 6-Port TradeMaster Datacom Wall Plate, Single Gang GRY, I, LA, W
TPD9_ 9-Port TradeMaster Datacom Wall Plate, Double Gang GRY, I, LA, W
WMPPSS Wall Mount Phone Plate Stainless Steel
TradeMaster® Datacom Wall Plates
ElEctrical accEssoriEs – NEtwork wiriNg coNNEctivity
Frames & Wall Plates
C5EFLA TPD1LA TPD9LA
Each sold as a package of 10.
Replace _ in Catalog Number to designate color.
Replace _ in Catalog Number to designate color.
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
Q-19
ELECTRICAL ACCESSORIES
PASS & SEYMOUR
CATALOG NUMBER DESCRIPTION DIMENSIONS RACK UNITS
24845CC6 24-Port T568A/B Universal Wiring 19" x 1.75" 1
48845CC6 48-Port T568A/B Universal Wiring 19" x 3.50" 2
Category 6
CATALOG NUMBER DESCRIPTION DIMENSIONS RACK UNITS
24845C5E 24-Port T568A/B Universal Wiring 19" x 1.75" 1
48845C5E 48-Port T568A/B Universal Wiring 19" x 3.50" 2
Category 5e
Dimensions shown are W x H.
One Rack Unit = 1.75" H.
CATALOG NUMBER DESCRIPTION DIMENSIONS
JP12845C5E 12-Port T568A/ Universal Wiring 10.69" x 3.46" x 3.08"
JP24845C5E 24-Port T568A/ Universal Wiring 10.69" x 3.46" x 3.08"
JP36845C5E 36-Port T568A/ Universal Wiring 10.69" x 6.94" x 3.08"
Category 5e Modular IDC Wall-Mount Jack Panels with Stand-Off Legs
CATALOG NUMBER DESCRIPTION DIMENSIONS
12845C5E89 12-Port T568A/B Universal Wiring 2.25" x 10" x 1.625"
Category 5e Wall-Mount Patch Panel with 89D Bracket
Dimensions shown are W x H x D.
CATALOG NUMBER DESCRIPTION
PS665089V 50-Pair 66 Block, Unwired & Mounting Bracket
CATALOG NUMBER DESCRIPTION DIMENSIONS
PCC6_ Category 6, Gray 3', 5', 7', 10', 15'
PSPC5B_ Category 5e Booted, White 3', 5', 7', 10', 15'
Patch Panels
High-performance panels meet the TIA/EIA-568-B.2 standard for connecting hardware,
including Addendum 1 for Cat 6 component performance.
66 Block
Provides flexibility in network interface connections. Used primarily for
cross-connections, 66 blocks provide easy connections between customer
voice or data networks and telecommunications equipment.
66 Block & Bracket
Patch Cords
Stranded-wire, twisted-pair construction provides the flexibility to make
Cross-connections easy.
ElEctrical accEssoriEs – NEtwork wiriNg coNNEctivity
Patch Panels, 66 Block & Patch Cords
12845C5E8948845CC6 PSPC5B7, PSPC5B5JP24845C5E PS665089V*
*Block and bracket pictured
separately, product sold together
as one catalog number.
Add desired length to end of Catalog Number to order, example PCC610.
All devices listed on this page conform to NEMA WD-1 and WD-6.
R-1
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Associations, Organizations & Standards R-5
Cam-Type Devices R-124
Configuration & Clocking Systems R-127
Dimmers R-156
GFCI Receptacles R-64
Hallway Lights R-63
Horsepower Ratings for NEMA R-12
IP Codes & Their Meaning R-11
NEMA Configurations R-8
Network Wiring R-164
Occupancy Sensors R-146
Pin & Sleeve/Mechanical Interlock R-144
Pin & Sleeve/Splashproof R-136
Pin & Sleeve/Watertight R-128
Receptacles R-33
Straight Blade Plugs & Connectors R-102
Switches R-23
Symbols R-7
Turnlok® Plugs, Connectors Inlets & Outlets R-109
Surge Protective R-85
UL Changes, Conversions & Wire Spec Chart R-10
Wall Plates R-166
Wiring Diagrams R-13
Technical SpecificaTionS
PASS & SEYMOUR
R-2
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
CAMTYPE DEVICES Series 15 In-Line Connectors R-125
Series 16 In-Line Connectors R-124
Series 18 In-Line Connectors R-126
CONFIGURATION & CLOCKING SYSTEMS R-127
ASSOCIATIONS, ORGANIZATIONS & STANDARDS R-5, R-6
CATEGORY DESCRIPTION PAGE NUMBER
DIMMERS Incandescent Rotary Dimmers R-163
Titan™ Series Fluorescent 2, 3 & 4 Wire R-158 – R-160
Titan™ Series Incandescent & Magnetic Low-Voltage R-156, R-157
Wide Slide Dimmers R-161, R-162
GFCI RECEPTACLES Audible Alarm Hospital Grade Tamper-Resistant GFCI Receptacles R-72
Audible Alarm Tamper-Resistant GFCI Receptacles R-71
Hospital Grade GFCI Receptacles R-67
Hospital Grade Tamper-Resistant GFCI Receptacles R-65
Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacles R-69
Hospital Grade Isolated Ground Tamper-Resistant GFCI Receptacles R-74
Isolated Ground Tamper-Resistant GFCI Receptacles R-73
NAFTA-Compliant & RoHS-Compliant GFCI Receptacles R-81
NAFTA-Compliant Hospital Grade GFCI Receptacles R-82
NAFTA-Compliant PlugTail™ GFCI Receptacles R-83
NAFTA-Compliant PlugTail™ Hospital Grade GFCI Receptacles R-84
PlugTail™ Hospital Grade GFCI Receptacles R-76
PlugTail™ Hospital Grade Tamper-Resistant GFCI Receptacles R-78
PlugTail™ Hospital Grade TR Nightlight/GFCI Receptacles R-80
PlugTail™ Specification Grade GFCI Receptacles R-75
PlugTail™ Specification Grade Tamper-Resistant GFCI Receptacles R-77
PlugTail™ Specification Grade TR Nightlight/GFCI Receptacles R-79
Tamper-Resistant GFCI Receptacles R-64
Tamper-Resistant Nightlight/GFCI Receptacles R-68
TradeMaster® & Specification Grade GFCI Receptacles R-66
Weather-Resistant GFCI Receptacles R-70
HALLWAY LIGHTS Light Output Measurements R-63
HORSEPOWER RATINGS FOR NEMA R-12
IP CODES & THEIR MEANINGS R-11
NEMA CONFIGURATIONS Straight Blade Devices & Turnlok® Devices R-8, R-9
NETWORK WIRING Universal & Six-Pin Wiring Guides & UTP Cabling Installation R-165
UTP Outlet Wiring Configurations R-164
OCCUPANCY SENSORS Dual-Technology Ceiling Sensor R-153
Dual-Technology Wall Switch R-148
High Bay Passive Infrared (PIR) Line Voltage Occupancy Sensor R-154
Occupancy Sensors R-146
Passive Infrared Wide Angle & Hallway Sensors R-149 – R-150
Passive Infrared Wall Switch R-147
Power Pack & Add-A-Relay R-155
Ultrasonic Ceiling Sensors R-152
Technical SpecificaTionS
Table of Contents
R-3
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
CATEGORY DESCRIPTION PAGE NUMBER
PIN & SLEEVE/ Watertight Pin & Sleeve Non-Fusible Mechanical Interlock R-144, R-145
PIN & SLEEVE/SPLASHPROOF Splashproof Pin & Sleeve Connectors R-140, R-141
Splashproof Pin & Sleeve Inlets R-142, R-143
Splashproof Pin & Sleeve Plugs R-138, R-139
Splashproof Pin & Sleeve Receptacles R-136, R-137
PIN & SLEEVE/WATERTIGHT Watertight Pin & Sleeve Connectors R-132, R-133
Watertight Pin & Sleeve Inlets R-134, R-135
Watertight Pin & Sleeve Plugs R-130, R-131
Watertight Pin & Sleeve Receptacles R-128, R-129
RECEPTACLES Commercial Specification Grade Receptacles R-49
Construction Specification Grade Receptacles R-48
Extra Heavy-Duty Hospital Grade MRI Receptacles R-39
Extra Heavy-Duty Hospital Grade Receptacles R-38
Federal Specification Grade USB Charger Tamper-Resistant Receptacle R-33
Hard Use Specification Grade Receptacles R-47
Heavy-Duty Hospital Grade Compact Design Receptacles R-43
Heavy-Duty Hospital Grade Receptacles R-42
Heavy-Duty Specification Grade Receptacles R-41
Heavy-Duty Tamper-Resistant Decorator Receptacles R-60
Heavy-Duty Tamper-Resistant Decorator and HG Single Receptacles R-61
Hospital Grade USB Charger with Tamper-Resistant Receptacles R-34
Industrial Extra Heavy-Duty Specification Grade Receptacles R-40
PlugTail™ Decorator Receptacles R-56
PlugTail™ Extra Heavy-Duty Hospital Grade Illuminated Receptacles R-37
PlugTail™ Extra Heavy-Duty Hospital Grade Receptacles R-36
PlugTail™ Extra Heavy-Duty Specification Grade Receptacles R-35
PlugTail™ Specification & Hospital Grade Receptacles R-44
PlugTail™ Specification Grade Receptacles Split Circuit R-46
PlugTail™ Tamper-Resistant Specification & Hospital Grade Receptacles R-45
Specification Grade Combination Receptacles R-62
Tamper-Resistant Commercial Grade Receptacles R-52
Tamper-Resistant Construction & Hospital Grade Single Receptacles R-53
Tamper-Resistant Duplex Receptacles R-57
Tamper-Resistant Hard Use Receptacles R-51
Tamper-Resistant Hospital Grade Duplex Receptacles R-58
Tamper-Resistant Specification & Hospital Grade Receptacles R-50
Tamper-Resistant Split Circuit Duplex Receptacles R-59
Weather-Resistant Commercial Grade Receptacles R-55
Weather-Resistant Heavy-Duty Receptacles R-54
MECHANICAL INTERLOCK
STRAIGHT BLADE PLUGS Clamp-Lock™ Plugs & Connectors R-108
Ground Continuity Monitoring (GCM) Connectors R-105
Ground Continuity Monitoring (GCM) Plugs R-104
MaxGrip® M3 Connectors R-107
MaxGrip® M3 Plugs R-106
Straight Blade Connectors R-103
Straight Blade Plugs R-102
& CONNECTORS
Technical SpecificaTionS
Table of Contents
PASS & SEYMOUR
R-4
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
TURNLOK®PLUGS, CONNECTORS, 15, 20 & 30A Heavy-Duty Ground Continuity Monitoring
(GCM) Connectors R-118
15, 20 & 30A Heavy-Duty Ground Continuity Monitoring (GCM) Plugs R-117
15A Turnlok® EHU Plugs & Connectors R-112
15A Turnlok® Flanged Inlets & Outlets R-119
15A Turnlok® Receptacles R-109
20A Turnlok® Connectors R-114
20A Turnlok® Flanged Inlets R-120
20A Turnlok® Flanged Outlets R-121
20A Turnlok® Plugs R-113
20A Turnlok® Receptacles R-110
30A Turnlok® Connectors R-116
30A Turnlok® Flanged Inlets R-122
30A Turnlok® Flanged Outlets R-123
30A Turnlok® Plugs R-115
30A Turnlok® Receptacles R-111
INLETS & OUTLETS
Technical SpecificaTionS
Table of Contents
Devices & Wall Plates Color Selection Chart available on Pages A-29, B-82 and P-59.
CATEGORY DESCRIPTION PAGE NUMBER
SWITCHES Commercial Specification Grade Switches R-27
Hard-Use Specification Grade Switches R-26
Industrial Extra Heavy-Duty Specification Grade Switches R-24, R-25
Manual Controller Switches R-28, R-29
PlugTail™ Specification Grade Decorator Switches R-30
PlugTail™ Specification Grade Switches R-23
Specification Grade Combination & Contact Switches R-32
Specification Grade Decorator Switches R-31
SYMBOLS R-7
SURGE PROTECTIVE Extra Heavy-Duty Tamper-Resistant Hospital Grade Receptacles R-99
Extra Heavy-Duty Tamper-Resistant Receptacles R-97
Hospital Grade Isolated Ground Receptacles R-86
Hospital Grade Receptacles R-85
PlugTail™ Extra Heavy-Duty Receptacles R-91
PlugTail™ Extra Heavy-Duty Receptacles R-91
PlugTail™ Hospital Grade Extra Heavy-Duty Receptacles R-93
PlugTail™ Hospital Grade Isolated Ground Receptacles R-95
PlugTail™ Hospital Grade Tamper-Resistant Receptacles R-96
PlugTail™ Isolated Ground Receptacles R-92
Receptacles R-89
Specification Grade Extra Heavy-Duty Receptacles R-87
Specification Grade Isolated Ground Receptacles R-88
Surge Protection Panels R-101
Tamper-Resistant Hospital Grade Isolated Ground Receptacles R-100
Tamper-Resistant Isolated Ground Receptacles R-98
Tamper-Resistant Receptacles R-90
UL CHANGES, CONVERSIONS R-10
& WIRE SPEC CHART
WALL PLATES Dimensions R-168
Specifications R-166, R-167
WIRING DIAGRAMS R-13 – R-22
R-5
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Associations, Organizations, & Standards
For convenience, the following listings define common acronyms for a variety of organizations.
Standards Development Organization
Organizations primarily involved in the development and/or promulgation of standards.
NFPA National Fire Protection Agency
IEC International Electrotechnical Commission
IEEE Institute of Electrical and Electronics Engineers, Inc.
ANSI American National Standards Institute
CANENA Consejo de Armonizacion de Normas Electrotecnicas de Naciones America (Council for
Harmonization of Electrotechnical Standardization of the Nations of the Americas)
SAE Society of Automotive Engineers
ISA Instrument Society of America
SME Society of Manufacturing Engineers
ISO International Standards Organization
Industry Associations
Associations of companies or individuals for the purpose of standardization, trade and professional development, etc.
NMDA National Marine Distributor Association
NEMA National Electrical Manufacturers Association
ABYC American Boat and Yacht Council
EIA/TIA Electronics Industry Association/Telecommunications Industry Association
NAED National Association of Electrical Distributors
NAW National Association of Wholesalers
BICSI Building Industry Consulting Services International
IBI Intelligent Building Institute
EPRI Electric Power Research Institute
ESFI Electrical Safety Foundation International
NEMRA National Electrical Manufacturers Representatives Association
IAEI International Association of Electrical Inspectors
IFMA International Facilities Management Association
BOMA Building Owner Management Association
SEMI Semi-Conductor Equipment and Material International
CEMRA Canadian Electrical Manufacturers Representative Association
NMRA National Marine Representative Association
EFI Electro-Federation Incorporated
NECA National Electrical Contractors Association
IECA Independent Electrical Contractors Association
ECOC Electrical Contractors of Canada
CANAME Camara Nacional de Manufacturas Electricas
HLCA Home Lighting Control Alliance
USGBC U.S. Green Building Council
Codes & Standards
Installation codes and product safety, performance on interchangeability standards.
NEC National Electrical Code
NOM Normas Oficiales de Mexicanas (Official Mexican Standard)
NMX Normas Mexicanas
CEC Canadian Electrical Code
PASS & SEYMOUR
R-6
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Associations, Organizations, & Standards
Certification Agencies
Primarily involved in certification of products or manufacturers to standards developed
by the certification agency or by others.
UL Underwriters’ Laboratories, Inc.
cUL Tested to Canadian Safety Standards by Underwriters’ Laboratories, Inc.
cULus Tested to U.S. and Canadian Safety Standards by Underwriters’ Laboratories, Inc.
CSA Canadian Standards Association
ANCE National Association of Normalization and Certification of the Electrical Sector, (Mexico)
TUV TUV Rheinland of N.A., Inc.
VDE Verband Deutscher Elektrotechniker
BSI British Standards Institute
FM Factory Mutual
NRTL Nationally Recognized Testing Laboratories
Government Agencies
OSHA Occupational Safety and Health Administration
FCC Federal Communications Commission
DSSC Defense Supply Center, Columbus
IAPA Independent Accident and Protection Association (Canada)
LEED Leadership in Energy and Environmental Design
Underwriters’ Laboratories, Inc. (UL)
1285 Walt Whitman Road
Melville, NY 11747
333 Pfingston Road
Northbrook, IL 60062
1655 Scott Boulevard
Santa Clara, CA 95050
12 Laboratory Drive
Research Triangle Park, NC 27709
2600 N.W. Lake Road
Camas, WA 98607
The Canadian Standards Association (CSA)
Standards Division
178 Rexdale Boulevard
Rexdale, Ontario
Canada M9W 1R3
The American National Standards Institute (ANSI)
1430 Broadway
New York, NY 10018
National Electrical Manufacturers Association (NEMA)
2101 L Street, NW, Suite 300
Washington, DC 20037
National Fire Protection Association (NFPA)
Batterymarch Park
Quincy, MA 02269
The International Electrotechnical Commission (IEC)
Copies of IEC standards may be obtained from the
American National Standards Institute (ANSI) at the
above address.
American Boat and Yacht Council, Inc. (ABYC)
P.O. Box 806
Amityville, NY 11701
Asociacion Nacional de Normalizacion y Certificacion del
Sector Electrico A.C. (NOM-ANCE)
Insurgentes Sur 664, 3ER Piso
Col. Del Valle
03100 Mexico D.F.
Phone: 011-525-227-1110
Fax: 011-525-227-1177
Occupational Safety and Health Administration
200 Constitution Avenue N.W.
Room 3647
Washington, DC 20210
Copies of standards referred to on the preceding pages may be purchased from the following:
R-7
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Symbols Electrical Symbols & Abbreviations In Accordance with American National Standards Institute
General Outlets
Outlet
Blanked Outlet
Drop Cord
Electrical Outlet: for use only when circle
used alone might be confused with columns,
plumbing symbols, etc.
Fan Outlet
Junction Box
Lamp Holder
Lamp Holder with Pull Switch
Pull Switch
Outlet for Vapor Discharge Lamp
Exit Light Outlet
Clock Outlet (Specify Voltage)
Convenience Outlets
Duplex Convenience Outlet
Convenience Outlet other than Duplex
1 = Single, 3 = Triplex, etc.
Weatherproof Convenience Outlet
Range Outlet
Switch and Convenience Outlet
Radio and Convenience Outlet
Special Purpose Outlet
Floor Outlet
Switch Outlets
S Single Pole Switch
S2Double Pole Switch
S3Three Way Switch
S4Four Way Switch
SDAutomatic Door Switch
SEElectrolier Switch
SKKey Operated Switch
SPSwitch and Pilot Lamp
SCB Circuit Breaker
SWCB Weatherproof Circuit Breaker
SMC Momentary Contact Switch
SRC Remote Control Switch
SWP Weatherproof Switch
SFFused Switch
SWF Weatherproof Fused Switch
Special Outlets
Any Standard Symbol as given above with the
addition of a lower case subscript letter may be
used to designate some special variation of
Standard Equipment of particular interest in a
specific set of Architectural Plans. When used
they must be listed in the Key of Symbols on each
drawing and if necessary further described in
the specifications.
Panels, Circuits & Miscellaneous
Lighting Panel
Power Panel
Branch Circuit: Concealed in Ceiling or Wall
Branch Circuit: Concealed in Floor
Branch Circuit: Exposed
Home Run to Panel Board. Indicate number of Circuits by
number of arrows.
Note: Any circuit without further designation
indicates a two-wire circuit. For a greater number
of wires indicate as follows:
(3 wires), (4 wires), etc.
Feeders: Note: Use heavy lines and designate by number
corresponding to listing in Feeder Schedule.
Underfloor Duct and Junction Box. Triple System.
Note: For double or single systems eliminate one
or two lines. This symbol is equally adaptable to
auxiliary system layouts.
Generator
Motor
Instrument
Power Transformer. (Or draw to scale.)
Controller
Isolating Switch
Auxiliary Systems
Push Button
Buzzer
Bell
Annunciator
Outside Telephone
Interconnecting Telephone
Telephone Switchboard
Bell Ringing Transformer
Electric Door Opener
Fire Alarm Bell
Fire Alarm Station
City Fire Alarm Station
Fire Alarm Central Station
Automatic Fire Alarm Device
Watchman’s Station
Watchman’s Central Station
Horn
Nurse’s Signal Plug
Maid’s Signal Plug
Radio Outlet
Signal Central Station
Interconnection Box
Battery
Auxiliary System Circuits
Note: Any line without further designation indicates
System. For a greater number of wires designate
with numerals in manner similar to 12-No.
18 W-3/4" C., or designate by number corresponding
to listing in Schedule.
Special Auxiliary Outlets
Subscript letters refer to notes on plans or
detailed description in specifications.
.
T
D
F
F
FA
FS
W
W
C C
X X
V
S
L
L
J
F
V
S
L
L
J
F
E
D
E
B B
R
S
R
WP
PS PS
[ 3
a.b.c.etc
a.b.c.etc
a.b.c.etc
S
T
I
M
G
R
M
N
H
SC
a.b.c.
PASS & SEYMOUR
R-8
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
NEMA Configurations – Straight Blade Devices
Labels and Their Meanings
X, Y, Z Hot Lead
WNeutral Lead
GGrounding Lead
Open Slots
Indicate receptacle
configurations (female).
Closed Slots
Indicate plug blade
configurations (male).
Blade
Configuration
R = Female
(receptacle, connector,
flanged outlet)
P = Male
(plug, flanged inlet)
NEMA
Configuration
Line #
(refers to voltage) Amperage
5-15 R
15 AMPERE 20 AMPERE 30 AMPERE 50 AMPERE 60 AMPERE
RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG
2 POLE, 2 WIRE NON-GROUNDING
1
1-15R 1-15P
125V
2
250V
2 POLE, 3 WIRE GROUNDING
5
5-15R 5-15P 5-20R 5-20P 5-30R 5-30P 5-50P
125V
6
6-15R 6-15P 6-20R 6-20P 6-30R 6-30P 6-50R 6-50P
250V
7
7-15R 7-15P 7-20R 7-20P 7-30P 7-50P
277VAC
3 POLE, 3 WIRE NON-GROUNDING
10
10-20R 10-20P 10-30R 10-30P 10-50R 10-50P
125/250V
3 POLE, 4 WIRE GROUNDING
14
14-20R 14-20P 14-30R 14-30P 14-50R 14-50P 14-60P
125/250V
15
15-20P 15-30R 15-30P 15-50R 15-50P 15-60R 15-60P
3ø250V
4 POLE, 4 WIRE NON-GROUNDING
3øY18
18-20R 18-20P 18-60R 18-60P
120/208V
Straight Blade Plugs & Receptacles
R-9
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
NEMA Configurations – Turnlok® Devices
Midget – LockingLocking Plugs & Receptacles
15 AMPERE 20 AMPERE 30 AMPERE
RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG
2 POLE, 2 WIRE NON-GROUNDING
L1
L1-15R L1-15P
125V
L2
L2-20P L2-20P
250V
2 POLE, 3 WIRE GROUNDING
L5
L5-15R L5-15P L5-20R L5-20P L5-30R 5-30P
125V
L6
L6-15R L6-15P L6-20R L6-20P L6-30R 6-30P
250V
L7
L7-15R L7-15P L7-20R L7-20P L7-30R 7-30P
277VAC
L24
L24-20R L24-20P
347VAC
L8
L8-20R L8-20P L8-30R L8-30P
480VAC
L9
L9-20R L9-20P L9-30R L9-30P
600VAC
3 POLE, 3 WIRE NON-GROUNDING
L10
L10-20R L10-20P L10-30R L10-30P
125/250V
L11
L11-20R L11-20P L11-30R L11-30P
3ø250V
L12
L12-20R L12-20P L12-30R L12-30P
3ø480V
L13
L13-30R L13-30P
3ø600V
3 POLE, 4 WIRE NON-GROUNDING
L14
L14-20R L14-20P L14-30R L14-30P
125/250V
L15
L15-20R L15-20P L15-30R L15-30P
3ø250V
L16
L16-20R L16-20P L16-30R L16-30P
3ø480V
L17
L17-30R L17-30P
3ø600V
4 POLE, 4 WIRE NON-GROUNDING
3øY L18
L18-20R L18-20P L18-30R L18-30P
120/208V
3øY L19
L19-20R L19-20P L19-30R L19-30P
277/480V
3øY L20
L20-20R L20-20P L20-30R L20-30P
347/600V
4 POLE, 5 WIRE NON-GROUNDING
3øY L21
L21-20R L21-20P L21-30R L21-30P
120/208V
3øY L22
L22-20R L22-20P L22-30R L22-30P
277/480V
3øY L23
L23-20R L23-20P L23-30R L23-30P
347/600V
15 AMPERE
RECEPTACLE PLUG
2 POLE, 2 WIRE NON-GROUNDING
ML1
ML-1R ML-1P
125V
2 POLE, 3 WIRE GROUNDING
ML2
ML-2R ML-2P
125V
3 POLE, 3 WIRE NON-GROUNDING
ML3
ML-3R ML-3P
125/250V
Labels and Their Meanings
X, Y, Z Hot Lead
WNeutral Lead
GGrounding Lead
Open Slots
Indicate receptacle
configurations (female).
Closed Slots
Indicate plug blade
configurations (male).
PASS & SEYMOUR
R-10
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
UL Changes, Conversion & Wire Spec Chart
*Actual sizes will vary by cord manufacturers.
Wire Specifications
Diameter Ranges of Jacketed Cord in Accordance with Standard “UL62”
1. 30A, 3 Pole, 3 Wire
not grounding Turnlok®
No. 3330 Series
2. 20A, 4 Pole, 4 Wire
not grounding Turnlok®
No. 7410 Series
3. 30A , 4 Pole, 4 Wire
not grounding Turnlok®
No. 3430 Series
UL Rating Changes
On July 1, 1983, UL cancelled listing of 3 non-NEMA dual-rated configurations and assigned new voltage ratings to them.
There is no change in the slot/blade configurations and the catalog numbers for each series are now UL listed under their
new voltage ratings. Affected configurations are:
*Old
Rating
30A, 250V
New
Rating
30A,125/250V
*Old
Rating
20A, 250V
10A, 600V
New
Rating
20A, 120/208V
3øY
*Old
Rating
30A, 600V
30A, 250V
New
Rating
30A, 120/208V
3øY
Conversion Chart
Fractions to Decimals to Millimeters
INCHES INCHES INCHES INCHES
FRACTION DECIMAL MM FRACTION DECIMAL MM FRACTION DECIMAL MM FRACTION DECIMAL MM
1/64 0.0156 0.3969 17/64 0.2656 6.7469 33/64 0.5156 13.0969 49/64 0.7656 19.4469
1/32 0.0312 0.7938 9/32 0.2812 7.1438 17/32 0.5312 13.4938 25/32 0.7812 19.8437
3/64 0.0468 1.1906 19/64 0.2968 7.5406 35/64 0.5468 13.8906 51/64 0.7968 20.2406
1/16 0.0625 1.5875 5/16 0.3125 7.9375 9/16 0.5625 14.2875 13/16 0.8125 20.6375
5/64 0.0781 1.9844 21/64 0.3281 8.3344 37/64 0.5781 14.6844 53/64 0.8281 21.0344
3/32 0.0937 2.3812 11/32 0.3437 8.7312 19/32 0.5937 15.0812 27/32 0.8437 21.4312
7/64 0.1093 2.7781 23/64 0.3593 9.1281 39/64 0.6093 15.4781 55/64 0.8593 21.8281
1/8 0.1250 3.1750 3/8 0.3750 9.5250 5/8 0.6250 15.8750 7/8 0.8750 22.2250
9/64 0.1406 3.5719 25/64 0.3906 9.9219 41/64 0.6406 16.2719 57/64 0.8906 22.6219
5/32 0.1562 3.9688 13/32 0.4062 10.3188 21/32 0.6562 16.6688 29/32 0.9062 23.0188
11/64 0.1718 4.3656 27/64 0.4218 10.7156 43/64 0.6718 17.0656 59/64 0.9218 23.4156
3/16 0.1875 4.7625 7/16 0.4375 11.1125 11/16 0.6875 17.4625 15/16 0.9375 23.8125
13/64 0.2031 5.1594 29/64 0.4531 11.5094 45/64 0.7031 17.8594 61/ 64 0.9531 24.2094
7/32 0.2187 5.5562 15/32 0.4687 11.9062 23/32 0.7187 18.2562 31/32 0.9687 24.6062
15/64 0.2343 5.9531 31/64 0.4843 12.3031 47/64 0.7343 18.6531 63/64 0.9843 25.0031
1/4 0.2500 6.3500 1/2 0.5000 12.7000 3/4 0.7500 19.0500 1 1.0000 25.4000
TYPE*
AWG
SIZE 2 COND. 3 COND.
SV,SVO,SVT,SVTO 18 .220-.255" .230-.265"
17 .235-.270" .250-.285"
TYPE*
AWG
SIZE 2 COND. 3 COND. 4 COND.
SJ,SJO,SJT,SJTO 18 .280-.315" .300-.335" .325-.365"
17 .290-.325" .310-.345" .340-.380"
16 .305-.340" .325-.360" .350-.395"
15 .315-.350" .335-.375" .370-.415"
14 .335-.375" .360-.395" .390-.435"
12 .405-.455" .425-.475" .465-.520"
10 .540-.605" .565-.635" .625-.700"
TYPE*
AWG
SIZE 2 COND. 3 COND. 4 COND. 5 COND.
S,SO,ST,STO 18 .340-.385" .360-.400" .385-.430" .460-.510"
17 .350-.390" .370-.415" .400-.445" .465-.520"
16 .365-.410" .385-.430" .410-.460" .490-.550"
15 .475-.530" .500-.560" .540-.610" .615-.690"
14 .495-.550" .520-.575" .560-.620" .630-.705"
12 .565-.625" .590-.655" .640-.710" .700-.770"
10 .615-.685" .650-.720" .700-.775" .760-.840"
8 .780-.880" .830-.930" .925-1.050" 1.000-1.150"
6 .920-1.050" .970-1.100" 1.050-1.200" 1.180-1.330"
4 1.060-1.210" 1.130-1.280" 1.250-1.450"
2 1.210-1.400" 1.300-1.500" 1.450-1.650"
R-11
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
IP Codes & Their Meanings
IP Suitability Rating
IP Suitability Ratings are an international system for classifying the degree of protection
provided by enclosures of electrical equipment. The higher the number, the greater the
degree of protection; they apply ONLY to properly installed equipment. The numerals stand
for the following:
1. First Number: Degree of protection for persons against access to
hazardous parts inside the enclosure and/or against solid bodies.
2. Second Number: Degree of protection of equipment inside
enclosures against damage from the ingress of water.
IP44
Suitability
Example: IP44=Ingress Protection; Solid bodies >=1.0mm; Splashing
Note: >= denotes greater than or equal to. Dimensions in Inches (mm)
Meaning for the Protection of Equipment
CODE LETTERS FIRST NUMBER SECOND NUMBER
Ingress Protection Against Ingress
of Solid Bodies
Against Ingress of Water
with Harmful Effects
IP 0 - Non-protected 0 – Non-protected
1 – >=50 mm diameter 1 – Vertically dripping
2 – >=12.5 mm diameter 2 – Dripping (15° Tilted)
3 – >=2.5 mm diameter 3 – Spraying
4 – >=1.0 mm 4 – Splashing
5 – Dust-protected 5 – Jetting
6 – Dust-tight 6 – Power jetting
7 – Temporary immersion
8 – Continuous immersion
PASS & SEYMOUR
R-12
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Horsepower Ratings for NEMA Configuration Receptacles & Plugs Only
L-L: Motor connected line-to-line.
L-N: Motor connected line-to-neutral.
#: Also suitable for 208V motor applications at the indicated horsepower rating.
AMPERE
RATING
AC VOLTAGE
RATING PHASES POLES
HORSEPOWER
RATING
NEMA
DESIGNATION
15 125 1 2 1/2 1-15, L1-15, 5-15, L5-15
250 1 2 1-1/2# 6-15, L6-15
277 1 2 2 7-15, L7-15
125/250 1 3 1-1/2 L-L# 14-15
1/2 L-N
250 3 3 2 11-15, L11-15, 15-15
120/208 3 4 2 18-15
20 125 1 2 1 5-20, L5-20
250 1 2 2# 2-20, L2-20, 6-20, L6-20
277 1 2 2 7-20, L7-20
480 1 2 3 L8-20
125/250 1 3 2 L-L# 10-20, L10-20, 14-20, L14-20
1 L-N
250 3 3 3 11-20, L11-20, 15-20, L15-20
480 3 3 5 L12-20, L16-20
120/208 3 4 2 18-20, L18-20, L21-20
277/480 3 4 5 L19-20, L22-20
30 125 1 2 2 5-30, L5-30
250 1 2 2# 2-30, 6-30, L6-30
277 1 2 3 7-30, L7-30
480 1 2 5 L8-30
125/250 1 3 2 L-L# 10-30, L10-30
2 L-N 14-30, L14-30
250 33 3 11-30, L11-30, 15-30, L15-30
480 3 3 10 L12-30, L16-30
120/208 3 4 3 18-30, L18-30, L21-30
277/480 3 4 10 L19-30, L22-30
50 125 1 2 2 5-50
250 1 2 3 6-50
277 1 2 5 7-50
125/250 1 3 3 L-L# 10-50, 14-50
2 L-N
250 3 3 7-1/2 11-50, 15-50
120/208 3 4 7-1/2 18-50
60 125/250 1 3 3 L-L# 14-60
2 L-N
250 3 3 10 15-60
120/208 3 4 7-1/2 18-60
R-13
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – Switches & Receptacles
Switches
Single Pole Double Pole 3-Way to 3-Way 3-Way to 4-Way to 3-Way
Pilot Light Switch & Lighted Toggle Switch
Single Pole
Pilot Light Switch
Toggle Glows when
Light is On
Single Pole
Lighted Toggle Switch
Toggle Glows when
Switch is Off
Double Pole
Pilot Light Switch
Toggle Glows when
Switch is On
3-Way
Lighted Toggle
Switch
3-Way
Lighted Toggle
Switch
(Two Lighted or Pilots May Be Used)
Maintained & Momentary Contact
Maintained Contact
3-Position, 2-Circuit
Center “Off”
Momentary Contact
Either Direction
3-Position, Center “Off”
Maintained Contact
Either Direction
2-Position, No Center “Off”
Single Pole
Double Throw
Single Pole
Double Throw
Single Pole
Double Throw
Double Pole
Double Throw
Double Pole
Double Throw
Double Pole
Double Throw
1222 1256 1276
Receptacles
1 Circuit Split Circuit 1 Circuit
PASS & SEYMOUR
R-14
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – GFCIs
Wiring Diagram GFCI Receptacle, Feed-Thru Installation
To protect the entire branch circuit the GFCI must be the first receptacle from the fuse or circuit
breaker box. Receptacles on the circuit between the GFCI and the box will not be protected,
but receptacles downstream from the GFCI will have protection.
Wiring Diagram GFCI Receptacle, Non-Feed-Thru Installation
Terminal, or one-outlet-only protection can be achieved on a multi-outlet circuit by connecting
the hot and neutral line conductors to the corresponding line side terminals of the GFCI. Only
the GFCI receptacle will be protected.
R-15
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – 2 Pole, 2 Wire Non-Grounding; 3 Pole, 3 Wire Non-Grounding
250V
2 Pole, 2 Wire Non-Grounding
125V
3 Pole, 3 Wire Non-Grounding
125V/250V
3ø250V
PASS & SEYMOUR
R-16
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – 2 Pole, 3 Wire Grounding
2 Pole, 3 Wire Grounding
G
125V
250V
277VAC
480VAC
R-17
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – 3 Pole, 4 Wire Grounding
G
3 Pole, 4 Wire Grounding
125V/250V
3ø250V
3ø480V
3ø600V
PASS & SEYMOUR
R-18
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – 4 Pole, 4 Wire Non-Grounding
4 Pole, 4 Wire Non-Grounding
3øY120V/208V
3øY277/480V
3ø347/600V
R-19
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – 4 Pole, 5 Wire Grounding
4 Pole, 5 Wire Grounding
3øY120V/208V
3øY277/480V
3øY347/600V
PASS & SEYMOUR
R-20
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – Sensors Connected to Power Packs
Neutral
Hot
Wht
Blk
Power
Pack
Local
Off
Switch
Local
Off
Switch
Red
Red
Red
Blk
Blu
Hot Blk
Auxilliary
Relay Pack
Red
Red
Neutral
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Load
Hot
Neutral
Wht
Blk
Power
Pack
Travelers
Red
Red
Red
Blk
Blu
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Existing 3-Way
Switches
Neutral
Hot
Wht
Blk
Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Local
Off
Switch
Load
Neutral
Hot
Wht
Blk
Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Any
3-Wire
24VDC
Sensor
Control Output
Common
+24VDC
Load
1 Sensor, 1 Power Pack
Standard Wiring
1 Sensor, 1 Power Pack
Bi-Level Lighting
1 Sensor, 1 Power Pack
3-Way Switching
1 Sensor, 1 Power Pack
2 Lighting Loads
R-21
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – Sensors Connected to Power Packs
Neutral
Hot
Wht
Blk
Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Red
Neutral
Hot
Wht
Blk
Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Red
Blk
Blu
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Neutral
Hot
Wht
Blk
Power
Pack
Red
TO OTHER
LOADS
Red
Red
Blk
Blu
Neutral
Hot
Wht
Blk
Power
Pack
Red
TO OTHER
LOADS
Neutral
Hot
Wht
Blk
Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Neutral
Hot
Wht
Blk
Power
Pack
Local
Off
Switch
Red
Red
Neutral
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Load
1 Sensor & Up to 3 Power Packs Multiple Sensors, 1 Power Pack
Multiple Sensors, Multiple Power Packs
PASS & SEYMOUR
R-22
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Technical SpecificaTionS
Wiring Diagrams – Dimmers & Fan Speed Controls
Single-Pole Wiring Single-Pole Wiring
Using 3-Way Preset Dimmer
Control Line Side
OR
Control Load Side
3-Way Wiring
Control Line Side
Control Load Side
OR
4-Way Wiring
For Scene Director
Wiring Diagrams,
see Page L-9.
For Leandro®
Wiring Diagrams,
see Page L-10.
For Dual Timer Cat.# 97352 Wiring
Diagrams,
see Page K-20.
R-23
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Specification Grade Switches 15 & 20A, 120/277VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT15AC1
Description: PlugTail™ Specification Grade Switches
Rating: 15 & 20A, 120/277VAC
3rd Party Compliance: cULus Listed, File Number LR17446, Standard CSA-C22.2 No. 111,
General Use Snap Switches. Federal Specification WS896. Conforms to NEMA WD-1 and WD-6.
PTS6STR3 PTS6STR4
1.125"
6.375"
PT20AC1W
1.320"
3.281"
1.073"
2.195"
2.375"
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
PT15AC1I Ivory 15A 120/277VAC, Single Pole
r
PT15AC1W White 15A 120/277VAC, Single Pole
r
PT15AC1 Brown 15A 120/277VAC, Single Pole
r
PT15AC1BK Black 15A 120/277VAC, Single Pole
r
PT15AC1GRY Gray 15A 120/277VAC, Single Pole
r
PT15AC1RED Red 15A 120/277VAC, Single Pole
r
PT15AC1LA Lt. Almond 15A 120/277VAC, Single Pole
r
PT15AC3I Ivory 15A 120/277VAC, 3-Way
r
PT15AC3W White 15A 120/277VAC, 3-Way
r
PT15AC3 Brown 15A 120/277VAC, 3-Way
r
PT15AC3BK Black 15A 120/277VAC, 3-Way
r
PT15AC3GRY Gray 15A 120/277VAC, 3-Way
r
PT15AC3RED Red 15A 120/277VAC, 3-Way
r
PT15AC3LA Lt. Almond 15A 120/277VAC, 3-Way
r
PT20AC1I Ivory 20A 120/277VAC, Single Pole
r
PT20AC1W White 20A 120/277VAC, Single Pole
r
PT20AC1 Brown 20A 120/277VAC, Single Pole
r
PT20AC1BK Black 20A 120/277VAC, Single Pole
r
PT20AC1GRY Gray 20A 120/277VAC, Single Pole
r
PT20AC1RED Red 20A 120/277VAC, Single Pole
r
PT20AC1LA Lt. Almond 20A 120/277VAC, Single Pole
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
PT20AC3I Ivory 20A 120/277VAC, 3-Way
r
PT20AC3W White 20A 120/277VAC, 3-Way
r
PT20AC3 Brown 20A 120/277VAC, 3-Way
r
PT20AC3BK Black 20A 120/277VAC, 3-Way
r
PT20AC3GRY Gray 20A 120/277VAC, 3-Way
r
PT20AC3RED Red 20A 120/277VAC, 3-Way
r
PT20AC3LA Lt. Almond 20A 120/277VAC, 3-Way
ILLUMINATED*
r
PT15AC1CSL Clear 15A 120/277VAC, Single Pole
r
PT15AC1ISL White 15A 120/277VAC, Single Pole
r
PT15AC1WSL White 15A 120/277VAC, Single Pole
r
PT15AC3CSL Clear 15A 120/277VAC, 3-Way
r
PT15AC3ISL White 15A 120/277VAC, 3-Way
r
PT15AC3WSL White 15A 120/277VAC, 3-Way
r
PT20AC1CSL Clear 20A 120/277VAC, Single Pole
r
PT20AC1ISL White 20A 120/277VAC, Single Pole
r
PT20AC1WSL White 20A 120/277VAC, Single Pole
r
PT20AC3CSL Clear 20A 120/277VAC, 3-Way
r
PT20AC3ISL White 20A 120/277VAC, 3-Way
r
PT20AC3WSL White 20A 120/277VAC, 3-Way
*For Illuminated versions. May not be compatible with some fluorescent lighting loads.
Performance
Electrical
Dielectric Withstand Voltage: 1500V minimum
Maximum Working Voltage: 277VAC, 347VAC
Overload: Minimum 4.8 times rated current for 100 cycles
Temperature Rise: 30°C maximum at rated current
Maximum Continuous Current: 277VAC 20A
Endurance: 50,000 cycles minimum, resistive, inductive, tungsten filament lamp load
(Fed Spec)
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Switches only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail Switch Materials
PlugTail Connector Materials
Front Body: Nylon
Back Body: Glass-Reinforced Nylon
Toggle: Thermoplastic Polycarbonate
Contacts: Silver Cadmium Oxide
Mounting Strap: Nickel-Plated Brass
Housing: Polycarbonate Contacts: Brass
Spring Arm: Brass
Bumper: Rubber
Spring: Zinc-Plated Steel
Auto Ground Clip: Nickel-Plated Brass
Illuminating Lamp:* Neon
PASS & SEYMOUR
R-24
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Performance
Electrical
Dielectric Withstand Voltage: 1500V Minimum
Maximum Working Voltage: 277VAC
Overload: Minimum 4.8 times rated current for 100 cycles
Temperature Rise: 30°C maximum at rated current
Maximum Continuous Current: 277VAC
Endurance: 50,000 cycles minimum, resistive, inductive, tungsten filament lamp load (Fed Spec)
Mechanical
Terminal Accommodations: #14 AWG – #10 AWG stranded (when back-wired) or solid copper conductors
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +115°C, minimum -40°C
Materials
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
PS20AC2I Ivory 20A 120/277VAC, Double Pole
r
PS20AC2W White 20A 120/277VAC, Double Pole
r
PS20AC2 Brown 20A 120/277VAC, Double Pole
r
PS20AC2GRY Gray 20A 120/277VAC, Double Pole
r
PS20AC2BK Black 20A 120/277VAC, Double Pole
r
PS20AC2RED Red 20A 120/277VAC, Double Pole
r
PS20AC2LA Lt. Almond 20A 120/277VAC, Double Pole
r
PS20AC3I Ivory 20A 120/277VAC, 3-Way
r
PS20AC3W White 20A 120/277VAC, 3-Way
r
PS20AC3 Brown 20A 120/277VAC, 3-Way
r
PS20AC3GRY Gray 20A 120/277VAC, 3-Way
r
PS20AC3BK Black 20A 120/277VAC, 3-Way
r
PS20AC3RED Red 20A 120/277VAC, 3-Way
r
PS20AC3LA Lt. Almond 20A 120/277VAC, 3-Way
r
PS20AC3GN Green 20A 120/277VAC, 3-Way
r
PS20AC4I Ivory 20A 120/277VAC, 4-Way
r
PS20AC4W White 20A 120/277VAC, 4-Way
r
PS20AC4 Brown 20A 120/277VAC, 4-Way
r
PS20AC4GRY Gray 20A 120/277VAC, 4-Way
r
PS20AC4BK Black 20A 120/277VAC, 4-Way
r
PS20AC4RED Red 20A 120/277VAC, 4-Way
r
PS20AC4LA Lt. Almond 20A 120/277VAC, 4-Way
r
PS30AC1I Ivory 30A 120/277VAC, Single Pole
r
PS30AC1W White 30A 120/277VAC, Single Pole
r
PS30AC1 Brown 30A 120/277VAC, Single Pole
r
PS30AC2I Ivory 30A 120/277VAC, Double Pole
r
PS30AC2W White 30A 120/277VAC, Double Pole
r
PS30AC2 Brown 30A 120/277VAC, Double Pole
r
PS30AC3I Ivory 30A 120/277VAC, 3-Way
r
PS30AC3 Brown 30A 120/277VAC, 3-Way
Technical SpecificaTionS
Industrial Extra Heavy-Duty Specification Grade Switches
Back & Side Wire 15, 20 & 30A, 120/277VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS15AC1
Description: Industrial EHD Specification Grade Switch, Back & Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed File Number E140597; Standard UL20, General Use Snap Switches.
Federal Specification WS896, CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111,
General Use Snap Switches. Conforms to NEMA WD-1 and WD-6.
15 & 20 Amp*
*30AC series is 1.437" wide
1.320"
3.281"
2.375"
1.073"
2.196"
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
PS15AC1I Ivory 15A 120/277VAC, Single Pole
r
PS15AC1W White 15A 120/277VAC, Single Pole
r
PS15AC1 Brown 15A 120/277VAC, Single Pole
r
PS15AC1GRY Gray 15A 120/277VAC, Single Pole
r
PS15AC1LA Lt. Almond 15A 120/277VAC, Single Pole
r
PS15AC2I Ivory 15A 120/277VAC, Double Pole
r
PS15AC2W White 15A 120/277VAC, Double Pole
r
PS15AC2 Brown 15A 120/277VAC, Double Pole
r
PS15AC2GRY Gray 15A 120/277VAC, Double Pole
r
PS15AC2LA Lt. Al. 15A 120/277VAC, Double Pole
r
PS15AC3I Ivory 15A 120/277VAC, 3-Way
r
PS15AC3W White 15A 120/277VAC, 3-Way
r
PS15AC3 Brown 15A 120/277VAC, 3-Way
r
S15AC3GRY Gray 15A 120/277VAC, 3-Way
r
PS15AC3LA Lt. Almond 15A 120/277VAC, 3-Way
r
PS15AC4I Ivory 15A 120/277VAC, 4-Way
r
PS15AC4W White 15A 120/277VAC, 4-Way
r
PS15AC4 Brown 15A 120/277VAC, 4-Way
r
PS15AC4GRY Gray 15A 120/277VAC, 4-Way
r
PS15AC4LA Lt. Almond 15A 120/277VAC, 4-Way
r
PS20AC1I Ivory 20A 120/277VAC, Single Pole
r
PS20AC1W White 20A 120/277VAC, Single Pole
r
PS20AC1 Brown 20A 120/277VAC, Single Pole
r
PS20AC1GRY Gray 20A 120/277VAC, Single Pole
r
PS20AC1BK Black 20A 120/277VAC, Single Pole
r
PS20AC1RED Red 20A 120/277VAC, Single Pole
r
PS20AC1LA Lt. Almond 20A 120/277VAC, Single Pole
r
PS20AC1GN Green 20A 120/277VAC, Single Pole
Back Body: Glass-Reinforced Nylon
Front Body: Nylon
Toggle: Thermoplastic Polycarbonate
Terminals: Brass
Terminal Screws: Tri-Drive Brass
Mounting Strap: Nickel-Plated Steel
Pressure Plate: Brass
Contacts: Silver Cadmium Oxide
Spring Arm: Brass
Bumper: Rubber
Spring: Zinc-Plated Steel
Ground Terminal: Brass
Ground Screw: Tri-Drive Zinc-Plated Steel
Auto-Ground Clip: Nickel-Plated Brass
R-25
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Industrial Extra Heavy-Duty & Extra Heavy-Duty Specification Grade Switches
15, 20 & 30A, 120, 277 & 120/277VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS15AC1ISL
Description: Industrial EHD Specification Grade Switch, Back & Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches. Federal Specification WS896, CSA
Certified, File Number LR17446, Standard CSA-C22.2 No. 111, General Use Snap Switches. Conforms to NEMA WD-1 and WD-6.
15 & 20 Amp Lighted
& Pilot Lighted
1.320"
3.281"
2.375"
1.073"
2.196"
Locking
30AC series
is 1.437" wide
1.320"
3.281"
2.375"
1.073"
2.196"
Security Switch
1.475"
4.071"
2.261"
.610"
*For Lighted versions. May not be compatible with some fluorescent lighting loads. **For Locking versions.
†For Security versions Ground Terminal is Zinc-Plated Steel. No Auto-Ground Clip on Security Switches.
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
PS15AC1CSL Clear 15A 120/277VAC, Single Pole
r
PS15AC1ISL Ivory 15A 120/277VAC, Single Pole
r
PS15AC1WSL White 15A 120/277VAC, Single Pole
r
PS15AC1CPL Clear 15A 120VAC, Single Pole
r
PS15AC1RPL Red 15A 120VAC, Single Pole
r
PS15AC1L Gray 15A 120/277VAC, Single Pole
r
PS15AC3CSL Clear 15A 120/277VAC, 3-Way
r
PS15AC3ISL Ivory 15A 120/277VAC, 3-Way
r
PS15AC3WSL White 15A 120/277VAC, 3-Way
r
PS15AC3CPL Clear 15A 120VAC, 3-Way
r
PS15AC3RPL Red 15A 120VAC, 3-Way
r
PS15AC3L Gray 15A 120/277VAC, 3-Way
r
PS20AC1CSL Clear 20A 120/277VAC, Single Pole
r
PS20AC1ISL Ivory 20A 120/277VAC, Single Pole
r
PS20AC1WSL White 20A 120/277VAC, Single Pole
r
PS20AC1LASL Lt. Almond 20A 120/277VAC, Single Pole
r
PS20AC1CPL Clear 20A 120VAC, Single Pole
r
PS20AC1CPL7 Clear 20A 277VAC, Single Pole
r
PS20AC1RPL Red 20A 120VAC, Single Pole
r
PS20AC1RPL7 Red 20A 277VAC, Single Pole
r
PS20AC1CPL Clear 20A 120VAC, Single Pole
r
PS20AC1CPL7 Clear 20A 277VAC, Single Pole
r
PS20AC1RPL Red 20A 120VAC, Single Pole
r
PS20AC1RPL7 Red 20A 277VAC, Single Pole
r
PS20AC1IL Ivory 20A 120/277VAC, Single Pole
r
PS20AC1WL White 20A 120/277VAC, Single Pole
r
PS20AC1L Gray 20A 120/277VAC, Single Pole
r
PS20AC1BKL Black 20A 120/277VAC, Single Pole
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
PS20AC1LAL Lt. Almond 20A 120/277VAC, Single Pole
r
PS20AC1KL —20A 120/277VAC, Single Pole
r
PS20AC2CPL Clear 20A 120/277VAC, Double Pole
r
PS20AC2RPL Red 20A 120/277VAC, Double Pole
r
PS20AC2CPL Clear 20A 120/277VAC, Double Pole
r
PS20AC2RPL Red 20A 120/277VAC, Double Pole
r
PS20AC2IL Ivory 20A 120/277VAC, Double Pole
r
PS20AC2WL White 20A 120/277VAC, Double Pole
r
PS20AC2L Gray 20A 120/277VAC, Double Pole
r
PS20AC2LAL Lt. Almond 20A 120/277VAC, Double Pole
r
PS20AC2KL —20A 120/277VAC, Double Pole
r
PS20AC3LASL Lt. Almond 20A 120/277VAC, 3-Way
r
PS20AC3CPL Clear 20A 120VAC, 3-Way
r
PS20AC3RPL Red 20A 120VAC, 3-Way
r
PS20AC3RPL7 Red 20A 277VAC, 3-Way
r
PS20AC3IL Ivory 20A 120/277VAC, 3-Way
r
PS20AC3WL White 20A 120/277VAC, 3-Way
r
PS20AC3L Gray 20A 120/277VAC, 3-Way
r
PS20AC3REDL Red 20A 120/277VAC, 3-Way
r
PS20AC3LAL Lt. Almond 20A 120/277VAC, 3-Way
r
PS20AC3KL —20A 120/277VAC, 3-Way
r
PS20AC4IL Ivory 20A 120/277VAC, 4-Way
r
PS20AC4WL White 20A 120/277VAC, 4-Way
r
PS20AC4L Gray 20A 120/277VAC, 4-Way
r
PS20AC4REDL Red 20A 120/277VAC, 4-Way
r
PS20AC4LAL Lt. Almond 20A 120/277VAC, 4-Way
r
PS20AC4KL —20A 120/277VAC, 4-Way
r
PS30AC1RPL Red 30A 120VAC, Single Pole
r
PS30AC2RPL Red 30A 120/ 277VAC, Double Pole
r
PS30AC3RPL Red 30A 120VAC, 3-Way
Performance
Electrical
Dielectric Withstand Voltage: 1500V Minimum
Maximum Working Voltage: 277VAC
Overload: Minimum 4.8 times rated current for 100 cycles
Temperature Rise: 30°C maximum at rated current
Maximum Continuous Current: 277VAC
Endurance: 50,000 cycles minimum, resistive, inductive, tungsten filament lamp load (Fed Spec)
Mechanical
Terminal Accommodations: #14 AWG – #10 AWG stranded (when back-wired) or solid copper conductors
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +115°C, minimum -40°C
Materials
Back Body: Glass-Reinforced Nylon
Front Body: Nylon
Toggle: Thermoplastic Polycarbonate
Key Slot:** Thermoplastic Polycarbonate
Terminals: Brass
Terminal Screws: Tri-Drive Brass
Strap: Nickel-Plated Steel
Pressure Plate: Brass
Contacts: Silver Cadmium Oxide
Spring Arm: Brass
Bumper: Rubber
Spring: Zinc-Plated Steel
Ground Terminal:†Brass
Ground Screw: Tri-Drive Zinc-Plated Steel
Auto-Ground Clip:†Nickel-Plated Brass
Illuminating Lamp:* Neon
Lock Housing: Stainless Steel
PASS & SEYMOUR
R-26
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Hard Use Specification Grade Switches Back & Side Wire 15 & 20A, 120/277VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® CSB15AC1
Description: Hard Use Specification Grade Switch, Back & Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches.
Federal Specification WS896, CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111,
General Use Snap Switches. Conforms to NEMA WD-1 and WD-6.
1.320"
3.281"
2.375"
1.073"
2.196"
15 & 20 Amp
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
CSB15AC1I Ivory 15A 120/277VAC, Single Pole
r
CSB15AC1W White 15A 120/277VAC, Single Pole
r
CSB15AC1 Brown 15A 120/277VAC, Single Pole
r
CSB15AC1GRY Gray 15A 120/277VAC, Single Pole
r
CSB15AC1LA Lt. Almond 15A 120/277VAC, Single Pole
r
CSB20AC1I Ivory 20A 120/277VAC, Single Pole
r
CSB20AC1W White 20A 120/277VAC, Single Pole
r
CSB20AC1 Brown 20A 120/277VAC, Single Pole
r
CSB20AC1GRY Gray 20A 120/277VAC, Single Pole
r
CSB20AC1BK Black 20A 120/277VAC, Single Pole
r
CSB20AC1LA Lt. Almond 20A 120/277VAC, Single Pole
r
CSB15AC2I Ivory 15A 120/277VAC, Double Pole
r
CSB15AC2W White 15A 120/277VAC, Double Pole
r
CSB15AC2 Brown 15A 120/277VAC, Double Pole
r
CSB15AC2GRY Gray 15A 120/277VAC, Double Pole
r
CSB15AC2LA Lt. Almond 15A 120/277VAC, Double Pole
r
CSB20AC2I Ivory 20A 120/277VAC, Double Pole
r
CSB20AC2W White 20A 120/277VAC, Double Pole
r
CSB20AC2 Brown 20A 120/277VAC, Double Pole
r
CSB20AC2GRY Gray 20A 120/277VAC, Double Pole
r
CSB20AC2LA Lt. Almond 20A 120/277VAC, Double Pole
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
CSB15AC3I Ivory 15A 120/277VAC, 3-Way
r
CSB15AC3W White 15A 120/277VAC, 3-Way
r
CSB15AC3 Brown 15A 120/277VAC, 3-Way
r
CSB15AC3GRY Gray 15A 120/277VAC, 3-Way
r
CSB15AC3LA Lt. Almond 15A 120/277VAC, 3-Way
r
CSB20AC3I Ivory 20A 120/277VAC, 3-Way
r
CSB20AC3W White 20A 120/277VAC, 3-Way
r
CSB20AC3 Brown 20A 120/277VAC, 3-Way
r
CSB20AC3GRY Gray 20A 120/277VAC, 3-Way
r
CSB20AC3BK Black 20A 120/277VAC, 3-Way
r
CSB20AC3LA Lt. Almond 20A 120/277VAC, 3-Way
r
CSB15AC4I Ivory 15A 120/277VAC, 4-Way
r
CSB15AC4W White 15A 120/277VAC, 4-Way
r
CSB15AC4 Brown 15A 120/277VAC, 4-Way
r
CSB15AC4GRY Gray 15A 120/277VAC, 4-Way
r
CSB15AC4LA Lt. Almond 15A 120/277VAC, 4-Way
r
CSB20AC4I Ivory 20A 120/277VAC, 4-Way
r
CSB20AC4W White 20A 120/277VAC, 4-Way
r
CSB20AC4 Brown 20A 120/277VAC, 4-Way
r
CSB20AC4GRY Gray 20A 120/277VAC, 4-Way
r
CSB20AC4LA Lt. Almond 20A 120/277VAC, 4-Way
Performance
Electrical
Dielectric Withstand Voltage: 1500V Minimum
Maximum Working Voltage: 277VAC
Overload: Minimum 4.8 times rated current for 100 cycles
Temperature Rise: 30°C maximum at rated current
Maximum Continuous Current: 277VAC
Endurance: 50,000 cycles minimum, resistive, inductive, tungsten filament lamp load (Fed Spec)
Mechanical
Terminal Accommodations: #14 AWG – #10 AWG stranded (when back-wired) or solid copper conductors
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +115°C, minimum -40°C
Materials
Back Body: Glass-Reinforced Nylon
Front Body: Nylon
Toggle: Thermoplastic Polycarbonate
Terminals: Brass
Terminal Screws: Tri-Drive Brass
Mounting Strap: Nickel-Plated Steel
Pressure Plate: Brass
Contacts: Silver Cadmium Oxide
Spring Arm: Brass
Bumper: Rubber
Spring: Zinc-Plated Steel
Ground Terminal: Brass
Ground Screw: Tri-Drive Zinc-Plated Steel
R-27
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Commercial Specification Grade Switches Side Wire 15 & 20A, 120/277VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® CS15AC1
Description: Commercial Specification Grade Switch, Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches.
Federal Specification WS896, CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111,
General Use Snap Switches. Conforms to NEMA WD-1 and WD-6.
1.320"
3.281"
2.375"
1.073"
2.196"
15 & 20 Amp
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
CS15AC1I Ivory 15A 120/277VAC, Single Pole
r
CS15AC1W White 15A 120/277VAC, Single Pole
r
CS15AC1 Brown 15A 120/277VAC, Single Pole
r
CS15AC1GRY Gray 15A 120/277VAC, Single Pole
r
CS15AC1BK Black 15A 120/277VAC, Single Pole
r
CS15AC1LA Lt. Almond 15A 120/277VAC, Single Pole
r
CS20AC1I Ivory 20A 120/277VAC, Single Pole
r
CS20AC1W White 20A 120/277VAC, Single Pole
r
CS20AC1 Brown 20A 120/277VAC, Single Pole
r
CS20AC1GRY Gray 20A 120/277VAC, Single Pole
r
CS20AC1LA Lt. Almond 20A 120/277VAC, Single Pole
CATALOG
NUMBER COLOR DESCRIPTION/RATING
CS15AC3I Ivory 15A 120/277VAC, 3-Way
CS15AC3W White 15A 120/277VAC, 3-Way
CS15AC3 Brown 15A 120/277VAC, 3-Way
CS15AC3GRY Gray 15A 120/277VAC, 3-Way
CS15AC3BK Black 15A 120/277VAC, 3-Way
CS15AC3LA Lt. Almond 15A 120/277VAC, 3-Way
CS20AC3I Ivory 20A 120/277VAC, 3-Way
CS20AC3W White 20A 120/277VAC, 3-Way
CS20AC3 Brown 20A 120/277VAC, 3-Way
CS20AC3GRY Gray 20A 120/277VAC, 3-Way
CS20AC3LA Lt. Almond 20A 120/277VAC, 3-Way
For double pole and 4-Way switches refer to CSB version on Page R-26.
Performance
Electrical
Dielectric Withstand Voltage: 1500V Minimum
Maximum Working Voltage: 277VAC
Overload: Minimum 4.8 times rated current for 100 cycles
Temperature Rise: 30°C maximum at rated current
Maximum Continuous Current: 277VAC
Endurance: 50,000 cycles minimum, resistive, inductive, tungsten filament lamp load (Fed Spec)
Mechanical
Terminal Accommodations: #14 AWG – #10 AWG copper conductors
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +115°C, minimum -40°C
Materials
Back Body: Glass-Reinforced Nylon
Front Body: Nylon
Toggle: Thermoplastic Polycarbonate
Terminals: Brass
Terminal Screws: Tri-Drive Brass
Mounting Strap: Nickel-Plated Steel
Contacts: Silver Cadmium Oxide
Spring Arm: Brass
Bumper: Rubber
Spring: Zinc-Plated Steel
Ground Terminal: Brass
Ground Screw: Tri-Drive Zinc-Plated Steel
PASS & SEYMOUR
R-28
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Manual Controller Switches 30A, 600VAC, 1ø & 3ø
7802
7803
2.375"
2.155"
3.280"
1.825"
3.67"
1.753"
7812EX
7813EX
2.250"
5.250" 5.875"
4.625"
4.250"
3.375"
3.000"
7812P
7813P
3.910"
2.825"
2.80"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 7802
Description: Manual Controller, Double Pole, Single Phase
Rating: 30A, 600VAC max.
3rd Party Compliance: UL Listed, File Number E31169, Standard UL508, Industrial Control Equipment; CSA Certified,
File Number LR17949, Standard CSA-C22.23, No. 14, Industrial Control Equipment. Conforms to NEMA WD-1 and WD-6.
All Industrial Control Equipment is suitable for use in a circuit capable of deliverable not more than 5,000
rms amperes at 600VAC maximum or equivalent.
Footnote 1. Suitable as Motor Disconnect – 10KA @ 600VAC, 30A max. Class J Fuse
7832
7833
5.75"
1.80"
4.50"
3.25"
CATALOG NUMBER RATING DESCRIPTION
r
7802 General Use 2 120 Double Pole, Single Phase AC
30 600Max. 3 240 Manual Motor Starting Switch
7.5 480 (No overload protection)
10 600
r
7802MD Same as 7802 7802, See Footnote 1
r
7812P Same as 7802 7802 in a NEMA 1 Enclosure
r
7812PMD Same as 7802 7812P, See Footnote 1
r
7812EX Same as 7802 7802 in a NEMA 7 & 9 Enclosure for
Hazardous Locations Class I – Groups C, D;
Class II – Groups E, F, G
r
7832 Same as 7802 7802 in a NEMA 3R Enclosure
r
7832MD Same as 7802 7832, See Footnote 1
r
7803 General Use 3 120 Three Phase, Three Pole AC
30 600Max. 7.5 240 Manual Motor Starting Switch
10 480 (No overload protection)
20 600
r
7803MD Same as 7803 7803, See Footnote 1
r
7813P Same as 7803 7803 in a NEMA 1 Enclosure
r
7813PMD Same as 7803 7813P, See Footnote 1
r
7813EX Same as 7803 7803 in a NEMA 7 & 9 Enclosure for
Hazardous Locations Class I – Groups C, D;
Class II – Groups E, F, G
r
7833 Same as 7803 7803 in a NEMA 3R Enclosure
r
7833MD Same as 7803 7803, See Footnote 1
Performance
Electrical
Dielectric Withstand Voltage: 2000V Minimum
Maximum Working Voltage: 600VAC
Overload: 50 cycles, 132 Amps/600VAC .5 PF
Temperature Rise: 50°C maximum
Maximum Continuous Current: 30A
Endurance: 1000 Cycles, 44Amp/600VAC 0.5 PF
5000 Cycles, 30Amp/600VAC 0.75 PF
Mechanical
Terminal Accommodations: #14 AWG – #10 AWG copper or copper-clad wire
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C
Materials
Back Body: Nylon
Front Body: Nylon
Carrier: Nylon
Toggle: Nylon
Contract Arm: Brass
Terminals: Brass
Terminal Screws: Brass
Leaf Springs: Stainless Steel
Coil Springs: Zinc-Plated Steel
Strap: Zinc-Plated Steel
Rivets: Brass
Contacts: Silver Cadmium Oxide
R-29
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Manual Controller Switches 40A, 600VAC, 1ø & 3ø
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 7842
Description: Manual Controller, Double Pole, Single Phase
Rating: 40A, 600VAC max.
3rd Party Compliance: UL Listed, File Number E31169, Standard UL508, Industrial Control Equipment;
CSA Certified, File Number LR17949, Standard CSA-C22.23, No. 14, Industrial Control Equipment.
Conforms to NEMA WD-1 and WD-6.
All Industrial Control Equipment is suitable for use in a circuit capable of deliverable not more than 5,000 rms
amperes at 600VAC maximum or equivalent.
Footnote: 2. Suitable as Motor Disconnect – 10KA @ 600VAC, 60A max. Class J Fuse or
100A max. Ferraz Shawmut HSJ Fuse
7842
7843
2.375"
2.155"
3.280"
1.825"
3.67"
1.753"
CATALOG NUMBER RATING DESCRIPTION
r
7842 General Use 2 120 Double Pole, Single Phase AC
40 600Max. 5 240 Manual Motor Starting Switch
10 480 (No overload protection)
15 600
r
7842MD Same as 7842 7842, See Footnote 2
r
7843 General Use 3 120 Three Phase, Three Pole AC
40 600Max. 7.5 240 Manual Motor Starting Switch
15 480 (No overload protection)
20 600
r
7843MD Same as 7843 7843, See Footnote 2
r
7801P Handle Locking Guard has opening
for padlock to secure control in either
ON or OFF position.
r
7806P NEMA 1 Black Nylon Enclosure has
baked-on gray enamel finish with 1/2"
and 3/4" knockouts at each end.
r
7830 NEMA 3R Aluminum Enclosure
Performance
Electrical
Dielectric Withstand Voltage: 2000V Minimum
Maximum Working Voltage: 600VAC
Overload: 50 cycles, 132 Amps/600VAC .5 PF
Temperature Rise: 50°C maximum
Maximum Continuous Current: 30A
Endurance: 1000 Cycles, 44Amp/600VAC 0.5 PF
5000 Cycles, 30Amp/600VAC 0.75 PF
Mechanical
Terminal Accommodations: #14 AWG – #10 AWG copper or copper-clad wire
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C
Materials
Back Body: Nylon
Front Body: Nylon
Carrier: Nylon
Toggle: Nylon
Contract Arm: Brass
Terminals: Brass
Terminal Screws: Brass
Leaf Springs: Stainless Steel
Coil Springs: Zinc-Plated Steel
Strap: Zinc-Plated Steel
Rivets: Brass
Contacts: Silver Cadmium Oxide
PASS & SEYMOUR
R-30
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Specification Grade Decorator Switches 15 & 20A, 120/277VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT2601
Description: PlugTail™ Specification Grade Decorator Switches
Rating: 15 & 20A, 120/277VAC
3rd Party Compliance: cULus Listed, File Number E140597, Standard CSA-C22.2 No. 111, General Use
Snap Switches. Federal Specification WS896. Conforms to NEMA WD-1 and WD-6.
*For Illuminated versions. May not be compatible with some fluorescent lighting loads.
PTS6STR3
PTS6STR4
1.125"
6.375"
PTS6STR3BP
PTS6STR4BP
1.125"
6.375"
PT2626W
1.2"
1.6"
3.281"
2.6"
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
PT2601I Ivory 15A 120/277VAC, Single Pole
r
PT2601W White 15A 120/277VAC, Single Pole
r
PT2601 Brown 15A 120/277VAC, Single Pole
r
PT2601GRY Gray 15A 120/277VAC, Single Pole
r
PT2601RED Red 15A 120/277VAC, Single Pole
r
PT2601BK Black 15A 120/277VAC, Single Pole
r
PT2601LA Lt. Almond 15A 120/277VAC, Single Pole
r
PT2603I Ivory 15A 120/277VAC, 3-Way
r
PT2603W White 15A 120/277VAC, 3-Way
r
PT2603 Brown 15A 120/277VAC, 3-Way
r
PT2603GRY Gray 15A 120/277VAC, 3-Way
r
PT2603RED Red 15A 120/277VAC, 3-Way
r
PT2603BK Black 15A 120/277VAC, 3-Way
r
PT2603LA Lt. Almond 15A 120/277VAC, 3-Way
r
PT2621I Ivory 20A 120/277VAC, Single Pole
r
PT2621W White 20A 120/277VAC, Single Pole
r
PT2621 Brown 20A 120/277VAC, Single Pole
r
PT2621GRY Gray 20A 120/277VAC, Single Pole
CATALOG
NUMBER COLOR DESCRIPTION/RATING
r
PT2621RED Red 20A 120/277VAC, Single Pole
r
PT2621BK Black 20A 120/277VAC, Single Pole
r
PT2621LA Lt. Almond 20A 120/277VAC, Single Pole
r
PT2623I Ivory 20A 120/277VAC, 3-Way
r
PT2623W White 20A 120/277VAC, 3-Way
r
PT2623 Brown 20A 120/277VAC, 3-Way
r
PT2623GRY Gray 20A 120/277VAC, 3-Way
r
PT2623RED Red 20A 120/277VAC, 3-Way
r
PT2623BK Black 20A 120/277VAC, 3-Way
r
PT2623LA Lt. Almond 20A 120/277VAC, 3-Way
ILLUMINATED*
r
PT2625I Ivory 20A 120/277VAC, Single Pole
r
PT2625W White 20A 120/277VAC, Single Pole
r
PT2625BK Black 20A 120/277VAC, Single Pole
r
PT2625LA Lt. Almond 20A 120/277VAC, Single Pole
r
PT2626I Ivory 20A 120/277VAC, 3-Way
r
PT2626W White 20A 120/277VAC, 3-Way
r
PT2626BK Black 20A 120/277VAC, 3-Way
r
PT2626LA Lt. Almond 20A 120/277VAC, 3-Way
Performance
Electrical
Dielectric Withstand Voltage: 1500V Minimum
Maximum Working Voltage: 277VAC
347VAC
Overload: Minimum 4.8 times rated current for 100 cycles
Temperature Rise: 30°C maximum at rated current
Maximum Continuous Current: 20A
Endurance: 50,000 cycles minimum, resistive, inductive, tungsten filament lamp load
(Fed Spec)
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Switches only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Front Body: Polycarbonate
Back Body: Polycarbonate
Paddle: Thermoplastic Polycarbonate
Contacts: Silver Cadmiun Oxide
Mounting Strap: Steel
Spring Arm: Brass
Springs: Zinc-Plated Steel
Auto Ground Clip: Steel
Illuminating Lamp:* LED
PlugTail Connector Materials
Housing: Polycarbonate Contacts: Brass
R-31
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Specification Grade Decorator Switches 15 & 20A, 120/277VAC; 20A, 120VAC
2601
2.620"
4.200"
1.060"
3.281"
3.812"
1.300"
2625, 2626, 2629
2.620"
4.200"
1.060"
3.281"
3.812"
1.300"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 2601
Description: Specification Grade Decorator Switch, Back & Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches,
CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111, General Use Snap Switches.
Conforms to NEMA WD-1 and WD-6.
*For Illuminated versions. May not be compatible with some fluorescent lighting loads.
CATALOG NUMBER COLOR DESCRIPTION/RATING
r
2601I Ivory 15A 120/277VAC, Single Pole
r
2601W White 15A 120/277VAC, Single Pole
r
2601GRY Gray 15A 120/277VAC, Single Pole
r
2601BK Black 15A 120/277VAC, Single Pole
r
2601LA Lt. Almond 15A 120/277VAC, Single Pole
r
2621I Ivory 20A 120/277VAC, Single Pole
r
2621W White 20A 120/277VAC, Single Pole
r
2621 Brown 20A 120/277VAC, Single Pole
r
2621GRY Gray 20A 120/277VAC, Single Pole
r
2621BK Black 20A 120/277VAC, Single Pole
r
2621RED Red 20A 120/277VAC, Single Pole
r
2621LA Lt. Almond 20A 120/277VAC, Single Pole
r
2622I Ivory 20A 120/277VAC, Double Pole
r
2622W White 20A 120/277VAC, Double Pole
r
2622 Brown 20A 120/277VAC, Double Pole
r
2622GRY Gray 20A 120/277VAC, Double Pole
r
2622BK Black 20A 120/277VAC, Double Pole
r
2622LA Lt. Almond 20A 120/277VAC, Double Pole
r
2603I Ivory 15A 120/277VAC, 3-Way
r
2603W White 15A 120/277VAC, 3-Way
r
2603GRY Gray 15A 120/277VAC, 3-Way
r
2603BK Black 15A 120/277VAC, 3-Way
r
2603LA Lt. Almond 15A 120/277VAC, 3-Way
r
2623I Ivory 20A 120/277VAC, 3-Way
r
2623W White 20A 120/277VAC, 3-Way
r
2623 Brown 20A 120/277VAC, 3-Way
r
2623GRY Gray 20A 120/277VAC, 3-Way
r
2623BK Black 20A 120/277VAC, 3-Way
CATALOG NUMBER COLOR DESCRIPTION/RATING
r
2623RED Red 20A 120/277VAC, 3-Way
r
2623LA Lt. Almond 20A 120/277VAC, 3-Way
r
2604I Ivory 15A 120/277VAC, 4-Way
r
2604W White 15A 120/277VAC, 4-Way
r
2604LA Lt. Al. 15A 120/277VAC, 4-Way
r
2624I Ivory 20A 120/277VAC, 4-Way
r
2624W White 20A 120/277VAC, 4-Way
r
2624 Brown 20A 120/277VAC, 4-Way
r
2624GRY Gray 20A 120/277VAC, 4-Way
r
2624BK Black 20A 120/277VAC, 4-Way
r
2624RED Red 20A 120/277VAC, 4-Way
r
2624LA Lt. Almond 20A 120/277VAC, 4-Way
ILLUMINATED*
r
2625I Ivory 20A 120VAC, Single Pole
r
2625W White 20A 120VAC, Single Pole
r
2625 Brown 20A 120VAC, Single Pole
r
2625LA Lt. Almond 20A 120VAC, Single Pole
r
2626I Ivory 20A 120VAC, 3-Way
r
2626W White 20A 120VAC, 3-Way
r
2626LA Lt. Almond 20A 120VAC, 3-Way
r
2628I Ivory 20A 120VAC, 4-Way
r
2628W White 20A 120VAC, 4-Way
r
2628LA Lt. Almond 20A 120VAC, 4-Way
PILOT LIGHTED
r
2629I Ivory 20A 120VAC, Single Pole
r
2629W White 20A 120VAC, Single Pole
r
2629LA Lt. Almond 20A 120VAC, Single Pole
Back Body: Polycarbonate
Frame: Polycarbonate
Paddle: Thermoplastic
Terminals: Brass
Terminal Screws: Tri-Drive Brass-Plated Steel
Strap: Steel
Pressure Plate: Steel
Contacts: Silver Cadmium Oxide
Performance
Electrical
Dielectric Withstand Voltage: 1500V Minimum
Maximum Working Voltage: 277VAC
Overload: Minimum 4.8 times rated current for 100 cycles
Temperature Rise: 30°C maximum at rated current
Maximum Continuous Current: 277VAC
Endurance: 50,000 cycles minimum, resistive, inductive, tungsten filament lamp load
Mechanical
Terminal Accommodation: #14 AWG – #10 AWG
Environmental
Flammability: UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C
Materials
Spring Arm: Brass
Bumper: Rubber
Spring: Zinc-Plated Steel
Ground Terminal: Brass
Ground Screw: Tri-Drive Zinc-Plated Steel
Illuminating Lamp*: Neon
Lens*: Polycarbonate
PASS & SEYMOUR
R-32
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Specification Grade Combination & Momentary & Maintained Contact Switches
15A, 120VAC; 20A, 277VAC
Maintained
Contact
Momentary
Contact
1.29"
1.59"
2.60"
3.281"
3.812"
1.29"
1.59"
2.60"
3.281"
3.812"
15 & 20 Amp
1.29"
1.59"
2.60"
3.281"
3.812"
Typical Specifications
Manufacturer's Identification: Pass & Seymour® PS81120, PS811120, TM811DTMO & TM811DTMA
Rating: PS81120 & PS811120: 20A, 277VAC. TM811DTMO & TM811DTMA: 15A, 120VAC
3rd Party Compliance: PS81120, PS811120, TM811DTMA: cULus Listed, File Number E140597, Standard UL20,
General Use Snap Switches.TM811DTMO: cULus Listed, File Number E31169, UL508, Industrial Control.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Maximum Amperage per Circuit: PS81120 and PS811120 = 20A
Maximum Amperage per Device: PS81120 = 30A, PS811120 = 35A
Dielectric Withstand Voltage: 1500V Minimum
Maximum Working Voltage: PS81120 and PS811120 = 277VAC
TM811DTMO and TM811DTMA = 120VAC
Overload: Minimum 4.8 times rated current for 100 cycles
Temperature Rise: 30°C maximum at rated current
Maximum Continuous Current: PS81120 and PS811120 = 277VAC
TM811DTMO and TM811DTMA = 120VAC
Mechanical
Terminal Accommodation: #14 AWG – #10 AWG
Product Identification: Amperage, Voltage, 3rd Party Compliance
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +115°C, minimum -40°C
Materials
Back Body: Polycarbonate
Frame: Polycarbonate
Paddle: Thermoplastic
Terminals: Brass
Terminal Screws: Tri-Drive Brass-Plated Steel
Strap: Steel
Pressure Plate: Steel
Contacts: Silver Cadmium Oxide
Spring: Zinc-Plated Steel
Ground Terminal: Brass
Ground Screw: Tri-Drive Zinc-Plated Steel
R-33
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Fed Spec Grade USB Chargers with Tamper-Resistant Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V & 120V
TR5361USBW
4.18"
1.60"
1.31"
2.61"
Typical Specifications
Manufacturer's Identification: Pass & Seymour® TR5261USB
Description: Fed Spec Grade USB Chargers with Tamper-Resistant Receptacles
Type: 2 Pole, 3 Wire Grounding
Rating: 15V, 125VAC
Configuration: NEMA 5-15R
3rd Party Compliance: ETL Tested US and Canada. Complies with test requirements UL 498, UL 1310.
Fed Spec WC596, CSA C22.2 No. 42, CSA C22.2 No. 223.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r TR5261USBI Ivory 15A 125VAC 5-15R
r TR5261USBW White 15A 125VAC 5-15R
r TR5261USB Brown 15A 125VAC 5-15R
r TR5261USBGRY Gray 15A 125VAC 5-15R
r TR5261USBBK Black 15A 125VAC 5-15R
r TR5261USBRED Red 15A 125VAC 5-15R
r TR5261USBLA Light Almond 15A 125VAC 5-15R
r TR5261USBGN Green 15A 125VAC 5-15R
r TR5261USBNI Nickel 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r TR5361USBI Ivory 20A 125VAC 5-20R
r TR5361USBW White 20A 125VAC 5-20R
r TR5361USB Brown 20A 125VAC 5-20R
r TR5361USBGRY Gray 20A 125VAC 5-20R
r TR5361USBBK Black 20A 125VAC 5-20R
r TR5361USBLA Light Almond 20A 125VAC 5-20R
r TR5361USBGN Green 20A 125VAC 5-20R
r TR5361USBNI Nickel 20A 125VAC 5-20R
NEMA
5-15R
NEMA
5-20R
Performance
Electrical
Dielectric Withstand Voltage: Withstands 1500V Minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current (receptacle only)
Temperature Rise: Maximum 30°C after 50 cycles at full-rated current after 50 cycles of
overload are 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation: #14 AWG – #10 AWG copper conductor only
Product Identification: Ratings are permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Polycarbonate
Body: Nylon
Contacts: CDA 260 Brass
Mounting Strap: .049" Zinc-Plated Steel
Terminal Screws: Tri-Drive Zinc-Plated Steel with either clear or black chromate for
color identification
Ground Screw: Tri-Drive Green with green chromate
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
Warranty: 1 year
PASS & SEYMOUR
R-34
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Hospital Grade USB Chargers with Tamper-Resistant Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V & 120V
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r TR8201USBI Ivory 15A 125VAC 5-15R
r TR8201USBW White 15A 125VAC 5-15R
r TR8201USB Brown 15A 125VAC 5-15R
r TR8201USBGRY Gray 15A 125VAC 5-15R
r TR8201USBBK Black 15A 125VAC 5-15R
r TR8201USBRED Red 15A 125VAC 5-15R
r TR8201USBLA Light Almond 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r TR8301USBI Ivory 20A 125VAC 5-20R
r TR8301USBW White 20A 125VAC 5-20R
r TR8301USB Brown 20A 125VAC 5-20R
r TR8301USBGRY Gray 20A 125VAC 5-20R
r TR8301USBBK Black 20A 125VAC 5-20R
r TR8301USBRED Red 20A 125VAC 5-20R
r TR8301USBLA Light Almond 20A 125VAC 5-20R
Typical Specifications
Manufacturer's Identification: Pass & Seymour® TR8201USB
Description: Hospital Grade USB Chargers with Tamper-Resistant Receptacles
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125VAC
Configuration: NEMA 5-15R
3rd Party Compliance: ETL Tested US and Canada. Complies with test requirements UL 498, UL 1310.
Fed Spec WC596, CSA C22.2 No. 42, CSA C22.2 No. 223.
TR8301USBW
4.18"
1.60"
1.31"
2.61"
NEMA
5-15R
NEMA
5-20R
Performance
Electrical
Dielectric Withstand Voltage: Withstands 1500V Minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current (receptacle only)
Temperature Rise: Maximum 30°C after 50 cycles at full-rated current after 50 cycles of
overload are 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 AWG – #10 AWG copper conductor only
Product Identification: Ratings are permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Polycarbonate
Body: Nylon
Contacts: CDA 260 Brass
Mounting Strap: .049" Zinc-Plated Steel
Terminal Screws: Tri-Drive Zinc-Plated Steel with either Clear or Black Chromate for
color identification
Ground Screw: Tri-Drive Green with Green Chromate
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
Warranty: 1 year
R-35
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Extra Heavy-Duty Specification Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT5262A & PTTR62
Description: PlugTail™ Straight Blade Duplex Receptacle & Tamper-Resistant Duplex Receptacle – Extra Heavy-Duty
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498, Federal Specification WC596.
Conforms to NEMA WD-1 and WD-6.
*For Tamper-Resistant version.
Consult Straight Blade Section B for complete compliance listing.
PT5362AW
.866"
3.281"
1.625"
1.104"
2.750"
PTTR63W
.866"
3.281"
1.625"
1.104"
2.750"
PTRA6STR
PTRA6STRG
1.125"
6.375"
PTRA6STRBP
1.125"
6.375"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PT5262AI Ivory 15A 125V 5-15R
r
PT5262AW White 15A 125V 5-15R
r
PT5262A Brown 15A 125V 5-15R
r
PT5262AGRY Gray 15A 125V 5-15R
r
PT5262ABK Black 15A 125V 5-15R
r
PT5262ARED Red 15A 125V 5-15R
r
PT5262ALA Lt. Almond 15A 125V 5-15R
r
PT5262ABL Blue 15A 125V 5-15R
r
PT5362AI Ivory 20A 125V 5-20R
r
PT5362AW White 20A 125V 5-20R
r
PT5362A Brown 20A 125V 5-20R
r
PT5362AGRY Gray 20A 125V 5-20R
r
PT5362ABK Black 20A 125V 5-20R
r
PT5362ARED Red 20A 125V 5-20R
r
PT5362ALA Lt. Almond 20A 125V 5-20R
r
PT5362ABL Blue 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PTTR62I Ivory 15A 125V 5-15R
r
PTTR62W White 15A 125V 5-15R
r
PTTR62 Brown 15A 125V 5-15R
r
PTTR62GRY Gray 15A 125V 5-15R
r
PTTR62BK Black 15A 125V 5-15R
r
PTTR62RED Red 15A 125V 5-15R
r
PTTR62LA Lt. Almond 15A 125V 5-15R
r
PTTR62BL Blue 15A 125V 5-15R
r
PTTR63I Ivory 20A 125V 5-20R
r
PTTR63W White 20A 125V 5-20R
r
PTTR63 Brown 20A 125V 5-20R
r
PTTR63GRY Gray 20A 125V 5-20R
r
PTTR63BK Black 20A 125V 5-20R
r
PTTR63RED Red 20A 125V 5-20R
r
PTTR63LA Lt. Almond 20A 125V 5-20R
r
PTTR63BL Blue 20A 125V 5-20R
NEMA
5-15R
NEMA
5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated
current (receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated
current after 50 cycles of overload at 150% of
rated current with direct current
Mechanical
PlugTail Connectors Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Back Body: Nylon
Line Contacts: .036 688 Brass
Mounting Strap: .050 260 Brass
Tamper Shutter*: Thermoplastic
Housing: Polycarbonate
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Brass
Mounting Screws: Tri-Drive Steel
Contacts: 036 688 Brass
PASS & SEYMOUR
R-36
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Extra Heavy-Duty Hospital Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
*For Tamper-Resistant version.
Consult Straight Blade Section B and Hospital Grade Section D for complete compliance listing.
PTTR63HW
.866"
3.281"
1.625"
1.104"
2.750"
PT8300W
.866"
3.281"
1.625"
1.104"
2.750"
Typical Specifications
Manufacturer's Identification: Pass & Seymour® PT8200 & PTTR62H
Description: PlugTail™ Straight Blade Duplex Receptacle & Tamper-Resistant Duplex Receptacle – Extra Heavy-Duty
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498, Federal Specification WC596,
Hospital Grade. Conforms to NEMA WD-1 and WD-6.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PT8200I Ivory 15A 125V 5-15R
r
PT8200W White 15A 125V 5-15R
r
PT8200 Brown 15A 125V 5-15R
r
PT8200GRY Gray 15A 125V 5-15R
r
PT8200BK Black 15A 125V 5-15R
r
PT8200RED Red 15A 125V 5-15R
r
PT8200LA Lt. Almond 15A 125V 5-15R
r
PT8200BL Blue 15A 125V 5-15R
r
PT8300I Ivory 20A 125V 5-20R
r
PT8300W White 20A 125V 5-20R
r
PT8300 Brown 20A 125V 5-20R
r
PT8300GRY Gray 20A 125V 5-20R
r
PT8300BK Black 20A 125V 5-20R
r
PT8300RED Red 20A 125V 5-20R
r
PT8300LA Lt. Almond 20A 125V 5-20R
r
PT8300BL Blue 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PTTR62HI Ivory 15A 125V 5-15R
r
PTTR62HW White 15A 125V 5-15R
r
PTTR62H Brown 15A 125V 5-15R
r
PTTR62HGRY Gray 15A 125V 5-15R
r
PTTR62HBK Black 15A 125V 5-15R
r
PTTR62HRED Red 15A 125V 5-15R
r
PTTR62HLA Lt. Almond 15A 125V 5-15R
r
PTTR62HBL Blue 15A 125V 5-15R
r
PTTR63HI Ivory 20A 125V 5-20R
r
PTTR63HW White 20A 125V 5-20R
r
PTTR63H Brown 20A 125V 5-20R
r
PTTR63HGRY Gray 20A 125V 5-20R
r
PTTR63HBK Black 20A 125V 5-20R
r
PTTR63HRED Red 20A 125V 5-20R
r
PTTR63HLA Lt. Almond 20A 125V 5-20R
r
PTTR63HBL Blue 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current (receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
PlugTail Connectors Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded,
for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Back Body: Nylon
Line Contacts: .036 688 Brass
Mounting Strap: .050 260 Brass
Tamper Shutter*: Thermoplastic
Housing: Polycarbonate Contacts: .036 688 Brass
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Brass
Mounting Screws: Tri-Drive Steel
NEMA
5-15R
NEMA
5-20R
R-37
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Extra Heavy-Duty Hospital Grade Illuminated Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
PT8300ILLA
.866"
3.281"
1.625"
1.104"
2.750"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT8200IL
Description: PlugTail™ Straight Blade Illuminated Duplex Receptacle – Extra Heavy-Duty Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498, Federal Specification
WC596, Hospital Grade. Conforms to NEMA WD-1 and WD-6.
PTRA6STR, PTRA6STRG
1.125"
6.375"
PTRA6STRBP
1.125"
6.375"
NEMA
5-15R
NEMA
5-20R
Consult Straight Blade Section B and Hospital Grade Section D for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PT8200ILI Ivory 15A 125V 5-15R
r
PT8200ILW White 15A 125V 5-15R
r
PT8200IL Brown 15A 125V 5-15R
r
PT8200ILGRY Gray 15A 125V 5-15R
r
PT8200ILBK Black 15A 125V 5-15R
r
PT8200ILRED Red 15A 125V 5-15R
r
PT8200ILLA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PT8300ILI Ivory 20A 125V 5-20R
r
PT8300ILW White 20A 125V 5-20R
r
PT8300IL Brown 20A 125V 5-20R
r
PT8300ILGRY Gray 20A 125V 5-20R
r
PT8300ILBK Black 20A 125V 5-20R
r
PT8300ILRED Red 20A 125V 5-20R
r
PT8300ILLA Lt. Almond 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current (receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
PlugTail Connectors Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
Face: Nylon
Back Body: Nylon
Line Contacts: .036 688 Brass
Mounting Strap: .050 260 Brass
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Brass
Mounting Screws: Tri-Drive Steel
LED: 8-9 Years
PlugTail Connector Materials
Housing: Polycarbonate Contacts: .036 688 Brass
PASS & SEYMOUR
R-38
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Extra Heavy-Duty Hospital Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 8200
Description: Straight Blade Duplex Receptacle – Extra Heavy-Duty Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596, Hospital Grade. CSA Certified, File Number LR16063, Standard CSA-C22.2, No. 42. Conforms
to NEMA WD-1 and WD-6.
*For LED Illuminated Face version.
Consult Straight Blade Section B and Hospital Grade Section D for complete compliance listing.
15 & 20 Amp
.900"
3.281"
1.625"
1.104"
2.750"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
8200I Ivory 15A 125V 5-15R
r
8200W White 15A 125V 5-15R
r
8200 Brown 15A 125V 5-15R
r
8200GRY Gray 15A 125V 5-15R
r
8200BK Black 15A 125V 5-15R
r
8200RED Red 15A 125V 5-15R
r
8200LA Lt. Almond 15A 125V 5-15R
r
8200ILI Ivory 15A 125V 5-15R
r
8200ILW White 15A 125V 5-15R
r
8200ILRED Red 15A 125V 5-15R
r
8300I Ivory 20A 125V 5-20R
r
8300W White 20A 125V 5-20R
r
8300 Brown 20A 125V 5-20R
r
8300GRY Gray 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
8300BK Black 20A 125V 5-20R
r
8300RED Red 20A 125V 5-20R
r
8300LA Lt. Almond 20A 125V 5-20R
r
8300ILI Ivory 20A 125V 5-20R
r
8300ILW White 20A 125V 5-20R
r
8300ILGRY Gray 20A 125V 5-20R
r
8300ILRED Red 20A 125V 5-20R
r
8300ILLA Lt. Almond 20A 125V 5-20R
r
8800I Ivory 20A 250V 6-20R
r
8800W White 20A 250V 6-20R
r
8800 Brown 20A 250V 6-20R
r
8800GRY Gray 20A 250V 6-20R
r
8800BK Black 20A 250V 6-20R
r
8800LA Lt. Almond 20A 250V 6-20R
r
8800RED Red 20A 250V 6-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2 and UL94-5 VA
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: Nylon
Line Contacts: .040 688 Nickel-Plated Brass
Mounting Strap: .050 688 Brass
Ground Contacts: Strap with Integral Ground
Pressure Plate: .031 260 Nickel-Plated Brass
Terminal Screws: #10 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #10 Hex Tri-Drive Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Brass
Mounting Screws: Tri-Drive Steel
Illuminating Lamp:* Neon
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
R-39
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Extra Heavy-Duty Hospital Grade MRI Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 8200MRI
Description: Straight Blade Duplex Receptacle – Extra Heavy-Duty Hospital Grade MRI
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596, Hospital Grade. CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to
NEMA WD-1 and WD-6.
NEMA
5-15R
NEMA
5-20R
15 & 20 Amp
.900"
3.281"
1.625"
1.104"
2.750"
Consult Straight Blade Section B and Hospital Grade Section D for complete compliance listing.
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: Nylon
Line Contacts: .036 688 Brass
Mounting Strap: .050 688 Brass
Ground Contacts: Strap with Integral Ground
Pressure Plate: .031 260 Brass
Terminal Screws: #10 Tri-Drive Brass
Ground Screw: #10 Hex Tri-Drive Brass
Auto-Ground Clip: Brass
Mounting Screws: Slotted Brass
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
8200IMRI Ivory 15A 125V 5-15R
r
8200WMRI White 15A 125V 5-15R
r
8200MRI Brown 15A 125V 5-15R
r
8200GRYMRI Gray 15A 125V 5-15R
r
8200BKMRI Black 15A 125V 5-15R
r
8200REDMRI Red 15A 125V 5-15R
r
8200LAMRI Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
8300IMRI Ivory 20A 125V 5-20R
r
8300WMRI White 20A 125V 5-20R
r
8300MRI Brown 20A 125V 5-20R
r
8300GRYMRI Gray 20A 125V 5-20R
r
8300BKMRI Black 20A 125V 5-20R
r
8300REDMRI Red 20A 125V 5-20R
r
8300LAMRI Lt. Almond 20A 125V 5-20R
PASS & SEYMOUR
R-40
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Industrial Extra Heavy-Duty Specification Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
15 & 20 Amp
.900"
3.281"
1.625"
1.104"
2.750"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 5262A
Description: Straight Blade Duplex Receptacle – Industrial Extra Heavy-Duty Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
*Corrosion-Resistant
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
5262AI Ivory 15A 125V 5-15R
r
5262AW White 15A 125V 5-15R
r
5262A Brown 15A 125V 5-15R
r
5262AGRY Gray 15A 125V 5-15R
r
5262ABK Black 15A 125V 5-15R
r
5262ARED Red 15A 125V 5-15R
r
5262ALA Lt. Almond 15A 125V 5-15R
r
CR6200* Yellow 15A 125V 5-15R
r
CR6200GRY* Gray 15A 125V 5-15R
r
5662AI Ivory 15A 250V 6-15R
r
5662AW White 15A 250V 6-15R
r
5662A Brown 15A 250V 6-15R
r
5662AGRY Gray 15A 250V 6-15R
r
5662ABK Black 15A 250V 6-15R
r
5662ARED Red 15A 250V 6-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
5362AI Ivory 20A 125V 5-20R
r
5362AW White 20A 125V 5-20R
r
5362A Brown 20A 125V 5-20R
r
5362AGRY Gray 20A 125V 5-20R
r
5362ABK Black 20A 125V 5-20R
r
5362ARED Red 20A 125V 5-20R
r
5362ALA Lt. Almond 20A 125V 5-20R
r
5362ABL Blue 20A 125V 5-20R
r
CR6300* Yellow 20A 125V 5-20R
r
CR6300BR* Brown 20A 125V 5-20R
r
5862AI Ivory 20A 250V 6-20R
r
5862AW White 20A 250V 6-20R
r
5862A Brown 20A 250V 6-20R
r
5862AGRY Gray 20A 250V 6-20R
r
5862ABK Black 20A 250V 6-20R
r
5862ARED Red 20A 250V 6-20R
r
5862ALA Lt. Almond 20A 250V 6-20R
r
5862ABL Blue 20A 250V 6-20R
**Corrosion-Resistant versions have nickel-plated straps and contacts.
Consult Straight Blade Section B for complete compliance listing.
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: Nylon
Line Contacts:** .036 688 Brass
Mounting Strap:** .050 688 Brass
Ground Contacts: Strap with Integral Ground
Pressure Plate: .031 260 Brass
Terminal Screws: #10 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #10 Hex Tri-Drive Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Brass
Mounting Screws: Tri-Drive Steel
R-41
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Heavy-Duty Specification Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS5262
Description: Straight Blade Duplex Receptacle – Heavy-Duty Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
15 & 20 Amp
1.104"
.780"
2.635"
3.281"
1.322"
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PS5262I Ivory 15A 125V 5-15R
r
PS5262W White 15A 125V 5-15R
r
PS5262 Brown 15A 125V 5-15R
r
PS5262GRY Gray 15A 125V 5-15R
r
PS5262BK Black 15A 125V 5-15R
r
PS5262RED Red 15A 125V 5-15R
r
PS5262LA Lt. Almond 15A 125V 5-15R
r
PS5262BL Blue 15A 125V 5-15R
r
5662I Ivory 15A 250V 6-15R
r
5662W White 15A 250V 6-15R
r
5662 Brown 15A 250V 6-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PS5362I Ivory 20A 125V 5-20R
r
PS5362W White 20A 125V 5-20R
r
PS5362 Brown 20A 125V 5-20R
r
PS5362GRY Gray 20A 125V 5-20R
r
PS5362BK Black 20A 125V 5-20R
r
PS5362RED Red 20A 125V 5-20R
r
PS5362LA Lt. Almond 20A 125V 5-20R
r
PS5362BL Blue 20A 125V 5-20R
r
5862I Ivory 20A 250V 6-20R
r
5862W White 20A 250V 6-20R
r
5862 Brown 20A 250V 6-20R
r
5862GRY Gray 20A 250V 6-20R
r
5862BK Black 20A 250V 6-20R
r
5862RED Red 20A 250V 6-20R
r
5862BL Blue 20A 250V 6-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Max 30°C temperature rise at full-rated current after 50 cycles of overload
at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40° (without impact)
Materials
Face: Nylon
Back Body: PVC
Line Contacts: .032 688 Brass
Mounting Strap: .043 688 Brass
Ground Contacts: .040 688 Brass
Pressure Plate: .080 Steel
Terminal Screws: #8 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #8 Hex Tri-Drive Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
PASS & SEYMOUR
R-42
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Heavy-Duty Hospital Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS8200H
Description: Straight Blade Duplex Receptacle – Heavy-Duty Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498. Federal Specification
WC596, Hospital Grade. CSA Certified, File Number LR16063, Standard CSA C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
PS8200HI
.780"
3.281"
1.322"
1.104"
2.635"
PS8300HSLA
.780"
3.281"
1.322"
1.104"
2.635"
Consult Straight Blade Section B and Hospital Grade Section D for complete compliance listing.
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PS8200HI Ivory 15A 125V 5-15R
r
PS8200HW White 15A 125V 5-15R
r
PS8200H Brown 15A 125V 5-15R
r
PS8200HGRY Gray 15A 125V 5-15R
r
PS8200HRED Red 15A 125V 5-15R
r
PS8200HLA Lt. Almond 15A 125V 5-15R
r
PS8300HI Ivory 20A 125V 5-20R
r
PS8300HW White 20A 125V 5-20R
r
PS8300H Brown 20A 125V 5-20R
r
PS8300HGRY Gray 20A 125V 5-20R
r
PS8300HRED Red 20A 125V 5-20R
r
PS8300HLA Lt. Almond 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PS8200HSI Ivory 15A 125V 5-15R
r
PS8200HSW White 15A 125V 5-15R
r
PS8200HS Brown 15A 125V 5-15R
r
PS8200HSGRY Gray 15A 125V 5-15R
r
PS8200HSBK Black 15A 125V 5-15R
r
PS8200HSRED Red 15A 125V 5-15R
r
PS8200HSLA Lt. Almond 15A 125V 5-15R
r
PS8300HSI Ivory 20A 125V 5-20R
r
PS8300HSW White 20A 125V 5-20R
r
PS8300HS Brown 20A 125V 5-20R
r
PS8300HSGRY Gray 20A 125V 5-20R
r
PS8300HSBK Black 20A 125V 5-20R
r
PS8300HSRED Red 20A 125V 5-20R
r
PS8300HSLA Lt. Almond 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload
at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 AWG – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: PVC
Line Contacts: .032 688 Brass
Mounting Strap: .043 260 Brass
Ground Contacts: .040 688 Brass
Pressure Plate: .080 Steel
Terminal Screws : #8 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #8 Hex Tri-Drive Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
R-43
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Heavy-Duty Hospital Grade Compact Design Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V; 20A, 250V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 8200H
Description: Straight Blade Duplex Receptacle – Heavy-Duty Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498. Federal Specification
WC596, Hospital Grade. CSA Certified, File Number LR16063, Standard CSA C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Section B and Hospital Grade Section D for complete compliance listing.
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
IG8300
1.322"
1.104"
2.635"
3.281"
.922"
8200HI
.780"
3.281"
1.322"
1.104"
2.635"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
8200HI Ivory 15A 125V 5-15R
r
8200HW White 15A 125V 5-15R
r
8200H Brown 15A 125V 5-15R
r
8200HGRY Gray 15A 125V 5-15R
r
8200HRED Red 15A 125V 5-15R
r
8200HLA Lt. Almond 15A 125V 5-15R
r
8200HOR Orange 15A 125V 5-15R
r
8300HI Ivory 20A 125V 5-20R
r
8300HW White 20A 125V 5-20R
r
8300H Brown 20A 125V 5-20R
r
8300HGRY Gray 20A 125V 5-20R
r
8300HBK Black 20A 125V 5-20R
r
8300HRED Red 20A 125V 5-20R
r
8300HLA Lt. Almond 20A 125V 5-20R
r
8300HBL Blue 20A 125V 5-20R
r
8300HOR Orange 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
IG8200I Ivory 15A 125V 5-15R
r
IG8200RED Red 15A 125V 5-15R
r
IG8200O Orange 15A 125V 5-15R
r
IG8300I Ivory 20A 125V 5-20R
r
IG8300W White 20A 125V 5-20R
r
IG8300RED Red 20A 125V 5-20R
r
IG8300LA Lt. Almond 20A 125V 5-20R
r
IG8300O Orange 20A 125V 5-20R
r
IG8800LA Lt. Almond 20A 250V 6-20R
r
IG8800O Orange 20A 250V 6-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after
50 cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 AWG – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: PVC
Line Contacts: .032 688 Brass
Mounting Strap: .043 260 Brass
Ground Contacts: .040 688 Brass
Pressure Plate: .080 Steel
Terminal Screws: #8 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #8 Hex Tri-Drive Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
PASS & SEYMOUR
R-44
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Specification & Hospital Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
NEMA
5-15R
NEMA
5-20R
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT5262
Description: Plugtail™ Straight Blade Duplex Receptacle – Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Federal Specification WC596.
Conforms to NEMA WD-1 and WD-6.
PTIG5362LA
3.281"
.625"
1.5"
2.750"
1.104"
PT5362LA
1.104"
3.281"
.625"
1.5"
2.750"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
PT5262I Ivory 15A 125V 5-15R
r
PT5262W White 15A 125V 5-15R
r
PT5262 Brown 15A 125V 5-15R
r
PT5262GRY Gray 15A 125V 5-15R
r
PT5262BK Black 15A 125V 5-15R
r
PT5262RED Red 15A 125V 5-15R
r
PT5262LA Lt. Almond 15A 125V 5-15R
r
PT5262BL Blue 15A 125V 5-15R
r
PT5362I Ivory 20A 125V 5-20R
r
PT5362W White 20A 125V 5-20R
r
PT5362 Brown 20A 125V 5-20R
r
PT5362GRY Gray 20A 125V 5-20R
r
PT5362BK Black 20A 125V 5-20R
r
PT5362RED Red 20A 125V 5-20R
r
PT5362LA Lt. Almond 20A 125V 5-20R
r
PT5362BL Blue 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
PTIG5262I Ivory 15A 125V 5-15R
r
PTIG5262W White 15A 125V 5-15R
r
PTIG5262 Orange 15A 125V 5-15R
r
PTIG5262GRY Gray 15A 125V 5-15R
r
PTIG5262RED Red 15A 125V 5-15R
r
PTIG5262LA Lt. Almond 15A 125V 5-15R
r
PTIG5362I Ivory 20A 125V 5-20R
r
PTIG5362W White 20A 125V 5-20R
r
PTIG5362 Orange 20A 125V 5-20R
r
PTIG5362GRY Gray 20A 125V 5-20R
r
PTIG5362RED Red 20A 125V 5-20R
r
PTIG5362LA Lt. Almond 20A 125V 5-20R
r
PTIG8200I Ivory 15A 125V 5-15R
r
PTIG8200 Orange 15A 125V 5-15R
r
PTIG8200RED Red 15A 125V 5-15R
r
PTIG8300I Ivory 15A 125V 5-15R
r
PTIG8300 Orange 15A 125V 5-15R
r
PTIG8300RED Red 15A 125V 5-15R
r
PTIG8300LA Lt. Almond 15A 125V 5-15R
Consult Straight Blade Section B and Hospital Grade Section D for complete compliance listing.
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current (receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded,
for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Back Body: PVC
Line Contacts: .036 688 Brass
Mounting Strap: .042 Zinc-Plated Steel
Housing Polycarbonate
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Steel
Mounting Screws: Tri-Drive Steel
Contacts .030 Brass
R-45
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Tamper-Resistant Specification & Hospital Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PTTR5262
Description: Plugtail™ Straight Blade Duplex Receptacle – Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Federal Specification WC596.
Conforms to NEMA WD-1 and WD-6.
PTTR5362W
2.750"
3.281"
.625"
1.5"
1.104"
PTTR8300W
2.750"
3.281"
.625"
1.5"
1.104"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
PTTR5262I Ivory 15A 125V 5-15R
r
PTTR5262W White 15A 125V 5-15R
r
PTTR5262 Brown 15A 125V 5-15R
r
PTTR5262GRY Gray 15A 125V 5-15R
r
PTTR5262BK Black 15A 125V 5-15R
r
PTTR5262RED Red 15A 125V 5-15R
r
PTTR5262LA Lt. Almond 15A 125V 5-15R
r
PTTR5362I Ivory 20A 125V 5-20R
r
PTTR5362W White 20A 125V 5-20R
r
PTTR5362 Brown 20A 125V 5-20R
r
PTTR5362GRY Gray 20A 125V 5-20R
r
PTTR5362BK Black 20A 125V 5-20R
r
PTTR5362LA Lt. Almond 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
PTTR8200I Ivory 15A 125V 5-15R
r
PTTR8200W White 15A 125V 5-15R
r
PTTR8200 Brown 15A 125V 5-15R
r
PTTR8200GRY Gray 15A 125V 5-15R
r
PTTR8200BK Black 15A 125V 5-15R
r
PTTR8200RED Red 15A 125V 5-15R
r
PTTR8200LA Lt. Almond 15A 125V 5-15R
r
PTTR8300I Ivory 20A 125V 5-20R
r
PTTR8300W White 20A 125V 5-20R
r
PTTR8300 Brown 20A 125V 5-20R
r
PTTR8300GRY Gray 20A 125V 5-20R
r
PTTR8300BK Black 20A 125V 5-20R
r
PTTR8300RED Red 20A 125V 5-20R
r
PTTR8300LA Lt. Almond 20A 125V 5-20R
NEMA
5-15R
NEMA
5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current (receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded,
for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Consult Straight Blade Section B and Hospital Grade Section D for complete compliance listing.
Face: Nylon
Back Body: PVC
Line Contacts: .036 688 Brass
Mounting Strap: .042 Zinc-Plated Steel
Housing: Polycarbonate Contacts: .030 Brass
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Steel
Mounting Screws: Tri-Drive Steel
PASS & SEYMOUR
R-46
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Specification Grade Receptacles Split Circuit
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT5262SC
Description: Plugtail™ Straight Blade Duplex Receptacle – Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Federal Specification
WC596. Conforms to NEMA WD-1 and WD-6.
PT5362SCI
2.750"
3.281"
.625"
1.5"
1.104"
6.0"
PTTR5362SCI
2.750"
3.281"
.625"
1.5"
1.104"
6.0"
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
PT5262SCI Ivory 15A 125V 5-15R
r
PT5262SCW White 15A 125V 5-15R
r
PT5262SC Brown 15A 125V 5-15R
r
PT5262SCGRY Gray 15A 125V 5-15R
r
PT5262SCBK Black 15A 125V 5-15R
r
PT5262SCRED Red 15A 125V 5-15R
r
PT5262SCLA Lt. Almond 15A 125V 5-15R
r
PT5262SCBL Blue 15A 125V 5-15R
r
PT5362SCI Ivory 20A 125V 5-20R
r
PT5362SCW White 20A 125V 5-20R
r
PT5362SC Brown 20A 125V 5-20R
r
PT5362SCGRY Gray 20A 125V 5-20R
r
PT5362SCBK Black 20A 125V 5-20R
r
PT5362SCRED Red 20A 125V 5-20R
r
PT5362SCLA Lt. Almond 20A 125V 5-20R
r
PT5362SCBL Blue 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
PTTR5262SCI Ivory 15A 125V 5-15R
r
PTTR5262SCW White 15A 125V 5-15R
r
PTTR5262SC Brown 15A 125V 5-15R
r
PTTR5262SCBK Black 15A 125V 5-15R
r
PTTR5262SCLA Lt. Almond 15A 125V 5-15R
r
PTTR5362SCI Ivory 20A 125V 5-20R
r
PTTR5362SCW White 20A 125V 5-20R
r
PTTR5362SC Brown 20A 125V 5-20R
r
PTTR5362SCBK Black 20A 125V 5-20R
r
PTTR5362SCLA Lt. Almond 20A 125V 5-20R
Consult Straight Blade Section B for complete compliance listing.
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current (receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded,
for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Back Body: PVC
Line Contvacts: .036 688 Brass
Mounting Strap: .042 Zinc-Plated Steel
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Steel
Mounting Screws: Tri-Drive Steel
Housing: Polycarbonate Contacts: .030 Brass
R-47
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Hard Use Specification Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 5262
Description: Straight Blade Duplex Receptacle – Hard Use Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42.27. Conforms to NEMA WD-1 and WD-6.
15 & 20 Amp
1.104"
.780"
2.635"
3.281"
1.322"
Consult Straight Blade Section B for complete compliance listing.
*Side wire only.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
5262I Ivory 15A 125V 5-15R
r
5262W White 15A 125V 5-15R
r
5262 Brown 15A 125V 5-15R
r
5262GRY Gray 15A 125V 5-15R
r
5262BK Black 15A 125V 5-15R
r
5262RED Red 15A 125V 5-15R
r
5262LA Lt. Almond 15A 125V 5-15R
r
5262BL Blue 15A 125V 5-15R
r
5362I Ivory 20A 125V 5-20R
r
5362W White 20A 125V 5-20R
r
5362 Brown 20A 125V 5-20R
r
5362GRY Gray 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
5362BK Black 20A 125V 5-20R
r
5362RED Red 20A 125V 5-20R
r
5362LA Lt. Almond 20A 125V 5-20R
r
5362BL Blue 20A 125V 5-20R
r
5362GN Green 20A 125V 5-20R
r
5362OR Orange 20A 125V 5-20R
r
5290I* Ivory 15A 125/250V 5/6-15R
r
5290* Brown 15A 125/250V 5/6-15R
r
5890I* Ivory 20A 125/250V 5/6-20R
r
5890W* Wwhite 20A 125/250V 5/6-20R
r
5890* Brown 20A 125/250V 5/6-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Max 30°C temperature rise at full-rated current after 50 cycles of overload at
150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C (without impact)
Materials
Face: Nylon
Back Body: PVC
Contacts: .032" (.8) Brass
Clamping Plate: .080" Steel
Mounting Strap: .042" Steel
Terminal Screws: Tri-Drive Brass
Hex Head
Grounding Screw: Tri-Drive Zinc-Plated Steel
Assembly Rivets: Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
PASS & SEYMOUR
R-48
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Construction Specification Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125V
Consult Straight Blade Section B for complete compliance listing.
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® CRB5262
Description: Straight Blade Duplex Receptacle – Construction Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596.
CSA/CUL approved, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
15 & 20 Amp
1.104"
.780"
2.635"
3.281"
1.322"
CRB5362SLA
1.104"
.780"
2.635"
3.281"
1.322"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
CRB5262I Ivory 15A 125V 5-15R
CRB5262W White 15A 125V 5-15R
CRB5262 Brown 15A 125V 5-15R
CRB5262GRY Gray 15A 125V 5-15R
CRB5262BK Black 15A 125V 5-15R
CRB5262RED Red 15A 125V 5-15R
CRB5262LA Lt. Almond 15A 125V 5-15R
CRB5362I Ivory 20A 125V 5-20R
CRB5362W White 20A 125V 5-20R
CRB5362 Brown 20A 125V 5-20R
CRB5362GRY Gray 20A 125V 5-20R
CRB5362BK Black 20A 125V 5-20R
CRB5362RED Red 20A 125V 5-20R
CRB5362LA Lt. Almond 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
CRB5262SI Ivory 15A 125V 5-15R
CRB5262SW White 15A 125V 5-15R
CRB5262S Brown 15A 125V 5-15R
CRB5262SGRY Gray 15A 125V 5-15R
CRB5262SRED Red 15A 125V 5-15R
CRB5262SLA Lt. Almond 15A 125V 5-15R
CRB5362SI Ivory 20A 125V 5-20R
CRB5362SW White 20A 125V 5-20R
CRB5362S Brown 20A 125V 5-20R
CRB5362SGRY Gray 20A 125V 5-20R
CRB5362SRED Red 20A 125V 5-20R
CRB5362SLA Lt. Almond 20A 125V 5-20R
NEMA
5-15R
NEMA
5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Max 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C (without impact)
Materials
Face: Nylon
Back Body: PVC
Line Contacts: .032 688 Brass
Mounting Strap: .042 Plated Steel
Ground Contacts: .040 260 Brass
Pressure Plate: .080 Steel
Terminal Screws: #8 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #8 Hex Tri-Drive Steel with
Green Zinc Coating
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
R-49
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Commercial Specification Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V; 20A, 250V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® CR15
Description: Straight Blade Duplex Receptacle – Commercial Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, CSA Certified, File Number
LR16063, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Section B for complete compliance listing.
15 & 20 Amp
1.104"
1.018"
2.635"
3.281"
1.322"
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
*Side wire only
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
CR15I Ivory 15A 125V 5-15R
r
CR15W White 15A 125V 5-15R
r
CR15 Brown 15A 125V 5-15R
r
CR15GRY Gray 15A 125V 5-15R
r
CR15LA Lt. Al. 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
CR20I Ivory 20A 125V 5-20R
r
CR20W White 20A 125V 5-20R
r
CR20 Brown 20A 125V 5-20R
r
CR20GRY Gray 20A 125V 5-20R
r
CR20BK Black 20A 125V 5-20R
r
CR20RED Red 20A 125V 5-20R
r
CR20LA Lt. Al. 20A 125V 5-20R
r
5850I* Ivory 20A 250V 6-20R
r
5850W* White 20A 250V 6-20R
Performance
Electrical
Dielectric Voltage: Withstands 1500V minimum
Maximum Working Voltage: 125V
Maximum Continuous Current: 15A – CR15/BR15; 20A – CR20/BR20/5850
Temperature Rise: Maximum 30°C after 50 cycles at 150% of rated current
Mechanical
Terminal Accommodation: #14 – #10 AWG
Product Identification: Amp, Voltage, 3rd Party Compliance
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: PVC
Line Contacts: .032 688 Brass
Mounting Strap: .042 Plated Steel
Ground Contacts: .040 260 Brass
Terminal Screws: #8 Tri-Drive Steel (Neutral =
Nickel-Plated Steel)
Ground Screw: #8 Hex Tri-Drive Steel with Green
Zinc Coating
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
PASS & SEYMOUR
R-50
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant Specification & Hospital Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR62
Description: Straight Blade Duplex Receptacle – Tamper-Resistant Specification & Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596.
CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Section B for complete compliance listing.
TR62I
.900"
3.281"
1.625"
1.104"
2.750"
TR62HI
.900"
1.625"
1.104"
2.750"
3.281"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR62I Ivory 15A 125V 5-15R
r
TR62W White 15A 125V 5-15R
r
TR62 Brown 15A 125V 5-15R
r
TR62GRY Gray 15A 125V 5-15R
r
TR62BK Black 15A 125V 5-15R
r
TR62RED Red 15A 125V 5-15R
r
TR62LA Lt. Almond 15A 125V 5-15R
r
TR62BL Blue 15A 125V 5-15R
r
TR63I Ivory 20A 125V 5-20R
r
TR63W White 20A 125V 5-20R
r
TR63 Brown 20A 125V 5-20R
r
TR63GRY Gray 20A 125V 5-20R
r
TR63BK Black 20A 125V 5-20R
r
TR63RED Red 20A 125V 5-20R
r
TR63LA Lt. Almond 20A 125V 5-20R
r
TR63BL Blue 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR62HI Ivory 15A 125V 5-15R
r
TR62HW White 15A 125V 5-15R
r
TR62H Brown 15A 125V 5-15R
r
TR62HGRY Gray 15A 125V 5-15R
r
TR62HRED Red 15A 125V 5-15R
r
TR62HLA Lt. Almond 15A 125V 5-15R
r
TR63HI Ivory 20A 125V 5-20R
r
TR63HW White 20A 125V 5-20R
r
TR63H Brown 20A 125V 5-20R
r
TR63HGRY Gray 20A 125V 5-20R
r
TR63HRED Red 20A 125V 5-20R
r
TR63HLA Lt. Almond 20A 125V 5-20R
r
TR63HBL Blue 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after
50 cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal Identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: Nylon
Line Contacts: .036 688 Brass
Mounting Strap: .050 688 Brass
Ground Contacts: Strap with Integral Ground
Pressure Plate: .031 260 Brass
Tamper Shutter: Thermoplastic
Terminal Screws: #10 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #10 Hex Tri-Drive Brass
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Brass
Mounting Screws: Tri-Drive Steel
NEMA
5-15R
NEMA
5-20R
R-51
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant Hard Use Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR5262
Description: Straight Blade Duplex Receptacle – Tamper-Resistant Hard Use
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596,
CSA/CUL Approved, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
TR5362LA
1.130"
1.322"
1.104"
2.635"
3.281"
Consult Straight Blade Section B for complete compliance listing.
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR5262I Ivory 15A 125V 5-15R
r
TR5262W White 15A 125V 5-15R
r
TR5262 Brown 15A 125V 5-15R
r
TR5262GRY Gray 15A 125V 5-15R
r
TR5262BK Black 15A 125V 5-15R
r
TR5262RED Red 15A 125V 5-15R
r
TR5262LA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR5262I Ivory 20A 125V 5-20R
r
TR5262W White 20A 125V 5-20R
r
TR5262 Brown 20A 125V 5-20R
r
TR5262GRY Gray 20A 125V 5-20R
r
TR5262BK Black 20A 125V 5-20R
r
TR5262RED Red 20A 125V 5-20R
r
TR5262LA Lt. Almond 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Maximum Continuous Current: TR5262 = 15A, TR5263 = 20A
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Amperage, Voltage, 3rd Party Compliance
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: PVC
Line Contacts: .036 Olin 688 Brass
Mounting Strap: .042 Zinc-Plated Steel
Ground Contacts: .040 Olin 688 Brass
Pressure Plate: .080 Steel
Tamper-Resistant Shutters: Thermoplastic
Terminal Screws: #10 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #8 Hex Tri-Drive Steel;
Zinc Coating with Green Chromate
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
PASS & SEYMOUR
R-52
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant Commercial Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR15
Description: Straight Blade Duplex Receptacle – Tamper-Resistant Commercial Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULs Listed, File Number E140596, Standard UL498, Standard CSA-C22.2 No. 42.
Conforms to NEMA WD-1 and WD-6.
TR15LA
1.130"
1.322"
1.104"
2.635"
3.281"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR15I Ivory 15A 125V 5-15R
r
TR15W White 15A 125V 5-15R
r
TR15 Brown 15A 125V 5-15R
r
TR15GRY Gray 15A 125V 5-15R
r
TR15LA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR20I Ivory 20A 125V 5-20R
r
TR20W White 20A 125V 5-20R
r
TR20 Brown 20A 125V 5-20R
r
TR20GRY Gray 20A 125V 5-20R
r
TR20BK Black 20A 125V 5-20R
r
TR20LA Lt. Almond 20A 125V 5-20R
Consult Straight Blade Section B for complete compliance listing.
Performance
Electrical
Dielectric Voltage: Withstands 1500V minimum
Maximum Working Voltage: 125V
Maximum Continuous Current: 15A – TR15; 20A – TR20
Temperature Rise: Maximum 30°C temperature rise at full-rated current after
50 cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Accommodation: #14 – #10 AWG
Product Identification: Amperage, Voltage, 3rd Party Compliance
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: PVC
Line Contacts: .032 260 Brass
Mounting Strap: .042 Zinc-Plated Steel
Ground Contacts: .040 260 Brass
Tamper-Resistant Shutters: Thermoplastic
Terminal Screws: #8 Tri-Drive Steel
(Neutral = Nickel-Plated Steel)
Ground Screws: #8 Hex Tri-Drive Steel;
Zinc Coating with Green Chromate
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
NEMA
5-15R
NEMA
5-20R
R-53
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant Construction & Hospital Grade Single Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
TR5351LA
1.190"
1.296"
1.38"
3.28"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR5251
Description: Straight Blade Single Receptacle – Tamper-Resistant Construction Grade and Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596, CSA
Certified, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR5251I Ivory 15A 125V 5-15R
r
TR5251W White 15A 125V 5-15R
r
TR5251 Brown 15A 125V 5-15R
r
TR5251LA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR5351I Ivory 20A 125V 5-20R
r
TR5351W White 20A 125V 5-20R
r
TR5351 Brown 20A 125V 5-20R
r
TR5351LA Lt. Almond 20A 125V 5-20R
Consult Straight Blade Section B for complete compliance listing.
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Back Body: PVC
Contacts: .032" (.8) Brass
Clamping Plate: .080" Steel
Mounting Strap: .042" Steel
Tamper-Resistant Shutters: Thermoplastic
Terminal Screws: Tri-Drive Brass
Hex Head Grounding Screw: Tri-Drive Zinc-Plated Steel
Assembly Rivets: Steel
Mounting Screws: Tri-Drive Steel
NEMA
5-15R
NEMA
5-20R
TR8301LA
1.093"
2.37"
3.28"
1.68"
1.32"
3.68"
1.38"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR8201I Ivory 15A 125V 5-15R
r
TR8201W White 15A 125V 5-15R
r
TR8201 Brown 15A 125V 5-15R
r
TR8201GRY Gray 15A 125V 5-15R
r
TR8201BK Black 15A 125V 5-15R
r
TR8201RED Red 15A 125V 5-15R
r
TR8201LA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR8301I Ivory 20A 125V 5-20R
r
TR8301W White 20A 125V 5-20R
r
TR8301 Brown 20A 125V 5-20R
r
TR8301GRY Gray 20A 125V 5-20R
r
TR8301BK Black 20A 125V 5-20R
r
TR8301RED Red 20A 125V 5-20R
r
TR8301LA Lt. Almond 20A 125V 5-20R
Tamper-Resistant Hospital Grade Single Receptacles
Tamper-Resistant Construction Grade Single Receptacles
PASS & SEYMOUR
R-54
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Weather-Resistant Heavy-Duty Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
WR5262W
1.322"
1.104"
2.635"
3.281"
.780"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® WR5262
Description: Straight Blade Duplex Receptacle – Weather-Resistant Heavy-Duty
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596,
CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
WR5262I Ivory 15A 125V 5-15R
r
WR5262W White 15A 125V 5-15R
r
WR5262GRY Gray 15A 125V 5-15R
r
WR5362I Ivory 20A 125V 5-20R
r
WR5362W White 20A 125V 5-20R
r
WR5362GRY Gray 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
WR5662I Ivory 15A 250V 6-15R
r
WR5662W White 15A 250V 6-15R
r
WR5662GRY Gray 15A 250V 6-15R
r
WR5362I Ivory 20A 250V 6-20R
r
WR5362W White 20A 250V 6-20R
r
WR5362GRY Gray 20A 250V 6-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V/250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload
at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: UV Resistant Nylon
Back Body: PVC
Line Contacts: .032 688 Brass
Mounting Strap: .043 260 Brass
Ground Contact: .040 688 Brass
Pressure Plate: .080 Nickel-Plated Steel
Terminal Screws: #8 Tri-Drive Steel
(Neutral = Nickel-Plated Steel)
Ground Screw: #8 Hex Tri-Drive
Nickel-Plated Steel
Assembly Drive Screw: .0004" Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel .0004"
Zinc-Plated Steel
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
R-55
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Weather-Resistant Commercial Grade Receptacles 2 Pole, 3 Wire Grounding 20A, 125V
WR20TRW
1.322"
1.104"
2.635"
3.281"
1.130"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® WR20TR
Description: Straight Blade Duplex Receptacle – Weather-Resistant Commercial Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA 5-20R
3rd Party Compliance: cUL Listed, File Number E140596, Standard UL498, Standard CSA-C22.2 No. 42.
Conforms to NEMA WD-1 and WD-6.
NEMA
5-20R
WR20TR models are Tamper-Resistant.
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
WR20TRI Ivory 20A 125V 5-20R
r
WR20TRW White 20A 125V 5-20R
r
WR20TR Brown 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
WR20TRGRY Gray 20A 125V 5-20R
r
WR20TRLA Lt. Almond 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 1500V minimum
Maximum Working Voltage: 125V
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload
at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Materials
Face: UV Resistant Nylon
Back Body: PVC
Line Contacts: .032 260 Brass
Mounting Strap: .042 Nickel-Plated Steel
Ground Contact: .040 260 Brass
Terminal Screws: #8 Tri-Drive Brass
(Neutral = Nickel-Plated Brass)
Ground Screw: #8 Hex Tri-Drive
Nickel-Plated Steel
Assembly Drive Screw: Zinc-Plated Steel
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Steel
PASS & SEYMOUR
R-56
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
PT26352LA
2.75" 3.281"
.625"
1.5"
PTIG26362LA
2.75" 3.281"
.625"
1.5"
PT26362HGI
2.75" 3.281"
.625"
1.5"
Technical SpecificaTionS
PlugTail™ Decorator Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT26252
Description: PlugTail™ Straight Blade Duplex Receptacle – Decorator Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Federal Specification WC596.
Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PT26252I Ivory 15A 125V 5-15R
r
PT26252W White 15A 125V 5-15R
r
PT26252 Brown 15A 125V 5-15R
r
PT26252GRY Gray 15A 125V 5-15R
r
PT26252BK Black 15A 125V 5-15R
r
PT26252RED Red 15A 125V 5-15R
r
PT26252LA Lt. Almond 15A 125V 5-15R
r
PT26252BL Blue 15A 125V 5-15R
r
PT26352I Ivory 20A 125V 5-20R
r
PT26352W White 20A 125V 5-20R
r
PT26352 Brown 20A 125V 5-20R
r
PT26352GRY Gray 20A 125V 5-20R
r
PT26352BK Black 20A 125V 5-20R
r
PT26352RED Red 20A 125V 5-20R
r
PT26352LA Lt. Almond 20A 125V 5-20R
r
PT26262HGI Ivory 15A 125V 5-15R
r
PT26262HGW White 15A 125V 5-15R
r
PT26262HGGRY Gray 15A 125V 5-15R
r
PT26262HGRED Red 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PT26362HGI Ivory 20A 125V 5-20R
r
PT26362HGW White 20A 125V 5-20R
r
PT26362HGGRY Gray 20A 125V 5-20R
r
PT26362HGRED Red 20A 125V 5-20R
r
PT26362HGLA Lt. Almond 20A 125V 5-20R
r
PTIG26262I Ivory 15A 125V 5-15R
r
PTIG26262W White 15A 125V 5-15R
r
PTIG26262 Orange 15A 125V 5-15R
r
PTIG26262GRY Gray 15A 125V 5-15R
r
PTIG26262RED Red 15A 125V 5-15R
r
PTIG26262LA Lt. Almond 15A 125V 5-15R
r
PTIG26362I Ivory 20A 125V 5-20R
r
PTIG26362W White 20A 125V 5-20R
r
PTIG26362 Orange 20A 125V 5-20R
r
PTIG26362GRY Gray 20A 125V 5-20R
r
PTIG26362RED Red 20A 125V 5-20R
r
PTIG26362LA Lt. Almond 20A 125V 5-20R
NEMA
5-15R
NEMA
5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles
of overload at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Back Body: PVC
Line Contacts: .036 688 Brass
Mounting Strap: .042 Plated Steel
Contacts: .030 Brass
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Plated Steel
Auto-Ground Clip: Steel
Mounting Screws: Tri-Drive Steel
Housing: Polycarbonate
R-57
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PTTR26262
Description: PlugTail™ Tamper-Resistant Straight Blade Duplex Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Federal Specification
WC596. Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Section B for complete compliance listing.
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles
of overload at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Tamper-Resistant Duplex Receptacle Materials
Tamper-Resistant Duplex Connector Materials
Face: Nylon
Back Body: PVC
Line Contacts: .036 688 Brass
Mounting Strap: .042 Plated Steel
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Plated Steel
Auto-Ground Clip: Steel
Mounting Screws: Tri-Drive Steel
Housing: Polycarbonate Contacts: .030 Brass
Technical SpecificaTionS
PlugTail™ Tamper-Resistant Duplex Receptacles 15 & 20A, 125V
NEMA
5-20R
NEMA
5-15R
PTTR26262I
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
PTTR26262I Ivory 15A 125V 5-15R
r
PTTR26262W White 15A 125V 5-15R
r
PTTR26262 Brown 15A 125V 5-15R
r
PTTR26262BK Black 15A 125V 5-15R
r
PTTR26262LA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r
PTTR26362I Ivory 20A 125V 5-20R
r
PTTR26362W White 20A 125V 5-20R
r
PTTR26362I Brown 20A 125V 5-20R
r
PTTR26362BK Black 20A 125V 5-20R
r
PTTR26362LA Lt. Almond 20A 125V 5-20R
2.75" 3.281"
.625"
1.5"
PTTR26362I
2.75" 3.281"
.625"
1.5"
PASS & SEYMOUR
R-58
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PTTR26262HG
Description: Tamper-Resistant Straight Blade Duplex Receptacle – Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Federal Specification
WC596. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload
at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use
with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Tamper-Resistant Duplex Receptacle Materials
Tamper-Resistant Duplex Connector Materials
Face: Nylon
Back Body: PVC
Line Contacts: .036 688 Brass
Mounting Strap: .042 Plated Steel
Contacts: .030 Brass
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PTTR26262HG Ivory 15A 125V 5-15R
r
PTTR26262HGW White 15A 125V 5-15R
r
PTTR26262HG Brown 15A 125V 5-15R
r
PTTR26262HGGRY Gray 15A 125V 5-15R
r
PTTR26262HGBK Black 15A 125V 5-15R
r
PTTR26262HGRED Red 15A 125V 5-15R
r
PTTR26262HGLA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PTTR26362HGI Ivory 20A 125V 5-20R
r
PTTR26362HGW White 20A 125V 5-20R
r
PTTR26362HG Brown 20A 125V 5-20R
r
PTTR26362HGGRY Gray 20A 125V 5-20R
r
PTTR26362HBK Black 20A 125V 5-20R
r
PTTR26362HGRED Red 20A 125V 5-20R
r
PTTR26362HGla Lt. Almond 20A 125V 5-20R
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Plated Steel
Auto-Ground Clip: Steel
Mounting Screws: Tri-Drive Steel
Housing: Polycarbonate
Technical SpecificaTionS
Tamper-Resistant Hospital Grade Duplex Receptacles 15 & 20A, 125V
NEMA
5-20R
NEMA
5-15R
PTTR26262I
2.75" 3.281"
.625"
1.5"
PTTR26362I
2.75" 3.281"
.625"
1.5"
R-59
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PTTR26262SC
Description: Tamper-Resistant Straight Blade Duplex Receptacle – Split Circuit
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Federal Specification
WC596. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload
at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use
with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Tamper-Resistant Duplex Receptacle Materials
Tamper-Resistant Duplex Connector Materials
Face: Nylon
Back Body: PVC
Line Contacts: .036 688 Brass
Mounting Strap: .042 Plated Steel
Contacts: .030 Brass
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PTTR26262SCI Ivory 15A 125V 5-15R
r
PTTR26262SCW White 15A 125V 5-15R
r
PTTR26262SC Brown 15A 125V 5-15R
r
PTTR26262SCBK Black 15A 125V 5-15R
r
PTTR26262SCLA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PTTR26362SCI Ivory 20A 125V 5-20R
r
PTTR26362SCW White 20A 125V 5-20R
r
PTTR26362SC Brown 20A 125V 5-20R
r
PTTR26362SCBK Black 20A 125V 5-20R
r
PTTR26362SCLA Lt. Almond 20A 125V 5-20R
Integral Ground System: .036 260 Brass
Assembly Drive Screw: Plated Steel
Auto-Ground Clip: Steel
Mounting Screws: Tri-Drive Steel
Housing: Polycarbonate
Technical SpecificaTionS
Tamper-Resistant Split Circuit Duplex Receptacles 15 & 20A, 125V
NEMA
5-20R
NEMA
5-15R
PTTR26262SCI
2.75" 3.281"
.625"
1.5"
PTTR26362I
2.75" 3.281"
.625"
1.5"
PASS & SEYMOUR
R-60
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Heavy-Duty Tamper-Resistant Decorator Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR26362
Description: PlugTail™ Straight Blade Duplex Receptacle – Heavy-Duty Tamper-Resistant Decorator
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596,
CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
TR26362I
2.635"
3.281"
1.322"
3.81"
.833"
TR26362HGI
2.635"
3.281"
1.322"
3.81"
.833"
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR26262I Ivory 15A 125V 5-15R
r
TR26262W White 15A 125V 5-15R
r
TR26262 Brown 15A 125V 5-15R
r
TR26262GRY Gray 15A 125V 5-15R
r
TR26262BK Black 15A 125V 5-15R
r
TR26262RED Red 15A 125V 5-15R
r
TR26262LA Lt. Almond 15A 125V 5-15R
r
TR26362I Ivory 20A 125V 5-20R
r
TR26362W White 20A 125V 5-20R
r
TR26362 Brown 20A 125V 5-20R
r
TR26362GRY Gray 20A 125V 5-20R
r
TR26362BK Black 20A 125V 5-20R
r
TR26362RED Red 20A 125V 5-20R
r
TR26362LA Lt. Almond 20A 125V 5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR26262HGI Ivory 15A 125V 5-15R
r
TR26262HGW White 15A 125V 5-15R
r
TR26262HGGRY Gray 15A 125V 5-15R
r
TR26262HGRED Red 15A 125V 5-15R
r
TR26262HGLA Lt. Almond 15A 125V 5-15R
r
TR26362HGI Ivory 20A 125V 5-20R
r
TR26362HGW White 20A 125V 5-20R
r
TR26362HGGRY Gray 20A 125V 5-20R
r
TR26362HGBK Black 20A 125V 5-20R
r
TR26362HGRED Red 20A 125V 5-20R
r
TR26362HGLA Lt. Almond 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload
at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: Nylon
Line Contacts: .036 688 Brass
Mounting Strap: Plated Steel
Ground Contacts: Strap with Integral Ground
Pressure Plate: .031 260 Brass
Tamper Shutter: Thermoplastic
Terminal Screws: #10 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw: #10 Hex Tri-Drive Brass
Auto-Ground Clip: Steel
Mounting Screws: Tri-Drive Steel
NEMA
5-15R
NEMA
5-20R
R-61
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Heavy-Duty Tamper-Resistant Decorator & Hospital Grade Single Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR26261
Description: PlugTail™ Straight Blade Duplex Receptacle – Heavy-Duty Tamper-Resistant Decorator and
Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596, CSA
Certified, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
TR26361LA
2.635"
3.281"
1.322"
3.813"
1.188"
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR26261I Ivory 15A 125V 5-15R
r
TR26261W White 15A 125V 5-15R
r
TR26261 Brown 15A 125V 5-15R
r
TR26261GRY Gray 15A 125V 5-15R
r
TR26261BK Black 15A 125V 5-15R
r
TR26261LA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR26361I Ivory 20A 125V 5-20R
r
TR26361W White 20A 125V 5-20R
r
TR26361 Brown 20A 125V 5-20R
r
TR26361GRY Gray 20A 125V 5-20R
r
TR26361BK Black 20A 125V 5-20R
r
TR26361LA Lt. Almond 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 2000V minimum
Maximum Working Voltage: 125V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
overload at 150% of rated current with direct current
Mechanical
Terminal Identification: Terminal identification in accordance with UL498 (Brass, White, Green)
Terminal Accommodation: #14 – #10 AWG copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Materials
Face: Nylon
Back Body: PVC
Line Contacts: .032 (.8) Brass
Mounting Strap: .042 Zinc-Plated Steel
Clamping Plate: .080 Steel
Tamper Shutter: Thermoplastic
Terminal Screws: Tri-Drive Brass
Hex Head : Tri-Drive Zinc-Plated
Grounding Screw: Steel with Green Chromate
Assembly Drive Screws: Zinc-Plated Steel
Auto-Ground Clip: StainlessSteel
Mounting Screws: Tri-Drive Steel
NEMA
5-15R
NEMA
5-20R
TR26361HGLA
2.635"
3.281"
1.322"
3.813"
1.188"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR26261HGI Ivory 15A 125V 5-15R
r
TR26261HGW White 15A 125V 5-15R
r
TR26261HG Brown 15A 125V 5-15R
r
TR26261HGGRY Gray 15A 125V 5-15R
r
TR26261HGBK Black 15A 125V 5-15R
r
TR26261HGLA Lt. Almond 15A 125V 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
TR26361HGI Ivory 20A 125V 5-20R
r
TR26361HGW White 20A 125V 5-20R
r
TR26361HG Brown 20A 125V 5-20R
r
TR26361HGGRY Gray 20A 125V 5-20R
r
TR26361HGBK Black 20A 125V 5-20R
r
TR26361HGLA Lt. Almond 20A 125V 5-20R
Heavy-Duty Tamper-Resistant Hospital Grade Decorator Single Receptacles
Heavy-Duty Tamper-Resistant Decorator Single Receptacles
PASS & SEYMOUR
R-62
TECHNICAL SPECIFICATIONS
WWW.LEGRAND.US/PASSANDSEYMOUR
Project
Location/Type
Technical SpecificaTionS
Specification Grade Combination Receptacles 2 Pole, 3 Wire Grounding 20A, 120/125VAC
PS8HWLLA
3.281"
3.812"
2.60"
1.29"
1.59"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS8HWL
Description: Combination Straight Blade Receptacle – Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 120/125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Conforms to NEMA WD-1 and WD-6.
Light output in 1' FCD = 0.2561. FCD = Foot Candle Distance. 1 Lumen = 1 FCD.
See Page R-63 for more information.
NEMA
5-20R
Consult Straight Blade Section B for complete compliance listing.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r
PS8HWLI Ivory 20A 120/125V 5-20R
r
PS8HWLW White 20A 120/125V 5-20R
r
PS8HWLLA Lt. Almond 20A 120/125V 5-20R
Performance
Electrical
Dielectric Voltage: Withstands 1500V minimum
Maximum Working Voltage: 125V
Maximum Continuous Current: 20A
Temperature Rise: Maximum 30°C after 50 cycles at 150% of rated current
Mechanical
Terminal Accommodation: #14 AWG – #10 AWG
Product Identification: Amperage, Voltage, 3rd Party Compliance
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +50°C, minimum -40°C (without impact)
Materials
Face: Polycarbonate
Back Body: Polycarbonate
Line Contacts: .031 688 Brass
Mounting Strap: .047 Steel
Ground Contacts: .040 260 Brass
Pressure Plate: .031 260 Brass
Terminal Screws: #8 Tri-Drive Brass
Ground Screw: #8 Hex Tri-Drive Brass
Mounting Screws: Tri-Drive Steel
Lens: Polycarbonate
Illuminating Lamp: 2 LED
WWW.LEGRAND.US/PASSANDSEYMOUR
R-63
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Hallway Lights – Light Output Measurements
CATALOG
NUMBER DESCRIPTION
LIGHT
OUTPUT
IN 1' FCD*
P&S ENHANCED LED NIGHTLIGHTS
TMHWLECC Enhanced Decorator
Full Hallway Light with
Light Sensor
1.079
TMHWLENSCC Enhanced Decorator
Full Hallway Light
without Light Sensor
1.113
TMHWLLOUVCCFull Hallway Decorator
Light for use with P&S
Metal Louver Plates
0.0843
TM8HWLTRCC Decorator Hallway Light
with High Output Light &
Tamper-Resistant Single
Receptacle
0.2561
PS8HWL Specification Grade
Enhanced Decorator
Hallway Light &
Single Receptacle
0.2561
1595NTLTRCC4Combination Enhanced
Nightlight/ GFCI
(15 Amp)
0.180
2095NTLTR Combination Enhanced
Nightlight/ GFCI
(20 Amp)
0.180
P&S LED NIGHTLIGHTS
TMHWLCC Decorator Full Hallway
Light with Light Sensor
0.1328
TM8HWLCC Decorator Hallway Light
& Single Receptacle
0.1442
*FCD = Foot Candle Distance. 1 Lumen = 1 FCD.
Standard 4 Watt Incandescent Nightlight
P&S® Enhanced LED Nightlight
P&S® LED Nightlight
16 Lumens
3 Lumens
1 Lumen
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-64
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595TR
Description: Straight Blade Duplex Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498 Tamper-Resistant, Attachment
Plugs and Receptacles UL943 GFCIs. Federal Specification WC596. Standard CSA-C22.2 No. 42, General
Use Receptacles, CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
With Auto-Ground
1.13"
1.25"
2.62"
4.20"
1.72"
Dimensions for
15 & 20 Amp
1.72"
1.25"
2.62"
4.20"
.98"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595TRI Ivory 15A 125VAC 5-15R
r 1595TRW White 15A 125VAC 5-15R
r 1595TR Brown 15A 125VAC 5-15R
r 1595TRBK Black 15A 125VAC 5-15R
r 1595TRLA Light Almond 15A 125VAC 5-15R
r 1595TRBNCC4 Brushed Nickel 15A 125VAC 5-15R
r 1595TRTI Titanium 15A 125VAC 5-15R
r 1595TRSI* Ivory 15A 125VAC 5-15R
r 1595TRSW* White 15A 125VAC 5-15R
r 1595TRSLA* Light Almond 15A 125VAC 5-15R
r 2095TRI Ivory 20A 125VAC 5-20R
r 2095TRW White 20A 125VAC 5-20R
r 2095TR Brown 20A 125VAC 5-20R
r 2095TRGRY Gray 20A 125VAC 5-20R
r 2095TRBK Black 20A 125VAC 5-20R
r 2095TRRED Red 20A 125VAC 5-20R
r 2095TRLA Light Almond 20A 125VAC 5-20R
r 2095TRSI* Ivory 20A 125VAC 5-20R
r 2095TRSW* White 20A 125VAC 5-20R
r 2095TRSLA* Light Almond 20A 125VAC 5-20R
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Straps: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
*Tamper-Resistant GFCIs with Auto-Ground feature.
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Tamper-Resistant Shutter: Thermoplastic
Auto-Ground Clip*: Brass Alloy C260
WWW.LEGRAND.US/PASSANDSEYMOUR
R-65
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Hospital Grade Tamper-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595HGTR
Description: Straight Blade Duplex Hospital Grade Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190, Standard UL498 Tamper-Resistant, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596 Hospital Grade. Standard CSA-C22.2 No. 42, General Use
Receptacles, CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Dimensions for
15 & 20 Amp
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screw: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Tamper-Resistant Shutter: Thermoplastic
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595HGTRI Ivory 15A 125VAC 5-15R
r 1595HGTRW White 15A 125VAC 5-15R
r 1595HGTR Brown 15A 125VAC 5-15R
r 1595HGTRGRY Gray 15A 125VAC 5-15R
r 1595HGTRRED Red 15A 125VAC 5-15R
r 1595HGTRLA Light Almond 15A 125VAC 5-15R
r 2095HGTRI Ivory 20A 125VAC 5-20R
r 2095HGTRW White 20A 125VAC 5-20R
r 2095HGTR Brown 20A 125VAC 5-20R
r 2095HGTRGRY Gray 20A 125VAC 5-20R
r 2095HGTRRED Red 20A 125VAC 5-20R
r 2095HGTRLA Light Almond 20A 125VAC 5-20R
NEMA
5-15R
NEMA
5-20R
1.13"
1.72"
1.25"
2.62"
4.20"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-66
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
TradeMaster® & Specification Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595
Description: Straight Blade Duplex GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498, Attachment Plugs
and Receptacles UL943 GFCIs. Federal Specification WC596. Standard CSA-C22.2 No. 42,
General Use Receptacles, CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
*GFCIs with Auto-Ground feature.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Auto-Ground Clip*: Brass Alloy C260
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595I Ivory 15A 125VAC 5-15R
r 1595W White 15A 125VAC 5-15R
r 1595 Brown 15A 125VAC 5-15R
r 1595GRY Gray 15A 125VAC 5-15R
r 1595BK Black 15A 125VAC 5-15R
r 1595RED Red 15A 125VAC 5-15R
r 1595LA Light Almond 15A 125VAC 5-15R
r 1595SI* Ivory 15A 125VAC 5-15R
r 1595SW* White 15A 125VAC 5-15R
r 1595SLA* Light Almond 15A 125VAC 5-15R
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.72"
1.25"
2.62"
4.20"
.98"
Dimensions for
15 & 20 Amp
With Auto-Ground
.98"
1.72"
1.25"
2.62"
4.20"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 2095I Ivory 20A 125VAC 5-20R
r 2095W White 20A 125VAC 5-20R
r 2095 Brown 20A 125VAC 5-20R
r 2095GRY Gray 20A 125VAC 5-20R
r 2095BK Black 20A 125VAC 5-20R
r 2095RED Red 20A 125VAC 5-20R
r 2095LA Light Almond 20A 125VAC 5-20R
r 2095SI* Ivory 20A 125VAC 5-20R
r 2095SW* White 20A 125VAC 5-20R
r 2095SLA* Light Almond 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-67
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Hospital Grade GFCI Receptacles 2 Pole, 3 Wire Grounding 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595HG
Description: Straight Blade Duplex Hospital Grade GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190, Standard UL498, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596 Hospital Grade. Standard CSA-C22.2 No. 42,
General Use Receptacles, CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screw: Zinc-Plated Steel
Test/Reset Buttons: Nylon
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595HGI Ivory 15A 125VAC 5-15R
r 1595HGW White 15A 125VAC 5-15R
r 1595HG Brown 15A 125VAC 5-15R
r 1595HGGRY Gray 15A 125VAC 5-15R
r 1595HGRED Red 15A 125VAC 5-15R
r 1595HGLA Light Almond 15A 125VAC 5-15R
r 2095HGI Ivory 20A 125VAC 5-20R
r 2095HGW White 20A 125VAC 5-20R
r 2095HG Brown 20A 125VAC 5-20R
r 2095HGGRY Gray 20A 125VAC 5-20R
r 2095HGRED Red 20A 125VAC 5-20R
r 2095HGLA Light Almond 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.72"
1.25"
2.62"
4.20"
.98"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-68
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595NTLTRCC4
Description: Straight Blade Duplex Tamper-Resistant Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498 Tamper-Resistant, Attachment
Plugs and Receptacles UL943 GFCIs. Federal Specification WC596. Standard CSA-C22.2 No. 42, General
Use Receptacles, CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screw: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Nightlight Lens: Lexan®
Tamper-Resistant Shutter: Thermoplastic
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.25"
1.13"
4.20"
2.62"
1.72"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595NTLTRICC4 Ivory 15A 125VAC 5-15R
r 1595NTLTRWCC4 White 15A 125VAC 5-15R
r 1595NTLTRBKCC4 Black 15A 125VAC 5-15R
r 1595NTLTRLACC4 Light Almond 15A 125VAC 5-15R
r 1595NTLTRBNCC4 Brushed Nickel 15A 125VAC 5-15R
r 1595NTLTRTICC4 Titanium 15A 125VAC 5-15R
r 2095NTLTRI Ivory 20A 125VAC 5-20R
r 2095NTLTRW White 20A 125VAC 5-20R
r 2095NTLTRGRY Gray 20A 125VAC 5-20R
r 2095NTLTRLA Light Almond 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-69
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595HGNTLTR
Description: Straight Blade Duplex Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190, Standard UL498 Tamper-Resistant, Attachment
Plugs and Receptacles UL943 GFCIs. Federal Specification WC596 Hospital Grade. Standard CSA-C22.2 No.
42, General Use Receptacles, CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screw: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Nightlight Lens: Lexan®
Tamper-Resistant Shutter: Thermoplastic
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.25"
1.13"
4.20"
2.62"
1.72"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595HGNTLTRI Ivory 15A 125VAC 5-15R
r 1595HGNTLTRW White 15A 125VAC 5-15R
r 1595HGNTLTR Brown 15A 125VAC 5-15R
r 1595HGNTLTRGRY Gray 15A 125VAC 5-15R
r 1595HGNTLTRRED Red 15A 125VAC 5-15R
r 1595HGNTLTRLA Light Almond 15A 125VAC 5-15R
r 2095HGNTLTRI Ivory 20A 125VAC 5-20R
r 2095HGNTLTRW White 20A 125VAC 5-20R
r 2095HGNTLTRGRY Gray 20A 125VAC 5-20R
r 2095HGNTLTRRED Red 20A 125VAC 5-20R
r 2095HGNTLTRLA Light Almond 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-70
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Weather-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595TRWR
Description: Straight Blade Duplex Weather-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498 Weather-Resistant,
Tamper-Resistant, Attachment Plugs and Receptacles; UL943 GFCIs. Federal Specification WC596.
Standard CSA-C22.2 No. 42, General Use Receptacles, CSA-C22.2 No. 144 GFCIs. Conforms to
NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon 66
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Nickel Post-Plated Steel (1.3)
Terminal Screws: Brass #8 - 32
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon 66
Tamper-Resistant Shutter: Thermoplastic
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595TRWRI Ivory 15A 125VAC 5-15R
r 1595TRWRW White 15A 125VAC 5-15R
r 1595TRWR Brown 15A 125VAC 5-15R
r 1595TRWRLA Light Almond 15A 125VAC 5-15R
r 2095TRWRI Ivory 20A 125VAC 5-20R
r 2095TRWRW White 20A 125VAC 5-20R
r 2095TRWR Brown 20A 125VAC 5-20R
r 2095TRWRGRY Gray 20A 125VAC 5-20R
r 2095TRWRLA Light Almond 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.25"
1.13"
4.20"
2.62"
1.72"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-71
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595TRA
Description: Straight Blade Duplex Audible Alarm Tamper-Resistant Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A & 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, Standard UL498 Tamper-Resistant, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use
Receptacles, CSA-C22.2 No. 144 GFCIs.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Short Circuit Rating: 10kA
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Audible Alarm: 60 dB at 10 feet
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Motor Control: Rated as a 1.5 HP motor control switch
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Technical SpecificaTionS
Audible Alarm Tamper-Resistant GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
1595TRAW
1.13"
1.25"
2.62"
4.20"
1.72"
2095TRAW
1.13"
1.25"
2.62"
4.20"
1.72"
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595TRAI Ivory 15, 125VAC 5-15R
r 1595TRAW White 15, 125VAC 5-15R
r 1595TRA Brown 15, 125VAC 5-15R
r 1595TRABK Black 15, 125VAC 5-15R
r 1595TRALA Lt. Almond 15, 125 VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 2095TRAI Ivory 20, 125VAC 5-20R
r 2095TRAW White 20, 125VAC 5-20R
r 2095TRA Brown 20, 125VAC 5-20R
r 2095TRAGRY Gray 20, 125VAC 5-20R
r 2095TRABK Black 20, 125VAC 5-20R
r 2095TRARED Red 20, 125VAC 5-20R
r 2095TRALA Lt. Almond 20, 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-72
TECHNICAL SPECIFICATIONS
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595HGTRA
Description: Straight Blade Duplex Audible Alarm Hospital Grade Tamper-Resistant Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A & 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, Standard UL498 Tamper-Resistant, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596 Hospital Grade. Standard CSA-C22.2 No. 42,
General Use Receptacles, CSA-C22.2 No. 144 GFCIs.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Short Circuit Rating: 10kA
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Audible Alarm: 60 dB at 10 feet
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Motor Control: Rated as a 1.5 HP motor control switch
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Technical SpecificaTionS
Audible Alarm Hospital Grade Tamper-Resistant GFCI
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r 1595HGTRAI Ivory 15, 125VAC 5-15R
r 1595HGTRAW White 15, 125VAC 5-15R
r 1595HGTRA Brown 15, 125VAC 5-15R
r 1595HGTRAGRY Gray 15, 125VAC 5-15R
r 1595HGTRARED Red 15, 125VAC 5-15R
r 1595HGTRALA Lt. Almond 15, 125VAC 5-15R
NEMA
5-15R
NEMA
5-20R
2095HGTRAW
1.13"
1.25"
2.62"
4.20"
1.72"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r 2095HGTRAI Ivory 20, 125VAC 5-20R
r 2095HGTRAW White 20, 125VAC 5-20R
r 2095HGTRA Brown 20, 125VAC 5-20R
r 2095HGTRAGRY Gray 20, 125VAC 5-20R
r 2095HGTRARED Red 20, 125VAC 5-20R
r 2095HGTRALA Lt. Almond 20, 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-73
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Isolated-Ground Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595IGTR
Description: Straight Blade Duplex Isolated Ground Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A & 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, Standard UL498 Tamper-Resistant, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use
Receptacles, CSA-C22.2 No. 144 GFCIs.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r 1595IGTRI Ivory 15, 125VAC 5-15R
r 1595IGTRW White 15, 125VAC 5-15R
r 1595IGTR Brown 15, 125VAC 5-15R
r 1595IGTRBK Black 15, 125VAC 5-15R
r 1595IGTRLA Lt. Almond 15, 125VAC 5-15R
r 1595IGTROCC4 Orange 15, 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r 2095IGTRI Ivory 20, 125VAC 5-20R
r 2095IGTRW White 20, 125VAC 5-20R
r 2095IGTR Brown 20, 125VAC 5-20R
r 2095IGTRGRY Gray 20, 125VAC 5-20R
r 2095IGTRBK Black 20, 125VAC 5-20R
r 2095IGTRRED Red 20, 125VAC 5-20R
r 2095IGTRO Orange 20, 125VAC 5-20R
r 2095IGTRLA Lt. Almond 20, 125VAC 5-20R
1595IGTRO
1.13"
1.25"
2.62"
4.20"
1.72"
2095IGTRO
1.13"
1.25"
2.62"
4.20"
1.72"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-74
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Hospital Grade Isolated-Ground Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595IGHGTR
Description: Straight Blade Duplex Isolated Ground Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A & 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, Standard UL498 Tamper-Resistant, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596 Hospital Grade. Standard CSA-C22.2 No. 42,
General Use Receptacles, CSA-C22.2 No. 144 GFCIs.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Short Circuit Rating: 10kA
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidit: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r 1595IGHGTRI Ivory 15, 125VAC 5-15R
r 1595IGHGTRW White 15, 125VAC 5-15R
r 1595IGHGTR Brown 15, 125VAC 5-15R
r 1595IGHGTRGRY Gray 15, 125VAC 5-15R
r 1595IGHGTRRED Red 15, 125VAC 5-15R
r 1595IGHGTRO Orange 15, 125VAC 5-15R
r 1595IGHGTRLA Lt. Almond 15, 125VAC 5-15R 2095IGHGTRO
1.13"
1.25"
2.62"
4.20"
1.72"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r 2095IGHGTRI Ivory 20, 125VAC 5-20R
r 2095IGHGTRW White 20, 125VAC 5-20R
r 2095IGHGTR Brown 20, 125VAC 5-20R
r 2095IGHGTRGRY Gray 20, 125VAC 5-20R
r 2095IGHGTRRED Red 20, 125VAC 5-20R
r 2095IGHGTR Orange 20, 125VAC 5-20R
r 2095IGHGTRLA Lt. Almond 20, 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-75
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Specification Grade GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT1595
Description: PlugTail™ Straight Blade Duplex GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Attachment
Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596. Standard CSA C22.2 No. 42 General
Use Receptacles, CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Housing: Polycarbonate
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Flat Head
Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Contacts: .030" Brass
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
PTRA6STR
1.125"
6.375"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT1595I Ivory 15A 125VAC 5-15R
r PT1595W White 15A 125VAC 5-15R
r PT1595 Brown 15A 125VAC 5-15R
r PT1595GRY Gray 15A 125VAC 5-15R
r PT1595BK Black 15A 125VAC 5-15R
r PT1595RED Red 15A 125VAC 5-15R
r PT1595LA Light Almond 15A 125VAC 5-15R
r PT2095I Ivory 20A 125VAC 5-20R
r PT2095W White 20A 125VAC 5-20R
r PT2095 Brown 20A 125VAC 5-20R
r PT2095GRY Gray 20A 125VAC 5-20R
r PT2095BK Black 20A 125VAC 5-20R
r PT2095RED Red 20A 125VAC 5-20R
r PT2095LA Light Almond 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-76
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Hospital Grade GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT1595HGI Ivory 15A 125VAC 5-15R
r PT1595HGW White 15A 125VAC 5-15R
r PT1595HG Brown 15A 125VAC 5-15R
r PT1595HGGRY Gray 15A 125VAC 5-15R
r PT1595HGRED Red 15A 125VAC 5-15R
r PT1595HGLA Light Almond 15A 125VAC 5-15R
r PT2095HGI Ivory 20A 125VAC 5-20R
r PT2095HGW White 20A 125VAC 5-20R
r PT2095HG Brown 20A 125VAC 5-20R
r PT2095HGGRY Gray 20A 125VAC 5-20R
r PT2095HGRED Red 20A 125VAC 5-20R
r PT2095HGLA Light Almond 20A 125VAC 5-20R
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT1595HG
Description: PlugTail™ Straight Blade Duplex Hospital Grade GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Attachment Plugs
and Receptacles, UL943 GFCIs. Federal Specification WC596, Hospital Grade. Standard CSA C22.2 No. 42
General Use Receptacles, CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid
or stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Housing: Polycarbonate
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Flat Head
Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Contacts: .030" Brass
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-77
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Specification Grade Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT1595TRI Ivory 15A 125VAC 5-15R
r PT1595TRW White 15A 125VAC 5-15R
r PT1595TR Brown 15A 125VAC 5-15R
r PT1595TRGRY Gray 15A 125VAC 5-15R
r PT1595TRBK Black 15A 125VAC 5-15R
r PT1595TRRED Red 15A 125VAC 5-15R
r PT1595TRLA Light Almond 15A 125VAC 5-15R
r PT2095TRI Ivory 20A 125VAC 5-20R
r PT2095TRW White 0A 125VAC 5-20R
r PT2095TR Brown 0A 125VAC 5-20R
r PT2095TRGRY Gray 20A 125VAC 5-20R
r PT2095TRBK Black 20A 125VAC 5-20R
r PT2095TRRED Red 0A 125VAC 5-20R
r PT2095TRLA Light Almond 20A 125VAC 5-20R
NEMA
5-15R
NEMA
5-20R
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT1595NTL
Description: PlugTail™ Straight Blade Duplex Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Tamper-Resistant,
Attachment Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596. Standard CSA C22.2 No. 42
General Use Receptacles, CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Housing: Polycarbonate
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Tamper-Resistant Shutter: Thermoplastic
Contacts: .030" Brass
Dimensions for
15 & 20 Amp
1.20"
1.25"
4.20"
2.62"
1.72"
PTRA6STR
1.125"
6.375"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-78
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Hospital Grade Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT1595HGTR
Description: PlugTail™ Straight Blade Duplex Hospital Grade Tamper-Resistant GFCI Receptacle Type:
2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 TamperResistant,
Attachment Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596 Hospital Grade. Standard
CSA C22.2 No. 42 General Use Receptacles, CSA C22.2 No. 144 GFCIs.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid
or stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Housing: Polycarbonate
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Tamper-Resistant Shutter: Thermoplastic
Contacts: .030" Brass
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT1595HGTRI Ivory 15A 125VAC 5-15R
r PT1595HGTRW White 15A 125VAC 5-15R
r PT1595HGTRGRY Gray 15A 125VAC 5-15R
r PT1595HGTRRED Red 15A 125VAC 5-15R
r PT1595HGTRLA Light Almond 15A 125VAC 5-15R
r PT2095HGTRI Ivory 20A 125VAC 5-20R
r PT2095HGTRW White 20A 125VAC 5-20R
r PT2095HGTRGRY Gray 20A 125VAC 5-20R
r PT2095HGTRRED Red 20A 125VAC 5-20R
r PT2095HGTRLA Light Almond 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.13"
1.72"
1.25"
2.62"
4.20"
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-79
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Specification Grade Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT1595NTL
Description: PlugTail™ Straight Blade Duplex Tamper-Resistant Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Tamper-Resistant,
Attachment Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596. Standard CSA C22.2 No. 42
General Use Receptacles, CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
PlugTail™ GFCI Receptacle Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Nickel-Plated Steel (1.3)
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Nightlight Lens: Lexan®
Tamper-Resistant Shutter: Thermoplastic
PlugTail Connector Materials
Housing: Polycarbonate
Contacts: .030" Brass
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT1595NTLTRI Ivory 15A 125VAC 5-15R
r PT2095NTLTRI Ivory 20A 125VAC 5-20R
r PT2095NTLTRW White 20A 125VAC 5-20R
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-80
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT1595HG
Description: PlugTail™ Straight Blade Duplex Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Attachment Plugs and
Receptacles, UL943 GFCIs. Federal Specification WC596, Hospital Grade. Standard CSA C22.2 No. 42 General Use
Receptacles, CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid
or stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
PlugTail™ GFCI Receptacle Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Nightlight Lens: Lexan®
PlugTail Connector Materials
Housing: Polycarbonate
Contacts: .030" Brass
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT1595HGNTLTRI Ivory 15A 125VAC 5-15R
r PT1595HGNTLTRW White 15A 125VAC 5-15R
r PT1595HGNTLTRRED Red 15A 125VAC 5-15R
r PT2095HGNTLTRI Ivory 20A 125VAC 5-20R
r PT2095HGNTLTRW White 20A 125VAC 5-20R
r PT2095HGNTLTRLA Light Almond 20A 125VAC 5-20R
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-81
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
NAFTA-Compliant & RoHS-Compliant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1595TRNA, 1595NA, 1595R
Description: Straight Blade Duplex NAFTA-Compliant GFCI Receptacle, Duplex NAFTA-Compliant Tamper-Resistant
GFCI Receptacle & Duplex RoHS-Compliant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498, Attachment Plugs and Receptacles
UL943 GFCIs. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use Receptacles, CSA-C22.2 No.
144 GFCIs. Conforms to NEMA WD-1 and WD-6.
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
RoHS-Compliant GFCI Receptacles meet the requirements of Restriction of Hazardous Substances directives and regulations.
*Tamper-Resistant GFCIs.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid o r stranded copper conductor only
Product Identification: Ratings are a permanent part of device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screw: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Tamper-Resistant Shutter*: Thermoplastic
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595TRNAI Ivory 15A 125VAC 5-15R
r 1595TRNAW White 15A 125VAC 5-15R
r 1595TRNA Brown 15A 125VAC 5-15R
r 1595TRNAGRY Gray 15A 125VAC 5-15R
r 1595TRNABK Black 15A 125VAC 5-15R
r 1595TRNALA Lt. Almond 15A 125VAC 5-15R
r 2095TRNAI Ivory 20A 125VAC 5-20R
r 2095TRNAW White 20A 125VAC 5-20R
r 2095TRNA Brown 20A 125VAC 5-20R
r 2095TRNAGRY Gray 20A 125VAC 5-20R
r 2095TRNABK Black 20A 125VAC 5-20R
r 2095TRNALA Lt. Almond 20A 125VAC 5-20R
r 1595NAI Ivory 15A 125VAC 5-15R
r 1595NAW White 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 1595NA Brown 15A 125VAC 5-15R
r 1595NAGRY Gray 15A 125VAC 5-15R
r 1595NABK Black 15A 125VAC 5-15R
r 1595NALA Lt. Almond 15A 125VAC 5-15R
r 2095NAI Ivory 20A 125VAC 5-20R
r 2095NAW White 20A 125VAC 5-20R
r 2095NA Brown 20A 125VAC 5-20R
r 2095NAGRY Gray 20A 125VAC 5-20R
r 2095NABK Black 20A 125VAC 5-20R
r 2095NALA Lt. Almond 20A 125VAC 5-20R
r 1595RI Ivory 15A 125VAC 5-15R
r 1595RW White 15A 125VAC 5-15R
r 1595RLA Lt. Almond 15A 125VAC 5-15R
Dimensions for
15 & 20 Amp
1.72"
1.25"
2.62"
4.20"
.98"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-82
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
NAFTA-Compliant Hospital Grade GFCI Receptacles 2 Pole, 3 Wire Grounding15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 2095HGTRNA, 1595HTNA
Description: Straight Blade Duplex Hospital Grade NAFTA-Compliant GFCI Receptacle & Duplex
Tamper-Resistant Hospital Grade NAFTA-Compliant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed, File Number E42190, Standard UL498, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596 Hospital Grade. Standard CSA-C22.2 No. 42,
General Use Receptacles, CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
Terminal Identification: Terminals identified in accordance with UL498 (Hot, White, Green)
Terminal Accommodation: #14 – #10 AWG solid or stranded copper conductor only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
Terminal Screws: Steel #8 - 32
Hex Head Grounding Screw: Steel (Green)
Flat Head Mounting Screw: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Tamper-Resistant Shutter*: Thermoplastic
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 2095HGTRNAI Ivory 20A 125VAC 5-20R
r 2095HGTRNAW White 20A 125VAC 5-20R
r 2095HGTRNAGRY Gray 20A 125VAC 5-20R
r 2095HGTRNARED Red 20A 125VAC 5-20R
r 2095HGTRNALA Light Almond 20A 125VAC 5-20R
r 1595HGNAI Ivory 15A 125VAC 5-15R
r 1595HGNAW White 15A 125VAC 5-15R
r 1595HGNARED Red 15A 125VAC 5-15R
r 2095HGNAI Ivory 20A 125VAC 5-20R
r 2095HGNAW White 20A 125VAC 5-20R
r 2095HGNA Brown 20A 125VAC 5-20R
r 2095HGNAGRY Gray 20A 125VAC 5-20R
r 2095HGNARED Red 20A 125VAC 5-20R
r 2095HGNALA Light Almond 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.72"
1.25"
2.62"
4.20"
.98"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-83
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Dimensions for
15 & 20 Amp
Technical SpecificaTionS
NAFTA-Compliant PlugTail™ GFCI Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT1595NA, PT1595TRNA
Description: PlugTail™ Straight Blade Duplex NAFTA-Compliant GFCI Receptacle & Straight Blade Duplex
Tamper-Resistant NAFTA-Compliant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498, Attachment
Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596. Standard CSA C22.2 No. 42 General
Use Receptacles, CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level: 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
PlugTail™ GFCI Receptacle Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
PlugTail Connector Materials
Housing: Polycarbonate Contacts .030" Brass
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Tamper-Resistant Shutter: Thermoplastic
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
PT1595NAI Ivory 15A 125VAC 5-15R
PT1595NAW White 15A 125VAC 5-15R
PT1595NAGRY Gray 15A 125VAC 5-15R
PT1595NALA Light Almond 15A 125VAC 5-15R
PT2095NAI Ivory 20A 125VAC 5-20R
PT2095NAW White 20A 125VAC 5-20R
PT2095NAGRY Gray 20A 125VAC 5-20R
PT2095NABK Black 20A 125VAC 5-20R
PT2095NALA Light Almond 20A 125VAC 5-20R
PT2095TRNAI Ivory 20A 125VAC 5-20R
PT2095TRNAW White 20A 125VAC 5-20R
PT2095TRNAGRY Gray 20A 125VAC 5-20R
PT2095TRNALA Light Almond 20A 125VAC 5-20R
PT1595NTLTRNAI Ivory 15A 125VAC 5-15R
PT1595NTLTRNAW White 15A 125VAC 5-15R
PT2095NTLTRNAI Ivory 15A 125VAC 5-15R
PT2095NTLTRNAW White 15A 125VAC 5-15R
NEMA
5-15R
NEMA
5-20R
1.72"
1.25"
2.62"
4.20"
.98"
PTRA6STR
1.125"
6.375"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-84
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
NAFTA-Compliant PlugTail™ Hospital Grade GFCI Receptacles
15 & 20A, 125VAC 2 Pole, 3 Wire Grounding
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT1595HG
Description: PlugTail™ Straight Blade Duplex Hospital Grade NAFTA-Compliant GFCI Receptacle, Straight
Blade Duplex Hospital Grade Tamper-Resistant NAFTA-Compliant GFCI Receptacle & Straight Blade
Duplex Tamper-Resistant NAFTA-Compliant Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru; 15 or 20A, 125VAC Face
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498, Attachment
Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596, Hospital Grade. Standard CSA C22.2
No. 42 General Use Receptacles, CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
PT2095HGNAI Ivory 20A 125VAC 5-20R
PT2095HGNAW White 20A 125VAC 5-20R
PT2095HGNAGRY Gray 20A 125VAC 5-20R
PT2095HGNARED Red 20A 125VAC 5-20R
PT2095HGNALA Light Almond 20A 125VAC 5-20R
PT1595HGTRNAI Ivory 15A 125VAC 5-15R
PT1595HGTRNAW White 15A 125VAC 5-15R
PT1595HGTRNAGRY Gray 15A 125VAC 5-15R
PT1595HGTRNARED Red 15A 125VAC 5-15R
PT1595HGTRNALA Light Almond 15A 125VAC 5-15R
PT1595HGNTLTRNAI Ivory 15A 125VAC 5-15R
PT1595HGNTLTRNAW White 15A 125VAC 5-15R
PT1595HGNTLTRNARED Red 15A 125VAC 5-15R
PT2095HGNTLTRNAI Ivory 20A 125VAC 5-20R
PT2095HGNTLTRNAW White 20A 125VAC 5-20R
PT2095HGNTLTRNARED Red 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.72"
1.25"
2.62"
4.20"
.98"
Performance
Electrical
Dielectric: Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time: .025 Second Nominal
Frequency: 60 Hz
Voltage: 125VAC
Voltage Range: 102-132VAC
Mechanical
Indicator Light (LED): Red, ON when GFCI is tripped
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification: Ratings are a permanent part of the device
Environmental
Operating Temperature: -35°C to +66°C
Maximum Humidity: 95%
Flammability: UL94 V2
PlugTail™ GFCI Receptacle Materials
Face: Nylon
Body: Nylon
Contacts: .03" Brass (.8)
Mounting Strap: .05" Zinc-Plated Steel (1.3)
PlugTail Connector Materials
Housing: Polycarbonate
Flat Head Mounting Screws: Zinc-Plated Steel
Test/Reset Buttons: Nylon
Tamper-Resistant Shutter: Thermoplastic
Contacts: .030" Brass
PTRA6STR
1.125"
6.375"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-85
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Hospital Grade Surge Protective Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and Receptacles
UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified, File Number LR16063,
Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587),
ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC 410-
56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal
assembly
• Back and side wire capability
including ground terminal
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes; Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 500V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Three Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel,
1.2mm thick
Clamping Plate: Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
8300GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 8200ISP Ivory 15A 125VAC 5-15R
r 8200WSP White 15A 125VAC 5-15R
r 8200SP Brown 15A 125VAC 5-15R
r 8200GRYSP Gray 15A 125VAC 5-15R
r 8200REDSP Red 15A 125VAC 5-15R
r 8200LASP Lt. Almond 15A 125VAC 5-15R
r 8200BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 8300ISP Ivory 20A 125VAC 5-20R
r 8300WSP White 20A 125VAC 5-20R
r 8300SP Brown 20A 125VAC 5-20R
r 8300GRYSP Gray 20A 125VAC 5-20R
r 8300REDSP Red 20A 125VAC 5-20R
r 8300LASP Lt. Almond 20A 125VAC 5-20R
r 8300BLSP Blue 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-86
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Hospital Grade Isolated Ground Surge Protective Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® IG8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and Receptacles
UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified, File Number LR16063,
Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories
“A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) & 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 500V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Three Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel,
1.2mm thick
Clamping Plate: Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal
assembly
• Back and side wire capability
including ground terminal
NEMA
5-15R
NEMA
5-20R
IG8300GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r IG8200ISP Ivory 15A 125VAC 5-15R
r IG8200WSP White 15A 125VAC 5-15R
r IG8200GRYSP Gray 15A 125VAC 5-15R
r IG8200REDSP Red 15A 125VAC 5-15R
r IG8200LASP Lt. Almond 15A 125VAC 5-15R
r IG8200BLSP Blue 15A 125VAC 5-15R
r IG8200OSP Orange 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r IG8300ISP Ivory 20A 125VAC 5-20R
r IG8300WSP White 20A 125VAC 5-20R
r IG8300GRYSP Gray 20A 125VAC 5-20R
r IG8300REDSP Red 20A 125VAC 5-20R
r IG8300LASP Lt. Almond 20A 125VAC 5-20R
r IG8300BLSP Blue 20A 125VAC 5-20R
r IG8300OSP Orange 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-87
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Specification Grade Extra Heavy-Duty Surge Protective Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and Re-
ceptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified, File
Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45
Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel,
1.2mm thick
Clamping Plate: Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 500V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Three Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 5262ISP Ivory 15A 125VAC 5-15R
r 5262WSP White 15A 125VAC 5-15R
r 5262SP Brown 15A 125VAC 5-15R
r 5262GRYSP Gray 15A 125VAC 5-15R
r 5262BKSP Black 15A 125VAC 5-15R
r 5262REDSP Red 15A 125VAC 5-15R
r 5262LASP Lt. Almond 15A 125VAC 5-15R
r 5262BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 5362ISP Ivory 20A 125VAC 5-20R
r 5362WSP White 20A 125VAC 5-20R
r 5362SP Brown 20A 125VAC 5-20R
r 5362GRYSP Gray 20A 125VAC 5-20R
r 5362BKSP Black 20A 125VAC 5-20R
r 5362REDSP Red 20A 125VAC 5-20R
r 5362LASP Lt. Almond 20A 125VAC 5-20R
r 5362BLSP Blue 20A 125VAC 5-20R 5362GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal
assembly
• Back and side wire capability
including ground terminal
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-88
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Specification Grade Isolated Ground Surge Protective Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® IG5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and Receptacles
UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified, File Number LR16063,
Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories
“A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC 410-56(c) and 250-74 exception 4.
Conforms to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes:
Normal Mode (L-N) 500V Clamping; Common Mode (L-G) 500V
Clamping, (N-G) 500V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Three Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel,
1.2mm thick
Clamping Plate: Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
NEMA
5-15R
NEMA
5-20R
IG5362GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal
assembly
• Back and side wire capability
including ground terminal
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r IG5262ISP Ivory 15A 125VAC 5-15R
r IG5262WSP White 15A 125VAC 5-15R
r IG5262GRYSP Gray 15A 125VAC 5-15R
r IG5262LASP Lt. Almond 15A 125VAC 5-15R
r IG5262BLSP Blue 15A 125VAC 5-15R
r IG5262OSP Orange 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r IG5362ISP Ivory 20A 125VAC 5-20R
r IG5362WSP White 20A 125VAC 5-20R
r IG5362SP Brown 20A 125VAC 5-20R
r IG5362GRYSP Gray 20A 125VAC 5-20R
r IG5362LASP Lt. Almond 20A 125VAC 5-20R
r IG5362BLSP Blue 20A 125VAC 5-20R
r IG5362OSP Orange 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-89
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Surge Protective Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 5252ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC 410-
56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules (L-N) and (L-G) Modes; 680 Joules (N-G) Mode
Max Surge Capability: 24kA
Protection Modes Normal and Common Mode: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 1000V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Two Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Two Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel,
1.2mm thick
Clamping Plate: Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
NEMA
5-15R
NEMA
5-20R
5362GRYSP
3.75"
1.70"
.875"
1.25"
Behind Strap
2.75"
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
• Brass 1-piece ground terminal
assembly
• Back and side wire capability
including ground terminal
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 5252ISP Ivory 15A 125VAC 5-15R
r 5252WSP White 15A 125VAC 5-15R
r 5252GRYSP Gray 15A 125VAC 5-15R
r 5252BKSP Black 15A 125VAC 5-15R
r 5252LASP Lt. Almond 15A 125VAC 5-15R
r 5252BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r 5352ISP Ivory 20A 125VAC 5-20R
r 5352WSP White 20A 125VAC 5-20R
r 5352GRYSP Gray 20A 125VAC 5-20R
r 5352BKSP Black 20A 125VAC 5-20R
r 5352LASP Lt. Almond 20A 125VAC 5-20R
r 5352BLSP Blue 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-90
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant Surge Protective Receptacles 2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR5252ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
•Brass 1-piece ground terminal
assembly
•Back and side wire capability
including ground terminal
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating 340 Joules (L-N) and (L-G) Modes; 680 Joules (N-G) Mode
Max Surge Capability: 24kA
Protection Modes: Normal and Common Mode: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 1000V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Two Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Two Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel,
1.2mm thick
Clamping Plate: Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587),
ANSI/IEEE C62.45.
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Tamper Shutter: Thermoplastic
Encapsulation: Conformal Coating
NEMA
5-15R
NEMA
5-20R
TR5352GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r TR5252ISP Ivory 15A 125VAC 5-15R
r TR5252WSP White 15A 125VAC 5-15R
r TR5252GRYSP Gray 15A 125VAC 5-15R
r TR5252BKSP Black 15A 125VAC 5-15R
r TR5252LASP Lt. Almond 15A 125VAC 5-15R
r TR5252BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r TR5352ISP Ivory 20A 125VAC 5-20R
r TR5352WSP White 20A 125VAC 5-20R
r TR5352GRYSP Gray 20A 125VAC 5-20R
r TR5352BKSP Black 20A 125VAC 5-20R
r TR5352LASP Lt. Almond 20A 125VAC 5-20R
r TR5352BLSP Blue 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-91
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules (L-N) and (L-G) Modes; 680 Joules (N-G) Mode
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 1000V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Two Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Two Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with Plugtail Receptacles only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
PlugTail Connector
Housing: Polycarbonate
Contacts: .030" Brass
Technical SpecificaTionS
PlugTail™ Extra Heavy-Duty Surge Protective Receptacles 2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT5262ISP Ivory 15A 125VAC 5-15R
r PT5262WSP White 15A 125VAC 5-15R
r PT5262SP Brown 15A 125VAC 5-15R
r PT5262GRYSP Gray 15A 125VAC 5-15R
r PT5262BKSP Black 15A 125VAC 5-15R
r PT5262REDSP Red 15A 125VAC 5-15R
r PT5262LASP Lt. Almond 15A 125VAC 5-15R
r PT5262BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT5362ISP Ivory 20A 125VAC 5-20R
r PT5362WSP White 20A 125VAC 5-20R
r PT5362SP Brown 20A 125VAC 5-20R
r PT5362GRYSP Gray 20A 125VAC 5-20R
r PT5362BKSP Black 20A 125VAC 5-20R
r PT5362REDSP Red 20A 125VAC 5-20R
r PT5362LASP Lt. Almond 20A 125VAC 5-20R
r PT5362BLSP Blue 20A 125VAC 5-20R PTIG5362GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PTRA6STR
1.125"
6.375"
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-92
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Isolated Ground Surge Protective Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PTIG5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules (L-N) and (L-G) Modes; 680 Joules (N-G) Mode
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 1000V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Two Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with Plugtail Receptacles only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
PlugTail Connector
Housing: Polycarbonate
Contacts: .030" Brass
NEMA
5-15R
NEMA
5-20R
PTIG5362GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
PTRA6STR
1.125"
6.375"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r PTIG5262ISP Ivory 15A 125VAC 5-15R
r PTIG5262WSP White 15A 125VAC 5-15R
r PTIG5262GRYSP Gray 15A 125VAC 5-15R
r PTIG5262BKSP Black 15A 125VAC 5-15R
r PTIG5262REDSP Red 15A 125VAC 5-15R
r PTIG5262LASP Lt. Almond 15A 125VAC 5-15R
r PTIG5262BLSP Blue 15A 125VAC 5-15R
r PTIG5262OSP Orange 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r PTIG5362ISP Ivory 20A 125VAC 5-20R
r PTIG5362WSP White 20A 125VAC 5-20R
r PTIG5362GRYSP Gray 20A 125VAC 5-20R
r PTIG5362BKSP Black 20A 125VAC 5-20R
r PTIG5362REDSP Red 20A 125VAC 5-20R
r PTIG5362LASP Lt. Almond 20A 125VAC 5-20R
r PTIG5362BLSP Blue 20A 125VAC 5-20R
r PTIG5362OSP Orange 20A 125VAC 5-20R
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
WWW.LEGRAND.US/PASSANDSEYMOUR
R-93
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Hospital Grade Extra Heavy-Duty Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PTTR5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r PTTR5262ISP Ivory 15A 125VAC 5-15R
r PTTR5262WSP White 15A 125VAC 5-15R
r PTTR5262SP Brown 15A 125VAC 5-15R
r PTTR5262GRYSP Gray 15A 125VAC 5-15R
r PTTR5262BKSP Black 15A 125VAC 5-15R
r PTTR5262REDSP Red 15A 125VAC 5-15R
r PTTR5262LASP Lt. Almond 15A 125VAC 5-15R
r PTTR5262BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG.
NO.
r PTTR5362ISP Ivory 20A 125VAC 5-20R
r PTTR5362WSP White 20A 125VAC 5-20R
r PTTR5362SP Brown 20A 125VAC 5-20R
r PTTR5362GRYSP Gray 20A 125VAC 5-20R
r PTTR5362BKSP Black 20A 125VAC 5-20R
r PTTR5362REDSP Red 20A 125VAC 5-20R
r PTTR5362LASP Lt. Almond 20A 125VAC 5-20R
r PTTR5362BLSP Blue 20A 125VAC 5-20R
PTTR5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules (L-N) and (L-G) Modes; 680 Joules (N-G) Mode
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 1000V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Two Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Two Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with Plugtail Receptacles only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
PlugTail Connector
Housing: Polycarbonate
Contacts: .030" Brass
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-94
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Hospital Grade Extra Heavy-Duty Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PT8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules (L-N) and (L-G) Modes; 680 Joules (N-G) Mode
Max Surge Capability: 24kA
Protection Modes Normal and Common Modes: Normal Mode (L-N) 500V
Clamping; Common Mode (L-G) 500V Clamping,
(N-G) 1000V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Two Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Two Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid
or stranded, for use with Plugtail Receptacles only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
PlugTail Connector
Housing: Polycarbonate
Contacts: .030" Brass
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT8200ISP Ivory 15A 125VAC 5-15R
r PT8200WSP White 15A 125VAC 5-15R
r PT8200SP Brown 15A 125VAC 5-15R
r PT8200GRYSP Gray 15A 125VAC 5-15R
r PT8200REDSP Red 15A 125VAC 5-15R
r PT8200LASP Lt. Almond 15A 125VAC 5-15R
r PT8200BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PT8300ISP Ivory 20A 125VAC 5-20R
r PT8300WSP White 20A 125VAC 5-20R
r PT8300SP Brown 20A 125VAC 5-20R
r PT8300GRYSP Gray 20A 125VAC 5-20R
r PT8300REDSP Red 20A 125VAC 5-20R
r PT8300LASP Lt. Almond 20A 125VAC 5-20R
r PT8300BLSP Blue 20A 125VAC 5-20R
PT8300GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
WWW.LEGRAND.US/PASSANDSEYMOUR
R-95
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Hospital Grade Isolated Ground Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PTIG8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587),
ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with
NEC 410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules (L-N) and (L-G) Modes; 680 Joules (N-G) Mode
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 1000V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Two Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded,
for use with Plugtail Receptacles only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
PlugTail Connector
Housing: Polycarbonate
Contacts: .030" Brass
PTIG8300GRYSP
3.75"
1.70"
.875"
1.20"
Behind Strap
2.75"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PTIG8200ISP Ivory 15A 125VAC 5-15R
r PTIG8200WSP White 15A 125VAC 5-15R
r PTIG8200GRYSP Gray 15A 125VAC 5-15R
r PTIG8200REDSP Red 15A 125VAC 5-15R
r PTIG8200LASP Lt. Almond 15A 125VAC 5-15R
r PTIG8200BLSP Blue 15A 125VAC 5-15R
r PTIG8200OSP Orange 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PTIG8300ISP Ivory 20A 125VAC 5-20R
r PTIG8300WSP White 20A 125VAC 5-20R
r PTIG8300GRYSP Gray 20A 125VAC 5-20R
r PTIG8300REDSP Red 20A 125VAC 5-20R
r PTIG8300LASP Lt. Almond 20A 125VAC 5-20R
r PTIG8300BLSP Blue 20A 125VAC 5-20R
r PTIG8300OSP Orange 20A 125VAC 5-20R
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-96
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
PlugTail™ Hospital Grade Tamper-Resistant Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PTTR8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and Receptacles UL1449
Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified, File Number LR16063, Standard
CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave)
“B” (Unidirectional Impulse). Complies with NEC 410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
PTTR8300ISP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PTTR8200ISP Ivory 15A 125VAC 5-15R
r PTTR8200WSP White 15A 125VAC 5-15R
r PTTR8200SP Brown 15A 125VAC 5-15R
r PTTR8200GRYSP Gray 15A 125VAC 5-15R
r PTTR8200REDSP Red 15A 125VAC 5-15R
r PTTR8200LASP Lt. Almond 15A 125VAC 5-15R
r PTTR8200BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r PTTR8300ISP Ivory 20A 125VAC 5-20R
r PTTR8300WSP White 20A 125VAC 5-20R
r PTTR8300SP Brown 20A 125VAC 5-20R
r PTTR8300GRYSP Gray 20A 125VAC 5-20R
r PTTR8300REDSP Red 20A 125VAC 5-20R
r PTTR8300LASP Lt. Almond 20A 125VAC 5-20R
r PTTR8300BLSP Blue 20A 125VAC 5-20R
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules (L-N) and (L-G) Modes; 680 Joules (N-G) Mode
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 1000V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Two Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
PlugTail Connector Identification: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with Plugtail Receptacles only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
PlugTail Connector
Housing: Polycarbonate
Contacts: .030" Brass
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
• Back and side wire capability including ground terminal
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
WWW.LEGRAND.US/PASSANDSEYMOUR
R-97
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Extra Heavy-Duty Tamper-Resistant Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and Receptacles UL1449
Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified, File Number LR16063, Standard
CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave)
“B” (Unidirectional Impulse). Complies with NEC 410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 500V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Three Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Clamping Plate: Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head
Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
Tamper Shutter: Thermoplastic
NEMA
5-15R
NEMA
5-20R
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
• Back and side wire capability including ground terminal
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r TR5262ISP Ivory 15A 125VAC 5-15R
r TR5262WSP White 15A 125VAC 5-15R
r TR5262SP Brown 15A 125VAC 5-15R
r TR5262GRYSP Gray 15A 125VAC 5-15R
r TR5262BKSP Black 15A 125VAC 5-15R
r TR5262REDSP Red 15A 125VAC 5-15R
r TR5262LASP Lt. Almond 15A 125VAC 5-15R
r TR5262BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r TR5362ISP Ivory 20A 125VAC 5-20R
r TR5362WSP White 20A 125VAC 5-20R
r TR5362SP Brown 20A 125VAC 5-20R
r TR5362GRYSP Gray 20A 125VAC 5-20R
r TR5362BKSP Black 20A 125VAC 5-20R
r TR5362REDSP Red 20A 125VAC 5-20R
r TR5362LASP Lt. Almond 20A 125VAC 5-20R
r TR5362BLSP Blue 20A 125VAC 5-20R TR5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-98
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant Isolated Ground Surge Protective Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TRIG5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage 500V
Energy Rating: 340 Joules
Max Surge Capability: 24kA
Protection Modes Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 500V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection: Three Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Clamping Plate: Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head Grounding: Tri-Drive Steel (Green) Screw
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
Tamper Shutter: Thermoplastic
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
• Back and side wire capability including ground terminal
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r TRIG5262ISP Ivory 15A 125VAC 5-15R
r TRIG5262WSP White 15A 125VAC 5-15R
r TRIG5262GRYSP Gray 15A 125VAC 5-15R
r TRIG5262BKSP Black 15A 125VAC 5-15R
r TRIG5262REDSP Red 15A 125VAC 5-15R
r TRIG5262LASP Lt. Almond 15A 125VAC 5-15R
r TRIG5262BLSP Blue 15A 125VAC 5-15R
r TRIG5262OSP Orange 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r TRIG5362ISP Ivory 20A 125VAC 5-20R
r TRIG5362WSP White 20A 125VAC 5-20R
r TRIG5362GRYSP Gray 20A 125VAC 5-20R
r TRIG5362BKSP Black 20A 125VAC 5-20R
r TRIG5362REDSP Red 20A 125VAC 5-20R
r TRIG5362LASP Lt. Almond 20A 125VAC 5-20R
r TRIG5362BLSP Blue 20A 125VAC 5-20R
r TRIG5362OSP Orange 20A 125VAC 5-20R TRIG5362GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-99
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Extra Heavy-Duty Tamper-Resistant Hospital Grade Surge Protective Receptacles
2 Pole, 3 Wire Grounding, 15 & 20A, 125VAC
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TR8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes:
Normal Mode (L-N) 500V Clamping; Common Mode (L-G) 500V
Clamping, (N-G) 500V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Three Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap: Super Dyma Cold-Rolled Steel, 1.2mm thick
Clamping Plate : Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head
Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
Tamper Shutter: Thermoplastic
NEMA
5-15R
NEMA
5-20R
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
• Back and side wire capability including ground terminal
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
TR8300GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r TR8200ISP Ivory 15A 125VAC 5-15R
r TR8200WSP White 15A 125VAC 5-15R
r TR8200SP Brown 15A 125VAC 5-15R
r TR8200GRYSP Gray 15A 125VAC 5-15R
r TR8200REDSP Red 15A 125VAC 5-15R
r TR8200LASP Lt. Almond 15A 125VAC 5-15R
r TR8200BLSP Blue 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r TR8300ISP Ivory 20A 125VAC 5-20R
r TR8300WSP White 20A 125VAC 5-20R
r TR8300SP Brown 20A 125VAC 5-20R
r TR8300GRYSP Gray 20A 125VAC 5-20R
r TR8300REDSP Red 20A 125VAC 5-20R
r TR8300LASP Lt. Almond 20A 125VAC 5-20R
r TR8300BLSP Blue 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-100
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Tamper-Resistant Hospital Grade Isolated Ground Surge Protective Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
5-15R
NEMA
5-20R
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® TRIG8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and Receptacles
UL1449 Transient Voltage Surge Suppressor. Federal Specification WC596. CSA Certified,
File Number LR16063, Standard CSA-C22.2 No. 42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE
C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency: 60 Hz
Voltage: 125VAC
MOV Rating: 130V 17mm Dual Pack
Suppressed Voltage: 500V
Energy Rating: 340 Joules
Max Surge Capability: 24kA
Protection Modes: Normal and Common Modes: Normal Mode (L-N) 500V Clamping;
Common Mode (L-G) 500V Clamping, (N-G) 500V Clamping
Noise Attenuation: Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection: Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Three Fuses Protects 3 Modes
Operating Temperature: -20°C to 55°C (-4 to 131°F)
Storage Temperature: -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification: Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation: #14 – 10 AWG copper conductor only
Product Identification: Ratings are a permanent part of device
Weight: 125 grams
Environmental
Flammability: UL94 V2
Materials
Face: Nylon
Body: Nylon
Line Terminal: Olin #260 EH, 0.8mm thick
Grounding Terminal: 70/30 Brass, 0.4mm thick
(Uni-Ground Assembly)
Mounting Strap Super Dyma Cold-Rolled Steel, 1.2mm thick
Clamping Plate : Cold-Rolled Steel, 1.6mm
Warranty: 1 year
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Terminal Screws: Tri-Drive Brass #8 - 32
Hex Head
Grounding Screw: Tri-Drive Steel (Green)
Auto-Ground Clip: Stainless Steel
Mounting Screws: Tri-Drive Zinc-Plated Steel
LED: Green/Red
Encapsulation: Conformal Coating
Tamper Shutter: Thermoplastic
TRIG8300GRYSP
3.75"
1.70"
.875"
1.40"
Behind Strap
2.75"
• Alarm
• Alarm shutoff/override
• Brass 1-piece ground terminal assembly
• Back and side wire capability including ground terminal
Features
• LED Indication:
- Steady green = protected
- Flashing red = not protected
- OFF = no power to unit
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r TRIG8200ISP Ivory 15A 125VAC 5-15R
r TRIG8200WSP White 15A 125VAC 5-15R
r TRIG8200GRYSP Gray 15A 125VAC 5-15R
r TRIG8200REDSP Red 15A 125VAC 5-15R
r TRIG8200LASP Lt. Almond 15A 125VAC 5-15R
r TRIG8200BLSP Blue 15A 125VAC 5-15R
r TRIG8200OSP Orange 15A 125VAC 5-15R
CATALOG
NUMBER COLOR RATING
NEMA
CONFIG. NO.
r TRIG8300ISP Ivory 20A 125VAC 5-20R
r TRIG8300WSP White 20A 125VAC 5-20R
r TRIG8300GRYSP Gray 20A 125VAC 5-20R
r TRIG8300REDSP Red 20A 125VAC 5-20R
r TRIG8300LASP Lt. Almond 20A 125VAC 5-20R
r TRIG8300BLSP Blue 20A 125VAC 5-20R
r TRIG8300OSP Orange 20A 125VAC 5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-101
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Surge Protection Panels Heavy-, Medium- & Light-Duty
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 1224SL
3rd Party Compliance: UL Listed: Basic UL File Number – E324279; ML File Number – E332797.
Standard UL1449, 3rd Edition (effective 9/29/09):
– Light Duty: UL1449 3rd Edition Type 2 SPD, cUL
– Medium Duty: UL1449 3rd Edition Type 2 SPD, cUL
– Heavy Duty: UL1449 3rd Edition Type 1 SPD
UL1283, CSA, CE, NEMA LS-1.
Performance
LED Indicators
Green LED is illuminated at all times while unit is functioning with no faults.
A red LED will come on if any phase/mode has a fault.
Audible Alarm
Visible on the enclosure cover; will sound whenever surge protection is lost.
Rotary Disconnect Switch
Lockable only in the off position for increased safety.
NEMA 12 Enclosure
Epoxy painted steel with gasketing, rated for indoor operating use.
Three-Position Test Switch
Used for the audible alarm and LEDs – functions are: enable/switch/test.
Environmental
Recommended ambient temperature range: Designed for -40 degrees C to +60 degrees C,
with a relative humidity of 0% to 5% (non-
condensing)
Warranty: 5 years
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE587), ANSI/IEEE C62.45.
Medium-Duty
6.00"
4.00"
3.00"
MFKITHeavy-Duty
14.00"
8.00"
16.00"
Light-Duty
2.2"
4.6"
2.8"
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-102
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Straight Blade Plugs 2 Pole, 3 Wire Grounding 15 & 20A, 125, 250 & 277V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS5266X
Description: Straight Blade Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
**Nickel-Plated for Corrosion-Resistant Product.
Consult Straight Blade Plugs & Connectors Section F for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage: 1500V minimum
Maximum Working Voltage: 277V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation Round portable service cords of diameters in accordance with the
device rating as defined in UL62
Cord Grip Accommodation: .230"–.720" diameter, Angle Plugs – .320"–.655"
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body: Nylon
Front Body: Nylon
Terminal Chamber: Polycarbonate
Cord Clamp: Nylon
Insert: Nylon
Blades: Brass**
Terminal Clamp: Zinc-Plated Steel**
Terminal Screws Nickel- or Brass-Plated
Steel Ground Screws: Nickel-Plated Steel Cord
Clamp Screws: Nickel-Plated Steel #8
Assembly Screws: Nickel-Plated Steel PS5266XHG
1.752"
2.791"
1.516" 1.358"
PS5266HGAN
2.130"
1.350"
1.530"
PS5266X
1.516" 1.358"
2.791"
1.752"
PS5266SSAN
2.130"
1.350"
1.530"
NEMA
7-20P
NEMA
7-15P
NEMA
6-15P
NEMA
6-20P
NEMA
5-15P
NEMA
5-20P
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5266XHG 15A 125V 5-15P
r PS5266HGAN 15A 125V 5-15P
r PS5366XHG 20A 125V 5-20P
r PS5366HGAN 20A 125V 5-20P
r PS5666XHG 15A 250V 6-15P
r PS5666HGAN 15A 250V 6-15P
r PS5466XHG 20A 250V 6-20P
r PS5466HGAN 20A 250V 6-20P
r PS5266X 15A 125V 5-15P
r PS5266SSAN 15A 125V 5-15P
r PS5266XGRY 15A 125V 5-15P
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5266XBK 15A 125V 5-15P
r CR5266X 15A 125V 5-15P
r PS5366X 20A 125V 5-20P
r PS5366SSAN 20A 125V 5-20P
r PS5666X 15A 250V 6-15P
r PS5666SSAN 15A 250V 6-15P
r PS5466X 20A 250V 6-20P
r PS5466SSAN 20A 250V 6-20P
r PS5766X 15A 277V 7-15P
r PS5866X 20A 277V 7-20P
NEMA
CONFIG. NO. AC HP RATING
STRAIGHT BLADE HORSEPOWER RATING
FOR NEMA CONFIGURATION
5-15 1⁄2
6-15 1 1/2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
* Suitable for 208V motor applications at the HP
rating specified.
WWW.LEGRAND.US/PASSANDSEYMOUR
R-103
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Straight Blade Connectors 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
PS5269X
1.516" 1.358"
1.752"
2.638"
PS5269XHG
2.638"
1.516" 1.358"
1.752"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS5269X
Description: Straight Blade Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A. 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
NEMA
CONFIG. NO. AC HP RATING
STRAIGHT BLADE HORSEPOWER RATING
FOR NEMA CONFIGURATION
5-15 1⁄2
6-15 1 1/2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
* Suitable for 208V motor applications at the HP
rating specified.
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
**Nickel-Plated for Corrosion-Resistant Product.
Consult Straight Blade Plugs & Connectors Section F for complete compliance listing.
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5269XHG 15A 125V 5-15R
r PS5369XHG 20A 125V 5-20R
r PS5669XHG 15A 250V 6-15R
r PS5469XHG 20A 250V 6-20R
r PS5269X 15A 125V 5-15R
r PS5269XGRY 15A 125V 5-15R
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5269XBK 15A 125V 5-15R
r CR5269X 15A 125V 5-15R
r PS5369X 20A 125V 5-20R
r PS5669X 15A 250V 6-15R
r PS5469X 20A 250V 6-20R
Performance
Electrical
Dielectric Withstand Voltage: 1500V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation: Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodation: .230"–.720" diameter
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Terminal Clamp: Zinc-Plated Steel**
Terminal Screw: Nickel- or Brass-Plated Steel
Ground Screws: Nickel-Plated Steel
Cord Clamp Screws: Nickel-Plated Steel #8
Assembly Screws: Nickel-Plated Steel
Back Body: Nylon
Front Body: Nylon
Terminal Chamber: Polycarbonate
Cord Clamp: Nylon
Insert: Nylon
Contacts: Brass**
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-104
TECHNICAL SPECIFICATIONS
Project
Location/Type
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5266XGCM 15A 125V 5-15P
r PS5266XGCMAN 15A 125V 5-15P
r PS5366XGCM 20A 125V 5-20P
r PS5366XGCMAN 20A 125V 5-20P
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5666XGCM 15A 250V 6-15P
r PS5666XGCMAN 15A 250V 6-15P
r PS5466XGCM 20A 250V 6-20P
r PS5466XGCMAN 20A 250V 6-20P
Technical SpecificaTionS
Straight Blade Ground Continuity Monitoring (GCM) Plugs
2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS5266XGCM
Description: Straight Blade Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15P
3rd Party Compliance: cULus Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use Receptacles and
Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Plugs & Connectors Section F for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage: 1500V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation: Round portable service cords of diameters in
accordance with the device rating as defined in UL62
Cord Grip Accommodation .230"–.720" diameter, Angle Plugs – .320"–.655"
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body: Nylon
Front Body: Nylon
Terminal Chamber: Polycarbonate
Cord Clamp: Nylon
Insert: Nylon
Blades: Brass
Terminal Clamp: Zinc-Plated Steel
Terminal Screws: Nickel- or Brass-Plated Steel
Ground Screws: Nickel-Plated Steel
Cord Clamp Screws: Nickel-Plated Steel #8
Assembly Screws: Nickel-Plated Steel
NEMA
CONFIG. NO. AC HP RATING
STRAIGHT BLADE HORSEPOWER RATING
FOR NEMA CONFIGURATION
5-15 1⁄2
6-15 1 1/2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
* Suitable for 208V motor applications at the HP
rating specified.
PS5266XGCM
1.516" 1.358"
1.752"
2.791"
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-105
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
NEMA
CONFIG. NO. AC HP RATING
STRAIGHT BLADE HORSEPOWER RATING
FOR NEMA CONFIGURATION
5-15 1⁄2
6-15 1 1/2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
* Suitable for 208V motor applications at the
HP rating specified.
PS5269XGCM
1.516" 1.358"
1.752"
2.638"
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS5269XGCM
Description: Straight Blade Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use Receptacles and
Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 1500V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation: Round portable service cords of diameters in
accordance with the device rating as defined in UL62
Cord Grip Accommodation: .230"–.720" diameter
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body: Nylon
Front Body: Nylon
Terminal Chamber: Polycarbonate
Cord Clamp: Nylon
Insert: Nylon
Contacts: Brass
Terminal Clamp: Zinc-Plated Steel
Terminal Screws: Nickel- or Brass-Plated Steel
Ground Screws: Nickel-Plated Steel
Cord Clamp Screws: Nickel-Plated Steel #8
Assembly Screws: Nickel-Plated Steel
Technical SpecificaTionS
Straight Blade Ground Continuity Monitoring (GCM) Connectors
2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5269XGCM 15A 125V 5-15R
r PS5369XGCM 20A 125V 5-20R
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5669XGCM 15A 250V 6-15R
r PS5469XGCM 20A 250V 6-20R
Consult Straight Blade Plugs & Connectors Section F for complete compliance listing.
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-106
TECHNICAL SPECIFICATIONS
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS5965Y
Description: Plug Straight Blade, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Plugs & Connectors Section F for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage: 1500V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C, maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation: Round portable service cords of diameters in accordance with the
device rating as defined in UL62
Cord Grip Accommodation: .230"–.720" diameter cord
Terminal Identification: Green = Ground, Silver = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #12 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 HB
Operating Temperatures: Maximum continuous +75°C, minimum -40°C without impact
Materials
Body/Housing: Nylon
Cord Grip Insert: Nylon
Terminal Clamp: Brass
Terminal Screws: Zinc- and Brass-Plated Steel
Ground Screw: Zinc-Plated Steel
Blades: Brass
Cord Clamp
Assembly Screws: Zinc-Plated Steel
Technical SpecificaTionS
MaxGrip® M3 Plugs 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
NEMA
6-15P
NEMA
6-20P
NEMA
5-15P
NEMA
5-20P
PS5965Y
.77"
1.83"
1.34" 1.21"
PS8115
1.34"
1.21"
1.83"
.77"
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS8115 15A 125V 5-15P
r PS5965Y 15A 125V 5-15P
r PS5965GRY 15A 125V 5-15P
r PS5965O 15A 125V 5-15P
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5364Y 20A 125V 5-20P
r PS5364GRY 20A 125V 5-20P
r PS5666Y 15A 250V 6-15P
r PS5464Y 20A 250V 6-20P
WWW.LEGRAND.US/PASSANDSEYMOUR
R-107
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS5969Y
Description: Connector Straight Blade, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 1500V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C, maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation: Round portable service cords of diameters in accordance with
the device rating as defined in UL62
Cord Grip Accommodation: .230"–.720" diameter cord
Terminal Identification: Green = Ground, Silver = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #12 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 HB
Operating Temperatures: Maximum continuous +75°C, minimum -40°C without impact
Materials
Body/Housing: Nylon
Cord Grip Insert: Nylon
Terminal Clamp: Brass
Terminal Screws: Zinc- and Brass-Plated Steel
Ground Screw: Zinc-Plated Steel
Contacts: Brass
Cord Clamp
Assembly Screws: Zinc-Plated Steel
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
Technical SpecificaTionS
MaxGrip® M3 Connectors 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
PS5969Y
1.83"
1.21"
1.34"
1.34"
1.21"
1.83"
PS8119
Consult Straight Blade Plugs & Connectors Section F for complete compliance listing.
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS8119 15A 125V 5-15R
r PS5969Y 15A 125V 5-15R
r PS5969GRY 15A 125V 5-15R
r PS5969O 15A 125V 5-15R
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS5369Y 20A 125V 5-20R
r PS5369GRY 20A 125V 5-20R
r PS5669Y 15A 250V 6-15R
r PS5469Y 20A 250V 6-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-108
TECHNICAL SPECIFICATIONS
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS515PCLB
Description: Connector Straight Blade, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Plugs & Connectors Section F for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage: 1500V minimum
Maximum Working Voltage: 250V
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C, maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation: Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodation: .20"–.470" diameter cord
Terminal Identification: Green = Ground, Silver = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #12 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 HB
Operating Temperatures: Maximum continuous +75°C, minimum -40°C without impact
Materials
Body/Housing: Nylon
Cord Grip Insert: Nylon
Terminal Clamp: Brass
Terminal Screws: Zinc- and Brass-Plated Steel
Ground Screw: Zinc-Plated Steel
Contacts: Brass
Cord Clamp
Assembly Screws: Zinc-Plated Steel
Technical SpecificaTionS
Clamp-Lock™ Plugs & Connectors 2 Pole, 3 Wire Grounding 15A, 125 & 250V; 20A, 125V
PS515PCLB
1.55" 1.40"
1.85"
2.10"
PS515CCLB
1.55"
1.85"
2.80"
1.40"
NEMA
6-15R
NEMA
5-15R
NEMA
5-20R
NEMA
6-15P
NEMA
5-15P
NEMA
5-20P
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS515PCLB 15A 125V 5-15P
r PS515CCLB 15A 125V 5-15R
r PS520PCLB 20A 125V 5-20P
r PS520CCLB 20A 125V 5-20R
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PS615PCLB 15A 250V 6-15P
r PS615CCLB 15A 250V 6-15R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-109
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 4700
Description: Locking Receptacle, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA L5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 2000V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Accommodation: #18 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, NEMA Configuration molded into face
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Front Body: Nylon
Back Body: Nylon
Mounting Strap: Steel
Contacts: Brass
Terminal Clamps: Brass
Terminal Screws: Brass
Mounting Screws: Zinc-Plated Steel
Technical SpecificaTionS
15A Turnlok® Receptacles
Consult Turnlok® Section G for complete compliance listing.
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
15 r 4710 L5-15R
15 r 4700 L5-15R
15 r 4792 L5-15R
15 r 4560 L5-15R
4760
2.375"
2.250"
1.203"
1.000"
1.375"
3.281"
4.031"
#6-32
TAP
1.437"
4792
3.28"
1.50"
1.199"
1.0"
3.281"
1.437"
1.375"
2.375"
4.031"
1.203"
2.25"
4710
3.281"
1.322"
1.104"
.0625"
2.635"
1.50"
1.199"
.9375"
4700 4550
1.150"
.940"
3.281"
1.500"
2.270"
4750
3.281"
2.635"
.938"
1.199"
1.322"
1.50"
1.104"
4560
2.375"
1.375"
1.500"
#6-32
TAP
.922"
1.125"
3.281"
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
15 r 4550 L6-15R
15 r 4760 L7-15R
15 r 4750 L7-15R
NEMA
L6-15R
NEMA
L5-15R
NEMA
L7-15R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-110
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
20A Turnlok® Receptacles
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L520R
Description: Locking Receptacle, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 2000V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Accommodation: #14 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, NEMA Configuration molded into face
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Front Body: Nylon Nylon
Back Body: Nylon Nylon
Mounting Strap: Brass Nickel-Plated Brass
Pressure Plate: Brass Nickel-Plated Brass
Contacts: Brass Nickel-Plated Brass
Terminal Clamps: Brass Nickel-Plated Brass
Terminal Screws: Brass Brass
Mounting Screws: Zinc-Plated Steel Stainless Steel
Consult Turnlok® Section G for complete compliance listing.
NEMA
L9-20R
NEMA
L8-20R
NEMA
L15-20R
NEMA
L10-20R
NEMA
L6-20R
NEMA
L5-20R
NEMA
L11-20R
NEMA
L7-20R
NEMA
L16-20R
NEMA
L12-20R
NEMA
L18-20R
NEMA
L14-20R
NEMA
L19-20R
NEMA
L20-20R
NEMA
L21-20R
NEMA
L22-20R
NEMA
L23-20R
2.29"
1.19" 1.61"
.14"
2.37"
3.28"
1.545"
20A Receptacle
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L520R L5-20R
20 r CRL520R L5-20R
20 r L620R L6-20R
20 r L720R L7-20R
20 r L820R L8-20R
20 r L920R L9-20R
20 r L1020R L10-20R
20 r L1120R L11-20R
20 r L1220R L12-20R
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L1420R L14-20R
20 r L1520R L15-20R
20 r L1620R L16-20R
20 r L1820R L18-20R
20 r L1920R L19-20R
20 r L2020R L20-20R
20 r L2120R L21-20R
20 r L2220R L22-20R
20 r L2320R L23-20R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-111
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
30A Turnlok® Receptacles
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L530R
Description: Locking Receptacle, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 2000V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Accommodation: #14 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, NEMA Configuration molded into face
Environmental
Flammability: UL94 V2
Operating Temperature : Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Front Body: Nylon Nylon
Back Body: Nylon Nylon
Mounting Strap: Brass Nickel-Plated Brass
Pressure Plate: Brass Nickel-Plated Brass
Contacts: Brass Nickel-Plated Brass
Terminal Clamps: Brass Nickel-Plated Brass
Terminal Screws: Brass Brass
Mounting Screws: Zinc-Plated Steel Stainless Steel
Consult Turnlok® Section G for complete compliance listing.
NEMA
L5-30R
NEMA
L6-30R
NEMA
L7-30R
NEMA
L8-30R
NEMA
L9-30R
NEMA
L10-30R
NEMA
L11-30R
NEMA
L12-30R
NEMA
L13-30R
NEMA
L14-30R
NEMA
L15-30R
NEMA
L16-30R
NEMA
L18-30R
NEMA
L19-30R
NEMA
L20-30R
NEMA
L21-30R
NEMA
L17-30R
NEMA
L22-30R
NEMA
L23-30R
30A Receptacle
2.42"
1.28" 1.61"
2.37"
3.28"
1.545"
.23"
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L530R L5-30R
30 r CRL530R L5-30R
30 r L630R L6-30R
30 r L730R L7-30R
30 r L830R L8-30R
30 r L930R L9-30R
30 r L1030R L10-30R
30 r L1130R L11-30R
30 r L1230R L12-30R
30 r L1330R L13-30R
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L1430R L14-30R
30 r L1530R L15-30R
30 r L1630R L16-30R
30 r L1730R L17-30R
30 r L1830R L18-30R
30 r L1930R L19-30R
30 r L2030R L20-30R
30 r L2130R L21-30R
30 r L2230R L22-30R
30 r L2330R L23-30R
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-112
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
15A Turnlok® EHU Plugs & Connectors
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PSL515C
Description: Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA L5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 1600V minimum
Max. Working Voltage: 277VAC
Current Interrupting: Certified for current interrupting at full-rated current.
Temperature Rise: 30°C max. after 50 cycles at 150% rated current.
Mechanical
Cord Accommodations: Round portable service cords of diameters in accordance
with the device rating as defined in UL62.
Cord Grip Accommodations: .230"-.720" diameter
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Plugs Standard Corrosion-Resistant
Back Body: Nylon Nylon
Front Body: Nylon Nylon
Terminal Chamber Separator: Polycarbonate Polycarbonate
Cord Clamp: Nylon Nylon
Insert: Nylon Nylon
Blades: Brass Nickel-Plated Brass
Terminal Clamp: Zinc-Plated Steel Nickel-Plated Steel
Terminal Screws: Nickel- or Brass-Plated Steel Nickel-Plated Steel
Ground Screws: Nickel-Plated Steel Nickel-Plated Steel
Cord Clamp Screws: Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws: Nickel-Plated Steel Nickel-Plated Steel
Connectors Standard Corrosion-Resistant
Back Body: Nylon Nylon
Front Body: Nylon Nylon
Terminal Chamber Separator: Polycarbonate Polycarbonate
Cord Clamp: Nylon Nylon
Insert: Nylon Nylon
Contacts: Brass Nickel-Plated Brass
Terminal Clamp: Zinc-Plated Steel Nickel-Plated Steel
Terminal Screws: Nickel- or Brass-Plated Steel Nickel-Plated Steel
Ground Screws: Nickel-Plated Steel Nickel-Plated Steel
Cord Clamp Screws: Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws: Nickel-Plated Steel Nickel-Plated Steel
Consult Turnlok® Section G for complete compliance listing.
NEMA
L5-15R
NEMA
L5-15P
NEMA
L6-15R
NEMA
L6-15P
NEMA
L7-15R
NEMA
L7-15P
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
15 r PSL515C L5-15R
15 r PSL515P L5-15P
15 r CRL515C L5-15R
15 r CRL515P L5-15P
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
15 r PSL615C L6-15R
15 r PSL615P L6-15P
15 r PSL715C L7-15R
15 r PSL715P L7-15P 15A Connector
1.358"
1.516"
2.598"
1.752"
15A Plug
1.516" 1.358"
2.617"
1.752"
1.844"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-113
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
20A Turnlok® Plugs
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L520P
Description: Locking Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 2200V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations: Round portable service cords of diameters in
accordance with the device rating as defined in UL62
Cord Grip Accommodations: 3 Wire = .225"–1.150" diameter; 4 & 5 Wire = .225"–1.150" diameter
Terminal Identification: “GR” and Green Color = Ground, “WH” and
White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation: #18 AWG min. – #8 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration hot
stamped onto device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Back Body: Super Tough Nylon Super Tough Nylon
Front Body: Nylon Nylon
Terminal Chamber: Polycarbonate Polycarbonate
Cord Clamp: Nylon Nylon
Insert: Nylon Nylon
Dust Cover: Neoprene Neoprene
Blades: Brass Nickel-Plated Brass
Terminal Clamp: Nickel-Plated Steel Nickel-Plated Steel
Terminal Screws: Brass Nickel-Plated Brass
Ground Screws: Brass Nickel-Plated Brass
Cord Clamp Screws: Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws: Nickel-Plated Steel Nickel-Plated Steel
Consult Turnlok® Section G for complete compliance listing.
NEMA
L5-20P
NEMA
L7-20P
NEMA
L8-20P
NEMA
L9-20P
NEMA
L10-20P
NEMA
L11-20P
NEMA
L12-20P
NEMA
L14-20P
NEMA
L15-20P
NEMA
L16-20P
NEMA
L18-20P
NEMA
L20-20P
NEMA
L21-20P
NEMA
L22-20P
NEMA
L23-20P
NEMA
L24-20P
NEMA
L19-20P
NEMA
L6-20P
Non-NEMA
7311SS
Non-NEMA
7411SS
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L1520P L15-20P
20 r L1520PBK L15-20P
20 r L1620P L16-20P
20 r L1820P L18-20P
20 r L1920P L19-20P
20 r L2020P L20-20P
20 r L2120P L21-20P
20 r L2220P L22-20P
20 r L2320P L23-20P
20 r L3720P L24-20P
20 r 7311SS Non-NEMA
20 r 7411SS Non-NEMA
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L520P L5-20P
20 r L520PBK L5-20P
20 r CRL520P L5-20P
20 r L620P L6-20P
20 r CRL620P L6-20P
20 r L720P L7-20P
20 r L820P L8-20P
20 r L920P L9-20P
20 r L1020P L10-20P
20 r L1120P L11-20P
20 r L1220P L12-20P
20 r L1420P L14-20P
20 r CRL1420P L14-20P
3.75"
2.57"
2.20"
20A Plug
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-114
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
20A Turnlok® Connectors
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r CRL1420C L14-20R
20 r L1520C L15-20R
20 r L1520CBK L15-20R
20 r L1620C L16-20R
20 r L1820C L18-20R
20 r L1920C L19-20R
20 r L2020C L20-20R
20 r L2120C L21-20R
20 r L2220C L22-20R
20 r L2320C L23-20R
20 r L3720C L24-20R
20 r 7313SS Non-NEMA
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L520C L5-20R
20 r L520CBK L5-20R
20 r CRL520C L5-20R
20 r L620C L6-20R
20 r CRL620C L6-20R
20 r L720C L7-20R
20 r L820C L8-20R
20 r L920C L9-20R
20 r L1020C L10-20R
20 r L1120C L11-20R
20 r L1220C L12-20R
20 r L1420C L14-20R
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L520C
Description: Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 2200V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations: Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations: 3 Wire = .225"–1.150" diameter; 4 & 5 Wire = .225"–1.150" diameter
Terminal Identification: “GR” and Green Color = Ground, “WH” and
White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation: #18 AWG min. – #8 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Back Body: Super Tough Nylon Super Tough Nylon
Front Body: Nylon Nylon
Terminal Chamber: Polycarbonate Polycarbonate
Cord Clamp: Nylon Nylon
Insert: Nylon Nylon
Dust Cover: Neoprene Neoprene
Contacts: Brass Nickel-Plated Brass
Terminal Clamp: Nickel-Plated Steel Nickel-Plated Steel
Terminal Screws: Brass Nickel-Plated Brass
Ground Screws: Brass Nickel-Plated Brass
Cord Clamp Screws: Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws: Nickel-Plated Steel Nickel-Plated Steel
Consult Turnlok® Section G for complete compliance listing.
NEMA
L5-20R
NEMA
L7-20R
NEMA
L8-20R
NEMA
L9-20R
NEMA
L10-20R
NEMA
L11-20R
NEMA
L12-20R
NEMA
L14-20R
NEMA
L15-20R
NEMA
L16-20R
NEMA
L18-20R
NEMA
L20-20R
NEMA
L21-20R
NEMA
L22-20R
NEMA
L23-20R
NEMA
L19-20R
NEMA
L6-20R
Non-NEMA
7313SS
NEMA
L24-20R
2.20"
3.33"
20A Connector
WWW.LEGRAND.US/PASSANDSEYMOUR
R-115
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L530P
Description: Locking Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 2200V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations: Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations: 3 Wire = .225"–1.150" diameter; 4 & 5 Wire = .225"–1.150" diameter
Terminal Identification: “GR” and Green Color = Ground, “WH” and
White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation: #18 AWG min. – #8 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Back Body: Super Tough Nylon Super Tough Nylon
Front Body: Nylon Nylon
Terminal Chamber: Polycarbonate Polycarbonate
Cord Clamp: Nylon Nylon
Insert: Nylon Nylon
Dust Cover: Neoprene Neoprene
Blades: Brass Tin-Plated Brass
Terminal Clamp: Brass Nickel-Plated Brass
Terminal Screws: Brass Nickel-Plated Brass
Ground Screws: Brass Nickel-Plated Brass
Cord Clamp Screws: Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws: Nickel-Plated Steel Nickel-Plated Steel
Consult Turnlok® Section G for complete compliance listing.
Technical SpecificaTionS
30A Turnlok® Plugs
NEMA
L5-30P
NEMA
L6-30P
NEMA
L7-30P
NEMA
L8-30P
NEMA
L9-30P
NEMA
L10-30P
NEMA
L11-30P
NEMA
L12-30P
NEMA
L13-30P
NEMA
L14-30P
NEMA
L15-30P
NEMA
L16-30P
NEMA
L18-30P
NEMA
L19-30P
NEMA
L20-30P
NEMA
L21-30P
NEMA
L17-30P
NEMA
L22-30P
NEMA
L23-30P
Non-NEMA
3331-SS
Non-NEMA
3431-SS
3.75"
2.57"
2.20"
20A Plug
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L1530P L15-30P
30 r L1630P L16-30P
30 r L1730P L17-30P
30 r L1830P L18-30P
30 r L1930P L19-30P
30 r L2030P L20-30P
30 r L2130P L21-30P
30 r L2230P L22-30P
30 r L2230PBK L22-30P
30 r L2330P L23-30P
30 r 3331SS Non-NEMA
30 r 3431SS Non-NEMA
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L530P L5-30P
30 r CRL530P L5-30P
30 r L630P L6-30P
30 r CRL630P L6-30P
30 r L730P L7-30P
30 r L830P L8-30P
30 r L930P L9-30P
30 r L1030P L10-30P
30 r L1130P L11-30P
30 r L1230P L12-30P
30 r L1330P L13-30P
30 r L1430P L14-30P
30 r CRL1430P L14-30P
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-116
TECHNICAL SPECIFICATIONS
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L530C
Description: Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Consult Turnlok® Section G for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage: 2200V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations: Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations: 3 Wire = .225"–1.150" diameter; 4 & 5 Wire = .225"–1.150" diameter
Terminal Identification: “GR” and Green Color = Ground,
“WH” and White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation: #18 AWG min. – #8 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Back Body: Super Tough Nylon Super Tough Nylon
Front Body: Nylon Nylon
Terminal Chamber: Polycarbonate Polycarbonate
Cord Clamp: Nylon Nylon
Insert: Nylon Nylon
Dust Cover: Neoprene Neoprene
Contacts: Brass Tin-Plated Brass
Terminal Clamp: Brass Nickel-Plated Brass
Terminal Screws: Brass Nickel-Plated Brass
Ground Screws: Brass Nickel-Plated Brass
Cord Clamp Screws: Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws: Nickel-Plated Steel Nickel-Plated Steel
Technical SpecificaTionS
30A Turnlok® Connectors
NEMA
L5-30R
NEMA
L6-30R
NEMA
L7-30R
NEMA
L8-30R
NEMA
L9-30R
NEMA
L10-30R
NEMA
L11-30R
NEMA
L12-30R
NEMA
L13-30R
NEMA
L14-30R
NEMA
L15-30R
NEMA
L16-30R
NEMA
L18-30R
NEMA
L19-30R
NEMA
L20-30R
NEMA
L21-30R
NEMA
L17-30R
NEMA
L22-30R
NEMA
L23-30R
Non-NEMA
3333-SS
Non-NEMA
3433-SS
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L1530C L15-30R
30 r L1630C L16-30R
30 r L1730C L17-30R
30 r L1830C L18-30R
30 r L1930C L19-30R
30 r L2030C L20-30R
30 r L2130C L21-30R
30 r L2230C L22-30R
30 r L2330C L23-30R
30 r 3333SS Non-NEMA
30 r 3433SS Non-NEMA
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L530C L5-30R
30 r CRL530C L5-30R
30 r L630C L6-30R
30 r CRL630C L6-30R
30 r L730C L7-30R
30 r L830C L8-30R
30 r L930C L9-30R
30 r L1030C L10-30R
30 r L1130C L11-30R
30 r L1230C L12-30R
30 r L1330C L13-30R
30 r L1430C L14-30R
30 r CRL1430C L14-30R
2.20"
3.33"
30A Connector
WWW.LEGRAND.US/PASSANDSEYMOUR
R-117
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PSL515PGCM
Description: Ground Continuity Monitoring (GCM) Locking Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15P
3rd Party Compliance: cULus Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use Receptacles and
Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
*Dust Shield for 20 & 30 Amp Plugs. Consult Turnlok® Section G for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage: 15A = 1600V minimum, 20 & 30A = 2200V minimum
Maximum Working Voltage: 15A = 277VAC, 20 & 30A = 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations: Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations: 15A = .230"–.720" diameter, 20 & 30A 3 Wire = .225"–1.150"
diameter, 20 & 30A 4 & 5 Wire = .225"–1.150" diameter
Terminal Identification: 15A = Green = Ground, White = Neutral, Brass = Hot
20 & 30A = "GR" and Green Color = Ground,
"WH" and white Color = Neutral, "X", "Y", "Z" = Hot
Terminal Accommodation: 15A = #18 AWG min. -#10 AWG max.
20A = #18 AWG min. - # 8 AWG max.
30A = #18 AWG min. - # 6 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body: Super Tough Nylon
Front Body: Nylon
Terminal Chamber: Polycarbonate
Cord Clamp: Nylon
Insert: Nylon
Dust Shield:* Neoprene
Blades: Brass
Terminal Clamp: 15A = Zinc-Plated Steel
20A = Nickel-Plated Steel
30A = Brass
Terminal Screws: 15A = Nickel- or Brass-Plated Steel
20 & 30A = Brass
Ground Screws: 15A = Nickel-Plated Steel
20 & 30A = Brass
Cord Clamp Screws: Nickel-Plated Steel
Assembly Screws: Nickel-Plated Steel
Technical SpecificaTionS
Turnlok® Heavy-Duty Ground Continuity Monitoring (GCM) Plugs
15, 20 & 30A; 125, 250, 277 & 347V, 125/250V
NEMA
L6-20P
NEMA
L6-15P
NEMA
L14-20P
NEMA
L6-30P
NEMA
L5-20P
NEMA
L5-15P
NEMA
L7-15P
NEMA
L5-30P
NEMA
L14-30P
NEMA
L7-20P
NEMA
L24-20P
NEMA
L7-30P
15A Plug
1.358"
1.516"
1.752"
1.844"
2.617"
2.20"
2.57"
3.75"
20 & 30A Plug
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PSL515PGCM 15 125 L5-15P
r L520PGCM 20 125 L5-20P
r L530PGCM 30 125 L5-30P
r PSL615PGCM 15 250 L6-15P
r L620PGCM 20 250 L6-20P
r L630PGCM 30 250 L6-30P
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PSL715PGCM 15 277 L7-15P
r L720PGCM 20 277 L7-20P
r L730PGCM 30 277 L7-30P
r L3720PGCM 20 347 L24-20P
r L1420PGCM 20 125/250 L14-20P
r L1430PGCM 30 125/250 L14-30P
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-118
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Turnlok® Heavy-Duty Ground Continuity Monitoring (GCM) Connectors
15, 20 & 30A; 125, 250, 277 & 347V, 125/250V
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PSL515CGCM
Description: Ground Continuity Monitoring (GCM) Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use Receptacles and
Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
*Dust Shield for 20 & 30A Connectors. Consult Turnlok® Section G for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage: 15A = 1600V minimum, 20 & 30A = 2200V minimum
Maximum Working Voltage: 15A = 277VAC, 20 & 30A = 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations: Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations : 15A = .230"–.720" diameter, 20 & 30A 3 Wire = .225"–1.150"
diameter, 20 & 30A 4 & 5 Wire = .225"–1.150" diameter
Terminal Identification: 15A = Green = Ground, White = Neutral, Brass = Hot
20 & 30A = "GR" and Green Color = Ground,
"WH" and white Color = Neutral, "X", "Y", "Z" = Hot
Terminal Accommodation: 15A = #18 AWG min. - #10 AWG max.
20A = #18 AWG min. - #8 AWG max.
30A = #18 AWG min. - #6 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance,
NEMA Configurationhot stamped onto device
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body: Super Tough Nylon
Front Body: Nylon
Terminal Chamber: Polycarbonate
Cord Clamp: Nylon
Insert: Nylon
Dust Shield:* Neoprene
Contacts: Brass
Terminal Clamp: 15A = Zinc-Plated Steel
20A = Nickel-Plated Steel
30A = Brass
Terminal Screws: 15A = Nickel- or Brass-Plated Steel
20 & 30A = Brass
Ground Screws: 15A = Nickel-Plated Steel
20 & 30A = Brass
Cord Clamp Screws: Nickel-Plated Steel
Assembly Screws: Nickel-Plated Steel
NEMA
L6-20R
NEMA
L6-15R
NEMA
L14-20R
NEMA
L6-30R
NEMA
L5-20R
NEMA
L5-15R
NEMA
L7-15R
NEMA
L5-30R
NEMA
L14-30R
NEMA
L7-20R
NEMA
L24-20R
NEMA
L7-30R
2.20"
3.33"
30A Connector
15A Connector
1.516" 1.358"
1.752"
2.598"
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PSL515CGCM 15 125 L5-15R
r L520CGCM 20 125 L5-20R
r L530CGCM 30 125 L5-30R
r PSL615CGCM 15 250 L6-15R
r L620CGCM 20 250 L6-20R
r L630CGCM 30 250 L6-30R
CATALOG
NUMBER RATING
NEMA
CONFIG. NO.
r PSL715CGCM 15 277 L7-15R
r L720CGCM 20 277 L7-20R
r L730CGCM 30 277 L7-30R
r L3720CGCM 20 347 L24-20R
r L1420CGCM 20 125/250 L14-20R
r L1430CGCM 30 125/250 L14-30R
WWW.LEGRAND.US/PASSANDSEYMOUR
R-119
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
15A Turnlok® Flanged Inlets & Outlets
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® 4715SS
Description: Locking Flanged Outlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA L5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Consult Turnlok® Section G for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage: 2000V minimum
Maximum Working Voltage: 277VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #18 AWG min. – #10 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +115°C, minimum -40°C without impact
Materials
Inlet Outlet
Flanged Casing: Polycarbonate Polycarbonate
Body Contact: Polycarbonate Polycarbonate
Blades: Nickel-Plated Brass Brass
Terminal Clamp: Zinc-Plated Steel Zinc-Plated Steel
Terminal Screws: Zinc- or Brass-Plated Steel Zinc- or Brass-Plated Steel
Ground Screws: Zinc-Plated Steel Zinc-Plated Steel
Assembly Screws: Zinc-Plated Steel Zinc-Plated Steel NEMA
5-15P
NEMA
5-15R
4716SS
2.0"
.156"
2.562"
1.655"
1.725"
4715SS
2.0"
.156"
2.562"
1.374"
1.660"
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
15 r 4715SS L5-15R
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
15 r 4716SS L5-15P
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
R-120
TECHNICAL SPECIFICATIONS
Project
Location/Type
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L1520FI L15-20P
20 r L1620FI L16-20P
20 r L1820FI L18-20P
20 r L1920FI L19-20P
20 r L2020FI L20-20P
20 r L2120FI L21-20P
20 r L2220FI L22-20P
20 r L2220FIBK L22-20P
20 r L2320FI L23-20P
Technical SpecificaTionS
20A Turnlok® Flanged Inlets
Performance
Electrical
Dielectric Withstand Voltage: 3000V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #12 AWG min. – #8 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +115°C, minimum -40°C without impact
Materials
Flanged Casing: Polycarbonate
Blade Holder: Polycarbonate
Blades: Brass
Terminal Clamp: Zinc-Plated Steel
Terminal Screws: Zinc- or Brass-Plated Steel
Ground Screws: Zinc-Plated Steel
Assembly Screws: Zinc-Plated Steel
Consult Turnlok®Section G for complete compliance listing.
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L520FI
Description: Locking Flanged Inlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
NEMA
L7-20P
NEMA
L8-20P
NEMA
L9-20P
NEMA
L10-20P
NEMA
L11-20P NEMA
L12-20P
NEMA
L14-20P
NEMA
L15-20P
NEMA
L16-20P
NEMA
L18-20P
NEMA
L21-20P
NEMA
L22-20P
NEMA
L23-20P
NEMA
L20-20P
NEMA
L19-20P
NEMA
L5-20P
NEMA
L6-20P
2.09"
ø.187"
1.65"
2.87"
3 HOLES ON ø2.50" C/L@ 120°
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L520FI L5-20P
20 r L620FI L6-20P
20 r L720FI L7-20P
20 r L820FI L8-20P
20 r L920FI L9-20P
20 r L1020FI L10-20P
20 r L1120FI L11-20P
20 r L1220FI L12-20P
20 r L1420FI L14-20P
WWW.LEGRAND.US/PASSANDSEYMOUR
R-121
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
20A Turnlok® Flanged Outlets
Performance
Electrical
Dielectric Withstand Voltage: 3000V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #12 AWG min. – #8 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +115°C, minimum -40°C without impact
Materials
Flanged Casing: Polycarbonate
Contact Carrier: Polycarbonate
Contacts: Brass
Terminal Clamp: Zinc-Plated Steel
Terminal Screws: Zinc- or Brass-Plated Steel
Ground Screws: Zinc-Plated Steel
Assembly Screws: Zinc-Plated Steel
Consult Turnlok® Section G for complete compliance listing.
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L520FO
Description: Locking Flanged Outlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2 No.
42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
NEMA
L7-20R
NEMA
L9-20R
NEMA
L11-20R
NEMA
L14-20R
NEMA
L16-20R
NEMA
L20-20R
NEMA
L19-20R
NEMA
L22-20R
NEMA
L24-20R
2.09"
1.34"
ø.187"
2.87"
3 HOLES ON ø2.50" C/L@ 120°
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L520FO L5-20P
20 r L620FO L6-20P
20 r L720FO L7-20P
20 r L820FO L8-20P
20 r L920FO L9-20P
20 r L1020FO L10-20P
20 r L1120FO L11-20P
20 r L1220FO L12-20P
20 r L1420FO L14-20P
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
20 r L1520FO L15-20P
20 r L1620FO L16-20P
20 r L1820FO L18-20P
20 r L1920FO L19-20P
20 r L2020FO L20-20P
20 r L2120FO L21-20P
20 r L2220FO L22-20P
20 r L2220FOBK L22-20P
20 r L2320FO L23-20P
20 r L3720FO L24-20P
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-122
TECHNICAL SPECIFICATIONS
Project
Location/Type
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L1530FI L15-30P
30 r L1530FIBK L15-30P
30 r L1630FI L16-30P
30 r L1730FI L17-30P
30 r L1830FI L18-30P
30 r L1930FI L19-30P
30 r L2030FI L20-30P
30 r L2130FI L21-30P
30 r L2230FI L22-30P
30 r L2230FIBK L22-30P
30 r L2330FI L23-30P
Technical SpecificaTionS
30A Turnlok®Flanged Inlets
Performance
Electrical
Dielectric Withstand Voltage: 3000V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #12 AWG min. – #8 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Flanged Casing: Polycarbonate
Blade Holder: Nylon
Blades: Tin-Plated Stresscon
Terminal Clamp: Brass
Terminal Screws: Brass
Ground Screws: Brass
Assembly Screws: Zinc-Plated Steel
Consult Turnlok®Section G for complete compliance listing.
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L530FI
Description: Locking Flanged Inlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 rL530FI L5-30P
30 r L630FI L6-30P
30 r L730FI L7-30P
30 r L830FI L8-30P
30 r L930FI L9-30P
30 r L1030FI L10-30P
30 r L1130FI L11-30P
30 r L1230FI L12-30P
30 r L1430FI L14-30P
2.26"
3.12"
1.750"
ø.187"
3 HOLES ON ø2.72" C/L @ 120°
NEMA
L5-30P
NEMA
L6-30P
NEMA
L7-30P
NEMA
L8-30P
NEMA
L9-30P
NEMA
L10-30P
NEMA
L11-30P
NEMA
L12-30P
NEMA
L13-30P
NEMA
L14-30P
NEMA
L15-30P
NEMA
L16-30P
NEMA
L18-30P
NEMA
L19-30P
NEMA
L20-30P
NEMA
L21-30P
NEMA
L17-30P
NEMA
L22-30P
NEMA
L23-30P
WWW.LEGRAND.US/PASSANDSEYMOUR
R-123
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
30A Turnlok®Flanged Outlets
Performance
Electrical
Dielectric Withstand Voltage: 3000V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification: Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation: #12 AWG min. – #8 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability: UL94 V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Materials
Flanged Casing: Polycarbonate
Contact Carrier: Nylon
Contacts: Tin-Plated Brass
Terminal Clamp: Brass- or Nickel-Plated Steel
Terminal Screws: Brass- or Nickel-Plated Steel
Ground Screws: Nickel-Plated Brass
Assembly Screws: Zinc-Plated Steel
Consult Turnlok®Section G for complete compliance listing.
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® L530FO
Description: Locking Flanged Outlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L530FO L5-30R
30 r L630FO L6-30R
30 r L730FO L7-30R
30 r L830FO L8-30R
30 r L930FO L9-30R
30 r L1030FO L10-30R
30 r L1130FO L11-30R
30 r L1230FO L12-30R
30 r L1330FO L13-30R
30 r L1430FO L14-30R
AMPS
CATALOG
NUMBER
NEMA
CONFIG. NO.
30 r L1530FO L15-30R
30 r L1530FOBK L15-30R
30 r L1630FO L16-30R
30 r L1730FO L17-30R
30 r L1830FO L18-30R
30 r L1930FO L19-30R
30 r L2030FO L20-30R
30 r L2130FO L21-30R
30 r L2230FO L22-30R
30 r L2230FOBK L22-30R
30 r L2330FO L23-30R
2.26"
3.12"
ø.187"
1.765"
3 HOLES ON ø2.72" C/L @ 120°
NEMA
L5-30R
NEMA
L6-30R
NEMA
L7-30R
NEMA
L8-30R
NEMA
L9-30R
NEMA
L10-30R
NEMA
L11-30R
NEMA
L12-30R
NEMA
L13-30R
NEMA
L14-30R
NEMA
L15-30R
NEMA
L16-30R
NEMA
L18-30R
NEMA
L19-30R
NEMA
L20-30R
NEMA
L21-30R
NEMA
L17-30R
NEMA
L22-30R
NEMA
L23-30R
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-124
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Cam-Type Devices Series 16 In-Line Connectors
Performance
Electrical
Dielectric Withstand Voltage: 2200V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Not for interrupting current
Temperature Rise: 45°C maximum
Mechanical
Cord Accommodation: Individual conductor, Type SC, SCE, SCT or W, 75°C, copper wire only
Terminal Accommodation: PS20 Series = #2 AWG min. – 2/0 AWG max.
PS40 Series = 2/0 AWG min. – 4/0 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Standards molded into external
product body
Environmental
Flammability: UL94V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Enclosure: NEMA Type 3R and 4
Materials
Body – Connectors: Thermoplastic Elastomer
Body – Panel Mounts: Nylon
Body – Adapters: Thermoplastic Elastomer
Terminal / Pin / Cam: Brass
Terminal Screw: Plated Steel
Retaining Screw: Plastic
Strain Relief Wire: Copper
Shim: Copper
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS40MBBK, PS40FBBK
Description: Series 16 Single Pole In-Line Connector
Type: Single Pole
Electrical Rating: 400A, 600V
Enclosure Rating: NEMA 3R, 4
3rd Party Compliance: UL Listed, File Number E111198, cCSAus Certified, File Number LR81290.
Applicable standards: UL50, Enclosures for Electrical Equipment, UL498, Attachment Plugs and
Receptacles, UL1682, Plugs, Receptacles and Cable Connectors of the Pin & Sleeve Type, CSA-C22.2 No.
65-93, Wire Connectors, CSA-C22.2 No. 94-M91, Special Purpose Enclosures, CSA-C22.2 No. 182.1-1988,
Industrial Type, Special Use Attachment Plugs, Receptacles. Conforms to NEMA WD-1 and WD-6.
PS40MBBK
PS40FBBK
6.875"
6.800"
*All ratings are both AC/DC.
CATALOG
NUMBER RATING* CABLE SIZE COLOR
r
PS20MBBK 400 600 #2 - 2/0 Black
r
PS20MBW 400 600 #2 - 2/0 White
r
PS20MBR 400 600 #2 - 2/0 Red
r
PS20MBBL 400 600 #2 - 2/0 Blue
r
PS20MBG 400 600 #2 - 2/0 Green
r
PS20MBBR 400 600 #2 - 2/0 Brown
r
PS20MBO 400 600 #2 - 2/0 Orange
r
PS20MBY 400 600 #2 - 2/0 Yellow
r
PS40MBBK 400 600 2/0 - 4/0 Black
r
PS40MBW 400 600 2/0 - 4/0 White
r
PS40MBR 400 600 2/0 - 4/0 Red
r
PS40MBBL 400 600 2/0 - 4/0 Blue
r
PS40MBG 400 600 2/0 - 4/0 Green
r
PS40MBBR 400 600 2/0 - 4/0 Brown
r
PS40MBO 400 600 2/0 - 4/0 Orange
r
PS40MBY 400 600 2/0 - 4/0 Yellow
CATALOG
NUMBER RATING* CABLE SIZE COLOR
r
PS20FBBK 400 600 #2 - 2/0 Black
r
PS20FBW 400 600 #2 - 2/0 White
r
PS20FBR 400 600 #2 - 2/0 Red
r
PS20FBBL 400 600 #2 - 2/0 Blue
r
PS20FBG 400 600 #2 - 2/0 Green
r
PS20FBBR 400 600 #2 - 2/0 Brown
r
PS20FBO 400 600 #2 - 2/0 Orange
r
PS20FBY 400 600 #2 - 2/0 Yellow
r
PS40FBBK 400 600 2/0 - 4/0 Black
r
PS40FBW 400 600 2/0 - 4/0 White
r
PS40FBR 400 600 2/0 - 4/0 Red
r
PS40FBBL 400 600 2/0 - 4/0 Blue
r
PS40FBG 400 600 2/0 - 4/0 Green
r
PS40FBBR 400 600 2/0 - 4/0 Brown
r
PS40FBO 400 600 2/0 - 4/0 Orange
r
PS40FBY 400 600 2/0 - 4/0 Yellow
WWW.LEGRAND.US/PASSANDSEYMOUR
R-125
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Cam-Type Devices Series 15 In-Line Connectors
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PSM2MBK, PSM2FBK
Description: Series 15 Single Pole In-Line Connector
Type: Single Pole
Electrical Rating: 150A, 600V
Enclosure Rating: NEMA 3R, 4
3rd Party Compliance: UL Listed, File Number E111198, cCSAus Certified, File Number LR81290. Applicable
standards: UL50, Enclosures for Electrical Equipment, UL498, Attachment Plugs and Receptacles, UL1682, Plugs,
Receptacles and Cable Connectors of the Pin & Sleeve Type, CSA-C22.2 No. 65-93, Wire Connectors, CSA-C22.2
No. 94-M91, Special Purpose Enclosures, CSA-C22.2 No. 182.1-1988, Industrial Type, Special Use Attachment
Plugs, Receptacles. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage: 2200V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Not for interrupting current
Temperature Rise: 45°C maximum
Mechanical
Cord Accommodation: Individual conductor, Type SC, SCE, SCT or W, 75°C, copper wire only
Terminal Accommodation: PSM Series = #8 AWG min. – #2 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Standards molded into
external product body
Environmental
Flammability: UL94V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Enclosure: NEMA Type 3R and 4
Materials
Body – Connectors: Thermoplastic Elastomer
Body – Panel Mounts: Nylon
Body – Adapters: Thermoplastic Elastomer
Terminal / Pin / Cam: Brass
Terminal Screw: Plated Steel
Retaining Screw: Plastic
Strain Relief Wire: Copper
Shim: Copper
PSM2MBK
PSM2FBK
4.300"
4.300"
CATALOG
NUMBER RATING* CABLE SIZE COLOR
r
PSM2MBK 150 600 #8 – #2 Black
r
PSM2MW 150 600 #8 – #2 White
r
PSM2MR 150 600 #8 – #2 Red
r
PSM2MBL 150 600 #8 – #2 Blue
r
PSM2MG 150 600 #8 – #2 Green
CATALOG
NUMBER RATING* CABLE SIZE COLOR
r
PSM2FBK 150 600 #8 – #2 Black
r
PSM2FW 150 600 #8 – #2 White
r
PSM2FR 150 600 #8 – #2 Red
r
PSM2FBL 150 600 #8 – #2 Blue
r
PSM2FG 150 600 #8 – #2 Green
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-126
TECHNICAL SPECIFICATIONS
Project
Location/Type
Performance
Electrical
Dielectric Withstand Voltage: 2200V minimum
Maximum Working Voltage: 600VAC
Current Interrupting: Not for interrupting current
Temperature Rise: 45°C maximum
Mechanical
Cord Accommodation: Individual conductor, Type SC, SCE, SCT or W, 75°C,
copper wire only
Terminal Accommodation: PLS182 Series = #6 AWG min. – #2 AWG max.
PLS1820 Series = #2 AWG min. – 2/0 AWG max.
PLS1840 Series = 2/0 AWG min. – 4/0 AWG max.
Product Identification: Amperage, Voltage, 3rd Party Compliance, NEMA Standards molded into
external product body
Environmental
Flammability: UL94V2
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Enclosure: NEMA Type 3R and 4
Materials
Body – Connectors: Thermoplastic Elastomer
Body – Panel Mounts: Nylon
Body – Adapters: Thermoplastic Elastomer
Terminal / Pin / Cam: Brass
Terminal Screw: Plated Steel
Retaining Screw: Plastic
Strain Relief Wire: Copper
Shim: Copper
Technical SpecificaTionS
Cam-Type Devices Series 18 In-Line Connectors
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PLS182MBK, PLS182FBK
Description: Series 18 Single Pole In-Line Connector
Type: Single Pole
Electrical Rating: 400A, 600V
Enclosure Rating: NEMA 3R, 4
3rd Party Compliance: UL Listed, File Number E111198, cCSAus Certified, File Number LR81290. Applicable standards: UL50, Enclosures
for Electrical Equipment, UL498, Attachment Plugs and Receptacles, UL1682, Plugs, Receptacles and Cable Connectors of the Pin &
Sleeve Type, CSA-C22.2 No. 65-93, Wire Connectors, CSA-C22.2 No. 94-M91, Special Purpose Enclosures, CSA-C22.2 No. 182.1-1988,
Industrial Type, Special Use Attachment Plugs, Receptacles. Conforms to NEMA WD-1 and WD-6.
PLS182MBK
PLS182FBK
6.875"
6.800"
*All ratings are both AC/DC.
CATALOG
NUMBER RATING* CABLE SIZE COLOR
r
PLS182MBK 400 600 #6 - #2 Black
r
PLS182MW 400 600 #6 - #2 White
r
PLS182MR 400 600 #6 - #2 Red
r
PLS182MBL 400 600 #6 - #2 Blue
r
PLS182MG 400 600 #6 - #2 Green
r
PLS1820MBK 400 600 #2 - 2/0 Black
r
PLS1820MW 400 600 #2 - 2/0 White
r
PLS1820MR 400 600 #2 - 2/0 Red
r
PLS1820MBL 400 600 #2 - 2/0 Blue
r
PLS1820MG 400 600 #2 - 2/0 Green
r
PLS1840MBK 400 600 4/0 Black
r
PLS1840MBL 400 600 4/0 Blue
CATALOG
NUMBER RATING* CABLE SIZE COLOR
r
PLS182FBK 400 600 #6 - #2 Black
r
PLS182FW 400 600 #6 - #2 White
r
PLS182FR 400 600 #6 - #2 Red
r
PLS182FBL 400 600 #6 - #2 Blue
r
PLS182FG 400 600 #6 - #2 Green
r
PLS1820FBK 400 600 #2 - 2/0 Black
r
PLS1820FW 400 600 #2 - 2/0 White
r
PLS1820FR 400 600 #2 - 2/0 Red
r
PLS1820FBL 400 600 #2 - 2/0 Blue
r
PLS1820FG 400 600 #2 - 2/0 Green
r
PLS1840FBK 400 600 4/0 Black
r
PLS1840FBL 400 600 4/0 Blue
WWW.LEGRAND.US/PASSANDSEYMOUR
R-127
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Technical SpecificaTionS
Configuration & Clocking System
North American Catalog Numbering System
Catalog numbers within the North American product offering are
structured to communicate the following: manufacturer, number
of conductors, amperage rating, device type, clocking position of
the ground sleeve, and environmental rating. This applies to all
receptacles, inlets, plugs, and connectors in the Pass & Seymour®
North American Pin & Sleeve product line (see sample below).
Here’s How It Works
The amperage rating is determined by the size of the device.
Voltage rating is determined by the location of the ground sleeve
on the receptacle and/or connector along with the number of
conductors.
Ground sleeve position for all connectors and receptacles
is based on a clock face with the keyway always being at 6
o’clock. The ground sleeve is positioned at a specific hour point,
depending on the device’s voltage rating.
The clocking position for plugs and inlets is a mirror image of the
mating device, allowing for interconnection.
In addition, voltage ratings for all Pin & Sleeve products are color
coded for visual identification.
IEC 309 Clocking System
PREFIX
PS
=
PASS &
SEYMOUR
1ST DIGIT
3 = 3 WIRE
4 = 4 WIRE
5 = 5 WIRE
2ND-4TH DIGIT
20 = 20 AMP
30 = 30 AMP
60 = 60 AMP
100 = 100 AMP
LETTER
R = RECEPTACLE
P = PLUG
C = CONNECTOR
B = INLET
CLOCK POSITION
POSITION OF
GROUNDING
SLEEVE
WATERTIGHT
OR
SPLASHPROOF
W = WATERTIGHT
S = SPLASHPROOF
P S 4 6 0 R 7 W
North American Catalog Numbering System
12
3
9
6
1
2
11
10
8
75
4
125/250VAC 3 POLE, 4 WIRE
277VAC 2 POLE, 3 WIRE
250VAC 2 POLE, 3 WIRE
380-415VAC 3 POLE, 4 WIRE
220/380-240/415VAC 4 POLE, 5 WIRE
480VAC 2 POLE, 3 WIRE
3ø 480VAC 3 POLE, 4 WIRE
3øY 277VAC 4 POLE, 5 WIRE
3ø 250VAC
3 POLE, 4 WIRE
3øY 120/208VAC
4 POLE, 5 WIRE
380-415VAC
2 POLE, 3 WIRE
250VDC
2 POLE, 3 WIRE
380/440VAC
3 POLE, 4 WIRE
(REFRIGERANT
CONTAINERS)
125VAC 2 POLE, 3 WIRE
600VAC 3 POLE, 4 WIRE
600VAC 4 POLE, 5 WIRE
s
Application
Specific
50-500VAC
300-500 Hz
2 POLE, 3 WIRE
3 POLE, 4 WIRE
4 POLE, 5 WIRE
50-500VAC
100-300 Hz
3 POLE, 4 WIRE
Adapting To Worldwide Configuration Standards
Application
Legrand’s Pass & Seymour® Pin & Sleeve products are designed
to meet IEC 309-1, 309-2 specifications. These specifications are
recognized around the world and are intended to prevent the mating
of plugs and receptacles of different voltage and current ratings
(see Section 406.3(F) of the National Electrical Code® relating to this
noninterchangeability feature).
Global Product Offering
Legrand provides IEC 309-1, 309-2 Pass & Seymour® Pin & Sleeve
products in both Series I (International) and Series II (North
American) current ratings:
Series I (International) 16, 32, 63, 125 Amps
Series II (North American) 20, 30, 60, 100 Amps
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-128
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Receptacles 20, 30, 60 & 100A
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS460R7W
Description: Receptacle, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Watertight (IP67)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
*Application specific.
AMPS
POLES
& WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR CODING
CATALOG
NUMBER
20 r 2P3W 125 PS320R4W
20 r2P3W 250 PS320R6W
20 r2P3W 480 PS320R7W
20 r2P3W 277 PS420R12W
20 r3P4W 125/250 PS420R12W
20 r3P4W 3Ø250 PS420R9W
20 r3P4W 3Ø480 PS420R7W
20 r3P4W 3Ø600 PS420R5W
20 r4P5W 3ØY120/208 PS520R9W
20 r4P5W 3ØY277/480 PS520R7W
20 r4P5W 3ØY347/600 PS520R5W
AMPS
POLES
& WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR CODING
CATALOG
NUMBER
30 r2P3W 125 PS330R4W
30 r2P3W 250 PS330R6W
30 r2P3W 480 PS330R7W
30 r3P4W 125/250 PS430R12W
30 r3P4W 3Ø250 PS430R9W
30 r3P4W 3Ø480 PS430R7W
30 r3P4W 3Ø600 PS430R5W
30 r3P4W 380/440 PS430R3W*
30 r4P5W 3ØY120/208 PS530R9W
30 r4P5W 3ØY277/480 PS530R7W
30 r4P5W 3ØY347/600 PS530R5W
AMPS
POLES
& WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR CODING
CATALOG
NUMBER
60 r2P3W 125 PS360R4W
60 r2P3W 250 PS360R6W
60 r2P3W 480 PS360R7W
60 r3P4W 125/250 PS460R12W
60 r3P4W 3Ø250 PS460R9W
60 r3P4W 3Ø480 PS460R7W
60 r3P4W 3Ø600 PS460R5W
60 r4P5W 3ØY120/208 PS560R9W
60 r4P5W 3ØY277/480 PS560R7W
60 r4P5W 3ØY347/600 PS560R5W
AMPS
POLES
& WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR CODING
CATALOG
NUMBER
100 r2P3W 125 PS3100R4W
100 r2P3W 250 PS3100R6W
100 r2P3W 480 PS3100R7W
100 r3P4W 125/250 PS4100R12W
100 r3P4W 3Ø250 PS4100R9W
100 r3P4W 3Ø480 PS4100R7W
100 r3P4W 3Ø600 PS4100R5W
100 r4P5W 3ØY120/208 PS5100R9W
100 r4P5W 3ØY277/480 PS5100R7W
100 r4P5W 3ØY347/600 PS5100R5W
WWW.LEGRAND.US/PASSANDSEYMOUR
R-129
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Receptacles 20, 30, 60 & 100A
Performance
Electrical
Dielectric Voltage Withstand: 3000V maximum
Maximum Working Voltage:** 600V RMS, 60Hz - 400Hz
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance: 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance: Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention: Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation: Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification: Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification: Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance: Watertight per IEC 309-1.
Flammability: Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature: +80°C maximum continuous, -50°C minimum without impact
Materials 20 Amp 30 Amp 60 Amp 100 Amp
Housing: Polyamide 6 Polyamide 6 Valox Valox
Cover Polyamide 66 Polyamide 66 Valox Valox
Cover Spring: Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Sealing Gasket: Neoprene Neoprene Neoprene Neoprene
Mounting Gasket: Neoprene Neoprene Neoprene Neoprene
Contact Carrier: Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Sleeves: Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate
Terminal Screws: Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
E
F
CB
AMPS WIRE CONFIG. A B C D E F
WATERTIGHT RECEPTACLES
20
2 Pole, 3 Wire inch 2.85 1.80 1.60 3.40 2.05 2.36
3 Pole, 4 Wire inch 3.20 1.90 1.60 3.80 2.36 2.75
4 Pole, 5 Wire inch 3.40 2.00 1.70 3.80 2.36 2.75
30
2 Pole, 3 Wire inch 3.72 2.60 1.80 4.30 2.75 3.15
3 Pole, 4 Wire inch 3.72 2.60 1.90 4.30 2.75 3.15
4 Pole, 5 Wire inch 3.98 2.70 1.95 4.30 2.75 3.15
60
2 Pole, 3 Wire inch 4.20 3.10 3.50 5.00 3.03 3.35
3 Pole, 4 Wire inch 4.20 3.10 3.50 5.00 3.03 3.35
4 Pole, 5 Wire inch 4.20 3.10 3.50 5.00 3.03 3.35
100
2 Pole, 3 Wire inch 5.20 2.20 4.40 5.60 4.88 4.88
3 Pole, 4 Wire inch 5.20 2.20 4.40 5.60 4.88 4.88
4 Pole, 5 Wire inch 5.20 2.20 4.40 5.60 4.88 4.88
Specimen
**Rated for copper wire only.
A
D
CB
E
F
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-130
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Plugs 20, 30, 60 & 100A
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS460P7W
Description: Plug, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Watertight (IP67)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2;
UL Classified to IEC 309-1 and IEC 309-2
*Application specific.
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
20 r2P3W 125 PS320P4W
20 r2P3W 250 PS320P6W
20 r2P3W 480 PS320P7W
20 r2P3W 277 PS320P5W
20 r3P4W 125/250 PS420P12W
20 r3P4W 3Ø250 PS420P9W
20 r3P4W 3Ø480 PS420P7W
20 r3P4W 3Ø600 PS420P5W
20 r4P5W 3ØY120/208 PS520P9W
20 r4P5W 3ØY277/480 PS520P7W
20 r4P5W 3ØY347/600 PS520P5W
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
30 r2P3W 125 PS330P4W
30 r2P3W 250 PS330P6W
30 r2P3W 480 PS330P7W
30 r3P4W 125/250 PS430P9W
30 r3P4W 3Ø250 PS430P7W
30 r3P4W 3Ø480 PS430P5W
30 r4P5W 3Ø600 PS430P3W*
30 r4P5W 380/440 PS530P9W
30 r4P5W 3ØY120/208 PS530P7W
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
60 r2P3W 125 PS360P4W
60 r2P3W 250 PS360P6W
60 r2P3W 480 PS360P7W
60 r3P4W 125/250 PS460P12W
60 r3P4W 3Ø250 PS460P9W
60 r3P4W 3Ø480 PS460P7W
60 r3P4W 3Ø600 PS460P5W
60 r4P5W 3ØY120/208 PS560P9W
60 r4P5W 3ØY277/480 PS560P7W
60 r4P5W 3ØY347/600 PS560P5W
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
100 r2P3W 125 PS3100P4W
100 r2P3W 250 PS3100P6W
100 r2P3W 480 PS3100P7W
100 r3P4W 125/250 PS4100P12W
100 r3P4W 3Ø250 PS4100P9W
100 r3P4W 3Ø480 PS4100P7W
100 r3P4W 3Ø600 PS4100P5W
100 r4P5W 3ØY120/208 PS5100P9W
100 r4P5W 3ØY277/480 PS5100P7W
100 r4P5W 3ØY347/600 PS5100P5W
Cable Stripping Guide
DEVICE SIZE CONDUCTORS A B
INCHES MM INCHES MM
20 AMP All 1-1/8 29 1/2 12
30 AMP All 1-1/2 38 13/16 21
60 AMP All 2-3/4 70 13/16 21
100 AMP All 5-5/16 135 1-3/8 35
Tightening Guide
DEVICE SIZE TERMINAL SCREW CABLE CLAMP SCREW ASSEMBLY SCREW COMPRESSION NUT
INLBS NM INLBS NM INLBS NM INLBS NM
20 AMP 7 .8 6 .8 7 .8 18-36 2-4
30 AMP 7 .8 6 .8 7 .8 18-36 2-4
60 AMP 17 1.9 12 1.4 7 .8 45-90 5-10
100 AMP 70 7.9 15 1.8 7 .8 45-90 5-10
WWW.LEGRAND.US/PASSANDSEYMOUR
R-131
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Plugs 20, 30, 60 & 100A
Performance
Electrical
Dielectric Voltage Withstand: 3000V maximum
Maximum Working Voltage:** 600V RMS, 60Hz - 400Hz
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance: 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage
applied on every other cycle
Mechanical
Impact Resistance: Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention: Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation: Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification: Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification: Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance: Watertight per IEC 309-1.
Flammability: Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature: +80°C maximum continuous, -50°C minimum without impact
Materials 20 Amp 30 Amp 60 Amp 100 Amp
Housing: Polyamide 6 Polyamide 6 Valox Valox
Locking Ring: Polyamide 66 Polyamide 66 Valox Valox
Sealing Gasket: Neoprene Neoprene Neoprene Neoprene
Housing Gasket: Neoprene Neoprene Neoprene Neoprene
Back Body: Polyamide 6 Polyamide 6 Valox Valox
Contact Carrier: Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Pins: Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate
Terminal Screws: Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Cord Grip: Polyamide 6 Polyamide 6 Polyamide 66 Polyamide 66
Grommet: Natural Rubber Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws: Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Assembly Screws: Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Specimen
B
A
D
AMPS WIRE CONFIG. A B C D E F
WATERTIGHT CONNECTORS
20
2 Pole, 3 Wire inch 5.30 2.85 .31-.59
3 Pole, 4 Wire inch 5.50 3.20 .31-.59
4 Pole, 5 Wire inch 6.00 3.40 .39-.71
30
2 Pole, 3 Wire inch 6.50 3.70 .39-.71
3 Pole, 4 Wire inch 6.50 3.70 .47-.87
4 Pole, 5 Wire inch 6.70 3.98 .47-.87
60
2 Pole, 3 Wire inch 10.00 4.50 .63-1.04
3 Pole, 4 Wire inch 10.00 4.50 .73-1.14
4 Pole, 5 Wire inch 10.00 4.50 .80-1.26
100
2 Pole, 3 Wire inch 13.40 5.20 .59-1.97
3 Pole, 4 Wire inch 13.40 5.20 .59-1.97
4 Pole, 5 Wire inch 13.40 5.20 .59-1.97
**Rated for copper wire only.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-132
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Connectors 20, 30, 60 & 100A
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS460C7W
Description: Connector, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Watertight (IP67)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
*Application specific.
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
20 r 2P3W 125 PS320C4W
20 r 2P3W 250 PS320C6W
20 r 2P3W 480 PS320C7W
20 r 2P3W 277 PS320C5W
20 r 3P4W 125/250 PS420C12W
20 r 3P4W 3Ø250 PS420C9W
20 r 3P4W 3Ø480 PS420C7W
20 r 3P4W 3Ø600 PS420C5W
20 r 4P5W 3ØY120/208 PS520C9W
20 r 4P5W 3ØY277/480 PS520C7W
20 r 4P5W 3ØY347/600 PS520C5W
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
30 r 2P3W 125 PS330C4W
30 r 2P3W 250 PS330C6W
30 r 2P3W 480 PS330C7W
30 r 3P4W 125/250 PS430C12W
30 r 3P4W 3Ø250 PS430C9W
30 r 3P4W 3Ø480 PS430C7W
30 r 3P4W 3Ø600 PS430C5W
30 r 3P4W 380/440 PS430C3W*
30 r 4P5W 3ØY120/208 PS530C9W
30 r 4P5W 3ØY277/480 PS530C7W
30 r 4P5W 3ØY347/600 PS530C5W
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
60 r 2P3W 125 PS360C4W
60 r 2P3W 250 PS360C6W
60 r 2P3W 480 PS360C7W
60 r 3P4W 125/250 PS460C12W
60 r 3P4W 3Ø250 PS460C9W
60 r 3P4W 3Ø480 PS460C7W
60 r 3P4W 3Ø600 PS460C5W
60 r 4P5W 3ØY120/208 PS560C9W
60 r 4P5W 3ØY277/480 PS560C7W
60 r 4P5W 3ØY347/600 PS560C5W
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
100 r 2P3W 125 PS3100C4W
100 r 2P3W 250 PS3100C6W
100 r 2P3W 480 PS3100C7W
100 r 3P4W 125/250 PS4100C12W
100 r 3P4W 3Ø250 PS4100C9W
100 r 3P4W 3Ø480 PS4100C7W
100 r 3P4W 3Ø600 PS4100C5W
100 r 4P5W 3ØY120/208 PS5100C9W
100 r 4P5W 3ØY277/480 PS5100C7W
100 r 4P5W 3ØY347/600 PS5100C5W
Cable Stripping Guide
DEVICE SIZE CONDUCTORS A B
INCHES MM INCHES MM
20 AMP All 1-1/8 29 1/2 12
30 AMP All 1-1/2 38 13/16 21
60 AMP All 2-3/4 70 13/16 21
100 AMP All 5-5/16 135 1-3/8 35
Tightening Guide
DEVICE SIZE TERMINAL SCREW CABLE CLAMP SCREW ASSEMBLY SCREW COMPRESSION NUT
INLBS NM INLBS NM INLBS NM INLBS NM
20 AMP 7 .8 6 .8 7 .8 18-36 2-4
30 AMP 7 .8 6 .8 7 .8 18-36 2-4
60 AMP 17 1.9 12 1.4 7 .8 45-90 5-10
100 AMP 70 7.9 15 1.8 7 .8 45-90 5-10
WWW.LEGRAND.US/PASSANDSEYMOUR
R-133
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Connectors 20, 30, 60 & 100A
Performance
Electrical
Dielectric Voltage Withstand: 3000V maximum
Maximum Working Voltage:** 600V RMS, 60Hz - 400Hz
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance: 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance: Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention: Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation: Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification: Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification: Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance: Watertight per IEC 309-1.
Flammability: Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature: +80°C maximum continuous, -50°C minimum without impact
Materials 20 Amp 30 Amp 60 Amp 100 Amp
Housing: Polyamide 6 Polyamide 6 Valox Valox
Cover: Polyamide 66 Polyamide 66 Valox Valox
Cover Spring: Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Sealing Gasket: Neoprene Neoprene Neoprene Neoprene
Housing Gasket: Neoprene Neoprene Neoprene Neoprene
Back Body: Polyamide 6 Polyamide 6 Valox Valox
Contact Carrier: Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Sleeves: Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate
Terminal Screws: Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Cord Grip: Polyamide 6 Polyamide 6 Polyamide 66 Polyamide 66
Grommet: Natural Rubber Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws: Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Assembly Screws: Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Specimen
C
A
D
B
AMPS WIRE CONFIG. A B C D E F
WATERTIGHT CONNECTORS
20
2 Pole, 3 Wire inch 5.90 2.85 3.00 .31-.59
3 Pole, 4 Wire inch 6.00 3.20 3.40 .31-.59
4 Pole, 5 Wire inch 6.70 3.40 3.50 .39-.71
30
2 Pole, 3 Wire inch 7.00 3.70 3.90 .39-.71
3 Pole, 4 Wire inch 7.00 3.70 3.90 .47-.87
4 Pole, 5 Wire inch 7.30 3.98 4.10 .47-.87
60
2 Pole, 3 Wire inch 10.90 4.50 4.70 .63-1.04
3 Pole, 4 Wire inch 10.90 4.50 4.70 .73-1.14
4 Pole, 5 Wire inch 10.90 4.50 4.70 .80-1.26
100
2 Pole, 3 Wire inch 14.30 5.20 5.30 .59-1.97
3 Pole, 4 Wire inch 14.30 5.20 5.30 .59-1.97
4 Pole, 5 Wire inch 14.30 5.20 5.30 .59-1.97
**Rated for copper wire only.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-134
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Inlets 60 & 100A
Performance
Electrical
Dielectric Voltage Withstand: 3000V maximum
Maximum Working Voltage:** 600V RMS, 60Hz - 400Hz
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of 150% overload
(at 0.75 to 0.80 power factor)
Endurance: 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance: Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention: Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation: Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification: Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification: Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance: Watertight per IEC 309-1.
Flammability: Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature: +80°C maximum continuous, -50°C minimum without impact
Specimen
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS460B7W
Description: Inlet, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Watertight (IP67)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
60 r 2P3W 125 PS360B4W
60 r 2P3W 250 PS360B6W
60 r 2P3W 480 PS360B7W
60 r 3P4W 125/250 PS460B12W
60 r 3P4W 3Ø250 PS460B9W
60 r 3P4W 3Ø480 PS460B7W
60 r 3P4W 3Ø600 PS460B5W
60 r 4P5W 3ØY120/208 PS560B9W
60 r 4P5W 3ØY277/480 PS560B7W
60 r 4P5W 3ØY347/600 PS560B5W
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
100 r 2P3W 125
PS3100B6W
100 r 2P3W 250
PS3100B7W
100 r 3P4W 480
PS4100B12W
100 r 3P4W 125/250
PS4100B9W
100 r 3P4W 3Ø250
PS4100B7W
100 r 3P4W 3Ø480
PS4100B5W
100 r 4P5W 3Ø600
PS5100B9W
100 r 4P5W 3ØY120/208
PS5100B7W
100 r 4P5W 3ØY277/480
PS5100B5W
**Rated for copper wire only.
WWW.LEGRAND.US/PASSANDSEYMOUR
R-135
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Inlets 60 & 100A
Materials 60 Amp 100 Amp
Housing: Valox Valox
Mounting Flange: Valox Valox
Locking Ring: Valox Valox
Sealing Gasket: Neoprene Neoprene
Mounting Gasket: Neoprene Neoprene
Contact Carrier: Polyamide 6 Polyamide 6
Pins: Brass with Nickel Plate Brass with Nickel Plate
Terminal Screws: Zinc-Plated Steel Zinc-Plated Steel
A
B
E
F
AMPS WIRE CONFIG. A B C D E F
WATERTIGHT INLETS
60
2 Pole, 3 Wire inch 4.50 4.25 3.03 3.35
3 Pole, 4 Wire inch 4.50 4.25 3.03 3.35
4 Pole, 5 Wire inch 4.50 4.25 3.03 3.35
100
2 Pole, 3 Wire inch 5.75 5.71 4.88 4.88
3 Pole, 4 Wire inch 5.75 5.71 4.88 4.88
4 Pole, 5 Wire inch 5.75 5.71 4.88 4.88
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-136
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Splashproof Pin & Sleeve Receptacles 20, 30 & 60A
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS460R7S
Description: Receptacle, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Splashproof (IP44)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
20 r 2P3W 125 PS320R4S
20 r 2P3W 250 PS320R6S
20 r 2P3W 277 PS320R5S
20 r 3P4W 125/250 PS420R12S
20 r 3P4W 3Ø250 PS420R9S
20 r 3P4W 3Ø480 PS420R7S
20 r 3P4W 3Ø600 PS420R5S
20 r 4P5W 3ØY120/208 PS520R9S
20 r 4P5W 3ØY347/600 PS520R5S
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
30 r 2P3W 125 PS330R4S
30 r 2P3W 250 PS330R6S
30 r 3P4W 125/250 PS430R12S
30 r 3P4W 3Ø250 PS430R9S
30 r 3P4W 3Ø480 PS430R7S
30 r 3P4W 3Ø600 PS430R5S
30 r 4P5W 3ØY120/208 PS530R9S
30 r 4P5W 3ØY347/600 PS530R5S
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
60 r 2P3W 250 PS360R6S
60 r 2P3W 480 PS360R7S
60 r 3P4W 125/250 PS460R12S
60 r 3P4W 3Ø250 PS460R9S
60 r 3P4W 3Ø480 PS460R7S
60 r 3P4W 3Ø600 PS460R5S
60 r 4P5W 3ØY120/208 PS560R9S
60 r 4P5W 3ØY277/480 PS560R7S
60 r 4P5W 3ØY347/600 PS560R5S
WWW.LEGRAND.US/PASSANDSEYMOUR
R-137
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Performance
Electrical
Dielectric Voltage Withstand: 3000V maximum
Maximum Working Voltage:** 600V RMS, 60Hz - 400Hz
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance: 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance: Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention: Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation: Round portable service cords. Diameters commensurate with the device rating as defined in UL62, CSA
C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification: Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification: Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance: Watertight per IEC 309-1.
Flammability: Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature: +80°C maximum continuous, -50°C minimum without impact
Specimen
Technical SpecificaTionS
Splashproof Pin & Sleeve Receptacles 20, 30 & 60A
Materials 20 Amp 30 Amp 60 Amp
Housing: Polyamide 6 Polyamide 6 Valox
Cover: Polyamide 66 Polyamide 66 Valox
Cover Spring: Stainless Steel Stainless Steel Stainless Steel
Mounting Gasket: Neoprene Neoprene Neoprene
Contact Carrier: Polyamide 6 Polyamide 6 Polyamide 6
Sleeves: Brass Brass Brass with Nickel Plate
Terminal Screws: Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
F
E
A
D
CB
AMPS WIRE CONFIG. A B C D E F
SPLASHPROOF RECEPTACLES
20
2 Pole, 3 Wire inch 2.50 1.57 1.60 3.10 2.05 2.36
3 Pole, 4 Wire inch 2.90 1.57 1.73 3.46 2.36 2.75
4 Pole, 5 Wire inch 2.90 1.73 1.73 3.66 2.36 2.75
30
2 Pole, 3 Wire inch 3.30 2.10 1.97 4.06 2.75 3.15
3 Pole, 4 Wire inch 3.30 2.10 1.97 4.06 2.75 3.15
4 Pole, 5 Wire inch 3.30 2.20 2.05 4.20 2.75 3.15
60
2 Pole, 3 Wire inch 4.20 3.50 2.76 5.08 3.03 3.35
3 Pole, 4 Wire inch 4.20 3.50 2.76 5.08 3.03 3.35
4 Pole, 5 Wire inch 4.20 3.50 2.76 5.08 3.03 3.35
**Rated for copper wire only.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-138
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Splashproof Pin & Sleeve Plugs 20, 30 & 60A
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS320P4S
Description: Plug, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Splashproof (IP44)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
30 r 2P3W 125 PS330P4S
30 r 2P3W 250 PS330P6S
30 r 2P3W 480 PS330P7S
30 r 3P4W 3ø250 PS430P9S
30 r 3P4W 3ø480 PS430P7S
30 r 3P4W 3ø600 PS430P5S
30 r 4P5W 3øY120/208 PS530P9S
30 r 4P5W 3øY277/480 PS530P7S
30 r 4P5W 3øY347/600 PS530P5S
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
20 r 2P3W 125 PS320P4S
20 r 2P3W 250 PS320P6S
20 r 2P3W 277 PS320P5S
20 r 3P4W 125/250 PS420P12S
20 r 3P4W 3ø250 PS420P9S
20 r 3P4W 3ø480 PS420P7S
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
60 r 2P3W 250 PS360P6S
60 r 2P3W 480 PS360P7S
60 r 3P4W 125/250 PS460P12S
60 r 3P4W 3ø250 PS460P9S
60 r 3P4W 3ø480 PS460P7S
60 r 3P4W 3ø600 PS460P5S
60 r 4P5W 3øY120/208 PS560P9S
60 r 4P5W 3øY277/480 PS560P7S
60 r 4P5W 3øY347/600 PS560P5S
WWW.LEGRAND.US/PASSANDSEYMOUR
R-139
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Performance
Electrical
Dielectric Voltage Withstand: 3000V maximum
Maximum Working Voltage:** 600V RMS, 60Hz-400Hz
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of
150% overload (at 0.75 to 0.80 power factor)
Endurance: 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance: Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention: Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation: Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification: Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification: Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance: Watertight per IEC 309-1.
Flammability: Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature: +80°C maximum continuous, -50°C minimum without impact
Specimen
Technical SpecificaTionS
Splashproof Pin & Sleeve Plugs 20, 30 & 60A
Materials 20 Amp 30 Amp 60 Amp
Housing: Polyamide 6 Polyamide 6 Valox
Housing Gasket: Neoprene Neoprene Neoprene
Back Body: Polyamide 6 Polyamide 6 Valox
Contact Carrier: Polyamide 6 Polyamide 6 Polyamide 6
Pins: Brass Brass Brass with Nickel Plate
Terminal Screws: Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Cord Grip: Polyamide 6 Polyamide 6 Polyamide 66
Grommet: Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws: Stainless Steel Stainless Steel Stainless Steel
Assembly Screws: Stainless Steel Stainless Steel Stainless Steel
AMPS WIRE CONFIG. A B C D E F
SPLASHPROOF PLUGS
20
2 Pole, 3 Wire inch 5.30 2.17 .31-.59
3 Pole, 4 Wire inch 5.50 2.36 .31-.59
4 Pole, 5 Wire inch 6.00 2.60 .39-.71
30
2 Pole, 3 Wire inch 6.50 2.78 .39-.71
3 Pole, 4 Wire inch 6.50 2.78 .47-.87
4 Pole, 5 Wire inch 6.70 3.03 .47-.87
60
2 Pole, 3 Wire inch 10.00 4.02 .63-1.04
3 Pole, 4 Wire inch 10.00 4.02 .73-1.14
4 Pole, 5 Wire inch 10.00 4.02 .80-1.26
B
A
D
**Rated for copper wire only.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-140
TECHNICAL SPECIFICATIONS
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS320C4S
Description: Connector, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Splashproof (IP44)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
Technical SpecificaTionS
Splashproof Pin & Sleeve Connectors 20, 30 & 60A
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
20 r 2P3W 125 PS320C4S
20 r 2P3W 250 PS320C6S
20 r 3P4W 125/250 PS420C12S
20 r 3P4W 3ø250 PS420C9S
20 r 3P4W 3ø480 PS420C7S
20 r 4P5W 3øY120/208 PS520C9S
20 r 4P5W 3øY277/480 PS520C7S
20 r 4P5W 3øY347/600 PS520C5S
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
30 r 2P3W 125 PS330C4S
30 r 2P3W 250 PS330C6S
30 r 2P3W 480 PS330C7S
30 r 3P4W 125/250 PS430C12S
30 r 3P4W 3ø250 PS430C9S
30 r 3P4W 3ø480 PS430C7S
30 r 3P4W 3ø600 PS430C5S
30 r 4P5W 3øY120/208 PS530C9S
30 r 4P5W 3øY347/600 PS530C5S
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
60 r 2P3W 250 PS360C6S
60 r 2P3W 480 PS360C7S
60 r 3P4W 125/250 PS460C12S
60 r 3P4W 3ø250 PS460C9S
60 r 3P4W 3ø480 PS460C7S
60 r 3P4W 3ø600 PS460C5S
60 r 4P5W 3øY120/208 PS560C9S
60 r 4P5W 3øY277/480 PS560C7S
60 r 4P5W 3øY347/600 PS560C5S
WWW.LEGRAND.US/PASSANDSEYMOUR
R-141
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Performance
Electrical
Dielectric Voltage Withstand: 3000V maximum
Maximum Working Voltage:** 600V RMS, 60Hz - 400Hz
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance: 20 Amp: 5000 cycles with full-rated current and voltage
30 & 60 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance: Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention: Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation: Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification: Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification: Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance: Watertight per IEC 309-1.
Flammability: Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature: +80°C maximum continuous, -50°C minimum without impact
Specimen
Materials 20 Amp 30 Amp 60 Amp
Housing: Polyamide 6 Polyamide 6 Valox
Cover: Polyamide 66 Polyamide 66 Valox
Cover Spring: Stainless Steel Stainless Steel Stainless Steel
Housing Gasket: Neoprene Neoprene Neoprene
Back Body: Polyamide 6 Polyamide 6 Valox
Contact Carrier: Polyamide 6 Polyamide 6 Polyamide 66
Sleeves: Brass Brass Brass with Nickel Plate
Terminal Screws: Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Cord Grip: Polyamide 6 Polyamide 6 Polyamide 66
Grommet: Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws: Stainless Steel Stainless Steel Stainless Steel
Assembly Screws: Stainless Steel Stainless Steel Stainless Steel
AMPS WIRE CONFIG. A B C D E F
SPLASHPROOF CONNECTORS
20
2 Pole, 3 Wire inch 5.79 2.15 2.91 .31-.59
3 Pole, 4 Wire inch 5.94 2.42 3.19 .31-.59
4 Pole, 5 Wire inch 6.77 2.73 3.54 .39-.71
30
2 Pole, 3 Wire inch 6.97 2.80 3.66 .39-.71
3 Pole, 4 Wire inch 6.97 2.80 3.66 .47-.87
4 Pole, 5 Wire inch 7.20 3.05 3.94 .47-.87
60
2 Pole, 3 Wire inch 10.75 3.78 4.67 .63-1.04
3 Pole, 4 Wire inch 10.75 3.78 4.67 .73-1.14
4 Pole, 5 Wire inch 10.75 3.78 4.67 .80-1.26
**Rated for copper wire only.
Technical SpecificaTionS
Splashproof Pin & Sleeve Connectors 20, 30 & 60A
A
D
C
B
B
A
C
D
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-142
TECHNICAL SPECIFICATIONS
Project
Location/Type
Typical Specifications
Manufacturer’s Identification: Legrand/Pass & Seymour PS460B7S
Description: Inlet, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Splashproof (IP44)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
Technical SpecificaTionS
Splashproof Pin & Sleeve Inlets 20, 30 & 60A
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
20 r 2P3W 250 PS320B6S
20 r 3P4W 3ø250 PS420B9S
20 r 3P4W 3ø480 PS420B7S
20 r 3P4W 3ø600 PS420B5S
20 r 4P5W 3øY120/208 PS520B9S
20 r 4P5W 3øY277/480 PS520B7S
20 r 4P5W 3øY347/600 PS520B5S
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
30 r 2P3W 125 PS330B4S
30 r 2P3W 250 PS330B6S
30 r 2P3W 480 PS330B7S
30 r 3P4W 125/250 PS430B12S
30 r 3P4W 3ø250 PS430B9S
30 r 3P4W 3ø480 PS430B7S
30 r 3P4W 3ø600 PS430B5S
30 r 4P5W 3øY120/208 PS530B9S
30 r 4P5W 3øY277/480 PS530B7S
30 r 4P5W 3øY347/600 PS530B5S
AMPS
POLES
&
WIRES
CONFIG.
RECEP/
CONN.
VOLTAGE/
COLOR
CODING
CATALOG
NUMBER
60 r 2P3W 250 PS360B6S
60 r 2P3W 480 PS360B7S
60 r 3P4W 125/250 PS460B12S
60 r 3P4W 3ø250 PS460B9S
60 r 3P4W 3ø480 PS460B7S
60 r 3P4W 3ø600 PS460B5S
60 r 4P5W 3øY120/208 PS560B9S
60 r 4P5W 3øY277/480 PS560B7S
60 r 4P5W 3øY347/600 PS560B5S
WWW.LEGRAND.US/PASSANDSEYMOUR
R-143
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Performance
Electrical
Dielectric Voltage Withstand: 3000V maximum
Maximum Working Voltage:** 600V RMS, 60Hz - 400Hz
Current Interrupting: Certified for current interrupting at full-rated current
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of 150% overload
(at 0.75 to 0.80 power factor)
Endurance: 20 Amp: 5000 cycles with full-rated current and voltage
30 & 60 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance: Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention: Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation: Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification: Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification: Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance: Watertight per IEC 309-1.
Flammability: Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature: +80°C maximum continuous, -50°C minimum without impact
Specimen
Materials 20 Amp 30 Amp 60 Amp
Housing: Polyamide 6 Polyamide 6 Valox
Mounting Flange: Polyamide 6 Polyamide 6 Valox
Mounting Gasket: Neoprene Neoprene Neoprene
Contact Carrier: Polyamide 6 Polyamide 6 Polyamide 6
Pins: Brass Brass Brass with Nickel Plate
Terminal Screws: Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
AMPS WIRE CONFIG. A B C D E F
SPLASHPROOF INLETS
20
2 Pole, 3 Wire inch 2.83 3.07 2.44 3.70
3 Pole, 4 Wire inch 3.70 3.39 3.27 4.29
4 Pole, 5 Wire inch 3.70 3.39 3.27 4.29
30
2 Pole, 3 Wire inch 3.98 4.37 3.54 5.86
3 Pole, 4 Wire inch 3.98 4.37 3.54 5.86
4 Pole, 5 Wire inch 3.98 4.25 3.54 5.86
60
2 Pole, 3 Wire inch 4.50 4.25 3.03 3.35
3 Pole, 4 Wire inch 4.50 4.25 3.03 3.35
4 Pole, 5 Wire inch 4.50 4.25 3.03 3.35
**Rated for copper wire only.
Technical SpecificaTionS
Splashproof Pin & Sleeve Inlets 20, 30 & 60A
A
B
F
E
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-144
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Non-Fusible Mechanical Interlock 20, 30, 60 & 100A
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PS560MIR5W
Description: Non-Fusible Pin & Sleeve Mechanical Interlock
Electrical Type: 3 Pole + Neutral + Earth
Rating: 60A, 3ø, 600VAC 15 HP standard, 40 HP maximum
Configuration: IEC Clock Position 5
Enclosure Type: NEMA 4X (watertight, hosedown), 12K (dusttight, falling dirt), IP67 suitability
Conduit Location: Top or bottom feed. Unit shipped with no holes drilled; a top and bottom feed spot drill is provided for locating
hole saw or knockout. End user decides at installation whether top or bottom feed is appropriate. No closure plug kits required.
AMPS
CATALOG
NUMBER
VOLTAGE/COLOR
CODING HORSEPOWER RATING
20 r PS420MIR12W 120/240VAC 1 HP @ 120V
2 HP @ 208-240V L-L
20 r PS420MIR9W 3ø 240VAC 5
20 r PS420MIR7W 3ø 480VAC 10
20 r PS420MIR5W 3ø 600VAC 15
AMPS
CATALOG
NUMBER
VOLTAGE/COLOR
CODING HORSEPOWER RATING
100 r PS3100MIR6W 240VAC 10 @ 208V
15 @ 240V
100 r PS3100MIR7W 480VAC 30
100 r PS3100MIR5W 3Ø 600VAC 50
100 r PS3100MIR7W 3Ø 480VAC 50
100 r PS3100MIR9W 3Ø 240VAC 25
100 r PS3100MIR12W 120/240VAC
5 @ 120V
10 @ 208V L-L
15 @ 240V L-L
100 r PS3100MIR5W 3ØY 347/600VAC 50
100 r PS3100MIR7W 3ØY 277/480VAC 50
100 r PS3100MIR9W 3ØY 120/208VAC 20
AMPS
CATALOG
NUMBER
VOLTAGE/COLOR
CODING HORSEPOWER RATING
30 r PS330MIR4W 120VAC 2
30 r PS430MIR9W 3Ø 240VAC 7.5
30 r PS430MIR7W 3Ø 480VAC 15
30 r PS430MIR5W 3Ø 600VAC 20
30 r PS430MIR3W 380/440VAC 15
30 r PS530MIR9W 3ØY 120/208VAC 5
30 r PS530MIR7W 3ØY 277/480VAC 15
30 r PS530MIR5W 3ØY347/600 20
AMPS
CATALOG
NUMBER
VOLTAGE/COLOR
CODING HORSEPOWER RATING
60 r PS360MIR6W 240VAC 7.5 @ 208-240V
60 r PS360MIR7W 480VAC 10
60 r PS460MIR12W 120/240VAC 3 @ 120V
7.5 @ 208-240VAC L-L
60 r PS460MIR9W 3Ø 240VAC 15
60 r PS460MIR7W 3Ø 480VAC 30
60 r PS460MIR5W 3Ø 600VAC 40
60 r PS560MIR9W 3ØY 120/208VAC 15
60 r PS560MIR7W 3ØY 277/480VAC 30
60 r PS560MIR5W 3ØY 347/600VAC 40
WWW.LEGRAND.US/PASSANDSEYMOUR
R-145
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Watertight Pin & Sleeve Non-Fusible Mechanical Interlock 20, 30, 60 & 100A
Materials
Enclosure Cover: Valox 357®
Enclosure Base: Valox 357®
Enclosure Gasket: Neoprene
Switch Handle: Valox 357®
Switch Handle Seal: Neoprene
Shaft: Brass
Gear Mechanism: 1/8" Zinc-Plated Steel
Locktab: 10% Glass-Filled Nylon
Switch Key: 10% Glass-Filled Nylon
Mounting Feet: Valox 357®
Mounting Feet Screws: 300 Series Stainless Steel
Enclosure Assembly Screws: 300 Series Stainless Steel
Performance
Electrical
Dielectric Voltage Withstand: 3000V minimum
Maximum Working Voltage:** 600V RMS, 60Hz - 400Hz
Current Interrupting: Listed for current interrupting at full-rated current
and voltage
Short Circuit Withstand Rating: For use on circuit capable of delivering not more
than 10,000 RMS amps at receptacle voltage rating
Operations: Mechanical: 15,000 cycles
Electrical: 10,000 cycles
Auxiliary Contacts: 10A @ 600V
1 N.O. & 1 N.C.
Mechanical
Impact Resistance: Per UL746C
Terminal Identification: Per UL, CSA, and IEC specifications
Product Identification: Identification and rating on external and internal
labels
Mounting : External adjustable feet with five (5) positions.
Can be mounted directly
to channel or strut
(no washer required)
Environmental
Moisture Resistance: Per UL50, section 35, NEMA Enclosure Type 4X
(watertight, hosedown)
Per UL50, section 35, NEMA Enclosure Type 12K
(dusttight, falling dirt) IP67 suitability
Flammability: UL94 5VA and VO Classification
Operating Temperature: Maximum continuous: +60ºC
Minimum continuous: -50ºC without impact
UV Resistance: All enclosure materials are
UV stable
Non-Fusible Mechanical Interlock Dimensions
Front Side
Back
All measurements shown in inches.
(See dimensions below.)
AMPS A B C D E F G H I J K L
20 1.38 6.88 9.13 8.00 12.38 11.06 4.75 6.88 7.75 8.00 10.13 11.00
30 1.38 6.88 9.13 8.25 12.38 11.50 4.75 6.88 7.75 8.00 10.13 11.00
60 1.19 6.88 9.13 9.00 13.63 14.13 4.75 6.88 7.75 9.75 11.88 12.75
100 1.19 6.88 9.13 9.50 14.13 14.13 4.75 6.88 7.75 9.75 11.88 12.75
**Rated for copper wire only.
Enclosure Assembly Inserts: Brass
Receptacle Lid: Valox 357®
Receptacle Gasketing: Neoprene
Receptacle Lid Hinge Spring: 300 Series Stainless Steel
Receptacle Contact Carrier: Polyamide 6
Receptacle Sleeves: Brass/Nickel-Plate
Receptacle Terminal Screws: Zinc-Plated Steel
Grounding Plate: Zinc-Plated Steel
Cover Chain: 300 Series Stainless Steel
Conduit Hub: Aluminum/Zinc
20/30 amp shipped with one (1) 1"
60 amp shipped with one (1) 11⁄4"
100 amp shipped with one (1) 11⁄2"
(will also fit a 2" hub, not provided)
C
A
B
D
E F
I
H
G
J K L
ON
OFF
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-146
TECHNICAL SPECIFICATIONS
Project
Location/Type
General Specifications
1. Occupancy sensors shall control lighting and/or HVAC in
the sensed area only.
2. Controlled lighting and/or HVAC zones shall not be larger
than 2500 sq. ft.
3. The contractor shall be responsible for a complete,
operable system, and installation should be warranted for
a period of one year after acceptance.
4. The product shall be warranted for a period of (5) five years
for wall switch sensors, ceiling sensors, and power packs.
5. Occupancy sensors shall be installed as per manufacturer’s
recommendations.
6. Specific low-voltage wire surface routing shall be approved by
the facilities engineer.
7. Sensor and control unit manufacturer must have experience in
the lighting and/or HVAC controls industry equal to a minimum
of (5) five years with a minimum of (5) five similar projects.
8. Contractor shall be responsible for contacting the manufacturer
for proper placement and adjustment of sensor.
Technical SpecificaTionS
Occupancy Sensors
Wall- and Ceiling-Mount Sensors
Feature WA1001 HS1001 CS500/CS1200 CSU600/1100/2200 CSD1000
Technology: Passive Infrared Passive Infrared Passive Infrared Ultrasonic** Dual Technology
Coverage Pattern: Wide Angle Long Range 360° 360° 360°
Mounting Method: Wall or Ceiling Wall or Ceiling Ceiling Ceiling Ceiling
Adjustable Sensitivity: Yes Yes Yes Yes Yes
Viewing Range: 1200 sq. ft. 90 x 20 ft. 500/1200 sq. ft. 600/1100/2200 sq. ft. 1000 sq. ft.
Fresnel Lens:*** Yes Yes Yes N/A Yes
ASIC:†Yes Yes Yes Yes Yes
5-Year Warranty: Yes Yes Yes Yes Yes
**Provides occupancy detection around obstacles.
***Dual tech has both Ultrasonic and PIR Fresnel lens.
†Improves reliability and boosts immunity to RFI and EMI.
Wall Box Switches
WSP250, WDT100*, WDT200*, OS300S, OSR300S Features & Benefits
Zero Crossing: This feature ensures the closing of the contacts as close to 0° as possible, extending the life of the
relay contacts, and limiting the effect of inrush current from some electronic ballasts.
ASIC Chip: Application Specific Integrated Component chip is a custom-designed microprocessor that
improves reliability and boosts immunity to RFI and EMI.
30 sec. - 30 min. Time Delay: Such a large range allows users to adjust time delay to fit the application and ensure maximum
savings without compromising convenience.
180° Coverage Provides detection even along the wall it is mounted on.
Maximum Rating: Allows for the combining of potential savings with room size. Wall switches that offer too much
wattage handling capacity are used in larger rooms where ceiling sensors should be used,
compromising the reliability of the installation.
Self-Adaptive: On the OS units only: Units automatically adjust the delay time by monitoring room usage patterns.
No user adjustment required, automatically sets delay time for most efficient use of energy.
2 relays for bi-level switching: The OSR300S is designed for areas with two lighting zones or bi-level lighting applications.
Adjustable Sensitivity: Enables the installer or user to adjust the sensitivity level to suit the application.
Voltage Drop Protection: Protects the electronics to ensure long-term performance.
Five-Year Warranty: Allows installer or user to receive a replacement or refund if a sensor is found to be defective within
5 years of purchase.
*Dual Technology
Power Packs
PWP120277 Features
Load Rating at 120V: 20A Ballast 13A Incandescent
Load Rating at 277V: 20A Ballast
Add-A-Relay Rating at 120V: 20A Ballast 13A Incandescent
Add-A-Relay Rating at 277V: 20A Ballast
HP Rating: 1HP
Output Rating:†† 24VDC; 225mA
††PWP unit only.
Mounting Method: 1/2" Knockout
Sized to Fit into Approved
Enclosure for Plenum Applications: Yes
Teflon-Coated Leads: Yes
Five Year Warranty: Yes
WWW.LEGRAND.US/PASSANDSEYMOUR
R-147
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Performance
Electrical
Supply Voltage: 120/277 Volt AC 60 Hz
Maximum Load: 800W Incandescent/Fluorescent at 120V 1/6 HP
1200W Fluorescent at 277V
Minimum Load: None
AC Switching: WSP250, OS300S: Normally Open Relay, Zero Crossing Circuitry
OSR300S: 2 Normally Open Relays, Zero Crossing Circuitry
Sensor
Technology: WSP250: Passive Infrared
OS300S, OSR300S: Self-Adaptive Passive Infrared
Time Delay: WSP250: Adjustable 30 sec. to 30 min.
OS300S, OSR300S: Adjustable 5 min. to 30 min.
Light Level Adjustment: WSP250: Adjustable from full daylight to 10 foot-candles
OS300S, OSR300S: 8-180 fcs
Sensitivity Adjustment: WSP250: 20% to 100%
OS300S, OSR300S: Self-Adaptive and Fixed Low
Spectral Response: WSP250: 6 to 14 m
OS300S: 7 to 14 m
OSR300S: 8 to 14 m
Field of View: Horizontal: 180°
Vertical: 2° and 8.6° down from the center
Indicator Light: Red LED flashes when motion is detected
Lens Type: Two-tier lens
Walk-through Mode: WSP250: No; OS300S, OSR300S: Yes
Audible Alert: WSP250: No; OS300S, OSR300S: Yes
Test Mode: WSP250: No; OS300S, OSR300S: Yes
Environmental
Temperature Range: 0°C to 35°C
Non-condensing Relative Humidity: 20 to 90%
Mechanical
Enclosure Material: Thermoplastic, UV-resistant plastic
Color(s): Ivory, White, Gray, Light Almond
Third Party Compliance:cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Technical SpecificaTionS
Wall Switch – WSP250, OS300S, OSR300S
Typical Specifications
Wall switch occupancy sensors shall be cULus Listed, and California Title 24 Compliant as provided
by Pass & Seymour®. Sensors shall be self-contained and fit in a standard wall box. Sensors shall be
capable of detecting changes in the infrared background caused by motion. Sensors shall be capable of
switching incandescent and fluorescent lighting loads on and off. Sensors shall use optics that operate
with a 180° field of view. The wall switch occupancy sensor shall be equipped with controls to adjust
sensitivity and ambient light threshold. The sensor shall also offer a time-delay adjustment from 30
seconds to 30 minutes, as well as an override. Conforms to NEMA WD-1 and WD-6.
Wiring Diagrams on Pages K-8, K-11 and K-12.
OS300SW
1.76"
2.73"
1.83"
CATALOG NUMBER DESCRIPTION
r
WSP250 Passive Infrared Wall Switch
r
OS300S Self-Adaptive Passive Infrared Occupancy/Vacancy Sensor
r
OSR300S Dual-Relay Self-Adaptive Passive Infrared Occupancy/Vacancy Sensor
WSP250W
1.55"
2.6"
1.7"
OSR300SW
1.83"
1.76"
2.73"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-148
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Dual Technology Wall Switch – WDT100, WDT200
Performance
Electrical
Supply Voltage: 120/230/277VAC
Maximum Supply Voltage: 277VA
Frequency: 50-60 Hz
Sensor
Technology: Passive Infrared and Ultrasonic
PIR Adjustment: Two Settings – Maximum (100%) and Minimum (50%)
Ultrasonic Adjustment: Ultrasonic sensitivity can be adjusted using a trimpot.
Output frequency of transmitter is fixed at 40kHz.
Time Delay: Adjustable 5 min. to 30 min.
Light Level Adjustment: 8fc to 180+fc
Spectral Response: 6 to 14 m
Field of View: 88°; 110° Vertical, 360° Horizontal
Coverage: 1050 sq. ft., 180°
Indicator Light(s): Red and Green LEDs
Lens Type: Two Horizontal Layers
Sensor Type: Multi-Directional Transmitter/Receiver with Quartz Oscillator
Audible Alert: Selectable
Environmental
Temperature Range: 0°C to 55°C
Mechanical
Enclosure Material: ABS KJW Flame-Retardant Cycolac, 940-0 or Equivalent
Color(s): Ivory, White, Black, Gray, Light Almond
Third Party Compliance:cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant RoHS-Compliant
Typical Specifications
Dual technology wall switch occupancy sensors shall be cULus Listed UL508 and C22.2 No. 14,
California Title 24 Compliant and RoHS-Compliant as provided by Pass & Seymour®. Conforms
to NEMA WD-1 and WD-6.
WDT100W
1.76"
2.73"
1.83"
Coverage Diagram on Page K-10 .
CATALOG NUMBER DESCRIPTION
r
WDT100 Dual Technology Wall Switch Sensor
r
WDT200 Bi-Level Dual Technology Wall Switch Sensor
WWW.LEGRAND.US/PASSANDSEYMOUR
R-149
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
PIR Wide Angle Sensor – WA1001
Typical Specifications
Wide angle motion sensors shall be cULus Listed, and California Title 24 Compliant as provided by Pass
& Seymour®. Sensors shall be ceiling or wall mount type, capable of detecting infrared emissions from
personnel movement, and switching lighting and HVAC systems on and off based on occupancy. Wide
angle motion sensor switch shall make use of optics that operate within an 88° field of view, offering a
typical coverage of up to 1200 sq ft. Mounting shall be wall or ceiling. Motion sensor switch must be used
in conjunction with the PWP120/277 (120/277 VAC supply) switching modules, and capable of handling
additional loads with the support of an Add-A-Relay AR120/277. Also, the sensor shall offer a time delay
adjustment from 15 seconds to 30 minutes, as well as an override. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Supply Voltage: + 24VDC Typical
Minimum Supply Voltage: + 20VDC
Maximum Supply Voltage: + 30VDC
Sensor Output: + 24VDC for external relay DC coil drive
Maximum Output Current: 100mA DC
Sensor
Technology: Passive Infrared
Time Delay: Adjustable 15 sec. to 30 min.
Light Level Adjustment: No
Sensitivity Adjustment: 14% to 100%
Spectral Response: 6 to 14 m
Field of View: 88°
Coverage: Up to 1200 sq. ft.
Indicator Light: Red LED flashes when motion is detected
Lens Type: Four horizontal layers
Environment
Temperature Range: 0°C to 35°C
Non-condensing Relative Humidity: 20 to 90%
Mechanical
Enclosure Material: Thermoplastic, UV-resistant plastic
Color: White
Third Party Compliance:cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
WA1001
2.034"
3.335"
3.367"
CATALOG NUMBER DESCRIPTION
r
WA1001 Passive Infrared Wall/Ceiling Sensor
Coverage Diagram on Page K-13.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-150
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
PIR Hallway Sensor – HS1001
Wiring Diagrams on Page K-13.
Performance
Electrical
Supply Voltage: + 24VDC Typical
Minimum Supply Voltage: + 20VDC
Maximum Supply Voltage: + 30VDC
Sensor Output: + 24VDC for external relay DC coil drive
Maximum Output Current: 100mA DC
Sensor
Technology: Passive Infrared
Time Delay: Adjustable 15 sec. to 30 min.
Light Level Adjustment: No
Sensitivity Adjustment: 14% to 100%
Spectral Response: 6 to 14 m
Field of View: 13°
Coverage: 90 linear feet typical
Indicator Light: Red LED flashes when motion is detected
Lens Type: Two horizontal layers
Environment
Temperature Range: 0°C to 35°C
Non-condensing Relative Humidity: 20 to 90%
Mechanical
Enclosure Material: Thermoplastic, UV-resistant plastic
Color: White
Third Party Compliance:cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Typical Specifications
Hallway motion sensors shall be cULus Listed, and California Title 24 Compliant as provided by Pass &
Seymour®. Sensors shall be ceiling or wall mount type, capable of detecting infrared emissions from
personnel movement, and switching lighting and HVAC systems on and off based on occupancy. Hallway
motion sensor switches shall make use of optics that operate within field of view 90 feet long by 20
feet wide. Mounting shall be wall or ceiling. Motion sensor switch must be used in conjunction with the
PWP120/277 (120/277 VAC supply) switching modules, and capable of handling additional loads by including
the support of an Add-A-Relay AR120/277. Also, the sensor shall offer a time delay adjustment from 15
seconds to 30 minutes, as well as an override. Conforms to NEMA WD-1 and WD-6.
HS1001
2.034"
3.335"
3.367"
CATALOG NUMBER DESCRIPTION
r
HS1001 Passive Infrared Wall/Ceiling Sensor for hallway applications
WWW.LEGRAND.US/PASSANDSEYMOUR
R-151
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Performance
Electrical
Supply Voltage: + 24VDC Typical
Minimum Supply Voltage: + 20VDC
Maximum Supply Voltage: + 30VDC
Sensor Output: + 24VDC for external relay DC coil drive
Maximum Output Current: 100mA DC
Sensor
Technology: Passive Infrared
Time Delay: 15 sec. to 30 min.
Light Level Adjustment: No
Sensitivity Adjustment: Yes
Spectral Response: 6 to 14 m
Field of View: 110° Vertical, 360° Horizontal
Coverage: Up to 900 sq. ft.
Indicator Light: Red LED flashes when motion is detected
Lens Type: Multi-zone fresnel type
Environment
Temperature Range: 0°C to 35°C
Non-condensing Relative Humidity: 20 to 90%
Mechanical
Enclosure Material: Thermoplastic, UV-resistant plastic
Color: White
Third Party Compliance: cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Typical Specifications
Motion sensor switches shall be cULus Listed, and California Title 24 Compliant as provided by Pass &
Seymour®. Sensors shall be ceiling mount type, capable of detecting infrared emissions from personnel
movement and switching incandescent and fluorescent lighting loads on and off. Motion sensor switches
shall make use of optics that operate within a 110° field of view. Motion sensors may be mounted
in a drop ceiling, solid ceiling, or wall. Motion sensor switch must be used in conjunction with the
PWP120/277 (120/277 VAC supply) switching modules, and capable of handling additional loads with the
support of an Add-A-Relay AR120/277. Conforms to NEMA WD-1 and WD-6.
Technical SpecificaTionS
PIR Occupancy Ceiling Sensors – CS500, CS1200
CS500, CS1200
Wiring Diagram
Wiring Diagrams on Page K-14.
CATALOG NUMBER DESCRIPTION
r
CS500 Ceiling Sensor, 500 sq. ft.
r
CS1200 Ceiling Sensor, 1200 sq. ft.
r
CS1200LV* Low Voltage Ceiling Sensor, 1200 sq. ft.
*Does not require a power pack.
CS500
CS1200
2.2"
3.3"
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-152
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Ultrasonic Ceiling Sensors – CSU600, CSU1100, CSU2200
Performance
Electrical
Supply Voltage: + 24VDC Typical
Minimum Supply Voltage: + 20VDC
Maximum Supply Voltage: + 30VDC
Sensor Output: + 24VDC for external relay DC coil drive
Maximum Output Current: 100mA DC
Sensor
Technology: Ultrasonic
Time Delay: Adjustable 15 sec. to 30 min.
Light Level Adjustment: No
Sensitivity Adjustment: 14% to 100%
Frequency: 32 kHz +/- 4 Hz
Coverage: Up to 600/1100/2200 sq. ft.
Indicator Light: Red LED flashes when motion is detected
Sensor Type: Multidirectional transmitter/receiver with quartz oscillator
Environment
Temperature Range: 0°C to 35°C
Non-condensing Relative Humidity: 20 to 90%
Mechanical
Enclosure Material: Thermoplastic, UV-resistant plastic
Color: White
Third Party Compliance:cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Typical Specifications
Ultrasonic motion sensors shall be cULus Listed, and California Title 24 Compliant as provided by Pass & Seymour®.
Sensors shall be ceiling or wall mount ceiling mount type, capable of detecting motion from personnel movement,
and switching lighting and HVAC systems on and off based on occupancy. Ultrasonic motion sensor switches shall
use a multi-directional transmitter/receiver system to broadcast ultrasonic 32 kHz sound waves generated by a
quartz oscillator. The ultrasonic motion sensor switch must be used in conjunction with PWP120277(120/277 VAC
supply) switching modules, and capable of handling additional loads by including the support of an Add-A-Relay
AR120/277. Also, the sensor shall offer a time delay adjustment from 15 seconds to 30 minutes, as well as an
override. Conforms to NEMA WD-1 and WD-6.
CSU1100
CSU2200
1.5"
4.8"
Wiring Diagrams on Page K-15.
CATALOG NUMBER DESCRIPTION
r
CSU600 Ultrasonic Ceiling Sensor
r
CSU1100 Ultrasonic Ceiling Sensor
r
CSU2200 Ultrasonic Ceiling Sensor
1.5"
CSU600
4.8"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-153
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Dual-Technology Ceiling Sensor – CSD1000
Performance
Electrical
Supply Voltage: + 24VDC Typical
Sensor output: + 24VDC for external relay DC coil drive
Current Consumption: 35mA
Sensor
Technology: Ultrasonic and Passive Infrared
Time Delay: 15 seconds to 30 minutes
Ultrasonic Sensitivity Adjustment: Min to max (trim pot)
Passive Infrared Sensitivity Adjustment: 30% to 100% (dip switches)
Frequency: 40 kHz
Ultrasonic Coverage: 1076 sq. ft. (100 sq. m)
Passive Infrared Coverage: 1290 sq. ft. (120 sq m)
Indicator Lights: Red and Green LEDs
Environment
Temperature Range: 32° to 131°F (0° to 55°C)
Non-condensing Relative Humidity: 20 to 90%
Mechanical
Material: Thermoplastic, UV-resistant plastic
Color: White
Mounting: Mounting hardware for acoustic ceiling tile and keyhole
mounting template included
Third Party Compliance:cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Typical Specifications
The P&S CSD1000 Dual Technology Ceiling Sensor shall be cULus Listed, and California Title 24
Compliant as provided by Pass & Seymour®. The sensor shall detect occupancy in the control area
by detecting Doppler shifts in transmitted ultrasound and passive infrared heat changes. Detection
verification of both technologies must occur in order to activate lighting systems. Upon verification,
detection by either shall hold lighting on. Unit shall be white, ceiling mounted with a flat, unobtrusive
appearance and provide 360° coverage. CSD1000 sensor shall operate at 24 VDC/VAC and utilize a P&S
power pack. For additional loads use the P&S Add-A-Relay Pack. Sensor shall have a time delay that
is adjustable from 15 seconds to 30 minutes, set by DIP switch. Each sensing technology shall have an
LED indicator that remains active at all times in order to verify detection within the area to be controlled.
Sensor shall have standard 5 year warranty. Conforms to NEMA WD-1 and WD-6.
Wiring Diagrams on Page K-16.
CSD1000
1.02"
4.5"
CATALOG NUMBER DESCRIPTION
r
CSD1000 Dual-Technology Ceiling Sensor
r
CSD1000LV* Low Voltage Dual-Technology Ceiling Sensor
*Does not require a power pack.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-154
TECHNICAL SPECIFICATIONS
Project
Location/Type
PSHB120277WL3
PSHB120277L1 PSHB120277L2 PSHB120277L3 PSHB120277WL2
CATALOG NUMBER DESCRIPTION
r
PSHB120277L1
Hi Bay Dry Location Sensor
r
PSHB120277L2
r
PSHB120277L3
r
PSHB120277WL2 Hi Bay Wet Location Sensor
r
PSHB120277WL3
Technical SpecificaTionS
High Bay Passive Infrared (PIR), Line Voltage Occupancy Sensors
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® PSHB120277L and PSHB120277WL
Description: Passive Infrared (PIR) Occupancy Sensor
Type: Passive Infrared Occupancy/Vacancy Sensors with Neutral
Rating: 120/277 VAC, 60Hz
3rd Party Compliance: cULus Listed, UL508 and C22.2 No. 14. Conforms to NEMA WD-1 and WD-6,
California Title 24 Compliant.
Performance
Electrical
Voltages: 120/277 VAC, 60Hz
Load Requirements: @120VAC 60Hz 0-800W ballast or tungsten
@277VAC 60Hz 0-1200W ballast
@120VAC 1/6 hp
Sensor
Technology: Passive Infrared
Time Delay: Adjustable 15 sec. to 30 min.
Light Level Adjustment: No
Sensitivity Adjustment: 60% to 100%
Indicator Light(s): Red LED flashes when motion is detected
Environment
Temperature Range: PSHB120277Lx:
Operating Temperature: 32°F to 158°F (0°C to 70°C)
Operating Humidity: 20-90% RH, non-condensing
For indoor use only
PSHB120277WLx:
Operating Temperature: -40°F to 131°F (-40°C to 55°C)
Operating Humidity: 5-95% RH, non-condensing
Maximum Dew Point: 85° F (29°C)
UL rated raintight (UL244A and UL508)
IP65 rated
Mechanical: PSHB120277Lx:
ABS, flame retardant, UV resistant, impact resistant
PSHB120277WLx:
Polycarbonate, flame retardant, UV resistant, impact resistant
WWW.LEGRAND.US/PASSANDSEYMOUR
R-155
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Power Pack – PWP120277 & Add-A-Relay – AR120/277
Typical Specifications
Switching modules shall be cULus Listed as provided by Pass & Seymour®. Switching modules shall
contain a 24VAC transformer, a full wave bridge rectifier, and a 24VDC coil-isolated relay capable
of handling both incandescent and fluorescent lighting loads as well as inductive loads. Normal current
consumption for the relay shall be 36mA, and the coil resistance shall be 660 Ohms. The transformer
input shall be 120VAC or 277VAC; output shall be 24VDC, with a maximum current of 114mA. Power
Packs shall have Teflon-coated wire leads for use in plenum ceilings.
Add-A-Relay modules shall be UL and CUL Listed as provided by Pass & Seymour®. Add-A-Relay
modules shall contain a 24VDC coil-isolated relay capable of handling both incandescent and fluorescent
lighting loads as well as inductive loads. Nominal current consumption for the relay shall be 36mA, and
the coil resistance shall be 660 Ohms. Add-A-Relay modules shall have Teflon-coated wire leads for use
in plenum ceilings. Conforms to NEMA WD-1 and WD-6.
Performance
Transformer
Supply Voltage: PWP120277: 120/230/277 Volt AC 50/60 Hz
Output: 24VDC
Maximum Current: 225mA (with relay connected)
Relay
Type: Normally Open
Control Input
Nominal Current: 36mA
Coil Resistance: 660 Ohms
Nominal Voltage: 24VDC
Maximum Voltage: 28.8VDC
Minimum Voltage: 18VDC
AC Load Output
Incandescent: 13 Amp Max. (120V, 50 Hz only)
Fluorescent: 20 Amp Max. (120V, 50 Hz or 277V, 60 Hz)
Motor Load: 1 HP (120V, 60 Hz only or 240VAC)
Environment
Temperature Range: 0°C to 35°C
Non-condensing Relative Humidity: 20 to 90%
Mechanical
Enclosure Material: Thermoplastic, UL flame class rating 94 V2
Color: Gray
Third Party Compliance:cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Wiring Diagrams on Page K-18.
PWP120277
AR120 /277
2.805"
2.916"
1.634"
.842"
1.673"
CATALOG NUMBER DESCRIPTION
r
PWP120277 Power Pack
r
AR120/277 Add-A-Relay (120V or 277V)
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-156
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Titan™ Series Incandescent & Magnetic Low-Voltage
Typical Specifications
Manufacturer’s Identification: Pass & Seymour® CD700
Description: Incandescent Dimmer
Type: Single Pole
Rating: 120V, 700W
3rd Party Compliance: cULus Listed, File Number E95219 Standard UL1472 Solid State Dimming
Controls, Standard C22.2 No. 184-1; File Number E109655 Standard UL1917 Solid State Fan Controls,
Standard C22.2 No. 156. California Title 24 Compliant. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Supply Voltage: 120VAC 60Hz
Maximum Load: Up to rating of device (including derating)
Environment
Ambient Temperature: Between 0° and 40°C
Humidity: Less than 95% non-condensing
Mechanical
Aluminum Heat Sink: Thermoplastic enclosure, wall plate, and ganging parts
Materials
Back Body: Thermoplastic Spacers: Thermoplastic
Front Body: Thermoplastic Heat Sink/Strap: Aluminum
Wall Plate: Thermoplastic Screws: Plated Steel
End Caps: Thermoplastic
CDLV1103PW
Wide
4.65"
4.87"
1.44"
CD1100W
Narrow
2.85"
4.87"
1.44"
CD703PW
Narrow
2.85"
4.87"
1.44"
CD1603PW
Wide
4.65"
4.87"
1.44"
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE
CD700 Single Pole, Slide-to-OFF 120V, 700W Narrow
r
CD703P Single Pole/3-Way, Preset 120V, 700W Narrow
r
CD1100 Single Pole, Slide-to-OFF 120V, 1100W Narrow
r
CD1103P Single Pole/3-Way, Preset 120V, 1100W Narrow
r
CD1600 Single Pole, Slide-to-OFF 120V, 1600W Wide
r
CD1603P Single Pole/3-Way, Preset 120V, 1600W Wide
r
CD2000 Single Pole, Slide-to-OFF 120V, 2000W Wide
r
CD2003P Single Pole/3-Way, Preset 120V, 2000W Wide
r
CDLV700 Single Pole, Slide-to-OFF 120V, 700W Narrow
r
CDLV703P Single Pole/3-Way, Preset 120V, 700W Narrow
r
CDLV1100 Single Pole, Slide-to-OFF 120V, 1100W Narrow
r
CDLV1103P Single Pole/3-Way, Preset 120V, 1100W Narrow
r
CDLV1600 Single Pole, Slide-to-OFF 120V, 1600W Wide
r
CDLV1603P Single Pole/3-Way, Preset 120V, 1600W Wide
WWW.LEGRAND.US/PASSANDSEYMOUR
R-157
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Titan™ Series Incandescent & Magnetic Low-Voltage
De-Rating for Multi-Gang Installations
Wall Box Gang Requirements
1. Choose fin style (not removed or removed).
2. Select the column for the number of narrow
dimmers to be installed.
3. Select the row for the number of wide dimmers
to be installed.
4. The number at the intersection of the selected
column and row indicates the number of wall
box gangs required.
*Refer to instruction sheets for exact placement of boxes
for even number of narrow dimmers.
DIMMER
CATALOG NO.
1GANG
INSTALLATION
FINS: NOT REMOVED FINS: REMOVED
2GANG
INSTALLATION
3 OR MORE GANG
INSTALLATION
2GANG
INSTALLATION
3 OR MORE GANG
INSTALLATION
CD700 700W 700W 700W 700W 700W
CDLV700 700VA 700VA 700VA 700VA 700VA
CD703P 700W 700W 700W 700W 700W
CDLV703P 700VA 700VA 700VA 700VA 700VA
CD1100 1100W 1100W 1000W 1000W 900W
CDLV1100 1100VA 1100VA 1000VA 1000VA 850VA
CD1103P 1100W 1100W 1000W 1000W 950W
CDLV1103P 1100VA 1100VA 1000VA 1000VA 850VA
CD1600 1600W 1600W 1600W 1600W 1550W
CDLV1600 1600VA 1600VA 1600VA 1600VA 1550VA
CD1603P 1600W 1600W 1600W 1600W 1550W
CDLV1603P 1600VA 1600VA 1600VA 1600VA 1550VA
CD2000 2000W 2000W 2000W — —
CD2003P 2000W 2000W 2000W — —
FINS: NOT REMOVED
WIDE
DIMMERS
NARROW DIMMERS
0123456
00 1 1+1* 44+1* 77+1*
113568911
2457810 11 13
368911 12 14 15
4910 12 13 15 16
511 13 14 16
614 15
FINS: NOT REMOVED
WIDE
DIMMERS
NARROW DIMMERS
0123456
00123456
11345678
23456789
35678910 11
478910 11 12 13
5910 11 12 13 14 15
611 12 13 14 15 16 17
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-158
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Titan™ Series Fluorescent 2, 3 & 4 Wire
Performance
Electrical
Supply Voltage: 2 & 3 Wire – 120VAC or 277VAC, 60Hz
4 Wire – 24VDC Class Two Wiring
Maximum Load: Up to rating of device (including de-rating)
Environment
Ambient Temperature: Between 0° and 40°C
Humidity: Less than 95% non-condensing
Mechanical
Aluminum Heat Sink: Thermoplastic enclosure, wall plate, and ganging parts
Materials
Back Body: Thermoplastic Spacers: Thermoplastic:
Front Body: Thermoplastic Heat Sink/Strap: Aluminum
Wall Plate: Thermoplastic Screws: Plated Steel:
End Caps: Thermoplastic
Narrow
2.85"
4.87"
1.44"
Narrow Preset
2.85"
4.87"
1.44"
Typical Specifications
Manufacturer’s Identification: Pass and Seymour® CDFB5
Description: Fluorescent Dimmer
Type: Single Pole 2 Wire
Rating: 5A, 120V
3rd Party Compliance: cULus Listed, File Number E95219 Standard UL1472 Solid State Dimming
Controls, Standard C22.2 No. 184-1; File Number E109655 Standard UL1917 Solid State Fan Controls,
Standard C22.2 No. 156. California Title 24 Compliant. Conforms to NEMA WD-1 and WD-6.
*4 Wire Dimmers require PWP120277 Power Pack, refer to Technical Specifications Page R-155.
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE
r
CDFB5 2 Wire, Electronic, Single Pole, Slide-to-OFF 5A, 120V Narrow
r
CDFB8 2 Wire, Electronic, Single Pole, Slide-to-OFF 8A, 120V Narrow
r
CDFB10 2 Wire, Electronic, Single Pole, Slide-to-OFF 10A, 120V Wide
r
CDFB16 2 Wire, Electronic, Single Pole, Slide-to-OFF 16A, 120V Wide
r
CDFB7277 2 Wire, Electronic, Single Pole, Slide-to-OFF 7A, 277V Wide
r
CDFB10277 2 Wire, Electronic, Single Pole, Slide-to-OFF 10A, 277V Wide
r
CDFB53P 2 Wire, Electronic, Single Pole/3-Way, Preset 5A, 120V Narrow
r
CDFB83P 2 Wire, Electronic, Single Pole/3-Way, Preset 8A, 120V Narrow
r
CDFB103P 2 Wire, Electronic, Single Pole/3-Way, Preset 10A, 120V Wide
r
CDFB163P 2 Wire, Electronic, Single Pole/3-Way, Preset 16A, 120V Wide
r
CDFB73P277 2 Wire, Electronic, Single Pole/3-Way, Preset 7A, 277V Wide
r
CDFB103P277 2 Wire, Electronic, Single Pole/3-Way, Preset 10A, 277V Wide
r
CD3FB16 3 Wire, Electronic, Single Pole, Slide-to-OFF 16A, 120V Narrow
r
CD3FB163P 3 Wire, Electronic, Single Pole/3-Way, Preset 16A, 120V Narrow
r
CD3FB10277 3 Wire, Electronic, Single Pole, Slide-to-OFF 10A, 277V Narrow
r
CD3FB103P277 3 Wire, Electronic, Single Pole/3-Way, Preset 10A, 277V Narrow
r
CD4FB* 4 Wire, Electronic, Single Pole, Slide-to-OFF 24VDC Narrow
r
CD4FB3P* 4 Wire, Electronic, Single Pole/3-Way, Preset 24VDC Narrow
Wide Preset
4.87"
1.44 4.65"
WWW.LEGRAND.US/PASSANDSEYMOUR
R-159
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Titan™ Series Fluorescent 2, 3 & 4 Wire
De-Rating for Multi-Gang Installations
2 & 4 Wire Electronic Fluorescent Dimmer Ballast Compatibility
*Additional 0-10V ballasts and/or LED drivers may also be compatible with this control.
Contact Legrand to verify compatibility.
DIMMER
CATALOG NO.
1GANG
INSTALLATION
FINS: NOT REMOVED FINS: REMOVED
2GANG
INSTALLATION
3 OR MORE GANG
INSTALLATION
2GANG
INSTALLATION
3 OR MORE GANG
INSTALLATION
CDFB5 5A 5A 5A 5A 5A
CDFB8 8A 8A 8A 7.7A 6.3A
CDFB53P 5A 5A 5A 5A 5A
CDFB83P 8A 8A 8A 7.7A 6.3A
CDFB10 10A 10A 10A 10A 10A
CDFB16 16A 16A 16A — —
CDFB7277 7A 7A 7A 7A 7A
CDFB10277 10A 10A 10A 10A 10A
CDFB103P 10A 10A 10A 10A 10A
CDFB163P 16A 16A 16A — —
CDFB73P277 7A 7A 7A 7A 7A
CDFB103P277 10A 10A 10A 10A 10A
CD3FB16 16A 16A 16A 16A 16A
CD3FB163P 16A 16A 16A 16A 16A
CD3FB10277 10A 10A 10A 10A 10A
CD3FB103P277 10A 10A 10A 10A 10A
CD4FB DO NOT EXCEED 60 BALLASTS
CD4FB3P DO NOT EXCEED 60 BALLASTS
COMPATIBLE P&S
CATALOG NUMBER VOLTAGE BALLAST MANUFACTURER MODEL & SERIES
2 WIRE BALLAST COMPATABILITY
CDFB5
CDFB8
CDFB53P
CDFB83P
CDFB10
CDFB16
CDFB103P
CDFB163P
120VAC
60Hz
Advance REZ-132-SC, REZ-2S32-SC, REZ-3S32-SC,
REZ-154, REZ-2554, REZ-1Q18-M2, REZ-2Q18-M2,
REZ-1T42-M2, REZ-2T42-M3, REZ-1TTS40/REZ-1TTS40-SC,
REZ-2TTS40/REZ-2TTS40-SC, IEZ-2S24-D, REB-2S26-M1-LS-DIM/
REB-2S26-M1-BS-DIM
Lutron 2W-T426-120-1-S, 2W-T426-120-2-S,
2W-T432-120-1-S, 2W-T432-120-2-S,
2W-T832-120-1-S, 2W-T832-120-2-S
Sylvania/Osram
CDFB7277
CDFB10277
CDFB73P277
CDFB103P277
277VAC
60Hz
Advance VEZ-132-SC, VEZ-2S32-SC, VEZ-3S32-SC, VEZ-154, VEZ2S54, VEZ-
1Q18-M2, VEZ-2Q18-M2, VEZ-2T42-M3, VEZ-1TTS40/VEZ-1TTS40-
SC, VEZ-2TTS40/VEZ-2TTS40-SC, IEZ-2S24-D
Sylvania/Osram QTP1x32T8/UNV DIM, QTP2x32T8/UNV DIM,QTP3x32T8/UNV DIM,
QTP4x32T8/UNV DIM
4 WIRE BALLAST COMPATABILITY*
CD4FB
CD4FB3
24VDC Advance Transformer
Lutron
Sylvania/Osram
Universal
GE
Mark 7, Xitanium, IZT, RZT, VZT, LED120
Eco-10 TVE
Quicktronic Powersense, Helios, Optotronic QTP, QT, OT
SuperDim, Ballastar ES, B132, B232, B332, B432
T8 Dimming Ballasts B132, B232, B332
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-160
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Titan™ Series Fluorescent 2, 3 & 4 Wire
3 Wire Electronic Fluorescent Dimmer Ballast Compatibility
*Refer to instruction sheets for exact placement of boxes for even number of narrow dimmers.
Wall Box Gang Requirements
1. Choose fin style (not removed or removed).
2. Select the column for the number of narrow dimmers to be installed.
3. Select the row for the number of wide dimmers to be installed.
4. The number at the intersection of the selected column and
row indicates the number of wall box gangs required.
COMPATIBLE P&S
CATALOG NUMBER VOLTAGE
BALLAST
MANUFACTURER
COMPATIBLE DIMMER BALLAST MODEL & SERIES
1% HILUME, HILUME 3D 5% COMPACT SE 10% ECO10
2 WIRE BALLAST COMPATABILITY
CD3FB16
CD3FB163P
120VAC
60Hz
Lutron HL3-T426-120-1-S
HL3-T432-120-1-S
FDB-T524-120-1
FDB-T524-120-2
FDB-T539-120-1
FDB-T539-120-2
FDB-T554-120-1
FDB-T554-120-2
FDB-2427-120-1
FDB-2427-120-2
FDB-2427-120-3
FDB-3627-120-1
FDB-3627-120-2
FDB-3627-120-3
FDB-4827-120-1
FDB-4827-120-2
FDB-4827-120-3
FDB-6027-120-1
FDB-6027-120-2
FDB-7280-120-1
FDB-8480-120-1
FDB-9680-120-1
H3DT832CUNV110
H3DT832CUNV117
H3DT832CUNV210
H3DT832CUNV217
FDB-T418-120-1-S
FDB-T418-120-2-S
FDB-T426-120-1-S
FDB-T426-120-2-S
FDB-T418-120-1-S
FDB-T418-120-2-S
FDB-T426-120-1-S
FDB-T426-120-2-S
FDB-T432-120-1-S
FDB-T432-120-2-S
FDB-T442-120-1-S
FDB-T442-120-2-S
FDB-1643-120-1
FDB-1643-120-2
FDB-1643-120-3
FDB-2227-120-1
FDB-2227-120-2
FDB-2227-120-3
FDB-2243-120-1
FDB-2243-120-2
E3-T514C-120-1
E3-T514C-120-2
E3-T521C-120-1
E3-T521C-120-2
ECO-T528-120-1
ECO-T528-120-2
ECO-T524-120-1
ECO-T524-120-2
ECO-T5H39-120-1
ECO-T5H39-120-2
ECO-T554-120-1
ECO-T554-120-2
ECO-T539-120-1
ECO-T539-120-2
ECO-T539-120-3
ECO-T540-120-1
ECO-T540-120-2
ECO-T540-120-3
ECO-T550-120-1
ECO-T550-120-2
ECO-T817-120-1
ECO-T817-120-2
ECO-T817-120-3
ECO-T825-120-1
ECO-T825-120-2
ECO-T832-120-1-L
ECO-T832-120-1-T
ECO-T832-120-2-L
ECO-T832-120-2-T
ECO-T832-120-3
CD3FB10277
CD3FB103P277
277VAC
60Hz
Lutron HL3-T426-277-1-S
HL3-T432-277-1-S
FDB-T524-277-1
FDB-T524-277-2
FDB-T539-277-1
FDB-T539-277-2
FDB-T554-277-1
FDB-T554-277-2
FDB-2427-277-1
FDB-2427-277-2
FDB-2427-277-3
FDB-3627-277-1
FDB-3627-277-2
FDB-3627-277-3
FDB-4827-277-1
FDB-4827-277-2
FDB-4827-277-3
FDB-6027-277-1
FDB-6027-277-2
H3DT832CUNV110
H3DT832CUNV117
H3DT832CUNV210
H3DT832CUNV217
FDB-T418-277-1-S
FDB-T418-277-2-S
FDB-T426-277-1-S
FDB-T426-277-2-S
FDB-T418-277-1-S
FDB-T418-277-2-S
FDB-T426-277-1-S
FDB-T426-277-2-S
FDB-T432-277-1-S
FDB-T432-277-2-S
FDB-T442-277-1-S
FDB-T442-277-2-S
FDB-1643-277-1
FDB-1643-277-2
FDB-1643-277-3
FDB-2227-277-1
FDB-2227-277-2
FDB-2227-277-3
FDB-2243-277-1
FDB-2243-277-2
E3-T514C-277-1
E3-T514C-277-2
E3-T521C-277-1
E3-T521C-277-2
ECO-T528-277-1
ECO-T528-277-2
ECO-T524-277-1
ECO-T524-277-2
ECO-T5H39-277-1
ECO-T5H39-277-2
ECO-T554-277-1
ECO-T554-277-2
ECO-T539-277-1
ECO-T539-277-2
ECO-T539-277-3
ECO-T540-277-1
ECO-T540-277-2
ECO-T540-277-3
ECO-T550-277-1
ECO-T550-277-2
ECO-T817-277-1
ECO-T817-277-2
ECO-T817-277-3
ECO-T825-277-1
ECO-T825-277-2
E3-T832C-277-1
ECO-T832-277-1-L
ECO-T832-277-1-T
ECO-T832-277-1
E3-T832C-277-2
ECO-T832-277-2-L
ECO-T832-277-2-T
ECO-T832-277-2
ECO-T832-277-3
FINS: NOT REMOVED
WIDE
DIMMERS
NARROW DIMMERS
0123456
00 1 1+1* 44+1* 77+1*
113568911
2457810 11 13
368911 12 14 15
4910 12 13 15 16
511 13 14 16
614 15
FINS: REMOVED
WIDE
DIMMERS
NARROW DIMMERS
0123456
00 1 23 4 5 6
11345678
23456789
35678910 11
478910 11 12 13
5910 11 12 13 14 15
611 12 13 14 15 16 17
WWW.LEGRAND.US/PASSANDSEYMOUR
R-161
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Incandescent Wide Slide Dimmers 120VAC, 60 Hz
Performance
Electrical
Voltage: 120VAC 60 Hz
Rated Load: (See Above) Incandescent Only
Filtering: Radio Frequency Interference Filtering
Construction: Printed Circuit Board for Reliability
3rd Party Compliance: UL Listed, CSA Certified
Physical
Size: One Gang
Heat Sink: Black Anodized Aluminum Mounting Strap
Wiring: 6" Color-Coded Leads Pre-Stripped
Environmental
Application: Indoor Use Only
Materials
Front Cover and Knob: Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body: Unbreakable ABS
Accessories
Installation and Operating Instructions Provided
Typical Specifications
Incandescent dimmer shall be UL Listed/CSA Certified Pass & Seymour®Specification Grade, with full
range solid-state circuitry that shall provide even control by means of a slide mechanism. Preset lighting
levels may be maintained by means of a separate ON/OFF switch. Dimmers shall fit in standard single
gang wall boxes. California Title 24 Compliant. Conforms to NEMA WD-1 and WD-6.
Features
•Maximum ratings are for continuous full load.
•Preset models include ON/OFF rocker switch
that allows ON/OFF switching without disturbing
preset intensity levels.
•700 Watt models may be ganged without
de-rating.
•RFI suppression built-in.
•Installs in NEMA standard single-gang wall
boxes.
• Screw-pressure-plate back and side wire.
•Package comes with three face colors –
Ivory, White, Light Almond (TC).
• White only option also available (W).
•Interchangeable faces available in four colors
(sold separately, see Page L-17).
Preset Models
4.25"
1.75"
1.25"
WS700TC
Shown with the Three
Interchangeable Faces
4.25"
1.75"
1.25"
All 1100W versions are 2.50" W
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE
r
WS700TC Single Pole, Slide to OFF 120V, 700W Ivory/White/Lt. Almond
r
WS700W Single Pole, Slide to OFF 120V, 700W White
r
WS703PTC Preset, Single Pole/3-Way 120V, 700W Ivory/White/Lt. Almond
r
WS703PW Preset, Single Pole/3-Way 120V, 700W White
r
WS1100TC Single Pole, Slide to OFF 120V, 1100W Ivory/White/Lt. Almond
r
WS1100W Single Pole, Slide to OFF 120V, 1100W White
r
WS1103PTC Preset, Single Pole/3-Way 120V, 1100W Ivory/White/Lt. Almond
r
WS1103PW Preset, Single Pole/3-Way 120V, 1100W White
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-162
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Magnetic Low-Voltage Wide Slide Dimmers 120VAC, 60 Hz
WSLV700TC
Shown with the Three
Interchangeable Faces
4.25"
1.75"
1.25"
Typical Specifications
Low-voltage dimmer shall be UL Listed/CSA Certified Pass & Seymour®Specification Grade, with full
range solid-state circuitry that shall provide even control by means of a slide mechanism. Preset lighting
levels may be maintained by means of a separate ON/OFF switch. Dimmers shall fit in standard single
gang wall boxes. California Title 24 Compliant. Conforms to NEMA WD-1 and WD-6.
Features
•Maximum ratings are for continuous full load.
•700VA dimmers may be ganged without
de-rating.
•Installs in NEMA standard single-gang wall
boxes.
•Preset models include ON/OFF rocker switch
that allows ON/OFF switching without
disturbing preset intensity levels.
•RFI suppression built-in.
• Screw-pressure-plate back and side wire.
•Package comes with three face colors –
Ivory, White, Light Almond (TC).
• White only option also available (W).
•Interchangeable faces available in four colors
(sold separately, see Page L-18).
WSLV703PW
4.25"
1.75"
1.25"
Performance
Electrical
Voltage: 120VAC 60 Hz
Rated Load: (See Above) Low-Voltage Only
Filtering: Radio Frequency Interference Filtering
Construction: Printed Circuit Board for Reliability
3rd Party Compliance: UL Listed, CSA Certified
Physical
Size: One Gang
Heat Sink: Black Anodized Aluminum Mounting Strap
Wiring: 6" Color-Coded Leads Pre-Stripped
Environmental
Application: Indoor Use Only
Materials
Front Cover and Knob: Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body: Unbreakable ABS
Accessories
Installation and Operating Instructions Provided
CATALOG NUMBER DESCRIPTION RATINGS NARROW OR WIDE
r
WSLV700TC Single Pole 120V, 700VA Ivory/White/Lt. Almond
r
WSLV700W Single Pole 120V, 700VA White
r
WSLV703PTC Preset, Single Pole/3-Way 120V, 700VA Ivory/White/Lt. Almond
r
WSLV703PW Preset, Single Pole/3-Way 120V, 700VA White
WWW.LEGRAND.US/PASSANDSEYMOUR
R-163
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Incandescent Rotary Dimmers 120VAC, 60 Hz
Typical Specifications
Incandescent dimmer shall be UL Listed/CSA Certified Pass & Seymour®Specification Grade, with full
range solid-state circuitry giving even control by means of rotary action and positive ON/OFF switching.
All dimmers shall fit standard single gang wall boxes. California Title 24 Compliant. Conforms to NEMA
WD-1 and WD-6.
Performance
Electrical
Voltage: 120VAC 60 Hz
Rated Load: 600 Watt Incandescent Only
Construction: Printed Circuit Board for Reliability
3rd Party Compliance: UL Listed
CSA Certified
Controls
Range: Dial with Push On and Off
Output: Safety Power Off Switch
Physical
Size: Single Gang, No Derating Necessary
Heat Sink: Aluminum Mounting Strap
Wiring: 6" Color-Coded Leads Pre-Stripped
Environmental
Application: Indoor Use Only
Materials
Knob: Unbreakable ABS
Back Body: Unbreakable ABS
Accessories
Twist Wire Connectors: Provided Installation and Operating Instructions: Provided
Features
•Maximum ratings are for continuous full load.
•Push-ON/OFF rotary switch permits full-range
dimming control and switching at any pre-set
level.
•Excellent state-of-the-art solid-state electronic
circuitry design saves energy and extends bulb
life when lighting level is reduced.
•600V, UL/CSA hook-up wire, multi-stranded,
fray-resistant, pre-tinned, 18-gauge wire,
insulation rated at 105°C.
•Thick aluminum mounting strap provides heat
sink for electronic components.
•Installs in NEMA standard single-gang
wall boxes.
•May be ganged without de-rating.
•RFI protected.
R600PWV
1.74"
4.19"
1.28"
R1000WV
2.50"
4.19"
1.28"
CATALOG NUMBER DESCRIPTION
RATED
LOAD
r
R600V Rotary Dial ON/Dial OFF Incandescent Dimmer, Single Pole Rotate to OFF 600W
r
R1000V Rotary Dial ON/Dial OFF Incandescent Dimmer, Single Pole Rotate to OFF 1000W
r
R600P Rotary Preset Incandescent Dimmer, Single Pole Push ON/Push OFF 600W
r
R603P Rotary Preset Incandescent Dimmer, 3-Way Push ON/Push OFF 600W
r
R1000P Rotary Preset Incandescent Dimmer, Single Pole Push ON/Push OFF 1000W
r
R1003P Rotary Preset Incandescent Dimmer, 3-Way Push ON/Push OFF 1000W
r
R600PLV Rotary Preset Lighted Incandescent Dimmer, Single Pole Push ON/Push OFF 600W
r
R603PLV Rotary Preset Lighted Incandescent Dimmer, 3-Way Push ON/Push OFF 600W
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-164
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
UTP Outlet Wiring Configurations
UTP Cable
T568A
•Adopted by TIA/EIA
and 11801 standards.
•Compatible with one- or
two-pair USOC.
•May be used for ISDN.
• Supports Categories
3, 4, 5, 5e, and 6.
UTP Outlet Wiring Configurations
T568B
•Adopted by TIA/EIA
and 11801 standards.
•Not compatible with
one- or two-pair USOC.
•May be used for ISDN.
• Supports Categories 3,
4, 5, 5e, and 6.
USOC
•Available for 1-, 2-, 3-, or
4-pair systems.
•Maintains pair continuity in
6-position plugs configured
with one, two, or three pairs.
•Inferior performance compared
to T568A or T568B.
•Not cabling standard compliant.
10Base-T/100Base-T
•Eight-position jack, but only
two pairs used.
Token Ring
• Uses either a six-position or
eight-position jack.
•Eight-position compatible with
T568A, T568B, and USOC.
• Six-position compatible with
one- or two-pair USOC.
Pair ID
T1
R1
T2
R2
T3
R3
T4
R4
5
4
3
6
1
2
7
8
PIN Number
Pair ID
T1
R1
T2
R2
T3
R3
T4
R4
5
4
1
2
3
6
7
8
PIN Number
Pair ID
T1
R1
T2
R2
T3
R3
T4
R4
5
4
3
6
2
7
1
8
PIN Number
Pair ID
T1
R1
T2
R2
1
2
3
6
PIN Number
Pair ID
T1
R1
T2
R2
5
4
3
6
PIN Number
T568A T568A (A&T)
USOC 4-pair USOC 1-, 2-, or 3- pair
10Base-T (802.3) Token Ring (802.5)
WWW.LEGRAND.US/PASSANDSEYMOUR
R-165
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Universal & Six-Pin Wiring Guides & UTP Cabling Installation
Basic practices for installing unshielded twisted-pair
(UTP) network cabling
Minimize untwisting of twisted pairs.
When making terminations at jack modules, untwist no more than
1/2" for Category 5e cable or above; no more than 1" for Category 3.
Untwisting pairs beyond these specifications can increase the risk
of failed cable performance testing.
Limit cable bend radius.
Cable should not bend more sharply than four times its diameter.
For Category 5e cable or above, that means a minimum bend radius
of about one inch. Bending cable to tighter-than-minimum bend
radius causes pairs to separate, compromising cable performance.
Observe maximum pulling tension.
Cable is commonly pulled through walls, raceways, and other
passageways. No more than 25 pounds of tension should be
applied. Excess pulling tension can distort twisted pairs, again
posing a threat to performance.
Stay away from high-voltage and
electromagnetism.
Avoid running cable in proximity to high-voltage sources or
electromagnetic fields, as these can cause interference. Examples
include ballasts, electric motors, transformers, and copiers.
Test to ensure performance.
Test completed cabling to ensure that customers get what they’re
paying for — and to prevent insufficient-performance liability. Test
parameters are outlined in TIA/EIA-568-B.1 and vary depending on
type of cable.
Universal Wiring Guide
Six-Pin
Wiring Guide
Pair 1 T White/Blue
R Blue/White
Pair 2 T White/Orange
R Orange/White
Pair 3 T White/Green
R Green/White
Pair 4 T White/Brown
R Brown/White
Twisted-pair wire with
band stripes
Solid-color
twisted-pair wire
Standard Four-Pair Wiring
Application Example
In some retrofit applications you may encounter quad-
wire. This is the red, green, yellow, and black phone
cable that was common in most phone installations
before the 90’s. Legrand recommends that you remove
this cable whenever possible and replace it with
Category 5e cable and connectors. If removal is not
possible, follow the color-code guidelines below to
make connections to jacks bearing current UTP
color markings.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-166
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Wall Plate Specifications
Thermoset Smooth TP Nylon Smooth
Application
Legrand’s broad line of Pass & Seymour® Standard Size Plastic and Metal Wall Plates features the most
complete range of types, sizes, colors, and finishes available. Choose from more than 1,900 standard
plates in non-combustible thermoset plastic material, self-extinguishing nylon material, screwless
polycarbonate material, or attractively finished metal, for residential, commercial, institutional, and
industrial applications. All plastic wall plates color match to Pass & Seymour® devices.
Materials
Wall Plate Material: Urea
Mounting Screws: Metal, oval heads painted to match plate color
Thermoset Plastic Wall Plates
•Molded of non-combustible mar-proof material.
•Available in “SP” series in Standard, Junior-
Jumbo, and Jumbo sizes.
• Seven standard colors available – Ivory, White,
Brown, Gray, Black, Red, and Light Almond.
•Individually wrapped with color-matching screws.
•Resistant to discoloration, grease, oil, solvent
and moisture.
•Nominal thickness, .070"
TradeMaster® Thermoplastic Wall Plates
•Molded of rugged, practically indestructible
self-extinguishing nylon. (“TP” series only.)
•Available in “TP” series, extra 3/16" width and
height than Standard size plates; and “TPJ”
series, extra 3/16" width and height than Junior-
Jumbo size plates.
•Available in Ivory, White, Brown, Gray, Black,
Blue, Orange, Red, and Light Almond.
•Preferred for hospital, industrial, institutional,
and other high-abuse applications.
•Nominal thickness, .070"
Performance
Mechanical
Mechanical Strength: Exceeds UL514 Bend Test
Deformation: Exceeds UL514 Corner Peel
Environmental
Chemical-Resistant Flammability: UL94 V2
Materials
Wall Plate Material: .070" Nylon 6
Wall Plate Finish: Matte
Mounting Screws: Steel, oval heads painted to match plate color
3rd Party Compliance
UL Listed, Standard UL514, Cover Plates for Flush-Mounted Wiring Devices.
Plastic Wall Plates UL File No. E143222.
Metal Wall Plates UL File No. E143223.
CSA Certified.
WWW.LEGRAND.US/PASSANDSEYMOUR
R-167
TECHNICAL SPECIFICATIONS
PASS & SEYMOUR
Project
Location/Type
Technical SpecificaTionS
Wall Plate Specifications
Brushed Brass Aluminum
302/304
Stainless Steel Polished Brass
Screwless
Polycarbonate
Studio
Polycarbonate
3rd Party Compliance
UL Listed, Standard UL514, Cover Plates for
Flush-Mounted Wiring Devices.
Plastic Wall Plates UL File No. E143222.
Metal Wall Plates UL File No. E143223.
CSA Certified.
Metal Wall Plates
•Constructed of corrosion-resistant stainless
steel, brass, aluminum, chrome, brushed bronze
or galvanized steel.
• Standard, Jumbo, and Tandem plates available,
as well as special Panel plates up to 5-gangs
high and 10-gangs wide.
•Packaged in protective film, with finish-matching
screws.
•Variety of special plated finishes. Paintable to
match plastic plates.
•Can be silk-screened or engraved, and custom
punched with over 300 opening styles.
Studio Polycarbonate Wall Plates
• Wall plate and back plate made of polycarbonate
Lexan 241R opaque.
• Wall plate thickness: 0.210
Back plate thickness: 0.28
Screwless Polycarbonate Wall Plates
• Molded of .065” thick polycarbonate, matte finish.
• 2-piece plastic subplate made of polycarbonate.
• Extra 1/8” width and height than Standard size
plates.
• Available in Ivory, White, Brown, Gray, Black, and
Light Almond; and five metallic and three wood
finishes.
Materials
Wall Plate Material: .065” Polycarbonate Wall Plate Finish: Matte
Materials
•Type 302/304 Stainless Steel, non-magnetic,
.032” nominal thickness, brushed finish. This
alloy contains 18% chromium and 8% nickel for
superior resistance to corrosion. Recommended
for use in food processing plants, dairies,
chemical plants, and other industrial, institutional,
and commercial applications where corrosive
atmospheres exist.
•Type 430 Stainless Steel, magnetic, .032” nominal
thickness, brushed finish. Less corrosion-
resistant than Type 302/304, but ideal for general
service in high abuse applications in industrial
plants, commercial, and institutional buildings.
•Chrome, Brushed and Polished Brass, .040” thick.
70% copper, 30% zinc alloy gives warm, appealing
finish to modern decor as well as retrofit
applications. Lacquered to prevent corrosion.
•Aluminum, .040” thick. Lustrous satin finish.
Lacquered to prevent corrosion.
•Galvanized Steel. Used only for Handy Box Plates.
•Brushed Bronze, .040” thick. 90% copper, 10%
zinc. Lacquered to prevent corrosion.
Performance
Flammability: .UL94 V2 Plastic Subplate Material: Polycarbonate
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
R-168
TECHNICAL SPECIFICATIONS
Project
Location/Type
Technical SpecificaTionS
Wall Plate Dimensions
Standard
4.5"
2.75"
Trademaster
Standard
2.9375"
4.6875"
Studio
2.99"
4.9"
Screwless
3.10"
4.87"
Junior-Jumbo
3.125"
4.87"
Trademaster
Jumbo
3.3125"
5.0625"
Jumbo
3.5"
Standard Size Wall Plates
• Standard size wall plates for all
applications.
• Best fit for surface mount boxes.
• Available in plastic and metal only.
Dimensions
1 gang 2.75" x 4.5"
2 gang 4.56" x 4.5"
3 gang 6.375" x 4.5"
4 gang 8.125" x 4.5"
5 gang 10" x 4.5"
6 gang 11.812" x 4.5"
7 gang 13.62" x 4.5"
8 gang 15.44" x 4.5"
TradeMaster® Wall Plates
• Extra 3/16" width and height than
Standard size wall plates.
• Provide better sheet rock coverage with
standard size appearance.
• Available in unbreakable nylon 6
construction only.
• Screws pre-installed in the duplex, toggle
and decorator single gang plates.
Dimensions
1 gang 2.9375" x 4.6875"
2 gang 4.75" x 4.6875"
3 gang 6.563" x 4.6875"
4 gang 8.375" x 4.6875"
5 gang 10.188" x 4.6875"
6 gang 12" x 4.6875"
Studio Polycarbonate Wall Plates
• Wall plate and back plate made of
polycarbonate Lexan 241R opaque.
• Wall plate thickness: 0.210, Back plate
thickness: 0.28
Wall Plate Dimensions
1 gang 2.988" x 4.901"
2 gang 4.80" x 4.901"
3 gang 6.613" x 4.901"
4 gang 8.425" x 4.901"
Back Plate Dimensions
1 gang 3.158" x 4.97"
2 gang 4.97" x 4.97"
3 gang 6.783" x 4.97"
4 gang 8.595" x 4.97"
Screwless Polycarbonate Wall Plates
• Available in decorator, toggle, and duplex
openings.
• Extra 1/8" width and height than
Standard size wall plates.
• Provide better sheet rock coverage with
standard size appearance.
• Molded of .065" thick polycarbonate.
• 2-piece plastic subplate made of
polycarbonate.
• Available in 5 metallic and 3 wood
finishes; and 6 standard colors.
Wall Plate Dimensions
1 gang 3.10" x 4.87"
2 gang 4.912" x 4.87"
3 gang 6.724" x 4.87"
4 gang 8.536" x 4.87"
Subplate Dimensions
1 gang 2.85" x 4.62"
2 gang 4.662" x 4.62"
3 gang 6.474" x 4.62"
4 gang 8.286" x 4.62"
Junior-Jumbo Wall Plates
• Extra 3/8" width and height than
Standard size wall plates.
• Additional coverage for sheet rock gaps.
• Available in plastic and metal only.
Dimensions
1 gang 3.125" x 4.87"
2 gang 4.93" x 4.87"
3 gang 6.75" x 4.87"
4 gang 8.56" x 4.87"
TradeMaster Jumbo Wall Plates
• Extra 3/16" width and height than Junior-
Jumbo size wall plates.
• Provide additional coverage for sheet
rock gaps, matching the appearance of
the TradeMaster Plates.
• Available in unbreakable nylon 6
construction only.
• Screws pre-installed in the duplex,
toggle, and decorator single gang plates.
Dimensions
1 gang 3.3125" x 5.0625"
2 gang 5.125" x 5.0625"
3 gang 6.9375" x 5.0625"
4 gang 8.75" x 5.0625"
Jumbo Wall Plates
• Extra 3/4" width and height than
Standard size wall plates.
• Largest size wall plates to cover larger
wall damage.
• Available in plastic and metal only.
Dimensions
1 gang 3.5" x 5.25"
2 gang 5.31" x 5.25"
3 gang 7.12" x 5.25"
4 gang 8.93" x 5.25"
WWW.LEGRAND.US/PASSANDSEYMOUR
S-1
GLOSSARY OF TERMS
PASS & SEYMOUR
GLOSSARY OF TERMS
A.C. (Alternating Current) – An electric current, such as normal
household current, that reverses direction in a circuit at regular
intervals.
A.C. Only – A device for use on alternating current (A.C.) circuits
only.
Active Equipment – Energized equipment used for receiving
or transmitting analog or digital signals (e.g., hubs, routers,
PBXs, etc.).
Adapter – An accessory used for interconnecting non–mating
devices or converting an existing device to a new or modified use.
Administration – The method for labeling, documentation, and
usage needed to implement moves, additions, and changes to a
telecommunications infrastructure.
AFCI – An arc-fault circuit interrupter is a device intended to
provide protection from the effects of arc faults.
Air Gap Switch – A mechanical switch which is capable of
creating a space between two contacts.
AL/CU – A marking designation used on certain devices to
indicate their suitability for connection to either aluminum or
copper conductors. Also referred to as CO/ALR.
Analog Signal – A signal that uses continuous physical variables
such as voltage amplitude or frequency variations to transmit
information. Contrast with Digital Signal.
Angle Plug – A plug that allows the attached flexible cord to exit
at a right angle to the plug face.
ANSI (American National Standards Institute) – An organization
that identifies industrial and public requirements for national
consensus standards and coordinates and manages their
development, resolves national standards problems, and ensures
effective participation in international standardization.
ANSI/ASHRAE/IESNA Standard 90.1 – An energy standard for
buildings except low-rise residential buildings, adopted by the
Department of Energy as the commercial building reference
standard for state building energy codes under the federal
Energy Policy Act.
Asynchronous Transfer Mode (ATM) – A high-speed switching
transmission protocol that uses payload packages organized into
53-byte cells to carry data.
Attenuation – The decrease in power received from power
transmitted due to loss through transmission lines; measured in
decibels.
Attenuation-to-Crosstalk Ratio (ACR) – The difference between
attenuation and crosstalk measured in decibels (dB) at a given
frequency. This difference is critical to ensure that the signal
sent down the twisted-pair cable is stronger at the receiving end
of the cable than any interference signals (crosstalk) from other
cable pairs.
Attenuator – Electrical or optical element that reduces
(attenuates) the intensity of the signal passing through it.
Automatic Grounding – A component that provides automatic
grounding of an electrical wiring device when installed in a
grounded metal enclosure. Eliminates the need for a bonding
jumper.
AWG (American Wire Gauge) – Standard American measuring
scheme for classifying wires according to the diameter of the
conductors.
Auto ON/OFF – A control strategy used with occupancy sensors
of turning lights on and off automatically; OFF when a space is
unoccupied and ON whenever occupancy is detected.
Back Wire Terminal – A termination that can be accomplished by
inserting a pre-stripped solid or stranded conductor into a wiring
device terminal opening, followed by tightening the adjacent
terminal screw.
Backbone Cabling – The physical interconnections between
the entrance facility, equipment room, and various floors or
telecommunications rooms.
Ballast – A device used with an electric-discharge lamp to obtain
the necessary circuit conditions (voltage, current, and waveform)
for starting and operating.
Bandwidth – A measure of the amount of information which
can pass through a channel, expressed in Hertz (Hz). Higher
bandwidth means greater capacity to carry data.
Bar Coil – A bar coil is constructed of a ferrite bar and is wrapped
with copper wire. This device is used to reduce RFI generated by
a dimmer or other electronic switching devices.
Bend Radius – The minimum radius to which a cable or fiber can
be bent before excessive signal attenuation occurs.
BICSI (Building Industry Consulting Service International) – An
industry association dedicated to the design and installation of
communication wiring.
Bi-level Switching – A control strategy that focuses on switching
individual lamps within a luminaire, or groups of luminaires to
achieve a reduced, balanced lighting level.
Binding Post – Type of connecting device used in audio speaker
circuits. A knurled nut is tightened over a speaker wire conductor
inserted through a hole in a threaded post. Binding posts may
also offer a female jack connection for use of banana-type jacks.
Bit Error Rate (BER) – The ratio of incorrectly transmitted bits to
total transmitted bits. A primary specification for all transmission
systems, it is usually expressed as a power of 10. The number of
errors made in a digital transmission as compared to complete
accuracy.
Box Mounted Dimmers/Fan Speed Control – Any dimmer or fan
speed control that mounts in or on a NEMA standard switch box.
Bulb Sing (Filament Hum) – The audible noise which can come
from an incandescent lamp controlled by a dimmer.
Bundle – More than one cable held in a single Grip.
Byte – A data unit made up of eight bits, sometimes referred to as
an octet. Megabytes and gigabytes are commonly used measures
of storage or memory capacity.
Cable – One or more electrical and/or optical conductors within a
protective sheath.
Cable Assembly – A cable that has connectors installed on one or
both ends. See Jumper and Pigtail.
Cable Modem – A modem used to link cable-supplied data to a
computer network; for example, when a CATV provider offers
high-speed, cable-based Internet service.
California Title 24 – In an effort to reduce electrical
power consumption, California has enacted
requirements for residential lighting. These
requirements are that all permanently installed
fixtures must be either high efficacy, controlled by a manual-on/
automatic-off vacancy sensor or controlled by a dimmer. Visit
www.energy.ca.gov/title24 for additional information.
Campus – A complex of buildings which operates as one
continuous facility – e.g., multibuilding corporate headquarters,
university, military base.
Candelabra – A small screw-base threaded lampholder
accepting a bulb approximately 1/2" in diameter commonly used
in night lights, indicator lights and Christmas tree bulbs.
Candlepower – A measurement of light at the source, not the
object you light up.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
S-2
GLOSSARY OF TERMS
GLOSSARY OF TERMS
Cascade Cable – A specialized cable used to link compatible
computer network hardware (usually hubs) together to form a
compound device that acts as a single, larger device. In the P&S
Home Network Center, a cascade cable can link two hub modules
to increase the number of ports available.
Category 3 – 100 ohm twisted-pair copper cable that meets or
exceeds specifications in ANSI/TIA/EIA-568-B.2, Commercial
Building Telecommunications Cabling Standard, and ISO/IEC
11801, Generic Cabling for Customer Premises, for transmissions
up to 16 MHz.
Category 5 – 100 ohm twisted-pair copper cable that meets
or exceeds specifications in ANSI/TIA/EIA-568-B.2 Annex N,
Commercial Building Telecommunications Cabling Standard.
Category 5 is no longer recognized for new commercial
installation.
Category 5e – An enhanced form of Category 5, supporting high-
speed data transmission per TIA/EIA-568-B.1.
Category 6 – 100 ohm twisted-pair copper cable that meets or
exceeds specifications in ANSI/TIA/EIA-568-B.2-1, Commercial
Building Telecommunications Cabling Standard, and ISO/IEC
11801, Generic Cabling for Customer Premises, for transmissions
up to 250 MHz. Positive power sum attenuation-to-crosstalk ratio
is characterized to 200 MHz.
Capacitor – An electronic device capable of storing an electrical
charge. Used in circuits for a variety of functions often to reduce
or eliminate noise.
CATV – Community Antenna Television, known as cable
television.
CE Marking – A product marking required in Europe that
indicates conformity to the “common level of safety” and is used
to insure “free movement of goods” within the 19 countries of the
European Union.
CEC – Canadian Electrical Code.
Centralized Cabling – An optical fiber cabling configuration,
based on TIA/EIA-568-B.1, Optical Fiber Cabling Guidelines, from
the work area to a centralized cross-connect using pull-through
cables, an interconnect, or splice in the telecommunications
room.
CFL – Compact fluorescent lamp. CFLs are a type of
fluorescent lamp that provide similar light levels compared with
incandescent lamps but offer longer lifecycles and consume less
electricity.
Channel – The complete communications path between
telecommunications room equipment and workstation
equipment, which includes cross-connects and patch cords.
Choke – A device used to filter RFI noise generated by dimmers
or other electronic switching devices.
Circuit Breaking Capability – Capability of a plug/receptacle
combination to break live circuits up to their maximum load
rating. Except in emergency situations, plugs and receptacles
should not be engaged or disengaged while power is on.
Circuit Breaking Rating – A rating which indicates the ability
of a connector to make and/or break a circuit under load. Such
ratings are determined through testing by qualified laboratories.
Cladding – In fiber cable, the transparent outer concentric glass
layer that surrounds the optical fiber core and has a lower index
of refraction than the core. It provides total internal reflection
and protects against scattering from contaminants at the core
surface.
Clamping Voltage – The peak voltage that can be measured after
a surge protective device has limited or “clamped” a transient
voltage surge. Clamping voltage must be determined by using
IEEE Standard C62 testing and evaluated by UL Standard 1449.
Clock Hanger – A single receptacle generally recessed behind a
special cover plate having a hook or other means of supporting a
wall-hung clock.
CO/ALR – A marking designation used on certain devices to
indicate their suitability for connection to either aluminum or
copper conductors.
Coaxial Cable – An electrical-transmission cable with a center
conductor, insulating spacer, and an outer electrical shield.
Provides high quality signal transmission for video and data
applications.
Combination Wall Plates – A multiple gang wall plate with
different openings in each gang for different devices.
Communications Plenum Cable (CMP) – Cable listed as
suitable for use in ducts, plenums, and other spaces used for
environmental air. It has adequate fire-resistant and low smoke-
producing characteristics. Cables must pass required test for
fire and smoke characteristics of wires and cables, NFPA 262 or
UL 910.
Communications Riser Cable (CMR) – Cable listed as suitable
for use in a vertical run in a shaft or from floor to floor. It has
fire-resistant characteristics capable of preventing the carrying
of fire from floor to floor. Cables must pass requirements of the
Standard Test for Flame Propagation Height of Electrical and
Optical-Fiber Cable Installed Vertically in Shafts, ANSI/UL 1666.
Configuration – A description of the arrangement, size, and
number of contacts in an insert assembly. Typical configuration
descriptions include the number of wires and poles and the
presence of a separate grounding contact. The combination of
such factors determine the connector’s electrical rating.
Connecting Block – A plastic block with metal wiring clips used
to establish an electrical connection.
Connector – A mechanical device used to provide a means for
aligning, attaching, and achieving continuity between conductors
or optical fibers.
Connector Grip – A strain-relief grip for specific customer
requirements. Usually attached to a connector retaining nut.
Connector, Small Form Factor – An optical fiber duplex
connector with a footprint approximating that of an 8-position
outlet connector typically used with 4-pair copper connectors.
Consolidation Point (CP) – A location for interconnection
between horizontal cables extending from building pathways and
horizontal cables extending into furniture pathways.
Cord Connector – A portable receptacle, which is provided, with
means for attachment to a flexible cord and which is not intended
for permanent mounting.
Core – The central, light-carrying part of an optical fiber through
which light pulses are transmitted.
Corrosion-Resistant – A device constructed of special materials
and/or suitably plated to withstand corrosive environments.
Cross-Connect – System component where jumper wires and
patch cords are used to rearrange communications circuits
in order to administer the network. Usually located in a
telecommunications room or equipment room.
Crosstalk – Undesired signal in one circuit transferred from
another circuit by induction.
CSA (Canadian Standards Association) – An organization serving
a function for Canadian electrical manufacturers similar to
that provided in the U.S. by Underwriters Laboratories, Inc.
(UL). CSA develops safety and performance standards for
electrical products that parallel, but are not always identical
to, UL standards. CSA tests products and grants paying clients
“certification” that their products meet CSA standards.
WWW.LEGRAND.US/PASSANDSEYMOUR
S-3
GLOSSARY OF TERMS
PASS & SEYMOUR
GLOSSARY OF TERMS
C-UL – UL certification to CSA requirements, C-UL is a
marking approved by the Standards Council of Canada. C-UL
can be used on products to be installed in accordance with the
Canadian Electrical Code.
Current – The flow of electrons through an electrical conductor,
measured in amperes.
Daisy Chain – A cabling method (topology) of connecting devices
in series. Daisy chaining is no longer recommended.
DALI – Digital Addressable Lighting Interface. A communication
protocol developed primarily for fluorescent dimming systems.
Part of an IEC standard.
Daylighting Control – A lighting control method that changes the
amount of light provided by lighting fixtures as the contribution of
ambient daylight changes.
dB (Decibel) – The standard unit of measure of signal gain or
loss, used in attenuation and crosstalk measurements.
DBS (Direct Broadcast Satellite) – Satellite television service
that is purchased through a subscription (DirecTV, DISH Network).
D.C. (Direct Current) – An electric current, for example, battery
power, that flows only in one direction through a circuit.
Dedicated Circuit – A circuit established to provide control
voltage and current to one load or one type of load, such as an
electric range or a computer.
Deep Wall Plate – A wall plate that provides greater clearance
for device mounting straps than standard wall plates.
Demarcation Point – The interface which marks the division
between telephone company facilities and private building wiring,
where ownership and operational control changes.
De-Rating – When two or more dimmers are ganged and heat
sinking material is removed, it is important to “de-rate” or lower
the wattage rating of the dimmer. This is due to the heat rise
caused by the devices.
Digital Signal (DS) – A signal with a fixed number of discrete
values. Commonly, a binary signal with two values that are used
to transmit the two states (0,1) used by digital computers. Most
data transmission in optical fibers is by digital optical pulses.
Contrast with Analog Signal.
Dimmer – A switch with electronic components that permits
variable control of lighting intensity.
Dimmer Derating – The reduced maximum load for a dimmer
in a specific application. When dimmers are used in a multigang
application they run hotter and therefore must be derated
depending upon the number of dimmers being used and their
locations within the box.
Dimming Ballast – A special ballast used with fluorescent
dimmers to control the light intensity of fluorescent lamps.
DIN Rail – Metal component found in enclosures used for
mounting control devices or power packs.
Direct-Buried Cable – A telecommunications cable designed to
be installed under the surface of the earth, in direct contact with
the soil.
Disconnect Use Only – Description of a connector not designed
for engaging or disengaging under load. Such connectors are
commonly used as cost-effective hard wiring alternatives.
“Disconnect Use Only” Rating – A rating of the current-carrying
capability of individually engaged pin and sleeve contacts. Such
ratings are established through testing for compliance with
applicable standards or codes, as well as wire conductor size and
insulation as defined in the National Electrical Code® (NEC®).
Dispersion – The spreading of light pulses as they travel through
an optical fiber.
Door Switch – A momentary contact switch normally installed in
a door-jamb. The switch is activated when the door is opened or
closed.
Double Pole Switch (double-pole single-throw) – A switch
that makes or breaks the connection of conductors of a single
branch circuit.
Double Weave – Mesh braid with rows of two strands each.
DSL (Digital Subscriber Line) – A new digital connection method
that provides high-speed Internet or other network connections
over standard telephone wire.
Dual Cable Systems – CATV systems in which the incoming
service is provided over two different cables, sometimes called
A/B cable systems. For example, a system in which one cable
(cable A) carries channels 2-50 and the other cable (cable B)
carries channels 51-100. This is an older method of providing
service, used when the initially installed cable lacks capacity to
meet current needs.
Dual Relay – Control device containing two relays that enables
simultaneous but independent control of two different loads.
Dual Technology – The combination of passive infrared and
ultrasonic technologies used to detect occupancy.
Duplex Receptacle – Two receptacles in a common housing or
mounting means which accepts two plugs.
Dustproof – A receptacle so constructed or protected that dust
will not interfere with its operation.
DVD (Digital Video Disc) – An acronym commonly used to
describe a device that plays DVD-format discs. Such devices
(both dedicated DVD players and computer DVD drives) can
supply video or other signals through a video or computer
network.
DV/DT (Delta Voltage/Delta Time) – DV/DT is the rate of change
in voltage over a certain time frame.
Electronic Dimming Ballast – A variable output electronic
fluorescent ballast.
Electronic Industries Alliance (EIA) – Industry trade association
which works with the Telecommunications Industry Association
(TIA) in developing standards.
EMI – Electromagnetic interference or unwanted signal pick-
up. One of two types of electrical “noise” caused by varying
magnetic fields conducted into branch wiring from inductive load
switching.
Energy – A measure of electrical power rated in joules.
Entrance Facility (EF) (telecommunications) – An entrance to
a building for both public and private network service cables
(including antennae) encompassing the entrance point at the
building wall and continuing to the entrance room or space.
Equipment Room (ER) – A centralized space for
telecommunications equipment serving one or multiple
buildings. It contains more complex equipment than the
telecommunications room, which serves each floor of a building.
Ethernet – The most commonly used protocol (language) in
computer networking. Originally supported (and still commonly
used) in 10 Mbps form (10Base-T), 100 Mbps Ethernet (Fast
Ethernet or 100Base-T) is also available.
External Video – A video signal provided by an external source,
such as cable, satellite, or antenna-received broadcast.
Fan Hum – Noise created by a fan motor when controlled by a
standard speed control.
Far-End Crosstalk (FEXT) – Crosstalk measured at the cable end
opposite from where the signal originates.
FCC – Federal Communications Commission.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
S-4
GLOSSARY OF TERMS
GLOSSARY OF TERMS
F Connector – The 75 ohm radio frequency connector used with
coaxial cable to attach drop cables to taps and other devices. The
F connector does not have center pins. The F connector uses the
solid copper center conductor of the coaxial cable itself as the
center pin to establish the connection.
FDDI (Fiber Distributed Data Interface) – An ANSI standard for
100 Mbps fiber physical and data protocols, generally used in
“backbone” applications.
Fed Spec – Devices which comply with Federal Specifications
such as W-C-596 for connecting and W-S-896 for switches. Fed
Spec Standards for switches and connecting devices include
NEMA Performance Standards.
Feed Through – The practice of wiring a single branch circuit
through a device and feeding power to other devices wired down-
stream. (Feeding through a GFCI would provide protection to
downstream receptacles.)
Fiber (Optical Fiber) – A thin filament of glass or plastic capable
of carrying information in the form of light.
Fiber Optics – Communications scheme which converts electrical
energy to light in order to transmit through optical fiber.
Field Adjustable Trim Potentiometer – A small, typically
screwdriver-adjustable, variable resistor. Used to adjust
minimum level of light or speed of a fan.
Firestop – A material or device installed in a cable pathway to
prevent the passage of flames, smoke, and gases.
Flanged Inlet – A plug which is intended for flush mounting on an
appliance or equipment and which serves to connect utilization
equipment to a cord connector.
Flanged Outlet – A receptacle which is intended for flush
mounting on an appliance or equipment which is intended to
establish electrical connection with an inserted plug.
Fluorescent Lamp – A glass housing that contains phosphorus in
a sealed vacuum. When the phosphorus is excited from a voltage
charge, it becomes ionized and gives off light.
Fluorescent Starter – A device rated in watts having a voltage-
sensitive switch and a capacitor whose function is to provide a
high-voltage pulse to start a fluorescent lamp.
Flush Wall Plate – A wall plate designed to mount flush with the
wall surface or the plane surface of electrical equipment.
Foot-Candle – The amount of light one candle generates one
foot away.
Four-Way Switch – A switch which is used in conjunction with
two three-way switches to control one light or other connected
equipment from three or more locations.
Floor Receptacle – A receptacle with a protective cover plate
intended for mounting flush with the surface of the floor.
Frequency – The number of cycles completed by a signal in one
second, expressed in Hertz.
Fresnel Lens – A lens recognized by its concentric rings that is
used for passive infrared sensors.
Fusible Mechanical Interlock – A switchable IEC pin and sleeve
receptacle that is mechanically interlocked to ensure that a plug
cannot be engaged or disengaged under load. Fusible mechanical
interlocks include a fusible disconnect switch inside a single,
non-metallic enclosure. They are typically used to provide
overload protection for portable equipment at the source of
power access.
Fusion Splice – A permanent joint accomplished by applying
localized heat sufficient to fuse or melt the ends of two optical
fibers together, forming a continuous single fiber.
Gang – The space required for one wiring device, wall plate, etc.
GFCI (Ground Fault Circuit Interrupter) – A personnel protection
device that detects current leakage and removes power to the
receptacle.
Gigabit Ethernet – A carrier-sense multiple access with collision
detection LAN standard developed by the IEEE 802 group
operating at one Gb/s.
GigaHertz – A unit of frequency equal to one billion Hertz.
Grip – A flexible wire mesh cable holding device.
Ground Conductor – A conductor (identified as the bare or green
conductor, normally non-current carrying) which is intentionally
connected to earth ground to provide an intentional path for fault
current to ground.
Grounding – A system in a connector assembly to ensure ground
continuity. Ground conductors connect normally nonenergized
metal components to earth and are not part of the electrical
circuit.
GSA (General Services Administration, Federal Supply
Service) – The U.S. Government administration responsible for
the approval of Federal Specifications used in the purchase of
products by all Federal agencies.
Headroom – The overhead or margin, expressed in decibels, by
which a communications system exceeds minimum requirements.
Heat Sink – A metal plate used for absorbing or removing heat
from the switching device (triac) in a dimmer or fan speed
control.
Heat Sink Dimmer/Fan Speed Control – Any dimmer or fan
speed control that mounts onto a NEMA standard switch box, but
whose strap protrudes beyond the box and onto the surface of
the wall itself. Heat sink dimmers and fan controls will not accept
a traditional wall plate and usually are supplied with their own
unique cover.
Hertz – A unit of frequency, one cycle.
Home Network Center – In the P&S Home Network Wiring
System, the center point for all network cabling. The Home
Network Center is configured for varying network needs, with
modules.
Home Run – Also known as star topology, a cabling system where
individual cables are run directly from the telecommunications
room to each work area outlet.
Home Theater – Home entertainment system using television
video and multi-channel audio to more closely approximate
a movie theater experience. Typical home theater systems
incorporate traditional front right and left audio channels, a front
center channel, and a two-speaker rear channel.
Horsepower Rated – A device having a marked horsepower
rating is intended for control of motor loads.
Horizontal Cabling – The portion of the wiring system extending
from the workstation to the horizontal cross-connect in the
telecommunications room.
Horizontal Cross-Connect – The cross-connection between
horizontal and other cabling, such as backbone cabling.
Horizontal Length – The cable distance from the workstation to
the telecommunications room cross-connect, a maximum of 295
ft. (100 meters).
Hospital Grade – A device constructed to meet performance
requirements of high abuse areas found in hospital locations,
tested to “Hospital Grade” requirements of Underwriters
Laboratories Standard UL 498.
Hub – Equipment which serves as a centralized connection point
for a network or a portion of network. Hubs contain multiplexing,
switching, and bridging functions and are not considered part of
the cabling infrastructure.
WWW.LEGRAND.US/PASSANDSEYMOUR
S-5
GLOSSARY OF TERMS
PASS & SEYMOUR
GLOSSARY OF TERMS
IEC (International Electrotechnical Commission) – The IEC is
a worldwide standards organization having 43 countries as its
members. The United States is active in many areas of the IEC
and the standards it develops.
IECC – The International Energy Conservation Code, developed
by the International Code Council® (ICC®), that provides the
minimum energy efficiency provisions for residential and
commercial buildings. It is written so that state and local
jurisdictions can easily adopt the model as their energy code.
IEEE – Institute of Electrical and Electronic Engineers.
Illuminated – A device that, when connected to an electrical
circuit, is lighted in the area of the face or handle.
Illumination – What results from light use. Point a flashlight on
an object and you light it up or “illuminate” it.
Impedance – The resistance or opposition to the flow of
alternating current within a circuit.
Impedance Matching – Matching impedances of adjoining
circuit elements so that power transfer across the interface is
maximized, in order to improve performance or to accomplish a
specific effect.
Incandescent Lamp – A light bulb which contains a filament in a
sealed vacuum. When voltage is applied to the filament, it heats,
producing light.
Inductive Load – Electrical devices made of coiled or wound wire
that create a magnetic field when energized. Components such as
motors, solenoids and coils are all inductive loads.
Infrared (I.R.) – The invisible light emitted by all people, animals,
and objects. Infrared is measured in terms of micrometers on the
wavelength spectrum.
Inlet (Male Base) – A plug which is intended for flush or surface
mounting on an appliance or equipment and which serves to
connect utilization equipment to a connector.
Inrush Current – The maximum current drawn by a device during
the starting period.
Insertion Loss – 1. The loss resulting from the insertion of a
device in a transmission line. 2. In an optical fiber system, the
loss of optical power caused by inserting a component, such as a
connector, coupler, or splice into a previously continuous optical
path.
Insulation Displacement Connection (IDC) – An electrical
connection made by “punching down” a wire in a terminal, which
cuts through the insulation to make contact with the conductor.
Interbuilding (Campus) Backbone – A backbone network
providing communications among multiple buildings.
Interbuilding Backbone Cable – 1. Cable that runs between
buildings in a campus environment. 2. Outside plant cabling.
Interchangeable – A device or combination of devices, each
individually housed and having common mounting dimensions
and intended for field installation on a single or multiple opening
mounting strap. Also known as Despard®.
Interconnection – A connection scheme that provides for the
connection of a cable to another cable or to an equipment cable.
Intermediate Cross-Connect (IC) – The cross-connection
between the first and second level of backbone cabling.
Internal Video – A video signal provided by such in-home sources
as a DVD player, VCR, camcorder, or video camera.
Intrabuilding Backbone Cable – Cable that runs between
telecommunications rooms inside a building. Can be vertical or
horizontal in physical configuration.
ISDN (Integrated Services Digital Network) – An integrated
digital network in which the same time division switches and
digital transmission paths are used to establish connections for
different services, for example, telephony, data, telex, and fax.
Isolated Ground – A grounding type device in which the
equipment ground contact and terminal are electrically isolated
from the receptacle mounting means.
Jack – A device into which a plug is inserted in order to make
electrical contact in a communication circuit.
Joule Rating – The measurement of a surge protective device’s
ability to absorb heat energy created by transient surges.
Note that the Joule rating is not a part of IEEE or UL Standards.
It is not as significant a specification as clamping voltage,
maximum surge current and other parameters recognized by
these agencies.
Jumper – 1. An assembly of twisted pairs without connectors,
used to join telecommunications circuits/links at the cross-
connect. 2. An optical fiber cable with connectors installed on
both ends. See Cable Assembly.
Jumper Wire – A short length of twisted pair cable used to route
a circuit between two cross-connect termination points.
Key – A lampholder with a means of switching the lamp on or off
as part of the device.
Keyless – A lampholder with no means of switching the light on
or off at the lampholder.
Lace – Strand of wire usually the same material as the mesh
used to weave closed a split mesh.
Lampholder – A device that establishes mechanical and
electrical connection to an inserted lamp.
LAN (Local Area Network) – A network of computers and
peripheral devices with a limited area such as a department,
single building, or campus environment.
Launch Cable – Length of optical fiber cable used to condition
the launch of the optical time domain reflectometer test signal so
that the correct results will be obtained.
LED – Light Emitting Diode.
LEED® – Leadership in Energy and Environmental Design, a
voluntary program administered by the U.S. Green Building
Council. Projects achieve Certified, Silver, Gold, or Platinum
ratings by satisfying standard prerequisites and going beyond
this threshold to earn points in specific categories.
Lighted Handle – A switch with an integral lamp in the actuator
that lights when the switch is in the “OFF” position.
Light Source – Used in conjunction with a power meter, the test
equipment unit that normally contains a light-emitting diode or
laser used to create a light wavelength for testing optical fiber
cable loss or continuity.
Link – The basic, permanently installed, horizontal cabling path
between the work area outlet and telecommunications room
cross-connect. Often referred to as the contractor link.
Load Shedding – A lighting control strategy for selectively
reducing the output of lighting fixtures or lamps on a temporary
basis as a means to reduce peak demand charges.
Locking (Turnlok®) – A device designated to lock in place when
it is rotated in a clockwise direction. The device can then only be
removed when turned in a counterclockwise direction.
Locking Switch – A switch with a separate actuator key, rather
than a toggle, to prevent unauthorized use.
Loss – Attenuation of the optical signal, usually measured in dB.
Loss Budget – The total allowable loss between source and
detector allocated among fiber, connectors, splices, and safety
margin.
Low-Voltage – A device designed for use under 50 volts.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
S-6
GLOSSARY OF TERMS
GLOSSARY OF TERMS
Lumen – One foot-candle falling on one square foot of area.
Lux – Luminance measured in metric units vs. English units.
Lux is the measurement of actual light available at a given
distance. Lux = one lumen incident per square meter of
illuminated surface area.
Main Cross-Connect (MC) – A cross-connect used with first level
backbone, entrance, or equipment cables.
Maintained Contact Switch – When the actuator is moved to the
“ON” position, this switch makes and retains the circuit contact
until the actuator is manually moved to the “OFF” position.
MAN (Metropolitan Area Network) – A data communications
network that covers an area larger than a campus area and
smaller than that of a wide area network. It usually interconnects
two or more LANs and covers an entire metropolitan area, such
as a large city and its suburbs.
Manual Controller – A horsepower rated switch without overload
protection. Used for the operation of small A.C. or D.C. motors.
Maximum (Peak) Surge Current – The peak surge current a
surge protective device can withstand, based on IEEE Standard
C62.45 test waveforms.
Mbps (MegaBits Per Second) – One million bits per second.
Mechanical Interlock – A switchable IEC pin and sleeve
receptacle that is mechanically interlocked to ensure that a plug
cannot be engaged or disengaged under load. They are typically
used to provide a disconnect point in power circuits supplying
portable equipment.
Mechanical Splicing – For optical fibers, permanently joining
two fibers together by mechanical means to enable a
continuous signal.
Media (telecommunications) – Wire, cable, or conductors used
for telecommunications.
Medium Base (Edison) – The most common type of screw-in
lampholder found in everyday lighting fixtures, table lamps and
accepting incandescent bulbs with screw bases approximately 1"
in diameter.
Megahertz (MHz) – A unit of frequency equal to one million cycles
per second (Hertz).
Mesh – The tubular open braid portion of a wire mesh grip.
Mesh Termination – The method of securing woven strands at the
ends of a wire mesh grip.
Microprocessor – Single chip computer element containing
the control unit, central processing circuitry; arithmetic and
logic function.
Midget – A device with a body diameter smaller than those of
devices of a similar rating.
MLD (Multi-Location Dimming) – This is achieved through the use
of specific components designed to interface and allow dimming
control from any location, master or remote. In a true MLD
situation, the master unit performs all dimming and switching
functions. The remote units provide input to the master (i.e.; dim,
bright, on or off, as desired).
Mode – 1. Loosely, a possible light path followed by light rays,
as in multimode or single-mode. 2. Strictly, a distribution of
electromagnetic energy that satisfies Maxwell’s equations and
boundary conditions in guided wave propagation, such as through
a waveguide or optical fiber.
Modular Jack – A female telecommunications connector, which is
mounted in a fixed location. Jacks are specified in IEC 603-7 and
FCC Part 68 Subpart F. Also see Outlet.
Modular Plug – A male telecommunications connector, specified
in IEC 603-7 and FCC Part 68 Subpart F.
Modulation – A process whereby certain characteristics of
a wave, often called the carrier, are varied or selected in
accordance with a modulating function. This includes amplitude,
frequency or phase, and other modulation techniques.
Mogul – The largest screw-in type of lampholder accepting
incandescent lamp bulbs having screw bases approximately
1-1/2" in diameter. Used in street lighting fixtures and industrial
high bay fixtures.
Molded On – A connector that is factory molded to a length of
flexible cord.
Momentary Contact – A switch which establishes circuit contact
when its actuator is moved to, and held in, the “ON” position. The
circuit is broken when the actuator is allowed to return, of itself,
to the “OFF” position (such a switch may also be furnished to
operate in the opposite mode).
M.O.V. – Metal Oxide Varistor, primary component of TVSS.
MTP™ – Factory-terminated multiple-termination fiber optic
connector for 12-strand ribbon-fiber optic cable. Most commonly
used in backbone (riser) applications such as the P&S PFOB
System. MTP is a trademark of US Conec Ltd.
Multimedia – Applications which communicate information using
more than one cabling means.
Multimode Optical Fiber – An optical fiber cable that allows
light to travel in many bound modes; used in LAN applications.
Multimode fibers have a larger core than single-mode (core/
cladding 62.5/125 micrometers).
Multiple Weave – Wire mesh grips woven utilizing single, double,
and triple strands of each wire material.
Multiplexing – Combining a number of individual messages over
a common path – usually by frequency division or time division.
Multi-User Telecommunications Outlet Assembly (MUTOA) – A
device grouping several telecommunications outlets into one
location.
Narrow Wall Plate – A cover plate designed for flush mounting
on narrow partitions having a width dimension of two inches
or less.
Near-End Crosstalk (NEXT) – Electrical noise coupled from
one pair of wires to another, measured from where the signal is
transmitted.
NEC (National Electrical Code®) – A code providing for practical
safeguarding of persons and property from hazards arising from
the use of electricity.
NEC Amperage Rating – The most widely recognized rating
for industrial applications. A current-carrying capability of
a pin and sleeve system in accordance with Underwriters
Laboratories Standards and wire conductor size and insulation
per the National Electrical Code. Determined by qualified
laboratory testing.
NEMA (National Electrical Manufacturers’ Association) –
An organization of electrical manufacturers that establishes
standards for manufacturing and testing of performance and
reliability of electrical products. NEMA tests are often the basis
or prerequisite for approval by the Federal Government and/or by
Underwriters’ Laboratories, Inc.
NEMA Type 1 Enclosures – Intended for indoor use primarily to
provide a degree of protection against limited amounts of falling
dirt in locations where unusual service conditions do not exist.
NEMA Type 3 Enclosures – Intended for outdoor use primarily to
provide a degree of protection against rain, sleet, and windblown
dust; and to be undamaged by the formation of ice on the
enclosure. They are not intended to provide protection against
conditions such as internal condensation or internal icing.
WWW.LEGRAND.US/PASSANDSEYMOUR
S-7
GLOSSARY OF TERMS
PASS & SEYMOUR
GLOSSARY OF TERMS
NEMA Type 3R Enclosures – Intended for outdoor use primarily
to provide a degree of protection against rain and sleet; and to be
undamaged by the formation of ice on the enclosure. They are not
intended to provide protection against conditions such as internal
condensation, or internal icing.
NEMA Type 4 Enclosures – Enclosures intended for indoor or
outdoor use primarily to provide a degree of protection against
windblown dust and rain, splashing water, hose-directed water,
and external ice formation.
NEMA Type 4X Enclosures – Enclosures intended for indoor or
outdoor use primarily to provide a degree of protection against
corrosion, windblown dust and rain, splashing water, hose-
directed water, and external ice formation.
NEMA Type 7 Enclosures – Intended for indoor use in locations
classified as Class 1, Group A, B, C, or D, as defined in the
National Electrical Code. They shall be capable of withstanding
the pressures resulting from an internal explosion of specified
gases, and contain such an explosion sufficient that an explosive
gas-air mixture existing in the atmosphere surrounding the
enclosure will not be ignited. Enclosed heat generating devices
shall not cause external surfaces to reach temperatures
capable of igniting explosive gas-air mixtures in the surrounding
atmosphere. Enclosures shall meet explosion, hydrostatic, and
temperature design tests.
NEMA Type 9 Enclosures – Intended for indoor use in locations
classified as Class II, Groups E, F, or G, as defined in the National
Electrical Code. They shall be capable of preventing the entrance
of dust. Enclosed heat generating devices shall not cause
external surfaces to reach temperatures capable of igniting or
discoloring dust on the enclosure or igniting dust-air mixtures
in the surrounding atmosphere. Enclosures shall meet dust
penetration and temperature design tests, and aging of gaskets
(if used).
NEMA Type 12 Enclosures – Intended for indoor use primarily
to provide a degree of protection against circulating dust,
falling dirt, and dripping non-corrosive liquids. They are not
intended to provide protection against such conditions as internal
condensation.
NEMA Type 13 Enclosures – Intended for indoor use primarily
to provide a degree of protection against lint, dust, spraying
of water, oil, and non-corrosive coolant. They are not intended
to provide protection against conditions such as internal
condensation.
Network – An interconnection of computers, peripherals, and
data/voice communications facilities.
NFPA (National Fire Protection Association) – An organization
devoted to promoting the science and improving the methods of
Fire Protection. Membership is open to anyone interested. Every
three years the NFPA produces a new edition of the NEC (see
above). The NFPA also provides many other useful publications
dealing with fire prevention.
N.P.S. – National Pipe Straight Thread.
N.P.T. – National Pipe Tapered Thread.
Occupancy Sensor – A device that switches lights on and off or
dims and brightens lights based on the presence or absence of
people.
OFNP (Optical Fiber Non-conductive Plenum) – NFPA
designation for optical fiber cable that contains no electrically
conductive components and meets fire rating requirements for
plenum (backbone) applications.
Ohm – The unit of measurement for electrical resistance.
Ohm’s Law – States that, in a given electrical circuit, the amount
at current in amps is equal to the pressure in volts divided by the
resistance in ohms. The formula is:
I (Current) = V voltage or V = I x R
R resistance or R = V/I
Open System Architecture – International standards for data
networking which allow multi-vendor/multi-product applications.
Optical Fiber – A thin filament of glass or plastic capable of
carrying information in the form of light.
Optical Power Meter – Test equipment that measures in dBm the
strength of a light wave over a fiber cable.
Optical Time Domain Reflectometer (OTDR) – An instrument that
measures transmission characteristics of fiber by measuring the
backscatter and reflection of injected light as a function of time.
Used to measure attenuation of fiber, splices, connectors, and
locate faults.
OSHA (Occupational Safety and Health Administration) – That
part of the U.S. Department of Labor responsible for assuring
that employers provide safe and healthful working conditions
and equipment for employees, and that employees properly avail
themselves of these conditions. Note: OSHA does not approve
products. Compliance with OSHA regulations is contingent
on approval or listing of the product by an authorized testing
laboratory, such as UL, and proper installation and/or use of the
product in accordance with OSHA guidelines.
Oversized Wall Plate – A wall plate with length and width
dimensions greater than standard wall plates.
Outlet – A point on the wiring system at which current is taken to
supply utilization equipment.
Outlet (DataCom) – A fixed connection where horizontal cable
terminates and work area equipment can be connected.
Outside Plant (OSP) – Telecommunications infrastructure
designed for installation exterior to buildings.
Pair – Two wires, twisted together with a reciprocal color code.
Pair Twist – The uniform twist of an insulated copper pair that
helps to improve the effects of capacitance imbalance and
electromagnetic induction.
Passive Infrared-(P.I.R.) – Typically this term is used in
reference to detecting infrared. A P.I.R. detector functions as
a receiver of infrared emitted from a transmitter, such as the
human body.
Patch Cord – A length of cable, with connectors on the ends, used
to join telecommunications links at a cross-connect.
Patch Panel – Connecting hardware that can be accessed
with patch cords to form cross-connection (usually located in
a telecommunications room) used to modify, reconfigure, or
administer communications networks.
PBX (Private Branch Exchange) – A telephone switching system
serving one organization or business, which is connected to the
public telephone system.
Peripherals – Devices used to extend the capability of a
computer or network. These can include printers, scanners,
external drives, modems, and more.
Permanent Link – The transmission path between any two
interfaces of cabling, excluding patch cords, equipment, and work
area cables.
Phase Control – The electronic process of chopping or turning
on and off the AC line every half line cycle. It is commonly used in
dimming and fan speed control applications.
Pigtail – A short length of copper or optical fiber cable that has a
pre-installed connector on one end. See Cable Assembly
and Jumper.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
S-8
GLOSSARY OF TERMS
GLOSSARY OF TERMS
Pin and Sleeve – Industrial wiring devices utilizing round pin-
shaped blades and tubular designed sleeve contacts.
Pilot Light – A switch with an integral lamp in the actuator which
lights when the switch is in the “ON” position.
Plenum – A chamber which forms part of a building’s air
distribution system.
Plug – A device utilizing blades which, when inserted into a
receptacle, establishes connection between the conductors of
the attached flexible cord and the conductors connected to the
receptacle.
Polarization (plugs and receptacles) – A means of assuring the
mating of plugs and receptacles of the same rating in only the
correct position.
Polarity – The alignment of a plug and receptacle to ensure
correct connection.
Pole – The term “pole” as used in designating plugs and
receptacles refers to a terminal to which a circuit conductor
(always current carrying) is connected. In switches, the number
of poles indicates the number of conductors being controlled.
Port – Hardware entity at the end of each link.
Potentiometer (POT) – A variable resistor, when used in a phase
control it adjusts the light intensity.
Power Budget – In fiber optics, the difference between the
strength of the signal transmitter and the sensitivity of the signal
receiver. It represents the maximum acceptable loss for the
combination of components and connectors used on a link.
Power Connector – A plug or receptacle that provides connection
for distribution of secondary electrical power from a power
source to electrical equipment, either portable or stationary.
Powersum – A test method for four-pair cable which compares
the sum of the pair-to-pair crosstalk from three pairs to the
fourth pair.
Premises Wiring – The technology of wiring buildings and
equipment for data, telephone, video and other electrical/
electronic functions.
Preset – The ability of a dimmer or fan speed control to
“remember” a desired level of output.
Pressure Termination – An electrical connection in which a
stripped cable is secured in a wire well by a set screw. The
simplest method of termination.
Propagation Delay – Time between when a signal is transmitted
and when it is received at the opposite end of the cable.
Protocol – A set of rules governing the transmission of
information over a data channel.
PDN (Public Data Network) – A network established and
operated for the specific purpose of providing data transmission
services to the public.
Pulling Grip – A reusable wire mesh grip for pulling cable, rope,
or bare conductor.
Pulling Tension – The amount of pull (foot-pounds of tension)
placed on a cable during installation.
Pull Switch – A switch with an actuator mechanism operated by a
downward or outward pull.
Punchdown – Securing a conductor to a wiring terminal by
placing the insulated conductor in the terminal groove and
pushing down with a “punchdown” (impact) tool – creating an
insulation displacement connection (IDC).
Push/Push – A means of achieving the preset features on a
rotary dimmer or fan speed control. The secondary switching
mechanism is activated by pushing the knob at any preset of light
or speed.
RCDD (Registered Communications Distribution Designer) –
Professional certification granted by BICSI (Building Industry
Consulting Services International).
Recessed F Connector – A type of video connector in which the
termination is recessed for a smoother appearance and greater
termination protection.
Receptacle – A contact device which is intended to establish
electrical connection with an inserted plug.
Refractive Index – The ratio of the velocity of light in a vacuum to
the velocity of light in a given material.
Relay Rack – A vertical metal frame that is equipped with
threaded holes at a predefined spacing in accordance with EIA-
310-D, on the front of the rack (or on both the front and rear sides
of the rack). It is used to mount termination hardware, electronic
equipment, or a combination of both. It can be floor mounted (free
standing) or wall mounted.
Resistive Load – A device which opposes the flow of electric
current. There is a voltage drop across a resistive load, which
causes the device to dissipate heat.
Response Time – The interval time required for a device to
perform its stated function in reaction to specific condition(s),
such as a transient voltage surge or ground fault.
Return Loss – 1. Noise or interference caused by impedance
of a cable, expressed in decibels. 2. The amount of reflected
power compared to the amount of incident power at an interface,
expressed in dB. Return loss is a critical factor in single-mode
links because reflected light can destabilize some lasers.
RF Control – Radio Frequency Control. Systems that use RF
communication to propagate control messages between devices
and/or throughout the system.
RFI (Radio Frequency Interference) – Electrical noise.
Ring – One of the two conductors or cable pair in a telephone
circuit.
Riser – The path between floors of a building.
RJ (Registered Jack) – Telephone and data jack applications
registered with FCC.
RJ31X – A specialized jack used to allow security systems to
take immediate control of a phone line, even when it is already in
use. The security module used in the P&S Home Network Wiring
Center includes an RJ31X jack for this purpose.
R.M.S. (Root Means Square) – Used as an A.C. value of voltage or
current. Expressed, for example, as 120 volts AC RMS.
Rocker Switch – A switch that is operated by a paddle-type
actuator, such as a decorator switch.
RoHS – Restriction of Hazardous Substances Directive. This
directive restricts the use of six hazardous materials in the
manufacture of various types of electronic and electrical
equipment. It has been adopted by the European Union and in
modified form by some jurisdictions in the U.S.
Rotary Dimming – Is achieved through the rotation of a knob of
any style to control the lighting level components.
Rough-In – Stage of network installation during which boxes are
mounted and cabling is run.
Safety Switch – Common term for an enclosed switch, commonly
used in service or motor-circuit disconnect applications or as a
motor controller. It is typically used to provide a disconnect point
in power circuits supplying stationary or permanently installed
equipment. Safety switches may be either fusible or non-fusible.
Scattering – A property of a fiber that causes light to deflect from
the fiber, contributing to losses.
Sectional Wall Plate – Individual section wall plates with
different openings that can be field assembled into a custom
multi-gang wall plate.
WWW.LEGRAND.US/PASSANDSEYMOUR
S-9
GLOSSARY OF TERMS
PASS & SEYMOUR
GLOSSARY OF TERMS
Self Modulating – A video device, for example, a VCR or video
camera, which supplies video signals to a specified CATV or UHF
channel. No separate modulator is required.
Series Circuit – A circuit in which the components are arranged
end to end to form a single path for current.
Service Loop – The slack which should be left in the cable at the
communications outlet to accommodate future needs.
Shield – Metallic layer placed around a conductor or group of
conductors to prevent electrostatic or electromagnetic coupling
between the enclosed wires and external fields.
Side Wire Terminal – A termination that can be accomplished
by a 3/4" turn looping pre-stripped solid or stranded conductor
under terminal screws.
Signal-to-Noise Ratio (SNR) – The ratio between the detected
signal power and noise in a receiver, expressed in dB. The prime
determining factor in bit error rate.
Single-Mode Fiber – An optical fiber that will allow only one
mode to propagate. This fiber is typically a step index fiber.
Single Receptacle – A receptacle which accepts only one plug.
Single Pole Switch – (single-pole single-throw) – A switch that
makes or breaks the connection of one conductor and controls
one load from one location.
Single Weave – A wire mesh grip woven with single strands of
wire material.
Slant Symbol (/) – As used in wiring device ratings, indicates that
two or more voltage potentials can be used.
Slide Switch – A switch having a sliding actuating member which
makes or breaks the switch contact mechanism.
Slide Dimming – Is achieved through the linear movement up
and down or horizontal of a slide mechanism to control the
lighting level.
Splice Tray – A container used to organize and protect fiber
splices, as well as a means for storing fiber slack.
Split Circuit – A duplex receptacle that can be wired for two
separate circuits.
Split Mesh – A wire mesh grip separated at one row along the
wire mesh axis utilizing an additional lace or rods to weave
closed around cable.
Star Wiring – Called Star Topology and Home Run, a method of
cabling each telecommunications outlet directly to the horizontal
cross-connect in the telecommunications room with an individual
pair of cables.
Straight Blade – A plug, connector, receptacle, flanged inlet or
flanged outlet providing no locking features.
Straight Tip (ST) – A type of optical fiber connector identified by
its bayonet housing. The ferrule may be metallic, ceramic, or
plastic.
Strain Relief Grip – A wire mesh grip used to relieve strain or
stress at the transition point between relatively flexible cable or
conduit and the rigid connection point.
Stranded – A number of solid wires twisted together to form a
flexible conductor.
Strap Dimmer/Fan Speed Control – Any dimmer or fan speed
control that will fit into a traditional NEMA standard switch box,
without an external heat sink.
Subscriber Connector (SC) – A type of optical fiber identified by
the square cross-section of its plastic housing.
Support Grip – A wire mesh grip used for permanent or
temporary support of a length of cable.
Surface-Mounted – A device intended to be installed on the
surface of a wall, panel, or equipment.
Surge-Suppression – The use of a device containing electronic
components which limits peak voltage to a predetermined value
when voltage spikes or surges appear on the connected line.
Switch – A device for making, breaking, or changing the
connections in an electric current. An enclosed switch is
located in a box or cabinet, may be fusible or non-fusible, and is
commonly used in a service or motor-circuit disconnect capacity,
as a disconnect when equipment is to be serviced, or as a motor
controller.
“T” Rated Switch – A switch for tungsten filament lamps for both
AC and DC current.
Tamper-Resistant – A receptacle which by its construction limits
improper access to its energized contacts.
Tandem – A wall plate in which individual gangs are arranged
vertically one above the other.
Telecommunications Room (TR) – An enclosed space for housing
telecommunications equipment, cable terminations, and cross-
connects. The room is the recognized cross-connect between the
backbone cable and horizontal cabling.
Terminal – A terminal is a fixed location on a wiring device where
a conductor is intended to be connected.
Three Position Center “OFF” – A two-circuit, three-position
switch of either the maintained or momentary type, in which
the “OFF” position is indicated by the centered position of
the actuator.
Three-Way Switch (single-pole double-throw) – A switch which
is used in pairs to control one load from two or more locations.
TIA (Telecommunications Industry Association) – Industry
trade association which works with the Electronics Industry
Association (EIA) in developing standards.
Tight-Buffered Cable – Type of cable construction in which
each glass fiber is tightly buffered by a protective thermoplastic
coating to a diameter of 900 microns. Increased buffering
provides ease of handling and installing connectors.
Time Delay – A period of time when a load is energized or
de-energized. At the end of the desired time period, the load
changes state (i.e.; on or off).
Time Switch – An electronic or electromechanical control,
used to schedule “turn on” and “turn off” time based on the time
of day.
Timer – An electronic or electromechanical control, used to
produce a time delay to control a load.
Tip – The positive conductor of a pair in a basic telephone circuit.
The tip is grounded.
Toggle Switch – A switch having a lever-type actuating member
which makes or breaks the switch contacts when its position is
changed.
Toggle Dimming – Is achieved through up or down toggling
of traditional switch style toggle used to control the dimming
components.
Topology – The physical or geometric configuration of a local
area network.
Toroid Choke – An electronic component constructed of a ferrite
ring wrapped with copper wire, used to reduce RFI generated by
an electronic switching device.
Touch Dimming – The ability of a dimmer to control lighting levels
by sensing the touch of a hand to its sensor plate.
Transient Voltage Surge Suppressor (TVSS) – A device designed
to protect sensitive electronic equipment from the harmful
effects of transient voltage surges having entered the power line
to which it is connected.
PASS & SEYMOUR
WWW.LEGRAND.US/PASSANDSEYMOUR
S-10
GLOSSARY OF TERMS
GLOSSARY OF TERMS
Transmitter (TX) – 1. An optoelectronic circuit that converts an
electrical logic signal to an optical signal. 2. In fiber optics, using
a source such as light-emitting diode or laser.
TRIAC (Bidirectional Triode Thyristor) – A solid-state output
device capable of switching alternating current.
Trim Kit – For P&S Home Network Centers, a set of components
enabling complete installation of capability-providing modules
and cabling following cabinet rough-in, as well as providing a
finished appearance.
Turnkey – An installation in which the user receives a complete,
operational system, ready to be used.
Twisted Pair – Two insulated copper wires twisted together to
reduce interference from each other.
UL (Underwriters Laboratories, Inc.) – “An independent
not-for-profit organization testing for public safety.”
UL Listed – Indicates an item that has been tested and approved
to the standards established by UL for safety.
UL Recognized – Refers to products that have been tested
and approved to be used as component parts of equipment or
products that are to be UL listed.
Ultrasonic – Technology to detect occupancy using high
frequency (ultrasonic) sound waves and measuring the changes
in the returning waves. Can sense around partitions.
USOC (Uniform Service Order Code) – Bell system term to
denote varying pin configurations on registered jacks (RJs).
UTP (Unshielded Twisted Pair) – Twisted-pair copper cables
without metallic braid shielding – capable of high-speed voice
and data transmission. The most common cabling used in the
U.S. in structured wiring.
Ultraviolet – The invisible rays of the spectrum of light which are
at its violet end. Sometimes abbreviated U.V.
Vacancy Sensor – A device that operates as a standard ON/OFF
switch that will automatically turn lights off if the space becomes
vacant. Required for certain residential applications under
California Title 24.
Varistor – Variable resistor.
Voltage – A difference of potential measured in volts. The electric
pressure available to cause a flow of electrons.
Voltage Rating – Ratings that indicate the current-carrying
capability of a connector up to a specified voltage. Voltage ratings
are determined by the air gap between contacts and between
contacts and the shell.
Wall Plate – A plate designed to enclose a device box, with or
without a device installed in the box.
Watertight – A classification of a device and/or enclosure with
design considerations for preventing water from entering under
specific conditions.
Wavelength – The length of a wave measured from any point on
one wave to the corresponding point on the next wave, such as
from crest to crest. The wavelength of light is usually measured
in nanometers (nm).
WD-1 – Standards Publications by NEMA. General requirements
for wiring devices.
WD-5 – Has been merged with WD-1.
WD-6 – Standards Publications by NEMA. Wiring devices –
dimensional requirements.
Weatherproof – A device constructed or protected such that
exposure to weather will not interfere with successful operation
(N.E.C.).
Wet Location; Cover Open – A cover, UL Listed, in accordance
with specific test standards for use in wet and damp locations
with the cover opened (plug cap inserted) or closed.
Wet Location; Only with Cover Closed – A cover, UL Listed, in
accordance with specific test standards for use in damp locations
with the cover closed, or wet locations only when the cover
is closed.
Wide-Area Network (WAN) – Computer networks where
devices are connected over extended distances using
telecommunications links, such as telephone lines, satellites,
and microwave connections, rather than a length of cable.
Wire Size – Conductors for building wiring are available in AWG
(American Wire Gauge) sizes ranging from #14 to 4/0. The larger
the number size, the smaller the diameter. For example: #10 is
smaller than #8. The larger the diameter of a wire, the less
the resistance.
Wire Mesh Grip (Flexcor) – Woven wire mesh holding devices
used to support, pull, or relieve strain exerted upon cables,
conduit, tubing, and various other items.
Wiring Closet – Termination point for customer premises wiring
offering access to service personnel.
Work Area Outlet – A connecting device in the work area
where horizontal cable terminates and work area equipment
can be connected. Also called information outlet and
telecommunications outlet.
Workstation – The location where telecommunications cabling
is connected to work area equipment (PCs and peripherals) by
means of a telecommunications outlet. Also called work area
outlet and information outlet.
Note: Some definitions courtesy of BICSI.
WWW.LEGRAND.US/PASSANDSEYMOUR
T-1
INDEX
Cat. No. Page Cat. No. Page Cat. No. Page Cat. No. Page
PASS & SEYMOUR
INDEX
A —C
A
ACD1......................................... Q11
ACD201 .....................................Q11
ACD203 .....................................Q11
ACD3......................................... Q11
ACDAP ...................................... Q17
ACMFB......................................Q17
ACSAP ......................................Q17
ACSFP.......................................Q17
AR120/277 ................................ K18
AX30........................................... I21
AX60........................................... I21
B
BOX120 ....................................... J8
BOX140 ....................................... J8
BOX22 ......................................... J8
BOX30 ......................................... J8
BOX40 ......................................... J8
BOX52 ......................................... J8
BOX70 ......................................... J8
BOX94 ......................................... J8
C
C118HAC ................................. M12
C118HGAC ............................... M12
C118RAC.................................. M12
C118RGAC ............................... M12
C118WAC................................. M12
C118WACX............................... M12
C118WGAC............................... M12
C118WGACX ............................ M12
C25E2F .....................................Q18
C5EF .........................................Q18
CA126..........................................O8
CA17G .........................................O8
CA18G .........................................O8
CA1G...........................................O7
CA1GL.........................................O7
CA1GS.........................................O7
CA1U2681G.................................O5
CA262G .......................................O8
CA268G .......................................O8
CA26GH ......................................O7
CA26GV.......................................O7
CA2G...........................................O8
CA2GS.........................................O8
CA2U2681G.................................O5
CA721G .......................................O6
CA723G .......................................O6
CA726G .......................................O8
CA72G .........................................O8
CA78G .........................................O8
CA7GV......................................... O6
CA82G .........................................O8
CA8GH .............................. O6, O15
CA8GJ .........................................O6
CA8GVFS.....................................O6
CD1100 ..................................... L24
CD1103P................................... L24
CD1600 ..................................... L24
CD1603P................................... L24
CD2000 ..................................... L24
CD2003P................................... L24
CD3FB10277............................. L28
CD3FB103P277 ........................ L28
CD3FB16................................... L28
CD3FB163P .............................. L28
CD4FB7120277......................... L29
CD4FB73P120277..................... L29
CD700 ....................................... L24
CD703P............................. L23, L24
CDADAPTORKIT ....................... L25
CDDH16...........................L30, L34
CDFB10 .................................... L26
CDFB10277............................... L26
CDFB103P ................................ L27
CDFB103P277P ........................ L27
CDFB16 .................................... L26
CDFB163P ................................ L27
CDFB5 ...................................... L26
CDFB53P .................................. L27
CDFB7277................................. L26
CDFB73P277 ............................ L27
CDFB8 ...................................... L26
CDFB83P .................................. L27
CDLV700 ................................... L25
CDLV703P................................. L25
CDLV1100 ................................. L25
CDLV1103P ............................... L25
CDLV1600 ................................. L25
CDLV1603P ............................... L25
CDSC12............................L30, L34
CDSC6 .............................L30, L34
CG1016 ....................................... J7
CG101690.................................... J7
CG1018 ....................................... J7
CG101890.................................... J7
CG1020 ....................................... J7
CG1022 ....................................... J7
CG102245.................................... J7
CG1218 ....................................... J7
CG1220 ....................................... J7
CG122090.................................... J7
CG1222 ....................................... J7
CG122245.................................... J7
CG122290.................................... J7
CG1422 ....................................... J7
CG142290.................................... J7
CG1424 ....................................... J7
CG142490.................................... J7
CG1426 ....................................... J7
CG142690.................................... J7
CG1428 ....................................... J7
CG142890.................................... J7
CG1430 ....................................... J7
CG143090.................................... J7
CG1432 ....................................... J7
CG143290.................................... J7
CG1434 ....................................... J7
CG1436 ....................................... J7
CG1438 ....................................... J7
CG1440 ....................................... J7
CG1442 ....................................... J7
CG1630 ....................................... J7
CG1634 ....................................... J7
CG1636 ....................................... J7
CG1638 ....................................... J7
CG1640 ....................................... J7
CG1642 ....................................... J7
CG1830 ....................................... J7
CG1834 ....................................... J7
CG1836 ....................................... J7
CG1838 ....................................... J7
CG1840 ....................................... J7
CG1842 ....................................... J7
CG1844 ....................................... J7
CG1846 ....................................... J7
CG1848 ....................................... J7
CG405 ......................................... J7
CG40545 ..................................... J7
CG40590 ..................................... J7
CG406 ......................................... J7
CG40645 ..................................... J7
CG40690 ..................................... J7
CG407 ......................................... J7
CG40790 ..................................... J7
CG408 ......................................... J7
CG40890 ..................................... J7
CG409 ......................................... J7
CG40945 ..................................... J7
CG40990 ..................................... J7
CG410 ......................................... J7
CG41090 ..................................... J7
CG410F ....................................... J7
CG411 ......................................... J7
CG412 ......................................... J7
CG606 ......................................... J7
CG607 ......................................... J7
CG608 ......................................... J7
CG60845 ..................................... J7
CG60890 ..................................... J7
CG609 ......................................... J7
CG60945 ..................................... J7
CG60990 ..................................... J7
CG610 .................................. J2, J7
CG61090 ..................................... J7
CG611 ......................................... J7
CG61190 ..................................... J7
CG612 ......................................... J7
CG61245 ..................................... J7
CG61290 ..................................... J7
CG809 ......................................... J7
CG811 ......................................... J7
CG812 ......................................... J7
CG81245 ..................................... J7
CG81290 ..................................... J7
CG812F ....................................... J7
CG814 ......................................... J7
CG81445 ..................................... J7
CG81490 ..................................... J7
CG816 ......................................... J7
CG81645 ..................................... J7
CG81690 ..................................... J7
CG816F ....................................... J7
CR15 .........................................B24
CR20 .........................................B24
CR5266X ..................................... F5
CR5269X ..................................... F5
CR6200 .....................................B10
CR6207 .....................................B75
CR6300 .....................................B10
CR6307 .....................................B75
CR6364 ..................................... G34
CR6365 ..................................... G34
CR6369 ..................................... G34
CR6370 ..................................... G33
CR6375 ..................................... G34
CR7716N............... G33, G34, G35
CR7717N............... G33, G34, G35
CRB5262......................... B22, B23
CRB5262S....................... B22, B23
CRB5362......................... B22, B23
CRB5362S....................... B22, B23
CRL1420C................................. G13
CRL1420P.................................G13
CRL1430C................................. G20
CRL1430P.................................G20
CRL2030RBC............................G35
CRL2030RBP............................ G35
CRL515C.....................................G6
CRL515P.....................................G6
CRL520C.....................................G9
CRL520P.....................................G9
CRL520R................ G9, G11, G12,
................................... G16, G17
CRL530C................................... G16
CRL530P................................... G16
CRL620C................................... G10
CRL620P................................... G10
CRL630C................................... G17
CRL630P................................... G17
CS1200.............................. K3, K14
CS1200L ................................... K14
CS15AC1..................................... A7
CS15AC3..................................... A7
CS20AC1..................................... A7
CS20AC3..................................... A7
CS500................................ K3, K14
CS6360...................................... G33
CS6361...................................... G33
CS6364...................................... G34
CS6365...................................... G34
CS6369...................................... G34
CS6370...................................... G33
CS6375...................................... G34
CS6377...................................... G33
CS8164...................................... G34
CS8165...................................... G34
CS8169...................................... G34
CS8175...................................... G34
CS8177...................................... G34
CS8264...................................... G33
CS8265...................................... G33
CS8269...................................... G33
CS8275...................................... G33
CS8364...................................... G34
CS8365...................................... G34
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
INDEX
T-2
PASS & SEYMOUR
INDEX
C — F
CS8369...................................... G34
CS8375...................................... G34
CS8464...................................... G33
CS8465...................................... G33
CS8469...................................... G33
CS8475...................................... G33
CSB15AC1 .................................. A7
CSB15AC2 .................................. A7
CSB15AC3 .................................. A7
CSB15AC4 .................................. A7
CSB20AC1 .................................. A7
CSB20AC2 .................................. A7
CSB20AC3 .................................. A7
CSB20AC4 .................................. A7
CSD1000 ........................... K3, K16
CSD1000LV ...............................K16
CSU1100 ........................... K3, K15
CSU2200 ........................... K3, K15
CSU600 ............................. K3, K15
CT1............................................. M7
D
D0531.............................. B76, F14
D0533.............................. B76, F14
D0551.............................. B76, F14
D0553.............................. B76, F14
D0631.............................. B76, F14
D0633.............................. B76, F14
D0651.............................. B76, F14
D0653.............................. B76, F14
D0711........................................B79
D0731........................................ F14
D0751........................................ F14
D1000M..................................... L10
D1103PTC................................. L11
D1861........................................B76
D1861........................................ F14
D600M....................................... L10
D703PTC................................... L11
DC1 ...........................................G35
DDH15M ..........................L10, L31
DDH16P ................. L20, L31, L33
DFB600M.................................. L10
DFB8P ...................................... L20
DKIT.......................................... L11
DLV600M................................... L10
DR703P..................................... L17
DR1103P................................... L17
DRD2........................................... L5
DRD3........................................... L5
DRD4........................................... L5
DRD5........................................... L6
DRD6........................................... L6
DRD8........................................... L5
DRD9....................................L4, L6
DRDH163P.......................L17, L31
DRLV703P........................L17, L20
DRLV1103P......................L17, L20
DRM.......................................... L10
DRSC53P .........................L17, L31
e
EHU15AN........... D31, F4, F5, F6
EXT1........................................... M2
EXT2........................................... M2
F
FB1TRDRB .............................. M13
FB1TRDRN .............................. M13
FB1TRSRB............................... M13
FB1TRSRN .............................. M13
FB2DR2B................................. M14
FB2DR2N................................. M14
FB2DRKS4B ............................ M14
FB2DRKS4N ............................ M14
FB2TRDRKS4N ....................... M14
FBOX1....................................... O10
FC050LB ....................................J10
FC050OF ....................................J10
FC050U ......................................J10
FC050UU....................................J10
FC062LB ....................................J10
FC062OF ....................................J10
FC062U ......................................J10
FC062UU....................................J10
FC075LB ....................................J10
FC075OF ....................................J10
FC075U ......................................J10
FC075UU....................................J10
FC100LB ....................................J10
FC100OF ....................................J10
FC100U ......................................J10
FC100UU....................................J10
FC125LB ....................................J10
FC125OF ....................................J10
FC125U ......................................J10
FC125UU....................................J10
FC150LB ....................................J10
FC150OF ....................................J10
FC150U ......................................J10
FC150UU....................................J10
FC175LB ....................................J10
FC175OF ....................................J10
FC175U ......................................J10
FC175UU....................................J10
FC200LB ....................................J10
FC200OF ....................................J10
FC200U ......................................J10
FC200UU....................................J10
FC22...........................................J14
FC22GL.....D31, F4, F5, G36, J8
FC250LB ....................................J10
FC250OF ....................................J10
FC250U ......................................J10
FC250UU....................................J10
FC30...........................................J14
FC300LB ....................................J10
FC300OF ....................................J10
FC300U ......................................J10
FC30GL.....D31, F4, F5, G36, J8
FC30LB......................................J14
FC350LB ....................................J10
FC350OF ....................................J10
FC40...........................................J14
FC40GL.....D31, F4, F5, G36, J8
FC40LB......................................J14
FC52...........................................J14
FC52GL.....D31, F4, F5, G36, J8
FC52LB......................................J14
FC70...........................................J14
FC70GL..............................G36, J8
FC70LB......................................J14
FC94...........................................J14
FC94GL..............................G36, J8
FC94LB......................................J14
FCHL075U .................................J13
FCHL075UU...............................J13
FCHL100U .................................J13
FCHL100UU...............................J13
FCHL125U .................................J13
FCHL125UU...............................J13
FCHL150U .................................J13
FCHL150UU...............................J13
FCHL200UU...............................J13
FCHL250UU...............................J13
FCHL300UU...............................J13
FCHL350UU...............................J13
FCSD22......................................J14
FCSD30......................................J14
FCSD30LB .................................J14
FCSD40......................................J14
FCSD52......................................J14
FCSD52LB .................................J14
FCSD70......................................J14
FCSD70LB .................................J14
FCSD94......................................J14
FCSD94LB .................................J14
FFO18LB....................................J15
FFO18U......................................J15
FFO24LB....................................J15
FFO24U......................................J15
FFO30LB....................................J15
FFO30U......................................J15
FFO38LB....................................J15
FFO38U......................................J15
FFO46LB....................................J15
FFO46U......................................J15
FFO56LB....................................J15
FFO56U......................................J15
FFO70LB....................................J15
FFO70U......................................J15
FFRO18U ...................................J15
FFRO24U ...................................J15
FFRO30U ...................................J15
FFRO38U ...................................J15
FFRO46U ...................................J15
FFRO56U ...................................J15
FFRO70U ...................................J15
FR050LB....................................J12
FR050U ......................................J12
FR050UU ...................................J12
FR062LB....................................J12
FR062U ......................................J12
FR062UU ...................................J12
FR075LB....................................J12
FR075U ......................................J12
FR075UU ...................................J12
FR100LB....................................J12
FR100U ......................................J12
FR100UU ...................................J12
FR125LB....................................J12
FR125U ......................................J12
FR125UU ...................................J12
FR150LB....................................J12
FR150U ......................................J12
FR150UU ...................................J12
FR175LB....................................J12
FR175U ......................................J12
FR175UU ...................................J12
FR200LB....................................J12
FR200U ......................................J12
FR200UU ...................................J12
FS050LB ....................................J11
FS050OF ....................................J11
FS050U ......................................J11
FS050UU....................................J11
FS062LB ....................................J11
FS062OF ....................................J11
FS062U ......................................J11
FS062UU....................................J11
FS075OF ....................................J11
FS075U ......................................J11
FS100LB ....................................J11
FS100OF ....................................J11
FS100U ......................................J11
FS100UU....................................J11
FS125LB ....................................J11
FS125OF ....................................J11
FS125U ......................................J11
FS125UU....................................J11
FS150LB ....................................J11
FS150OF ....................................J11
FS150U ......................................J11
FS150UU....................................J11
FS175LB ....................................J11
FS175OF ....................................J11
FS175U ......................................J11
FS175UU....................................J11
FS2............................................Q10
FS200LB ....................................J11
FS200OF ....................................J11
FS200U ......................................J11
FS200UU....................................J11
FS25.......................................... Q10
FS250LB ....................................J11
FS250OF ....................................J11
FS250U ......................................J11
FS250UU....................................J11
FS300LB ....................................J11
FS300OF ....................................J11
FS300U ......................................J11
FS300UU....................................J11
FS350LB ....................................J11
FS350OF ....................................J11
FS350U ......................................J11
FS350UU....................................J11
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
T-3
INDEX
PASS & SEYMOUR
INDEX
F — L
FS4............................................Q10
FS5............................................Q10
FSHL075U .................................J13
FSHL075UU...............................J13
FSHL100U .................................J13
FSHL100UU...............................J13
FSHL125U .................................J13
FSHL125UU...............................J13
FSHL150U .................................J13
FSHL150UU...............................J13
FSHL200UU...............................J13
FSHL250UU...............................J13
FSHL300UU...............................J13
FSHL350UU...............................J13
FSHL400UU...............................J13
g
GARD3GR .................................O21
GASKET1 .................................. P37
GASKET2 ..................................O23
GASKET3726.............................O23
GASKET3780.............................O23
GASKET38 ................................O23
GH5............................................J14
H
H703PTUTC .............................. L11
H703PTU..........................L11, L12
H703P ....................................... L11
H1103P ..................................... L11
HCL453PTC .....................L11, L12
HCL453P..........................L11, L12
HDH163PTC.............................. L13
HDH163P .................................. L13
HFB83PTC ................................ L13
HFB83P .................................... L13
HLV703PTC............................... L11
HLV703P ................................... L11
HLV1103PTC............................. L11
HLV1103P ................................. L11
HP30EX..................................... A11
HS1001 ............................. K3, K13
I
IG26262........................... B33, E17
IG26262HG........... B33, B39, D13,
................................... D16, E17
IG26362........................... B33, E17
IG26362HG........... B33, B39, D13,
................................... D16, E17
IG415.........................................B73
IG420.........................................B73
IG420HSP ....................... B73, D32
IG4700............................... E19, G6
IG4710............................... E19, G6
IG4760............................... E19, G7
IG5261............................. B33, E17
IG5262....................B33, E15, E17
IG5262SP .......................... B67, E4
IG5361............................. B33, E17
IG5362................... B33, D13, E17
IG5362SP .......................... B67, E4
IG5662............................. B33, E17
IG5862................... B33, D13, E17
IG8200.................... B13, B33, D9,
................................... D13, E17
IG8200SP ................ B66, D28, E3
IG8300.................... B13, B33, D9,
................................... D13, E17
IG8300SP ................ B66, D28, E3
IG8301................... B33, D13, E17
IG8800.................... B13, B33, D9,
................................... D13, E17
IGL1420R ........................ E19, G13
IGL1430R ........................ E19, G20
IGL1520R ........................ E19, G13
IGL1530R ........................ E19, G20
IGL1620R ........................ E19, G13
IGL2120R ........................ E19, G15
IGL2130R ........................ E19, G23
IGL2220R ........................ E19, G15
IGL2230R ........................ E19, G23
IGL2320R ........................ E19, G15
IGL2330R ........................ E19, G23
IGL520P .................................... E19
IGL520R ........E19, G9, G11, G12,
................................... G16, G17
IGL530R .................................... E19
IGL620R .......................... E19, G10
IGL630P ...........................E19, E19
IGL720R .......................... E19, G10
IGL820R .................................... E19
J
JP12845C5E ............................. Q19
JP24845C5E ............................. Q19
JP36845C5E ............................. Q19
K
K1 ............................................. P20
KS226........................................Q16
KS2BP ...................................... Q16
KS326........................................Q16
KS426........................................Q16
KS58AB..................................... Q16
KS68AB..................................... Q16
KS6U.........................................Q16
KSBL10..................................... Q16
KSBNC...................................... Q16
KSFF......................................... Q16
KSFFST..................................... Q16
KSRCAB.................................... Q16
KSRCAF.................................... Q16
KSRCAR.................................... Q16
KSRCAY .................................... Q16
KSSC......................................... Q16
KSST .........................................Q16
KSSV .........................................Q16
KTPD1.......................................Q16
KTPD2.......................................Q16
KTPD3.......................................Q16
KTPD4.......................................Q16
KTPD6.......................................Q16
KTPDL1 ....................................Q16
KTPDL2 ....................................Q16
KTPDL3 ....................................Q16
KTPDL4 ....................................Q16
KTPDL6 ....................................Q16
L
L0115 ..........................................G5
L0714 ..........................................G7
L1020C...................................... G12
L1020FI..................................... G12
L1020FO....................................G12
L1020P...................................... G12
L1030C...................................... G19
L1030FI..................................... G19
L1030FO....................................G19
L1030P...................................... G19
L1030R...................................... G19
L1120C...................................... G12
L1120FO....................................G12
L1120P...................................... G12
L1130C...................................... G19
L1130FI..................................... G19
L1130FO....................................G19
L1130P...................................... G19
L1130R...................................... G19
L1220C...................................... G12
L1220FI..................................... G12
L1220FO....................................G12
L1220P...................................... G12
L1230C...................................... G19
L1230FI..................................... G19
L1230FO....................................G19
L1230P...................................... G19
L1230R...................................... G19
L1330C...................................... G19
L1330FO....................................G19
L1330P...................................... G19
L1330R...................................... G19
L1420C...................................... G13
L1420CGCM.............................. G26
L1420FI..................................... G13
L1420FO....................................G13
L1420P...................................... G13
L1420PGCM..............................G26
L1420R...................................... G13
L1430C...................................... G20
L1430CGCM.............................. G26
L1430FI..................................... G20
L1430FIKIT ............................... G20
L1430FO....................................G20
L1430KIT .................................. O16
L1430P...................................... G20
L1430PGCM..............................G26
L1430R...................................... G20
L1520C...................................... G13
L1520FI..................................... G13
L1520FO....................................G13
L1520P...................................... G13
L1520R...................................... G13
L1530C...................................... G20
L1530FI..................................... G20
L1530FI..................................... G20
L1530FO....................................G20
L1530FO....................................G20
L1530P...................................... G20
L1530R...................................... G20
L15AN............................... G8, G36
L15RBC....................................... F5
L15RBC..................................... G35
L15RBP....................................... F5
L15RBP..................................... G35
L1620C...................................... G13
L1620FI..................................... G13
L1620FO....................................G13
L1620P...................................... G13
L1620R...................................... G13
L1630C...................................... G21
L1630FI..................................... G21
L1630FO....................................G21
L1630P...................................... G21
L1630R...................................... G21
L1730C...................................... G21
L1730FI..................................... G21
L1730FO....................................G21
L1730P...................................... G21
L1730R...................................... G21
L1820C............................ G14, G22
L1820FI........................... G14, G22
L1820FO.......................... G14, G22
L1820P............................ G14, G22
L1820R............................ G14, G22
L1920C............................ G14, G22
L1920FI........................... G14, G22
L1920FO.......................... G14, G22
L1920P............................ G14, G22
L1920R............................ G14, G22
L2020C............................ G14, G22
L2020FI........................... G14, G22
L2020FO.......................... G14, G22
L2020P............................ G14, G22
L2020R............................ G14, G22
L20303AN ......................... G8, G36
L203045AN ....................... G8, G36
L2030RBC.................................G35
L2030RBP.................................G35
L2120C...................................... G15
L2120FI..................................... G15
L2120FO....................................G15
L2120P...................................... G15
L2120R...................................... G15
L2130C...................................... G23
L2130FI..................................... G23
L2130FO....................................G23
L2130P...................................... G23
L2130R...................................... G23
L2220C...................................... G15
L2220FI..................................... G15
L2220FO....................................G15
L2220P...................................... G15
L2220R...................................... G15
L2230C...................................... G23
L2230FI..................................... G23
L2230FO....................................G23
L2230P...................................... G23
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
INDEX
T-4
PASS & SEYMOUR
INDEX
L — P
L2230R...................................... G23
L2320C...................................... G15
L2320FI..................................... G15
L2320FO....................................G15
L2320P...................................... G15
L2320R...................................... G15
L2330C...................................... G23
L2330FI..................................... G23
L2330FO....................................G23
L2330P...................................... G23
L2330R...................................... G23
L3720C...................................... G11
L3720CGCM.............................. G26
L3720FO....................................G11
L3720P...................................... G11
L3720PGCM..............................G26
L520C..................... G9, G11, G16,
................................... G17, G18
L520CGCM................................G26
L520FI.................... G9, G10, G11,
......................... G16, G17, G18
L520FO .................. G9, G10, G11,
......................... G16, G17, G18
L520P..................... G9, G11, G16,
................................... G17, G18
L520PGCM................................ G26
L520R..................... G9, G11, G12,
......................... G16, G17, G18
L530CGCM................................G26
L530PGCM................................ G26
L620C........................................ G10
L620CGCM................................G26
L620P........................................G10
L620PGCM................................ G26
L620R........................................ G10
L630C.......................................... G2
L630CGCM................................G26
L630P..........................................G2
L630PGCM................................ G26
L720C........................................ G10
L720FI.......................................G10
L720FO .....................................G10
L720P........................................G10
L720PGCM................................ G26
L720R........................................ G10
L730C........................................ G17
L730CGCM................................G26
L730P........................................G17
L730PGCM................................ G26
L920C........................................ G11
L920FI................... G11, G17, G18
L920FO ................. G11, G17, G18
L930R........................................ G18
LLRKV..............................L15, L32
LRKV................................L15, L32
LS1000...................................... L14
LS1000P ................................... L14
LS1003P ................................... L14
LS600........................................ L14
LS600P ..................................... L14
LS603P ..................................... L14
LSDC163P .......................L16, L32
LSDC16............................L16, L32
LSDD300................................... L15
LSDH16............................L16, L32
LSDS300P................................. L15
LSDV25 ............................L16, L32
LSLV600.................................... L14
LSLV600P ................................. L14
LSLV603P ................................. L14
LSSC5 ..............................L16, L32
LSSC5P............................L16, L32
LVDIV1 ....................................... M5
M
M118 .......................................... M4
MB4S1PTSOL ...........................B20
MB4S1PTSTR ...........................B20
MB4S2PTSOL ...........................B20
MB4S2PTSTR ...........................B20
MBD4S1PTSTR.........................B20
MBD4S2PTSTR.........................B20
MFKIT ....................................... E12
MKFOB ....................................... L7
ML1113 .......................................G4
ML1133 .......................................G4
ML114.........................................G4
ML115.........................................G4
ML2113 .......................................G4
ML2133 .......................................G4
ML214.........................................G4
ML215.........................................G4
ML3113 .......................................G4
ML3133 .......................................G4
ML314.........................................G4
ML315.........................................G4
MR2000....................................... L5
MR232G ...................................... L7
MRC1 ........................................B20
MRC2 ........................................B20
MRH5G ....................................... L6
MRH6G ................................L4, L6
MRHC3G ..................................... L7
MRIR1......................................... L7
MRP6 .......................................... L6
MRP7 .......................................... L6
MRR2G........................................ L7
MRRC3G ..................................... L7
MSP025......................................J20
MSP050......................................J20
MSP075......................................J20
MSP100......................................J20
MSP125......................................J20
MSP150......................................J20
MSP175......................................J20
MSP200......................................J20
MSPS025 ...................................J20
MSPS050 ...................................J20
MSPS075 ...................................J20
MSPS100 ...................................J20
MSPS125 ...................................J20
MSPS150 ...................................J20
MSPS175 ...................................J20
MSPS200 ...................................J20
MSPS250 ...................................J20
MSPS300 ...................................J20
o
OS300S ............................. K3, K11
OSR300S........................... K3, K12
P
P0501.........................................J19
P0751.........................................J19
P0752.........................................J19
P1001.........................................J19
P1002.........................................J19
P100ND...................................... M5
P100WD ..................................... M5
P108N ........................................ M4
P108W........................................ M4
P116W........................................ M4
P118R ........................................ M3
P118RN...................................... M3
P122B ........................................ M6
P122C ........................................ M3
P122N ........................................ M3
P122R ........................................ M3
P122RN...................................... M3
P1501.........................................J19
P1502.........................................J19
P2001.........................................J19
P2002.........................................J19
P235RAC.................................... M3
P235RACMH.............................. M3
P242RRD ................................... M8
P242SRD.................................... M8
P2501.........................................J19
P2502.........................................J19
P3001.........................................J19
P3002.........................................J19
P3501.........................................J19
P3502.........................................J19
P354RACMH.............................. M3
PAR1 ......................................... O21
PCC6......................................... Q19
PDV2B........................................ M5
PF100.........................................J20
PF210.........................................J20
PF350.........................................J20
PF420.........................................J20
PF540.........................................J20
PF640.........................................J20
PH122B...................................... M6
PH122R...................................... M3
PJ100 .........................................J16
PJ1KIT........................................J16
PJ25 ...........................................J16
PJ37 ...........................................J16
PJ50 ...........................................J16
PJ62 ...........................................J16
PJ75 ...........................................J16
PJSC14...................................... P26
PJSC1........................................ P26
PJSC26...................................... P26
PJSC7........................................ P26
PJSC8........................................ P26
PJSE14...................................... P26
PJSE1........................................ P26
PJSE26...................................... P26
PJSE7........................................ P26
PJSE8........................................ P26
PL0501.......................................J16
PL0621.......................................J16
PL0622.......................................J16
PL0751.......................................J16
PL0752.......................................J16
PL1001.......................................J16
PL1002.......................................J16
PL1251.......................................J16
PL1252.......................................J16
PL1501.......................................J16
PL1502.......................................J16
PL1751.......................................J16
PL2001.......................................J16
PL2002.......................................J16
PL204L ..................................... C25
PL2501.......................................J16
PL2502.......................................J16
PL3002.......................................J16
PLS1820F .................................H10
PLS1820M ................................H10
PLS182F ...................................H10
PLS182M ..................................H10
PLS1840F .................................H10
PLS1840M ................................H10
PLV1B ........................................ M5
PLV1R ........................................ M5
PLV1S ........................................ M5
PLV1W........................................ M5
PLV2B ........................................ M5
PLV2W........................................ M5
PLV3W........................................ M5
PM037........................................J17
PM050........................................J17
PM0501......................................J17
PM075........................................J17
PM0751......................................J17
PM0752......................................J17
PM0753......................................J17
PM100........................................J17
PM1001......................................J17
PM1002......................................J17
PM1003......................................J17
PM125........................................J17
PM150........................................J17
PM1501......................................J17
PM1502......................................J17
PM1503......................................J17
PM1KIT......................................J17
PM2001......................................J17
PM2002......................................J17
PM2003......................................J17
PM2501......................................J17
PM2502......................................J17
PM2503......................................J17
PM3001......................................J17
PM3002......................................J17
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
T-5
INDEX
PASS & SEYMOUR
INDEX
P — P
PM3003......................................J17
PM3501......................................J17
PM3502......................................J17
PM3503......................................J17
PNS10....................B80, E20, E21
PNS6......................B80, E20, E21
PNS7L....................B80, E20, E21
PS0501.......................................J18
PS0502.......................................J18
PS0622.......................................J18
PS0751.......................................J18
PS0752.......................................J18
PS1 ..............B80, B81, E20, E21
PS1001.......................................J18
PS1002.......................................J18
PS100FSS .................................. I15
PS100SS .................................... I21
PS100SSAX........................I21, I22
PS100SSRC ............................... I21
PS10PC........B80, B81, E20, E21
PS1251.......................................J18
PS1501.......................................J18
PS1502.......................................J18
PS154S ..................................... C25
PS15AC1..................................... A5
PS15AC1CPL.............................. A5
PS15AC1CSL .............................. A5
PS15AC1L................................... A5
PS15AC2..................................... A5
PS15AC3..................................... A5
PS15AC3CPL.............................. A5
PS15AC3CSL .............................. A5
PS15AC3L................................... A5
PS15AC4..................................... A5
PS16CLF.....................................H9
PS16CLM....................................H9
PS1P ............................... B80, B81
PS1P ................................E20, E21
PS2001.......................................J18
PS2002.......................................J18
PS204S ..................................... C25
PS20AC1............................. A4, A5
PS20AC1CPL.............................. A5
PS20AC1CPL7 ............................ A5
PS20AC1CSL .............................. A5
PS20AC1KL ................................ A6
PS20AC1L................................... A5
PS20AC2..................................... A5
PS20AC2CPL.............................. A5
PS20AC2HP.............................. A11
PS20AC2KL ................................ A6
PS20AC2L................................... A5
PS20AC3..................................... A5
PS20AC3CPL.............................. A5
PS20AC3CSL .............................. A5
PS20AC3KL ................................ A6
PS20AC3L................................... A5
PS20AC3RPL7............................ A5
PS20AC4..................................... A5
PS20AC4IL.................................. A5
PS20AC4KL ................................ A6
PS20FB.......................................H5
PS20MB......................................H5
PS2501.......................................J18
PS2502.......................................J18
PS26W47 ..................................G24
PS27W47 ..................................G24
PS28W47 ..................................G24
PS29W47 ..................................G24
PS3001.......................................J18
PS3002.......................................J18
PS30AC1..................................... A5
PS30AC1RPL.............................. A5
PS30AC2..................................... A5
PS30AC2HP.............................. A11
PS30AC2RPL.............................. A5
PS30AC3..................................... A5
PS30AC3RPL.............................. A5
PS30FSS .................................... I15
PS30RSAX ................................. I21
PS30SSAX.......................... I21, I22
PS30SSRC ................................. I21
PS3100B6W....................... I27, I38
PS3100B7W....................... I27, I38
PS3100C4W .......................I27, I38
PS3100C4WL............................. I27
PS3100C4WR............................. I27
PS3100C6W .......................I27, I38
PS3100C6WL............................. I27
PS3100C6WR............................. I27
PS3100C7W .......................I27, I38
PS3100C7WL............................. I27
PS3100C7WR............................. I27
PS3100MIR6W...................I12, I38
PS3100MIR7W...................I12, I38
PS3100P4W .......................I27, I38
PS3100P4WR............................. I27
PS3100P6W ...............I12, I27, I38
PS3100P7W ...............I12, I27, I38
PS3100P7WR............................. I27
PS3100R4W .......................I27, I38
PS3100R4WL............................. I27
PS3100R6W .......................I27, I38
PS3100R6WL............................. I27
PS3100R7W .......................I27, I38
PS3100R7WL............................. I27
PS320B6S..........................I28, I39
PS320C4S ..........................I28, I39
PS320C4W .........................I26, I38
PS320C4WR............................... I26
PS320C5W .........................I26, I38
PS320C5WR............................... I26
PS320C6S ..........................I28, I39
PS320C6W .........................I26, I38
PS320C6WR............................... I26
PS320C7W .........................I26, I38
PS320C7WR............................... I26
PS320P4S ..........................I28, I39
PS320P4W .........................I26, I38
PS320P4WR............................... I26
PS320P5S ..........................I28, I39
PS320P5W .........................I26, I38
PS320P5WR............................... I26
PS320P6S ..........................I28, I39
PS320P6W .........................I26, I38
PS320P6WR............................... I26
PS320P7W .........................I26, I38
PS320P7WR............................... I26
PS320R4W......................... I26, I38
PS320R4WL............................... I26
PS320R5S.......................... I28, I39
PS320R5W......................... I26, I38
PS320R5WL............................... I26
PS320R6S.......................... I28, I39
PS320R6W......................... I26, I38
PS320R6WL............................... I26
PS320R7W......................... I26, I38
PS320R7WL............................... I26
PS330B4S..........................I28, I39
PS330B6S..........................I28, I39
PS330B7S..........................I28, I39
PS330C4S ..........................I28, I39
PS330C4W .........................I26, I38
PS330C4WL............................... I26
PS330C6S ..........................I28, I39
PS330C6W .........................I26, I38
PS330C6WL............................... I26
PS330C7S ..........................I28, I39
PS330C7W .........................I26, I38
PS330C7WL............................... I26
PS330C7WR............................... I26
PS330FMIR6W.....................I5, I38
PS330MIR4W.....................I12, I38
PS330P4S ..........................I28, I39
PS330P4W .................I12, I26, I38
PS330P6S ..........................I28, I39
PS330P6W .................. I5, I26, I38
PS330P7S ..........................I28, I39
PS330P7W .........................I26, I38
PS330P7WR............................... I26
PS330R4S.......................... I28, I39
PS330R4W......................... I26, I38
PS330R4WL............................... I26
PS330R6S.......................... I28, I39
PS330R6W......................... I26, I38
PS330R7W......................... I26, I38
PS330R7WL............................... I26
PS3501.......................................J18
PS3502.......................................J18
PS360B4W.........................I27, I38
PS360B6S..........................I28, I39
PS360B6W.........................I27, I38
PS360B7S..........................I28, I39
PS360C4W .........................I27, I38
PS360C4WL............................... I27
PS360C4WR............................... I27
PS360C6S ..........................I28, I39
PS360C6W .........................I27, I38
PS360C6WR............................... I27
PS360C7S ..........................I28, I39
PS360C7W .........................I27, I38
PS360C7WL............................... I27
PS360C7WR............................... I27
PS360FMIR6W.....................I5, I38
PS360MIR6W.....................I12, I38
PS360MIR7W.....................I12, I38
PS360P4W .........................I27, I38
PS360P6S ..........................I28, I39
PS360P6W ..........I5, I12, I27, I38
PS360P6WR............................... I27
PS360P7S ..........................I28, I39
PS360P7W .................I12, I27, I38
PS360P7WR............................... I27
PS360R4W......................... I27, I38
PS360R6S.......................... I28, I39
PS360R6W......................... I27, I38
PS360R7S.......................... I28, I39
PS360R7W......................... I27, I38
PS360R7WL............................... I27
PS371510.................................... A6
PS371530.................................... A6
PS372010.................................... A6
PS372010KL ............................... A6
PS372010L.................................. A6
PS372030.................................... A6
PS372030L.................................. A6
PS3F ...........................................H7
PS3M ..........................................H7
PS4001.......................................J18
PS4002.......................................J18
PS40FB.......................................H5
PS40FRB ....................................H6
PS40FRSB ..................................H6
PS40MB......................................H5
PS40MC ......................................H7
PS40MRB ...................................H6
PS40MRSB .................................H6
PS40WTCL062 ............................H8
PS40WTCL..................................H8
PS40WTCM.................................H8
PS4100B12W ..................... I27, I38
PS4100B5W....................... I27, I38
PS4100B7W....................... I27, I38
PS4100B9W....................... I27, I38
PS4100C12W ..................... I27, I38
PS4100C12WL ........................... I27
PS4100C12WR........................... I27
PS4100C5W .......................I27, I38
PS4100C5WL............................. I27
PS4100C5WR............................. I27
PS4100C7W .......................I27, I38
PS4100C7WL............................. I27
PS4100C9W .......................I27, I38
PS4100C9WL............................. I27
PS4100C9WR............................. I27
PS4100FMIR12W.................I5, I38
PS4100FMIR5W...................I5, I38
PS4100FMIR7W...................I5, I38
PS4100FMIR9W...................I5, I38
PS4100MIR12W .................I12, I38
PS4100MIR5W...................I12, I38
PS4100MIR7W...................I12, I38
PS4100MIR9W...................I12, I38
PS4100P12W ...... I5, I12, I27, I38
PS4100P5W ........I5, I12, I27, I38
PS4100P7W ........I5, I12, I27, I38
PS4100P9W ........I5, I12, I27, I38
PS4100R12W ..................... I27, I38
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
INDEX
T-6
PASS & SEYMOUR
INDEX
P — P
PS4100R5W .......................I27, I38
PS4100R5WL............................. I27
PS4100R7W .......................I27, I38
PS4100R7WL............................. I27
PS4100R9W .......................I27, I38
PS420B5S..........................I28, I39
PS420B7S..........................I28, I39
PS420B9S..........................I28, I39
PS420C12S ........................I28, I39
PS420C12W .......................I26, I38
PS420C12WR............................. I26
PS420C5W .........................I26, I38
PS420C5WR............................... I26
PS420C7S ..........................I28, I39
PS420C7W .........................I26, I38
PS420C7WR............................... I26
PS420C9S ..........................I28, I39
PS420C9W .........................I26, I38
PS420C9WR............................... I26
PS420FMIR12W...................I5, I38
PS420FMIR5W.....................I5, I38
PS420FMIR7W.....................I5, I38
PS420FMIR9W.....................I5, I38
PS420MIR12W...................I12, I38
PS420MIR5W.....................I12, I38
PS420MIR7W.....................I12, I38
PS420MIR9W.....................I12, I38
PS420P12S ........................I28, I39
PS420P12W ........I5, I12, I26, I38
PS420P5W ..........I5, I12, I26, I38
PS420P5WR............................... I26
PS420P7S ..........................I28, I39
PS420P7W ..........I5, I12, I26, I38
PS420P9S ..........................I28, I39
PS420P9W ..........I5, I12, I26, I38
PS420P9WR............................... I26
PS420R12S ........................I28, I39
PS420R12W .......................I26, I38
PS420R12WL............................. I26
PS420R5S.......................... I28, I39
PS420R5W......................... I26, I38
PS420R7S.......................... I28, I39
PS420R7W......................... I26, I38
PS420R9S.......................... I28, I39
PS420R9W......................... I26, I38
PS430171....................................H4
PS430244............................H4, H9
PS430245....................................H9
PS430246....................................H4
PS430B12S........................ I28, I39
PS430B5S..........................I28, I39
PS430B7S..........................I28, I39
PS430B9S..........................I28, I39
PS430C12S ........................I28, I39
PS430C12W .......................I26, I38
PS430C12WL............................. I26
PS430C12WR............................. I26
PS430C3W .........................I26, I38
PS430C3WR............................... I26
PS430C5S ..........................I28, I39
PS430C5W .........................I26, I38
PS430C5WL............................... I26
PS430C7S ..........................I28, I39
PS430C7W .........................I26, I38
PS430C7WR............................... I26
PS430C9S ..........................I28, I39
PS430C9W .........................I26, I38
PS430C9WR............................... I26
PS430FMIR12W...................I5, I38
PS430FMIR3W.....................I5, I38
PS430FMIR5W.....................I5, I38
PS430FMIR7W.....................I5, I38
PS430FMIR9W.....................I5, I38
PS430MIR3W.....................I12, I38
PS430MIR5W.....................I12, I38
PS430MIR7W.....................I12, I38
PS430MIR9W.....................I12, I38
PS430P12W .........................I5, I26
PS430P12WR............................. I26
PS430P3W ..........I5, I12, I26, I38
PS430P3WR............................... I26
PS430P5S ..........................I28, I39
PS430P5W ..........I5, I12, I26, I38
PS430P7S ..........................I28, I39
PS430P7W ..........I5, I12, I26, I38
PS430P7WR............................... I26
PS430P9S ..........................I28, I39
PS430P9W ..........I5, I12, I26, I38
PS430P9WR............................... I26
PS430R12S ........................I28, I39
PS430R12W .......................I26, I38
PS430R3W......................... I26, I38
PS430R3WL............................... I26
PS430R5S.......................... I28, I39
PS430R5W......................... I26, I38
PS430R7S.......................... I28, I39
PS430R7W......................... I26, I38
PS430R9S.......................... I28, I39
PS430R9W......................... I26, I38
PS430R9WL............................... I26
PS4502.......................................J18
PS460B12S........................ I28, I39
PS460B12W....................... I27, I38
PS460B5S..........................I28, I39
PS460B5W.........................I27, I38
PS460B7S..........................I28, I39
PS460B7W.........................I27, I38
PS460B9S..........................I28, I39
PS460B9W.........................I27, I38
PS460C12S ........................I28, I39
PS460C12W .......................I27, I38
PS460C12WL............................. I27
PS460C12WR............................. I27
PS460C5S ..........................I28, I39
PS460C5W .........................I27, I38
PS460C7S ..........................I28, I39
PS460C7W .........................I27, I38
PS460C9S ..........................I28, I39
PS460C9W .........................I27, I38
PS460C9WR............................... I27
PS460FMIR12W...................I5, I38
PS460FMIR5W.....................I5, I38
PS460FMIR7W.....................I5, I38
PS460FMIR9W.....................I5, I38
PS460MIR12W...................I12, I38
PS460MIR5W.....................I12, I38
PS460MIR7W.....................I12, I38
PS460MIR9W.....................I12, I38
PS460P12S ........................I28, I39
PS460P12W ........I5, I12, I27, I38
PS460P12WR............................. I27
PS460P5S ..........................I28, I39
PS460P5W ..........I5, I12, I27, I38
PS460P7S ..........................I28, I39
PS460P7W ..........I5, I12, I27, I38
PS460P9S ..........................I28, I39
PS460P9W ..........I5, I12, I27, I38
PS460R12S ........................I28, I39
PS460R12W .......................I27, I38
PS460R5S.......................... I28, I39
PS460R5W......................... I27, I38
PS460R5WL............................... I27
PS460R7S.......................... I28, I39
PS460R7W......................... I27, I38
PS460R9S.......................... I28, I39
PS460R9W......................... I27, I38
PS4720SSAN .............................. G8
PS500072....................................H9
PS5100B5W....................... I27, I38
PS5100B7W....................... I27, I38
PS5100B9W....................... I27, I38
PS5100C5W .......................I27, I38
PS5100C5WL............................. I27
PS5100C5WR............................. I27
PS5100C7W .......................I27, I38
PS5100C7WL............................. I27
PS5100C9W .......................I27, I38
PS5100C9WL............................. I27
PS5100C9WR............................. I27
PS5100FMIR5W...................I5, I38
PS5100FMIR7W...................I5, I38
PS5100FMIR9W...................I5, I38
PS5100MIR5W...................I12, I38
PS5100MIR7W...................I12, I38
PS5100MIR9W...................I12, I38
PS5100P5W ........I5, I12, I27, I38
PS5100P5WR............................. I27
PS5100P7W ........I5, I12, I27, I38
PS5100P7WR............................. I27
PS5100P9W ........I5, I12, I27, I38
PS5100P9WR............................. I27
PS5100R5W .......................I27, I38
PS5100R5WL............................. I27
PS5100R7W .......................I27, I38
PS5100R7WL............................. I27
PS5100R9W .......................I27, I38
PS515CCLB .............................. F15
PS520710....................................H9
PS520B5S..........................I28, I39
PS520B7S..........................I28, I39
PS520B9S..........................I28, I39
PS520C5S ..........................I28, I39
PS520C5W .........................I26, I38
PS520C5WR............................... I26
PS520C7S ..........................I28, I39
PS520C7W .........................I26, I38
PS520C7WR............................... I26
PS520C9S ..........................I28, I39
PS520C9W .........................I26, I38
PS520C9WR............................... I26
PS520P5W .........................I26, I38
PS520P5WR............................... I26
PS520P7W .........................I26, I38
PS520P7WR............................... I26
PS520P9W .........................I26, I38
PS520P9WR............................... I26
PS520R5S.......................... I28, I39
PS520R5W......................... I26, I38
PS520R7W......................... I26, I38
PS520R9S.......................... I28, I39
PS520R9W......................... I26, I38
PS5262......................................B11
PS5266HGAN.............D31, F4, F6
PS5266SSAN .............................. F6
PS5266X...............................F2, F5
PS5266XGCM.....................F7, F15
PS5266XGCMAN................F7, F15
PS5266XHG....................... D31, F4
PS5269X...............................F2, F5
PS5269XGCM.....................F7, F15
PS5269XHG....................... D31, F4
PS530B5S..........................I28, I39
PS530B7S..........................I28, I39
PS530B9S..........................I28, I39
PS530C5S ..........................I28, I39
PS530C5W .........................I26, I38
PS530C5WL............................... I26
PS530C5WR............................... I26
PS530C7W .........................I26, I38
PS530C7WL............................... I26
PS530C7WR............................... I26
PS530C9S ..........................I28, I39
PS530C9W .........................I26, I38
PS530C9WL............................... I26
PS530C9WR............................... I26
PS530FMIR7W.....................I5, I38
PS530FMIR9W.....................I5, I38
PS530MIR5W.....................I12, I38
PS530MIR7W.....................I12, I38
PS530MIR9W.....................I12, I38
PS530P5S ..........................I28, I39
PS530P5W .........................I12, I26
PS530P5WR............................... I26
PS530P7S ..........................I28, I39
PS530P7W ..........I5, I12, I26, I38
PS530P7WR............................... I26
PS530P9S ..........................I28, I39
PS530P9W ..........I5, I12, I26, I38
PS530P9WR............................... I26
PS530R5S.......................... I28, I39
PS530R5W......................... I26, I38
PS530R5WL............................... I26
PS530R7W......................... I26, I38
PS530R7WL............................... I26
PS530R9S.......................... I28, I39
PS530R9W......................... I26, I38
PS530R9WL............................... I26
PS5362......................................B11
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
T-7
INDEX
PASS & SEYMOUR
INDEX
P — P
PS5364Y...................................... F8
PS5366HGAN.............D31, F4, F6
PS5366SSAN .............................. F6
PS5366X...................................... F5
PS5366XGCM.....................F7, F15
PS5366XGCMAN................F7, F15
PS5366XHG....................... D31, F4
PS5369X...................................... F5
PS5369XGCM.............................. F7
PS5369XHG....................... D31, F4
PS5369Y...................................... F8
PS5464Y...................................... F8
PS5466HGAN.............D31, F4, F6
PS5466SSAN .............................. F6
PS5466X...................................... F5
PS5466XGCM.............................. F7
PS5466XGCMAN......................... F7
PS5466XHG....................... D31, F4
PS5469X...................................... F5
PS5469XGCM.............................. F7
PS5469XHG....................... D31, F4
PS5469Y...................................... F8
PS55A1 .....................................K22
PS55B1 .....................................K22
PS55G1 .....................................K22
PS560B5S..........................I28, I39
PS560B5W.........................I27, I38
PS560B7S..........................I28, I39
PS560B7W.........................I27, I38
PS560B9S..........................I28, I39
PS560B9W.........................I27, I38
PS560C5S ..........................I28, I39
PS560C5W .........................I27, I38
PS560C5WL............................... I27
PS560C5WR............................... I27
PS560C7S ..........................I28, I39
PS560C7W .........................I27, I38
PS560C7WL............................... I27
PS560C7WR............................... I27
PS560C9S ..........................I28, I39
PS560C9W .........................I27, I38
PS560FMIR5W.....................I5, I38
PS560FMIR7W.....................I5, I38
PS560FMIR9W.....................I5, I38
PS560MIR5W.....................I12, I38
PS560MIR7W.....................I12, I38
PS560MIR9W.....................I12, I38
PS560P5S ..........................I28, I39
PS560P5W ..........I5, I12, I27, I38
PS560P5WR............................... I27
PS560P7S ..........................I28, I39
PS560P7W ..........I5, I12, I27, I38
PS560P7WR............................... I27
PS560P9S ..........................I28, I39
PS560P9W ..........I5, I12, I27, I38
PS560P9WR............................... I27
PS560R5S.......................... I28, I39
PS560R5W......................... I27, I38
PS560R5WL............................... I27
PS560R7S.......................... I28, I39
PS560R7W......................... I27, I38
PS560R7WL............................... I27
PS560R9S.......................... I28, I39
PS560R9W......................... I27, I38
PS5666HGAN.............D31, F4, F6
PS5666SSAN .............................. F6
PS5666X...................................... F5
PS5666XGCM.....................F7, F15
PS5666XGCMAN......................... F7
PS5666XHG....................... D31, F4
PS5666Y...................................... F8
PS5669X...................................... F5
PS5669XGCM.............................. F7
PS5669XHG....................... D31, F4
PS5669Y...................................... F8
PS5766X...................................... F5
PS5866X............................ B79, F5
PS5965Y...................................... F8
PS5969Y...................................... F8
PS6 ..............B80, B81, E20, E21
PS60FSS .................................... I15
PS60SS ...................................... I21
PS60SSAX.......................... I21, I22
PS60SSRC ................................. I21
PS615PCLB .............................. F15
PS665089V................................ Q19
PS7 ..............B80, B81, E20, E21
PS7L ............B80, B81, E20, E21
PS7P ............B80, B81, E20, E21
PS811120.................................. A23
PS81120.................................... A23
PS8115.......................D31, F4, F8
PS8119.......................D31, F4, F8
PS8200H ........................... D8, B12
PS8200HS......................... D8, B12
PS8300H ........................... D8, B12
PS8300HS......................... D8, B12
PS862....................................... M15
PS862KIT................................. M15
PS862TRC................................ M15
PS862TRCAL ........................... M15
PS862TRT................................ M15
PS862TRTAL............................ M15
PS862TRTGFI .......................... M15
PS862TRTGFIAL...................... M15
PS862TRTGFIC........................ M15
PS862TRTGFICAL.................... M15
PS863DPCOM.......................... M16
PS863DPCOMAL ..................... M16
PS863DRGFICOM.................... M16
PS863DRGFICOMAL................ M16
PS895....................................... M16
PS895GFIC .............................. M16
PS895GFICAL .......................... M16
PS895T..................................... M16
PS895TAL ................................ M16
PS895TCAL.............................. M16
PS895TGFIAL .......................... M16
PS895TSP................................ M16
PS896TCK12............................ M16
PS8C ............................... B80, B81
PS8C ................................E20, E21
PS8HWL ...................................B44
PS8LM ...................................... A23
PS8P ............................... B80, B81
PS8P ................................E20, E21
PSAD100125 .............................. I35
PSAD100150 .............................. I35
PSAD1002.................................. I35
PSAD301.................................... I35
PSAD3034.................................. I35
PSAD3050.................................. I35
PSAD601.................................... I35
PSAD60125................................ I35
PSAD60150................................ I35
PSAP30CA ................................. I30
PSAP320CA ............................... I30
PSAP320HBL............................. I30
PSAP420HBL............................. I30
PSAP4520CA ............................. I30
PSAP52030HBL......................... I30
PSAP60HB................................. I30
PSBB1001W ..............I27, I34, I38
PSBB1002W .............................. I34
PSBB201SP.......................I28, I34
PSBB201W ...............I26, I28, I34,
..................................... I38, I39
PSBB202W ...............I26, I28, I34,
..................................... I38, I39
PSBB301SP.......................I28, I34
PSBB301W ...............I26, I28, I34,
......................................I38, I39
PSBB600W ................................ I39
PSBB601W ...............I27, I28, I34,
......................................I38, I39
PSBBN201W.............I26, I28, I34,
......................................I38, I39
PSBBN202W.............I26, I28, I34,
......................................I38, I39
PSBBN301W.............I26, I28, I34,
......................................I38, I39
PSBBN601W.............I27, I28, I34,
......................................I38, I39
PSCLSPRESS .............................H9
PSDT......................................... Q17
PSF1185825..............................B20
PSF1185835..............................B20
PSF1187525..............................B20
PSF1187535..............................B20
PSF2185825..............................B20
PSF2185835..............................B20
PSF2187525..............................B20
PSF2187535..............................B20
PSFFCBK....................................H7
PSFS1185825 ...........................B20
PSFS1187535 ...........................B20
PSFS2185825 ...........................B20
PSFS2187535 ...........................B20
PSHB120277L1......................... K17
PSHB120277L2......................... K17
PSHB120277L3......................... K17
PSHB120277WL2 ..................... K17
PSHB120277WL3 ..................... K17
PSIG5266X ................................ E17
PSL515C ..................................... G6
PSL515CGCM ...........................G25
PSL515P ..................................... G6
PSL515PGCM ...........................G25
PSL615C ..................................... G7
PSL615CGCM ...........................G25
PSL615P ..................................... G7
PSL615PAN ........................ G7, G8
PSL615PGCM ...........................G25
PSL715C ..................................... G7
PSL715CGCM ...........................G25
PSL715P ..................................... G7
PSL715PAN ........................ G7, G8
PSL715PGCM ...........................G25
PSM2F ........................................H3
PSM2M .......................................H3
PSMADFM ..................................H3
PSMADMF ..................................H3
PSMFC........................................H3
PSMFR........................................H4
PSMFRS .....................................H4
PSMM .........................................H7
PSMMC.......................................H3
PSMMR.......................................H4
PSMMRS.....................................H4
PSPC5B ....................................Q19
PSPT...........................................H7
PSTT ...........................................H7
PSVT .........................................Q17
PSW15825.................................B20
PSW15835.................................B20
PSW17525.................................B20
PSW25825.................................B20
PSW25835.................................B20
PSW27525.................................B20
PSWS15825 .............................. B20
PSWS15835 .............................. B20
PSWS17525 .............................. B20
PSWS17535 .............................. B20
PSWS25825 .............................. B20
PSWS25835 .............................. B20
PSWS27525 .............................. B20
PSWS27535 .............................. B20
PT1595............................ B58, C15
PT1595HG............. B59, C16, D23
PT1595HGNTL...... B61, C18, D25
PT1595HGNTL..........................D25
PT1595HGNTLTRNA ................ D27
PT1595HGTR ........ B60, C17, D24
PT1595NA....................... B64, C21
PT1595NTL.................... B61, B63,
................................... C18, C20
PT1595NTLTRNA............ B64, C21
PT1595TR ....................... B60, C17
PT15AC1 ..................................... A3
PT15AC1SL................................. A3
PT15AC3 ..................................... A3
PT15AC3SL................................. A3
PT2095............................ B58, C15
PT2095HG............. B59, C16, D23
PT2095HGNA........ B65, C22, D27
PT2095HGNTL...... B61, C18, D25
PT2095HGNTLTRNA ............... B65,
................................... C22, D27
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
INDEX
T-8
PASS & SEYMOUR
INDEX
P — S
PT2095HGTR ........ B60, C17, D24
PT2095HGTRNA ............ B65, C22,
.............................................D27
PT2095NA....................... B64, C21
PT2095NTL..................... B61, C18
PT2095NTLTRNA............ B64, C21
PT2095TR ....................... B60, C17
PT2095TRNA .................. B64, C21
PT20AC1 ..................................... A3
PT20AC1SL................................. A3
PT20AC1 ..................................... A2
PT20AC3 ..................................... A3
PT20AC3SL................................. A3
PT2601...................................... A14
PT2603...................................... A14
PT2621...................................... A14
PT2623...................................... A14
PT26252....................................B38
PT2625...................................... A14
PT26262HG..................... D15, B38
PT2626 ..................................... A14
PT26352....................................B38
PT26362HG...............................D15
PT26362HG............................... B38
PT5262................. B15, B16, B17,
................................... B18, D10
PT5262A .....................................B4
PT5262SP ......................... B69, E6
PT5362................. B15, B16, B17,
................................... B18, D10
PT5362A .....................................B4
PT5362SP ......................... B69, E6
PT8200................................B5, D4
PT8200IL............................. B6, D5
PT8200SP ............... B70, D29, E7
PT8300................................B5, D4
PT8300IL............................. B6, D5
PT8300SP ............... B70, D29, E7
PTIG26262 ...................... B38, E16
PTIG26362 ...................... B38, E16
PTIG5262 ........................ B15, E16
PTIG5362 ........................ B15, E16
PTIG8200 .............. B15, D10, E16
PTIG8300 .............. B15, D10, E16
PTJ .................................... A3, A14
PTJ5 .................................. A3, A14
PTRA6SOL... B4, B18, B58, B59,
...............B65, C15, C16, C22,
................D15, D23, D27, E16
PTRA6SOLB25..................B4, D15
PTRA6SOLBP ......... B4, B18, D15
PTRA6SOLG............ B4, B18, D15
PTRA6STR ............. B4, B18, B58,
...............B59, B65, C16, C22,
................D15, D23, D27, E16
PTRA6STRB25........ B4, B18, D15
PTRA6STRBP ......... B4, B18, D15
PTRA6STRG......................B4, D15
PTS6SOL3......................... A3, A14
PTS6SOL3277................... A3, A14
PTS6SOL3277BP...................... A14
PTS6SOL3BP............................ A14
PTS6SOL4......................... A3, A14
PTS6SOL4277................... A3, A14
PTS6SOL4277BP...................... A14
PTS6SOL4BP............................ A14
PTS6STR3......................... A3, A14
PTS6STR3277................... A3, A14
PTS6STR3277BP...................... A14
PTS6STR3BP............................ A14
PTS6STR4......................... A3, A14
PTS6STR4277................... A3, A14
PTS6STR4277BP...................... A14
PTS6STR4BP............................ A14
PTTESTER ..........................D5, B6
PTTR26262 ............................... B37
PTTR26262HG ..........................B37
PTTR26262SC........................... B37
PTTR26362 ............................... B37
PTTR26362HG ..........................B37
PTTR26362SC........................... B37
PTTR5262SP..................... B69, E6
PTTR5362SP..................... B69, E6
PTTR62 .......................................B4
PTTR62H.............................B5, D4
PTTR63 .......................................B4
PTTR63H.............................B5, D4
PTTR8200SP........... B70, D29, E7
PTTR8300SP........... B70, D29, E7
PTWSP250.................................. K8
PWP120277 .............................. L29
PWP2120 .................................. K18
R
R1000........................................ L22
R1000P ..................................... L22
R1003P ..................................... L22
R600.......................................... L22
R600P ....................................... L22
R603P ....................................... L22
R885TR .....................................B75
RC1 ............................................ M8
RC2 ............................................ M8
RRKIGV..................................... L22
RRK........................................... L22
RS30 .......................................... I21
RS60 .......................................... I21
RT1 ................................... K3, K20
RT12.................................. K3, K21
RT24.................................. K3, K21
RW3U600............................ K3, K6
RW3U603............................ K3, K6
RW500B .............................. K3, K4
RW500U.............................. K3, K5
RW600BTC..................................K4
RWDU500 ........................... K3, K7
RWU600B ........................... K3, K4
RWU600U ........................... K3, K5
S
S109FAN .................................. M10
S116FAN ..........................M9, M10
S116W........................................ M4
S118B50..................................... M6
S118R ........................................ M2
S118RS ...................................... M7
S118S50..................................... M6
S118W........................................ M4
S120BFAN ............................... M10
S120HAC.................................. M11
S120HGAC ............................... M11
S120JAC .................................. M11
S120JFAN ........................M9, M10
S120JGAC ................................ M11
S120RAC.................................. M11
S120RACS................................ M11
S120RFAN ............................... M10
S120RGAC ............................... M11
S122B ........................................ M6
S122R ........................................ M2
S122RS ...................................... M7
S122S50..................................... M6
S122W........................................ M4
S232W........................................ M4
S2347 ........................................G27
S2348DF ................................... G27
S235RAC.................................... M2
S235RACMH .............................. M2
S235RACS.................................. M7
S235RACSMH............................ M7
S235S50AC ................................ M6
S352W........................................ M4
S354RAC.................................... M2
S354RACS.................................. M7
S354S50AC ................................ M6
S3713 ........................................B75
S3733 ........................................B75
S384C........................................ P14
S3862C...................................... P15
S3863C...................................... P15
S40.............................................J14
S4418BAC.................................. M8
S4421RAC.................................. M8
S4421SAC .................................. M8
S4435RAC.................................. M8
S4435SAC .................................. M8
S468RAC.................................... M2
S468RACS.................................. M7
S468S50AC ................................ M6
S50BRACKET ............................ M6
S752WCC10 ................................ Q5
S80.............................................J14
SA1..............................................P9
SA126........................................ P16
SA13.......................................... P12
SA14.......................................... P13
SA155CC10 .................................Q7
SA2..............................................P9
SA23.......................................... P12
SA24.......................................... P13
SA26.......................................... P10
SA262........................................ P11
SA3..............................................P9
SA399OCC10...............................Q7
SA4..............................................P9
SA440CC10 .................................Q7
SA540CC10 .................................Q7
SA7............................................ P14
SA716........................................ P15
SA78.......................................... P18
SA8............................................ P10
SA82.......................................... P10
SA840CC10 .................................Q7
SA993OCC10...............................Q7
SAN11....................................... P28
SAN14....................................... P28
SAN144..................................... P28
SAN85....................................... P28
SANK14 .................................... P28
SANK24 .................................... P28
SANK41 .................................... P28
SANK43 .................................... P28
SANK44 .................................... P28
SANK51 .................................... P28
SANK53 .................................... P28
SANK54 .................................... P28
SB1 .............................................P9
SB11 ......................................... P33
SB12 ......................................... P33
SB126 ....................................... P16
SB126PB................................... P16
SB13 ......................................... P12
SB13BZ..................................... P12
SB13CH .................................... P12
SB13PB .................................... P12
SB14 ......................................... P13
SB18 ......................................... P16
SB182PB................................... P19
SB18PB .................................... P16
SB1BZ......................................... P9
SB1CH ........................................ P9
SB1PB ........................................ P9
SB2 .............................................P9
SB23 ......................................... P12
SB23BZ..................................... P12
SB23CH .................................... P12
SB23PB .................................... P12
SB24 ......................................... P13
SB26 ................................. E3, P10
SB262 ....................................... P11
SB262PB................................... P11
SB263 ....................................... P11
SB263PB................................... P11
SB264 ....................................... P11
SB264PB................................... P11
SB26BZ..................................... P10
SB26CH .................................... P10
SB26PB .................................... P10
SB28 ......................................... P16
SB28PB .................................... P16
SB2BZ......................................... P9
SB2CH ........................................ P9
SB2PB ........................................ P9
SB3 .............................................P9
SB33PB .......................... P12, P16
SB3BZ......................................... P9
SB3CH ........................................ P9
SB3PB ........................................ P9
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
T-9
INDEX
PASS & SEYMOUR
INDEX
S — S
SB4 .............................................P9
SB4PB ........................................ P9
SB5 .............................................P9
SB5PB ........................................ P9
SB6PB ........................................ P9
SB7 ........................................... P14
SB760 ....................................... P22
SB771 ....................................... P22
SB7PB ...................................... P14
SB8 ........................................... P10
SB82 ......................................... P10
SB826PB................................... P18
SB82BZ..................................... P10
SB82CH .................................... P10
SB82PB .................................... P10
SB83 ......................................... P10
SB83PB .................................... P10
SB84PB .................................... P10
SB8BZ....................................... P10
SB8CH ...................................... P10
SB8PB ...................................... P10
SBJ1.......................................... P23
SBJ2.......................................... P23
SBJ26........................................ P24
SBJ8.......................................... P23
SBO1......................................... P23
SBO26....................................... P24
SBO8......................................... P23
SC600.......................................... L9
SCDH15 .............................L9, L31
SCELV300 ................................... L9
SCFB600..................................... L9
SCIR............................................ L9
SCK0751 ....................................J21
SCK1001 ....................................J21
SCK1251 ....................................J21
SCK1501 ....................................J21
SCK1502 ....................................J21
SCK1751 ....................................J21
SCK2002 ....................................J21
SCK2501 ....................................J21
SCK2502 ....................................J21
SCK3001 ....................................J21
SCK3002 ....................................J21
SCK3501 ....................................J21
SCMC5........................................ L9
SCMCK ....................................... L9
SCR............................................. L9
SDV2B........................................ M5
SF326........................................Q18
SH1 ........................................... P27
SH122B...................................... M6
SH13 ......................................... P27
SH26 ......................................... P27
SH7 ........................................... P27
SH8 ........................................... P27
SHL100 ........................... A23, B31
SHL20 ............................. A23, B31
SL1.............................................. P9
SL12.......................................... P33
SL13.......................................... P12
SL14.......................................... P13
SL2.............................................. P9
SL23.......................................... P12
SL24.......................................... P13
SL26.......................................... P10
SL262........................................ P11
SL3.............................................. P9
SL4.............................................. P9
SL7............................................ P14
SL8............................................ P10
SL82.......................................... P10
SLV1B ........................................ M5
SLV1R ........................................ M5
SLV1S......................................... M5
SLV1W........................................ M5
SLV2B ........................................ M5
SLV2W........................................ M5
SLV3W........................................ M5
SMTE14 .................................... P31
SP1 .............................................P9
SP11.......................................... P33
SP112.............................. P18, P35
SP12.......................................... P33
SP1214...................................... P35
SP1226............................ P18, P35
SP126........................................ P16
SP1262...................................... P16
SP128.............................. P18, P35
SP13.......................................... P12
SP138........................................ P18
SP14.......................................... P13
SP1426...................................... P19
SP147........................................ P19
SP148........................................ P19
SP17.......................................... P18
SP18.......................................... P16
SP182........................................ P19
SP2 .............................................P9
SP21.......................................... P33
SP226.............................. P16, P18
SP2262...................................... P17
SP23.......................................... P12
SP24.......................................... P13
SP26.......................................... P10
SP262........................................ P11
SP263........................................ P11
SP264........................................ P11
SP265........................................ P11
SP266........................................ P11
SP28.......................................... P16
SP3 .............................................P9
SP326........................................ P16
SP33................................ P12, P16
SP4 .............................................P9
SP43.......................................... P12
SP44.......................................... P13
SP5 .............................................P9
SP60.......................................... P33
SP6 .............................................P9
SP7 ........................................... P14
SP703........................................ P15
SP72.......................................... P14
SP720........................................ P14
SP732........................................ P33
SP78.......................................... P18
SP8 ........................................... P10
SP82.......................................... P10
SP826........................................ P18
SP83.......................................... P10
SP84.......................................... P10
SPJ1 .......................................... P23
SPJ113 ...................................... P25
SPJ126 ...................................... P25
SPJ13 ........................................ P24
SPJ138 ...................................... P25
SPJ1426 .................................... P25
SPJ18 ........................................ P25
SPJ2 .......................................... P23
SPJ26 ........................................ P24
SPJ262 ...................................... P24
SPJ263 ...................................... P24
SPJ264 ...................................... P24
SPJ3 .......................................... P23
SPJ4 .......................................... P23
SPJ7 .......................................... P23
SPJ8 .......................................... P23
SPJ82 ........................................ P23
SPJ826 ...................................... P25
SPO1......................................... P23
SPO113 ..................................... P25
SPO13 ....................................... P24
SPO1326 ................................... P25
SPO138 ..................................... P25
SPO18 ....................................... P25
SPO2......................................... P23
SPO23 ....................................... P24
SPO26 ....................................... P24
SPO262 ..................................... P24
SPO8......................................... P23
SPO82 ....................................... P23
SRK050OF .................................J21
SRK062OF .................................J21
SRK075OF .................................J21
SRK100OF .................................J21
SRK125OF .................................J21
SRK150OF .................................J21
SRK175OF .................................J21
SRK200OF .................................J21
SRK250OF .................................J21
SRK300OF .................................J21
SRK350OF .................................J21
SS1.............................................. P9
SS11.......................................... P33
SS113........................................ P18
SS114........................................ P17
SS12.......................................... P33
SS1214...................................... P35
SS1226............................ P18, P35
SS126........................................ P16
SS1262...................................... P16
SS128.............................. P18, P35
SS13.......................................... P12
SS13.5....................................... P12
SS138........................................ P18
SS14.......................................... P13
SS14.5....................................... P13
SS14114.................................... P19
SS1426...................................... P19
SS147........................................ P19
SS148........................................ P19
SS14814.................................... P19
SS17.......................................... P18
SS18.......................................... P16
SS182........................................ P19
SS1GBRED ............................... P40
SS2.............................................. P9
SS21.......................................... P33
SS214........................................ P17
SS22.......................................... P33
SS226.............................. P16, P18
SS23.......................................... P12
SS23.5....................................... P12
SS24.......................................... P13
SS24.5....................................... P13
SS26.................................. E3, P10
SS262........................................ P11
SS263........................................ P11
SS264........................................ P11
SS265........................................ P11
SS266........................................ P11
SS267........................................ P11
SS268........................................ P11
SS26IG .............................. E3, P39
SS28.......................................... P16
SS282........................................ P19
SS3.............................................. P9
SS314........................................ P17
SS326........................................ P16
SS33................................ P12, P16
SS33.5............................. P12, P16
SS34.......................................... P13
SS4.............................................. P9
SS43.......................................... P12
SS44.......................................... P13
SS48.......................................... P16
SS5.............................................. P9
SS53.......................................... P12
SS6.............................................. P9
SS601.......................................... P9
SS6013...................................... P12
SS602.......................................... P9
SS6023...................................... P12
SS63.......................................... P12
SS7........................ B76, G36, P14
SS701.............................. B76, P15
SS702.............................. B76, P15
SS703........................................ P15
SS705........................................ P15
SS710........................................ P15
SS716........................................ P15
SS717........................................ P21
SS72.......................................... P14
SS720..................... G9, G10, G11,
...............G12, G14, G16, G17,
.....G18, G19, G20, G21, G22,
................G28, G29, G36, P14
SS721........................................ P14
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
INDEX
T-10
PASS & SEYMOUR
INDEX
S — T
SS723........................................ P14
SS724........................................ P14
SS725........................................ P14
SS727........................................ P21
SS73.......................................... P14
SS730........................................ P33
SS736........................................ P33
SS740........................................ P21
SS741........................................ P35
SS742........................................ P35
SS743........................................ P21
SS746........................................ P21
SS747........................................ P21
SS748........................................ P21
SS751........................................ P34
SS752........................................ P34
SS753........................................ P34
SS754........................................ P34
SS760........................................ P22
SS771........................................ P22
SS772........................................ P22
SS78.......................................... P18
SS785........................................ P34
SS787........................................ P34
SS791........................................ P35
SS792........................................ P35
SS8.................................. G36, P10
SS8148...................................... P19
SS82.......................................... P10
SS826........................................ P18
SS82IG ...................................... P39
SS83.......................................... P10
SS84.......................................... P10
SS85.......................................... P10
SS86.......................................... P10
SS8EE ....................................... P39
SS8ERED .................................. P39
SS8ES ....................................... P39
SS8IG ........................................ P39
SS9............................................ P22
SSJ1.......................................... P23
SSJ126...................................... P25
SSJ13 ........................................ P24
SSJ18 ........................................ P25
SSJ2.......................................... P23
SSJ26 ........................................ P24
SSJ262...................................... P24
SSJ263...................................... P24
SSJ3.......................................... P23
SSJ7.......................................... P23
SSJ8.......................................... P23
SSJ82 ........................................ P23
SSK0751 ....................................J21
SSK1 ......................................... P20
SSK1002 ....................................J21
SSK12 ....................................... P20
SSK1251 ....................................J21
SSK1252 ....................................J21
SSK13 ....................................... P20
SSK1501 ....................................J21
SSK1502 ....................................J21
SSK1751 ....................................J21
SSK2001 ....................................J21
SSK2002 ....................................J21
SSK2502 ....................................J21
SSK3001 ....................................J21
SSK3002 ....................................J21
SSK32 ....................................... P20
SSK33 ....................................... P20
SSK3501 ....................................J21
SSMF ......................................... I21
SSN11 ....................................... P28
SSN117 ..................................... P28
SSN121 ..................................... P28
SSN14 ....................................... P28
SSN142 ..................................... P28
SSN144 ..................................... P28
SSN15 ....................................... P28
SSN85 ....................................... P28
SSNK14..................................... P28
SSNK24..................................... P28
SSNK34..................................... P28
SSNK41..................................... P28
SSNK43..................................... P28
SSNK44..................................... P28
SSNK51..................................... P28
SSNK53..................................... P28
SSNK54..................................... P28
SSO1 ......................................... P23
SSO11 ....................................... P35
SSO114 ..................................... P25
SSO12 ....................................... P35
SSO126 ..................................... P25
SSO13 ....................................... P24
SSO138 ..................................... P25
SSO14 ....................................... P24
SSO18 ....................................... P25
SSO2 ......................................... P23
SSO23 ....................................... P24
SSO24 ....................................... P24
SSO26 ....................................... P24
SSO262 ..................................... P24
SSO28 ....................................... P25
SSO3 ......................................... P23
SSO33 ....................................... P24
SSO34 ....................................... P24
SSO4 ......................................... P23
SSO7 ......................................... P23
SSO8 ......................................... P23
SSO82 ....................................... P23
SSO83 ....................................... P23
SSTK424 ................................... P27
STB100SF................................... J9
STB125SF................................... J9
STB150SF................................... J9
STB200SF................................... J9
STB250SF................................... J9
STB300SF................................... J9
STB38SF..................................... J9
STB45100SF ............................... J9
STB45125SF ............................... J9
STB45200SF ............................... J9
STB45250SF ............................... J9
STB45300SF ............................... J9
STB4538SF ................................. J9
STB4550SF ................................. J9
STB4575SF ................................. J9
STB50SF..................................... J9
STB75SF..................................... J9
STB90100SF ............................... J9
STB90125SF ............................... J9
STB90150SF ............................... J9
STB90200SF ............................... J9
STB90300SF ............................... J9
STB9050SF ................................. J9
STB9075SF ................................. J9
STBN100SF ................................ J9
STBN125SF ................................ J9
STBN150SF ................................ J9
STBN200SF ................................ J9
STBN38SF .................................. J9
STBN50SF .................................. J9
STBN75SF .................................. J9
SW262BB.................................... P6
SW262BC....................................P6
SW262BN ................................... P6
SW262BR.................................... P6
SW262MA ................................... P6
SW262MH ................................... P6
SW262SS .................................... P6
SW262WA ................................... P6
SW263BB.................................... P6
SW263BC....................................P6
SW263BN ................................... P6
SW263MA ................................... P6
SW263MH ................................... P6
SW263SS .................................... P6
SW263WA ................................... P6
SW264BB.................................... P6
SW264BC....................................P6
SW264BN ................................... P6
SW264BR.................................... P6
SW264MA ................................... P6
SW264MH ................................... P6
SW264SS .................................... P6
SW264WA ................................... P6
SW26BB...................................... P6
SW26BC...................................... P6
SW26BN .....................................P6
SW26BR...................................... P6
SW26MA .....................................P6
SW26MH.....................................P6
SW26SS ......................................P6
SW26WA .....................................P6
SWP1 ..........................................P7
SWP2 ..........................................P7
SWP26 ........................................P7
SWP262 ...................................... P7
SWP262BB .................................P6
SWP262BC .................................P6
SWP262BN .................................P6
SWP262BR .................................P6
SWP262MA................................. P6
SWP262MH................................. P6
SWP262SS .................................. P6
SWP262WA .................................P6
SWP263 ...................................... P7
SWP263ABBPCC10....................P6
SWP263BB .................................P6
SWP263BC .................................P6
SWP263BN .................................P6
SWP263DBBPCC10.................... P6
SWP263MA................................. P6
SWP263MH................................. P6
SWP263SS .................................. P6
SWP263WA .................................P6
SWP264 ...................................... P7
SWP264ABBPCC10....................P6
SWP264BB .................................P6
SWP264BC .................................P6
SWP264BN .................................P6
SWP264BR .................................P6
SWP264DBBPCC10.................... P6
SWP264MA................................. P6
SWP264MH................................. P6
SWP264SS .................................. P6
SWP264WA .................................P6
SWP26ABBPCC10...................... P6
SWP26BB ...................................P6
SWP26BC ...................................P6
SWP26BN ...................................P6
SWP26BR ...................................P6
SWP26DBBPCC10......................P6
SWP26LA.................................... P2
SWP26MA................................... P6
SWP26MH...................................P6
SWP26SS.................................... P6
SWP26WA...................................P6
SWP3 ..........................................P7
SWP4 ..........................................P7
SWP8 ..........................................P7
SWP82 ........................................P7
t
T1000 ........................................ L21
T1000L ...................................... L21
T600 .......................................... L21
T600L........................................ L21
TD1103P ................................... L19
TD703P ..................................... L19
TLV1000 .................................... L21
TLV600 ...................................... L21
TM1542BOX ............................. M17
TM1542CF................................ M17
TM1542TR................................ M17
TM81111 ................................... A25
TM8111 ..................................... A25
TM8113CC .......................A24, A25
TM8118TRCC............................ A26
TM811 ....................................... A25
TM811DTMA ............................. A22
TM811DTMO............................. A22
TM813 ....................................... A25
TM818TR................................... A26
TM818TRPL.............................. A26
TM833CC .................................. A25
TM838TR................................... A26
TM83USB..................................B35
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
T-11
INDEX
PASS & SEYMOUR
INDEX
T — W
TM870 ....................................... A20
TM870SL................................... A21
TM870NA .................................. A20
TM870S..................................... A21
TM870STM................................ A22
TM873 ....................................... A20
TM873SL................................... A21
TM873NA .................................. A20
TM873S..................................... A21
TM874 ....................................... A20
TM874SL................................... A21
TM874S..................................... A21
TM885 .......................................B48
TM885S.....................................B48
TM8HWLTRCC..........................B50
TM8ID ....................................... A24
TM8LM................... A24, L15, L32
TM8LOCATOR ........................... A28
TM8USB4..................................B35
TM8USB....................................B35
TMHWLCC ................................B50
TMHWLECC.............................. B50
TMHWLENSCC.........................B50
TMHWLLOUVCC.......................B50
TP1.............................................. P9
TP11.......................................... P33
TP113........................................ P18
TP12.......................................... P33
TP126........................................ P16
TP13.......................................... P12
TP138........................................ P18
TP14.......................................... P13
TP18.......................................... P16
TP1ERED .................................. P39
TP2.............................................. P9
TP226.............................. P16, P18
TP23.......................................... P12
TP24.......................................... P13
TP26.......................................... P10
TP262........................................ P11
TP263........................................ P11
TP264........................................ P11
TP265........................................ P11
TP266........................................ P11
TP26BL....................................... E3
TP26CI ...................................... P40
TP26ERED ................................ P40
TP26IG .............................. E3, P39
TP28.......................................... P16
TP2ERED .................................. P39
TP3.............................................. P9
TP4.............................................. P9
TP5.............................................. P9
TP6.............................................. P9
TP60.......................................... P33
TP7............................................ P14
TP703.............................. B76, P15
TP720........................................ P14
TP724.............................. B76, P14
TP7CI ........................................ P40
TP7IG ........................................ P39
TP8............................................ P10
TP82.......................................... P10
TP826........................................ P18
TP82ERED ................................ P39
TP8CI ........................................ P40
TP8EI ........................................ P39
TP8EMPOWER.......................... P40
TP8GFI...................................... P40
TP8IG ........................................ P39
TPCATV ..................................... P32
TPCATV2 ................................... P32
TPD1.........................................Q18
TPD2.........................................Q18
TPD3.........................................Q18
TPD4.........................................Q18
TPD6.........................................Q18
TPD9.........................................Q18
TPJ1 .......................................... P23
TPJ113 ...................................... P25
TPJ126 ...................................... P25
TPJ13 ........................................ P24
TPJ18 ........................................ P25
TPJ2 .......................................... P23
TPJ26 ........................................ P24
TPJ262 ...................................... P24
TPJ263 ...................................... P24
TPJ264 ...................................... P24
TPJ3 .......................................... P23
TPJ4 .......................................... P23
TPJ7 .......................................... P23
TPJ8 .......................................... P23
TPJ82 ........................................ P23
TPJ826 ...................................... P25
TPTE1 ....................................... P30
TPTE2 ....................................... P30
TPTELTV ................................... P32
TR15..........................................B30
TR20..........................................B30
TR26262....................................B42
TR26262HG..................... B42, D17
TR26362....................................B42
TR26362HG..................... B42, D17
TR5251......................................B31
TR5261USB ..............................B36
TR5262......................................B30
TR5262SP ......................... B71, E8
TR5351......................................B31
TR5361USB ..............................B36
TR5362......................................B30
TR5362SP ......................... B71, E8
TR62..........................................B28
TR62H............................. B29, D12
TR63..........................................B28
TR63H............................. B29, D12
TR8200SP ............. B72, D30, E10
TR8201......................................B25
TR8201USB .................... B36, D18
TR8300SP ............. B72, D30, E10
TR8301......................................B25
TR8301USB .................... B36, D18
TRIG26262 ............ B34, D14, E18
TRIG26262HG ....... B34, D14, E18
TRIG26362 ............ B34, D14, E18
TRIG26362HG ....... B34, D14, E18
TRIG5262 .............. B34, D14, E18
TRIG5362 .............. B34, D14, E18
TRIG5362SP...................... B71, E8
TRIG8200 .............. B34, D14, E18
TRIG8300 .............. B34, D14, E18
TRIG8300SP................................ E9
TRIG8300SP..............................B72
TSC5 ................................L21, L33
TV1WMLVKIT ........................... M18
TV1WMTVSSWCC2 .................. M18
TV1WTVSSW............................ M18
TV1WW..................................... M18
TV2MW..................................... M18
TV3WMTTVSSW....................... M18
TV3WTVSSW............................ M18
TV3WW..................................... M18
V
VG100........................................ O22
VG200........................................ O22
VPC100G...................................O22
VPC200G...................................O22
VPG100 ..................................... O22
VPG200 ..................................... O22
VPP100G ...................................O22
VPP200G ...................................O22
VPW100G .................................. O22
VPW200G .................................. O22
W
WA1001............................. K3, K13
WDT100 ......................................K3
WDT200 ......................................K3
WIU10PK ....................................O3
WIU20PK ....................................O3
WIUC10DGL................................O3
WIUC10GL ..................................O3
WIUC10SC ..................................O2
WIUC10SG ..................................O3
WIUC20GL ..................................O3
WIUCAST1 ..................................O5
WIUCAST2 ..................................O5
WIUFC10S...................................O4
WIUFC10W..................................O4
WMPPSS...................................Q18
WMTE14.................................... P31
WP1 .......................................... P29
WP13......................................... O14
WP13FS .................................... O14
WP23......................................... O14
WP26......................................... P29
WP26L ...................................... P29
WP5001WH.................................P8
WP5002WH.................................P8
WP5003WH.................................P8
WP5004WH.................................P8
WP7 ..........................................G36
WP8 ..........................................G36
WPB1........................................ O20
WPB11...................................... O20
WPB12...................................... O20
WPB13...................................... O20
WPB2........................................ O20
WPB23............................ O15, O16
WPB232 .................................... O17
WPB24...................................... O16
WPB242 .................................... O17
WPB25...................................... O16
WPB252 .................................... O17
WPB26...................................... O16
WPB262 .................................... O17
WPB272 .................................... O17
WPB276 .................................... O17
WPB282 .................................... O17
WPB287 .................................... O17
WPB3........................................ O20
WPB33...................................... O16
WPB332 .................................... O17
WPB34...................................... O16
WPB342 .................................... O17
WPB35...................................... O16
WPB352 .................................... O17
WPB36...................................... O16
WPB362 .................................... O17
WPB373 .................................... O18
WPB382 .................................... O17
WPB387 .................................... O17
WPBD23 ...................................O18
WPBD252..................................O18
WPBD33 ...................................O18
WPBD352..................................O18
WPBD43 ...................................O18
WPBD452..................................O18
WPBJ22 .................................... O21
WPBL100.................................. O23
WPBP100.................................. O23
WPBP50....................................O23
WPBP75....................................O23
WPEX1 ......................................O23
WPEX2 ......................................O23
WPEX3 ......................................O23
WPEX4 ......................................O23
WPEX5 ......................................O23
WPEX6 ......................................O23
WPFLDKIT................................ O19
WPG1... F12, G31, G36, O2, O12
WPG2............G9, G10, G11, G12,
...............G14, G16, G17, G18,
...............G19, G20, G21, G22,
........G28, G29, G36, O2, O12
WPGAS100................................ O23
WPGAS101................................ O23
WPGASR101 .............................O23
WPGFIKIT .................................O19
WPH1L...................................... P29
WPH7L...................................... P29
WPH8L...................................... P29
WPLKIT1................................... O21
WPLKIT2................................... O21
WPLKIT3................................... O21
WPLKIT4................................... O21
WPOUTKIT................................O19
WPRB1 .....................................O20
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
INDEX
T-12
PASS & SEYMOUR
INDEX
W
WPRB11....................................O20
WPRB12....................................O20
WPRB13....................................O20
WPRB25....................................O19
WPRB35....................................O19
WPWIUKITC..............................O19
WPWIUKITSC ...........................O19
WR20TR....................................B32
WR5262.....................................B32
WR5362.....................................B32
WR5662.....................................B32
WR5862.....................................B32
WS1100TC ................................ L18
WS1100..................................... L18
WS1103PTC .............................. L18
WS1103P .................................. L18
WS700TC .................................. L18
WS703PTC ................................ L18
WS703P .................................... L18
WSKIT....................................... L18
WSKITP..................................... L18
WSLV700TC .............................. L18
WSLV703PTC............................ L18
WSP101 .............................. K3, K9
WSP200 .................... K3, K8, K10
WSP201 .............................. K3, K9
WSSC53PTC ....................L18, L33
2A145C5EU............................... Q17
2A145CC6 .................................Q17
2A245C5EU............................... Q17
2A245CC6 .................................Q17
2ABL .........................................Q17
4AP ...........................................B73
4RBC........................................ M11
4RBCW .................................... M11
4SBC.......................................... M8
4SBCW....................................... M8
5SC .............................................Q9
14W33 ....................................... F10
14W47 ....................................... F10
14W48 ....................................... F10
14W49 ....................................... F10
14WPS ............................ F10, G24
15W33 ....................................... F10
15W47 ....................................... F10
15W48 ....................................... F10
15W49 ....................................... F10
24W34 ....................................... G24
24W47 ....................................... G24
25W34 ....................................... G24
25W47 ....................................... G24
26CATV...................................... P32
26TE14...................................... P30
26TE16...................................... P30
26TE24...................................... P31
26TE26...................................... P31
26TELTVICC10.......................... P32
50W50PS ........................ F10, G24
61 ...............................................Q5
63 ...............................................Q8
68 ...............................................Q8
69 ...............................................Q8
83CC4 .........................................Q7
84BKCC20...................................Q7
101 ..............................................Q7
111GMC ......................................Q7
111MC......................................... Q7
114GMC ......................................Q7
123C3W.......................................Q8
123P............................................Q7
123PQC .......................................Q8
125 ..............................................Q8
128 ..............................................Q8
201 ..............................................Q5
210G............................................Q8
220 ..............................................Q2
226PA..........................................Q9
240TDM..................................... E12
267 ..............................................Q6
272 ..............................................Q4
272WH6 ......................................Q4
274 ..............................................Q4
276WH ........................................Q4
276WH6 ......................................Q4
277FL..........................................Q4
278FL..........................................Q4
280WH ........................................Q4
280WH6 ......................................Q4
282 ..............................................Q4
284 ..............................................Q4
288 ..............................................Q4
313CC10......................................Q8
325 ............................................Q10
326 .................................. P36, Q10
327 .................................. P36, Q10
341DU4 .......................................Q6
342 .................................. P36, Q12
347 ............................................Q12
348 ............................................Q12
384 ............................................ P14
385 ............................................B76
388 ............................................B76
405RED..................................... P36
406RED..................................... P36
410WCC25 ..................................Q2
415 ............................................B73
420H..........................................B73
420 ............................................B73
420SP........................................ B73
423 ..............................................Q2
464 ..............................................Q3
465 ..............................................Q3
466 ..............................................Q3
467 ..............................................Q3
480TDH ..................................... E12
500K.................................. A5, Q14
509 ............................................ P38
510 ............................................ P38
511 ............................................ P38
512 ............................................ P38
513 ............................................ P38
528 ............................................ P38
531S.......................................... P38
532S.......................................... P38
533D.......................................... P38
574T ............................................Q2
575 ..............................................Q2
614 ..............................................G7
623 ..............................................Q3
653 ..............................................Q2
660G.......................................... A15
660GMH .................................... A15
660SLG ..................................... A16
660NAG..................................... A15
660SG........................................ A16
663G.......................................... A15
663SLG ..................................... A16
663SG........................................ A16
664G.......................................... A15
664SG........................................ A16
670 ............................................ A18
670G.......................................... A17
671 ............................................ A17
671TR........................................ A17
680 ............................................ A18
680IG......................................... A18
681 ............................................ A18
690 ............................................ A18
691 ............................................ A17
691TR........................................ A17
692 ............................................ A18
692G.......................................... A17
693 ............................................ A18
693G.......................................... A17
695 ............................................ A18
695G.......................................... A17
696 ............................................ A18
696G.......................................... A17
697 ..............................................Q9
697R............................................Q9
699CC25......................................Q9
735CC10......................................Q9
738 ..............................................Q2
746ICC10 .................................... Q9
779CC5 .......................................Q9
880 ............................................B49
880MH ......................................B49
880TR........................................B46
880TRWMH...............................B46
885 ............................................B48
885S..........................................B48
885TR........................................B46
885TRWRS................................B47
911LOCATOR ............................ A28
975ABDCC10 ..............................Q5
1031 ................................ B76, F14
1033 .......................................... F14
1038 ..........................................Q15
1039 ..........................................Q15
1050K........................................Q14
1051 ................................ B76, F14
1053 ................................ B76, F14
1070B........................................ Q14
1081 ..........................................Q14
1081K........................................Q14
1091 ..........................................Q14
1091K........................................Q14
1200 .......................................... A28
1201 .......................................... A28
1205 .......................................... A28
1205A........................................ A28
1206 .......................................... A28
1206A........................................ A28
1220TWES ................................ E12
1220TWH .................................. E12
1220TWH4B .............................. E12
1220TWHB................................ E12
1220TWLI.................................. E12
1220TWM.................................. E12
1221 .......................................... A12
1222 .......................................... A12
1224SH ..................................... E12
1224SHB................................... E12
1224SL...................................... E12
1224SM ..................................... E12
1225 .......................................... A12
1226 .......................................... A12
1227 .......................................... A12
1228 .......................................... A12
1250 .......................................... A12
1251 .......................................... A12
1255 .......................................... A12
1256 .......................................... A12
1264 ............................................Q8
1275 .......................................... A12
1276 .......................................... A12
1332 ..........................................Q11
1333 ..........................................Q11
1354 ..........................................Q12
1375 ..........................................Q11
1376 ..........................................Q11
1377 ..........................................Q11
1403 ............................................Q8
1406 ............................................Q8
1431 ................................ B76, F14
1432 ..........................................Q11
1433 ..........................................Q11
1433P.......................................... F9
1447 ............................................ F9
1448 ............................................ F9
1449 ............................................ F9
1451 ................................ B76, F14
1475 ..........................................Q11
1482ICC10 .................................. Q8
1498 .................................. A5, A12
1498NT ............................. A5, A12
1532 ..........................................Q11
1533 ............................................ F9
1542DR .................................... M17
1542FBA .................................. M17
1542TRFM ............................... M17
1547 ............................................ F9
1548 ............................................ F9
1549 ............................................ F9
1575 ..........................................Q11
1594CMA .................................. C23
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
T-13
INDEX
PASS & SEYMOUR
INDEX
1594CMM.................................. C23
1594CS1A ................................. C24
1594CS1M................................. C24
1594PC2A ................................. C24
1594PC2M ................................ C24
1594PC6M ................................ C24
1594TC2A.................................. C24
1594TC2M................................. C24
1594TL2A.................................. C24
1594TL2M ................................. C24
1594TPA...................................... C9
1595 .................................. B53, C7
1595HG ......... B54, C8, D19, D21
1595HGNA ............ B63, C20, D26
1595HGNTLTR...... B56, C11, D22
1595HGTR............... B52, C6, D19
1595HGTRA .............................. C13
1595IGHGTR ................... C14, D21
1595NA ........................... B62, C19
1595NTLTR ..................... B56, C11
1595S ................................ B53, C7
1595SWTTR ...........A27, B55, C10
1595TR..................... B51, C3, C5,
................................... C13, C14
1595TRNA....................... B62, C19
1595TRS ........................... B51, C5
1595TRWR ...................... B57, C12
1595TRWRNA...........................B62
2005 ............................................Q6
2006 ............................................Q6
2085 ............................................C9
2094PC2A ................................. C24
2094PC2M ................................ C24
2094TL2A.................................. C24
2094TL2M ................................. C24
2095 .................................. B53, C7
2095HG ......... B54, C8, D19, D21
2095HGNA ............ B63, C20, D26
2095HGNTLTR...... B56, C11, D22
2095HGTR............... B52, C6, D19
2095HGTRA .............................. C13
2095HGTRNA........ B63, C20, D26
2095IGHGTR ................... C14, D21
2095IGTR .................................. C14
2095NA ........................... B62, C19
2095NTLTR ..................... B56, C11
2095S ................................ B53, C7
2095TR.................... B51, C5, C13
2095TRNA....................... B62, C19
2095TRR ................................... C20
2095TRS ...................................B51
2095TRS ..................................... C5
2095TRWR ...................... B57, C12
2095TRWRNA...........................B62
2096 ............................................C3
2096HG ............................. C3, D20
2096HGTR......................... C3, D20
2096TR........................................ C3
2151RED ................................... P37
2152 .......................................... P37
2156 .......................................... P37
2200PL...................................... P37
2219PL...................................... P37
2220PL...................................... P37
2434 ..........................................G24
2447 ..........................................G24
2534 ..........................................G24
2536 ............................................Q3
2537 ............................................Q3
2547 ..........................................G24
2601 .......................................... A19
2603 .......................................... A19
2604 .......................................... A19
2621 .......................................... A19
2622 .......................................... A19
2623 .......................................... A19
2624 .......................................... A19
2625 .......................................... A19
2626 .......................................... A19
2628 .......................................... A19
2629 .......................................... A19
2748TWH .................................. E12
2748TWH4B .............................. E12
2748TWHB................................ E12
2748TWL................................... E12
2748TWM.................................. E12
3232 ..........................................B49
3232MH.....................................B49
3232S ........................................B49
3232TR......................................B45
3232TRNA................................. B45
3232TRS ...................................B45
3232TRWR ................................ B47
3330 ..........................................G27
3330G........................................G27
3331G........................................G27
3331SS...................................... G27
3333SS...................................... G27
3334SS...................................... G27
3352F ..........................................Q5
3393 ..........................................O13
3430 ..........................................G29
3431G........................................G29
3431SS...................................... G29
3433SS...................................... G29
3434SS...................................... G29
3435SS...................................... G29
3700 ............................................O9
3700FS........................................O9
3703 ............................................O9
3703FS........................................O9
3703T ..........................................O9
3703TC........................................O9
3710 ............................................O9
3710FS.............................. G36, O9
3720 ............................................O9
3720FS.............................. G36, O9
3722FS.............................. G36, O9
3723 ............................................O9
3723FS........................................O9
3724FS........................................O9
3726SC......................................O11
3760 ................................ G36, O11
3762 ..........................................G33
3763 ..........................................O11
3763M .......................................G33
3764 ..........................................G34
3765 ..........................................G34
3769 ..........................................G34
3770SC......................................O11
3771 ..........................................G33
3775 ..........................................G34
3777 ..........................................G33
3778 ............................................O7
3780 ..........................................O11
3780SC......................................O11
3780SCFBX...............................O10
3780SCLV..................................O10
3780SCMH ................................O10
3795 ............................................O9
3796 ..........................................O13
3797 ..........................................O13
3801 ..........................................B76
3802 ..........................................B76
3804 ..........................................B76
3820 ..........................................B76
3822 ..........................................B76
3830 ..........................................B76
3852 ..........................................B76
3854 ..........................................B76
3854NA .....................................B76
3860 ..........................................B76
3861 ................................ B76, F13
3862 .......................................... P15
3864 ..........................................B76
3864NA .....................................B76
3867 ................................ B76, F13
3869 ................................ B76, F13
3870 ..........................................B76
3884 ..........................................B76
3884NA .....................................B76
3890 ..........................................B76
3894 ..........................................B76
3894NA .....................................B76
3901 ............................................Q3
3911 ............................................Q3
4015D4F...................................... Q6
4017CC10.................................... Q6
4063CC10.................................... Q6
4155 ............................................Q6
4510 ..........................................O13
4511 ..........................................O13
4512 ..........................................O13
4515 ..........................................O14
4515FS...................................... O14
4515FSGAS ...............................O14
4515GAS ................................... O14
4516 ..........................................O14
4517 ..........................................O14
4550 ............................................G7
4560 ............................................G7
4600 ..........................................O12
4609 ..........................................O12
4700 ............................................G6
4710 ............................................G6
4715SS........................................G6
4716SS........................................G6
4750 ............................................G7
4760 ............................................G7
4792 ............................................G6
4867Y ........................................ F11
4887Y ........................................ F11
10020 ..........................................Q6
10027 ..........................................Q6
10028 ..........................................Q6
10045 ..........................................Q5
10083M .......................................Q4
10085 ..........................................Q5
12845C5E89.............................. Q19
13053UN .....................................Q3
13057UN .....................................Q3
13741 ..........................................Q9
19062 ..........................................Q5
19980PG .....................................Q4
14629 ........................................ F13
15010 ................................. N5, N7
15040 ................................. N5, N7
20403N...................................... G31
20414 ........................................G31
20414N...................................... G31
20415 ........................................G31
20415N...................................... G31
20416N...................................... G31
20417N...................................... G31
20418 ........................................G31
20443N...................................... G31
20444N...................................... G31
20445N...................................... G31
20446N...................................... G31
21414 ........................................G31
21415 ........................................G31
21420 ........................................G31
21426 ........................................G31
21426S ......................................G31
22200 ......................... N2, N6, N7
23000 ........................................G30
23000G...................................... G30
23000HG ................................... G30
23002N...................................... G30
23005N...................................... G30
23035N...................................... G30
23050 ........................................G30
23054N...................................... G30
23056N...................................... G30
24845C5E.................................. Q19
24845CC6.................................. Q19
25250 ........................................G32
25414 ........................................G32
25414N...................................... G32
25415 ........................................G32
25415N...................................... G32
26222HG ......................... B39, D16
26252 .............................. B40, B41
26262HG ......................... B39, D16
26322HG ......................... B39, D16
26352 .............................. B40, B41
26362HG ......................... B39, D16
26400 .............................. G31, G32
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
WWW.LEGRAND.US/PASSANDSEYMOUR
INDEX
T-14
PASS & SEYMOUR
INDEX
26401 .............................. G31, G32
26402 .............................. G31, G32
26404 .............................. G31, G32
26414 ........................................G31
26415 ........................................G31
26415A ......................................G31
26420 ........................................G31
26426 ........................................G31
26427 ........................................G31
26514 ........................................G32
26514A ......................................G32
26515 ........................................G32
26515A ......................................G32
26520 ........................................G32
26526 ........................................G32
26527 ........................................G32
26661 ........................................B44
26652 ........................................B41
26852 ........................................B41
26861 .............................. B43, B44
29816C2......................................Q4
31528 ..........................................Q5
32324 ........................................B49
33300 ................................. N2, N6
33303 ................................. N4, N7
33310 ......................... N2, N6, N7
43308 ..........................................Q6
44400 ................................. N4, N7
43379 ........................................ F13
43399 ........................................ F13
44859 ..........................................G6
46001P...................................... O12
46007P...................................... O12
46008P...................................... O12
48643 ..........................................Q7
48845C5E.................................. Q19
48845CC6.................................. Q19
51920 .................................I29, I40
51940 .................................I29, I40
51970 .................................I29, I40
51972 .................................I29, I40
51980 .................................I29, I40
52022 .................................I29, I40
52023 .................................I29, I40
52029 .................................I29, I40
52042 .................................I29, I40
52043 .................................I29, I40
52044 .................................I29, I40
52073 .................................I29, I40
52074 .................................I29, I40
52079 ......................................... I30
52082 .................................I29, I40
52083 .................................I29, I40
52084 .................................I29, I40
52172 .................................I29, I40
52174 .................................I29, I40
52222 .................................I29, I40
52223 .................................I29, I40
52224 .................................I29, I40
52229 .................................I29, I40
52242 .................................I29, I40
52243 .................................I29, I40
52244 .................................I29, I40
52272 .................................I29, I40
52282 .................................I29, I40
52283 .................................I29, I40
52284 .................................I29, I40
52371 ......................................... I30
52402 ......................................... I30
52421 ......................................... I30
52718 .................................I29, I40
52742 .................................I29, I40
52743 .................................I29, I40
52744 .................................I29, I40
52773 .................................I29, I40
52774 .................................I29, I40
52782 .................................I29, I40
52783 .................................I29, I40
52872 .................................I29, I40
52873 .................................I29, I40
52942 .................................I29, I40
52943 .................................I29, I40
52944 .................................I29, I40
52972 .................................I29, I40
52982 .................................I29, I40
52983 .................................I29, I40
52984 .................................I29, I40
53542 .................................I29, I40
53582 .................................I29, I40
53622 .................................I29, I40
53623 .................................I29, I40
53642 .................................I29, I40
53643 .................................I29, I40
53644 .................................I29, I40
53682 .................................I29, I40
53683 .................................I29, I40
53684 .................................I29, I40
53772 .................................I29, I40
53773 .................................I29, I40
53774 .................................I29, I40
53823 .................................I29, I40
53824 .................................I29, I40
53843 .................................I29, I40
53844 .................................I29, I40
53879 ......................................... I30
53883 .................................I29, I40
53884 .................................I29, I40
53889 .................................I29, I40
55015 ................................. N4, N7
55020 ................................. N4, N7
55025 ................................. N4, N7
55500 ..........................................N5
55501 ......................... N3, N6, N7
55528 ................................. N4, N7
65501 ......................... N5, N6, N7
65505 ..........................................N5
65521 ......................... N3, N6, N7
67705 ..........................................N5
77700 ................................. N4, N7
77702 ......................... N3, N6, N7
77705 ................................. N4, N7
77706 ................................. N5, N7
77708 ................................. N5, N6
80700 .............................. P36, Q10
83300 ......................... N2, N6, N7
85502 ................................. N3, N6
90577 ..........................................Q2
97015 ........................................K22
97030 ........................................K22
97060 ........................................K22
97115 ........................................K22
97130 ........................................K22
97160 ........................................K22
97352 ........................................K23
168950 ........................................Q2
385440 ......................................B76
388440 ......................................B76
460026P ....................................O12
941904 ........................................Q9
1008316 ......................................Q4
1375220 ....................................Q11
1475277 ....................................Q11
2601347 .................................... A19
2603347 .................................... A19
2621347 .................................... A19
2623347 .................................... A19
2624347 .................................... A19
CAt. No. PAge CAt. No. PAge CAt. No. PAge CAt. No. PAge
