04/19/2016Page1/4

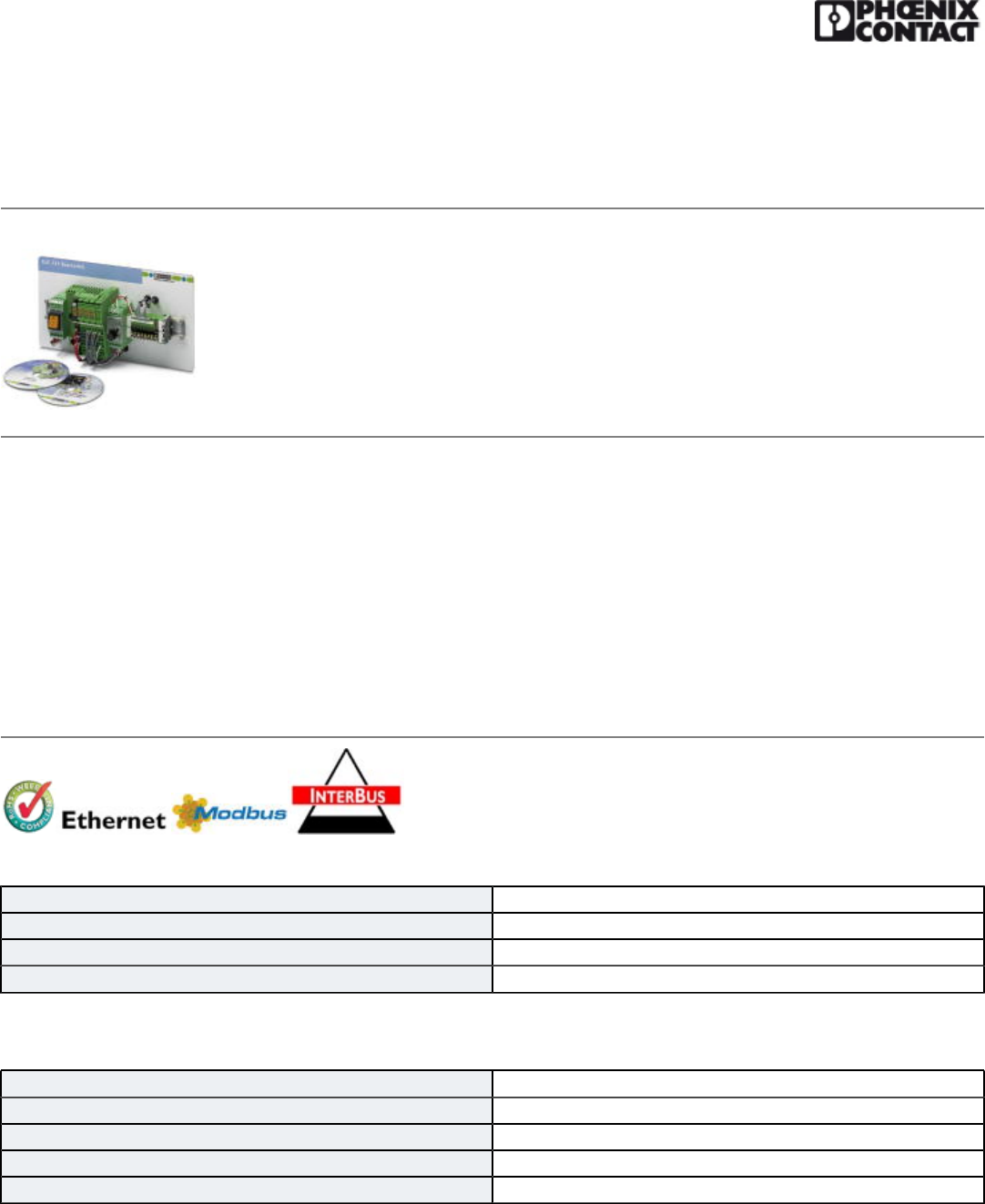

Starter kit-ILC 131 STARTERKIT-2701835
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
ILC131 starter kit incl. ILC131ETH, control panel, power supply unit, plus accessories and cables with test
application set up
Product Description
Test the highly communicative ILC 131 ETH high-performance controller. Small to medium function units can be automated inexpensively using this
high-performance controller. The high-performance controller features modular expansion, easy programming, and high performance. We have compiled
this starter kit so that you can try out the capabilities of the ILC 131 ETH for yourself. It has digital and analog output and input terminals as well as
simulation modules. In addition, example projects for PC WORX EXPRESS and the web server are available to the user.
Product Features
■Integrated I/Os: 8/4
■Processing time per 1000 instructions: 90 µs (bit data types), 1.7 ms (mixed data types)
■Program/mass storage: 192KB/192KB
■Retentive mass storage: 8 KB
■Supply voltage: 24VDC
Key Commercial Data
Packing unit 1 pc
Weight per Piece (excluding packing) 2180.0 g
Custom tariff number 85371091
Country of origin Germany
Technical data
Product type Starter kit
Approval EAC
EAC
Set consists of Controller
Inline ME terminal
https://www.phoenixcontact.com/us/products/2701835
04/19/2016Page2/4
Starter kit-ILC 131 STARTERKIT-2701835
Technical data
Interface module
Software

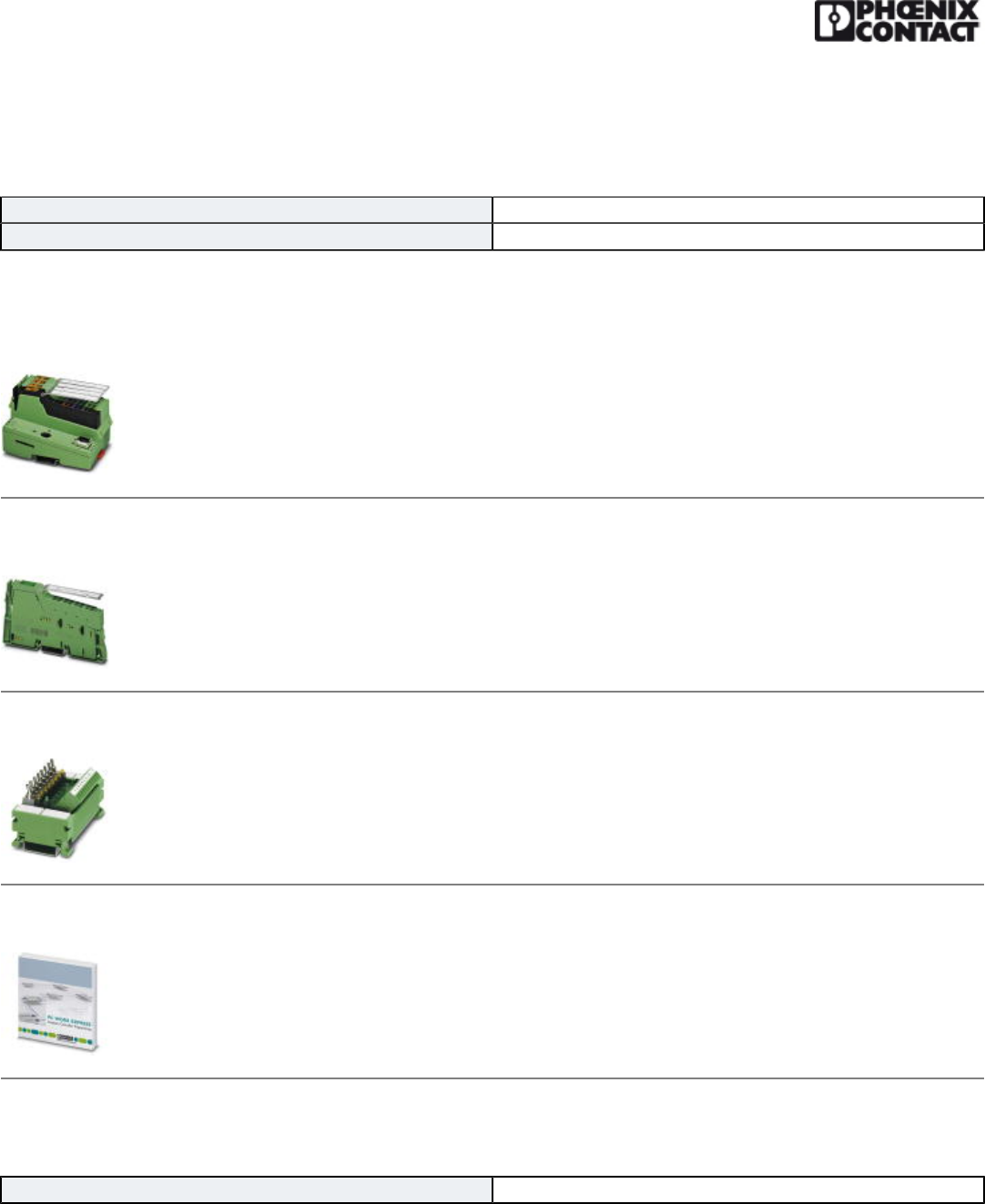

Articles in set
Controller-ILC 131 ETH-2700973
The Inline controller offers the option of communicating via PROFINET and Modbus/TCP. Programming is carried out
using PC Worx Express or PC Worx (IEC 61131-3).
Inline ME terminal-IB IL AI 2/SF-ME-2863944
Inline analog input terminal, Inline ME variants (Machine Edition) complete with accessories (connector and labeling
field), 2 inputs, 0-20 mA, 4-20 mA, ±20 mA, 0-10 V, ±10 V, 2-conductor connection system
Interface module-UM 45-IB-DI/SIM8-2962997
VARIOFACE switch module, with COMBICON connector, for simulation, for 8 signals, for mounting DIN rail NS 35
Software-PC WORX EXPRESS-2988670
PC WORX EXPRESS is a piece of easy-to-operate engineering software. Class 100 and class 1000 modular small-scale
controllers as well as the PC WORX SRT software controller with IEC-61131 programming languages ST and LD are
supported. Free programming version without licensing mechanism, max. 128 kbyte of input and output data.
Classifications
eCl@ss
eCl@ss 4.0 27250203
https://www.phoenixcontact.com/us/products/2701835
04/19/2016Page3/4
Starter kit-ILC 131 STARTERKIT-2701835
Classifications
eCl@ss
eCl@ss 4.1 27240601
eCl@ss 5.0 27242215
eCl@ss 5.1 27242690
eCl@ss 6.0 27242690
eCl@ss 7.0 27242690
eCl@ss 8.0 27242207
eCl@ss 9.0 27242207
ETIM
ETIM 3.0 EC000236
ETIM 4.0 EC001596
ETIM 5.0 EC001603
UNSPSC
UNSPSC 6.01 43172015
UNSPSC 7.0901 43201404
UNSPSC 11 43172018
UNSPSC 12.01 43201404
UNSPSC 13.2 43201404
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approvals submitted
Approval details
EAC
