BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

Introduction

Basic Connection Principles

Hardware Data

DURIUM™ Steel/Aluminum Tightening

Torques

DURIUM™ Hex Bolts Data

UL Tightening Torque UL486

Recommended Clamping on Bolted

Connectors

Cable Data (Tables)

Copper Cable

Copper Tube

Solid Copper Wire

Compact Stranded Copper Cable

Stranded Copper Cable

Flexible Copper Stranded Cable

Aluminum and ACSR Cable

Aluminum Tube

Aluminum 1350 Cable Bare -

Classes AA and A

Aluminum 1350 Cable Bare - Class B

ACSR Cable

High Strength ACSR Cable

Compact Aluminum 1350 Cable

Aluminimum Alloy 5005 Cable

Aluminum 6201 Cable

Aluminum Alloy 8000 Series “O”

Temper Cable

Compact ACSR Cable

ACSR/TW Cable (Trap Wire)

AAC/TW Cable

(All Aluminum Trap Wire)

ACAR Cable

SSAC Cable

Steel Conductors

Copperweld Cable

Copperweld - Copper Cable

Galvanized Steel Cable

Aluminum Coated Steel Cable

TABLE OF CONTENTS

O-2 to O-5

O-6

O-6

O-7, O-8

O-9

O-10

O-11

O-11

O-12, O-13

O-14, O-15

O-16

O-17

O-18

O-19

O-20

O-21

O-22

O-22

O-23, O-24

O-25

O-25, O-26

O-26

O-27

O-27, O-28

O-29

O-29, O-30

O-31

O-32

O-32

O-33, O-34

O-35

O-36, O-37

O-38 to O-48

O-49

O-49

O-50

O-51

O-52 to O-99

Terminal Stud Size Chart

AWG vs. Metric Wire Sizes

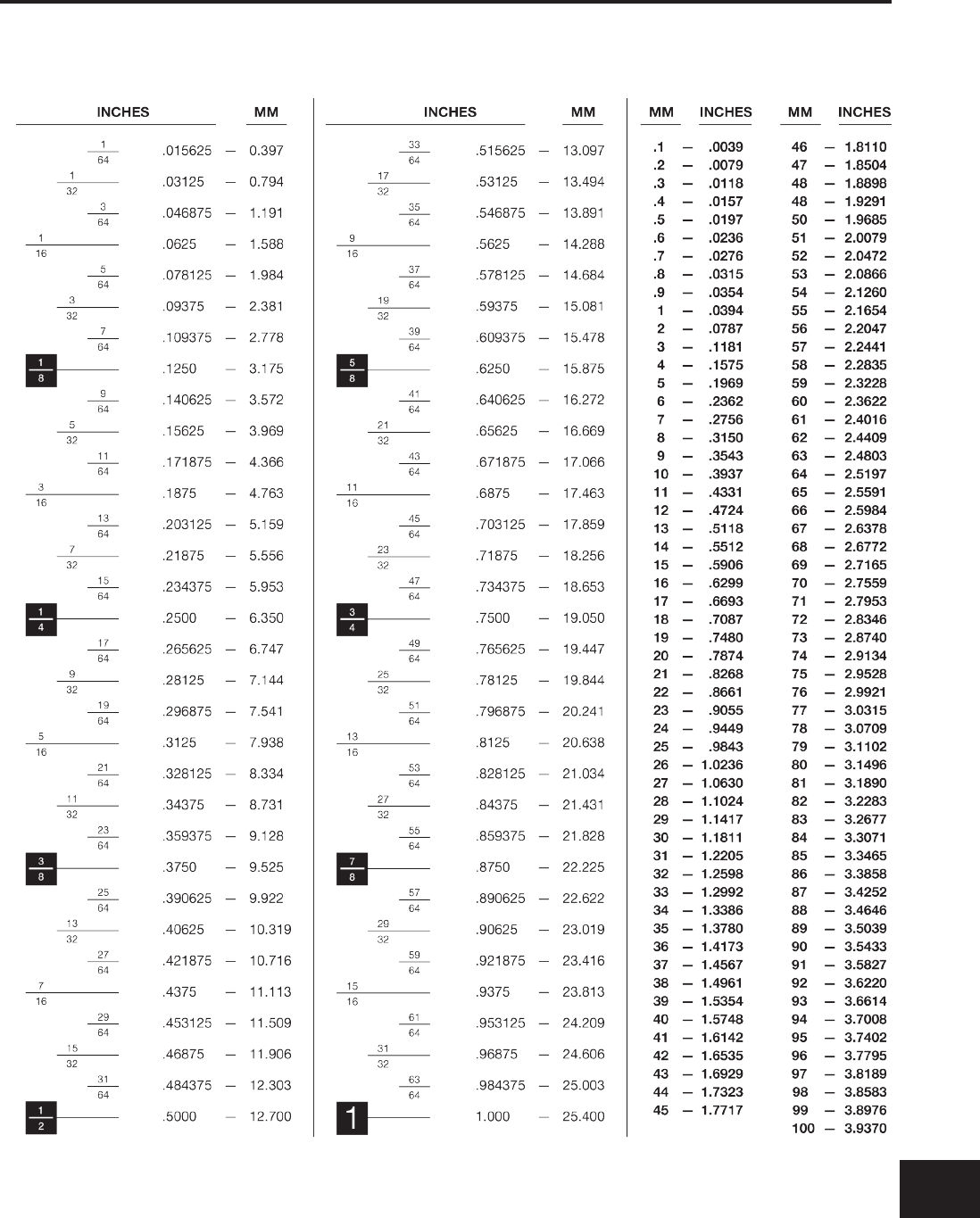

Inches - Millimeters

Conversion Chart

BURNDY Conductor Numbering

System

Present Installation Tool Index

Color Coding for Overhead

Conectors

Color Coding for AL/CU

Connectors

Color Coding for Copper

Lugs and Splices

Product/Trade Name Index

Alpha-Numeric Index

O-1

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

Introduction - Basic Electrical Connection Principles:

Basic Factors:

The basic factors which inuence the design and

performance of pressure wire connections are as

follows:

1. Creep

2. Surface Oxide

3. Corrosion

A fourth factor, known as thermal effects, is also a

consideration, but due to the technical nature and

length of this topic, it will not be discussed in this

publication.

At the outset it should be pointed out that these

factors give rise to much more difcult problems

in connections involving aluminum conductors

than those encountered in copper to copper

connections.

Creep (Cold Flow)

Creep is the cold ow of the metal under pressure

and it continues until the pressure reduces to a

value at which any further creep is negligible.

Creep properties depend on the particular metal

or alloy and on its hardness; alloys having less

creep than pure metals, and harder metals

have less creep than soft metals. In a typical

connection, the conductors are generally of pure

metal and often of soft temper and therefore,

subject to considerable creep. In addition, the

condition is further exaggerated when aluminum

is the conductor as compared to copper, since its

creep rate is many times that of copper.

Effect of Creep: Figure 2 shows typical curves

of total contact resistance plotted against total

contact force. Curve A shows how the contact

resistance continually decreases with increasing

contact force. When the full contact force F1 is

reached, the contact resistance reaches the low

value of R1. In general, the full tightening force on

a connector greatly exceeds the maximum force

for which there is no appreciable creep. Therefore,

the force will gradually settle down to a value after

which there will be no further signicant creep.

Fortunately, however, the resistance does not

climb back up along curve A, the tightening curve,

but instead it follows a new curve B, the relaxing

curve, along which the resistance changes very

little until the force relaxes to a value such as F2.

Admittedly, the point of “no appreciable creep”

is difcult to dene. For pure metals, especially

in the soft state, there is always some creep,

even at very low pressures at room temperature.

However, we do know that the pressure required

to produce the same creep rate is several times

greater for copper than for aluminum. Thus, to

permit the same contact force F2 for aluminum

and copper, the contact area A required for

aluminum can be expected to be considerably

greater than that required for copper. This

explains why the contact areas for connectors for

aluminum must be considerably greater than for

copper and why many light duty connectors for

copper are entirely inadequate for aluminum, even

when specially plated and when recommended

compounds are used on the contact surfaces.

Relaxation: Relaxation of pressure due to creep,

or for any other reason, would be a much more

difcult factor in a pressure connection were it not

for the relationship of contact pressure to contact

resistance on the relaxation curve as shown

in Figure 2. It is frequently observed that some

time after the bolts of a clamp type connector

are tightened, the bolt tensions are relaxed

appreciably. The question arises as to whether it

is necessary to retighten the bolts to the original

torque value. In a properly designed connector,

retightening is unnecessary since the contact

resistance should increase very little due to the

relaxation of pressure, as shown by the relaxation

curve of Figure 2.

This fact is largely responsible for the successful

operation of a compression connector. The

application of the compression tool applies very

high pressure, establishing very low contact

resistance. The removal of the compression

tool releases a very large proportion of this

pressure, and creep further relaxes this pressure.

Fortunately, the contact resistance increases very

little due to this pressure relaxation.

Contact Force: The previous analysis shows

that the total contact force largely determines the

contact resistance. Thus, to achieve the desired

low value of contact resistance, the proper size

and number of bolts in a clamp type connector

must be supplied, and the compression tool

must apply the proper force to a compression

connector. In addition, the connector must be

designed with sufcient structural strength,

contact area, and resilience, to assure that the

contact force cannot relax beyond the point where

contact resistance begins to rise appreciably, as

shown in Figure 2.

Surface Oxide

The contact of pure metallic surfaces cannot

be assured in practical connections. Surface

contamination must be expected, especially

surface oxidation. These surface lms are

insulators as far as contact resistance is

concerned, and they must be broken to achieve

metal to metal contact to make an adequate

electrical connection. The difculty of breaking

the lm depends on the nature of the lm, its

thickness, and the metal on which it is formed.

Copper oxide is generally broken down by

reasonably low values of contact pressure. Unless

the copper is badly oxidized, good contact can be

obtained with very little or no cleaning.

Silver oxide is even more easily broken down

by the contact pressure; and since silver oxide

forms less readily at elevated temperatures, silver

contact surfaces are preferred over copper when

used for high temperatures. For this reason,

it is considered good practice to silver plate

copper contact surfaces that must operate at

temperatures over 200˚ C.

On the other hand, aluminum oxide is a hard,

tenacious, high resistance lm that forms very

rapidly on the surface of aluminum exposed to air.

In fact, it is the toughness of this lm that gives

aluminum its good corrosion resistance. The

oxide lm that forms after more than a few hours

is too thick and tough to permit a low resistance

contact without cleaning. The aluminum oxide

lm is transparent so that even the bright and

clean appearance of an aluminum connector is no

assurance that the low contact resistance can be

attained without cleaning.

In addition to the necessity for cleaning the oxide

from aluminum, the surface should be covered

with a good connector compound to prevent

the oxide from reforming. Common practice

is to clean the surface with a wire brush or

emery cloth. The compound should be applied

immediately after cleaning, or the compound

should be put on rst and the surface scraped

through the compound. Present practice is to

scratch brush dry and to apply the compound

immediately thereafter. This allows a more

thorough job of cleaning the conductor.

Contact Compounds: Petrolatum or No-

Oxid are good contact surface compounds for

aluminum, but BURNDY® PENETROX™ A, a

petroleum type compound containing zinc dust,

has the additional advantage of assisting in the

Figure 2

O-2

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

breaking down of the contact resistance. How this

is accomplished is not certain, but it appears that

the zinc particles of PENETROX™ A probably

act as current bridges in the breaks in the oxide

lm. For more complete information about the

PENETROX™ line of compounds, refer to the

Accessories section of this catalog.

Interstrand Resistance: The high contact

resistance due to the oxide on the strands of

an aluminum cable may be responsible for a

poor distribution of current among the strands

on the cable. Thus, the outer strands may carry

much more than their share of the current and

overheating of the cable may result. Tests have

shown that even on new cable this effect of

interstrand resistance can be considerable unless

a good contact compound is used. The clamping

action tends to break down the oxide and force

the compound between the strands. This is

particularly true of compression connectors due to

the very high unit pressures developed.

The most effective way to break down interstrand

resistance of aluminum cable is to use

compression connectors lled with a compound

having zinc particles. Then, when the end of the

cable is inserted in the connector, the compound

is forced between the strands where it very

effectively breaks down the interstrand resistance

upon applicaton of the compressive force.

Plating Aluminum: Plating the contact surfaces

of aluminum connectors will prevent the formation

of aluminum oxide. Electro-tin, cadmium and

zinc platings have been used for this purpose.

However, the use of a plated aluminum conductor,

does not make it less necessary to scratch brush

the aluminum conductor, nor does it reduce the

need for a good contact compound. Additional

problems are introduced due to the plating on

aluminum which render it of very doubtful value

over the proper use of base aluminum. This will be

more fully discussed later.

Corrosion

The electrical conductivity and mechanical

strength of an electrical connection must remain

stable under the deteriorating inuences of the

environment. This deterioration is corrosion. It

is the electrolytic action of moisture and other

elements of the atmosphere in conjunction with

the metals of the connection. If the conductors

and connectors are of copper or a corrosion

resistant copper alloy, corrosion is usually a minor

factor. However, it is a very vital factor if aluminum

is involved.

If moisture can be kept away from the connection,

corrosion will not be a factor. The electrical

connection of a high voltage splice on insulated

cable is generally free from corrosion since

the taping may be used to avoid corrosion on

bare cable, provided it excludes moisture. It is

difcult to get a good tape seal to the conductor

itself, especially on stranded cable. If moisture

does penetrate the taping, it will not dry out as

readily as if the joint were untaped. Various

plastic materials are available today for covering

low voltage connections or for bare conductor

connections on high voltage. Unless such

coverings are completely moisture-proof, it is

better to rely on installation with a good contact

compound, using a connector designed to resist

corrosion.

Galvanic Action: Whenever dissimilar metals

are in the presence of an electrolyte, a difference

in electric potential is developed. One metal

becomes the cathode and receives a positive

charge. The other becomes the anode and

receives a negative charge. When these metals

are in contact, an electrical current will ow, as in

the case of any short-circuited electric cell. This

electrolytic action causes an attack of the anodic

metal, leaving the cathodic metal unharmed.

The extent of the attack is proportional to the

strength of the electrolytic current, which in turn

is proportional to the electric potential difference

developed.

The magnitude of the potential difference

generated between two dissimilar metals can

be seen by the position of these metals in the

electrolytic series. Figure 3 is such a series. When

two metals are in contact in an electrolyte, the one

higher up in this series is the anode, the corroded

metal, while the one lower is the cathode, the

protected metal. The further apart the metals are

in this series, the greater the electrolytic potential

difference, and the greater the attack to the

anodic metal.

Note that copper and aluminum are quite far

apart in the series, copper being cathodic and

aluminum anodic. Hence, when aluminum

and copper are in contact in an electrolyte,

the aluminum can be expected to be severely

attacked.

Crevice Corrosion: Electrolytic attack can also

occur between like metals due to a phenomenon

known as oxygen concentration cell or crevice

corrosion. Since oxygen is necessary for

corrosive action, a variation in the concentration of

oxygen where a metal is exposed to an electrolyte

will generate a difference of potential, and cause

a corrosive attack in the oxygen starved area.

Thus, since an electrolyte in a deep crevice

is freely exposed to the air at the outside, the

concentration of oxygen will be greatest at the

mouth of the crevice. Then corrosion can be

expected to occur in the crevice remote from the

surface. Crevice corrosion can be prevented if

the crevice is lled with a compound to exclude

moisture. Thus, within the contact groove of an

aluminum connector containing an aluminum

conductor, there will be numerous crevices in

which corrosion will take place unless a good

connector compound is applied during installation.

Copper, being a more noble metal, appears to be

much less subject to crevice corrosion.

Corrosion Testing: The effectiveness of an

electrical connection to resist corrosion can

be tested in the laboratory under conditions

designed to greatly accelerate the natural

corrosive conditions of actual service. The most

widely accepted means is the standard salt spray

chamber. In this chamber the specimens are

placed in a salt fog made by atomizing a 20% salt

solution at 100˚ F.

BURNDY, as well as other manufacturers and

utility companies, have done a great deal of

testing and a considerable area of agreement

has been reached. There are, however, minor

differences in recommended practices. The

problem is concerned with aluminum and

aluminum to copper connections since the effect

of corrosion on copper to copper connections is

far less serious. Let us study the recommended

practices.

Aluminum to Aluminum Connections: For

joining aluminum to aluminum conductors,

there is little disagreement that an aluminum

bodied connector is the proper choice, since

this obviously elimates the galvanic corrosion of

dissimilar metals. However, even in this case, care

must be taken to prevent crevice corrosion and to

select an alloy of aluminum for the connector body

that is free from cracking due to stress corrosion.

Aluminum to Copper Connections: Similarly,

for joining aluminum to copper conductors,

an aluminum bodied connector is the best

choice since it prevents galvanic corrosion of

the aluminum conductor, the most vulnerable

element to attack in the connection. Realizing

this, BURNDY initiated a research program aimed

at nding the best way to make an aluminum

Introduction - Basic Electrical Connection Principles: (continued)

O-3

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

connector suitable for joining aluminum to copper

conductors.

This led to the evolution of the “Massive Anode

Principle” of connector design for joining

conductors of dissimilar metal. On the basis of

this principle, properly designed, all-aluminum

connectors became available for universal use

in joining aluminum to aluminum or aluminum to

copper conductors.

Massive Anode Principle: By making the

aluminum connector massive in comparison to

the copper conductor, when the copper conductor

emerges from the connector, the electrolytic

current density over the exposed face of the

aluminum connector is greatly reduced. This is

schematically represented in Figure 4. Since the

rate of corrosion is directly related to the current

density on the surface of the anodic material, the

relatively large face of the aluminum connector

will suffer only minor attack.

In addition, because the aluminum connector

body is massive in the region where the corrosion

occurs, the small loss of metal caused by

corrosion is insignicant, even after long periods

of service. Furthermore, the connector design

should be such that clamping bolts, and areas of

high stress which provide structural strength, are

not in the regions subject to galvanic attack.

The effectiveness of this theory has been amply

demonstrated in salt spray corrosion tests in

which the connectors were subject to 1,000 hours

in the salt spray fog with only minor corrosive

pitting adjacent to the copper conductor, as seen

in Figure 5. In addition, the aluminum conductor

was completely protected, and the joint resistance

remained virtually unchanged. The test involved

a wide variety of sizes and types of connectors

showing the effectiveness for small service

connectors as well as large power connectors.

Figure 6 shows a large all aluminum clamp type

T connector installed on 3-1/2” diameter copper

run and 750 kcmil aluminum tap. The gure

shows this connector which was opened up after

1,400 hours of the salt spray test. Note that the

contact surfaces are bright and clean and the only

evidence is minor pitting along the faces adjacent

to the copper.

*It should be empasized that a good compound

should be used on the contact surfaces whether

aluminum or copper is used in an aluminum

connector.

Position of Conductor: A properly designed

aluminum connector for joining aluminum to

copper must provide adequate separation

between the conductors to prevent electrolytic

attack on the aluminum conductor. Even then, it is

good practice to install

the aluminum conductor above the copper

conductor if possible. This will prevent pitting of

the aluminum conductor due to copper salts being

washed over the aluminum.

Plated Aluminum Connectors: Plating has

been used as a means to make an aluminum

connector suitable for copper conductor. Such

platings as copper, zinc, tin and cadmium have

been used. The plating of aluminum is much

more critical than plating a more noble metal

such as copper. In addition, a preplate, usually of

copper or brass, must be applied, thus introducing

numerous metals and further possibilities for

galvanic corrosion.

To be effective in reducing galvanic corrosion

between the copper conductor and the aluminum

connector, the plated metal must be closer in the

Electrolytic Series to copper than is aluminum. It

must therefore, be cathodic to aluminum. Since

porosity and minor scratches are always present,

galvanic action can be expected in the presence

of moisture, resulting in attack of the aluminum

under the plating. Corrosion tests reveal attack in

the form of a mottled appearance and aking of

the plating.

In addition, the presence of plated metal can

cause galvanic attack of the aluminum conductor,

thus reducing the protection offered to this

conductor in an aluminum connector.

Cleaning and the Use of Compound: It should

be emphasized that when aluminum connectors

or conductors are involved, proper cleaning of

the aluminum and the use of a good connector

compound, such as BURNDY PENETROX™ A,

are essential for trouble-free service. BURNDY,

as well as other manufacturers, provide the

contact grooves with a coating to make it

unnecessary to clean the connectors, but in

all cases the aluminum conductor should be

LESS NOBLE (ANODIC)

Magnesium

Magnesium alloys

Zinc

Aluminum 1100

Cadmium

Aluminum 2024-T4

Steel or Iron

Cast Iron

Chromium Iron (Active)

Ni-Resist

Type 304 Stainless (Active)

Type 316 Stainless (Active)

Lead Tin Solders

Lead

Tin

Nickel (Active)

Inconel

Brasses

Copper

Bronzes

Copper-Nickel alloys

Monel

Silver Solder

Nickel (Passive)

Inconel (Passive)

Chromium-Iron (Passive)

Type 304 Stainless (Passive)

Type 316 Stainless (Passive)

Silver

Titanium

Graphite

Gold

Platinum

MORE NOBLE (CATHODIC)

































–

Figure 3

Figure 4

Introduction - Basic Electrical Connection Principles: (continued)

O-4

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

cleaned by means such as scratch brushing,

and immediately coated with the connector

compound.

To simplify the application of the compound, and

to assure its use, almost all BURNDY aluminum

connectors, except the large clamp type

substation connectors, are supplied factory lled

with PENETROX™ compound. For the tubular

compression connectors, the tubular barrels are

sufciently lled with PENETROX™ and capped.

For other types, the contact grooves are lled with

PENETROX™ and enclosed in plastic packaging

in a process called ‘stripsealing’.

Clamp vs. Compression: In general, a

compression connection can be expected to be

more corrosion resistant than a clamp connection.

The high pressures applied to a compression

connector more effectively seal the contact

against the penetration of moisture. The tubular

sleeve of a compression connector has no side

openings such as exist in clamp connectors

between the clamping members. On the other

hand, the clamp connector can be made more

corrosion resistant if the conductor grooves

conform more closely with the conductor contour.

Thus a clamp connector made to accommodate a

wide range of conductor sizes cannot be expected

to be as corrosion resistant as one designed for

one specic conductor size. Nevertheless, the

differences in effectiveness of various designs

can be minimized if a good contact compound is

used.

Figure 5

Negligible Corosion of Severe Salt Spray on

Compression Connector Joining Aluminum to

Copper.

Figure 6

Large Aluminum Bolted Connector Joining

Copper Run to Aluminum Tap After Severe Salt

Spray Test.

Introduction - Basic Electrical Connection Principles: (continued)

O-5

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

Recommended Tightening Torque

The hardware used in connectors must be compatible

with the connector material, have high mechanical

strength and be corrosion resistant.

Copper alloy connectors have hardware made of

DURIUM™, which is the BURNDY trade name for

silicon bronze alloy ASTMB99. This material was rst

introduced by BURNDY in 1927 for use in outdoor

construction and today is the standard throughout the

industry.

Aluminum connectors generally have aluminum alloy

hardware. The bolts are 2024T4 and anodized to resist

corrosion. The nuts are 6061T6, which is resistant to

corrosion and does not require anodizing. Bolts are

lubricated to eliminate galling and to provide consistent

clamping forces.

The size material for clamping hardware are selected

to provide the required force when tightened to the

recommended torque. To reduce or greatly exceed

the recommended torque can adversely affect the

performance of the connector.

Steel Hardware

Bolt Size Recommended Torque

(Inch Pounds)

1/4 - 20 80

5/16 - 18 180

3/8 - 16 240

1/2 - 13 480

5/8 - 11 660

3/4 - 10 1050

Aluminum Hardware

Bolt Size Recommended Torque

(Inch Pounds)

1/2 - 13 300

5/8 - 11 480

3/4 - 10 650

HARDWARE DATA

DURIUM™ (Silicon Bronze)

Hexagonal Bolt Data

DURIUM™ (Silicon Bronze) Hardware

Catalog Number

Series*

“A” Bolt

Size “B” “C” “D” Recommended

Torque (in-lb)**

Min. Breaking

Force (lb)

Min. Shearing Force

(lb)

25X_ _ _HEB 1/4 - 20 7/16 .50 .16 80 1,780 990

31X_ _ _ HEB 5/16 - 18 1/2 .56 .21 180 2,930 1,640

38X_ _ _ HEB 3/8 - 16 9/16 .65 .24 240 4,350 2,430

50X_ _ _ HEB 1/2 - 13 3/4 .87 .32 480 7,950 4,460

62X_ _ _HEB 5/8 - 11 15/16 1.08 .40 660 12,700 7,100

75X_ _ _HEB 3/4 - 10 1-1/8 1.30 .48 1050 17,510 10,540

*_ _ _ is substituted for bolt length; Consult sales representative for available lengths

**These torque values develop maximum bolt preload

This drawing is based on BURNDY engineering specication

O-6

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

Recommended Termination Hardware

HARDWARE DATA (continued)

Recommended Tightening Torque per UL 486A and UL486B

Table 21 - Tightening torque for screws

Conductor Size

Installed in Connector

Tightening Torque, N●m (lbf-in)

Slotted Head No. 10 and Larger* Hexagonal Head - External Drive Socket Wrench

Slot Width - 1.2mm

(.047 in) or Less and

Slot Length - 6.4mm

(1/4 in.) or less

Slot Width - Over 1.2mm

(.047 in) or Slot Length -

Over 6.4mm (1/4 in.) Split-Bolt Connectors Other Connectors

AWG or

kcmil mm2

30 - 10 .05 - 5.3 2.3 (20) 4.0 (35) 9.0 (80) 8.5 (75)

8 8.4 2.8 (25) 4.5 (40) 9.0 (80) 8.5 (75)

6 - 4 13.2 - 21.2 4.0 (35) 5.1 (45) 18.6 (165) 12.4 (110)

3 26.7 4.0 (35) 5.6 (50) 31.1 (275) 16.9 (150)

2 33.6 4.5 (40) 5.6 (50) 31.1 (275) 16.9 (150)

1 42.4 - 5.6 (50) 31.1 (275) 16.9 (150)

1/0 - 2/0 53.5 - 67.4 - 5.6 (50) 43.5 (385) 20.3 (180)

3/0 - 4/0 85.0 - 107.2 - 5.6 (50) 56.5 (500) 28.2 (250)

250 - 350 127 - 177 - 5.6 (50) 73.4 (650) 36.7 (325)

400 203 - 5.6 (50) 93.2 (825) 36.7 (325)

500 253 - 5.6 (50) 93.2 (825) 42.4 (375)

600 - 750 304 - 380 - 5.6 (50) 113.0 (1000) 42.4 (375)

800 - 1000 406 - 508 - 5.6 (50) 124.3 (1100) 56.5 (500)

1250 - 2000 635 - 1000 - - 124.3 (1100) 67.8 (600)

* For values of slot width or length not corresponding to those specied, select the largest torque value associated with the conductor size.

Slot width is the nominal design value. Slot length shall be measured at the bottom of the slot.

O-7

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

Recommended Tightening Torque per UL486A & UL486B

Table 22 - Tightening torque for slotted head screws smaller than No. 10 intended for use

with 8 AWG (8.4 mm2) or smaller conductors

Slot Length of Screw* Tightening Torque, N●m (lbf-in)

Slot Width of Screw Smaller than

1.2 mm (.047 in.)b

Slot Width of Screw 1.2mm

(.047 in.) and larger**

mm inch

Less than 4 Less than 5/32 0.79 (7) 1.0 (9)

4 5/32 0.79 (7) 1.4 (12)

4.8 3/16 0.79 (7) 1.4 (12)

5.6 7/32 0.79 (7) 1.4 (12)

6.4 1/4 1.0 (9) 1.4 (12)

7.1 9/32 - 1.7 (15)

Above 7.1 Above 9/32 - 2.3 (20)

* For slot lengths of intermediate values, select torques pertaining to next shorter slot length.

Also see Table 21 for screws with multiple tightening means.

Slot length shall be measured at the bottom of the slot.

** Slot width is the nominal design value

Recommended Tightening Torque per UL486A & UL486B

Table 23 - Tightening torque for screws with recessed allen or square drives

Socket Width

Across Flats* Tightening Torque, N●m

(lbf-in)

mm inch

3.2 1/8 5.1 (45)

4.0 5/32 11.3 (100)

4.8 3/16 13.6 (120)

5.6 7/32 16.9 (150)

6.4 1/4 25.4 (225)

7.9 5/16 33.9 (300)

9.5 3/8 45.2 (400)

12.7 1/2 56.6 (500)

14.3 9/16 67.8 (600)

* See Table 21 for screws with multiple tightening means

HARDWARE DATA (continued)

O-8

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

HARDWARE DATA (continued)

1. Nuts need to be tightened up to 30% of expected torque.

2. A check needs to be done to ensure the clamping elements are even.

3. Tightening has to follow a sequence (1-6) as shown below. As a general rule, the torque has to be applied to the nut. For ease of installation

most connectors are designed for one wrench installation. A torque wrench is recommended when tightening the nut to ensure the proper

torque is applied.

When installing a bolted connector, an appropriate sequence needs to be followed.

INSTALLATION INSTRUCTIONS:

Tightened up to 30%

Even clamping elements

check

BURNDY offers three sizes of professional grade torque wrenches, catalog

number BTW30150 to be used on connectors requiring 30-150 in-lbs., the

BTW150750, designed for 150-750 in-lbs., and the BTW1575F12, designed for

15 - 75 ft-lbs. These micro-adjustable “click-type” torque wrenches feature an

easy-to-read scale that can be easily matched to the recommended torque of

each of our mechanical connector products. Calibration traceable to N.I.S.T.

Recommended Clamping on Bolted Connectors:

O-9

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA

COPPER TUBE (BUS)

Size of Tube

IPS

Diameter of Tube

(Inches) Wall

Thickness

(Inches)

Outside Inside

STANDARD PIPE SIZES

1/4” 0.540 0.375 0.082

3/8” 0.675 0.494 0.090

1/2” 0.840 0.625 0.107

3/4” 1.050 0.822 0.114

1” 1.315 1.062 0.126

1-1/4” 1.660 1.368 0.146

1-1/2” 1.900 1.600 0.150

2” 2.375 2.062 0.156

2-1/2” 2.875 2.500 0.187

3” 3.500 3.062 0.219

3-1/2” 4.000 3.500 0.250

4” 4.500 4.000 0.250

4-1/2” 5.000 4.500 0.250

5” 5.563 5.063 0.250

6” 6.625 6.125 0.250

EXTRA HEAVY PIPE SIZES

1/4” 0.540 0.294 0.123

3/8” 0.675 0.421 0.127

1/2” 0.840 0.542 0.149

3/4” 1.050 0.736 0.157

1” 1.315 0.951 0.182

1-1/4” 1.660 1.272 0.194

1-1/2” 1.900 1.494 0.203

2” 2.375 1.933 0.221

2-1/2” 2.875 2.315 0.280

3” 3.500 2.892 0.304

3-1/2” 4.000 3.358 0.321

4” 4.500 3.818 0.341

4-1/2” 5.000 4.250 0.375

5” 5.563 4.813 0.375

6” 6.625 5.751 0.437

DOUBLE EXTRA HEAVY PIPE SIZES

1/2” 0.840 0.252 0.294

3/4” 1.050 0.434 0.308

1” 1.315 0.599 0.358

1-1/4” 1.660 0.896 0.382

1-1/2” 1.900 1.100 0.400

2” 2.375 1.503 0.436

2-1/2” 2.875 1.771 0.552

3” 3.500 2.300 0.600

3-1/2” 4.000 2.728 0.636

44.500 3.152 0.674

4-1/2” 5.000 3.580 0.710

5” 5.563 4.063 0.750

6” 6.625 4.897 0.864

Size of Tube

IPS

Diameter of Tube

(Inches) Wall

Thickness

(Inches)

Outside Inside

Tube dimensions (excepting wall thickness of double extra heavy) taken

from A.S.T.M. Specication B42-33.

Tubular values based on a density of 0.322 pound per cubic inch.

* Conductivity of 98% I.A.C.S. at 20˚ C or 68˚ F

O-10

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

CABLE DATA (continued)

SOLID COPPER WIRE (ASTM B1, B2, & B3)

Size

AWG

(Solid)

Wire Dia

(Inch)

Hard

Drawn

Medium

Drawn Soft Drawn

Normal

Breaking

Load

(Pounds)

Minimum

Breaking

Load

(Pounds)

Elongation

in 10 in.

% Min.

18 .040 85.8 67.6 25

17 .045 107.5 84.7 25

16 .050 135.2 106.2 25

15 .057 170.0 133.0 25

14 .064 213.8 166.6 25

13 .071 268.2 208.0 25

12 .080 337.0 261.6 25

11 .090 422.5 327.6 25

10 .101 529.2 410.4 25

9.114 661.0 514.2 30

8.128 826.0 643.9 30

7.144 1,030.0 806.6 30

6.162 1,280.0 1,010.0 30

5.181 1,591.0 1,265.0 30

4.204 1,970.0 1,584.0 30

3.229 2,439.0 1,984.0 30

2.257 3,003.0 2,450.0 30

1.289 3,688.0 3,024.0 30

1/0 .324 4,519.0 3,730.0 35

2/0 .364 5,518.0 4,599.0 35

3/0 .409 6,722.0 5,667.0 35

4/0 .460 8,143.0 6,980.0 35

COMPACT STRANDED COPPER CABLE

(ASTM SPEC. B496)

Conductor Size

Number of

Wires

Conductor

Dia (in)

KCMIL AWG

1000 6111.060

900 6110.999

800 6110.938

750 6110.908

700 6110.877

650 6110.845

600 6110.813

550 6110.775

500 3720.736

450 3720.700

400 3720.659

350 3720.616

300 3720.570

250 3720.520

4/0 1930.475

3/0 1930.423

2/0 1930.376

1/0 1930.336

11930.299

27 0.268

47 0.213

67 0.169

87 0.134

1 58 Wires Minimum

2 35 Wires Minimum

3 18 Wires Minimum

O-11

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

STRANDED COPPER WIRE (ASTM B8 EXCLUDING BREAKING LOADS)

Size A.S.T.M. Strandings Hard

Drawn

Medium

Drawn

Soft

Drawn

Stranded Class No. of

Wires

Cable

Diameter

(Inches)

Minimum Breaking Load

(Pounds)

Circular Mils AWG

1,022 20 B 7 0.036 50.0 40.67 32.1

1,624 18 B 7 0.045 79.0 63.91 51.0

2,583 16 B 7 0.057 124.7 100.4 81.1

4,107 14 B 7 0.072 197.1 157.7 124.2

6,530 12 B 7 0.091 311.1 247.7 197.5

10,380 10 B 7 0.116 491.7 388.9 314.0

13,090 9 B 7 0.130 618.2 487.4 395.9

16,510 8 B 7 0.146 777.2 610.7 499.2

20,820 7 B 7 0.164 977.1 765.2 629.5

26,250 6 B 7 0.184 1,288.0 958.6 793.8

33,100 5 B 7 0.206 1,542.0 1,201.0 1,001.0

41,740 4 AA 3 0.254 1,879.0 1,465.0 1,213.0

41,740 4 B&A 7 0.232 1,938.0 1,505.0 1,262.0

52,630 3 AA 3 0.285 2,359.0 1,835.0 1,530.0

52,630 3 B&A 7 0.260 2,433.0 1,885.0 1,592.0

66,370 2 AA 3 0.320 2,913.0 2,299.0 1,929.0

66,370 2 B&A 7 0.292 3,045.0 2,361.0 2,007.0

83,690 1 AA 3 0.360 3,621.0 2,879.0 2,432.0

83,690 1 A 7 0.328 3,804.0 2,958.0 2,432.0

83,690 1 B 19 0.332 3,899.0 3,037.0 2,531.0

105,500 1/0 A&A 7 0.368 4,752.0 3,705.0 3,067.0

105,500 1/0 - 12 0.390 4,841.0 3,755.0 3,191.0

105,500 1/0 B 19 0.373 4,901.0 3,805.0 3,191.0

133,100 2/0 A&A 7 0.414 5,926.0 4,640.0 3,867.0

133,100 2/0 - 12 0.438 6,048.0 4,703.0 3,867.0

133,100 2/0 B 19 0.419 6,152.0 4,765.0 4,024.0

167,800 3/0 A&A 7 0.464 7,366.0 5,812.0 4,876.0

167,800 3/0 - 12 0.492 7,556.0 5,890.0 4,876.0

167,800 3/0 B 19 0.470 7,698.0 5,970.0 5,074.0

211,600 4/0 A&A 7 0.522 9,154.0 7,278.0 6,149.0

211,600 4/0 - 12 0.522 9,483.0 7,378.0 6,149.0

211,600 4/0 B 19 0.528 9,617.0 7,479.0 6,149.0

O-12

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

STRANDED COPPER WIRE (ASTM B8 EXCLUDING BREAKING LOADS continued)

Size A.S.T.M. Strandings Hard

Drawn

Medium

Drawn

Soft

Drawn

Circular Mils Class No. of

Wires

Cable

Diameter

(Inches)

Minimum Breaking Load

(Pounds)

250 kcmil AA 12 0.600 11,130 8,717 7,265

250 kcmil A 19 0.574 11,360 8,986 7,265

250 kcmil B 37 0.575 11,560 8,952 7,559

300 kcmil AA 12 0.657 13,170 10,390 8,718

300 kcmil A 19 0.628 13,510 10,530 8,718

300 kcmil B 37 0.630 13,870 10,740 9,071

350 kcmil AA 12 0.710 15,140 12,040 10,170

350 kcmil A 19 0.679 15,590 12,200 10,170

350 kcmil B 37 0.681 16,060 12,450 10,580

400 kcmil A&AA 19 0.726 17,810 13,950 11,620

400 kcmil B 37 0.728 18,320 14,140 11,620

450 kcmil AA 19 0.770 19,750 15,590 13,080

450 kcmil B&A 37 0.772 20,450 15,900 13,080

500 kcmil AA 19 0.811 21,950 17,320 14,530

500 kcmil B&A 37 0.813 22,510 17,550 14,530

600 kcmil A&AA 37 0.891 27,020 21,060 17,440

600 kcmil B 61 0.893 27,530 21,350 18,140

700 kcmil AA 37 0.963 31,170 24,410 20,340

700 kcmil B&A 61 0.964 31,820 24,740 20,340

750 kcmil AA 37 0.997 33,400 26,150 21,790

750 kcmil B&A 61 0.998 34,090 26,510 21,790

800 kcmil AA 37 1.029 35,120 27,710 23,250

800 kcmil B&A 61 1.031 36,360 28,270 23,250

900 kcmil AA 37 1.092 39,510 31,170 26,150

900 kcmil B&A 61 1.094 40,520 31,590 26,150

1000 kcmil AA 37 1.151 43,830 34,400 29,060

1000 kcmil B&A 61 1.152 45,030 35,100 29,060

1250 kcmil A 61 1.288 55,670 43,590 36,320

1250 kcmil B 91 1.289 56,280 43,880 36,320

1500 kcmil A 61 1.411 65,840 51,950 43,590

1500 kcmil B 91 1.412 67,540 52,650 43,590

1750 kcmil A 91 1.526 77,930 61,020 50,850

1750 kcmil B 127 1.526 78,800 61,430 50,850

2000 kcmil A 91 1.630 87,790 69,270 58,120

2000 kmcil B 127 1.632 90,050 70,210 58,120

CABLE DATA (continued)

O-13

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

FLEXIBLE COPPER STRANDED CABLE

Conductor

Size kcmil

or B & S G

(AWG)

#

Strands

Strand

Diameter

Nominal

Diameter Class

841 .0201 .156 I

849 .0184 .166 G

8133 .0111 .167 H

8168 .010 .157 K

8420 .0063 .162 M

749 .0206 .185 G

752 .0201 .185 I

7133 .0125 .188 H

7210 .010 .179 K

7532 .0063 .196 M

649 .0231 .208 G

663 .0201 .207 I

6133 .0140 .210 H

6266 .010 .210 K

6665 .0063 .215 M

549 .0260 .234 G

584 .0201 .235 I

5133 .0158 .237 H

5336 .010 .235 K

5836 .0063 .240 M

449 .0292 .263 G

4105 .0201 .263 I

4133 .0177 .266 .H

4420 .010 .272 K

41064 .0063 .269 M

349 .0328 .295 G

3133 .0199 .299 I

3133 .0201 .291 H

3532 .010 .304 K

31323 .0063 .305 M

249 .0368 .331 G

2133 .0223 .335 I

2161 .0201 .319 H

2665 .010 .338 K

21666 .0063 .337 M

1133 .0251 .377 G

1210 .0201 .367 I

1259 .018 .378 H

1836 .010 .397 K

12107 .0063 .376 M

Conductor

Size kcmil

or B & S G

(AWG)

#

Strands

Strand

Diameter

Nominal

Diameter Class

1/0 133 .0282 .423 I

1/0 259 .0202 .424 G

1/0 266 .0201 .441 H

1/0 1064 .010 .451 K

1/0 2646 .0063 .423 M

2/0 133 .0316 .474 G

2/0 259 .0227 .477 I

2/0 342 .0201 .500 H

2/0 1323 .010 .470 K

2/0 3325 .0063 .508 M

3/0 133 .0355 .533 G

3/0 259 .0255 .536 I

3/0 418 .0201 .549 H

3/0 1666 .010 .533 K

3/0 4256 .0063 .576 M

4/0 133 .0399 .599 G

4/0 259 .0286 .601 I

4/0 532 .0201 .613 H

4/0 2107 .010 .627 K

4/0 5320 .0063 .645 M

250 259 .0311 .650 G

250 427 .0242 .653 I

250 637 .0201 .682 .H

250 2499 .010 .682 K

250 6384 .0063 .713 M

300 259 .0340 .714 G

300 427 .0265 .716 I

300 735 .0201 .737 H

300 2989 .010 .768 K

300 7581 .0063 .768 M

350 259 .0368 .773 G

350 427 .0286 .772 I

350 882 .0201 .800 H

350 3458 .010 .809 K

350 8806 .0063 .825 M

400 259 .0393 .825 G

400 427 .0306 .826 I

400 980 .0201 .831 H

400 3990 .010 .878 K

400 10101 .0063 .901 M

O-14

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

FLEXIBLE COPPER STRANDED CABLE (continued)

Conductor

Size kcmil

or B & S G

(AWG)

# Strands Strand

Diameter

Nominal

Diameter Class

450 259 .0417 .876 I

450 427 .0325 .878 G

450 1127 .0201 .894 H

450 4522 .010 .933 K

450 11396 .0063 .940 M

500 259 .0439 .922 G

500 427 .0342 .923 I

500 1225 .0201 .941 H

500 5054 .010 .988 K

500 12691 .0063 .997 M

600 427 .0375 1.013 G

600 703 .0292 1.022 I

600 1470 .0201 1.027 H

600 5985 .010 1.125 K

600 14945 .0063 1.084 M

700 427 .0405 1.094 G

700 703 .0316 1.106 I

700 1729 .0201 1.194 H

700 6916 .010 1.207 K

700 17507 .0063 1.183 M

800 427 .0433 1.169 G

800 703 .0337 1.180 I

800 1995 .0201 1.290 .H

800 7980 .010 1.305 K

800 20069 .0063 1.256 M

900 427 .0459 1.239 G

900 703 .0358 1.253 I

900 2261 .0201 1.372 H

900 9065 .010 1.323 K

900 22631 .0063 1.331 M

1000 427 .0484 1.307 G

1000 703 .0377 1.320 I

1000 2527 .0201 1.427 H

1000 10101 .010 1.419 K

1000 25193 .0063 1.404 M

CABLE DATA (continued)

O-15

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

ALUMINUM TUBE

Size of Tube

IPS

Diameter of Tube

(Inches) Wall

Thickness

(Inches)

Outside Inside

STANDARD PIPE SIZES

1/4” 0.540 0.364 0.088

3/8” 0.675 0.493 0.091

1/2” 0.840 0.622 0.109

3/4” 1.050 0.824 0.113

1” 1.315 1.049 0.133

1-1/4” 1.660 1.380 .0.140

1-1/2” 1.900 1.610 0.145

2” 2.375 2.067 0.154

2-1/2” 2.875 2.469 0.203

3” 3.500 3.068 0.213

3-1/2” 4.000 3.548 0.226

4” 4.500 4.026 0.237

4-1/2” 5.000 4.506 0.247

5” 5.563 5.047 0.258

6” 6.625 6.065 0.280

EXTRA HEAVY PIPE SIZES

1/4” 0.540 0.302 0.119

3/8” 0.675 0.423 0.126

1/2” 0.840 0.546 0.147

3/4” 1.050 0.742 0.154

1” 1.315 0.957 0.179

1-1/4” 1.660 1.278 0.191

1-1/2” 1.900 1.500 0.200

2” 2.375 1.939 0.218

2-1/2” 2.875 2.323 0.276

3” 3.500 2.900 0.300

3-1/2” 4.000 3.364 0.318

4” 4.500 3.826 0.337

4-1/2” 5.000 4.290 0.355

5” 5.563 4.813 0.375

6” 6.625 5.761 0.432

Size of Tube

IPS

Diameter of Tube

(Inches) Wall

Thickness

(Inches)

Outside Inside

O-16

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALUMINUM 1350 CABLE

BARE-CLASSES AA AND A - Hard Drawn

Cable Code

Word

Size (circular

mils or AWG)

Copper Equivalent

based on equal D.C.

resistance, Cu 97%

Al 61%

# of Wires Cable Dia.

(inches)

Ultimate Strength

(pounds)

Peachbell 6 8 7 0.184 528

Rose 4 6 7 0.232 826

Lily 3 5 7 0.260 1022

Iris 2 4 7 0.292 1266

Pansy 1 3 7 0.328 1537

Poppy 1/0 2 7 0.368 1865

Aster 2/0 1 7 0.414 2350

Phlox 3/0 1/0 7 0.464 2845

Oxlip 4/0 2/0 7 0.522 3590

Daisy 266800 3/0 7 0.586 4525

Laurel 266800 3/0 19 0.593 4800

Tulip 336400 4/0 19 0.666 5940

Canna 397500 250000 19 0.724 6880

Cosmos 477000 300000 19 0.793 8090

Syringa 477000 300000 37 0.795 8600

Dahlia 556500 350000 19 0.856 9440

Mistletoe 556500 350000 37 0.858 9830

Orchid 636000 400000 37 0.918 11240

Violet 715500 450000 37 0.974 12640

Nasturtium 715500 450000 61 0.975 13150

Arbutus 795000 500000 37 1.026 13770

Lilac 795000 500000 61 1.028 14330

Anemone 874500 550000 37 1.077 14830

Crocus 874500 550000 61 1.078 15760

Magnolia 954000 600000 37 1.124 16180

Goldenrod 954000 600000 61 1.126 16860

Bluebell 1033500 650000 37 1.170 17530

Larkspur 1033500 650000 61 1.172 18260

Marigold 1113000 700000 61 1.216 19660

Narcissus 1272000 800000 61 1.300 22000

Carnation 1431000 900000 61 1.379 24300

Coreopsis 1590000 1000000 61 1.454 27000

Dogwood 1590000 1000000 91 1.454 28100

CABLE DATA (continued)

O-17

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

ALUMINUM 1350 CABLE

BARE-CLASS B

Size

(circular mils or

AWG)

Copper Equivalent based

on equal D.C. resistance,

Cu 97% Al 61%

# of

Wires

Cable Dia.

(inches)

Ultimate

Strength

(pounds)

Hard Drawn

Minimum

Ultimate

Strength

(pounds)

3/4 Hard

Minimum

Ultimate

Strength

(pounds)

Inter Temper

250000 157300 37 0.575 4860 3338 2946

300000 188800 37 0.629 5831 4005 3534

350000 220200 37 0.681 6680 4673 4123

400000 251500 37 0.728 7352 5341 4713

450000 283000 37 0.772 8110 6007 5301

500000 314500 37 0.813 9012 6675 5890

550000 346000 61 0.855 10490 7344 6480

600000 377000 61 0.893 11450 8010 7068

650000 409000 61 0.929 11940 8678 7657

700000 440000 61 0.964 12860 9346 8247

750000 472000 61 0.998 13510 10010 8835

800000 503000 61 1.031 14410 10680 9424

900000 566000 61 1.094 15900 12010 10600

1000000 629000 61 1.152 17670 13350 11780

1100000 692000 91 1.209 20210 14680 12950

1200000 755000 91 1.263 21630 16020 14130

1250000 786000 91 1.289 22530 16690 14720

1300000 818000 91 1.315 23430 17350 15310

1400000 880000 91 1.364 24750 18700 16500

1500000 943000 91 1.412 26500 20020 17670

1600000 1006000 127 1.459 28840 21360 18850

1700000 1069000 127 1.504 30630 22690 20020

1750000 1101000 127 1.526 31530 23350 20610

1800000 1132000 127 1.548 32450 24030 21210

1900000 1195000 127 1.590 33570 25360 22380

2000000 1258000 127 1.632 35340 26700 23560

2500000 1570000 127 1.824 43300 33380 29460

3000000 1890000 169 1.998 53010 40050 35340

3500000 2200000 169 2.158 60610 46730 41230

O-18

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

CABLE DATA (continued)

ACSR

Cable Code

Word

Size

(circular mils or

AWG)

No. Alum

Strands

No. Steel

Strands

Complete

Cable Dia.

(inches)

Steel Core Dia.

(inches)

Copper Equivalent

based on equal D.C.

resistance,

Cu 97% Al 61%

Ultimate Strength

(pounds)

Turkey 6 6 1 0.198 0.0661 8 1170

Thrush 5 6 1 0.223 0.0743 7 1460

Swan 4 6 1 0.250 0.0834 6 1830

Swanate 4 7 1 0.257 0.1029 6 2288

Swallow 3 6 1 0.281 0.0937 5 2250

Sparrow 2 6 1 0.316 0.1052 4 2790

Sparate 2 7 1 0.325 0.1299 4 3525

Robin 1 6 1 0.355 0.1182 3 3480

Raven 1/0 6 1 0.398 0.1327 2 4280

Quail 2/0 6 1 0.447 0.1490 1 5345

Pigeon 3/0 6 1 0.502 0.1672 1/0 6675

Penguin 4/0 6 1 0.563 0.1878 2/0 8420

Waxwing 266800 18 1 0.609 0.1217 3/0 7100

Owl 266800 26 7 0.633 0.2109 3/0 9645

Patridge 266800 26 7 0.642 0.2364 3/0 11250

Ostrich 300000 26 7 0.680 0.2505 188700 12650

Merlin 336400 18 1 0.684 0.1367 4/0 8950

Linnet 336400 26 7 0.721 0.2655 4/0 14050

Oriole 336400 30 7 0.741 0.3177 4/0 17040

Chickadee 397500 18 1 0.743 0.1486 250000 10400

Brant 397500 24 7 0.771 0.2575 250000 14690

Ibis 397500 26 7 0.783 0.2883 250000 16190

Lark 397500 30 7 0.806 0.3453 250000 19980

Pelican 477000 18 1 0.814 0.1628 300000 12300

Flicker 477000 24 7 0.846 0.2820 300000 17200

Hawk 477000 26 7 0.858 0.3162 300000 19430

Hen 477000 30 7 0.883 0.3783 300000 23300

Parakeet 556500 24 7 0.914 0.3045 350000 19850

Dove 556500 26 7 0.927 0.341 350000 22400

Eagle 556500 30 7 0.953 0.409 350000 27200

Peacock 605000 24 7 0.953 0.318 380500 21500

Squab 605000 26 7 0.966 0.356 380500 24100

Teal 605000 30 19 0.994 0.426 380500 30000

Rook 636000 24 7 0.977 0.326 400000 22600

Grosbeak 636000 26 7 0.990 0.365 400000 25000

Egret 636000 30 19 1.019 0.437 400000 31500

Flamingo 666600 24 7 1.000 0.333 419000 23700

Crow 715500 54 7 1.036 0.345 450000 26300

Starling 715500 26 7 1.051 0.387 450000 28100

Redwing 715500 30 19 1.081 0.463 450000 34600

Condor 795000 54 7 1.093 0.364 500000 28500

O-19

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

ACSR (continued)

Cable Code

Word

Size

(circular mils

or AWG)

No. Alum

Strands

No. Steel

Strands

Complete

Cable Dia.

(inches)

Steel Core Dia.

(inches)

Copper Equivalent

based on equal D.C.

resistance,

Cu 97% Al 61%

Ultimate Strength

(pounds)

Drake 795000 26 7 1.108 0.408 500000 31200

Mallard 795000 30 19 1.140 0.489 500000 38400

Crane 874500 54 7 1.146 0.382 550000 31400

Canary 900000 54 7 1.162 0.387 566000 32300

Cardinal 954000 54 7 1.196 0.399 600000 34200

Curlew 1033500 54 7 1.246 0.415 650000 37100

Finch 1113000 54 19 1.293 0.431 700000 40200

Pheasant 1272000 54 19 1.382 0.461 800000 44800

Plover 1431000 54 19 1.465 0.489 900000 50400

Falcon 1590000 54 19 1.545 0.515 100000 56000

HIGH STRENGTH ACSR

Cable Code

Word

Size

(circular mils

or AWG)

No. Alum

Strands

No. Steel

Strands

Complete

Cable Dia.

(inches)

Steel Core Dia.

(inches)

Copper Equivalent

based on equal D.C.

resistance,

Cu 97% Al 61%

Ultimate Strength

(pounds)

Grouse 80000 8 1 0.367 0.1670 50310 5200

Petrel 101800 12 7 0.461 0.2763 64160 9860

Minorca 110800 12 7 0.481 0.2883 69700 10730

Leghorn 134600 12 7 0.530 0.3177 84600 12920

Guinea 159000 12 7 0.576 0.3453 100000 15200

Dotterel 176900 12 7 0.607 0.3642 111200 16440

Dorking 190800 12 7 0.631 0.3783 120000 17730

Cochin 211300 12 7 0.663 0.3981 132900 19640

Brahma 203200 16 9 0.714 0.4885 127800 27500

O-20

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

COMPACT ALUMINUM 1350 CABLE (ASTM B400) EXTRA HARD

Conductor Size

Class No. of Wires Cable Diameter

(Inches)

Breaking Strength

(pounds)

kcmil AWG

1000 B 6111.060 17700

900 B 6110.999 15900

800 B 6110.938 14400

750 B 6110.908 13500

700 B 6110.877 12900

650 B 6110.845 11900

600 B 6110.813 11500

556 AA 1930.780 9750

550 B 6110.775 10500

500 B 3720.736 9110

500 AA 1930.736 8760

477 AA 1930.722 8360

450 B 3720.700 8200

400 B 3720.659 7440

397 AA, A 1930.659 7110

350 B 3720.616 6760

350 A 1930.616 6390

336 A 1930.603 6150

336 AA 7 0.603 5960

300 B 3720.570 5890

300 A 1930.570 5480

300 AA 7 0.570 5430

266 A 1930.537 4970

266 AA 7 0.537 4830

250 B 3720.520 4910

250 A 1930.520 4660

250 AA 7 0.520 4520

4/0 B 1930.475 4020

4/0 AA, A 7 0.475 3830

3/0 B 1930.423 3310

3/0 AA, A 7 0.423 3040

2/0 B 1930.376 2670

2/0 AA, A 7 0.376 2510

1/0 B 1930.336 2160

1/0 AA, A 7 0.336 1990

1 B 1930.299 1740

1 AA, A 7 0.299 1640

2 AA, A, B 7 0.268 1350

3 A, B 7 0.238 1090

4 A, B 7 0.213 .881

6 A, B 7 0.169 .563

8 A, B 7 0.134 .312

1 58 Wires Minimum

2 35 Wires Minimum

3 18 Wires Minimum

CABLE DATA (continued)

O-21

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

ALUMINUM ALLOY 5005 CABLE (ASTM B397)

Conductor Size

cmil

Number of

Wires

Approx. Aluminum 1350 Size

having Equivalent Resistance

Size & Stranding of ACSR

with Equal Diameter Rated Strength

(pounds)

cmil AWG cmil AWG Stranding

927200 37 795000 - 795000 - 26/7 23900

740800 37 636000 - 636000 - 26/7 19300

652400 19 556500 - 556500 - 26/7 16200

587200 19 506500 - 506500 - 18/1 14600

559500 19 477000 - 477000 - 26/7 13900

503600 19 435500 - 435500 - 18/1 12500

465400 19 397500 - 397500 - 26/7 12200

419400 19 362000 - 362000 - 18/1 11200

394500 19 336400 - 336400 - 26/7 10500

355100 19 306400 - 306400 - 18/1 9600

312800 19 266800 - 266800 - 26/7 8450

281400 19 242900 - 242900 - 18/1 7610

246900 7 211600 4/0 211600 4/0 6/1 6330

195700 7 167800 3/0 167800 3/0 6/1 5020

155400 7 133100 2/0 133100 2/0 6/1 4280

123300 7 105600 1/0 105600 1/0 6/1 3440

77470 7 66360 2 66360 2 6/1 2200

48690 7 41740 4 41740 4 6/1 1430

30580 7 26240 6 26240 6 6/1 922

ALUMINUM ALLOY 6201 CABLE (ASTM B399)

Conductor Size

cmil

Number of

Wires

Approx. Aluminum 1350 Size

having Equivalent Resistance

Size & Stranding of ACSR

with Equal Diameter Rated Strength

(pounds)

cmil AWG cmil AWG Stranding

1439200 61 1272000 - 1272000 - 54/7 46800

1348800 61 1192500 - 1192500 - 54/7 43900

1259600 61 1113000 - 1113000 - 54/7 41000

1165100 61 1033500 - 1033500 - 54/7 37900

1077400 61 954000 - 954000 - 54/7 35000

927200 37 795000 - 795000 - 26/7 30500

740800 37 636000 - 636000 - 26/7 24400

652400 19 556500 - 556500 - 26/7 21900

559500 19 477000 - 477000 - 26/7 18800

465400 19 397500 - 397500 - 26/7 15600

394500 19 336400 - 336400 - 26/7 13300

312800 19 266800 - 266800 - 26/7 11000

246900 7 211600 4/0 211600 4/0 6/1 8560

195700 7 167800 3/0 167800 3/0 6/1 6790

155400 7 133100 2/0 133100 2/0 6/1 5390

123300 7 105600 1/0 105600 1/0 6/1 4460

77470 7 66360 2 66360 2 6/1 2800

48690 7 41740 4 41740 4 6/1 1760

30580 7 26240 6 26240 6 6/1 1110

O-22

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALUMINUM ALLOY 8000 SERIES “O” TEMPER CABLE ASTM B801)

Conductor Size Number of

Wires† Class

Conductor Diameter (inches) Min. Breaking

Strength (pounds)

kcmil AWG Conventional Compressed Compact

1000 127 D 1.153 1.119 1.060 6010

1000 91 C 1.153 1.118 1.060 6010

1000 61 B, A 1.152 1.117 1.060 6010

900 127 D 1.095 1.062 0.999 5400

900 91 C 1.093 1.060 0.999 5400

900 61 B, A 1.093 1.060 0.999 5400

800 127 D 1.032 1.001 0.938 4800

800 91 C 1.032 1.001 0.938 4800

800 61 B, A 1.031 1.000 0.938 4800

750 127 D 0.998 0.968 0.908 4500

750 91 C 0.999 0.969 0.908 4500

750 61 B, A 0.998 0.938 0.908 4500

700 127 D 0.965 0.936 0.877 4200

700 91 C 0.965 0.936 0.877 4200

700 61 B, A 0.964 0.935 0.877 4200

650 127 D 0.930 0.902 0.845 3900

650 91 C 0.930 0.902 0.845 3900

650 61 B 0.929 0.901 0.845 3900

650 37 A 0.928 0.900 0.845 3950

600 127 D 0.893 0.866 0.813 3600

600 91 C 0.893 0.866 0.813 3600

600 61 B 0.893 0.866 0.813 3600

600 37 A 0.891 0.864 0.813 3640

556 127 D 0.861 0.835 0.780 3340

556 91 C 0.860 0.834 0.780 3340

556 61 B 0.860 0.834 0.780 3340

556 37 A 0.858 0.832 0.780 3380

550 127 D 0.855 0.829 0.775 3300

550 91 C 0.855 0.829 0.775 3300

550 61 B 0.855 0.829 0.775 3300

550 37 A 0.853 0.827 0.775 3340

500 91 D 0.815 0.791 0.736 3000

500 61 C 0.815 0.791 0.736 3000

500 37 B, A 0.813 0.789 0.736 3040

477 91 D 0.796 0.772 0.722 2860

477 61 C 0.796 0.772 0.722 2860

477 37 B, A 0.795 0.771 0.722 2900

450 91 D 0.773 0.750 0.700 2700

450 61 C 0.773 0.750 0.700 2700

450 37 B, A 0.772 0.749 0.700 2730

CABLE DATA (continued)

O-23

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

Conductor Size Number of

Wires† Class Conductor Diameter (inches) Min. Breaking

Strength

(pounds)

kcmil AWG Conventional Compressed Compact

400 91 D 0.729 0.707 0.659 2400

400 61 C 0.729 0.707 0.659 2400

400 37 B, A 0.728 0.706 0.659 2430

397 91 D 0.727 0.705 0.659 2390

397 61 C 0.726 0.704 0.659 2390

397 37 B 0.725 0.703 0.659 2410

397 19 A 0.724 0.702 0.659 2470

350 91 D 0.682 0.661 0.616 2100

350 61 C 0.681 0.661 0.616 2100

350 37 B 0.681 0.661 0.616 2130

350 19 A 0.679 0.659 0.616 2170

336 61 C 0.669 .0649 0.603 2020

336 37 B 0.668 0.648 0.603 2040

336 19 A 0.666 0.646 0.603 2090

300 61 C 0.631 0.612 0.570 1800

300 37 B 0.630 0.611 0.570 1820

300 19 A 0.629 0.610 0.576 1860

266 61 C 0.595 0.577 0.537 1600

266 37 B 0.594 0.576 0.537 1620

266 19 A 0.593 0.575 0.537 1660

250 61 C 0.576 0.559 0.520 1500

250 37 B 0.575 0.558 0.520 1520

250 19 A 0.574 0.557 0.520 1550

4/0 37 C 0.529 0.513 0.475 1280

4/0 19 B 0.528 0.512 0.475 1310

4/0 7 A 0.522 0.506 0.475 1360

3/0 37 C 0.471 0.457 0.423 1020

3/0 19 B 0.470 0.456 0.423 1040

3/0 7 A 0.464 0.450 0.423 1070

2/0 19 B 0.419 0.406 0.376 826

2/0 7 A 0.414 0.402 0.376 853

1/0 19 B 0.373 0.362 0.336 655

1/0 7 A 0.368 0.357 0.336 676

1 19 B 0.332 0.322 0.229 519

2 7 B, A 0.292 0.283 0.268 425

3 7 B, A 0.260 0.252 0.238 337

4 7 B, A 0.232 0.225 0.213 267

6 7 B, A 0.184 0.178 0.169 168

8 7 B, A 0.146 0.142 0.134 106

ALUMINUM ALLOY 8000 SERIES “O” TEMPER CABLE (ASTM B801) Continued

† For compact-stranded constructions, the number of wires may be reduced as follows:

19-Wire Constructions - 18 Wires Minimum 37-Wire Constructions - 35 Wires Minimum

61-Wire Constructions - 58 Wires Minimum 91-Wire Constructions - 87 Wires Minimum

127-Wire Constructions - 122 Wires Minimum

O-24

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

COMPACT ACSR (ASTM B401)

Conductor Size Cable Diameter

(Inches)

Breaking

Strength

(pounds)

kcmil AWG

336.4 0.628 8260

266.8 0.559 6540

4/0 0.517 7420

3/0 0.461 5880

2/0 0.410 4880

1/0 0.365 3980

1 0.326 3290

2 0.298 3260

2 0.290 2640

3 0.258 2130

4 0.236 2160

4 0.229 1760

6 0.182 1120

ACSR/TW (TRAP WIRE) CABLE (ASTM B779)

Conductor

Size

kcmil

Stranding Nominal

Diameter

(inches)

Rated

Strength

(pounds)

No.

Aluminum

Wires

No. Steel

Wires

336.4 14 1 0.63 8600

405.1 14 1 0.68 10200

477.0 18 7 0.78 17200

477.0 18 7 0.79 19400

556.5 18 7 0.84 20000

556.5 20 7 0.85 22600

565.3 20 7 0.86 22900

571.7 18 7 0.85 20600

636.0 27 1 0.85 13500

636.0 18 7 0.89 22900

636.0 20 7 0.91 25400

664.8 20 7 0.93 26600

666.6 20 7 0.91 24000

762.8 20 7 0.99 30500

768.2 20 7 0.98 27700

768.9 27 1 0.93 16400

795.0 17 7 0.96 21000

795.0 18 7 0.98 25900

795.0 20 7 0.99 28200

795.0 20 7 1.01 31800

946.7 35 7 1.08 29600

954.0 30 7 1.05 23700

Conductor

Size

kcmil

Stranding Nominal

Diameter

(inches)

Rated

Strength

(pounds)

No.

Aluminum

Wires

No. Steel

Wires

954.0 32 7 1.06 25900

954.0 20 7 1.08 33500

957.2 32 7 1.06 26000

959.6 22 7 1.11 37000

966.2 21 7 1.09 34000

1033.5 30 7 1.09 25700

1033.5 32 7 1.10 28100

1033.5 21 7 1.13 36300

1113.0 30 7 1.13 27500

1113.0 33 7 1.14 30000

1113.0 38 19 1.19 39100

1158.0 33 7 1.17 31600

1158.4 25 7 1.20 39600

1168.1 30 7 1.16 28900

1192.5 30 7 1.17 29500

1192.5 33 7 1.18 32400

1192.5 38 19 1.22 41900

1233.6 38 19 1.25 42900

1257.1 35 7 1.21 34200

1272.0 30 7 1.20 31400

1272.0 35 7 1.22 34600

1272.0 39 19 1.26 44100

CABLE DATA (continued)

O-25

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

ACSR/TW (TRAP WIRE) Continued

Conductor

Size

kcmil

Stranding Nominal

Diameter

(inches)

Rated

Strength

(pounds)

No.

Aluminum

Wires

No. Steel

Wires

1334.6 39 19 1.29 46300

1351.5 35 7 1.26 36700

1351.4 39 19 1.30 46800

1359.7 36 7 1.26 36900

1372.5 30 7 1.25 33400

1431.0 36 7 1.29 38900

1431.0 39 19 1.34 49600

1433.6 39 19 1.34 49700

1455.3 36 7 1.30 39200

1467.8 33 7 1.29 35800

1533.3 39 19 1.38 53200

1557.4 36 7 1.35 41900

1569.0 33 7 1.33 38200

Conductor

Size

kcmil

Stranding Nominal

Diameter

(inches)

Rated

Strength

(pounds)

No.

Aluminum

Wires

No. Steel

Wires

1590.0 36 7 1.36 42200

1590.0 42 19 1.41 55100

1622.0 39 19 1.42 57500

1657.4 36 7 1.39 44000

1730.6 39 19 1.47 59400

1758.6 37 19 1.47 34600

1780.0 37 19 1.45 50700

1926.9 42 19 1.55 65300

1949.6 42 7 1.50 51900

2153.8 64 19 1.60 61100

2156.0 64 19 1.61 61100

2627.3 64 19 1.76 74500

AAC/TW (ALL ALUMINUM TRAP WIRE) (ASTM B778)

Conductor Size

kcmil

Nominal

Diameter

(inches)

Number of

Wires

Rated Strength

(pounds)

336.4 0.612 17 6220

397.5 0.661 17 7230

477.0 0.720 17 8530

500.0 0.736 17 8940

556.5 0.775 17 9950

600.0 0.803 17 10700

636.0 0.825 17 11400

700.0 0.864 17 12500

750.0 0.893 17 13400

795.0 0.919 17 13900

900.0 0.990 31 15800

954.0 1.018 31 16700

1000.0 1.041 31 17500

1033.5 1.057 31 18100

1113.0 1.095 31 19500

1192.5 1.132 31 20900

1272.0 1.168 31 22300

1351.5 1.202 31 23700

1431.0 1.236 31 24600

1590.0 1.315 49 27300

1750.0 1.377 49 30000

2000.0 1.468 49 34300

O-26

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ACAR CABLE (ASTM B524)

Conductor Size Number of

Wires

Nominal Outside

Diameter (inches)

kcmil AWG

2000 91 1.630

2000 61 1.630

1900 61 1.588

1800 61 1.546

1750 61 1.525

1700 61 1.502

1600 61 1.458

1500 61 1.411

1400 61 1.364

1300 61 1.314

1300 37 1.312

1250 61 1.288

1250 37 1.287

1200 61 1.263

1200 37 1.261

1100 61 1.209

1100 37 1.207

1000 61 1.152

1000 37 1.151

950 37 1.121

900 37 1.092

850 37 1.061

800 37 1.029

750 37 0.997

700 37 0.962

650 37 0.928

600 37 0.891

600 19 0.888

550 37 0.853

550 19 0.850

500 37 0.813

500 19 0.811

450 19 0.770

400 19 0.726

350 19 0.678

300 19 0.628

250 19 0.574

246.9 7 0.563

Conductor Size Number of

Wires

Nominal Outside

Diameter (inches)

kcmil AWG

4/0 7 0.522

195.7 7 0.502

3/0 7 0.464

155.4 7 0.447

2/0 7 0.414

123.3 7 0.398

1/0 7 0.368

77.4 7 0.316

2 7 0.292

48.6 7 0.250

4 7 0.232

30.5 7 0.198

CABLE DATA (continued)

SSAC CABLE

Size AWG or

kcmil

# Alum

Strands

# Steel

Strands

Conductor

Diameter

Rated Strength

(pounds)

266.8 22 7 .622 6030

266.8 24 7 .633 7410

266.8 26 7 .642 8880

266.8 30 7 .660 11700

300.0 26 7 .680 9970

336.4 20 7 .692 5990

336.4 22 7 .701 7610

336.4 24 7 .710 9340

336.4 26 7 .720 11200

336.4 30 7 .741 14800

397.5 20 7 .752 7090

397.5 22 7 .762 8990

397.5 24 7 .772 11000

397.5 26 7 .783 13000

397.5 30 7 .806 17500

477.0 20 7 .823 8490

477.0 22 7 .834 10800

477.0 24 7 .846 13000

477.0 26 7 .858 15600

477.0 30 7 .883 21000

500.0 30 7 .904 22000

O-27

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

SSAC CABLE (Continued)

Size

AWG or

kcmil

# Alum

Strands

# Steel

Strands

Conductor

Diameter

Rated

Strength

(pounds)

556.5 20 7 .890 9910

556.5 22 7 .901 12600

556.5 24 7 .914 15200

556.5 26 7 .927 18200

556.5 30 7 .953 24500

605.0 24 7 .953 16500

605.0 26 7 .966 19700

605.0 30 7 .994 26000

605.0 30 19 .994 26600

636.0 20 7 .951 11300

636.0 22 7 .963 14100

636.0 24 7 .977 17300

636.0 26 7 .990 20700

636.0 30 7 1.019 27400

636.0 30 19 1.019 28000

666.6 24 7 1.000 18200

666.6 26 7 1.104 21700

715.5 24 7 1.036 19500

715.5 26 7 1.051 23300

715.5 30 19 1.081 30800

795.0 42 7 1.055 11800

795.0 20 7 1.063 14200

795.0 45 7 1.063 14200

795.0 22 7 1.077 17700

795.0 24 7 1.092 21700

795.0 54 7 1.092 21700

795.0 26 7 1.108 25900

795.0 30 19 1.140 34300

900.0 45 7 1.131 15800

900.0 54 7 1.162 24600

954.0 42 7 1.155 14200

954.0 20 7 1.185 16700

954.0 45 7 1.165 16700

954.0 48 7 1.175 19700

954.0 24 7 1.196 26000

954.0 54 7 1.196 26000

954.0 30 19 1.248 41100

1033.5 42 7 1.203 15400

Size

AWG or

kcmil

# Alum

Strands

# Steel

Strands

Conductor

Diameter

Rated

Strength

(pounds)

1033.5 45 7 1.212 18100

1033.5 48 7 1.222 21300

1033.5 54 7 1.245 28200

1113.0 42 7 1.248 16300

1113.0 45 7 1.259 19500

1113.0 48 7 1.269 23000

1113.0 54 19 1.293 30400

1192.5 42 7 1.292 17500

1192.5 45 7 1.302 20900

1192.5 48 7 1.313 24600

1192.5 54 19 1.338 32600

1272.0 42 7 1.334 18700

1272.0 45 7 1.345 22300

1272.0 48 7 1.357 26200

1272.0 54 19 1.382 34100

1351.5 42 7 1.376 19900

1351.5 45 7 1.386 23700

1351.5 48 7 1.398 27900

1351.5 54 19 1.424 36200

1431.0 42 7 1.415 21000

1431.0 45 7 1.427 25100

1431.0 48 7 1.439 29500

1431.0 54 19 1.465 38400

1510.5 45 7 1.466 26500

1510.5 54 19 1.505 40500

1590.0 42 7 1.492 23400

1590.0 45 7 1.504 27900

1590.0 48 7 1.517 32200

1590.0 54 19 1.545 42600

1780.0 84 19 1.602 35400

1869.0 68 7 1.603 21500

2034.5 72 7 1.681 27200

O-28

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

SOLID COPPERWELD CABLE (ASTM B227)

Conductor Size

(AWG)

Nominal

Diameter

(inches)

Circular

Mils

Minimum Breaking Load (pounds)

Grade 40

HS Grade 40 EHS Grade 30

HS

Grade 30

EHS

4 0.2043 41740 3540 - 3934 4671

5 0.1819 33090 2937 - 3249 3911

- 0.1650* 27230 2779 - 2779 3367

6 0.1620 26240 2679 - 2679 3246

7 0.1443 20820 2207 - 2207 2681

8 0.1285 16510 1816 - 1816 2205

- 0.1280* 16380 1802 - 1802 2188

9 0.1144 13090 1491 - 1491 1790

- 0.1040* 10820 1283 1325 1283 1487

10 0.1019 10380 1231 - 1231 1460

12 0.0808 6530 774 - 774 918

- 0.0800* 6400 759 - 759 900

- 0.0640* 4096 485 - 485 576

18 0.0403 1624 193 - 193 228

- 0.0390* 1521 180 - 180 214

20 0.0320 1024 121 - 121 144

* These diameters are often employed by purchasers for communication lines BUT are not in the American

Wire Gauge (B&S Wire Gauge) series, as are the other diameter listed.

STRANDED COPPERWELD CABLE (ASTM B228)

Nominal Diameter†

(inch) Size AWG‡

Circular

Mils

Diameter*

(inch)

Breaking Load (pounds)**

High Strength Extra High

Strength

40%

Cond.

30%

Cond. 30% Cond.

7/8 (19 No. 5) 628900 .910 50240 55570 66910

13/16 (19 No. 6) 498800 .810 41600 45830 55530

23/32 (19 No. 7) 395500 .721 34390 37740 45850

27/32 (19 No. 8) 313700 .642 28380 31040 37690

9/16 (19 No. 9) 248800 .572 23390 25500 30610

5/8 (7 No. 4) 292200 .613 22310 24780 29430

9/16 (7 No. 5) 231700 .546 18510 20470 24650

1/2 (7 No. 6) 183800 .486 15330 16890 20460

7/16 (7 No. 7) 145700 .433 12670 13910 16890

3/8 (7 No. 8) 115600 .385 10460 11440 13890

11/32 (7 No. 9) 91650 .343 8616 9393 11280

5/16 (7 No. 10) 72680 .306 7121 7758 9196

3 No. 5 99310 .392 8373 9262 11860

3 No. 6 78750 .349 6934 7639 9754

3 No. 7 62450 .311 5732 6291 7922

3 No. 8 49530 .277 4730 5174 6282

3 No. 9 39280 .247 3898 4250 5129

3 No. 10 31150 .220 3221 3509 4160

3 No. 12 19590 .174 2236 - -

† The designation “inch” is the

approximate diameter in proper fraction

of an inch.

‡ The designation AWG is a combination

of the number of wires each of the

American Wire Gauge size indicated by

“No.”

* Diameter of circumscribing.

** Breaking loads of 7-wire and 19-wire

conductors are taken as 90% of the sum

of the breaking loads of individual wires;

breaking load of 3-wire conductors is

taken as 95% of the sum of the breaking

loads of the individual wires.

CABLE DATA (continued)

O-29

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

COPPERWELD-COPPER CABLE (ASTM B229)

Conductor size Hard Drawn

Copper Equivalent

Nom. Dia. of

Conductor

(inches)

Min. Breaking

Load (pounds)

cmil AWG Type

350000 - E 0.788 32420

350000 - EK 0.735 23850

350000 - V 0.754 23480

300000 - E 0.729 27770

300000 - EK 0.680 20960

300000 211600 V 0.698 20730

250000 - E 0.666 23920

250000 - EK 0.621 17840

250000 - V 0.637 17420

4/0 E 0.613 20730

211600 4/0 G 0.583 15640

211600 4/0 EK 0.571 15370

211600 4/0 V 0.586 15000

211600 4/0 F 0.550 12290

167800 3/0 E 0.545 16800

167800 3/0 J 0.555 16170

167800 3/0 G 0.519 12860

167800 3/0 EK 0.509 12370

167800 3/0 V 0.522 12200

167800 3/0 F 0.490 9980

133100 2/0 K 0.534 17600

133100 2/0 J 0.494 13430

133100 2/0 G 0.463 10510

133100 2/0 V 0.465 9846

133100 2/0 F 0.436 8094

105600 1/0 K 0.475 14490

105600 1/0 J 0.440 10970

105600 1/0 G 0.412 8563

105600 1/0 F 0.388 6536

83690 1 N 0.464 15410

83690 1 K 0.423 11900

83690 1 J 0.392 9000

83690 1 G 0.367 6956

83690 1 F 0.346 5266

66360 2 P 0.462 16870

66360 2 N 0.413 12680

66360 2 K 0.377 9730

66360 2 J 0.349 7322

66360 2 A 0.366 5876

66360 2 G 0.327 5626

66360 2 F 0.308 4233

55620 3 P 0.411 13910

52620 3 N 0.368 10390

Conductor size Hard

Drawn Copper Equivalent

Nom. Dia. of

Conductor

(inches)

Min. Breaking

Load (pounds)

cmil AWG Type

52620 3 K 0.336 7910

52620 3 J 0.311 5955

52620 3 A 0.326 4810

41740 4 P 0.366 11420

41740 4 N 0.328 8460

41740 4 D 0.348 7340

41740 4 A 0.290 3938

33090 5 P 0.326 9311

33090 5 D 0.310 6035

33090 5 A 0.258 3193

26240 6 D 0.276 4942

26240 6 A 0.230 2585

26240 6 C 0.225 2143

20820 7 D 0.246 4022

20820 7 A 0.223 2754

16510 8 D 0.219 3256

16510 8 A 0.199 2233

16510 8 C 0.179 1362

11750 9 D 0.174 1743

O-30

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

GALVANIZED STEEL CABLE (ASTM A475)

inches Nom. Dia. of

Strand (mm)

Number of

Wires in

Strand

Minimum Breaking Load (pounds)

Utilities Grade Common

Grade

Siemens-

Martin Grade

High-Strength

Grade

Extra High-Strength

Grade

1/8 3.18 7 - 540 910 1330 1830

5/32 3.97 7 - 870 1470 2140 2940

3/16 4.76 7 - 1150 1900 2850 3990

3/16 4.76 7 2400 - - - -

7/32 5.56 3 - 1400 2340 3500 4900

7/32 5.56 7 - 1540 2560 3850 5400

1/4 6.35 3 3150 1860 3040 4730 6740

1/4 6.35 3 4500 - - - -

1/4 6.35 7 - 1900 3150 4750 6650

9/32 7.14 3 - 2080 3380 5260 7500

9/32 7.14 7 4600 2570 4250 6400 8950

5/16 7.94 3 6500 2490 4090 6350 9100

5/16 7.94 7 - 3200 5350 8000 11200

5/16 7.94 7 6000 - - - -

3/8 9.52 3 8500 3330 5560 8360 11800

3/8 9.52 7 11500 4250 6950 10800 15400

7/16 11.11 7 18000 5700 9350 14500 20800

1/2 12.70 7 25000 7400 12100 18800 26900

1/2 12.70 19 - 7620 12700 19100 26700

9/16 14.29 7 - 9600 15700 24500 35000

9/16 14.29 19 - 9640 16100 24100 33700

5/8 15.88 7 - 11600 19100 29600 42400

5/8 15.88 19 - 11000 18100 28100 40200

3/4 19.05 19 - 16000 26200 40800 58300

7/8 22.22 19 - 21900 35900 55800 79700

1 25.40 9 - 28700 47000 73200 104500

1 25.40 37 - 28300 46200 71900 102700

1-1/8 28.58 37 - 36000 58900 91600 130800

1-1/4 31.75 37 - 44600 73000 113600 162200

CABLE DATA (continued)

O-31

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

CABLE DATA (continued)

ALUMINUM-COATED STEEL CABLE (ASTM A474)

Nom. Dia.

of Strand

(inches)

Number of

Wires in

Strand

Minimum Breaking Strength (pounds)

Utilities Grade* Common Grade Siemens-Martin

Grade

High-Strength

Grade

Extra High-Strength

Grade

3/16 7 1150 1900 2850

3/16 7 2400

1/4 3 3150

1/4 3 4500

1/4 7 1900 3150 4750 6650

9/32 7 4600

5/16 3 6500

5/16 7 3200 5350 8000 11200

5/16 7 6000

3/8 3 8500

3/8 7 11500 4250 6950 10800 15400

7/16 7 18000 5350 9350 14500 20800

1/2 7 25000 7400 12100 18800 26900

* The Utilities Grade is used principally by communications and power and light industries.

TERMINAL STUD SIZE CHART*

O-32

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

Circ.

Mils

Equivalent

Circ. Mils AWG Size Metric Wire

Size (mm)

Number of

Strands

Wire Dia. per Strand Approx. Overall Diameter

inches mm inches mm

- 937 - .50 1 .032 .813 .032 .81

1020 - 20 - 7 .0121 .307 .036 .91

- 1480 - .75 1 .039 .091 .039 .99

1620 - 18 - 1 .0103 1.02 .040 1.02

1620 - 18 - 7 .0152 .386 .046 1.16

- 1974 - 1.0 1 .045 1.14 .045 1.14

- 1974 - 1.0 7 .017 .422 .061 1.30

2580 - 16 - 1 .0503 1.29 .051 1.29

2580 - 16 - 7 .0192 .468 .058 1.46

- 2960 - 1.5 1 .055 1.40 .055 1.40

- 2960 - 1.5 7 .021 5.33 .063 1.60

4110 - 14 - 1 .0641 1.63 .064 1.63

4110 - 14 - 7 .0242 .615 .073 1.84

- 4934 - 2.5 1 .071 1.80 .071 1.80

- 4934 - 2.5 7 .027 6.66 .081 2.06

6530 - 12 - 1 .0308 2.05 .081 2.05

6530 - 12 - 7 .0305 .775 .092 2.32

- 7894 - 4 1 .089 2.26 .089 2.26

- 7894 - 4 7 .034 .864 .102 2.59

10380 - 10 - 1 .1019 2.59 .102 2.59

10380 - 10 - 7 .0355 .978 .116 2.93

- 11840 - 6 1 .109 2.77 .109 2.77

- 11840 - 6 7 .042 .107 .126 3.21

13000 - 9 - 1 .1144 2.91 .114 2.91

13090 - 9 - 7 .0432 1.10 .130 3.30

16510 - 8 - 1 .1285 3.26 .128 3.25

16510 - 8 - 7 .0486 1.23 .146 3.70

- 19740 - 10 1 .141 3.58 .141 3.58

- 19740 - 10 7 .054 1.37 .162 4.12

20520 - 7 - 1 .1443 3.67 .144 3.67

20520 - 7 - 7 .0545 1.38 .164 4.15

26240 - 6 - 1 .162 4.11 .162 4.11

26240 - 6 - 7 .0612 1.55 .184 4.66

- 31580 - 16 7 .008 1.73 .204 5.13

33090 - 5 - 7 .0688 1.75 .206 5.24

41740 - 4 - 7 .0772 1.96 .232 5.88

- 49340 - 25 7 .085 2.16 .255 6.48

- 49340 - 25 19 .052 1.32 .260 6.60

52620 - 3 - 7 .0867 2.20 .260 6.61

66300 - 2 - 7 .0974 2.47 .292 7.42

- 69070 - 35 7 .100 2.54 .300 7.62

- 69070 - 35 19 .001 1.55 .305 7.75

AWG VS. METRIC WIRE SIZES

O-33

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

Circ.

Mils

Equivalent Circ.

Mils AWG Size Metric Wire

Size (mm)

Number of

Strands

Wire Dia. per Strand Approx. Overall Diameter

inches mm inches mm

83690 - 1 - 19 .0064 1.50 .332 8.43

- 98680 - 50 19 .073 1.85 .365 9.27

105000 - 1/0 - 19 .0745 1.59 .373 9.46

133100 - 2/0 - 19 .0837 2.13 .419 10.6

- 138100 - 70 19 .086 2.18 .430 10.9

167800 - 3/0 - 19 .094 2.59 .470 11.9

167800 - 3/0 - 36 .0673 1.71 .471 12.0

- 187500 - 95 19 .101 2.57 .505 12.8

- 187500 - 95 37 .072 1.83 .504 12.5

211600 - 4/0 - 19 .1055 2.89 .528 13.4

- 237.8 kcmil - 120 37 .081 2.06 .567 14.4

250 kcmil - - - 37 .0822 2.07 .575 14.6

300 kcmil - - 150 37 .090 2.29 .630 16.0

350 kcmil - - - 37 .0973 2.47 .681 17.3

- 365.1 kcmil - 185 37 .100 2.54 .700 17.8

400 kcmil - - - 37 .104 2.64 .728 18.5

- 473.6 kcmil - 240 37 .114 2.90 .798 20.3

- 473.6 kcmil - 240 61 .089 2.26 .801 20.3

500 kcmil - - - 37 .1162 2.95 .813 20.7

500 kcmil - - - 61 .0905 2.30 .814 20.7

- 592.1 kcmil - 300 61 .099 2.51 .891 22.6

600 kcmil - - - 61 .0992 2.52 .893 22.7

700 kcmil - - - 61 .1071 2.72 .964 24.5

750 kcmil - - - 6 .1109 2.82 .998 25.4

750 kcmil - - - 91 .0908 2.31 .998 25.4

- 789.4 kcmil - 400 61 .114 2.90 1.026 26.1

800 kcmil - - - 61 .1145 2.91 1.031 26.2

800 kcmil - - - 91 .0938 2.38 1.032 26.2

1000 kcmil 986.8 kcmil - 500 61 .1280 3.25 1.152 28.3

1000 kcmil - - - 91 .1048 2.66 1.153 29.3

- 1233.7 kcmil - 625 91 .117 2.97 1.287 32.7

1250 kcmil - - - 91 .1172 2.93 1.289 32.7

1250 kcmil - - - 127 .0992 2.52 1.200 32.8

1500 kcmil - - - 91 .1284 3.26 1.412 36.9

1500 kcmil - - - 127 .1087 2.76 1.413 36.9

- 1578.8 kcmil - 800 91 .132 3.35 1.452 36.9

- 1973.5 kcmil - 1000 91 .147 3.73 1.617 41.1

2000 kcmil - - - 127 .1255 3.19 1.632 41.5

2000 kcmil - - - 169 .1088 2.76 1.632 41.5

AWG VS. METRIC WIRE SIZES (continued)

O-34

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

Circ.

Mils

Equivalent Circ.

Mils AWG Size Metric Wire

Size (mm)

Number of

Strands

Wire Dia. per Strand Approx. Overall Diameter

inches mm inches mm

83690 - 1 - 19 .0064 1.50 .332 8.43

- 98680 - 50 19 .073 1.85 .365 9.27

105000 - 1/0 - 19 .0745 1.59 .373 9.46

133100 - 2/0 - 19 .0837 2.13 .419 10.6

- 138100 - 70 19 .086 2.18 .430 10.9

167800 - 3/0 - 19 .094 2.59 .470 11.9

167800 - 3/0 - 36 .0673 1.71 .471 12.0

- 187500 - 95 19 .101 2.57 .505 12.8

- 187500 - 95 37 .072 1.83 .504 12.5

211600 - 4/0 - 19 .1055 2.89 .528 13.4

- 237.8 kcmil - 120 37 .081 2.06 .567 14.4

250 kcmil - - - 37 .0822 2.07 .575 14.6

300 kcmil - - 150 37 .090 2.29 .630 16.0

350 kcmil - - - 37 .0973 2.47 .681 17.3

- 365.1 kcmil - 185 37 .100 2.54 .700 17.8

400 kcmil - - - 37 .104 2.64 .728 18.5

- 473.6 kcmil - 240 37 .114 2.90 .798 20.3

- 473.6 kcmil - 240 61 .089 2.26 .801 20.3

500 kcmil - - - 37 .1162 2.95 .813 20.7

500 kcmil - - - 61 .0905 2.30 .814 20.7

- 592.1 kcmil - 300 61 .099 2.51 .891 22.6

600 kcmil - - - 61 .0992 2.52 .893 22.7

700 kcmil - - - 61 .1071 2.72 .964 24.5

750 kcmil - - - 6 .1109 2.82 .998 25.4

750 kcmil - - - 91 .0908 2.31 .998 25.4

- 789.4 kcmil - 400 61 .114 2.90 1.026 26.1

800 kcmil - - - 61 .1145 2.91 1.031 26.2

800 kcmil - - - 91 .0938 2.38 1.032 26.2

1000 kcmil 986.8 kcmil - 500 61 .1280 3.25 1.152 28.3

1000 kcmil - - - 91 .1048 2.66 1.153 29.3

- 1233.7 kcmil - 625 91 .117 2.97 1.287 32.7

1250 kcmil - - - 91 .1172 2.93 1.289 32.7

1250 kcmil - - - 127 .0992 2.52 1.200 32.8

1500 kcmil - - - 91 .1284 3.26 1.412 36.9

1500 kcmil - - - 127 .1087 2.76 1.413 36.9

- 1578.8 kcmil - 800 91 .132 3.35 1.452 36.9

- 1973.5 kcmil - 1000 91 .147 3.73 1.617 41.1

2000 kcmil - - - 127 .1255 3.19 1.632 41.5

2000 kcmil - - - 169 .1088 2.76 1.632 41.5

INCHES & MILLIMETERS CONVERSION CHART

O-35

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

BURNDY CONDUCTOR NUMBERING SYSTEM - © BURNDY ENGINEERING CO., INC., 1940

Outside

Dia. IN

Outside

Dia. MM

STR. CABLE SOL. WIRE AREA MM2

Copper

Cable

ACSR PIPE SIZE CONDUCTOR TUBE & ROD SERVIT

NO.

Cat.

No. Size Cat.

No. Size Cat.

No. Cable Size Cat.

No. ST D Cat No. Ex Hvy Cat.

No. Dia.

.102 2.594 10W 10 5.261 KS90

.114 2.896 9W 9 6.634

.116 2.946 10 C 10 5.261

.125 3.175 60 1/8

.129 3.277 8W 8 8.366 KS15

.130 3.302 9 C 9 6.634

.144 3.658 7W 7 10.550

.146 3.708 8 C 8 8.366

.158 4.013 8R 8

.162 4.115 6W 6 13.300 KS17

.164 4.166 7 C 7 10.550

.176 4.470 7R 7

.182 4.597 5W 5 16.770

.184 4.648 6 C 6 13.300

.198 5.029 6R 6

.204 5.182 4W 4 21.150 KS20

.206 5.258 5 C 5 16.770

.223 5.664 5R 5

.229 5.817 3W 3 26.670

.232 5.867 4 C 4 21.150

.250 6.350 4R 461 1/4

.258 6.553 2W 2 33.630 KS22

.260 6.629 3 C 3 2.6670

.281 7.137 3R 3

.289 7.344 1W 1 42.410

.292 7.394 2 C 2 33.630 KS23

.316 8.026 2R 2

.325 8.255 75 1/0 53.480

.332 8.382 1 C 1 42.410

.355 9.017 1R 1

.365 9.274 76 2/0 67.430

.372 9.474 25 1/0 53.480 KS25

.375 9.525 62 3/8

.398 10.109 25R 1/0

.405 10.287 10 1/8 50 1/8

.410 10.414 77 3/0 85.030

.419 10.617 26 2/0 67.430 KS26

.447 11.354 26R 2/0

.460 11.684 78 4/0 107.200

.470 11.938 27 3/0 85.030

.500 12.700 63 1/2

.502 12.725 27R 3/0

.528 13.414 28 4/0 107.200 KS28

.540 13.716 11 1/4 51 1/4

.563 14.326 28R 4/0

.575 14.605 29 250 127.000

.630 16.002 30 300 152.000

.633 16.078 29R 266,800

.642 16.307 30R 266,800

.675 17.145 12 3/8 52 3/8

.680 17.272 31R 300,000

.681 17.297 31 350 177.000 KS31

.721 18.313 32R 336,400

.728 18.494 32 400 203.000

.741 18.824 33R 336,400

.750 19.050 64 3/4

.772 19.609 33 450 228.000

.783 19.888 34R 397,500

.806 20.472 35R 397,500

.813 20.676 34 500 253.000

.840 21.336 13 1/2 53 1/2

.855 21.717 35 550 279.000 KS34

.858 21.742 36R 477,000

.883 22.428 37R 477,000

.893 22.682 36 600 304.000

.904 22.962 38R 500,000

.927 23.546 39R 556,500

.929 23.597 37 650 329.000

.953 24.206 40R 556,500

.953 24.206 41R 605,000

.964 24.486 38 700 355.000

.977 24.714 42R 636,000

.998 25.349 39 750 380.000 KS39

1.000 25.400 43R 666,600 65 1

O-36

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

BURNDY CONDUCTOR NUMBERING SYSTEM (continued)

1.031 26.187 40 800 405.000

1.036 26.314 44R 715,500

1.050 26.670 14 54

1.062 26.975 41 850 431.000

1.094 27.762 42 900 456.000 45R 795,000

1.123 28.524 43 950 481.000

1.146 29.108 46R 874,000

1.152 29.264 44 1000 507.000 KS44

1.162 29.515 47R 900,000

1.196 30.378 48R 954,000

1.209 30.709 444 1100 557.000

1.246 31.648 49R 1,033,500

1.250 31.750 66 1

1.263 32.080 448 1200 608.000

1.289 32.744 45 1250 633.000

1.293 32.817 50R 1,113,000

1.315 33.404 452 1300 15 155 1

1.338 33.960 51R 1,192,500

1.364 34.646 456 1400 709.000

1.382 35.103 52R 1,272,000

1.412 35.865 46 1500 760.000

1.424 36.170 53R 1,351,500

1.459 37.059 464 1600 811.000

1.465 37.214 54R 1,431,000

1.500 38.100 67 1-1/2

1.504 38.202 468 1700 861.000

1.506 38.252 55R 1,510,500

1.526 38.786 47 1750 866.000

1.545 39.218 56R 1,590,000

1.548 39.319 472 1800 912.000

1.590 40.386 476 1900 963.000

1.632 41.427 48 2000 1013.00

1.660 42.164 16 156 1

1.729 43.917 483 2250 1140.000

1.824 46.330 486 2500 1267.000

1.900 48.260 17 1-1/2 57 1-1/2

1.914 48.616 490 2750 1393.000

1.988 50.495 493 3000 1520.000

2.000 50.800 68 2

2.375 60.325 18 258 2

2.500 63.500 69 2-1/2

2.875 73.025 19 2-1/2 59 2-1/2

3.000 76.200 70 3

3.500 88.900 20 390 371 3-1/2

4.000 101.600 21 3-1/2 91 3-1/2 72 4

4.500 114.300 22 492 473 4-1/2

5.000 127.000 23 4-1/2 93 4-1/2 74 5

5.563 141.300 24 594 5

6.063 154.000 85 5-1/2 95 5-1/2

6.625 168.275 86 696 6

7.625 193.675 87 797 7

8.625 219.075 88 898 8

Outside

Dia. IN

Outside

Dia. MM

STR. CABLE SOL. WIRE AREA MM2

Copper

Cable

ACSR PIPE SIZE CONDUCTOR TUBE & ROD SERVIT

NO.

Cat.

No. Size Cat.

No. Size Cat.

No. Cable Size Cat.

No. ST D Cat No. Ex Hvy Cat.

No. Dia.

O-37

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

PRESENT INSTALLATION TOOL INDEX

This chart provides a cross-reference between

die index numbers marked on BURNDY® COM-

PRESSION CONNECTORS and the CORRE-

SPONDING DIE SETS used with the various

BURNDY® INSTALLATION TOOLS. This is the

only way to have a complete connections with

the BURNDY® ENGINEERED SYSTEM.

A die index number has been assigned to each

required groove conguration. A prex letter is

used to indicate the specic installation tool for

which the die has been designed, as shown.

CHART III

A - ALUMINUM

B - INDENTOR NEST (USED WITH INDENTOR DIE # Y34P**)

R - ROUND DIE (CIRCUMFERENTAL)

T - TWIN DIE (BOTH HALVES)

CHART II

12 - #12

10 - #10

8C - # 8

6C - # 6

5C - # 5

4C - #4

3C - #3

2C - #2

1C - #1

25 - 1/0

26 - 2/0

27 - 3/0

28 - 4/0

29 - 250 MCM

30 - 300 MCM

31 - 350 MCM

32 - 400 MCM

34 - 500 MCM

36 - 600 MCM

39 - 750 MCM

44 - 1000 MCM

OR INDEX

i.e., U312

312 Die Index

CHART I

U 34 ART

A - Y34A

B - Y34BH

C - Y48B

E - Y44B

F - Y486RB

G - Y34C

L - Y60B

P - Y46

S - Y45

U - Y35

W - MD-6/OUR840

X - OUR840/MD-6

TOOL TYPE (CHART I)

WIRE SIZE (CHART II) OR INDEX

USE CHART (CHART III)

O-38

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y29BY35Y39 Y750Y45Y46-Y60 Ser.

ADIE SET U-A U-A U-A U-A U-A

BG DIE SET Perm. GR

W-BG

X-BG

X-NBG U-BG U-BG U-BG U-BG U-BG

CDIE SET BROWN W-C U-C U- U-C U-C U-C

DDIE SET U-D U-D U-D U-D U-D

D3 DIE SET BLUE U-YFD U-YFD U-YFD U-YFD U-YFD

Perm. GR U-D3 U-D3 U-D3 U-D3 U-D3

EDIE SET U-E U-E U-E U-E U-E

FDIE SET U-F U-F U-F U-F U-F

HDIE SET U-H U-H U-H U-H U-H

K-1/4 DIE SET WK14

K-5/16 DIE SET WK516 UK516T UK526T UK516T UK516T UK516T

K-3/8 DIE SET WK38 UK38T UK38T UK38T UK38T UK38T

K-1/2 DIE SET WK12

K-9/16 DIE SET WK916 UK916T UK916T UK916T UK916T UK916T

K-19/32 DIE SET WK1932

K-5/8-1 DIE SET UK581T UK581T UK581T UK581T UK581T

K-11/16 DIE SET WK1116 UK1116T UK1116T UK1116T UK1116T UK1116T

K-3/4 DIE SET UK34T UK34T UK34T UK34T UK34T

K-1 DIE SET UK1T UK1T UK1T UK1T UK1T

K-1-5/16 DIE SET UK1516T UK1516T UK1516T UK1516T UK1516T

K-635 DIE SET WK737 UK737T UK737T UK737T UK737T UK737T

K-747 DIE SET WK747

K-781 DIE SET WK781

K-840 DIE SET W-K840 U-K840 U-K840 U-K840 U-K840 U-K840

KB DIE SET WKB UKBT UKBT UKBT UKBT UKBT

KBKT DIE SET UKBKTT UKBKTT UKBKTT UKBKTT UKBKTT

KC DIE SET UKCT UKCT UKCT UKCT UKCT

KK DIE SET WKK

KR DIE SET YELLOW P-YFR

S-KR P-KR

KT DIE SET WKT

KU DIE SET UKUT UKUT UKUT UKUT UKUT

LDIE SET W-L U-L U-L U-L U-L U-L

L80 DIE SET U32XRT U32XRT U32XRT U32XRT U32XRT

L99 DIE SET PINK U38XRT U38XRT U38XRT U38XRT U38XRT

L115 DIE SET YELLOW U44XRT U44XRT U44XRT U44XRT U44XRT

MDIE SET U-M U-M U-M U-M U-M

NDIE SET RED U-YFN U-YFN U-YFN U-YFN U-YFN

U-N U-N U-N U-N U-N

ODIE SET

GREEN U-YFO U-YFO U-YFO U-YFO U-YFO

Perm. GR

W-O U-O U-O U-O U-O U-O

QDIE SET W-Q

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series.

The MD6-6R2 ratchet tool is required on these sizes.

The standard MD6 or MD6R ratchet tools will not work.

Also pneumatic version Y29NC. O-39

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y29B



Y35

Y39 Y750



Y45



Y46

-

Y60

Ser.

RDIE SET U-R U-R U-R U-R U-R

TDIE SET S-T

ZDIE SET S-Z

7

94

MR4C

MY29-3

MY29-11

1

CRIMP

DIE SET BLUE W5CRT X5CRT U5CRT U5CRT U5CRT U5CRT U5CRT

NEST D6CL U6CD-1 U6CD-1 U6CD-1 U6CD-1 U6CD-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

8

95

MR4C

MY29-3

MY29-11

1

CRIMP

DIE SET GRAY W4CRT X4CRT U4CRT U4CRT U4CRT U4CRT U4CRT

NEST D4CL U4CD-1 U4CD-1 U4CD-1 U4CD-1 U4CD-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

9

96

MY29-3

MY29-11

1

CRIMP

DIE SET WHITE W3CRT X3CRT U3CRT U3CRT U3CRT U3CRT U3CRT

NEST D3CL U3CD-1 U3CD-1 U3CD-1 U3CD-1 U3CD-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

10

97

MY29-3

MY29-11

1

CRIMP

DIE SET BROWN W2CRT X2CRT U2CRT U2CRT U2CRT U2CRT U2CRT

NEST D2CL U2CD-1 U2CD-1 U2CD-1 U2CD-1 U2CD-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

11

98

MY29-3

MY29-11

1

CRIMP

DIE SET GREEN W1CRT-1 X1CRT-1 U1CRT-1 U1CRT-1 U1CRT-1 U1CRT-1 U1CRT-1

NEST D1CL U1CD-1 U1CD-1 U1CD-1 U1CD-1 U1CD-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

12

99

MY29-3

MY29-11

1

CRIMP

DIE SET PINK W25RT X25RT U25RT U25RT U25RT U25RT U25RT

NEST D25L U25D-1 U25D-1 U25D-1 U25D-1 U25D-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

13

100

MY29-3

MY29-11

1

CRIMP

DIE SET BLACK W26RT X26RT U26RT U26RT U26RT U26RT U26RT

NEST D26L U26D-1 U26D-1 U26D-1 U26D-1 U26D-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

14

101

MY29-3

MY29-11

1

CRIMP

DIE SET ORANGE W27RT X27RT U27RT U27RT U27RT U27RT U27RT

NEST D27L U27D-1 U27D-1 U27D-1 U27D-1 U27D-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

15 MY29-3

MY29-11

1

CRIMP

DIE SET PURPLE W28RT X28RT U28RT U28RT U28RT U28RT U28RT

NEST D28L U28D-1 U28D-1 U28D-1 U28D-1 U28D-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR Y34PR

16 MY29-3

MY29-11

1

CRIMP

DIE SET YELLOW W29RTX29RT U29RT U29RT U29RT U29RT U29RT

NEST D29L U29D-1 U29D-1 U29D-1 U29D-1

INDENTOR Y29PR Y34PR Y34PR Y34PR Y34PR

17 1

CRIMP

DIE SET WHITE W30RTU30RT U30RT U30RT U30RT U30RT L30RT

NEST U30D-1 U30D-1 U30D-1 U30D-1

INDENTOR Y34PR Y34PR Y34PR Y34PR

18 1

CRIMP

DIE SET RED W31RTU31RT U31RT U31RT U31RT U31RT L31RT

NEST U31D-1 U31D-1 U31D-1 U31D-1

INDENTOR Y34PR Y34PR Y34PR Y34PR

19 1

CRIMP

DIE SET BLUE W32RTU32RT U32RT U32RT U32RT U32RT L32RT

NEST U32D-1 U32D-1 U32D-1 U32D-1

INDENTOR Y34PR Y34PR Y34PR Y34PR

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series.

The MD6-6R2 ratchet tool is required on these sizes.

The standard MD6 or MD6R ratchet tools will not work.

Also pneumatic version Y29NC.

O-40

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y29B



Y35

Y39 Y750



Y45



Y46

-

Y60

Ser.

20 1

CRIMP

DIE SET BROWN W34RTU34RT U34RT U34RT U34RT U34RT L34RT

NEST U34D-1 U34D-1 U34D-1 U34D-1

INDENTOR Y34PR Y34PR Y34PR Y34PR

21 1

CRIMP

DIE SET YELLOW U35RT U35RT U35RT U35RT

NEST

INDENTOR

22 1

CRIMP

DIE SET GREEN U36RT U36RT U36RT U36RT L36RT

NEST P36D

INDENTOR P44PR

23 1

CRIMP

DIE SET ORANGE U37RT U37RT U37RT U37RT

NEST

INDENTOR

24 1

CRIMP

DIE SET BLACK U39RT U39RT S39RT P39RT L39RT

NEST P39D

INDENTOR P44PR

25 1

CRIMP

DIE SET ORANGE S40RT P40RT

NEST P40D

INDENTOR P44PR

26 1

CRIMP

DIE SET GOLD

NEST

INDENTOR

27 1

CRIMP

DIE SET WHITE S44RT P44RT L44RT

NEST P44D

INDENTOR P44PR

29

DIE SET YELLOW P45RT L45RT

NEST

INDENTOR

30

DIE SET ORANGE

NEST

INDENTOR

31

DIE SET GREEN S46RT P46RT L46RT

NEST No Nest

INDENTOR P44PR

33

DIE SET GRAY L47RT

NEST

INDENTOR

34

DIE SET BROWN L48RT

NEST

INDENTOR

38

MR4C

MR8G98

MR89Q

MY28

Y8MRB-1

NEST DV8L UV8L UV8L UV8L UV8L UV8L

INDENTOR Y29PL Y34PL Y34PL Y34PL Y34PL Y34PL

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series.

The MD6-6R2 ratchet tool is required on these sizes.

The standard MD6 or MD6R ratchet tools will not work.

Also pneumatic version Y29NC. O-41

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y29B



Y35

Y39 Y750



Y45



Y46

-

Y60

Ser.

39 MR4C

MY28

1

CRIMP

NEST DV6L UV6L UV6L UV6L UV6L UV6L

INDENTOR Y29PL Y34PLA Y34PLA Y34PLA Y34PLA Y34PLA

40 MR4C

MY28

NEST DV4L UV4L UV4L UV4L UV4L UV4L

INDENTOR Y29PL Y34PLA Y34PLA Y34PLA Y34PLA Y34PLA

41 MY28 NEST DV2L UV2; UV2; UV2; UV2; UV2;

INDENTOR Y29PL Y34PLA Y34PLA Y34PLA Y34PLA Y34PLA

42 MY28 NEST DV1L UV1L UV1L UV1L UV1L UV1L

INDENTOR Y29PL Y34PLA Y34PLA Y34PLA Y34PLA Y34PLA

43 MY28 NEST DV25L UV25L UV25L UV25L UV25L UV25L

INDENTOR Y29PL Y34PA Y34PA Y34PA Y34PA Y34PA

44 MY28 NEST DV26L UV26L UV26L UV26L UV26L UV26L

INDENTOR Y29PL Y34PA Y34PA Y34PA Y34PA Y34PA

45 MY28 NEST UV27L UV27L UV27L UV27L UV27L

INDENTOR Y34PA Y34PA Y34PA Y34PA Y34PA

46 MY28 NEST UV28L UV28L UV28L UV28L UV28L

INDENTOR Y34PA Y34PA Y34PA Y34PA Y34PA

49 DIE SET RED W8CRT X8CRT U8CRT U8CRT U8CRT U8CRT U8CRT

161 DIE SET W161 X-161 U161 U161 U161 U161 U161

162 DIE SET W162 W162 U162 U162 U162 U162 U162

163 505 DIE SET W163 W163 U163 U163 U163 U163 U163

164 275 DIE SET W164 U164 U164 U164 U164 U164

165 205

287 339 DIE SET W165 X-165 U165/

U205

U165/

U205

U165/

U205

U165/

U205

U165/

U205 L165

166 206

459 DIE SET W166 U166/

U459

U166/

U459

U166/

U459

U166/

U459

U166/

U459 L166

167 207

211 256

568

DIE SET W167 U167/

U568

U167/

U568

U167/

U568

U167/

U568

U167/

U568 L167

168 208 DIE SET U168 U168 U168 U168 U168 L168

169 DIE SET U169 U169 U169 U169 U169 L169

170 306 DIE SET U170 U170 U170 U170 U170 L170

171 DIE SET W161 U171 U171 U171 U171 U171

193 DIE SET U193 U193 U193 U193 U193 L193

202 DIE SET U202 U202 U202 U202 U202

203 DIE SET U203 U203 U203 U203 U203

204 DIE SET U204 U204 U204 U204 U204

205 165

287 339 DIE SET W165 X-165 U165/

U205

U165/

U205

U165/

U205

U165/

U205

U165/

U205 L165

206 166

459 DIE SET W166 U166/

U459

U166/

U459

U166/

U459

U166/

U459

U166/

U459 L166

207 167

211 256

568

DIE SET W167 U167/

U568

U167/

U568

U167/

U568

U167/

U568

U167/

U568 L167

208 168 DIE SET U168 U168 U168 U168 U168 L168

209 DIE SET U209 U209 U209 U209 U209 L209

210 DIE SET U210 U210 U210 U210 U210 L210

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series.

Also pneumatic version Y29NC.

O-42

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y35

Y39 Y750



Y45



Y46

-

Y60

Ser.

211 167

256 568 DIE SET W167 U167/

U568

U167/

U568

U167/

U568

U167/

U568

U167/

U568 L167

236 DIE SET W236 U236 U236 U236 U236 U236

237 DIE SET W237 X-237 U237 U237 U237 U237 U237

238 DIE SET W238 U238 U238 U238 U238 U238

239 DIE SET W239 X-239 U239 U239 U239 U239 U239

240 DIE SET RED W240 U240 U240 U240 U240 U240

241 DIE SET W241 X-241 U241 U241 U241 U241 U241

242 244 3S/4S DIE SET W242 U242 U242 U242 U242 U242 L242

243 DIE SET W243 U243 U243 U243 U243 U243 L243

244 242 3S/4S DIE SET W242 U242 U242 U242 U242 U242 L242

245 9A DIE SET W245 X-245 U245 U245 U245 U245 U245 L245

246 248 5S DIE SET W248 U248 U248 U248 U248 U248 L248

247 DIE SET W247 X-247 U247 U247 U247 U247 U247 L247

248 246 5S DIE SET W248 U248 U248 U248 U248 U248 L248

249 11A DIE SET W249 X-249 U249 U249 U249 U249 U249 L249

250 DIE SET U250 U250 U250 U250 U250 L250

251 12A DIE SET RED W251 U251 U251 U251 U251 U251 L251

252 DIE SET U252 U252 U252 U252 U252 L252

253 DIE SET U253 U253 U253 U253 U253 L253

254 DIE SET S254 P254 L254

255 DIE SET U255 U255 U255 U255 U255 L255

256 167

207 211

568

DIE SET W167 U167/

U567

U167/

U567

U167/

U567

U167/

U567

U167/

U567 L167

257 DIE SET U257 U257 U257 U257 U257 L257

259 DIE SET U259 U259 U259 U259 U259

260 DIE SET L260

261 318 15A DIE SET U261 U261 U261 U261 U261 L261

263 DIE SET U263 U263 U263 U263 U263

267 DIE SET U267 U267 U267 U267 U267 L267

275 164 DIE SET W164 U164 U164 U164 U164 U164

276 DIE SET U276 U276 U276 U276 U276

285 DIE SET U285 U285 U285 U285 U285

287 165

205 339 DIE SET W165 U165/

U205

U165/

U205

U165/

U205

U165/

U205

U165/

U205 L165

292 578 DIE SET S292 P292 L292

293 294 DIE SET S293 P293 L293

296 MY29-3 1

CRIMP

DIE SET TAN X25ART U25ART U25ART U25ART U25ART

NEST P27D

INDETOR P34PR5

297 MY29-3 1

CRIMP

DIE SET OLIVE X26ART U26ART U26ART U26ART U26ART

NEST P29D

INDENTOR P34PR5

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series. O-43

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y35

Y39 Y750



Y45



Y46

-Y60 Ser.

298 MY29-3 1

CRIMP

DIE SET WHITE X28ART U28ART U28ART U28ART U28ART U28ART L28ART

NEST P31D

INDENTOR Y45PR5

299 1

CRIMP

DIE SET BROWN U31ART U31ART U31ART U31ART U31ART L31ART

NEST P35D

INDENTOR P48PR1

300 1

CRIMP

DIE SET PINK U34ART U34ART U34ART U34ART U34ART L34ART

NEST P39D

INDENTOR P49PR1

301 1

CRIMP

DIE SET RED S39ART P39ART L39ART

NEST P45D

INDENTOR P48PR1

302 1

CRIMP

DIE SET BROWN S44ART P44ART L44ART

NEST No Nest

INDENTOR P48PR1

303 DIE SET GRAY U42ART U42ART U42ART U42ART U42ART

304 DIE SET U304 U304 U304 U304 U304 L304

305 341 DIE SET U305 U305 U305 U305 U305 L305

306 170 DIE SET U170 U170 U170 U170 U170 L170

308 DIE SET U308 U308 U308 U308 U308

313 DIE SET U313 U313 U313 U313 U313 L313

314 376 DIE SET L314

316 DIE SET U316 U316 U316 U316 U316 L316

317 426 DIE SET U317 U317 U317 U317 U317 L317

318 261 DIE SET U261 U261 U261 U261 U261 L261

319 DIE SET S319 P319 L319

320 DIE SET S320 P320 L320

321 DIE SET U321 U321 U321 U321 U321 L321

322 DIE SET U322 U322 U322 U322 U322

324 1

CRIMP

DIE SET RED U29ART U29ART U29ART U29ART U29ART L29ART

NEST P32D

INDENTOR P34PR5

326 538 DIE SET U33RT U33RT U33RT U33RT U33RT

327 14A DIE SET U327 U327 U327 U327 U327 L327

328 DIE SET L328

329 DIE SET U329 U329 U329 U329 U329

331 DIE SET U331 U331 U331 U331 U331

339 165

205 287 DIE SET X-339 U165/

U205

U165/

U205

U165/

U205

U165/

U205

U165/

U205

341 305 DIE SET U305 U305 U305 U305 U305 L305

342 DIE SET S342 P342 L342

344 DIE SET L344

345 DIE SET L345

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series.

The MD6-6R2 ratchet tool is required on these sizes.

The standard MD6 or MD6R ratchet tools will not work.

O-44

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y35

Y39 Y750



Y45



Y46

-Y60 Ser.

346 1 CRIMP DIE SET GRAY X6CART U6CABT U6CABT U6CABT U6CABT U6CABT

348 1 CRIMP DIE SET PINK X2CART U2CABT U2CABT U2CABT U2CABT U2CABT

350 DIE SET U350 U350 U350 U350 U350 L350

352 DIE SET S352 P352 L352

373 DIE SET U373 U373 U373 U373 U373

374 MY29-3 DIE SET BLUE X8CART U8CABT U8CABT U8CABT U8CABT U8CABT

375 MY29-3 1 CRIMP DIE SET GREEN X4CART U4CABT U4CABT U4CABT U4CABT U4CABT

376 314 DIE SET L314

400 DIE SET PURPLE U38RT U38RT U38RT U38RT U38RT

403 DIE SET U403 U403 U403 U403 U403

419 DIE SET S419 P419 L419

422 DIE SET L422

426 317 DIE SET U317 U317 U317 U317 U317

459 166 DIE SET U166/459 U166/459 U166/459 U166/459 U166/459

467 MY29-3 1 CRIMP

DIE SET RUBY X27ART U27ART U27ART U27ART U27ART U27ART

NEST P30D

INDENTOR P34PR5

468 DIE SET U468 U468 U468 U468 U468

469 DIE SET S469 P469 L469

470 1 CRIMP

DIE SET BLUE U30ART U30ART U30ART U30ART U30ART L30ART

NEST P34D

INDENTOR P48PR1

471 MY29-3 1 CRIMP

DIE SET GOLD X1CART U1CART U1CART U1CART U1CART U1CART

NEST

INDENTOR

472 1 CRIMP

DIE SET GREEN U32ART U32ART U32ART U32ART U32ART L32ART

NEST P35D

INDENTOR P48PR1

473 1 CRIMP

DIE SET BLACK U36ART U36ART U36ART U36ART U36ART L36ART

NEST P44D

INDENTOR P48PR1

474 1 CRIMP

DIE SET GOLD S40ART P40ART L40ART

NEST

INDENTOR

478 1 CRIMP

DIE SET BLUE L46ART

NEST

INDENTOR

479 DIE SET RED L48ART

490 547 DIE SET U490 U490 U490 U490 U490 L490

495 DIE SET L495

505 163 DIE SET W163 U163 U163 U163 U163 U163 L163

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series.

The MD6-6R2 ratchet tool is required on these sizes.

The standard MD6 or MD6R ratchet tools will not work.

 Hexagonal crimp O-45

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y35

Y39 Y750



Y45



Y46

-Y60 Ser.

511 MY29-3 NEST

INDENTOR

512 MY29-3 NEST

INDENTOR

513 MY29-3 NEST

INDENTOR

514 MY29-3 NEST

INDENTOR

515 MY29-3 NEST

INDENTOR

516 MY29-3 NEST

INDENTOR

517 MY29-3 NEST

INDENTOR

518 MY29-3 NEST

INDENTOR

519 MY29-3 NEST

INDENTOR

520 MY29-3 NEST

INDENTOR

538 326 DIE SET U33RT U33RT U33RT U33RT U33RT

547 490 DIE SET U490 U490 U490 U490 U490 L490

552 DIE SET U552 U552 U552 U552 U552

568 167

207 211

256

DIE SET W167 U167/

U568

U167/

U568

U167/

U568

U167/

U568

U167/

U568

575 DIE SET L575

576 DIE SET L576

578 292 DIE SET S292 P292 L292

579 DIE SET S579 P579 L579

587 DIE SET L47ART

607 DIE SET U607 U607 U607 U607 U607

608 DIE SET U608 U608 U608 U608 U608 608

609 DIE SET U609 U609 U609 U609 U609

627 DIE SET L627

642 DIE SET U642 U642 U642 U642 U642 L642

643 DIE SET U643 U643 U643 U643 U643

647DIE SET L45ART

648 DIE SET L648

654 DIE SET PURPLE U654 U654 U654 U654 U654 L654

655 13A DIE SET U655 U655 U655 U655 U655

658 DIE SET U658 U658 U658 U658 U658

659 DIE SET W659 U659 U659 U659 U659 U659

660 DIE SET W660 X-660 U660 U660 U660 U660 U660

667 DIE SET L667

668 DIE SET U668 U668 U668 U668 U668

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series.

Die 302 recommended for 1.84 O.D. barrel.

O-46

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y35

Y39 Y750



Y45



Y46

-Y60 Ser.

676 DIE SET U676 U676 U676 U676 U676

677 DIE SET U677 U677 U677 U677 U677 L677

678 DIE SET U678 U678 U678 U678 U678

679 DIE SET U679 U679 U679 U679 U679

684 DIE SET L684

687 DIE SET W687 X-687

690 1S DIE SET W690 U690 U690 U690 U690 U690

691 2S DIE SET W691 U691 U691 U691 U691 U691

692 4S DIE SET W692 U692 U692 U692 U692 U692

693 6A DIE SET W693 U693 U693 U693 U693 U693

694 10A DIE SET W694 U694 U694 U694 U694 U694

702 DIE SET W702

705 DIE SET U705 U705 U705 U705 U705

717DIE SET S717 P717 L717/

L717W

718DIE SET L718

719DIE SET S719 P719 L719/

L719W

720DIE SET S720 P720 L720/

L720W

721DIE SET L721

722DIE SET S722 P722 L722/

L722W

723DIE SET L723

724DIE SET S724 P724 L724/

L724W

725DIE SET S725 P725 L725/

L725W

726DIE SET L726

727DIE SET L727/

L727W

728DIE SET L728/

L728W

729DIE SET L729/

L729W

735DIE SET L735/

L735W

740DIE SET L740

786 DIE SET U786 U786 U786 U786 U786

788 DIE SET U788 U788 U788 U788 U788

789 DIE SET L789

9361 CRIMP DIE SET YELLOW U39ART-2 U39ART-2 U39ART-2 U39ART-2 U39ART-2 L39ART-2

997 DIE SET ORANGE U997 U997 U997 U997 U997

998 DIE SET PU998 S998 P998

999 DIE SET S999 P999

1011 DIE SET U1011 S1011 P1011

1012 DIE SET S1012

Cat. No. Y35P3 Adaptor is required to use “Y34PR” type

indentors with “U” type nest dies in Y35 and Y750 series.

Cat. No. PT6515 Adaptor is required to use “U” type dies

in Y45 series.

-Cat. No. PUADP-1 Adaptor is required to use “U” type

dies in Y46 series.

 Hexagonal crimp

O-47

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

PRESENT INSTALLATION TOOL INDEX (continued)

DIE DIELESS TOOLS INSTALLATION TOOLING USING DIES

GROOVE MECH. HYD. DIE INFORMATION MECHANICAL HYDRAULIC

BURNDY EEI MR, MY Y644 TYPE COLOR MD6 OUR840 Y35

Y39 Y750



Y45



Y46

-Y60 Ser.

1013 MY29-11 NEST UV8L UV8L UV8L UV8L UV8L

INDENTOR Y34PL Y34PL Y34PL Y34PL Y34PL

1014 MY29-11 NEST U6CD1 U6CD1 U6CD1 U6CD1 U6CD1

INDENTOR Y34PR Y34PR Y34PR Y34PR Y34PR

1015 MY29-11 NEST U4CD1 U4CD1 U4CD1 U4CD1 U4CD1

INDENTOR Y34PR Y34PR Y34PR Y34PR Y34PR

1016 MY29-11 NEST U3CD1 U3CD1 U3CD1 U3CD1 U3CD1

INDENTOR Y34PR Y34PR Y34PR Y34PR Y34PR

1017 MY29-11 NEST U2CD1 U2CD1 U2CD1 U2CD1 U2CD1

INDENTOR Y34PR Y34PR Y34PR Y34PR Y34PR

1018 MY29-11 NEST U1CD1 U1CD1 U1CD1 U1CD1 U1CD1

INDENTOR Y34PR Y34PR Y34PR Y34PR Y34PR

1019 MY29-11 NEST U25D1 U25D1 U25D1 U25D1 U25D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1020 MY29-11 NEST U26D1 U26D1 U26D1 U26D1 U26D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1021 MY29-11 NEST U27D1 U27D1 U27D1 U27D1 U27D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1022 MY29-11 NEST U28D1 U28D1 U28D1 U28D1 U28D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1023 MY29-11 NEST U29D1 U29D1 U29D1 U29D1 U29D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1024 NEST U30D1 U30D1 U30D1 U30D1 U30D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1025 NEST U31D1 U31D1 U31D1 U31D1 U31D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1026 NEST U32D1 U32D1 U32D1 U32D1 U32D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1027 NEST U34D1 U34D1 U34D1 U34D1 U34D1

INDENTOR Y34PR2 Y34PR2 Y34PR2 Y34PR2 Y34PR2

1028 NEST P36D

INDENTOR Y48PR1

1029 NEST P38D

INDENTOR P48PR1

1030 NEST P39D

INDENTOR P48PR1

1031 NEST P40D

INDENTOR P48PR1

1032 NEST P44D

INDENTOR P48PR1

1102 DIE SET WHITE P1102

1103 DIE SET BLUE P1103

1104 DIE SET BROWN U1104 P1104

1105 DIE SET U1105 P1105

2000 NEST U27B U27B U27B U27B

INDENTOR Y34PR15 Y34PR15 Y34PR15 Y34PR15

O-48

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

COLOR CODING FOR OVERHEAD CONNECTORS

Color Code Wire Dia. per Strand

Str. Compact Sol. ACSR

Brown 10 8

Green 8 6

Blue 5, 6 4 6

Orange 3, 4 #2 2 4

Red 1-19, 2 1/0 1 2

Yellow 1/0 2/0 1/0, 1

Gray 2/0 3/0 2/0

Black 3/0 4/0 3/0

Pink 4/0 266, 300 4/0

Red 250

White 266

Blue 300 350 266.8 (26/7, 18/1)

Brown 336

Green 350, 397, 400 336.4 (26/7, 18/1)

Gray 450

Pink 500 477 (18/1)

Green 556

Purple 600

Yellow 556.5 (24/7, 26/7)

Blue 650

Red 700

Yellow 750

Orange 800

White 900

Brown 1000

COLOR CODING FOR AL/CU CONNECTORS

Color Code Str. Color Code Str.

Blue 8 Blue 300

Gray 6 Brown 350

Green 4 Green 400

Pink 2 Pink 500

Gold 1 Black 600

Tan 1/0 Yellow 700/750

Olive 2/0 Red 700/750

Ruby 3/0 Brown 1000

White 4/0 Blue 1500

Red 250 Red 2000

NOTE: This chart is only intended as a

guide. For specific applications, refer to

the catalog page of the connector.

NOTE: This chart is only intended as a

guide. For specific applications, refer to

the catalog page of the connector.

O-49

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

COLOR CODING FOR COPPER LUGS AND SPLICES

Color Code Code Size Flex Cable

Str. Sol.

Red 8 6 8

Blue 6 6

Blue 5

Gray 4 4

White 3 2

Brown 2 2

Green 1 1

Pink 1/0 1/0

Black 2/0 2/0

Orange 3/0 3/0

Purple 4/0 4/0

Yellow 250 4/0 and 250

White 300 250

Red 350 313.1

Blue 400 373.7

Brown 500 444.4

Green 600

Pink 700 535.3

Purple 600

Black 750 646

Yellow 777.7

Orange 800

White 1000

Yellow 1111

Green 1500

Brown 2000

NOTE: This chart is only intended as a

guide. For specific applications, refer to

the catalog page of the connector.

O-50

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

BURNDY® REGISTERED AND TRADE NAMES

4-POINT®

BONDIT®

BURNDY®

BURNDYWeld®

ENFORCER®

GRIDMAX®

HYGROUND®

IMPLO®

INFINITY DRIVE®

IN-LINE®

PATRIOT®

SERVIT®

The SmartCart®

There is Only One IMPLO®

Connecting Power to Your World™

Registered Name Registered/Trade Name Catalog

Section

4-POINT®

ALFLUID™

BARTAP™

BONDIT®

BURNDYWeld®

CABELOK™

CLIPIT™

CRIMPIT™

DURIUM™

ENFORCER®

FASTAP™

FINGRIP™

FLEXITAP™

GRIDLOK™

GRIDMAX®

GROUNDLINK™

GROUNDMAX™

HYCRAB™

HYCRIMP™

HYDENT™

HYFLUID™

HYGRID™

HYGROUND®

HYLINK™

HYLUG™

HYPLUG™

HYPRESS™

HYREDUCER™

HYSEALPLUG™

HYSEALUG™

HYSPLICE™

HYSTACK™

HYTAIL™

HYTAP™

HYTEE™

HYTOOL™

IMPLO®

INFINITY DRIVE®

IN-LINE®

INSULUG™

KA-LUG™

KOMPRESSOR™

L’IL CRIMP™

LINEMAN ASSIST™

LOKTAP™

MOLE™

MOLIMITER™

NOTAPE™

OKLIP™

OKLIP™

N

N

A, E, L

E

E

H

H

C, E, H

D

N

H

B

A

E

E

E

E

K

H

B, C

N

E

E

B, C, E

B, C, E, H

C, H

N

B, C, K

H

H

C, H

C

E

C, E

H

N

I

N

N

B

A

N

N

H

H

A, K

K

K

A

H

PATRIOT®

PENETROX™

POLYTAP™

POPPER™

POSI-PRESS™

POWERLUG™

QIKLINK™

QIKLITE®

QIKLUG™

QIKTAP™

SCRULUG™

SERVIT POST™

SERVIT®

SPEC-BLOK™

STIRRUP™

STIRRUP™

STUDBUG™

SUPER-CLAMP™

TAPIT™

The SmartCart®

TRITAP™

U-BLOK™

UNIGROUND™

UNIRAP™

UNISPLICE™

UNITAP™

VARILUG™

VARITAP™

VERSILUG™

VERSIPOLE™

VERSITAIL™

VERSITAP™

VINYLUG™

VISEIT™

VISI-SHRINK™

WEEB™

WEJTAP™

WIREMIKE™

N

F

A

N

N

J

A

E

A, E

B

A

E

A, H

A

H

J

E

E

H

N

A

A

E

G

H

A

L

A

A

A

E

A, H

B

H

F

E

J

N

Registered/Trade Name Catalog

Section

O-51

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

O-52

ALPHA-NUMERIC INDEX BY CATALOG NUMBER

Catalog Number Page #

15

25

32

45

65

90

115

150

200

250

500

1050

1051

1052

1053

1054

1056

1057

1058

1059

1060

1061

1062

1063

1064

1065

1066

1067

1070

1072

1073

1074

1075

1076

1077

1079

1080

1083

1084

1085

1086

1090

1093

1094

1095

1103

1112

1113

1114

1117

1118

1120

1121

1123

1124

1131

1133

1138

1139

1140

1141

1142

1143

1144

1146

1149

1150

1157

1158

1165

1166

1167

1169

1170

1171

1174

1179

1181

1182

1190

1903

1904

1906

1923

1930

1931

1978

1990

1991

1993

1994

1995

1997

1998

2050

2051

2052

2053

2054

2056

2057

2058

2059

2060

2061

2062

2063

2064

2065

2066

2067

2070

2072

2073

2074

2075

2076

2077

2079

2080

2083

2084

2085

2086

2090

2093

2094

2095

2103

2112

2113

2114

2117

2118

2120

2121

2123

2124

2131

2133

2138

2139

2140

2141

2142

2143

2144

2146

2149

2150

2157

2158

2165

2166

2167

2169

2170

2171

2174

2179

2181

2182

2190

2903

2904

2906

2923

2978

2990

2991

2993

2994

2995

2997

2998

3050

3051

3053

3054

3056

3057

3058

3059

3060

3061

3062

3063

3064

3065

3066

3067

3070

3072

3073

3074

3075

3076

3077

3079

3080

3083

3084

3085

3086

3090

3093

3094

3095

3103

3112

3113

3114

3117

3118

3120

3121

3123

3124

3131

3133

3138

3139

3140

3141

3142

3143

3144

3146

3149

3150

3157

3158

3165

3166

3167

3169

3170

3171

3174

3179

3181

3182

3190

9050

9051

9052

9053

9054

9056

9057

9058

9059

9060

9061

9062

9063

9064

9065

9066

9067

E-74

E-74

E-74

E-74

E-74

E-74

E-74

E-74

E-74

E-74

E-74

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-59

I-59

I-55

I-59

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-56

I-56

I-56

I-56

I-59

I-59

I-59

I-59

I-59

I-59

I-56

I-59

I-59

I-59

I-59

I-59

I-59

I-59

I-56

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-59

I-59

I-55

I-59

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-56

I-56

I-56

I-56

I-59

I-59

I-59

I-59

I-59

I-59

I-56

I-59

I-59

I-59

I-59

I-59

I-59

I-59

I-56

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-60

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-59

I-59

I-55

I-59

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-56

I-56

I-56

I-56

I-59

I-59

I-59

I-59

I-59

I-59

I-56

I-59

I-59

I-59

I-59

I-59

I-59

I-59

I-56

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

I-54

Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

O-53

9070

9072

9073

9074

9075

9076

9077

9079

9080

9083

9084

9085

9086

9090

9093

9094

9095

9103

9112

9113

9114

9117

9118

9120

9121

9123

9124

9131

9133

9138

9139

9140

9141

9142

9143

9144

9146

9149

9150

9157

9158

9165

9166

9167

9169

9170

9171

9174

9179

9181

9182

9190

1050/ACSS

1050/ACSS/TW

1050/I

1051/ACSS

1051/ACSS/TW

1052/ACSS

1052/ACSS/TW

1053/ACSS

1053/ACSS/TW

1054/ACSS

1054/ACSS/TW

1056/ACSS

1056/ACSS/TW

1057/ACSS

1057/ACSS/TW

1059/ACSS

1059/ACSS/TW

1060/ACSS

1060/ACSS/TW

1061/ACSS

1061/ACSS/TW

1062/ACSS

1062/ACSS/TW

1063/ACSS

1063/ACSS/TW

1065/ACSS

1065/ACSS/TW

1066/ACSS

1066/ACSS/TW

1067/ACSS

1067/ACSS/TW

1070/ACSS

1070/ACSS/TW

1072/ACSS

1072/ACSS/TW

1073/ACSS

1073/ACSS/TW

1074/ACSS

1074/ACSS/TW

1075/ACSS

1075/ACSS/TW

1076/ACSS

1076/ACSS/TW

115CI

115Q

1165-NZ

122EMT

122IMC

122PVC

122RIG

145PTAG

150Q

15CI

15CP

15Q

1PBS1/0

1PBS2

1PBS250

1PBS350

1PBS500

1PL2/02

1PL2/03

1PL2502

1PL2503

1PL3502

1PL42

1PL43

1PL44

1PL6002

1PLD2/02

1PLD2/03

1PLD2/04

1PLD2/06

1PLD2502

1PLD2503

1PLD2504

1PLD2506

1PLD3502

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

I-54

I-54

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-59

I-59

I-55

I-59

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-55

I-56

I-56

I-56

I-56

I-59

I-59

I-59

I-59

I-59

I-59

I-56

I-59

I-59

I-59

I-59

I-59

I-59

I-59

I-56

I-57

I-58

I-54

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

E-74

E-71

I-59

N-121

N-121

N-121

N-121

G-11

E-71

E-74

E-74

E-71

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

1PLD3503

1PLD3504

1PLD3506

1PLD3508

1PLD43

1PLD44

1PLD6002

1PLD6003

1PLD6004

1PLD6005

1PLD6006

1PLD6008

1PLO2/02

1PLO2502

1PLO3502

1PLO42

1PLO6002

200Q

2050/ACSS

2050/ACSS/TW

2050/I

2051/ACSS

2051/ACSS/TW

2052/ACSS

2052/ACSS/TW

2053/ACSS

2053/ACSS/TW

2054/ACSS

2054/ACSS/TW

2056/ACSS

2056/ACSS/TW

2057/ACSS

2057/ACSS/TW

2059/ACSS

2059/ACSS/TW

2060/ACSS

2060/ACSS/TW

2061/ACSS

2061/ACSS/TW

2062/ACSS

2062/ACSS/TW

2063/ACSS

2063/ACSS/TW

2065/ACSS

2065/ACSS/TW

2066/ACSS

2066/ACSS/TW

2067/ACSS

2067/ACSS/TW

2070/ACSS

2070/ACSS/TW

2072/ACSS

2072/ACSS/TW

2073/ACSS

2073/ACSS/TW

2074/ACSS

2074/ACSS/TW

2075/ACSS

2075/ACSS/TW

2076/ACSS

2076/ACSS/TW

2165-NZ

250Q

25CHENBOX

25CI

25CP

25FWBOX

25FWSS

25HSSN

25NWBOX

25Q

25SWBOX

25SWSSLT

25x100HEBBOX

25x125HEBBOX

25x150HEBBOX

25x200HEBBOX

25x250HEBBOX

25x300HEBBOX

25x50HEBBOX

25x62HEBBOX

25x75HEBBOX

3050/ACSS

3050/ACSS/TW

3051/ACSS

3051/ACSS/TW

3052/ACSS

3052/ACSS/TW

3053/ACSS

3053/ACSS/TW

3054/ACSS

3054/ACSS/TW

3056/ACSS

3056/ACSS/TW

3057/ACSS

3057/ACSS/TW

3059/ACSS

3059/ACSS/TW

3060/ACSS

3060/ACSS/TW

3061/ACSS

3061/ACSS/TW

3062/ACSS

3062/ACSS/TW

3063/ACSS

3063/ACSS/TW

3065/ACSS

3065/ACSS/TW

3066/ACSS

3066/ACSS/TW

3067/ACSS

3067/ACSS/TW

3070/ACSS

3070/ACSS/TW

3072/ACSS

3072/ACSS/TW

3073/ACSS

3073/ACSS/TW

3074/ACSS

3074/ACSS/TW

3075/ACSS

3075/ACSS/TW

3076/ACSS

3076/ACSS/TW

3165-NZ

31CHENBOX

31CHGSN

31FWBOX

31NWBOX

31SWBOX

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

A-60

E-71

I-57

I-58

I-54

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-59

E-71

D-3

E-74

E-74

D-3

D-6

D-6

D-3

E-71

D-3

D-6

D-2

D-2

D-2

D-2

D-2

D-2

D-2

D-2

D-2

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-59

D-3

D-5

D-3

D-3

D-3

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

O-54

31x100HEBBOX

31x125HEBBOX

31x150HEBBOX

31x175HEBBOX

31x200HEBBOX

31x250HEBBOX

31x300HEBBOX

31x50HEBBOX

31x62HEBBOX

31x75HEBBOX

32CI

32CP

32Q

38CHENBOX

38FWBOX

38FWSS

38HGSN

38HGSN009

38HSSN

38NWBOX

38NWGS

38SWBOX

38SWSSMD

38x100HEBBOX

38x125HEBBOX

38x125HGSB

38X125HSSB

38x150HEBBOX

38x175HEBBOX

38x200HEBBOX

38x225HEBBOX

38x225HGSB

38x225HSSB

38x250HEBBOX

38x250HSSB

38x275HEBBOX

38x275HGSB

38x275HSSB

38x300HEBBOX

38x325HEBBOX

38x350HEBBOX

38x400HEBBOX

38x450HEBBOX

38x500HEBBOX

38x50HEBBOX

38x62HEBBOX

38x75BWSS

38x75HEBBOX

38x81FWGS

38x88HEBBOX

3S

3U

44CHENBOX

44FWBOX

44NWBOX

44SWBOX

44x150HEBBOX

44x200HEBBOX

45CI

45CP

45Q

4S

4U

500Q

50CHENBOX

50FWABOX

50FWBOX

50FWSS

50HANBOX

50HGSN

50HSSN

50NWBOX

50NWGS

50SWALBOX

50SWBOX

50SWSSMD

50x100HEBBOX

50x100HGSB

50x106BWSS

50x106FWGS

50x125HEBBOX

50x150HABBOX

50x150HEBBOX

50x150HGSB

50x175HABBOX

50x175HEBBOX

50x200HABBOX

50x200HEBBOX

50x200HGSB

50x200HSSB

50x225HABBOX

50x225HEBBOX

50x250HABBOX

50x250HEBBOX

50x250HSSB

50x275HABBOX

50x275HEBBOX

50x300HABBOX

50x300HEBBOX

50x300HSSB

50x325HABBOX

50x325HEBBOX

50x350HABBOX

50x350HEBBOX

50x375HABBOX

50x375HEBBOX

50x400HABBOX

50x400HEBBOX

50x425HABBOX

50x450HABBOX

50x450HEBBOX

50x500HABBOX

50x500HEBBOX

50x550HABBOX

50x550HEBBOX

50x600HEBBOX

50x75HEBBOX

5600-1020

5600-1020D

5600-1022

5600-1022D

5600-1026

5600-1026D

5600-1028

5600-1028D

5600-1030

5600-1030D

5600-1032

5600-1032D

5600-1040

5600-1040D

5600-1042

5600-1042D

5600-1044

5600-1044D

5600-1050

5600-1050D

5600-1052

5600-1052D

5600-1054

5600-1054D

5600-1056

5600-1056D

5600-1058

5600-1058D

5600-1060

5600-1060D

5600-1062

5600-1062D

5600-1064

5600-1064D

5600-1066

5600-1066D

5600-1070

5600-1070D

5600-1072

5600-1074

5600-1074D

5600-1076

5600-1076D

5600-1078

5600-1078D

5600-1079

5600-1079D

5600-1080

5600-1080D

5600-1082

5600-1082D

5600-2020

5600-2022

5600-2026

5600-2028

5600-2030

5600-2032

5600-2040

5600-2042

5600-2044

5600-2050

5600-2052

5600-2054

5600-2056

5600-2058

5600-2060

5600-2062

5600-2064

5600-2066

5600-2070

5600-2072

5600-2074

5600-2076

5600-2078

5600-2079

5600-2080

5600-2082

62CHENBOX

62FWABOX

62FWBOX

62FWSS

62HANBOX

62HGSN

62HSSN

62NWBOX

62NWGS

62SWALBOX

62SWBOX

62SWSSMD

62x100HEBBOX

62X100HGSB

62x125HEBBOX

62x150HEBBOX

62x175HABBOX

62x175HEBBOX

62x175HGSB

62x200HABBOX

62x200HEBBOX

62x225HABBOX

62x225HEBBOX

62x250HABBOX

62x250HEBBOX

62x275HEBBOX

62x300HABBOX

62x300HEBBOX

62x300HSSB

62x325HEBBOX

62x350HABBOX

62x350HEBBOX

62x400HABBOX

62x400HEBBOX

62x450HABBOX

62x450HEBBOX

62x500HABBOX

62x500HEBBOX

62x550HABBOX

62x600HABBOX

62x600HEBBOX

65CI

65CP

65Q

75NWGS

75X125HGSB

9050/ACSS

9050/ACSS/TW

9051/ACSS

9051/ACSS/TW

9052/ACSS

9052/ACSS/TW

9053/ACSS

9053/ACSS/TW

9054/ACSS

9054/ACSS/TW

9056/ACSS

9056/ACSS/TW

9057/ACSS

9057/ACSS/TW

9059/ACSS

9059/ACSS/TW

9060/ACSS

9060/ACSS/TW

9061/ACSS

9061/ACSS/TW

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

D-2

D-2

D-2

D-2

D-2

D-2

D-2

D-2

D-2

D-2

E-74

E-74

E-71

D-3

D-3

D-6

D-5

D-5

D-6

D-3

D-5

D-3

D-6

D-2

D-2

D-5

D-6

D-2

D-2

D-2

D-2

D-5

D-6

D-2

D-6

D-2

D-5

D-6

D-2

D-2

D-2

D-2

D-2

D-2

D-2

D-2

D-7

D-2

D-5

D-2

A-41

A-41

D-3

D-3

D-3

D-3

D-2

D-2

E-74

E-74

E-71

A-41

A-41

E-71

D-3

D-4

D-3

D-6

D-4

D-5

D-6

D-3

D-5

D-4

D-3

D-6

D-2

D-5

D-7

D-5

D-2

D-4

D-2

D-5

D-4

D-2

D-4

D-2

D-5

D-6

D-4

D-2

D-4

D-2

D-6

D-4

D-2

D-4

D-2

D-6

D-4

D-2

D-4

D-2

D-4

D-2

D-4

D-2

D-4

D-4

D-2

D-4

D-2

D-4

D-2

D-2

D-2

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-47

I-48

I-48

I-47

I-47

I-47

I-47

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-48

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

I-49

D-3

D-4

D-3

D-6

D-4

D-5

D-6

D-3

D-5

D-4

D-3

D-6

D-2

D-5

D-2

D-2

D-4

D-2

D-5

D-4

D-2

D-4

D-2

D-4

D-2

D-2

D-4

D-2

D-6

D-2

D-4

D-2

D-4

D-2

D-4

D-2

D-4

D-2

D-4

D-4

D-2

E-74

E-74

E-71

D-5

D-5

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

O-55

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

9062/ACSS

9062/ACSS/TW

9063/ACSS

9063/ACSS/TW

9065/ACSS

9065/ACSS/TW

9066/ACSS

9066/ACSS/TW

9067/ACSS

9067/ACSS/TW

9070/ACSS

9070/ACSS/TW

9072/ACSS

9072/ACSS/TW

9073/ACSS

9073/ACSS/TW

9074/ACSS

9074/ACSS/TW

9075/ACSS

9075/ACSS/TW

9076/ACSS

9076/ACSS/TW

90CI

90Q

9165-NZ

AGSKIT2

AGSKIT250

ALFLUIDGAL

ALFLUIDQT

AMS-0

AMS-1000

AMS-2

AMS-250

AMS-350

AMS-4/0

AMS-500

AMS-750

ASA1000U

ASA250U

ASA800U

AYP1

AYP1/0

AYP2

AYP250

AYP350

AYP4

AYP500

AYP6

AYP750

AYPO2/0

AYPO250

AYPO3/0

AYPO300

AYPO350

AYPO4/0

AYPO400

AYPO500

AYPO600

AYPO750

B-106

B106-32

B106-37

B106-41

B-107

B107-32

B-1208

B-1212

B-1215

B-1216

B-1218

B-1219

B-1220

B-1221

B-1222

B-1223

B-1224

B-1225-H

B-1226-H

B-1228-H

B-1270

B-1271

B-1272

B-1273

B-1274

B-1275

B-1276

B-1277

B-1278

B-1279

B-1280

B-1281

B-1282

B-1283

B-1284

B-1285

B-1286

B-1287

B-1288

B-1289

B-1290

B-1291

B-1292

B-1293

B-1294

B-1295

B-1296

B-1297

B-1298

B-1299

B12E

B-1300

B-1301

B-1302

B-1303

B-1304

B-1305

B-1306

B-1307

B-1308

B-1309

B-1310

B-1311

B-1313

B-1314

B-1315

B-1316

B-1317

B-1318

B-1319

B-1320

B-1321

B-1322

B-1323

B-1324

B-1325

B-1326

B-1327

B-1328

B-1329

B-1330

B-1331

B-1332

B-1333

B-1334

B-1335

B-1336

B-1581

B-1582

B-1583

B-1584

B-1586

B-1587

B-1588

B-1589

B-1593

B-1594

B-1595

B-1596

B-1597

B-1601

B-1602

B-1603

B-1604

B-1605

B-1606

B-1610

B-1611

B-1613

B-1614

B-1615

B-1616

B-1617

B-1618

B-1619

B-1620

B-1626

B-1627

B-1628

B-1629

B-1630

B-1631

B-1632

B-1633

B-1634

B-1635

B-1636

B-1637

B-1638

B-1639

B-1640

B-1641

B-1642

B1643

B-1644

B-1645

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

I-57

I-58

E-74

E-71

I-59

A-33

A-33

N-97

N-97

A-32

A-32

A-32

A-32

A-32

A-32

A-32

A-32

C-142

C-142

C-142

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

C-149

E-101

E-102

E-102

E-102

E-101

E-102

E-80

E-85

E-90

E-90

E-90

E-90

E-90

E-90

E-90

E-90

E-90

E-90

E-90

E-90

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

N-120

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-79

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-92

E-92

E-92

E-92

E-92

E-92

E-92

E-92

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

E-91

B-1646

B-1648

B-1649

B-1650

B1E34R

B-205

B-206

B-207

B-208

B-2084

B-209

B-210

B-211

B-213

B-214

B-215

B2154

B-2155

B-2156

B-2157

B-2158

B-2159

B-2160

B-2161

B-2162

B-2163

B-2164

B-2165

B-2189

B-2199

B-2200

B-221

B-223

B-2235

B-224

B-225

B-226

B-227

B-228

B-229

B-230

B-231

B-232

B-2320

B-234

B-235

B-236

B-237

B-238

B-239

B-240

B-241

B-242

B-243

B-244

B-245

B-2450

B-246

B-247

B-2476

B-2477

B-2478

B-248

B-2480

B-2480-S

E-91

E-91

E-91

E-91

N-120

E-75

E-75

E-75

E-75

E-85

E-75

E-75

E-75

E-75

E-75

E-75

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-83

E-90

E-87

E-87

E-76

E-76

E-85

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-85

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-85

E-76

E-76

E-89

E-89

E-89

E-76

E-89

E-89

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

O-56

B-2482

B-2483

B-2484

B-2486

B-2487

B-2488

B-249

B-2490

B-2491

B-2493

B-2494

B-2495

B-2497

B-2498

B-250

B-2506

B-2507

B-2509

B-251

B-2510

B-2511

B-252

B-253

B-254

B-2540

B-2542

B-255

B-2558

B-256

B-2566

B-2567

B-2568

B-257

B-258

B-2583

B-2583-S

B-259

B-260

B-261

B-262

B-263

B-264

B-265

B-266

B-267

B-268

B-2687

B-2689

B-269

B-2690

B-2691

B-2692

B-2693

B-2694

B-2695

B-2696

B-2697

B-2698

B-2699

B-270

B-2700

B-2701

B-2702

B-2703

B-2704

B-2705

B-2706

B-2707

B-2708

B-2709

B-2710

B-2711

B-2712

B-2713

B-2714

B-2715

B-2716

B-2717

B-2718

B-2719

B-2747

B-2751

B-2752

B-2753

B-2754

B-2755

B-2756

B-2757

B-2761

B-2781

B-280

B-282

B-283

B-284

B-285

B-286

B-287

B-288

B-289

B-290

B-291

B-293

B-294

B-295

B-296

B-297

B-298

B2D12

B2D12N

B2E12

B2E12N

B2F12

B2F12N

B2G12N

B-333

B34E12R

B370320-01

B370320-02

B370320-03

B38-0101-00

B38-0135-01

B38-0302-00

B38-0302-02

B38-0303-00

B38-0304-00

B38-0305-00

B38-0306-00

B38-0307-00

B38-0308-00

B38-0309-00

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

E-89

E-89

E-89

E-89

E-89

E-89

E-76

E-89

E-89

E-89

E-89

E-89

E-89

E-89

E-76

E-87

E-87

E-87

E-76

E-85

E-87

E-76

E-76

E-76

E-90

E-87

E-76

E-85

E-76

E-84

E-92

E-92

E-76

E-76

E-89

E-89

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-78

E-78

E-76

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-76

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-78

E-92

E-90

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-76

E-56

E-56

E-56

E-56

E-56

E-56

E-56

E-76

N-120

E-74

E-74

E-74

E-104

E-103

E-104

E-104

E-104

E-104

E-104

E-103, E-104

E-104

E-104

E-104

B38-0315-00

B38-0330-00

B38-3662-01

B38-3662-02

B38-3662-03

B38-3662-04

B38-3662-05

B38-3662-06

B38-3922-00

B38412900

B38412905

B3D12

B3D12N

B3E12

B3E12N

B3F12

B3F12N

B3G12

B3G12N

B40-0106-75

B40-0106-76

B40-0106-77

B40-0106-78

B40-0319-01

B40-0319-03

B40-3657-00

B40-4431-00

B-423

B-424

B-425

B-426

B-427

B-428

B-429

B-430

B-431

B-432

B-433

B-434

B-435

B-436

B-437

B-438

B-439

B-440

B-441

B-442

B-443

B-444

B-445

B-446

B-447

B-448

B-449

B-450

B-451

B-452

B-453

B-454

B-455

B-456

B-457

B-458

B-459

B-460

B-461

B-462

B-463

B-464

B-465

B-466

B-467

B-468

B-469

B-470

B-471

B-472

B-483

B-485

B-486

B-487

B-488

B-489

B-490

B-491

B-492

B-493

B-495

B-496

B-497

B-498

B-499

B4D12

B4D12N

B4E12

B4E12N

B4F12

B4F12N

B4G12N

B-500

B-501

B-502

B-5021

B-503

B-504

B-505

B-506

B-5065

B-507

B-508

B-509

B-510

B-511

B-513

B-5294

B-5321

B-5330

B-5331

B-5332

B-5333

B-5334

B-5335

B-5336

B-5337

B-5338

B-5340

B-5341

B-5342

B-5351

B-5352

E-103

E-103

E-105

E-105

E-105

E-105

E-105

E-105

E-103, E-104

E-103

E-103

E-56

E-56

E-56

E-56

E-56

E-56

E-56

E-56

E-101

E-102

E-102

E-102

E-103

E-103

E-101

E-102

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-77

E-81

E-81

E-81

E-81

E-81

E-56

E-56

E-56

E-56

E-56

E-56

E-56

E-81

E-81

E-81

E-76

E-81

E-81

E-81

E-81

E-88

E-81

E-81

E-81

E-81

E-81

E-81

E-84

E-83

E-85

E-88

E-85

E-85

E-85

E-85

E-85

E-85

E-85

E-80

E-85

E-80

E-85

E-85

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

O-57

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

B-5353

B-5359

B-5361

B-5362

B-5363

B-537

B-538

B-5380

B-5389

B-539

B-5390

B-540

B-541

B-5416

B-5419

B-542

B-5428

B-543

B-5432

B-544

B-545

B-546

B-547

B-5475

B-548

B-549

B-550

B-551

B-5513

B-5515

B-5517

B-552

B-553

B-555

B-5555

B-5556

B-556

B-5560

B-5561

B-557

B-5573

B-5574

B-558

B-559

B-560

B-5604

B-561

B-5618

B-562

B-5623

B-5624

B-5625

B-5626

B-5627

B-5629

B-563

B-5630

B-5631

B-5632

B-5634

B-5635

B-5636

B-5637

B-5638

B-5639

E-85

E-90

E-90

E-90

E-90

E-82

E-82

E-84

E-90

E-82

E-84

E-82

E-82

E-84

E-92

E-82

E-85

E-82

E-78

E-82

E-82

E-82

E-82

E-76

E-82

E-82

E-82

E-82

E-84

E-84

E-85

E-82

E-82

E-82

E-84

E-84

E-82

E-85

E-84

E-82

E-85

E-76

E-82

E-82

E-82

E-85

E-82

E-79

E-82

E-75

E-75

E-75

E-75

E-80

E-80

E-82

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

E-80

B-564

B-5640

B-5642

B-5644

B-5645

B-5652

B-5659

B-566

B-5660

B-5667

B-5668

B-567

B-5676

B-5677

B-5679

B-5680

B-5682

B-5684

B-5686

B-5688

B-569

B-5698

B-5699

B-570

B-5702

B-5709

B-571

B-572

B-5722

B-573

B-5732

B-5734

B-5738

B-574

B-5746

B-575

B-5767

B-577

B-5777

B-578

B-579

B-5803

B-5807

B-5820

B-5821

B-5830

B-5833

B-585

B-5850

B-5857

B-586

B-587

B-5877

B-588

B-588-S

B-589

B-590

B-5904

B-591

B-5910

B-592

B-593

B-5935

B-594

B-5940

B-5943

B-595

B-596

B-5961

B-5963

B-5972

B-598

B-599

B-5992

B-600

B-6002

B-6003

B-602

B-6025

B-603

B-604

B-6046

B-6048

B-605

B-6051

B-6060

B-6061

B-6067

B-6072

B-6114

B-616

B-6165

B-617

B-618

B-619

B-620

B-6208

B-621

B-622

B-624

B-625-H

B-626-H

B-628

B-629

B-630

B-631

B-644

B-645

B-646

B-647

B-648

B-649

B-650

B-652

B-653

B-654

B-6552

B-6630

B-6766

B-6906

B-7075

B-7146

B-7192

B-7500

B-7501

B-7502

B-7503

B-7504

B-7505

B-7506

B-7507

B-7508

B-7509

B-7510

B-7511

B-7512

B-7513

B-7514

B-7515

B-7520

B-7521

B-7522

B-7523

B-7528

B-7529

B-7530

B-7531

B-7588

B-7589

B-7590

B-7591

B-7592

B-7593

B-7594

B-7595

B-7596

B-7597

B-7598

B-7599

B-7600

B-7601

B-7602

B-7603

B-7604

B-7605

B-7606

B-7607

B-7608

B-7609

B-7610

B-7611

B-7612

B-7613

B-7614

B-7615

B-7616

B-7617

B-7618

B-7619

B-7620

B-7621

B-7622

B-7623

B-7624

B-7625

B-7626

B-7627

B-7628

B-7629

B-7630

B-7631

B-7632

B-7633

B-7634

B-7635

E-82

E-85

E-80

E-80

E-80

E-80

E-80

E-82

E-83

E-85

E-80

E-82

E-80

E-85

E-80

E-80

E-80

E-80

E-80

E-80

E-82

E-84

E-84

E-82

E-85

E-79

E-82

E-82

E-84

E-82

E-84

E-84

E-84

E-82

E-84

E-82

E-85

E-82

E-84

E-82

E-82

E-84

E-84

E-84

E-84

E-84

E-84

E-89

E-84

E-84

E-89

E-89

E-84

E-89

E-89

E-89

E-89

E-84

E-89

E-92

E-89

E-89

E-84

E-89

E-84

E-80

E-89

E-89

E-84

E-84

E-84

E-89

E-89

E-84

E-89

E-85

E-84

E-88

E-84

E-88

E-88

E-80

E-84

E-88

E-85

E-92

E-92

E-92

E-92

E-87

E-88

E-84

E-88

E-88

E-88

E-88

E-85

E-88

E-88

E-88

E-88

E-88

E-87

E-87

E-87

E-87

E-87

E-87

E-87

E-87

E-87

E-87

E-87

E-87

E-87

E-87

E-80

E-83

E-85

E-83

E-87

E-87

E-88

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-93

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-94

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

O-58

B-7636

B-7637

B-7638

B-7639

B-7640

B-7641

B-7642

B-7643

B-7644

B-7645

B-7646

B-7647

B-7648

B-7649

B-7650

B-7651

B-7652

B-7653

B-7654

B-7655

B-7656

B-7657

B-7658

B-7659

B-7708

B-7709

B-7710

B-7711

B-7712

B-7713

B-7714

B-7715

B-7716

B-7717

B-7718

B-7719

B-7720

B-7721

B-7722

B-7723

B-7724

B-7725

B-7726

B-7727

B-7728

B-7729

B-7730

B-7731

B-7732

B-7733

B-7734

B-7735

B-7736

B-7737

B-7738

B-7739

B-7884

B-7885

B-7886

B-7887

B-7888

B-7889

B-7890

B-7891

B-7892

B-7893

B-7894

B-7895

B-7896

B-7897

B-7898

B-7899

B-7900

B-7901

B-7902

B-7903

B-7904

B-7905

B-7906

B-7907

B-7908

B-7909

B-7910

B-7911

B-7912

B-7913

B-7914

B-7915

B-7916

B-7917

B-7918

B-7919

B-7920

B-7921

B-7922

B-7923

B-8011

B-8027

B-8165

B-8214

B-8294

B-8359

B-8379

B-8381

B-8402

B-8403

B-8410

B-8413

B-8414

B-8415

B-8423

B-8428

B-8434

B-8435

B-8441

B-8442

B-8451

B-8452

B-8454

B-8461

B-8512

B-8718

B-8726

B-8802

B-8833

B-8882

B-9021

B-9029

B-9233

B-9233-S

B-9253

BA10E10M

BA10E14M

BA10E38M

BA10E516

BA10E6M

BA10E8M

BA10EF10

BA10EF10M

BA10EF6

BA10EF6M

BA10EF8

BA10EF8M

BA10EL10

BA10EL10M

BA10EL6

BA10EL6M

BA10EL8

BA10EL8M

BA10EZ10

BA10EZ6

BA10EZ8

BA14E10M

BA14E14M

BA14E38

BA14E4M

BA14E516M

BA14E6L

BA14E6LM

BA14E6M

BA14E8M

BA14EF10

BA14EF10M

BA14EF2

BA14EF6

BA14EF8

BA14EF8M

BA14EL10

BA14EL10M

BA14EL8

BA14EL8M

BA14EZ10

BA14EZ2

BA14EZ6

BA14EZ8

BA16E10M

BA16E14M

BA16E38M

BA16E4M

BA16E6M

BA16E8M

BA16EF10

BA16EF10M

BA16EF2

BA16EF2M

BA16EF6

BA16EF6M

BA16EF8

BA16EF8M

BA16EL10

BA16EL10M

BA16EL6

BA16EL6M

BA16EL8

BA16EL8M

BA16EZ10

BA16EZ2

BA16EZ6

BA16EZ8

BA-200

BA-201

BA-202

BA-203

BA-204

BA-205

BA-207

BA-208

BA-209

BA-211

BA-212

BA-213

BA-214

BA-215

BA-240

BAT14V

BAT18V

BAT18VLI

BB024L

BB024L6T14

BB024L9T14

BB048L

BB048L6T14

BB048L9T14

BB067L

BB067L6T14

BB067L9T14

BB077L

BB154L

BB226L

BB300L

BBB-14210A

BBB-14224B

BBB-14410C

BBB-14410D

BBB-14412E

BBB-14412F

BBB-14416G

BBB-14416H

BBB-14420J

BBB412UD

BBB-424-UD

BBB-HR19

BBB-VR36

BC25

BC28

BC2C

BCC1000CUAL

BCCBAT12V

BCCCASE

BCCCHGR

BCH1211

BCM5

BCT/PATCHGR-LIDC

BCT/PATDCCHGR

BD12

BD12N

BD18

BD18N

BD24

BD24N

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-95

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-96

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-97

E-85

E-85

E-90

E-85

E-85

E-92

E-88

E-88

E-81

E-81

E-88

E-88

E-81

E-81

E-88

E-85

E-82

E-82

E-82

E-82

E-85

E-82

E-82

E-85

E-90

E-90

E-85

E-85

E-89

E-80

E-89

E-90

E-89

E-89

E-92

B-8

B-8

B-8

B-8

B-8

B-8

B-28

B-28

B-28

B-28

B-28

B-28

B-33

B-33

B-33

B-33

B-33

B-33

B-42

B-42

B-42

B-8

B-8

B-8

B-8

B-8

B-33

B-33

B-8

B-8

B-28

B-28

B-28

B-28

B-28

B-28

B-33

B-33

B-33

B-33

B-42

B-42

B-42

B-42

B-8

B-8

B-8

B-8

B-8

B-8

B-28

B-28

B-28

B-28

B-28

B-28

B-28

B-28

B-33

B-33

B-33

B-33

B-33

B-33

B-42

B-42

B-42

B-42

E-105

E-105

E-105

E-105

E-105

E-105

E-105

E-105

E-105

E-105

E-105

E-105

E-105

E-105

E-105

N-24, N-79

N-10, N-20, N-73

N-9, N-21, N-72

E-52

E-54

E-54

E-52

E-54

E-54

E-52

E-54

E-54

E-52

E-52

E-52

E-52

E-68

E-68

E-68

E-68

E-68

E-68

E-68

E-68

E-68

E-68

E-68

E-68

E-68

H-69

H-69

H-69

N-80

N-80

N-80

N-80

N-117, N-119

N-117, N-119

N-76

N-10, N-20, N-71

E-55

E-55

E-55

E-55

E-55

E-55

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

O-59

BD6T14

BD9T14

BDA-11-2/0-1

BDA-112-350

BDA-11-500

BDA-14-2/0-1

BDA-16-350

BDA-16-500

BDA-212-500

BDA-22-350

BDA-22-500

BDA-24-500

BDA-26-350

BDA-26-500

BDALHC112350

BDALHC11500

BDALHC16350

BDALHC16500

BDALHC212500

BDALHC22350

BDALHC22500

BDALHC22600

BDALHC24500

BDALHC26350

BDALHC26500

BDALHCEB

BDAMHC112/0

BDAMHC11350

BDAMHC14500

BDAMHC162/0

BDAMHC162500

BDAMHC222/0

BDAMHC262/0

BDAMHCEB

BDASHC112/01

BDASHC142/01

BDASHCEB

BDB-11-2/0-1

BDB-11-2/0-2

BDB-11-2/0-3

BDB-112-350-1

BDB-112-350-2

BDB-112-350-3

BDB-11-350-1

BDB-11-350-2

BDB-11-350-3

BDB-11-500-1

BDB-11-500-2

BDB-11-500-3

BDB-14-500-1

BDB-14-500-2

BDB-14-500-3

BDB-16-2/0-1

BDB-16-2/0-2

BDB-16-2/0-3

BDB-162-500-1

BDB-162-500-2

BDB-162-500-3

BDB-16-350-1

BDB-16-350-2

BDB-16-350-3

BDB-16-500-1

BDB-16-500-2

BDB-16-500-3

BDB-212-500-1

BDB-212-500-2

BDB-212-500-3

BDB-22-2/0-1

BDB-22-2/0-2

BDB-22-2/0-3

BDB-22-350-1

BDB-22-350-2

BDB-22-350-3

BDB-22-500-1

BDB-22-500-2

BDB-22-500-3

BDB-24-500-1

BDB-24-500-2

BDB-24-500-3

BDB-26-2/0-1

BDB-26-2/0-2

BDB-26-2/0-3

BDB-26-350-1

BDB-26-350-2

BDB-26-350-3

BDB-26-500-1

BDB-26-500-2

BDB-26-500-3

BDBLHC1123501

BDBLHC1123502

BDBLHC1123503

BDBLHC115001

BDBLHC115002

BDBLHC115003

BDBLHC163501

BDBLHC163502

BDBLHC163503

BDBLHC165001

BDBLHC165002

BDBLHC165003

BDBLHC2125001

BDBLHC2125002

BDBLHC2125003

BDBLHC223501

BDBLHC223502

BDBLHC223503

BDBLHC225001

BDBLHC225002

BDBLHC225003

BDBLHC226001

BDBLHC226002

BDBLHC226003

BDBLHC245001

BDBLHC245002

BDBLHC245003

BDBLHC263501

BDBLHC263502

BDBLHC263503

BDBLHC265001

BDBLHC265002

BDBLHC265003

BDBLHCCOVER

BDBMHC112/01

BDBMHC112/02

BDBMHC112/03

BDBMHC113501

BDBMHC113502

BDBMHC113503

BDBMHC145001

BDBMHC145002

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

E-54

E-54

A-53

A-51

A-51

A-53

A-51

A-51

A-51

A-51

A-51

A-51

A-51

A-51

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-50

A-50

A-49

A-50

A-50

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-47

A-47

A-47

A-53

A-53

A-53

A-52

A-52

A-52

A-53

A-53

A-53

A-53

A-53

A-53

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-53

A-53

A-53

A-53

A-53

A-53

A-53

A-53

A-53

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-52

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-49

A-50

A-50

A-50

A-50

A-50

A-50

A-49

A-49

A-49

A-50

A-50

A-50

A-50

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

BDBMHC145003

BDBMHC162/01

BDBMHC162/02

BDBMHC162/03

BDBMHC1625001

BDBMHC1625002

BDBMHC1625003

BDBMHC222/01

BDBMHC222/02

BDBMHC222/03

BDBMHC262/01

BDBMHC262/02

BDBMHC262/03

BDBMHCCOVER

BDBSHCCOVER

BDC-11-2/0-1

BDC-14-2/0-1

BDCSHC112/01

BDCSHC142/01

BDESS750-3

BDESS750-4

BDESS750-5

BDESS750-6

BDESS750-7

BDESS750-8

BDSC1

BDSC5

BDT1

BDTIBB

BE12

BE12N

BE18

BE18N

BE24

BE24N

BEB122

BEB122EMT

BEB122PVC

BEB122RIG

BEBSHOECASE

BECBSD

BECNVSD

BF12

BF12N

BF18

BF18N

BF24

BF24N

BG12

BG12N

BG18

BG18N

BG24

BG24N

BGBL-1/0

BGBL-250

BGBL-4

BGBL4SS

BGM3050

BGM3100

BGM640044

BGM64006

BGM640066

BGM640068

BH864

BHA12E

BHA1E34R

BHA34E12R

BHSG1100

BIBD2/0-10

BIBD2/010MT

BIBD2/0-12

BIBD2/012MT

BIBD2/0-14

BIBD2/0-2

BIBD2/0-3

BIBD2/0-4

BIBD2/04MT

BIBD2/0-5

BIBD2/0-6

BIBD2/06MT

BIBD2/0-8

BIBD2/08MT

BIBD250-10

BIBD25010MT

BIBD250-12

BIBD25012MT

BIBD250-14

BIBD250-2

BIBD250-3

BIBD250-4

BIBD2504MT

BIBD250-5

BIBD250-6

BIBD2506MT

BIBD250-8

BIBD2508MT

BIBD350-10

BIBD35010MT

BIBD350-12

BIBD35012MT

BIBD350-14

BIBD350-2

BIBD350-3

BIBD350-4

BIBD3504MT

BIBD350-5

BIBD350-6

BIBD3506MT

BIBD350-8

BIBD3508MT

BIBD4-2

BIBD4-3

BIBD4-4

BIBD4-5

BIBD4-6

BIBD4-8

BIBD600-10

BIBD60010MT

BIBD600-12

BIBD60012MT

BIBD600-14

BIBD600-2

BIBD600-3

BIBD600-4

BIBD6004MT

BIBD600-5

BIBD600-6

BIBD6006MT

BIBD600-8

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-48

A-47

A-53

A-53

A-47

A-47

K-65

K-65

K-65

K-65

K-65

K-65

F-5

F-5

E-41

E-42

E-55

E-55

E-55

E-55

E-55

E-55

N-121

N-121

N-121

N-121

N-121

N-68

N-68

E-55

E-55

E-55

E-55

E-55

E-55

E-55

E-55

E-55

E-55

E-55

E-55

A-13

A-13

A-13

A-13

E-100

E-100

E-100

E-100

E-100

E-100

N-117, N-119

N-120

N-120

N-120

F-15

A-58

A-59

A-58

A-59

A-58

A-58

A-58

A-58

A-59

A-58

A-58

A-59

A-58

A-59

A-58

A-59

A-58

A-59

A-58

A-58

A-58

A-58

A-59

A-58

A-58

A-59

A-58

A-59

A-58

A-59

A-58

A-59

A-58

A-58

A-58

A-58

A-59

A-58

A-58

A-59

A-58

A-59

A-58

A-58

A-58

A-58

A-58

A-58

A-58

A-59

A-58

A-59

A-58

A-58

A-58

A-58

A-59

A-58

A-58

A-59

A-58

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

O-60

BIBD6008MT

BIBD750-10

BIBD750-12

BIBD750-14

BIBD750-2

BIBD750-3

BIBD750-4

BIBD750-6

BIBD750-8

BIBS2/0-10

BIBS2/010MT

BIBS2/0-12

BIBS2/012MT

BIBS2/0-14

BIBS2/0-3

BIBS2/0-4

BIBS2/04MT

BIBS2/0-5

BIBS2/0-6

BIBS2/06MT

BIBS2/0-8

BIBS2/08MT

BIBS250-10

BIBS25010MT

BIBS250-12

BIBS25012MT

BIBS250-14

BIBS250-3

BIBS250-4

BIBS2504MT

BIBS250-5

BIBS250-6

BIBS2506MT

BIBS250-8

BIBS2508MT

BIBS350-10

BIBS35010MT

BIBS350-12

BIBS35012MT

BIBS350-14

BIBS3502DB

BIBS350-3

BIBS3503DB

BIBS350-4

BIBS3504DB

BIBS3504MT

BIBS350-5

BIBS3505DB

BIBS350-6

BIBS3506DB

BIBS3506MT

BIBS350-8

BIBS3508MT

BIBS4-3

BIBS4-4

BIBS4-5

BIBS4-6

BIBS4-8

BIBS5003DB

BIBS5004DB

BIBS5005DB

BIBS5006DB

BIBS600-10

BIBS60010MT

BIBS600-12

BIBS60012MT

BIBS600-14

BIBS600-3

BIBS600-4

BIBS6004MT

BIBS600-5

BIBS600-6

BIBS6006MT

BIBS600-8

BIBS6008MT

BIBS750-10

BIBS750-12

BIBS750-14

BIBS750-3

BIBS750-4

BIBS750-6

BIBS750-8

BIC2-4-750

BIC2-6-750

BIC2-8-750

BIC-4-350

BIC-4-500

BIC-6-350

BIC-6-500

BIC-8-350

BIC-8-500

BIPC1/0-2

BIPC350-350

BIPC350-4/0

BIPC4/0-1/0

BIPC4/0-6

BIPC500-4/0

BISR1/0

BISR1-DB

BISR2

BISR250

BISR250-DB

BISR3/0-DB

BISR350

BISR4-DB

BISR500

BIT2/0

BIT250

BIT350

BIT4

BIT600

BIT750

BITO2/0

BITO250

BITO350

BITO4

BITO600

BITO750

BK88001

BK88004

BK88007

BK88008

BK88020

BKC3540

BKD1000B

BKD1250B

BKD1500B

BKD2000B

BKD2500

BKD3000

BKD3500

BKD4000

BKD500B

BKD750B

BKLP2

BKLP2K1

BKLP6

BKOF540

BKOH2540

BKOH520A

BKOH540A

BKOM152

BKOM50125

BKOR14

BKOR152

BKOR50

BKOR520

BKOR75125

BKOS520

BKOS5290

BKOW520

BKP1000B

BKP1250B

BKP1500B

BKP2000B

BKP2500

BKP3000

BKP3500

BKP4000

BKP500B

BKP750B

BKPR7520

BKPR7540

BKPS50

BKS752B

BKSA50

BKSB50B

BKW52

BMY-BCH-MT

BP10PADKIT

BPC1000

BPC1125

BPC1187

BPC1250

BPC1375

BPC1500

BPC1687

BPC1875

BPC2000

BPC2375

BPC2500

BPC312

BPC3500

BPC375

BPC437

BPC500

BPC562

BPC625

BPC687

BPC750

BPC843

BPC875

BPD2-4-750

BPD2-6-750

BPD2-8-750

BPD-4-350

BPD-4-500

BPD-6-350

BPD-6-500

BPD-8-350

BPD-8-500

BPF65

BPH20

BPTE14-750

BPTE20-1000

BPTE22-750

BPTE26-500

BS10

BS14

BS16

BS-2006

BS-2007

BS-2008

BS-2009

BS-2010

BS-2011

BS-2012

BS-2013

BS-2014

BS-2015

BS-2016

BS-2017

BS-2018

BS-2019

BS-2020

BS-2021

BS-2024

BS-2025

BS-2026

BS-2027

BS-2028

BS-2029

BS-2030

BS-2031

BS-2032

BS-2033

BS-2034

BS-2068

BS-2069

BS-2070

BS-2105

BS-2106

BS-2107

BS-2108

BS-2109

BS-2110

BSC1000

BSC1125

BSC1375

BSC1500

BSC1875

BSC2000

BSC2375

BSC2500

BSC25002.5

BSC2H

BSC2H1C2DEBP

BSC2H2A1B1FEBP

BSC2H2C1DEBP

BSC2H3A2B

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

A-59

A-58

A-58

A-58

A-58

A-58

A-58

A-58

A-58

A-57

A-59

A-57

A-59

A-57

A-57

A-57

A-59

A-57

A-57

A-59

A-57

A-59

A-57

A-59

A-57

A-59

A-57

A-57

A-57

A-59

A-57

A-57

A-59

A-57

A-59

A-57

A-59

A-57

A-59

A-57

A-34

A-57

A-34

A-57

A-34

A-59

A-57

A-34

A-57

A-34

A-59

A-57

A-59

A-57

A-57

A-57

A-57

A-57

A-34

A-34

A-34

A-34

A-57

A-59

A-57

A-59

A-57

A-57

A-57

A-59

A-57

A-57

A-59

A-57

A-59

A-57

A-57

A-57

A-57

A-57

A-57

A-57

K-75

K-75

K-75

K-75

K-75

K-75

K-75

K-75

K-75

A-39

A-39

A-39

A-39

A-39

A-39

A-56

A-36

A-56

A-56

A-36

A-36

A-56

A-36

A-56

A-56

A-56

A-56

A-56

A-56

A-56

A-56

A-56

A-56

A-56

A-56

A-56

N-111

N-110

N-113

N-112

N-114, N-116

N-117, N-119

N-110

N-110

N-111

N-111

N-112

N-112

N-112

N-112

N-110

N-110

N-116

N-116

N-115

N-119

N-112

N-117

N-118

N-111

N-110

N-114

N-114

N-114

N-114

N-114

N-116

N-115

N-113

N-110

N-110

N-111

N-111

N-112

N-112

N-112

N-112

N-110

N-110

N-115

N-117

N-115

N-110

N-115

N-110

N-113

N-59

N-88, N-89

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

F-12

K-75

K-75

K-75

K-75

K-75

K-75

K-75

K-75

K-75

N-119

N-117, N-118

A-62

A-62

A-62

A-62

B-47

B-47

B-47

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

E-86

F-11

F-11

F-11

F-11

F-11

F-11

F-11

F-11

F-11

N-122

N-122

N-122

N-122

N-122

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

O-61

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

BSC2H5A

BSC2H5B

BSC2L

BSC2L1C2DEBP

BSC2L2C1DEBP

BSC2L3A2B

BSC2L5A

BSC2L5B

BSC687

BSCWS40

BSCWS80

BSD2050

BSD2050N

BSD2050Y

BSSBC750-2-1

BSSBC750-3

BSSBC750-3-1

BSSBC750-4

BSSBC750-4-1

BSSBC750-4-2

BSSBC750-5

BSSBC750-6

BSSBC750-6-2

BSSBC750-7

BSSBC750-8

BSSI-20

BSSI-500

BSSI-500L

BTW150750

BTW1575F12

BTW30150

BTWTC500

BULF10HS

BULF10P

BULF14HS

BULF14N

BULF14NG

BULF14P

BULF18HS

BULF18N

BULF18NG

BULF18P

BULM10P

BULM14HS

BULM14N

BULM14NG

BULM14P

BULM18HS

BULM18N

BULM18NG

BULM18P

BWB680AG

BWB680IG

BWTE21-1000

BWTE21-500

BWTE21-750

BYNA245MRT15ACCC

BYNA245MRT15HACCC

BYNA245MRTACCC

BYNA32R15HHT

BYNA32R15HT

BYNA32RHT

BYNA32RT15ACCC

BYNA32RT15HACCC

BYNA32RT15HHT

BYNA32RT15HT

BYNA32RTACCC

BYNA32RTHT

BYNA34R15HHT

BYNA34R15HT

BYNA34RHT

BYNA34RT15HHT

BYNA34RT15HT

BYNA34RTHT

BYNA36R15HHT

BYNA36R15HT

BYNA36RHT

BYNA36RT15ACCC

BYNA36RT15HACCC

BYNA36RT15HHT

BYNA36RT15HT

BYNA36RTACCC

BYNA36RTHT

BYNA39R15HHT

BYNA39R15HT

BYNA39RHT

BYNA39RT15ACCC

BYNA39RT15HACCC

BYNA39RT15HHT

BYNA39RT15HT

BYNA39RTACCC

BYNA39RTHT

BYNA43R15HHT

BYNA43R15HT

BYNA43RHT

BYNA43RT15ACCC

BYNA43RT15HACCC

BYNA43RT15HHT

BYNA43RT15HT

BYNA43RTACCC

BYNA43RTHT

BYNA451R15HHT

BYNA451R15HT

BYNA451RHT

BYNA451RT15ACCC

BYNA451RT15HACCC

BYNA451RT15HHT

BYNA451RT15HT

BYNA451RTACCC

BYNA451RTHT

BYNA49R15HHT

BYNA49R15HT

BYNA49RHT

BYNA49RT15ACCC

BYNA49RT15HACCC

BYNA49RT15HHT

BYNA49RT15HT

BYNA49RTACCC

BYNA49RTHT

BYNA52R15HHT

BYNA52R15HT

BYNA52RHT

BYNA52RT15ACCC

BYNA52RT15HACCC

BYNA52RT15HHT

BYNA52RT15HT

BYNA52RTACCC

BYNA52RTHT

BYNA56R15HHT

BYNA56R15HT

BYNA56RHT

BYNA56RT15HHT

BYNA56RT15HT

BYNA56RTHT

BYNA58R15HHT

BYNA58R15HT

BYNA58RHT

BYNA58RT15HHT

BYNA58RT15HT

BYNA58RTHT

BYNA590MRT15ACCC

BYNA590MRT15HACCC

BYNA590MRTACCC

BYNA59R15HHT

BYNA59R15HT

BYNA59RHT

BYNA59RT15HHT

BYNA59RT15HT

BYNA59RTHT

BYNA760MRT15ACCC

BYNA760MRT15HACCC

BYNA760MRTACCC

BYNS32RHT

BYNS32RTHT

BYNS34RHT

BYNS34RTHT

BYNS36RHT

BYNS36RTHT

BYNS39RHT

BYNS39RTHT

BYNS43RHT

BYNS43RTHT

BYNS451RHT

BYNS451RTHT

BYNS49RHT

BYNS49RTHT

BYNS52RHT

BYNS52RTHT

BYNS56RHT

BYNS56RTHT

BYNS58RHT

BYNS58RTHT

BYNS59RHT

BYNS59RTHT

C-11B

C-11CSH-1

C-11CSH-2

C-11CSH-3

C11CSLH12

C-11D

C11HD4/0DB

C-11JA

C-11JPT

C11K16D

C11K17D

C-11LH-1

C-11LH-2

C-11LH-3

C-11N

C-22

C-22D

C22HD4/0DB

C-22JA

C-22JPT

C-22LH-1

C-22LH-2

C-22LH-3

C-4

C-4JA

C-4JPT

C-4LH-1

C-4LH-2

C-4LH-3

C-5

C-6

C-61

C-66

C-6D

C-7

C-8

CASEWDIES

CCD

CCFBG-FR

CCFD-FR

CCFDXFR

CCFDX-FR

CCFN-FR

CCFO-FR

CCFR-FR

CCN

CCNL

CCO

CFAD

CFAD-FR

CFAN

CFAN-FR

CFANL

CFANL-FR

CFAO-FR

CFAR

CFAR-FR

CFBG-FR

CFD-FR

CFN-FR

CFO-FR

CFR-FR

CH10C

CH10M

CH11C

CH11M

CH12C

CH12M

CH14C

CH14M

CH16C

CH16M

CH18C

CH18M

CH24C

CH24L

CH2C

CH2M

CH3C

CH3M

CH4C

CH4M

CH5C

CH5M

CH6C

CH6M

N-122

N-122

N-123

N-123

N-123

N-123

N-123

N-123

F-11

N-122

N-122

E-62

E-62

E-62

K-64

K-65

K-64

K-65

K-64

K-64

K-65

K-65

K-64

K-65

K-65

K-71

K-71

K-71

N-70

N-70

N-70

K-71

B-83

B-82

B-83

B-82

B-83

B-82

B-83

B-82

B-83

B-82

B-80

B-81

B-80

B-81

B-80

B-81

B-80

B-81

B-80

E-70

E-70

A-61

A-61

A-61

I-50

I-47

I-50

I-16, I-17

I-22

I-22

I-50

I-47

I-18, I-19

I-23

I-50

I-23

I-16, I-17

I-22

I-22

I-18, I-19

I-23

I-23

I-16, I-17

I-22

I-22

I-50

I-47

I-18, I-19

I-23

I-50

I-23

I-16, I-17

I-22

I-22

I-50

I-47

I-18, I-19

I-23

I-50

I-23

I-16, I-17

I-22

I-22

I-50

I-47

I-18, I-19

I-23

I-50

I-23

I-16, I-17

I-22

I-22

I-50

I-47

I-18, I-19

I-23

I-50

I-23

I-16, I-17

I-22

I-22

I-50

I-48

I-18, I-19

I-23

I-50

I-23

I-16, I-17

I-22

I-22

I-50

I-48

I-18, I-19

I-23

I-50

I-23

I-16, I-17

I-22

I-22

I-18, I-19

I-23

I-23

I-16, I-17

I-22

I-22

I-18, I-19

I-23

I-23

I-50

I-48

I-50

I-16, I-17

I-22

I-22

I-18, I-19

I-23

I-23

I-50

I-48

I-50

I-24

I-25

I-24

I-25

I-24

I-25

I-24

I-25

I-24

I-25

I-24

I-25

I-24

I-25

I-24

I-25

I-24

I-25

I-24

I-25

I-24

I-25

E-43

E-47

E-47

E-47

E-47

E-43

E-45

E-45

E-43

E-44

E-44

E-47

E-47

E-47

E-43

E-43

E-43

E-45

E-45

E-43

E-47

E-47

E-47

E-43

E-45

E-43

E-47

E-47

E-47

E-43

E-46

E-46

E-46

E-46

E-46

E-43

N-66

H-26

C-135

C-131, C-135

C-131

C-135

C-131, C-135

C-131, C-135

C-131, C-135

H-26

H-26

H-26

C-155

C-155

C-155

C-155

C-155

C-155

C-155

C-155

C-155

C-135

C-131, C-135

C-131, C-135

C-131, C-135

C-131, C-135

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

G-19

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

O-62

CH7C

CH7M

CH8C

CH8M

CH9C

CH9M

CL1/0-14TN

CL250-516TN

CL3/0-516TN

CL50-1

CL50-1TN

CL50-1TNBULK

CM2829P

CM2929P

CM29L

CM3029P

CM3229P

CM3429P

CM3629P

CP2525

CP2626

CP26A26A

CP27A27A

CP2828

CP28A28A

CP2929

CP29A29A

CP2C2C

CP30A30A

CP31A31A

CP32A32A

CP3434

CP34A34A

CP37A37A

CPB10

CPB12

CPB14

CPB16-5/8

CPB21-1/4

CPB6

CPB8

CPT10

CPT12

CPT16

CPT6

CPT8

CT110200SSBB

CT110200SSBB0

CT110200SSBC

CT110200SSBC0

CT110300SSBC

CT110300SSBC0

CT110300SSBL

CT110300SSBL0

CT110325SSBB

CT110325SSBB0

CT110325SSBC

CT110325SSBC0

CT110350SSBC

CT110350SSBC0

CT110350SSBL

CT110350SSBL0

CT110400SSBC

CT110400SSBC0

CT110400SSBL

CT110400SSBL0

CT110500SSBC

CT110500SSBC0

CT110500SSBL

CT110500SSBL0

CT110600SSBC

CT110600SSBC0

CT110600SSBL

CT110600SSBL0

CT110800SSBC

CT110800SSBC0

CT110800SSBL

CT110800SSBL0

CT120200D

CT120200D0

CT120200L

CT120200L0

CT120200L0UG

CT120300D

CT120300D0

CT120300L

CT120300L0

CT120300SSBC

CT120300SSBC0

CT120300SSBL

CT120300SSBL0

CT120350SSBC

CT120350SSBC0

CT120350SSBL

CT120350SSBL0

CT120400C0UG

CT120400D

CT120400D0

CT120400D00

CT120400L

CT120400L0

CT120400L00

CT120400L0UG

CT120400LUG

CT120400MH14D

CT120400MH14D0

CT120400MH14L

CT120400MH14L0

CT120400SSBC

CT120400SSBC0

CT120400SSBL

CT120400SSBL0

CT120500CUG

CT120500D0UG

CT120500SSBC

CT120500SSBC0

CT120500SSBL

CT120500SSBL0

CT120800L

CT120800L0

CT120900D

CT120900D00

CT120900L

CT120900L00

CT120900LUG

CT1751100Q

CT1751100Q0

CT1751100Q0UG

CT1751100QUG

CT1751400QUG

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

G-19

G-19

G-19

G-19

G-19

G-19

A-14, E-31

A-14, E-31

A-14, E-31

A-14, E-31

A-14, E-31

E-31

K-35

K-35

K-35

K-35

K-35

K-35

K-35

H-13

H-13

H-11

H-11

H-13

H-11

H-13

H-11

H-13

H-11

H-11

H-11

H-13

H-11

H-11

A-45

A-45

A-45

A-45

A-45

A-45

A-45

A-45

A-45

A-45

A-45

A-45

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-7

G-7

G-7

G-7

G-8

G-7

G-7

G-7

G-7

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-14

G-8

G-5, G-7

G-7

G-5

G-5, G-7

G-7

G-5

G-8

G-8

G-12

G-12

G-12

G-12

G-14

G-14

G-14

G-14

G-8

G-8

G-14

G-14

G-14

G-14

G-7

G-7

G-5

G-5

G-5

G-5

G-8

G-7

G-7

G-8

G-8

G-8

CT175400Q

CT175400Q0UG

CT175500Q

CT175500Q0

CT175600Q

CT175600Q0

CT175600Q00

CT175600Q0UG

CT175600QUG

CT175900Q

CT175900Q0

CT175900Q00

CT175900Q0UG

CT18075C

CT18075C0

CT18075C00

CT18075C0UG

CT18075CUG

CT18075FLC

CT18075IDC

CT18075M

CT18075M0

CT18075M00

CT18075M0UG

CT18075MH4C

CT18075MH4C0

CT18075MH4M

CT18075MUG

CT18100SSBC

CT18100SSBC0

CT18100SSBM

CT18100SSBM0

CT18125C

CT18125C0

CT18125M

CT18125M0

CT18200C

CT18200C0

CT18200C0UG

CT18200M

CT18200M0

CT18200MUG

CT18200SSBC

CT18200SSBC0

CT18200SSBM

CT18200SSBM0

CT2501000Q

CT2501000Q0

CT2501000RQ

CT2501000RQ0

CT2501200Q

CT2501200Q0

CT2501200RQ0

CT250200RQ

CT250200RQ0

CT250500RQ

CT250500RQ0

CT250600Q

CT250600Q0

CT250600RQ

CT250600RQ0

CT250800Q

CT250800Q0

CT250800Q0UG

CT250800RQ

CT250800RQ0

CT30125C

CT30125C0

CT30125C00

CT30125C0UG

CT30125CUG

CT30125M

CT30125M0

CT30125M00

CT30125MH8C

CT30125MH8C0

CT30125MH8M

CT30125MUG

CT40137SSBC

CT40137SSBC0

CT40137SSBM

CT40137SSBM0

CT40200C

CT40200C0

CT40200CUG

CT40200M

CT40200M0

CT40200MUG

CT40200SSBC

CT40200SSBC0

CT40200SSBD

CT40200SSBD0

CT40300C

CT40300C0

CT40300M

CT40300M0

CT40300SSBC

CT40300SSBC0

CT40300SSBD

CT40300SSBD0

CT40400C

CT40400C0

CT40400C0UG

CT40400M

CT40400M0

CT40400SSBC

CT40400SSBC0

CT40400SSBD

CT40400SSBD0

CT50137EPRC

CT50137EPRC0

CT50137RC

CT50137RC0

CT50175C

CT50175C0

CT50175C00

CT50175C0UG

CT50175CUG

CT50175ID2L

CT50175ID3L

CT50175IDC

CT50175M

CT50175M0

CT50175M00

CT50175M0UG

CT50175MH10C

CT50175MH10C0

CT50175MH10C0UG

CT50175MH10CUG

CT50175MH10M

G-5

G-8

G-7

G-7

G-5, G-7

G-7

G-5

G-8

G-8

G-5, G-7

G-7

G-5

G-8

G-5, G-6

G-6

G-5

G-8

G-8

G-11

G-5, G-11

G-5, G-6

G-6

G-5

G-8

G-12

G-12

G-12

G-8

G-13

G-13

G-13

G-13

G-6

G-6

G-6

G-6

G-6

G-6

G-8

G-6

G-6

G-8

G-13

G-13

G-13

G-13

G-7

G-7

G-10

G-10

G-7

G-7

G-10

G-10

G-10

G-10

G-10

G-7

G-7

G-10

G-10

G-7

G-7

G-8

G-10

G-10

G-5, G-6

G-6

G-5

G-8

G-8

G-5, G-6

G-6

G-5

G-12

G-12

G-12

G-8

G-13

G-13

G-13

G-13

G-6

G-6

G-8

G-6

G-6

G-8

G-13

G-13

G-13

G-13

G-6

G-6

G-6

G-6

G-13

G-13

G-13

G-13

G-6

G-6

G-8

G-6

G-6

G-13

G-13

G-13

G-13

G-10

G-10

G-10

G-10

G-5, G-6

G-6

G-5

G-8

G-8

G-5, G-11

G-5, G-11

G-5, G-11

G-5, G-6

G-6

G-5

G-8

G-12

G-12

G-9

G-9

G-12

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

O-63

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

CT50175MH10M0

CT50175MUG

CT50175RC

CT50175RC0

CT50175SSBC

CT50175SSBC0

CT50175SSBD

CT50175SSBD0

CT50200SSBB

CT50200SSBB0

CT50200SSBC

CT50200SSBC0

CT50250EPRC

CT50250EPRC0

CT50250SSBB

CT50250SSBB0

CT50250SSBC

CT50250SSBC0

CT50300C

CT50300C0

CT50300C00

CT50300C0UG

CT50300CUG

CT50300M

CT50300M0

CT50300M00

CT50300M0UG

CT50300MH10C0UG

CT50300MH10GUG

CT50300MUG

CT50300SSBB

CT50300SSBB0

CT50300SSBC

CT50300SSBC0

CT50400C

CT50400C0

CT50400C00

CT50400C0UG

CT50400CUG

CT50400IDC

CT50400M

CT50400M0

CT50400M00

CT50400MH10C

CT50400MH10C0

CT50400MH10M0

CT50400RC

CT50400RC0

CT50425SSBB

CT50425SSBB0

CT50425SSBC

CT50425SSBC0

CTASST

CTB075AA4C

CTB075RA4C

CTB075RA4CUG

CTB075RA4M

CTB075S4C

CTB125AA4C

CTB125RA2C

CTB125RA4C

CTB125RA4CUG

CTB125RA4D

CTB125RA4DUG

CTB125RA4L

CTB125S2C

CTB125S4C

CTB150AA4C

CTB150RA4B

CTB150RA4C

CTB150S4B

CTH30200C

CTH50175C

CTH50175M

CTHS120400M

CTHS140125M

CTHS18075M

CTHS50300M

CTHS50400M

CTHS50700M

CTSS100100FC304C

CTSS100100FC316C

CTSS100200FC304C

CTSS100200FC316C

CTSS100300FC304C

CTSS100300FC316C

CTSS100400FC304C

CTSS100400FC316C

CTSS100500FC304C

CTSS100500FC316C

CTSS100600FC304C

CTSS100600FC316C

CTSS100800FC304C

CTSS100800FC316C

CTSS225100304C

CTSS225100316C

CTSS225200304C

CTSS225200316C

CTSS225300304C

CTSS225300316C

CTSS225400304C

CTSS225400316C

CTSS225500304C

CTSS225500316C

CTSS225600304C

CTSS225600316C

CTSS250200FC304L

CTSS250200FC316L

CTSS250200PC304L

CTSS250200PC316L

CTSS250300FC304L

CTSS250300FC316L

CTSS250300PC304L

CTSS250300PC316L

CTSS250400FC304L

CTSS250400FC316L

CTSS250400PC304L

CTSS250400PC316L

CTSS250500FC304L

CTSS250500FC316L

CTSS250500PC304L

CTSS250500PC316L

CTSS250600FC304L

CTSS250600FC316L

CTSS250600PC304L

CTSS250600PC316L

CTSS250700FC304L

CTSS250700FC316L

CTSS250700PC304L

CTSS250700PC316L

CTSS250800FC304L

CTSS250800FC316L

CTSS250800PC304L

CTSS250800PC316L

CTSS450200FC304L

CTSS450200FC316L

CTSS450200PC304L

CTSS450200PC316L

CTSS450300FC304L

CTSS450300FC316L

CTSS450300PC304L

CTSS450300PC316L

CTSS450400FC304L

CTSS450400FC316L

CTSS450400PC304L

CTSS450400PC316L

CTSS450500FC304L

CTSS450500FC316L

CTSS450500PC304L

CTSS450500PC316L

CTSS450600FC304L

CTSS450600FC316L

CTSS450600PC304L

CTSS450600PC316L

CTSS450700FC304L

CTSS450700FC316L

CTSS450700PC304L

CTSS450700PC316L

CTSS450800FC304L

CTSS450800FC316L

CTSS450800PC304L

CTSS450800PC316L

CTSS500200304L

CTSS500200316C

CTSS500300304L

CTSS500300316C

CTSS500400304L

CTSS500400316L

CTSS500500304L

CTSS500500316L

CTSS500600304L

CTSS500600316L

CTSS500700304L

CTSS500700316L

CTSS500750304L

CTSS500750316L

CTSS500800304L

CTSS500800316L

CTSS675200FC304Q

CTSS675200FC316Q

CTSS675200PC304Q

CTSS675200PC316Q

CTSS675300FC304Q

CTSS675300FC316Q

CTSS675300PC304Q

CTSS675300PC316Q

CTSS675400FC304Q

CTSS675400FC316Q

CTSS675400PC304Q

CTSS675400PC316Q

CTSS675500FC304Q

CTSS675500FC316Q

CTSS675500PC304Q

CTSS675500PC316Q

CTSS675600FC304Q

CTSS675600FC316Q

CTSS675600PC304Q

CTSS675600PC316Q

CTSS675700FC304Q

CTSS675700FC316Q

CTSS675700PC304Q

CTSS675700PC316Q

CTSS675800FC304Q

CTSS675800FC316Q

CTSS675800PC304Q

CTSS675800PC316Q

CTSS700200304L

CTSS700200316L

CTSS700300304L

CTSS700300316L

CTSS700400304L

CTSS700400316L

CTSS700500304L

CTSS700500316L

CTSS700600304L

CTSS700600316L

CTSS700700304L

CTSS700700316L

CTSS700800304L

CTSS700800316L

CTSS900

CTSS900200304L

CTSS900200316L

CTSS900300304L

CTSS900300316L

CTSS900400304L

CTSS900400316L

CTSS900500304L

CTSS900500316L

CTSS900600304L

CTSS900600316L

CTSS900700304L

CTSS900700316L

CTSS900800304L

CTSS900800316L

CTT50

CTZ120400D

CTZ120400L

CTZ18075C

CTZ30200C

CTZ50175C

CUSA442NTC

CUSA442TC38

CUT200BLMVBL

CUT200BLSTA

CUW26RE-1

CUW30A-E

CUW32R-E

CUW34-E

CUW361R-E

CUW391A-E

CUW44-E

CZ-11

D26L/Y29PR

D3CL/Y29PR

D6CL/Y29PL

DUW28

DUW28A

DUW31

DUW34

G-12

G-8

G-10

G-10

G-13

G-13

G-13

G-13

G-13

G-13

G-13

G-13

G-10

G-10

G-13

G-13

G-13

G-13

G-5, G-6

G-6

G-5

G-8

G-8

G-5, G-6

G-6

G-5

G-8

G-9

G-9

G-8

G-13

G-13

G-13

G-13

G-5, G-6

G-6

G-5

G-8

G-8

G-5

G-5, G-6

G-6

G-5

G-12

G-12

G-12

G-10

G-10

G-14

G-14

G-14

G-14

G-26

G-18

G-18

G-9

G-18

G-18

G-18

G-18

G-18

G-9

G-18

G-9

G-18

G-18

G-18

G-18

G-18

G-18

G-18

G-15

G-15

G-15

G-16

G-16

G-16

G-16

G-16

G-16

G-22

G-23

G-22

G-23

G-22

G-23

G-22

G-23

G-22

G-23

G-22

G-23

G-22

G-23

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-22

G-23

G-24

G-25

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-26

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-20

G-21

G-26

G-15

G-15

G-15

G-15

G-15

C-142

C-142

N-76, N-77

N-76, N-77

H-71

H-71

H-71

H-70

H-71

H-71

H-70

E-44

N-69

N-69

N-69

H-70

H-71

H-70

H-70

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

O-64

DUW44

DUW44A

DUW44A-E

DV1L/Y29PR

DV25L/Y29PR

DV26L/Y29PR

DV2CL/Y29PL

DV4L/Y29PL

DV6LY29PL

DV8L/Y29PL

E2C34G1

E3C34G1

E4C34G1

EA25

EA28

EA28-2N

EA2C

EA34

EA34-2N

EBP

EP10

EP10-1HP

EP10-1HP-2

EP10-2

EP6

EP8

EPAC10

EPAC-6

EPAC-8

EPP10

EPP6

EPPCASE-1

ES25A25A

ES25A2W

ES25A4W

ES25R25R

ES25R2R

ES25R2W

ES25R4W

ES25R6W

ES2R2R

ES2R2W

ES2R4W

ES2R6W

ES2R8W

ES2W2W

ES2W4W

ES2W6W

ES2W8W

ES4W4W

ES4W6W

ES4W8W

ES6W6W

ES6W8W

ES8W8W

F22A28

FCB63-2NP300

FCB63-4N

FCB63-6N

FCB64-2NP300

FCB64-44NP50

FCB644G4

FCB64-4N

FCB64-6N

FCB65-4N

FD64C5T16

FD655C6

FD655D6

FD65C6T14

FD66C6

FD66D6

FD675C8

FD675D8

FD685C8

FD685D12

FD685D8

FD68C8

FD68D12

FD68D8

FD69C8

FD69D12

FD69D8

FD70D12

FD70D16

FL1025X03B

FL1025X03D

FL1425X03B

FL1425X03D

FL1825X03B

FL1825X03D

FLN1025X03D

FLN1425X03D

FLN1825X03D

FORCEGAUGE12-15

FP10

FP6

FP8

FQN10M25X03B

FQN10M25X03D

FQN14M18X02D

FQN14M25X03B

FQN14M25X03D

FQN18M18X02D

FQN18M25X03B

FQN18M25X03D

FQP10F25X03D

FQP14F11X03D

FQP14F18X02D

FQP14F25X03D

FQP18F11X03D

FQP18F18X02D

FQP18F25X03D

FT3B4/0

FT3B500

FT4B4/0

FT4B500

GA25H26

GAR1126

GAR1129

GAR114C

GAR1426

GAR1429

GAR1434

GAR144C

GAR1526

GAR1529

GAR1534

GAR154C

GAR1626

GAR1629

GAR1634

GAR164C

GAR1726

GAR1729

GAR1734

GAR174C

GAR1826

GAR1829

GAR1834

GAR184C

GAR1926

GAR1929

GAR1934

GAR194C

GAR2026

GAR2029

GAR2034

GAR204C

GAR2126

GAR2129

GAR2134

GAR214C

GAR2226

GAR2229

GAR2234

GAR224C

GAR2426

GAR2429

GAR2434

GAR244C

GAR3902

GAR3902-BU

GAR3902TC

GAR3903

GAR3903-BU

GAR3903TC

GAR3904

GAR3904-BU

GAR3904TC

GAR3905

GAR3905-BU

GAR3905TC

GAR3906

GAR3906-BU

GAR3906TC

GAR3907

GAR3907-BU

GAR3907TC

GAR3908

GAR3908-BU

GAR3908TC

GAR3909

GAR3909-BU

GAR3909TC

GAR6426

GAR6429

GAR6434

GAR644C

GAR644C-RB

GAR8629

GAR8634

GB26

GB29

GB34

GB4C

GBL30N

GBM26

GBM29

GBM34

GBM4C

GC15A

GC18A

GC22A

GC2525CT

GC2626

GC2626CT

GC2929

GC2929CT

GC3434

GC4C4C

GCB63T13G1

GCL30

GCM26

GCM29

GCM30

GCM34

GCM4C

GCRT1/0

GD1526

GD1529

GD1626

GD1629

GD1726

GD1729

GD1734

GD174C

GD1826

GD1829

GD1834

GD184C

GD1926

GD1929

GD1934

GD194C

GD2026

GD2029

GD2034

GD204C

GD2126

GD2129

GD2134

GD214C

GD2226

GD2229

GD2234

GD224C

GG15-1

GG16-1

GG17-1

GG17-15

GG18-1

GG18-15

GG18-2

GG19-2

GG19-25

GG20-2

GG20-25

GG20-3

GG21-2

GG21-25

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

H-70

H-71

H-71

N-69

N-69

N-69

N-69

N-69

N-69

N-69

A-19, H-40, L-22

A-19, H-40, L-22

A-19, H-40, L-22

A-12

A-12

A-12

A-12

A-12

A-12

N-122, N-123

N-93

N-94

N-94

N-93

N-93

N-93

N-92

N-92

N-92

N-91

N-91

N-91

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

H-45

K-74

A-37, L-22

A-37, L-22

A-37, L-22

L-22

A-37, L-22

L-22

A-37, L-22

A-37, L-22

A-37, L-22

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

L-20

B-74

B-74

B-74

B-74

B-74

B-74

B-74

B-74

B-74

N-8, N-25

N-89

N-89

N-89

B-67

B-67

B-67

B-67

B-67

B-67

B-67

B-67

B-64

B-64

B-64

B-64

B-64

B-64

B-64

A-41

A-41

A-41

A-41

E-64

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-34

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-35

E-36

E-36

E-37

E-36

E-36

E-37

E-36

E-36

E-37

E-36

E-36

E-37

E-36

E-36

E-37

E-36

E-36

E-37

E-36

E-36

E-37

E-36

E-36

E-37

E-34

E-34

E-34

E-34

E-36

E-35

E-35

E-57

E-57

E-57

E-57

E-57

E-57

E-57

E-57

E-57

E-48

E-48

E-48

E-59

E-57

E-59

E-57

E-59

E-57

E-57

E-61

E-57

E-57

E-57

E-57

E-57

E-57

E-51

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-38

E-49

E-49

E-49

E-49

E-49

E-49

E-49

E-49

E-49

E-49

E-49

E-49

E-49

E-49

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

O-65

GG21-3

GG21-35

GG22-2

GG22-25

GG22-3

GG22-4

GG24-2

GIE2CG3

GIE4CG3

GIE4CG3P5

GIE4CG3P7

GIE4CG4

GIE4CG4P5

GIE4CG4P7

GK1126

GK1129

GK114C

GK1426

GK1429

GK1434

GK1526

GK1529

GK1626

GK1629

GK1726

GK1729

GK1826

GK1829

GK1926

GK1929

GK6426

GK6429

GK6434

GK644C

GKA25

GKA25SB

GKA28

GKA28SB

GKA4C

GKA8C

GL2626

GL2929

GL3434

GL4C4C

GP10

GP1126

GP1129

GP114C

GP1426

GP1429

GP1434

GP144C

GP1526G1

GP1629

GP164C

GP1726

GP1726G1

GP1726RT

GP1826

GP184C

GP2026

GP2226

GP6426

GP6429

GP6434

GP644C

GP64526G1

GP654CG1

GQ26-1

GQ2626

GQ29-1

GQ2929

GRC12

GRC34

GRC58

GRF4C-3

GRF4C-4

GRL3

GRL4

GRL5

GRL6

GROUNDMAX

GROUNDTAB1/2

GROUNDTAB3/8

GSTUD14HY

GSTUD34HY

GSTUD38HY

GSTUD916HY

GX2626

GX264C

GX2926

GX2929

GX294C

GX3426

GX3429

GX3434

GX344C

GX4C4C

GXP1828RF

GZ26-12

GZ26-38

GZ26-58

GZ29-12

GZ29-38

GZ29-58

GZ4C-12

GZ4C-38

GZ4C-58

H12E

H1E34R

H34E12R

HBR40

HBR66

HCCACSR

HCCCUAL

HCCGUY

HCCSOL

HFB22P1

HFB33-4N

HFB33P1

HFB42P1

HFB44-4N

HFB44G30W

HFB44G31W

HFB44G32W

HFB44P1

HFB52P1

HFB53P1

HFB54P1

HFB55P1

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

E-49

E-49

E-49

E-49

E-49

E-49

E-49

E-60

E-60

E-60

E-60

E-60

E-60

E-60

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-40

E-30

E-30

E-30

E-30

E-30

E-30

E-58

E-58

E-58

E-58

N-95

E-39

E-39

E-39

E-39

E-39

E-39

E-39

E-67

E-39

E-39

E-39

E-67

E-67

E-39

E-39

E-39

E-39

E-39

E-39

E-39

E-39

E-67

E-67

E-50

E-50

E-50

E-50

E-51

E-51

E-51

E-66

E-66

E-51

E-51

E-51

E-51

E-98

E-18

E-18

E-24

E-24

E-24

E-24

E-50

E-50

E-50

E-50

E-50

E-50

E-50

E-50

E-50

E-50

E-65

E-58

E-58

E-58

E-58

E-58

E-58

E-58

E-58

E-58

N-120

N-120

N-120

N-103

N-103

N-71, N-82

N-71, N-82

N-71, N-82

N-71, N-82

A-21, L-24

A-22, L-24

A-21, L-24

A-21, L-24

A-22, L-24

L-23

L-23

L-23

A-21, L-24

L-24

L-24

L-24

L-24

HFB62P1

HFB63P1

HFB64P1

HFB66-6N

HFB66P1

HFB88P1

HH5-RL48

HHS-O/C-4-B13

HHS-O/C-5-B13

HHS-O/C-B13

HHS-O/C-B16

HHS-O/C-B20

HIW12SOCSET

HIW71612TGKIT

HIW716ENF

HIW716ENFTG

HIW716ENFTGKIT

HIW716MAG

HOSE2

HOSE325

HOSE350

HP10

HP2CAMLOCKHOSESET

HP2HV

HP3

HP6

HP8

HPP18

HPP18-2

HPP5

HPS1371LW

HPS1383LW

HPT-59-R1

HPT-60-R1

HPT-71-R1

HPT-72-R1

HPT-83-R1

HPT-84-R1

HPT-96-R1

HS_100FR

HS_100FR100

HS_100T300PF

HS_100T48PF

HS_112FR

HS_112FR100

HS_116T300PF

HS_116T48PF

HS_12FR

HS_12FR250

HS_12T300PF

HS_12T48PF

HS_14FR

HS_14FR250

HS_14T300PF

HS_14T48PF

HS_150T48PF

HS_18FR

HS_18FR250

HS_18T300PF

HS_18T48PF

HS_200FR

HS_200FR100

HS_200T48PF

HS_316T300PF

HS_316T48PF

HS_332T300PF

HS_332T48PF

HS_34FR

HS_34FR250

HS_34T300PF

HS_34T48PF

HS_38FR

HS_38FR250

HS_38T300PF

HS_38T48PF

HSB100T6PF7

HSB110H48PF5

HSB110H6PF5

HSB110H9PF5

HSB11612T6PF14

HSB116T6PF26

HSB12T6PF10

HSB14T6PF14

HSB150H12PF3

HSB150H48PF5

HSB150H9PF3

HSB18T6PF20

HSB200H12PF2

HSB200H48PF2

HSB200H9PF2

HSB316T6PF18

HSB332T6PF24

HSB34H48PF5

HSB34H6PF10

HSB34H9PF10

HSB34T6PF8

HSB35H3PF25

HSB35H48PF5

HSB35H6PF25

HSB38100T6PF8

HSB38T6PF12

HSC100FR

HSC100FR100

HSC112FR

HSC112FR100

HSC12FR

HSC12FR250

HSC14FR

HSC14FR250

HSC18FR

HSC18FR250

HSC200FR

HSC200FR100

HSC34FR

HSC34FR250

HSC38FR

HSC38FR250

HSIC10-500FR

HSIC200FR

HSIC30-1000FR

HSIC350FR

HSIC4-40FR

HSIC8-1FR

HSKIT

HSM100T6PF7

HSM116T6PF26

HSM12T6PF10

HSM14T6PF14

HSM18T6PF20

HSM316T6PF18

L-24

A-21, L-24

L-24

A-22, L-24

A-21

A-21

N-27

N-106

N-106

N-106

N-106

N-106

N-109

N-109

N-98

N-98

N-98

N-99

N-104

N-104

N-104

N-88

N-104

N-104

N-104

N-88

N-88

N-108

N-108

N-108

N-107

N-107

N-105

N-105

N-105

N-105

N-105

N-105

N-105

F-14

F-14

F-8

F-7

F-14

F-14

F-8

F-7

F-14

F-14

F-8

F-7

F-14

F-14

F-8

F-7

F-7

F-14

F-14

F-8

F-7

F-14

F-14

F-7

F-8

F-7

F-8

F-7

F-14

F-14

F-8

F-7

F-14

F-14

F-8

F-7

F-6

F-9

F-9

F-9

F-6

F-6

F-6

F-6

F-9

F-9

F-9

F-6

F-9

F-9

F-9

F-6

F-6

F-9

F-9

F-9

F-6

F-9

F-9

F-9

F-6

F-6

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-13

F-10

F-10

F-10

F-10

F-10

F-10

B-91

F-6

F-6

F-6

F-6

F-6

F-6

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

HSM332T6PF24

HSM34T6PF8

HSM38T6PF12

HTP3

HYA_28

HYA_29

HYA_31

HYA_34

HYA_39

HYAO_28

HYAO_29

HYAO_31

HYAO_34

HYAO_39

HYFLUIDGAL

HYFLUIDQT

HYM_28

HYM_29

HYM_31

HYM_34

HYM_39

HYS_28

HYS_29

HYS_31

HYS_34

HYS_39

J1022NC1

J1022NC2

J1022NC3

J1022NC4

J1022NC5

J1207

J1592

J278

J279

J280

J295

J4CNC

J6CNC

J6NCP1CH

J8CNC

K10P4CG1

K11A30U

K11A34U-2

K11A36U-2

K11A39U-2

K12P4CG1

K12P6C3P1/0CAG1

K13P4CAG1

K14P4CG1

K14P6C5P1/0CAG1

K15P4CAG1

K16P6C5P1/0CAG1

K174P4CG1

K21A36U-2

K22A36U-2

K22A39U-2

K2A25U

K2A26U

K2A29U

K2A31U

K2A31U-2N

K2A36U

K2A36U-2N

K2A40U

K2A40U-2N

K2A44U

K2A44U-2N

K2C15

K2C15B1

K2C17

K2C17B1

K2C20

K2C20B1

K2C22

K2C22B1

K2C23

K2C23B1

K2C25

K2C25B1

K2C26

K2C26B1

K2C28

K2C28B1

K2C28G3

K2C31

K2C31B1

K2C34

K2C34B1

K2P4CAG1

K33B34-4N

K3A25U-2

K3A25U-4

K3A26U-2N

K3A27U-2N

K3A27U-4N

K3A29U-2N

K3A29U-4N

K3A2U-2

K3A2U-4

K3A31U-2N

K3A31U-4N

K3A36U-2N

K3A36U-4N

K3A40U-4N

K3P4CAG1

K4A29U-4N

K4A31U-4N

K5P6C2P1/0CAG1

K6A34U-6N

K6A34U-8

K6B2826-2N

K6B28-4N

K6P28

K6P28C

K6P34U

K6P34UC

K6P4CG1

K6PC34U

K8A34U-10

K8P4CG1

K9P4CAG1

KA25

KA25-2TC38

KA25U

KA25UAR

KA26U

KA26UAR

KA28

KA29U

KA2U

KA30226U

KA30U

KA30UAR

KA31U

KA31UAR

KA34

KA34U

KA36229U

KA36U

KA36U-2N

KA36UAR

KA39229U

KA40U

KA40U-2N

KA44U

KA44U-2N

KA4C

KA4UAR

KA6U

KA8C

KAG1MTGBRKT

KAU-KIT1

KAU-KIT2

KAU-KIT3

KAU-KIT4

KC15

KC15B1

KC17

KC17B1

KC20

KC20B1

KC22

KC22B1

KC23

KC23B1

KC25

KC25B1

KC26

KC26B1

KC28

KC28B1

KC28G3

KC31

KC31B1

KC34

KC34B1

KCKF23

KCKF25

KCKF28

KK3A36U-2N

KK3A36U-4N

KK3A40U-2N

KK3A40U-4N

KK3A44U-2N

KK3A44U-4N

KK4A36U-4N

KK4A40U-4N

KK6A31U-8

KK6A34U-8

KK6A44U-12

KK8A31U-10

KK8A34U-10

KK8A39U-10

KK8A39U-12

KK8A44U-14

KKA31U-2N

KLU125

KLU125TP

KLU175

KLU175TP

KLU225

KLU225TP

KLU25

KLU25TP

KLU300

KLU300TP

KLU35

KLU35TP

KLU400

KLU400TP

KLU70

KLU70TP

KPA25

KPA28

KPA34

KPA4C

KPA4CUP

KPA8C

KPA8CUP

KPB4CG1

K-PC28

KPU29A26AC

KPU29A29AC

KPU34A26AC

KPU34A34AC

KPU39A26AC

KPU39A39AC

KS15

KS17

KS17-3

KS20

KS20-3

KS22

KS22-3

KS23

KS25

KS26

KS27

KS29

KS31

KS34

KS39

KS44

KS90

KSA1/0

KSA2

KSA2/0

KSA350

KSA4

KSA4/0

KSA500

KSA6

KSU17

KSU20

KSU22

KSU23

KSU25

KSU26

KSU27

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

F-6

F-6

F-6

N-104

K-60

K-60

K-60

K-60

K-60

K-60

K-60

K-60

K-60

K-60

N-97

N-97

K-60

K-60

K-60

K-60

K-60

K-60

K-60

K-60

K-60

K-60

N-54, N-68

N-54, N-68

N-54, N-68

N-54, N-68

N-54, N-68

K-66

K-66

E-63

E-63

E-63

E-63

N-68

N-68

N-68

N-68

A-31

A-27

A-27

A-27

A-27

A-31

A-30

A-30

A-31

A-30

A-30

A-30

A-31

A-27

A-27

A-27

A-25

A-25

A-25

A-25

A-25

A-25

A-25

A-25

A-25

A-25

A-25

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

A-30

K-73

A-26

A-26

A-26

A-26

A-26

A-26

A-26

A-26

A-26

A-26

A-26

A-26

A-26

A-26

A-30

A-27

A-27

A-30

K-74

A-28

K-73

K-73

K-72

K-72

K-74

K-74

A-31

K-74

A-28

A-31

A-30

A-12

A-12

A-23

A-24

A-23

A-24

A-12

A-23

A-23

A-23

A-23

A-24

A-23

A-24

A-12

A-23

A-23

A-23

A-23

A-24

A-23

A-23

A-23

A-23

A-23

A-12

A-24

A-23

A-12

A-30

A-29

A-29

A-29

A-29

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-27

E-28

E-28

E-28

A-26

A-26

A-26

A-26

A-26

A-26

A-27

A-27

A-28

A-28

A-28

A-28

A-28

A-28

A-28

A-28

A-23

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-11

A-10

A-10

A-10

A-10

A-10

A-10

A-10

E-30

K-72

A-38

A-38

A-38

A-38

A-38

A-38

A-3, E-29, H-4

A-3, E-29, H-4

A-3, H-4

A-3, E-29, H-4

A-3, H-4

A-3, E-29, H-4

A-3, H-4

A-3, E-29, H-4

A-3, E-29, H-4

A-3, E-29, H-4

A-3, E-29, H-4

A-3, E-29, H-4

A-3, E-29, H-4

A-3, E-29, H-4

A-3, H-4

A-3, H-4

A-3, H-4

A-5

A-5

A-5

A-5

A-5

A-5

A-5

A-5

A-4, H-5

A-4, H-5

A-4, H-5

A-4, H-5

A-4, H-5

A-4, H-5

A-4, H-5

O-66

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

KSU29

KSU31

KSU34

KUADP

KVS26

KVS26A

KVS28

KVS28A

KVS31

KVS31A

KVS34

KVS34A

KVS40

KVS40A

KVS44

KVS44A

KVSU26

KVSU28

KVSU31

KVSU34

KVSU40

KVSU44

KVSW26

KVSW28

KVSW31

KVSW34

KVSW40

KVSW44

L717W

L719W

L720W

L722W

L724W

L725W

L727W

L728W

L729W

L735W

LB13A

LB14A

LB15A

LB16A

LB17A

LB18A

LB19A

LB20A

LB21A

LB22A

LB23A

LB24A

LB53A

LB54A

LB55A

LB56A

LB57A

LB58A

LB59A

LB83A

LB86A

LB88A

LB90A

LB91A

LB92A

LB94A

LB96A

LF1006

LF1010

LF1014

LF1025

LF2019

LF2027

LF2038

LF2065

LF2108

LH283

LH343

LH453

LHR293

LHR443

LHR445

LPC12S

LPC38S

LPHT3CHISEL11418

LPHTADPMM71612

LPHTADPMMOP66

LPHTADPSMFOP66

LPHTADPSMOP66

LPHTASPHALTCUT118

LPHTBIT111612HC

LPHTBIT111612SC

LPHTBIT111618

LPHTBIT111618D

LPHTBIT111618HC

LPHTBIT111618R

LPHTBIT111624D

LPHTBIT111624R

LPHTBIT11812HC

LPHTBIT11824D

LPHTBIT11824R

LPHTBIT1218

LPHTBIT131612HC

LPHTBIT131612SC

LPHTBIT131618

LPHTBIT131618D

LPHTBIT131618HC

LPHTBIT131618R

LPHTBIT131618SC

LPHTBIT131624

LPHTBIT131624D

LPHTBIT131624R

LPHTBIT151618

LPHTBIT151618D

LPHTBIT151618R

LPHTBIT151624D

LPHTBIT151624R

LPHTBIT3418D

LPHTBIT3418R

LPHTBIT3424D

LPHTBIT5818D

LPHTBIT5818R

LPHTBIT5824D

LPHTBIT7818D

LPHTBIT91612HC

LPHTBIT91618R

LPHTBIT9168R

LPHTCLAYSPADE118

LPHTDRIPBODY66

LPHTDRIPBODY88

LPHTDRIPNOSE66

LPHTDRIPNOSE88

LPHTGRDVR11458

LPHTGRDVR11858

LPHTHOSNCR666610

LPHTHOSNCR666610OP

LPHTHOSNCR66668

LPHTHOSNCR66668OP

LPHTHTMABODY66

LPHTHTMADUSTCAPF

LPHTHTMADUSTCAPM

LPHTHTMANOSE66

LPHTMOILPT118

LPHTMOILPT11814

LPHTNARCHISEL11814

LPHTSOC121

LPHTSOC121/118

LPHTSOC121116

LPHTSOC12112

LPHTSOC12114

LPHTSOC12118

LPHTSOC121188PT

LPHTSOC1212

LPHTSOC12128PT

LPHTSOC121316

LPHTSOC121316/1516

LPHTSOC1213168PT

LPHTSOC12138

LPHTSOC1215168PT

LPHTSOC121716

LPHTSOC1217168PT

LPHTSOC1218PT

LPHTSOC1234

LPHTSOC12348PT

LPHTSOC1258

LPHTSOC12588PT

LPHTSOC1278

LPHTSOC12788PT

LPHTSOC12916

LPHY750CXT

LPHY750XT

LPWHPKITD

LSC1/0

LSC1/0-1

LSC556

LSC556-1

LYBASE

LYM1CC

LYM25C

LYM26C

LYM27C

LYM28C

LYM29C

LYM2CC

LYM30C

LYM31C

LYM32C

LYM34C

LYM34P3

LYS1CC

LYS1CP5

LYS25C

LYS25P5

LYS26C

LYS26P5

LYS27C

LYS27P5

LYS28C

LYS28P5

LYS29C

LYS29P5

LYS2CC

LYS2CP5

LYS30C

LYS30P5

LYS31C

LYS31P5

LYS32C

LYS32P5

LYS32P6

LYS34C

LYS34P2

LYS34P5

LYS48P6

LYS4CC

LYS4CP5

LYS64P6

LYS6CP5

LYS80P6

M20

M30

M40

M50

M60

M70

M80

M8ND

M90

MCC1000

MCC1000BLADESET

MCC600

MCC600BLADESET

MD6

MD6-12

MD6-14

MD6-37

MD6-38

MD6-4

MD6-6

MD6-6HS60

MD6-6HS72

MD6-8

MD6-8AH48

MD6-8HS60

MD6-8HS72

MD6-AH48

MD6-CP1

MD6HS60

MD6HS72

MD6-K

MD7

MD7-34

MD7-34-KIT1

MD7-34R

MD7-34R-C

MD7-34R-KIT1

MD7-6

MD7-8

MINBAG

MK7

MK9

MK9SST

A-4, H-5

A-4, H-5

A-4, H-5

N-15

A-6, H-6

A-7, H-8

A-6, H-6

A-7, H-8

A-6, H-6

A-7, H-8

A-6, H-6

A-7, H-8

A-6, H-6

A-7, H-8

A-6, H-6

A-7, H-8

A-6, H-7

A-6, H-7

A-6, H-7

A-6, H-7

A-6, H-7

A-6, H-7

A-7, H-6

A-7, H-6

A-7, H-6

A-7, H-6

A-7, H-6

A-7, H-6

N-33

N-33

N-33

N-33

N-33

N-33

N-33

N-33

N-33

N-33

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

L-34

K-53

K-51, K-53

K-51, K-52, K-53

K-51, K-52, K-53

K-51, K-52, K-53

K-51, K-52, K-53

K-51, K-52, K-53

K-51, K-52, K-53

K-53

L-18

L-18

L-18

L-18

L-18

L-18

N-109

N-109

N-109

N-99, N-109

N-98, N-109

N-102

N-99

N-109

N-101

N-101

N-101

N-101, N-109

N-101

N-101

N-101, N-109

N-101

N-101

N-101

N-101

N-101

N-101

N-101

N-101

N-101, N-109

N-101

N-101

N-101

N-101

N-101, N-109

N-101

N-101

N-101, N-109

N-101

N-101, N-109

N-101

N-101

N-101

N-101

N-101

N-101

N-101

N-101

N-101

N-101

N-101

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-102, N-109

N-102, N-109

N-98, N-109

N-102, N-109

N-98, N-102

N-109

N-109

N-98, N-102

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-109

N-102

N-102

N-105

H-19

H-19

H-19

H-19

K-54

K-52

K-52

K-52

K-52

K-52

K-52

K-52

K-52

K-52

K-52

K-52

K-56

K-51

K-55

K-51

K-55

K-51

K-55

K-51

K-55

K-51

K-55

K-51

K-55

K-51

K-55

K-51

K-55

K-51

K-55

K-51

K-55

K-56

K-51

K-54

K-55

K-56

K-51

K-55

K-56

K-55

K-56

H-69

H-69

H-69

H-69

H-69

H-69

H-69

N-57

H-69

N-85

N-85

N-85

N-85

N-62

N-62

N-62

N-62

N-62

N-62

N-62

N-65

N-65

N-62

N-65

N-65

N-65

N-65

N-66

N-65

N-65

N-62

N-63

N-64

N-64

N-64

N-64

N-64

N-63

N-63

N-82

G-26

G-26

G-26 O-67

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

MR15

MR18

MR20

MR4C

MR8-1A

MR8-33S-1

MR8-33T-1

MR8-9Q

MR8-G96

MR8-G98

MRC840

MRC840AL

MRE10-22B

MRE10-22NV

MTB

MTX

MY28

MY28-4

MY28-6

MY29-11

MY29-11C

MY29-3

MY29-3C

MY29-3CF

MY29UNIVERSALKIT

N2AH29-2N

N2AH29-34N

N2AH34-2N

N2AH34-34N

N2AH34-44N

N2AH40-34N

N2AH44-34N

N2AH44-44N

N2AH44-44NHQ

N2AH46-44N

N2AH48-44N

NA122N

NA132N

NA142N

NA144N

NA152N

NA154N

NA15A-2N

NA15A-4N

NA162N

NA164N

NA16A-2N

NA172N

NA1744NHQ

NA174N

NA17A-2N

NA17A-4N

NA182N

NA184N

NA18A-2N

NA18A-4N

NA1944N

NA1944NHQ

NA194N

NA194N90CG2

NA19A-4N

NA204N

NA20A-4N

NA214N

NA224N

NA22A-4N

NAH29-2N

NAH29-34N

NAH34-2N

NAH34-34N

NAH40-2N

NAH40-34N

NAH404-4N

NAH44-2N

NAH44-34N

NAH44-44N

NAH46-2N

NAH46-34N

NAH46-44N

NAH48-2N

NAH48-34N

NAH48-44N

NAH48-62N

NAH486-34N

NAR25A2N

NAR29A2N

NAR29A4N

NAR32A2N

NAR32A4N

NAR36A2N

NAR36A4N

NAR42A2N

NAR42A4N

NAR45A2N

NAR45A4N

NAR46A2N

NAR46A4N

NAR48A2N

NAR48A4N

NAS29-2N

NAS29-34N

NAS29-N

NAS34-2N

NAS34-34N

NAS34-N

NAS40-2N

NAS40-34N

NAS40-44N

NBC14A2N

NBC15A-2N

NBC15A34N

NBC16A2N

NBC16A34N

NBC16A44N

NBC17A2N

NBC17A34N

NBC17A44N

NBC18A2N

NBC18A34N

NBC18A-44N

NBC19A34N

NBC19A44N

NBC20A2N

NBC20A34N

NBC20A-44N

NBC21A44N

NBC22A2N

NBC22A34N

NBC22A44N

NBC24A2N

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

N-52

N-52

N-52

N-53

N-50

N-50

N-50

N-50

N-50

N-50

N-58

N-58

N-51

N-51

N-122, N-123

N-122, N-123

N-59

N-59

N-59

N-59

N-59

N-59

N-59

N-59

N-59

L-7

L-7

L-7

L-7

L-7

L-7

L-7

L-7

L-7

L-7

L-7

L-5

L-5

L-5

L-5

L-5

L-5

L-28

L-28

L-5

L-5

L-28

L-5

L-5

L-5

L-28

L-28

L-5

L-5

L-28

L-28

L-5

L-5

L-5

L-5

L-28

L-5

L-28

L-5

L-5

L-28

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-6

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-30

L-4

L-4

L-4

L-4

L-4

L-4

L-4

L-4

L-4

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

L-31

NBC24A34N

NBC24A44N

NBC86A44N

NDR6328T13

NDR6334T13

NDR6428T16

NDR6434T12

NDR6434T16

NDR6444T16

NDR64534T14

NDR6528T14

NDR6534T12

NDR6534T14

NDR6544T14

NDR65528T12

NDR65534T12

NDR65544T12

NDR6748T12

NDR67544T12

NDR67548T12

NDR6844T12

NDR6848T12

NDR68544T12

NHNT1429

NHNT1434

NHNT1529

NHNT1534

NHNT1540

NHNT1629

NHNT1634

NHNT1640

NHNT1644

NHNT1729

NHNT1734

NHNT1740

NHNT1744

NHNT1829

NHNT1834

NHNT1840

NHNT1844

NHNT1846

NHNT1929

NHNT1934

NHNT1940

NHNT1944

NHNT1946

NHNT2040

NHNT2044

NHNT2229

NNT15A15A

NNT16A16A

NNT17A17A

NNT18A18A

NNT19A19A

NNT20A20A

NNT21A20A

NNT22A22A

NNTR14A29A

NNTR15A36A

NNTR15A42A

NNTR16A29A

NNTR16A32A

NNTR16A42A

NNTR17A29A

NNTR18A29A

L-31

L-31

L-31

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-19

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-13

L-25

L-25

L-25

L-25

L-25

L-25

L-25

L-25

L-27

L-27

L-27

L-27

L-27

L-27

L-27

L-27

NNTR19A42A

NNTR20A32A

NNTR22A46A

NNTR29A29A

NNTR32A25A

NNTR32A32A

NNTR36A29A

NNTR36A36A

NNTR42A32A

NNTR42A36A

NNTR42A42A

NNTR45A45A

NNTR46A42A

NNTR46A46A

NNTR48A48A

NS1212

NS1313

NS14148HC

NS1414HC

NS14A14A

NS1515

NS1515HC

NS1515HCHQ

NS15A15A

NS1616HC

NS16A16A

NS1717

NS1717HC

NS1717HCHQ

NS17A17A

NS1818

NS1818CG2

NS1818HC

NS18A18A

NS1919

NS1919HC

NS1919HCHQ

NS19A19A

NS2020

NS2020HC

NS20A20A

NS2121

NS2121HC

NS21A21A

NS2222

NS2222HC

NS22A22A

NS23A23A

NS24A24A

NS86A86A

NSNT1329

NSNT1429

NSNT1434

NSNT1529

NSNT1629

NSNT2929

NSNT3429

NSNT3434

NT1313

NT1413

NT1414

NT1514

NT1515

NT1614

NT1615

L-27

L-27

L-27

L-26

L-26

L-26

L-26

L-26

L-26

L-26

L-26

L-26

L-26

L-26

L-26

L-15

L-15

L-15

L-15

L-28

L-15

L-15

L-15

L-28

L-15

L-28

L-15

L-15

L-15

L-28

L-15

L-15

L-15

L-28

L-15

L-15

L-15

L-28

L-15

L-15

L-28

L-15

L-15

L-28

L-15

L-15

L-28

L-28

L-28

L-28

L-12

L-12

L-12

L-12

L-12

L-12

L-12

L-12

L-11

L-11

L-11

L-11

L-11

L-11

L-11

O-68

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

NT1616

NT1714

NT1715

NT1717

NT1816

NT1817

NT1818

NT1919

NT2020

NT2121

NT2222

NYFT3434CCP

NYFT3434CCR

NYT2825

NYT2826

NYT2828

NYT282C

NYT2925

NYT2926

NYT2928

NYT2929

NYT292C

NYT3125

NYT3126

NYT3128

NYT3129

NYT3131

NYT3426

NYT3428

NYT3429

NYT3431

NYT3434

NYT3926

NYT3928

NYT3929

NYT3931

NYT3934

NYT3939

NYT4426

NYT4428

NYT4429

NYT4431

NYT4434

NYT4439

NYT4444

NYT4628

NYT4629

NYT4631

NYT4634

NYT4639

NYT4644

NYT4646

OH25

OUR840

OUR840-WC

P15K

P8A

PAT46-18V

PAT46C-18V

PAT46C-LI

PAT46-LI

PAT46LW-18V

PAT46LW-LI

PAT4PC834-18V

PAT4PC834-LI

PAT600-18V

PAT600C-18V

PAT600C-LI

PAT600-LI

PAT644-LI

PAT750CK-18V

PAT750C-LI

PAT750CXT-18V

PAT750K-18V

PAT750K-LI

PAT750-LI

PAT750XT-18V

PAT81KFT-18V

PAT81KFT-LI

PATCHGLIDC

PATCHGR18V

PATCHGR250V

PATCHGRLI

PATCHGR-LI

PATCHGR-LIDC

PATCUT129ACSR-18V

PATCUT129-LI

PATCUT2156-18V

PATCUT2156-18V250V

PATCUT2156-18VDC

PATCUT2156-LI

PATCUT2156-LIDC

PATCUT2156-LILCB

PATCUT245CUAL-18V

PATCUT245-LI

PATHCC1018V

PATHCC10ACSR18V

PATHCC10C18V

PATHCC10CACSR18V

PATHCC10CCUAL18V

PATHCC10CGUY18V

PATHCC10CSOL18V

PATHCC10CUAL18V

PATHCC10GUY18V

PATHCC10SOL18V

PATJAWSCUT

PATJAWSMD6

PATJAWSMD6-6

PATJAWSMD6-8

PATJAWSMD6K

PATJMD6-K-14V

PATJMD6-K-LI

PATMD6-14V

PATMD6-6-14V

PATMD66JC

PATMD6-6-LI

PATMD66LICUTKIT1

PATMD66LIWCJ

PATMD6-8-14V

PATMD6-8-LI

PATMD68LICUTKIT1

PATMD68LIWCJ

PATMD6JC

PATMD6KJC

PATMD6-LI

PATMD6LICUTKIT1

PATMD6LIWCJ

PATMDCUT14V

PATMDCUT14V250V

PATMDCUT14VDC

PATMDCUT48LLI

PATMDCUT48LNMH

PATMDCUT60LLI

PATMDCUT60LNMH

PATMDCUT72LLI

PATMDCUT72LNMH

PATMDCUTACSRKIT

PATMDCUTLI

PATMDCUTLIDC

PATMDCUTSOMI

PENA1/2

PENA13-4

PENA13-55GAL

PENA13-5GAL

PENA13-8

PENA13CARTRIDGE

PENA13-GAL

PENA13-QT

PENA-4

PENA-55GAL

PENA-5GAL

PENACARTRIDGE

PENA-GAL

PENA-QT

PENE-4

PENE-55GAL

PENE-5GAL

PENE-8

PENE-GAL

PENE-QT

PENHT1LB

PENHT-4

PENHT-8

PENHTGAL

PG1025X03D

PG121-1

PG125-1

PG133-1

PG1425X03D

PG1825X03D

PG-406-1

PG-407-1

PG-408-1

PGHS1425X03D

PGHS1825X03D

PGN1025X03B

PGN1025X03D

PGN1425X03B

PGN1425X03D

PGN1825X03B

PGN1825X03D

PGP1025X03B

PGP1025X03D

PGP1425X03B

PGP1425X03D

PGP1825X03B

PGP1825X03D

PT10024162

PT10037384

PT10037388

PT10038657

PT10040663

PT10043890

PT10044980

PT10054094

PT10074020

PT10128

PT11018

PT208620

PT29074-1

PT29091

PT29214-1

PT29279-2

PT29291

PT29360

PT2972

PT29900-10

PT29900-15

PT29900-25

PT29901-10

PT29901-15

PT29901-25

PT29902-10

PT29902-15

PT29902-25

PT4583

PT4925

PT4931-1

PT4952-1

PT6515

PT6545

PT6733

PT6744

PT76

PT8504

PT91

PT93

PT94

PTV10

PTV14

PTV18

PU998

PUADP-1

Q10F11X02D

Q10F18X02D

Q10F25X03B

Q10F25X03D

Q10M25X03D

Q14F11X02B

Q14F11X02D

Q14F18X02B

Q14F18X02D

Q14F25X03B

Q14F25X03D

Q14M18X02B

Q14M18X02D

Q14M25X03B

Q14M25X03D

Q18F11X02D

Q18F18X02B

Q18F18X02D

Q18F25X03B

Q18F25X03D

Q18M11X02D

Q18M18X02B

Q18M18X02D

Q18M25X03B

Q18M25X03D

Q2A1C-2

Q2A26-2N

L-11

L-11

L-11

L-11

L-11

L-11

L-11

L-11

L-11

L-11

L-11

K-50

K-50

K-58

K-58

C-138, K-58

K-58

C-138, K-58

K-58

K-58

C-138, K-58

K-58

K-58

K-58

K-58

K-58

K-58

C-138, K-58

C-138, K-58

C-138, K-58

K-58

C-138, K-58

K-58

K-58

C-138, K-58

K-58

C-138, K-58

K-58

K-58

K-58

C-138, K-58

C-138, K-58

C-138, K-58

K-58

C-138, K-58

K-58

K-58

K-58

K-58

K-58

K-58

C-138, K-58

N-60

N-61

N-61

N-9, N-12, N-35

F-4

N-10

N-10

N-9

N-9

N-11, N-12

N-11, N-12

N-20

N-19

N-22

N-22

N-21

N-21

N-16

N-15

N-13

N-14

N-15

N-15

N-13

N-14

N-18

N-17

N-78, N-79

N-10, N-20, N-79

N-10, N-22, N-75

N-11, N-78, N-79

N-9, N-17, N-74

N-15, N-21, N-74

N-73

N-72

N-77

N-77

N-77

N-76

N-76

N-76

N-75

N-74

N-71

N-71

N-71

N-71

N-71

N-71

N-71

N-71

N-71

N-71

N-23, N-78, N-79

N-23, N-78, N-79

N-23, N-78, N-79

N-24, N-78, N-79

N-23, N-78, N-79

N-24

N-23

N-24

N-24

N-23, N-78, N-79

N-23

N-23, N-78

N-23, N-78

N-24

N-23

N-23, N-78

N-23, N-78

N-23, N-24, N-79

N-23, N-78, N-79

N-23

N-23, N-78

N-23, N-78

N-78

N-78

N-78

N-79

N-79

N-79

N-79

N-79

N-79

N-78, N-79

N-78

N-78

N-78, N-79

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

F-4

B-71

N-53

N-53

N-53

B-71

B-71

N-51

N-51

N-51

B-71

B-71

B-73

B-73

B-73

B-73

B-73

B-73

B-72

B-72

B-72

B-72

B-72

B-72

N-81

N-72, N-74, N-83

N-72, N-73, N-83

N-75, N-84

N-75, N-84

N-83

N-75

N-84

N-78, N-79

N-35, N-82, N-97

N-97

N-13, N-20, N-76

N-96, N-97

N-97

N-97

N-27, N-37

N-7, N-25, N-97

N-27, N-37, N-97

N-27

N-96

N-96

N-96

N-96

N-96

N-96

N-96

N-96

N-96

N-60, N-61

N-66

N-66

N-66

N-36

N-36, N-97

N-27, N-66

N-66

N-96

N-60

N-96

N-97

N-97

B-84

B-84

B-84

N-7

N-9, N-11, N-35

B-61

B-61

B-61

B-61

B-60

B-61

B-61

B-61

B-61

B-61

B-61

B-60

B-60

B-60

B-60

B-61

B-61

B-61

B-61

B-61

B-60

B-60

B-60

B-60

B-60

A-16

A-16 O-69

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

Q2A28-2N

Q2A28-4N

Q2A31-2N

Q2A31-4N

Q2A34-2N

Q2A34-4N

Q2A40-2N

Q2A40-4N

Q2A44-4N

Q2A46-4N

Q2B28-2N

Q2B31-2N

Q2B40-4N

Q3A28-2N

Q3A28-4N

Q3A31-2N

Q3A31-4N

Q3A34-2N

Q3A34-4N

Q3A40-4N

Q3A44-4N

Q3A46-4N

QA1C-2B

QA1C-B

QA26-2B

QA26-B

QA28-2B

QA28-2N

QA28-B

QA31-2B

QA31-2N

QA31-B

QA34-2B

QA34-2N

QA34-4B

QA34-B

QA40-2N

QA40-B

QA44-2N

QA44-4N

QA44-B

QA46-2N

QA46-B

QA4C-2B

QA4C-B

QA8C-2B

QA8C-B

QB1C

QB26

QB28

QB31-2N

QB4C

QB8C

QDA1C

QDA26

QDA28

QDA31

QDA34

QDA40

QDA4C

QDA8C

QGFL1CB1

QGFL1CB1T6

QGFL26B1

QGFL26B1T6

QGFL26B2

QGFL26B2T6

QGFL29B1

QGFL29B1T6

QGFL31B1

QGFL31B1T6

QGFL34B1

QGFL34B1T6

QGFL39B1

QGFL39B1T6

QGFL44B1

QGFL44B1T6

QGFL46B1

QGFL46B1T6

QGFL48B1

QIKLITE

QIKLITEKIT

QIKSTIK

QN10F18X02B

QN10F18X02D

QN10F25X03B

QN10F25X03D

QN10M25X03D

QN14F11X02B

QN14F11X02D

QN14F18X02B

QN14F18X02D

QN14F25X03B

QN14F25X03D

QN14M18X02B

QN14M18X02D

QN14M25X03B

QN14M25X03D

QN18F11X02B

QN18F11X02D

QN18F18X02B

QN18F18X02D

QN18F25X03B

QN18F25X03D

QN18M18X02B

QN18M18X02D

QN18M25X03B

QN18M25X03D

QP10F18X02B

QP10F18X02D

QP10F25X03B

QP10F25X03D

QP10F38X05D

QP10M25X03D

QP14F11X02D

QP14F18X02B

QP14F18X02D

QP14F25X03B

QP14F25X03D

QP14M11X02D

QP14M18X02B

QP14M18X02D

QP14M25X03B

QP14M25X03D

QP18F11X02D

QP18F18X02B

QP18F18X02D

QP18F25X03B

QP18F25X03D

QP18M11X02D

QP18M18X02B

QP18M18X02D

QP18M25X03B

QP18M25X03D

QPX2828

QPX2828-Y

QPX282C

QPX282C-Y

QPX2C2C

QPX2C2C-Y

QPX3428

QPX3428-Y

QPX342C

QPX342C-Y

QPX3434

QPX3434-Y

QPX4428

QPX442C

QPX4434

QPX4444

QPX4444-Y

QQA1C

QQA1C-2

QQA26

QQA26-2

QQA28

QQA28-2N

QQA31

QQA31-2N

QQA34

QQA34-2N

QQA40-2N

QQA40-4N

QQA44-2N

QQA44-4N

QQA4C

QQA4C-2

QQA8C

QQA8C-2

QR1C

QR26

QR28

QR31

QR34

QR40

QR4C

R17A

R17C

R22B

R24F

R25D

RA6UCR-SL

RA6UC-SL

RCC1000

RCC336

RCC556

RCC600E

RCC750HD

RCC954ACSR1K

RDM4-28

RDM5-28T

RDM6-28

RDM7-28T

RDM8-28

RDMD-28CR

RDMD4-2858D

RDMD4-28G3

RGC39G1

RGC44G1

RHCC10

RHCC10ACSR

RHCC10C

RHCC10CACSR

RHCC10CCUAL

RHCC10CGUY

RHCC10CSOL

RHCC10CUAL

RHCC10GUY

RHCC10SOL

RHCC129ACSR

RHCC245CUAL

RHCCHSA

RK141-2

RK141ABOX100

RK142-2

RK142ABOX100

RK149-2

RK150-2

RK151-2

RK152-2

RK153-2

RK194-2

RK225-2

RK226-2

RK227-2

RP50RP02

RP50RP03

RWRC516

RWRC916

RYA25UC

RYA25UCR

RYA26UC

RYA26UCR

RYA27UC

RYA27UCR

RYA28UC

RYA28UCR

RYA29UC

RYA29UCR

RYA2UC

RYA2UCR

RYA2WAC

RYA2WACR

RYA31

RYA31AC

RYA31ACR

RYA31C-2

RYA31CR-2

RYA34C-2

RYA34CR-2

RYA4UC

RYA4UCR

RYA75AC

RYA75ACR

RYAC25

RYAC31

RYAC31-1

S2D451R-SG1

S2GBP41A

S2GBP41A12

A-16

A-16

A-16

A-16

A-16

A-16

A-16

A-16

A-16

A-16

A-17

A-17

A-17

A-16

A-16

A-16

A-16

A-16

A-16

A-16

A-16

A-16

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-17

A-17

A-17

A-17

A-17

A-17

A-18

A-18

A-18

A-18

A-18

A-18

A-18

A-18

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

A-37, E-64, L-21

E-71

E-71

E-71

B-66

B-66

B-66

B-66

B-65

B-66

B-66

B-66

B-66

B-66

B-66

B-65

B-65

B-65

B-65

B-66

B-66

B-66

B-66

B-66

B-66

B-65

B-65

B-65

B-65

B-63

B-63

B-63

B-63

B-63

B-62

B-63

B-63

B-63

B-63

B-63

B-62

B-62

B-62

B-62

B-62

B-63

B-63

B-63

B-63

B-63

B-62

B-62

B-62

B-62

B-62

A-8, H-14

A-9

A-8, H-14

A-9

A-8, H-14

A-9

A-8, H-14

A-9

A-8, H-14

A-9

A-8, H-14

A-9

A-8, H-14

A-8, H-14

A-8, H-14

A-8, H-14

A-9

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-15

A-18

A-18

A-18

A-18

A-18

A-18

A-18

N-122, N-124

N-122, N-124

N-122, N-124

N-122, N-124

N-122, N-124

K-62

K-62

N-86

N-86

N-86

N-86

N-86

N-86

K-62

K-62

K-62

K-62

K-62

K-61

K-61

K-61

E-63

E-63

N-82

N-82

N-82

N-82

N-82

N-82

N-82

N-82

N-82

N-82

N-83

N-84

N-83

B-92

B-92

B-92

B-92

A-40

A-40

A-40

A-40

A-40

N-67

A-40

A-40

A-40

N-80

N-80

N-87

N-87

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-63

K-62

K-62

K-62

K-62

K-63

K-63

K-63

K-63

K-63

K-66

K-66

I-62

M-33

M-33

O-70

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

S2GBP41A12B2

S2GBP41AB2

S2GBP445A

S2GBP445A12

S2GBP445A12B2

S2GBP445AB2

S2GBP44A

S2GBP44A12

S2GBP44A12B2

S2GBP44AB2

S2GBP451ASG1HT

S2GBP451ASG4

S2GBP45A

S2GBP45A12

S2GBP45A12B2

S2GBP45AB2

S2GBP463ASG1HT

S2GBP463ASG6

S2GBP46A

S2GBP46A12

S2GBP46A12B2

S2GBP46AB2

S2GBP47ASG1

S2GBP47ASG2HT

S2GBP483A

S2GBP483A12

S2GBP483A12B2

S2GBP483AB2

S2GBP486A

S2GBP486A12

S2GBP486A12B2

S2GBP486AB2

S2GBP48A

S2GBP48A12

S2GBP48A12B2

S2GBP48AB2

S2GBP48ASG1HT

S2GBP48ASG2

S2GBP51ASG1

S2GBP51ASG2HT

S2GBP52ASG1

S2GBP52ASG2HT

S2GBPA41A

S2GBPA41A12

S2GBPA41A12B2

S2GBPA41AB2

S2GBPA445A

S2GBPA445A12

S2GBPA445A12B2

S2GBPA445AB2

S2GBPA44A

S2GBPA44A12

S2GBPA44A12B2

S2GBPA44AB2

S2GBPA45A

S2GBPA45A12

S2GBPA45A12B2

S2GBPA45AB2

S2GBPA46A

S2GBPA46A12

S2GBPA46A12B2

S2GBPA46AB2

S2GBPA483A

S2GBPA483A12

S2GBPA483A12B2

S2GBPA483AB2

S2GBPA486A

S2GBPA486A12

S2GBPA486A12B2

S2GBPA486AB2

S2GBPA48A

S2GBPA48A12

S2GBPA48A12B2

S2GBPA48AB2

S3D451R-SG1

S3D55R-SG1

S3GBP41A

S3GBP445A

S3GBP44A

S3GBP45A

S3GBP46A

S3GBP483A

S3GBP486A

S3GBP48A

S4D48R-SG1

S6D441R-SG1

SC2

SC2/0

SC4

SCB19A

SCB20A

SCB21A

SCB22A

SCB24A

SCB86A

SD10NCP1CH

SF2A44NL12EX

SF2A44NL18EX

SH2GBP41A5

SH2GBP41A512

SH2GBP41A512B2

SH2GBP41A5B2

SH2GBP445A5

SH2GBP445A512

SH2GBP445A512B2

SH2GBP445A5B2

SH2GBP44A5

SH2GBP44A512

SH2GBP44A512B2

SH2GBP44A5B2

SH2GBP45A5

SH2GBP45A512

SH2GBP45A512B2

SH2GBP45A5B2

SH2GBP46A5

SH2GBP46A512

SH2GBP46A512B2

SH2GBP46A5B2

SH2GBP483A5

SH2GBP483A512

SH2GBP483A512B2

SH2GBP483A5B2

SH2GBP486A5

SH2GBP486A512

SH2GBP486A512B2

SH2GBP486A5B2

SH2GBP48A5

SH2GBP48A512

SH2GBP48A512B2

SH2GBP48A5B2

M-35

M-35

M-33

M-33

M-35

M-35

M-33

M-33

M-35

M-35

I-63

I-63

M-33

M-33

M-35

M-35

I-63

I-63

M-34

M-34

M-36

M-36

I-63

I-63

M-34

M-34

M-36

M-36

M-34

M-34

M-36

M-36

M-34

M-34

M-36

M-36

I-63

I-63

I-63

I-63

I-63

I-63

M-33

M-33

M-35

M-35

M-33

M-33

M-35

M-35

M-33

M-33

M-35

M-35

M-33

M-33

M-35

M-35

M-34

M-34

M-36

M-36

M-34

M-34

M-36

M-36

M-34

M-34

M-36

M-36

M-34

M-34

M-36

M-36

I-62

I-62

M-37

M-37

M-37

M-37

M-37

M-37

M-37

M-37

I-62

I-62

A-3, H-5

A-3, H-5

A-3, H-5

M-29

M-29

M-29

M-29

M-29

M-29

N-68

M-38

M-38

M-33

M-33

M-35

M-35

M-33

M-33

M-35

M-35

M-33

M-33

M-35

M-35

M-33

M-33

M-35

M-35

M-34

M-34

M-36

M-36

M-34

M-34

M-36

M-36

M-34

M-34

M-36

M-36

M-34

M-34

M-36

M-36

SN10

SN10B

SN14

SN14B

SN18

SN18B

SP10

SP14

SP16

STKIT08

STKIT15

STS33A-4N

STS43A-4N

STS44A-4N

STS44A-4NCG2

STS46A6NCG1

SW3A20A44N8

SW3A22A44N8

SW3A24A44N8

SW3A86A44N8

SW3AB20A44N8

SW3AB22A44N8

SW3AB24A44N8

SW3AB86A44N8

SWA18A-2N

SWA18A-34N

SWA18A-44N

SWA19A-2N

SWA19A-34N

SWA19A-44N

SWA20A-2N

SWA20A-34N

SWA20A-44N

SWA21A-34N

SWA21A-44N

SWA22A-44N

SWA23A-44N

SWA24A-34N

SWA24A-44N

SWA444A-44N

SWA44R-44N

SWA486A-44N

SWA486A-4N

SWA486A-66N

SWA48A-44N

SWA493R-4N

SWA54R-44N

SWA58A-2N

SWA58A-34N

SWA58A-44N

SWA58R-44N

SWA59A-2N

SWA59A-34N

SWA59A-44N

SWA86A-44N

SWA90A-2N

SWA90A-34N

SWA90A-44N

SWA91A-34N

SWA91A-44N

SWA92A-44N

SWA93A-44N

SWA94A-34N

SWA94A-44N

SWA96A-44N

SWAB19A2N

SWAB19A-34N

SWAB22A2N

SWAB22A-34N

SWAB22A-44N

SWAB86A2N

SWAB86A34N

SWAB86A-44N

SWAC18A-2N

SWAC18A-34N

SWAC18A-44N

SWAC19A-2N

SWAC19A-34N

SWAC19A-44N

SWAC20A-2N

SWAC20A-34N

SWAC20A-44N

SWAC21A-34N

SWAC21A-44N

SWAC22A-34N

SWAC22A-44N

SWAC23A-34N

SWAC24A-34N

SWAC24A-44N

SWAC58A-2N

SWAC58A-34N

SWAC58A-44N

SWAC59A-2N

SWAC59A-34N

SWAC59A-44N

SWAC86A-44N

SWAC90A-2N

SWAC90A-34N

SWAC90A-44N

SWAC91A-34N

SWAC91A-44N

SWAC92A-34N

SWAC92A-44N

SWAC93A-34N

SWAC94A-34N

SWAC94A-44N

SWAC96A-44N

SWAT18A16A-30

SWAT18A17A-30

SWAT18A18A-30

SWAT19A16A-30

SWAT19A17A-30

SWAT19A18A-30

SWAT20A17A-30

SWAT20A18A-30

SWAT20A19A-30

SWAT21A16A-30

SWAT21A17A-30

SWAT21A18A-30

SWAT21A19A-30

SWAT21A20A-30

SWAT22A18A-30

SWAT22A19A-30

SWAT22A20A-30

SWAT24A18A-30

SWAT24A19A-30

SWAT24A20A-30

SWAT86A20A-30

SWAT86A21A-30

SWAT86A22A-30

B-48

B-49

B-48

B-49

B-48

B-49

B-47

B-47

B-47

B-90

B-90

M-32

M-32

M-32

M-32

M-32

M-39

M-39

M-39

M-39

M-40

M-40

M-40

M-40

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-11

M-11

M-11

M-11

M-11

M-11

M-11

M-11

M-12

M-12

M-12

M-11

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-12

M-19

M-19

M-19

M-19

M-19

M-19

M-19

M-19

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-13

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23

M-23 O-71

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

SWCB19A

SWCB20A

SWCB22A

SWCB24A

SWCB86A

SWHRH18A-3CH

SWHRH18A-5CH

SWHRH19A-3CH

SWHRH19A-5CH

SWHRH20A-3CH

SWHRH20A-5CH

SWHRH21A-3CH

SWHRH21A-5CH

SWHRH22A-3CH

SWHRH22A-5CH

SWHRH24A-3CH

SWHRH24A-5CH

SWHRH86A-3CH

SWHRH86A-5CH

SWL18A

SWL19A

SWL20A

SWL21A

SWL22A

SWL24A

SWL58A

SWL59A

SWL86A

SWL90A

SWL91A

SWL92A

SWL93A

SWL96A

SWOH18A-3

SWOH18A-5

SWOH19A-3

SWOH19A-5

SWOH20A-3

SWOH20A-5

SWOH21A-5

SWOH22A-3

SWOH22A-5

SWOH24A-5

SWOH86A-5

SWT17A17A

SWT18A16A75

SWT18A17A75

SWT19A16A75

SWT19A17A75

SWT19A18A75

SWT19A19A

SWT20A17A75

SWT20A18A75

SWT20A19A75

SWT21A14A

SWT21A15A

SWT21A16A

SWT21A16A75

SWT21A17A

SWT21A17A75

SWT21A18A

SWT21A18A75

SWT21A19A

SWT21A19A75

SWT21A20A

SWT22A18A

SWT22A18A75

SWT22A19A

SWT22A19A75

SWT22A20A

SWT22A20A75

SWT22A21A

SWT22A22A

SWT24A18A75

SWT24A19A75

SWT24A20A

SWT24A20A75

SWT24A21A

SWT24A22A

SWT24A24A

SWT86A20A

SWT86A20A75

SWT86A21A

SWT86A21A75

SWT86A22A

SWT86A22A75

SWT86A24A

SWT86A86A

SWVH19A-5

SWVH19A-7

SWVH20A-5

SWVH20A-7

SWVH22A-5

SWVH22A-7

SWVH24A-5

SWVH86A-5

SWVH86A-7

SWXA20A-44N

SWXA20A-4NK8

SWXA22A-44N

SWXA22A-4NK8

SWXA24A-44N

SWXA24A-4NK8

SWXA86A-44N

SWXA86A-4NK8

SWXA92A-44N

SWXA92A-4NK8

SWXA94A-44N

SWXA94A-4NK8

SWXA96A-4NK8

SWXHP19A-5

SWXHP20A-5

SWXHP21A-5

SWXHP22A-5

SWXHP24A-5

SWXHP59A-5

SWXHP86A-5

SWXHP90A-5

SWXHP91A-5

SWXHP92A-5

SWXHP94A-5

SWXHP96A-5

SWXP20A20A

SWXP22A22A

SWXP24A24A

SWXP86A86A

SWXP90A90A

SWXP92A92A

SWXP94A94A

SWXP96A96A

T10-10

T1010BF

T10-10F

T1010LF

T10-12

T10-14

T10-14F

T10-38

T10-516

T10-6

T106BF

T10-6F

T106LF

T10-8

T108BF

T10-8F

T108LF

T14-10

T1410BF

T14-10F

T1410LF

T14-14

T14-14F

T14-38

T14-4

T14-516

T14-6

T146BF

T14-6F

T146LF

T14-8

T148BF

T14-8F

T148LF

T1610BF

T1610LF

T166BF

T166LF

T168BF

T168LF

T18-10

T18-10F

T18-14

T18-14F

T18-38

T18-4

T18-516

T18-6

T18-6F

T18-8

T18-8F

TBPT10

TBPT12

TBPT6

TBPT8

TDM177RG1

TDM177RG2

TDM210RG1

TDM210RG2

TDM246RG1

TDM330RG1

TDM393RG1

TDM430RG1

TDM99RG1

TFV3B12V2

TFV3B18V2

TFV3B6V2

TFV3BLU12

TFV3BLU18

TMH261

TMH261SS

TMH262

TMH262SS

TMH263

TMH263SS

TMH264

TMH264SS

TMH265

TMH265SS

TMH266

TMH267

TMH267SS

TMH268

TMH268SS

TMH269

TMH269SS

TMH270

TMH270SS

TMH271

TMH271SS

TMH272

TMH272SS

TMH289

TMH294

TMH294SS

TMH295

TMH295SS

TMH322SS

TMH332

TMH69

TMH69SS

TN10-10

TN1010BF

TN10-10F

TN10-10LF

TN10-12

TN10-14

TN10-14F

TN10-38

TN10-516

TN10-6

TN106BF

TN10-6F

TN10-6LF

TN10-8

TN108BF

TN10-8F

TN10-8LF

TN14-10

TN1410BF

TN14-10F

TN14-10LF

TN14-14

TN14-14F

TN14-38

TN14-4

TN14-516

TN14-6

TN146BF

TN14-6F

M-30

M-30

M-30

M-30

M-30

M-25

M-25

M-25

M-25

M-25

M-25

M-25

M-25

M-25

M-25

M-25

M-25

M-25

M-25

M-28

M-28

M-28

M-28

M-28

M-28

M-28

M-28

M-28

M-28

M-28

M-28

M-28

M-28

M-24

M-24

M-24

M-24

M-24

M-24

M-24

M-24

M-24

M-24

M-24

M-20

M-22

M-22

M-22

M-22

M-22

M-20

M-22

M-22

M-22

M-20

M-20

M-20

M-22

M-21

M-22

M-21

M-22

M-21

M-22

M-21

M-21

M-22

M-21

M-22

M-21

M-22

M-21

M-21

M-22

M-22

M-21

M-22

M-21

M-21

M-21

M-21

M-22

M-21

M-22

M-21

M-22

M-21

M-21

M-26

M-26

M-26

M-26

M-26

M-26

M-26

M-26

M-26

M-15

M-14

M-15

M-14

M-15

M-14

M-15

M-14

M-15

M-14

M-15

M-14

M-14

M-27

M-27

M-27

M-27

M-27

M-27

M-27

M-27

M-27

M-27

M-27

M-27

M-18

M-18

M-18

M-18

M-18

M-18

M-18

M-18

B-5

B-37

B-27

B-32

B-5

B-5

B-27

B-5

B-5

B-5

B-37

B-27

B-32

B-5

B-37

B-27

B-32

B-5

B-37

B-27

B-32

B-5

B-27

B-5

B-5

B-5

B-5

B-37

B-27

B-32

B-5

B-37

B-27

B-32

B-37

B-32

B-37

B-32

B-37

B-32

B-5

B-27

B-5

B-27

B-5

B-5

B-5

B-5

B-27

B-5

B-27

A-42

A-42

A-42

A-42

I-61

I-61

I-61

I-61

I-61

I-61

I-61

I-61

I-61

G-17

G-17

G-17

G-17

G-17

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

D-8

B-9

B-39

B-29

B-34

B-9

B-9

B-29

B-9

B-9

B-9

B-39

B-29

B-34

B-9

B-39

B-29

B-34

B-9

B-39

B-29

B-34

B-9

B-29

B-9

B-9

B-9

B-9

B-39

B-29

O-72

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

TN14-6G1

TN14-6LF

TN14-8

TN148BF

TN14-8F

TN14-8LF

TN18-10

TN1810BF

TN18-10F

TN18-10LF

TN18-14

TN18-14F

TN18-38

TN18-4

TN184F

TN18-516

TN18-6

TN186BF

TN18-6F

TN18-6G1

TN18-6LF

TN18-8

TN188BF

TN18-8F

TN18-8LF

TN20-2F

TN20-6F

TP10-10

TP1010BF

TP10-10F

TP10-10LF

TP10-10Z

TP10-12

TP10-14

TP10-38

TP10-516

TP10-6

TP106BF

TP10-6F

TP10-6LF

TP10-6Z

TP10-8

TP108BF

TP10-8F

TP10-8LF

TP10-8Z

TP14-10

TP1410BF

TP14-10F

TP14-10LF

TP14-10Z

TP14-14

TP14-2F

TP14-2Z

TP14-38

TP14-4

TP14-516

TP14-6

TP146BF

TP14-6F

TP14-6LF

TP14-6Z

TP14-8

TP148BF

TP14-8F

TP14-8LF

TP14-8Z

TP16-10

TP1610BF

TP16-10F

TP16-10LF

TP16-10Z

TP16-14

TP16-2F

TP16-2Z

TP16-38

TP16-4

TP16-516

TP16-6

TP166BF

TP16-6F

TP16-6LF

TP16-6Z

TP16-8

TP168BF

TP16-8F

TP16-8LF

TP16-8Z

TS-KD

TS-RD

TS-SQ

TTV10

TTV14

TTV18

TWT1

TWT2

U1011

U1104

U1105

U1CART

U1CRT-1

U1CRT-1W

U25ART

U25RT

U25RTW

U26ART

U26RT

U26RTW

U27ART

U27RT

U27RTW

U28ART

U28RT

U28RTW

U29ART

U29RT

U2CABT

U2CRT

U2CRTW

U30ART

U30RT

U31ART

U31RT

U32ART

U32RT

U34ART

U34RT

U36ART

U36RT

U38XRT

U39ART-2

U39RT

U3CRT

U3CRTW

U44XRT

U4CABT

U4CRT

U4CRTW

U5CRT

U5CRTW

U6CABT

U8CABT

U8CRT

U8CRTW

U997

UB101

UB1027

UB1028

UB1029

UB1030

UB1031

UB1032

UB1033

UB104

UB105

UB106

UB107

UB124

UB178

UB187

UB199

UB204

UB222

UB224

UB230

UB232

UB236

UB242

UB244

UB249

UB254

UB257

UB258

UB260

UB261

UB262

UB263

UB264

UB266

UB267

UB268

UB269

UB271

UB275

UB282

UB291

UB293

UB294

UB300

UB302

UB306

UB310

UB311

UB314

UB315

UB317

UB318

UB319

UB328

UB336

UB344

UB354

UB357

UB358

UB383

UB384

UB390

UB392

UB399

UB400

UB416

UB422

UB425

UB436

UB437

UB464

UB540

UC

UC25R2R

UC25R2RS

UC2834

UC28R

UC28RS

UC2W28-L

UC2W30

UC3040

UC32R

UC32RS

UC33R

UC3444

UC4W28

UC4W28CONKIT

UC6W25

UC6W25CONKIT

UC8W26-L

UCCOVER1BOX25

UCG25R

UCG25R2R

UCG25R2RS

UCG25RS

UCG28R

UCG28RS

UCG32R

UCG32RS

UCK-1UL

UCK-2UL

UCK-3UL

UCT26RS

UCT32RS

UCTCOVER

UCU28AC

UDIEKITAL

UDIEKITCU

UDIEKITCUW

UDIEKITHYGRD

UGS350ULDB

UGSKIT2

UGSKIT250

UGSKIT8

UH143

B-9

B-34

B-9

B-39

B-29

B-34

B-9

B-39

B-29

B-34

B-9

B-29

B-9

B-9

B-29

B-9

B-9

B-39

B-29

B-9

B-34

B-9

B-39

B-29

B-34

B-29

B-29

B-8

B-38

B-28

B-33

B-42

B-8

B-8

B-8

B-8

B-8

B-38

B-28

B-33

B-42

B-8

B-38

B-28

B-33

B-42

B-8

B-38

B-28

B-33

B-42

B-8

B-28

B-42

B-8

B-8

B-8

B-8

B-38

B-28

B-33

B-42

B-8

B-38

B-28

B-33

B-42

B-8

B-38

B-28

B-33

B-42

B-8

B-28

B-42

B-8

B-8

B-8

B-8

B-38

B-28

B-33

B-42

B-8

B-38

B-28

B-33

B-42

N-105

N-105

N-105

B-75

B-75

B-75

G-26

G-26

N-7

N-7

N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5

N-5, N-7

N-5, N-7

N-5

N-5

N-5

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5, N-7

N-5

N-5

N-5, N-7

N-7

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

D-9

N-7

H-16

H-16

H-13

H-16

H-16

H-10

H-13

H-13

H-16

H-16

H-16

H-13

H-13

H-18

H-13

H-18

H-10

H-18

H-16

H-16

H-16

H-16

H-16

H-16

H-16

H-16

H-10

H-10

H-10

H-17

H-17

H-18

A-38

N-7

N-7

N-7

N-7

A-35

A-33

A-33

A-35

L-17 O-73

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

UH153

UH155

UH163

UH165

UH173

UH175

UH183

UH185

UH193

UH195

UH203

UH205

UH225

UHG13A3CH

UHG14A-3

UHG14A3CH

UHG15A-3

UHG15A3CH

UHG15A-5

UHG15A5CH

UHG16A3CH

UHG16A5CH

UHG17A-3

UHG17A3CH

UHG17A-5

UHG17A5CH

UHG18A-3

UHG18A3CH

UHG18A-5

UHG18A5CH

UHG19A-3

UHG19A3CH

UHG19A5CH

UHG20A3CH

UHG20A-5

UHG20A5CH

UHG20A7CH

UHG21A-3

UHG21A3CH

UHG21A5CH

UHG22A3CH

UHG22A-5

UHG22A5CH

UHG24A-3

UHG24A3CH

UHG24A-5

UHG24A5CH

UHG83A5

UHG86A5CH

UHKR11A3

UHKR11A5

UHKR13A3

UHKR13A5

UHKR14A3

UHKR14A5

UHKR16A3

UHKR16A5

UHKR17A3

UHKR17A5

UHR133

UHR135

UHR153

UHR153SS

UHR155

UHR173

UHR175

UHR183

UHR185

UO

UP34R

UP45R

UP45R36R

UW25R

UW2R

VA25

VA252

VA28

VA28-2N

VA2C

VA30

VA30-2N

VA34

VA34-2N

VA344

VA34-4N

VA40

VA40-2N

VA404

VA40-4N

VA44

VA444

VA462N

VA4C

VG1

VG2

VG3

VG4

VG5

VP2828

VP3030

VP3430

VP3434

VP4030

VP4040

VP4440

VP4646

VT2525

VT2825

VT2828

VT2C2C

VT3025

VT3028

VT3030

VT3425

VT3428

VT3430

VT3434

VT4034

VT4040

VT4425

VT4428

VT4430

VT4434

VT4440

VT4444

VT4628

VT4630

VT4640

VT4830

VT4834

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-32

L-33

L-33

L-33

L-33

L-33

L-33

L-33

L-33

L-33

L-33

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-17

L-17

N-7

H-68

H-68

H-68

H-12

H-12

A-20, L-8

L-8

A-20, L-8

A-20, L-8

A-20, L-8

A-20, L-8

A-20, L-8

A-20, L-8

A-20, L-8

L-8

A-20

A-20, L-8

A-20, L-8

L-8

A-20, L-8

L-8

L-8

L-8

L-8

H-9

H-9

H-9

H-9

H-9

H-12

H-12

H-12

H-12

H-12

H-12

H-12

H-12

A-19, H-15, L-14

A-19, H-15, L-14

A-19, H-15, L-14

A-19, H-15, L-14

A-19, H-15, L-14

L-14

A-19, H-15

A-19, H-15

A-19, H-15

A-19, H-15

A-19, H-15

L-14

A-19, H-15

A-19, H-15

A-19, H-15

L-14

L-14

L-14

L-14

L-14

L-14

L-14

L-14

A-19, H-15

VT4840

VT4844

VT4848

VVA25

VVA25-2

VVA28

VVA28-2N

VVA2C

VVA30

VVA30-2N

VVA30-4N

VVA34

VVA34-2N

VVA34-4

VVA34-4N

VVA40

VVA40-2N

VVA40-4N

VVA40-4NCG1

VVA44-2N

VVA44-4N

VVA46-2N

VVA46-4NCG2

VVA46-4NCG4

VVA48-2N

VYFT3428CCP

VYFT3428CCR

VYFT3434CCP

VYFT3434CCR

VYFT3934CCP

VYFT3934CCR

VYFT4434CCP

VYFT4434CCR

W161

W162

W163

W166

W1CRT-1

W1CVT

W239

W241

W245

W249

W25RT

W25VT

W26RT

W26VT

W27RT

W27VT

W28K

W28RT

W28VT

W29RT

W29VT

W2CRT

W2CVT

W30RT

W30VT

W31ART

W31RT

W31VT

W32RT

W32VT

W33RT

W33VT

W34RT

W34VT

W36RT

W3CRT

W3CVT

W4CRT

W4CVT

W5CRT

W5CVT

W660

W-687

W-702

W8CRT

W8CVT

WAD1015

WAD1029

WAD1035

WAD336-15

WAD336-29

WAD336-35

WAD4015

WAD4029

WAD4035

WAD477-15

WAD477-29

WAD477-35

WAD556-15

WAD556-29

WAD556-35

WAD795-15

WAD795-29

WAD795-35

WAS14A-2N

WAS15A-2N

WAS15A-34N

WAS16A-2N

WAS16A34N

WAS17A-2N

WAS17A-34N

WAS18A-2N

WAS18A-34N

WAS18A44N

WAS19A-2N

WAS19A-34N

WAS19A-44N

WAS20A-2N

WAS20A-34N

WAS20A-44N

WAS21A34N

WAS22A34N

WAS22A-44N

WASC15A2N

WASC16A34N

WASC17A2N

WASC17A34N

WASC18A2N

WASC18A34N

WASC19A34N

WASC19A44N

WASC20A2N

WASC20A34N

WASC20A44N

WASC21A34N

WASC21A44N

WASC22A34N

L-14

L-14

L-14

A-20, L-9

L-9

A-20, L-9

A-20, L-9

A-20, L-9

A-20, L-9

A-20, L-9

L-9

A-20, L-9

A-20, L-9

L-9

A-20, L-9

A-20, L-9

A-20, L-9

A-20, L-9

L-9

L-9

L-9

L-9

L-9

L-9

L-9

K-50

K-50

K-50

K-50

K-50

K-50

K-50

K-50

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-23, N-24, N-66

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-6

N-66

N-66

N-6

N-6

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

J-16

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-35

L-36

L-36

L-36

L-36

L-36

L-36

L-36

L-36

L-36

L-36

L-36

L-36

L-36

L-36

O-74

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

WASC22A44N

WASC24A44N

WASC24A66N

W-BG

WCAB30R-2N

WCAB30R-4N

WCAY39R-2N

WCAY39R-4N

WCAY49R-2N

WCAY49R-4N

WCB10

WCB10C2

WCB11

WCB11PB

WCB12

WCB13

WCB14

WCB15

WCB16

WCB17

WCB18

WCB19

WCB20

WCB20C2

WCB20C20

WCB21

WCB22

WCB23

WCB24

WCB25

WCB250C2

WCB250C20

WCB250C250

WCB26

WCB27

WCB28

WCB2C2

WCB30C2

WCB40

WCB40C2

WCB40C20

WCB40C40

WCB41

WCB42

WCB43

WCB44

WCB45

WCB46

WCB47

WCB4C4

WCBB30R-4N

WCBY39R-4N

WCBY49R-4N

WCCB

WCCLY

WCCR

WCCSY

WCHAWAS

WCR29

WCR30

WCR31

WCR32

WCR33

WCR34

WCR35

WCR36

WCR37

WCY100

WCY101

WCY102

WCY103

WCY104

WCY105

WCY106

WCY107

WCY108

WCY109

WCY110

WCY111

WCY112

WCY113

WCY114

WCY115

WCY116

WCY117

WCY118

WCY119

WCY120

WCY121

WCY122

WCY123

WCY124

WCY125

WCY126

WCY127

WCY128

WCY129

WCY130

WCY131

WCY132

WCY133

WCY134

WCY135

WCY136

WCY137

WCY138

WCY139

WCY140

WCY145

WCY48

WCY49

WCY50

WCY51

WCY52

WCY53

WCY53PB

WCY54

WCY54PB

WCY55

WCY56

WCY57

WCY58

WCY59

WCY60

WCY61

WCY62

WCY63

WCY63PB

WCY64

WCY64PB

WCY65

WCY65PB

WCY66

WCY67

WCY68

WCY69

WCY70

WCY71

WCY72

WCY73

WCY74

WCY75

WCY76

WCY77

WCY78

WCY79

WCY80

WCY81

WCY82

WCY83

WCY84

WCY85

WCY86

WCY87

WCY88

WCY89

WCY90

WCY91

WCY92

WCY93

WCY94

WCY95

WCY96

WCY97

WCY98

WCY99

WDA8300

WDC4500

WDIETREE

WG19A

WG86A

WHHWB

WHSCWH

WHSGB

WHSPBC

WHSSADP

WHSTA

WHSWB

WHSWHADP

Wiley PV Solutions

WIREMIKE

WLB15A

WLB16A

WLB17A

WLB18A

WLB19A

WLB20A

WLB21A

WLB22A

WLB24A

WLB55A

WLB56A

WLB57A

WLB58A

WLB59A

WLB86A

WLB90A

WLB91A

WLB92A

WLB94A

WLB96A

WS14A

WS15A

WS16A

WS17A

WS18A

WS19A

WS20A

WS21A

WS22A

WS24A

WS58A

WS59A

WS86A

WS90A

WS91A

WS92A

WS94A

WS96A

WSBC128A

WSBC74A

WSBC83A

WSL1

WSL10

WSL11

WSL12

WSL13

WSL14

WSL2

WSL3

WSL4

WSL5

WSL6

WSL7

WSL8

WSL9

WSLB15A

WSLB16A

WSLB17A

WSLB18A

WSLB19A

WSLB20A

WSLB21A

WSLB22A

WSLB24A

WSLB55A

WSLB56A

WSLB57A

WSLB58A

WSLB59A

WSLB86A

WSLB90A

WSLB91A

WSLB92A

WSLB94A

WSLB96A

WSM1

WSM10

WSM11

WSM2

L-36

L-36

L-36

N-66

J-13

J-13

J-13

J-13

J-13

J-13

J-6

J-9

J-6

J-13

J-6

J-6

J-6

J-6

J-6

J-6

J-6

J-6

J-6

J-9

J-9

J-6

J-6

J-6

J-6

J-6

J-9

J-9

J-9

J-6

J-6

J-6

J-9

J-9

J-6

J-9

J-9

J-9

J-6

J-6

J-6

J-6

J-6

J-6

J-6

J-9

J-13

J-13

J-13

J-5

J-5

J-5

J-5

J-14

J-6

J-6

J-6

J-6

J-6

J-6

J-6

J-6

J-6

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-8

J-6

J-6

J-6

J-6

J-7

J-7

J-13

J-7

J-13

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-13

J-7

J-13

J-7

J-13

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

J-7

N-32

N-32

N-21, N-22, N-66

L-37

L-37

J-14

J-14

J-14

J-14

J-14

J-14

J-14

J-14

E-32, E-33

N-25, N-37, N-67

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-29

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-17

M-31

M-31

M-31

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

M-16

J-11

J-11

J-11

J-11 O-75

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

WSM3

WSM4

WSM5

WSM6

WSM7

WSM8

WSM9

WSS1

WSS2

WT2B2RBYK

WT2B2RBYWABAG

WT2BRBYK

WT2BRBYWABAG

WTB

WTBASY1

WTBGBWRBYK

WTCK

WTHRB1S

WTHY1S

WTOCBR

WTOCY

WTRB

WTRBK

WTRBKNHS

WTRBKNHSBAG

WTRBWABAG

WTRBYK

WTRBYKNHS

WTRBYKNHSGAB

WTRBYWABAG

WTY

WTYK

WTYKNHS

WTYKNHSBAG

WTYWABAG

X161

X241

X245

X247

X249

X660

X840

X8CART

XA132N

XA142N

XA144N

XA152N

XA154N

XA15A-4N

XA162N

XA164N

XA16A-4N

XA172N

XA174N

XA184N

XA18A-4N

XA194N

XA19A-4N

XA204N

XA20A-4N

XA214N

XA21A-4N

XA224N

XA22A-4N

XA24A-4N

XA574N

XA594N

XBG

XNBG

XOH25

XP1313

XP1414

XP1515

XP1616

XP1717

XP1818

XP1919

XP1919HC

XP2020

XP2121

XP2222

XP5656

Y10-22

Y10AC9

Y10D

Y10MRSA1

Y-11

Y122CMR

Y-15

Y1MRKIT

Y1MRTC

Y1MRTCKIT

Y-22.5

Y-25

Y281CR

Y2825R

Y2826R

Y2827R

Y282CR

Y284CR

Y284WR

Y286CR

Y2928R

Y29BH

Y29NC

Y2CNC

Y3025R

Y3026R

Y3027R

Y3028R

Y302CR

Y304CR

Y3126R

Y3128R

Y3129R

Y3425R

Y3426R

Y3427R

Y3428R

Y3429R

Y342CR

Y3430R

Y3431R

Y3432R

Y34A

Y34BH

Y35

Y35/Y39REPKITA

Y35-2

Y35B

Y35BH

Y35BH-4

Y35H

Y35P3

Y-37.5

Y39

Y3934R

Y3936R

Y39BH

Y4439R

Y45

Y46

Y46-2

Y46C

Y4PC834

Y4PC834MBH

Y-50

Y500CT-HS

Y60BHU

Y60LW

Y644HSCASE

Y644HSXT

Y644MBH

Y6NCP1

Y6NCP1BMNT

Y6NCP1FTSW

Y6NCP1SD

Y-7.5

Y750BHXT

Y750CBHXT

Y750CHSXT

Y750HSCASE

Y750HSXT

Y81KFT

Y81KFTMBH

Y8MRB-1

YA10A-TN

YA12A-TN

YA15ALKIT

YA1C

YA1C-2L

YA1C-2LN

YA1C2N

YA1C2NU

YA1C2TC14

YA1C2TC14E2

YA1C2TC38

YA1CA1

YA1CL2

YA1CL2NT14

YA1CL2NT14E2

YA1CL-2TC14

YA1CL-2TC14E2

YA1CL-2TC38

YA1CL4-BOX

YA1CL6-BOX

YA1C-LB

YA1CL-BOX

YA1CLNT10

YA1CLNT14

YA1CN

YA1CTC10

YA1CTC14

YA1CTC38

YA25

YA25-2L

YA25-2LN

YA252N

YA252NTC38

YA252NU

YA252TC14

YA252TC14E2

YA252TC38

YA252TC516

YA25A1

YA25A1S60T516E

YA25A3

YA25A3N69T38E

YA25A5

YA25A7

YA25A9

YA25L2-BOX

YA25L2NT14

YA25L2NT14E1

YA25L-2TC14

YA25L-2TC14E1

YA25L-2TC14E2

YA25L-2TC38

YA25L4-BOX

YA25L4TCG1

YA25L6-BOX

YA25-LB

YA25L-BOX

YA25LN50T14E

YA25LN64T516E

YA25LNT10

YA25LNT14

YA25LNT38

YA25LNT516

YA25N

YA25TC10

YA25TC38

YA26

YA26-2L

YA26-2LH89

YA26-2LN

YA262N

YA262NU

YA262TC14

YA262TC14E2

YA262TC38

YA26A1

YA26A13N100T516E

YA26A3

YA26A5

YA26A6

YA26A6N100T38E

YA26L2-BOX

YA26L2NT14

YA26L2NT14E1

YA26L-2TC14

YA26L-2TC14E1

YA26L-2TC14E2

YA26L-2TC38

YA26L4TCG1

YA26L60

YA26L6-BOX

YA26-LB

YA26L-BOX

YA26LN50T14E

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-11

J-15

J-15

J-15

J-15

J-12

J-12

J-15

J-12

J-12

J-12

J-12

J-12

J-15

J-15

J-15

J-15

J-15

J-15

J-15

J-15

J-15

J-15

J-15

J-15

J-15

J-15

N-61

N-61

N-61

N-61

N-61

N-61

N-61

N-6

L-10

L-10

L-10

L-10

L-10

L-29

L-10

L-10

L-29

L-10

L-10

L-10

L-29

L-10

L-29

L-10

L-29

L-10

L-29

L-10

L-29

L-29

L-10

L-10

N-61

N-61

N-61

L-16

L-16

L-16

L-16

L-16

L-16

L-16

L-16

L-16

L-16

L-16

L-16

N-46

N-90

N-45

N-54

K-57

N-55

K-57

N-56

N-56

N-56

K-57

K-57

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

N-44

N-69

N-68

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

C-112

N-27

N-43

N-26

N-27

N-26

N-38

N-38

N-38

N-38

N-27

K-57

N-28

C-112

C-112

N-39

C-112

N-36

N-35

N-35

N-35

N-31

N-42

K-57

N-32

N-33

N-34

N-29

N-29

N-40

N-68

N-68

N-68

N-68

K-57

N-37

N-37

N-25

N-25

N-25

N-30

N-41

N-49

C-143

C-143

C-17

C-28

C-35

C-35

C-41

C-19

C-41

C-41

C-41

C-144

C-22

C-38

C-38

C-35

C-35

C-35

C-22

C-22

C-55

C-22

C-25

C-25

C-28

C-28

C-28

C-28

C-28

C-35

C-35

C-41

C-41

C-19

C-41

C-41

C-41

C-41

C-144

C-107

C-144

C-107

C-146

C-146

C-144

C-22

C-38

C-38

C-35

C-35

C-35

C-35

C-22

C-85

C-22

C-55

C-22

C-107

C-107

C-25

C-25

C-25

C-25

C-28

C-28

C-28

C-29

C-36

H-41

C-36

C-41

C-19

C-41

C-41

C-41

C-144

C-107

C-146

C-146

C-144

C-107

C-22

C-38

C-38

C-36

C-36

C-36

C-36

C-85

C-22

C-22

C-55

C-22

C-107

O-76

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

YA26LNT10

YA26LNT14

YA26LNT38

YA26LNT516

YA26N

YA26TC14

YA26TC516

YA27

YA27-2LN

YA272N

YA272NU

YA272TC14E2

YA272TC38

YA27A1

YA27A10S76T516E

YA27A3

YA27A5

YA27A7

YA27L2NT14

YA27L2NT38

YA27L2NT516

YA27L-2TC14E2

YA27L-2TC38

YA27L3

YA27L4-BOX

YA27L4TCG1

YA27-LB

YA27L-BOX

YA27LNT14

YA27LNT38

YA27LNT516

YA28

YA28-2LH114

YA28-2LH115

YA28-2LN

YA282N

YA282NTC38

YA282NU

YA282TC14E2

YA282TC38

YA28A1

YA28A14N100T516E

YA28A1N100T38E

YA28A3

YA28A5

YA28A7

YA28L2

YA28L2NT14

YA28L2NTC516

YA28L-2TC14E1

YA28L-2TC14E2

YA28L-2TC38

YA28L-2TC38E2

YA28L3

YA28L4-BOX

YA28L4TCG1

YA28L56

YA28-LB

YA28L-BOX

YA28LNT14

YA28LNT38

YA28LNT516

YA28TC38

YA29

YA29-2LH91

YA29-2LN

YA292N

YA292NU

YA292TC38

YA292TC58E16

YA29A1

YA29A3

YA29A5

YA29A9

YA29L2

YA29L2NT38

YA29L2NT38E16

YA29L-2TC38

YA29L4

YA29L4TCG1

YA29L7

YA29-LB

YA29L-BOX

YA29LENT38

YA29LENT516

YA29LNT38

YA29LTC78

YA2C

YA2C-2L

YA2C-2LN

YA2C2N

YA2C2NTC38

YA2C2NU

YA2C2TC14

YA2C2TC14E2

YA2C2TC38

YA2C2TC38E2

YA2C2TC38E6

YA2C2TC38SL

YA2C2TC38SLBOX500

YA2C2TC516E2

YA2CA1

YA2CA1S91T516E

YA2CA3

YA2CA5

YA2CA5S53T14E

YA2CA9

YA2CL2-BOX

YA2CL2NT14

YA2CL2NT14E1

YA2CL2NT14E2

YA2CL-2TC14

YA2CL-2TC14E1

YA2CL-2TC14E2

YA2CL-2TC38

YA2CL-2TC516

YA2CL4-BOX

YA2CL6-BOX

YA2C-LB

YA2CL-BOX

YA2CLNT10

YA2CLNT14

YA2CLNT516

YA2CN

YA2CTC10

YA2CTC14

YA2CTC38

YA30

YA30-2LH85

YA30-2LN

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

C-25

C-25

C-25

C-25

C-29

C-29

C-29

C-29

C-36

C-41

C-19

C-41

C-41

C-144

C-107

C-144

C-146

C-146

C-38

C-38

C-38

C-36

C-36

C-22

C-22

C-85

C-55

C-22

C-26

C-26

C-26

C-29

H-41

H-41

C-36

C-41

C-41

C-19

C-41

C-41

C-144

C-107

C-107

C-144

C-146

C-146

C-23

C-38

C-36

C-36

C-36

C-36

C-36

C-23

C-23

C-85

C-23

C-55

C-23

C-26

C-26

C-26

C-29

C-29

H-41

C-36

C-41

C-19

C-41

C-41

C-144

C-146

C-146

C-144

C-23

C-38

C-38

C-36

C-23

C-85

C-23

C-55

C-23

C-26

C-26

C-26

C-23

C-28

C-35

C-35

C-41

C-41

C-19

C-41

C-41

C-41

C-41

C-41

C-81

C-81

C-41

C-144

C-107

C-144

C-144

C-107

C-146

C-22

C-38

C-38

C-38

C-35

C-35

C-35

C-35

C-35

C-22

C-22

C-55

C-22

C-25

C-25

C-25

C-28

C-28

C-28

C-28

C-29

H-41

C-36

YA302N

YA302N-FXB

YA302NU

YA302TC38

YA30A1

YA30A1N131T12E

YA30A3

YA30A5

YA30A6

YA30A6N100T38E

YA30A9N100T516E

YA30L

YA30L1

YA30L24

YA30L24N100T38E

YA30L27

YA30L28

YA30-L2NTC-FX

YA30L-2TC-38

YA30-L2TC38-FX

YA30-L2TC516-FX

YA30L7

YA30-LB

YA30LN

YA30LNT14

YA30LNT38

YA30LNT516FX

YA30L-TC12-FX

YA30L-TC34-FX

YA30L-TC38-FX

YA30L-TC516-FX

YA30L-TC58-FX

YA30N

YA30-TC12-FXB

YA31

YA31-2LH90

YA31-2LN

YA312N

YA312N-FXB

YA312NU

YA312TC14E2

YA312TC38

YA312TC38-FXB

YA31A1

YA31A11N100T516E

YA31A3

YA31A5

YA31A9N100T38E

YA31L

YA31L11

YA31L2NT38

YA31L2NT38E16

YA31L2NT38FX

YA31L-2NTC516

YA31-L2NTC-FX

YA31L-2TC12

YA31-L2TC12-FX

YA31L-2TC14E2

YA31L-2TC38

YA31-L2TC38-FX

YA31L36

YA31L4TCG1

YA31L7

YA31-LB

YA31LNT12

YA31L-NT12-FX

YA31LNT38

YA31L-TC12-FX

YA31L-TC14-FX

YA31L-TC34-FX

YA31L-TC38-FX

YA31L-TC516-FX

YA31L-TC58-FX

YA31-TC12-FXB

YA32

YA32-2L

YA32-2LN

YA322N

YA322N-FXB

YA322NU

YA322TC38

YA322TC38-FXB

YA32A1

YA32A3

YA32A5

YA32A8N106T516E

YA32A9

YA32L

YA32L1

YA32L14

YA32L2NT38FX

YA32-L2NTC-FX

YA32L-2TC38

YA32L-2TC38E5

YA32-L2TC38-FX

YA32-LB

YA32LN

YA32LNT12

YA32LNT38

YA32LNT38FX

YA32LNT516FX

YA32L-TC100-FX

YA32L-TC12-FX

YA32L-TC38-FX

YA32L-TC58-FX

YA32LTC78

YA32N

YA32-TC12-FXB

YA33

YA33-2LN

YA332N

YA33L

YA33N

YA34

YA34-2L

YA34-2LH110

YA34-2LH111

YA34-2LN

YA342LNN119T12E

YA342LNN131T12E

YA342N

YA342N-FXB

YA342NU

YA342TC14E2

YA342TC38

YA342TC38-FXB

YA34A1

YA34A3

YA34A3N131T12E

YA34A5

C-42

C-69

C-19

C-42

C-144

C-108

C-146

C-146

C-144

C-108

C-107

C-23

C-23

C-23

C-107

C-23

C-23

C-62

C-36

C-62

C-62

C-23

C-55

C-23

C-26

C-26

C-52

C-50

C-50

C-50

C-50

C-50

C-29

C-59

C-29

H-41

C-36

C-42

C-69

C-19

C-42

C-42

C-69

C-144

C-108

C-146

C-146

C-108

C-23

C-23

C-39

C-39

C-64

C-36

C-62

C-36

C-62

C-36

C-36

C-62

C-23

C-85

C-23

C-55

C-26

C-50, C-52

C-26

C-50

C-50

C-50

C-50

C-50

C-50

C-59

C-29

C-36

C-36

C-42

C-70

C-19

C-42

C-70

C-144

C-146

C-146

C-108

C-144

C-23

C-23

C-23

C-64

C-62

C-36

C-36

C-62

C-55

C-23

C-26

C-26

C-52

C-52

C-50

C-50

C-50

C-50

C-23

C-29

C-59

C-29

C-37

C-42

C-23

C-29

C-29

C-37

H-41

H-41

C-37

C-107

C-107

C-42

C-70

C-19

C-42

C-42

C-70

C-144

C-146

C-108

C-146 O-77

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

YA34A7N131T12E

YA34A8N131T38E

YA34L

YA34L20

YA34L2NT12E1

YA34L2NT38

YA34L2NT38E16

YA34L2NT38FX

YA34-L2NTC38-FX

YA34-L2NTC-FX

YA34L-2TC12

YA34-L2TC12-FX

YA34L-2TC14E2

YA34L-2TC38

YA34-L2TC38-FX

YA34-L2TC516-FX

YA34L37

YA34L6

YA34L6N131T12E

YA34L8

YA34L9

YA34-LB

YA34LNT12

YA34LNT38

YA34L-TC12-FX

YA34L-TC38-FX

YA34L-TC516-FX

YA34L-TC58-FX

YA34N

YA34-TC12-FXB

YA35

YA35-2L

YA35-2LN

YA352N

YA35L

YA35N

YA36

YA36-2LN

YA362N

YA362NFXB

YA362NU

YA362TC38

YA36A1

YA36A3

YA36A3N131TD12E

YA36A3N131TD38E

YA36A5

YA36A9N131TD12E

YA36L

YA36L11

YA36L2ENT38E10FX

YA36L2NNT

YA36L2NT38FX

YA36-L2NTC-FX

YA36L-2TC38

YA36-L2TC38-FX

YA36-LB

YA36LNT12

YA36LNT38

YA36L-TC12-FX

YA36L-TC58-FX

YA36LTC78

YA36N

YA36-TC12-FXB

YA36-TC58-FXB

YA37

YA37-2L

YA37-2LN

YA372N

YA37L

YA37L1

YA37N

YA38

YA382-FXBG2

YA382-FXBG3

YA38-2L

YA38-2LN

YA382N

YA382N-FXB

YA382TC38

YA382TC38-FXB

YA38L

YA38L2ENT38FX

YA38L2NNTFX

YA38L2NT38FX

YA38-L2NTC-FX

YA38L-2TC12

YA38-L2TC12-FX

YA38L-2TC38

YA38-L2TC38-FX

YA38-L2TC516-FX

YA38-LB

YA38LNT12FX

YA38LNTM20FX

YA38L-TC12-FX

YA38L-TC38-FX

YA38L-TC516-FX

YA38L-TC58-FX

YA38N

YA38-TC12-FXB

YA38-TC58-FXB

YA39

YA392ENNT

YA39-2L

YA39-2LN

YA392LNN131T12E

YA392N

YA392NT38

YA392NU

YA392TC38

YA39A1

YA39A1N131TD12E

YA39A3

YA39A34

YA39A5

YA39A5N131TD12E

YA39A7

YA39AM2

YA39L

YA39L2

YA39L2NT12E1

YA39L2NT38

YA39L2NT38E16

YA39-L2NTC-FX

YA39L-2TC12E3

YA39L-2TC38

YA39-L2TC38E10-FX

YA39L-2TC58

YA39L6

YA39L6N131T12E

YA39L9

YA39-LB

YA39LNT12

YA39LNT38

YA39LNT58

YA39N

YA3C

YA3C-2L

YA3C2N

YA3C2NU

YA3C2TC14

YA3C2TC14E2

YA3C2TC38

YA3C2TC38E2

YA3C2TC38-FXB

YA3C2TC38SL

YA3C2TC38SLBOX500

YA3C2TC516-FXB

YA3CL

YA3CL-2TC14

YA3CL-2TC38

YA3C-LB

YA3CLNT14

YA3CLNT516

YA3CN

YA3CTC14

YA3CTC38

YA40

YA40-2L

YA40-2LN

YA402N

YA402N-FXB

YA402NU

YA40A1

YA40A3

YA40L

YA40L2NNTFX

YA40-L2NTC-FX

YA40L-2TC38

YA40-L2TC38-FX

YA40-LB

YA40LENT12FX

YA40L-TC12-FX

YA40L-TC38-FX

YA40L-TC516-FX

YA40L-TC58-FX

YA40-TC58-FXB

YA41

YA41-2L

YA412N

YA41L

YA41N

YA42A1

YA42A3

YA42A5

YA42A7

YA44

YA44-2L

YA44-2LN

YA442N

YA442N-FXB

YA442NU

YA442TC38

YA442TC38-FXB

YA444N

YA444NU

YA44A1

YA44A3

YA44L

YA44L2

YA44L23

YA44L2NNTFX

YA44L2NNTFXSL

YA44L2NT38FX

YA44L-2NTC12E24

YA44-L2NTC-FX

YA44L-2TC12

YA44-L2TC12E3-FX

YA44-L2TC12-FX

YA44-L2TC38-FX

YA44-L2TC58-FX

YA44-LB

YA44LNT12FX

YA44LNT38FX

YA44L-TC12-FX

YA44L-TC58-FX

YA44N

YA44-TC58-FXB

YA45

YA452N

YA452NU

YA4532N

YA453L

YA454N

YA454NU

YA45A5^^

YA45L

YA45L2NT38FX

YA46

YA462N

YA462N-FXB

YA462NU

YA464N

YA464NU

YA46A3

YA46A5

YA46L

YA46N

YA46-TC58-FXB

YA47

YA472N

YA472NU

YA474N

YA47N

YA48

YA482N

YA482NU

YA484N

YA4864N

YA48A3

YA48L

YA48N

YA4C

YA4C-2L

YA4C-2LN

YA4C2N

YA4C2NU

YA4C2TC14

YA4C2TC14E2

YA4C2TC38

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

C-108

C-108

C-23

C-23

C-39

C-39

C-39

C-64

C-62

C-62

C-37

C-62

C-37

C-37

C-62

C-62

C-23

C-23

C-107

C-23

C-23

C-55

C-26

C-26

C-50

C-50

C-50

C-50

C-29

C-59

C-29

C-37

C-37

C-42

C-23

C-29

C-29

C-37

C-42

C-70

C-19

C-42

C-144

C-146

C-108

C-108

C-146

C-108

C-23

C-23

C-64

C-39

C-64

C-62

C-37

C-62

C-55

C-26

C-26

C-50

C-50

C-23

C-29

C-59

C-59

C-30

C-37

C-37

C-42

C-24

C-24

C-30

C-30

C-70

C-70

C-37

C-37

C-42

C-70

C-42

C-70

C-24

C-64

C-64

C-64

C-62

C-37

C-62

C-37

C-62

C-62

C-55

C-52

C-52

C-50

C-50

C-50

C-50

C-30

C-59

C-59

C-30

C-42

C-37

C-37

C-107

C-42

C-42

C-20

C-42

C-144

C-108

C-144

C-144

C-146

C-108

C-146

C-146

C-24

C-24

C-39

C-39

C-39

C-62

C-37

C-37

C-62

C-37

C-24

C-107

C-24

C-55

C-26

C-26

C-26

C-30

C-28

C-35

C-40

C-18

C-40

C-40

C-40

C-40

C-68

C-81

C-81

C-68

C-22

C-35

C-35

C-55

C-25

C-25

C-28

C-28

C-28

C-30

C-37

C-37

C-42

C-70

C-20

C-144

C-146

C-24

C-64

C-62

C-37

C-62

C-55

C-52

C-50

C-50

C-50

C-50

C-59

C-30

C-37

C-42

C-24

C-30

C-144

C-144

C-146

C-146

C-30

C-37

C-37

C-42

C-70

C-20

C-42

C-70

C-47

C-20

C-144

C-146

C-24

C-24

C-24

C-64

C-80

C-64

C-39

C-62

C-37

C-62

C-62

C-62

C-62

C-55

C-52

C-52

C-50

C-50

C-30

C-59

C-30

C-42

C-20

C-42

C-24

C-47

C-20

C-146

C-24

C-64

C-30

C-42

C-70

C-20

C-47

C-20

C-146

C-146

C-24

C-30

C-59

C-30

C-42

C-20

C-47

C-30

C-30

C-42

C-20

C-47

C-47

C-146

C-24

C-30

C-27

C-35

C-35

C-40

C-18

C-40

C-40

C-40

O-78

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YA4CA1

YA4CA3

YA4CA6

YA4CL1-BOX

YA4CL-2TC14

YA4CL-2TC14E1

YA4CL-2TC14E2

YA4CL-2TC38

YA4CL-2TC516

YA4CL3-BOX

YA4CL4-BOX

YA4CL6-BOX

YA4C-LB

YA4CL-BOX

YA4CLNT10

YA4CN

YA4CTC10

YA4CTC38

YA5C

YA5C-2L

YA5C2N

YA5C2NU

YA5CL

YA5C-LB

YA5CN

YA5CTC14FXB

YA6C

YA6C-2L

YA6C-2L51

YA6C-2L52

YA6C-2LN

YA6C2N

YA6C2NU

YA6C2TC14

YA6C2TC14E1

YA6C2TC14E2

YA6C2TC38

YA6C2TC38E2

YA6C2TC38E6

YA6C2TC38SL

YA6C2TC38SLBOX500

YA6CA1

YA6CA3

YA6CL1-BOX

YA6CL-2TC10

YA6CL-2TC14

YA6CL-2TC14E

YA6CL-2TC14E1

YA6CL-2TC14E2

YA6CL2TC14E2SL

YA6CL-2TC38

YA6CL-2TC516

YA6CL-2TC516E2

YA6CL3-BOX

YA6CL4-BOX

YA6CL-6

YA6CL-BOX

YA6CLNT6

YA6CN

YA6CTC10

YA6CTC38

YA6CTC516

YA6CTC8

YA8C-2LN

YA8C2NU

YA8C2TC14

YA8C2TC14E2

YA8C2TC14E2-FXB

YA8C2TC38

YA8C2TC38-FXB

YA8CA1

YA8CA3

YA8CA3S56T14E

YA8CL1-BOX

YA8C-L1-BOX

YA8CL2-BOX

YA8C-L2-BOX

YA8C-L2TC10

YA8CL-2TC10E2

YA8C-L2TC14

YA8C-L2TC14E1

YA8C-L2TC14E2

YA8C-L2TC38

YA8CL3-BOX

YA8C-L3-BOX

YA8CL4-BOX

YA8C-L4-BOX

YA8C-LB

YA8CL-BOX

YA8CLNT6

YA8CLNT8

YA8CTC10

YA8CTC14

YA8C-TC14-FXB

YA8CTC38

YA-A-KIT1

YA-AKIT2

YA-AKIT3

YAB25-2LH70

YAB25-2LH71

YAB2C-2LH74

YAB2C2LH75

YAB344N

YAB364N

YAB394N

YAB4C-2LH72

YAC-CASE

YAC-FC

YAD10-10

YAD1010F

YAD10-14

YAD1014F

YAD10-14M

YAD10-38

YAD10-38M

YAD10-516

YAD10-516M

YAD10-6

YAD106F

YAD10-8

YAD108F

YAD10-8M

YAD14-10

YAD1410F

YAD14-10M

YAD14-14

YAD1414F

YAD14-14M

YAD14-38

YAD14-38M

YAD14-4

YAD14-516

YAD14-6

YAD146F

YAD14-6M

YAD14-8

YAD148F

YAD14-8M

YAD18-10

YAD1810F

YAD18-10M

YAD18-14

YAD1814F

YAD18-14M

YAD18-38

YAD18-4

YAD18-4M

YAD18-516

YAD18-6

YAD186F

YAD18-6M

YAD18-8

YAD188F

YAD18-8M

YAD1CM10E38

YAD1CM12E12

YAD1CM16E58

YAD1CM20E34

YAD1CM6E14

YAD1CM8E516

YAD25M10E38

YAD25M12E12

YAD25M16E58

YAD25M20E34

YAD25M6E14

YAD25M8E516

YAD26M10E38

YAD26M12E12

YAD26M16E58

YAD26M20E34

YAD26M6E14

YAD26M8E516

YAD27M10E38

YAD27M12E12

YAD27M16E58

YAD27M20E34

YAD27M8E516

YAD28M10E38

YAD28M12E12

YAD28M16E58

YAD28M20E34

YAD28M6E14

YAD28M8E516

YAD2CM10E38

YAD2CM12E12

YAD2CM16E58

YAD2CM20E34

YAD2CM6E14

YAD2CM8E516

YAD30M10E38

YAD30M12E12

YAD30M16E58

YAD30M20E34

YAD31M10E38

YAD31M12E12

C-143

C-143

C-143

C-22

C-35

C-35

C-35

C-35

C-35

C-22

C-22

C-22

C-55

C-22

C-25

C-28

C-27

C-28

C-27

C-35

C-40

C-18

C-21

C-55

C-27

C-58

C-27

C-34

C-34

C-34

C-35

C-40

C-18

C-40

C-40

C-40

C-40

C-40

C-40

C-81

C-81

C-143

C-143

C-21

C-34

C-34

C-34

C-34

C-34

C-80

C-35

C-35

C-35

C-21

C-21

C-21

C-21

C-25

C-27

C-27

C-27

C-27

C-27

C-34

C-18

C-40

C-40

C-68

C-40

C-68

C-143

C-143

C-107

C-21

C-48

C-21

C-48

C-34, C-60

C-34

C-34, C-60

C-34, C-60

C-34, C-60

C-34, C-60

C-21

C-48

C-21

C-48

C-55

C-21, C-48

C-25

C-25

C-27

C-27

C-58

C-27

C-147

C-147

C-147

H-41

H-41

H-41

H-41

C-47

C-47

C-47

H-41

N-90

N-90

B-5

B-27

B-5

B-27

B-5

B-5

B-5

B-5

B-5

B-5

B-27

B-5

B-27

B-5

B-5

B-27

B-5

B-5

B-27

B-5

B-5

B-5

B-5

B-5

B-5

B-27

B-5

B-5

B-27

B-5

B-5

B-27

B-5

B-5

B-27

B-5

B-5

B-5

B-5

B-5

B-5

B-27

B-5

B-5

B-27

B-5

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-6

B-6

B-6

B-6

B-6

B-6

B-7

B-7

B-7

B-7

B-7

B-7

YAD31M16E58

YAD31M20E34

YAD33M10E38

YAD33M12E12

YAD33M16E58

YAD33M20E34

YAD36M10E38

YAD36M12E12

YAD36M16E58

YAD36M20E34

YAD4CM10E38

YAD4CM12E12

YAD4CM16E58

YAD4CM20E34

YAD4CM5E10

YAD4CM6E14

YAD4CM8E516

YAD6CM10E38

YAD6CM12E12

YAD6CM5E10

YAD6CM6E14

YAD6CM8E516

YAD8CM10E38

YAD8CM12E12

YAD8CM16E58

YAD8CM4E8

YAD8CM5E10

YAD8CM6E14

YAD8CM8E516

YAE10N

YAE10N11

YAE10N110BFBOX

YAE10N110LFBOX

YAE10N111BFBOX

YAE10N111LFBOX

YAE10N112BFBOX

YAE10N112LFBOX

YAE10N11BOX

YAE10N11M

YAE10N2

YAE10N2BOX

YAE10N2M

YAE10N3

YAE10N3BOX

YAE10N3M

YAE10N4

YAE10N4BOX

YAE10N4M

YAE10N5

YAE10N5BOX

YAE10N5M

YAE10N79

YAE10N79BOX

YAE10N80FBOX

YAE10N81FBOX

YAE10N82FBOX

YAE10N83FBOX

YAE10NBOX

YAE10NM

YAE12N

YAE12N1

YAE12N1BOX

YAE12N1M

YAE12N2

YAE12N2BOX

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-7

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-6

B-11

B-11

B-40

B-35

B-40

B-35

B-40

B-35

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-30

B-30

B-30

B-30

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11 O-79

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

YAE12N2M

YAE12N7

YAE12N7BOX

YAE12N7M

YAE12N9

YAE12N9BOX

YAE12N9M

YAE12NBOX

YAE12NM

YAE12Z2

YAE12Z2BOX

YAE12Z3

YAE12Z3BOX

YAE12Z4

YAE12Z4BOX

YAE14N

YAE14N1

YAE14N107BFBOX

YAE14N107LFBOX

YAE14N108BFBOX

YAE14N108LFBOX

YAE14N109BFBOX

YAE14N109LFBOX

YAE14N1BOX

YAE14N1M

YAE14N2

YAE14N2BOX

YAE14N2M

YAE14N3

YAE14N3BOX

YAE14N3M

YAE14N4

YAE14N43

YAE14N43BOX

YAE14N43M

YAE14N4BOX

YAE14N4M

YAE14N76F

YAE14N76FBOX

YAE14N77F

YAE14N77FBOX

YAE14N77FM

YAE14N78F

YAE14N78FBOX

YAE14N78FM

YAE14NBOX

YAE14NM

YAE14Z2

YAE14Z2BOX

YAE14Z3

YAE14Z3BOX

YAE14Z4

YAE14Z4BOX

YAE18G43F

YAE18G43FBOX

YAE18G43FM

YAE18N

YAE18N104BFBOX

YAE18N104LFBOX

YAE18N105BFBOX

YAE18N105LFBOX

YAE18N106BFBOX

YAE18N106LFBOX

YAE18N15

YAE18N15BOX

YAE18N15M

YAE18N2

YAE18N21

YAE18N21BOX

YAE18N21M

YAE18N24

YAE18N24BOX

YAE18N24M

YAE18N26

YAE18N26BOX

YAE18N26M

YAE18N2BOX

YAE18N2M

YAE18N3

YAE18N3BOX

YAE18N3M

YAE18N56F

YAE18N56FBOX

YAE18N57F

YAE18N57FBOX

YAE18N57FM

YAE18N58FBOX

YAE18N60F

YAE18N60FBOX

YAE18N60FM

YAE18NBOX

YAE18NM

YAE18Z1

YAE18Z1BOX

YAE18Z2

YAE18Z2BOX

YAE18Z3

YAE18Z3BOX

YAE18Z4

YAE18Z4BOX

YAE22G12

YAE22G12BOX

YAE22G13

YAE22G13BOX

YAE22G13M

YAE22G14

YAE22G14BOX

YAE22G15

YAE22G15BOX

YAE22G16

YAE22G16BOX

YAE22G16M

YAE22G18

YAE22G18BOX

YAE22G18M

YAE22N65F

YAE22N65FBOX

YAE22N65FM

YAE22N66F

YAE22N66FBOX

YAE22N66FM

YAE22Z1

YAE22Z1BOX

YAE22Z2

YAE22Z2BOX

YAE22Z3

YAE22Z3BOX

YAEBAF1CNTN

YAEBAF1CNTNOEM

YAEBAF1CPTN

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-43

B-43

B-43

B-43

B-43

B-43

B-11

B-11

B-40

B-35

B-40

B-35

B-40

B-35

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-30

B-30

B-30

B-30

B-30

B-30

B-30

B-30

B-11

B-11

B-43

B-43

B-43

B-43

B-43

B-43

B-30

B-30

B-30

B-11

B-40

B-35

B-40

B-35

B-40

B-35

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-11

B-30

B-30

B-30

B-30

B-30

B-30

B-30

B-30

B-30

B-11

B-11

B-43

B-43

B-43

B-43

B-43

B-43

B-43

B-43

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-10

B-30

B-30

B-30

B-30

B-30

B-30

B-43

B-43

B-43

B-43

B-43

B-43

C-12

C-12

C-12

YAEBAF1CPTNOEM

YAEBAF25NTN

YAEBAF25NTNOEM

YAEBAF25PTN

YAEBAF25PTNOEM

YAEBAF26NTN

YAEBAF26NTNOEM

YAEBAF26PTN

YAEBAF26PTNOEM

YAEBAF27NTN

YAEBAF27NTNOEM

YAEBAF27PTN

YAEBAF27PTNOEM

YAEBAF28NTN

YAEBAF28NTNOEM

YAEBAF28PTN

YAEBAF28PTNOEM

YAEBAF2CNTN

YAEBAF2CNTNOEM

YAEBAF2CPTN

YAEBAF2CPTNOEM

YAEBAS1CNTN

YAEBAS1CNTNOEM

YAEBAS1CPTN

YAEBAS1CPTNOEM

YAEBAS25NTN

YAEBAS25NTNOEM

YAEBAS25PTN

YAEBAS25PTNOEM

YAEBAS26NTN

YAEBAS26NTNOEM

YAEBAS26PTN

YAEBAS26PTNOEM

YAEBAS27NTN

YAEBAS27NTNOEM

YAEBAS27PTN

YAEBAS27PTNOEM

YAEBAS28NTN

YAEBAS28NTNOEM

YAEBAS28PTN

YAEBAS28PTNOEM

YAEBAS2CNTN

YAEBAS2CNTNOEM

YAEBAS2CPTN

YAEBAS2CPTNOEM

YAEBAS4CNTN

YAEBAS4CNTNOEM

YAEBAS4CPTN

YAEBAS4CPTNOEM

YAEBAS6CNTN

YAEBAS6CNTNOEM

YAEBAS6CPTN

YAEBAS6CPTNOEM

YAES10K11

YAES10K11T1

YAES10K12

YAES10K13

YAES10K14

YAES10K56

YAES10K57

YAES10K58

YAES10N11

YAES10N11F

YAES10N12

YAES10N12F

YAES10N13

YAES10N14

YAES10N56

YAES10N56F

YAES10N57

YAES10N57F

YAES10N58

YAES14K10

YAES14K53

YAES14K54

YAES14K6

YAES14K7

YAES14K8

YAES14K9

YAES14N10

YAES14N52

YAES14N53

YAES14N53F

YAES14N54

YAES14N54F

YAES14N6

YAES14N6F

YAES14N7

YAES14N8

YAES14N8F

YAES14N9

YAES18K1

YAES18K2

YAES18K3

YAES18K4

YAES18K49

YAES18K5

YAES18K50

YAES18N1

YAES18N1F

YAES18N2

YAES18N3

YAES18N3F

YAES18N4

YAES18N48

YAES18N49

YAES18N49F

YAES18N5

YAES18N50

YAES18N50F

YAEV10

YAEV10BOX

YAEV10-L36

YAEV10-L36BOX

YAEV10-T11

YAEV10-T11BOX

YAEV10-T2

YAEV10-T2BOX

YAEV10-T3

YAEV10-T3BOX

YAEV10-T4

YAEV10-T4BOX

YAEV10-T7

YAEV10-T7BOX

YAEV14

YAEV14BOX

YAEV18

YAEV18BOX

YAEV1C-H

YAEV1C-H1

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-12

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

C-11

B-14

B-14

B-14

B-14

B-14

B-14

B-14

B-14

B-9

B-29

B-9

B-29

B-9

B-9

B-9

B-29

B-9

B-29

B-9

B-14

B-14

B-14

B-14

B-14

B-14

B-14

B-9

B-9

B-9

B-29

B-9

B-29

B-9

B-29

B-9

B-9

B-29

B-9

B-14

B-14

B-14

B-14

B-14

B-14

B-14

B-9

B-29

B-9

B-9

B-29

B-9

B-9

B-9

B-29

B-9

B-9

B-29

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-19

B-21

B-21

O-80

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YAEV1C-H2

YAEV1C-H3

YAEV1C-L

YAEV1C-L1

YAEV1C-L2

YAEV1C-L3

YAEV1C-RH

YAEV1C-RH2

YAEV1C-RS

YAEV1C-RS2

YAEV25-H

YAEV25-H1

YAEV25-H2

YAEV25-H3

YAEV25-H4

YAEV25-L

YAEV25-L1

YAEV25-L2

YAEV25-L3

YAEV25-L4

YAEV25-RH

YAEV25-RS

YAEV26-H

YAEV26-H1

YAEV26-H12

YAEV26-H2

YAEV26-H3

YAEV26-L

YAEV26-L1

YAEV26-L2

YAEV26-L3

YAEV26-RH

YAEV26-RS

YAEV2C-H

YAEV2C-H1

YAEV2C-H2

YAEV2C-H3

YAEV2C-H4

YAEV2C-L

YAEV2C-L1

YAEV2C-L2

YAEV2C-L3

YAEV2C-L4

YAEV2C-RH

YAEV2C-RH1

YAEV2C-RS

YAEV2C-RS1

YAEV4C-H

YAEV4C-H2

YAEV4C-H3

YAEV4C-H4

YAEV4C-H5

YAEV4C-L

YAEV4C-L2

YAEV4C-L3

YAEV4C-L4

YAEV4C-L5

YAEV4C-RH

YAEV4C-RH2

YAEV4C-RS

YAEV4C-RS2

YAEV6C-H

YAEV6C-H1

YAEV6C-H10

YAEV6C-H2

B-21

B-21

B-20

B-20

B-20

B-20

B-25

B-25

B-24

B-24

B-22

B-22

B-22

B-22

B-22

B-20

B-20

B-20

B-20

B-20

B-25

B-24

B-22

B-22

B-22

B-22

B-22

B-20

B-20

B-20

B-20

B-25

B-24

B-21

B-21

B-21

B-21

B-21

B-20

B-20

B-20

B-20

B-20

B-25

B-25

B-24

B-24

B-21

B-21

B-21

B-21

B-21

B-20

B-20

B-20

B-20

B-20

B-25

B-25

B-24

B-24

B-21

B-21

B-21

B-21

YAEV6C-H4

YAEV6C-L

YAEV6C-L1

YAEV6C-L10

YAEV6C-L2

YAEV6C-L4

YAEV6C-RH

YAEV6C-RH1

YAEV6C-RS

YAEV6C-RS1

YAEV8C-H

YAEV8C-H1

YAEV8C-H14

YAEV8C-H2

YAEV8C-H3

YAEV8C-H4

YAEV8C-L

YAEV8C-L1

YAEV8C-L14

YAEV8C-L14BOX

YAEV8C-L1BOX

YAEV8C-L2

YAEV8C-L2BOX

YAEV8C-L3

YAEV8C-L3BOX

YAEV8C-L4

YAEV8C-L4BOX

YAEV8C-LBOX

YAEV8C-RH

YAEV8C-RH1

YAEV8C-RS

YAEV8C-RS1

YAFW10HS

YAFW10N

YAFW10NG

YAFW10P

YAFW14HS

YAFW14N

YAFW14NG

YAFW14P

YAFW18HS

YAFW18N

YAFW18NG

YAFW18P

YAFX15CLKIT

YAG18TC516LD

YAG1CL-2NTC-LD

YAG1CL-2TC14E1-LD

YAG1CL-2TC14E2-LD

YAG1CL-2TC14-LD

YAG1CL-2TC38-LD

YAG1CL-2TC516-LD

YAG1CLTC10LD

YAG1CLTC12FX

YAG1CLTC12LD

YAG1CLTC14FX

YAG1CLTC14LD

YAG1CLTC38FX

YAG1CLTC38LD

YAG1CLTC516FX

YAG1CLTC516LD

YAG25L-2NTC-LD

YAG25L-2TC12E1-LD

YAG25L-2TC14E2-LD

YAG25L-2TC14-LD

YAG25L-2TC38-LD

YAG25L-2TC516E2-LD

YAG25L-2TC516-LD

YAG25LTC12FX

YAG25LTC12LD

YAG25LTC14FX

YAG25LTC14LD

YAG25LTC38FX

YAG25LTC38LD

YAG25LTC516FX

YAG25LTC516LD

YAG26L-2NTC-LD

YAG26L-2TC14E2-LD

YAG26L-2TC14-LD

YAG26L-2TC38-LD

YAG26L-2TC516-LD

YAG26LTC10LD

YAG26LTC12FX

YAG26LTC12LD

YAG26LTC14FX

YAG26LTC14LD

YAG26LTC34LD

YAG26LTC38FX

YAG26LTC38LD

YAG26LTC516FX

YAG26LTC516LD

YAG26LTC58LD

YAG27L-2NTC-LD

YAG27L-2TC14E2-LD

YAG27L-2TC14-LD

YAG27L-2TC38-LD

YAG27L-2TC516-LD

YAG27LTC10LD

YAG27LTC12FX

YAG27LTC12LD

YAG27LTC14FX

YAG27LTC14LD

YAG27LTC38FX

YAG27LTC38LD

YAG27LTC516FX

YAG27LTC516LD

YAG28L-2NT38-LD

YAG28L-2NTC-LD

YAG28L-2TC12E1-LD

YAG28L-2TC12-LD

YAG28L-2TC14E2-LD

YAG28L-2TC14-LD

YAG28L-2TC38-LD

YAG28L-2TC516-LD

YAG28LTC12FX

YAG28LTC12LD

YAG28LTC14FX

YAG28LTC14LD

YAG28LTC38FX

YAG28LTC38LD

YAG28LTC516FX

YAG28LTC516LD

YAG28LTC516N66LD

YAG28LTC58LD

YAG29L-2NT38-LD

YAG29L-2NTC-LD

YAG29L-2TC12E1-LD

YAG29L-2TC12-LD

YAG29L-2TC14E2-LD

YAG29L-2TC14-LD

YAG29L-2TC38-LD

YAG29L-2TC516-LD

YAG29LTC12FX

YAG29LTC12LD

YAG29LTC34LD

YAG29LTC38FX

YAG29LTC38LD

YAG29LTC516LD

YAG29LTC58FX

YAG2CL-2NTC-LD

YAG2CL-2TC14E1-LD

YAG2CL-2TC14E2-LD

YAG2CL-2TC14-LD

YAG2CL-2TC38-LD

YAG2CL-2TC516-LD

YAG2CLTC10LD

YAG2CLTC12FX

YAG2CLTC12LD

YAG2CLTC14FX

YAG2CLTC14LD

YAG2CLTC38FX

YAG2CLTC38LD

YAG2CLTC516FX

YAG2CLTC516LD

YAG30L-2NTC-LD

YAG30L-2TC12-LD

YAG30L-2TC38-LD

YAG30LTC12FX

YAG30LTC34LD

YAG30LTC38FX

YAG30LTC58FX

YAG30LTC58LD

YAG31L-2NTC38-LD

YAG31L-2NTC-LD

YAG31L-2TC12-LD

YAG31L-2TC38-LD

YAG31LNT12LD

YAG31LTC12FX

YAG31LTC12LD

YAG31LTC14FX

YAG31LTC14LD

YAG31LTC34LD

YAG31LTC38FX

YAG31LTC38LD

YAG31LTC516FX

YAG31LTC516LD

YAG31LTC58FX

YAG31LTC58LD

YAG32L-2NTC-LD

YAG32L-2TC38-LD

YAG32LTC12FX

YAG32LTC12LD

YAG32LTC38LD

YAG32LTC58FX

YAG32LTC58LD

YAG34L-2NT38-LD

YAG34L-2NTC-LD

YAG34L-2TC12-LD

YAG34L-2TC38-LD

YAG34L-2TC516-LD

YAG34LNT516N66LD

YAG34LTC12FX

YAG34LTC12LD

YAG34LTC38FX

YAG34LTC38LD

B-21

B-20

B-20

B-20

B-20

B-20

B-25

B-25

B-24

B-24

B-21

B-21

B-21

B-21

B-21

B-21

B-20

B-20

B-20

B-20

B-20

B-20

B-20

B-20

B-20

B-20

B-20

B-20

B-25

B-25

B-24

B-24

B-79

B-78

B-79

B-78

B-79

B-78

B-79

B-78

B-79

B-78

B-79

B-78

C-17

C-73

C-77

C-77

C-77

C-77

C-77

C-77

C-73

C-53

C-73

C-53

C-73

C-53

C-73

C-53

C-73

C-77

C-77

C-77

C-77

C-77

C-77

C-77

C-53

C-74

C-53

C-74

C-53

C-74

C-53

C-74

C-77

C-77

C-77

C-77

C-77

C-74

C-53

C-74

C-53

C-74

C-74

C-53

C-74

C-53

C-74

C-74

C-77

C-77

C-77

C-77

C-77

C-74

C-53

C-74

C-53

C-74

C-53

C-74

C-53

C-74

C-77

C-77

C-77

C-77

C-77

C-77

C-77

C-77

C-54

C-74

C-54

C-74

C-54

C-74

C-54

C-74

C-74

C-74

C-77

C-77

C-77

C-77

C-77

C-77

C-77

C-77

C-54

C-74

C-74

C-54

C-74

C-74

C-54

C-76

C-76

C-76

C-76

C-76

C-76

C-73

C-53

C-73

C-53

C-73

C-53

C-73

C-53

C-73

C-78

C-78

C-78

C-54

C-74

C-54

C-54

C-74

C-78

C-78

C-78

C-78

C-74

C-54

C-74

C-54

C-74

C-74

C-54

C-74

C-54

C-74

C-54

C-74

C-78

C-78

C-54

C-74

C-74

C-54

C-74

C-78

C-78

C-78

C-78

C-78

C-75

C-54

C-75

C-54

C-75 O-81

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YAG34LTC516FX

YAG34LTC516LD

YAG34LTC516N66LD

YAG34LTC58FX

YAG34LTC58LD

YAG36L-2NTC-LD

YAG36L-2TC38-LD

YAG36LTC12LD

YAG36LTC38FX

YAG36LTC58LD

YAG38L-2NT38-LD

YAG38L-2NTC-LD

YAG38L-2TC12-LD

YAG38L-2TC38-LD

YAG38L-2TC516-LD

YAG38LTC12FX

YAG38LTC12LD

YAG38LTC38FX

YAG38LTC38LD

YAG38LTC516FX

YAG38LTC516LD

YAG38LTC58LD

YAG39L-2NTC-LD

YAG40L-2NNT-LD

YAG40L-2NTC-LD

YAG40L-2TC38-LD

YAG40LTC12FX

YAG40LTC12LD

YAG40LTC14FX

YAG40LTC38FX

YAG40LTC38LD

YAG40LTC516FX

YAG40LTC516LD

YAG40LTC58LD

YAG44L-2NTC-LD

YAG44L-2TC12E3-LD

YAG44L-2TC12-LD

YAG44L-2TC38-LD

YAG44L-2TC58-LD

YAG44LTC12FX

YAG44LTC12LD

YAG44LTC38FX

YAG44LTC516FX

YAG44LTC58LD

YAG4CL-2NT10E1-LD

YAG4CL-2NT10-LD

YAG4CL-2NTC-LD

YAG4CL-2TC14E1-LD

YAG4CL-2TC14E2-LD

YAG4CL-2TC14-LD

YAG4CL-2TC38-LD

YAG4CL-2TC516-LD

YAG4CLNT10LD

YAG4CLTC10LD

YAG4CLTC12FX

YAG4CLTC12LD

YAG4CLTC14FX

YAG4CLTC14LD

YAG4CLTC38FX

YAG4CLTC38LD

YAG4CLTC516FX

YAG4CLTC516LD

YAG6CL-2NTC-LD

YAG6CL-2TC10E2-LD

YAG6CL-2TC10E4-LD

YAG6CL-2TC10E-LD

YAG6CL-2TC10-LD

YAG6CL-2TC14E1-LD

YAG6CL-2TC14E2-LD

YAG6CL-2TC14-LD

YAG6CL-2TC38-LD

YAG6CL-2TC516-LD

YAG6CLTC10LD

YAG6CLTC12FX

YAG6CLTC12LD

YAG6CLTC14FX

YAG6CLTC14LD

YAG6CLTC38FX

YAG6CLTC38LD

YAG6CLTC516FX

YAG6CLTC516LD

YAG8CL-2TC10-LD

YAG8CL-2TC14E1-LD

YAG8CL-2TC14E2-LD

YAG8CL-2TC14-LD

YAG8CL-2TC38-LD

YAG8CLTC10LD

YAG8CLTC12FX

YAG8CLTC12LD

YAG8CLTC14FX

YAG8CLTC14LD

YAG8CLTC38LD

YAG8CLTC516FX

YAG8CLTC516LD

YAGB25LTC12FX

YAGB25LTC12FXOEM

YAGB25LTC14FX

YAGB25LTC14FXOEM

YAGB25LTC38FX

YAGB25LTC38FXOEM

YAGB25LTC516FX

YAGB25LTC516FXOEM

YAGB26LTC12FX

YAGB26LTC12FXOEM

YAGB26LTC14FX

YAGB26LTC14FXOEM

YAGB26LTC38FX

YAGB26LTC38FXOEM

YAGB26LTC516FX

YAGB26LTC516FXOEM

YAGB28LTC12FX

YAGB28LTC12FXOEM

YAGB28LTC14FX

YAGB28LTC14FXOEM

YAGB28LTC38FX

YAGB28LTC38FXOEM

YAGB28LTC516FX

YAGB28LTC516FXOEM

YAGB2CLTC10FX

YAGB2CLTC10FXOEM

YAGB2CLTC12FX

YAGB2CLTC12FXOEM

YAGB2CLTC14FX

YAGB2CLTC14FXOEM

YAGB2CLTC38FX

YAGB2CLTC38FXOEM

YAGB2CLTC516FX

YAGB2CLTC516FXOEM

YAGB4CLTC10FX

YAGB4CLTC10FXOEM

YAGB4CLTC12FX

YAGB4CLTC12FXOEM

YAGB4CLTC14FX

YAGB4CLTC14FXOEM

YAGB4CLTC38FX

YAGB4CLTC38FXOEM

YAGB4CLTC516FX

YAGB4CLTC516FXOEM

YAGB6CLTC10FX

YAGB6CLTC10FXOEM

YAGB6CLTC12FX

YAGB6CLTC12FXOEM

YAGB6CLTC14FX

YAGB6CLTC14FXOEM

YAGB6CLTC38FX

YAGB6CLTC38FXOEM

YAGB6CLTC516FX

YAGB6CLTC516FXOEM

YAIT1210Y

YAIT1814B

YAIT2218R

YAK25A-2G1

YAK25A-2G2

YAK28A-2G1

YAK28A-2G2

YAK29A-2G1

YAK2CA2G1

YAK2CA2G2

YAK311A-2G1

YAK311A-2G2

YAK31A-2G1

YAK31A-2G2

YAK34A-2G1

YAK34A-2G2

YAK-361A-2G1

YAK-361A-2G2

YAK39A-2G1

YAK39A-2G2

YAK44A-2NG7

YAK44A-2NG8

YALB102M10

YALB102M12

YALB102M4

YALB102M5

YALB102M6

YALB102M8

YALB10M10

YALB10M12

YALB10M4

YALB10M5

YALB10M6

YALB10M8

YALB1202M10

YALB1202M12

YALB1202M14

YALB1202M16

YALB1202M20

YALB1202M8

YALB120F2M10

YALB120F2M12

YALB120F2M14

YALB120F2M16

YALB120F2M20

YALB120F2M8

YALB120FM10

C-54

C-75

C-75

C-54

C-75

C-78

C-78

C-75

C-54

C-75

C-78

C-78

C-78

C-78

C-78

C-54

C-75

C-54

C-75

C-54

C-75

C-75

C-78

C-78

C-78

C-78

C-54

C-75

C-54

C-54

C-75

C-54

C-75

C-75

C-78

C-78

C-78

C-78

C-78

C-54

C-75

C-54

C-54

C-75

C-76

C-76

C-76

C-76

C-76

C-76

C-76

C-76

C-73

C-73

C-53

C-73

C-53

C-73

C-53

C-73

C-53

C-73

C-76

C-76

C-76

C-76

C-76

C-76

C-76

C-76

C-76

C-76

C-73

C-53

C-73

C-53

C-73

C-53

C-73

C-53

C-73

C-76

C-76

C-76

C-76

C-76

C-73

C-53

C-73

C-53

C-73

C-73

C-53

C-73

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

C-13

B-75

B-75

B-75

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

H-77

C-96

C-96

C-96

C-96

C-96

C-96

C-90

C-90

C-90

C-90

C-90

C-90

C-97

C-97

C-97

C-97

C-97

C-97

C-105

C-105

C-105

C-105

C-105

C-105

C-101

YALB120FM12

YALB120FM14

YALB120FM16

YALB120FM20

YALB120FM8

YALB120M10

YALB120M12

YALB120M14

YALB120M16

YALB120M20

YALB120M8

YALB1502M10

YALB1502M12

YALB1502M14

YALB1502M16

YALB1502M20

YALB1502M8

YALB150F2M10

YALB150F2M12

YALB150F2M14

YALB150F2M16

YALB150F2M20

YALB150F2M8

YALB150FM10

YALB150FM12

YALB150FM14

YALB150FM16

YALB150FM20

YALB150FM8

YALB150M10

YALB150M12

YALB150M14

YALB150M16

YALB150M20

YALB150M8

YALB162M10

YALB162M12

YALB162M4

YALB162M5

YALB162M6

YALB162M8

YALB16M10

YALB16M12

YALB16M4

YALB16M5

YALB16M6

YALB16M8

YALB1852M10

YALB1852M12

YALB1852M14

YALB1852M16

YALB1852M20

YALB1852M8

YALB185F2M10

YALB185F2M12

YALB185F2M14

YALB185F2M16

YALB185F2M20

YALB185F2M8

YALB185FM10

YALB185FM12

YALB185FM14

YALB185FM16

YALB185FM20

YALB185FM8

C-101

C-101

C-101

C-101

C-101

C-91

C-91

C-91

C-91

C-91

C-91

C-97

C-97

C-97

C-97

C-97

C-97

C-105

C-105

C-105

C-105

C-105

C-105

C-101

C-101

C-101

C-101

C-101

C-101

C-91

C-91

C-91

C-91

C-91

C-91

C-96

C-96

C-96

C-96

C-96

C-96

C-90

C-90

C-90

C-90

C-90

C-90

C-97

C-97

C-97

C-97

C-97

C-97

C-106

C-106

C-106

C-106

C-106

C-106

C-102

C-102

C-102

C-102

C-102

C-102

O-82

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YALB185M10

YALB185M12

YALB185M14

YALB185M16

YALB185M20

YALB185M8

YALB2402M10

YALB2402M12

YALB2402M14

YALB2402M16

YALB2402M20

YALB240F2M10

YALB240F2M12

YALB240F2M14

YALB240F2M16

YALB240F2M20

YALB240FM10

YALB240FM12

YALB240FM14

YALB240FM16

YALB240FM20

YALB240M10

YALB240M12

YALB240M14

YALB240M16

YALB240M20

YALB252M10

YALB252M12

YALB252M5

YALB252M6

YALB252M8

YALB25M10

YALB25M12

YALB25M5

YALB25M6

YALB25M8

YALB3002M10

YALB3002M12

YALB3002M14

YALB3002M16

YALB3002M20

YALB300F2M10

YALB300F2M12

YALB300F2M14

YALB300F2M16

YALB300F2M20

YALB300FM10

YALB300FM12

YALB300FM14

YALB300FM16

YALB300FM20

YALB300M10

YALB300M12

YALB300M14

YALB300M16

YALB300M20

YALB352M10

YALB352M12

YALB352M5

YALB352M6

YALB352M8

YALB35M10

YALB35M12

YALB35M5

YALB35M6

YALB35M8

YALB4002M12

YALB4002M14

YALB4002M16

YALB4002M20

YALB400F2M12

YALB400F2M14

YALB400F2M16

YALB400F2M20

YALB400FM12

YALB400FM14

YALB400FM16

YALB400FM20

YALB400M12

YALB400M14

YALB400M16

YALB400M20

YALB5002M12

YALB5002M16

YALB5002M20

YALB500F2M12

YALB500F2M16

YALB500F2M20

YALB500FM12

YALB500FM16

YALB500FM20

YALB500M12

YALB500M16

YALB500M20

YALB502M10

YALB502M12

YALB502M14

YALB502M16

YALB502M6

YALB502M8

YALB50F2M10

YALB50F2M12

YALB50F2M14

YALB50F2M16

YALB50F2M6

YALB50F2M8

YALB50FM10

YALB50FM12

YALB50FM14

YALB50FM16

YALB50FM6

YALB50FM8

YALB50M10

YALB50M12

YALB50M14

YALB50M16

YALB50M6

YALB50M8

YALB6302M12

YALB6302M16

YALB6302M20

YALB630F2M12

YALB630F2M16

YALB630F2M20

YALB630FM12

YALB630FM16

YALB630FM20

YALB630M12

YALB630M16

YALB630M20

C-91

C-91

C-91

C-91

C-91

C-91

C-98

C-98

C-98

C-98

C-98

C-106

C-106

C-106

C-106

C-106

C-102

C-102

C-102

C-102

C-102

C-92

C-92

C-92

C-92

C-92

C-96

C-96

C-96

C-96

C-96

C-90

C-90

C-90

C-90

C-90

C-98

C-98

C-98

C-98

C-98

C-106

C-106

C-106

C-106

C-106

C-102

C-102

C-102

C-102

C-102

C-92

C-92

C-92

C-92

C-92

C-96

C-96

C-96

C-96

C-96

C-90

C-90

C-90

C-90

C-90

C-98

C-98

C-98

C-98

C-106

C-106

C-106

C-106

C-102

C-102

C-102

C-102

C-92

C-92

C-92

C-92

C-98

C-98

C-98

C-106

C-106

C-106

C-102

C-102

C-102

C-92

C-92

C-92

C-96

C-96

C-96

C-96

C-96

C-96

C-105

C-105

C-105

C-105

C-105

C-105

C-101

C-101

C-101

C-101

C-101

C-101

C-90

C-90

C-90

C-90

C-90

C-90

C-98

C-98

C-98

C-106

C-106

C-106

C-102

C-102

C-102

C-92

C-92

C-92

YALB702M10

YALB702M12

YALB702M14

YALB702M16

YALB702M6

YALB702M8

YALB70F2M10

YALB70F2M12

YALB70F2M14

YALB70F2M16

YALB70F2M6

YALB70F2M8

YALB70FM10

YALB70FM12

YALB70FM14

YALB70FM16

YALB70FM6

YALB70FM8

YALB70M10

YALB70M12

YALB70M14

YALB70M16

YALB70M6

YALB70M8

YALB952M10

YALB952M12

YALB952M14

YALB952M16

YALB952M20

YALB952M8

YALB95F2M10

YALB95F2M12

YALB95F2M14

YALB95F2M16

YALB95F2M20

YALB95F2M8

YALB95FM10

YALB95FM12

YALB95FM14

YALB95FM16

YALB95FM20

YALB95FM8

YALB95M10

YALB95M12

YALB95M14

YALB95M16

YALB95M20

YALB95M8

YASG6CL-2TC14E2-FX

YASV6CL-2TC14E2-FX

YASV6CL-2TC14E2-FX-60

YATW10HS

YATW10N

YATW10NG

YATW10P

YATW14HS

YATW14N

YATW14NG

YATW14P

YATW18HS

YATW18N

YATW18NG

YATW18P

YAV0252M3

YAV0252M4

YAV0252M5

YAV0252M6

YAV0252M8

YAV025M3

YAV025M4

YAV025M5

YAV025M6

YAV025M8

YAV062M10

YAV062M4

YAV062M5

YAV062M6

YAV062M8

YAV06M10

YAV06M4

YAV06M5

YAV06M6

YAV06M8

YAV10

YAV102M10

YAV102M12

YAV102M4

YAV102M5

YAV102M6

YAV102M8

YAV10-2TC10

YAV102TC1090SL

YAV10-2TC14

YAV10-2TC14E1

YAV10-2TC14E2

YAV10-2TC38

YAV10BOX

YAV10-H25BOX

YAV10-H3BOX

YAV10-HBOX

YAV10-HF

YAV10-HFBOX

YAV10L36

YAV10-L36BOX

YAV10M10

YAV10M12

YAV10M4

YAV10M5

YAV10M6

YAV10M8

YAV10-R

YAV10-R3BOX

YAV10R-BOX

YAV10T11

YAV10-T11BOX

YAV10T2

YAV10T21F

YAV10-T21FBOX

YAV10T23F

YAV10-T23FBOX

YAV10-T2BOX

YAV10T3

YAV10-T3BOX

YAV10T4

YAV10-T4BOX

YAV10T7

YAV10-T7BOX

YAV1202M10

YAV1202M12

YAV1202M14

C-97

C-97

C-97

C-97

C-97

C-97

C-105

C-105

C-105

C-105

C-105

C-105

C-101

C-101

C-101

C-101

C-101

C-101

C-91

C-91

C-91

C-91

C-91

C-91

C-97

C-97

C-97

C-97

C-97

C-97

C-105

C-105

C-105

C-105

C-105

C-105

C-101

C-101

C-101

C-101

C-101

C-101

C-91

C-91

C-91

C-91

C-91

C-91

C-79

C-79

C-79

B-77

B-76

B-77

B-76

B-77

B-76

B-77

B-76

B-77

B-76

B-77

B-76

C-93

C-93

C-93

C-93

C-93

C-87

C-87

C-87

C-87

C-87

C-93

C-93

C-93

C-93

C-93

C-87

C-87

C-87

C-87

C-87

B-15

C-93

C-93

C-93

C-93

C-93

C-93

C-34

C-83

C-34

C-34

C-34

C-34

B-15, C-21

B-18

B-18

B-18

B-45

B-45

B-15

B-15

C-87

C-87

C-87

C-87

C-87

C-87

B-23

B-23, C-21

C-21

B-15

B-15

B-15

B-44

B-44

B-44

B-44

B-15, C-21

B-15

B-15, C-21

B-15

B-15, C-21

B-15

B-15

C-94

C-94

C-94 O-83

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YAV1202M16

YAV1202M20

YAV1202M8

YAV120F2M10

YAV120F2M12

YAV120F2M14

YAV120F2M16

YAV120F2M20

YAV120F2M8

YAV120FM10

YAV120FM12

YAV120FM14

YAV120FM16

YAV120FM20

YAV120FM8

YAV120M10

YAV120M12

YAV120M14

YAV120M16

YAV120M20

YAV120M8

YAV12G2

YAV12-G2BOX

YAV12G3

YAV12-G3BOX

YAV14

YAV14BOX

YAV14-H1BOX

YAV14-H2BOX

YAV14-H32F

YAV14-H32FBOX

YAV14-H34F

YAV14-H34FBOX

YAV14-H56F

YAV14-H56FBOX

YAV14-HBOX

YAV14-HF

YAV14-HFBOX

YAV14L33

YAV14-L33BOX

YAV14L36

YAV14-L36BOX

YAV14-R

YAV14-RL33

YAV14T1

YAV14-T1BOX

YAV14T2

YAV14-T2BOX

YAV14T3

YAV14T32F

YAV14-T32FBOX

YAV14T34F

YAV14-T34FBOX

YAV14-T3BOX

YAV14T5

YAV14-T5BOX

YAV14-Z5

YAV14-Z5BOX

YAV14-Z6

YAV14-Z6BOX

YAV1502M10

YAV1502M12

YAV1502M14

YAV1502M16

YAV1502M20

YAV1502M8

YAV150F2M10

YAV150F2M12

YAV150F2M14

YAV150F2M16

YAV150F2M20

YAV150F2M8

YAV150FM10

YAV150FM12

YAV150FM14

YAV150FM16

YAV150FM20

YAV150FM8

YAV150M10

YAV150M12

YAV150M14

YAV150M16

YAV150M20

YAV150M8

YAV162M10

YAV162M12

YAV162M4

YAV162M5

YAV162M6

YAV162M8

YAV16M10

YAV16M12

YAV16M4

YAV16M5

YAV16M6

YAV16M8

YAV18

YAV1852M10

YAV1852M12

YAV1852M14

YAV1852M16

YAV1852M20

YAV1852M8

YAV185F2M10

YAV185F2M12

YAV185F2M14

YAV185F2M16

YAV185F2M20

YAV185F2M8

YAV185FM10

YAV185FM12

YAV185FM14

YAV185FM16

YAV185FM20

YAV185FM8

YAV185M10

YAV185M12

YAV185M14

YAV185M16

YAV185M20

YAV185M8

YAV18BOX

YAV18-H19F

YAV18-H19FBOX

YAV18-H21F

YAV18-H21FBOX

YAV18-H6F

YAV18-H6FBOX

YAV18-HBOX

YAV18L33

YAV18-L33BOX

YAV18-R

YAV18T1

YAV18T19F

YAV18-T19FBOX

YAV18-T1BOX

YAV18T21F

YAV18-T21FBOX

YAV18T4

YAV18-T4BOX

YAV18T5

YAV18-T5BOX

YAV1C2N-FXB

YAV1C2TC38-FXB

YAV1C-L

YAV1C-L1

YAV1C-L1BOX

YAV1C-L2

YAV1C-L2BOX

YAV1CL2NT14FX

YAV1CL2NT516FX

YAV1C-L2NTC-FX

YAV1C-L2TC14E1-FX

YAV1C-L2TC14E2-FX

YAV1C-L2TC14-FX

YAV1C-L2TC38-FX

YAV1C-L2TC516-FX

YAV1C-L3

YAV1C-L3BOX

YAV1C-LBOX

YAV1CL-TC10-FX

YAV1CL-TC12-FX

YAV1CL-TC14-FX

YAV1CL-TC38-FX

YAV1CL-TC516-FX

YAV1C-RS1

YAV1C-RS2

YAV1C-TC10-FXB

YAV1C-TC516-FXB

YAV2402M10

YAV2402M12

YAV2402M14

YAV2402M16

YAV2402M20

YAV240F2M10

YAV240F2M12

YAV240F2M14

YAV240F2M16

YAV240F2M20

YAV240FM10

YAV240FM12

YAV240FM14

YAV240FM16

YAV240FM20

YAV240M10

YAV240M12

YAV240M14

YAV240M16

YAV240M20

YAV252M10

YAV252M12

YAV252M5

YAV252M6

YAV252M8

YAV252TC14E2-FXB

YAV252TC14-FXB

YAV252TC38-FXB

YAV25-L

YAV25-L1

YAV25-L1BOX

YAV25-L2

YAV25-L2BOX

YAV25L2NT14E1FX

YAV25L2NT14FX

YAV25L2NT516FX

YAV25-L2NTC-FX

YAV25-L2TC12E1-FX

YAV25-L2TC14E2-FX

YAV25-L2TC14-FX

YAV25-L2TC38-FX

YAV25-L2TC516E2-FX

YAV25-L2TC516-FX

YAV25-L3

YAV25-L3BOX

YAV25-L4

YAV25-L4BOX

YAV25L4TC14FXG1

YAV25-LBOX

YAV25LNT14FX

YAV25LNT38FX

YAV25LNT516FX

YAV25L-TC12-FX

YAV25L-TC14-FX

YAV25L-TC38-FX

YAV25L-TC516-FX

YAV25M10

YAV25M12

YAV25M5

YAV25M6

YAV25M8

YAV25-RS

YAV25-RS3

YAV25-TC10-FXB

YAV25-TC12-FXB

YAV25-TC38-FXB

YAV25-TC516-FXB

YAV262N-FXB

YAV262NTC38-FXB

YAV262TC14E2-FXB

YAV262TC14-FXB

YAV262TC38-FXB

YAV26-L

YAV26-L1

YAV26-L12

YAV26-L12BOX

YAV26-L1BOX

YAV26-L2

YAV26-L2BOX

YAV26L2NT14FX

YAV26L2NT38FX

YAV26L2NT516FX

YAV26-L2NTC-FX

YAV26-L2TC12E1-FX

YAV26-L2TC14E2-FX

YAV26-L2TC14-FX

YAV26-L2TC38E10-FX

YAV26-L2TC38-FX

YAV26-L2TC516-FX

YAV26-L3

YAV26-L3BOX

C-94

C-94

C-94

C-103

C-103

C-103

C-103

C-103

C-103

C-99

C-99

C-99

C-99

C-99

C-99

C-88

C-88

C-88

C-88

C-88

C-88

B-15

B-15

B-15

B-15

B-15

B-15

B-18

B-18

B-45

B-45

B-45

B-45

B-45

B-45

B-18

B-45

B-45

B-15

B-15

B-15

B-15

B-23

B-23

B-15

B-15

B-15

B-15

B-15

B-44

B-44

B-44

B-44

B-15

B-15

B-15

B-45

B-45

B-45

B-45

C-94

C-94

C-94

C-94

C-94

C-94

C-103

C-103

C-103

C-103

C-103

C-103

C-99

C-99

C-99

C-99

C-99

C-99

C-88

C-88

C-88

C-88

C-88

C-88

C-93

C-93

C-93

C-93

C-93

C-93

C-87

C-87

C-87

C-87

C-87

C-87

B-15

C-94

C-94

C-94

C-94

C-94

C-94

C-103

C-103

C-103

C-103

C-103

C-103

C-100

C-100

C-100

C-100

C-100

C-100

C-89

C-89

C-89

C-89

C-89

C-89

B-15

B-45

B-45

B-45

B-45

B-45

B-45

B-18

B-15

B-15

B-23

B-15

B-44

B-44

B-15

B-44

B-44

B-15

B-15

B-15

B-15

C-69

C-69

B-17

B-17

B-17

B-17

B-17

C-63

C-63

C-61

C-61

C-61

C-61

C-61

C-61

B-17

B-17

B-17

C-49

C-49

C-49

C-49

C-49

B-23

B-23

C-58

C-58

C-94

C-94

C-94

C-94

C-94

C-104

C-104

C-104

C-104

C-104

C-100

C-100

C-100

C-100

C-100

C-89

C-89

C-89

C-89

C-89

C-93

C-93

C-93

C-93

C-93

C-69

C-69

C-69

B-17

B-17

B-17

B-17

B-17

C-63

C-63

C-63

C-61

C-61

C-61

C-61

C-61

C-61

C-61

B-17

B-17

B-17

B-17

C-85

B-17

C-51

C-51

C-51

C-49

C-49

C-49

C-49

C-87

C-87

C-87

C-87

C-87

B-23

B-23

C-59

C-59

C-59

C-59

C-69

C-69

C-69

C-69

C-69

B-17

B-17

B-17

B-17

B-17

B-17

B-17

C-63

C-63

C-63

C-61

C-61

C-61

C-61

C-61

C-61

C-61

B-17

B-17

O-84

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YAV26L4TC14FXG1

YAV26-LBOX

YAV26LNT12FX

YAV26LNT38FX

YAV26LNT516FX

YAV26L-TC10-FX

YAV26L-TC12-FX

YAV26L-TC14-FX

YAV26L-TC34-FX

YAV26L-TC38-FX

YAV26L-TC516-FX

YAV26L-TC58-FX

YAV26-RS

YAV26-RS3

YAV26-TC12-FXB

YAV26-TC38-FXB

YAV272N-FXB

YAV272TC14E2-FXB

YAV272TC38-FXB

YAV27-L

YAV27-L1

YAV27-L15

YAV27-L15BOX

YAV27-L1BOX

YAV27-L2NTC-FX

YAV27-L2TC14-FX

YAV27-L2TC38-FX

YAV27L4TC14FXG1

YAV27-LBOX

YAV27LNT12FX

YAV27L-TC10-FX

YAV27L-TC12-FX

YAV27L-TC14-FX

YAV27L-TC38-FX

YAV27L-TC516-FX

YAV27-RS

YAV27-TC12-FXB

YAV282N-FXB

YAV282NT38-FXB

YAV282NTC38-FXB

YAV282TC14E2-FXB

YAV282TC38-FXB

YAV28-L

YAV28-L12

YAV28-L12BOX

YAV28-L13

YAV28-L13BOX

YAV28-L14

YAV28-L14BOX

YAV28L2ENT14FX

YAV28L2NT38FX

YAV28-L2NTC-FX

YAV28-L2TC12E1-FX

YAV28-L2TC12-FX

YAV28-L2TC14E2-FX

YAV28-L2TC14-FX

YAV28-L2TC38-FX

YAV28-L2TC516-FX

YAV28L4TC14FXG1

YAV28-LBOX

YAV28LNT12FX

YAV28LNT38FX

YAV28LNT516FX

YAV28L-TC12-FX

YAV28L-TC14-FX

YAV28L-TC34-FX

YAV28L-TC38-FX

YAV28L-TC516-FX

YAV28L-TC58-FX

YAV28-RS

YAV28-TC12-FXB

YAV28-TC38-FXB

YAV292N-FXB

YAV292NT38-FXB

YAV292NTC38-FXB

YAV292TC14E2-FXB

YAV292TC38-FXB

YAV29L2NT38FX

YAV29-L2NTC-FX

YAV29-L2TC12E1-FX

YAV29-L2TC12-FX

YAV29-L2TC14E2-FX

YAV29-L2TC14-FX

YAV29-L2TC38-FX

YAV29-L2TC516-FX

YAV29L-TC12-FX

YAV29L-TC14-FX

YAV29L-TC34-FX

YAV29L-TC38-FX

YAV29L-TC516-FX

YAV29L-TC58-FX

YAV2C2N-FXB

YAV2C2TC14E1-FXB

YAV2C2TC14E2-FXB

YAV2C2TC14-FXB

YAV2C2TC38-FXB

YAV2C2TC516-FXB

YAV2C-L

YAV2C-L1

YAV2C-L1BOX

YAV2C-L2

YAV2C-L2BOX

YAV2CL2NT10FX

YAV2CL2NT14E1FX

YAV2CL2NT14FX

YAV2C-L2NTC-FX

YAV2C-L2TC14E1-FX

YAV2C-L2TC14E2-FX

YAV2C-L2TC14-FX

YAV2CL2TC14FXSL

YAV2C-L2TC38-FX

YAV2CL2TC38FXSL

YAV2C-L2TC516-FX

YAV2C-L4

YAV2C-L4BOX

YAV2CL4TC14FXG1

YAV2C-LBOX

YAV2CLNT14FX

YAV2CLNT516FX

YAV2CL-TC10-FX

YAV2CL-TC12-FX

YAV2CL-TC14-FX

YAV2CL-TC38-FX

YAV2CL-TC516-FX

YAV2C-RS

YAV2C-RS1

YAV2C-RS2

YAV2C-TC10-FXB

YAV2C-TC516-FXB

YAV3002M10

YAV3002M12

YAV3002M14

YAV3002M16

YAV3002M20

YAV300F2M10

YAV300F2M12

YAV300F2M14

YAV300F2M16

YAV300F2M20

YAV300FM10

YAV300FM12

YAV300FM14

YAV300FM16

YAV300FM20

YAV300M10

YAV300M12

YAV300M14

YAV300M16

YAV300M20

YAV352M10

YAV352M12

YAV352M5

YAV352M6

YAV352M8

YAV35M10

YAV35M12

YAV35M5

YAV35M6

YAV35M8

YAV3C2NFXB

YAV4002M12

YAV4002M14

YAV4002M16

YAV4002M20

YAV400F2M12

YAV400F2M14

YAV400F2M16

YAV400F2M20

YAV400FM12

YAV400FM14

YAV400FM16

YAV400FM20

YAV400M12

YAV400M14

YAV400M16

YAV400M20

YAV4C2N-FXB

YAV4C2TC14E2-FXB

YAV4C2TC14-FXB

YAV4C2TC38-FXB

YAV4C2TC516-FXB

YAV4C-L

YAV4C-L2

YAV4C-L2BOX

YAV4CL2NT10E1FX

YAV4CL2NT10FX

YAV4CL2NT14FX

YAV4C-L2NTC-FX

YAV4C-L2TC14E1-FX

YAV4C-L2TC14E2-FX

YAV4C-L2TC14-FX

YAV4CL2TC14FXSL

YAV4C-L2TC38-FX

YAV4CL2TC38FXSL

YAV4C-L2TC516-FX

YAV4C-L3

YAV4C-L3BOX

YAV4C-L4

YAV4C-L4BOX

YAV4C-L5

YAV4C-L5BOX

YAV4C-LBOX

YAV4CLNT10FX

YAV4CL-TC10-FX

YAV4CL-TC12-FX

YAV4CL-TC14-FX

YAV4CL-TC38-FX

YAV4CL-TC516-FX

YAV4C-RS

YAV4C-RS2

YAV4C-RS3

YAV4C-RS4

YAV4C-TC10-FXB

YAV4C-TC14-FXB

YAV4C-TC516-FXB

YAV5002M12

YAV5002M16

YAV5002M20

YAV500F2M12

YAV500F2M16

YAV500F2M20

YAV500FM12

YAV500FM16

YAV500FM20

YAV500M12

YAV500M16

YAV500M20

YAV502M10

YAV502M12

YAV502M14

YAV502M16

YAV502M6

YAV502M8

YAV50F2M10

YAV50F2M12

YAV50F2M14

YAV50F2M16

YAV50F2M6

YAV50F2M8

YAV50FM10

YAV50FM12

YAV50FM14

YAV50FM16

YAV50FM6

YAV50FM8

YAV50M10

YAV50M12

YAV50M14

YAV50M16

YAV50M6

YAV50M8

YAV6302M12

YAV6302M16

YAV6302M20

YAV630F2M12

YAV630F2M16

YAV630F2M20

YAV630FM12

YAV630FM16

YAV630FM20

C-85

B-17

C-51

C-51

C-51

C-49

C-49

C-49

C-49

C-49

C-49

C-49

B-23

B-23

C-59

C-59

C-69

C-69

C-69

B-17

B-17

B-17

B-17

B-17

C-61

C-61

C-61

C-85

B-17

C-51

C-49

C-49

C-49

C-49

C-49

B-23

C-59

C-69

C-69

C-69

C-69

C-69

B-17

B-17

B-17

B-17

B-17

B-17

B-17

C-63

C-63

C-61

C-61

C-61

C-61

C-61

C-61

C-61

C-85

B-17

C-51

C-51

C-51

C-49

C-49

C-49

C-49

C-49

C-49

B-23

C-59

C-59

C-69

C-69

C-69

C-69

C-69

C-64

C-61

C-61

C-61

C-61

C-61

C-61

C-61

C-49

C-49

C-49

C-49

C-49

C-49

C-68

C-68

C-68

C-68

C-68

C-68

B-16

B-16

B-16

B-16

B-16

C-63

C-63

C-63

C-60

C-60

C-60

C-60

C-80

C-60

C-80

C-60

B-16

B-16

C-85

B-16

C-51

C-51

C-48

C-48

C-48

C-48

C-48

B-23

B-23

B-23

C-58

C-58

C-95

C-95

C-95

C-95

C-95

C-104

C-104

C-104

C-104

C-104

C-100

C-100

C-100

C-100

C-100

C-89

C-89

C-89

C-89

C-89

C-93

C-93

C-93

C-93

C-93

C-87

C-87

C-87

C-87

C-87

C-68

C-95

C-95

C-95

C-95

C-104

C-104

C-104

C-104

C-100

C-100

C-100

C-100

C-89

C-89

C-89

C-89

C-68

C-68

C-68

C-68

C-68

B-16

B-16

B-16

C-63

C-63

C-63

C-60

C-60

C-60

C-60

C-80

C-60

C-80

C-60

B-16

B-16

B-16

B-16

B-16

B-16

B-16

C-51

C-48

C-48

C-48

C-48

C-48

B-23

B-23

B-23

B-23

C-58

C-58

C-58

C-95

C-95

C-95

C-104

C-104

C-104

C-100

C-100

C-100

C-89

C-89

C-89

C-93

C-93

C-93

C-93

C-93

C-93

C-103

C-103

C-103

C-103

C-103

C-103

C-99

C-99

C-99

C-99

C-99

C-99

C-88

C-88

C-88

C-88

C-88

C-88

C-95

C-95

C-95

C-104

C-104

C-104

C-100

C-100

C-100 O-85

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

YAV630M12

YAV630M16

YAV630M20

YAV6C2N-FXB

YAV6C2TC14E2-FXB

YAV6C2TC14-FXB

YAV6C2TC38-FXB

YAV6C-L

YAV6C-L1

YAV6C-L10

YAV6C-L10BOX

YAV6C-L1BOX

YAV6C-L2

YAV6C-L2BOX

YAV6C-L2NTC-FX

YAV6C-L2TC10E2-FX

YAV6C-L2TC10E4-FX

YAV6C-L2TC10E9-FX

YAV6C-L2TC10-FX

YAV6CL2TC10FX90SL

YAV6C-L2TC14E1-FX

YAV6C-L2TC14E2-FX

YAV6C-L2TC14-FX

YAV6C-L2TC38-FX

YAV6C-L2TC516-FX

YAV6C-L4

YAV6C-L4BOX

YAV6C-LBOX

YAV6CL-TC10-FX

YAV6CL-TC12-FX

YAV6CL-TC14-FX

YAV6CL-TC34-FX

YAV6CL-TC38-FX

YAV6CL-TC516-FX

YAV6C-RS

YAV6C-RS1

YAV6C-RS2

YAV6C-RS4

YAV6C-TC10-FXB

YAV6C-TC14-FXB

YAV702M10

YAV702M12

YAV702M14

YAV702M16

YAV702M6

YAV702M8

YAV70F2M10

YAV70F2M12

YAV70F2M14

YAV70F2M16

YAV70F2M6

YAV70F2M8

YAV70FM10

YAV70FM12

YAV70FM14

YAV70FM16

YAV70FM6

YAV70FM8

YAV70M10

YAV70M12

YAV70M14

YAV70M16

YAV70M5

YAV70M6

YAV70M8

YAV8C-L

YAV8C-L1

YAV8C-L1BOX

YAV8C-L2

YAV8C-L2BOX

YAV8C-L3

YAV8C-L3BOX

YAV8C-L4

YAV8C-L4BOX

YAV8C-LBOX

YAV8C-RS

YAV8C-RS1

YAV8C-RS3

YAV952M10

YAV952M12

YAV952M14

YAV952M16

YAV952M20

YAV952M8

YAV95F2M10

YAV95F2M12

YAV95F2M14

YAV95F2M16

YAV95F2M20

YAV95F2M8

YAV95FM10

YAV95FM12

YAV95FM14

YAV95FM16

YAV95FM20

YAV95FM8

YAV95M10

YAV95M12

YAV95M14

YAV95M16

YAV95M20

YAV95M8

YAV9CL36

YAV9C-L36BOX

YAV9CT4

YAV9C-T4BOX

YAV9CT9

YAV9C-T9BOX

YAZ1C-2N

YAZ1C-2TC14

YAZ1C-2TC14E2

YAZ1C-2TC38

YAZ1CTC12

YAZ1CTC14

YAZ1CTC38

YAZ25-2N

YAZ25-2NTC38

YAZ25-2TC14

YAZ25-2TC14E1

YAZ25-2TC14E2

YAZ252TC14E3

YAZ25-2TC38

YAZ25-2TC516

YAZ25-2TC516E6

YAZ254TC38E1G1

YAZ254TCG1

YAZ25TC12

YAZ25TC14

YAZ25TC38

YAZ25TC516

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

C-89

C-89

C-89

C-68

C-68

C-68

C-68

B-16

B-16

B-16

B-16

B-16

B-16

B-16

C-60

C-60

C-60

C-60

C-60

C-80

C-60

C-60

C-60

C-60

C-60

B-16

B-16

B-16

C-48

C-48

C-48

C-48

C-48

C-48

B-23

B-23

B-23

B-23

C-58

C-58

C-94

C-94

C-94

C-94

C-94

C-94

C-103

C-103

C-103

C-103

C-103

C-103

C-99

C-99

C-99

C-99

C-99

C-99

C-88

C-88

C-88

C-88

C-88

C-88

C-88

B-16

B-16

B-16

B-16

B-16

B-16

B-16

B-16

B-16

B-16

B-23

B-23

B-23

C-94

C-94

C-94

C-94

C-94

C-94

C-103

C-103

C-103

C-103

C-103

C-103

C-99

C-99

C-99

C-99

C-99

C-99

C-88

C-88

C-88

C-88

C-88

C-88

B-15

B-15

B-15

B-15

B-15

B-15

C-44

C-44

C-44

C-44

C-32

C-32

C-32

C-45

C-45

C-45

C-45

C-45

C-45

C-45

C-45

C-45

C-86

C-86

C-32

C-32

C-32

C-32

YAZ26-2N

YAZ26-2TC14

YAZ262TC14E1

YAZ26-2TC14E2

YAZ26-2TC38

YAZ262TC38E16

YAZ264TC38E1G1

YAZ264TCG1

YAZ26TC12

YAZ26TC14

YAZ26TC38

YAZ27-2N

YAZ27-2TC14E2

YAZ27-2TC38

YAZ27TC12

YAZ27TC38

YAZ28-2N

YAZ28-2NTC38

YAZ28-2TC14E2

YAZ28-2TC38

YAZ284TCG1

YAZ28TC12

YAZ28TC38

YAZ29-2N

YAZ29-2TC38

YAZ294TCG1

YAZ29TC12

YAZ29TC38

YAZ2C-2N

YAZ2C-2NTC38

YAZ2C-2TC10E2

YAZ2C-2TC14

YAZ2C-2TC14E1

YAZ2C-2TC14E2

YAZ2C-2TC38

YAZ2C-2TC38E2

YAZ2C-2TC38E6

YAZ2C2TC38SL

YAZ2C2TC38SLBOX500

YAZ2C-2TC516E2

YAZ2C2TC516E7

YAZ2CTC12

YAZ2CTC14

YAZ2CTC38

YAZ30-2N

YAZ30-2TC38

YAZ302TC38FX

YAZ30TC12

YAZ30TC38

YAZ30TC38FX

YAZ31-2N

YAZ312NTCFX

YAZ31-2TC14E2

YAZ312TC14E2FX

YAZ31-2TC38

YAZ312TC38FX

YAZ314TCG1

YAZ31TC12

YAZ31TC38

YAZ31TC38FX

YAZ32-2N

YAZ32-2TC38

YAZ322TC38FX

YAZ32TC12

YAZ32TC38

YAZ32TC38FX

YAZ33-2N

YAZ33TC12

YAZ34-2N

YAZ342NT38FX

YAZ342NTCFX

YAZ34-2TC14E2

YAZ342TC14E2FX

YAZ34-2TC38

YAZ342TC38FX

YAZ34NT38FX

YAZ34TC12

YAZ34TC12FX

YAZ34TC38

YAZ34TC38FX

YAZ35-2N

YAZ35TC12

YAZ36-2N

YAZ36-2TC38

YAZ362TC38FX

YAZ36TC12

YAZ36TC38

YAZ36TC38FX

YAZ37-2N

YAZ37TC12

YAZ382ENT38FX

YAZ38-2N

YAZ382NNTFX

YAZ382NT38FX

YAZ382NTCFX

YAZ382TC38FX

YAZ38NT12FX

YAZ38NT38FX

YAZ38TC12

YAZ38TC12FX

YAZ38TC38FX

YAZ39-2N

YAZ39-2NNT

YAZ39-2NT38

YAZ39-2TC38

YAZ39NT12

YAZ39TC12

YAZ39TC38

YAZ3C-2N

YAZ3C-2TC14

YAZ3C-2TC14E2

YAZ3C-2TC38

YAZ3C-2TC38E2

YAZ3C2TC38SL

YAZ3C2TC38SLBOX500

YAZ3CTC12

YAZ3CTC14

YAZ3CTC38

YAZ40-2N

YAZ402NTCFX

YAZ40TC12

YAZ41-2N

YAZ41TC12

YAZ44-2N

YAZ442NT38FX

YAZ44-2TC38

YAZ44TC12

YAZ44TC38

YAZ45-2N

YAZ453-2N

C-45

C-45

C-45

C-45

C-45

C-45

C-86

C-86

C-32

C-32

C-32

C-45

C-45

C-45

C-32

C-32

C-45

C-45

C-45

C-45

C-86

C-32

C-32

C-45

C-45

C-86

C-32

C-32

C-44

C-44

C-44

C-44

C-44

C-44

C-44

C-44

C-44

C-82

C-82

C-44

C-44

C-32

C-32

C-32

C-45

C-45

C-66

C-32

C-32

C-57

C-45

C-67

C-45

C-67

C-45

C-67

C-86

C-32

C-32

C-57

C-45

C-45

C-67

C-32

C-32

C-57

C-46

C-33

C-46

C-67, C-71

C-67

C-46

C-67

C-46

C-67

C-57

C-33

C-57

C-33

C-57

C-46

C-33

C-46

C-46

C-67

C-33

C-33

C-57

C-46

C-33

C-72

C-46

C-67, C-72

C-67, C-72

C-67

C-67

C-57

C-57

C-33

C-57

C-57

C-46

C-46

C-46

C-46

C-33

C-33

C-33

C-44

C-44

C-44

C-44

C-44

C-82

C-82

C-32

C-32

C-32

C-46

C-67

C-33

C-46

C-33

C-46

C-67, C-72

C-46

C-33

C-33

C-46

C-46

O-86

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YAZ453TC12

YAZ45TC12

YAZ46-2N

YAZ46TC12

YAZ47-2N

YAZ47TC12

YAZ48-2N

YAZ48TC12

YAZ4C-2N

YAZ4C-2TC10-E2

YAZ4C-2TC14

YAZ4C-2TC14E2

YAZ4C-2TC38

YAZ4CTC12

YAZ4CTC14

YAZ4CTC38

YAZ5C-2N

YAZ5CTC12

YAZ6C-2N

YAZ6C-2TC10E2

YAZ6C-2TC14

YAZ6C-2TC14E1

YAZ6C-2TC14E2

YAZ6C-2TC38

YAZ6C2TC38E16

YAZ6C-2TC38E2

YAZ6C-2TC38E6

YAZ6C2TC38SL

YAZ6C2TC38SLBOX500

YAZ6CTC12

YAZ6CTC14

YAZ6CTC38

YAZ8C-2TC10

YAZ8C2TC1090SL

YAZ8C-2TC10E2

YAZ8C2TC10E2FX

YAZ8C2TC10FX

YAZ8C2TC10SL

YAZ8C-2TC14

YAZ8C-2TC14E1

YAZ8C2TC14E1FX

YAZ8C-2TC14E2

YAZ8C2TC14E2FX

YAZ8C2TC14FX

YAZ8C-2TC38

YAZ8C2TC38FX

YAZ8CTC10

YAZ8CTC14

YAZ8CTC38

YAZV10-2TC14

YAZV102TC14E1

YAZV10-2TC14E2

YAZV102TC14SL

YAZV10TC14

YAZV1C2TC14E1FX

YAZV1C2TC14E2FX

YAZV1C2TC14FX

YAZV1C2TC38FX

YAZV1C2TC516E6FX

YAZV1C2TC516FX

YAZV1CTC14FX

YAZV1CTC38FX

YAZV1CTC516FX

YAZV252NT14FX

YAZV252NTCFX

YAZV252TC14E2FX

YAZV252TC14FX

YAZV252TC14FXSL

YAZV252TC14FXSLBOX500

YAZV252TC38FX

YAZV252TC38FXSL

YAZV252TC38FXSLBOX500

YAZV25TC12FX

YAZV25TC14FX

YAZV25TC38FX

YAZV262NTCFX

YAZV262TC14E2FX

YAZV262TC14FX

YAZV262TC14FXSL

YAZV262TC14FXSLBOX500

YAZV262TC38E6FX

YAZV262TC38FX

YAZV262TC38FXSL

YAZV262TC38FXSLBOX500

YAZV26TC12FX

YAZV26TC14FX

YAZV26TC38FX

YAZV272TC14E2FX

YAZV272TC38FX

YAZV27TC38FX

YAZV282NT38FX

YAZV282NTCFX

YAZV282TC14E2FX

YAZV282TC14FXSL

YAZV282TC14FXSLBOX500

YAZV282TC38FX

YAZV282TC38FXSL

YAZV282TC38FXSLBOX500

YAZV28NT38FX

YAZV28TC12FX

YAZV28TC38FX

YAZV292NT516FX

YAZV29NT516FX

YAZV2C2NT14E2FX

YAZV2C2NTCFX

YAZV2C2TC14E2FX

YAZV2C2TC14FX

YAZV2C2TC14FXSL

YAZV2C2TC14FXSLBOX500

YAZV2C2TC38FX

YAZV2C2TC38FXSL

YAZV2C2TC38FXSLBOX500

YAZV2CTC12FX

YAZV2CTC14FX

YAZV2CTC38FX

YAZV4C2NT14E2FX

YAZV4C2TC14E2FX

YAZV4C2TC14FX

YAZV4C2TC14FXSL

YAZV4C2TC14FXSLBOX500

YAZV4C2TC38E2-FX

YAZV4C2TC38FX

YAZV4C2TC38FXSL

YAZV4C2TC38FXSLBOX500

YAZV4CTC14FX

YAZV4CTC38FX

YAZV6C2TC10E2FX

YAZV6C2TC10FX90SL

YAZV6C2TC14E1FX

YAZV6C2TC14E2FX

C-33

C-33

C-46

C-33

C-46

C-33

C-46

C-33

C-44

C-44

C-44

C-44

C-44

C-31

C-31

C-31

C-43

C-31

C-43

C-43

C-43

C-43

C-43

C-43

C-43

C-43

C-43

C-82

C-82

C-31

C-31

C-31

C-43

C-82

C-43

C-65

C-65

C-82

C-43

C-43

C-65

C-43

C-65

C-65

C-43

C-65

C-31, C-56

C-31, C-56

C-31, C-56

C-43

C-65

C-43

C-83

C-31

C-66

C-66

C-66

C-66

C-66

C-66

C-56

C-56

C-56

C-71

C-66

C-66

C-66

C-84

C-84

C-66

C-84

C-84

C-57

C-57

C-57

C-66

C-66

C-66

C-84

C-84

C-66

C-66

C-84

C-84

C-57

C-57

C-57

C-66

C-66

C-57

C-71

C-66

C-66

C-84

C-84

C-66

C-84

C-84

C-57

C-57

C-57

C-66, C-71

C-57

C-71

C-65

C-65

C-65

C-84

C-84

C-65

C-84

C-84

C-56

C-56

C-56

C-71

C-65

C-65

C-83

C-83

C-65

C-65

C-83

C-83

C-56

C-56

C-65

C-83

C-65

C-65

YAZV6C2TC14FX

YAZV6C2TC14FXSL

YAZV6C2TC14FXSLBOX500

YAZV6C2TC38E2FX

YAZV6C2TC38E6FX

YAZV6C2TC38FX

YAZV6C2TC38FXSL

YAZV6C2TC38FXSLBOX500

YAZV6CTC14FX

YAZV6CTC38FX

YBA15ALKIT

YBA25A

YBA26A

YBA27A

YBA28A

YBA29

YBA29A

YBA30A

YBA31A

YBA31FX

YBA32A

YBA32FX

YBA34A

YBA34FX

YBA36A

YBA36FX

YBA36FX58

YBA38FX

YBA39

YBA39A

YBA42A

YBA44A

YBA44FX

YBA44FX58

YBAFX15CLKIT

YBAV25FX14

YBAV26FX14

YBAV27FX14

YBAV28FX

YBM1C-L

YBM1C-L3

YBM25-L

YBM25-L1

YBM25-L2

YBM26-L

YBM28-1/4

YBM2C-L

YBM2C-L1

YBM2C-L2

YBM4C-L

YBM4C-L1

YBM4C-L2

YBM4C-L4

YBM6C-L

YBM6C-L2

YBM6C-L3

YBM6C-L9

YBM8C

YBM8C-T2

YBM8CT4

YC10C10

YC1L12

YC1U1

YC25A2

YC25A25

YC25A4

YC25L12

YC26A25

YC26A26

YC26C2

YC26C26

YC26L12

YC27L12

YC28A2

YC28A25

YC28A26

YC28A28

YC28C2

YC28C26

YC28C28

YC28U26

YC2A2

YC2A4

YC2C2

YC2C4

YC2L12

YC33R26

YC33R26U

YC3L12

YC4A4

YC4A6

YC4C4

YC4C6

YC4C8

YC4L12

YC4U1

YC6L12

YC8C8

YC8L12

YCA25-2N

YCA25R-2N

YCA25RL-2N

YCA26-2N

YCA26R-2N

YCA26RL-2N

YCA27-2N

YCA27R-2N

YCA27RL-2N

YCA28-2N

YCA28R-2N

YCA28RL-2N

YCA29-2N

YCA2R-2N

YCA2RL-2N

YCA30-2N

YCA30R-2N

YCA31-2N

YCA321R-2N

YCA321RL-2N

YCA32-2N

YCA33R-2N

YCA34-2N

YCA35R-2N

YCA361R-2N

YCA37R-2N

YCA391A-2N

YCA39-2N

YCA39R-2N

YCA43R-2N

YCA441A-4N

C-65

C-83

C-83

C-65

C-65

C-65

C-83

C-83

C-56

C-56

C-17

C-16

C-16

C-16

C-16

C-14

C-16

C-16

C-16

C-14

C-16

C-14

C-16

C-14

C-16

C-15

C-15

C-15

C-15

C-16

C-16

C-16

C-15

C-15

C-17

C-14

C-14

C-14

C-14

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

B-26

C-130, H-21

C-129

H-25

H-22

H-22

H-22

C-129

H-22

H-22

C-130, H-21

C-130, H-21

C-129

C-129

H-22

H-22

H-22

H-22

C-130, H-21

C-130, H-21

C-130, H-21

H-25

H-22

H-22

C-130, H-21

C-130, H-21

C-129

H-22

H-25

C-129

H-22

H-22

C-130, H-21

C-130, H-21

C-130, H-21

C-129

H-25

C-129

C-130, H-21

C-129

H-73

H-75

H-74

H-73

H-75

H-74

H-73

H-75

H-74

H-73

H-75

H-74

H-73

H-75

H-74

H-73

H-75

H-73

H-75

H-74

H-73

H-75

H-73

H-75

H-75

H-75

H-76

H-73

H-75

H-76

H-76 O-87

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

YCA44A2NG2

YCA451A-4N

YCA45R-2N

YCA48R-4N

YCA4R-2N

YCA4RL-2N

YCAB28-4N

YCAB32-4N

YCAB34-4N

YCAB39-4N

YCAB44-4N

YCAK25R-4N

YCAK28A-2G1

YCAK28R-4N

YCAK29A-2G1

YCAK30R-4N

YCAK31A-2G1

YCAK31AG1

YCAK321R-4N

YCAK33R-4N

YCAK34A-2G3

YCAK35R-4N

YCAK361A-4N

YCAK361R-4N

YCAK36A-2G1

YCAK37R-4N

YCAK391A-4N

YCAK39A-2G2

YCAK39R-4N

YCAK43R-4N

YCAK44A-2G2

YCAK453R-4N

YCAK45R-4N

YCB1U1

YCB25R

YCB26R

YCB27R

YCB28R

YCB28U26

YCB2R

YCB321R

YCB33R

YCB33R26U

YCB35R

YCB361R

YCB38R26U

YCB4U1

YCHC29TC2

YCHC29TC29

YCHC2TC2

YCHC34TC2

YCHC34TC29

YCHC34TC34

YCHC39TC2

YCHC39TC31

YCHC39TC39

YCHC44TC44

YCHC8TC8

YCR25RG6

YCR2625

YCR26RG2

YCR26RG3

YCR2725

YCR27RG5

YCR27RG6

YCR2825

YCR28RG5

YCR28RG6

YCR28RG7

YCR28RG8

YCR291RG2

YCR291RG3

YCR291RG4

YCR291RG5

YCR30RG4

YCR30RG6

YCR30RG7

YCR32RG1

YCR32RG2

YCR32RG3

YCR32RG4

YCR32RG5

YCR32RG6

YCR32RG7

YCS25

YCS25R

YCS25RL

YCS26

YCS26A

YCS26R

YCS26RL

YCS27

YCS27R

YCS28

YCS28A

YCS28R

YCS28RL

YCS29

YCS2R

YCS30

YCS301A

YCS30R

YCS31

YCS311A

YCS32

YCS321R

YCS321RL

YCS331A

YCS33R

YCS34

YCS341RL

YCS351A

YCS35R

YCS361A

YCS361R

YCS37R

YCS39

YCS391A

YCS39R

YCS43R

YCS44

YCS453R

YCS45R

YCS4R

YCT2626

YCT2828

YCU25A

YCU25R

YCU26R

YCU27R

YCU28A

YCU28R

YCU291A

YCU2CA

YCU2R

YCU301A

YCU30R

YCU321R

YCU4R

YCU4RG1

YCUT129ACSR

YD28REP2

YDS011R

YDS011RP1

YDS021R

YDS021RE

YDS021REP1

YDS021RL

YDS021RLY

YDS021RP1

YDS1C

YDS1C-3

YDS1R

YDS1RP1

YDS1RP2

YDS1W

YDS25

YDS250E

YDS251R

YDS251RP1

YDS25AT

YDS25F

YDS25R

YDS25REP2

YDS25RL

YDS25RLY

YDS25RP1

YDS25RP2

YDS26

YDS261R

YDS261RP1

YDS26AT

YDS26F

YDS26R

YDS26RL

YDS26RLY

YDS26RP1

YDS26RP2

YDS27

YDS271R

YDS271RP1

YDS27AT

YDS27R

YDS27RE

YDS27RL

YDS27RLY

YDS27RP1

YDS27RP2

YDS28

YDS28AT

YDS28F

YDS28R

YDS28RE

YDS28RL

YDS28RLY

YDS28RP1

YDS28RP2

YDS29

YDS291AT

YDS291R

YDS291RP1

YDS29AT

YDS2C

YDS2C-3

YDS2CA

YDS2F

YDS2KT

YDS2RE

YDS2REP2

YDS2RL

YDS2RLY

YDS2W

YDS2WA

YDS30

YDS301AT

YDS30LT

YDS30R

YDS30RP1

YDS30RP2

YDS31

YDS311AT

YDS312E

YDS312H

YDS31AT

YDS32

YDS321R

YDS321RL

YDS321RLY

YDS321RP1

YDS326R

YDS32LT

YDS32R

YDS32RP2

YDS331AT

YDS33R

YDS33RP1

YDS34

YDS341RL

YDS34R

YDS34RP2

YDS351AT

YDS35R

YDS35RP1

YDS361AT

YDS361R

YDS361RL

YDS361RP1

YDS36LT

YDS36R

YDS36RP2

YDS375H

YDS37RP1

YDS39

YDS391AT

YDS392R

YDS39RP1

YDS3C-3

YDS3K10

YDS3K5

YDS3K6

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

H-76

H-76

H-76

H-76

H-75

H-74

H-73

H-73

H-73

H-73

H-73

H-75

H-78

H-75

H-78

H-75

H-78

H-78

H-75

H-75

H-78

H-75

H-75

H-75

H-78

H-75

H-76

H-78

H-75

H-76

H-78

H-76

H-76

H-38

H-37

H-37

H-37

H-37

H-38

H-37

H-37

H-37

H-38

H-37

H-37

H-38

H-38

C-131

C-131

C-131

C-131

C-131

C-131

C-131

C-131

C-131

C-131

C-131

H-52

H-51

H-52

H-52

H-51

H-52

H-52

H-51

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-52

H-53

H-48, H-49

H-50

H-53

H-51

H-49

H-50

H-53

H-49

H-53

H-51

H-49

H-50

H-53

H-49

H-53

H-51

H-49

H-53

H-51

H-53

H-49

H-50

H-51

H-49

H-53

H-50

H-51

H-49

H-51

H-49

H-49

H-53

H-51

H-49

H-49

H-53

H-49

H-49

H-49

H-31

H-31

H-53

H-54

H-54

H-54

H-53

H-54

H-53

H-53

H-54

H-53

H-54

H-54

H-54

H-54

N-81

H-64

H-60

H-60

H-59

H-64

H-64

H-62

H-61

H-59

H-53, H-57

H-57

H-59

H-59

H-59

H-58

H-57

H-64

H-60

H-60

H-48, H-56, H-63

H-66

H-59

H-64

H-62

H-61

H-59, H-64

H-59

H-57

H-60

H-60

H-56

H-66

H-59

H-62

H-61

H-59, H-64

H-59

H-57

H-60

H-60

H-56, H-63

H-59

H-64

H-62

H-61

H-59, H-64

H-59, H-60, H-64

H-57

H-56, H-63

H-66

H-59

H-64

H-62

H-61

H-59, H-64

H-59

H-57

H-56

H-59

H-59

H-56

H-53, H-57

H-57

H-56, H-63

H-66

H-66

H-64

H-64

H-62

H-61

H-53, H-58

H-56

H-57

H-56

H-63

H-59

H-59

H-59

H-57

H-56, H-63

H-64

H-64

H-56

H-57

H-59

H-62

H-61

H-59

H-59

H-63

H-59

H-59

H-56, H-63

H-59

H-59

H-57

H-63

H-59

H-59, H-60

H-56

H-59

H-59

H-56

H-59, H-64

H-55, H-63

H-59, H-64

H-63

H-59

H-59, H-60

H-64

H-59

H-57

H-56

H-60

H-60

H-57

H-65

H-65

H-65, H-66

O-88

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

YDS3K7

YDS3K8

YDS3W

YDS40R

YDS41RP2

YDS42R

YDS431AT

YDS43R43RS

YDS43R45RS

YDS43RP1

YDS43RP2

YDS44

YDS44RP2

YDS451R34RS

YDS451R49RS

YDS451RP1

YDS45R45RS

YDS45RP1

YDS45RP2

YDS49R

YDS49RP1

YDS49RP2

YDS4C

YDS4CA

YDS4KT

YDS4RL

YDS4RLY

YDS4W

YDS4WA

YDS500H

YDS50R

YDS6C

YDS6CA

YDS6KT

YDS6W

YDS6WA

YDS6WK

YDS75

YDS76

YDS78

YDS7K5

YDS7K6

YDS7K7

YDS7M10T

YDS7M6T

YDS7M7T

YDS7M8T

YDS7M9T

YDS8KT

YDS8W

YDS8WG1

YDS8WK

YDSR25RL

YDSR26RL

YDSR27RL

YDSR28RL

YDSR2RL

YDSR321RL

YDSR341RL

YDSR4RL

YE1WAG1

YE25-LH97

YE25R-25

YE26-LH88

YE26-LH89

YE26R-60

YE27R-60

YE28-LH128

YE28R-60

YE29P31X109

YE29P41X82

YE29P46X92

YE29P50X100

YE2C-LH128

YE2C-LH129

YE2R-25

YE2WAG5

YE30P46X92

YE30P46X92FX

YE30P50X100

YE30P50X100FX

YE30P55X110

YE30R-60

YE31-LH96

YE31P41X82FX

YE31P50X100

YE31P51X102FX

YE31P55X110

YE31P59X118

YE32P51X102FX

YE32P55X110

YE32P55X110FX

YE32P59X118

YE32P63X126

YE32R-60

YE34-LH119

YE34-LH120

YE34P51X102FX

YE34P55X110FX

YE34P59X118

YE34P59X118FX

YE34P63X126

YE34P71X142

YE361R-60

YE36P59X118FX

YE36P63X126

YE36P67X134FX

YE36P71X142

YE36P78X156

YE38P59X118FX

YE38P67X134FX

YE38P71X142FX

YE39P71X142

YE39P78X156

YE39P87X174

YE39R-60

YE40P67X134FX

YE40P71X142FX

YE40P78X156FX

YE44P78X156FX

YE44P87X174FX

YE4R-25

YE6R-25

YEV1CP23X75FX

YEV1CP26X75FX

YEV1CP29X75FX

YEV25P26X75FX

YEV25P29X75FX

YEV25P33X75FX

YEV26P29X75FX

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

H-65

H-65

H-58

H-60

H-59, H-60

H-60

H-56

H-60

H-60

H-60

H-60

H-57

H-59, H-60

H-60

H-60

H-60

H-60

H-60

H-60

H-60

H-60

H-60

H-53, H-57

H-48, H-56

H-66

H-62

H-61

H-53, H-58

H-48, H-56

H-64

H-60

H-53, H-57

H-56

H-66

H-53, H-58

H-56

H-65

H-58

H-58

H-58

H-65

H-65

H-65

H-66, I-45

H-66, I-45

H-66, I-45

H-66, I-45

H-66, I-45

H-66

H-53, H-58

H-58

H-65

H-55

H-55

H-55

H-55

H-55

H-55

H-55

H-55

H-42

H-42

H-42

H-42

H-42

H-42

H-42

H-42

H-42

C-141

C-141

C-140

C-139

H-42

H-42

H-42

H-42

C-141

C-140

C-140

C-139

C-139

H-42

H-42

C-141

C-141

C-139

C-140

C-139

C-140

C-141

C-139

C-140

C-139

H-42

H-42

H-42

C-141

C-140

C-141

C-139

C-140

C-139

H-42

C-140

C-141

C-139

C-140

C-139

C-141

C-140

C-139

C-141

C-140

C-139

H-42

C-141

C-140

C-139

C-140

C-139

H-42

H-42

C-141

C-140

C-139

C-141

C-140

C-139

C-141

YEV26P33X75FX

YEV26P37X75FX

YEV27P33X75FX

YEV27P37X75FX

YEV27P41X82FX

YEV28P37X75FX

YEV28P41X75FX

YEV28P46X92FX

YEV2CP20X75FX

YEV2CP23X75FX

YEV2CP26X75FX

YEV4CP16X75FX

YEV4CP20X75FX

YF0112ID

YF0112IT

YF0112IW

YF0116ID

YF0116IT

YF0116IW

YF0120ID

YF0120IT

YF0120IW

YF0122ID

YF0122IT

YF0122IW

YF0122UI

YF0125ID

YF0125IT

YF0125IW

YF0125UI

YF0130ID

YF0130IT

YF0130IW

YF0132UI

YF0215UI

YF0216ID

YF0216IT

YF0216IW

YF0218ID

YF0218IT

YF0218IW

YF0220UI

YF0222ID

YF0222IT

YF0222IW

YF0225ID

YF0225IT

YF0225IW

YF0225UI

YF0232UI

YF0401TOOL

YF0412ID

YF0412IT

YF0412IW

YF0412UI

YF0415ID

YF0415IT

YF0415IW

YF0415UI

YF0416ID

YF0416IT

YF0416IW

YF0418ID

YF0418IT

YF0418IW

YF0418UI

YF0420UI

YF0422ID

YF0422IT

YF0422IW

YF0425ID

YF0425IT

YF0425IW

YF0425UI

YF0432UI

YF0612ID

YF0612IT

YF0612IW

YF0612UI

YF0615UI

YF0618ID

YF0618IT

YF0618IW

YF0618UI

YF0625UI

YF0801TOOL

YF0812ID

YF0812IT

YF0812IW

YF0812UI

YF0815ID

YF0815IT

YF0815IW

YF0815UI

YF0818ID

YF0818IT

YF0818IW

YF0818UI

YF1/03/0TOOL

YF1006TOOL

YF1010ID

YF1010IT

YF1010IW

YF1010UI

YF1012ID

YF1012IT

YF1012IW

YF1012UI

YF1015UI

YF1018ID

YF1018IT

YF1018IW

YF1018UI

YF1209ID

YF1209IT

YF1209IW

YF1209UI

YF1210ID

YF1210IT

YF1210IW

YF1212ID

YF1212IT

YF1212IW

YF1212UI

YF1215UI

YF1218ID

YF1218IT

YF1218IW

YF1218UI

YF1407UI

C-140

C-139

C-141

C-140

C-139

C-141

C-140

C-139

C-141

C-140

C-139

C-141

C-139

B-88

B-88

B-88

B-88

B-88

B-88

B-88

B-88

B-88

B-88

B-88

B-88

B-86

B-88

B-88

B-88

B-86

B-88

B-88

B-88

B-86

B-86

B-88

B-88

B-88

B-88

B-88

B-88

B-86

B-88

B-88

B-88

B-88

B-88

B-88

B-86

B-86

N-48

B-88

B-88

B-88

B-86

B-88

B-88

B-88

B-86

B-88

B-88

B-88

B-88

B-88

B-88

B-86

B-86

B-88

B-88

B-88

B-88

B-88

B-88

B-86

B-86

B-88

B-88

B-88

B-86

B-86

B-88

B-88

B-88

B-86

B-86

N-48

B-88

B-88

B-88

B-86

B-88

B-88

B-88

B-86

B-88

B-88

B-88

B-86

N-48

N-48

B-88

B-88

B-88

B-85

B-88

B-88

B-88

B-85

B-85

B-88

B-88

B-88

B-85

B-88

B-88

B-88

B-85

B-88

B-88

B-88

B-88

B-88

B-88

B-85

B-85

B-88

B-88

B-88

B-85

B-85 O-89

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

YF1408ID

YF1408IT

YF1408IW

YF1408UI

YF1410ID

YF1410IT

YF1410IW

YF1410UI

YF1412ID

YF1412IT

YF1412IW

YF1412UI

YF1418ID

YF1418IT

YF1418IW

YF1418UI

YF1606ID

YF1606IT

YF1606IW

YF1607UI

YF1608ID

YF1608IT

YF1608IW

YF1608UI

YF1610ID

YF1610IT

YF1610IW

YF1610UI

YF1612ID

YF1612IT

YF1612IW

YF1612UI

YF1615ID

YF1615IT

YF1615IW

YF1618ID

YF1618IT

YF1618IW

YF1618UI

YF1806ID

YF1806IT

YF1806IW

YF1806UI

YF1808ID

YF1808IT

YF1808IW

YF1808UI

YF1810ID

YF1810IT

YF1810IW

YF1810UI

YF1812ID

YF1812IT

YF1812IW

YF1812UI

YF1818ID

YF1818IT

YF1818IW

YF2/020ID

YF2/022UI

YF2/025ID

YF2/025UI

YF2/027ID

YF2/032UI

YF2006IT

YF2006IW

YF2006UI

YF2008ID

YF2008IT

YF2008IW

YF2010ID

YF2010IT

YF2010IW

YF2010UI

YF2012ID

YF2012IT

YF2012IW

YF2012UI

YF2018ID

YF2018IT

YF2018IW

YF2205ID

YF2205IT

YF2205IW

YF2206ID

YF2206IT

YF2206IW

YF2206UI

YF2208ID

YF2208IT

YF2208IW

YF2208UI

YF22-10FL

YF2210ID

YF2210IT

YF2210IW

YF2210TOOL

YF2210UI

YF2212ID

YF2212IT

YF2212IW

YF2212UI

YF2214TOOL

YF2405UI

YF2406IT

YF2406IW

YF2407UI

YF2408IT

YF2408IW

YF25025ID

YF25027ID

YF25032ID

YF25032UI

YF25038ID

YF25040UI

YF2605UI

YF2606ID

YF2606IT

YF2606IW

YF2607UI

YF2608ID

YF2608IT

YF2608IW

YF2610TOOL

YF2806IT

YF2806IW

YF2807UI

YF2808IT

YF2808IW

YF3/025ID

YF3/025UI

YF3/030ID

YF3/030UI

YF3/032UI

YF3206TOOL

YF35032UI

YF35040UI

YF4/0250TOOL

YF4/027ID

YF4/030ID

YF4/032ID

YF4/032UI

YF4/034ID

YF4/034UI

YF4/040UI

YFA28CP-2

YFA28CPL2

YFA28CR2

YFA29CP-2

YFA29CPL2

YFA29CR2

YFA30CP-2

YFA30CPL2

YFA30CR2

YFA31CP-2

YFA31CPL2

YFA31CR2

YFA32CPL2

YFA32CR2

YFA34CP-2

YFA34CPL2

YFA34CR2

YFA39CP-2

YFA39CPL2

YFA39CR2

YFAP282

YFAP28L2

YFAP292

YFAP29L2

YFAP302

YFAP30L2

YFAP312

YFAP31L2

YFAP322

YFAP32L2

YFAP342

YFAP34L2

YFAP392

YFAP39L2

YFAR282

YFAR292

YFAR302

YFAR312

YFAR322

YFAR342

YFAR392

YFD-365

YFM28CP

YFM28CPL

YFM28CR

YFM29CP

YFM29CPL

YFM29CR

YFM30CP

YFM30CPL

YFM30CR

YFM31CP

YFM31CPL

YFM31CR

YFM32CP

YFM32CPL

YFM32CR

YFM34CP

YFM34CPL

YFM34CR

YFM39CP

YFM39CPL

YFM39CR

YFMP28

YFMP28L

YFMP29

YFMP29L

YFMP30

YFMP30L

YFMP31

YFMP31L

YFMP32

YFMP32L

YFMP34

YFMP34PL

YFMP39

YFMP39PL

YFMR28

YFMR29

YFMR30

YFMR31

YFMR32

YFMR34

YFMR39

YFN-540

YFO-140

YFR-865

YFS28CPL

YFS28CR

YFS29CP

YFS29CPL

YFS29CR

YFS30CP

YFS30CPL

YFS30CR

YFS31CP

YFS31CPL

YFS31CR

YFS32CP

YFS32CPL

YFS32CR

YFS34CP

YFS34CPL

YFS34CR

YFS39CP

YFS39CPL

YFS39CR

YFSP28

YFSP28L

YFSP29

YFSP29L

YFSP30

YFSP30L

YFSP31

YFSP31L

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-88

B-86

B-88

B-86

B-88

B-86

B-87

B-87

B-85

B-87

B-87

B-87

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-87

B-87

B-87

B-87

B-87

B-87

B-85

B-87

B-87

B-87

B-85

N-47

B-87

B-87

B-87

N-48

B-85

B-87

B-87

B-87

B-85

N-48

B-85

B-87

B-87

B-85

B-87

B-87

B-88

B-88

B-88

B-86

B-88

B-86

B-85

B-87

B-87

B-87

B-85

B-87

B-87

B-87

N-48

B-87

B-87

B-85

B-87

B-87

B-88

B-86

B-88

B-86

B-86

N-48

B-86

B-86

N-48

B-88

B-88

B-88

B-86

B-88

B-86

B-86

K-44

K-45

K-44

K-44

K-45

K-44

K-44

K-45

K-44

K-44

K-45

K-44

K-45

K-44

K-44

K-45

K-44

K-44

K-45

K-44

K-46

K-47

K-46

K-47

K-46

K-47

K-46

K-47

K-46

K-47

K-46

K-47

K-46

K-47

K-46

K-46

K-46

K-46

K-46

K-46

K-46

C-154

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-48

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

K-49

C-154

C-154

C-154

K-42

K-41

K-41

K-42

K-41

K-41

K-42

K-41

K-41

K-42

K-41

K-41

K-42

K-41

K-41

K-42

K-41

K-41

K-42

K-41

K-43

K-43

K-43

K-43

K-43

K-43

K-43

K-43

O-90

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YFSP32

YFSP32L

YFSP34

YFSP34L

YFSP39

YFSP39L

YFSR28

YFSR29

YFSR30

YFSR31

YFSR32

YFSR34

YFSR39

YFTW0614D

YFTW0614T

YFTW0614W

YFTW0814D

YFTW0814T

YFTW0814W

YFTW1014D

YFTW1014T

YFTW1014W

YFTW1212D

YFTW1212T

YFTW1212W

YFTW1410D

YFTW1410T

YFTW1410W

YFTW1413D

YFTW1413T

YFTW1413W

YFTW1608D

YFTW1608T

YFTW1608W

YFTW1612D

YFTW1612T

YFTW1612W

YFTW1808D

YFTW1808T

YFTW1808W

YFTW1810D

YFTW1810T

YFTW1810W

YFTW2008D

YFTW2008T

YFTW2008W

YFTW2010D

YFTW2010T

YFTW2010W

YFTW2208D

YFTW2208T

YFTW2208W

YG14B2TC2C2C

YG14B2TC2C6C

YG14BTC28

YGA25-2N

YGA26-2N

YGA28-2N

YGA29-2N

YGA2C-2N

YGA2C-2TC38

YGA34-2N

YGA6C-2N

YGA6C-2TC38E2G1

YGA6C-TC10

YGA6C-TC14

YGA6C-TC516

YGA8C-2N

YGA8C-TC10

YGA8C-TC14

YGA8C-TC516

YGC6C6

YGC6C8

YGC8C8

YGF29-2N

YGF29-4N

YGF34-2N

YGF34-4N

YGHA25-2N

YGHA26-2N

YGHA27-2N

YGHA28-2N

YGHA29-2N

YGHA2C-2N

YGHA31-2N

YGHA34-2N

YGHC26C2

YGHC26C26

YGHC29C26

YGHC29C29

YGHC2C2

YGHC34C26

YGHC34C29

YGHC34C34

YGHP29C2

YGHP29C26

YGHP29C29

YGHP29C6W6W

YGHP2C2

YGHP2C6W6W

YGHP34C2

YGHP34C26

YGHP34C29

YGHP34C34

YGHP58C2W-2

YGHP58C2W-2TN

YGHR26C100

YGHR26C12

YGHR26C34

YGHR26C58

YGHR29C100

YGHR29C12

YGHR29C34

YGHR29C58

YGHR34C100

YGHR34C34

YGHR34C58

YGHR58C2W-3

YGHS25

YGHS26

YGHS27

YGHS28

YGHS29

YGHS2C

YGHS31

YGHS34

YGIBS28-338-2N

YGIBS28-400-2N

YGIBS28-462-2N

YGIBS28-550-2N

YGIBS28-613-2N

YGIBS28-675-2N

YGIBS34-338-2N

YGIBS34-400-2N

YGIBS34-462-2N

YGIBS34-550-2N

YGIBS34-675-2N

YGIBW28-1000-2N

YGIBW28-338-2N

YGIBW28-400-2N

YGIBW28-462-2N

YGIBW28-550-2N

YGIBW28-613-2N

YGIBW28-675-2N

YGIBW28-750-2N

YGIBW34-338-2N

YGIBW34-400-2N

YGIBW34-462-2N

YGIBW34-550-2N

YGIBW34-613-2N

YGIBW34-675-2N

YGL29C2

YGL29C29

YGL2C2

YGL34C2

YGL34C29

YGL34C34

YGLR29C100

YGLR29C12

YGLR29C34

YGLR29C58

YGLR34C100

YGLR34C12

YGLR34C34

YGLR34C58

YGS25

YGS26

YGS28

YGS29

YGS2C

YGS34

YGS6C

YGS8C

YGT275

YH2929

YH2929WC

YH2929WCC

YH292C

YH292CWC

YH292CWCC

YH298C

YH298CWC

YH298CWCC

YH2C2C

YH2C2CWC

YH2C2CWCC

YH3429

YH3429WC

YH3429WCC

YH3434

YH3434WC

YH3434WCC

YH3931

YH3931WC

YH3931WCC

YH3939

YH3939WC

YH3939WCC

YH4429

YH4429WC

YH4429WCC

YH4434

YH4434WC

YH4434WCC

YH4444

YH4444WC

YH4444WCC

YH6C6C

YH6C6CWC

YH6C6CWCC

YH8C8C

YH8C8CWC

YH8C8CWCC

YHD200

YHD-200

YHD200J1444

YHD250

YHD-250

YHD250J1444

YHD-3

YHD300

YHD-300

YHD300J1496

YHD350

YHD-350

YHD350J1496

YHD-4

YHD-400

YHD-5

YHD-6

YHD-7

YHN-450

YHN500

YHN-500

YHN500J1496

YHN-525

YHN-550

YHN-600

YHO-1

YHO-10

YHO100

YHO-100

YHO100J1444

YHO125

YHO-125

YHO150

YHO-150

YHO150J1444

YHO-2

YHR-700

YHR-750

YHR-800

YHR-850

YHR-900

YHR-950

YHSA10K10

YHSA10K10BF

YHSA10K10F

YHSA10K10FRK

YHSA10K10LF

K-43

K-43

K-43

K-43

K-43

K-43

K-43

K-43

K-43

K-43

K-43

K-43

K-43

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

B-89

E-26

E-26

E-26

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-17

E-12

E-12

E-12

E-21

E-21

E-21

E-21

E-16

E-16

E-16

E-16

E-16

E-16

E-16

E-16

E-11

E-11

E-11

E-11

E-11

E-11

E-11

E-11

E-9

E-9

E-9

E-9

E-9

E-9

E-9

E-9

E-9

E-9

E-10

E-10

E-14

E-14

E-14

E-14

E-14

E-14

E-14

E-14

E-14

E-14

E-14

E-15

E-19

E-19

E-19

E-19

E-19

E-19

E-19

E-19

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-23

E-7

E-7

E-7

E-7

E-7

E-7

E-8

E-8

E-8

E-8

E-8

E-8

E-8

E-8

E-20

E-20

E-20

E-20

E-20

E-20

E-20

E-20

E-25

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

C-132, C-134

H-38

H-28

H-39

H-38

H-28

H-39

H-30

H-38

H-28

H-39

H-38

H-28

H-39

H-30

H-28

H-30

H-30

H-30

H-29

H-38

H-29

H-39

H-29

H-29

H-29

H-30

H-30

H-38

H-28

H-39

H-30

H-28

H-38

H-28

H-39

H-30

H-29

H-29

H-29

H-29

H-29

H-29

B-12

B-41

B-31

B-31

B-36 O-91

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

YHSA10K10RK

YHSA10K12

YHSA10K12RK

YHSA10K14

YHSA10K14FRK

YHSA10K14RK

YHSA10K38

YHSA10K38RK

YHSA10K516

YHSA10K6

YHSA10K6BF

YHSA10K6F

YHSA10K6LF

YHSA10K8

YHSA10K8BF

YHSA10K8F

YHSA10K8FRK

YHSA10K8LF

YHSA14K10

YHSA14K10BF

YHSA14K10F

YHSA14K10FRK

YHSA14K10LF

YHSA14K10RK

YHSA14K14

YHSA14K14FRK

YHSA14K14RK

YHSA14K38

YHSA14K38RK

YHSA14K516

YHSA14K6

YHSA14K6BF

YHSA14K6F

YHSA14K6FRK

YHSA14K6LF

YHSA14K8

YHSA14K8BF

YHSA14K8F

YHSA14K8FRK

YHSA14K8LF

YHSA14K8RK

YHSA18K10

YHSA18K10BF

YHSA18K10F

YHSA18K10FRK

YHSA18K10LF

YHSA18K10RK

YHSA18K14

YHSA18K14RK

YHSA18K38

YHSA18K38RK

YHSA18K516

YHSA18K516RK

YHSA18K6

YHSA18K6BF

YHSA18K6F

YHSA18K6FRK

YHSA18K6LF

YHSA18K6RK

YHSA18K8

YHSA18K8BF

YHSA18K8F

YHSA18K8FRK

YHSA18K8LF

YHSA18K8RK

YHSFQ10F25X03

YHSFQ10F25X03RK

YHSFQ14F25X03

YHSFQ14F25X03RK

YHSFQ18F25X03

YHSFQ18F25X03RK

YHSQ10F25X03

YHSQ10F25X03RK

YHSQ10M25X03

YHSQ10M25X03RK

YHSQ14F11X02D

YHSQ14F18X02D

YHSQ14F25X03

YHSQ14F25X03RK

YHSQ14M25X03

YHSQ14M25X03RK

YHSQ18F11X02D

YHSQ18F18X02D

YHSQ18F25X03

YHSQ18F25X03RK

YHSQ18M250X03RK

YHSQ18M25X03

YHSS10

YHSS10RK

YHSS14

YHSS14RK

YHSS18

YHSS18RK

YKA25R-2N

YKA26-2N

YKA26R-2N

YKA27R-2N

YKA28-2N

YKA28R-2N

YKA2C-2N

YKA2R-2N

YKA30-2N

YKA30R-2N

YKA321R-2N

YKA33R-2N

YKA34-2N

YKA34CA-2N

YKA361R-2N

YKA37R-2N

YKA391A-2N

YKA44-2N

YKA6C-2N

YM10-28

YM10-34

YM12-28

YM12-34

YM4-28

YM4-34

YM6-28

YM6-34

YM8-28

YM8-34

YNA32R

YNA32R15

YNA32R15H

YNA32RT

YNA32RT15

YNA32RT15H

YNA34R

YNA34R15

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

B-12

B-12

B-12

B-12

B-31

B-12

B-12

B-12

B-12

B-12

B-41

B-31

B-36

B-12

B-41

B-31

B-31

B-36

B-12

B-41

B-31

B-31

B-36

B-12

B-12

B-31

B-12

B-12

B-12

B-12

B-12

B-41

B-31

B-31

B-36

B-12

B-41

B-31

B-31

B-36

B-12

B-12

B-41

B-31

B-31

B-36

B-12

B-12

B-12

B-12

B-12

B-12

B-12

B-12

B-41

B-31

B-31

B-36

B-12

B-12

B-41

B-31

B-31

B-36

B-12

B-70

B-70

B-70

B-70

B-70

B-70

B-69

B-69

B-68

B-68

B-69

B-69

B-69

B-69

B-68

B-68

B-69

B-69

B-69

B-69

B-68

B-68

B-59

B-59

B-59

B-59

B-59

B-59

H-34

H-36

H-34

H-34

H-36

H-34

H-36

H-34

H-36

H-34

H-34

H-34

H-36

H-34

H-34

H-34

H-34

H-36

H-36

K-37

K-37

K-37

K-37

K-37

K-37

K-37

K-37

K-37

K-37

I-9, I-37

I-9, I-37

I-3, I-31, I-32

I-10, I-38

I-10, I-38

I-5

I-9

I-9

YNA34R15H

YNA34RT

YNA34RT15

YNA34RT15H

YNA36R

YNA36R15

YNA36R15H

YNA36RT

YNA36RT15

YNA36RT15H

YNA39R

YNA39R15

YNA39R15H

YNA39RT

YNA39RT15

YNA39RT15H

YNA43R

YNA43R15

YNA43R15H

YNA43RT

YNA43RT15

YNA43RT15H

YNA451R

YNA451R15

YNA451R15H

YNA451RT

YNA451RT15

YNA451RT15H

YNA49R

YNA49R15

YNA49R15H

YNA49RT

YNA49RT15

YNA49RT15H

YNA52R

YNA52R15

YNA52R15H

YNA52RT

YNA52RT15

YNA52RT15H

YNA54R

YNA54R15

YNA54R15H

YNA54RT

YNA54RT15

YNA54RT15H

YNA56R

YNA56R15

YNA56R15H

YNA56RT

YNA56RT15

YNA56RT15H

YNA58R

YNA58R15

YNA58R15H

YNA58RT

YNA58RT15

YNA58RT15H

YNA594R

YNA594R15

YNA594R15H

YNA594RT

YNA594RT15

YNA594RT15H

YNA59R

YNA59R15

YNA59R15H

YNA59RT

YNA59RT15

YNA59RT15H

YNA7M10T

YNA7M6T

YNA7M7T

YNA7M8T

YNM428

YNM434

YNM628

YNM634

YNM828

YNM834

YNS32R

YNS32RT

YNS34R

YNS34RT

YNS36R

YNS36RT

YNS39R

YNS39RT

YNS43R

YNS43RT

YNS451R

YNS451RT

YNS49R

YNS49RT

YNS52R

YNS52RT

YNS54R

YNS54RT

YNS56R

YNS56RT

YNS58R

YNS58RT

YNS594R

YNS594RT

YNS59R

YNS59RT

YNT32R32R

YNT32R32RHT

YNT34R34R

YNT34R34RHT

YNT36R36R

YNT36R36RHT

YNT39R39R

YNT39R39RHT

YNT43R43R

YNT43R43RHT

YNT451R451R

YNT451R451RHT

YNT49R49R

YNT49R49RHT

YNT52R52R

YNT52R52RHT

YNT54R54R

YNT56R56R

YNT56R56RHT

YNT58R58R

YNT58R58RHT

YNT594R594R

YNT59R59R

YNT59R59RHT

I-3

I-10

I-10

I-5

I-9

I-9

I-3, I-31, I-32

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-9, I-37

I-9, I-37

I-3, I-29, I-32

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-9, I-37

I-9, I-37

I-3, I-29, I-32

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-9, I-37

I-9, I-37

I-3, I-31, I-32

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-9

I-9

I-3

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-9, I-37

I-9, I-37

I-3, I-29, I-32

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-37

I-37

I-29, I-31, I-32

I-38

I-38

I-30

I-9, I-37

I-9, I-37

I-3, I-4, I-31

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-9, I-37

I-9, I-37

I-3, I-4, I-32

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-37

I-37

I-29, I-31, I-32

I-38

I-38

I-30

I-9, I-37

I-9, I-37

I-4, I-29, I-31

I-10, I-38

I-10, I-38

I-5, I-6, I-30

I-44

I-44

I-44

I-44

K-38

K-38

K-38

K-38

K-38

K-38

I-11, I-39

I-12, I-40

I-11, I-39

I-12, I-40

I-11, I-39

I-12, I-40

I-11, I-39

I-12, I-40

I-11, I-39

I-12, I-40

I-11, I-39

I-12, I-40

I-11, I-39

I-12, I-40

I-11, I-39

I-12, I-40

I-39

I-40

I-11, I-39

I-12, I-40

I-11, I-39

I-12, I-40

I-39

I-40

I-11, I-39

I-12, I-40

I-13, I-42

I-26

I-13, I-42

I-26

I-13, I-42

I-26

I-13, I-42

I-26

I-13, I-42

I-26

I-13, I-42

I-26

I-13, I-42

I-26

I-13, I-42

I-26

I-42

I-13, I-42

I-26

I-13, I-42

I-26

I-42

I-13, I-42

I-26

O-92

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YNTA245MRTACCC

YNTA32R

YNTA32RHT

YNTA32RTACCC

YNTA34R

YNTA34RHT

YNTA36R

YNTA36RHT

YNTA36RTACCC

YNTA39R

YNTA39RHT

YNTA39RTACCC

YNTA43R

YNTA43RHT

YNTA43RTACCC

YNTA451R

YNTA451RHT

YNTA451RTACCC

YNTA49R

YNTA49RHT

YNTA49RTACCC

YNTA52RTACCC

YNTA54R

YNTA54RHT

YNTA56R

YNTA56RHT

YNTA58R

YNTA58RHT

YNTA594R

YNTA59R

YNTA59RHT

YNU245MRACCC

YNU32R

YNU32RACCC

YNU32RHT

YNU34R

YNU34RHT

YNU36R

YNU36RACCC

YNU36RHT

YNU39R

YNU39RACCC

YNU39RHT

YNU43R

YNU43RACCC

YNU43RHT

YNU451R

YNU451RACCC

YNU451RHT

YNU49R

YNU49RACCC

YNU49RHT

YNU52RACCC

YNU54R

YNU54RHT

YNU56R

YNU56RHT

YNU58R

YNU58RHT

YNU594R

YNU595R

YNU59R

YNU59RHT

YOT3434

YOU32R

YOU33R

YOU35R

YOU361R

YOU37R

YOU39R

YOU41R

YOU421R

YOU43R

YOU44R

YOU453R

YOU45R

YOU48R

YOU49R

YP25U25

YP26AU2

YP27AU2

YP27AU26

YP27AU4

YP28C28

YP28U2

YP28U26

YP28U28

YP29C26

YP2C2

YP2U3

YPC26R8U

YPC28R28A

YPC28U26

YPC28U28

YPC28U4

YPC29C26

YPC2A8U

YPC33R26U

YPC33R28R

YPC33R33R

YPC36A32

YPC36A36

YPC38R26U

YPC40A32

YPC40A36

YPC40A40

YQE-91

YR2C2WT

YRA1CU-1

YRA25A-1

YRA25U

YRA26U

YRA27U

YRA28U

YRA4CU-1

YRA6CU-1

YRA8CU-1

YRAL1CU

YRAL4CU

YRB1CU1TTN

YRB1CU2TTN

YRB25U2

YRB25U25TTN

YRB25U2TTN

YRB25U3TTN

YRB27U25

YRB27U25TW

YRB27U26

YRB2825T

YRB28U1TW

YRB28U25TW

YRB28U26

YRB28U26TW

YRB28U28TW

YRB28U3TW

YRB29U28

YRB2U3TTN

YRB2U4

YRB31U25TW

YRB31U28

YRB31U28TW

YRB31U29

YRB31U31TW

YRB3428T

YRB34U25TW

YRB34U28TW

YRB34U29TW

YRB34U30TW

YRB34U31

YRB34U31TW

YRB34U34TW

YRB36U31

YRB36U34

YRB39U31TW

YRB39U34

YRB39U34TW

YRB39U36

YRB39U39TW

YRB44U31TW

YRB44U34TW

YRB44U39TW

YRB44U44TW

YRV2CV6C-L

YRV4CV6C-L

YRV6CV10-L

YRV6CV8C-L

YRV8CV10-L

YRV8CV14-L

YS10WAG1

YS12AG1

YS1C

YS1CA1

YS1C-LB

YS1C-LBOX

YS1C-T

YS25

YS25A1

YS25AT

YS25FXLTCKITC

YS25-LB

YS25-LBOX

YS25LTCKITC

YS25-T

YS25UCG1

YS26

YS26A1

YS26AT

YS26FXLTCKITC

YS26-LB

YS26-LBOX

YS26LTCKITC

YS26-T

YS26UCG1

YS27

YS27A1

YS27AT

YS27-LB

YS27-LBOX

YS27UCG1

YS28

YS28A1

YS28AT

YS28-LB

YS28-LBOX

YS28LTCKITC

YS28-T

YS28UCG1

YS29

YS29A1

YS29AT

YS29FXLTCKITC

YS29-LB

YS29-LBOX

YS29-T

YS2C

YS2CA1

YS2CAT

YS2CFXLTCKITC

YS2C-LB

YS2C-LBOX

YS2CLTCKITC

YS2C-T

YS2UCG1

YS30

YS30A1

YS30AT

YS30-FXB

YS30-L

YS30-LB

YS30-T

YS31

YS31A1

YS31ACG1

YS31AT

YS31-FXB

YS31-L

YS31LTCKITC

YS31-T

YS32

YS32A1

YS32-FXB

YS32-L

YS32-LB

YS34

YS34A1

YS34AT

YS34-FXB

YS34FXLTCKITC

YS34-L

YS34-LB

YS34LTCKITC

YS34-T

YS36

YS36A1

YS36-FXB

YS36-L

YS38-FXB

YS38FXLTCKITC

YS38-L

YS38-LB

I-51

I-14, I-41

I-27

I-51

I-14, I-41

I-27

I-14, I-41

I-27

I-51

I-14, I-41

I-27

I-51

I-14, I-41

I-27

I-51

I-14, I-41

I-27

I-51

I-14, I-41

I-27

I-51

I-51

I-14, I-41

I-27

I-14, I-41

I-27

I-14, I-41

I-27

I-41

I-14, I-41

I-27

I-52

I-15, I-43

I-52

I-28

I-15, I-43

I-28

I-15, I-43

I-52

I-28

I-15, I-43

I-52

I-28

I-15, I-43

I-52

I-28

I-15, I-43

I-52

I-28

I-15, I-43

I-52

I-28

I-52

I-15, I-43

I-28

I-15, I-43

I-28

I-15

I-28

I-43

I-43

I-15, I-43

I-28

H-31

H-54

H-54

H-54

H-54

H-54

H-54

H-54

H-54

H-54

H-54

H-54

H-54

H-54

H-54

H-23

H-23, H-38

H-23

H-23, H-38

H-23, H-38

H-21

H-23

H-23, H-38

H-23

H-21

H-21

H-23, H-38

H-25

H-24

H-24, H-38

H-24

H-24, H-38

K-72

H-25

H-24, H-38

H-24

H-24

H-24

H-24

H-24

H-24

H-24

H-24

B-92

C-111

H-78

H-78

H-78

H-78

H-78

H-78

H-78

H-78

H-78

H-78

H-78

K-67

K-67

C-153

K-67

K-67

K-67

C-153

K-67

C-153

K-70

K-67

K-67

C-153

K-67

K-67

K-67

C-153

K-67

C-153

K-67

C-153

K-67

C-153

K-67

K-70

K-68

K-68

K-68

K-68

C-153

K-68

K-68

C-153

C-153

K-68

C-153

K-68

C-153

K-68

K-68

K-68

K-68

K-68

B-58

B-58

B-58

B-58

B-58

B-58

C-150

C-150

C-111

C-150

C-113, C-114

C-110

C-116

C-111

C-150

C-152

C-118

C-113, C-114

C-110

C-118

C-116

K-66

C-111

C-151

C-152

C-118

C-113, C-114

C-110

C-118

C-116

K-66

C-111

C-151

C-152

C-113, C-114

C-110

K-66

C-111

C-151

C-152

C-113, C-115

C-110

C-118

C-116

K-66

C-111

C-151

C-152

C-118

C-113, C-115

C-110

C-116

C-111

C-150

C-152

C-118

C-113, C-114

C-110

C-118

C-116

K-66

C-111

C-151

C-152

C-117

C-110

C-113, C-115

C-116

C-111

C-151

K-66

C-152

C-117

C-110

C-118

C-116

C-111

C-151

C-117

C-110

C-113, C-115

C-111

C-151

C-152

C-117

C-118

C-110

C-113, C-115

C-118

C-116

C-111

C-151

C-117

C-110

C-117

C-118

C-110

C-113, C-115 O-93

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

YS39

YS39A1

YS39AM1

YS39AT

YS39-L

YS39LTCKITC

YS39-T

YS3C

YS3C-L

YS3C-LB

YS40-FXB

YS42A1

YS44

YS44A1

YS44AT

YS44-FXB

YS44FXLTCKITC

YS44-L

YS45A1

YS46

YS46A1

YS47A1

YS48

YS483A1

YS48A1

YS4C

YS4CA1

YS4CFXLTCKITC

YS4C-LB

YS4C-LBOX

YS4C-T

YS5C

YS5C-LB

YS5C-LBOX

YS6C

YS6CA1

YS6CFXLTCKITC

YS6C-LBOX

YS6C-T

YS8C

YS8CA1

YS8C-FXB

YS8CFXLTCKITC

YS8C-L-BOX

YSA25R-2N

YSA26R-2N

YSA28R-2N

YSA2R-2N

YSA30R-2N

YSA321R-2N

YSA37R-2N

YSCM104

YSCM133

YSCM167

YSCM17

YSCM212

YSCM231

YSCM27

YSCM42

YSCM66

YSCM80

YSD25R25R

YSD26R25R

YSD26R26R

YSD26R2R

YSD26R2W

YSD27R25R

YSD27R26R

YSD27R27R

YSD27R2R

YSD27R2W

YSD28R25R

YSD28R26R

YSD28R27R

YSD28R28R

YSD28R2R

YSD28R2W

YSE10

YSE10-BOX

YSE10HHS

YSE10HN

YSE14H

YSE14H-BOX

YSE14HHS

YSE14HN

YSE18H

YSE18H-BOX

YSE18HHS

YSE18HN

YSES10K

YSES14K

YSES18K

YSF28CP

YSH2929

YSH3429

YSH3434

YSH3931

YSH3939

YSHG3429

YSHG3434

YSHG3931

YSHG4429

YSM10

YSM14

YSM18

YSM1C

YSM25

YSM26

YSM27

YSM28

YSM2C

YSM4C

YSM6C

YSM8C

YSP1C-T

YSP25-T

YSP26-T

YSP28-T

YSP29-T

YSP2C-T

YSP30-T

YSP31-T

YSP34-T

YSP39-T

YSP4C-T

YSR10CFX12CLTCKITC

YSR10CFX14CLTCKITC

YSR25FX2CFXLTCKITC

YSR25FX4CFXLTCKITC

YSR25FX6CFXLTCKITC

YSR25FX8CFXLTCKITC

YSR26FX25FXLTCKITC

YSR26FX2CFXLTCKITC

YSR26FX4CFXLTCKITC

YSR26FX6CFXLTCKITC

YSR2825FXLTCKITC

YSR282CFXLTCKITC

YSR284CFXLTCKITC

YSR286CFXLTCKITC

YSR28FX25FXLTCKITC

YSR28FX26FXLTCKITC

YSR28FX28LTCKITC

YSR28FX2CFXLTCKITC

YSR28FX4CFXLTCKITC

YSR29FX25FXLTCKITC

YSR29FX28LTCKITC

YSR29FX2CFXLTCKITC

YSR2CFX4CFXLTCKITC

YSR2CFX6CFXLTCKITC

YSR2CFX8CFXLTCKITC

YSR3125FXLTCKITC

YSR3126FXLTCKITC

YSR3128FXLTCKITC

YSR3128LTCKITC

YSR3129FXLTCKITC

YSR312CFXLTCKITC

YSR314CFXLTCKITC

YSR316CFXLTCKITC

YSR32FX28FXLTCKITC

YSR32FX29FXLTCKITC

YSR3425FXLTCKITC

YSR3426FXLTCKITC

YSR3428FXLTCKITC

YSR3428LTCKITC

YSR3429FXLTCKITC

YSR3431LTCKITC

YSR3434FXLTCKITC

YSR34FX25FXLTCKITC

YSR34FX26FXLTCKITC

YSR34FX28FXLTCKITC

YSR34FX28LTCKITC

YSR34FX29FXLTCKITC

YSR34FX2CFXLTCKITC

YSR34FX31LTCKITC

YSR34FX4CFXLTCKITC

YSR34FX6CFXLTCKITC

YSR38FX26FXLTCKITC

YSR38FX28FXLTCKITC

YSR38FX28LTCKITC

YSR38FX29FXLTCKITC

YSR38FX29LTCKITC

YSR38FX30LTCKITC

YSR38FX31LTCKITC

YSR38FX34FXLTCKITC

YSR38FX34LTCKITC

YSR3928FXLTCKITC

YSR3928LTCKITC

YSR3929FXLTCKITC

YSR3929LTCKITC

YSR3930LTCKITC

YSR3931LTCKITC

YSR3934FXLTCKITC

YSR3934LTCKITC

YSR3938FXLTCKITC

YSR3939LTCKITC

YSR44FX28FXLTCKITC

YSR44FX28LTCKITC

YSR44FX29FXLTCKITC

YSR44FX29LTCKITC

YSR44FX30LTCKITC

YSR44FX31LTCKITC

YSR44FX34FXLTCKITC

YSR44FX34LTCKITC

YSR44FX38FXLTCKITC

YSR44FX39LTCKITC

YSR4CFX10CLTCKITC

YSR4CFX6CFXLTCKITC

YSR4CFX8CFXLTCKITC

YSR6CFX10CLTCKITC

YSR6CFX14CLTCKITC

YSR6CFX8CFXLTCKITC

YSR8CFX10CLTCKITC

YSR8CFX14CLTCKITC

YSS2R

YSS4R

YSS6R

YSS6RG2

YST2525

YST2626

YST2825

YST2828

YST282C

YST2929

YST2C2C

YST3131

YST3428

YST3434

YST3939

YST4C4C

YSU25A25A

YSU25R25R

YSU25R2R

YSU25R2W

YSU25R4W

YSU25R6W

YSU2R2R

YSU2R2W

YSU2R4W

YSU2R6W

YSU2R8W

YSU2W2W

YSU2W4W

YSU2W6W

YSU2W8W

YSU4W4W

YSU4W6W

YSU4W8W

YSU6W6W

YSV10

YSV1014-G2

YSV10BBOX

YSV10BOX

YSV10H

YSV10-HBOX

YSV1214-G1

YSV14

YSV1418

YSV14BBOX

YSV14BOX

YSV14H

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

C-111

C-151

C-151

C-152

C-110

C-118

C-116

C-111

C-110

C-113, C-114

C-117

C-151

C-111

C-151

C-152

C-117

C-118

C-110

C-151

C-111

C-151

C-151

C-111

C-151

C-151

C-111

C-150

C-118

C-113, C-114

C-110

C-116

C-111

C-113, C-114

C-110

C-111

C-150

C-118

C-110

C-116

C-111

C-150

C-117

C-118

C-110

H-35

H-35

H-35

H-35

H-35

H-35

H-35

B-57, C-109

B-57, C-109

B-57, C-109

B-57, C-109

B-57, C-109

B-57, C-109

B-57, C-109

B-57, C-109

B-57, C-109

B-57, C-109

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

H-47

B-50

B-50

B-51

B-48

B-50

B-50

B-51

B-48

B-50

B-50

B-51

B-48

B-52

B-52

B-52

K-41

C-136

C-136

C-136

C-136

C-136

E-13

E-13

E-13

E-13

B-56

B-56

B-56

B-56

B-56

B-56

B-56

B-56

B-56

B-56

B-56

B-56

C-116

C-116

C-116

C-116

C-116

C-116

C-116

C-116

C-116

C-116

C-116

C-122, C-128

C-122, C-128

C-122, C-127

C-122, C-127

C-122, C-127

C-122, C-127

C-121, C-127

C-121, C-127

C-121, C-127

C-121, C-127

C-121, C-127

C-121, C-127

C-121, C-127

C-121, C-127

C-121, C-126

C-121, C-126

C-121, C-126

C-121, C-126

C-121, C-127

C-121, C-126

C-121, C-126

C-121, C-126

C-122, C-128

C-122, C-128

C-122, C-128

C-121, C-126

C-121, C-126

C-120, C-125

C-121, C-125

C-120, C-125

C-121, C-126

C-121, C-126

C-121, C-126

C-120, C-125

C-120, C-125

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-125

C-120, C-125

C-120, C-125

C-120, C-125

C-120, C-124

C-120, C-125

C-120, C-124

C-120, C-125

C-120, C-125

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-124

C-120, C-124

C-119, C-124

C-119, C-124

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-119, C-123

C-122, C-128

C-122, C-128

C-122, C-128

C-122, C-128

C-122, C-128

C-122, C-128

C-122, C-128

C-122, C-128

H-48

H-48

H-48

H-48

C-137

C-137

C-137

C-137

C-137

C-137

C-137

C-137

C-137

C-137

C-137

C-137

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

H-46

B-53

B-58

B-46

B-53

B-55

B-55

B-58

B-53

B-58

B-46

B-53

B-55

O-94

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

YSV14-HBOX

YSV18

YSV18BBOX

YSV18BOX

YSV18H

YSV18-HBOX

YSV1C-FXB

YSV1CL

YSV1C-LBOX

YSV25-FXB

YSV25L

YSV25-LBOX

YSV26-FXB

YSV26L

YSV26-LBOX

YSV27-FXB

YSV27L

YSV27-LBOX

YSV28-FXB

YSV28L

YSV28-LBOX

YSV2C-FXB

YSV2CL

YSV2C-LBOX

YSV4C-FXB

YSV4CL

YSV4C-LBOX

YSV6C-FXB

YSV6CL

YSV6C-LBOX

YSV8CL

YSV8C-LBOX

YTA25R-2N

YTA26-2N

YTA26R-2N

YTA27R-2N

YTA28-2N

YTA28R-2N

YTA2C-2N

YTA2R-2N

YTA321R-2N

YTA33R-2N

YTA34-2N

YTA361R-2N

YTA37R-2N

YTA391A-2N

YTA39R-2N

YTA43R-2N

YTS301A

YTS301AT

YTS311A

YTS311AT

YTS312E

YTS32AR

YTS32ART

YTS32R33RS

YTS32R34RS

YTS32R34RSHT

YTS32RT33RS

YTS32RT33RSHT

YTS32RT34RS

YTS32RT34RSHT

YTS331A

YTS331AT

YTS34R34RS

YTS34R34RSHT

YTS34RT34RS

YTS34RT34RSHT

YTS351A

YTS351AT

YTS361A

YTS361AT

YTS36R362RS

YTS36R362RSHT

YTS36R36RS

YTS36R36RSHT

YTS36RT362RS

YTS36RT362RSHT

YTS36RT36RS

YTS36RT36RSHT

YTS375E

YTS391A

YTS391AT

YTS39A

YTS39AR

YTS39ART

YTS39AT

YTS39R43RS

YTS39R43RSHT

YTS39RT43RS

YTS39RT43RSHT

YTS431A

YTS431AT

YTS438E

YTS43R43RS

YTS43R43RSHT

YTS43RT43RS

YTS43RT43RSHT

YTS445A

YTS445AT

YTS451A

YTS451AR

YTS451ART

YTS451AT

YTS451R449RS

YTS451R449RSHT

YTS451R48RS

YTS451R48RSHT

YTS451RT449RS

YTS451RT449RSHT

YTS451RT48RS

YTS451RT48RSHT

YTS457A

YTS457AT

YTS463A

YTS463AT

YTS47A

YTS47AT

YTS484A

YTS484AT

YTS486A

YTS486AT

YTS48A

YTS48AR

YTS48ART

YTS48AT

YTS48R481RS

YTS48R481RSHT

YTS48R48RS

YTS48R48RSHT

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

B-55

B-53

B-46

B-53

B-55

B-55

C-117

B-54

B-54

C-117

B-54

B-54

C-117

B-54

B-54

C-117

B-54

B-54

C-117

B-54

B-54

C-117

B-54

B-54

C-117

B-54

B-54

C-117

B-54

B-54

B-54

B-54

H-33

H-35

H-33

H-33

H-35

H-33

H-35

H-33

H-33

H-33

H-35

H-33

H-33

H-33

H-33

H-33

I-33

I-35

I-33

I-35

I-46

I-34

I-36

I-7

I-7

I-20

I-8

I-21

I-8

I-21

I-33

I-35

I-7

I-20

I-8

I-21

I-33

I-35

I-33

I-35

I-7

I-20

I-7

I-20

I-8

I-21

I-8

I-21

H-65, I-46

I-33

I-35

I-33

I-34

I-36

I-35

I-7

I-20

I-8

I-21

I-33

I-35

H-65, I-46

I-7

I-20

I-8

I-21

I-33

I-35

I-33

I-34

I-36

I-35

I-7

I-20

I-7

I-20

I-8

I-21

I-8

I-21

I-33

I-35

I-33

I-35

I-33

I-35

I-33

I-35

I-33

I-35

I-33

I-34

I-36

I-35

I-7

I-20

I-7

I-20

YTS48RT481RS

YTS48RT481RSHT

YTS48RT48RS

YTS48RT48RSHT

YTS49AR

YTS49ART

YTS49R483RS

YTS49R483RSHT

YTS49R48RS

YTS49R48RSHT

YTS49RT483RS

YTS49RT483RSHT

YTS49RT48RS

YTS49RT48RSHT

YTS500E

YTS51AR

YTS51ART

YTS52R48RS

YTS52R48RSHT

YTS52R521RS

YTS52R521RSHT

YTS52R59RS

YTS52R59RSHT

YTS52RT48RS

YTS52RT48RSHT

YTS52RT521RS

YTS52RT521RSHT

YTS52RT59RS

YTS52RT59RSHT

YTS54959RSHT

YTS549R521RS

YTS549R521RSHT

YTS549R549RS

YTS549R549RSHT

YTS549R59RS

YTS549RT521RS

YTS549RT521RSHT

YTS549RT549RS

YTS549RT549RSHT

YTS549RT59RS

YTS549RT59RSHT

YTS55AR

YTS55ART

YTS56R59RS

YTS56R59RSHT

YTS56RT59RS

YTS56RT59RSHT

YTS58R48RS

YTS58R48RSHT

YTS58RT48RS

YTS58RT48RSHT

YTS592AR

YTS592ART

YTS59AR

YTS59ART

YTS59R521RS

YTS59R521RSHT

YTS59R59RS

YTS59R59RSHT

YTS59RT521RS

YTS59RT521RSHT

YTS59RT59RS

YTS59RT59RSHT

YTTAG388

YTU25R25R

YTU25R4W

YTU26R26R

YTU27R27R

YTU28R28R

YTU30R30R

YTU321R26R

YTU321R27R

YTU321R28R

YTU321R2R

YTU321R321R

YTU33R26R

YTU33R28R

YTU33R33R

YTW301A

YTW301A331AEK

YTW301AD

YTW301AD331AEK

YTW301ADT

YTW301ADT331AEK

YTW301AT

YTW301AT331AEK

YTW311A

YTW311A331AEK

YTW311AD

YTW311AD331AEK

YTW311ADT

YTW311ADT331AEK

YTW311AT

YTW311AT331AEK

YTW32R

YTW32R33REK

YTW32R33REKHT

YTW32R34REK

YTW32R34REKHT

YTW32RD

YTW32RD33REK

YTW32RD33REKHT

YTW32RD34REK

YTW32RD34REKHT

YTW32RDHT

YTW32RDT

YTW32RDT33REK

YTW32RDT33REKHT

YTW32RDT34REK

YTW32RDT34REKHT

YTW32RDTHT

YTW32RHT

YTW32RT

YTW32RT33REK

YTW32RT33REKHT

YTW32RT34REK

YTW32RT34REKHT

YTW32RTHT

YTW331A

YTW331A331AEK

YTW331AD

YTW331AD331AEK

YTW331ADT

YTW331ADT331AEK

YTW331AE

YTW331AT

YTW331AT331AEK

YTW33RE

YTW33REHT

YTW34R

I-8

I-21

I-8

I-21

I-34

I-36

I-7

I-20

I-7

I-20

I-8

I-21

I-8

I-21

I-46

I-34

I-36

I-7

I-20

I-7

I-20

I-7

I-20

I-8

I-21

I-8

I-21

I-8

I-21

I-20

I-7

I-20

I-7

I-20

I-7

I-8

I-21

I-8

I-21

I-8

I-21

I-34

I-36

I-7

I-20

I-8

I-21

I-7

I-20

I-8

I-21

I-34

I-36

I-34

I-36

I-7

I-20

I-7

I-20

I-8

I-21

I-8

I-21

E-25

H-32

H-32

H-32

H-32

H-32

H-32

H-32

H-32

H-32

H-32

H-32

H-32

H-32

H-32

I-29

I-29

I-31

I-31

I-32

I-32

I-30

I-30

I-29

I-29

I-31

I-31

I-32

I-32

I-30

I-30

I-3

I-3

I-16

I-3

I-16

I-4

I-4

I-17

I-4

I-17

I-17

I-6

I-6

I-19

I-6

I-19

I-19

I-16

I-5

I-5

I-18

I-5

I-18

I-18

I-29

I-29

I-31

I-31

I-32

I-32

I-29, I-30, I-32

I-30

I-30

I-3, I-5, I-6

I-16, I-17, I-19

I-3 O-95

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

YTW34R34REK

YTW34R34REKHT

YTW34RD

YTW34RD34REK

YTW34RD34REKHT

YTW34RDHT

YTW34RDT

YTW34RDT34REK

YTW34RDT34REKHT

YTW34RDTHT

YTW34RE

YTW34REHT

YTW34RHT

YTW34RT

YTW34RT34REK

YTW34RT34REKHT

YTW34RTHT

YTW351A

YTW351A351AEK

YTW351AD

YTW351AD351AEK

YTW351ADT

YTW351ADT351AEK

YTW351AE

YTW351AT

YTW351T351AEK

YTW361A

YTW361A39AEK

YTW361AD

YTW361AD39AEK

YTW361ADT

YTW361ADT39AEK

YTW361AT

YTW361AT39AEK

YTW362RE

YTW362REHT

YTW36R

YTW36R362REK

YTW36R362REKHT

YTW36R36REK

YTW36R36REKHT

YTW36RD

YTW36RD362REK

YTW36RD362REKHT

YTW36RD36REK

YTW36RD36REKHT

YTW36RDHT

YTW36RDT

YTW36RDT362REK

YTW36RDT362REKHT

YTW36RDT36REK

YTW36RDT36REKHT

YTW36RDTHT

YTW36RE

YTW36REHT

YTW36RHT

YTW36RT

YTW36RT362REK

YTW36RT362REKHT

YTW36RT36REK

YTW36RT36REKHT

YTW36RTHT

YTW391A

YTW391A431AEK

YTW391AD

YTW391AD431AEK

YTW391ADT

YTW391ADT431AEK

YTW391AT

YTW391AT431AEK

YTW39A

YTW39A39AEK

YTW39AD

YTW39AD39AEK

YTW39ADT

YTW39ADT39AEK

YTW39AE

YTW39AT

YTW39AT39AEK

YTW39R

YTW39R43REK

YTW39R43REKHT

YTW39RD

YTW39RD43REK

YTW39RD43REKHT

YTW39RDHT

YTW39RDT

YTW39RDT43REK

YTW39RDT43REKHT

YTW39RDTHT

YTW39RHT

YTW39RT

YTW39RT43REK

YTW39RT43REKHT

YTW39RTHT

YTW431A

YTW431A431AEK

YTW431AD

YTW431AD431AEK

YTW431ADT

YTW431ADT431AEK

YTW431AE

YTW431AT

YTW431AT431AEK

YTW43R

YTW43R43REK

YTW43R43REKHT

YTW43RD

YTW43RD43REK

YTW43RD43REKHT

YTW43RDHT

YTW43RDT

YTW43RDT43REK

YTW43RDT43REKHT

YTW43RDTHT

YTW43RE

YTW43REHT

YTW43RHT

YTW43RT

YTW43RT43REK

YTW43RT43REKHT

YTW43RTHT

YTW445A

YTW445A463AEK

YTW445AD

YTW445AD463AEK

YTW445ADT

YTW445ADT463AEK

YTW445AT

YTW445AT463AEK

YTW451A

YTW451A463AEK

YTW451AD

YTW451AD463AEK

YTW451ADT

YTW451ADT463AEK

YTW451AT

YTW451AT463AEK

YTW451R

YTW451R45REK

YTW451R45REKHT

YTW451R481REK

YTW451R481REKHT

YTW451R48REK

YTW451R48REKHT

YTW451RD

YTW451RD45REK

YTW451RD45REKHT

YTW451RD481REK

YTW451RD481REKHT

YTW451RD48REK

YTW451RD48REKHT

YTW451RDHT

YTW451RDT

YTW451RDT45REK

YTW451RDT45REKHT

YTW451RDT481REK

YTW451RDT481REKHT

YTW451RDT48REK

YTW451RDT48REKHT

YTW451RDTHT

YTW451RHT

YTW451RT

YTW451RT45REK

YTW451RT45REKHT

YTW451RT481REK

YTW451RT481REKHT

YTW451RT48REK

YTW451RT48REKHT

YTW451RTHT

YTW457A

YTW457A463AEK

YTW457AD

YTW457AD463AEK

YTW457ADT

YTW457ADT463AEK

YTW457AT

YTW457AT463AEK

YTW45RE

YTW45REHT

YTW463A

YTW463A463AEK

YTW463AD

YTW463AD463AEK

YTW463ADT

YTW463ADT463AEK

YTW463AE

YTW463AT

YTW463AT463AEK

YTW47A

YTW47A47AEK

YTW47AD

YTW47AD47AEK

YTW47ADT

YTW47ADT47AEK

YTW47AE

YTW47AT

YTW47AT47AEK

YTW481RE

YTW481REHT

YTW483RE

YTW483REHT

YTW484A

YTW484A484AEK

YTW484AD

YTW484AD484AEK

YTW484ADT

YTW484ADT484AEK

YTW484AE

YTW484AT

YTW484AT484AEK

YTW486A

YTW486A486AEK

YTW486AD

YTW486AD486AEK

YTW486ADT

YTW486ADT486AEK

YTW486AE

YTW486AT

YTW486AT486AEK

YTW48A

YTW48A484AEK

YTW48AD

YTW48AD484AEK

YTW48ADT

YTW48ADT484AEK

YTW48AT

YTW48AT484AEK

YTW48R

YTW48R481REK

YTW48R481REKHT

YTW48R48REK

YTW48R48REKHT

YTW48RD

YTW48RD481REK

YTW48RD481REKHT

YTW48RD48REK

YTW48RD48REKHT

YTW48RDHT

YTW48RDT

YTW48RDT481REK

YTW48RDT481REKHT

YTW48RDT48REK

YTW48RDT48REKHT

YTW48RDTHT

YTW48RE

YTW48REHT

YTW48RHT

YTW48RT

YTW48RT481REK

YTW48RT481REKHT

YTW48RT48REK

YTW48RT48REKHT

YTW48RTHT

YTW49R

YTW49R483REK

YTW49R483REKHT

YTW49R50REK

YTW49R50REKHT

YTW49RD

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

I-3

I-16

I-4

I-4

I-17

I-17

I-6

I-6

I-19

I-19

I-4, I-5, I-6

I-16, I-17, I-19

I-16

I-5

I-5

I-18

I-18

I-29

I-29

I-31

I-31

I-32

I-32

I-29, I-30, I-32

I-30

I-30

I-29

I-29

I-31

I-31

I-32

I-32

I-30

I-30

I-3, I-4, I-6

I-16, I-18, I-19

I-3

I-3

I-16

I-3

I-16

I-4

I-4

I-17

I-4

I-17

I-17

I-6

I-6

I-19

I-6

I-19

I-19

I-3, I-4, I-6

I-16, I-17, I-19

I-16

I-5

I-5

I-18

I-5

I-18

I-18

I-29

I-29

I-31

I-31

I-32

I-32

I-30

I-30

I-29

I-29

I-31

I-31

I-32

I-32

I-29, I-30, I-32

I-30

I-30

I-3

I-3

I-16

I-4

I-4

I-17

I-17

I-6

I-6

I-19

I-19

I-16

I-5

I-5

I-18

I-18

I-29

I-29

I-31

I-31

I-32

I-32

I-29, I-31, I-32

I-30

I-30

I-3

I-3

I-16

I-4

I-4

I-17

I-17

I-6

I-6

I-19

I-19

I-3, I-4, I-5

I-16, I-18, I-19

I-16

I-5

I-5

I-18

I-18

I-29

I-29

I-31

I-31

I-32

I-32

I-30

I-30

I-29

I-29

I-31

I-31

I-32

I-32

I-30

I-30

I-3

I-3

I-16

I-3

I-16

I-3

I-16

I-4

I-4

I-17

I-4

I-17

I-4

I-17

I-17

I-6

I-6

I-19

I-6

I-19

I-6

I-19

I-19

I-16

I-5

I-5

I-18

I-5

I-18

I-5

I-18

I-18

I-29

I-29

I-31

I-31

I-32

I-32

I-30

I-30

I-3, I-5, I-6

I-16, I-17, I-18

I-29

I-29

I-31

I-31

I-32

I-32

I-29, I-31, I-32

I-30

I-30

I-29

I-29

I-31

I-31

I-32

I-32

I-29, I-30, I-32

I-30

I-30

I-3, I-5, I-6

I-16, I-17, I-19

I-3, I-4, I-5

I-16, I-17, I-19

I-29

I-29

I-31

I-31

I-32

I-32

I-30, I-31, I-32

I-30

I-30

I-29

I-29

I-31

I-31

I-32

I-32

I-29, I-30, I-32

I-30

I-30

I-29

I-29

I-31

I-31

I-32

I-32

I-30

I-30

I-3

I-3

I-16

I-3

I-16

I-4

I-4

I-17

I-4

I-17

I-17

I-6

I-6

I-19

I-6

I-19

I-19

I-3, I-4, I-6

I-16, I-17, I-19

I-16

I-5

I-5

I-18

I-5

I-18

I-18

I-3

I-3

I-16

I-3

I-16

I-4

O-96

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

YTW49RD483REK

YTW49RD483REKHT

YTW49RD50REK

YTW49RD50REKHT

YTW49RDHT

YTW49RDT

YTW49RDT483REK

YTW49RDT483REKHT

YTW49RDT50REK

YTW49RDT50REKHT

YTW49RDTHT

YTW49RHT

YTW49RT

YTW49RT483REK

YTW49RT483REKHT

YTW49RT50REK

YTW49RT50REKHT

YTW49RTHT

YTW50RE

YTW50REHT

YTW521RE

YTW521REHT

YTW52R

YTW52R50REK

YTW52R50REKHT

YTW52R521REK

YTW52R521REKHT

YTW52R56REK

YTW52R56REKHT

YTW52RD

YTW52RD50REK

YTW52RD50REKHT

YTW52RD521REK

YTW52RD521REKHT

YTW52RD56REK

YTW52RD56REKHT

YTW52RDHT

YTW52RDT

YTW52RDT50REK

YTW52RDT50REKHT

YTW52RDT521REK

YTW52RDT521REKHT

YTW52RDT56REK

YTW52RDT56REKHT

YTW52RDTHT

YTW52RHT

YTW52RT

YTW52RT50REK

YTW52RT50REKHT

YTW52RT521REK

YTW52RT521REKHT

YTW52RT56REK

YTW52RT56REKHT

YTW52RTHT

YTW549R

YTW549R521REK

YTW549R521REKHT

YTW549R549REK

YTW549R549REKHT

YTW549R56REK

YTW549R56REKHT

YTW549RD

YTW549RD521REK

YTW549RD521REKHT

YTW549RD549REK

YTW549RD549REKHT

YTW549RD56REK

YTW549RD56REKHT

YTW549RDHT

YTW549RDT

YTW549RDT521REK

YTW549RDT521REKHT

YTW549RDT549REK

YTW549RDT549REKHT

YTW549RDT56REK

YTW549RDT56REKHT

YTW549RDTHT

YTW549RE

YTW549REHT

YTW549RHT

YTW549RT

YTW549RT521REK

YTW549RT521REKHT

YTW549RT549REK

YTW549RT549REKHT

YTW549RT56REK

YTW549RT56REKHT

YTW549RTHT

YTW56R

YTW56R590REK

YTW56R590REKHT

YTW56RD

YTW56RD590REK

YTW56RD590REKHT

YTW56RDHT

YTW56RDT

YTW56RDT590REK

YTW56RDT590REKHT

YTW56RDTHT

YTW56RE

YTW56REHT

YTW56RHT

YTW56RT

YTW56RT590REK

YTW56RT590REKHT

YTW56RTHT

YTW58R

YTW58R58REK

YTW58R58REKHT

YTW58RD

YTW58RD58REK

YTW58RD58REKHT

YTW58RDHT

YTW58RDT

YTW58RDT58REK

YTW58RDT58REKHT

YTW58RDTHT

YTW58RE

YTW58REHT

YTW58RHT

YTW58RT

YTW58RT58REK

YTW58RT58REKHT

YTW58RTHT

YTW590RE

YTW590REHT

YTW591RE

YTW591REHT

YTW59R

YTW59R591REK

YTW59R591REKHT

YTW59R59REK

YTW59R59REKHT

YTW59RD

YTW59RD591REK

YTW59RD591REKHT

YTW59RD59REK

YTW59RD59REKHT

YTW59RDHT

YTW59RDT

YTW59RDT591REK

YTW59RDT591REKHT

YTW59RDT59REK

YTW59RDT59REKHT

YTW59RDTHT

YTW59RE

YTW59REHT

YTW59RHT

YTW59RT

YTW59RT591REK

YTW59RT591REKHT

YTW59RT59REK

YTW59RT59REKHT

YTW59RTHT

Z104C4034

Z104C4434

Z-11

Z144C4840

Z-15

Z1C28

Z1C29

Z1C30

Z1C32

Z1C34

Z-22.5

Z-25

Z2528

Z2529

Z2530

Z2532

Z2534

Z2536

Z2628

Z2629

Z2630

Z2632

Z2634

Z2636

Z2640

Z2728

Z2729

Z2730

Z2732

Z2734

Z2736

Z2740

Z2828

Z2829

Z2830

Z2832

Z2834

Z2836

Z2840

Z2844

Z28NR

Z2929

Z2930

Z2932

Z2934

Z2936

Z2940

Z2944

Z29NR

Z29P

Z2C28

Z2C29

Z2C30

Z2C32

Z2C34

Z2MLDN2-20

Z2MLDN2-30

Z2MLDN2-30B

Z2MLDN4-20

Z2MLDN4-30

Z2MLDN4-30B

Z2MLDN6-20

Z2MLDN6-30

Z2MLDN6-30B

Z-30

Z3030

Z3032

Z3034

Z3036

Z3040

Z30NR

Z3132

Z3134

Z3136

Z3140

Z3232

Z3234

Z3236

Z3240

Z3244

Z32NR

Z3334

Z3336

Z3340

Z3344

Z3434

Z3436

Z3440

Z3444

Z34NR

Z34NRB

Z34P

Z3536

Z3540

Z3544

Z3636

Z3640

Z3644

Z36NR

Z-37.5

Z3740

Z3744

Z3840

Z3844

Z3940

Z3944

I-4

I-17

I-4

I-17

I-17

I-6

I-6

I-19

I-6

I-19

I-19

I-16

I-5

I-5

I-18

I-5

I-18

I-18

I-3, I-5, I-6

I-16, I-17, I-19

I-3, I-5, I-6

I-16, I-17, I-18

I-3

I-3

I-16

I-3

I-16

I-3

I-16

I-4

I-4

I-17

I-4

I-17

I-4

I-17

I-17

I-6

I-6

I-19

I-6

I-19

I-6

I-19

I-19

I-16, I-18

I-5

I-5

I-18

I-5

I-18

I-5

I-18

I-18

I-3

I-3

I-16

I-3

I-16

I-3

I-16

I-4

I-4

I-17

I-4

I-17

I-4

I-17

I-17

I-6

I-6

I-19

I-6

I-19

I-6

I-19

I-19

I-3, I-5, I-6

I-16, I-17, I-19

I-16

I-5

I-5

I-18

I-5

I-18

I-5

I-18

I-18

I-3

I-3

I-16

I-4

I-4

I-17

I-17

I-6

I-6

I-19

I-19

I-3, I-4, I-5, I-6

I-16, I-18, I-19

I-16

I-5

I-5

I-18

I-18

I-3

I-3

I-16

I-4

I-4

I-17

I-17

I-6

I-6

I-19

I-19

I-3, I-4, I-6

I-16, I-17, I-19

I-16

I-5

I-5

I-18

I-18

I-3, I-5, I-6

I-16, I-17, I-18

I-3, I-4, I-5

I-16, I-17, I-19

I-3

I-3

I-16

I-3

I-16

I-4

I-4

I-17

I-4

I-17

I-17

I-6

I-6

I-19

I-6

I-19

I-19

I-3, I-4, I-5

I-16, I-17, I-19

I-16

I-5

I-5

I-18

I-5

I-18

I-18

K-36

K-36

K-57

K-36

K-57

K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-33

K-57

K-57

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-34

K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-34

K-34

K-33, K-34

K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-34

K-34

K-33

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-34

K-34

K-34

K-32, K-35

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-34

K-32, K-35

K-31

K-33, K-34

K-33, K-34

K-33

K-33

K-33

K-29

K-29

K-29

K-29

K-29

K-29

K-29

K-29

K-29

K-57

K-33

K-33

K-33

K-33

K-33

K-32

K-33

K-33

K-33

K-33

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-34

K-32, K-35

K-33, K-34

K-33, K-34

K-33, K-34

K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-33, K-34

K-32, K-35

K-32

K-31

K-33

K-33

K-33

K-33, K-34

K-33, K-34

K-33, K-34

K-32, K-35

K-57

K-33

K-33

K-33

K-33

K-33

K-33 O-97

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Reference

Z3C28

Z3ONR

Z4040

Z4044

Z40NR

Z40NRA

Z40P

Z4144

Z4244

Z4344

Z-44

Z4444

Z44NR

Z4C28

Z4C29

Z4C30

Z-50

Z6C28

Z6C29

Z6C30

Z-7.5

Z72C3029

Z88C3429

ZH50

ZM10-15

ZM10-25

ZM10-25B

ZM10-30

ZM10-30B

ZM12-15

ZM12-25

ZM12-25B

ZM12-30

ZM12-30B

ZM14-15

ZM14-25

ZM14-25B

ZM14-30

ZM14-30B

ZM16-15

ZM16-25

ZM16-25B

ZM16-30

ZM16-30B

ZM4-15

ZM4-25

ZM4-25B

ZM4-30

ZM4-30B

ZM6-15

ZM6-25

ZM6-25B

ZM6-30

ZM6-30B

ZM8-15

ZM8-25

ZM8-25B

ZM8-30

ZM8-30B

ZMDN3-20

ZMDN3-20B

ZMDN3-25

ZMDN4-20

ZMDN4-20B

ZMDN4-25

ZMDN5-20

ZMDN5-20B

ZMDN5-25

ZMDN6-20

ZMDN6-20B

ZMDN6-25

ZME2-15

ZME2-25

ZME2-25B

ZME230

ZME230B

ZME3-15

ZME3-25

ZME3-25B

ZME330

ZME330B

ZME4-15

ZME4-25

ZME4-25B

ZME430

ZME430B

ZME5-15

ZME5-25

ZME5-25B

ZME530

ZME530B

ZME6-15

ZME6-25

ZME6-25B

ZME630

ZME630B

ZME7-15

ZME7-25

ZME7-25B

ZME730

ZME730B

ZME8-15

ZME8-25

ZME8-25B

ZME830

ZME830B

ZMK10-15

ZMK10-15A3

ZMK10-15A4

ZMK10-25

ZMK10-25A4

ZMK10-25B

ZMK10-25B12

ZMK1030

ZMK1030B

ZMK4-15

ZMK4-15A3

ZMK4-15A4

ZMK4-25

ZMK4-25A4

ZMK4-25B

ZMK4-25B12

ZMK430

ZMK430B

ZMK5-15

ZMK5-15A3

ZMK5-15A4

ZMK5-25

ZMK5-25A4

ZMK5-25B

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

K-34

K-35

K-33

K-33

K-32

K-32

K-31

K-33

K-33

K-33

K-57

K-33

K-32

K-33

K-33

K-33

K-57

K-33

K-33

K-33

K-57

K-36

K-36

K-57

K-9

K-15

K-15

K-21

K-21

K-9

K-15

K-15

K-21

K-21

K-9

K-15

K-15

K-21

K-21

K-9

K-15

K-15

K-21

K-21

K-9

K-15

K-15

K-21

K-21

K-9

K-15

K-15

K-21

K-21

K-9

K-15

K-15

K-21

K-21

K-30

K-30

K-30

K-30

K-30

K-30

K-30

K-30

K-30

K-30

K-30

K-30

K-11

K-17

K-17

K-23

K-23

K-11

K-17

K-17

K-23

K-23

K-11

K-17

K-17

K-23

K-23

K-11

K-17

K-17

K-23

K-23

K-11

K-17

K-17

K-23

K-23

K-11

K-17

K-17

K-23

K-23

K-11

K-17

K-17

K-23

K-23

K-14

K-14

K-14

K-20

K-20

K-20

K-20

K-26

K-26

K-14

K-14

K-14

K-20

K-20

K-20

K-20

K-26

K-26

K-14

K-14

K-14

K-20

K-20

K-20

ZMK5-25B12

ZMK530

ZMK530B

ZMK6-15

ZMK6-15A3

ZMK6-15A4

ZMK6-25

ZMK6-25A4

ZMK6-25B

ZMK6-25B12

ZMK630

ZMK630B

ZMK7-15

ZMK7-15A3

ZMK7-15A4

ZMK7-25

ZMK7-25A4

ZMK7-25B

ZMK7-25B12

ZMK730

ZMK730B

ZMK8-15

ZMK8-15A3

ZMK8-15A4

ZMK8-25

ZMK8-25A4

ZMK8-25B

ZMK8-25B12

ZMK830

ZMK830B

ZMK9-15

ZMK9-15A3

ZMK9-15A4

ZMK9-25

ZMK9-25A4

ZMK9-25B

ZMK9-25B12

ZMK930

ZML0-15A3

ZML2-15

ZML2-15A3

ZML2-25

ZML2-25A3

ZML2-25B

ZML2-25B12

ZML2-30

ZML2-30B

ZML3-15

ZML3-15A3

ZML3-25

ZML3-25A3

ZML3-25B

ZML3-25B12

ZML3-30

ZML3-30B

ZML4-15

ZML4-15A3

ZML4-25

ZML4-25A3

ZML4-25B

ZML4-25B12

ZML4-30

ZML4-30B

ZML5-15

ZML5-15A3

ZML5-25

ZML5-25A3

ZML5-25B

ZML5-25B12

ZML5-30

ZML5-30B

ZML6-15

ZML6-15A3

ZML6-25

ZML6-25A3

ZML6-25B

ZML6-25B12

ZML6-30

ZML6-30B

ZML7-15

ZML7-15A3

ZML7-25

ZML7-25A3

ZML7-25B

ZML7-25B12

ZML7-30

ZML7-30B

ZML8-15

ZML8-25

ZML8-25A3

ZML8-25B

ZML8-25B12

ZML8-30

ZML8-30B

ZML9-15

ZML9-15A3

ZML9-25

ZML9-25A3

ZML9-25B

ZML9-25B12

ZML9-30

ZML9-30B

ZMLDN1-15

ZMLDN1-20

ZMLDN1-20B

ZMLDN1-25

ZMLDN1-25B

ZMLDN1-30

ZMLDN1-30B

ZMLDN2-15

ZMLDN2-20

ZMLDN2-20B

ZMLDN2-25

ZMLDN2-25B

ZMLDN2-30

ZMLDN2-30B

ZMLDN3-15

ZMLDN3-20

ZMLDN3-20B

ZMLDN3-25

ZMLDN3-25B

ZMLDN3-30

ZMLDN3-30B

ZMLDN4-15

ZMLDN4-20

ZMLDN4-20B

ZMLDN4-25

ZMLDN4-25B

ZMLDN4-30

ZMLDN4-30B

K-20

K-26

K-26

K-14

K-14

K-14

K-20

K-20

K-20

K-20

K-26

K-26

K-14

K-14

K-14

K-20

K-20

K-20

K-20

K-26

K-26

K-14

K-14

K-14

K-20

K-20

K-20

K-20

K-26

K-26

K-14

K-14

K-14

K-20

K-20

K-20

K-20

K-26

K-12

K-12

K-12

K-18

K-18

K-18

K-18

K-24

K-24

K-12

K-12

K-18

K-18

K-18

K-18

K-24

K-24

K-12

K-12

K-18

K-18

K-18

K-18

K-24

K-24

K-12

K-12

K-18

K-18

K-18

K-18

K-24

K-24

K-12

K-12

K-18

K-18

K-18

K-18

K-24

K-24

K-12

K-12

K-18

K-18

K-18

K-18

K-24

K-24

K-12

K-18

K-18

K-18

K-18

K-24

K-24

K-12

K-12

K-18

K-18

K-18

K-18

K-24

K-24

K-27

K-27

K-27

K-28

K-28

K-28

K-28

K-27

K-27

K-27

K-28

K-28

K-28

K-28

K-27

K-27

K-27

K-28

K-28

K-28

K-28

K-27

K-27

K-27

K-28

K-28

K-28

K-28

O-98

Catalog Number Page # Catalog Number Page # Catalog Number Page # Catalog Number Page #

BURNDY®

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Reference

ALPHA-NUMERIC INDEX BY CATALOG NUMBER (Continued)

ZMLDN5-15

ZMLDN5-20

ZMLDN5-20B

ZMLDN5-25

ZMLDN5-25B

ZMLDN5-30

ZMLDN5-30B

ZMLDN6-15

ZMLDN6-20

ZMLDN6-20B

ZMLDN6-25

ZMLDN6-25B

ZMLDN6-30

ZMLDN6-30B

ZMS29

ZMS34

ZMS40

ZMT11-15

ZMT11-15A3

ZMT11-25

ZMT11-25A3

ZMT11-25B

ZMT11-25B12

ZMT11-30

ZMT11-30B

ZMT13-15

ZMT13-15A3

ZMT13-25

ZMT13-25A3

ZMT13-25B

ZMT13-25B12

ZMT13-30

ZMT13-30B

ZMT15-15

ZMT15-15A3

ZMT15-25

ZMT15-25A3

ZMT15-25B

ZMT15-25B12

ZMT15-30

ZMT15-30B

ZMT17-15

ZMT17-15A3

ZMT17-25

ZMT17-25A3

ZMT17-25B

ZMT17-25B12

ZMT17-30

ZMT17-30B

ZMT3-15

ZMT3-15A3

ZMT3-25

ZMT3-258

ZMT3-25A3

ZMT3-25B12

ZMT3-30

ZMT3-30B

ZMT5-15

ZMT5-15A3

ZMT5-25

ZMT5-25A3

ZMT5-25B

ZMT5-25B12

ZMT5-30

ZMT5-30B

K-27

K-27

K-27

K-28

K-28

K-28

K-28

K-27

K-27

K-27

K-28

K-28

K-28

K-28

K-35

K-35

K-35

K-10

K-10

K-16

K-16

K-16

K-16

K-22

K-22

K-10

K-10

K-16

K-16

K-16

K-16

K-22

K-22

K-10

K-10

K-16

K-16

K-16

K-16

K-22

K-22

K-10

K-10

K-16

K-16

K-16

K-16

K-22

K-22

K-10

K-10

K-16

K-16

K-16

K-16

K-22

K-22

K-10

K-10

K-16

K-16

K-16

K-16

K-22

K-22

ZMT7-15

ZMT7-15A3

ZMT7-25

ZMT7-25A3

ZMT7-25B

ZMT7-25B12

ZMT7-30

ZMT7-30B

ZMT9-15

ZMT9-15A3

ZMT9-25

ZMT9-25A3

ZMT9-25B

ZMT9-25B12

ZMT9-30B

ZMTDN1015

ZMTDN81025

ZMTDN815

ZMTDN820

ZMX10-15

ZMX10-15A3

ZMX10-15A4

ZMX10-25

ZMX10-25A4

ZMX10-25B

ZMX10-25B12

ZMX10-30

ZMX10-30B

ZMX12-15

ZMX12-15A3

ZMX12-15A4

ZMX12-25

ZMX12-25A4

ZMX12-25B

ZMX12-25B12

ZMX12-30

ZMX14-15

ZMX14-15A3

ZMX14-15A4

ZMX14-25

ZMX14-25A4

ZMX14-25B

ZMX14-25B12

ZMX14-30

ZMX14-30B

ZMX16-15

ZMX16-15A3

ZMX16-15A4

ZMX16-25

ZMX16-25A4

ZMX16-25B

ZMX16-25B12

ZMX16-30

ZMX18-15

ZMX18-15A3

ZMX18-15A4

ZMX18-25

ZMX18-25A4

ZMX18-25B

ZMX18-25B12

ZMX18-30

ZMX18-30B

ZMX4-15

ZMX4-15A3

ZMX4-15A4

ZMX4-25

ZMX4-25A4

ZMX4-25B

ZMX4-25B12

ZMX4-30

ZMX4-30B

ZMX6-15

ZMX6-15A3

ZMX6-15A4

ZMX6-25

ZMX6-25A4

ZMX6-25B

ZMX6-25B12

ZMX6-30

ZMX6-30B

ZMX8-15

ZMX8-15A3

ZMX8-15A4

ZMX8-25

ZMX8-25A4

ZMX8-25B

ZMX8-25B12

ZMX8-30

ZMX8-30B

K-10

K-10

K-16

K-16

K-16

K-16

K-22

K-22

K-10

K-10

K-16

K-16

K-16

K-16

K-22

K-31

K-31

K-31

K-31

K-13

K-13

K-13

K-19

K-19

K-19

K-19

K-25

K-25

K-13

K-13

K-13

K-19

K-19

K-19

K-19

K-25

K-13

K-13

K-13

K-19

K-19

K-19

K-19

K-25

K-25

K-13

K-13

K-13

K-19

K-19

K-19

K-19

K-25

K-13

K-13

K-13

K-19

K-19

K-19

K-19

K-25

K-25

K-13

K-13

K-13

K-19

K-19

K-19

K-19

K-25

K-25

K-13

K-13

K-13

K-19

K-19

K-19

K-19

K-25

K-25

K-13

K-13

K-13

K-19

K-19

K-19

K-19

K-25

K-25

O-99

Catalog Number Page # Catalog Number Page # Catalog Number Page #
