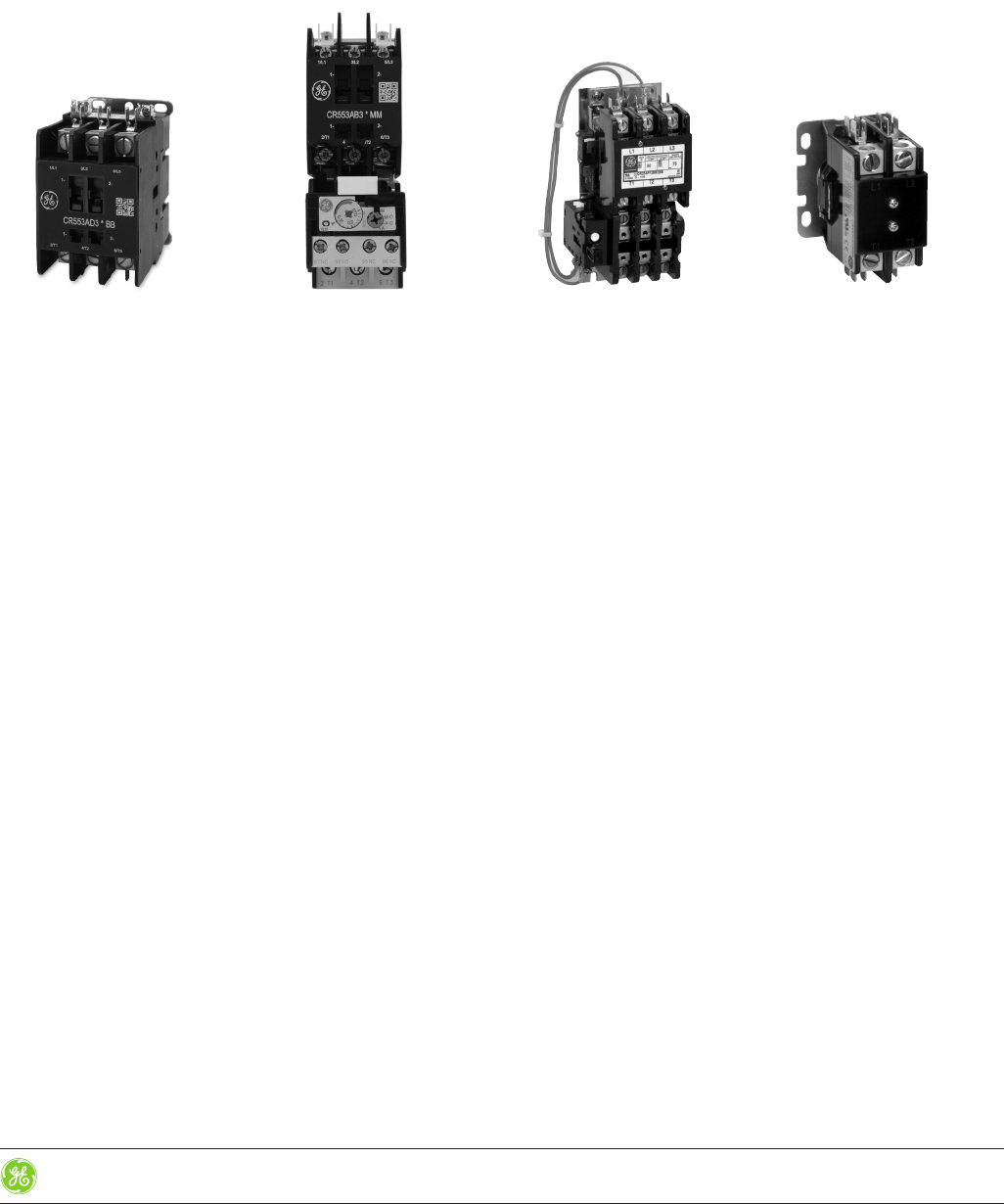

www.geindustrial.com Control Catalog 4-1
Definite Purpose Controls Section 4
Full Voltage Contactors
Definite Purpose Controls Advantages
(CR453C Compact)...................................................................................4-2
Definite Purpose Controls Advantages
(CR553A Standard)...................................................................................4-3
Compact, Single Phase, 20A-40A
(CR453C) Product Tables ......................................................................4-4
Compact, Single Phase, 20A-40A
(CR453C) Factory Modified Forms....................................................4-5
Standard, Three Phase, 25A-40A
(CR553A) Product Tables ......................................................................4-6
Standard, Three Phase, 25A-40A
(CR553A) Factory Modified Forms....................................................4-7
Standard, Three Phase, 2-pole and 3-pole, 50A-150A
(CR353) Product Tables .........................................................................4-8
Standard, Three Phase, 2-pole and 3-pole, 50A-150A
(CR353) Factory Modified Forms.......................................................4-9
Standard, Three Phase and Single Phase, 25A-40A
(CR555) Product Tables.......................................................................4-10
Standard, Three Phase and Single Phase, 25A-40A
(CR555) Factory Modified Forms....................................................4-11
Full Voltage Starters
Standard, Three Phase and Single Phase, 3-Pole,
25A-40A (CR554) Product Tables...................................................4-12
Standard, Three Phase and Single Phase, 3-Pole,
25A-40A (CR554) Factory Modified Forms ................................4-13
Standard, Three Phase and Single Phase, 2-Pole and
3-Pole, 50A-60A (CR354F) Product Tables.................................4-14
Standard, Three Phase and Single Phase, 2-Pole and
3-Pole, 50A-60A (CR354F) Factory Modified Forms..............4-15
Heaters, Three Phase and Single Phase, 50A-60A...................4-16
Full Voltage Contactors and Starters
Accessories (CR553, CR353E/F/G) ....................................................4-17
Accessories (C-2000)...............................................................................4-17
Replacement Coils and Renewal Parts,
Contactors and Starters ....................................................................4-19
Technical Data, Contactors and Starters .....................................4-21
Outlines and Dimensions, Contactors and Starters................4-24
Bulk Pack Data ..........................................................................................4-32
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-2
Definite Purpose Controls
Full Voltage Contactors
Section 4

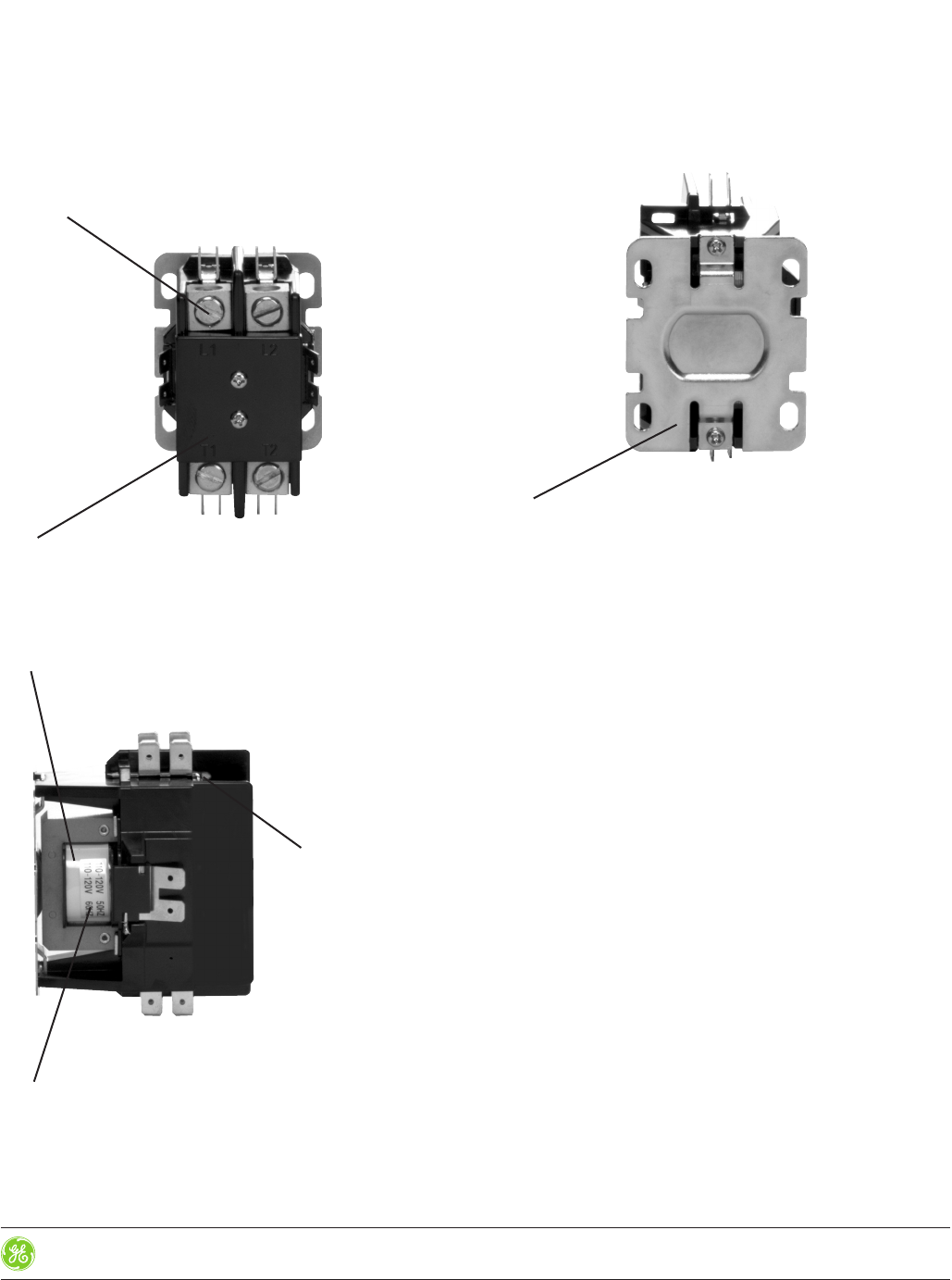

GE’s New Definite Purpose Controls Deliver Definite Advantages
CR453C Compact
20A-40A
1-pole, 1-pole + shunt and 2-pole
Outstanding performance meets all pertinent standards: UL
Component Recognized, CSA, CE and ARI 780–insuring long
service life and suitability in the application. All ratings meet 6x,
5x, 4x locked rotor amp rating at 240, 4 80 and 600V respectively.
Tested for endurance per ARI 780, all contactors meet or exceed
for 500,000 mechanical and 200,000 electrical operations.
Multiple terminal configurations on line and load terminals
allow selection of the right terminals for the job. Choose
from hex head screw terminals with slotted/Phillips head
or box lug terminals, all with or without quick connect
accessory terminals.
Cover (standard on 40A, optional on 25A-30A) offers
increased protection from contaminants.
Wide array of coil voltages and frequencies allows the
compact DP contactors to be adapted to a wide array
of applications.
Low VA “no burn” coil design allows minimum CPT require-
ment and failsafe reliability during brownout conditions.
Features standard 1/4” dual quick connect angled terminals
for ease of wiring. Coils are tape wrapped for superior
durability and protection from damage.
Large silver alloy
contacts offer superior
life and resistance
to welding.
Universal mounting plate with multiple elongated holes
allows the compact contactors to be used with the
same mounting holes as existing designs—allowing easy
replacement or simple substitution.
www.geindustrial.com Control Catalog 4-3
Definite Purpose Controls
Full Voltage Contactors
Rev. 4/16
Prices and data subject to
change without notice
Section 4

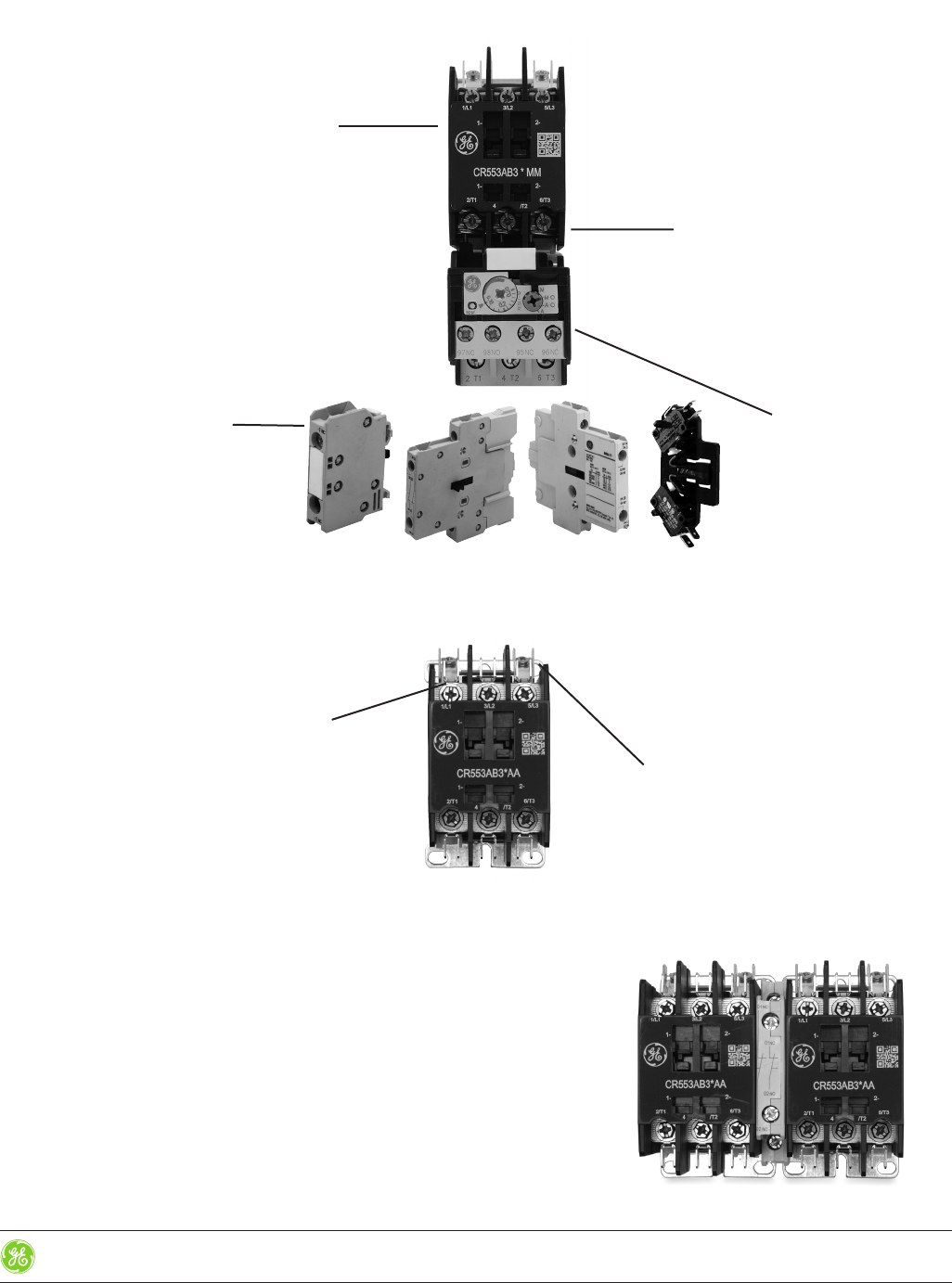

CR553
2-pole and 3-pole
25A-40A
Outstanding performance meets all pertinent standards: UL Component Recognized,
CSA, CE and ARI 780–insuring long service life and suitability in the application. All
ratings meet 6x, 5x, 4x locked rotor amp rating at 240, 480 and 600V respectively.
Tested for endurance per ARI 780, all contactors meet or exceed 500,000 mechanical
and 200,000 electrical operations.
The use of advanced thermoplastics increases con-
tactor performance, allows better appearance,
enhances the overall quality and improves the
clarity of the terminal markings.
Multiple terminal configurations on line
and load terminals allow selection of
the right terminals for the job. Choose
from hex head screw terminals with
slotted/Phillips head or box lug termi-
nals, all with or without quick connect
accessory terminals.
New contactors have significantly lower
noise levels for quieter operations.
Cover permits visual on/off status indication.
Toolless, snap on accessories make
factory and field modifications
simple and easy while delivering time
savings and late point flexibility.
Class 20 and Class 10
overloads are available.
Quick connects are integral to the terminal to
provide strength and reliability. Silver alloy
contacts are strip welded for superior bond,
resulting in long life and weld resistance. Universal mounting plate with multiple
elongated holes allow contactors to be used
in same mounting holes as existing designs—
allowing easy replacement or simple substitu-
tion. DIN rail mount is available.
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-4
Definite Purpose Controls
Full Voltage Contactors
Section 4

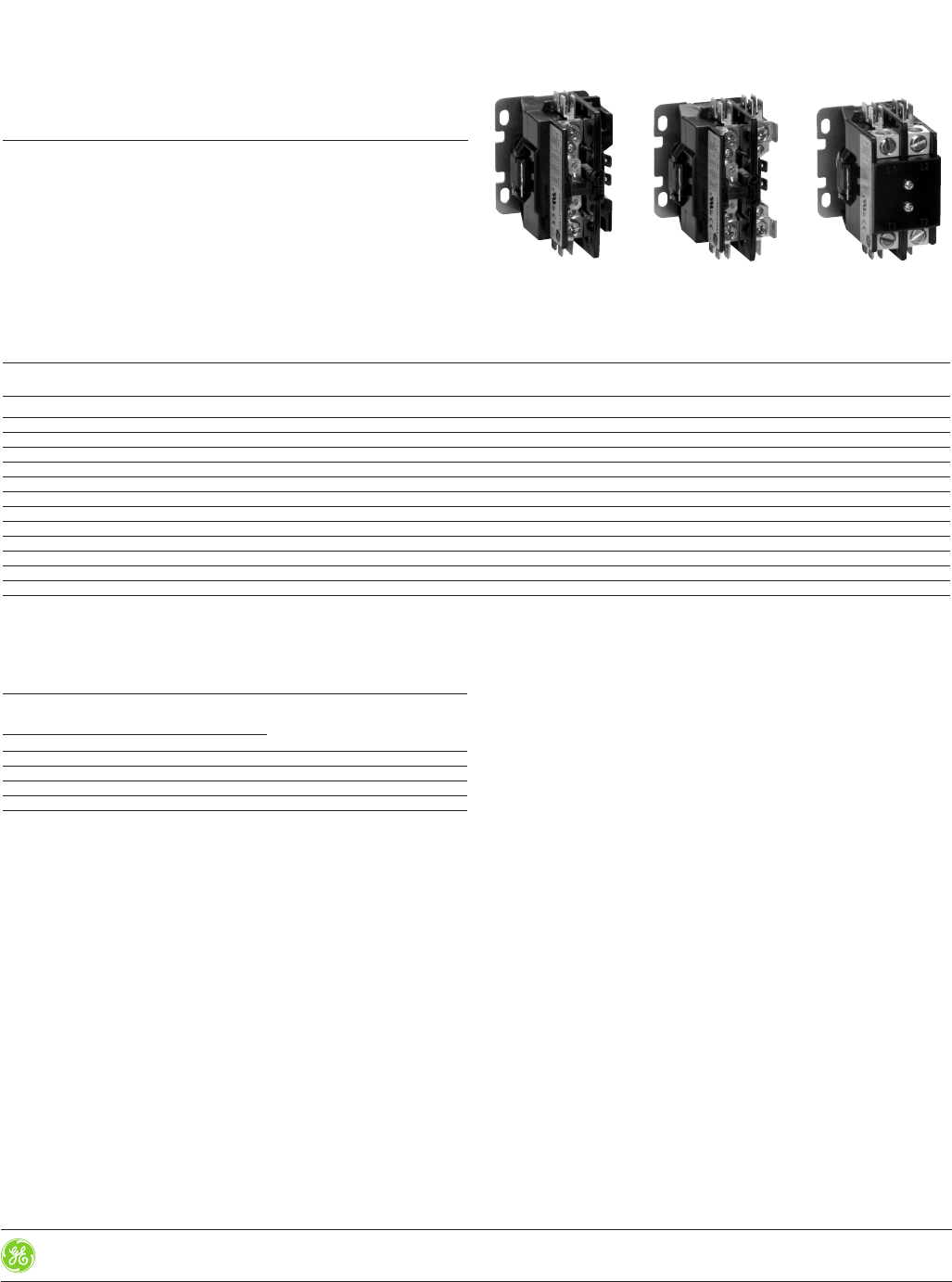

CR453C
Compact
Single Phase
20A-40A
Standard Forms
Standard CR453C contactors feature hex screws with #2 Phillips/
slotted heads on the 20-35FLA devices and box lugs on 40FLA
forms. Each pole is supplied with four 1/4” quick connect terminals.
Coils are provided with two 1/4” quick connect terminals.
For configurations not found below see page 4-5 for Factory
Modified Forms.
CR453C Compact (1, 1 + shunt & 2 pole)
Locked Rotor Amps, Locked Rotor Amps, Locked Rotor Amps, List Price
Inductive Amps Resistive Amps 50/60 Hz @ 240/277V 50/60 Hz @ 480V 50/60 Hz @ 600V No. of Poles Product Number GO-10DP
20 30 120 100 80 1 CR453CA1*AA $24.00
20 30 120 100 80 1 + Shunt CR453CA3*AA $29.00
20 30 120 100 80 2 CR453CA2*AA $32.00
25 35 150 125 100 1 CR453CB1*AA $30.00
25 35 150 125 100 1 + Shunt CR453CB3*AA $36.00
25 35 150 125 100 2 CR453CB2*AA $40.00
30 40 180 150 120 1 CR453CC1*AA $32.00
30 40 180 150 120 1 + Shunt CR453CC3*AA $38.00
30 40 180 150 120 2 CR453CC2*AA $42.00
35 50 180 150 120 1 CR453CD1*AA $35.00
35 50 180 150 120 1 + Shunt CR453CD3*AA $44.00
35 50 210 175 140 21 CR453CD2*AA $46.00
40 50 240 200 160 21 CR453CE2*BB $51.00
1Ratings shown are for single phase, 2-pole. See page 4-21 for single phase, 1-pole ratings.
(Replace * in product number with appropriate coil digit.)
Coil Selection
CR453C Compact Coil Selection
Coil Voltage
60 Hz 50 Hz Product Number Digit
24 24 H
110-120 110 A
208-240 208-220 B
277 — F
25A-35A 1 pole 25A-35A
1 pole + shunt
40A 2 pole
www.geindustrial.com Control Catalog 4-5
Definite Purpose Controls
Full Voltage Contactors
Rev. 4/16
Prices and data subject to
change without notice
Section 4
CR453C
Compact
Single Phase
Factory Modified Forms
20A-40A
Factory Installed Modifications
CR453C Definite Purpose Contactors, 20A-40A, 1-pole & 2-pole Compact Design
Select contactor from the main table and complete the product number by inserting the digits corresponding to required and optional
specifications from the tables below. Note: all factory modified forms require a minimum order of 200 and additional multiples of 20.
See page 4-32 for bulk pack details.
1-pole & 1-pole plus shunted pole
Locked Rotor Amps Product Number
Full Resistive (1 Phase - Per Pole) (Complete by adding digits from tables below1)
Load Amps Required Digits Options List Price
Amps Per Pole 240V/277V 480V 600V Poles 1 2 3 4 5 6 7 8 9 10 11 12 13 14 GO-10DP
20 30 120 100 80 1 C R 4 5 3 C A 1 $24.00
20 30 120 100 80 1 + Shunt C R 4 5 3 C A 3 $29.00
25 35 150 125 100 1 C R 4 5 3 C B 1 $30.00
25 35 150 125 100 1 + Shunt C R 4 5 3 C B 3 $36.00
30 40 180 150 120 1 C R 4 5 3 C C 1 $32.00
30 40 180 150 120 1 + Shunt C R 4 5 3 C C 3 $38.00
35 50 180 150 120 1 C R 4 5 3 C D 1 $35.00
35 50 180 150 120 1 + Shunt C R 4 5 3 C D 3 $44.00
1If no options are required, product number is complete after 11 digits.
2-pole
Locked Rotor Amps Product Number
Full Resistive (1 Phase - 2 Pole/ (Complete by adding digits from tables below1)
Load Amps 1 Phase - Per Pole) Required Digits Options List Price
Amps Per Pole 240V/277V 480V 600V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 GO-10DP
20 30 120/120 100/100 80/80 C R 4 5 3 C A 2 $32.00
25 35 150/150 125/125 100/100 C R 4 5 3 C B 2 $40.00
30 40 180/180 150/150 120/120 C R 4 5 3 C C 2 $42.00
35 50 210/180 175/150 140/120 C R 4 5 3 C D 2 $46.00
40 50 240/180 200/150 160/120 C R 4 5 3 C E 2 $51.00
1If no options are required, product number is complete after 11 digits.
Digit 9 Coil Selection
Coil Voltage Product No.
60 Hz 50 Hz Digit 9
24 24 H
110-120 110 A
208-240 208-220 B
277 — F
Digit 10 Line Terminals
List Price Adder, GO-10DP
Product No. Terminal 1-pole+
Digit 10 Type 1-pole shunt, 2-pole
A Screw w/ 1/4” Quick Connect $0.00 $0.00
B Lug w/ 1/4” Quick Connect $3.00 $4.00
C Screw w/o Quick Connect terminals $0.00 $0.00
D Lug w/o Quick Connect terminals $2.00 $3.00
L Sems Clamp w/ 1/4” Quick Connect $2.00 $3.00
M Sems Clamp $1.00 $2.00
Digit 11 Load Terminals
List Price Adder, GO-10DP
Product No. Terminal 1-pole+
Digit 11 Type 1-pole shunt, 2-pole
A Screw w/ 1/4” Quick Connect $0.00 $0.00
B Lug w/ 1/4” Quick Connect $3.00 $4.00
C Screw w/o Quick Connect terminals $0.00 $0.00
D Lug w/o Quick Connect terminals $2.00 $3.00
L Sems Clamp w/ 1/4” Quick Connect $2.00 $3.00
M Sems Clamp $1.00 $2.00
Digit 12 Cover
Product No. Digit 12 Cover Option List Price Adder, GO-10DP
A Standard (cover on $0.00
40FLA is standard)2
C Add cover to 20-35FLA $2.00
Digit 13 Nameplate Marking
Product No. Digit 13 Nameplate Marking List Price Adder, GO-10DP
A None2 $0.00
Request from Factory (Custom)3 $9.00
Digit 14 Packaging
Product No. Digit 14 Packaging List Price Adder, GO-10DP
Blank Single Pack $0.00
P Bulk Pack (available in multiples of 200; $0.00
contact factory for delivery schedules;
see page 4-32 for bulk pack details)
2If this will be the final digit in your selection, omit from product number.
3For special nameplate markings, contact factory.
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-6
Definite Purpose Controls
Full Voltage Contactors
Section 4

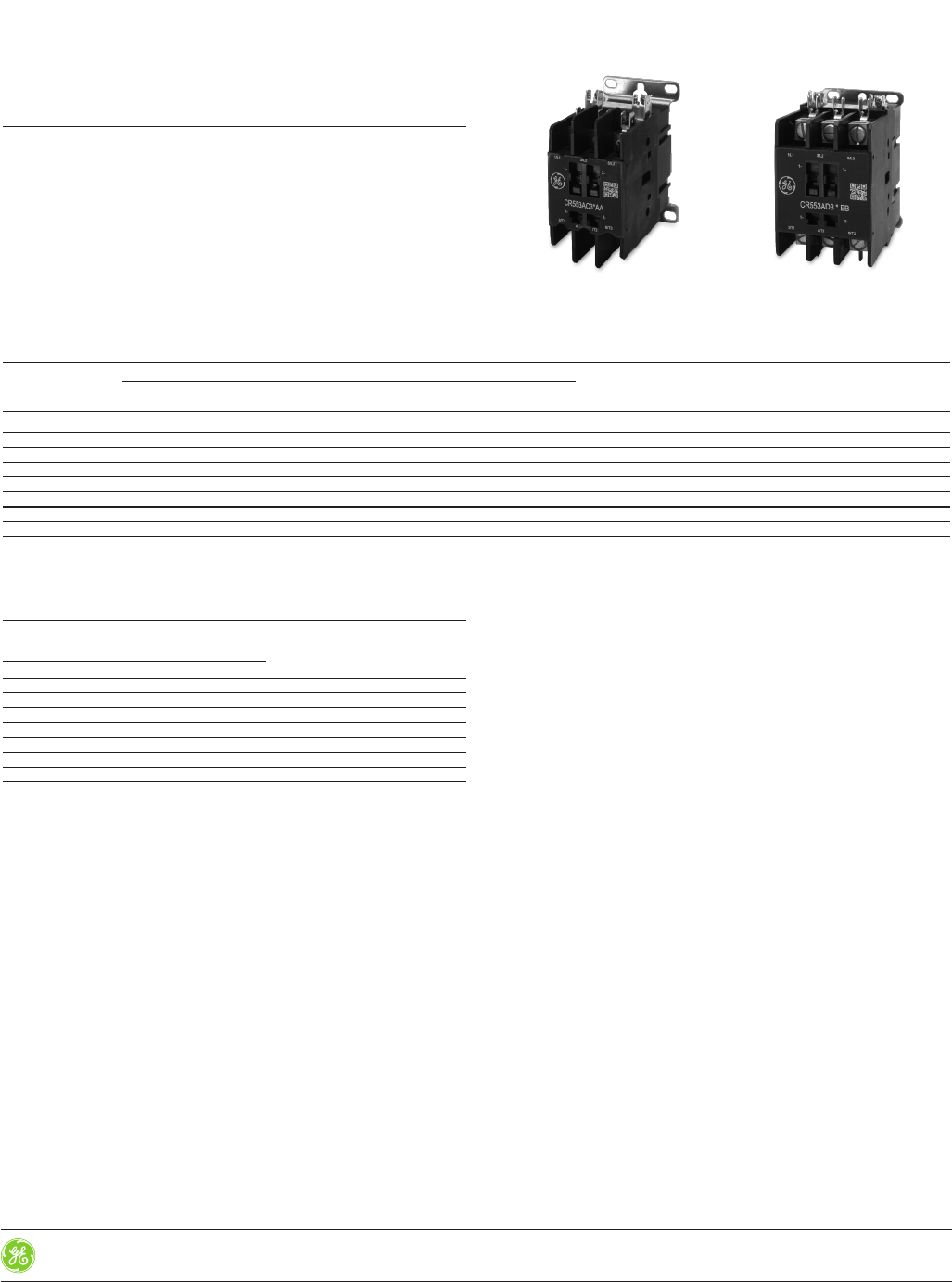

CR553A
Standard
Three Phase
25A-40A
Standard Forms
On standard CR553 contactors, the coil and each power pole are
supplied with two 1/4” quick connect terminals. Standard 25 FLA
and 30 FLA contactors feature hex screws with #2 Phillips/slotted
heads and short covers. Standard 40 FLA contactors come with
box lugs and long covers.
For configurations not found below see page 4-7 for Factory
Modified Forms.
CR553A Standard (2, 3 and 4 pole)
50/60 Hz Single Phase Single Phase
Inductive Resistive Three Phase Three Phase Three Phase Three Phase Three Phase Three Phase 50/60 Hz 50/60 Hz No. of Product List Price
Amps Amps 240V HP 240V LRA 480V HP 480V LRA 600V HP 600V LRA 120V HP 240V HP Poles Number GO-10DP
25 35 7.5 150 10 125 10 100 2 3 2 CR553AB2*AA $47.00
25 35 7.5 150 10 125 10 100 2 3 3 CR553AB3*AA $53.00
25 35 7.5 150 10 125 10 100 2 3 4 CR553AB4*AA $71.00
30 40 10 180 15 150 15 120 2 5 2 CR553AC2*AA $53.00
30 40 10 180 15 150 15 120 2 5 3 CR553AC3*AA $59.00
30 40 10 180 15 150 15 120 2 5 4 CR553AC4*AA $77.00
40 50 10 240 20 200 20 160 3 7.5 2 CR553AD2*BB $64.00
40 50 10 240 20 200 20 160 3 7.5 3 CR553AD3*BB $71.00
40 50 10 240 20 200 20 160 3 7.5 4 CR553AD4*BB $95.00
(Replace * in product number with appropriate coil digit.)
Coil Selection
CR553A Coil Selection
Coil Voltage
60 Hz 50 Hz Product No. Digit
12 12 E
24 24 H
115-120 110 A
208-240 220-230 B
277 — F
440-480 380-415 C
575-600 — D
25-30A 3 pole 40A 3 pole
www.geindustrial.com Control Catalog 4-7
Definite Purpose Controls
Full Voltage Contactors
Rev. 4/16
Prices and data subject to
change without notice
Section 4
Digit 9 Coil Selection
Coil Voltage Product No.
60 Hz 50 Hz Digit 9
12 12 E
24 24 H
115-120 110 A
208-240 220-230 B
277 — F
440-480 380-415 C
575-600 — D
Digit 10 Line Terminals
List Price Adder, GO-10DP
Product No. 2-pole, 2-pole 3-pole 3-pole 4-pole 4-pole
Digit 10 Terminal Type 25-30FLA 40FLA 25-30FLA 40FLA 25-30FLA 40FLA
A Binding Screw w/QC $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
B Lug w/ Slotted Screw w/QC $5.00 $5.00 $6.00 $6.00 $7.00 $7.00
C Binding Screw $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
D Lug with Slotted Screw $4.00 $4.00 $5.00 $5.00 $6.00 $6.00
L Sems Clamp w/QC2 $3.00 N/A $4.00 N/A $5.00 N/A
M Sems Clamp2 $2.00 N/A $3.00 N/A $4.00 N/A
N Lug w/ Hex Head Screw $4.00 $4.00 $5.00 $5.00 $6.00 $6.00
P Lug w/ Hex Head Screw w/QC $5.00 $5.00 $6.00 $6.00 $7.00 $7.00
Digit 11 Load Terminals3
List Price Adder, GO-10DP
Product No. 2-pole, 2-pole 3-pole 3-pole 4-pole 4-pole
Digit 11 Terminal Type 25-30FLA 40FLA 25-30FLA 40FLA 25-30FLA 40FLA
A Binding Screw w/QC $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
B Lug w/ Slotted Screw w/QC $5.00 $5.00 $6.00 $6.00 $7.00 $7.00
C Binding Screw $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
D Lug with Slotted Screw $4.00 $4.00 $5.00 $5.00 $6.00 $6.00
L Sems Clamp w/QC2 $3.00 N/A $4.00 N/A $5.00 N/A
M Sems Clamp2 $2.00 N/A $3.00 N/A $4.00 N/A
N Lug w/ Hex Head Screw $4.00 $4.00 $5.00 $5.00 $6.00 $6.00
P Lug w/ Hex Head Screw w/QC $5.00 $5.00 $6.00 $6.00 $7.00 $7.00
Digit 12 Auxiliary Contacts
Product No. Mounting No. of
Digit 12 Position Contacts Volts List Price Adder, GO-10DP
A — None 250 V $0.00
B Left 1 SPDT Left 250 V $16.00
C Right 1 SPDT Right 250 V $16.00
D Left 2 SPDT Left 250 V $30.00
E Right 2 SPDT Right 250 V $30.00
F Left & Right 1 SPDT Left and Right 250 V $32.00
G Left & Right 2 SPDT Left and Right 250 V $60.00
H Left 1 NO-NC Left 600 V $40.00
J Right 1 NO-NC Right 600 V $40.00
2Not available in 40FLA.
3To mount overload relay on contactor load terminal, select option "M", Sems Clamp
for 25/30amp, and select option "D", Lug with Slotted Screw for 40amp.
CR553A
Standard
Three Phase
Factory Modified Forms
25A-40A
Factory Installed Modifications
Definite Purpose Contactors, 25A-40A, 2-pole, 3-pole and 4-pole
Select contactor from the main table and complete the product number by inserting the digits corresponding to required and optional
specifications from the tables below. Note: factory modified forms require minimum orders/additional multiples. See page 4-32 for
bulk pack details.
Product Number
Full Resistive Three Phase, 50/60 Hz Single Phase (Complete by adding digits from tables below1)
Load Amps Per 240V 480V 600V HP, 50/60 Hz Required Digits Options List Price,
Amps Pole HP LRA HP LRA HP LRA 120V 240V Poles 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GO-10DP
25 35 7.5 150 10 125 10 100 2 3 2 C R 5 5 3 A B 2 $47.00
25 35 7.5 150 10 125 10 100 2 3 3 C R 5 5 3 A B 3 $53.00
25 35 7.5 150 10 125 10 100 2 3 4 C R 5 5 3 A B 4 $71.00
30 40 10 180 15 150 15 120 2 5 2 C R 5 5 3 A C 2 $53.00
30 40 10 180 15 150 15 120 2 5 3 C R 5 5 3 A C 3 $59.00
30 40 10 180 15 150 15 120 2 5 4 C R 5 5 3 A C 4 $77.00
40 50 10 240 20 200 20 160 3 7.5 2 C R 5 5 3 A D 2 $61.00
40 50 10 240 20 200 20 160 3 7.5 3 C R 5 5 3 A D 3 $67.00
40 50 10 240 20 200 20 160 3 7.5 4 C R 5 5 3 A D 4 $89.00
1If no options are required, product number is complete after 11 digits.
Digit 12 Auxiliary Contacts (cont.)
Product No. Mounting No. of
Digit 12 Position Contacts Volts List Price Adder, GO-10DP
K Left & Right 1 NO-NC Left & Right 600 V $80.00
L Left 2NO Left 600 V $40.00
M Right 2NO Right 600 V $40.00
N Left & Right 2NO Left & Right 600 V $80.00
P Left & Right NO-NC Left 2NO Right 600 V $80.00
Q Left & Right 2 NO Left NO-NC Right 600 V $80.00
R Front 1 NO 600 V $20.00
S Front 1 NC 600 V $20.00
T Front 1NO - 1NC 600 V $40.00
Maximum of 4 contacts allowed in Left, Right & Front side together; Maximum 2 Aux contacts
allowed in Front mount.
Digit 13 Modifications
Product No. Digit 13 Modification List Price Adder, GO-10DP
0 None $0.00
1 Coil Rotated with Coil Terminals Down $2.00
3 DIN Rail Mounting Provision $7.00
4 Coil Rotated with Coil Terminals Down and $9.00
DIN Rail Mounting Provision
5 Dummy Quick Connect Tabs on Coil $6.00
6 Coil Rotated with Coil Terminals Down and $8.00
Dummy Quick Connect Tabs on Coil
8 Dummy Quick Connect Tabs on Coil and $14.00
DIN Rail Mounting Provision
9 Coil Rotated with Coil Terminals Down and $15.00
DIN Rail Mounting Provision and
Dummy Quick Connect Tabs on Coil
Digit 14 Terminal Marking
Product No. Digit 14 Marking List Price Adder, GO-10DP
A Standard Terminal Marking $0.00
B Inverse Terminal Marking $0.00
C Reverse Terminal Marking $0.00
D Without Terminal Marking $0.00
Digit 15 Special Marking
Product No. Digit 15 Special Mark List Price Adder, GO-10DP
A None $0.00
* Customer Specific options assigned by Factory $0.00
Digit 16 Packaging
Product No. Digit 16 Specials List Price Adder, GO-10DP
A Single $0.00
P Bulk pack $0.00
Complete Product Numbers:
11 digits for Standard
16 digits for Customized
Omit digit 12 through 16, if the selection is "A0AAA".
Ordering Bulk Packs? Just add A0AAP to the Standard Product Number.
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-8
Definite Purpose Controls
Full Voltage Contactors
Section 4

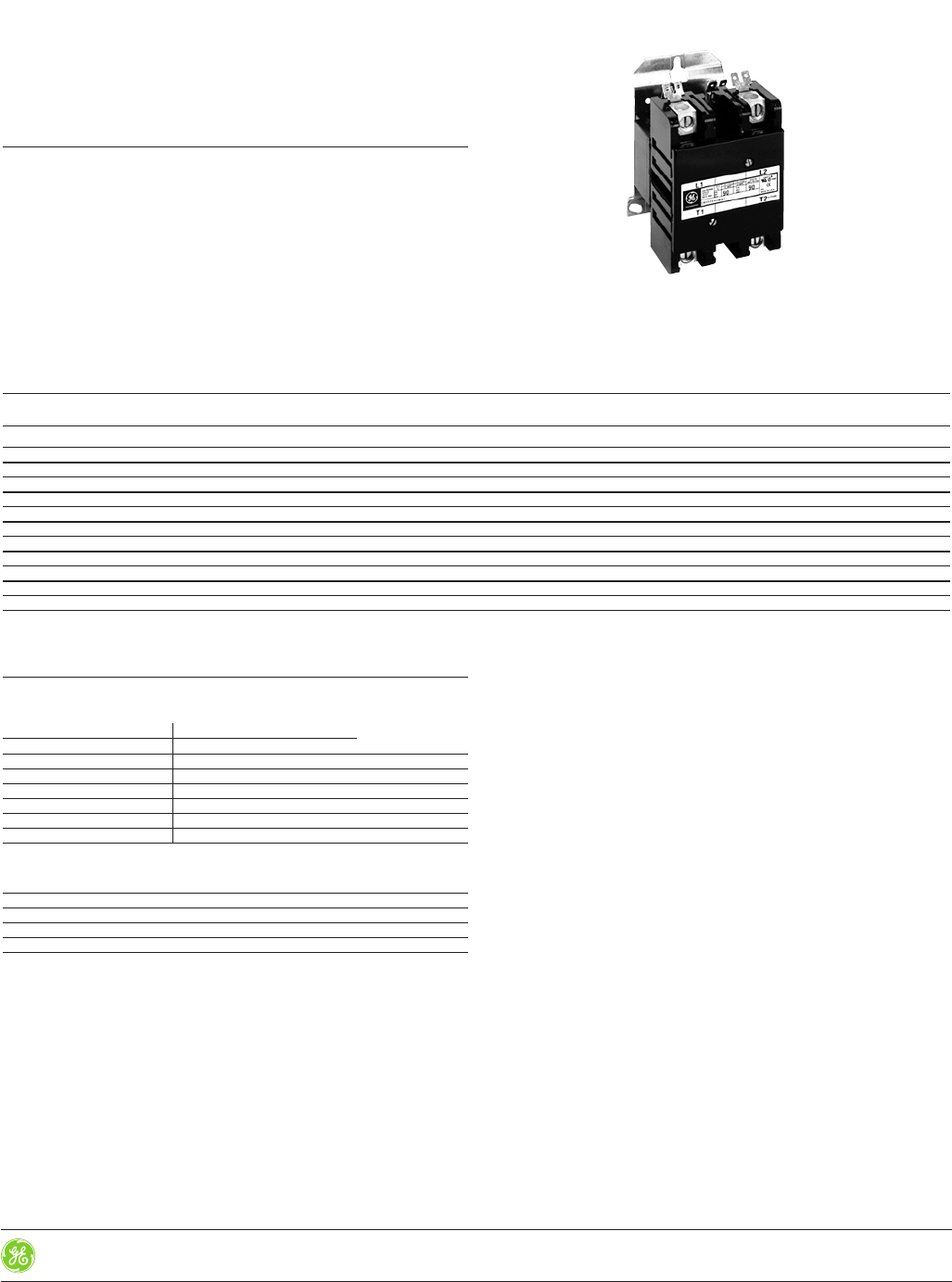

CR353
Standard
Three Phase
2-pole and 3-pole
50A - 150A
Standard Forms
Standard CR353 contactors in the 50-120FLA ratings are supplied
with box lug terminals. Power poles in the 50-90FLA size are
supplied with two 1/4” quick connect terminals. Contactors in the
120-150FLA size include control power accessory screws on L1
and L2. Coils are provided with screw connections with a single
1/4” quick connect terminal on the 50 and 60 amp size and two
1/4” quick connect terminals on the 75 and 90 amp size.
For configurations not found below see page 4-9 for Factory
Modified Forms.
CR353 Standard (2-pole and 3-pole)
Locked Rotor Amps, Locked Rotor Amps, Locked Rotor Amps, List Price
Inductive Amps Resistive Amps 50/60 Hz @ 240V 50/60 Hz @ 480V 50/60 Hz @ 600V No. of Poles Product Number GO-10DP
50 62 300 250 200 2 CR353FE2B*1 $121.00
50 62 300 250 200 3 CR353FE3B*1 $134.00
60 75 360 300 240 2 CR353FF2B*1 $141.00
60 75 360 300 240 3 CR353FF3B*1 $157.00
75 90 450 375 300 2 CR353EG2B*1 $203.00
75 90 450 375 300 3 CR353EG3B*1 $225.00
90 90 540 450 360 2 CR353EH2B*1 $290.00
90 90 540 450 360 3 CR353EH3B*1 $322.00
120 120 720 600 480 2 CR353GJ2A*1 $423.00
120 120 720 600 480 3 CR353GJ3A*1 $460.00
150 150 900 750 600 2 CR353GK2A*1 $816.00
150 150 900 750 600 3 CR353GK3A*1 $900.00
(Replace * in product number with appropriate coil digit.)
Coil Selection
CR353F, E, G Coil Selection
AC Coils
CR353F, E Coil Voltage CR353G Coil Voltage
60 Hz 50 Hz 60 Hz 50 Hz Product No. Digit
24 24 — — H
110-120 110-120 115-120 110 A
208-240 208-240 230-240 220 B
277 — 277 — F
460-480 440 460-480 440 C
575-600 550 575-600 550 D
DC Coils List Price Adder
CR353F Coil Voltage CR353E Coil Voltage Product No. Digit GO-10DP
12 12 P $36.00
24-28 24-28 R $36.00
110-125 110-125 S $36.00
— 48 T $36.00
CR353 Contactor
Digit 10 Coil Selection
Coil Voltage
60 Hz 50 Hz Product No. Digit 10
115-120 110 A
230-240 220 B
277 — F
460-480 440 C
575-600 550 D
Digit 12 Auxiliary Contacts
List Price Adder
Product No. Digit 12 Auxiliary Contacts GO-10DP
A None2 $0.00
B 10FLA, 600Vac, 1NO on left side $32.00
C 10FLA, 600Vac, 1NC on left side $32.00
D 10FLA, 600Vac, 1NO-1NC on left side $60.00
2If this will be the final digit in your selection, omit from product number.
Digit 13 Nameplate Marking
List Price Adder
Product No. Digit 13 Specials GO-10DP
Blank None (standard) $0.00
Request from Factory (Custom)4 $9.00
4For special nameplate markings, contact factory.
www.geindustrial.com Control Catalog 4-9
Definite Purpose Controls
Full Voltage Contactors
Rev. 4/16
Prices and data subject to
change without notice
Section 4
CR353
Standard
Three Phase
2-pole and 3-pole
Factory Modified Forms
50A-150A
Factory Installed Modifications
CR353 Definite Purpose Contactors, 50A-90A, 2-pole & 3-pole
Select contactor from the main table and complete the product number by inserting the digits corresponding to required and optional
specifications from the tables below. Note: minimum order quantities apply to all factory modified forms. Contact factory for details.
Product Number
Full Resistive Locked Rotor Amps, (Complete by adding digits from tables below1)
Load Amps Three Phase, 50/60 Hz Required Digits Options List Price
Amps Per Pole 240V 480V 600V Poles 1 2 3 4 5 6 7 8 9 10 11 12 13 GO-10DP
50 62 300 250 200 2 C R 3 5 3 F E 2 $121.00
50 62 300 250 200 3 C R 3 5 3 F E 3 $134.00
60 75 360 300 240 2 C R 3 5 3 F F 2 $141.00
60 75 360 300 240 3 C R 3 5 3 F F 3 $157.00
75 90 450 375 300 2 C R 3 5 3 E G 2 $203.00
75 90 450 375 300 3 C R 3 5 3 E G 3 $225.00
90 90 540 450 360 2 C R 3 5 3 E H 2 $290.00
90 90 540 450 360 3 C R 3 5 3 E H 3 $322.00
1If no options are required, product number is complete after 10 digits.
Digit 9 Line and Load Terminals
List Price Adder
Product No. Digit 9 Terminal Type GO-10DP
A Screw w/Quick Connect $0.00
B Box Lug w/Quick Connect (standard) $0.00
C Screw $0.00
D Lug $0.00
Digit 10 Coil Selection
AC Coils
Coil Voltage
60 Hz 50 Hz Product No. Digit 10
24 24 H
110-120 110-120 A
208-240 208-240 B
277 — F
460-480 440 C
575-600 550 D
DC Coils Product No. List Price Adder
CR353F Coil Voltage CR353E Coil Voltage Digit 10 GO-10DP
— 12 P $36.00
24-28 24-28 R $36.00
— 115 S $36.00
— 48 T $36.00
Digit 11 Terminal Markings
List Price Adder
Product No. Digit 11 Terminal Markings GO-10DP
0 No terminal markings2 $1.00
1 Line (L) at top, Load (T) at bottom (Standard) $0.00
2 Load (T) at top, Line (L) at bottom (Inverted) $1.00
2If this will be the final digit(s) in your selection, omit from product number.
Digit 12 Auxiliary Contacts
List Price Adder
Product No. Digit 12 Auxiliary Contacts GO-10DP
A None (standard)2 $0.00
B 10FLA, 250Vac SPDT on left side $16.00
C 10FLA, 250Vac, SPDT left & right $32.00
D 10FLA, 600Vac, 1NO-1NC on left side3 $36.00
3Not available on CR353F.
Digit 13 Nameplate Markings
List Price Adder
Product No. Digit 13 Specials GO-10DP
Blank None (standard) $0.00
Request from Factory (Custom)4 $9.00
4For special nameplate markings, contact factory.
Factory Installed Modifications
CR353 Definite Purpose Contactors, 120A-150A, 2-pole and 3-pole
Select contactor from the main table and complete the product number by inserting the digits corresponding to required and optional
specifications from the tables below. Note: minimum order quantities apply to all factory modified forms. Contact factory for details.
Product Number
Full Resistive Locked Rotor Amps, (Complete by adding digits from tables below1)
Load Amps Three Phase, 50/60 Hz Required Digits Options List Price
Amps Per Pole 240V 480V 600V Poles 1 2 3 4 5 6 7 8 9 10 11 12 13 GO-10DP
120 120 720 600 480 2 C R 3 5 3 G J 2 A 1 $423.00
120 120 720 600 480 3 C R 3 5 3 G J 3 A 1 $460.00
150 150 900 750 600 2 C R 3 5 3 G K 2 A 1 $816.00
150 150 900 750 600 3 C R 3 5 3 G K 3 A 1 $900.00
1If no options are required, product number is complete after 11 digits.
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-10
Definite Purpose Controls
2-Speed Contactors
Section 4

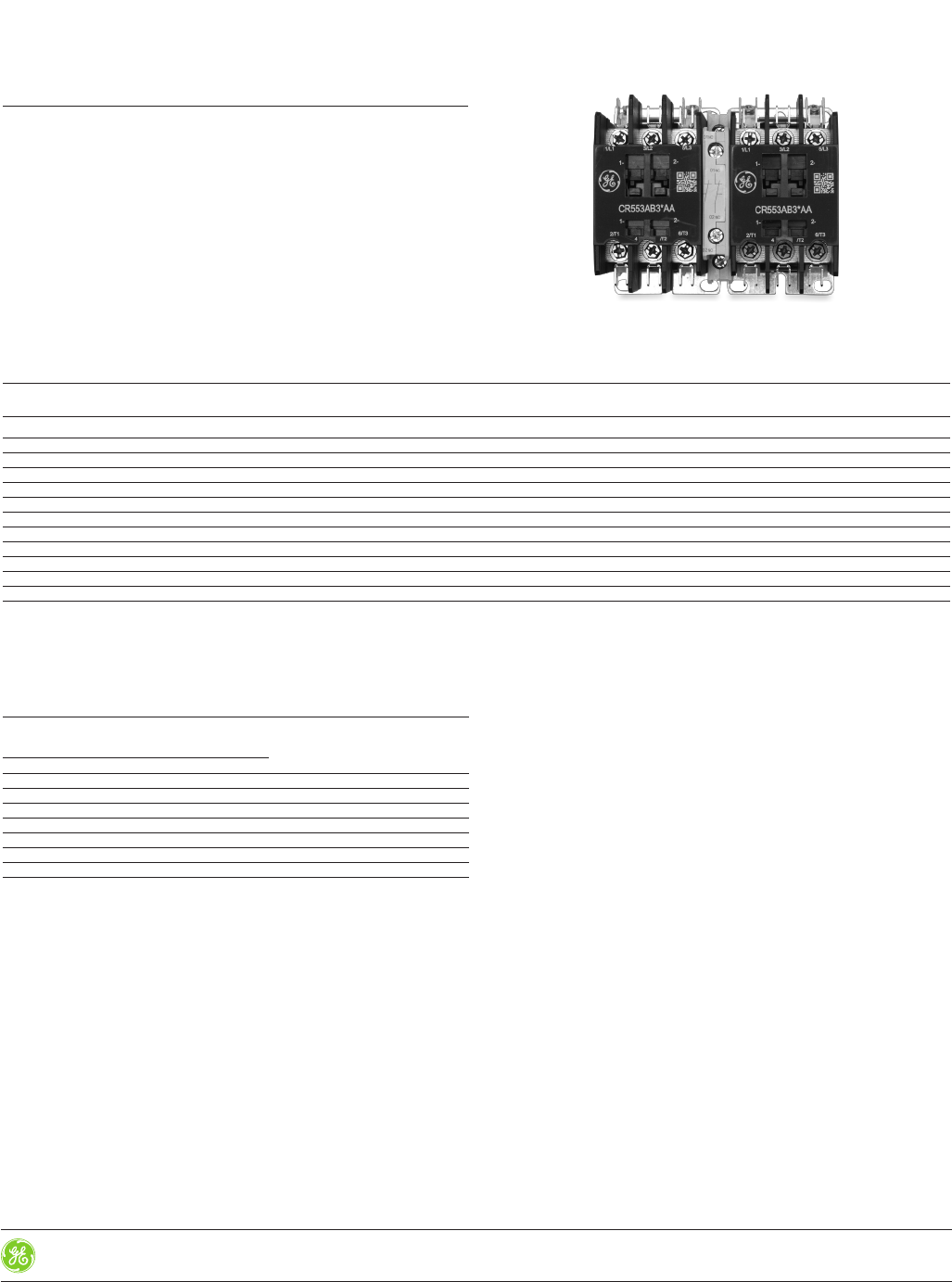

CR555
Three Phase and Single Phase
25A-40A
Standard Forms
Standard CR555 2-speed controllers consist of two contactors,
a mechanical interlock and partially wired cross-electrical inter-
locks. The coil and each power pole are supplied with two 1/4”
quick connect terminals. Standard 25 FLA and 30 FLA 2-speed
controllers feature hex screws with #2 Phillips/slotted heads.
Standard 40 FLA 2-speed controllers come with box lugs.
CR555 Standard (2 and 3 pole)
Inductive Resistive Three Phase Three Phase Three Phase Three Phase Three Phase Three Phase Single Phase Single Phase No. of Product List Price
Amps Amps 240V HP 240V LRA 480V HP 480V LRA 600V HP 600V LRA 50/60 Hz 120V HP 50/60 Hz 240V HP Poles Number GO-10DP
25 35 7.5 150 10 125 10 100 2 3 2-3 CR555AB2*AA $190.00
25 35 7.5 150 10 125 10 100 2 3 3-3 CR555AB3*AA $202.00
25 35 7.5 150 10 125 10 100 2 3 4-3 CR555AB7*AA $217.00
25 35 7.5 150 10 125 10 100 2 3 4-4 CR555AB4*AA $232.00
30 40 10 180 15 150 15 120 2 5 2-3 CR555AC2*AA $202.00
30 40 10 180 15 150 15 120 2 5 3-3 CR555AC3*AA $214.00
30 40 10 180 15 150 15 120 2 5 4-3 CR555AC7*AA $229.00
30 40 10 180 15 150 15 120 2 5 4-4 CR555AC4*AA $245.00
40 50 10 240 20 200 20 160 3 7.5 2-3 CR555AD2*BB $218.00
40 50 10 240 20 200 20 160 3 7.5 3-3 CR555AD3*BB $230.00
40 50 10 240 20 200 20 160 3 7.5 4-3 CR555AD7*AA $255.00
40 50 10 240 20 200 20 160 3 7.5 4-4 CR555AD4*AA $279.00
(Replace * in product number with appropriate coil digit.)
Coil Selection
CR555 Coil Selection
Coil Voltage
60 Hz 50 Hz Product No. Digit
12 12 E
24 24 H
115-120 110 A
208-240 220-230 B
277 — F
440-480 380-415 C
575-600 — D
CR555 Contactor
www.geindustrial.com Control Catalog 4-11
Definite Purpose Controls
2-Speed Contactors
Rev. 4/16
Prices and data subject to
change without notice
Section 4
CR555
Three Phase and Single Phase
Factory Modified Forms
25A-40A
Factory Installed Modifications
CR555 Definite Purpose Two-speed Controllers, 25A-40A
Select two-speed contactor from the main table and complete the product number by inserting the digits corresponding to required
and optional specifications from the tables below. Note: factory modified forms require minimum quantity orders in standard packs.
See page 4-32 for bulk pack details.
Product Number
Full Three Phase, 50/60 Hz Single Phase (Complete by adding digits from tables below1)
Load 240V 480V 600V HP, 50/60 Hz Required Digits Options List Price
Amps HP LRA HP LRA HP LRA 120V 240V Poles 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GO-10DP
25 7.5 150 10 125 10 100 2 3 2-3 C R 5 5 5 A B 2 $190.00
25 7.5 150 10 125 10 100 2 3 3-3 C R 5 5 5 A B 3 $202.00
25 7.5 150 10 125 10 100 2 3 4-4 C R 5 5 5 A B 4 $232.00
25 7.5 150 10 125 10 100 2 3 4-3 C R 5 5 5 A B 7 $217.00
30 10 180 15 150 15 120 2 5 2-3 C R 5 5 5 A C 2 $202.00
30 10 180 15 150 15 120 2 5 3-3 C R 5 5 5 A C 3 $214.00
30 10 180 15 150 15 120 2 5 4-4 C R 5 5 5 A C 4 $245.00
30 10 180 15 150 15 120 2 5 4-3 C R 5 5 5 A C 7 $229.00
40 10 240 20 200 20 160 3 7.5 2-3 C R 5 5 5 A D 2 $218.00
40 10 240 20 200 20 160 3 7.5 3-3 C R 5 5 5 A D 3 $230.00
40 10 240 20 200 20 160 3 7.5 4-4 C R 5 5 5 A D 4 $279.00
40 10 240 20 200 20 160 3 7.5 4-3 C R 5 5 5 A D 7 $255.00
1If no options are required, product number is complete after 11 digits.
Digit 9 Coil Selection
Coil Voltage Product No.
60 Hz 50 Hz Digit 9
12 12 E
24 24 H
115-120 110 A
208-240 220-230 B
277 — F
440-480 380-415 C
575-600 — D
Digit 10 Line Terminals
List Price Adder, GO-10DP
2-3 2-3 3-3 3-3 4-4 4-4 4-3 4-3
Product No. Terminal poles poles poles poles poles poles poles poles
Digit 10 Type 25-30FLA 40FLA 25-30FLA 40FLA 25-30FLA 40FLA 25-30FLA 40FLA
A Binding Screw w/QC $0.00 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
B Lug w/ Slotted
Screw w/QC $5.00 $5.00 $6.00 $6.00 $7.00 $7.00 $7.00 $7.00
C Binding Screw $0.00 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
D Lug with Slotted Screw $4.00 $4.00 $5.00 $5.00 $6.00 $6.00 $6.00 $6.00
L Sems Clamp w/QC2 $3.00 N/A $4.00 N/A $5.00 N/A $5.00 N/A
M Sems Clamp2 $2.00 N/A $3.00 N/A $4.00 N/A $4.00 N/A
N Lug w/ Hex
Head Screw $4.00 $4.00 $5.00 $5.00 $6.00 $6.00 $6.00 $6.00
P Lug w/ Hex Head
Screw w/QC $5.00 $5.00 $6.00 $6.00 $7.00 $7.00 $7.00 $7.00
Digit 11 Load Terminals
List Price Adder, GO-10DP
2-3 2-3 3-3 3-3 4-4 4-4 4-3 4-3
Product No. Terminal poles poles poles poles poles poles poles poles
Digit 11 Type 25-30FLA 40FLA 25-30FLA 40FLA 25-30FLA 40FLA 25-30FLA 40FLA
A Binding Screw w/QC $0.00 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
B Lug w/ Slotted
Screw w/QC $5.00 $5.00 $6.00 $6.00 $7.00 $7.00 $7.00 $7.00
C Binding Screw $0.00 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
D Lug with Slotted Screw $4.00 $4.00 $5.00 $5.00 $6.00 $6.00 $6.00 $6.00
L Sems Clamp w/QC2 $3.00 N/A $4.00 N/A $5.00 N/A $5.00 N/A
M Sems Clamp2 $2.00 N/A $3.00 N/A $4.00 N/A $4.00 N/A
N Lug w/ Hex
Head Screw $4.00 $4.00 $5.00 $5.00 $6.00 $6.00 $6.00 $6.00
P Lug w/ Hex Head
Screw w/QC $5.00 $5.00 $6.00 $6.00 $7.00 $7.00 $7.00 $7.00
Digits 12 Auxiliary Contacts
Product No. Mounting No. of
Digit 12 Position Contacts Volts List Price Adder, GO-10DP
A — None 250V $0.00
B Left 1 SPDT Left 250V $16.00
C Right 1 SPDT Right 250V $16.00
D Left 2 SPDT Left 250V $30.00
E Right 2 SPDT Right 250V $30.00
2Not available in 40FLA.
Digits 12 Auxiliary Contacts (Cont.)
Product No. Mounting No. of
Digit 12 Position Contacts Volts List Price Adder, GO-10DP
F Left & Right 1 SPDT Left and Right 250V $32.00
G Left & Right 2 SPDT Left and Right 250V $60.00
H Left 1 NO-NC Left 600V $40.00
J Right 1 NO-NC Right 600V $40.00
K Left & Right 1 NO-NC Left & Right 600V $80.00
L Left 2NO Left 600V $40.00
M Right 2NO Right 600V $40.00
N Left & Right 2NO Left & Right 600V $80.00
P Left & Right NO-NC Left 2NO Right 600V $80.00
Q Left & Right 2 NO Left NO-NC Right 600V $80.00
R Front 1 NO 600V $20.00
S Front 1 NC 600V $20.00
T Front 1NO - 1NC 600V $40.00
Maximum of 4 contacts allowed in Left, Right & Front side together; Maximum 2 Aux contacts
allowed in Front mount.
Digit 13 Modifications
Product No. Digit 13 Modification List Price Adder GO-10DP
0 None $0.00
1 Coil Rotated with Coil Terminals Down $2.00
3 DIN Rail Mounting Provision $7.00
4 Coil Rotated with Coil Terminals Down
and DIN Rail Mounting Provision $9.00
5 Dummy Quick Connect Tabs on Coil $6.00
6 Coil Rotated with Coil Terminals Down
and Dummy Quick Connect Tabs on Coil $8.00
8 Dummy Quick Connect Tabs on Coil
and DIN Rail Mounting Provision $14.00
9 Coil Rotated with Coil Terminals Down and
DIN Rail Mounting Provision and
Dummy Quick Connect Tabs on Coil $15.00
Modification includes the following:
1) Name plate specific to customer
Digit 14 Name Plate Terminal Marking
Product No. Digit 14 Marking List Price Adder GO-10DP
A Standard Terminal Markings (Without Markings) $0.00
Digit 15 Special Marking
Product No. Digit 15 Special Mark List Price Adder GO-10DP
A None $0.00
* Customer Specific options assigned by Factory $0.00
Digit 16 Packaging
Product No. Digit 16 Special List Price Adder GO-10DP
A Single $0.00
P Bulk Pack $0.00
Complete Product Numbers:
11 digits for Standard
16 digits for Customized
Omit digit 12 through 16, if the selection is "A0AAA".
Ordering Bulk Packs? Just add A0AAP to the Standard Product Number.
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-12
Definite Purpose Controls
Full Voltage Starters
Section 4

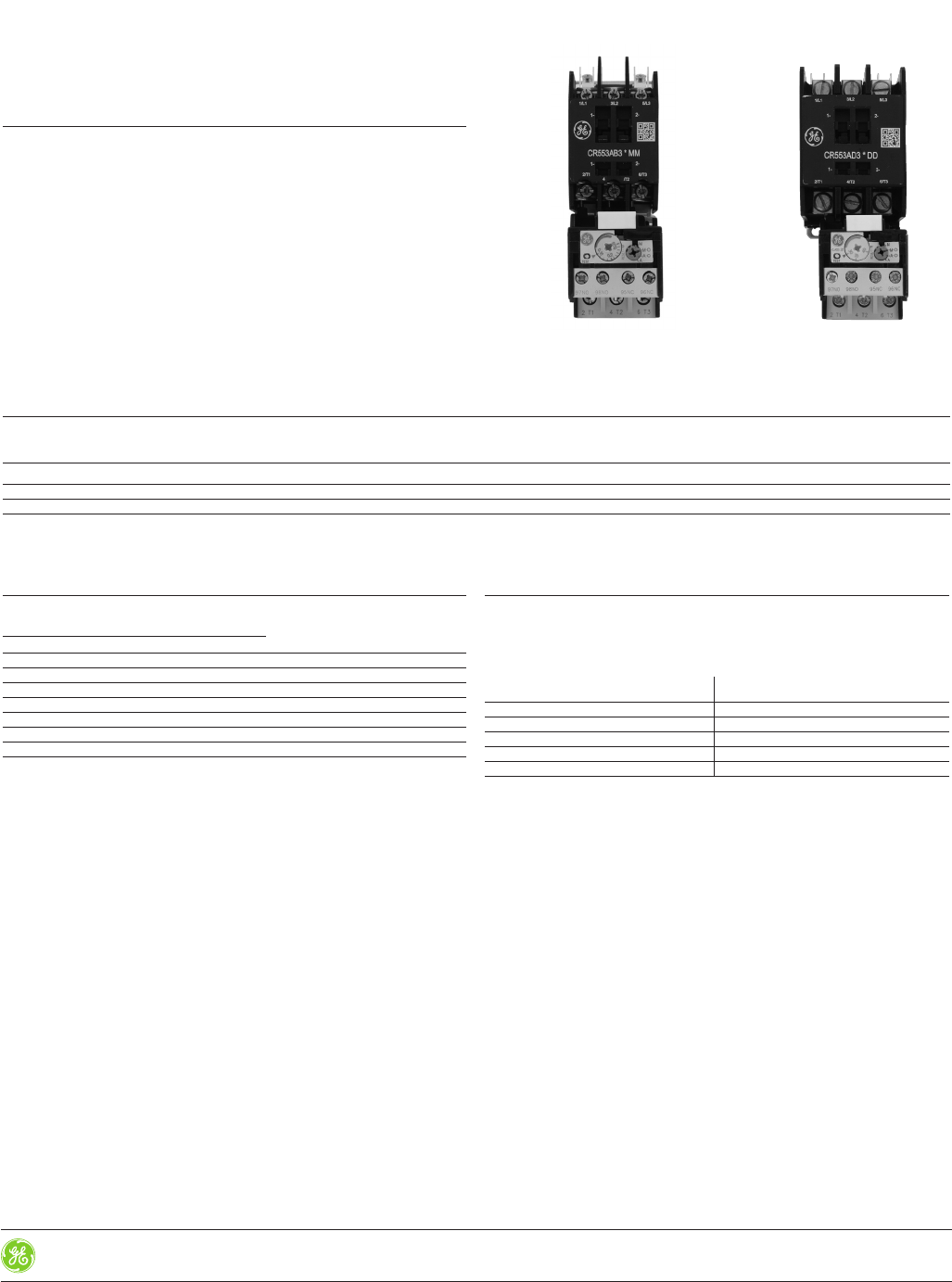

CR554
Three Phase and Single Phase
3-pole
25A-40A
Standard Forms
Standard CR554 starters consist of contactors and overload
relays. (For starters with holding interlocks, see factory modified
forms on page 4-13.) The coil and each power pole are supplied
with two 1/4” quick connect terminals. Standard 25 FLA and 30
FLA starters feature hex screws with #2 Phillips/slotted heads.
Standard 40 FLA starters come with box lugs.
CR554 25A-40A 3-pole
Full Three Phase Locked Three Phase Locked Three Phase Locked Single Phase Single Phase
load Resistive Horsepower Rotor Amps Horsepower Rotor Amps Horsepower Rotor Amps Horsepower Horsepower No. of Product List Price
amps per Pole @ 240V @ 240V @ 480V @ 480V @ 600V @ 600V @ 115V @ 230V Poles Number GO-10DP
25 35 7.5 150 10 125 10 100 2 3 3 CR554AB3*A#1 $78.00
30 40 10 180 15 150 15 120 2 5 3 CR554AC3*A#1 $84.00
40 50 10 240 20 200 20 160 3 7.5 3 CR554AD3*B#1 $96.00
1For single phase starters, wire 2 poles in series.
(Replace * in product number with appropriate coil digit.)
Coil Selection
CR554 Coil Selection
Coil Voltage
60 Hz 50 Hz Product No. Digit
12 12 E
24 24 H
115-120 110 A
208-240 220-230 B
277 — F
440-480 380-415 C
575-600 — D
(Replace # in product number with appropriate overload digit.)
Overload Selection
Select range corresponding to full load amps. Overloads are Class
20, ambient compensated. For starters with lower overload amp
ranges, see page 4-13.
Overload Amp Product List Price Adder Overload Amp Product List Price Adder
Range No. Digit GO-10DPA Range No. Digit GO-10DP
2.5-4.1 K $55.00 14.5-18 S $57.00
4-6.3 L $55.00 17.5-22 T $57.00
5.5-8.5 M $57.00 21-26 U $57.00
8-12 N $57.00 25-32 V $63.00
10-16 P $57.00 30-40 W $78.00
25A-30A with sems clamp 40A with box lugs
www.geindustrial.com Control Catalog 4-13
Definite Purpose Controls
Full Voltage Starters
Rev. 4/16
Prices and data subject to
change without notice
Section 4
CR554
Three Phase and Single Phase
Factory Modified Forms
25A-40A
Factory Installed Modifications
CR554 Definite Purpose Starters, 25A-40A
Select your starter from the main table and complete the product number by inserting the digits corresponding to required and
optional specifications from the tables below. For holding interlocks, select the appropriate auxiliary contact for Digit 12.
Note: all factory modified forms require minimum orders/additional multiples. See page 4-32 for bulk pack details.
Product Number
Full Resistive Three Phase, 50/60 Hz Single (Complete by adding digits from tables below1)
Load Amps 240V 480V 600V Phase HP2 Required Digits Options List Price
Amps Per Pole HP LRA HP LRA HP LRA 120V 240V Poles 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GO-10DP
25 35 7.5 150 10 125 10 100 2 3 3 C R 5 5 4 A B 3 $78.00
30 40 10 180 15 150 15 120 2 5 3 C R 5 5 4 A C 3 $84.00
40 50 10 240 20 200 20 160 3 7.5 3 C R 5 5 4 A D 3 $93.75
1If no options are required, product number is complete after 11 digits.
2For single phase starters, wire 2 poles in series.
Digit 9 Coil Selection
Coil Voltage
60 Hz 50 Hz Product No. Digit 9
12 12 E
24 24 H
115-120 110 A
208-240 220-230 B
277 — F
440-480 380-415 C
575-600 — D
Digit 10 Line Terminals
List Price Adder, GO-10DP
Product No. 3-pole 3-pole
Digit 10 Terminal Type 25-30FLA 40FLA
A Binding Screw w/QC $0.00 $0.00
B Lug w/ Slotted Screw w/QC $6.00 $6.00
C Binding Screw $0.00 $0.00
D Lug with Slotted Screw $5.00 $5.00
L Sems Clamp w/QC3 $4.00 N/A
M Sems Clamp3 $3.00 N/A
N Lug w/ Hex Head Screw $5.00 $5.00
P Lug w/ Hex Head Screw w/QC $6.00 $6.00
3Not available in 40FLA.
Digit 11 Overload Range
Product No.
Digit 114 FLA Range List Price Adder, GO-10DP
B 0.16-0.26 $55.00
C 0.25-0.41 $55.00
D 0.4-0.65 $55.00
F 0.65-1.1 $55.00
G 1.0-1.5 $55.00
H 1.3-1.9 $55.00
J 1.8-2.7 $55.00
K 2.5-4.1 $55.00
L 4.0-6.3 $55.00
M 5.5-8.5 $57.00
N 8-12 $57.00
P 10-16 $57.00
S 14.5-18 $57.00
T 17.5-22 $57.00
U 21-26 $57.00
V 25-32 $65.00
W 30-40 $78.00
Notes: Digits 11, 13 Dependency
A - Only K-W C - Only K-W 1 - B-W 2 - B-W
4For selection "B" through "J", complete product number is 16 digits.
For selection "K" through "W", complete product number is 11 digits. If 12 through
16 digits, selection is "AAAAA".
Digit 12 Auxiliary Contacts
Product No. Mounting No. of
Digit 12 Position Contacts Volts List Price Adder, GO-10DP
A — None 250 V $0.00
B Left 1 SPDT Left 250 V $16.00
C Right 1 SPDT Right 250 V $16.00
D Left 2 SPDT Left 250 V $30.00
E Right 2 SPDT Right 250 V $30.00
F Left & Right 1 SPDT Left and Right 250 V $32.00
G Left & Right 2 SPDT Left and Right 250 V $60.00
H Left 1 NO-NC Left 600 V $40.00
J Right 1 NO-NC Right 600 V $40.00
K Left & Right 1 NO-NC Left & Right 600 V $80.00
L Left 2NO Left 600 V $40.00
M Right 2NO Right 600 V $40.00
N Left & Right 2NO Left & Right 600 V $80.00
P Left & Right NO-NC Left 2NO Right 600 V $80.00
Q Left & Right 2 NO Left NO-NC Right 600 V $80.00
R Front 1 NO 600 V $20.00
S Front 1 NC 600 V $20.00
T Front 1NO - 1NC 600 V $40.00
Maximum of 4 contacts allowed in Left, Right & Front side together; Maximum 2 Aux
contacts allowed in Front mount.
Digits 13 Modifications
Product No. Digit 13 Modification List Price Adder, GO-10DP
A Class 20 Thermal Overload. $0.00
(Only valid for K-W in Digit 9)
C DIN Rail Mounting Provision and $7.00
Class 20 Thermal Overload.
(Only valid for K-W in Digit 9)
1 Class 10 Thermal Overload $0.00
2 DIN Rail Mounting Provision and $9.00
Class 10 Thermal Overload
Digit 14 Enclosure
Product No. Digit 14 Type List Price Adder, GO-10DP
A None $0.00
E Starter assembled in enclosure $62.00
Digit 15 Special Nameplate Marking
Product No. Digit 15 Special Mark List Price Adder, GO-10DP
A None $0.00
* Customer Specific options assigned by Factory $9.00
Digit 16 Packaging
Product No. Digit 16 Specials List Price Adder, GO-10DP
A Single $0.00
P Bulk pack $0.00
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-14
Definite Purpose Controls
Full Voltage Starters
Section 4

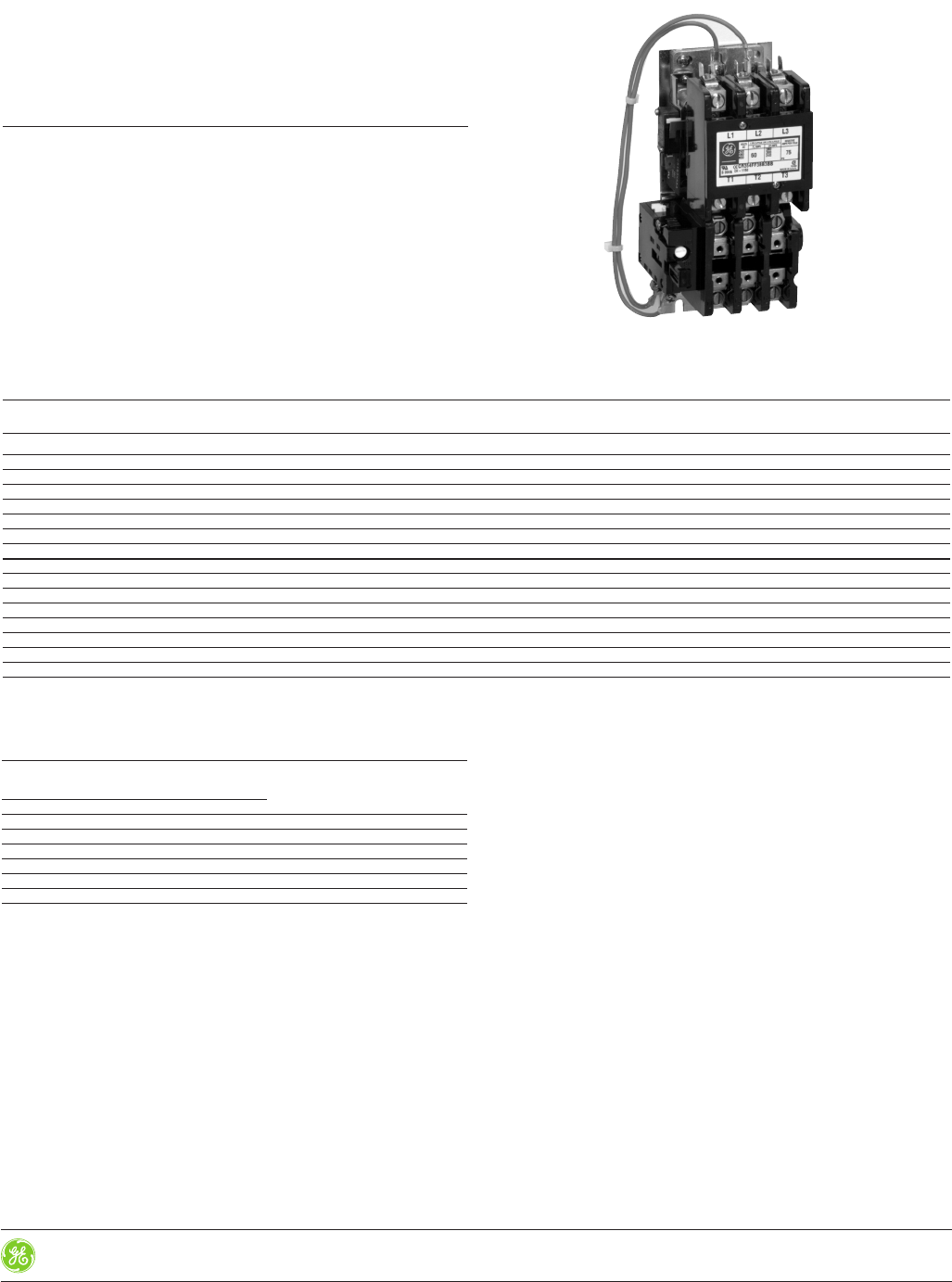

CR354F
Three Phase and Single Phase
2-pole and 3-pole
50A-60A
Standard Forms
Standard starters consist of contactors and overload relays.
For starters with holding interlocks, see factory modified forms
on page 4-15.
CR354 50A-60A 2-pole and 3-pole
Full load Locked Rotor Amps Locked Rotor Amps Locked Rotor Amps Motor No. of Overload NO Aux Contact Overload Product List Price
amps @ 240V @ 480V @ 600V Type Poles Heaters (10A, 250 Vac) Type Number GO-10DPA
50 300 250 200 1 2 1 — Standard Overload CR354FE2B*31 $242.00
50 300 250 200 1 2 1 1 Standard Overload CR354FE2B*3B1 $254.00
50 300 250 200 1 2 1 — Ambient Compensated Overload CR354FE2B*41 $258.00
50 300 250 200 1 2 1 1 Ambient Compensated Overload CR354FE2B*4B1 $270.00
50 300 250 200 3 3 3 — Standard Overload CR354FE3B*31 $336.00
50 300 250 200 3 3 3 1 Standard Overload CR354FE3B*3B1 $348.00
50 300 250 200 3 3 3 — Ambient Compensated Overload CR354FE3B*41 $352.00
50 300 250 200 3 3 3 1 Ambient Compensated Overload CR354FE3B*4B1 $364.00
60 360 300 240 1 2 1 — Standard Overload CR354FF2B*31 $282.00
60 360 300 240 1 2 1 1 Standard Overload CR354FF2B*3B1 $294.00
60 360 300 240 1 2 1 — Ambient Compensated Overload CR354FF2B*41 $298.00
60 360 300 240 1 2 1 1 Ambient Compensated Overload CR354FF2B*4B1 $310.00
60 360 300 240 3 3 3 — Standard Overload CR354FF3B*31 $393.00
60 360 300 240 3 3 3 1 Standard Overload CR354FF3B*3B1 $405.00
60 360 300 240 3 3 3 — Ambient Compensated Overload CR354FF3B*41 $409.00
60 360 300 240 3 3 3 1 Ambient Compensated Overload CR354FF3B*4B1 $421.00
1For Heater Selection, see page 4-16.
(Replace * in product number with appropriate coil digit.)
Coil Selection
CR354 Coil Selection
Coil Voltage
60 Hz 50 Hz Product No. Digit
24 24 H
110-120 110-120 A
208-240 208-240 B
277 — F
415-480 415-480 C
575-600 550 D
CR354 Starter
www.geindustrial.com Control Catalog 4-15
Definite Purpose Controls
Full Voltage Starters
Rev. 4/16
Prices and data subject to
change without notice
Section 4
CR354F
Three Phase and Single Phase
Factory Modified Forms
50A-60A
Factory Installed Modifications
CR354F, 50A-60A, 2-pole and 3-pole
Select your contactor from the main table and complete the product number by inserting the digits corresponding to required and
optional specifications from the tables below. Note: minimum order quantities apply to all factory modified forms. Contact factory
for details.
Product Number
Full Locked Rotor Amps (Complete by adding digits from tables below1)
Load Three Phase, 60 Hz Overload Required Digits Opt. List Price
Amps 240V 480V 600V Phase Poles Heaters 1 2 3 4 5 6 7 8 9 10 11 12 GO-10DPA
50 300 250 200 1 2 1 C R 3 5 4 F E 2 B $242.00
50 300 250 200 3 3 3 C R 3 5 4 F E 3 B $336.00
60 360 300 240 1 2 1 C R 3 5 4 F F 2 B $282.00
60 360 300 240 3 3 3 C R 3 5 4 F F 3 B $393.00
1If no options are required, product number is complete after 11 digits.
Digit 10 Coil Selection
Coil Voltage
60 Hz 50 Hz Product No. Digit 10
24 24 H
110-120 110-120 A
208-240 208-240 B
277 — F
460-480 440 C
575-600 550 D
Digit 11 Overload Relay
List Price Adder
Product No. Digit 11 Overload Relay GO-10DPA
3 Standard $0.00
4 Ambient Compensated $16.00
Digit 12 Auxiliary Contacts
List Price Adder
Product No. Digit 12 Auxiliary Contacts GO-10DPA
Blank None $0.00
B 10A, 250V, SPDT, left side $16.00
C 10A, 250V, SPDT, left & right $32.00
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-16
Definite Purpose Controls
Full Voltage Starters
Section 4
Standard or ambient compensated overload relays,
Open or Type 1 Enclosed
To prevent overloading the starter, do not select heater(s) for a
motor with a rating larger than the maximum shown on the
starter nameplate. If a motor’s full-load amps fall between two
ratings, select heaters with the higher of the two ratings.
For continuous rated motors with a service factor of 1.15 to 1.25,
select the heater with maximum motor amps equal to or immedi-
ately greater than the motor full-load current. This will provide a
maximum of 125% protection. For continuous rated motors with
no service factor, multiply the full-load current of the motor by
0.9 and use the resulting value to select the heater.
To protect the heater and starter during a short circuit, provide
motor branch circuit protection in accordance with Table 420-
152 in Article 430 of the National Electrical Code. In no case
should the fuse rating exceed 4 times the motor full-load current
for single- element fuses or 2.25 times the motor full-load current
for dual- element fuses.
Do not use these tables to select heaters for hermetic motor
applications. Contact your GE Energy sales office for information.
Heater amps are based on 75°C wire. All heaters are packaged 3
per carton and carry a List Price of $9.00, GO-10H.
Single phase (1 heater required)
Max. Motor FLA
50A Starter 60A Starter Product Number
6.15 6.15 CR123C592A
6.47 6.47 CR123C630A
6.84 6.84 CR123C695A
7.72 7.72 CR123C778A
8.99 8.99 CR123C867A
9.87 9.87 CR123C955A
10.6 10.6 CR123C104B
12.0 12.0 CR123C113B
12.3 12.3 CR123C125B
14.0 14.0 CR123C137B
15.7 15.7 CR123C151B
17.6 17.6 CR123C163B
20.1 20.1 CR123C180B
23.3 23.3 CR123C198B
27.0 27.0 CR123C214B
29.8 29.8 CR123C228B
32.2 32.2 CR123C250B
33.9 33.9 CR123C273B
36.7 36.7 CR123C303B
42.5 42.5 CR123C330B
46.2 46.2 CR123C366B
50.0 50.0 CR123C400B
— 52.4 CR123C440B
— 58.2 CR123C460B
— 60.0 CR123C500B
Three Phase (3 heaters required)
Max. Motor FLA
50A Starter 60A Starter Product Number
6.07 5.14 CR123C630A
6.63 5.63 CR123C695A
7.35 6.26 CR123C778A
8.09 7.15 CR123C867A
8.89 7.58 CR123C955A
9.78 8.39 CR123C104B
10.8 9.11 CR123C113B
11.8 9.67 CR123C125B
13.0 11.0 CR123C137B
14.5 12.0 CR123C151B
16.1 14.4 CR123C163B
17.9 16.3 CR123C180B
19.8 17.3 CR123C198B
22.0 19.3 CR123C214B
24.4 20.9 CR123C228B
27.1 22.9 CR123C250B
29.9 24.7 CR123C273B
34.1 28.0 CR123C303B
38.8 32.1 CR123C330B
44.3 35.9 CR123C366B
50.0 41.5 CR123C400B
— 43.4 CR123C440B
— 46.4 CR123C460B
— 50.9 CR123C500B
— 56.9 CR123C550B
— 60.0 CR123C600B
CR354
Three Phase and Single Phase
Heaters
50A-60A
www.geindustrial.com Control Catalog 4-17
Definite Purpose Controls
Full Voltage Starters
Rev. 4/16
Prices and data subject to
change without notice
Section 4
CR553, CR353E/F/G
Standard
Accessories
25A-40A

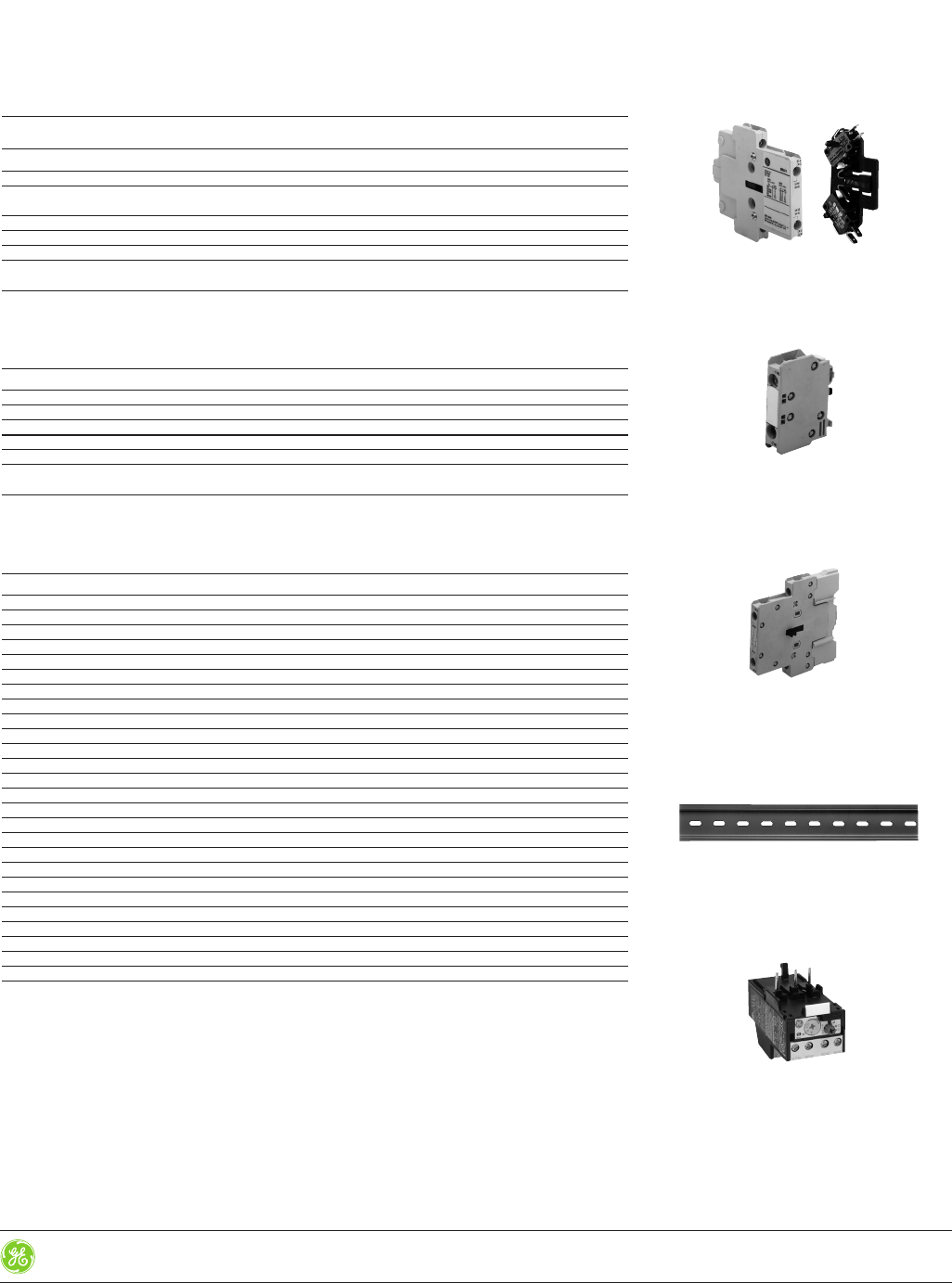

Auxiliary Contact Kits
List Price
Contactor Prefix Contactor Rating Description Product Number GO-10DP
CR553 25A-40A 2-3 pole 250V, Side Mounted, SPDT CR553XC211 $16.00
CR553 25A-40A 2-3 pole 250V, Side Mounted, Two SPDT CR553XC222 $30.00
CR553 25A-40A 2-3 pole DIN Rail Clip (sold only CR553XDCA $7.00 ea.
in multiples of 10)
CR353F 50A-60A SPDT CR353XAAA $16.00
CR353F 75A-90A SPDT CR353XAAB $20.00
CR353G 120A-150A 1NO-1NC CR353XADC $32.00
C-2000 Accessories
For more information, see the C-2000 Contactors and Starters Purchasing Guide (DEP-
014). For use with CR45* devices.
List Price
Accessory Type Mounting Type Contact Configuration Type of Kit Product Number GO-10C2
Auxiliary Contact Blocks Front-Mount 1NO — BCLF10 $11.00
Auxiliary Contact Blocks Front-Mount 1NC — BCLF01 $11.00
Auxiliary Contact Blocks Side-Mount 1NO-1NC — BCLL11 $19.00
Auxiliary Contact Blocks Side-Mount 2NO — BCLL20 $19.00
Mechanical Interlock — 2NC — BELA02 $35.00
Miscellaneous Kits — — 35 mm DIN Rail (1 meter) CLXR35 $8.00
Overload Relays
Direct mount, manual/auto reset (stop/reset only). Requires contactor with sems clamp
terminal (without quick connects) on load side. Select M for Digit 11 on page 4-7.
Current Range Maximum Fuse Maximum Circuit Breaker List Price
Amps(min-max) Rating Amps Rating Amps Trip Class Product Number GO-10C2
0.16-0.26 1 15 Class 10 RT1B $55.00
0.25-0.41 1 15 Class 10 RT1C $55.00
0.4-0.65 3 15 Class 10 RT1D $55.00
0.65-1.1 6 15 Class 10 RT1F $55.00
1-1.5 6 15 Class 10 RT1G $55.00
1.3-1.9 6 15 Class 10 RT1H $55.00
1.8-2.7 10 15 Class 10 RT1J $55.00
2.5-4.1 15 15 Class 10 RT1K $55.00
4-6.3 20 15 Class 10 RT1L $55.00
5.5-8.5 25 15 Class 10 RT1M $57.00
8.0-12.0 40 30 Class 10 RT1N $57.00
10.0-16.0 50 35 Class 10 RT1P $57.00
14.5-18 60 40 Class 10 RT1S $57.00
17.5-22 70 50 Class 10 RT1T $57.00
21-26 80 60 Class 10 RT1U $57.00
25-32 100 80 Class 10 RT1V $65.00
30-40 100 80 Class 10 RT1W $78.00
2.5-4.1 15 15 Class 20 RT12K $55.00
4-6.3 20 15 Class 20 RT12L $55.00
5.5-8.5 25 15 Class 20 RT12M $57.00
8.0-12.0 40 30 Class 20 RT12N $57.00
10.0-16.0 50 35 Class 20 RT12P $57.00
14.5-18 60 40 Class 20 RT12S $57.00
17.5-22 70 50 Class 20 RT12T $57.00
21-26 80 60 Class 20 RT12U $57.00
25-32 100 80 Class 20 RT12V $65.00
30-40 100 80 Class 20 RT12W $78.00
Auxiliary Contact Kits
Front-Mount Auxiliary Contact Block
Mechanical Interlock
DIN-Rail Kit
Overload Relay, Class 10
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-18
Section 4Definite Purpose Controls
Full Voltage Contactors
CR553, CR353E/F/G
Standard
Accessories
25A-40A

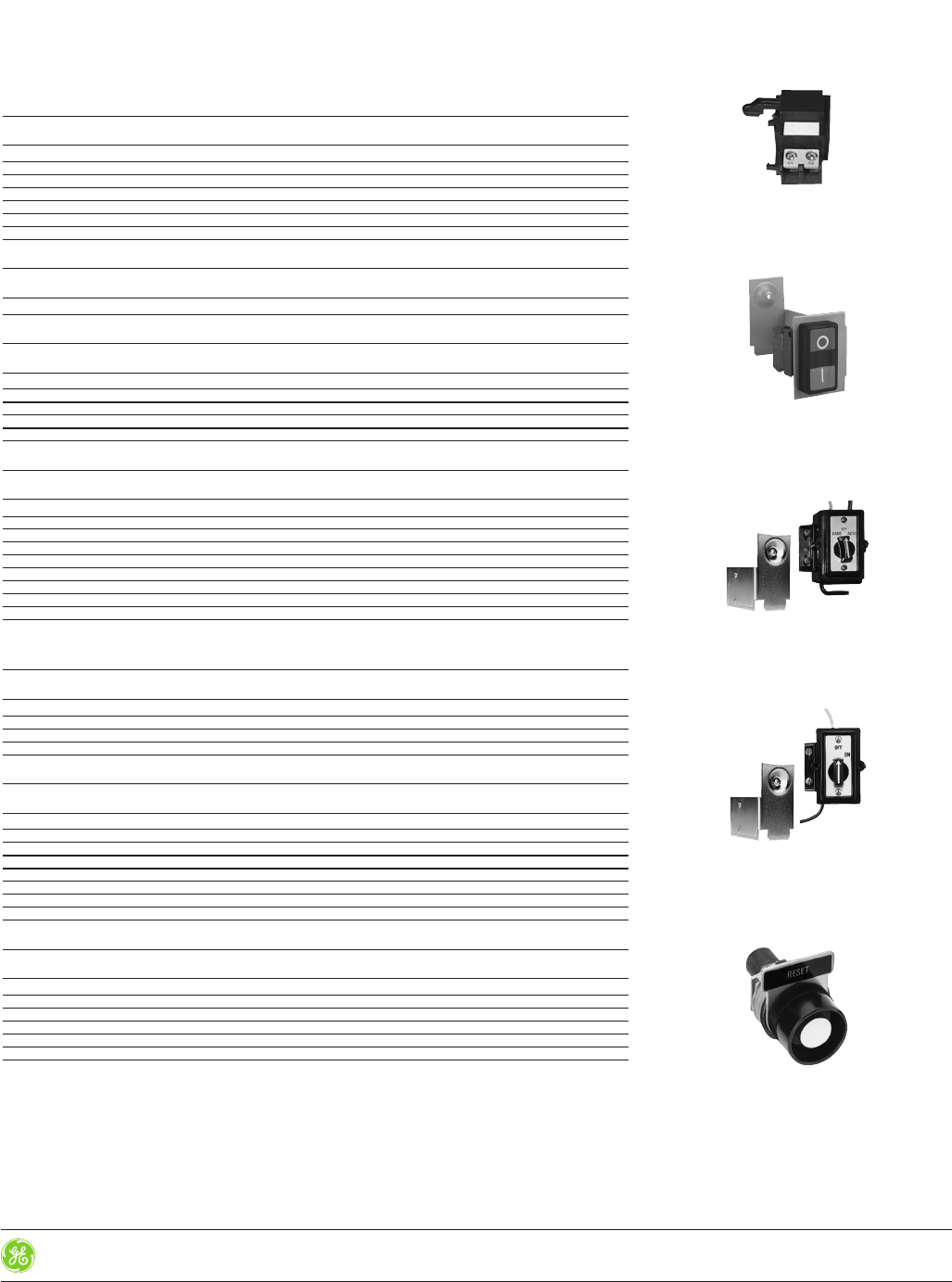

Remote Electrical Reset for RT1 Overload Relays
List Price
Voltage 50/60 Hz AC/DC Product Number GO-10C2
12 RTXRRB $55.00
24 RTXRRD $55.00
48 RTXRRG $55.00
110-120 RTXRRJ $55.00
220-240 RTXRRN $55.00
380-415 RTXRRU $55.00
440-480 RTXRRX $55.00
Overload Base Adapter Panel Mount
List Price
Product Number GO-10C2
RTXP $12.00
Enclosure Kits NEMA Type 1
List Price
Contactor Prefix Device Rating Product Number GO-10DP
CR553 Contactors/Starters 25A-30A, 2-3 pole CR553XE1A $42.00
CR553 Contactors/Starters 40A, 2-3 pole CR553XE1B $82.00
CR353 Contactors 50A-60A, 3-pole CR353XE1BB $42.00
CR353 Contactors 75A-90A CR353XE1BC $60.00
CR354 Starters 50A CR353XE1AA $48.00
Accessories for CR553XE1A Enclosure
List Price
Enclosure Accessory Type Product Number GO-10C2
Start/Stop Push Button Without Light CLXP1B $39.00
Start/Stop Push Button With Light—115 V CLXP1C $112.00
Start/Stop Push Button With Light—230 V CLXP2C $112.00
Start/Stop Push Button With Light—460 V CLXP3C $112.00
Start/Stop Push Button With Light—575 V CLXP1C4 $112.00
H-O-A Switch CLXP1D $39.00
On-off Switch CLXP1E $39.00
Red Indicating Light (For use with H-O-A or ON/OFF selector switch) CLXP1F1 $67.00
Reset Kit (For starter enclosure) CLXR11 $8.00
1Each kit has three resistors allowing light to be used with all voltages 110 through 600.
Pneumatic Timers for CR553A Series
List Price
Type Time Range Contacts Product Number GO-10C2
Time Delay On 0.1-30 seconds 1 NO-1 NC BTLF30C $120.00
Time Delay On 1-60 seconds 1 NO-1 NC BTLF60C $120.00
Time Delay Off 0.1-30 seconds 1 NO-1 NC BTLF30D $120.00
Time Delay Off 1-60 seconds 1 NO-1 NC BTLF60D $120.00
Surge Suppressors
List Price
Type Voltage Product Number GO-10C2
RC 24-48 VAC BSLR2G $24.00
RC 50-127 VAC BSLR2K $24.00
RC 130-240 VAC BSLR2R $24.00
Diode 12-600 VAC BSLDZ $24.00
Varistor 24-48 VAC/DC BSLV3G $24.00
Varistor 50-127 VAC/DC BSLV3K $24.00
Varistor 130-250 VAC/DC BSLV3R $24.00
Varistor 380-500 VAC/DC BSLV3U $24.00
Mechanical Latch Block for CR553A Series
List Price
Release Voltage Product Number GO-10C2
24-32 VAC/DC RMLFD $70.00
42-48 VAC/DC RMLFG $70.00
110-125 VAC/DC RMLFJ $70.00
208-277 VAC/DC RMLFN $70.00
380-480 VAC/DC RMLFU $70.00
500-600 VAC/DC RMLFY $70.00
Reset Kit for Starter Enclosure
Start/Stop Push Button
H-O-A Switch
On-Off Switch
Remote Electrical Reset
www.geindustrial.com Control Catalog 4-19
Rev. 4/16
Prices and data subject to
change without notice
Section 4Definite Purpose Controls
Full Voltage Contactors
CR553, CR353E/F/G
Standard
Coils and Renewal Parts
25A-150A
AC Replacement Coil – CR553
Product Number Product Number
2/3 Pole List Price 2/3 Pole 40FLA List Price
Coil Voltage 25-30FLA GO-11G 4 Pole 25-40FLA GO-11G
115-120V 60Hz / 110V 50Hz CRDB1AA $27.00 CRDB3AA $30.00
208-240V 60Hz / 220-230V 50Hz CRDB1AB $27.00 CRDB3AB $30.00
440-480V 60Hz / 380-415V 50Hz CRDB1AC $27.00 CRDB3AC $30.00
575-600V 60Hz CRDB1AD $27.00 CRDB3AD $30.00
12V 50Hz/60Hz CRDB1AE $27.00 CRDB3AE $30.00
277V 60Hz CRDB1AF $27.00 CRDB3AF $30.00
24V 50Hz/60Hz CRDB1AH $27.00 CRDB3AH $30.00
AC Replacement Coil – CR353, CR354, CR355
List Price
Contactor Prefix Inductive Amps Coil Letter Code Coil Voltage @ 60 Hz Coil Voltage @ 50 Hz Product Number GO-11G
CR353FE, CR353F, 50-60 A 110-120 110-120 55-B38A $30.00
CR354FE, CR354F
CR353FE, CR353F 50-60 B 208-240 208-240 55-B38B $30.00
CR354FE, CR354F
CR353FE, CR353F 50-60 C 440-480 380-415 55-B38C $30.00
CR354FE, CR354F
CR353FE, CR353F 50-60 D 575-600 550 55-B38D $30.00
CR354FE, CR354F
CR353FE, CR353F 50-60 F 277 — 55-B38F $30.00
CR354FE, CR354F
CR353FE, CR353F 50-60 H 24 24 55-B38H $30.00
CR354FE, CR354F
CR355EE, CR355F 50-60 A 110-120 110-120 55-B21A $54.00
CR355EE, CR355F 50-60 B 208-240 208-240 55-B21B $54.00
CR355EE, CR355F 50-60 C 415-480 415-480 55-B21C $54.00
CR355EE, CR355F 50-60 D 575-600 550 55-B21D $54.00
CR355EE, CR355F 50-60 F 277 55-B21F $54.00
CR355EE, CR355F 50-60 H 24 24 55-B21H $54.00
CR353EG, CR353H 75-90 A 110-120 110-120 55-B22A $60.00
CR355EG, CR355H
CR353EG, CR353H 75-90 B 208-240 208-240 55-B22B $60.00
CR355EG, CR355H
CR353EG, CR353H 75-90 C 440-480 380-415 55-B22C $60.00
CR355EG, CR355H
CR353EG, CR353H 75-90 D 575-600 550 55-B22D $60.00
CR355EG, CR355H
CR353EG, CR353H 75-90 F 277 — 55-B22F $60.00
CR355EG, CR355H
CR353EG, CR353H 75-90 H 24 24 55-B22H $60.00
CR355EG, CR355H
CR353GJ 120 A 115-120 110 55-501336G002 $148.00
CR353GJ 120 B 230-240 220 55-501336G003 $148.00
CR353GJ 120 C 460-480 440 55-501336G004 $148.00
CR353GJ 120 D 575-600 550 55-501336G005 $148.00
CR353GK 150 A 115-120 110 55-501563G002 $202.00
CR353GK 150 B 230-240 220 55-501563G003 $202.00
CR353GK 150 C 460-480 440 55-501563G004 $202.00
CR353GK 150 D 575-600 550 55-501563G005 $202.00
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-20
Section 4
Replacement Contact Kits for CR353
Continuous Poles List Price
Amp Rating Per Kit Termination Product Number GO-11GS
50A 1 Lug/Quick Connect 55-152313G2161 $32.00
90A 1 Lug/Quick Connect 55-152313G217 $84.00
75A 1 Lug/Quick Connect 55-152313G218 $58.00
60A 1 Lug/Quick Connect 55-152313G2372 $35.00
120A 3 Pressure 55-152313G139 $308.00
150A 3 Pressure 55-152313G140 $418.00
1For CR353EE and CR355EE, use 55-152313G150, List Price, $26.00, GO-11GS.
2For CR353EF and CR355EF, use 55-152313G219, List Price, $32.00, GO-11GS.
CR353E/F/G
Standard
Coils and Renewal Parts
50A - 150A
Definite Purpose Controls
Full Voltage Contactors
www.geindustrial.com Control Catalog 4-21
Rev. 4/16
Prices and data subject to
change without notice
Section 4Definite Purpose Controls
Full Voltage Contactors
CR453C, CR553, CR353
Technical Data
25A-150A
DP Contactors Compact
Product Inductive Resistive Locked Rotor Amps, Locked Rotor Amps, Locked Rotor Amps, % Nominal Coil % Nominal Coil Wire Size Terminal Approx. Ship.
Family Poles Amps Amps 50/60 Hz @ 240/277V 50/60 Hz @ 480V 50/60 Hz @ 600V Voltage @ Pickup Voltage @ Dropout Range AWG Torque (lb.-in.) Wt. (Lbs)
CR453CA 1 + shunt 20 30 120 100 80 85% 60% 16-8 20 0.7
CR453CA 2 20 30 120 100 80 85% 60% 16-8 20 0.7
CR453CB 1 + shunt 25 35 150 125 100 85% 60% 16-8 20 0.7
CR453CB 2 25 35 150 125 100 85% 60% 16-8 20 0.7
CR453CC 1 + shunt 30 40 180 150 120 85% 60% 16-8 20 0.7
CR453CC 2 30 40 180 150 120 85% 60% 16-8 20 0.7
CR453CD 1 + shunt 35 50 180 150 120 85% 60% 16-8 20 0.7
CR453CD 2 35 50 210 175 140 85% 60% 16-8 20 0.7
CR453CE 1 + shunt 40 50 180 150 120 85% 60% 14-4 40 0.7
CR453CE 2 40 50 240 200 160 85% 60% 14-4 40 0.7
DP Contactors Standard
Inductive Resistive Three Phase Three Phase Three Phase Locked Rotor Amps, Locked Rotor Amps, Locked Rotor Amps, Part Winding Locked Part Winding Locked Part Winding Locked
Family Type Amps Amps 240V LRA 480V LRA 600V LRA 50/60 Hz @ 240V 50/60 Hz @ 480V 50/60 Hz @ 600V Rotor Amps @ 240V Rotor Amps @ 480V Rotor Amps @ 600V
CR553 AB 25 35 150 125 100 — — — — — —
CR554 AC 30 40 180 150 120 — — — — — —
CR555 AD 40 50 240 200 160 — — — — — —
CR353 FE 50 62 300 250 200 — — — 300 250 200
CR354 FF 60 75 360 300 240 — — — 360 300 240
CR353 GG 75 90 450 375 300 — — — 450 375 300
CR355 EH 90 90 540 450 360 — — — 540 450 360
CR353 GJ 120 120 720 600 480 — — — 720 600 480
CR353 GK 150 150 900 750 600 — — — 900 750 600
DP Contactors Standard (continued)
Approx. Shipping
Family Type % Nominal Coil Voltage @ Pickup % Nominal Coil Voltage @ Dropout Wire Size Range AWG Terminal Torque (lb.-in.) Wt. (Lbs)
CR553, CR554 AB, AC, AD ≤ 85% ≤ 60% 16-8 20 0.7
CR555 AB, AC, AD ≤ 85% ≤ 60% 14-4 40 0.7
CR353 FE, FF ≤ 85% ≤ 60% 14-2 50 1.9
CR354 FE, FF ≤ 85% ≤ 60% 14-2 50 3.5
CR353 GG ≤ 85% ≤ 55% 14-2/0 50 4.0
CR355 EH ≤ 85% ≤ 55% 14-2/0 50 8.1
CR353 GJ ≤ 85% ≤ 65% 8/3/0 200 17.5
CR353 GK ≤ 85% ≤ 65% 8/3/0 200 17.5
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-22
Section 4Definite Purpose Controls
Full Voltage Contactors
CR453C CE Technical Data
Product Number Electrical Rating AC1 @ 480V Electrical Rating AC3 @ 240V Electrical Rating AC3 @ 480V UL File No.
CR453CA1*AA 30A 20A 16.7A E126105 Volume 20, Section 1
CR453CB1*AA 35A 25A 20.8A E126105 Volume 20, Section 1
CR453CC1*AA 40A 30A 25A E126105 Volume 20, Section 1
CR453CD1*AA 50A 35A 25A E126105 Volume 20, Section 1
CR453CE2*BB 50A 40A 25A E126105 Volume 20, Section 1
UL References
Family Type File Volume Section Issued
CR553 A E1811 20 1 11/27/14
CR554, CR555 A E1811 20 2 11/27/14
CR355 EE E1811 2 26 03/10/70
CR355 EF E1811 2 25 01/22/70
CR353, CR355 EG E1811 2 24 10/15/68
CR353, CR355 EH E1811 2 30 06/01/71
CR353, CR354 FE E1811 2 54 06/17/75
CR353, CR354 FF E1811 2 54 06/17/75
CR353 GJ E1811 2 47 01/31/74
CR353 GK E1811 3 5 05/26/76
CSA References
Product Line CSA File Number CSA Class
CR453C 212530-M-000 1222 01, 4813 01
Auxiliary Contact Ratings
Product Line Type Kits Ratings
CR553 250 V SPDT CR553XC2** 11 A, 1/3 HP at 250 VAC;
1/2 A at 125 VDC;
1/4 A at 250 VDC
CR553 600 V BCLF**, BCLL** A600, Q600 Pilot Duty
CR553 600 V Interlock BEL02 A600, Q600 Pilot Duty
CR353F 250 V SPDT 353XAAA 10 A, 1/3 HP at 250 VAC;
1/2 A at 125 VDC;
1/4 A at 250 VDC
CR353E 250 V SPDT 353XAAB 10 A, 1/3 HP at 250 VAC;
1/2 A at 125 VDC;
1/4 A at 250 VDC
CR353G 600 V 353XA*C A600, P300 Pilot Duty
CR453C, CR553, CR353
Technical Data
25A-150A
www.geindustrial.com Control Catalog 4-23
Definite Purpose Controls
Full Voltage Contactors
Rev. 4/16
Prices and data subject to
change without notice
Section 4
CR453C, CR553, CR353
Technical Data
25A-150A
AC Coils – CR553
Nominal Coil voltage VAC Frequency FLA Poles 12 24 115-120 208-240 277 440-480 550-600
Maximum pickup voltage 25 / 30 / 40A 2, 3 & 4 9.6 18 88 177 220 352 440
Drop-out voltage range 60Hz 25 / 30 / 40A 2, 3 & 4 4.2 6 - 15 20 - 70 50 - 165 65 - 185 150 - 270 192 - 336
25 / 30 A 2, 3 44 44 44 44 44 44 44
60Hz 40 A 3 100 100 100 100 100 100 100
25 / 30 / 40A 4 100 100 100 100 100 100 100
Nominal inrush VA 25 / 30 A 2, 3 53 53 53 53 – 53 53
50Hz 40 A 3 120 120 120 120 – 120 120
25 / 30 / 40A 4 120 120 120 120 – 120 120
25 / 30 A 2, 3 5.6 5.6 5.6 5.6 5.6 5.6 5.6
60Hz 40 A 3 9.5 9.5 9.5 9.5 9.5 9.5 9.5
25 / 30 / 40A 4 9.5 9.5 9.5 9.5 9.5 9.5 9.5
Nominal sealed VA 25 / 30 A 2, 3 6.8 6.8 6.8 6.8 – 6.8 6.8
50Hz 40 A 3 11.4 11.4 11.4 11.4 – 11.4 11.4
25 / 30 / 40A 4 11.4 11.4 11.4 11.4 – 11.4 11.4

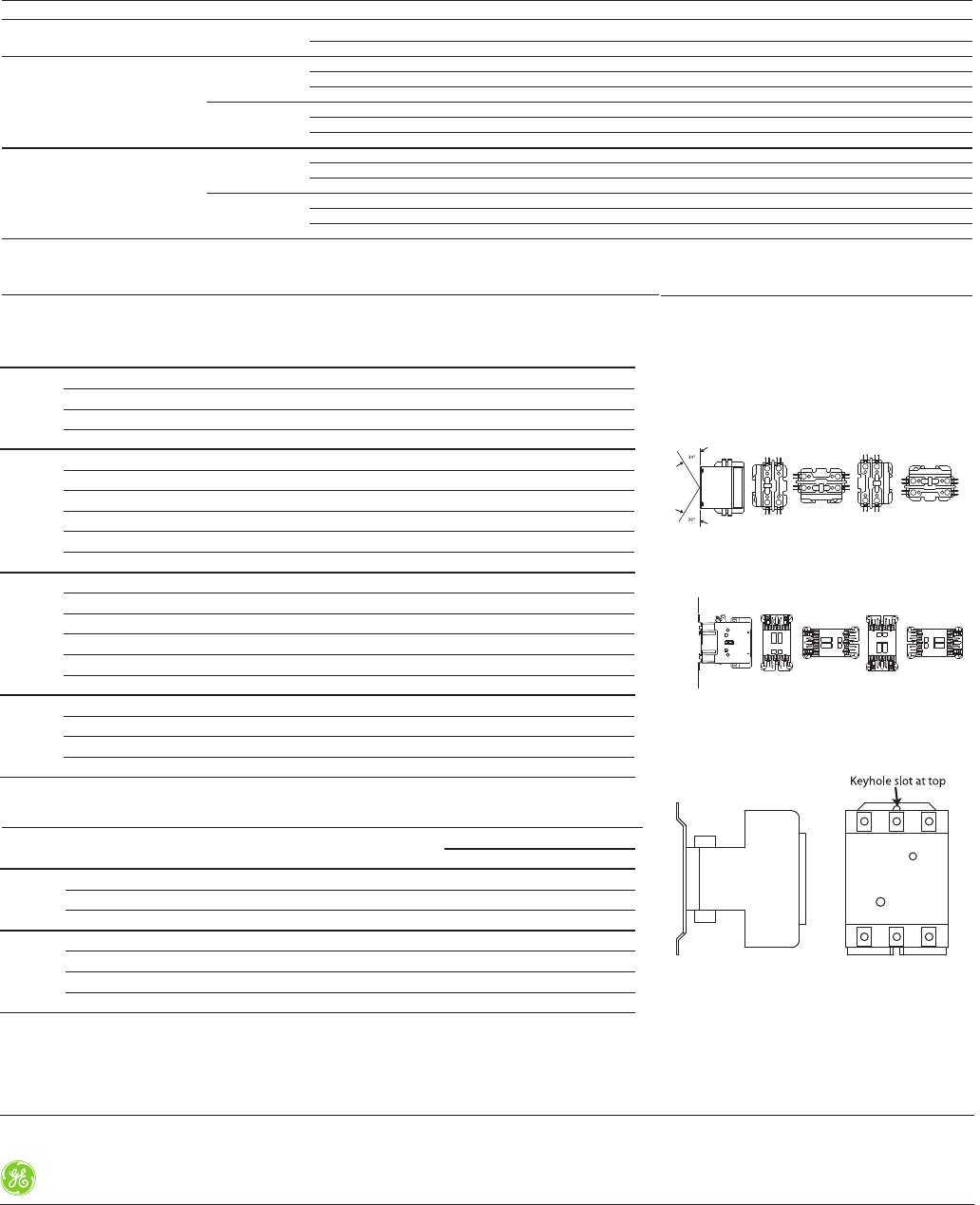

AC Coils – CR453C, CR35*F, CR35*E, CR353G Mounting Positions
To maintain operating integrity, contactors
must be mounted in one of the positions
shown below:
CR453C
CR553
CR353
Family Coil Voltage Inrush VA Sealed VA Sealed Watts
Resistance
Ohms ±10%
24V, 50/60 Hz 29 5.0 2.6 11
110-120V, 50/60 Hz 34 6.0 3.3 244
208-240V, 50/60 Hz 33 5.6 3.7 990
277V, 60 Hz 30 6.3 3.2 1520
CR453C
24V, 60 Hz 125 17 82.7
115-120V 60 Hz, 110V 50 Hz 125 17 8 64
208-240V 60 Hz, 220V 50 Hz 125 17 8241
277V, 60 Hz 125 17 8389
460V 60 Hz, 440V 50 Hz 125 17 8972
600V 60 Hz, 550V 50 Hz 125 17 82074
24V, 50/60 Hz 233 40 16 1.0
110-120V, 50/60 Hz 233 40 16 28
208-240V, 50/60 Hz 233 40 16 109
277V, 60 Hz 233 40 16 169
440-480V 60 Hz, 380-415V 60 Hz 233 40 16 547
575-600V 60 Hz, 550V 50 Hz 233 40 16 655
115-120V 60 Hz, 110V 50 Hz 1150 80 18.4 2.11
230-240V 60 Hz, 220V 50 Hz 1150 80 18.4 10.6
460-480 60 Hz, 440V 50 Hz 1150 80 18.4 41.8
575-600 Hz, 550V 50 Hz 1150 80 18.4 67.0
CR35*E
CR353G
CR35*F
DC Coils
Family Voltage DC Inrush VA Sealed VA Sealed Watts Inrush Sealed
Resistance Ohms ±10%
12 107 3.8 3.8 1.35 37.6
24-28 110 3.8 3.8 5.2 153
110-125 110 5.25 5.25 133 2519
12 278 11.3 11.3 0.54 12.7
24-48 270 11.1 11.1 2.13 51.9
48 301 12.6 12.6 7.65 183.0
110-125 292 12.0 12.0 47.1 1133
CR353F
CR353E
CR553AB3/CR553AC3 + 250V Aux. Contacts
CR553AB4/CR553AC4/CR553AD4 + 250V Aux. Contacts
3.6
(92.6)
3.6
(92.1)
3.3
(82.6)
1.6
(41.3) 0.2
(4.8)
2.2
(57)
3.7
(95.1)
3.9
(100.3)
0.3
(7.9)
1 TO 4 NO.S
AS PER ORDER
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
CR553AD3 + 250V Aux. Contacts
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-24
Section 4Definite Purpose Controls
Full Voltage Contactors

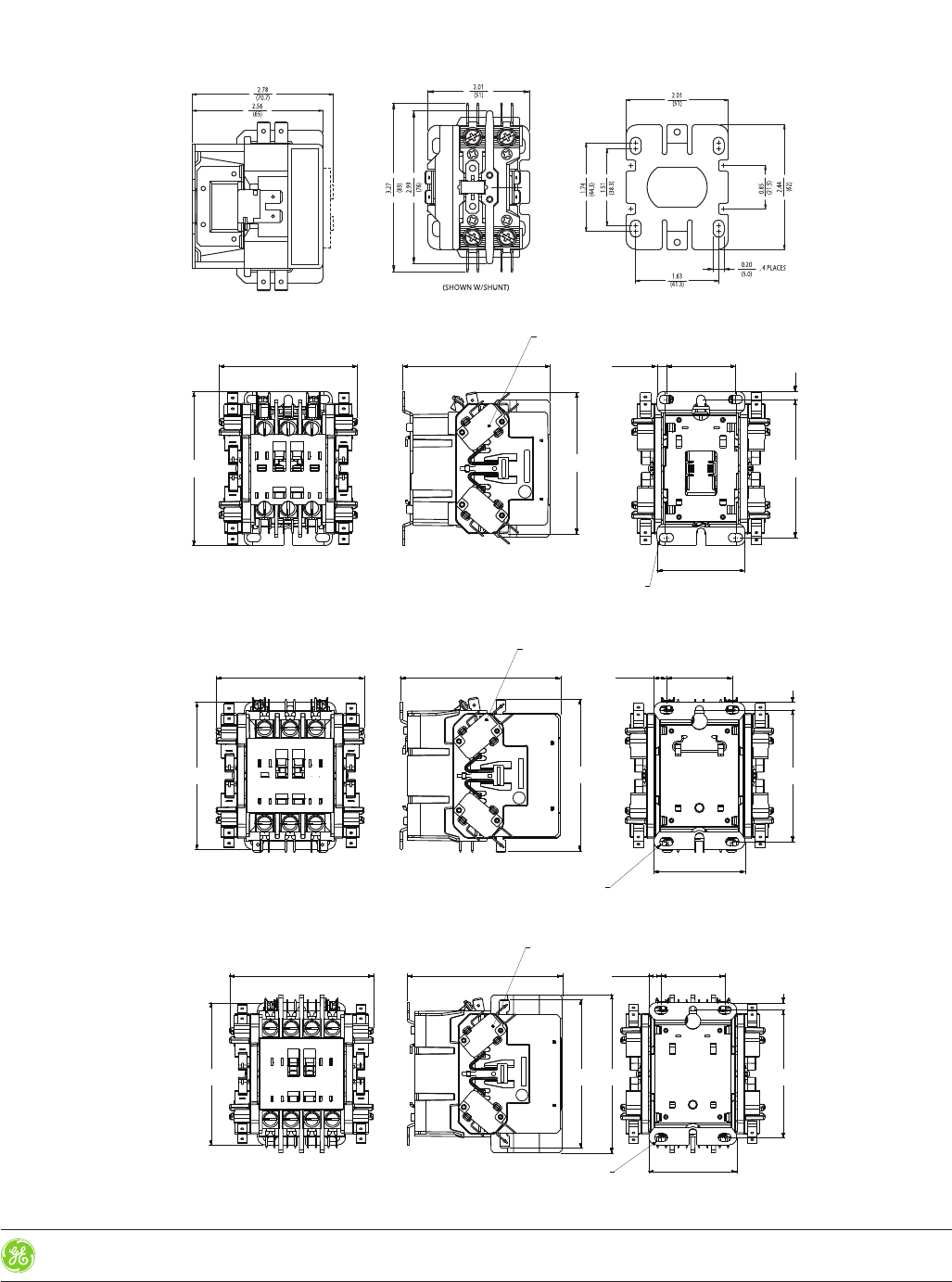

CR453C, CR553
Outlines and Dimensions in./(mm) (For Estimating Only)
20A-150A
CR453C
1.6
(41.3)
0.2
(5.6)
3.6
(92)
3.3
(82.6)
3.5
(88.3)
3.3
(84.6) 3.3
(82.6)
2.1
(52.5)
0.2
(4.7)
1 TO 4 NO.S
AS PER ORDER
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
3.3
(82.6)
1.6
(41.3)
0.3
(7.9) 0.2
(4.8)
3.6
(92.1)
3.7
(93.1)
4.0
(100.5)
3.8
(96.1)
4.0
(102.6)
2.2
(57)
1 TO 4 NO.S
AS PER ORDER
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)

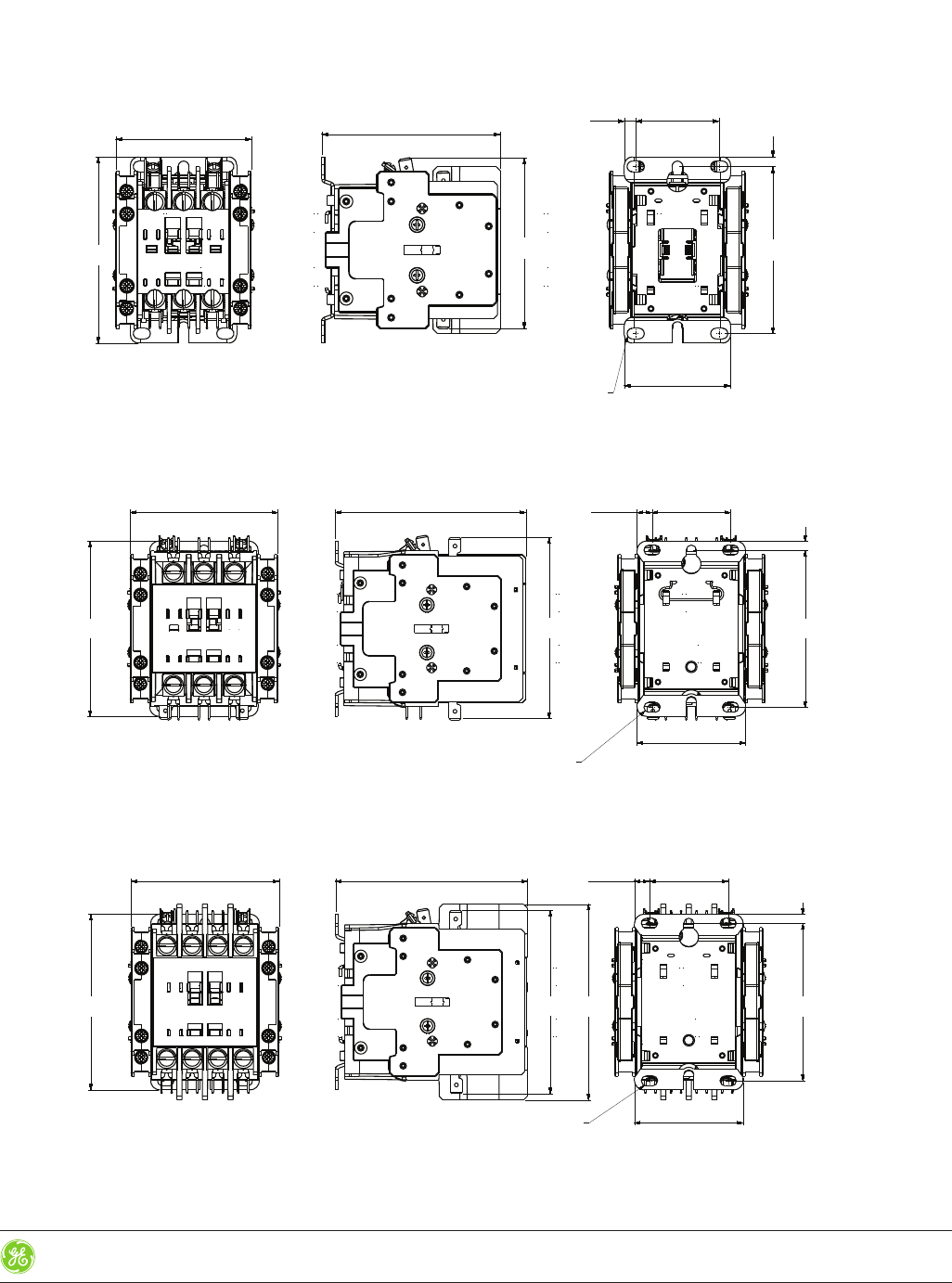

CR553AB3/CR553AC3 + 600V Aux. Contacts
CR553AD3 + 600V Aux. Contacts
CR553AB4/CR553AC4/CR553AD4 + 600V Aux. Contacts
www.geindustrial.com Control Catalog 4-25
Rev. 4/16
Prices and data subject to
change without notice
Section 4Definite Purpose Controls
Full Voltage Contactors
CR553
Outlines and Dimensions in./(mm) (For Estimating Only)
20A-150A
3.1
(77.5)
3.6
(92.1)
3.3
(82.6)
1.6
(41.3) 0.2
(4.8)
2.2
(57)
3.7
(95.1)
3.9
(100.3)
0.3
(7.9)
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
3.3
(82.6)
1.6
(41.3)
0.3
(7.9) 0.2
(4.8)
3.6
(92.1)
3.1
(77.5)
4.0
(100.5)
3.8
(96.1)
4.0
(102.6)
2.2
(57)
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-26
Section 4Definite Purpose Controls
Full Voltage Contactors

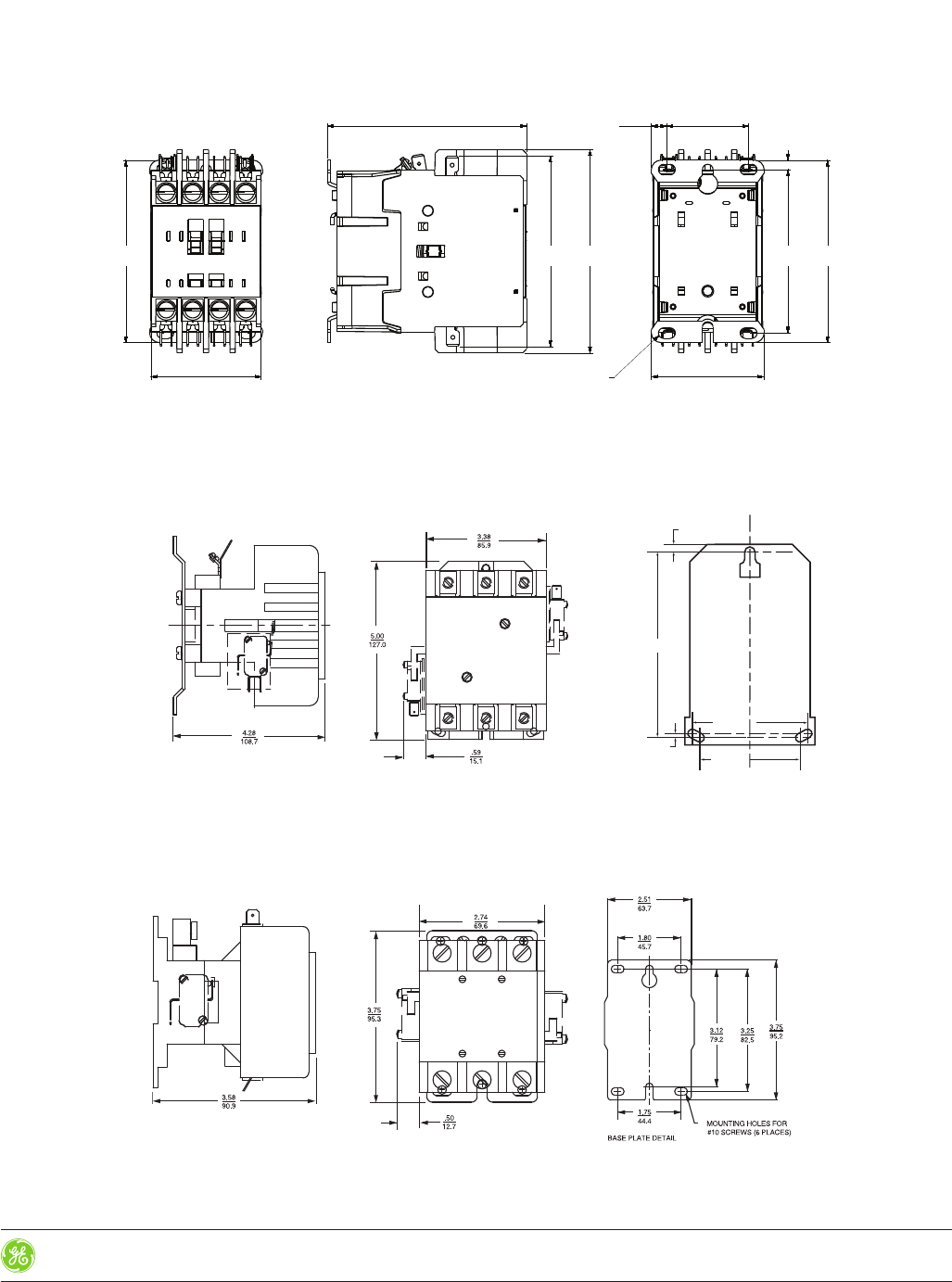

CR353, CR553
Outlines and Dimensions in./(mm) (For Estimating Only)
25A-150A
CR553AB4/CR553AC4/CR553AD4
CR353F + 250V Aux. Contacts
CR353E + 250V Aux. Contacts
2.5/63.5
2.875/73
4.62/117.35
.19/4.82
.09/2.3
4.0
(102.6)
4.0
(100.5)
3.8
(96.1)
3.6
(92.1)
2.2
(55.5)
3.3
(82.6)
3.6
(92.1)
1.6
(41.3)
2.2
(57)
0.3
(7.9) 0.2
(4.8)
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
www.geindustrial.com Control Catalog 4-27
Rev. 4/16
Prices and data subject to
change without notice
Section 4Definite Purpose Controls
Full Voltage Contactors

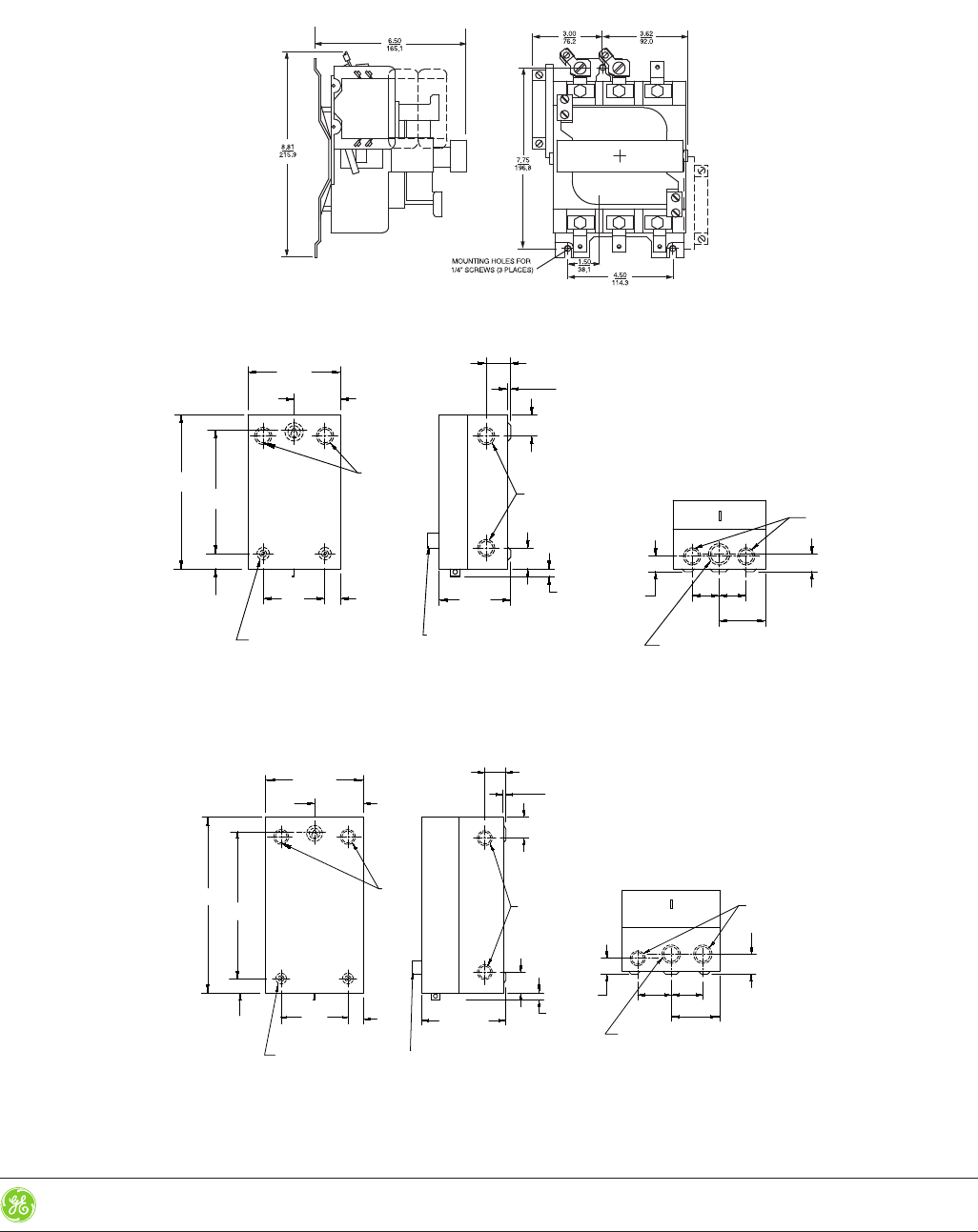

CR353G + 600V Aux. Contacts
Enclosure CR553XE1A
Enclosure CR553XE1B
CR553, CR353E/F/G
Outlines and Dimensions in./(mm) (For Estimating Only)
25A-150A
1.63
1.38
.50
4.63 1.13
1.00
[28.6]
[25.4]
1.75
1.75
3.00
[44.4] [44.4]
[76.2]
[117.5]
[34.9]
[12.7]
1.38
[35.1]
.18
[4.6]
[41.3]
8.00
10.00
1.00
[254.0]
[203.2]
[25.4]
6.00
3.00
[152.4]
[76.2]
1.00
4.00
[25.4]
[101.6]
"A"
BOTH SIDES
3 POINT MTG.
FOR #10 SCREW
"A"
"B"
(TOP & BOTTOM)
"
"A"
BACK
RESET BUTTON IN
STARTER ENCLOSURE
(TOP & BOTTOM)
1.63
1.50
.50
6.13
1.50
1.19
[38.1]
[30.2]
2.38
2.00
3.69
[50.8] [60.3]
[93.7]
[155.6]
[38.1]
[12.7]
1.50
[38.1]
.18
[4.6]
[41.3]
11.00
13.25
1.13
[336.6]
[279.4]
[28.7]
7.38
3.69
[187.3]
[93.7]
1.19
[30.2]
"A"
BOTH SIDES
3 POINT MTG.
FOR #10 SCREW
"B"
"A"
(TOP & BOTTOM)
"
"A"
BACK
RESET BUTTON IN
STARTER ENCLOSURE
(TOP & BOTTOM)
5.00
[127]
“A” Combination Knockouts for 1/2 or 3/4-inch Conduit
“B” Combination Knockouts for 3/4 or 1-inch Conduit
“A” Combination Knockouts for 1/2 or 3/4-inch Conduit
“B” Combination Knockouts for 3/4 or 1-inch Conduit
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-28
Section 4Definite Purpose Controls
2-Speed Contactors

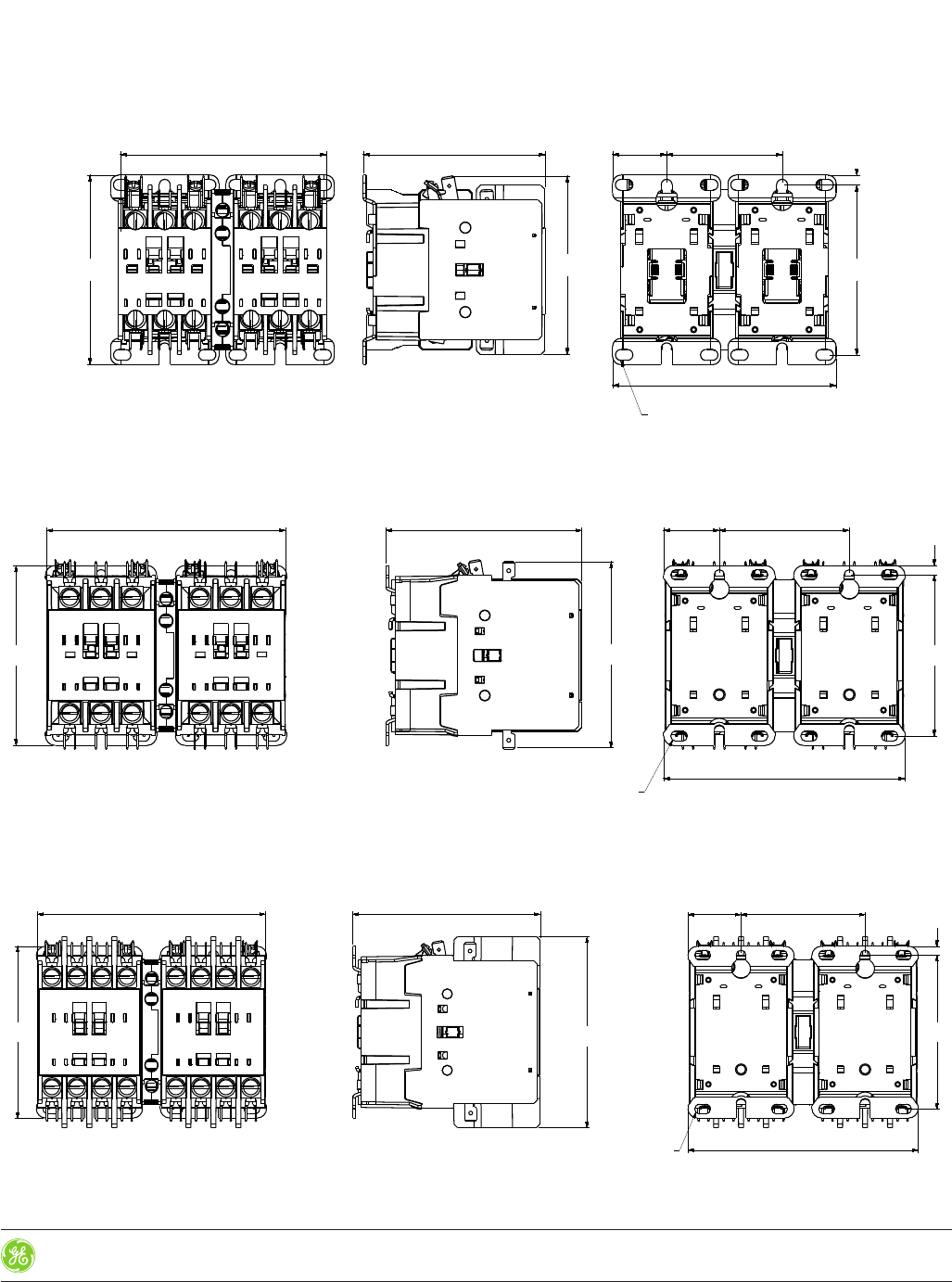

CR555
Outlines, Dimensions in./(mm) and Weights (For Estimating Only)
25A-40A
CR555AB4/CR555AC4/CR555AD4
CR555AB3/CR555AC3
CR555AD3
3.6
(92)
3.9
(100)
3.5
(88.3)
3.4
(86.7) 3.3
(82.6)
4.3
(108.5)
0.2
(4.7)
2.2
(56)
1.0
(26.3)
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
4.8
(122.1)
3.6
(92.1)
3.3
(82.6)
0.2
(4.8)
4.9
(123.5)
3.7
(95.1)
3.9
(100.3)
2.6
(66.5)
1.1
(28.5)
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
3.6
(92.1)
4.8
(122.1)
4.0
(100.5)
4.0
(102.6)
4.9
(123.5)
3.3
(82.6)
0.2
(4.8)
2.6
(66.5)
1.1
(28.5)
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
www.geindustrial.com Control Catalog 4-29
Rev. 4/16
Prices and data subject to
change without notice
Section 4Definite Purpose Controls
2-Speed Contactors

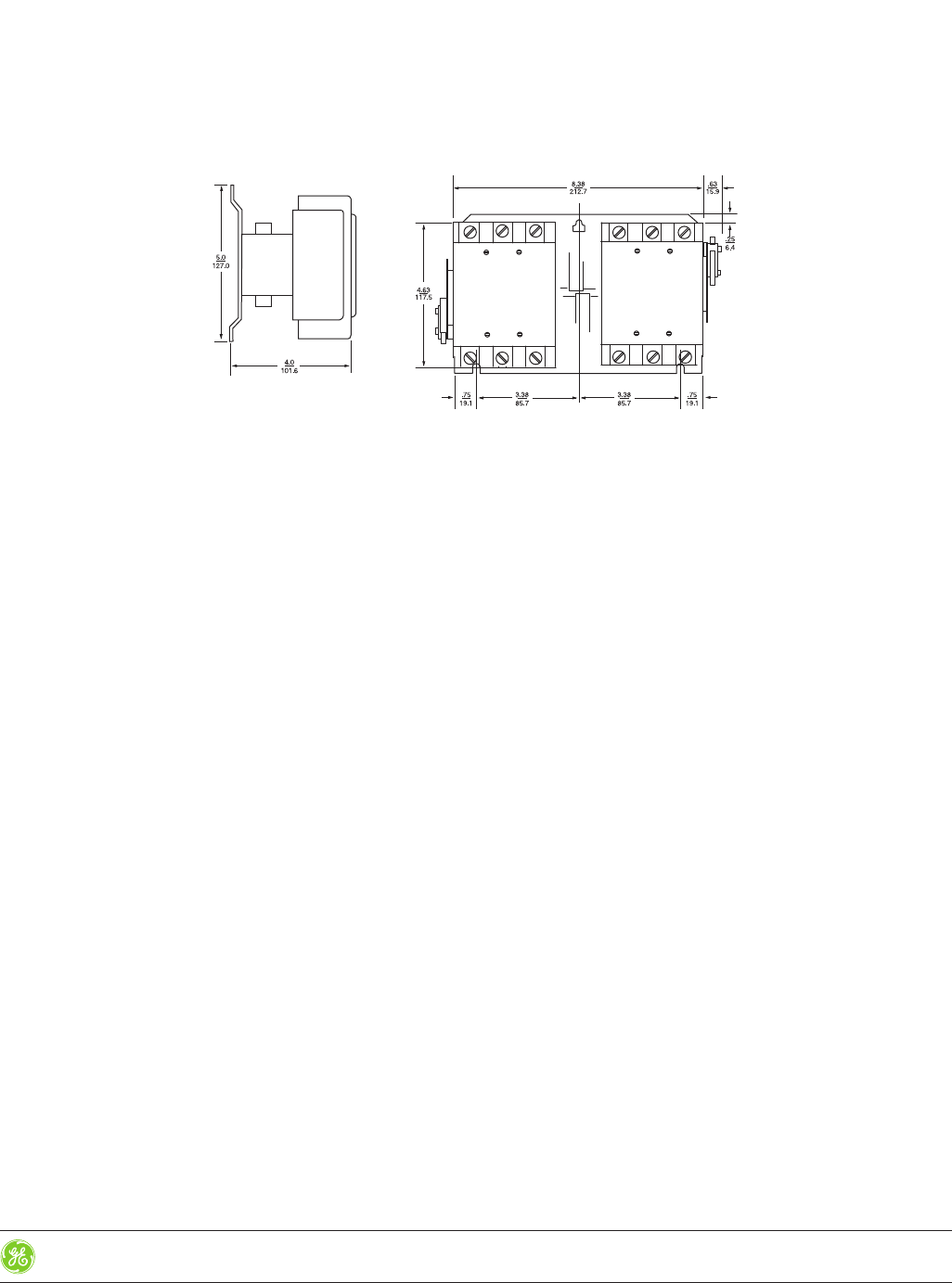

CR355E
Outlines, Dimensions in./(mm) and Weights (For Estimating Only)
50A-90A
CR355E + 250V Aux. Contacts
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-30
Section 4Definite Purpose Controls
Full Voltage Starters

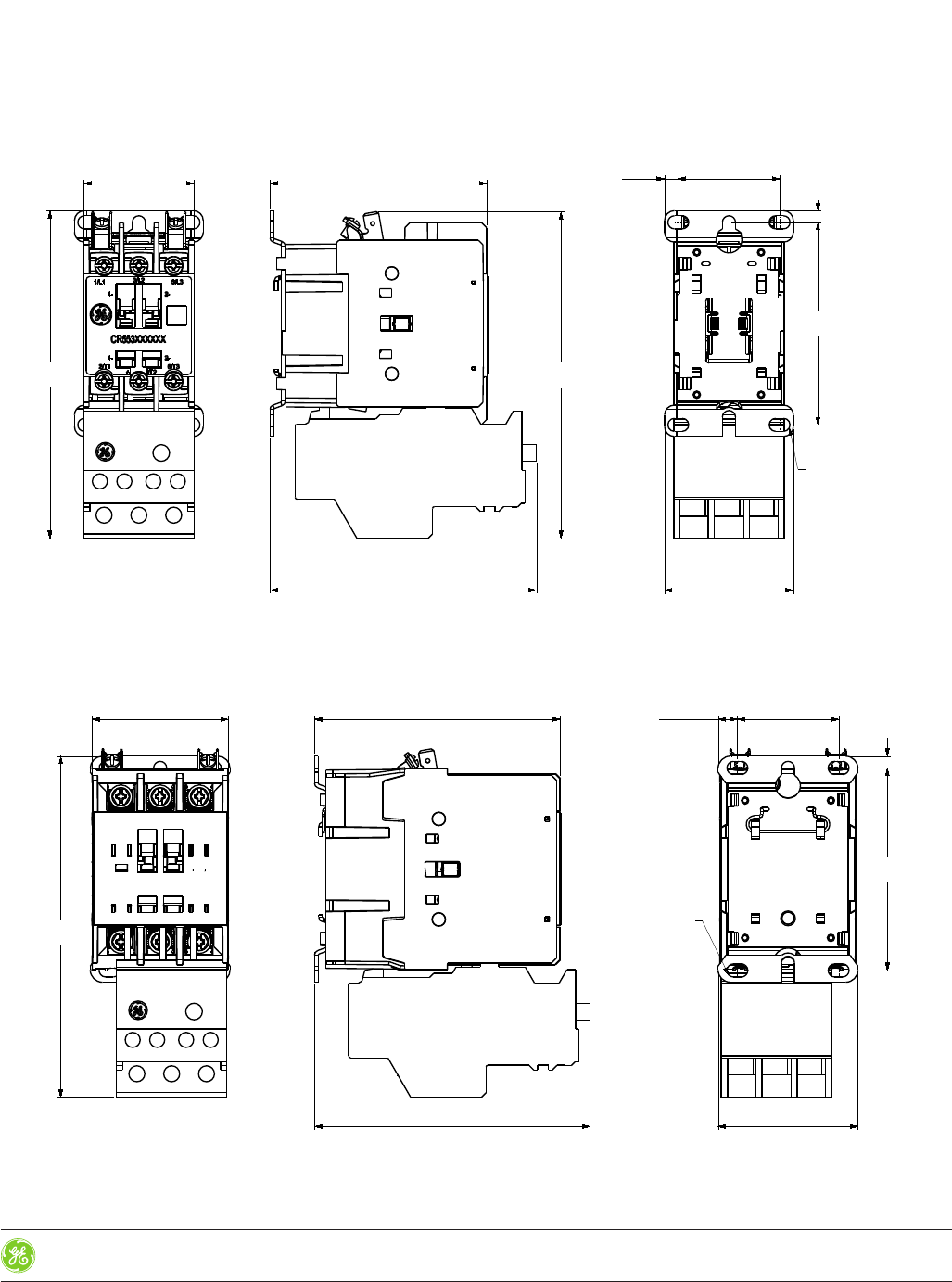

CR554
Outlines, Dimensions in./(mm) and Weights (For Estimating Only)
25A-40A
CR554AD3 + Overload Relay
CR554AB3/CR554AC3 + Overload Relay
1.6
(41.3)
0.2
(5.6)
5.3
(133.6)
1.8
(45)
3.5
(88.3)
5.2
(133.2)
3.3
(82.6)
2.1
(52.5)
4.3
(108.6)
0.2
(4.7)
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
2.2
(55.5)
5.5
(139)
3.3
(82.6)
1.6
(41.3) 0.2
(4.8)
2.2
(57)
3.9
(100.3)
0.3
(7.9)
4.4
(112.3)
MOUNTING HOLES FOR
#10 SCREWS (6 PLACES)
www.geindustrial.com Control Catalog 4-31
Rev. 4/16
Prices and data subject to
change without notice
Section 4Definite Purpose Controls
Full Voltage Starters

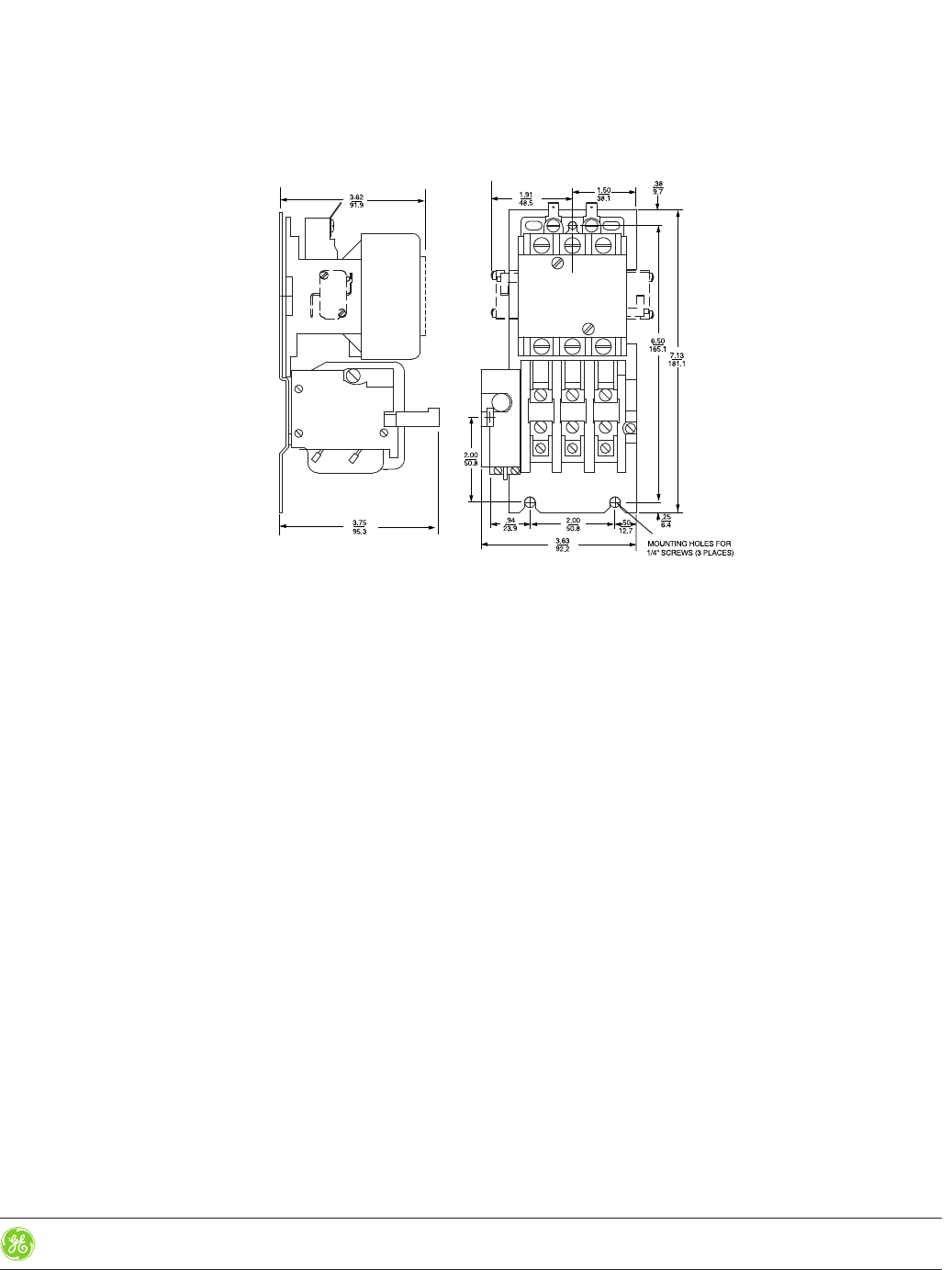

CR354E/F
Outlines, Dimensions in./(mm) and Weights (For Estimating Only)
50A-60A
CR354F + 250V Aux. Contacts
www.geindustrial.com Rev. 4/16
Prices and data subject to
change without notice
Control Catalog
4-32
Section 4
4-32
Definite Purpose Controls
Full Voltage Contactors
Bulk Pack Data
CR453C Bulk Pack
Packaging Description Units Item Weight Dimensions (H x W x D)
Units in single boxes Single box 1 1-pole 10.1 oz. .3” x 2.4” x 3.7”
Units in single boxes Single box 1 1-pole + shunt 10.4 oz. .3” x 2.4” x 3.7”
Units in single boxes Single box 1 2-pole 10.5 oz. .3” x 2.4” x 3.7”
Units in single boxes Overpack (20 single boxes) 20 1-pole 2.5 lbs. 7.9 x 8” x 13”
Units in single boxes Overpack (20 single boxes) 20 1-pole + shunt 2.6 lbs. 7.9 x 8” x 13”
Units in single boxes Overpack (20 single boxes) 20 2-pole 2.6 lbs. 7.9 x 8” x 13”
Units in single boxes Case (60 overpacks) 1,200 1-pole 180.8 lbs. 39” x 43.3” x 42.1”
Units in single boxes Case (60 overpacks) 1,200 1-pole + shunt 185.2 lbs. 39” x 43.3” x 42.1”
Units in single boxes Case (60 overpacks) 1,200 2-pole 186.8 lbs. 39” x 43.3” x 42.1”
Units in single boxes 20’ container (20 cases) 24,000 1-pole 3,616 lbs. (net) 7.8’ x 7.7’ x 19.4’
Units in single boxes 20’ container (20 cases) 24,000 1-pole + shunt 3,704 lbs. (net) 7.8’ x 7.7’ x 19.4’
Units in single boxes 20’ container (20 cases) 24,000 2-pole 3,736 lbs. (net) 7.8’ x 7.7’ x 19.4’
Units in single boxes 40’ container (44 cases) 52,800 1-pole 7,955 lbs. (net) 7.8’ x 7.7’ x 39.5’
Units in single boxes 40’ container (44 cases) 52,800 1-pole +shunt 8,149 lbs. (net) 7.8’ x 7.7’ x 39.5’
Units in single boxes 40’ container (44 cases) 52,800 2-pole 8,219 lbs. (net) 7.8’ x 7.7’ x 39.5’
Units bulk packed Overpack (20 DPs) 20 1-pole 12.5 lbs. 3.7” x 11.2” x 14.2”
Units bulk packed Overpack (20 DPs) 20 1-pole + shunt 12.66 lbs. 3.7” x 11.2” x 14.2”
Units bulk packed Overpack (20 DPs) 20 2-pole 12.66 lbs. 3.7” x 11.2” x 14.2”
Units bulk packed Case (90 overpacks) 1,800 1-pole 236.5 lbs. 41.3” x 44.5” x 35.4”
Units bulk packed Case (90 overpacks) 1,800 1-pole + shunt 243.1 lbs. 41.3” x 44.5” x 35.4”
Units bulk packed Case (90 overpacks) 1,800 2-pole 245.5 lbs. 41.3” x 44.5” x 35.4”
Units bulk packed 20’ container (24 cases) 43,200 1-pole 5,676 lbs. (net) 7.8’ x 7.7’ x 19.4’
Units bulk packed 20’ container (24 cases) 43,200 1-pole + shunt 5,834 lbs. (net) 7.8’ x 7.7’ x 19.4’
Units bulk packed 20’ container (24 cases) 43,200 2-pole 5,652 lbs. (net) 7.8’ x 7.7’ x 19.4’
Units bulk packed 40’ container (52 cases) 93,600 1-pole 12,298 lbs. (net) 7.8’ x 7.7’ x 39.5’
Units bulk packed 40’ container (52 cases) 93,600 1-pole + shunt 12,641 lbs. (net) 7.8’ x 7.7’ x 39.5’
Units bulk packed 40’ container (52 cases) 93,600 2-pole 12,766 lbs. (net) 7.8’ x 7.7’ x 39.5’
CR553A Bulk Pack
Product Rating Poles Min. Order / Additional Multiples Items per Box Box Weight (lbs) Box Dimension (H x W x D)
Contactor with no aux. contacts 25-30A 3 96 / 96 8 6 7.5" x 7.5" x 9"
40A 3 96 / 96 8 10 8.5" x 8.5" x 9.5"
Contactor with no aux. contacts 25-40A 4 96 / 96 8 11 8.5" x 8.5" x 9.5"
Contactor with aux. contacts 25-30A 3 96 / 96 8 6 7.5" x 7.5" x 13.5"
40A 3 96 / 96 8 10 8.5" x 8.5" x 15"
Contactor with aux. contacts 25-40A 4 96 / 96 8 11 8.5" x 8.5" x 15"
Single box
Overpack
(20 single boxes) Overpack
(20 DP’s)
Case
(90 overpacks)
Case
(60 overpacks)
(1200 units)
CR453C units in single boxes CR453C units in bulk pack

Navigation menu
