Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E1
Nylon Flexible Conduits – Overview................................................E2–E7
Conduits.......................................................................................E8–E25
PMAFIX®Fittings ................................................................................E26

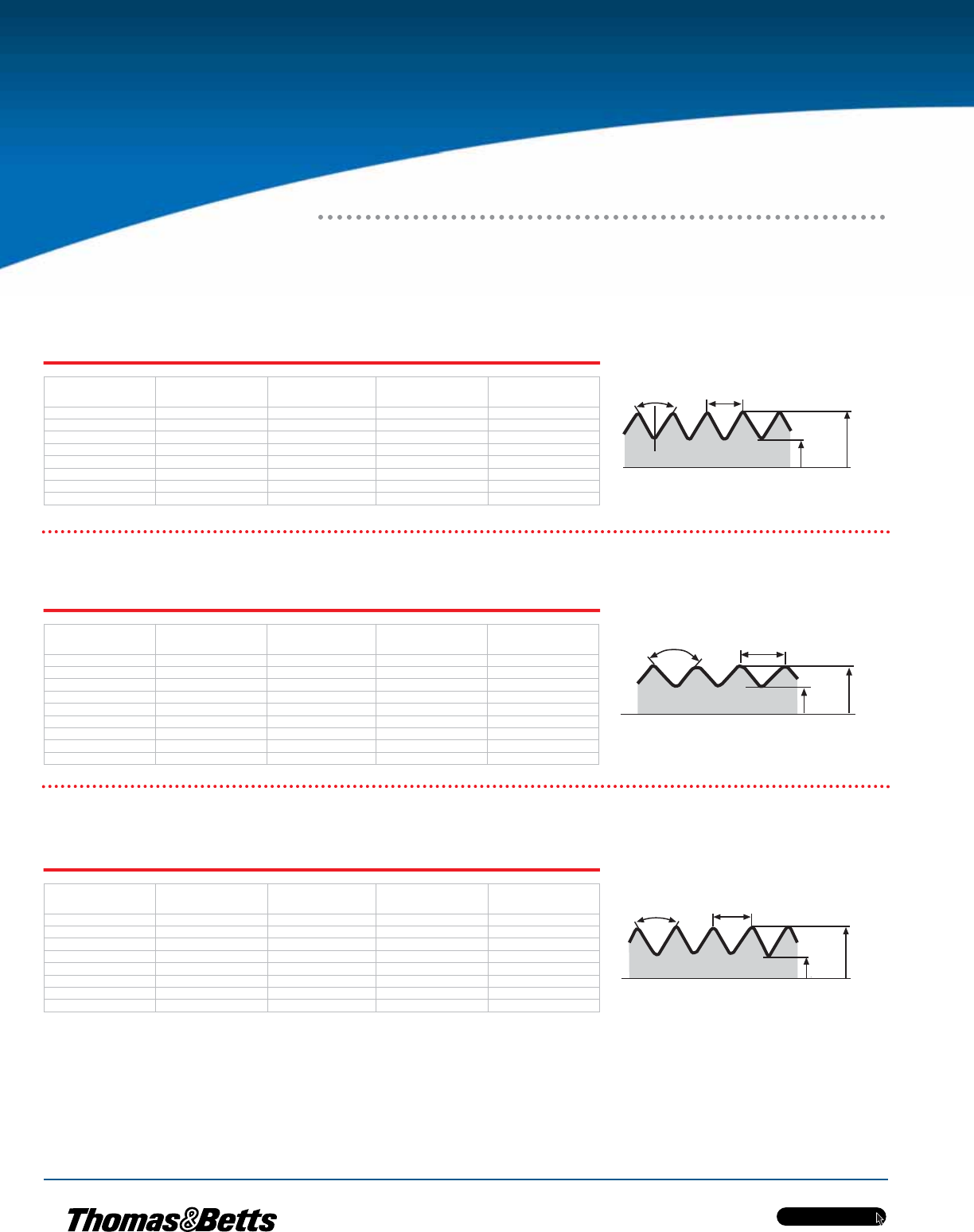

Thread Codes.....................................................................................E27
Connectors for Nylon Flexible Conduits.......................................E28–E29
Fittings for Nylon Flexible Conduits.............................................E30–E54
Accessories for Nylon Flexible Conduits......................................E55–E57
Large-Size Nylon Flexible Conduits and Fittings..........................E58–E62
Large-Size Nylon Flexible Accessories................................................E63
Divisible-System Nylon Flexible Conduits and Fittings.........................E64
Divisible-System Nylon Flexible Accessories.......................................E65
Special Products ........................................................................E66–E70
Accessories and Tools ................................................................E71–E79
Hazardous Location ATEX Systems .............................................E80–E91
Technical Information ...............................................................E92–E103
Table of Contents
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E2
Mechanical Engineering
A considerable number of PMA®cable
protection systems are used in mechanical
engineering. A few examples illustrate how
varied the range of mechanical
engineering applications is. You will find
our products in machine tools, packaging
machines, printing machines, as well as
heating, ventilation, conveyer and filling
systems. PMA®products also make a vital
contribution to the smooth operation of
high-voltage and emergency power
systems, can production machinery and
woodworking machines, etc. PMA®cable
protection solutions safeguard cables,
wires and data links against heat, cold,
tensile stress, pressure stress and other
external influences in the important
mechanical engineering industry.
Railway/Railway Infrastructure
PMA®products have proven their
dependability in railway construction
projects around the world. This is the
reason why large corporations including
Siemens, Alstom, Bombardier, Deutsche
Bahn and SNCF have chosen us as
supplier over a period of many years.
Our special railway engineering product
line provides protection and safety on
signalling systems, couplings, trucks and
gangways, as well as with roof and
underfloor equipment. The range of
applications is very extensive. PMA®
products contribute to the safe operation
of trams, locomotives, freight cars,
high-speed trains and even roller coasters.
Automation
In the field of automation, there
is a need for products that can withstand
the stress of motion-intensive applications.
Solutions developed by PMA®fully meet
these requirements. Special conduit
designs, supports and abrasion-protection
sleeves provide optimal protection along
the entire length of all moving elements,
enabling engineers to achieve a massive
reduction in torsional forces. There is a
good reason why leading robotics
manufacturers rely on PMA®technology.
Countless Applications
PMA®cable protection products can be
used in an extremely wide range of
applications. The list is virtually endless
and includes industries such as telecom-
munications, construction equipment and
medical equipment. Wherever there is a
need for cable protection, the PMA®
product portfolio provides safe,
dependable, forward-looking solutions. We
can also develop custom solutions to meet
your individual needs.
Nylon Flexible Conduits
Overview
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E3
Nylon Flexible Conduits
Overview

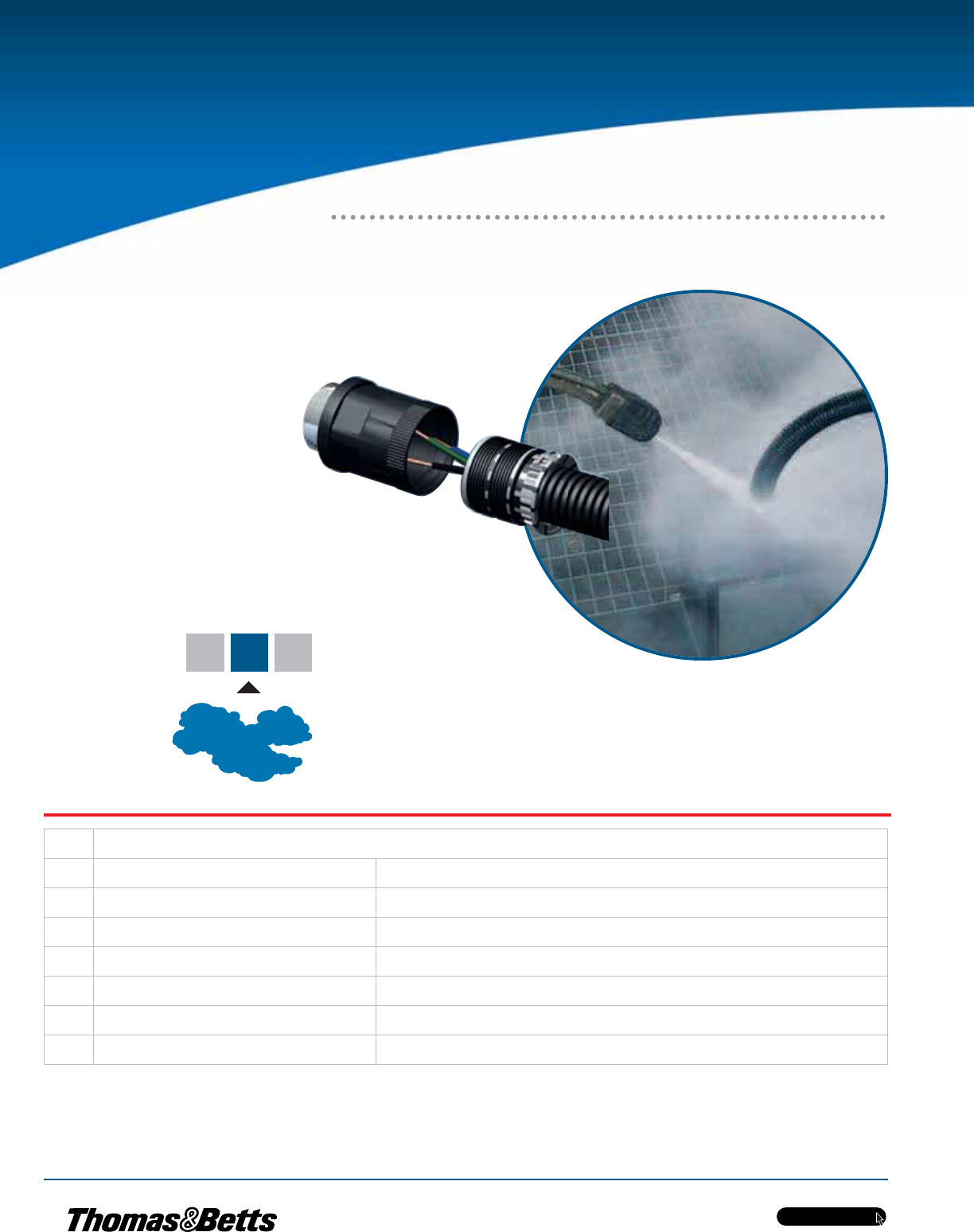

PMAFIX®Pro
Connectors
State-of-the-Art Design and Manufacturing Procedure for
Highest Sealing Performance
The PMAFIX®Pro fitting series employs two-component injection-
molding technology in a radical new design to set new standards for
the cable protection industry in critical performance parameters,
particularly sealing security.
Connectors: Male and female threads in polyamide and metal,
straight, 45°, 90° and strain-relief types
Conduits: The PMAFIX®Pro system is compatible with the entire PMAFLEX®Pro and
PMAFLEX®conduit range
Modes of Protection: IP68 and IP69K both in static and dynamic installations

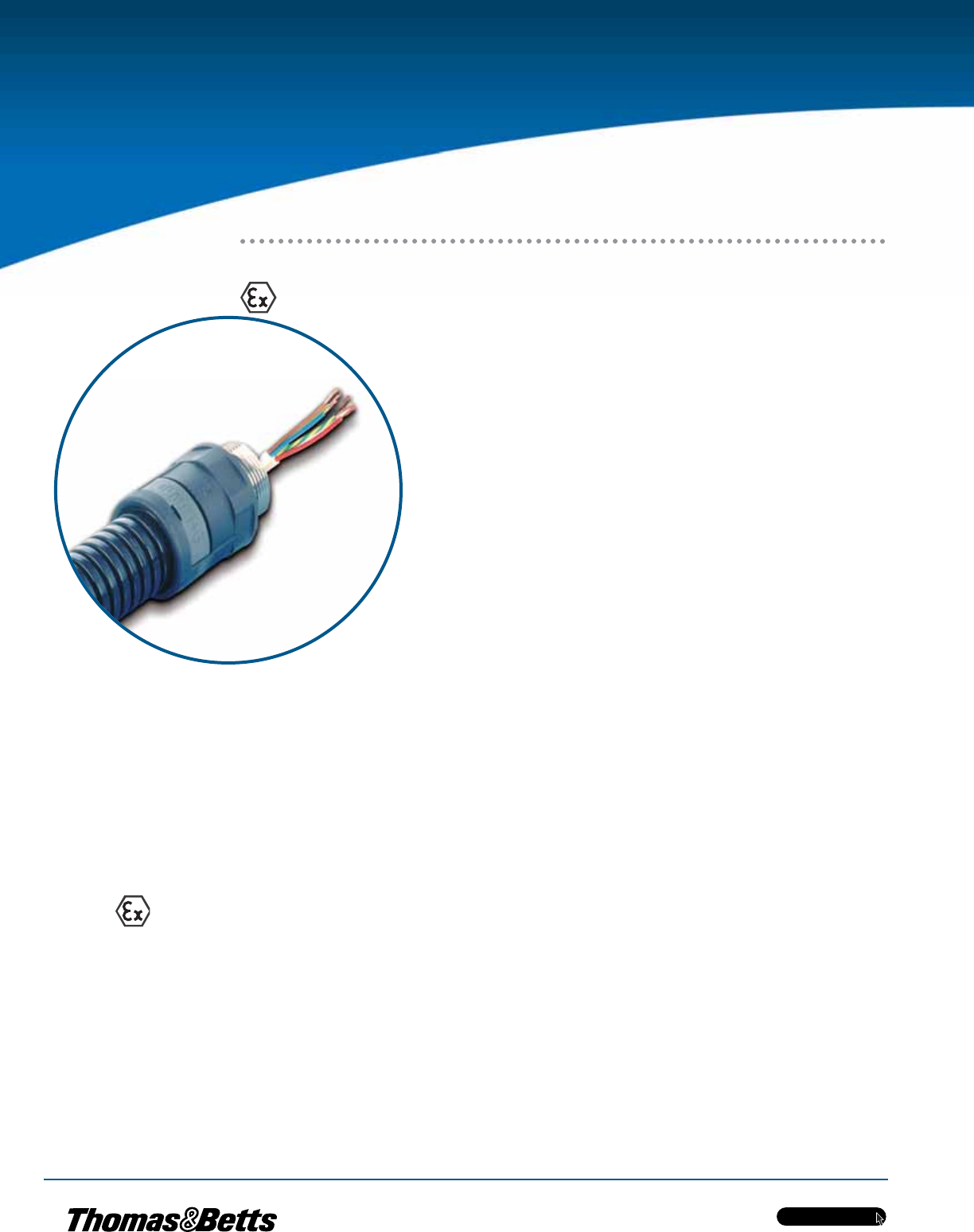

PMA®EX-SYSTEM
Connectors, Conduits and
Accessories
Electrostatic load discharging for explosion-endangered areas
The EX-System includes conduits, fittings and accessories for flexible
protection of cables, wires and hoses against mechanical damage,
UV-radiation and weathering in explosion-endangered areas classified
as zones 1/21 (gas/dust) according to ATEX 137.
Connectors: Straight, 45° elbow, 90° elbow and 90° curved elbow,
distributors
Conduits: Highly flexible, conduit sizes from Ø 10 to 50
Applications: Areas where combustible gases, liquids or solids and atmospheric oxygen
can form an explosive atmosphere and where any form of ignition has to be avoided
Installation: Simple push-in installation (IP66), safety and sealing system (IP68)
PMAFIX®/PMAFLEX®
Connectors and Conduits
Best selling and very popular
This product line offers solutions that meet the highest expectations:
IP66–IP69K. It is based on a perfected system technology that makes
installation easy. You can choose from a very large, varied range of
connectors and conduit that has demonstrated its dependability in all
types of applications for more than 20 years.
Connectors: Male and female thread in polyamide or metal, straight,
45° elbow, 90° elbow and 90° curved elbow, distribution
Conduits: More than 20 different types of conduit: light to heavy, flexible to highly flexible,
conduit size from Ø 6 to 125

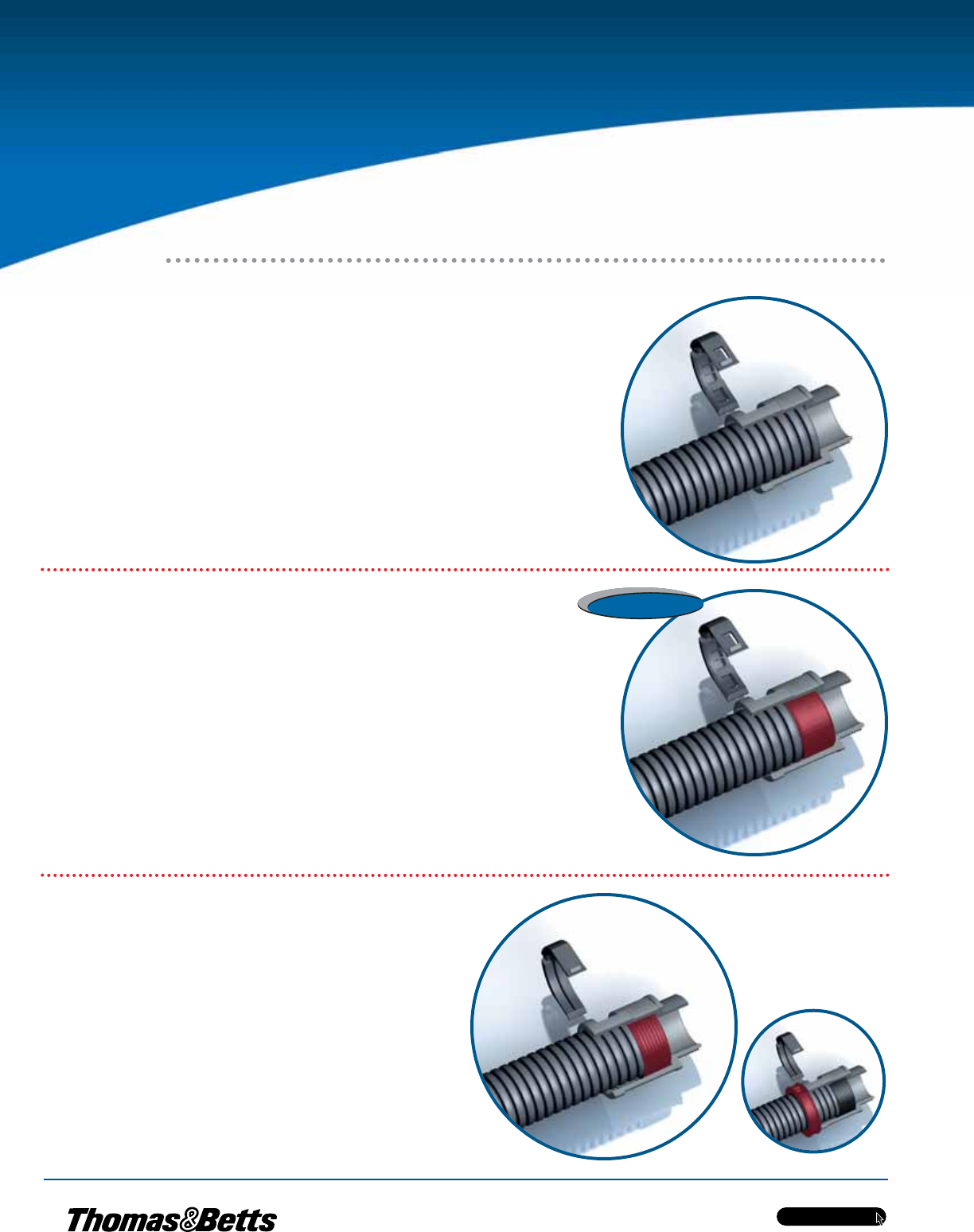

Safety System: Unique safety clip system for connection with PMA conduit
Modes of Protection: IP66, IP68GT, IP68, IP69K
PMA®SMART LINE
Connectors and Conduits
Modern, versatile and attractive
One-piece design, IP66 protection and simple, fast installation are the
outstanding features of the Smart Line. Other characteristics, including
a modern, functional design and an excellent price/performance ratio,
make this product line a very attractive solution.
Connectors: Straight, 45° elbow and 90° elbow
Conduits: Conduit types made of PA6, PA12 and PP
Modes of Protection: IP66

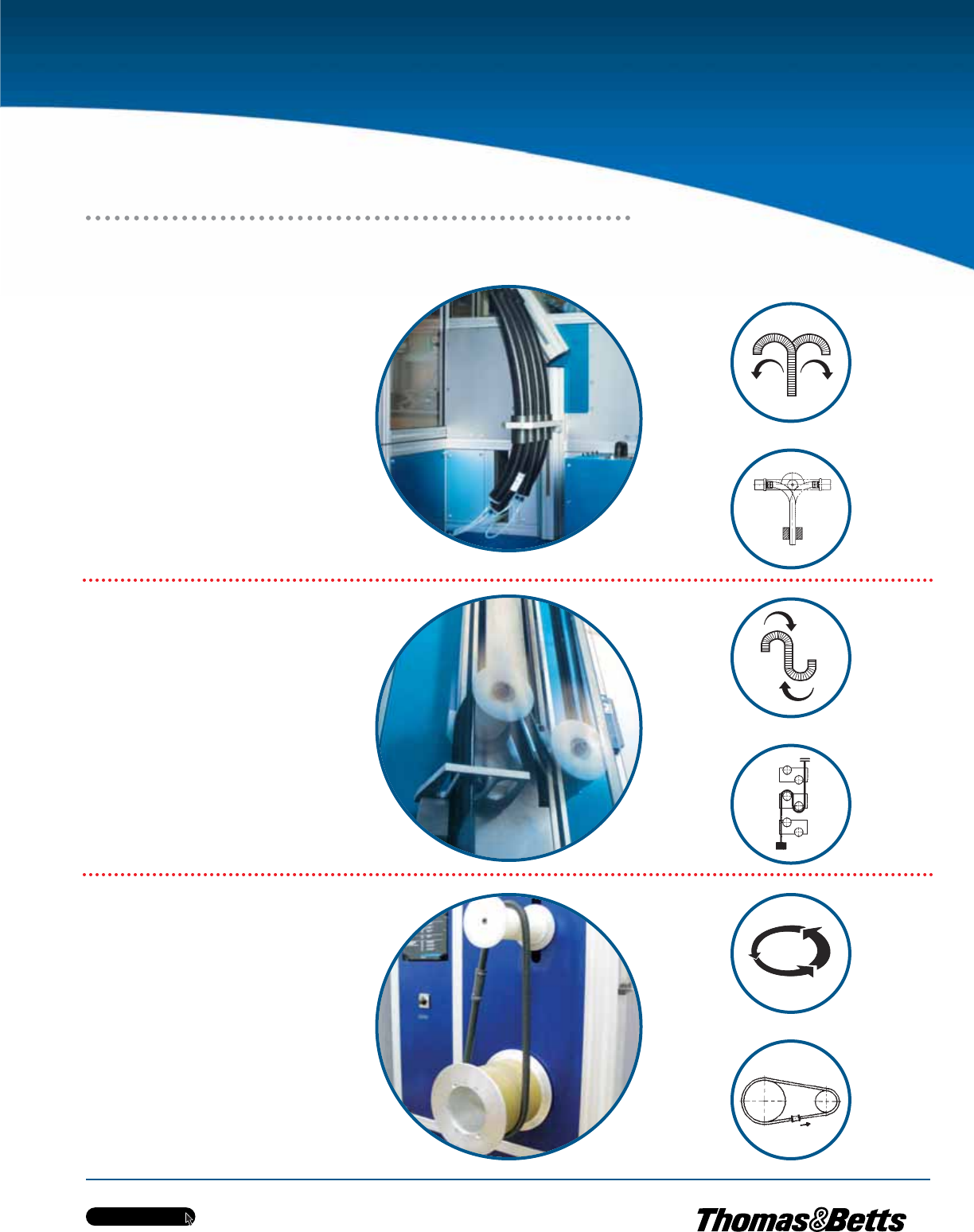

AUTOMATION
Accessories and Robotics
Protection and dependability in automation applications
PMA®products provide optimal cable protection in all automation
applications. They give you dependable protection against abrasion,
and they prevent wearing through the insulation. They are very flexible
and deliver long service life in motion-intensive applications.
Applications:
Special conduit and accessories for robotics and automation
applications provide:
•Reduced mechanical stress
•Longer service life
•Flexible design for motion-intensive applications
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E4

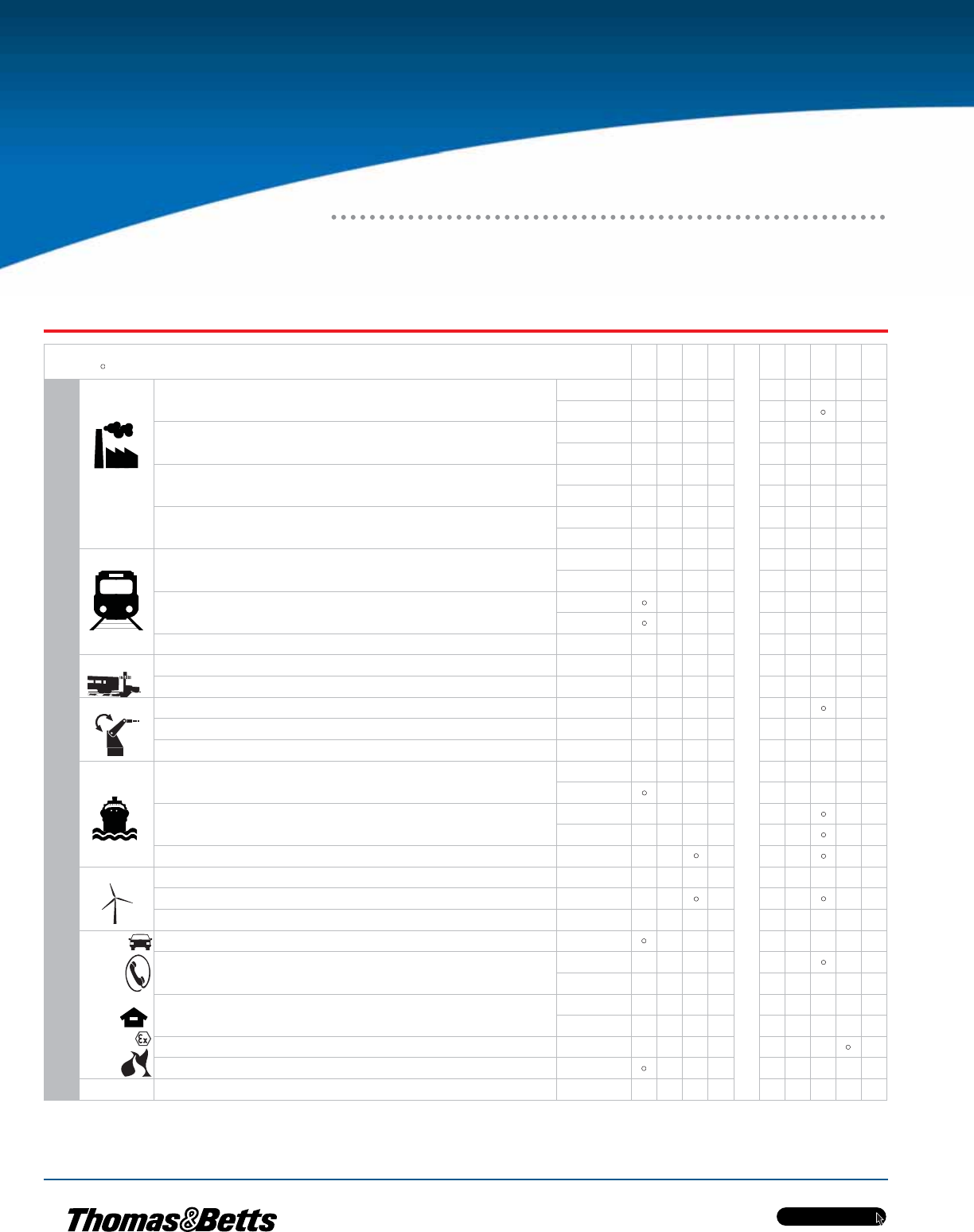

Key: l recommended
suitable (application details to be considered)
MACHINE
BUILDING General Applications static •
dynamic •
Heavy Loads static
dynamic
Outdoor Applications static
dynamic
Antistatic Requirements static • •
dynamic • •
TRACTION
Outdoor Applications with Sunlight Exposure static
dynamic
Outdoor Applications static
dynamic
Indoor Applications static • •
TRACTION INFRA Outdoor Applications with Sunlight Exposure static
Indoor and Tunnel Applications static •
AUTOMATION Moving Systems static •
Systems with E xtreme Movements static
Moving Systems with Antistatic Requirements static • •
SHIP + OFF-
SHORE Outdoor General Applications static
dynamic
Indoor Applications static
dynamic
Passenger Area static
ENERGY Outdoor Applications with Sunlight Exposure static
Indoor Applications static
Exposed to Radiation static •
OTHERS Vehicle Building static • •
Telecommunications indoor
outdoor
Building Construction indoor •
outdoor
Ex Hazardous Areas (ATEX) static
High-Temperature Applications static •
Find on page E18 E18 E19 E19 E9 E9 E9 E10 E10
PHT
PLU
POH
PSX
CYF
CYFH
CYL
ESD
ESDP
APPLICATION AREAS
PMAFLEX®PRO PMAFLEX®
Nylon Flexible Conduits
Overview
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E5
• • • • • • • • •
• • • • •
• • •
• •
• • • •
• • •
•
•
• •
•
• •
• • •
• •
• • • • • • •
• • •
• • • • •
• • • •
• • • • • • • • •
• • • •
• • • • •
• • •
• • • • • • •
•
• •
• • • • • • • •
• • • •
• • • •
• • •
•
•
E11 E11 E12 E12 E13 E13 E14 E14 —E15 E15 E16 E16 E17 E21 E21 E22 E22 E23 E24 E24 E25 — — — E20 E20 —
PCL
PCS
PCSL
PEL
PIS/PIH
POS
PUE
PVD
R90
TEC
VAM
VAML
VCS
VOH
XCYL
XPCL
XSOL
XSOLL
XVCS1H
CUS
PUS
VUS
LLPA
LLPF
LLPO
PACO
PPCO
ESX
PMAFLEX®
PMAFLEX®
MULTI-LAYER
PMA®FLEX-
PLUS (UL
LISTED) SMART LINE COFLEX EX
Nylon Flexible Conduits
Overview
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E6

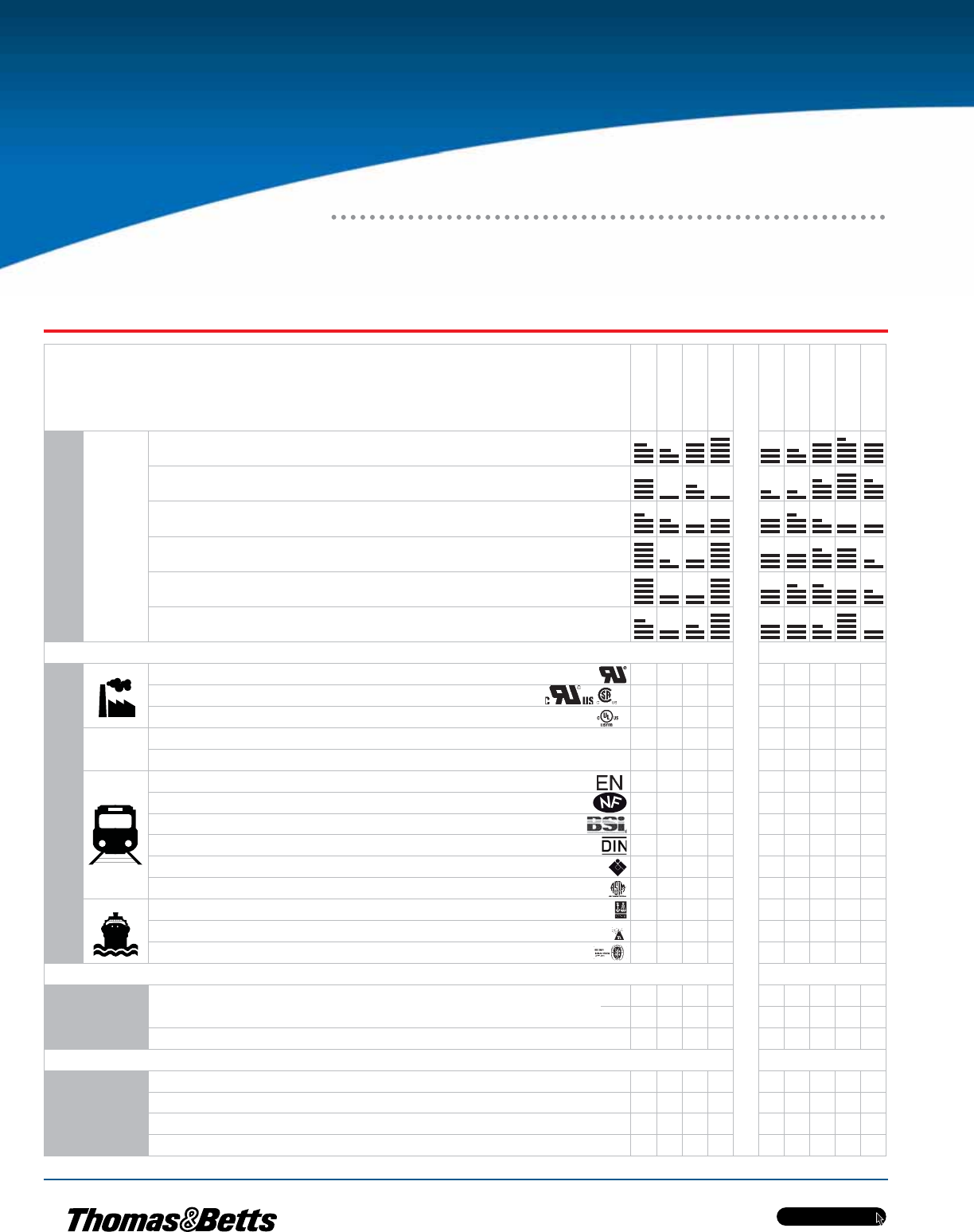

Key: √ = correct
Ductility
Reverse Bending Resistance
Compression Resistance
Low-Temperature Performance
High-Temperature Performance
Resistance to Weathering
UL Recognition File √
Bi-National Recognition UL and CSA C22.2 No. 227.3-05 √
Bi-National Recognition UL and CSA C22.2 No. 227.2.1
Free from Halogens and Cadmium √√√√ √√√√√
Non Flame Propagating EN61386 √ √ √ √
EN45545 √
NF F 16-101 + 102 √
BS6853 √ √
DIN 5510-2 √
UNI CEI 11170-3 Ed. 2005 √
NFPA130 (ASTM E162 - ASTM E662 - ASTM E1354) BSS7239/SMP 800-C
DNV (Type approved) √ √ √
Lloyd’s Register (Type approved) √ √ √
Bureau Veritas (Type approved) √ √ √
Continuous Operating Temperature (Acc. to DO 9.21-4510) -50 -25 -25 -100 -30 -30 -40 -40 -20
135 95 95 170 90 90 105 90 90
Short-Term Max. Operating Temperature 168h (Acc. to DO 9.21-4360) 180 120 200 125 125 160 150
Nominal Widths Min. 07 10 10 10 07 23 07 07 10
Nominal Widths Max. 48 48 48 48 17 48 125 95 48
Metric Size Min. 10 12 12 12 10 25 10 10 12
Metric Size Max. 50 50 50 50 20 50 146 106 50
Min.
Max.
TEMP.
RANGE
SIZES
APPROVALS
PHT (PAE)
PLU (PO)
POH (PO)
PSX (PEI)
CYF (PA6)
CYFH (PA6)
CYL (PA6)
ESD (PA12)
ESDP (PO)
PMAFLEX®PRO PMAFLEX®
Nylon Flexible Conduits
Overview
MATERIAL PROPERTIES
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E7
√ √ √ √ √ √ √ √
√ √ √ √ √ √ √
√√√
√ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
√ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
√ √
√ √ √ √ √
√ √
√ √ √ √ √ √ √ √ √
√ √ √ √ √ √ √ √
√ √ √ √ √
√ √ √ √ √ √ √ √ √ √ √ √ √
√ √ √ √ √ √ √ √ √ √ √ √ √
√ √ √ √ √ √ √ √ √ √ √ √ √
-50 -50 -50 -50 -50 -25 -60 -60 -40 -200 -40 -40 -50 -40 -40 -50 -50 -40 -50 -40 -50 -50 -40 -40 -20 -40 -20 -50
105 95 95 60 95 95 50 150 95 200 105 105 105 105 105 105 95 95 90 105 95 105 105 105 90 100 95 90
160 150 150 150 130 150 260 160 160 160 160 160 160 150 150 120 160 150 160 160 160 130 150 120 150
07 07 07 10 07 07 12 10 29 10 07 07 07 07 12 12 12 12 12 17 17 17 07 07 07 07 07 10
125 95 48 48 125 95 70 29 70 29 48 125 95 125 48 48 48 48 48 48 48 48 125 48 48 70 70 48
10 10 10 12 10 10 16 12 32 12 10 10 10 10 16 16 16 16 16 20 20 20 10 10 10 10 10 12
146 106 50 50 146 106 80 32 80 32 50 146 106 146 50 50 50 50 50 50 50 50 146 50 50 80 80 50
PCL (PA6)
PCS (PA12)
PCSL (PA12)
PEL (PE)
PIS/PIH (PA12)
POS (PO)
PUE (TPU)
PVD (PVDF)
R90 (PA12)
TEC (PFA)
VAM (PA6)
VAML (PA6)
VCS (PA6)
VOH (PA6)
XCYL (PA6/PA6)
XPCL (PA6/PA6)
XSOL (PA12/PA6)
XSOLL (PA12/PA6)
XVCS1H (PA6/PO)
CUS (PA6)
PUS (PA12)
VUS (PA6)
LLPA (PA6)
LLPF (PA6)
LLPO (PO)
PACO (PA6)
PPCO (PP)
ESX (PA11)
PMAFLEX®
PMAFLEX®
MULTI-LAYER
PMA®FLEX-
PLUS (UL
LISTED) SMART LINE COFLEX EX
Nylon Flexible Conduits
Overview
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E8

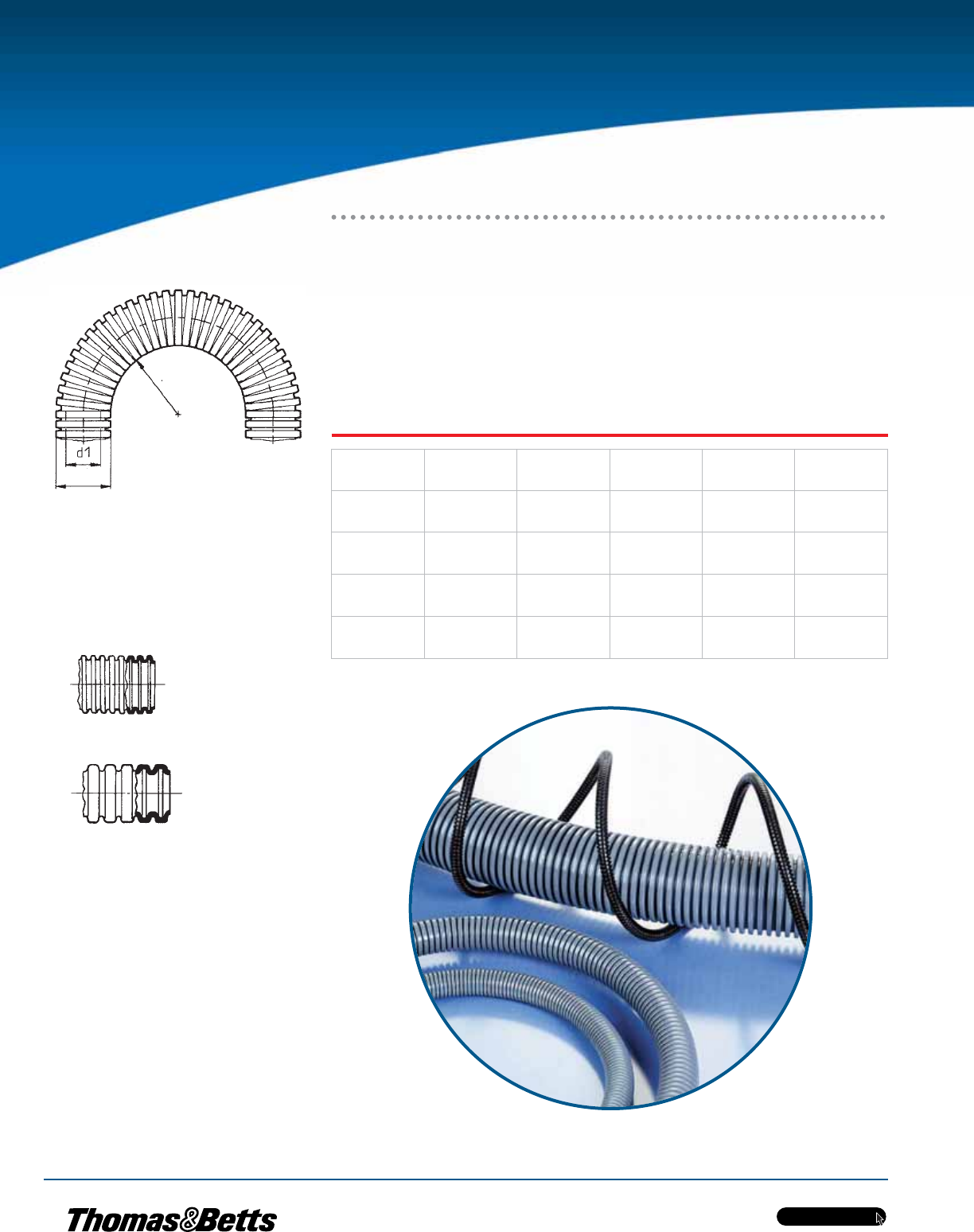

** stat. R = lowest recommended bending
radius for static (fixed)
installation.
*** dyn. R =lowest recommended bending
radius for dynamic (flexible)
installation.
Fine profile T
Tight bending
radius
Coarse profile G
High pullout
strength
D2
R
PMAFLEX®covers more than 20 diffe rent conduit types for a variety of applications in cable protection. The PMAFLEX®
range offers conduits for technically demanding applications and spe cial requi rements.
Conduit sizes range from 6 to 125 diameters, from lightweight to heavyweight, and pliable to highly flexible. Standard
colours are black and grey.
Many conduits are specially approved, e.g. CSA, UL Recognition, NF, SNCF, DB, etc.
Conduits
PMAFLEX®Conduits
X PCL T - 12 S G
MULTI-LAYER
CONDUIT TYPE PROFILE NOMINAL
WIDTH COLOUR COLOUR INNER
LAYER
T = FINE
PROFILE B = BLACK G = GREEN
D = FINE
PROFILE S = GREY B = BLUE
C = COARSE
PROFILE
XPCLT-12SG

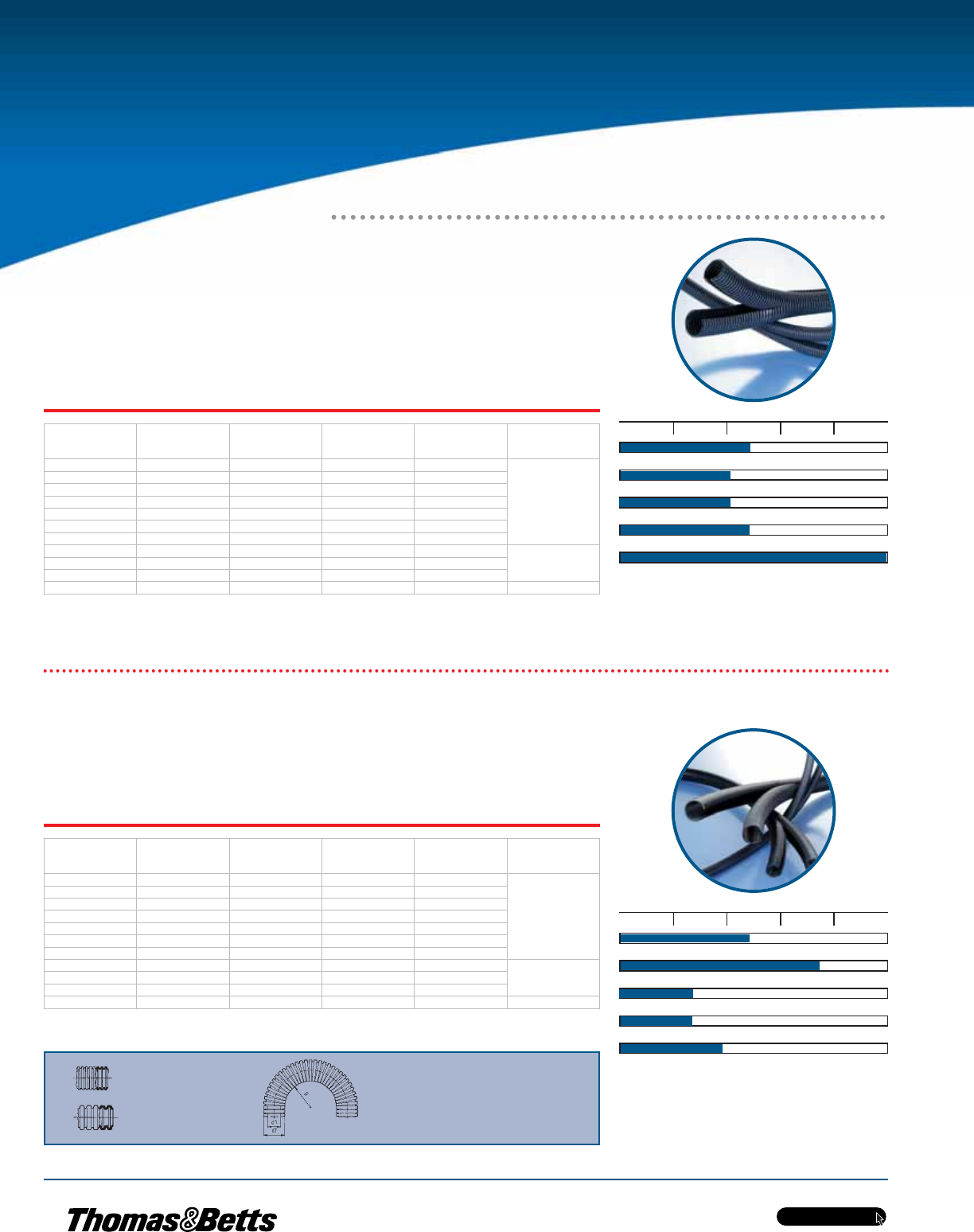

Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E9
Temperature range: -30° C to 90°C; Short term to 125° C
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius †(mm)
Product Unit
(m)
NW Metric
CYFT-07B 7 10 6.2 10.0 15
100
CYFT-10B 10 12 9.6 13.0 20
CYFT-12B 12 16 12.0 15.8 30
CYFT-17B 17 20 16.2 21.2 40
CYFHG-23B 23 25 21.4 28.5 50
50
CYFHG-29B 29 32 27.2 34.4 60
CYFHG-36B 36 40 35.8 42.4 70
CYFHG-48B 48 50 46.8 54.4 80

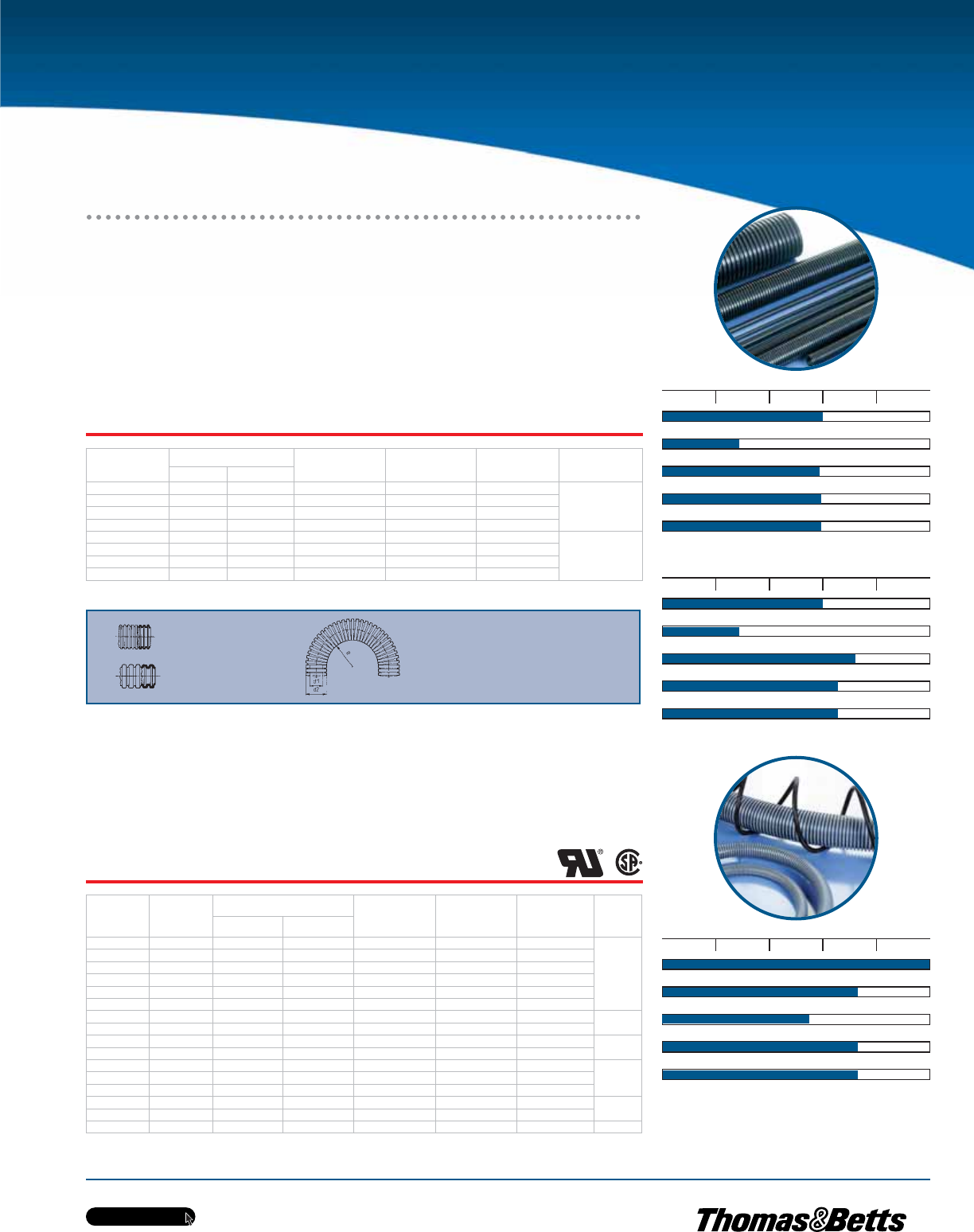

CYF Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
CYFH Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
CYL Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat.
Radius †
(mm)
Product
Unit
(m)
NW Metric
CYLT-07B CYLT-07S 7 10 6.2 10.0 15
50
CYLT-10B CYLT-10S 10 12 9.6 13.0 20
CYLT-12B* CYLT-12S* 12 16 12.0 15.8 30
CYLT-17B* CYLT-17S* 17 20 16.2 21.2 40
CYLT-23B* CYLT-23S* 23 25 22.6 28.5 45
CYLT-29B* CYLT-29S* 29 32 29.0 34.5 55
CYLT-36B* CYLT-36S* 36 40 36.5 42.5 60 30
CYLT-48B* CYLT-48S* 48 50 47.5 54.5 70
CYLG-23B* CYLG-23S* 23 25 21.9 28.5 45 50
CYLG-29B* CYLG-29S* 29 32 27.6 34.5 55
CYLG-36B* CYLG-36S* 36 40 36.0 42.5 60
30CYLG-48B* CYLG-48S* 48 50 47.0 54.5 70
CYLG-56B CYLG-56S 56 68 56.3 67.2 120
CYLG-70B CYLG-70S 70 80 68.0 80.0 160 10
CYLG-95B CYLG-95S 95 106 91.9 106.0 210
CYLG-125B CYLG-125S 125 146 126.5 146.5 450 6
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.

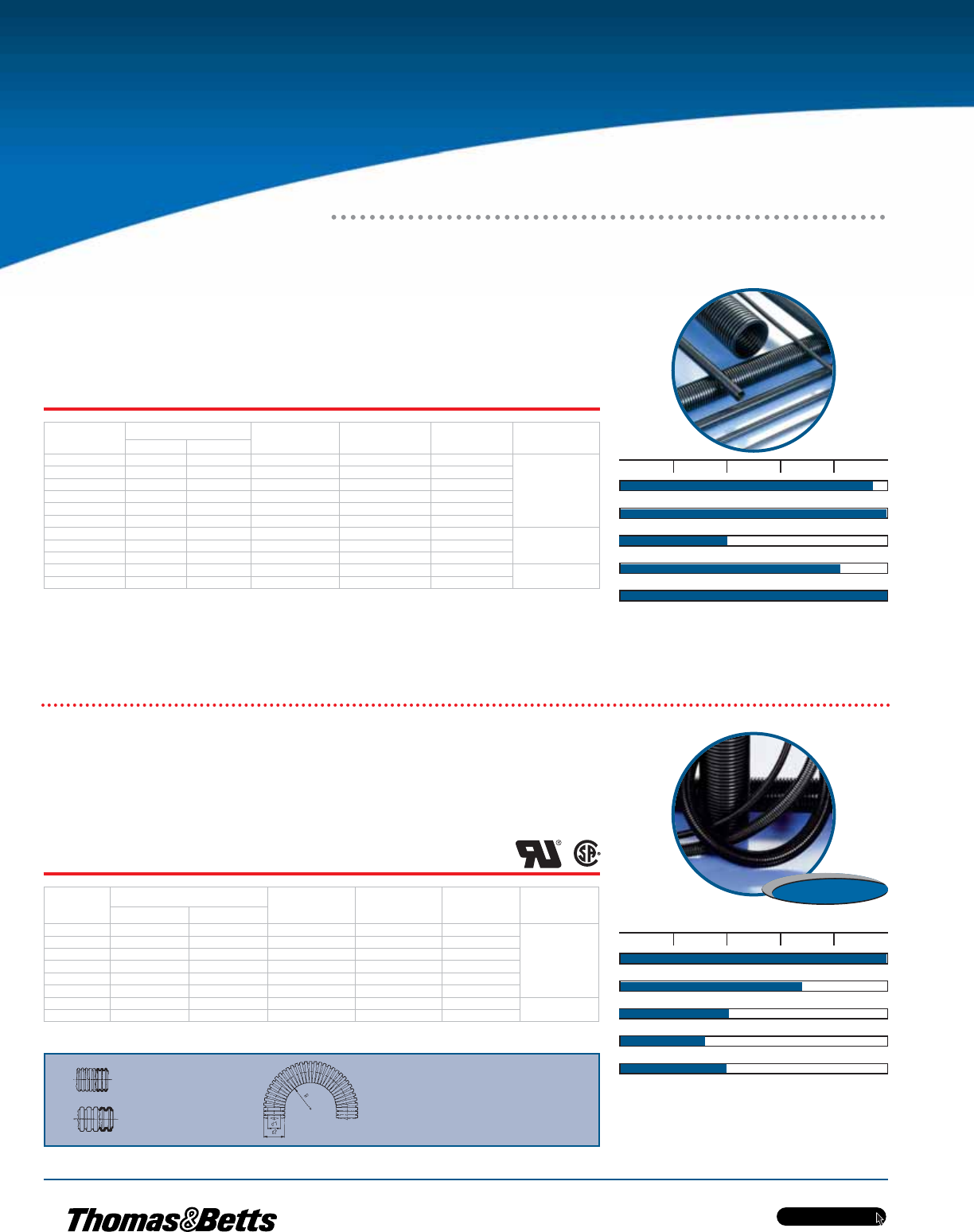

CYL Very Flexible, Medium
•Use in machine building and installation
industries
•High-grade, specially formulated polyamide 6
•Very good flexibility
•Good impact strength at low temperatures
and in dry conditions
•Self extinguishing
•Free from halogens and cadmium
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc. (see page E102-E103)
* CSA certified
For actual cat. number, add product unit at the end. Example: CYLT-07B.50
For actual cat. number, add product unit at the end. Example: CYFT-07B.100
•Use in automobile and truck industries
•High-grade, specially modified polyamide 6
•CYF: medium-wall (NW 07 to 17); CYFH:
heavy-wall (NW 23 to 48)
•Self extinguishing
•Free from halogens and cadmium
•Good impact strength at low temperatures
and in dry conditions
Conduits
CYF/CYFH Flexible, Medium/Heavy
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E10

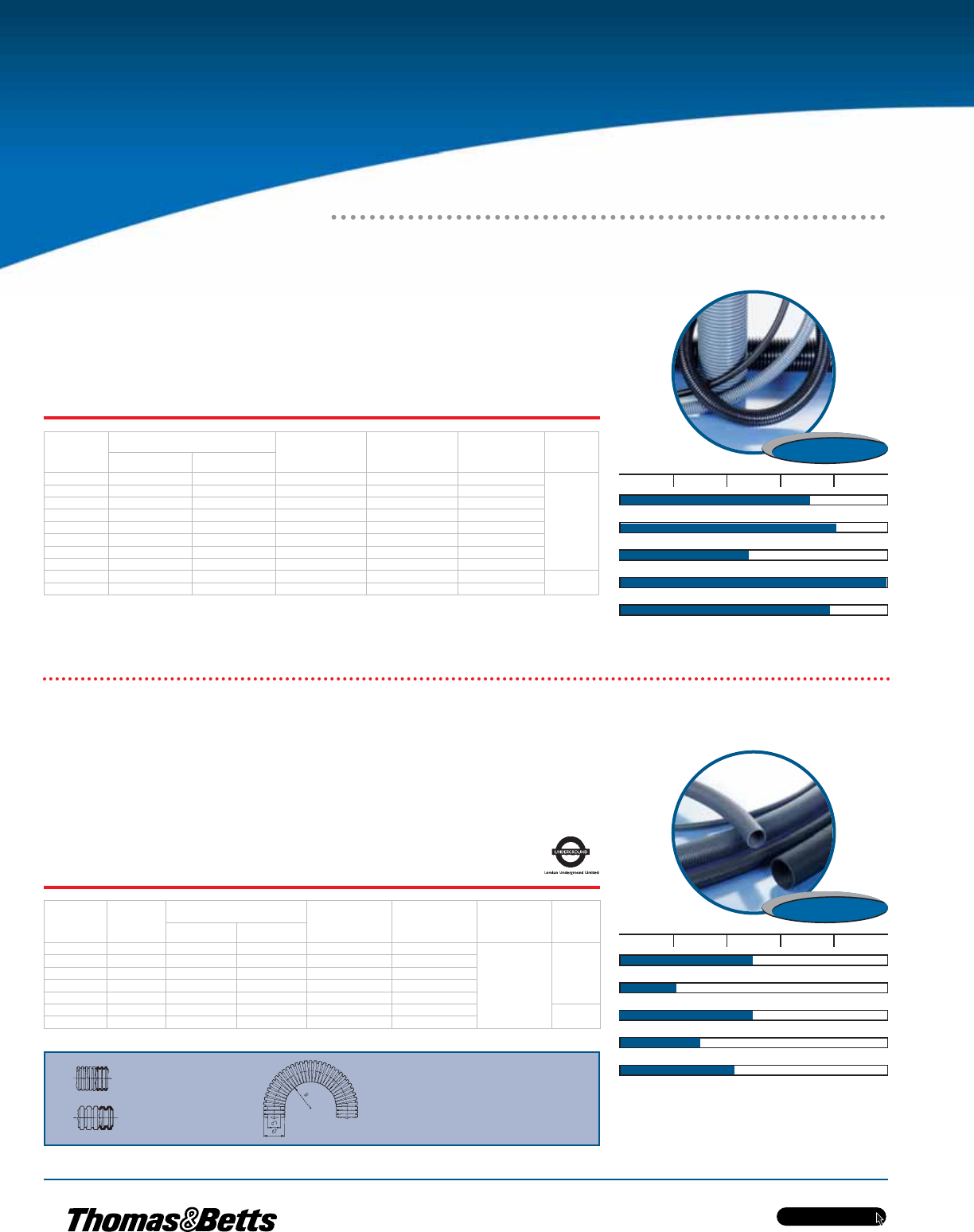

•For dynamic applications in robotics and
automation where electrostatic charge and
uncontrolled discharge need to be avoided
•High-grade, specially modified polyamide 12
•Prevents electrostatic charging
•For indoor and outdoor use (very good cold
temperature performance)
•Excellent UV resistance and high
dynamic-load resistance
•Free from halogens and cadmium
Temperature range: -40 to 90 ºC
Short term: Max. 150 ºC
Chemical Resistance: Fuels, mineral oils, fats, alkalies,
acids, etc.
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius*(mm)
Product Unit
(m)
NW Metric
ESDT-07B 07 10 6.2 10.0 15
50
ESDT-10B 10 12 9.6 13.0 20
ESDT-12B 12 16 12.0 15.8 30
ESDT-17B 17 20 16.4 21.1 40
ESDT-23B 23 25 22.6 28.4 45
ESDT-29B 29 32 29.0 34.3 55
ESDT-36B 36 40 36.5 42.5 60
30ESDT-48B 48 50 47.5 54.5 70
ESDG-56B 56 68 56.5 67.0 110
ESDG-70B 70 80 67.5 80.0 150 10
ESDG-95B 95 106 91.5 106.0 170
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius *(mm)
Product Unit
(m)
NW Metric
ESDPT-07B 7 10 6.2 10.0 15
50
ESDPT-10B 10 12 9.6 13.0 20
ESDPT-12B 12 16 12.0 15.8 30
ESDPT-17B 17 20 16.4 21.1 40
ESDPT-23B 23 25 22.6 28.4 45
ESDPT-29B 29 32 29.0 34.3 55
ESDPT-36B 36 40 36.5 42.5 60 30
ESDPT-48B 48 50 47.5 54.5 70
ESD Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
ESDP Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
For actual cat. number, add product unit at the end. Example: ESDT-07B.50
•For dynamic applications in automation,
electronics and clean rooms where
electrostatic charging and uncontrolled
discharge must be avoided
•High-grade, specially modified polyolefin
•Prevents electrostatic charging
•Minimal migration
•Very good dynamic load resistance and good
impact resistance
•Free from halogens and cadmium
ESDP Very Flexible, Medium
Continuous temperature range: -20 to 90 ºC
Chemical Resistance: Fuels, mineral oils, fats, alkalies,
strong acids, etc.
For actual cat. number, add product unit at the end. Example: ESDPT-07B.50
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
NEW!
NEW!
Conduits
ESD Very Flexible, Medium
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E11

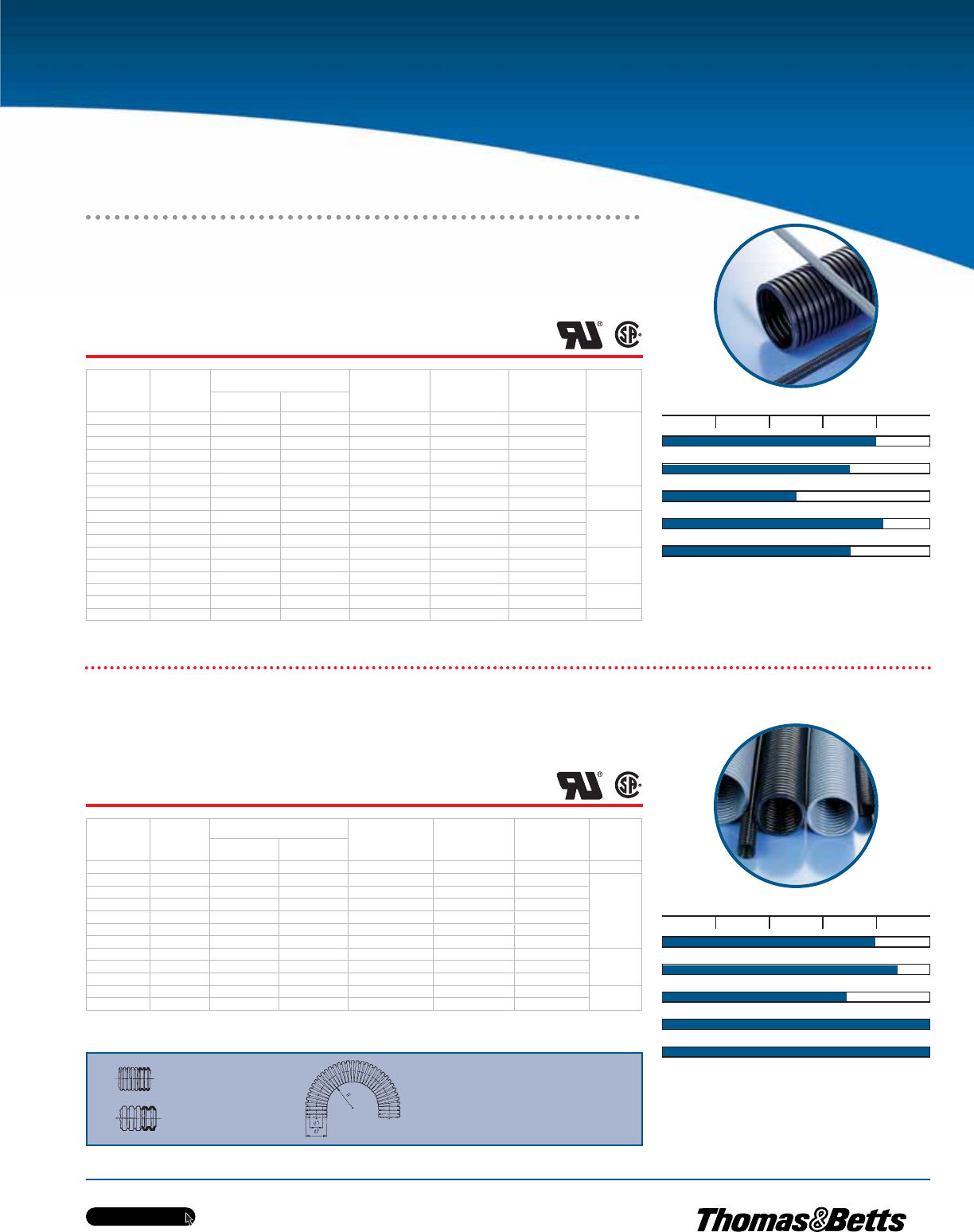

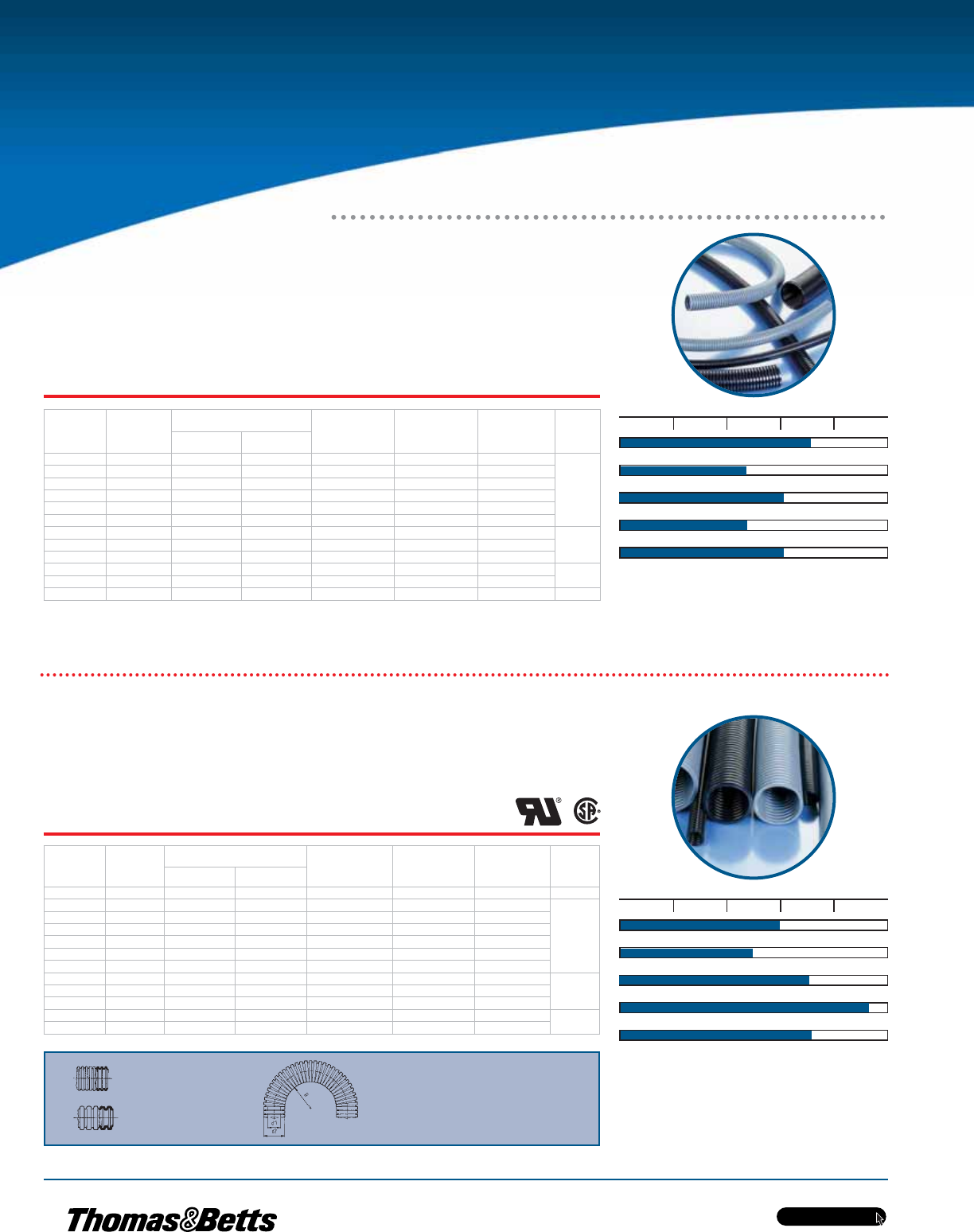

PCL Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
PSC Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
•Specially modified polyamide 6/6.6
for cold impact
•Very good flexibility
•Self extinguishing
•Free from halogens and cadmium
•Good resistance to weathering
•High-grade, specially modified polyamide 12
•Excellent resistance to ultraviolet rays and
atmospheric corrosion
•Excellent flexibility and is self extinguishing
•Good mechanical strength at low
temperatures and dry conditions
•Free from halogens and cadmium
Temperature range: -50 to 105 ºC
Short term: Max. 160 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
Temperature range: -50 to 95 ºC
Short term: Max. 150 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat.
Radius †
(mm)
Product
Unit
(m)
NW Metric
PCLT-07B PCLT-07S 7 10 6.2 10.0 15
50
PCLT-10B PCLT-10S 10 12 9.6 13.0 20
PCLT-12B* PCLT-12S 12 16 12.0 15.8 30
PCLT-17B * PCLT-17S* 17 20 16.2 21.2 40
PCLT-23B* PCLT-23S* 23 25 22.6 28.5 45
PCLT-29B* PCLT-29S* 29 32 29.0 34.5 55
PCLT-36B* PCLT-36S* 36 40 36.5 42.5 60 30
PCLT-48B* PCLT-48S* 48 50 47.5 54.5 70
PCLG-17B* PCLG-17S* 17 20 15.3 21.2 40
50PCLG-23B* PCLG-23S* 23 25 21.9 28.5 45
PCLG-29B* PCLG-29S* 29 32 27.6 34.5 55
PCLG-36B* PCLG-36S* 36 40 36.0 42.5 60
30PCLG-48B* PCLG-48S* 48 50 47.0 54.5 70
PCLG-56B PCLG-56S 56 68 56.3 67.2 130
PCLG-70B PCLG-70S 70 80 67.5 80.0 160 10
PCLG-95B PCLG-95S 95 106 91.5 106.0 210
PCLG-125B PCLG-125S 125 146 126.5 146.5 450 6
PCS Highly Flexible, Heavy
Conduits
PCL Very Flexible, Medium
*CSA certified.
For actual cat. number, add product unit at the end. Example: PCLT-07B.50
*CSA certified.
For actual cat. number, add product unit at the end. Example: PCST-07B.100
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter
(mm)
Stat.
Radius †
(mm)
Product
Unit
(m)
NW Metric
PCST-07B PCST-07S 7 10 6.0 10.0 15/40 100
PCST-10B PCST-10S 10 12 9.2 13.0 20/50
50
PCST-12B* PCST-12S* 12 16 11.8 15.8 25/70
PCST-17B* PCST-17S* 17 20 16.0 21.2 35/80
PCSG-17B* PCSG-17S* 17 20 15.2 21.2 35/85
PCSG-23B* PCSG-23S* 23 25 22.0 28.5 40/110
PCSG-29B* PCSG-29S* 29 32 27.7 34.4 50/130
PCSG-36B* PCSG-36S* 36 40 35.8 42.4 60/180
30PCSG-48B* PCSG-48S* 48 50 46.8 54.4 70/220
PCSG-56B PCSG-56S 56 68 56.1 67.2 130/280
PCSG-70B PCSG-70S 70 80 66.5 80.0 170/360 10
PCSG-95B PCSG-95S 95 106 91.0 106.0 250/470
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E12
PCSL Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
PEL Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
•Use in dynamic installations in railway
vehicules, or in external applications like solar
systems and signalling
•High-grade, specially modified polyamide 12
•Excellent resistance to ultraviolet rays and
atmospheric corrosion
•Excellent flexibility
•Good mechanical strength at low
temperatures and dry conditions
•Self-extinguishing properties
•Free from halogens and cadmium
Temperature range: -50 to 95 ºC
Short term: Max. 150 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
For actual cat. number, add product unit at the end. Example: PCSLT-07B.50
•Use in electrical cabinets and
appliance construction
•Specially modified polyethylene
•Self extinguishing
•Low stiffness
For actual cat. number, add product unit at the end. Example: PELT-10S.50
Temperature range: -50 to 60 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
acids, etc.
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius_ (mm)
Product
Unit
(m)
NW Metric
PCSLT-07B PCSLT-07S 7 10 6.2 10.0 15
50
PCSLT-10B PCSLT-10S 10 12 9.6 13.0 20
PCSLT-12B PCSLT-12S 12 16 11.9 15.8 25
PCSLT-17B PCSLT-17S 17 20 16.4 21.1 30
PCSLG-17B PCSLG-17S 17 20 15.2 21.1 30
PCSLG-23B PCSLG-23S 23 25 21.7 28.4 40
PCSLG-29B PCSLG-29S 29 32 27.4 34.3 50
PCSLG-36B PCSLG-36S 36 40 35.8 42.3 60 30
PCSLG-48B PCSLG-48S 48 50 46.7 54.2 70
Cat. No.
Black
Cat. No.
Grey
Conduit Size Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius (mm)
Product
Unit
(m)
NW Metric
PELT-10S PELT-10SL 10 12 9.7 12.7 20
50PELT-12S PELT-12SL 12 16 11.5 15.5 30
PELT-17S PELT-17SL 17 20 16.0 20.9 35
PELT-23S PELT-23SL 23 25 22.5 27.5 40
30
PELT-29S PELT-29SL 29 32 28.5 33.8 50
PELT-36S PELT-36SL 36 40 34.0 41.6 60
PELT-48S PELT-48SL 48 50 47.0 53.2 70
PEL Highly Flexible, Light/Soft
Conduits
PCSL Very Flexible, Medium-Duty
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E13
PIS/PIH Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
POS Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
•Use in dynamic applications in robotics
and automation
•High-grade, specially modified polyamide 12
•PIS: medium-wall (nominal width 07 to 48)
PIH: heavy-wall (nominal width 56 to 125)
•Excellent resistance to ultraviolet rays and
atmospheric corrosion
•Self extinguishing
•Excellent flexibility
•Free from halogens and cadmium
•Good mechanical strength at low
temperatures and dry conditions
Temperature range: -50 to 95 ºC
Short term: Max. 150 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
•Use in automation as well as in machine
building and industrial installations, especially
where continuous movements occur
•High-grade, specially modified polyolefin
•Excellent reversed bending performance
and flexibility
•Very good insulating characteristics
•Good impact resistance
•Free from halogens and cadmium
For actual cat. number, add product unit at the end. Example: POST-07B.50
Temperature range: -25 to 95 ºC
Short term: Max. 130 ºC
Chemical resistance: Strong acids
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat.
Radius †(mm)
Product
Unit
(m)
NW Metric
PIST-07B PIST-07S 7 10 6.2 10.0 15/40
50
PIST-10B PIST-10S 10 12 9.6 13.0 20/50
PIST-12B_ PIST-12S_ 12 16 11.9 15.8 25/65
PIST-17B_ PIST-17S_ 17 20 16.4 21.1 30/65
PIST-23B_ PIST-23S_ 23 25 22.6 28.4 35/90
PIST-29B_ PIST-29S_ 29 32 29.0 34.3 45/110
PIST-36B_ PIST-36S_ 36 40 36.5 42.5 60/165 30
PIST-48B_ PIST-48S_ 48 50 47.5 54.5 70/180
PISG-17B_ PISG-17S_ 17 20 15.2 21.1 30/80
50PISG-23B_ PISG-23S_ 23 25 21.7 28.4 40/100
PISG-29B_ PISG-29S_ 29 32 27.4 34.3 50/120
PISG-36B_ PISG-36S_ 36 40 35.8 42.3 60/180
30
PISG-48B_ PISG-48S_ 48 50 46.7 54.2 70/200
PIHG-56B PIHG-56S 56 68 56.3 67.2 110/270
PIHG-70B PIHG-70S 70 80 67.2 79.6 150/350
PIHG-95B PIHG-95S 95 106 91.3 106.0 170/450
PIHG-125B PIHG-125S 125 146 126.5 146.5 350/480 20
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat.
Radius †(mm)
Product
Unit
(m)
NW Metric
POST-07B POST-07S 7 10 6.2 10.0 15
50
POST-10B POST-10S 10 12 9.6 13.0 20
POST-12B POST-12S 12 16 11.9 15.8 30
POST-17B POST-17S 17 20 16.2 21.2 35
POST-23B POST-23S 23 25 22.6 28.5 40
POST-29B POST-29S 29 32 29.0 34.5 50
POST-36B POST-36S 36 40 36.5 42.5 60 30
POST-48B POST-48S 48 50 47.5 54.5 70
POSG-29B POSG-29S 29 32 27.6 34.5 50 50
POSG-36B POSG-36S 36 40 36.0 42.5 60
30
POSG-48B POSG-48S 48 50 47.0 54.5 70
POSG-70B POSG-70S 70 80 67.2 79.6 150
POSG-95B POSG-95S 95 106 91.3 106.0 170
POS Very Flexible, Medium-Duty
Conduits
PIS/PIH Highly Flexible, Medium- and Heavy-Duty
_ UL Recognized Component.
For actual cat. number, add product unit at the end. Example: PIST-07B.50

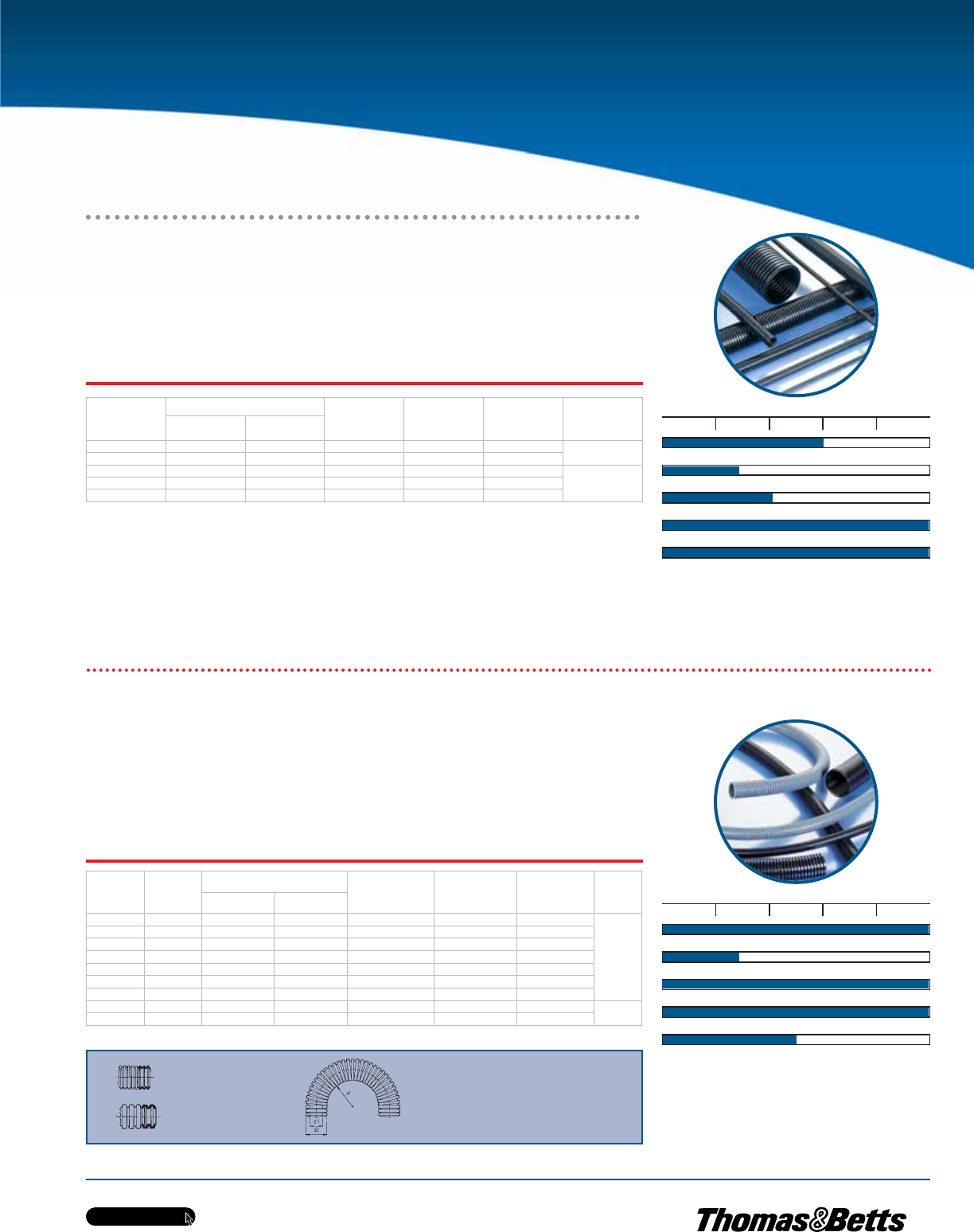

Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E14
PUE Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
PVD Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter
(mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
PUET-12B 12 16 11.8 15.8 25/45
50PUET-17B 17 20 16.0 21.2 30/50
PUET-23B 23 25 22.4 28.5 35/70
PUET-29B 29 32 28.8 34.5 40/90 30
PUET-36B 36 40 35.8 42.4 50/120
PUET-48B 48 50 48.6 54.5 60/130 21
PUEG-56B 56 68 56.3 67.2 90/170 30
PUEG-70B 70 80 68.2 80.5 100/220
•Use in dynamic applications in robotics
and automation
•Specially modified polyurethane
•Free from halogens and cadmium
•Excellent chafing properties
For actual cat. number, add product unit at the end. Example: PUET-12B.50
Temperature range: -60 to 50 ºC
Chemical resistance: Fuels, mineral oils and fats, etc.
•Use in machine building applications with
long-term high-temperature requirements
•Also used in the chemical and food industries
•Specially formulated PVDF
•Excellent chemical resistance to high
temperatures over the long term
•Self extinguishing
•Free from halogens and cadmium
•Excellent UV resistance and very good
abrasion resistance
•High stiffness
Temperature range: -60 to 150 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
strong acids, etc.
For actual cat. number, add product unit at the end. Example: PVDT-10P.50
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
PVDT-10P 10 12 9.5 12.6 10
50
PVDT-12P 12 16 11.8 15.5 30
PVDT-17P 17 20 16.0 20.8 40
PVDT-23P 23 25 22.6 28.0 45
PVDT-29P 29 32 29.0 34.1 50
PVD Pliable, Medium
Conduits
PUE Highly Flexible, Medium
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E15
TEC Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
VAM Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Cat. No.
Black
Conduit Size Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
TECT-10B 10 12 9.9 13.0 9 50
TECT-13B 13 — 12.5 16.0 12
TECT-17B 17 20 16.8 21.1 15
25TECT-23B 23 25 23.8 28.8 26
TECT-29B 29 32 28.2 33.0 30
•Use in chemical installations or applications
with increased temperature requirements
•Specially formulated PFA
•Very good resistance to extreme low and high
temperatures
•Self extinguishing
•Excellent resistance to highly corrosive
chemicals
For actual cat. number, add product unit at the end. Example: TECT-10B.50
Temperature range: --200 to 200 ºC
Short term: Max. 260 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
strong acids, etc.
•In passenger areas of railway vehicles
•Excellent fire safety characteristics allow
application in public buildings like hospitals,
hotels, airports, train and subway
•High-grade, specially formulated polyamide 6
•Good resistance to ultraviolet rays and
weathering
•High impact and compression strength
•High stiffness
•Free from halogens and cadmium
•Outstanding self-extinguishing characteristics
•Minimal development of smoke and gases
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
For actual cat. number, add product unit at the end. Example: VAMT-07B.50
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
VAMT-07B VAMT-07S 7 10 6.0 10.0 20
50
VAMT-10B VAMT-10S 10 12 9.2 13.0 25
VAMT-12B VAMT-12S 12 16 11.8 15.8 30
VAMT-17B VAMT-17S 17 20 16.0 21.2 40
VAMG-17B VAMG-17S 17 20 15.2 21.2 40
VAMG-23B VAMG-23S 23 25 22.0 28.5 50
VAMG-29B VAMG-29S 29 32 27.7 34.4 60
VAMG-36B VAMG-36S 36 40 35.8 42.4 70 30
VAMG-48B VAMG-48S 48 50 46.8 54.4 80
VAM Flexible, Heavy
Conduits
TEC Flexible, Light-Duty
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E16

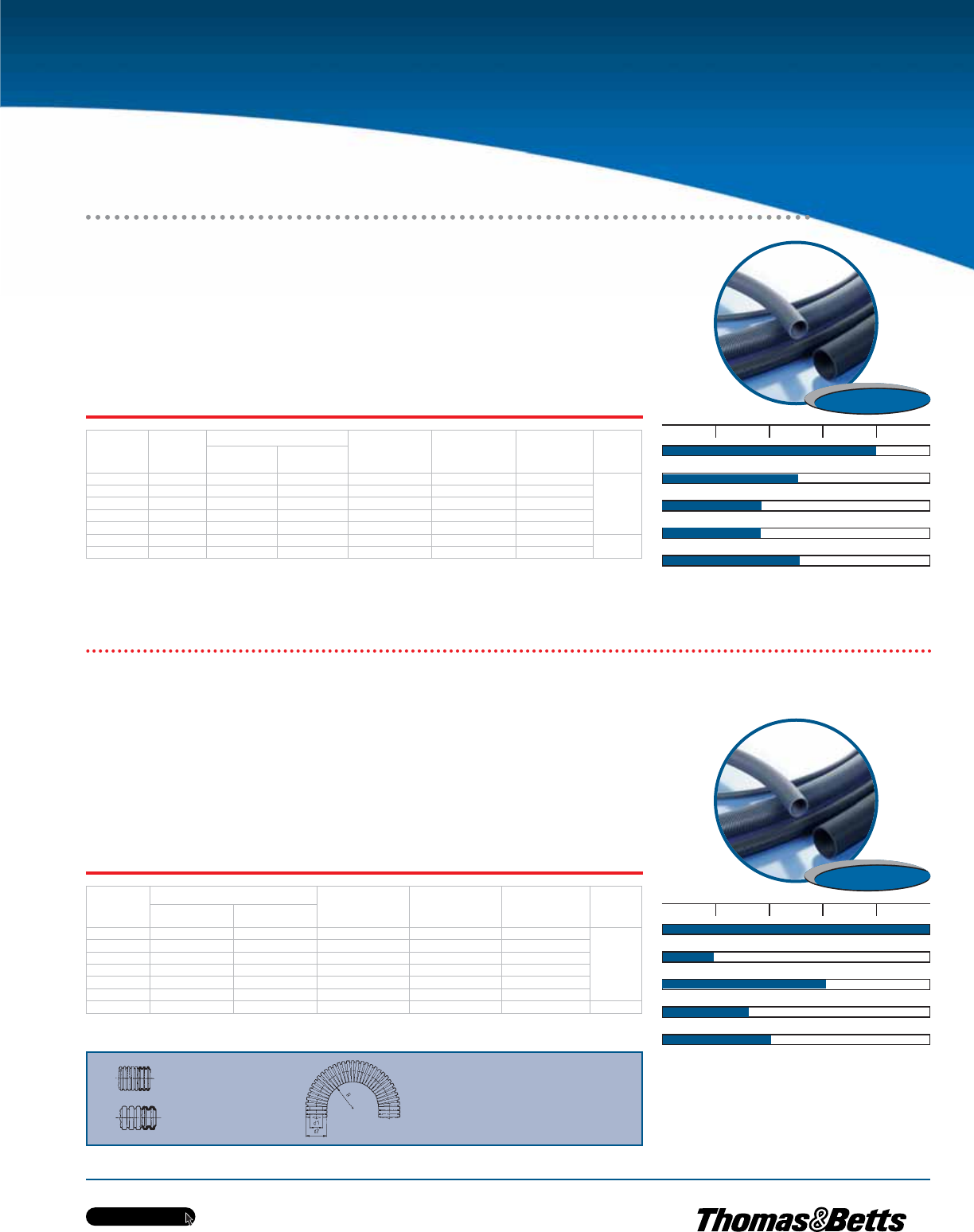

VAML Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
VCS Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
•Use in passenger areas of railway vehicles
•Excellent fire safety characteristics for
public buildings
•Specially modified polyamide 6
•Good impact strength
•Good resistance to ultraviolet rays
and weathering
•Outstanding self-extinguishing characteristics
•Minimal development of smoke and gases
•Free from halogens and cadmium
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
For actual cat. number, add product unit at the end. Example: VAMLT-07B.50
VCS Flexible, Heavy
•Use in external applications, static
installations in railway vehicles
•High-grade, specially formulated
polyamide 6
•Very good resistance to ultraviolet rays
and weathering
•Good flexibility
•Self extinguishing
•High compression and impact strengths
at low temperature and low humidity
•Free from halogens and
cadmium
Temperature range: -50 to 105 ºC
Short term: Max. 160 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
For actual cat. number, add product unit at the end. Example: VCST-07B.100
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
VAMLT-07B VAMLT-07S 7 10 6.2 10.0 15
50
VAMLT-10B VAMLT-10S 10 12 9.6 13.0 20
VAMLT-12B VAMLT-12S 12 16 12.0 15.8 30
VAMLG-17B VAMLG-17S 17 20 15.3 21.2 40
VAMLG-23B VAMLG-23S 23 25 22.6 28.5 45
VAMLG-29B VAMLG-29S 29 32 27.6 34.5 55
VAMLG-36B VAMLG-36S 36 40 36.0 42.5 65
30
VAMLG-48B VAMLG-48S 48 50 47.0 54.5 75
VAMLG-56B VAMLG-56S 56 68 56.3 67.2 140
VAMLG-70B VAMLG-70S 70 80 67.5 80.0 160 10
VAMLG-95B VAMLG-95S 95 106 91.5 106.0 210
VAMLG-125B VAMLG-125S 125 148 126.0 146.5 450 6
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
VCST-07B VCST-07S 7 10 6.0 10.0 20 100
VCST-10B VCST-10S 10 12 9.2 13.0 25
50
VCST-12B* VCST-12S* 12 16 11.8 15.8 30
VCST-17B* VCST-17S* 17 20 16.0 21.2 40
VCSG-17B* VCSG-17S* 17 20 15.2 21.2 40
VCSG-23B* VCSG-23S* 23 25 22.0 28.5 50
VCSG-29B* VCSG-29S* 29 32 27.7 34.4 60
VCSG-36B* VCSG-36S* 36 40 35.8 42.4 70
30
VCSG-48B* VCSG-48S* 48 50 46.8 54.4 80
VCSG-56B VCSG-56S 56 68 56.1 67.2 150
VCSG-70B VCSG-70S 70 80 66.5 80.0 200 10
VCSG-95B VCSG-95S 95 106 91.0 106.0 300
Conduits
VAML Flexible, Medium
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E17

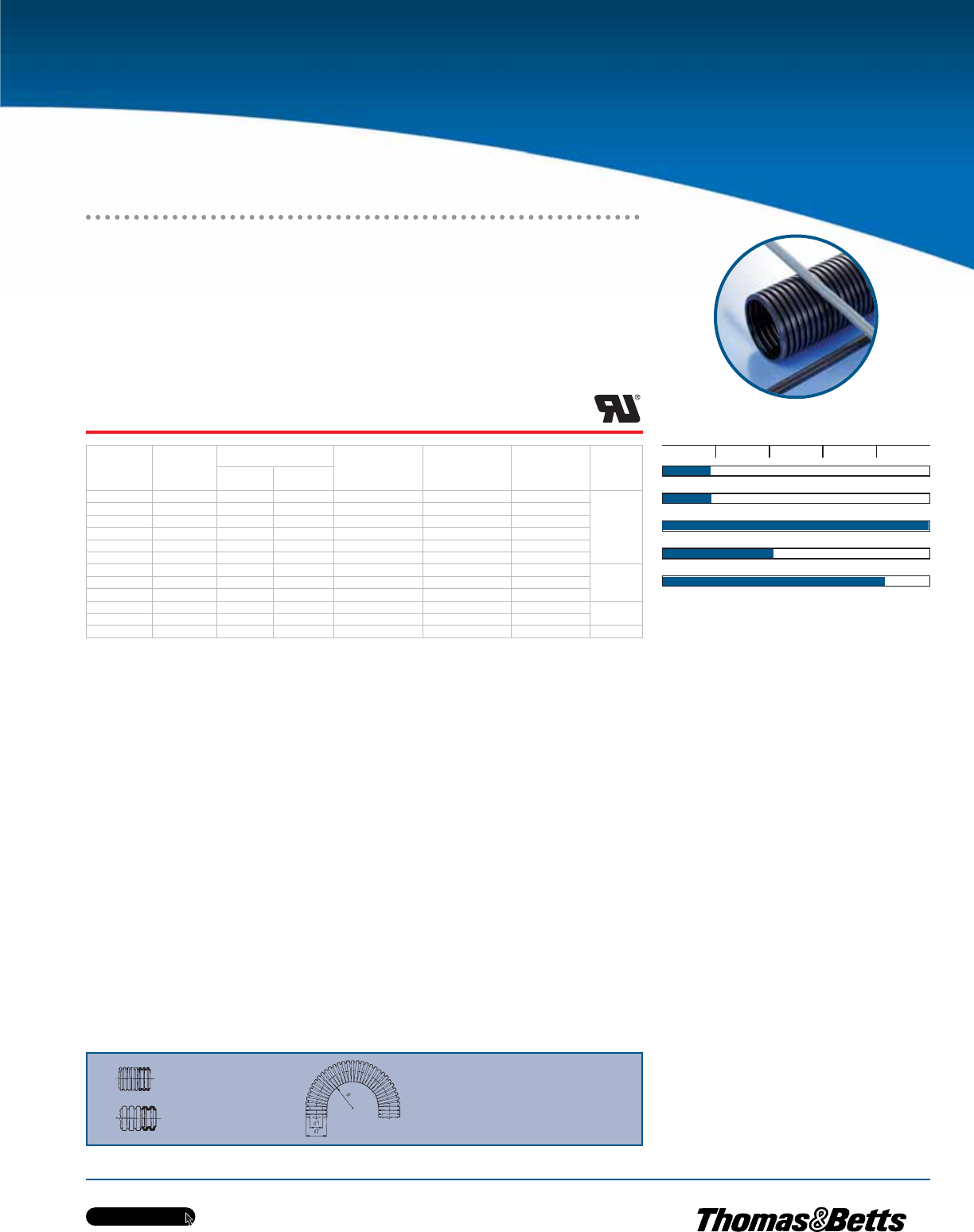

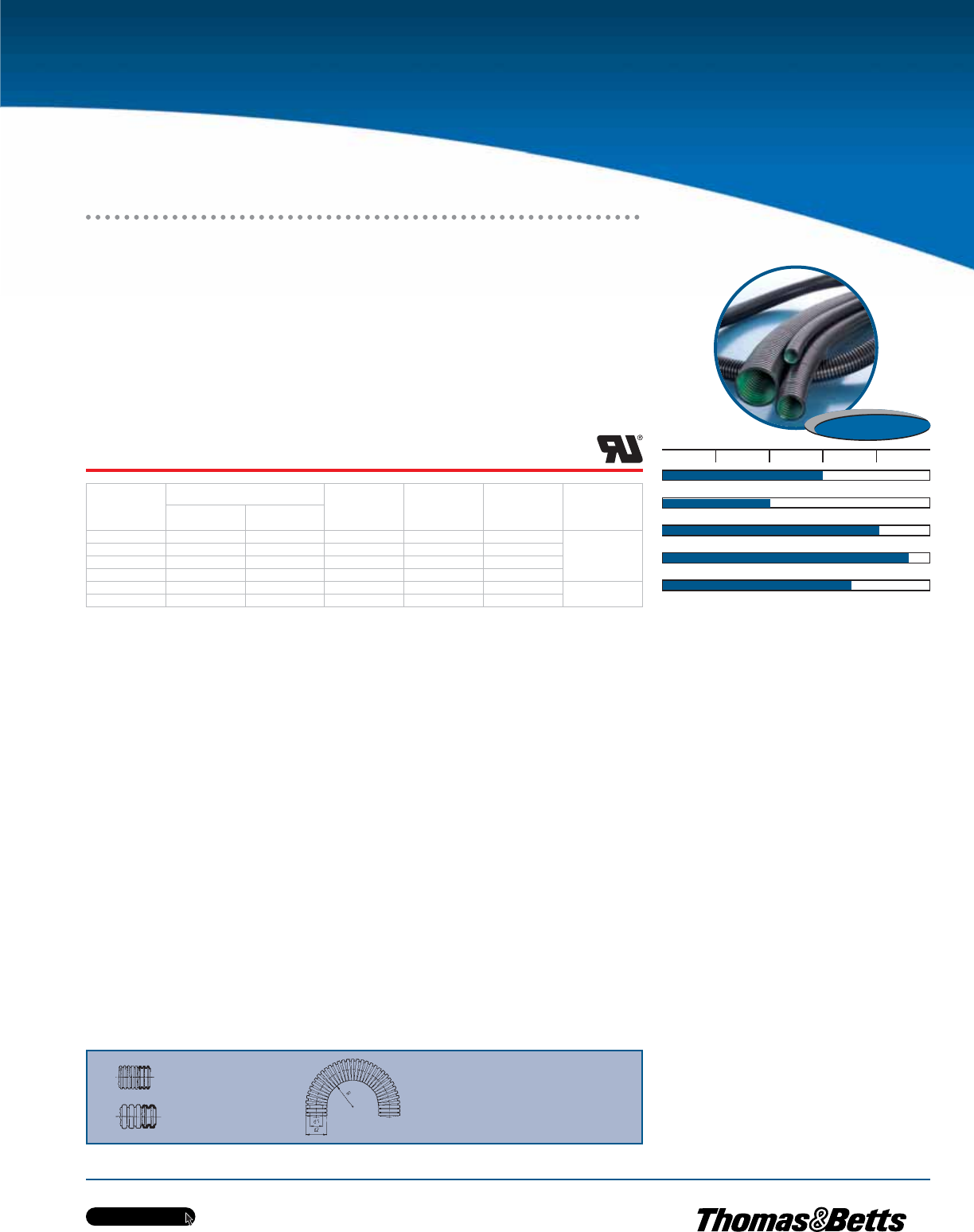

VOH Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
•Use to make exterior connections
on heavy machine equipment
•High-grade specially modified polyamide 6
•High degree of mechanical protection and
outstanding pullout resistance
•For exterior applications in machinery and
installations from nominal width 17 according
to UL standards
•Self extinguishing
•Robust construction
•Free from halogens and cadmium
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
For actual cat. number, add product unit at the end. Example: VOHD-07B.50
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
VOHD-07B VOHD-07S 7 10 5.8 10.0 30
50
VOHD-10B VOHD-10S 10 12 9.0 13.0 35
VOHD-12B VOHD-12S 12 16 11.6 15.8 40
VOHG-17B VOHG-17S 17 20 14.5 21.0 60
VOHG-23B VOHG-23S 23 25 21.1 28.5 70
VOHG-29B VOHG-29S 29 32 26.6 34.5 80
VOHG-36B VOHG-36S 36 40 35.0 42.5 90
30
VOHG-48B VOHG-48S 48 50 46.5 54.5 100
VOHG-56B VOHG-56S 56 68 55.5 67.2 135
VOHG-70B VOHG-70S 70 80 67.0 80.0 200 10
VOHG-95B VOHG-95S 95 106 90.5 106.0 300
VOHG-125B VOHG-125S 125 146 126.0 146.5 300 6
Conduits
VOH Pliable, Very Heavy
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E18

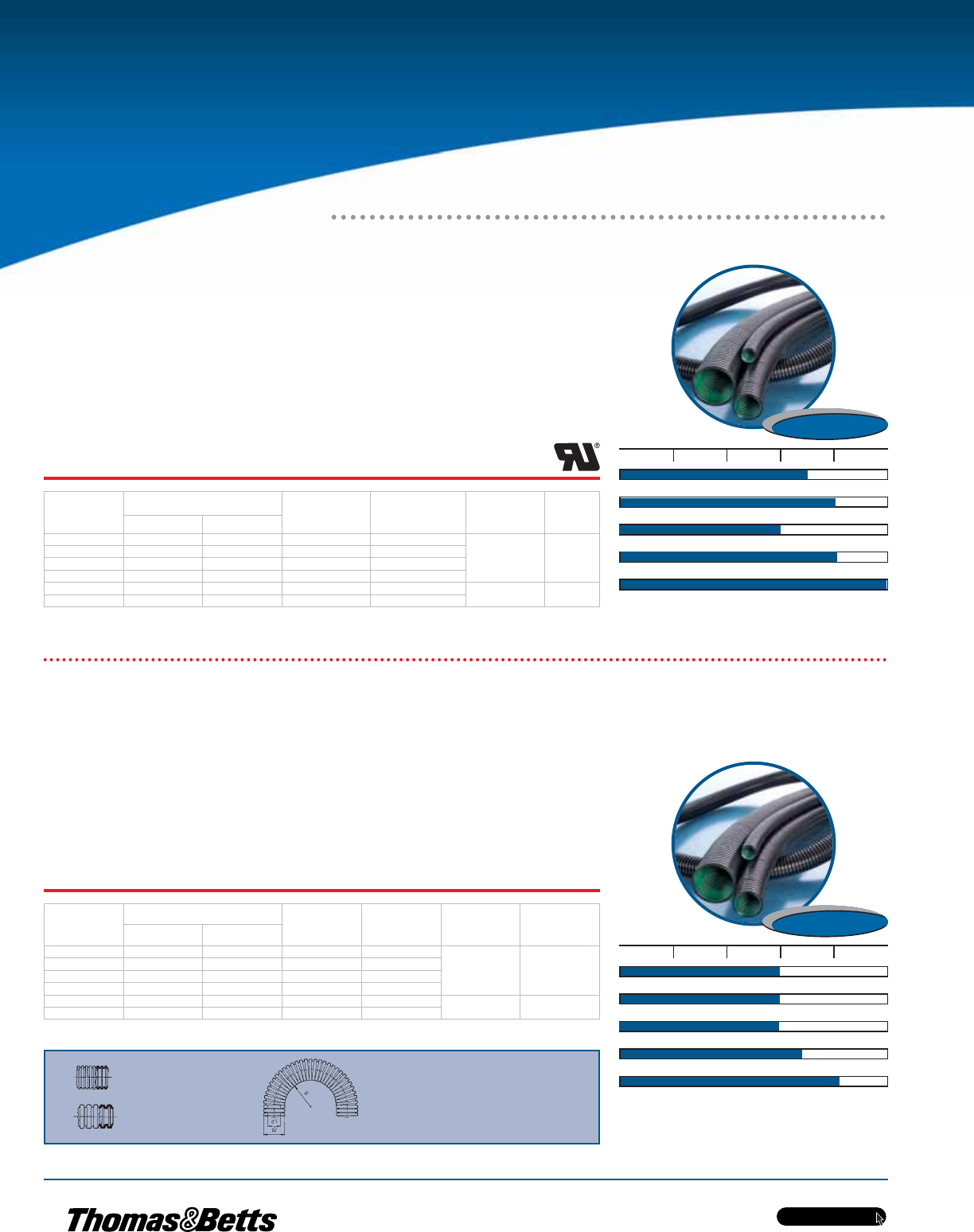

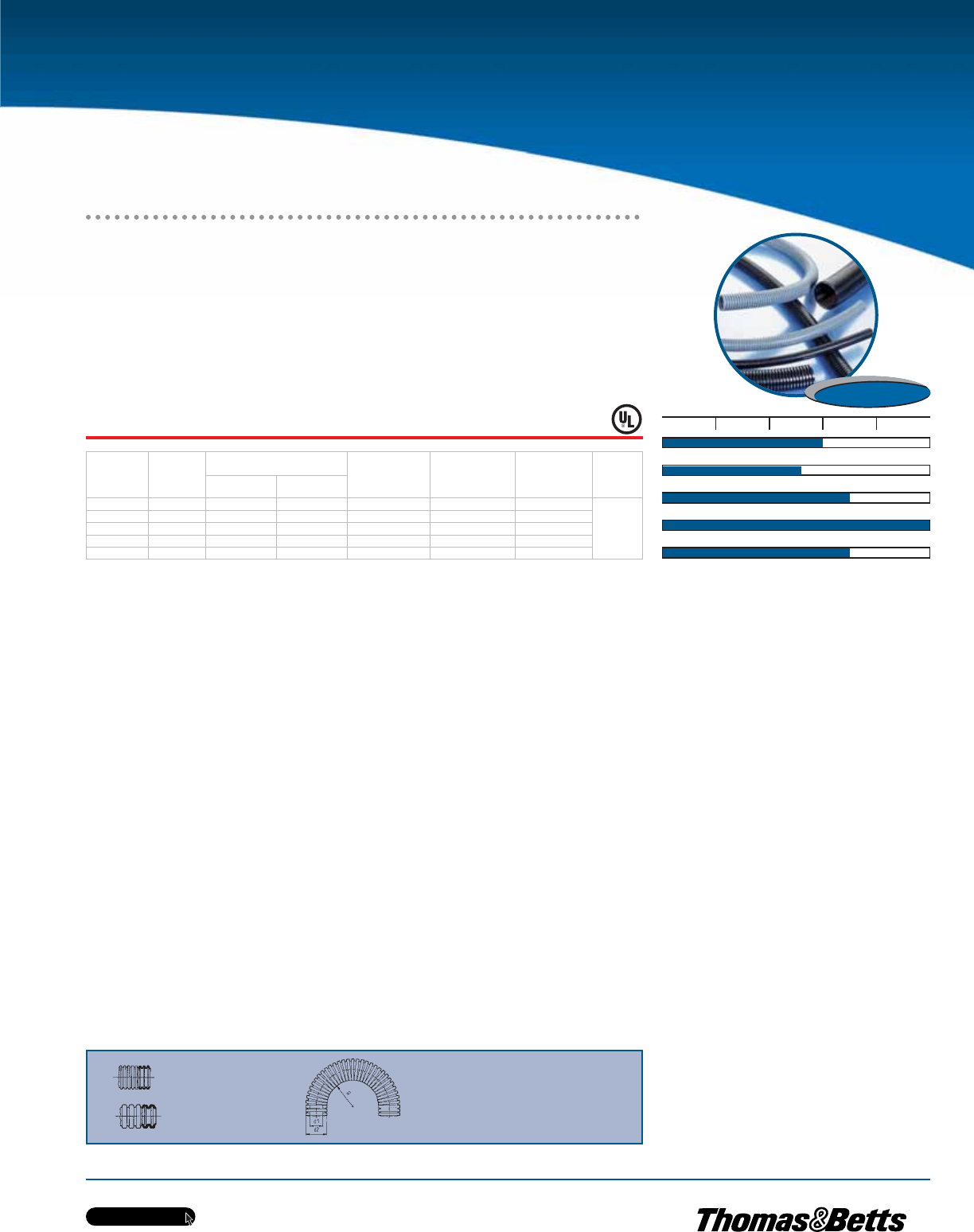

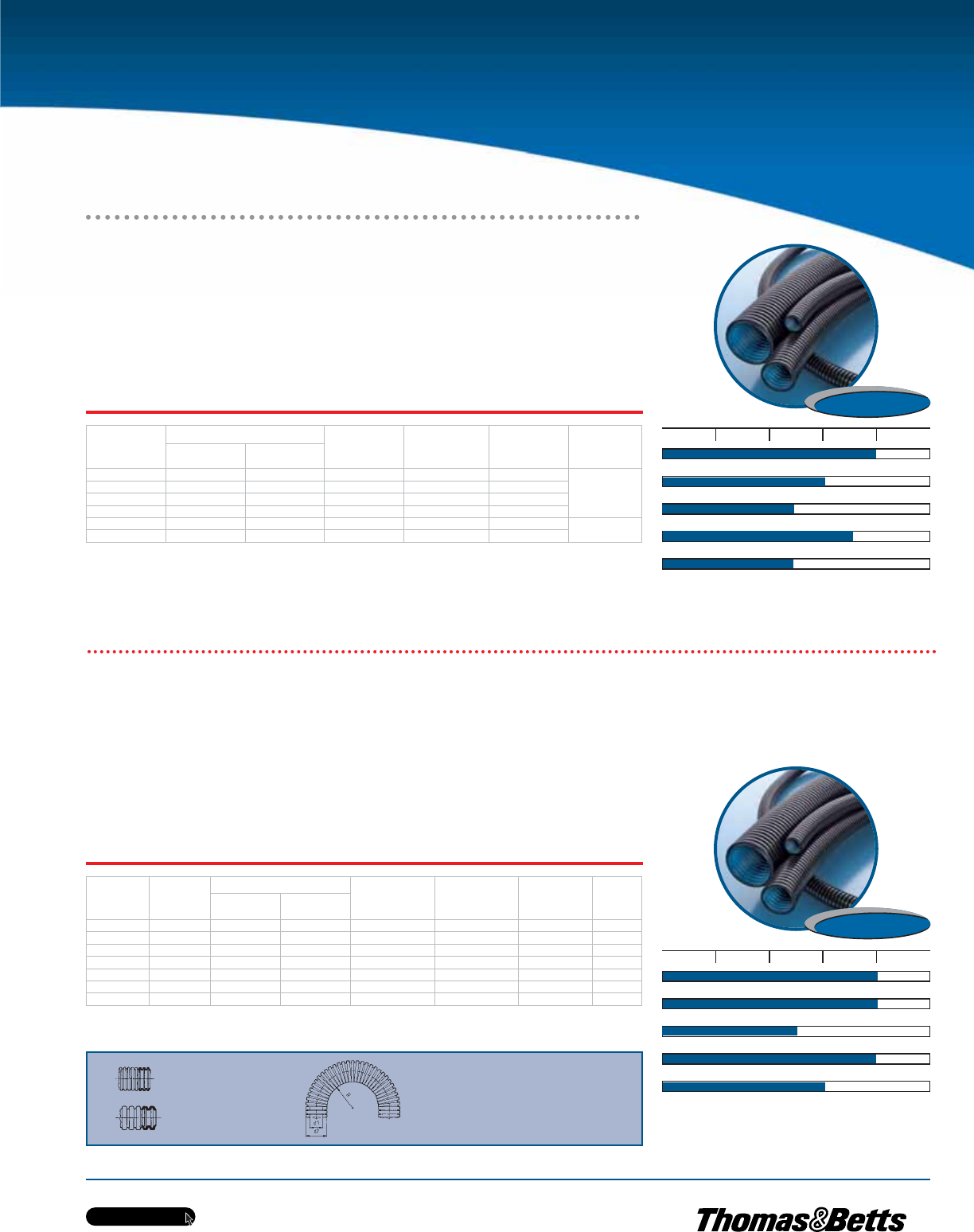

PHT Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
PLU Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat./DYN
Radius (mm)
Product
Unit
(m)
NW Metric
PHTT-07B 07 10 6.2 10.0 15/40
50
PHTT-10B 10 12 9.6 13.0 20/55
PHTT-12B 12 16 12.0 15.8 30/65
PHTT-17B 17 20 16.2 21.2 40/70
PHTT-23B 23 25 22.6 28.5 45/95
PHTG-17B 17 20 15.2 21.2 40/75
PHTG-23B 23 25 22.0 28.5 45/100
PHTG-29B 29 32 27.7 34.5 55/120
PHTG-36B 36 40 35.8 42.5 60/180 30
PHTG-48B 48 50 46.8 54.5 70/200
•For applications at high and very low
temperatures
•For dynamic applications
•High-grade, specially formulated polyamide
elastomer
•High resistance to ultraviolet rays and
atmospheric corrosion
•Excellent flexibility and high compression
strength
•Extremely good impact resistance at very low
temperatures
•Enhanced temperature range compared to
standard polyamides
•Free from halogens and cadmium
Temperature range: -50 to 135 ºC
Short term: Max. 180 ºC
For actual cat. number, add product unit at the end. Example: PHTT-07B.50
PLU Flexible, Medium-Duty, Semi-Rigid,
for Static Applications
•For static applications with the highest
fire safety performance requirements
(e.g. London Underground)
•Specially modified polyolefin
•Self-extinguishing properties
•Very good insulating characteristics
•Very good flexibility
•Impact resistance
•Free from halogens and cadmium
Temperature range: -25 to 95 ºC
Chemical resistance: Strong acids and alkalies
For actual cat. number, add product unit at the end. Example: PLUT-10B.50
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
PLUT-10B PLUT-10S 10 9.5 13.0 20
50
50
PLUT-12B PLUT-12S 12 11.8 15.8 30
PLUG-17B PLUG-17S 17 15.3 21.2 40
PLUG-23B PLUG-23S 23 22.2 28.5 45
PLUG-29B PLUG-29S 29 28.7 34.5 55
PLUG-36B PLUG-36S 36 36.3 42.5 65 30
PLUG-48B PLUG-48S 48 47.3 54.5 70
NEW!
NEW!
NEW!
NEW!
Conduits
PHT Highly Flexible, Medium/Heavy-Duty
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E19

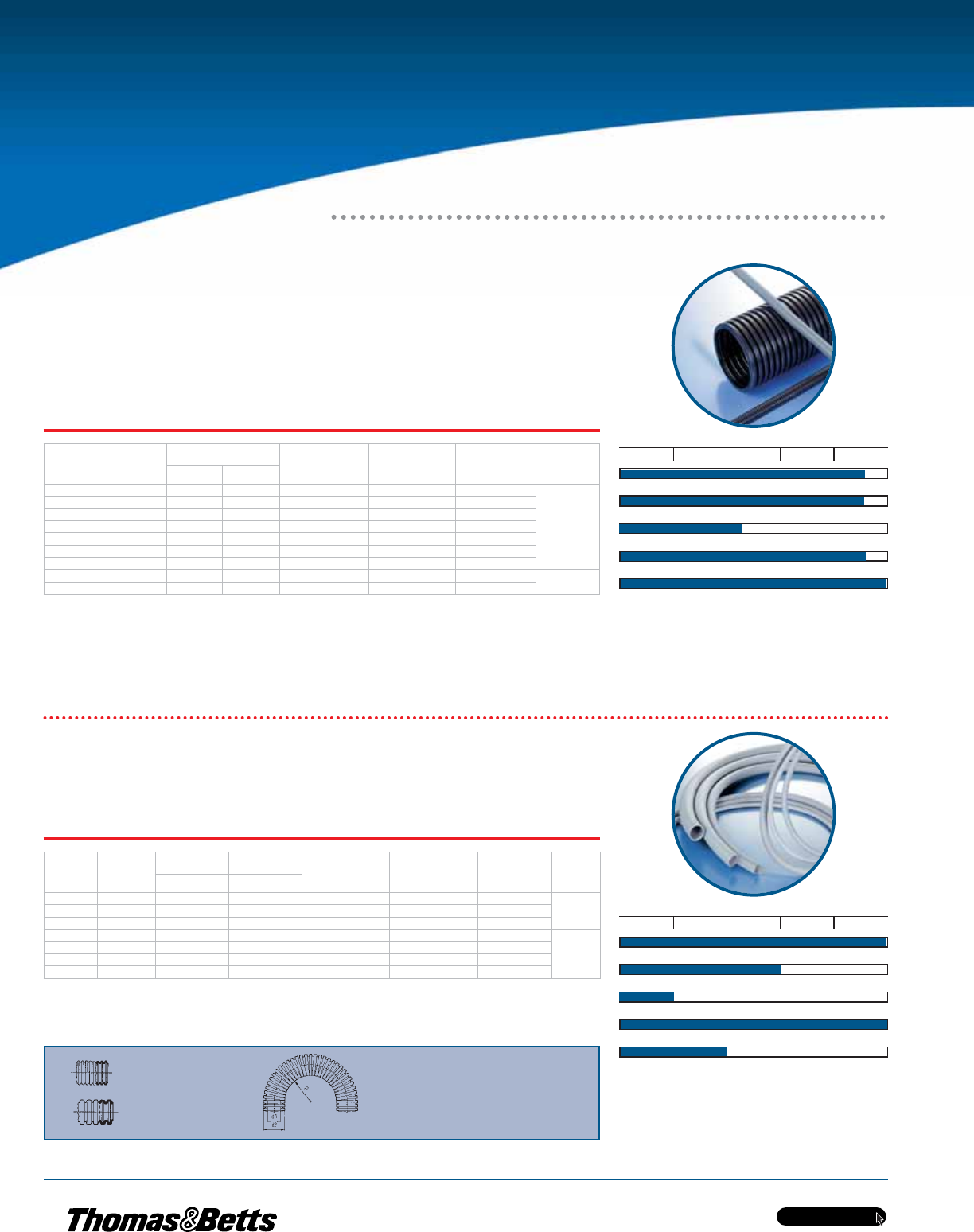

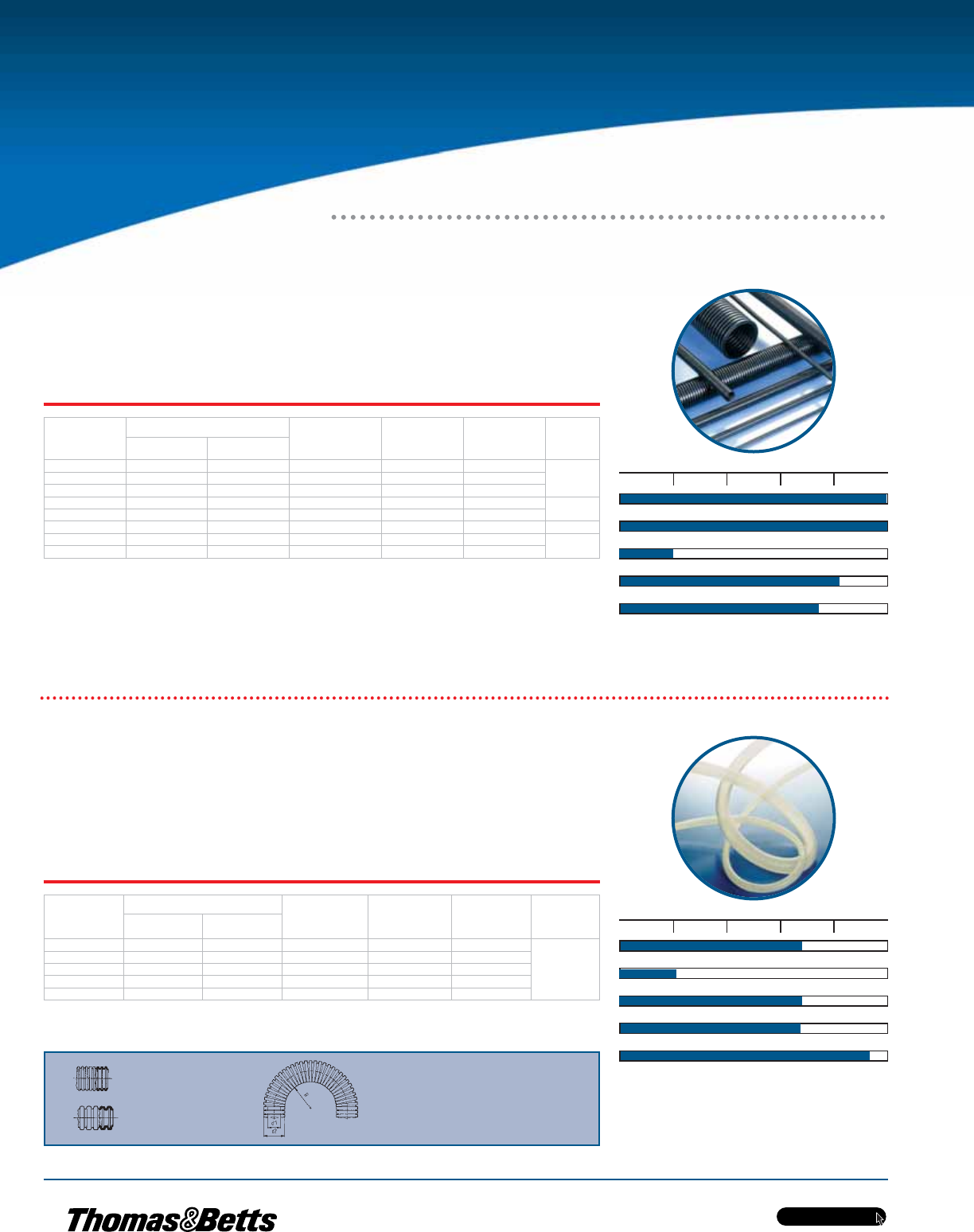

POH Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
PSX Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
PSXT-10B 10 12 9.8 13.0 20
50
PSXT-12B 12 16 12.2 15.8 30
PSXG-17B 17 20 15.8 21.2 40
PSXG-23B 23 25 22.3 28.5 45
PSXG-29B 29 32 28.0 34.5 55
PSXG-36B 36 40 36.5 42.5 60
PSXG-48B 48 50 47.5 54.5 70 30
•For applications with the highest fire safety
performance requirements
•Specially modified polyolefin
•Excellent fire safety characteristics
•Self extinguishing
•Free from halogens and cadmium
•High ductility and formability enable
easy installation
•Very good flexibility
•Very good insulating characteristics
•Impact resistance
Temperature range: -25 to 95 ºC
Short term: Max. 120 ºC
Chemical resistance: Strong acids and alkalies

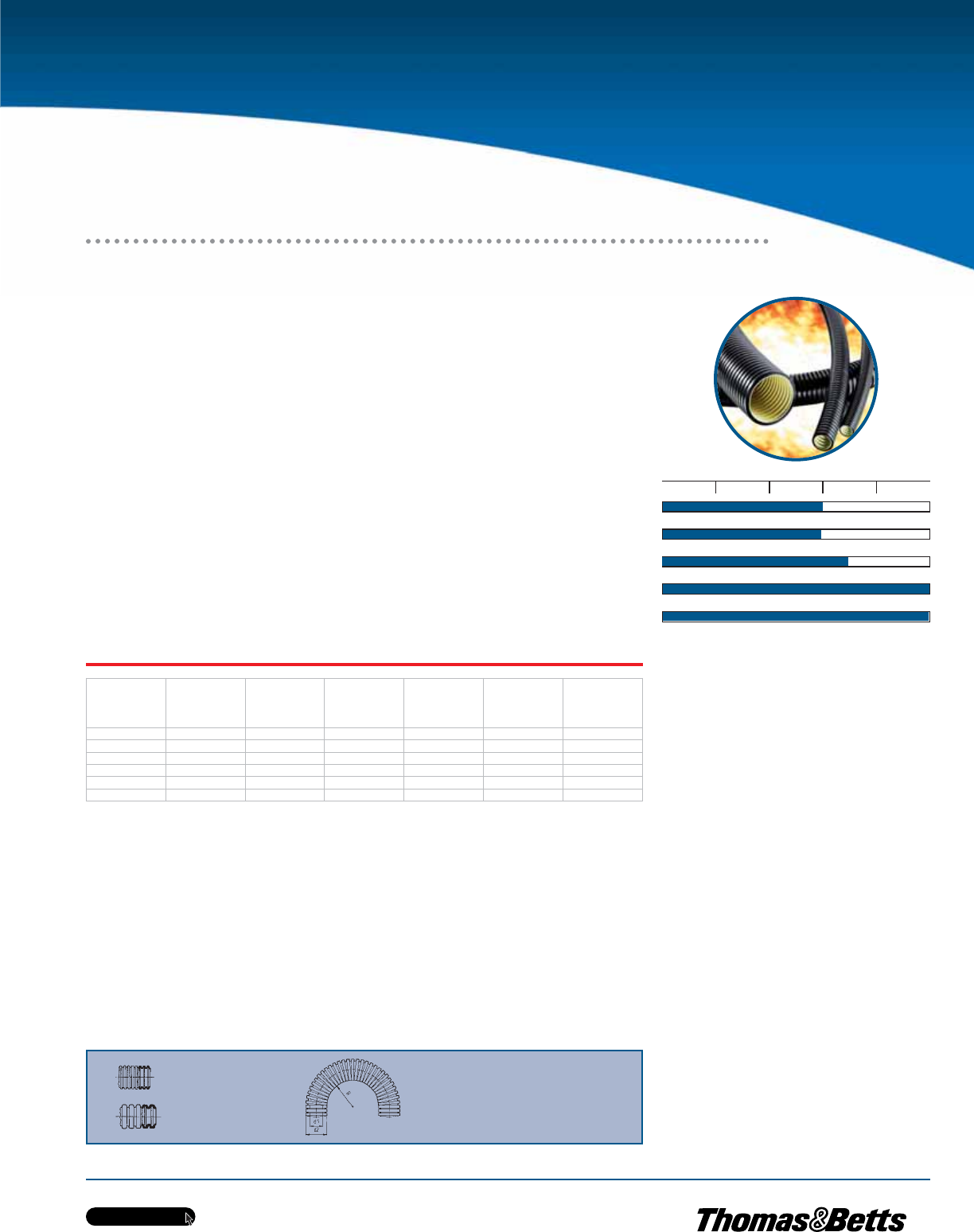

For actual cat. number, add product unit at the end. Example: POHT-10B.50
PSX Flexible, Light-Wall
•For applications with the highest fire safety
performance requirements
•For applications with extreme
temperature conditions
•For applications exposed to radiation
•Specially modified polyetherimide
•Excellent fire safety characteristics
•Self extinguishing
•Very good insulating characteristics
•High radiation resistance
•Good flexibility
•Impact resistant
•Low smoke density and toxicity
•Free from halogens and cadmium
•High impact strength also at low
temperatures
Temperature range: -100 to 170 ºC
Short term: Max. 200 ºC
Chemical resistance: Oils, fats, acids, alcohols and
hot water
For actual cat. number, add product unit at the end. Example: PSXT-10B.50
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
POHT-10B POHT-10S 10 12 9.2 13.0 13.0
50
POHT-12B POHT-12S 12 16 11.8 15.8 15.8
POHG-17B POHG-17S 17 20 15.7 21.2 21.2
POHG-23B POHG-23S 23 25 22.0 28.5 28.5
POHG-29B POHG-29S 29 32 27.4 34.4 34.4
POHG-36B POHG-36S 36 40 35.8 42.4 42.4 30
POHG-48B POHG-48S 48 50 46.8 54.5 54.5
NEW!
NEW!
NEW!
NEW!
Conduits
POH Very Flexible, Very Supple, Very High Stability,
Medium-Duty, Highest Levels of Fire and Passenger Safety
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E20

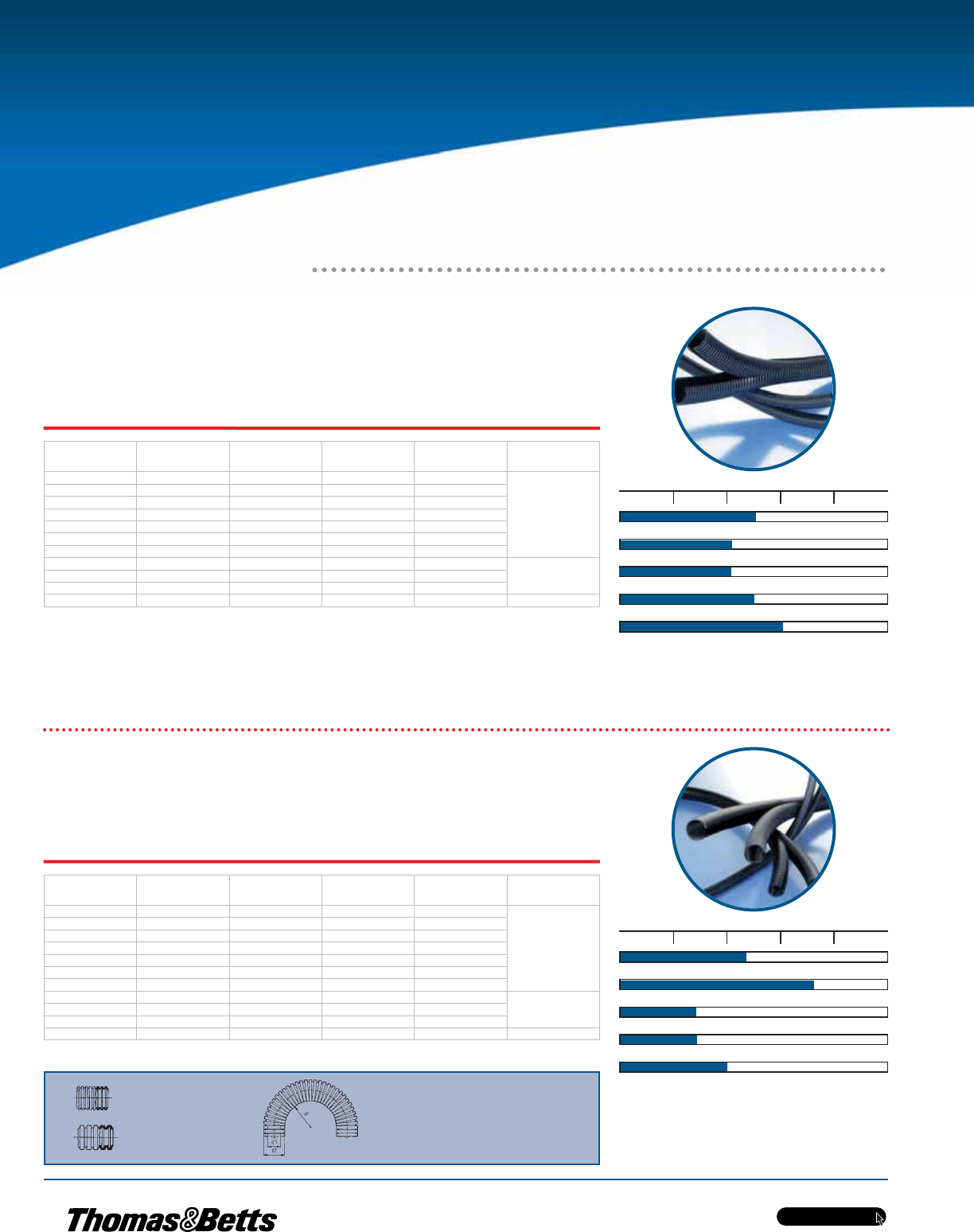

PACO Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
PPCO Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Cat. No.
Black
Conduit Size
NW
Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product Unit
(m)
PACO-07B 07 6.5 10.1 45
50
PACO-10B 10 8.8 13.5 55
PACO-12B 12 11.3 16.3 60
PACO-14B 14 13.2 18.7 75
PACO-17B 17 16.5 21.8 90
PACO-20B 20 20.2 25.7 105
PACO-23B 23 23.9 31.3 125
PACO-29B 29 27.8 35.9 150
25
PACO-37B 37 32.5 41.9 170
PACO-45B 45 43.0 54.2 200
PACO-70B 70 66.5 79.8 300 10
Cat. No.
Black
Conduit Size
NW
Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product Unit
(m)
PPCO-07B 07 6.3 10.0 60
50
PPCO-10B 10 8.4 13.4 70
PPCO-12B 12 11.0 16.1 80
PPCO-14B 14 12.5 18.5 95
PPCO-17B 17 16.0 21.5 110
PPCO-20B 20 19.2 25.3 130
PPCO-23B 23 23.4 30.8 155
PPCO-29B 29 27.3 35.5 180
25
PPCO-37B 37 31.0 41.4 190
PPCO-45B 45 42.7 54.0 205
PPCO-70B 70 66.0 79.5 300 10
•Use in machine building and plant
construction
•Specially modified polyamide 6
•Easy installation and trouble-free
retrofitting, applicable also for repairs
•Can be opened and closed again
in longitudinal direction any time
•Self extinguishing
•Free from halogens and cadmium
For actual cat. number, add product unit at the end. Example: PACO-07B.50 Temperature range: -40 to 100 ºC
Short term: Max. 150 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.

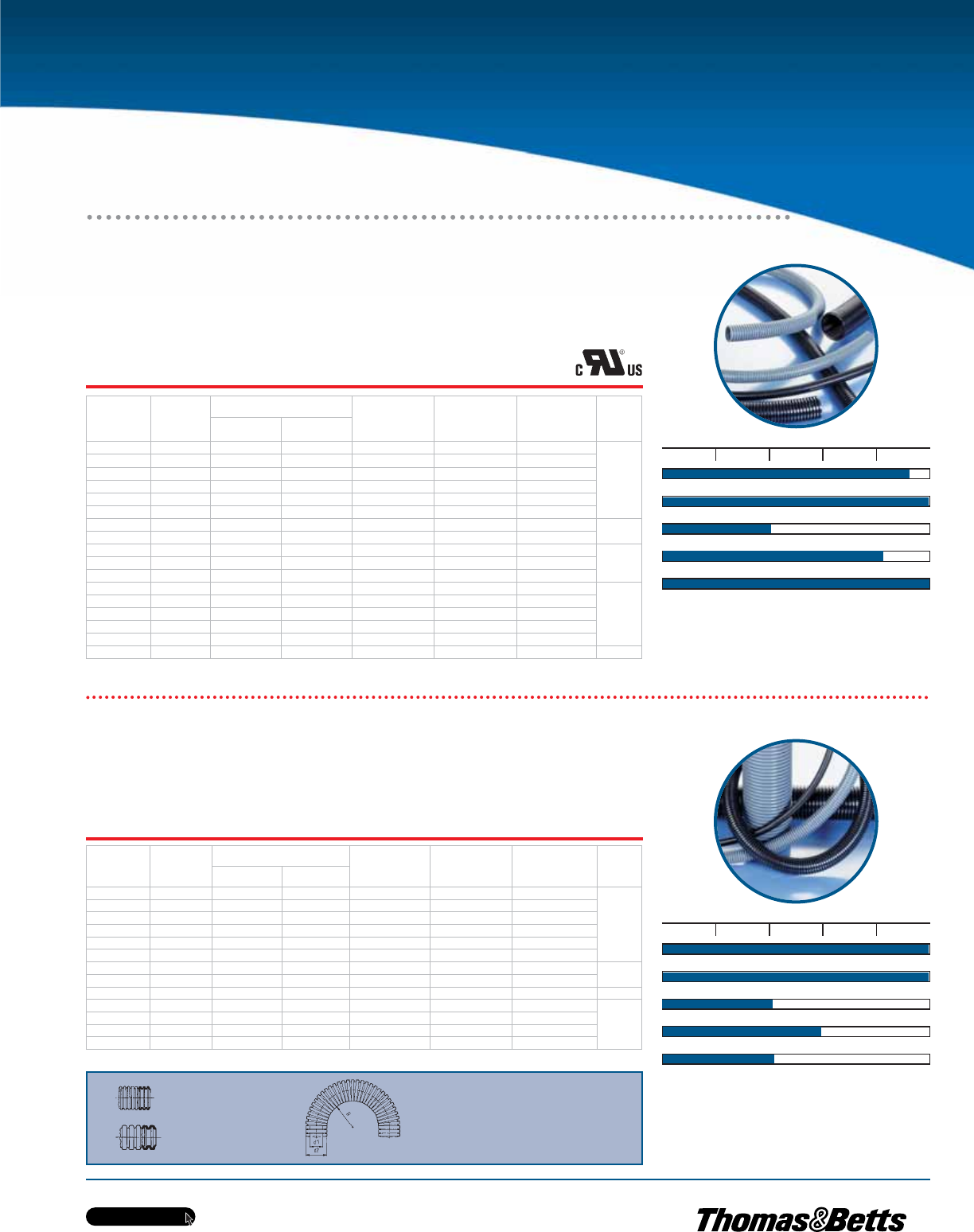

PPCO Flexible, Divisible
•Use in machine building and plant
construction
•Specially modified polypropylene PP
•Easy installation and trouble-free
retrofitting, applicable also for repairs
•Can be opened and closed again
in longitudinal direction any time
For actual cat. number, add product unit at the end. Example: PPCO-07B.50
Temperature range: -20 to 95 ºC
Short term: Max. 120 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
Conduits
PACO Flexible, Divisible
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E21
XCYL Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
XPCL Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
XCYLT-12BB 12 16 11.7 15.5 30
50
XCYLT-17BB 17 20 15.2 21.0 40
XCYLT-23BB 23 25 21.7 28.4 50
XCYLT-29BB 29 32 27.5 34.3 60
XCYLT-36BB 36 40 35.8 42.2 70 30
XCYLT-48BB 48 50 46.8 54.3 80
•Use in machine building and equipment
•Outer layer: high-grade, specially formulated
polyamide 6
•Inner layer: specially modified polyolefin
•Very long lifetime — more than 20 years
•Excellent cold temperature performance
•Low-friction inner layer facilitates cable
insertion
•Very good resistance to ultraviolet rays
and atmospheric corrosion
•Very good mechanical strength while
simultaneously highly flexible
•Impermeable to water and steam
For actual cat. number, add product unit at the end. Example: XCYLT-12BB.50
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
XPCL Highly Flexible, Medium-Duty
•Use in machine building and equipment with
high requirements
•Outer layer: high-grade, specially formulated
polyamide 6
•Intermediate layer: special bonding compound
•Inner layer: specially modified polyolefin
•Self extinguishing
•Very long lifetime, 15–20 years for standard
applications
•Easy cable inseration, low-friction inner layer
•Impermeable to water and steam
•Excellent flexibility
•Good mechanical strength even at low
temperatures and low humidity
Temperature range: -50 to 105 ºC
Short term: Max. 160 ºC
For actual cat. number, add product unit at the end. Example: XPCLT-12BB.50
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
XPCLT-12BB XPCLT-12SB 12 16 11.8 15.6 30 50
XPCLT-17BB XPCLT-17SB 17 20 16.6 21.0 40 50
XPCLG-17BB XPCLG-17SB 17 20 15.6 20.9 40 50
XPCLG-23BB XPCLG-23SB 23 25 21.9 28.5 45 50
XPCLG-29BB XPCLG-29SB 29 32 27.6 34.5 55 50
XPCLG-36BB XPCLG-36SB 36 40 36.0 42.5 60 30
XPCLG-48BB XPCLG-48SB 48 50 47.0 54.5 70 30
NEW!
NEW!
NEW!
NEW!
Conduits
XCYL Very Flexible, Medium-Duty
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E22
XSOL Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
XSOLL Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
XSOLT-12BG 12 16 11.8 15.6
50 50
XSOLG-17BG 17 20 15.2 21.0
XSOLG-23BG 23 25 22.0 28.5
XSOLG-29BG 29 32 27.5 34.5
XSOLG-36BG 36 40 35.8 42.5 30 30
XSOLG-48BG 48 50 46.8 54.5
Cat. No.
Black
Conduit Size Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat.
Radius* (mm)
Product Unit
(m)
NW Metric
XSOLLT-12BG 12 16 11.8 15.8
50 50
XSOLLG-17BG 17 20 15.2 21.2
XSOLLG-23BG 23 25 22.0 28.5
XSOLLG-29BG 29 32 27.7 34.4
XSOLLG-36BG 36 40 35.8 42.4 30 30
XSOLLG-48BG 48 50 46.8 54.4
•All-purpose, especially in long-term external
applications, e.g. energy technology,
transportation
•Outer layer: high-grade, specially formulated
polyamide 12
•Intermediate layer: special bonding compound
•Inner layer: high-grade, specially modified
polyamide 6
•Very long lifetime, up to 20–30 years
•Very high flexibility
•Very good mechanical strength
•High impact resistance at low temperature
and humidity
•Excellent fire safety characteristics
•Excellent chemical resistance
•Free from halogens and cadmium
For actual cat. number, add product unit at the end. Example: XSOLT-12BG.50 Temperature range: -50 to 95 ºC
Short term: Max. 150 ºC
XSOLL Highly Flexible, Medium-Duty
•All-purpose, especially in long-term external
applications, e.g. energy technology, trans-
portation, etc.
•Outer layer: high-grade, specially formulated
polyamide 12
•Intermediate layer: special bonding compound
•Inner layer: high-grade, specially modified
polyamide 6
•Very long lifetime — greater than 20 years
•Very good resistance to UV and weathering
•High flexibility and very good mechanical
strength
•High impact resistance at low temperature
and humidity
•Good fire safety characteristics
•Excellent chemical resistance
•Free from halogens and cadmium
For actual cat. number, add product unit at the end. Example: XSOLLT-12BG.50
Temperature range: -40 to 95 ºC
Short term: Max. 150 ºC
NEW!
NEW!
NEW!
NEW!
Conduits
XSOL Highly Flexible, Medium-Duty
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E23
XVCS1H Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Cat. No.
Black
Conduit Size Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
XVCS1H-12BG† 12 16 11.7 15.5 30
50
XVCS1H-17BG 17 20 15.2 21.0 40
XVCS1H-23BG 23 25 21.7 28.4 50
XVCS1H-29BG 29 32 27.5 34.3 60
XVCS1H-36BG 36 40 35.8 42.2 70 30
XVCS1H-48BG 48 50 46.8 54.3 80
•Use in track side applications
•Outer layer: high-grade, specially formulated
polyamide 6
•Inner layer: specially modified polyolefin
•High conduit ductility and formability enable
easy installation
•Very long lifetime — greater than 20 years
•Excellent cold temperature performance
•Low friction inner layer facilitates cable
insertion
•Very good resistance to ultraviolet rays
and atmospheric corrosion
•Very good mechanical strength while
simultaneously highly flexible
•Impermeable to water and steam
† XVCS1H-12BG is not a UL Recognized Component.
For actual cat. number, add product unit at the end. Example: XVCS1H-12BG.50 Temperature range: -50 to 90 ºC
Short term: Max. 120 ºC
NEW!
NEW!
Conduits
XVCS1H Flexible, Heavy-Duty
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E24

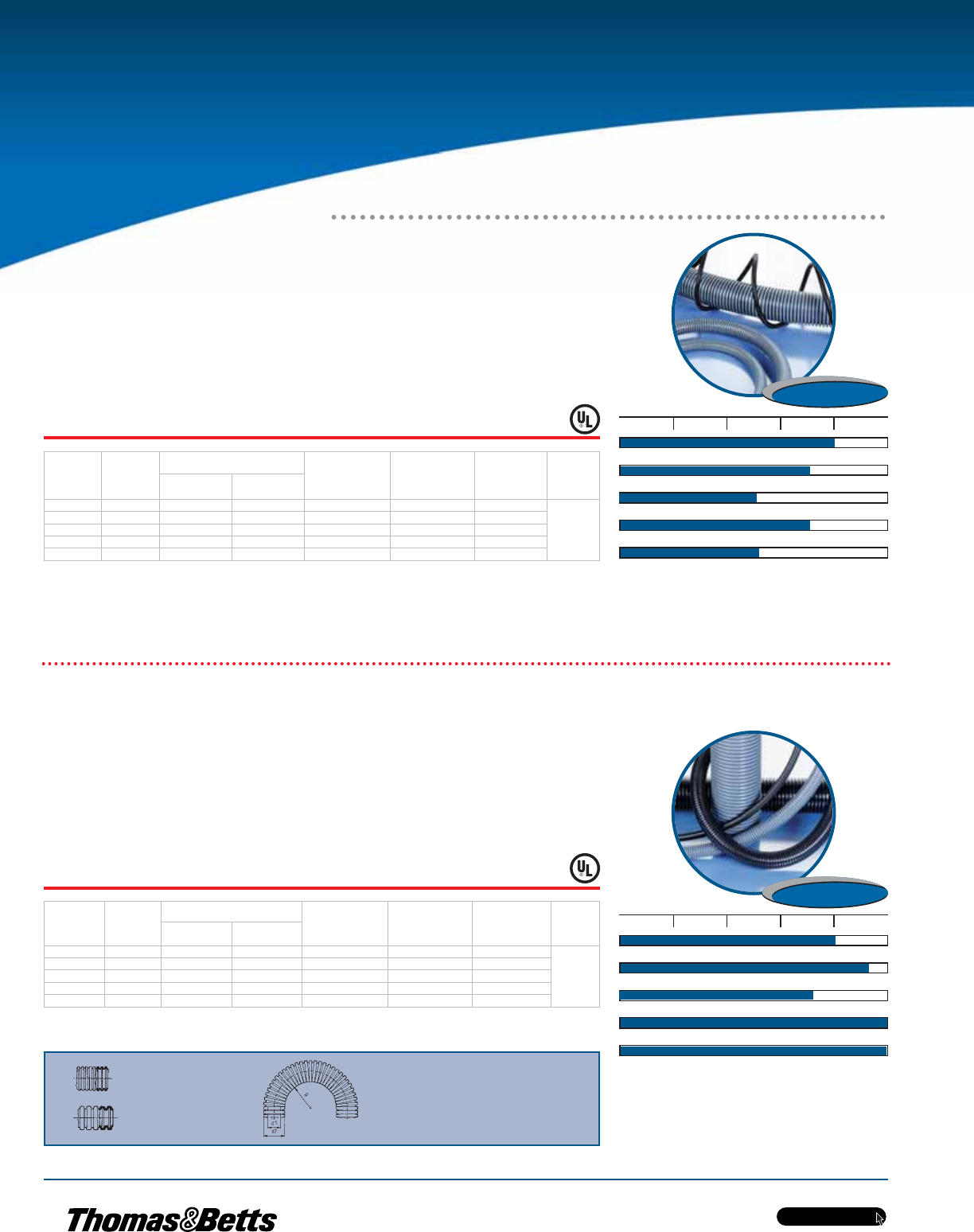

CUS Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
PUS Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Conduits
CUS Flexible, Heavy
•Use in machine building and in electrical
installations
•High-grade, specially modified polyamide 6
•Cost effective
•Very good flexibility
•Good impact strength also at low
temperatures and dry conditions
•Self extinguishing
•Free from halogens and cadmium
For actual cat. number, add product unit at the end. Example: CUSG-17B.31
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
PUS Very Flexible, Heavy
•Use in long-term external and dynamic
applications, like solar systems,
signalling, CCTV
•High-grade, specially modified polyamide 12
•Excellent resistance to ultraviolet rays and
atmospheric corrosion
•Excellent flexibility and is self extinguishing
•Good mechanical strength at low
temperatures and dry conditions
•Free from halogens and cadmium
For actual cat. number, add product unit at the end. Example: PUSG-17B.31
Temperature range: -50 to 95 ºC
Short term: Max. 150 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius*
(mm)
Product
Unit
(m)
NW Metric
CUSG-17B CUSG-17S 17 20 16.2 21.2 40
31
CUSG-23B CUSG-23S 23 25 21.9 28.5 45
CUSG-29B CUSG-29S 29 32 27.6 34.4 55
CUSG-36B CUSG-36S 36 40 36.0 42.4 60
CUSG-48B CUSG-48S 48 50 47.0 54.4 70
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat./DYN
Radius* (mm)
Product
Unit
(m)
NW Metric
PUSG-17B PUSG-17S 17 20 15.2 21.2 35/85
31
PUSG-23B PUSG-23S 23 25 22.0 28.5 40/110
PUSG-29B PUSG-29S 29 32 27.7 34.4 50/130
PUSG-36B PUSG-36S 36 40 35.8 42.4 60/180
PUSG-48B PUSG-48S 48 50 46.8 54.4 70/220
NEW!
NEW!
NEW!
NEW!
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E25
VUS Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Conduits
VUS Flexible, Heavy
•Meet high requirements in machine building
and plant construction
•Use where high compression resistance is
required
•Great for external applications
•High-grade, specially modified polyamide 6
•Very good resistance to ultraviolet rays and
weathering
•Good flexibility and self-extinguishing
•High mechanical strength at low
temperatures and low humidity
•Free from halogens and cadmium
Temperature range: -50 to 105 ºC
Short term: Max. 160 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids, etc.
For actual cat. number, add product unit at the end. Example: VUSG-17B.31
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm)
Stat.
Radius* (mm)
Product
Unit
(m)
NW Metric
VUSG-17B VUSG-17S 17 20 15.2 21.2 40
31
VUSG-23B VUSG-23S 23 25 22.0 28.5 50
VUSG-29B VUSG-29S 29 32 27.7 34.4 60
VUSG-36B VUSG-36S 36 40 35.8 42.4 70
VUSG-48B VUSG-48S 48 50 46.8 54.4 80
NEW!
NEW!
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E26

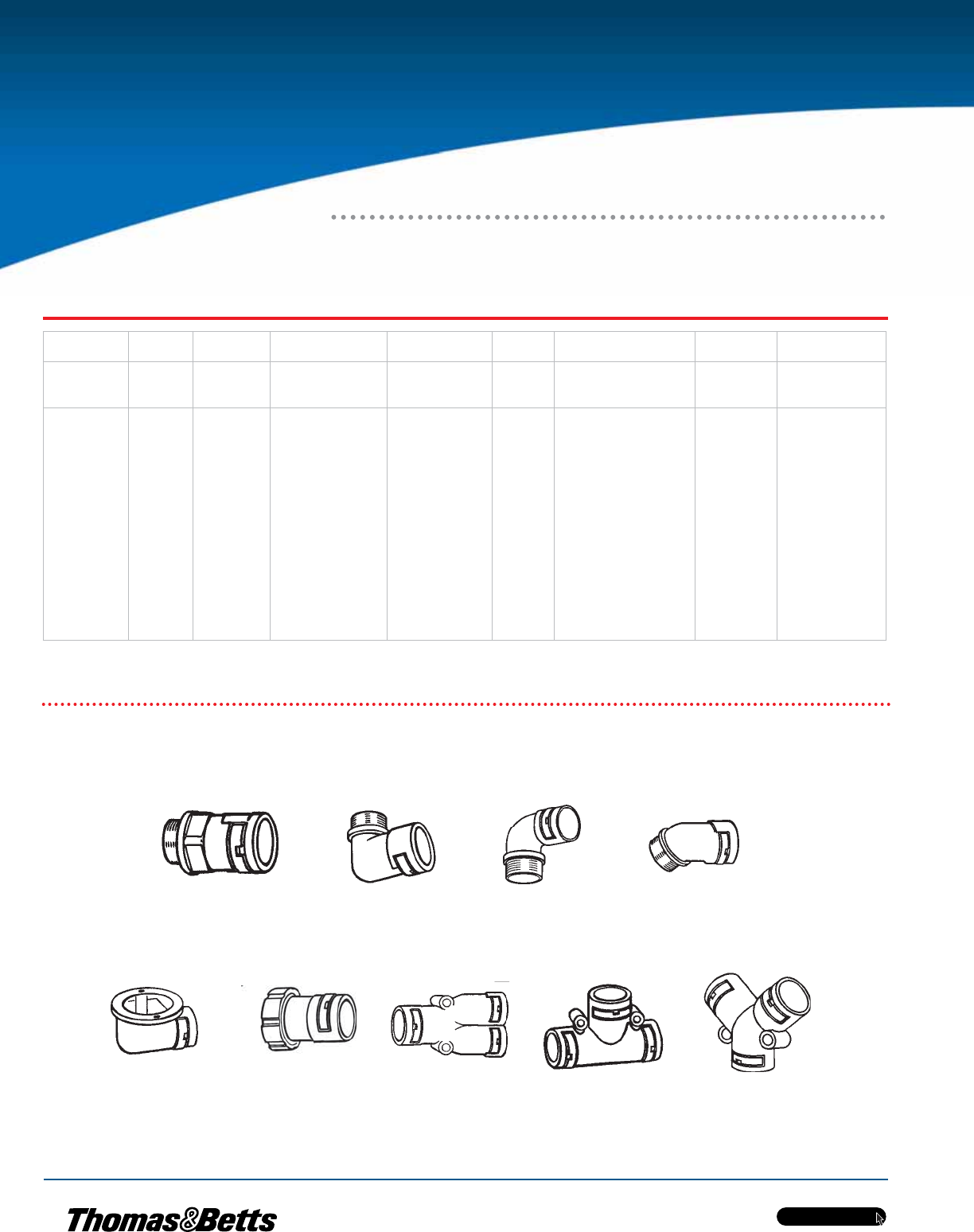

PMAFIX®Connector Series
Series N Series W Series B Series A
Series O Series I Series Y Series T Series V
B V N D - P 16 7 GT/ 01
COLOURS
PMAFIX®
TYPE
PMAFIX®
SERIES
MODE OF INGRESS
PROTECTION
(PAGE E76)
CODE OF
THREAD
(PAGE E77)
SIDE OF
THREAD
(TABLE 2)
NOMINAL WIDTH
PMAFLEX®(TABLE 1)
SAFETY
RETAINING
CLIP TYPE
MODIFICATION
CODE
B =Black
S =Grey
N =Black with
Metal Thread
M =Grey with
Metal Thread
A =Black –
Anthracite
T =Transparent
X =Special Colour
V =Reinforced
S =Series V
with
Swiveling
Coupler
E =Ex
Certified
N =Straight
W =90° Elbow
B =90° Curved
Elbow
A =45° Elbow
O =90° Elbow
with Flange
I =With Female
Thread
Y =Y Piece
T =T Piece
V =V Piece
D =Self-Sealing IP66
L =With Sealing Ring
IP67 on Conduit
R =With Sealing Ring
IP68 on Conduit
V =With Gasket-
Reinforced
IP68
Z =Add. combined
Sealing with
Strain Relief
IP50/IP68
P =PG Thread
M =Metric Thread
F =Metric Fine
Thread
N =NPT Thread
(USA)
G =Whitworth Thread
(Italy)
U =UNEF Round
Connector
(See p. E27) 7 =Nominal-Width Conduit
(See p. E27)
GT =Universal
Safety Clip
.. =Oval Clip
BVND-P167GT/01
PMAFIX®Fittings
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E27
Nominal
Width
UK
Sizes
PMA
Code
7 10 M
10 12 0
12 16 2
17 20 7
23 25 3
29 32 9
36 40 6
48 50 8
Type PMA
Code
AMP A
Souriau (ex BURNDY) B
With O-Ring Groove (MIL C 5015) G
Thread
Metric
PMA
Code Thread PG PMA
Code
Thread
Whitworth (in.)
PMA
Code
Thread
NPT (in.)
PMA
Code
Thread
UNEF
PMA
Code
M12x1.5 M12 PG07 P07 G 1/4 G00 3/8-28 UNEF U09
M16x1.5 M16 PG09 P09 G 3/8 G01 7/16-28 UNEF U10
M20x1.5 M20 PG11 P11 G 1/2 G02 N 1/2 N02 1/2-28 UNEF U12
PG13.5 P13 G 3/4 G04 N 3/4 N04 9/16-24 UNEF U13
M25x1.5 M25 PG16 P16 G 1 G06 N 1 N06 5/8-24 UNEF U15
M32x1.5 M32 PG21 P21 G 1-1/4 G07 N 1-1/4 N07 11/16-24 UNEF U16
M40x1.5 M40 PG29 P29 G 1-1/2 G08 N 1-1/2 N08 3/4-20 UNEF U18
M50x1.5 M50 PG36 P36 G 2 G09 N 2 N09 13/16-20 UNEF U20
M63x1.5 M63 PG42 P42 G 2-1/4 G10 7/8-20 UNEF U21
PG48 P48 G 2-1/2 G11 15/16-20 UNEF U23
1-20 UNEF U24
M 8x1.0 F08 1-1/16-18 UNEF U26
M12x1.0 F12 1-3/16-18 UNEF U29
M18x1.0 F18 1-1/4-18 UNEF U30
M30x1.5 F30 1-5/16-18 UNEF U32
1-3/8-18 UNEF U34
1-7/16-18 UNEF U35
1-5/8-18 UNEF U40
1-11/16-20 UN U41
1-3/4-18 UNS U43
2-18 UNS U50
2-1/4-16 UN U56
2-3/8-12 UN U57
2-1/2-16 UN U62
Table 1
PMAFIX®/PMAFLEX®Code
Table 2
Thread Codes
Types of Connector for
Female Thread Adapters
Threaded Codes
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E28

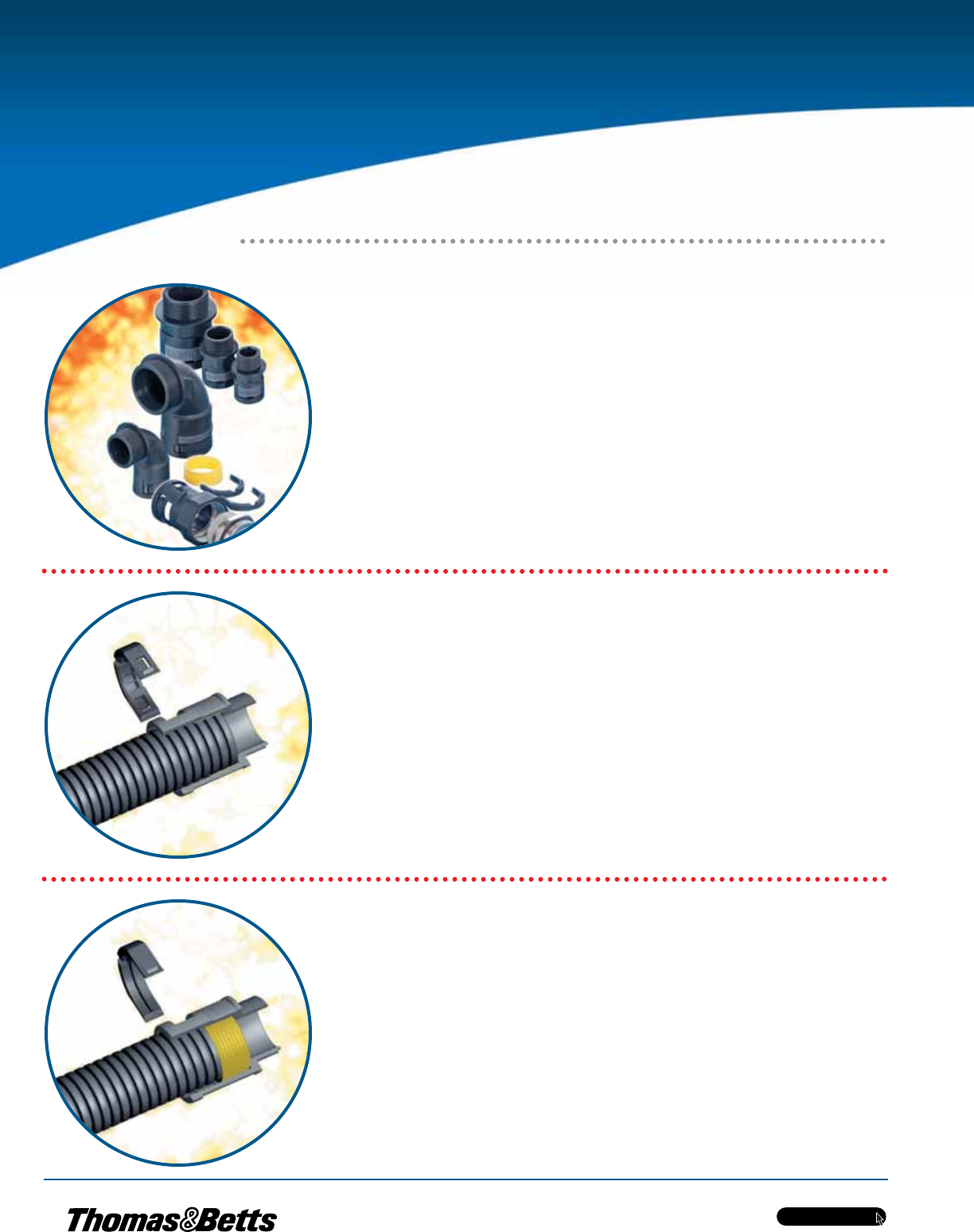

IP66 — IP66 Static, IP54 Dynamic
•One-piece fitting
•Conical sealing method
•Easy push-in installation
•Pre-installed safety clip AFN2
•Fits any type of conduit profile (T and G)
•Excellent pullout strength
•Re-opening only possible with a screwdriver for safety reasons
IP68GT — IP68 static, IP67 dynamic, IP69K
•Single-piece PMAFIX®IP68GT fitting with integrated sealing ring
and pre-installed locking clip
•Simple push-in assembly (as with the proven
PMAFIX®IP66 system)
•Extra-long sealing ring guarantees the highest
level of ingress protection
•Compatible with all types of PMA®conduits
•Identical approvals as with the PMAFIX®IP68 system
•The complete PMAFIX®IP68 product range is available
as a GT single-component version
•Fast modification of specification drawings through
simple addition of “GT” to the existing order number
(e.g. BVNV-M257 becomes BVNV-M257GT)
IP68 — IP68 static, IP67 dynamic, IP69K
•High sealing through additional seal ring
•For highest dynamic appli cations
•Fits any type of conduit profile (T and G)
•Excellent pullout strength
•Re-opening only possible with a screwdriver for safety reasons
•Additional water-protection ring WPS for IP69K ingress
protection in conjunction with the IP68 system
•To be applied right after the IP68 connector onto the conduit
NEW!
NEW!
IP69K
Connectors for Nylon Flexible Conduits
PMAFIX®Connector Safety and Sealing Systems
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E29

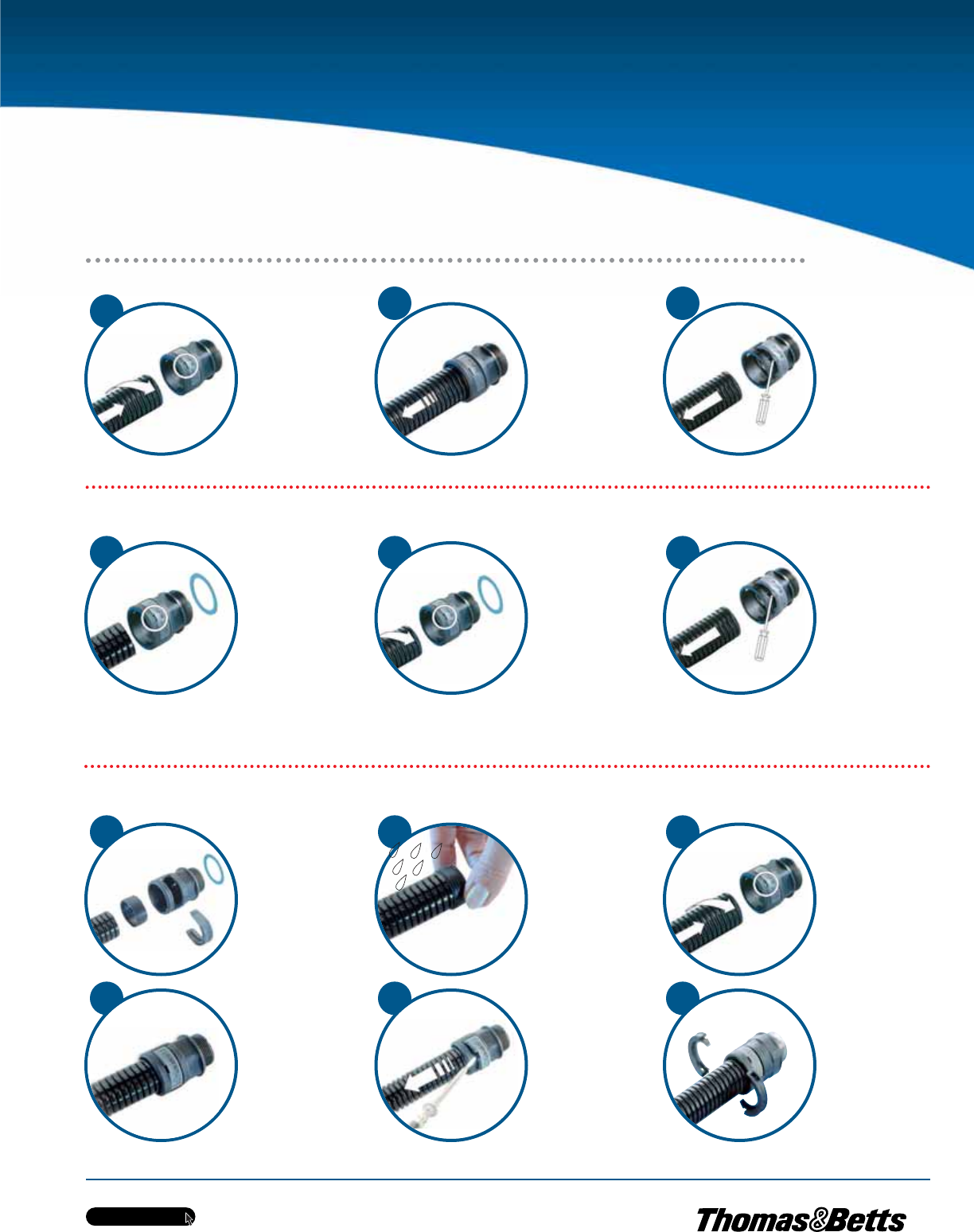

Push in conduit with
a slight twist. (Open
using screwdriver on
conduit side.)
Pull back slightly
to ensure the
locking mechanism is
fully engaged.
To re-open, use
a screwdriver.
Locking clip pre-installed in all IP66 connectors
IP68GT Installation
(A) Conduit
(B) Connector
(pre-installed sealing
ring and locking clip)
(C) Flat Gasket or O-ring
Push in conduit with a
slight twist. Pull back
slightly to ensure the
locking mechanism is
fully engaged.
To re-open, use
a screwdriver.
Pre-installed sealing ring and locking clip in all IP68GT connectors
For safety reasons, oval clip will not fit if sealing ring is not fully installed.
Follow O-ring manufacturer’s guidelines when using O-rings for sealing purposes.
IP68 Installation (IP69K)
(A) Conduit
(B) Sealing Ring
(C) Connector
(D) Oval Clip
(E) Flat Gasket
(or O-ring seal)
Push sealing ring
onto end of conduit
to achieve IP68. For
ease of installation,
moisten sealing ring
with water or grease.
Push conduit with
sealing ring fully
into connector. This
guarantees PMA’s
unique IP68/67
rating.*
Install retaining
oval clip.
To re-open, use
a screwdriver.
Mount WPS half
shells at the base of
the connector onto
the conduit.
* For safety reasons, oval clip will not fit if sealing ring is not fully installed.
Follow O-ring manufacturer’s guidelines when using O-rings for sealing purposes.
123
123
12 3
456
A
B
C
A
B
C
D
E
Connectors for Nylon Flexible Conduits
IP66 Installation
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E30

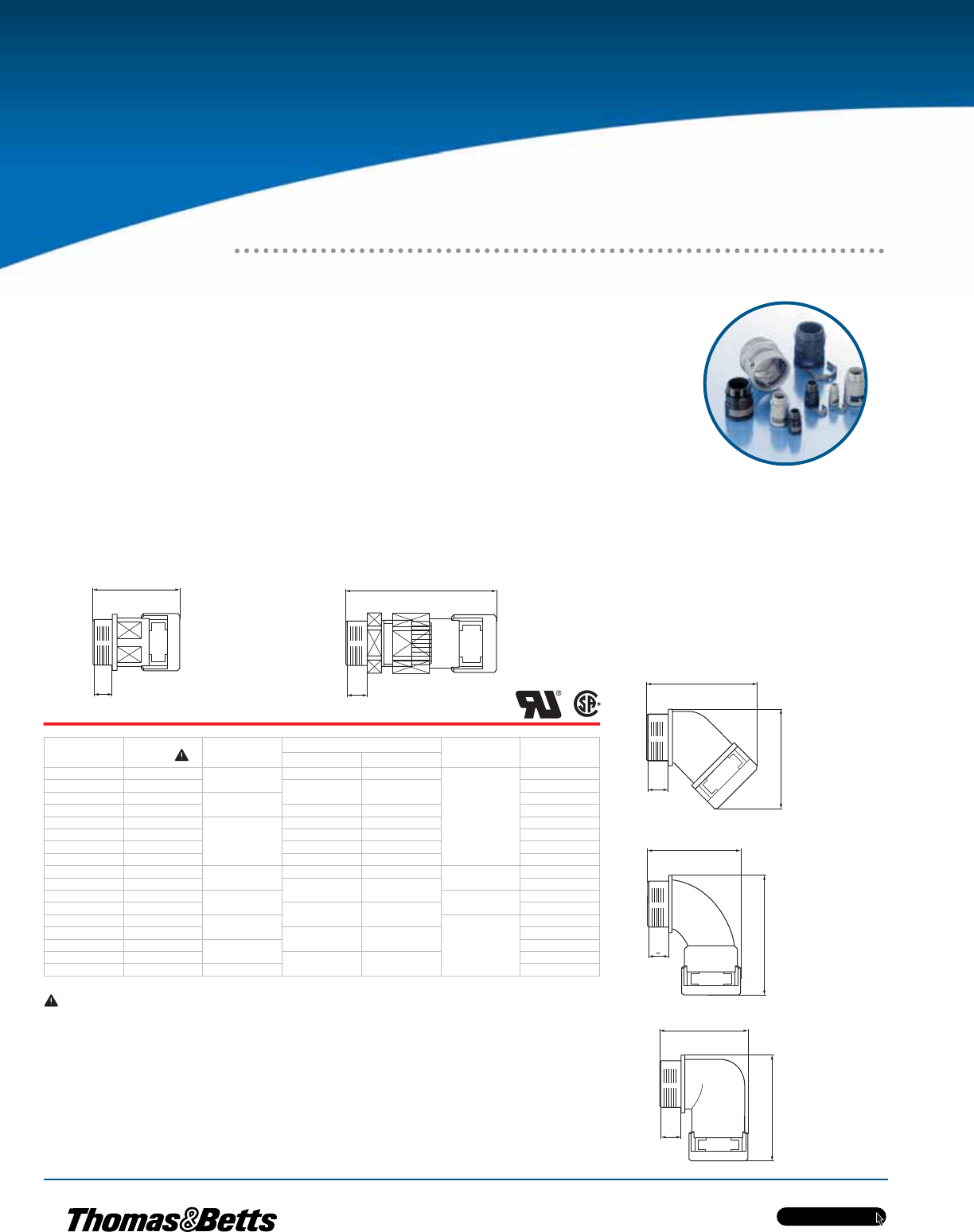

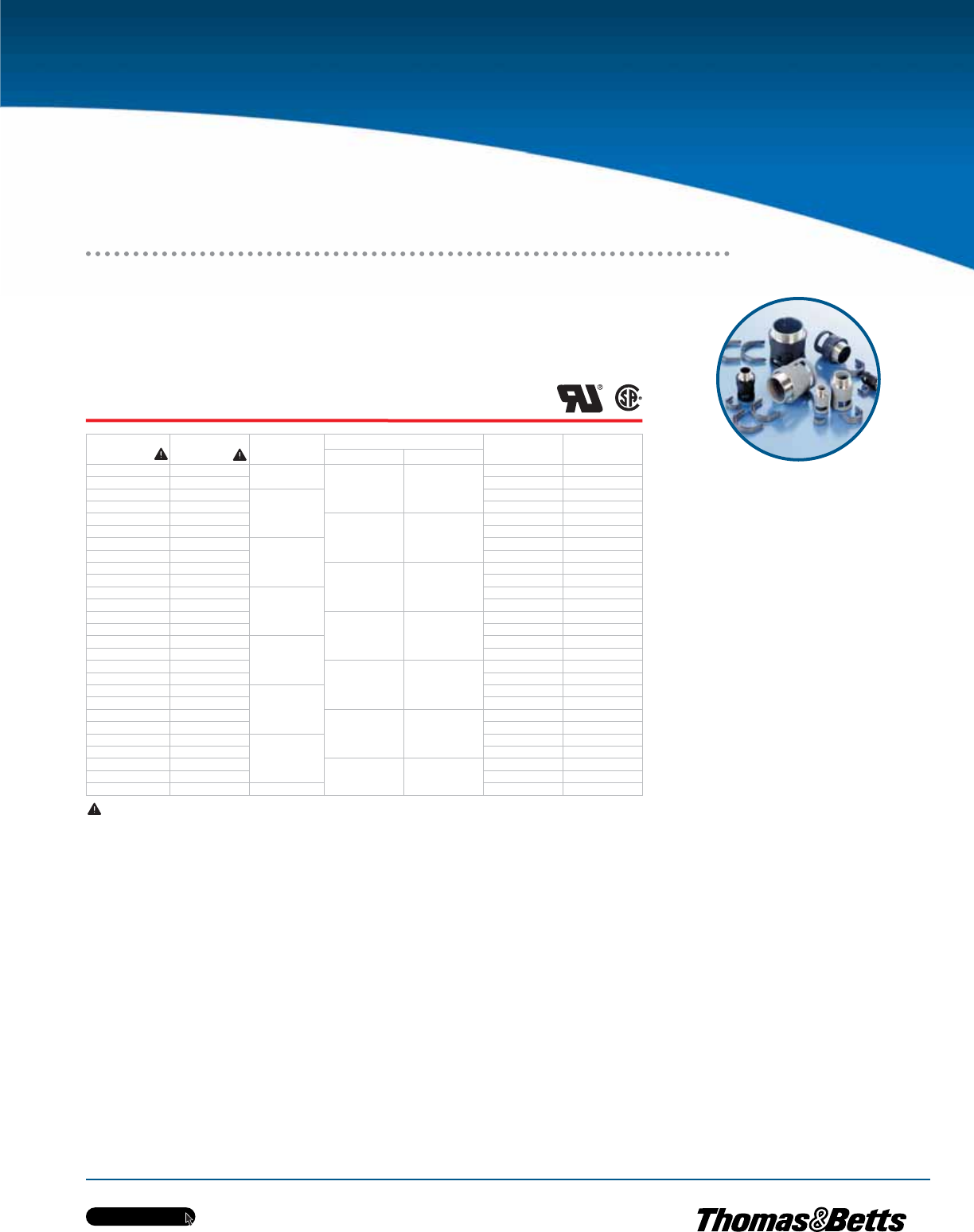

Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
G
Thread
Length
A
Overall
Length
G
Thread Length
A
Overall Length
G
Thread
Length
A x B
External
dimensions
G
Thread
ength
A x B
External
dimensions
G
Thread
Length
A x B
External
dimensions
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66
Cat. No.
IP68
Thread
Metric
Fits to Conduit Thread
Length (mm)
Overall
Length (mm)
NW Metric
_VND-M12MGT _VNV-M12M M12x1.5 7 10
11.0
34.5
_VND-M120GT _VNV-M120 10 12 36.5
_VND-M160GT _VNV-M160 M16x1.5 36.5
_VND-M162GT _VNV-M162 12 16 39.5
_VND-M200GT _VNV-M200
M20x1.5
10 12 36.5
_VND-M202GT _VNV-M202 12 16 39.5
_VND-M207GT _VNV-M207 17 20 47.5
_VND-M203GT _VNV-M203 23 25 51.0
_VND-M257GT _VNV-M257 M25x1.5 17 20 12.0 48.5
_VND-M253GT _VNV-M253 23 25 52.0
_VND-M323GT _VNV-M323 M32x1.5 15.0 55.5
_VND-M329GT _VNV-M329 29 32 56.0
_VND-M409GT _VNV-M409 M40x1.5
19.0
60.0
_VND-M406GT _VNV-M406 36 40 72.5
_VND-M506GT _VNV-M506 M50x1.5 72.0
_VND-M508GT _VNV-M508 48 50 72.5
_VND-M638GT _VNV-M638 M63x1.5 72.0
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated
polyamide 6
•Very high impact resistance
•Vibration-proof connection to
PMAFLEX®conduits
•Easy mounting: simple conduit
push-in installation
•High conduit pullout strength
•Can be easily re-opened with
a screwdriver
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
The designation PMAFIX®describes a very large range of fittings for PMA conduits with the paten ted PMA®safety clip
system. Fittings are available for ingress protection IP66 and IP68. IP66 fittings are fitted with a pre- installed universal
safety clip that ensu res a quick push-in installation. IP68 fittings for increased requirements will be delivered with a
special conduit sealing ring. The new PMAFIX IP68GT fittings combine simplest push-in assembly with highest sealing
performance.
A
GG
G
G
G
A
A
B
B
B
A
A
Fittings for Nylon Flexible Conduits
VN Straight, Metric, Polymide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E31

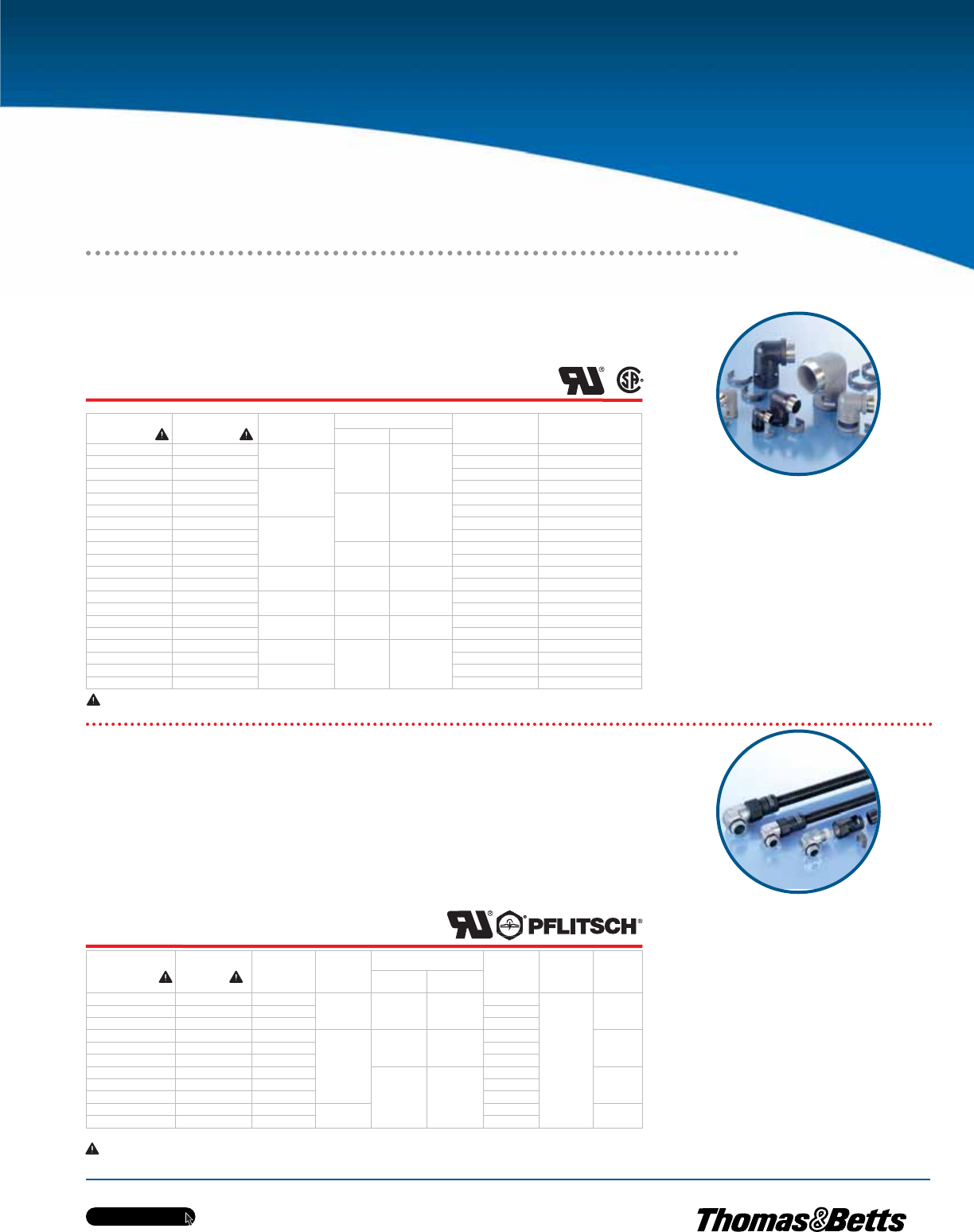

Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2) and strain-relief bushing
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), strain-relief
bushing, conduit seal (NVN3) and thread
gasket (SNV4)
Cat. No.
IP66
Cat. No.
IP68
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VAD-M120GT — M12x1.5 10 12
11.0
43.5 x 37.0
_VAD-M160GT _VAV-M160 M16x1.5 43.5 x 38.0
_VAD-M162GT _VAV-M162 12 16 48.0 x 40.0
_VAD-M202GT _VAV-M202 M20x1.5 48.0 x 41.5
_VAD-M207GT _VAV-M207 17 20 55.5 x 51.5
_VAD-M253GT _VAV-M253 M25x1.5 23 25 12.0 65.0 x 58.5
_VAD-M329GT _VAV-M329 M32x1.5 29 32 15.0 73.5 x 66.5
_VAD-M406GT _VAV-M406 M40x1.5 36 40
19.0
92.5 x 85.5
_VAD-M506GT _VAV-M506 M50x1.5 92.5 x 89.5
_VAD-M508GT _VAV-M508 48 50 100.0 x 96.0
_VAD-M638GT _VAV-M638 M63x1.5 100.0 x 104.0
Cat. No.
IP66
Cat. No.
IP68
Thread
Metric
Conduit Size Bushing dia.
Range (mm)
Thread
Length (mm)
Overall
Length (mm)
NW Metric
_VNDZ-M160GT — M16x1.5 10 12 5.0–10.0
8.0
62.0
_VNDZ-M162GT _VNZ-M162S 12 16
_VNDZ-M207GT _VNZ-M207S M20x1.5 17 20 10.0–14.0 71.5
_VNDZ-M253GT _VNZ-M253S M25x1.5 23 25 13.0–18.0 81.0
_VNDZ-M329GT _VNZ-M329S M32x1.5 29 32 18.0–25.0 10.0 85.0
_VNDZ-M406GT _VNZ-M406S M40x1.5 36 40 22.0–32.0 116.5
_VNDZ-M508GT _VNZ-M508S M50x1.5 48 50 30.0–38.0 12.0 120.5
_VNDZ-M638GT _VNZ-M638S M63x1.5 48 50 34.0–44.0
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide range
of applications
•For separation of damp and dry areas
•High-grade formulated polyamide 6,
very high impact resistance
•Easy installation: simply push
the conduit in
•High conduit pullout strength
•Integrated strain relief optimally holds
and seals cables
•If several conductors are used with the
connector, multi-hole bushings should
be considered
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
VA 45° Elbow, Metric, Polyamide
•For cable protection systems in a wide range
of applications
•High-grade specially formulated
polyamide 6
•Extremely high impact resistance
•Vibration-proof connection to
PMAFLEX®conduits
•Easy installation
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
_ = Insert “B” to order black or “S” to order grey.
Note: MDE multiple sealing inserts are available for this product.
IP68GT available. Please replace final “S” with “GT”.
(Functional description PMAFIX IP68GT, pages E28–E29).
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).

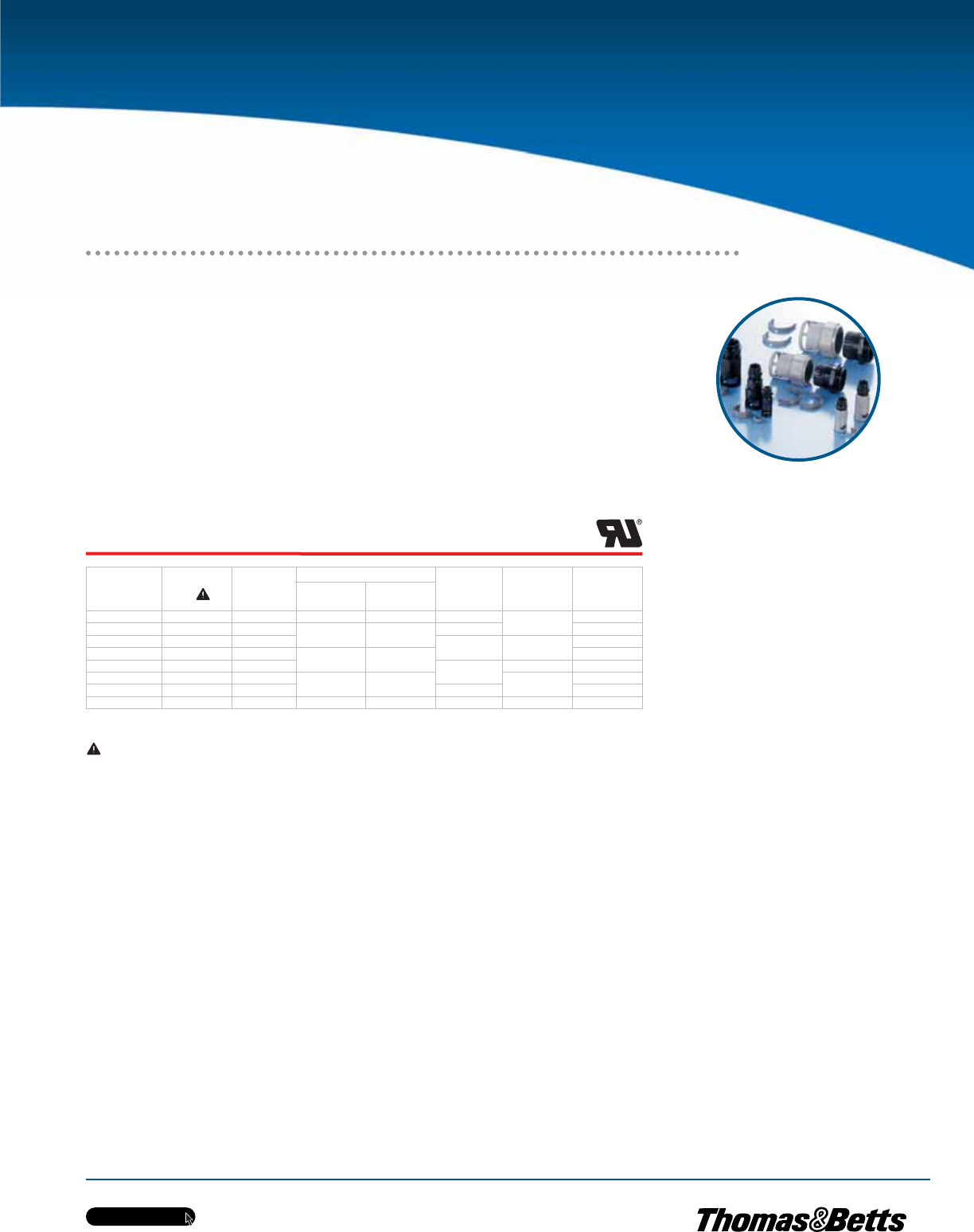

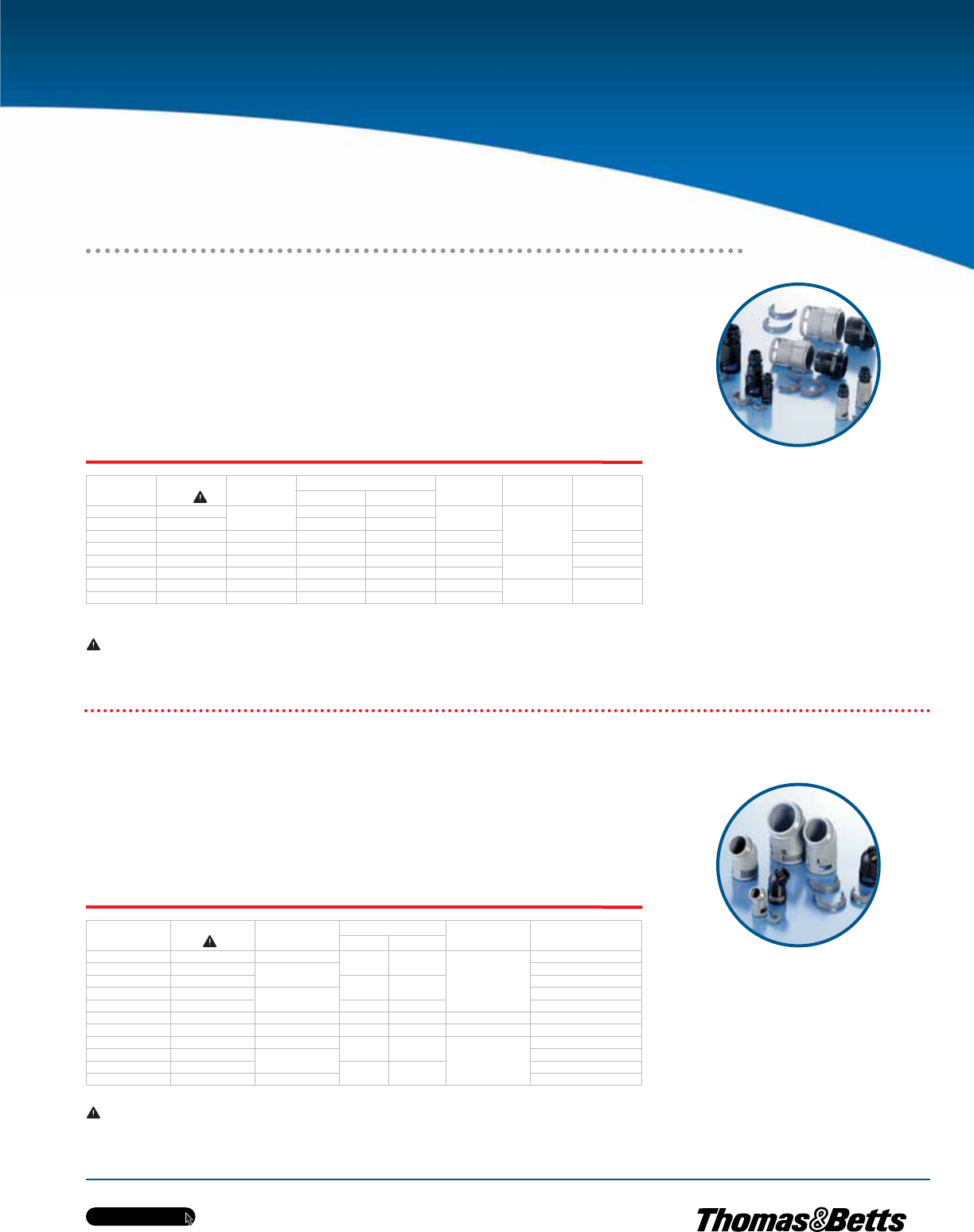

Fittings for Nylon Flexible Conduits
VNZ Straight, Metric, Strain Relief, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E32
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide
range of applications
•High-grade specially formulated polyamide
•Easy installation, high conduit pull-
out strength
•Easy threading of wires and cables
•Self extinguishing
•Free from halogens and phosphor
•Excellent impact strength
•Fits fine (T) and coarse (G) conduit profiles

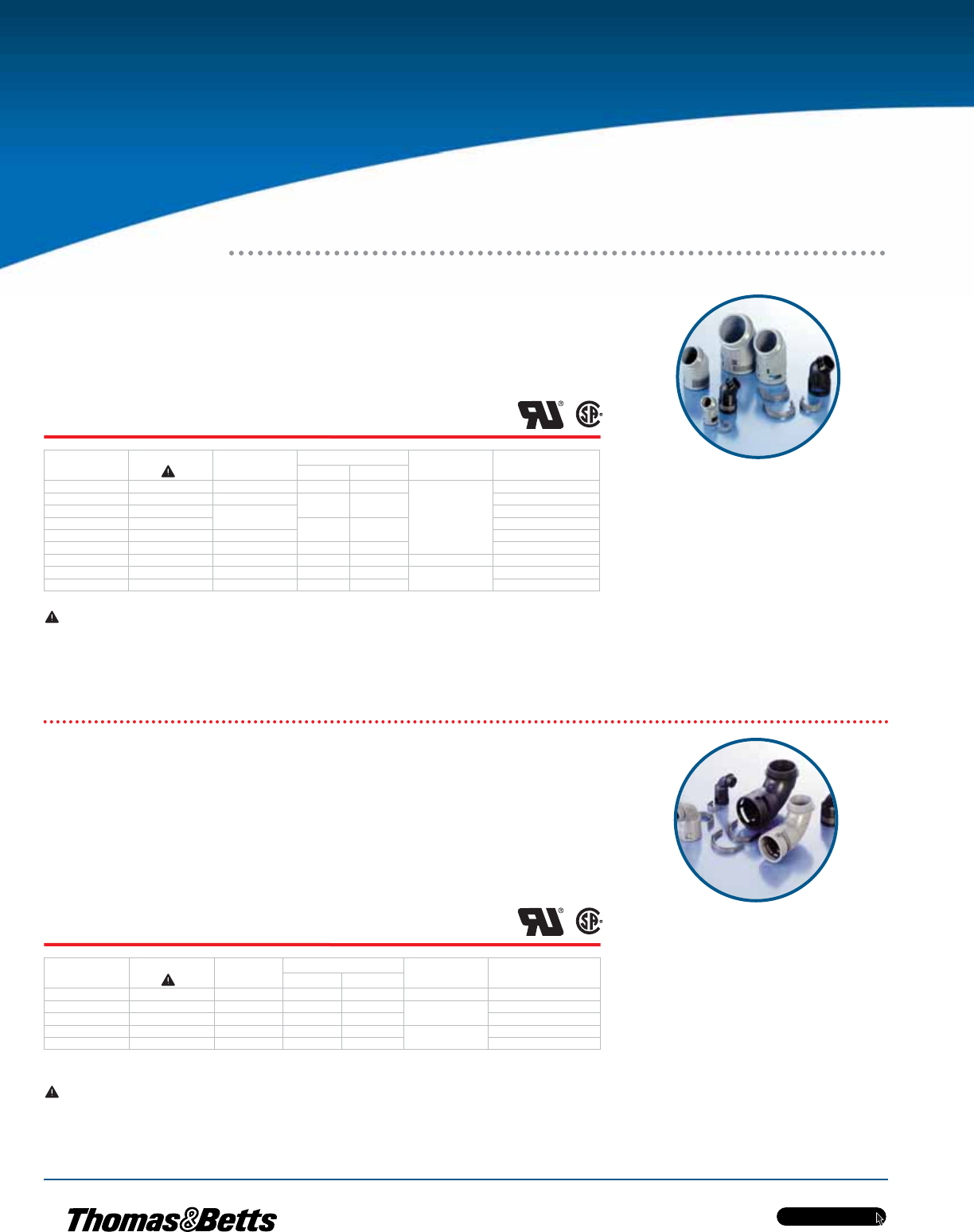

VW 90° Elbow, Metric, Polyamide
•For cable protection systems in a
wide range of applications
•High-grade specially formulated
polyamide 6
•Very high impact resistance
•Vibration-proof connection to
PMAFLEX®conduits
•Easy installation: simply push the conduit in
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
_ = Insert with “B” to order black or “S” to order grey.
For smaller conduit sizes NW 07 to NW 12, appropriate standard elbows of type VW are available.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, (pages E28–E29).
_ = Insert with “B” to order black or “S” to order grey.
For the sizes NW 17 to NW 48, curved elbows of type VB are available.
IP68GT available. Please add “GT” after the Catallog no.
(Functional description PMAFIX IP68GT, (pages E28–E29).
Cat. No.
IP66
Cat. No.
IP68
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VBD-M207GT _VBV-M207 M20x1.5 17 20 11.0 47.5 x 73.0
_VBD-M257GT _VBV-M257 M25x1.5 12.0 48.5 x 76.0
_VBD-M253GT _VBV-M253 23 25 57.5 x 83.0
_VBD-M323GT _VBV-M323 M32x1.5 15.0 61.0 x 87.5
_VBD-M329GT _VBV-M329 293270.5 x 93.0
_VBD-M409GT _VBV-M409 M40x1.5
19.0
74.5 x 98.5
_VBD-M406GT _VBV-M406 36 40 85.0 x 121.0
_VBD-M506GT _VBV-M506 M50x1.5 85.0 x 125.0
_VBD-M508GT _VBV-M508 48 50 98.5 x 130.0
_VBD-M638GT _VBV-M638 M63x1.5 98.5 x 138.0
Cat. No.
IP66
Cat. No.
IP68
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VWD-M12MGT _VWV-M12M M12x1.5 7 10
11.0
32.0 x 35.0
_VWD-M120GT _VWV-M120 10 12 34.0 x 39.5
_VWD-M160GT _VWV-M160 M16x1.5 34.0 x 40.5
_VWD-M162GT _VWV-M162 12 16 38.5 x 46.0
_VWD-M200GT —
M20x1.5
10 12 34.0 x 42.5
_VWD-M202GT _VWV-M202 12 16 38.5 x 47.5
_VWD-M207GT _VWV-M207 17 20 43.5 x 58.5
_VWD-M253GT _VWV-M253 M25x1.5 23 25 12.0 54.0 x 65.0
_VWD-M329GT _VWV-M329 M32x1.5 29 29 15.0 64.5 x 73.0
_VWD-M406GT _VWV-M406 M40x1.5 36 36 19.0 78.0 x 96.0
_VWD-M508GT _VWV-M508 M50x1.5 48 48 91.5 x 106.0

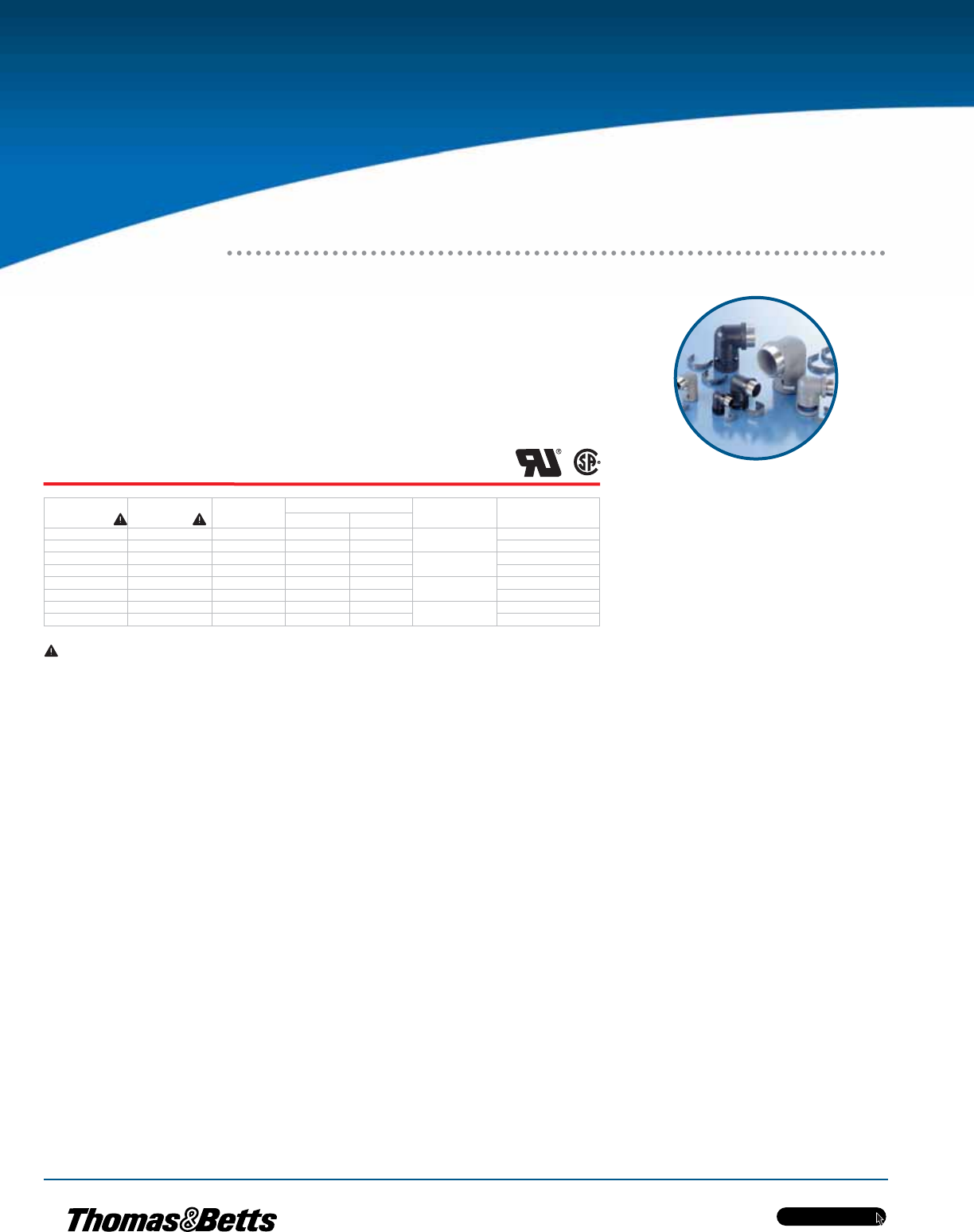

Fittings for Nylon Flexible Conduits
VB 90° Curved Elbow, Metric, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E33
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4 or OR)
•Use in railway vehicle and heavy
machine construction
•High-grade specially formulated polyamide
•Threads made of nickel-plated brass
•Self extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
•Fits fine (T) and coarse (G)
conduit profiles
IP68GT available. Please add “GT” prior to the thread length (for example, NVNV-M120GT-10).
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66, Black
Cat. No.
IP68, Grey
Thread
Metric
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
NVNV-M120-10 MVNV-M120-10 M12x1.5
10 12
10.0 40.0
NVNV-M120-5 MVNV-M120-5 5.0 35.0
NVNV-M160-10 MVNV-M160-10
M16x1.5
10.0 40.0
NVNV-M160-5 MVNV-M160-5 5.0 35.0
NVNV-M162-10 MVNV-M162-10
12 16
10.0 43.0
NVNV-M162-5 MVNV-M162-5 5.0 38.0
NVNV-M202-10 MVNV-M202-10
M20x1.5
10.0 43.0
NVNV-M202-6 MVNV-M202-6 6.0 39.0
NVNV-M207-10 MVNV-M207-10
17 20
10.0 51.0
NVNV-M207-6 MVNV-M207-6 6.0 47.0
NVNV-M257-11 MVNV-M257-11
M25x1.5
11.0 52.0
NVNV-M257-7 MVNV-M257-7 7.0 48.0
NVNV-M253-11 MVNV-M253-11
23 25
11.0 54.0
NVNV-M253-7 MVNV-M253-7 7.0 50.0
NVNV-M323-13 MVNV-M323-13
M32x1.5
13.0 56.0
NVNV-M323-8 MVNV-M323-8 8.0 51.0
NVNV-M329-13 MVNV-M329-13
29 32
13.0 57.3
NVNV-M329-8 MVNV-M329-8 8.0 52.3
NVNV-M409-13 MVNV-M409-13
M40x1.5
13.0 57.3
NVNV-M409-8 MVNV-M409-8 8.0 52.3
NVNV-M406-13 MVNV-M406-13
36 40
13.0 71.4
NVNV-M406-8 MVNV-M406-8 8.0 66.4
NVNV-M506-14 MVNV-M506-14
M50x1.5
14.0 72.4
NVNV-M506-9 MVNV-M506-9 9.0 67.4
NVNV-M508-14 MVNV-M508-14
48 50
14.0 72.4
NVNV-M508-9 MVNV-M508-9 9.0 67.4
NVNV-M638-14 MVNV-M638-14 M63x1.5 14.0 72.4

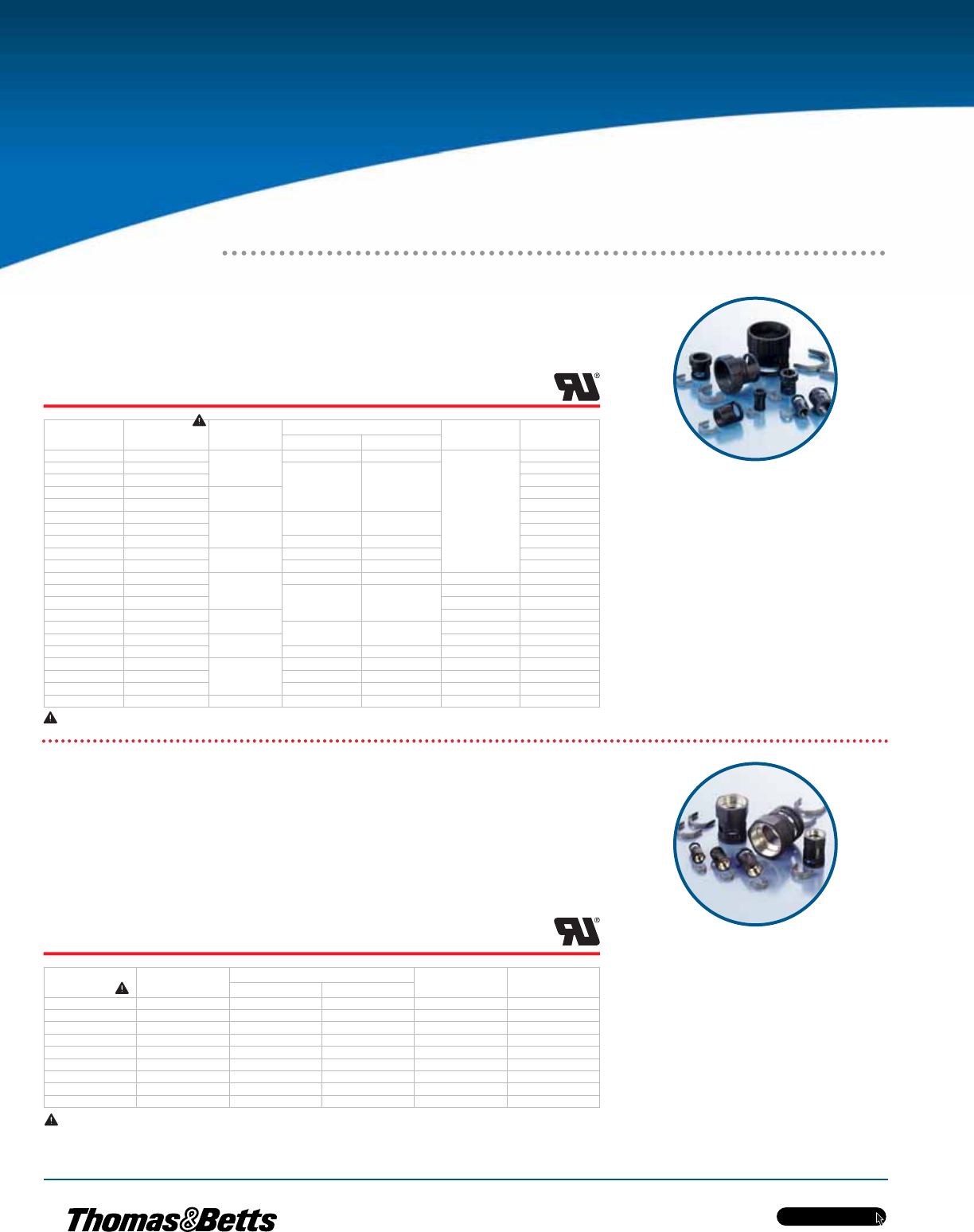

Fittings for Nylon Flexible Conduits
VN Straight, Metric, Metal/Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E34
•Use in railway vehicle and heavy machine
construction and for the separation of damp
and dry areas
•High-grade, specially formulated polyamide 6
•Threads made of nickel-plated brass
•Sealing bushings are made from TPE-V
•Very high impact resistance
•Integrated strain-relief and optimal ingress
protection at the cable (up to IP68/10 bar)
•High thread and system pullout resistance
•Vibration-resistant connection to PMAFLEX®
conduits
•Easy assembly
•Very good chemical properties
•Polyamide free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
•For several conductors, multi-hole bushings
are available (MDE)
Temperature range: -40 to 105 ºC
Short term: Max. 135 ºC
Content of delivery:
IP68GT
Complete Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT), sealing
bushing and O-ring (OR)
Fitting* Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
O-ring (OR)
IP68
Complete Fitting with oval clips (OVN2), sealing
bushing, conduit seal (NVN3) and O-ring OR)
Fitting* Fitting with oval clips (OVN2), conduit seal
(NVN3) and O-ring (OR)
* = without insert
Note: MDE multiple sealing inserts are available for this product.
IP68GT available. Please replace “S” or “R” with “GT” (for example, NVNZ-M120GT/P1, NVNZ-M120GT/P).
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
Complete,
Black
Cat. No.
Fitting *
Cat. No.
Insert
Thread
Metric
Fits to Conduit
Size Terminal
Range
(mm)
Thread
Length
(mm)
Overall
Length
(mm)
NW Metric
NVNZ-M120S/P1 NVNZ-M120R/P DE-M120/P1
M12x1.5
10 12
4.0–6.5
5.0 48.5NVNZ-M120S/P2 DE-M120/P2 5.0–8.0
NVNZ-M120S/P3 DE-M120/P3 6.5–9.5
NVNZ-M160S/P1 NVNZ-M160R/P DE-M160/P1
M16x1.5
4.0–6.5
6.0
49.5NVNZ-M160S/P2 DE-M160/P2 5.0–8.0
NVNZ-M160S/P3 DE-M160/P3 6.5–9.5
NVNZ-M202S/P1 NVNZ-M202R/P DE-M202/P1
M20x1.5
12 16
4.0–6.5
54.0NVNZ-M202S/P3 DE-M202/P3 6.5–9.5
NVNZ-M202S/P4 DE-M202/P4 7.0–10.5
NVNZ-M207S/P3 NVNZ-M207R/P DE-M207/P3
17 20
6.5–9.5
6.5 60.0NVNZ-M207S/P4 DE-M207/P4 7.0–10.5
NVNZ-M207S/P5 DE-M207/P5 9.0–13.0
NVNZ-M253S/P5 NVNZ-M253R/P DE-M253/P5
M25x1.5
23 25 9.0–13.0
7.5
72.5
NVNZ-M253S/P6 DE-M253/P6 11.5–15.5
NVNZ-M257S/P4 NVNZ-M257R/P DE-M257/P4
17 20
7.0–10.0
61.5NVNZ-M257S/P5 DE-M257/P5 9.0–13.0
NVNZ-M257S/P6 DE-M257/P6 11.5–15.5
NVNZ-M323S/P4 NVNZ-M323R/P DE-M323/P4
M32x1.5
23 25 14.0–18.0
8.0 73.0
NVNZ-M323S/P5 NVNZ-M323R1/P DE-M323/P5 17.0–20.5
NVNZ-M329S/P2 NVNZ-M329R/P DE-M329/P2
29 32
14.0–18.0
NVNZ-M329S/P3 DE-M329/P3 17.0–20.5
NVNZ-M329S/P4 DE-M329/P4 20.0–25.0
NVNZ-M406S/P1 NVNZ-M406R/P DE-M406/P1
M40x1.5
36 40 20.0–25.0 9.0 87.0
NVNZ-M406S/P2 DE-M406/P2 24.0–28.0
NVNZ-M409S/P1 NVNZ-M409R/P DE-M409/P1
29 32
11.5–15.5
8.0 73.0
NVNZ-M409S/P2 DE-M409/P2 14.0–18.0
NVNZ-M409S/P3 DE-M409/P3 17.0–20.5
NVNZ-M409S/P4 DE-M409/P4 20.0–25.0
NVNZ-M409S/P5 DE-M409/P5 24.0–28.0
NVNZ-M506S/P1 NVNZ-M506R/P DE-M506/P1
M50x1.5
36 40 27.0–32.0
9.0
89.5
NVNZ-M506S/P3 DE-M506/P3 32.0–36.0
NVNZ-M508S/P2 NVNZ-M508R/P DE-M508/P2
48 50
32.0–36.0 92.0
NVNZ-M508S/P3 DE-M508/P3 36.0–40.0
NVNZ-M638S/P1 NVNZ-M638R/P DE-M638/P1 M63x1.5 35.0–40.0 10.0 90.5
NVNZ-M638S/P2 DE-M638/P2 39.0–44.0
Fittings for Nylon Flexible Conduits
VNZ Straight, Metric, Strain Relief, Metal/Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E35
* = without insert
Note: MDE multiple sealing inserts are available for this product.
IP68GT available. Please replace “S” or “R” with “GT” (for example, NVNZ-M120GT/P1).
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
Complete,
Black
Cat. No.
Fitting *
Cat. No.
Insert
Thread
Metric
Fits to Conduit
Size Terminal
Range
(mm)
Thread
Length
(mm)
Overall
Length
(mm)
NW Metric
NVNZ-M160S/P1-L NVNZ-M160R/P-L DE-M160/P1
M16x1.5 10 12
4.0–6.5
15.0
58.5NVNZ-M160S/P2-L DE-M160/P2 5.0–8.0
NVNZ-M160S/P3-L DE-M160/P3 6.5–9.5
NVNZ-M202S/P1-L NVNZ-M202R/P-L DE-M202/P1
M20x1.5
12 16
4.0–6.5
62.5NVNZ-M202S/P3-L DE-M202/P3 6.5–9.5
NVNZ-M202S/P4-L DE-M202/P4 7.0–10.5
NVNZ-M207S/P3-L NVNZ-M207R/P-L DE-M207/P3
17 20
6.5–9.5
68.5NVNZ-M207S/P4-L DE-M207/P4 7.0–10.5
NVNZ-M207S/P5-L DE-M207/P5 9.0–13.0
NVNZ-M257S/P5-L NVNZ-M257R/P-L DE-M257/P5 M25x1.5 9.0–13.0 69.0
NVNZ-M257S/P6-L DE-M257/P6 11.5–15.5
NVNZ-M323S/P4-L NVNZ-M323R/P-L DE-M323/P4
M32x1.5
23 25 14.0–18.0 80.0
NVNZ-M323S/P5-L NVNZ-M323R1/P-L DE-M323/P5 17.0–20.5
NVNZ-M329S/P2-L NVNZ-M329R/P-L DE-M329/P2
29 32
14.0–18.0 91.0
NVNZ-M329S/P3-L DE-M329/P3 17.0–20.5
NVNZ-M409S/P3-L NVNZ-M409R/P-L DE-M409/P3
M40x1.5
17.0–20.5
80.0NVNZ-M409S/P4-L DE-M409/P4 20.0–25.0
NVNZ-M409S/P5-L DE-M409/P5 24.0–28.0
NVNZ-M506S/P1-L NVNZ-M506R/P-L DE-M506/P1
M50x1.5
36 40 27.0–32.0 94.5
NVNZ-M506S/P3-L DE-M506/P3 32.0–36.0
NVNZ-M508S/P2-L NVNZ-M508R/P-L DE-M508/P2
48 50
32.0–36.0 97.0
NVNZ-M508S/P3-L DE-M508/P3 36.0–40.0
NVNZ-M638S/P1-L NVNZ-M638R/P-L DE-M638/P1 M63x1.5 35.0–40.0 95.5
NVNZ-M638S/P2-L DE-M638/P2 39.0–44.0
Fittings for Nylon Flexible Conduits
VNZ Straight, Metric, Strain Relief, Metal/Polyamide (cont’d)
•Use in railway vehicle and heavy
machine construction
•Body made of high-grade formulated
polyamide
•Threads made of nickel-plated brass
•Self extinguishing
•Free from halogens and
cadmium
•Excellent impact strength
•Extremely high thread and system connection
strength
•Fits fine (T) and coarse (G) conduit profiles
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E36
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4 or OR)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
IP68GT available. Please add “GT” prior to the thread length (e.g. NVAV-M120GT-10).
(Functional description PMAFIX IP68GT, pages E28–E29).
Appropriate standard elbows of type VW are available for smaller conduit sizes NW 10 to NW 12.
IP68GT available. Please add “GT” prior to the thread length (e.g. NVBV-M207GT-10).
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP68, Black
Cat. No.
IP68, Grey
Thread
Metric
Fits to Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NVBV-M207-10 MVBV-M207-10 M20x1.5
17 20
10.0 51.0 x 73.0
NVBV-M207-6 MVBV-M207-6 6.0 47.0 x 73.0
NVBV-M257-11 MVBV-M257-11
M25x1.5
11.0 52.0 x 76.0
NVBV-M257-7 MVBV-M257-7 7.0 48.0 x 76.0
NVBV-M253-11 MVBV-M253-11
23 25
11.0 62.5 x 85.0
NVBV-M253-7 MVBV-M253-7 7.0 58.5 x 85.0
NVBV-M323-13 MVBV-M323-13
M32x1.5
13.0 64.5 x 89.0
NVBV-M323-8 MVBV-M323-8 8.0 59.5 x 89.0
NVBV-M329-13 MVBV-M329-13
29 32
13.0 74.0 x 94.5
NVBV-M329-8 MVBV-M329-8 8.0 69.0 x 94.5
NVBV-M409-13 MVBV-M409-13
M40x1.5
13.0 75.5 x 100.5
NVBV-M409-8 MVBV-M409-8 8.0 70.5 x 100.5
NVBV-M406-13 MVBV-M406-13
36 40
13.0 86.5 x 123.0
NVBV-M406-8 MVBV-M406-8 8.0 81.5 x 123.0
NVBV-M506-14 MVBV-M506-14
M50x1.5
14.0 87.5 x 130.0
NVBV-M506-9 MVBV-M506-9 9.0 82.5 x 130.0
NVBV-M508-14 MVBV-M508-14
48 50
14.0 100.5 x 135.0
NVBV-M508-9 MVBV-M508-9 9.0 95.5 x 135.0
NVBV-M638-10 MVBV-M638-10 M63x1.5 14.0 100.5 x 138.0
NVBV-M638-14 MVBV-M638-14 10.0 96.5 x 138.0
Cat. No.
IP68, Black
Cat. No.
IP68, Grey
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NVAV-M120-10 MVAV-M120-10 M12x1.5 10 12 10.0 48.5 x 37.0
NVAV-M120-5 MVAV-M120-5 5.0 43.5 x 37.0
NVAV-M162-10 MVAV-M162-10 M16x1.5 12 16 10.0 53.0 x 40.5
NVAV-M162-5 MVAV-M162-5 5.0 48.0 x 40.5
NVAV-M207-10 MVAV-M207-10 M20x1.5 17 20 10.0 60.5 x 51.5
NVAV-M207-6 MVAV-M207-6 6.0 56.5 x 51.5
NVAV-M253-11 MVAV-M253-11
M25x1.5 23 25 11.0 70.0 x 60.5
NVAV-M253-7 MVAV-M253-7 7.0 66.0 x 60.5
NVAV-M257-11 MVAV-M257-11 17 20 11.0 61.5 x 54.5
NVAV-M323-13 MVAV-M323-13
M32x1.5
23 25 13.0 72.0 x 64.5
NVAV-M329-13 MVAV-M329-13 29 32 13.0 77.0 x 68.0
NVAV-M329-8 MVAV-M329-8 8.0 72.0 x 68.0
NVAV-M406-13 MVAV-M406-13
M40x1.5 36 40 13.0 94.0 x 87.5
NVAV-M406-8 MVAV-M406-8 8.0 89.0 x 87.5
NVAV-M409-13 MVAV-M409-13 29 32 13.0 77.0 x 73.0
NVAV-M506-14 MVAV-M506-14
M50x1.5
36 40 14.0 95.0 x 92.5
NVAV-M508-14 MVAV-M508-14
48 50
14.0 102.0 x 101.0
NVAV-M508-9 MVAV-M508-9 9.0 97.0 x 101.0
NVAV-M638-14 MVAV-M638-14 M63x1.5 14.0 102.0 x 104.0
NVAV-M638-10 MVAV-M638-10 10.0 98.0 x 104.0

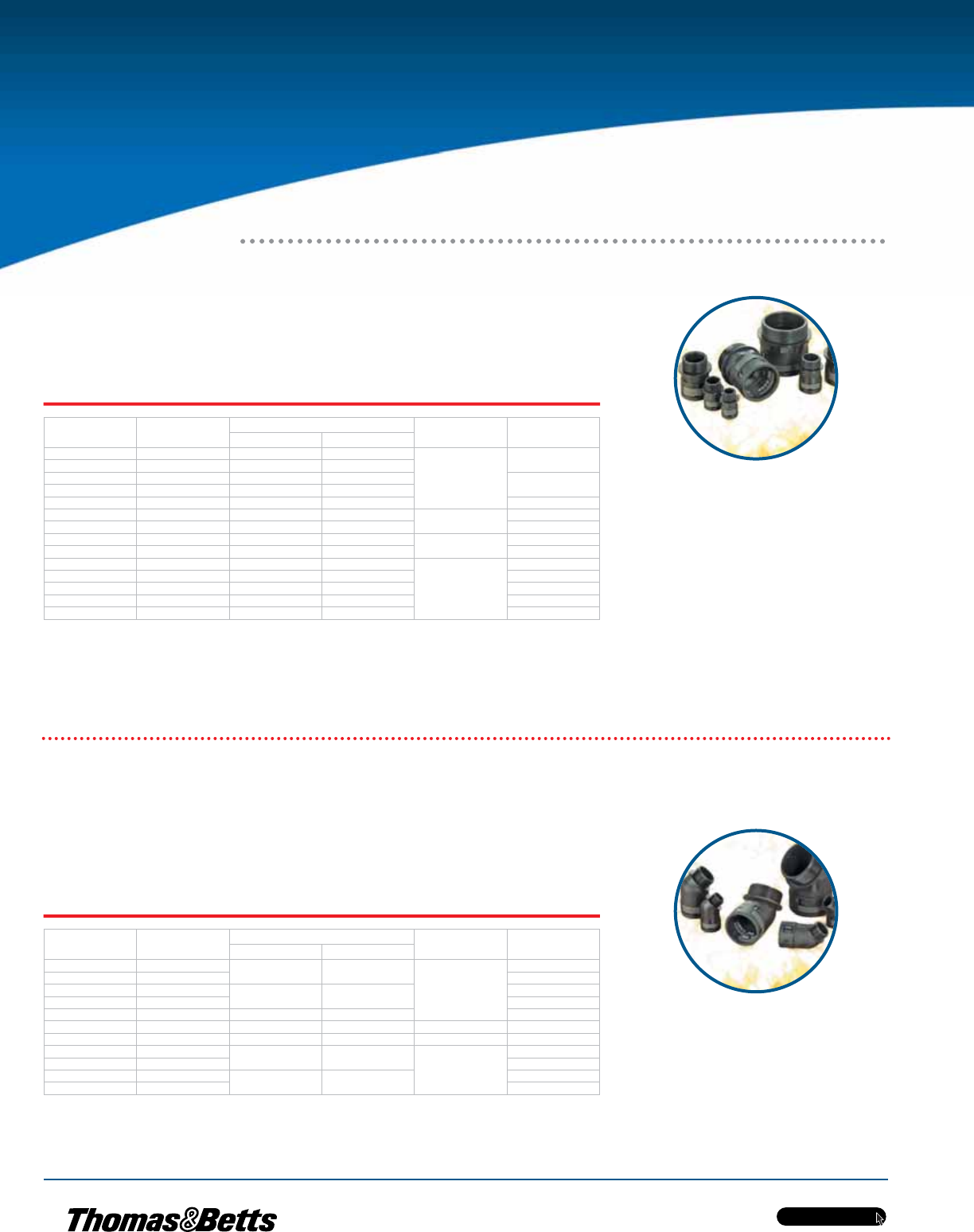

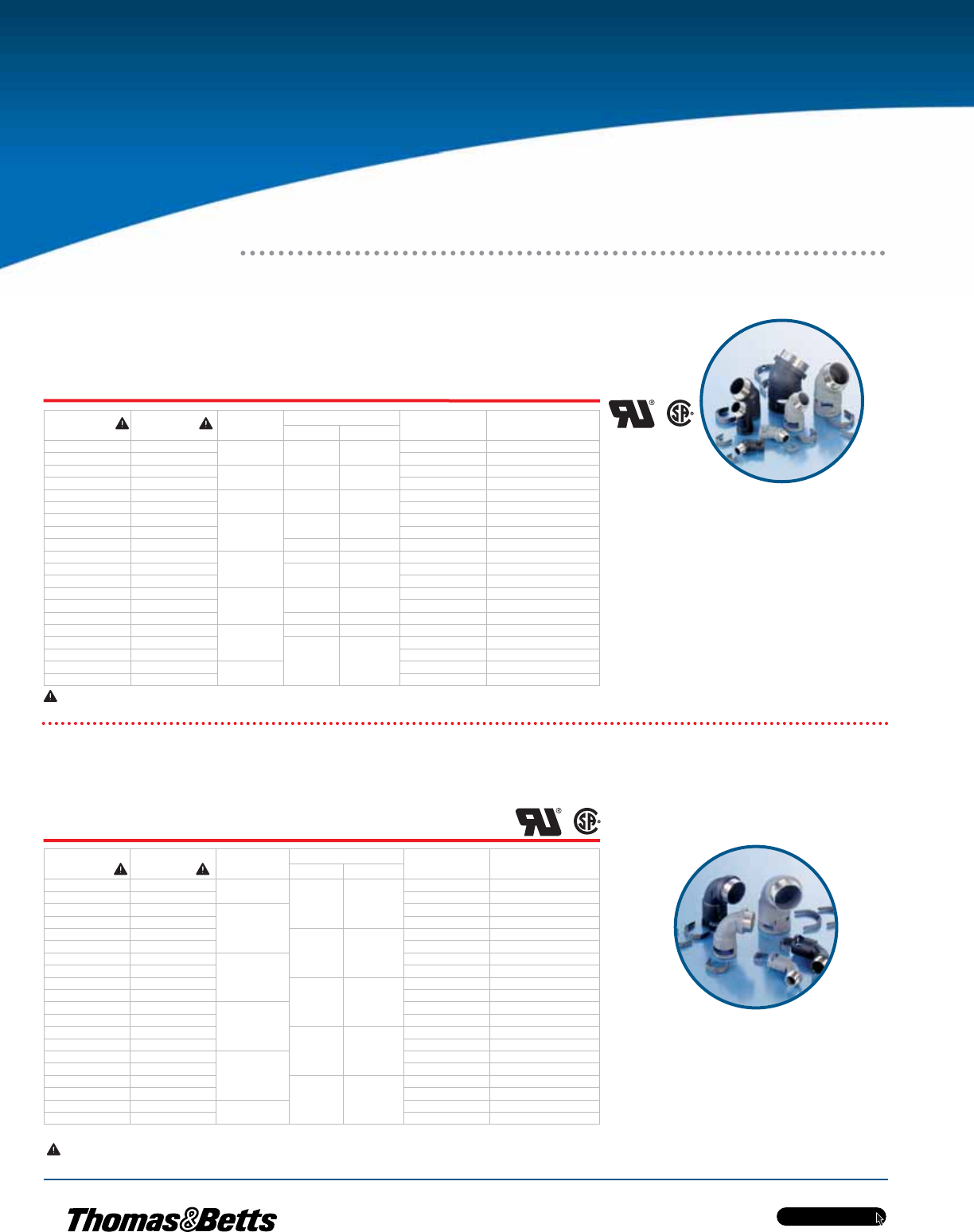

Fittings for Nylon Flexible Conduits
VA 45° Elbow, Metric, Metal/Polyamide
•Use in railway vehicle and heavy machine
construction
•Body made of specially formulated
polyamide 6
•Threads made of nickel-plated brass
•Very high impact resistance
•High thread and system pullout resistance
•Vibration-proof connection to PMAFLEX®conduits
•Easy assembly
•Very good chemical properties
•Polyamide free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles

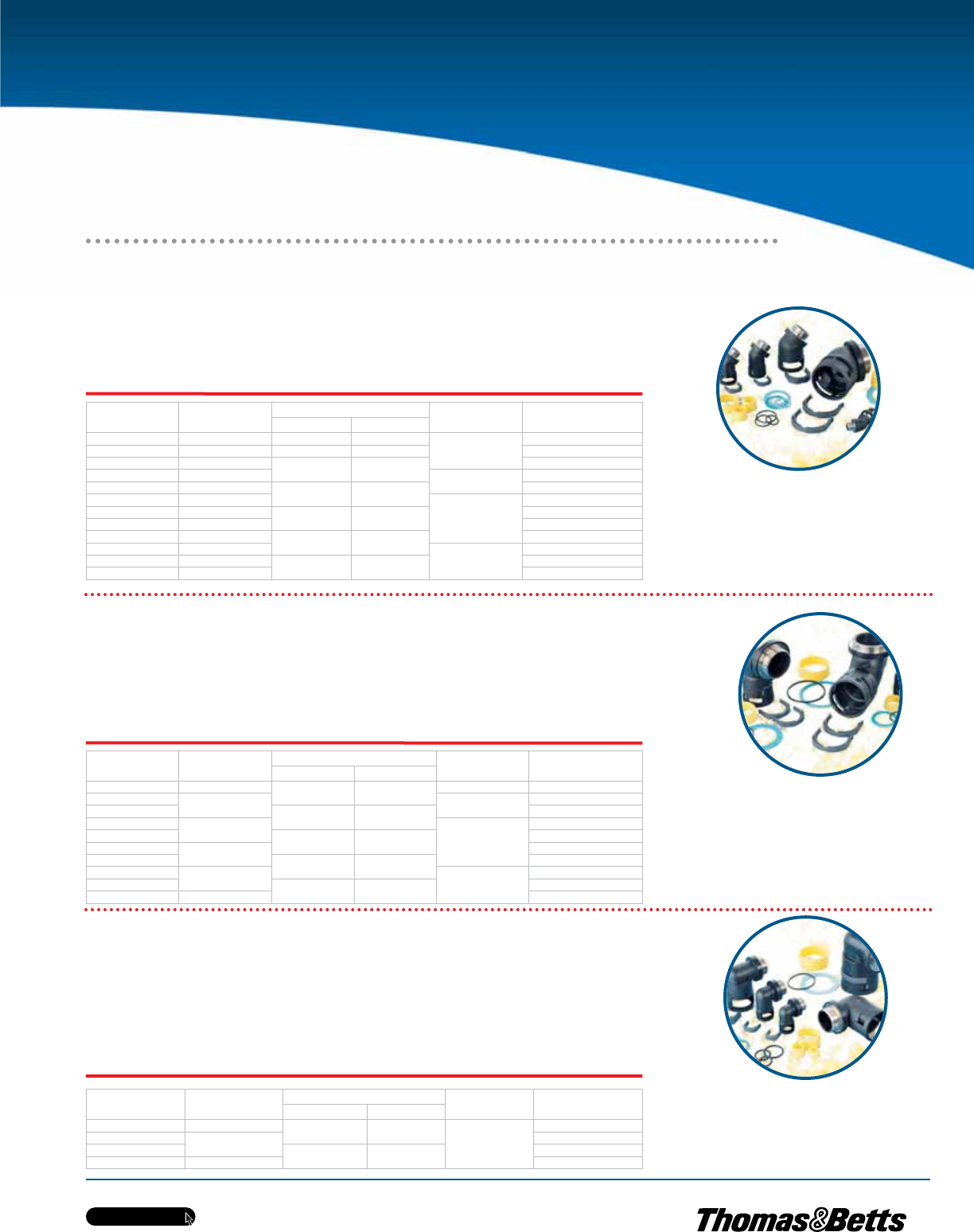

VB 90° Curved Elbow, Metric, Metal/Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E37
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4 or OR)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4 or OR)
•Use in railway vehicle and heavy machine
construction
•Body made of high-grade formulated
polyamide
•Threads made of nickel-plated brass
•Self extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
•Fits fine (T) and coarse
(G) conduit profiles
VWZ 90° Elbow, Metric, Strain Relief,
Metal/Polyamide
•Use in railway vehicle construction and heavy
machine construction
•Separate damp and dry areas
•PA straight fitting made from high-grade
formulated polyamide with nickel-plated
brass female threads
•Zinc diecast 90° elbow, with TPE-V bushing
•With corresponding seals, IP68 static/IP67
dynamic cable = IP68 (10 bar)
•Self extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
•Fits fine (T) and coarse (G) conduit profiles
IP68GT available. Please add “GT” prior to the thread length (e.g. NVWV-M120GT-10).
(Functional description PMAFIX IP68GT, pages E28–E29).
* = without insert
IP68GT available. Please replace “S” with “GT” (for example NVWZ-M160GT/P1).
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP68, Black
Cat. No.
IP68, Grey
Thread
Metric
Fits to Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NVWV-M120-10 MVWV-M120-10 M12x1.5
10 12
10.0 37.5 x 39.5
NVWV-M120-5 MVWV-M120-5 5.0 32.5 x 39.5
NVWV-M160-10 MVWV-M160-10
M16x1.5
10.0 37.5 x 41.5
NVWV-M160-5 MVWV-M160-5 5.0 32.5 x 41.5
NVWV-M162-10 MVWV-M162-10
12 16
10.0 42.0 x 46.5
NVWV-M162-5 MVWV-M162-5 5.0 37.0 x 46.5
NVWV-M202-10 MVWV-M202-10
M20x1.5
10.0 42.0 x 49.0
NVWV-M202-6 MVWV-M202-6 6.0 38.0 x 49.0
NVWV-M207-10 MVWV-M207-10 17 20 10.0 47.0 x 58.5
NVWV-M207-6 MVWV-M207-6 6.0 43.0 x 58.5
NVWV-M253-11 MVWV-M253-11 M25x1.5 23 25 11.0 59.0 x 67.0
NVWV-M253-7 MVWV-M253-7 7.0 55.0 x 67.0
NVWV-M329-13 MVWV-M329-13 M32x1.5 29 32 13.0 68.0 x 74.5
NVWV-M329-8 MVWV-M329-8 8.0 63.0 x 74.5
NVWV-M406-13 MVWV-M406-13 M40x1.5 36 40 13.0 80.5 x 98.0
NVWV-M406-8 MVWV-M406-8 8.0 75.5 x 98.0
NVWV-M508-14 MVWV-M508-14 M50x1.5
48 50
14.0 95.5 x 111.0
NVWV-M508-9 MVWV-M508-9 9.0 90.5 x 111.0
NVWV-M638-14 MVWV-M638-14 M63x1.5 14.0 94.5 x 114.0
NVWV-M638-10 MVWV-M638-10 10.0 90.5 x 114.0
Cat. No. IP68
Complete,
Black
Cat. No.
Fitting *
Cat. No.
Insert
Thread
Metric
Conduit Size Terminal
Range
(mm)
Thread
Length
(mm)
Overall
Length
(mm)
NW Metric
NVWZ-M160S/P1 NVWZ-M160R/P DE-M160/P1
M16x1.5 10 12
4.0–6.5
8.0
65.0NVWZ-M160S/P2 DE-M160/P2 5.0–8.0
NVWZ-M160S/P3 DE-M160/P3 6.5–9.5
NVWZ-M202S/P1 NVWZ-M202R/P DE-M202/P1
M20x1.5
12 16
4.0–6.5
74.5NVWZ-M202S/P3 DE-M202/P3 6.5–9.5
NVWZ-M202S/P4 DE-M202/P4 7.0–10.5
NVWZ-M207S/P3 NVWZ-M207R/P DE-M207/P3
17 20
6.5–9.5
81.0NVWZ-M207S/P4 DE-M207/P4 7.0–10.5
NVWZ-M207S/P5 DE-M207/P5 9.0–13.0
NVWZ-M257S/P5 NVWZ-M257R/P DE-M257/P5 M25x1.5 9.0–13.0 84.0
NVWZ-M257S/P6 DE-M257/P6 11.5–15.5
Fittings for Nylon Flexible Conduits
VW 90° Elbow, Metric, Metal/Polyamide
Temperature range: -40 to 105 ºC
Short term: Max. 135 ºC
Content of delivery:
IP68GT
Complete Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT), sealing
bushing and O-ring (OR)
Fitting* Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
O-ring (OR)
IP68
Complete Fitting with oval clips (OVN2), sealing
bushing, conduit seal (NVN3) and O-ring OR)
Fitting* Fitting with oval clips (OVN2), conduit seal
(NVN3) and O-ring (OR)
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E38
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Easy mounting: simple conduit push-in
installation
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP68
Cat. No.
IP68
Thread
PG
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
_VND-P07MGT-11 _VNV-P07M
7
7 10 11.0 34.5
_VND-P07MGT-8 — 8.0 31.5
_VND-P070GT-11 _VNV-P070 10 12 11.0 36.5
_VND-P070GT-8 — 8.0 33.5
_VND-P072GT-11 _VNV-P072 12 16 11.0 39.0
_VND-P072GT-8 — 8.0 36.0
_VND-P09MGT-11 _VNV-P09M
9
7 10 11.0 34.5
_VND-P09MGT-8 —
10 12
8.0 31.5
_VND-P090GT-11 _VNV-P090 11.0 36.5
_VND-P090GT-8 — 8.0 33.5
_VND-P092GT-11 _VNV-P092 12 16 11.0 39.0
_VND-P092GT-8 — 8.0 36.0
_VND-P097GT-11 _VNV-P097 17 20 11.0 47.5
_VND-P097GT-8 — 8.0 44.5
_VND-P11MGT-11 _VNV-P11M
11
7 10 11.0 34.5
_VND-P11MGT-8 — 8.0 31.5
_VND-P110GT-11 _VNV-P110 10 12 11.0 36.5
_VND-P110GT-8 — 8.0 33.5
_VND-P112GT-11 _VNV-P112 12 16 11.0 39.0
_VND-P112GT-8 — 8.0 36.0
_VND-P117GT-11 _VNV-P117 17 20 11.0 47.5
_VND-P117GT-8 — 8.0 44.5
_VND-P13MGT-11 _VNV-P13M
13.5
7 10 11.0 34.5
_VND-P13MGT-8 — 8.0 31.5
_VND-P130GT-11 _VNV-P130 10 12 11.0 36.5
_VND-P130GT-8 — 8.0 33.5
_VND-P132GT-11 _VNV-P132 12 16 11.0 39.0
_VND-P132GT-8 — 8.0 36.0
_VND-P137GT-11 _VNV-P137 17 20 11.0 47.5
_VND-P137GT-8 — 8.0 44.0
_VND-P160GT-11 —
16
10 12 11.0 36.5
_VND-P160GT-8 — 8.0 33.5
_VND-P162GT-11 _VNV-P162 12 16 11.0 39.0
_VND-P163GT-11 _VNV-P163 23 25 11.0 51.5
_VND-P163GT-8 — 8.0 48.0
_VND-P167GT-11 _VNV-P167 17 20 11.0 47.5
_VND-P167GT-8 — 8.0 44.5
_VND-P213GT _VNV-P213 21 23 25
12.0
52.0
_VND-P296GT _VNV-P296 29 36 40 67.5
_VND-P299GT _VNV-P299 29 32 53.0
_VND-P366GT _VNV-P366 36 36 40
13.0
66.0
_VND-P368GT _VNV-P368 36
48 50 68.5_VND-P428GT _VNV-P428 42
_VND-P488GT _VNV-P488 48
Fittings for Nylon Flexible Conduits
VN Straight, PG, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E39
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT),
strain-relief bushing and thread gasket
(SNV4)
IP68 Fitting with oval clips (OVN2), strain-relief
bushing, conduit seal (NVN3) and thread
gasket (SNV4)
For several conductors, multi-hole bushings
are available (MDE)
•For cable protection systems in a wide range
of applications
•Separate damp and dry areas
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•High conduit pullout strength
•Easy mounting: simple push-in installation
•Integrated strain-relief optimally holds and
seals cables
•If several conductors are used with the
connector, multi-hole bushings should
be considered
•Very good chemical properties
•Free from halogens and cadmium
•Excellent impact strength
•Fits fine (T) and coarse (G) conduit profiles
_ = Insert “B” to order black or “S” to order grey.
Note: MDE multiple sealing inserts are available for this product.
IP68GT available. Please replace “S” at the end with “GT” (for example, BVNZ-P112GT/P1).
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66
Cat. No.
IP68
Thread
Metric
Conduit Size Terminal
Range
(mm)
Thread
Length
(mm)
Overall
Length
(mm)
NW Metric
_VNDZ-P090GT _VNZ-P090S 9 10 12 4.0–8.0 8.0 53.0
_VNDZ-P112GT _VNZ-P112S 11 12 16 5.0–10.0 59.0
_VNDZ-P132GT _VNZ-P132S 13.5 6.0–12.0 9.0 62.0
_VNDZ-P137GT _VNZ-P137S 13.5 17 20 69.0
_VNDZ-P167GT _VNZ-P167S 16 10.0–14.0 10.0 72.0
_VNDZ-P163GT _VNZ-P163S 16 23 25 12.0 79.0
_VNDZ-P213GT _VNZ-P213S 21 13.0–18.0 82.0
_VNDZ-P299GT _VNZ-P299S 29 29 32 18.0–25.0 11.0 85.0
Fittings for Nylon Flexible Conduits
VNZ Straight, PG, Strain Relief, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E40
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated
polyamide 6
•Very high impact resistance
•Vibration-proof connection
to PMAFLEX®conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
_ = Insert “B” to order black or “S” to order grey.
Appropriate standard elbows of type VW are available for smaller conduit sizes NW 07 to NW 12.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).

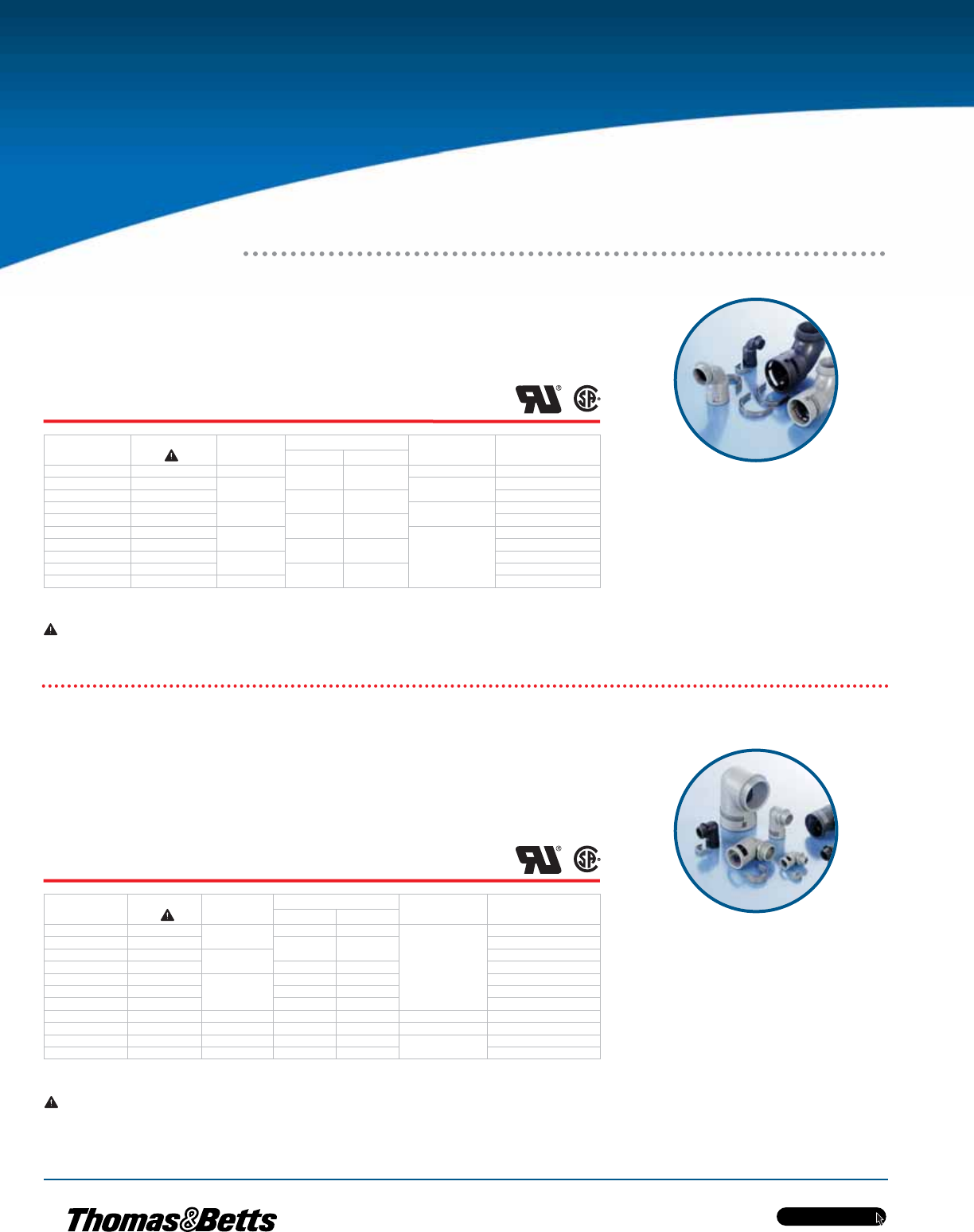

VB 90° Curved Elbow, PG, Polyamide
•For cable protection systems in a
wide range of applications
•High-grade, specially formulated
polyamide 6
•Very high impact resistance
•Vibration-proof connection to
PMAFLEX conduits
•High conduit pullout strength
•Smooth elbow allows easy guidance through
connector
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
Cat. No.
IP66
Cat. No.
IP68
Thread
PG
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VBD-P167GT _VBV-P167 16 17 20 11.0 47.5 x 73.0
_VBD-P213GT _VBV-P213 21 23 25 12.0 57.5 x 85.0
_VBD-P299GT _VBV-P299 29 29 32 67.5 x 96.0
_VBD-P366GT _VBV-P366 36 36 40 13.0 79.0 x 123.0
_VBD-P488GT _VBV-P488 48 48 50 92.5 x 135.0
Cat. No.
IP66
Cat. No.
IP68
Thread
PG
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VAD-P090GT _VAV-P090 9 10 12
11.0
43.0 x 37.0
_VAD-P112GT _VAV-P112 11 12 16 48.0 x 40.0
_VAD-P132GT _VAV-P132 13.5 48.0 x 41.5
_VAD-P137GT _VAV-P137 17 20 55.5 x 51.5
_VAD-P167GT _VAV-P167 16 55.5 x 51.5
_VAD-P213GT _VAV-P213 21 23 25 63.0 x 58.0
_VAD-P299GT _VAV-P299 29 29 32 12.0 69.0 x 66.0
_VAD-P366GT _VAV-P366 36 36 40 13.0 86.0 x 86.0
_VAD-P488GT _VAV-P488 48 48 50 94.0 x 100.0
Fittings for Nylon Flexible Conduits
VA 45° Elbow, PG, Polyamide
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E41
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide
range of applications
•High-grade, specially formulated
polyamide 6
•Very high impact resistance
•Vibration-proof connection
to PMAFLEX®conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
_= Insert “B” to order black or “S” to order grey.
Curved elbows of type VB are available for the sizes NW 17 to NW 48.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66
Cat. No.
IP68
Thread
PG
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VWD-P07MGT-11 _VWV-P07M
7
7 10 11.0 32.0 x 35.0
_VWD-P07MGT-8 — 8.0 29.0 x 35.0
_VWD-P070GT-11 _VWV-P070 10 12 11.0 34.0 x 39.5
_VWD-P070GT-8 — 8.0 31.0 x 39.5
_VWD-P072GT-11 _VWV-P072 12 16 11.0 38.5 x 44.5
_VWD-P072GT-8 — 8.0 35.5 x 44.5
_VWD-P09MGT-11 _VWV-P09M
9
7 10 11.0 32.0 x 36.5
_VWD-P09MGT-8 — 8.0 29.0 x 36.5
_VWD-P090GT-11 _VWV-P090 10 12 11.0 34.0 x 39.5
_VWD-P090GT-8 — 8.0 31.0 x 39.5
_VWD-P092GT-11 _VWV-P092 12 16 11.0 38.5 x 44.5
_VWD-P092GT-8 — 8.0 35.5 x 44.5
_VWD-P11MGT-11 _VWV-P11M
11
7 10 11.0 32.0 x 38.0
_VWD-P11MGT-8 — 8.0 29.0 x 38.0
_VWD-P110GT-11 _VWV-P110 10 12 11.0 34.0 x 41.0
_VWD-P110GT-8 — 8.0 31.0 x 41.0
_VWD-P112GT-11 _VWV-P112 12 16 11.0 38.5 x 46.0
_VWD-P112GT-8 — 8.0 35.5 x 46.0
_VWD-P13MGT-11 _VWV-P13M
13.5
7 10 11.0 32.0 x 39.5
_VWD-P13MGT-8 — 8.0 29.0 x 39.5
_VWD-P130GT-11 _VWV-P130 10 12 11.0 34.0 x 42.5
_VWD-P130GT-8 — 8.0 31.0 x 42.5
_VWD-P132GT-11 _VWV-P132 12 16 11.0 38.5 x 47.5
_VWD-P132GT-8 — 8.0 35.5 x 47.5
_VWD-P137GT-11 _VWV-P137
17 20
11.0 43.5 x 58.5
_VWD-P137GT-8 — 8.0 40.5 x 58.5
_VWD-P167GT-11 _VWV-P167 16 11.0 43.5 x 58.5
_VWD-P167GT-8 — 8.0 40.5 x 58.5
_VWD-P213GT _VWV-P213 21 23 25 12.0 54.0 x 67.0
_VWD-P299GT _VWV-P299 29 29 32 61.5 x 74.5
_VWD-P366GT _VWV-P366 36 36 40 13.0 72.0 x 98.0
_VWD-P488GT _VWV-P488 48 48 50 85.5 x 111.0

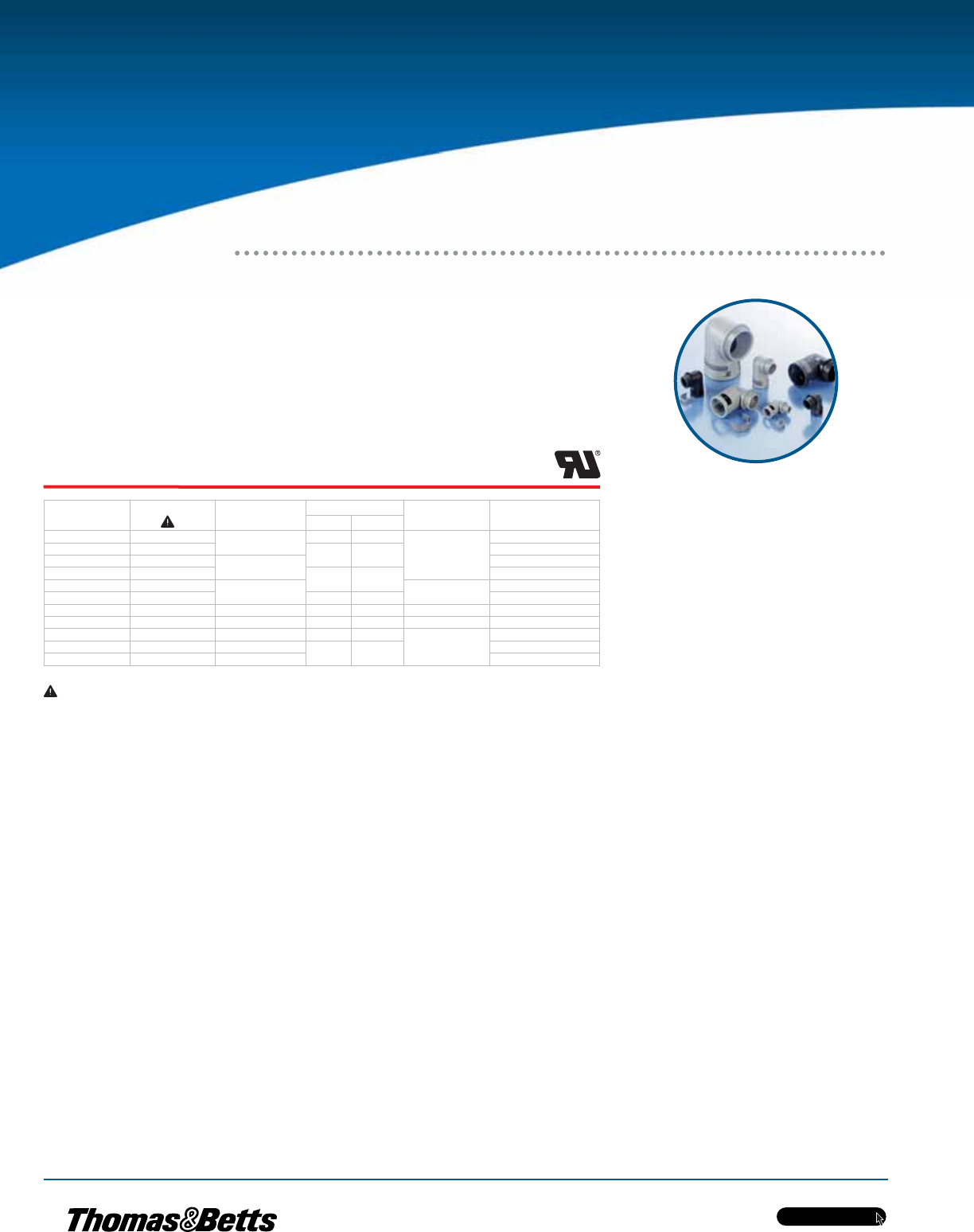

Fittings for Nylon Flexible Conduits
VW 90° Elbow, PG, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E42
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
Temperature range: -40 to 105 ºC
Short term: Max. 135 ºC
Content of delivery:
IP68GT
Complete Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT), sealing
bushing and O-ring (OR)
Fitting* Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
O-ring (OR)
IP68
Complete Fitting with oval clips (OVN2), sealing
bushing, conduit seal (NVN3) and O-ring OR)
Fitting* Fitting with oval clips (OVN2), conduit seal
(NVN3) and O-ring (OR)
Bushing Sealing bushing
For several conductors, multi-hole bushings
are available (MDE)
•Use in railway vehicle and heavy machine
construction
•Body made of high-grade, specially
formulated polyamide
•Threads made of nickel-plated brass
•Self extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
•Fits fine (T) and coarse
(G) conduit profiles
VNZ Straight, PG, Strain Relief, Metal/Polyamide
•Use in railway vehicle and heavy machine
construction
•Separate damp and dry areas
•Body made of high-grade, specially
formulated polyamide 6
•Threads made of nickel-plated brass
•Sealing bushings made of TPE-V
•Integrated strain relief and optimal ingress
protection at the cable (up to IP68/10 bar)
•High thread and system pullout resistance
•Vibration-resistant connection
to PMAFLEX®conduits
•Very good chemical properties
•Polyamide free from halogens and cadmium
• Fits fine (T) and coarse (G) conduit profiles
IP68GT available. Please add “GT” after the order no. (Functional description PMAFIX IP68GT, pages E28–E29).
* = without insert
Note: MDE multi-hole bushings are available for this product.
IP68GT available. Please replace “S” or “R” with “GT” (for example NVNZ-P112GT/P1)
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP68, Black
Cat. No.
IP68, Grey
Thread
PG
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
NVNV-P090 MVNV-P090 9 10 12 12.0 42.0
NVNV-P112 MVNV-P112 11 12 16 45.0
NVNV-P137 MVNV-P137 13.5 17 20 13.0 54.0
NVNV-P167 MVNV-P167 16
NVNV-P213 MVNV-P213 21 23 25 14.0 57.0
NVNV-P293 MVNV-P293 29
NVNV-P299 MVNV-P299 29 32 58.5
NVNV-P366 MVNV-P366 36 36 40 17.0 75.5
NVNV-P488 MVNV-P488 48 48 50
Cat. No. IP68
Complete,
Black
Cat. No.
IP68
Fitting *
Cat. No.
Insert
Thread
PG
Conduit Size Terminal
Range
(mm)
Thread
Length

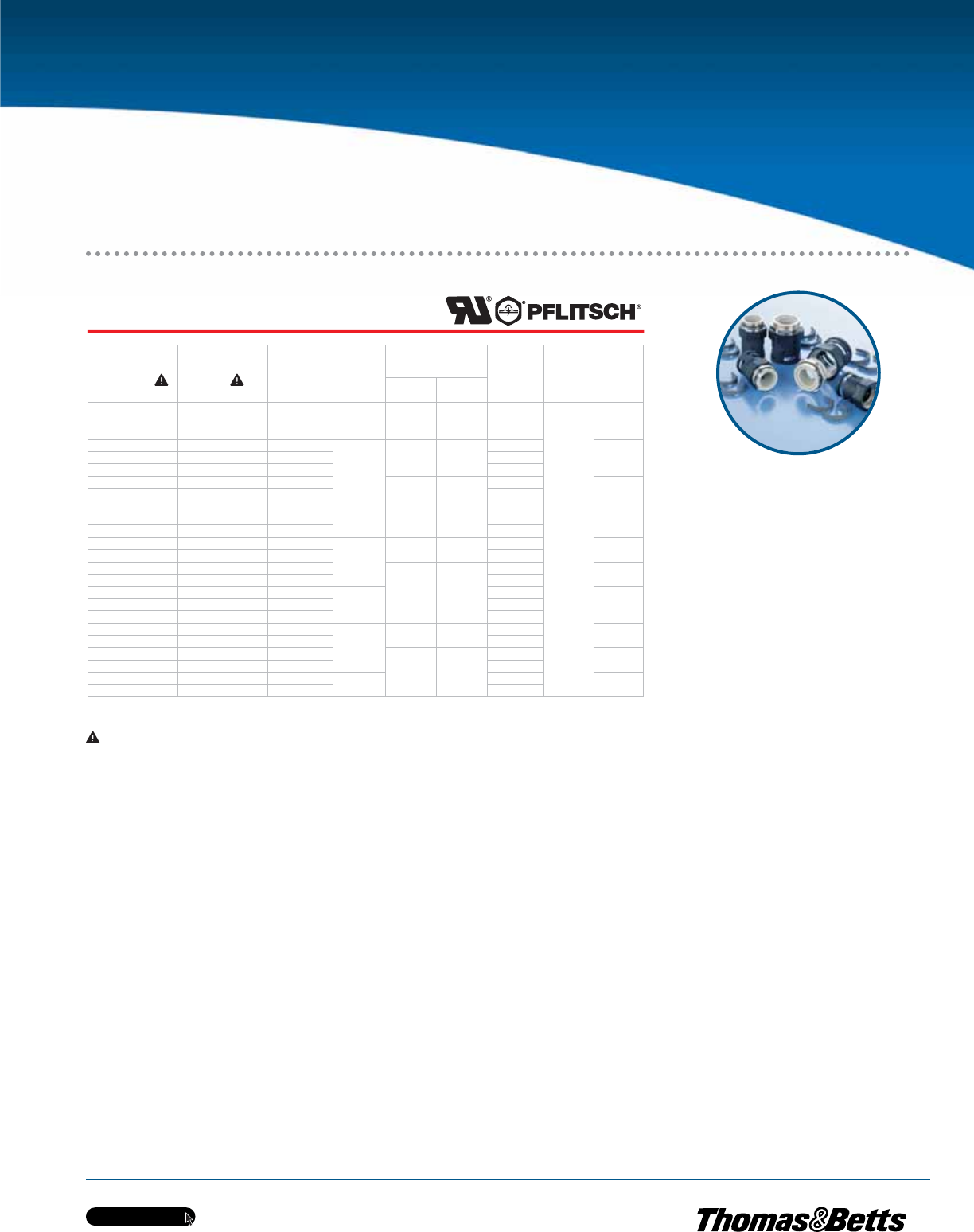

(mm)
Overall
Length
(mm)
NW Metric
NVNZ-P090S/P3 NVNZ-P090R/P DE-P090/P3 9
10 12
6.5–9.5
6.0
49.5
NVNZ-P110S/P1 NVNZ-P110R/P DE-P110/P1
11
4.0–6.5 52.0
NVNZ-P110S/P3 DE-P110/P3 6.5–9.5 52.0
NVNZ-P112S/P1 NVNZ-P112R/P DE-P112/P1
12 16
4.0–6.5
53.5NVNZ-P112S/P3 DE-P112/P3 6.5–9.5
NVNZ-P112S/P4 DE-P112/P4 7.0–10.5
NVNZ-P160S/P1 NVNZ-P160R/P1 DE-P110/P1
16
10 4.5–6.5
6.5
52.5
NVNZ-P167S/P3 NVNZ-P167R/P DE-P167/P3
17 20
6.5–9.5
61.0
NVNZ-P167S/P4 DE-P167/P4 7.0–10.5
NVNZ-P167S/P5 DE-P167/P5 9.0–13.0
NVNZ-P167S/P6 DE-P167/P6 11.5–15.5
NVNZ-P213S/P4 NVNZ-P213R/P DE-P213/P4 21 23 25 14.0–18.0 7.0 72.0
NVNZ-P213S/P5 NVNZ-P213R1/P DE-P213/P5 17.0–20.5
NVNZ-P299S/P3 NVNZ-P299R/P DE-P299/P3
29 29 32
17.0–20.5
8.0 73.5NVNZ-P299S/P4 DE-P299/P4 20.0–25.0
NVNZ-P299S/P5 DE-P299/P5 24.0–28.0
NVNZ-P366S/P1 NVNZ-P366R/P DE-P366/P1
36 36 40
27.0–32.0
9.0 88.0NVNZ-P366S/P2 DE-P366/P2 29.0–34.0
NVNZ-P366S/P3 DE-P366/P3 32.0–36.0
NVNZ-P488S/P1 NVNZ-P488R/P DE-P488/P1 48 48 50 35.0–40.0 10.0 90.5
NVNZ-P488S/P2 NVNZ-P488R/P DE-P488/P2 39.0–44.0

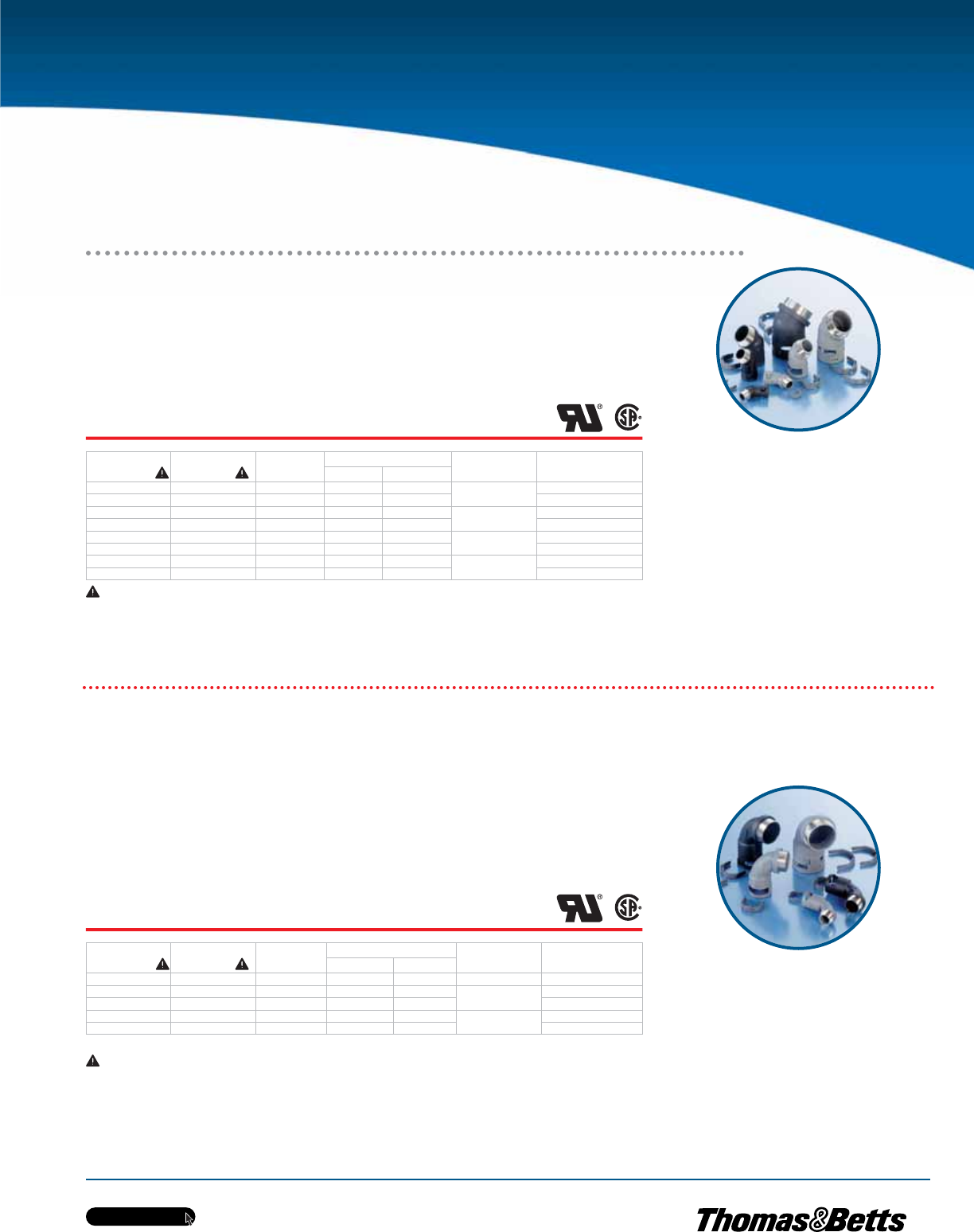

Fittings for Nylon Flexible Conduits
VN Straight, PG, Metal/Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E43
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide range
of applications
•Body made of high-grade, specially
formulated polyamide
•Threads made of nickel-plated brass
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties
•Polyamide free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
VB 90° Curved Elbow, PG, Metal/Polyamide
•For cable protection systems in a wide range
of applications
•Body made of high-grade, specially
formulated polyamide
•Threads made of nickel-plated brass
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Very good chemical properties
•Polyamide free from halogens and cadmium
•Extremely high thread and system
pullout resistance
•Fits fine (T) and coarse (G) conduit profiles
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Appropriate standard elbows of type VW are available for smaller conduit sizes NW 07 to NW 12.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP68, Black
Cat. No.
IP68, Grey
Thread
PG
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NVAV-P090 MVAV-P090 9 10 12 12.0 50.5 x 37.0
NVAV-P112 MVAV-P112 11 12 16 55.0 x 40.5
NVAV-P137 MVAV-P137 13.5 17 20 13.0 63.5 x 50.0
NVAV-P167 MVAV-P167 16 17 20 63.5 x 50.0
NVAV-P213 MVAV-P213 21 23 25 14.0 73.0 x 60.5
NVAV-P299 MVAV-P299 29 29 32 78.0 x 68.0
NVAV-P366 MVAV-P366 36 36 40 17.0 98.0 x 87.5
NVAV-P488 MVAV-P488 48 48 50 105.0 x 101.0
Cat. No.
IP68, Black
Cat. No.
IP68, Grey
Thread
PG
Fits to Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NVBV-P167 MVBV-P167 16 17 20 13.0 54.0 x 73.0
NVBV-P213 MVBV-P213 21 23 25 14.0 65.5 x 85.0
NVBV-P299 MVBV-P299 29 29 32 75.0 x 96.0
NVBV-P366 MVBV-P366 36 36 40 17.0 90.5 x 123.0
NVBV-P488 MVBV-P488 48 48 50 103.5 x 135.0
Fittings for Nylon Flexible Conduits
VA 45° Elbow, PG, Metal/Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E44
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•Use in railway vehicle and heavy machine
construction
•Body made if high-grade, specially
formulated polyamide
•Threads made of nickel-plated brass
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Very good chemical properties
•Polyamide free from halogens and cadmium
•Extremely high thread and system
pullout resistane
•Fits fine (T) and coarse (G) conduit profiles
Curved elbows of type VB are available for the sizes NW 17 to NW 48.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66, Black
Cat. No.
IP68, Grey
Thread
PG
Fits to Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NVWV-P090 MVWV-P090 9 10 12 12.0 39.5 x 39.5
NVWV-P112 MVWV-P112 11 12 16 45.5 x 45.0
NVWV-P137 MVWV-P137 13.5 17 20 13.0 50.0 x 58.5
NVWV-P167 MVWV-P167 16 17 20 50.0 x 58.5
NVWV-P213 MVWV-P213 21 23 25 14.0 62.0 x 67.0
NVWV-P299 MVWV-P299 29 29 32 69.0 x 74.5
NVWV-P366 MVWV-P366 36 36 40 17.0 83.5 x 98.0
NVWV-P488 MVWV-P488 48 48 50 96.5 x 111.0
Fittings for Nylon Flexible Conduits
VW 90° Elbow, PG, Metal/Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E45
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Easy mounting: simple conduit push-in
installation
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
VA 45° Elbow, Whitworth, Polyamide
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Easy mounting: simple conduit push-in
installation
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66
Cat. No.
IP68
Thread
Whitworth (in.)
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
_VND-G00MGT _VNV-G00M 1/4 7 10
11.0
34.5
_VND-G000GT _VNV-G000 10 12 36.5
_VND-G010GT _VNV-G010 3/8 10 12 36.5
_VND-G012GT _VNV-G012 12 16 39.0
_VND-G022GT _VNV-G022 1/2 12 16 13.0 41.0
_VND-G027GT _VNV-G027 17 20 49.5
_VND-G043GT _VNV-G043 3/4 23 25 14.0 54.0
_VND-G069GT _VNV-G069 1 29 32 15.0 56.0
_VND-G076GT _VNV-G076 1-1/4 36 40
18.0
71.0
_VND-G088GT _VNV-G088 1-1/2 48 50 71.5
_VND-G098GT _VNV-G098 2 48 50 71.5
Cat. No.
IP66
Cat. No.
IP68
Thread
Whitworth (in.)
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
_VAD-G000GT _VAV-G000 1/4 10 12 11.0 43.5 x 37.0
_VAD-G012GT _VAV-G012 12 16 48.0 x 40.0
_VAD-G027GT _VAV-G027 3/8 17 20 13.0 57.5 x 51.5
_VAD-G043GT _VAV-G043 23 25 14.0 67.0 x 60.0
_VAD-G069GT _VAV-G069 1/2 29 32 15.0 73.5 x 67.0
_VAD-G076GT _VAV-G076 36 40
18.0
91.5 x 85.5
_VAD-G088GT — 3/4 48 50 99.0 x 96.0
_VAD-G098GT _VAV-G098 1 48 50 99.0 x 101.0
Fittings for Nylon Flexible Conduits
VN Straight, Whitworth, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E46
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Easy mounting: simple conduit push-in
installation
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66
Cat. No.
IP68
Thread
Whitworth (in.)
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VWD-G00MGT _VWV-G00M 1/4 7 10
11.0
32.0 x 36.5
_VWD-G000GT _VWV-G000 10 12 34.0 x 39.5
_VWD-G010GT _VWV-G010 3/8 34.0 x 40.5
_VWD-G012GT _VWV-G012 12 16 38.5 x 46.0
_VWD-G022GT _VWV-G022 1/2 13.0 40.5 x 47.5
_VWD-G027GT _VWV-G027 17 20 45.5 x 58.5
_VWD-G043GT _VWV-G043 3/4 23 25 14.0 56.0 x 66.5
_VWD-G069GT _VWV-G069 1 29 32 15.0 64.5 x 73.5
_VWD-G076GT _VWV-G076 1-1/4 36 40
18.0
77.0 x 96.0
_VWD-G088GT _VWV-G088 1-1/2 48 50 90.5 x 106.0
_VWD-G098GT _VWV-G098 2 90.5 x 111.0
Fittings for Nylon Flexible Conduits
VW 90° Elbow, Whitworth, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E47

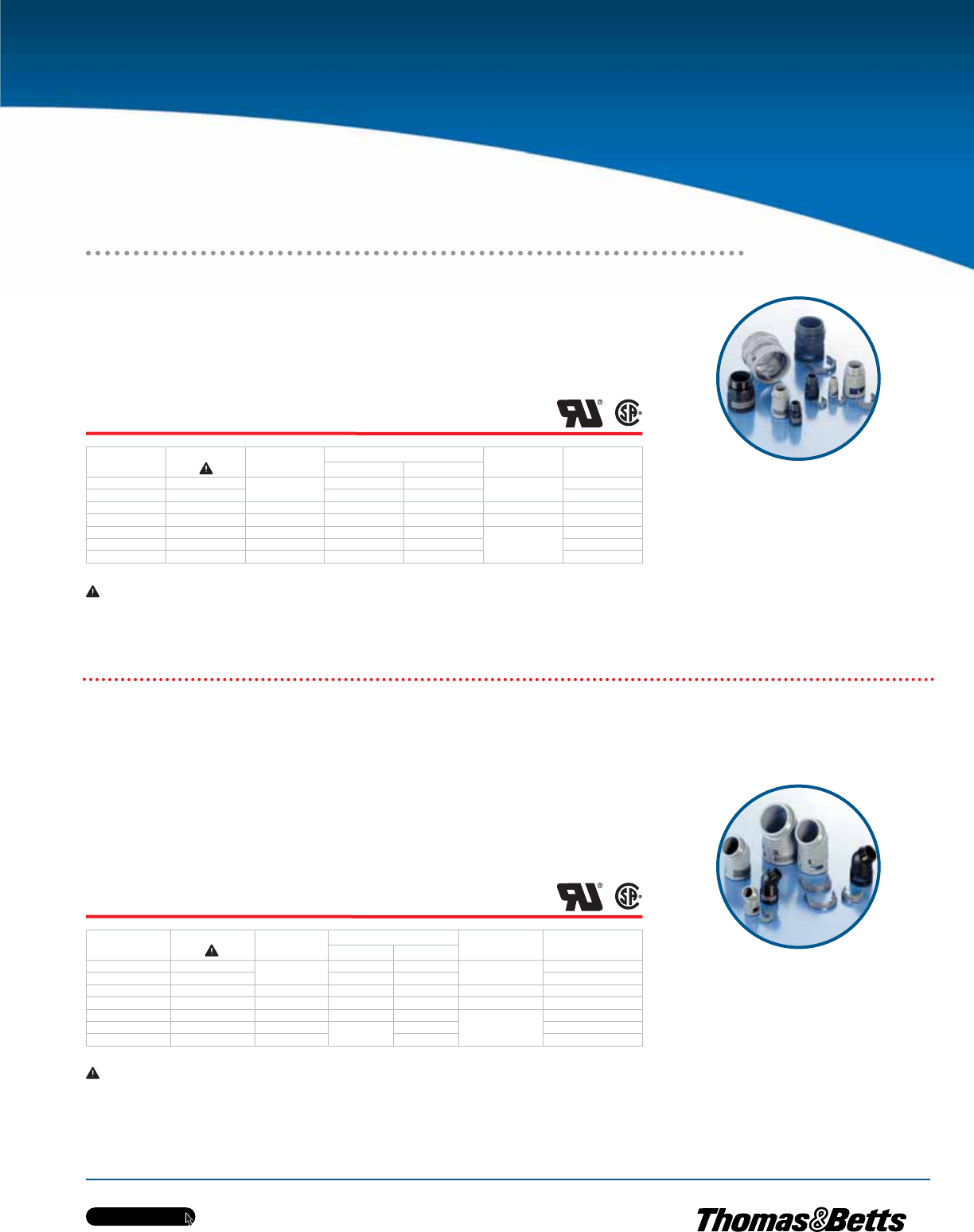

Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Easy mounting: simple conduit push-in
installation
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
VA 45° Elbow, NPT, Polyamide
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Easy mounting: simple conduit push-in
installation
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66
Cat. No.
IP68
Thread
NPT (in.)
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
_VND-N022GT _VNV-N022 1/2 12 16 13.0 41.5
_VND-N027GT _VNV-N027 17 20 49.5
_VND-N043GT _VNV-N043 3/4 23 25 14.0 54.0
_VND-N069GT _VNV-N069 1 29 32 15.0 56.0
_VND-N076GT _VNV-N076 1-1/4 36 40
18.0
71.0
_VND-N088GT _VNV-N088 1-1/2 48 50 71.5
_VND-N098GT _VNV-N098 2 48 50 71.5
Cat. No.
IP66
Cat. No.
IP68
Thread
NPT (in.)
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VAD-N022GT _VAV-N022 1/2 12 16 13.0 50.0 x 41.5
_VAD-N027GT _VAV-N027 17 20 57.5 x 51.5
_VAD-N043GT _VAV-N043 3/4 23 25 14.0 67.0 x 60.0
_VAD-N069GT _VAV-N069 1 29 32 15.0 73.5 x 67.0
_VAD-N076GT _VAV-N076 1-1/4 36 40
18.0
91.5 x 85.5
_VAD-N088GT _VAV-N088 1-1/2 48 50 99.0 x 96.0
_VAD-N098GT _VAV-N098 2 50 99.0 x 101.0
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).

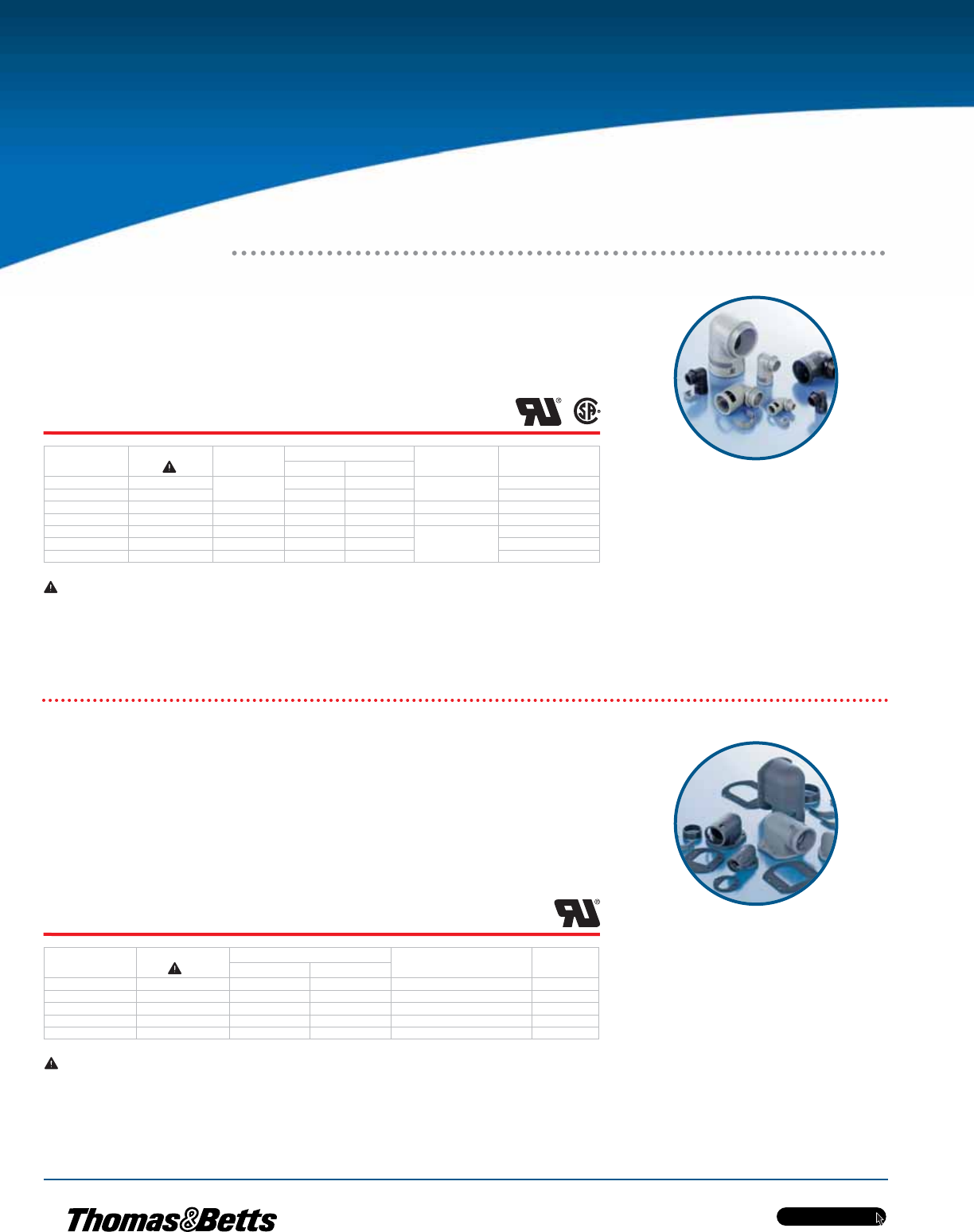

Fittings for Nylon Flexible Conduits
VN Straight, NPT, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E48
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
thread gasket (SNV4)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and thread gasket (SNV4)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2) and flange gasket (FG04)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
flange gasket (FG04)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and flange gasket (FG04)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Easy mounting: simple conduit
push-in installation
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse
(G) conduit profiles
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
VO Flange 90°, Polyamide
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Standard flange seal FGO4 made from EPDM
•Flange seal FGO4/01 made from NBR on
demand
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit
profiles
Cat. No.
IP66
Cat. No.
IP68
Thread
NPT (in.)
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
_VWD-N022GT _VWV-N022 1/2 12 16 13.0 40.5 x 47.5
_VWD-N027GT _VWV-N027 17 20 45.5 x 58.5
_VWD-N043GT _VWV-N043 3/4 23 25 14.0 56.0 x 66.5
_VWD-N069GT _VWV-N069 1 29 32 15.0 64.5 x 73.5
_VWD-N076GT _VWV-N076 1-1/4 36 40
18.0
77.0 x 96.0
_VWD-N088GT _VWV-N088 1-1/2 48 50 90.5 x 106.0
_VWD-N098GT _VWV-N098 2 48 50 90.5 x 111.0
Cat. No.
IP66
Cat. No.
IP68
Conduit Size Dimensions (mm)
Width x Length x Depth
Screw
Sizes
NW Metric
_VOD-P167GT _VOV-P167 17 20 46.0 x 66.0 x 35.5 2 x M5
_VOD-P213GT _VOV-P213 23 25 65.5 x 70.0 x 43.0 2 x M6
_VOD-P299GT _VOV-P299 29 32 67.0 x 78.0 x 49.5 4 x M6
_VOD-P366GT _VOV-P366 36 40 85.0 x 102.0 x 65.5 4 x M6
_VOD-P488GT _VOV-P488 48 50 86.0 x 119.0 x 77.5 4 x M6
Fittings for Nylon Flexible Conduits
VW 90° Elbow, NPT, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E49
VIR: IP68 static/IP67 dynamic,
conduit side
VID: IP66 static/IP54 dynamic,
conduit side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2) and conduit seal (NVN3-GT)
IP68 Fitting with oval clips (OVN2) and conduit
seal (NVN3)
VIR: IP68 static/IP67 dynamic,
conduit side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2) and conduit seal (NVN3-GT)
IP68 Fitting with oval clips (OVN2) and conduit
seal (NVN3)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
VI Female Thread Adapter, Metric, Metal/Polyamide
•Use in machine railway construction and
heavy-duty applications
•Body made of high-grade, specially
formulated polyamide 6
•Threads made of nickel-plated brass
•Very high impact resistance
•High thread and system pullout resistance
•Vibration-proof connection to PMAFLEX®
conduits
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66, Black
Cat. No.
IP68, Black
Thread
Metric
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
BVID-M12MGT — M12x1.5 7 10
8.0
32.0
BVID-M160GT BVIR-M160 M16x1.5 10 12 33.5
BVID-M162GT BVIR-M162 M16x1.5 12 16 36.5
— BVIR-M202 M20x1.5 12 16 36.5
BVID-M207GT BVIR-M207 M20x1.5 17 20 44.5
BVID-M253GT BVIR-M253 M25x1.5 23 25 48.5
— BVIR-M257 M25x1.5 17 20 44.5
BVID-M329GT BVIR-M329 M32x1.5 29 32
10.0
51.5
BVID-M406GT BVIR-M406 M40x1.5 36 40 65.5
BVID-M508GT BVIR-M508 M50x1.5 48 50 65.5
BVID-M638GT BVIR-M638 M63x1.5 48 50 65.5
Cat. No.
IP68, Black
Thread
Metric
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
NVIR-M120 M12x1.5 10 12 7.0 35.5
NVIR-M162 M16x1.5 12 16 9.0 40.5
NVIR-M207 M20x1.5 17 20 10.5 50.5
NVIR-M253 M25x1.5 23 25 10.5 53.0
NVIR-M329 M32x1.5 29 32 11.0 55.0
NVIR-M406 M40x1.5 36 40 13.5 71.0
NVIR-M508 M50x1.5 48 50 15.0 73.0
NVIR-M638 M63x1.5 48 50 17.5 78.0
Fittings for Nylon Flexible Conduits
VI Female Thread Adapter, Metric, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E50
VIR: IP68 static/IP67 dynamic, conduit side
FIL: IP67 static/IP65 dynamic, conduit side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP67 Fitting with oval clips (OVN2) and conduit
seal (NFN3)
IP68GT Fitting with pre-installed universal safety
clips (AFN2) and conduit seal (NVN3-GT)
IP68 Fitting with oval clips (OVN2) and conduit
seal (NVN3)
•For machine, automobile and rail vehicle
building
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
VI Female Thread Adapter PG, Metal/Polyamide
•For machine, vehicle and traction building
•Body made of high-grade, specially
formulated polyamide 6
•Threads made of nickel-plated brass
•Very high impact resistance
•High thread and system connection strengths
•Vibration-proof connection
to PMAFLEX®conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
Cat. No.
IP67, Black
Cat. No.
IP68, Black
Thread
PG
Fits to Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
BFIL-P07M —
7
7 10
8.0
29.0
BFIL-P070 —
10 12
34.5
— BVIR-P070 33.5
BFIL-P090 — 932.5
— BVIR-P090 33.5
BFIL-P112 —
11 12 16 32.5
— BVIR-P112 36.5
BFIL-P117 — 17 20 35.0
BFIL-P132 — 13.5 12 16 32.5
BFIL-P137 — 17 20 33.5
BFIL-P160 —
16
10 12 7.0 37.0
BFIL-P167 —
17 20
8.0 33.5
— BVIR-P167 8.0 44.5
BFIL-P217 — 21 10.5 35.5
BFIL-P213 — 23 25 8.0 39.0
BFIL-P293 — 29 9.0 42.0
BFIL-P299 — 29 32 9.0 43.0
BFIL-P363 —
36
23 25 12.0 51.0
BFIL-P369 — 29 32 16.0 52.0
BFIL-P366 — 36 25 13.0 64.0
BFIL-P488 — 48 48 50 13.0 65.0
Cat. No.
IP68, Black
Thread
PG
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
NVIZR-P07M 7 7 10 6.0 33.0
NVIZR-P090 9 10 12 9.0 37.5
NVIZR-P110 11 10 12 9.0 39.5
NVIZR-P112 11 12 16 9.0 41.5
NVIZR-P167 16 17 20 9.5 49.5
NVIZR-P213 21 23 25 10.0 56.5
NVIZR-P299 29 29 32 12.5 56.5
NVIZR-P366 36 36 40 13.0 73.0
NVIZR-P488 48 48 50 14.0 75.0
Fittings for Nylon Flexible Conduits
FI/VI Female Thread Adapter, PG, Polyamide
VUZR: IP68 static/IP67 dynamic, conduit side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68GT Fitting with pre-installed universal safety
clips (AFN2) and conduit seal (NVN3-GT)
IP68 Fitting with oval clips (OVN2) and conduit
seal (NVN3)
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E51

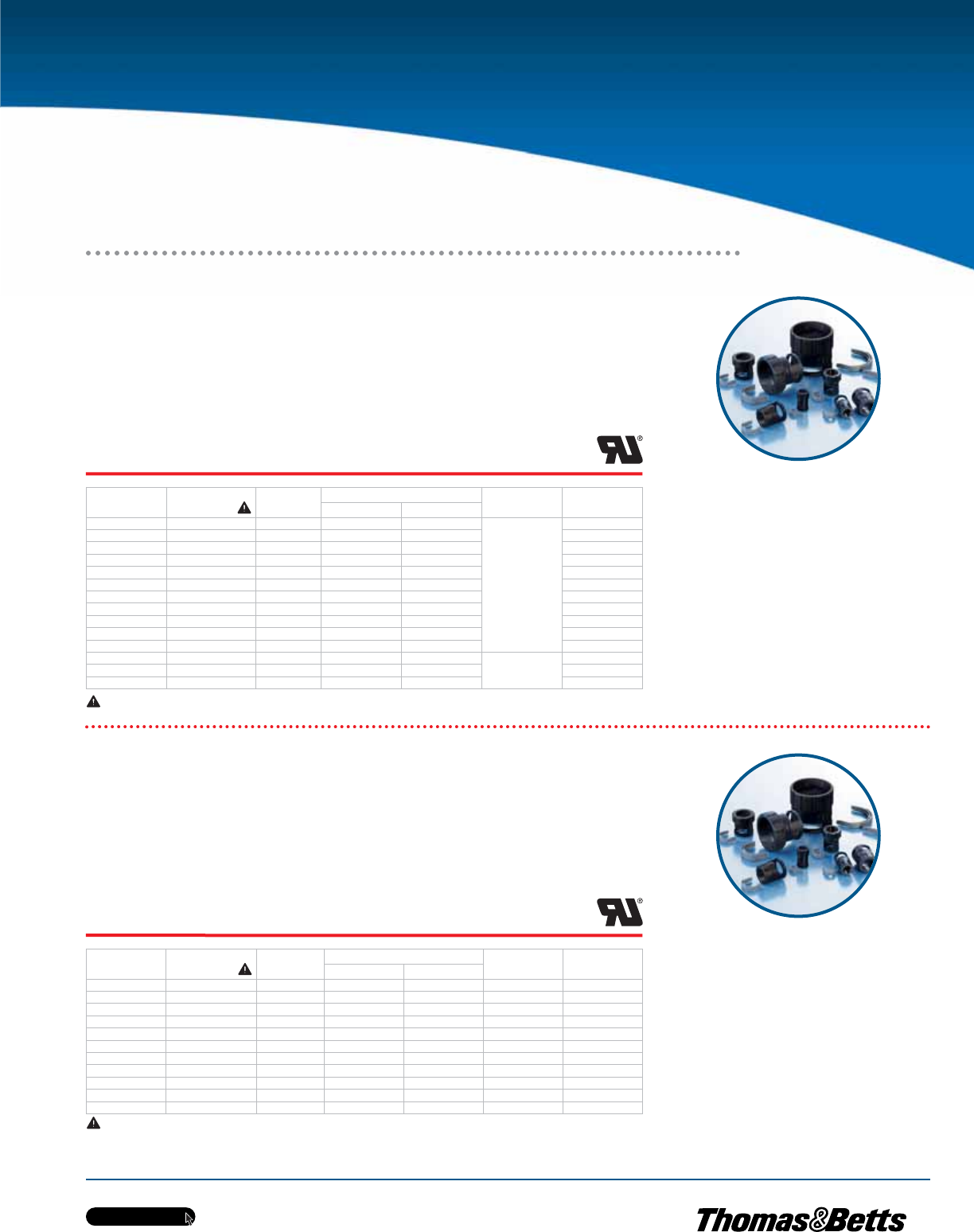

VIRA: IP68 static/IP67 dynamic, conduit side
VIDA: IP66 static/IP54 dynamic, conduit side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2) and conduit seal (NVN3-GT)
IP68 Fitting with oval clips (OVN2) and conduit
seal (NVN3)
VIRB: IP68 static/IP67 dynamic, conduit side
VIDB: IP66 static/IP54 dynamic, conduit side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2)
IP68GT Fitting with pre-installed universal safety
clips (AFN2) and conduit seal (NVN3-GT)
IP68 Fitting with oval clips (OVN2) and conduit
seal (NVN3)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated
polyamide 6
•Very high impact resistance
•Suitable for the AMP connector Series CPC
•Vibration-proof connection
to PMAFLEX®conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
IP68GT available. Please add “GT” after the catalogue no. (Functional description PMAFIX IP68GT, pages E28–E29).
VI Female Thread Adapter, UNEF for Souriau
UTG-6/ITT Cannon Trident, Polyamide
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated
polyamide 6
•Very high impact resistance
•Suitable for the Souriau connector Series
UTG-6 - ITT Cannon Trident
•Vibration-proof connection
to PMAFLEX®conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
Cat. No.
IP66, Black
Cat. No.
IP68, Black
Thread
UNEF
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
BVIDA-U15MGT BVIRA-U15M 5/8 in.-24 7 10
8.0
31.5
BVIDA-U150GT BVIRA-U150 5/8 in.-24 10 12 33.5
BVIDA-U152GT BVIRA-U152 5/8 in.-24 12 16 36.5
BVIDA-U180GT BVIRA-U180 1/4 in.-20 10 12 33.5
BVIDA-U182GT BVIRA-U182 1/4 in.-20 12 16 36.5
BVIDA-U187GT BVIRA-U187 1/4 in.-20 17 20 44.5
BVIDA-U232GT BVIRA-U232 15/16 in.-20 12 16 38.5
BVIDA-U237GT BVIRA-U237 15/16 in.-20 17 20 46.5
BVIDA-U233GT BVIRA-U233 15/16 in.-20 23 25 48.5
BVIDA-U347GT BVIRA-U347 13/8 in.-18 17 20 46.5
BVIDA-U343GT BVIRA-U343 13/8 in.-18 23 25 48.5
BVIDA-U402GT BVIRA-U402 15/8 in.-18 12 16
7.0
55.5
BVIDA-U407GT BVIRA-U407 15/8 in.-18 17 20 61.5
BVIDA-U403GT BVIRA-U403 15/8 in.-18 23 25 60.5
Cat. No.
IP66, Black
Cat. No.
IP68, Black
Thread
UNEF
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
BVIDB-U162GT BVIRB-U162 11/16 in.-24 12 16 4.0 43.5
BVIDB-U202GT BVIRB-U202 13/16 in.-20 12 16 4.5 44.0
BVIDB-U232GT BVIRB-U232 15/16 in.-20 12 16 4.5 49.0
BVIDB-U237GT BVIRB-U237 15/16 in.-20 17 20 4.5 52.0
BVIDB-U267GT BVIRB-U267 11/16 in.-18 17 20 4.5 52.0
BVIDB-U297GT BVIRB-U297 13/16 in.-18 17 20 6.5 55.5
BVIDB-U293GT BVIRB-U293 13/16 in.-18 23 25 6.5 52.0
BVIDB-U323GT BVIRB-U323 15/16 in.-18 23 25 6.5 52.0
BVIDB-U357GT BVIRB-U357 17/16 in.-18 17 20 6.5 58.5
BVIDB-U353GT BVIRB-U353 17/16 in.-18 23 25 6.5 54.0
BVIDB-U359GT BVIRB-U359 17/16 in.-18 29 32 6.5 50.5
Fittings for Nylon Flexible Conduits
VI Female Thread Adapter, UNEF for
AMP CPC Series, Polyamide
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E52

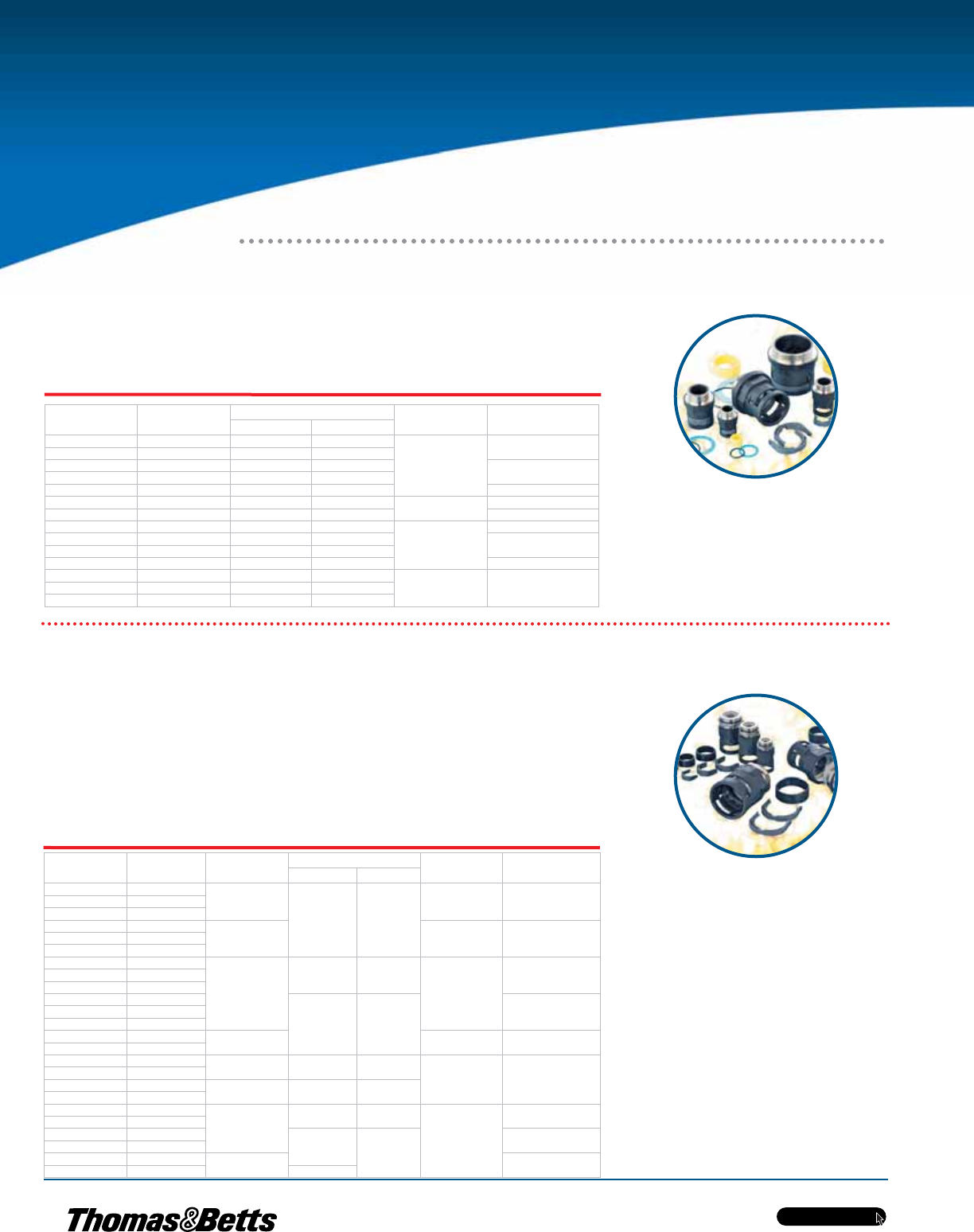

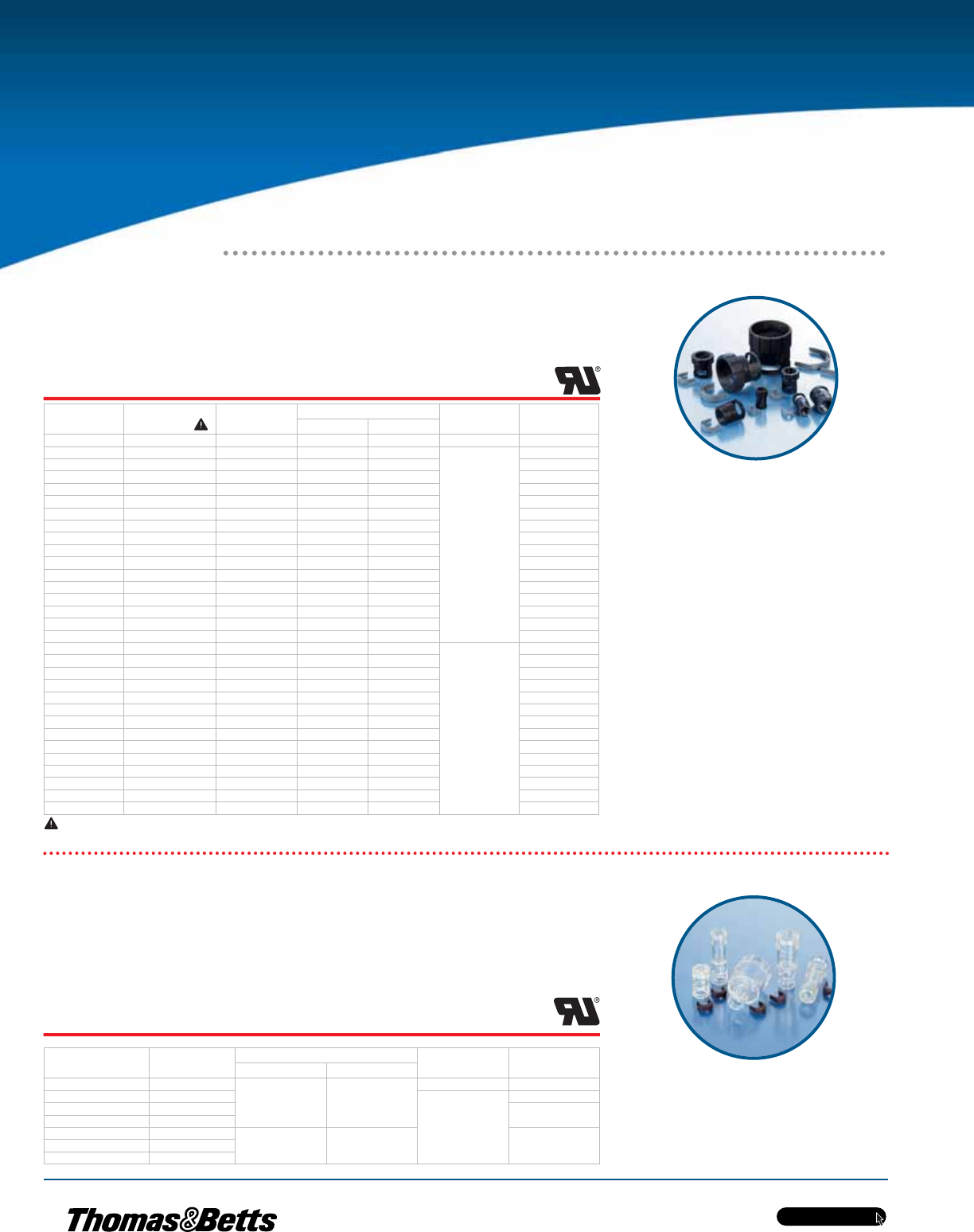

VIVG: IP68 static/IP67 dynamic, conduit- and
thread side
VIDG: IP66 static/IP54 dynamic, conduit- and
thread side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Fitting with pre-installed universal safety
clips (AFN2) and O-ring (OR)
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
O-ring (OR)
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and O-ring (OR)
• Use in machine, vehicle and traction
building industries
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties
•Fits fine (T) and coarse (G)
conduit profiles
FI Female Thread Adapter, Fine-Metric, Transparent
•Use in machine and vehicle building,
in connection with electronic sensors
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Light-emitting diodes are recognizable
through the connector
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties, free from
halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28-E29).
Cat. No.
IP66, Black
Cat. No.
IP68, Black
Thread
UNEF
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NWMetric
— BVIVG-U152 5/ in.–24 12 16 8.0 36.5
— BVIVG-U187 3/4 in.–20 17 20
9.0
46.5
— BVIVG-U210 7/8 in.–20 10 07 37.0
BVIDG-U212GT BVIVG-U212 7/8 in.–20 12 16 38.5
BVIDG-U217GT BVIVG-U217 7/8 in.–20 172046.5
BVIDG-U242GT BVIVG-U242 1 in.–20 12 16 40.5
— BVIVG-U243 1 in.–20 23 25 55.0
BVIDG-U247GT BVIVG-U247 1 in.–20 17 20 47.5
— BVIVG-U292 1-3/16 in.–18 12 16 40.5
BVIDG-U293GT BVIVG-U293 1-3/16 in.–18 23 25 55.0
BVIDG-U297GT BVIVG-U297 1-3/16 in.–18 17 20 47.5
— BVIVG-U299 1-3/16 in.–18 29 29 47.0
— BVIVG-U352 1-7/16 in.–18 12 16 39.0
BVIDG-U353GT BVIVG-U353 1-7/16 in.–18 23 25 52.0
— BVIVG-U356 1-7/16 in.–18 36 40 63.0
BVIDG-U357GT BVIVG-U357 1-7/16 in.–18 17 20 46.5
BVIDG-U359GT BVIVG-U359 1-7/16 in.–18 29 29 52.0
BVIDG-U433GT BVIVG-U433 1-3/4–18 UNS 23 25
10.0
52.0
BVIDG-U436GT BVIVG-U436 1-3/4–18 UNS 36 40 62.5
— BVIVG-U437 1-3/4–18 UNS 17 20 46.5
BVIDG-U439GT BVIVG-U439 1-3/4–18 UNS 29 32 51.5
— BVIVG-U503 2 in.–18 UNS 23 25 51.5
— BVIVG-U503/01 2 in.–18 UNS 23 25 62.5
BVIDG-U506GT BVIVG-U506 2 in.–18 UNS 36 40 62.5
— BVIVG-U508 2 in.–18 UNS 48 50 64.5
BVIDG-U509GT BVIVG-U509 2 in.–18 UNS 29 32 55.0
— BVIVG-U563 2-1/4 in.–16 UN 23 25 51.0
BVIDG-U566GT BVIVG-U566 2-1/4 in.–16 UN 36 40 62.0
— BVIVG-U568 2-1/4 in.–16 UN 48 50 64.0
BVIDG-U569GT BVIVG-U569 2-1/4 in.–16 UN 29 32 51.0
— BVIVG-U628 2-1/4 in.–16 UN 48 50O 64.0
Cat. No.
IP67, Transparent
Thread
Fine-Metric
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
TFIL-F08M 8
7 10
6.5 29.5
TFIL-F12M 12
6.0
56.0
TFIL-F18M 18 56.5
TFIL-F30M 30
TFIL-F120 12
10 12 57.0TFIL-F180 18
TFIL-F300 30
Fittings for Nylon Flexible Conduits
VI Female Thread Adapter, UNEF for MIL C 5015
FIL: IP67 static / IP65 dynamic, conduit side
Temperature range: -40 to 105 ºC
Short term: Max. 120 ºC
Content of delivery:
Fitting with oval clips (OVN2) and conduit seal (NFN3)
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E53

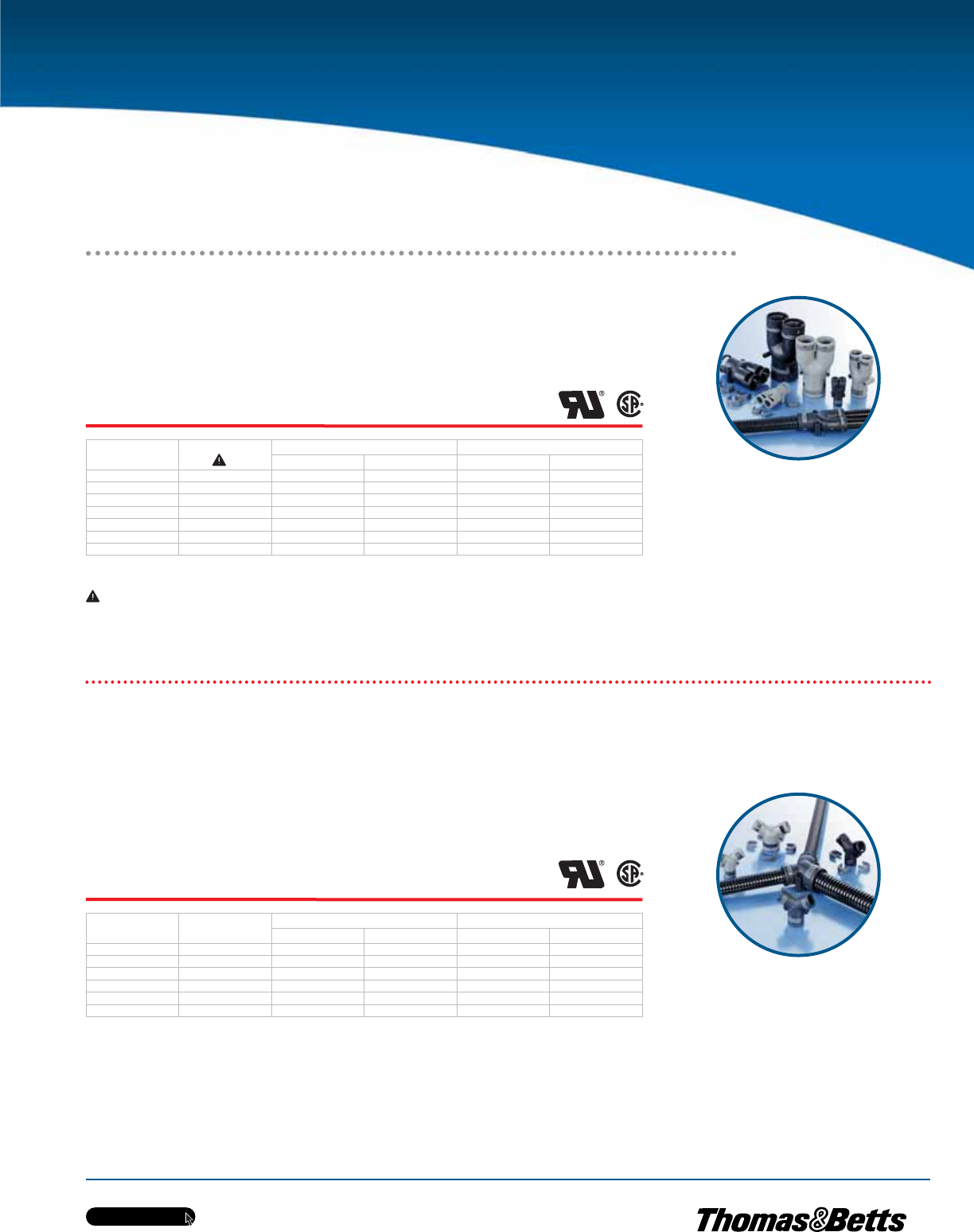

Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Distributor fitting with pre-installed universal
safety clips (AFN2)
IP68GT Distributor fitting with pre-installed universal
safety clips (AFN2) and conduit seal
(NVN3-GT)
IP68 Distributor fitting with oval clips (OVN2) and
conduit seal (NVN3)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Distributor fitting with pre-installed universal
safety clips (AFN2)
IP67 Distributor fitting with oval clips (OVN2) and
conduit seal (NFN3)
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
FV V Pieces
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
_ = Insert “B” to order black or “S” to order grey.
The input/output sizes can be adapted with the AVD/AVR conduit adapters.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28-E29).
_ = Insert “B” to order black or “S” to order grey.
Cat. No.
IP66
Cat. No.
IP68
Input Fits to Conduit Size Outputs Fit to Conduit Size
NW Metric NW Metric
_VYD-100707GT _VYR-100707 10 12 7 10
_VYD-121010GT _VYR-121010 12 16 10 12
_VYD-171212GT _VYR-171212 17 20 12 16
_VYD-231717GT _VYR-231717 23 25 17 20
_VYD-292323GT _VYR-292323 29 32 23 25
_VYD-362929GT _VYR-362929 36 40 29 32
_VYD-483636GT _VYR-483636 48 50 36 40
Cat. No.
IP66
Cat. No.
IP67
Input Fits to Conduit Size Outputs Fit to Conduit Size
NW Metric NW Metric
_FVD-100707GT _FVL-100707 10 12 7 10
_FVD-101010GT _FVL-101010 10 12 10 12
_FVD-121010GT _FVL-121010 12 16 10 12
_FVD-171010GT _FVL-171010 17 20 10 12
_FVD-171212GT _FVL-171212 17 20 12 16
_FVD-231717GT _FVL-231717 23 25 17 20
Fittings for Nylon Flexible Conduits
VY Y Pieces
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E54
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Distributor fitting with pre-installed universal
safety clips (AFN2)
IP67 Distributor fitting with oval clips (OVN2) and
conduit seal (NFN3)
IP68GT Distributor fitting with pre-installed universal
safety clips (AFN2) and conduit seal
(NVN3-GT)
IP68 Distributor fitting with oval clips (OVN2) and
conduit seal (NVN3)

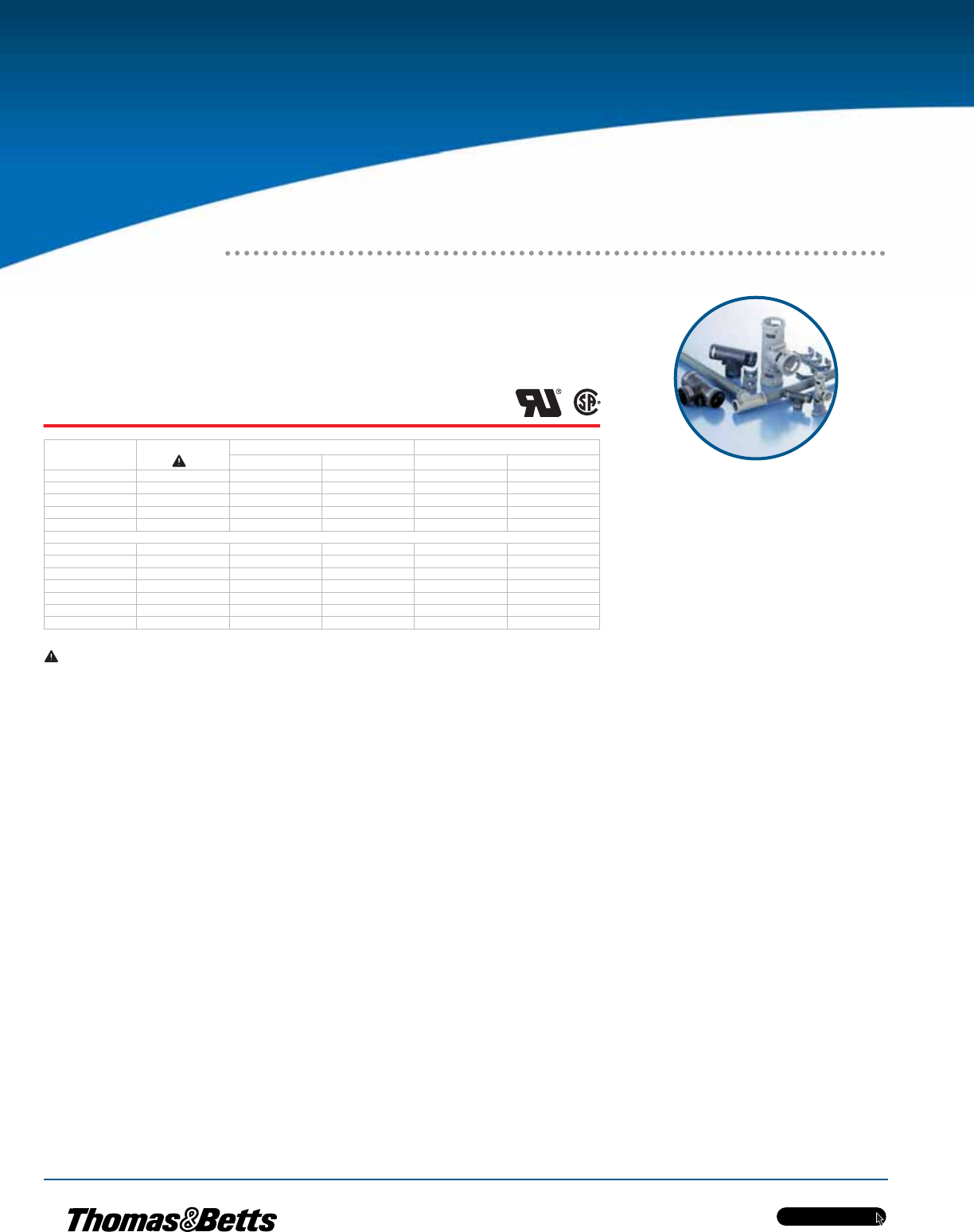

Fittings for Nylon Flexible Conduits
FT/VT T Pieces
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” after the catalogue no.
(Functional description PMAFIX IP68GT, pages E28–E29).
(!) Please note: The article “FTL” (IP67) will be discontinued! For new applications we recommend _VTR (IP68).
Cat. No.
IP66
Cat. No.
IP67
Input Fits to Conduit Size Outputs Fit to Conduit Size
NW Metric NW Metric
_FTD-101010GT — 10 12 10 12
_FTD-121212GT — 12 16 12 16
_FTD-171717GT — 17 20 17 20
_FTD-292323GT _FTL-292323 (!) 29 32 23 25
_FTD-292929GT — 29 32 29 32
— _VTR-101010 10 12 10 12
— _VTR-121212 12 16 12 16
— _VTR-171717 17 20 17 20
_VDD-232323GT _VTR-232323 23 25 23 25
— _VTR-292929 29 32 29 32
_VTD-363636GT _VTR-363636 36 40 36 40
_VTD-484848GT _VTR-484848 48 50 48 50
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E55

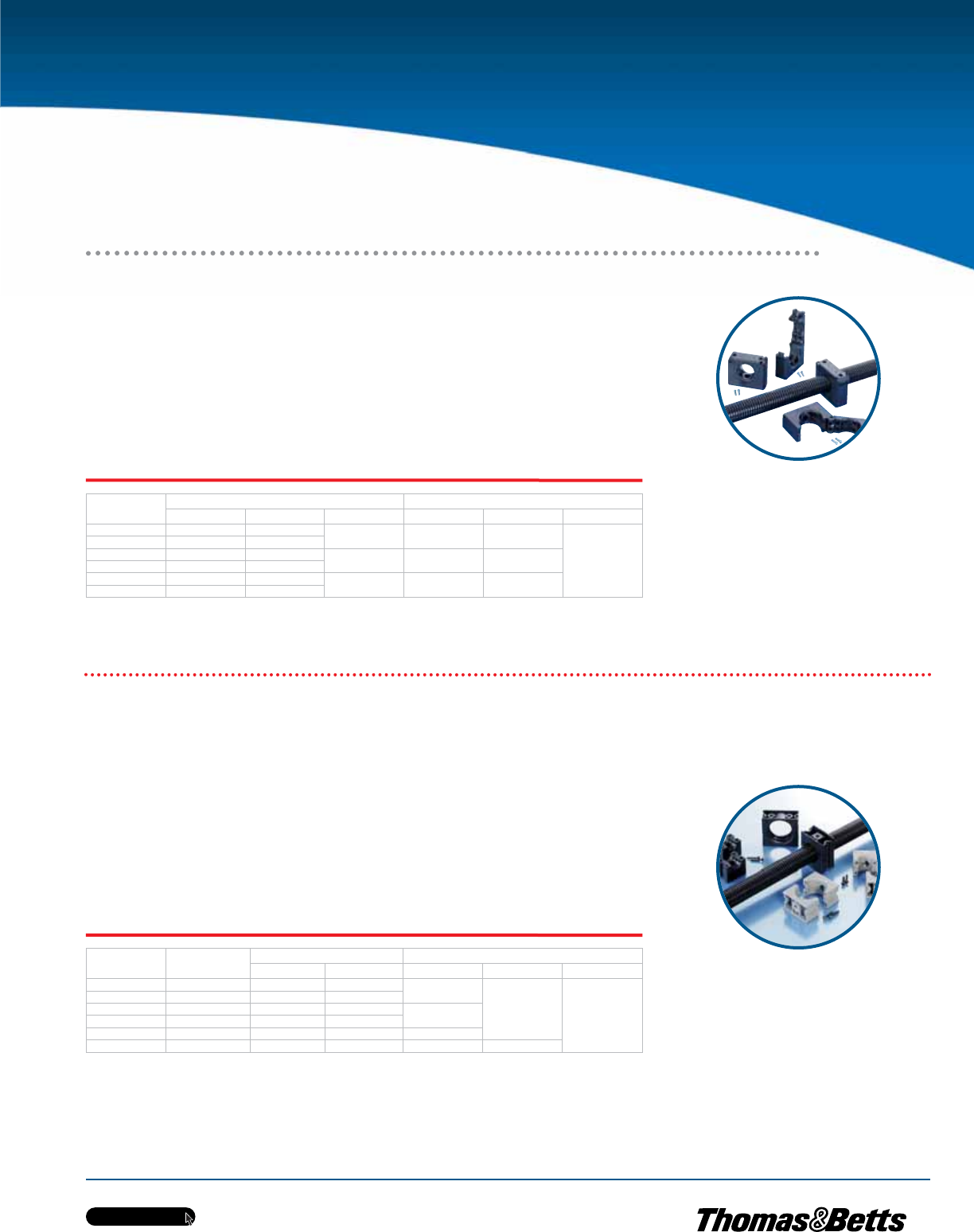

Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
System supports with two (2) screws for securing the lid
(optional).
Mounting accessories not included
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
System supports with two (2) screws for securing the lid
(optional).
Mounting accessories not included
Accessories for Nylon Flexible Conduits
GPS One-Piece System Supports
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•One-piece construction, stackable
•Excellent impact resistance
•Heavy design, high retention forces
•Applicable with standard metal C rails
• Easy pre-installation by conduit snap-in
•Clasp for easy pre-mounting and final
assembly
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) conduit profile
•The following nominal widths can be
combined for stacking:
NW 17 with NW 23, NW 29 with NW 36,
NW 48 with NW 56
GP System Supports for Stacking
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide
•Variable stacking possibilities — due to the
block system, a high rigidity is guaranteed
•Strain relief due to gripping around conduit
•Especially suitable for dynamic applications
due to rounded edges
•Variety of support possibilities
•Self extinguishing, free from halogens and
cadmium
•Excellent impact strength
_ = Insert “B” to order black or “S” to order grey.
Cat. No.
Fine Profile
Fits to Conduit Size Dimensions (mm)
NW Metric DIN-NW Width Height Depth
BGPS-17 17 20 2 70.0 51.0
30.0
BGPS-23 23 25
BGPS-29 29 32 3 85.0 65.0
BGPS-36 36 40
BGPS-48 48 50 4 115.0 92.5
BGPS-56 56 —
Cat. No.
Fine Profile
Cat. No.
Coarse Profile
Conduit Size Dimensions (mm)
NW Metric Width Height Depth
_GP-16T _GP-16G 17 20 47.5
66.0 36.0
_GP-21T _GP-21G 23 25
_GP-29T _GP-29G 29 32 61.5
_GP-36T _GP-36G 36 40
_GP-48T _GP-48G 48 50 76.0
— _GP-56G 56 — 87.0 78.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E56
Accessories for Nylon Flexible Conduits

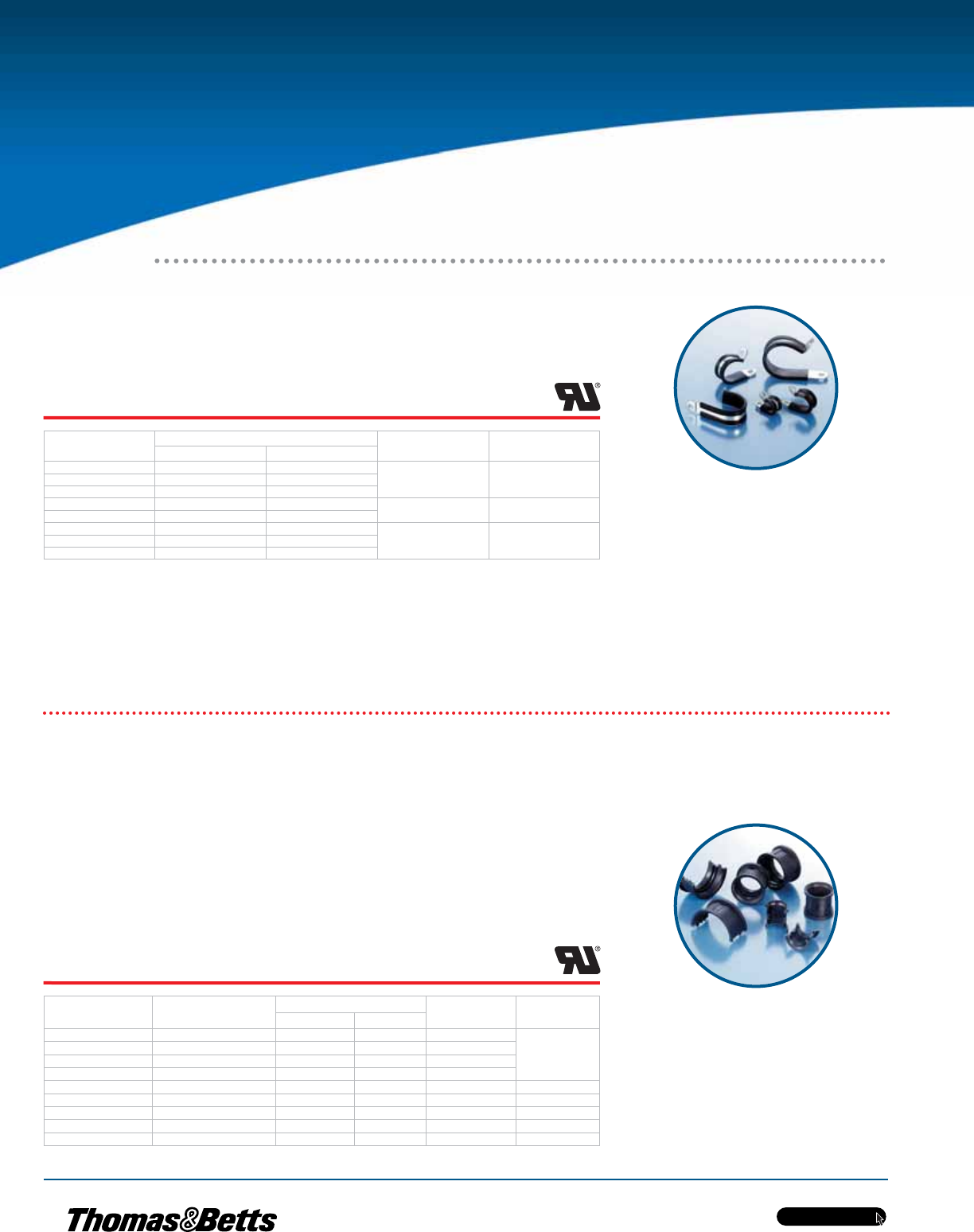

SGB Tube Clamps
•Especially suitable for mounting
static conduits
•Body: galvanized steel according to DIN 3016
•Coating: elastomer (EPDM) free from halogens
•Smooth connection to
PMAFLEX®corrugated conduits
•Good ozone and aging resistance
GN Half Shells
•Used for fixing PMA®conduits to beam
systems, particularly in traction and machine
applications
•High-grade, specially formulated polyamide
•Variable combinations
•Strain relief due to gripping around conduit
•Especially suitable for dynamic applications
due to rounded edges
•Variety of support possibilities
•Self extinguishing
•Free from halogens and cadmium
•Excellent impact strength
Cat. No.
Fine Profile, Black
Cat. No.
Coarse Profile, Black
Conduit Size Outside
Diameter (mm) Width (mm)
NW Metric
BGN-S12T — 12 16 26.5
34.0
BGN-S17T BGN-S17G 17 20 32.0
BGN-S23T BGN-S23G 23 25 39.5
BGN-S29T BGN-S29G 29 32 47.0
BGN-S36T — 36 40 55.0 36.5
— BGN-S36G 36 40 55.0 34.0
BGN-S48T — 48 50 66.5 36.5
— BGN-S48G 48 50 66.5 34.0
— BGN-S70G 70 80 93.5. 38.0
Cat. No.
Fine Profile, Black
Fits to Conduit Size Width (mm) Fixing
Screw
NW Metric
SGB-07 7 10
13.0 (1) M4SGB-09 10 12
SGB-11 12 16
SGB-16 17 20 16.0 (1) M5
SGB-21 23 25
SGB-29 2932
19.0 (1) M6SGB-36 36 40
SGB-48 48 50
Temperature range: -50 to 105 ºC
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E57

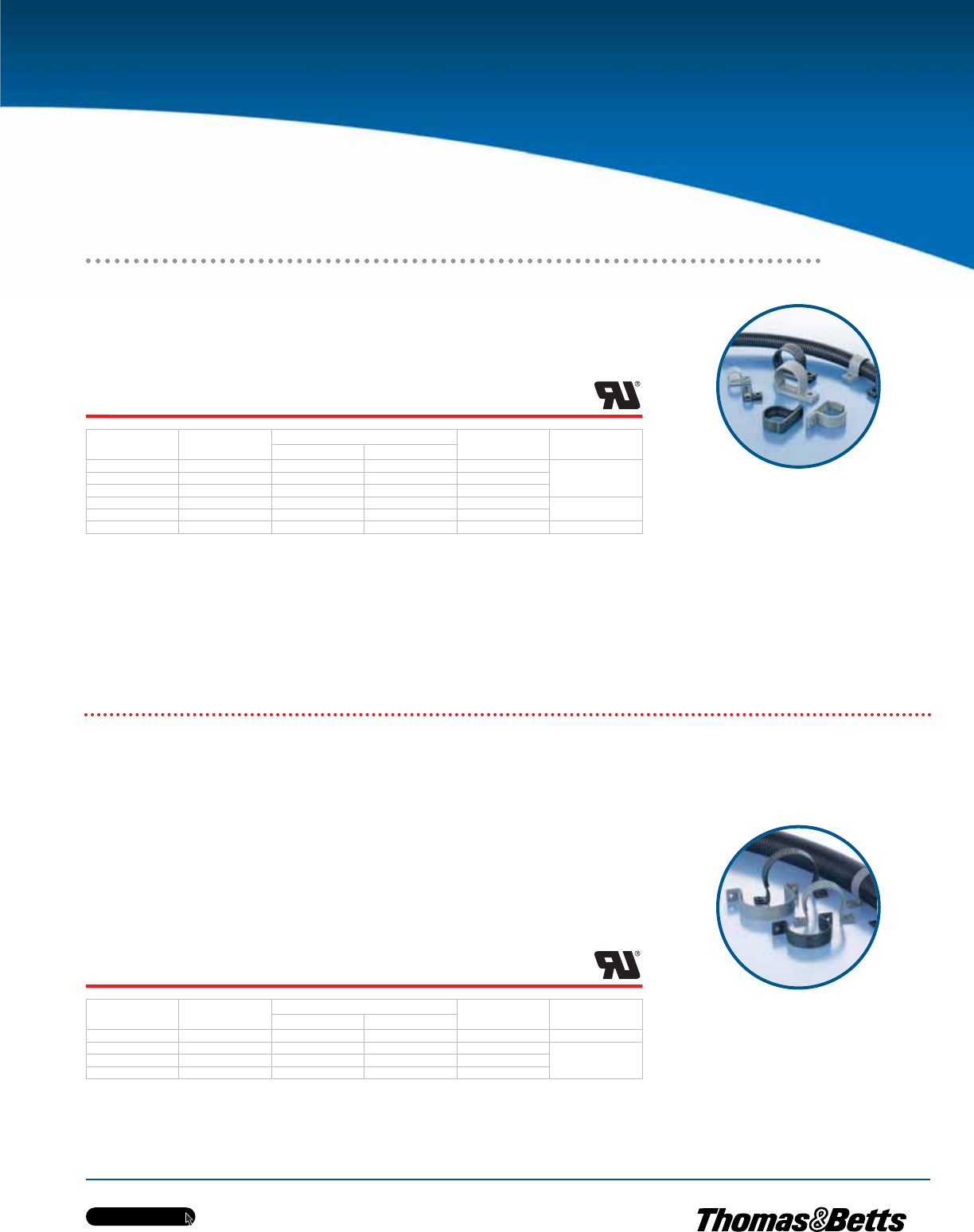

Temperature range: -40 to 105 ºC
Temperature range: -40 to 105 ºC
•Used in general machine and
installation applications
•High-grade, specially formulated polyamide
•Self extinguishing
•Free from halogens and cadmium
GH Tube Clamps
•Used in general machine and installation
applications
•High-grade, specially formulated polyamide
•Self extinguishing
•Free from halogens and cadmium
•Nominal widths: 23–95
Cat. No.
Black
Cat. No.
Grey
Conduit Size Width (mm) Fixing
Screw
NW Metric
BGH-23 SGH-23 23 25 58.0 (2) M5
BGH-29 SGH-29 29 32 70.0
(2) M6BGH-36 SGH-36 36 40 80.0
BGH-48 SGH-48 48 50 94.0
Cat. No.
Black
Cat. No.
Grey
Conduit Size Width (mm) Fixing
Screw
NW Metric
BGL-07 SGL-07 07 10 25.0
(1) M4BGL-10 SGL-10 10 12 27.0
BGL-12 SGL-12 12 16 31.0
BGL-17 SGL-17 17 20 39.5 (1) M5
BGL-23 SGL-23 23 25 49.0
BGL-29 SGL-29 29 32 57.0 (1) M6
Accessories for Nylon Flexible Conduits
GL Tube Clamps
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E58
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Flange part, fixation clamps (including two screws),
conduit seal (NVN3) and flange seal (FG04 or FG04/01)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Flange part, fixation clamps (including two screws),
conduit seal (NVN3) and flange seal (FG04 or FG04/01)

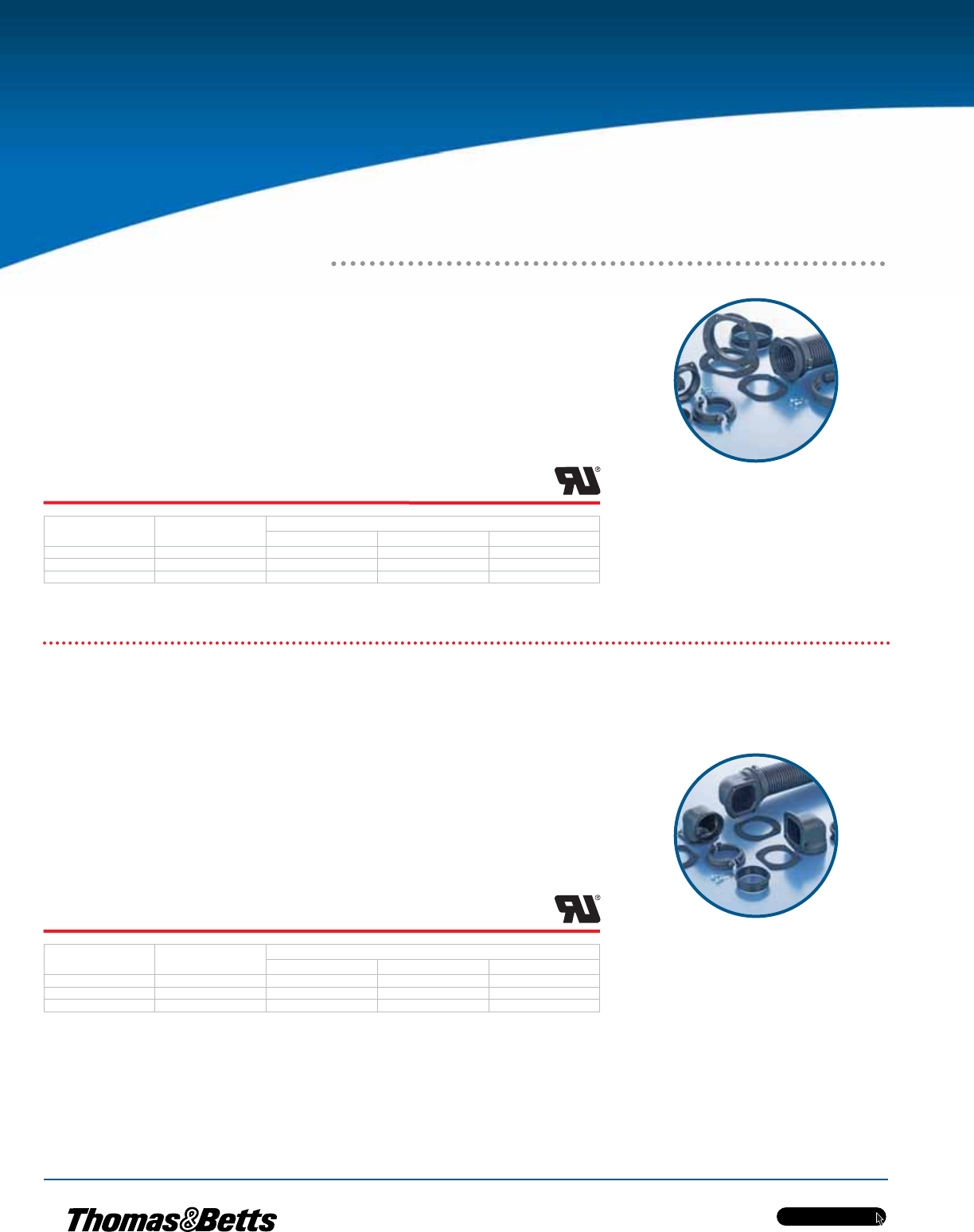

Large-Size Nylon Flexible
Conduits and Connectors
GGV Flange, Straight
•Use in railway vehicle construction as well as
in a wide range of industrial applications with
high sealing and safety requirements
•High-grade, specially formulated polyamide 6
•Flange seal FGO4 made from EPDM
•Flange seal FGO4/01 made from NBR on
special request
•Very high impact strength
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Ingress protection: IP68, IP69K
•Very good chemical properties
•Free from halogens and cadmium
•If the application temperature is above 70° C,
we recommend using an additional internal
conduit support sleeve (BES)
GOV Flange, 90° Elbow
•Use in railway vehicle construction as well as
in a wide range of industrial applications with
high sealing and safety requirements
•High-grade, specially formulated polyamide 6
•Flange seal FGO4 made from EPDM
•Flange seal FGO4/01 made from NBR on
special request
•Very high impact strength
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Ingress protection: IP68, IP69K
•Very good chemical properties
•Free from halogens and cadmium
•If the application temperature is above 70° C,
we recommend using an additional internal
conduit support sleeve (BES)
Cat. No.
Black
Conduit Size
NW
Dimensions (mm)
Width Height Depth
BGGV-56 56 82.0 97.0 42.0
BGGV-70 70 97.0 114.0 48.0
BGGV-95 95 126.0 146.0 53.0
Cat. No.
Black
Conduit Size
NW
Dimensions (mm)
Width Height Depth
BGOV-56 56 82.0 97.0 101.0
BGOV-70 70 97.0 114.0 115.0
BGOV-95 95 126.0 146.0 151.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E59

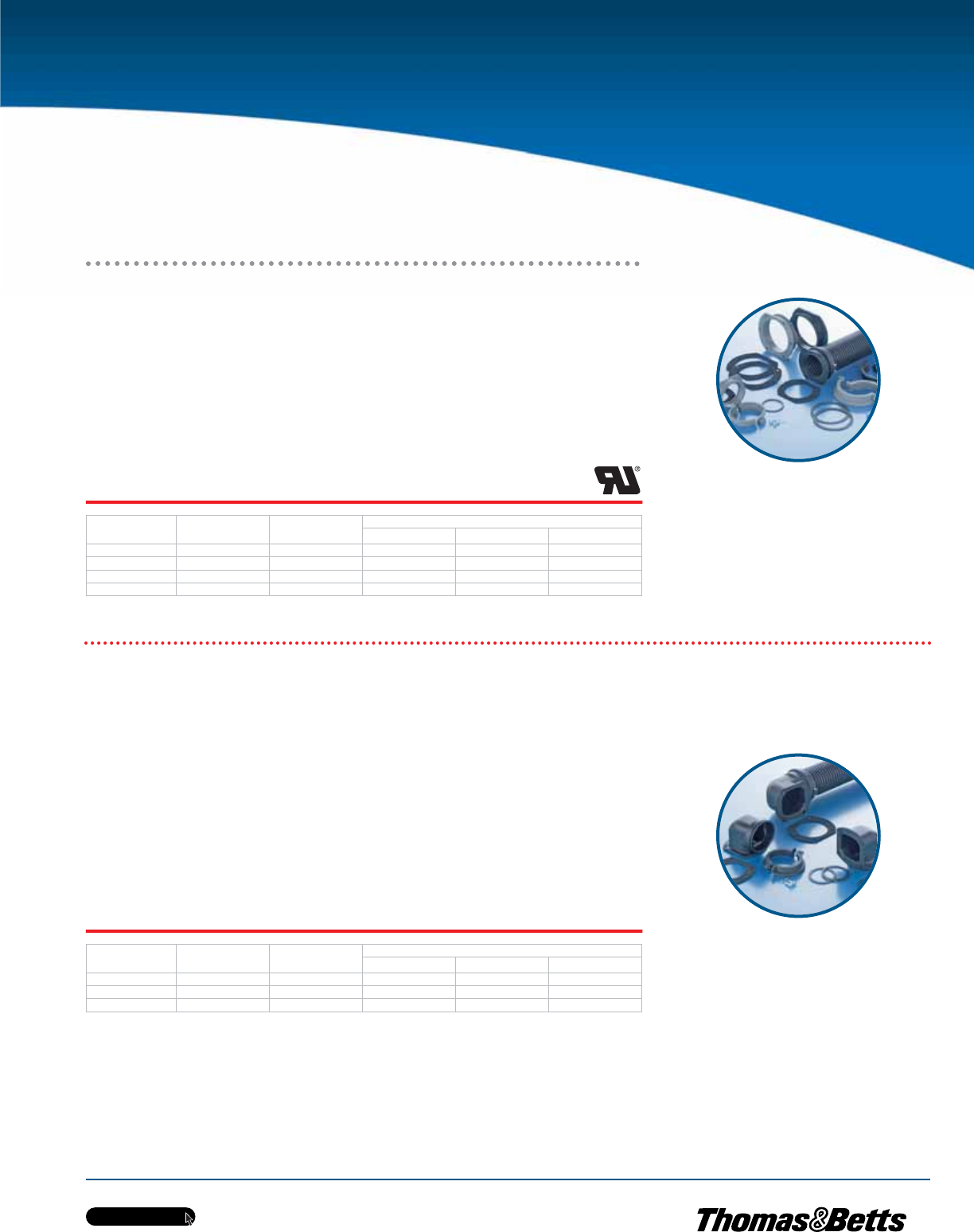

Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Flange part, fixation clamps (including two screws),
flange seal (FG04 or FG04/01) and conduit sealing
ring (SG03, optional for IP65)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Flange part, fixation clamps (including two screws),
flange seal (FG04 or FG04/01) and conduit sealing
ring (SG03, optional for IP65)
Large-Size Nylon Flexible
Conduits and Fittings
GG Flange, Straight
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Flange seal FGO4 made from EPDM
•Flange seal FGO4/01 made from NBR
•Very high impact strength
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Ingress protection: IP50 (IP65 with conduit
sealing ring)
•Very good chemical properties
•Free from halogens and cadmium
GO Flange, 90° Elbow
•For cable protection systems in a wide range
of applications
•High-grade, specially formulated polyamide 6
•Flange seal FGO4 made from EPDM
•Flange seal FGO4/01 made from NBR
•Very high impact strength
•Vibration-proof connection to PMAFLEX®
conduits
•High conduit pullout strength
•Ingress protection: IP50 (IP65 with conduit
sealing ring)
•Very good chemical properties
•Free from halogens and cadmium
Cat. No.
Black
Cat. No.
Grey
Conduit Size
NW
Dimensions (mm)
Width Height Depth
BGG-56 SGG-56 56 82.0 97.0 42.0
BGG-70 SGG-70 70 97.0 114.0 48.0
BGG-95 SGG-95 95 126.0 146.0 53.0
BGG-125 SGG-125 125 — 194.0 79.0
Cat. No.
Black
Cat. No.
Grey
Conduit Size
NW
Dimensions (mm)
Width Height Depth
BGO-56 SGO-56 56 82.0 97.0 101.0
BGO-70 SGO-70 70 97.0 114.0 115.0
BGO-95 SGO-95 95 126.0 146.0 149 .0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E60
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Threaded connector body, fixation clamps (including
two screws) and conduit sealing ring (SG03, optional
for IP65)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Threaded connector body, fixation clamps (including
two screws) and conduit sealing ring (SG03, optional
for IP65)

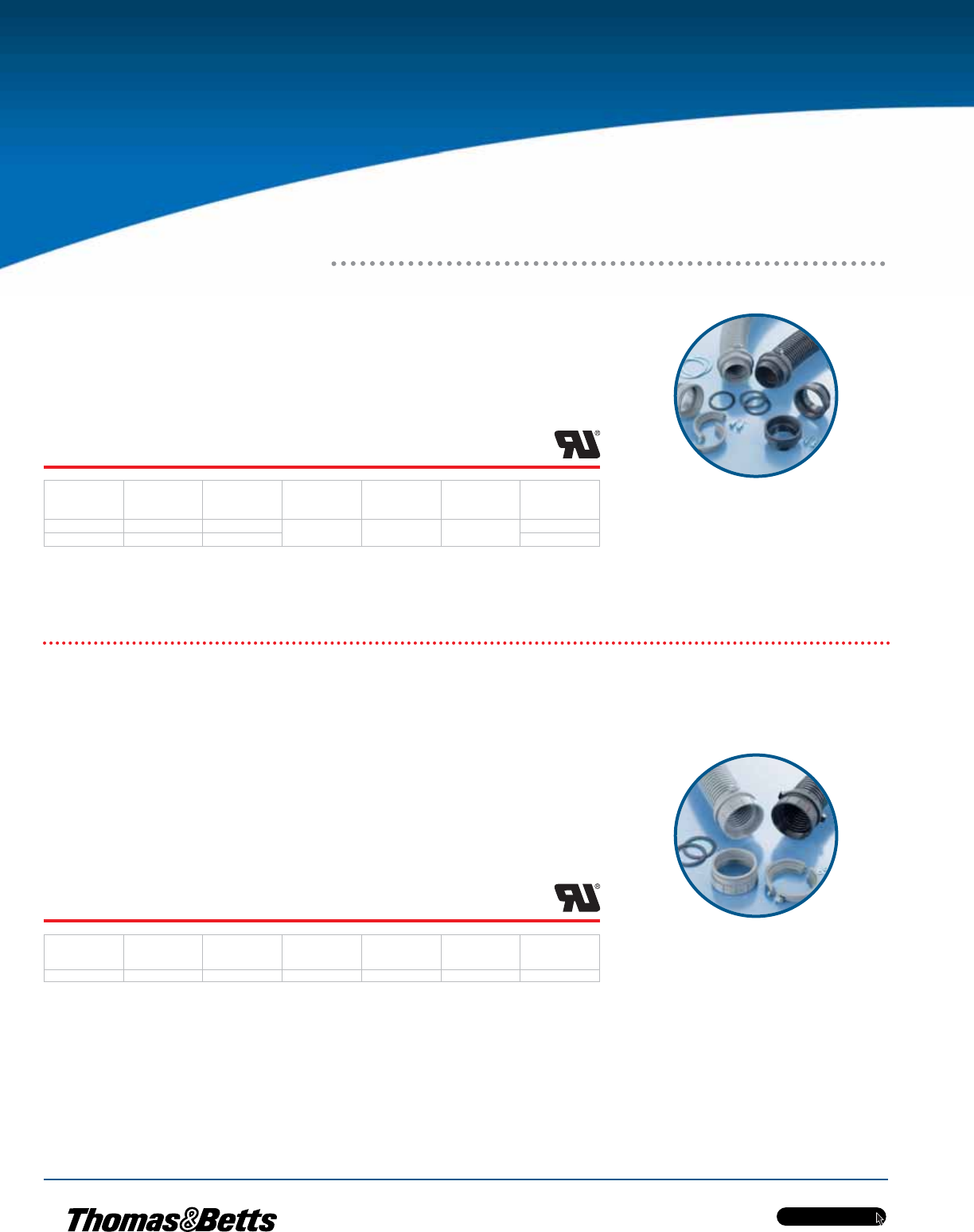

Large-Size Nylon Flexible
Conduits and Fittings
GG Straight, Male Thread
•For cable protection systems in a wide
range of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Easy mounting with locking clamps
•Vibration-proof connection
to PMAFLEX®conduits
•High conduit pullout strength
•Ingress protection: IP50 (IP65 when using
sealing ring on conduit and thread gasket)
•Very good chemical properties
•Free from halogens and cadmium
GI Straight, Female Thread
•For cable protection systems in a wide
range of applications
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Easy mounting with locking clamps
•Vibration-proof connection
to PMAFLEX®conduits
•High conduit pullout strength
•Ingress protection: IP50 (IP65 on conduit
side when using sealing ring on conduit)
•Very good chemical properties
•Free from halogens and cadmium
Cat. No.
Black
Cat. No.
Grey Thread Conduit Size
NW
Thread
Length (mm) Height (mm) Depth (mm)
BGG-M6356 SGG-M6356 M63x1.5 56 18.0 98.0 57.5
BGG-P3656 SGG-P3656 PG 36 57.3
Cat. No.
Black
Cat. No.
Grey Thread Conduit Size
NW
Thread
Length (mm) Height (mm) Depth (mm)
BGI-M7556 SGI-M7556 M75x1.5 56 15.0 98.0 53.3
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E61
Large-Size Nylon Flexible
Conduits and Fittings

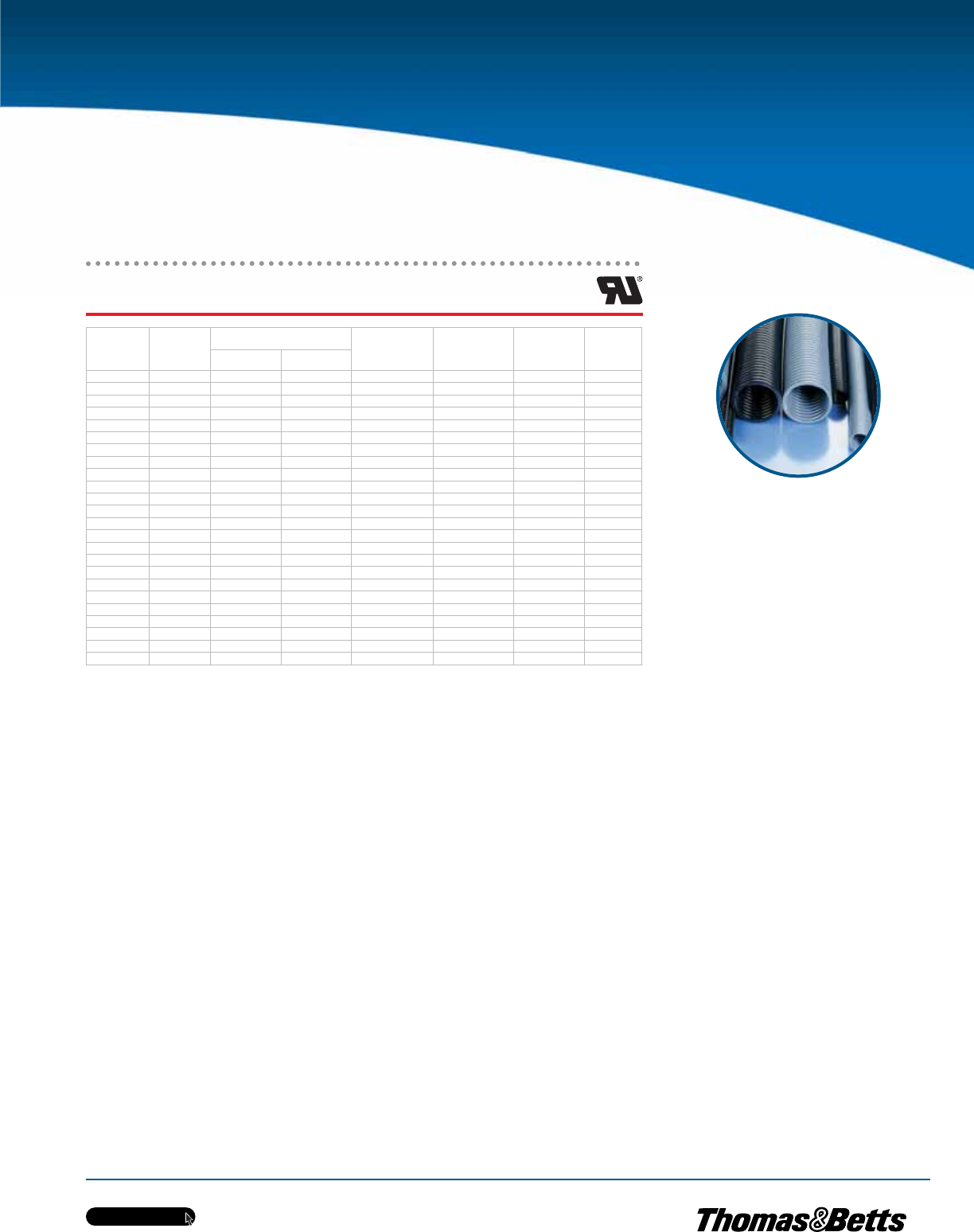

Jumbo Conduits
For actual cat. number, add product unit at the end. Example: PCLG-56B.30
Cat. No.
Black
Cat. No.
Grey
Conduit Size Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat./Dyn.
Radius (mm)
Product
Unit
(m)
NW Metric
PCLG-56B PCLG-56S 56 68 56.3 67.2 130/_ 30
PCLG-70B PCLG-70S 708067.5 80.0 160/_ 30/10
PCLG-95B PCLG-95S 95 106 91.5 106.0 210/_ 30/10
PCLG-125B PCLG-125S 125 146 126.5 146.5 450/_ 6
PIHG-56B PIHG-56S 56 68 56.3 67.2 110/270 30
PIHG-70B PIHG-70S 70 80 67.2 79.6 150/350 30/10
PIHG-95B PIHG-95S 95106 91.3 106.0 170/450 30/10
PIHG-125B PIHG-125S 125 146 126.5 146.5 350/4 80 20
VOHG-56B VOHG-56S 56 68 55.5 67.2 135/_ 30
VOHG-70B VOHG-70S 70 80 67.0 80.0 200/_ 10
VOHG-95B VOHG-95S 95 106 90.5 106.0 300/_ 10
VOHG-125B VOHG-125S 125 146 126.0 146.5 480/_ 6
VCSG-56B VCSG-56S 566856.1 67.2 150/_ 30
VCSG-70B VCSG-70S 70 80 66.5 80.0 200/_ 10
VCSG-95B VCSG-95S 95 106 91.0 106.0 300/_ 10
PCSG-56B PCSG-56S 56 68 56.1 67.2 130/280 30
PCSG-70B PCSG-70S 70 80 66.5 80.0 170/360 10
PCSG-95B PCSG-95S 95 106 91.0 106.0 250/470 10
PUEG-56B — 56 68 56.3 67.2 90/170 30
PUEG-70B — 70 80 68.2 80.2 100/220 30
CYLG-56B CYLG-56S 56 68 56.3 67.2 120/_ 30
CYLG-70B CYLG-70S 70 80 68.0 80.0 160/_ 30/10
CYLG-90B CYLG-95S 95 106 91.9 106.0 210/_ 10
CYLG-125B CYLG-125S 125 146 126.5 146.5 450/_ 6
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E62
PACO Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
PPCO Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
Temperature range: -40 to 100 ºC
Short term: Max. 150 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids and bases, etc.
Temperature range: -20 to 95 ºC
Short term: Max. 120 ºC
Chemical resistance: Fuels, mineral oils, fats, alkalies,
weak acids and bases, etc.
Large-Size Nylon Flexible
Conduits and Fittings
PACO Flexible Medium, Divisible
•Use in machine building and
plant construction
•Specially modified polyamide 6
•Easy installation, trouble-free retrofitting,
also applicable for repairs
•Can be opened and closed again
in longitudinal direction any time
•Self extinguishing
•Free from halogens and cadmium
PPCO Very Flexible Medium, Divisible
•Use in machine building and
plant construction
•Specially modified polypropylene
•Easy installation, trouble-free retrofitting,
also applicable for repairs
•Can be opened and closed again
in longitudinal direction any time
For actual cat. number, add product unit at the end. Example: PACO-07B.50
Cat. No.
Black
Conduit Size
NW
Inside
Diameter (mm)
Outside
Diameter (mm)
Stat
Radius* (mm)
Product Unit
(m)
PACO-07B 076.5 10.1 45
50
PACO-10B 10 8.8 13.5 55
PACO-12B 12 11.3 16.3 60
PACO-14B 14 13.2 18.7 75
PACO-17B 17 16.5 21.8 90
PACO-20B 2020.2 25.7 105
PACO-23B 23 23.9 31.3 125
PACO-29B 29 27.8 35.9 150
25PACO-37B 37 32.5 41.9 170
PACO-45B 45 43.0 54.2 200
PACO-70B 70 66.5 79.8 300 10
Cat. No.
Black
Conduit Size
NW
Inside
Diameter (mm)
Outside
Diameter (mm)
Stat
Radius* (mm)
Product Unit
(m)
PPCO-07B 07 6.3 10.0 60
50
PPCO-10B 10 8.4 13.4 70
PPCO-12B 12 11.0 16.1 80
PPCO-14B 14 12.5 18.5 95
PPCO-17B 17 16.0 21.5 110
PPCO-20B 20 19.2 25.3 130
PPCO-23B 23 23.4 30.8 155
PPCO-29B 29 27.3 35.5 180
25PPCO-37B 37 31.0 41.4 190
PPCO-45B 45 42.7 54.0 205
PPCO-70B 70 66.0 79.5 300 10
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
For actual cat. number, add product unit at the end. Example: PPCO-07B.50
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E63
Temperature range: -40 to 105 ºC
Temperature range: -50 to 105 ºC
Temperature range: -40 to 105 ºC

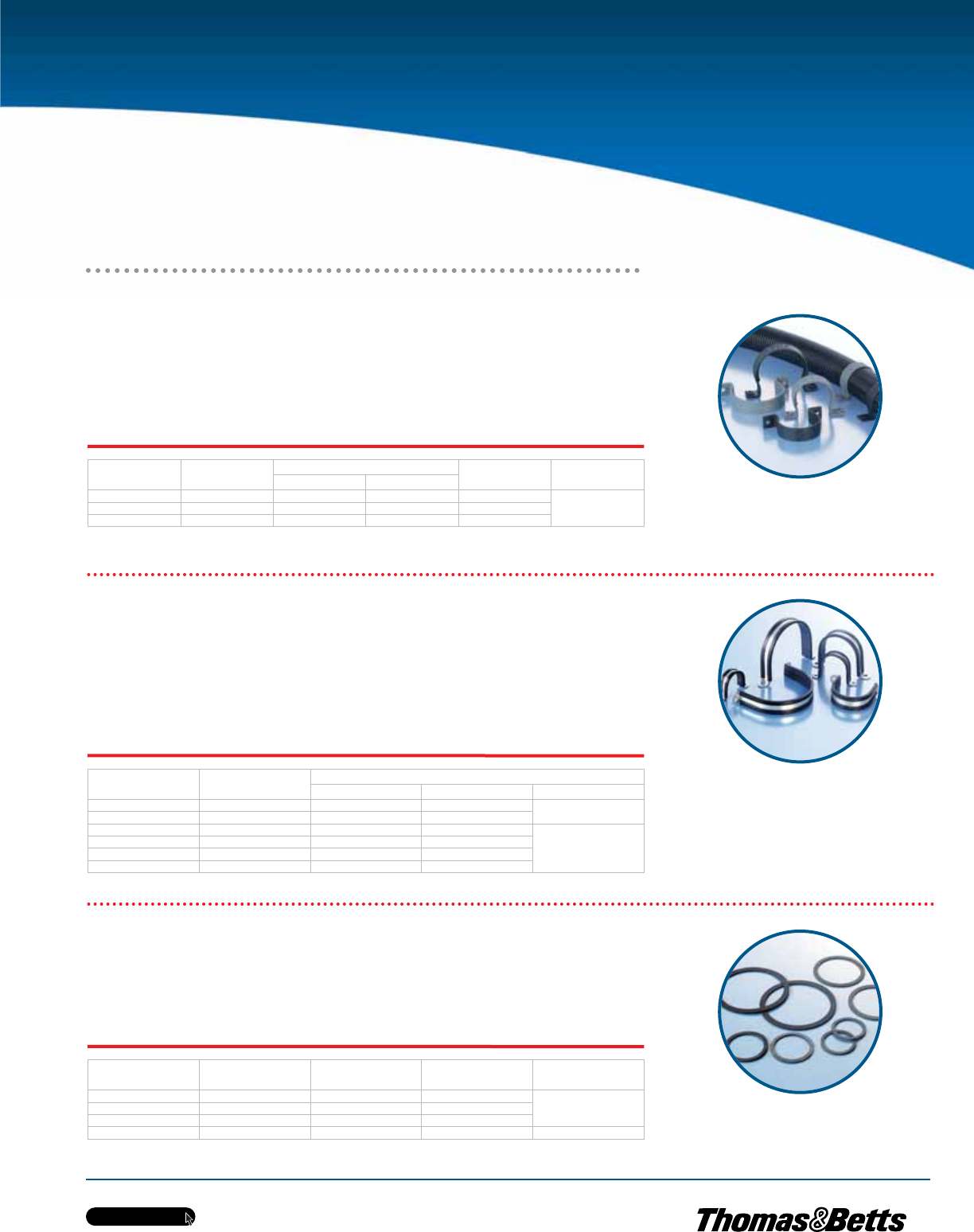

Large-Size Nylon Flexible
Accessories

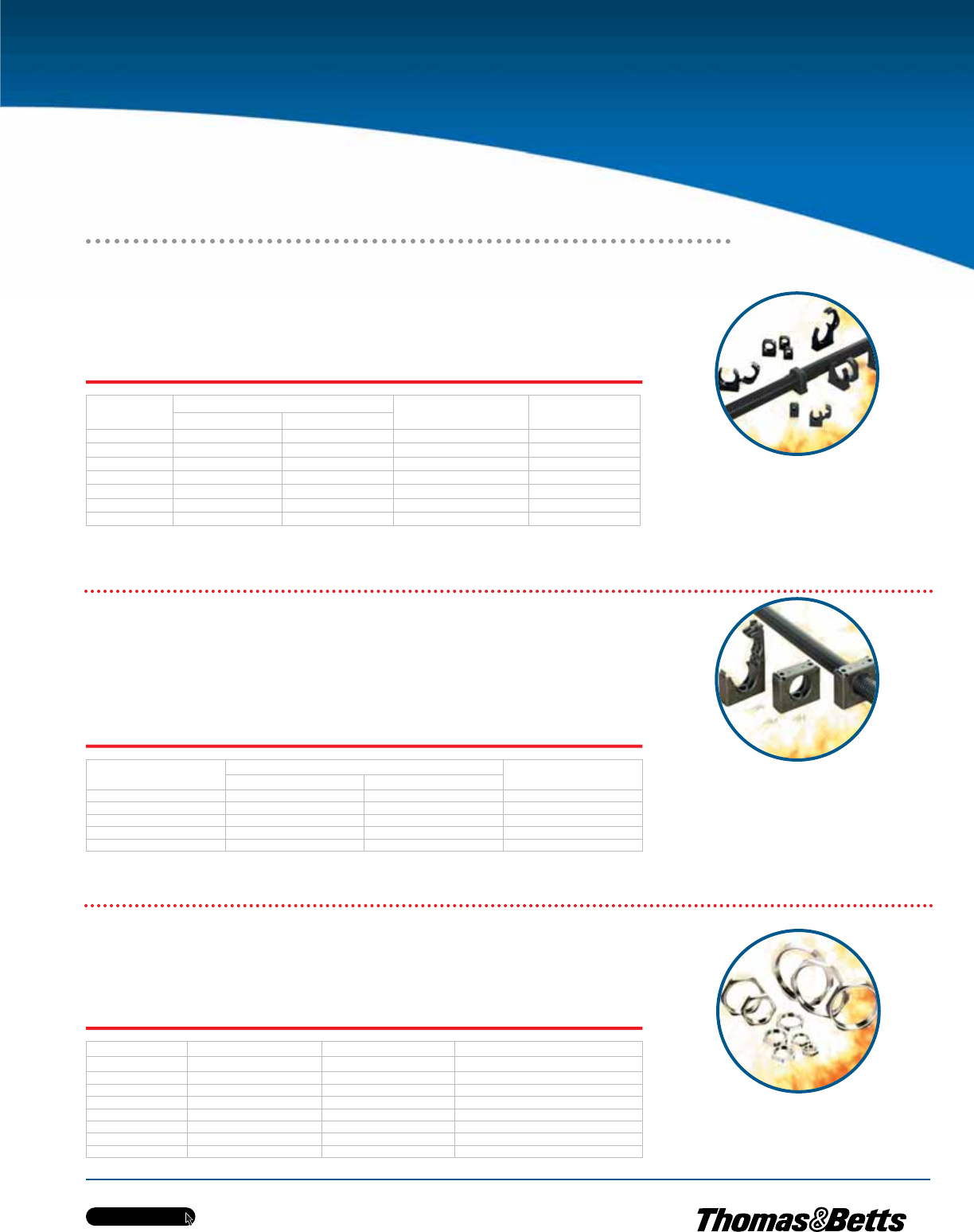

GH Tube Clamps
•For mounting conduits in a wide
range of applications
•High-grade, specially formulated polyamide 6
•One-piece design
•Integrated rib provides axial strain relief
•Allows turning of the conduit to avoid
torsion stresses
•Pre-fixation on the conduit possible
•Allows solid fixation with two screws
•Self extinguishing
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
•No corrosion
SGS Tube Clamps
•For mounting of static conduits
•Galvanized steel
•Elastomer profile (EPDM)
•Elastomer free from halogens
•Smooth connection to PMAFLEX®corrugated
conduits
• Good ozone and aging resistance
SGO3 Conduit Sealing Rings
•Used at the conduit end for sealing
between the PMAGRIP flanges GG/GI/GO
and PMAFLEX®Jumbo conduits
•Nitrile rubber
Cat. No.
Black
Cat. No.
Grey
Conduit Size Width (mm) Fixing
Screw
NW Metric
BGH-56 SGH-56 56 63 26.0
(2) M8BGH-70 SGH-70 70 80 30.0
BGH-95 SGH-95 95 106 30.0
Cat. No.
Black
Conduit Size
NW
Dimensions (mm)
Width Height Depth
SGS-36 36 80.0 48.0 19.0
SGS-48 48 94.0 58.0
SGS-56 56 118.0 72.0
24.0
SGS-70 70 130.0 85.0
SGS-95 95 156.0 110.0
SGS-125 125 200.0 152.0
Cat. No.
Black
Conduit Size
NW
Inside
Diameter (mm)
Outside
Diameter (mm) Width (mm)
SGO3-56 56 49.5 61.0
1.5SGO3-70 70 61.5 74.0
SGO3-95 95 86.0 102.0
SGO3-125 125 122.0 142.0 2.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E64
Temperature range: -40 to 100 ºC
Short term: Max. 130 ºC
Temperature range: -40 to 100 ºC
Short term: Max. 130 ºC
Divisible-System Nylon Flexible
Conduits and Fittings
TN Divisible Connectors, Metric
•Connect with divisible PMA®COFLEX conduits
and PMA®COFIX locknuts
•For installation upon fully assembled
cable looms in plant construction or
machine repairs
•High-grade, specially formulated polyamide 6
•High impact resistance
•Easy installation
• Very good chemical properties
• Free from halogens and cadmium
GTN Divisible Locknuts, Metric
•Connect with divisible PMA®COFLEX
conduits and PMA®COFIX locknuts
•For installation upon fully assembled
cable looms in plant construction or
machine repairs
•High-grade, specially formulated polyamide 6
•High impact resistance
•Easy installation
•Very good chemical properties
•Free from halogens and cadmium
Cat. No.
Black
Thread
Metric
Coflex
Conduit Size
NW
Inside
Diameter (mm)
Outside
Diameter (mm)
Outside
Diameter (mm)
BTNO-M1610 M16x1.5 10 11.0 25.5 36.0
BTNO-M2014 M20x1.5 14 14.5 29.0 41.0
BTNO-M2520 M25x1.5 20 19.0 35.0 43.0
BTNO-M3223 M32x1.5 23 26.0 44.0 50.5
BTNO-M4037 M40x1.5 37 32.0 53.0 59.0
BTNO-M5045 M50x1.5 45 42.0 69.0 67.5
Cat. No.
Black
Thread
Metric
Coflex
Connector
Outside
Diameter (mm)
Inside
Diameter (mm)
BGTN-M1610 M16x1.5 BTNO-M1610 21.5 8.0
BGTN-M2014 M20x1.5 BTNO-M2014 29.0 8.0
BGTN-M2520 M25x1.5 BTNO-M2520 35.5 9.0
BGTN-M3223 M32x1.5 BTNO-M3223 44.0 12.0
BGTN-M4037 M40x1.5 BTNO-M4037 52.5 15.0
BGTN-M5045 M50x1.5 BTNO-M5045 69.0 15.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E65

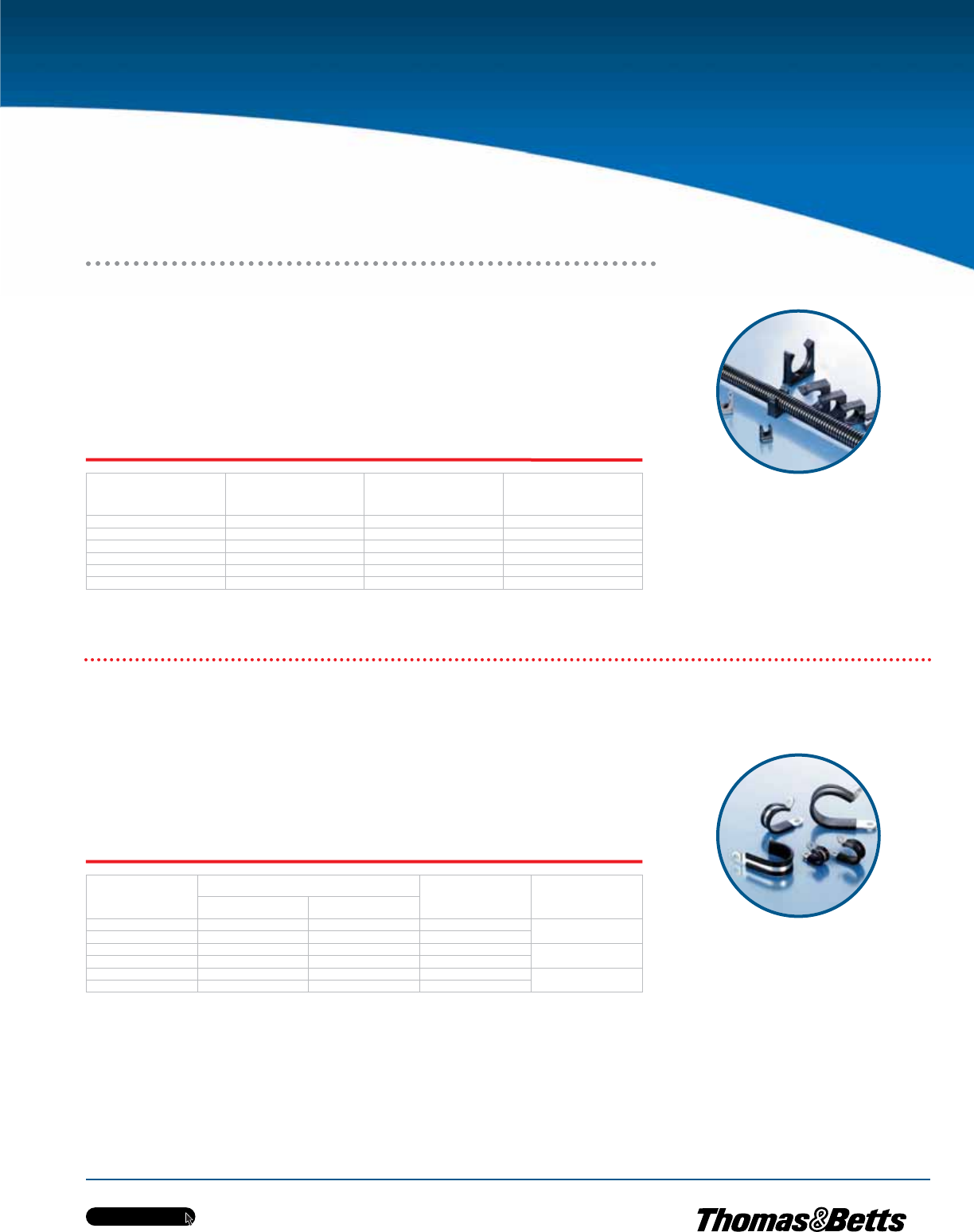

Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Temperature range: : -50 to 105 ºC
Chemical resistance: Very good weather, ozone and
aging resistance, resistant to mineral oils and fats
Divisible-System Nylon Flexible
Accessories
FH System Supports
•Use in machine building and
plant construction
•High-grade, specially formulated
polyamide 6
•Very high impact resistance
•Optimal axial strain relief due
to integrated rib
•Quick installation due to single-hole fixing
•For increased stress due to heavy cables
and wires, closing with cable ties is possible
•Very good chemical properties
•Free from halogens and cadmium
•Fits to rail system supports FHS
GB Tube Clamps
•Use to mount of static conduits
•Galvanized steel according to DIN 3016
•Elastomer profile (EPDM), free
from halogens
•Smooth connection to PMAFLEX®
corrugated conduits
•Good ozone and aging resistance
Cat. No.
Black Fixing Screw
Coflex
Conduit Size
NW
Dimensions (mm)
Width x Length x Depth
BFH-09 M5 10 20 x 19 x 23
BFH-01 M5 14 20 x 24 x 27
BFH-20 M6 20 20 x 35 x 40
BFH-23 M6 23 20 x 43 x 45.5
BFH-37 M6 37 20 x 52 x 52
BFH-48 M6 45 20 x 66 x 66
Cat. No.
Black
Conduit Size Coflex
Conduit Size
NW
Width (mm)
NW Metric
SGB-09 10 12 10 13.0
SGB-14 — — 14
SGB-20 — — 20 15.0
SGB-23 — — 23
SGB-36 36 40 37 19.0
SGB-48 48 50 45
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E66

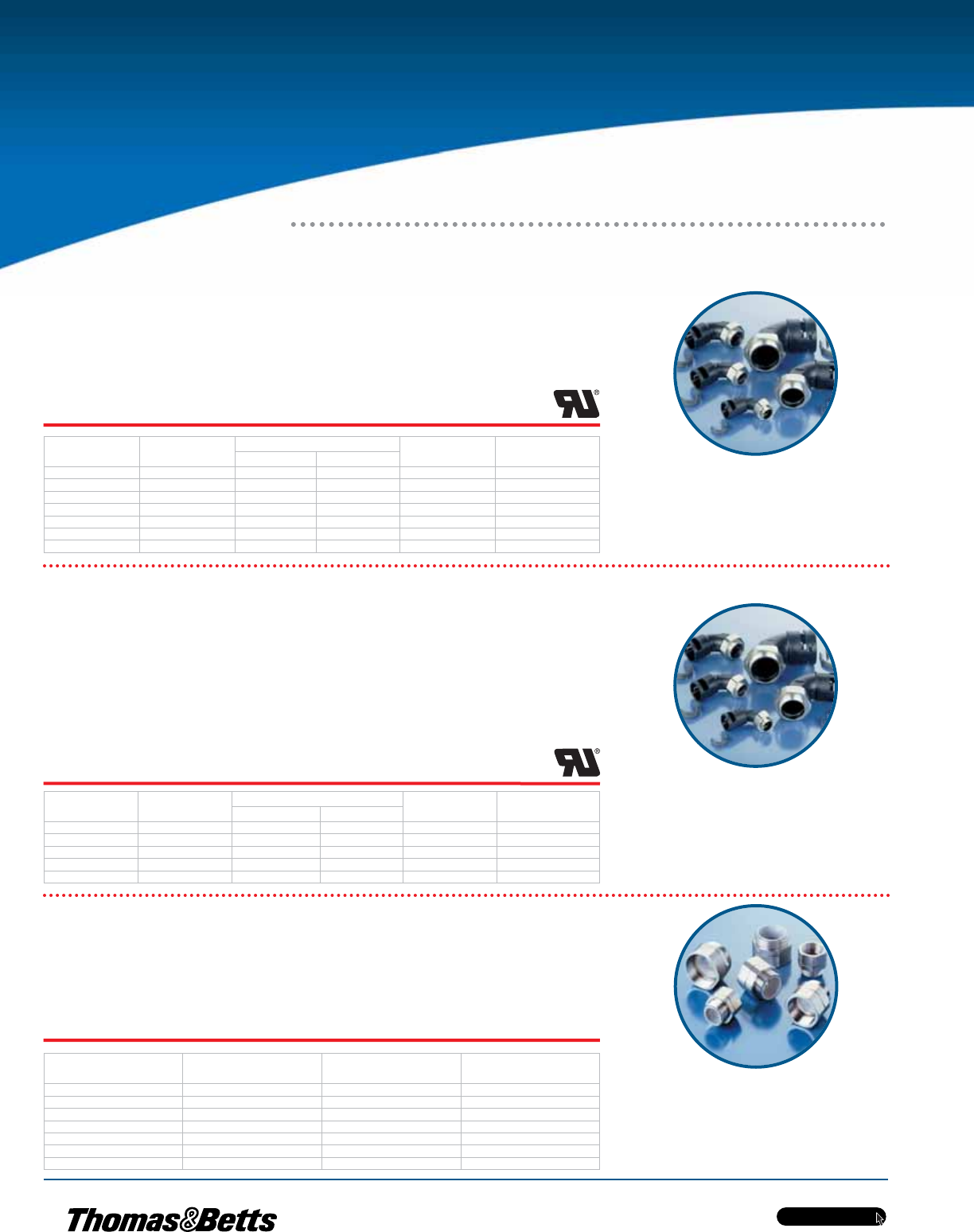

Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Fitting with oval clips (OVN2), conduit seal (NVN3)
and thread gasket (SNV4 or OR)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Fitting with oval clips (OVN2), conduit seal (NVN3)
and thread gasket (SNV4 or OR)
Temperature range: -40 to 105 ºC
Content of delivery:
Adapter and thread gasket (SNV4 or OR)
Special Products
SB 90° Curved Elbow, Metric, Metal/
Polyamide, Swivel
•For applications with high technical
requirements, mainly in machine building
•Suitable for occasional rotation
•Body made of high-grade formulated
polyamide 6
•Threads and integrated swivel adapter made
from nickel-plated brass
•Very high impact resistance
•High thread and system pullout resistance
•Round guidance within the connector
•Easy introduction of wires and cables
•Vibration-proof connection
to PMAFLEX®conduits
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
SB 90° Curved Elbow, PG, Metal/Polyamide, Swivel
•For applications with high technical
requirements, mainly in machine building
•Suitable for occasional rotation
•Body made of high-grade formulated
polyamide 6
•Threads and integrated swivel adapter made
from nickel-plated brass
•Very high impact resistance
•High thread and system pullout resistance
•Round guidance within the connector
•Easy introduction of wires and cables
•Vibration-proof connection to PMAFLEX®
conduits
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
SWA Swivel Adapters, Metric
•Allow PMA®connectors to swivel freely
in applications where such movements
are occasionally necessary
•Nickel-plated brass
•Connect to PMA®connectors with
metal threads
•Include thread edge protection
•Include corresponding seals up to IP67/IP68
Cat. No.
IP67
Thread
Metric
Outside
Diameter (mm) Length (mm)
SWA-M16-10 M16x1.5 23.0 37.5
SWA-M20-10 M20x1.5 27.0 38.5
SWA-M25-11 M25x1.5 32.0 41.0
SWA-M32-13 M32x1.5 45.0 46.5
SWA-M40-13 M40x1.5 55.0 47.5
SWA-M50-14 M50x1.5 59.0 49.5
SWA-M63-14 M63x1.5 75.0 52.0
Cat. No.
IP68, Black
Thread
PG
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NSBV-P167-6.5 16 17 20 6.5 58.0 x 75.5
NSBV-P213-7 21 23 25 7.0 69.0 x 87.5
NSBV-P299-8 29 29 32 8.0 80.0 x 98.0
NSBV-P366-9 36 36 40 9.0 91.5 x 127.5
NSBV-P488-10 48 48 50 10.0 106.0 x 139.0
Cat. No.
IP68, Black
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NSBV-M207-10 M20x1.5 17 20 10.0 62.5 x 74.5
NSBV-M253-11 M25x1.5 23 25 11.0 73.0 x 87.5
NSBV-M329-13 M32x1.5 29 32 13.0 86.5 x 98.0
NSBV-M406-13 M40x1.5 36 40 13.0 98.5 x 127.5
NSBV-M409-13 M40x1.5 29 32 13.0 86.5 x 98.0
NSBV-M508-14 M50x1.5 48 50 14.0 113.0 x 139.0
NSBV-M638-14 M63x1.5 48 50 14.0 110.0 x 139.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E67
Temperature range: -40 to 105 ºC
Content of delivery:
Adapter and thread gasket (SNV4 or OR)
Temperature range: -40 to 105 ºC
Content of delivery:
Adapter and thread gasket (SNV4 or OR)
Temperature range: -40 to 105 ºC
Content of delivery:
Adapter and thread gasket (SNV4 or OR)

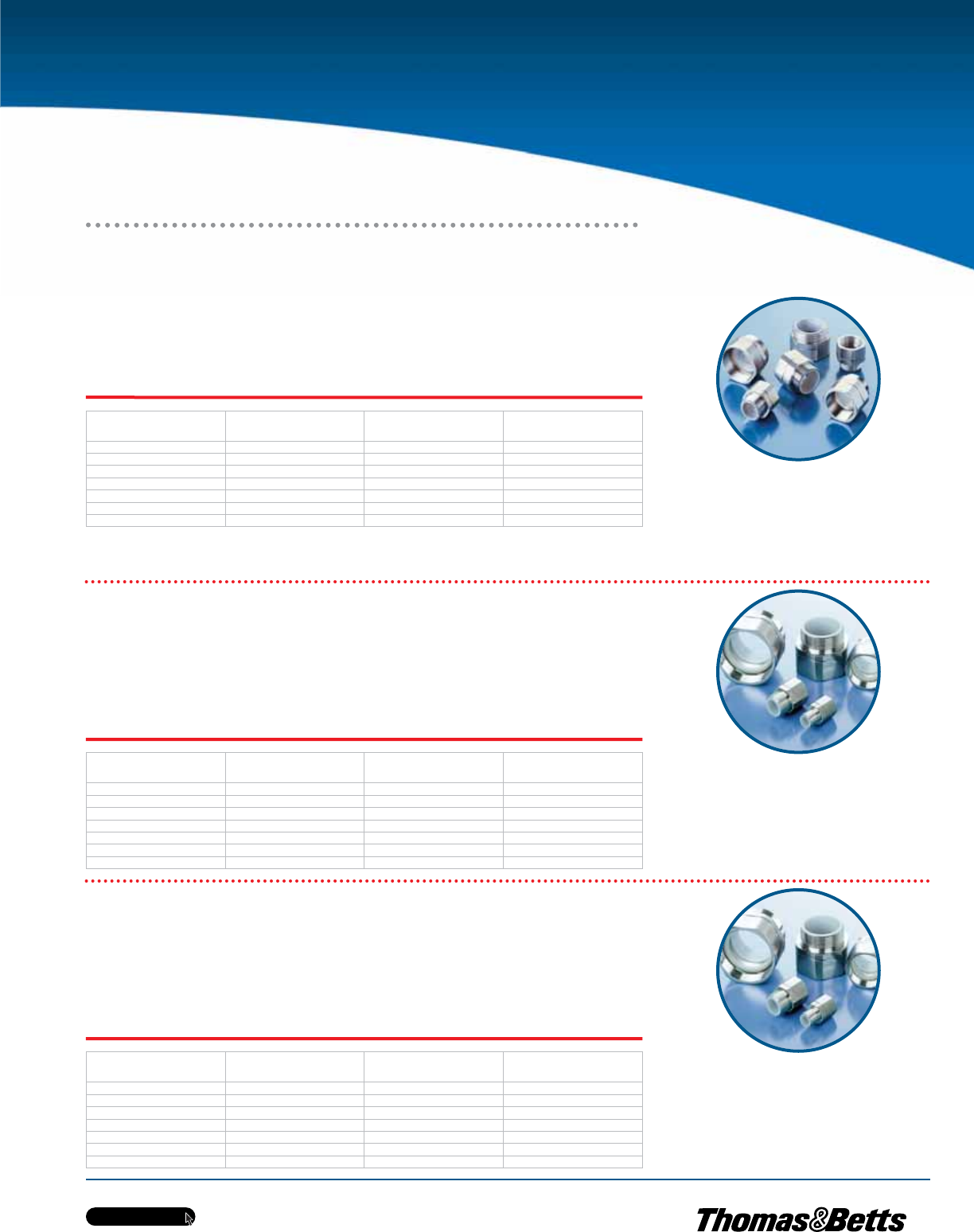

Special Products
SWA Swivel Adapters, PG
•Allow PMA®connectors to swivel freely
in applications where such movements
are occasionally necessary
•Nickel-plated brass
•Connect to PMA® connectors with
metal threads
•With thread edge protection
•With corresponding seals up to IP67/IP68
SCA Spin Couplers, Metric
•Allow the easy positioning of elbow
connectors with metal threads
•Nickel-plated brass
•Connect to PMA®connectors with
metal threads
•High fastening torque
•Include thread edge protection
•Up to IP68 (IEC 60529/EN 60529)
SCA Spin Couplers, PG
•Allow the easy positioning of elbow
connectors with metal threads
•Nickel-plated brass
•Connect to PMA®connectors with
metal threads
•High fastening torque
•Include thread edge protection
•Up to IP68 (IEC 60529/EN 60529)
Cat. No.
IP68
Thread
PG
Outside
Diameter (mm) Length (mm)
SCA-P09 9 22.0 35.0
SCA-P11 11 26.0 36.0
SCA-P16 16 29.0 38.0
SCA-P21 21 39.0 41.0
SCA-P29 29 44.0 42.5
SCA-P36 36 59.0 49.0
SCA-P48 48 69.0 50.5
Cat. No.
IP68
Thread
Metric
Outside
Diameter (mm) Length (mm)
SCA-M16-10 M16x1.5 22.0 32.0
SCA-M20-10 M20x1.5 26.0 33.0
SCA-M25-11 M25x1.5 32.0 35.0
SCA-M32-13 M32x1.5 39.0 39.5
SCA-M40-13 M40x1.5 50.0 41.0
SCA-M50-14 M50x1.5 59.0 43.5
SCA-M63-14 M63x1.5 75.0 45.5
Cat. No.
IP67
Thread
PG
Outside
Diameter (mm) Length (mm)
SWA-P09 9 23.0 44.5
SWA-P11 11 27.0 45.5
SWA-P16 16 32.0 48.0
SWA-P21 21 40.0 51.0
SWA-P29 29 50.0 52.0
SWA-P36 36 59.0 55.0
SWA-P48 48 70.0 55.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E68

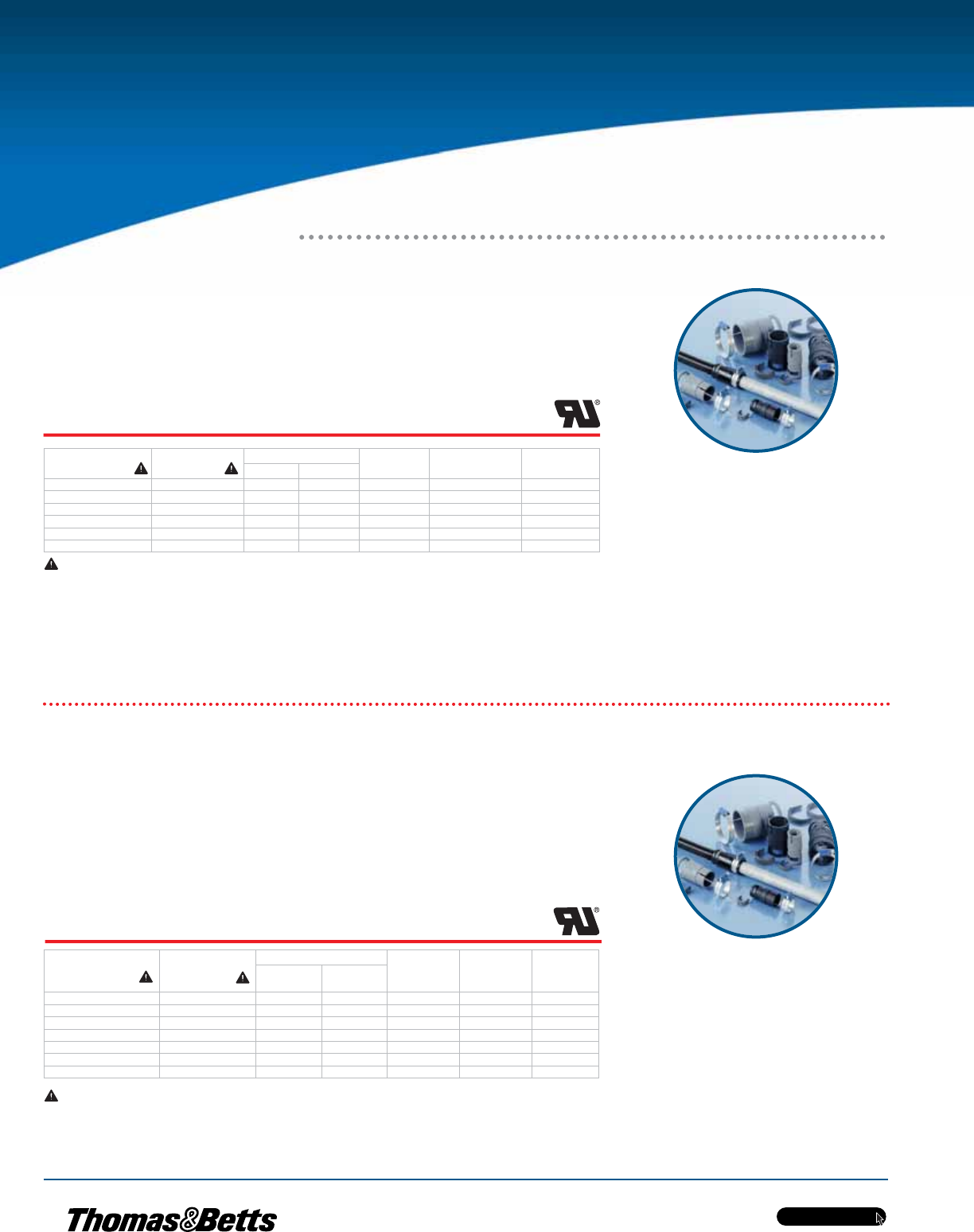

VNR: IP68 static/IP67 dynamic, conduit
side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP68 Fitting with oval clips (OVN2), conduit seal
(NVN3) and clamp according to catalogue
number
IP68GT Fitting with pre-installed universal safety
clips (AFN2), conduit seal (NVN3-GT) and
clamp according to catalogue number
VNR: IP68 static/IP67 dynamic, conduit side
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Fitting with oval clips (OVN2), conduit seal (NVN3)
and clamp according to catalogue number
Special Products

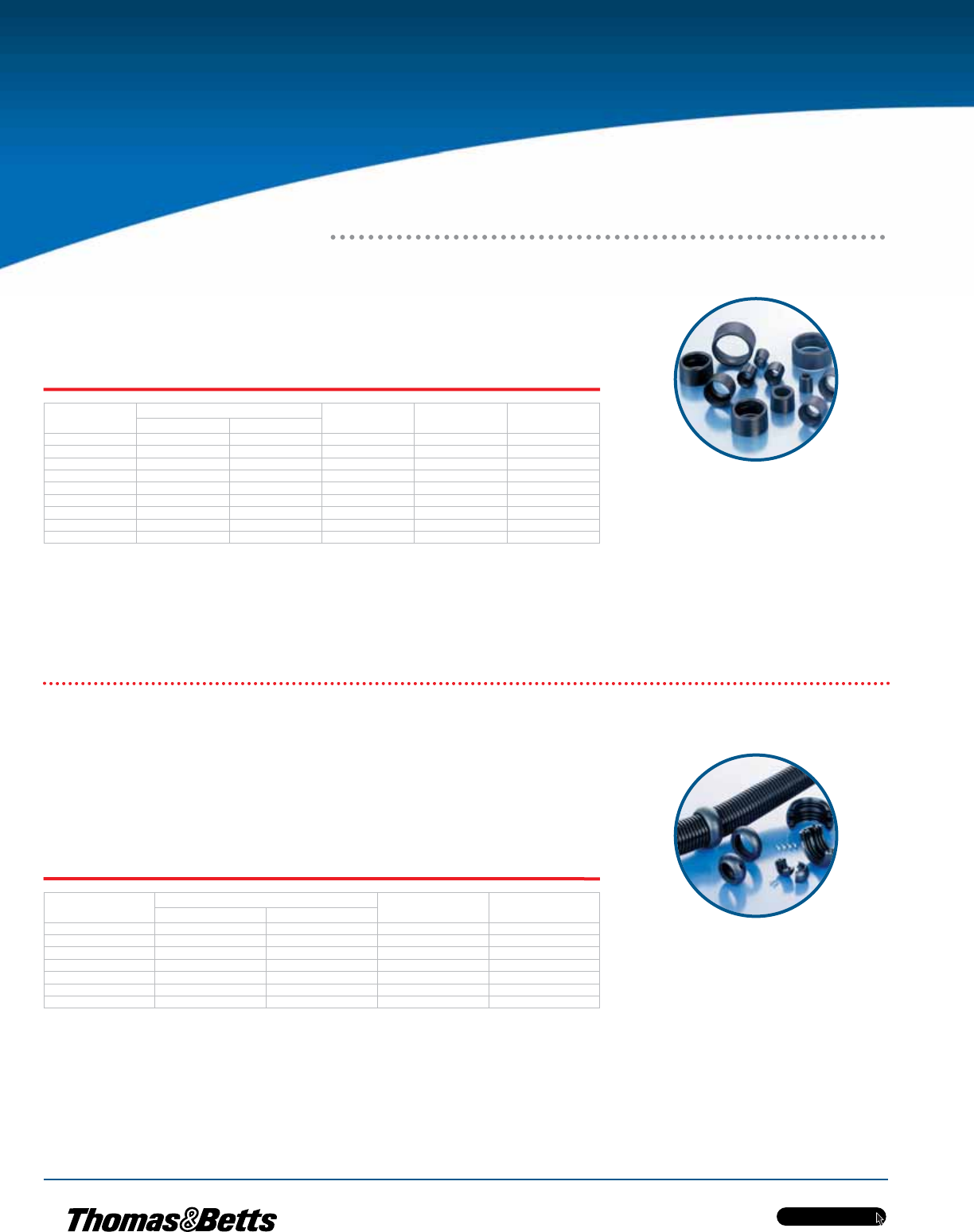

VN-REM Connection to Solid Tube, Metric
•Use in railway vehicle construction and other
applications where metric metal tubes are to
be connected with the flexible PMAFLEX®
system
•High-grade, specially formulated polyamide 6;
hose clamp made of galvanized bright steel
•Very high impact resistance
•Quick connection of solid metal tubes with
flexible PMA®conduits
•Available with or without hose clamp
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit
profiles
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” to catalogue no. or insert before clamp size (e.g. BVNR-REM162GT, BVNR-REM162GT24).
(Functional description PMAFIX IP68GT, pages E28–E29).
_ = Insert “B” to order black or “S” to order grey.
IP68GT available. Please add “GT” to catalogue no. or insert before clamp size (e.g. BVNR-RE(12)GT, BVNR-RE(12)GT24).
(Functional description PMAFIX IP68GT, pages E28–E29).
VN-RE Connector for Solid Tube, PG
•Use in railway vehicle with PG dimensions,
construction and other applications where
metal tubes are to be connected with the
flexible PMAFLEX®system
•High-grade, specially formulated polyamide 6;
hose clamp made of galvanized bright steel
•Very high impact resistance
•Quick connection of solid metal tubes with
flexible PMA®conduits
•Available with or without hose clamp
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
Cat. No. IP68
Without Clamp
Cat. No. IP68
With Clamp
Conduit Size Steel Tube
Metric
Inside
Diameter (mm)
Overall
Length (mm)
NW Metric
_VNR-REM162 _VNR-REM162-24 12 16 M16 16.0 54.0
_VNR-REM207 _VNR-REM207-28 17 20 M20 20.0 65.0
_VNR-REM253 _VNR-REM253-32 23 25 M25 26.0 71.0
_VNR-REM329 _VNR-REM329-44 29 32 M32 32.0 71.0
_VNR-REM406 _VNR-REM406-50 36 40 M40 40.0 90.0
_VNR-REM508 _VNR-REM508-65 48 50 M50 50.0 90.0
Cat. No. IP68
Without Clamp
Cat. No. IP68
With Clamp
Conduit Size Steel Tube
PG
Inside
Diameter
(mm)
Overall
Length
(mm)
NW Metric
_VNR-RE12 _VNR-RE12-24 12 16 PG11 18.5 56.0
_VNR-RE1317 _VNR-RE1317-28 17 20 PG13 20.4 65.0
_VNR-RE17 _VNR-RE17-28 17 20 PG16 22.5 65.0
_VNR-RE23 _VNR-RE23-32 23 25 PG21 28.5 71.0
_VNR-RE29 _VNR-RE29-44 29 32 PG29 37.0 71.0
_VNR-RE36 _VNR-RE36-50 36 40 PG36 47.0 84.0
_VNR-RE48 _VNR-RE48-65 48 50 PG48 59.3 90.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E69
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Connection splice with pre-installed
universal safety clips (AFN2)
IP68 Connection splice with oval clips (OVN2) and
conduit seal (NVN3)
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
IP66 Adapter with pre-installed universal safety
clips (AFN2)
IP68 Adapter with oval clips (OVN2) and
conduit seal (NVN3)
Special Products
VSG Connection Splices for Flexible Conduits
•Use in railway vehicle construction and
machine tooling
•High-grade formulated polyamide
•Self extinguishing
•Free from halogens and cadmium
•High pullout strength
•Fits fine (T) and coarse (G) conduit profiles
AV Conduit Adapters
•Use in connection with PMAFIX®/PMAFLEX®
system
•High-grade, specially formulated polyamide 6
•Very high impact resistance
•Allow variable application of the PMAFIX®
system, particularly of PMA®distribution
pieces
•High conduit pullout strength
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
_ = Insert “B” to order black or “S” to order grey.
Cat. No.
IP66
Cat. No.
IP68
Conduit Size Outisde
Diameter (mm)
Overall
Length (mm)
NW Metric
_VSGD-1212GT _VSGR-1212 12 16 23.5 66.0
_VSGD-1717GT _VSGR-1717 17 20 30.0 89.0
_VSGD-2323GT _VSGR-2323 23 25 37.0 103.0
_VSGD-2929GT _VSGR-2929 29 32 44.0 100.0
_VSGD-3636GT _VSGR-3636 36 40 53.0 130.0
_VSGD-4848GT _VSGR-4848 48 50 61.0 136.0
Cat. No.
IP66, Black
Cat. No.
IP68, Black
Input Fits Conduit Size Outputs Fit Conduit Size Overall
Length (mm)
NW Metric NW Metric
BAVD-10/07GT BAVR-10/07 10 12 07 10 43.0
BAVD-12/10GT BAVR-12/10 12 16 10 12 46.0
BAVD-17/10GT BAVR-17/10 17 20 10 12 53.0
BAVD-17/12GT BAVR-17/12 17 20 12 16 54.0
BAVD-23/10GT BAVR-23/10 23 25 10 12 54.0
BAVD-23/12GT BAVR-23/12 23 25 12 16 53.0
BAVD-23/17GT BAVR-23/17 23 25 17 20 62.0
BAVD-29/10GT BAVR-29/10 29 32 10 12 56.5
BAVD-29/12GT BAVR-29/12 29 32 12 16 55.0
BAVD-29/17GT BAVR-29/17 29 32 17 20 61.0
BAVD-29/23GT BAVR-29/23 29 32 23 25 64.0
BAVD-36/29GT BAVR-36/29 36 40 29 32 81.0
BAVD-48/36GT BAVR-48/36 48 50 36 40 88.5
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E70
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Content of delivery:
Abrasion-protection sleeves with assembling screws
Special Products
RKS Conduit Terminal Sleeves
•Used at the end of conduits where no
connectors with threads are necessary
•Specially modified polyamide
•Self extinguishing
•Free from halogens and cadmium
SS/SV Abrasion-Protection Sleeves
•Abrasion protection for corrugated conduits
exposed to chafing
•High-grade, specially modified polyamide 6
•Increase the lifetime of moving conduits
•Excellent chafing characteristics
•Very good chemical properties
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
Cat. No.
Black
Conduit Size Inside
Diameter (mm)
Outside
Diameter (mm) Length (mm)
NW Metric
RKS-07 7 10 4.5 12.5 16.0
RKS-10 10 12 8.0 15.5 16.0
RKS-12 12 16 10.0 19.0 20.0
RKS-17 17 20 13.0 24.0 21.0
RKS-23 23 25 20.0 32.0 22.0
RKS-29 29 32 25.0 38.0 22.0
RKS-36 36 40 33.5 46.0 25.0
RKS-48 48 50 45.0 58.0 25.0
RKS-56 56 63 54.0 71.0 28.0
Cat. No.
Black
Conduit Size Outside
Diameter (mm)
Dimensions
Length (mm)
NW Metric
BSS-17 17 20 42.0 22.0
BSS-23 23 25 49.0 26.0
BSS-29 29 32 55.0 26.0
BSS-36 36 40 63.0 30.0
BSS-48 48 50 75.0 30.0
BSS-56G 56 — 90.0 33.0
BSV-70G 70 — 108.0 60.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E71
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Temperature range: -40 to 105 ºC
Short term: Max. 160 ºC
Accessories and Tools

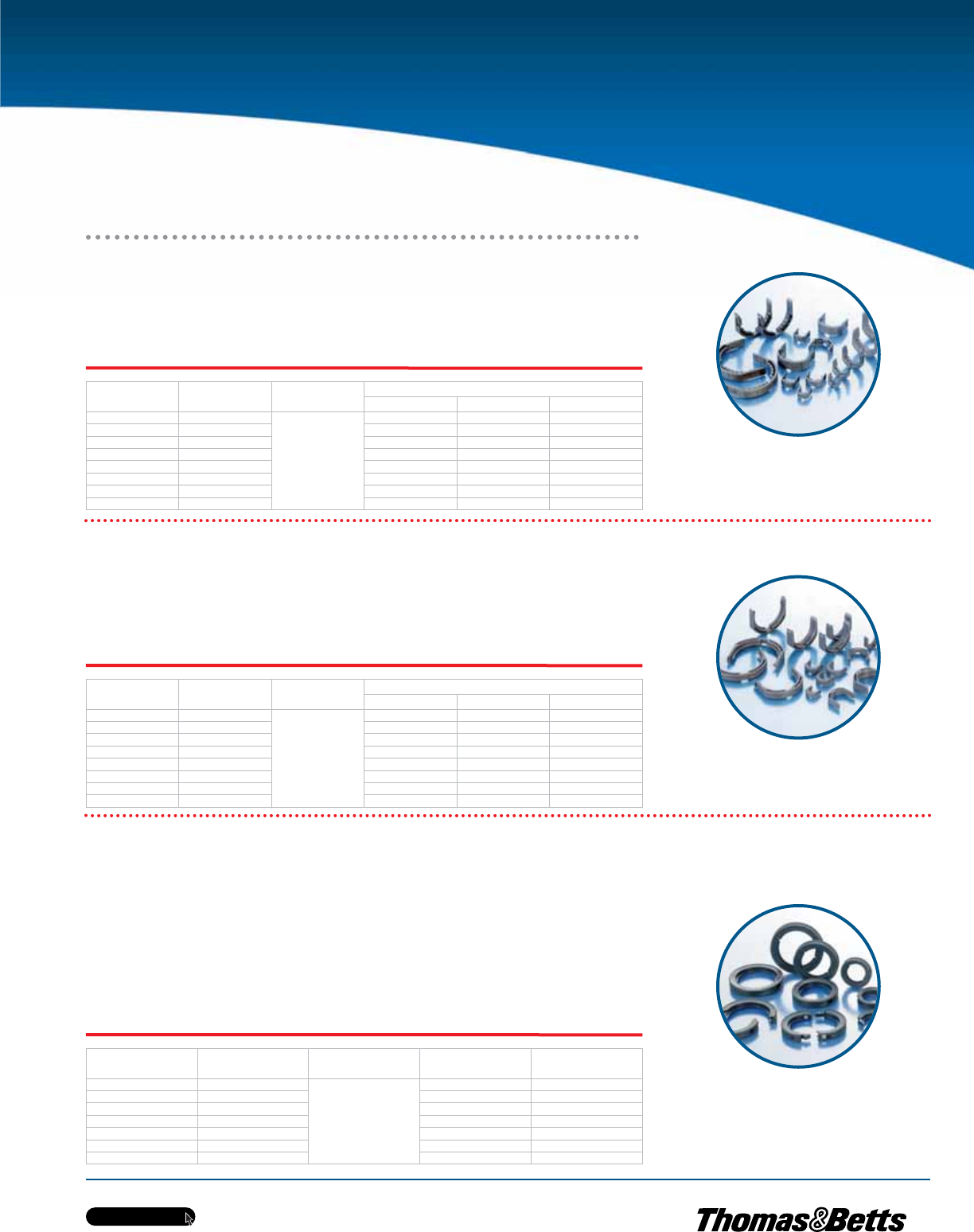

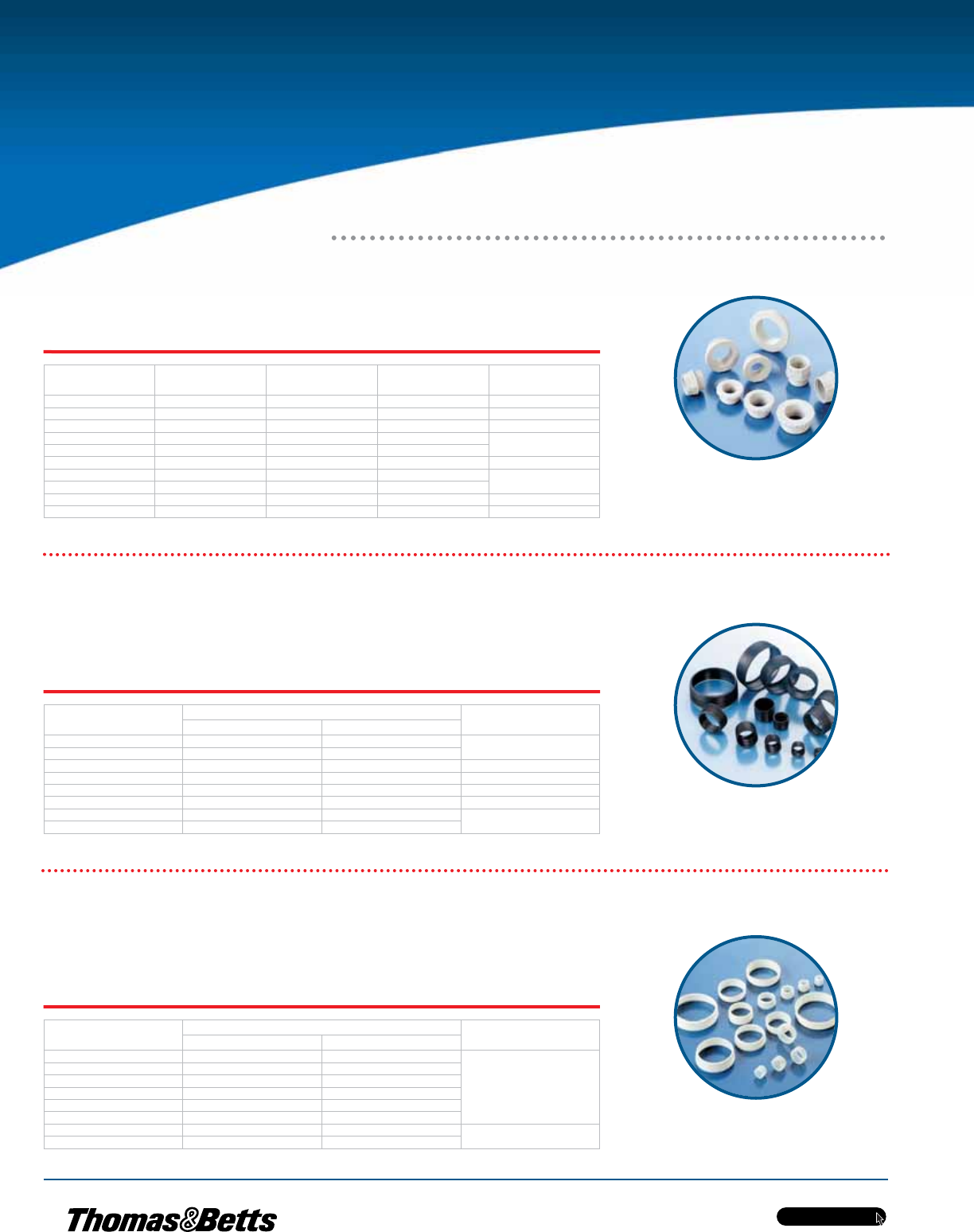

AFN2 Universal Safety Clips
•Pre-installed in the IP66 and IP68GT range
of connectors
•Allow for a quick and easy connection to
PMAFLEX®conduits by just pushing the
conduit into the connector
•High-grade formulated polyamide
•Self extinguishing
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
OVN2 Oval Clips
•Secure the conduit within the PMAFIX®
connectors and distributors
•Connections made with a high degree
of safety
•High-grade formulated polyamide
•Easy to install
•Self extinguishing
•Free from halogens and cadmium
•Fits fine (T) and coarse (G)
conduit profiles
WPS Water-Impact Protection
•Increased protection of PMAFIX®fittings
against water jet impact
•Meet increased ingress protection
requirements regarding high-pressure/
steam jet cleaning
•High-grade, specially formulated polyamide 6,
extremely shock resistant
•Self extinguishing
•Free from halogens and cadmium
•Based on PMAFIX®/PMAFLEX®system with
ingress protection of IP68
•Additional protection against water jet impact;
increased protection up to IP69K
•Two-piece water-impact protection
with click ring
•Fits all PMAFLEX®conduit profiles
Cat. No.
IP66, Dark Grey
Conduit Size
NW
Conduit to
Profile
Dimensions (mm)
Width Length Thickness
AFN2-07GT 7
G + T
14.0 14.0 7.0
AFN2-10GT 10 17.5 17.0 8.0
AFN2-12GT 12 20.5 20.0 7.3
AFN2-17GT 17 26.5 22.0 8.0
AFN2-23GT 23 34.0 27.5 11.8
AFN2-29GT 29 40.5 32.0 11.8
AFN2-36GT 36 49.5 38.8 9.5
AFN2-48GT 48 62.0 47.0 9.5
Cat. No.
IP68, Dark Grey
Conduit Size
NW
Conduit to
Profile
Dimensions (mm)
Width Length Thickness
OVN2-07 7
G + T
14.0 14.0 6.0
OVN2-10 10 17.5 17.0 7.0
OVN2-12 12 21.0 19.0 6.0
OVN2-17 17 26.5 22.5 7.0
OVN2-23 23 34.0 27.5 10.5
OVN2-29 29 40.5 32.0 10.5
OVN2-36 36 49.5 39.0 8.5
OVN2-48 48 62.0 47.0 8.5
Cat. No.
IP69K, Black
Conduit Size
NW
Conduit to
Profile
Outside
Diameter (mm) Thickness (mm)
WPS-NW10 10
G + T
22.0 8.0
WPS-NW12 12 26.0 8.0
WPS-NW17 17 33.0 8.0
WPS-NW23 23 40.0 9.0
WPS-NW29 29 47.0 9.5
WPS-NW36 36 59.0 10.0
WPS-NW48 48 71.0 10.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E72
Temperature range: -40 to 105 ºC
Short term: Max. 150 ºC
Temperature range: -40 to 105 ºC
Short term: Max. 150 ºC
Accessories and Tools

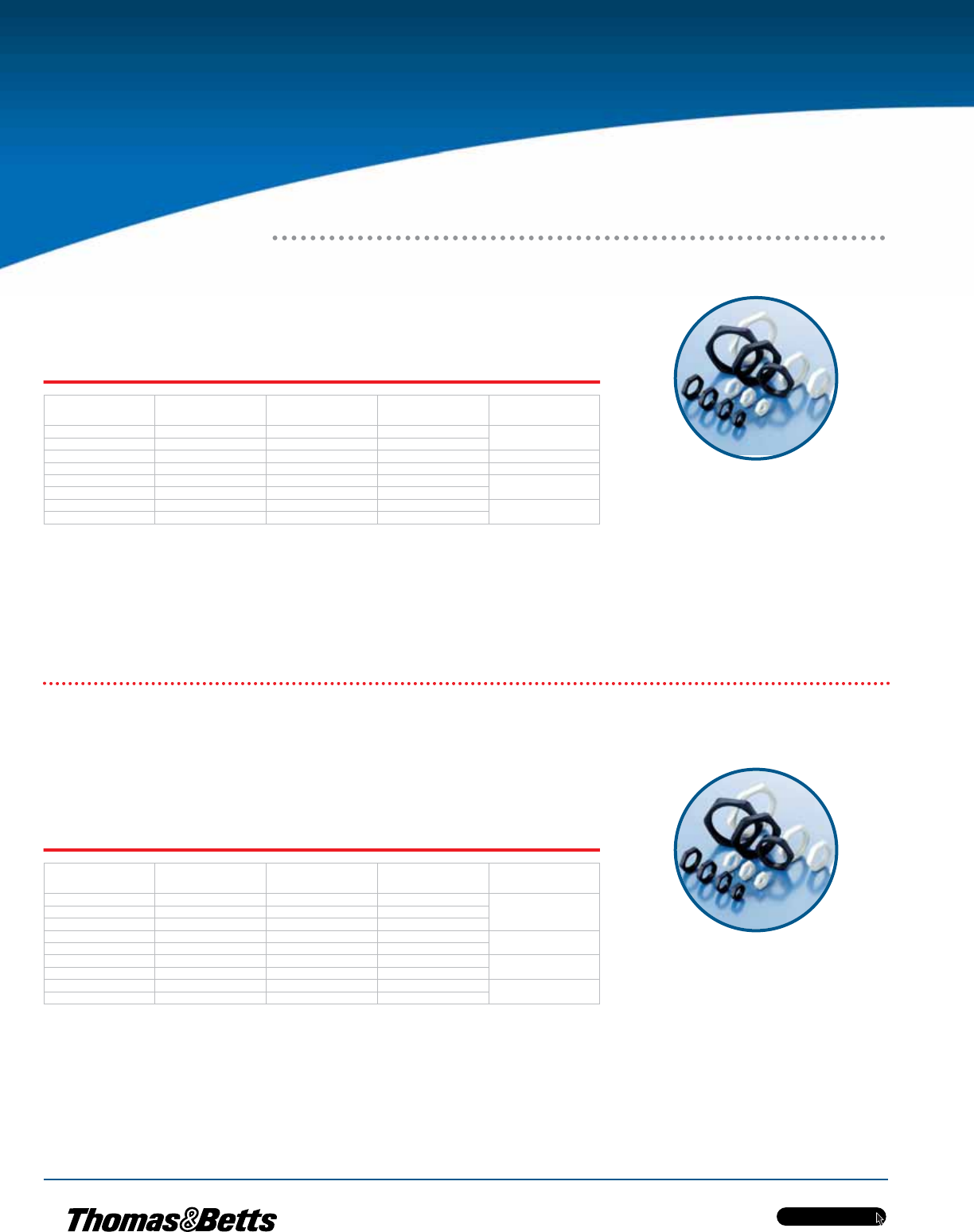

MN Hexagonal Locknuts, Metric, Polyamide
•High-grade, specially formulated polyamide 6,
30% reinforced fiberglass
•High tightening torques
•Safe system connection
•Very good chemical properties
•Free from halogens and cadmium
MN Hexagonal Locknuts, PG,
Polyamide
•High-grade, specially formulated polyamide 6,
30% reinforced fiberglass
•High tightening torques
•Safe system connection
•Very good chemical properties
•Free from halogens and cadmium
Cat. No.
Black
Cat. No.
Grey
Thread
Metric
Wrench
Size (mm) Height Min. (mm)
BMN-M12 GMN-M12 M12x1.5 18.0 5.0
BMN-M16 GMN-M16 M16x1.5 22.0
BMN-M20 GMN-M20 M20x1.5 26.0 6.0
BMN-M25 GMN-M25 M25x1.5 32.0 5.6
BMN-M32 GMN-M32 M32x1.5 41.0 7.0
BMN-M40 GMN-M40 M40x1.5 50.0
BMN-M50 GMN-M50 M50x1.5 60.0 8.0
BMN-M63 GMN-M63 M63x1.5 75.0
Cat. No.
Black
Cat. No.
Grey
Thread
PG
Wrench
Size (mm) Height Min. (mm)
BMN-07 GMN-07 7 19.0
5.0BMN-09 GMN-09 9 22.0
BMN-11 GMN-11 11 24.0
BMN-13 GMN-13 13.5 27.0 6.0
BMN-16 GMN-16 16 30.0
BMN-21 GMN-21 21 36.0 7.0
BMN-29 GMN-29 29 46.0
BMN-36 GMN-36 36 60.0 8.0
BMN-48 GMN-48 48 70.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E73
Accessories and Tools

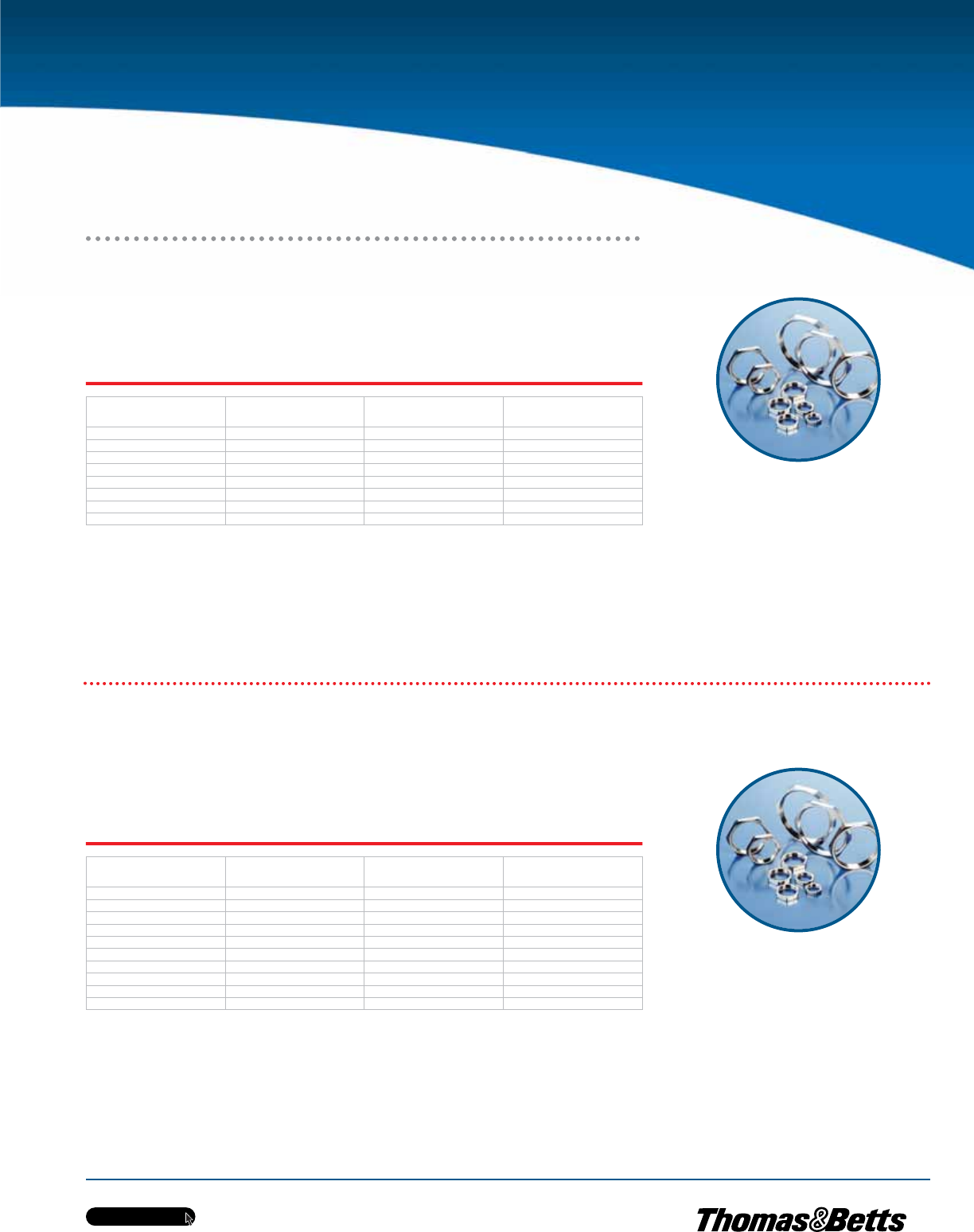

MM Hexagonal Locknuts, Metric, Metal
•Brass galvanically nickel plated
•Maximum possible torque
•Safe system connection
Hexagonal Locknuts, PG, Metal
•Brass galvanically nickel plated
•Maximum possible torque
•Safe system connection
Cat. No.
Metal
Thread
Metric
Wrench
Size (mm) Height Min. (mm)
GMM-M12 M12x1.5 15.0 2.8
GMM-M16 M16x1.5 19.0 2.8
GMM-M20 M20x1.5 24.0 3.0
GMM-M25 M25x1.5 30.0 3.5
GMM-M32 M32x1.5 36.0 4.0
GMM-M40 M40x1.5 46.0 4.5
GMM-M50 M50x1.5 60.0 5.0
GMM-M63 M63x1.5 70.0 5.5
Cat. No.
Metal
Thread
PG
Wrench
Size (mm) Height Min. (mm)
GMM-07 7 15.0 2.8
GMM-09 9 18.0 2.8
GMM-11 11 21.0 3.0
GMM-13 13.5 23.0 3.0
GMM-16 16 26.0 3.0
GMM-21 21 32.0 3.5
GMM-29 29 41.0 4.0
GMM-36 36 51.0 5.0
GMM-42 42 60.0 5.0
GMM-48 48 64.0 5.5
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E74
Accessories and Tools
ME Enlargers, Metric, Brass
•Used to enlarge metric threads
•Easy mounting, equipped with hexagonal ring
•Brass galvanically nickel plated
•For enlargement of an existing thread
MR Reducers, Metric, Brass
•Used to reduce metric threads
•Available in round and hexagonal form
•Brass galvanically nickel plated
Cat. No.
Metal
Standard
Thread Outside Thread Inside Inside
Diameter
(mm)
Total
Length
(mm)
Wrench
Size
Metric Length Metric Length (mm)
M12M16M M12x1.5 5 M16x1.5 7.0 8.0 16.0 18
M16M20M M16x1.5 5 M20x1.5 7.5 12.0 16.5 22
M20M25M M20x1.5 6 M25x1.5 8.0 15.0 18.5 27
M25M32M M25x1.5 7 M32x1.5 9.0 21.0 20.5 34
M32M40M M32x1.5 8 M40x1.5 10.0 26.0 23.5 42
M40M50M M40x1.5 8 M50x1.5 13.0 34.0 30.0 52
M50M63M M50x1.5 9 M63x1.5 16.0 44.0 32.5 65
Cat. No.
Metal Standard
Cat. No.
Metal Hexagonal
Thread Outside
Metric
Thread inside
Metric
M16M12M M16M12M/6 M16x1.5 M12x1.5
M20M12M M20M12M/6 M20x1.5 M12x1.5
M20M16M M20M16M/6 M20x1.5 M16x1.5
M25M16M M25M16M/6 M25x1.5 M16x1.5
M25M20M M25M20M/6 M25x1.5 M20x1.5
M32M20M M32M20M/6 M32x1.5 M20x1.5
M32M25M M32M25M/6 M32x1.5 M25x1.5
M40M25M M40M25M/6 M40x1.5 M25x1.5
M40M32M M40M32M/6 M40x1.5 M32x1.5
M50M32M M50M32M/6 M50x1.5 M32x1.5
M50M40M M50M40M/6 M50x1.5 M40x1.5
M63M40M M63M40M/6 M63x1.5 M40x1.5
M63M50M M63M50M/6 M63x1.5 M50x1.5
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E75
Accessories and Tools
ME Enlargers, PG, Brass
•Used to enlarge PG threads
•Brass galvanically nickel plated
MR Reducers, PG, Brass
•Used to reduce PG threads
•Brass galvanically nickel plated
Cat. No.
Metal, Standard
Thread Outside Thread Inside Outside
Diameter (mm)
Total
Length (mm)
PG Length (mm) PG Length (mm)
0709M 7.0 5.0 9.0 7.0 17.0 15.0
0911M 9.0 6.0
11.0 20.0 16.5
0913M 13.5 7.5 22.0 17.5
1113M
11.0
13.5 8.0 22.0 17.5
1116M
6.5
16.0 8.5 24.0 19.0
1121M 21.0 10.0 30.0 21.0
1316M 13.5 16.0 7.5 24.0 19.0
1321M 21.0 8.5 30.0 21.0
1621M 16.0 21.0 8.5 30.0 21.0
1629M 29.0 11.0 39.0 22.5
2129M 21.0 7.0 29.0 11.5 39.0 23.0
2936M 29.0 8.0 36.0 12.0 50.0 27.5
4248M 42.0 10.0 48.0 1.0 64.0 33.0
Cat. No.
IP66
Thread Outside Thread Inside Outside
Diameter (mm)
Total
Length (mm)
PG Length (mm) PG
0907M 9.0
6.0
7 17.0
8.51107M 11.0 720.0
1109M 9
1307M
13.5
6.5
7
22.0 9.01309M 9
1311M 11
1607M
16.0
7
24.0 9.5
1609M 9
1611M 11
1613M 13.5
2111M
21.0 7.0
11
30.0 10.02113M 13.5
2116M 16
2916M 29.0 8.0 16 39.0 11.5
2921M 21
3621M 36.0 9.0 21 50.0 12.5
3629M 29
4229M 42.0
10.0
29 57.0
14.0
4236M 36
4836M 48.0 36 64.0
4842M 42
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E76
Temperature range: -40 to 105 ºC
Temperature range: -40 to 105 ºC
Temperature range: -40 to 105 ºC
Accessories and Tools
NR Reducers, PG, Polyamide
•Reduce connecting threads
•Polyamide reinforced fiberglass
NVN3 Sealing Rings, Reinforced, IP68
•Connect PMAFIX®connectors (“V” Series
and PMAFLEX®corrugated
conduits)
•Specially modified polyester elastomer
•Suitable for sealing
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
NFN3 Sealing Rings, IP67
•Connect PMAFIX®connectors (“F” Series
and PMAFLEX®corrugated conduits)
•Specially modified polyester elastomer
•Suitable for sealing
•Free from halogens and cadmium
•Fits fine (T) and coarse (G) conduit profiles
Cat. No. Thread Outside
PG
Thread Inside
PG Length (mm) Outside
Diameter (mm)
1109N 11 9 18.0 22.5
1309N 13.5 9 11.5 27.0
1311N 13.5 11 21.5 25.0
1609N 16 9 13.0 29.0
1611N 16 11 12.5
1613N 16 13.5 24.5 28.5
2113N 21 13.5 13.5 35.5
2116N 21 16 13.5
2921N 29 21 13.5 46.0
3629N 36 29 21.5 54.5
Cat. No.
Black
Conduit Size 1 head only Length (mm)
NW Metric
NVN3-07 7 10 9.0
NVN3-09 10 12
NVN3-11 12 16 12.0
NVN3-16 17 23 16.5
NVN3-21 23 25 13.0
NVN3-29 29 32 14.0
NVN3-36 36 40 17.5
NVN3-48 48 50
Cat. No.
Black
Conduit Size 1 head only Length (mm)
NW Metric
NFN3-07 7 10
9.0
NFN3-09 10 12
NFN3-11 12 16
NFN3-16 17 23
NFN3-21 23 25
NFN3-29 29 32
NFN3-36 36 40 11.0
NFN3-48 48 50
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E77
Temperature range: -40 to 105 ºC
Short term: Max. 350 ºC
Temperature range: -40 to 105 ºC
Short term: Max. 350 ºC
Temperature range: -40 to 105 ºC
Short term: Max. 350 ºC
Accessories and Tools

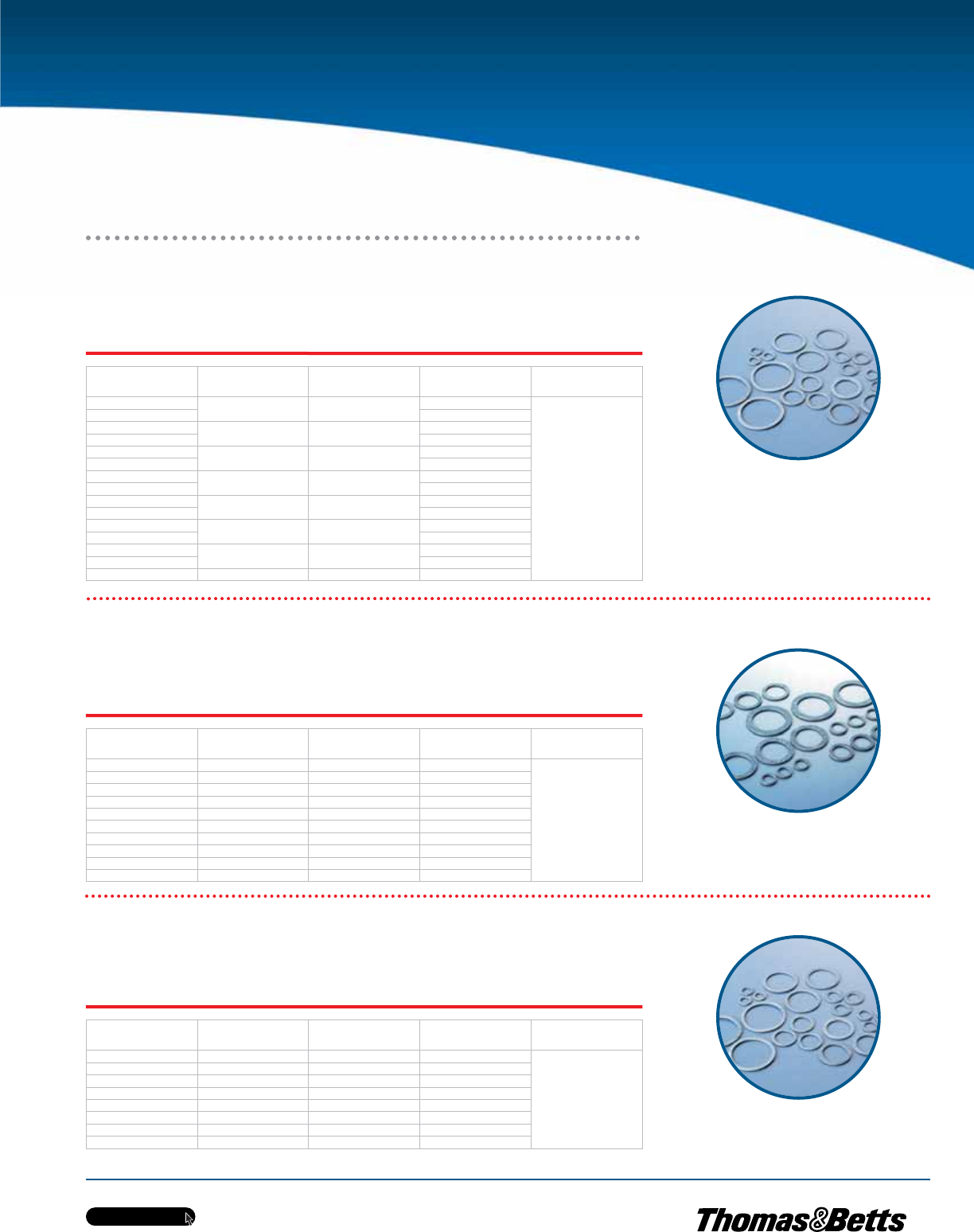

SVN4 Flat Gaskets, Metric
•Suitable for the reinforced PMAFIX®
connectors with polyamide or metal threads
•Guarantee ingress protection of up to IP68
•NBR reinforced with aramide fibers
(asbestos free)
SVN4 Flat Gaskets, PG
•Suitable for the reinforced PMAFIX®
connectors with polyamide or metal threads
•Guarantee ingress protection of up to IP68
•NBR reinforced with aramide fibers
(asbestos free)
SVN4 Flat Gaskets, Whitworth
•Suitable for the reinforced PMAFIX®
connectors with polyamide or metal threads
•Guarantee ingress protection of up to IP68
•NBR reinforced with aramide fibers
(asbestos free)
Cat. No.
IP68
Thread
PG
Inside
Diameter (mm)
Outside
Diameter (mm) Width (mm)
SVN4-07 7 12.5 16.5
1.5
SVN4-09 9 15.2 20.0
SVN4-11 11 18.6 24.0
SVN4-13 13.5 20.4 31.0
SVN4-16 16 22.5 31.0
SVN4-21 21 28.3 37.0
SVN4-29 29 37.0 48.0
SVN4-36 36 47.0 57.0
SVN4-42 42 54.0 60.0
SVN4-48 48 59.3 69.0
Cat. No.
IP68
Thread
Metric
Inside
Diameter (mm)
Outside
Diameter (mm) Width (mm)
SVN4-M12 M12x1.5 12.0 20.0
1.5
SVN4-M12/02 23.0
SVN4-M16 M16x1.5 16.0 22.0
SVN4-M16/02 25.0
SVN4-M20 M20x1.5 20.0 27.0
SVN4-M20/02 33.0
SVN4-M25 M25x1.5 25.0 35.0
SVN4-M25/02 39.0
SVN4-M32 M32x1.5 32.0 43.0
SVN4-M32/02 49.0
SVN4-M40 M40x1.5 40.0 55.0
SVN4-M40/02 64.0
SVN4-M50 M50x1.5 50.0 69.0
SVN4-M50/02 74.0
SVN4-M63 M63x1.5 63.0 75.0
Cat. No.
IP68
Thread
Whitworth (mm)
Inside
Diameter (mm)
Outside
Diameter (mm) Width (mm)
SVN4-G00 1/4 13.2 20.0
1.5
SVN4-G01 3/8 16.7 22.0
SVN4-G02 1/2 21.0 28.0
SVN4-G04 3/4 26.5 34.0
SVN4-G06 1 33.3 42.0
SVN4-G07 1-1/4 41.9 53.0
SVN4-G08 1-1/2 47.8 62.0
SVN4-G09 2 59.6 69.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E78
Temperature range: -40 to 100 ºC
Short term: Max. 150 ºC
Temperature range: -40 to 100 ºC
Short term: Max. 150 ºC
Accessories and Tools

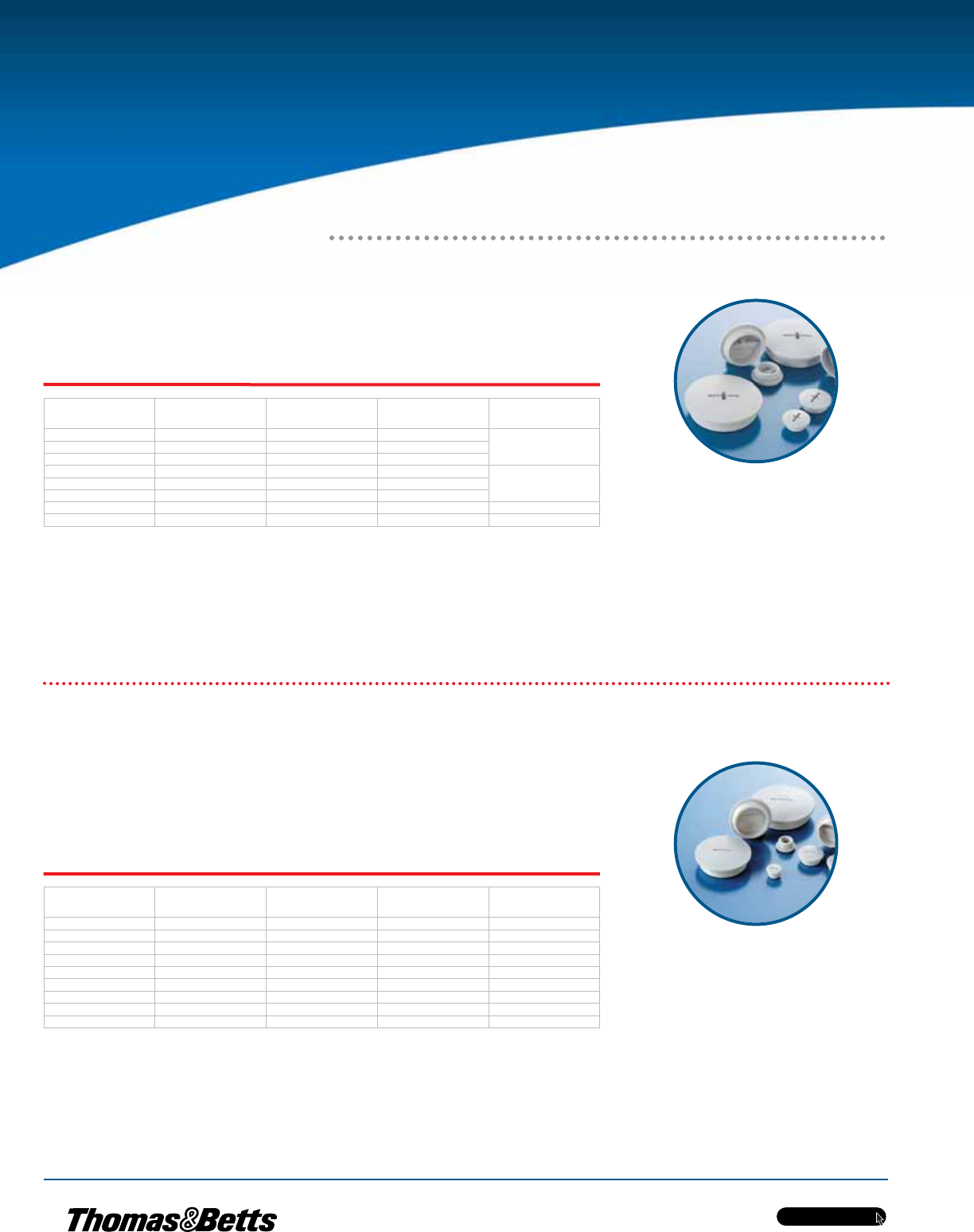

514 Plug Screws, Metric
•Suitable for an accurate termination where
there are no threaded holes in casings and
distribution boxes
•Product with metric thread: PA-GF
•Free from halogens and cadmium
•IP54
514 Plug Screws, PG
•Suitable for an accurate termination where
there are no threaded holes in casings and
distribution boxes
•Product with PG thread: PS
•Free from halogens and cadmium
•IP54
Cat. No.
Grey
Fits to Thread
Metric
Outside
Diameter (mm) Height (mm) Thread
Length (mm)
514-M12 M12x1.5 15.0 8.0
6.0514-M16 M16x1.5 20.0 9.0
514-M20 M20x1.5 24.0 9.5
514-M25 M25x1.5 30.0 11.5
8.0514-M32 M32x1.5 37.0 12.0
514-M40 M40x1.5 46.0 13.0
514-M50 M50x1.5 56.0 15.0 10.0
514-M63 M63x1.5 70.0 17.0 12.0
Cat. No.
Grey
Thread
PG
Outside
Diameter (mm) Height (mm) Thread
Length (mm)
514-07 7 15.0 8.0 6.0
514-09 9 19.0 9.5 6.5
514-11 11 22.0 10.0 6.5
514-13 13.5 25.0 10.0 6.5
514-16 16 27.0 10.0 6.5
514-21 21 33.0 12.0 8.0
514-29 29 44.0 11.5 8.0
514-36 36 55.0 14.0 10.0
514-48 48 68.0 16.0 12.0
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E79
Accessories and Tools

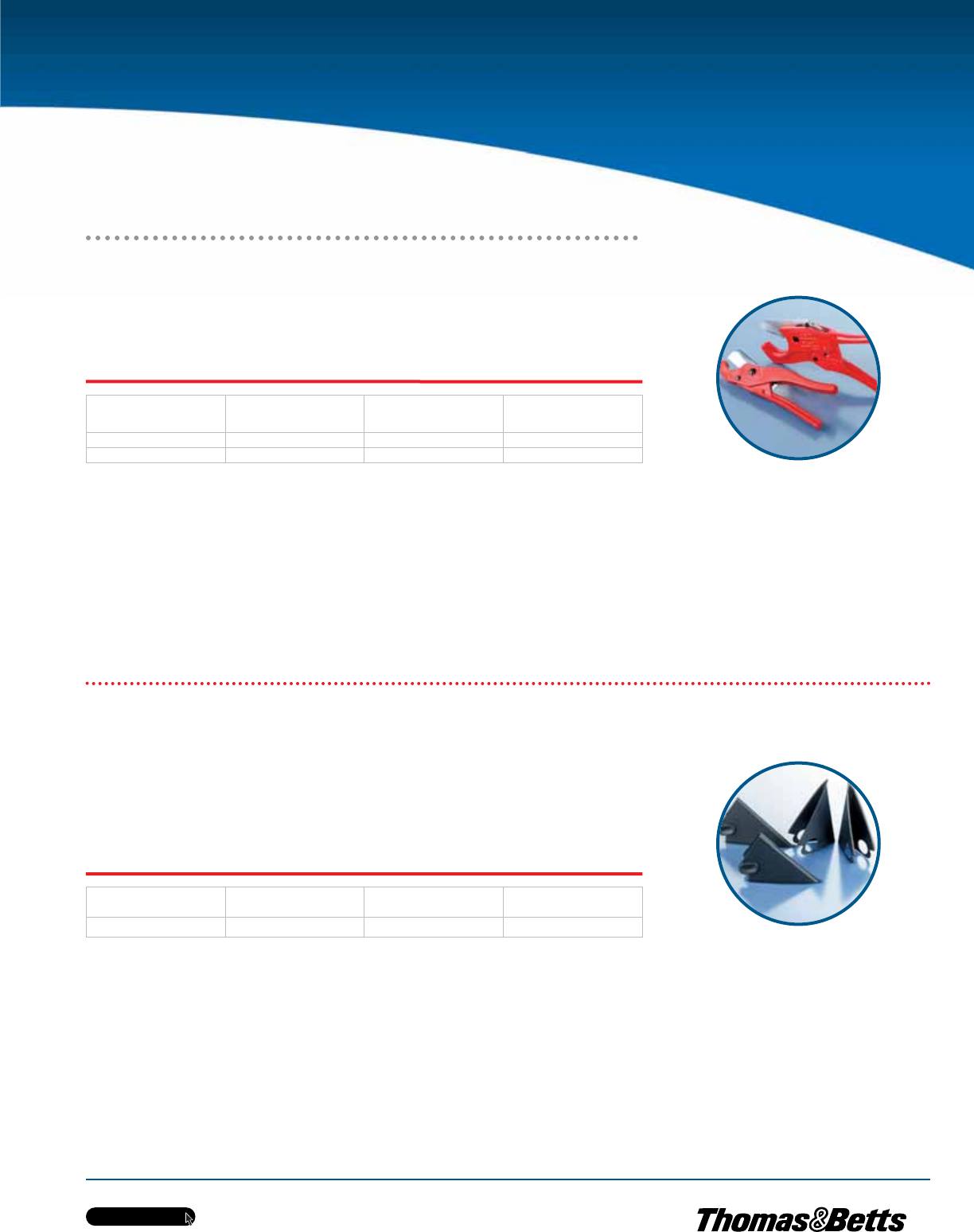

PMACUT Cutting Tools
•Excellent tools for cutting all PMA®conduits
•Guarantee precise and safe 90° angle cuts
•Material: Metal
•Colour: Red
EWZ Draw-In Tools
•Suitable for drawing in cables or wires into
PMA®COFLEX or other slit conduits
•Designed in a handy shape and equipped with
a practical hand grip for wedging or with hole
for direct holding of the wires
•Can be used whenever drawing-in
assistance for slit conduits is helpful
•Material: Polyamide
•Colour: Black
Cat. No.
Cutting Tool
Cat. No.
Spare Blade
Cutting
Range (mm)
For PMAFLEX
NW
PMACUT-38 FP-38 0–38 7–29
PMACUT-52 FP-52 0–52 23–48
Cat. No.
Black with Holes
Cat. No.
Black with Handle
Conduit Size
NW
Dimensions (mm)
Width x Length x Depth
EWZ-02 EWZ-03 7.5–34 117.7 x 45.2 x 71.9
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E80
Hazardous Location ATEX Systems
ATEX 95
Polyamide Cable Protection:
30 years of experience, now ATEX 95
is certified
•Products for the protection of cables, wires and hoses against not only
mechanical damage but also the influences of UV radiation, weathering
and chemicals
•Products made of specially modified, load-discharging polyamide
materials (PA11, PA12) for use in explosion- endangered zones 1/2 (gas)
and 21/22 (dust)
•ATEX marking:
•Identical in function to the standard product range PMAFIX®/PMAFLEX®
successfully used in applications such as railway, machinery, automation,
etc., for more than 30 years
•Two sealing systems to IP66 or IP68 ratings
•System safety: For security reasons, re-opening is only possible with the
use of a screwdriver
•Flexible conduits, excellent for applications with continual
reversed bending
•Quick and simple installation, reduced total installation
costs compared to other explosion-proof cable
protection systems
•No corrosion, long service life
•Low weight
Areas of Application
PMA®Ex-System products constitute an equipment group II category 2G device in
accordance with Directive 94/9/EC (ATEX 95) Appendix I which may be implemented in
zones 1/2 as well as in gas groups IIA, IIB and IIC which are subject to explosion risk due
to combustible substances, in accordance with Directive 99/92/EC (ATEX 137). The
requirements in accordance with EN 60079-14 shall be adhered to on use/installation.
The products constitute an equipment group II category 2D device in accordance with
Directive 94/9/EC (ATEX 95) Appendix I which may be implemented in zones 21/22 with
ex plosive air/dust mixtures in accordance with Directive 99/92/EC (ATEX 137). The
requirements in accordance with EN 60079-14 shall be adhered to on use/installation.
Operation, Service and Maintenance
The defined ambient and operating temperature range is -20° C to 85° C and
-40° C to 85° C for conduit type XESX (temperature range for electrical equipment in ac-
cordance with EN 60079-0).
A visual examination of the cable protection system shall be performed during periodic
maintenance of systems and components, at intervals no longer than 5 years. In the event
of visible damage (holes, cracks, signs of heavy wear) to conduits, fittings or accessories,
the damaged parts shall be replaced. (In the event of apparent mechanical damage, it
shall be ensured that no incorrect handling takes place.)
Only ATEX-approved original PMA®parts shall be used for the replacement of ATEX
approved parts.
These operating and assembly instructions include important information for service and
maintenance and should be retained.
Assembly
To ensure the discharge of electrical currents and proper antistatic behaviour,
ATEX-approved PMA®conduits shall be used exclusively in combination with special PMA®
connectors and accessories which are also ATEX-approved. These connectors and
accessories (seals, fasteners) are also made of discharging material and are designated
with the conformity marking.
The ATEX approved connectors or accessories shall always be in direct contact with a
metallic surface (ground). No insulating materials (e.g. adhesives) and no components
which are not ATEX approved shall be used between the discharging plastic parts or
between plastic parts and metal surfaces.
CE 1258 II 2G Ex eb IIC SEV 05 ATEX 0105 II 2D Ex tb IIIC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E81
XESX-Index
min. max.
ductility
fatigue-reversed bending
compression resistance
low-temperature performance
weathering resistance
•Specially modified polyamide and
polyethylene
•Electrostatic discharging
•Free from halogens and cadmium
•Very high mechanical load capacity and
low-temperature impact strength
•Very good UV-resistance
•High abrasion resistance
•Highest dynamic load capacity
•Very good chemical properties
Hazardous Location ATEX Systems
ATEX Multilayer Conduits
The PMA®EX-system is suitable for the protection of cables, wires and hoses against mechanical damage, UV radiation
and weathering in explosion-endangered areas classified as zones 1/2 (gas) and 21/22 (dust) according to ATEX 137.
The multilayer conduit offers electrostatic load-discharging properties and comes with a range of compatible ATEX
approved fittings and installation accessories.
XESX Highly Flexible, Medium Wall
The PMA®Ex-System multilayer conduit type XESX offers an electrostatically discharging property, very high mechanical
load capacity and low-temperature impact strength. Excellent UV and weathering resistance allow outdoor installation
exposed to constant sunlight.
Cat. No.
Black
Conduit Size
NW
Rec. Fitting
Thread
Metric
Inside
Diameter
(mm)
Outside
Diameter
(mm)
Stat.
Radius* (mm)
PU
Meter
XESXT-12BY 12 M16/M20 11.8 15.6 30/70 50
XESXG-17BY 17 M20/M25 15.2 21.0 35/85 50
XESXG-23BY 23 M25/M32 22.0 28.5 40/110 50
XESXG-29BY 29 M32/M40 27.5 34.4 50/130 50
XESXG-36BY 36 M40/M50 35.8 42.4 60/180 30
XESXG-48BY 48 M50/M63 46.8 54.4 70/220 30
For actual cat. number, add product unit at the end. Example: XESXT-12BY.50
Fine profile T
Tight bending raduis
Coarse profile G
High pullout strength
**† stat. R = lowest recommended bending
radius for static (fixed) installation.
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E82
PMA®Ex-System connectors together with PMA®Ex-System protection conduits are used for flexible protection of cables,
wires and hoses against mechanical damage, UV radiation and weathering in explosion-endangered areas classified as
zones 1/2 (gas) and 21/22 (dust) according to ATEX 137.
Connectors are available with ingress protection up to and including IP66 or IP68.
IP66 connectors are fitted with a pre- in stalled universal safety clip which ensu res a quick push-in installation of the
conduit.
IP68 connectors for increased requirements will be delivered with a special conduit sealing ring.
IP66
IP66 static
IP54 dynamic
• One-piece fitting, conical sealing method
• Easy push-in installation
• Pre-installed safety clip AFN2
• Fits any type of conduit profile (T and G)
• Excellent pullout strength
• For safety reasons, re-opening is only possible with a screwdriver
IP68
IP68 static
IP67 dynamic
• High sealing through additional sealing ring
• For highest dynamic appli cations
• Fits any type of conduit profile (T and G)
• Excellent pullout strength
• For safety reasons, re-opening is only possible with a screwdriver
Hazardous Location ATEX Systems
ATEX Connectors
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E83
IP66

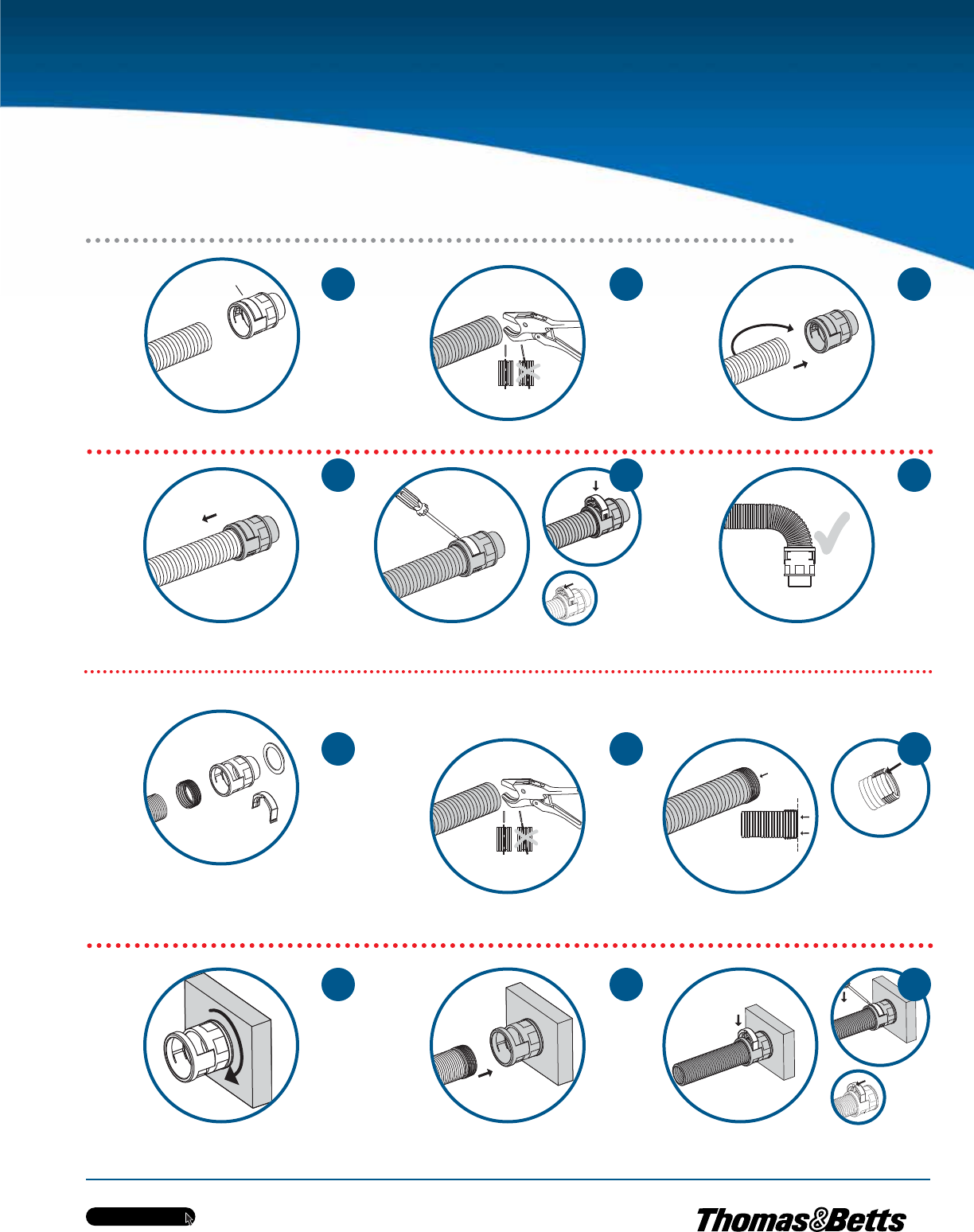

Installation of IP66 Safety System
A.Conduit
B.Fitting
C.Universal safety clip Straight cut of conduit (A). Push in the conduit (A) with a slight twist until the stop.
Pull back the conduit (A) slightly to ensure the locking
mechanism is fully engaged.
To re-open use a screw driver. The screwdriver slot at the
oval clip (C) must point towards the conduit.
If bending the conduit, please maintain the
recommended bending radius.
Installation of IP68 Safety System
IP68
A.Conduit
B.Ex Sealing ring (yellow)
C.Fitting
D.Oval clip
E.Thread seal
(O-ring or flat seal) Straight cut of conduit (A). Push seal cap (B) com pletely onto conduit in order to
achieve IP68.
Place seal (E) onto fitting thread (C) and screw in. Push conduit with sealing ring (A+B) into the fitting until
the sealing ring is no longer visible in the locking
element window.
123
123
456
456
A
A
C + E
A + B
B
C
D
E
Hazardous Location ATEX Systems
A
B
C
Insert oval clip (D) in locking element window and click
into place. The screwdriver slot must point towards
the conduit. To re-open, use a screwdriver.
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E84
•Specially modified electrostatic-discharging
polyamide
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Specially modified electrostatic-discharging
polyamide
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
These PMA®Ex-System connectors allow a quick
push-in installation of PMA®Ex-System conduits
EAD 45° Elbow, Metric, IP66
These PMA®Ex-System connectors allow a quick
push-in installation of PMA®Ex-System conduits
Cat. No.
IP66
Thread
Metric
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
BEND-M120GT M12x1.5 1012
11.0
36.5
BEND-M160GT M16x1.5 10 12
BEND-M162GT M16x1.5 12 16 39.5
BEND-M202GT M20x1.5 12 16
BEND-M207GT M20x1.5 17 20 47.5
BEND-M257GT M25x1.5 172012.0 48.5
BEND-M253GT M25x1.5 23 25 52.0
BEND-M323GT M32x1.5 23 25 15.0 55.5
BEND-M329GT M32x1.5 29 32 56.0
BEND-M409GT M40x1.5 29 32
19.0
60.0
BEND-M406GT M40x1.5 36 40 72.5
BEND-M506GT M50x1.5 36 40 72.0
BEND-M508GT M50x1.5 48 50 72.5
BEND-M638GT M63x1.5 48 50 72.0
Cat. No.
IP66
Thread
Metric
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
BEAD-M120GT M12x1.5 10 12
11.0
43.5 x 37.0
BEAD-M160GT M16x1.5 43.5 x 38.0
BEAD-M162GT M16x1.5 12 16 48.0 x 40.0
BEAD-M202GT M20x1.5 48.0 x 41.5
BEAD-M207GT M20x1.5 17 20 55.5 x 51.5
BEAD-M253GT M25x1.5 23 25 12.0 65.0 x 58.5
BEAD-M329GT M32x1.5 29 32 15.0 73.5 x 66.5
BEAD-M406GT M40x1.5 36 40
19.0
92.5 x 85.5
BEAD-M506GT M50x1.5 92.5 x 89.5
BEAD-M508GT M50x1.5 48 50 100.0 x 96.0
BEAD-M638GT M63x1.5 100.0 x 104.0
Hazardous Location ATEX Systems
END Straight, Metric, IP66
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E85

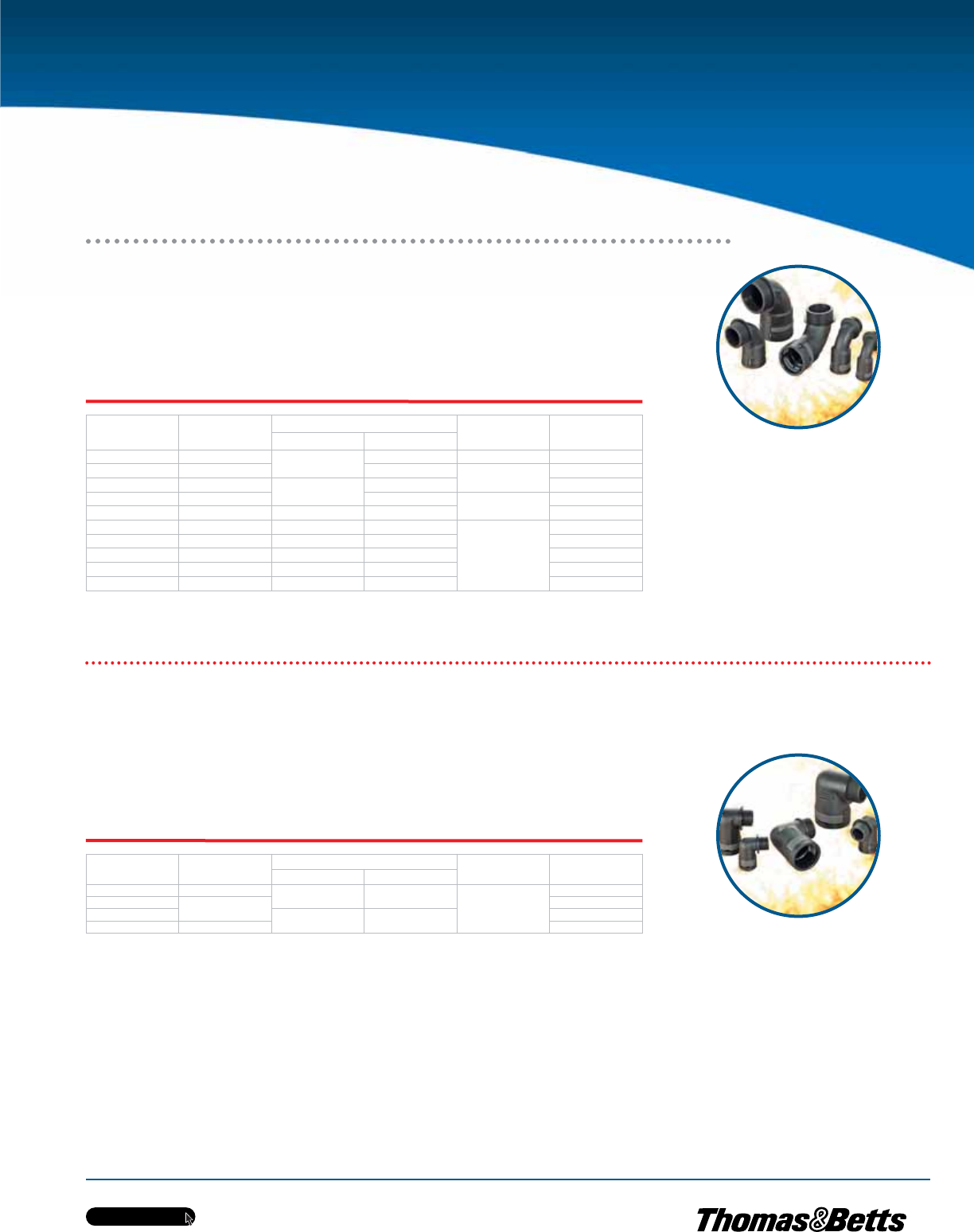

•Specially modified electrostatic-discharging
polyamide
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Specially modified electrostatic-discharging
polyamide
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
These PMA®Ex-System connectors allow a quick
push-in installation of PMA®Ex-System conduits
EWD 90° Elbow, Metric, IP66
These PMA®Ex-System connectors allow a quick
push-in installation of PMA®Ex-System conduits
Cat. No.
IP66
Thread
Metric
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
BEBD-M207GT M20x1.5 17 20 11.0 47.5 x 73.0
BEBD-M257GT M25x1.5 20 12.0 48.5 x 76.0
BEBD-M253GT M25x1.5 23 25 57.5 x 83.0
BEBD-M323GT M32x1.5 25 15.0 61.0 x 87.5
BEBD-M329GT M32x1.5 29 21 70.5 x 93.0
BEBD-M409GT M40x1.5 29 32
19.0
74.5 x 98.5
BEBD-M406GT M40x1.5 36 40 85.0 x 121.0
BEBD-M506GT M50x1.5 36 40 85.0 x 125.0
BEBD-M508GT M50x1.5 48 50 98.5 x 130.0
BEBD-M638GT M63x1.5 48 50 98.5 x 138.0
Cat. No.
IP66
Thread
Metric
Conduit Size Thread
Length (mm)
Overall
Length (mm)
NW Metric
BEWD-M120GT M12x1.5 10 12
11.0
34.0 x 39.5
BEWD-M160GT M16x1.5 34.0 x 40.5
BEWD-M162GT 12 16 38.5 x 46.0
BEWD-M202GT M20x1.5 38.5 x 47.5
Hazardous Location ATEX Systems
EBD 90° Curved Elbow, Metric, IP66
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E86
•Specially modified electrostatic-discharging
polyamide
•Threads made of nickel-plated brass
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
•Specially modified electrostatic-discharging
polyamide
•Strain-relief socket made of nickel-plated
brass
•Sealing insert made of TPE-V
•With corresponding seals IP68 static / IP67
dynamic on cable = IP68 (10 bar)
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
The metal threads and the level IP68 rating allow use of
these PMA®Ex-System fittings in applications with
increased requirements
ENZ Straight with Strain Relief, Metric, Metal Thread, IP68
The metal threads and the level IP68 rating allow use of
these PMA®Ex-System fittings in applications with
increased requirements. Due to the integrated
Pflitsch sealing bushing, cables are held and, at the
same time, sealed to an IP68 level (10 bar). Furthermore,
these connectors can be used where damp and dry areas
have to be separated.
Cat. No.
IP68
Thread
Metric
Fit to Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NENV-M120-10 M12x1.5 10 12
10.0
40.0
NENV-M160-10 M16x1.5 10 12
NENV-M162-10 M16x1.5 12 16 43.0
NENV-M202-10 M20x1.5 12 16
NENV-M207-10 M20x1.5 17 20 51.0
NENV-M257-11 M25x1.5 17 20 11.0 52.0
NENV-M253-11 M25x1.5 23 25 54.0
NENV-M323-13 M32x1.5 23 25
13.0
56.0
NENV-M329-13 M32x1.5 29 32 57.3
NENV-M409-13 M40x1.5 29 32
NENV-M406-13 M40x1.5 36 40 71.4
NENV-M506-14 M50x1.5 36 40
14.0 72.4NENV-M508-14 M50x1.5 48 50
NENV-M638-14 M63x1.5 48 50
Cat. No.
IP68
Bushing
Range (mm)
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NENZ-M120S/P1 4.5–6.0
M12x1.5
10 12
5.0 48.5NENZ-M120S/P2 5.0–8.0
NENZ-M120S/P3 6.5–9.5
NENZ-M160S/P1 4.0–6.5
M16x1.5 6.0 49.5NENZ-M160S/P2 5.0–8.0
NENZ-M160S/P3 6.5–9.5
NENZ-M202S/P1 4.0–6.5
M20x1.5
12 16
6.5
54.0NENZ-M202S/P3 6.5–9.5
NENZ-M202S/P4 7.0–10.5
NENZ-M207S/P3 6.5–9.5
17 20
60.0NENZ-M207S/P4 7.0–10.5
NENZ-M207S/P5 9.0–13.0
NENZ-M257S/P5 9.0–13.0 M25x1.5 7.5 61.5
NENZ-M257S/P6 11.5–15.5
NENZ-M323S/P4 14.0–18.0 M32x1.5 23 25
8.0 73.0
NENZ-M323S/P5 17.0–20.5
NENZ-M409S/P4 20.0–25.0 M40x1.5 29 32
NENZ-M409S/P5 24.0–28.0
NENZ-M506S/P1 27.0–32.0
M50x1.5
36 40
10.0
89.5
NENZ-M506S/P3 32.0–36.0
NENZ-M508S/P2 32.0–36.0
48 50
92.0
NENZ-M508S/P3 36.0–40.0
NENZ-M638S/P1 35.0–40.0 M63x1.5 90.5
NENZ-M638S/P2 39.0–44.0 4
Hazardous Location ATEX Systems
ENV Straight, Metric, Metal Thread, IP68
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Content of delivery:
Complete: Fitting with oval clips (OVN2), Pflitsch
sealing bushing (DE), conduit seal (NEN3) and
O-ring (OR)
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E87
•Specially modified electrostatic-discharging
polyamide
•Threads made of nickel-plated brass
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
•Specially modified electrostatic-discharging
polyamide
•Threads made of nickel-plated brass
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
•Specially modified electrostatic-discharging
polyamide
•Threads made of nickel-plated brass
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Extremely high thread and system
pullout resistance
The metal threads and the level IP68 rating allow use of
these PMA®Ex-System fittings in applications with
increased requirements
EBV 90° Curved Elbow, Metric, Metal Thread, IP68
The metal threads and the level IP68 rating allow use of
these PMA®Ex-System fittings in applications with
increased requirements
EWV 90° Elbow, Metric, Metal Thread, IP68
The metal threads and the level IP68 rating allow use of
these PMA®Ex-System fittings in applications with
increased requirements
Cat. No.
IP68
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NEAV-M120-10 M12x1.5 10 12
10.0
48.5 x 37.0
NEAV-M162-10 M16x1.5 12 16 53.0 x 40.5
NEAV-M207-10 M20x1.5 17 20 60.5 x 51.5
NEAV-M257-11 M25x1.5 11.0 61.5 x 54.5
NEAV-M253-11 M25x1.5 23 25 70.0 x 60.5
NEAV-M323-13 M32x1.5
13.0
72.0 x 64.5
NEAV-M329-13 M32x1.5 29 32 77.0 x 68.0
NEAV-M409-13 M40x1.5 77.0 x 73.0
NEAV-M406-13 M40x1.5 36 40 94.0 x 87.5
NEAV-M506-14 M50x1.5
14.0
95.0 x 92.5
NEAV-M508-14 M50x1.5 48 50 102.0 x 101.0
NEAV-M638-14 M63x1.5 102.0 x 104.0
Cat. No.
IP68
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NEBV-M207-10 M20x1.5 17 20 10.0 51.0 x 73.0
NEBV-M257-11 M25x1.5 11.0 52.0 x 76.0
NEBV-M253-11 23 25 62.5 x 85.0
NEBV-M323-13 M32x1.5
13.0
64.5 x 89.0
NEBV-M329-13 29 32 74.0 x 94.5
NEBV-M409-13 M40x1.5 75.5 x 100.5
NEBV-M406-13 36 40 86.5 x 123.0
NEBV-M506-14 M50x1.5 14.0
87.5 x 130.0
NEBV-M508-14 48 50 100.5 x 135.0
NEBV-M638-14 M63x1.5 100.5 x 138.0
Cat. No.
IP68
Thread
Metric
Conduit Size Thread
Length (mm)
External
Dimensions (mm)
NW Metric
NEWV-M120-10 M12x1.5 10 12
10.0
37.5 x 39.5
NEWV-M160-10 M16x1.5 37.5 x 41.5
NEWV-M162-10 12 16 42.0 x 46.5
NEWV-M202-10 M20x1.5 42.0 x 49.0
Hazardous Location ATEX Systems
EAV 45° Elbow, Metric, Metal Thread, IP68
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E88
•Specially modified electrostatic-discharging
polyamide
•Clamp made of stainless steel
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Specially modified electrostatic-discharging
polyamide
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Specially modified electrostatic-discharging
polyamide
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
Hazardous Location ATEX Systems
ENR-REM Connector for Metal Tube
With these products, solid metal tubes can easily and
quickly be connected to flexible PMA®Ex-System
conduits. The connection is fixed onto the solid tube
with a stainless steel hose clamp.
ESGD/ESGR Splice Connector
These PMA®connection splices are used for an optimum
connection of PMA®Ex-System conduits and enable the
highest grade of safety and sealing.
EYD/EYR Y Piece
These PMA®Ex-System junctions allow the splitting
of cable looms and rerouting of the split looms into
different directions.
Cat. No.
IP66
Cat. No.
IP68
Input Fits to Conduit Size Outputs Fit to Conduit Size
NW Metric NW Metric
BEYD-12/10GT BEYR-12/10 12 16 10 12
BEYD-17/12GT BEYR-17/12 17 20 12 16
BEYD-23/17GT BEYR-23/17 23 25 17 20
BEYD-29/23GT BEYR-29/23 29 32 23 25
BEYD-36/29GT BEYR-36/29 36 40 29 32
BEYD-48/36GT BEYR-48/36 48 50 36 40
Cat. No.
IP66
Cat. No.
IP68
Input Fits to Conduit Size External
Dimensions (mm)
NW Metric
BESGD-1212GT BESGR-1212 12 16 66.0
BESGD-1717GT BESGR-1717 17 20 89.0
BESGD-2323GT BESGR-2323 23 25 103.0
BESGD-2929GT BESGR-2929 29 32 100.0
BESGD-3636GT BESGR-3636 36 40 130.0
BESGD-4848GT BESGR-4848 48 50 136.0
Cat. No.
Without Clamp, IP68
Cat. No.
With Clamp IP68
Input Fits to Conduit Size External
Dimensions (mm)
NW Metric
BENR-REM162 BENR-REM162-24 12 M16 54.0
BENR-REM207 BENR-REM207-28 17 M20 65.0
BENR-REM253 BENR-REM253-32 23 M25 71.0
BENR-REM329 BENR-REM329-44 29 M32 71.0
BENR-REM406 BENR-REM406-50 36 M40 90.0
BENR-REM508 BENR-REM508-65 48 M50 90.0 Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E89

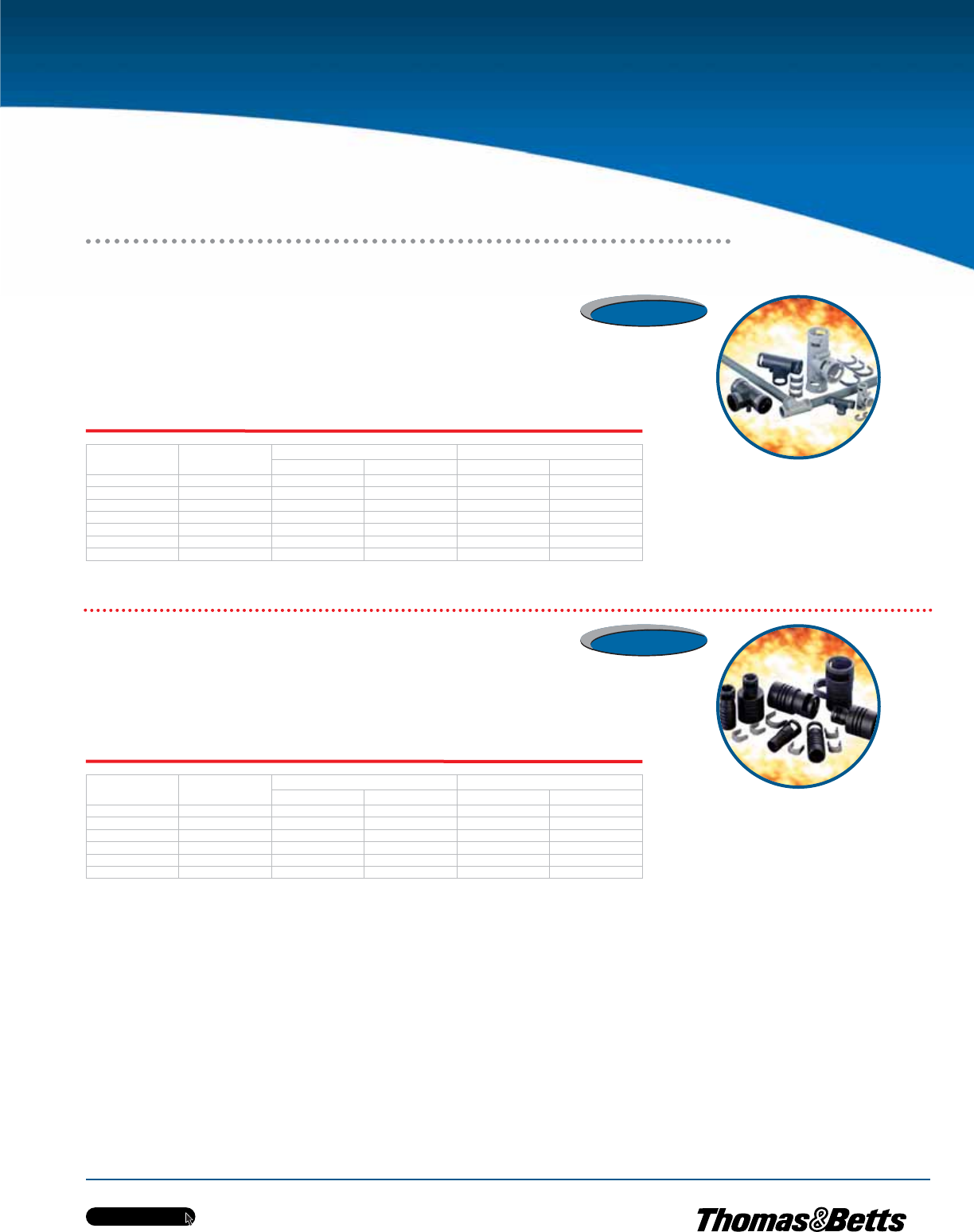

•High-grade, specially modified polyamide 12
•Electrostatically discharging
•Extremely shock resistant
•Free from halogens and cadmium
•Very good chemical properties
•High-grade, specially modified polyamide 12
•Electrostatically discharging
•Very high impact resistant
•Free from halogens and cadmium
•Very good chemical properties
These PMA®Ex-System junctions allow the splitting
of cable looms and rerouting of the split looms into
different directions.
EAVD/EAVR Conduit Adapter
PMA®Ex-System conduit adapters allow variable
applications of conduit sizes within the PMA®Ex-System,
particularly with PMA® Ex-System junctions.
Cat. No.
IP66
Cat. No.
IP68
Input Fits to Conduit Size Outputs Fit to Conduit Size
NW Metric NW Metric
BEAVD-12/10GT BEAVR-12/10 12 16 10 12
BEAVD-17/12GT BEAVR-17/12 17 20 12 16
BEAVD-23/17GT BEAVR-23/17 23 25 17 20
BEAVD-29/23GT BEAVR-29/23 29 32 23 25
BEAVD-36/29GT BEAVR-36/29 36 40 29 32
BEAVD-48/36GT BEAVR-48/36 48 50 36 40
Cat. No.
IP66
Cat. No.
IP68
Input Fits to Conduit Size Outputs Fit to Conduit Size
NW Metric NW Metric
BETD-101010GT BETR-101010 10 12 10 12
BETD-121212GT BETR-121212 12 16 12 16
BETD-171717GT BETR-171717 17 20 17 20
BETD-232323GT BETR-232323 23 25 23 25
BETD-292929GT BETR-292929 29 32 29 32
BETD-363636GT BETR-363636 36 40 36 40
BETD-484848GT BETR-484848 48 50 48 50
NEW!
NEW!
NEW!
NEW!
Hazardous Location ATEX Systems
ETD/ETR T Piece
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E90
•Nickel-plated aluminum
•Up to IP68 in connection with the PMAFIX®
product range
•Thread 1: casing side
Thread 2: conduit side
•At thread 2 PMAFIX®straight and elbows
fittings may be applied; also standard cable
glands may be applicable for screened cables
depending on final use
•Low transfer impedances
•360° Clamping effect: High degree of safety
in case of short-circuiting
Hazardous Location ATEX Systems
HEAK EMC Connector
This PMA®Ex-System EMC connector can be used
together with PMA®tinned copper braids and PMA®
Ex-System conduits and connectors to provide
shielding against electromagnetic interference in
explosion-endangered areas.
Cat. No.
IP68
Thread metric Fits to
NW
Fits to
F.CK
Fits to
F.CU
ID min.
(mm)
Thread
Length (mm)
Overall
Length (mm)
1 2
HEAK-M32/25-13 M32x1.5 M25x1.5 23 20 20 16.8 13.0 42.0
HEAK-M40/32-13 M40x1.5 M32x1.5 29 20/(25) 22.4 51.0
HEAK-M50/40-14 M50x1.5 M40x1.5 36 30/(35) 40 32.4 14.0 58.0
HEAK-M63/63-14 M63x1.5 M63x1.5 48 35 43.4 57.5
CONTENT OF DELIVERY INCLUDES SHADED PRODUCTS.
THREAD 2 THREAD 1
NEW!
NEW!
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E91
•Specially modified electrostatic-discharging
polyamide
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Specially modified electrostatic-discharging
polyamide
•Self-extinguishing
•Free from halogens and cadmium
•Excellent impact strength
•Useable with standard type C rails
•Brass galvanically nickel-plated
•Maximum possible torque
•Safe system connections
These one-piece PMA®Ex-System supports are designed
to secure PMA®Ex-System corrugated conduits in
explosion-endangered zones 1/21 (gas/dust) according to
ATEX 137.
EPS One-Piece System Support
These one-piece system supports have clasps for easy
pre-mounting and final assembly as well as for securing
conduits to type C standard rails. Because they grip all
around the conduit, they act as strain-relief. Partially
stackable.
Hexagonal Locknuts, Metric, Metal
Hexagonal lock nuts are suitable for a wide range of
applications and maximum possible torques guarantee
safe system connections.
Cat. No. Conduit Size Dimensions (mm)
Width x Height x Depth Fixing Screw
NW Metric
BEH-10-0 10 12 20.5 x 24.5 x 20.0 1 x M5
BEH-12-0 12 16 24.0 x 27.0 x 20.0 1 x M5
BEH-17-0 17 20 30.0 x 34.0 x 20.0 1 x M6
BEH-23-0 23 25 38.5 x 42.0 x 20.0 1 x M6
BEH-29-0 29 32 45.5 x 48.0 x 20.0 1 x M6
BEH-36-0 36 40 55.5 x 56.0 x 20.0 1 x M6
BEH-48-0 48 50 67.5 x 68.0 x 20.0 1 x M6
Cat. No. Conduit Size Dimensions (mm)
Width x Height x Depth
NW Metric
BEPS-17 17 20 70.0 x 51.0 x 30.0
BEPS-23 23 25 70.0 x 51.0 x 30.0
BEPS-29 29 32 85.0 x 65.0 x 30.0
BEPS-36 36 40 85.0 x 65.0 x 30.0
BEPS-48 48 50 115.0 x 92.5 x 30.0
Cat. No. Thread Metric Wrench Size (mm) Height Min. (mm)
GMM-M12 M12x1.5 15.0 2.8
GMM-M16 M16x1.5 19.0 2.8
GMM-M20 M20x1.5 24.0 3.0
GMM-M25 M25x1.5 30.0 3.5
GMM-M32 M32x1.5 36.0 4.0
GMM-M40 M40x1.5 46.0 4.5
GMM-M50 M50x1.5 60.0 5.0
GMM-M63 M63x1.5 70.0 5.5
Hazardous Location ATEX Systems
EH-0 One-Piece System Support
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Temperature range: -50 to 90 ºC (material limits)
ATEX use: -20 to 85 ºC
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E92
Conformance with standards:
Additional services to benefit you
PMA®products conform to worldwide standards and regulations. As a pioneer in the field
of cable protection, we have al ways given high priority to our own testing facilities, and
we have consciously introduced stringent in-house standards. This approach has enabled
us to exercise a significant influence on the development of international standards.
Standards committees with responsibility for cable systems regularly ask our company
to provide advice or participate as an active member.
High quality products from A–Z
From basic items to high-tech products, all of our products meet the most strin gent quality
requirements. Some of their outstanding features include:
•Resistance to temperature, weathering, UV radiation
and chemical agents
•High system pullout resistance
•Excellent fire protection characteristics
(flammability, smoke density, and toxicity)
•Excellent system ingress protection up to IP69K
•Extremely long service life
•Conformance to the EN ISO 9001:2000 quality standard
Technical Information
Testing Methods
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E93
Reversed Bending
Test with Swinging
Movements
DO 9.21-4425 IEC EN 61386
This standard is based on a cyclic reversed bending test
(pivoting) of conduits under various conditions
(temperature). The conduits are dynamically loaded and
evaluated at the upper and lower application temperature
limits. The test is performed based on IEC EN 61386. The
minimum requirement corresponds to the specifications
of IEC EN 61386. For PMA®, the test is not considered
completed for final evaluation until cracking or fracture.
The number of cycles to fracture determines the fatigue
strength of the conduit.
Reversed Bending Test
DO 9.21-4420
This standard describes a cyclic reversed bending test with
additional tensile loading (lifting) on flexible conduits under
standard ambient conditions (23 °C/50% relative humi-
dity). The conduit is loaded until fracture. The number of
cycles to fracture determines the fatigue strength of the
conduit.
Reversed Bending Test
DO 9.21-4220
This standard describes a cyclic bending test (rotation in
an oval pattern) on flexible conduits under standard
ambient conditions (23 °C/50% relative humidity). The
conduit is tested until failure. The number of cycles to
fracture determines the fatigue strength of the conduit.
Technical Information
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E94
Peak Load Test
DO 9.21-4320 IEC EN 61386
This standard describes the peak load test on conduits
under standard ambient conditions (23 °C/50% relative
humidity). The conduit is deformed by a defined amount
between two plates. The restoring force established over
a specific time (by relaxation of the conduit) describes the
crushing pressure or compressive strength.
Pullout Test
DO 9.21-4610 IEC EN 61386
This standard defines the system pullout test on conduits
and connectors under standard ambient conditions
(23 °C/50% relative humidity). The conduits are mounted
with the appropriate system connectors. The pullout
strength of the system is determined in a tensile test.
Impact Test
DO 9.21-4330 IEC EN 61386
This standard describes the impact strength test on
conduits at various temperatures. The specimen is placed
on a steel plate, centered under an impact head with a
defined profile. The head impacts the center of the
specimen surface. In contrast to international specifica-
tions, deformation behavior (buckling) is determined rather
than fracture behavior. The impact test is considered to be
passed if no fracture or cracking can be detected after the
impact, and there is no excessive permanent
deformation of the conduit in accordance with PMA®
specifications.
Technical Information
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E95
Cold Bending Test
DO 9.21-4380
This standard describes a bending test on conduits at low
temperatures. The specimens are stored in a controlled-
climate cabinet at the specified test temperature. Loading
is achieved by winding the specimen around a test
mandrel with a defined diameter. The various products are
classified based on the mandrel diameter which can be
achieved.
Thermal Aging Test
DO 9.21-4360
This standard describes a bending test on thermally aged
specimens.The test conduits are stored in a controlled-
climate oven at the specified test temperature. After
removal from the oven, they are cooled to room
temperature. Loading is achieved by winding the specimen
around a test mandrel with a defined diameter. The various
products are classified based on the mandrel diameter
which can be achieved.
Self-Extinguishing Test
DO 9.21-4430 IEC EN 61386
This standard describes a flame test on conduits based on
international specifications. The conduit is exposed to a
defined flame from a standard burner. The time of ignition,
flame propagation behavior, as well as time of
extinguishing after removal of the flame source are
significant parameters for evaluating the flame behavior
of the products.
Technical Information
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E96
Ingress Protection (IP)
A standard to classify product
performance regarding ingress
protection.
Different number —
different protection!
For example, products classified as IPx8 are not
automatically protected against water jets! Immersion
tests for classifications IPx7 and IPx8 differ from the
tests for protection against water jets for IPx6, IPx5 or
IPx4.
Therefore, PMA®cable protection systems are
tested regarding different sealing requirements.
The first digit stands
for Protection against
DUST PMA®products offer complete protection!
Technical Information
Ingress Protection (IP)
according to EN 60529/DIN 40050
IP 6 8
Protection against contact and penetration of foreign objects
Degree of protection (contact/foreign bodies)
0No protection No contact protection, no protection against solid particles and bodies.
1Protection against large foreign bodies Protection against large contact area with hands and foreign bodies with Ø > 50 mm.
2Protection against medium foreign bodies Protection against contact with fingers, protection against foreign bodies Ø > 12.5 mm.
3Protection against small foreign bodies Protection against contact with tools and foreign bodies, wires or the like with Ø > 2.5 mm.
4Protection against foreign grains See 3, but Ø > 1 mm.
5Dust protected Full contact protection. Protection against dust deposits inside.
6Dust tight Full contact protection. Protection against dust penetration.
Compliance certified by an independent test laboratory.
Official approval documents available on request. Please contact your Regional Sales Office.
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E97
* EN 60529/DIN 40050 can be fulfilled without WPS (Water impact protection ring).
PMA®recommends the use of the WPS ring for trouble-free practical applications.
The second digit
stands for Protection against
WATER
IP 6 8
Protection against fluids
Degree of protection (water)
0No protection No protection against water.
1Protection against large foreign bodies Protection against vertical water drops.
2Protection against medium foreign bodies Protection against inclined water drops (any angle up to 15° to vertical line).
3Protection against small foreign bodies Protection against water sprayed from an angle up to 60° to vertical line.
4Protection against foreign grains Protection against water splasched from all directions.
5Dust protected Protection against water jets from any angle.
6Dust tight Protection against powerful water jets from any angle.
7Protection against immersion Protection against water penetration 1m below water.
8Protection against submersion Protection against water pressure for an indefinite time (customer tailored).
9K Protection against high-pressure cleaning Protection against water from any angle at high pressure.
PMA®
Products
PMAFIX
Pro
PMAFIX
IP68 + WPS
PMAFIX
IP68/IP68GT
PMAFIX
IP66
SMART-
LINE
IPx4 Splash water from all directions √√√√√
IPx5 Water jets at any angle √√√√√
IPx6 Powerful water jets from any angle √√√√√
IPx7 Submersion (1m, 30 min.) √√√
IPx8 Submersion at time and pressure >IPx7 √√√
IPx9K High-pressure (up to 80 bar) water from any angle √ √* √* √* √*
Technical Information
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E98
Metric Pitch Major Ø D1 Minor Ø D2 Hole -0/+0.3
12 1.5 12 10.16 12.0
16 1.5 16 14.16 16.0
20 1.5 20 18.16 20.0
25 1.5 25 23.16 25.0
32 1.5 32 30.16 32.0
40 1.5 40 38.16 40.0
50 1.5 50 48.16 50.0
63 1.5 63 61.16 63.0
PG Pitch Major Ø D1 Minor Ø D2 Hole
07 1.270 12.5 11.28 12.7
09 1.411 15.2 13.86 15.4
11 1.411 18.6 17.26 18.8
13 1.411 20.4 19.06 20.7
16 1.411 22.5 21.16 22.8
21 1.588 28.3 26.78 28.6
29 1.588 37.0 35.48 37.4
36 1.588 47.0 45.48 47.5
48 1.588 59.3 57.78 59.8
Whitworth (in.) Pitch Major Ø D1 Minor Ø D2 Hole
1/4 1.337 13.157 11.445 13.4
3/8 1.337 16.662 14.950 17.0
1/2 1.814 20.955 18.631 21.3
3/4 1.814 26.441 24.117 26.8
1 2.309 33.249 30.291 33.7
1-1/4 2.309 41.910 38.952 42.4
1-1/2 2.309 47.803 44.845 48.31
2 2.309 59.614 56.656 60.2
Metric Fine Thread
EN 60423
PG Thread
DIN 40430
Whitworth Pipe Thread
DIN 259 BL. 3, ISO 228/I
60°
ØD2
ØD1
ØD2 ØD1
ØD2
ØD1
80°
55°
PITCH
PITCH
PITCH
Technical Information
Thread Dimensions
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E99
NPT (in.) Pitch Major Ø Hole
1/4 1.411 13.616 13.9
3/8 1.411 17.055 17.4
1/2 1.814 21.223 21.6
3/4 1.814 26.568 26.9
1 2.209 33.227 33.7
1-1/4 2.209 41.984 42.4
1-1/2 2.209 48.053 48.5
2 2.209 60.091 60.6
Conduit Connector Connector
Nominal Width
NW
Inside diameter
(nom.) ID
Thread Size
Inside diameter (nom.) ID
Thread Size
Inside diameter (nom.) ID
Standard Nominal Inside Ø Metal Polyamide Metal Thread Polyamide Thread
NW07 6.2 PG07 — 8.0 M10 — —
NW10 9.6 PG09 9.5 10.0 M12 5.7 8.0
M16 — 11.0
NW12 12.0 PG11 12.5 13.0 M16 9.7 11.0
— — PG13.5 14.5 14.5 — — —
NW17 16.2 PG16 16.5 17.5 M20 13.7 14.6
NW23 22.6 PG21 22.5 22.5 M25 18.6 19.0
NW29 29.0 PG29 30.5 30.5 M32 25.7 26.0
NW36 36.5 PG36 40.5 37.5 M40 33.4 32.0
— — PG42 — 48.0 — — —
NW48 47.5 PG48 52.0 50.0 M50 42.7 54.0
M63 54.0 53.0
American Standard Taper Pipe Thread
COMPARISON TABLE—INSIDE DIAMETER THREADS TO INSIDE DIAMETER CONDUITS
NSI B2.1/ANSI B2.2
NW
ID
ID
NW D
ID
90°
60° PITCH
TAPERING 6.25%
Technical Information
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca
E100
Thread Metal
[NM]
Polyamide
[NM]
M12 5 3
M16 6 4
M20 7 5
M25 10 8
M32 10 10
M40 15 15
M50 15 15
M63 15 15
Thread Metal
[NM]
Polyamide
[NM]
PG07 4 2
PG09 5 3
PG11 6 4
PG13.5 7 5
PG16 7 5
PG21 10 10
PG29 15 15
PG36 15 15
PG48 15 15
Thread
Metal Lock Nut*
G-MXX
[NM]
Polyamide Lock Nut**
B/GMN-MXX
[NM]
M12 3 3
M16 6 4
M20 7 5
M25 8 8
M32 10 10
M40 15 15
M50 15 15
M63 15 15
Thread
Metal Lock Nut*
G-MXX
[NM]
Polyamide Lock Nut
B/GMN-MXX
[NM]
PG07 2 2.5
PG09 3 3
PG11 6 4
PG13.5 7 5
PG16 7 5
PG21 10 8
PG29 15 10
PG36 15 15
PG48 15 15
Thread Metal Metal Polyamide
M12 5.0 6.0 0.7
M16 5.0 8.0 2.0
M20 7.5 10.0 3.0
M25 10.0 10.0 5.0
M32 15.0 15.0 7.5
M40 20.0 20.0 7.5
M50 20.0 20.0 7.5
M63 20.0 20.0 7.5
Thread
Metal
NVNZ-PXXXX
[NM]
Metal
NVNZ-PXXXX/P
[NM]
Polyamide
S/BVNZ-PXXXX
[NM]
PG07 6.25 6.25 1.0
PG09 6.25 6.25 2.0
PG11 6.25 6.25 2.5
PG13.5 6.25 6.25 3.0
PG16 7.5 7.5 3.5
PG21 10.0 10.0 5.0
PG29 10.0 10.0 7.5
PG36 10.0 10.0 7.5
PG48 10.0 10.0 7.5
For threaded bore holes
With locknuts
* Thread combination: metal + metal.
** Thread combination: metal + polyamide or polyamide + polyamide.
Strain-Relief fittings
These values were gauged at standard ambiante conditions (23° C/50% relative humidity).
Note: Data represents approximate values. For application,
please take into account the influence of the counter-thread.
ACCORDING TO EN 50262 (MANUFACTURERS’ SPECIFICATIONS) ACCORDING TO DIN VDE 0619
Technical Information
Recommended torques for PMA®fittings
Nylon Flexible Conduit Systems
PMA®
www.tnb.ca E101
Fill factor, relevant guidelines
The question of conduit capacity or fill factor arises in the use of cable protection
systems. This describes the extent to which a conduit can or should be filled with
cables and/or conductors based on the available cross-sectional area.
In all cases, PMA®recommends that a conduit capacity of 70% not be exceeded.
Application-specific procedures and standards must also be considered.
This ensures that operation is not unnecessarily impaired by increased friction
between the individual conductors in dynamically moving systems.
In addition, subsequent installation of additional conductors and/or cables
is possible if necessary.
Wiring installation: Fastening
PMA recommends that cable protection systems be fastened with a spacing of
300 to 500 mm between supports. This spacing can be varied depending on the
application and location. This recommendation applies for all available dimensions.
For larger diameters, the increased load due to the cables and conductors in the
conduit is accounted for by adherence to the support spacing. PMA supplies suitable
system supports for various strength requirements and applications.
European standard EN 50343:2003-5.15 “Railway applications - Rolling stock -
Rules for installation of cabling” specifies the following spacing between supports
for fastening conductors:
Horizontal wiring: 300 mm
Vertical wiring: 500 mm
Application-specific guidelines and standards should also be considered.
FIXATION DISTANCES
FILL FACTOR MAX. 70%
Technical Information
Nylon Flexible Conduit Systems
PMA®
E102
Chemical Formula
PA6
Polyamide 6
PA66
Polyamide 66
PA12
Polyamide 12
PA11
Polyamide 11
PP
Polypropylene
PE
Polyethylene
TPU
Thermoplastic
Polyurethane
elastomer
PFA
Perfluoralkoxy
copolymer
PVDF
Polyvinylidene
fluoride
Acetic acid (10%) C2H4O2 • •• ••• •••
Acetone C3H6O • • • ••• ••• •••
Aonia (30%) NH3 • • • ••• ••• •••
Benzine — • • • ••• •• • •••
Brake fluid — • • • ••• ••• •••
Caustic soda HNaO • • • ••• ••• • •••
Ethyl alcohol (40%) C2H6O • • • ••• ••• • •••
Glycol C2H6O2 • • • ••• ••• •••
Hydrochloric acid (10%) HCL • ••• •••
Methanol CH4O • • ••• ••• • •••
Methyl ethyl ketone C4H8O • • • ••• ••• •••
Nitric acid (10%) HNO3 •• •••
Ozone O3 • • •• •• • •••
Paint thinner — • • • ••• • •••
Perchlorethylene C2Cl4 •• •• •• •••
Paraffin — ••• ••• • •••
Phosphoric acid (10%) H3O4P • •• ••• •••
Sea water — ••• ••• ••• •• •••
Soap solution — ••• ••• ••• •• •••
Sodium chloride NaCI ••• ••• ••• ••• •••
Sulphuric acid (10%) H2SO4 • •• ••• •••
Toluene C7H8 ••• ••• • •••
Trichlorethylene C2HCl3 • •• •••
Turpentine — ••• ••• •••
Urine — ••• ••• ••• ••• •••
* Synthetic additives can affect the oil resistance of plastics.
Please contact your Thomas & Betts Regional Sales Office
for further information.
•••Excellent resistance/suitable for permanent contact
••Resistant/suitable for occasional contact
•Relatively resistant/suitable for short-term contact
Not recommended
Important:
The chemical resistance of plastic products is also dependant on factors such as temperature,
amount of time exposed to chemicals (e.g. occasional contact or immersed) as well as the
concentration of the specific chemicals.
The stated chemical resistances are valid for a temperature of -20° C. The chemical resistance
table above is to serve only as a guide for the use of polyamide products in conjunction with the
listed chemicals. Each specific application should be controlled for suitability by the end-user.
Technical Information
Chemical Resistance
www.tnb.ca E103
Nylon Flexible Conduit Systems
PMA®
Chemical Formula
PA6
Polyamide 6
PA66
Polyamide 66
PA12
Polyamide 12
PA11
Polyamide 11
PP
Polypropylene
PE
Polyethylene
TPU
Thermoplastic
Polyurethane
elastomer
PFA
Perfluoralkoxy
copolymer
PVDF
Polyvinylidene
fluoride
Resistance to Oils and Greases
Cutting oils* — ••• ••• •• • •••
Diesel oil — ••• ••• •• •• •••
ASTM oil No. 3 — ••• ••• •• • •••
Fuel oil — ••• ••• •• • •••
Hydraulic oils* — ••• ••• •• • •••
Mineral oils — ••• ••• •• ••• •••
Spark-erosion liquids — ••• ••• •• • •••
Skydrol — • •• •• •••
Transformer oils* — ••• ••• •• • •••
* Synthetic additives can affect the oil resistance of plastics.
Please contact your Thomas & Betts Regional Sales Office3
for further information.
•••Excellent resistance/suitable for permanent contact
••Resistant/suitable for occasional contact
•Relatively resistant/suitable for short-term contact
Not recommended
Important:
The chemical resistance of plastic products is also dependant on factors such as temperature,
amount of time exposed to chemicals (e.g. occasional contact or immersed) as well as the
concentration of the specific chemicals.
The stated chemical resistances are valid for a temperature of -20° C. The chemical resistance
table above is to serve only as a guide for the use of polyamide products in conjunction with the
listed chemicals. Each specific application should be controlled for suitability by the end-user.
Technical Information
Chemical Resistance
Head Office
19295 25th Avenue
Surrey, BC V3Z 3X1
Tel: 778-545-9916
Fax: 778-545-3099
Toll Free: 1-888-467-7626
Terrace
5000 Pohle Avenue
Terrace, BC V8G 4S8
Tel: 250-635-6379
Prince George
2255 S. Quinn Street
Prince George, BC V2N 2X4
Tel: 250-563-0575
Kitimat
622 Commercial Avenue
Kitimat, BC V8C 2C5
Tel: 250-632-3774
Fort Nelson
PO Box 3266 - 5016 48th Avenue
Fort Nelson, BC V0C 1R0
Tel: 250-233-8570
Dawson Creek
1101 97th Avenue
Dawson Creek, BC V1G 1N5
Tel: 250-782-4896
Williams Lake
527 S. MacKenzie Avenue
Williams Lake, BC V2G 1C8
Tel: 250-392-7795
Vernon
5203 24th Street
Vernon, BC V1T 8X7
Tel: 250-545-2191
Penticton
401 Okanagan Avenue
Penticton, BC V2A 3K1
Tel: 250-492-4032
Kamloops
B-983 Camosun Crescent
Kamloops, BC V2C 6G1
Tel: 250-374-3191
Cranbrook
Unit A #800 Industrial Road. #2
Cranbrook, BC V1C 4C9
Tel: 250-489-4591
Parksville
#105 - 425 E. Stanford Avenue
Parksville, BC V9P 2N4
Tel: 250-954-1797
Duncan
5286 Polkey Road
Duncan, BC V9L 6W3
Tel: 250-748-3377
Courtenay
2615 Moray Place
Courtenay, BC V9N 8A9
Tel: 250-334-0338
Campbell River
1030 B - 9th Avenue
Campbell River, BC V9W 4C2
Tel: 250-287-9265
Surrey
13055 80th Avenue
Surrey, BC V3W 3B1
Tel: 604-596-7111
Richmond
12360 Vickers Way
Richmond, BC V6V 1H9
Tel: 604-273-1981
Langley
#101 - 20550 Duncan Way
Langley, BC V3A 7A3
Tel: 604-533-1275
Burnaby
3935 2nd Avenue
Burnaby, BC V5C 3W9
Tel: 604-292-4800
Lighting Specialist
Tel: 778-545-9916
Projects Group
Tel: 604-596-7111
Data Communications Group
Tel: 778-545-9916
Process, Automation &
Controls Group
Tel: 778-545-9916
Unit 9, 7223 68 Avenue,
Edmonton, Alberta T6B 3T6
