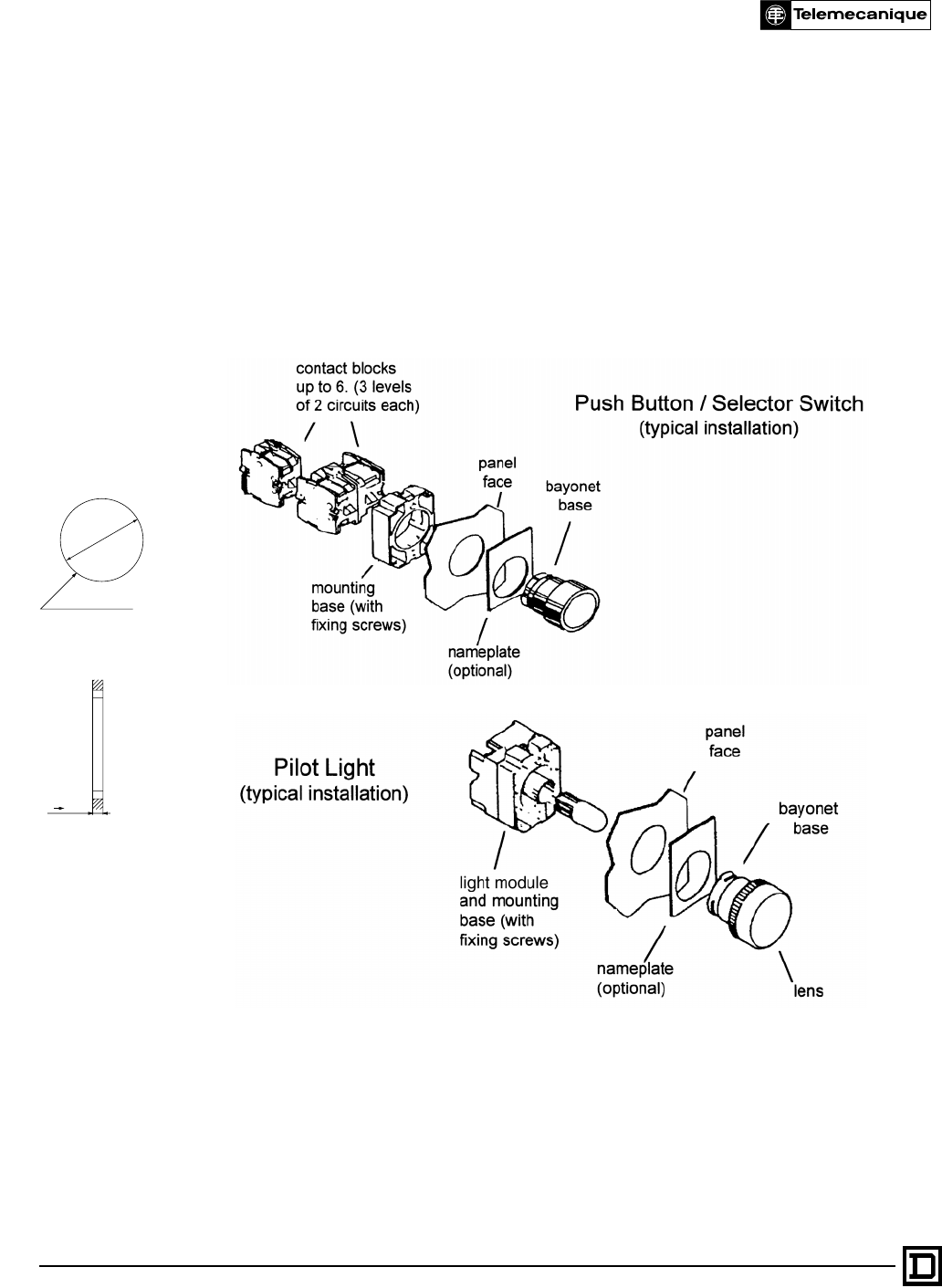

- Mounting Instructions for ZB2B
![](asset-1.png)
CONTENTS
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page
General Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Non-Illuminated Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Mushroom Operators and Yellow Contrast Plates . . . . . . . . . . . . . . . . . . . . . . . . .317
Two Button Operators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .319
Specialty Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .320
Reset Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
Contact Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Pilot Lights and Light Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Illuminated Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324
Light Module Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .328
Specialty Light Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Accessories and Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Legend Plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
XB2B 22 mm Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Schneider Electric Brand
s
File 9001
Push Buttons and Operator Interface
Specifier’s Guide
Type XB2B 22 mm Diecast Chrome Plated
![](asset-2.png)

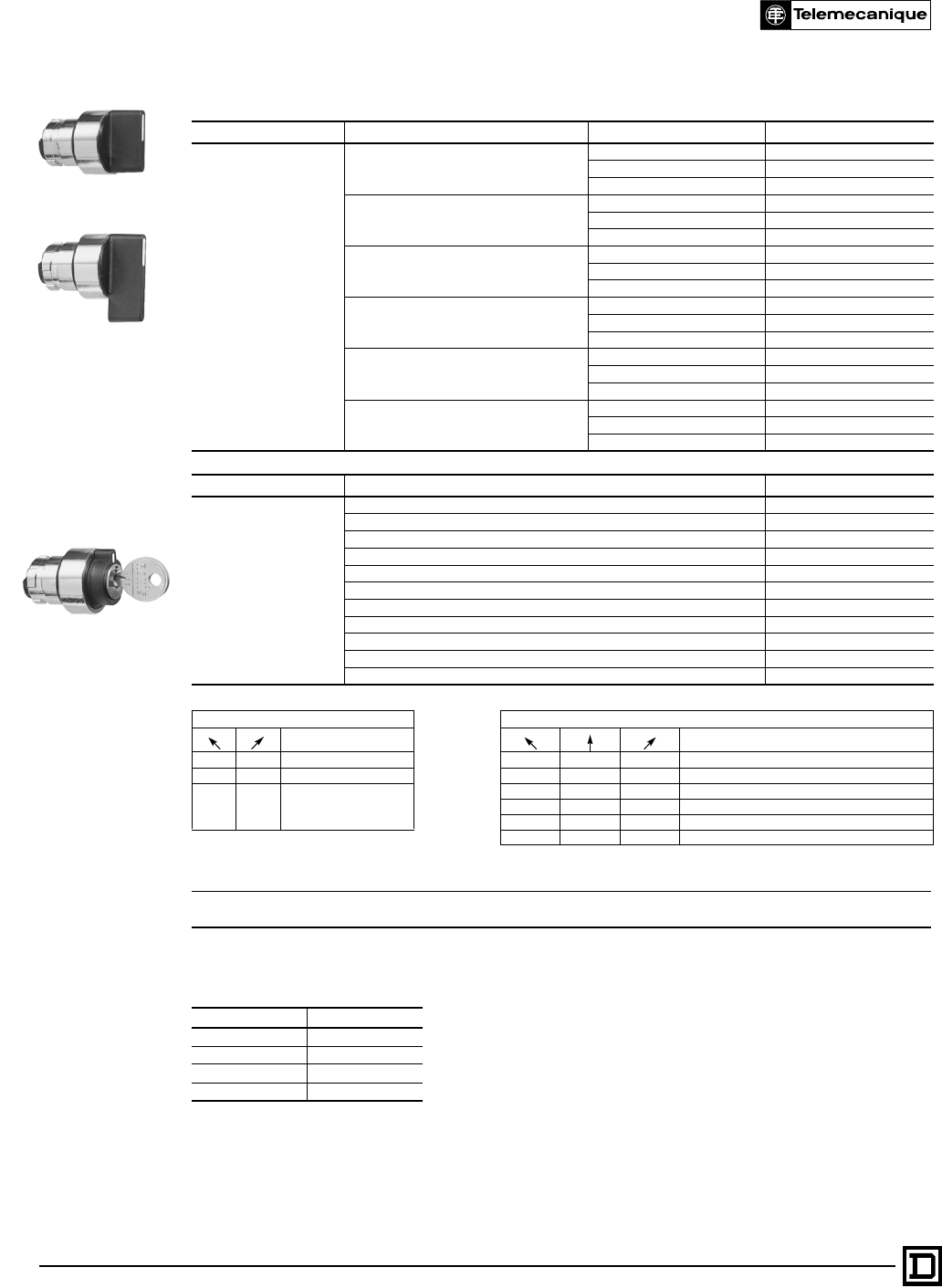

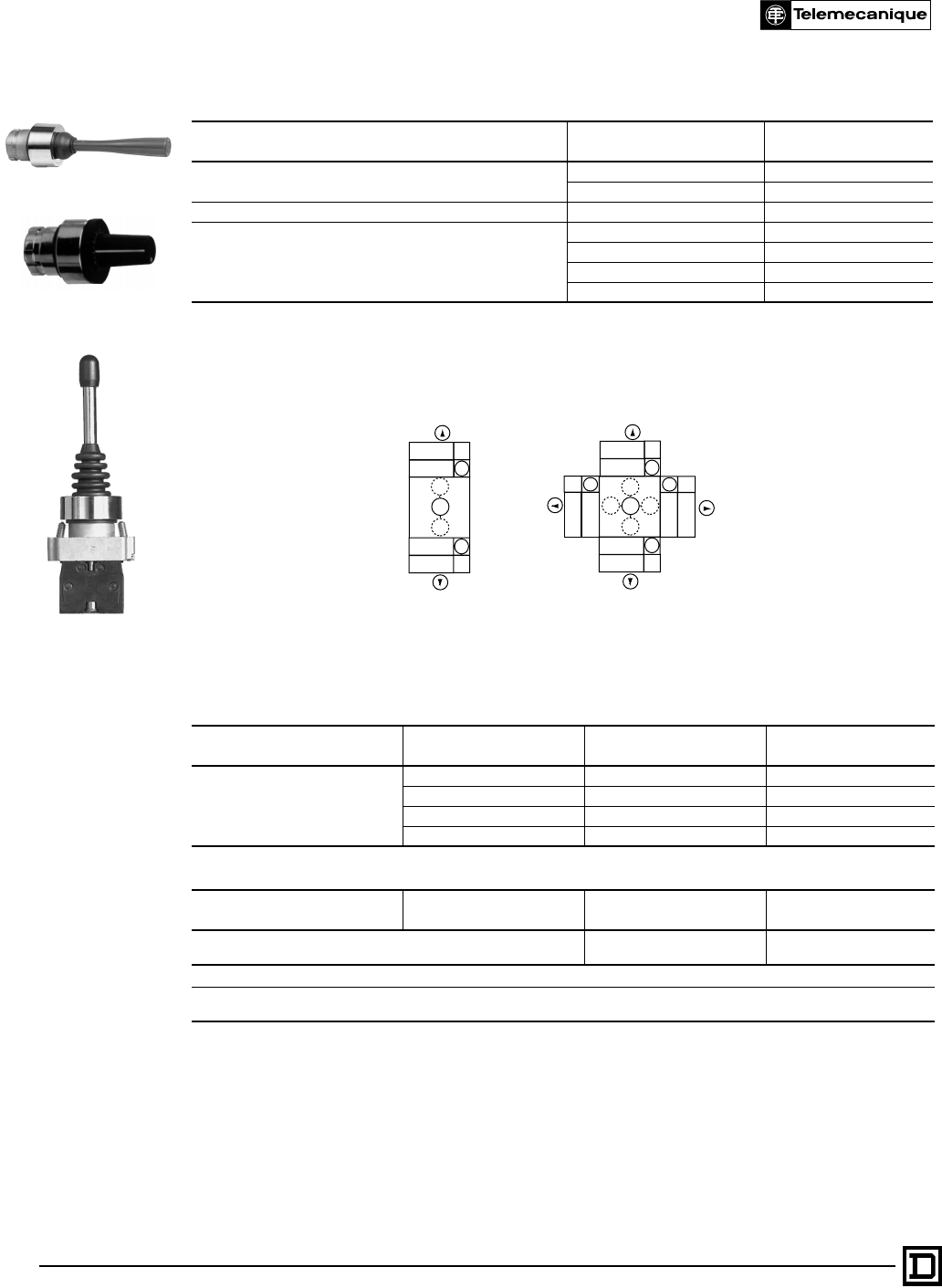

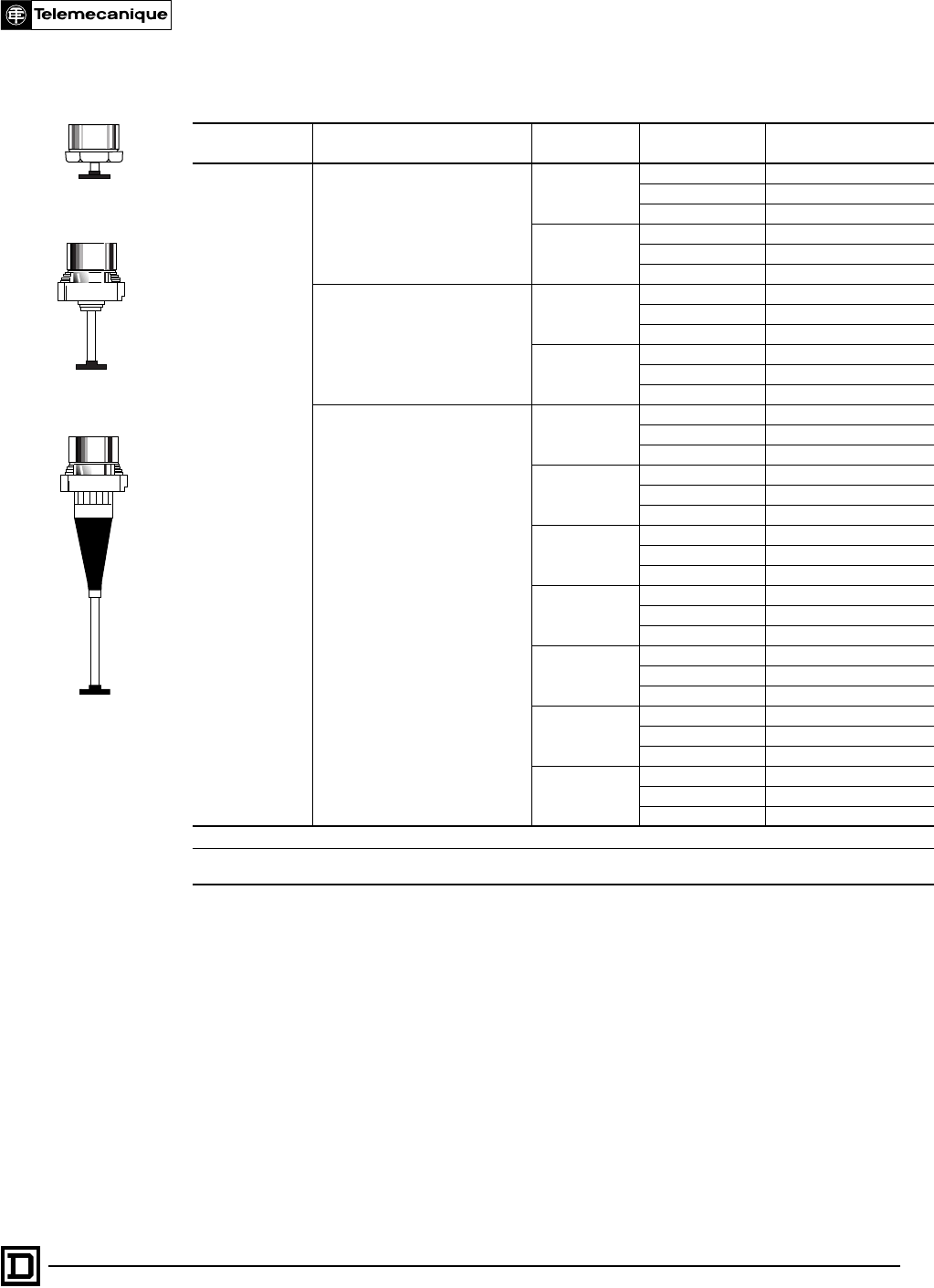

Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm

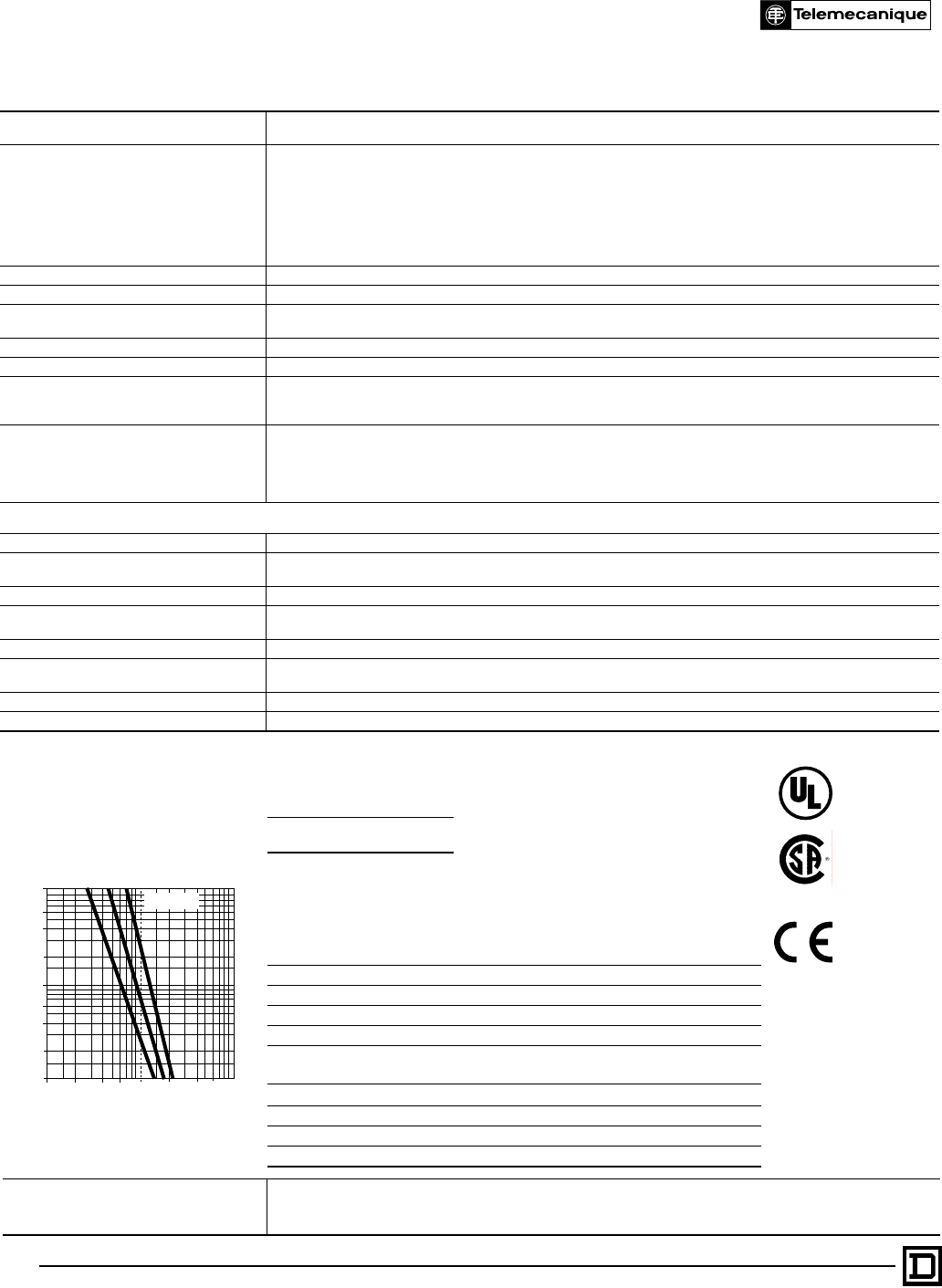

General Characteristics
© 1999 - 2000 Schneider Electric All Rights Reserved
314 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Environment
Conformity to standards XB2B, XD2P: UL 508, IEC 60947-5-1, EN60947-5-1, IEC 60337-1, IEC 60337-2, NF C 63-140, ASE 0119, ASE1003,
BS 4794, VDE 0660-200, CSA C 22-2 No. 14, CSA C 22-2 No. 66
Approvals UL: push buttons and selector switches NEMA / UL Type A600-Q600;
pilot lights and illuminated push buttons direct supply (120 V max.);
pilot lights and illuminated push buttons with transformer (600 V)
CSA: push buttons and selector switches NEMA / UL Type A600-Q600.
pilot lights and illuminated push buttons direct supply (120 V max.);
pilot lights and illuminated push buttons with transformer (600 V).
ASE, DEMKO, NEMKO, SEMKO, BUREAU VERITAS, SAHKOTARKASTUSKESKUS, GL, DNV, LROS
XD2P, standard version: CSA A600-Q600, LROS.
Protective treatment Standard version: TC “All climates”
Ambient temperature Operating: -25 °C to +70 °C (-13 °F to +158 °F) Storage: -40 °C to +70 °C (-40 °F to +158 °F)
Resistance to vibration 60 mm diameter mushroom head: 8 g. Other push buttons: 15 g. Small joystick controllers: 5 g (from 40 to 50 Hz)
Conforming to IEC 60068-2-6.
Resistance to shock Push buttons: 70 g. Mushroom head push-buttons: 15 g. Selector switches: 200 g. Conforming to IEC 60068-2-27.
Protection against electric shock XB2B, XD2P: Class 1, conforming to IEC 60536 and NF C 20-030.
Degree of protection
conforming to IEC 60529
and NF C 20-010
NEMA / UL ratings XB2B: 1, 2, 3, 4, 4X, 12K, 13, XB2B, XD2P: IP 65: flush and protecting, illuminated and non-
illuminated push buttons (mounted). IP 66: booted and mushroom head push buttons, selector switches, pilot lights and
small joystick controllers (mounted). IP 40: double- headed push buttons (IP 65 on request).
Mechanical life Push buttons—3 million operations (Latching mushroom head push buttons: 300,000 operations. Illuminated selector
switches: 100,000 operations). The product life expressed is based on average usage and normal operating conditions.
Actual operating life will vary with conditions. The above statements are not intended to nor shall they create any express
or implied warranties as to product operation or life. For information on the limited warranty offered on this product,
please refer to Square D terms and conditions of sale found in the Square D Digest.
Contact block characteristics
Nominal thermal current 10 A conforming to IEC 60947-5-1, NF C 63-140, UL 508, CSA 22-2 No. 14, VDE 0660 part 2, NEMA / UL Type A600-Q600.
Nominal insulation voltage 500 V conforming to NF C 20-040, VDE 0110, IEC 60158-1, 600 V conforming to UL 508, 600 V conforming to
CSA 22-2 No. 14.
Insulation category Group C conforming to NF C 20-040 and VDE 0110.
Contact operation Slow- make N.O. or slow-break N.C. with direct opening operation conforming to EN60947-5-1
section 3.
Contact resistance ð25 m¾ conforming to: NF C 93-050 method A or IEC 60225-7 category 3.
Operating force Flush or projecting push buttons - with 1 NO contact: 2.25 lb - with 1 NC contact: 1.8 lb
Additional contacts - N.O.: add 1 lb - N.C.: add 0.7 lb.
Terminal referencing Conforming to CENELEC EN 50013.
Short circuit protection 10 A cartridge fuses, Gl or N conforming to IEC 60269-1and VDE 0660-200.
Rated power
conforming to IEC 60947-5-1 Appendix C
duty categories AC11-DC11
Operating frequency: 3,600 ops/hour
Load factor: 0.5
AC supply (50-60 Hz)
Cabling XB2B, XD2P: Screw and captive clamp terminals. Recommended torque 15.62 lb-in. Capacity: minimum 1 x 0.5 mm2
(20 AWG) solid or stranded, maximum with or without cable end: 2 x 1.5 mm2 (16 AWG) or 1 x 2.5 mm2 (14 AWG) or by
quick connector conforming to NF C 20-120 (on request).
1
06
04
02
01
.06
.04
.02
.01
220 V
127 V
24/48 V
12
4610 20 40 60
current in amperes
millions of operations
ith = 10 A
DC supply
Power broken in watts
for 1 million operations
Voltage 24 V 48 V 120 V
Inductive
load 65 W48 W40 W
AC Ratings, Inductive - NEMA / UL A600
35% Power factor
VA Break
Amperes VA Continuous
carrying
Amperes
Resistive 75%
Power factor
Make, Break and
continuous
Amperes
Volts Make
Amperes
120 60 7200 6 720 10 10
240 30 7200 3 720 10 10
480 15 7200 1.5 720 10 10
600 12 7200 1.2 720 10 10
DC Ratings, NEMA / UL Type Q600
Inductive and resistive
Volts Make and break Continuous
125 0.55 2.5
250 0.27 2.5
600 0.10 2.5
®
File E164353
CCN NKCR
File LR 44087
Class 3211 03
Marking
![](asset-3.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm

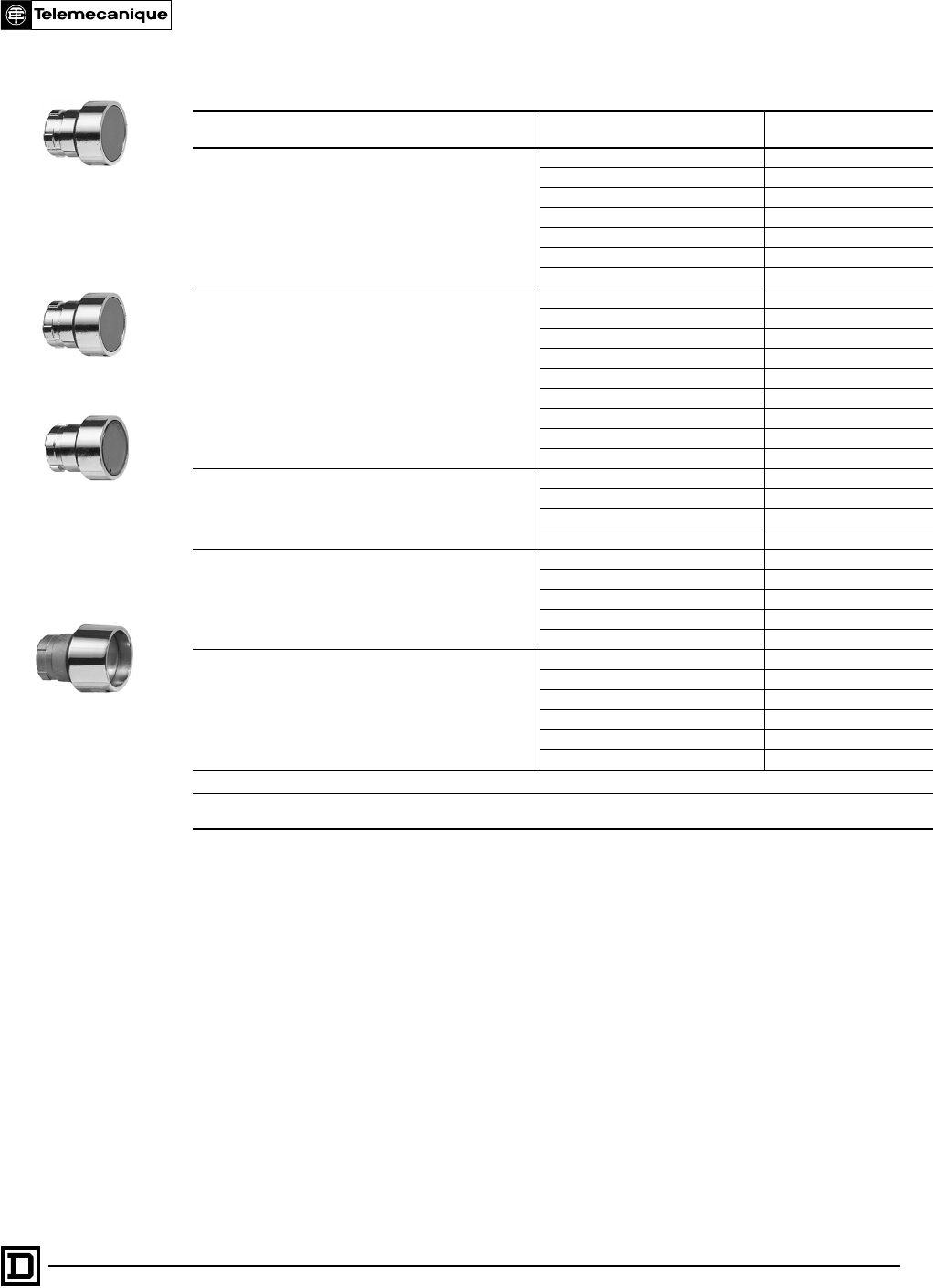

Non-Illuminated Operators
315
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Contact Block Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . Page 322
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335

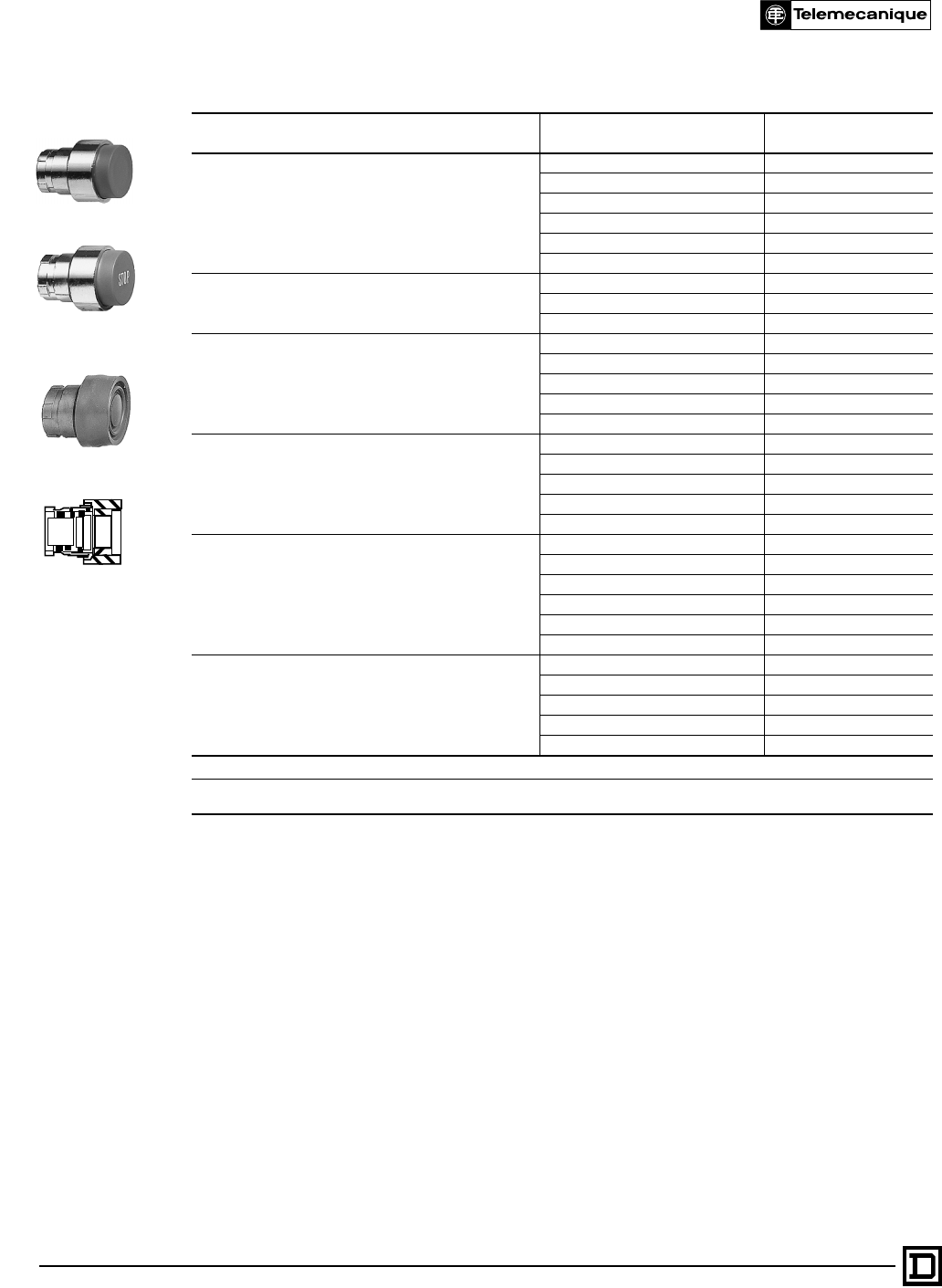

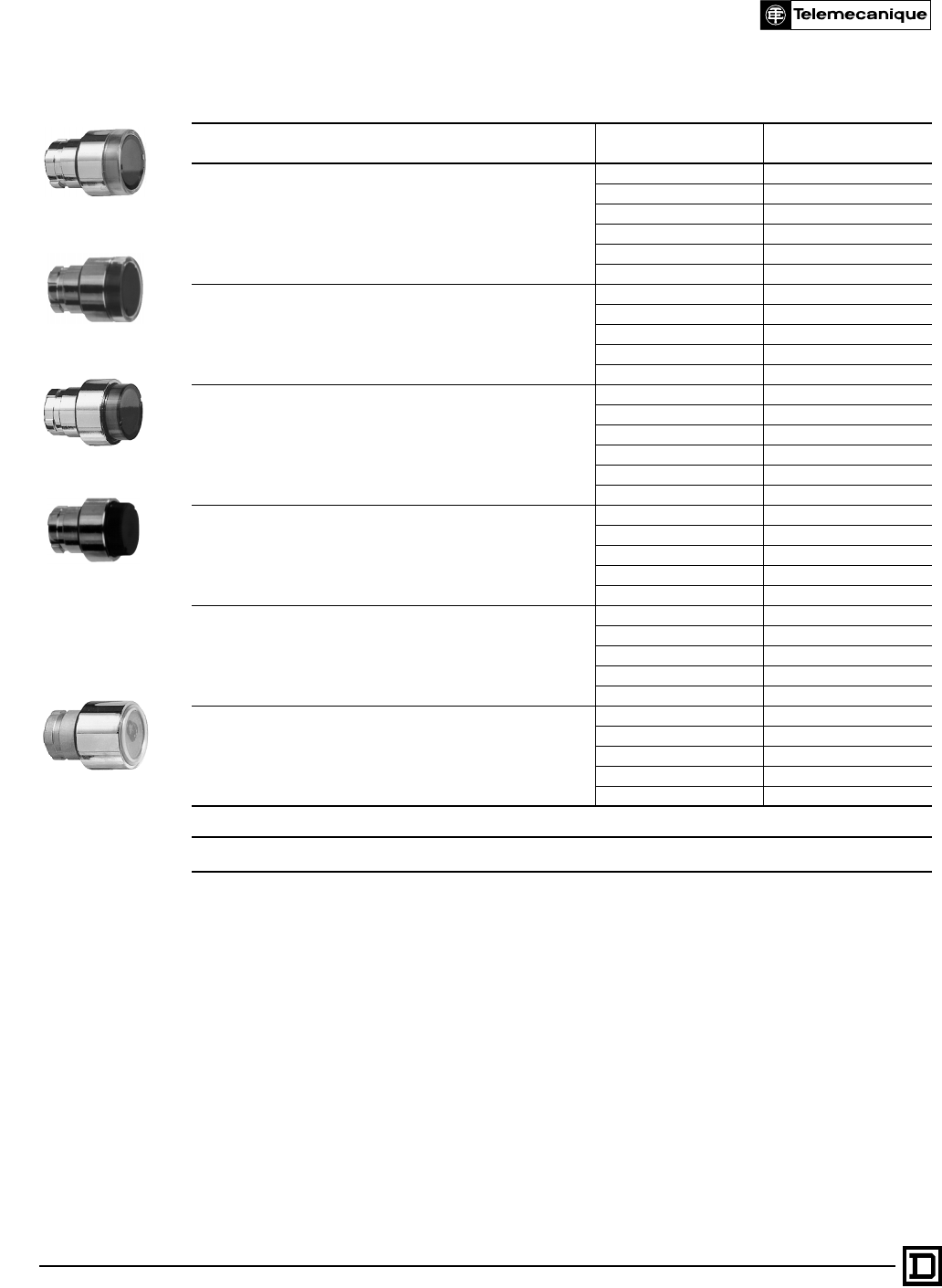

Operator
Type Color Catalog
Number
Flush head
White ZB2BA1
Black ZB2BA2
Green ZB2BA3
Red ZB2BA4
Yellow ZB2BA5
Blue ZB2BA6
Grey ZB2BA8
Flush head premarked
White “I” ZB2BA131
Black “START” ZB2BA230
Black “O” ZB2BA232
Green “I” ZB2BA331
Red “O” ZB2BA432
Green “START” ZB2BA333
Green “ON” ZB2BA341
Red “STOP” ZB2BA434
Red “OFF” ZB2BA435
Metallic flush head
(metal pusher)
Black ZB2BA29
Green ZB2BA39
Red ZB2BA49
Yellow ZB2BA59
Transparent flush head
Use with mylar circular legend (ZB2BY1kkk)
See page 333
Green ZB2BA38
Red ZB2BA48
Amber ZB2BA58
Blue ZB2BA68
Clear ZB2BA78
Guarded head
White ZB2BA16
Black ZB2BA26
Green ZB2BA36
Red ZB2BA46
Yellow ZB2BA56
Blue ZB2BA66
Operating heads with black metal bezel
To order, add suffix 7 to the above references (except ZB2BP2 TO ZB2BP6).
Example: ZB2BA2 becomes ZB2BA27.
Flush head
ZB2BA•
Metallic flush head
ZB2BA•9
Transparent flush head
ZB2BA•8
Guarded head
ZB2BA•6
![](asset-4.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Non-Illuminated Operators
© 1999 - 2000 Schneider Electric All Rights Reserved
316 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Contact Block Assemblies . . . . . . . . . . . . . . . . . . . . . . Page 322
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages 334-335
Operator
Type Color Catalog
Number
Extended head
White ZB2BL1
Black ZB2BL2
Green ZB2BL3
Red ZB2BL4
Yellow ZB2BL5
Blue ZB2BL6
Extended head premarked
Red “O” ZB2BL432
Red “STOP” ZB2BL434
Red “OFF” ZB2BL435
Silicon booted head
Black ZB2BP2
Green ZB2BP3
Red ZB2BP4
Yellow ZB2BP5
Blue ZB2BP6
Neoprene booted head
Black ZB2BP02
Green ZB2BP03
Red ZB2BP04
Yellow ZB2BP05
Blue ZB2BP06
Flush with reinforced dust, damp,
and cutting oil protection
White ZB2BA15
Black ZB2BA25
Green ZB2BA35
Red ZB2BA45
Yellow ZB2BA55
Blue ZB2BA65
Transparent silicon booted push button
Use with mylar circular legend (ZB2BY1kkk)
See page 333.
Green ZB2BP38
Red ZB2BP48
Yellow ZB2BP58
Blue ZB2BP68
Clear ZB2BP78
Operating heads with black metal bezel
To order, add suffix 7 to the above references (except ZB2BP2 TO ZB2BP6 and ZB2BP02 TO ZB2BP06).
Example: ZB2BL2 becomes ZB2BL27.
Extended head
ZB2BL•
Extended head
marked stop
ZB2BL434
Silicon booted head
ZB2BP•
Flush with reinforced
protection
ZB2BA•5
![](asset-5.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm

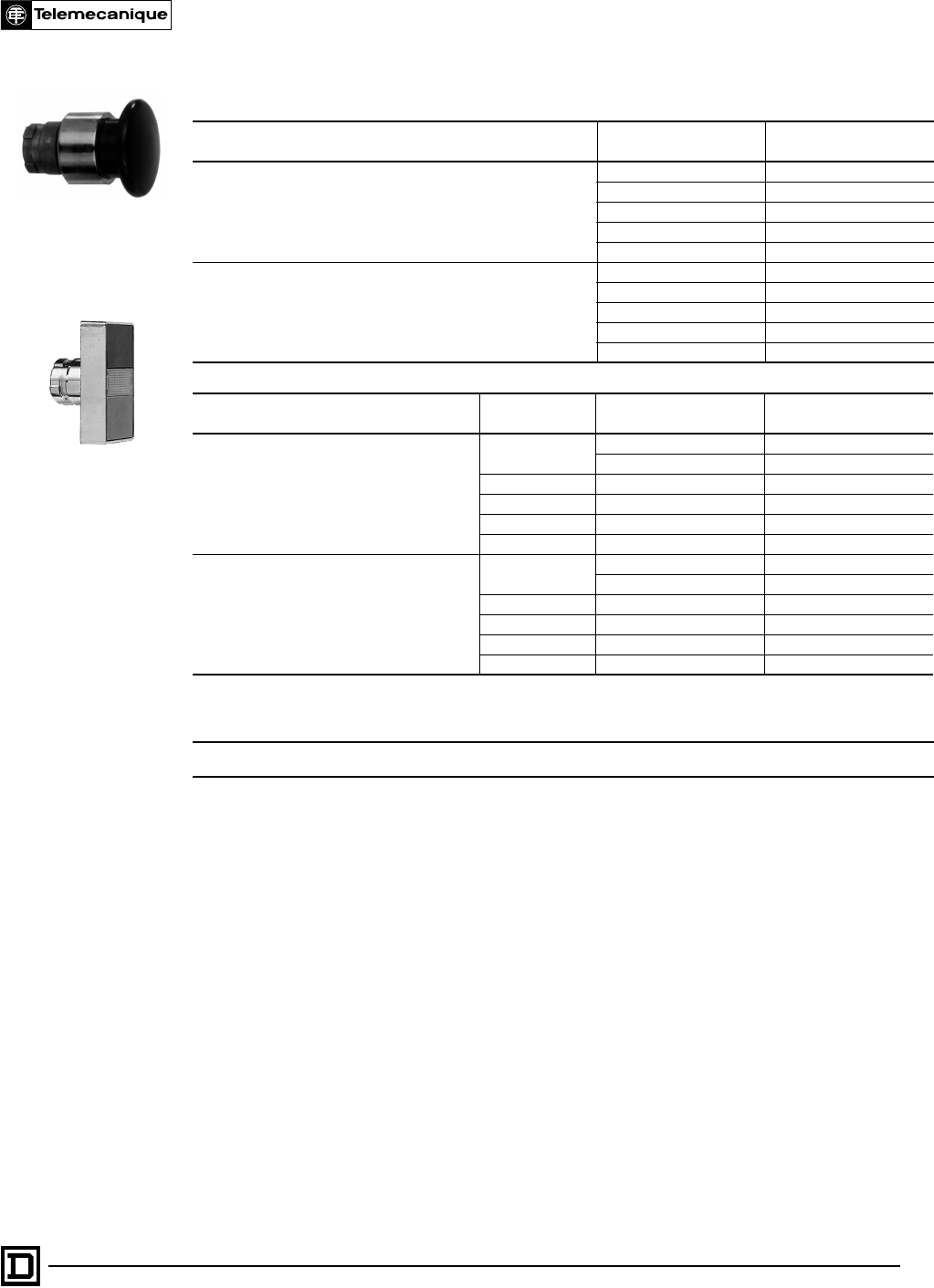

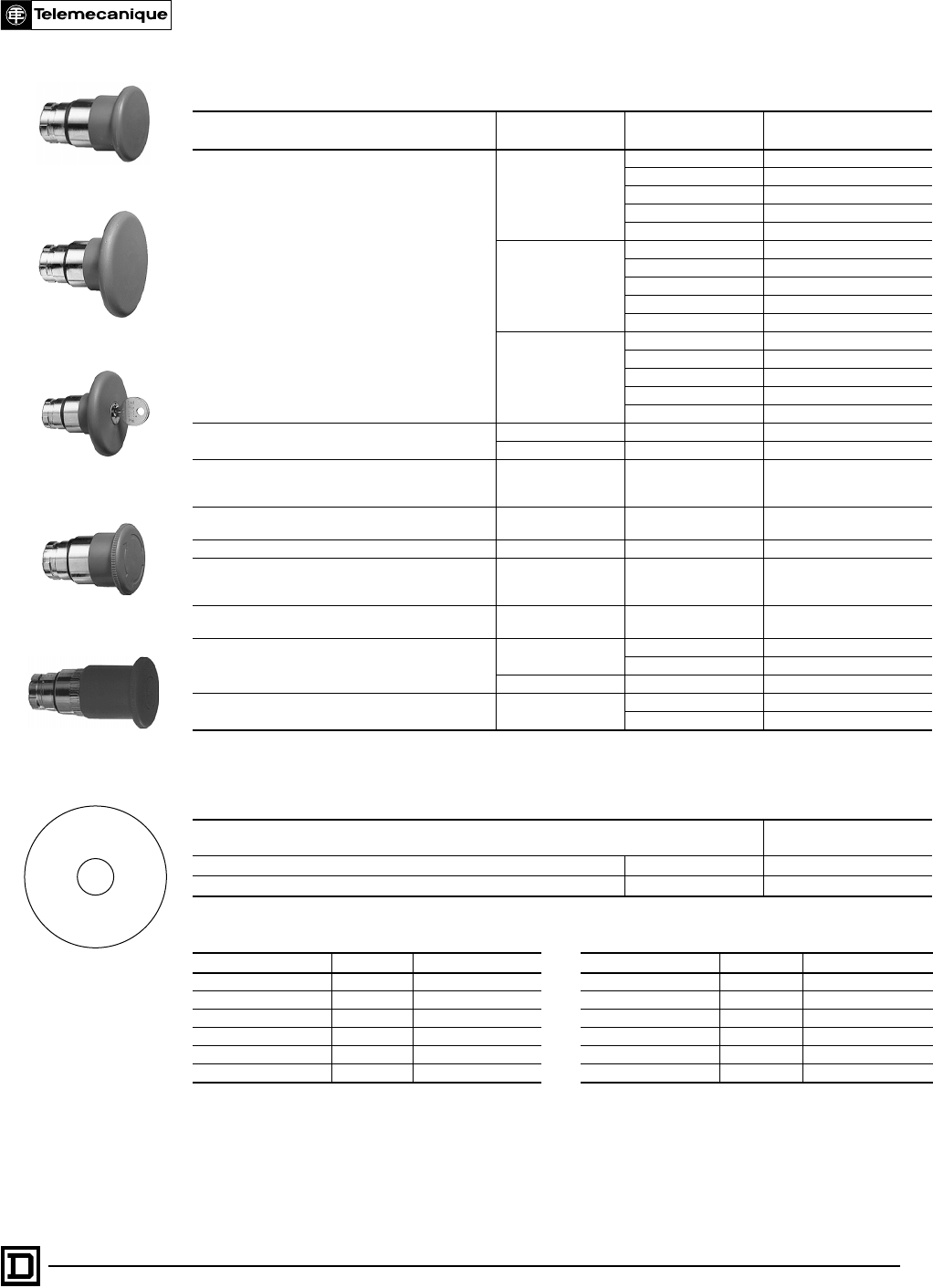

Mushroom Operators and Yellow Contrast Plates
317
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Yellow Contrast Plates
Contact Block Assemblies. . . . . . . . . . . . . . . . . . . . . . . . Page 322
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335
Operator
Type Size Color Catalog
Number
Mushroom head
Momentary
30mm
Black ZB2BC24
Green ZB2BC34
Red ZB2BC44
Yellow ZB2BC54
Blue ZB2BC64
40mm
Black ZB2BC2
Green ZB2BC3
Red ZB2BC4
Yellow ZB2BC5
Blue ZB2BC6
60mm
Black ZB2BR2
Green ZB2BR3
Red ZB2BR4
Yellow ZB2BR5
Blue ZB2BR6
Mushroom head
Key releasea
40mm Red ZB2BS14
60mm Red ZB2BS24
Mushroom head push button
with trigger actionf
Key releasea
40mm Red ZB2BS944
Mushroom head
turn to release 40mm Red ZB2BS54
Premarked “EMO” 40mm Red ZB2BS5430
Mushroom head push button
with trigger actionf
Turn to release 40mm Red ZB2BS844
Mushroom head
turn to release 60mm Red ZB2BS64
Mushroom head
push-pull 40mm Black ZB2BT2
Red ZB2BT4
Premarked “EMERGENCY STOP” 40mm Red ZB2BT43
Mushroom head
push-pull 60mm Black ZB2BX2
Red ZB2BX4
aKey release operators come with Ronis #455 keys (quantity 2) as standard. For replacement keys see page 332. For other key
numbers contact local field office.
fTrigger action mushroom heads are “tamper proof” whereby a change of contact state is not possible by “teasing” or floating the
operator.
Guards / Locks
Type Size Color Catalog
Number
Metal 40 mm with finger cutout and 7 mm holes for padlocking Red ZB2BZ1804
Plastic 60 mm (for 40 mm turn to release) Yellow ZB2BZ1905
PVC Yellow Legend Plates 60 mm diameter PVC Yellow Legend Plates 90 mm diameter
Text Language Catalog Number Text Language Catalog Number
Blank N/A ZB2BY9101 Blank N/A ZB2BY8101
Emergency Stop English ZB2BY9330 Emergency Stop English ZB2BY8330
Arret d’Urgence French ZB2BY9130 Arret d’Urgence French ZB2BY8130
Not Aus German ZB2BY9230 Not Aus German ZB2BY8230
Parada de Emergencia Spanish ZB2BY9430 Parada de Emergencia Spanish ZB2BY8430
Arresto Emergenza Italian ZB2BY9630 Arresto Emergenza Italian ZB2BY8630
Mushroom head 40mm
ZB2BC•
Mushroom head 60mm
ZB2BR•
Mushroom head
key release
ZB2BS•4
Mushroom head
turn to release
ZB2BS54
Mushroom head
with trigger action
turn to release
ZB2BS844
E
M
E
R
G
E
N
C
Y
S
T
O
P
ZB2BY8330
![](asset-6.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Lever and Key Operators
© 1999 - 2000 Schneider Electric All Rights Reserved
318 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
aWhen ordering extended lever substitute J for D. Example: ZB2BD2 becomes ZB2BJ2.
fKey selector switches come with Ronis #455 keys (quantity 2) as standard. For replacement keys see page 332. For switches
keyed with different keys, add the suffixes shown in the table below (no change in price). For other key numbers contact local field
office.
Contact Block Assemblies . . . . . . . . . . . . . . . . . . . . Page 322
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335
Lever Operators
Type Number of positions, actions Lever Color Catalog Number
Standard or
Extended lever a
2-maintained
Black ZB2BD2
White ZB2BD201
Red ZB2BD204
2-spring return
from right to left
Black ZB2BD4
White ZB2BD401
Red ZB2BD404
3-maintained
Black ZB2BD3
White ZB2BD301
Red ZB2BD304
3-spring return to center
from left and right
Black ZB2BD5
White ZB2BD501
Red ZB2BD504
3-spring return from
right to center
Black ZB2BD8
White ZB2BD801
Red ZB2BD804
3-spring return from
left to center
Black ZB2BD7
White ZB2BD701
Red ZB2BD704
Key Operators
Type Number of positions, actions, key removal Catalog Number
Key switchf
2-maintained key removal from left ZB2BG2
2-maintained key removal from left or right ZB2BG4
2-spring return from right to left, key removal from left ZB2BG6
3-maintained key removal from center ZB2BG3
3-maintained key removal from left and right ZB2BG5
3-maintained key removal from left ZB2BG9
3-maintained key removal from all positions ZB2BG0
3-spring return left or right to center, key removal from center ZB2BG7
3-spring return left to center key removal right ZB2BG1
3-spring return right to center key removal center ZB2BG8
3-spring return right to center key removal left ZB2BG08
Selector Switch Sequences (using contact block assemblies, page 322)
2 Position selector switch 3 Position selector switch
Contact block guide Contact block guide
O X 1 N.O. (left or right) X O O 1 N.O. (left)
X O 1 N.C. (left or right) O X O 2 NC wired in series (side-by-side)
O X 1 N.O. O O X 1 N.O. (right)
and X X O 1 N.C. (right)
X O 1 N.C. O X X 1 N.C. (left)
Note: View from front of panel X O X 2 NO wired in parallel (side-by-side)
Operating heads with black metal bezel
To order, add suffix 7 to the above references.
Example: ZB2BD3 becomes ZB2BD37.
Key Number Suffix
421 12
458A 10
520 14
3131A 20
Standard lever
ZB2BD•••
Extended levera
ZB2BJ•••
Key switch
ZB2BG••
![](asset-7.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Two Button Operators
319
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Contact Block Assemblies ........................................... Page 322
Specialty Contacts...................................................... Page 329
Application Information ................................................ Page 314
Legend Plates.............................................................. Page 333
Accessories ................................................................. Page 331
Replacement Parts ...................................................... Page 332
Dimensions ......................................................... Pages 334-335
Momentary operators
Type Marked fColor Catalog
Number
Two flush
Black/Red ZB2BA9124
Green/Red ZB2BA9134
I,O Black/Red ZB2BA9224
I,O Green/Red ZB2BA9234
STOP, START Black/Red ZB2BA9724
STOP, START Green/Red ZB2BA9734
One flush, one extended
Black/Red ZB2BL9324
Green/Red ZB2BL9334
I,O Black/Red ZB2BL9424
I,O Green/Red ZB2BL9434
STOP, START Black/Red ZB2BL9824
STOP, START Green/Red ZB2BL9834
fAdditional markings available on special order. Contact local field office for details.
Operating heads with black metal bezel
To order, add suffix 7 to the above references.
Example: ZB2BA9124 becomes ZB2BA91247.
2 Button maintained operators
Type Number of
contact(s) Button 1 Button 2 Catalog
Number
Flush interlocked push buttons
(30 mm centers, maintained,
mechanically interlocked)
Units include contact block(s) as shown.
1 NO-Black Black XB2BF521
1 NO-Black Red XB2BF551
1 NO-Green Red XB2BF581
2 NO-Black NO-Black XB2BF523
2 NO-Black NO-Red XB2BF553
2 NO-Green NO-Red XB2BF583
2 NO-Black NO-Black XB2BF525
2 NO-Black NC-Red XB2BF555
2 NO-Green NC-Red XB2BF585
Type Color Catalog
Number
Replacement push button operators only
(with no spring return in head)
for XB2BF
Black ZB2BAW80424194002
Green ZB2BAW80424194003
Red ZB2BAW80424194004
Operating heads with black metal bezel
To order, add suffix 7 to the above references.
Example: ZB2BF521 becomes ZB2BF5217.
Two flush
ZB2BA9•••
One flush, one extended
ZB2BL94••
Start/stop
ZB2BL98••
Interlocked
XB2BF5••
![](asset-8.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Specialty Operators
© 1999 - 2000 Schneider Electric All Rights Reserved
320 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
tUnits come with 1 N.O. contact in each direction. Screw terminals. Contact blocks cannot be added or removed from the above
arrangements. For other requirements, contact local sales office.
fCustomer to supply potentiometer, unit accepts 1/4" diameter, 1.625" (43-47 mm) length shaft potentiometer.
These 2 direction and 4 direction position charts are viewed from behind the panel, thereby reversing
east and west positions. When lever is moved away from center, only one contact changes from N.O.
to N.C. The other contact blocks in the switch are unaffected.
Contact Block Assemblies . . . . . . . . . . . . . . . . . . . . . . . . Page 322
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information. . . . . . . . . . . . . . . . . . . . . . . . . . .Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 332
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335
Operators
Type Color Catalog
Number
Wobble sticks Black ZB2BB2
Red ZB2BB4
Potentiometer operator fBlack ZB2BD922
Joystickst
Contacts supplied
2-maintained XD2PA12
2-spring return XD2PA22
4-maintained XD2PA14
4-spring return XD2PA24
Two step push buttons (contacts supplied)
Type Contact
1st step Contact
2nd step Catalog
Number
Flush head
N.O. N.O. XB2BAk41
N.O. N.C. XB2BAk42
N.O.+N.C. N.O. XB2BAk43
N.O.+N.C. N.O.+N.C. XB2BAk44
k Replace k with desired color head. (1-white, 2-black, 3-green, 4-red, 5-yellow, 6-blue).
Two position toggle switch (maintained)
Type Color Catalog
Number
Two position toggle switch
NEMA Type 1 only Black ZB2BD28
Operating heads with black metal bezel
To order, add suffix 7 to the above references.
Example: ZB2BD922 becomes ZB2BD9227.
Wobble sticks
Potentiometer operator
Joysticks
2 Position
OPERATED
CENTER
X
OPERATED
CENTER
X
4 Position
OPERATED
CENTER
X
OPERATED
CENTER
X
OPERATED
CENTER
OPERATED
CENTER
XX
![](asset-9.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Reset Operators
321
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335
Reset operators
Type Description Adjustable
length of rod Color Catalog
Number
Flush head
0.39" (10 mm) Travel
Panel thickness: 0.04" - 0.12" (1-3
mm)
Tightened by nut
0.24" - 0.63"
(6 - 16 mm)
Black XB2BA821
Red XB2BA841
Blue XB2BA861
0.63" - 1.02"
(16 - 26 mm)
Black XB2BA822
Red XB2BA842
Blue XB2BA862
0.55" (14 mm) Travel
Panel thickness: 0.04" - 0.23" (1-6
mm)
Tightened by 2 screw mounting
base (supplied)
1.18" - 2.25"
(30 - 57 mm)
Black XB2BA921
Red XB2BA941
Blue XB2BA961
2.16" - 3.23"
(55 - 82 mm)
Black XB2BA922
Red XB2BA942
Blue XB2BA962
0.55" (14 mm) Travel
Panel thickness: 0.04" - 0.23" (1-6
mm)
Tightened by 2 screw mounting
base (supplied)
3.15" - 4.2"
(80 - 107 mm)
Black XB2BA923
Red XB2BA943
Blue XB2BA963
4.13" - 5.2"
(105 - 132 mm)
Black XB2BA924
Red XB2BA944
Blue XB2BA964
5.12"- 6.18"
(130 - 157 mm)
Black XB2BA925
Red XB2BA945
Blue XB2BA965
6.1" - 7.16"
(155 - 182 mm)
Black XB2BA926
Red XB2BA946
Blue XB2BA966
7.08" - 8.15"
(180 - 207 mm)
Black XB2BA927
Red XB2BA947
Blue XB2BA967
8.07" - 9.13"
(205 - 232 mm)
Black XB2BA928
Red XB2BA948
Blue XB2BA968
9.05" - 10.1"
(230 - 257 mm)
Black XB2BA929
Red XB2BA949
Blue XB2BA969
Operating heads with black metal bezel
To order, add suffix 7 to the above references.
Example: ZB2BA944 becomes ZB2BA9447.
XB2BA8kk
XB2BA9kk
80 to 257 mm
XB2BA9kk
30 to 82 mm
![](asset-a.png)
Push Buttons and Operator Interface Specifiers Guide

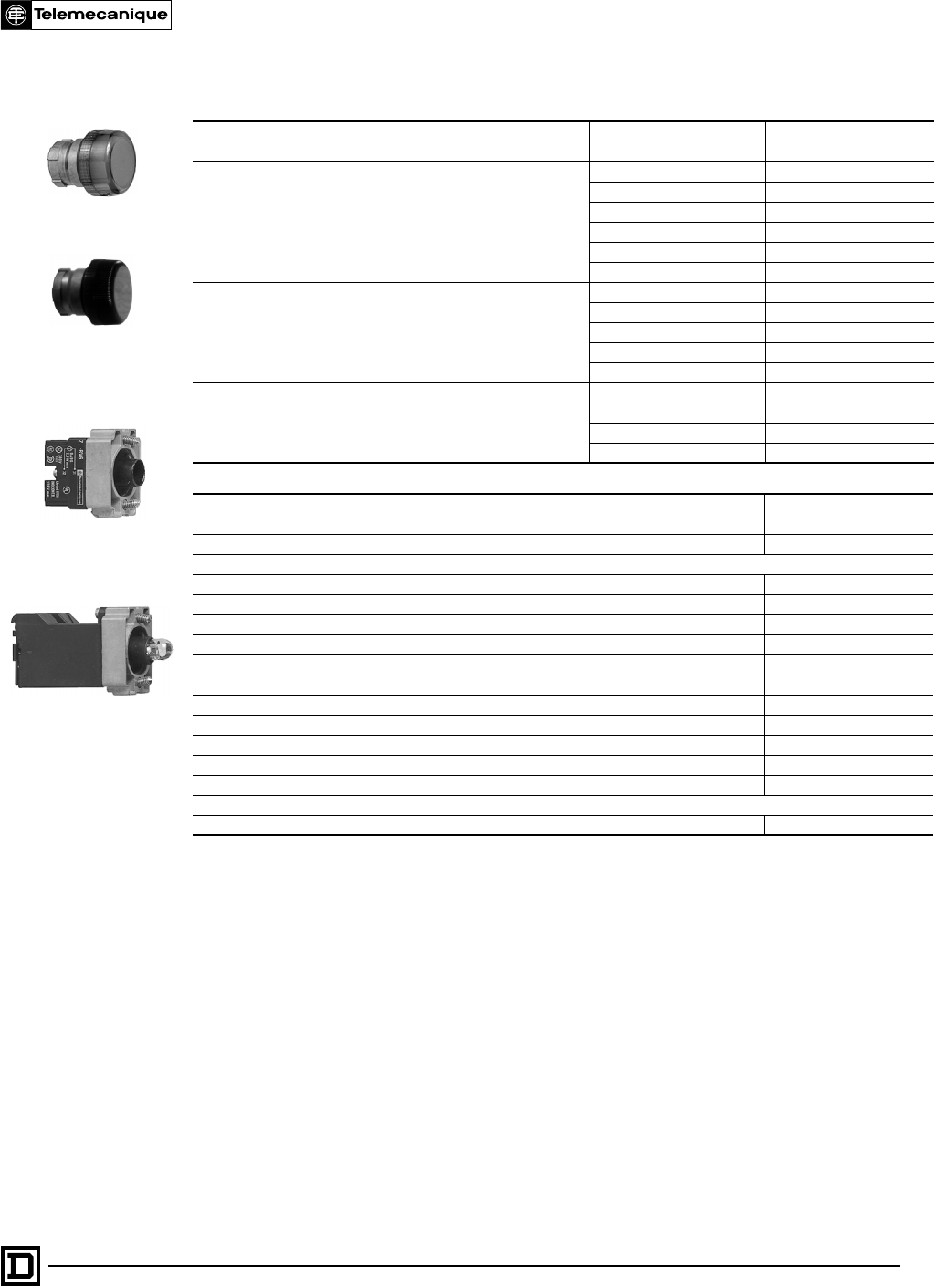

XB2B 22 mm
Contact Blocks
© 1999 - 2000 Schneider Electric All Rights Reserved
322 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
tQuick connect contact blocks will accept commercially available female quick slide connector (1 x 0.25" or 2 x 0.11")
fNon-illuminated devices can be configured with 6 contacts maximum (3 decks of 2).
■N.C. contact is direct opening operation conforming to EN 60 947-5-1, Section 3.
Non-Illuminated Operators. . . . . . . . . . . . . . . . . . . Pages 315-317
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information . . . . . . . . . . . . . . . . . . . . . . . . . .Page 314
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335

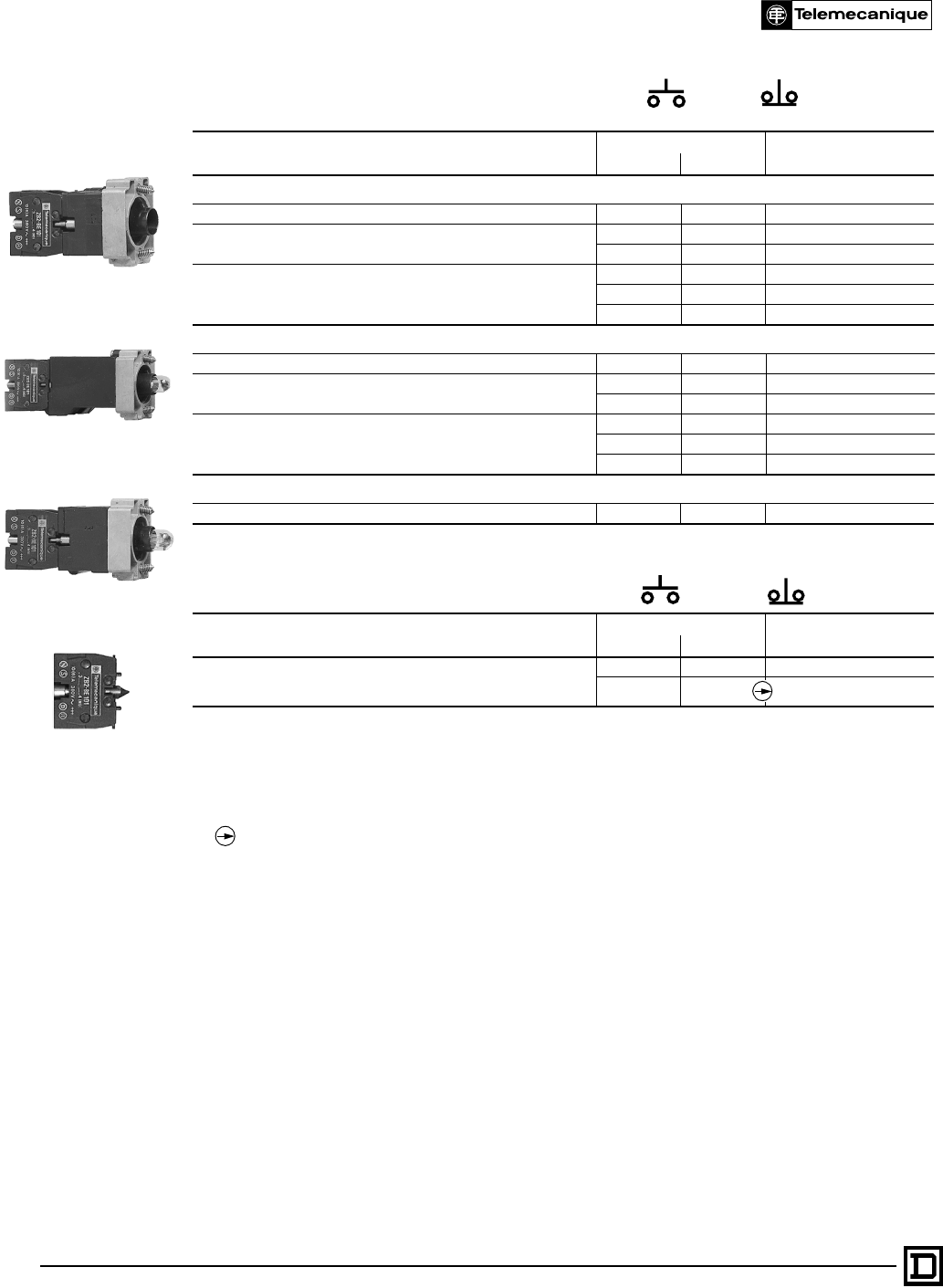

Mounting base with contact block(s) “Screw clamp connection”
N.O. N.C.
Type Contacts
N.O. N.C. Catalog Number
1 Contact Block 1 - ZB2BZ101
- 1 ZB2BZ102
2 Contact Blocks
2 - ZB2BZ103
- 2 ZB2BZ104
1 1 ZB2BZ105
Additional contact blocks
Type Contacts
N.O. N.C. Catalog Number
For making up body assemblies
with 3, 4, 5 or max. of 6 contact blocks
or replacing 1st or 2nd contact blockf
1 - ZB2BE101
- 1 ZB2BE102
Mounting base with contact block(s) “Quick connect” t
Type Contacts
N.O. N.C. Catalog Number
1 Contact Block 1 - ZB2BZ1013
- 1 ZB2BZ1023
2 Contact Blocks
2 - ZB2BZ1033
- 2 ZB2BZ1043
1 1 ZB2BZ1053
Additional contact blocks “Quick Connect” *
Type Contacts
N.O. N.C. Catalog Number
For making up body assemblies
with 3, 4, 5 or max. of 6 contact blocks
or replacing 1st or 2nd contact blockf
1 - ZB2BE1013
- 1 ZB2BE1023
Spare parts
Description Catalog Number
Mounting Base only With fixing screws ZB2BZ009
Quick Connect tFitting by customer ZB2BZ003
ZB2BZ101
ZB2BE10k
■
■
ZB2BZ009
![](asset-b.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Pilot Lights and Light Modules
323
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
tComplete catalog number by adding one of the following voltages: 6, 12, 24, 48 or 120 V. If desired without bulb, omit voltage.
fLight module assemblies are available with quick connectors. Add suffix “3” to end of part number.
Example: ZB2BV6 becomes ZB2BV63.
Replacement Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Application Information. . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335
Pilot light heads
Type Color Catalog
Number
Standard
White ZB2BV01
Green ZB2BV03
Red ZB2BV04
Amber ZB2BV05
Blue ZB2BV06
Clear ZB2BV07
Special lens for neon and LED bulbs
Green ZB2BV033
Red ZB2BV043
Amber ZB2BV053
Blue ZB2BV063
Clear ZB2BV073
Glass lens (NEMA Type 1 only)
Green ZB2BV032
Red ZB2BV042
Amber ZB2BV052
Clear ZB2BV072
Pilot light modules f
Type Catalog
Number
Direct supply (incandescent bulb included)t (AC/DC) ZB2BV6t
Transformer type (1.2 VA/6 V bulb included) (AC only)
24 V: 50-60 Hz ZB2BV1
48 V: 50-60 Hz ZB2BV2
110 V: 50 Hz 110-120 V: 60 Hz ZB2BV3
127 V: 50 Hz ZB2BV91
220 V: 50 Hz ZB2BV4
240 V: 50 Hz 220-240 V: 60 Hz ZB2BV94
380 V: 50 Hz ZB2BV5
415 V: 50 Hz ZB2BV9
440-480 V: 60 Hz ZB2BV95
500 V: 50 Hz ZB2BV8
550-660 V: 60 Hz ZB2BV98
Resistor type (130 V bulb included).
220/250 V (AC/DC) ZB2BV7
Standard
ZB2BV••
Special lens for neon and
LED bulbs
ZB2BV0••
Direct supply
ZB2BV6
Transformer type
ZB2BV3
![](asset-c.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Illuminated Operators
© 1999 - 2000 Schneider Electric All Rights Reserved
324 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Light Module Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . Page 328
Specialty Light Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 330
Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages 334-335
Operator
Type Color Catalog
Number
Flush head White ZB2BW31
Green ZB2BW33
Red ZB2BW34
Amber ZB2BW35
Blue ZB2BW36
Clear ZB2BW37
Flush head for neon and LED lamps Green ZB2BW333
Red ZB2BW343
Amber ZB2BW353
Blue ZB2BW363
Clear ZB2BW373
Extended head White ZB2BW11
Green ZB2BW13
Red ZB2BW14
Amber ZB2BW15
Blue ZB2BW16
Clear ZB2BW17
Extended head for neon and LED lamps Green ZB2BW133
Red ZB2BW143
Amber ZB2BW153
Blue ZB2BW163
Clear ZB2BW173
Silicon booted flush head Green ZB2BW53
Use with mylar circular legend (ZB2BY1kkk) Red ZB2BW54
See page 333 Amber ZB2BW55
Blue ZB2BW56
Clear ZB2BW57
Push to test Green ZB2BV031
Red ZB2BV041
Amber ZB2BV051
Blue ZB2BV061
Clear ZB2BV071
Operating heads with black metal bezel
To order, add suffix 7 to the above references.
Example: ZB2BV071 becomes ZB2BV0717.
Flush Head
ZB2BW3•
Flush Head for LED
ZB2BW3••
Extended Head
ZB2BW1•
Extended Head for LED
ZB2BW1••
Silicon Booted Flush Head
ZB2BW5•
![](asset-d.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Illuminated Operators
325
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
tAdditional color indicators available, contact local field office for details.
fTo upgrade to NEMA Type 3, 4, 13 order clear silicon boot ZB2BW008.
Light Module Assemblies............................................... Page 328
Specialty Light Modules................................................. Page 330
Application Information .................................................. Page 314
Legend Plates................................................................ Page 333
Accessories.................................................................... Page 331
Replacement Parts ........................................................ Page 332
Dimensions ........................................................... Pages 334-335
Mushroom operator
T y p e C o l o r Catalog
Number
40 mm Mushroom head Green ZB2BW43
2 position momentary Red ZB2BW44
Amber ZB2BW45
Blue ZB2BW46
Clear ZB2BW47
40 mm Mushroom head Green ZB2BW63
2 position maintained Red ZB2BW64
Amber ZB2BW65
Blue ZB2BW66
Clear ZB2BW67
Two button with amber indicatort NEMA Type 1 onlyf
Type Marked Color Catalog
Number
Two Flush Black/Red ZB2BW81254
Green/Red ZB2BW81354
I,O Black/Red ZB2BW82254
I,O Green/Red ZB2BW82354
START,STOP Black/Red ZB2BW87254
START,STOP Green/Red ZB2BW87354
One flush, one extended Black/Red ZB2BW83254
Green/Red ZB2BW83354
I,O Black/Red ZB2BW84254
I,O Green/Red ZB2BW84354
START,STOP Black/Red ZB2BW88254
START,STOP Green/Red ZB2BW88354
Operating heads with black metal bezel
To order, add suffix 7 to the above references.
Example: ZB2BW64 becomes ZB2BW647.
40 mm Mushroom head
ZB2BW••
Two Flush
Amber Indicator
ZB2BW8••54
![](asset-e.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Illuminated Operators
© 1999 - 2000 Schneider Electric All Rights Reserved
326 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Light Module Assemblies...................................................... Page 328
Specialty Light Modules........................................................ Page 330
Application Information......................................................... Page 314
Legend Plates....................................................................... Page 333
Accessories .......................................................................... Page 331
Dimensions.................................................................. Pages 334-335
Selector Switches
Number of positions, action Color Catalog
Number
2-maintained Green ZB2BK123
Red ZB2BK124
Amber ZB2BK125
Blue ZB2BK126
Clear ZB2BK127
2-spring return Green ZB2BK143
from right to left Red ZB2BK144
Amber ZB2BK145
Blue ZB2BK146
Clear ZB2BK147
3-maintained Green ZB2BK133
Red ZB2BK134
Amber ZB2BK135
Blue ZB2BK136
Clear ZB2BK137
3-spring return to Green ZB2BK153
center from right and left Red ZB2BK154
Amber ZB2BK155
Blue ZB2BK156
Clear ZB2BK157
3-spring return Green ZB2BK183
from right to center Red ZB2BK184
Amber ZB2BK185
Blue ZB2BK186
Clear ZB2BK187
3-spring return Green ZB2BK173
from left to center Red ZB2BK174
Amber ZB2BK175
Blue ZB2BK176
Clear ZB2BK177
Selector Switch Sequences (using contact block assemblies, page 328)
2 Position selector switch 3 Position selector switch
Contact block guide Contact block guide
O X 1 N.O. (left or right) X O O 1 N.O. (left)
X O 1 N.C. (left or right) O X O 2 NC wired in series (side-by-side)
O X 1 N.O. O O X 1 N.O. (right)
and X X O 1 N.C. (right)
X O 1 N.C. O X X 1 N.C. (left)
Note: View from front of panel X O X 2 NO wired in parallel (side-by-side)
Operating heads with black metal bezel
To order, add suffix 7 to the above references.
Example: ZB2BK123 becomes ZB2BK1237.
Selector switch
ZB2BK1kk
![](asset-f.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Illuminated Operators
327
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Application Information. . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335

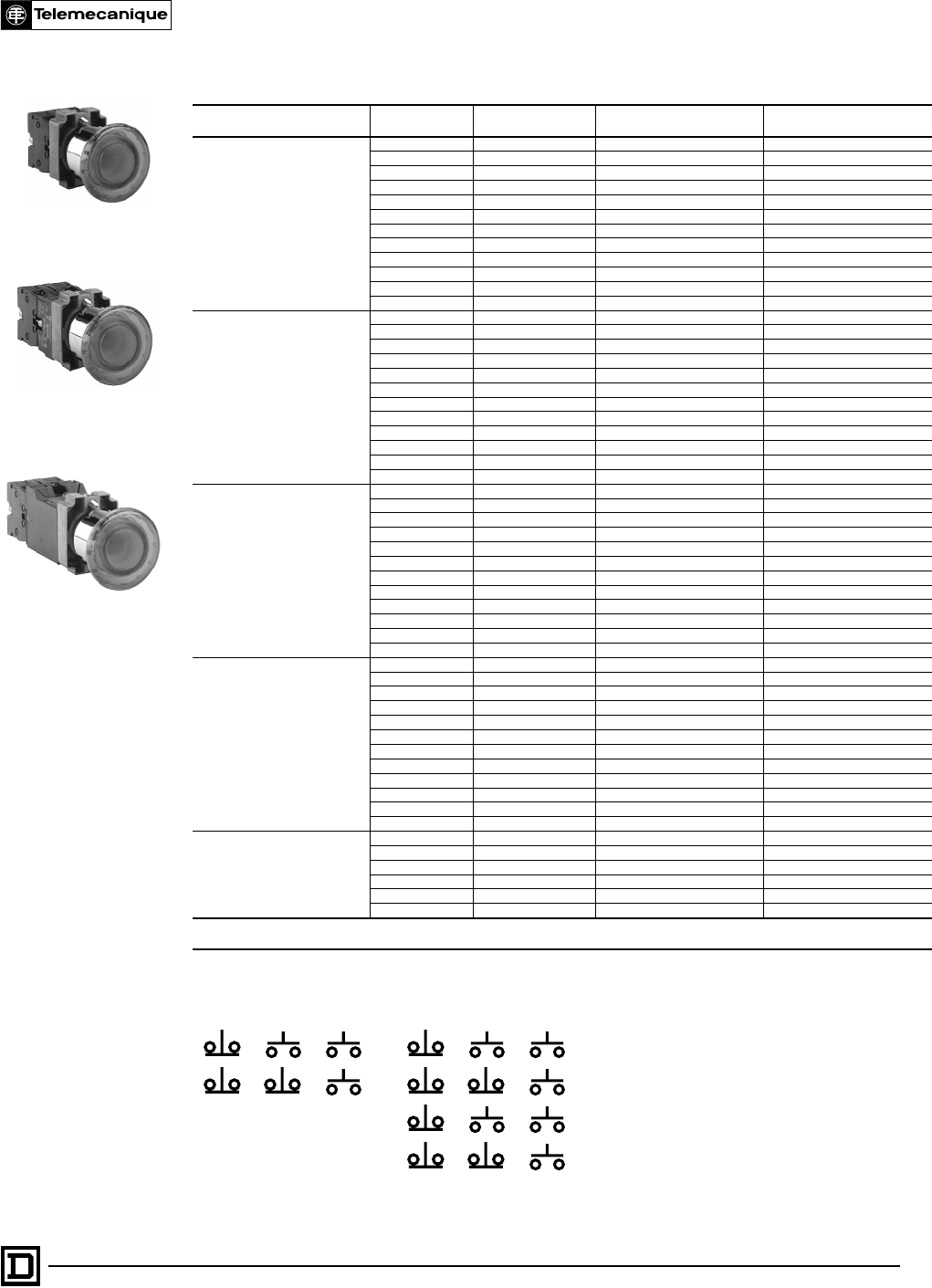

40 mm Mushroom head
Type Push
positiontColor Catalog Number
1N.O. - 1N.C.♦
Catalog Number
2N.O. - 2N.C.
Non-illuminated
M: Maintained
SR: Spring Return
M White XB2BN111 XB2BN112
M Green XB2BN311 XB2BN312
M Red XB2BN411 XB2BN412
M Amber XB2BN511 XB2BN512
M Blue XB2BN611 XB2BN612
M Clear XB2BN711 XB2BN712
SR White XB2BN121 XB2BN122
SR Green XB2BN321 XB2BN322
SR Red XB2BN421 XB2BN422
SR Amber XB2BN521 XB2BN522
SR Blue XB2BN621 XB2BN622
SR Clear XB2BN721 XB2BN722
Illuminated
Direct supply
M White XB2BN1161 XB2BN1162
M Green XB2BN3161 XB2BN3162
M Red XB2BN4161 XB2BN4162
M Amber XB2BN5161 XB2BN5162
M Blue XB2BN6161 XB2BN6162
M Clear XB2BN7161 XB2BN7162
SR White XB2BN1261 XB2BN1262
SR Green XB2BN3261 XB2BN3262
SR Red XB2BN4261 XB2BN4262
SR Amber XB2BN5261 XB2BN5262
SR Blue XB2BN6261 XB2BN6262
SR Clear XB2BN7261 XB2BN7262
Illuminated
Transformer Type
110/120 V
(lamp included)
M White XB2BN1131 XB2BN1132
M Green XB2BN3131 XB2BN3132
M Red XB2BN4131 XB2BN4132
M Amber XB2BN5131 XB2BN5132
M Blue XB2BN6131 XB2BN6132
M Clear XB2BN7131 XB2BN7132
SR White XB2BN1231 XB2BN1232
SR Green XB2BN3231 XB2BN3232
SR Red XB2BN4231 XB2BN4232
SR Amber XB2BN5231 XB2BN5232
SR Blue XB2BN6231 XB2BN6232
SR Clear XB2BN7231 XB2BN7232
Illuminated
Transformer Type
220/240V
(lamp included)
M White XB2BN1141 XB2BN1142
M Green XB2BN3141 XB2BN3142
M Red XB2BN4141 XB2BN4142
M Amber XB2BN5141 XB2BN5142
M Blue XB2BN6141 XB2BN6142
M Clear XB2BN7141 XB2BN7142
SR White XB2BN1241 XB2BN1242
SR Green XB2BN3241 XB2BN3242
SR Red XB2BN4241 XB2BN4242
SR Amber XB2BN5241 XB2BN5242
SR Blue XB2BN6241 XB2BN6242
SR Clear XB2BN7241 XB2BN7242
Mushroom lens only
White W40429264001
Green W40429264003
Red W40429264004
Amber W40429264005
Blue W40429264006
Clear W40429264007
tPosition status: Position 1 - Pull. Spring return, Position 2- Center, Maintained, Position 3 - Push. Maintained or spring return.
fContacts cannot be modified or interchanged; therefore operators are not sold separately.
1 N.O./1 N.C. 2 N.O./2 N.C.
Pos. 1
Pull Pos. 2
Center Pos. 3
Push Pos. 1
Pull Pos. 2
Center Pos. 3
Push
Non-Illuminated
XB2BN•••
Illuminated
(Direct Supply)
XB2BN••6•
Illuminated
(Transformer type)
XB2BN••••
![](asset-10.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Light Module Assemblies
© 1999 - 2000 Schneider Electric All Rights Reserved
328 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
+Complete catalog number by adding one of the following voltages: 6, 12, 24, 48 or 120 V AC/DC.
Note: If desired without bulb, omit voltage.
tSelect proper digit for voltage desired: 1 (24 V 50/60 Hz) 2(48 V 50/60 Hz) 3 (110/120 V 50/60 Hz).
94 (220/240 V 60 Hz) 95 (440/480 V 60 Hz) 98 (550/600 V 60 Hz).
fIlluminated devices can be configured with a light module and 4 contacts maximum (2 decks of 2).
jAdditional primary voltages available, contact local field office for details.
kContact blocks and light module assemblies are available with quick connectors. Add suffix “3” to end of part number.
Example: ZB2BW061 becomes ZB2BW0613.
■N.C. contact is direct opening operation conforming to EN 60 947-5-1, Section 3.
Illuminated Operators . . . . . . . . . . . . . . . . . . . . . . . . .Pages 324-326
Specialty Light Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 330
Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages 334-335
Light module assemblies with contact block(s) N.O. N.C.
screw clamp connectorsk
Type Contacts Catalog
Number
N.O. N.C.
Direct supply (incandescent bulb included) (AC/DC)
Without contactsf-- ZB2BW060+
1 Contact block 1 - ZB2BW061+
-1 ZB2BW062+
2 Contact blocks 2 - ZB2BW063+
-2 ZB2BW064+
11 ZB2BW065+
Transformer type (1.2 VA/6 V AC incandescent bulb included) (AC only)j
Without contactsf-- ZB2BW0t0
1 Contact block 1 - ZB2BW0t1
-1 ZB2BW0t2
2 Contact blocks 2 - ZB2BW0t3
-2 ZB2BW0t4
11 ZB2BW0t5
Resistor type (130 V incandescent bulb included) 220-250 V supply
2 Contact blocks 1 1 ZB2BW075
Additional contact blocks f ■N.O. N.C.
Type Contacts Catalog
Number
N.O. N.C.
For making up body assemblies
with 3 or maximum 4 contact blocks
or replacing 1st or 2nd contact block
1 - ZB2BE101
- 1 ZB2BE102
Direct supply
ZB2BW06k
Transformer type
ZB2BW03k
Resistor type
ZB2BW075
Additional contact block
ZB2BE10k
■
![](asset-11.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Specialty Contact Blocks
329
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
Application Information ..................................................... Page 314
Accessories ...................................................................... Page 331
Replacement Parts ........................................................... Page 332
Dimensions .............................................................. Pages 334-335
Specialty contact blocks N.O. N.C.
Type Description Number of
contacts Catalog
Number
Low voltage / low current
Gold flashed contacts
5-24 volt 0.1-100 mA Contact block without mounting base
1-N.O. ZB2BE1016
1-N.C. ZB2BE1026
1-N.O. ZB2BZ1016
1-N.C. ZB2BZ1026
Overlapping, sequencing &
time delay contact blocks
Contact block w/o mounting base
1-N.O.
Early closing ZB2BE201
1-N.C.
Late opening ZB2BE202
Overlapping block w/mounting base 1-NO (early closing) &
1-NC (late opening) ZB2BZ106
Sequencing block w/mounting base 1-NO (early closing) &
1-N.O. ZB2BZ107
0.1-30 sec. time delay block
w/mounting base (on delay)
1-N.O. &
1-N.C. ZB2BZ91
10-180 sec. time delay block
w/mounting base (on delay)
1-N.O. &
1-N.C. ZB2BZ92
Contact blocks for ring
tongue lugs with widths
smaller than 0.312” (8 mm)
1-N.O. ZB2BE1019
1-N.C. ZB2BE1029
![](asset-12.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Specialty Light Modules
© 1999 - 2000 Schneider Electric All Rights Reserved
330 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
cWhen ordering, specify voltage required (6-120 V) Example: ZB2BV156120V
Illuminated Operators . . . . . . . . . . . . . . . . . . . . . . .Pages 324-326
Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages 334-335
Specialty Light Modules
Type Description Supply Voltage Catalog Number
Flashing pilot light base Light Module with incandescent bulb
included 120 Vac ZB2BV184
Flashing illuminated push button base Light Module with incandescent bulb and
1 N.O./1 N.C. included 120 Vac ZB2BW1845
Typical Wiring Diagrams
Type Description Supply Voltage Catalog Number
Remote test pilot light base Single Diode <380 V
ac or dc ZB2BV156c
Typical Wiring Diagram – Single Diode
Type Description Supply Voltage Catalog Number
Remote test pilot light base Dual Diode <380 V
ac or dc ZB2BV68
Typical Wiring Diagram – Dual Diode
Flashing pilot light base
ZB2BV184
X1 Y1
X2 Y2
X1 Y1
X2 Y2
X1 Y1
X2 Y2
X1 Y1
X2 Y2
X1 Y1
X2 Y2
X1 Y1
X2 Y2
Off Flashing On Wiring in parallel
-X1,+X2
Remote test
pilot light base
ZB2BV156
Test X1 X2
Test
X1
X2
M
![](asset-13.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Accessories and Replacement Parts
331
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)

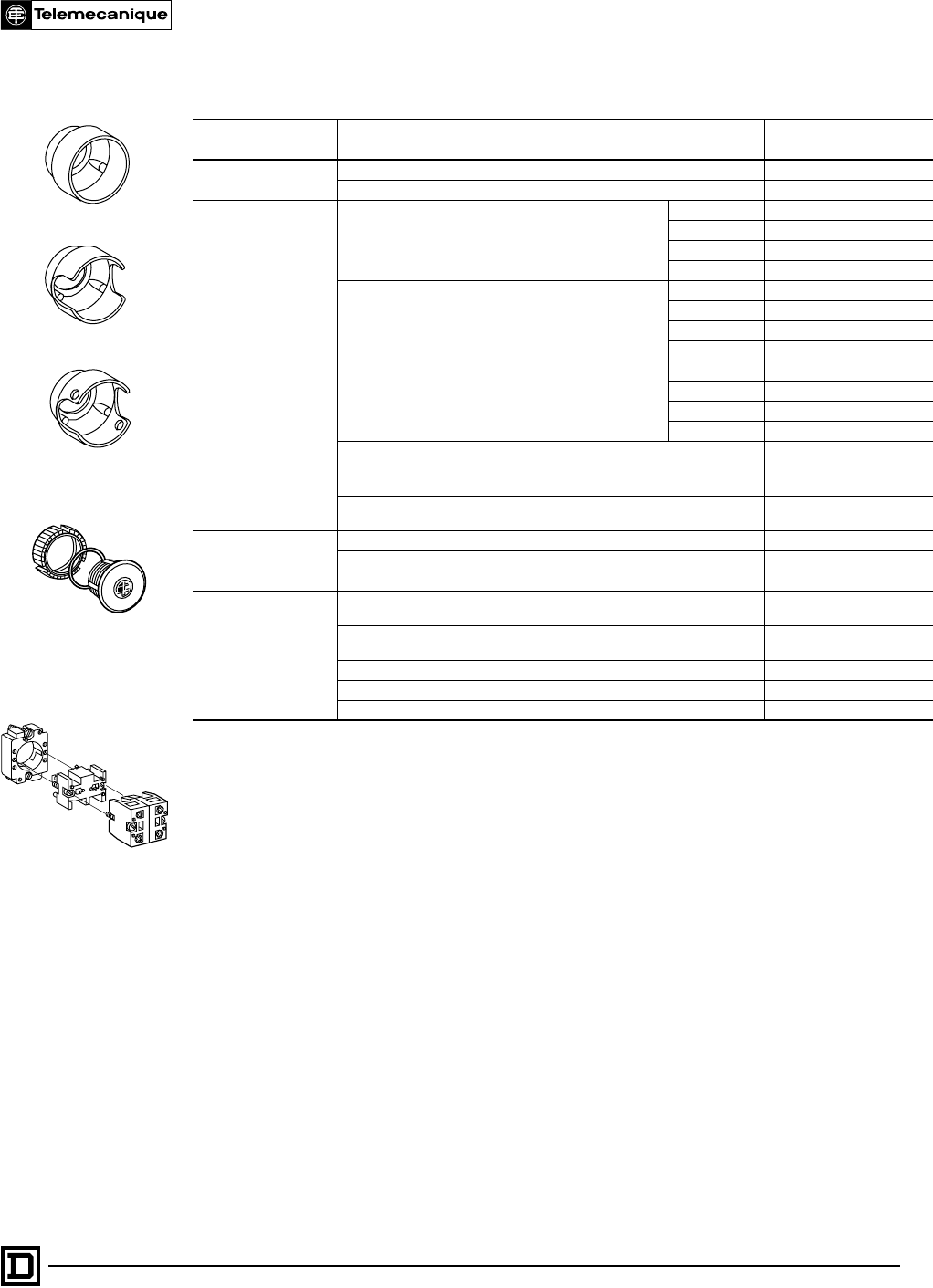

XB2B Accessories
Type Description Catalog
Number
Boots Silicon boot for rectangular push button w/indicator light ZB2BW008
Silicon boot for rectangular push button w/o light ZB2BA008
Guards/Locks
40 mm for Momentary Mushrooms (metal)
Blue ZB2BZ1601
Black ZB2BZ1602
Red ZB2BZ1604
Yellow ZB2BZ1605
40 mm with finger cut-out for push-pull (metal)
Blue ZB2BZ1701
Black ZB2BZ1702
Red ZB2BZ1704
Yellow ZB2BZ1705
40 mm with finger cut-out and 7mm holes for padlocking
(metal)
Blue ZB2BZ1801
Black ZB2BZ1802
Red ZB2BZ1804
Yellow ZB2BZ1805
60 mm mushroom guard (black plastic)
no padlocking provision ZB2BZ19
60 mm guard for 40 mm T-T-R EMO button (yellow plastic) ZB2BZ1905
Padlock attachment
(makes flush operator inaccessible) ZB2BZ6
Closing plates
22 mm
Black plastic ZB2SZ3
Gray plastic ZB2 SZ4
Blue metallic ZB2SZ2
Miscellaneous
accessories
Adapter for mounting into 1 3/16" (30 mm) hole
and used with 30 mm P.B. nameplate ZB2BZ41
Adapter for mounting into 30 mm hole and use with
XB2B nameplate ZB2BZ4
Base only-for mounting contact blocks ZB2BZ009
Add on push-on/push-off mechanism ZB2BZ21
Bulb extractor for use with BA9s XBFX13
ZB2BZ16kk
ZB2BZ18kk
ZB2BZ17kk
ZB2SZ3
ZB2BZ21
![](asset-14.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Accessories and Replacement Parts
© 1999 - 2000 Schneider Electric All Rights Reserved
332 11/00
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
kComplete lens part number by replacing with digit for desired color. (1- white, 3- green, 4-red, 5- amber, 6- blue, 7-clear). Example
ZB2BV013 green standard pilot lens. Note: Jeweled lens not available in white.
jComplete boot part number by replacing with digit for desired color. (2- black, 3- green, 4- red, 5- yellow, 6- blue, 7-clear).
Example ZB2BP013 green silicon boot.
Lamps
Type Voltage
AC/DC Watts Catalog Number
Incandescent
Replacement bulbs
(Type BA9s)
6 1.5 DL1CB006
12 2.0 DL1CE012
24 2.0 DL1CE024
48 2.4 DL1CE048
130 2.6 DL1CE130
Neon
(use with direct supply light module)
120 - NE51HRT120V
220 - NE51HRT220V
380 - NE51HRT380V
Type Color Voltage Part Number
LED, BA9s base for
Direct Supply blocks
Green 6 Vac/dc DL1CJUS0063
Red 6 Vac/dc DL1CJUS0064
Amber 6 Vac/dc DL1CJUS0065
Green 12 Vac/dc DL1CJUS0123
Red 12 Vac/dc DL1CJUS0124
Amber 12 Vac/dc DL1CJUS0125
Green 24 Vac/dc DL1CJUS0243
Red 24 Vac/dc DL1CJUS0244
Amber 24 Vac/dc DL1CJUS0245
Green 120 Vac/dc DL1CJUS1203
Red 120 Vac/dc DL1CJUS1204
Amber 120 Vac/dc DL1CJUS1205
LED, BA9s base for
retrofitting into transformer Light
Modules
Green 9 Vac only DL1CJUS0093
Red 9 Vac only DL1CJUS0094
Amber 9 Vac only DL1CJUS0095
Replacement Lenses, Boots and Keys
Type Description Catalog
Number
Replacement lenses
Lens - standard pilot light ZB2BV01k
Lens kit - standard pilot light
(includes lens, diffuser & gasket) ZB2BV02k
Lens - pilot light
(jeweled for LED & Neon) ZB2BV01k3
Lens - flush illuminated push buttons ZB2BW91k
Lens - flush illuminated push buttons
(Jeweled for LED & Neon) ZB2BW93k3
Lens - extended push buttons ZB2BW93k
Lens - extended push buttons
(jeweled for LED & Neon) ZB2BW93k3
Lens - push-to-test ZB2BV01k1
Lens - rectangle for ZB2BW80000 series
(2 button with indicator) ZB2BW90k
Lens - 40 mm mushroom W4042926400k
Replacement boots
Replacement silicon boot for ZB2BP
series operators ZB2BP01j
Replacement neoprene boot for ZB2BP
series operators ZB2BP02j
Replacement keys
Replacement key for standard selector switches and key
release mushroom operators. Qty. 1 - Ronis key #455 Q99900901
Key # 421 Qty. 1 Q99900911
Key # 458A Qty. 1 Q99900910
Key # 520 Qty. 1 Q99900912
Key # 3131A Qty. 1 Q99900915
DL1CE• • •
(incandescent)
DL1CJUS• • •
(LED)
ZB2-BV
ZB2BVkkk
ZB2-BW93.
ZB2BW93k
ZB2 BP012
ZB2BP012
Q99900901
Q99900901
![](asset-15.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Legend Plates
333
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
aAll nameplates are black w/white lettering except “Stop”, “Emergency Stop” and “Reset” which are red w/white lettering.
For black “Reset” change final digit of catalog number to 2.
jPlease specify lettering when ordering. Two lines with 11 characters (including spaces) maximum on each line.
PVC Standard legend plates 30 x 40 mm
TextaCatalog Number TextaCatalog Number
Close ZB2BY2314 On ZB2BY2311
Down ZB2BY2308 Off On ZB2BY2367
Emergency Stop ZB2BY2330 Open ZB2BY2313
Fast ZB2BY2328 Open Close ZB2BY2376
Forward ZB2BY2305 Open-O-Close ZB2BY2388
For Rev ZB2BY2371 Out ZB2BY2339
For-O-Rev ZB2BY2384 Power On ZB2BY2326
Hand Off Auto ZB2BY2387 Raise ZB2BY2335
High ZB2BY2338 Reset ZB2BY2323
High Low ZB2BY2369 Reverse ZB2BY2306
In ZB2BY2503 Right ZB2BY2309
Inch ZB2BY2321 Run ZB2BY2334
Jog For ZB2BY2381 Slow ZB2BY2327
Jog Rev ZB2BY2380 Start ZB2BY2303
Jog Run ZB2BY2365 Stop ZB2BY2304
Left ZB2BY2310 Stop Start ZB2BY2366
Low ZB2BY2336 Up ZB2BY2307
Lower ZB2BY2337 Up Down ZB2BY2370
Man-Auto ZB2BY2372 Up-O-Down ZB2BY2389
Off ZB2BY2312
PVC Yellow Legend Plates 60 mm diameter PVC Yellow Legend Plates 90 mm diameter
Text Language Catalog Number Text Language Catalog Number
Blank N/A ZB2BY9101 Blank N/A ZB2BY8101
Emergency Stop English ZB2BY9330 Emergency Stop English ZB2BY8330
Arret d’Urgence French ZB2BY9130 Arret d’Urgence French ZB2BY8130
Not Aus German ZB2BY9230 Not Aus German ZB2BY8230
Parada de Emergencia Spanish ZB2BY9430 Parada de Emergencia Spanish ZB2BY8430
Arresto Emergenza Italian ZB2BY9630 Arresto Emergenza Italian ZB2BY8630
Type Description Catalog Number
PVC blank legend
Blank Black or red background-30 mm x 40 mm ZB2BY2101
Blank Yellow or white background-30 mm x 40 mm ZB2BY4101
Blank Red background-45 mm x 67.5 mm
(For use w/mushroom head operators) ZB2BY5101
Blank Oversized legend-48 mm x 48 mm
(For use with XB2 operators) XBCY22011
Blank Black or red background- 30 mm x 48 mm
(For use w/2 position joysticks) ZD2GY2201
Metal legend plates
Silver 30 x 40 mm ZB2BY2011
30 x 50 mm ZB2BY6011
Black 30 x 40 mm ZB2BY2021
30 x 50 mm ZB2BY6021
Red 30 x 40 mm ZB2BY2041
30 x 50 mm ZB2BY6041
PVC custom engraved
Special engravingjBlack background, white letters-30 mm x 40 mm ZB2BY2002
Special engravingjRed background, white letters-30 mm x 40 mm ZB2BY2004
Special engravingjWhite background, black letters-30 mm x 40 mm ZB2BY4001
Special engravingjYellow background, black letters-30 mm x 40 mm ZB2BY4005
Special engravingjRed background, white letters-45 mm x 67.5 mm ZB2BY5004
Mylar Circular Legends
Type Description Catalog Number
Mylar circular
legends for use with
transparent flush
head operators
See page 315, 324
No text ZB2BY1101
O ZBZBY1146
I ZBZBY1147
Auto ZB2BY1115
Hand ZB2BY1316
Off ZB2BY1312
On ZB2BY1311
Start ZB2BY1303
Stop ZB2BY1304
Forward ZB2BY1305
Reverse ZB2BY1306
E
M
E
R
G
E
N
C
Y
S
T
O
P
ZB2BY8330
![](asset-16.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
© 1999 - 2000 Schneider Electric All Rights Reserved
334 11/00
Dimensions
ZB2BA•
ZB2BA•8
ZB2BA•9
ZB2BW3•
.47
12
1.14
29
1.14
29
.67
17
ZB2BA•6
1.14
29
.79
20
ZB2BL•
ZB2BW1•
.87
22
1.18
30
ZB2BH•
1.14
29
.59
15
ZB2BP•
ZB2BW5•
1.57
40
1.26
32
ZB2BC•
ZB2BT•
ZB2BS54
ZB2BW4•
2.36
60
1.34
34
ZB2BR•
ZB2BX•
ZB2BS64
1.57
40
1.25
32
.94
24
ZB2BS14
2.36
60
1.34
34
.91
23
ZB2BS24
1.06
27
1.54
39
ZB2BJ•••
1.14
29
.91
23 .83
21
ZB2BG•
1.14
29
.55
14
ZB2BVO•
ZB2BVO•3
1.14
29
.75
19
ZB2BVO•1
1.18
30
.98
25
ZB2BVO•2
1.14
29
1.46
37 .63
16
ZB2BD922
1.18
30
1.79
42.5
.43
11
ZB2BA91•4
.59
15
ZB2 BL93•4
2.17
55
1.18
30
.43
11
ZB2BW81•••
.59
15
ZB2BW83•••
.98
Maximum
travel = 25mm
in all directions
3.46
88
1.14
29
22
ZB2BB•
1.57
40
1.85
47
ZB2BS844
1.57
40
1.85
47
.94
24
ZB2BS944
1.14
29
1.06
27
ZB2BD•••
ZB2BK1•••
Dual Dimensions inches
mm
![](asset-17.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
335
11/00 © 1999 - 2000 Schneider Electric All Rights Reserved
Dimensions
2.36
60
1.77
45
0.47
12
dia.
1.14
29
centers
1.18
30
XB2BF5••
40°
40°
3.11
79
XD2PA••
1.69
43
0.94
24
0.94
24
Contact blocks and bases only
ZB2BZ10•, ZB2BZ10••,
ZB2BE10•, ZB2BE10••,
ZB2BE20•
1.57
40
1.46
37
ZB2BV6
1.57
40
2.28
58
ZB2BV1, ZB2BV2
ZB2BV3, ZB2BV9•
1.57x1.18
40x30
2.40
61
ZB2 BW06•
1.57x1.18
40x30
2.60
66
ZB2BW075
1.57x1.18
40x30
3.23
82
ZB2BW0••
1.57x1.18
40x30
2.32
59
ZB2BW184
ZB2BW1845
ZB2BV68
3.54
90
1.73
44
1.87
47.5
ZB2BZ9•
Operator
Nameplate
Panel
Contact block
with mounting
base
Adder contact
block
MOUNTING DIMENSIONS (Minimum spacing)
General mounting set-up
dia.
0.886
22.5
1.18
30
1.57
40
Standard pushbuttons
and pilot lights
1.18
30
3.35
85
dia.
0.886
22.5
3.35
85
3.35
85
dia.
0.886
22.5
2 Position Joysticks 4 Position Joysticks
1.50
38
1.85
47
dia.
0.886
22.5
Rectangular units
w/o indicator
2.36
60
1.73
44
dia.
0.886
22.5
Rectangular units
w/ indicator
1.57
40
1.65
42
ZB2BV7
+0.4
-0.0 +0.4
-0.0
+0.4
-0.0
+0.4
-0.0
+0.4
-0.0
Dual Dimensions inches
mm
![](asset-18.png)
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Mounting Instructions
© 1999 - 2000 Schneider Electric All Rights Reserved
336 11/00
Mounting Instructions for ZB2B
1. The panel knockout must be 7/8" (22.3 mm) with a panel thickness of 1 to 6 mm (0.04 in to 0.23 in).
No anti-rotation notch is required.
2. Insert the operator through the knockout.
3. Bayonet lock the operator into the diecast mounting base with a 1/8 clockwise turn.
4. Orient the angled fixing screws at 12 and 6 o’clock and alternately tighten the 2 screws.
5. The fixing screws will bite into the metal of the inside panel door and provide anti-rotation and a
tamper proof installation.
1 6 mm
22.3 mm +0.4
–0.0
Limited Availability
For replacement use only.
For new applications, use
XB4 (page 37 - 72)
