Committed to our Customers & the Environment
Quality & Performance in Every Solution
A Culture of Ingenuity & Innovation
The Industry's Best Service & Support
Outstanding Return on
Infrastructure Investment
2016 U.S. CATALOG
Leviton.com/ns
FEATURED PRODUCTS
UHDX SYSTEM
Page B11
AV
SOLUTIONS
Page C1
ATLAS-X1
SHIELDED PATCH PANELS
Page A18
IN-WALL
& IN-CEILING
BRACKETS
Page D4
QUICKPLATE®
TEMPO WALLPLATES
Page D5
ATLAS-X1
CONNECTORS
Page A12
1
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
ABOUT US
The Smart Choice for a Better Network 4
Configurable Solutions 10
Data Center Solutions 12
Enterprise Solutions 14
COPPER SOLUTIONS
Copper Systems Guide A3
Atlas-X1™ System A5
eXtreme® System A7
GigaMax® System A8
Connectors A11
Patch Panels & Cross Connect A15
Patch Cords & Pre-Terminated Trunks A29
Copper Tools & Labeling A35
FIBER SOLUTIONS
Fiber Systems Guide B3
Opt-X® Family of Fiber Optic Systems B9
e2XHD Snap-In Cassette Patching System B34
LightSpace® System B37
Flush-Mount Enclosures & Panels B45
Equipment-Specific Solutions B47
Pre-Terminated Cable Assemblies B51
Connectors & Housings B65
Tools & Consumables B71
AV SOLUTIONS
Introduction C3
IT/AV Systems C5
AV Signal Extension C11
AV Connectors & Adapters C14
Multimedia Outlet System (MOS) C17
Speakers C21
Volume Controls & Audio Distribution Modules C24
Home Theater & Recessed Devices C25
BitWise Integrated Controllers C27
HOUSINGS & WALLPLATES
QuickPort
®
Boxes, Brackets, Wallplates & Inserts
D3
Decora® Wallplates & Inserts D9
Renu® Wallplates & Inserts D12
QuickPort Modular Furniture Products D13
Duplex, Round Opening & Blank Wallplates D14
DuraPort® Industrial Connectivity D15
86 mm x 86 mm Intl. Wallplate Inserts & Frames D17

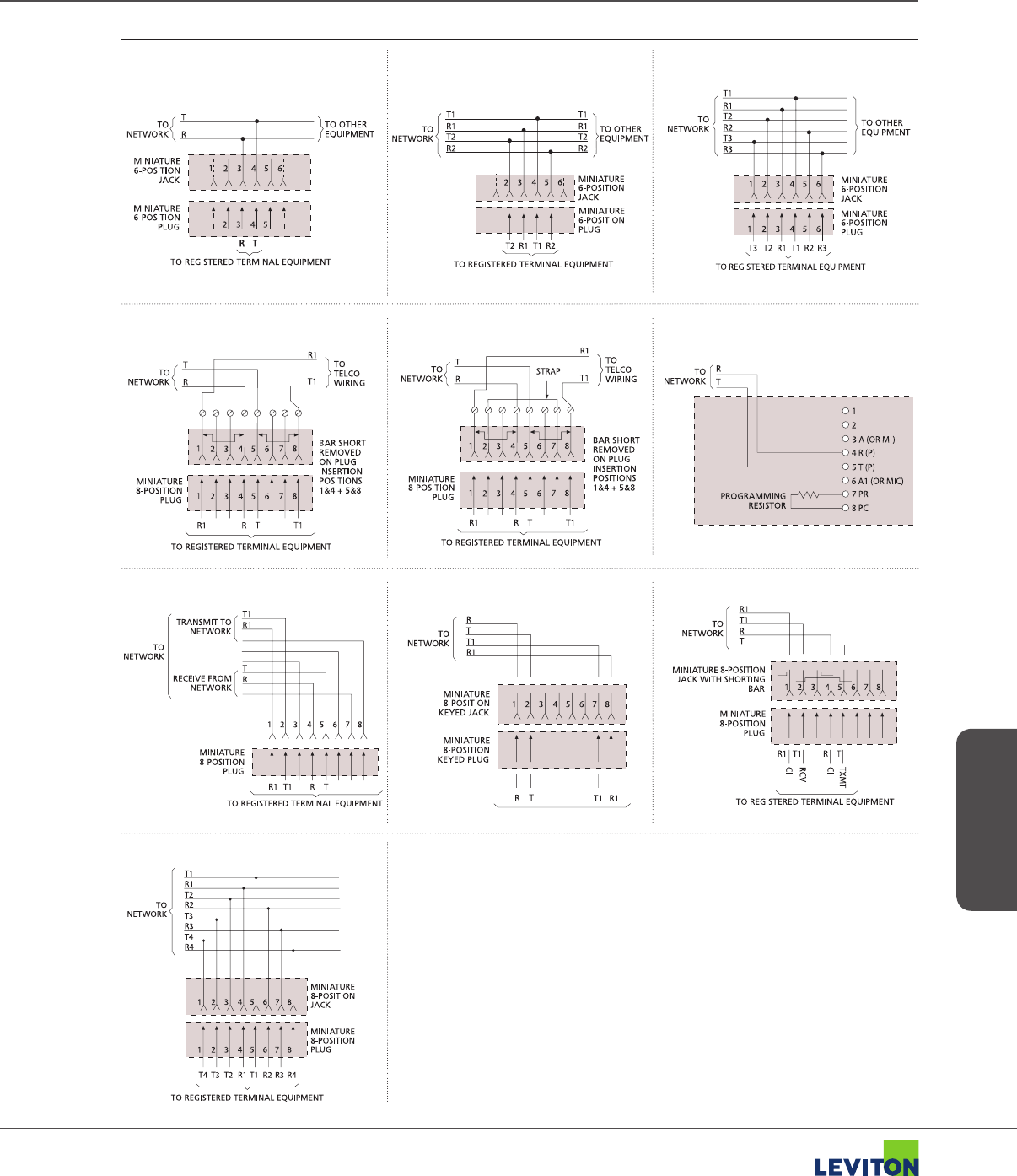

Telephone & Video Wallplates, Wall Phone Jacks D19
QuickPort Floor Box Assemblies D20
Multimedia Outlet System (MOS) D21
CABLE MANAGEMENT SOLUTIONS
Overhead Infrastructure Platform E3
Versi-Duct® Cable Management System E5
Cable Managers & Accessories E7
VELCRO®-Brand Fasteners E10
Zone Enclosures E12
INTELLIGENT INFRASTRUCTURE
Intact™ Intelligent Port Management System F3
POWER SOLUTIONS
Power Distribution Units (PDUs) G3

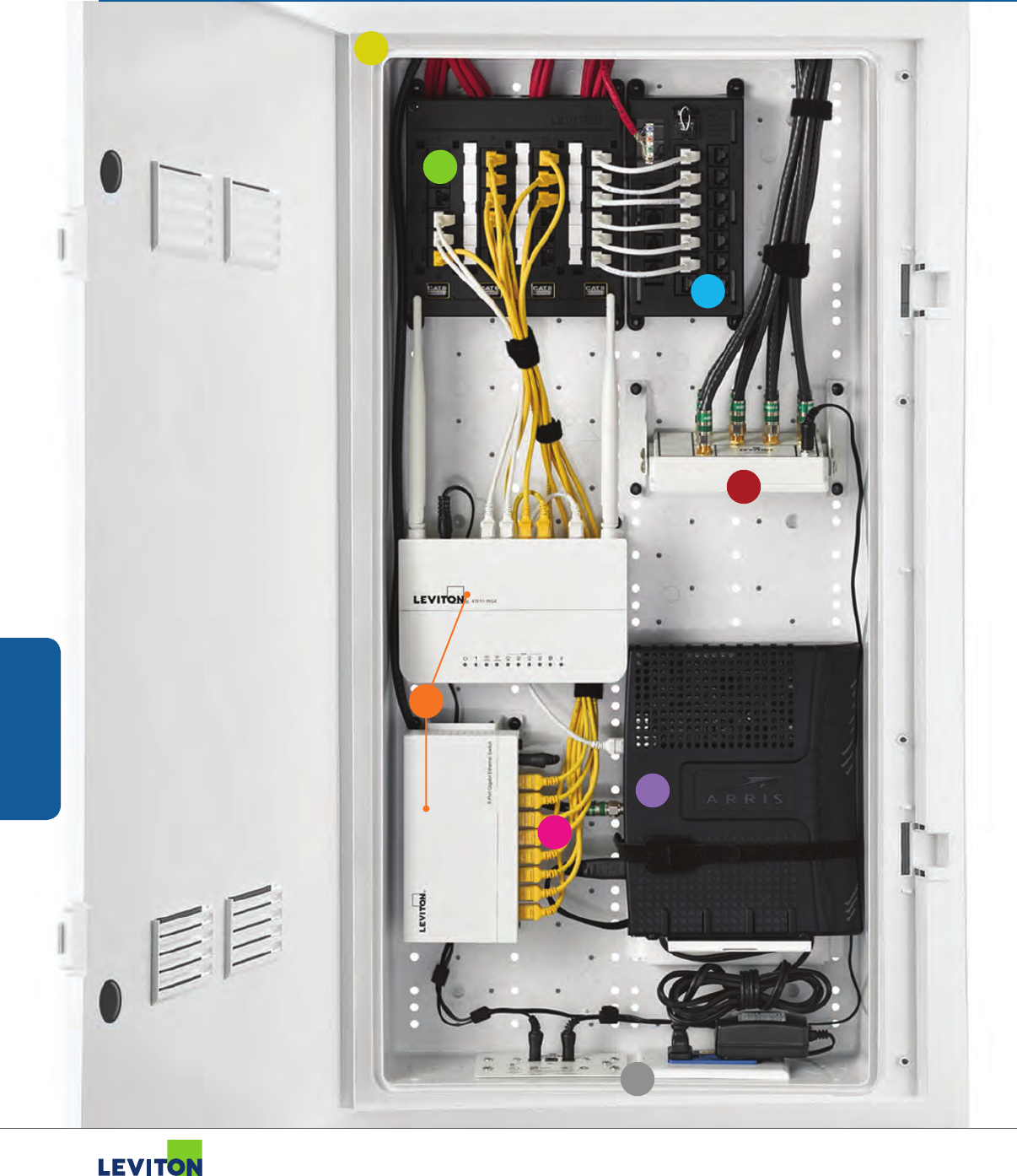

MDU & HOSPITALITY SOLUTIONS
Structured Media®H3
TECHNICAL INFORMATION
General Information X3
Termination Instructions X7
Splice Tray Selection Guide X13
Standards X14
Index X16
CATALOG CONTENTS
SO
SO SO
SO
SO
SO
SO
SO
SO
SO
SO
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
W
W
W
W
W
W
W
Thank you for choosing Leviton Network Solutions.
For the past quarter century we have developed an unparalleled selection of
high-performance connectivity solutions and systems for enterprise, data center,
government, residential, and other markets around the globe.
We manufacture nearly all of our branded products at 12 Leviton manufacturing
facilities; the majority are made in the United States at facilities colocated with our
product development teams.
We support customers around the world with 11 global sales offices and installations
of Leviton Network Solutions products in more than 80 countries.
PROGRAMS
Contractor leviton.com/ns/contractors
Consultant Connection leviton.com/networkconsultant
Network Technology Alliances leviton.com/alliances
TECHNICAL RESOURCES
Application / Tech Notes leviton.com/ns/techlibrary
Detailed Termination Diagrams leviton.com/ns/techlibrary
Dimensional Line Art leviton.com/ns/techlibrary
Manuals & Guides leviton.com/ns/techlibrary
Training Videos leviton.com/ns/techlibrary
BIM Objects leviton.com/bim
VISIO® Stencils leviton.com/visio
GLOBAL SALES
OFFICES
11
COUNTRIES
80
2
12
MANUFACTURING
FACILITIES
7
WAREHOUSES
SO
SO SO
SO
SO
SO
SO
SO
SO
SO
SO
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
W
W
W
W
W
W
W
SO
SO SO
SO
SO
SO
SO
SO
SO
SO
SO
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
MF
W
W
W
W
W
W
W
3
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
SUPPORT TEAMS
Technical Support 800.824.3005 \ +1.425.486.2222
appeng@leviton.com
Inside Sales / Customer Service 800.722.2082 \ +1.425.486.2222
insidesales@leviton.com
Specification Team leviton.com/specteam
specteam@leviton.com
Government Team leviton.com/gov
Data Center Team leviton.com/datacenter
dcteam@leviton.com
WEB SUPPORT
Make to Order (MTO) leviton.com/configurator
Structured Media® Planning Worksheet leviton.com/homeconfig
Independent Testing Information leviton.com/ns/testresults
Literature Library leviton.com/ns/litlibrary
Live Chat leviton.com/support
Knowledgebase & Forums communities.leviton.com
CrossTalk Newsletter leviton.com/crosstalk
Leviton Blog blog.leviton.com/network-solutions
3
4LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
ROii
THE SMART CHOICE FOR A BETTER NETWORK
THE SMART CHOICE — At Leviton, we understand that the best value
comes from more than a high-quality, aordable product — it means
delivering peace of mind. With unbeatable service, best-in-class
support, and the reassurance that comes from working with a stable,
century-old supplier, you get far and away the highest return on
infrastructure investment in the industry. Leviton invents the
industry’s best technologies. We build them to last, and we back
them up with incredible service and support. Whatever your need,
Leviton can provide it, and we will stand behind it.
OUTSTANDING
RETURN ON
INFRASTRUCTURE
INVESTMENT
5
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
THE SMART CHOICE FOR A BETTER NETWORK
A NAME YOU CAN TRUST — Leviton is the world’s largest privately
held producer of electrical and data connectivity devices. We’ve been
serving customers from the electrical age through the information age,
and we’ll be here through the life of your installation — and beyond.
CUSTOMERS AROUND THE WORLD —Thousands of organizations
all across the globe have installed Leviton Network Solutions copper
and fiber infrastructure systems. With distribution locations on nearly
every continent, we’re ready to serve customers in every location
and every industry.
CREATING A SUSTAINABLE FUTURE —The Leviton “Go Green”
initiative provides a framework for reducing our environmental
impact. Monitoring energy use, recycling scrap metal, and re-using
leftover plastics are just a few examples of how Leviton helps to
keep our world clean.
COMMITTED
TO OUR
CUSTOMERS AND
THE ENVIRONMENT
6LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
THE SMART CHOICE FOR A BETTER NETWORK
MANUFACTURING EXCELLENCE — Our products feature durable
construction that reduces maintenance and downtime, with
headroom that exceeds standards to boost network performance.
We manufacture nearly all of our branded products at company-
owned, ISO 9001-2008 certified plants. We ensure product designs
are robust and reliable by using trusted quality methods, and all
Leviton products include a workmanship warranty, guaranteeing
material and manufacturing quality. This high level of quality allows
us to offer a limited lifetime performance warranty when your
system is installed by a Leviton certified contractor, protecting your
investment and providing peace of mind.
QUALITY
AND PERFORMANCE
IN EVERY SOLUTION
7
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
THE SMART CHOICE FOR A BETTER NETWORK
INDUSTRY-LEADING INVENTIONS — At Leviton, we’re
continuously inventing the solutions that drive next-generation
networks, developing innovative solutions that raise the bar on
performance and aesthetics. Engineers within our collaborative
“Development Factory” have built an extensive patent portfolio
with performance, design, and process enhancements that
improve product functionality and deliver fast, reliable networks.
A CULTURE OF
INGENUITY
AND INNOVATION
8LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
THE SMART CHOICE FOR A BETTER NETWORK
MULTI-TIERED SUPPORT MEANS YOU CAN CALL ON A VARIETY OF
LEVITON EXPERTS TO HELP YOU WITH EACH AND EVERY PROJECT.
Inside Sales Representatives answer questions, provide quotes,
or direct you to field support or a distributor in your city.
Applications Engineers and Data Center Specialists provide
guidance for product installation, use, and troubleshooting. They
can also assist with topology, layout, elevations, pathways, remote,
or on-site network analysis, and deliver custom product designs.
Certified Contractors deliver the highest-quality installations
and are authorized to offer extended product and performance
warranties on qualified projects.
Network Consultants provide exclusive information and support,
delivering the solution-oriented expertise you need.
U.S. Government Team provide the contacts, product knowledge,
and support needed in a specialized network environment.
Global Account Managers deliver the products and support
you need, just about anywhere in the world.
Technical Support Representatives assist with product
and network troubleshooting, over the phone or online.
THE INDUSTRY'S
BEST
SERVICE
AND SUPPORT
TWO LEADING NETWORK INFRASTRUCTURE EXPERTS
9
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
RELY ON BERK-TEK LEVITON TECHNOLOGIES FOR THE FASTEST,
MOST RELIABLE ENTERPRISE AND DATA CENTER NETWORKS
ON THE MARKET.
The combined strength of Leviton’s extensive connectivity portfolio
and Berk-Tek’s high-performance cable manufactured in U.S.-based,
ISO-certified facilities is another way we ensure that you get
unparalleled return on your infrastructure investment.
Together, we’re customer-focused; meaning we put you, the customer,
at the center of everything we do. We’re technology-driven so you get
industry-leading innovations with outstanding performance. And we
assure you the highest quality solutions for every installation.
Advanced data center solutions
Best-in-class category-rated copper systems
High performance optical fiber systems
Pre-terminated, make-to-order solutions with fast delivery
Performance verified by independent third-party labs
THE INDUSTRY’S
PREMIER
END-TO-END
SOLUTIONS
10 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
SOLUTIONS
Getting the exact product you need is quicker and easier than ever.
Rely on our innovative online configurators for a variety of fiber and
copper products, assembled and shipped quickly for fast turnaround.
Look for this icon to
identify configurable solutions.
CONFIGURABLE
B
A
C
D
How It Works:
To configure a product, go to leviton.com/configurator and
choose from a wealth of options (e.g., fiber type, cable length,
polarity, etc.). Take the resulting model number or part number
and submit your quote request to Leviton inside sales or your
local Leviton distributor.
You can expect 24-hour turnarounds on all quote requests.
11
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
COPPER SOLUTIONS
Configure and order trunk cables
and Secure RJ Patch Cords.
Pre-Terminated Copper Trunks - Cat 6A/6/5e
Pre-Terminated Copper Trunks with e2XHD cassettes
Secure RJ Patch Cords - Cat 6A/6
Patch Cords - Cat 6A/6/5e
Intact Intelligent Copper Patch Cords – Cat 6A/6
FIBER SOLUTIONS
Configure and order fiber panels, enclosures, cassettes,
trunk cables, harnesses, and patch cords.
HDX and SDX Enclosures
and HDX Frame
• LightSpace® Enclosures
HDX and SDX Cassettes
e2XHD MTP® Cassettes
MTP Harnesses
Pre-Terminated Trunks
Premium and Economy Series
Patch Cords
Intact™ Intelligent Fiber Patch Cords
Splice Trays
INTACT™ INTELLIGENT PORT MANAGEMENT SYSTEM
Real-time network documentation with alerts
for faults or unplanned changes
40/100G MTP® SYSTEMS
Ideal migration path to
40/100G speeds
7
8
12 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
1
8
3
2
7
5
6
4
9
10
DATA CENTER SOLUTIONS
Leviton solutions cover every area of the data center – from the entrance room
and computer room to the telecommunications room (TR) and support oces –
and our data center experts are always available to provide in-depth technical
and design support.
FIBER OPTIC SYSTEMS
High-density enclosures can be custom configured with
cassettes, adapter plates, and pre-terminated solutions
POWER DISTRIBUTION UNITS
Provide reliable power distribution into
racks and cabinets with outlet power
ranging from 2.0 kW to 12.5 kW
PRE-TERMINATED COPPER & FIBER TRUNKS
Provide backbone connections between entrance
facility, MDA/Core, SAN, and HDA
HDX FRAME SYSTEM
Used in MDA to consolidate
patching and reduce footprint,
freeing up valuable space
9
10
6
5
CABLE MANAGEMENT
Vertical/horizontal cable management for standard
equipment racks and large-scale deployments
SECURE CONNECTIVITY
Physical port security with copper RJ and fiber LC assemblies
4
3
REPLICATOR® ENCLOSURES
Unique logical port management design
can be configured to replicate any switch
2
E2XHD SNAP-IN CASSETTE PATCHING SYSTEM
Single-click patching of copper, fiber, or a combination
in the same panel
1
13
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
14 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
WALLPLATES & HOUSINGS
Extensive selection to customize work area outlets
8
HORIZONTAL & VERTICAL CABLE MANAGEMENT
Organize and support cables, patch cords,
and equipment
7
1
2
3
5
6
7
9
10
ENTERPRISE SOLUTIONS
Leviton provides high-performance connectivity for health care, education,
business, and government applications around the globe, all backed by the
industry’s best service and support.
15
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
3
PATCH CORDS
Include snagless design and strain-relief
boot for long-term performance
WALLMOUNT
FIBER-OPTIC ENCLOSURES
Transitions from outside plant
cable to inside plant cable
2
PATCH PANELS
Wide selection of styles: flat, angled, and recessed in UTP and shielded
AV CONNECTIVITY
For high-quality multimedia applications
4
POWER DISTRIBUTION UNITS (PDUs)
Robust, reliable power
to rack and cabinet applications
9
4
8
10
FIBER OPTIC ENCLOSURES
Broad selection to address any fiber
density requirements
6
DATA CONNECTORS & ADAPTERS
Fast, reliable category-rated and optical
fiber connectors and adapters
5
ZONE ENCLOSURES
Easily accessible for
simple moves, adds,
and changes
1
COPPER SOLUTIONS
A1
SECTION ACONTENTS
PATCH PANELS &
CROSS CONNECT
A15 Introduction
A16 Selection Guide
A17 Flat Metal 110-Style
A18 Flat Metal QuickPort
A19 Flat Composite 110-Style
& QuickPort
A20 Angled 110-Style & QuickPort
A21 Recessed-Flat & Recessed-Angled
110-Style & QuickPort
A22 e2XHD Snap-In Cassette
Patching System
A23 VertiGO® Zero-U
QuickPort & SDX
A24 Voice-Grade Panels
& Labeling Solutions
A25 110-Style Wiring Products
A28 66 Blocks & Accessories
PATCH CORDS &
PRE-TERMINATED
TRUNKS
A29 Introduction
A30 Cat 6A Patch Cords
A31 Cat 6 Patch Cords
A32 Cat 5e Patch Cords
A33 Secure RJ System
A34 Pre-Terminated Trunks
COPPER TOOLS
& LABELING
A35 Introduction
A36 Tools
A38 Labeling Solutions
COPPER
SYSTEMS
A3 Atlas-X1™ / eXtreme® / GigaMax®
A5 Atlas-X1 UTP Systems
A6 Atlas-X1 Shielded Systems
A7 eXtreme UTP Systems
A8 GigaMax UTP System
A9 System Selection Chart
CONNECTORS A12 Atlas-X1
A13 eXtreme
A14 GigaMax
A14 Cat 5/3 & USOC QuickPort®
A2
Atlas-X1
Mission Critical
eXtreme
Enterprise
GigaMax
Light Commercial, MDU
A premium category-rated
system that delivers the
highest level of verified
performance and reliability.
Pairs high-quality,
guaranteed performance
with a user-friendly
design to support fast,
easy installations.
Delivers proven
performance with the
reliability you have come
to expect from Category
5e applications.
System Features:
High-density shielded system with shortest-length connector for better bend radius
Advanced features (icons, shutters) for clear network ID and protection
Unified form factor (Cat 5e to Cat 8) for easy migration
Shielded systems for EMI/RFI protection
Performance exceeds the standard
 
Margin guarantees for confidence in performance
 
Component-rated products available
 
Cat 6A
 
Cat 6
 
Cat 5e
  
Third-party tested and verified
  
Color options
  
Limited Lifetime Warranty
  
COPPER SYSTEMS | Atlas-X1™ / eXtreme® / GigaMax®
COPPER SYSTEMS
Leviton copper systems combine category-rated performance with high-density, user-friendly
designs to deliver the industry’s most innovative family of solutions. Whether you are supporting
a large enterprise, data center, or a small business infrastructure, Leviton has the system to fit
your needs. Refer to the system features below and on the following pages for an overview of
Leviton’s three copper system brands: Atlas-X1, eXtreme, and GigaMax.
A3 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Copper Systems
COPPER
Atlas-X1
Mission Critical
eXtreme
Enterprise
GigaMax
Light Commercial, MDU
A premium category-rated
system that delivers the
highest level of verified
performance and reliability.
Pairs high-quality,
guaranteed performance
with a user-friendly
design to support fast,
easy installations.
Delivers proven
performance with the
reliability you have come
to expect from Category
5e applications.
System Features:
High-density shielded system with shortest-length connector for better bend radius
Advanced features (icons, shutters) for clear network ID and protection
Unified form factor (Cat 5e to Cat 8) for easy migration
Shielded systems for EMI/RFI protection
Performance exceeds the standard
 
Margin guarantees for confidence in performance
 
Component-rated products available
 
Cat 6A
 
Cat 6
 
Cat 5e
  
Third-party tested and verified
  
Color options
  
Limited Lifetime Warranty
  
COPPER SYSTEMS | Atlas-X1™ / eXtreme® / GigaMax®
A4
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Copper Systems
COPPER
COPPER SYSTEMS | Atlas-X1™ UTP Systems > Cat 6A, 6 & 5e
Atlas-X1 is the premium category-rated system that delivers the highest level
of verified performance and reliability, oers tool-free termination for simplified
installations, and seamlessly supports network migration paths up to 40G.
ATLAS-X1 UTP QUICKPORT® CONNECTORS
(See page A12)
Connector design allows for tool-free terminations,
reducing installation time and costs
Robust housing increases longevity and virtually
eliminates alien crosstalk (AXT)
Patented Retention Force Technology (RFT) protects
against tine damage from 4- or 6-pin plugs, saves
on costly repairs, and increases system longevity
Unified form factor from Cat 5e to Cat 8 (UTP
and shielded)
Includes interchangeable icons (voice, data, AV,
and blank) that match connector color
Connector with internal shutter is available to protect
against dust and debris
Available in 13 colors
ATLAS-X1 SLIMLINE BOOT PATCH CORDS
(See page A30-A32)
Narrow profile alleviates congestion in higher-density
applications for easier moves, adds, and changes
Snagless design prevents tab breakage and strain relief
boot ensures long-term network performance
Manufactured in the United States using Berk-Tek cable
RECOMMENDED PATCH PANELS
(See page A18-A22)
High-density e2XHD panels and snap-in cassettes
make it easy to deploy networks quickly
Composite panels can be customized with company
or school logos and colors
High-density 1RU 48-port and 2RU 72-port QuickPort
options maximize rack space and reduce costs
Visit Leviton.com/AtlasX1 to learn more.
California State University Monterey Bay (CSUMB) Installs Leviton Intelligent NetworkSPOTLIGHT
In 2014, CSUMB broke ground on a new academic facility, the first building
on campus to support a Cat 6A intelligent system. CSUMB chose the Leviton
Intact™ Intelligent Port Management solution, supported by Leviton Atlas-X1™
connectivity, to provide accurate reporting and optimize network maintenance.
Once complete, CSUMB students and faculty will benefit from 10GBASE-T
network performance. Plus, the new building sets the standard for future
facilities, paving the way for a high-performing, intelligent network campus wide.
See page A12 for Atlas-X1 and F3 for Intact Intelligent Port Management.
A5 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Copper Systems
COPPER
COPPER SYSTEMS | Atlas-X1™ Shielded Systems > Cat 6A, 6 & 5e
The Atlas-X1 Shielded System includes all the features of the
Atlas-X1 UTP System, with shielding for additional EMI/RFI protection
and AXT suppression. It is ideal for government, health care,
manufacturing, transportation, education, financial, gaming, or
any environment where EMI/RFI may be a concern.
ATLAS-X1 SHIELDED QUICKPORT® CONNECTORS
(See page A12)
Connector design allows for tool-free terminations,
reducing installation time and costs
Robust housing increases longevity and virtually
eliminates alien crosstalk (AXT)
Patented Retention Force Technology (RFT) protects
against tine damage from 4- or 6-pin plugs, saves on
costly repairs, and increases system longevity
Unified form factor of from Cat 5e to Cat 8 (UTP
and shielded)
Includes interchangeable icons (voice, data, AV,
and blank) that match connector color
Connector with internal shutter is available to protect
against dust and debris
Shielded connector is enclosed in a die-cast housing
for maximum EMI/RFI protection
Available in 13 colors
ATLAS-X1 SHIELDED SLIMLINE BOOT PATCH CORDS
(See page A30-A32)
Narrow profile alleviates congestion in higher-density
applications for easier moves, adds, and changes
Snagless design prevents tab breakage and strain relief
boot ensures long-term network performance
Shielded construction provides excellent alien crosstalk
protection and EMI/RFI protection
RECOMMENDED PATCH PANELS
(See page A18-A22)
Atlas-X1 Shielded 1RU 24-port and 2RU 48-port
QuickPort panels are available in flat and angled styles
1RU 48-port flat and angled shielded QuickPort panels
provide twice the density of a conventional 1RU panel
Visit Leviton.com/AtlasX1 to learn more.
COMING
IN 2016:
CAT 8
SYSTEM
A6
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Copper Systems
COPPER
COPPER SYSTEMS | eXtreme® UTP Systems > Cat 6A, 6 & 5e
The Leviton eXtreme UTP System pairs high-quality, guaranteed performance with a user-friendly
design to support fast, easy installations. With enhanced performance and unmatched system longevity,
eXtreme systems are well suited for an extensive range of enterprise and commercial networks.
EXTREME UTP QUICKPORT® CONNECTORS
(See page A13)
Cutting ledge, large format tear-away dual-layer wiring
guide, and pair separation towers simplify punchdown,
reduce rework, and support faster terminations
Patented Retention Force Technology (RFT) protects
against tine damage from 4- or 6-pin plugs, saves on
costly repairs, and increases system longevity
Cat 6A connector includes a patented Cone of Silence®
for additional alien crosstalk (AXT) suppression
Compatible with Fluke JackRapid™ Punchdown Tool for
quick and easy terminations
Available in 13 colors
EXTREME UTP PATCH CORDS
(See page A30-A32)
Stranded conductors ensure long-term channel integrity
and add enhanced flexibility
Cat 6A cord provides exceptional AXT suppression
Cat 6 and 5e cords feature narrow profile SlimLine Boot
to alleviate congestion in higher-density applications
RECOMMENDED PATCH PANELS
(See page A18-A22)
110-style panels use 6-port RJ-45 modules in front
and 110-style punchdowns on rear
110-style oered in flat, angled, and recessed options
for any application need
Silk-screened port numbers and paper label holders
for easy reading
System is also compatible with QuickPort® Panels
Patented Retention Force Technology (RFT) protects
against tine damage from 4- or 6-pin plugs, saves on
costly repairs, and increases system longevity (select
panels only)
Compatible with e2XHD Patching System
Visit Leviton.com/eXtreme to learn more.
A7 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Copper Systems
COPPER
COPPER SYSTEMS | GigaMax® Cat 5e UTP System
The GigaMax Cat 5e UTP System delivers reliable, field-proven performance for
high-bandwidth applications. This cost-eective structured cabling system is ideal
for light commercial and MDU environments.
GIGAMAX UTP QUICKPORT® CONNECTORS
(See page A14)
Single T568A or T568B wiring labels simplify field
terminations
Narrow connector profile for high-density installations
Compatible with Fluke JackRapid™ Punchdown Tool for
quick and easy terminations
Durable one-piece frame built for longevity
Available in 13 colors
GIGAMAX UTP PATCH CORDS
(See page A32)
Color-matched cable and boots
Rubber boot provides plug protection
RECOMMENDED PATCH PANELS
(See page A17-A21)
QuickPort flat, angled, and recessed options for any
application need
High-density panels available, with 1RU 48-port and
2RU 72-port options
QuickPort panels can mix and match different
category-rated connectors, and allow users to install
the exact quantity of connectors needed while planning
for future growth
System is also compatible with 110-style panels
Visit Leviton.com/GigaMax to learn more.
A8
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Copper Systems
COPPER
Leviton Atlas-X1,
eXtreme & GigaMax
COPPER
SYSTEMS
are designed to give customers the right
level of performance and value to fit
their needs. These systems have been
tested and verified by third-party labs
to meet or exceed industry-standard
performance. And they all include a
limited lifetime warranty when installed
by Leviton certified installers.
This selection chart provides part
numbers for system connectors, patch
cords, and recommended patch panels.
Note that Leviton UTP systems
are compatible with a wide range
of patch panels beyond what is
listed here. For a full list of Leviton
patch panels, see pages A16-A23.
COPPER SYSTEMS | Selection Chart
Cat 6A Cat 6 Cat 5e
ATLAS-X1™ UTP - MISSION CRITICAL
Connectors 6AUJK-xx6 61UJK-xx6 5EUJK-xx5
Patch Cords 6AS10-xxx 6D560-xxx 5D560-xxx
Recommended
Patch Panels
e2XHD Panels (flat, angled) & Cassette
C1255-H48 (composite, empty)
Any empty QuickPort® panel (Pages A18-A21)
e2XHD Panels & Cassette
C1255-H48
C1686-U48
Any empty QuickPort panel (Pages A18-A21)
e2XHD Panels & Cassette
C1255-H48
C1586-U48
Any empty QuickPort panel (Pages A18-A21)
ATLAS-X1 SHIELDED - MISSION CRITICAL
Connectors 6ASJK-xx6 61SJK-xx6 5ESJK-xx5
Patch Cords 6AS10-xxx 6S560-xxx 5S460-xxx
Recommended
Patch Panels
4S255-xxx
4S256-xxx
4S255-xxx
4S256-xxx
4S255-xxx
4S256-xxx
EXTREME® UTP - ENTERPRISE
Connectors 6110G-xx6 61110-xx6 5G110-xx5
Patch Cords 6210G-xxx
6AZ10-xxx
6D460-xxx
62460-xxx
6Z460-xxx
5D460-xxx
Recommended
Patch Panels
6910G-Uxx
6A586-xxx
6A587-xxx
Any empty QuickPort panel (Pages A18-A21)
69270-xxx
69586-xxx
69587-xxx
Any empty QuickPort panel (Pages A18-A21)
5G270-xxx
5G596-xxx
5G597-xxx
Any empty QuickPort panel (Pages A18-A21)
GIGAMAX® UTP - LIGHT COMMERCIAL, MDU
Connectors — 5G108-xx5
Patch Cords — 5G460-xxx
Recommended
Patch Panels — —
5G596-xxx
5G597-xxx
Any empty QuickPort panel (Pages A18-A21)
Leviton.com/ns/videos
“How to Terminate Atlas-X1 Connector”
WATCH: TRAINING VIDEOS
A9 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Copper Systems
COPPER
COPPER SYSTEMS | Selection Chart
Cat 6A Cat 6 Cat 5e
ATLAS-X1™ UTP - MISSION CRITICAL
Connectors 6AUJK-xx6 61UJK-xx6 5EUJK-xx5
Patch Cords 6AS10-xxx 6D560-xxx 5D560-xxx
Recommended
Patch Panels
e2XHD Panels (flat, angled) & Cassette
C1255-H48 (composite, empty)
Any empty QuickPort® panel (Pages A18-A21)
e2XHD Panels & Cassette
C1255-H48
C1686-U48
Any empty QuickPort panel (Pages A18-A21)
e2XHD Panels & Cassette
C1255-H48
C1586-U48
Any empty QuickPort panel (Pages A18-A21)
ATLAS-X1 SHIELDED - MISSION CRITICAL
Connectors 6ASJK-xx6 61SJK-xx6 5ESJK-xx5
Patch Cords 6AS10-xxx 6S560-xxx 5S460-xxx
Recommended
Patch Panels
4S255-xxx
4S256-xxx
4S255-xxx
4S256-xxx
4S255-xxx
4S256-xxx
EXTREME® UTP - ENTERPRISE
Connectors 6110G-xx6 61110-xx6 5G110-xx5
Patch Cords 6210G-xxx
6AZ10-xxx
6D460-xxx
62460-xxx
6Z460-xxx
5D460-xxx
Recommended
Patch Panels
6910G-Uxx
6A586-xxx
6A587-xxx
Any empty QuickPort panel (Pages A18-A21)
69270-xxx
69586-xxx
69587-xxx
Any empty QuickPort panel (Pages A18-A21)
5G270-xxx
5G596-xxx
5G597-xxx
Any empty QuickPort panel (Pages A18-A21)
GIGAMAX® UTP - LIGHT COMMERCIAL, MDU
Connectors — 5G108-xx5
Patch Cords — 5G460-xxx
Recommended
Patch Panels — —
5G596-xxx
5G597-xxx
Any empty QuickPort panel (Pages A18-A21)
A10
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Copper Systems
COPPER
FEATURED
PRODUCTS
Atlas-X1
Component-Rated
UTP & Shielded
Connectors A12
Connectors
Leviton copper connectors go through rigorous third-party testing to ensure
the highest levels of quality and reliability. Whether supporting mission-critical
applications with Atlas-X1™, a large enterprise with eXtreme®, or a small business
infrastructure with GigaMax®, Leviton has the connectivity solution for your needs.
A11 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Leviton.com/ns/videos
“How to Terminate Atlas-X1 Connector” or
“How to Terminate the Atlas-X1 Shielded Connector”
WATCH: INSTALLATION VIDEOS
CATEGORY-RATED CONNECTORS | Atlas-X1™
ATLAS-X1 COMPONENT-RATED UTP & SHIELDED CONNECTORS
Innovative wire manager and door-release levers support quick,
repeatable terminations
Tool-free design requires no specialized termination tool
Patented Retention Force Technology (RFT) protects against tine
damage and increases system longevity
Each connector includes interchangeable icons (voice, data, AV, and
blank), color-coded to match the connector face
Connector with internal shutter is available to protect ports from dust,
debris, and contaminants
Shielded connectors provide additional EMI/RFI protection, signal
isolation, and alien crosstalk (AXT) suppression
Unified form factor and termination method, from Cat 5e to Cat 8
Tested and approved for use in air-handling spaces (plenum rating) in
accordance with UL Standard 2043
Supports Power over Ethernet (PoE) – See individual product
specifications sheets for full capabilities
Made in the USA
See connector termination
Instructions on page X7.
ATLAS-X1 UTP QUICKPORT® CONNECTORS
DESCRIPTION CAT 6A CAT 6 CAT 5E
Atlas-X1 UTP QuickPort Connector [A] 6AUJK-R*6 61UJK-R*6 5EUJK-R*5
Atlas-X1 UTP QuickPort Connector with Shutter 6AUJK-S*6 [B] 61UJK-S*6 5EUJK-S*5
ATLAS-X1 SHIELDED QUICKPORT CONNECTORS
Atlas-X1 Shielded QuickPort Connector [C] 6ASJK-R*6 61SJK-R*6 5ESJK-R*5
Atlas-X1 Shielded QuickPort Connector with Shutter 6ASJK-S*6 61SJK-S*6 [D] 5ESJK-S*5
ATLAS-X1 ACCESSORIES
DESCRIPTION PART NO.
Atlas-X1 Bulk Icons, pack of 72 (2-sided icons, 24 of each icon) [E] ICONS-IC*
Atlas-X1 UTP Wire Managers, bag of 10 AXUJK-BWM
Atlas-X1 Shielded Wire Managers, bag of 10 [F] AXSJK-BGM
* = Colors: Choose from any of the colors below.
Green (V)
Blue (L)Purple (P)
Crimson (C) Dark
Red (R)
Orange (O) Yellow (Y) Black (E)Grey (G)
Ivory (I)Light
Almond (T)
Brown (B)
White (W)
BA C
D E F
Cat 8
Coming
in
2016
A12
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
COPPER Category-Rated
Connectors
CATEGORY-RATED CONNECTORS | eXtreme®
EXTREME UTP QUICKPORT® CONNECTORS
Patented Retention Force Technology protects against damage from 4- or 6-pin plugs
Pair Separation Towers facilitate quick, eective termination
Compatible with Fluke JackRapid™ Punchdown Tool for quick and easy terminations
Cat 6A connector includes a patented Cone of Silence® for additional alien crosstalk (AXT) suppression
Patented large format, tear-away, dual-layer wiring guide
Made in the USA
EXTREME UTP QUICKPORT CONNECTORS
DESCRIPTION PART NO. QUICKPACK® 25-PACK QUICKPACK 150-PACK
WITH JACKRAPID TOOL
[A] eXtreme Cat 6A UTP Channel-Rated Connector 6110G-R*6
[B] eXtreme Cat 6 UTP Component-Rated Connector 61110-R*6 61110-B*6 61110-J*6
[C] eXtreme Cat 5e UTP Component-Rated Connector 5G110-R*5 5G110-B*5 5G110-J*5
* = Colors: Choose from any of the colors below. All Leviton Category-Rated Connectors are RoHS Compliant.
Green (V)
Blue (L)Purple (P)
Crimson (C) Dark
Red (R)
Orange (O) Yellow (Y) Black (E)Grey (G)
Ivory (I)Light
Almond (T)
Brown (B)
White (W)
C
B
A
FEATURE COMPONENT
RATED
CHANNEL
RATED
Meets ANSI/TIA standard  
Exceeds ANSI/TIA standard
Complete end-to-end channel tested  
Individually certified (tested) component
Meets channel-link performance  
Greater permanent-link performance
Ensures multi-manufacturer channel compatibility
Component- vs. Channel-Rated PerformanceSPOTLIGHT
A13 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Category-Rated
Connectors
COPPER
B
A
GIGAMAX UTP QUICKPORT® CONNECTORS
Single T568A or T568B wiring labels simplify terminations
Narrow connector profile for high-density installations
Compatible with Fluke JackRapid™ Punchdown Tool for quick and easy terminations
Durable one-piece frame built for longevity
Made in the USA
CAT 5/3 & USOC UTP QUICKPORT CONNECTORS
Fit into all QuickPort wallplates and housings
Full support of voice and low-speed data applications
Cat 5/3 and 8P8C USOC accept RJ-45 plugs; 6P6C USOC accepts RJ-11 plugs
CONNECTOR ADAPTER BEZELS
• Allow QuickPort connectors to be open spacing installed into third-party wallplates and surface-mount boxes
Bezel color will be visible after installation
Packaged individually and sold separately from connectors
CommScope bezels fit SYSTIMAX® or Uniprise® wallplates and surface-mount boxes
See Connection Termination
Instructions on pages X7 and X8.
GIGAMAX CAT 5E UTP QUICKPORT CONNECTORS
DESCRIPTION PART NO. QUICKPACK® 25-PACK QUICKPACK 150-PACK
WITH JACKRAPID TOOL
[A] GigaMax Cat 5e UTP Channel-Rated Connector 5G108-R*5 5G108-B*5 5G108-J*5
CAT 5/3/USOC UTP QUICKPORT CONNECTORS
[B] Cat 5 Connector 41108-R*5
Cat 3 Connector 41108-R*3
USOC Connector, 8P8C 41108-R*8
USOC Connector, 6P6C 41106-R*6
CONNECTOR ADAPTER BEZELS
LexCom Connector Adapter Bezel (connector not included) AB300-00
CommScope Connector Adapter Bezel (connector not included) AB100-00
[C] Clipsal® Connector Adapter Bezel (connector not included) AB200-00*
* = Colors: Choose from any of the colors below.
All Leviton Category-Rated and USOC Connectors are RoHS compliant.
† = Colors: Choose from white or black.
Green (V)
Blue (L)Purple (P)
Crimson (C) Dark
Red (R)
Orange (O) Yellow (Y) Black (E)Grey (G)
Ivory (I)Light
Almond (T)
Brown (B)
White (W)
CATEGORY-RATED CONNECTORS | GigaMax® & Cat 5/3/USOC
C
A14
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Category-Rated
Connectors
COPPER
FEATURED
PRODUCTS
Composite
Patch Panels A19
1RU 48-Port
QuickPort®
High-Density Flat
& Angled Panels
A18, A20
e2XHD Snap-In
Cassette Patching
System A22
Patch Panels & Cross Connect
Choose Leviton for all your patch panel needs. Our e2XHD high-density panels make
patching easier than ever, using snap-in copper and fiber cassettes. Other popular
styles include the 1RU 48-port, component-rated Cat 6A 110-style, and composite
panels with a customizable face. Additional UTP and shielded panels, the patented
Zero-U VertiGO®, die-cast high-density panels, recessed panels for close quarters,
and two angled styles round out the industry’s largest selection of patch panels.
A15 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
PATCH PANELS & CROSS CONNECT | Selection Guide
Flat Composite Patch Panels A19
Leviton Composite panels have the same profile as
standard metal panels, but feature polymer composite
construction. Customizable faces are ideal for data centers,
telecommunication rooms, and other showroom-style
environments.
Available Styles: 110-Style | QuickPort®
Flat 48-Port
Angled Patch Panels A20
Recommended for use in racks to optimize patch cord
management and rack space utilization.
Available Styles: 110-Style | QuickPort | Shielded
Angled 48-Port
Flat Patch Panels A17-A19
Traditional, flat profile works well in almost any application.
Most flat panels include rear cable management bars.
Available Styles: 110-Style | QuickPort | Shielded
Flat 48-Port
Die-Cast High-Density 48-Port
Zero-U Patch Panels A23
VertiGO panels are recommended for use in data center
cabinets, or for any application that needs connectivity
outside of the traditional 19-inch rack space. Vertical
channel models provide cable routing and protection.
Available Styles: QuickPort | SDX
VertiGO® Zero-U
Recessed & Recessed-Angled Patch Panels A21
Designed primarily for data center cabinet applications,
recessed-flat and recessed-angled panels are ideal where a
low-profile appearance and minimal depth in front of the
panel is required.
Available Styles: 110-Style | QuickPort
Recessed-Angled 48-Port Recessed-Flat 24-Port
Cross-Connect A25
Dependable, flexible, and cost eective, Leviton 110-style
and 66-block cross-connect products are ideal for
telecommunications rooms and distribution frames.
110-style wiring blocks are available in Cat 6A, 6, and 5e,
and can be mounted to the wall or plywood backboard.
Rack-mount solutions are also available.
Available Styles: Cat 6A | Cat 6 | Cat 5e
Cross-Connect 110-Style Wiring Block
e2XHD Snap-In Cassette Patch Panels A22
These high-density panels are designed for data center
applications where fast single-click deployment and simple
maintenance is important. They accept both fiber and
copper e2XHD snap-in cassettes in the same panel.
Available Styles: Flat | Angled
Flat 48-Port
Flat 192-Port
A16
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
COPPER Patch Panels
PATCH PANELS | Flat Metal 110-Style > UTP
FLAT UTP 110-STYLE PATCH PANELS
1RU 12- or 24-port, 2RU 48-port, and 4RU 96-port configurations
6-port RJ-45 modules on front, and 110-style punchdowns on rear
Includes color codes for T568A and T568B wiring schemes
• Cat 5e and Cat 6 include 25-pair wiring schemes
Silk-screened port numbers and paper label holders included
Optional patented magnifying lens label holders for easy reading
Patented Retention Force Technology (RFT) protects against tine damage from 4- or 6-pin
plugs, saves on costly repairs, and increases system longevity (select panels only)
FLAT 110-STYLE PATCH PANELS & PATCH BLOCK
DESCRIPTION CAT 6A CAT 6 CAT 5E
1RU 12-Port Flat 110-Style Patch Panel 69586-U12 5G596-U12
1RU 24-Port Flat 110-Style Patch Panel [B] 69586-U24 5G596-U24
1RU 24-Port Flat 110-Style Patch Panel,
magnifying lens label holder [A] 6A586-U24 69586-L24 5G596-L24
2RU 48-Port Flat 110-Style Patch Panel [C] 69586-U48 5G596-U48
2RU 48-Port Flat 110-Style Patch Panel,
magnifying lens label holder 6A586-U48 69586-L48 5G596-L48
2RU 48-Port Flat 110-Style Patch Panel, central labeling [D] 69586-C48 5G596-C48
4RU 96-Port Flat 110-Style Patch Panel 69586-U96 5G596-U96
12-Port 110-Style Patch Block, 89D bracket [E] 69586-U89 5G596-U89
Leviton Cat 6A 110-style patch panels oer ANSI/TIA-568-C.2 performance up
to 500 MHz to support 10GBASE-T networks. The panels have a physical design
consistent with industry-standard 110-style panels, including in-line configured IDCs
and 6-port housing modules. In addition, they add several exclusive design features:
Pair Separation Tower design makes untwisting Cat 6A pairs easier
Separated IDC fields simplify identifying first cable-pair position
Conductor retention feature holds conductors securely in place during termination
Triple-stage compensation with patented design features enhances
permanent link and channel performance
C
A
D
B
E
49005-CMB included with
all 110-Style Cat 6A/6/5e
flat panels.
AVAILABLE CABLE
MANAGEMENT:
See Section E for product details
and ordering information.
Versi-Duct®
Rear Cable
Management Bars
Horizontal Cable
Managers
Blank Filler Panels
VELCRO®
Brand Fasteners
Cat 6A Component-Rated 110-Style Patch PanelsSPOTLIGHT
A17 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Panels
COPPER
PATCH PANELS | Flat Metal QuickPort® > UTP & Shielded
FLAT UTP QUICKPORT PATCH PANELS
Standard-density 24- and 48-port panels are available with white blocks
or patented magnifying lens label holder
Silk-screened port numbers on panel front
High-density 1RU 48-port and 2RU 72-port options maximize rack space
and reduce costs in high-density applications
1RU 48-port panel available in standard (stamped) or patented robust die-cast aluminum
ATLAS-X1™ FLAT SHIELDED QUICKPORT PATCH PANELS
Shielding protects against electromagnetic interference (EMI) and radio frequency
interference (RFI), and provides excellent alien crosstalk (AXT) suppression
Includes appropriate grounding hardware
High-density 1RU 48-port option maximizes rack space and reduces costs
in high-density applications
FLAT QUICKPORT PATCH PANELS, PATCH BLOCKS & ACCESSORIES
DESCRIPTION CAT 6A CAT 6 CAT 5E EMPTY
1RU 24-Port Flat QuickPort Patch Panel [A] 6910G-U2469270-U245G270-U2449255-H24
1RU 48-Port Flat High-Density QuickPort Patch Panel
[B] 49255-Q48*
1RU 48-Port Flat
High-Density
Die-Cast QuickPort Patch Panel 69270-D48^
5G270-D48
^ 49255-D48^
2RU 48-Port Flat QuickPort Patch Panel 6910G-U48 69270-U48 5G270-U48 49255-H48
2RU 72-Port Flat QuickPort Patch Panel [C] 49255-D72
1RU 24-Port Flat QuickPort Patch Panel, magnifying lens label holder [D] 49255-L24
2RU 48-Port Flat QuickPort Patch Panel, magnifying lens label holder [E] 49255-L48
12-Port QuickPort Patch Block,
mounting bracket (item H below) sold separately, 10" H x 2.375" W [G] 49255-Q89
12-Port QuickPort Patch Block, extra deep,
mounting bracket included, 10" H x 2.375" W 47689-0QP
QuickPort Patch Block 89D Mounting Bracket (mounts to item G) [H] 40089-00D
ATLAS-X1 FLAT SHIELDED PATCH PANELS
1RU 24-Port Flat Shielded QuickPort Patch Panel 4S255-S24
1RU 48-Port Flat Shielded QuickPort Patch Panel [F] 4S255-D48*
2RU 48-Port Flat Shielded QuickPort Patch Panel 4S255-S48
‡ = Intact™ Intelligent Port Management ready (see Section F). * = Cable management bar sold separately. ^ = 49005-DMB, high-density cable management bar included.
Cat 6A/6/5e patch panels are kitted with black 6110G, 61110, or 5G110 connectors. QuickPort connectors are available on pages A12-A14.
C
A
D
B
E GF H
AVAILABLE CABLE
MANAGEMENT:
See Section E for product details
and ordering information.
Versi-Duct®
Rear Cable
Management Bars
Horizontal Cable
Managers
Blank Filler Panels
VELCRO®
Brand Fasteners
49005-CMB included with all
Cat 6A/6/5e flat panels, unless
otherwise noted.
A18
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Panels
COPPER
PATCH PANELS | Flat Composite > UTP
FLAT COMPOSITE UTP 110-STYLE AND QUICKPORT® PATCH PANELS
10 percent stronger than standard 16-gauge metal patch panels, providing added support
during termination of 110-style panels
Panel face can be customized to feature any design, color, or logo
Patch cord managers prevent cables from obstructing view of port numbers
Clear label holders create a window to easily view port numbers and custom designs
Patented Retention Force Technology (RFT) protects against tine damage from
4- or 6-pin plugs, saves on costly repairs, and increases system longevity
FLAT COMPOSITE 110-STYLE & QUICKPORT PATCH PANELS
DESCRIPTION CAT 6 CAT 5E EMPTY
2RU 48-Port Flat Composite 110-Style Panel [A] C1686-U48 C1586-U48
2RU 48-Port Flat Composite QuickPort Panel [B] C1255-H48
2RU Blank Panel / Cable Manager [C] C1253-2CM
QuickPort connectors are available on pages A12-A14.
B
Customize composite patch panels with any design, color, or logo.
Visit Leviton.com/compositepanel to learn more.
C
Front and Rear Managers
are included (QuickPort and
110-Styles only)
A
AVAILABLE CABLE
MANAGEMENT:
See Section E for product details
and ordering information.
Versi-Duct®
Rear Cable
Management Bars
Horizontal Cable
Managers
Blank Filler Panels
VELCRO®
Brand Fasteners
Patch panels combine strength and durability with a unique style and
customizable faces, providing a uniform look when installed with 2000i SDX
Fiber Enclosures and Versi-Duct Cable Managers.
Under applied force tests, the panel was 10 percent stronger
than standard 16-gauge metal patch panels
Panels come kitted with two patch cord managers that attach
directly to the panel face, saving up to 50 percent of rack or cabinet
space and reducing obstruction of center label
Clear label holders create a "window" to easily view centralized
port numbers and custom designs
Protective
Overlay Cover
Custom Insert
Patch Panel
Composite Patch PanelsSPOTLIGHT
Leviton.com/ns/videos
“Composite Patch Panel”
WATCH:
TRAINING
VIDEOS
A19 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Panels
COPPER
ANGLED UTP 110-STYLE & QUICKPORT® PATCH PANELS
Angled design conserves rack space by routing patch cords directly into vertical cable management
Angled design facilitates proper bend radius and simplifies termination
110-style angled panels include a snap-in plastic label holder and card stock labels
QuickPort angled panels include white write-on blocks
Cat 6A panels include patented magnifying lens label holders for easy reading
ATLAS-X1™ ANGLED SHIELDED QUICKPORT PATCH PANELS
Shielding protects against electromagnetic interference (EMI) and radio frequency
interference (RFI), and provides excellent alien crosstalk (AXT) suppression
Include appropriate grounding hardware
High-density 1RU 48-port option maximizes rack space and reduces costs in
high-density applications
ANGLED 110-STYLE & QUICKPORT PATCH PANELS
DESCRIPTION CAT 6A CAT 6 CAT 5E EMPTY
1RU 24-Port Angled 110-Style Patch Panel 69587-U24 5G597-U24
1RU 24-Port Angled 110-Style Patch Panel,
magnifying lens holder 6A587-U24 69587-L24 5G597-L24
2RU 48-Port Angled 110-Style Patch Panel [A] 69587-U48 5G597-U48
2RU 48-Port Angled 110-Style Patch Panel,
magnifying lens holder 6A587-U48 69587-L48 5G597-L48
1RU 24-Port Angled QuickPort Patch Panel 49256-H24
1RU 24-Port Angled QuickPort Patch Panel,
magnifying lens holder 49256-L24
2RU 48-Port Angled QuickPort Patch Panel 49256-H48
2RU 48-Port Angled QuickPort Patch Panel,
magnifying lens holder 49256-L48
2RU 72-Port Angled QuickPort Patch Panel [B] 49256-D72
1RU 48-Port Angled High-Density QuickPort
Patch Panel [C] 49256-D48
ATLAS-X1 ANGLED SHIELDED PATCH PANELS
1RU 24-Port Angled Shielded QuickPort Patch Panel
4S256-S24
1RU 48-Port Angled Shielded QuickPort Patch Panel
4S256-D48
2RU 48-Port Angled Shielded QuickPort Patch Panel
[D] 4S256-S48
QuickPort Connectors are available on pages A12-A14.
PATCH PANELS | Angled > UTP & Shielded
A B
C D
49006-AMB
Recommended angled
rear
cable management bar
49254-BC1
Recommended angled
transitional cover
AVAILABLE CABLE
MANAGEMENT:
See Section E for product details
and ordering information.
Versi-Duct®
Rear Cable
Management Bars
Horizontal Cable
Managers
Blank Filler Panels
Transitional Covers
VELCRO®
Brand Fasteners
A20
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Panels
COPPER
PATCH PANELS | Recessed-Flat & Recessed-Angled > UTP
A
Available with a wide selection of Leviton patch
panels, Leviton patented magnifying lens label
holders ensure visibility of port labels for easy
identification of individual port designations.
CB
4W006-AMB
Recommended rear cable
management bar for recessed-
angled panels
4W254-BC1
Recommended recessed-
angled transitional cover for
recessed-angled panels
AVAILABLE CABLE
MANAGEMENT:
See Section E for product details
and ordering information.
Versi-Duct®
Rear Cable
Management Bars
Horizontal Cable
Managers
VELCRO®
Brand Fasteners
49005-CMB included with all
recessed-flat panels.
Recessed-flat and recessed-angled patch panels are a great option for rack and cabinet
installations with minimal front depth, and where rear cabinet doors are in close proximity
to the back rail.
RECESSED-FLAT 110-STYLE & QUICKPORT® PATCH PANELS
3-inch recessed design allows improved access and maintains proper cable bend radius
All recessed-flat panels include a screwless cable management bar that fastens
directly to the back of the panel
Recessed-flat 110-style panels include patented magnifying lens label holders for easy reading
RECESSED-ANGLED 110-STYLE & QUICKPORT PATCH PANELS
Conserve rack space by routing patch cords directly into vertical cable management
Unique dual-angled design greatly improves punchdown accessibility
Recessed-angled 110-style panels include a snap-in plastic label holder and card stock labels
RECESSED-FLAT 110-STYLE & QUICKPORT PATCH PANELS
DESCRIPTION CAT 6 CAT 5E EMPTY
1RU 24-Port Recessed-Flat 110-Style Panel [A] 69586-R24 5G596-R24
2RU 48-Port Recessed-Flat 110-Style Panel 69586-R48 5G596-R48
1RU 24-Port Recessed-Flat QuickPort Panel 49255-R24
RECESSED-ANGLED 110-STYLE & QUICKPORT PATCH PANELS
2RU 48-Port Recessed-Angled 110-Style Panel [B] 6W587-U48 5W597-U48
1RU 24-Port Recessed-Angled QuickPort Panel [C] 4W256-H24
2RU 48-Port Recessed-Angled QuickPort Panel 4W256-H48
2RU 72-Port Recessed-Angled QuickPort Panel 4W256-D72
QuickPort connectors are available on pages A12-A14.
Magnifying Lens Label HolderSPOTLIGHT
A21 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Panels
COPPER
PATCH PANELS | e2XHD Snap-In Cassette Patching System > UTP
Panels allow a mix-and-match of Leviton fiber
and copper UTP snap-in cassettes
Cassettes are available empty or on pre-terminated
trunks (see Leviton.com/configurator)
UTP copper connectors easily snap into cassette
after termination
System accessories include rear cable managers, blank
cassette inserts for unused cassette openings, and a
cover for the angled panel, minimizing dust or debris
The e2XHD Snap-In Cassette Patching System includes 1RU and 4RU panels, copper and fiber snap-in cassettes,
and accessories for additional cable protection and management. The e2XHD cassettes quickly snap in and pull
out of the high-density angled panel, making installation, moves, adds, and changes easier than ever.
e2XHD UTP SNAP-IN CASSETTE PATCHING SYSTEM
DESCRIPTION PART NO.
[A] 1RU 48-Port e2XHD Angled High-Density Panel E2X1A-D48
[B] 4RU 192-Port e2XHD Angled High-Density Panel E2X4A-192
[C] 1RU 48-Port e2XHD Flat High-Density Panel E2X1F-D48
4RU 192-Port e2XHD Flat High-Density Panel E2X4F-192
[D] 6-port e2XHD Cat 6A Cassette Kit^ E2X6A-xxx
[E] 6-port e2XHD Cassette, empty* E2XHD-BRK
[F] e2XHD Copper Cassette, terminated to trunk cable Configure online at Leviton.com/e2XHD
e2XHD Rear Cable Manager for Angled Panel, with fiber storage rings (four ¼" rings) E2XHD-CMB
[G] e2XHD Rear Cable Manager for Flat Panel, with fiber storage rings (four ¼" rings) E2X1F-CMB
[H] e2XHD Angled Panel Cover E2XHD-COV
[I] e2XHD Cassette Blank E2XHD-BLK
[J] QuickPort® Connector Removal Tool E2XHD-JRT
[K] e2XHD Label Kit (4 pack)+E2XHD-LBL
^ = Cat 6A Cassettes include six 6110G QuickPort Connectors.
xxx = Connector colors: Blue (BLU), Green (GRN), Yellow (YEL), Red (RED)
* = QuickPort connectors sold separately (see pages A12-A14).
+= Label kit occupies one row of panel.
B
D E
F
H
G
KC
A
I
J
e2XHD Snap-In Cassette Patching System
for fiber applications on pages B33-B36.
A22
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Panels
COPPER
A B C D E F
PATCH PANELS | VertiGO® Zero-U QuickPort® UTP & SDX
VERTIGO ZERO-U PATCH PANELS
Zero-U panels can be mounted to a ladder tray, wire basket, under a raised floor,
or onto modular furniture
QuickPort or SDX-style openings for copper and fiber installations
Low-profile design fully covers connections
Improves cabinet center airflow by routing rear cable along outer edges
Styles with 3- and 6-inch channels provide additional cable management space
Hinged doors provide easy access to termination field
Patented magnifying lens label holders facilitate easy reading
VERTIGO ZERO-U PATCH PANELS
DESCRIPTION PART NO.
[A] 12-Port UTP QuickPort VertiGO Panel, panel only, empty 49280-QP0
[B] 12-Port UTP QuickPort VertiGO Panel, 3" channel, empty 49280-QP3
[C] 12-Port UTP QuickPort VertiGO Panel, 6" channel, empty 49280-QP6
[D] SDX Adapter Plate VertiGO Panel, panel only, empty 49280-AP0
[E] SDX Adapter Plate VertiGO Panel, 3" channel, empty 49280-AP3
[F] SDX Adapter Plate VertiGO Panel, 6" channel, empty 49280-AP6
Contact Inside Sales at 800.722.2082 for custom VertiGO configurations.
QuickPort connectors are available on pages A12-A14, B70, and C14.
SDX adapter plates are available on pages B27-B28.
Channel not available separately.
Patented VertiGO Zero-U Patch Panels offer unprecedented versatility for a wide range
of installations. In data centers where left- or right-side cabinet installation is ideal, VertiGO
can share mounting hardware with servers or other existing equipment. Where traditional
cabinet space is lacking, VertiGO can be mounted to a ladder tray, wire basket, directly to
the wall, under a raised floor, or even onto modular furniture.
VertiGO addresses three major data center issues: density, cooling, and appearance. Mounting
vertically along a back cabinet rail allows more terminations than would otherwise be possible.
Cables can be routed along the cabinet outer edges to improve airflow. The low-profile
design fully covers the connections, providing the clean look data center managers seek.
RECOMMENDED
APPLICATIONS:
Any Size Cabinet
Ladder Tray
Wire Basket
Raised-Floor Enclosure
Modular Furniture
Wall-Mount
See page B26 for additional specialized fiber applications.
VertiGO Zero-U Patch Panels > Unparalleled FlexibilitySPOTLIGHT
Leviton.com/ns/videos
“How to Mount a VertiGO Patch Panel”
WATCH: INSTALLATION VIDEOS
A23 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Panels
COPPER
PATCH PANELS | Voice-Grade Panels & Labeling Solutions
VOICE-GRADE PATCH PANELS
110-style or female 25-pair configurations
Unique label delineates 1-, 2-, 4-, or 25-pair termination options
25th pair (violet/slate) is not used in 25-pair style panels
8P8C panel supports 10/100BASE-T applications
Features 25-pair female Amphenol™ RJ-21X connectors
PATCH PANEL LABELING SOLUTIONS
Universal/110-style labeling kits for 12-, 24-, 48-, and 96-port panels
• QuickPort® kits available for 24- and 48-port panels
Label holders include adhesive backing
VOICE-GRADE PATCH PANELS
DESCRIPTION 1RU 24-PORT 2RU 48-PORT
8P4C Patch Panel, 110 termination, 2 wire-pairs per port [A] 49013-P24 [D] 49013-P48
8P4C Patch Panel, two 25-pair connectors per 24 ports, 2 wire-pairs per port 49014-J24 [B] 49014-J48
8P2C Patch Panel, one 25-pair connector per 24 ports, 1 wire-pair per port 49012-J24 49012-J48
8P8C Patch Panel, one 25-pair connector per 6 ports (supports 10/100BASE-T),
4 wire-pairs per port [C] 49018-J24 49018-J48
PATCH PANEL LABELING SOLUTIONS
DESCRIPTION PART NO.
[E] Adhesive Holder and Label Kit for QuickPort® Patch Panels (supports 24 ports) 49257-QHD
[F] Adhesive Holder and Label Kit for 110-Style Patch Panels (supports 24 ports) 49257-I24
[G] Designation Kit Replacement for 110-Style Patch Panels (supports 24 ports) 69585-IDL
A-C D
F G
E
RJ-21X CONNECTORS PER PATCH PANEL
VOICE-GRADE PANELS
PART NO. 24-PORT 48-PORT
49012 1 2
49014 2 4
49018 4 8
A24
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Panels
COPPER
CAT 6A 110-STYLE WIRING BLOCKS
Supports high-frequency data signals up to 500 MHz
Can be used as a consolidation point (CP) in a TIA-defined
90-meter permanent link
Designed to mitigate alien crosstalk (AXT)
Independently tested and verified by Intertek (ETL) to meet
all TIA component, permanent link, and channel requirements
Available in 64-pair wall-mount block
CAT 6 110-STYLE WIRING PRODUCTS
Supports voice, data, and security applications
Wall-mount and rack-mount wiring block kits available in 96-, 192-, and 288-pairs
110-style patch cords in 110-110 and 110-T568A/B configurations
Connector clips withstand 200 re-terminations
CAT 6A 110-STYLE WALL-MOUNT WIRING BLOCK KITS
DESCRIPTION 64-PAIR
[A] Cat 6A 110-Style Wiring Block, wall mount, with legs and C-4 clips* 41D6A-1F4
CAT 6 110-STYLE WIRING BLOCK KITS (WITH C-4 CLIPS)
DESCRIPTION 96-PAIR 192-PAIR 288-PAIR
Cat 6 110-Style Wiring Block, wall mount, without legs 41NB6-1F4
Cat 6 110-Style Wiring Block, wall mount, with legs* [B] 41AB6-1F4 — 41AB6-3F4
Cat 6 110-Style Wiring Block, rack mount [C] 41DR6-1F4 [D] 41DR6-2F4 [E] 41DR6-3F4
CAT 6 110-STYLE PATCH CORDS
DESCRIPTION 1-FOOT 2-FOOT 3-FOOT 5-FOOT 7-FOOT 10-FOOT
[F] Cat 6 110 to 110 Patch Cord 62240-01S 62240-02S 62240-03S 62240-05S 62240-07S 62240-10S
[G] Cat 6 110 to T568B Patch Cord 6234B-01S 6234B-03S 6234B-05S 6234B-07S 6234B-10S
CAT 6 110-STYLE CONNECTOR CLIPS
DESCRIPTION PART NO.
[H] Cat 6 C-4 Clips (bag of 10) 69104-IDC
110-STYLE LABELING SOLUTIONS
[I] Cat 6 Label Kit, 6/kit 41LBL-60W
[J] Label Holder, 6/kit 41100-HLD
* = Cat 6A/6 110-Style wiring block stand-o legs are non-removable. Legs not sold separately for Cat 6A/6 wiring blocks.
AF, G H
C-E
BIJ
CROSS CONNECT | 110-Style Wiring Products > Cat 6A/6
Our wide selection of 110-style
and 66-block products (see
page A28) are ideal for telecom
rooms and distribution frames.
110-style blocks are available
in Cat 6A, 6, and 5e.
A25 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Cross Connect
COPPER
CROSS CONNECT | 110-Style Wiring Products > Cat 5e
D-FA-C
CAT 5E 110-STYLE WIRING PRODUCTS
Wall-mount bases available in 50- and 100-pair with or without legs
300-pair bases include stand-o legs, labels, and label holders
Kits include bases, connecting blocks, labels, and holders
Rack-mount units are for 100-, 200-, and 300-pair densities
Patch cords in 110-110 and 110-T568A/B configurations
110-style wiring cable management available
CAT 5E 110-STYLE WALL-MOUNT WIRING BLOCK KITS
DESCRIPTION C-4 CLIPS C-5 CLIPS
Cat 5e 110-Style Wall-Mount Wiring Block Kit, with legs, 100 pair* 41AB2-1F4 41AB2-1F5
Cat 5e 110-Style Wall-Mount Wiring Block Kit, without legs, 100 pair 41NB2-1F5
Cat 5e 110-Style Wall-Mount Wiring Block Kit, with legs, 300 pair* 41AB2-3F4 41AB2-3F5
CAT 5E 110-STYLE WALL-MOUNT WIRING BLOCKS
DESCRIPTION 50-PAIR 100-PAIR 300-PAIR
Cat 5e 110-Style Wall-Mount Wiring Block, with legs* 41AW1-050 [B] 41AW2-100 [A] 41AW2-300
Cat 5e 110-Style Wall-Mount Wiring Block, without legs 41DW1-050 [C] 41DW2-100
89D Bracket Compatible Wiring Base Unit** 41DW1-589
CAT 5E 110-STYLE RACK-MOUNT KITS
DESCRIPTION C-4 CLIPS C-5 CLIPS
Cat 5e 110-Style Rack-Mount Wiring Block Kit, 100 pair, 1RU 41DBR-1F4 41DBR-1F5
Cat 5e 110-Style Rack-Mount Wiring Block Kit, 200 pair, 2RU 41DBR-2F4 41DBR-2F5
Cat 5e 110-Style Rack-Mount Wiring Block Kit, 300 pair, 3RU 41DBR-3F4 41DBR-3F5
CAT 5E 110-STYLE RACK-MOUNT WIRING BLOCKS
DESCRIPTION 100-PAIR 200-PAIR 300-PAIR
Cat 5e 110-Style Rack-Mount Wiring Block [D] 41DR2-100 [E] 41DR2-200 [F] 41DR2-300
* = Cat 5e 110-style wiring block stand-o legs are non-removable.
** = 89D Brackets, 40089-00D, sold separately. See page A28.
Leviton.com/ns/videos
“How to Terminate 110-Style Cross-Connect”
WATCH: INSTALLATION VIDEOS
A26
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Cross Connect
COPPER
CROSS CONNECT | 110-Style Wiring Products > Cat 5e & Cable Management
G J, KH, I
N O
L, M
RACK-MOUNT MANAGER
DESCRIPTION PART NO.
Rack-Mount Horizontal Cord Manager [G] 41D1R-HCM
CAT 5E 110-STYLE PATCH CORDS
DESCRIPTION 1-FOOT 2-FOOT 3-FOOT 5-FOOT 7-FOOT 10-FOOT
Cat 5e 110 to 110 Patch Cord, 4 pair [H] 5G240-01S 5G240-02S 5G240-03S 5G240-05S 5G240-07S 5G240-10S
Cat 5e 110 to 568A Patch Cord, 4 pair [I] 5G34A-01S 5G34A-02S 5G34A-03S 5G34A-05S 5G34A-07S 5G34A-10S
Cat 5e 110 to 568B Patch Cord, 4 pair 5G34B-01S 5G34B-02S 5G34B-03S 5G34B-05S 5G34B-07S 5G34B-10S
CAT 5E 110-STYLE CONNECTOR CLIPS
DESCRIPTION C-3 CLIPS C-4 CLIPS C-5 CLIPS
Cat 5e 110-Style Connector Clips (bag of 10) 49103-IDC [J] 49104-IDC [K] 49105-IDC
Cat 5e 110-Style Connector Clips (bag of 50) 49104-I50
CAT 5E 110-STYLE WIRING BLOCK ACCESSORIES
DESCRIPTION PART NO.
Cat 5e 110-Style legs (2 each) (for use with 41DW1 only) 410L2-050
Cat 5e 110-Style legs (2 each) (for use with 41DW2 only) 410L2-100
110-Style Horizontal Cord Manager without legs [L] 41D10-HCM
110-Style Horizontal Cord Manager with legs* [M] 41A10-HCM
110-STYLE LABELING SOLUTIONS
Cat 5e Label Kit, 6/kit [N] 41LBL-00W
Label Holder, 6/kit [O] 41100-HLD
VERTICAL CORD MANAGERS AND 110-STYLE WALL-MOUNT WIRING PRODUCTS
300-Pair Basic Mounting Frame Unit (sheet metal frame and bottom cable tray only) [P] 41MB2-SMF
300-Pair Extension Mounting Frame Unit (sheet metal frame only) 41MB2-SME
Basic Mounting Frame Kit, three 100-pair bases, mounting frame, cable tray, 75 C-4 connector blocks,
three horizontal cord managers, label strip holders, and white label strips 41MB2-3F4
Basic Mounting Frame Kit, three 100-pair bases, mounting frame, cable tray, 60 C-5 connector blocks,
three horizontal cord managers, label strip holders, and white label strips 41MB2-3F5
Extension Mounting Frame Kit, three 100-pair bases, mounting frame, 60 C-4 and 12 C-5 connector blocks,
three horizontal cord managers, label strip holders, and white label strips 41MB2-EXT
300-pair Vertical Cord Manager Basic Unit, includes bottom cable tray 41880-300
300-pair Vertical Cord Manager Extension Unit [Q] 41880-EXT
P, Q
A27 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Cross Connect
COPPER
CROSS CONNECT | 66 Blocks & Accessories
66 CONNECTING BLOCKS
Install individually or in pairs in cross-connect system
High-impact fire-retardant UL 94V-0 plastic
Phosphor bronze quick-connect insulation
displacement 66-clips
25-pair and split 50-pair styles
Accessories include covers, brackets, wire distribution
spools, adapters, and bridging clips
SURFACE-MOUNT MINI PATCH PANELS
Excellent for tight spaces and simple breakout patching
Combine two or more panels for in-line cross connect
Use with 25-pair cable assemblies
Wall mountable
66 CONNECTING BLOCKS
DESCRIPTION PART NO.
[A] M-Block: 25-pair [66M1-25]* 10" H x 3 5
/
16" W x 1 3
/
16" D 40066-M25
Split M-Block: 50-pair [66M1-50]* 10" H x 3 5
/
16" W x 1 3
/
16" D 40066-M50
[B] M-Block, female connector [66M1-50W]* 10" H x 3 5
/
16" W x 1 3
/
16" D 40066-0MW
[C] M-Block, female and male connectors [66M1-50W2]* 10" H x 3 5
/
16" W x 1 3
/
16" D 40066-MW2
[D] Connectorized Demarc Block [66M1-50R]* 10" H x 3 13
32" W x 2 ¾" D, female Amphenol™ 40066-0MR
BRIDGING CLIPS
[E] Bridging Clips (SA-1) (50 per package) 40067-0BC
HINGED COVERS AND SNAP-ON COVERS
Snap-on Cover for M-Blocks: [66MC-4]* 9 15
/
16" H x 2 15
/
16" W x 5
/
16" D 40050-MCV
[F] Hinged Cover for M-Blocks: grey [66MC4LH-G]* 10" H x 2 7
/
16" W x ¾" D 40050-MHG
[G] Hinged Cover for Demarc Blocks: orange [66MC4LH-O]* 10" H x 2 7
/
16" W x ¾" D 40050-MH0
BRACKET FOR M BLOCKS AND CONNECTOR MOUNTING
[H] M-Block Bracket for Connector Mounting: [89-D/QuickPort® Blocks]* 10" H x 3 13
32" W x 1 ½" D 40089-00D
[I] MODULAR ADAPTERS
2-Position Modular Adapter [Tap-2]* - Converts two 66-clip contacts into 6P2C modular connector 40072-0T2
4-Position Modular Adapter [Tap-4]* - Converts four contacts into 6P4C modular connector 40072-0T4
6-Position Modular Adapter [Tap-6]* - Converts six contacts into 6P6C modular connector 40072-0T6
8-Position Modular Adapter, T568B wiring [Tap-8]* - Converts eight contacts into 8P8C non-keyed modular connector 40072-0T8
WIRE DISTRIBUTION SPOOLS
[J] Wire Distribution Spool [20-A]* 1 ¾" Dia. x 3" H 40054-0DS
[K] Wire Distribution Spool with screw [20-B]* 1 ¾" Dia. x 3" H 40054-DSS
SURFACE-MOUNT MINI PATCH PANELS
[L] 25 6-position 2-Conductor [RJ-11]* FCC Spec Jacks, connected to a circuit board with one male 25-pair connector 41600-00I
[M] 25 6-position 2-Conductor [RJ-11]* FCC Spec Jacks, connected to a circuit board with two bridged 25-pair connectors 41620-00I
Mounting Magnets (20 per package) 49200-00M
* = Numbers in brackets refer to industry product designation.
A B C ED
F, G H I J, K L, M
Visit Leviton.com/support for
detailed termination diagrams.
A28
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Cross Connect
COPPER
Patch Cords
& Pre-Terminated Trunks
Leviton copper patch cords and pre-terminated trunks are designed to ensure
the highest levels of performance, reliability, and longevity whether supporting
mission-critical, large-enterprise, or small-business applications. And Leviton
makes it easy to configure custom solutions. With factory testing and no need
for field terminations, you can reduce installation time by up to 75 percent.
FEATURED
PRODUCTS
Secure RJ
System A33
e2XHD Trunks A34
A29 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
PATCH CORDS | Cat 6A > UTP & Shielded
AC
B
[A] ATLAS-X1 CAT 6A COMPONENT-RATED SLIMLINE BOOT PATCH CORD, CMR
DESCRIPTION WHITE YELLOW RED BLUE GREEN GREY BLACK
3-Foot Patch Cord
6AS10-03W 6AS10-03Y 6AS10-03R 6AS10-03L 6AS10-03G 6AS10-03S 6AS10-03E
5-Foot
Patch Cord
6AS10-05W 6AS10-05Y 6AS10-05R 6AS10-05L 6AS10-05G 6AS10-05S 6AS10-05E
7-Foot
Patch Cord
6AS10-07W 6AS10-07Y 6AS10-07R 6AS10-07L 6AS10-07G 6AS10-07S 6AS10-07E
10-Foot
Patch Cord
6AS10-10W 6AS10-10Y 6AS10-10R 6AS10-10L 6AS10-10G 6AS10-10S 6AS10-10E
15-Foot
Patch Cord
6AS10-15W 6AS10-15Y 6AS10-15R 6AS10-15L 6AS10-15G 6AS10-15S 6AS10-15E
20-Foot
Patch Cord
6AS10-20W 6AS10-20Y 6AS10-20R 6AS10-20L 6AS10-20G 6AS10-20S 6AS10-20E
CAT 6A UTP PATCH CORDS
DESCRIPTION PART NO.
[B]
eXtreme Cat 6A Channel-Rated
Standard Patch Cord, snagless boot, CM (PVC)
6210G-xx~
[C]
eXtreme Cat 6A Snagless Channel-Rated
Patch Cord, LSZH
6AZ10-††º
xx = Length in feet
~ = Color: White (W), Red (R), Blue (L), Grey (S)
†† = Color: White (WH), Blue (BL), Grey (GY)
º = Length in meters
All Leviton Cat 6A patch cords are RoHS Compliant. White Yellow Red GreyBlue Green Black
ATLAS-X1™ CAT 6A SLIMLINE BOOT PATCH CORDS
• Provide exceptional alien crosstalk (AXT) suppression and EMI/RFI protection in Cat 6A channels
• Atlas-X1 Cat 6A cord can be used for UTP or shielded installations
• Cords feature narrow-profile boot for less congestion in high-density applications
Independently tested and verified by Intertek (ETL) to meet ANSI/TIA-568-C.2 component requirements
Strain-relief boot ensures long-term network performance
Snagless design prevents tab breakage
Ergonomic release tab allows for quick and easy connections and disconnects
Outside diameter of .240 inches is easier to manage
26-gauge stranded conductor cable for maximum flexibility
EXTREME® CAT 6A STANDARD PATCH CORDS
• Strain-relief boot ensures long-term network performance
Snagless design prevents tab breakage
• Independently tested and verified by Intertek (ETL) to meet ANSI/TIA-568-C.2 channel requirements
• Color-matched cords and boots
• Low-Smoke Zero-Halogen (LSZH) cords available
• eXtreme Cat 6A standard patch cords use the same cord for UTP or shielded installations
Additional custom lengths available, for assistance please visit Leviton.com/MTOCords or call Tech Support at 800.824.3005
A30
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
COPPER Patch Cords
PATCH CORDS | Cat 6 > UTP & Shielded
A B C
[A]
EXTREME CAT 6 COMPONENT-RATED
SLIMLINE BOOT PATCH CORD, CM (PVC)
DESCRIPTION WHITE YELLOW RED BLUE GREEN GREY BLACK
3-Foot Patch Cord
6D460-03W 6D460-03Y 6D460-03R 6D460-03L 6D460-03G 6D460-03S 6D460-03E
5-Foot
Patch Cord
6D460-05W 6D460-05Y 6D460-05R 6D460-05L 6D460-05G 6D460-05S 6D460-05E
7-Foot
Patch Cord
6D460-07W 6D460-07Y 6D460-07R 6D460-07L 6D460-07G 6D460-07S 6D460-07E
10-Foot
Patch Cord
6D460-10W 6D460-10Y 6D460-10R 6D460-10L 6D460-10G 6D460-10S 6D460-10E
15-Foot
Patch Cord
6D460-15W 6D460-15Y 6D460-15R 6D460-15L 6D460-15G 6D460-15S 6D460-15E
20-Foot
Patch Cord
6D460-20W 6D460-20Y 6D460-20R 6D460-20L 6D460-20G 6D460-20S 6D460-20E
[B] EXTREME® CAT 6 CHANNEL-RATED STANDARD PATCH CORD, SNAGLESS BOOT, CM (PVC)
3-Foot Patch Cord
62460-03W 62460-03Y 62460-03R 62460-03L 62460-03G 62460-03S 62460-03E
5-Foot
Patch Cord
62460-05W 62460-05Y 62460-05R 62460-05L 62460-05G 62460-05S 62460-05E
7-Foot
Patch Cord
62460-07W 62460-07Y 62460-07R 62460-07L 62460-07G 62460-07S 62460-07E
10-Foot
Patch Cord
62460-10W 62460-10Y 62460-10R 62460-10L 62460-10G 62460-10S 62460-10E
15-Foot
Patch Cord
62460-15W 62460-15Y 62460-15R 62460-15L 62460-15G 62460-15S 62460-15E
20-Foot
Patch Cord
62460-20W 62460-20Y 62460-20R 62460-20L 62460-20G 62460-20S 62460-20E
CAT 6 UTP & SHIELDED PATCH CORDS
DESCRIPTION PART NO.
Atlas-X1 Cat 6 UTP Component-Rated SlimLine Boot Patch Cord, CM (PVC) (Country of Origin: USA) 6D560-xx*
[C] Atlas-X1 Cat 6 Shielded SlimLine Boot Patch Cord, CM (PVC), grey 6S560-xxS
eXtreme Cat 6 UTP Snagless Channel-Rated Patch Cord, LSZH 6Z460-††°
* = Color: White (W), Yellow (Y), Red (R), Blue (L), Green (G), Grey (S), Black (E)
†† = Color: White (WH), Blue (BL), Grey (GY)
xx = Length in feet
º = Length in meters
All Leviton Cat 6 patch cords are RoHS Compliant. White Yellow Red GreyBlue Green Black
CAT 6 SLIMLINE BOOT UTP & SHIELDED PATCH CORDS
Independently tested and verified by Intertek (ETL) to meet ANSI/TIA-568-C.2 component requirements
Narrow-profile boot reduces congestion in high-density applications
Strain-relief boot ensures long-term network performance
Snagless boot design prevents tab breakage
Ergonomic release tab allows for quick and easy connections and disconnects
Atlas-X1™ shielded patch cord provides exceptional EMI/RFI protection
24-gauge stranded conductor cable for maximum flexibility
CAT 6 STANDARD UTP & SHIELDED PATCH CORDS
Standard and LSZH cords are independently tested and verified by Intertek (ETL) to meet ANSI/TIA-568-C.2 channel requirements
Matching color cords and boots
• Strain-relief boot ensures long-term network performance
Additional custom lengths available, for assistance please visit Leviton.com/MTOCords or call Tech Support at 800.824.3005
A31 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Cords
COPPER
PATCH CORDS | Cat 5e & 1G > UTP & Shielded
AC
[A] EXTREME HIGH-FLEX HD6 PATCH CORD, 1G APPLICATION GRADE
DESCRIPTION WHITE YELLOW RED BLUE GREEN GREY BLACK
0.5-Foot Patch Cord
6H460-6IW 6H460-6IY — 6H460-6IL — 6H460-6IS
1-Foot Patch Cord
6H460-01W 6H460-01Y 6H460-01R 6H460-01L 6H460-01G 6H460-01S 6H460-01E
2-Foot Patch Cord
6H460-02W 6H460-02Y — 6H460-02L — 6H460-02S
3-Foot Patch Cord
6H460-03W 6H460-03Y 6H460-03R 6H460-03L 6H460-03G 6H460-03S 6H460-03E
4-Foot Patch Cord
6H460-04W 6H460-04Y — 6H460-04L — 6H460-04S
5-Foot
Patch Cord
6H460-05W 6H460-05Y 6H460-05R 6H460-05L 6H460-05G 6H460-05S 6H460-05E
7-Foot
Patch Cord
6H460-07W 6H460-07Y 6H460-07R 6H460-07L 6H460-07G 6H460-07S 6H460-07E
10-Foot
Patch Cord
6H460-10W 6H460-10Y 6H460-10R 6H460-10L 6H460-10G 6H460-10S 6H460-10E
15-Foot
Patch Cord
6H460-15W 6H460-15Y 6H460-15R 6H460-15L 6H460-15G 6H460-15S 6H460-15E
20-Foot
Patch Cord
6H460-20W 6H460-20Y 6H460-20R 6H460-20L 6H460-20G 6H460-20S 6H460-20E
CAT 5E UTP & SHIELDED COMPONENT-RATED
SLIMLINE BOOT PATCH CORDS
DESCRIPTION PART NO.
Atlas-X1 Cat 5e UTP Component-Rated SlimLine Boot Patch Cord, CM (PVC) (Country of Origin: USA) 5D560-xx*
[B]
eXtreme Cat 5e UTP Component-Rated
Slimline Boot Patch Cord, CM (PVC) 5D460-xx*
GigaMax® Cat 5e UTP Channel-Rated Standard Patch Cord, CM (PVC) 5G460-xx*
[C] Atlas-X1 Cat 5e Shielded Standard Patch Cord, CM (PVC), grey 5S460-xxS
xx = Length in feet
* = Color: White (W), Yellow (Y), Blue (L), Green (G), Grey (S)
All Leviton Cat 5e patch cords are RoHS Compliant.
White Yellow Red GreyBlue Green Black
CAT 5E SLIMLINE BOOT UTP PATCH CORDS
Independently tested and verified by Intertek (ETL) to
meet ANSI/TIA-568-C.2 component requirements
Narrow-profile boot reduces congestion in high-density
applications
Strain-relief boot ensures long-term network performance
Snagless boot design prevents tab breakage
Ergonomic release tab allows for quick and easy
connections and disconnects
24-gauge stranded conductor cable for maximum flexibility
CAT 5E STANDARD UTP & SHIELDED PATCH CORDS
Standard and LSZH cords are
independently tested and verified by
Intertek (ETL) to meet ANSI/TIA-568-C.2
channel requirements
Matching color cords and boots
Strain-relief boot ensures long-term network performance
Atlas-X1™ shielded patch cord provides exceptional
EMI/RFI protection
EXTREME® HIGH-FLEX HD6 PATCH CORD 1G APPLICATION GRADE
Ultra high-density design
Maximizes capacity of cable management and pathways
28-gauge stranded for the ultimate flexibility
Used in 1 Gigabit applications where Cat 6 patch cords are commonly utilized
Additional custom lengths available, for assistance please visit Leviton.com/MTOCords or call Tech Support at 800.824.3005
B
A32
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Cords
COPPER
PATCH CORDS | Secure RJ System
SECURE RJ SYSTEM
Compatible with industry-standard RJ ports in most network equipment, devices, patch panels, and work area outlets
Same-color extraction tool disengages color-matched patch cords and port blockers
Transparent housing allows color coding without blocking visibility to link/status LEDs on electronic equipment
Port blocker prevents unauthorized network connection and protects open, unused ports
Cat 6A and Cat 6 Secure RJ Patch Cord options available
A B
C
Blue (L) Green (G) Purple (P) Black (B)
White (W) Yellow (Y) Orange (O) Red (R)
SECURE RJ SYSTEM
DESCRIPTION PART NO.
[A] Cat 6 SlimLine Boot Patch Cord, with Secure RJ housing
on both ends (Country of Origin: USA) SRJ6-xx*
[B] Secure RJ Port Blocker, pack of 12 SRJPB-00
[C] Secure RJ Extraction Tool, pack of 1 SRJET-00
xx = Length: (05), (10), or (20) feet. Minimum orders and extended lead time may apply. Contact Inside Sales at 800.722.2082 for more details.
† = Patch cord housing, port blocker, and extraction tool colors: Choose from the transparent colors shown in (C) above.
* = Patch cord jacket colors: Choose from the colors at right.
Make-to-Order! SECURE RJ PATCH CORD OPTIONS
CATEGORY CABLE RATING CABLE COLOR CABLE LENGTH SECURE HOUSING COLOR SECURE HOUSING
PLACEMENT
Cat 6A FTP CM (PVC) White, Yellow, Red, Blue,
Green, Grey, Black 3-72 feet White, Yellow, Red, Blue, Green,
Purple, Black, Orange
Both Ends or
One End
Cat 6 UTP CM (PVC) White, Yellow, Red, Blue,
Green, Grey, Black 1-72 feet White, Yellow, Red, Blue, Green,
Purple, Black, Orange
Both Ends or
One End
All patch cords utilize stranded cable.
White (W) Red (R) Blue (L)
Patch cord jacket colors below:
Leviton.com/ns/videos
“Secure RJ Copper Systems”
WATCH:
TRAINING
VIDEOS
For assistance customizing your patch
cords, please visit Leviton.com/configurator
or call Tech Support at 800.824.3005
A33 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Patch Cords
COPPER
PRE-TERMINATED TRUNKS | Make-to-Order
Make-to-Order! PRE-TERMINATED COPPER TRUNK OPTIONS
CABLE TYPE CABLE RATING # OF
CABLES
CABLE
LENGTH
CABLE
COLOR* INDIVIDUAL CONNECTOR COLOR TERMINATION
OPTIONS
Cat 6A UTP CMP, CMR, LSZH 6, 8 10-295 ft
(3-90 m)
Blue White, Light Almond, Ivory, Yellow, Orange, Crimson,
Purple, Blue, Green, Grey, Black, Brown
Connector,
Plug, Open
Cat 6A NcHT UTP CMP, CMR, LSZH
Cat 6A FTP CMP, CMR 6 Grey Black* Connector, Open
Cat 6 UTP CMP, CMR, LSZH 6, 8, 12 6-295 ft
(2-90 m) Blue White, Light Almond, Ivory, Yellow, Orange, Crimson,
Purple, Blue, Green, Grey, Black, Brown
Connector,
Plug, Open
Cat 5e UTP CMP, CMR
Make-to-Order! e2XHD COPPER TRUNK ASSEMBLY OPTIONS
CABLE TYPE CABLE RATING # OF
CABLES
CABLE
LENGTH
CABLE
COLOR*
INDIVIDUAL CONNECTOR COLOR
& CASSETTE CONNECTOR COLOR
TERMINATION
OPTIONS
Cat 6A UTP
CMP, CMR, LSZH 6
10-295 ft
(3-90 m) Blue White, Light Almond, Ivory, Yellow, Orange, Crimson,
Purple, Blue, Green, Grey, Black, Brown
Connector, Plug,
Open, Cassette
Cat 6A NcHT^ UTP
Cat 6 UTP 6-295 ft
(2-90 m)
* = Additional cable and shielded connector colors are available, but may require additional lead-time. Contact Inside Sales at 800.722.2082 for more details.
^ = Noise-Canceling Helix Technology
Available with Atlas-X1 or eXtreme® connectors.
All trunks utilize solid conductor cable.
e2XHD copper cassettes are available either on
pre-terminated trunks or as empty cassettes. See
page A22 for field-terminated copper cassettes.
MINIMUM BREAKOUT
LENGTHS ALIGNMENT OPTIONS
Copper Trunks
12 cables = 24" minimum
8 cables = 20" minimum
6 cables = 18" minimum
Even
Stagger cable 1 shortest
Stagger cable 1 longest
Stagger cable 1 & 2 shortest (plug)
Stagger cable 1 & 2 longest (plug)
e2XHD
Copper Trunks
Cat 6 = 6" minimum
Cat 6A = 24" minimum
Even
UTP connector to plug
RECOMMENDED
APPLICATIONS:
Data Center Cabinets
Telecommunications Racks
Quick Network Deployment
Custom configured for length, connector type, and more
Fast and easy installation with reduced labor costs
100% factory tested, with test results available
Cat 6A trunks all use component-rated connectors, which
provide guaranteed performance in short lengths
Atlas-X1™ pre-terminated copper trunks provide the
option of having connectors with shutters and/or icons
Customized breakout length from braided sleeve
improves installation flexibility and appearance
Optional pulling eye protects connectors
and eases installation
Pre-terminated assemblies are eligible
for limited lifetime product, system, and
performance warranties
Noise-Canceling Helix Technology (NcHT) cable available
for Cat 6A assemblies to reduce bundle size and improve
alien crosstalk (AXT) suppression
PRE-TERMINATED COPPER TRUNKS
Breakout and Alignment Options
Choose from five different alignments, or contact Tech Support at 800.824.3005 to discuss options. e2XHD Copper Trunks will always
have an even alignment on the cassette end(s). Different minimum breakout lengths apply.
For assistance customizing your trunks, please visit
Leviton.com/configurator or call Tech Support at 800.824.3005
A34
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Trunks
COPPER
Copper Tools & Labeling
Leviton has everything you need to terminate and test our copper solutions.
The ergonomic Palm Termination Tool, designed by and for installers, offers
comfort-grip or rack-mounted positioning for termination, a sturdy connector
holder, and a wire-supporting retainer. The Wire-Punchdown Termination Tool
enables one-step punchdown of 110-style or 66 connecting block IDCs with
a single push on the handle. Specialized termination tools, test equipment,
crimping tools, and other accessories complete the collection.
FEATURED
PRODUCTS
Palm Termination
Tool A36
Wire-Punchdown
Termination Tool
A36
A35 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
A35
COPPER TOOLS & LABELING | Tools
TERMINATION TOOLS & BLADES
DESCRIPTION PART NO.
[A] Palm Termination Tool 47615-PTT
[B] Wire-Punchdown/Termination Tool (blades sold separately) 49553-814
[C] 110 IDC Blade 49553-110
[D] 66 IDC Blade 49553-066
MULTI-PAIR TERMINATION TOOLS & ACCESSORIES
[E] Mass-Termination Multi-Pair Tool Handle with Cat 6, 4-pair head 49553-TTH
Mass-Termination Replacement Head, Cat 6, 4 pair 49553-64H
Mass-Termination Replacement Head, Cat 5e, 5 pair 49553-55H
CUTTING TOOLS
[F] Klein Tools Electrician's Scissors 49886-SIS
[G] Klein Tools Flush Cutter (must be ordered in increments of 5) 49886-FCS
FE
PALM TERMINATION TOOL
Overmolded ergonomic soft grip
Easy-to-see wiring labels
Connector holders provide stability for punchdown
Incorporated retainer supports cable during termination
Integrated holes allow rack-mounting of the Palm Tool
for patch panel terminations
Compatible with eXtreme® and GigaMax®
Cat 6A/6/5e and AV connectors
MULTI-PAIR TERMINATION TOOL
Designed for 110-style wiring blocks
High-impact, spring-loaded handle for one-punch
termination of multiple pairs
“Blade-in” and “blade-out” options
Includes 4-pair, Cat 6 head
Cat 5e and 6 heads available individually
WIRE-PUNCHDOWN / TERMINATION TOOL
Punches and trims each wire with just a single
push of the handle
Adjustable impact setting for minimal physical eort
Spare blade storage in handle chamber
Available in 110 IDC and 66 IDC
Terminate 22-, 24-, or 26-gauge wire
CUTTING TOOLS
Klein Tools® Electrician’s Scissors are excellent for cutting
and stripping copper cable as well as trimming center
splines and rip cords
Klein Tools Flush Cutter neatly trims individual cable
wires flush to connector body to prevent shorts in metal
housings (recommended for Atlas-X1™ connectors)
A G
B
C, D
A36
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
COPPER Tools & Labeling
TONE TEST SET, INDUCTIVE SPEAKER PROBE & KITS
DESCRIPTION PART NO.
[A] Tone Test Set (includes 9-volt battery) 49560-TTS
[B] Inductive Speaker Probe (includes 9-volt battery, one duckbill tip, and one needlepoint tip) 49561-SSP
[C] Kit containing one Tone Test Set with Belt Holster, and one Inductive Speaker Probe with Belt Holster 49562-TSK
MODULAR PLUG BREAKOUT ADAPTER
[D] Modular Plug Breakout Adapter 40070-MDP
COAXIAL CONNECTOR TOOLS
Crimping Tool for Coaxial Connectors 40988-000
[E] Master Compression Tool 40989-CPT
D E
TONE TEST SET
Low-voltage tester for continuity, shorts, and opens
Talk battery for a communications line on a vacant pair
Identifies tip and ring polarity, and line condition for
clear line with dial tone, busy line, and ringing line
Generates continuous or warble tone to trace pairs
and locate broken pairs or cables in walls – use with
Inductive Speaker Probe (below)
INDUCTIVE SPEAKER PROBE
Detects audible frequency tones for accurate
tracing and identification of wires, cables,
and metallic circuits
MODULAR PLUG BREAKOUT ADAPTER
For testing any six- or eight-position modular connectors
Works with the Tone Test Set
COAXIAL CONNECTOR TOOLS
Crimp coax onto RG-59 or RG-6 cables
Rugged metal construction with cushioned handles
MASTER COMPRESSION TOOL
Terminates all Leviton coaxial compression connectors,
including RCA and F-connectors
Radial-style crimp compresses uniformly around
connector body
COPPER TOOLS & LABELING | Tools
BA C
A37 LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Tools & Labeling
COPPER
COPPER TOOLS & LABELING | Labeling Solutions
WORK-AREA LABELING SOLUTIONS
DESCRIPTION PART NO.
[A] QuickPort® Shutter Kit (50 shutters) 51084-ICN
White Label Kit 51084-XLB
[B] Color Label Kit includes grey, orange, red, yellow, green, blue, purple, and brown (2 sheets of each color) 51084-CLB
[C] Labels and Windows for Housings & Wallplates on page D6 41080-IDW
Labels and Windows for Stainless-Steel and Angled Wallplates on pages D7 and D8 43080-IDW
Pre-printed Port Labels, black ink, 10 sheets per package 41080-LEB
PATCH PANEL LABELING SOLUTIONS
[D] Adhesive Holder and Labels Kit for QuickPort Panels (supports 24 ports) 49257-QHD
[E] Adhesive Holder and Labels Kit for 110-Style Panels (supports 24 ports) 49257-I24
[F] Designation Kit Replacement for 110-Style Panels (supports 24 ports) 69585-IDL
Use the Leviton Palm Termination Tool (page A36) to quickly and easily
punchdown connectors at the job site. The Palm Tool was designed
with contractor input and offers an ergonomic comfort grip, increased
connector stability, and integrated holes that allow rack mounting for
QuickPort panel terminations. The Palm Tool is compatible with eXtreme®
and GigaMax® Cat 6A/6/5e and QuickPort AV connectors.
110-STYLE LABELING SOLUTIONS
DESCRIPTION PART NO.
Cat 6 Label Kit, 6 label strips per kit 41LBL-60W
Cat 5e Label Kit, 6 label strips per kit 41LBL-00W
Label Holder, 6 holders per kit 41100-HLD
E FD
Cat 6 Label HolderCat 5e
BA C
Leviton Palm Termination ToolSPOTLIGHT
A38
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Tools & Labeling
COPPER
FIBER SOLUTIONS
B1
INTRODUCTION B3 Systems Overview
B7 Pre-Terminated Solutions
B8 Opt-X® Unity 40/100G
OPT-X FAMILY B10 Introduction
UHDX SYSTEM B13 Enclosures, Angled Panel
& Accessories
B14 HDX Adapter Plates
& Cassettes
HDX SYSTEM B16 Enclosures, Trays
& Accessories
HDX FRAME
SYSTEM
B18 Introduction
B19 Frame, Patch & Splice Decks
SDX SYSTEMS B22 2000i
B23 1000i
B24 500i
B25 1000
B26 VertiGO®
B27 Adapter Plates
B29 MTP® Premium Cassettes
B30 MTP Opt-X Unity Cassettes
B31 Splice Trays & Splice Modules
B32 Accessories
e2XHD SNAP-IN
CASSETTE
PATCHING
SYSTEM
B34 Introduction
B35 Panels, Cable Managers,
Covers & Tools
B36 Cassettes
LIGHTSPACE®
SYSTEM
B38 Rack Mount
B39 Wall Mount
B41 Adapter Plates
B43 Splice Trays & Holders
B44 Splice Sleeves & Enclosure
Accessories
SECTION BCONTENTS
FLUSH-MOUNT
ENCLOSURES &
PANELS
B46 Enclosures & Panels
EQUIPMENT-
SPECIFIC
SOLUTIONS
B48 Vertical Patching Brackets
& Blade Replicators
B49 Replicator® Enclosures
B50 100/40G to 10G Conversion
PRE-TERMINATED
CABLE ASSEMBLIES
B52 Make-to-Order Overview
B53 Trunk Cables >
Opt-X Unity 40/100G MTP
B55 Trunk Cables > Standard
B56 Trunk Cables > Secure Keyed LC
B57 MTP Harnesses >
Opt-X Unity 40/100G
B58 Harnesses > Standard
B59 Harnesses > Secure Keyed LC
B60 Array Cords > Opt-X Unity
40/100G
B61 Patch Cords & Pigtails > Premium
B62 Patch Cords & Pigtails > Economy
B64 Patch Cords & Pigtails >
Secure Patch Cords
CONNECTORS &
HOUSINGS
B66 Connectors > FastCAM®
B67 Connectors > Fast-Cure®
B68 Connectors > Secure Keyed LC
B69 Fiber Optic Fan-Out Kits
B70 QuickPort® Adapters
TOOLS &
CONSUMABLES
B72 Featured Products
B73 Fiber Optic Tool Kits
B75 Fiber Optic Tools
B76 Consumable Products & Kits
B2
FIBER SYSTEMS | Opt-X® / e2XHD / LightSpace®
FIBER SYSTEMS
Whether your installation is small or large, simple or complex, you can rely on Leviton for a
network patching platform that meets your requirements. From cloud data center to remote
telecom room, from service provider to enterprise oce building, Leviton solutions are versatile
enough to meet specific customer demands, ensuring migration options for future bandwidth
growth and strong return on infrastructure investment.
Opt-X
e2XHD
Mission Critical
LightSpace
Service Provider
HDX
Mission Critical
SDX
Enterprise
Ultra high
density to help
meet increasing
network demands
in data centers.
High density to
expand capabilities
with large enterprise
applications.
Versatile solutions
in multiple sizes
and styles for
small data centers
and enterprise
applications.
High-density
snap-in cassettes
allow a mix of fiber
or copper patching
for large enterprise
applications.
Built on the
LGX® platform
for central office
and government
networks.
System Features:
LC fibers per RU 144 96 72 96 72
MTP fibers (12F) per RU 864 576 288 384 288
MTP fibers (24F) per RU 1,728 1,152 576 768 576
High- and ultra-high density to save rack space
Individual sliding trays minimize impact on surrounding fibers
Trays lock into place when open, simplifying network maintenance
Enclosure-based solutions for network security and protection  
Precision-molded adapter plates for durable network connections  
10/40/100G Unity migration to ease tech upgrades   
OM4+ fiber type for extended-reach fiber networks   
OM1 / OM2 / OM3 / OM4 / OS2 fiber types for backward compatibility 
Limited lifetime warranty 
Panel-based solutions for easy network accessibility  
Field splicing capability for flexibility and MACs  
B3 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
FIBER Fiber Systems
FIBER SYSTEMS | Opt-X® / e2XHD / LightSpace®
FIBER SYSTEMS
Whether your installation is small or large, simple or complex, you can rely on Leviton for a
network patching platform that meets your requirements. From cloud data center to remote
telecom room, from service provider to enterprise oce building, Leviton solutions are versatile
enough to meet specific customer demands, ensuring migration options for future bandwidth
growth and strong return on infrastructure investment.
Opt-X
e2XHD
Mission Critical
LightSpace
Service Provider
HDX
Mission Critical
SDX
Enterprise
Ultra high
density to help
meet increasing
network demands
in data centers.
High density to
expand capabilities
with large enterprise
applications.
Versatile solutions
in multiple sizes
and styles for
small data centers
and enterprise
applications.
High-density
snap-in cassettes
allow a mix of fiber
or copper patching
for large enterprise
applications.
Built on the
LGX® platform
for central office
and government
networks.
System Features:
LC fibers per RU 144 96 72 96 72
MTP fibers (12F) per RU 864 576 288 384 288
MTP fibers (24F) per RU 1,728 1,152 576 768 576
High- and ultra-high density to save rack space
Individual sliding trays minimize impact on surrounding fibers
Trays lock into place when open, simplifying network maintenance
Enclosure-based solutions for network security and protection  
Precision-molded adapter plates for durable network connections  
10/40/100G Unity migration to ease tech upgrades   
OM4+ fiber type for extended-reach fiber networks   
OM1 / OM2 / OM3 / OM4 / OS2 fiber types for backward compatibility 
Limited lifetime warranty 
Panel-based solutions for easy network accessibility  
Field splicing capability for flexibility and MACs  
B4
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Fiber Systems
FIBER SOLUTIONS | Recommended Systems
APPLICATIONS ADAPTER PLATES ENCLOSURES CONNECTORS CABLE ASSEMBLIES FIBER TYPE & SPECIFICATION CHART
Data center infrastructure
High-bandwidth enterprise,
building automation and
security
High-performance
computer clusters
VCSEL-based propagation
HDX Cassettes
& Adapter Plates — Page B14 1000i HDX — Page B16
FastCAM® Field-Installable
Connectors — Page B66
Premium Patch Cords
& Pigtails — Page B61
SPECIFICATION
OM3 OM4 OM4+
850
nm
1300
nm
850
nm
1300
nm
850
nm
1300
nm
Max. Attenuation (dB/km) 3.0 1.0 3.0 1.0 3.0 1.0
Overfill Launch Min.
Bandwidth (MHz•km) 1500h 5002N/A 5002N/A 5003
Eective Modal Bandwidth
(EMB)(MHz•km) 20001N/A 47001N/A 4900 N/A
1G Transmission Distance (m) 1000 600 1040 600 1210 600
10G Transmission Distance (m) 300 300 550 300 600 3005
40/100G Transmission
Distance (m) 100 N/A 150 N/A 3003N/A
1 The eective modal bandwidth is determined based on an overfill launch (OFL) per ANSI/TIA-455-204, except on LOMM fiber types.
2 10GbE transmission at 1,300 nm only applies to 10GBASE-LX4 (CWDM).
3 Reach calculation is based on attenuation of </=3.0 dB/km at 850nm and 1.0 dB of connector loss.
Building backbones
and zone cabling
Legacy cabling
(62.5/125 μm fiber/OM1)
Low-bandwidth enterprise,
building automation and
security
Enterprise networks
SDX Adapter Plates — Page B27 1000i SDX — Page B23
Fast-Cure® Field-Installable
Connectors — Page B67
Economy Patch Cords
& Pigtails — Pages B62-B63
SPECIFICATION
OM1 OM2
850
nm
1300
nm
850
nm
1300
nm
Maximum Attenuation (dB/km) 3.5 1.0 3.0 1.0
Overfill Launch Minimum
Bandwidth (MHz•km) 200 500 950 500
1G Transmission Distance (m) 300 600 750 600
10G Transmission Distance (m) 36 300 150 300
Campus and
building backbones
Entrance facilities
and equipment rooms
Long distances
SDX Adapter Plates — Page B27 500i SDX — Page B24
FastCAM Field-Installable
Connectors — Page B66
Premium Patch Cords
& Pigtails — Page B61
SPECIFICATION
OS1 OS2
1310
nm
1550
nm
1310
nm
1550
nm
Maximum Attenuation (dB/km) 0.5 0.4 0.4 0.3
1G Transmission Distance (m) 5,000 N/A 5,000 N/A
10G Transmission Distance (m) 10,000 N/A 10,000 N/A
Service provider
Carrier equipment
Legacy government
applications
LightSpace®
Adapter Plates — Page B41 LightSpace DPC 700 — Page B38
Fast-Cure Field-Installable
Connectors — Page B67
Economy Patch Cords
& Pigtails — Pages B62-B63
SPECIFICATION
OS1 OS2
1310
nm
1550
nm
1310
nm
1550
nm
Maximum Attenuation (dB/km) 0.5 0.4 0.4 0.3
1G Transmission Distance (m) 5,000 N/A 5,000 N/A
10G Transmission Distance (m) 10,000 N/A 10,000 N/A
UHDX — Page B13
2000i HDX — Page B16
2000i SDX — Page B22
1000i SDX — Page B23
2000i SDX — Page B22
e2XHD — Page B35 e2XHD Cassette — Page B36
B5 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Fiber Solutions
FIBER
FIBER SOLUTIONS | Recommended Systems
APPLICATIONS ADAPTER PLATES ENCLOSURES CONNECTORS CABLE ASSEMBLIES FIBER TYPE & SPECIFICATION CHART
Data center infrastructure
High-bandwidth enterprise,
building automation and
security
High-performance
computer clusters
VCSEL-based propagation
HDX Cassettes
& Adapter Plates — Page B14 1000i HDX — Page B16
FastCAM® Field-Installable
Connectors — Page B66
Premium Patch Cords
& Pigtails — Page B61
SPECIFICATION
OM3 OM4 OM4+
850
nm
1300
nm
850
nm
1300
nm
850
nm
1300
nm
Max. Attenuation (dB/km) 3.0 1.0 3.0 1.0 3.0 1.0
Overfill Launch Min.
Bandwidth (MHz•km) 1500h 5002N/A 5002N/A 5003
Eective Modal Bandwidth
(EMB)(MHz•km) 20001N/A 47001N/A 4900 N/A
1G Transmission Distance (m) 1000 600 1040 600 1210 600
10G Transmission Distance (m) 300 300 550 300 600 3005
40/100G Transmission
Distance (m) 100 N/A 150 N/A 3003N/A
1 The eective modal bandwidth is determined based on an overfill launch (OFL) per ANSI/TIA-455-204, except on LOMM fiber types.
2 10GbE transmission at 1,300 nm only applies to 10GBASE-LX4 (CWDM).
3 Reach calculation is based on attenuation of </=3.0 dB/km at 850nm and 1.0 dB of connector loss.
Building backbones
and zone cabling
Legacy cabling
(62.5/125 μm fiber/OM1)
Low-bandwidth enterprise,
building automation and
security
Enterprise networks
SDX Adapter Plates — Page B27 1000i SDX — Page B23
Fast-Cure® Field-Installable
Connectors — Page B67
Economy Patch Cords
& Pigtails — Pages B62-B63
SPECIFICATION
OM1 OM2
850
nm
1300
nm
850
nm
1300
nm
Maximum Attenuation (dB/km) 3.5 1.0 3.0 1.0
Overfill Launch Minimum
Bandwidth (MHz•km) 200 500 950 500
1G Transmission Distance (m) 300 600 750 600
10G Transmission Distance (m) 36 300 150 300
Campus and
building backbones
Entrance facilities
and equipment rooms
Long distances
SDX Adapter Plates — Page B27 500i SDX — Page B24
FastCAM Field-Installable
Connectors — Page B66
Premium Patch Cords
& Pigtails — Page B61
SPECIFICATION
OS1 OS2
1310
nm
1550
nm
1310
nm
1550
nm
Maximum Attenuation (dB/km) 0.5 0.4 0.4 0.3
1G Transmission Distance (m) 5,000 N/A 5,000 N/A
10G Transmission Distance (m) 10,000 N/A 10,000 N/A
Service provider
Carrier equipment
Legacy government
applications
LightSpace®
Adapter Plates — Page B41 LightSpace DPC 700 — Page B38
Fast-Cure Field-Installable
Connectors — Page B67
Economy Patch Cords
& Pigtails — Pages B62-B63
SPECIFICATION
OS1 OS2
1310
nm
1550
nm
1310
nm
1550
nm
Maximum Attenuation (dB/km) 0.5 0.4 0.4 0.3
1G Transmission Distance (m) 5,000 N/A 5,000 N/A
10G Transmission Distance (m) 10,000 N/A 10,000 N/A
B6
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Fiber Solutions
FIBER SOLUTIONS | Pre-Terminated Solutions
PRE-TERMINATED SOLUTIONS
Leviton recommends using pre-terminated trunks and harnesses whenever possible. With 100 percent factory
testing and no need for field terminations or splices, installation time is reduced by up to 70 percent. Plug-n-play
pre-terminated MTP® cassettes feature a space-saving design with a notched back for a smaller footprint and
excellent radius control. All Leviton pre-terminated solutions are made to your specifications: fiber and cable type,
fiber count, connector type, breakout leg types, length, and more. See more information on page B51.
TRUNK CABLES (see pages B53-B56)
MTP to MTP, including 12- and 24-fiber MTP connectors
Discrete to discrete (LC, SC, ST, and MU)*
MTP to discrete*
Single-mode, multimode, and laser-optimized multimode types available
Secure Keyed LC trunks lock into any industry-compliant adapter or interface
HARNESSES (see pages B57-B59)
MTP to MTP connectors
MTP to discrete connectors (LC, SC, ST, and MU)*
Single-mode, multimode, and laser-optimized multimode types available
Secure Keyed LC harnesses lock into any industry-compliant adapter
or interface
MTP CASSETTES
Available in HDX, SDX, and e2XHD form factors
12- or 24-fiber MTP connectors on the back
MTP connectors or discrete connectors on the front, including LC, SC, and MU*
Single-mode, multimode, and laser-optimized multimode types available
* = LC/APC and SC/APC available for OS2.
CONNECTOR
MATED
PAIRS
MULTIMODE SINGLE-MODE
DUPLEX
TYPICAL
IL
DUPLEX
MAX
IL
12-FIBER
STANDARD
TYPICAL IL
12-FIBER
STANDARD
MAX IL
12- & 24-
FIBER
PREMIUM
MAX IL
STANDARD
TYPICAL IL
STANDARD
MAX IL
12- & 24-
FIBER
PREMIUM
MAX IL
LC 0.15 0.25 0.25 0.35
SC 0.20 0.25 0.25 0.35
MU 0.15 0.25 0.25 0.35
MTP 0.35 0.50 0.35 0.75 0.35
MTP
CASSETTES
&
HARNESSES
MULTIMODE SINGLE-MODE
12-FIBER
PREMIUM
MAX IL
24-FIBER
PREMIUM
MAX IL
12-FIBER
STANDARD
MAX IL
24-FIBER
PREMIUM
MAX IL
LC 0.50 0.50 1.00 0.50
SC 0.50 1.00 0.60
MU 0.50 1.00 0.60
PRE-TERMINATED FIBER CABLING PERFORMANCE
In order to achieve proper polarity when using Method B with two cassette configurations,
core and edge cassettes must be used in pairs. This will simplify the design requirements
for trunks and patch cords. For consistency, core cassettes are typically placed at the main
connection point, at or close to the main switching equipment. Edge cassettes are placed
at the end connection point, near access layer equipment. For easy identification, core
cassette casing and pins are black, while edge cassette casing and pins are white.
HDX Edge (White)HDX Core (Black)
e2XHD Edge (White)e2XHD Core (Black)
SDX Edge (White)SDX Core (Black)
Core & Edge CassettesSPOTLIGHT
B7 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
FIBER Pre-Terminated
PREPARE FOR 40/100G WITH THE OPT-X UNITY MULTIMODE SYSTEM
Leviton pre-terminated Opt-X Unity 40/100G laser-optimized multimode (LOMM) systems oer an ideal migration path
to 40/100G speeds. They also meet IEEE 802.3ba and 802.3bm standards, which respond to the needs of data centers
and enterprise networks that require speeds beyond 10. The Opt-X Unity system features pre-terminated trunks,
harnesses, array cords, and MTP® cassettes to help you future-proof your networks. See pages B53-B54, B57, and B60
for detailed product information.
System of trunks, harnesses, and cassettes is 40/100G ready
Industry-leading 24-fiber MTP system
System uses best-in-class MTP premium multi-fiber connectors
Available in laser-optimized multimode (OM3/OM4/OM4+)
Third-party verification of 40/100G channel performance
OPT-X UNITY 40/100G SYSTEM
24-fiber MTP trunks
24-fiber MTP harnesses
24-fiber MTP array patch cords
24-fiber MTP cassettes
100G migration is available in HDX, SDX, and e2XHD footprints
MIGRATION SOLUTIONS TO OPT-X UNITY
40/100G SYSTEM FROM EXISTING 10G NETWORKS
Premium 12-fiber MTP trunks
Premium 12-fiber MTP harnesses
24-fiber and premium 12-fiber array patch cords
Premium 12-fiber MTP cassettes
FIBER SOLUTIONS | Pre-Terminated Solutions > Opt-X® Unity 40/100G
40/100G MULTIMODE CHANNEL REQUIREMENTS
(IEEE802.3BA AND IEEE802.3BM)
APPLICATION
IEEE
STANDARD
OM3 OM4
Max
Channel IL
Reach
Max
Channel IL
Reach
40G-SR4 802.3ba 1.9 100 m 1.5 150 m
100G-SR10 802.3ba 1.9 100 m 1.5 150 m
100G-SR4 802.3bm 1.8 70 m 1.9 100 m
Channel tested by
Intertek (ETL)
®
COLOR-CODED BOOTS ON MTP
Red
24-Fiber
Aqua
12-Fiber
Grey
8-Fiber
Contact dcteam@leviton.com for help
designing your 10/40/100G migration plan.
B8
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Pre-Terminated
Opt-X Family
of Fiber Optic Systems
Opt-X® systems provide the high performing, flexible, and reliable solutions needed
for today’s mission-critical and enterprise environments while supporting the
capability for future technology upgrades and network migrations. The Opt-X family
of products oers options and designs for high-end and economical applications, with
customizable solutions that meet specific network requirements.
FEATURED
PRODUCTS
UHDX System B13
HDX Adapter Plates
& Cassettes B14
B9 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B9
OPT-X® FAMILY OF FIBER OPTIC SYSTEMS | Introduction
UHDX
Enclosure System
HDX PLATFORM
High- and ultra-high-density systems that support
cloud data center and large enterprise networks
with network manageability and a reduced cabling
network footprint
SDX PLATFORM
Versatile fiber optic patching solutions, available
in multiple sizes and styles, designed to support
enterprise and small data center applications.
UHDX Enclosures
2000i HDX Enclosures
1000i HDX Enclosures HDX Frame
2000i SDX Enclosures 1000i SDX Enclosures
500i SDX Enclosures 500i SDX Panels
1000 SDX
Wall-Mount Enclosures
UHDX Panel
HDX Retrofit Trays
B10
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B10
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Opt-X Systems
UHDX System
144 LC Fibers Per RU
Data centers and telecommunications rooms are rapidly outgrowing their footprints
as they attempt to meet increasing network demands. Leviton UHDX enclosures
offer optimum patching capacity in areas where space is at a premium. Using
HDX Adapter Plates and Cassettes, the enclosures allow up to 144 fibers with LC
connectors, or 1,728 fibers with 24-fiber MTP® connectors — the highest density
per rack unit available.
B11 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B11
FEATURED
PRODUCTS
UHDX System B13
HDX Adapter Plates
& Cassettes B14
UHDX SYSTEM | Introduction
A PART OF THE OPT-X® FAMILY
UHDX fiber enclosures, adapter plates, MTP® cassettes, and cable assemblies offer flexible connections and
storage options. Featuring compact HDX cassettes and adapter plates, this innovative system creates a scalable
platform for comprehensive enterprise and data center applications.
SIZED TO FIT YOUR NEED
Available in 1RU, 2RU, and 4RU, the UHDX system
is the highest density per rack unit available: up to
144 fibers with LC connectors or 1,728 fibers with
24-fiber MTP connectors.
CLEAN CABLE ROUTING
Highly visible tray locators in the front and
rear of the enclosure, along with clean cable
management, make moves, adds, changes,
and updates more manageable. A hinged
front door protects patch cords and provides
an easy means to maintain port ID labels.
EASY TRUNK ROUTING
Removable back door, brush guards, cable tie downs, and cable clamp
options make trunk routing easier in the most dense applications.
And the removable rear cover makes all of the details accessible.
B12
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B12
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER UHDX System
UHDX SYSTEM | Enclosures, Angled Panel & Accessories
UHDX RACK-MOUNT ENCLOSURES & PANEL
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
FIBERS
(USING 24F MTP)
ADAPTER
PLATES
OR
MTP
CASSETTES
[A] 1RU UHDX Enclosure, empty 144 1,728 12 12 5R1UD-S12
[B] 2RU UHDX Enclosure, empty 288 3,456 24 24 5R2UD-S24
[C] 4RU UHDX Enclosure, empty 576 6,912 48 48 5R4UD-S48
[D] 1RU UHDX Angled Panel, empty 144 1,728 12 12 HDX1A-144
ACCESSORIES
DESCRIPTION PART NO.
Universal Clamp Kit, Single Cable Grommet (mounts to enclosure or rear cable manager) 5RCMP-KIT
Universal Clamp Kit, Multiple Cable Grommet (mounts to enclosure or rear cable manager) 5RCMP-KT2
Universal Clamp Kit, Single and Multiple Cable Grommet (for rack mounting) 5RCMR-KIT
[E] 1RU Brush Guard, bag of 2 5RBSH-1UN
[F] 2RU Brush Guard, bag of 2 5RBSH-2UN
23" Rack-Mount Ears, bag of 2 5REAR-023
[G] Rear Cable Manager for Angled Panel, with cable management rings (four ¼" rings) E2XHD-CMB
RECOMMENDED
APPLICATIONS:
Data Centers
Entrance Facility
19" and 23" Racks
and Cabinets
UHDX RACK-MOUNT ENCLOSURES
Accept Leviton HDX Adapter Plates and Cassettes
Up to 144 fibers with LC connectors or 1,728 fibers with 24-fiber MTP® connectors
Individual sliding trays allow easy access to fiber connectors in dense applications while
minimizing the impact to surrounding fibers
20-inch depth for high-density, pre-terminated solution
Hinged front door provides easy means to install, remove, and update port ID labels
Highly visible port locators in the front and rear of the enclosure help easily identify specific ports
Hinged or removable rear doors improve accessibility to rear cable routing
GA, B C
D
E, F
UHDX 1RU ANGLED PANEL
Eliminates the need for patch cord
cable managers
Open access to patch cords and trunks
One-hand installation and removal of
HDX cassettes or adapter plates
Up to 144 fibers with LC connectors or 1,728
fibers with 24-fiber MTP® connectors
ACCESSORIES
Cable clamp kits minimize excessive pulling, bending, and crushing
Clamp Kits support easy cable identification and decrease the need
for tie-wraps
Optional brush guards minimize dust buildup in rear of enclosure
Accessory kit consists of VELCRO® cable ties, mounting ear screws,
and port ID card label
Rear cable manager (sold separately) supports fiber cables and snaps
directly into panel without tools
B13 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
UHDX System
FIBER
HDX ADAPTER PLATES
DESCRIPTION PART NO.
12-Fiber HDX Adapter Plate, OM1 & OM2, Quad LC (beige), phosphor bronze sleeve 5FUHD-2IL
[A] 12-Fiber HDX Adapter Plate, OM3 & OM4, Quad LC (aqua), zirconia ceramic sleeve 5FUHD-2QL
12-Fiber HDX Adapter Plate, OM4+, Quad LC (violet), zirconia ceramic sleeve* 5FUHD-2PL
12-Fiber HDX Adapter Plate, OS2, Quad LC (blue), zirconia ceramic sleeve 5FUHD-2LL
12-Fiber HDX Adapter Plate, OS2, Quad LC/APC (green), zirconia ceramic sleeve* 5FUHD-2VL
6-Fiber HDX Adapter Plate, OM1 & OM2, Duplex SC (beige), phosphor bronze sleeve 5FUHD-6IC
6-Fiber HDX Adapter Plate, OM3 & OM4, Duplex SC (aqua), zirconia ceramic sleeve 5FUHD-6QC
6-Fiber HDX Adapter Plate, OS2, Duplex SC (blue), zirconia ceramic sleeve 5FUHD-6LC
6-Fiber HDX Adapter Plate, OS2, Duplex SC/APC (green), zirconia ceramic sleeve* 5FUHD-6VC
HDX Adapter Plate, 3 Duplex MTP Adapters (black), key up/key up 5FUHD-6MB
[B] HDX Adapter Plate, 3 Duplex MTP Adapters (black), key up/key down 5FUHD-6MP
HDX Adapter Plate, blank (black) 5FUHD-BLK
* = Minimum order quantity and lead times may apply.
Make-to-Order! HDX CASSETTE OPTIONS
FIBER TYPE FIBER COUNT CONNECTOR TYPE (FRONT) MTP TYPE (REAR) POLARITY
OM2
OM3
OM4
OM4+
OS2
12
24
48
LC
LC (Violet)
8-fiber MTP (Female)
12-fiber MTP (Male)
24-fiber MTP (Male)
Method A
Method B, Core
Method B, Edge
Method C
For MTP Method B polarity, you must order one each of the core and edge cassettes.
For assistance customizing your cassettes, please visit Leviton.com/configurator or call Tech Support at 800.824.3005.
HDX | Adapter Plates & Cassettes
1x12 MTP® to 12-Fiber LC Cassette (OM3)
HDX ADAPTER PLATES
Connect to field-terminated backbone cabling
or pre-terminated trunks
Easy, one-hand installation and removal
Oered in OM1/OM2, OM3/OM4, OM4+, and
OS2 fiber types
LC, SC, and MTP styles in 6, 12, or up to 72/144
fiber configurations are available
Visible sequential numbering to identify ports
(for Tx and Rx)
OPT-X® UNITY 40/100G HDX MTP CASSETTES
Easy to migrate from 10G to 40/100G when used
with Opt-X Unity trunks, harnesses, and patch cords
12- or 24-fiber MTP configurations
Select from LC or MTP connectors
for 10G, 40G, or 100G applications
Configure up to 48 fibers for 24
channels (10G) and 6 channels (40G)
Pre-terminated fiber eliminates the need
for complicated field terminations and splices
A variety of fiber types are available, including
single-mode, multimode, and laser-optimized multimode
Easy, one-hand installation and removal
BA
HDX Adapter Plates & Cassettes work with HDX
Frame Patch Decks, UHDX, and HDX Enclosures.
1x12 MTP to 12-Fiber LC Cassette (OM4+)2x24 MTP to 6x8 MTP Cassette1x24 MTP to 3x8 MTP Cassette
B14
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER HDX Adapter Plates
& Cassettes
HDX System
96 LC FIBERS PER RU
The Leviton HDX System, part of the Opt-X® family of fiber optic solutions, features
compact, HDX Adapter Plates and Cassettes with LC or MTP® connectors that fit
into high-density enclosures to create a scalable platform for enterprise and data
center applications. This allows you to maintain low costs while benefiting from
higher density: 33 percent more density with LC connectors or 50 percent with MTP,
compared to standard enclosures.
B15 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B15
FEATURED
PRODUCTS
Enclosures &
Trays B16
HDX SYSTEM | Enclosures, Trays & Accessories
HDX RACK-MOUNT ENCLOSURES
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
ADAPTER
PLATES
OR
MTP
CASSETTES
[A] 1RU 2000i HDX Enclosure, empty, with tray 96 8 8 5R1UH-S08
2RU 2000i HDX Enclosure, empty, with sliding tray 192 16 16 5R2UH-S16
1RU 1000i HDX Enclosure, empty, with sliding tray 96 8 8 5R1UM-S08
[B] 2RU 1000i HDX Enclosure, empty, with sliding tray 192 16 16 5R2UM-S16
[C] 1RU HDX Retrofit Tray (for use with 2000i SDX or 1000i SDX Enclosures) 5R1UR-TRY
2RU HDX Retrofit Tray (for use with 2000i SDX or 1000i SDX Enclosures) 5R2UR-TRY
[D] HDX Adapter Plates and Cassettes See page B14.
ACCESSORIES
DESCRIPTION PART NO.
Universal Clamp Kit, single-cable grommet (for enclosure mounting) 5RCMP-KIT
Universal Clamp Kit, multiple-cable grommet (for enclosure mounting) 5RCMP-KT2
Universal Clamp Kit, single- and multiple-cable grommet (for rack mounting) 5RCMR-KIT
RECOMMENDED
APPLICATIONS:
Data Centers
Equipment Room
Entrance Facility
Telecommunications
Room
19" and 23" Racks
and Cabinets
HDX RACK-MOUNT ENCLOSURES
• Enclosures accept HDX Adapter Plates and Cassettes
• 2000i HDX Enclosures oer a stylish design with transparent doors
• 1000i HDX Enclosures provide a simplified look, with 16-gauge steel, powder-coated black
• 1RU enclosures hold up to 96 fibers (using LC) and 2RU enclosures up to 192 fibers using
HDX adapter plates or MTP cassettes
• Sliding tray removes completely from enclosure for field terminations
• HDX Retrofit Trays available to upgrade 1RU/2RU 2000i SDX and 1000i SDX
enclosures to accept HDX cassettes and adapter plates
CLAMP KITS
Cable clamp kits minimize excessive pulling, bending, and crushing
Support easy cable identification and decreases the need for tie-wraps inside the enclosure
Create a transition point from jacketed cable to buered fiber or subunits
Ideal for vertical strain relief and strain relief at the top or bottom of a rack/cabinet
BA
See page B14 for HDX Adapter Plates & Cassettes.
DC
B16
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B16
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER HDX System
FEATURED
PRODUCTS
Frame, Patch
& Splice Decks B9
HDX Frame System
The Leviton high-density HDX Frame System, part of the Opt-X® family of
fiber optic solutions, can handle up to 3,168 LC terminated fibers in just one
2 x 2-foot tile of floor space. Ideal for service providers, central office facilities,
large enterprise, and cloud data centers, the HDX Frame System will reduce your
patching footprint, free up valuable space, and save you money. Integrated trunk
cable and patch cord management improves accessibility and enables easy
moves, adds, and changes. In addition, the system is fully scalable and modular,
supporting consolidation and growth.
B17 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B17
FEATURED
PRODUCTS
Frame, Patch &
Splice Decks B19
HDX FRAME SYSTEM | Introduction
BUILT-IN CABLE MANAGEMENT & ROUTING
The frame keeps pathways clean and organized, using integrated cable
management for minimum bend radius, better slack storage, and protection
within the frame. Patch decks contain patch cord and MTP trunk routing for
individual trays. And enhanced labeling improves deck and fiber identification
to simplify moves, adds, or changes.
SUPERIOR SCALABILITY
HDX frames can be ganged together to handle future growth with
easy pass-through cross-frame routing kits. And with 24-fiber MTP
connectivity, they are ideal for migration from 10G to 40G to 100G
and beyond.
ADDITIONAL SECURITY
The HDX frame includes rear doors that lock to protect and conceal
trunk cabling. Locking front doors (sold separately) are transparent
to allow visibility.
EASY ACCESSIBILITY
The frame’s open design greatly reduces time and labor for
maintenance, as it allows unobstructed access to patch cord
connections on the cassettes and adapter plates. And the one-tile
footprint makes it easier to access the space beneath a raised floor.
INDUSTRY-LEADING DENSITY
The HDX frame system accomplishes such
high density through its unique patch deck
design. One frame holds up to 22 patch decks,
each configured with your choice of fiber
cassettes, adapter plates, or splice trays.
HDX FRAME CAPACITY CHART
CONNECTIVITY MAX. FIBER STRANDS
LC 3,168
SC 1,584
12-Fiber MTP®7,776
24-Fiber MTP 15,552
Chart based on use of 48-fiber trunks
B18
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER
B18
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
HDX Frame System
HDX FIBER OPTIC DISTRIBUTION FRAME (3,168 CAPACITY)
Integrated cable management and routing solutions for minimum bend radius, better slack storage, and protection
Holds up to 22 decks, each configured with cassettes, adapter plates, or splice trays
Lockable rear doors included to protect and conceal trunk cabling
Optional front door kit (sold separately) with transparent door is lockable for additional security
Occupies only one 2 x 2-foot tile
Seismic rated to GR-63-CORE, Zone 4, UL 2046 Listed
PATCH DECK
2RU height for up to 144 fibers (using LC) capacity
Holds 6 independent sliding trays and accepts up to 12 HDX adapter plates or cassettes
Magnifying port identification label holders for better visibility
Integrated minimum bend radius protection
SPLICE DECK
Modular 3.5-inch-high deck accepts up to three independent splice deck trays
Sliding trays are removable for ease of splicing
Heat-shrink fusion splicing of individual 250 µm or 900 µm tight-buer fibers for up to 144 fibers per deck
Mass ribbon fusion splicing available as custom order
24-FIBER HIGH-DENSITY SPLICE TRAY
Use with HDX Frame Splice Decks, 2 trays per splice deck tray
Protect and manage heat-shrink spliced fibers
Heat-shrink splice sleeves included
HDX FRAME SYSTEM | Frame, Patch & Splice Decks
B C
A EFD
See page B14 for
HDX Cassettes
and Adapter Plates.
B19 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
HDX Frame System
FIBER
HDX FRAME SYSTEM | Frame, Patch & Splice Decks
HDX FIBER OPTIC FRAME SYSTEM
DESCRIPTION PART NO.
[A] HDX Fiber Optic Distribution Frame, 7' H x 2' W x 2' D F3168-22F
[B] 2RU Patch Deck, empty (includes front/rear cable management and cable clamp kit) F3168-DCK
[C] 2RU Splice Deck, empty (includes VELCRO®-brand ties, front/rear cable management, and cable clamp kit) F3168-SPD
[D] Cross-Frame Routing Kit F3168-CFR
[E] Front Door Kit F3168-FDR
Cable Clamp Kit, single-cable grommet F3168-CCK
2RU Blank Panel F3168-BLK
24-FIBER SPLICE TRAY
[F] 24-fiber Heat-Shrink Style Molded Splice Tray (includes 60 mm splice sleeves) T5PLS-24F
Make-to-Order! HDX FRAME OPTIONS
NUMBER OF
PATCH DECKS
NUMBER OF HDX
ADAPTER PLATES
OR CASSETTES PER
PATCH DECK
CASSETTE
FIBER COUNT FIBER TYPE
HDX CASSETTE/
PLATE CONNECTOR
TYPE (FRONT)
HDX CASSETTE/
PLATE CONNECTOR
TYPE (REAR)
HDX CASSETTE
POLARITY
FRONT
DOOR KIT
1-22 1-12 12
24
48
Adapter
Plate Only
OM2
OM3
OM4
OM4+
OS2
LC
SC
MTP (key up)
LC (Plate)
SC (Plate)
MTP (Plate, key up)
MTP (Plate, key down)
12-Fiber MTP (Cassette)
24-Fiber MTP (Cassette)
Method A
Method B (Core)
Method B (Edge)
Method C
None
(Adapter Plate)
Yes
No
Make-to-Order! HDX PATCH DECK OPTIONS
NUMBER OF
CASSETTES
OR ADAPTER
PLATES PER
DECK
CASSETTE FIBER
COUNT FIBER TYPE HDX CASSETTE/PLATE
CONNECTOR TYPE (FRONT)
HDX CASSETTE/PLATE
CONNECTOR TYPE (REAR) HDX CASSETTE POLARITY
1-12 12
24
48
Adapter Plate Only
OM2
OM3
OM4
OM4+
OS2
LC
SC
MTP® (key up)
LC (Plate)
SC (Plate)
MTP (Plate, key up)
MTP (Plate, key down)
12-Fiber MTP (Cassette)
24-Fiber MTP (Cassette)
Method A
Method B, Core
Method B, Edge
Method C
None
(Adapter Plate)
Make-to-Order! HDX MTP CASSETTE OPTIONS
FIBER TYPE FIBER COUNT CONNECTOR TYPE (FRONT) MTP TYPE (REAR) POLARITY
OM2
OM3
OM4
OM4+
OS2
12
24
48
LC
LC (Violet)
8-Fiber MTP (Female)
12-Fiber MTP (Male)
24-Fiber MTP (Male)
Method A
Method B, Core
Method B, Edge
Method C
For Method B polarity, you must order one each of the core and edge cassettes.
For assistance customizing your HDX frame system, please visit
Leviton.com/configurator or call Tech Support at 800.824.3005.
ROii™ Savings Calculator
Calculate your return on infrastructure investment when installing the HDX Frame System
in your Main Distribution Area. Go to apps.Leviton.com/HDXcalculator.
B20
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER HDX Frame System
SDX Systems
72 LC FIBERS PER RU
The SDX System, part of the Opt-X® family of fiber optic solutions, is a flexible
solution designed for easy installation and maintenance. Whether it's the 2000i
for data centers or 1000i and 500i for medium and small enterprise applications,
each comes packed with features for better cable organization and maintainability. In
addition, precision-molded SDX adapter plates, MTP® cassettes, and cable assemblies
oer the flexible connection and storage options to meet any project need.
B21 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B21
FEATURED
PRODUCTS
Enclosures B22
Adapter Plates
B27
MTP Cassettes
B29
SDX SYSTEMS | Rack-Mount Enclosures > 2000i SDX
2000i SDX 1RU/2RU/4RU RACK-MOUNT ENCLOSURES
Accept SDX adapter plates, MTP® cassettes, splice trays, and splice modules
Removable transparent hinged doors
Sliding tray provides accessibility to front and rear of bulkhead after installation,
and removes completely to facilitate field terminations and splicing
17-inch depth for high-density fiber termination and/or splicing
Stackable and adjustable fiber rings simplify cable management
Constructed of durable polycarbonate plastic and black powder-coated 16-gauge steel
19- or 23-inch rack-mount options (23-inch 1RU mounting bracket sold separately)
1RU and 2RU accept the HDX Retrofit Tray (sold separately) for higher density applications
using HDX MTP Cassettes and Adapter Plates
1RU and 2RU enclosures are “intelligent ready,” accept Intact Fiber Upgrade Kits, see page F5
2000i SDX RACK-MOUNT ENCLOSURES
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
ADAPTER
PLATES
AND
SPLICE
TRAYS/
MODULES*
OR
MTP®
CASSETTES
[A] 1RU 2000i SDX Enclosure, empty, sliding tray 72 3 3 3 5R1UH-S03
[B] 2RU 2000i SDX Enclosure, empty, sliding tray 144 6 6 6 5R2UH-S06
[C] 4RU 2000i SDX Enclosure, empty, sliding tray 288 12 12 12 5R4UH-S12
[D] SDX Adapter Plates and Cassettes See pages B27-B30.
* = Maximum splice tray capacity is limited by height of selected splice tray. See page X13 for splice tray dimension and selection guide.
Make-to-Order! 2000i SDX RACK-MOUNT ENCLOSURE OPTIONS
ENCLOSURE
STYLE
ADAPTER PLATES
OR MTP CASSETTE
SELECTION
ADAPTER
PLATE
QTY
FIBER
TYPE
ADAPTER TYPE
& PIGTAIL
SELECTION
SPLICE TRAY STYLE
NO. OF
SPLICE
TRAYS
SECURITY
OPTIONS
CABLE
CLAMP
KIT
MOUNTING
EAR
POSITION
1U
2U
4U
6 fibers (SC, ST)
8 fibers (SC, ST)
12 fibers (LC, SC, ST)
16 fibers (LC only)
24 fibers (LC only)
MTP Cassette -
12 fibers (LC, SC, ST)
MTP Cassette -
24 fibers (LC only)
1-12 OM1
OM2
OM3
OM4
OM4+
OS2
LC
LC + pigtail
SC
SC/APC
SC + pigtail
SC/APC + pigtail
ST
ST + pigtail
LC (Violet)
Heat shrink, foam holders,
up to 12 fibers (molded tray)
Heat shrink, plastic holders,
up to 12 fibers (molded tray)
Bare fusion, plastic holders,
up to 12 fibers (metal tray)
Heat shrink, plastic holders,
up to 24 fibers (molded tray)
None
1-12
None
Locking
front door
Locking
rear door
Both doors
None
Yes
No
19"
23"
LightSpace® (LGX® footprint) compatible versions also available by special order.
RECOMMENDED
APPLICATIONS:
Data Centers
Equipment Room
Entrance Facility
Telecommunications
Room
19" and 23" Racks
and Cabinets
B
A
D
For assistance customizing your enclosures, please visit Leviton.com/configurator or call Tech Support at 800.824.3005.
C
B22
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B22
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER SDX Systems
SDX SYSTEMS | Rack-Mount Enclosures > 1000i SDX
1000i SDX 1RU/2RU/3RU/4RU RACK-MOUNT ENCLOSURES
Accept SDX adapter plates, MTP® cassettes, splice trays, and splice modules (pages B27-B31)
• Sliding tray in 1RU and 2RU removes completely for easy field terminations and splicing
15-inch depth for high-density fiber termination and/or splicing
19- or 23-inch enclosure rack-mount option (23-inch 1RU mounting bracket sold separately)
Enclosures protrude 4.5-inches from mounting ears to align with Versi-Duct® Cable
Management System
• LightSpace® (LGX® footprint) compatible versions also available by custom order
Included accessory kit consists of cable ties, mounting ear screws, and port ID label
1RU and 2RU accept the HDX Retrofit Tray (sold separately) for higher density applications
using HDX MTP Cassettes
1000i SDX RACK-MOUNT ENCLOSURES
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
ADAPTER
PLATES
AND
SPLICE TRAYS/
MODULES*
OR
MTP
CASSETTES
1RU 1000i SDX Enclosure, empty 72 3 3 3 5R1UM-F03
[A] 1RU 1000i SDX Enclosure, empty, sliding tray 72 3 3 3 5R1UM-S03
2RU 1000i SDX Enclosure, empty 144 6 6 6 5R2UM-F06
2RU 1000i SDX Enclosure, empty, sliding tray 144 6 6 6 5R2UM-S06
3RU 1000i SDX Enclosure, empty, horizontal^ 216 9 12 9 5R3UM-F09
[B] 3RU 1000i SDX Enclosure, empty, vertical° 288 12 12 12 5R3UM-F12
[C] 4RU 1000i SDX Enclosure, empty, vertical° 288 12 12 12 5R4UM-F12
4RU 1000i SDX Enclosure, empty, horizontal^ 360 15 12 15 5R4UM-F15
° = Vertical adapter plate/cassette orientation ^ = Horizontal adapter plate/cassette orientation
* = Maximum splice tray capacity is limited by height of selected splice tray. See page X13 for splice tray dimension and selection guide.
See pages B27-B30 for list of SDX adapter plates and cassettes. LightSpace (LGX footprint) compatible versions also available by special order.
Make-to-Order! 1000i SDX RACK-MOUNT ENCLOSURE OPTIONS
ENCLOSURE STYLE
ADAPTER PLATES OR
MTP CASSETTE
SELECTION
ADAPTER
PLATE
QTY
FIBER
TYPE
ADAPTER TYPE &
PIGTAIL SELECTION SPLICE TRAY STYLE
NO. OF
SPLICE
TRAYS
SECURITY
OPTIONS
CABLE
CLAMP
KIT
MOUNTING
EAR
POSITION
1RU
2RU
1RU or 2RU
with tray
3RU or 4RU
with horizontal
adapter plates
3RU or 4RU
with vertical
adapter plates
6 fibers (SC, ST)
8 fibers (SC, ST)
12 fibers (LC, SC, ST)
16 fibers (LC only)
24 fibers (LC only)
MTP Cassette - 12
fibers (LC, SC, ST)
MTP Cassette - 24
fibers (LC only)
1-15 OM1
OM2
OM3
OM4
+
OS2
LC
LC + pigtail
SC
SC/APC
SC + pigtail
SC/APC + pigtail
ST
ST + pigtail
LC (Violet)
Heat shrink, foam holders,
up to 12 fibers (molded tray)
Heat shrink, plastic holders,
up to 12 fibers (molded tray)
Bare fusion, plastic holders,
up to 12 fibers (metal tray)
Heat shrink, plastic holders,
up to 24 fibers (molded tray)
None
1-12
None
Locking
front
door
Locking
rear
door
Both
doors
None
Ye s
No
19"
23"
RECOMMENDED
APPLICATIONS:
Equipment Room
Telecommunications
Room
19" and 23" Racks
and Cabinets
BA C
For assistance customizing your enclosures, please visit Leviton.com/configurator or call Tech Support at 800.824.3005.
B23 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
SDX Systems
FIBER
SDX SYSTEMS | Rack-Mount Enclosures > 500i SDX
500i SDX 1RU/2RU/3RU FLUSH-MOUNT RACK ENCLOSURES
Accept SDX adapter plates, MTP® cassettes, splice trays, and splice modules (page B27-B31)
• Flush-mount adapter bulkhead makes moves, adds, and changes easy
• One-piece removable cover allows for complete accessibility to the back of the enclosure
• Accepts injection-molded splice trays and 4 inch x 7 inch metal splice trays
• Enclosure can store up to 3 meters of 900 μm tight-buered fiber per adapter
• Included accessory kit consists of cable ties, mounting ear screws, and port ID label
• 1RU and 3RU flush-mount panels accept SDX adapter plates and cassettes, and mount to 19-inch racks and cabinets
• Optional add-on patch cord cable management tray (sold separately) uses existing rack unit
500i SDX RACK-MOUNT ENCLOSURES
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
ADAPTER
PLATES
AND
SPLICE
TRAYS/
MODULES*
OR
MTP
CASSETTES
[A] 1RU 500i SDX Enclosure, empty 72 3 3 3 5R1UL-F03
[B] 2RU 500i SDX Enclosure, empty 144 6 6 6 5R2UL-F06
[C] 3RU 500i SDX Enclosure, empty 288 12 12 12 5R3UL-F12
[D] 1RU 500i SDX Panel, empty 72 3 N/A 3 5R1UE-OPX
[E] 3RU 500i SDX Panel, empty 288 12 N/A 12 5R3UE-OPX
* = Maximum splice tray capacity is limited by height of selected splice tray. See page X13 for splice tray dimension and selection guide.
See pages B27-B30 for list of SDX adapter plates and cassettes.
RECOMMENDED
APPLICATIONS:
Equipment Room
Telecommunications
Room
19" Racks and Cabinets
Patch Cord Management Trays help route and organize cables on 500i SDX
enclosures. The trays feature identification labels and front saddles that pivot
for easier routing. Because they mount directly to the front of the enclosures,
they do not require additional rack space. Available in 1RU and 2RU sizes, the
trays can be used with any Leviton 1RU flush-mount MTP enclosure, and 2RU
trays can be used with 3RU 500i SDX enclosures. (See page B32.)
BA C
D E
Patch Cord Management TraySPOTLIGHT
B24
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER SDX Systems
SDX SYSTEMS | Wall-Mount Enclosures > 1000 SDX
RECOMMENDED
APPLICATIONS:
Telecommunications
Room
Equipment Room
1000 SDX WALL-MOUNT FIBER OPTIC ENCLOSURES
Self-healing grommet material protects cable and minimizes dust buildup
Adjustable fiber management rings easily attach to mounting studs
Ground terminal lug provides grounding option or cable strain relief
Cutout on side of enclosure allows access to adapter bulkhead when doors are open
Door options: split with single lock on service side (optional lock available to install
on customer side), solid with or without single lock on customer side
Constructed of 16-gauge steel, powder-coated black
1000 SDX WALL-MOUNT ENCLOSURES
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
ADAPTER
PLATES
AND
SPLICE
TRAYS/
MODULES*
OR
MTP®
CASSETTES
Small 1000 SDX Enclosure, empty,
solid metal door, no lock 48 2 N/A 2 5W110-00N
[A] Small 1000 SDX Enclosure, empty,
split metal door, one lock and key 48 2 N/A 2 5W120-00N
Small 1000 SDX Enclosure, empty,
solid metal door, one lock and key 48 2 N/A 2 5W170-00N
Medium 1000 SDX Enclosure, empty,
solid metal door, no lock 96 4 6 / 4 4 5W310-00N
[B]
Medium
1000 SDX Enclosure
, empty,
split metal door
, one lock and key 96 4 6 / 4 4 5W320-00N
Medium
1000 SDX Enclosure
, empty,
solid metal door
, one lock and key 96 4 6 / 4 4 5W370-00N
[C] Large 1000 SDX Enclosure, empty,
solid metal door, no lock 288 12 6 / 12 12 5W710-00N
Large 1000 SDX Enclosure, empty,
split metal door, one lock and key 288 12 6 / 12 12 5W720-00N
Large 1000 SDX Enclosure, empty,
solid metal door, one lock and key 288 12 6 / 12 12 5W770-00N
ACCESSORIES
DESCRIPTION PART NO.
1000 SDX Enclosure Lock and Key 5L000-L0K
* = Maximum splice tray capacity is limited by height of selected splice tray. See page X13 for splice tray dimension and selection guide.
See pages B27-B30 for list of SDX adapter plates and cassettes.
BA C
B25 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
SDX Systems
FIBER
SDX SYSTEMS | Rack-Mount > VertiGO®
VERTIGO ZERO-U PATCH PANELS
• QuickPort® or SDX-style openings for copper and fiber installations
Zero-U uses no rack space
Improves cabinet center airflow by routing rear cable along outer edges
Styles with 3- and 6-inch channels* provide additional cable
management space
Hinged doors provide easy access to termination field
Patented magnified lens label holders make for easy reading
Pre-configured plug-n-play options available for fast network
deployment, call 800.722.2082 for more information
*Not available as stand-alone pieces and must be purchased as a complete unit.
VERTIGO RACK-MOUNT PLUG-N-PLAY PATCH PANELS
Adjustable mounting ears provide five unique oset distances for enhanced horizontal cable management
Integrated cable manager
Accepts all SDX adapter plates, allowing for a mix of copper, fiber, and multimedia connectivity
Provides either MTP® Plug-n-Play or discrete point termination
All VertiGO Rack-Mount Plug-n-Play Patch Panels sold as custom configurations; call 800.722.2082 for more information
VERTIGO ZERO-U PATCH PANELS
DESCRIPTION PART NO.
[A] VertiGO Zero-U SDX Panel, empty 49280-AP0
[B] VertiGO Zero-U Plug-N-Play Patch Panel* Contact Inside Sales 800.722.2082
[C] VertiGO Rack-Mount Plug-N-Play Patch Panels* Contact Inside Sales 800.722.2082
For VertiGO panels with QuickPort openings, see page A23.
* = Minimum order quantity and lead times may apply.
BA C
VertiGO®
SPOTLIGHT
A major developer of enterprise cloud applications for
human resource and finance organizations recently installed
VertiGO Zero-U panels above their data center cabinets.
Installing above the cabinet allowed them to dedicate 100
percent of their rack space to equipment, and mounting
brackets made it easy to mount horizontally to ladder racks
without requiring any drilling. The panels include both copper and fiber, using built-in
dividers to isolate LC fiber and RJ copper connectivity against damage. Rear cable
managers protect MTP connections and insure that no other cables installed in the
ladder rack will disturb the connection to the cabinets.
Leviton.com/ns/videos
“How to Mount a VertiGO Patch Panel”
WATCH: INSTALLATION VIDEOS
B26
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER SDX Systems
AB C E F GHJ
I
STK LMNOP RQ
SDX ADAPTER PLATES
Work with SDX Enclosures, including the 2000i, 1000i, 500i, VertiGO®,
and wall-mount 1000
Captive push/pull fasteners allow for quick, tool-free installation and removal
Precision-molded LC and SC adapter plate colors designate fiber type, per TIA standards
Available in 6- to 24-fiber plates for LC, SC, and ST
Available in 72- to 192-fiber plates for MTP®
• MTP® and LC adapter plates with shutters available by custom order
6-position QuickPort® Adapter plates (item T) accept all QuickPort modules
SDX RACK-MOUNT ENCLOSURE CAPACITY
1RU
FOR 2000i, 1000i & 500i 2RU
FOR 2000i, 1000i & 500i
3RU
FOR 1000i
3RU
FOR 500i
4RU
FOR 2000i & 1000i
Holds up to 3 adapter plates Holds up to 6 adapter plates Holds up to 9/12 adapter plates Holds up to 12 adapter plates Holds up to 12/15 adapter plates
6-pk Dplx LC = up to 36 fibers
6-pk Quad LC = up to 72 fibers
8-pk Dplx LC = up to 48 fibers
3-pk Dplx SC = up to 18 fibers
6-pk Dplx SC = up to 36 fibers
6-pk ST = up to 18 fibers
8-pk ST = up to 24 fibers
6-pk Dplx LC = up to 72 fibers
6-pk Quad LC = up to 144 fibers
8-pk Dplx LC = up to 96 fibers
3-pk Dplx SC = up to 36 fibers
6-pk Dplx SC = up to 72 fibers
6-pk ST = up to 36 fibers
8-pk ST = up to 48 fibers
6-pk Dplx LC = up to 108/144 fibers
6-pk Quad LC = up to 216/288 fibers
8-pk Dplx LC = up to 144/192 fibers
3-pk Dplx SC = up to 54/72 fibers
6-pk Dplx SC = up to 108/144 fibers
6-pk ST = up to 54/72 fibers
8-pk ST = up to 72/96 fibers
6-pk Dplx LC = up to 144 fibers
6-pk Quad LC = up to 288 fibers
8-pk Dplx LC = up to 192 fibers
3-pk Dplx SC = up to 72 fibers
6-pk Dplx SC = up to 144 fibers
6-pk ST = up to 72 fibers
8-pk ST = up to 96 fibers
6-pk Dplx LC = up to 144/180 fibers
6-pk Quad LC = up to 288/360 fibers
8-pk Dplx LC = up to 192/240 fibers
3-pk Dplx SC = up to 72/90 fibers
6-pk Dplx SC = up to 144/180 fibers
6-pk ST = up to 72/90 fibers
8-pk ST = up to 96/120 fibers
SDX WALL-MOUNT ENCLOSURE CAPACITY
SMALL MEDIUM LARGE
Holds up to 2 adapter plates Holds up to 4 adapter plates Holds up to 12 adapter plates
6-pk Dplx LC = up to 24 fibers
6-pk Quad LC = up to 48 fibers
8-pk Dplx LC = up to 32 fibers
3-pk Dplx SC = up to 12 fibers
6-pk Dplx SC = up to 24 fibers
6-pk ST = up to 12 fibers
8-pk ST = up to 16 fibers
6-pk Dplx LC = up to 48 fibers
6-pk Quad LC = up to 96 fibers
8-pk Dplx LC = up to 64 fibers
3-pk Dplx SC = up to 24 fibers
6-pk Dplx SC = up to 48 fibers
6-pk ST = up to 24 fibers
8-pk ST = up to 32 fibers
6-pk Dplx LC = up to 144 fibers
6-pk Quad LC = up to 288 fibers
8-pk Dplx LC = up to 192 fibers
3-pk Dplx SC = up to 72 fibers
6-pk Dplx SC = up to 144 fibers
6-pk ST = up to 72 fibers
8-pk ST = up to 96 fibers
SDX | Adapter Plates
Front Rear
Key Up / Key Down
Front Rear
Key Up / Key Up
D
B27 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
FIBER SDX Adapter Plates
SDX | Adapter Plates
SDX PRECISION-MOLDED FIBER ADAPTER PLATES
DESCRIPTION PART NO.
[A] 12-Fiber SDX Adapter Plate, OM1, Duplex LC (beige), zirconia ceramic sleeve 5F100-2IL
[B] 12-Fiber SDX Adapter Plate, OM2, Duplex LC (black), zirconia ceramic sleeve 5F100-2EL
[C] 12-Fiber SDX Adapter Plate, OM3 & OM4, Duplex LC (aqua), zirconia ceramic sleeve 5F100-2QL
[D] 12-Fiber SDX Adapter Plate, OM4+, Duplex LC (violet), zirconia ceramic sleeve 5F100-2PL
[E] 12-Fiber SDX Adapter Plate, OS2, Duplex LC (blue), zirconia ceramic sleeve 5F100-2LL
[F] 12-Fiber SDX Adapter Plate, OS2, Duplex LC/APC (green), zirconia ceramic sleeve 5F100-2VL
[G] 24-Fiber SDX Adapter Plate, OM1, Quad LC (beige), zirconia ceramic sleeve 5F100-4IL
[H] 24-Fiber SDX Adapter Plate, OM2, Quad LC (black), zirconia ceramic sleeve 5F100-4EL
[I] 24-Fiber SDX Adapter Plate, OM3 & 4, Quad LC (aqua), zirconia ceramic sleeve 5F100-4QL
24-Fiber SDX Adapter Plate, OM4+, Quad LC (violet), zirconia ceramic sleeve 5F100-4PL
[J] 24-Fiber SDX Adapter Plate, OS2, Quad LC (blue), zirconia ceramic sleeve 5F100-4LL
6-Fiber SDX Adapter Plate, OM1, Duplex SC (beige), zirconia ceramic sleeve 5F100-6IC
6-Fiber SDX Adapter Plate, OM2, Duplex SC (black), zirconia ceramic sleeve 5F100-6EC
6-Fiber SDX Adapter Plate, OM3 & OM4, Duplex SC (aqua), zirconia ceramic sleeve 5F100-6QC
6-Fiber SDX Adapter Plate, OS2, Duplex SC (blue), zirconia ceramic sleeve 5F100-6LC
6-Fiber SDX Adapter Plate, OS2, Duplex SC/APC (green), zirconia ceramic sleeve 5F100-6VC
[K] 12-Fiber SDX Adapter Plate, OM1, Duplex SC (beige), zirconia ceramic sleeve 5F100-2IC
[L] 12-Fiber SDX Adapter Plate, OM2, Duplex SC (black), zirconia ceramic sleeve 5F100-2EC
[M] 12-Fiber SDX Adapter Plate, OM3 & OM4, Duplex SC (aqua), zirconia ceramic sleeve 5F100-2QC
[N] 12-Fiber SDX Adapter Plate, OS2, Duplex SC (blue), zirconia ceramic sleeve 5F100-2LC
[O] 12-Fiber SDX Adapter Plate, OS2, Duplex SC/APC (green), zirconia ceramic sleeve 5F100-2VC
[P] 6-Fiber SDX Adapter Plate, ST MM/SM (black), zirconia ceramic sleeve 5F100-6MT
[Q] 8-Fiber SDX Adapter Plate, ST MM/SM (black), zirconia ceramic sleeve 5F100-8MT
[R] SDX Adapter Plate, blank (black) 5F100-PLT
SDX FIBER ADAPTER PLATES, METAL
16-Fiber SDX Adapter Plate (black), OM1 & OM2, Duplex LC (beige), phosphor bronze sleeve* 5F100-16P
16-Fiber SDX Adapter Plate (black), OM3 & OM4, Duplex LC (aqua), zirconia ceramic sleeve* 5F100-16A
16-Fiber SDX Adapter Plate (black), OS2, Duplex LC (blue), zirconia ceramic sleeve* 5F100-16Z
[S] SDX Adapter Plate, 6 simplex MTP® (black), key up/key down 5F100-6MP
SDX Adapter Plate, 6 simplex MTP (black), key up/key up* 5F100-6MB
SDX Adapter Plate, 8 simplex MTP (black), key up/key down 5F100-8MP
SDX Adapter Plate, 8 simplex MTP (black), key up/key up* 5F100-8MB
[T] SDX Adapter Plate, 6-position QuickPort® (black), empty 5F100-6QP
* = Minimum order quantity and lead times may apply.
Traditional adapter plate construction typically uses independent couplers
inserted in a metal plate that often results in a “rattling” of components. Leviton
SDX Adapter Plates eliminate rattling and loose-fitting adapters by using
precision molding and integrated adapters, improving the overall performance,
functionality, and quality of construction. All multimode and single-mode SDX
plates feature zirconia ceramic sleeves, providing high performance and low
insertion loss (recommended for applications requiring 10 Gbps and higher).
Additional adapter plate configurations
available. Please contact Tech Support
at 800.824.3005 for more information.
SDX Precision-Molded Adapter PlatesSPOTLIGHT
B28
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER SDX Adapter Plates
SDX MTP CASSETTES
Plug-n-play cassettes eliminate the need for field termination or splices
Bend-insensitive fiber used in OM3/OM4/OM4+ cassette
All premium 12-fiber MTP cassettes use low-loss MTP connectors
Low insertion loss of 0.5 dB maximum
100% factory tested with test results included with each cassette
SDX CASSETTES, COMMON CONFIGURATIONS
DESCRIPTION PART NO.
12-Fiber SDX MTP Cassette, MTP-LC FM-*012CAC0+
[A] 12-Fiber SDX MTP Cassette, MTP-SC FM-*012BAC0+
[B] 24-Fiber SDX MTP Cassette, 2x12F MTP-LC FM-*024CAC0+
* = fiber type: A = OS2, E = OM3, F = OM4, G = OM4+
+ = Polarity: A=Method A, C=Method C, BC = Method B (core), BE = Method B (edge). For Method B, each channel must have 1 core and 1 edge cassette.
Make-to-Order! MTP CASSETTE OPTIONS
FIBER TYPE FIBER COUNT CONNECTOR TYPE MTP FIBER COUNT POLARITY
OM1
OM2
OM3
OM4 (aqua)
OM4+ (violet)
OS2
12
24
LC
LC (violet)
LC (w/shutters)
LC/APC
LC/APC (w/shutters)
SC
SC/APC
MU
ST
12 MTP Method A
MTP Method B, Core, Black Latches
MTP Method B, Edge, White Latches
MTP Method C
For MTP Method B polarity, you must order one each of the Core and Edge cassettes.
SDX | MTP® Cassettes
A B MTP-LC Cassette with Shutters
MTP-LC, 24-fiber, OM4
(OM4+ violet color option)
SDX GPON SPLITTER MODULE
Permits low optical loss for passive optical network layouts
Cassette includes SC/APC connector on fiber lead
Fits SDX wall- and rack-mount enclosures
SDX GPON SPLITTER CASSETTES
DESCRIPTION PART NO.
SDX Splitter, 1 x 16, SC/APC, 3-foot leg PLC16-003
SDX Splitter, 2 x 16, SC/APC, 3-foot leg PLC26-003
SDX Splitter, 1 x 32, SC/APC, 3-foot leg PLC12-003
SDX Splitter, 2 x 32, SC/APC, 3-foot leg PLC22-003
For assistance customizing your cassettes, please visit
Leviton.com/configurator or call Tech Support at 800.824.3005.
B29 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
FIBER SDX MTP Cassettes
OPT-X UNITY 40/100G SDX MTP CASSETTES
Easy to migrate from 10G to 40/100G when used with Opt-X® Unity trunks,
harnesses, and patch cords
Cassettes support up to 48 fibers using MTP-MTP, or 24 fibers using MTP-LC
All cassettes use either 24-fiber or 12-fiber low-loss MTP connectors
Bend-insensitive fiber used in OM3/OM4/OM4+ cassettes
MTP-MTP cassettes are used with MTP array cords on page B60
See specific enclosure pages for MTP cassette capacity
Latches are color coded: black = Core, white = Edge
Unity cassettes are Make-to-Order only
OPT-X UNITY 40/100G SDX MTP CASSETTES, COMMON CONFIGURATIONS
DESCRIPTION PART NO.
[A] 24-Fiber Opt-X Unity SDX MTP Cassette, 2x12F MTP-3x8F MTP, method B FM -*024NCC0B†
[B] 48-Fiber Opt-X Unity SDX MTP Cassette, 2x24F MTP-6x8F MTP, method B FM -*048NDC0B†
24-Fiber Opt-X Unity SDX MTP Cassette, 24F MTP-LC, method B FM -*024CDC0B†
24-Fiber Opt-X Unity SDX MTP Cassette, 24F MTP-3x8F MTP, method B FM -*024NDC0B†
* = Fiber type: OM3 (E), OM4 (F), OM4+ (G) † = Polarity: Core (C), or Edge (E) Each channel must have one core and one edge cassette. Other MTP polarity options available.
SDX SYSTEMS | MTP® Cassettes > Opt-X® Unity 40/100G
Leviton is the first manufacturer to have an independent fiber channel verification completed. Our OM3 fiber connectivity
has been tested and shown to exceed performance requirements to support 10GBASE-S, and the Opt-X Unity System has
been shown to exceed the performance requirements for 40GBASE-SR4 and 100GBASE-SR10 standards. Both tests were
performed by Intertek (ETL) to ensure compliance to the maximum insertion loss and link distance requirements specified in
the ANSI/TIA-568-C.3 and IEEE 802.3ba standards. The channels were configured to show typical data center applications
as well as maximum flexibility. This type of testing assures customers that our fiber solutions will support their needs as
they migrate to 10G, 40G, or 100G.
Mated-pair channel
tested by Intertek (ETL)
®
40GBASE-SR4, 8-fiber MTP
100GBASE-SR4, 8-fiber MTP
100GBASE-SR10, 2x12-fiber MTPs
100GBASE-SR10, 24-fiber MTP
1x24-Fiber MTP
(back view)
2x12-Fiber MTP
(back view)
Two Configurations Available:
Electronics 8-Fiber MTP
Array Cord
24-Fiber MTP
Cassette (core)
24-Fiber MTP
Cassette (edge)
Electronics1x24-Fiber
MTP Trunk Cable
8-Fiber MTP
Array Cord
(x3) (x3)
BA
For assistance customizing your cassettes, please visit Leviton.com/configurator or call Tech Support at 800.824.3005.
10/40/100G Fiber PerformanceSPOTLIGHT
B30
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER SDX MTP Cassettes
PRECISION-MOLDED SPLICE TRAYS
DESCRIPTION PART NO.
[A] 12-Fiber Mini Splice Tray, 3.74" W x 5.59" L x 0.56" H (includes 14 heat-shrink splice sleeves) T5PLS-12F
[B] 24-Fiber High-Density Splice Tray, 4.5" W x 7.63" L x 0.50" H (includes 26 heat-shrink splice sleeves) T5PLS-24F
Splice Tray Mounting Hardware Kit SPLMT-HKT
SDX 12- & 24-FIBER SPLICE MODULES
[C] 12-Fiber Splice Module, LC* SPLCS-12x
[D] 24-Fiber Splice Module, LC* SPLCS-24x
[E] 12-Fiber Splice Module, SC* SPSCS-12x
* = Additional fiber types and connector combinations are available. For assistance ordering, call 800.824.3005.
x = OM3 (A), OS2 (L), APC OS2 (V), OM4 (4), OM4+ (P)
Note: Splice tray mounting hardware sold separately except as noted. Additional configurations available including mechanical splice. Contact Inside Sales at
800.824.3005
for more information.
For assistance ordering your splice trays, visit Leviton.com/configurator or call Tech Support at 800.824.3005.
SDX | Splice Trays & Splice Modules
A B C D, E
SDX 12- and 24-Fiber Splice Modules protect and organize heat-shrink fusion
spliced fibers inside a fiber enclosure. Splice modules eliminate the need for
individual splice trays within a fiber enclosure and provide optimal organization
and slack management of fibers. Plus, the modular design enables faster field
splicing and simple management of pigtails within the housing.
SDX Fiber Splice ModulesSPOTLIGHT
PRECISION-MOLDED SPLICE TRAYS
12-fiber mini and 24-fiber high-density splice trays
Protect and manage heat-shrink-style spliced fibers
Heat-shrink splice sleeves included
Ratchet-action clamps with foam-rubber padding
minimize damage to fibers
Compatible with Leviton SDX 2000i, 1000i, and 1000
Enclosures, plus LightSpace® Wall-Mount Enclosures
24-fiber splice tray (T5PLS-24F) compatible with HDX
frame splice deck
12-fiber splice tray compatible with Leviton network
interface devices (NIDs); when stacking splice trays,
only use lids on top tray
SDX 12- & 24-FIBER SPLICE MODULES
Integrate fiber adapter bulkhead (12 or 24 fibers) and
splice holders, eliminating the need of splice trays
Individual compartments provide slack storage and bend
radius guides for respective backbone cable, 900 μm
tight-buer pigtails, and fusion-spliced fibers
Modular design allows for ease of maintenance of
individual spliced fiber and allows for scaling up without
impacting existing fibers
B31 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
FIBER SDX Splice Trays
& Modules
AVAILABLE FOR
UHDX
2000i HDX & SDX
1000i HDX & SDX
500i SDX
1000 SDX WALL-MOUNT
ACCESSORIES
DESCRIPTION PART NO.
[A] Universal Clamp Kit, single cable grommet (for enclosure mounting) 5RCMP-KIT XXXX
Universal Clamp Kit, multiple cable grommet (for enclosure mounting) 5RCMP-KT2 XXXX
[B] Universal Clamp Kit, single and multiple cable grommet (for rack mounting) 5RCMR-KIT XXXX
1RU 23" Rack and Cabinet Mounting Bracket^ 5R1RU-023 X X
23" Rack and Cabinet Mounting Bracket 5REAR-023 X
Replacement Door^ 5D000-*UN X
Replacement Door with Lock^ 5D000-*UL X
Replacement Covers^ 5C000-RPL X
Covers, metal^ 5CMTL-RPL X
[C] Fiber Cable Management ¼" Ring Kit (bag of four ¼" rings) 5R100-14R XXX
[D] 2000i Patch Cord Bend Radius Bracket (bag of two)^ 5PCBR-*BT X
Lock and Key for Rack-Mount Enclosure 5L000-KAL X
Lock and Key for Wall-Mount Enclosure 5L000-L0K X
[E] 1RU Patch Cord Management Tray, for use with 1RU enclosure, 4" depth 5R1UL-CMT X
[F] 2RU Patch Cord Management Tray, for use with 2RU and 3RU enclosure, 4" depth 5R2UL-CMT X
Grounding Kit DPGRD-KIT XXXX
^ = Minimum order quantity and lead times may apply. * = Rack Units: 1RU (1), 2RU (2), 4RU (4)
SDX SYSTEMS | Accessories
SDX SYSTEM ACCESSORIES
Cable Clamp Kits minimize excessive pulling, bending, and crushing
Support easy cable identification and decrease the need for tie-wraps
inside the enclosure
Fiber Cable Management Rings secure fiber slack
Patch Cord Management Trays help route and organize cables, mount directly
to the front of the enclosures, and do not require additional rack space
Cable clamp kits minimize excessive pulling, bending, and crushing forces on cable.
The Enclosure-Mount Universal Clamp Kit makes it easy to identify cables, and decreases
the need for tie-wraps inside the enclosure. The kit also creates a transition point from
jacketed cable to buered fiber or subunits. The Rack-Mount Universal Clamp Kit is ideal
for vertical strain relief and strain relief at the top or bottom of a rack/cabinet. Use it for
installations with minimal vertical cable pathways and little space for an enclosure-mount
cable clamp kit.
Enclosure-Mount Universal Clamp Kit InstalledRack-Mount Universal Clamp Kit Installed
BA C D
FE
Cable Clamp KitsSPOTLIGHT
B32
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER SDX Systems
e2XHD Snap-In
Cassette Patching System
The e2XHD Copper and Fiber Patching System is an easy-to-connect, high-density
solution for enterprise and data center applications, where fast deployment and
simple maintenance are critical. The system includes 1RU and 4RU high-density
panels, copper and fiber snap-in cassettes, and accessories for additional cable
protection and management. The e2XHD cassettes quickly snap in and pull out
of the panels, making installation, moves, adds, and changes easier than ever.
For copper cassettes, see page A22.
FEATURED
PRODUCTS
Panels B35
Cassettes B36
B33 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B33
e2XHD HIGH-DENSITY PATCH PANELS
High-density panels allow patching for up to 48 duplex fiber
channels in a 1RU panel or 192 channels in a 4RU panel.
e2XHD FIBER CASSETTES
Fiber MTP® Cassettes provide a simple migration path to 40G
or 100G networks. The cassettes are pre-terminated and available
in 12 or 24 fibers, OM3, OM4, OM4+, or OS2 single mode.
The e2XHD Fiber Cassette features an MTP adapter that swivels to
three positions for easier cable routing. Used in conjunction with the
patching system’s rear cable manager and cable management rings,
the adapter delivers an ideal solution for eliminating cable tension
and ensuring proper bend radius.
e2XHD MTP-MTP Fiber Cassette, Core
e2XHD MTP-MTP Pass-Through Cassette
e2XHD 12-Fiber QuickPort® LC Cassette, OM3/OM4 - Aqua
e2XHD SNAP-IN CASSETTE PATCHING SYSTEM | Introduction
Leviton.com/ns/videos
“e2XHD Cassette-Based
Patching System”
WATCH: TRAINING VIDEOS
B34
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B34
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER e2XHD
Patching System
e2XHD SNAP-IN
CASSETTE PATCHING SYSTEM |
HIGH-DENSITY PANELS
Allows for fiber and copper in the same panel
1RU panels hold up to 8 single-height fiber cassettes
(48 fiber channels)
4RU panels hold up to 32 single-height fiber cassettes
(192 fiber channels)
Alignment tabs on panels ensure upright insertion
of cassettes
Mount on standard 19-inch racks or cabinets
ANGLED PANEL COVER
Uses no additional rack space
Minimizes dust and debris behind panels
Attaches directly to e2XHD Angled Panel
Can be retrofitted after panel is installed
Can be used for top and bottom of panels
e2XHD PANELS, CABLE MANAGERS, COVERS & TOOLS
DESCRIPTION PART NO.
[A] 1RU e2XHD Angled High-Density Panel E2X1A-D48
[B] 4RU e2XHD Angled High-Density Panel E2X4A-192
[C] 1RU e2XHD Flat High-Density Panel E2X1F-D48
4RU e2XHD Flat High-Density Panel E2X4F-192
[D] e2XHD Rear Cable Manager for Angled Panel, with fiber storage rings (four ¼" rings) E2XHD-CMB
[E] e2XHD Rear Cable Manager for Flat Panel, with fiber storage rings (four ¼" rings) E2X1F-CMB
[F] e2XHD Angled Panel Cover E2XHD-COV
[G] e2XHD Cassette Blank E2XHD-BLK
QuickPort® Connector Removal Tool E2XHD-JRT
[H] Universal Clamp Kit, single cable Grommet (mounts to Rear Cable Manager) 5RCMP-KIT
Universal Clamp Kit, multiple cable Grommet (mounts to Rear Cable Manager) 5RCMP-KT2
Universal Clamp Kit, single and multiple cable Grommet (for rack mounting) 5RCMR-KIT
[I] e2XHD Label Kit (4 pack)+E2XHD-LBL
+ = Label kit occupies one row of panel.
B
A
C1RU e2XHD High-Density Patch Panel with Label Kit
D
E
F
GH
I
Panels, Cable Managers, Covers & Tools
REAR CABLE MANAGERS
Support both fiber and copper cables
Cable management rings included to help manage and route incoming fiber cables
Built-in VELCRO®-Brand tie downs secure cables
Optional Clamp Kits available to provide cable strain relief for incoming cables
Flat Panel Manager mounts to rack or cabinet; screws included
Angled Panel Manager attaches directly to panels
e2XHD Snap-In Cassette Patching
System for copper applications
on page A22.
B35 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
e2XHD
Patching System
FIBER
e2XHD SNAP-IN CASSETTE PATCHING SYSTEM | Cassettes
FIBER CASSETTES
Easy to migrate from 10G to 40/100G when used
with Opt-X® Unity trunks, harnesses, and patch cords
Used exclusively with e2XHD panels
Available in MTP-MTP or MTP-LC
Available in 12- or 24-fiber, OM3, OM4, OM4+, OS2
• MTP
®
adapter swivel allows for easy cable routing and proper bend radius
QuickPort
®
MTP-LC Cassette uses QuickPort modular fiber adapters; can be removed with QuickPort Connector Removal Tool
All cassettes use either 24-fiber or 12-fiber low-loss MTP connectors
Blank cassettes reserve capacity for future cassettes, easily snap into rear of panel to block unused cassette openings
Conversion cassettes available on page B50 (40G to 10G, 100G to 10G, etc.)
e2XHD PATCHING SYSTEM CASSETTES
DESCRIPTION PART NO.
[A] 24-Fiber e2XHD Cassette, MTP-LC, core (2x12 Fiber MTP) (see options below)
[B] 12-Fiber e2XHD Cassette, OM4+ (violet shown), MTP-LC, core (1x12 Fiber MTP) (see options below)
[C] 24-Fiber e2XHD Cassette, MTP-MTP, core (1x24 Fiber MTP) (see options below)
24-Fiber e2XHD Cassette, MTP-MTP, edge (1x24 Fiber MTP) (see options below)
[D] 24-Fiber e2XHD Cassette, MTP-LC, edge (2x12 Fiber MTP) (see options below)
[E] 24-Fiber e2XHD Cassette, MTP-MTP, edge (1x24 Fiber MTP) (see options below)
[F] 12-Fiber e2XHD QuickPort Cassette, OM3 and OM4, LC (aqua) E2XLC-AQU
12-Fiber e2XHD QuickPort Cassette, OS2, LC (blue) E2XLC-BLU
[G] e2XHD Cassette, MTP-MTP passthrough, four key-up/key-down adapters E2XHD-4MP
e2XHD Cassette, MTP-MTP passthrough, four key-up/key-up adapters E2XHD-4MB
D E F G
A B C
For assistance customizing your cassettes,
please visit Leviton.com/configurator or
call Tech Support at 800.824.3005.
Make-to-Order! e2XHD MTP FIBER CASSETTE OPTIONS
FIBER TYPE FIBER COUNT CONNECTOR TYPE MTP FIBER COUNT POLARITY
OM3
OM4 (aqua)
OM4+ (violet)
OS2
8
12
24
LC
8F MTP (female)
12F MTP
24F MTP
Method A
Method B, Core, black
Method B, Edge, white
Method C
8-Fiber MTP®-LC
Conversion MTO Cassette
B36
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER e2XHD
Patching System
LightSpace® System
Leviton oers a wide range of enclosures designed to protect, manage, and organize
fiber splices across various indoor and outdoor environments. Specifically designed to
meet the requirements of service providers large and small, LightSpace enclosures are
ideal for central-oce, outside-plant, and fiber-to-the-premises applications.
FEATURED
PRODUCTS
Enclosures B38
Adapter Plates
B41
Splice Trays
& Holders B43
Splice Sleeves
& Enclosure
Accessories B44
B37 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B37
LIGHTSPACE® SYSTEM | Rack Mount > DP/DPS/DPC Series
KEY FEATURES
Large cable management rings for enhanced jumper routing
Front cable management saddles
Side entry for backbone cable
Constructed of high-strength aluminum, powder-coated central-oce white
Mounts on standard 19- and 23-inch racks and cabinets
Accepts LightSpace adapter plates (See pages B41-B42.)
RECOMMENDED
APPLICATIONS:
Central Oce or
Head End, CLEC
19" and 23" Racks
and Cabinets
A B C
LIGHTSPACE DP OPTICAL DISTRIBUTION ENCLOSURES, STANDARD PART NUMBERS
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
ADAPTER
PLATES
AND
SPLICE
TRAYS*
3RU LightSpace DP-525 Enclosure, empty^ 144 6 N/A DP03U-STD
[A] 4RU LightSpace DP-700 Enclosure, empty^ 288 12 N/A DP04U-STD
6RU LightSpace DP-105 Enclosure, empty° 288 12 N/A DP06U-STD
LIGHTSPACE DPS OPTICAL SPLICE ENCLOSURES, STANDARD PART NUMBERS
3RU LightSpace DPS-525 Enclosure, empty N/A N/A 4 DPS3U-STD
[B] 4RU LightSpace DPS-700 Enclosure, empty N/A N/A 6 DPS4U-STD
6RU LightSpace DPS-105 Enclosure, empty N/A N/A 12 DPS6U-STD
LIGHTSPACE DPC OPTICAL DISTRIBUTION & SPLICE ENCLOSURES, STANDARD PART NUMBERS
6RU LightSpace DPC-525 Enclosure, empty^ 144 6 4 DPC6U-033
[C] 8RU LightSpace DPC-700 Enclosure, empty^ 288 12 6 DPC8U-STD
12RU LightSpace DPC-105 Enclosure, empty° 288 12 12 DPC12-066
* = Maximum splice tray capacity is limited by height of selected splice tray. See page X13 for splice tray dimension and selection guide.
^ = Accepts LightSpace (LGX® footprint) 6- or 8-pack adapter plates.
° = Accepts LightSpace 12-pack adapter plates.
DP SERIES OPTICAL DISTRIBUTION ENCLOSURES
Removable front door
Rear door with key lock option
Upper and lower patch cord bend radius brackets
DPS & DPC SERIES OPTICAL SPLICE ENCLOSURES
Front accessibility to splice trays
Removable front door with key lock option
Rear door with key lock option
Connector identification label
For assistance customizing your enclosures,
please visit Leviton.com/configurator or call
Tech Support at 800.824.3005.
B38
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B38
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER LightSpace System
LIGHTSPACE CPC SERIES CUSTOMER PREMISE ENCLOSURES
Wide-swing radius doors provide full access during installation and maintenance
Double doors with slam latches provide separation between service provider and customer
Top or bottom cable entry
Stackable, allowing for additional capacity
Constructed of 16-gauge steel, powder-coated central-oce white
Accepts all Leviton splice trays
Accepts LightSpace adapter plates (See pages B41-B42.)
LIGHTSPACE CPS SERIES CUSTOMER PREMISE SPLICE ENCLOSURES
Single-fixed left-hinged door with wide-swing radius design for easy access
Top or bottom cable entry
Stackable, allowing for additional capacity
Padlock provision
Constructed of 16-gauge steel, powder-coated central-oce white
Accepts all Leviton splice trays
CPC CUSTOMER PREMISE ENCLOSURES, STANDARD PART NUMBERS
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
ADAPTER
PLATES
AND
SPLICE
TRAYS*
[A] LightSpace CPC-12 Enclosure, empty 48 2 4 CPC12-STD
[B] LightSpace CPC-24 Enclosure, empty 96 4 4 CPC24-STD
LightSpace CPC-48 Enclosure, empty 192 8 6 CPC48-STD
CPS CUSTOMER PREMISE SPLICE ENCLOSURES, STANDARD PART NUMBERS
LightSpace CPS-12 Enclosure, empty N/A N/A 4 CPS12-STD
LightSpace CPS-24 Enclosure, empty N/A N/A 4 CPS24-STD
[C] LightSpace CPS-48 Enclosure, empty N/A N/A 6 CPS48-STD
* = Maximum splice tray capacity is limited by height of selected splice tray. See page X13 for splice tray dimension and selection guide.
A B C
LIGHTSPACE® SYSTEM | Wall Mount > CPC/CPS Series
RECOMMENDED
APPLICATIONS:
Central Oce or
Head End, CLEC
Wall Mount
RECOMMENDED
APPLICATIONS:
Central Oce or
Head End, CLEC
Enterprise
B39 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
LightSpace System
FIBER
LIGHTSPACE® SYSTEM | Wall Mount > Indoor/Outdoor
LIGHTSPACE NETWORK INTERFACE DEVICES (NIDS)
3500 and 502H models have upper-hinge doors
530 model has a left-hinge door
502H and 3500 models have padlock provision for added security
All enclosures are custom configurable
Unique hinging mechanism holds the door open for easy installation and servicing
Accepts LightSpace adapter plates (See pages B41-B42.)
Splice tray option available
Ideal for MDUs or single-family home environments
NETWORK INTERFACE DEVICES (NID), STANDARD PART NUMBERS
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
FIBERS
(USING LC)
ADAPTER
PLATES
AND
SPLICE
TRAYS*
OR
MTP®
CASSETTES
[A] LightSpace NID 3500, double doors, upper hinge, empty 12 1 1 N/A N3500-STD
[B] LightSpace NID 502H, single door, upper hinge, empty 12 1 1 N/A N502H-STD
[C] LightSpace NID 530, single door, left hinge, empty 8 0** 1 N/A N5300-STD
* = Accepts 12-fiber Mini-Molded Splice Tray T5PLS-12F (page B31).
** = Accepts 2 individual adapters (LC Duplex/SC Simplex).
Make-to-Order! NID OPTIONS
NID STYLE ADAPTER PLATE SELECTION FIBER TYPE ADAPTER TYPE & PIGTAIL SELECTION
502
350
530
6 fibers (ST, SC)
8 fibers (ST, SC)
12 fibers (SC, LC)
2 fibers (SC, ST)
4 fibers (SC, LC)
8 fibers (LC)
None
OM1
OM2
OM3
OM4 (aqua)
OS2
None
LC
LC + pigtail
LC/APC
LC/APC + pigtail
SC
SC/APC
SC + pigtail
SC/APC + pigtail
ST
ST + pigtail
None
A CB
RECOMMENDED
APPLICATIONS:
Demarcation Point
Telecommunications
Room
Equipment Room
Wall Mount
Pigtails, splice tray, and adapter plate sold separately.
For assistance customizing your NIDs, please visit Leviton.com/configurator or call Tech Support at 800.824.3005.
B40
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER LightSpace System
LIGHTSPACE® SYSTEM | Adapter Plates
LIGHTSPACE ADAPTER PLATES
Industry-standard style (LGX® footprint) adapter plates fit in all LightSpace wall-mount
and rack-mount enclosures, and NIDs
Captive push/pull fasteners allow for quick, tool-free installation and removal
Available in six, eight, and twelve packs
Available in LC, SC, ST, and MTP®
LIGHTSPACE RACK-MOUNT ENCLOSURE FIBER DENSITY CHART
OPTICAL DISTRIBUTION ENCLOSURES
DP/DPC 525 DP/DPC 700 DP/DPC 105
Holds up to six 6-pack or six 8-pack plates
6-Pack = up to 36 fibers
8-Pack = up to 48 fibers
Duplex 6-Pack = up to 72 fibers
Quad 6-Pack = up to 144 fibers
Holds up to twelve 6-pack or twelve 8-pack plates
6-Pack = up to 72 fibers
8-Pack = up to 96 fibers
Duplex 6-Pack = up to 144 fibers
Quad 6-Pack = up to 288 fibers
Holds up to twelve 12-pack plates
12-Pack = up to 288 fibers
A B C D E F G H I J K L
M N O P Q R S T U V W X Y
B41 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
LightSpace System
FIBER
LIGHTSPACE FIBER ADAPTER PLATES
DESCRIPTION PART NO.
[A] 12-Fiber LightSpace Adapter Plates, OM1 & OM2, Duplex LC (beige), phosphor bronze sleeve APLW6-LDM
[B] 12-Fiber LightSpace Adapter Plates, OM3 & OM4, Duplex LC (aqua), zirconia ceramic sleeve* APLW6-LDL
[C] 12-Fiber LightSpace Adapter Plates, OS2, Duplex LC (blue), zirconia ceramic sleeve APLW6-LDS
[D] 24-Fiber LightSpace Adapter Plates, OM1 & OM2, Quad LC (beige), phosphor bronze sleeve* APLW6-LQM
[E] 24-Fiber LightSpace Adapter Plates, OS2, Quad LC (blue), zirconia ceramic sleeve* APLW6-LQS
[F] 24-Fiber LightSpace Adapter Plates, OM3 & OM4, Quad LC (aqua), zirconia ceramic sleeve* APLW6-LQL
[G]
24-Fiber LightSpace Adapter Plates, OM1 & OM2, Duplex LC (beige), phosphor bronze sleeve (DP or DPC 105 Enclosure only)*
APL12-LDM
[H]
24-Fiber LightSpace Adapter Plates, OS2, Duplex LC (blue), zirconia ceramic sleeve (DP or DPC 105 Enclosure only)
* APL12-LDS
[I] 6-Fiber LightSpace Adapter Plates, OM1 & OM2, SC (beige), phosphor bronze sleeve APLW6-SCM
[J] 6-Fiber LightSpace Adapter Plates, OS2, SC (blue), zirconia ceramic sleeve APLW6-SCS
[K] 6-Fiber LightSpace Adapter Plates, OS2, SC/APC (green), zirconia ceramic sleeve APLW6-SCA
[L] 12-Fiber LightSpace Adapter Plates, OM1 & OM2, Duplex SC (beige), phosphor bronze sleeve APLW6-SDM
[M] 12-Fiber LightSpace Adapter Plates, OS2, Duplex SC (blue), zirconia ceramic sleeve APLW6-SDS
12-Fiber LightSpace Adapter Plates, OS2, Duplex SC/APC (green), zirconia ceramic sleeve* APLW6-SDA
[N] 8-Fiber LightSpace Adapter Plates, OM1 & OM2, SC (beige), phosphor bronze sleeve* APLW8-SCM
[O] 8-Fiber LightSpace Adapter Plates, OS2, SC (blue), zirconia ceramic sleeve* APLW8-SCS
[P] 8-Fiber LightSpace Adapter Plates, OS2, SC/APC (green), zirconia ceramic sleeve* APLW8-SCA
[Q]
12-Fiber LightSpace Adapter Plates, OM1 & OM2, SC (beige), phosphor bronze sleeve (DP or DPC 105 Enclosure only)
* APL12-SCM
[R] 12-Fiber LightSpace Adapter Plates, OS2, SC (blue), zirconia ceramic sleeve (DP or DPC 105 Enclosure only)* APL12-SCS
[S]
12-Fiber LightSpace Adapter Plates, OS2, SC/APC (green), zirconia ceramic sleeve (DP or DPC 105 Enclosure only)
* APL12-SCA
6-Fiber LightSpace Adapter Plates, ST, MM/SM, phosphor bronze sleeve APLW6-STM
[T] 6-Fiber LightSpace Adapter Plates, ST, MM/SM, zirconia ceramic sleeve APLW6-STS
[U] 8-Fiber LightSpace Adapter Plates, ST, MM/SM, phosphor bronze sleeve* APLW8-STM
8-Fiber LightSpace Adapter Plates, ST, MM/SM, zirconia ceramic sleeve* APLW8-STS
12-Fiber LightSpace Adapter Plates, ST (beige), MM/SM, phosphor bronze sleeve (DP or DPC 105 Enclosure only)
* APL12-STM
[V] 12-Fiber LightSpace Adapter Plates, ST, MM/SM, zirconia ceramic sleeve (DP or DPC 105 Enclosure only)* APL12-STS
[W] LightSpace Adapter Plates, 6 Simplex MTP®, key up/key down* APLW6-6MP
[X] LightSpace Adapter Plate, blank, metal APLW6-BLK
[Y] LightSpace Adapter Plates, blank (DP or DPC 105 Enclosure only) APL12-BLK
* = Minimum order quantity and lead times may apply.
LIGHTSPACE® SYSTEM | Adapter Plates
LIGHTSPACE WALL-MOUNT ENCLOSURE FIBER DENSITY CHART
CUSTOMER PREMISE ENCLOSURES
CPC-12 CPC-24 CPC-48
Holds up to two 6-pack or two 8-pack plates
6-Pack = up to 12 fibers
8-Pack = up to 16 fibers
Duplex 6-Pack = up to 24 fibers
Quad 6-Pack = up to 48 fibers
Holds up to four 6-pack or four 8-pack plates
6-Pack = up to 24 fibers
8-Pack = up to 32 fibers
Duplex 6-Pack = up to 48 fibers
Quad 6-Pack = up to 96 fibers
Holds up to eight 6-pack or eight 8-pack plates
6-Pack = up to 48 fibers
8-Pack = up to 64 fibers
Duplex 6-Pack = up to 96 fibers
Quad 6-Pack = up to 192 fibers
Additional adapter plate configurations available.
Please contact Tech Support at 800.824.3005 for more information.
B42
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER LightSpace System
METAL SPLICE TRAYS
DESCRIPTION HEAT SHRINK
(PLASTIC)
HEAT SHRINK
(FOAM)
BARE
FUSION
[A] 12-Fiber LightSpace Mini Splice Tray, 4" W x 7" L x 0.35" H T47HS-P06 T47BF-P06^
12-Fiber LightSpace Mini Splice Tray, with stando 4" W x 7" L x 0.57" H 5T000-00T
12-Fiber LightSpace Standard Splice Tray, 4" W x 11.75" L x 0.35" H T4LHS-P06 T4LHS-F06^ T4LBF-P06
[B] 24-Fiber LightSpace High-Density Splice Tray, 4" W x 11.75" L x 0.35" H T4LHS-P12 T4LHS-F12^ T4LBF-P12
[C] 12-Fiber LightSpace Standard Splice Tray, 5" W x 11.75" L x 0.35" H T5LHS-P06 T5LHS-F06^ T5LBF-P06
[D] 24-Fiber LightSpace High-Density Splice Tray, 5" W x 11.75" L x 0.35" H T5LHS-B12 T5LHS-F12 T5LBF-P12^
RIBBON-STYLE SPLICE TRAYS
DESCRIPTION PART NO.
72-Fiber LightSpace Ribbon Style Splice Tray, quartz, 6" W x 10" L x 0.35" H T6XRB-40Q
SPLICE TRAY MOUNTING HARDWARE
[E] LightSpace Splice Tray Mounting-Hardware Kit SPLMT-HKT
SPLICE HOLDERS
6-Fiber LightSpace Splice Holder, heat shrink (black plastic) FSHHS-P06
8-Fiber LightSpace Splice Holder, heat shrink (black plastic) FSHHS-P08
[F] 6-Fiber LightSpace Splice Holder, heat shrink (black foam) FSHSL-F06
6-Fiber LightSpace Splice Holder, mini sleeves (black foam) FSHMI-F06
6-Fiber LightSpace Splice Holder, micro sleeves (black foam) FSHMR-F06
12-Fiber LightSpace Splice Holder, bare fusion FSHBF-P12
6-Fiber LightSpace Splice Holder, heat shrink (LGX® footprint) FSHAT-F06
72-Fiber LightSpace Splice Holder, ribbon, 6 position FSHRB-F06
^ = Minimum order quantity and lead times may apply.
Note: Splice tray mounting hardware sold separately except as noted. Additional configurations available including mechanical splice.
Contact Inside Sales at 800.722.2082 for more information.
LIGHTSPACE® SYSTEM | Splice Trays & Holders
A B C D F
METAL SPLICE TRAYS
Heat-shrink, heat-shrink foam, and bare-fusion
styles available
Mounting holes with space blocks prevent fiber damage
Compatible with SDX and LightSpace enclosures
Splice tray selector is available online at
Leviton.com/configurator
Heat-shrink fusion splice sleeves sold separately
SPLICE HOLDERS
6- and 12-fiber designs in foam and solid plastic options
Mini, micro, and mechanical options available
Styles accommodate the entire range of Leviton
fusion splice sleeves
E
For assistance ordering your splice trays,
visit Leviton.com/configurator or
call Tech Support at 800.824.3005.
B43 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
LightSpace System
FIBER
FUSION SPLICE SLEEVES
Standard 40 mm and 60 mm sizes, plus mini
and micro sleeves for smaller trays and fibers
Precise lengths free of all burrs and sharp edges
Clear outer tube for viewing fiber color
LIGHTSPACE ENCLOSURE ACCESSORIES
Select cable clamp kits, key locks, strain-relief options,
or grounding solutions.
LIGHTSPACE® SYSTEM | Splice Sleeves & Enclosure Accessories
FUSION SPLICE SLEEVES
DESCRIPTION STANDARD
50/PACK
SLIM
100/PACK
MINI
100/PACK
MICRO
100/PACK
RIBBON
25/PACK
LightSpace Fusion Splice Sleeve,
60 mm [A] FSSSD-060 FSSSL-060 — — —
LightSpace Fusion Splice Sleeve,
40 mm FSSSD-040 FSSSL-040 FSSMI-040 FSSMR-040
LightSpace Fusion Splice Sleeve,
25 mm FSSMI-025 FSSMR-025 —
LightSpace Fusion Splice Sleeve,
quartz, 40 mm — — — FSSRB-P40
LIGHTSPACE DP, DPS & DPC SERIES ACCESSORIES
DESCRIPTION PART NO.
[B] LightSpace Cable Clamp Kit (.25"-1.25" diameter) DPCMP-UNV
[C] LightSpace Key Lock Kit DPLOK-KIT
[D] LightSpace Grounding Kit DPGRD-KIT
LIGHTSPACE CPC & CPS SERIES ACCESSORIES
[E] LightSpace Cable Clamp Kit (.25"-.50" diameter cable), use with CPC/CPS 12/24/48 CPCSR-001
[F] LightSpace Cable Clamp Kit (.50"-.75" diameter cable), use with CPC/CPS 24/48 CPCSR-002
[G] LightSpace Key Lock Kit CPLOK-KIT
[H] LightSpace Grounding Kit, single cable CPGRD-KIT
A
SPLICE TRAY RECOMMENDED
SPLICE SLEEVE
T47HS-P06 FSSSD-040
T47BF-P06 FSSSD-040
5T000-00T FSSSD-040
T4LHS-P06 FSSSD-060
T4LHS-F06 FSSSD-060
T4LBF-P06 FSSSD-060
SPLICE TRAY RECOMMENDED
SPLICE SLEEVE
T4LHS-P12 FSSSD-040
T4LHS-F12 FSSSD-040
T4LBF-P12 FSSSD-040
T5LHS-P06 FSSSD-060
T5LHS-F06 FSSSD-060
SPLICE TRAY RECOMMENDED
SPLICE SLEEVE
T5LBF-P06 FSSSD-060
T5LHS-B12 FSSSD-040
T5LHS-F12 FSSSD-040
T5LBF-P12 FSSSD-040
T6XRB-40Q FSSRB-P40
D H
B C E G
F
B44
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER LightSpace System
Flush-Mount Enclosures & Panels
Leviton high-density Flush-Mount Enclosures and Panels are ideal for data center
server, zone, or MDA cabinet applications where space is crucial. These enclosures
utilize MTP® connections on the back with choice of fiber connectors on the front,
or can be pre-assembled with harnesses. Panels can accommodate up to 576
multimode or single-mode fibers, depending on connector style, and mount on
standard 19-inch racks and cabinets.
FEATURED
PRODUCTS
Flush-Mount
Enclosures &
Panels B46
B45 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B45
FLUSH-MOUNT | Enclosures & Panels
The Patch Cord Management Tray provides convenient
routing and protection using the same rack-unit space as
the enclosure. It can also be used with any Leviton 1RU
Flush-Mount MTP to LC enclosure. See page B32.
HIGH-DENSITY FLUSH-MOUNT ENCLOSURES & PANELS
Staggered, ergonomic design allows easy access to connectors
Incorporates logical port management (LPM) using custom silk-screening
(modular, numeric, and hexadecimal) for easy port identification
Constructed of 16-gauge steel, powder-coated black
Panel mounts on standard 19-inch racks and cabinets
Accepts 1RU Patch Cord Management Tray (5R1UL-CMT)
Larger enclosures (up to 10RU) are available, contact Inside Sales to order
FLUSH-MOUNT ENCLOSURE & PANEL DENSITY, MAXIMUM FIBER COUNT
SIZE/TYPE MTP LC SC ST
1RU Panel/Enclosure 576 96 72 72
1RU Panel, 72-fiber, OS2, MU
1RU Enclosure, 48-fiber OM3, MTP®-LC, front and rear
1RU Panel, 72-fiber OM3, LC
Make-to-Order! FLUSH-MOUNT ENCLOSURE & PANEL (1RU ONLY) OPTIONS
FIBER TYPE FIBER COUNT CONNECTOR TYPE MTP FIBER COUNT FOOTPRINT COLOR POLARITY
OM1
OM2
OM3
OM4 (aqua)
OS2
24
36
48
72
96
144 (MTP)
288 (MTP)
576 (MTP)
LC
LC w/shutters
LC/APC
LC/APC w/ shutters
MTP
SC
ST
MU
12
None
1RU Rack Mount Black (standard)
Beige (1RU panel
only)
A-A
A-B
None
(panels only)
RECOMMENDED
APPLICATIONS:
Data Center Server,
Zone, or MDA
Equipment Room
Telecommunications
Room
19" Racks
and Cabinets
For assistance customizing your enclosures and
panels, please visit Leviton.com/configurator or
call Tech Support at 800.824.3005.
Patch Cord Management TraySPOTLIGHT
96-F Panel
B46
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B46
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Flush-Mount
Enclosures & Panels
Equipment-Specific Solutions
Leviton works closely with the biggest names in active network equipment to
create scalable, high-density data center networks. When combined with the
latest data center switches from Arista, Brocade, Cisco, and Extreme Networks,
Leviton connectivity provides design flexibility for your equipment architecture.
These solutions include conversion harnesses and cassettes that break out
40GbE or 100GbE connections into individual 10GbE channels.
FEATURED
PRODUCTS
Vertical Patching
Brackets & Blade
Replicators B48
Replicator®
Enclosures B49
100/40G to 10G
Conversion B50
B47 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B47
VERTICAL PATCHING BRACKETS
Enable vertical mounting in a 19-inch rack
Align or replicate patch panel or adapter plate ports with the ports that reside on servers or switches within the same
or adjacent rack or cabinet
48-port copper panels replicate typical 1G/10G copper switch blades
32, 48, and 64 fiber ports replicate typical fiber switch blades
Up to ten 1RU copper/fiber patch panels and cable managers can be mounted vertically utilizing 10RU space
BLADE REPLICATORS
Replicators provide one-to-one Logical Port Management (LPM) replication for the high-density blade fiber switches
Blade Replicator supports switches and directors from Cisco, Brocade, Arista, and Extreme
Mounting can be done horizontally or vertically using Leviton Vertical Patching Brackets
Blade Replicator supports 32-, 48-, and 64-ports per blade
Replicator kits simplify ordering: Kits can include the replicated patch panel, associated trunks, MTP® panels,
and harnesses
VERTICAL PATCHING BRACKETS
DESCRIPTION PART NO.
[A] Vertical Patching Bracket, 19" (Two Pieces Required) VERPB-019
BLADE REPLICATORS
[B] 32-Port Blade, LC RPL-xxxx32PLC*
[C] 48-Port Blade, LC RPL-xxxx48PLC*
[D] 64-Port Blade, LC RPL-BRCD64PLC*
xxxx = For Arista Switch (ASTA), Brocade Switch (BRCD), Cisco Switch (CSCO), Extreme Switch (EXTM).
* = Fiber type: OM3 = 3, OM4 = 4.
EQUIPMENT-
SPECIFIC SOLUTIONS | Vertical Patching Brackets & Blade Replicators
A
Courtesy of Brocade
Unauthorized use not permitted
Brocade DXC8510
For assistance customizing your replicator,
please call 800.722.2082.
B C D
B48
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B48
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Equipment-
Specific Solutions
REPL-BRDE2400-LCMTP096OM3C:
Brocade 12/24k Replicator 8RU Enclosure,
96 channel, MTP® to LC, OM3, Fiber
REPL-CSCO9513-LCMTP576OM3C:
Cisco 9513 Replicator 8RU Enclosure, Beige,
288 channel, MTP to LC, OM3, Fiber
EQUIPMENT-SPECIFIC SOLUTIONS | Replicator® Enclosures
Courtesy of Cisco Systems, Inc.
Unauthorized use not permitted
Cisco MDS 9513
REPLICATOR ENCLOSURES
Can be configured to replicate any switch, using unique logical port management (LPM) design
Kits available with trunks, MTP panels, and harnesses
Full front access to all terminations via fold-down panel
Shallow depth allows back-to-back mounting in cabinets and 4-post racks for high-density applications
Up to 384-channel capacity (768 fiber strands)
Available with LC and MU connector interfaces
MTP BRACKETS FOR MAINFRAME SOLUTIONS
Mount to back rail (right or left side) of racks and cabinets, freeing up valuable space
Provide direct connection to the mainframe using trunk cables and MTP harnesses
Available with shutters
REPLICATOR ENCLOSURES
DESCRIPTION PART NO.
6-Blade, 48-Port Cisco Replicator, LC (aqua), no internal harness FP8-E576CN190N-C
6-Blade, 48-Port Cisco Replicator, LC (blue), no internal harness FP8-A576CN190N-S
6-Blade, 48-Port Cisco Replicator, LC (aqua), with OM3 internal harness FP8-E576CA190N-A
8-Blade, 48-Port Brocade Replicator, LC (aqua), no internal harness
FP10-E384CN190N-C
8-Blade, 48-Port Brocade Replicator, LC (blue), no internal harness
FP10-A384CN190N-C
8-Blade, 48-Port Brocade Replicator, LC (aqua), with OM3 internal harness
FP10-E384CA190N-C
MTP BRACKETS FOR MAINFRAME
DESCRIPTION 6 MTP ADAPTERS 9 MTP ADAPTERS 10 MTP ADAPTERS 12 MTP ADAPTERS
Straight Bracket with Adapters* [C] FB106-0ST FB109-0ST —
90˚ Angled Bracket with Adapters* FB106-090 [D] FB109-090 —
Standard 12 MTP-Adapter Bracket* [E] FB112-000
Straight Vertical MTP Bracket* [F] FB110-VST —
45˚ Angled MTP Bracket, left-hand mount* [G] FB112-L45
45˚ Angled MTP Bracket, right-hand mount* FB112-045
* = Minimum order quantity and lead times may apply.
For assistance customizing your replicator,
please call 800.722.2082.
EDC FMcDATA Switch McDATA Switch Z9 IBM Z9 IBM IBM Z9 & 196 G
B49 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Equipment-
Specific Solutions
FIBER
EQUIPMENT-SPECIFIC SOLUTIONS | 100/40G to 10G Conversion
8-Fiber MTP®-LC
Conversion Harness
B
CONVERSION CASSETTES
DESCRIPTION PART NO.
8-Fiber e2XHD Conversion Cassette, 40G to 10G OM3, MTP-LC* FME2XHD-E008CKQDJ
[A] 8-Fiber e2XHD Conversion Cassette, 40G to 10G OM4, MTP-LC* FME2XHD-F008CKQDJ
8-Fiber e2XHD Conversion Cassette, 40G to 10G OS2, MTP-LC* FME2XHD-A008CKQDJ
8-Fiber HDX Conversion Cassette, 40G to 10G OM3, MTP-LC* 38LM1-1AE
[B] 8-Fiber HDX Conversion Cassette, 40G to 10G OM4, MTP-LC* 48LM1-1AE
8-Fiber HDX Conversion Cassette, 40G to 10G OS2, MTP-LC* U8LM1-1AE
24-Fiber e2XHD Conversion Cassette, 120G to 10G OM3, MTP-LC* FME2XHD-E024CHQES4
[C] 24-Fiber e2XHD Conversion Cassette, 120G to 10G OM4, MTP-LC* FME2XHD-F024CHQES4
24-Fiber e2XHD Conversion Cassette, 120G to 10G OS2, MTP-LC* FME2XHD-A024CHQES4
* = Minimum order quantity and lead times may apply.
Make-to-Order! OPT-X UNITY CONVERSION FIBER HARNESSES
FIBER TYPE FIBER COUNT CONNECTOR 1ST END (MTP) CONNECTORS 2ND END CABLE LENGTH BREAKOUT LENGTH (INCHES)
OM3
OM4 (aqua)
OM4+ (violet)
OS2
8
24
Male
Female
LC
Uniboot LC
Custom lengths
in feet and
meters
12-48
Other
For assistance customizing your harnesses, please visit Leviton.com/configurator
or call Tech Support at 800.824.3005.
C
A
120G-TO-10G & 40G-TO-10G
CONVERSION CASSETTES
For 40G to 10G channels connecting QSFP+ to
SFP+ transceivers
For 120G to 10G channels connecting MXP ports
to SFP+ transceivers
Low-loss MTP® connector 0.35dB Max IL; LC connector
at 0.15dB typical IL
Bend-insensitive fiber lowers risk for pinched cables
Compatible with reversing polarity LC Uniboot patch cords
Includes options for HDX and e2XHD systems
40G-TO-10G
CONVERSION FIBER HARNESSES
For channels connecting QSFP+ to
SFP+ transceivers
Small diameter cable for dense connectivity
Uses bend-insensitive fiber; lowers risk for pinched cables
Available with optional reversing polarity LC Uniboot
Low-loss MTP connector 0.35dB Max IL
Includes options for HDX and e2XHD systems
B50
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Equipment-
Specific Solutions
Pre-Terminated Cable Assemblies
Simplify fiber connection and termination with Leviton cable assemblies.
Take advantage of our Secure Keyed LC and Opt-X Unity 40/100G assemblies
to protect and future-proof your critical networks. Pre-terminated trunk cables
and harnesses, plus multimode, single-mode, and pigtail assemblies are all made
to customer specifications. Choose cable type, connector combinations, length,
mode, and more. Configure online at Leviton.com/configurator.
FEATURED
PRODUCTS
Opt-X® Unity
40/100G System
B53
Pre-Terminated
Trunk Cables B53
Harnesses B57
Array Cords B60
Premium &
Economy
Fiber Optic Cable
Assemblies B61
B51 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
B51
PRE-TERMINATED CABLE ASSEMBLIES | Make-to-Order (MTO) Overview
BUILD YOUR OWN PRODUCTS WITH
THE LEVITON MAKE-TO-ORDER PROGRAM
We’ve made building the exact solution for your network quicker and
easier than ever. Rely on our innovative online custom configurators
for a wide variety of fiber and copper products.
MAKE-TO-ORDER CABLE ASSEMBLIES
• Pre-Terminated Fiber Trunks
• Fiber MTP® Harnesses
• Secure Keyed LC Cable Assemblies
• Fiber Optic Patch Cords
• Pigtails
With the increasing demand for 40GbE and 100GbE, more data centers
are choosing OM4+ performance for better bandwidth and link distances.
The new Leviton OM4+ Premium Violet System offers the best chance to
future-proof data center cabling infrastructure, with the ability to transmit
40/100GbE signals out to an unprecedented 300 meters when using standard
40GBASE-SR4 or 100GBASE-SR10 transceivers. The OM4+ system components
— including violet trunk cables, harnesses, patch cords, MTP® cassettes, and
adapter plates — create the first violet end-to-end solution in the industry.
FIBER TRUNK CABLE DIAGRAM (CUSTOMIZE AT LEVITON.COM/CONFIGURATOR)
Our engineers can also work with you to design and manufacture a solution that meets your specific application needs.
For questions or assistance configuring your products, please call Network Solutions Tech Support at 800.824.3005.
2
1
1
2
BREAKOUT TO BREAKOUT LENGTH
(XX) FEET - A CALCULATED DIMENSION
2"(+2"/ -0")
OVERALL CABLE ASSEMBLY LENGTH, "L" (SEE TOLERANCE TABLE)
OVERALL CABLE LENGTH TOLERANCE
LENGTH - L (FT) TOLERANCE
L ≤ 3 +3"/ -0"
3 <L ≤ 25 +6"/ -0"
25 < L ≤ 50 +9"/ -0"
50 < L +12"/ -0"
FIRST END BREAKOUT LENGTH (+2"/ -0") SECOND END BREAKOUT LENGTH (+2"/ -0")
EVEN
STAGGERED
OM4+ Premium Violet SystemSPOTLIGHT
B52
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222 B52
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER
Pre-Terminated
Cable Assemblies
CABLE ASSEMBLIES | Pre-Term. Trunk Cables > Opt-X® Unity 40/100G
OPT-X UNITY 40/100G PRE-TERMINATED TRUNK CABLES
MTP-to-MTP trunk cables support 40/100G speeds
Terminations available in 8-, 12-, and 24-fiber configurations
Migration solution to 40/100G from existing 10G networks with premium 12-fiber MTP
trunk configuration
Up to 70% faster install than field-terminated trunks
MTP polarity options are TIA methods A, B, or C (Method B is standard)
100 percent factory tested, with test results included for each assembly
All assemblies labeled with serial number and length for traceability and easy re-order
MTP®-MTP (2x12)
Connector detail
MTP-MTP (1x24)
10G
Leviton components for a 10G channel
include MTP-LC SDX, e2XHD, or HDX
cassettes, and LC duplex patch cords.
40G
Migration from 10G to a 40G system
replaces LC with MTP components, such as
2x12-fiber to 3x8-fiber MTP cassettes and
8-fiber MTP array cords.
100G
Moving from 40G to 100G replaces MTP
cassettes with MTP adapter plates and
uses 24-fiber MTP array cords.
Leviton pre-terminated MTP solutions offer an ideal migration path from 10G to 40G and 100G channels. The Opt-X Unity 40/100G
system features MTP trunks, harnesses, array cords, adapter plates, and cassettes to help future-proof your networks. The Opt-X Unity
system is fully compatible with UHDX, HDX, SDX, and e2XHD (shown) footprints.
MTP-MTP (1x24) (Violet OM4+)
PRE-TERMINATED
New
See page B8 for Opt-X Unity
40/100G system overview.
12- or 24-fiber MTP Trunk Cable
MTP MTP
CONNECTOR
MATED PAIRS
MULTIMODE SINGLE-MODE
DUPLEX
TYPICAL IL
DUPLEX
MAX
IL
12-FIBER
STANDARD
TYPICAL IL
12-FIBER
STANDARD
MAX IL
12- & 24-
FIBER
PREMIUM
MAX IL
STANDARD
TYPICAL IL
STANDARD
MAX IL
12- & 24-
FIBER
PREMIUM
MAX IL
LC 0.15 0.25 ———0.25 0.35
MTP 0.35 0.50 0.35 0.75 0.35
Migration Path to 40G & 100GSPOTLIGHT
B53 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Pre-Terminated
Cable Assemblies
FIBER
OPT-X UNITY 40/100G MTP TRUNKS, STANDARD EXAMPLE PART NUMBERS
DESCRIPTION PART NO.
24-Fiber, OM3, 24F MTP - 24F MTP, MDP Plenum, 50 feet, pulling eye FT-EM024JJ050F38C38CY-NNBS
24-Fiber, OM4, 24F MTP - 24F MTP, MDP Plenum, 50 feet, pulling eye FT-FM024JJ050F38C38CY-NNBS
48-Fiber, OM3, 24F MTP - 24F MTP, MDP Plenum, 50 feet, pulling eye FT-EM048JJ050F38C38CY-NNBS
48-Fiber, OM4, 24F MTP - 24F MTP, MDP Plenum, 50 feet, pulling eye FT-FM048JJ050F38C38CY-NNBS
144-Fiber, OM3, 24F MTP - 24F MTP, MDP Plenum, 50 feet, pulling eye FT-EM144JJ050F38C38CY-NNBS
144-Fiber, OM4, 24F MTP - 24F MTP, MDP Plenum, 50 feet, pulling eye FT-FM144JJ050F38C38CY-NNBS
Make-to-Order! OPT-X UNITY 40/100G MTP TRUNK CABLE OPTIONS
FIBER
TYPE CABLE TYPE FIBER
COUNT TERMINATION CABLE
LENGTH
BREAKOUT
LENGTH
(INCHES)
BREAKOUT LEG
TYPE FIRST- &
SECOND-END
TERMINATION
PULLING
EYE
1ST &
2ND END
STAGGER
POLARITY LABELING
OM3
OM4
(aqua)
OM4+
(violet)
MDP Plenum
MDP Plenum Armor
Plenum I/O Dry
Loose Tube
(standard)
Plenum Armor I/O
Dry Loose Tube
Riser I/O Dry
Loose Tube
LSZH I/O Dry
Loose Tube
12
24
36
48
72
96
144
FIRST END
24 F MTP (male)
24 F MTP
(female) STD
Premium 12 F
MTP (male)
Premium 12 F
MTP (female)
STD
SECOND END
24 F MTP (male)
24 F MTP
(female) STD
Premium 12 F
MTP (male)
Premium 12 F
MTP (female)
STD
10-984 ft
3-300 m
12-99
(38"
typical)
3-mm
Jacketed
12-Fiber
3.8-mm
Jacketed
24-Fiber
Yes
No
Yes
No
MTP
Method A
MTP
Method B
(standard)
MTP
Method C
Standard
Custom
CABLE ASSEMBLIES | Pre-Term. Trunk Cables > Opt-X® Unity 40/100GCABLE ASSEMBLIES | Pre-Term. Trunk Cables > Opt-X® Unity 40/100G
100GBASE-SR10, 2x12-fiber MTPs
100GBASE-SR10, 24-fiber MTP
NOTE: Per IEEE 802.3ba and 802.3bm
40GBASE-SR4, 8-fiber MTP
100GBASE-SR4, 8-fiber MTP
MTP® LANE ASSIGNMENTS FOR 40/100G COLOR-CODED BOOTS ON MTP
Red - 24 Fiber
Aqua - 12 Fiber
Grey - 8 Fiber
PRE-TERMINATED
For assistance customizing your Opt-X Unity
trunks, please visit Leviton.com/configurator
or call Tech Support at 800.824.3005.
B54
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Pre-Terminated
Cable Assemblies
CABLE ASSEMBLIES | Pre-Terminated Trunk Cables > Standard
LC-LC MTP®-LC
PRE-TERMINATED TRUNK CABLES
Up to 70% faster install than field-terminated trunks
Discrete connectors are heat cured and use ceramic ferrules and sleeves for optimal performance
Optional pulling eye protects connectors and eases installation
Available in LC, SC, ST, MU, and MTP
MTP polarity options are TIA methods A, B, or C
100 percent factory tested, with test results included for each assembly
All assemblies labeled with serial number and length for traceability and easy re-order
PRE-TERMINATED TRUNK CABLES, STANDARD EXAMPLE PART NUMBERS
DESCRIPTION PART NO.
LC-LC, 12-fiber, OM3, MDP Plenum Aqua, 50 feet, pulling eye, Method A-B FT-EM012RR050F38B38BY-NNBS
LC-LC, 12-fiber, OM4, MDP Plenum Aqua, 50 feet, pulling eye, Method A-B FT-FM012RR050F38B38BY-NNBS
LC-LC, 12-fiber, OM4+, MDP Plenum Violet, 50 feet, pulling eye, Method A-B FT-GM012RR050F38B38BY-NNBS
LC-LC, 24-fiber, OM3, MDP Plenum Aqua, 50 feet, pulling eye, Method A-B FT-EM024RR050F38B38BY-NNBS
LC-LC, 24-fiber, OM4, MDP Plenum Aqua, 50 feet, pulling eye, Method A-B FT-FM024RR050F38B38BY-NNBS
LC-LC, 24-fiber, OM4+, MDP Plenum Violet, 50 feet, pulling eye, Method A-B FT-GM024RR050F38B38BY-NNBS
MTP-MTP, 12-fiber, OM3, MDP Plenum Aqua, 50 feet, pulling eye, Method B FT-EM012SS050F38B38BY-NNCS
MTP-MTP, 12-fiber, OM4, MDP Plenum Aqua, 50 feet, pulling eye, Method B FT-FM012SS050F38B38BY-NNCS
MTP-MTP, 12-fiber, OM4+, MDP Plenum Violet, 50 feet, pulling eye, Method B FT-GM012SS050F38B38BY-NNCS
Make-to-Order! PRE-TERMINATED TRUNK CABLE OPTIONS
FIBER
TYPE CABLE TYPE FIBER
COUNT TERMINATION
CABLE
LENGTH
(FEET)
BREAKOUT
LENGTH
(INCHES)
BREAKOUT-LEG TYPE
FIRST- & SECOND-END
TERMINATION
POLARITY LABELING
OM1
OM2
OM3
OM4
(aqua)
OM4+
(violet)
OS2
Riser I/O Dry Loose Tube
Plenum I/O Dry
Loose Tube (standard)
Plenum Armor I/O
Dry Loose Tube
Riser Distribution
Plenum Distribution
LSZH I/O Dry Loose Tube
MDP Plenum
MDP Plenum Armor
4
6
12
24
36
48
72
96
144
LC (duplex clips)
LC/APC
LC (uniboot)
SC
SC/APC
ST
MU
12-fiber MTP (female)
12-fiber MTP (male)
Pigtail
FC
FC/APC
MTRJ (female)
MTRJ (male)
1-999
10-999
12-99
(36" is
typical)
FIRST END
900 µm buffered fiber
(for SC, ST, LC, MU)
2 mm jacketed fiber
(for LC, SC, MU)
3 mm jacketed fiber
(for SC, ST, LC, MTP)
SECOND END
900 µm buffered fiber
(for LC, SC, ST, MU)
2 mm jacketed fiber
(for LC, SC, MU)
3 mm jacketed fiber
(for LC, SC, ST, MTP)
None
MTP Method A
MTP Method B
MTP Method C
A-A
A-B
Standard
Custom
PRE-TERMINATED
For assistance customizing your trunk cables, please visit Leviton.com/configurator or call Tech Support at 800.824.3005.
B55 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Pre-Terminated
Cable Assemblies
FIBER
CABLE ASSEMBLIES | Pre-Terminated Trunk Cables > Secure Keyed LC
Secure Keyed LC to Secure Keyed LC
12-fiber, 50/125 µm
PRE-TERMINATED SECURE KEYED LC TRUNK CABLES
Locking design prevents unauthorized and inadvertent moves, adds, and changes (MACs)
Duplex LC connectors can only be removed with matching-color extraction tool
Choose from eight colors to segregate and secure networks
Duplex LC connectors plug into any industry-compliant LC adapter or interface
Standard polarity: A-B or MTP® Method C; others available
Standard breakout lengths can be staggered for better cable routing and management
Trunks over 125 feet long are shipped on spools, or upon request for shorter lengths
Pulling eye option available
SECURE KEYED LC FIBER TRUNK CABLE OPTIONS
KEYED
COLOR
FIBER
TYPE CABLE TYPE FIBER
COUNT TERMINATION
CABLE
LENGTH
(FEET)
1ST & 2ND
BREAKOUT
(INCHES)
BREAKOUT LEG POLARITY LABELING
White
Yellow
Orange
Red
Blue
Green
Slate
Black
OM1
OM2
OM3
OM4
(aqua)
Riser I/O Dry
Loose Tube
Plenum I/O Dry
Loose
Tube (standard)
Plenum Armor
I/O Dry
Loose Tube
Riser Distribution
Plenum
Distribution
4
6
12
24
36
48
72
96
144
FIRST END
Secure Keyed
LC Duplex (uniboot)
SECOND END
LC (duplex clip)
LC/APC
LC Duplex (uniboot)
SC (duplex clip)
SC/APC
ST
MU
Secured Keyed LC
MTP (female)
MTP (male)
Pigtail
1-999 12-99
(38" is typical)
900 µm buffered fiber
2 mm jacketed fiber
3 mm jacketed fiber
MTP Method A
MTP Method B
MTP Method C
Standard
Custom
PRE-TERMINATED
C.
Before you Connect – CL.I.C. SPOTLIGHT
INSPECT
Every Connection
CLEAN
Every Connection
Per ANSI/TIA 568-C.0-2, all fiber optic assemblies, test jumpers, and the ports
under test should be inspected, cleaned, and free of damage in accordance
with IEC-61300-3-35 which sets the requirements for connector quality.
Adherence to this standard and best cleaning practices during and after
installation is required to meet all Leviton product warranty criteria.
YES CONNECT
IS IT
CLEAN?
NO YES
Did you
disconnect?
CL. I.
For assistance customizing your trunk cables,
please call Tech Support at 800.824.3005.
B56
LEVITON.COM/NS Tech Support | 800.824.3005 / +1.425.486.2222
FIBER Pre-Terminated
Cable Assemblies
OPT-X UNITY 40/100G MTP ARRAY HARNESSES
For use in attaching directly to 40/100G transceivers
Pre-terminated MTP-to-MTP connectors in laser-optimized multimode
MTP Extender Tab option for high-density applications
Custom short-length cable for cabinet/rack patching
• Custom staggering available
MTP polarity options are TIA method A, B, or C (Method B is standard)
Used in conjunction with MTP brackets (Zero-U) or adapter plates
100 percent factory tested, with test results included for each assembly
All assemblies labeled with serial number and length for traceability
and easy re-order
Color-coded boots
Make-to-Order! OPT-X UNITY 40/100G MTP ARRAY HARNESS OPTIONS
FIBER TYPE CABLE
TYPE
FIBER
COUNT TERMINATION CABLE LENGTH
(FEET)
BREAKOUT LENGTH
(INCHES) POLARITY LOCATION
OM3
OM4
(aqua)
OM4+
(violet)
Harness 24 FIRST END
24 F MTP (male)
24 F MTP (female)
Premium 12 F MTP (male)
Premium 12 F MTP (female)
SECOND END
Premium 24 F MTP (male)
Premium 24 F MTP (female)
Premium 12 F MTP (male)
Premium 12 F MTP (female)
Premium 8 F MTP (female)
LC Duplex with clips
LC Uniboot
3-33
Other
1-48 MTP Method A
MTP Method B
(standard)
MTP Method C
Core
Edge
2x12-fiber MTP to 3x8-Fiber MTPs
50/125 µm LOMM
24-fiber MTP to 3x8-Fiber MTP
50/125 µm LOMM
24-fiber MTP to 2x12-Fiber MTP
50/125 µm LOMM
CABLE ASSEMBLIES | MTP® Array Harnesses > Opt-X® Unity 40/100G
40GBASE-SR4, 8-fiber MTP
100GBASE-SR4, 8-fiber MTP
100GBASE-SR10, 2x12-fiber MTPs
100GBASE-SR10, 24-fiber MTP
NOTE: Per IEEE802.3ba
PRE-TERMINATED
The pulling eye protects fiber connectors on 12- through 144-fiber
trunk cables. It completely covers the breakout length, transferring
any pulling force from the assembly to the pulling eye sleeve.
Customers can specify which end to have the pulling eye installed.
Also available: a high-tensile load option that attaches to Kevlar®.
Heavy-duty high-tensile load option
used for 125 feet and more
Pulling EyeSPOTLIGHT
For assistance customizing your harnesses,
please visit Leviton.com/configurator or
call Tech Support at 800.824.3005.
B57 LEVITON.COM/NS 800.722.2082 / +1.425.486.2222
Pre-Terminated
Cable Assemblies
FIBER
PRE-TERMINATED CABLE ASSEMBLIES | Harnesses
MTP®-LC, LOMM MTP-SC, SM
HARNESSES
Pre-terminated MTP-to-discrete connectors (LC, SC, ST, MU) in all fiber types
Custom short-length cable reduces congestion in cabinet or rack patching applications
• Custom staggering available
Straight polarity configuration
Used in conjunction with MTP brackets (Zero-U) or Flush-Mount Series MTP 1RU panels
Used as direct connect into SAN equipment
100 percent factory tested, with test results included for each assembly
All assemblies labeled with serial number and length for traceability and easy re-order
Small diameter cable for dense connectivity
Available with optional reversing polarity LC Uniboot
Make-to-Order! HARNESS OPTIONS
FIBER TYPE CABLE TYPE FIBER COUNT TERMINATION CABLE LENGTH (FEET) BREAKOUT LENGTH
(INCHES) POLARITY
OM1
OM2
OM3
OM4
(aqua)
OM4+
(violet)
